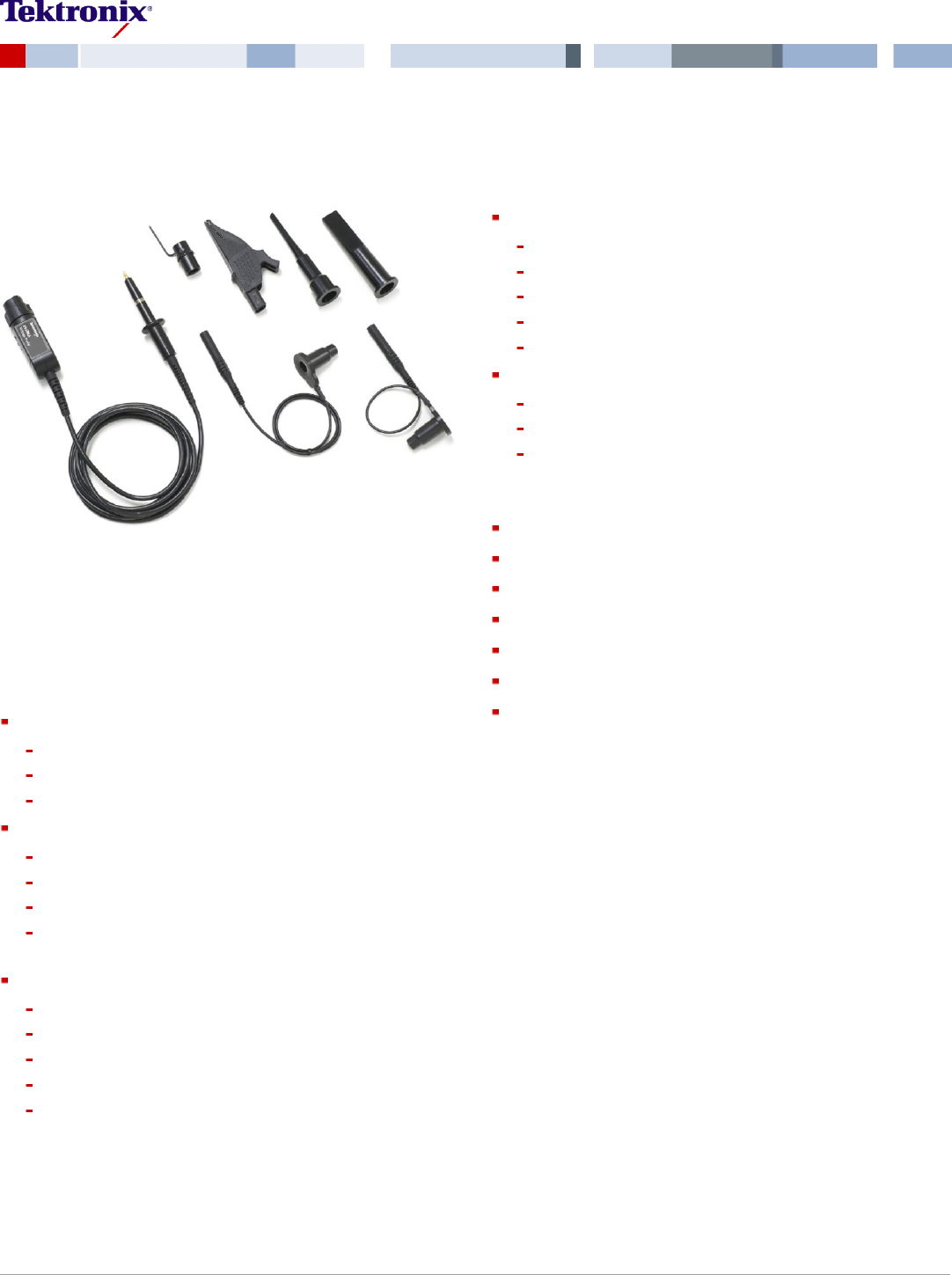

Passive High Voltage Probes
P5100A-TPP0850-P5122-P5150-P6015A Datasheet
Safe high voltage probe solutions for ground-referenced voltage testing. It
is critical to safely and accurately capture real-time signal information from
"elevated" or "floating" voltage systems. Our portfolio of high voltage probes
provides the safety you need for single-ended, differential or isolated
measurements.
Key performance specifications
P5100A
DC to 500 MHz
2500 VPeak, 1000 VRMS CAT II
100X with readout coding
TPP0850
DC to 800 MHz
2500 VPeak, 1000 VRMS CAT II
50X with readout coding
Designed for use with the MSO/DPO5000 and MSO/DPO4000B
Series Oscilloscopes
P5122
DC to 200 MHz
1000 VRMS CAT II when DC-coupled*1
100 X
Floatable up to 600 VRMS CAT II
For TPS2000 and THS3000 Series Oscilloscopes
P5150
DC to 500 MHz
2500 VPeak, 1000 VRMS CAT II
50 X
Floatable up to 600 VRMS CAT II or 300 VRMS CAT III
For TPS2000 and THS3000 Series Oscilloscopes
P6015A
DC to 75 MHz
High Voltage - 20 kV DC / 40 kV Peak (100 ms Pulse Width)
Optional 1000X readout coding
Applications
Power supply design
Design motor drive
Electronic ballast
Power semiconductors
Switch mode control
UPS systems
Power converters
P5100A High-Voltage Probe
The P5100A is a low input capacitance, high-voltage probe (2.5 kV)
designed for higher-frequency applications. The probe can be
compensated to match plug-ins and oscilloscopes with nominal input
capacitances of 7-30 pF. A variety of screw-on accessories provide easy
connection to the device-under-test.
www.tektronix.com 1
TPP0850 High-Voltage Probe
The TPP0850 offers the industry's highest bandwidth probe (800 MHz) for
high-voltage signals (up to 2500 Vp-p). This is ideal for testing power
semiconductors and switch-mode power supplies, which continue to
increase in switching speed to minimize power loss, creating a need for
faster rise time, higher bandwidth, and higher voltage probes. The
TPP0850 meets this need and can be used with switching transistor circuits
operating at 1200 VRMS, above the voltage operating range of standard
general-purpose probes. It will also be able to accommodate emerging
power applications that will require even faster rise time capabilities.
P5150 and P5122 IsolatedChannel™
Applications
In many applications, it is important to be able to isolate the measurement
from earth ground and also to isolate the common voltage between
channels. The P5150 or P5122, coupled with the TPS2000 and THS3000
Series digital storage oscilloscopes, deliver both the isolation for the
measurement from earth ground and full isolation between the channels.
The P5150 is the recommended probe for measuring ripple on high-voltage
DC supplies. The P5122 probe should not be used on the TPS2000 Series
oscilloscopes for AC-coupled measurements on signals with greater than
300 V DC offset.
P6015A High-Voltage Probe
For heavy-duty high-performance measurements of voltages over 2.5 kV,
the P6015A is the industry standard. You can measure DC voltages up to
20 kVRMSand pulses up to 40 kV (peak, 100 ms duration). The 75 MHz
bandwidth enables you to capture fast, high-voltage signals.
The P6015A uses an environmentally safe silicone compound for a
dielectric and never needs refilling. Other features include: A 7-49 pF
compensation range, small compensation box that fits on adjacent amplifier
inputs, and a readout option for use with most Tektronix digital scopes.
With the readout option, displayed voltage amplitude values will be the
actual signal value rather than understated by a factor of 1,000.
Note: Using the readout version with other than Tektronix digital
oscilloscopes may result in an erroneous readout display.
Datasheet
2 www.tektronix.com
Specifications
All specifications apply to all models unless noted otherwise.
Model overview
P5100A TPP0850 P5122 P5150 P6015A P6015A Opt. 1R
Nominal length 2 m 1.3 m 1.2 m 2 m 3 m 3 m
Attenuation 100X 50X 100X 50X 1000X 1000X
Bandwidth 500 MHz 800 MHz 200 MHz 500 MHz 75 MHz 75 MHz
Rise time (typ) <700 ps <525 ps 2.2 ns <700 ps 4.0 ns 4.0 ns
Loading 40 MΩ/ 2.5 pF 40 MΩ/ 1.8 pF 100 MΩ/ 4.0 pF 40 MΩ/ 3.8 pF 100 MΩ/ 3.0 pF 100 MΩ/ 3.0 pF
Maximum input voltage, DC or RMS 2.5 kVPeak
1000 VRMS CAT II
2.5 kVPeak
1000 VRMS CAT II
1000 VRMS CAT II 2.5 kVPeak
1000 VRMS CAT II
20 kV 20 kV
Maximum float voltage N/A N/A 600 VRMS CAT II 600 VRMS CAT II
300 VRMS CAT III
N/A N/A
Compensation range (pf) 7 to 30 N/A 10 to 22 10 to 25 7 to 49 7 to 49
Readout Yes Yes No No No Yes
EMC environment and safety
P5100A UL61010-031, EN61010-031, IEC61010-031, CSA61010-031
TPP0850 UL61010-031, EN61010-031, IEC61010-031, CSA61010-031
P5122 UL61010-1, UL61010B-2-031, CSA61010-1
P5150 UL61010-031, EN61010-031, IEC61010-031, CSA61010-031
P6015A UL3111-1, EN61010-1, IEC61010-2-031, CSA1010.1, CSA1010.2.031
Passive High Voltage Probes
www.tektronix.com 3
Ordering information
Models
P5100A/TPP0850 High Voltage Probes
Includes: Large hook tip (013-0384-xx), small hook tip (013-0388-xx), 6 in. ground lead (196-3524-xx), 18 in. ground lead
(196-3525-xx), ground spring (214-5298-xx), crocodile clip (344-0461-xx), adjustment tool (003-1433-xx), color bands (016-1886-
xx).
P5122 100X, High-voltage Probe for TPS2000 and THS3000 Series Oscilloscopes.
Includes accessory kit (020-3046-xx) Contents: large retractable hook tip, lead with hook tip, lead with crocodile clip, adjustment
tool, instruction manual.
P5150 50X, High-voltage Probe for TPS2000 and THS3000 Series Oscilloscopes.
Includes: Large hook tip (013-0389-xx), small hook tip (013-0388-xx), 6 in. ground lead (196-3526-xx), 18 in. ground lead
(196-3527-xx), common spring (214-5299-xx), crocodile clip (344-0461-xx), color bands (016-1886-xx), adjustment tool (003-1433-
xx).
P6015A 1000X, 3-meter High-voltage Probe.
Includes: Hook probe tip (206-0463-xx); banana plug tip (134-0016-xx); crocodile clip - plugs onto ground lead (344-0461-xx);
ground lead (196-3363-xx); carrying case (016-1147-xx); instruction manual (070-8223-xx).
Recommended accessories (for P5100A, TPP0850, P5150)
Probe Tip to BNC Adapter 013-0291-xx
0.080 in. diameter Spring Tip 206-0060-xx
Warranty
One year parts and labor.
Options
Options (P6015A only)
Option 1R 3-meter length with readout
Service options (P6015A)
Opt. C3 Calibration Service 3 Years
Opt. C5 Calibration Service 5 Years
Opt. D1 Calibration Data Report
Opt. D3 Calibration Data Report 3 Years (with Opt. C3)
Opt. D5 Calibration Data Report 5 Years (with Opt. C5)
Opt. R3 Repair Service 3 Years (including warranty)
Opt. R5 Repair Service 5 Years (including warranty)
Opt. SILV600 Standard warranty extended to 5 years
Datasheet
4 www.tektronix.com
Service options (TPP0850)
Opt. C3 Calibration Service 3 Years
Opt. C5 Calibration Service 5 Years
Opt. D1 Calibration Data Report
Opt. D3 Calibration Data Report 3 Years (with Opt. C3)
Opt. D5 Calibration Data Report 5 Years (with Opt. C5)
Opt. R3 Repair Service 3 Years (including warranty)
Opt. R5 Repair Service 5 Years (including warranty)
Opt. SILV200 Standard warranty extended to 5 years
Tektronix is registered to ISO 9001 and ISO 14001 by SRI Quality System Registrar.
