1
HAIER
COLOR TELEVISION & DVD
SERVICE MANUAL
PART # TV-8888-41
HAIER AMERICA TRADING, LLC
www.haieramerica.com
Colour Television
SERVICE MANUAL
z
Haier model:
DTA-2198
Customer model:
TDCF2014S
TDC2014S
FEATURES
DVD-TV 21” COMBO
AUTO TUNE/181 CHANNES
DVD/VCD/SVCD/CD/CD-R/CD-RW/JPEG/MP3 COMPATIBLE
NTSC-M、CCD、V-CHIP+AV STEREO
96kHz/24 BITS AUDIO DAC
FORMATO DE VIDEO 4:3PS、4:3LB
DOLBY AC-3 DECODE
PANATAL LOCK
MTS
.
2
CONTENTS
1. Safety precautions……………………………………………………………..……………3
2. TV block diagram……………………………………………………………………..…….4
3. Replacement of memory IC………………………………………………………….……5
4. Service adjustment……………………………………………………………..…………...5
5. ICs functional description…………………………………………………………………8

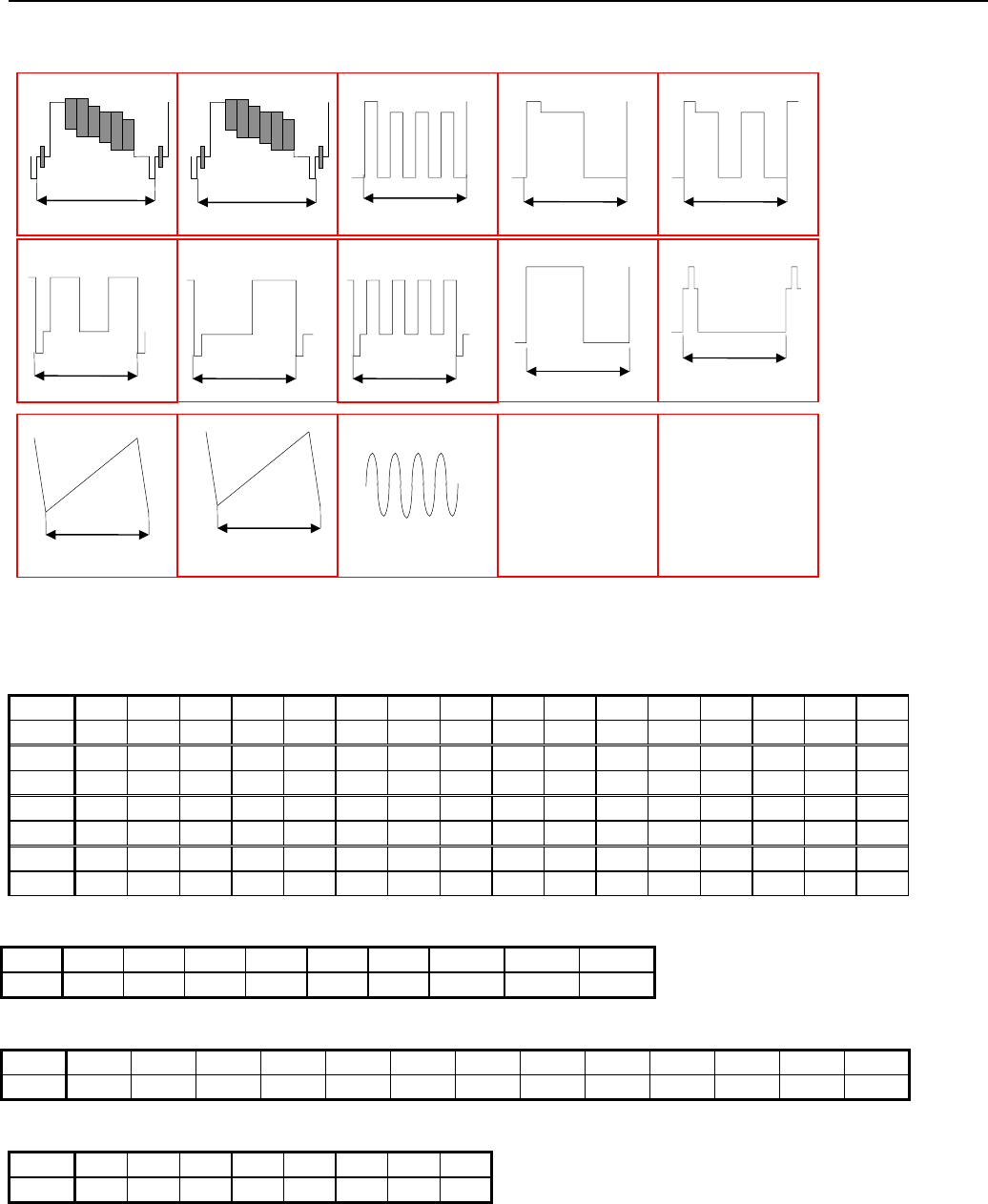

6. Test point waveform………………………………………………………………………10
7. All ICs voltages……………………………..……………………………………………….10

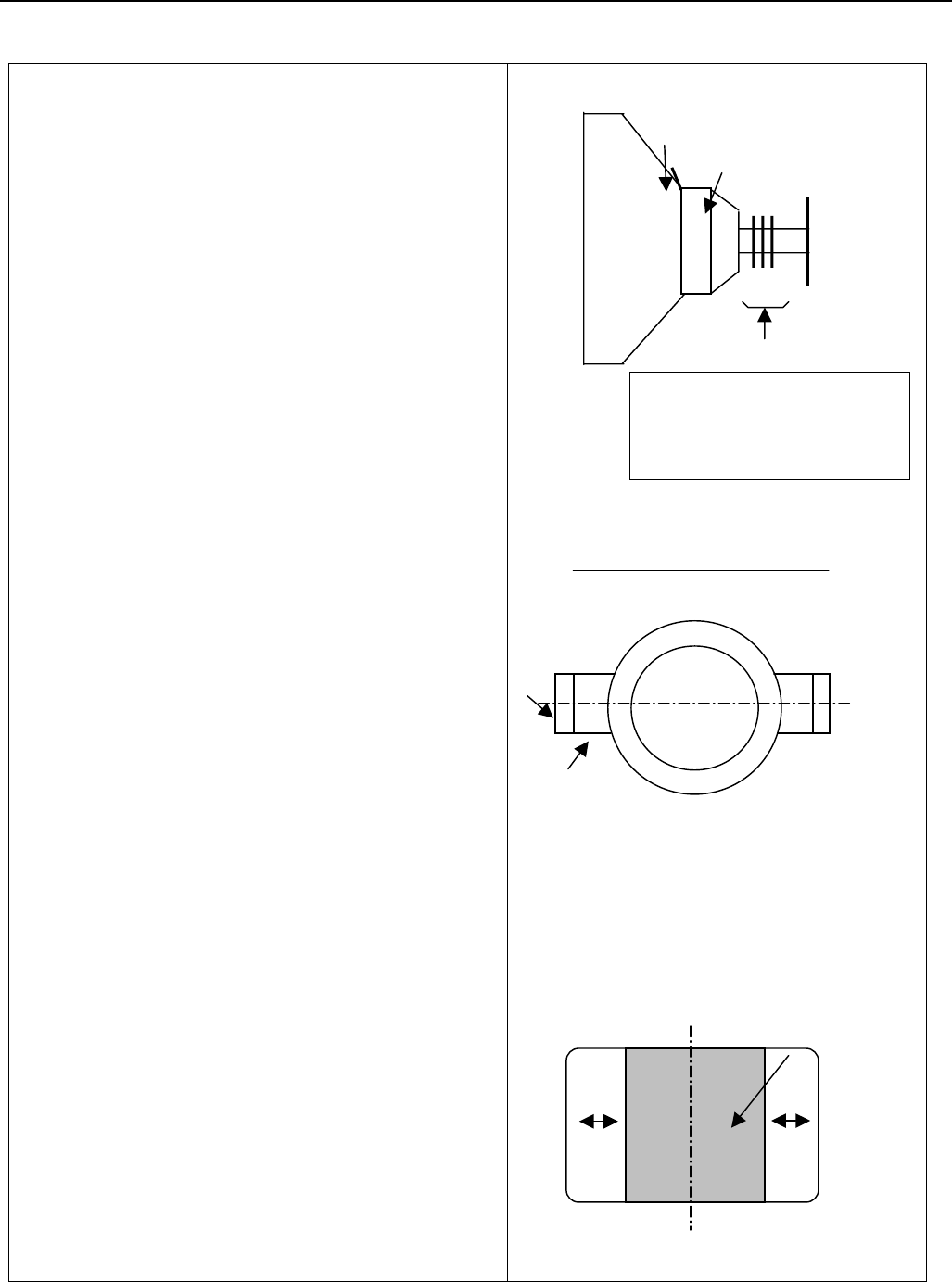

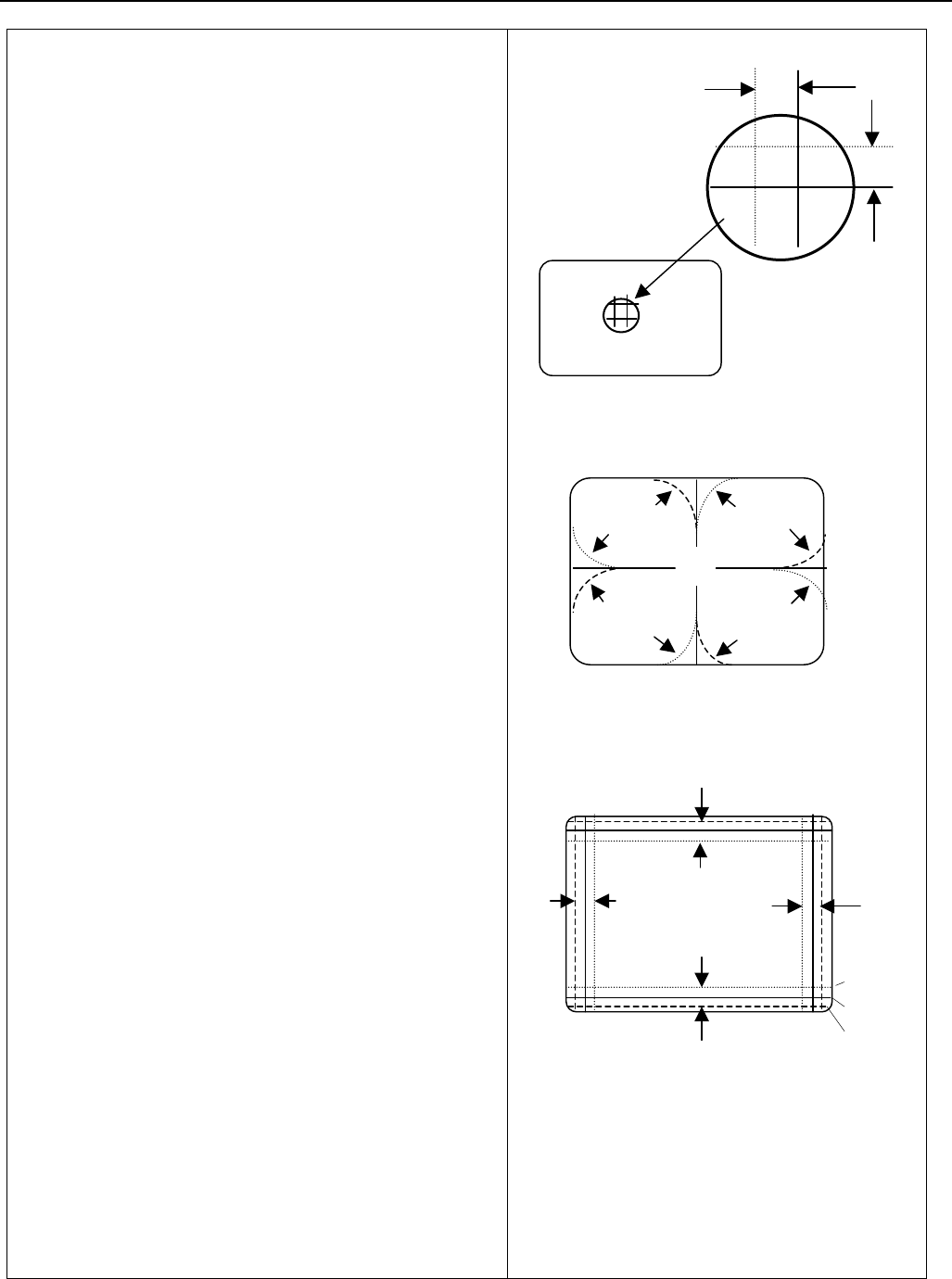

8. Purity / convergence adjustment………………………………………………………11
9. DVD maintenance…………………………………………………………………………13
10. List of Parts ………………………………………………………………………….…….14

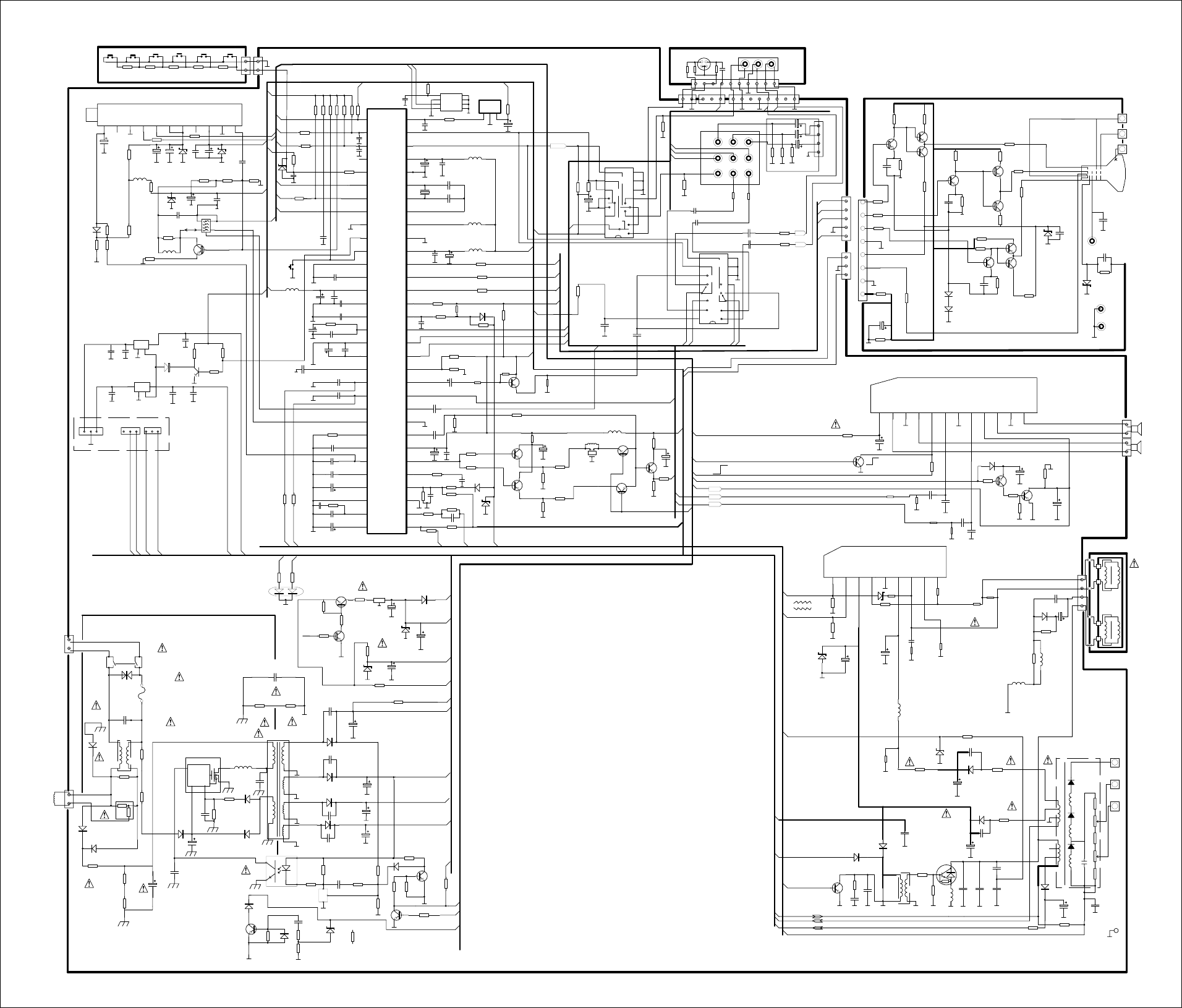

11. Circuit diagram………………………………………………………………………Attached

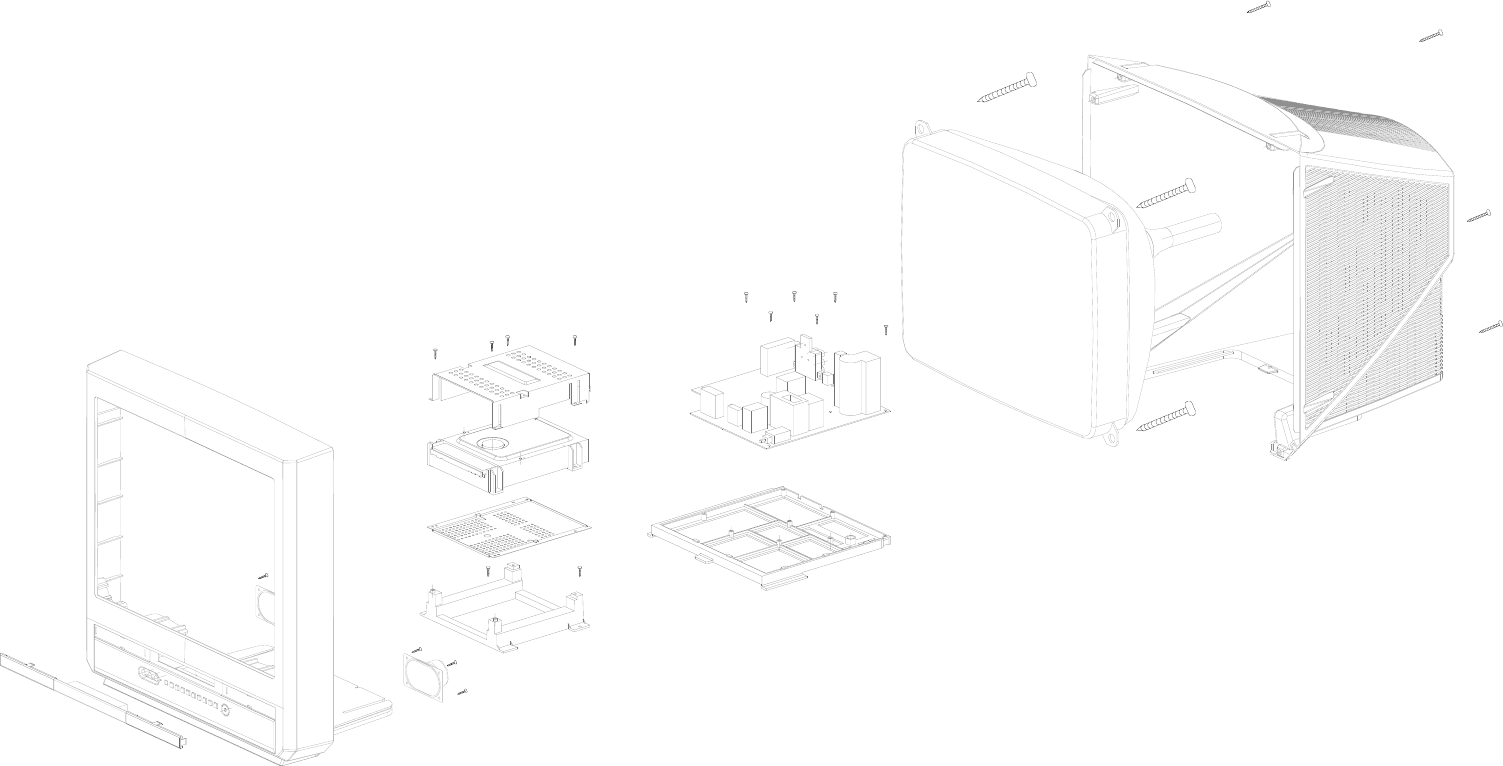

12. Exploded view…………………………………………………………………Attached
.
3
1. SAFETY PRECAUTIONS
1. The design of this product contains special hardware, many
circuits and components especially for safety purposes. For
continued protection, no changes should be made to the
original design unless authorized in writing by the
manufacturer. Replacement parts must be identical to those
used in the original circuits. Service should be performed by
qualified personnel only.
2. Alterations of the design or circuitry of the products should
not be made. Any design alterations or additions will void the
manufacturer’s warranty and will further relieve the
manufacturer of responsibility for personal injury or property
damage resulting therefrom.
3. Many electrical and mechanical parts in the products have
special safety-related characteristics. These characteristics
are often not evident from visual inspection nor can the
protection afforded by them necessarily be obtained by using
replacement components rated for higher voltage, wattage,
etc. Replacement parts which have these special safety
characteristics are identified in the parts list of Service
manual. Electrical components having such features are
identified by shading on the schematics and by ( ！ ) on
the parts list in Service manual. The use of a substitute
replacement which does not have the same safety
characteristics as the recommended replacement part
shown in the parts list of Service manual may cause shock,
fire, or other hazards
4. Don’t short between the LIVE side ground and
ISOLATED (NEUTRAL) side ground or EARTH side
ground when repairing. Some model’s power circuit is
partly different in the GND. The difference of the GND is
shown by the LIVE: ( ) side GND, ISOLATED
(NEUTRAL): ( ) side GND and EARTH: ( ) side GND.
Don’t short between the LIVE side GND and ISOLATED
(NEUTRAL) side GND or EARTH side GND and never
measure with a measuring apparatus (oscilloscope etc.) the
LIVE side GND and ISOLATED (NEUTRAL) side GND or
EARTH side GND at the same time. If above note will not be
kept, a fuse or any parts will be broken.
5. If any repair has been made to the chassis, it is
recommended that the B1 setting should be checked or
adjusted (See ADJUSTMENT OF B1 POWER SUPPLY).
6. The high voltage applied to the picture tube must conform to
that specified in Service manual. Excessive high voltage can
cause an increase in X-Ray emission, arcing and possible
component damage, therefore operation under excessive
high voltage conditions should be kept to a minimum, or
should be prevented. If severe arcing occurs, remove the AC
power immediately and determine the cause by visual
inspection (incorrect installation, cracked or melted high
voltage harness, poor soldering, etc.). To maintain the proper
minimum level of soft X-Ray emission, components in the
high voltage circuitry including the picture tube must be the
exact replacements or alternatives approved by the
manufacturer of the complete product.
7. Do not check high voltage by drawing an arc. Use a high
voltage meter or a high voltage probe with a VTVM.
Discharge the picture tube before attempting meter
connection, by connecting a clip lead to the ground frame
and connecting the other end of the lead through a 10kΩ 2W
resistor to the anode button.
8. When service is required, observe the original lead dress.
Extra precaution should be given to assure correct lead
dress in the high voltage circuit area. Where a short circuit
has occurred, those components that indicate evidence of
overheating should be replaced. Always use the
manufacturer’s replacement components.
9. Isolation Check
(Safety for Electrical Shock Hazard)
After re-assembling the product, always perform an isolation
check on the exposed metal parts of the cabinet (antenna
terminals, video/audio input and output terminals, Control
knobs, metal cabinet, screw heads, earphone jack, control
shafts, etc.) to be sure the product is safe to operate without
danger of electrical shock.
10. The surface of the TV screen is coated with a thin film which
can easily be damaged. Be very careful with it when handle
the TV. Should the TV screen become soiled, wipe it with a
soft dry cloth. Never rub it forcefully. Never use any cleaner
or detergent on it.
(1) Dielectric Strength Test
The isolation between the AC primary circuit and all metal
parts exposed to the user, particularly any exposed metal
part having a return path to the chassis should withstand a
voltage of 3000V AC (r.m.s.) for a period of one second.
(…Withstand a voltage of 1100V AC (r.m.s.) to an appliance
rated up to 120V, and 3000V AC (r.m.s.) to an appliance
rated 200V or more, for a period of one second.)
This method of test requires test equipment not generally
found in the service trade.
(2) Leakage Current Check
Plug the AC line cord directly into the AC outlet (do not use
line isolation transformers during this check). Using a
“Leakage Current Tester”, measure the leakage current from
each exposed metal part of the cabinet, particularly any
exposed metal part having a return path to the chassis, to a
known good earth ground (water pipe, etc.). Any leakage
current must not exceed 0.5mA AC (r.m.s.).
However, in tropical area, this must not exceed 0.2mA AC
(r.m.s.).

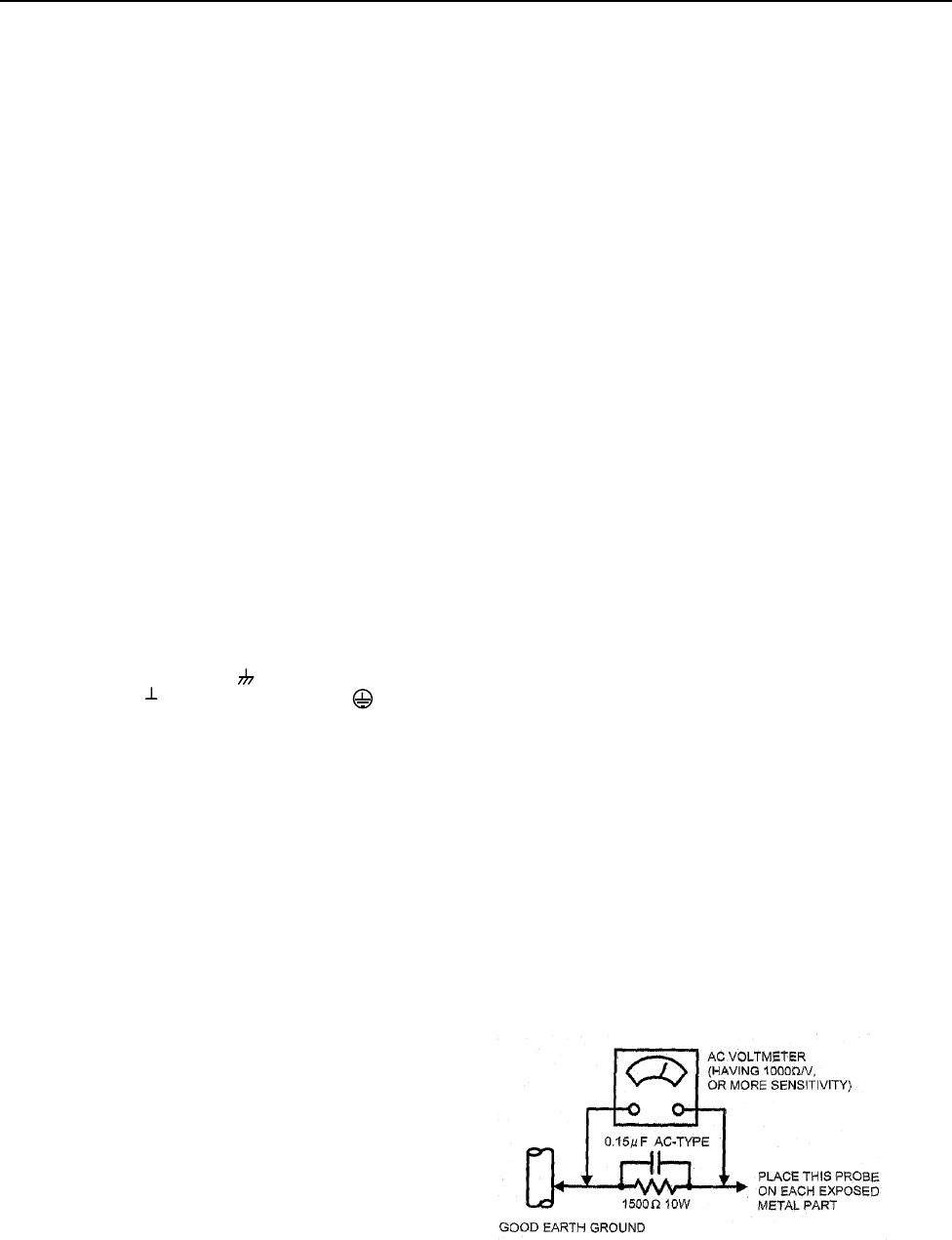

●Alternate Check Method
Plug the AC line cord directly into the AC outlet ( do not use
a line isolation transformer during this check.). Use an AC
voltmeter having 1000 ohms per volt or more sensitivity in
the following manner. Connect a 1500Ω 10W resistor
paralleled by a 0.15µF AC-type capacitor between an
exposed metal part and a known good earth ground (water
pipe, etc.). Measure the AC voltage across the resistor with
the AC voltmeter. Move the resistor connection to each
exposed metal part, particularly any exposed metal part
having a return path to the chassis, and measure the AC
voltage across the resistor. Now, reverse the plug in the AC
outlet and repeat each measurement. Any voltage measured
must not exceed 0.75V AC (r.m.s.). This corresponds to
0.5mA AC (r.m.s.).
However, in tropical area, this must not exceed 0.3V AC
(r.m.s.).
This corresponds to 0.2mA AC (r.m.s.)
.
4

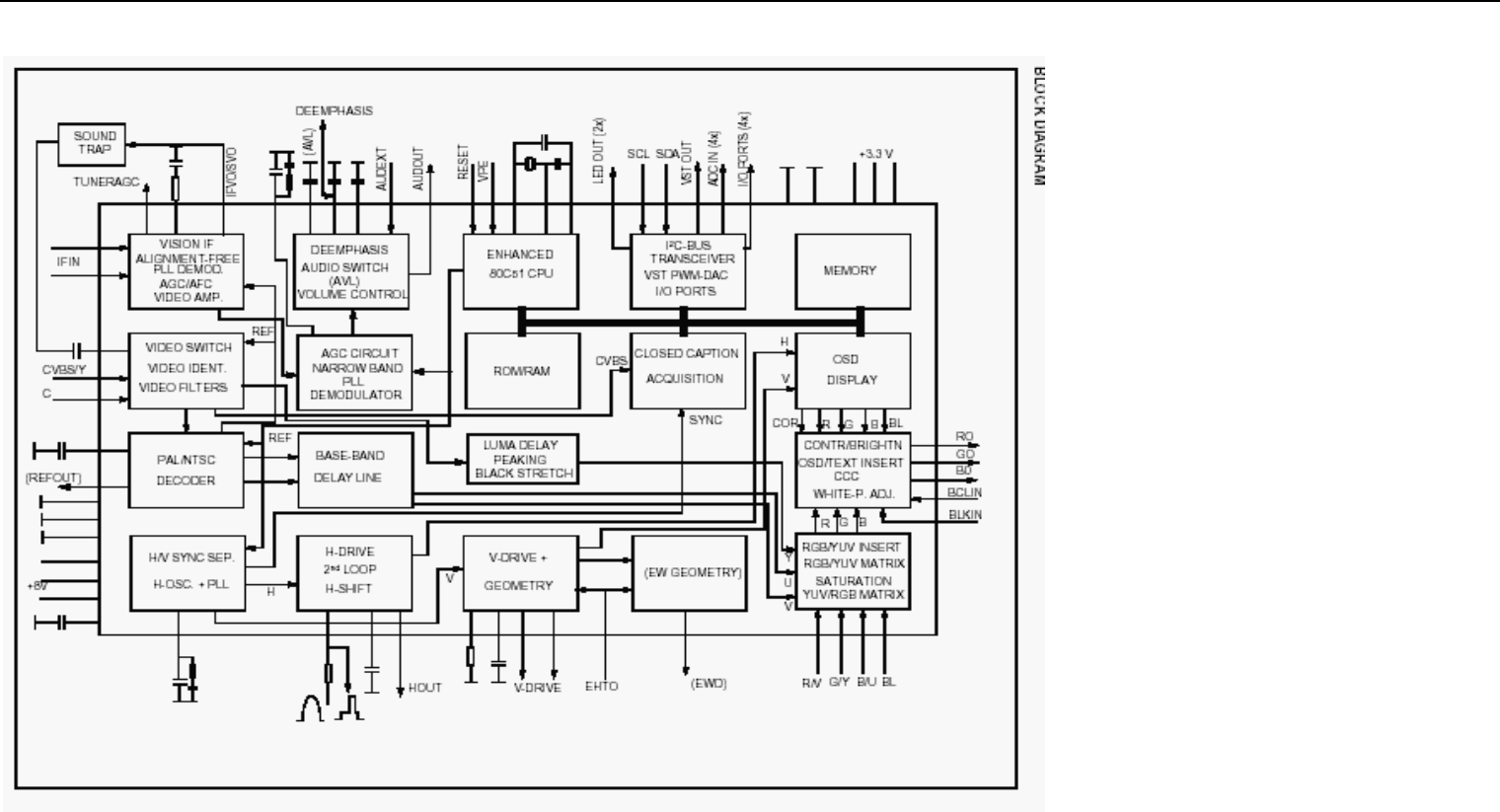

2. Block diagram TDA9377 PS/N2 series with mono intercarrier sound demodulator
5
3. REPLACEMENT OF MEMORY IC
1. MEMORY IC.
This TV uses memory IC. In the memory IC are memorized data for correctly operating the video and deflection
circuits.
2. PROCEDURE FOR REPLACING MEMORY IC
(1) Power off
Switch the power off and unplug the power cord from AC outlet.
(2) Replace IC
Be sure to use memory IC written with the initial data values.
(3) Power On
Plug the power cord into the AC outlet and switch the power on.
(4) Check and set SYSTEM default value:
1) Press “MUTE”
“CALL” “-\--“ “CALL” “MUTE” buttons in sequence to enter into factory
status.
2) If the memory IC haven’t been written with the initial data, press [Program+] / [Program-] to select item
INIT and press [VOLUME+] / [VOLUME-] to start initialize memory IC.
3) Check the setting value of the SYSTEM default value of Table below. If the value is different, select
items by [Program+] / [Program-] keys and set value by [VOLUME+] / [VOLUME-] keys.
4) Press “EXIT” button to return to the normal screen.
4. SERVICE ADJUSTMENT
Specific operation: use remote controller
Press “MUTE” “CALL” “-\--“ “CALL” “MUTE” buttons in sequence to enter into factory mode.
Press [Program+] / [Program-] to select items and press [VOLUME+] / [VOLUME-] key, to make data adjustment
of corresponding factory menus.
Press “EXIT” key to exit factory mode.
Focus adjustment
1. Receive a crosshatch signal.
2. While watching the screen, adjust the FOCUS VR on the FBT to make the vertical and horizontal lines as
fine and sharp as possible.
Geometrical adjustment
Receive PAL standard complete pattern signal.
Adjustment steps：
a) Adjust VSL, to the centre horizontal line just appears from half bottom shadow.
b) Adjust VAM, to get 92% of vertical picture contents would be displayed on CRT.
c) Adjust VSH, the centre horizontal line corresponds to CRT vertical centre.
d) Adjust SCL, to the linearity of P card field is in proper condition.
e) Adjust HSH, to get the picture horizontal centre correspond to CRT horizontal centre.
Receive NTSC signal and repeat above adjustment.
AGC Adjustment
Receive 60dBµ (1mV) VH colour bar pattern signal.
Select TOP item.
Adjust value, to noise reduce gradually and just disappeared point.
CRT cut off and white balance adjustment
a) CRT cut off adjustment
1. Select item VG2B, then adjust value to 32.
2. PRESS “0” key, when the screen shows”VG2” adjust the SCREEN control on Fly back transformer to
make the screen show alternating flashing characters of “INSIDE HIGH INSIDE LOW”.
b) White balance adjustment
1. Receive a Black and White pattern.
2. Adjust WRP, WRG, WRB items to get colour temperature 9300K ±3 JND.
6
Adjustable Items
Direct access key Items Description Preset Remark
“1” 5/6HSH Horizontal shift ON A
“2” 5/6VSL Vertical slop 21 A
5/6VAM Vertical amplitude 45 A
5/6SCL S-correction 20 A
5/6VSH Vertical shift 38 A
5/6VOF OSD Vertical offset 38 A
HOF* OSD Horizontal offset 20 A
“3” RED Black level offset R 32 A
GRN Black level offset G 32 A
WPR White point R 31 A
WPG White point G 31 A
WPB White point B 31 A
“4” TOP AGC Take-over point 20 A
VOL Volume 42
9860 Sub-volume of TDA9860/59 59
HDOL Cathode drive level 5
AGC IF AGC speed 1
VG2B VG2 Brightness 42
IFO 31
“5” Picture preset 1
0CON Listen: Contrast 0 A
0BRI Listen: Brightness 0 A
0COL Listen: Colour 50 A
0SHP Listen: Sharpness 50 A
1CON Soft: Contrast 45 A
1BRI Soft: Brightness 45 A
1COL Soft: Colour 50 A
1SHP Soft: Sharpness 50 A
“6” Picture preset 2
2CON Standard: Contrast 75 A
2BRI Standard: Brightness 50 A
2COL Standard: Colour 50 A
2SHP Standard: Sharpness 60 A
3CON Dynamic: Contrast 85 A
3BRI Dynamic: Brightness 60 A
3COL Dynamic: Colour 60 A
3SHP Dynamic: Sharpness 80 A
NOTE: THE ITEMS WITH REMARK “A” IS ADJUSTABLE DATA.
Optional data
1. OP1
Bit Function Description Preset Remark
Bit 7 RESERVE 0 EA
Bit 6 AV2 1=Enable 1 EA
Bit 5 Half Tone Translucence OSD manual 1=Enable 1 EA
Bit 4 RGB 1=Enable (Can only be selected either RGB and DVD) 0 EA
Bit 3 DVD 1=Enable 1 EA
Bit 2 Comb filter 1=Enable 0 EA
Bit 1 SVHS 1=Enable 0 EA
Bit 0 AV1 1=Enable 1 EA
7
2. OP2
Bit Function Description Preset Remark
Bit 7 Ident sensitive PAL 1=21dBµV 0=26dBµV 0 EA
Bit 6 TILT 1=Enable 0 EA
Bit 5 OSO 1=Enable 1 EA
Bit 4 FSL 1=Enable 0 EA
Bit 3 RESERVE 1 EA
Bit 2 FMWS 1=Enable 1 EA
Bit 1 RESERVE 1 EA
Bit 0 AVL 1=Enable 1 EA
3. OP3
Bit Function Description Preset Remark
Bit 7 TDA9377 1=TDA9377 0=TDA9378 1 EA
Bit 6 16:9 1=Enable 0 EA
Bit 5 RESERVE 0 EA
Bit 4 RESERVE 0 EA
Bit 3 YPbPr 1=YPbPr 0=Yuv 1 EA
Bit 2 Blue/Black back 1=Blue Back 0=Black Back 1 EA
Bit 1 RESERVE 0 EA
Bit 0 Woofer 1=Enable 0 EA
4. OP4
Bit Function Description Preset Remark
Bit 7 RESERVE 0 EA
Bit 6 VCHIP 1=Enable 1 EA
Bit 5 RESERVE 0 EA
Bit 4 Soft program change 1=Enable 0 EA
Bit 3 RESERVE 0 EA
Bit 2 RESERVE 0 EA
Bit 1 RESERVE 0 EA
Bit 0 RESERVE 0 EA
5. OP5
Bit Function Description Preset Remark
Bit 7 AUTO CHARACTER 1= Enable 1 EA
Bit 6 FREQ 1= Enable 0 EA
Bit 5 AV AUDIO TRACK 1=Enable 0 EA
Bit 4 PAL 1=Enable 0 EA
Bit 3 Portuguese 1= Enable 0 EA
Bit 2 Spanish 1= Enable 1 EA
Bit 1 French 1=Enable With DVD select 1 0 EA
Bit 0 English 1=Enable 1 EA
6. OP6
Bit Function Description Preset Remark
Bit 7 RESERVE 1=Enable 0 EA
Bit 6 RESERVE 1=Enable 0 EA
Bit 5 SOFT CHANGE AV 1=Enable 0 EA
Bit 4 LISTEN 1=Enable 1 EA
Bit 3 INNER DVD 1=Enable 1 EA
Bit 2 ZOOM 1=Enable 0 EA
Bit 1 9860 1=Enable 0 EA
Bit 0 MEMU STYLE 1 EA
Note：Don’t adjust any OPTION items, please inform the engineer about any change.
8
5. ICs functional description
1. N501 UOC TDA9377
SYMBOL PIN DESCRIPTION
STAND BY output. 1 In STAND BY mode, low level (Power OFF).
For Power ON this pin will be high.
SCL 2 I2C-bus clock line
SDA 3 I2C-bus data line
TUNING 4 tuning Voltage (Vt) PWM output
KEY 5 Control keys input
SYSTEM 6 TV system control
VOL 7 Sound Volume control PWM output
MUTE 8 Sound mute output
VSSC/P 9 Digit ground for µ-controller core and periphery
CTL 10 DVD power control
STANDBY 11 STANDBY control
VSSA 12 Analog ground of digital ground of TV-processor
SECPLL 13 Internally connected
VP2 14 2nd supply voltage TV-processor(+8V)
DECDIG 15 decoupling digital supply of TV-processor
PH2LF 16 Phase-2 filter
PH1LF 17 Phase-1 filter
GND3 18 Ground 3 for TV-processor
DECBG 19 Band gap decoupling
AVL/EWD 20 Automatic volume levelling
VDRB 21 Vertical drive B output
VDRA 22 Vertical drive A output
IFIN1 23 IF input 1
IFIN2 24 IF input 2
IREF 25 Reference current input
VSC 26 Vertical sawtooth capacitor
TUNER AGC 27 Tuner AGC output
AUDEEM/SIFIN1 *1 28 Audio deemphasize or SIF input
DECSDEM/SIFIN2 29 Decoupling sound demodulator
GND2 30 Ground 2 for TV processor
SNDPLL/SIFAGC *1 31 Narrow band PLL filter
AVL 32 Automatic Volume Levelling
HOUT 33 Horizontal output
FBISO 34 Flyback input/sandcastle output
AUDEXT 35 External audio output
EHTO 36 EHT/over voltage protection input
PLL IF 37 IF-PLL loop filter
IFVO/SVO 38 IF video output / selected CVBS output
VP1 39 supply voltage TV processor
CVBS INT 40 internal CVBS input
GND1 41 ground for TV processor
CVBS/Y 42 CVBS/SVHS(Y) input
CHROMA 43 SVHS (C) input
AUDOUT 44 Audio output
INSSW2 45 YUV insertion input
R2/VIN 46 R input / V (R-Y) input / PR input
G2/YIN 47 G input / Y input
B2/UIN 48 B input / U (B-Y) input / PB input
BCLIN 49 Beam current limiter input
BLKIN 50 Black current input
RO 51 Red output
GO 52 Green output
BO 53 Blue output
VDDA 54 Analog supply of Closed Caption decoder and digital supply of TV-processor (3.3 V)
VPE 55 Ground
VDDC 56 Digital supply to core (3.3 V)
OSCGND 57 Oscillator ground supply
XTALIN 58 Crystal oscillator input
XTALOUT 59 Crystal oscillator output
9
RESET 60 Ground
VDDP 61 Digital supply to periphery (+3.3 V)
P1.0/INT1 62 AV1 / AV2 mode Output.
P1.1/T0 63 AV /S-VHS mode Output.
P1.2/INT0 64 Remote control signal input.
Note
Pin TV SVHS AV1 AV2
62 1 0 0 1
63 1 1 0 0
2. N902 24C08/PCF8598
PIN Function
1 GND
2 GND
3 Upper resistance
4 GND
5 SDA data wire
6 SCL clock wire
7 GND
8 +5V Power
3. N601: Sound power amplify (AN7522N)
Symbol PIN Function Symbol PIN Function
Vcc 1 Power supply GND 7 ground
Out 1 (+) 2 Ch 1 output (+) In 2 8 Ch 2 input
GND(out 1) 3 Ch 1Ground VOL 9 Volume Control
Out 1 (-) 4 Ch 1 output (-) Out 2 (-) 10 Ch 2 output (-)
Standby 5 Mute input GND(out 2) 11 Ch 2 Ground
In 1 6 Ch 1 input Out 2 (+) 12 Ch 2 output (+)
4. N301: Vertical output (TDA8357A)
Symbol PIN Function Symbol PIN Function
INV IN 1 Input PUMP UP 6 Pump up power
INV IN 2 Input V OUT 7 Vertical output
Vcc 3 Pump up power V PRO 8 Vertical protection
V OUT 4 Vertical output V FEEDBACK 9 Vertical feedback
GND 5 Ground
5. U101：Tuner
PIN Function PIN Function
1 AGC 7 +5V
2 vacant 8 vacant
3 Gnd 9 Vt 33V
4 SCL 10 Gnd
5 SDA 11 IF Out
6 +5V
10
6. Test point Waveforms
7. IC voltages
TDA9377
PIN 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16
V 0 3.8 3.6 3.3 3.5 4.4 5.1 1.8 0 0.18 0.17 0 2.3 8 5 3
PIN 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32
V 4 0 4 0.5 0.7 0.8 1.9 1.9 3.9 3.8 1.6 3.2 2.3 0 2.3 0.2
PIN 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48
V 0.5 0.3 0 1.7 2.4 3.4 8 3.9 0 3.3 0 3.6 1.4 2.5 2.5 2.5
PIN 49 50 51 52 53 54 55 56 57 58 59 60 61 62 63 64
V 1.9 5.0 2.4 2.4 2.4 3.1 0 3.2 0 1.8 1.7 0 3.2 5.1 3.3 5
TDA8357
PIN 1 2 3 4 5 6 7 8 9
V 0.8 0.7 16 6.9 0 43 7.2 0.3 7.2
AN 7522N
PIN 1 2 3 4 5 6 7 8 9 10 11 12
V 10 4.4 0 4.4 2.75 1.4 0 1.4 0.35 4.4 0 4.4
24C08/PCF8598
PIN 1 2 3 4 5 6 7 8
V 0 0 5.1 0 3.2 0 0 5.1
5Vpp
0.9Vpp
1.3Vpp
H H
1Vpp
V
CRT KB
CRT KG CRT KR
95Vpp
95Vpp
95Vpp
H H H
TDA9377 PIN53
2.5Vpp
2.5Vpp
3.8Vpp
H H
H
TDA9377 PIN52
TDA9377 PIN51
TDA9377 PIN33
TDA9377 PIN34
0.8Vpp
V
TDA9377 PIN21
TDA9377 PIN22
TDA9377 PIN59
1.2Vpp
2.6Vpp
H H
TDA9377 PIN40
TDA9377 PIN38
11
8. PURITY / CONVERGENCE ADJUSTMENT
PURITY ADJUSTMENT
1. Demagnetize CRT with the demagnetizer.
2. Loosen the retainer screw of the deflection yoke.
3. Remove the wedges.
4. Input a green raster signal from the signal generator,
and turn the screen to green raster.
5. Move the deflection yoke backward.
6. Bring the long lug of the purity magnets on the short
lug and position them horizontally. (Fig2)
7. Adjust the gap between two lugs so that the GREEN
RASTER will come into the centre of the screen.
(Fig. 3)
8. Move the deflection yoke forward, and fix the position
of the deflection yoke so that the whole screen will
become green.
9. Insert the wedge to the top side of the deflection yoke
so that it will not move.
10. Input a crosshatch signal.
11. Verify that the screen is horizontal.
12. Input red and blue raster signals, and make sure that
purity is properly adjusted.
CRT
WEDGE
DEFLECTION YOKE
P
4
6
P: PURITY MAGNET
4: 4-POLES (convergence magnets)
6: 6-POLES (convergence magnets)
P/C MAGNETS
Fig. 1
PURITY MAGNETS
Long lug
Short lug
Bring the long lug over the short lug an
d
p
osition them horizontally.
Fig. 2
(FRONT VIEW)
GREEN RASTER
CENTER
Fi
g
. 3
12
STATIC CONVERGENCE ADJUSTMENT
1. Input a crosshatch signal.
2. Using 4-pole convergence magnets overlap the red
and blue lines in the center of the screen (Fig. 1) and
turn them to magenta (red/blue).
3. Using 6-pole convergence magnets overlap the
magenta (red/blue) and green lines in the center of the
screen and turn them to white.
4. Repeat 2 and 3 above, and make the best
convergence.
DYNAMIC CONVERGENCE ADJUSTMENT
1. Move the deflection yoke up and down and overlap
lines in the periphery. (Fig. 2)
2. Move the deflection yoke left to right and overlap the
lines in the periphery. (Fig. 3)
3. Repeat 1 and 2 above, and make the best
convergence.
After adjustment, fix the wedge at the original position.
Fasten the retainer screw of the deflection yoke.
Fix the 6 magnets with glue.
(FRONT VIEW)
Fig. 1
(FRONT VIEW)
RED GREEN BLUE
BLUE
RED
GREEN GREEN
RED BLUE
BLUE GREEN RED
Fig.2
(FRONT VIEW)
RED GREEN BLUE BLUE GREEN RED
RED
GREEN
BLUE
BLUE
GREEN
RED
Fig. 3
13
9. DVD Part: Introduction of MTK1379 maintenance
1. Under normal power supply conditions, the maintenance plan for MT1379 mono-chip is: first the reset
circuit resets the MT1379, after the crystal oscillator circuit gave the clock signal to MT1379, MT1379 will
start the initialization check for Flash、E2PROM、SDRAM, after everything is checked to be normal, it will
start initialization check for 7Audio DAC, MT1336 and motor Driver.
2. If the all the a.m. parts are good, then MT1379 will send signal to motor Driver to drive the servo system，
pick up then to generate DVD light for collection, tracing the main shaft to check if there is any disc, and
confirm if it is CD format or DVD format disc. If the disc is in DVD format, the system will read the data
from the disc directly; if it is in CD format MT1336 will drive the CD laser to send out CD light and read the
data, the data then will be amplified through MT1336 and sent to MT1379 for data processing, released by
MPEG and resolved into video data and audio data, then they will be returned to analog signals through
VIDEO DAC、AUDIO DAC.
Decoder section
3. There is power supply, clock and reset, but the system does not work.
1） Check if all the address wires required for FLASH are exist, and if they are in normal status,
especially check if the A0~A15 of FLASH have normal signals, if there aren’t, then inspect MT1379
to see if there is faulty soldering. If there are normal signals at A0~A15, check if the address data
signal of MT1379 and SDRAM is normal. If it is normal, then check the signal at A16~A19 of
MT1379; if there are also signals, then check the 8 video data wires; it there is no signal, then
check the corresponding pins of MT1397 to see if there is any short circuit, break or faulty
soldering.
2） If all the a.m. conditions are good, but there is still no video signal output, then the filter circuit after
MT1379 shall be checked.
4. System in normal operation, but the audio has no sound.
1） Check if all the signals of DATA, MCLK, BCLK, LRCK and reset required by the Audio DAC are
exist, if there is signal missing, then check the signal line between MT1379 and Audio DAC. If the
line is connected properly, but there is no signal, then check if there is any welding problem at the
corresponding pins of MT1379. If it is still OK, it is probably the problem on MT1379 itself.
2） All the required signals are exist, while there is no audio output. Then you need to check the lower
passing amplifying circuit and the MUTE circuit at the back of Audio DAC. Also check if there is
any power supply to the Audio DAC.
3） Check if the power supply voltage required for playing is at normal level.
Servo Section
5. After the LOGO of the machine shows normally, there is no OSD display. This problem mainly is caused
by the abnormality between servo and MPEG, possible problems may be:
1） T1336 and its surrounding circuits have problems.
2) Servo part of MT1379 has problems.
6. OSD display is normal，while there is no action of servo part（feeding motor does not work, main shaft does
no turn, possible fault status are:
1) The corresponding signals giving by MT1379 to DMSO、FMSO are missing, the reason may be the
problem of MT1379 or the communication between MT1379 and motor Driver.
2) Not output from Motor Driver, the reason may be the problem on motor Driver or its corresponding
circuit.
7. Servo part in good status, while there is no pick up action（no light, no focus）
1） No light, check the power supply（power supply for pick up）, or the light producing driving circuit to see
if they are in normal status.
2） No focus, check MT1379 to see if there is signal output from FOSO、TRSO.
Secondly, check motor driver to see if there is F+、F-、T+、T-signal output.
Thirdly, check the external corresponding circuit of the motor driver to see if there is any problem.
8. All the servo part has action, while it cannot read out the disc
1） Check MT1336 if there is RF net picture output, if there isn’t, then it must be the problem of MT1336
and external surrounding circuits, it there is output, then it might the problem of MT1369 and its
surrounding circuits.
2） There is RF signal，but not in normal status，then check MT1336 and surrounding circuits.
3 ）Everything is normal, but the disc cannot be read out, check MT1369 and its surrounding circuit
14
10. List of Parts
LOCATION DESCRIPTION
R
QTY
FRONT CABINET ASS’Y BCJ7008-----Q 90806302 1
LENS MTAA7011AA--Q 90204520 1
SCREW SJ2824-87 ST3X10F 90600011 1
KEYS MTAA7012AA--Q 90204553 1
SCREW SJ2824-87 ST3X10F 90600011 3
SCREW SJ2838-87 ST3x12F 90600200 2
SWITCH BUTTON MTAA7013AA--Q
90204554 1
SPRING MTBH7004BC--Q 90100663 1
SPEAKER YDT0407-9AU-8W-8Ω 94008903 2
SPEAKER WIRE 90401453 2
SCREW SJ2824-87 ST3X8F 90600012 8
SCREW SJ2824-87 ST4X12F 90600015 2
WIRE ASS’Y
D2006-12P-D2512-10P-TJ
C3-2P-350 90401676 1
FRONT AV CONNECTOR ASS’Y 90401336 1
DVD STAND MTAC7014AA--Q 90204556 1
DVD SHIELD（UP） 90100709 1
DVDSHIELD（DOWN） 90100710 1
SCREW SJ2824-87 ST3X12F 90600034 4
DVD ASS’Y DC005B 94006927 1
BACK CABINET MTFC7011AJ--Q 90204557 1
SCREW SJ2825-87 ST3X10F 90600037 1
AV LABEL 69.6X71.4 90204538 1
HIGH VOLTAGE SPACER TEM101 90200008 1
DVD DOOR MTAH7008AA--Q 90204558 1
POWER CORD CLIP MTAH7005AA--Q 90205627 1
SCREW SJ2824-87 SJ4X16F 90600023 8
SCREW SJ2824-87 SJ4X16F 90600023 2
TOP FOAM STAND MTEE7013AB--Q 90503695 1
BOTTOM FOAM STAND MTEE7014AB--Q 90503696 1
PLASTIC BRACKET MTFC1014AJ--Q 90806490 1
SCREW SJ2825-87 ST3X10F 90600037 6
UL POWER CORD JPRVVZ202XDFQ 90402120 1
040 PLASTIC CLIP MTAJ1001AG--Q 90200038 1
CRT ASS’Y 94005582 1
21" CRT A51JXS098X96 94000748 1
GROUNDING WIRE TJC1-1Y/2 90401291 1
DEGUASSING COIL HXC-54D 94500818 1
NUT M6 90600003 1
PARKAGING ASS’Y 90804858 1
RATING LABEL MTFB5364CA--Q 90205788 1
CARTON BOX 90505178 1
BATTERY 5# 94000105 2
PLASTIC BAG FOR USER MANUAL 90204759 1
REMOTE CONTROL 94009887 1
PLASTIC BAG FOR 14” COMPLETE SET 90500102 1
PLASTIC BAG FOR POWER CORD 90500018 1
USER MANUAL 90504553 1
15
TELESCOPIC MAST 94501185 1
MAIN BAORD ASS’Y 94008724 1
N301B HEAT SINK HEAT SINK 90100450 1
N301C IC TDA8357J 94401409 1
N301D SCREW ST3X8F SJ2831-87 90600097 1
V401B SCREW ST3X8F SJ2831-87 90600097 1
V401A HEAT SINK QHS-30184A 90100017 1
V401 TRANSISTOR 2SD2499 94401401 1
N801A HEAT SINK QHS-30184A 90100661 1
N801C IC KA5Q0765RTH-YDTU 94401392 1
N801D SCREW ST3X8F SJ2831-87 90600097 1
N802C IC L7809CS 94400808 1
N802B SCREW ST3X8F SJ2831-87 90600097 1
N802A HEAT SINK QHS-30184A 90100017 1
N601B IC AN7522N 94401684 1
N601A HEAT SINK QHS-30184A 90100665 1
N601C SCREW ST3X8F SJ2831-87 90600097 2
N804B IC KA278R05 94401923 1
N804A HEAT SINK MTBH4070BC--Q 90100443 1
N804C SCREW ST3X8F SJ2831-87 90600097 2
VD806 IC FFPF10U20STU 94401512 1
R625 CARBON FILM RESISTOR RT13-1/6W-1K-J------T 94100023 1
R110 METAL OXIDE RESISTOR RY16S-1W-33-J-05-E-A 94102578 1
R407 METAL OXIDE RESISTOR RY16S-1W-3.9K-J-12.5-E-A94102667 1
R307 METAL OXIDE RESISTOR RY17S-2W-390-J-05-E-A 94100097 1
R414 METAL OXIDE RESISTOR RY17S-2W-1K-J-05-E-A 94102457 1
R413 METAL OXIDE RESISTOR RY17S-2W-7.5K-J-05-E-A 94100098 1
R810 METAL OXIDE RESISTOR RY17S-2W-18K-J-17.5-L-A 94102580 1
R802 METAL OXIDE RESISTOR RY17S-2W-33K-J-05-E-A 94100101 1
R801 METAL OXIDE RESISTOR RY17S-2W-33K-J-05-E-A 94100101 1
R501H CARBON FILM RESISTOR RT13-1/6W-47-J------T 94100066 1
C501 CERAMIC CAPACITOR CC1-B-500V-470PF-K-F05 94201264 1
C502 CERAMIC CAPACITOR CC1-B-500V-470PF-K-F05 94201264 1
R502 CARBON FILM RESISTOR RT13-1/6W-47-J------T 94100066 1
R825 METAL OXIDE RESISTOR RY17S-2W-47K-J-05-E-A 94102581 1
R818 METAL OXIDE RESISTOR RY15S-1/2W-1.5K-J------T 94100085 1
R503 CARBON FILM RESISTOR RT13-1/6W-47-J------T 94100066 1
R505 FUSE RESISTOR RF10-2W-2.4Ω-J-A 94100704 1
R506 FUSE RESISTOR RF10-2W-68-J-05-E-A 94100128
1
R820 FUSE RESISTOR RF10-2W-68Ω-J-05-C 94100128
R821 FUSE RESISTOR RF10-2W-1-J-05-E-A 94100125 1
R824 FUSE RESISTOR RF10-1/2W-1-J-05-E-A 94102583 1
R415 FUSE RESISTOR RF10-1/2W-1-J-05-E-A 94102583 1
R302 FUSE RESISTOR RF10-1/2W-10-J-05-E-A 94102668 1
R409 FUSE RESISTOR RF10-1/2W-0.22-J-05-E-A 94102584 1
R306 FUSE RESISTOR RF10-2W-0.68-J-05-E-A 94102586 1
R815 FUSE RESISTOR RF10-2W-0.18-J-15-L-A 94102669 1
R416 FUSE RESISTOR RF10-1/2W-68-J-12-L-A 94102591 1
DV801 TVR14561 94400806 1
P801 THERMISTOR MZ73-14RM270V 94400046 1
RP801 THERMISTOR MF72-2-5Ω±N 94400047 1
C248 CERAMIC CAPACITOR CS1-F-63V-0.1µF-Z-F05 94201617 1
C419 CERAMIC CAPACITOR CT1-B-2kV-681pF-K-07-A 94201373 1
C410 CERAMIC CAPACITOR CT1-B-2kV-681pF-K-07-A 94201373 1
C807 CERAMIC CAPACITOR CT1-B-2kV-561pF-K-07-A 94200067 1
16
C810 CERAMIC CAPACITOR CT1-B-500V-560pF-K-F05 94201449 1
C823 CERAMIC CAPACITOR
CT81-400VAC-18B-2E4-33
2-M-10-C-A 94202412 1
C805 CAPACITOR CT1-B-1kV-1000pF-K-07-A 94201071 1
C849 CAPACITOR CL21X-63V-224-J------F 94201463 1
C216 CAPACITOR CL21X-63V-224-J------F 94201463 1
C414 CAPACITOR CL21X-400V-104-J-07-A-A 94200098 1
C227 CAPACITOR CBB13-50V-104-J-07-A-A 94200099 1
C416 CAPACITOR CBB21-400V-364-J-20-G-A 94200101 1
C409 CAPACITOR CBB81-1.6KV-752-J-20-A-A 94200104 1
C802A CAPACITOR
MKT61-275V-104-M-15-G-
A 94200105 1
C222 ELECT. CAPACITOR CD110X-50V-1µF-M-F05 94200043 1
C236 ELECT. CAPACITOR CD110X-16V-22µF-M-F05 94201043 1
C846 ELECT. CAPACITOR
CD110X-25V-1000µF-M-05-
A 94201011 1
C811 ELECT. CAPACITOR
CD110X-25V-2200µF-M-05-
A 94201319 1
C610 ELECT. CAPACITOR
CD110X-25V-1000µF-M-05-
A 94201011 1
C304 ELECT. CAPACITOR CD263-100V-33uF-M-05-A 94202297 1
C418 ELECT. CAPACITOR CD263-100V-33uF-M-05-A 94202297 1
C808 ELECT. CAPACITOR
CD263-160V-100µF-M-07-
A 94200736 1
C411 ELECT. CAPACITOR
CD288H-250V-22uF±20%-0
5-G-A 94201604 1
C801 ELECT. CAPACITOR
CD293-400V-150µF-M-10-
A 94201341 1
C852 ELECT. CAPACITOR
CD110X-16V-1000µF-M-F0
5 94200802 1
N201 IC TDA9377PS/N2/A 94401967 1
N202 IC M24C08(BR24C08) 94400636 1
N202 IC PC817C 94400036 1
N703 IC TC4052BP 94400138 1
N805 IC KA78R12 94401924 1
N702 IC HEF4053 94400503 1
X201 CRYTAL JA12D-12MHZ-20PF 94600198 1
Z201 CERAMIC TRAP FILTER XT4.5B 94600015 1
TU101 TUNER ENV56DB4G3 94003734 1
SF101 SAW FILTER D1510C 94600292 1
F801 FUSE TSG-3.15A-250V 94000137 1
F801A FUSE CLIP FC503 90100021 1
F801B FUSE CLIP FC503 90100021 1
L401 LINEARITY COIL LX034 94501053 1
L801 LINE FILTER LCL-207 94500686 1
T444 FLYBACK TRANSFORMER BSC25-0283G 94501054
1
T801 SWITCHING MODE TRANSFORMERBCK-07-DE7 94501146 1
T401 HORIZONTAL TRANSFORMER AA26-50001B 94500034 1
LW INDUCTOR TK115 94401063
1
V999 CRT SOCKET GZS10-2-BD 94300007
1
CN801 CONNECTOR SOCKET TJC1-2A 94300110 1
CN802 CONNECTOR SOCKET TJC2-2A 94300063 1
CN601 CONNECTOR SOCKET TJC3-2A 94300092 1
CN602 CONNECTOR SOCKET TJC3-2A 94300092 1
CN502 CONNECTOR SOCKET TJC3-3A 94300111 1
17
CN200 CONNECTOR SOCKET TJC3-3A 94300012 1
CN211 CONNECTOR SOCKET TJC3-3A 94300012 1
CN210 CONNECTOR SOCKET TJC3-5A 94300104 1
CN503 CONNECTOR SOCKET TJC3-5A 94300104 1
CN401 CONNECTOR SOCKET TJC1-4A 94300307 1
CN809 CONNECTOR SOCKET TJC3-5A 94300104 1
VD802 DIODE T1R5GU41-12.5-M 94401993 1
VD803 DIODE T1R5GU41-12.5-M 94401993 1
C259 DIODE MTZJ5.1B------T 94400617 1
CN501 WIRE ASS’Y TJC3-5Y-750mm 90401725 1
CN502 WIRE ASS’Y TJC3-3Y-750mm 90401724 1
GT501 CONNECTOR SOCKET TJC1-1A 94300090 1
GT502 CONNECTOR SOCKET TJC1-1A 94300090 1
C503 CERAMIC CAPACITOR CC1-B-500V-470PF-K-F05 94201264 1
C705 CAPACITOR CD71-50V-1uF-M-F05 94200994 1
C848 ELECT. CAPACITOR
CD110X-25V-1000µF-M-05-
A 94201011 1
CN702 WIRE ASS’Y 90401872 1
CN706 WIRE ASS’Y 90401670 1
CN703 CONNECTOR SOCKET TJC3-8A 94300106 1
S WIRE ASS’Y 90401672 1
CN810 WIRE ASS’Y TJC3-4A 90400514 1
CN807-CN
808 WIRE ASS’Y 90401671 1
G WIRE ASS’Y 150mm 90400064 1
DVD SCART SOCKET CS-103 94300457 1
MAIN PCB 91801280 91801280 1
R104 CARBON FILM RESISTOR RT13-1/6W-10-J------T 94100065 1
R752 CARBON FILM RESISTOR RT13-1/6W-10-J------T 94100065 1
R742 CARBON FILM RESISTOR RT13-1/6W-10-J------T 94100065 1
R216 CARBON FILM RESISTOR RT13-1/6W-47-J------T 94100066 1
R103 CARBON FILM RESISTOR RT13-1/6W-100Ω-J-T52 94100017 1
R943 CARBON FILM RESISTOR RT13-1/6W-47-J------T 94100066 1
R250 CARBON FILM RESISTOR RT13-1/6W-47-J------T 94100066 1
R257 CARBON FILM RESISTOR RT13-1/6W-47-J------T 94100066 1
R258* CARBON FILM RESISTOR RT13-1/6W-75-J------T 94100067 1
R265 CARBON FILM RESISTOR RT13-1/6W-75-J------T 94100067 1
R715 CARBON FILM RESISTOR RT13-1/6W-75-J------T 94100067 1
R735 CARBON FILM RESISTOR RT13-1/6W-75-J------T 94100067 1
R733 CARBON FILM RESISTOR RT13-1/6W-75-J------T 94100067 1
R734 CARBON FILM RESISTOR RT13-1/6W-75-J------T 94100067 1
RS03 CARBON FILM RESISTOR RT13-1/6W-75-J------T 94100067 1
R718 CARBON FILM RESISTOR RT13-1/6W-75-J------T 94100067 1
RS01 CARBON FILM RESISTOR RT13-1/6W-75-J------T 94100067 1
RS02 CARBON FILM RESISTOR RT13-1/6W-100-J------T 94100017 1
R208 CARBON FILM RESISTOR RT13-1/6W-100-J------T 94100017 1
R209 CARBON FILM RESISTOR RT13-1/6W-100-J------T 94100017 1
R210 CARBON FILM RESISTOR RT13-1/6W-100-J------T 94100017 1
R230 CARBON FILM RESISTOR RT13-1/6W-100-J------T 94100017 1
R235 CARBON FILM RESISTOR RT13-1/6W-100-J------T 94100017 1
R236 CARBON FILM RESISTOR RT13-1/6W-100-J------T 94100017 1
R237 CARBON FILM RESISTOR RT13-1/6W-100-J------T 94100017 1
R245 CARBON FILM RESISTOR RT13-1/6W-100-J------T 94100017 1
R252 CARBON FILM RESISTOR RT13-1/6W-100-J------T 94100017 1
R743 CARBON FILM RESISTOR RT13-1/6W-100-J------T 94100017 1
18
R744 CARBON FILM RESISTOR RT13-1/6W-100-J------T 94100017 1
R745 CARBON FILM RESISTOR RT13-1/6W-100-J------T 94100017 1
R740 CARBON FILM RESISTOR RT13-1/6W-100-J------T 94100017 1
R741 CARBON FILM RESISTOR RT13-1/6W-100-J------T 94100017 1
W235 CARBON FILM RESISTOR RT13-1/6W-100-J------T 94100017 1
W236 CARBON FILM RESISTOR RT13-1/6W-100-J------T 94100017 1
R280 CARBON FILM RESISTOR RT13-1/6W-100-J------T 94100017 1
R281 CARBON FILM RESISTOR RT13-1/6W-100-J------T 94100017 1
R251 CARBON FILM RESISTOR RT13-1/6W-200-J------T 94100133 1
R263 CARBON FILM RESISTOR RT13-1/6W-200-J------T 94100133 1
R843 CARBON FILM RESISTOR RT13-1/6W-220-J------T 94100019 1
R817A CARBON FILM RESISTOR RT13-1/6W-220-J------T 94100019 1
R244 CARBON FILM RESISTOR RT13-1/6W-390-J------T 94100134 1
R255 CARBON FILM RESISTOR RT13-1/6W-430-J------T 94100069 1
R106 CARBON FILM RESISTOR RT13-1/6W-470-J------T 94100020 1
R256 CARBON FILM RESISTOR RT13-1/6W-470-J------T 94100020 1
R242 CARBON FILM RESISTOR RT13-1/6W-1K-J------T 94100023 1
R243 CARBON FILM RESISTOR RT13-1/6W-1K-J------T 94100023 1
R258 CARBON FILM RESISTOR RT13-1/6W-1K-J------T 94100023 1
R840 CARBON FILM RESISTOR RT13-1/6W-510-J------T 94100070 1
R227 CARBON FILM RESISTOR RT13-1/6W-1K-J--------T 94100023 1
R841 CARBON FILM RESISTOR RT13-1/6W-1K-J------T 94100023 1
R310 CARBON FILM RESISTOR RT13-1/6W-1.5K-J------T 94101350 1
R861 CARBON FILM RESISTOR RT13-1/6W-1.5K-J------T 94100025 1
R102 CARBON FILM RESISTOR RT13-1/6W-2.2KΩ-J-T52 94100026 1
R215 CARBON FILM RESISTOR RT13-1/6W-3.3K-J------T 94101328 1
R266 CARBON FILM RESISTOR RT13-1/6W-3.3K-J------T 94101328 1
R247 CARBON FILM RESISTOR RT13-1/6W-3.3K-J------T 94101328 1
R220 CARBON FILM RESISTOR RT13-1/6W-3.3K-J------T 94101328 1
R278 CARBON FILM RESISTOR RT13-1/6W-3.3K-J------T 94101328 1
R747 CARBON FILM RESISTOR RT13-1/6W-3.3K-J------T 94101328 1
R746 CARBON FILM RESISTOR RT13-1/6W-3.3K-J------T 94101328 1
R845 CARBON FILM RESISTOR RT13-1/6W-3.3K-J------T 94101328 1
R846 CARBON FILM RESISTOR RT13-1/6W-3.3K-J------T 94101328 1
R229 CARBON FILM RESISTOR RT13-1/6W-3.9K-J------T 94100071 1
R830 CARBON FILM RESISTOR RT13-1/6W-3.3K-J------T 94101328 1
R105 CARBON FILM RESISTOR RT13-1/6W-3.3K-J------T 94101328 1
R211 CARBON FILM RESISTOR RT13-1/6W-4.7K-J------T 94100029 1
R212 CARBON FILM RESISTOR RT13-1/6W-4.7K-J------T 94100029 1
R207 CARBON FILM RESISTOR RT13-1/6W-4.7K-J------T 94100029 1
R262* CARBON FILM RESISTOR RT13-1/6W-4.7K-J------T 94100029 1
R241 CARBON FILM RESISTOR RT13-1/6W-4.7K-J------T 94100029 1
R623 CARBON FILM RESISTOR RT13-1/6W-4.7K-J------T 94100029 1
R605 CARBON FILM RESISTOR RT13-1/6W-5.6KΩ-J------T 94100721 1
R606 CARBON FILM RESISTOR RT13-1/6W-5.6KΩ-J------T 94100721 1
R610 CARBON FILM RESISTOR RT13-1/6W-5.6KΩ-J------T 94100721 1
R611 CARBON FILM RESISTOR RT13-1/6W-5.6KΩ-J------T 94100721 1
R213 CARBON FILM RESISTOR RT13-1/6W-6.2K-J------T 94100072 1
R848 CARBON FILM RESISTOR RT13-1/6W-15K-J------T 94100034 1
R847 CARBON FILM RESISTOR RT13-1/6W-15K-J------T 94100034 1
R248 CARBON FILM RESISTOR RT13-1/6W-6.8K-J------T 94100031 1
R246 CARBON FILM RESISTOR RT13-1/6W-8.2K-J------T 94100032 1
R860 CARBON FILM RESISTOR RT13-1/6W-10K-J------T 94100033 1
R862 CARBON FILM RESISTOR RT13-1/6W-15K-J------T 94100034 1
R218 CARBON FILM RESISTOR RT13-1/6W-10K-J------T 94100033 1
R214 CARBON FILM RESISTOR RT13-1/6W-10K-J------T 94100033 1
19
R218 CARBON FILM RESISTOR RT13-1/6W-10K-J------T 94100033 1
R831 CARBON FILM RESISTOR RT13-1/6W-10K-J------T 94100033 1
R620 CARBON FILM RESISTOR RT13-1/6W-10K-J------T 94100033 1
R622 CARBON FILM RESISTOR RT13-1/6W-10K-J------T 94100033 1
R738 CARBON FILM RESISTOR RT13-1/6W-220-J------T 94100019 1
R739 CARBON FILM RESISTOR RT13-1/6W-220-J------T 94100019 1
R849 CARBON FILM RESISTOR RT13-1/6W-10K-J------T 94100033 1
R833 CARBON FILM RESISTOR RT13-1/6W-10K-J------T 94100033 1
R832 CARBON FILM RESISTOR RT13-1/6W-10K-J------T 94100033 1
R850 CARBON FILM RESISTOR RT13-1/6W-10K-J------T 94100033 1
R238 CARBON FILM RESISTOR RT13-1/6W-1K-J------T 94100023 1
R311 CARBON FILM RESISTOR RT13-1/6W-12K-J------T 94100073 1
R219 CARBON FILM RESISTOR RT13-1/6W-15K-J------T 94100034 1
R226 CARBON FILM RESISTOR RT13-1/6W-15K-J------T 94100034 1
R249 CARBON FILM RESISTOR RT13-1/6W-20K-J------T 94100074 1
R274 CARBON FILM RESISTOR RT13-1/6W-22K-J------T 94100779 1
R276 CARBON FILM RESISTOR RT13-1/6W-27K-J------T 94100780 1
W610 CARBON FILM RESISTOR RT13-1/6W-56K-J------T 94100038 1
R275 CARBON FILM RESISTOR RT13-1/6W-270K-J------T 94100943 1
R273 CARBON FILM RESISTOR RT13-1/6W-33K-J------T 94100036 1
R621 CARBON FILM RESISTOR RT13-1/6W-33K-J------T 94100036 1
R851 CARBON FILM RESISTOR RT13-1/6W-33K-J------T 94100036 1
R233 CARBON FILM RESISTOR RT13-1/6W-36KΩ-J 94100767 1
R261 CARBON FILM RESISTOR RT13-1/6W-68K-J------T 94100039 1
R277 CARBON FILM RESISTOR RT13-1/6W-100K-J------T 94100077 1
R303 CARBON FILM RESISTOR RT13-1/6W-100K-J------T 94100077 1
R314 CARBON FILM RESISTOR RT13-1/6W-270K-J------T 94100943 1
R407 METAL OXIDE RESISTOR RY15S-1/2W-0.39-J------T 94100079 1
R408 METAL OXIDE RESISTOR RY15S-1/2W-33-J------T 94100080 1
R403 METAL OXIDE RESISTOR RY15S-1/2W-270-J------T 94100083 1
R406 METAL OXIDE RESISTOR RY15S-1/2W-330-J------T 94102592 1
R809 METAL OXIDE RESISTOR RY15S-1/2W-39K-J------T 94102161 1
R822 METAL OXIDE RESISTOR RY15S-1/2W-470K-J------T 94100090 1
R823 METAL OXIDE RESISTOR RY15S-1/2W-470K-J------T 94100090 1
R807 RESISTOR RS11-1/2W-3.3M-K------T 94100103 1
RX801 RESISTOR RS11-1/2W-3.3M-K------T 94100103 1
R260 METAL FILM RESISTOR RJ13-1/6W-9.1K-J------T 94100106 1
R262 METAL FILM RESISTOR RJ13-1/6W-9.1K-J------T 94100106 1
R259 METAL FILM RESISTOR RJ13-1/6W-100K-J------T 94102210 1
R228 METAL FILM RESISTOR RJ13-1/6W-39K-G------T 94101159 1
R312 METAL FILM RESISTOR RJ15X-1/2W-2.2KΩ-F-T52 94102527 1
R313 METAL FILM RESISTOR RJ15X-1/2W-2.2KΩ-F-T52 94102527 1
R308 METAL FILM RESISTOR RJ15S-1/2W-1.5-F------T 94101353 1
R305 METAL FILM RESISTOR RJ15S-1/2W-1.3-F------T 94102593 1
R803 METAL FILM RESISTOR
RJ15S-1/2W-390Ω±1%-----
T 94102526 1
R805 METAL FILM RESISTOR RJ15S-1/2W-600-J------T 94102162 1
R819 METAL FILM RESISTOR RJ15S-1/2W-1K-F------T52 94101354 1
R420 METAL FILM RESISTOR RJ15S-1/2W-232K-F------T 94102851 1
R816 METAL FILM RESISTOR RJ15S-1/2W-123K-F------T 94102595 1
R817 METAL FILM RESISTOR RJ15S-1/2W-2.49K-F-J 94101355 1
C417 CERAMIC CAPACITOR CT1-B-500V-330pF-K-F05 94202282 1
C403 CERAMIC CAPACITOR CT1-B-500V-470pF-K-F05 94201264 1
C402 CERAMIC CAPACITOR CT1-B-500V-560pF-K-F05 94201449 1
C847 CERAMIC CAPACITOR CT1-B-500V-560pF-K-F05 94201449 1
C845 CERAMIC CAPACITOR CT1-B-500V-560pF-K-F05 94201449 1
20
C239 CERAMIC CAPACITOR CC1-CH-63V-33pF-J-F05 94201124 1
C240 CERAMIC CAPACITOR CC1-CH-63V-33pF-J-F05 94201124 1
C208 CERAMIC CAPACITOR CC1-CH-63V-56pF-J-F05 94201228 1
C209 CERAMIC CAPACITOR CC1-CH-63V-56pF-J-F05 94201228 1
C804 CERAMIC CAPACITOR CT1-B-63V-3900PF-K-F05 94202277 1
C218 CERAMIC CAPACITOR CT1-B-63V-2200pF-K-F05 94200760 1
C249 CERAMIC CAPACITOR CC1-CH-63V-150PF-J-F05 94200715 1
C232 CERAMIC CAPACITOR CC1-CH-63V-330PF-J-F05 94202373 1
C231 CERAMIC CAPACITOR CT1-B-63V-1000pF-K-F05 94200981 1
C234 CERAMIC CAPACITOR CT1-B-63V-1000pF-K-F05 94200981 1
C110 CERAMIC CAPACITOR CT1-B-63V-1000pF-K-F05 94200981 1
C229 CERAMIC CAPACITOR CT1-B-63V-3300PF-K-F05 94201178 1
C221 CERAMIC CAPACITOR CT1-B-63V-4700PF-K-F05 94201039 1
C603 CERAMIC CAPACITOR CT1-B-63V-4700PF-K-F05 94201039 1
C611 CERAMIC CAPACITOR CT1-B-63V-4700PF-K-F05 94201039 1
C111 CERAMIC CAPACITOR
CT1-2F4-63V-0.01µF-Z------
F 94201040 1
C207 CERAMIC CAPACITOR CT1-B-63V-0.01µF-K-F05 94201040 1
C225 CERAMIC CAPACITOR CT1-B-63V-0.01µF-K-F05 94201040 1
C226 CERAMIC CAPACITOR CT1-B-63V-0.01µF-K-F05 94201040 1
C228 CERAMIC CAPACITOR CT1-F-63V-0.022µF-Z-F05 94201448 1
C254 CERAMIC CAPACITOR CT1-F-63V-0.022µF-Z-F05 94201448 1
C101 CERAMIC CAPACITOR CS1-F-63V-0.1µF-Z-F05 94201617 1
C202 CERAMIC CAPACITOR CS1-F-63V-0.1µF-Z-F05 94201617 1
C220 CERAMIC CAPACITOR CS1-F-63V-0.1µF-Z-F05 94201617 1
C223 CERAMIC CAPACITOR CS1-F-63V-0.1µF-Z-F05 94201617 1
C237 CERAMIC CAPACITOR CS1-F-63V-0.1µF-Z-F05 94201617 1
C242 CERAMIC CAPACITOR CS1-F-63V-0.1µF-Z-F05 94201617 1
C243 CERAMIC CAPACITOR CS1-F-63V-0.1µF-Z-F05 94201617 1
C244 CERAMIC CAPACITOR CS1-F-63V-0.1µF-Z-F05 94201617 1
C245 CERAMIC CAPACITOR CS1-F-63V-0.1µF-Z-F05 94201617 1
C256 CERAMIC CAPACITOR CS1-F-63V-0.1µF-Z-F05 94201617 1
C306 CAPACITOR CL11-63V-0.047µF-J-F05 94201458 1
CS01 CAPACITOR CL11-63V-1000pF-J-F05 94201459 1
C803 CAPACITOR CL11-63V-0.047µF-J-F05 94201458 1
C217 CAPACITOR CL21X-63V-224-J------F 94201463 1
C850 CAPACITOR CL21X-63V-224-J------F 94201463 1
C725 CAPACITOR CD71-50V-1uF-M-F05 94200994 1
C247 ELECT. CAPACITOR CD71-50V-1uF-M-F05 94200994 1
C253 ELECT. CAPACITOR CD71-50V-1uF-M-F05 94200994 1
C401 CAPACITOR CL21X-100V-103-J------F 94200095 1
C413 CAPACITOR CL23B-400V-472-J------F 94200097 1
C814 CAPACITOR CL21X-63V-104-J------F 94201462 1
C853 CAPACITOR CL21X-63V-104-J------F 94201462 1
C851 CAPACITOR CL21X-63V-104-J------F 94201462 1
C722 ELECT. CAPACITOR CD71-50V-1uF-M-F05 94200994 1
C727 ELECT. CAPACITOR CD71-50V-1uF-M-F05 94200994 1
C706 ELECT. CAPACITOR CD71-50V-1uF-M-F05 94200994 1
C233 ELECT. CAPACITOR CD110X-50V-4.7µF-M-F05 94200751 1
C230 ELECT. CAPACITOR CD110X-16V-10µF-M-F05 94200008 1
C246 ELECT. CAPACITOR CD110X-16V-10µF-M-F05 94200008 1
C250 ELECT. CAPACITOR CD110X-16V-10µF-M-F05 94200008 1
C842 ELECT. CAPACITOR CD110X-16V-10µF-M-F05 94200008 1
C107 ELECT. CAPACITOR CD110X-16V-10µF-M-F05 94200008 1
C108 ELECT. CAPACITOR CD110X-16V-47µF-M-F05 94200988 1
C252 ELECT. CAPACITOR CD110X-16V-47µF-M-F05 94200988 1
21
C257 ELECT. CAPACITOR CD110X-16V-47µF-M-F05 94200988 1
C620 ELECT. CAPACITOR
CD110X-16V-100µF-M-F05 94200747 1
C829 ELECT. CAPACITOR
CD110X-16V-100µF-M-F05 94200747 1
C819 ELECT. CAPACITOR
CD110X-16V-100µF-M-F05 94200747 1
C841 ELECT. CAPACITOR
CD110X-16V-100µF-M-F05 94200747 1
C922 ELECT. CAPACITOR D110X-16V-100µF-M-F05 94200747 1
C219 ELECT. CAPACITOR CD110X-16V-100µF-M-F05 94200747 1
C854 ELECT. CAPACITOR
CD110X-16V-100µF-M-F05 94200747 1
C241 ELECT. CAPACITOR CD110X-16V-100µF-M-F05 94200747 1
C255 ELECT. CAPACITOR CD110X-16V-100µF-M-F05 94200747 1
C408 ELECT. CAPACITOR CD110X-25V-47µF-M-F05 94201113 1
C303 ELECT. CAPACITOR CD263-35V-100uF-M-F05 94200746 1
C102 ELECT. CAPACITOR CD110X-25V-220µF-M-F05 94200550 1
C820 ELECT. CAPACITOR CD110X-25V-220µF-M-F05 94200550 1
C238 ELECT. CAPACITOR CD110X-50V-1µF-M-F05 94200043 1
C750 ELECT. CAPACITOR CD110X-50V-1µF-M-F05 94200043 1
C621 ELECT. CAPACITOR CD110X-50V-1µF-M-F05 94200043 1
C740 ELECT. CAPACITOR CD110X-50V-1µF-M-F05 94200043 1
C224 ELECT. CAPACITOR CD110X-50V-2.2µF-M-F05 94200044 1
C258 ELECT. CAPACITOR CD110X-50V-2.2µF-M-F05 94200044 1
C201 ELECT. CAPACITOR CD110X-50V-10µF-M-F05 94200046 1
C802 ELECT. CAPACITOR CD110X-50V-47µF-M-F05 94200858 1
C404 ELECT. CAPACITOR CD263-25V-470uF-M-F05 94200729 1
C415 ELECT. CAPACITOR CD110-160V-1uF-M-F 94200993 1
C604 ELECT. CAPACITOR CD71-50V-1uF-M-F05 94200994 1
C612 ELECT. CAPACITOR CD71-50V-1uF-M-F05 94200994 1
L210 INDUCTOR LGA0203-5R6-K------T 94500020 1
L101 INDUCTOR LGA0203-1µH-K-T52 94500450 1
L102 INDUCTOR LGA0203-100-K------T 94500021 1
L202 INDUCTOR LGA0203-100-K------T 94500021 1
L206 INDUCTOR LGA0203-100-K------T 94500021 1
L207 INDUCTOR LGA0203-100-K------T 94500021 1
L208 INDUCTOR LGA0203-100-K------T 94500021 1
L306 INDUCTOR LGA0305-10uH-J-T52 94500264 1
L402 INDUCTOR LB3.5*5-2------F 94500027 1
L804 INDUCTOR LB3.5*6-3------T 94500028 1
DZ831 DIODE 1N4148------T 94400049 1
VD201 DIODE 1N4148------T 94400049 1
VD202 DIODE 1N4148------T 94400049 1
VD809 DIODE 1N4148------T 94400049 1
VD816 DIODE 1N4148------T 94400049 1
VD817 DIODE 1N4148------T 94400049 1
VD620 DIODE 1N4148------T 94400049 1
VD217 DIODE 1N4148------T 94400049 1
VD401 DIODE 1N4004-T52 94400473 1
VD402 DIODE 1N4004-T52 94400473 1
L209 DIODE 1N4004-T52 94400473 1
VD804 DIODE TB1206------T 94400052 1
VD403 DIODE TC2406------T 94400053 1
VD406 DIODE T1R5GU41------T 94400055 1
VD404 DIODE T1R5GU41------T 94400055 1
VD805 DIODE T1R5GU41------T 94400055 1
22
VD405 DIODE TTVR10G------T 94400056 1
VD810 DIODE TERB4304------T 94400059 1
DZ808 DIODE MTZJ3.9B------T 94400615 1
DZ205 DIODE MTZJ4.7B------T 94400616 1
DZ102 DIODE MTZJ5.1B------T 94400617 1
DZ402 DIODE MTZJ5.1B------T 94400617 1
DZ802 DIODE MTZJ5.1B------T 94400617 1
DZ101 DIODE MTZJ9.1B------T 94400493 1
DZ701 DIODE MTZJ9.1B------T 94400493 1
DZ702 DIODE MTZJ9.1B------T 94400493 1
DZ703 DIODE MTZJ9.1B------T 94400493 1
DZ807 DIODE MTZJ9.1B------T 94400493 1
VD811 DIODE TRM11C--------T 94400453 1
VD812 DIODE TRM11C--------T 94400453 1
VD813 DIODE TRM11C--------T 94400453 1
VD814 DIODE TRM11C--------T 94400453 1
DZ303 DIODE MTZJ15C------T 94400372 1
DZ301 DIODE MTZJ22A------T 94400068 1
V101 TRANSISTOR
TRANSISTOR2SC2216（O）
-05-D-A 94400405 1
V620 TRANSISTOR KSA539-YTA------F 94400203 1
V622 TRANSISTOR KSA539-YTA------F 94400203 1
V402 TRANSISTOR KSC2331-YTA------F 94400204 1
V206 TRANSISTOR KSC815-YTA------F 94400192 1
V208 TRANSISTOR KSC815-YTA------F 94400192 1
V212 TRANSISTOR KSC815-YTA------F 94400192 1
V213 TRANSISTOR KSC815-YTA------F 94400192 1
V621 TRANSISTOR KSC815-YTA------F 94400192 1
V801 TRANSISTOR KSC815-YTA------F 94400192 1
V802 TRANSISTOR KSC815-YTA------F 94400192 1
V803 TRANSISTOR KSC815-YTA------F 94400192 1
V804 TRANSISTOR KSC815-YTA------F 94400192 1
V806 TRANSISTOR KSC815-YTA------F 94400192 1
V807 TRANSISTOR KSC815-YTA------F 94400192 1
V805 TRANSISTOR 2SB764E 94401676 1
DZ201 IC KA33VTA------F 94400201 1
DZ803 IC KA431AZTA------F 94400200 1
R511 METAL OXIDE RESISTOR RY17-2W-18KΩ-J-20-D 94102168 1
R512 CARBON FILM RESISTOR RT13-1/6W-220-J------T 94100019 1
R513 CARBON FILM RESISTOR RT13-1/6W-390-J------T 94100019 1
R514 RESISTOR RS11-1/2W-1.8K-K------T 94100102
1
R516 CARBON FILM RESISTOR RT13-1/6W-270-J------T 94100795 1
R521 METAL OXIDE RESISTOR RY17-2W-18KΩ-J-20-D 94102168 1
R522 CARBON FILM RESISTOR RT13-1/6W-220-J------T 94100019
1
R523 CARBON FILM RESISTOR RT13-1/6W-390-J------T 94100134 1
R524 RESISTOR RS11-1/2W-1.8K-K------T 94100102
1
C508 ELECT. CAPACITOR CD110X-250V-10µF-M-F05 94200728 1
C509 CERAMIC CAPACITOR CD110X-250V-4.7µF-M-F0594200727 1
VD501 DIODE 1N4148------T 94400049 1
VD503 DIODE 1N4148------T 94400049 1
VD507 DIODE MTZJ8.2B--T 94400621 1
VD505 DIODE 1SS133T-72---------T 94400106 1
VD502 DIODE 1SS133T-72---------T 94400106 1
VD504 DIODE 1SS133T-72---------T 94400106 1
V511 TRANSISTOR BF420 94400578 1
V521 TRANSISTOR BF420 94400578 1
23
V531 TRANSISTOR BF420 94400578 1
V513 TRANSISTOR BF420 94400578 1
V523 TRANSISTOR BF420 94400578 1
V533 TRANSISTOR BF420 94400578 1
C510 CERAMIC CAPACITOR CT1-B-2KV-1000PF-K-07-A 94200971 1
C511 CERAMIC CAPACITOR CT1-B-63V-1000pF-K-F05 94200981 1
R526 CARBON FILM RESISTOR RT13-1/6W-270-J------T 94100795 1
R527 METAL OXIDE RESISTOR RY17S-2W-33K-J-05-E-A 94100101
1
R531 METAL OXIDE RESISTOR RY17-2W-18KΩ-J-20-D 94102168 1
R806 RESISTOR RS11-1/2W-3.3M-K------T 94100103 1
R532 CARBON FILM RESISTOR RT13-1/6W-220-J------T 94100019
1
R533 CARBON FILM RESISTOR RT13-1/6W-390-J------T 94100134 1
R534 RESISTOR RS11-1/2W-1.8K-K------T 94100102
1
R536 CARBON FILM RESISTOR RT13-1/6W-270-J------T 94100795 1
R550 METAL OXIDE RESISTOR RY15S-1/2W-10M-J------T 94100091 1
V512 TRANSISTOR BF421 94400577 1
V522 TRANSISTOR BF421 94400577 1
V532 TRANSISTOR BF421 94400577 1
CC2 COAXIAL 94300460 1
CC1 WIRE ASS’Y 90401735 1
COAXIAL PCB 91801448 1
DVD INPUT PCB 0091800828V1.0 91800828 1
R001 CARBON FILM RESISTOR RT13-1/6W-120-J------T 94100942 1
R002 CARBON FILM RESISTOR RT13-1/6W-200-J------T 94100133 1
R003 CARBON FILM RESISTOR RT13-1/6W-100-J------T 94100017 1
C001 ELECT. CAPACITOR
CD110-16V-10uF±20%------
F 94200008 1
C002 ELECT. CAPACITOR
CD110-16V-10uF±20%------
F 94200008 1
C003 ELECT. CAPACITOR
CD110-16V-10uF±20%------
F 94200008 1
CN001 CONNECTOR SOCKET TJC3-4AW 94300283 1
DVD AV CONNECTOR SOCKET AV9-3B04 94300393 1
CONTROL BOARD ASS’Y 94009500
1
LP01 LED TOL-30mRGdEHa 94401957
1
A1001 REMOTE RECEIVER HS0038A 进口 94000136 1
CNT08 AV CONNECTOR SOCKET AV3-B03 94300018
1
TV/AV TACT SWITCH K66T-1B-BL-6.5 94000480
1
MENU TACT SWITCH K66T-1B-BL-6.5 94000480
1
V- TACT SWITCH K66T-1B-BL-6.5 94000480
1
V+ TACT SWITCH K66T-1B-BL-6.5 94000480
1
P- TACT SWITCH K66T-1B-BL-6.5 94000480
1
P+ TACT SWITCH K66T-1B-BL-6.5 94000480
1
OPEN/CLO
SE TACT SWITCH K66T-1B-BL-6.5 94000480
1
PLAY TACT SWITCH K66T-1B-BL-6.5 94000480
1
STOP TACT SWITCH K66T-1B-BL-6.5 94000480
1
CN01 CONNECTOR SOCKET TJC3-6A 94300107
1
CN03 CONNECTOR SOCKET TJC3-2P-260 90400915
1
CN04 WIRE ASS’Y 300mm 90402080
1
CN05 WIRE ASS’Y 230mm 90401673
1
CN02 WIRE ASS’Y TJC3-5Y-750mm 90401725
1
POWER TACT SWITCH KFC-A06-1H-9 94008608 1
24
VD02 TRANSISTOR KSC815-YTA------F 94400192
1
RD14 CARBON FILM RESISTOR RT13-1/6W-1K-J------T 94100023
1
RD17 CARBON FILM RESISTOR RT13-1/6W-1K-J------T 94100023
1
CN08 WIRE ASS’Y 450mm 90401317 1
CONTROL BOARD PCB 0091801372V2.0 91801372
1
R01 CARBON FILM RESISTOR RT13-1/6W-470-J------T 94100020
1
R02 CARBON FILM RESISTOR RT13-1/6W-620-J------T 94100916
1
R03 CARBON FILM RESISTOR RT13-1/6W-1K-J------T 94100023
1
R04 CARBON FILM RESISTOR RT13-1/6W-1.2K-J------T 94100753
1
R05 CARBON FILM RESISTOR RT13-1/6W-1.8K-J------T 94100722
1
RB06 CARBON FILM RESISTOR RT13-1/6W-10K-J------T 94100033
1
RB07 CARBON FILM RESISTOR RT13-1/6W-10K-J------T 94100033
1
R12 CARBON FILM RESISTOR RT13-1/6W-100-J------T 94100017
1
R11 CARBON FILM RESISTOR RT13-1/6W-100-J------T 94100017
1
R13 CARBON FILM RESISTOR RT13-1/6W-10K-J------T 94100033
1
VD01 TRANSISTOR 2SA1015 94400439
1
C13 CERAMIC CAPACITOR CT1-F-63V-0.01µF-Z-F05 94201040
1
C11 ELECT. CAPACITOR CD110X-16V-100µF-M-F05 94200747 1
C12 ELECT. CAPACITOR CD110X-16V-47µF-M-F05 94200988 1
N701 IC TDA9859
009440019
9 1
CN708-CN
701 2*8 16PINS 009430053
1 1
009180115
8 PCB
009180115
8 1
C714 film capacitor CL21X-50V-562-J------F
009420173
5 1
C717 film capacitor CL21X-50V-562-J------F
009420173
5 1
C713 film capacitor CL21X-50V-333-J------F
009420143
7 1
C718 film capacitor CL21X-50V-333-J------F
009420143
7 1
C722 film capacitor CL21X-63V-224-J------F
009420146
3 1
C709 film capacitor CL21X-63V-104-J------F
009420146
2 1
C721 film capacitor CL11-63V-0.015µF-J-F05
009420008
7 1
R705 CARBON FILM RESISTOR RT13-1/6W-100-J------T
009410001
7 1
R706 CARBON FILM RESISTOR RT13-1/6W-100-J------T
009410001
7 1
R730 CARBON FILM RESISTOR RT13-1/6W-1K-J------T
009410002
3 1
R726 CARBON FILM RESISTOR RT13-1/6W-1K-J------T
009410002
3 1
R753 CARBON FILM RESISTOR RT13-1/6W-10K-J------T
009410003
3 1
R752 CARBON FILM RESISTOR RT13-1/6W-10K-J------T
009410003
3 1
R731 CARBON FILM RESISTOR RT13-1/6W-10K-J------T
009410003
3 1
R727 CARBON FILM RESISTOR RT13-1/6W-10K-J------T
009410003
3 1
C712 ELECT. CAPACITOR
CD110-50V-10uF±20%------
F
009420004
6 1
C711 ELECT. CAPACITOR
CD110-16V-10uF±20%------
F
009420000
8 1
25
C719 ELECT. CAPACITOR
CD110-50V-10uF±20%------
F
009420004
6 1
C720 ELECT. CAPACITOR
CD110-16V-10uF±20%------
F
009420000
8 1
C710 ELECT. CAPACITOR
CD110X-25V-100uF±20%--
----F
009420058
1 1
C707 ELECT. CAPACITOR
CD110X-25V-100uF±20%--
----F
009420058
1 1
L709 inductance LGA0203-100-K------T
009450002
1 1
1
1
NN02 IC TDA9850 009440079
6 1
ZD03 crystal CSB503F58(500KHZ)
009460011
9 1
MD701A socket JL-6AW 009430018
4 1
MD702A socket JL-7AW 009430018
6 1
PCB BTSC PCB 009180113
6 1
RD22 CARBON FILM RESISTOR RT13-1/6W-100-J------T 009410001
7 1
RD20 CARBON FILM RESISTOR RT13-1/6W-150Ω-J------T 0094100802 1
RD25 CARBON FILM RESISTOR RT13-1/6W-100-J------T 0094100017 1
RD26 CARBON FILM RESISTOR RT13-1/6W-2.2KΩ-J------T 0094100026 1
RD21 CARBON FILM RESISTOR RT13-1/6W-8.2K-J------T 0094100032 1
CD26 CERAMIC CAPACITOR CT1-F-63V-0.022µF-Z-F05 0094201448 1
CD38 film capacitor
CL21X/CL23B-50V-0.015uF-
J----- 0094202341 1
CD20 film capacitor
CL21X-50V-0.047uF-F5-K----
--F 0094201093 1
CD21 film capacitor CL21X-63V-104-J------F 0094201462 1
CD41 film capacitor CL21X-63V-104-J------F 0094201462 1
CD29 film capacitor CL21X-63V-224-J------F 0094201463 1
CD28 film capacitor CL21X-63V-474-J------F 0094201465 1
CD27 ELECT. CAPACITOR CD110X-16V-100µF-M-F05 0094200747 1
CD39 ELECT. CAPACITOR CD110X-16V-100µF-M-F05 0094200747 1
CD47 ELECT. CAPACITOR CD110X-50V-1µF-M-F05 0094200043 1
CD48 ELECT. CAPACITOR CD110X-50V-1µF-M-F05 0094200043 1
CD22 ELECT. CAPACITOR CD110X-50V-4.7µF-M-F05 0094200751
1
CD31 ELECT. CAPACITOR CD110X-50V-4.7µF-M-F05 0094200751
1
CD32 ELECT. CAPACITOR CD110X-50V-4.7µF-M-F05 0094200751
1
CD35 ELECT. CAPACITOR CD110X-50V-4.7µF-M-F05 0094200751
1
CD23 ELECT. CAPACITOR CD110X-16V-10µF-M-F05 0094200008
1
CD45 ELECT. CAPACITOR CD110X-16V-10µF-M-F05 0094200008
1
CD30 ELECT. CAPACITOR CD110X-16V-10µF-M-F05 0094200008
1
CD46 ELECT. CAPACITOR CD110X-16V-10µF-M-F05 0094200008
1
CD33 ELECT. CAPACITOR CD110X-16V-10µF-M-F05 0094200008
1
CD25 ELECT. CAPACITOR CD110X-16V-22µF-M-F05 0094201043 1
CD36 ELECT. CAPACITOR CD110X-50V-2.2µF-M-F05 0094200986 1
CD37 ELECT. CAPACITOR CD110X-50V-2.2µF-M-F05 0094200986 1
CD40 ELECT. CAPACITOR CD110X-50V-2.2µF-M-F05 0094200986 1
CD42 ELECT. CAPACITOR CD110X-50V-2.2µF-M-F05 0094200986 1
26
LD02 inductance LGA0203-100-K------T 0094500021 1
50V-4.7µF
C233
63V-330PF
C232
1/6W-3.9K
R229
63V-1000pF
C231
63V-0.022µF
C228
50V-104
C227
16V-10µF
C230
1/6W-39K
R228
63V-0.01µF
C226
63V-0.01µF
C225
104
C223
472
C221
15K
R226
222
C218
224
C217
224
C216
104
C220
V- P+ TV/AV
P-
V+ MENU
RB01
470
RB02
620
RB03
1K
RB05
1.8K
RB04
1.2K
C240
33
C239
33
X201
12M
OUT
GND
VCC
HS0038A
RM201
3.3K
R266
100
R210
100
R209
AV1/AV2
R208
1/6W-100
A5-3.3V
B-OUT
G-OUT
IN4148
VD201
R-OUT
CUT-OFF
50V-1uF
C247
50V-1uF
C253
IN4148
VD202
63V-150PF
C249
BL
C-SVHS
V-OUT
SYSTEM
H-DRI
A7-8V
H-SYNC ABL
A5-3.3V
SYSTEM
A7-8V
VD-N
VD-P
HTRYG9208
LD901
180V
HEATER
CUT-OFF
B-OUT
G-OUT
3
2
1
CN503
H-DRI C402
500V-560pF
T401
AA26 C419
2kV-681pF
C413
400V-472
C401
100V-103
VD401
IN4004
B4-16.5V
A2-125V
H-SYNC
VD-N
VD-P
VD402
IN4004
C422
104
VD404
T1R5GU41
C403
500V-470pF
C303
35V-100uF
DZ301
MTZJ22A
VD406
TR5GU41
C416
400V-364
DZ402
MTZJ5.1B
VD403
TC2406
C417
500V-470pF
C418
100V 33u
HEATER
B1-185V VIDEO GT404
C414
104
VD405
TTVR10G
ABL
C411
250V-22uF
B3-18.5V
HEATER
H-OUT
V401
2SD2499
C404
25V-470uF
C802A
MKT61-275V-104
DV801
TVR14561
L801
SW01
KDC-A10
P801
MZ73-14RM270V
。
。
。
L803
LB3.5*6
C805
1kV-1000pF
N801
VFB
VCC
4
35
1
2
SYNC
C804
63V-3900PF VD809
IN4148
VD810
TERB4304
VD804
TB1206
C803
63V-0.047µF
C823
332
C801
150uF/400V
T801
4
8
9
10
12
14
15
16
17
1
PC801
PC817C
C807
2kV-561pF
C808
160V-100UF
VD802
T1R5GU41-12.5-M
A1-33V
A2-130V
C810
500V-560pF
VD805
T1R5GU41
A3-15.7V
VD803
T1R5GU41
C845
500V-560pF
C814
63V-104
DZ803
KA431
A4-10.4V
。
。
C802
50v-47u
BCK-07-DE7
R803
1/2W-390
POWER
R848
1/6W-15K
47
R943
C219
100u
C222
1u
C224
2.2u
1
2
3
4
5
6
7
8
16
9
10
11
12
13
14
15
R746
3.3K
16
9
10
11
12
R747
3.3K
13
14
15
A3-5V
A6-5V
C209
56
56
C208
A6-5V
A6-5V
C259
223
10K
R279
63V-0.1µF
C242
16V-100µF
C241
16V-22µF
C236
63V-0.1µF
C237
63V-1000pF
C234 100U
C922
16V-100µF
C255 63V-0.022µF
C254
63V-0.1µF
C256
63V-0.1µF
C248
1N4004
L209
63V-0.01µF
C207
1/6W-22K
R274
A5-3.3V
A7-8V
STAND BY
TJC-5
CN502
TJC-3
GND
CNB01
TJC3-2Y
CNB02
TJC3-2Y
CN802
TJC1-2Y
DEGUSS
CN801
TJC1-2Y
CN401
TJC-4
160V-1uF
C415
16V-10µF
C250
A3-15.8V
A6-5V
1/6W-4.7K
R241
1/6W-1K
R242
3.3K
R278 3.3K
R222 3.3K
R220 4.7K
R212 4.7K
R211
3.3K
R215
47
R216
10uH
L202
1K
R840
1K
R841
1/6W-100
R230
1/6W-100
R236
1/6W-100
R235
1/6W-100
R237
1/6W-33K
R273
1/6W-1K
R238
1/6W-6.8K
R248
1/6W-20K
R249
1/6W-470
R256
1/6W-75
R265
1/6W-390
R244
1/6W-270K
R275
1/6W-100K
R259
1/6W-27K
R276
1/6W-100
R245
1/6W-200
R263
1/6W-8.2K
R246
1/6W-3.3K
R247
1/6W-430
R255
1/6W-200
R251
1/6W-1K
W265 1/6W-75
R258*
1/6W-75
R718
1W-3.9K
R407
2W-1K
R414
2W-7.5K
R413
1/2W-0.22
R409
1/2W-33
R408
1/2W-0.39
R407
1/2W-270
R403
2W-18KR810
1/2W-1K
R819
1/2W-1.5K
R818
1/2W-39K
R809
1/2W-123K
R816
1/2W-2.49K
R817
1/6W-15K
R847
1/6W-10K
R849
1/6W-10K
R214
1/6W-6.2K
R213
1/2W-3.3M
R806
1/2W-3.3M
R807
1/2W-3.3M
Rx801
33K
R801
33K
R802
1/2W-470K
R822
1/2W-470K
R823
MF72-2-5Ω±N
RP801
1/2W-600
R805
250V/3.15A
F801
LGA0203-100
L208
LGA0203-100
L207
LGA0203-100
L206
LX034
L401
1722-400uH
LW
KSC815
V804
KSC815
V206
KSC2331-Y
V402
21P-R
21P-G
21P-B
A7-8V
STANDBY
SCL
SDA
HEATER
B1-180V
1N4148
VD815
AV2-VIN
OUT
VIDEO
YCb Cr
10u
C001
10u
C002
10u
C003
CN001
TJC3-4Y
V-OUT
A0L
A0R
120
R001
120
R002
120
R003
AV1-VINAV1-ALAV1-AR
YC
CNS01
CNT01
TJC3-10A
CN703
CN704
TJC-2A
CN200
102
CT01
75
RS01
Y-SVHS C-SVHS AV1-V AV1-AR
AV1-AL
CNS02
75
RS03
100
RT02
1
2
MUTE
1
4
5
8
1
2
3
4
185v
16.5
A6-5V
SDA SCL
N702 HEF4053
V1
V2
H2
H1
1N4148
VD816
MTZJ4.7B
DZ205
Wp
NC
A2
VSS
VDD
PTC
SCL
SDA
N202
24C08
MUTE
CN602
CN601
B+SCL SDA
AGC
9
GNDBT
11
IF
1083154672
TU101
ENV56DB4G3
16V-10µF
C107
104
C202 C201
10u
KA33V
DZ201
A1-33V
D1510C
SF101
MTZJ9.1B
DZ101
16V-47µF
C108
BF370
V101
1/6W-10
R104
1/6W-13K
R105
1/6W-470
R106
25V-220µF
C102
MTZJ5.1B
DZ102
63V-0.1µF
C101
1/6W-68K
R261
1N4148
VD217
1/6W-9.1K
R260
1/6W-1K
R227
1/6W-9.1K
R262
B4-12V
C214
104
SYSTEM
1W-33
R110
LGA0203-100
L102
SDA
SCL
1/6W-22
R103
3.3k
R845
KSC815
V802
MTZJ3.9B
DZ807
1/6W-100K
R850A
1N4148
VD818
R851
33K
B4-12V
SPEAKER
SPEAKER
INPUT
INPUT
2
VCC
3
OUT
4
GND
5
VFB
6
OUT
7
VO
8
VI
9
TDA8357J
N301
1/2W-1
R415
100V-33uF
C304
LGA0305-10uH
L306
MTZJ15C
DZ303
63V-0.047µF
C306
1/2W-1.5
R308
1/2W-10
R302
1/6W-12K
R311
1/6W-270K
R314
1/6W-1.3K
R313
1/6W-1.2K
R312
1/2W-1.3
R305 2W 0.68
R306
1/6W-100K
R303
2W 270
R307*
2W-0.18
R815
1000u
C610
A4-10.4V
VCC
1
OUT2
2
GND
3
OUT2
4
MUTE
5
INPUT
6
GND
7
INPUT
8
VOL
9
OUT1
10
GND
11
OUT1
12
N601
AN7522N
KSA539
V622
KSC815
V621
KSA539
v620
1/6W-4.7K
R623
1/6W-33K
R621
1/6W-10K
R620
W610
1/6W-56K
C612
50V-1uF
C604
50V-1uF
C611
63V-4700PF
C603
63V-4700PF
POWER
VD620
1N4148
A3-15.7V 1/6W-10K
R622
C621
50V-1µF
C620
16V-100µF
1/2W-68
R416
ABL
16V-10µF
C246
1/6W-1K
R243 V213
KSC815
1/6W-100K
R277
R262*
1/6W-4.7K
C740
1UF
50V-1uF
C725 1/6W-220
R707
A1R
V04
V03
VOL
1/6W-5.6KΩ
R605
1/6W-5.6KΩ
R606
1/6W-5.6KΩ
R611
1/6W-5.6KΩ
R610
1/6W-220
R704 1/6W-220
R703
50V-1uF
C722
50V-1uF
C727
A6-5V
A3-15.8
FO
SC
HV
TO CRT
TO CRT PCB SCREEN & FOCUS
8
9
6
7
1
4
5
3
10 11
B+
SC
FO
HV
46
BSC25-0283G
T444
AV1/AV2
C811
25V-2200µF
C846
25V-1000µF
18
19
。
VD806
FFPF10U20STU
C847
500V-560pF
C848
1000UF
1
2
3
4
5
6
7
8
16
9
10
11
12
15
16
9
10
11
12
13
14
15
N703
HEF4052
AV/SVHS
2
R752
1/6W-10
CVBS/Y
CVBS/Y
75
R715
50V-1uF
C706
50V-1uF
C705 1/6W-220
R708
A1L
AV2-L
AV2-R
V03
V04
63V-3300PF
C229
DVD-5V
1
2
34
2
1/6W-10K
R833
2
R830
1/6W-3.3K
2
R832
1/6W-10K
V807
KSC815
DZ831
1N4148
C850
63V-224
C853
63V-104
C854
16V-100µF
12
34 C849
63V-224
C851
63V-104
C852
16V-1000µF
12V 5V
CN810
CN706 cn702
DVD-5V A3-15.8V
DVD-AL
DVD-AR
CY
SL SR
78R12
78R05
N805
N804
R-OUT
2W-6.2Ω
R821
1/6W-1.5K
R861
1/6W-15K
R862
1/6W-10K
R860
2W-110Ω
R820
MTZ5.1B
DZ802
KSC815
V806
2SB764(Y)
V805
C819
16V-100µF
C829
16V-100µF
L7809CS
L209
IN4004
A3-14.73V
B4-9V
A6-5V
POWER
N802
A7-8V
MTZJ9.1B
DZ101
C108
16V-47µF
LCL-207
CN501
GT501 1P
GT502 1P
5
6
7
8
FO
SC
HV
C508
10uF
CRT
A51JXS098X96
1.8K
R534
1.8K
R524
1.8K
R514
68
R506
33K
R527
2.8
R505
47
R501
47
R502
47
R503
C2688
V531
BF423
V503
C502
330p 270
R536
16K
R531
10K
R512
SCREEN
C510
102K/2KV
C2688
V521
BF423
v522
C503
470Pf 270
R526
12k
R521
390
R523
C2688
V511
BF423
V512
C501
470Pf 270
R516
18K
R511
390
R513
VD504
1N4148
VD505
1N4148
ZD501
BZX79C8V2
R-OUT
B-OUT
G-OUT
G
220
R522
B
BF422
V513
220
R512
BF422
V523
BF423
V533
220
R532
C511
100Pf
R
C509
4.7uf
10M
R550
VD507
TC2406------T
G1
KA5Q0765RTH-YDTU
VD814
TRM11C
VD811
TRM11C
VD812
TRM11C
1/4W-2.7K
R850
C821
25V-220µF
C410
2kV-681pF
LB3.5*5
L402
125v
1/2W-120K
R420
C409
1.5KV-622
NC
LGA0203-1µH
L101
63V-1000pF
C110
1/6W-2.2KΩ
R102
63V-104
C422
63V-0.01µF
C111
KA78R12
KA278R05
1/2W-1
R824
1/6W-12K
w333
50V-1uF
C750
1/6W-100
w236 1/6W-100
w235
39K
R281
39K
R280
50V-2.2µF
C258
YS
V2
A2L
SL
去功放 去功放
MTZJ5.1B
DZ259
Z203
4.5MHz
L211
10uH
47u
C252
47
R250
470
R264
180
R254
100
R252
510
R253
KSC815
V209
KSC815
V208
KSR1010
V211
KSR2010
V210
47u
C257
47
R257
KSC815
V212
EWD
DEC.BG
PH1.LF
GND3
PH2.LF
DECD/G
SEC.PLL
VSSA
CTL
STAND BY
VSSC/P
VOL
MUTE
SYSTEM
KEY
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
47
48
49
50
51
52
53
54
55
56
57
58
59
60
VP2
46
23
24
25
26
27
28
29
30
31
32
45
33
34
39
40
41
42
35
36
37
38
43
44
H.OUT
F.B.L.SO
AUO.EXT
EHTO
PLL.IF
IF.VO/SVO
VP1
CVPS.INT
GND1
CVBS/Y
CHROMA
AUD.OUTV.DRB
V.BRA
IF.IN1
IF.IN2
I.REF
V.S.C.
AGC
AV.DEEM
DECS.DEM
GND2
SND.PLL
AVL
RESET
XTAL.OUT
XTAL.IN
OSC.GND
VDD.C
VPE
B.OUT
G.OUT
INSS.W2(BL)
R.OUT
BLK.IN
BCL.IN
B2/U.IN
G2/Y.IN
R2/V.IN
VDD.A
VT
SDA
SCL
STANDBY
1
2
3
461
62
63
64
INT.REM
AV/SVHS
AV1/AV2
VDDP
N201
TDA9377
3.3K
R286
STAND BY
1/6W-10
R104
C109
Ly/50µH<R307*<Ly/20µH
低电平有效
高电平有效
+5V
DTA-2198 Ｅｘｐｌｏｄｅｄ ｖｉｅｗ：
