Model TX-1510-01-1

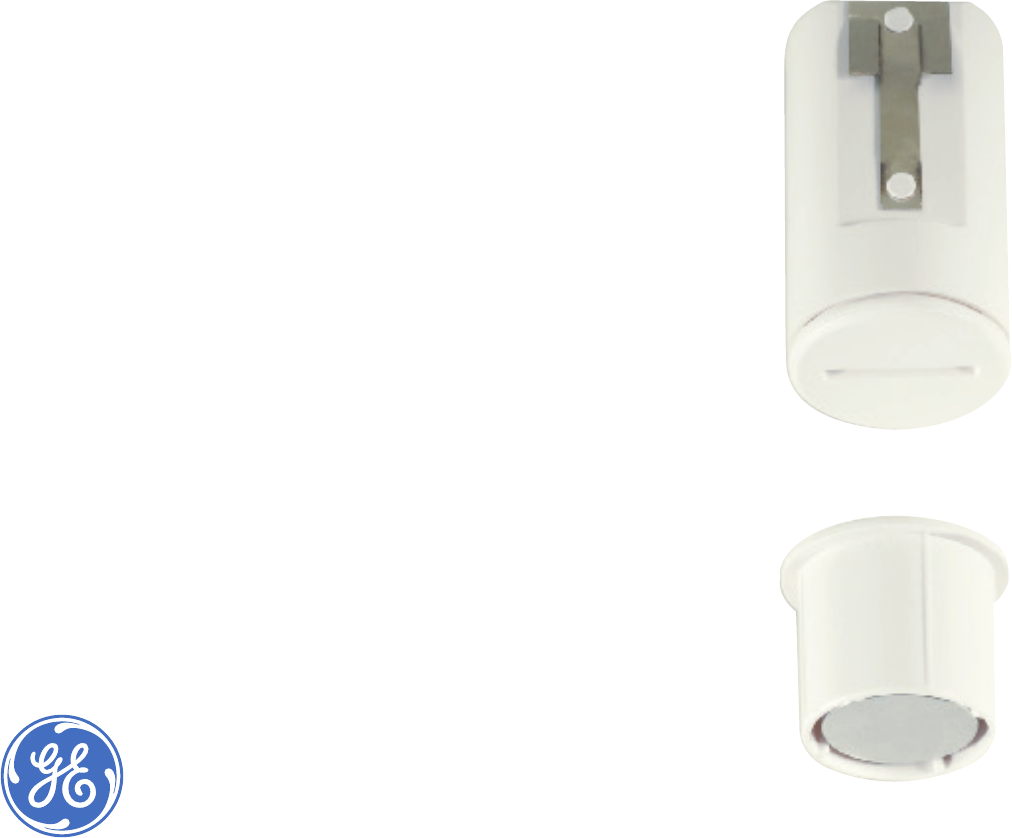

DesignLine Recessed Door Contact
Overview
The DesignLine Recessed Door Contact from GE Security
is the industry’s finest supervised, recessed door contact.
Hidden within the door frame, the DesignLine contact
is ideal, especially when a discreet sensor is required.
The contact uses a replaceable lithium battery that lasts
up to five years under normal usage and comes with a
standard flush-mount and a flanged top.
Standard Features
• Compact design ensures effortless installation
• Hides discreetly in door frame
• Replaceable lithium battery lasts up to five years
• Easily installed
• Standard flush-mount and flanged tops included
• Requires only one drill bit to install
• Supervisory reports of battery and transmitter
condition
DesignLine
Recessed Door Contact
Discreet, flexible and reliable
magnetic contact
GE
Security
North America
T 888-GE-SECURITY
888-437-3287
Asia
T 852-2907-8108
F 852-2142-5063
Australia
T 61-3-9259-4700
F 61-3-9259-4799
Canada
T 800-267-6317
F 613-737-5517
Europe
T 32-2-725-11-20
F 32-2-721-40-47
Latin America
T 305-593-4301
F 305-593-4300
gesecurity.com
Specifications subject to
change without notice.
© 2008 General Electric Company
All Rights Reserved
803-3053 2008/07 (53183)
Installation
Installation of the DesignLine Recessed Door Contact is quick and easy, with
just a few steps and minimal tools required.
Specifications
Battery CR2032, 3 VDC, 225 mAh, Lithium Coin Cell
Typical Battery Life 5 years
Transmitter Frequency 319.508 MHz (crystal-controlled)
Transmitter Frequency Tolerance +/- 8 kHz
Bandwidth 24 kHz
Modulation Type Amplitude Shift Key (ASK)
Unique ID Codes 16 million
Peak Field Strength Typical 30,000 uV/m @ 3m
Magnetic Sensitivity of Reed Switch 10 to 20 amp turns
Reed Sensitivity .38-in. (.97-cm) gap
Magnet Type Nd-Fe-B, N45
Magnet Dimensions (WxHxD) 0.7 in. (1.8 cm) long x 0.75 in. x (1.9 cm) diam.
Supervisory Interval 64 minutes
Operating Temperature 10 degrees F (-12 degrees C) to 120 degrees F (49 degrees C)
Enclosure PC-540
Weight 0.45 oz. (12.6g)
Dimensions 1.55 in. (3.92cm) long x 0.87 in. (2.21 cm) diam.
Colors Belgian Grey
FCC Standard FCC Part 15
Ordering Information
TX-1510-01-1 DesignLine Recessed Door Contact
