DVD Stereo System

Operating Instructions

Model No. SC-DV290

Note

“EB” on the outer packaging indicates the

United Kingdom.

Before connecting, operating or adjusting

this product, please read these instructions

completely. Please keep this manual for fu-

ture reference.

RQT6894-B

The illustration shows the model for the United Kingdom, Continental Europe and Russia.

For the United Kingdom and

Continental Europe

pThe region number of this player is “2”.

pThe player will play DVD-Video marked with

labels containing “2” or “ALL”.

Example:

For Australia and N.Z.

pThe region number of this player is “4”.

pThe player will play DVD-Video marked with

labels containing “4” or “ALL”.

Example:

For Russia

pThe region number of this player is “5”.

pThe player will play DVD-Video marked with

labels containing “5” or “ALL”.

Example:

2ALL

Region number supported by

this player

Region numbers are allocated to DVD players and

software according to where they are sold.

ALL

RQT6894 Before use

System

Sound processor

Stereo tuner/amplifier

DVD/Video CD/CD changer

Stereo cassette deck

Supplied accessories

Please check and identify the supplied acces-

sories. Use numbers indicated in parentheses

when asking for replacement parts.

uAC mains lead . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1

For the United Kingdom For Australia and N.Z.

(RJA0053-3X) (RJA0035-2X)

For Continental Europe and Russia

(RJA0019-2X)

Note

The included AC mains lead is for use with this unit only. Do not use

it with other equipment.

uRemote control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1

For the United Kingdom, For Australia and N.Z.

Continental Europe and Russia (EUR7702300)

(EUR7702290)

uRemote control batteries . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2

uFM indoor antenna . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1

For the United Kingdom, For Australia and N.Z.

Continental Europe and Russia (RSA0006-J)

(RSA0007)

uAM loop antenna set: (RSA0022-L) . . . . . . . . . . . . . . . . . . . . . 1

uSpeaker leads

(REE1234-1) . . . . . . . . . . 2 (REE1233-1) . . . . . . . . . . 2

(Red/Black) (Gray/Blue)

uAntenna plug adaptor: (SJP9009) . . . . . . . . . . . . . . . . . . . . . . 1

(Only for the United Kingdom)

uVideo cord

For the United Kingdom and Continental Europe

(VJA0815-A) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1

For Russia (RJL1P019B15) . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1

For Australia and N.Z. (RJL1P019B15) . . . . . . . . . . . . . . . . . . . . 2

uRCAJ adaptor: (VFA0151-2) . . . . . . . . . . . . . . . . . . . . . . . . . . . 1

(Only for the United Kingdom, Continental Europe and Russia)

Dear customer

Thank you for purchasing this product.

For optimum performance and safety, please read these instructions care-

fully.

Front

Center

Surround

Speakers

SC-DV290

SH-DV290

SA-DV290

SL-DV290

RS-DV290

SB-DV290

SB-PC95

SB-PS95

www.panasonic.co.uk (for UK customers only)

Order accessory and consumable items for your

product with ease and confidence by telephoning our

Customer Care Centre Mon–Friday 9:00am–5:30pm.

(Excluding public holidays.)

Or go on line through our Internet Accessory ordering

application.

Most major credit and debit cards accepted.

All enquiries transactions and distribution facilities are

provided directly by Panasonic UK Ltd.

It couldn’t be simpler!

Customer Care Centre

For UK customers: 08705 357357

For Republic of Ireland customers: 01 289 8333

Technical Support

For UK customers: 0870 1 505610

This Technical Support Hot Line number is for

Panasonic PC software related products only.

For Republic of Ireland, please use the Customer Care

Centre number listed above for all enquiries.

For all other product related enquiries, please use the

Customer Care Centre numbers listed above.

For United Kingdom and Republic of Ireland

Unless otherwise indicated, illustrations in these operating in-

structions are of the system for the United Kingdom, Continen-

tal Europe and Russia.

RQT6894 Before use

Table of contents

Before use

Safety precautions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

Cassette tape selection and care . . . . . . . . . . . . . . . . . . . . 3

Caution for AC Mains Lead . . . . . . . . . . . . . . . . . . . . . . . . . 4

Disc information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

Simple setup . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

Control guide and preparatory steps

Front panel controls . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

Turning DEMO off . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

The remote control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

Setting the time. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

QUICK SETUP . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

Basic operations

Discs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

Skip function/Search function/Slow-motion play . . . . . . . . . . . . . . . . 15

Frame-by-frame viewing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

Position Memory function/Selecting groups to play . . . . . . . . . . . . . . 16

Soundtracks/Subtitles/Cinema . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17

Marking places to play again/Variable Zoom function . . . . . . . . . . . . 18

Repeat play/A-B repeat play/All group play . . . . . . . . . . . . . . . . . . . . 19

Program play . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20

Random play/ALL DISC play. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21

Starting play from a selected item . . . . . . . . . . . . . . . . . . . . . . . . . . . 21

Playing the programs or play lists on DVD-RAM . . . . . . . 22

Navigation menus . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22

Using GUI screens . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24

The radio: manual tuning . . . . . . . . . . . . . . . . . . . . . . . . . . 27

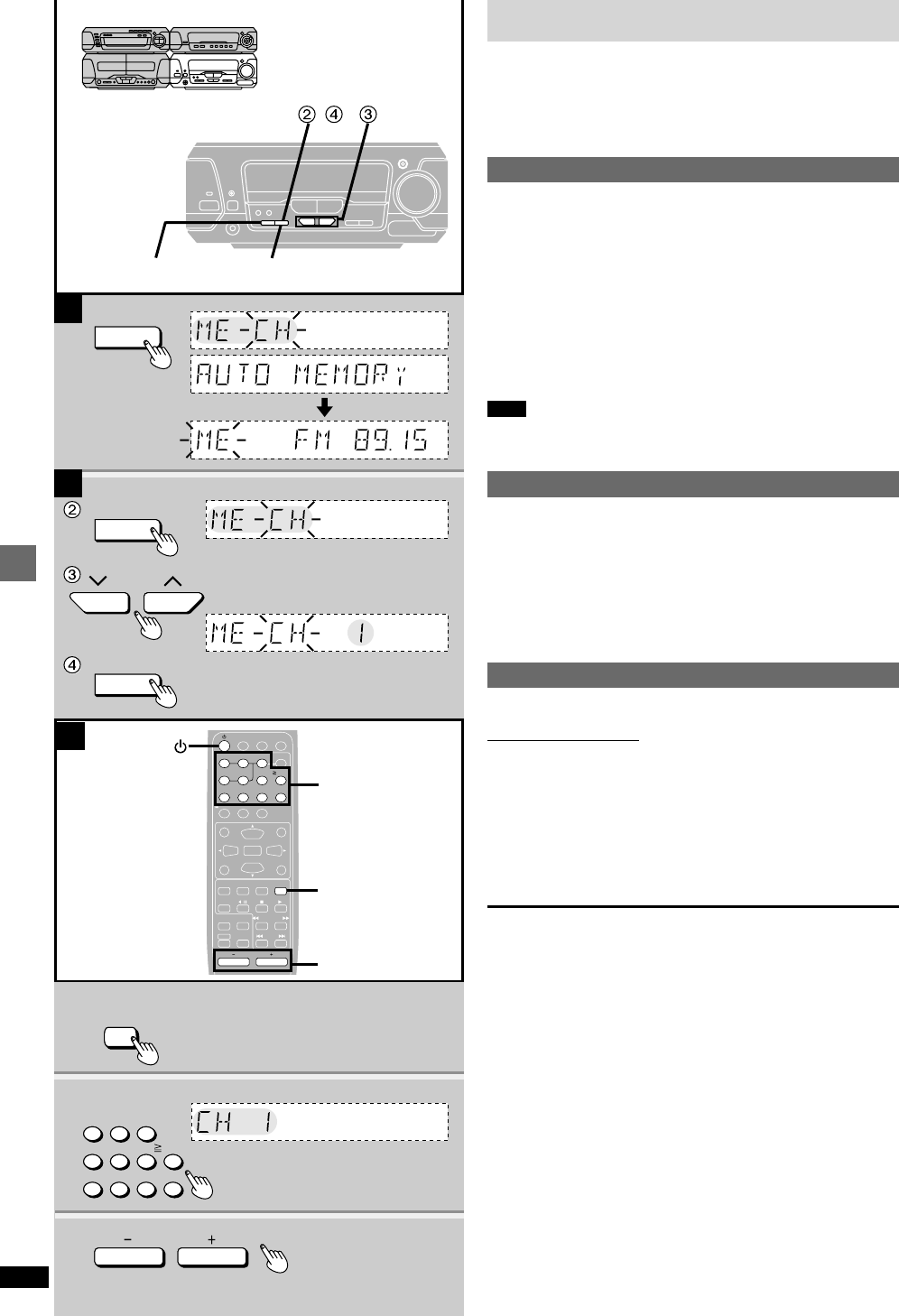

The radio: preset tuning . . . . . . . . . . . . . . . . . . . . . . . . . . . 28

Cassette tapes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29

Changing sound field and quality

Boosting the super woofer . . . . . . . . . . . . . . . . . . . . . . . . . 30

Using the super sound equalizer . . . . . . . . . . . . . . . . . . . . 30

Double re-master—Enjoying more natural sound . . . . . . 30

Changing sound field and quality . . . . . . . . . . . . . . . . . . . 30

Using the acoustic image equalizer (AI EQ) . . . . . . . . . . . . . . . . . . . 31

Using the manual equalizer (M.EQ) . . . . . . . . . . . . . . . . . . . . . . . . . 31

Enjoying surround sound . . . . . . . . . . . . . . . . . . . . . . . . . . 32

Surround effects . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34

Recording operations

Before recording (Deck 2 only) . . . . . . . . . . . . . . . . . . . . . . 35

Recording discs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36

Recording the radio . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37

Tape-to-tape recording . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37

Timer operations and convenient functions

Using the timers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38

Changing the sound range display . . . . . . . . . . . . . . . . . . 41

Muting the volume . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41

Using headphones (not included) . . . . . . . . . . . . . . . . . . . 41

Enjoying karaoke (For Australia and N.Z.) . . . . . . . . . . . . 42

External unit connections . . . . . . . . . . . . . . . . . . . . . . . . . . 44

Optional antenna connections . . . . . . . . . . . . . . . . . . . . . . 45

Using other equipment . . . . . . . . . . . . . . . . . . . . . . . . . . . . 45

Changing settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 46

Reference

Glossary . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 48

Technical specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . 49

Troubleshooting guide . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50

Safety precautions

Placement

Set the unit up on an even surface away from direct sunlight, high tem-

peratures, high humidity, and excessive vibration. These conditions can

damage the cabinet and other components, thereby shortening the unit’s

service life.

Do not place heavy items on the unit.

Voltage

Do not use high voltage power sources. This can overload the unit and

cause a fire.

Do not use a DC power source. Check the source carefully when setting

the unit up on a ship or other place where DC is used.

AC mains lead protection

Ensure the AC mains lead is connected correctly and not damaged. Poor

connection and lead damage can cause fire or electric shock. Do not pull,

bend, or place heavy items on the lead.

Grasp the plug firmly when unplugging the lead. Pulling the AC mains

lead can cause electric shock.

Do not handle the plug with wet hands. This can cause electric shock.

Foreign matter

Do not let metal objects fall inside the unit. This can cause electric shock

or malfunction.

Do not let liquids get into the unit. This can cause electric shock or mal-

function. If this occurs, immediately disconnect the unit from the power sup-

ply and contact your dealer.

Do not spray insecticides onto or into the unit. They contain flammable

gases which can ignite if sprayed into the unit.

Service

Do not attempt to repair this unit by yourself. If sound is interrupted, indi-

cators fail to light, smoke appears, or any other problem that is not covered

in these instructions occurs, disconnect the AC mains lead and contact your

dealer or an authorized service center. Electric shock or damage to the unit

can occur if the unit is repaired, disassembled or reconstructed by unquali-

fied persons.

Extend operating life by disconnecting the unit from the power source if it

is not to be used for a long time.

Maintenance

If the surfaces are dirty

To clean this unit, wipe with a soft, dry cloth.

pNever use alcohol, paint thinner or benzine to clean this unit.

pBefore using chemically treated cloth, read the instructions that came with

the cloth carefully.

For a cleaner crisper sound

Clean the heads regularly to assure good quality playback and recording.

Use a cleaning tape (not included).

Cassette tape selection and care

The unit can correctly play or record on the following types. It identifies the

type automatically.

pTapes exceeding 100 minutes are thin and can break or get caught in the

mechanism.

pTape slack can get caught up in the mechanism and should be taken up

before the tape is played.

pEndless tapes can get caught up in the deck’s moving parts if used incor-

rectly. Use tapes appropriate to this unit’s auto-reverse mechanism.

✔

Normal position/TYPE I

High position/TYPE II

Metal position/TYPE IV

RQT6894 Before use

(For United Kingdom)

(“EB” area code model only)

For your safety, please read the following text carefully.

This appliance is supplied with a moulded three pin mains

plug for your safety and convenience.

A 5-ampere fuse is fitted in this plug.

Should the fuse need to be replaced please ensure that

the replacement fuse has a rating of 5-ampere and that it

is approved by ASTA or BSI to BS1362.

Check for the ASTA mark P or the BSI mark R on the

body of the fuse.

If the plug contains a removable fuse cover you must en-

sure that it is refitted when the fuse is replaced.

If you lose the fuse cover the plug must not be used until a

replacement cover is obtained.

A replacement fuse cover can be purchased from your

local dealer.

Caution for AC Mains Lead

If a new plug is to be fitted please observe the wiring code

as stated below.

If in any doubt please consult a qualified electrician.

IMPORTANT

The wires in this mains lead are coloured in accordance

with the following code:

Blue: Neutral, Brown: Live.

As these colours may not correspond with the coloured

markings identifying the terminals in your plug, proceed

as follows:

The wire which is coloured Blue must be connected to the

terminal which is marked with the letter N or coloured

Black or Blue.

The wire which is coloured Brown must be connected to

the terminal which is marked with the letter L or coloured

Brown or Red.

WARNING: DO NOT CONNECT EITHER WIRE TO THE

EARTH TERMINAL WHICH IS MARKED WITH THE

LETTER E, BY THE EARTH SYMBOL Q OR COL-

OURED GREEN OR GREEN/YELLOW.

THIS PLUG IS NOT WATERPROOF—KEEP DRY.

Before use

Remove the connector cover.

How to replace the fuse

The location of the fuse differ according to the type of AC

mains plug (figures A and B). Confirm the AC mains plug

fitted and follow the instructions below.

Illustrations may differ from actual AC mains plug.

1. Open the fuse cover with a screwdriver.

2. Replace the fuse and close or attach the fuse

cover.

CAUTION!

IF THE FITTED MOULDED PLUG IS UNSUIT-

ABLE FOR THE SOCKET OUTLET IN YOUR

HOME THEN THE FUSE SHOULD BE RE-

MOVED AND THE PLUG CUT OFF AND DIS-

POSED OF SAFELY.

THERE IS A DANGER OF SEVERE ELEC-

TRICAL SHOCK IF THE CUT OFF PLUG

IS INSERTED INTO ANY 13-AMPERE

SOCKET.

Fuse cover

Figure A

Figure B

Fuse

(5 ampere)

Fuse

(5 ampere)

Figure A

Figure B

RQT6894 Before use

Disc information

[A[ Discs that can be played

pUse discs with the logos at left and that conform to specifications. The unit

cannot play other discs correctly.

pDo not use irregularly shaped discs (e.g. heart-shaped), as these can

damage the unit.

wDiscs that cannot be played

DVD-RAM (2.6 GB, TYPE 1), DVD-ROM, CD-ROM, CDV, CD-G, KRW,

DVD-RW, CVD, SVCD, SACD, Divx Video Discs and Photo CD.

wDisc structure

Disc structure and the labels given to the items on discs depend on the disc

type.

Track: the smallest division on DVD-Audio, CDs and Video CDs, or a

single WMA/MP3 file.

Chapter: the smallest division on DVD-Video.

Group: collections of tracks on DVD-Audio and equivalent to folders or

albums on data discs.

Title: the largest division on DVD-Video, usually an entire movie.

Program: the division on DVD-RAM equivalent to a single recording.

Picture: a single JPEG file.

Play list: a group of scenes on DVD-RAM.

Scene: DVD-RAM program sections specified and grouped into play

lists on a DVD video recorder.

DVD-RAM

DVD-Audio

DVD-Video

DVD-R

Video CD

CD-R/RW

wCD-R and CD-RW discs

This unit can play CD-R/RW (audio recording disc) recorded with CD-DA,

video CD, WMA, MP3, or JPEG. Finalize the disc after recording.

wDVD-R discs

Panasonic DVD-R recorded and finalized on a Panasonic DVD video re-

corder are played as DVD-Video on this unit.

wDVD-RAM discs

DVD-RAM discs must meet the following conditions for this unit to be able

to play them.

Playing DVDs and Video CDs

The producer of these discs can control how they are played so you

may not always be able to control play as described in these operating

instructions (for example if the play time is not displayed or if a Video

CD has menus). Read the disc’s instructions carefully.

pNon-cartridge discs

pDiscs that can be removed from their cartridges

(TYPE 2 and 4)

p12 cm 9.4 GB (double-sided) and 4.7 GB (single-

sided)

p8 cm 2.8 GB (double-sided)

Discs recorded with DVD video recorders, DVD video

cameras, personal computers, etc., using Version 1.1 of

the Video Recording Format (a unified video recording

standard).

Type

Capacity

Recording

format

pRemove TYPE 2 and 4 discs from their cartridges before use, then return

them when you are finished. Read the instructions for the disc carefully.

pDo not allow the disc to become dirty or scratched. Store discs in their

cartridges and ensure the disc label and cartridge label face the same

way.

pSome parts of the disc, for example where one program ends and another

begins, may not play smoothly.

Note

It may not be possible to play CD-R, CD-RW, DVD-R and DVD-RAM in all

cases due to the type of disc or condition of the recording.

wVideo systems

This unit can play both the PAL and NTSC video systems. To view PAL or

NTSC, however, your television must match the system used on the disc.

PAL discs cannot be correctly viewed on an NTSC television. NTSC can be

correctly viewed on a PAL television by converting the video signal to

PAL 60 (➡ page 46, Video—NTSC Disc Output).

wTo clean discs

DVD-Audio, DVD-Video, Video CD, CD

Wipe with a damp cloth and then wipe dry. [B]

DVD-RAM, DVD-R

pClean with an optional DVD-RAM/PD disc cleaner (LF-K200DCA1, where

available).

pNever use cloths or cleaners for CDs etc.

wHandling precautions

pDo not write on the label side with a ball-point pen or other writing instru-

ment.

pDo not use record cleaning sprays, benzine, thinner, static electricity

prevention liquids or any other solvent.

pDo not attach labels or stickers to discs. (Do not use discs with exposed

adhesive from tape or left over peeled-off stickers.)

pDo not use scratch-proof protectors or covers.

pDo not use discs printed with label printers available on the market.

Including

CD text

RQT6894 Simple setup

Simple setup

STEP1Locating

Components

DVD/Video CD/CD changer Sound processor

Stereo cassette deck Stereo tuner/amplifier

Sound processor

Stereo tuner/amplifier

DVD/Video CD/CD changer

Stereo cassette deck

Speakers

Optimum location

Distance: ANBNCNDNE

Front speaker (left)

Center speaker

Front speaker (right)

Surround speaker (left) Surround speaker (right)

Note

Do not put the DVD/Video CD/CD changer on the top of the tuner/ampli-

fier. Heat can damage your discs.

Use only the supplied speakers.

Using other speakers can damage the unit and sound quality will be neg-

atively affected.

Caution

pUse the speakers only with the recommended system.

Failure to do so may lead to damage to the amplifier and/or the

speakers, and may result in the risk of fire.

Consult a qualified service person if damage has occurred or if

you experience a sudden change in performance.

pDo not attempt to attach these speakers to walls using meth-

ods other than those described in this manual.

Front speakers

Left and right front speakers are exactly same.

Surround speakers

Place either side of the listening position, or slightly to the rear, about

1 meter higher than ear level with the Technics logo facing toward the

listening position.

The effect varies with the type of music and the music source.

If you are unable to position the surround speakers as recommended, you

can put them near the front speakers and still achieve a surround-like

effect (➡ page 34, VIRTUAL REAR SURROUND).

Attaching to a wall

Set the speaker onto screws and slide through bracket to lock into

position.

Note

The wall or pillar on which the speakers are to be attached should be

capable of supporting 5 kg per screw.

Notes on speaker use

wYou can damage your speakers and shorten their useful life if you play

sound at high levels over extended periods.

wReduce the volume in the following cases to avoid damage.

pWhen playing distorted sound.

pWhen the speakers are receiving howling from a microphone (for

Australia and N.Z.) or record player, noise from FM broadcasts, or

continuous signals from an oscillator, test disc, or electronic in-

strument.

pWhen adjusting the sound quality.

pWhen turning the unit on or off.

If irregular colouring occurs on your television

These speakers are designed to be used close to a television, but the

picture may be affected with some televisions and set-up combinations.

If this occurs, turn the television off for about 30 minutes.

The television’s demagnetizing function should correct the problem.

If it persists, move the speakers further away from the television.

70 mm

30–35 mm

7.5–9.5 mm

7–9 mm

RQT6894 Simple setup

CENTER SURROUND

LF HF F F

(8 ) (6 )(8)(6)

STEP2Speaker leads Do not connect the AC mains lead until all other connections are complete.

Surround and center

speakers

Center speaker Surround speaker (left)

Surround speaker

(right)

Right Left

Front speaker

Connect the leads to the terminals of the

same colour.

LF and HF stand for low frequency and high

frequency.

Connect the left (L) side in the same

way.

Note

pNever short-circuit positive (T) and nega-

tive (U) speaker wires.

pBe sure to connect only positive (red or

grey) wires to positive (T) terminals and

negative (black or blue) wires to negative

(U) terminals.

Incorrect connection can damage the

speakers.

Twist the vinyl tip and pull off.

Speaker side

Grey

Blue

Blue Blue

Blue

Black

Red

Tuner/amplifier side

RQT6894 Simple setup

STEP3Antennas

A1 B2

FM indoor antenna

Fix the other end of the antenna where reception is best.

Adhesive tape

For Australia and N.Z.

Twist the vinyl tip and pull off.

AM indoor antenna

Twist the vinyl tip and pull off. Keep loose antenna cord away

from other wires and cords.

STEP4Flat cables

Keep the cables as flat as possible against the back of the unit.

Connect the connectors to the terminals of the same colour.

Incorrect connection can damage the unit.

Connecting Disconnecting

RQT6894 Simple setup

VIDEO

OUT

STEP5Video cords

Video cord

To your television

VIDEO

OUT

VIDEO

OUT

DVD

MONITOR

OUT

To your television

For the United Kingdom,

Continental Europe and Russia

Use the RCAJ adaptor (included) if your television has a 21-pin

SCART terminal. You do not have to connect anything to the

AUDIO terminals.

DVD/Video CD/CD changer

RCAJ adaptor

To your

television

Audio terminals

Video terminal

For Australia and N.Z.

Use this connection if you have connected a VCR or Laser Disc

player (➡ page 44 [B]–[D]).

This enables you to control the video and audio from this equipment

with [INPUT SELECTOR].

STEP6AC mains lead

To household

mains socket

(For the United Kingdom only)

BE SURE TO READ THE CAUTION FOR THE AC

MAINS LEAD ON PAGE 4 BEFORE CONNEC-

TION.

Connector

Appliance inlet

Approx. 6 mm

Insertion of connector

Even when the connector is perfectly insert-

ed, depending on the type of inlet used, the

front part of the connector may jut out as

shown in the drawing.

However there is no problem using the unit.

For your reference:

Information you enter into the unit’s memory,

except for time, remains intact for up to two

weeks after the mains lead is disconnected.

RQT6894 Control guide and preparatory steps

Front panel controls

AStereo tuner/amplifier

Standby/on switch (¦/I) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

Press to switch the unit from on to standby mode or vice versa. In

standby mode, the unit is still consuming a small amount of power.

Standby indicator (¦)

When the unit is connected to the AC mains supply, this indicator lights

up in standby mode and goes out when the unit is turned on.

Play timer/record timer button and indicator

(&PLAY/&REC) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38, 39

Clock/timer button (CLOCK/TIMER) . . . . . . . . . . . . . . . . 12, 38, 39

Demo button (–DEMO) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

FM mode button (FM AUTO/MONO) . . . . . . . . . . . . . . . . . . . . . . . 27

Source input button (INPUT SELECTOR) . . . . . . . . . . . . . . . . . . 45

Tuner/band button (TUNER/BAND) . . . . . . . . . . . . . . . . . . . . . . . 27

Digital super woofer button and indicator

(DIGITAL S.WOOFER) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30

Volume control (VOLUME) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

Headphone jack (PHONES) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41

Tuning mode button (TUNING MODE) . . . . . . . . . . . . . . . . . . . . . 27

Set button (SET) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12, 28

[For\the\United\Kingdom,\Continental\Europe\and\Russia]

Tuning buttons (:, 9 TUNING) . . . . . . . . . . . . . . . . . . . . . . . 12, 27

RDS display mode button (RDS, PS–DISP MODE–PTY) . . . . . . 27

[For\Australia\and\N.Z.]

Key control button (KEY CON) . . . . . . . . . . . . . . . . . . . . . . . . . . . 43

MIC effect buttons (MIC EFFECT, LOUNGE, CHORUS) . . . . . . . 43

Echo button (ECHO) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43

Tuning, Key up/down buttons

(:, 9 TUNING, , ) . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12, 27, 43

KARAOKE, Voice mute buttons (KARAOKE, V.MUTE) . . . . . . . 42

Microphone jacks (1–MIC–2) . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42

Microphone volume control (MIC VOL) . . . . . . . . . . . . . . . . . . . . 42

BDVD/Video CD/CD changer

A-B repeat button (A-B REPEAT) . . . . . . . . . . . . . . . . . . . . . . . . . 19

Repeat play button (REPEAT) . . . . . . . . . . . . . . . . . . . . . . . . . . . 19

CD edit button (CD EDIT) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36

Disc direct open buttons (DIRECT OPEN, DISC 1–DISC 5) . . . . 14

!Disc tray open/close button (, OPEN/CLOSE) . . . . . . . . . . . . . 14

"Skip/search buttons (, ) . . . . . . . . . . . . . . . . . . 15

#Disc select buttons and indicators (DISC, 1–5) . . . . . . . . . . . . . 14

Green: Indicates that the tray is ready to play its disc or to be opened.

$Disc tray

%Cinema mode button and indicator (CINEMA) . . . . . . . . . . . . . . 17

&Double re-master button and indicator

(DOUBLE RE-MASTER) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30

'Stop button (w) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

(Pause button () . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

)Play button and indicator () . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

The colour of the indicator depends on the operation taking place.

If stopped: orange

If playing: green

If paused: flashes green

When the resume function is on: flashes orange

CStereo cassette deck

*Deck 1 cassette holder open button ( OPEN) . . . . . . . . . . . . . 29

+Deck 1

,Fast forward/rewind, TPS buttons (, ) . . . . . . . . . . . . . . . 29

-Deck 2

.Deck 2 cassette holder open button ( OPEN) . . . . . . . . . . . . . 29

/Counter reset, display buttons

(COUNTER, RESET, DISPLAY) . . . . . . . . . . . . . . . . . . . . . . . . . . 35

0Deck 1/deck 2 select button (DECK 1/2) . . . . . . . . . . . . . . . . . . . 29

1Playback buttons and indicators (, ) . . . . . . . . . . . . . . . . . . . 29

The colour of the indicators depends on the operation taking place.

If stopped, fast forwarding or rewinding: orange

If playing or recording: green

While carrying out TPS or recording is on standby: flashes

2Stop button (w) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29

3Dolby noise reduction button (DOLBY NR) . . . . . . . . . . . . . . . . . 29

4Reverse mode button (REV MODE) . . . . . . . . . . . . . . . . . . . . . . . 29

5Tape edit button (TAPE EDIT) . . . . . . . . . . . . . . . . . . . . . . . . . . . 37

6Record pause button (q REC PAUSE) . . . . . . . . . . . . . . . . . . . . 36

C OCK

T MER

PHONES

TU ING MODE ET ARAOKE V MUTE

MIC

C VOL

IN AX

NPUT SELECTOR TUNER BAND

D G TAL

S WOOFER

VOLUME

DOWN

FM AUT /

MONO KEY CON OUNGE

M C FFE T

CH RUS

CHO

TUNING

PLA

REC

DEMO

COUNTER

RESET

D SPLAY

DECK 1 2

OPEN OPEN

DO BY NR REV MODE TAPE ED T REC

PAU E

D SC

D RECT OPEN

DISC

D SC

DISC

OPE

A B REP AT

REP T

CIN MA

DOU LE RE MA TER

D DIT

RQT6894 Control guide and preparatory steps

Front panel controls

ASound processor

7Display mode button (DISPLAY MODE) . . . . . . . . . . . . . . . . . . . 41

8Display

9Super sound EQ button (SUPER SOUND EQ) . . . . . . . . . . . . . . 30

:Super 3D AI EQ button (SUPER 3D AI EQ) . . . . . . . . . . . . . . . . . 31

;Jog control and joystick (, , , , MULTI JOG) . . . . . . . . . 30

<DOLBY PRO LOGIC button and indicator

(§PRO LOGIC, OFF/ON) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33

=Super surround button and indicator

(SUPER SURROUND) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33

>Center focus button and indicator (CENTER FOCUS) . . . . . . . . 34

?Virtual rear surround button and indicator

(VIRTUAL REAR SURROUND) . . . . . . . . . . . . . . . . . . . . . . . . . . . 34

@Multi rear surround button and indicator

(MULTI REAR SURROUND) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34

ASeat position button and indicator (SEAT POSITION) . . . . . . . . 34

BRemote control

Buttons , , , , ; and < function in the same way as the controls on

the main unit.

BSleep timer button (SLEEP) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40

CNumbered buttons (1–9, 0, 510/-/--) . . . . . . . . . . . . . . . . . . . . . . . 14

DChannel select, Test signal button (CH SELECT, TEST) . . . . . . 33

ETop menu, Direct navigator, EQ button

(TOP MENU, DIRECT NAVIGATOR, EQ) . . . . . . . . . . . . . 14, 22, 30

FCursor buttons (, , , ) . . . . . . . . . . . . . . . . . . . . . . . . . 13, 47

GDisplay, Super 3D AI EQ button (DISPLAY, S.3D AI EQ) . . . 18, 31

HInput select button [VCR (EXT)/VDP (AUX)] . . . . . . . . . . . . . . . . 45

ITape select, deck 1/deck 2 select button (TAPE/DECK 1/2) . . . . 29

JPlay mode, Cancel button (PLAY MODE, CANCEL) . . . . . . . 18, 19

KDisc pause, Tape reverse play button (/) . . . . . . . . . . . . 14, 29

LAudio select, 2 channel down mixing button

(AUDIO, MIX 2CH) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17, 33

MShift button (SHIFT) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

To operate functions labeled in orange, press [SHIFT] and then the cor-

responding button at the same time.

NMuting button (MUTING) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41

OPosition memory, Subtitle select button

(POSITION MEMORY, SUBTITLE) . . . . . . . . . . . . . . . . . . . . . 16, 17

PGroup, Initial setting button

(GROUP, SETUP) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13, 16, 47

QDisc button (DISC) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20

R[For\Australia\and\N.Z.]

Karaoke, Karaoke effect button

(KARAOKE, KARAOKE EFFECT) . . . . . . . . . . . . . . . . . . . . . 42, 43

SMenu, Play list, Super sound EQ button

(MENU, PLAY LIST, SUPER SOUND EQ) . . . . . . . . . . . . 14, 22, 30

TEnter button (ENTER) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13, 47

UReturn, AV effect button (RETURN, AV EFFECT) . . . . . . . . . 13, 34

VDVD button (DVD) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

WDisc play, Tape forward play button () . . . . . . . . . . . . . . . . 14, 29

XDisc stop, Tape stop button (w) . . . . . . . . . . . . . . . . . . . . . . . 14, 29

YDisc slow/search buttons (,  SLOW/SEARCH) . . . . . . . . 15

ZDisc skip buttons (,  SKIP) . . . . . . . . . . . . . . . . . . . . . . . 15

CANCEL

PLAY MODE

MIX 2CH

AUDIO

TAPE/

DECK 1/ 2

DVD

TUNER/

BAND

SLEEP

TOP MENU MENU

PLAY LIST

SUPER

SOUND EQ

SUBT TLE

POSITION MEMORY

SETUP

GROUP

123

DISC

456

7890

CH SELECT

TEST

SUPER SRND KARAOKE

KARAOKE EFFECT

10/-/--

VCR(EXT)/

VDP(AUX)

MUTING

SLOW/SEARCH

DIGITAL

S.WOOFER

SKIP

VOLUME

ENTER

SHIFT

S 3D AI EQ

DISPLAY

DIRECT

NAVIGATOR

AV EFFECT

RETURN

PRO LOGIC

DEMO

D SPLAY MODE

OF /ON

SUPER

D A EQ

MUL I J G

SEAT

POS T ON

SUP R

SOU D Q MULT REAR

SURROUND

VIR UAL REAR

SURROUND

ENTER

FOC S

S PER

SURROU D

RO LOG C

[C] Turning DEMO off

A demonstration of the display is shown if you have not set the

clock.

You can reduce the power consumed in standby mode by turning

the demonstration off.

While the unit is on:

Press and hold [–DEMO] until “NO DEMO” is

displayed.

Each time you press and hold the button:

NO DEMO (off)9DEMO (on)

RQT6894 Control guide and preparatory steps

R6, AA, UM-3

CLOCK/

TIMER

SET

123

TUNING

The remote control

ABatteries

pInsert so the poles (K and L) match those in the remote control.

pDo not use rechargeable type batteries.

Do not;

pmix old and new batteries.

puse different types at the same time.

pheat or expose to flame.

ptake apart or short circuit.

pattempt to recharge alkaline or manganese batteries.

puse batteries if the covering has been peeled off.

pkeep together with metallic objects such as necklaces.

Mishandling of batteries can cause electrolyte leakage which can damage

items the fluid contacts and may cause a fire.

If electrolyte leaks from the batteries, consult your dealer.

Wash thoroughly with water if electrolyte comes in contact with any part of

your body.

Remove if the remote control is not going to be used for a long period of

time. Store in a cool, dark place.

Replace if the unit does not respond to the remote control even when held

close to the front panel.

BUse

Aim at the sensor, avoiding obstacles, at a maximum range of about 7 me-

ters directly in front of the unit.

pKeep the transmission window and the unit’s sensor free from dust.

pOperation can be affected by strong light sources, such as direct sunlight,

and the glass doors on cabinets.

Do not;

pput heavy objects on the remote control.

ptake the remote control apart.

pspill liquids onto the remote control.

xCSetting the time

This is a 24-hour clock.

The example shows how to set the clock for 16:25 (4:25 p.m.).

1Press [¦/I] to turn the unit on.

2Press [CLOCK/TIMER] to display “CLOCK”.

Each time you press the button:

CLOCK&PLAY&RECOriginal display

$

Within 5 seconds

Press [SET].

3Press [TUNING (: or 9)] to set the time.

The time display can be changed in one minute units by tapping

the buttons, and quickly by holding down the buttons.

Press [SET].

The time is set and the original display is restored.

Displaying the clock

Press [CLOCK/TIMER].

The clock is shown for about 5 seconds.

Reset the clock regularly to maintain accuracy.

RQT6894 Control guide and preparatory steps

SELECT

SETUP QUICK SETUP

Select the menu language.

ENTER RETURN

English Français

Español

Deutsch Italiano

Português

Svenska Nederlands

CANCEL

PLAY MODE

MIX 2CH

AUDIO

TAPE/

DECK 1/ 2

DVD

TUNER/

BAND

SLEEP

TOP MENU MENU

AY L ST

SUPER

SO D EQ

SUBTITLE

POSIT ON MEMORY

SETUP

GROUP

123

D SC

456

7890

CH SELECT

TEST

SUPER SRND

10/ /

VCR(EXT)/

VDP(AUX)

MUT NG

SLOW/SEARCH

D GITAL

S WOOFER

SK P

VOLUME

ENTER

SHIFT

S 3D EQ

DISPLAY

D REC

NAVI TOR

AV FECT

ETURN

PRO LOGIC

RETURN

4-7

3,71

3,7

QUICK SETUP

The QUICK SETUP screen appears when you press [SHIFT]K[SETUP] the

first time after purchase and assists you to make necessary settings. You

can access this screen again later if you need to (➡ page 46, Others—

QUICK SETUP)

Remote control only

Preparation

Turn on the television and select the appropriate video input on the televi-

sion to suit the connections for the unit.

1Press [¦] to turn on the unit.

2Press [DVD] to select “DVD”.

3Press [SHIFT]T[SETUP] to show the QUICK

SETUP screen. [A]

4Press [, , , ] to select the menu language

and press [ENTER].

5Press [, ] to select “Yes” to continue and

press [ENTER].

6Press [, , , ] to select the item and press

[ENTER].

pAudio Language (➡ page 46)

pSubtitle Language (➡ page 46)

pTV Type (➡ below)

pTV Aspect (➡ below)

7Press [ENTER] and then [SHIFT]T[SETUP] to end

the settings.

To return to the previous screen

Press [RETURN].

wTV Type

Select to suit the type of television.

pStandard (Direct View TV) (factory preset)

pCRT Projector

pLCD TV/Projector

pProjection TV

pPlasma TV

wTV Aspect

Select “4:3” (regular) or “16:9” (widescreen) to suit your television.

If you have a regular 4:3 television, you can also select how video on some

discs is shown (➡ page 46, Video—TV Aspect).

[B] 4:3 Pan&Scan (factory preset)

Widescreen software is expanded to fill the screen of a 4:3 aspect television

(unless prohibited by the producer of the disc).

[C] 4:3 Letterbox

Widescreen software is shown in the letterbox style on a 4:3 aspect tele-

vision.

RQT6894 Basic operations

Discs

[RAM] [DVD-A] [DVD-V] [VCD] [CD] [WMA] [MP3] [JPEG]

Preparation

pPress [¦/I] to turn on the unit.

pTurn on the television and select the appropriate video input on the televi-

sion to suit the connections for the unit.

1Press [DVD] to select “DVD” as the source.

If the disc contains both audio data (WMA and MP3) and JPEG,

check “Mixed Disc—Audio & Stills” setting in the SETUP menu

(➡ page 46). Select “Audio (MP3/WMA)” or “Stills (JPEG)” .

2Press DIRECT OPEN [DISC 1]–[DISC 5] to open a

tray and set a disc.

p[RAM] Remove TYPE 2 and 4 discs from their cartridges before use.

[A]

pLabel-up (With double-sided discs, load so the label for the side you

want to play is facing up.) [B]

3Press [, OPEN/CLOSE] to close the tray.

The tray closed is in the play position (its disc indicator turns green).

Some discs start playing automatically.

Repeat steps 2 and 3 to load the other trays.

4Press [DISC, 1–5] to change the play position

tray and start play.

[CD] (CD text only) [WMA] [MP3]

Track information appears on the television. Press [SHIFT]K

[SUBTITLE] to turn the display on or off.

5Adjust the volume.

Play position

The disc in the play position is ready to play immediately when you press

[].

To pause play

Press [] during play.

Press [] to restart play.

To stop play

Press [w].

“RESUME” lights on the display when the unit has recorded the position at

which you stopped play.

Press [] to start play from that position.

[DVD-V]: Press [] again to review chapters (➡ page 16).

pPress [w] to clear the position.

pThe position is cleared when you turn the unit off, change the source,

open the disc tray or change the disc.

Note

pIf “” appears on the television

The operation is prohibited by the unit or disc.

pIt may take some time for play to start but this is normal.

When a menu appears on the television

[DVD-A] [DVD-V] [VCD]

Remote control only

Press the numbered buttons to select an item.

To select a 2-digit number

Example: To select item 23, press [510/-/--] ➡ [2] ➡ [3].

pWhen playing DVDs, you can also use [, , , ] to select items.

Press [ENTER] to confirm your selection.

To return to the menu screen

[DVD-A] [DVD-V] [TOP MENU]: Shows the first menu screen.

[DVD-V] [MENU]: Shows the menu screen.

[VCD] [RETURN]: Shows the menu screen.

Note

The disc continues to rotate while the menu is displayed even after you

finish playing an item. Press [w] when you finish to preserve the unit’s motor

and your television screen.

CANCEL

PLAY MODE

M X 2CH

AUDIO

TAPE/

DECK 1/ 2

DVD

TUNER/

BAND

SLEEP

TOP MENU MENU

P AY LIST

PER

SO D EQ

SUBTITLE

POS TION MEMORY

SETUP

GROUP

123

DISC

456

7890

CH SELECT

TEST

SUPER SRND

10/ /

VCR(EXT)/

VDP(AUX)

MUTING

S OW SEARCH

DIGITAL

S WOOFER

SKIP

VOLUME

ENTER

SHIFT

S 3D Q

DISPLAY

DIREC

NAV ATOR

AV FFECT

RETURN

PRO LOG C

RETURN

TOP MENU

, , ,

ENTER

SUBTITLE

Numbered

buttons

RQT6894 Basic operations

, , ,

SKIP

SLOW/SEARCH

CANCEL

PLAY MODE

MIX 2CH

AUD O

TAPE/

DECK 1/ 2

DVD

TUNER/

BAND

SLEEP

TOP MENU MENU

P Y LIST

UPER

SO D EQ

SUBTITLE

POS TION MEMORY

SETUP

GROUP

123

DISC

456

7890

CH SELECT

TEST

SUPER SRND

10/ /

VCR EXT)/

VDP(AUX)

MUTING

SLOW SEARCH

DIG TAL

S WOOFER

SKIP

VOLUME

ENTER

SHIFT

S 3D EQ

DISPLA

DIREC

NAV TOR

AV FFECT

RETURN

PRO LOGIC

Discs

Skip function

[RAM] [DVD-A] [DVD-V] [VCD] [CD] [WMA] [MP3] [JPEG]

While playing or paused

On the remote control

Press [SKIP ( or )].

On the changer

Press [] or [].

[JPEG]

Remote control only

Press [] or [] for group skip.

Each press increases the number of skips.

Search function

[RAM] [DVD-A] [DVD-V] [VCD] [CD] [WMA] [MP3]

During play

On the remote control

Press [SLOW/SEARCH ( or )].

On the changer

Press and hold [] or [].

pAudio will be heard during search for most discs. You can turn this audio

off if you want to (➡ page 46, Audio—Audio during Search).

p[DVD-V] You can slow down or speed up play (➡ page 24).

Slow-motion play

[RAM] [DVD-V] [VCD]

[DVD-A] (Motion picture parts only)

While play is paused

On the remote control

Press [SLOW/SEARCH ( or )].

On the changer

Press and hold [] or [].

Frame-by-frame viewing

[RAM] [DVD-V] [VCD]

[DVD-A] (Motion picture parts only)

Remote control only

While play is paused

Press [] or [].

pEach press changes the frame.

pThe frames change in succession if you press and hold a cursor button.

pThe frame also advances each time you press [/] on the remote con-

trol or [] on the changer.

When playing Video CDs with playback control

Pressing buttons to perform skip, search or slow-motion may take

you to a menu screen.

Notes

pThe speed of search and slow-motion increases up to 5 steps.

pPress [] (play) to restart play.

pYou cannot move backwards with Video CD during frame-by-

frame and slow-motion.

RQT6894 Basic operations

CANCEL

PLAY MODE

MIX 2CH

AUDIO

TAPE/

DECK 1/ 2

DVD

TUNER/

BAND

SLEEP

TOP MENU MENU

PLAY L ST

SUPER

SOUND EQ

SUBTITLE

POSIT ON MEMORY

SETUP

GROUP

123

D SC

456

7890

CH SELECT

TEST

SUPER SRND

10/ /

VCR(EXT)/

VDP(AUX)

MUT NG

SLOW/SEARCH

D GITAL

S WOOFER

SKIP

VOLUME

ENTER

SHIFT

S 3D AI EQ

DISPLAY

D RECT

NAVIGATOR

AV EFFECT

RETURN

PRO LOGIC

GROUP

ENTER

POSITION

MEMORY

Press PLAY to Chapter Review

Position memorized

Discs

Remote control only

APosition Memory function

[RAM] [DVD-A] [DVD-V] [VCD] [CD] [WMA] [MP3] [JPEG]

During play

Press [POSITION MEMORY] to memorize a position.

Press again to replace the position.

This position is saved even if you turn the unit off, change the source, open

the disc tray or change the disc. When you turn the unit on, reselect “DVD”

or reinsert the disc whose position you memorized, “RESUME” lights on the

display. Press [] (play) to start play from the memorized position. The

position is cleared.

pYou can memorize positions on up to five different discs at a time. When

you memorize another position, the earliest position is replaced.

pThis function does not work while playing some DVDs or play lists on

DVD-RAM.

Chapter Review

[DVD-V]

This message appears. [B]

Press [] (play) again to review the first few seconds of the chapters up

to the one where you memorized the position. Play then resumes from the

memorized position.

Do not press [] (play) if you do not want to review chapters.

Selecting groups to play

[DVD-A] [WMA] [MP3] [JPEG]

1Press [GROUP]. [C]

2Press the numbered buttons to select the group

number and press [ENTER].

3Press the numbered buttons to select the track/

picture number and press [ENTER].

[DVD-A]

Playing all the groups in succession (➡ page 19, All group play)

Playing bonus groups

Some discs contain bonus groups. If a password screen appears

after selecting a group, enter the password with the numbered

buttons. Refer to the disc’s jacket.

Group number

Track number in group

Numbered

buttons

Example [MP3]

RQT6894 Basic operations

Discs

ASoundtracks

[RAM] [DVD-A] [DVD-V]

(Discs with multiple soundtracks)

Remote control only

During play

Press [AUDIO].

The number on the television changes each time you press the button.

p“–” or “––” is displayed instead of the language number in circumstances

such as when no language is recorded on the disc.

pYou can also use this button to turn the vocals on and off on karaoke

discs. Read the disc’s instructions for details.

[DVD-A]

pPlay restarts from the beginning of the soundtrack when changing sound-

tracks that are accompanied by still pictures.

pEven if a second soundtrack isn’t recorded, two soundtrack numbers will

normally appear in the soundtrack display. The soundtrack currently play-

ing is number 1.

Signal type/data

LPCM/PPCM/§Digital/DTS/MPEG: Signal type

k (kHz): Sampling frequency

b (bit): Number of bits ch (channel): Number of channels

Example:

3/2 .1ch

BSubtitles

[DVD-A] (Motion picture parts only) [DVD-V]

(Discs with multiple subtitle languages)

You can change the subtitle language and turn the subtitles on and off.

[RAM]

You can turn the subtitles on and off.

Remote control only

During play

Press [SHIFT]T[SUBTITLE].

The number on the television changes each time you press the button.

p“–” or “––” is displayed instead of the language number in circumstances

such as when no language is recorded on the disc.

pIn some cases, the subtitle language is not changed to the selected one

immediately.

To clear/display the subtitles

1. Press [SHIFT]K[SUBTITLE].

2. Press []. ([DVD-A] [DVD-V])

3. Press [,] to display “OFF” or “ON” on the television.

Changing the position and brightness of the subtitles (➡ page 26)

CCinema

[RAM] [DVD-A] [DVD-V] [VCD] [JPEG]

Change the picture quality for movie viewing.

Press [CINEMA].

CINEMA indicator lights up.

Each time you press the buttons:

 Cinema1: Mellows images and enhances detail in dark scenes.

!

Cinema2: Sharpens images and enhances detail in dark scenes.

!

" Normal: Normal mode (factory preset)

pUse the Picture menu (➡ page 26) to make finer adjustments.

.1: Low frequency effect

(not displayed if there is no signal)

0: No surround

1: Mono surround

2: Stereo surround (left/right)

1: Center

2: Front leftKFront right

3: Front leftKFront rightKCenter

CANCEL

PLAY MODE

MIX 2CH

AUDIO

TAPE/

DECK 1/ 2

DVD

TUNER/

BAND

SLEEP

TOP MENU MENU

P AY LIST

UPER

SOU EQ

SUBTITLE

POS T ON MEMORY

SETUP

GROUP

123

DISC

456

7890

CH SELECT

TEST

SUPER SRND

10/ /

VCR(EXT)/

VDP(AUX)

MUT NG

SLOW/SEARCH

DIGITAL

S WOOFER

SKIP

VOLUME

ENTER

SHIFT

S 3D EQ

D SPLA

D REC

NAV ATOR

AV FECT

RETURN

PRO LOG C

SUBTITLE

, , ,

AUDIO

SHIFT

CINEMA

I love you

English

Je t’aime

French

192k24b 2ch

LPCM Digital

1 1 English 3/2.1 ch

Cinema1

LR L R

Soundtrack playing

Soundtrack selected

Audio language

Number of

channels (➡ right)

Signal type/data

(➡ right)

Example [DVD-V]

RQT6894 Basic operations

Discs

Remote control only

Marking places to play again

[RAM] [DVD-A] [DVD-V] [VCD] [CD] [WMA] [MP3] [JPEG]

You can mark a position so you can return to it easily at a later time.

1During play

Press [DISPLAY] until the unit information screen

is displayed (➡

page 26).

2Press [, ] to select the play menu. [A]

3Press [, ] to select “Marker” and press

[ENTER].

[RAM]

Press [] to select an asterisk (_).

4Press [ENTER] at the point you want to mark.

To mark another position

Up to 5 points ([RAM] only: up to 999 points)

1 Press [] to select “_”.

2 Press [ENTER] at the point.

To recall or erase a marker

1 Press [, ] to select a marker.

2 Press [ENTER] to recall or press [SHIFT]K[CANCEL] to erase.

[RAM]

To mark the eleventh point and beyond

1 Press [, ] to select the marker pin icon. [B]

2 Press [, ] to select “11-20”.

You can select the next group when the current group is full.

Note

Markers added with this unit clear when you turn the unit off, change the

source, open the disc tray or change the disc.

Variable Zoom funcion

[RAM] [DVD-V] [VCD]

[DVD-A] (Motion picture parts only)

Change the zoom ratio so the picture expands to the optimum size to fill the

screen.

Preparation

Change the setting “TV Aspect” to suit your television (➡ page 46).

1During play

Press [DISPLAY] until the unit information screen

is displayed (➡ page 26).

2Press [, ] to select the display menu. [C]

3Press [, ] to select “Zoom” and press

[ENTER].

4Press [, ] to select the aspect ratio.

4:3 StandardEuropean Vista16:9 Standard



Cinemascope2Cinemascope1American Vista

pRefer to the disc’s instructions and “Screen size” below for the

aspect ratio of the picture.

5Press [, ] to make fine adjustment and press

[ENTER].

The ratio changes in 0.01 units between 1.00 and 1.60 and in 0.02

units between 1.60 and 2.00.

To restore the original ratio

Press [, ] until the ratio returns to 1.00.

pThe ratio also returns to 1.00 when you turn the unit off, change the

source, open the disc tray or change the disc.

pThe ratio may return to 1.00 when a menu is displayed.

[D] Screen size

Movies are made using a variety of screen sizes.

CANCEL

PLAY MODE

M X 2CH

AUDIO

TAPE/

DECK 1/ 2

DVD

TUNER/

BAND

SLEEP

TOP MENU

P AY LIST

UPER

SO EQ

SUBTITLE

POS TION MEMORY

SETUP

GROUP

123

DISC

456

7890

CH SELECT

TEST

SUPER SRND

10/ /

VCR(EXT /

VDP(AUX)

MUTING

SLOW SEARCH

DIGITAL

S WOOFER

SKIP

VOLUME

ENTER

SH FT

S 3D EQ

D SPLA

DIRE

NAVI ATOR

AV FECT

RETURN

PRO LOG C

OFF

SHIFT

CANCEL

DISPLAY

, , ,

ENTER

OFF

Marker

Zoom

16:9 Standard

4:3 Standard

European Vista (1.66:1)

American Vista (1.85:1)

Cinemascope1 (2.35:1)

Cinemascope2 (2.55:1)

Example [DVD-V]

RQT6894 Basic operations

Discs

ARepeat play

[RAM] [DVD-A] [DVD-V] [VCD] [CD] [WMA] [MP3] [JPEG]

During play

Press [REPEAT].

Each time you press the button:

[RAM]

ProgramAll (Entire disc)Off

pDuring play list play

ScenePlaylistOff

[DVD-V]

ChapterTitleOff

[DVD-A]

[WMA] [MP3] (There is no on-screen display.)

TrackGroupaOff

aDuring all group play, “All” is displayed. [DVD-A]

[JPEG]

GroupOff

[VCD] [CD] (There is no on-screen display.)

Entire discOff

Use the PLAY MODE function if you want to listen to all discs repeatedly

(➡ page 21, ALL DISC play). [VCD] [CD]

To repeat only your favorite tracks [VCD] [CD]

Program the tracks you want (➡ page 20).

Press []. Play will start.

Press [REPEAT] to display “7”.

BA-B repeat play

[RAM] [DVD-A] [DVD-V] [VCD] [CD] [WMA] [MP3]

1During play

Press [A-B REPEAT] at the starting point (A).

2Press [A-B REPEAT] at the finishing point (B).

To cancel A-B repeat play

Press [A-B REPEAT] to clear “7” on the tuner/amplifier.

CAll group play

[DVD-A]

Remote control only

Preparation:

Ensure a DVD-Audio is in the play position tray.

1While stopped

Press [PLAY MODE] to display “ALL GROUP” on

the tuner/amplifier.

Each time you press the button:

ALL GROUP(off)

2Press [] (play).

Note

If you select bonus groups, you will have to enter a password (➡ page 16).

✱

A B

A-B REPEAT

REPEAT

CANCEL

PLAY MODE

MIX 2CH

AUD O

TAPE/

DECK 1/ 2

DVD

TUNER/

BAND

SLEEP

TOP MENU

PLAY LIST

SUPER

SOUND EQ

SUBT TLE

POSITION MEMORY

SETUP

GROUP

123

DISC

456

7890

CH SELECT

TEST

SUPER SRND

10/ /

VCR EXT)/

VDP(AUX)

MUTING

SLOW SEARCH

DIG TAL

S WOOFER

SKIP

VOLUME

ENTER

SHIFT

S 3D AI EQ

DISPLAY

DIRECT

NAV GATOR

AV EFFECT

RETURN

PRO LOGIC

PLAY MODE

Program

RQT6894 Basic operations

Discs

Program play

[VCD] [CD]

Remote control only

You can select up to 24 tracks on any of the loaded Video CDs or CDs to

play in the order you choose.

Preparation:

Ensure a Video CD or CD is in the play position tray. (Program play is not

possible if the play position tray is empty or contains a disc other than a

Video CD or CD.)

1While stopped

Press [PLAY MODE] to display “PRGM” on the

tuner/amplifier.

Each time you press the button:

ALL DISCPRGMRANDOM(off)

$

2Press [DISC] and (within 10 seconds) [1]–[5] to

select the disc.

3Select the track with the numbered buttons.

For tracks numbered 10 and over, press [510/-/--] then the two digits.

The tuner/amplifier shows the disc number, track number and pro-

grammed order.

Repeat steps 2 and 3 to program the tracks in the required order.

4Press [] (play).

To exit program mode

Press [PLAY MODE] while in the stop mode to clear “PRGM” on the tuner/

amplifier.

Program contents will be saved in the memory.

You can do the following while the disc is stopped in pro-

gram mode

Press [w] to cancel the resume function (➡ page 14) if it is on.

pChecking program contents

Each time you press [SKIP ( or )], the disc number, track number

and program order are displayed.

pAdding to the program

Repeat steps 2 and 3.

pCanceling a particular track

Select the track with [SKIP ( or )] then press [SHIFT]K

[CANCEL].

pCanceling all tracks

Hold [w] for 3 seconds.

If “FULL” is displayed

24 tracks have been programmed. No further tracks can be programmed.

Note

pDiscs and tracks the unit cannot find can be programmed but are skipped

during play. This is also the case if you program a disc other than a Video

CD or CD.

pSkipping is done in the programmed order.

pYou can search only within a track being played.

PRGM

DISC

PRGM

DISC

123

456

7890

10/-/--

123

DISC

PRGM

PLAY MODE

DISC

PRGM

CANCEL

PLAY MODE

MIX 2CH

AUDIO

TAPE/

DECK 1/ 2

DVD

TUNER/

BAND

SLEEP

TOP MENU

PLAY L ST

SUPER

SOUND EQ

SUBT TLE

POSIT ON MEMORY

SETUP

GROUP

123

D SC

456

7890

CH SELECT

TEST

SUPER SRND

10/ /

VCR(EXT)/

VDP(AUX)

MUTING

SL W/SEARCH

D GITAL

S WOOFER

SKIP

VOLUME

ENTER

SHIFT

S 3D AI EQ

DISPLAY

D RECT

NAVIGATOR

AV EFFECT

RETURN

PRO LOGIC

DISC

SKIP

PLAY MODE

CANCEL

SHIFT

Numbered

buttons

RQT6894 Basic operations

Discs

Remote control only

Random play

[VCD] [CD]

Plays all discs once each in random order.

Ensure a Video CD or CD is in the play position tray. (Random play is not

possible if the play position tray is empty or contains a disc other than a

Video CD or CD.)

1While stopped

Press [PLAY MODE] to display “RANDOM” on the

tuner/amplifier. [A]

Each time you press the button:

ALL DISCPRGMRANDOM(off)

$

2Press [] (play) .

To exit random mode

Press [PLAY MODE] while in the stop mode to clear “RANDOM” on the

tuner/amplifier.

Note

pIf the disc is a Video CD with PBC, menu play is automatically canceled

during random play.

pThis function skips discs other than a Video CD or CD.

pYou cannot skip to tracks already played.

pYou can search only within a track being played in random play.

ALL DISC play

[VCD] [CD]

You can play up to 5 discs in succession to the final disc.

Ensure a Video CD or CD is in the play position tray. (ALL DISC play is not

possible if the play position tray is empty or contains a disc other than a

Video CD or CD.)

1While stopped

Press [PLAY MODE] to display “ALL DISC” on the

tuner/amplifier. [B]

Each time you press the button:

ALL DISCPRGMRANDOM(off)

$

2Press [] (play).

To cancel

Press [PLAY MODE] while in the stop mode to clear “ALL DISC” on the

tuner/amplifier.

Final disc

For example, if play starts from disc 4, disc 3 will be the final disc.

Order of progression: Disc 45123

Starting play from a selected item

[RAM] [DVD-A] [DVD-V] [VCD] [CD] [WMA] [MP3] [JPEG]

1Press [DISC] and (within 10 seconds) [1]–[5] to

select the disc.

Play starts from the first item.

pIf a menu appears (Video CD with PBC), press [w] to cancel menu

play.

2Press the numbered buttons to select the item.

Play starts from the selected item.

To select a 2-digit number

Example: To select track 23, press [510/-/--] ➡ [2] ➡ [3].

[WMA] [MP3] [JPEG]:[2] ➡ [3] ➡ [ENTER]

Note

This works only when stopped with some discs.

ENTER

ALL

DISC

RANDOM

CANCEL

PLAY MODE

MIX 2CH

AUDIO

TAPE/

DECK 1/ 2

DVD

TUNER/

BAND

SLEEP

TOP MENU

PLAY L ST

SUPER

SOUND EQ

SUBTITLE

POSIT ON MEMORY

SETUP

GROUP

123

D SC

DISC

456

7890

CH SELECT

TEST

SUPER SRND

10/ /

VCR(EXT)/

VDP(AUX)

MUT NG

S OW/SEARCH

D GITAL

S WOOFER

SKIP

VOLUME

ENTER

SHIFT

S 3D AI EQ

DISPLAY

D RECT

NAVIGATOR

AV EFFECT

RETURN

PRO LOGIC

PLAY MODE

Numbered

buttons

RQT6894 Basic operations

TAPE/

DECK 1/ 2

DVD

TUNER/

BAND

SLEEP

TOP MENU

P AY LIST

UPER

SO D EQ

SUBTITLE

POSIT ON MEMORY

SETUP

GROUP

123

D SC

456

7890

CH SELECT

TEST

SUPER SRND

10/ /

VCR(EXT)/

VDP(AUX)

ENTER

S 3D EQ

D SPLAY

D REC

NAVI ATOR

AV FECT

RETURN

PRO LOGIC

PLAY LIST

, , ,

ENTER

TOP MENU

DIRECT

NAVIGATOR

NextPrev Tree

Group: 001 Penguins Picture: filename00..

SELECT

ENTER RETURN

G 1

P 1

Total 1

SELECT

NUMBER

JPEG ALBUM

1 2 3

001 Both Ends Freezing

002 Lady Starfish

003 Life on Jupiter

004 Metal Glue

005 Paint It Yellow

006 Pyjamamama

007 Shrimps from Mars

008 Starperson

009 Velvet Cuppermine

010 Ziggy Starfish

NextPrev

No Group: 001 My favorite Tree

Find

SELECT

ENTER RETURN

G 1

T 1

Total 1

SELECT

NUMBER

PLAYLIST

No Date Length Title

0 46:35

0:09:15

0:12:32

0:07:30

SELECT

ENTER RETURN

10/17

10/24

11/29

12/22

SELECT

NUMBER

Clay Penguin

Ashley at Prom

Formula one

Soccer

0:30:2012/23 Baseball

0:08:1512/23 Neanderthal

0:15:3012/24 Cartoons

0 20:3012/24 Trilobites

0 20:0012/25 White Dwarf

0:55:0012/25 Discovery

DIRECT NAVIGATOR

Date On

12 23(SAT)

12 26(TUE)

1/12(FRI)

1/24(WED)

2/20(TUE)

21:02

14:35

20:00

19:30

19:05

SELECT

ENTER RETURN

SELECT

NUMBER

Saturday feature

Auto action

Sunday Cinema

Music

Baseball

Program Title

USED 2 00 27

Playing the programs or play lists on

DVD-RAM

[RAM]

Remote control only

Selecting a program to play—DIRECT

NAVIGATOR

Use the program list to find programs to play.

1Press [DIRECT NAVIGATOR]. [A]

2Press [3, 4] to select the program.

The selected program plays in the background.

≥You can select programs with the numbered buttons.

To select a 2-digit number

Example 23: [S10/-/--] ➡ [2] ➡ [3].

3Press [ENTER].

The program being played in the background continues.

To clear the program list

Press [DIRECT NAVIGATOR].

Note

≥Titles appear only if you have entered them.

≥You cannot change program and disc titles.

Using the play list menu

You can play a group of scenes, a play list, created on other equipment

such as a DVD video recorder.

1Press [PLAY LIST]. [B]

2Press [3, 4] to select the play list.

≥You can select play lists with the numbered buttons.

To select a 2-digit number

Example 23: [S10/-/--] ➡ [2] ➡ [3]

3Press [ENTER] to start play.

To clear the play list screen

Press [PLAY LIST].

Navigation menus

If the disc contains both audio data (WMA and MP3) and JPEG,

check “Mixed Disc—Audio & Stills” setting in the SETUP menu

(➡ page 46). Select “Audio (MP3/WMA)” or “Stills (JPEG)”.

[WMA] [MP3] [CD] (CD text only) [JPEG]

Remote control only

These menus help you find items to play.

1Press [TOP MENU].

[C] [WMA] [MP3] Audio navigation menu

“0” indicates the track currently playing.

[D] [JPEG] Album display

2Press [3, 4] to select a track or [3, 4, 2, 1] to

select the picture, and press [ENTER].

To show other pages, press [3, 4, 2, 1] to select “Prev” or “Next”

and press [ENTER].

≥After listing all the tracks or pictures in one group, the list for the

next group appears.

To exit the menu

Press [TOP MENU].

Numbered

buttons

RQT6894 Basic operations

CANCEL

PLAY MODE

MIX 2CH

AUD O

TAPE/

DECK 1/ 2

DVD

TUNER/

BAND

SLEEP

TOP MENU

P AY LIST

UPER

SO EQ

SUBTITLE

POS TION MEMORY

SETUP

GROUP

123

DISC

456

7890

CH SELECT

TEST

SUPER SRND

10/ /

VCR EXT)/

VDP(AUX)

MUTING

SLOW SEARCH

DIG TAL

S WOOFER

SKIP

VOLUME

ENTER

SHIFT

S 3D EQ

DISPLA

DIREC

NAV ATOR

AV FECT

RETURN

PRO LOG C

RETURN

, , ,

ENTER

SKIP

Board T p

Fall In The Frozen Season

Violet Sky

Pink Island

NextPre

SELECT

ENTER RETURN

SELECT

NUMBER

Find

Tree

G 7/16

MP3 music

001 My favorite

001 Brazilian pops

002 Chinese pops

003 Czech pops

004 Hungarian pops

005 Liner notes

006 Japanese pops

007 Mexican pops

008 Philippine pops

009 Swedish pops

001 Momoko

002 Standard number

001 Piano solo

002 Vocal

SELECT

ENTER RETURN

G 8

T 14

Total 123

SELECT

NUMBER

SELECT

ENTER RETURN

T 10 /14

MENU Contents

Track 10 Title/Artist

Pink Island

Long John Platinum

Disc Title/Artist

SHIPWRECKED

ORIGINAL SOUNDTRACK

Navigation menus

Remote control only

Track title search

[WMA] [MP3] [CD] (CD text only)

Example: finding a track including the word “LOVE”

1While the menu is displayed (➡ page 22)

Press [3, 4] to select “Find” and press [ENTER].

[A]

2Press [3, 4] to select “L” and press [ENTER].

Characters change in alphanumeric order each time you press [3].

Repeat this step to enter “O”, “V”, and “E”.

≥Press [SKIP (: or 9)] to skip between A, E, I, O, and U.

≥Only uppercase appear but the search also includes lower case.

≥Press [2] to erase a character.

≥You can erase the asterisk (¢) to search for the first word in a title.

≥You can enter numbers with the numbered buttons.

3Press [1] to select “Find” and press [ENTER].

The search results screen appears.

4Press [3, 4] to select the track and press

[ENTER].

To return to the menu

Press [RETURN].

To use the tree screen to find a group

[WMA] [MP3] [JPEG]

1While the menu is displayed (➡ page 22)

[WMA] [MP3]

Press [1] while a track is highlighted to display a

tree screen. [B]

[JPEG]

Press [3, 4, 2, 1] to select “Tree” and press

[ENTER].

2Press [3, 4, 2, 1] to select a group and press

[ENTER].

The audio navigation menu/album display for the group appears.

To return to the menu

Press [RETURN].

To use the contents screen to find a track

[CD] (CD text only)

You can use the text information recorded on these discs to find a track to

play.

1While the menu is displayed (➡ page 22)

Press [1] while a track is highlighted to display

the contents screen. [C]

2Press [2, 1] to move through the tracks and

press [ENTER].

To return to the menu

Press [RETURN].

You cannot select groups that contain no compatible files.

See page 48 for more information about WMA, MP3, and JPEG.

Numbered

buttons

Example MP3

RQT6894 Basic operations

CANCEL

PLAY MODE

MIX 2CH

AUD O

TAPE/

DECK 1/ 2

DVD

TUNER/

BAND

SLEEP

TOP MENU

P AY LIST

UPER

SOU EQ

SUBTITLE

POS TION MEMORY

SETUP

GROUP

123

DISC

456

7890

CH SELECT

TEST

SUPER SRND

10/ /

VCR EXT)/

VDP(AUX)

MUTING

SLOW SEARCH

DIG TAL

S WOOFER

SKIP

VOLUME

ENTER

SHIFT

S 3D EQ

DISPLA

DIRE

NAV GATOR

AV FECT

RETURN

PRO LOG C

DISPLAY RETURN

2 2 1 : 46 : 50

, , ,

ENTER

Using GUI screens

[RAM] [DVD-A] [DVD-V] [VCD] [CD] [WMA] [MP3] [JPEG]

Remote control only

GUI screens are menus that contain information about the disc or unit.

These menus allow you to perform operations by changing this information.

Common procedures

1Press [DISPLAY].

Each time you press the button:

Disc information (➡ page 25)_)Progress indicator (➡ below)

: ;

Original display(-----------------------=Unit information (➡ page 26)

2[Unit\information\only]

While the leftmost icon is highlighted

Press [3, 4] to select the menu.

Each time you press the button:

Play menu()Display menu

;;

Picture menu()Audio menu

3Press [2, 1] to select the item.

4Press [3, 4] to select the setting.

≥Items with “3” or “4” above and below can be changed by [3, 4].

≥Press [ENTER] if the setting does not change after pressing [3, 4].

≥Some items require different operations. Read the explanations on

the following pages.

For your reference

≥Depending on the condition of the unit (playing, stopped, etc.) and the

type of software you are playing, there are some items that you cannot

select or change.

≥When numbers are displayed (e.g. title No.), the numbered buttons are

also effective for setting. After entering the numbers, press [ENTER] to

To clear the menus

Press [RETURN] until the menus disappear.

∫To change the position of the icons

1 Press [2, 1] to select the rightmost icon.

2 Press [3, 4] to move the icons.

(There are 5 positions.)

AProgress indicator

Indicates how far you have played through an item.

1Current position [RAM] [DVD-A] [DVD-V] [VCD] [CD] [WMA] [MP3]

2PG: Program number [RAM]

PL: Play list number [RAM]

T: Title number [DVD-V]

Track number [VCD] [CD]

G: Group number [DVD-A] [WMA] [MP3] [JPEG]

3T: Track number in group [DVD-A] [WMA] [MP3]

C: Chapter number [DVD-V]

P: Picture number [JPEG]

4Condition - play, pause, or slow/search

[RAM] [DVD-A] [DVD-V] [VCD] [CD] [WMA] [MP3]

Play speed (➡ below)

5Changing the time display [RAM] [DVD-A] [DVD-V] [VCD] [CD]

Press [3, 4] to show the elapsed play time or remaining time for the

program, play list, track or title.

Elapsed play time [WMA] [MP3]

(display only, cannot be changed)

Changing play speed

[DVD-A] (Motion picture parts only) [DVD-V] (Dolby Digital only)

You can slow down or speed up play.

During play

Press [2] (slower) or [1] (faster).

There are five speeds:

k0.8()k0.9()k1.0 (normal speed)()k1.2()k1.4

After you change the speed, output is in stereo.

Sound is stereo as long as “k1.0” is orange.

To return to normal play (surround sound), press [1] (play) or [ENTER].

Normal play is also restored when you return the speed to k1.0 and clear

the progress indicator.

Example [DVD-V]

Numbered

buttons

RQT6894 Basic operations

Unless otherwise indicated, select items with [2, 1] and change with [3, 4].

Disc information

PG: Program number [RAM]

PL: Play list number [RAM]

G: Group number [DVD-A] [WMA] [MP3] [JPEG]

T: Title number [DVD-V]

Track number [VCD] [CD]

T: Track number in group

[DVD-A] [WMA] [MP3]

C: Chapter number [DVD-V]

P: Picture number [JPEG]

Time [RAM] [DVD-A] [DVD-V]

Select a position to start play by specifying a time.

[3, 4]

;

[ENTER]

Numbered

buttons

;

[ENTER]

Changing the time display

[RAM] [DVD-A] [DVD-V] [VCD] [CD]

([WMA] [MP3] Display only)

[)Elapsed play time for the program, play list, title or track

l :;

lRemaining time for the group ([DVD-A]) or disc ([VCD] [CD])

l :;

{)Remaining time for the program, play list, title or track

Soundtrack language (➡ page 17) [DVD-A] [DVD-V]

Subtitle language (➡ page 17) [DVD-A] [DVD-V]

Subtitles on/off [RAM] [DVD-A] [DVD-V]

Track information on/off [WMA] [MP3] [CD] (CD text only)

Picture information [JPEG]

Full: Group title, picture title, file size, picture size, date of

shooting, and camera model used.§

Date: Date of shooting only.

OFF: No display.

§Actual displays depend on the camera and conditiion of the

data.

Angle number [DVD-A] [DVD-V]

Rotating pictures [JPEG]

0()90()180()270

^-------------------------------------J

Track/picture number in disc

[WMA] [MP3] [JPEG]

Total number of tracks/pictures on disc

[WMA] [MP3] [JPEG]

;

[3, 4]

;

[ENTER]

Display

only

Karaoke vocal on/off [DVD-V] (Karaoke DVD only)

If a DVD title is a duet, select V1 or V2 to duet with the unit.

Audio mode [RAM] (➡ page 17)

LR()L()R

^--------------------J

Display

only

Current bitrate (kbps) [WMA] [MP3]

Current sampling frequency (kHz)

[WMA] [MP3]

Slideshow setting on/off [JPEG]

Slideshow timing [JPEG]

0–30 sec

Menu play [VCD]

(with playback control only)

Still picture number [DVD-A]

≥To return to page 1

[2, 1] ➡ Select “Return” ➡ [ENTER]

Slideshow [DVD-A]

Picture number

Display

only

Display

only

ENG: English

FRA: French

DEU: German

ITA: Italian

ESP: Spanish

NLD: Dutch

Audio/Subtitle language

SVE: Swedish

NOR: Norwegian

DAN: Danish

POR: Portuguese

RUS: Russian

JPN: Japanese

CHI: Chinese

KOR: Korean

MAL: Malay

VIE: Vietnamese

THA: Thai

¢: Others

Return

RQT6894 Basic operations

Using GUI screens

Unit information

Audio menu

Picture menu

Display menu

Double re-master

(➡ page 30)

[RAM] [DVD-A] [DVD-V] [CD] [WMA] [MP3]

Dialogue Enhancer on/off [DVD-V]

(Discs where the dialogue is recorded in the center

channel)

This makes the dialogue in movies easier to hear.

Zoom (➡ page 18) [RAM] [DVD-A] [DVD-V] [VCD]

Subtitle Position/Brightness

[DVD-A] [DVD-V]

≥Position (0 to s60): in 2 unit steps

≥Brightness (Auto§/0 to s9)

§The brightness adjusts automatically against the

background.

Bitrate display on/off

[RAM] [DVD-A] [DVD-V] [VCD]

During play: shows the bitrate(approximate values) of the

video being played

While paused: shows the data volume of the frame and type

of picture

(➡ page 48, Glossary—I/P/B)

OSD brightness (s3 to i3)

Adjust the brightness of the on-screen displays.

A record of bitrates for

a sample period.

Average bitrate

Current bitrate

To change the user mode

1 Select User mode and press [1] to highlight the number.

2 Press [3, 4] to select “1” or “2”.

U1: MPEG D.N.R. (Digital Noise Reduction)

Picture mode (➡ page 17, Cinema)

≥N: Normal mode

≥S: Soft mode (Soft picture with fewer video artifacts)

≥F: Fine mode (Details are sharper)

≥C1: Mellows images and enhances detail in dark scenes

≥C2: Sharpens images and enhances detail in dark scenes

≥U1/U2: User mode (➡ below)

Depth Enhancer (0 to i4)

Reduces the rough noise in the background to give a greater

feeling of depth.

3D-NR (0 to i4)/Dot NR (On)

Reduces overall noise/Reduces the dot noise that occurs at

the borders between colors.

Block NR (0 to i3)

Smoothes block noise.

Mosquito NR (0 to i3)

Reduces the smudging that appears around contrasting

sections of the picture.

Contrast (s7 to i7)

Increases the contrast between light and dark parts of the picture.

Brightness (0 to i15)

Brightens the picture.

Sharpness (s7 to i7)

Adjusts the sharpness of the edges of the horizontal lines.

Colour (s7 to i7)

Adjust the shade of the picture’s colour.

Gamma (0 to i5)

Emphasis of outlines.

[RAM] [DVD-A] [DVD-V] [VCD] [J

[JPEG]

Play menu

A-B repeat (➡ page 19)

[RAM] [DVD-A] [DVD-V] [VCD] [CD] [WMA] [MP3]

Repeat mode (➡ page 19)

[RAM] [DVD-A] [DVD-V] [JPEG]

Play mode (➡ page 19) [DVD-A]

---: Normal play

ALL: All group play

Marker

[RAM] [DVD-A] [DVD-V] [VCD] [CD] [WMA] [MP3] [JPEG]

[ENTER]

Display only

➡ page 18

U 2

[ , ]

RQT6894 Basic operations

The radio: manual tuning

Radio stations can be tuned manually by selecting the station’s frequency

or they can be preset into channels to make it easy to tune (➡ page 28).

Preparation: Press [Í/I] to turn the unit on.

1Press [TUNER/BAND] to display FM or AM on the

tuner/amplifier.

Each time you press the button: FMbAM

2Press [TUNING MODE] to display “MANUAL” on

the tuner/amplifier.

Each time you press the button: MANUALbPRESET

3Press [TUNING (X or W)] to tune in the desired

broadcast.

If you press and hold [TUNING (X or W)] for a moment, the frequency

starts changing automatically. It stops when a station is found.

It may also stop if there is outside interference. Press and hold

[TUNING (X or W)] again to restart. You can also stop the frequency

changing by pressing [TUNING (X or W)].

“TUNED” is displayed when a radio station is tuned.

“ST” is displayed when a stereo FM broadcast is being received.

4Adjust the volume.

ªIf noise is excessive in FM

Press [FM AUTO/MONO] to display “MONO”.

This mode improves sound quality if reception is weak for some reason but

broadcasts are heard in monaural.

Press [FM AUTO/MONO] again to cancel the mode. “MONO” goes out.

MONO is also canceled if the frequency is changed.

Turn off “MONO” for normal listening. Stereo and monaural broadcasts are

automatically played as they are received.

Stations can be preset in monaural. Carry out presetting manually

(➡ page 28).

RDS broadcasting

ª[For\the\United\Kingdom,\Continental\Europe\and\Russia]

This unit can display the text data transmitted by the radio data system

(RDS) available in some areas.

If the station you are listening to is transmitting RDS signals, “RDS” will light

up on the display.

Displaying the text data

Press [PS–DISP MODE] to display a station name.

Press [DISP MODE–PTY] to display a program type.

Each time you press the button:

Frequency displaybPS or PTY display

Note

RDS displays may not be available if reception is poor.

§“M.O.R M”l“Middle of the road music”.

MHz

TUNED

MHz

RDS PS

RDS

PTY

MONO

MHz

DISP MODE

RDS

PTYPS

TUNER/BAND

FM AUTO/

MONO

TUNING MODE

VOLUME

DOWN

-- dB

MIN 0 dB

MAX

231 4

FM AUTO/

MONO

RDS

PS-DISP MODE-PTY

TUNING

NEWS VARIED FINANCE COUNTRY

AFFAIRS POP M CHILDREN NATIONAL

INFO ROCK M SOCIAL A OLDIES

SPORT M.O.R M RELIGION FOLK M

EDUCATE LIGHT M PHONE IN DOCUMENT

DRAMA CLASSICS TRAVEL TEST

CULTURE OTHER M LEISURE ALARM

SCIENCE WEATHER JAZZ

PTY displays

RQT6894 Basic operations

MHz

SET

TUNER/

BAND

VOLUME

123

456

7890

10/-/--

SETTUNING MODE

TUNING

CANCEL

PLAY MODE

M X 2CH

AUDIO

TAPE/

DECK 1/ 2 DVD TUNER/

BAND

SLEEP

TOP MENU

PLAY L ST

SUPER

OUND EQ

SUBT TLE

PO IT ON M MO Y

SETUP

GROUP

123

D SC

456

7890

CH SELECT

TEST

SUPER SRND

10/-/-

VCR EXT)/

VDP AUX)

MUTING

SLOW/SEARCH

DIGITAL

S WOOFER

SKIP

VOLUME

ENTER

SHIFT

S 3D AI EQ

D SPLAY

D RECT

NAV GATOR

AV EFFECT

RETURN

PRO LOG C

The radio: preset tuning

There are two methods of presetting stations.

Automatic presetting: The stations the tuner can receive are preset.

Manual presetting: You can select the stations to preset and the order

they are preset in.

There are 39 channels available for presetting.

AAutomatic presetting

Do the following once each for FM and AM.

Preparation: Tune to the frequency presetting is to begin at (➡ page 27).

Hold down [SET].

Release the button when “AUTO MEMORY” appears on the tuner/amplifier.

The tuner presets all the stations it can receive into the channels in ascend-

ing order. FM stations are preset into channels 1 to 39, and AM stations are

preset into channels 21 to 39.

“SET OK” is shown when presetting is complete and the last station to be

preset is played.

“ERROR” is displayed if the tuner doesn’t receive any stations. Do preset-

ting manually if this happens (see below).

Note

AM stations replace any FM channels that were preset in channels 21

to 39.

BManual presetting

Preset the stations one at a time.

1Tune to the required station.

2Press [SET].

3Press [TUNING (X or W)] to select a channel.

4Press [SET].

The station occupying a channel is erased if another station is preset in that

channel.

CSelecting channels

Preparation: Press [Í] to turn the unit on.

On the remote control

1Press [TUNER/BAND].

2Press the numbered buttons to select the

channel.

For channels 1 to 9 press the corresponding number.

For channels 10 or over press [S10/-/--], then the two digits.

e.g. To select channel 21: [S10/-/--]>[2]>[1]

3Adjust the volume.

On the main unit

1Select “PRESET” with [TUNING MODE].

2Press [TUNING (X or W)] to select the channel.

RQT6894 Basic operations

Cassette tapes

See page 3 for tape selection.

Preparation: Press [Í/I] to turn the unit on.

1Press [< OPEN] on deck 1 or deck 2 and insert

the cassette with a tape facing down.

Close the holder by hand.

2Press [DOLBY NR] to select Dolby NR on (“Î

NR” appears on the tuner/amplifier) or off.

3Press [REV MODE] to select the reverse mode.

The indicator on the tuner/amplifier changes each time you press the

button:

b: One side is played.

d: Both sides are played.

f: Both sides are played 8 times each.

4Press ["] (reverse side) or [!] (forward side).

Play begins and the play indicator changes to green.

5Adjust the volume.

To stop the tape

Press [∫].

[A] To change the deck to be used

Press [DECK 1/2] to select the deck you want to play.

To listen to 2 tapes consecutively

Insert a tape into each deck and select “f”. Both tapes will be played

8 times each.

ªFinding a place on a tape

To fast-forward and rewind

Press [6] or [5] while the tape is stopped.

To find the beginning of a track (TPS: Tape program sensor)

Press [6] or [5] during play.

Play resumes from the beginning.

Manufactured under license from Dolby Laboratories.

“Dolby” and the double-D symbol are trademarks of Dolby

Laboratories.

≥Each deck’s play direction is stored in the system’s memory.

≥You can fast-forward or rewind the tape while you are playing or recording

a tape in another deck.

Press [DECK 1/2] to switch to the deck not playing, and then press

[6] or [5]. After the above operation, be sure to press [DECK 1/2] to

reselect the deck playing.

Note

TPS may not operate correctly in the following situations:

If the interval between tracks is less than 4 seconds.

If there is noise between tracks.

If there are silent parts within tracks.

Dolby noise reduction

Dolby NR reduces “hissing” when playing tapes. It increases the high fre-

quency region when recording and then reduces it in playback. Use the

same system during playback and recording. This unit has Dolby B NR

which reduces noise to a third.

Prerecorded cassettes and equipment marked “ÎNR” use Dolby B NR.

Tape direction rewind fast-forward

!65

"56

forward side

DECK 1/2

DOLBY NR

REV MODE

OPEN

114

DECK 1/2

VOLUME

DOWN

-- dB

MIN 0 dB

MAX

DECK 1 DECK 2

/I 5

RQT6894 Changing sound field and quality

ABoosting the super woofer

Boosting the super woofer adds power to the bass.

Press [DIGITAL S.WOOFER].

The indicator turns green.

The display on the tuner/amplifier changes each time you press the button:

MID (medium)>MAX (high)>cancel (off)

^--------------------------------------------------------}

There is only one level when listening through headphones.

To cancel

Press [DIGITAL S.WOOFER] to turn the indicator off.

BUsing the super sound equalizer

Turning on the super sound equalizer gives you a more powerful sound.

Press [SUPER SOUND EQ].

The indicator turns green.

To cancel

Press [SUPER SOUND EQ] so the indicator turns orange.

ªCDouble re-master—Enjoying more

natural sound

[RAM] [DVD-A] [DVD-V] [CD]

Discs recorded with 2-channel LPCM at 44.1 kHz or 48 kHz

This feature gives you a more natural sound by adding higher frequency

signals not recorded on the disc.

[WMA] [MP3]

Discs recorded at 44.1 kHz or 48 kHz

This feature reproduces the frequencies lost during recording to give you a

sound closer to the original.

During play

Press [DOUBLE RE-MASTER].

DOUBLE RE-MASTER indicator lights up.

Each time you press the button:

SUPER

SOUND EQ MULTI JOG

SUPER

SOUND EQ

DIGITAL

S.WOOFER

HEAVY

CLEAR HALL

SOFT AI EQ

M.EQ

FLAT

MULTI JOG

DIGITAL

S. WOOFER

DISC

D SC

D RECT OPEN

D SC

DISC

D SC

DOUBLE RE-MASTER

[RAM] [DVD-A] [DVD-V] [CD]

Type of music

High tempo (e.g.,pops and rock)

Various tempos (e.g., jazz)

Low tempo (e.g., classical)

off

Setting

OFF

DChanging sound field and quality

Turn [MULTI JOG] to select a setting.

The display on the sound processor changes each time you turn the jog:

HEAVY: Adds punch to rock.

CLEAR: Clarifies higher sounds.

SOFT: For background music

HALL: Expands sound to make you feel like you were in a hall.

AI-EQ: Adjust sound with the acoustic image equalizer (➡ page 31).

M.EQ: Create your own effects (➡ page 31).

FLAT: Canceled (no effect is added).

On the remote control

Press [SHIFT]i[EQ].

To cancel

Turn [MULTI JOG] to select “FLAT”.

Note

Turn off the effect if sound quality reduces when using HALL with a source.

DChanging sound field and quality

Turn [MULTI JOG] to select a setting.

The display on the sound processor changes each time you turn the jog:

HEAVY: Adds punch to rock.

CLEAR: Clarifies higher sounds.

SOFT: For background music

HALL: Expands sound to make you feel like you were in a hall.

AI-EQ: Adjust sound with the acoustic image equalizer (➡ page 31).

M.EQ: Create your own effects (➡ page 31).

FLAT: Canceled (no effect is added).

On the remote control

Press [SHIFT]i[EQ].

To cancel

Turn [MULTI JOG] to select “FLAT”.

Note

Turn off the effect if sound quality reduces when using HALL with a source.

[WMA] [MP3]

Effect level

Light

Medium

Strong

off

RQT6894 Changing sound field and quality

Changing sound field and quality

AUsing the acoustic image equalizer (AI EQ)

Achieve subtle sound quality settings with the soft, sharp, heavy, and light

coordinates.

1Turn [MULTI JOG] to display “AI-EQ” on the

sound processor.

2Press [SUPER 3D AI EQ] to select the surround

level.

Each time you press the button:

AI EQ>SUPER 3D AI 1>SUPER 3D AI 2

^----------------------------------------------------------}

SUPER 3D AI 1: Adds a surround effect to the AI EQ.

SUPER 3D AI 2: Adds a stronger surround effect to the AI EQ.

3Change the sound quality with [2, 1, 3, 4].

Adjust softness and sharpness with [2, 1].

Adjust heaviness and lightness with [3, 4].

The original display is restored on the display panel in about

5 seconds.

To cancel

Turn [MULTI JOG] to select “FLAT”.

The changes you make are stored and automatically recalled the next time

you select AI EQ.

Note

≥Turn off the effect if sound quality reduces when using SUPER 3D AI EQ

with a source.

≥You cannot select “SUPER 3D AI 1” or “SUPER 3D AI 2” while:

≥Using a surround system (➡ page 32)

≥Karaoke mode is on (➡ page 42)

≥Listening to the radio

≥Playing a DVD (except for MIX 2CH mode, ➡ page 33)

≥Using headphones

BUsing the manual equalizer (M.EQ)

Create your own sound quality effects.

1Turn [MULTI JOG] to display “M.EQ” on the

sound processor.

2Change the sound quality with [2, 1, 3, 4].

1Select the sound range to be adjusted with [2] or [1].

2Adjust the level with [3] or [4].

Repeat step 2 to set the desired sound quality.

The original display is restored on the display panel in about

5 seconds.

To cancel

Turn [MULTI JOG] to select “FLAT”.

Note

The changes you make are stored and automatically recalled the next time

you select the manual equalizer.

MULTI JOG

SUPER

3D AI EQ

LOW HIGHMID

HEAVY

SOFT SHARP

LIGHT

MULTI JOG

FLAT

HEAVY

CLEAR

SOFT

HALL

AI-EQ

M.EQ

FLAT

HEAVY

CLEAR

SOFT

HALL

AI-EQ

M.EQ

1, 3, ,

RQT6894 Changing sound field and quality

Software

Any stereo sound source except for

the radio.

Software encoded with Dolby Digital

can be identified with this mark.

Software encoded with DTS can be

identified with this mark.

Software encoded with Dolby

Surround can be identified with this

mark.

≥DVD

≥Video CD

≥CD

≥Laser Disc

≥Video tape

Additional effects

See below for details.

ACENTER FOCUS

BVIRTUAL REAR

SURROUND

CMULTI REAR

SURROUND

DSEAT POSITION

ACENTER FOCUS

BVIRTUAL REAR

SURROUND

CMULTI REAR

SURROUND

DSEAT POSITION

BVIRTUAL REAR

SURROUND

CMULTI REAR

SURROUND

DSEAT POSITION

When you turn on one of the surround systems, the indicators

for the additional effects you can use also light.

CMULTI REAR SURROUND (➡ page 34)

This mode makes it seem like there are multiple

surround speakers in your room, increasing the

cinema-like atmosphere.

DSEAT POSITION (➡ page 34)

This mode helps maintain the sound position

even if the listening position itself is changed.

Surround

system Features

SUPER

SUR-

ROUND

(➡ page 33)

MUSIC

DOLBY

DIGITAL and

DTS

(➡ page 33)

≥Dolby Digital and DTS are digital encoding

systems used on DVD to carry surround

sound. Both were originally developed for

use in cinemas.

≥This unit automatically recognizes and

decodes these systems.

DOLBY PRO

LOGIC

(➡ page 33)

≥This unit has built-in Dolby Pro Logic

circuitry so you can enjoy Dolby Surround.

≥Dolby Pro Logic is a decoding system that

was developed to get a better sense of

presence from sources encoded with Dolby

Surround. The feeling of position has been

improved by the addition of a separate

center speaker channel.

≥This mode adds surround effects to movie

software that hasn’t been recorded with the

above systems.

≥In MOVIE mode you can adjust the volume

of the surround speakers to get the best

surround effect.

The following chart gives a summary of this unit’s surround features. It also

shows additional effects that can be used to enhance your enjoyment.

Note

≥All the features are only effective if speakers are used.

≥You may experience a reduction in sound quality when these surround

systems and effects are used with some sources. If this occurs, turn the

surround system or effect off.

This mode adds surround effects to stereo

sources.

MOVIE

Additional Effects

ACENTER FOCUS (➡ page 34)

≥This mode makes it seem like the sound from

the center speaker is coming from within the

television.

≥The center speaker should be placed above

the television.

BVIRTUAL REAR SURROUND

(➡ page 34)

≥This mode is useful if you have to place your

surround speakers near the front speakers

due to the layout of your room.

≥This mode makes it seem like the sound from

the surround speakers is coming from behind

you. Virtual speakers

Virtual speakers

≥DVD

Enjoying surround sound

RQT6894 Changing sound field and quality

DOLBY DIGITAL and DTS

Play a DVD encoded with Dolby Digital or DTS.

“ÎDIGITAL” or “DTS” appears on the tuner/amplifier.

To down-mix Dolby Digital or DTS (5.1ch) signals to

2 channels

Press [SHIFT]i[MIX 2CH].

To cancel

Press [SHIFT]i[MIX 2CH] again.

When “D.MIX” is flashing [DVD-A]

The DVD-Audio contains multiple-channel signals that cannot be down-

mixed.

DOLBY PRO LOGIC

1Press [Î PRO LOGIC, OFF/ON].

The indicator turns green.

2Playback a Dolby Surround source.

To cancel

Press [Î PRO LOGIC, OFF/ON] so the indicator turns off.

Note

≥This does not work when playing multi-channel Dolby Digital.

≥Turn Dolby Pro Logic off when playing a DVD recorded with

5.1-channel Dolby Digital or DTS. The surround effects will not be repro-

duced correctly if this is left on.

1SUPER

SURROUND

CANCEL

PLAY MODE

MIX 2CH

AUD O

TAPE/

DECK 1 2

DVD

TUNER/

BAND

SLEEP

TOP MENU

PLAY LIST

S PER

SOUND E

SUBTITLE

POS TION MEMORY

SETUP

GROUP

123

DISC

456

7890

CH SELECT

TEST

SUPER SRND

10/-/--

VCR(EXT /

VDP(AUX)

MUT NG

SLOW SEARCH

D G TAL

S WOOFER

SKIP

VOLUME

ENTER

SH FT

S D AI Q

DISPLAY

D RECT

NAVIGATOR

AV EF ECT

RETURN

PRO LOGIC

MIX 2CH

SHIFT

CH SELECT

TEST ,

SUPER SURROUND

Press [SUPER SURROUND] and select “MOVIE” or

“MUSIC”.

The indicator turns green.

The display on the tuner/amplifier changes each time you press the button:

MUSIC>MOVIE>STEREO SOUND§ (off)

^------------------------------------------------}

§Original display when playing DVDs

To cancel

Press [SUPER SURROUND] to select “STEREO SOUND”. The indicator

goes out.

Note

Turn SUPER SURROUND off when playing a DVD recorded with

5.1-channel Dolby Digital or DTS. The surround effects will not be repro-

duced correctly if this is left on.

Speaker level adjustments

Remote control only

DOLBY DIGITAL and DTS, DOLBY PRO LOGIC

If the level of the speakers appears to be different while listening to a

source, adjust the levels of the speakers to the same apparent level.

Preparation: Set the volume level of the front speakers normally used for

enjoying the source.

1While stopped

Press [SHIFT]i[TEST] to output a test signal.

A test signal is output from each speaker in order.

To stop the test signal, press [SHIFT]i[TEST] again.

Lch: Front left speaker

Cch: Center speaker

Rch: Front right speaker

RSch: Right surround speaker

LSch: Left surround speaker

(No signal is output for the subwoofer.)

≥The surround channel for Dolby Pro Logic is monaural so the indicator

appears as “Sch” instead.

2While the speaker to be adjusted is outputting a signal

Press [3] (to increase the level) or [4] (to decrease the level).

The level of the speaker changes.

Repeat step 2 as desired.

To adjust the levels during play

1Press [CH SELECT] to select the speaker.

Each time you press the button:

In Dolby Digital and DTS

Lch>Cch>Rch>RSch>LSch>SWch

^---------------------------------------------------------------}

SWch: Subwoofer (Adjust only when connected)

In Dolby Pro Logic

Lch>Cch>Rch>Sch

^-----------------------------------}

2Press [3] or [4] to adjust the level.

SUPER SURROUND

While playing a source

1. Press [CH SELECT].

2. Press [3] (to increase level) or [4] (to decrease level).

Manufactured under license from Dolby Laboratories.

“Dolby”, “Pro Logic” and the double-D symbol are trademarks of

Dolby Laboratories.

Manufactured under license from Digital Theater Systems, Inc. US

Pat. No. 5,451,942, 5,956,674, 5,974,380, 5,978,762 and other world-

wide patents issued and pending. “DTS” and “DTS Digital Surround”

are registered trademarks of Digital Theater Systems, Inc.

RQT6894 Changing sound field and quality

Surround effects

These effects can be used with the surround systems described on page 32.

These effects are available when the corresponding indicators are alight.

ACENTER FOCUS

(Discs where the dialogue is recorded in the center channel)

Press [CENTER FOCUS].

The indicator turns green.

Dialogue enhancer is canceled when you turn this on (➡ page 26).

To cancel

Press [CENTER FOCUS] so the indicator turns orange.

BVIRTUAL REAR SURROUND

Press [VIRTUAL REAR SURROUND].

The indicator turns green.

To cancel

Press [VIRTUAL REAR SURROUND] so the indicator turns orange.

CMULTI REAR SURROUND

Press [MULTI REAR SURROUND].

The indicator turns green.

To cancel

Press [MULTI REAR SURROUND] so the indicator turns orange.

DSEAT POSITION

1Press [SEAT POSITION].

The indicator flashes green.

2While the indicator is flashing (within 10 seconds)

Adjust the seat position with [2, 1, 3, 4].

The indicator flashes for 10 seconds then lights green.

To cancel

1. Press [SEAT POSITION] so the indicator flashes.

2. Press [SEAT POSITION] again while the indicator is flashing so it turns

orange.

Note

≥The seat position is remembered by the unit and is reactivated when you

turn seat position on again.

≥When used with virtual rear surround, seat position is changed in

3 steps. [E]

CENTER

FOCUS

VIRTUAL REAR

SURROUND

MULTI REAR

SURROUND

SEAT

POSITION

MULTI JOG

CENTER FOCUS MULTI REAR SURROUND

VIRTUAL REAR SURROUND 2

CANCEL

PLAY MODE

MIX 2CH

AUDIO

TAPE

DECK 1/ 2

DVD

TUNER/

BAND

SLEEP

TOP MENU

P L ST

SO Q

SUBT TLE

POS T ON MEMORY

SETUP

GROUP

123

D SC

456

7890

CH SELECT

TEST

SUPER SRND

10/-/ -

VCR EXT)/

VDP AUX)

MUTING

SLOW/SEARCH

DIGITAL

S WOOFER

SKIP

VOLUME

ENTER

SHIFT

S I EQ

DISP Y

D R

NA GATOR

AV E CT

TURN

RO LOGIC

AV EFFECT

, , ,

SHIFT

On the remote control

1Press [SHIFT]i[AV EFFECT].

2Press [2] or [1] so the surround effect indicators flash in

order.

3Press [3] (ON).

4(If you select SEAT POSITION)

Adjust the seat position with [2, 1, 3, 4].

To turn it off, after steps 1 and 2 press [4] so the indicator turns

orange.

RQT6894 Recording operations

COUNTER

RESET

COUNTER

DISPLAY

COUNTER

RESET

DISPLAY DECK 1/2

132

OPEN

DOLBY NR

REV MODE

ªTo display the tape counter while recording

Press [COUNTER, DISPLAY].

The counter is displayed for about 5 seconds.

≥Press [COUNTER, RESET] to reset the counter.

≥To display or reset the tape counter for deck 1, first press [DECK 1/2].

ªErasing recordings

1Press [INPUT SELECTOR] to select “TAPE”.

2Insert the recorded tape into deck 2.

3Press [DOLBY NR] so the “Î NR” indicator goes out.

4Select the reverse mode.

5Press [¥ REC PAUSE].

6Press ["] or [!].

Erasure prevention

The illustration shows how to remove the tabs to prevent recording.

To record on the tape again, cover as shown, being careful not to cover the

high position discrimination hole.

Before recording (Deck 2 only)

See page 3 for tape selection.

Volume, sound quality and surround effects have no effect on re-

cording. Sound quality and surround effects are automatically set to

flat when recording.

Your attention is drawn to the fact that recording pre-recorded tapes

or discs or other published or broadcast material may infringe copy-

right laws.

CPreparatory steps

Do these steps before each recording.

Wind up the leader tape so recording can begin immediately.

1Press [< OPEN] on deck 2 and insert the

cassette with tape facing down.

Close the holder by hand.

2Press [DOLBY NR] to select Dolby NR on

(“ÎNR” appears on the tuner/amplifier) or off.

(➡ “Dolby noise reduction”, page 29)

3Press [REV MODE] to select the reverse mode.

Each time you press the button:

b: One side only records.

d and f: Both sides record (forward>reverse).

“f” automatically changes to “d” when [¥ REC PAUSE],

[CD EDIT] or [TAPE EDIT] is pressed.

Side A

Tab for side A

Discrimination hole

Normal tape High-position tape

Forward side

Tab for side B

RQT6894 Recording operations

Recording discs

Preparation:

pDo the preparatory steps (➡ page 35).

pInsert the disc(s) you want to record (➡ page 14).

pPress [DISC, 1–5] to select the disc where you want to start recording,

then press [w] to stop the disc.

ANormal recording

[RAM] [DVD-A] [DVD-V] [VCD] [CD] [WMA] [MP3]

1Press [] (reverse side) or [] (forward side) then [w] to

set the tape direction.

2Press [q REC PAUSE].

The deck goes into the recording standby mode and the indicator “”

or “” starts flashing.

3Press [] on the DVD/Video CD/CD changer.

Recording starts automatically.

4 seconds after the disc(s) finishes, the deck goes into the recording stand-

by mode.

To stop recording

EITHER

Press [w] on the changer.

The deck goes into the recording standby mode 4 seconds later.

Press [w] on the deck.

Recording stops immediately but the disc continues to play.

To record programmed tracks [VCD] [CD]

Program tracks before step 1 (➡ page 20).

BOne touch disc editing

[VCD] [CD]

This function makes it easier for you to record from discs.

pWhen recording, if a track is cut off in the middle at the end of the front

side, it is recorded from the beginning on the reverse side.

(Ensure the “;” reverse mode is selected. )

pAt the end of the reverse side recording stops and the current track will be

interrupted.

Ensure a Video CD or CD is in the play position tray.

Press [] or [] then [w] to set the tape direction, and press [INPUT

SELECTOR] to select “DVD” as the source, then

Press [CD EDIT].

Recording starts. In the meantime, “CD EDIT” will scroll across the display.

The deck stops when recording finishes.

To stop editing

Press [w] on the changer.

The cassette deck also stops. “EDIT OUT” scrolls across the display.

To edit programmed tracks

Program the tracks (➡ page 20) and press [CD EDIT].

For your reference:

pALL DISC play can be combined (➡ page 21).

pPBC on Video CDs is automatically canceled.

p“ERROR” is displayed if the disc in the playing position is a DVD or the

resume function (➡ page 14) is activated.

REC

PAUSE

REC

EDIT

REC

CD EDIT

DISC, 1–5

CD EDIT

INPUT SELECTOR

RQT6894 Recording operations

ARecording the radio

Preparation: Do the preparatory steps (➡ page 35).

1Tune to the required station.

(➡ page 27, 28)

2Press [q REC PAUSE].

The deck goes into the recording standby mode and the play indicator

“” or “” starts flashing.

3Press [] (reverse side) or [] (forward side) to start

recording.

To stop recording

Press [w].

To temporarily stop recording

Press [q REC PAUSE].

The deck goes into recording standby mode.

To resume recording press [] or [] with the flashing indicator.

BTape-to-tape recording

Preparation:

pDo preparatory steps 1 and 3 (➡ page 35).

pInsert the tape to be recorded in deck 1.

1Set the tape direction on both decks.

Press [DECK 1/2] to select “DECK 2”.

First press [] or [], and then [w].

Repeat steps  and  for deck 1.

2Press [TAPE EDIT] to start recording.

The indicator “” or “” shows deck 2 direction.

If either deck 1 or deck 2 stops, the other deck also stops.

To stop recording

Press [w].

Both decks stop.

To enjoy another source while recording

Start playing the other source.

You can change the volume level and tone quality without affecting the re-

cording.

Note

The recording level and the noise reduction effect of the original (playback)

tape will be recorded on the new tape.

REC

PAUSE

DECK 1/2

MHz

TAPE EDIT

REC

TUNED

RQT6894 Timer operations and convenient functions

Using the timers

The play timer

This timer starts play of the selected source at the selected time.

The displays in the illustrations show settings for preset radio channel 1 to

play between 6:30 and 7:40 at L48 dB.

Preparation: Turn the unit on, set the time (➡ page 12), preset radio sta-

tions if you want the timer to start playing the radio

(➡ page 28).

1Press [CLOCK/TIMER] to display “&PLAY” on

the tuner/amplifier.

Each time you press the button:

CLOCK&PLAY&RECOriginal display

$

Press [SET] within 3 seconds.

2Follow these steps to set items to !.

Press [TUNING (: or 9)] to select the condi-

tion required and

Press [SET].

Start time

Finish time

Source

TUNERDVDTAPE



Insert a disc or tape if you select these sources.

If you select TUNER

Select a preset channel.

!Volume

The play timer is now on standby. The display shows each condition

again then restores the original display.

3Press [¦/I] to turn the unit off.

&PLAY/&REC indicator remains illuminated to show the play (or

record) timer is on.

The timer starts at the set time with the volume increasing gradually to the

set level.

To cancel the timer

Press [&PLAY/&REC] so “&PLAY” goes out.

Each time you press the button:

&PLAY&REC&PLAY &RECLight off

$

The play timer will be canceled, but the settings stay in the memory.

For your reference:

When you insert cassettes in decks 1 and 2, deck 1 has priority.

CLOCK/

TIMER

SET

PLAY

MHz

PLAY

PLAY/ REC

TUNING

RQT6894 Timer operations and convenient functions

Using the timers

The record timer

This timer records the radio at the set time.

The displays in the illustrations show settings for recording preset chan-

nel 1 from 18:30 to 19:30.

Preparation: Turn the unit on, set the time (➡ page 12), preset radio sta-

tions (➡ page 28).

1Press [CLOCK/TIMER] to display “&REC” on

the tuner/amplifier.

Each time you press the button:

CLOCK&PLAY&RECOriginal display

$

Press [SET] within 3 seconds.

2Follow these steps to set items , and .

Press [TUNING (: or 9)] to select the condi-

tion required and

Press [SET].

Start time

Finish time

Preset channel

The record timer is now on standby. The display shows each condi-

tion again then restores the original display.

3Prepare for recording.

Insert a tape into deck 2.

Select the Dolby NR mode.

Select the reverse mode.

Select the tape direction.

4Press [¦/I] to turn the unit off.

&PLAY/&REC indicator remains illuminated to show the record (or

play) timer is on.

Recording starts 30 seconds before the set time with the volume muted

during the set time.

To cancel the timer

Press [&PLAY/&REC] so “&REC” goes out.

Each time you press the button:

&PLAY&REC&PLAY &RECLight off

The record timer will be canceled, but the settings stay in the memory.

PLAY/ REC

REC

MHz

REC

CLOCK/

TIMER

SET

REC

TUNING

RQT6894 Timer operations and convenient functions

Using the timers

AThe play and record timers

Turning the timers on and off

The timers come on at the set times if &PLAY/&REC indicator is on. They

can be turned on and off by pressing [&PLAY/&REC].

Checking the timers

Press [CLOCK/TIMER] to select “&PLAY” (or “&REC”).

The timer conditions are shown in the following order:

Play timer:

Start timeFinish timeSourceVolume

Record timer:

Start timeFinish timeSelected radio station

The timers can be checked even if the unit is off.

Playing the unit after the timers are set

The unit can be used after the timers are set. Make sure the unit is off before

the set start time.

Note

pIf you turn the unit off and on again while a timer is functioning, the finish

time setting will not be activated.

pIf the unit is on, the timer will not function. The system must be in the

standby mode.

pThis system retains the ON/OFF time settings until you make a new set-

ting. If you make a new ON time setting, you must make a new OFF time

setting.

pDo not turn DEMO on after setting a timer. The timers will not work while

DEMO is on.

BThe sleep timer

Remote control only

This timer turns the unit off after a set time.

While playing a source

Press [SLEEP] to select the time (minutes).

Each time you press the button:

SLEEP 30 SLEEP 60 SLEEP 90

SLEEP OFFSLEEP 120$

To cancel the sleep timer

Press [SLEEP] to select “SLEEP OFF”.

“SLEEP” goes out.

To confirm the remaining time

(While the timer is functioning)

Press [SLEEP].

The remaining time is shown for about 5 seconds.

To change the setting

Press [SLEEP] to display the remaining time, then press again to select the

required time.

Using the timers together

Any of the timers can be used together, but ensure the unit is off before the

start time for the record and play timers.

SLEEP

PLAY/ REC

CLOCK/

TIMER

CANCEL

PLAY MODE

M X 2CH

AUDIO

TAPE/

DECK 1/ 2

DVD

TUNER/

BAND

SLEEP

TOP MENU

PLAY LIST

SUPER

SOUND EQ

SUBTITLE

POS TION MEMORY

SETUP

GROUP

123

DISC

456

7890

CH SELECT

TEST

SUPER SRND

10/ /

VCR(EXT)/

VDP(AUX)

MUTING

SLOW/SEARCH

DIGITAL

S WOOFER

SKIP

VOLUME

ENTER

SH FT

S 3D AI EQ

D SPLAY

D RECT

NAVIGATOR

AV EFFECT

RETURN

PRO LOG C

SLEEP

RQT6894 Timer operations and convenient functions

AChanging the sound range display

The sound processor shows the level of each sound range with the three

types of display described below.

Press [DISPLAY MODE].

The spectrum display will change as follows.

[a] Normal display

This display indicates the strength of the sound in each tonal range.

[b] Peak-hold display

The peak sound value of each sound range is held on the display for

about one second after it occurs.

[c] Aurora display

The peak sound value of each sound range is displayed in inverted

form.

BMuting the volume

Remote control only

Press [MUTING].

Volume is reduced to minimum.

To cancel

Press [MUTING] again.

“MUTING” goes out and the volume is restored.

To cancel from the tuner/amplifier, turn [VOLUME] to minimum (–– dB),

then raise it to the required level.

Muting is also canceled when the unit is turned off.

C Using headphones (not included)

Reduce the volume before connection.

Avoid listening for prolonged periods of time to prevent hearing damage.

Plug type: 3.5 mm stereo

DISPLAY MODE

MUTING

VOLUME

PHONES

DISPLAY MODE

CANCEL

PLAY MODE

MIX 2CH

AUDIO

MUT NG

SLOW/SEARCH

D GITAL

S WOOFER

SKIP

VOLUME

SHIFT

MUTING

RQT6894 Timer operations and convenient functions

Enjoying karaoke (For Australia and N.Z.)

Preparation:

pPress [¦/I] to turn the unit on.

pTurn on the television and switch the video input mode of the television to

suit the type of connection you have made (e.g., VIDEO 1).

pLower volume with [MIC VOL], then connect the microphone(s) to the mi-

crophone jack(s). (Plug type 6.3 mm monaural)

1Start the source.

2Select the Karaoke mode.

See below ([A], [B] or [C]) for operation details.

3Adjust the main volume and microphone volume.

xKaraoke DVD

Icons are displayed on the television to assist operation.

Remote control only

Press [AUDIO].

Press the cursor button [] or [] to select the vocal se-

lect mode.

Press [] or [] to select the appropriate mode.

(Refer to the discs jacket for details.)

The display on television changes each time you press the button:

pSolo pDuet

OFF: Vocal off OFF: Vocal off

ON: Vocal on V1KV2: Vocal 1K2 on

V1: Vocal 1 on

V2: Vocal 2 on

Other sources (except for radio)

The changes in Karaoke mode are shown on the tuner/amplifier.

[B] Video CD/CD/cassette tape (multiplex)

Press [KARAOKE] to turn the vocals off.

MONO L: Vocal off (Lch only)  

#

MONO R: Vocal on (Rch only) #

#

(off): Karaoke mode canceled. $

[C] DVD/Video CD/CD/cassette tape/video tape

(non-Karaoke)

Press [V.MUTE] to turn the vocals off.

V.MUTE: Vocal off

(off): Karaoke mode canceled.

Note

pThe Karaoke modes cannot be used with the radio, SUPER 3D AI EQ or

surround effects.

pIf a strange noise (squealing or howling) is emitted during use, move the

microphone away from the speakers, or turn down the microphone vol-

ume.

When you are not using the microphone, disconnect it from the MIC jack,

and turn down the microphone volume level to MIN.

When using the VOICE MUTE function

Voice mute may not function sufficiently or noise may interfere when using

the following software.

pMonaural software

pSoftware with few musical instruments, including classical music and po-

etry recitations

pSoftware with duets or strong choruses

To record your performance

Start recording in deck 2 and then start singing.

MIC VOL

MIN MAX

VOLUME

DOWN

V.MUTE

MONO L

V.MUTE

AUDIO

KARAOKE

V.MUTE 1-MIC-2

KARAOKE 3

1 ✱

Vocal

OFF

CANCEL

PLAY MODE

MIX 2CH

AUD O

TAPE/

DECK 1 2

DVD

TUNER/

BAND

SLEEP

TOP MENU

Y LIST

PER

S D EQ

SUBT TLE

POS T ON MEMORY

SETUP

GROUP

123

DISC

456

7890

CH SE ECT

TEST

SUPER SRND KARAOKE

ARAOKE EFFECT

10/-/--

VCR(EXT /

VDP(AUX)

MUT NG

SLOW SEARCH

D G TAL

S WOOFER

SKIP

VOLUME

ENTER

SH FT

S 3 EQ

DISPL

D R

NAV ATOR

AV ECT

TURN

PRO LOGIC

, , ,

AUDIO

KARAOKE

RQT6894 Timer operations and convenient functions

Enjoying karaoke (For Australia and N.Z.)

xUsing the echo effect

Press [ECHO].

The display on the tuner/amplifier changes each time you press

the button:

ECHO 1ECHO 2ECHO 3

ECHO OFF$

xChanging the key (up to 6 steps)

1Press [KEY CON].

“KEY 0” is displayed on the tuner/amplifier.

2Press [TUNING (or )] to change the key.

: Lower the key by a halftone (L1, L2, L3)

: Raise the key by a halftone (K1, K2, K3)

To restore the original key

Press [KEY CON] to display “KEY OFF” on the tuner/amplifier.

xGiving the effect of singing at a Karaoke bar

Disconnect headphones.

Press [LOUNGE].

The display on the tuner/amplifier changes each time you press the button:

LOUNGE 1LOUNGE 2LOUNGE 3

LOUNGE OFF$

To cancel the effect

Press [LOUNGE] to display “LOUNGE OFF” on the tuner/amplifier.

xGiving the effect of singing in a chorus

Press [CHORUS].

The display on the tuner/amplifier changes each time you press

the button:

CHORUS 1CHORUS 2

CHORUS OFF$

To cancel the effect

Press [CHORUS] to display “CHORUS OFF” on the tuner/amplifier.

Selecting the Karaoke effect with the remote

xcontrol

Press [SHIFT]K[KARAOKE EFFECT].

Press [] or [] to select the desired effect.

ECHOKEYLOUNGECHORUS



Press [] or [] to select the desired level.

2 1

ECHO LOUNGE

CHORUS

ECHO

KEY CON

LOUNGE

CHORUS

ECHO

KEYCON

TUNING

CANCEL

PLAY MODE

MIX 2CH

AUD O

TAPE/

DECK 1/ 2

DVD

TUNER/

BAND

SLEEP

TOP MENU

AY L ST

UPER

SO D EQ

SUBT TLE

POSIT ON MEMORY

SETUP

GROUP

123

DISC

456

7890

CH SELECT

TEST

SUPER SRND KARAOKE

KARAOKE EFFECT

10/ /

VCR(EXT)/

VDP AUX)

MUTING

SLOW SEARCH

DIG TAL

S WOOFER

SKIP

VOLUME

ENTER

SHIFT

S 3D EQ

DISPLA

DIREC

NAV ATOR

A FFECT

RETURN

PRO LOGIC

KARAOKE

EFFECT

, , ,

RQT6894 Timer operations and convenient functions

External unit connections

pTurn off all units before making connections.

pRefer to the manuals of the other units for details.

(Cords and equipment not included.)

[A] Television with S-VIDEO terminal

The S-VIDEO output terminal on DVD/Video CD/CD changer achieves

a more vivid picture than the video output terminal by separating the

colour and luminance signals before transmitting them to the television.

(Actual results depend on the television.)

[B] Laser Disc player (without 5.1ch output), etc.

Connect to the VDP (AUX) terminal on the sound processor.

This unit has Dolby Pro Logic circuitry. The sound will be reproduced

with the same powerful stereophonic effects found in movie theaters.

[C] Video cassette recorder

Connect to the VCR (EXT) terminal on the sound processor.

You can play the sound from a video cassette recorder through this

unit’s speakers or record sound from this unit onto a video cassette.

[D] Televison

(For Australia and N.Z.)

Using video cords, connect the following equipment to the terminals on

the sound processor.

Connect a laser disc player or other audiovisual equipment to VDP IN.

Connect a television to MONITOR OUT.

Connect a video cassette recorder to VIDEO IN and VIDEO OUT.

These connections allow you to control the video and audio from this

equipment with [INPUT SELECTOR].

S-video cord (not included)

Video cord

(1 included for the United Kingdom, Continental Europe and

Russia

2 included for Australia and N.Z.)

Stereo phono cable (not included)

White

Red

Subwoofer

The included front speakers have subwoofers, but you can enhance the

sound by connecting an optional subwoofer to SUBWOOFER OUT ter-

minal on the back of the sound processor.

S-VIDEO

OUT

VDP

(AUX)

AUDIO

L/R OUT

VCR

(EXT)

OUT IN

AUDIO

OUT

AUDIO

VIDEO

MONITOR

OUT

VIDEO

IN VIDEO

OUT

VCR

OUT

VIDEO OUT

VIDEO IN

VCR

VDP

(R)

(L)

RQT6894 Timer operations and convenient functions

Optional antenna connections

If radio reception is poor, connect outdoor antennas to the antenna termi-

nals on the tuner/amplifier ([A]).

FM outdoor antenna

[B] For Continental Europe and Russia

Connect the 75 j coaxial cable () from the outdoor antenna to the FM

antenna terminal.

For UK only

Attach the included antenna plug adaptor () to the end of the cable

before connection.

[C] For Australia and N.Z.

After preparing the 75 j coaxial cable as described below, connect the

shield braid ( ) to GND and the core wire (!) to 75 j.

Preparing the 75 j coaxial cable

Remove a piece of the outer vinyl.

Twist the shield braid to expose the core wire.

pDisconnect the FM indoor antenna.

pThe antenna should be installed by a competent technician.

xAM outdoor antenna

Use a piece of vinyl covered wire as an AM outdoor antenna. Connect it to

AM ANT EXT and run it horizontally across a window or other convenient

location.

Leave the loop antenna connected.

Note

Disconnect the antenna when the unit is not in use.

Do not use the antenna during an electrical storm.

E Using other equipment

Listening to an external source

1Press [INPUT SELECTOR] to select the external

source.

Each time you press the button:

TUNERDVDTAPEVCR (EXT)VDP (AUX)

$

On the remote control

Press [VCR (EXT)/VDP (AUX)].

2Operate the unit.

See the unit’s manual for details on operation and connection.

Recording an external source

Press [INPUT SELECTOR] to select the external

source.

Select Dolby NR and reverse mode.

(➡ page 35)

Press [q REC PAUSE].

Press [] or [] to start recording.

Start the source to be recorded.

See the unit’s manual for details on operation and connection.

To stop recording

Press [w] on the deck.

To temporarily stop recording

Press [q REC PAUSE].

The deck goes into the recording standby mode.

To resume recording press [] or [] with the flashing indicator.

Recording onto an external unit

Press [INPUT SELECTOR] to select the source to be recorded.

Start recording on the external unit and start playing the source to be

recorded.

EXT

LOOP

AM ANT

FM ANT

GND

EXT

LOOP

AM ANT

15mm

30mm

EXT

LOOP

AM ANT

5–12m

REC

PAUSE

RQT6894 Timer operations and convenient functions

Changing settings

This chart shows the settings for this unit. Change the settings to suit your preferences and to suit the unit to the environment in which it is being

used. These settings are retained in memory until they are changed, even if the unit is turned off. See page 47 for details on menu operation.

Options (Underlined items are the factory preset.)

English French German Italian Spanish Portuguese Swedish Dutch

Original Other____

Original: The original language of each disc will be selected.

Other____: Input a code number with the numbered buttons (➡ page 48).

Automatic English French German Italian Spanish Portuguese

Swedish Dutch Other____

Automatic: If the language selected for “Audio” is not available, subtitles of

that language will automatically appear if available on that disc.

English French German Italian Spanish Portuguese Swedish Dutch

Other____

Setting ratings (When level 8 is selected)

8 No Limit: All DVD-Video can be played.

1 to 7: Prohibits play of DVD-Video with corresponding ratings recorded

on them.

0 Lock All: Prohibits play of all DVD-Video.

Changing ratings (When level 0–7 is selected)

Unlock Player Change Password

Change Level Temporary Unlock

4:3 Pan&Scan 4:3 Letterbox 16:9

Standard (Direct View TV) CRT Projector LCD TV/Projector

Projection TV Plasma TV

Automatic Field Frame

PAL60: when connected to a PAL television.

NTSC: when connected to an NTSC television.

Multi-channel

Center: 0/1.3/2.6/3.9/5.3 ms

Surround (L/R): 0/5.3/10.6/15.9 ms

Off

On: For clear dialog when listening at low volume.

On Off

pThis feature dose not work for some discs.

English Français Deutsch Italiano Español Português

Svenska Nederlands

On Off

Audio (MP3/WMA) Stills (JPEG)

Off: DVD-Audio are played as DVD-Audio.

On: DVD-Video contents found on DVD-Audio can be played.

Yes No

Items

Audio

Choose the preferred audio language.

Subtitle

Choose the preferred subtitle language.

Menus

Choose the preferred language for disc menus.

Ratings (➡ page 47)

Set a ratings level to limit DVD-Video play.

pThe password screen is shown if you choose

levels 0 to 7 or if you choose “Ratings” when

levels 0 to 7 have been selected.

pSelect “Level 0” to prevent play of discs that do

not have ratings levels recorded on them.

TV Aspect (➡ page 13)

Choose the setting to suit your television and preference.

TV Type (➡ page 13)

Select to suit the type of television.

Still Mode

Specify the type of picture shown when paused.

NTSC Disc Output

Choose whether PAL 60 or NTSC signals are

output during playback of NTSC discs (➡ page 5).

Speaker Setting (➡

➡ page 47)

Set the delay time for your center and surround

speakers.

Dynamic Range Compression (Dolby Digital only)

Change the dynamic range for late night viewing.

Audio during Search

Choose whether to have sound during search.

Menu Language

Choose the preferred language for these menus

and the on-screen messages.

On-Screen Messages

Choose whether to show on-screen messages or not.

Mixed Disc—Audio & Stills

Select the type of file played on discs containing

both JPEG and WMA/MP3. (Reload the disc for the

setting to be effective.)

DVD-Video Mode

Select how to play pictures contained on some

DVD-Audio.

The setting returns to “Off” when you remove the

disc, turn the unit off or change the source.

QUICK SETUP (➡ page 13)

Answer questions to make basic settings.

Menus

Disc

Video

Audio

Display

Others

RQT6894 Timer operations and convenient functions

Common procedures

Remote control only

See page 46 for menu and option details.

Preparation: Press [DVD].

1Press [SHIFT]T[SETUP] to show the menus.

2Press [, ] to select the menu’s tab.

The screen changes to display the menu.

3Press [, ] to select the item you want to

change and press [ENTER].

4Press [, , , ] to select the option and press

[ENTER].

The screen now shows the menu again.

To return to the previous screen

Press [RETURN].

When you are finished

Press [SHIFT]K[SETUP].

Entering a password (Ratings)

[DVD-V]

The password screen is shown when you select levels 0 to 7.

1 Input a 4-digit password with the numbered buttons and press

[ENTER].

pIf you enter a wrong number, press [SHIFT]K[CANCEL] to erase it

before you press [ENTER].

pThe lock symbol appears closed to show the rating is locked.

pDo not forget your password.

2 Press [ENTER] to confirm the 4 digits.

Disc

Audio

Subtitle

Menus

Ratings

English

Automatic

Level 8

SETUP

SELECT TAB

Changing the delay time (Speaker Setting)

[DVD-V]

(Center and surround speakers only)

For optimum listening with 5.1-channel sound, all the speakers, except for

the subwoofer, should be the same distance from the seating position. If

you have to place the center or surround speakers closer to the seating

position, adjust the delay time to make up for the difference.

1 Press [, , , ] to select the delay time box and press

[ENTER].

2 Press [, ] to adjust the delay time and press [ENTER].

Values

If distance  or  is greater than or equal to distance , set to “0”.

If distance  or  is less than distance , set as follows.

Center speaker Surround speakers

Now, when you insert a DVD-Video that exceeds the ratings limit you

set, a message appears on the television.

Follow the on-screen instructions.

Difference

Approx. 50 cm

Approx. 100 cm

Approx. 150 cm

Approx. 200 cm

Setting

1.3 ms

2.6 ms

3.9 ms

5.3 ms

Difference

Approx. 200 cm

Approx. 400 cm

Approx. 600 cm

Setting

5.3 ms

10.6 ms

15.9 ms

When you are finished

Press [, , , ] to select “Exit” and press [ENTER].

CANCEL

PLAY MODE

M X 2CH

AUDIO

TAPE/

DECK 1/ 2

DVD

TUNER/

BAND

SLEEP

TOP MENU

P Y LIST

UPER

SOU EQ

SUBTITLE

POS TION MEMORY

SETUP

GROUP

123

DISC

456

7890

CH SELECT

TEST

SUPER SRND

10/ /

VCR(EXT)/

VDP(AUX)

MUTING

SLOW/SEARCH

DIGITAL

S WOOFER

SKIP

VOLUME

ENTER

SH FT

S 3D EQ

D SPLA

D RE

NAVI ATOR

AV FECT

RETURN

PRO LOG C

RETURN

CANCEL

SHIFT

DVD

SETUP

, , ,

ENTER

Numbered

buttons

LS RS

Disc Video Audio Display Others

Center delay time

Surround delay time

SETUP

SELECT

ENTER RETURN

m s

Exit

RQT6894

Reference

Language code list

Abkhazian: 6566

Afar: 6565

Afrikaans: 6570

Albanian: 8381

Ameharic: 6577

Arabic: 6582

Armenian: 7289

Assamese: 6583

Aymara: 6588

Azerbaijani: 6590

Bashkir: 6665

Basque: 6985

Bengali; Bangla

: 6678

Bhutani: 6890

Bihari: 6672

Breton: 6682

Bulgarian: 6671

Burmese: 7789

Byelorussian: 6669

Cambodian: 7577

Catalan: 6765

Chinese: 9072

Corsican: 6779

Croatian: 7282

Czech: 6783

Danish: 6865

Dutch: 7876

English: 6978

Esperanto: 6979

Estonian: 6984

Faroese: 7079

Fiji: 7074

Finnish: 7073

French: 7082

Frisian: 7089

Galician: 7176

Georgian: 7565

German: 6869

Greek: 6976

Greenlandic: 7576

Guarani: 7178

Gujarati: 7185

Hausa: 7265

Hebrew: 7387

Hindi: 7273

Hungarian: 7285

Icelandic: 7383

Indonesian: 7378

Interlingua: 7365

Irish: 7165

Italian: 7384

Japanese: 7465

Javanese: 7487

Kannada: 7578

Kashmiri: 7583

Kazakh: 7575

Kirghiz: 7589

Korean: 7579

Kurdish: 7585

Laotian: 7679

Latin: 7665

Latvian, Lettish

: 7686

Lingala: 7678

Lithuanian: 7684

Macedonian: 7775

Malagasy: 7771

Malay: 7783

Malayalam: 7776

Maltese: 7784

Maori: 7773

Marathi: 7782

Moldavian: 7779

Mongolian: 7778

Nauru: 7865

Nepali: 7869

Norwegian: 7879

Oriya: 7982

Pashto, Pushto

: 8083

Persian: 7065

Polish: 8076

Portuguese: 8084

Punjabi: 8065

Quechua: 8185

Rhaeto-Romance

: 8277

Telugu: 8469

Thai: 8472

Tibetan: 6679

Tigrinya: 8473

Tonga: 8479

Turkish: 8482

Turkmen: 8475

Twi: 8487

Ukrainian: 8575

Urdu: 8582

Uzbek: 8590

Vietnamese: 8673

Volapük: 8679

Welsh: 6789

Wolof: 8779

Xhosa: 8872

Yiddish: 7473

Yoruba: 8979

Zulu: 9085

Romanian: 8279

Russian: 8285

Samoan: 8377

Sanskrit: 8365

Scots Gaelic: 7168

Serbian: 8382

Serbo-Croatian

: 8372

Shona: 8378

Sindhi: 8368

Singhalese: 8373

Slovak: 8375

Slovenian: 8376

Somali: 8379

Spanish: 6983

Sundanese: 8385

Swahili: 8387

Swedish: 8386

Tagalog: 8476

Tajik: 8471

Tamil: 8465

Tatar: 8484

Glossary

WMA/MP3/JPEG information

pDiscs must conform to ISO9660 level 1 or 2 (except for extended formats).

pThis unit is compatible with multi-session but if there are a lot of sessions it

takes more time for play to start. Keep the number of sessions to a mini-

mum to avoid this.

[WMA]

pNoise may occur when playing WMA files.

pYou cannot play WMA files that are copy protected.

pWMA files must have the extension “.WMA” or “.wma”.

[MP3]

pThis unit is not compatible with ID3 tags.

pIf you play an MP3 track that includes still picture data, it will take some

time before the music itself starts playing and the elapsed time will not be

displayed during this time. Even after the track starts, the correct play time

will not be displayed.

pMP3 files must have the extension “.MP3” or “.mp3”.

[JPEG]

To view JPEG files on this unit:

—Take them on a digital camera that meets the DCF (Design rule for

Camera File system) standard. Some digital cameras have functions that

are not supported by the DCF standard like automatic picture rotation

which may render a picture un-viewable.

—Do not alter the files in any way or save them under a different name.

—Ensure they have the extension “.JPG” or “.jpg”, “.JPEG” or “.jpeg”.

This unit cannot display moving pictures, MOTION JPEG and other such

formats, still pictures other than JPEG (i.e. TIFF) or play associated sound.

Naming folders and files

At the time of recording, give folders and file

names 3-digit prefixes in the order you want to

play them (this may not work at times).

Decoder

A decoder restores the coded audio signals on DVDs to normal. This is

called decoding.

Dolby Digital

This is a method of coding digital signals developed by Dolby Laboratories.

Apart from stereo (2-channel) audio, these signals can also be multi-

channel audio. A large amount of audio information can be recorded on one

disc using this method.

DTS (Digital Theater Systems)

This surround system is used in many movie theaters around the world.

There is good separation between the channels, so realistic sound effects

are possible.

Dynamic range

Dynamic range is the difference between the lowest level of sound that can

be heard above the noise of the equipment and the highest level of sound

before distortion occurs.

Frame still and field still

Frames are the still pictures that go together to make a moving picture.

There are about 30 frames shown each second.

One frame is made up of two fields. A regular television shows these fields

one after the other to create frames.

A still is shown when you pause a moving picture. A frame still is made up of

two alternating fields, so the picture may appear blurred, but overall quality

is high.

A field still is not blurred, but it has only half the information of a frame still so

picture quality is lower.

I/P/B

MPEG 2, the video compression standard adopted for use with DVD-Video,

codes frames using these 3 picture types.

I: Intra coded picture (I-picture)

This picture has the best quality and is the best to use when adjusting

the picture.

P: Predictive coded picture (P-picture)

This picture is calculated based on past I or P-pictures.

B: Bidirectionally-predictive coded picture (B-picture)

This picture is calculated by comparing past and future I and

P-pictures so it has the lowest volume of information.

Linear PCM (pulse code modulation)

These are uncompressed digital signals, similar to those found on CDs.

Playback control (PBC)

If a Video CD has playback control, you can select scenes and information

with menus.

MPEG Layer-3 audio decoding technology

licensed from Fraunhofer IIS and Thomson

multimedia.

root

001group

004track.mp3

005track.mp3

006track.mp3

002group

003group 007track.mp3

008track.mp3

009track.mp3

010track.mp3

011track.mp3

012track.mp3

013track.mp3

Windows Media, and the Windows logo are

trademarks, or registered trademarks of

Microsoft Corporation in the United States

and/or other countries.

WMA is a compression format developed

by Microsoft Corporation. It achieves the

same sound quality as MP3 with a file size

that is smaller than that of MP3.

e.g. [MP3]

RQT6894

Reference

∫AM tuner section

Frequency range 522–1629 kHz (9 kHz steps)

520–1630 kHz (10 kHz steps)

Sensitivity (S/N 20 dB) 500 ¨V/m

∫Timer section

Clock Quartz-lock type

Function Play timer (1 time, daily),

Rec timer (1 time, daily),

Sleep (120 min, 30 min intervals)

Setting intervals (Play/Rec)

1 minute–23 hours 59 minutes

(1 min intervals)

∫General

Power supply

(For the United Kingdom, Australia and N.Z.)

AC 230–240 V 50 Hz

(For Continental Europe and Russia)

AC 230 V 50 Hz

Power consumption 230 W

Standby 0.5 W

Dimensions (WtHtD) 293k118.5k345 mm

Mass 5.3 kg

DVD/VIDEO CD/CD CHANGER

∫Discs played (8 cm or 12 cm)

DVD-Video/DVD-Audio

DVD-RAM/R (DVD-Video format discs)

Video CD, CD (CD-DA)

CD-R/RW (CD-DA/Video-CD,

MP3/WMA/JPEG format discs)

∫Audio

No. of channels 5.1 channel (FL, FR, SL, SR, C, SW)

∫Video

Signal system PAL 625/50, PAL 525/60, NTSC

Output level

Composite video 1 Vp-p (75 ≠)

S-video Y 1 Vp-p (75 ≠)

S-video C 0.300 Vp-p (75 ≠) PAL

0.286 Vp-p (75 ≠) NTSC

∫Pickup

Beam source Semiconductor laser

Wavelength 658/790 nm

(For Norge)

Bølgelengde 658/790 nm

Laserstyrke Ingen farlig stråling sendes ut

∫General

Dimensions (WtHtD) 293k89k288 mm

Mass 2.5 kg

CASSETTE DECK

Deck system Stereo cassette deck

Track system 4 track, 2 channel

Recording system AC bias

Bias frequency 100 kHz

Erasing system AC erase

Heads

Deck 1

(Playback head) Permalloy head

Deck 2

(Recording/Playback head) Permalloy head

(Erasing head) Double gap ferrite head

Motors

Deck 1, 2

Capstan drive DC servo motor

Tape speed 4.8 cm/s

Wow and flutter 0.16 % (WRMS)

Technical specifications

SOUND PROCESSOR

∫EQ/SFP section

MANUAL GEQ

5-Band EQ

Center frequency 70/300/1 k/3.15 k/10 k Hz

Level control n2.0, 4.0, 6.0 dB

EQ/Space mode

4 modes HEAVY, CLEAR, SOFT, HALL

SUPER 3D AI EQ

3 modes AI EQ, SUPER 3D AI 1, SUPER 3D AI 2

∫Pre-amplifier section

Input sensitivity/impedance

VCR (EXT) 250 mV/15 k≠

VDP (AUX) 250 mV/15 k≠

Output level

VCR REC OUT 150 mV/1.5 k≠

(For Australia and N.Z.)

VIDEO OUTPUT

MONITOR OUT 1 Vp-p/75 ≠

VCR REC OUT 1 Vp-p/75 ≠

∫DOLBY PRO LOGIC section

PRO LOGIC mode SURROUND

CENTER mode NORMAL

DELAY TIME 20 ms (Fixed)

∫AV SURROUND section

AV surround mode

SUPER SURROUND(MUSIC, MOVIE)

∫DSP CONTROL section

DSP control mode SUPER SOUND EQ

CENTER FOCUS

VIRTUAL REAR SURROUND

MULTI REAR SURROUND

SEAT POSITION

∫Spectrum analyzer section

Display mode NORMAL, PEAKHOLD, AURORA

∫General

Dimensions (WtHtD) 293k89k270 mm

Mass 1.5 kg

TUNER AMPLIFIER

∫Amplifier section

Power output (L/R both channel driven)

Stereo Mode

DIN 1 kHz THD 1 %/6

≠≠

≠

(High) 2k25 W

100 Hz THD 1 %/8

≠≠

≠

(Low) 2k45 W

RMS 1 kHz THD 10 %/6

≠≠

≠

(High) 2k35 W

100 Hz THD 10 %/8

≠≠

≠

(Low) 2k65 W

PRO LOGIC mode

DIN FRONT

1 kHz THD 1 %/6 ≠ ≠

≠ ≠

≠ (High) 2k25 W

100 Hz THD 1 %/8 ≠≠

≠≠

≠ (Low) 2k45 W

SURROUND 1 kHz THD 1 %/8 ≠≠

≠≠

≠2k30 W

CENTER 1 kHz THD 1 %/8 ≠≠

≠≠

≠60 W

RMS FRONT

1 kHz THD10 %/6 ≠ ≠

≠ ≠

≠ (High) 2k35 W

100 Hz THD 10 %/8 ≠ ≠

≠ ≠

≠ (Low) 2k65 W

SURROUND 1 kHz THD 10 %/8 ≠≠

≠≠

≠2k40 W

CENTER 1 kHz THD 10 %/8 ≠ ≠

≠ ≠

≠ 80 W

PMPO 1 kHz/High 6 ≠≠

≠≠

≠, Low 8 ≠ ≠

≠ ≠

≠

CENT. 8 ≠≠

≠≠

≠, SURR. 8 ≠≠

≠≠

≠3000 W

Total harmonic distortion

Rated power at 1 kHz 1 % (6 ≠)

Half power at 1 kHz 0.1 % (6 ≠)

Load impedance

FRONT (High) 6 ≠

FRONT (Low) 8 ≠

SURROUND 8 ≠

CENTER 8 ≠

DIGITAL S. WOOFER

Center frequency 60 Hz

LEVEL (VOL s20 dB) MID i3 dB

MAX i6 dB

∫FM tuner section

Frequency range 87.50–108.00 MHz

(0.05 MHz steps)

Sensitivity 1.8 ¨V (IHF usable)

S/N 26 dB 1.5 ¨V

S/N

MONO 70 dB (75 dB, IHF)

Antenna terminal(s) 75 ≠ (unbalanced)

Fast forward and rewind times

Approx. 110 seconds with C-60 cassette tape

Frequency response (Dolby NR off)

TYPE I (NORMAL) 20 Hz–16 kHz (DIN)

TYPE II (HIGH) 20 Hz–16 kHz (DIN)

TYPE IV (METAL) 20 Hz–16 kHz (DIN)

S/N (Signal levelumax recording level, TYPE II type

tape)

NR off 56 dB (A weighted)

Dolby B NR on 66 dB (A weighted)

Input sensitivity and impedance

REC (IN) 150 mV/23 k≠

Output voltage and impedance

PLAY (OUT) 280 mV/360 ≠

∫General

Dimensions (WtHtD) 294k118.5k281 mm

Mass 2.1 kg

FRONT SPEAKER

Type 3 way, 3 speakers, Bassreflex

Speaker(s)

Super woofer 17 cm cone type

Woofer 12 cm cone type

Tweeter 6 cm ring shaped dome type

Impedance High 6 ≠

Low 8 ≠

Input power (Music) High 60 W

Low 120 W

Output sound pressure level 87 dB/W (1.0 m)

Crossover frequency 120 Hz, 4 kHz

Frequency range 42 Hz–50 kHz (j16 dB)

46 Hz–36 kHz (j10 dB)

∫General

Dimensions (WtHtD) 240k412k259 mm

Mass 5.8 kg

CENTER SPEAKER

Type 2 way, 3 speakers, Bassreflex

Speaker

Woofer(t2) 8 cm cone type

Tweeter 6 cm cone type

Impedance 8 ≠

Input power (Music) 160 W

Output sound pressure level 86 dB/W (1.0 m)

Crossover frequency 4 kHz

Frequency range 100 Hz–22 kHz (j16 dB)

115 Hz–20 kHz (j10 dB)

∫General

Dimensions (WtHtD) 190k99k166 mm

Mass 1.8 kg

SURROUND SPEAKER

Type 1 way, 1 speaker, Closed

Speaker

Full range 8 cm cone type

Impedance 8 ≠

Input power (Music) 70 W

Output sound pressure level 84 dB/W (1.0 m)

Frequency range 130 Hz–20 kHz (j16 dB)

150 Hz–18 kHz (j10 dB)

∫General

Dimensions (WtHtD) 140k99k118 mm

Mass 0.9 kg

§“Low” and “High” stand for low frequency and

high frequency.

Note

1. Specifications are subject to change without

notice.

Mass and dimensions are approximate.

2. Total harmonic distortion is measured by the

digital spectrum analyzer.

This product incorporates copyright protection technology that is protected by method claims of certain U.S. patents and other intellectual property

rights owned by Macrovision Corporation and other rights owners. Use of this copyright protection technology must be authorized by Macrovision

Corporation, and is intended for home and other limited viewing uses only unless otherwise authorized by Macrovision Corporation. Reverse

engineering or disassembly is prohibited.

RQT6894

Reference

Troubleshooting guide

Before requesting service, make the below checks. If you are in doubt about some of the check points, or if the remedies indicated in the chart do not solve

the problem, consult your dealer for instructions.

Reference pages are shown as black circled numbers 7.

Common Problems

No sound.

Sounds unfixed, reversed or

come from one speaker only.

Humming heard during play.

“ERROR” is displayed.

“U70” is displayed.

“F61” is displayed.

“––:––” appears on the display.

The display starts up even after

the unit is turned off.

“DVD U11” displayed.

“DVD H ∑∑” displayed.

(∑∑ will be numbers.)

Initial settings menu cannot be

accessed.

Turn the volume up.

Switch off the unit, determine and correct the cause, then switch the unit on. Causes include shorting of the

positive and negative speaker wires, straining of the speakers through excessive volume or power, and using

the unit in a hot environment.

Check the speaker connections. 7

An AC mains lead or fluorescent light is near the cables. Keep other appliances and leads away from this unit’s cables.

If possible in your area, turn the AC mains lead’s plug or connector over to reverse the lead’s polarity.

Incorrect operation performed. Read the instructions and try again.

Connect the flat cables firmly. If “U70” remains on the display, contact the dealer.

There is a problem with the amplifier. Consult your dealer.

You plugged the AC mains lead in for the first time or there was a power failure recently.

Set the time. <

The demonstration feature (–DEMO) is on. Turn it off if it is not required. ;

The disc is dirty. Wipe it with a soft cloth. 5

A problem has occurred. Turn the unit off and unplug the AC mains lead. Wait a moment and then plug the

lead in and turn on the unit again. If the unit is still not working correctly, consult your dealer.

Select “DVD” as the source.

Cancel all group, program, random and ALL DISC play. C–E

Listening to the radio

Use an outdoor antenna. ]

Turn the TV off or separate it from the unit.

Separate the antenna from other cables and leads.

Change the frequency step. Hold [TUNER/BAND] down for 10 seconds to change the step to 9 kHz.

Clean the heads. 3

Check the Dolby NR setting. M

If the erasure prevention tabs have been removed, cover the holes with adhesive tape. S

Listening to tapes

Poor quality sound.

Recording is not possible.

Noise is heard.

The stereo indicator flickers or

doesn’t light.

Sound is distorted.

A beat sound is heard.

A low hum is heard during AM

broadcasts.

The correct AM frequency can’t

be tuned in.

Enjoying discs

Sound is distorted.

“NO DISC” appears on display

“NO PLAY” appears on display

Play doesn’t start (or stops

immediately) when you press

[1] (play).

When you are playing a DVD recorded with Dolby Digital, you can reduce distortion by compressing the

dynamic range. See Audio–Dynamic Range Compression in the SETUP menus. ^

There is no disc on the selected tray or the disc is set incorrectly.

The disc does not correspond to the unit and cannot be played. 5

≥Condensation has formed: Wait 1 to 2 hours for it to evaporate.

≥This unit cannot play discs other than the ones listed in these operating instructions. 5

≥You can only play DVD-Video if their region number is the same or includes the same region number as the

unit or if the DVD-Video is marked “ALL”. Confirm the region number for the unit on the rear panel. 1

≥The disc may be dirty and may require cleaning. 5

≥Ensure that the disc is installed with the label of the side to be played facing upwards. >

≥Check that the DVD-RAM has something recorded on it.

RQT6894

Reference

“DECK NO TAPE” displayed.

“DECK CHANGE TAPE”

displayed.

Load a cassette into deck 2. S

If the erasure prevention tabs have been removed, cover the holes with adhesive tape. S

The remote control

The remote control doesn’t

work.

Check the batteries are inserted correctly. <

Replace the batteries if they are worn.

Enjoying discs

During one touch disc editing (➡ page 36)

“TAKE OUT/DISC” appears on

display.

No picture.

The picture shown on the

television is not normal.

(The sides of the picture are cut

off, the picture is stretched

horizontally or black bands

appear at the top and bottom of

the screen.

Menus not displayed correctly.

Picture on TV screen disappears

or stripes appear on screen.

The position of the subtitles is

incorrect.

Cannot add markers.

There are already markers. [RAM]

Marker numbers I added are

different when I call them up.

[RAM]

Folders deeper than the eighth

layer on a data CD are not

displayed correctly.

You have forgotten your ratings

password.

(Reset all the settings to Factory

Preset)

Cannot eject disc.

There is a problem with the disc mechanism. (A power failure may have occurred.)

The tray will open automatically. Remove the disc from the tray, and close it after ensuring there is no disc in

the tray. The unit will make disc changing noises for a few moments and then it should operate normally.

≥Check the connection. 9

≥Make sure the television is on.

≥Ensure the television’s video input setting (e.g., VIDEO 1) is correct.

≥Go to Video in the SETUP menus, and change “TV Aspect” to suit your television. ^

≥Use the television to change the aspect to the correct one.

≥Ensure that the unit is connected directly to the television, and is not connected through a video cassette

recorder.

≥Change the size with the variable zoom function. B

≥Change the zoom ratio to “k1.00”. B

≥With the GUI screen, change “Subtitle Position” to “0”. J

The location and orientation of the antenna are incorrect. If you are using an indoor antenna, change to an

outdoor antenna. ]

The television antenna wire is too close to the system. Separate the antenna wire of the television from the

system.

Change the position of the subtitles with “Subtitle Position” in the GUI screen. J

You cannot add markers while playing a play list or if the disc’s play time doesn’t appear on the unit’s display.

The unit reads and displays the markers added with a DVD video recorder. You can clear them but reappear

when you turn the unit off, change the source, open the disc tray or change the disc.

The unit numbers markers by time so they change when you add and delete them.

Folders deeper than the eighth layer are displayed as the eighth layer.

Reset the unit to its original factory settings by doing the following procedure.

When “DVD” is selected as a source, press [∫] on the changer and [S10/-/--] on the remote control at the

same time for about 3 seconds until the message “Initialized” disappears from the television screen.

The unit may not operate properly if the disc is damaged or dirty. Press [Í/I] and after the display disappears,

wait a few seconds, then press [Í/I] again and eject the disc.

All components are required to service the system. If service is ever necessary, bring the entire system.

Matsushita Electric Industrial Co., Ltd.

Web Site: http://www.panasonic.co.jp/global/

RQT6894-B

F0203AT0



(Inside of product)

(Tuotteen sisällä)

(Produktets innside)

SUOMI

NORSK

DVD/Video CD/CD Changer

(Back of product)

CAUTION!

THIS PRODUCT UTILIZES A LASER.

USE OF CONTROLS OR ADJUSTMENTS OR PERFORMANCE OF PRO-

CEDURES OTHER THAN THOSE SPECIFIED HEREIN MAY RESULT IN

HAZARDOUS RADIATION EXPOSURE.

DO NOT OPEN COVERS AND DO NOT REPAIR YOURSELF. REFER

SERVICING TO QUALIFIED PERSONNEL.

WARNING:

TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK OR PRODUCT DAM-

AGE, DO NOT EXPOSE THIS APPARATUS TO RAIN, MOISTURE, DRIP-

PING OR SPLASHING AND THAT NO OBJECTS FILLED WITH LIQUIDS,

SUCH AS VASES, SHALL BE PLACED ON THE APPARATUS.

CAUTION!

pDO NOT INSTALL OR PLACE THIS UNIT IN A BOOKCASE, BUILT-IN

CABINET OR IN ANOTHER CONFINED SPACE. ENSURE THE UNIT IS

WELL VENTILATED. TO PREVENT RISK OF ELECTRIC SHOCK OR

FIRE HAZARD DUE TO OVERHEATING, ENSURE THAT CURTAINS

AND ANY OTHER MATERIALS DO NOT OBSTRUCT THE VENTILATION

VENTS.

pDO NOT OBSTRUCT THE UNIT’S VENTILATION OPENINGS WITH

NEWSPAPERS, TABLECLOTHS, CURTAINS, AND SIMILAR ITEMS.

pDO NOT PLACE SOURCES OF NAKED FLAMES, SUCH AS LIGHTED

CANDLES, ON THE UNIT.

pDISPOSE OF BATTERIES IN AN ENVIRONMENTALLY FRIENDLY MAN-

NER.

This product may receive radio interference caused by mobile tele-

phones during use. If such interference is apparent, please in-

crease separation between the product and the mobile telephone.

THIS UNIT IS INTENDED FOR USE IN MODERATE CLIMATES.

TÄMÄ LAITE ON TARKOITETTU KÄYTETTÄVÄKSI LEUDOSSA

ILMASTOSSA.

DETTE APPARATET ER BEREGNET TIL BRUK UNDER MO-

DERATE KLIMAFORHOLD.

ADVARSEL!

pAPPARATET MÅ IKKE PLASSERES I EN BOKHYLLE, ET INNEBYGGET

KABINETT ELLER ET ANNET LUKKET STED HVOR VENTILASJONS-

FORHOLDENE ER UTILSTREKKELIGE. SØRG FOR AT

GARDINER ELLER LIGNENDE IKKE FORVERRER VENTILASJONS-

FORHOLDENE, SÅ RISIKO FOR ELEKTRISK SJOKK ELLER BRANN

FORÅRSAKET AV OVERHETING UNNGÅS.

pAPPARATETS VENTILASJONSÅPNINGER MÅ IKKE DEKKES TIL MED

AVISER, BORDDUKER , GARDINER OG LIGNENDE.

pPLASSER IKKE ÅPEN ILD, SLIK SOM LEVENDE LYS, OPPÅ APPARA-

TET.

pBRUKTE BATTERIER MÅ KASSERES UTEN FARE FOR MILJØET.

VAROITUS!

pÄLÄ ASENNA TAI LAITA TÄTÄ LAITETTA KABINETTITYYPPISEEN

KIRJAKAAPPIIN TAI MUUHUN SULJETTUUN TILAAN, JOTTA TUULE-

TUS ONNISTUISI. VARMISTA, ETTÄ VERHO TAI MIKÄÄN MUU MATE-

RIAALI EI HUONONNA TUULETUSTA, JOTTA VÄLTETTÄISIIN YLIKU-

UMENEMISESTA JOHTUVA SÄHKÖISKU- TAI TULIPALOVAARA.

pÄLÄ PEITÄ LAITTEEN TUULETUSAUKKOJA SANOMALEHDELLÄ,

PÖYTÄLIINALLA, VERHOLLA TAI MUULLA VASTAAVALLA ESINEEL-

LÄ.

pÄLÄ ASETA PALAVAA KYNTTILÄÄ TAI MUUTA AVOTULEN LÄHDET-

TÄ LAITTEEN PÄÄLLE.

pHÄVITÄ PARISTOT LUONTOA VAHINGOITTAMATTOMALLA TAVAL-

LA.

VAROITUS:

TULIPALO-, SÄHKÖISKUVAARAN TAI TUOTETTA KOHTAAVAN MUUN

VAHINGON VÄHENTÄMISEKSI EI LAITETTA SAA ALTISTAA SATEELLE,

KOSTEUDELLE, VESIPISAROILLE TAI ROISKEELLE, EIKÄ NESTETTÄ

SISÄLTÄVIÄ ESINEITÄ, KUTEN ESIMERKIKSI MALJAKOITA, SAA

ASETTAA LAITTEEN PÄÄLLE.

ADVARSEL:

FOR Å REDUSERE FAREN FOR BRANN, ELEKTRISK STØT ELLER

SKADER PÅ PRODUKTET, MÅ DETTE APPARATET IKKE UTSETTES

FOR REGN, FUKTIGHET, VANNDRÅPER ELLER VANNSPRUT. DET MÅ

HELLER IKKE PLASSERES GJENSTANDER FYLT MED VANN, SLIK

SOM BLOMSTERVASER, OPPÅ APPARATET.

VAROITUS!

LAITTEEN KÄYTTÄMINEN MUULLA KUIN TÄSSÄ KÄYTTÖOHJEESSA

MAINITULLA TAVALLA SAATTAA ALTISTAA KÄYTTÄJÄN TURVALLIS-

UUSLUOKAN 1 YLITTÄVÄLLE NÄKYMÄTTÖMÄLLE LASERSÄTEI-

LYLLE.

ADVARSEL!

DETTE PRODUKTET ANVENDER EN LASER.

BETJENING AV KONTROLLER, JUSTERINGER ELLER ANDRE

INNGREP ENN DE SOM ER BESKREVET I DENNE BRUKSANVISNING,

KAN FØRE TIL FARLIG BESTRÅLING.

DEKSLER MÅ IKKE ÅPNES, OG FORSØK ALDRI Å REPARERE APPA-

RATET PÅ EGENHÅND. ALT SERVICE OG REPARASJONSARBEID MÅ

UTFØRES AV KVALIFISERT PERSONELL.

RQLS0233

VISIBLE AND INVISIBLE LASER RADIATION WHEN OPEN.

AVOID DIRECT EXPOSURE TO BEAM.

DANGER

(FDA 21 CFR)

(IEC60825-1)

VISIBLE AND INVISIBLE LASER RADIATION WHEN OPEN.

AVOID EXPOSURE TO BEAM.

CAUTION

RAYONNEMENT LASER VISIBLE ET INVISIBLE EN CAS D’OUVERTURE.

EXPOSITION DANGEREUSE AU FAISCEAU.

ATTENTION

SYNLIG OG USYNLIG LASERSTRÅLING VED ÅBNING.

UNDGÅ UDSÆTTELSE FOR STRÅLING.

ADVARSEL

AVATTAESSA OLET ALTTIINA NÄKYVÄÄ JA NÄKYMÄTÖN

LASERSÄTEILYLLE. ÄLÄ KATSO SÄTEESEEN.

VARO!

SYNLIG OCH OSYNLIG LASERSTRÅLNING NÄR DENNA DEL

ÄR ÖPPNAD. BETRAKTA EJ STRÅLEN.

VARNING

SYNLIG OG USYNLIG LASERSTRÅLING NÅR DEKSEL ÅPNES.

UNNGÅ EKSPONERING FOR STRÅLEN.

ADVARSEL

SICHTBARE UND UNSICHTBARE LASERSTRAHLUNG, WENN ABDECKUNG

GEÖFFNET. NICHT DEM STRAHL AUSSETZEN.

VORSICHT

LUOKAN 1 LASERLAITE

KLASS 1 LASER APPARAT

CLASS 1

LASER PRODUCT

Technics SC DV290 Owners Manual

Navigation menu

Versions of this User Manual:

Views

Navigation
