i

Basic

Troubleshooting and

Service Information

TECUMSEH

POWER

ENGINES TRANSMISSIONS&

TecumsehPower

i

TABLE OF CONTENTS

Safety Definitions ....� ii

General Safety Precautions ....................................................................................................................1

General Information .� 2

Reviewing The Engine ID Label ..............................................................................................................3

Model Numbering Identification for TecumsehPower's Full Engine Line ................................................4

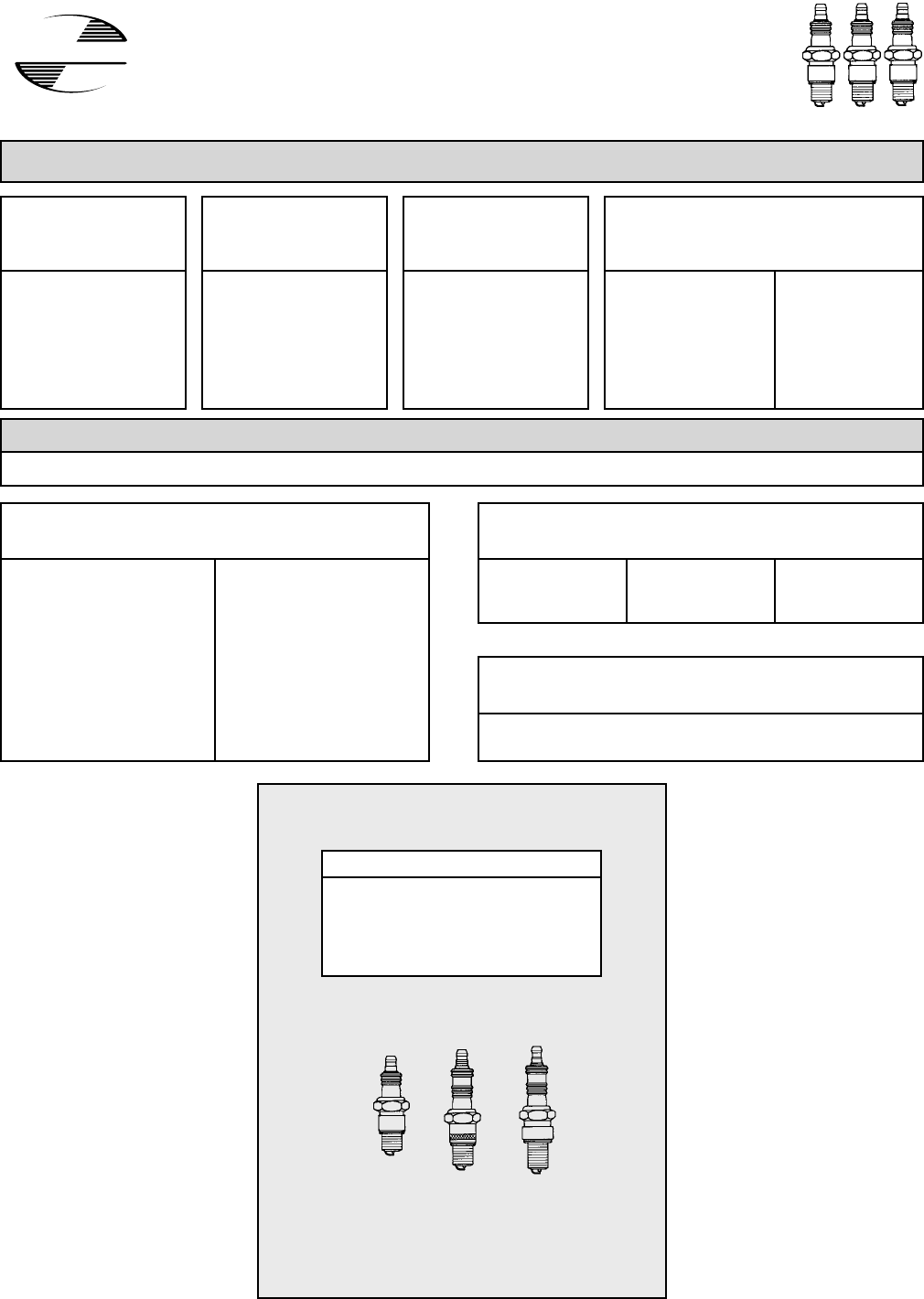

Spark Plug Replacement (4-Cycle) ......................................................................................................... 5

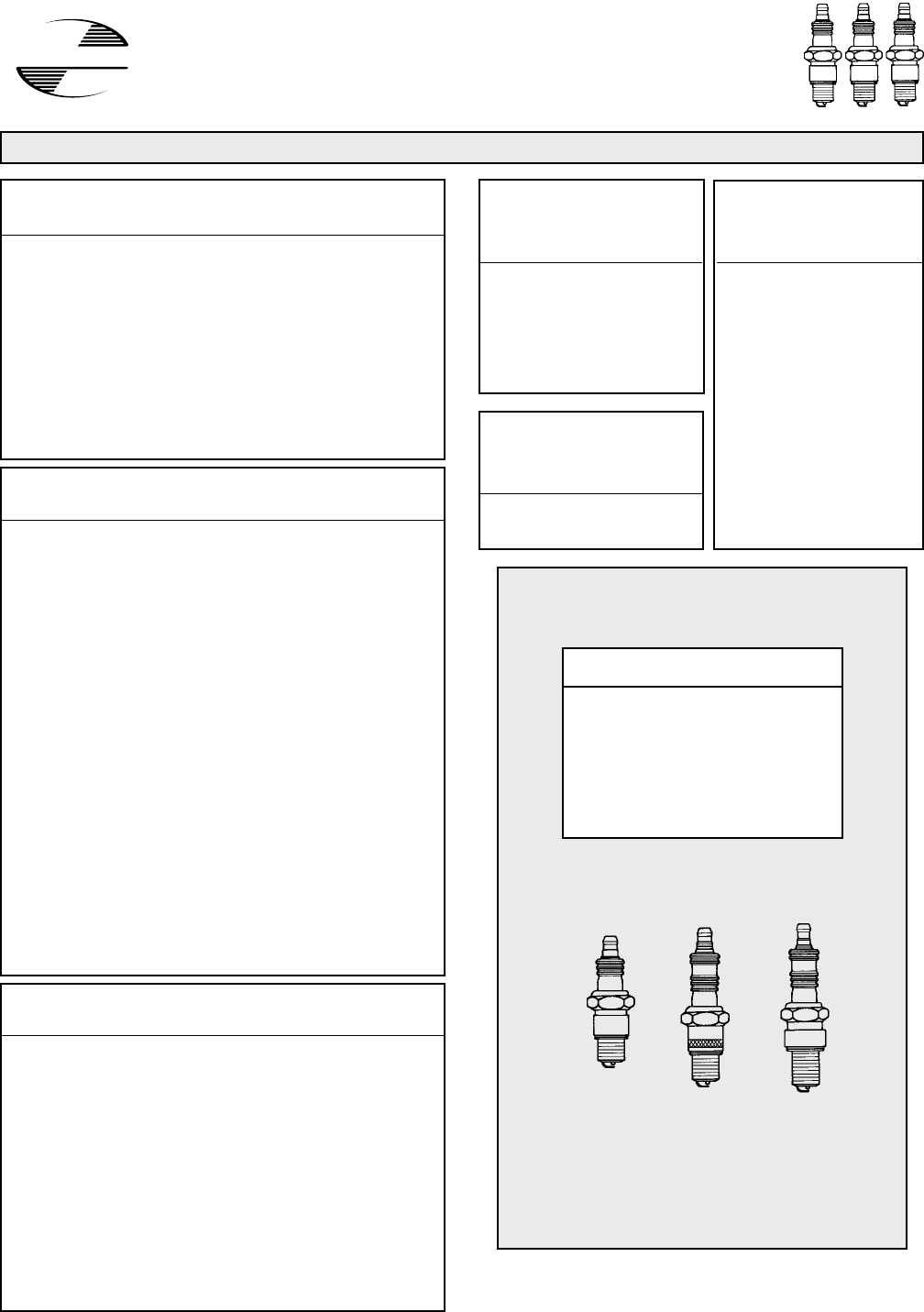

Spark Plug Replacement (2-Cycle and Europa) .....................................................................................6

Fuel Recommendations .......................................................................................................................7-8

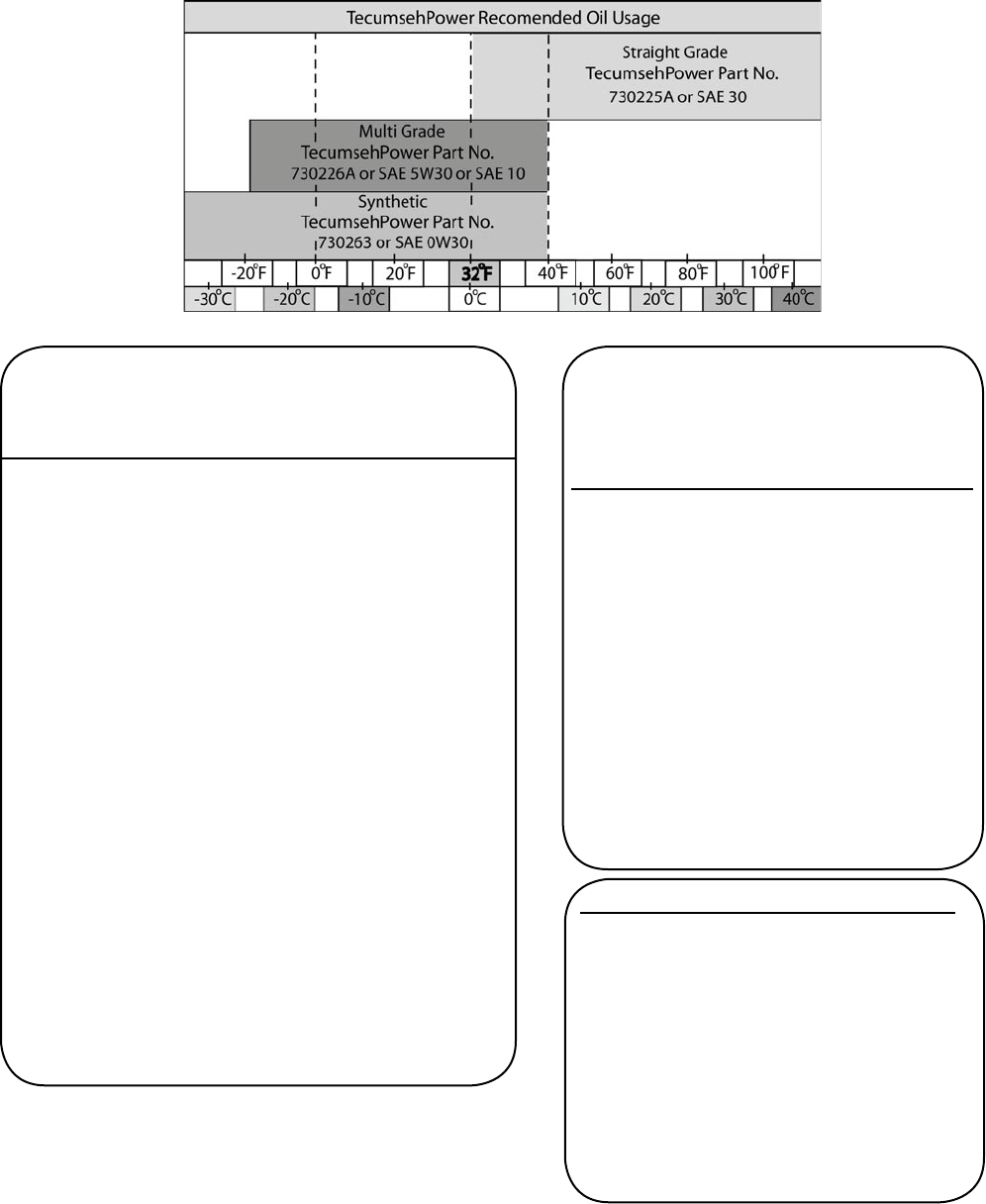

TecumsehPower 4-Cycle Lubrication Requirements ............................................................................... 9

4-Cycle Troubleshooting ...................................................................................................................10-11

TecumsehPower 2-Cycle Engine Oil Requirements .............................................................................. 12

2-Cycle Troubleshooting ...................................................................................................................13-14

4-Cycle Cross Reference for Specification-To-Model Number Designation (Vertical Engines) ............. 15

4-Cycle Cross Reference for Specification-To-Model Number Designation (Horizontal Engines) ........16

2-Cycle Cross Reference for Specification-To-Model Number Designation

(Vertical and Horizontal Engines) ......................................................................................................16

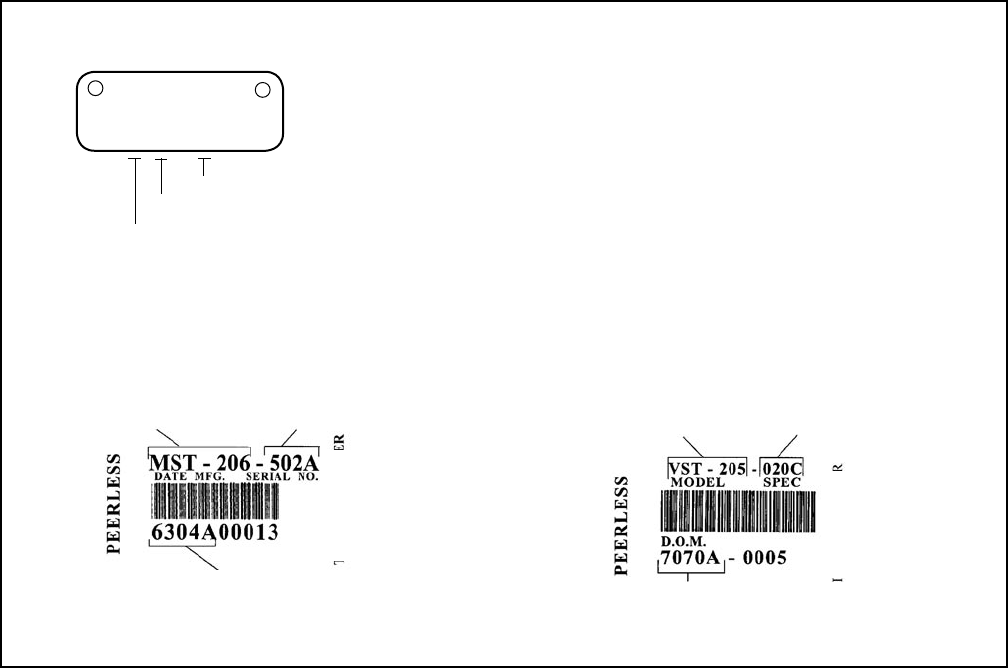

TecumsehPower and Peerless® Model and Specification Numbers .................................................17-18

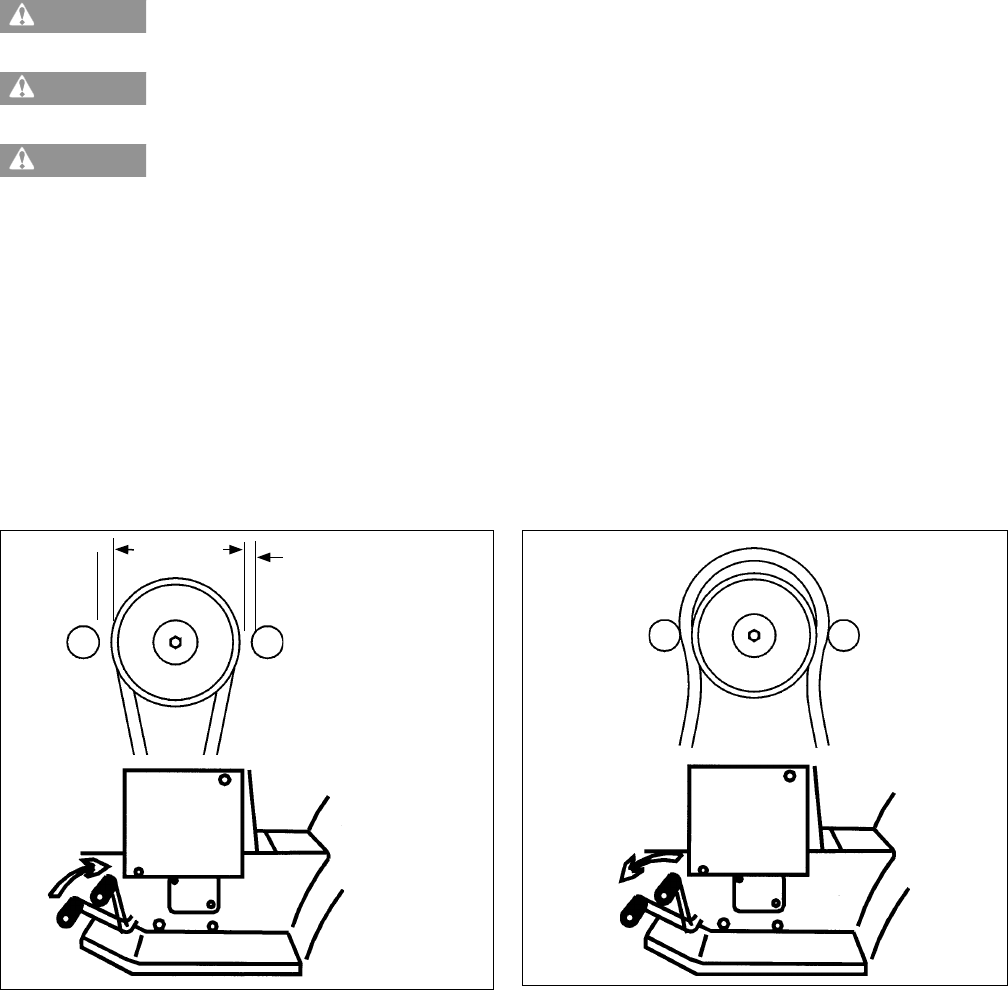

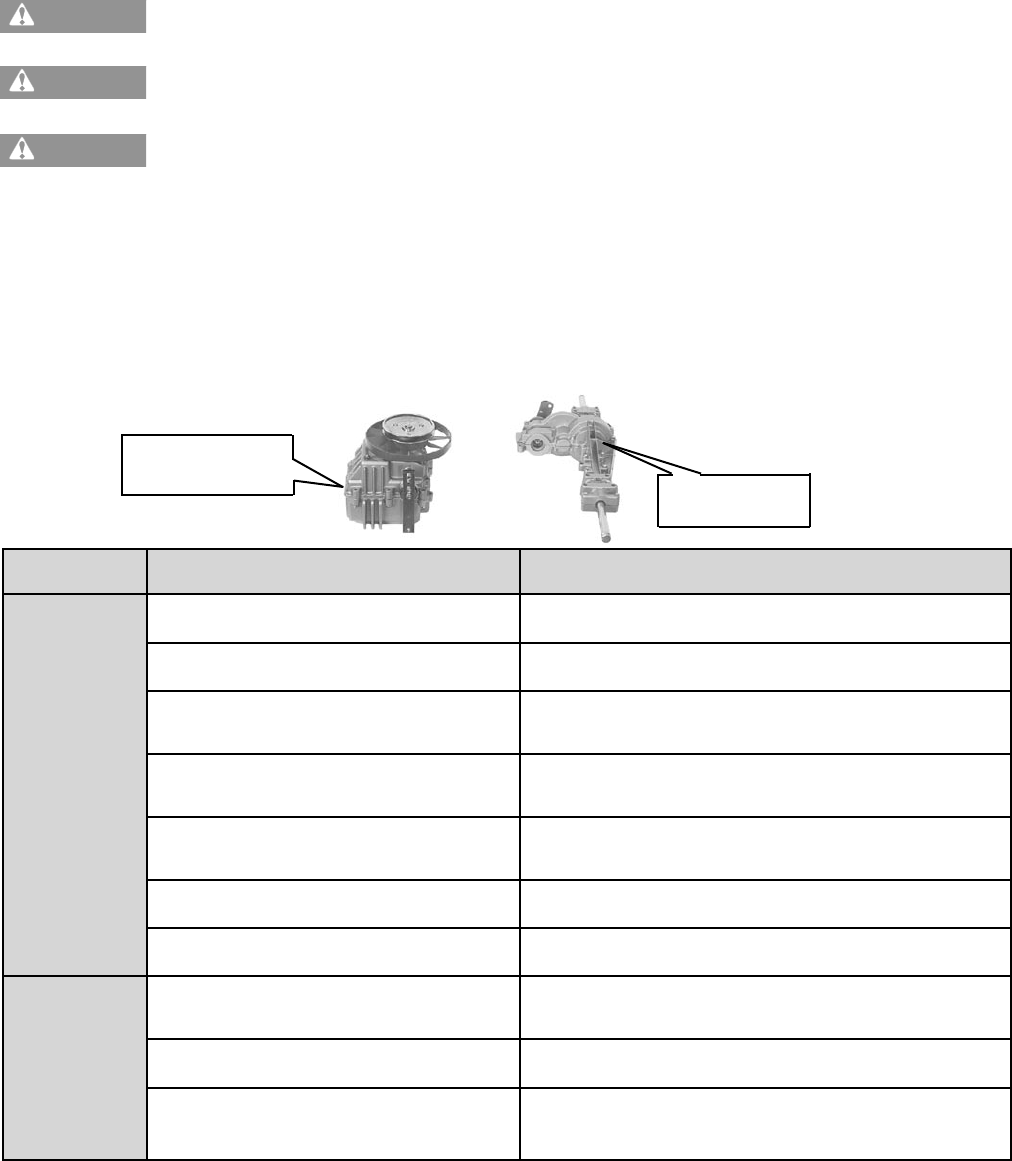

Basic Gear Drive Troubleshooting ....................................................................................................19-20

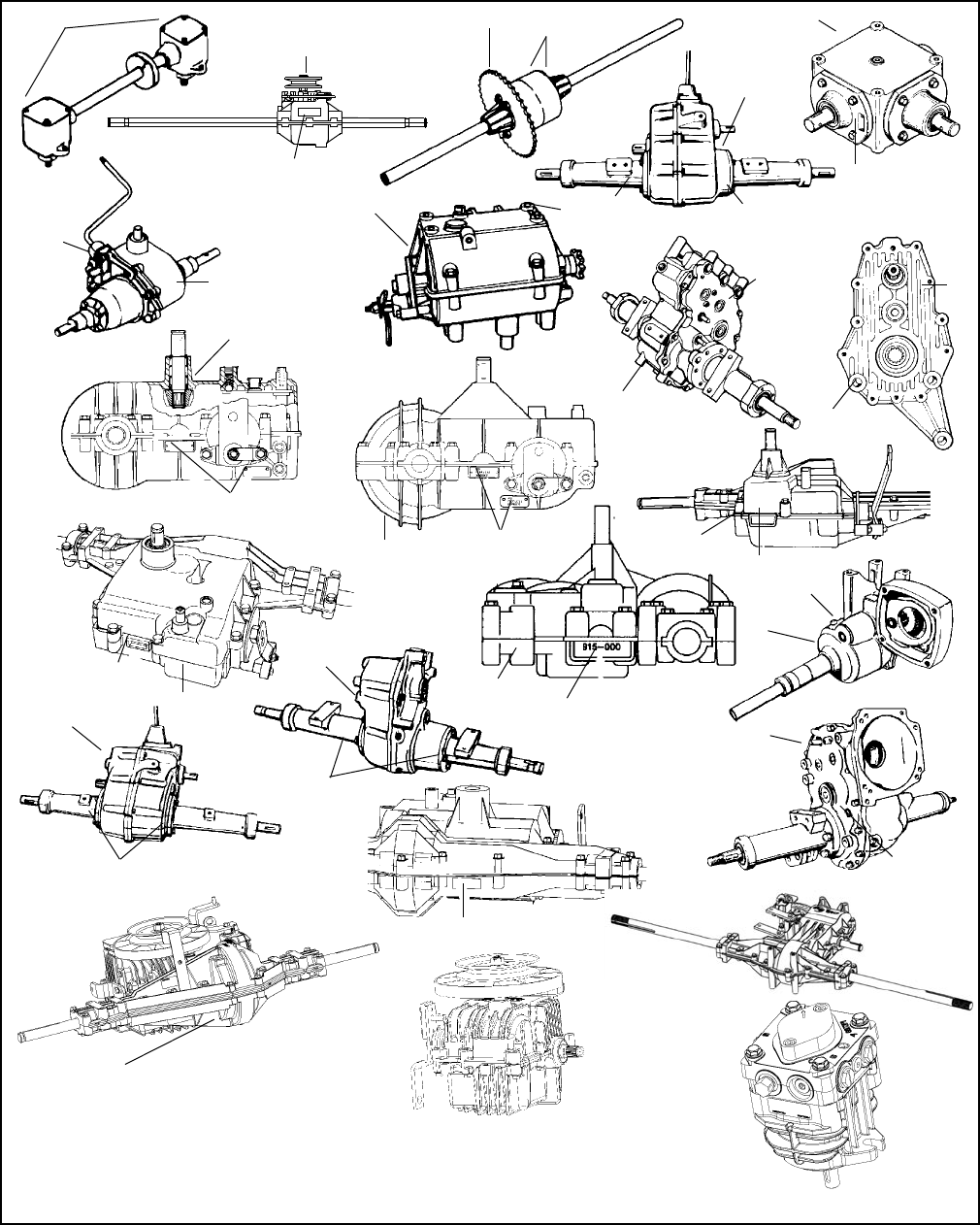

TecumsehPower and Peerless® Transmission, Transaxle and Gear Products ..................................... 21

LTH 2000 Series Hydrostatic Transaxle Troubleshooting .................................................................21-22

1800 / VST Troubleshooting ..................................................................................................................23

TecumsehPower and Peerless® Lubrication Requirements .................................................................. 24

Repair Manuals .....� 25

© 2005, 2007 TecumsehPower Company. All Rights Reserved

ii

The information in this guide is intended to assist individuals who are knowledgeable in basic en-

gine repair and maintenance. If you are unfamiliar with two and four cycle engine operation and

maintenance, DO NOT attempt any maintenance or repairs. Contact your local TecumsehPower

Servicing Dealer for assistance.

IMPORTANT NOTICE!

Safety Definitions

Statements in this manual preceded by the following

words and graphics are of special significance:

Or

WARNING indicates a potentially hazardous situation

which if not avoided, could result in death or serious

injury.

NOTE

Refers to important information and is placed in italic

type.

It is recommended that you take special notice of all

items discussed on the next two pages and wear the

appropriate safety equipment.

Before operating an engine it is your responsibility to

read the Operator’s Manual. Follow these basic rules

for your personal safety:

• Keep this manual handy at all times for

future reference.

• Read it carefully and familiarize yourself

with operating, maintenance, components

and safety instructions.

Notice Regarding Emissions

Engines which are certified to comply with California and

U.S. EPA emission regulations for SORE (Small Off Road

Equipment), are certified to operate on regular unleaded

gasoline, and may include the following emission control

systems: (EM) Engine Modification and (TWC) Three-

Way Catalyst (if so equipped).

TecumsehPower Contact Information

For engine adjustments, repairs or warranty service,

contact your nearest Authorized TecumsehPower

Servicing Dealer. Find them on our website at www.

TecumsehPower.com or call TecumsehPower at 1-800-

558-5402 or 262-377-2700 if you are located outside

the U.S.

WARNING

WARNING

1

General Safety Precautions

A. Avoid Carbon Monoxide Poisoning

All engine exhaust contains

carbon monoxide, a deadly gas.

Breathing carbon monoxide can

cause headaches, dizziness,

drowsiness, nausea, confusion

and eventually death.

to store and dispense fuel. TecumsehPower

recommends purchasing gasoline in containers with

a capacity of 2.5 gallons or less. Small containers

are easier to handle and help eliminate spillage

during refueling.

• DO NOT pour fuel from engine or siphon fuel by

mouth.

C. Adult Supervision of Operation, Refueling

and Maintenance

Not everyone who is allowed to use an engine is capable

of safely and responsibly operating, maintaining and/or

fueling it. TecumsehPower recommends the following:

• An adult should fuel the engine. NEVER allow

children to refuel an engine.

• An adult should perform maintenance on an engine.

Only allow children to perform maintenance if an

adult has determined they are experienced and

capable of such operation.

• An adult should start the engine. Only allow children

to start the engine if an adult has determined they

are experienced and capable of such operation.

To avoid unsupervised operation of the engine, especially

by children, NEVER leave it unattended when it is

running.

D. Stay Away from Rotating Parts

NEVER operate an engine with an unguarded engine

shaft.

The equipment manufacturer may attach a sprocket and

chain or pulley and belt to the engine

shaft. If these parts are not properly

guarded, or if you are not sure whether

they are properly guarded, DO NOT

use your engine; contact the equipment

manufacturer. Hands, feet, hair, jewelry,

clothing, etc. can become entangled in

rotating parts, leading to serious injury or

death. To avoid serious injury or death,

be sure the flywheel guard is in place.

Carbon monoxide is a colorless, odorless, tasteless gas

which may be present even if you do not see or smell

any engine exhaust. Deadly levels of carbon monoxide

can collect rapidly and you can quickly be overcome and

unable to save yourself. Also, deadly levels of carbon

monoxide can linger for hours or days in enclosed or

poorly-ventilated areas. If you experience any symptoms

of carbon monoxide poisoning, leave the area immediately,

get fresh air, and SEEK MEDICAL TREATMENT.

To prevent serious injury or death from carbon

monoxide:

• NEVER run engine indoors. Even if you try to

ventilate engine exhaust with fans or open windows

and doors, carbon monoxide can rapidly reach

dangerous levels.

• NEVER run engine in poorly-ventilated or

partially enclosed areas such as barns, garages,

basements, carports, under dwellings, or in pits.

• NEVER run engine outdoors where engine exhaust

can be drawn into a building through openings

such as windows and doors.

B. Avoid Gasoline Fires

Gasoline (fuel) vapors are highly flammable

and can explode. Fuel vapors can spread

and be ignited by a spark or flame many feet

away from engine. To prevent injury or death

from fuel fires, follow these instructions:

• NEVER store engine with fuel in fuel

tank inside a building with potential

sources of ignition such as hot water

and space heaters, clothes dryers, electric motors,

etc.

• NEVER remove fuel cap or add fuel when engine

is running.

• NEVER start or operate the engine with fuel fill cap

removed.

• Allow engine to cool before refueling.

• NEVER fill fuel tank indoors. Fill fuel tank outdoors

in a well-ventilated area.

• DO NOT smoke while refueling tank.

• Use only an approved red GASOLINE container

2

General Information

The following information is being provided to assist you in locating and recording your engine model and specification

numbers. This information will be needed to use this book or obtain parts from a local TecumsehPower dealer.

ENGINE MODEL NUMBER

LOCATED UNDER COVER

Model Specification (DOM)

ENGINE: TVM195 150288G 8150C

ENGINE MODEL SPEC NO. D.O.M

TVM195 150288G 8150C

Typical Engine I.D. Label

TVM195 150288G (E)

STP318U1G2EA

318 8150 C

Tecumseh Power Company

THIS ENGINE MEETS 1995-1998 CALIF/US

EPA PH1 APPLICABLE EMISSION REGULA-

TIONS FOR ULGE ENGINES FUEL REGULAR

UNLEADED OIL SAE 30

THE FOLLOWING WILL BE NEEDED TO LOCATE PARTS FOR YOUR ENGINE.

LOCATING AND READING ENGINE MODEL AND SPECIFICATION

ENGINE MODEL

NUMBER

LOCATIONS

Model Numbering System for TecumsehPower’s Full Engine Line

Prior to 2004 Production

ENGINE MODEL NUMBER LOCATIONS

3

Model Numbering System for Current TecumsehPower’s Full Engine Line

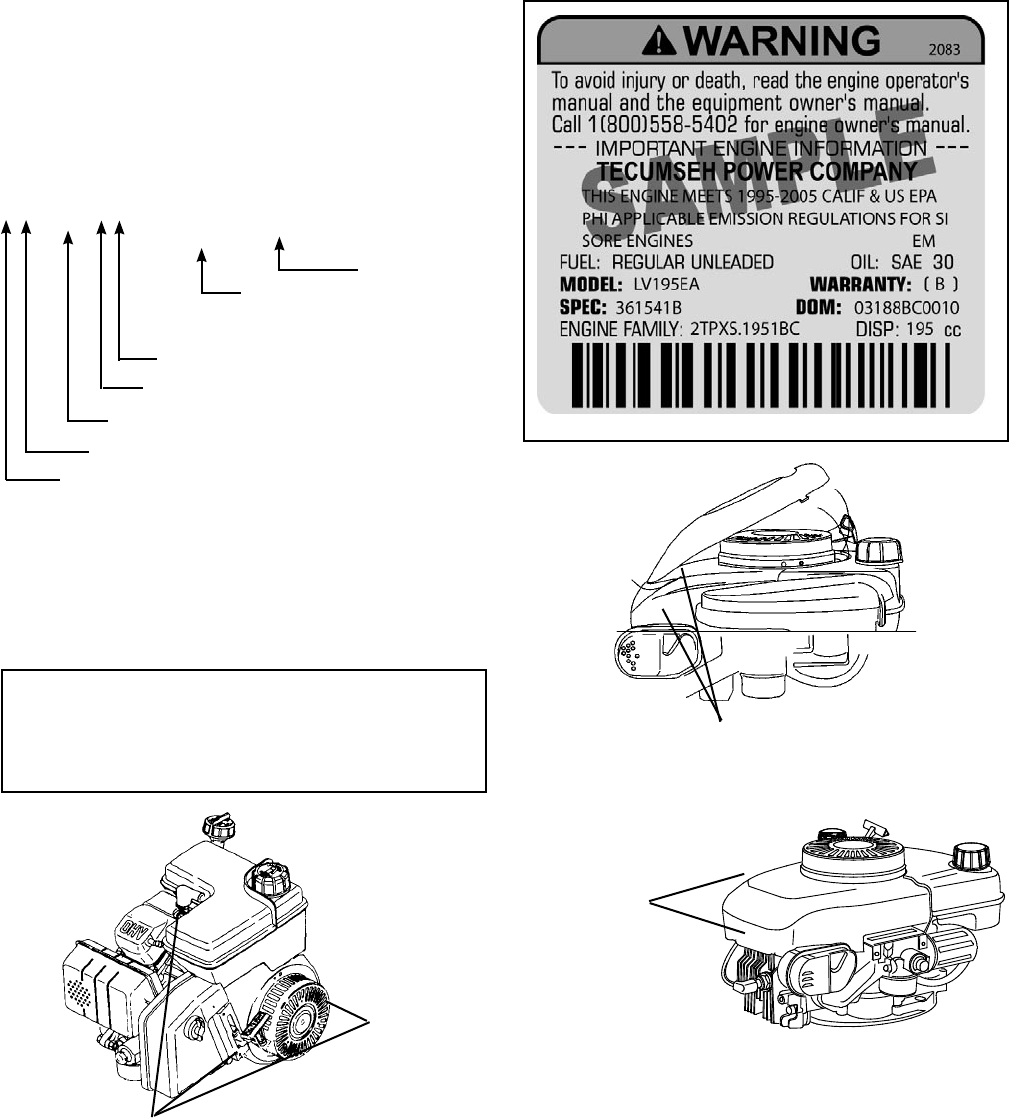

Reviewing The Engine ID Label

Effective with the 2004 Model Year, we have changes to the engine I.D. label on our products. The following pages

will explain the information contained on the label dependent on the age of your product.

Specification Number

The numbers following the model number make up the

specification number.

Using model LV195EA-361541B, as an example,

interpretation is as follows:

LV195EA-361541B is the model and specification

number.

L V 195 E A - 361541B (B)

03 188 B C 0010

Year

2003

Day of

Year

188th

Mfg

Facility

Assembly

Line / Shift

Individual

Serial #

10th unit built

{

{

Indicates an L-Head, side valve configuration

Indicates a 195 cc displacement

Warranty Code

Is the specification number used

for properly identifying the parts of

the engine

Indicates a vertical shaft configuration

Indicates EPA/CARB compliant

Indicates a standard power configuration

Date of Manufacture

The Date of Manufacture (D.O.M.) indicates the

production date.

For this example, 03188BC0010 is the D.O.M. (Date of

Manufacture).

ENGINE MODEL NUMBER LOCATIONS

ENGINE MODEL NUMBER

LOCATED UNDER COVER

Typical Engine

I.D. Label

Locations

ENGINE MODEL

NUMBER

LOCATIONS

{

4

Prior to 2004

Model Number Conversion Chart

4-Cycle

LEV90 - LV148EA OHH60 - OH195EA

LEV120 - LV195EA OHH65 - OH195EP

HSSK50 - LH195SA OHSK70 - OH195SA

HSSK55 - LH195SP OHSK75 - OH195SP

VSK90 - LV148SA HMSK90 - LH318SA

OHV135 - OV358EA HMSK110 - LH358SA

OHV180 - OV490EA OHSK110 - OH318SA

TVT691 - OV691EA OHSK130 - OH358SA

VTX691 - OV691EP OHM110 - OH318EA

2-Cycle

TC300 - TM049XA

HSK870 - TH139SP

HSK600 - TH098SA

AV520 - TV085XA

Model Numbering Identification for TecumsehPower’s Full Engine Line

4-Cycle

ECH - Exclusive Craftsman Horizontal

ECV - Exclusive Craftsman Vertical

H - Horizontal Shaft

HH - Horizontal Heavy Duty (Cast Iron)

HHM - Horizontal Heavy Duty (Cast Iron)

(Medium Frame)

HM - Horizontal Medium Frame

HMSK - Horizontal Medium Frame (Snow King)

HMXL - Horizontal Medium Frame (Extra Life)

HS - Horizontal Small Frame

HSSK - Horizontal Small Frame (Snow King)

HXL - Horizontal (Extra Life)

LAV - Lightweight Aluminum Frame Vertical

LEV - Low Emissions Vertical

LH - L-Head Horizontal

LV - L-Head Vertical

OH - Overhead Valve Heavy Duty (Cast Iron)

OHH - Overhead Valve Horizontal

OH195 - Overhead Valve Horizontal (195 cc's)

OHM - Overhead Valve Heavy Duty Horizontal

(Medium Frame)

OHSK - Overhead Valve Horizontal (Snow King)

OHV - Overhead Valve Vertical (Medium Frame)

OV - Overhead Valve Vertical

OVM - Overhead Valve Vertical (Medium Frame)

OVRM - Overhead Valve Vertical (Small Frame)

(Rotary Mower)

OVXL - Overhead Valve Vertical (Medium

Frame) (Extra Life)

TNT - Toro ‘N’ TecumsehPower (Toro

Exclusive Series)

TVEM - TecumsehPower Vertical European

Model

TVM - TecumsehPower Vertical (Medium

Frame) (Replaces V & VM)

TVS - TecumsehPower Vertical Styled

TVT - TecumsehPower Vertical Twin

TVXL - TecumsehPower Vertical (Extra Life)

V - Vertical Shaft

VH - Vertical Heavy Duty (Cast Iron)

VLV - Vector Lightweight Vertical

VLXL - Vector Lightweight Vertical (Extra Life)

VM - Vertical Shaft (Medium Frame)

VSK - Vertical Snow King

VTX - Vertical Twin

2-Cycle

TH - Two Cycle Horizontal Shaft

TM - Two Cycle Multiposition Operation

TV - Two Cycle Vertical Shaft

CURRENT CODE

(effective 2004 production)

1st Space - Valve Orientation

T = Two Cycle

O = Overhead Valve

L = L-Head

2nd Space - Crank Orientation

V = Vertical

H = Horizontal

M = Multi-position

3rd, 4th and 5th Space - Displacement

6th Space - Emissions Class

E = 50 State/Global Emissions Compliant

X = Not for sale in California, except exempt

applications

S = Snow Emission Compliant

7th Space - Engine Specifics

A = Standard (OHH50-60), (OHSK50-70)

P = Power Up (OHH65-70, OHSK75-775)

5

Service Number 34046

RL86C

† OHM120

‡ OH318SA (OHSK110), OH358SA (OHSK120-130)

OVM120

* OVXL120

* OVXL/C120

* OVXL125

Note:

* OVXL models with specification nos. 202700, 203000 and

up, use RN4C.

† OHM120 models with specification nos. 224000 and up,

use RN4C.

‡ OHSK110, OHSK120-130 models with specification nos.

223000 and up, use RN4C.

Spark Plug Replacement

4-CYCLE SPARK PLUG

Service Number

33636

RJ17LM

H30-80

HM70-100

HS40-50

TVM195-220

TVXL195-220

VLV-all

Service Number

35552

RL82C

HH140-160

OH120-160

Champion Autolite

35395 - RJ19LM NA

35552 - RL82C 4092

34046 - RL86C 425

34645 - RN4C 403

33636 - RJ17LM 245

34277 - RJ8C 304

NOTE: THE SERVICE NUMBERS LISTED BELOW

WILL GIVE CORRESPONDING CHAMPION

AND AUTOLITE SUBSTITUTIONS.

NOTE:

Not all spark plugs have the same heat range or reach.

Using an incorrect spark plug can cause severe engine

damage or poor performance. TecumsehPower uses

all three of the reaches shown.

Service Number 34645

RN4C

OH318EA (OHM90-110)

† OHM120

OH195EA (OHH60), OH195EP (OHH65)

OHH/OHSK40-130

OH195SA (OHSK70), OH195SP (OHSK75)

‡ OH318SA (OHSK110), OH358SA (OHSK120-130)

OH180

OV195EA

OV358EA (OHV110-135), OV490EA (OHV140-180)

OV691EP (VTX691, TVT691)

OVM120

* OVXL120

* OVXL/C120

* OVXL125

OV195

RJ8C

H22

H25

HH40-120

HHM80

HMXL70

HT30

HT35

HXL35

LAV25-50

TVM125-170

V40-80

VH40-100

VM70-100

Service Number

34277

Note:

* OVXL models with specification nos. below 202700 use

RL86C.

† OHM120 models with specification nos. below 224000 use

RL86C.

‡ OHSK110 - 130 models with specification nos. below

223000 use RL86C.

NOTE: Only models which will continue to be manufactured long term will have an updated Model designation.

SPARK PLUG AIR GAP ON ALL MODELS IS

.030 (.762 mm)

Service Number 35395

RJ19LM

ECV100-120

HMSK70, LH318SA (HMSK80), HMSK90

HSK30-70

HSSK40, LH195SA (HSSK50), LH195SP (HSSK55)

LH358SA (HMSK100), HMSK110

LEV80, LV148EA (LEV90), LV195EA (LEV120)

LV148SA (VSK90), VSK100

TNT100

TNT120

TVS75-120

TVXL90-120

FOR TWO CYCLE INFORMATION

REFER TO NEXT PAGE.

1/2"

12.700 mm

3/4"

19.050 mm

3/8"

9.525 mm

Note: If you need assistance locating your engine model numbers please check page 3 or 4.

TecumsehPower

6

Champion Autolite

35395 - RJ19LM NA

33636 - RJ17LM 245

611100 - RCJ-6Y 2974

611049 - RCJ-8Y 2976

NOTE: THE SERVICE NUMBERS LISTED BELOW

WILL GIVE CORRESPONDING CHAMPION

AND AUTOLITE SUBSTITUTIONS.

NOTE:

Not all spark plugs have the same heat range or reach. Using an

incorrect spark plug can cause severe engine damage or poor

performance. TecumsehPower uses all three of the reaches

shown.

Spark Plug Replacement

NOTE: Only models which will continue to be manufactured long term will have an updated Model designation.

1/2"

12.700 mm

3/4"

19.050 mm

3/8"

9.525 mm

SPARK PLUG AIR GAP ON ALL MODELS IS

.030 (.762 mm)

2-CYCLE SPARK PLUG

Service Number

611100

Service Number

33636

Service Number

35395

Service Number 611049

RCJ6Y RJ17LM RJ19LM RCJ8Y

TC300

TCH300

TM049XA

AV600

AV520

TVS600

TV085XA

TVS840

TVXL840

AH520

AH600

HSK840

HXL840

TC200

TCH200 Type 1500

TH098SA

HSK600

HSK635

TH139SA

HSK845, 850

TH139SP

HSK870

EUROPA MODELS

4-CYCLE SPARK PLUG

Service Number 33636 Service Number 34645

RJ17LM RN4C

All Horizontal Models

BV

BVL

BVS

Centura

Futura

HTL

LAV

Legend

Premier 153/173

Prisma

Spectra

Synergy

Vantage

Centrua OHV

Futura OHV

Geotec OHV

Premier 45/55

Synergy OHV

2-CYCLE SPARK PLUG

Service Number 33636

RJ17LM

AV85/125

AV520/600

MV100S

TVS600

Note: If you need assistance locating your engine model numbers please check page 3 or 4.

TecumsehPower

7

Fuel Recommendations

Today’s fuels have a short shelf life and it is recommended you buy no more than a two week

supply at a time.

GASOLINE

TecumsehPower strongly recommends the use of fresh, clean, unleaded regular gasoline in all

TecumsehPower engines. Unleaded gasoline burns cleaner, extends engine life, and promotes good

starting by reducing the build-up of combustion chamber deposits. Leaded gasoline, gasohol containing

no more than 10% ethanol, premium gasoline, or unleaded gasoline containing no more than 15% MTBE

(Methyl Tertiary Butyl Ether), 15% ETBE (Ethyl Tertiary Butyl Ether) or 10% ethanol, can be used if

unleaded regular gasoline is not available.

Reformulated gasoline that is now required in several areas of the United States is also acceptable.

NEVER USE gasoline, fuel conditioners, additives or stabilizers containing methanol, gasohol containing

more than 10% ethanol, unleaded regular gasoline containing more than 15% MTBE (Methyl Tertiary Butyl

Ether), 15% ETBE (Ethyl Tertiary Butyl Ether) or 10% ethanol, gasoline additives, or white gas because

engine/fuel system damage could result.

SPECIALTY FUELS

Fuels being marketed for use on small engines can have a significant effect on starting and engine

performance. Prior to using any specialty fuel, the Reid Vapor Pressure (RVP) must be determined. Fuels

with a rating of less than 50kPa (7psi) should not be used in summer, and fuel with a rating of 85kPa

(12psi) should not be used during winter.

SHORT TERM STORAGE

NEVER store the engine with fuel in the fuel tank inside a building with potential sources

of ignition such as hot water and space heaters, clothes dryers, electric motors, etc.

If engine fuel stored in the gas tank and/or an approved gas container is to be unused without gasoline

stabilizer for more than 15-30 days, prepare it for short term/seasonal storage.

TecumsehPower recommends using ULTRA-FRESH™ or Fuel Saver Plus Gasoline Stabilizer plus Fuel

System Cleaner as an acceptable method of minimizing formation of fuel gum deposits during storage.

This product is available from your Authorized TecumsehPower Servicing Dealer.

Always follow mix ratio found on stabilizer container. Failure to do so may result in equipment damage.

It is not necessary to drain stabilized gas from carburetor.

FUEL TREATMENT

1. Add fuel stabilizer according to manufacturer’s instructions.

2. Run engine at least 10 minutes after adding stabilizer to allow it to reach carburetor.

3. Instead of using a fuel preservative/stabilizer, you can empty the fuel tank as described under "Extended

Storage”.

WARNING

8

Fuel Recommendations - continued

EXTENDED STORAGE

NOTES

Clean debris from engine before draining fuel from carburetor. If you have prepared your fuel for short

term storage it is not necessary to drain fuel that contains stabilizer from your carburetor.

To avoid severe injury or death, DO NOT pour fuel from engine or siphon fuel by mouth.

1. To prevent serious injury from fuel fires, empty fuel tank by running engine until it stops from lack of

fuel. DO NOT attempt to pour fuel from engine.

2. Run the engine while waiting until the remaining fuel is consumed.

NEVER leave the engine unattended when it is running and NEVER run engine in enclosed areas.

FUEL ADDITIVES

Only fuel additives such as TecumsehPower’s fuel stabilizer Part No. 730245A or liquid varieties can be

used when mixed properly. For winter applications, Isopropyl alcohol fuel dryers may be used in the fuel

system but must be mixed at the proper ratio recommended by the manufacturer. NEVER USE METHANOL

BASED FUEL DRYERS.

9

Engine Model ml Oz.

LH195SA, LH195SP 630 21

LH318SA, LH358SA 720 26

LV148EA, LV148SA 630 21

LV195EA 630 21

OH195EA, OH195EP 630 21

OH195SA, OH195SP 630 21

OH318EA 720 26

OH358SA 840 28

OV195EA 630 21

OV358EA With Filter 1170 39

OV358EA Without Filter 960 32

OV490EA With Filter 1800 61

OV490EA Without Filter 1650 55

OV691EA With Filter 2150 71

OV691EA Without Filter 1950 64

OV691EP With Filter 2150 71

OV691EP Without Filter 1950 64

TecumsehPower

4-CYCLE ENGINE OIL

shown with model names

2004 production and later

TECUMSEHPOWER 4-CYCLE LUBRICATION

TecumsehPower recommends the use of a high quality,

brand name oil with a minimum classification of SL/SJ.

Very few air cooled engines have any type of oil filtration

system, making regular oil changes critical to remove

TecumsehPower

4-CYCLE ENGINE OIL

shown with model names prior to 2004

CLASSIFICATIONS: “SL/SJ"

DO NOT USE 10W40

CAPACITIES:

Engine Model ml Oz.

All LAV, TVS, LEV, OVRM ................................ 630 21

ECV, TNT .......................................................... 630 21

V & VH50-70 ..................................................... 810 27

TVM 125, 140 ................................................... 810 27

TVM 170-220 .................................................... 960 32

VM70-100, HHM80 ........................................... 960 32

VH100 ............................................................... 1500 50

All VLV .............................................................. 810 27

VSK90-100 ......................................................... 630 21

OVM120, OVXL120, 125 .................................. 960 32

OHV11-13 Without Filter ................................... 960 32

OHV11-13 With Filter .........................................1170 39

OHV13.5-17 With Filter ..................................... 1800 61

OHV13.5-17 Without Filter ................................ 1650 55

TVT691 With Filter ............................................ 2150 71

TVT691 Without Filter ....................................... 1950 64

H, HSK30-35 ..................................................... 630 21

HS, HSSK40-50 ................................................ 630 21

H, HH, HSK50-70 ............................................. 570 19

OHH/OHSK50-70 ............................................. 630 21

HMSK, HM70-100 ............................................. 720 26

OHSK80-100 .................................................... 720 26

OHM120, OHSK110*-130 ................................. 840 28

HH100,120, OH120-180 ................................... 1560 52

*NOTE: Model OHSK110 with a spec. of 221000 and up, have a

capacity of 26 oz. (720 ml).

NOTE: Vertical shaft engines with auxiliary PTO:

26 oz. (700 ml).

EUROPA MODELS *

VERTICALS

ml Oz.

Vantage 630 21

Prisma 630 21

Synergy 630 21

Synergy "55" 810 27

Spectra 630 21

Futura 630 21

HTL 630 21

BVS 630 21

HORIZONTALS

BH Series 630 21

Geotec Series 35-50 630 21

impurities from the engine and maximize engine life.

Consult the operator's or repair manual for the oil

change interval and viscosity based on equipment

operating temperature.

10

Four Cycle Troubleshooting

The following is provided as a basic troubleshooting guide. Its use requires a complete review of all conditions

and symptoms. Always examine the exterior for clues: leaks, excessive dirt, or obvious damage. Some repairs will

require the assistance of a TecumsehPower Servicing Dealer.

Should more extensive repair be needed, we recommend you contact a local TecumsehPower Servicing Dealer

for repair. Repair manuals are also available from your local dealer or direct from www.TecumsehPower.com. A

complete list of the available manuals can be found at the end of this book.

NOTE: Refer to Technician's Handbook for a more detailed list of remedies.

Preparation

Before troubleshooting any system problem, see original equipment manufacturer’s (O.E.M.) instructions.

Make your troubleshooting easier by preparing as follows:

• Work in a clean, well-lighted place.

• Keep proper tools and materials nearby.

• Keep an adequate supply of clean petroleum-based solvent.

To reduce the risk of serious injury or death from fires and/or explosions, NEVER use flammable

solvents (e.g., gasoline) to clean serviceable parts. Use a water-based, non-flammable solvent

such as TecumsehPower Degreaser Cleaner.

NEVER use compressed air to clean debris from yourself or your clothing. When using compressed

air to clean or dry serviceable parts:

• Wear appropriate eye protection.

• Use only approved air blow nozzles.

CAUTION

FUEL SYSTEM

Engine Will Not Start

Check if spark plug is wet or

dry

Wet Dry

Defective spark plug

Use Tester 670366

Review with the customer proper

priming procedure (3-5 primes,

waiting 2 seconds between each

prime)

Restricted air filter

If equipped with a choke, check for full

travel. Check throttle cable and control

for proper adjustment.

Improper or stale fuel Check fuel supply and fuel cap vent

Exhaust ports plugged Restriction in fuel system (filter)

Carburetion problems due to flooding,

over priming, etc.*

Carburetion problem*

(bad bowl gasket)

Ignition System Poor Compression

• Air pressure must not exceed 30psi (206kPa).

• Shield yourself and bystanders from flying debris.

11

Four Cycle Troubleshooting - continued

IGNITION SYSTEM

Engine Will

Not Start

Check for Spark

Spark No Spark

Check flywheel for

correct key, damaged

or sheared key

Replace spark plug

Set proper air gap on

external coil

Isolate engine from all

equipment (disconnect

wiring harness), repeat

test

Set proper point gap,

check condensor and

timing

Spark No Spark

Equipment problem,

check switches, wiring and

equipment controls

Engine problem, check

for shorts or grounds

in wiring

Test coil for

intermittent or weak

spark

Parasitic load too high Test ignition module

To reduce the risk of serious injury or death from fires and/or explosions, NEVER use flammable

solvents (e.g., gasoline) to clean serviceable parts. Use a water-based, non-flammable solvent

such as TecumsehPower Degreaser Cleaner.

NEVER use compressed air to clean debris from yourself or your clothing. When using compressed

air to clean or dry serviceable parts:

• Wear appropriate eye protection.

• Use only approved air blow nozzles.

• Air pressure must not exceed 30psi (206kPa).

• Shield yourself and bystanders from flying debris.

CAUTION

Should more extensive repair be needed, we recommend you contact a local TecumsehPower Servicing Dealer

for repair. Repair manuals are also available from your local dealer or direct from www.TecumsehPower.com. A

complete list of the available manuals can be found at the end of this book.

NOTE: Refer to Technician's Handbook for a more detailed list of remedies.

12

TECUMSEHPOWER 2-CYCLE ENGINE OIL

The proper type and ratio of 2-cycle oil is critical to

long life and low maintenance of the engine. The use

of non-certified oils and improper mix ratio’s can cause

severe engine damage and possibly void warranty

consideration.

ENGINE FUEL MIX

U.S.

Gasoline

U.S.

Amount of Oil

To Be Added

METRIC

Petrol

METRIC

Amount of Oil

To Be Added

24:1 1 Gallon 5 oz. 4 Liters 167 ml

2 Gallons 11 oz. 8 Liters 333 ml

5 Gallons 27 oz. 20 Liters 833 ml

32:1 1 Gallon 4 oz. 4 Liters 125 ml

2 Gallons 8 oz. 8 Liters 250 ml

5 Gallons 20 oz. 20 Liters 625 ml

50:1 1 Gallon 2.5 oz. 4 Liters 80 ml

2 Gallons 5 oz. 8 Liters 160 ml

5 Gallons 13 oz. 20 Liters 400 ml

Sears/Craftsman 40:1 2-Cycle Oil has been tested and approved for use in all engines,

EXCEPT the TC / TM Models which require a 24:1 Ratio.

2-CYCLE

SYNTHETIC BLEND

ENGINE OIL WITH

FUEL STABILIZER

PART NO. 730227D

TecumsehPower 2-CYCLE ENGINE

OIL may be used in a variety of

2-cycle engines including: outboards,

lawnmowers, snow-blower, string

trimmers, and edgers at any fuel/oil

mixing ratio up to 50:1.

• Superior Lubricity Extends engine

life by reducing wear

• Longer Spark Plug life through

reduced fouling

• Reduces Carbon Build-Up

extending required service intervals

• Helps maintain emissions

compliance which helps our

environment

• Contains Fuel Stabilizer-Extends

fuel life and protects fuel system

TWO-CYCLE FUEL/OIL MIX RATIOS

24:1 32:1 50:1

AV520 Types 670 & 653, TV085

TV085XA (AV600 Type 600-10 & Up)

TC200, TCH200, TCH300

TM049XA (TC300)

MV100S

TVS600 ALL TYPES

AH600

TVS / TVXL

HSK840 - 870 - TH139

HSK600 - 635 - TH098

The following is a list of 2-cycle engine oil classifications

which are certified for use in TecumsehPower

2-cycle engines:

• National Marine Manufactures Association,

(NMMA), TC-WII or TC-W3

• American Petroleum Institute, (API), TC

• Japanese Automobile Standard Organization,

(JASO), FB or FC

13

Engine Will Not

Start

Check if spark plug is

wet or dry

Wet Dry

Defective spark plug

Review with customer priming or choking

procedure (3-5 primes, if equipped, waiting 2

seconds between each prime)

Restricted air filter

If equipped with a choke, check for full travel.

Check throttle cable and control for proper

adjustment.

Improper fuel mix or stale fuel Carburetion problem*

(bad bowl gasket)

Sheared or partially sheared

flywheel key Check fuel supply and fuel cap vent

Carburetion problems due to

flooding, over priming, etc.*

Restriction in fuel system

(filter, screen)

Ignition System Poor compression

Crankcase seals or gaskets leaking Damaged reed, port plugs, seals or gaskets

Should more extensive repair be needed, we recommend you contact a local TecumsehPower Servicing Dealer

for repair. Repair manuals are also available from your local dealer or direct from www.TecumsehPower.com. A

complete list of the available manuals can be found at the end of this book.

NOTE: Refer to Technician's Handbook for a more detailed list of remedies.

Two Cycle Troubleshooting

The following is provided as a basic troubleshooting guide. Its use requires a complete review of all conditions

and symptoms. Always examine the exterior for clues: leaks, excessive dirt, or obvious damage. Some repairs will

require the assistance of a TecumsehPower Servicing Dealer.

Preparation

Before troubleshooting any system problem, see original equipment manufacturer’s (O.E.M.) instructions.

Make your troubleshooting easier by preparing as follows:

• Work in a clean, well-lighted place.

• Keep proper tools and materials nearby.

• Keep an adequate supply of clean petroleum-based solvent.

To reduce the risk of serious injury or death from fires and/or explosions, NEVER use flammable

solvents (e.g., gasoline) to clean serviceable parts. Use a water-based, non-flammable solvent

such as TecumsehPower Degreaser Cleaner.

NEVER use compressed air to clean debris from yourself or your clothing. When using compressed

air to clean or dry serviceable parts:

• Wear appropriate eye protection.

• Use only approved air blow nozzles.

CAUTION

• Air pressure must not exceed 30psi (206kPa).

• Shield yourself and bystanders from flying debris.

FUEL SYSTEM

14

Two Cycle Troubleshooting - continued

IGNITION SYSTEM

Engine Will

Not Start

Check for Spark

Spark No Spark

Check flywheel for

correct key, damaged

key or key adaptor

Replace spark plug

Set proper air gap on

external coil

Isolate engine from all

equipment (disconnect

wiring harness), repeat

test

Set proper point gap,

check condensor and

timing (if equipped)

Spark No Spark

Equipment problem,

check switches, wiring and

equipment controls

Engine problem, check

for shorts or grounds in

wiring

Test coil for

intermittent or weak

spark

Parasitic load too high Test ignition module

Check electric starter

if applicable

To reduce the risk of serious injury or death from fires and/or explosions, NEVER use flammable

solvents (e.g., gasoline) to clean serviceable parts. Use a water-based, non-flammable solvent

such as TecumsehPower Degreaser Cleaner.

NEVER use compressed air to clean debris from yourself or your clothing. When using compressed

air to clean or dry serviceable parts:

• Wear appropriate eye protection.

• Use only approved air blow nozzles.

• Air pressure must not exceed 30psi (206kPa).

• Shield yourself and bystanders from flying debris.

CAUTION

Should more extensive repair be needed, we recommend you contact a local TecumsehPower Servicing Dealer

for repair. Repair manuals are also available from your local dealer or direct from www.TecumsehPower.com. A

complete list of the available manuals can be found at the end of this book.

NOTE: Refer to Technician's Handbook for a more detailed list of remedies.

15

Cross Reference for Specification - To - Model Number Designation

VERTICAL 4-CYCLE ENGINES

Specification Model

Number Series Number

10000 TNT100

12000 TNT120

20000 LAV25, OVRM55

20500 OVRM105

21000 OVRM60

21800 OVRM60

22000 OVRM65, OVRM120

23000 OV195EA (RM)

23500 OV195EA (Utility)

30000 LAV30

33000 TVS75

40000 LAV35

42000 OVRM905 (Sears Only)

42600 OVRM40, OVRM45 (Premier Engine)

42900 OVRM40 (High Tech Look)

43000 TVS90

43600 TVS90 (Premier Engine)

43700 TVS90, TVXL90

43900 TVS90 (High Tech Look)

44000 TVS100

44600 TVS100 (Premier Engine)

44800 TVS100

46000 TVS90, TVXL90

46600 TVS90

48000 TVS90

50000 V40

50200 LAV40

52600 OVRM50, OVRM55 (Premier Engine)

52800 OVRM50, OVRM55

52900 OVRM50, OVRM55 (High Tech Look)

53000 TVS105

53600 TVS105 (Premier Engine)

53800 TVS105

53900 TVS105 (High Tech Look)

54000 TVXL105

56000 TVS105, TVS & TVXL115

56600 TVS105, TVS115 (Premier Engine)

56800 TVS115

56900 TVS105, TVS115 (High Tech Look)

57000 TVS & TVXL115

57600 TVS115 (Premier Engine)

57800 TVS115

57900 TVS115 (High Tech Look)

60000 V50, TVM125

61000 TVS & TVXL115

61600 TVS & TVXL115

61800 TVS115

61900 TVS115

62000 LAV50

62100 LAV50 & TVS115

63000 TVS120

63200 TVS120, TVEM120

63600 TVS120 (Premier Engine)

63900 TVS120 (High Tech Look)

66000 TVS120

66100 TVS120

70000 V60, TVM140

80000 VH40

90000 VH50

100000 VH60

125000 V70

127000 VM70, TVM170

127200 TVXL170

135000 VH70

145000 ECV100

147000 ECV105

148000 VH80

149000 VH100

150000 V & VM80, TVM195

150200 TVM & TVXL195

150500 TVM195

151000 ECV110, TVM195

151500 TVM220

152000 ECV120

157000 VM100, TVM220

157200 TVM & TVXL220

157400 TVM220

200000 OVM120

202000 OVXL120, OVXL125

202200 OVXL120 (I/C)

202300 OHV11, OHV115

202400 OVXL125

202500 OHV115

202600 OVXL125 (I/C)

202700 OHV12, OVXL120 (Tec.1200)

203000 OHV125, OVXL125 (Tec1250)

203200 OHV13

203500 OVXL125 (Tec.1250I/C), OHV13/135

203600 OHV14/140

203800 OHV145

204000 OHV15/150

204200 OHV16/160

204400 OHV165

204500 OHV155

204600 OHV17/170

204800 OHV175

206000 OHV110

206200 OHV115

206400 OHV120

206600 OHV125

206800 OHV130

206900 OHV135,OV358EA (Sm. Enduro)

208000 OHV180,OV490EA (Lg. Enduro)

334000 LEV90, LV148EA

334500 VSK90, LV148SA

335000 LEV100

338000 LEV100

338500 VSK100

340000 LEV100

345000 LEV100

346000 LEV105

347000 LEV105

348500 VSK105

350000 LEV115

355000 LEV115

360000 LEV115

361000 LEV120

361400 VSK120

361500 LEV120, LV195EA (Utility)

362000 LEV120, LV195EA (RM)

400000 VLV40

500000 ULT, VLV B24, VLXL50, & VLV126

501000 ULT, VLV, VLXL55, & VLV126

502000 ULT, VLV60, VLV65, & VLV126

502500 VLV65, VLV66

600400 TVT691

600800 TVT691, OV691EA (Twin)

600900 VTX691, OV691EP (Twin)

This cross reference chart allows you to determine an engine Model Number if you only have the Specification

Number.

Specification Model

Number Series Number

16

VERTICAL 2-CYCLE ENGINES

15000 H22

25000 H25

26000 OHH45

35000 H30

35400 HSK30

35800 H30

36700 H30

45000 H & HT35

45400 HSK35

45800 H35

46700 H35

47000 HXL35

55000 H40

55200 HS & HSSK40

55500 HSK40

55700 H40

55800 H40

55900 HSSK40

65000 H50

65300 HSK50

67000 HS & HSSK50, LH195SA

67500 HSSK55, LH195SP

68000 OHH50

68500 OHSK50

69000 OHH55

69500 OHSK55

71100 OHH60, OH195EA

71500 OHSK60

71700 OHH65

71800 OHH65, OH195EP

71900 OHSK65

72000 OHH70

72500 OHSK70, OH195SA (Premium)

73500 OHSK75, OH195SP (Premium)

75000 H60

76000 HSK60

85000 HH40

95000 HH50

105000 HH60

110000 HH80

115000 HH100

Specification Model

Number Series Number

Specification Model

Number Series Number

HORIZONTAL 2-CYCLE ENGINES

Specification Model

Number Series Number

3600 TC300, TM049XA

670000 AV520, TV085XA

Specification Model

Number Series Number

1720 HSK635, TH098SA

8300 HSK850, TH139SA

8700 HSK870, TH139SP

This cross reference chart allows you to determine an engine Model Number if you only have the Specification

Number.

HORIZONTAL 4-CYCLE ENGINES

Cross Reference for Specification - To - Model Number Designation

120000 HH120

130000 H70

130200 HSK70

132000 HM & HMSK70

132500 HMXL70

140000 HH70

146000 ECH90

155000 H & HM80

155000 HMSK80

155800 HM85

155900 HM & HMSK85

156000 HM90

156500 HMSK90, LH318SA

159000 HM & HMSK100, LH358SA

159900 HMSK105

159950 HMSK110

160000 HH & OH140

170000 HH150 & 160

170000 OH160

175000 OH120

180000 OH180

190000 HHM80

220000 OHM120

221000 OHSK110

221200 OHSK80

221400 OHSK90

221600 OHSK100

221700 OHSK110

221800 OHSK115, OH318SA (Premium)

222000 OHSK120

222300 OHM90

222500 OHM100

222700 OHM110, OH318EA

223000 OHSK90

223400 OHSK110

223600 OHSK120

223700 OHSK125

223800 OHSK130, OH358SA (Premium)

17

TECUMSEHPOWER AND PEERLESS®

MODEL AND SPECIFICATION NUMBERS

The following information is being provided to assist you in locating and recording your TecumsehPower transmission

components model and specification numbers. This information will be needed to use this book or obtain parts from

a local TecumsehPower dealer.

RIGHT ANGLE DRIVES 100 SERIES A or B

A or B A or B

1200 SERIES

1100 SERIES

600 SERIES

A or B

700 SERIES

A

2600 SERIES

A

2800 SERIES

A

A

810 SERIES

801 SERIES

900 SERIES

920 SERIES

930 SERIES

A

A910 SERIES

A

1300 SERIES

A

820 SERIES

A

915 SERIES

A

2400 SERIES

A or B

2300 SERIES

A or B

2500 SERIES

A

300 SERIES

A

MST

THE MODEL NUMBER WILL BE FOUND ON:

A. Metal tag or decal attached to unit in the location shown.

B. Stamped on unit in the location shown.

850 SERIES

LTH SERIES

LDP-10

2100 SERIES

18

Various Styles of Identification Used On

TecumsehPower and Peerless Transmission, Transaxle and

Gear Products

Early Models were not identified with a model number on the unit.

MODEL NUMBER REQUIRED

FOR WARRANTY

SPECIFICATION NUMBER

REQUIRED FOR WARRANTY

D.O.M. (DATE OF MANUFACTURE)

ORIGINAL SERIAL NUMBER

MOD 506

PEERLESS

1 275 1374

Manufactured in 1991

Individual Serial Number

Manufactured on the 275th Day

MODEL NUMBER REQUIRED

FOR WARRANTY

SPECIFICATION NUMBER

REQUIRED FOR WARRANTY

D.O.M. (DATE OF MANUFACTURE)

ORIGINAL SERIAL NUMBER

MODEL NUMBER REQUIRED

FOR WARRANTY

SPECIFICATION NUMBER

REQUIRED FOR WARRANTY

D.O.M. (DATE OF MANUFACTURE)

ORIGINAL SERIAL NUMBER

TECUMSEHPOWER

TECUMSEHPOWER

TECUMSEHPOWER

19

Basic Gear Drive Troubleshooting

Preparation

NOTE

Before troubleshooting any system problem, see original equipment manufacturer’s (O.E.M.) instructions.

Make your troubleshooting easier by preparing as follows:

• Work in a clean, well-lighted place.

• Keep proper tools and materials nearby.

• Keep an adequate supply of clean petroleum-based solvent.

To avoid carbon monoxide poisoning, make sure engine is outdoors in a well-ventilated area.

Some maintenance procedures cannot be performed until the vehicle wheels are secured and off

the ground. Failure to do so could result in death or serious injury to yourself and/or bystanders.

DO NOT attempt any maintenance procedures with the engine running. Doing so could result in

death or serious injury to yourself and/or bystanders.

Use care when performing inspection of the drive belt assembly including all vehicle linkage. Failure

to do so could result in death or serious injury to yourself and/or bystanders.

For proper declutching to occur, it is very important that

the engine belt guide be set at a predetermined clearance

when engaged (set by the manufacturer) and away from

the belt with the belt engaged.

With clutch disengaged, it is very important that the belt

blossoms away from the engine pulley. Belt must stop

turning before transaxle shifting can occur.

1/16" to 3/16"

(1.6 mm - 4.8 mm) THIS DIMENSION

VARIES FROM EACH

MANUFACTURER

Improper belt or belt guide clearance will not allow the belt to disengage, causing internal transmission

damage.

Hard Shifting Transaxles and Drive Belts

Often hard shifting is blamed on an internal problem in the transaxle.

To determine if the problem is transaxle or equipment related make these simple checks.

1. Turn the unit off so that all power is removed to the transaxle.

2. With the unit off, move the shift lever through the shift gate. Movement of the lever should have only slight

resistance. The shifting effort should be equal when the engine is off and when running. If the unit is difficult to

shift the problem would be internal and the transaxle would need to be removed and repaired.

3. If the unit shifts with ease, check the following areas that would be equipment related. Check to see if the belt

is releasing from the pulley on the engine and transmission / transaxle, it may require that the belt guides be

repositioned. The distance required from the pulley to the guide is typically 1/16" to 3/16" (1.6 mm - 4.8 mm),

always check the O.E.M. specs.

4. Check to see if the pulley is damaged and may not be releasing the belt.

5. Confirm the correct length and type of belt, as recommended by the manufacturer, is installed.

WARNING

WARNING

WARNING

20

6. Check the brake/clutch pedal to make sure that when the pedal is depressed that the idler pulley is releasing

the belt tension before it applies the brake. If this does not happen the unit will still be under a load and be

impossible to shift.

7. The final area to check would be for damaged or binding shift linkage.

Hard shifting with the engine off could be caused by:

1. Shift linkage out of adjustment.

2. Corrosion in the transaxle or transmission.

3. Damaged shift keys, gears, or shifter brake shaft.

4. Belt guides missing or improperly adjusted (see equipment manufacturer specs).

Unit seems to slip:

1. Check for proper belt adjustment (consult O.E.M. operator's manual).

2. Check for proper clutch/brake adjustment (consult O.E.M. operator's manual).

3. Check pulley condition and wheels for sheared or damaged keys.

4. Check drive belt condition, if glazed or worn, replace it.

5. Possible internal transmission damage. We suggest you contact a local TecumsehPower Servicing Dealer.

Basic Gear Drive Troubleshooting - continued

21

NOTE

Before troubleshooting any system problem, see original equipment manufacturer’s (O.E.M.) instructions.

Make your troubleshooting easier by preparing as follows:

• Work in a clean, well-lighted place.

• Keep proper tools and materials nearby.

• Keep an adequate supply of clean petroleum-based solvent.

To avoid carbon monoxide poisoning, make sure engine is outdoors in a well-ventilated area.

Some maintenance procedures cannot be performed until the vehicle wheels are secured and off

the ground. Failure to do so could result in death or serious injury to yourself and/or bystanders.

DO NOT attempt any maintenance procedures with the engine running. Doing so could result in

death or serious injury to yourself and/or bystanders.

Use care when performing inspection of the drive belt assembly including all vehicle linkage.

Failure to do so could result in death or serious injury to yourself and/or bystanders.

LTH-2000 Series Troubleshooting Chart

TecumsehPower’s lawn tractor hydrostatic transaxle (LTH) includes a hydrostatic transmission attached to a final

drive. Use of this troubleshooting chart will aid in determining the source of a problem; the hydrostatic transmission,

final drive or vehicle's belt drive and/or linkage systems.

TecumsehPower LTH-2000 Series Hydrostatic Transaxle

Troubleshooting

Final Drive

Hydrostatic

Transmission

TecumsehPower and Peerless Transmission, Transaxle and Gear

SYMPTOM PROBLEM CORRECTIVE ACTION

REDUCED POWER

Improper belt tension Belt worn, replace

Belt worn, glazed, or oil saturated Replace belt

Drive pulley worn Replace pulley and belt

(See O.E.M. equipment manual)

Brake set too tight Set brake adjustment

(See O.E.M. equipment manual)

Shifter linkage misadjusted or broken Linkage damaged or loose, replace or adjust

(See O.E.M. equipment manual)

Fluid low in hydrostatic transmission Check and add fluid if low (Part No. 730228A)

Hydrostatic transmission bad Replace hydrostatic transmission

DIFFICULT

TO SHIFT

Linkage broken or bent Repair or replace linkage

(See O.E.M. equipment manual)

Hydrostatic transmission pump seized Replace hydrostatic transmission

Hydrostatic transmission control friction

pack misadjusted

Replace friction pack washers, tighten nut

to 100 in. lbs. (11.2 Nm) loosen nut 4-turns

WARNING

WARNING

WARNING

22

SYMPTOM PROBLEM CORRECTIVE ACTION

UNIT IS NOISY

Final drive gear noise

Check, add gear oil to final drive

Check, replace worn gears

Check, replace worn bearings

Hydrostatic transmission noise Replace hydrostatic transmission

Transaxle clicking

Mechanical disconnect not properly engaged,

check for obstruction

Check, replace mechanical disconnect

components (If hydrostatic transmission

shaft is damaged, replace transmission)

DOES NOT DRIVE

Improper belt tension Belt worn, replace

(See O.E.M. equipment manual)

Brake setting incorrect Adjust brake to proper setting

(See O.E.M. equipment manual)

Belt worn, glazed, or oil saturated Replace belt

(See O.E.M. equipment manual)

Drive pulley worn Replace pulley and belt

(See O.E.M. equipment manual)

Transaxle - hydrostatic transmission bad Replace hydrostatic transmission

Shifter linkage misadjusted or broken Linkage damaged or loose, replace or adjust

(See O.E.M. equipment manual)

Fluid low in hydrostatic transmission Check and add fluid if low (Part No. 730228A)

Disconnect is in freewheel position Move control to connected position

(See O.E.M. equipment manual)

Sheared or missing axle key Replace missing or broken key

Damaged or broken final drive gear Check, replace worn or damaged gear

Hydrostatic transmission leaking Replace hydrostatic transmission

LEAKING

LUBRICANT

Hydrostatic transmission leaking Replace hydrostatic transmission

Final drive leaking at seam

Split final drive housing, clean old sealant off,

replace seals, apply new sealant (torque bolts

80-120 in. lbs.[9.0 Nm - 13.5 Nm])

Final drive leaking at shaft seal

Split final drive housing, clean old sealant off,

replace seals, apply new sealant (torque bolts

80-120 in. lbs. [9.0 Nm - 13.5 Nm])

BRAKE

NOT

WORKING

Linkage out of adjustment Adjust brake linkage

(See O.E.M. equipment manual)

Linkage bent or broken Replace components, set brake

(See O.E.M. equipment manual)

Brake setting incorrect Adjust brake to proper setting

(See O.E.M. equipment manual)

TecumsehPower LTH-2000 Series Transaxle Troubleshooting - continued

23

1800 / VST Troubleshooting

The information on this page has been provided to help

understand the internal operation of the VST. Do not

use this information to attempt any internal repairs.

TecumsehPower's current policy on hydrostatic

transaxles that have internal failures is to replace

the complete unit. This has not changed. However,

TecumsehPower would like to provide a failure

checklist to assist in making an accurate evaluation

of the complete tractor to eliminate any unnecessary

replacements. Here is a list of items to check and

corrective actions to take.

To properly test the unit for power loss.

1. Allow the unit to cool before trying the following

steps.

2. Put the shift lever in a position that is 1/2 of the

travel distance from neutral to forward.

3. Place the tractor on a 17o grade.

4. Drive the tractor up the grade (without the mower

deck engaged). The loss of power experienced

should be approximately 20%. This is considered

normal. If the loss of power is approximately 50%,

this would be considered excessive.

5. Bring the unit to neutral, shift into forward and note

the response. Care should be taken to move the

lever slowly to avoid an abrupt wheel lift.

To determine if the problem is with the hydro unit, all

external problem possibilities must be eliminated. Here

are some potential problem areas.

1. Overheating: Heat can cause a breakdown in the

viscosity of the oil which reduces the pressure used

to move the motor. Remove any grass, debris, or

dirt buildup on the transaxle cover and / or between

the cooling fins and fan. Buildup of material will

reduce the cooling efficiency.

2. Belt slippage: A belt that is worn, stretched, or

the wrong belt (too large or wide) can cause belt

slippage. This condition may have the same loss of

power symptom as overheating. Typically, the unit

which has a slipping belt will exhibit a pulsating type

motion of the mower. This can be verified visually

by watching the belt and pulley relationship. If the

belt is slipping, the belt will chatter or jump on the

pulley. If the belt is good, a smooth rotation will be

seen. Replace the belt and inspect the pulley for

damage.

3. Leakage: The VST and 1800 Series have two oil

reservoirs which can be checked for diagnostic

purposes. The first is the pump and motor expansion

bellows. With a small diameter blunt or round nose

probe, check the bellows depth through the center

vent hole. Proper depth from the edge of that hole

is 3-1/4 - 3-1/2 inches (8.25 - 8.9 cm).

The second chamber is for the output gears

including the differential. FIRST make sure the

tractor is level, then remove the drain/fill plug.

NOTE: Some units that do not have differential

disconnect will have two plugs. We recommend

using only the primary plug. With a small pocket

rule insert until you touch bottom of case. You

can then remove it and check for 1/4 - 3/8 inches

(6.5 - 9.5 mm) contact, this is full at its 8 oz.

capacity.

4. Low ground speed: If the linkage is not

synchronized to absolute neutral, or the shift lever

is not properly fastened to the tapered control shaft,

full forward travel may not be achieved. This may

cause a false reading and be misdiagnosed as a

low power condition. This also could be caused by

the brake not releasing.

To determine absolute neutral, the hole in the

tapered control shaft must face straight up and

down, at this point make sure the O.E.M. linkage is

in neutral. To properly fasten the control lever to the

shaft, torque the nut to 25-35 ft. lbs. (34 - 48.3 Nm)

of torque with the shaft and the lever in neutral.

When attaching the shifter arm to the shaft you

must prevent any rotation during torquing. This can

be done by placing a long 5/16" bolt in the hole of

the shaft. Hold the bolt until the tapers are locked

and the nut torque is correct.

To make sure that the brake is not binding, drive the

unit up a slight grade. Position the speed control

lever into neutral. The unit should coast backwards.

If the unit does not coast back slowly, the brake is

not released from the brake disk. Adjust the brake

linkage to release the brake completely when the

foot pedal is released.

5. Hard to shift: Typically hard to shift symptoms are

not caused by the hydrostatic unit. The shift arm

should move with relative ease. Approximately 40-

50 in. lbs. (4.48 - 5.6 Nm) at the transaxle for foot

pedal units or 150-200 in. lbs. (16.8 -22.4 Nm) for

hand operated units. This varies depending on the

type of linkage. Binding may occur in the linkage

connections due to rust or moisture. Lubricating

these connections and checking for bent or

damaged parts should resolve hard shifting.

24

TRANSAXLES

Model

No. Quantity

301 Non-Serviceable

600 24 oz./710 ml Oil

800 30 oz./887 ml Grease

801 36 oz./1065 ml Grease

820 36 oz./1065 ml Grease

900 26 oz./769 ml Grease

910 18 oz./532 ml Grease

915 10 oz./296 ml Grease

920 30 oz./887 ml Grease

930 30 oz./887 ml Grease

1200 48 oz./1420 ml Oil ††

1301

1305

1309

1313

32 oz./946 ml Oil

1302

1303

1304

1306

1307

1308

1310

1311

1312

1314

1315

1316

1317

1318

1319

1320

1321

1322

1325

1328

1329

44 oz./1301 ml Oil

1323

1326

1327

24 oz./710 ml Oil

MST200 16 oz./473 ml Oil

VST205

and

1800's

2300

††††

64 oz./1892 ml Oil

2400 32 oz./946 ml Oil

TecumsehPower and Peerless® Lubrication Requirements

Grease: Bentonite Grease

Part Number 788067C

Oil: SAE E.P. 80W90 Oil

Part Number 730229B

† Refer to O.E.M. Technician’s Manual for type of lubricant.

†† To be filled through shift lever opening.

††† Some 1000 Right Angle and T-Drives use Bentonite Grease.

†††† TecumsehPower's current policy on VST and 1800 Series

transaxles with internal failure, is to replace the complete unit. VST

and 1800's have two separate reservoirs which can be checked for

diagnostic purpose only. The output gear reservoir can be checked

with a small pocket rule as outlined in the TecumsehPower & Peerless

Transmission and Drive Products Handbook.

Refer to TecumsehPower & Peerless Transmission and Drive Products

Handbook, 691218.

NOTE

Use ONLY the recommended lubricant in all models as listed to insure proper operation and long life.

TRANSMISSION

Model

No. Quantity

2500 †

2600 †

700

700H

12 oz./355 ml Grease

12 oz./355 ml Grease

2800 †

HYDROSTATIC

TRANSAXLES and

TRANSMISSIONS

1800 Series Limited service; use

Kit Part No. 799030

VST205/705 Limited service; use

Kit Part No. 799030

LTH 2000

Limited service;

final drive ONLY

8 oz./240 ml Oil

2100 Non-Serviceable

LDP-10 Non-Serviceable

RIGHT ANGLE

AND T-DRIVES

Model

No. Quantity

All Models

Except * 4 oz./118 ml Grease

*1408-P91

*1409-P91

*1410-P91

*3002

*3003

*3028

*3029

*3035

3 oz./89 ml Grease

1000 Series 6 oz./180 ml Oil

†††

1100 16 oz./473 ml Oil

DIFFERENTIALS

All Models 3 oz./89 ml Grease

TWO SPEED AXLE

All Models 2 oz./59 ml Grease

THREE SPEED AXLE

All Models 2 oz./59 ml Grease

25

Service Number 740043 or 695244A

† OHM120

‡ OH318SA (OHSK110), OH358SA (OHSK120-130)

OH318EA (OHM90-110)

† OHM120

OH195EA (OHH60), OH195EP (OHH65)

OHH/OHSK40-130

OH195SA (OHSK70), OH195SP (OHSK75)

‡ OH318SA (OHSK110), OH358SA (OHSK120-130)

OVM120

* OVXL120,

* OVXL/C120

* OVXL125

OV195EA

OV358EA (OHV110-135)

OV490EA (OHV140-180)

OV691EP (VTX691, TVT691)

OVM120

* OVXL120

* OVXL/C120

* OVXL125

Service Number 691462A

HH140-160

OH120-180

Service Number 740049 or 692509

ECV100-120

HMSK70, LH318SA (HMSK80), HMSK90,

H22

H25

H30-80

HM70-100

HH40-120

HHM80

HMXL70

HT30

HT35

HXL35

HS40-50

HSK30-70

HSSK40, LH195SA (HSSK50), LH195SP (HSSK55)

LH358SA (HMSK100), HMSK110

LAV25-50

LEV80, LV148EA (LEV90), LV195EA (LEV120)

LV148SA (VSK90), VSK100

TNT100

TNT120

TVS75-120

TVXL90-120

TVM125-170

TVM195-220

TVXL195-220

V40-80

VH40-100

VM70-100

VLV-ALL

Service Number 694782

TCH300

TM049XA (TC300)

Service Number 740047 or 692508

AH520

AH600

HSK840

HXL840

TC200

TCH200 Type 1500

TH098SA (HSK600), HSK635

TH139SA (HSK845, 850)

TH139SP (HSK870)

AV600

TV085XA (AV520)

TVS600

Service Number 694988

TVS840

TVXL840

Repair Manuals

Service Number 740045 or 691218

100 Series Differentials

MST200 Series Transaxles

300 Series Transaxles

600 Series Transaxles

601 Slow Speed Transaxle

700 Series Transmissions

700H Series Transmissions

800/801 Series Transaxle

820 Series Transmission

900 Series Transaxles

910 Series Transaxles

915/940 Series Transaxles

920 Series Transaxles

930 Series Transaxles

1000/1100 Series Right Angle / T-Drives

1200 Series Transaxles

1300 Series Transaxles

2300 Series Transaxles

2400 Series Transaxles

2500 Series Transaxles

2600 Series Transaxles

VST Transaxles

TecumsehPower

26

TecumsehPower Company

900 North Street

Grafton, Wisconsin 53024

1-800-558-5402

Form No. 696533 Litho In U.S.A. R 12/07

ENGINES TRANSMISSIONS&

TecumsehPower
