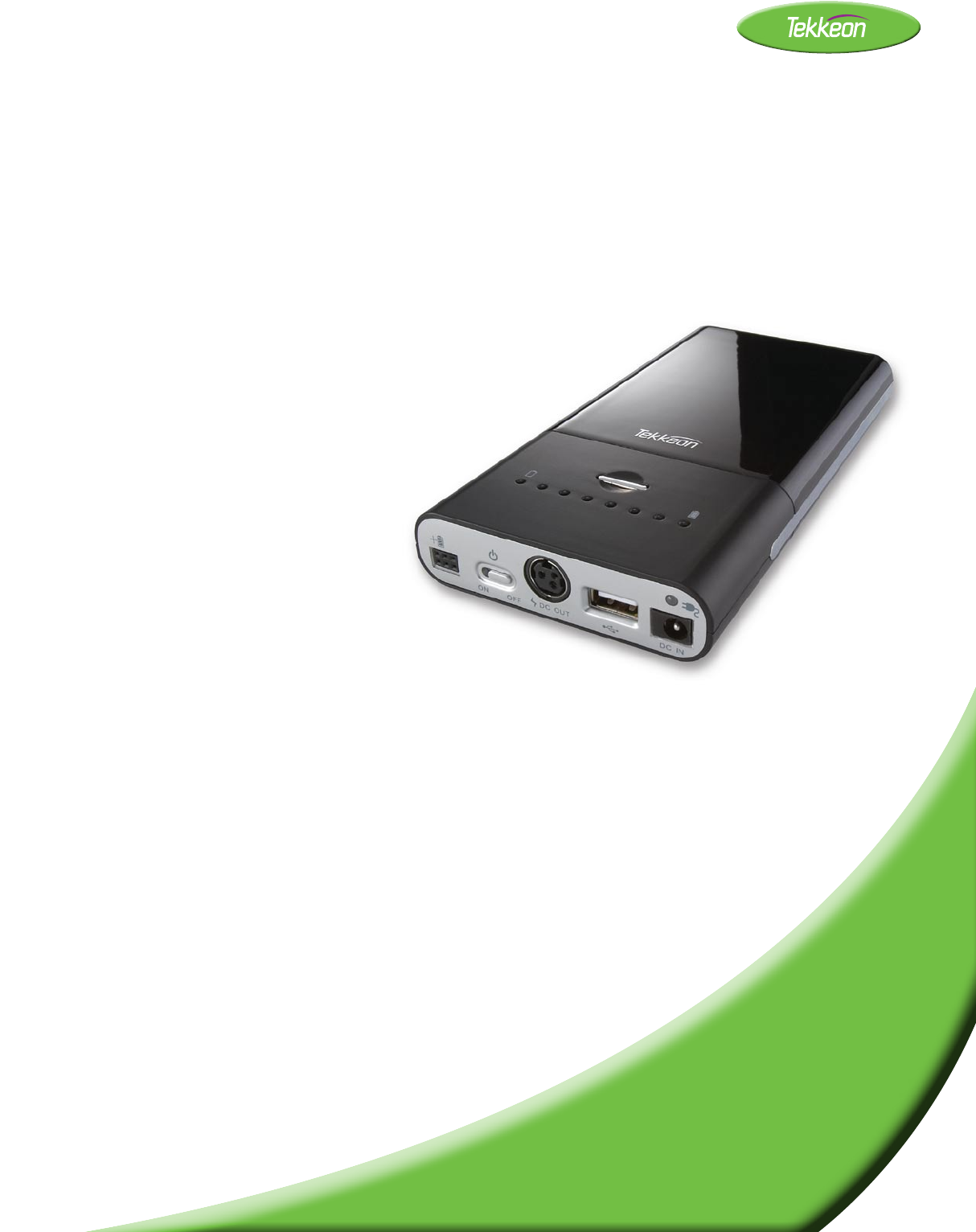

myPower™ ALL Plus MP3450i R2 is an industrial-grade, high-temperature,
high-capacity lithium polymer battery for use with portable instruments
and equipment as portable power, or as an Uninterruptable Power Supply
(UPS) for battery backup. This universal battery provides instant power
for instruments and equipment that require between 5V and 19V, and the
voltage is fixed for the connected equipment, or can be quickly changed to
meet the power needs of a wide range of devices. And myPower ALL Plus
can simultaneously charge other small portable devices, like mobile
phones and portable music players.
A versatile power solution that meets the needs of
power-hungry portable devices, myPower ALL Plus
MP3450i R2 will significantly extend the life of a
range of instruments or equipment batteries—
anywhere, anytime. As a UPS, the battery will
provide the back-up power you need to avoid any
equipment down time.
myPower ALL Plus is modular, so you can add an extended battery
to this lightweight rechargeable battery to double the life of the battery
between charges, or connect multiple myPower ALL Plus batteries to
significantly increase the battery life.
To ensure compatibility with your equipment or instrument, myPower ALL
Plus comes with five adapter tips that work with the most-widely used
DC jacks. Additional adapter tips, as well as the extended batteries,
are available at the Tekkeon Store at www.tekkeon.com.
EXTERNAL INSTRUMENT BATTERY
MP3450i R2
myPower ALL plus
™
Power your laptop and more...
n Aviation equipment
n Digital monitors
n Digital picture frames
n Digital video cameras
n GPS
n iPhone/iPod/iPad
n Mobile phones/PDAs
n Photography/studio lighting
n Portable instruments
n Portable routers
n And more…
SPECIFICATIONS
Weight: 15.9 oz
Dimensions: 3.32" (W) x 6.85" (L) x .89" (D)
Battery Type: Rechargeable lithium polymer
Lithium Content*: 4.8 grams (MP3450i R2)
4 grams (MP3450-10)
Charging Time: 4 hours
Voltage Selection: 5V to 19V (16 preset voltages for main output)
5V for USB port
Output Power: 58Wh
Color: Black
* Meets FAA lithium battery requirements for carry-on luggage.
www.tekkeon.com
Tekkeon, Inc. . 3002 Dow Avenue, #134 . Tustin, CA 92780
© 2010 Tekkeon, Inc. All rights reserved. myPower is a trademark of Tekkeon, Inc. Specifications are subject to change without notice.
iPhone and iPod are trademarks of Apple Inc., registered in the U.S. and other countries. iPad is a trademark of Apple Inc. 0510 Made in China. Rev A
EXTERNAL INSTRUMENT BATTERY
MP3450i R2
myPower ALL plus
™
Adapter tips included!
Includes tips for the most widely used DC jacks.
More adapters available at tekkeon.com.
Adapter kit
with carrying pouch
(includes 5 adapter tips)
BOX INCLUDES
n myPower ALL Plus universal rechargeable battery
n Adapter kit with carrying pouch (includes 5 adapter tips)
n AC/DC power adapter
n Output cord
n Voltage selection card
n User guide
Optional extended battery (MP3450-10)
available to double the capacity,
or multiple myPower ALL Plus
batteries can be connected to
significantly extend the
capacity.
MP3450i R2 MP3450-10 R2
Capacity Level Indicators
ON/OFF
Switch
DC OUT
for connection
to device
DC IN for connection to
power adapter
Charging/Indicator
USB Port for connection
to 5V device
6-Pin Input Port
for connection to a solar panel or a second battery
Capacity Level
Button
Sunbooster Solar
Charging Port
Sunbooster Solar
Charging Port
NOW CHARGE
TWO DEVICES
AT ONCE!
Dip Switch Cover Voltage Setting
(Dip Switch)
Get compatibility details and additional adapter tips at www.tekkeon.com
