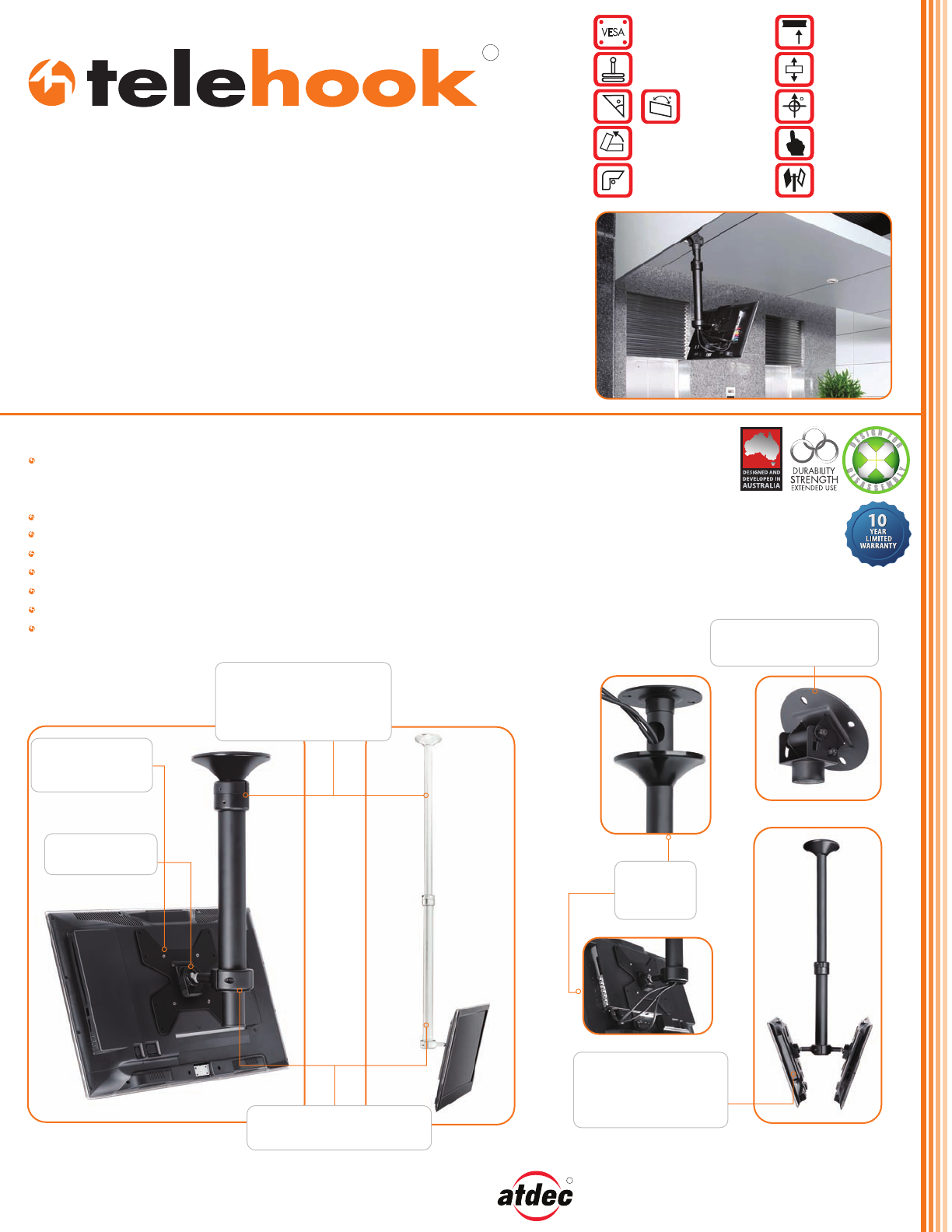

Flat screen ceiling mount | Medium weight
The TH-1040-CT is a cutting edge ceiling mount with superior installation versatility and
extended operational flexibility. It comes in different versions to suit a variety of drop
lengths and décor with a design that allows extensive height and orientation adjustment.
The product ships with a mounting head that suits a wide variety of VESA compatible
screens and can be upgraded for dual displays. The head features a ball joint that
allows tilt/ pan adjustment and landscape / portrait screen rotation. It features a Quick
Release mechanism for easy installation and maintenance with a security screw to deter
unauthorized removal. Once installed, your guaranteed a quality professional finish with
fully integrated cable management, a dress cover to hide the ceiling connection and a
clean pole without screw holes.
Product key features:
Allows telescopic height adjustment during installation:
Short pole version: 400mm to 900mm (15.75" - 25.43")**
Long pole version: 900mm to 1800mm (35.43"-70.87")**
Allows 360° rotation around the pole for viewing angle adjustment during installation
Quick Release mounting head with security screw for public area installation
Integrated ball-joint allows +/-20° tilt/ pan and 360° screen rotation (user adjustable)
Incorporates tension control for POS/ touch-screen support
Flexible cable management with option to pass cables direct to cavity or exit at ceiling
Supplied with all mounting hardware required for display attachment and ceiling installation
Durable and stylish design with 10 year warranty
TH-1040-CTS / CTSW
TH-1040-CTL / CTLW
Atdec Global www.atdec.com.au
Atdec North America www.atdec.com
Available in white and black
versions
Optional accessory available
for raked ceilings
Integrated ball-joint
allows screen tilt,
pan & rotation
Two versions to suit different
ceiling heights, each with
telescopic adjustment
Advanced
internal cable
management
Can be upgraded for dual
screens in a back-to-back
configuration via an
optional accessory
Quick release
display head
Suits 75x75 to 200x200mm
(opt.support up to 400x400)*
Suits displays up to
25kgs (55lbs)
User adjustable
tilt & pan
Telescopic height
adjustment
Flexible ceiling
mount
Quick Release
mounting head
VESA
User adjustable
screen orientation
Allows pole rotation
during installation
Supports POS/
touchscreen operation
Can be upgraded
for two screens
R
R
* Supports 75x75, 100x100, 200x100 & 200x200mm VESA hole patterns.
(Also supports 200x300, 200x400,300x200, 300x300, 300x400, 400x200,
400x300 & 400x400mm via an optional adaptor accessory)
** An optional extension pole can be added to increase the drop length 1m (39")
Product information, single unit
Package information, master pack
Package information, single unit
Technical drawings
Load capacity Material Color
25kg (55lbs) Steel & aluminium with plastic trim
Size Ship weight UPC code Contents
Pole with ceiling cover, display
head (x1), install guide, display
& ceiling attachment hardware
881493006010 / 881493007116
550 x 240 x 100mm (9.4" x 3.9" x 12.1") 5.5kg (12.1lbs)
Size Ship weight UPC Units per master pack
2
881493006300 / 881493007123
1015 x 255 x 225mm (40" x 10" x 8.9")
Atdec Global www.atdec.com.au
Atdec North America www.atdec.com
Black / white
TH-1040-CTS / CTSW
Product
Model Codes
TH-1040-CTL / CTLW
Product
TH-1040-CTS Short Pole (black)
TH-1040-CTSW Short Pole (white)
TH-1040-CTL Short Pole (black)
TH-1040-CTLW Short Pole (white)
881493006003 / 881493007147
10mm
(0.39
")
120mm
(4.72
")
150mm
(6")
Ceiling Plate
")
")
128mm (5")
Display
Ceiling
Tube
diameter
inside = Ø40mm
(1.58
")
outside =
Ø45mm
(1.77
Tube
diameter
inside = Ø50mm
(1.99
")
outside =
Ø55mm
(2.17
Height Adjustment**
TH-1040-CTS/CTSW:
400-900mm (15.75" - 35.43")
**
TH-1040-CTL/CTLW:
900-1800mm (35.43" - 70.87")
**
TH-1040-CTS/CTSW: 315mm
(12.40")
TH-1040-CTL/CTLW: 765mm (30.12
")
TH-1040-CTS:
454mm
(17.87")
TH-1040-CTL:
904mm (35.59
")
Range of user adjustment:
+/-20 pan and tilt
360° screen rotation
** Can be increased an additional 1m (39") through
use of optional extension pole TH-1040-EXT-1000-1H
Accessory Options
AC-AP-4040 400x400 VESA adaptor
TH-1040-EXT-1000-1H 1m extension Pole (Black)
TH-1040-RCA
TH-1040-CT-B2
Raked ceiling accessory (Black)
Dual Screen upgrade accessory (Black)
R
881493005990 / 881493007130
Internal Cable Management:
Max. plug width 34mm (1.34")
TH-1040-CTL / CTLW 1005 x 240 x 100mm (39.4" x 9.4" x 4.3") 8.5kg (18.7lbs)
TH-1040-CTS / CTSW 570 x 250 x 330mm (22.4" x 9.8" x 13")
17.7kg (38.9lbs)
17kg (37.4lbs) 3
Allows 360° rotation around the
pole for correct angle setting
during installation
Atdec mounts are designed, developed and tested in Australia. We manufacture an extensive
range of display and projector mountings for a variety of user types and situations. While all
efforts have been made to ensure the information in this brochure was correct as of the date
of printing, we reserve the right to change specifications without notice. Please refer to the
web site for our full range along with the latest details on specifications, compatibility and
dealer location. Atdec and Telehook are registered trademarks with all rights reserved.
Copyright July 2011 V2.0
