Android Programming: The Big Nerd Ranch Guide
by Bill Phillips, Chris Stewart and Kristin Marsicano
Copyright © 2017 Big Nerd Ranch, LLC.
All rights reserved. Printed in the United States of America. This publication is protected by copyright, and
permission must be obtained from the publisher prior to any prohibited reproduction, storage in a retrieval system,
or transmission in any form or by any means, electronic, mechanical, photocopying, recording, or likewise. For
information regarding permissions, contact
Big Nerd Ranch, LLC.
200 Arizona Ave NE
Atlanta, GA 30307
(770) 817-6373
http://www.bignerdranch.com/
book-comments@bignerdranch.com
The 10-gallon hat with propeller logo is a trademark of Big Nerd Ranch, Inc.
Exclusive worldwide distribution of the English edition of this book by
Pearson Technology Group
800 East 96th Street
Indianapolis, IN 46240 USA
http://www.informit.com
The authors and publisher have taken care in writing and printing this book but make no expressed or implied
warranty of any kind and assume no responsibility for errors or omissions. No liability is assumed for incidental
or consequential damages in connection with or arising out of the use of the information or programs contained
herein.
Many of the designations used by manufacturers and sellers to distinguish their products are claimed as
trademarks. Where those designations appear in this book, and the publisher was aware of a trademark claim, the
designations have been printed with initial capital letters or in all capitals.
ISBN-100134706099
ISBN-13978-0134706092
Third edition, first printing, February 2017
Release D.3.1.1
iii
Dedication
To the record player on my desk. Thanks for keeping me company
through all this. I promise I’ll get you a new needle soon.
— B.P.
To my dad, David, for teaching me the value of hard work. To my mom,
Lisa, for pushing me to always do the right thing.
— C.S.
To my dad, Dave Vadas, for inspiring and encouraging me to pursue a
career in computing. And to my mom, Joan Vadas, for cheering me on
through all the ups and downs (and for reminding me that watching an
episode of The Golden Girls always makes things better).
— K.M.
v
Acknowledgments
With this being our third edition, we find ourselves used to saying this. It always needs to be said,
though: Books are not created by authors alone. They are shepherded into existence by a community
of collaborators, risk-takers, and other supporters, without whom the burden of comprehending and
writing all this material would be crippling.
• Brian Hardy, who, along with Bill, had the gusto to bring the very first edition of this book into
the world. From nothing, Brian and Bill made something great.
• Our co-instructors and members of our Android development team: Andrew Lunsford, Bolot
Kerimbaev, Brian Gardner, David Greenhalgh, Josh Skeen, Matt Compton, Paul Turner, and
Rashad Cureton. (Soon, Rashad. Soon.) They taught everything in this book before it was
polished enough to be presentable and gave us many invaluable suggestions and corrections. Most
people live their entire lives without ever working with such a talented and entertaining crew.
They make work at Big Nerd Ranch an everyday joy.
• Special thanks to Andrew, who went through the entire book and updated all the Android Studio
screenshots. We appreciate his thoroughness, attention to detail, and acerbic wit.
• Zack Simon, our fantastically talented and soft-spoken Big Nerd Ranch designer. Unbeknownst
to us, Zack went behind our backs and updated the nifty cheat sheet you can find attached to this
book. If you enjoy that sheet, you should find Zack and tell him so yourself. But we will also
thank Zack right here: Thanks, Zack!
• Kar Loong Wong, for his work redesigning the crime list screen. The more help we get from Kar,
the better the apps in this book look. Thanks, Kar.
• Mark Dalrymple, who reviewed our constraint layout coverage for accuracy and wonderfulness. If
you happen to run into Mark, ask him to review your constraint layout coverage. He is so good at
doing that! But if you have none, ask him to make balloon animals for you instead.
• Thanks to Aaron Hillegass. As a practical matter, it is not possible to do this work without Big
Nerd Ranch, the company Aaron founded. Thank you.
• Our editor, Elizabeth Holaday. The famous beat author William S. Burroughs sometimes wrote by
cutting up his work into little pieces, throwing them in the air, and publishing the rearrangement.
Without a strong editor like Liz, our confusion and simpleminded excitement may have caused
us to resort to such techniques. We are thankful that she was there to impose focus, precision, and
clarity on our drafts.
• Ellie Volckhausen, who designed our cover.
• Anna Bentley, our copyeditor, and Simone Payment, our proofreader. Thank you both for sanding
away the remaining rough edges of this book.
• Chris Loper at IntelligentEnglish.com, who designed and produced the print and ebook versions
of the book. His DocBook toolchain made life much easier, too.
Acknowledgments
vi
Finally, thanks to our students. There is a feedback loop between us and our students: We teach them
out of these materials, and they respond to it. Without that loop, this book could never have existed, nor
could it be maintained. If Big Nerd Ranch books are special (and we hope they are), it is that feedback
loop that makes them so. Thank you.
vii
Table of Contents
Learning Android ........................................................................................................... xix
Prerequisites .......................................................................................................... xix
What’s New in the Third Edition? ............................................................................. xix
How to Use This Book ............................................................................................. xx
How This Book Is Organized .................................................................................... xx
Challenges ..................................................................................................... xxi
Are you more curious? .................................................................................... xxi
Code Style ............................................................................................................. xxi
Typographical Conventions ...................................................................................... xxii
Android Versions ................................................................................................... xxii
The Necessary Tools ..................................................................................................... xxiii
Downloading and Installing Android Studio .............................................................. xxiii
Downloading Earlier SDK Versions ......................................................................... xxiii
A Hardware Device ............................................................................................... xxiv
1. Your First Android Application ........................................................................................ 1
App Basics ............................................................................................................... 2
Creating an Android Project ........................................................................................ 3
Navigating in Android Studio ...................................................................................... 8
Laying Out the UI ..................................................................................................... 9
The view hierarchy .......................................................................................... 13
Widget attributes ............................................................................................. 14
Creating string resources ................................................................................... 15
Previewing the layout ....................................................................................... 16
From Layout XML to View Objects ........................................................................... 17
Resources and resource IDs ............................................................................... 18
Wiring Up Widgets .................................................................................................. 21
Getting references to widgets ............................................................................. 22
Setting listeners ............................................................................................... 23
Making Toasts ......................................................................................................... 25
Using code completion ..................................................................................... 26
Running on the Emulator .......................................................................................... 27
For the More Curious: Android Build Process .............................................................. 30
Android build tools .......................................................................................... 31
Challenges .............................................................................................................. 32
Challenge: Customizing the Toast ............................................................................... 32
2. Android and Model-View-Controller ............................................................................... 33
Creating a New Class ............................................................................................... 34
Generating getters and setters ............................................................................ 35
Model-View-Controller and Android ........................................................................... 37
Benefits of MVC ............................................................................................. 38
Updating the View Layer .......................................................................................... 39
Updating the Controller Layer ................................................................................... 41
Running on a Device ............................................................................................... 46
Connecting your device .................................................................................... 46
Configuring your device for development ............................................................ 46
Android Programming
viii
Adding an Icon ....................................................................................................... 48
Adding resources to a project ............................................................................ 49
Referencing resources in XML .......................................................................... 51
Challenge: Add a Listener to the TextView .................................................................. 52
Challenge: Add a Previous Button .............................................................................. 52
Challenge: From Button to ImageButton ...................................................................... 53
3. The Activity Lifecycle .................................................................................................. 55
Logging the Activity Lifecycle .................................................................................. 57
Making log messages ....................................................................................... 57
Using Logcat .................................................................................................. 59
Exploring the activity lifecycle by example .......................................................... 60
Rotation and the Activity Lifecycle ............................................................................ 63
Device configurations and alternative resources ..................................................... 63
Saving Data Across Rotation ..................................................................................... 68
Overriding onSaveInstanceState(Bundle) .............................................................. 69
The Activity Lifecycle, Revisited ............................................................................... 70
For the More Curious: Current State of Activity Cleanup ................................................ 72
For the More Curious: Log Levels and Methods ........................................................... 73
Challenge: Preventing Repeat Answers ........................................................................ 74
Challenge: Graded Quiz ............................................................................................ 74
4. Debugging Android Apps .............................................................................................. 75
Exceptions and Stack Traces ..................................................................................... 76
Diagnosing misbehaviors .................................................................................. 78
Logging stack traces ........................................................................................ 78
Setting breakpoints .......................................................................................... 80
Using exception breakpoints .............................................................................. 83
Android-Specific Debugging ...................................................................................... 85
Using Android Lint .......................................................................................... 85
Issues with the R class ..................................................................................... 87
Challenge: Exploring the Layout Inspector ................................................................... 88
Challenge: Exploring Allocation Tracking .................................................................... 89
5. Your Second Activity ................................................................................................... 91
Setting Up a Second Activity .................................................................................... 93
Creating a new activity ..................................................................................... 93
A new activity subclass .................................................................................... 96
Declaring activities in the manifest ..................................................................... 97
Adding a cheat button to QuizActivity ................................................................ 98
Starting an Activity .................................................................................................. 99
Communicating with intents ............................................................................ 100
Passing Data Between Activities ............................................................................... 101
Using intent extras ......................................................................................... 102
Getting a result back from a child activity .......................................................... 105
How Android Sees Your Activities ............................................................................ 109
Challenge: Closing Loopholes for Cheaters ................................................................ 112
6. Android SDK Versions and Compatibility ....................................................................... 113
Android SDK Versions ........................................................................................... 113
Compatibility and Android Programming ................................................................... 114
A sane minimum ........................................................................................... 114
Android Programming
ix
Minimum SDK version ................................................................................... 117
Target SDK version ........................................................................................ 117
Compile SDK version ..................................................................................... 117
Adding code from later APIs safely .................................................................. 118
Using the Android Developer Documentation ............................................................. 120
Challenge: Reporting the Build Version ..................................................................... 122
Challenge: Limited Cheats ....................................................................................... 122
7. UI Fragments and the Fragment Manager ....................................................................... 123
The Need for UI Flexibility ..................................................................................... 124
Introducing Fragments ............................................................................................ 125
Starting CriminalIntent ............................................................................................ 126
Creating a new project .................................................................................... 129
Two types of fragments ................................................................................... 130
Adding dependencies in Android Studio ............................................................ 131
Creating the Crime class ................................................................................. 134
Hosting a UI Fragment ........................................................................................... 136
The fragment lifecycle .................................................................................... 136
Two approaches to hosting .............................................................................. 137
Defining a container view ............................................................................... 137
Creating a UI Fragment .......................................................................................... 139
Defining CrimeFragment’s layout ..................................................................... 139
Creating the CrimeFragment class ..................................................................... 142
Adding a UI Fragment to the FragmentManager .......................................................... 148
Fragment transactions ..................................................................................... 149
The FragmentManager and the fragment lifecycle ................................................ 152
Application Architecture with Fragments ................................................................... 153
The reason all our activities will use fragments ................................................... 154
For the More Curious: Fragments and the Support Library ............................................ 155
For the More Curious: Why Support Fragments Are Superior ........................................ 156
8. Displaying Lists with RecyclerView .............................................................................. 157
Updating CriminalIntent’s Model Layer ..................................................................... 159
Singletons and centralized data storage .............................................................. 159
An Abstract Activity for Hosting a Fragment .............................................................. 161
A generic fragment-hosting layout .................................................................... 161
An abstract Activity class ................................................................................ 162
RecyclerView, Adapter, and ViewHolder .................................................................... 167
ViewHolders and Adapters .............................................................................. 168
Using a RecyclerView .................................................................................... 171
A view to display .......................................................................................... 173
Implementing a ViewHolder and an Adapter ....................................................... 173
Binding List Items ................................................................................................. 176
Responding to Presses ............................................................................................ 178
For the More Curious: ListView and GridView ........................................................... 179
For the More Curious: Singletons ............................................................................. 179
Challenge: RecyclerView ViewTypes ......................................................................... 180
9. Creating User Interfaces with Layouts and Widgets .......................................................... 181
Using the Graphical Layout Tool .............................................................................. 182
Introducing ConstraintLayout ................................................................................... 183
Android Programming
x
Using ConstraintLayout .................................................................................. 184
The graphical editor ....................................................................................... 186
Making room ................................................................................................ 188
Adding widgets ............................................................................................. 190
ConstraintLayout’s inner workings .................................................................... 194
Editing properties ........................................................................................... 195
Making list items dynamic .............................................................................. 199
More on Layout Attributes ...................................................................................... 200
Screen pixel densities and dp and sp ................................................................. 200
Margins vs padding ........................................................................................ 202
Styles, themes, and theme attributes .................................................................. 203
Android’s design guidelines ............................................................................. 204
The Graphical Layout Tools and You ........................................................................ 204
Challenge: Formatting the Date ................................................................................ 204
10. Using Fragment Arguments ........................................................................................ 205
Starting an Activity from a Fragment ........................................................................ 205
Putting an extra ............................................................................................. 207
Retrieving an extra ......................................................................................... 207
Updating CrimeFragment’s view with Crime data ................................................ 208
The downside to direct retrieval ........................................................................ 209
Fragment Arguments .............................................................................................. 210
Attaching arguments to a fragment .................................................................... 210
Retrieving arguments ...................................................................................... 211
Reloading the List .................................................................................................. 212
Getting Results with Fragments ................................................................................ 215
For the More Curious: Why Use Fragment Arguments? ................................................ 216
Challenge: Efficient RecyclerView Reloading ............................................................. 216
Challenge: Improving CrimeLab Performance ............................................................. 216
11. Using ViewPager ...................................................................................................... 217
Creating CrimePagerActivity .................................................................................... 219
ViewPager and PagerAdapter ........................................................................... 219
Integrating CrimePagerActivity ......................................................................... 221
FragmentStatePagerAdapter vs FragmentPagerAdapter ................................................. 223
For the More Curious: How ViewPager Really Works .................................................. 224
For the More Curious: Laying Out Views in Code ....................................................... 225
Challenge: Restoring CrimeFragment’s Margins .......................................................... 226
Challenge: Adding First and Last Buttons .................................................................. 226
12. Dialogs ................................................................................................................... 227
Creating a DialogFragment ...................................................................................... 228
Showing a DialogFragment .............................................................................. 231
Setting a dialog’s contents ............................................................................... 232
Passing Data Between Two Fragments ....................................................................... 235
Passing data to DatePickerFragment .................................................................. 236
Returning data to CrimeFragment ..................................................................... 238
Challenge: More Dialogs ......................................................................................... 245
Challenge: A Responsive DialogFragment .................................................................. 245
13. The Toolbar ............................................................................................................. 247
AppCompat ........................................................................................................... 248
Android Programming
xi
Using the AppCompat library .......................................................................... 248
Menus .................................................................................................................. 250
Defining a menu in XML ................................................................................ 250
Creating the menu .......................................................................................... 256
Responding to menu selections ......................................................................... 259
Enabling Hierarchical Navigation ............................................................................. 260
How hierarchical navigation works ................................................................... 261
An Alternative Action Item ..................................................................................... 262
Toggling the action item title ........................................................................... 263
“Just one more thing...” ................................................................................... 265
For the More Curious: Action Bar vs Toolbar ............................................................. 267
Challenge: Deleting Crimes ..................................................................................... 267
Challenge: Plural String Resources ........................................................................... 268
Challenge: An Empty View for the RecyclerView ........................................................ 268
14. SQLite Databases ..................................................................................................... 269
Defining a Schema ................................................................................................. 270
Building Your Initial Database ................................................................................. 271
Exploring files using Android Device Monitor .................................................... 274
Debugging database issues .............................................................................. 276
Gutting CrimeLab .................................................................................................. 277
Writing to the Database .......................................................................................... 278
Using ContentValues ...................................................................................... 278
Inserting and updating rows ............................................................................. 279
Reading from the Database ...................................................................................... 281
Using a CursorWrapper .................................................................................. 282
Converting to model objects ............................................................................ 284
For the More Curious: More Databases ..................................................................... 287
For the More Curious: The Application Context .......................................................... 288
Challenge: Deleting Crimes ..................................................................................... 288
15. Implicit Intents ......................................................................................................... 289
Adding Buttons ..................................................................................................... 290
Adding a Suspect to the Model Layer ....................................................................... 291
Using a Format String ............................................................................................ 293
Using Implicit Intents ............................................................................................. 294
Parts of an implicit intent ................................................................................ 295
Sending a crime report .................................................................................... 296
Asking Android for a contact ........................................................................... 299
Checking for responding activities .................................................................... 302
Challenge: ShareCompat ......................................................................................... 304
Challenge: Another Implicit Intent ............................................................................ 304
16. Taking Pictures with Intents ....................................................................................... 305
A Place for Your Photo ........................................................................................... 305
File Storage .......................................................................................................... 308
Using FileProvider ......................................................................................... 309
Designating a picture location .......................................................................... 310
Using a Camera Intent ............................................................................................ 311
Firing the intent ............................................................................................. 311
Scaling and Displaying Bitmaps ............................................................................... 313
Android Programming
xii
Declaring Features ................................................................................................. 316
Challenge: Detail Display ........................................................................................ 316
Challenge: Efficient Thumbnail Load ........................................................................ 316
17. Two-Pane Master-Detail Interfaces ............................................................................... 317
Adding Layout Flexibility ....................................................................................... 319
Modifying SingleFragmentActivity ................................................................... 320
Creating a layout with two fragment containers ................................................... 321
Using an alias resource ................................................................................... 323
Creating tablet alternatives ............................................................................... 324
Activity: Fragment Boss .......................................................................................... 325
Fragment callback interfaces ............................................................................ 326
For the More Curious: More on Determining Device Size ............................................. 335
Challenge: Adding Swipe to Dismiss ........................................................................ 335
18. Localization ............................................................................................................. 337
Localizing Resources .............................................................................................. 338
Default resources ........................................................................................... 341
Checking string coverage using Translations Editor .............................................. 344
Targeting a region .......................................................................................... 345
Configuration Qualifiers .......................................................................................... 348
Prioritizing alternative resources ....................................................................... 349
Multiple qualifiers .......................................................................................... 351
Finding the best-matching resources .................................................................. 352
Testing Alternative Resources .................................................................................. 353
Challenge: Localizing Dates .................................................................................... 354
19. Accessibility ............................................................................................................ 355
TalkBack .............................................................................................................. 355
Explore by Touch .......................................................................................... 359
Linear navigation by swiping ........................................................................... 359
Making Non-Text Elements Readable by TalkBack ...................................................... 362
Adding content descriptions ............................................................................. 362
Making a widget focusable .............................................................................. 364
Creating a Comparable Experience ........................................................................... 365
Using labels to provide context ........................................................................ 367
For the More Curious: Using Accessibility Scanner ..................................................... 370
Challenge: Improving the List .................................................................................. 373
Challenge: Providing Enough Context for Data Entry ................................................... 373
Challenge: Announcing Events ................................................................................. 373
20. Data Binding and MVVM .......................................................................................... 375
Different Architectures: Why Bother? ........................................................................ 376
Creating BeatBox ................................................................................................... 376
Simple data binding ....................................................................................... 378
Importing Assets .................................................................................................... 382
Getting At Assets ................................................................................................... 384
Wiring Up Assets for Use ....................................................................................... 386
Binding to Data ..................................................................................................... 389
Creating a ViewModel .................................................................................... 391
Binding to a ViewModel ................................................................................. 392
Observable data ............................................................................................. 394
Android Programming
xiii
Accessing Assets ................................................................................................... 396
For the More Curious: More About Data Binding ........................................................ 396
Lambda expressions ....................................................................................... 397
More syntactic sugar ...................................................................................... 397
BindingAdapters ............................................................................................ 397
For the More Curious: Why Assets, Not Resources ...................................................... 398
For the More Curious: Non-Assets? .......................................................................... 398
21. Unit Testing and Audio Playback ................................................................................ 399
Creating a SoundPool ............................................................................................. 399
Loading Sounds ..................................................................................................... 400
Playing Sounds ...................................................................................................... 402
Test Dependencies .................................................................................................. 402
Creating a Test Class .............................................................................................. 403
Setting Up Your Test .............................................................................................. 405
Using mocked dependencies ............................................................................ 405
Writing Tests ......................................................................................................... 407
Testing object interactions ............................................................................... 407
Data Binding Callbacks .......................................................................................... 411
Unloading Sounds .................................................................................................. 412
Rotation and Object Continuity ................................................................................ 413
Retaining a fragment ...................................................................................... 414
Rotation and retained fragments ....................................................................... 414
For the More Curious: Whether to Retain .................................................................. 416
For the More Curious: Espresso and Integration Testing ................................................ 417
For the More Curious: Mocks and Testing .................................................................. 418
Challenge: Playback Speed Control ........................................................................... 419
22. Styles and Themes .................................................................................................... 421
Color Resources .................................................................................................... 422
Styles ................................................................................................................... 422
Style inheritance ............................................................................................ 424
Themes ................................................................................................................ 425
Modifying the theme ...................................................................................... 426
Adding Theme Colors ............................................................................................ 428
Overriding Theme Attributes .................................................................................... 429
Theme spelunking .......................................................................................... 429
Modifying Button Attributes .................................................................................... 433
For the More Curious: More on Style Inheritance ........................................................ 435
For the More Curious: Accessing Theme Attributes ..................................................... 436
23. XML Drawables ....................................................................................................... 437
Making Uniform Buttons ........................................................................................ 438
Shape Drawables ................................................................................................... 439
State List Drawables ............................................................................................... 441
Layer List Drawables ............................................................................................. 443
For the More Curious: Why Bother with XML Drawables? ........................................... 444
For the More Curious: Mipmap Images ..................................................................... 445
For the More Curious: 9-Patch Images ...................................................................... 446
Challenge: Button Themes ....................................................................................... 452
24. More About Intents and Tasks .................................................................................... 453
Android Programming
xiv
Setting Up NerdLauncher ........................................................................................ 454
Resolving an Implicit Intent ..................................................................................... 456
Creating Explicit Intents at Runtime .......................................................................... 460
Tasks and the Back Stack ........................................................................................ 462
Switching between tasks ................................................................................. 462
Starting a new task ......................................................................................... 464
Using NerdLauncher as a Home Screen ..................................................................... 466
Challenge: Icons .................................................................................................... 468
For the More Curious: Processes vs Tasks .................................................................. 468
For the More Curious: Concurrent Documents ............................................................ 471
25. HTTP and Background Tasks ..................................................................................... 473
Creating PhotoGallery ............................................................................................ 475
Networking Basics ................................................................................................. 477
Asking permission to network .......................................................................... 479
Using AsyncTask to Run on a Background Thread ...................................................... 479
You and Your Main Thread ..................................................................................... 481
Beyond the main thread .................................................................................. 482
Fetching JSON from Flickr ..................................................................................... 483
Parsing JSON text .......................................................................................... 487
From AsyncTask Back to the Main Thread ................................................................. 491
Cleaning Up AsyncTasks ........................................................................................ 495
For the More Curious: More on AsyncTask ................................................................ 496
For the More Curious: Alternatives to AsyncTask ........................................................ 497
Challenge: Gson .................................................................................................... 498
Challenge: Paging .................................................................................................. 498
Challenge: Dynamically Adjusting the Number of Columns .......................................... 498
26. Loopers, Handlers, and HandlerThread ......................................................................... 499
Preparing RecyclerView to Display Images ................................................................ 499
Downloading Lots of Small Things ........................................................................... 502
Communicating with the Main Thread ....................................................................... 502
Assembling a Background Thread ............................................................................ 504
Messages and Message Handlers .............................................................................. 506
Message anatomy ........................................................................................... 506
Handler anatomy ............................................................................................ 507
Using handlers .............................................................................................. 508
Passing handlers ............................................................................................ 512
For the More Curious: AsyncTasks vs Threads ............................................................ 518
For the More Curious: Solving the Image Downloading Problem .................................... 518
For the More Curious: StrictMode ............................................................................ 519
Challenge: Preloading and Caching ........................................................................... 520
27. Search .................................................................................................................... 521
Searching Flickr .................................................................................................... 521
Using SearchView .................................................................................................. 526
Responding to SearchView user interactions ....................................................... 530
Simple Persistence with Shared Preferences ................................................................ 532
Polishing Your App ................................................................................................ 536
Challenge: Polishing Your App Some More ................................................................ 536
28. Background Services ................................................................................................. 537
Android Programming
xv
Creating an IntentService ........................................................................................ 537
What Services Are For ........................................................................................... 540
Safe background networking ............................................................................ 540
Looking for New Results ........................................................................................ 542
Delayed Execution with AlarmManager ..................................................................... 544
Being a good citizen: using alarms the right way ................................................. 545
PendingIntent ................................................................................................ 547
Managing alarms with PendingIntent ................................................................. 547
Controlling Your Alarm .......................................................................................... 548
Notifications .......................................................................................................... 551
Challenge: Notifications on Android Wear .................................................................. 553
For the More Curious: Service Details ....................................................................... 553
What a service does (and does not do) ............................................................... 553
A service’s lifecycle ....................................................................................... 554
Non-sticky services ........................................................................................ 554
Sticky services ............................................................................................... 554
Bound services .............................................................................................. 555
For the More Curious: JobScheduler and JobServices ................................................... 556
JobScheduler and the future of background work ................................................. 559
Challenge: Using JobService on Lollipop ................................................................... 559
For the More Curious: Sync Adapters ....................................................................... 559
29. Broadcast Intents ...................................................................................................... 561
Regular Intents vs Broadcast Intents .......................................................................... 561
Receiving a System Broadcast: Waking Up on Boot ..................................................... 562
Creating and registering a standalone receiver ..................................................... 562
Using receivers .............................................................................................. 565
Filtering Foreground Notifications ............................................................................ 567
Sending broadcast intents ................................................................................ 567
Creating and registering a dynamic receiver ........................................................ 568
Limiting broadcasts to your app using private permissions ..................................... 570
Passing and receiving data with ordered broadcasts .............................................. 572
Receivers and Long-Running Tasks ........................................................................... 577
For the More Curious: Local Events .......................................................................... 578
Using EventBus ............................................................................................. 578
Using RxJava ................................................................................................ 579
For the More Curious: Detecting the Visibility of Your Fragment .................................... 580
30. Browsing the Web and WebView ................................................................................. 581
One Last Bit of Flickr Data ..................................................................................... 582
The Easy Way: Implicit Intents ................................................................................ 585
The Harder Way: WebView ..................................................................................... 586
Using WebChromeClient to spruce things up ...................................................... 590
Proper Rotation with WebView ................................................................................ 593
Dangers of handling configuration changes ......................................................... 593
For the More Curious: Injecting JavaScript Objects ...................................................... 594
For the More Curious: WebView Updates .................................................................. 595
Challenge: Using the Back Button for Browser History ................................................ 595
Challenge: Supporting Non-HTTP Links .................................................................... 596
31. Custom Views and Touch Events ................................................................................. 597
Android Programming
xvi
Setting Up the DragAndDraw Project ........................................................................ 598
Creating a Custom View ......................................................................................... 600
Creating BoxDrawingView .............................................................................. 600
Handling Touch Events ........................................................................................... 602
Tracking across motion events .......................................................................... 604
Rendering Inside onDraw(Canvas) ............................................................................ 606
Challenge: Saving State .......................................................................................... 608
Challenge: Rotating Boxes ...................................................................................... 608
32. Property Animation ................................................................................................... 609
Building the Scene ................................................................................................. 609
Simple Property Animation ..................................................................................... 612
View transformation properties ......................................................................... 614
Using different interpolators ............................................................................ 616
Color evaluation ............................................................................................ 616
Playing Animators Together ..................................................................................... 618
For the More Curious: Other Animation APIs ............................................................. 620
Legacy animation tools ................................................................................... 620
Transitions .................................................................................................... 620
Challenges ............................................................................................................ 620
33. Locations and Play Services ....................................................................................... 621
Locations and Libraries ........................................................................................... 622
Google Play Services ...................................................................................... 622
Creating Locatr ...................................................................................................... 623
Play Services and Location Testing on Emulators ........................................................ 623
Mock location data ......................................................................................... 624
Building Out Locatr ............................................................................................... 627
Setting Up Google Play Services .............................................................................. 629
Location permissions ...................................................................................... 630
Using Google Play Services ..................................................................................... 631
Flickr Geosearch .................................................................................................... 633
Getting a Location Fix ............................................................................................ 634
Asking for Permission at Runtime ............................................................................ 637
Checking for permissions ................................................................................ 638
Find and Display an Image ...................................................................................... 644
Challenge: Permissions Rationale ............................................................................. 646
Challenge: Progress ................................................................................................ 646
34. Maps ...................................................................................................................... 647
Importing Play Services Maps .................................................................................. 647
Mapping on Android .............................................................................................. 647
Getting a Maps API Key ......................................................................................... 648
Setting Up Your Map ............................................................................................. 650
Getting More Location Data .................................................................................... 652
Working with Your Map ......................................................................................... 654
Drawing on the map ....................................................................................... 657
For the More Curious: Teams and API Keys ............................................................... 659
35. Material Design ........................................................................................................ 661
Material Surfaces ................................................................................................... 662
Elevation and Z values .................................................................................... 664
Android Programming
xvii
State list animators ......................................................................................... 665
Animation Tools .................................................................................................... 667
Circular reveal ............................................................................................... 667
Shared element transitions ............................................................................... 669
View Components .................................................................................................. 673
Cards ........................................................................................................... 673
Floating action buttons .................................................................................... 675
Snackbars ..................................................................................................... 676
More on Material Design ........................................................................................ 677
36. Afterword ................................................................................................................ 679
The Final Challenge ............................................................................................... 679
Shameless Plugs .................................................................................................... 679
Thank You ............................................................................................................ 680
Index ........................................................................................................................... 681
xix
Learning Android
As a beginning Android programmer, you face a steep learning curve. Learning Android is like moving
to a foreign city. Even if you speak the language, it will not feel like home at first. Everyone around
you seems to understand things that you are missing. Things you already knew turn out to be dead
wrong in this new context.
Android has a culture. That culture speaks Java, but knowing Java is not enough. Getting your head
around Android requires learning many new ideas and techniques. It helps to have a guide through
unfamiliar territory.
That’s where we come in. At Big Nerd Ranch, we believe that to be an Android programmer, you
must:
•write Android applications
•understand what you are writing
This guide will help you do both. We have trained thousands of professional Android programmers
using it. We lead you through writing several Android applications, introducing concepts and
techniques as needed. When there are rough spots, or when some things are tricky or obscure, you will
face them head on, and we will do our best to explain why things are the way they are.
This approach allows you to put what you have learned into practice in a working app right away rather
than learning a lot of theory and then having to figure out how to apply it all later. You will come away
with the experience and understanding you need to get going as an Android developer.
Prerequisites
To use this book, you need to be familiar with Java, including classes and objects, interfaces, listeners,
packages, inner classes, anonymous inner classes, and generic classes.
If these concepts do not ring a bell, you will be in the weeds by page 2. Start instead with an
introductory Java book and return to this book afterward. There are many excellent introductory books
available, so you can choose one based on your programming experience and learning style.
If you are comfortable with object-oriented programming concepts, but your Java is a little rusty, you
will probably be OK. We will provide some brief reminders about Java specifics (like interfaces and
anonymous inner classes). Keep a Java reference handy in case you need more support as you go
through the book.
What’s New in the Third Edition?
This third edition adds coverage of a couple of new tools: constraint layout (plus its associated editor)
and data binding. New chapters have also been added on unit testing, accessibility, the MVVM
architectural style, and localization. Toward the end of the book, we have added material on the new
runtime permissions system. Finally, many new challenges and For the More Curious sections have
been added and many others have been revised throughout the book.
Learning Android
xx
How to Use This Book
This book is not a reference book. Its goal is to get you over the initial hump to where you can get
the most out of the reference and recipe books available. It is based on our five-day class at Big Nerd
Ranch. As such, it is meant to be worked through from the beginning. Chapters build on each other,
and skipping around is unproductive.
In our classes, students work through these materials, but they also benefit from the right environment
– a dedicated classroom, good food and comfortable board, a group of motivated peers, and an
instructor to answer questions.
As a reader, you want your environment to be similar. That means getting a good night’s rest and
finding a quiet place to work. These things can help, too:
• Start a reading group with your friends or coworkers.
• Arrange to have blocks of focused time to work on chapters.
• Participate in the forum for this book at forums.bignerdranch.com.
• Find someone who knows Android to help you out.
How This Book Is Organized
As you work through this book, you will write eight Android apps. A couple are very simple and take
only a chapter to create. Others are more complex. The longest app spans 13 chapters. All are designed
to teach you important concepts and techniques and give you direct experience using them.
GeoQuiz In your first app, you will explore the fundamentals of Android projects,
activities, layouts, and explicit intents.
CriminalIntent The largest app in the book, CriminalIntent lets you keep a record of your
colleagues’ lapses around the office. You will learn to use fragments, master-
detail interfaces, list-backed interfaces, menus, the camera, implicit intents,
and more.
BeatBox Intimidate your foes with this app while you learn more about fragments,
media playback, MVVM architecture, data binding, testing, themes, and
drawables.
NerdLauncher Building this custom launcher will give you insight into the intent system and
tasks.
PhotoGallery A Flickr client that downloads and displays photos from Flickr’s public
feed, this app will take you through services, multithreading, accessing web
services, and more.
Challenges
xxi
DragAndDraw In this simple drawing app, you will learn about handling touch events and
creating custom views.
Sunset In this toy app, you will create a beautiful representation of a sunset over open
water while learning about animations.
Locatr This app lets you query Flickr for pictures around your current location and
display them on a map. In it, you will learn how to use location services and
maps.
Challenges
Most chapters have a section at the end with exercises for you to work through. This is your
opportunity to use what you have learned, explore the documentation, and do some problem solving on
your own.
We strongly recommend that you do the challenges. Going off the beaten path and finding your way
will solidify your learning and give you confidence with your own projects.
If you get lost, you can always visit forums.bignerdranch.com for some assistance.
Are you more curious?
There are also sections at the ends of chapters labeled “For the More Curious.” These sections offer
deeper explanations or additional information about topics presented in the chapter. The information in
these sections is not absolutely essential, but we hope you will find it interesting and useful.
Code Style
There are two areas where our choices differ from what you might see elsewhere in the Android
community:
We use anonymous inner classes for listeners.
This is mostly a matter of opinion. We find it makes for cleaner code in the applications in this
book because it puts the listener’s method implementations right where you want to see them. In
high-performance contexts or large applications, anonymous inner classes may cause problems,
but for most circumstances they work fine.
After we introduce fragments in Chapter7, we use them for all user interfaces.
Fragments are not an absolutely necessary tool, but we find that, when used correctly, they are a
valuable tool in any Android developer’s toolkit. Once you get comfortable with fragments, they
are not that difficult to work with. Fragments have clear advantages over activities that make
them worth the effort, including flexibility in building and presenting your user interfaces.
Learning Android
xxii
Typographical Conventions
All code and XML listings are in a fixed-width font. Code or XML that you need to type in is always
bold. Code or XML that should be deleted is struck through. For example, in the following method
implementation, you are deleting the call to makeText(…) and adding the call to checkAnswer(true).
@Override
public void onClick(View v) {
Toast.makeText(QuizActivity.this, R.string.incorrect_toast,
Toast.LENGTH_SHORT).show();
checkAnswer(true);
}
Android Versions
This book teaches Android development for all widely used versions of Android. As of this writing,
that is Android 4.4 (KitKat) - Android 7.1 (Nougat). While there is a small amount of market-share on
older versions of Android, we find that for most developers the amount of effort required to support
those versions is not worth the reward. For more info on the support of versions of Android earlier
than 4.4, see earlier editions of this book. The second edition targeted Android 4.1 and up, and the first
edition targeted Android 2.3 and up.
As Android releases new versions, the techniques you learn in this book will continue to work thanks
to Android’s backward compatibility support (see Chapter6 for details). We will keep track of changes
at forums.bignerdranch.com and offer notes on using this book with the latest version.
xxiii
The Necessary Tools
To get started with this book, you will need Android Studio. Android Studio is an integrated
development environment used for Android development that is based off of the popular IntelliJ IDEA.
An install of Android Studio includes:
Android SDK
the latest version of the Android SDK
Android SDK tools and platform tools
tools for debugging and testing your apps
A system image for the Android emulator
lets you create and test your apps on different virtual devices
As of this writing, Android Studio is under active development and is frequently updated. Be aware
that you may find differences between your version of Android Studio and what you see in this book.
Visit forums.bignerdranch.com for help with these differences.
Downloading and Installing Android Studio
Android Studio is available from Android’s developer site at developer.android.com/sdk/.
If you do not already have it installed, you will need to install the Java Development Kit (JDK 8),
which you can download from www.oracle.com.
If you are still having problems, return to developer.android.com/sdk/ for more information.
Downloading Earlier SDK Versions
Android Studio provides the SDK and the emulator system image from the latest platform. However,
you may want to test your apps on earlier versions of Android.
You can get components for each platform using the Android SDK Manager. In Android Studio, select
Tools → Android → SDK Manager. (You will only see the Tools menu if you have a project open. If
you have not created a project yet, you can instead access the SDK Manager from the Android Setup
Wizard screen. Under the Quick Start section, select Configure → SDK Manager.)
The Necessary Tools
xxiv
The SDK Manager is shown in Figure1.
Figure 1Android SDK Manager
Select and install each version of Android that you want to test with. Note that downloading these
components may take a while.
The Android SDK Manager is also how to get Android’s latest releases, like a new platform or an
update of the tools.
A Hardware Device
The emulator is useful for testing apps. However, it is no substitute for an actual Android device when
measuring performance. If you have a hardware device, we recommend using that device at times
when working through this book.
1
1
Your First Android Application
This first chapter is full of new concepts and moving parts required to build an Android application. It
is OK if you do not understand everything by the end of this chapter. You will be revisiting these ideas
in greater detail as you proceed through the book.
The application you are going to create is called GeoQuiz. GeoQuiz tests the user’s knowledge of
geography. The user presses TRUE or FALSE to answer the question on screen, and GeoQuiz provides
instant feedback.
Figure1.1 shows the result of a user pressing the TRUE button.
Figure 1.1Do you come from a land down under?
Chapter 1Your First Android Application
2
App Basics
Your GeoQuiz application will consist of an activity and a layout:
• An activity is an instance of Activity, a class in the Android SDK. An activity is responsible for
managing user interaction with a screen of information.
You write subclasses of Activity to implement the functionality that your app requires. A simple
application may need only one subclass; a complex application can have many.
GeoQuiz is a simple app, so it will have a single Activity subclass named QuizActivity.
QuizActivity will manage the user interface, or UI, shown in Figure1.1.
• A layout defines a set of UI objects and their positions on the screen. A layout is made up of
definitions written in XML. Each definition is used to create an object that appears on screen, like
a button or some text.
GeoQuiz will include a layout file named activity_quiz.xml. The XML in this file will define
the UI shown in Figure1.1.
The relationship between QuizActivity and activity_quiz.xml is diagrammed in Figure1.2.
Figure 1.2QuizActivity manages what activity_quiz.xml defines
With those ideas in mind, let’s build an app.
Creating an Android Project
3
Creating an Android Project
The first step is to create an Android project. An Android project contains the files that make up an
application. To create a new project, first open Android Studio.
If this is your first time running Android Studio, you will see the Welcome dialog, as in Figure1.3.
Figure 1.3Welcome to Android Studio
From the dialog, choose Start a new Android Studio project. If you do not see the dialog, you may have
created projects before. In this case, choose File → New → New Project....
Chapter 1Your First Android Application
4
You should see the New Project wizard (Figure1.4). In the first screen of the wizard, enter GeoQuiz
as the application name. For the company domain, enter android.bignerdranch.com. As you do this,
you will see the generated package name change to com.bignerdranch.android.geoquiz. For the
project location, you can use any location on your filesystem that you want.
Figure 1.4Creating a new application
Notice that the package name uses a “reverse DNS” convention: The domain name of your
organization is reversed and suffixed with further identifiers. This convention keeps package names
unique and distinguishes applications from each other on a device and on Google Play.
Creating an Android Project
5
Click Next. The next screen allows you to specify details about which devices you want to support.
GeoQuiz will only support phones, so just check Phone and Tablet. Select a minimum SDK version
of API 19: Android 4.4 (KitKat) (Figure1.5). You will learn about the different versions of Android in
Chapter6.
Figure 1.5Specifying device support
Chapter 1Your First Android Application
6
Click Next.
In the next screen, you are prompted to choose a template for the first screen of GeoQuiz (Figure1.6).
You want the most basic template available. Choose Empty Activity and click Next.
(Android Studio updates regularly, so your wizard may look slightly different from what we are
showing you. This is usually not a problem; the choices should be similar. If your wizard looks very
different, then the tools have changed more drastically. Do not panic. Head to this book’s forum at
forums.bignerdranch.com and we will help you navigate the latest version.)
Figure 1.6Choosing a type of activity
Creating an Android Project
7
In the final dialog of this wizard, name the activity subclass QuizActivity (Figure1.7). Notice the
Activity suffix on the class name. This is not required, but it is an excellent convention to follow.
Figure 1.7Configuring the new activity
Leave Generate Layout File checked. The layout name will automatically update to activity_quiz
to reflect the activity’s new name. The layout name reverses the order of the activity name, is all
lowercase, and has underscores between words. This naming style is recommended for layouts as well
as other resources that you will learn about later.
If your version of Android Studio has other options on this screen, leave them as is. Click Finish.
Android Studio will create and open your new project.
Chapter 1Your First Android Application
8
Navigating in Android Studio
Android Studio opens your project in a window, as shown in Figure1.8.
The different panes of the project window are called tool windows.
The lefthand view is the project tool window. From here, you can view and manage the files associated
with your project.
The main view is the editor. To get you started, Android Studio has opened QuizActivity.java in the
editor.
Figure 1.8A fresh project window
You can toggle the visibility of the various tool windows by clicking on their names in the strips of tool
buttons on the left, right, and bottom of the screen. There are keyboard shortcuts for many of these as
well. If you do not see the tool button strips, click the gray square button in the lower-left corner of the
main window or choose View → Tool Buttons.
Laying Out the UI
9
Laying Out the UI
Open app/res/layout/activity_quiz.xml. If you see a graphical preview of the file, select the Text
tab at the bottom to see the backing XML.
Currently, activity_quiz.xml defines the default activity layout. The defaults change frequently, but
the XML will look something like Listing 1.1.
Listing 1.1Default activity layout (activity_quiz.xml)
<RelativeLayout
xmlns:android="http://schemas.android.com/apk/res/android"
xmlns:tools="http://schemas.android.com/tools"
android:id="@+id/activity_quiz"
android:layout_width="match_parent"
android:layout_height="match_parent"
android:paddingBottom="16dp"
android:paddingLeft="16dp"
android:paddingRight="16dp"
android:paddingTop="16dp"
tools:context="com.bignerdranch.android.geoquiz.QuizActivity">
<TextView
android:layout_width="wrap_content"
android:layout_height="wrap_content"
android:text="Hello World!"/>
</RelativeLayout>
The default activity layout defines two widgets: a RelativeLayout and a TextView.
Widgets are the building blocks you use to compose a UI. A widget can show text or graphics, interact
with the user, or arrange other widgets on the screen. Buttons, text input controls, and checkboxes are
all types of widgets.
The Android SDK includes many widgets that you can configure to get the appearance and behavior
you want. Every widget is an instance of the View class or one of its subclasses (such as TextView or
Button).
Chapter 1Your First Android Application
10
Figure1.9 shows how the RelativeLayout and TextView defined in Listing 1.1 would appear on
screen.
Figure 1.9Default widgets as seen on screen
But these are not the widgets you are looking for. The interface for QuizActivity requires five
widgets:
• a vertical LinearLayout
• a TextView
• a horizontal LinearLayout
• two Buttons
Laying Out the UI
11
Figure1.10 shows how these widgets compose QuizActivity’s interface.
Figure 1.10Planned widgets as seen on screen
Now you need to define these widgets in activity_quiz.xml.
In the project tool window, find the app/res/layout directory, reveal its contents, and open
activity_quiz.xml. Make the changes shown in Listing 1.2. The XML that you need to delete is
struck through, and the XML that you need to add is in bold font. This is the pattern we will use
throughout this book.
Chapter 1Your First Android Application
12
Do not worry about understanding what you are typing; you will learn how it works next. However, do
be careful. Layout XML is not validated, and typos will cause problems sooner or later.
You will see errors on the three lines that start with android:text. Ignore these errors for now; you
will fix them soon.
Listing 1.2Defining widgets in XML (activity_quiz.xml)
<RelativeLayout
android:id="@+id/activity_quiz"
xmlns:android="http://schemas.android.com/apk/res/android"
xmlns:tools="http://schemas.android.com/tools"
android:layout_width="match_parent"
android:layout_height="match_parent"
android:paddingBottom="@dimen/activity_vertical_margin"
android:paddingLeft="@dimen/activity_horizontal_margin"
android:paddingRight="@dimen/activity_horizontal_margin"
android:paddingTop="@dimen/activity_vertical_margin"
tools:context="com.bignerdranch.android.geoquiz.QuizActivity">
<TextView
android:layout_width="wrap_content"
android:layout_height="wrap_content"
android:text="Hello World!"/>
</RelativeLayout>
<LinearLayout xmlns:android="http://schemas.android.com/apk/res/android"
android:layout_width="match_parent"
android:layout_height="match_parent"
android:gravity="center"
android:orientation="vertical" >
<TextView
android:layout_width="wrap_content"
android:layout_height="wrap_content"
android:padding="24dp"
android:text="@string/question_text" />
<LinearLayout
android:layout_width="wrap_content"
android:layout_height="wrap_content"
android:orientation="horizontal" >
<Button
android:layout_width="wrap_content"
android:layout_height="wrap_content"
android:text="@string/true_button" />
<Button
android:layout_width="wrap_content"
android:layout_height="wrap_content"
android:text="@string/false_button" />
</LinearLayout>
</LinearLayout>
The view hierarchy
13
Compare your XML with the UI shown in Figure1.10. Every widget has a corresponding XML
element, and the name of the element is the type of the widget.
Each element has a set of XML attributes. Each attribute is an instruction about how the widget should
be configured.
To understand how the elements and attributes work, it helps to look at the layout from a hierarchical
perspective.
The view hierarchy
Your widgets exist in a hierarchy of View objects called the view hierarchy. Figure1.11 shows the view
hierarchy that corresponds to the XML in Listing 1.2.
Figure 1.11Hierarchical layout of widgets and attributes
The root element of this layout’s view hierarchy is a LinearLayout. As the root element, the
LinearLayout must specify the Android resource XML namespace at http://schemas.android.com/
apk/res/android.
LinearLayout inherits from a subclass of View named ViewGroup. A ViewGroup is a widget that
contains and arranges other widgets. You use a LinearLayout when you want widgets arranged
in a single column or row. Other ViewGroup subclasses are FrameLayout, TableLayout, and
RelativeLayout.
When a widget is contained by a ViewGroup, that widget is said to be a child of the ViewGroup. The
root LinearLayout has two children: a TextView and another LinearLayout. The child LinearLayout
has two Button children of its own.
Chapter 1Your First Android Application
14
Widget attributes
Let’s go over some of the attributes that you have used to configure your widgets.
android:layout_width and android:layout_height
The android:layout_width and android:layout_height attributes are required for almost every type
of widget. They are typically set to either match_parent or wrap_content:
match_parent view will be as big as its parent
wrap_content view will be as big as its contents require
(You may see fill_parent in some places. This deprecated value is equivalent to match_parent.)
For the root LinearLayout, the value of both the height and width attributes is match_parent. The
LinearLayout is the root element, but it still has a parent – the view that Android provides for your
app’s view hierarchy to live in.
The other widgets in your layout have their widths and heights set to wrap_content. You can see in
Figure1.10 how this determines their sizes.
The TextView is slightly larger than the text it contains due to its android:padding="24dp" attribute.
This attribute tells the widget to add the specified amount of space to its contents when determining its
size. You are using it to get a little breathing room between the question and the buttons. (Wondering
about the dp units? These are density-independent pixels, which you will learn about in Chapter9.)
android:orientation
The android:orientation attribute on the two LinearLayout widgets determines whether
their children will appear vertically or horizontally. The root LinearLayout is vertical; its child
LinearLayout is horizontal.
The order in which children are defined determines the order in which they appear on screen. In a
vertical LinearLayout, the first child defined will appear topmost. In a horizontal LinearLayout, the
first child defined will be leftmost. (Unless the device is set to a language that runs right to left, such as
Arabic or Hebrew. In that case, the first child will be rightmost.)
android:text
The TextView and Button widgets have android:text attributes. This attribute tells the widget what
text to display.
Notice that the values of these attributes are not literal strings. They are references to string resources.
A string resource is a string that lives in a separate XML file called a strings file. You can give a widget
a hardcoded string, like android:text="True", but it is usually not a good idea. Placing strings into a
separate file and then referencing them is better because it makes localization easy.
The string resources you are referencing in activity_quiz.xml do not exist yet. Let’s fix that.
Creating string resources
15
Creating string resources
Every project includes a default strings file named strings.xml.
Open res/values/strings.xml. The template has already added one string resource for you. Add the
three new strings that your layout requires.
Listing 1.3Adding string resources (strings.xml)
<resources>
<string name="app_name">GeoQuiz</string>
<string name="question_text">Canberra is the capital of Australia.</string>
<string name="true_button">True</string>
<string name="false_button">False</string>
</resources>
(Depending on your version of Android Studio, you may have additional strings. Do not delete them.
Deleting them could cause cascading errors in other files.)
Now, whenever you refer to @string/false_button in any XML file in the GeoQuiz project, you will
get the literal string “False” at runtime.
If you had errors in activity_quiz.xml about the missing string resources, they should now be gone.
(If you still have errors, check both files for typos.)
Although the default strings file is named strings.xml, you can name a strings file anything you want.
You can also have multiple strings files in a project. As long as the file is located in res/values/, has a
resources root element, and contains child string elements, your strings will be found and used.
Chapter 1Your First Android Application
16
Previewing the layout
Your layout is now complete, and you can preview the layout in the graphical layout tool (Figure1.12).
First, make sure that your files are error free. Then return to activity_quiz.xml and open the preview
tool window (if it is not already open) using the tab to the right of the editor.
Figure 1.12Previewing activity_quiz.xml in graphical layout tool
From Layout XML to View Objects
17
From Layout XML to View Objects
How do XML elements in activity_quiz.xml become View objects? The answer starts in the
QuizActivity class.
When you created the GeoQuiz project, a subclass of Activity named QuizActivity was created for
you. The class file for QuizActivity is in the app/java directory of your project. The java directory is
where the Java code for your project lives.
In the project tool window, reveal the contents of the app/java directory and then the contents of the
com.bignerdranch.android.geoquiz package. Open the QuizActivity.java file and take a look at
its contents.
Listing 1.4Default class file for QuizActivity (QuizActivity.java)
package com.bignerdranch.android.geoquiz;
import android.support.v7.app.AppCompatActivity;
import android.os.Bundle;
public class QuizActivity extends AppCompatActivity {
@Override
protected void onCreate(Bundle savedInstanceState) {
super.onCreate(savedInstanceState);
setContentView(R.layout.activity_quiz);
}
}
(Wondering what AppCompatActivity is? It is a subclass of Android’s Activity class that
provides compatibility support for older versions of Android. You will learn much more about
AppCompatActivity in Chapter13.)
If you are not seeing all of the import statements, click the symbol to the left of the first import
statement to reveal the others.
This file has one Activity method: onCreate(Bundle).
(If your file has onCreateOptionsMenu(Menu) and onOptionsItemSelected(MenuItem) methods,
ignore them for now. You will return to menus in detail in Chapter13.)
The onCreate(Bundle) method is called when an instance of the activity subclass is created. When an
activity is created, it needs a UI to manage. To get the activity its UI, you call the following Activity
method:
public void setContentView(int layoutResID)
This method inflates a layout and puts it on screen. When a layout is inflated, each widget in the layout
file is instantiated as defined by its attributes. You specify which layout to inflate by passing in the
layout’s resource ID.
Chapter 1Your First Android Application
18
Resources and resource IDs
A layout is a resource. A resource is a piece of your application that is not code – things like image
files, audio files, and XML files.
Resources for your project live in a subdirectory of the app/res directory. In the project tool window,
you can see that activity_quiz.xml lives in res/layout/. Your strings file, which contains string
resources, lives in res/values/.
To access a resource in code, you use its resource ID. The resource ID for your layout is
R.layout.activity_quiz.
To see the current resource IDs for GeoQuiz, you must first change your project view. By default,
Android Studio uses the Android project view (Figure1.13). This view hides the true directory structure
of your Android project so that you can focus on the files and folders that you need most often.
Figure 1.13Changing the project view
Locate the dropdown at the top of the project tool window and change from the Android view to the
Project view. The Project view will show you the files and folders in your project as they actually are.
To see the resources for GeoQuiz, reveal the contents of the app/build/generated/source/r/debug
directory. In this directory, find your project’s package name and open R.java within that package.
Because this file is generated by the Android build process, you should not change it, as you are subtly
warned at the top of the file.
After making a change to your resources, you may not see this file instantly update. Android Studio
maintains a hidden R.java that your code builds against. The R.java file in Listing 1.5 is the one that
is generated for your app just before it is installed on a device or emulator. You will see this file update
when you run your app.
Resources and resource IDs
19
Listing 1.5Current GeoQuiz resource IDs (R.java)
/* AUTO-GENERATED FILE. DO NOT MODIFY.
*
* This class was automatically generated by the
* aapt tool from the resource data it found. It
* should not be modified by hand.
*/
package com.bignerdranch.android.geoquiz;
public final class R {
public static final class anim {
...
}
...
public static final class id {
...
}
public static final class layout {
...
public static final int activity_quiz=0x7f030017;
}
public static final class mipmap {
public static final int ic_launcher=0x7f030000;
}
public static final class string {
...
public static final int app_name=0x7f0a0010;
public static final int false_button=0x7f0a0012;
public static final int question_text=0x7f0a0014;
public static final int true_button=0x7f0a0015;
}
}
The R.java file can be large, and much of this file is omitted from Listing 1.5.
This is where the R.layout.activity_quiz comes from – it is an integer constant named
activity_quiz within the layout inner class of R.
Chapter 1Your First Android Application
20
Your strings also have resource IDs. You have not yet referred to a string in code, but if you did, it
would look like this:
setTitle(R.string.app_name);
Android generated a resource ID for the entire layout and for each string, but it did not generate IDs for
the individual widgets in activity_quiz.xml. Not every widget needs a resource ID. In this chapter,
you will only interact with the two buttons in code, so only they need resource IDs.
Before generating the resource IDs, switch back to the Android project view. Throughout this book, the
Android project view will be used – but feel free to use the Project version if you prefer.
To generate a resource ID for a widget, you include an android:id attribute in the widget’s definition.
In activity_quiz.xml, add an android:id attribute to each button.
Listing 1.6Adding IDs to Buttons (activity_quiz.xml)
<LinearLayout ... >
<TextView
android:layout_width="wrap_content"
android:layout_height="wrap_content"
android:padding="24dp"
android:text="@string/question_text" />
<LinearLayout
android:layout_width="wrap_content"
android:layout_height="wrap_content"
android:orientation="horizontal">
<Button
android:id="@+id/true_button"
android:layout_width="wrap_content"
android:layout_height="wrap_content"
android:text="@string/true_button" />
<Button
android:id="@+id/false_button"
android:layout_width="wrap_content"
android:layout_height="wrap_content"
android:text="@string/false_button" />
</LinearLayout>
</LinearLayout>
Notice that there is a + sign in the values for android:id but not in the values for android:text. This
is because you are creating the IDs and only referencing the strings.
Wiring Up Widgets
21
Wiring Up Widgets
Now that the buttons have resource IDs, you can access them in QuizActivity. The first step is to add
two member variables.
Type the following code into QuizActivity.java. (Do not use code completion; type it in yourself.)
After you save the file, it will report two errors.
Listing 1.7Adding member variables (QuizActivity.java)
public class QuizActivity extends AppCompatActivity {
private Button mTrueButton;
private Button mFalseButton;
@Override
protected void onCreate(Bundle savedInstanceState) {
super.onCreate(savedInstanceState);
setContentView(R.layout.activity_quiz);
}
}
You will fix the errors in just a second. First, notice the m prefix on the two member (instance) variable
names. This prefix is an Android naming convention that we will follow throughout this book.
Now mouse over the red error indicators. They report the same problem: Cannot resolve symbol
'Button'.
These errors are telling you that you need to import the android.widget.Button class into
QuizActivity.java. You could type the following import statement at the top of the file:
import android.widget.Button;
Or you can do it the easy way and let Android Studio do it for you. Just press Option+Return (or Alt
+Enter) to let the IntelliJ magic under the hood amaze you. The new import statement now appears
with the others at the top of the file. This shortcut is generally useful when something is not correct
with your code. Try it often!
This should get rid of the errors. (If you still have errors, check for typos in your code and XML.)
Now you can wire up your button widgets. This is a two-step process:
• get references to the inflated View objects
• set listeners on those objects to respond to user actions
Chapter 1Your First Android Application
22
Getting references to widgets
In an activity, you can get a reference to an inflated widget by calling the following Activity method:
public View findViewById(int id)
This method accepts a resource ID of a widget and returns a View object.
In QuizActivity.java, use the resource IDs of your buttons to retrieve the inflated objects and assign
them to your member variables. Note that you must cast the returned View to Button before assigning
it.
Listing 1.8Getting references to widgets (QuizActivity.java)
public class QuizActivity extends AppCompatActivity {
private Button mTrueButton;
private Button mFalseButton;
@Override
protected void onCreate(Bundle savedInstanceState) {
super.onCreate(savedInstanceState);
setContentView(R.layout.activity_quiz);
mTrueButton = (Button) findViewById(R.id.true_button);
mFalseButton = (Button) findViewById(R.id.false_button);
}
}
Setting listeners
23
Setting listeners
Android applications are typically event driven. Unlike command-line programs or scripts, event-
driven applications start and then wait for an event, such as the user pressing a button. (Events can also
be initiated by the OS or another application, but user-initiated events are the most obvious.)
When your application is waiting for a specific event, we say that it is “listening for” that event. The
object that you create to respond to an event is called a listener, and the listener implements a listener
interface for that event.
The Android SDK comes with listener interfaces for various events, so you do not have to write your
own. In this case, the event you want to listen for is a button being pressed (or “clicked”), so your
listener will implement the View.OnClickListener interface.
Start with the TRUE button. In QuizActivity.java, add the following code to onCreate(Bundle) just
after the variable assignment.
Listing 1.9Setting a listener for the TRUE button (QuizActivity.java)
@Override
protected void onCreate(Bundle savedInstanceState) {
super.onCreate(savedInstanceState);
setContentView(R.layout.activity_quiz);
mTrueButton = (Button) findViewById(R.id.true_button);
mTrueButton.setOnClickListener(new View.OnClickListener() {
@Override
public void onClick(View v) {
// Does nothing yet, but soon!
}
});
mFalseButton = (Button) findViewById(R.id.false_button);
}
}
(If you have a View cannot be resolved to a type error, try using Option+Return (Alt+Enter) to import
the View class.)
In Listing 1.9, you set a listener to inform you when the Button known as mTrueButton has been
pressed. The setOnClickListener(OnClickListener) method takes a listener as its argument. In
particular, it takes an object that implements OnClickListener.
Chapter 1Your First Android Application
24
Using anonymous inner classes
This listener is implemented as an anonymous inner class. The syntax is a little tricky, but
it helps to remember that everything within the outermost set of parentheses is passed into
setOnClickListener(OnClickListener). Within these parentheses, you create a new, nameless class
and pass its entire implementation.
mTrueButton.setOnClickListener(new View.OnClickListener() {
@Override
public void onClick(View v) {
// Does nothing yet, but soon!
}
});
All of the listeners in this book will be implemented as anonymous inner classes. Doing so puts the
implementations of the listeners’ methods right where you want to see them. And there is no need for
the overhead of a named class because the class will be used in one place only.
Because your anonymous class implements OnClickListener, it must implement that interface’s sole
method, onClick(View). You have left the implementation of onClick(View) empty for now, and the
compiler is OK with that. A listener interface requires you to implement onClick(View), but it makes
no rules about how you implement it.
(If your knowledge of anonymous inner classes, listeners, or interfaces is rusty, you may want to
review some Java before continuing or at least keep a reference nearby.)
Set a similar listener for the FALSE button.
Listing 1.10Setting a listener for the FALSE button (QuizActivity.java)
mTrueButton.setOnClickListener(new View.OnClickListener() {
@Override
public void onClick(View v) {
// Does nothing yet, but soon!
}
});
mFalseButton = (Button) findViewById(R.id.false_button);
mFalseButton.setOnClickListener(new View.OnClickListener() {
@Override
public void onClick(View v) {
// Does nothing yet, but soon!
}
});
}
Making Toasts
25
Making Toasts
Now to make the buttons fully armed and operational. You are going to have a press of each button
trigger a pop-up message called a toast. A toast is a short message that informs the user of something
but does not require any input or action. You are going to make toasts that announce whether the user
answered correctly or incorrectly (Figure1.14).
Figure 1.14A toast providing feedback
First, return to strings.xml and add the string resources that your toasts will display.
Listing 1.11Adding toast strings (strings.xml)
<resources>
<string name="app_name">GeoQuiz</string>
<string name="question_text">Canberra is the capital of Australia.</string>
<string name="true_button">True</string>
<string name="false_button">False</string>
<string name="correct_toast">Correct!</string>
<string name="incorrect_toast">Incorrect!</string>
</resources>
To create a toast, you call the following method from the Toast class:
public static Toast makeText(Context context, int resId, int duration)
Chapter 1Your First Android Application
26
The Context parameter is typically an instance of Activity (Activity is a subclass of Context). The
second parameter is the resource ID of the string that the toast should display. The Context is needed
by the Toast class to be able to find and use the string’s resource ID. The third parameter is one of two
Toast constants that specify how long the toast should be visible.
After you have created a toast, you call Toast.show() on it to get it on screen.
In QuizActivity, you are going to call makeText(…) in each button’s listener. Instead of typing
everything in, try using Android Studio’s code completion feature to add these calls.
Using code completion
Code completion can save you a lot of time, so it is good to become familiar with it early.
Start typing the code addition shown in Listing 1.12. When you get to the period after the Toast class,
a pop-up window will appear with a list of suggested methods and constants from the Toast class.
To choose one of the suggestions, use the up and down arrow keys to select it. (If you wanted to ignore
code completion, you could just keep typing. It will not complete anything for you if you do not press
the Tab key, press the Return key, or click on the pop-up window.)
From the list of suggestions, select makeText(Context context, int resID, int duration). Code
completion will add the complete method call for you.
Fill in the parameters for the makeText method until you have added the code shown in Listing 1.12.
Listing 1.12Making toasts (QuizActivity.java)
mTrueButton.setOnClickListener(new View.OnClickListener() {
@Override
public void onClick(View v) {
Toast.makeText(QuizActivity.this,
R.string.correct_toast,
Toast.LENGTH_SHORT).show();
// Does nothing yet, but soon!
}
});
mFalseButton = (Button) findViewById(R.id.false_button);
mFalseButton.setOnClickListener(new View.OnClickListener() {
@Override
public void onClick(View v) {
Toast.makeText(QuizActivity.this,
R.string.incorrect_toast,
Toast.LENGTH_SHORT).show();
// Does nothing yet, but soon!
}
});
In makeText(…), you pass the instance of QuizActivity as the Context argument. However, you
cannot simply pass the variable this as you might expect. At this point in the code, you are defining
the anonymous class where this refers to the View.OnClickListener.
Because you used code completion, you do not have to do anything to import the Toast class. When
you accept a code completion suggestion, the necessary classes are imported automatically.
Now, let’s see your new app in action.
Running on the Emulator
27
Running on the Emulator
To run an Android application, you need a device – either a hardware device or a virtual device. Virtual
devices are powered by the Android emulator, which ships with the developer tools.
To create an Android virtual device (AVD), choose Tools → Android → AVD Manager. When the AVD
Manager appears, click the +Create Virtual Device... button in the lower-left corner of the window.
In the dialog that appears, you are offered many options for configuring a virtual device. For your first
AVD, choose to emulate a Nexus 5X, as shown in Figure1.15. Click Next.
Figure 1.15Choosing a virtual device
Chapter 1Your First Android Application
28
On the next screen, choose a system image that your emulator is based on. For this emulator, select an
x86 Nougat emulator and select Next (Figure1.16). (You may need to follow the steps to download the
emulator’s components before you can click Next.)
Figure 1.16Choosing a system image
Finally, you can review and tweak properties of the emulator. You can also edit the properties of an
existing emulator later. For now, name your emulator something that will help you to identify it later
and click Finish (Figure1.17).
Running on the Emulator
29
Figure 1.17Updating emulator properties
Once you have an AVD, you can run GeoQuiz on it. From the Android Studio toolbar, click the run
button (it looks like a green “play” symbol) or press Control+R. Android Studio will find the virtual
device you created, start it, install the application package on it, and run the app.
Starting up the emulator can take a while, but eventually your GeoQuiz app will launch on the AVD
that you created. Press buttons and admire your toasts.
If GeoQuiz crashes when launching or when you press a button, useful information will appear in
the Logcat view in the Android DDMS tool window. (If Logcat did not open automatically when you
ran GeoQuiz, you can open it by clicking the Android Monitor button at the bottom of the Android
Studio window.) Look for exceptions in the log; they will be an eye-catching red color, as shown in
Figure1.18.
Figure 1.18An example NullPointerException at line 21
Compare your code with the code in the book to try to find the cause of the problem. Then try running
again. (You will learn more about Logcat and debugging in the next two chapters.)
Chapter 1Your First Android Application
30
Keep the emulator running – you do not want to wait for it to launch on every run.
You can stop the app by pressing the Back button on the emulator. The Back button is shaped like a
left-pointing triangle (on older versions of Android, it looks like an arrow that is making a U-turn).
Then re-run the app from Android Studio to test changes.
The emulator is useful, but testing on a real device gives more accurate results. In Chapter2, you will
run GeoQuiz on a hardware device. You will also give GeoQuiz more geography questions with which
to test the user.
For the More Curious: Android Build Process
By now, you probably have some burning questions about how the Android build process works.
You have already seen that Android Studio builds your project automatically as you modify it rather
than on command. During the build process, the Android tools take your resources, code, and the
AndroidManifest.xml file (which contains metadata about the application) and turn them into an .apk
file. This file is then signed with a debug key, which allows it to run on the emulator. (To distribute
your .apk to the masses, you have to sign it with a release key. There is more information about this
process in the Android developer documentation at developer.android.com/tools/publishing/
preparing.html.)
How do the contents of activity_quiz.xml turn into View objects in an application? As part of the
build process, aapt (Android Asset Packaging Tool) compiles layout file resources into a more compact
format. These compiled resources are packaged into the .apk file. Then, when setContentView(…) is
called in the QuizActivity’s onCreate(Bundle) method, the QuizActivity uses the LayoutInflater
class to instantiate each of the View objects as defined in the layout file (Figure1.19).
Figure 1.19Inflating activity_quiz.xml
Android build tools
31
(You can also create your view classes programmatically in the activity instead of defining them in
XML. But there are benefits to separating your presentation from the logic of the application. The main
one is taking advantage of configuration changes built into the SDK, which you will learn more about
in Chapter3.)
For more details on how the different XML attributes work and how views display themselves on the
screen, see Chapter9.
Android build tools
All of the builds you have seen so far have been executed from within Android Studio. This build is
integrated into the IDE – it invokes standard Android build tools like aapt, but the build process itself
is managed by Android Studio.
You may, for your own reasons, want to perform builds from outside of Android Studio. The easiest
way to do this is to use a command-line build tool. The modern Android build system uses a tool called
Gradle.
(You will know if this section applies to you. If it does not, feel free to read along but do not be
concerned if you are not sure why you might want to do this or if the commands below do not seem to
work. Coverage of the ins and outs of using the command line is beyond the scope of this book.)
To use Gradle from the command line, navigate to your project’s directory and run the following
command:
$ ./gradlew tasks
On Windows, your command will look a little different:
> gradlew.bat tasks
This will show you a list of available tasks you can execute. The one you want is called “installDebug”.
Make it so with a command like this:
$ ./gradlew installDebug
Or, on Windows:
> gradlew.bat installDebug
This will install your app on whatever device is connected. However, it will not run the app. For that,
you will need to pull up the launcher and launch the app by hand.
Chapter 1Your First Android Application
32
Challenges
Challenges are exercises at the end of the chapter for you to do on your own. Some are easy and
provide practice doing the same thing you have done in the chapter. Other challenges are harder and
require more problem solving.
We cannot encourage you enough to take on these challenges. Tackling them cements what you
have learned, builds confidence in your skills, and bridges the gap between us teaching you Android
programming and you being able to do Android programming on your own.
If you get stuck while working on a challenge, take a break and come back to try again fresh. If that
does not help, check out the forum for this book at forums.bignerdranch.com. In the forum, you
can review questions and solutions that other readers have posted as well as ask questions and post
solutions of your own.
To protect the integrity of your current project, we recommend you make a copy and work on
challenges in the new copy.
In your computer’s file explorer, navigate to the root directory of your project. Copy the GeoQuiz
folder and Paste a new copy next to the original (on macOS, use the Duplicate feature). Rename the
new folder GeoQuiz Challenge. Back in Android Studio, select File → Import Project.... Inside the
import window, navigate to GeoQuiz Challenge and select OK. The copied project will then appear in a
new window ready for work.
Challenge: Customizing the Toast
In this challenge, you will customize the toast to show at the top instead of the bottom of the screen. To
change how the toast is displayed, use the Toast class’s setGravity method. Use Gravity.TOP for the
gravity value. Refer to the developer documentation at developer.android.com/reference/android/
widget/Toast.html#setGravity(int, int, int) for more details.
33
2
Android and Model-View-
Controller
In this chapter, you are going to upgrade GeoQuiz to present more than one question, as shown in
Figure2.1.
Figure 2.1Next!
To make this happen, you are going to add a class named Question to the GeoQuiz project. An
instance of this class will encapsulate a single true-false question.
Then, you will create an array of Question objects for QuizActivity to manage.
Chapter 2Android and Model-View-Controller
34
Creating a New Class
In the project tool window, right-click the com.bignerdranch.android.geoquiz package and select
New → Java Class. Name the class Question and click OK (Figure2.2).
Figure 2.2Creating the Question class
In Question.java, add two member variables and a constructor.
Listing 2.1Adding to Question class (Question.java)
public class Question {
private int mTextResId;
private boolean mAnswerTrue;
public Question(int textResId, boolean answerTrue) {
mTextResId = textResId;
mAnswerTrue = answerTrue;
}
}
The Question class holds two pieces of data: the question text and the question answer (true or false).
Why is mTextResId an int and not a String? The mTextResId variable will hold the resource ID
(always an int) of a string resource for the question. You will create the question string resources in a
later section.
These variables need getter and setter methods. Rather than typing them in yourself, you can have
Android Studio generate the implementations for you.
Generating getters and setters
35
Generating getters and setters
The first step is to configure Android Studio to recognize the m prefix for member variables.
Open Android Studio’s preferences (from the Android Studio menu on Mac and from File → Settings
on Windows). Expand Editor and then expand Code Style. Select Java, then choose the Code
Generation tab.
In the Naming table, select the Field row and add m as the name prefix for fields (Figure2.3). Then add
s as the name prefix for static fields. (You will not be using the s prefix in the GeoQuiz project, but it
will be useful in later projects.)
Figure 2.3Setting Java code style preferences
Click OK.
What is the point of setting these prefixes? Now, when you ask Android Studio to generate a getter for
mTextResId, it will create getTextResId() rather than getMTextResId() and isAnswerTrue() rather
than isMAnswerTrue().
Back in Question.java, right-click after the constructor and select Generate... and then Getter and
Setter. Select mTextResId and mAnswerTrue and click OK to create a getter and setter for each variable.
The results are shown in Listing 2.2.
Chapter 2Android and Model-View-Controller
36
Listing 2.2Generated getters and setters (Question.java)
public class Question {
private int mTextResId;
private boolean mAnswerTrue;
...
public int getTextResId() {
return mTextResId;
}
public void setTextResId(int textResId) {
mTextResId = textResId;
}
public boolean isAnswerTrue() {
return mAnswerTrue;
}
public void setAnswerTrue(boolean answerTrue) {
mAnswerTrue = answerTrue;
}
}
Your Question class is now complete. In a moment, you will modify QuizActivity to work with
Question. First, let’s take a look at how the pieces of GeoQuiz will work together.
You are going to have QuizActivity create an array of Question objects. It will then interact with the
TextView and the three Buttons to display questions and provide feedback. Figure2.4 diagrams these
relationships.
Figure 2.4Object diagram for GeoQuiz
Model-View-Controller and Android
37
Model-View-Controller and Android
Notice that the objects in Figure2.4 are separated into three sections labeled Model, Controller, and
View. Android applications are designed around an architecture called Model-View-Controller, or
MVC. In MVC, all objects in your application must be a model object, a view object, or a controller
object.
• A model object holds the application’s data and “business logic.” Model classes are typically
designed to model the things your app is concerned with, such as a user, a product in a store, a
photo on a server, a television show – or a true-false question. Model objects have no knowledge
of the UI; their sole purpose is holding and managing data.
In Android applications, model classes are generally custom classes you create. All of the model
objects in your application compose its model layer.
GeoQuiz’s model layer consists of the Question class.
•View objects know how to draw themselves on the screen and how to respond to user input, like
touches. A simple rule of thumb is that if you can see it on screen, then it is a view.
Android provides a wealth of configurable view classes. You can also create custom view classes.
An application’s view objects make up its view layer.
GeoQuiz’s view layer consists of the widgets that are inflated from activity_quiz.xml.
•Controller objects tie the view and model objects together. They contain “application logic.”
Controllers are designed to respond to various events triggered by view objects and to manage the
flow of data to and from model objects and the view layer.
In Android, a controller is typically a subclass of Activity, Fragment, or Service. (You will
learn about fragments in Chapter7 and services in Chapter28.)
GeoQuiz’s controller layer, at present, consists solely of QuizActivity.
Chapter 2Android and Model-View-Controller
38
Figure2.5 shows the flow of control between objects in response to a user event, like a press of a
button. Notice that model and view objects do not talk to each other directly; controllers sit squarely in
the middle of everything, receiving messages from some objects and dispatching instructions to others.
Figure 2.5MVC flow with user input
Benefits of MVC
An application can accumulate features until it is too complicated to understand. Separating code into
classes helps you design and understand the application as a whole; you can think in terms of classes
instead of individual variables and methods.
Similarly, separating classes into model, view, and controller layers helps you design and understand
an application; you can think in terms of layers instead of individual classes.
Although GeoQuiz is not a complicated app, you can still see the benefits of keeping layers separate. In
a moment, you are going to update GeoQuiz’s view layer to include a NEXT button. When you do that,
you will not need to remember a single thing about the Question class you just created.
MVC also makes classes easier to reuse. A class with restricted responsibilities is more reusable than
one with its fingers in every pie.
For instance, your model class, Question, knows nothing about the widgets used to display a true-false
question. This makes it easy to use Question throughout your app for different purposes. For example,
if you wanted to display a list of all the questions at once, you could use the same object that you use
here to display just one question at a time.
Updating the View Layer
39
Updating the View Layer
Now that you have been introduced to MVC, you are going to update GeoQuiz’s view layer to include
a NEXT button.
In Android, objects in the view layer are typically inflated from XML within a layout file. The sole
layout in GeoQuiz is defined in activity_quiz.xml. This layout needs to be updated as shown in
Figure2.6. (Note that to save space we are not showing the attributes of unchanged widgets.)
Figure 2.6New button!
So the changes you need to make to the view layer are:
• Remove the android:text attribute from the TextView. You no longer want a hardcoded question
to be part of its definition.
• Give the TextView an android:id attribute. This widget will need a resource ID so that you can
set its text in QuizActivity’s code.
• Add the new Button widget as a child of the root LinearLayout.
Return to activity_quiz.xml and make it happen.
Chapter 2Android and Model-View-Controller
40
Listing 2.3New button... and changes to the text view (activity_quiz.xml)
<LinearLayout ... >
<TextView
android:id="@+id/question_text_view"
android:layout_width="wrap_content"
android:layout_height="wrap_content"
android:padding="24dp"
android:text="@string/question_text" />
<LinearLayout ... >
...
</LinearLayout>
<Button
android:id="@+id/next_button"
android:layout_width="wrap_content"
android:layout_height="wrap_content"
android:text="@string/next_button" />
</LinearLayout>
You will see a familiar error alerting you about a missing string resource.
Return to res/values/strings.xml. Rename question_text and add a string for the new button.
Listing 2.4Updating strings (strings.xml)
<string name="app_name">GeoQuiz</string>
<string name="question_text">Canberra is the capital of Australia.</string>
<string name="question_australia">Canberra is the capital of Australia.</string>
<string name="true_button">True</string>
<string name="false_button">False</string>
<string name="next_button">Next</string>
<string name="correct_toast">Correct!</string>
While you have strings.xml open, go ahead and add the strings for the rest of the geography
questions that will be shown to the user.
Listing 2.5Adding question strings in advance (strings.xml)
<string name="question_australia">Canberra is the capital of Australia.</string>
<string name="question_oceans">The Pacific Ocean is larger than
the Atlantic Ocean.</string>
<string name="question_mideast">The Suez Canal connects the Red Sea
and the Indian Ocean.</string>
<string name="question_africa">The source of the Nile River is in Egypt.</string>
<string name="question_americas">The Amazon River is the longest river
in the Americas.</string>
<string name="question_asia">Lake Baikal is the world\'s oldest and deepest
freshwater lake.</string>
...
Notice that you use the escape sequence \' in the last value to get an apostrophe in your string. You
can use all the usual escape sequences in your string resources, such as \n for a new line.
Updating the Controller Layer
41
Return to activity_quiz.xml and preview your layout changes in the graphical layout tool.
That is all for now for GeoQuiz’s view layer. Time to wire everything up in your controller class,
QuizActivity.
Updating the Controller Layer
In the previous chapter, there was not much happening in GeoQuiz’s one controller, QuizActivity. It
displayed the layout defined in activity_quiz.xml. It set listeners on two buttons and wired them to
make toasts.
Now that you have multiple questions to retrieve and display, QuizActivity will have to work harder
to tie GeoQuiz’s model and view layers together.
Open QuizActivity.java. Add variables for the TextView and the new Button. Also, create an array
of Question objects and an index for the array.
Listing 2.6Adding variables and a Question array (QuizActivity.java)
public class QuizActivity extends AppCompatActivity {
private Button mTrueButton;
private Button mFalseButton;
private Button mNextButton;
private TextView mQuestionTextView;
private Question[] mQuestionBank = new Question[] {
new Question(R.string.question_australia, true),
new Question(R.string.question_oceans, true),
new Question(R.string.question_mideast, false),
new Question(R.string.question_africa, false),
new Question(R.string.question_americas, true),
new Question(R.string.question_asia, true),
};
private int mCurrentIndex = 0;
...
Here you call the Question constructor several times and create an array of Question objects.
(In a more complex project, this array would be created and stored elsewhere. In later apps, you will
see better options for storing model data. For now, we are keeping it simple and just creating the array
within your controller.)
You are going to use mQuestionBank, mCurrentIndex, and the accessor methods in Question to get a
parade of questions on screen.
Chapter 2Android and Model-View-Controller
42
First, get a reference for the TextView and set its text to the question at the current index.
Listing 2.7Wiring up the TextView (QuizActivity.java)
public class QuizActivity extends AppCompatActivity {
...
@Override
protected void onCreate(Bundle savedInstanceState) {
super.onCreate(savedInstanceState);
setContentView(R.layout.activity_quiz);
mQuestionTextView = (TextView) findViewById(R.id.question_text_view);
int question = mQuestionBank[mCurrentIndex].getTextResId();
mQuestionTextView.setText(question);
mTrueButton = (Button) findViewById(R.id.true_button);
...
}
}
Save your files and check for any errors. Then run GeoQuiz. You should see the first question in the
array appear in the TextView.
Now let’s see about the NEXT button. First, get a reference to the button. Then set a
View.OnClickListener on it. This listener will increment the index and update the TextView’s text.
Listing 2.8Wiring up the new button (QuizActivity.java)
public class QuizActivity extends AppCompatActivity {
...
@Override
protected void onCreate(Bundle savedInstanceState) {
...
mFalseButton.setOnClickListener(new View.OnClickListener() {
...
}
});
mNextButton = (Button) findViewById(R.id.next_button);
mNextButton.setOnClickListener(new View.OnClickListener() {
@Override
public void onClick(View v) {
mCurrentIndex = (mCurrentIndex + 1) % mQuestionBank.length;
int question = mQuestionBank[mCurrentIndex].getTextResId();
mQuestionTextView.setText(question);
}
});
}
}
Updating the Controller Layer
43
You now have code in two separate places that updates the mQuestionTextView variable. Take a
moment to put this code into a private method instead, as shown in Listing 2.9. Then call that method
in the mNextButton’s listener and at the end of onCreate(Bundle) to initially set the text in the
activity’s view.
Listing 2.9Encapsulating with updateQuestion() (QuizActivity.java)
public class QuizActivity extends AppCompatActivity {
...
@Override
protected void onCreate(Bundle savedInstanceState) {
...
mQuestionTextView = (TextView) findViewById(R.id.question_text_view);
int question = mQuestionBank[mCurrentIndex].getTextResId();
mQuestionTextView.setText(question);
...
mNextButton.setOnClickListener(new View.OnClickListener() {
@Override
public void onClick(View v) {
mCurrentIndex = (mCurrentIndex + 1) % mQuestionBank.length;
int question = mQuestionBank[mCurrentIndex].getTextResId();
mQuestionTextView.setText(question);
updateQuestion();
}
});
updateQuestion();
}
private void updateQuestion() {
int question = mQuestionBank[mCurrentIndex].getTextResId();
mQuestionTextView.setText(question);
}
}
Run GeoQuiz and test your new NEXT button.
Now that you have the questions behaving appropriately, it is time to turn to the answers. At the
moment, GeoQuiz thinks that the answer to every question is “true.” Let’s rectify that. Here again, you
will implement a private method to encapsulate code rather than writing similar code in two places.
The method that you are going to add to QuizActivity is:
private void checkAnswer(boolean userPressedTrue)
This method will accept a boolean variable that identifies whether the user pressed TRUE or FALSE.
Then, it will check the user’s answer against the answer in the current Question object. Finally, after
determining whether the user answered correctly, it will make a Toast that displays the appropriate
message to the user.
Chapter 2Android and Model-View-Controller
44
In QuizActivity.java, add the implementation of checkAnswer(boolean) shown in Listing 2.10.
Listing 2.10Adding checkAnswer(boolean) (QuizActivity.java)
public class QuizActivity extends AppCompatActivity {
...
@Override
protected void onCreate(Bundle savedInstanceState) {
...
}
private void updateQuestion() {
int question = mQuestionBank[mCurrentIndex].getTextResId();
mQuestionTextView.setText(question);
}
private void checkAnswer(boolean userPressedTrue) {
boolean answerIsTrue = mQuestionBank[mCurrentIndex].isAnswerTrue();
int messageResId = 0;
if (userPressedTrue == answerIsTrue) {
messageResId = R.string.correct_toast;
} else {
messageResId = R.string.incorrect_toast;
}
Toast.makeText(this, messageResId, Toast.LENGTH_SHORT)
.show();
}
}
Updating the Controller Layer
45
Within the button’s listeners, call checkAnswer(boolean), as shown in Listing 2.11.
Listing 2.11Calling checkAnswer(boolean) (QuizActivity.java)
public class QuizActivity extends AppCompatActivity {
...
@Override
protected void onCreate(Bundle savedInstanceState) {
...
mTrueButton = (Button) findViewById(R.id.true_button);
mTrueButton.setOnClickListener(new View.OnClickListener() {
@Override
public void onClick(View v) {
Toast.makeText(QuizActivity.this,
R.string.correct_toast,
Toast.LENGTH_SHORT).show();
checkAnswer(true);
}
});
mFalseButton = (Button) findViewById(R.id.false_button);
mFalseButton.setOnClickListener(new View.OnClickListener() {
@Override
public void onClick(View v) {
Toast.makeText(QuizActivity.this,
R.string.incorrect_toast,
Toast.LENGTH_SHORT).show();
checkAnswer(false);
}
});
...
}
...
}
GeoQuiz is ready to run again. Let’s get it running on a real device.
Chapter 2Android and Model-View-Controller
46
Running on a Device
In this section, you will set up your system, device, and application to get GeoQuiz running on your
hardware device.
Connecting your device
First, plug the device into your system. If you are developing on a Mac, your system should recognize
the device right away. On Windows, you may need to install the adb (Android Debug Bridge) driver. If
Windows cannot find the adb driver, then download one from the device manufacturer’s website.
Configuring your device for development
To test apps on your device, you need to enable USB debugging on it.
Developer options is not visible by default. To enable it, go to Settings → About Tablet/Phone and
press Build Number seven times. Then you can return to Settings, see Developer options, and enable
USB debugging.
The options vary considerably across devices. If you are having problems enabling your device, visit
developer.android.com/tools/device.html for more help.
You can confirm that your device is recognized by opening the Devices view. The quickest way to the
Devices view is to select the Android Monitor tool window near the bottom of Android Studio. Inside
of this window, you will see a drop-down list of connected devices (Figure2.7). You should see your
AVD and your hardware device listed.
Figure 2.7Viewing connected devices
If you are having trouble getting your device recognized, verify that your device is turned on and the
developer options are enabled.
If you are still unable to see your device in the devices view, you can find more help on the Android
developers’ site. Start at developer.android.com/tools/device.html. You can also visit this book’s
forum at forums.bignerdranch.com for more troubleshooting help.
Run GeoQuiz as before. Android Studio will offer a choice between running on the virtual device or
the hardware device plugged into your system. Select the hardware device and continue. GeoQuiz will
launch on your device.
Configuring your device for development
47
If Android Studio defaults to your emulator without offering a choice of device to run the app
on, recheck the steps above and make sure your device is plugged in. Next, ensure that your run
configuration is correct. To modify the run configuration, select the app drop-down list near the top of
the window, as shown in Figure2.8.
Figure 2.8Run configurations
Choose Edit Configurations... and you will be presented with a new window with details about your run
configuration (Figure2.9).
Figure 2.9Run configuration properties
Select app in the left pane and verify that Deployment Target Options is set to Open Select Deployment
Target Dialog and that Use same device for future launches is unchecked. Select OK and re-run the
app. You will now be presented with a choice of device to launch the app on.
Chapter 2Android and Model-View-Controller
48
Adding an Icon
GeoQuiz is now up and running, but the UI would be spiffier if the NEXT button also displayed a right-
pointing arrow icon.
You can find such an arrow in the solutions file for this book, which is a collection of Android Studio
projects for each chapter of this book. The solutions are hosted here:
www.bignerdranch.com/solutions/AndroidProgramming3e.zip
Download this file and open the 02_MVC/GeoQuiz/app/src/main/res directory. Within this directory,
locate the drawable-hdpi, drawable-mdpi, drawable-xhdpi, and drawable-xxhdpi directories.
The suffixes on these directory names refer to the screen pixel density of a device:
mdpi medium-density screens (~160dpi)
hdpi high-density screens (~240dpi)
xhdpi extra-high-density screens (~320dpi)
xxhdpi extra-extra-high-density screens (~480dpi)
(There are a few other density categories that are omitted from the solutions, including ldpi and
xxxhdpi.)
Within each directory, you will find two image files – arrow_right.png and arrow_left.png. These
files have been customized for the screen pixel density specified in the directory’s name.
You are going to include all the image files from the solutions in GeoQuiz. When the app runs, the
OS will choose the best image file for the specific device running the app. Note that by duplicating
the images multiple times, you increase the size of your application. In this case, this is not a problem
because GeoQuiz is a simple app.
If an app runs on a device that has a screen density not included in any of the application’s screen
density qualifiers, Android will automatically scale the available image to the appropriate size for the
device. Thanks to this feature, it is not necessary to provide images for all of the pixel density buckets.
To reduce the size of your application, you can focus on one or a few of the higher resolution buckets
and selectively optimize for lower resolutions when Android’s automatic scaling provides an image
with artifacts on those lower resolution devices.
(You will see alternatives to duplicating images at different densities, along with an explanation of the
mipmap directory, in Chapter23.)
Adding resources to a project
49
Adding resources to a project
The next step is to add the image files to GeoQuiz’s resources.
Make sure the project tool window is displaying the Project view (select Project from the dropdown
at the top of the project tools window, as shown in Figure1.13 in Chapter1). Expand the contents
of GeoQuiz/app/src/main/res. You will see folders named mipmap-hdpi and mipmap-xhdpi, for
example, as shown in Figure2.10.
Figure 2.10A distinct lack of drawable directories
Back in the solutions file, select and copy the four directories that you located earlier: drawable-
hdpi, drawable-mdpi, drawable-xhdpi, and drawable-xxhdpi. In Android Studio, paste the copied
directories into app/src/main/res. You should now have four density-qualified directories, each with
an arrow_left.png and arrow_right.png file, as shown in Figure2.11.
Chapter 2Android and Model-View-Controller
50
Figure 2.11Arrow icons in GeoQuiz drawable directories
If you switch the project tools window back to the Android view, you will see the newly added
drawable files summarized (as shown in Figure2.12).
Figure 2.12Summary of arrow icons in GeoQuiz drawable directories
Including images in your app is as simple as that. Any .png, .jpg, or .gif file you add to a res/
drawable folder will be automatically assigned a resource ID. (Note that filenames must be lowercase
and have no spaces.)
These resource IDs are not qualified by screen density, so you do not need to determine the device’s
screen density at runtime. All you have to do is use this resource ID in your code. When the app runs,
the OS will determine the appropriate image to display on that particular device.
You will learn more about how the Android resource system works starting in Chapter3. For now, let’s
put that right arrow to work.
Referencing resources in XML
51
Referencing resources in XML
You use resource IDs to reference resources in code. But you want to configure the NEXT button to
display the arrow in the layout definition. How do you reference a resource from XML?
Answer: with a slightly different syntax. Open activity_quiz.xml and add two attributes to the
Button widget definition.
Listing 2.12Adding an icon to the NEXT button (activity_quiz.xml)
<LinearLayout ... >
...
<LinearLayout ... >
...
</LinearLayout>
<Button
android:id="@+id/next_button"
android:layout_width="wrap_content"
android:layout_height="wrap_content"
android:text="@string/next_button"
android:drawableRight="@drawable/arrow_right"
android:drawablePadding="4dp" />
</LinearLayout>
In an XML resource, you refer to another resource by its resource type and name. A reference to a
string resource begins with @string/. A reference to a drawable resource begins with @drawable/.
You will learn more about naming resources and working in the res directory structure starting in
Chapter3.
Run GeoQuiz and admire your button’s new appearance. Then test it to make sure it still works as
before.
GeoQuiz does, however, have a bug. While the app is running, press the NEXT button to show another
question. Then rotate the device. If you are running on the emulator, click the rotate left or rotate right
button in the floating toolbar to rotate (Figure2.13).
Figure 2.13Control the roll
After you rotate, you will see the first question again. How did this happen, and how can you fix it?
The answers to those questions have to do with the activity lifecycle, which is the topic of Chapter3.
Chapter 2Android and Model-View-Controller
52
Challenge: Add a Listener to the TextView
Your NEXT button is nice, but you could also make it so that a user could press the TextView itself to
see the next question.
Hint: You can use the View.OnClickListener listener for the TextView that you have used with the
Buttons, because TextView also inherits from View.
Challenge: Add a Previous Button
Add a button that the user can press to go back one question. The UI should look something like
Figure2.14.
Figure 2.14Now with a previous button!
This is a great challenge. It requires you to retrace many of the steps in these two chapters.
Challenge: From Button to ImageButton
53
Challenge: From Button to ImageButton
Perhaps the UI would look even better if the next and previous buttons showed only icons, as in
Figure2.15.
Figure 2.15Icon-only buttons
To accomplish this challenge, these two widgets must become ImageButtons instead of regular
Buttons.
ImageButton is a widget that inherits from ImageView. Button, on the other hand, inherits from
TextView. Figure2.16 shows their different inheritance hierarchies.
Figure 2.16Inheritance diagram for ImageButton and Button
Chapter 2Android and Model-View-Controller
54
You can replace the text and drawable attributes on the next button with a single ImageView attribute:
<Button ImageButton
android:id="@+id/next_button"
android:layout_width="wrap_content"
android:layout_height="wrap_content"
android:text="@string/next_button"
android:drawableRight="@drawable/arrow_right"
android:drawablePadding="4dp"
android:src="@drawable/arrow_right"
/>
Of course, you will need to modify QuizActivity to work with ImageButton.
After you have changed these buttons to ImageButtons, Android Studio will warn you about a missing
android:contentDescription attribute. This attribute supports accessibility for users with vision
impairments. You set the value to a string, which is read aloud when users have the appropriate settings
applied.
Add an android:contentDescription attribute to each ImageButton to complete the challenge.
55
3
The Activity Lifecycle
What good is an app that resets itself when the user rotates the device? At the end of Chapter2 you
discovered that the geography question displayed is reset to the first question every time the device is
rotated, regardless of what question is displayed prior to rotation. In this chapter you will address the
dreaded – and very common – “rotation problem.” To fix it, you will learn the basics of the activity
lifecycle.
Every instance of Activity has a lifecycle. During this lifecycle, an activity transitions between four
states: resumed, paused, stopped, and nonexistent. For each transition, there is an Activity method
that notifies the activity of the change in its state. Figure3.1 shows the activity lifecycle, states, and
methods.
Figure 3.1Activity state diagram
Chapter 3The Activity Lifecycle
56
Figure3.1 indicates for each state whether the activity has an instance in memory, is visible to the user,
or is active in the foreground (accepting user input). Table3.1 summarizes this information.
Table 3.1Activity States
State In memory? Visible to user? In foreground?
nonexistent no no no
stopped yes no no
paused yes yes/partially* no
resumed yes yes yes
(*Depending on the circumstances, a paused activity may be fully or partially visible. This is discussed
further in the section called Exploring the activity lifecycle by example.)
The resumed state represents the activity the user is currently interacting with. Only one activity across
all the apps on the device can be in the resumed state at any given time.
Subclasses of Activity can take advantage of the methods named in Figure3.1 to get work done at
critical transitions in the activity’s lifecycle. These methods are often called lifecycle callbacks.
You are already acquainted with one of these lifecycle callback methods – onCreate(Bundle). The OS
calls this method after the activity instance is created but before it is put on screen.
Typically, an activity overrides onCreate(Bundle) to prepare the specifics of its UI:
• inflating widgets and putting them on screen (in the call to (setContentView(int))
• getting references to inflated widgets
• setting listeners on widgets to handle user interaction
• connecting to external model data
It is important to understand that you never call onCreate(Bundle) or any of the other Activity
lifecycle methods yourself. You simply override the callbacks in your activity subclass. Then Android
calls the lifecycle callbacks at the appropriate time (in relation to what the user is doing and what is
happening across the rest of the system) to notify the activity that its state is changing.
Logging the Activity Lifecycle
57
Logging the Activity Lifecycle
In this section, you are going to override lifecycle methods to eavesdrop on QuizActivity’s lifecycle.
Each implementation will simply log a message informing you that the method has been called. This
will help you see how QuizActivity’s state changes at runtime in relation to what the user is doing.
Making log messages
In Android, the android.util.Log class sends log messages to a shared system-level log. Log has
several methods for logging messages. Here is the one that you will use most often in this book:
public static int d(String tag, String msg)
The d stands for “debug” and refers to the level of the log message. (There is more about the Log levels
in the final section of this chapter.) The first parameter identifies the source of the message, and the
second is the contents of the message.
The first string is typically a TAG constant with the class name as its value. This makes it easy to
determine the source of a particular message.
Open QuizActivity.java and add a TAG constant to QuizActivity:
Listing 3.1Adding a TAG constant (QuizActivity.java)
public class QuizActivity extends AppCompatActivity {
private static final String TAG = "QuizActivity";
...
}
Next, in onCreate(Bundle), call Log.d(…) to log a message.
Listing 3.2Adding a log statement to onCreate(Bundle)
(QuizActivity.java)
public class QuizActivity extends AppCompatActivity {
...
@Override
protected void onCreate(Bundle savedInstanceState) {
super.onCreate(savedInstanceState);
Log.d(TAG, "onCreate(Bundle) called");
setContentView(R.layout.activity_quiz);
...
}
}
Chapter 3The Activity Lifecycle
58
Now override five more methods in QuizActivity by adding the following after onCreate(Bundle):
Listing 3.3Overriding more lifecycle methods (QuizActivity.java)
public class QuizActivity extends AppCompatActivity {
...
@Override
protected void onCreate(Bundle savedInstanceState) {
...
}
@Override
public void onStart() {
super.onStart();
Log.d(TAG, "onStart() called");
}
@Override
public void onResume() {
super.onResume();
Log.d(TAG, "onResume() called");
}
@Override
public void onPause() {
super.onPause();
Log.d(TAG, "onPause() called");
}
@Override
public void onStop() {
super.onStop();
Log.d(TAG, "onStop() called");
}
@Override
public void onDestroy() {
super.onDestroy();
Log.d(TAG, "onDestroy() called");
}
...
}
Notice that you call the superclass implementations before you log your messages. These superclass
calls are required. Calling the superclass implementation should be the first line of each callback
method override implementation.
You may have been wondering about the @Override annotation. This asks the compiler to ensure that
the class actually has the method that you want to override. For example, the compiler would be able to
alert you to the following misspelled method name:
public class QuizActivity extends AppCompatActivity {
@Override
public void onCreat(Bundle savedInstanceState) {
super.onCreate(savedInstanceState);
...
}
...
}
Using Logcat
59
The parent AppCompatActivity class does not have an onCreat(Bundle) method, so the compiler will
complain. This way you can fix the typo now rather than waiting until you run the app and see strange
behavior to discover the error.
Using Logcat
To access the log while the application is running, you can use Logcat, a log viewer included in the
Android SDK tools.
When you run GeoQuiz, you should see Logcat appear at the bottom of Android Studio, as shown in
Figure3.2. If Logcat is not visible, select the Android Monitor tool window near the bottom of the
screen and ensure that the logcat tab is selected.
Figure 3.2Android Studio with Logcat
Run GeoQuiz and messages will start materializing in Logcat. By default, log statements that are
generated with your app’s package name are shown. You will see your own messages along with some
system output.
To make your messages easier to find, you can filter the output using the TAG constant. In Logcat, click
the dropdown in the top right of the Logcat pane that reads Show only selected application. This is the
filter dropdown, which is currently set to show messages from only your app. Selecting No Filters will
show log messages generated from all over the system.
Chapter 3The Activity Lifecycle
60
In the filter dropdown, select Edit Filter Configuration to create a new filter. Name the filter
QuizActivity and enter QuizActivity in the Log Tag field (Figure3.3).
Figure 3.3Creating a filter in Logcat
Click OK. Now, only messages tagged QuizActivity will be visible in Logcat (Figure3.4).
Figure 3.4Launching GeoQuiz creates, starts, and resumes an activity
Exploring the activity lifecycle by example
Three lifecycle methods were called after GeoQuiz was launched and the initial instance of
QuizActivity was created: onCreate(Bundle), onStart(), and onResume() (Figure3.4). Your
QuizActivity instance is now in the resumed state (in memory, visible, and active in the foreground).
(If you are not seeing the filtered list, select the QuizActivity filter from Logcat’s filter dropdown.)
Now let’s have some fun. Press the Back button on the device and then check Logcat. Your activity
received calls to onPause(), onStop(), and onDestroy() (Figure3.5). Your QuizActivity instance
is now in the nonexistent state (not in memory and thus not visible – and certainly not active in the
foreground).
Figure 3.5Pressing the Back button destroys the activity
Exploring the activity lifecycle by example
61
When you pressed the Back button, you told Android, “I’m done with this activity, and I won’t need
it anymore.” Android then destroyed your activity’s view and removed all traces of the activity from
memory. This is Android’s way of being frugal with your device’s limited resources.
Launch GeoQuiz again by clicking the GeoQuiz app icon. Android creates a new instance of
QuizActivity from scratch and calls onCreate(), onStart(), and onResume() to move QuizActivity
from nonexistent to resumed.
Now press the Home button. The home screen displays and QuizActivity moves completely out of
view. What state is QuizActivity in now? Check Logcat for a hint. Your activity received calls to
onPause() and onStop(), but not onDestroy() (Figure3.6).
Figure 3.6Pressing the Home button stops the activity
Pressing the Home button means the user is telling Android, “I’m going to go look at something
else, but I might come back. I’m not really done with this screen yet.” Android pauses and ultimately
stops your activity. This means, after pressing Home, your instance of QuizActivity hangs out in the
stopped state (in memory, not visible, and not active in the foreground). Android does this so it can
quickly and easily restart QuizActivity where you left off when you come back to GeoQuiz later.
(This is not the whole story about going Home. Stopped activities can be destroyed at the discretion of
the OS. See the section called The Activity Lifecycle, Revisited for the rest of the story.)
Go back to GeoQuiz by selecting the GeoQuiz task card from the overview screen. To do this, press the
Recents button next to the Home button (Figure3.7). (On devices without a Recents button, long-press
the Home button.)
Figure 3.7Back, Home, and Recents buttons
Chapter 3The Activity Lifecycle
62
Each card in the overview screen represents an app the user has interacted with in the past (Figure3.8).
(The overview screen is often called the “Recents screen” or “task manager” by users. We defer to the
developer documentation, which calls it the “overview screen.”)
Figure 3.8Overview screen
Click on the GeoQuiz task card in the overview screen. QuizActivity will fill the screen.
A quick look at Logcat shows that your activity got calls to onStart() and onResume(). Note that
onCreate() was not called. This is because QuizActivity was in the stopped state after the user
pressed the Home button. Because the activity instance was still in memory, it did not need to be
created. Instead, the activity only had to be started (moved to the paused/visible state) and then
resumed (moved to the resumed/foreground state).
It is also possible for an activity to hang out in the paused state (fully or partially visible, but not in
the foreground). The partially visible paused scenario can occur when a new activity with either a
transparent background or a smaller-than-screen size is launched on top of your activity. The fully
visible scenario occurs in multi-window mode (only available on Android 6.0 Nougat and higher)
when the user interacts with a window that does not contain your activity, and yet your activity remains
fully visible in the other window.
As you continue through the book, you will override the different activity lifecycle methods to do real
things for your application. When you do, you will learn more about the uses of each method.
Rotation and the Activity Lifecycle
63
Rotation and the Activity Lifecycle
Let’s get back to the bug you found at the end of Chapter2. Run GeoQuiz, press the NEXT button
to reveal the second question, and then rotate the device. (On the emulator, press Command+Right
Arrow/Ctrl+Right Arrow or click the rotation icon in the toolbar to rotate.)
After rotating, GeoQuiz will display the first question again. Check Logcat to see what has happened.
Your output should look like Figure3.9.
Figure 3.9QuizActivity is dead. Long live QuizActivity!
When you rotated the device, the instance of QuizActivity that you were looking at was destroyed,
and a new one was created. Rotate the device again to witness another round of destruction and rebirth.
This is the source of your bug. Each time you rotate the device, the current QuizActivity instance
is completely destroyed. The value that was stored in mCurrentIndex in that instance is wiped from
memory. This means that when you rotate, GeoQuiz forgets which question you were looking at. As
rotation finishes, Android creates a new instance of QuizActivity from scratch. mCurrentIndex is
initialized to 0 in onCreate(Bundle), and the user starts over at the first question.
You will fix this bug in a moment. First, let’s take a closer look at why this happens.
Device configurations and alternative resources
Rotating the device changes the device configuration. The device configuration is a set of
characteristics that describe the current state of an individual device. The characteristics that make up
the configuration include screen orientation, screen density, screen size, keyboard type, dock mode,
language, and more.
Typically, applications provide alternative resources to match device configurations. You saw an
example of this when you added multiple arrow icons to your project for different screen densities.
Screen density is a fixed component of the device configuration; it cannot change at runtime. On
the other hand, some components, like screen orientation, can change at runtime. (There are other
configuration changes that can occur at runtime, such as keyboard availability, language, and multi-
window mode.)
When a runtime configuration change occurs, there may be resources that are a better match for the
new configuration. So Android destroys the activity, looks for resources that are the best fit for the
new configuration, and then rebuilds a new instance of the activity with those resources. To see this
in action, let’s create an alternative resource for Android to find and use when the device’s screen
orientation changes to landscape.
Chapter 3The Activity Lifecycle
64
Creating a landscape layout
In the project tool window, right-click the res directory and select New → Android resource directory.
You should see a window similar to Figure3.10 that lists the resource types and qualifiers for those
types. Select layout in the Resource type dropdown. Leave the Source set option set to main.
Figure 3.10Creating a new resource directory
Next, you will choose how the layout resources will be qualified. Select Orientation in the Available
qualifiers list and click the >> button to move Orientation to the Chosen qualifiers section.
Device configurations and alternative resources
65
Finally, ensure that Landscape is selected in the Screen orientation dropdown, as shown in Figure3.11.
Verify that the Directory name now indicates that your directory is called layout-land. While this
window looks fancy, its purpose is just to set the name of your directory. Click OK and Android Studio
will create the res/layout-land/ folder.
Figure 3.11Creating res/layout-land
The -land suffix is another example of a configuration qualifier. Configuration qualifiers on res
subdirectories are how Android identifies which resources best match the current device configuration.
You can find the list of configuration qualifiers that Android recognizes and the pieces of the device
configuration that they refer to at developer.android.com/guide/topics/resources/providing-
resources.html.
When the device is in landscape orientation, Android will find and use resources in the res/
layout-land directory. Otherwise, it will stick with the default in res/layout/. However, at the
moment there are no resources in the res/layout-land directory. Let’s fix that.
Copy the activity_quiz.xml file from res/layout/ to res/layout-land/. (If you do not see res/
layout-land/ in the project tool window, select Project from the dropdown to switch from the Android
view. Just be sure to switch back to the Android view when you are done. You can also copy and paste
the file outside of Android Studio using your favorite file explorer or terminal app.)
You now have a landscape layout and a default layout. Keep the filename the same. The two layout
files must have the same filename so that they can be referenced with the same resource ID.
Chapter 3The Activity Lifecycle
66
Now make some changes to the landscape layout so that it is different from the default. Figure3.12
shows the changes that you are going to make.
Figure 3.12An alternative landscape layout
A FrameLayout will replace the top LinearLayout. FrameLayout is the simplest ViewGroup and does
not arrange its children in any particular manner. In this layout, child views will be arranged according
to their android:layout_gravity attributes.
This means that the TextView, LinearLayout, and Button children of the FrameLayout need
android:layout_gravity attributes. The Button children of the LinearLayout will stay exactly the
same.
Device configurations and alternative resources
67
Open layout-land/activity_quiz.xml and make the necessary changes using Figure3.12. You can
use Listing 3.4 to check your work.
Listing 3.4Tweaking the landscape layout (layout-land/activity_quiz.xml)
<LinearLayout xmlns:android="http://schemas.android.com/apk/res/android"
android:layout_width="match_parent"
android:layout_height="match_parent"
android:gravity="center"
android:orientation="vertical" >
<FrameLayout xmlns:android="http://schemas.android.com/apk/res/android"
android:layout_width="match_parent"
android:layout_height="match_parent" >
<TextView
android:id="@+id/question_text_view"
android:layout_width="wrap_content"
android:layout_height="wrap_content"
android:layout_gravity="center_horizontal"
android:padding="24dp" />
<LinearLayout
android:layout_width="wrap_content"
android:layout_height="wrap_content"
android:layout_gravity="center_vertical|center_horizontal"
android:orientation="horizontal" >
...
</LinearLayout>
<Button
android:id="@+id/next_button"
android:layout_width="wrap_content"
android:layout_height="wrap_content"
android:layout_gravity="bottom|right"
android:text="@string/next_button"
android:drawableRight="@drawable/arrow_right"
android:drawablePadding="4dp"
/>
</LinearLayout>
</FrameLayout>
Chapter 3The Activity Lifecycle
68
Run GeoQuiz again. Rotate the device to landscape to see the new layout (Figure3.13). Of course, this
is not just a new layout – it is a new QuizActivity as well.
Figure 3.13QuizActivity in landscape orientation
Rotate back to portrait to see the default layout and yet another new QuizActivity.
Saving Data Across Rotation
Android does a great job of providing alternative resources at the right time. However, destroying and
re-creating activities on rotation can cause headaches, such as GeoQuiz’s bug of reverting back to the
first question when the device is rotated.
To fix this bug, the post-rotation QuizActivity instance needs to know the old value of
mCurrentIndex. You need a way to save this data across a runtime configuration change, like rotation.
One way to do this is to override the Activity method:
protected void onSaveInstanceState(Bundle outState)
This method is called before onStop(), except when the user presses the Back button. (Remember,
pressing Back tells Android the user is done with the activity, so Android wipes the activity from
memory completely and does not make any attempt to save data to re-create it.)
The default implementation of onSaveInstanceState(Bundle) directs all of the activity’s views to
save their state as data in the Bundle object. A Bundle is a structure that maps string keys to values of
certain limited types.
You have seen this Bundle before. It is passed into onCreate(Bundle):
@Override
public void onCreate(Bundle savedInstanceState) {
super.onCreate(savedInstanceState);
...
}
Overriding onSaveInstanceState(Bundle)
69
When you override onCreate(Bundle), you call onCreate(Bundle) on the activity’s superclass and
pass in the bundle you just received. In the superclass implementation, the saved state of the views is
retrieved and used to re-create the activity’s view hierarchy.
Overriding onSaveInstanceState(Bundle)
You can override onSaveInstanceState(Bundle) to save additional data to the bundle and then read
that data back in onCreate(Bundle). This is how you are going to save the value of mCurrentIndex
across rotation.
First, in QuizActivity.java, add a constant that will be the key for the key-value pair that will be
stored in the bundle.
Listing 3.5Adding a key for the value (QuizActivity.java)
public class QuizActivity extends AppCompatActivity {
private static final String TAG = "QuizActivity";
private static final String KEY_INDEX = "index";
private Button mTrueButton;
Next, override onSaveInstanceState(Bundle) to write the value of mCurrentIndex to the bundle with
the constant as its key.
Listing 3.6Overriding onSaveInstanceState(…) (QuizActivity.java)
public class QuizActivity extends AppCompatActivity {
...
@Override
protected void onPause() {
...
}
@Override
public void onSaveInstanceState(Bundle savedInstanceState) {
super.onSaveInstanceState(savedInstanceState);
Log.i(TAG, "onSaveInstanceState");
savedInstanceState.putInt(KEY_INDEX, mCurrentIndex);
}
@Override
protected void onStop() {
...
}
...
}
Chapter 3The Activity Lifecycle
70
Finally, in onCreate(Bundle), check for this value. If it exists, assign it to mCurrentIndex.
Listing 3.7Checking bundle in onCreate(Bundle) (QuizActivity.java)
public class QuizActivity extends AppCompatActivity {
...
@Override
protected void onCreate(Bundle savedInstanceState) {
super.onCreate(savedInstanceState);
Log.d(TAG, "onCreate(Bundle) called");
setContentView(R.layout.activity_quiz);
if (savedInstanceState != null) {
mCurrentIndex = savedInstanceState.getInt(KEY_INDEX, 0);
}
...
}
...
}
Run GeoQuiz and press NEXT. No matter how many device rotations you perform, the newly minted
QuizActivity will “remember” what question you were on.
Note that the types that you can save to and restore from a Bundle are primitive types and classes that
implement the Serializable or Parcelable interfaces. It is usually a bad practice to put objects of
custom types into a Bundle, however, because the data might be stale when you get it back out. It is
a better choice to use some other kind of storage for the data and put a primitive identifier into the
Bundle instead.
The Activity Lifecycle, Revisited
Overriding onSaveInstanceState(Bundle) is not just for handling rotation or other runtime
configuration changes. An activity can also be destroyed by the OS if the user navigates away for a
while and Android needs to reclaim memory (e.g., if the user presses Home and then goes and watches
a video or plays a game).
Practically speaking, the OS will not reclaim a visible (paused or resumed) activity. Activities are not
marked as “killable” until onStop() is called and finishes executing.
Stopped activities are fair game to be killed, though. Still, not to worry. If an activity is stopped, that
means onSaveInstanceState(Bundle) was called. So resolving the data-loss-across-rotation bug also
addresses the situation where the OS destroys your nonvisible activity to free up memory.
How does the data you stash in onSaveInstanceState(Bundle) survive the activity’s death? When
onSaveInstanceState(Bundle) is called, the data is saved to the Bundle object. That Bundle object is
then stuffed into your activity’s activity record by the OS.
To understand the activity record, let’s add a stashed state to the activity lifecycle (Figure3.14).
The Activity Lifecycle, Revisited
71
Figure 3.14The complete activity lifecycle
When your activity is stashed, an Activity object does not exist, but the activity record object lives on
in the OS. The OS can reanimate the activity using the activity record when it needs to.
Note that your activity can pass into the stashed state without onDestroy() being called. You can rely
on onStop() and onSaveInstanceState(Bundle) being called (unless something has gone horribly
wrong on the device). Typically, you override onSaveInstanceState(Bundle) to stash small, transient-
state data that belongs to the current activity in your Bundle. Override onStop() to save any permanent
data, such as things the user is editing, because your activity may be killed at any time after this
method returns.
So when does the activity record get snuffed? When the user presses the Back button, your activity
really gets destroyed, once and for all. At that point, your activity record is discarded. Activity records
are also discarded on reboot.
Chapter 3The Activity Lifecycle
72
For the More Curious: Current State of Activity
Cleanup
As of this writing, activities themselves are not individually destroyed in low-memory situations.
Instead, Android clears an entire app process from memory, taking any of the app’s in-memory
activities with it. (Each application gets its own process. You will learn more about Android
application processes in the section called For the More Curious: Processes vs Tasks in Chapter24.)
Processes containing foreground (resumed) and/or visible (paused) activities get higher priority than
other processes. When the OS needs to free up resources, it will select the lower priority processes
first. Practically speaking, a process containing a visible activity will not reclaimed by the OS. If a
foreground process does get reclaimed, that means something is horribly wrong with the device (and
your app being killed is probably the least of the user’s concerns).
If you are overriding onSaveInstanceState(Bundle), you should test that your state is being saved
and restored as expected. Rotation is easy to test. And, luckily, so is the low-memory situation. Try it
out now to see for yourself.
Find and click on the Settings icon within the list of applications on the device. When the Settings
screen appears, click Developer options (you will need to scroll down until you see the option you are
looking for). On the Developer options screen you will see many possible settings. Turn on the setting
labeled Don’t keep activities, as shown in Figure3.15.
Figure 3.15Don’t keep activities
For the More Curious: Log Levels and Methods
73
Now run your app and press the Home button. Pressing Home causes the activity to be paused and
stopped. Then the stopped activity will be destroyed, just as if the Android OS had reclaimed it for its
memory. Restore the app to see if your state was saved as you expected. Be sure to turn this setting off
when you are done testing, as it will cause a performance decrease and some apps will perform poorly.
Remember that pressing the Back button instead of the Home button will always destroy the activity,
regardless of whether you have this development setting on. Pressing the Back button tells the OS that
the user is done with the activity.
For the More Curious: Log Levels and Methods
When you use the android.util.Log class to send log messages, you control not only the content of a
message, but also a level that specifies how important the message is. Android supports five log levels,
shown in Table3.2. Each level has a corresponding method in the Log class. Sending output to the log
is as simple as calling the corresponding Log method.
Table 3.2Log levels and methods
Log level Method Used for
ERROR Log.e(…) errors
WARNING Log.w(…) warnings
INFO Log.i(…) informational messages
DEBUG Log.d(…) debug output
(may be filtered out)
VERBOSE Log.v(…) development only
In addition, each of the logging methods has two signatures: one that takes a TAG string and a message
string and a second that takes those two arguments plus an instance of Throwable, which makes it easy
to log information about a particular exception that your application might throw. Listing 3.8 shows
some sample log method signatures. You can use regular Java string concatenation to assemble your
message string or String.format if you have fancier needs.
Listing 3.8Different ways of logging in Android
// Log a message at "debug" log level
Log.d(TAG, "Current question index: " + mCurrentIndex);
Question question;
try {
question = mQuestionBank[mCurrentIndex];
} catch (ArrayIndexOutOfBoundsException ex) {
// Log a message at "error" log level, along with an exception stack trace
Log.e(TAG, "Index was out of bounds", ex);
}
Chapter 3The Activity Lifecycle
74
Challenge: Preventing Repeat Answers
Once a user provides an answer for a particular question, disable the buttons for that question to
prevent multiple answers being entered.
Challenge: Graded Quiz
After the user provides answers for all of the quiz questions, display a Toast with a percentage score
for the quiz. Good luck!
75
4
Debugging Android Apps
In this chapter, you will find out what to do when apps get buggy. You will learn how to use Logcat,
Android Lint, and the debugger that comes with Android Studio.
To practice debugging, the first step is to break something. In QuizActivity.java, comment out the
code in onCreate(Bundle) where you pull out mQuestionTextView.
Listing 4.1Commenting out a crucial line (QuizActivity.java)
@Override
protected void onCreate(Bundle savedInstanceState) {
super.onCreate(savedInstanceState);
Log.d(TAG, "onCreate(Bundle) called");
setContentView(R.layout.activity_quiz);
if (savedInstanceState != null) {
mCurrentIndex = savedInstanceState.getInt(KEY_INDEX, 0);
}
// mQuestionTextView = (TextView)findViewById(R.id.question_text_view);
mTrueButton = (Button)findViewById(R.id.true_button);
mTrueButton.setOnClickListener(new View.OnClickListener() {
...
});
...
}
Chapter 4Debugging Android Apps
76
Run GeoQuiz and see what happens. Figure4.1 shows the message that appears when your app crashes
and burns. Different versions of Android will have slightly different messages, but they all mean the
same thing.
Figure 4.1GeoQuiz is about to E.X.P.L.O.D.E.
Of course, you know what is wrong with your app, but if you did not, it might help to look at your app
from a new perspective.
Exceptions and Stack Traces
Expand the Android Monitor tool window so that you can see what has happened. If you scroll up
and down in Logcat, you should eventually find an expanse of red, as shown in Figure4.2. This is a
standard AndroidRuntime exception report.
If you do not see much in Logcat and cannot find the exception, you may need to select the No Filters
option in the filter dropdown. On the other hand, if you see too much in Logcat, you can adjust the Log
Level to Error, which will show only the most severe log messages. You can also search for the text
“FATAL EXCEPTION,” which will bring you straight to the exception that caused the app to crash.
Exceptions and Stack Traces
77
Figure 4.2Exception and stack trace in Logcat
The report tells you the top-level exception and its stack trace, then the exception that caused that
exception and its stack trace, and so on until it finds an exception with no cause.
In most of the code you will write, that last exception with no cause is the interesting one. Here the
exception without a cause is a java.lang.NullPointerException. The line just below this exception
is the first line in its stack trace. This line tells you the class and method where the exception occurred
as well as what file and line number the exception occurred on. Click the blue link, and Android Studio
will take you to that line in your source code.
The line to which you are taken is the first use of the mQuestionTextView variable, inside
updateQuestion(). The name NullPointerException gives you a hint to the problem: This variable
was not initialized.
Uncomment the line initializing mQuestionTextView to fix the bug.
When you encounter runtime exceptions, remember to look for the last exception in Logcat and the
first line in its stack trace that refers to code that you have written. That is where the problem occurred,
and it is the best place to start looking for answers.
If a crash occurs while a device is not plugged in, all is not lost. The device will store the latest lines
written to the log. The length and expiration of the stored log depends on the device, but you can
usually count on retrieving log results within 10 minutes. Just plug in the device and select it in the
Devices view. Logcat will fill itself with the stored log.
Chapter 4Debugging Android Apps
78
Diagnosing misbehaviors
Problems with your apps will not always be crashes. In some cases, they will be misbehaviors. For
example, suppose that every time you pressed the NEXT button, nothing happened. That would be a
noncrashing, misbehaving bug.
In QuizActivity.java, make a change to the mNextButton listener to comment out the code that
increments mCurrentIndex.
Listing 4.2Forgetting a critical line of code (QuizActivity.java)
@Override
protected void onCreate(Bundle savedInstanceState) {
super.onCreate(savedInstanceState);
...
mNextButton = (Button)findViewById(R.id.next_button);
mNextButton.setOnClickListener(new View.OnClickListener() {
@Override
public void onClick(View v) {
// mCurrentIndex = (mCurrentIndex + 1) % mQuestionBank.length;
updateQuestion();
}
});
...
}
Run GeoQuiz and press the NEXT button. You should see no effect.
This bug is trickier than the last bug. It is not throwing an exception, so fixing the bug is not a simple
matter of making the exception go away. On top of that, this misbehavior could be caused in two
different ways: The index might not be changed, or updateQuestion() might not be called.
If you had no idea what was causing the problem, you would need to track down the culprit. In the
next few sections, you will see two ways to do this: diagnostic logging of a stack trace and using the
debugger to set a breakpoint.
Logging stack traces
In QuizActivity, add a log statement to updateQuestion().
Listing 4.3Exception for fun and profit (QuizActivity.java)
public class QuizActivity extends AppCompatActivity {
...
private void updateQuestion() {
Log.d(TAG, "Updating question text", new Exception());
int question = mQuestionBank[mCurrentIndex].getTextResId();
mQuestionTextView.setText(question);
}
The Log.d(String, String, Throwable) version of Log.d logs the entire stack trace just like
the AndroidRuntime exception you saw earlier. The stack trace will tell you where the call to
updateQuestion() was made.
Logging stack traces
79
The exception that you pass to Log.d(String, String, Throwable) does not have to be a thrown
exception that you caught. You can create a brand new Exception and pass it to the method without
ever throwing it, and you will get a report of where the exception was created.
Run GeoQuiz, press the NEXT button, and then check the output in Logcat (Figure4.3).
Figure 4.3The results
The top line in the stack trace is the line where you logged out the Exception. A few lines after that
you can see where updateQuestion() was called from within your onClick(View) implementation.
Click the link on this line, and you will be taken to where you commented out the line to increment
your question index. But do not get rid of the bug; you are going to use the debugger to find it again in
a moment.
Logging out stack traces is a powerful tool, but it is also a verbose one. Leave a bunch of these hanging
around, and soon Logcat will be an unmanageable mess. Also, a competitor might steal your ideas by
reading your stack traces to understand what your code is doing.
On the other hand, sometimes a stack trace showing what your code does is exactly what you need. If
you are seeking help with a problem at stackoverflow.com or forums.bignerdranch.com, it often
helps to include a stack trace. You can copy and paste lines directly from Logcat.
Before continuing, delete the log statement in QuizActivity.java.
Listing 4.4Farewell, old friend (QuizActivity.java)
public class QuizActivity extends AppCompatActivity {
...
private void updateQuestion() {
Log.d(TAG, "Updating question text", new Exception());
int question = mQuestionBank[mCurrentIndex].getTextResId();
mQuestionTextView.setText(question);
}
Chapter 4Debugging Android Apps
80
Setting breakpoints
Now you will use the debugger that comes with Android Studio to track down the same bug. You will
set a breakpoint on updateQuestion() to see whether it was called. A breakpoint pauses execution
before the line executes and allows you to examine line by line what happens next.
In QuizActivity.java, return to the updateQuestion() method. Next to the first line of this method,
click the gray bar in the lefthand margin. You should now see a red circle in the gray bar like the one
shown in Figure4.4. This is a breakpoint.
Figure 4.4A breakpoint
To engage the debugger and trigger your breakpoint, you need to debug your app instead of running it.
To debug your app, click the debug button (represented by a bug), which is next to the run button. You
can also navigate to Run → Debug 'app' in the menu bar. Your device will report that it is waiting for
the debugger to attach, and then it will proceed normally.
Once your app is up and running with the debugger attached, it will pause. Firing up GeoQuiz called
QuizActivity.onCreate(Bundle), which called updateQuestion(), which hit your breakpoint.
In Figure4.5, you can see that this editor has opened QuizActivity.java and highlighted the line with
the breakpoint where execution has paused.
Setting breakpoints
81
Figure 4.5Stop right there!
Chapter 4Debugging Android Apps
82
The debug tool window at the bottom of the screen is now visible. It contains the Frames and Variables
views (Figure4.6).
Figure 4.6The debug tool window
You can use the arrow buttons at the top of the view to step through your program. You can see from
the stack trace that updateQuestion() has been called from inside onCreate(Bundle). But you are
interested in investigating the NEXT button’s behavior, so click the resume program button to continue
execution. Then press the NEXT button in GeoQuiz to see if your breakpoint is hit and execution is
stopped. (It should be.)
Now that you are stopped at an interesting point of execution, you can take a look around. The
Variables view allows you to examine the values of the objects in your program. You should see
the variables that you have created in QuizActivity as well as an additional value: this (the
QuizActivity instance itself).
You could expand the this variable to see all the variables declared in QuizActivity’s superclass,
Activity, in Activity’s superclass, in its super-superclass, and so on. But for now, focus on the
variables that you created.
You are only interested in one value: mCurrentIndex. Scroll down in the variables view until you see
mCurrentIndex. Sure enough, it still has a value of 0.
This code looks perfectly fine. To continue your investigation, you need to step out of this method.
Click the step out button.
Check the editor view. It has now jumped you over to your mNextButton’s OnClickListener, right
after updateQuestion() was called. Pretty nifty.
You will want to fix this implementation, but before you make any changes to code, you should stop
debugging your app. You can do this in two ways: You can stop the program, or you can simply
disconnect the debugger. To stop the program, click the stop button shown in Figure4.6. Usually it is
easier to simply disconnect the debugger. To do that, click the close button also labeled in Figure4.6.
Using exception breakpoints
83
Now return your OnClickListener to its former glory.
Listing 4.5Returning to normalcy (QuizActivity.java)
@Override
protected void onCreate(Bundle savedInstanceState) {
super.onCreate(savedInstanceState);
...
mNextButton = (Button)findViewById(R.id.next_button);
mNextButton.setOnClickListener(new View.OnClickListener() {
@Override
public void onClick(View v) {
// mCurrentIndex = (mCurrentIndex + 1) % mQuestionBank.length;
updateQuestion();
}
});
...
}
You have tried out two ways of tracking down a misbehaving line of code: stack trace logging and
setting a breakpoint in the debugger. Which is better? Each has its uses, and one or the other will
probably end up being your favorite.
Logging out stack traces has the advantage that you can see stack traces from multiple places in
one log. The downside is that to learn something new you have to add new log statements, rebuild,
deploy, and navigate through your app to see what happened. The debugger is more convenient. If you
run your app with the debugger attached, then you can set a breakpoint while the application is still
running and poke around to get information about multiple issues.
Using exception breakpoints
As if that were not enough choices, you can also use the debugger to catch exceptions. Return to
QuizActivity’s onCreate method and comment out a line of code that will cause the app to crash.
Listing 4.6Making GeoQuiz crash again (QuizActivity.java)
@Override
protected void onCreate(Bundle savedInstanceState) {
super.onCreate(savedInstanceState);
...
// mNextButton = (Button) findViewById(R.id.next_button);
mNextButton.setOnClickListener(new View.OnClickListener() {
@Override
public void onClick(View v) {
mCurrentIndex = (mCurrentIndex + 1) % mQuestionBank.length;
updateQuestion();
}
});
...
}
Chapter 4Debugging Android Apps
84
Now select Run → View Breakpoints... to pull up the breakpoints dialog, as shown in Figure4.7.
Figure 4.7Setting an exception breakpoint
This dialog shows all of your currently set breakpoints. Remove the breakpoint you added earlier by
highlighting it and clicking the - button.
The breakpoints dialog also allows you to set a breakpoint that is triggered when an exception is
thrown, wherever it might happen. You can limit it to only uncaught exceptions or apply it to both
caught and uncaught exceptions.
Click the + button to add a new breakpoint. Choose Java Exception Breakpoints in the drop-down
list. You can now select the type of exception that you want to catch. Type in RuntimeException and
choose RuntimeException (java.lang) from the suggestions. RuntimeException is the superclass of
NullPointerException, ClassCastException, and other runtime problems, so it makes a nice catch-
all.
Click Done and launch GeoQuiz with the debugger attached. This time, your debugger will jump right
to the line where the exception was thrown as soon as it happens. Exquisite.
Now, this is a fairly big hammer. If you leave this breakpoint on while debugging, you can expect
it to stop on some framework code or in other places you do not expect. So you may want to turn it
off when you are not using it. Go ahead and remove the breakpoint now by returning to Run → View
Breakpoints....
Undo the change from Listing 4.6 to get GeoQuiz back to a working state.
Android-Specific Debugging
85
Android-Specific Debugging
Most Android debugging is just like Java debugging. However, you will run into issues with Android-
specific parts, such as resources, that the Java compiler knows nothing about. This is where Android
Lint comes in.
Using Android Lint
Android Lint (or just “Lint”) is a static analyzer for Android code. A static analyzer is a program
that examines your code to find defects without running it. Lint uses its knowledge of the Android
frameworks to look deeper into your code and find problems that the compiler cannot. In most cases,
Lint’s advice is worth taking.
In Chapter6, you will see Lint warn you about compatibility problems. Lint can also perform type-
checking for objects that are defined in XML. Make the following casting mistake in QuizActivity.
Listing 4.7A simple mix-up (QuizActivity.java)
@Override
protected void onCreate(Bundle savedInstanceState) {
super.onCreate(savedInstanceState);
Log.d(TAG, "onCreate(Bundle) called");
setContentView(R.layout.activity_quiz);
...
mQuestionTextView = (TextView)findViewById(R.id.question_text_view);
mTrueButton = (Button)findViewById(R.id.true_button);
mTrueButton = (Button)findViewById(R.id.question_text_view);
...
}
Because you used the wrong resource ID, this code will attempt to cast a TextView as a Button at
runtime. This will cause an improper cast exception. The Java compiler sees no problem with this code,
but Lint will catch this error. You should see Lint immediately highlight this line of code to indicate
that there is a problem.
You can manually run Lint to see all of the potential issues in your project, including those that are not
as serious as the one above. Select Analyze → Inspect Code... from the menu bar. You will be asked
which parts of your project you would like to inspect. Choose Whole project and click OK. Android
Studio will now run Lint as well as a few other static analyzers on your code.
Once the scan is complete, you will see a few categories of potential issues in the inspection tool
window. Expand the Android Lint categories to see Lint’s information about your project (Figure4.8).
Chapter 4Debugging Android Apps
86
Figure 4.8Lint warnings
You can select an issue in this list to see more detailed information and its location in your project.
The Mismatched view type warning in the Android > Lint > Correctness category is the one that you
created above. Go ahead and correct the cast in onCreate(Bundle).
Listing 4.8Fixing that simple mix-up (QuizActivity.java)
@Override
protected void onCreate(Bundle savedInstanceState) {
super.onCreate(savedInstanceState);
Log.d(TAG, "onCreate(Bundle) called");
setContentView(R.layout.activity_quiz);
mQuestionTextView = (TextView)findViewById(R.id.question_text_view);
mTrueButton = (Button)findViewById(R.id.question_text_view);
mTrueButton = (Button)findViewById(R.id.true_button);
...
}
Run GeoQuiz once more and confirm that the app is back to normal.
Issues with the R class
87
Issues with the R class
You are familiar with build errors that occur when you reference resources before adding them or
delete resources that other files refer to. Usually, resaving the files once the resource is added or the
references are removed will cause Android Studio to rebuild without any fuss.
Sometimes, however, these build errors will persist or appear seemingly out of nowhere. If this happens
to you, here are some things you can try:
Recheck the validity of the XML in your resource files
If your R.java file was not generated for the last build, you will see errors in your project
wherever you reference a resource. Often, this is caused by a typo in one of your XML files.
Layout XML is not always validated, so typos in these files may not be pointedly brought to
your attention. Finding the typo and resaving the file should cause R.java to regenerate.
Clean your project
Select Build → Clean Project. Android Studio will rebuild the project from scratch, which often
results in an error-free build. We can all use a deep clean every now and then.
Sync your project with Gradle
If you make changes to your build.gradle file, you will need to sync those changes to update
your project’s build settings. Select Tools → Android → Sync Project with Gradle Files. Android
Studio will rebuild the project from scratch with the correct project settings, which can help to
resolve issues after changing your Gradle configuration.
Run Android Lint
Pay close attention to the warnings from Lint. With this tool, you will often discover unexpected
issues.
If you are still having problems with resources (or having different problems), give the error messages
and your layout files a fresh look. It is easy to miss mistakes in the heat of the moment. Check out any
Lint errors and warnings as well. A cool-headed reconsideration of the error messages may turn up a
bug or typo.
Finally, if you are stuck or having other issues with Android Studio, check the archives at
stackoverflow.com or visit the forum for this book at forums.bignerdranch.com.
Chapter 4Debugging Android Apps
88
Challenge: Exploring the Layout Inspector
For support debugging layout file issues, the layout inspector can be used to interactively inspect how
a layout file is rendered to the screen. To use the layout inspector, make sure GeoQuiz is running in
the emulator and click on the layout inspector icon in the left drawer within the Android Monitor tool
window (Figure4.9). Once the inspector is activated, you can explore the properties of your layout by
clicking the elements within the layout inspector view.
Figure 4.9The Layout Inspector button
Challenge: Exploring Allocation Tracking
89
Challenge: Exploring Allocation Tracking
The Allocation Tracker tool creates detailed reports for the frequency and number of memory
allocation calls in your program and is useful for performance-tuning your app. In the Android Monitor
tool window, click the Allocation Tracker button (Figure4.10).
Figure 4.10Starting the Allocation Tracker
This will begin recording memory allocations as you interact with your app. Once you have performed
the interaction you are profiling, click the button again to stop allocation tracking. This will display the
allocation report (Figure4.11).
Chapter 4Debugging Android Apps
90
Figure 4.11Allocation Tracker report
The allocation report shows the count of memory allocation events and the size of each in bytes in
table form and as a visualization. You can select the report type at the top of the tool window.
91
5
Your Second Activity
In this chapter, you will add a second activity to GeoQuiz. An activity controls a screen of information,
and this activity will add a second screen that offers users a chance to cheat on the current question by
showing the answer. Figure5.1 shows the new activity.
Figure 5.1CheatActivity offers the chance to peek at the answer
Chapter 5Your Second Activity
92
If users choose to view the answer and then return to the QuizActivity and answer the question, they
will get a new message, shown in Figure5.2.
Figure 5.2QuizActivity knows if you’ve been cheating
Why is this a good Android programming exercise? Because you will learn how to:
• Create a new activity and a new layout for it.
• Start an activity from another activity. Starting an activity means asking the OS to create an
activity instance and call its onCreate(Bundle) method.
• Pass data between the parent (starting) activity and the child (started) activity.
Setting Up a Second Activity
93
Setting Up a Second Activity
There is a lot to do in this chapter. Fortunately, some of the grunt work can be done for you by Android
Studio’s New Activity wizard.
Before you invoke the magic, open strings.xml and add all the strings you will need for this chapter.
Listing 5.1Adding strings (strings.xml)
<resources>
...
<string name="incorrect_toast">Incorrect!</string>
<string name="warning_text">Are you sure you want to do this?</string>
<string name="show_answer_button">Show Answer</string>
<string name="cheat_button">Cheat!</string>
<string name="judgment_toast">Cheating is wrong.</string>
</resources>
Creating a new activity
Creating an activity typically involves touching at least three files: the Java class file, an XML layout,
and the application manifest. If you touch those files in the wrong ways, Android can get mad. To
ensure that you do it right, you can use Android Studio’s New Activity wizard.
Launch the New Activity wizard by right-clicking on your com.bignerdranch.android.geoquiz
package in the project tool window. Choose New → Activity → Empty Activity, as shown in Figure5.3.
Figure 5.3The New Activity wizard menu
Chapter 5Your Second Activity
94
You should then see a dialog like Figure5.4. Set Activity Name to CheatActivity. This is the name of
your Activity subclass. Layout Name will be automatically set to activity_cheat. This will be the
base name of the layout file the wizard creates.
Figure 5.4The New Empty Activity wizard
The defaults for the remaining fields are fine, but take care to ensure that the package name is what you
expect. This determines where CheatActivity.java will live on the filesystem. Click the Finish button
to make the magic happen.
Now it is time to make the UI look good. The screenshot at the beginning of the chapter shows you
what CheatActivity’s view should look like. Figure5.5 shows the widget definitions.
Creating a new activity
95
Figure 5.5Diagram of layout for CheatActivity
Open activity_cheat.xml from the layout directory and switch to the Text view.
Try creating the XML for the layout using Figure5.5 as a guide. Replace the sample layout with a
new LinearLayout and so on down the tree. After Chapter9, we will only show layout diagrams like
Figure5.5 instead of long passages of XML, so it is a good idea to start using them now to create your
layout XML. You can check your work against Listing 5.2.
Listing 5.2Filling out the second activity’s layout (activity_cheat.xml)
<LinearLayout xmlns:android="http://schemas.android.com/apk/res/android"
xmlns:tools="http://schemas.android.com/tools"
android:layout_width="match_parent"
android:layout_height="match_parent"
android:orientation="vertical"
android:gravity="center"
tools:context="com.bignerdranch.android.geoquiz.CheatActivity">
<TextView
android:layout_width="wrap_content"
android:layout_height="wrap_content"
android:padding="24dp"
android:text="@string/warning_text"/>
<TextView
android:id="@+id/answer_text_view"
android:layout_width="wrap_content"
android:layout_height="wrap_content"
android:padding="24dp"
tools:text="Answer"/>
<Button
android:id="@+id/show_answer_button"
android:layout_width="wrap_content"
android:layout_height="wrap_content"
android:text="@string/show_answer_button"/>
</LinearLayout>
Chapter 5Your Second Activity
96
Notice the special XML namespace for tools and the tools:text attribute on the TextView widget
where the answer will appear. This namespace allows you to override any attribute on a widget for
the purpose of displaying it differently in the Android Studio preview. Because TextView has a text
attribute, you can provide a literal dummy value for it to help you know what it will look like at
runtime. The value “Answer” will never show up in the real app. Handy!
You will not be creating a landscape alternative for activity_cheat.xml, but there is a way to preview
how the default layout will appear in landscape.
In the preview tool window, find the button in the toolbar above the preview pane that looks like a
device with curved arrows. Click this button to change the orientation of the preview (Figure5.6).
Figure 5.6Previewing activity_cheat.xml in landscape
The default layout works well enough in both orientations, so let’s move on to fleshing out the activity
subclass.
A new activity subclass
In the project tool window, find the com.bignerdranch.android.geoquiz Java package and open the
CheatActivity class, which is in the CheatActivity.java file.
This class already includes a basic implementation of onCreate(Bundle) that passes the resource ID of
the layout defined in activity_cheat.xml to setContentView(…).
CheatActivity will eventually do more in its onCreate(Bundle) method. For now, let’s take a look
at another thing the New Activity wizard did for you: declaring CheatActivity in the application’s
manifest.
Declaring activities in the manifest
97
Declaring activities in the manifest
The manifest is an XML file containing metadata that describes your application to the Android OS.
The file is always named AndroidManifest.xml, and it lives in the app/manifests directory of your
project.
In the project tool window, find and open AndroidManifest.xml. You can also use Android Studio’s
Quick Open dialog by pressing Command+Shift+O (Ctrl+Shift+N) and starting to type the filename.
Once it has guessed the right file, press Return to open it.
Every activity in an application must be declared in the manifest so that the OS can access it.
When you used the New Project wizard to create QuizActivity, the wizard declared the activity for
you. Likewise, the New Activity wizard declared CheatActivity by adding the XML highlighted in
Listing 5.3.
Listing 5.3Declaring CheatActivity in the manifest (AndroidManifest.xml)
<manifest xmlns:android="http://schemas.android.com/apk/res/android"
package="com.bignerdranch.android.geoquiz" >
<application
android:allowBackup="true"
android:icon="@mipmap/ic_launcher"
android:label="@string/app_name"
android:supportsRtl="true"
android:theme="@style/AppTheme">
<activity android:name=".QuizActivity">
<intent-filter>
<action android:name="android.intent.action.MAIN"/>
<category android:name="android.intent.category.LAUNCHER"/>
</intent-filter>
</activity>
<activity android:name=".CheatActivity">
</activity>
</application>
</manifest>
The android:name attribute is required, and the dot at the start of this attribute’s value tells the OS that
this activity’s class is in the package specified in the package attribute in the manifest element at the
top of the file.
You will sometimes see a fully qualified android:name attribute, like
android:name="com.bignerdranch.android.geoquiz.CheatActivity". The long-form notation is
identical to the version in Listing 5.3.
There are many interesting things in the manifest, but, for now, let’s stay focused on getting
CheatActivity up and running. You will learn about the different parts of the manifest in later
chapters.
Chapter 5Your Second Activity
98
Adding a cheat button to QuizActivity
The plan is for the user to press a button in QuizActivity to get an instance of CheatActivity
on screen. So you need new buttons in layout/activity_quiz.xml and layout-land/
activity_quiz.xml.
In the default layout, add the new button as a direct child of the root LinearLayout. Its definition
should come right before the NEXT button.
Listing 5.4Adding a cheat button to the default layout
(layout/activity_quiz.xml)
...
</LinearLayout>
<Button
android:id="@+id/cheat_button"
android:layout_width="wrap_content"
android:layout_height="wrap_content"
android:text="@string/cheat_button"/>
<Button
android:id="@+id/next_button"
android:layout_width="wrap_content"
android:layout_height="wrap_content"
android:text="@string/next_button"
android:drawableRight="@drawable/arrow_right"
android:drawablePadding="4dp"/>
</LinearLayout>
In the landscape layout, have the new button appear at the bottom and center of the root FrameLayout.
Listing 5.5Adding a cheat button to the landscape layout
(layout-land/activity_quiz.xml)
...
</LinearLayout>
<Button
android:id="@+id/cheat_button"
android:layout_width="wrap_content"
android:layout_height="wrap_content"
android:layout_gravity="bottom|center_horizontal"
android:text="@string/cheat_button" />
<Button
android:id="@+id/next_button"
android:layout_width="wrap_content"
android:layout_height="wrap_content"
android:layout_gravity="bottom|right"
android:text="@string/next_button"
android:drawableRight="@drawable/arrow_right"
android:drawablePadding="4dp" />
</FrameLayout>
Starting an Activity
99
Reopen QuizActivity.java. Add a variable, get a reference, and set a View.OnClickListener stub
for the CHEAT! button.
Listing 5.6Wiring up the cheat button (QuizActivity.java)
public class QuizActivity extends AppCompatActivity {
...
private Button mNextButton;
private Button mCheatButton;
private TextView mQuestionTextView;
...
@Override
protected void onCreate(Bundle savedInstanceState) {
...
mNextButton = (Button) findViewById(R.id.next_button);
mNextButton.setOnClickListener(new View.OnClickListener() {
@Override
public void onClick(View v) {
mCurrentIndex = (mCurrentIndex + 1) % mQuestionBank.length;
updateQuestion();
}
});
mCheatButton = (Button)findViewById(R.id.cheat_button);
mCheatButton.setOnClickListener(new View.OnClickListener() {
@Override
public void onClick(View v) {
// Start CheatActivity
}
});
updateQuestion();
}
...
}
Now you can get to the business of starting CheatActivity.
Starting an Activity
The simplest way one activity can start another is with the startActivity method:
public void startActivity(Intent intent)
You might guess that startActivity(Intent) is a static method that you call on the Activity
subclass that you want to start. But it is not. When an activity calls startActivity(Intent), this call
is sent to the OS.
Chapter 5Your Second Activity
100
In particular, it is sent to a part of the OS called the ActivityManager. The ActivityManager then
creates the Activity instance and calls its onCreate(Bundle) method, as shown in Figure5.7.
Figure 5.7Starting an activity
How does the ActivityManager know which Activity to start? That information is in the Intent
parameter.
Communicating with intents
An intent is an object that a component can use to communicate with the OS. The only components
you have seen so far are activities, but there are also services, broadcast receivers, and content
providers.
Intents are multipurpose communication tools, and the Intent class provides different constructors
depending on what you are using the intent to do.
In this case, you are using an intent to tell the ActivityManager which activity to start, so you will use
this constructor:
public Intent(Context packageContext, Class<?> cls)
The Class argument specifies the activity class that the ActivityManager should start. The Context
argument tells the ActivityManager which application package the activity class can be found in
(Figure5.8).
Figure 5.8The intent: telling ActivityManager what to do
Passing Data Between Activities
101
Within mCheatButton’s listener, create an Intent that includes the CheatActivity class. Then pass the
intent into startActivity(Intent) (Listing 5.7).
Listing 5.7Starting CheatActivity (QuizActivity.java)
mCheatButton = (Button)findViewById(R.id.cheat_button);
mCheatButton.setOnClickListener(new View.OnClickListener() {
@Override
public void onClick(View v) {
// Start CheatActivity
Intent intent = new Intent(QuizActivity.this, CheatActivity.class);
startActivity(intent);
}
});
Before starting the activity, the ActivityManager checks the package’s manifest for a declaration with
the same name as the specified Class. If it finds a declaration, it starts the activity, and all is well. If it
does not, you get a nasty ActivityNotFoundException, which will crash your app. This is why all of
your activities must be declared in the manifest.
Run GeoQuiz. Press the CHEAT! button, and an instance of your new activity will appear on screen.
Now press the Back button. This will destroy the CheatActivity and return you to the QuizActivity.
Explicit and implicit intents
When you create an Intent with a Context and a Class object, you are creating an explicit intent. You
use explicit intents to start activities within your application.
It may seem strange that two activities within your application must communicate via the
ActivityManager, which is outside of your application. However, this pattern makes it easy for an
activity in one application to work with an activity in another application.
When an activity in your application wants to start an activity in another application, you create an
implicit intent. You will use implicit intents in Chapter15.
Passing Data Between Activities
Now that you have a QuizActivity and a CheatActivity, you can think about passing data between
them. Figure5.9 shows what data you will pass between the two activities.
Figure 5.9The conversation between QuizActivity and CheatActivity
The QuizActivity will inform the CheatActivity of the answer to the current question when the
CheatActivity is started.
Chapter 5Your Second Activity
102
When the user presses the Back button to return to the QuizActivity, the CheatActivity will be
destroyed. In its last gasp, it will send data to the QuizActivity about whether the user cheated.
You will start with passing data from QuizActivity to CheatActivity.
Using intent extras
To inform the CheatActivity of the answer to the current question, you will pass it the value of
mQuestionBank[mCurrentIndex].isAnswerTrue()
You will send this value as an extra on the Intent that is passed into startActivity(Intent).
Extras are arbitrary data that the calling activity can include with an intent. You can think of them like
constructor arguments, even though you cannot use a custom constructor with an activity subclass.
(Android creates activity instances and is responsible for their lifecycle.) The OS forwards the intent to
the recipient activity, which can then access the extras and retrieve the data, as shown in Figure5.10.
Figure 5.10Intent extras: communicating with other activities
An extra is structured as a key-value pair, like the one you used to save out the value of mCurrentIndex
in QuizActivity.onSaveInstanceState(Bundle).
To add an extra to an intent, you use Intent.putExtra(…). In particular, you will be calling:
public Intent putExtra(String name, boolean value)
Intent.putExtra(…) comes in many flavors, but it always has two arguments. The first argument is
always a String key, and the second argument is the value, whose type will vary. It returns the Intent
itself, so you can chain multiple calls if you need to.
In CheatActivity.java, add a key for the extra.
Listing 5.8Adding an extra constant (CheatActivity.java)
public class CheatActivity extends AppCompatActivity {
private static final String EXTRA_ANSWER_IS_TRUE =
"com.bignerdranch.android.geoquiz.answer_is_true";
...
Using intent extras
103
An activity may be started from several different places, so you should define keys for extras on the
activities that retrieve and use them. Using your package name as a qualifier for your extra, as shown in
Listing 5.8, prevents name collisions with extras from other apps.
Now you could return to QuizActivity and put the extra on the intent, but there is a better approach.
There is no reason for QuizActivity, or any other code in your app, to know the implementation
details of what CheatActivity expects as extras on its Intent. Instead, you can encapsulate that work
into a newIntent(…) method.
Create this method in CheatActivity now.
Listing 5.9A newIntent(…) method for CheatActivity
(CheatActivity.java)
public class CheatActivity extends AppCompatActivity {
private static final String EXTRA_ANSWER_IS_TRUE =
"com.bignerdranch.android.geoquiz.answer_is_true";
public static Intent newIntent(Context packageContext, boolean answerIsTrue) {
Intent intent = new Intent(packageContext, CheatActivity.class);
intent.putExtra(EXTRA_ANSWER_IS_TRUE, answerIsTrue);
return intent;
}
...
This static method allows you to create an Intent properly configured with the extras CheatActivity
will need. The answerIsTrue argument, a boolean, is put into the intent with a private name using
the EXTRA_ANSWER_IS_TRUE constant. You will extract this value momentarily. Using a newIntent(…)
method like this for your activity subclasses will make it easy for other code to properly configure their
launching intents.
Speaking of other code, use this new method in QuizActivity’s cheat button listener now.
Listing 5.10Launching CheatActivity with an extra (QuizActivity.java)
mCheatButton.setOnClickListener(new View.OnClickListener() {
@Override
public void onClick(View v) {
// Start CheatActivity
Intent intent = new Intent(QuizActivity.this, CheatActivity.class);
boolean answerIsTrue = mQuestionBank[mCurrentIndex].isAnswerTrue();
Intent intent = CheatActivity.newIntent(QuizActivity.this, answerIsTrue);
startActivity(intent);
}
});
You only need one extra, but you can put multiple extras on an Intent if you need to. If you do, add
more arguments to your newIntent(…) method to stay consistent with the pattern.
To retrieve the value from the extra, you will use:
public boolean getBooleanExtra(String name, boolean defaultValue)
The first argument is the name of the extra. The second argument of getBooleanExtra(…) is a default
answer if the key is not found.
Chapter 5Your Second Activity
104
In CheatActivity, retrieve the value from the extra in onCreate(Bundle) and store it in a member
variable.
Listing 5.11Using an extra (CheatActivity.java)
public class CheatActivity extends AppCompatActivity {
private static final String EXTRA_ANSWER_IS_TRUE =
"com.bignerdranch.android.geoquiz.answer_is_true";
private boolean mAnswerIsTrue;
...
@Override
protected void onCreate(Bundle savedInstanceState) {
super.onCreate(savedInstanceState);
setContentView(R.layout.activity_cheat);
mAnswerIsTrue = getIntent().getBooleanExtra(EXTRA_ANSWER_IS_TRUE, false);
}
...
}
Note that Activity.getIntent() always returns the Intent that started the activity. This is what you
sent when calling startActivity(Intent).
Finally, wire up the answer TextView and the SHOW ANSWER button to use the retrieved value.
Listing 5.12Enabling cheating (CheatActivity.java)
public class CheatActivity extends AppCompatActivity {
...
private boolean mAnswerIsTrue;
private TextView mAnswerTextView;
private Button mShowAnswerButton;
...
@Override
protected void onCreate(Bundle savedInstanceState) {
super.onCreate(savedInstanceState);
setContentView(R.layout.activity_cheat);
mAnswerIsTrue = getIntent().getBooleanExtra(EXTRA_ANSWER_IS_TRUE, false);
mAnswerTextView = (TextView) findViewById(R.id.answer_text_view);
mShowAnswerButton = (Button) findViewById(R.id.show_answer_button);
mShowAnswerButton.setOnClickListener(new View.OnClickListener() {
@Override
public void onClick(View v) {
if (mAnswerIsTrue) {
mAnswerTextView.setText(R.string.true_button);
} else {
mAnswerTextView.setText(R.string.false_button);
}
}
});
}
}
Getting a result back from a child activity
105
This code is pretty straightforward. You set the TextView’s text using TextView.setText(int).
TextView.setText(…) has many variations, and here you use the one that accepts the resource ID of a
string resource.
Run GeoQuiz. Press CHEAT! to get to CheatActivity. Then press SHOW ANSWER to reveal the
answer to the current question.
Getting a result back from a child activity
At this point, the user can cheat with impunity. Let’s fix that by having the CheatActivity tell the
QuizActivity whether the user chose to view the answer.
When you want to hear back from the child activity, you call the following Activity method:
public void startActivityForResult(Intent intent, int requestCode)
The first parameter is the same intent as before. The second parameter is the request code. The request
code is a user-defined integer that is sent to the child activity and then received back by the parent. It
is used when an activity starts more than one type of child activity and needs to know who is reporting
back. QuizActivity will only ever start one type of child activity, but using a constant for the request
code is a best practice that will set you up well for future changes.
In QuizActivity, modify mCheatButton’s listener to call startActivityForResult(Intent, int).
Listing 5.13Calling startActivityForResult(…) (QuizActivity.java)
public class QuizActivity extends AppCompatActivity {
private static final String TAG = "QuizActivity";
private static final String KEY_INDEX = "index";
private static final int REQUEST_CODE_CHEAT = 0;
...
@Override
protected void onCreate(Bundle savedInstanceState) {
...
mCheatButton.setOnClickListener(new View.OnClickListener() {
@Override
public void onClick(View v) {
// Start CheatActivity
boolean answerIsTrue = mQuestionBank[mCurrentIndex].isAnswerTrue();
Intent intent = CheatActivity.newIntent(QuizActivity.this,
answerIsTrue);
startActivity(intent);
startActivityForResult(intent, REQUEST_CODE_CHEAT);
}
});
Setting a result
There are two methods you can call in the child activity to send data back to the parent:
public final void setResult(int resultCode)
public final void setResult(int resultCode, Intent data)
Typically, the result code is one of two predefined constants: Activity.RESULT_OK or
Activity.RESULT_CANCELED. (You can use another constant, RESULT_FIRST_USER, as an offset when
defining your own result codes.)
Chapter 5Your Second Activity
106
Setting result codes is useful when the parent needs to take different action depending on how the child
activity finished.
For example, if a child activity had an OK button and a Cancel button, the child activity would set a
different result code depending on which button was pressed. Then the parent activity would take a
different action depending on the result code.
Calling setResult(…) is not required of the child activity. If you do not need to distinguish
between results or receive arbitrary data on an intent, then you can let the OS send a default
result code. A result code is always returned to the parent if the child activity was started with
startActivityForResult(…). If setResult(…) is not called, then when the user presses the Back
button, the parent will receive Activity.RESULT_CANCELED.
Sending back an intent
In this implementation, you are interested in passing some specific data back to QuizActivity. So you
are going to create an Intent, put an extra on it, and then call Activity.setResult(int, Intent) to
get that data into QuizActivity’s hands.
In CheatActivity, add a constant for the extra’s key and a private method that does this work. Then
call this method in the SHOW ANSWER button’s listener.
Listing 5.14Setting a result (CheatActivity.java)
public class CheatActivity extends AppCompatActivity {
private static final String EXTRA_ANSWER_IS_TRUE =
"com.bignerdranch.android.geoquiz.answer_is_true";
private static final String EXTRA_ANSWER_SHOWN =
"com.bignerdranch.android.geoquiz.answer_shown";
...
@Override
protected void onCreate(Bundle savedInstanceState) {
...
mShowAnswerButton.setOnClickListener(new View.OnClickListener() {
@Override
public void onClick(View v) {
if (mAnswerIsTrue) {
mAnswerTextView.setText(R.string.true_button);
} else {
mAnswerTextView.setText(R.string.false_button);
}
setAnswerShownResult(true);
}
});
}
private void setAnswerShownResult(boolean isAnswerShown) {
Intent data = new Intent();
data.putExtra(EXTRA_ANSWER_SHOWN, isAnswerShown);
setResult(RESULT_OK, data);
}
}
When the user presses the SHOW ANSWER button, the CheatActivity packages up the result code
and the intent in the call to setResult(int, Intent).
Getting a result back from a child activity
107
Then, when the user presses the Back button to return to the QuizActivity, the ActivityManager calls
the following method on the parent activity:
protected void onActivityResult(int requestCode, int resultCode, Intent data)
The parameters are the original request code from QuizActivity and the result code and intent passed
into setResult(int, Intent).
Figure5.11 shows this sequence of interactions.
Figure 5.11Sequence diagram for GeoQuiz
Chapter 5Your Second Activity
108
The final step is to override onActivityResult(int, int, Intent) in QuizActivity to handle
the result. However, because the contents of the result Intent are also an implementation detail of
CheatActivity, add another method to help decode the extra into something QuizActivity can use.
Listing 5.15Decoding the result intent (CheatActivity.java)
public static Intent newIntent(Context packageContext, boolean answerIsTrue) {
Intent intent = new Intent(packageContext, CheatActivity.class);
intent.putExtra(EXTRA_ANSWER_IS_TRUE, answerIsTrue);
return intent;
}
public static boolean wasAnswerShown(Intent result) {
return result.getBooleanExtra(EXTRA_ANSWER_SHOWN, false);
}
@Override
protected void onCreate(Bundle savedInstanceState) {
...
}
Handling a result
In QuizActivity.java, add a new member variable to hold the value that CheatActivity is passing
back. Then override onActivityResult(…) to retrieve it, checking the request code and result code to
be sure they are what you expect. This, again, is a best practice to make future maintenance easier.
Listing 5.16Implementing onActivityResult(…) (QuizActivity.java)
public class QuizActivity extends AppCompatActivity {
...
private int mCurrentIndex = 0;
private boolean mIsCheater;
...
@Override
protected void onCreate(Bundle savedInstanceState) {
...
}
@Override
protected void onActivityResult(int requestCode, int resultCode, Intent data) {
if (resultCode != Activity.RESULT_OK) {
return;
}
if (requestCode == REQUEST_CODE_CHEAT) {
if (data == null) {
return;
}
mIsCheater = CheatActivity.wasAnswerShown(data);
}
}
...
}
How Android Sees Your Activities
109
Finally, modify the checkAnswer(boolean) method in QuizActivity to check whether the user
cheated and to respond appropriately.
Listing 5.17Changing toast message based on value of mIsCheater
(QuizActivity.java)
@Override
protected void onCreate(Bundle savedInstanceState) {
...
mNextButton = (Button)findViewById(R.id.next_button);
mNextButton.setOnClickListener(new View.OnClickListener() {
@Override
public void onClick(View v) {
mCurrentIndex = (mCurrentIndex + 1) % mQuestionBank.length;
mIsCheater = false;
updateQuestion();
}
});
...
}
...
private void checkAnswer(boolean userPressedTrue) {
boolean answerIsTrue = mQuestionBank[mCurrentIndex].isAnswerTrue();
int messageResId = 0;
if (mIsCheater) {
messageResId = R.string.judgment_toast;
} else {
if (userPressedTrue == answerIsTrue) {
messageResId = R.string.correct_toast;
} else {
messageResId = R.string.incorrect_toast;
}
}
Toast.makeText(this, messageResId, Toast.LENGTH_SHORT)
.show();
}
Run GeoQuiz. Cheat and see what happens.
How Android Sees Your Activities
Let’s look at what is going on OS-wise as you move between activities. First, when you click on
the GeoQuiz app in the launcher, the OS does not start the application; it starts an activity in the
application. More specifically, it starts the application’s launcher activity. For GeoQuiz, QuizActivity
is the launcher activity.
When the New Project wizard created the GeoQuiz application and QuizActivity, it made
QuizActivity the launcher activity by default. Launcher activity status is specified in the manifest by
the intent-filter element in QuizActivity’s declaration (Listing 5.18).
Chapter 5Your Second Activity
110
Listing 5.18QuizActivity declared as launcher activity
(AndroidManifest.xml)
<manifest xmlns:android="http://schemas.android.com/apk/res/android"
... >
<application
... >
<activity android:name=".QuizActivity">
<intent-filter>
<action android:name="android.intent.action.MAIN"/>
<category android:name="android.intent.category.LAUNCHER"/>
</intent-filter>
</activity>
<activity android:name=".CheatActivity">
</activity>
</application>
</manifest>
After the instance of QuizActivity is on screen, the user can press the CHEAT! button. When this
happens, an instance of CheatActivity is started – on top of the QuizActivity. These activities exist
in a stack (Figure5.12).
Pressing the Back button in CheatActivity pops this instance off the stack, and the QuizActivity
resumes its position at the top, as shown in Figure5.12.
Figure 5.12GeoQuiz’s back stack
A call to Activity.finish() in CheatActivity would also pop the CheatActivity off the stack.
How Android Sees Your Activities
111
If you run GeoQuiz and press Back from the QuizActivity, the QuizActivity will be popped off the
stack and you will return to the last screen you were viewing before running GeoQuiz (Figure5.13).
Figure 5.13Looking at the home screen
If you started GeoQuiz from the launcher application, pressing the Back button from QuizActivity
will return you to the launcher (Figure5.14).
Figure 5.14Running GeoQuiz from launcher
Pressing the Back button from the launcher will return you to the screen you were looking at before
you opened the launcher.
Chapter 5Your Second Activity
112
What you are seeing here is that the ActivityManager maintains a back stack and that this back stack
is not just for your application’s activities. Activities for all applications share the back stack, which is
one reason the ActivityManager is involved in starting your activities and lives with the OS and not
your application. The stack represents the use of the OS and device as a whole rather than the use of a
single application.
(Wondering about the Up button? We will discuss how to implement and configure this button in
Chapter13.)
Challenge: Closing Loopholes for Cheaters
Cheaters never win. Unless, of course, they persistently circumvent your anticheating measures. Which
they probably will. Because they are cheaters.
GeoQuiz has a few major loopholes. For this challenge, you will busy yourself with closing them. Here
are the loopholes in order, from easiest to hardest to close:
• Users can rotate CheatActivity after they cheat to clear out the cheating result.
• Once they get back from CheatActivity, users can rotate QuizActivity to clear out mIsCheater.
• Users can press NEXT until the question they cheated on comes back around.
Good luck!
113
6
Android SDK Versions and
Compatibility
Now that you have gotten your feet wet with GeoQuiz, let’s review some background material about
the different versions of Android. The information in this chapter is important to have under your belt
as you continue with the book and develop more complex and realistic apps.
Android SDK Versions
Table6.1 shows the SDK versions, the associated versions of the Android firmware, and the percentage
of devices running them as of December 2016.
Table 6.1Android API levels, firmware versions, and percent of devices in use
API level Codename Device firmware version % of devices in use
24 Nougat 7.0 0.4
23 Marshmallow 6.0 26.3
22 5.1 23.2
21 Lollipop 5.0 10.8
19 KitKat 4.4 24.0
18 4.3 1.9
17 4.2 6.4
16
Jelly Bean
4.1 4.5
15 Ice Cream Sandwich (ICS) 4.0.3, 4.0.4 1.2
10 Gingerbread 2.3.3 - 2.3.7 1.2
8 Froyo 2.2 0.1
(Note that versions of Android with less than 0.1% distribution are omitted from this table.)
Each “codenamed” release is followed by incremental releases. For instance, Ice Cream Sandwich was
initially released as Android 4.0 (API level 14). It was almost immediately replaced with incremental
releases culminating in Android 4.0.3 and 4.0.4 (API level 15).
Chapter 6Android SDK Versions and Compatibility
114
The percentage of devices using each version changes constantly, of course, but the figures do reveal
an important trend: Android devices running older versions are not immediately upgraded or replaced
when a newer version is available. As of December 2016, more than 15% of devices are still running
Jelly Bean or an earlier version. Android 4.3 (the last Jelly Bean update) was released in October 2013.
(If you are curious, the data in Table6.1 is kept current at developer.android.com/about/
dashboards/index.html.)
Why do so many devices still run older versions of Android? Most of it has to do with heavy
competition among Android device manufacturers and US carriers. Carriers want features and phones
that no other network has. Device manufacturers feel this pressure, too – all of their phones are based
on the same OS, but they want to stand out from the competition. The combination of pressures from
the market and the carriers means that there is a bewildering array of devices with proprietary, one-off
modifications of Android.
A device with a proprietary version of Android is not able to run a new version of Android released
by Google. Instead, it must wait for a compatible proprietary upgrade. That upgrade might not be
available until months after Google releases its version, if it is ever available at all. Manufacturers often
choose to spend resources on newer devices rather than keeping older ones up to date.
Compatibility and Android Programming
The delay in upgrades combined with regular new releases makes compatibility an important issue in
Android programming. To reach a broad market, Android developers must create apps that perform
well on devices running KitKat, Lollipop, Marshmallow, Nougat, and any more recent versions of
Android, as well as on different device form factors.
Targeting different sizes of devices is easier than you might think. Phone screens are a variety of sizes,
but the Android layout system does a good job at adapting. Tablets require more work, but you can use
configuration qualifiers to do the job (as you will see in Chapter17). However, for Android TV and
Android Wear devices (both of which also run Android), the differences in UI are large enough that
you need to rethink the user interaction patterns and design of your app.
A sane minimum
The oldest version of Android that the exercises in this book support is API level 19 (KitKat). There
are references to legacy versions of Android, but the focus is on what we consider to be modern
versions (API level 19+). With the distribution of Gingerbread, Ice Cream Sandwich, and Jelly Bean
dropping month by month, the amount of work required to support those older versions eclipses the
value they can provide.
Incremental releases cause little problem with backward compatibility. Major versions can be a
different story. The work required to support only 5.x devices is not terribly significant. If you also
need to support 4.x devices, you will have to spend time working through the differences in those
versions. Luckily, Google has provided libraries to ease the pain. You will learn about these libraries in
later chapters.
A sane minimum
115
One of the biggest changes for Android developers came with the release of Honeycomb, Android
3.0. This release was a major shift in the platform that introduced a new UI and new architectural
components. Honeycomb was released only for tablets, so it was not until Ice Cream Sandwich that
these new developments were widely available. Since then, new releases have been more incremental
for developers.
Android has provided help for maintaining backward compatibility. There are also third-party libraries
that can help. But maintaining compatibility does complicate learning Android programming.
When you created the GeoQuiz project, you set a minimum SDK version within the New Project
wizard, as shown in Figure6.1. (Note that Android uses the terms “SDK version” and “API level”
interchangeably.)
Figure 6.1Remember me?
Chapter 6Android SDK Versions and Compatibility
116
In addition to the minimum supported version, you can also set the target version and the build version.
Let’s explain the default choices and see how to change them.
All of these properties are set in the build.gradle file in your app module. The build version lives
exclusively in this file. The minimum SDK version and target SDK version are set in the build.gradle
file, but are used to overwrite or set values in your AndroidManifest.xml.
Open the build.gradle file that exists in your app module. Notice the values for compileSdkVersion,
minSdkVersion, and targetSdkVersion.
Listing 6.1Examining the build configuration (app/build.gradle)
compileSdkVersion 25
buildToolsVersion "25.0.0"
defaultConfig {
applicationId "com.bignerdranch.android.geoquiz"
minSdkVersion 19
targetSdkVersion 25
...
}
Minimum SDK version
117
Minimum SDK version
The minSdkVersion value is a hard floor below which the OS should refuse to install the app.
By setting this version to API level 19 (KitKat), you give Android permission to install GeoQuiz on
devices running KitKat or higher. Android will refuse to install GeoQuiz on a device running, say, Jelly
Bean.
Looking again at Table6.1, you can see why API level 19 is a good choice for a minimum SDK
version: It allows your app to be installed on more than 80% of devices in use.
Target SDK version
The targetSdkVersion value tells Android which API level your app is designed to run on. Most often
this will be the latest Android release.
When would you lower the target SDK? New SDK releases can change how your app appears
on a device or even how the OS behaves behind the scenes. If you have already designed an
app, you should confirm that it works as expected on new releases. Check the documentation at
developer.android.com/reference/android/os/Build.VERSION_CODES.html to see where
problems might arise. Then you can modify your app to work with the new behavior or lower the target
SDK.
Not increasing the target SDK when a new version of Android is released ensures that your app will
still run with the appearance and behavior of the targeted version on which it worked well. This option
exists for compatibility with newer versions of Android, as changes in subsequent releases are ignored
until the targetSdkVersion is increased.
Compile SDK version
The last SDK setting is labeled compileSdkVersion in Listing 6.1. This setting is not used to update the
AndroidManifest.xml file. Whereas the minimum and target SDK versions are placed in the manifest
when you build your app to advertise those values to the OS, the compile SDK version is private
information between you and the compiler.
Android’s features are exposed through the classes and methods in the SDK. The compile SDK
version, or build target, specifies which version to use when building your own code. When Android
Studio is looking to find the classes and methods you refer to in your imports, the build target
determines which SDK version it checks against.
The best choice for a build target is the latest API level (currently 25, Nougat). However, you can
change the build target of an existing application if you need to. For instance, you might want to
update the build target when a new version of Android is released so that you can make use of the new
methods and classes it introduces.
You can modify the minimum SDK version, target SDK version, and compile SDK version in your
build.gradle file, but note that modification of this file requires that you sync your project with the
Gradle changes before they will be reflected. To do this, select Tools → Android → Sync Project with
Gradle Files. This will trigger a fresh build of your project with the updated values.
Chapter 6Android SDK Versions and Compatibility
118
Adding code from later APIs safely
The difference between GeoQuiz’s minimum SDK version and build SDK version leaves you with a
compatibility gap to manage. For example, what happens if you call code from an SDK version that is
later than the minimum SDK of KitKat (API level 19)? When your app is installed and run on a KitKat
device, it will crash.
This used to be a testing nightmare. However, thanks to improvements in Android Lint, potential
problems caused by calling newer code on older devices can be caught at compile time. If you use code
from a higher version than your minimum SDK, Android Lint will report build errors.
Right now, all of GeoQuiz’s simple code was introduced in API level 19 or earlier. Let’s add some code
from API level 21 (Lollipop) and see what happens.
Open CheatActivity.java. In the OnClickListener for the SHOW ANSWER button, add the
following code to present a fancy circular animation while hiding the button.
Listing 6.2Adding activity animation code (CheatActivity.java)
mShowAnswerButton.setOnClickListener(new View.OnClickListener() {
@Override
public void onClick(View v) {
if (mAnswerIsTrue) {
mAnswerTextView.setText(R.string.true_button);
} else {
mAnswerTextView.setText(R.string.false_button);
}
setAnswerShownResult(true);
int cx = mShowAnswerButton.getWidth() / 2;
int cy = mShowAnswerButton.getHeight() / 2;
float radius = mShowAnswerButton.getWidth();
Animator anim = ViewAnimationUtils
.createCircularReveal(mShowAnswerButton, cx, cy, radius, 0);
anim.addListener(new AnimatorListenerAdapter() {
@Override
public void onAnimationEnd(Animator animation) {
super.onAnimationEnd(animation);
mShowAnswerButton.setVisibility(View.INVISIBLE);
}
});
anim.start();
}
});
The createCircularReveal(…) method creates an Animator from a few parameters. First, you specify
the View that will be hidden or shown based on the animation. Next, you set a center position for
the animation as well as the start radius and end radius of the animation. You are hiding the SHOW
ANSWER button, so the radius moves from the width of the button to 0.
Before the newly created animation is started, you set a listener that allows you to know when the
animation is complete. Once complete, you will show the answer and hide the button.
Finally, the animation is started and the circular reveal animation will begin. (You will learn much
more about animation in Chapter32.)
The ViewAnimationUtils class and its createCircularReveal(…) method were both added to the
Android SDK in API level 21, so this code would crash on a device running a lower version than that.
Adding code from later APIs safely
119
After you enter the code in Listing 6.2, Android Lint should immediately present you with a warning
that the code is not safe on your minimum SDK version. If you do not see a warning, you can manually
trigger Lint by selecting Analyze → Inspect Code.... Because your build SDK version is API level 21,
the compiler itself has no problem with this code. Android Lint, on the other hand, knows about your
minimum SDK version and will complain loudly.
The error messages read something like Call requires API level 21 (Current min is 19). You can still run
the code with this warning, but Lint knows it is not safe.
How do you get rid of these errors? One option is to raise the minimum SDK version to 21. However,
raising the minimum SDK version is not really dealing with this compatibility problem as much as
ducking it. If your app cannot be installed on API level 19 and older devices, then you no longer have a
compatibility problem.
A better option is to wrap the higher API code in a conditional statement that checks the device’s
version of Android.
Listing 6.3Checking the device’s build version first (CheatActivity.java)
mShowAnswerButton.setOnClickListener(new View.OnClickListener() {
@Override
public void onClick(View v) {
if (mAnswerIsTrue) {
mAnswerTextView.setText(R.string.true_button);
} else {
mAnswerTextView.setText(R.string.false_button);
}
setAnswerShownResult(true);
if (Build.VERSION.SDK_INT >= Build.VERSION_CODES.LOLLIPOP) {
int cx = mShowAnswerButton.getWidth() / 2;
int cy = mShowAnswerButton.getHeight() / 2;
float radius = mShowAnswerButton.getWidth();
Animator anim = ViewAnimationUtils
.createCircularReveal(mShowAnswerButton, cx, cy, radius, 0);
anim.addListener(new AnimatorListenerAdapter() {
@Override
public void onAnimationEnd(Animator animation) {
super.onAnimationEnd(animation);
mShowAnswerButton.setVisibility(View.INVISIBLE);
}
});
anim.start();
} else {
mShowAnswerButton.setVisibility(View.INVISIBLE);
}
}
});
The Build.VERSION.SDK_INT constant is the device’s version of Android. You then compare that
version with the constant that stands for the Lollipop release. (Version codes are listed at http://
developer.android.com/reference/android/os/Build.VERSION_CODES.html.)
Now your circular reveal code will only be called when the app is running on a device with API level
21 or higher. You have made your code safe for API level 19, and Android Lint should now be content.
Run GeoQuiz on a Lollipop or higher device, cheat on a question, and check out your new animation.
Chapter 6Android SDK Versions and Compatibility
120
You can also run GeoQuiz on a KitKat device (virtual or otherwise). It will not have the circular
animation, but you can confirm that the app still runs safely.
Using the Android Developer Documentation
Android Lint errors will tell you what API level your incompatible code is from. But you can also find
out which API level particular classes and methods belong to in Android’s developer documentation.
It is a good idea to get comfortable using the developer documentation right away. There is far too
much in the Android SDKs to keep in your head, and, with new versions appearing regularly, you will
need to learn what is new and how to use it.
The Android developer documentation is an excellent and voluminous source of information. The
main page of the documentation is developer.android.com. It is split into three parts: Design,
Develop, and Distribute. It is all worth perusing when you get a chance. The Design section of the
documentation includes patterns and principles for the UI design of your apps. The Develop section
contains documentation and training. The Distribute section shows you how to prepare and publish
your apps on Google Play or through open distribution.
The Develop section is further divided into six areas:
Training Beginning and advanced developer training modules, including
downloadable sample code
API Guides Topic-based descriptions of app components, features, and best practices
Reference Searchable, linked documentation of every class, method, interface,
attribute constant, etc. in the SDK
Samples Sample code demonstrating some examples of how to use the APIs
Android Studio Information about the Android Studio IDE
Android NDK Descriptions and links about the Native Development Kit, which allows
you to write code in C and C++
Google Services Information about Google’s proprietary APIs, including Google Maps and
Google Cloud Messaging
You do not have to be online to have access to the documentation. In the SDK Manager, download the
documentation for a particular Android version, then navigate on your filesystem to where you have
downloaded the SDKs. There is a docs directory that contains the complete documentation.
To determine what API level ViewAnimationUtils belongs to, search for this class using the search bar
at the top right of the browser. You will see results from a few different categories. Make sure that you
select a result that is from the reference section (there is a filter on the left).
Select the first result and you will be sent to the ViewAnimationUtils class reference page shown in
Figure6.2. At the top of this page are links to its different sections.
Using the Android Developer Documentation
121
Figure 6.2ViewAnimationUtils reference page
Scroll down, find the createCircularReveal(…) method, and click on the method name to see a
description. To the right of the method signature, you can see that createCircularReveal(…) was
introduced in API level 21.
If you want to see which ViewAnimationUtils methods are available in, say, API level 19, you can
filter the reference by API level. On the lefthand side of the page where the classes are indexed by
package, find where it says API level: 21. Click the adjacent control and select 19 from the list. In
most cases, everything that Android has introduced after API level 19 will be grayed out. In this case,
ViewAnimationUtils was introduced in API level 21, so you will see a warning indicating that this
entire class is not available at all on API level 19.
The API level filter is much more useful for a class that is available at the API level that you are using.
Search for the reference page on the Activity class in the documentation. Change the API level filter
back down to API level 19 and notice that many methods have been added since that API, such as
onEnterAnimationComplete, which is an addition to the SDK in Lollipop that allows you to provide
interesting transitions between activities.
As you continue through this book, visit the developer documentation often. You will certainly need
the documentation to tackle the challenge exercises, but also consider exploring it whenever you
get curious about particular classes, methods, or other topics. Android is constantly updating and
improving the documentation, so there is always something new to learn.
Chapter 6Android SDK Versions and Compatibility
122
Challenge: Reporting the Build Version
Add a TextView widget to the GeoQuiz layout that reports to the user what API level the device is
running. Figure6.3 shows what the final result should look like.
Figure 6.3Finished challenge
You cannot set this TextView’s text in the layout because you will not know the device’s build
version until runtime. Find the TextView method for setting text in the TextView reference page in
Android’s documentation. You are looking for a method that accepts a single argument – a string (or a
CharSequence).
Use other XML attributes listed in the TextView reference to adjust the size or typeface of the text.
Challenge: Limited Cheats
Allow the user to cheat a maximum of three times. Keep track of the user’s cheat occurrences and
display the number of remaining cheat tokens below the cheat button. If no tokens remain, disable the
cheat button.
123
7
UI Fragments and the Fragment
Manager
In this chapter, you will start building an application named CriminalIntent. CriminalIntent records the
details of “office crimes” – things like leaving dirty dishes in the breakroom sink or walking away from
an empty shared printer after documents have printed.
With CriminalIntent, you can make a record of a crime including a title, a date, and a photo. You
can also identify a suspect from your contacts and lodge a complaint via email, Twitter, Facebook,
or another app. After documenting and reporting a crime, you can proceed with your work free of
resentment and ready to focus on the business at hand.
CriminalIntent is a complex app that will take 13 chapters to complete. It will have a list-detail
interface: The main screen will display a list of recorded crimes, and users will be able to add new
crimes or select an existing crime to view and edit its details (Figure7.1).
Figure 7.1CriminalIntent, a list-detail app
Chapter 7UI Fragments and the Fragment Manager
124
The Need for UI Flexibility
You might imagine that a list-detail application consists of two activities: one managing the list and the
other managing the detail view. Clicking a crime in the list would start an instance of the detail activity.
Pressing the Back button would destroy the detail activity and return you to the list, where you could
select another crime.
That would work, but what if you wanted more sophisticated presentation and navigation between
screens?
• Imagine that your user is running CriminalIntent on a tablet. Tablets and some larger phones have
screens large enough to show the list and detail at the same time – at least in landscape orientation
(Figure7.2).
Figure 7.2Ideal list-detail interface for phone and tablet
• Imagine the user is viewing a crime on a phone and wants to see the next crime in the list. It
would be better if the user could swipe to see the next crime without having to return to the list.
Each swipe should update the detail view with information for the next crime.
What these scenarios have in common is UI flexibility: the ability to compose and recompose an
activity’s view at runtime depending on what the user or the device requires.
Activities were not built to provide this flexibility. An activity’s views may change at runtime, but the
code to control those views must live inside the activity. As a result, activities are tightly coupled to the
particular screen being used.
Introducing Fragments
125
Introducing Fragments
You can get around the letter of the Android law by moving the app’s UI management from the activity
to one or more fragments.
A fragment is a controller object that an activity can deputize to perform tasks. Most commonly, the
task is managing a UI. The UI can be an entire screen or just one part of the screen.
A fragment managing a UI is known as a UI fragment. A UI fragment has a view of its own that is
inflated from a layout file. The fragment’s view contains the interesting UI elements that the user wants
to see and interact with.
The activity’s view contains a spot where the fragment’s view will be inserted. In fact, while in this
chapter the activity will host a single fragment, an activity can have several spots for the views of
several fragments.
You can use the fragment(s) associated with the activity to compose and recompose the screen as your
app and users require. The activity’s view technically stays the same throughout its lifetime, and no
laws of Android are violated.
Let’s see how this would work in a list-detail application to display the list and detail together. You
would compose the activity’s view from a list fragment and a detail fragment. The detail view would
show the details of the selected list item.
Selecting another item should display a new detail view. This is easy with fragments; the activity will
replace the detail fragment with another detail fragment (Figure7.3). No activities need to die for this
major view change to happen.
Figure 7.3Detail fragment is swapped out
Using UI fragments separates the UI of your app into building blocks, which is useful for more than
just list-detail applications. Working with individual blocks, it is easy to build tab interfaces, tack on
animated sidebars, and more.
Achieving this UI flexibility comes at a cost: more complexity, more moving parts, and more code.
You will reap the benefits of using fragments in Chapter11 and Chapter17. The complexity, however,
starts now.
Chapter 7UI Fragments and the Fragment Manager
126
Starting CriminalIntent
In this chapter, you are going to start on the detail part of CriminalIntent. Figure7.4 shows you what
CriminalIntent will look like at the end of this chapter.
Figure 7.4CriminalIntent at the end of this chapter
The screen shown in Figure7.4 will be managed by a UI fragment named CrimeFragment. An instance
of CrimeFragment will be hosted by an activity named CrimeActivity.
Starting CriminalIntent
127
For now, think of hosting as the activity providing a spot in its view hierarchy where the fragment can
place its view (Figure7.5). A fragment is incapable of getting a view on screen itself. Only when it is
placed in an activity’s hierarchy will its view appear.
Figure 7.5CrimeActivity hosting a CrimeFragment
Chapter 7UI Fragments and the Fragment Manager
128
CriminalIntent will be a large project, and one way to keep your head wrapped around a project is with
an object diagram. Figure7.6 gives you the big picture of CriminalIntent. You do not have to memorize
these objects and their relationships, but it is good to have an idea of where you are heading before you
start.
You can see that CrimeFragment will do the sort of work that your activities did in GeoQuiz: create and
manage the UI and interact with the model objects.
Figure 7.6Object diagram for CriminalIntent (for this chapter)
Three of the classes shown in Figure7.6 are classes that you will write: Crime, CrimeFragment, and
CrimeActivity.
An instance of Crime will represent a single office crime. In this chapter, a crime will have a title, an
ID, a date, and a boolean that indicates whether the crime has been solved. The title is a descriptive
name, like “Toxic sink dump” or “Someone stole my yogurt!” The ID will uniquely identify an
instance of Crime.
For this chapter, you will keep things very simple and use a single instance of Crime. CrimeFragment
will have a member variable (mCrime) to hold this isolated incident.
CrimeActivity’s view will consist of a FrameLayout that defines the spot where the CrimeFragment’s
view will appear.
CrimeFragment’s view will consist of a LinearLayout with a few child views inside of it, including
an EditText, a Button, and a CheckBox. CrimeFragment will have member variables for each of these
views and will set listeners on them to update the model layer when there are changes.
Creating a new project
129
Creating a new project
Enough talk; time to build a new app. Create a new Android application (File → New Project...). Name
the application CriminalIntent and make sure the company domain is android.bignerdranch.com, as
shown in Figure7.7.
Figure 7.7Creating the CriminalIntent application
Click Next and specify a minimum SDK of API 19: Android 4.4. Also ensure that only the Phone and
Tablet application type is checked.
Click Next again to select the type of activity to add. Choose Empty Activity and continue along in the
wizard.
Chapter 7UI Fragments and the Fragment Manager
130
In the final step of the New Project wizard, name the activity CrimeActivity and click Finish
(Figure7.8).
Figure 7.8Creating CrimeActivity
Two types of fragments
Fragments were introduced in API level 11 along with the first Android tablets and the sudden need
for UI flexibility. You must choose which implementation of fragments that you want use: native
fragments or support fragments.
The native implementation of fragments is built into the device that the user runs your app on. If you
support many different versions of Android, each of those Android versions could have a slightly
different implementation of fragments (for example, a bug could be fixed in one version and not
the versions prior to it). The support implementation of fragments is built into a library that you
include in your application. This means that each device you run your app on will depend on the same
implementation of fragments no matter the Android version.
In CriminalIntent, you will use the support implementation of fragments. Detailed reasoning for this
decision is laid out at the end of the chapter in the section called For the More Curious: Why Support
Fragments Are Superior.
Adding dependencies in Android Studio
131
Adding dependencies in Android Studio
You will use the implementation of fragments that comes with the AppCompat library. The
AppCompat library is one of Google’s many compatibility libraries that you will use throughout this
book. You will learn much more about the AppCompat library in Chapter13.
To use the AppCompat library, it must be included in your list of dependencies. Your project comes
with two build.gradle files, one for the project as a whole and one for your app module. Open the
build.gradle file located in your app module.
Listing 7.1Gradle dependencies (app/build.gradle)
apply plugin: 'com.android.application'
android {
...
}
dependencies {
compile fileTree(dir: 'libs', include: ['*.jar'])
...
compile 'com.android.support:appcompat-v7:25.0.1'
...
}
In the current dependencies section of your build.gradle file, you should see something similar to
Listing 7.1 that specifies that the project depends on all of the .jar files in its libs directory. You will
also see dependencies for other libraries that are automatically included when projects are created with
Android Studio, most likely including the AppCompat library.
Gradle allows for the specification of dependencies that you have not copied into your project. When
your app is compiled, Gradle will find, download, and include the dependencies for you. All you have
to do is specify an exact string incantation and Gradle will do the rest.
If you do not have the AppCompat library listed in your dependencies, Android Studio has a tool to
help you add the library and come up with this string incantation. Navigate to the project structure for
your project (File → Project Structure...).
Chapter 7UI Fragments and the Fragment Manager
132
Select the app module on the left and the Dependencies tab in the app module. The dependencies for
the app module are listed here (Figure7.9).
Figure 7.9App dependencies
(You may have additional dependencies specified. If you do, do not remove them.)
You should see the AppCompat dependency listed. If you do not, add it with the + button and choose
Library dependency. Choose the appcompat-v7 library from the list and click OK (Figure7.10).
Figure 7.10A collection of dependencies
Adding dependencies in Android Studio
133
Navigate back to the editor window showing app/build.gradle, and you should now see AppCompat
included, as shown in Listing 7.1.
(If you modify this file manually, outside of the project structure window, you will need to sync your
project with the Gradle file to reflect any updates that you have made. This sync asks Gradle to update
the build based on your changes by either downloading or removing dependencies. Changes within the
project structure window will trigger this sync automatically. To manually perform this sync, navigate
to Tools → Android → Sync Project with Gradle Files.)
The dependency string compile 'com.android.support:appcompat-v7:25.0.0' uses the Maven
coordinates format groupId:artifactId:version. (Maven is a dependency management tool. You can
learn more about it at maven.apache.org/.)
The groupId is the unique identifier for a set of libraries available on the Maven repository. Often
the library’s base package name is used as the groupId, which is com.android.support for the
AppCompat library.
The artifactId is the name of a specific library within the package. In this case, the name of the
library you are referring to is appcompat-v7.
Last but not least, the version represents the revision number of the library. CriminalIntent depends
on the 25.0.0 version of the appcompat-v7 library. Version 25.0.0 is the latest version as of this writing,
but any version newer than that should also work for this project. In fact, it is a good idea to use the
latest version of the support library so that you can use newer APIs and receive the latest bug fixes. If
Android Studio added a newer version of the library for you, do not roll it back to the version shown
above.
Now that the AppCompat library is a dependency in the project, make sure that your project uses it. In
the project tool window, find and open CrimeActivity.java. Verify that CrimeActivity’s superclass
is AppCompatActivity.
Listing 7.2Tweaking template code (CrimeActivity.java)
public class CrimeActivity extends AppCompatActivity {
@Override
protected void onCreate(Bundle savedInstanceState) {
super.onCreate(savedInstanceState);
setContentView(R.layout.activity_crime);
}
}
Before proceeding with CrimeActivity, let’s create the model layer for CriminalIntent by writing the
Crime class.
Chapter 7UI Fragments and the Fragment Manager
134
Creating the Crime class
In the project tool window, right-click the com.bignerdranch.android.criminalintent package and
select New → Java Class. Name the class Crime and click OK.
In Crime.java, add fields to represent the crime’s ID, title, date, and status and a constructor that
initializes the ID and date fields (Listing 7.3).
Listing 7.3Adding to Crime class (Crime.java)
public class Crime {
private UUID mId;
private String mTitle;
private Date mDate;
private boolean mSolved;
public Crime() {
mId = UUID.randomUUID();
mDate = new Date();
}
}
UUID is a Java utility class included in the Android framework. It provides an easy way to generate
universally unique ID values. In the constructor you generate a random unique ID by calling
UUID.randomUUID().
Android Studio may find two classes with the name Date. Use the Option+Return (or Alt+Enter)
shortcut to manually import the class. When asked which version of the Date class to import, choose
the java.util.Date version.
Initializing the Date variable using the default Date constructor sets mDate to the current date. This will
be the default date for a crime.
Creating the Crime class
135
Next, you want to generate a getter for the read-only mId and both a getter and setter for mTitle,
mDate, and mSolved. Right-click after the constructor and select Generate... → Getter and select the
mId variable. Then, generate the getter and setter for mTitle, mDate, and mSolved by repeating the
process, but selecting Getter and Setter in the Generate... menu.
Listing 7.4Generated getters and setters (Crime.java)
public class Crime {
private UUID mId;
private String mTitle;
private Date mDate;
private boolean mSolved;
public Crime() {
mId = UUID.randomUUID();
mDate = new Date();
}
public UUID getId() {
return mId;
}
public String getTitle() {
return mTitle;
}
public void setTitle(String title) {
mTitle = title;
}
public Date getDate() {
return mDate;
}
public void setDate(Date date) {
mDate = date;
}
public boolean isSolved() {
return mSolved;
}
public void setSolved(boolean solved) {
mSolved = solved;
}
}
That is all you need for the Crime class and for CriminalIntent’s model layer in this chapter.
At this point, you have created the model layer and an activity that is capable of hosting a support
fragment. Now you will get into the details of how the activity performs its duties as host.
Chapter 7UI Fragments and the Fragment Manager
136
Hosting a UI Fragment
To host a UI fragment, an activity must:
• define a spot in its layout for the fragment’s view
• manage the lifecycle of the fragment instance
The fragment lifecycle
Figure7.11 shows the fragment lifecycle. It is similar to the activity lifecycle: It has stopped, paused,
and resumed states, and it has methods you can override to get things done at critical points – many of
which correspond to activity lifecycle methods.
Figure 7.11Fragment lifecycle diagram
The correspondence is important. Because a fragment works on behalf of an activity, its state should
reflect the activity’s state. Thus, it needs corresponding lifecycle methods to handle the activity’s work.
One critical difference between the fragment lifecycle and the activity lifecycle is that fragment
lifecycle methods are called by the hosting activity, not the OS. The OS knows nothing about the
fragments that an activity is using to manage things. Fragments are the activity’s internal business.
You will see more of the fragment lifecycle methods as you continue building CriminalIntent.
Two approaches to hosting
137
Two approaches to hosting
You have two options when it comes to hosting a UI fragment in an activity:
• add the fragment to the activity’s layout
• add the fragment in the activity’s code
The first approach is known as using a layout fragment. It is straightforward but inflexible. If you add
the fragment to the activity’s layout, you hardwire the fragment and its view to the activity’s view and
cannot swap out that fragment during the activity’s lifetime.
The second approach, adding the fragment to the activity’s code, is more complex – but it is the only
way to have control at runtime over your fragments. You determine when the fragment is added to the
activity and what happens to it after that. You can remove the fragment, replace it with another, and
then add the first fragment back again.
Thus, to achieve real UI flexibility you must add your fragment in code. This is the approach you will
use for CrimeActivity’s hosting of a CrimeFragment. The code details will come later in the chapter.
First, you are going to define CrimeActivity’s layout.
Defining a container view
You will be adding a UI fragment in the hosting activity’s code, but you still need to make a spot for
the fragment’s view in the activity’s view hierarchy. In CrimeActivity’s layout, this spot will be the
FrameLayout shown in Figure7.12.
Figure 7.12Fragment-hosting layout for CrimeActivity
This FrameLayout will be the container view for a CrimeFragment. Notice that the container view is
completely generic; it does not name the CrimeFragment class. You can and will use this same layout
to host other fragments.
Locate CrimeActivity’s layout at res/layout/activity_crime.xml. Open this file and replace the
default layout with the FrameLayout diagrammed in Figure7.12. Your XML should match Listing 7.5.
Listing 7.5Creating the fragment container layout (activity_crime.xml)
<FrameLayout
xmlns:android="http://schemas.android.com/apk/res/android"
android:id="@+id/fragment_container"
android:layout_width="match_parent"
android:layout_height="match_parent" />
Chapter 7UI Fragments and the Fragment Manager
138
Note that while activity_crime.xml consists solely of a container view for a single fragment, an
activity’s layout can be more complex and define multiple container views as well as widgets of its
own.
You can preview your layout file or run CriminalIntent to check your code. You will see an empty
FrameLayout below a toolbar containing the text CriminalIntent (Figure7.13). (If the preview window
does not render the screen correctly, or you see errors, build the project by selecting Build → Rebuild
Project. If that still does not work correctly, run the app on your emulator or device. As of this writing,
the preview window can be finicky.)
Figure 7.13An empty FrameLayout
The FrameLayout is empty because the CrimeActivity is not yet hosting a fragment. Later, you
will write code that puts a fragment’s view inside this FrameLayout. But first, you need to create a
fragment.
(The toolbar at the top of your app is included automatically because of the way you configured your
activity. You will learn more about the toolbar in Chapter13.)
Creating a UI Fragment
139
Creating a UI Fragment
The steps to create a UI fragment are the same as those you followed to create an activity:
• compose a UI by defining widgets in a layout file
• create the class and set its view to be the layout that you defined
• wire up the widgets inflated from the layout in code
Defining CrimeFragment’s layout
CrimeFragment’s view will display the information contained within an instance of Crime.
First, define the strings that the user will see in res/values/strings.xml.
Listing 7.6Adding strings (res/values/strings.xml)
<resources>
<string name="app_name">CriminalIntent</string>
<string name="crime_title_hint">Enter a title for the crime.</string>
<string name="crime_title_label">Title</string>
<string name="crime_details_label">Details</string>
<string name="crime_solved_label">Solved</string>
</resources>
Next, you will define the UI. The layout for CrimeFragment will consist of a vertical LinearLayout
that contains two TextViews, an EditText, a Button, and a Checkbox.
To create a layout file, right-click the res/layout folder in the project tool window and select New →
Layout resource file. Name this file fragment_crime.xml and enter LinearLayout as the root element.
Click OK and Android Studio will generate the file for you.
Chapter 7UI Fragments and the Fragment Manager
140
When the file opens, navigate to the XML. The wizard has added the LinearLayout for you. Add the
widgets that make up the fragment’s layout to fragment_crime.xml.
Listing 7.7Layout file for fragment’s view (fragment_crime.xml)
<LinearLayout xmlns:android="http://schemas.android.com/apk/res/android"
android:layout_width="match_parent"
android:layout_height="match_parent"
android:layout_margin="16dp"
android:orientation="vertical">
<TextView
style="?android:listSeparatorTextViewStyle"
android:layout_width="match_parent"
android:layout_height="wrap_content"
android:text="@string/crime_title_label"/>
<EditText
android:id="@+id/crime_title"
android:layout_width="match_parent"
android:layout_height="wrap_content"
android:hint="@string/crime_title_hint"/>
<TextView
style="?android:listSeparatorTextViewStyle"
android:layout_width="match_parent"
android:layout_height="wrap_content"
android:text="@string/crime_details_label"/>
<Button
android:id="@+id/crime_date"
android:layout_width="match_parent"
android:layout_height="wrap_content"/>
<CheckBox
android:id="@+id/crime_solved"
android:layout_width="match_parent"
android:layout_height="wrap_content"
android:text="@string/crime_solved_label"/>
</LinearLayout>
Defining CrimeFragment’s layout
141
Check the Design view to see a preview of your fragment’s view (Figure7.14).

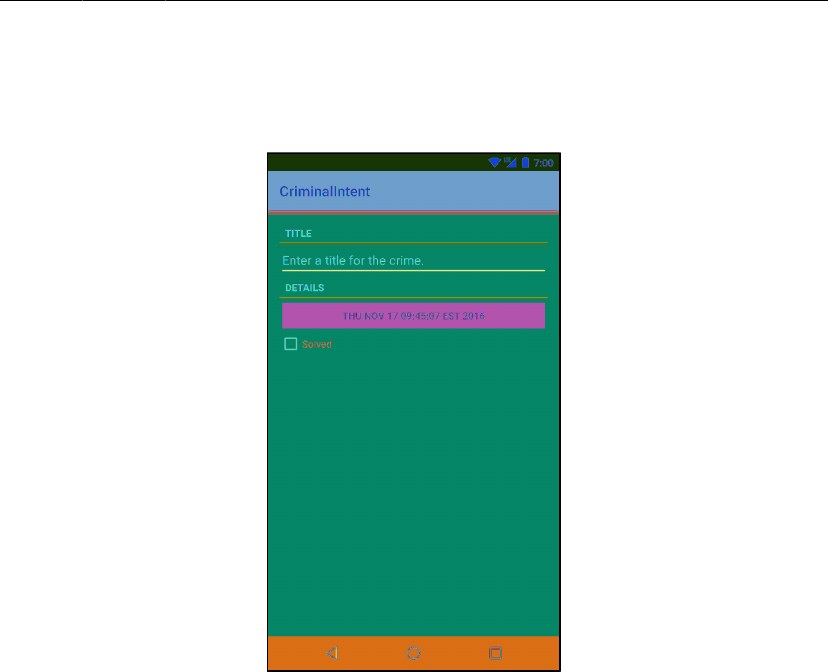

Figure 7.14Previewing updated crime fragment layout
(The updated fragment_crime.xml code includes new syntax related to view style: <style="?
android:listSeparatorTextViewStyle". Fear not. You will learn the meaning behind this syntax in
the section called Styles, themes, and theme attributes in Chapter9.)
Chapter 7UI Fragments and the Fragment Manager
142
Creating the CrimeFragment class
Right-click the com.bignerdranch.android.criminalintent package and select New → Java Class.
Name the class CrimeFragment and click OK to generate the class.
Now, turn this class into a fragment. Update CrimeFragment to subclass the Fragment class.
Listing 7.8Subclassing the Fragment class (CrimeFragment.java)
public class CrimeFragment extends Fragment {
}
As you subclass the Fragment class, you will notice that Android Studio finds two classes with the
Fragment name. You will see Fragment (android.app) and Fragment (android.support.v4.app).
The android.app Fragment is the version of fragments built into the Android OS. You will use the
support library version, so be sure to select the android.support.v4.app version of the Fragment class
when you see the dialog, as shown in Figure7.15.
Figure 7.15Choosing the support library’s Fragment class
Your code should match Listing 7.9.
Listing 7.9Supporting the Fragment import (CrimeFragment.java)
package com.bignerdranch.android.criminalintent;
import android.support.v4.app.Fragment;
public class CrimeFragment extends Fragment {
}
If you do not see this dialog or the wrong fragment class was imported, you can manually import the
correct class. If you have an import for android.app.Fragment, remove that line of code. Import the
correct Fragment class with the Option+Return (or Alt+Enter) shortcut. Be sure to select the support
version of the Fragment class.
Creating the CrimeFragment class
143
Implementing fragment lifecycle methods
CrimeFragment is a controller that interacts with model and view objects. Its job is to present the
details of a specific crime and update those details as the user changes them.
In GeoQuiz, your activities did most of their controller work in activity lifecycle methods. In
CriminalIntent, this work will be done by fragments in fragment lifecycle methods. Many of these
methods correspond to the Activity methods you already know, such as onCreate(Bundle).
In CrimeFragment.java, add a member variable for the Crime instance and an implementation of
Fragment.onCreate(Bundle).
Android Studio can provide some assistance when overriding methods. As you define the
onCreate(Bundle) method, type the first few characters of the method name where you want to place
the method. Android Studio will provide a list of suggestions, as shown in Figure7.16.
Figure 7.16Overriding the onCreate(Bundle) method
Press Return to select the onCreate(Bundle) method, and Android Studio will create the method
declaration for you. Update your code to create a new Crime, matching Listing 7.10.
Listing 7.10Overriding Fragment.onCreate(Bundle)
(CrimeFragment.java)
public class CrimeFragment extends Fragment {
private Crime mCrime;
@Override
public void onCreate(Bundle savedInstanceState) {
super.onCreate(savedInstanceState);
mCrime = new Crime();
}
}
There are a couple of things to notice in this implementation. First, Fragment.onCreate(Bundle) is a
public method, whereas Activity.onCreate(Bundle) is protected. Fragment.onCreate(Bundle) and
other Fragment lifecycle methods must be public, because they will be called by whatever activity is
hosting the fragment.
Second, similar to an activity, a fragment has a bundle to which it saves and retrieves its state. You can
override Fragment.onSaveInstanceState(Bundle) for your own purposes just as you can override
Activity.onSaveInstanceState(Bundle).
Chapter 7UI Fragments and the Fragment Manager
144
Also, note what does not happen in Fragment.onCreate(Bundle): You do not inflate the fragment’s
view. You configure the fragment instance in Fragment.onCreate(Bundle), but you create and
configure the fragment’s view in another fragment lifecycle method:
public View onCreateView(LayoutInflater inflater, ViewGroup container,
Bundle savedInstanceState)
This method is where you inflate the layout for the fragment’s view and return the inflated View to the
hosting activity. The LayoutInflater and ViewGroup parameters are necessary to inflate the layout.
The Bundle will contain data that this method can use to re-create the view from a saved state.
In CrimeFragment.java, add an implementation of onCreateView(…) that inflates
fragment_crime.xml. You can use the same trick from Figure7.16 to fill out the method declaration.
Listing 7.11Overriding onCreateView(…) (CrimeFragment.java)
public class CrimeFragment extends Fragment {
private Crime mCrime;
@Override
public void onCreate(Bundle savedInstanceState) {
super.onCreate(savedInstanceState);
mCrime = new Crime();
}
@Override
public View onCreateView(LayoutInflater inflater, ViewGroup container,
Bundle savedInstanceState) {
View v = inflater.inflate(R.layout.fragment_crime, container, false);
return v;
}
}
Within onCreateView(…), you explicitly inflate the fragment’s view by calling
LayoutInflater.inflate(…) and passing in the layout resource ID. The second parameter is your
view’s parent, which is usually needed to configure the widgets properly. The third parameter tells the
layout inflater whether to add the inflated view to the view’s parent. You pass in false because you
will add the view in the activity’s code.
Creating the CrimeFragment class
145
Wiring widgets in a fragment
You are now going to hook up the EditText, Checkbox, and Button in your fragment. The
onCreateView(…) method is the place to wire up these widgets.
Start with the EditText. After the view is inflated, get a reference to the EditText and add a listener.
Listing 7.12Wiring up the EditText widget (CrimeFragment.java)
public class CrimeFragment extends Fragment {
private Crime mCrime;
private EditText mTitleField;
...
@Override
public View onCreateView(LayoutInflater inflater, ViewGroup container,
Bundle savedInstanceState) {
View v = inflater.inflate(R.layout.fragment_crime, container, false);
mTitleField = (EditText) v.findViewById(R.id.crime_title);
mTitleField.addTextChangedListener(new TextWatcher() {
@Override
public void beforeTextChanged(
CharSequence s, int start, int count, int after) {
// This space intentionally left blank
}
@Override
public void onTextChanged(
CharSequence s, int start, int before, int count) {
mCrime.setTitle(s.toString());
}
@Override
public void afterTextChanged(Editable s) {
// This one too
}
});
return v;
}
}
Getting references in Fragment.onCreateView(…) works nearly the same as in
Activity.onCreate(Bundle). The only difference is that you call View.findViewById(int) on the
fragment’s view. The Activity.findViewById(int) method that you used before is a convenience
method that calls View.findViewById(int) behind the scenes. The Fragment class does not have a
corresponding convenience method, so you have to call the real thing.
Setting listeners in a fragment works exactly the same as in an activity. In Listing 7.12, you create an
anonymous class that implements the verbose TextWatcher interface. TextWatcher has three methods,
but you only care about one: onTextChanged(…).
In onTextChanged(…), you call toString() on the CharSequence that is the user’s input. This method
returns a string, which you then use to set the Crime’s title.
Chapter 7UI Fragments and the Fragment Manager
146
Next, connect the Button to display the date of the crime, as shown in Listing 7.13.
Listing 7.13Setting Button text (CrimeFragment.java)
public class CrimeFragment extends Fragment {
private Crime mCrime;
private EditText mTitleField;
private Button mDateButton;
...
@Override
public View onCreateView(LayoutInflater inflater, ViewGroup container,
Bundle savedInstanceState) {
View v = inflater.inflate(R.layout.fragment_crime, container, false);
...
mDateButton = (Button) v.findViewById(R.id.crime_date);
mDateButton.setText(mCrime.getDate().toString());
mDateButton.setEnabled(false);
return v;
}
}
Disabling the button ensures that it will not respond in any way to the user pressing it. It also changes
its appearance to advertise its disabled state. In Chapter12, you will enable the button and allow the
user to choose the date of the crime.
Moving on to the CheckBox, get a reference and set a listener that will update the mSolved field of the
Crime, as shown in Listing 7.14.
Listing 7.14Listening for CheckBox changes (CrimeFragment.java)
public class CrimeFragment extends Fragment {
private Crime mCrime;
private EditText mTitleField;
private Button mDateButton;
private CheckBox mSolvedCheckBox;
...
@Override
public View onCreateView(LayoutInflater inflater, ViewGroup container,
Bundle savedInstanceState) {
View v = inflater.inflate(R.layout.fragment_crime, container, false);
...
mSolvedCheckBox = (CheckBox)v.findViewById(R.id.crime_solved);
mSolvedCheckBox.setOnCheckedChangeListener(new OnCheckedChangeListener() {
@Override
public void onCheckedChanged(CompoundButton buttonView,
boolean isChecked) {
mCrime.setSolved(isChecked);
}
});
return v;
}
}
Creating the CrimeFragment class
147
After typing in the code as above, click on OnCheckedChangeListener:
mSolvedCheckBox.setOnCheckedChangeListener(new OnCheckedChangeListener()
and use the Option+Return (Alt+Enter) shortcut to add the necessary import statement. You will be
presented with two options. Choose the android.widget.CompoundButton version.
Depending on which version of Android Studio you are using, the autocomplete feature
may insert CompoundButton.OnCheckedChangeListener() instead of leaving the code as
OnCheckedChangeListener(). Either implementation is fine. But to remain consistent with the
solution presented in this book, click on CompoundButton and hit Option+Return (Alt+Enter).
Select the option to Add on demand static import for 'android.widget.CompoundButton' (Figure7.17).
This will update the code so it matches Listing 7.14.
Figure 7.17Adding on demand static import
Your code for CrimeFragment is now complete. It would be great if you could run CriminalIntent now
and play with the code you have written. But you cannot. Fragments cannot put their views on screen
on their own. To realize your efforts, you first have to add a CrimeFragment to CrimeActivity.
Chapter 7UI Fragments and the Fragment Manager
148
Adding a UI Fragment to the FragmentManager
When the Fragment class was introduced in Honeycomb, the Activity class was changed to include a
piece called the FragmentManager. The FragmentManager is responsible for managing your fragments
and adding their views to the activity’s view hierarchy (Figure7.18).
The FragmentManager handles two things: a list of fragments and a back stack of fragment transactions
(which you will learn about shortly).
Figure 7.18The FragmentManager
For CriminalIntent, you will only be concerned with the FragmentManager’s list of fragments.
To add a fragment to an activity in code, you make explicit calls to the activity’s FragmentManager.
The first step is to get the FragmentManager itself. Do so in onCreate(Bundle) in
CrimeActivity.java.
Listing 7.15Getting the FragmentManager (CrimeActivity.java)
public class CrimeActivity extends AppCompatActivity {
@Override
protected void onCreate(Bundle savedInstanceState) {
super.onCreate(savedInstanceState);
setContentView(R.layout.activity_crime);
FragmentManager fm = getSupportFragmentManager();
}
}
If you see an error after adding this line of code, check the import statements to make sure that the
support version of the FragmentManager class was imported.
You call getSupportFragmentManager() because you are using the support library and the
AppCompatActivity class. If you were not interested in using the support library, then you would
subclass Activity and call getFragmentManager().
Fragment transactions
149
Fragment transactions
Now that you have the FragmentManager, add the following code to give it a fragment to manage. (We
will step through this code afterward. Just get it in for now.)
Listing 7.16Adding a CrimeFragment (CrimeActivity.java)
public class CrimeActivity extends AppCompatActivity {
@Override
protected void onCreate(Bundle savedInstanceState) {
super.onCreate(savedInstanceState);
setContentView(R.layout.activity_crime);
FragmentManager fm = getSupportFragmentManager();
Fragment fragment = fm.findFragmentById(R.id.fragment_container);
if (fragment == null) {
fragment = new CrimeFragment();
fm.beginTransaction()
.add(R.id.fragment_container, fragment)
.commit();
}
}
}
The best place to start understanding the code you just added is not at the beginning. Instead, find the
add(…) operation and the code around it. This code creates and commits a fragment transaction.
if (fragment == null) {
fragment = new CrimeFragment();
fm.beginTransaction()
.add(R.id.fragment_container, fragment)
.commit();
Fragment transactions are used to add, remove, attach, detach, or replace fragments in the fragment
list. They are the heart of how you use fragments to compose and recompose screens at runtime. The
FragmentManager maintains a back stack of fragment transactions that you can navigate.
The FragmentManager.beginTransaction() method creates and returns an instance of
FragmentTransaction. The FragmentTransaction class uses a fluent interface – methods that
configure FragmentTransaction return a FragmentTransaction instead of void, which allows you to
chain them together. So the code highlighted above says, “Create a new fragment transaction, include
one add operation in it, and then commit it.”
The add(…) method is the meat of the transaction. It has two parameters: a container view ID and the
newly created CrimeFragment. The container view ID should look familiar. It is the resource ID of the
FrameLayout that you defined in activity_crime.xml.
Chapter 7UI Fragments and the Fragment Manager
150
A container view ID serves two purposes:
• It tells the FragmentManager where in the activity’s view the fragment’s view should appear.
• It is used as a unique identifier for a fragment in the FragmentManager’s list.
When you need to retrieve the CrimeFragment from the FragmentManager, you ask for it by container
view ID:
FragmentManager fm = getSupportFragmentManager();
Fragment fragment = fm.findFragmentById(R.id.fragment_container);
if (fragment == null) {
fragment = new CrimeFragment();
fm.beginTransaction()
.add(R.id.fragment_container, fragment)
.commit();
}
It may seem odd that the FragmentManager identifies the CrimeFragment using the resource ID of a
FrameLayout. But identifying a UI fragment by the resource ID of its container view is built into how
the FragmentManager operates. If you are adding multiple fragments to an activity, you would typically
create separate containers with separate IDs for each of those fragments.
Now we can summarize the code you added in Listing 7.16 from start to finish.
First, you ask the FragmentManager for the fragment with a container view ID of
R.id.fragment_container. If this fragment is already in the list, the FragmentManager will return it.
Why would a fragment already be in the list? The call to CrimeActivity.onCreate(Bundle) could be
in response to CrimeActivity being re-created after being destroyed on rotation or to reclaim memory.
When an activity is destroyed, its FragmentManager saves out its list of fragments. When the activity
is re-created, the new FragmentManager retrieves the list and re-creates the listed fragments to make
everything as it was before.
On the other hand, if there is no fragment with the given container view ID, then fragment will be null.
In this case, you create a new CrimeFragment and a new fragment transaction that adds the fragment to
the list.
Fragment transactions
151
CrimeActivity is now hosting a CrimeFragment. Run CriminalIntent to prove it. You should see the
view defined in fragment_crime.xml, as shown in Figure7.19.
Figure 7.19CrimeFragment’s view hosted by CrimeActivity
Chapter 7UI Fragments and the Fragment Manager
152
The FragmentManager and the fragment lifecycle
Now that you know about the FragmentManager, let’s take another look at the fragment lifecycle
(Figure7.20).
Figure 7.20The fragment lifecycle, again
The FragmentManager of an activity is responsible for calling the lifecycle methods of the fragments in
its list. The onAttach(Context), onCreate(Bundle), and onCreateView(…) methods are called when
you add the fragment to the FragmentManager.
The onActivityCreated(Bundle) method is called after the hosting activity’s onCreate(Bundle)
method has executed. You are adding the CrimeFragment in CrimeActivity.onCreate(Bundle), so
this method will be called after the fragment has been added.
What happens if you add a fragment while the activity is already resumed? In that case, the
FragmentManager immediately walks the fragment through whatever steps are necessary to get it
caught up to the activity’s state. For example, as a fragment is added to an activity that is already
resumed, that fragment gets calls to onAttach(Context), onCreate(Bundle), onCreateView(…),
onActivityCreated(Bundle), onStart(), and then onResume().
Once the fragment’s state is caught up to the activity’s state, the hosting activity’s FragmentManager
will call further lifecycle methods around the same time it receives the corresponding calls from the OS
to keep the fragment’s state aligned with that of the activity.
Application Architecture with Fragments
153
Application Architecture with Fragments
Designing your app with fragments the right way is supremely important. Many developers, after first
learning about fragments, try to use them for every reusable component in their application. This is the
wrong way to use fragments.
Fragments are intended to encapsulate major components in a reusable way. A major component in
this case would be on the level of an entire screen of your application. If you have a significant number
of fragments on screen at once, your code will be littered with fragment transactions and unclear
responsibility. A better architectural solution for reuse with smaller components is to extract them into
a custom view (a class that subclasses View or one of its subclasses).
Use fragments responsibly. A good rule of thumb is to have no more than two or three fragments on the
screen at a time (Figure7.21).
Figure 7.21Less is more
Chapter 7UI Fragments and the Fragment Manager
154
The reason all our activities will use fragments
From here on, all of the apps in this book will use fragments – no matter how simple. This may seem
like overkill. Many of the examples you will see in following chapters could be written without
fragments. The UIs could be created and managed from activities, and doing so might even be less
code.
However, we believe it is better for you to become comfortable with the pattern you will most likely
use in real life.
You might think it would be better to begin a simple app without fragments and add them later, when
(or if) necessary. There is an idea in Extreme Programming methodology called YAGNI. YAGNI
stands for “You Aren’t Gonna Need It,” and it urges you not to write code if you think you might need
it later. Why? Because YAGNI. It is tempting to say “YAGNI” to fragments.
Unfortunately, adding fragments later can be a minefield. Changing an activity to an activity hosting
a UI fragment is not difficult, but there are swarms of annoying gotchas. Keeping some interfaces
managed by activities and having others managed by fragments only makes things worse because you
have to keep track of this meaningless distinction. It is far easier to write your code using fragments
from the beginning and not worry about the pain and annoyance of reworking it later, or having to
remember which style of controller you are using in each part of your application.
Therefore, when it comes to fragments, we have a different principle: AUF, or “Always Use
Fragments.” You can kill a lot of brain cells deciding whether to use a fragment or an activity, and it is
just not worth it. AUF!
For the More Curious: Fragments and the Support Library
155
For the More Curious: Fragments and the Support
Library
In this chapter, you included the AppCompat library so that you can use support fragments.
AppCompat on its own does not include a support fragment implementation. The AppCompat library
depends on the support-v4 library, which is where the support fragment implementation lives.
Google provides many different support libraries, including support-v4, appcompat-v7, recyclerview-
v7, and many more. The support-v4 library is typically referred to as the support library. This was the
first support library Google provided to developers. Over time, more and more tools have been added
to this library, and it became a grab bag of things with no real focus. At that point, Google decided to
develop a suite of support libraries rather than a single library.
The support library (support-v4) contains the support implementation of fragments
that you used in this chapter. For example, this is where you will find the source of
android.support.v4.app.Fragment. The support library also includes an Activity subclass:
FragmentActivity. To use support fragments, your activities must subclass FragmentActivity.
As shown in Figure7.22, AppCompatActivity is a subclass of this FragmentActivity class, which
is how you were able to use support fragments in this chapter. If you were using support fragments
without the AppCompat library, you would include the support-v4 dependency in your project and you
would subclass FragmentActivity in each of your activity classes instead of AppCompatActivity.
Figure 7.22AppCompatActivity class hierarchy
If all of this sounds confusing, that is because it is. But not to worry – most Android developers use
these libraries as you did in this chapter: using the AppCompat library rather than the support library
directly. You will learn more about the features of the AppCompat library in Chapter13.
Chapter 7UI Fragments and the Fragment Manager
156
For the More Curious: Why Support Fragments Are
Superior
This book uses the support library implementation of fragments over the implementation built into the
Android OS, which may seem like an unusual choice. After all, the support library implementation of
fragments was initially created so that developers could use fragments on old versions of Android that
do not support the API. Today, most developers can exclusively work with versions of Android that
include support for fragments natively.
We still prefer support fragments. Why? Support fragments are superior because you can update the
version of the support library in your application and ship a new version of your app at any time. New
releases of the support library come out multiple times a year. When a new feature is added to the
fragment API, that feature is also added to the support library fragment API along with any available
bug fixes. To use this new goodness, just update the version of the support library in your application.
As an example, official support for fragment nesting (hosting a fragment in a fragment) was added in
Android 4.2. If you are using the Android OS implementation of fragments and supporting Android 4.0
and newer, you cannot use this API on all devices that your app supports. If you are using the support
library, you can update the version of the library in your app and nest fragments until you run out of
memory on the device.
There are no significant downsides to using the support library’s fragments. The implementation of
fragments is nearly identical in the support library as it is in the OS. The only real downside is that you
have to include the support library in your project, and it has a nonzero size. However, it is currently
under a megabyte – and you will likely use the support library for some of its other features as well.
We take a practical approach in this book and in our own application development. The support library
is king.
If you are strong-willed and do not believe in the advice above, you can use the fragment
implementation built into the Android OS.
To use standard library fragments, you would make three changes to the project:
• Subclass the standard library Activity class (android.app.Activity) instead of
FragmentActivity or AppCompatActivity. Activities have support for fragments out of the box
on API level 11 or higher.
• Subclass android.app.Fragment instead of android.support.v4.app.Fragment.
• To get the FragmentManager, call getFragmentManager() instead of
getSupportFragmentManager().
157
8
Displaying Lists with
RecyclerView
CriminalIntent’s model layer currently consists of a single instance of Crime. In this chapter, you will
update CriminalIntent to work with a list of crimes. The list will display each Crime’s title and date, as
shown in Figure8.1.
Figure 8.1A list of crimes
Chapter 8Displaying Lists with RecyclerView
158
Figure8.2 shows the overall plan for CriminalIntent in this chapter.
Figure 8.2CriminalIntent with a list of crimes
In the model layer, you have a new object, CrimeLab, that will be a centralized data stash for Crime
objects.
Displaying a list of crimes requires a new activity and a new fragment in CriminalIntent’s controller
layer: CrimeListActivity and CrimeListFragment.
(Where are CrimeActivity and CrimeFragment in Figure8.2? They are part of the detail view,
so we are not showing them here. In Chapter10, you will connect the list and the detail parts of
CriminalIntent.)
In Figure8.2, you can also see the view objects associated with CrimeListActivity and
CrimeListFragment. The activity’s view will consist of a fragment-containing FrameLayout. The
fragment’s view will consist of a RecyclerView. You will learn more about the RecyclerView class
later in the chapter.
Updating CriminalIntent’s Model Layer
159
Updating CriminalIntent’s Model Layer
The first step is to upgrade CriminalIntent’s model layer from a single Crime object to a List of Crime
objects.
Singletons and centralized data storage
You are going to store the List of crimes in a singleton. A singleton is a class that allows only one
instance of itself to be created.
A singleton exists as long as the application stays in memory, so storing the list in a singleton will
keep the crime data available throughout any lifecycle changes in your activities and fragments. Be
careful with singleton classes, as they will be destroyed when Android removes your application from
memory. The CrimeLab singleton is not a solution for long-term storage of data, but it does allow the
app to have one owner of the crime data and provides a way to easily pass that data between controller
classes. (You will learn more about long-term data storage in Chapter14.)
(See the For the More Curious section at the end of this chapter for more about singleton classes.)
To create a singleton, you create a class with a private constructor and a get() method. If the instance
already exists, then get() simply returns the instance. If the instance does not exist yet, then get() will
call the constructor to create it.
Right-click the com.bignerdranch.android.criminalintent package and choose New → Java
Class. Name this class CrimeLab and click OK.
In CrimeLab.java, implement CrimeLab as a singleton with a private constructor and a get() method.
Listing 8.1Setting up the singleton (CrimeLab.java)
public class CrimeLab {
private static CrimeLab sCrimeLab;
public static CrimeLab get(Context context) {
if (sCrimeLab == null) {
sCrimeLab = new CrimeLab(context);
}
return sCrimeLab;
}
private CrimeLab(Context context) {
}
}
There are a few interesting things in this CrimeLab implementation. First, notice the s prefix on the
sCrimeLab variable. You are using this Android convention to make it clear that sCrimeLab is a static
variable.
Also, notice the private constructor on the CrimeLab. Other classes will not be able to create a
CrimeLab, bypassing the get() method.
Finally, in the get() method on CrimeLab, you pass in a Context object. You will make use of this
Context object in Chapter14.
Chapter 8Displaying Lists with RecyclerView
160
Let’s give CrimeLab some Crime objects to store. In CrimeLab’s constructor, create an empty List of
Crimes. Also, add two methods: a getCrimes() method that returns the List and a getCrime(UUID)
that returns the Crime with the given ID.
Listing 8.2Setting up the List of Crime objects (CrimeLab.java)
public class CrimeLab {
private static CrimeLab sCrimeLab;
private List<Crime> mCrimes;
public static CrimeLab get(Context context) {
...
}
private CrimeLab(Context context) {
mCrimes = new ArrayList<>();
}
public List<Crime> getCrimes() {
return mCrimes;
}
public Crime getCrime(UUID id) {
for (Crime crime : mCrimes) {
if (crime.getId().equals(id)) {
return crime;
}
}
return null;
}
}
List<E> is an interface that supports an ordered list of objects of a given type. It defines methods for
retrieving, adding, and deleting elements. A commonly used implementation of List is ArrayList,
which uses a regular Java array to store the list elements.
Because mCrimes holds an ArrayList – and ArrayList is also a List – both ArrayList and List are
valid types for mCrimes. In situations like this, we recommend using the interface type for the variable
declaration: List. That way, if you ever need to use a different kind of List implementation – like
LinkedList, for example – you can do so easily.
The mCrimes instantiation line uses diamond notation, <>, which was introduced in Java 7. This
shorthand notation tells the compiler to infer the type of items the List will contain based on the
generic argument passed in the variable declaration. Here, the compiler will infer that the ArrayList
contains Crimes because the variable declaration private List<Crime> mCrimes; specifies Crime for
the generic argument. (The more verbose equivalent, which developers were required to use prior to
Java 7, is mCrimes = new ArrayList<Crime>();.)
An Abstract Activity for Hosting a Fragment
161
Eventually, the List will contain user-created Crimes that can be saved and reloaded. For now,
populate the List with 100 boring Crime objects.
Listing 8.3Generating crimes (CrimeLab.java)
private CrimeLab(Context context) {
mCrimes = new ArrayList<>();
for (int i = 0; i < 100; i++) {
Crime crime = new Crime();
crime.setTitle("Crime #" + i);
crime.setSolved(i % 2 == 0); // Every other one
mCrimes.add(crime);
}
}
Now you have a fully loaded model layer with 100 crimes.
An Abstract Activity for Hosting a Fragment
In a moment, you will create the CrimeListActivity class that will host a CrimeListFragment. First,
you are going to set up a view for CrimeListActivity.
A generic fragment-hosting layout
For CrimeListActivity, you can simply reuse the layout defined in activity_crime.xml (which is
copied in Listing 8.4). This layout provides a FrameLayout as a container view for a fragment, which is
then named in the activity’s code.
Listing 8.4activity_crime.xml is already generic
<?xml version="1.0" encoding="utf-8"?>
<FrameLayout xmlns:android="http://schemas.android.com/apk/res/android"
android:id="@+id/fragment_container"
android:layout_width="match_parent"
android:layout_height="match_parent"
/>
Because activity_crime.xml does not name a particular fragment, you can use it for any activity
hosting a single fragment. Rename it activity_fragment.xml to reflect its larger scope.
In the project tool window, right-click res/layout/activity_crime.xml. (Be sure to right-click
activity_crime.xml and not fragment_crime.xml.)
From the context menu, select Refactor → Rename.... Rename this layout activity_fragment.xml
and click Refactor.
Chapter 8Displaying Lists with RecyclerView
162
When you rename a resource, the references to it should be updated automatically. If you see an error
in CrimeActivity.java, then you need to manually update the reference in CrimeActivity, as shown
in Listing 8.5.
Listing 8.5Updating layout file for CrimeActivity (CrimeActivity.java)
public class CrimeActivity extends AppCompatActivity {
/** Called when the activity is first created. */
@Override
protected void onCreate(Bundle savedInstanceState) {
super.onCreate(savedInstanceState);
setContentView(R.layout.activity_crime);
setContentView(R.layout.activity_fragment);
FragmentManager fm = getSupportFragmentManager();
Fragment fragment = fm.findFragmentById(R.id.fragment_container);
if (fragment == null) {
fragment = new CrimeFragment();
fm.beginTransaction()
.add(R.id.fragment_container, fragment)
.commit();
}
}
}
An abstract Activity class
To create the CrimeListActivity class, you could reuse CrimeActivity’s code. Look back at the
code you wrote for CrimeActivity (which is copied in Listing 8.6). It is simple and almost generic.
In fact, the only nongeneric code is the instantiation of the CrimeFragment before it is added to the
FragmentManager.
Listing 8.6CrimeActivity is almost generic (CrimeActivity.java)
public class CrimeActivity extends AppCompatActivity {
/** Called when the activity is first created. */
@Override
protected void onCreate(Bundle savedInstanceState) {
super.onCreate(savedInstanceState);
setContentView(R.layout.activity_fragment);
FragmentManager fm = getSupportFragmentManager();
Fragment fragment = fm.findFragmentById(R.id.fragment_container);
if (fragment == null) {
fragment = new CrimeFragment();
fm.beginTransaction()
.add(R.id.fragment_container, fragment)
.commit();
}
}
}
An abstract Activity class
163
Nearly every activity you will create in this book will require the same code. To avoid typing it again
and again, you are going to stash it in an abstract class.
Right-click on the com.bignerdranch.android.criminalintent package, select New → Java Class,
and name the new class SingleFragmentActivity. Make this class a subclass of AppCompatActivity
and make it an abstract class. Your generated file should look like this:
Listing 8.7Creating an abstract Activity (SingleFragmentActivity.java)
public abstract class SingleFragmentActivity extends AppCompatActivity {
}
Now, add the following code to SingleFragmentActivity.java. Except for the highlighted portions, it
is identical to your old CrimeActivity code.
Listing 8.8Adding a generic superclass (SingleFragmentActivity.java)
public abstract class SingleFragmentActivity extends AppCompatActivity {
protected abstract Fragment createFragment();
@Override
protected void onCreate(Bundle savedInstanceState) {
super.onCreate(savedInstanceState);
setContentView(R.layout.activity_fragment);
FragmentManager fm = getSupportFragmentManager();
Fragment fragment = fm.findFragmentById(R.id.fragment_container);
if (fragment == null) {
fragment = createFragment();
fm.beginTransaction()
.add(R.id.fragment_container, fragment)
.commit();
}
}
}
In this code, you set the activity’s view to be inflated from activity_fragment.xml. Then you look for
the fragment in the FragmentManager in that container, creating and adding it if it does not exist.
The only difference between the code in Listing 8.8 and the code in CrimeActivity is an
abstract method named createFragment() that you use to instantiate the fragment. Subclasses of
SingleFragmentActivity will implement this method to return an instance of the fragment that the
activity is hosting.
Chapter 8Displaying Lists with RecyclerView
164
Using an abstract class
Try it out with CrimeActivity. Change CrimeActivity’s superclass to SingleFragmentActivity,
remove the implementation of onCreate(Bundle), and implement the createFragment() method as
shown in Listing 8.9.
Listing 8.9Cleaning up CrimeActivity (CrimeActivity.java)
public class CrimeActivity extends AppCompatActivity SingleFragmentActivity {
/** Called when the activity is first created. */
@Override
protected void onCreate(Bundle savedInstanceState) {
super.onCreate(savedInstanceState);
setContentView(R.layout.activity_fragment);
FragmentManager fm = getSupportFragmentManager();
Fragment fragment = fm.findFragmentById(R.id.fragment_container);
if (fragment == null) {
fragment = new CrimeFragment();
fm.beginTransaction()
.add(R.id.fragment_container, fragment)
.commit();
}
}
@Override
protected Fragment createFragment() {
return new CrimeFragment();
}
}
Creating the new controllers
Now, you will create the two new controller classes: CrimeListActivity and CrimeListFragment.
Right-click on the com.bignerdranch.android.criminalintent package, select New → Java Class,
and name the class CrimeListActivity.
Modify the new CrimeListActivity class to also subclass SingleFragmentActivity and implement
the createFragment() method.
Listing 8.10Implementing CrimeListActivity (CrimeListActivity.java)
public class CrimeListActivity extends SingleFragmentActivity {
@Override
protected Fragment createFragment() {
return new CrimeListFragment();
}
}
If you have other methods in your CrimeListActivity, such as onCreate, remove them. Let
SingleFragmentActivity do its job and keep CrimeListActivity simple.
An abstract Activity class
165
The CrimeListFragment class has not yet been created. Let’s remedy that.
Right-click on the com.bignerdranch.android.criminalintent package again, select New → Java
Class, and name the class CrimeListFragment.
Listing 8.11Implementing CrimeListFragment (CrimeListFragment.java)
public class CrimeListFragment extends Fragment {
// Nothing yet
}
For now, CrimeListFragment will be an empty shell of a fragment. You will work with this fragment
later in the chapter.
Now your activity code is nice and tidy. And SingleFragmentActivity will save you a lot of typing
and time as you proceed through the book.
Declaring CrimeListActivity
Now that you have created CrimeListActivity, you must declare it in the manifest. In addition, you
want the list of crimes to be the first screen that the user sees when CriminalIntent is launched, so
CrimeListActivity should be the launcher activity.
In the manifest, declare CrimeListActivity and move the launcher intent filter from CrimeActivity’s
declaration to CrimeListActivity’s declaration.
Listing 8.12Declaring CrimeListActivity as the launcher activity
(AndroidManifest.xml)
<application
android:allowBackup="true"
android:icon="@mipmap/ic_launcher"
android:label="@string/app_name"
android:theme="@style/AppTheme" >
<activity android:name=".CrimeListActivity">
<intent-filter>
<action android:name="android.intent.action.MAIN" />
<category android:name="android.intent.category.LAUNCHER" />
</intent-filter>
</activity>
<activity android:name=".CrimeActivity">
<intent-filter>
<action android:name="android.intent.action.MAIN" />
<category android:name="android.intent.category.LAUNCHER" />
</intent-filter>
</activity>
</application>
Chapter 8Displaying Lists with RecyclerView
166
CrimeListActivity is now the launcher activity. Run CriminalIntent and you will see
CrimeListActivity’s FrameLayout hosting an empty CrimeListFragment, as shown in Figure8.3.
Figure 8.3Blank CrimeListActivity screen
RecyclerView, Adapter, and ViewHolder
167
RecyclerView, Adapter, and ViewHolder
Now, you want CrimeListFragment to display a list of crimes to the user. To do this, you will use a
RecyclerView.
RecyclerView is a subclass of ViewGroup. It displays a list of child View objects, one for each item in
your list of items. Depending on the complexity of what you need to display, these child Views can be
complex or very simple.
For your first implementation, each item in the list will display the title and date of a Crime. The View
object on each row will be a LinearLayout containing two TextViews, as shown in Figure8.4.
Figure 8.4A RecyclerView with child Views
Figure8.4 shows 12 rows of Views. Later you will be able to run CriminalIntent and swipe to scroll
through 100 Views to see all of your Crimes. Does that mean that you have 100 View objects in
memory? Thanks to your RecyclerView, no.
Creating a View for every item in the list all at once could easily become unworkable. As you can
imagine, a list can have far more than 100 items, and your list items can be much more involved than
your simple implementation here. Also, a Crime only needs a View when it is onscreen, so there is no
need to have 100 Views ready and waiting. It would make far more sense to create view objects only as
you need them.
RecyclerView does just that. Instead of creating 100 Views, it creates 12 – enough to fill the screen.
When a view is scrolled off the screen, RecyclerView reuses it rather than throwing it away. In short, it
lives up to its name: It recycles views over and over.
Chapter 8Displaying Lists with RecyclerView
168
ViewHolders and Adapters
The RecyclerView’s only responsibilities are recycling TextViews and positioning them onscreen.
To get the TextViews in the first place, it works with two classes that you will build in a moment: an
Adapter subclass and a ViewHolder subclass.
The ViewHolder’s job is small, so let’s talk about it first. The ViewHolder does one thing: It holds on to
a View (Figure8.5).
Figure 8.5The lowly ViewHolder
A small job, but that is what ViewHolders do. A typical ViewHolder subclass looks like this:
Listing 8.13A typical ViewHolder subclass
public class ListRow extends RecyclerView.ViewHolder {
public ImageView mThumbnail;
public ListRow(View view) {
super(view);
mThumbnail = (ImageView) view.findViewById(R.id.thumbnail);
}
}
You can then create a ListRow and access both mThumbnail, which you created yourself, and
itemView, a field that your superclass RecyclerView.ViewHolder assigns for you. The itemView
field is your ViewHolder’s reason for existing: It holds a reference to the entire View you passed into
super(view).
Listing 8.14Typical usage of a ViewHolder
ListRow row = new ListRow(inflater.inflate(R.layout.list_row, parent, false));
View view = row.itemView;
ImageView thumbnailView = row.mThumbnail;
ViewHolders and Adapters
169
A RecyclerView never creates Views by themselves. It always creates ViewHolders, which bring their
itemViews along for the ride (Figure8.6).
Figure 8.6A RecyclerView with its ViewHolders
When the View is simple, ViewHolder has few responsibilities. For more complicated Views, the
ViewHolder makes wiring up the different parts of itemView to a Crime simpler and more efficient.
You will see how this works later on in this chapter, when you build a complex View yourself.
Adapters
Figure8.6 is somewhat simplified. RecyclerView does not create ViewHolders itself. Instead, it asks
an adapter. An adapter is a controller object that sits between the RecyclerView and the data set that
the RecyclerView should display.
The adapter is responsible for:
• creating the necessary ViewHolders
• binding ViewHolders to data from the model layer
To build an adapter, you first define a subclass of RecyclerView.Adapter. Your adapter subclass will
wrap the list of crimes you get from CrimeLab.
Chapter 8Displaying Lists with RecyclerView
170
When the RecyclerView needs a view object to display, it will have a conversation with its adapter.
Figure8.7 shows an example of a conversation that a RecyclerView might initiate.
Figure 8.7A scintillating RecyclerView-Adapter conversation
First, the RecyclerView asks how many objects are in the list by calling the adapter’s getItemCount()
method.
Then the RecyclerView calls the adapter’s onCreateViewHolder(ViewGroup, int) method to create a
new ViewHolder, along with its juicy payload: a View to display.
Finally, the RecyclerView calls onBindViewHolder(ViewHolder, int). The RecyclerView will pass a
ViewHolder into this method along with the position. The adapter will look up the model data for that
position and bind it to the ViewHolder’s View. To bind it, the adapter fills in the View to reflect the data
in the model object.
After this process is complete, RecyclerView will place a list item on the screen.
Note that onCreateViewHolder(ViewGroup, int) will happen a lot less often than
onBindViewHolder(ViewHolder, int). Once enough ViewHolders have been created, RecyclerView
stops calling onCreateViewHolder(…). Instead, it saves time and memory by recycling old
ViewHolders.
Using a RecyclerView
171
Using a RecyclerView
Enough talk; time for the implementation. The RecyclerView class lives in one of Google’s many
support libraries. The first step to using a RecyclerView is to add the RecyclerView library as a
dependency.
Navigate to your project structure window with File → Project Structure.... Select the app module
on the left, then the Dependencies tab. Use the + button and choose Library dependency to add a
dependency.
Find and select the recyclerview-v7 library and click OK to add the library as a dependency, as shown in
Figure8.8.
Figure 8.8Adding the RecyclerView dependency
Your RecyclerView will live in CrimeListFragment’s layout file. First, you must create the layout
file. Right-click on the res/layout directory and select New → Layout resource file. Name the file
fragment_crime_list and click OK to create the file.
Open the new fragment_crime_list file and modify the root view to be a RecyclerView and to give it
an ID attribute.
Listing 8.15Adding RecyclerView to a layout file
(fragment_crime_list.xml)
<LinearLayout xmlns:android="http://schemas.android.com/apk/res/android"
android:orientation="vertical"
android:layout_width="match_parent"
android:layout_height="match_parent">
</LinearLayout>
<android.support.v7.widget.RecyclerView
xmlns:android="http://schemas.android.com/apk/res/android"
android:id="@+id/crime_recycler_view"
android:layout_width="match_parent"
android:layout_height="match_parent"/>
Chapter 8Displaying Lists with RecyclerView
172
Now that CrimeListFragment’s view is set up, hook up the view to the fragment. Modify
CrimeListFragment to use this layout file and to find the RecyclerView in the layout file, as shown in
Listing 8.16.
Listing 8.16Setting up the view for CrimeListFragment
(CrimeListFragment.java)
public class CrimeListFragment extends Fragment {
// Nothing yet
private RecyclerView mCrimeRecyclerView;
@Override
public View onCreateView(LayoutInflater inflater, ViewGroup container,
Bundle savedInstanceState) {
View view = inflater.inflate(R.layout.fragment_crime_list, container, false);
mCrimeRecyclerView = (RecyclerView) view
.findViewById(R.id.crime_recycler_view);
mCrimeRecyclerView.setLayoutManager(new LinearLayoutManager(getActivity()));
return view;
}
}
Note that as soon as you create your RecyclerView, you give it another object called a LayoutManager.
RecyclerView requires a LayoutManager to work. If you forget to give it one, it will crash.
RecyclerView does not position items on the screen itself. It delegates that job to the LayoutManager.
The LayoutManager positions every item and also defines how scrolling works. So if RecyclerView
tries to do those things when the LayoutManager is not there, the RecyclerView will immediately fall
over and die.
There are a few built-in LayoutManagers to choose from, and you can find more as third-party libraries.
You are using the LinearLayoutManager, which will position the items in the list vertically. Later on in
this book, you will use GridLayoutManager to arrange items in a grid instead.
Run the app. You should again see a blank screen, but now you are looking at an empty RecyclerView.
You will not see any Crimes represented on the screen until the Adapter and ViewHolder
implementations are defined.
A view to display
173
A view to display
Each item displayed on the RecyclerView will have its own view hierarchy, exactly the way
CrimeFragment has a view hierarchy for the entire screen. You create a new layout for a list item view
the same way you do for the view of an activity or a fragment. In the project tool window, right-click
the res/layout directory and choose New → Layout resource file. In the dialog that appears, name the
file list_item_crime and click OK.
Update your layout file to add the two TextViews as shown in Figure8.9.
Figure 8.9Updating the list item layout file (list_item_crime.xml)
Take a look at the design preview, and you will see that you have created exactly one row of the
completed product. In a moment, you will see how RecyclerView will create those rows for you.
Implementing a ViewHolder and an Adapter
The next job is to define the ViewHolder that will inflate and own your layout. Define it as an inner
class in CrimeListFragment.
Listing 8.17The beginnings of a ViewHolder (CrimeListFragment.java)
public class CrimeListFragment extends Fragment {
...
private class CrimeHolder extends RecyclerView.ViewHolder {
public CrimeHolder(LayoutInflater inflater, ViewGroup parent) {
super(inflater.inflate(R.layout.list_item_crime, parent, false));
}
}
}
In CrimeHolder’s constructor, you inflate list_item_crime.xml. Immediately you pass it
into super(…), ViewHolder’s constructor. The base ViewHolder class will then hold on to the
fragment_crime_list.xml view hierarchy. If you need that view hierarchy, you can find it in
ViewHolder’s itemView field.
Chapter 8Displaying Lists with RecyclerView
174
CrimeHolder is all skin and bones right now. Later in the chapter, CrimeHolder will beef up as you
give it more work to do.
With the ViewHolder defined, create the adapter.
Listing 8.18The beginnings of an adapter (CrimeListFragment.java)
public class CrimeListFragment extends Fragment {
...
private class CrimeAdapter extends RecyclerView.Adapter<CrimeHolder> {
private List<Crime> mCrimes;
public CrimeAdapter(List<Crime> crimes) {
mCrimes = crimes;
}
}
}
(The code in Listing 8.18 will not compile. You will fix this in a moment.)
When the RecyclerView needs to display a new ViewHolder or connect a Crime object to an existing
ViewHolder, it will ask this adapter for help by calling a method on it. The RecyclerView itself will
not know anything about the Crime object, but the Adapter will know all of Crime’s intimate and
personal details.
Next, implement three method overrides in CrimeAdapter. (You can automatically generate these
overrides by putting your cursor on top of extends, keying in Option-Return (Alt+Enter), selecting
Implement methods, and clicking OK. Then you only need to fill in the bodies.)
Listing 8.19Filling out CrimeAdapter (CrimeListFragment.java)
private class CrimeAdapter extends RecyclerView.Adapter<CrimeHolder> {
...
@Override
public CrimeHolder onCreateViewHolder(ViewGroup parent, int viewType) {
LayoutInflater layoutInflater = LayoutInflater.from(getActivity());
return new CrimeHolder(layoutInflater, parent);
}
@Override
public void onBindViewHolder(CrimeHolder holder, int position) {
}
@Override
public int getItemCount() {
return mCrimes.size();
}
}
onCreateViewHolder is called by the RecyclerView when it needs a new ViewHolder to display an
item with. In this method, you create a LayoutInflater and use it to construct a new CrimeHolder.
Your adapter must have an override for onBindViewHolder(…), but for now you can leave it empty. In a
moment, you will return to it.
Implementing a ViewHolder and an Adapter
175
Now that you have an Adapter, connect it to your RecyclerView. Implement a method called
updateUI that sets up CrimeListFragment’s UI. For now it will create a CrimeAdapter and set it on the
RecyclerView.
Listing 8.20Setting an Adapter (CrimeListFragment.java)
public class CrimeListFragment extends Fragment {
private RecyclerView mCrimeRecyclerView;
private CrimeAdapter mAdapter;
@Override
public View onCreateView(LayoutInflater inflater, ViewGroup container,
Bundle savedInstanceState) {
View view = inflater.inflate(R.layout.fragment_crime_list, container, false);
mCrimeRecyclerView = (RecyclerView) view
.findViewById(R.id.crime_recycler_view);
mCrimeRecyclerView.setLayoutManager(new LinearLayoutManager(getActivity()));
updateUI();
return view;
}
private void updateUI() {
CrimeLab crimeLab = CrimeLab.get(getActivity());
List<Crime> crimes = crimeLab.getCrimes();
mAdapter = new CrimeAdapter(crimes);
mCrimeRecyclerView.setAdapter(mAdapter);
}
...
}
In later chapters, you will add more to updateUI() as configuring your UI gets more involved.
Chapter 8Displaying Lists with RecyclerView
176
Run CriminalIntent and scroll through your new RecyclerView, which should look like Figure8.10.

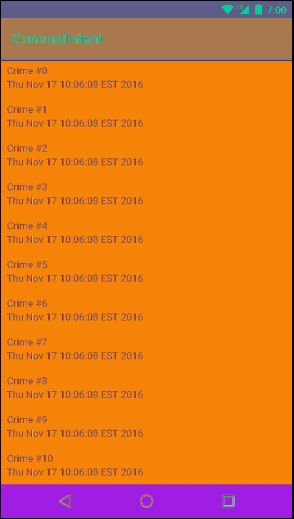

Figure 8.10A beautiful list of… beautiful, beautiful beautifuls
Hmm. Looking a little repetitive there, Mr. RecyclerView. Swipe or drag down, and you will see even
more identical views scroll across your screen.
In the screenshot above, there are 11 rows, which means that onCreateViewHolder(…) was called
11 times. If you scroll down, a few more CrimeHolders may be created, but at a certain point
RecyclerView will stop creating new CrimeHolders. Instead, it will recycle old CrimeHolders as they
scroll off the top of the screen. RecyclerView, you were named well indeed.
For the moment, every row is identical. In your next step, you will fill each CrimeHolder with fresh
information as it is recycled by binding to it.
Binding List Items
Binding is taking Java code (like model data in a Crime, or click listeners) and hooking it up to a
widget. So far, in all the exercises up until this point in the book, you bound each and every time you
inflated a view. This meant there was no need to split that work into its own method. However, now
that views are being recycled, it pays to have creation in one place and binding in another.
All the code that will do the real work of binding will go inside your CrimeHolder. That work starts
with pulling out all the widgets you are interested in. This only needs to happen one time, so write this
code in your constructor.
Binding List Items
177
Listing 8.21Pulling out views in the constructor (CrimeListFragment.java)
private class CrimeHolder extends RecyclerView.ViewHolder {
private TextView mTitleTextView;
private TextView mDateTextView;
public CrimeHolder(LayoutInflater inflater, ViewGroup parent) {
super(inflater.inflate(R.layout.list_item_crime, parent, false));
mTitleTextView = (TextView) itemView.findViewById(R.id.crime_title);
mDateTextView = (TextView) itemView.findViewById(R.id.crime_date);
}
}
Your CrimeHolder will also need a bind(Crime) method. This will be called each time a new Crime
should be displayed in your CrimeHolder. First, add bind(Crime).
Listing 8.22Writing a bind(Crime) method (CrimeListFragment.java)
private class CrimeHolder extends RecyclerView.ViewHolder {
private Crime mCrime;
...
public void bind(Crime crime) {
mCrime = crime;
mTitleTextView.setText(mCrime.getTitle());
mDateTextView.setText(mCrime.getDate().toString());
}
}
When given a Crime, CrimeHolder will now update the title TextView and date TextView to reflect the
state of the Crime.
Next, call your newly minted bind(Crime) method each time the RecyclerView requests that a given
CrimeHolder be bound to a particular crime.
Listing 8.23Calling the bind(Crime) method (CrimeListFragment.java)
private class CrimeAdapter extends RecyclerView.Adapter<CrimeHolder> {
...
@Override
public void onBindViewHolder(CrimeHolder holder, int position) {
Crime crime = mCrimes.get(position);
holder.bind(crime);
}
...
}
Chapter 8Displaying Lists with RecyclerView
178
Run CriminalIntent one more time, and every visible CrimeHolder should now display a distinct Crime
(Figure8.11).
Figure 8.11All right, all right, all right
When you fling the view up, the scrolling animation should feel as smooth as warm butter. This effect
is a direct result of keeping onBindViewHolder(…) small and efficient, doing only the minimum
amount of work necessary.
Take heed: Always be efficient in your onBindViewHolder(…). Otherwise, your scroll animation could
feel as chunky as cold Parmesan cheese.
Responding to Presses
As icing on the RecyclerView cake, CriminalIntent should also respond to a press on these list items.
In Chapter10, you will launch the detail view for a Crime when the user presses on that Crime in the
list. For now, show a Toast when the user takes action on a Crime.
As you may have noticed, RecyclerView, while powerful and capable, has precious few real
responsibilities. (May it be an example to us all.) The same goes here: Handling touch events is mostly
up to you. If you need them, RecyclerView can forward along raw touch events. But most of the time
this is not necessary.
Instead, you can handle them like you normally do: by setting an OnClickListener. Since each View
has an associated ViewHolder, you can make your ViewHolder the OnClickListener for its View.
Modify the CrimeHolder to handle presses for the entire row.
For the More Curious: ListView and GridView
179
Listing 8.24Detecting presses in CrimeHolder (CrimeListFragment.java)
private class CrimeHolder extends RecyclerView.ViewHolder
implements View.OnClickListener {
...
public CrimeHolder(LayoutInflater inflater, ViewGroup parent) {
super(inflater.inflate(R.layout.list_item_crime, parent, false));
itemView.setOnClickListener(this);
...
}
...
@Override
public void onClick(View view) {
Toast.makeText(getActivity(),
mCrime.getTitle() + " clicked!", Toast.LENGTH_SHORT)
.show();
}
}
In Listing 8.24, the CrimeHolder itself is implementing the OnClickListener interface. On the
itemView, which is the View for the entire row, the CrimeHolder is set as the receiver of click events.
Run CriminalIntent and press on an item in the list. You should see a Toast indicating that the item
was clicked.
For the More Curious: ListView and GridView
The core Android OS includes ListView, GridView, and Adapter classes. Until the release of Android
5.0, these were the preferred ways to create lists or grids of items.
The API for these components is very similar to that of a RecyclerView. The ListView or GridView
class is responsible for scrolling a collection of items, but it does not know much about each of those
items. The Adapter is responsible for creating each of the Views in the list. However, ListView and
GridView do not enforce that you use the ViewHolder pattern (though you can – and should – use it).
These old implementations are replaced by the RecyclerView implementation because of the
complexity required to alter the behavior of a ListView or GridView.
Creating a horizontally scrolling ListView, for example, is not included in the ListView API and
requires a lot of work. Creating custom layout and scrolling behavior with a RecyclerView is still a lot
of work, but RecyclerView was built to be extended, so it is not quite so bad.
Another key feature of RecyclerView is the animation of items in the list. Animating the addition
or removal of items in a ListView or GridView is a complex and error-prone task. RecyclerView
makes this much easier, includes a few built-in animations, and allows for easy customization of these
animations.
For example, if you found out that the crime at position 0 moved to position 5, you could animate that
change like so:
mRecyclerView.getAdapter().notifyItemMoved(0, 5);
For the More Curious: Singletons
The singleton pattern, as used in the CrimeLab, is very common in Android. Singletons get a bad rap
because they can be misused in a way that makes an app hard to maintain.
Chapter 8Displaying Lists with RecyclerView
180
Singletons are often used in Android because they outlive a single fragment or activity. A singleton
will still exist across rotation and will exist as you move between activities and fragments in your
application.
Singletons make a convenient owner of your model objects. Imagine a more complex CriminalIntent
application that had many activities and fragments modifying crimes. When one controller modifies
a crime, how would you make sure that updated crime was sent over to the other controllers? If the
CrimeLab is the owner of crimes and all modifications to crimes pass through it, propagating changes
is much easier. As you transition between controllers, you can pass the crime ID as an identifier for a
particular crime and have each controller pull the full crime object from the CrimeLab using that ID.
However, singletons do have a few downsides. For example, while they allow for an easy place to stash
data with a longer lifetime than a controller, singletons do have a lifetime. Singletons will be destroyed,
along with all of their instance variables, as Android reclaims memory at some point after you switch
out of an application. Singletons are not a long-term storage solution. (Writing the files to disk or
sending them to a web server is.)
Singletons can also make your code hard to unit test. There is not a great way to replace the CrimeLab
instance in this chapter with a mock version of itself because the code is calling a static method
directly on the CrimeLab object. In practice, Android developers usually solve this problem using a tool
called a dependency injector. This tool allows for objects to be shared as singletons, while still making
it possible to replace them when needed.
Singletons also have the potential to be misused. The temptation is to use singletons for everything
because they are convenient – you can get to them wherever you are, and store whatever information
you need to get at later. But when you do that, you are avoiding answering important questions: Where
is this data used? Where is this method important?
A singleton does not answer those questions. So whoever comes after you will open up your singleton
and find something that looks like somebody’s disorganized junk drawer. Batteries, zip ties, old
photographs? What is all this here for? Make sure that anything in your singleton is truly global and
has a strong reason for being there.
On balance, however, singletons are a key component of a well-architected Android app – when used
correctly.
Challenge: RecyclerView ViewTypes
For this advanced challenge, you will create two types of rows in your RecyclerView: a normal
row and a row for more serious crimes. To implement this, you will work with the view type
feature available in RecyclerView.Adapter. Add a new property, mRequiresPolice, to the Crime
object and use it to determine which view to load on the CrimeAdapter by implementing the
getItemViewType(int) method (developer.android.com/reference/android/support/v7/widget/
RecyclerView.Adapter.html#getItemViewType(int)).
In the onCreateViewHolder(ViewGroup, int) method, you will also need to add logic that returns a
different ViewHolder based on the new viewType value returned by getItemViewType(int). Use the
original layout for crimes that do not require police intervention and a new layout with a streamlined
interface containing a button that says “contact police” for crimes that do.
181
9
Creating User Interfaces with
Layouts and Widgets
In this chapter, you will learn more about layouts and widgets while adding some style to your list
items in the RecyclerView. You will also learn about a new tool called ConstraintLayout. Figure9.1
shows what CrimeListFragment’s view will look like once you chisel down your existing app to build
up your masterpiece.

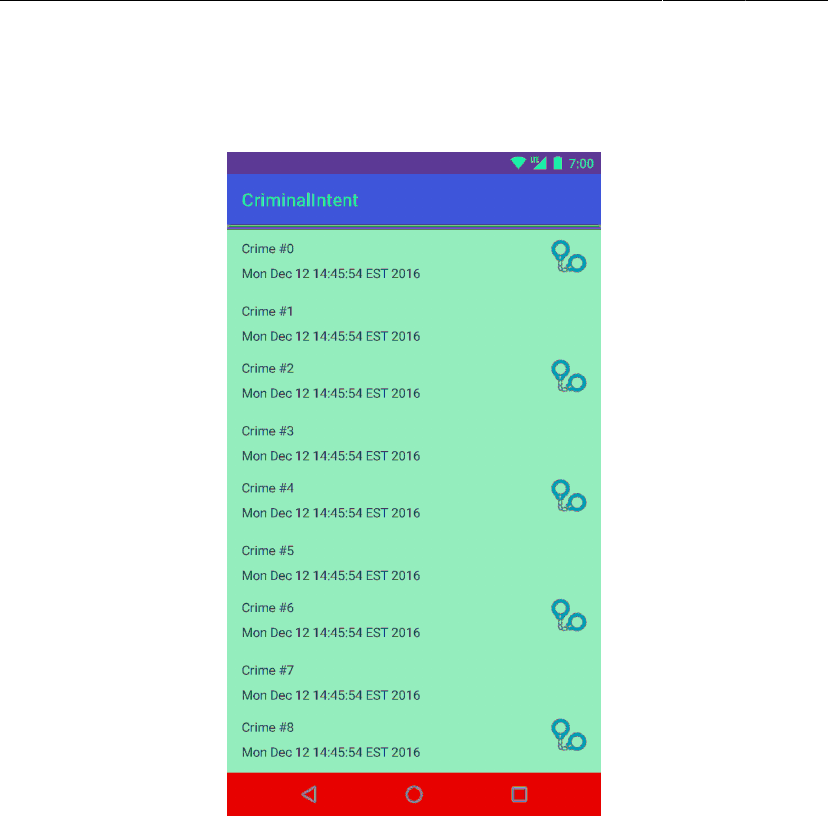

Figure 9.1CriminalIntent, now with beautiful pictures
Before you dive in to ConstraintLayout, you must do a little legwork. You will need a copy of that
fancy handcuff image from Figure9.1 in your project. Navigate to the solutions file and open the
09_LayoutsAndWidgets/CriminalIntent/app/src/main/res directory. Copy each density version of
ic_solved.png into the appropriate drawable folder in your project. For information on how to access
the solutions files, refer back to the section called Adding an Icon in Chapter2.
Chapter 9Creating User Interfaces with Layouts and Widgets
182
Using the Graphical Layout Tool
So far, you have created layouts by typing XML. In this section, you will use Android Studio’s
graphical layout tool.
Open list_item_crime.xml and select the Design tab at the bottom of the file.
In the middle of the graphical layout tool is the preview you have already seen. Just to the right of the
preview is the blueprint. The blueprint view is like the preview but shows an outline of each of your
views. This can be useful when you need to see how big each view is, not just what it is displaying.
On the lefthand side of the screen is the palette. This view contains all the widgets you could wish for,
organized by category (Figure9.2).
Figure 9.2Views in the graphical layout tool
The component tree is in the bottom left. The tree shows how the widgets are organized in the layout.
On the right side of the screen is the properties view. In this view, you can view and edit the attributes
of the widget selected in the component tree.
Introducing ConstraintLayout
183
Introducing ConstraintLayout
With ConstraintLayout, instead of using nested layouts you add a series of constraints to your
layout. A constraint is like a rubber band. It pulls two things toward each other. So, for example,
you can attach a constraint from the right edge of an ImageView to the right edge of its parent (the
ConstraintLayout itself), as shown in Figure9.3. The constraint will hold the ImageView to the right.
Figure 9.3ImageView with a constraint on the right edge
You can create a constraint from all four edges of your ImageView (left, top, right, and bottom). If you
have opposing constraints, they will equal out and your ImageView will be right in the center of the two
constraints (Figure9.4).
Figure 9.4ImageView with opposing constraints
So that is the big picture: To place views where you want them to go in a ConstraintLayout, you give
them constraints instead of dragging them around the screen.
What about sizing widgets? For that, you have three options: Let the widget decide (your old friend
wrap_content), decide for yourself, or let your widget expand to fit your constraints.
With all those tools, you can achieve a great many layouts with a single ConstraintLayout, no nesting
required. As you go through this chapter, you will see how to use constraints with list_item_crime.
Chapter 9Creating User Interfaces with Layouts and Widgets
184
Using ConstraintLayout
Now, convert list_item_crime.xml to use a ConstraintLayout. Right-click on your root
LinearLayout in the component tree and select Convert LinearLayout to ConstraintLayout (Figure9.5).
Figure 9.5Converting the root view to a ConstraintLayout
Android Studio will ask you in a pop-up how aggressive you would like this conversion process to be
(Figure9.6). Since list_item_crime is a simple layout file, there is not much that Android Studio can
optimize. Leave the default values checked and select OK.
Figure 9.6Converting with the default configuration
Using ConstraintLayout
185
Finally, you will be asked to add the constraint layout dependency to your project (Figure9.7).
ConstraintLayout lives in a library, like RecyclerView. To use the tool, you must add a dependency to
your Gradle file. Or, you can select OK on this dialog and Android Studio will do it for you.
Figure 9.7Adding the ConstraintLayout dependency
If you peep your app/build.gradle file, you will see that the dependency has been added:
Listing 9.1ConstraintLayout project dependency (app/build.gradle)
dependencies {
...
compile 'com.android.support.constraint:constraint-layout:1.0.0-beta4'
}
Your LinearLayout has now been converted to a ConstraintLayout.
Chapter 9Creating User Interfaces with Layouts and Widgets
186
The graphical editor
Look to the toolbar near the top of the preview and you will find a few editing controls (Figure9.8).
Figure 9.8Constraint controls
Show Constraints Show Constraints will reveal the constraints that are set up in the
preview and blueprint views. You will find this option helpful at
times and unhelpful at others. If you have many constraints, this
button will trigger an overwhelming amount of information.
Toggle Autoconnect When autoconnect is enabled, constraints will be automatically
configured as you drag views into the preview. Android Studio
will guess the constraints that you want a view to have and make
those connections on demand.
Clear All Constraints Clear All Constraints will remove all existing constraints in this
layout file. You will use this option soon.
Infer Constraints This option is similar to autoconnect in that Android Studio will
automatically create constraints for you, but it is only triggered
when you select this option. Autoconnect is active anytime you
add a view to your layout file.
When you converted list_item_crime to use ConstraintLayout, Android Studio automatically
added the constraints it thinks will replicate the behavior of your old layout. However, to learn how
constraints work you are going to start from scratch.
The graphical editor
187
Select the ConstraintLayout view in the component tree, then choose the Clear All Constraints option
from Figure9.8. You will immediately see a red warning flag with the number 4 at the top right of the
screen. Click on it to see what that is all about (Figure9.9).
Figure 9.9ConstraintLayout warnings
When views do not have enough constraints, ConstraintLayout cannot know exactly where to put
them. Your TextViews have no constraints at all, so they each have a warning that says they will not
appear in the right place at runtime.
As you go through the chapter, you will add those constraints back to fix those warnings. In your own
work, keep an eye on that warning indicator to avoid unexpected behavior at runtime.
Chapter 9Creating User Interfaces with Layouts and Widgets
188
Making room
You need to make some room. Your two TextViews are taking up the entire area, which will make it
hard to wire up anything else. Time to shrink those two widgets.
Select crime_title in the component tree and look at the properties view on the right (Figure9.10).
Figure 9.10Title TextView’s properties
The vertical and horizontal sizes of your TextView are governed by the height setting and width
setting, respectively. These can be set to one of three view size settings (Figure9.11), each of which
corresponds to a value for layout_width or layout_height.
Figure 9.11Three view size settings
Making room
189
Table 9.1View size setting types
Setting
type
Setting
value
Usage
fixed Xdp Specifies an explicit size (that will not change) for the view.
The size is specified in dp units. (More on dp units later in this chapter.)
wrap content wrap_content Assigns the view its “desired” size. For a TextView, this means that the
size will be just big enough to show its contents.
any size 0dp Allows the view to stretch to meet the specified constraints.
Both crime_title and crime_date are set to a large fixed width, which is why they are taking up the
whole screen. Adjust the width and height of both of these widgets. With crime_title still selected in the
component tree, click the width setting until it cycles around to the wrap content setting. If necessary,
adjust the height setting until the height is also set to wrap content (Figure9.12).
Figure 9.12Adjusting the title width and height
Chapter 9Creating User Interfaces with Layouts and Widgets
190
Repeat the process with the crime_date widget to set its width and height. Now, the two widgets
overlap but are much smaller (Figure9.13).
Figure 9.13Overlapping TextViews
Adding widgets
With your other widgets out of the way, you can add the handcuffs image to your layout. Add
an ImageView to your layout file. In the palette, find ImageView (Figure9.14). Drag it into your
component tree as a child of ConstraintLayout, just underneath crime_date.
Figure 9.14Finding the ImageView
Adding widgets
191
In the pop-up, choose ic_solved as the resource for the ImageView (Figure9.15). This image will be
used to indicate which crimes have been solved.
Figure 9.15Choosing the ImageView’s resource
The ImageView is now a part of your layout, but it has no constraints. So while the graphical editor
gives it a position, that position does not really mean anything.
Time to add some constraints. Click on your ImageView in the preview or in the component tree. You
will see dots on each side of the ImageView (Figure9.16). Each of these dots represents a constraint
handle.
Figure 9.16ImageView’s constraint handles
Chapter 9Creating User Interfaces with Layouts and Widgets
192
You want the ImageView to be anchored in the right side of the view. To accomplish this, you need to
create constraints from the top, right, and bottom edges of the ImageView.
First, you are going to set a constraint between the top of the ImageView and the top of the
ConstraintLayout. The top of the ConstraintLayout is a little difficult to see, but it is just under the
blue CriminalIntent toolbar. In the preview, drag the top constraint handle from the ImageView to the top
of the ConstraintLayout – you will need to drag to the right somewhat, because the image is at the top
of the constraint layout. Watch for the constraint handle to turn green and a pop-up reading Release to
Create Top Constraint to appear (Figure9.17), and release the mouse.
Figure 9.17Creating a top constraint
Be careful to avoid clicking when the mouse cursor is a corner shape – this will resize your ImageView
instead. Also, make sure you do not inadvertently attach the constraint to one of your TextViews. If
you do, click on the constraint handle to delete the bad constraint, then try again.
When you let go and set the constraint, the view will snap into position to account for the presence
of the new constraint. This is how you move views around in a ConstraintLayout – by setting and
removing constraints.
Verify that your ImageView has a top constraint connected to the top of the ConstraintLayout by
hovering over the ImageView with your mouse. It should look like Figure9.18.
Figure 9.18ImageView with a top constraint
Adding widgets
193
Do the same for the bottom constraint handle, dragging it from the ImageView to the bottom of the root
view, also taking care to avoid attaching to the TextViews. Again, you will need to drag the connection
toward the center of the root view and then slightly down, as shown in Figure9.19.
Figure 9.19ImageView connection in progress
Finally, drag the right constraint handle from the ImageView to the right side of the root view. That
should set all of your constraints. Hovering over the ImageView will show all of them. Your constraints
should look like Figure9.20.
Figure 9.20ImageView’s three constraints
Chapter 9Creating User Interfaces with Layouts and Widgets
194
ConstraintLayout’s inner workings
Any edits that you make with the graphical editor are reflected in the XML behind the scenes. You
can still edit the raw ConstraintLayout XML, but the graphical editor will often be easier, because
ConstraintLayout is much more verbose than other ViewGroups.
Switch to the text view to see what happened to the XML when you created the three constraints on
your ImageView.
Listing 9.2ImageView’s new XML constraints
(layout/list_item_crime.xml)
<android.support.constraint.ConstraintLayout
xmlns:android="http://schemas.android.com/apk/res/android"
xmlns:app="http://schemas.android.com/apk/res-auto"
xmlns:tools="http://schemas.android.com/tools"
android:layout_width="match_parent"
android:layout_height="wrap_content">
...
<ImageView
android:id="@+id/imageView"
android:layout_width="wrap_content"
android:layout_height="wrap_content"
app:srcCompat="@drawable/ic_solved"
android:layout_marginTop="16dp"
app:layout_constraintTop_toTopOf="parent"
app:layout_constraintBottom_toBottomOf="parent"
android:layout_marginBottom="16dp"
android:layout_marginEnd="16dp"
app:layout_constraintRight_toRightOf="parent"/>
</android.support.constraint.ConstraintLayout>
Take a closer look at the top constraint:
app:layout_constraintTop_toTopOf="parent"
This attribute begins with layout_. All attributes that begin with layout_ are known as layout
parameters. Unlike other attributes, layout parameters are directions to that widget’s parent, not the
widget itself. They tell the parent layout how to arrange the child element within itself. You have seen a
few layout parameters so far, like layout_width and layout_height.
The name of the constraint is constraintTop. This means that this is the top constraint on your
ImageView.
Finally, the attribute ends with toTopOf="parent". This means that this constraint is connected to the
top edge of the parent. The parent here is the ConstraintLayout.
Whew, what a mouthful. Time to leave the raw XML behind and return to the graphical editor.
Editing properties
195
Editing properties
Your ImageView is now positioned correctly. Next up: Position and size the title TextView.
First, select crime_date in the component tree and drag it out of the way (Figure9.21). Remember that
any changes you make to the position in the preview will not be represented when the app is running.
At runtime, only constraints remain.
Figure 9.21Get out of here, date
Now, select crime_title in the component tree. This will also highlight crime_title in the preview.
You want crime_title to be at the top left of your layout, positioned to the left of your new ImageView.
That requires three constraints:
• from the left side of your view to the left side of the parent, with a 16dp margin
• from the top of your view to the top of the parent, with a 16dp margin
• from the right of your view to the left side of the new ImageView, with an 8dp margin
Modify your layout so that all of these constraints are in place. (As of this writing, finding the right
place to click can be tricky. Try to click inside of the TextView, and remember that you can always key
Command+Z (Ctrl+Z) to undo and try again.)
Verify that your constraints look like Figure9.22. (The selected widget will show squiggly lines for
any of its constraints that are stretching.)
Figure 9.22Title TextView’s constraints
When you click on the TextView, you can see that it has an oval area that the ImageView did not have.
TextViews have this additional constraint anchor that can be used to align text. You will not be using it
in this chapter, but now you know what it is.
Chapter 9Creating User Interfaces with Layouts and Widgets
196
Now that the constraints are set up, you can restore the title TextView to its full glory. Adjust its
horizontal view setting to any size (0dp) to allow the title TextView to fill all of the space available
within its constraints. Adjust the vertical view size to wrap_content, if it is not already, so that the
TextView will be just tall enough to show the title of the crime. Verify that your settings match those
shown in Figure9.23.
Figure 9.23crime_title view settings
Now, add constraints to the date TextView. Select crime_date in the component tree. You are going to
add three constraints:
• from the left side of your view to the left side of the parent, with a 16dp margin
• from the top of your view to the bottom of the crime title, with an 8dp margin
• from the right of your view to the left side of the new ImageView, with an 8dp margin
Editing properties
197
After adding the constraints, adjust the properties of the TextView. You want the width of your date
TextView to be Any Size and the height to be Wrap Content, just like the title TextView. Verify that
your settings match those shown in Figure9.24.
Figure 9.24crime_date view settings
Your layout in the preview should look similar to Figure9.1, at the beginning of the chapter.
Chapter 9Creating User Interfaces with Layouts and Widgets
198
Run CriminalIntent and verify that you see all three components lined up nicely in each row of your
RecyclerView (Figure9.25).
Figure 9.25Now with three views per row
Making list items dynamic
199
Making list items dynamic
Now that the layout includes the right constraints, update the ImageView so that the handcuffs are only
shown on crimes that have been solved.
First, update the ID of your ImageView. When you added the ImageView to your ConstraintLayout,
it was given a default name. That name is not too descriptive. Select your ImageView in
list_item_crime.xml and, in the properties view, update the ID attribute to crime_solved
(Figure9.26). You will be asked whether Android Studio should update all usages of the ID; select
Yes.
Figure 9.26Updating the image ID
With a proper ID in place, now you will update your code. Open CrimeListFragment.java. In
CrimeHolder, add an ImageView instance variable and toggle its visibility based on the solved status of
your crime.
Listing 9.3Updating handcuff visibility (CrimeListFragment.java)
private class CrimeHolder extends RecyclerView.ViewHolder
implements View.OnClickListener {
...
private TextView mDateTextView;
private ImageView mSolvedImageView;
public CrimeHolder(LayoutInflater inflater, ViewGroup parent) {
super(inflater.inflate(R.layout.list_item_crime, parent, false));
itemView.setOnClickListener(this);
mTitleTextView = (TextView) itemView.findViewById(R.id.crime_title);
mDateTextView = (TextView) itemView.findViewById(R.id.crime_date);
mSolvedImageView = (ImageView) itemView.findViewById(R.id.crime_solved);
}
public void bind(Crime crime) {
mCrime = crime;
mTitleTextView.setText(mCrime.getTitle());
mDateTextView.setText(mCrime.getDate().toString());
mSolvedImageView.setVisibility(crime.isSolved() ? View.VISIBLE : View.GONE);
}
...
}
Run CriminalIntent and verify that the handcuffs now appear on every other row.
Chapter 9Creating User Interfaces with Layouts and Widgets
200
More on Layout Attributes
Let’s add a few more tweaks to the design of list_item_crime.xml and, in the process, answer some
lingering questions you might have about widgets and attributes.
Navigate back to the Design view of list_item_crime.xml. Select crime_title and adjust some of the
attributes in the properties view.
Click the disclosure arrow next to textAppearance to reveal a set of text and font attributes. Update the
textColor attribute to @android:color/black (Figure9.27).
Figure 9.27Updating the title color
Next, set the textSize attribute to 18sp. Run CriminalIntent and be amazed at how much better
everything looks with a fresh coat of paint.
Screen pixel densities and dp and sp
In list_item_crime.xml, you have specified attribute values in terms of sp and dp units. Now it is
time to learn what they are.
Sometimes you need to specify values for view attributes in terms of specific sizes (usually in pixels,
but sometimes points, millimeters, or inches). You see this most commonly with attributes for text size,
margins, and padding. Text size is the pixel height of the text on the device’s screen. Margins specify
the distances between views, and padding specifies the distance between a view’s outside edges and its
content.
As you saw in the section called Adding an Icon in Chapter2, Android automatically scales images to
different screen pixel densities using density-qualified drawable folders (such as drawable-xhdpi). But
what happens when your images scale, but your margins do not? Or when the user configures a larger-
than-default text size?
To solve these problems, Android provides density-independent dimension units that you can use to
get the same size on different screen densities. Android translates these units into pixels at runtime, so
there is no tricky math for you to do (Figure9.28).
Screen pixel densities and dp and sp
201
Figure 9.28Dimension units in action on TextView
px Short for pixel. One pixel corresponds to one onscreen pixel, no matter what the
display density is. Because pixels do not scale appropriately with device display
density, their use is not recommended.
dp (or dip) Short for density-independent pixel and usually pronounced “dip.” You typically
use this for margins, padding, or anything else for which you would otherwise
specify size with a pixel value. One dp is always 1/160th of an inch on a device’s
screen. You get the same size regardless of screen density: When your display is
a higher density, density-independent pixels will expand to fill a larger number of
screen pixels.
sp Short for scale-independent pixel. Scale-independent pixels are density-
independent pixels that also take into account the user’s font size preference. You
will almost always use sp to set display text size.
pt, mm, in These are scaled units, like dp, that allow you to specify interface sizes in points
(1/72 of an inch), millimeters, or inches. However, we do not recommend using
them: Not all devices are correctly configured for these units to scale correctly.
In practice and in this book, you will use dp and sp almost exclusively. Android will translate these
values into pixels at runtime.
Chapter 9Creating User Interfaces with Layouts and Widgets
202
Margins vs padding
In both GeoQuiz and CriminalIntent, you have given widgets margin and padding attributes. Beginning
developers sometimes get confused about these two. Now that you understand what a layout parameter
is, the difference is easier to explain.
Margin attributes are layout parameters. They determine the distance between widgets. Given that a
widget can only know about itself, margins must be the responsibility of the widget’s parent.
Padding, on the other hand, is not a layout parameter. The android:padding attribute tells the widget
how much bigger than its contents it should draw itself. For example, say you wanted the date button to
be spectacularly large without changing its text size (Figure9.29).
Figure 9.29I like big buttons and I cannot lie...
You could add the following attribute to the Button.
Listing 9.4Padding in action (fragment_crime.xml)
<Button android:id="@+id/crime_date"
android:layout_width="match_parent"
android:layout_height="wrap_content"
android:layout_marginLeft="16dp"
android:layout_marginRight="16dp"
android:padding="80dp" />
Alas, you should probably remove this attribute before continuing.
Styles, themes, and theme attributes
203
Styles, themes, and theme attributes
A style is an XML resource that contains attributes that describe how a widget should look and behave.
For example, the following is a style resource that configures a widget with a larger-than-normal text
size:
<style name="BigTextStyle">
<item name="android:textSize">20sp</item>
<item name="android:padding">3dp</item>
</style>
You can create your own styles (and you will in Chapter22). You add them to a styles file in res/
values/ and refer to them in layouts like this: @style/my_own_style.
Take another look at the TextView widgets in fragment_crime.xml; each has a style attribute that
refers to a style created by Android. This particular style makes the TextViews look like list separators
and comes from the app’s theme. A theme is a collection of styles. Structurally, a theme is itself a style
resource whose attributes point to other style resources.
Android provides platform themes that your apps can use. When you created CriminalIntent, the
wizard set up a theme for the app that is referenced on the application tag in the manifest.
You can apply a style from the app’s theme to a widget using a theme attribute
reference. This is what you are doing in fragment_crime.xml when you use the value
?android:listSeparatorTextViewStyle.
In a theme attribute reference, you tell Android’s runtime resource manager, “Go to the app’s theme
and find the attribute named listSeparatorTextViewStyle. This attribute points to another style
resource. Put the value of that resource here.”
Every Android theme will include an attribute named listSeparatorTextViewStyle, but its definition
will be different depending on the overall look and feel of the particular theme. Using a theme attribute
reference ensures that the TextViews will have the correct look and feel for your app.
You will learn more about how styles and themes work in Chapter22.
Chapter 9Creating User Interfaces with Layouts and Widgets
204
Android’s design guidelines
Notice that for your margins, Android Studio defaulted to either a 16dp or a 8dp value. This value
follows Android’s material design guidelines. You can find all of the Android design guidelines at
developer.android.com/design/index.html.
Your Android apps should follow these guidelines as closely as possible. However, you should know
that the guidelines rely heavily on newer Android SDK functionality that is not always available or
easy to achieve on older devices. Many of the design recommendations can be followed using the
AppCompat library, which you have seen and will read more about in Chapter13.
The Graphical Layout Tools and You
The graphical layout tools are useful, especially with ConstraintLayout. Not everyone is a fan,
though. Many prefer the simplicity and clarity of working directly with XML, rather than relying on
the IDE.
Do not feel that you have to choose sides. You can switch between the graphical editor and directly
editing XML at any time. Feel free to use whichever tool you prefer to create the layouts in this book.
From now on, we will show you a diagram rather than the XML when you need to create a layout. You
can decide for yourself how to create it – XML, graphical editor, or some of each.
Challenge: Formatting the Date
The Date object is more of a timestamp than a conventional date. A timestamp is what you see
when you call toString() on a Date, so that is what you have on in each of your RecyclerView
rows. While timestamps make for good documentation, it might be nicer if the rows just displayed
the date as humans think of it – like “Jul 22, 2016.” You can do this with an instance of the
android.text.format.DateFormat class. The place to start is the reference page for this class in the
Android documentation.
You can use methods in the DateFormat class to get a common format. Or you can prepare your own
format string. For a more advanced challenge, create a format string that will display the day of the
week as well – for example, “Friday, Jul 22, 2016.”
205
10
Using Fragment Arguments
In this chapter, you will get the list and the detail parts of CriminalIntent working together. When a
user presses an item in the list of crimes, a new CrimeActivity hosting a CrimeFragment will appear
and display the details for that instance of Crime (Figure10.1).
Figure 10.1Starting CrimeActivity from CrimeListActivity
In GeoQuiz, you had one activity (QuizActivity) start another activity (CheatActivity). In
CriminalIntent, you are going to start the CrimeActivity from a fragment. In particular, you will have
CrimeListFragment start an instance of CrimeActivity.
Starting an Activity from a Fragment
Starting an activity from a fragment works nearly the same as starting an activity from another activity.
You call the Fragment.startActivity(Intent) method, which calls the corresponding Activity
method behind the scenes.
In CrimeListFragment’s CrimeHolder, begin by replacing the toast with code that starts an instance of
CrimeActivity.
Listing 10.1Starting CrimeActivity (CrimeListFragment.java)
private class CrimeHolder extends RecyclerView.ViewHolder
implements View.OnClickListener {
...
@Override
public void onClick(View view) {
Toast.makeText(getActivity(),
mCrime.getTitle() + " clicked!", Toast.LENGTH_SHORT)
.show();
Intent intent = new Intent(getActivity(), CrimeActivity.class);
startActivity(intent);
}
}
Chapter 10Using Fragment Arguments
206
Here CrimeListFragment creates an explicit intent that names the CrimeActivity class.
CrimeListFragment uses the getActivity() method to pass its hosting activity as the Context object
that the Intent constructor requires.
Run CriminalIntent. Press any list item, and you will see a new CrimeActivity hosting a
CrimeFragment (Figure10.2).

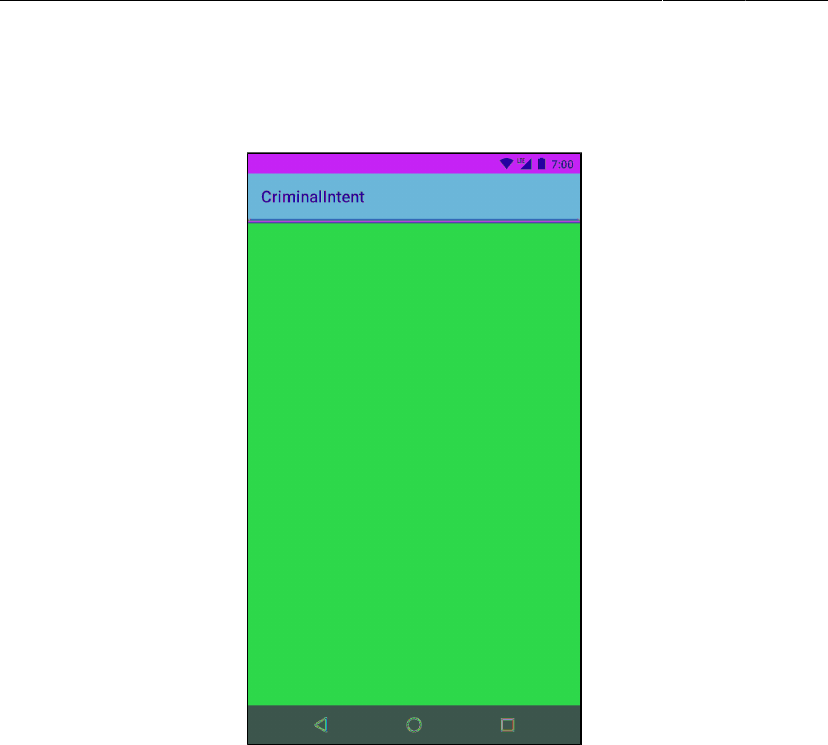

Figure 10.2A blank CrimeFragment
The CrimeFragment does not yet display the data for a specific Crime, because you have not told it
which Crime to display.
Putting an extra
207
Putting an extra
You can tell CrimeFragment which Crime to display by passing the crime ID as an Intent extra when
CrimeActivity is started.
Start by creating a newIntent method in CrimeActivity.
Listing 10.2Creating a newIntent method (CrimeActivity.java)
public class CrimeActivity extends SingleFragmentActivity {
public static final String EXTRA_CRIME_ID =
"com.bignerdranch.android.criminalintent.crime_id";
public static Intent newIntent(Context packageContext, UUID crimeId) {
Intent intent = new Intent(packageContext, CrimeActivity.class);
intent.putExtra(EXTRA_CRIME_ID, crimeId);
return intent;
}
...
}
After creating an explicit intent, you call putExtra(…) and pass in a string key and the value the key
maps to (the crimeId). In this case, you are calling putExtra(String, Serializable) because UUID
is a Serializable object.
Now, update the CrimeHolder to use the newIntent method while passing in the crime ID.
Listing 10.3Stashing and passing a Crime (CrimeListFragment.java)
private class CrimeHolder extends RecyclerView.ViewHolder
implements View.OnClickListener {
...
@Override
public void onClick(View view) {
Intent intent = new Intent(getActivity(), CrimeActivity.class);
Intent intent = CrimeActivity.newIntent(getActivity(), mCrime.getId());
startActivity(intent);
}
}
Retrieving an extra
The crime ID is now safely stashed in the intent that belongs to CrimeActivity. However, it is the
CrimeFragment class that needs to retrieve and use that data.
There are two ways a fragment can access data in its activity’s intent: an easy, direct shortcut and a
complex, flexible implementation. First, you are going to try out the shortcut. Then you will implement
the complex and flexible solution.
In the shortcut, CrimeFragment will simply use the getActivity() method to access the
CrimeActivity’s intent directly. In CrimeFragment.java, retrieve the extra from CrimeActivity’s
intent and use it to fetch the Crime.
Chapter 10Using Fragment Arguments
208
Listing 10.4Retrieving the extra and fetching the Crime (CrimeFragment.java)
public class CrimeFragment extends Fragment {
...
public void onCreate(Bundle savedInstanceState) {
super.onCreate(savedInstanceState);
mCrime = new Crime();
UUID crimeId = (UUID) getActivity().getIntent()
.getSerializableExtra(CrimeActivity.EXTRA_CRIME_ID);
mCrime = CrimeLab.get(getActivity()).getCrime(crimeId);
}
...
}
In Listing 10.4, other than the call to getActivity(), the code is the same as if you were retrieving
the extra from the activity’s code. The getIntent() method returns the Intent that was used to start
CrimeActivity. You call getSerializableExtra(String) on the Intent to pull the UUID out into a
variable.
After you have retrieved the ID, you use it to fetch the Crime from CrimeLab.
Updating CrimeFragment’s view with Crime data
Now that CrimeFragment fetches a Crime, its view can display that Crime’s data. Update
onCreateView(…) to display the Crime’s title and solved status. (The code for displaying the date is
already in place.)
Listing 10.5Updating view objects (CrimeFragment.java)
@Override
public View onCreateView(LayoutInflater inflater, ViewGroup container,
Bundle savedInstanceState) {
...
mTitleField = (EditText)v.findViewById(R.id.crime_title);
mTitleField.setText(mCrime.getTitle());
mTitleField.addTextChangedListener(new TextWatcher() {
...
});
...
mSolvedCheckBox = (CheckBox)v.findViewById(R.id.crime_solved);
mSolvedCheckBox.setChecked(mCrime.isSolved());
mSolvedCheckBox.setOnCheckedChangeListener(new OnCheckedChangeListener() {
...
});
...
return v;
}
The downside to direct retrieval
209
Run CriminalIntent. Select Crime #4 and watch a CrimeFragment instance with the correct crime data
appear (Figure10.3).
Figure 10.3The crime that you wanted to see
The downside to direct retrieval
Having the fragment access the intent that belongs to the hosting activity makes for simple code.
However, it costs you the encapsulation of your fragment. CrimeFragment is no longer a reusable
building block because it expects that it will always be hosted by an activity whose Intent defines an
extra named com.bignerdranch.android.criminalintent.crime_id.
This may be a reasonable expectation on CrimeFragment’s part, but it means that CrimeFragment, as
currently written, cannot be used with just any activity.
A better solution is to stash the crime ID someplace that belongs to CrimeFragment rather than keeping
it in CrimeActivity’s personal space. The CrimeFragment could then retrieve this data without relying
on the presence of a particular extra in the activity’s intent. The “someplace” that belongs to a fragment
is known as its arguments bundle.
Chapter 10Using Fragment Arguments
210
Fragment Arguments
Every fragment instance can have a Bundle object attached to it. This bundle contains key-value pairs
that work just like the intent extras of an Activity. Each pair is known as an argument.
To create fragment arguments, you first create a Bundle object. Next, you use type-specific “put”
methods of Bundle (similar to those of Intent) to add arguments to the bundle:
Bundle args = new Bundle();
args.putSerializable(ARG_MY_OBJECT, myObject);
args.putInt(ARG_MY_INT, myInt);
args.putCharSequence(ARG_MY_STRING, myString);
Attaching arguments to a fragment
To attach the arguments bundle to a fragment, you call Fragment.setArguments(Bundle). Attaching
arguments to a fragment must be done after the fragment is created but before it is added to an activity.
To hit this window, Android programmers follow a convention of adding a static method named
newInstance() to the Fragment class. This method creates the fragment instance and bundles up and
sets its arguments.
When the hosting activity needs an instance of that fragment, you have it call the newInstance(…)
method rather than calling the constructor directly. The activity can pass in any required parameters to
newInstance(…) that the fragment needs to create its arguments.
In CrimeFragment, write a newInstance(UUID) method that accepts a UUID, creates an arguments
bundle, creates a fragment instance, and then attaches the arguments to the fragment.
Listing 10.6Writing a newInstance(UUID) method (CrimeFragment.java)
public class CrimeFragment extends Fragment {
private static final String ARG_CRIME_ID = "crime_id";
private Crime mCrime;
private EditText mTitleField;
private Button mDateButton;
private CheckBox mSolvedCheckbox;
public static CrimeFragment newInstance(UUID crimeId) {
Bundle args = new Bundle();
args.putSerializable(ARG_CRIME_ID, crimeId);
CrimeFragment fragment = new CrimeFragment();
fragment.setArguments(args);
return fragment;
}
...
}
Now, CrimeActivity should call CrimeFragment.newInstance(UUID) when it needs to create
a CrimeFragment. It will pass in the UUID it retrieved from its extra. Return to CrimeActivity
and, in createFragment(), retrieve the extra from CrimeActivity’s intent and pass it into
CrimeFragment.newInstance(UUID).
Retrieving arguments
211
You can now also make EXTRA_CRIME_ID private, because no other class will access that extra.
Listing 10.7Using newInstance(UUID) (CrimeActivity.java)
public class CrimeActivity extends SingleFragmentActivity {
public private static final String EXTRA_CRIME_ID =
"com.bignerdranch.android.criminalintent.crime_id";
...
@Override
protected Fragment createFragment() {
return new CrimeFragment();
UUID crimeId = (UUID) getIntent()
.getSerializableExtra(EXTRA_CRIME_ID);
return CrimeFragment.newInstance(crimeId);
}
}
Notice that the need for independence does not go both ways. CrimeActivity has to know plenty
about CrimeFragment, including that it has a newInstance(UUID) method. This is fine. Hosting
activities should know the specifics of how to host their fragments, but fragments should not have to
know specifics about their activities. At least, not if you want to maintain the flexibility of independent
fragments.
Retrieving arguments
When a fragment needs to access its arguments, it calls the Fragment method getArguments() and
then one of the type-specific “get” methods of Bundle.
Back in CrimeFragment.onCreate(…), replace your shortcut code with retrieving the UUID from the
fragment arguments.
Listing 10.8Getting crime ID from the arguments (CrimeFragment.java)
@Override
public void onCreate(Bundle savedInstanceState) {
super.onCreate(savedInstanceState);
UUID crimeId = (UUID) getActivity().getIntent()
.getSerializableExtra(CrimeActivity.EXTRA_CRIME_ID);
UUID crimeId = (UUID) getArguments().getSerializable(ARG_CRIME_ID);
mCrime = CrimeLab.get(getActivity()).getCrime(crimeId);
}
Run CriminalIntent. The app will behave the same, but you should feel all warm and fuzzy inside for
maintaining CrimeFragment’s independence. You are also well prepared for the next chapter, where
you will implement more sophisticated navigation in CriminalIntent.
Chapter 10Using Fragment Arguments
212
Reloading the List
There is one more detail to take care of. Run CriminalIntent, press a list item, and then modify
that Crime’s details. These changes are saved to the model, but when you return to the list, the
RecyclerView is unchanged.
The RecyclerView’s Adapter needs to be informed that the data has changed (or may have changed) so
that it can refetch the data and reload the list. You can work with the ActivityManager’s back stack to
reload the list at the right moment.
When CrimeListFragment starts an instance of CrimeActivity, the CrimeActivity is put on top of
the stack. This pauses and stops the instance of CrimeListActivity that was initially on top.
When the user presses the Back button to return to the list, the CrimeActivity is popped off the stack
and destroyed. At that point, the CrimeListActivity is started and resumed (Figure10.4).
Figure 10.4CriminalIntent’s back stack
When the CrimeListActivity is resumed, it receives a call to onResume() from the OS. When
CrimeListActivity receives this call, its FragmentManager calls onResume() on the fragments that the
activity is currently hosting. In this case, the only fragment is CrimeListFragment.
Reloading the List
213
In CrimeListFragment, override onResume() and trigger a call to updateUI() to reload the list.
Modify the updateUI() method to call notifyDataSetChanged() if the CrimeAdapter is already set
up.
Listing 10.9Reloading the list in onResume() (CrimeListFragment.java)
@Override
public View onCreateView(LayoutInflater inflater, ViewGroup container,
Bundle savedInstanceState) {
...
}
@Override
public void onResume() {
super.onResume();
updateUI();
}
private void updateUI() {
CrimeLab crimeLab = CrimeLab.get(getActivity());
List<Crime> crimes = crimeLab.getCrimes();
if (mAdapter == null) {
mAdapter = new CrimeAdapter(crimes);
mCrimeRecyclerView.setAdapter(mAdapter);
} else {
mAdapter.notifyDataSetChanged();
}
}
Why override onResume() to update the RecyclerView and not onStart()? You cannot assume that
your activity will be stopped when another activity is in front of it. If the other activity is transparent,
your activity may just be paused. If your activity is paused and your update code is in onStart(),
then the list will not be reloaded. In general, onResume() is the safest place to take action to update a
fragment’s view.
Run CriminalIntent. Select a crime and change its details. When you return to the list, you will
immediately see your changes.
Chapter 10Using Fragment Arguments
214
You have made progress with CriminalIntent in the last two chapters. Let’s take a look at an updated
object diagram (Figure10.5).

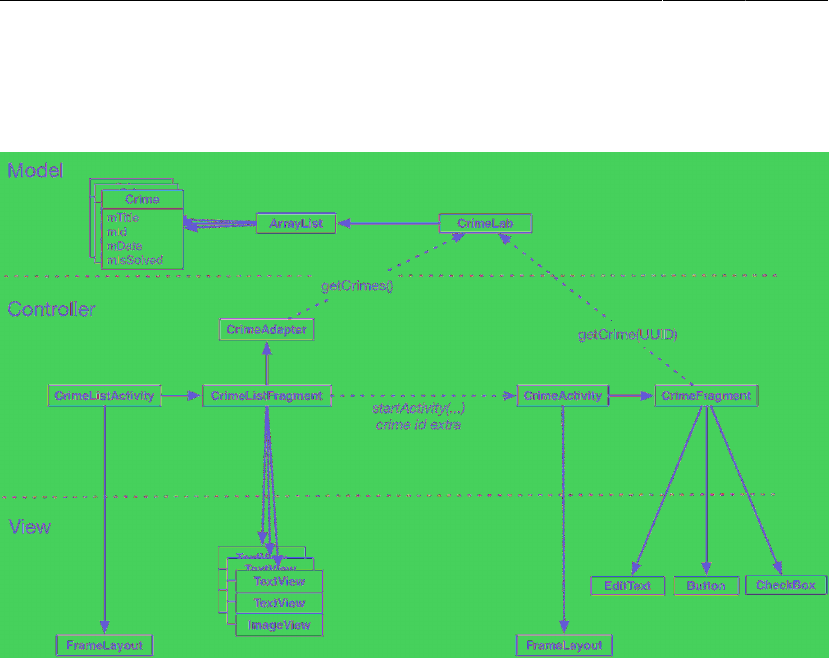

Figure 10.5Updated object diagram for CriminalIntent
Getting Results with Fragments
215
Getting Results with Fragments
In this chapter, you did not need a result back from the started activity. But what if you did? Your code
would look a lot like it did in GeoQuiz. Instead of using Activity’s startActivityForResult(…)
method, you would use Fragment.startActivityForResult(…). Instead of overriding
Activity.onActivityResult(…), you would override Fragment.onActivityResult(…):
public class CrimeListFragment extends Fragment {
private static final int REQUEST_CRIME = 1;
...
private class CrimeHolder extends RecyclerView.ViewHolder
implements View.OnClickListener {
...
@Override
public void onClick(View view) {
Intent intent = CrimeActivity.newIntent(getActivity(), mCrime.getId());
startActivityForResult(intent, REQUEST_CRIME);
}
}
@Override
public void onActivityResult(int requestCode, int resultCode, Intent data) {
if (requestCode == REQUEST_CRIME) {
// Handle result
}
}
...
}
Fragment.startActivityForResult(Intent, int) is similar to the Activity method with the same
name. It includes some additional code to route the result to your fragment from its host activity.
Returning results from a fragment is a bit different. A fragment can receive a result from an activity,
but it cannot have its own result. Only activities have results. So while Fragment has its own
startActivityForResult(…) and onActivityResult(…) methods, it does not have any setResult(…)
methods.
Instead, you tell the host activity to return a value. Like this:
public class CrimeFragment extends Fragment {
...
public void returnResult() {
getActivity().setResult(Activity.RESULT_OK, null);
}
}
Chapter 10Using Fragment Arguments
216
For the More Curious: Why Use Fragment Arguments?
This all seems so complicated. Why not just set an instance variable on the CrimeFragment when it is
created?
Because it would not always work. When the OS re-creates your fragment – either across a
configuration change or when the user has switched out of your app and the OS reclaims memory –
all of your instance variables will be lost. Also, remember that there is no way to cheat low-memory
death, no matter how hard you try.
If you want something that works in all cases, you have to persist your arguments.
One option is to use the saved instance state mechanism. You can store the crime ID as a normal
instance variable, save the crime ID in onSaveInstanceState(Bundle), and snag it from the Bundle in
onCreate(Bundle). This will work in all situations.
However, that solution is hard to maintain. If you revisit this fragment in a few years and add another
argument, you may not remember to save the argument in onSaveInstanceState(Bundle). Going this
route is less explicit.
Android developers prefer the fragment arguments solution because it is very explicit and clear in its
intentions. In a few years, you will come back and know that the crime ID is an argument and is safely
shuttled along to new instances of this fragment. If you add another argument, you will know to stash it
in the arguments bundle.
Challenge: Efficient RecyclerView Reloading
The notifyDataSetChanged method on your Adapter is a handy way to ask the RecyclerView to
reload all of the items that are currently visible.
The use of this method in CriminalIntent is wildly inefficient because at most one Crime will have
changed when returning to the CrimeListFragment.
Use the RecyclerView.Adapter’s notifyItemChanged(int) method to reload a single item in the
list. Modifying the code to call that method is easy. The challenge is discovering which position has
changed and reloading the correct item.
Challenge: Improving CrimeLab Performance
CrimeLab’s get(UUID) method works, but checking each crime’s ID against the ID you are looking
for one at a time can be improved upon. Improve the performance of the lookup, making sure that
CriminalIntent’s existing behavior remains unchanged as you refactor.
217
11
Using ViewPager
In this chapter, you will create a new activity to host CrimeFragment. This activity’s layout will consist
of an instance of ViewPager. Adding a ViewPager to your UI lets users navigate between list items by
swiping across the screen to “page” forward or backward through the crimes (Figure11.1).
Figure 11.1Swiping to page through crimes
Chapter 11Using ViewPager
218
Figure11.2 shows an updated diagram for CriminalIntent. The new activity will be named
CrimePagerActivity and will take the place of CrimeActivity. Its layout will consist of a ViewPager.
Figure 11.2Object diagram for CrimePagerActivity
The only new objects you need to create are within the dashed rectangle in the object diagram:
CrimePagerActivity and ViewPager. Nothing else in CriminalIntent needs to change to implement
paging between detail views. In particular, you will not have to touch the CrimeFragment class, thanks
to the work you did in Chapter10 to ensure CrimeFragment’s independence.
Here are the tasks ahead in this chapter:
• create the CrimePagerActivity class
• define a view hierarchy that consists of a ViewPager
• wire up the ViewPager and its adapter in CrimePagerActivity
• modify CrimeHolder.onClick(…) to start CrimePagerActivity instead of CrimeActivity
Creating CrimePagerActivity
219
Creating CrimePagerActivity
CrimePagerActivity will be a subclass of AppCompatActivity. It will create and manage the
ViewPager.
Create a new class named CrimePagerActivity. Make its superclass AppCompatActivity and set up
the view for the activity.
Listing 11.1Setting up ViewPager (CrimePagerActivity.java)
public class CrimePagerActivity extends AppCompatActivity {
@Override
protected void onCreate(Bundle savedInstanceState) {
super.onCreate(savedInstanceState);
setContentView(R.layout.activity_crime_pager);
}
}
The layout file does not yet exist. Create a new layout file in res/layout/ and name
it activity_crime_pager. Make its root view a ViewPager and give it the attributes
shown in Figure11.3. Notice that you must use ViewPager’s full package name
(android.support.v4.view.ViewPager).
Figure 11.3CrimePagerActivity’s ViewPager
(activity_crime_pager.xml)
You use ViewPager’s full package name when adding it to the layout file because the ViewPager class
is from the support library. Unlike Fragment, ViewPager is only available in the support library; there
is not a “standard” ViewPager class in a later SDK.
ViewPager and PagerAdapter
A ViewPager is like a RecyclerView in some ways. A RecyclerView requires an Adapter to provide
views. A ViewPager requires a PagerAdapter.
However, the conversation between ViewPager and PagerAdapter is much more involved than the
conversation between RecyclerView and Adapter. Luckily, you can use FragmentStatePagerAdapter,
a subclass of PagerAdapter, to take care of many of the details.
FragmentStatePagerAdapter will boil down the conversation to two simple methods: getCount() and
getItem(int). When your getItem(int) method is called for a position in your array of crimes, it
will return a CrimeFragment configured to display the crime at that position.
Chapter 11Using ViewPager
220
In CrimePagerActivity, set the ViewPager’s pager adapter and implement its getCount() and
getItem(int) methods.
Listing 11.2Setting up pager adapter (CrimePagerActivity.java)
public class CrimePagerActivity extends AppCompatActivity {
private ViewPager mViewPager;
private List<Crime> mCrimes;
@Override
protected void onCreate(Bundle savedInstanceState) {
super.onCreate(savedInstanceState);
setContentView(R.layout.activity_crime_pager);
mViewPager = (ViewPager) findViewById(R.id.crime_view_pager);
mCrimes = CrimeLab.get(this).getCrimes();
FragmentManager fragmentManager = getSupportFragmentManager();
mViewPager.setAdapter(new FragmentStatePagerAdapter(fragmentManager) {
@Override
public Fragment getItem(int position) {
Crime crime = mCrimes.get(position);
return CrimeFragment.newInstance(crime.getId());
}
@Override
public int getCount() {
return mCrimes.size();
}
});
}
}
Let’s go through this code. After finding the ViewPager in the activity’s view, you get your data set
from CrimeLab – the List of crimes. Next, you get the activity’s instance of FragmentManager.
Then you set the adapter to be an unnamed instance of FragmentStatePagerAdapter.
Creating the FragmentStatePagerAdapter requires the FragmentManager. Remember that
FragmentStatePagerAdapter is your agent managing the conversation with ViewPager. For your agent
to do its job with the fragments that getItem(int) returns, it needs to be able to add them to your
activity. That is why it needs your FragmentManager.
(What exactly is your agent doing? The short story is that it is adding the fragments you return to your
activity and helping ViewPager identify the fragments’ views so that they can be placed correctly. More
details are in the section called For the More Curious: How ViewPager Really Works.)
The pager adapter’s two methods are straightforward. The getCount() method returns the number of
items in the array list. The getItem(int) method is where the magic happens. It fetches the Crime
instance for the given position in the data set. It then uses that Crime’s ID to create and return a
properly configured CrimeFragment.
Integrating CrimePagerActivity
221
Integrating CrimePagerActivity
Now you can begin the process of decommissioning CrimeActivity and putting CrimePagerActivity
in its place.
First, add a newIntent method to CrimePagerActivity along with an extra for the crime ID.
Listing 11.3Creating newIntent (CrimePagerActivity.java)
public class CrimePagerActivity extends AppCompatActivity {
private static final String EXTRA_CRIME_ID =
"com.bignerdranch.android.criminalintent.crime_id";
private ViewPager mViewPager;
private List<Crime> mCrimes;
public static Intent newIntent(Context packageContext, UUID crimeId) {
Intent intent = new Intent(packageContext, CrimePagerActivity.class);
intent.putExtra(EXTRA_CRIME_ID, crimeId);
return intent;
}
@Override
protected void onCreate(Bundle savedInstanceState) {
super.onCreate(savedInstanceState);
setContentView(R.layout.activity_crime_pager);
UUID crimeId = (UUID) getIntent()
.getSerializableExtra(EXTRA_CRIME_ID);
...
}
}
Now, you want pressing a list item in CrimeListFragment to start an instance of CrimePagerActivity
instead of CrimeActivity.
Return to CrimeListFragment.java and modify CrimeHolder.onClick(View) to start a
CrimePagerActivity.
Listing 11.4Firing it up (CrimeListFragment.java)
private class CrimeHolder extends RecyclerView.ViewHolder
implements View.OnClickListener {
...
@Override
public void onClick(View view) {
Intent intent = CrimeActivity.newIntent(getActivity(), mCrime.getId());
Intent intent = CrimePagerActivity.newIntent(getActivity(), mCrime.getId());
startActivity(intent);
}
}
Chapter 11Using ViewPager
222
You also need to add CrimePagerActivity to the manifest so that the OS can start it. While you are
in the manifest, remove CrimeActivity’s declaration. To accomplish this, you can just rename the
CrimeActivity to CrimePagerActivity in the manifest.
Listing 11.5Adding CrimePagerActivity to the manifest
(AndroidManifest.xml)
<manifest ...>
...
<application ...>
...
<activity
android:name=".CrimeActivity"
android:name=".CrimePagerActivity">
</activity>
Finally, to keep your project tidy, delete CrimeActivity.java from the project tool window.
Run CriminalIntent. Press Crime #0 to view its details. Then swipe left and right to browse the
crimes. Notice that the paging is smooth and there is no delay in loading. By default, ViewPager
loads the item currently onscreen plus one neighboring page in each direction so that the response
to a swipe is immediate. You can tweak how many neighboring pages are loaded by calling
setOffscreenPageLimit(int).
Your ViewPager is not yet perfect. Press the Back button to return to the list of crimes and press a
different item. You will see the first crime displayed again instead of the crime that you asked for.
By default, the ViewPager shows the first item in its PagerAdapter. You can have it show the crime
that was selected by setting the ViewPager’s current item to the index of the selected crime.
At the end of CrimePagerActivity.onCreate(Bundle), find the index of the crime to display by
looping through and checking each crime’s ID. When you find the Crime instance whose mId matches
the crimeId in the intent extra, set the current item to the index of that Crime.
Listing 11.6Setting the initial pager item (CrimePagerActivity.java)
public class CrimePagerActivity extends AppCompatActivity {
...
@Override
protected void onCreate(Bundle savedInstanceState) {
...
FragmentManager fragmentManager = getSupportFragmentManager();
mViewPager.setAdapter(new FragmentStatePagerAdapter(fragmentManager) {
...
});
for (int i = 0; i < mCrimes.size(); i++) {
if (mCrimes.get(i).getId().equals(crimeId)) {
mViewPager.setCurrentItem(i);
break;
}
}
}
}
Run CriminalIntent again. Selecting any list item should display the details of the correct Crime. And
that is it. Your ViewPager is now fully armed and operational.
FragmentStatePagerAdapter vs FragmentPagerAdapter
223
FragmentStatePagerAdapter vs
FragmentPagerAdapter
There is another PagerAdapter type that you can use called FragmentPagerAdapter.
FragmentPagerAdapter is used exactly like FragmentStatePagerAdapter. It only differs in how it
unloads your fragments when they are no longer needed.
With FragmentStatePagerAdapter, your unneeded fragment is destroyed (Figure11.4). A transaction
is committed to completely remove the fragment from your activity’s FragmentManager. The “state”
in FragmentStatePagerAdapter comes from the fact that it will save out your fragment’s Bundle from
onSaveInstanceState(Bundle) when it is destroyed. When the user navigates back, the new fragment
will be restored using that instance state.
Figure 11.4FragmentStatePagerAdapter’s fragment management
FragmentPagerAdapter handles things differently. When your fragment is no longer needed,
FragmentPagerAdapter calls detach(Fragment) on the transaction, instead of remove(Fragment).
This destroys the fragment’s view, but leaves the fragment instance alive in the FragmentManager. So
the fragments created by FragmentPagerAdapter are never destroyed (Figure11.5).
Chapter 11Using ViewPager
224
Figure 11.5FragmentPagerAdapter’s fragment management
Which kind of adapter you should use depends on your application. FragmentStatePagerAdapter is
generally more frugal with memory. CriminalIntent is displaying what could be a long list of crimes,
each of which will eventually include a photo. You do not want to keep all that information in memory,
so you use FragmentStatePagerAdapter.
On the other hand, if your interface has a small, fixed number of fragments, FragmentPagerAdapter
would be safe and appropriate. The most common example of this scenario is a tabbed interface. Some
detail views have enough details to require two screens, so the details are split across multiple tabs.
Adding a swipeable ViewPager to this interface makes the app tactile. Keeping these fragments in
memory can make your controller code easier to manage. Plus, because this style of interface usually
has only two or three fragments per activity, there is little danger of running low on memory.
For the More Curious: How ViewPager Really Works
The ViewPager and PagerAdapter classes handle many things for you behind the scenes. This section
will supply more details about what is going on back there.
A caveat before we get into this discussion: You do not need to understand the nitty-gritty details in
most cases.
But, if you need to implement the PagerAdapter interface yourself, you will need to know how the
ViewPager-PagerAdapter relationship differs from an ordinary RecyclerView-Adapter relationship.
For the More Curious: Laying Out Views in Code
225
When would you need to implement the PagerAdapter interface yourself? When you want ViewPager
to host something other than Fragments. If you want to host normal View objects in a ViewPager, like a
few images, you implement the raw PagerAdapter interface.
So why is ViewPager not a RecyclerView?
Using a RecyclerView in this case would be a lot of work because you could not use your existing
Fragment. An Adapter expects you to provide a View instantly. However, your FragmentManager
determines when your fragment’s view is created, not you. So when RecyclerView comes knocking at
your Adapter’s door for your fragment’s view, you will not be able to create the fragment and provide
its view immediately.
This is the reason ViewPager exists. Instead of an Adapter, it uses PagerAdapter. PagerAdapter is
more complicated than Adapter because it does more of the work of managing views than Adapter
does. Here are the basics.
Instead of an onBindViewHolder(…) method that returns a view holder and its corresponding view,
PagerAdapter has the following methods:
public Object instantiateItem(ViewGroup container, int position)
public void destroyItem(ViewGroup container, int position, Object object)
public abstract boolean isViewFromObject(View view, Object object)
PagerAdapter.instantiateItem(ViewGroup, int) tells the pager adapter to create an item view for a
given position and add it to a container ViewGroup, and destroyItem(ViewGroup, int, Object) tells
it to destroy that item. Note that instantiateItem(ViewGroup, int) does not say to create the view
right now. The PagerAdapter could create the view at any time after that.
Once the view has been created, ViewPager will notice it at some point. To figure out which
item’s view it is, it calls isViewFromObject(View, Object). The Object parameter is an
object received from a call to instantiateItem(ViewGroup, int). So if ViewPager calls
instantiateItem(ViewGroup, 5) and receives object A, isViewFromObject(View, A) should return
true if the View passed in is for item 5, and false otherwise.
This is a complicated process for the ViewPager, but it is less complicated for the PagerAdapter,
which only needs to be able to create views, destroy views, and identify which object a view comes
from. This loose requirement gives a PagerAdapter implementation enough wiggle room to create and
add a new fragment inside instantiateItem(ViewGroup, int) and return the fragment as the Object
to keep track of. Then isViewFromObject(View, Object) looks like this:
@Override
public boolean isViewFromObject(View view, Object object) {
return ((Fragment)object).getView() == view;
}
Implementing all those PagerAdapter overrides would be a pain to do every time you needed to use
ViewPager. Thank goodness for FragmentPagerAdapter and FragmentStatePagerAdapter.
For the More Curious: Laying Out Views in Code
Throughout this book, you have been creating your views in layout files. It is also possible to create
your views in code.
Chapter 11Using ViewPager
226
In fact, you could have defined your ViewPager in code without a layout file at all:
@Override
protected void onCreate(Bundle savedInstanceState) {
super.onCreate(savedInstanceState);
ViewPager viewPager = new ViewPager(this);
setContentView(viewPager);
...
}
No magic is necessary to create a view: Just call its constructor, passing in a Context as the parameter.
You can programmatically create an entire view hierarchy instead of using layout files.
However, creating views in code should be avoided, because layout files provide a few benefits.
One benefit of layout files is that they help to provide a clear separation between your controller
and view objects in your app. The view exists in XML and the controller exists in Java code. This
separation makes your code easier to maintain by limiting the amount of changes in your controller
when you change your view and vice versa.
Another benefit to views defined in XML is that you can use Android’s resource qualification system
to automatically choose the appropriate version of that XML file based on the properties of the device.
As you saw in Chapter3, this system makes it easy to change your layout file depending on the
orientation of the device (as well as other configurations).
So what are the downsides to using layout files? Well, you do have to go to the trouble of creating an
XML file and inflating it. If you are creating a single view, sometimes you may not want to go to the
trouble.
Otherwise, though, there are no downsides to speak of – the Android team has never recommended
constructing view hierarchies programmatically, even back in the old days when developers had to be
even more conscious of performance than they are now. Even if you need something as small as an ID
on your view (which is often necessary, even with a programmatically created view), it is simpler to
have a layout file.
Challenge: Restoring CrimeFragment’s Margins
You may have noticed that your CrimeFragment has mysteriously lost its margins. In
fragment_crime.xml, you specified a margin of 16dp.
<LinearLayout xmlns:android="http://schemas.android.com/apk/res/android"
android:layout_width="match_parent"
android:layout_height="match_parent"
android:layout_margin="16dp"
android:orientation="vertical">
That margin no longer shows up. So, what gives? ViewPager’s layout params do not support margins.
Update fragment_crime.xml and restore your margins.
Challenge: Adding First and Last Buttons
Add two buttons to CrimePagerActivity that allow jumping the ViewPager to the first or last crime
instantly. As a bonus, disable “jump to first” when on the first page and “jump to last” when on the last
page.
227
12
Dialogs
Dialogs demand attention and input from the user. They are useful for presenting a choice or important
information. In this chapter, you will add a dialog in which users can change the date of a crime.
Pressing the date button in CrimeFragment will present this dialog on Lollipop and later (Figure12.1).
Figure 12.1A dialog for picking the date of a crime
The dialog in Figure12.1 is an instance of AlertDialog, a subclass of Dialog. AlertDialog is the all-
purpose Dialog subclass that you will use most often.
Chapter 12Dialogs
228
When Lollipop was released, dialogs were given a visual makeover. AlertDialogs on Lollipop
automatically use this new style. On earlier versions of Android, AlertDialog will fall back to the
older style, shown on the left in Figure12.2.
Figure 12.2Old vs new
Rather than displaying the crusty old dialog style, it would be nice to always show the new
dialog style, no matter which version of Android the user’s device is on. And you can do just
that with the AppCompat library’s AlertDialog class. This version of AlertDialog is very
similar to the one included in the Android OS but, like other AppCompat classes, is compatible
with earlier versions. To get the benefits of the AppCompat version, make sure you import
android.support.v7.app.AlertDialog when prompted.
Creating a DialogFragment
When using an AlertDialog, it is a good idea to wrap it in an instance of DialogFragment, a subclass
of Fragment. It is possible to display an AlertDialog without a DialogFragment, but it is not
recommended. Having the dialog managed by the FragmentManager gives you more options for
presenting the dialog.
In addition, a bare AlertDialog will vanish if the device is rotated. If the AlertDialog is wrapped in a
fragment, then the dialog will be re-created and put back onscreen after rotation.
Creating a DialogFragment
229
For CriminalIntent, you are going to create a DialogFragment subclass named DatePickerFragment.
Within DatePickerFragment, you will create and configure an instance of AlertDialog that displays a
DatePicker widget. DatePickerFragment will be hosted by CrimePagerActivity.
Figure12.3 shows you an overview of these relationships.
Figure 12.3Object diagram for two fragments hosted by CrimePagerActivity
Your first tasks are:
• creating the DatePickerFragment class
• building an AlertDialog
• getting the dialog onscreen via the FragmentManager
Later in the chapter, you will wire up the DatePicker and pass the necessary data between
CrimeFragment and DatePickerFragment.
Before you get started, add the string resource shown in Listing 12.1.
Listing 12.1Adding string for dialog title (values/strings.xml)
<resources>
...
<string name="crime_solved_label">Solved</string>
<string name="date_picker_title">Date of crime:</string>
</resources>
Chapter 12Dialogs
230
Create a new class named DatePickerFragment and make its superclass DialogFragment. Be sure to
choose the support library’s version of DialogFragment: android.support.v4.app.DialogFragment.
DialogFragment includes the following method:
public Dialog onCreateDialog(Bundle savedInstanceState)
The FragmentManager of the hosting activity calls this method as part of putting the DialogFragment
onscreen.
In DatePickerFragment.java, add an implementation of onCreateDialog(Bundle) that builds an
AlertDialog with a title and one OK button. (You will add the DatePicker widget later.)
Be sure that the version of AlertDialog that you import is the AppCompat version:
android.support.v7.app.AlertDialog.
Listing 12.2Creating a DialogFragment (DatePickerFragment.java)
public class DatePickerFragment extends DialogFragment {
@Override
public Dialog onCreateDialog(Bundle savedInstanceState) {
return new AlertDialog.Builder(getActivity())
.setTitle(R.string.date_picker_title)
.setPositiveButton(android.R.string.ok, null)
.create();
}
}
In this implementation, you use the AlertDialog.Builder class, which provides a fluent interface for
constructing an AlertDialog instance.
First, you pass a Context into the AlertDialog.Builder constructor, which returns an instance of
AlertDialog.Builder.
Next, you call two AlertDialog.Builder methods to configure your dialog:
public AlertDialog.Builder setTitle(int titleId)
public AlertDialog.Builder setPositiveButton(int textId,
DialogInterface.OnClickListener listener)
The setPositiveButton(…) method accepts a string resource and an object that implements
DialogInterface.OnClickListener. In Listing 12.2, you pass in an Android constant for OK and
null for the listener parameter. You will implement a listener later in the chapter.
(A positive button is what the user should press to accept what the dialog presents or to take the
dialog’s primary action. There are two other buttons that you can add to an AlertDialog: a negative
button and a neutral button. These designations determine the positions of the buttons in the dialog.)
Finally, you finish building the dialog with a call to AlertDialog.Builder.create(), which returns
the configured AlertDialog instance.
There is more that you can do with AlertDialog and AlertDialog.Builder, and the details are well
covered in the developer documentation. For now, let’s move on to the mechanics of getting your
dialog onscreen.
Showing a DialogFragment
231
Showing a DialogFragment
Like all fragments, instances of DialogFragment are managed by the FragmentManager of the hosting
activity.
To get a DialogFragment added to the FragmentManager and put onscreen, you can call the following
methods on the fragment instance:
public void show(FragmentManager manager, String tag)
public void show(FragmentTransaction transaction, String tag)
The string parameter uniquely identifies the DialogFragment in the FragmentManager’s list. Whether
you use the FragmentManager or FragmentTransaction version is up to you. If you pass in a
FragmentTransaction, you are responsible for creating and committing that transaction. If you pass in
a FragmentManager, a transaction will automatically be created and committed for you.
Here, you will pass in a FragmentManager.
In CrimeFragment, add a constant for the DatePickerFragment’s tag. Then, in onCreateView(…),
remove the code that disables the date button and set a View.OnClickListener that shows a
DatePickerFragment when the date button is pressed.
Listing 12.3Showing your DialogFragment (CrimeFragment.java)
public class CrimeFragment extends Fragment {
private static final String ARG_CRIME_ID = "crime_id";
private static final String DIALOG_DATE = "DialogDate";
...
@Override
public View onCreateView(LayoutInflater inflater, ViewGroup container,
Bundle savedInstanceState) {
...
mDateButton = (Button) v.findViewById(R.id.crime_date);
mDateButton.setText(mCrime.getDate().toString());
mDateButton.setEnabled(false);
mDateButton.setOnClickListener(new View.OnClickListener() {
@Override
public void onClick(View v) {
FragmentManager manager = getFragmentManager();
DatePickerFragment dialog = new DatePickerFragment();
dialog.show(manager, DIALOG_DATE);
}
});
mSolvedCheckBox = (CheckBox) v.findViewById(R.id.crime_solved);
...
return v;
}
}
Chapter 12Dialogs
232
Run CriminalIntent and press the date button to see the dialog (Figure12.4).
Figure 12.4An AlertDialog with a title and a button
Setting a dialog’s contents
Next, you are going to add a DatePicker widget to your AlertDialog using the following
AlertDialog.Builder method:
public AlertDialog.Builder setView(View view)
This method configures the dialog to display the passed-in View object between the dialog’s title and its
button(s).
In the project tool window, create a new layout resource file named dialog_date.xml and make its
root element DatePicker. This layout will consist of a single View object – a DatePicker – that you
will inflate and pass into setView(…).
Configure the DatePicker as shown in Figure12.5.
Figure 12.5DatePicker layout (layout/dialog_date.xml)
Setting a dialog’s contents
233
In DatePickerFragment.onCreateDialog(Bundle), inflate this view and then set it on the dialog.
Listing 12.4Adding DatePicker to AlertDialog
(DatePickerFragment.java)
@Override
public Dialog onCreateDialog(Bundle savedInstanceState) {
View v = LayoutInflater.from(getActivity())
.inflate(R.layout.dialog_date, null);
return new AlertDialog.Builder(getActivity())
.setView(v)
.setTitle(R.string.date_picker_title)
.setPositiveButton(android.R.string.ok, null)
.create();
}
Run CriminalIntent. Press the date button to confirm that the dialog now presents a DatePicker. As
long as you are running Lollipop or later, you will see a calendar picker (Figure12.6).
Figure 12.6DatePicker with a calendar
The calendar picker in Figure12.6 was introduced along with material design. This version of the
DatePicker widget ignores the calendarViewShown attribute you set in your layout. If you are running
a previous version of Android, however, you will see the old spinner-based DatePicker version that
respects that attribute (Figure12.7).
Chapter 12Dialogs
234
Figure 12.7An AlertDialog with a DatePicker
Either version works fine. The newer one sure is pretty, though.
You may be wondering why you went to the trouble of defining and inflating a layout when you could
have created the DatePicker object in code, like this:
@Override
public Dialog onCreateDialog(Bundle savedInstanceState) {
DatePicker datePicker = new DatePicker(getActivity());
return new AlertDialog.Builder(getActivity())
.setView(datePicker)
...
.create();
}
Using a layout makes modifications easy if you change your mind about what the dialog should
present. For instance, what if you wanted a TimePicker next to the DatePicker in this dialog? If you
are already inflating a layout, you can simply update the layout file and the new view will appear.
Also, the selected date in the DatePicker is automatically preserved across rotation. (Try it.) How does
this happen? Remember that Views can save state across configuration changes, but only if they have
an ID attribute. When you created the DatePicker in dialog_date.xml you also asked the build tools
to generate a unique ID value for that DatePicker.
If you created the DatePicker in code, you would have to programmatically set an ID on the
DatePicker for its state saving to work.
Passing Data Between Two Fragments
235
Your dialog is onscreen and looks good. In the next section, you will wire it up to present the Crime’s
date and allow the user to change it.
Passing Data Between Two Fragments
You have passed data between two activities, and you have passed data between two fragment-based
activities. Now you need to pass data between two fragments that are hosted by the same activity –
CrimeFragment and DatePickerFragment (Figure12.8).
Figure 12.8Conversation between CrimeFragment and DatePickerFragment
To get the Crime’s date to DatePickerFragment, you are going to write a newInstance(Date) method
and make the Date an argument on the fragment.
To get the new date back to the CrimeFragment so that it can update the model layer and its own
view, you will package up the date as an extra on an Intent and pass this Intent in a call to
CrimeFragment.onActivityResult(…), as shown in Figure12.9.
Figure 12.9Sequence of events between CrimeFragment and
DatePickerFragment
It may seem strange to call Fragment.onActivityResult(…), given that the hosting activity receives
no call to Activity.onActivityResult(…) in this interaction. However, using onActivityResult(…)
to pass data back from one fragment to another not only works, but also offers some flexibility in how
you present a dialog fragment, as you will see later in the chapter.
Chapter 12Dialogs
236
Passing data to DatePickerFragment
To get data into your DatePickerFragment, you are going to stash the date in DatePickerFragment’s
arguments bundle, where the DatePickerFragment can access it.
Creating and setting fragment arguments is typically done in a newInstance() method that replaces the
fragment constructor. In DatePickerFragment.java, add a newInstance(Date) method.
Listing 12.5Adding a newInstance(Date) method
(DatePickerFragment.java)
public class DatePickerFragment extends DialogFragment {
private static final String ARG_DATE = "date";
private DatePicker mDatePicker;
public static DatePickerFragment newInstance(Date date) {
Bundle args = new Bundle();
args.putSerializable(ARG_DATE, date);
DatePickerFragment fragment = new DatePickerFragment();
fragment.setArguments(args);
return fragment;
}
...
}
In CrimeFragment, remove the call to the DatePickerFragment constructor and replace it with a call to
DatePickerFragment.newInstance(Date).
Listing 12.6Adding call to newInstance() (CrimeFragment.java)
@Override
public View onCreateView(LayoutInflater inflater, ViewGroup container,
Bundle savedInstanceState) {
...
mDateButton = (Button)v.findViewById(R.id.crime_date);
mDateButton.setText(mCrime.getDate().toString());
mDateButton.setOnClickListener(new View.OnClickListener() {
@Override
public void onClick(View v) {
FragmentManager manager = getFragmentManager();
DatePickerFragment dialog = new DatePickerFragment();
DatePickerFragment dialog = DatePickerFragment
.newInstance(mCrime.getDate());
dialog.show(manager, DIALOG_DATE);
}
});
...
return v;
}
Passing data to DatePickerFragment
237
DatePickerFragment needs to initialize the DatePicker using the information held in the Date.
However, initializing the DatePicker requires integers for the month, day, and year. Date is more of a
timestamp and cannot provide integers like this directly.
To get the integers you need, you must create a Calendar object and use the Date to configure the
Calendar. Then you can retrieve the required information from the Calendar.
In onCreateDialog(Bundle), get the Date from the arguments and use it and a Calendar to initialize
the DatePicker.
Listing 12.7Extracting the date and initializing DatePicker
(DatePickerFragment.java)
@Override
public Dialog onCreateDialog(Bundle savedInstanceState) {
Date date = (Date) getArguments().getSerializable(ARG_DATE);
Calendar calendar = Calendar.getInstance();
calendar.setTime(date);
int year = calendar.get(Calendar.YEAR);
int month = calendar.get(Calendar.MONTH);
int day = calendar.get(Calendar.DAY_OF_MONTH);
View v = LayoutInflater.from(getActivity())
.inflate(R.layout.dialog_date, null);
mDatePicker = (DatePicker) v.findViewById(R.id.dialog_date_picker);
mDatePicker.init(year, month, day, null);
return new AlertDialog.Builder(getActivity())
.setView(v)
.setTitle(R.string.date_picker_title)
.setPositiveButton(android.R.string.ok, null)
.create();
}
Now CrimeFragment is successfully telling DatePickerFragment what date to show. You can run
CriminalIntent and make sure that everything works as before.
Chapter 12Dialogs
238
Returning data to CrimeFragment
To have CrimeFragment receive the date back from DatePickerFragment, you need a way to keep
track of the relationship between the two fragments.
With activities, you call startActivityForResult(…), and the ActivityManager keeps track of the
parent-child activity relationship. When the child activity dies, the ActivityManager knows which
activity should receive the result.
Setting a target fragment
You can create a similar connection by making CrimeFragment the target fragment of
DatePickerFragment. This connection is automatically reestablished after both CrimeFragment and
DatePickerFragment are destroyed and re-created by the OS. To create this relationship, you call the
following Fragment method:
public void setTargetFragment(Fragment fragment, int requestCode)
This method accepts the fragment that will be the target and a request code just like the one you send
in startActivityForResult(…). The target fragment can use the request code later to identify which
fragment is reporting back.
The FragmentManager keeps track of the target fragment and request code. You can retrieve them by
calling getTargetFragment() and getTargetRequestCode() on the fragment that has set the target.
In CrimeFragment.java, create a constant for the request code and then make CrimeFragment the
target fragment of the DatePickerFragment instance.
Listing 12.8Setting target fragment (CrimeFragment.java)
public class CrimeFragment extends Fragment {
private static final String ARG_CRIME_ID = "crime_id";
private static final String DIALOG_DATE = "DialogDate";
private static final int REQUEST_DATE = 0;
...
@Override
public View onCreateView(LayoutInflater inflater, ViewGroup container,
Bundle savedInstanceState) {
...
mDateButton.setOnClickListener(new View.OnClickListener() {
@Override
public void onClick(View v) {
FragmentManager manager = getFragmentManager();
DatePickerFragment dialog = DatePickerFragment
.newInstance(mCrime.getDate());
dialog.setTargetFragment(CrimeFragment.this, REQUEST_DATE);
dialog.show(manager, DIALOG_DATE);
}
});
...
return v;
}
}
Returning data to CrimeFragment
239
Sending data to the target fragment
Now that you have a connection between CrimeFragment and DatePickerFragment, you need to send
the date back to CrimeFragment. You are going to put the date on an Intent as an extra.
What method will you use to send this intent to the target fragment? Oddly enough, you will have
DatePickerFragment pass it into CrimeFragment.onActivityResult(int, int, Intent).
Activity.onActivityResult(…) is the method that the ActivityManager calls on the
parent activity after the child activity dies. When dealing with activities, you do not call
Activity.onActivityResult(…) yourself; that is the ActivityManager’s job. After the activity has
received the call, the activity’s FragmentManager then calls Fragment.onActivityResult(…) on the
appropriate fragment.
When dealing with two fragments hosted by the same activity, you can borrow
Fragment.onActivityResult(…) and call it directly on the target fragment to pass back data. It has
exactly what you need:
• a request code that matches the code passed into setTargetFragment(…) to tell the target what is
returning the result
• a result code to determine what action to take
• an Intent that can have extra data
In DatePickerFragment, create a private method that creates an intent, puts the date on it as an extra,
and then calls CrimeFragment.onActivityResult(…).
Listing 12.9Calling back to your target (DatePickerFragment.java)
public class DatePickerFragment extends DialogFragment {
public static final String EXTRA_DATE =
"com.bignerdranch.android.criminalintent.date";
private static final String ARG_DATE = "date";
...
@Override
public Dialog onCreateDialog(Bundle savedInstanceState) {
...
}
private void sendResult(int resultCode, Date date) {
if (getTargetFragment() == null) {
return;
}
Intent intent = new Intent();
intent.putExtra(EXTRA_DATE, date);
getTargetFragment()
.onActivityResult(getTargetRequestCode(), resultCode, intent);
}
}
Chapter 12Dialogs
240
Now it is time to use this new sendResult(…) method. When the user presses the positive button in the
dialog, you want to retrieve the date from the DatePicker and send the result back to CrimeFragment.
In onCreateDialog(…), replace the null parameter of setPositiveButton(…) with an implementation
of DialogInterface.OnClickListener that retrieves the selected date and calls sendResult(…).
Listing 12.10Are you OK? (DatePickerFragment.java)
@Override
public Dialog onCreateDialog(Bundle savedInstanceState) {
...
return new AlertDialog.Builder(getActivity())
.setView(v)
.setTitle(R.string.date_picker_title)
.setPositiveButton(android.R.string.ok, null);
.setPositiveButton(android.R.string.ok,
new DialogInterface.OnClickListener() {
@Override
public void onClick(DialogInterface dialog, int which) {
int year = mDatePicker.getYear();
int month = mDatePicker.getMonth();
int day = mDatePicker.getDayOfMonth();
Date date = new GregorianCalendar(year, month, day).getTime();
sendResult(Activity.RESULT_OK, date);
}
})
.create();
}
In CrimeFragment, override onActivityResult(…) to retrieve the extra, set the date on the Crime, and
refresh the text of the date button.
Listing 12.11Responding to the dialog (CrimeFragment.java)
public class CrimeFragment extends Fragment {
...
@Override
public View onCreateView(LayoutInflater inflater, ViewGroup container,
Bundle savedInstanceState) {
...
}
@Override
public void onActivityResult(int requestCode, int resultCode, Intent data) {
if (resultCode != Activity.RESULT_OK) {
return;
}
if (requestCode == REQUEST_DATE) {
Date date = (Date) data
.getSerializableExtra(DatePickerFragment.EXTRA_DATE);
mCrime.setDate(date);
mDateButton.setText(mCrime.getDate().toString());
}
}
}
Returning data to CrimeFragment
241
The code that sets the button’s text is identical to code you call in onCreateView(…). To avoid setting
the text in two places, encapsulate this code in a private updateDate() method and then call it in
onCreateView(…) and onActivityResult(…).
You could do this by hand or you can have Android Studio do it for you. Highlight the entire line of
code that sets mDateButton’s text.
Listing 12.12Highlighting date button update (CrimeFragment.java)
@Override
public void onActivityResult(int requestCode, int resultCode, Intent data) {
if (resultCode != Activity.RESULT_OK) {
return;
}
if (requestCode == REQUEST_DATE) {
Date date = (Date) data
.getSerializableExtra(DatePickerFragment.EXTRA_DATE);
mCrime.setDate(date);
mDateButton.setText(mCrime.getDate().toString());
}
}
Right-click and select Refactor → Extract → Method... (Figure12.10).
Figure 12.10Extracting a method with Android Studio
Chapter 12Dialogs
242
Make the method private and name it updateDate. Click OK and Android Studio will tell you that
it has found one other place where this line of code was used. Click Yes to allow Android Studio
to update the other reference, then verify that your code is now extracted to a single updateDate()
method, as shown in Listing 12.13.
Listing 12.13Cleaning up with updateDate() (CrimeFragment.java)
public class CrimeFragment extends Fragment {
...
@Override
public View onCreateView(LayoutInflater inflater, ViewGroup container,
Bundle savedInstanceState) {
View v = inflater.inflate(R.layout.fragment_crime, container, false);
...
mDateButton = (Button) v.findViewById(R.id.crime_date);
updateDate();
...
}
@Override
public void onActivityResult(int requestCode, int resultCode, Intent data) {
if (resultCode != Activity.RESULT_OK) {
return;
}
if (requestCode == REQUEST_DATE) {
Date date = (Date) data
.getSerializableExtra(DatePickerFragment.EXTRA_DATE);
mCrime.setDate(date);
updateDate();
}
}
private void updateDate() {
mDateButton.setText(mCrime.getDate().toString());
}
}
Now the circle is complete. The dates must flow. He who controls the dates controls time itself.
Run CriminalIntent to ensure that you can, in fact, control the dates. Change the date of a Crime and
confirm that the new date appears in CrimeFragment’s view. Then return to the list of crimes and check
the Crime’s date to ensure that the model layer was updated.
Returning data to CrimeFragment
243
More flexibility in presenting a DialogFragment
Using onActivityResult(…) to send data back to a target fragment is especially nice when you are
writing an app that needs lots of input from the user and more room to ask for it – and you want the
app working well on phones and tablets.
On a phone, you do not have much screen real estate, so you would likely use an activity with a full-
screen fragment to ask the user for input. This child activity would be started by a fragment of the
parent activity calling startActivityForResult(…). On the death of the child activity, the parent
activity would receive a call to onActivityResult(…), which would be forwarded to the fragment that
started the child activity (Figure12.11).
Figure 12.11Inter-activity communication on phones
Chapter 12Dialogs
244
On a tablet, where you have plenty of room, it is often better to present a DialogFragment to the user
to get the same input. In this case, you set the target fragment and call show(…) on the dialog fragment.
When dismissed, the dialog fragment calls onActivityResult(…) on its target (Figure12.12).
Figure 12.12Inter-fragment communication on tablets
The fragment’s onActivityResult(…) will always be called, whether the fragment started an activity
or showed a dialog. So you can use the same code for different presentations.
When setting things up to use the same code for a full-screen fragment or a dialog fragment, you
can override DialogFragment.onCreateView(…) instead of onCreateDialog(…) to prepare for both
presentations.
Challenge: More Dialogs
245
Challenge: More Dialogs
Write another dialog fragment named TimePickerFragment that allows the user to select what time of
day the crime occurred using a TimePicker widget. Add another button to CrimeFragment to display a
TimePickerFragment.
Challenge: A Responsive DialogFragment
For a more involved challenge, modify the presentation of the DatePickerFragment.
The first stage of this challenge is to supply the DatePickerFragment’s view by overriding
onCreateView(…) instead of onCreateDialog(Bundle). When setting up a DialogFragment in this
way, your dialog will not be presented with the built-in title area and button area on the top and bottom
of the dialog. You will need to create your own OK button in dialog_date.xml.
Once DatePickerFragment’s view is created in onCreateView(…), you can present
DatePickerFragment as a dialog or embedded in an activity. For the second stage of this challenge,
create a new subclass of SingleFragmentActivity and host DatePickerFragment in that activity.
When presenting DatePickerFragment in this way, you will use the startActivityForResult(…)
mechanism to pass the date back to CrimeFragment. In DatePickerFragment, if the target fragment
does not exist, use the setResult(int, intent) method on the hosting activity to send the date back
to the fragment.
For the final step of this challenge, modify CriminalIntent to present the DatePickerFragment
as a full-screen activity when running on a phone. When running on a tablet, present the
DatePickerFragment as a dialog. You may need to read ahead in Chapter17 for details on how to
optimize your app for multiple screen sizes.
247
13
The Toolbar
A key component of any well-designed Android app is the toolbar. The toolbar includes actions
that the user can take, provides an additional mechanism for navigation, and also provides design
consistency and branding.
In this chapter, you will create a menu for CriminalIntent that will be displayed in the toolbar. This
menu will have an action item that lets users add a new crime. You will also enable the Up button in the
toolbar (Figure13.1).
Figure 13.1CriminalIntent’s toolbar
Chapter 13The Toolbar
248
AppCompat
The toolbar component was added to Android in Android 5.0 (Lollipop). Prior to Lollipop, the action
bar was the recommended component for navigation and actions within an app.
The action bar and toolbar are very similar components. The toolbar builds on top of the action bar. It
has a tweaked UI and is more flexible in the ways that you can use it.
CriminalIntent supports API 19 and newer, which means that you cannot use the native toolbar on all
supported versions of Android. Luckily, the toolbar has been back-ported to the AppCompat library.
The AppCompat library allows you to provide a Lollipop’d toolbar on any version of Android back to
API 9 (Android 2.3).
Using the AppCompat library
You are already using the AppCompat library. As of this writing, new projects come with it
automatically. But what if you need to add the AppCompat library to a legacy project? AppCompat has
a few requirements that you will need to know about.
The AppCompat library requires that you:
• add the AppCompat dependency
• use one of the AppCompat themes
• ensure that all activities are a subclass of AppCompatActivity
Updating the theme
In Chapter7 you added the AppCompat dependency to CriminalIntent. The next step is to ensure that
you are using one of AppCompat’s themes. The AppCompat library comes with three themes:
•Theme.AppCompat – a dark theme
•Theme.AppCompat.Light – a light theme
•Theme.AppCompat.Light.DarkActionBar – a light theme with a dark toolbar
The theme for your application is specified at the application level and optionally per activity in your
AndroidManifest.xml. Open AndroidManifest.xml and look at the application tag. Notice the
android:theme attribute. You should see something similar to Listing 13.1.
Listing 13.1The stock manifest (AndroidManifest.xml)
<application
android:allowBackup="true"
android:icon="@mipmap/ic_launcher"
android:label="@string/app_name"
android:supportsRtl="true"
android:theme="@style/AppTheme" >
The AppTheme is defined in res/values/styles.xml. Open this file and ensure that the parent theme
of your AppTheme matches the shaded portion shown in Listing 13.2. For now, do not worry about the
attributes inside the theme. You will update those soon.
Using the AppCompat library
249
Listing 13.2Using an AppCompat theme (res/values/styles.xml)
<resources>
<style name="AppTheme" parent="Theme.AppCompat.Light.DarkActionBar">
<!-- Customize your theme here. -->
<item name="colorPrimary">@color/colorPrimary</item>
<item name="colorPrimaryDark">@color/colorPrimaryDark</item>
<item name="colorAccent">@color/colorAccent</item>
</style>
</resources>
You will learn much more about styles and themes in Chapter22.
Using AppCompatActivity
The final requirement to use the AppCompat library is to ensure that all of your activities subclass
AppCompatActivity. You have been using AppCompatActivity since Chapter7 for the support
fragment implementation, so no changes are necessary.
If you have made any updates so far in this chapter, run CriminalIntent and ensure that the app does not
crash. You should see something similar to Figure13.2.
Figure 13.2The toolbar
Now it is time to add actions to the toolbar.
Chapter 13The Toolbar
250
Menus
The top-right area of the toolbar is reserved for the toolbar’s menu. The menu consists of action items
(sometimes also referred to as menu items), which can perform an action on the current screen or on
the app as a whole. You will add an action item to allow the user to create a new crime.
Your menu will require a few string resources. Add them to strings.xml (Listing 13.3) now. These
strings may seem mysterious at this point, but it is good to get them taken care of. When you need
them later, they will already be in place, and you will not have to stop what you are doing to add them.
Listing 13.3Adding strings for menus (res/values/strings.xml)
<resources>
...
<string name="date_picker_title">Date of crime:</string>
<string name="new_crime">New Crime</string>
<string name="show_subtitle">Show Subtitle</string>
<string name="hide_subtitle">Hide Subtitle</string>
<string name="subtitle_format">%1$d crimes</string>
</resources>
Defining a menu in XML
Menus are a type of resource similar to layouts. You create an XML description of a menu and place
the file in the res/menu directory of your project. Android generates a resource ID for the menu file
that you then use to inflate the menu in code.
In the project tool window, right-click on the res directory and select New → Android resource file.
Change the Resource type to Menu, name the menu resource fragment_crime_list, and click OK
(Figure13.3).
Defining a menu in XML
251
Figure 13.3Creating a menu file
Here, you use the same naming convention for menu files as you do for layout files. Android
Studio will generate res/menu/fragment_crime_list.xml, which has the same name as your
CrimeListFragment’s layout file but lives in the menu folder. In the new file, switch to the Text view
and add an item element as shown in Listing 13.4.
Listing 13.4Creating a menu resource for CrimeListFragment
(res/menu/fragment_crime_list.xml)
<menu xmlns:android="http://schemas.android.com/apk/res/android"
xmlns:app="http://schemas.android.com/apk/res-auto">
<item
android:id="@+id/new_crime"
android:icon="@android:drawable/ic_menu_add"
android:title="@string/new_crime"
app:showAsAction="ifRoom|withText"/>
</menu>
The showAsAction attribute refers to whether the item will appear in the toolbar itself or in the
overflow menu. You have piped together two values, ifRoom and withText, so the item’s icon and text
will appear in the toolbar if there is room. If there is room for the icon but not the text, then only the
icon will be visible. If there is no room for either, then the item will be relegated to the overflow menu.
Chapter 13The Toolbar
252
If you have items in the overflow menu, those items will be represented by the three dots on the far-
right side of the toolbar, as shown in Figure13.4. You will update your code to add additional menu
items in a moment.
Figure 13.4Overflow menu in the toolbar
Other options for showAsAction include always and never. Using always is not recommended; it is
better to use ifRoom and let the OS decide. Using never is a good choice for less-common actions.
In general, you should only put action items that users will use frequently in the toolbar to avoid
cluttering the screen.
The app namespace
Notice that fragment_crime_list.xml uses the xmlns tag to define a new namespace, app, which is
separate from the usual android namespace declaration. This app namespace is then used to specify
the showAsAction attribute.
This unusual namespace declaration exists for legacy reasons with the AppCompat library. The
action bar APIs were first added in Android 3.0. Originally, the AppCompat library was created to
bundle a compatibility version of the action bar into apps supporting earlier versions of Android, so
that the action bar would exist on any device, even those that did not support the native action bar.
On devices running Android 2.3 or older, menus and their corresponding XML did exist, but the
android:showAsAction attribute was only added with the release of the action bar.
The AppCompat library defines its own custom showAsAction attribute and does not look for the
native showAsAction attribute.
Defining a menu in XML
253
Using Android Asset Studio
In the android:icon attribute, the value @android:drawable/ic_menu_add references a system icon. A
system icon is one that is found on the device rather than in your project’s resources.
In a prototype, referencing a system icon works fine. However, in an app that will be released, it is
better to be sure of what your user will see instead of leaving it up to each device. System icons can
change drastically across devices and OS versions, and some devices might have system icons that do
not fit with the rest of your app’s design.
One alternative is to create your own icons from scratch. You will need to prepare versions for each
screen density and possibly for other device configurations. For more information, visit Android’s Icon
Design Guidelines at developer.android.com/design/style/iconography.html.
A second alternative is to find system icons that meet your app’s needs and copy them directly into
your project’s drawable resources.
System icons can be found in your Android SDK directory. On a Mac, this is typically /Users/user/
Library/Android/sdk. On Windows, the default location is \Users\user\sdk. You can also verify
your SDK location by opening the project structure window and selecting the SDK Location option.
In your SDK directory, you will find Android’s resources, including ic_menu_add. These resources
are found in /platforms/android-25/data/res, where 25 represents the API level of the Android
version.
The third and easiest alternative is to use the Android Asset Studio, which is included in Android
Studio. The Asset Studio allows you to create and customize an image to use in the toolbar.
Right-click on your drawable directory in the project tool window and select New → Image Asset to
bring up the Asset Studio (Figure13.5).
Here, you can generate a few types of icons. In the Icon Type field, choose Action Bar and Tab Icons.
Next, name your asset ic_menu_add and set the Asset Type option to Clip Art. Update the Theme to use
HOLO_DARK. Since your toolbar uses a dark theme, your image should appear as a light color. These
changes are shown in Figure13.5; note that while we are also showing the clip art you are about to
select, your screen will feature the adorable Android logo.
Chapter 13The Toolbar
254

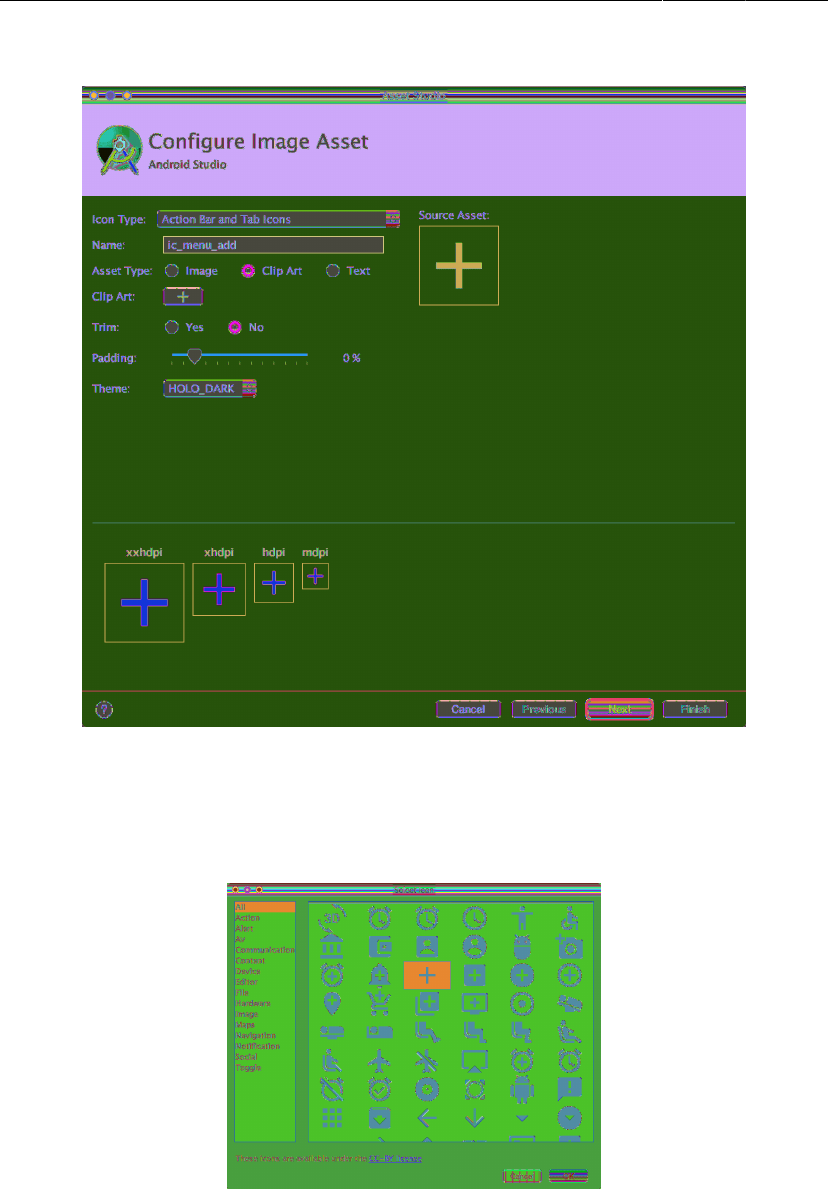

Figure 13.5Asset Studio
Select the Clip Art button to pick your clip art. In the clip art window, choose the image that looks like a
plus sign (Figure13.6).
Figure 13.6Clip art options – where is that plus sign?
Defining a menu in XML
255
Back on the main screen, click Next to move to the last step of the wizard. The Asset Studio will show
you a preview of the work that it will do (Figure13.7). Notice that an hdpi, mdpi, xhdpi, and xxhdpi
icon will be created for you. Jim-dandy.
Figure 13.7Asset Studio’s generated files
Select Finish to generate the images. Then, in your layout file, modify your icon attribute to reference
the new resource in your project.
Listing 13.5Referencing a local resource
(res/menu/fragment_crime_list.xml)
<item
android:id="@+id/new_crime"
android:icon="@android:drawable/ic_menu_add"
android:icon="@drawable/ic_menu_add"
android:title="@string/new_crime"
app:showAsAction="ifRoom|withText"/>
Chapter 13The Toolbar
256
Creating the menu
In code, menus are managed by callbacks from the Activity class. When the menu is needed, Android
calls the Activity method onCreateOptionsMenu(Menu).
However, your design calls for code to be implemented in a fragment, not an activity. Fragment comes
with its own set of menu callbacks, which you will implement in CrimeListFragment. The methods for
creating the menu and responding to the selection of an action item are:
public void onCreateOptionsMenu(Menu menu, MenuInflater inflater)
public boolean onOptionsItemSelected(MenuItem item)
In CrimeListFragment.java, override onCreateOptionsMenu(Menu, MenuInflater) to inflate the
menu defined in fragment_crime_list.xml.
Listing 13.6Inflating a menu resource (CrimeListFragment.java)
@Override
public void onResume() {
super.onResume();
updateUI();
}
@Override
public void onCreateOptionsMenu(Menu menu, MenuInflater inflater) {
super.onCreateOptionsMenu(menu, inflater);
inflater.inflate(R.menu.fragment_crime_list, menu);
}
...
Within this method, you call MenuInflater.inflate(int, Menu) and pass in the resource ID of your
menu file. This populates the Menu instance with the items defined in your file.
Notice that you call through to the superclass implementation of onCreateOptionsMenu(…). This
is not required, but we recommend calling through as a matter of convention. That way, any menu
functionality defined by the superclass will still work. However, it is only a convention – the base
Fragment implementation of this method does nothing.
The FragmentManager is responsible for calling Fragment.onCreateOptionsMenu(Menu,
MenuInflater) when the activity receives its onCreateOptionsMenu(…) callback from the
OS. You must explicitly tell the FragmentManager that your fragment should receive a call to
onCreateOptionsMenu(…). You do this by calling the following method:
public void setHasOptionsMenu(boolean hasMenu)
Creating the menu
257
Define CrimeListFragment.onCreate(Bundle) and let the FragmentManager know that
CrimeListFragment needs to receive menu callbacks.
Listing 13.7Receiving menu callbacks (CrimeListFragment.java)
public class CrimeListFragment extends Fragment {
private RecyclerView mCrimeRecyclerView;
private CrimeAdapter mAdapter;
@Override
public void onCreate(Bundle savedInstanceState) {
super.onCreate(savedInstanceState);
setHasOptionsMenu(true);
}
@Override
public View onCreateView(LayoutInflater inflater, ViewGroup container,
You can run CriminalIntent now to see your menu (Figure13.8).
Figure 13.8Icon for the New Crime action item in the toolbar
Chapter 13The Toolbar
258
Where is the action item’s text? Most phones only have enough room for the icon in portrait
orientation. You can long-press an icon in the toolbar to reveal its title (Figure13.9).
Figure 13.9Long-pressing an icon in the toolbar shows the title
In landscape orientation, there is room in the toolbar for the icon and the text (Figure13.10).
Figure 13.10Icon and text in the toolbar
Responding to menu selections
259
Responding to menu selections
To respond to the user pressing the New Crime action item, you need a way to add a new Crime to your
list of crimes. In CrimeLab.java, add a method to do this.
Listing 13.8Adding a new crime (CrimeLab.java)
...
public void addCrime(Crime c) {
mCrimes.add(c);
}
public List<Crime> getCrimes() {
return mCrimes;
}
In this brave new world where you will be able to add crimes yourself, the 100 programmatically
generated crimes are no longer necessary. Remove the code that generates these crimes from
CrimeLab.java.
Listing 13.9Goodbye, random crimes! (CrimeLab.java)
private CrimeLab(Context context) {
mCrimes = new ArrayList<>();
for (int i = 0; i < 100; i++) {
Crime crime = new Crime();
crime.setTitle("Crime #" + i);
crime.setSolved(i % 2 == 0); // Every other one
mCrimes.add(crime);
}
}
When the user presses an action item, your fragment receives a callback to the method
onOptionsItemSelected(MenuItem). This method receives an instance of MenuItem that describes the
user’s selection.
Although your menu only contains one action item, menus often have more than one. You can
determine which action item has been selected by checking the ID of the MenuItem and then respond
appropriately. This ID corresponds to the ID you assigned to the MenuItem in your menu file.
Chapter 13The Toolbar
260
In CrimeListFragment.java, implement onOptionsItemSelected(MenuItem) to respond to selection
of the MenuItem by creating a new Crime, adding it to CrimeLab, and then starting an instance of
CrimePagerActivity to edit the new Crime.
Listing 13.10Responding to menu selection (CrimeListFragment.java)
@Override
public void onCreateOptionsMenu(Menu menu, MenuInflater inflater) {
super.onCreateOptionsMenu(menu, inflater);
inflater.inflate(R.menu.fragment_crime_list, menu);
}
@Override
public boolean onOptionsItemSelected(MenuItem item) {
switch (item.getItemId()) {
case R.id.new_crime:
Crime crime = new Crime();
CrimeLab.get(getActivity()).addCrime(crime);
Intent intent = CrimePagerActivity
.newIntent(getActivity(), crime.getId());
startActivity(intent);
return true;
default:
return super.onOptionsItemSelected(item);
}
}
Notice that this method returns a boolean value. Once you have handled the MenuItem, you should
return true to indicate that no further processing is necessary. The default case calls the superclass
implementation if the item ID is not in your implementation.
Run CriminalIntent and try out your new menu. Add a few crimes and edit them afterward. (The empty
list that you see before you add any crimes can be disconcerting. At the end of this chapter there is a
challenge to present a helpful clue when the list is empty.)
Enabling Hierarchical Navigation
So far, CriminalIntent relies heavily on the Back button to navigate around the app. Using the Back
button is temporal navigation. It takes you to where you were last. Hierarchical navigation, on the
other hand, takes you up the app hierarchy. (It is sometimes called ancestral navigation.)
In hierarchical navigation, the user navigates up by pressing the Up button on the left side of the
toolbar.
Enable hierarchical navigation in CriminalIntent by adding a parentActivityName attribute in the
AndroidManifest.xml file.
How hierarchical navigation works
261
Listing 13.11Turning on the Up button (AndroidManifest.xml)
<activity
android:name=".CrimePagerActivity"
android:parentActivityName=".CrimeListActivity">
</activity>
Run the app and create a new crime. Notice the Up button in the crime detail screen, as shown in
Figure13.11. Pressing the Up button will take you up one level in CriminalIntent’s hierarchy to
CrimeListActivity.
Figure 13.11CrimePagerActivity’s Up button
How hierarchical navigation works
In CriminalIntent, navigating with the Back button and navigating with the Up button perform the
same task. Pressing either of those from within the CrimePagerActivity will take the user back to the
CrimeListActivity. Even though they accomplish the same result, behind the scenes they are doing
very different things. This is important because, depending on the application, navigating up may pop
the user back multiple activities in the back stack.
When the user navigates up from CrimePagerActivity, an intent like the following is created:
Intent intent = new Intent(this, CrimeListActivity.class);
intent.addFlags(Intent.FLAG_ACTIVITY_CLEAR_TOP);
startActivity(intent);
finish();
FLAG_ACTIVITY_CLEAR_TOP tells Android to look for an existing instance of the activity in the stack,
and, if there is one, pop every other activity off the stack so that the activity being started will be top-
most (Figure13.12).
Figure 13.12FLAG_ACTIVITY_CLEAR_TOP at work
Chapter 13The Toolbar
262
An Alternative Action Item
In this section, you will use what you have learned about menu resources to add an action item that lets
users show and hide a subtitle displaying the number of crimes from CrimeListActivity’s toolbar.
In res/menu/fragment_crime_list.xml, add an action item that will read SHOW SUBTITLE and will
appear in the toolbar if there is room. (The all-caps formatting is courtesy of the toolbar’s inherent
styles; you have seen similar formatting on buttons.)
Listing 13.12Adding SHOW SUBTITLE action item
(res/menu/fragment_crime_list.xml)
<menu xmlns:android="http://schemas.android.com/apk/res/android"
xmlns:app="http://schemas.android.com/apk/res-auto">
<item
android:id="@+id/new_crime"
android:icon="@android:drawable/ic_menu_add"
android:title="@string/new_crime"
app:showAsAction="ifRoom|withText"/>
<item
android:id="@+id/show_subtitle"
android:title="@string/show_subtitle"
app:showAsAction="ifRoom"/>
</menu>
Create a new method, updateSubtitle(), that will set the subtitle of the toolbar to display the number
of crimes.
Listing 13.13Setting the toolbar’s subtitle (CrimeListFragment.java)
@Override
public boolean onOptionsItemSelected(MenuItem item) {
...
}
private void updateSubtitle() {
CrimeLab crimeLab = CrimeLab.get(getActivity());
int crimeCount = crimeLab.getCrimes().size();
String subtitle = getString(R.string.subtitle_format, crimeCount);
AppCompatActivity activity = (AppCompatActivity) getActivity();
activity.getSupportActionBar().setSubtitle(subtitle);
}
...
updateSubtitle() first generates the subtitle string using the getString(int resId, Object…
formatArgs) method, which accepts replacement values for the placeholders in the string resource.
Next, the activity that is hosting the CrimeListFragment is cast to an AppCompatActivity.
Recall that because CriminalIntent uses the AppCompat library, all activities are a subclass of
AppCompatActivity, which allows you to access the toolbar. (For legacy reasons, the toolbar is still
referred to as “action bar” in many places within the AppCompat library.)
Now that updateSubtitle() is defined, call the method when the user presses on the new action item.
Toggling the action item title
263
Listing 13.14Responding to SHOW SUBTITLE action item
(CrimeListFragment.java)
@Override
public boolean onOptionsItemSelected(MenuItem item) {
switch (item.getItemId()) {
case R.id.new_crime:
...
return true;
case R.id.show_subtitle:
updateSubtitle();
return true;
default:
return super.onOptionsItemSelected(item);
}
}
Run CriminalIntent, press the SHOW SUBTITLE item, and confirm that you can see the number of
crimes in the subtitle.
Toggling the action item title
Now the subtitle is visible, but the action item still reads SHOW SUBTITLE. It would be better if the
action item toggled its title and function to show or hide the subtitle.
When onOptionsItemSelected(MenuItem) is called, you are given the MenuItem that the user pressed
as a parameter. You could update the text of the SHOW SUBTITLE item in this method, but the subtitle
change would be lost as you rotate the device and the toolbar is re-created.
A better solution is to update the SHOW SUBTITLE MenuItem in onCreateOptionsMenu(…) and trigger
a re-creation of the toolbar when the user presses on the subtitle item. This allows you to share the code
for updating the action item in the case that the user selects an action item or the toolbar is re-created.
First, add a member variable to keep track of the subtitle visibility.
Listing 13.15Keeping subtitle visibility state (CrimeListFragment.java)
public class CrimeListFragment extends Fragment {
private RecyclerView mCrimeRecyclerView;
private CrimeAdapter mAdapter;
private boolean mSubtitleVisible;
...
Chapter 13The Toolbar
264
Next, modify the subtitle in onCreateOptionsMenu(…) and trigger a re-creation of the action items
when the user presses on the SHOW SUBTITLE action item.
Listing 13.16Updating a MenuItem (CrimeListFragment.java)
@Override
public void onCreateOptionsMenu(Menu menu, MenuInflater inflater) {
super.onCreateOptionsMenu(menu, inflater);
inflater.inflate(R.menu.fragment_crime_list, menu);
MenuItem subtitleItem = menu.findItem(R.id.show_subtitle);
if (mSubtitleVisible) {
subtitleItem.setTitle(R.string.hide_subtitle);
} else {
subtitleItem.setTitle(R.string.show_subtitle);
}
}
@Override
public boolean onOptionsItemSelected(MenuItem item) {
switch (item.getItemId()) {
case R.id.new_crime:
...
case R.id.show_subtitle:
mSubtitleVisible = !mSubtitleVisible;
getActivity().invalidateOptionsMenu();
updateSubtitle();
return true;
default:
return super.onOptionsItemSelected(item);
}
}
Finally, respect the mSubtitleVisible member variable when showing or hiding the subtitle in the
toolbar.
Listing 13.17Showing or hiding the subtitle (CrimeListFragment.java)
private void updateSubtitle() {
CrimeLab crimeLab = CrimeLab.get(getActivity());
int crimeCount = crimeLab.getCrimes().size();
String subtitle = getString(R.string.subtitle_format, crimeCount);
if (!mSubtitleVisible) {
subtitle = null;
}
AppCompatActivity activity = (AppCompatActivity) getActivity();
activity.getSupportActionBar().setSubtitle(subtitle);
}
Run CriminalIntent and modify the subtitle visibility in the toolbar. Notice that the action item text
reflects the existence of the subtitle.
“Just one more thing...”
265
“Just one more thing...”
Programming in Android is often like being questioned by the TV detective Columbo. You think you
have the angles covered and are home free. But Android always turns at the door and says, “Just one
more thing...”
Here, there are actually two more things. First, when creating a new crime and then returning to
CrimeListActivity with the Back button, the number of crimes in the subtitle will not update to
reflect the new number of crimes. Second, the visibility of the subtitle is lost across rotation.
Tackle the update issue first. The solution to this problem is to update the subtitle text when returning
to CrimeListActivity. Trigger a call to updateSubtitle() in onResume(). Your updateUI() method
is already called in onResume() and onCreateView(…). Add a call to updateSubtitle() to the
updateUI() method.
Listing 13.18Showing the most recent state (CrimeListFragment.java)
private void updateUI() {
CrimeLab crimeLab = CrimeLab.get(getActivity());
List<Crime> crimes = crimeLab.getCrimes();
if (mAdapter == null) {
mAdapter = new CrimeAdapter(crimes);
mCrimeRecyclerView.setAdapter(mAdapter);
} else {
mAdapter.notifyDataSetChanged();
}
updateSubtitle();
}
Run CriminalIntent, show the subtitle, create a new crime, and press the Back button on the device to
return to CrimeListActivity. The number of crimes in the toolbar will be correct.
Now repeat these steps, but instead of using the Back button, use the Up button in the toolbar. The
visibility of the subtitle will be reset. Why does this happen?
An unfortunate side effect of the way hierarchical navigation is implemented in Android is that the
activity that you navigate up to will be completely re-created from scratch. This means that any
instance variables will be lost, and it also means that any saved instance state will be lost as well. This
parent activity is seen as a completely new activity.
There is not an easy way to ensure that the subtitle stays visible when navigating up. One option is to
override the mechanism that navigates up. You could call finish() on the CrimePagerActivity to pop
back to the previous activity. This would work perfectly well in CriminalIntent but would not work in
apps with a more realistic hierarchy, as this would only pop back one activity.
Another option is to pass information about the subtitle visibility as an extra to CrimePagerActivity
when it is started. Then, override the getParentActivityIntent() method in CrimePagerActivity
to add an extra to the intent that is used to re-create the CrimeListActivity. This solution requires
CrimePagerActivity to know the details of how its parent works.
Both of these solutions are less than ideal, and there is not a great alternative. For this reason, you are
going to let this issue ride; making the user click SHOW SUBTITLE is not a terrible burden.
Chapter 13The Toolbar
266
Now that the subtitle always displays the correct number of crimes, solve the rotation issue. To fix this
problem, save the mSubtitleVisible instance variable across rotation with the saved instance state
mechanism.
Listing 13.19Saving subtitle visibility (CrimeListFragment.java)
public class CrimeListFragment extends Fragment {
private static final String SAVED_SUBTITLE_VISIBLE = "subtitle";
...
@Override
public View onCreateView(LayoutInflater inflater, ViewGroup container,
Bundle savedInstanceState) {
...
if (savedInstanceState != null) {
mSubtitleVisible = savedInstanceState.getBoolean(SAVED_SUBTITLE_VISIBLE);
}
updateUI();
return view;
}
@Override
public void onResume() {
...
}
@Override
public void onSaveInstanceState(Bundle outState) {
super.onSaveInstanceState(outState);
outState.putBoolean(SAVED_SUBTITLE_VISIBLE, mSubtitleVisible);
}
}
Run CriminalIntent. Show the subtitle and then rotate. The subtitle should appear as expected in the re-
created view (Figure13.13).
For the More Curious: Action Bar vs Toolbar
267
For the More Curious: Action Bar vs Toolbar
Figure 13.13Action Bar vs Toolbar
What is the difference between the action bar and the toolbar?
The most obvious difference is the updated visual design of the toolbar. The toolbar no longer includes
an icon on the left side and decreases some of the spacing between the action items on the right side.
Another major visual change is the Up button. In the action bar, this button was much more subtle and
was just an accessory next to the icon in the action bar.
Aside from the visual differences, the main goal of the toolbar is to be more flexible than the action
bar. The action bar has many constraints. It will always appear at the top of the screen. There can only
be one action bar. The size of the action bar is fixed and should not be changed. The toolbar does not
have these constraints.
In this chapter, you used a toolbar that was provided by one of the AppCompat themes. Alternatively,
you can manually include a toolbar as a normal view in your activity or fragment’s layout file. You can
place this toolbar anywhere you like and you can even include multiple toolbars on the screen at the
same time. This flexibility allows for interesting designs; for example, imagine if each fragment that
you use maintains its own toolbar. When you host multiple fragments on the screen at the same time,
each of them can bring along its own toolbar instead of sharing a single toolbar at the top of the screen.
Another interesting addition with the toolbar is the ability to place Views inside of the toolbar and to
also adjust the height of the toolbar. This allows for much more flexibility in the way that your app
works.
Challenge: Deleting Crimes
Once a crime has been created in CriminalIntent, there is no way to erase that crime from the official
record. For this challenge, add a new action item to the CrimeFragment that allows the user to delete
the current crime. Once the user presses the new delete action item, be sure to pop the user back to the
previous activity with a call to the finish() method on the CrimeFragment’s hosting activity.
Chapter 13The Toolbar
268
Challenge: Plural String Resources
The subtitle is not grammatically correct when there is a single crime. 1 crimes just does not show the
right amount of attention to detail for your taste. For this challenge, correct this subtitle text.
You could have two different strings and determine which one to use in code, but this will quickly
fall apart when you localize your app for different languages. A better option is to use plural string
resources (sometimes also called quantity strings).
First, define a plural string in your strings.xml file.
<plurals name="subtitle_plural">
<item quantity="one">%1$d crime</item>
<item quantity="other">%1$d crimes</item>
</plurals>
Then, use the getQuantityString method to correctly pluralize the string.
int crimeSize = crimeLab.getCrimes().size();
String subtitle = getResources()
.getQuantityString(R.plurals.subtitle_plural, crimeSize, crimeSize);
Challenge: An Empty View for the RecyclerView
Currently, when CriminalIntent launches it displays an empty RecyclerView – a big white void. You
should give users something to interact with when there are no items in the list.
For this challenge, display a message like, There are no crimes and add a button to the view that will
trigger the creation of a new crime.
Use the setVisibility method that exists on any View class to show and hide this new placeholder
view when appropriate.
269
14
SQLite Databases
Almost every application needs a place to save data for the long term, longer than
savedInstanceState will keep it around. Android provides a place to do this for you: a local
filesystem on your phone or tablet’s flash memory storage.
Each application on an Android device has a directory in the device’s sandbox. Keeping files in the
sandbox protects them from being accessed by other applications or even the prying eyes of users
(unless the device has been “rooted,” in which case the user can get to whatever he or she likes).
Each application’s sandbox directory is a child of the device’s /data/data directory named after
the application package. For CriminalIntent, the full path to the sandbox directory is /data/data/
com.bignerdranch.android.criminalintent.
However, most application data is not stored in plain old files. Here is why: Say that you had a file with
all of your Crimes written out. To change the title on a Crime at the beginning of the file, you would
have to read in the entire file and write out a whole new version. With a lot of Crimes, that would take a
long time.
This is where SQLite comes in. SQLite is an open source relational database, like MySQL or
PostgreSQL. Unlike other databases, though, SQLite stores its data in simple files, which you can read
and write using the SQLite library. Android includes this SQLite library in its standard library, along
with some additional Java helper classes.
This chapter will not cover everything SQLite. For that, you will want to visit www.sqlite.org, which
has complete documentation of SQLite itself. Here you will see how Android’s basic SQLite helper
classes work. These will let you open, read, and write to SQLite databases in your application sandbox
without necessarily knowing where that is.
Chapter 14SQLite Databases
270
Defining a Schema
Before you create a database, you have to decide what will be in that database. CriminalIntent stores a
single list of crimes, so you will define one table named crimes (Figure14.1).
Figure 14.1The crimes table
People do this kind of thing in a lot of different ways in the programming world. They are all trying
to achieve the same thing: to DRY up their code. DRY means “Don’t Repeat Yourself” and refers to a
rule of thumb when writing a program: If you write something down, write it down in one authoritative
place. That way, instead of repeating yourself all over the place, you are always referring to the one
authoritative place for that information.
Doing this with databases can be involved. There are even complex tools called object-relational
mappers (ORMs) that let you use your model objects (like Crime) as your One True Definition. In this
chapter, you will take the simpler route of defining a simplified database schema in Java code that says
what your table is named and what its columns are.
Start by creating a class to put your schema in. You will call this class CrimeDbSchema, but in the
Create New Class dialog, enter database.CrimeDbSchema. This will put the CrimeDbSchema.java file
in its own database package, which you will use to organize all your database-related code.
Inside CrimeDbSchema, define an inner class called CrimeTable to describe your table.
Listing 14.1Defining CrimeTable (CrimeDbSchema.java)
public class CrimeDbSchema {
public static final class CrimeTable {
public static final String NAME = "crimes";
}
}
The CrimeTable class only exists to define the String constants needed to describe the moving pieces
of your table definition. The first piece of that definition is the name of the table in your database,
CrimeTable.NAME.
Next, describe the columns.
Listing 14.2Defining your table columns (CrimeDbSchema.java)
public class CrimeDbSchema {
public static final class CrimeTable {
public static final String NAME = "crimes";
public static final class Cols {
public static final String UUID = "uuid";
public static final String TITLE = "title";
public static final String DATE = "date";
public static final String SOLVED = "solved";
}
}
}
Building Your Initial Database
271
With that, you will be able to refer to the column named “title” in a Java-safe way:
CrimeTable.Cols.TITLE. That makes it much safer to update your program if you ever need to change
the name of that column or add additional data to the table.
Building Your Initial Database
With your schema defined, you are ready to create the database itself. Android provides some
low-level methods on Context to open a database file into an instance of SQLiteDatabase:
openOrCreateDatabase(…) and databaseList().
However, in practice you will always need to follow a few basic steps:
• Check to see whether the database already exists.
• If it does not, create it and create the tables and initial data it needs.
• If it does, open it up and see what version of your CrimeDbSchema it has. (You may want to add or
remove things in future versions of CriminalIntent.)
• If it is an old version, upgrade it to a newer version.
Android provides the SQLiteOpenHelper class to handle all of this for you. Create a class called
CrimeBaseHelper in your database package.
Listing 14.3Creating CrimeBaseHelper (CrimeBaseHelper.java)
public class CrimeBaseHelper extends SQLiteOpenHelper {
private static final int VERSION = 1;
private static final String DATABASE_NAME = "crimeBase.db";
public CrimeBaseHelper(Context context) {
super(context, DATABASE_NAME, null, VERSION);
}
@Override
public void onCreate(SQLiteDatabase db) {
}
@Override
public void onUpgrade(SQLiteDatabase db, int oldVersion, int newVersion) {
}
}
Chapter 14SQLite Databases
272
A SQLiteOpenHelper is a class designed to get rid of the grunt work of opening a SQLiteDatabase.
Use it inside of CrimeLab to create your crime database.
Listing 14.4Opening a SQLiteDatabase (CrimeLab.java)
public class CrimeLab {
private static CrimeLab sCrimeLab;
private List<Crime> mCrimes;
private Context mContext;
private SQLiteDatabase mDatabase;
...
private CrimeLab(Context context) {
mContext = context.getApplicationContext();
mDatabase = new CrimeBaseHelper(mContext)
.getWritableDatabase();
mCrimes = new ArrayList<>();
}
(Wondering why the context is stored in an instance variable? CrimeLab will use it in Chapter16.)
When you call getWritableDatabase() here, CrimeBaseHelper will do the following:
• Open up /data/data/com.bignerdranch.android.criminalintent/databases/crimeBase.db,
creating a new database file if it does not already exist.
• If this is the first time the database has been created, call onCreate(SQLiteDatabase), then save
out the latest version number.
• If this is not the first time, check the version number in the database. If the version number in
CrimeBaseHelper is higher, call onUpgrade(SQLiteDatabase, int, int).
The upshot is this: You put your code to create the initial database in onCreate(SQLiteDatabase),
your code to handle any upgrades in onUpgrade(SQLiteDatabase, int, int), and it just works.
For now, CriminalIntent will only have one version, so you can ignore onUpgrade(…). You only
need to create your database tables in onCreate(SQLiteDatabase). To do that, you will refer to the
CrimeTable inner class of CrimeDbSchema.
The import is a two-step process. First, write the initial part of your SQL creation code.
Listing 14.5Writing first part of onCreate(SQLiteDatabase)
(CrimeBaseHelper.java)
@Override
public void onCreate(SQLiteDatabase db) {
db.execSQL("create table " + CrimeDbSchema.CrimeTable.NAME);
}
Building Your Initial Database
273
Put your cursor on the word CrimeTable and key in Option+Return (Alt+Enter). Then select the first
item, Add import for 'com.bignerdranch.android.criminalintent.database.CrimeDbSchema.CrimeTable',
as shown in Figure14.2.
Figure 14.2Adding a CrimeTable import
Android Studio will generate an import like this for you:
import com.bignerdranch.android.criminalintent.database.CrimeDbSchema.CrimeTable;
public class CrimeBaseHelper extends SQLiteOpenHelper {
That will let you refer to the String constants in CrimeDbSchema.CrimeTable
by typing in CrimeTable.Cols.UUID, rather than typing out the entirety of
CrimeDbSchema.CrimeTable.Cols.UUID. Use that to finish filling out your table definition code.
Listing 14.6Creating crime table (CrimeBaseHelper.java)
@Override
public void onCreate(SQLiteDatabase db) {
db.execSQL("create table " + CrimeTable.NAME + "(" +
" _id integer primary key autoincrement, " +
CrimeTable.Cols.UUID + ", " +
CrimeTable.Cols.TITLE + ", " +
CrimeTable.Cols.DATE + ", " +
CrimeTable.Cols.SOLVED +
")"
);
}
Creating a table in SQLite requires less ceremony than in other databases: You do not have to specify
the type of a column at creation time. It is a good idea to do that, but here you will save a bit of labor
by doing without it.
Run CriminalIntent, and your database will be created. If you are running on an emulator or a rooted
device, you can look at it directly. (Not on an unrooted device, though – it is saved in private storage,
which is secret.)
As of this writing, the emulator images for Nougat (API 24 and 25) do not cooperate with the Android
Device Monitor’s file explorer. To see your files, you will need to install your app on an emulator
running an older version of Android. To remind yourself how to set up an emulator, see the section
called Running on the Emulator in Chapter1.
Chapter 14SQLite Databases
274
Exploring files using Android Device Monitor
Once you have an emulator running API 23 or earlier, pull up the Android Device Monitor. Select
Tools → Android → Android Device Monitor from the main menu.
If you see a dialog that asks to disable ADB integration, click Yes (Figure14.3).
Figure 14.3Disabling ADB integration
When the Android Device Monitor screen appears, click on the File Explorer tab. To see the database
files CriminalIntent created, look in /data/data/com.bignerdranch.android.criminalintent/
databases/ (Figure14.4).
Figure 14.4Your database
Exploring files using Android Device Monitor
275
(If you try to run the app once you have disabled ADB integration, you may see the following error:
Instant Run requires 'Tools | Android | Enable ADB integration' to be enabled. To fix this problem,
select Android Studio → Preferences from the main menu. In the screen that appears, enter “Instant
Run” in the search box on the top left (Figure14.5). Uncheck the top checkbox that reads Enable
Instant Run to hot swap code/resource changes on deploy (default enabled). Click the Apply button.
Then click OK to dismiss the dialog.)
Figure 14.5Disabling Instant Run
Chapter 14SQLite Databases
276
Debugging database issues
When writing code dealing with a SQLite database, you will sometimes need to tweak the layout of
the database. For example, in an upcoming chapter you will add a suspect for each crime. This will
require an additional column on the crime table. The “right” way to do this is to write code in your
SQLiteOpenHelper to bump the version number, and then update the tables inside onUpgrade(…).
Well, the “right” way involves a fair amount of code – code that is ridiculous to write when you are
only trying to get version 1 or 2 of the database right. In practice, the best thing to do is destroy the
database and start over, so that SQLiteOpenHelper.onCreate(…) is called again.
The easiest way to destroy your database is to delete the app off your device. And the easiest way to
delete the app on stock Android is to go to the application browser and drag CriminalIntent’s icon up to
where it says Uninstall at the top of screen. (The process may be different if your version of Android is
different from stock Android.) Then you will see a screen similar to the one shown in Figure14.6.
Figure 14.6Deleting an app
Remember this trick if you run into any issues with your database tables in this chapter.
Gutting CrimeLab
277
Gutting CrimeLab
Now that you have a database, your next step is to change a lot of code inside of CrimeLab, swapping it
to use mDatabase for storage instead of mCrimes.
Start out by doing some demolition. Strip out all the code related to mCrimes in CrimeLab.
Listing 14.7Tearing down some walls (CrimeLab.java)
public class CrimeLab {
private static CrimeLab sCrimeLab;
private List<Crime> mCrimes;
private Context mContext;
private SQLiteDatabase mDatabase;
public static CrimeLab get(Context context) {
...
}
private CrimeLab(Context context) {
mContext = context.getApplicationContext();
mDatabase = new CrimeBaseHelper(mContext)
.getWritableDatabase();
mCrimes = new ArrayList<>();
}
public void addCrime(Crime c) {
mCrimes.add(c);
}
public List<Crime> getCrimes() {
return mCrimes;
return new ArrayList<>();
}
public Crime getCrime(UUID id) {
for (Crime crime : mCrimes) {
if (crime.getId().equals(id)) {
return crime;
}
}
return null;
}
}
This will leave CriminalIntent in a state where it is not really working; you can see an empty list of
crimes, but if you add a crime it will show an empty CrimePagerActivity. This is irritating, but fine
for now.
Chapter 14SQLite Databases
278
Writing to the Database
The first step in using your SQLiteDatabase is to write data to it. You will need to insert new rows into
the crime table as well as update rows that are already there when Crimes are changed.
Using ContentValues
Writes and updates to databases are done with the assistance of a class called ContentValues.
ContentValues is a key-value store class, like Java’s HashMap or the Bundles you have been using so
far. However, unlike HashMap or Bundle, it is specifically designed to store the kinds of data SQLite
can hold.
You will be creating ContentValues instances from Crimes a few times in CrimeLab. Add
a private method to take care of shuttling a Crime into a ContentValues. (Remember to
use the same two-step trick from above to add an import of CrimeTable: When you get
to CrimeTable.Cols.UUID, type Option+Return (Alt+Enter) and choose Add import for
'com.bignerdranch.android.criminalintent.database.CrimeDbSchema.CrimeTable'.)
Listing 14.8Creating a ContentValues (CrimeLab.java)
public Crime getCrime(UUID id) {
return null;
}
private static ContentValues getContentValues(Crime crime) {
ContentValues values = new ContentValues();
values.put(CrimeTable.Cols.UUID, crime.getId().toString());
values.put(CrimeTable.Cols.TITLE, crime.getTitle());
values.put(CrimeTable.Cols.DATE, crime.getDate().getTime());
values.put(CrimeTable.Cols.SOLVED, crime.isSolved() ? 1 : 0);
return values;
}
}
For the keys, you use your column names. These are not arbitrary names; they specify the columns that
you want to insert or update. If they are misspelled or typo’d compared to what is in the database, your
insert or update will fail. Every column is specified here except for _id, which is automatically created
for you as a unique row ID.
Inserting and updating rows
279
Inserting and updating rows
Now that you have a ContentValues, it is time to add rows to the database. Fill out addCrime(Crime)
with a new implementation.
Listing 14.9Inserting a row (CrimeLab.java)
public void addCrime(Crime c) {
ContentValues values = getContentValues(c);
mDatabase.insert(CrimeTable.NAME, null, values);
}
The insert(String, String, ContentValues) method has two important arguments and one that is
rarely used. The first argument is the table you want to insert into – here, CrimeTable.NAME. The last
argument is the data you want to put in.
And the second argument? The second argument is called nullColumnHack. And what does it do?
Well, say that you decided to call insert(…) with an empty ContentValues. SQLite does not allow
this, so your insert(…) call would fail.
If you passed in a value of uuid for nullColumnHack, though, it would ignore that empty
ContentValues. Instead, it would pass in a ContentValues with uuid set to null. This would allow
your insert(…) to succeed and create a new row.
Handy? Perhaps someday. Not today, though. Now you know about it, at least.
Continue applying ContentValues by writing a method to update rows in the database.
Listing 14.10Updating a Crime (CrimeLab.java)
public Crime getCrime(UUID id) {
return null;
}
public void updateCrime(Crime crime) {
String uuidString = crime.getId().toString();
ContentValues values = getContentValues(crime);
mDatabase.update(CrimeTable.NAME, values,
CrimeTable.Cols.UUID + " = ?",
new String[] { uuidString });
}
private static ContentValues getContentValues(Crime crime) {
The update(String, ContentValues, String, String[]) method starts off similarly to insert(…)
– you pass in the table name you want to update and the ContentValues you want to assign to each
row you update. However, the last bit is different, because now you have to specify which rows get
updated. You do that by building a where clause (the third argument) and then specifying values for the
arguments in the where clause (the final String[] array).
Chapter 14SQLite Databases
280
You may be wondering why you are not putting uuidString directly into the where clause. That would
be a bit simpler than using ? and passing it in as a String[], after all.
The answer is that in some cases your String might itself contain SQL code. If you put that String
directly in your query, that code could change the meaning of your query, or even alter your database.
This is called a SQL injection attack, and it is a bad thing indeed.
If you use ?, though, your code will do what you intended: treat it as a String value, not code. So it is
best to be safe and use ? as a matter of habit, because it will always do what you intend no matter what
the String contains.
Crime instances get modified in CrimeFragment and will need to be written out when CrimeFragment
is done. Add an override to CrimeFragment.onPause() that updates CrimeLab’s copy of your Crime.
Listing 14.11Pushing updates (CrimeFragment.java)
@Override
public void onCreate(Bundle savedInstanceState) {
super.onCreate(savedInstanceState);
UUID crimeId = (UUID) getArguments().getSerializable(ARG_CRIME_ID);
mCrime = CrimeLab.get(getActivity()).getCrime(crimeId);
}
@Override
public void onPause() {
super.onPause();
CrimeLab.get(getActivity())
.updateCrime(mCrime);
}
Sadly, you have no way of verifying that this code works. That will need to wait until you can read in
the crimes you updated. To make sure that everything compiles correctly, run CriminalIntent one more
time before moving on to the next section. You should see a blank list.
Reading from the Database
281
Reading from the Database
Reading in data from SQLite is done using the query(…) method. SQLiteDatabase.query(…) has quite
a lot going on. There are a few different overloads of this method. The one you will be using looks like
this:
public Cursor query(
String table,
String[] columns,
String where,
String[] whereArgs,
String groupBy,
String having,
String orderBy,
String limit)
If you have dealt with SQL before, then most of these will be familiar to you as arguments of the
select statement. If you have not, then you only need to worry about the ones you will be using:
public Cursor query(
String table,
String[] columns,
String where,
String[] whereArgs,
String groupBy,
String having,
String orderBy,
String limit)
The table argument is the table to query. The columns argument names which columns you want
values for and what order you want to receive them in. And then where and whereArgs do the same
thing they do in update(…).
Use query(…) in a convenience method to call this on your CrimeTable.
Listing 14.12Querying for Crimes (CrimeLab.java)
public void updateCrime(Crime crime) {
...
}
private Cursor queryCrimes(String whereClause, String[] whereArgs) {
Cursor cursor = mDatabase.query(
CrimeTable.NAME,
null, // columns - null selects all columns
whereClause,
whereArgs,
null, // groupBy
null, // having
null // orderBy
);
return cursor;
}
Chapter 14SQLite Databases
282
Using a CursorWrapper
A Cursor leaves a lot to be desired as a way to look at a table. All it does is give you raw column
values. Pulling data out of a Cursor looks like this:
String uuidString = cursor.getString(
cursor.getColumnIndex(CrimeTable.Cols.UUID));
String title = cursor.getString(
cursor.getColumnIndex(CrimeTable.Cols.TITLE));
long date = cursor.getLong(
cursor.getColumnIndex(CrimeTable.Cols.DATE));
int isSolved = cursor.getInt(
cursor.getColumnIndex(CrimeTable.Cols.SOLVED));
Every time you pull a Crime out of a cursor, you need to write this code one more time. (And that does
not include the code to create a Crime instance with those values!)
Remember the DRY rule of thumb: Don’t repeat yourself. Instead of writing this code each time you
need to read data from a Cursor, you can create your own Cursor subclass that takes care of this in one
place. The easiest way to write a Cursor subclass is to use CursorWrapper. A CursorWrapper lets you
wrap a Cursor you received from another place and add new methods on top of it.
Create a new class in the database package called CrimeCursorWrapper.
Listing 14.13Creating CrimeCursorWrapper (CrimeCursorWrapper.java)
public class CrimeCursorWrapper extends CursorWrapper {
public CrimeCursorWrapper(Cursor cursor) {
super(cursor);
}
}
That creates a thin wrapper around a Cursor. It has all the same methods as the Cursor it wraps, and
calling those methods does the exact same thing. This would be pointless, except that it makes it
possible to add new methods that operate on the underlying Cursor.
Add a getCrime() method that pulls out relevant column data. (Remember to use the two-step import
trick for CrimeTable here, as you did earlier.)
Listing 14.14Adding getCrime() method (CrimeCursorWrapper.java)
public class CrimeCursorWrapper extends CursorWrapper {
public CrimeCursorWrapper(Cursor cursor) {
super(cursor);
}
public Crime getCrime() {
String uuidString = getString(getColumnIndex(CrimeTable.Cols.UUID));
String title = getString(getColumnIndex(CrimeTable.Cols.TITLE));
long date = getLong(getColumnIndex(CrimeTable.Cols.DATE));
int isSolved = getInt(getColumnIndex(CrimeTable.Cols.SOLVED));
return null;
}
}
Using a CursorWrapper
283
You will need to return a Crime with an appropriate UUID from this method. Add another constructor to
Crime to do this.
Listing 14.15Adding Crime constructor (Crime.java)
public Crime() {
this(UUID.randomUUID());
mId = UUID.randomUUID();
mDate = new Date();
}
public Crime(UUID id) {
mId = id;
mDate = new Date();
}
And then finish up getCrime().
Listing 14.16Finishing up getCrime() (CrimeCursorWrapper.java)
public Crime getCrime() {
String uuidString = getString(getColumnIndex(CrimeTable.Cols.UUID));
String title = getString(getColumnIndex(CrimeTable.Cols.TITLE));
long date = getLong(getColumnIndex(CrimeTable.Cols.DATE));
int isSolved = getInt(getColumnIndex(CrimeTable.Cols.SOLVED));
Crime crime = new Crime(UUID.fromString(uuidString));
crime.setTitle(title);
crime.setDate(new Date(date));
crime.setSolved(isSolved != 0);
return crime;
return null;
}
(Android Studio will ask you to choose between java.util.Date and java.sql.Date. Even though
you are dealing with databases, java.util.Date is the right choice here.)
Chapter 14SQLite Databases
284
Converting to model objects
With CrimeCursorWrapper, vending out a List<Crime> from CrimeLab will be straightforward. You
need to wrap the cursor you get back from your query in a CrimeCursorWrapper, then iterate over it
calling getCrime() to pull out its Crimes.
For the first part, update queryCrimes(…) to use CrimeCursorWrapper.
Listing 14.17Vending cursor wrapper (CrimeLab.java)
private Cursor queryCrimes(String whereClause, String[] whereArgs) {
private CrimeCursorWrapper queryCrimes(String whereClause, String[] whereArgs) {
Cursor cursor = mDatabase.query(
CrimeTable.NAME,
null, // columns - null selects all columns
whereClause,
whereArgs,
null, // groupBy
null, // having
null // orderBy
);
return cursor;
return new CrimeCursorWrapper(cursor);
}
Then get getCrimes() into shape. Add code to query for all crimes, walk the cursor, and populate a
Crime list.
Listing 14.18Returning crime list (CrimeLab.java)
public List<Crime> getCrimes() {
return new ArrayList<>();
List<Crime> crimes = new ArrayList<>();
CrimeCursorWrapper cursor = queryCrimes(null, null);
try {
cursor.moveToFirst();
while (!cursor.isAfterLast()) {
crimes.add(cursor.getCrime());
cursor.moveToNext();
}
} finally {
cursor.close();
}
return crimes;
}
Database cursors are called cursors because they always have their finger on a particular place in a
query. So to pull the data out of a cursor, you move it to the first element by calling moveToFirst(),
and then read in row data. Each time you want to advance to a new row, you call moveToNext(), until
finally isAfterLast() tells you that your pointer is off the end of the data set.
Converting to model objects
285
The last important thing to do is to call close() on your Cursor. This bit of housekeeping is important.
If you do not do it, your Android device will spit out nasty error logs to berate you. Even worse, if you
make a habit out of it, you will eventually run out of open file handles and crash your app. So: Close
your cursors.
CrimeLab.getCrime(UUID) will look similar to getCrimes(), except it will only need to pull the first
item, if it is there.
Listing 14.19Rewriting getCrime(UUID) (CrimeLab.java)
public Crime getCrime(UUID id) {
return null;
CrimeCursorWrapper cursor = queryCrimes(
CrimeTable.Cols.UUID + " = ?",
new String[] { id.toString() }
);
try {
if (cursor.getCount() == 0) {
return null;
}
cursor.moveToFirst();
return cursor.getCrime();
} finally {
cursor.close();
}
}
That completes a few moving pieces:
• You can insert crimes, so the code that adds Crime to CrimeLab when you press the New Crime
action item now works.
• You can successfully query the database, so CrimePagerActivity can see all the Crimes in
CrimeLab, too.
•CrimeLab.getCrime(UUID) works, too, so each CrimeFragment displayed in
CrimePagerActivity is showing the real Crime.
Now you should be able to press New Crime and see the new Crime displayed in CrimePagerActivity.
Run CriminalIntent and verify that you can do this. If you cannot, double-check your implementations
from this chapter so far.
Chapter 14SQLite Databases
286
Refreshing model data
You are not quite done. Your crimes are persistently stored to the database, but the persistent data is
not read back in. So if you press the Back button after editing your new Crime, it will not show up in
CrimeListActivity.
This is because CrimeLab now works a little differently. Before, there was only one List<Crime>
and one object for each Crime: the one in the List<Crime>. That was because mCrimes was the only
authority for which Crimes your app knew about.
Things have changed now. mCrimes is gone. So the List<Crime> returned by getCrimes() is a
snapshot of the Crimes at one point in time. To refresh CrimeListActivity, you need to update that
snapshot.
Most of the moving pieces to do this are already in place. CrimeListActivity already calls
updateUI() to refresh other parts of its interface. All you need to do is have it refresh its view of
CrimeLab, too.
First, add a setCrimes(List<Crime>) method to CrimeAdapter to swap out the crimes it displays.
Listing 14.20Adding setCrimes(List<Crime>) (CrimeListFragment.java)
private class CrimeAdapter extends RecyclerView.Adapter<CrimeHolder> {
...
@Override
public int getItemCount() {
return mCrimes.size();
}
public void setCrimes(List<Crime> crimes) {
mCrimes = crimes;
}
}
Then call setCrimes(List<Crime>) in updateUI().
Listing 14.21Calling setCrimes(List<>) (CrimeListFragment.java)
private void updateUI() {
CrimeLab crimeLab = CrimeLab.get(getActivity());
List<Crime> crimes = crimeLab.getCrimes();
if (mAdapter == null) {
mAdapter = new CrimeAdapter(crimes);
mCrimeRecyclerView.setAdapter(mAdapter);
} else {
mAdapter.setCrimes(crimes);
mAdapter.notifyDataSetChanged();
}
updateSubtitle();
}
Now everything should work correctly. Run CriminalIntent and verify that you can add a crime, press
the Back button, and see that crime in CrimeListActivity.
For the More Curious: More Databases
287
This is also a good time to test that calls to updateCrime(Crime) in CrimeFragment work, too. Press a
Crime and edit its title inside CrimePagerActivity. Press the Back button and make sure that the new
title is reflected in the list.
For the More Curious: More Databases
For the sake of space and simplicity, we do not go into all the details you might see in a professional
app’s application database here. There is a reason people resort to tools like ORMs: This stuff can get
complicated.
For a more substantial application, you will want to look into adding the following to your database
and your description of it:
•Data types on columns. Technically, SQLite does not have typed columns, so you can get by
without them. Giving SQLite hints is kinder, though.
•Indexes. Queries against columns with appropriate indexes are much faster than columns without
them.
•Foreign keys. Your database here only has one table, but associated data would need foreign key
constraints, too.
There are also deeper performance considerations to dive into. Your app creates a new list of all-new
Crime objects every time you query the database. A high-performance app would optimize this by
recycling instances of Crime or by treating them like an in-memory object store (like you did before
this chapter). That ends up being quite a bit more code, so this is another problem ORMs often try to
solve.
Chapter 14SQLite Databases
288
For the More Curious: The Application Context
Earlier in this chapter, you used the application context in the constructor of the CrimeLab.
private CrimeLab(Context context) {
mContext = context.getApplicationContext();
...
}
What makes the application context special? When should you use the application context over an
activity as a context?
It is important to think about the lifetime of each of these objects. If any of your activities exist,
Android will have also created an application object. Activities come and go as the user navigates
through your application, but the application object will still exist. It has a much longer lifetime than
any one activity.
The CrimeLab is a singleton, which means that once it is created, it will not be destroyed until your
entire application process is destroyed. Also, the CrimeLab maintains a reference to its mContext
object. If you store an activity as the mContext object, that activity will never be cleaned up by the
garbage collector because the CrimeLab has a reference to it. Even if the user has navigated away from
that activity, it will never be cleaned up.
To avoid this wasteful situation, you use the application context so that your activities can come and
go and the CrimeLab can maintain a reference to a Context object. Always think about the lifetime of
your activities as you keep a reference to them.
Challenge: Deleting Crimes
If you added a Delete Crime action item earlier, this challenge builds off of that by adding the ability to
delete crimes from your database by calling a deleteCrime(Crime) method on CrimeLab, which will
call mDatabase.delete(…) to finish the job.
And if you do not have a Delete Crime? Well, go ahead and add it! Add an action item to
CrimeFragment’s toolbar that calls CrimeLab.deleteCrime(Crime) and finish()es its Activity.
289
15
Implicit Intents
In Android, you can start an activity in another application on the device using an implicit intent. In an
explicit intent, you specify the class of the activity to start, and the OS will start it. In an implicit intent,
you describe the job that you need done, and the OS will start an activity in an appropriate application
for you.
In CriminalIntent, you will use implicit intents to enable picking a suspect for a Crime from the
user’s list of contacts and sending a text-based report of a crime. The user will choose a suspect from
whatever contacts app is installed on the device and will be offered a choice of apps to send the crime
report (Figure15.1).
Figure 15.1Opening contacts app and text-sending app
Using implicit intents to harness other applications is far easier than writing your own implementations
for common tasks. Users also appreciate being able to use apps they already know and like in
conjunction with your app.
Chapter 15Implicit Intents
290
Before you can create these implicit intents, there is some setup to do in CriminalIntent:
• add CHOOSE SUSPECT and SEND CRIME REPORT buttons to CrimeFragment’s layouts
• add an mSuspect field to the Crime class that will hold the name of a suspect
• create a crime report using a set of format resource strings
Adding Buttons
You are going to start by updating CrimeFragment’s layout to include new buttons for accusation
and tattling: namely, a suspect button and a report button. First, add the strings that these buttons will
display.
Listing 15.1Adding button strings (strings.xml)
<string name="subtitle_format">%1$d crimes</string>
<string name="crime_suspect_text">Choose Suspect</string>
<string name="crime_report_text">Send Crime Report</string>
</resources>
In layout/fragment_crime.xml, add two button widgets, as shown in Figure15.2. Notice that in this
diagram we are not showing all of the LinearLayout’s children so that you can focus on the new and
interesting parts of the diagram on the right.
Figure 15.2Adding suspect and crime report buttons
(layout/fragment_crime.xml)
At this point, you can preview the updated layout or run CriminalIntent to confirm that your new
buttons are in place.
Adding a Suspect to the Model Layer
291
Adding a Suspect to the Model Layer
Next, open Crime.java and add a new member variable to give Crime a field that will hold the name of
a suspect.
Listing 15.2Adding suspect field (Crime.java)
public class Crime {
...
private boolean mSolved;
private String mSuspect;
public Crime() {
this(UUID.randomUUID());
}
...
public void setSolved(boolean solved) {
mSolved = solved;
}
public String getSuspect() {
return mSuspect;
}
public void setSuspect(String suspect) {
mSuspect = suspect;
}
}
Now you need to add an additional field to your crime database. First, add a suspect column to
CrimeDbSchema.
Listing 15.3Adding suspect column (CrimeDbSchema.java)
public class CrimeDbSchema {
public static final class CrimeTable {
public static final String NAME = "crimes";
public static final class Cols {
public static final String UUID = "uuid";
public static final String TITLE = "title";
public static final String DATE = "date";
public static final String SOLVED = "solved";
public static final String SUSPECT = "suspect";
}
}
}
Chapter 15Implicit Intents
292
Add the column in CrimeBaseHelper, also. (Notice that the new code begins with a quotation mark and
comma after CrimeTable.Cols.SOLVED +.)
Listing 15.4Adding suspect column again (CrimeBaseHelper.java)
@Override
public void onCreate(SQLiteDatabase db) {
db.execSQL("create table " + CrimeTable.NAME + "(" +
" _id integer primary key autoincrement, " +
CrimeTable.Cols.UUID + ", " +
CrimeTable.Cols.TITLE + ", " +
CrimeTable.Cols.DATE + ", " +
CrimeTable.Cols.SOLVED + ", " +
CrimeTable.Cols.SUSPECT +
")"
);
}
Next, write to the new column in CrimeLab.getContentValues(Crime).
Listing 15.5Writing to suspect column (CrimeLab.java)
private static ContentValues getContentValues(Crime crime) {
ContentValues values = new ContentValues();
values.put(CrimeTable.Cols.UUID, crime.getId().toString());
values.put(CrimeTable.Cols.TITLE, crime.getTitle());
values.put(CrimeTable.Cols.DATE, crime.getDate().getTime());
values.put(CrimeTable.Cols.SOLVED, crime.isSolved() ? 1 : 0);
values.put(CrimeTable.Cols.SUSPECT, crime.getSuspect());
return values;
}
}
Now read from it in CrimeCursorWrapper.
Listing 15.6Reading from suspect column (CrimeCursorWrapper.java)
public Crime getCrime() {
String uuidString = getString(getColumnIndex(CrimeTable.Cols.UUID));
String title = getString(getColumnIndex(CrimeTable.Cols.TITLE));
long date = getLong(getColumnIndex(CrimeTable.Cols.DATE));
int isSolved = getInt(getColumnIndex(CrimeTable.Cols.SOLVED));
String suspect = getString(getColumnIndex(CrimeTable.Cols.SUSPECT));
Crime crime = new Crime(UUID.fromString(uuidString));
crime.setTitle(title);
crime.setDate(new Date(date));
crime.setSolved(isSolved != 0);
crime.setSuspect(suspect);
return crime;
}
}
Using a Format String
293
If CriminalIntent is already installed on your device, your existing database will not have the suspect
column, and your new onCreate(SQLiteDatabase) will not be run to add the new column, either.
As we said earlier, the easiest solution is to wipe out your old database in favor of a new one. (This
happens a lot in app development.)
First, uninstall the CriminalIntent app by opening the app launcher screen and dragging the
CriminalIntent icon to the top of the screen. All your sandbox storage will get blown away, along
with the out-of-date database schema, as part of the uninstall process. Next, run CriminalIntent from
Android Studio. A new database will be created with the new column as part of the app installation
process.
Using a Format String
The last preliminary step is to create a template crime report that can be configured with the specific
crime’s details. Because you will not know a crime’s details until runtime, you must use a format string
with placeholders that can be replaced at runtime. Here is the format string you will use:
<string name="crime_report">%1$s! The crime was discovered on %2$s. %3$s, and %4$s
%1$s, %2$s, etc. are placeholders that expect string arguments. In code, you will call getString(…)
and pass in the format string and four other strings in the order in which they should replace the
placeholders.
First, in strings.xml, add the strings shown in Listing 15.7.
Listing 15.7Adding string resources (strings.xml)
<string name="crime_suspect_text">Choose Suspect</string>
<string name="crime_report_text">Send Crime Report</string>
<string name="crime_report">%1$s!
The crime was discovered on %2$s. %3$s, and %4$s
</string>
<string name="crime_report_solved">The case is solved</string>
<string name="crime_report_unsolved">The case is not solved</string>
<string name="crime_report_no_suspect">there is no suspect.</string>
<string name="crime_report_suspect">the suspect is %s.</string>
<string name="crime_report_subject">CriminalIntent Crime Report</string>
<string name="send_report">Send crime report via</string>
</resources>
Chapter 15Implicit Intents
294
In CrimeFragment.java, add a method that creates four strings and then pieces them together and
returns a complete report.
Listing 15.8Adding getCrimeReport() method (CrimeFragment.java)
private void updateDate() {
mDateButton.setText(mCrime.getDate().toString());
}
private String getCrimeReport() {
String solvedString = null;
if (mCrime.isSolved()) {
solvedString = getString(R.string.crime_report_solved);
} else {
solvedString = getString(R.string.crime_report_unsolved);
}
String dateFormat = "EEE, MMM dd";
String dateString = DateFormat.format(dateFormat,
mCrime.getDate()).toString();
String suspect = mCrime.getSuspect();
if (suspect == null) {
suspect = getString(R.string.crime_report_no_suspect);
} else {
suspect = getString(R.string.crime_report_suspect, suspect);
}
String report = getString(R.string.crime_report,
mCrime.getTitle(), dateString, solvedString, suspect);
return report;
}
}
(Note that there are two DateFormat classes: android.text.format.DateFormat and
java.text.DateFormat. Use android.text.format.DateFormat.)
Now the preliminaries are complete, and you can turn to implicit intents.
Using Implicit Intents
An Intent is an object that describes to the OS something that you want it to do. With the explicit
intents that you have created thus far, you explicitly name the activity that you want the OS to start,
like:
Intent intent = new Intent(getActivity(), CrimePagerActivity.class);
intent.putExtra(EXTRA_CRIME_ID, crimeId);
startActivity(intent);
With an implicit intent, you describe to the OS the job that you want done. The OS then starts the
activity that has advertised itself as capable of doing that job. If the OS finds more than one capable
activity, then the user is offered a choice.
Parts of an implicit intent
295
Parts of an implicit intent
Here are the critical parts of an intent that you can use to define the job you want done:
the action that you are trying to perform
These are typically constants from the Intent class. If you want to view a URL, you can use
Intent.ACTION_VIEW for your action. To send something, you use Intent.ACTION_SEND.
the location of any data
This can be something outside the device, like the URL of a web page, but it can also be a URI
to a file or a content URI pointing to a record in a ContentProvider.
the type of data that the action is for
This is a MIME type, like text/html or audio/mpeg3. If an intent includes a location for data,
then the type can usually be inferred from that data.
optional categories
If the action is used to describe what to do, the category usually describes
where, when, or how you are trying to use an activity. Android uses the category
android.intent.category.LAUNCHER to indicate that an activity should be displayed in the top-
level app launcher. The android.intent.category.INFO category, on the other hand, indicates
an activity that shows information about a package to the user but should not show up in the
launcher.
A simple implicit intent for viewing a website would include an action of Intent.ACTION_VIEW and a
data Uri that is the URL of a website.
Based on this information, the OS will launch the appropriate activity of an appropriate application. (If
it finds more than one candidate, the user gets a choice.)
An activity would advertise itself as an appropriate activity for ACTION_VIEW via an intent filter in the
manifest. If you wanted to write a browser app, for instance, you would include the following intent
filter in the declaration of the activity that should respond to ACTION_VIEW:
<activity
android:name=".BrowserActivity"
android:label="@string/app_name" >
<intent-filter>
<action android:name="android.intent.action.VIEW" />
<category android:name="android.intent.category.DEFAULT" />
<data android:scheme="http" android:host="www.bignerdranch.com" />
</intent-filter>
</activity>
Chapter 15Implicit Intents
296
To respond to implicit intents, a DEFAULT category must be set explicitly in an intent filter. The action
element in the intent filter tells the OS that the activity is capable of performing the job, and the
DEFAULT category tells the OS that this activity should be considered for the job when the OS is asking
for volunteers. This DEFAULT category is implicitly added to every implicit intent. (In Chapter24, you
will see that this is not the case when Android is not asking for a volunteer.)
Implicit intents can also include extras, just like explicit intents. Any extras on an implicit intent,
however, are not used by the OS to find an appropriate activity.
Note that the action and data parts of an intent can also be used in conjunction with an explicit intent.
That would be the equivalent of telling a particular activity to do something specific.
Sending a crime report
Let’s see how this works by creating an implicit intent to send a crime report in CriminalIntent. The
job you want done is sending plain text; the crime report is a string. So the implicit intent’s action will
be ACTION_SEND. It will not point to any data or have any categories, but it will specify a type of text/
plain.
In CrimeFragment.onCreateView(…), get a reference to the SEND CRIME REPORT button and
set a listener on it. Within the listener’s implementation, create an implicit intent and pass it into
startActivity(Intent).
Listing 15.9Sending a crime report (CrimeFragment.java)
private Crime mCrime;
private EditText mTitleField;
private Button mDateButton;
private CheckBox mSolvedCheckbox;
private Button mReportButton;
...
public View onCreateView(LayoutInflater inflater, ViewGroup container,
Bundle savedInstanceState) {
...
mReportButton = (Button) v.findViewById(R.id.crime_report);
mReportButton.setOnClickListener(new View.OnClickListener() {
public void onClick(View v) {
Intent i = new Intent(Intent.ACTION_SEND);
i.setType("text/plain");
i.putExtra(Intent.EXTRA_TEXT, getCrimeReport());
i.putExtra(Intent.EXTRA_SUBJECT,
getString(R.string.crime_report_subject));
startActivity(i);
}
});
return v;
}
Here you use the Intent constructor that accepts a string that is a constant defining the action. There
are other constructors that you can use depending on what kind of implicit intent you need to create.
You can find them all on the Intent reference page in the documentation. There is no constructor that
accepts a type, so you set it explicitly.
Sending a crime report
297
You include the text of the report and the string for the subject of the report as extras. Note that these
extras use constants defined in the Intent class. Any activity responding to this intent will know these
constants and what to do with the associated values.
Run CriminalIntent and press the SEND CRIME REPORT button. Because this intent will likely
match many activities on the device, you will probably see a list of activities presented in a chooser
(Figure15.3).
Figure 15.3Activities volunteering to send your crime report
If you are offered a choice, make a selection. You will see your crime report loaded into the app that
you chose. All you have to do is address and send it.
If, on the other hand, you do not see a chooser, that means one of two things. Either you have already
set a default app for an identical implicit intent, or your device has only a single activity that can
respond to this intent.
Often, it is best to go with the user’s default app for an action. In CriminalIntent, however, you always
want the user to have a choice for ACTION_SEND. Today a user might want to be discreet and email the
crime report, but tomorrow he or she may prefer public shaming via Twitter.
You can create a chooser to be shown every time an implicit intent is used to start an activity. After
you create your implicit intent as before, you call the following Intent method and pass in the implicit
intent and a string for the chooser’s title:
public static Intent createChooser(Intent target, String title)
Then you pass the intent returned from createChooser(…) into startActivity(…).
Chapter 15Implicit Intents
298
In CrimeFragment.java, create a chooser to display the activities that respond to your implicit intent.
Listing 15.10Using a chooser (CrimeFragment.java)
public View onCreateView(LayoutInflater inflater, ViewGroup container,
Bundle savedInstanceState) {
...
mReportButton.setOnClickListener(new View.OnClickListener() {
public void onClick(View v) {
Intent i = new Intent(Intent.ACTION_SEND);
i.setType("text/plain");
i.putExtra(Intent.EXTRA_TEXT, getCrimeReport());
i.putExtra(Intent.EXTRA_SUBJECT,
getString(R.string.crime_report_subject));
i = Intent.createChooser(i, getString(R.string.send_report));
startActivity(i);
}
Run CriminalIntent and press the SEND CRIME REPORT button. As long as you have more than one
activity that can handle your intent, you will be offered a list to choose from (Figure15.4).
Figure 15.4Sending text with a chooser
Asking Android for a contact
299
Asking Android for a contact
Now you are going to create another implicit intent that enables users to choose a suspect
from their contacts. This implicit intent will have an action and a location where the relevant
data can be found. The action will be Intent.ACTION_PICK. The data for contacts is at
ContactsContract.Contacts.CONTENT_URI. In short, you are asking Android to help pick an item in
the contacts database.
You expect a result back from the started activity, so you will pass the intent via
startActivityForResult(…) along with a request code. In CrimeFragment.java, add a constant for
the request code and a member variable for the button.
Listing 15.11Adding field for suspect button (CrimeFragment.java)
private static final int REQUEST_DATE = 0;
private static final int REQUEST_CONTACT = 1;
...
private Button mSuspectButton;
private Button mReportButton;
At the end of onCreateView(…), get a reference to the button and set a listener on it. Within the
listener’s implementation, create the implicit intent and pass it into startActivityForResult(…).
Also, once a suspect is assigned, show the name on the suspect button.
Listing 15.12Sending an implicit intent (CrimeFragment.java)
public View onCreateView(LayoutInflater inflater, ViewGroup container,
Bundle savedInstanceState) {
...
final Intent pickContact = new Intent(Intent.ACTION_PICK,
ContactsContract.Contacts.CONTENT_URI);
mSuspectButton = (Button) v.findViewById(R.id.crime_suspect);
mSuspectButton.setOnClickListener(new View.OnClickListener() {
public void onClick(View v) {
startActivityForResult(pickContact, REQUEST_CONTACT);
}
});
if (mCrime.getSuspect() != null) {
mSuspectButton.setText(mCrime.getSuspect());
}
return v;
}
You will be using pickContact one more time in a bit, which is why you put it outside
mSuspectButton’s OnClickListener.
Chapter 15Implicit Intents
300
Run CriminalIntent and press the CHOOSE SUSPECT button. You should see a list of contacts
(Figure15.5).
Figure 15.5A list of possible suspects
If you have a different contacts app installed, your screen will look different. Again, this is one of the
benefits of implicit intents. You do not have to know the name of the contacts application to use it from
your app. Users can install whatever app they like best, and the OS will find and launch it.
Getting the data from the contact list
Now you need to get a result back from the contacts application. Contacts information is shared
by many applications, so Android provides an in-depth API for working with contacts information
through a ContentProvider. Instances of this class wrap databases and make it available to other
applications. You can access a ContentProvider through a ContentResolver.
Because you started the activity for a result with ACTION_PICK, you will receive an intent via
onActivityResult(…). This intent includes a data URI. The URI is a locator that points at the single
contact the user picked.
In CrimeFragment.java, retrieve a contact’s name from the contacts application in your
onActivityResult(…) implementation in CrimeFragment.
Asking Android for a contact
301
Listing 15.13Pulling contact name out (CrimeFragment.java)
@Override
public void onActivityResult(int requestCode, int resultCode, Intent data) {
if (resultCode != Activity.RESULT_OK) {
return;
}
if (requestCode == REQUEST_DATE) {
...
updateDate();
} else if (requestCode == REQUEST_CONTACT && data != null) {
Uri contactUri = data.getData();
// Specify which fields you want your query to return
// values for
String[] queryFields = new String[] {
ContactsContract.Contacts.DISPLAY_NAME
};
// Perform your query - the contactUri is like a "where"
// clause here
Cursor c = getActivity().getContentResolver()
.query(contactUri, queryFields, null, null, null);
try {
// Double-check that you actually got results
if (c.getCount() == 0) {
return;
}
// Pull out the first column of the first row of data -
// that is your suspect's name
c.moveToFirst();
String suspect = c.getString(0);
mCrime.setSuspect(suspect);
mSuspectButton.setText(suspect);
} finally {
c.close();
}
}
}
In Listing 15.13, you create a query that asks for all the display names of the contacts in the returned
data. Then you query the contacts database and get a Cursor object to work with. Because you know
that the cursor only contains one item, you move to the first item and get it as a string. This string
will be the name of the suspect, and you use it to set the Crime’s suspect and the text of the CHOOSE
SUSPECT button.
(The contacts database is a large topic in itself. We will not cover it here. If you would like to know
more, read the Contacts Provider API guide at developer.android.com/guide/topics/providers/
contacts-provider.html.)
Go ahead and run your app. Some devices may not have a contacts app for you to use. If that is the
case, use an emulator to test this code.
Chapter 15Implicit Intents
302
Contacts permissions
How are you getting permission to read from the contacts database? The contacts app is extending
its permissions to you. The contacts app has full permissions to the contacts database. When
the contacts app returns a data URI in an Intent to the parent activity, it also adds the flag
Intent.FLAG_GRANT_READ_URI_PERMISSION. This flag signals to Android that the parent activity in
CriminalIntent should be allowed to use this data one time. This works well because you do not really
need access to the entire contacts database. You only need access to one contact inside that database.
Checking for responding activities
The first implicit intent you created in this chapter will always be responded to in some way – there
may be no way to send a report, but the chooser will still display properly. However, that is not the case
for the second example: Some devices or users may not have a contacts app, and if the OS cannot find
a matching activity, then the app will crash.
The fix is to check with part of the OS called the PackageManager first. Do this in onCreateView(…).
Listing 15.14Guarding against no contacts app (CrimeFragment.java)
public View onCreateView(LayoutInflater inflater, ViewGroup container,
Bundle savedInstanceState) {
...
if (mCrime.getSuspect() != null) {
mSuspectButton.setText(mCrime.getSuspect());
}
PackageManager packageManager = getActivity().getPackageManager();
if (packageManager.resolveActivity(pickContact,
PackageManager.MATCH_DEFAULT_ONLY) == null) {
mSuspectButton.setEnabled(false);
}
return v;
}
PackageManager knows about all the components installed on your Android device, including
all of its activities. (You will run into the other components later on in this book.) By calling
resolveActivity(Intent, int), you ask it to find an activity that matches the Intent you gave it.
The MATCH_DEFAULT_ONLY flag restricts this search to activities with the CATEGORY_DEFAULT flag, just
like startActivity(Intent) does.
If this search is successful, it will return an instance of ResolveInfo telling you all about which
activity it found. On the other hand, if the search returns null, the game is up – no contacts app. So
you disable the useless suspect button.
If you would like to verify that your filter works, but do not have a device without a contacts
application, temporarily add an additional category to your intent. This category does nothing, but it
will prevent any contacts applications from matching your intent.
Checking for responding activities
303
Listing 15.15Adding dummy code to verify filter (CrimeFragment.java)
public View onCreateView(LayoutInflater inflater, ViewGroup container,
Bundle savedInstanceState) {
...
final Intent pickContact = new Intent(Intent.ACTION_PICK,
ContactsContract.Contacts.CONTENT_URI);
pickContact.addCategory(Intent.CATEGORY_HOME);
mSuspectButton = (Button) v.findViewById(R.id.crime_suspect);
mSuspectButton.setOnClickListener(new View.OnClickListener() {
...
});
Run CriminalIntent again, and you should see the suspect button disabled (Figure15.6).
Figure 15.6Disabled suspect button
Delete the dummy code once you are done verifying this behavior.
Listing 15.16Deleting dummy code (CrimeFragment.java)
public View onCreateView(LayoutInflater inflater, ViewGroup container,
Bundle savedInstanceState) {
...
final Intent pickContact = new Intent(Intent.ACTION_PICK,
ContactsContract.Contacts.CONTENT_URI);
pickContact.addCategory(Intent.CATEGORY_HOME);
mSuspectButton = (Button) v.findViewById(R.id.crime_suspect);
mSuspectButton.setOnClickListener(new View.OnClickListener() {
...
});
Chapter 15Implicit Intents
304
Challenge: ShareCompat
Your first challenge is an easy one. Android’s support library provides a class called ShareCompat with
an inner class called IntentBuilder. ShareCompat.IntentBuilder makes it a bit easier to build the
exact kind of Intent you used for your report button.
So your first challenge is this: In mReportButton’s OnClickListener, use
ShareCompat.IntentBuilder to build your Intent instead of doing it by hand.
Challenge: Another Implicit Intent
Instead of sending a crime report, an angry user may prefer a phone confrontation with the suspect.
Add a new button that calls the named suspect.
You will need the phone number out of the contacts database. This will require you to query another
table in the ContactsContract database called CommonDataKinds.Phone. Check out the documentation
for ContactsContract and ContactsContract.CommonDataKinds.Phone for more information on how
to query for this information.
A couple of tips: To query for additional data, you can use the android.permission.READ_CONTACTS
permission. With that permission in hand, you can read the ContactsContract.Contacts._ID to get
a contact ID on your original query. You can then use that ID to query the CommonDataKinds.Phone
table.
Once you have the phone number, you can create an implicit intent with a telephone URI:
Uri number = Uri.parse("tel:5551234");
The action can be Intent.ACTION_DIAL or Intent.ACTION_CALL. What is the difference? ACTION_CALL
pulls up the phone app and immediately calls the number sent in the intent; ACTION_DIAL just dials the
number and waits for the user to initiate the call.
We recommend using ACTION_DIAL. It is the kinder, gentler option. ACTION_CALL may be restricted
and will definitely require a permission. Your user may also appreciate the chance to cool down before
pressing the Call button.
305
16
Taking Pictures with Intents
Now that you know how to work with implicit intents, you can document your crimes in even more
detail. With a picture of the crime, you can share the gory details with everyone.
Taking a picture will involve a couple of new tools, used in combination with a tool you recently
got to know: the implicit intent. An implicit intent can be used to start up the user’s favorite camera
application and receive a new picture from it.
An implicit intent can get you a picture, but where do you put it? And once the picture comes in, how
do you display it? In this chapter, you will answer both of those questions.
A Place for Your Photo
The first step is to build out a place for your photo to live. You will need two new View objects: an
ImageView to display the photo and a Button to press to take a new photo (Figure16.1).
Figure 16.1New UI
Chapter 16Taking Pictures with Intents
306
Dedicating an entire row to a thumbnail and a button would make your app look clunky and
unprofessional. You do not want that, so you will arrange things nicely.
Add new views to fragment_crime.xml to build out this new area. Start with the lefthand side, adding
an ImageView for the picture and an ImageButton to take a picture (Figure16.2).
Figure 16.2Camera view layout (res/layout/fragment_crime.xml)
Then continue with the righthand side, moving your title TextView and EditText into a new
LinearLayout child to the LinearLayout you built in Figure16.2 (Figure16.3).
A Place for Your Photo
307
Figure 16.3Title layout (res/layout/fragment_crime.xml)
Run CriminalIntent, and you should see your new UI looking just like Figure16.1.
Looks great. Now, to respond to presses on your ImageButton and to control the content of your
ImageView, you need instance variables referring to each of them. Call findViewById(int) as usual on
your inflated fragment_crime.xml to find your new views and wire them up.
Listing 16.1Adding instance variables (CrimeFragment.java)
private Button mSuspectButton;
private Button mReportButton;
private ImageButton mPhotoButton;
private ImageView mPhotoView;
...
@Override
public View onCreateView(LayoutInflater inflater, ViewGroup container,
Bundle savedInstanceState) {
...
PackageManager packageManager = getActivity().getPackageManager();
if (packageManager.resolveActivity(pickContact,
PackageManager.MATCH_DEFAULT_ONLY) == null) {
mSuspectButton.setEnabled(false);
}
mPhotoButton = (ImageButton) v.findViewById(R.id.crime_camera);
mPhotoView = (ImageView) v.findViewById(R.id.crime_photo);
return v;
}
And with that, you are done with the UI for the time being. (You will wire those buttons up in a minute
or two.)
Chapter 16Taking Pictures with Intents
308
File Storage
Your photo needs more than a place on the screen. Full-size pictures are too large to stick inside a
SQLite database, much less an Intent. They will need a place to live on your device’s filesystem.
Luckily, you have a place to stash these files: your private storage. Recall that you used your private
storage to save your SQLite database. With methods like Context.getFileStreamPath(String)
and Context.getFilesDir(), you can do the same thing with regular files, too (which will live in a
subfolder adjacent to the databases subfolder your SQLite database lives in).
These are the basic file and directory methods in the Context class:
File getFilesDir()
returns a handle to the directory for private application files
FileInputStream openFileInput(String name)
opens an existing file for input (relative to the files directory)
FileOutputStream openFileOutput(String name, int mode)
opens a file for output, possibly creating it (relative to the files directory)
File getDir(String name, int mode)
gets (and possibly creates) a subdirectory within the files directory
String[] fileList()
gets a list of file names in the main files directory, such as for use with openFileInput(String)
File getCacheDir()
returns a handle to a directory you can use specifically for storing cache files; you should take
care to keep this directory tidy and use as little space as possible
There is a catch, though. Because these files are private, only your own application can read or write to
them. As long as no other app needs to access those files, these methods are sufficient.
However, they are not sufficient if another application needs to write to your files. This is the case for
CriminalIntent: The external camera app will need to save the picture it takes as a file in your app. In
those cases, these methods do not go far enough: While there is a Context.MODE_WORLD_READABLE
flag you can pass into openFileOutput(String, int), it is deprecated and not completely reliable in
its effects on newer devices. Once upon a time you could also transfer files using publicly accessible
external storage, but this has been locked down in recent versions of Android for security reasons.
If you need to share or receive files with other apps (files like stored pictures), you need to expose
those files through a ContentProvider. A ContentProvider allows you to expose content URIs to
other apps. They can then download from or write to those content URIs. Either way, you are in control
and always have the option to deny those reads or writes if you so choose.
Using FileProvider
309
Using FileProvider
When all you need to do is receive a file from another application, implementing an entire
ContentProvider is overkill. Fortunately, Google has provided a convenience class called
FileProvider that takes care of everything except the configuration work.
The first step is to declare FileProvider as a ContentProvider hooked up to a specific authority. This
is done by adding a content provider declaration to your AndroidManifest.xml.
Listing 16.2Adding a FileProvider declaration (AndroidManifest.xml)
<activity
android:name=".CrimePagerActivity"
android:parentActivityName=".CrimeListActivity">
</activity>
<provider
android:name="android.support.v4.content.FileProvider"
android:authorities="com.bignerdranch.android.criminalintent.fileprovider"
android:exported="false"
android:grantUriPermissions="true">
</provider>
The authority is a location – a place that files will be saved to. By hooking up FileProvider to your
authority, you give other apps a target for their requests. By adding the exported="false" attribute,
you keep anyone from using your provider except you or anyone you grant permission to. And by
adding the grantUriPermissions attribute, you add the ability to grant other apps permission to write
to URIs on this authority when you send them out in an intent. (Keep an eye out for this later.)
Now that you have told Android where your FileProvider is, you also need to tell your FileProvider
which files it is exposing. This bit of configuration is done with an extra XML resource file. Right-
click your app/res folder in the project tool window and select New → Android resource file. For
Resource type, select XML, and then enter files for the name.
Crack open xml/files.xml, switch to the Text tab, and replace its contents with the following:
Listing 16.3Filling out the paths description (res/xml/files.xml)
<PreferenceScreen xmlns:android="http://schemas.android.com/apk/res/android">
</PreferenceScreen>
<paths>
<files-path name="crime_photos" path="."/>
</paths>
This XML file is a description that says, “Map the root path of my private storage as crime_photos.”
You will not use the crime_photos name – FileProvider uses that internally.
Now hook up files.xml to your FileProvider by adding a meta-data tag in your
AndroidManifest.xml.
Chapter 16Taking Pictures with Intents
310
Listing 16.4Hooking up the paths description (AndroidManifest.xml)
<provider
android:name="android.support.v4.content.FileProvider"
android:authorities="com.bignerdranch.android.criminalintent.fileprovider"
android:exported="false"
android:grantUriPermissions="true">
<meta-data
android:name="android.support.FILE_PROVIDER_PATHS"
android:resource="@xml/files"/>
</provider>
Designating a picture location
Time to give your pictures a place to live locally. First, add a method to Crime to get a well-known
filename.
Listing 16.5Adding the filename-derived property (Crime.java)
public void setSuspect(String suspect) {
mSuspect = suspect;
}
public String getPhotoFilename() {
return "IMG_" + getId().toString() + ".jpg";
}
}
Crime.getPhotoFilename() will not know what folder the photo will be stored in. However, the
filename will be unique, since it is based on the Crime’s ID.
Next, find where the photos should live. CrimeLab is responsible for everything related to persisting
data in CriminalIntent, so it is a natural owner for this idea. Add a getPhotoFile(Crime) method to
CrimeLab that provides a complete local filepath for Crime’s image.
Listing 16.6Finding photo file location (CrimeLab.java)
public class CrimeLab {
...
public Crime getCrime(UUID id) {
...
}
public File getPhotoFile(Crime crime) {
File filesDir = mContext.getFilesDir();
return new File(filesDir, crime.getPhotoFilename());
}
public void updateCrime(Crime crime) {
...
}
This code does not create any files on the filesystem. It only returns File objects that point to the right
locations. Later on, you will use FileProvider to expose these paths as URIs.
Using a Camera Intent
311
Using a Camera Intent
The next step is to actually take the picture. This is the easy part: You get to use an implicit intent
again.
Start by stashing the location of the photo file. (You will use it a few more times, so this will save a bit
of work.)
Listing 16.7Grabbing photo file location (CrimeFragment.java)
private Crime mCrime;
private File mPhotoFile;
private EditText mTitleField;
...
@Override
public void onCreate(Bundle savedInstanceState) {
super.onCreate(savedInstanceState);
UUID crimeId = (UUID) getArguments().getSerializable(ARG_CRIME_ID);
mCrime = CrimeLab.get(getActivity()).getCrime(crimeId);
mPhotoFile = CrimeLab.get(getActivity()).getPhotoFile(mCrime);
}
Next you will hook up the camera button to actually take the picture. The camera intent is defined in
MediaStore, Android’s lord and master of all things media related. You will send an intent with an
action of MediaStore.ACTION_IMAGE_CAPTURE, and Android will fire up a camera activity and take a
picture for you.
But hold that thought for one minute.
Firing the intent
Now you are ready to fire the camera intent. The action you want is called ACTION_IMAGE_CAPTURE,
and it is defined in the MediaStore class. MediaStore defines the public interfaces used in Android for
interacting with common media – images, videos, and music. This includes the image capture intent,
which fires up the camera.
By default, ACTION_IMAGE_CAPTURE will dutifully fire up the camera application and take a picture,
but it will not be a full-resolution picture. Instead, it will take a small-resolution thumbnail picture and
stick it inside the Intent object returned in onActivityResult(…).
For a full-resolution output, you need to tell it where to save the image on the filesystem. This can be
done by passing a Uri pointing to where you want to save the file in MediaStore.EXTRA_OUTPUT. This
Uri will point at a location serviced by FileProvider.
Write an implicit intent to ask for a new picture to be taken into the location saved in mPhotoFile. Add
code to ensure that the button is disabled if there is no camera app or if there is no location at which to
save the photo. (To determine whether there is a camera app available, you will query PackageManager
for activities that respond to your camera implicit intent. Querying the PackageManager is discussed in
more detail in the section called Checking for responding activities in Chapter15.)
Chapter 16Taking Pictures with Intents
312
Listing 16.8Firing a camera intent (CrimeFragment.java)
private static final int REQUEST_DATE = 0;
private static final int REQUEST_CONTACT = 1;
private static final int REQUEST_PHOTO= 2;
...
@Override
public View onCreateView(LayoutInflater inflater, ViewGroup container,
Bundle savedInstanceState) {
...
mPhotoButton = (ImageButton) v.findViewById(R.id.crime_camera);
final Intent captureImage = new Intent(MediaStore.ACTION_IMAGE_CAPTURE);
boolean canTakePhoto = mPhotoFile != null &&
captureImage.resolveActivity(packageManager) != null;
mPhotoButton.setEnabled(canTakePhoto);
mPhotoButton.setOnClickListener(new View.OnClickListener() {
@Override
public void onClick(View v) {
Uri uri = FileProvider.getUriForFile(getActivity(),
"com.bignerdranch.android.criminalintent.fileprovider",
mPhotoFile);
captureImage.putExtra(MediaStore.EXTRA_OUTPUT, uri);
List<ResolveInfo> cameraActivities = getActivity()
.getPackageManager().queryIntentActivities(captureImage,
PackageManager.MATCH_DEFAULT_ONLY);
for (ResolveInfo activity : cameraActivities) {
getActivity().grantUriPermission(activity.activityInfo.packageName,
uri, Intent.FLAG_GRANT_WRITE_URI_PERMISSION);
}
startActivityForResult(captureImage, REQUEST_PHOTO);
}
});
mPhotoView = (ImageView) v.findViewById(R.id.crime_photo);
return v;
}
Calling FileProvider.getUriForFile(…) translates your local filepath into a Uri the camera app
can see. To actually write to it, though, you need to grant the camera app permission. To do this,
you grant the Intent.FLAG_GRANT_WRITE_URI_PERMISSION flag to every activity your cameraImage
intent can resolve to. That grants them all a write permission specifically for this one Uri. Adding the
android:grantUriPermissions attribute in your provider declaration was necessary to open this bit of
functionality. Later, you will revoke this permission to close up that gap in your armor again.
Run CriminalIntent and press the camera button to run your camera app (Figure16.4).
Scaling and Displaying Bitmaps
313

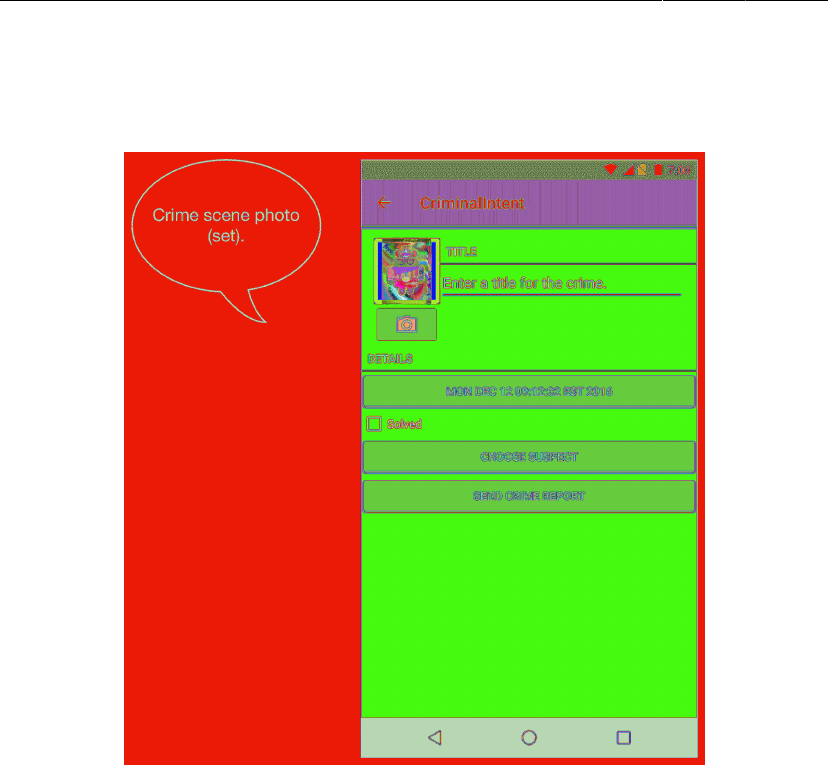

Figure 16.4[Insert your camera app here]
Scaling and Displaying Bitmaps
With that, you are successfully taking pictures. Your image will be saved to a file on the filesystem for
you to use.
Your next step will be to take this file, load it up, and show it to the user. To do this, you need to load
it into a reasonably sized Bitmap object. To get a Bitmap from a file, all you need to do is use the
BitmapFactory class:
Bitmap bitmap = BitmapFactory.decodeFile(mPhotoFile.getPath());
There has to be a catch, though, right? Otherwise we would have put that in bold, you would have
typed it in, and you would be done.
Here is the catch: When we say “reasonably sized,” we mean it. A Bitmap is a simple object that stores
literal pixel data. That means that even if the original file was compressed, there is no compression in
the Bitmap itself. So a 16-megapixel, 24-bit camera image – which might only be a 5 MB JPG – would
blow up to 48 MB loaded into a Bitmap object (!).
You can get around this, but it does mean that you will need to scale the bitmap down by hand. You
will first scan the file to see how big it is, next figure out how much you need to scale it by to fit it in a
given area, and finally reread the file to create a scaled-down Bitmap object.
Create a new class called PictureUtils.java for your new method and add a static method to it called
getScaledBitmap(String, int, int).
Chapter 16Taking Pictures with Intents
314
Listing 16.9Creating getScaledBitmap(…) (PictureUtils.java)
public class PictureUtils {
public static Bitmap getScaledBitmap(String path, int destWidth, int destHeight) {
// Read in the dimensions of the image on disk
BitmapFactory.Options options = new BitmapFactory.Options();
options.inJustDecodeBounds = true;
BitmapFactory.decodeFile(path, options);
float srcWidth = options.outWidth;
float srcHeight = options.outHeight;
// Figure out how much to scale down by
int inSampleSize = 1;
if (srcHeight > destHeight || srcWidth > destWidth) {
float heightScale = srcHeight / destHeight;
float widthScale = srcWidth / destWidth;
inSampleSize = Math.round(heightScale > widthScale ? heightScale :
widthScale);
}
options = new BitmapFactory.Options();
options.inSampleSize = inSampleSize;
// Read in and create final bitmap
return BitmapFactory.decodeFile(path, options);
}
}
The key parameter above is inSampleSize. This determines how big each “sample” should be for each
pixel – a sample size of 1 has one final horizontal pixel for each horizontal pixel in the original file, and
a sample size of 2 has one horizontal pixel for every two horizontal pixels in the original file. So when
inSampleSize is 2, the image has a quarter of the number of pixels of the original.
One more bit of bad news: When your fragment initially starts up, you will not know how big
PhotoView is. Until a layout pass happens, views do not have dimensions onscreen. The first layout
pass happens after onCreate(…), onStart(), and onResume() initially run, which is why PhotoView
does not know how big it is.
There are two solutions to this problem: Either you wait until a layout pass happens, or you use a
conservative estimate. The conservative estimate approach is less efficient, but more straightforward.
Write another static method called getScaledBitmap(String, Activity) to scale a Bitmap for a
particular Activity’s size.
Listing 16.10Writing conservative scale method (PictureUtils.java)
public class PictureUtils {
public static Bitmap getScaledBitmap(String path, Activity activity) {
Point size = new Point();
activity.getWindowManager().getDefaultDisplay()
.getSize(size);
return getScaledBitmap(path, size.x, size.y);
}
This method checks to see how big the screen is and then scales the image down to that size. The
ImageView you load into will always be smaller than this size, so this is a very conservative estimate.
Scaling and Displaying Bitmaps
315
Next, to load this Bitmap into your ImageView, add a method to CrimeFragment to update mPhotoView.
Listing 16.11Updating mPhotoView (CrimeFragment.java)
private String getCrimeReport() {
...
}
private void updatePhotoView() {
if (mPhotoFile == null || !mPhotoFile.exists()) {
mPhotoView.setImageDrawable(null);
} else {
Bitmap bitmap = PictureUtils.getScaledBitmap(
mPhotoFile.getPath(), getActivity());
mPhotoView.setImageBitmap(bitmap);
}
}
}
Then call that method from inside onCreateView(…) and onActivityResult(…).
Listing 16.12Calling updatePhotoView() (CrimeFragment.java)
mPhotoButton.setOnClickListener(new View.OnClickListener() {
@Override
public void onClick(View v) {
...
startActivityForResult(captureImage, REQUEST_PHOTO);
}
});
mPhotoView = (ImageView) v.findViewById(R.id.crime_photo);
updatePhotoView();
return v;
}
@Override
public void onActivityResult(int requestCode, int resultCode, Intent data) {
if (resultCode != Activity.RESULT_OK) {
return;
}
if (requestCode == REQUEST_DATE) {
...
} else if (requestCode == REQUEST_CONTACT && data != null) {
...
} else if (requestCode == REQUEST_PHOTO) {
Uri uri = FileProvider.getUriForFile(getActivity(),
"com.bignerdranch.android.criminalintent.fileprovider",
mPhotoFile);
getActivity().revokeUriPermission(uri,
Intent.FLAG_GRANT_WRITE_URI_PERMISSION);
updatePhotoView();
}
}
Chapter 16Taking Pictures with Intents
316
Now that the camera is done writing to your file, you can revoke the permission, closing off access to
your file again. Run CriminalIntent again, and you should see your image displayed in the thumbnail
view.
Declaring Features
Your camera implementation works great now. One more task remains: Tell potential users about it.
When your app uses a feature like the camera – or near-field communication, or any other feature
that may vary from device to device – it is strongly recommended that you tell Android about it. This
allows other apps (like the Google Play Store) to refuse to install your app if it uses a feature the device
does not support.
To declare that you use the camera, add a <uses-feature> tag to your AndroidManifest.xml.
Listing 16.13Adding uses-feature tag (AndroidManifest.xml)
<manifest xmlns:android="http://schemas.android.com/apk/res/android"
package="com.bignerdranch.android.criminalintent" >
<uses-feature android:name="android.hardware.camera"
android:required="false"
/>
You include the optional attribute android:required here. Why? By default, declaring that you use
a feature means that your app will not work correctly without that feature. This is not the case for
CriminalIntent. You call resolveActivity(…) to check for a working camera app, then gracefully
disable the camera button if you do not find one.
Passing in android:required="false" handles this situation correctly. You tell Android that your app
can work fine without the camera, but that some parts will be disabled as a result.
Challenge: Detail Display
While you can certainly see the image you display here, you cannot see it very well. For this first
challenge, create a new DialogFragment that displays a zoomed-in version of your crime scene photo.
When you press on the thumbnail, it should pull up the zoomed-in DialogFragment.
Challenge: Efficient Thumbnail Load
In this chapter, you had to use a crude estimate of the size you should scale down to. This is not ideal,
but it works and is quick to implement.
With the out-of-the-box APIs, you can use a tool called ViewTreeObserver, an object that you can get
from any view in your Activity’s hierarchy:
ViewTreeObserver observer = mImageView.getViewTreeObserver();
You can register a variety of listeners on a ViewTreeObserver, including OnGlobalLayoutListener.
This listener fires an event whenever a layout pass happens.
For this challenge, adjust your code so that it uses the dimensions of mPhotoView when they are valid
and waits until a layout pass before initially calling updatePhotoView().
317
17
Two-Pane Master-Detail
Interfaces
In this chapter, you will create a tablet interface for CriminalIntent that allows users to see and interact
with the list of crimes and the details of an individual crime at the same time. Figure17.1 shows this
list-detail interface, which is also commonly referred to as a master-detail interface.
Figure 17.1Master and detail sharing the spotlight
Chapter 17Two-Pane Master-Detail Interfaces
318
You will need a tablet device or AVD for testing in this chapter. To create a tablet AVD, select Tools
→ Android → AVD Manager. Click + Create Virtual Device... and select the Tablet category on the left.
Select your favorite hardware profile (Figure17.2), click Next, and choose an API level of at least 21.
Figure 17.2Device selections for a tablet AVD
Adding Layout Flexibility
319
Adding Layout Flexibility
On a phone, you want CrimeListActivity to inflate a single-pane layout, as it currently does. On a
tablet, you want it to inflate a two-pane layout that is capable of displaying the master and detail views
at the same time.
In the two-pane layout, CrimeListActivity will host both a CrimeListFragment and a
CrimeFragment, as shown in Figure17.3.
Figure 17.3Different types of layouts
To make this happen, you are going to:
• modify SingleFragmentActivity so that the layout that gets inflated is not hardcoded
• create a new layout that consists of two fragment containers
• modify CrimeListActivity so that it will inflate a single-container layout on phones and a two-
container layout on tablets
Chapter 17Two-Pane Master-Detail Interfaces
320
Modifying SingleFragmentActivity
CrimeListActivity is a subclass of SingleFragmentActivity. Currently, SingleFragmentActivity
is set up to always inflate activity_fragment.xml. To make SingleFragmentActivity more flexible,
you are going to enable a subclass to provide its own resource ID for the layout instead.
In SingleFragmentActivity.java, add a protected method that returns the ID of the layout that the
activity will inflate.
Listing 17.1Making SingleFragmentActivity flexible
(SingleFragmentActivity.java)
public abstract class SingleFragmentActivity extends AppCompatActivity {
protected abstract Fragment createFragment();
@LayoutRes
protected int getLayoutResId() {
return R.layout.activity_fragment;
}
@Override
public void onCreate(Bundle savedInstanceState) {
super.onCreate(savedInstanceState);
setContentView(R.layout.activity_fragment);
setContentView(getLayoutResId());
FragmentManager fm = getSupportFragmentManager();
...
}
}
The default implementation of SingleFragmentActivity will work the same as before, but
now its subclasses can choose to override getLayoutResId() to return a layout other than
activity_fragment.xml. You annotate getLayoutResId() with @LayoutRes to tell Android Studio
that any implementation of this method should return a valid layout resource ID.
Creating a layout with two fragment containers
321
Creating a layout with two fragment containers
In the project tool window, right-click res/layout/ and create a new Android XML file. Ensure that
the resource type is Layout, name the file activity_twopane.xml, and give it a LinearLayout root
element.
Use Figure17.4 to write the XML for the two-pane layout.
Figure 17.4A layout with two fragment containers
(layout/activity_twopane.xml)
Note that the first FrameLayout has a fragment_container layout ID, so the code in
SingleFragmentActivity.onCreate(…) can work as before. When the activity is created, the fragment
that is returned in createFragment() will appear in the lefthand pane.
Test this layout in CrimeListActivity by overriding getLayoutResId() to return
R.layout.activity_twopane.
Listing 17.2Changing to two-pane layout file (CrimeListActivity.java)
public class CrimeListActivity extends SingleFragmentActivity {
@Override
protected Fragment createFragment() {
return new CrimeListFragment();
}
@Override
protected int getLayoutResId() {
return R.layout.activity_twopane;
}
}
Chapter 17Two-Pane Master-Detail Interfaces
322
Run CriminalIntent on a tablet device and confirm that you have two panes (Figure17.5). (You will
need to add a crime to see the panes.) Note that the larger detail pane is empty and that pressing a list
item will not display the crime’s details. You will hook up the detail container later in the chapter.
Figure 17.5Two-pane layout on a tablet
As currently written, CrimeListActivity will also inflate the two-pane interface when running on a
phone. In the next section, you will fix that using an alias resource.
Using an alias resource
323
Using an alias resource
An alias resource is a resource that points to another resource. Alias resources live in res/values/ and,
by convention, are defined in a refs.xml file.
Your next job will be to have CrimeListActivity show a different layout file depending on whether
it is on a tablet or a phone. You do this the same way you show a different layout for landscape and
portrait: by using a resource qualifier.
Doing that with files in res/layout works, but it has some drawbacks. Each layout file has to contain
a complete copy of the layout you want to show. This can result in a lot of redundancy. If you wanted
an activity_masterdetail.xml layout file, you would have to copy all of activity_fragment.xml
into res/layout/activity_masterdetail.xml and all of activity_twopane.xml into res/layout-
sw600dp/activity_masterdetail.xml. (You will see what sw600dp does in a moment.)
Instead of doing that, you will use an alias resource. In this section, you will create an alias resource
that points to the activity_fragment.xml layout on phones and the activity_twopane.xml layout on
tablets.
In the project tool window, right-click the res/values directory and create a new values resource file.
Name the file refs.xml and check that the directory is values. It should have no qualifiers. Click OK.
Then add the item shown in Listing 17.3.
Listing 17.3Creating a default alias resource value (res/values/refs.xml)
<resources>
<item name="activity_masterdetail" type="layout">@layout/activity_fragment</item>
</resources>
This resource’s value is a reference to the single-pane layout. It also has a resource ID:
R.layout.activity_masterdetail. Note that the alias’s type attribute is what determines the inner
class of the ID. Even though the alias itself is in res/values/, its ID is in R.layout.
You can now use this resource ID in place of R.layout.activity_fragment. Make that change in
CrimeListActivity.
Listing 17.4Switching layout again (CrimeListActivity.java)
@Override
protected int getLayoutResId() {
return R.layout.activity_twopane;masterdetail;
}
Run CriminalIntent to confirm that your alias is working properly. CrimeListActivity should inflate
the single-pane layout again.
Chapter 17Two-Pane Master-Detail Interfaces
324
Creating tablet alternatives
Because your alias is in res/values/, it is the default alias. So, by default, CrimeListActivity
inflates the single-pane layout.
Now you are going to create an alternative resource so that the activity_masterdetail alias will
point to activity_twopane.xml on larger devices.
In the project tool window, right-click res/values/ and create a new values resource file. As before,
name the file refs.xml and check that its directory is values. But this time, select Smallest Screen
Width under Available qualifiers and click the >> button to move it over to the right (Figure17.6).
Figure 17.6Adding a qualifier
This qualifier is a bit different. It asks you to specify a value for the smallest screen width. Enter 600
here, and click OK. Once your new resource file opens, add the activity_masterdetail alias to this
file, too, pointing at a different layout file.
Listing 17.5Alternative alias for larger devices
(res/values-sw600dp/refs.xml)
<resources>
<item name="activity_masterdetail" type="layout">@layout/activity_twopane</item>
</resources>
Let’s explain what you are doing here. Your goal is to have logic that works like this:
• For devices that are under a specified size, use activity_fragment.xml.
• For devices that are over a specified size, use activity_twopane.xml.
Activity: Fragment Boss
325
Android does not provide a way to use a resource only when a device is under a particular size, but
it does provide the next best thing. The -sw600dp configuration qualifier lets you provide resources
only when a device is above a certain size. The sw stands for “smallest width,” but refers to the screen’s
smallest dimension, and thus is independent of the device’s current orientation.
With a -sw600dp qualifier, you are saying, “Use this resource on any device whose smallest dimension
is 600dp or greater.” This is a good rule of thumb for specifying a tablet-sized screen.
What about the other part, where you want to use activity_fragment.xml on smaller
devices? Smaller devices will not match your -sw600dp resource, so the default will be used:
activity_fragment.xml.
Run CriminalIntent on a phone and on a tablet. Confirm that the single- and two-pane layouts appear
where you expect them.
Activity: Fragment Boss
Now that your layouts are behaving properly, you can turn to adding a CrimeFragment to the detail
fragment container when CrimeListActivity is sporting a two-pane layout.
You might think to simply write an alternative implementation of CrimeHolder.onClick(View)
for tablets. Instead of starting a new CrimePagerActivity, this onClick(View) would get
CrimeListActivity’s FragmentManager and commit a fragment transaction that adds a
CrimeFragment to the detail fragment container.
The code in your CrimeListFragment.CrimeHolder would look like this:
public void onClick(View view) {
// Stick a new CrimeFragment in the activity's layout
Fragment fragment = CrimeFragment.newInstance(mCrime.getId());
FragmentManager fm = getActivity().getSupportFragmentManager();
fm.beginTransaction()
.add(R.id.detail_fragment_container, fragment)
.commit();
}
This works, but it is not how stylish Android programmers do things. Fragments are intended
to be standalone, composable units. If you write a fragment that adds fragments to the activity’s
FragmentManager, then that fragment is making assumptions about how the hosting activity works, and
your fragment is no longer a standalone, composable unit.
For example, in the code above, CrimeListFragment adds a CrimeFragment to CrimeListActivity
and assumes that CrimeListActivity has a detail_fragment_container in its layout.
This is business that should be handled by CrimeListFragment’s hosting activity instead of
CrimeListFragment.
To maintain the independence of your fragments, you will delegate work back to the hosting activity by
defining callback interfaces in your fragments. The hosting activities will implement these interfaces to
perform fragment-bossing duties and layout-dependent behavior.
Chapter 17Two-Pane Master-Detail Interfaces
326
Fragment callback interfaces
To delegate functionality back to the hosting activity, a fragment typically defines a callback interface
named Callbacks. This interface defines work that the fragment needs done by its boss, the hosting
activity. Any activity that will host the fragment must implement this interface.
With a callback interface, a fragment is able to call methods on its hosting activity without having to
know anything about which activity is hosting it.
Implementing CrimeListFragment.Callbacks
To implement a Callbacks interface, you first define a member variable that holds an object that
implements Callbacks. Then you cast the hosting activity to Callbacks and assign it to that variable.
You assign the context in the Fragment lifecycle method:
public void onAttach(Context context)
This method is called when a fragment is attached to an activity, whether it was retained or not.
Remember, Activity is a subclass of Context, so onAttach passes a Context as a parameter, which
is more flexible. Ensure that you use the onAttach(Context) signature for onAttach and not the
deprecated onAttach(Activity) method, which may be removed in future versions of the API.
Similarly, you will set the variable to null in the corresponding waning lifecycle method:
public void onDetach()
You set the variable to null here because afterward you cannot access the activity or count on the
activity continuing to exist.
Fragment callback interfaces
327
In CrimeListFragment.java, add a Callbacks interface to CrimeListFragment. Also add an
mCallbacks variable and override onAttach(Context) and onDetach() to set and unset it.
Listing 17.6Adding callback interface (CrimeListFragment.java)
public class CrimeListFragment extends Fragment {
...
private boolean mSubtitleVisible;
private Callbacks mCallbacks;
/**
* Required interface for hosting activities
*/
public interface Callbacks {
void onCrimeSelected(Crime crime);
}
@Override
public void onAttach(Context context) {
super.onAttach(context);
mCallbacks = (Callbacks) context;
}
@Override
public void onCreate(Bundle savedInstanceState) {
super.onCreate(savedInstanceState);
setHasOptionsMenu(true);
}
...
@Override
public void onSaveInstanceState(Bundle outState) {
super.onSaveInstanceState(outState);
outState.putBoolean(SAVED_SUBTITLE_VISIBLE, mSubtitleVisible);
}
@Override
public void onDetach() {
super.onDetach();
mCallbacks = null;
}
}
Now CrimeListFragment has a way to call methods on its hosting activity. It does not matter which
activity is doing the hosting. As long as the activity implements CrimeListFragment.Callbacks,
everything in CrimeListFragment can work the same.
Note that CrimeListFragment performs an unchecked cast of its activity to
CrimeListFragment.Callbacks. This means that the hosting activity must implement
CrimeListFragment.Callbacks. That is not a bad dependency to have, but it is important to document
it.
Chapter 17Two-Pane Master-Detail Interfaces
328
Next, in CrimeListActivity, implement CrimeListFragment.Callbacks. Leave
onCrimeSelected(Crime) empty for now.
Listing 17.7Implementing callbacks (CrimeListActivity.java)
public class CrimeListActivity extends SingleFragmentActivity
implements CrimeListFragment.Callbacks {
@Override
protected Fragment createFragment() {
return new CrimeListFragment();
}
@Override
protected int getLayoutResId() {
return R.layout.activity_masterdetail;
}
@Override
public void onCrimeSelected(Crime crime) {
}
}
Eventually, CrimeListFragment will call this method in CrimeHolder.onClick(…)
and also when the user chooses to create a new crime. First, let’s figure out
CrimeListActivity.onCrimeSelected(Crime)’s implementation.
When onCrimeSelected(Crime) is called, CrimeListActivity needs to do one of two things:
• if using the phone interface, start a new CrimePagerActivity
• if using the tablet interface, put a CrimeFragment in detail_fragment_container
To determine which interface was inflated, you could check for a certain layout ID. But it is better to
check whether the layout has a detail_fragment_container. Checking a layout’s capabilities is a
more precise test of what you need. Filenames can change, and you do not really care what file the
layout was inflated from; you just need to know whether it has a detail_fragment_container to put
your CrimeFragment in.
If the layout does have a detail_fragment_container, then you are going to create a fragment
transaction that removes the existing CrimeFragment from detail_fragment_container (if there is
one in there) and adds the CrimeFragment that you want to see.
Fragment callback interfaces
329
In CrimeListActivity.java, implement onCrimeSelected(Crime) to handle the selection of a crime
in either interface.
Listing 17.8Conditional CrimeFragment startup (CrimeListActivity.java)
@Override
public void onCrimeSelected(Crime crime) {
if (findViewById(R.id.detail_fragment_container) == null) {
Intent intent = CrimePagerActivity.newIntent(this, crime.getId());
startActivity(intent);
} else {
Fragment newDetail = CrimeFragment.newInstance(crime.getId());
getSupportFragmentManager().beginTransaction()
.replace(R.id.detail_fragment_container, newDetail)
.commit();
}
}
Finally, in CrimeListFragment, you are going to call onCrimeSelected(Crime) in the places where
you currently start a new CrimePagerActivity.
In CrimeListFragment.java, modify onOptionsItemSelected(MenuItem) and
CrimeHolder.onClick(View) to call Callbacks.onCrimeSelected(Crime).
Listing 17.9Calling all callbacks! (CrimeListFragment.java)
@Override
public boolean onOptionsItemSelected(MenuItem item) {
switch (item.getItemId()) {
case R.id.new_crime:
Crime crime = new Crime();
CrimeLab.get(getActivity()).addCrime(crime);
Intent intent = CrimePagerActivity
.newIntent(getActivity(), crime.getId());
startActivity(intent);
updateUI();
mCallbacks.onCrimeSelected(crime);
return true;
...
}
}
...
private class CrimeHolder extends RecyclerView.ViewHolder
implements View.OnClickListener {
...
@Override
public void onClick(View view) {
Intent intent = CrimePagerActivity.newIntent(getActivity(), mCrime.getId());
startActivity(intent);
mCallbacks.onCrimeSelected(mCrime);
}
}
When you call back in onOptionsItemSelected(MenuItem), you also reload the list immediately upon
adding a new crime. This is necessary because, on tablets, the list will remain visible after adding a
new crime. Before, you were guaranteed that the detail screen would appear in front of it.
Chapter 17Two-Pane Master-Detail Interfaces
330
Run CriminalIntent on a tablet. Create a new crime, and a CrimeFragment will be added and shown in
the detail_fragment_container. Then view an old crime to see the CrimeFragment being swapped
out for a new one (Figure17.7).
Figure 17.7Master and detail now wired up
Looks great! One small problem, though: If you make changes to a crime, the list will not update
to reflect them. Right now, you only reload the list immediately after adding a crime and in
CrimeListFragment.onResume(). But on a tablet, CrimeListFragment stays visible alongside the
CrimeFragment. The CrimeListFragment is not paused when the CrimeFragment appears, so it is
never resumed. Thus, the list is not reloaded.
You can fix this problem with another callback interface – this one in CrimeFragment.
Implementing CrimeFragment.Callbacks
CrimeFragment will define the following interface:
public interface Callbacks {
void onCrimeUpdated(Crime crime);
}
For CrimeFragment to push updates to a peer Fragment, it will need to do two things. First,
since CriminalIntent’s single source of truth is its SQLite database, it will need to save its Crime
to CrimeLab. Then CrimeFragment will call onCrimeUpdated(Crime) on its hosting activity.
CrimeListActivity will implement onCrimeUpdated(Crime) to reload CrimeListFragment’s list,
which will pull the latest data from the database and display it.
Fragment callback interfaces
331
Before you start with CrimeFragment’s interface, change the visibility of
CrimeListFragment.updateUI() so that it can be called from CrimeListActivity.
Listing 17.10Changing updateUI()’s visibility (CrimeListFragment.java)
private public void updateUI() {
...
}
Then, in CrimeFragment.java, add the callback interface along with an mCallbacks variable and
implementations of onAttach(…) and onDetach().
Listing 17.11Adding CrimeFragment callbacks (CrimeFragment.java)
private ImageButton mPhotoButton;
private ImageView mPhotoView;
private Callbacks mCallbacks;
/**
* Required interface for hosting activities
*/
public interface Callbacks {
void onCrimeUpdated(Crime crime);
}
public static CrimeFragment newInstance(UUID crimeId) {
...
}
@Override
public void onAttach(Context context) {
super.onAttach(context);
mCallbacks = (Callbacks) context;
}
@Override
public void onCreate(Bundle savedInstanceState) {
...
}
@Override
public void onPause() {
...
}
@Override
public void onDetach() {
super.onDetach();
mCallbacks = null;
}
Chapter 17Two-Pane Master-Detail Interfaces
332
Now implement CrimeFragment.Callbacks in CrimeListActivity to reload the list in
onCrimeUpdated(Crime).
Listing 17.12Refreshing crime list (CrimeListActivity.java)
public class CrimeListActivity extends SingleFragmentActivity
implements CrimeListFragment.Callbacks, CrimeFragment.Callbacks {
...
public void onCrimeUpdated(Crime crime) {
CrimeListFragment listFragment = (CrimeListFragment)
getSupportFragmentManager()
.findFragmentById(R.id.fragment_container);
listFragment.updateUI();
}
}
CrimeFragment.Callbacks must be implemented in all activities that host CrimeFragment. So provide
an empty implementation in CrimePagerActivity, too.
Listing 17.13Providing empty callbacks implementation
(CrimePagerActivity.java)
public class CrimePagerActivity extends AppCompatActivity
implements CrimeFragment.Callbacks {
...
@Override
public void onCrimeUpdated(Crime crime) {
}
}
CrimeFragment will be doing a Time Warp two-step a lot internally: Jump to the left, save mCrime to
CrimeLab. Step to the right, call mCallbacks.onCrimeUpdated(Crime). Add a method to make it more
convenient to do this jig.
Listing 17.14Adding updateCrime() method (CrimeFragment.java)
@Override
public void onActivityResult(int requestCode, int resultCode, Intent data) {
...
}
private void updateCrime() {
CrimeLab.get(getActivity()).updateCrime(mCrime);
mCallbacks.onCrimeUpdated(mCrime);
}
private void updateDate() {
mDateButton.setText(mCrime.getDate().toString());
}
Fragment callback interfaces
333
Then add calls in CrimeFragment.java to updateCrime() when a Crime’s title or solved status has
changed.
Listing 17.15Calling onCrimeUpdated(Crime) (CrimeFragment.java)
@Override
public View onCreateView(LayoutInflater inflater, ViewGroup container,
Bundle savedInstanceState) {
...
mTitleField.addTextChangedListener(new TextWatcher() {
...
@Override
public void onTextChanged(CharSequence s, int start, int before, int count) {
mCrime.setTitle(s.toString());
updateCrime();
}
...
});
...
mSolvedCheckbox.setOnCheckedChangeListener(new OnCheckedChangeListener() {
@Override
public void onCheckedChanged(CompoundButton buttonView,
boolean isChecked) {
mCrime.setSolved(isChecked);
updateCrime();
}
});
...
}
Chapter 17Two-Pane Master-Detail Interfaces
334
You also need to call updateCrime() in onActivityResult(…), where the Crime’s date, photo, and
suspect can be changed. Currently, the photo and suspect do not appear in the list item’s view, but
CrimeFragment should still be neighborly and report those updates.
Listing 17.16Calling updateCrime() again (CrimeFragment.java)
@Override
public void onActivityResult(int requestCode, int resultCode, Intent data) {
...
if (requestCode == REQUEST_DATE) {
Date date = (Date) data
.getSerializableExtra(DatePickerFragment.EXTRA_DATE);
mCrime.setDate(date);
updateCrime();
updateDate();
} else if (requestCode == REQUEST_CONTACT && data != null) {
...
try {
...
String suspect = c.getString(0);
mCrime.setSuspect(suspect);
updateCrime();
mSuspectButton.setText(suspect);
} finally {
c.close();
}
} else if (requestCode == REQUEST_PHOTO) {
...
getActivity().revokeUriPermission(uri,
Intent.FLAG_GRANT_WRITE_URI_PERMISSION);
updateCrime();
updatePhotoView();
}
}
Run CriminalIntent on a tablet and confirm that your RecyclerView updates when changes are made in
CrimeFragment. Then run it on a phone to confirm that the app works as before.
With that, you have an app that works on both tablets and phones.
For the More Curious: More on Determining Device Size
335
For the More Curious: More on Determining Device
Size
Before Android 3.2, the screen size qualifier was used to provide alternative resources based the size
of a device. Screen size is a qualifier that groups different devices into four broad categories – small,
normal, large, and xlarge.
Table17.1 shows the minimum screen sizes for each qualifier.
Table 17.1Screen size qualifiers
Name Minimum screen size
small 320x426dp
normal 320x470dp
large 480x640dp
xlarge 720x960dp
Screen size qualifiers were deprecated in Android 3.2 in favor of qualifiers that allow you to test for the
dimensions of the device. Table17.2 shows these new qualifiers.
Table 17.2Discrete screen dimension qualifiers
Qualifier
format
Description
wXXXdp available width: width is greater than or equal to XXX dp
hXXXdp available height: height greater than or equal to XXX dp
swXXXdp smallest width: width or height (whichever is smaller) greater than or equal to XXX dp
Let’s say that you wanted to specify a layout that would only be used if the display were at least 300dp
wide. In that case, you could use an available width qualifier and put your layout file in res/layout-
w300dp (the “w” is for “width”). You can do the same thing for height by using an “h” (for “height”).
However, the height and width may swap depending on the orientation of the device. To detect a
particular size of screen, you can use sw, which stands for smallest width. This specifies the smallest
dimension of your screen. Depending on the device’s orientation, this can be either width or height. If
the screen is 1024x800, then sw is 800. If the screen is 800x1024, sw is still 800.
Challenge: Adding Swipe to Dismiss
For this challenge, you will add swipe-to-dismiss functionality to enhance CriminalIntent’s
RecyclerView user experience. Implementing swipe to dismiss will allow a user to delete a crime with
a single swipe to the right.
To get swipe to dismiss set up with CrimeFragment’s RecyclerView, wire up an
ItemTouchHelper (developer.android.com/reference/android/support/v7/widget/helper/
ItemTouchHelper.html). ItemTouchHelper provides a swipe-to-dismiss implementation and is
included with the RecyclerView support library.
337
18
Localization
Knowing CriminalIntent is going to be a wildly popular app, you have decided to make it accessible
to a larger audience. Your first step is to localize all of the user-facing text so your app can be read in
Spanish or English.
Localization is the process of providing the appropriate resources for your app based on the user’s
language setting. In this chapter you will provide a Spanish version of strings.xml. When a device’s
language is set to Spanish, Android will automatically find and use the Spanish strings at runtime
(Figure18.1).

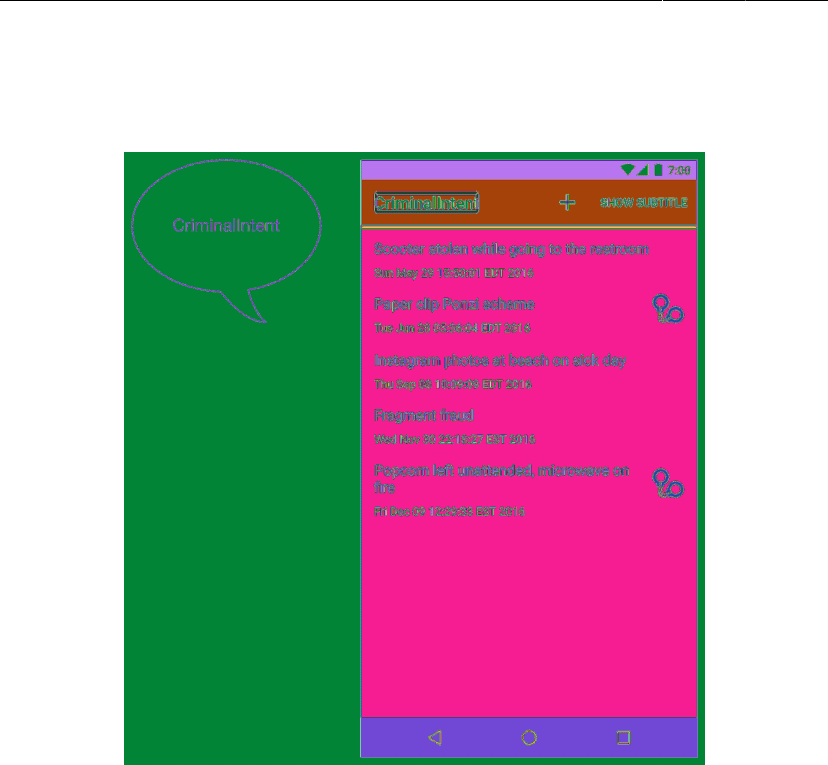

Figure 18.1IntentoCriminal
Chapter 18Localization
338
Localizing Resources
Language settings are part of the device’s configuration. (See the section called Device configurations
and alternative resources in Chapter3 for an overview of device configuration.) Android provides
qualifiers for different languages, just as it does for screen orientation, screen size, and other
configuration factors. This makes localization straightforward: You create resource subdirectories with
the desired language configuration qualifier and put the alternative resources in them. The Android
resource system does the rest.
In your CriminalIntent project, create a new values resource file (as you did in Chapter17): In the
project tool window, right-click res/values/ and select New → Values resource file. Enter strings
for the File name. Leave the Source set option set to main. Make sure Directory name is set to values.
Select Locale in the Available qualifiers list and click the >> button to move Locale to the Chosen
qualifiers section. Select es: Spanish in the Language list. Any Region will be automatically selected in
the Specific Region Only list – which is just what you want, so leave that selection be.
The resulting New Resource File window should look similar to Figure18.2.
Figure 18.2Adding a qualified strings resource file
Note that Android Studio automatically changes the Directory name field to values-es. The language
configuration qualifiers are taken from ISO 639-1 codes, and each consists of two characters. For
Spanish, the qualifier is -es.
Localizing Resources
339
Click OK. The new strings.xml file will be listed under res/values, with (es) after its name. The
strings files are grouped together in the project tool window’s Android view (Figure18.3).
Figure 18.3Viewing new strings.xml in Android view
However, if you explore the directory structure, you will see that your project now contains an
additional values directory: res/values-es. The newly generated strings.xml is located inside of this
new directory (Figure18.4).
Figure 18.4Viewing new strings.xml in Project view
Chapter 18Localization
340
Now it is time to make the magic happen. Add Spanish versions of all your strings to res/values-es/
strings.xml. (If you do not wish to type these strings in, copy the contents from the solution file. You
can find the URL in the section called Adding an Icon in Chapter2.)
Listing 18.1Adding Spanish alternative of string resources
(res/values-es/strings.xml)
<resources>
<string name="app_name">IntentoCriminal</string>
<string name="crime_title_hint">Introduzca un título para el crimen.</string>
<string name="crime_title_label">Título</string>
<string name="crime_details_label">Detalles</string>
<string name="crime_solved_label">Solucionado</string>
<string name="date_picker_title">Fecha del crimen:</string>
<string name="new_crime">Crimen Nuevo</string>
<string name="show_subtitle">Mostrar Subtítulos</string>
<string name="hide_subtitle">Esconder Subtítulos</string>
<string name="subtitle_format">%1$s crímenes</string>
<string name="crime_suspect_text">Elegir Sospechoso</string>
<string name="crime_report_text">Enviar el Informe del Crimen</string>
<string name="crime_report">%1$s!
El crimen fue descubierto el %2$s. %3$s, y %4$s
</string>
<string name="crime_report_solved">El caso está resuelto</string>
<string name="crime_report_unsolved">El caso no está resuelto</string>
<string name="crime_report_no_suspect">no hay sospechoso.</string>
<string name="crime_report_suspect">el/la sospechoso/a es %s.</string>
<string name="crime_report_subject">IntentoCriminal Informe del Crimen</string>
<string name="send_report">Enviar el informe del crimen a través de</string>
</resources>
That is all you have to do to provide localized string resources for your app. To confirm, change your
device’s settings to Spanish by opening Settings and finding the language settings. Depending on your
version of Android, these settings will be labeled Language and input, Language and Keyboard, or
something similar.
When you get to a list of language options, choose a setting for Español. The region (España or
Estados Unidos) will not matter, because the qualification -es matches both. (Note that on newer
versions of Android, users can select multiple languages and assign a priority order. If you are on a
newer device, make sure Español appears first in your language settings list.)
Run CriminalIntent and bask in the glory of your newly localized app. When you are done basking,
return your device’s language setting to English. Look for Ajustes or Configuración (Settings) in the
launcher and find the setting that includes Idioma (Language).
Default resources
341
Default resources
The configuration qualifier for English is -en. In a fit of localization, you might think to rename your
existing values directory to values-en/. This is not a good idea, but pretend for a moment you did
just that: Your hypothetical update means your app now has an English strings.xml in values-en and
a Spanish strings.xml in values-es.
Your newly updated app will build just fine. It will also run just fine on devices with the language set
to Spanish or English. But what happens if the user’s device language is set to Italian? Bad things.
Very bad things. At runtime Android will not find string resources that match the current configuration.
The severity of the resulting bad behavior depends on where the resource ID for a given string is being
referenced.
If an unmatched string resource is referenced in your XML layout file, the app will display the resource
ID of the resource (rather than a meaningful string you have defined). To see this behavior in action,
comment out the crime_title_label entry from values/strings.xml. (You can easily comment out
a single line by clicking on the line and then pressing Command+/ [Ctrl+/].)
Listing 18.2Commenting out English crime_title_label
(res/values/strings.xml)
<resources>
<string name="app_name">IntentoCriminal</string>
<string name="crime_title_hint">Introduzca un título para el crimen.</string>
<!--<string name="crime_title_label">Title</string>-->
...
(Recall that crime_title_label is referenced in fragment_crime.xml:)
<TextView
style="?android:listSeparatorTextViewStyle"
android:layout_width="match_parent"
android:layout_height="wrap_content"
android:text="@string/crime_title_label" />
Chapter 18Localization
342
Run CriminalIntent on a device with the language set to English. The app displays the resource ID for
crime_title_label instead of the TITLE text (Figure18.5).
Figure 18.5Referencing missing English version of title string from XML
Even worse, if an unmatched string resource is referenced in your Java code, the app will crash. To see
this in action, comment out crime_report_subject in the English values/strings.xml.
Listing 18.3Commenting out English crime_report_subject
(res/values/strings.xml)
<string name="crime_report_no_suspect">there is no suspect.</string>
<string name="crime_report_suspect">the suspect is %s.</string>
<!--<string name="crime_report_subject">CriminalIntent Crime Report</string>-->
(Recall that crime_report_subject is referenced by the crime report button’s click listener in
CrimeFragment.java:)
Default resources
343
mReportButton.setOnClickListener(new View.OnClickListener() {
public void onClick(View v) {
Intent i = new Intent(Intent.ACTION_SEND);
i.setType("text/plain");
i.putExtra(Intent.EXTRA_TEXT, getCrimeReport());
i.putExtra(Intent.EXTRA_SUBJECT,
getString(R.string.crime_report_subject));
i = Intent.createChooser(i, getString(R.string.send_report));
startActivity(i);
}
});
Run the app and press SEND CRIME REPORT to see the crash (Figure18.6).
Figure 18.6Missing English version of subject string
The moral of the story is this: Provide a default resource for each of your resources. Resources in
unqualified resource directories are your default resources. Default resources will be used if no match
for the current device configuration is found. Your app will misbehave if Android looks for a resource
and cannot find one that matches the device configuration.
(Leave crime_title_label and crime_report_subject commented out for now. You will be
reminded to uncomment both in a bit.)
Chapter 18Localization
344
Screen density works differently
The exception to providing default resources is for screen density. A project’s drawable directories are
typically qualified for screen density with -mdpi, -xxhdpi, etc., as you have seen. However, Android’s
decision about which drawable resource to use is not a simple matter of matching the device’s screen
density or defaulting to an unqualified directory if there is no match.
The choice is based on a combination of screen size and density, and Android may choose a drawable
from a directory that is qualified with a lower or higher density than the device and then scale
the drawable. There are more details in the docs at developer.android.com/guide/practices/
screens_support.html, but the important point is that putting default drawable resources in res/
drawable/ is not necessary.
Checking string coverage using Translations Editor
As the number of languages you support grows, making sure you provide a version of each string
for each language becomes more difficult. Luckily, Android Studio provides a handy Translations
Editor to see all of your translations in one place. To launch the Translations Editor, right-click
on one of the strings.xml files in the project tool window and select Open Translations Editor.
The Translations Editor displays all of the app’s strings and the translation status for each of the
languages your app currently provides any qualified string values for. Since crime_title_label and
crime_report_subject are commented out, you will see those field names in red (Figure18.7).
Figure 18.7Using the Translations Editor to check your string coverage
(Now it is time to uncomment both crime_title_label and crime_report_subject before moving
on. You can uncomment out a single line by clicking on the line and then pressing Command+/ [Ctrl+/]
again.)
Targeting a region
345
Targeting a region
You can qualify a resource directory with a language-plus-region qualifier that targets resources even
more specifically. For instance, the qualifier for Spanish spoken in Spain is -es-rES, where the r
denotes a region qualifier and ES is the ISO 3166-1-alpha-2 code for Spain. Configuration qualifiers are
not case sensitive, but it is good to follow Android’s convention here: Use a lowercase language code
and an uppercase region code prefixed with a lowercase r.
Note that a language-region qualifier, such as -es-rES, may look like two distinct configuration
qualifiers that have been combined, but it is just one. The region is not a valid qualifier on its own.
Figure18.8 shows the locale resource resolution strategy and how it differs based on the device’s
Android version.
Figure 18.8Locale resolution (pre- and post-Nougat)
A resource qualified with both a locale and region has two opportunities for matching a user’s locale.
An exact match occurs when both the language and region qualifiers match the user’s locale. If no
exact match is found, the system will strip off the region qualifier and look for an exact match for the
language only.
On devices running pre-Nougat versions of Android, if no language match is found, the default
(unqualified resource) is used. Nougat has enhanced locale support, with more locales and the ability
to select more than one locale in the device’s settings. The system also uses a more intelligent resource
resolution strategy for locale with the aim of showing the correct language as often as possible, even
if the app does not provide an exact region match or a nonqualified language match. If no exact match
is found on a device running Nougat, and no language-only match is found, the system will look
for a resource qualified with the same language but a different region and will use the best match of
resources that meet those criteria.
Chapter 18Localization
346
Consider an example. Suppose you set the language on your device to Spanish and your region to
Chile (Figure18.9). An app on your device contains Spanish strings.xml files tailored for Spain and
Mexico (in values-es-rES and values-es-rMX). The default values directory contains an English
strings.xml. If your device is running pre-Nougat Android, you will see the English contents of the
default values directory. But if your device is running Nougat, you will have a better experience: You
will see the contents of values-es-rMX/strings.xml – which means you will see Spanish, though not
tailored to Chile.
Figure 18.9Locale resolution example (pre- and post-Nougat)
This example is a bit contrived. But it highlights an important point: Provide strings in as general a
context as possible, using language-only qualified directories as much as possible and region-qualified
directories only when necessary. Rather than maintaining all Spanish user-facing strings in three
region-qualified directories, the example app above would be better off storing the Spanish strings in a
language-only qualified values-es directory and providing region-qualified strings only for words and
phrases that are different in the different regional dialects. This not only makes maintaining the strings
files easier for the programmer, but it also helps the system resolve the resources on both pre-Nougat
devices and Nougat devices by providing a language-only match.
Targeting a region
347
Testing custom locales
Different devices and different versions of Android know about and support different locales. It is
possible, then, that you may want to provide strings or other resources for a locale that is not available
on your test device. If this is the case, not to worry. You can use the Custom Locale tool on the
emulator to create and apply a locale that is not actually supported by the system image. The emulator
will then simulate a runtime configuration that includes that language/region combination, allowing
you to test how your app behaves in that configuration.
The emulator comes packaged with the Custom Locale tool. On your emulator, open the App Launcher
screen. Click on the icon labeled Custom Locale. Once launched, the Custom Locale tool allows you to
browse existing locales, add new custom locales, and apply a custom locale for testing (Figure18.10).
Figure 18.10Custom Locale tool
Note that if you apply a custom locale that is not supported by the system image, the system UI will
still display the default language. Your app, however, will resolve resources based on the custom locale
you chose.
Chapter 18Localization
348
Configuration Qualifiers
You have now seen and used several configuration qualifiers for providing alternative resources:
language (e.g., values-es/), screen orientation (e.g., layout-land/), screen density (e.g., drawable-
mdpi/), and screen size (e.g., layout-sw600dp).
The device configurations for which Android provides configuration qualifiers to target resources are:
1. mobile country code (MCC), optionally followed by mobile network code (MNC)
2. language code, optionally followed by region code
3. layout direction
4. smallest width
5. available width
6. available height
7. screen size
8. screen aspect
9. round screen (API level 23 and above)
10. screen orientation
11. UI mode
12. night mode
13. screen density (dpi)
14. touchscreen type
15. keyboard availability
16. primary text input method
17. navigation key availability
18. primary non-touch navigation method
19. API level
You can find descriptions of these characteristics and examples of specific configuration
qualifiers at developer.android.com/guide/topics/resources/providing-
resources.html#AlternativeResources.
Not all qualifiers are supported by earlier versions of Android. Luckily the system implicitly adds a
platform version qualifier to qualifiers that were introduced after Android 1.0. So if, for example, you
use the round qualifier, Android will automatically include the v23 qualifier, because round screen
qualifiers were added in API level 23. This means you do not have to worry about problems on older
devices when you introduce resources qualified for newer devices.
Prioritizing alternative resources
349
Prioritizing alternative resources
Given the many types of configuration qualifiers for targeting resources, there may be times when the
device configuration will match more than one alternative resource. When this happens, qualifiers are
given precedence in the order shown in the list above.
To see this prioritizing in action, let’s add another alternative resource to CriminalIntent – a longer
English version of the crime_title_hint string resource – to be displayed when the current
configuration’s width is at least 600dp. The crime_title_hint resource is displayed in the crime title
edit text before the user enters any text. When CriminalIntent is running on a screen that is at least
600dp (e.g., on a tablet, or perhaps in landscape mode on a smaller device), this change will display a
more descriptive, engaging hint for the title field.
Create a new string resource file and place it in a new values-w600dp directory (-w600dp will match
any device where the current available screen width is 600dp or more, meaning a device may match
when in landscape mode but not in portrait mode). Follow the same steps from the section called
Localizing Resources to create the values resource file, but select Screen Width in the Available
qualifiers list and click the >> button to move Screen Width to the Chosen qualifiers section. For the
rest of the fields, enter the values shown in Figure18.11.
Figure 18.11Adding strings for a wider screen
Chapter 18Localization
350
Add a longer value for crime_title_hint to values-w600dp/strings.xml.
Listing 18.4Creating alternative string resource for wider screen
(values-w600dp/strings.xml)
<resources>
<string name="crime_title_hint">
Enter a meaningful, memorable title for the crime.
</string>
</resources>
The only string resource you want to be different on wider screens is crime_title_hint. That is why
crime_title_hint is the only string you specified in values-w600dp. Alternatives for string resources
(and other values resources) are provided on a per-string basis, so you do not need to duplicate strings
when they are the same. Those duplicated strings would only end up being a maintenance hassle down
the road.
Now you have three versions of crime_title_hint: a default version in values/strings.xml, a
Spanish alternative in values-es/strings.xml, and a wide-screen alternative in values-w600dp/
strings.xml.
With your device’s language set to Spanish, run CriminalIntent and rotate to landscape (Figure18.12).
The Spanish language alternative has precedence, so you see the string from values-es/strings.xml
instead of values-w600dp/strings.xml.
Figure 18.12Android prioritizes language over available screen width
If you like, you can change your settings back to English and run again to confirm that the alternative
wide-screen string appears as expected.
Multiple qualifiers
351
Multiple qualifiers
You may have noticed that the New Resource File dialog has many available qualifiers. You can put
more than one qualifier on a resource directory. When using multiple qualifiers on directories, you
must put them in the order of their precedence. Thus, values-es-w600dp is a valid directory name,
but values-w600dp-es is not. (When you use the New Resource File dialog, it correctly configures the
directory name for you.)
Create a directory for a wide-screen Spanish string. It should be named values-es-w600dp and have
a file named strings.xml. Add a string resource for crime_title_hint to values-es-w600dp/
strings.xml (Listing 18.5).
Listing 18.5Creating a wide-screen Spanish string resource
(values-es-w600dp/strings.xml)
<resources>
<string name="crime_title_hint">
Introduzca un título significativo y memorable para el crimen.
</string>
</resources>
With your language set to Spanish, run CriminalIntent to confirm your new alternative resource
appears on cue (Figure18.13).
Figure 18.13Spanish wide-screen string resource
Chapter 18Localization
352
Finding the best-matching resources
Let’s walk through how Android determined which version of crime_title_hint to display in this
run. First, consider the four alternatives for the string resource named crime_title_hint and an
example device configuration for a Nexus 5x set to Spanish language and with an available screen
width greater than 600dp:
Device configuration App values for crime_title_hint
• Language: es (Spanish) • values
• Available height: 411dp •values-es
• Available width: 731dp •values-es-w600dp
• (etc.) • values-w600dp
Ruling out incompatible directories
The first step that Android takes to find the best resource is to rule out any resource directory that is
incompatible with the current configuration.
None of the four choices is incompatible with the current configuration. (If you rotated the device to
portrait, the available width would become 411dp, and the resource directories values-w600dp/ and
values-es-w600dp/ would be incompatible and thus ruled out.)
Stepping through the precedence table
After the incompatible resource directories have been ruled out, Android starts working through the
precedence table shown in the section called Configuration Qualifiers, starting with the highest priority
qualifier: MCC. If there is a resource directory with an MCC qualifier, then all resource directories
that do not have an MCC qualifier are ruled out. If there is still more than one matching directory,
then Android considers the next-highest precedence qualifier and continues until only one directory
remains.
In our example, no directories contain an MCC qualifier, so no directories are ruled out, and Android
moves down the list to the language qualifier. Two directories (values-es/ and values-es-w600dp/)
contain language qualifiers. One directory (values-w600dp/) does not and is ruled out:
Device Configuration App values for crime_title_hint
• Language: es (Spanish) • values
• Available height: 411dp •values-es
• Available width: 731dp •values-es-w600dp
• (etc.) • values-w600dp (not language specific)
Testing Alternative Resources
353
Because there are multiple values still in the running, Android keeps stepping down the qualifier
list. When it reaches available width, it finds one directory with an available width qualifier and two
without. It rules out values and values-es/, leaving only values-es-w600dp/:
Device Configuration App values for crime_title_hint
• Language: es (Spanish) • values (not width specific)
• Available height: 411dp •values-es (not width specific)
• Available width: 731dp •values-es-w600dp (best match)
• (etc.) • values-w600dp (not language specific)
Thus, Android uses the resource in values-es-w600dp/.
Testing Alternative Resources
It is important to test your app on different device configurations to see how your layouts and other
resources look on those configurations. You can test on devices both real and virtual. You can also use
the graphical layout tool.
The graphical layout tool has many options for previewing how a layout will appear in different
configurations. You can preview the layout on different screen sizes, device types, API levels,
languages, and more.
To see these options, open fragment_crime.xml in the graphical layout tool. Then try some of the
settings in the toolbar shown in Figure18.14.
Figure 18.14Using graphical layout tool to preview various device configurations
You can ensure that you have included all of the necessary default resources by setting a device to a
language that you have not localized any resources for. Run your app and put it through its paces. Visit
all of the views and rotate them. If the app crashes, check Logcat for a “Resource not found” message
to track down the missing default resource. Be on the lookout for non-crashing errors, such as the
problem of resource IDs displaying instead of strings that we discussed earlier in this chapter.
Before continuing to the next chapter, you may want to change your device’s language back to English.
Congratulations! Now your CriminalIntent app can be enjoyed fully in both Spanish and English.
Crimes will be logged. Cases will be solved. And all in the comfort of your user’s native language (so
long as that is either Spanish or English). Adding support for more languages is simply a matter of
adding additional qualified strings files.
Chapter 18Localization
354
Challenge: Localizing Dates
You may have noticed that, regardless of the device’s locale, the dates displayed in CriminalIntent are
always formatted in the default US style, with the month before the day. Take your localization a step
further by formatting the dates according to the locale configuration. It is easier than you might think.
Check out the developer documentation on the DateFormat class, which is provided as part of the
Android framework. DateFormat provides a date-time formatter that will take into consideration
the current locale. You can control the output further by using configuration constants built into
DateFormat.
355
19
Accessibility
In this chapter you will make CriminalIntent more accessible. An accessible app is usable by anyone,
regardless of any impairments in vision, mobility, or hearing. These impairments may be permanent,
but they could also be temporary or situational: Dilated eyes after an eye exam can make focusing
difficult. Greasy hands while cooking may mean you do not want to touch the screen. And if you are at
a loud concert, the music drowns out any sounds made by your device. The more accessible an app is,
the more pleasant it is to use for everyone.
Making an app fully accessible is a tall order. But that is no excuse not to try. In this chapter, you will
take some steps to make CriminalIntent more usable for people with a visual impairment. This is a
good place to begin learning about accessibility issues and accessible app design.
The changes you make in this chapter will not alter the appearance of the app. Instead, the changes will
make your app easier to explore with TalkBack.
TalkBack
TalkBack is an Android screen reader made by Google. It speaks out the contents of a screen based on
what the user is doing.
TalkBack works because it is an accessibility service, which is a special component that can read
information from the screen (no matter which app you are using). Anyone can write their own
accessibility service, but TalkBack is the most popular.
To use TalkBack, you need an Android device. (Unfortunately, the emulator does not have TalkBack.)
Make sure the device’s sound output is not muted – but you may want to grab headphones, because
once TalkBack is enabled the device will do a lot of “talking.”
Chapter 19Accessibility
356
To enable TalkBack, launch Settings and press Accessibility. Press on TalkBack under the Services
heading. Then press the switch near the top right of the screen to turn TalkBack on (Figure19.1).

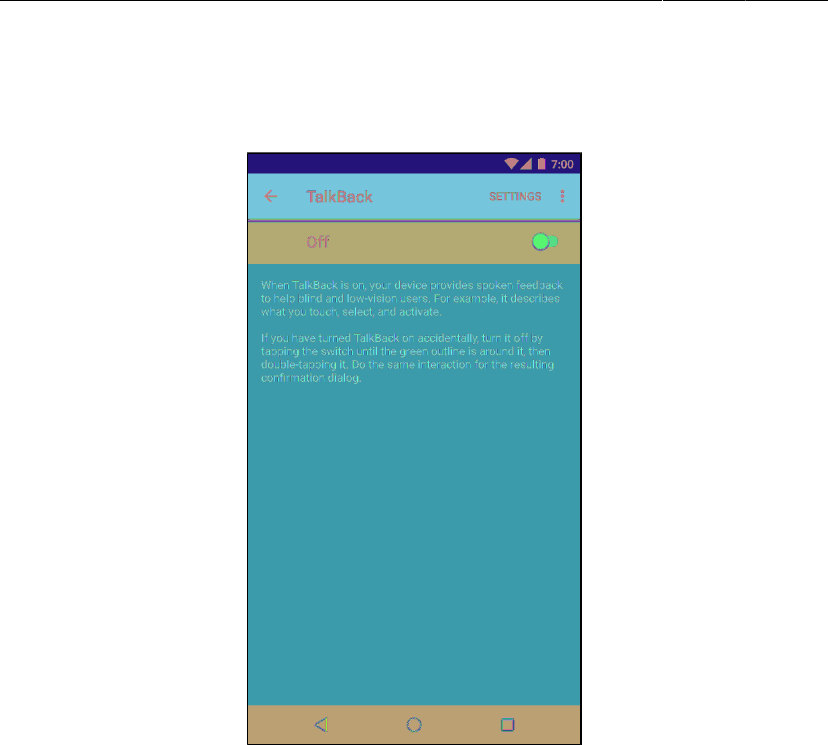

Figure 19.1TalkBack settings screen
TalkBack
357
Android presents a dialog asking for permission to access certain information, such as observing the
user’s actions, and to alter certain settings, such as turning on Explore by Touch (Figure19.2). Press
OK.
Figure 19.2Giving TalkBack permission
The label to the left of the toggle switch at the top of the screen now says On. (If this is your first time
using TalkBack on the device, you will be brought through a tutorial at this point.) Exit the menu by
pressing the Up button in the toolbar.
Chapter 19Accessibility
358
You will notice something different right away. A green outline appears around the Up button
(Figure19.3) and the device speaks: “Navigate Up button. Double-tap to activate.”
Figure 19.3TalkBack enabled
(Although “press” is the usual terminology for Android devices, TalkBack uses “tap.” Also, TalkBack
uses double-taps, which are not commonly used in Android.)
The green outline indicates which UI element has accessibility focus. Only one UI element can have
accessibility focus at a time. When a UI element receives focus, TalkBack will provide information
about that element.
When TalkBack is enabled, a single press (or “tap”) gives an element accessibility focus. Double-
tapping anywhere on the screen activates the element. So double-tapping when the Up button has focus
navigates up, double-tapping when a checkbox has focus toggles its check state, etc. (Also, if your
device locks, you can unlock it by pressing the lock icon and then double-tapping anywhere on the
screen.)
Explore by Touch
359
Explore by Touch
By turning TalkBack on, you have also enabled TalkBack’s Explore by Touch mode. This means the
device will speak information about the item immediately after it is pressed. (This assumes that the
item pressed specifies information TalkBack can read, which you will learn more about shortly.)
Leave the Up button selected with accessibility focus. Double-tap anywhere on the screen. The device
returns you to the Accessibility menu and TalkBack announces information about what is showing:
“Accessibility.”
Android framework widgets, such as Toolbar, RecyclerView, ListView, and Button, have basic
TalkBack support built in. You should use framework widgets as much as possible so you can leverage
the accessibility work that has already been done for those widgets. It is possible to properly respond to
accessibility events for custom widgets, but that is beyond the scope of this book.
To scroll the list, hold two fingers on the screen and drag them up or down. Depending on the length
of the list, you will hear tones that change as you scroll. These tones are earcons, sounds used to give
meta information about the interaction.
Linear navigation by swiping
Imagine what it must be like to explore an app by touch for the first time. You would not know where
things are located. What if the only way to learn what was on the screen was to press all around until
you landed on an element that TalkBack could read? You might end up pressing on the same thing
multiple times and, worse, you might miss elements altogether.
Luckily, there is a way to explore the UI linearly, and in fact this is the more common way to use
TalkBack: Swiping right moves accessibility focus to the next item on the screen. Swiping left moves
accessibility focus to the previous item on the screen. This allows the user to walk through each item
on the screen in a linear fashion, rather than trial-and-error poking around in hopes of landing on
something meaningful.
Chapter 19Accessibility
360
Try it out for yourself. Launch CriminalIntent and go to the crime list screen. Press on the toolbar title
to give it accessibility focus. The device reads out, “CriminalIntent” (Figure19.4).
Figure 19.4Title selected
Linear navigation by swiping
361
Now swipe right. Accessibility focus moves to the new crime button in the toolbar. TalkBack
announces, “New crime. Double-tap to activate. Double-tap and hold to long-press.” For framework
widgets, such as menu items and buttons, TalkBack will read the visible text content displayed on the
widget by default. The new crime menu item, however, is just an icon and does not have any visible
text. In this case, TalkBack looks for other information that it has available. You specified a title in
your menu XML, and that is what TalkBack reads to the user. TalkBack will also provide details about
actions the user can take on the widget and sometimes information about what kind of widget it is.
Figure 19.5New crime button selected
Swipe right again, and TalkBack reads information about the SHOW SUBTITLE menu button. Swipe
right a third time; accessibility focus moves to the first crime in the list. Swipe left, and focus moves
back to the SHOW SUBTITLE menu button. Android does its best to move accessibility focus in an
order that makes sense.
Chapter 19Accessibility
362
Making Non-Text Elements Readable by TalkBack
Now, press the new crime button in the toolbar. This gives accessibility focus to the new crime option,
and TalkBack announces the button’s name and options again. With the new crime button selected,
double-tap anywhere on the screen to launch the crime details screen.
Adding content descriptions
On the crime details screen, press the image capture button to give it accessibility focus (Figure19.6).
TalkBack announces, “Button unlabeled. Double-tap to activate.” (You may get slightly different
results depending on the version of Android you are using.)
Figure 19.6Image capture button selected
The camera button does not display any text, so TalkBack describes the button as well as it can. While
this is TalkBack’s best effort, the information is not very helpful to a user with a vision impairment.
Luckily, this problem is very easy to fix. You are going to specify details for TalkBack to read by
adding a content description to the ImageButton. A content description is a piece of text that describes
the widget and is read by TalkBack. (While you are at it, you are going to add a content description for
the ImageView that displays the selected picture, too.)
Adding content descriptions
363
You can set a widget’s content description in the XML layout file by setting a value for the attribute
android:contentDescription. That is what you are going to do next. You can also set it in your UI
setup code, using someView.setContentDescription(someString), which you will do later in this
chapter.
The text you set should be meaningful without being overly wordy. Remember, TalkBack users will
be listening to the audio, which is linear. They can speed up the pace of TalkBack’s speech output, but
even so you want to avoid adding extraneous information and wasting users’ time. For example, if you
are setting the description for a framework widget, avoid including information about what kind of
widget it is (e.g., a button), because TalkBack already knows and includes that information.
First, some housekeeping. Add the following strings to the unqualified strings.xml.
Listing 19.1Adding content description strings (res/values/strings.xml)
<resources>
...
<string name="crime_details_label">Details</string>
<string name="crime_solved_label">Solved</string>
<string name="crime_photo_button_description">Take photo of crime scene</string>
<string name="crime_photo_no_image_description">
Crime scene photo (not set)
</string>
<string name="crime_photo_image_description">Crime scene photo (set)</string>
...
</resources>
Next, open res/layout/fragment_crime.xml and set the content description for both the
ImageButton and ImageView.
Listing 19.2Setting content descriptions for ImageView and ImageButton
(res/layout/fragment_crime.xml)
<ImageView
android:id="@+id/crime_photo"
android:layout_width="80dp"
android:layout_height="80dp"
android:background="@android:color/darker_gray"
android:cropToPadding="true"
android:scaleType="centerInside"
android:contentDescription="@string/crime_photo_no_image_description" />
<ImageButton
android:id="@+id/crime_camera"
android:layout_width="match_parent"
android:layout_height="wrap_content"
android:src="@android:drawable/ic_menu_camera"
android:contentDescription="@string/crime_photo_button_description" />
Run CriminalIntent and press the camera button. TalkBack helpfully announces, “Take photo of crime
scene button. Double-tap to activate.” This spoken information is much more helpful than “button
unlabeled.”
Next, press the crime scene image (which at the moment is just the gray placeholder). You might
expect the accessibility focus to move to the ImageView, but the green border appears around the entire
fragment and TalkBack announces overview information about the fragment instead of about the
ImageView. What gives?
Chapter 19Accessibility
364
Making a widget focusable
The problem is that the ImageView is not registered to receive focus. Some widgets, such as Buttons
and CheckBoxes, are focusable by default. Other widgets, such as TextViews and ImageViews, are not.
You can make a view focusable by setting its android:focusable attribute to true or by adding a click
listener.
Make the crime photo’s ImageView focusable by explicitly setting focusable to true in the layout
XML.
Listing 19.3Making the crime photo ImageView focusable
(res/layout/fragment_crime.xml)
<ImageView
android:id="@+id/crime_photo"
...
android:contentDescription="@string/crime_photo_no_image_description"
android:focusable="true" />
Run CriminalIntent again and press on the crime photo. The ImageView now accepts focus and
TalkBack announces, “Crime scene photo (not set)” (Figure19.7).
Figure 19.7Focusable ImageView
Creating a Comparable Experience
365
Creating a Comparable Experience
You should specify a content description for any UI widget that provides information to the user but
does not use text to do it (such as an image). If there is a widget that does not provide any value other
than decoration, you should explicitly tell TalkBack to ignore it by setting its content description to
null.
You might think, “If a user cannot see, why does he or she need to know whether there is an image?”
But you should not make assumptions about your users. More importantly, you should make sure a
user with a visual impairment gets the same amount of information and functionality as a user without
one. The overall experience and flow may be different, but all users should be able to get the same
functionality from the app.
Good accessibility design is not about reading out every single thing on the screen. Instead, it focuses
on comparable experiences. Which information and context are important?
Right now, the user experience related to the crime photo is limited. TalkBack will always announce
that the image is not set, even if an image is indeed set. To see this for yourself, press the camera button
and then double-tap anywhere on the screen to activate it. The camera app launches and TalkBack
announces, “Camera.” Capture a photo by pressing on the shutter button and then double-tapping
anywhere on the screen.
Accept the photo. (The steps will be different depending on which camera app you are using, but
remember that you will need to press to select a button and then double-tap anywhere to activate it.)
The crime details screen will appear with the updated photo. Press the photo to give it accessibility
focus. TalkBack announces, “Crime scene photo (not set).”
To provide more relevant information to TalkBack users, dynamically set the content description of the
ImageView in updatePhotoView().
Listing 19.4Dynamically setting content description (CrimeFragment.java)
public class CrimeFragment extends Fragment {
...
private void updatePhotoView() {
if (mPhotoFile == null || !mPhotoFile.exists()) {
mPhotoView.setImageDrawable(null);
mPhotoView.setContentDescription(
getString(R.string.crime_photo_no_image_description));
} else {
...
mPhotoView.setImageBitmap(bitmap);
mPhotoView.setContentDescription(
getString(R.string.crime_photo_image_description));
}
}
}
Now, whenever the photo view is updated, updatePhotoView() will update the content description. If
mPhotoFile is empty, it will set the content description to indicate that there is no photo. Otherwise, it
will set the content description to indicate that a photo is present.
Chapter 19Accessibility
366
Run CriminalIntent. View the crime detail screen for the crime you just added a photo to. Press on the
photo of the crime scene (Figure19.8). TalkBack proudly announces, “Crime scene photo (set).”
Figure 19.8Focusable ImageView with dynamic description
Using labels to provide context
367
Using labels to provide context
Before moving on, give your new crime a title. Press on the title EditText box. TalkBack announces,
“Edit box. Enter a title for the crime” (Figure19.9).
Figure 19.9EditText hint
By default, TalkBack announces whatever content is in the EditText. Because you have not entered a
title, this means TalkBack reads the value you specified for android:hint. So you do not need to (and
should not) specify a content description for your EditText.
Chapter 19Accessibility
368
However, there is a problem. To see it for yourself, enter the title “Sticker vandalism.” Then press on
the EditText. TalkBack announces, “Edit box. Sticker vandalism” (Figure19.10).
Figure 19.10EditText with crime title
The problem is that TalkBack users lose context about what the EditText represents once they enter
a title. Sighted users can see that the EditText is for the title because of the TextView above it that
serves as a label. Given that crime data is pretty simple, TalkBack users could probably infer what the
EditText is for based on its contents. But this means you are making TalkBack users do more work
than non-TalkBack users.
You can easily provide the same context for TalkBack users by indicating the relationship between the
TextView and EditText. Do this by adding an android:labelFor attribute to the label in your layout
file.
Listing 19.5Setting label for EditText (res/layout/fragment_crime.xml)
<TextView
style="?android:listSeparatorTextViewStyle"
android:layout_width="match_parent"
android:layout_height="wrap_content"
android:text="@string/crime_title_label"
android:labelFor="@+id/crime_title"/>
Using labels to provide context
369
The android:labelFor attribute tells TalkBack that the TextView serves as a label to the view
specified by the ID value. labelFor is defined on the View class, so you can associate any view as
the label for any other view. Note that you must use the @+id syntax here because you are referring
to an ID that has not been defined at that point in the file. You could now remove the + from the
android:id="@+id/crime_title" line in the EditText’s definition, but it is not necessary to do so.
Run your app and press on the title EditText. TalkBack now announces, “Edit box. Sticker vandalism,
for title.”
Congratulations on making your app more accessible. One of the most common reasons developers
cite for not making their apps more accessible is lack of awareness about the topic. You are now
aware and can see how easy it is to make your apps more usable to TalkBack users. And, as a bonus,
improving your app’s TalkBack support means it will also be more likely to support other accessibility
services, such as BrailleBack.
Designing and implementing an accessible app may seem overwhelming. People make entire careers
out of being accessibility engineers. But rather than forgoing accessibility altogether because you fear
you will not do it right, start with the basics: Make sure every meaningful piece of content is reachable
and readable by TalkBack. Make sure TalkBack users get enough context to understand what is going
on in your app – without having to listen to extraneous information that wastes their time. And, most
importantly, listen to your users and learn from them.
With that, you have reached the end of your time with CriminalIntent. In 13 chapters, you have created
a complex application that uses fragments, talks to other apps, takes pictures, stores data, and even
speaks Spanish. Why not celebrate with a piece of cake?
Just be sure to clean up after yourself. You never know who might be watching.
Chapter 19Accessibility
370
For the More Curious: Using Accessibility Scanner
In this chapter you focused on making your app more accessible to people using TalkBack. But this is
not the whole story. Accommodating visual impairments is just one subset of accessibility.
Testing your application for accessibility should really involve user tests by people who actually use
accessibility services on a regular basis. But even if this is not possible, you should still do your best to
make your app accessible.
Google’s Accessibility Scanner analyzes apps and evaluates how accessible they are. It provides
suggestions based on its findings. Try it out on CriminalIntent.
Begin by following the simple instructions at play.google.com/store/apps/details?
id=com.google.android.apps.accessibility.auditor to install the app on your device.
Once you have Accessibility Scanner installed and running and you see the blue check mark icon
hovering over your screen, the real fun can begin. Launch CriminalIntent from the app launcher
screen or overview screen, leaving the check mark alone. Once CriminalIntent appears, make sure it is
displaying the crime details screen (Figure19.11).
Figure 19.11Launching CriminalIntent for analysis
For the More Curious: Using Accessibility Scanner
371
Press the check mark, and the Accessibility Scanner will go to work. You will see a progress spinner
while the analysis happens. Once the analysis is complete, a window showing suggestions will appear
(Figure19.12).
Figure 19.12Accessibility Scanner results summary
Chapter 19Accessibility
372
The ImageView, EditText, and CheckBox have outlines around them. This indicates that the scanner
found potential accessibility problems with those widgets. Press on the EditText to view accessibility
suggestions for that widget (Figure19.13).
Figure 19.13Accessibility Scanner EditText recommendations
Accessibility Scanner has three suggestions. The first relates to the size of the EditText. The
recommended minimum size for all touch targets is 48dp. The EditText’s height is smaller, which you
can easily fix by specifying an android:minHeight attribute for the widget.
The second issue relates to its label. The scanner points out that the information provided by the title
TextView and the EditText may be redundant, since the EditText refers to the TextView. However,
redundancy is not a problem here, so you can ignore this recommendation.
The final suggestion is about the contrast between the text color and its background color. There are
tools available online to estimate the contrast ratio of two colors based on their luminosity. There
are also sites, like randoma11y.com, that list color combinations that meet accessibility standards for
contrast. What are those standards? The World Wide Web Consortium, an international community that
develops open standards for web design, recommends a ratio of at least 4.5:1 for text that is 18 point
or smaller. The ratio of the colors in CriminalIntent’s EditText is 3.52. To fix this, you can adjust the
values of its android:textColor and android:background attributes.
You can learn more about each of Accessibility Scanner’s recommendations by pressing the down
arrow to drill into the details and then pressing Learn More.
Challenge: Improving the List
373
Challenge: Improving the List
On the crime list screen, TalkBack reads the title and date of each item. However, it does not indicate
whether the crime is solved. Fix this problem by giving the handcuff icon a content description.
Note that the readout is a bit lengthy, given the date format, and the solved status is read at the very
end – or not at all, if the crime is not solved. To take this challenge one step further, instead of adding a
content description on the icon in XML, add a dynamic content description to each visible item in the
recycler view. In the description, summarize the data the user sees in the row.
Challenge: Providing Enough Context for Data Entry
The date button and CHOOSE SUSPECT button both suffer from a similar problem as your original
title EditText: Users, whether using TalkBack or not, are not explicitly told what the button with the
date on it is for. Similarly, once users select a contact as the suspect, they are no longer told or shown
what the button represents. Users can probably infer the meaning of the buttons and the text on those
buttons, but should they have to?
This is one of the nuances of UI design. It is up to you (or your design team) to figure out what makes
the most sense for your application – to balance simplicity of the interface with ease of use.
For this challenge, update the implementation of the details screen so that users do not lose context
about what the data they have chosen means. This could be as simple as adding labels for each field,
as you did for the title EditText. Or it could be more involved; perhaps you want to rework the details
screen altogether. The choice is yours. Go forth and make your app more accessible so everyone can
enjoy ratting out misbehaving coworkers.
Challenge: Announcing Events
By adding dynamic content descriptions to the crime scene photo ImageView, you improved the crime
scene photo experience. But the onus is on the TalkBack user to press on the ImageView to check its
status. A sighted user has the benefit of seeing the image change (or not) when returning from the
camera app.
You can provide a similar experience via TalkBack by announcing what happened as a result of
the camera app closing. Read up on the View.announceForAccessibility(…) method in the
documentation and use it in CriminalIntent at the appropriate time.
You might consider making the announcement in onActivityResult(…). If you do, there will be some
timing issues related to the activity lifecycle. You can get around these by delaying the announcement
for a small amount of time by posting a Runnable (which you will learn more about in Chapter26). It
might look something like this:
Chapter 19Accessibility
374
mSomeView.postDelayed(new Runnable() {
@Override
public void run() {
// Code for making announcement goes here
}
}, SOME_DURATION_IN_MILLIS);
You could avoid using a Runnable by instead using some other mechanism for knowing when to
announce the change. For example, you might consider making the announcement in onResume()
instead – though you would then need to keep track of whether the user has just returned from the
camera app.
375
20
Data Binding and MVVM
In GeoQuiz and CriminalIntent, you used the standard Android tools to build out your app: a model
you built with Java objects, the view hierarchy, and controller objects – activities and fragments. And
in those projects, this MVC architecture was good.
In this project, you will learn how to use a tool called data binding. Data binding is just a tool – it
has no opinions about how you use it. We have opinions, though, so we will be showing you how we
like to use data binding: to implement an architecture called Model-View-ViewModel, or MVVM. In
addition, you will see how to use the assets system to store a sound file.
This chapter also starts a new application, BeatBox (Figure20.1). BeatBox is not a box for musical
beats. It is a box that helps you beat people up. It does not help with the easy part, though: the part
where you wave your arms around dangerously, bruising and hurting another human being. It helps
with the hard part: yelling in a manner calculated to frighten your opponent into submission.

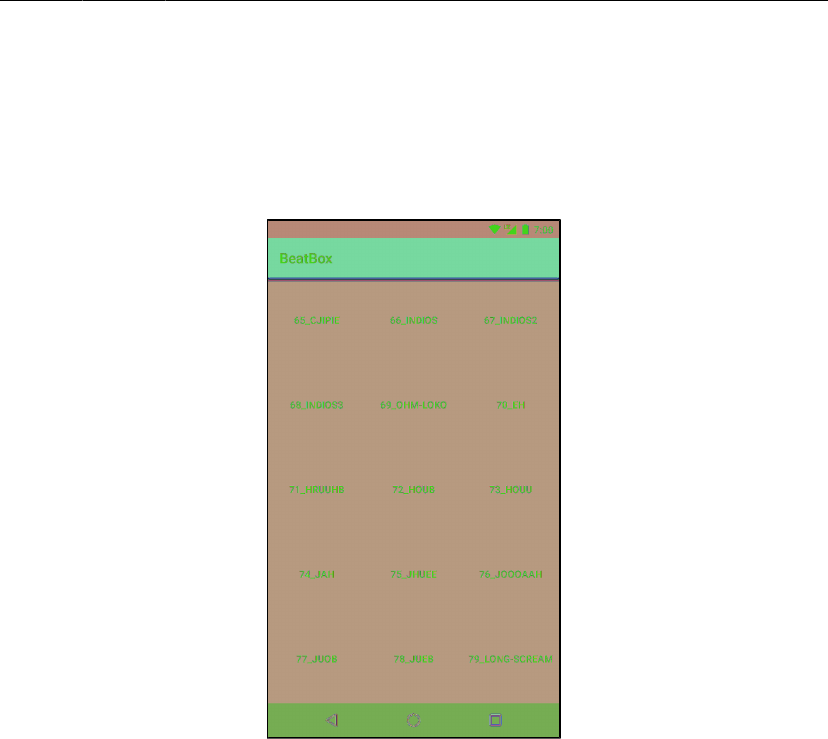

Figure 20.1BeatBox at the end of this chapter
Chapter 20Data Binding and MVVM
376
Different Architectures: Why Bother?
Every app you have written so far has used a simple version of MVC. And, so far – if we have done
our job well – every app has made sense to you. So why change? What is the problem?
MVC as written in this book works just fine for small, simple apps. It is easy to add new features and
easy to think about the moving pieces of the app. It creates a solid foundation for development, gets
your app up and running quickly, and works well in the early phases of a project.
The problem arises when your program grows larger than what we show in this book, as all programs
do. Large fragments and activities are difficult to build on top of and difficult to understand. New
features and bug fixes take longer. At some point, those controllers must be broken down into smaller
pieces.
How do you do that? You figure out the different jobs your big controller classes are doing, and you
give each job its own class. Instead of one big class, you have instances of a few classes doing the job
as a team.
How do you determine what those different jobs are, then? The answer to that question is the definition
of your architecture. People use descriptions like “Model-View-Controller” and “Model-View-
Presenter” to describe at a high level the ways they answer this question. But answering this question is
always your responsibility, so your architecture is always uniquely yours.
BeatBox is designed with an MVVM architecture. We are fans of MVVM because it does a great job
of lifting a lot of boring controller code out into the layout file, where you can easily see which parts
of your interface are dynamic. At the same time, it pulls the non-boring dynamic controller code into a
ViewModel class, where it can be more easily tested and verified.
How large each view model should be is always a judgment call. If your view model grows too large,
you can break it down further. Your architecture is yours, not ours.
Creating BeatBox
Time to get started. The first step is to create your BeatBox app. In Android Studio, select File
→ New Project... to create a new project. Call it BeatBox and give it a company domain of
android.bignerdranch.com. Use API 19 for your minimum SDK and start with one Empty Activity
called BeatBoxActivity. Leave the defaults as they are.
You will be using RecyclerView again, so open your project preferences and add the
com.android.support:recyclerview-v7 dependency.
Now, let’s build out the basics of the app. The main screen will show a grid of buttons, each of which
will play a sound. So, you will need two layout files: one for the grid and one for the buttons.
Create your layout file for the RecyclerView first. You will not need res/layout/
activity_beat_box.xml, so go ahead and rename it fragment_beat_box.xml.
Creating BeatBox
377
Open the newly renamed fragment_beat_box.xml. Delete the existing contents of the file. Then fill it
up like so:
Listing 20.1Reworking main layout file
(res/layout/fragment_beat_box.xml)
<android.support.v7.widget.RecyclerView
xmlns:android="http://schemas.android.com/apk/res/android"
android:id="@+id/recycler_view"
android:layout_width="match_parent"
android:layout_height="match_parent" />
Now create a new Fragment called BeatBoxFragment in com.bignerdranch.android.beatbox.
Listing 20.2Creating BeatBoxFragment (BeatBoxFragment.java)
public class BeatBoxFragment extends Fragment {
public static BeatBoxFragment newInstance() {
return new BeatBoxFragment();
}
}
For now, leave it empty.
Next, create the BeatBoxActivity your new fragment should go in. You will use the same
SingleFragmentActivity architecture you used in CriminalIntent.
First, use your favorite file explorer or terminal application to copy SingleFragmentActivity.java
from CriminalIntent into BeatBox/app/src/main/java/com/bignerdranch/android/beatbox/, and
then copy activity_fragment.xml into BeatBox/app/src/main/res/layout/. (You can pull these
files out of your own CriminalIntent folder or from the solutions. For information on how to access the
solutions files, refer back to the section called Adding an Icon in Chapter2.)
Next, delete everything in the body of BeatBoxActivity, change it to a subclass of
SingleFragmentActivity, and override createFragment(), like so:
Listing 20.3Filling out BeatBoxActivity (BeatBoxActivity.java)
public class BeatBoxActivity extends SingleFragmentActivity {
@Override
protected Fragment createFragment() {
return BeatBoxFragment.newInstance();
}
}
Chapter 20Data Binding and MVVM
378
Simple data binding
The next job is to inflate fragment_beat_box.xml and hook up its RecyclerView. This is a job that
you have done before. But this time, you will use data binding to speed up your work.
Start by enabling data binding in your app’s build.gradle file.
Listing 20.4Enabling data binding (app/build.gradle)
versionCode 1
versionName "1.0"
testInstrumentationRunner "android.support.test.runner.AndroidJUnitRunner"
}
buildTypes {
release {
minifyEnabled false
proguardFiles getDefaultProguardFile('proguard-android.txt'),
'proguard-rules.pro'
}
}
dataBinding {
enabled = true
}
}
dependencies {
This turns on the IDE integration that will allow you to access the classes data binding will generate for
you and integrate that class generation into your build.
To use data binding within a particular layout file, you have to change it into a data binding layout file.
The way you do that is by wrapping the entire XML file in a <layout> tag.
Listing 20.5Wrapping it up (res/layout/fragment_beat_box.xml)
<layout
xmlns:android="http://schemas.android.com/apk/res/android">
<android.support.v7.widget.RecyclerView
xmlns:android="http://schemas.android.com/apk/res/android"
android:id="@+id/recycler_view"
android:layout_width="match_parent"
android:layout_height="match_parent"/>
</layout>
The <layout> tag is your signal to the data binding tool that it should get to work on your layout file.
Once it is done, it will generate a binding class for you. By default, this class is named after your
layout file, but instead of using snake_case, it is switched to CamelCase naming style.
Your fragment_beat_box.xml file has already generated a binding class, called
FragmentBeatBoxBinding. This class is what you will use for data binding: Instead of inflating a
view hierarchy with a LayoutInflater, you will inflate an instance of FragmentBeatBoxBinding.
FragmentBeatBoxBinding will hold on to the view hierarchy for you in a getter called getRoot(). In
addition to that, it holds on to named references for each view you tagged with an android:id in your
layout file.
Simple data binding
379
So your FragmentBeatBoxBinding class has two references: getRoot(), which refers to the entire
layout, and recyclerView, which refers to just your RecyclerView (Figure20.2).
Figure 20.2Your binding class
Your layout only has one view, of course, so both references point at the same view: your
RecyclerView.
Now to use this binding class. Override onCreateView(…) in BeatBoxFragment and use
DataBindingUtil to inflate an instance of FragmentBeatBoxBinding (Listing 20.6). (You will
need to import FragmentBeatBoxBinding like any other class. If Android Studio cannot find
FragmentBeatBoxBinding, this means it was not autogenerated for some reason. Force Android Studio
to generate the class by selecting Build → Rebuild Project. If the class is not generated after forcing the
project to rebuild, restart Android Studio.)
Listing 20.6Inflating a binding class (BeatBoxFragment.java)
public class BeatBoxFragment extends Fragment {
public static BeatBoxFragment newInstance() {
return new BeatBoxFragment();
}
@Override
public View onCreateView(LayoutInflater inflater, ViewGroup container,
Bundle savedInstanceState) {
FragmentBeatBoxBinding binding = DataBindingUtil
.inflate(inflater, R.layout.fragment_beat_box, container, false);
return binding.getRoot();
}
}
Chapter 20Data Binding and MVVM
380
With your binding created, you can now get at your RecyclerView and configure it.
Listing 20.7Configuring RecyclerView (BeatBoxFragment.java)
public class BeatBoxFragment extends Fragment {
public static BeatBoxFragment newInstance() {
return new BeatBoxFragment();
}
@Override
public View onCreateView(LayoutInflater inflater, ViewGroup container,
Bundle savedInstanceState) {
FragmentBeatBoxBinding binding = DataBindingUtil
.inflate(inflater, R.layout.fragment_beat_box, container, false);
binding.recyclerView.setLayoutManager(new GridLayoutManager(getActivity(),
3));
return binding.getRoot();
}
}
This is what we call simple data binding –using data binding to automatically pull out views for you,
instead of writing findViewById(…). Later, you will see more advanced uses of data binding. For now,
though, you will continue wiring up your RecyclerView.
Next, create the layout for the buttons, res/layout/list_item_sound.xml. You will be using data
binding here, as well, so add a layout tag surrounding your layout file.
Listing 20.8Creating sound layout (res/layout/list_item_sound.xml)
<layout xmlns:android="http://schemas.android.com/apk/res/android"
xmlns:tools="http://schemas.android.com/tools">
<Button
android:layout_width="match_parent"
android:layout_height="120dp"
tools:text="Sound name"/>
</layout>
Simple data binding
381
Next, create a SoundHolder wired up to list_item_sound.xml.
Listing 20.9Creating SoundHolder (BeatBoxFragment.java)
public class BeatBoxFragment extends Fragment {
public static BeatBoxFragment newInstance() {
return new BeatBoxFragment();
}
@Override
public View onCreateView(LayoutInflater inflater, ViewGroup container,
Bundle savedInstanceState) {
...
}
private class SoundHolder extends RecyclerView.ViewHolder {
private ListItemSoundBinding mBinding;
private SoundHolder(ListItemSoundBinding binding) {
super(binding.getRoot());
mBinding = binding;
}
}
}
Your SoundHolder expects the binding class you just implicitly created: ListItemSoundBinding.
Next, create an Adapter hooked up to SoundHolder. (If you put your cursor on RecyclerView.Adapter
before typing in any of the methods below and hit Option+Return [Alt+Enter], Android Studio will
enter most of this code for you.)
Listing 20.10Creating SoundAdapter (BeatBoxFragment.java)
public class BeatBoxFragment extends Fragment {
...
private class SoundHolder extends RecyclerView.ViewHolder {
...
}
private class SoundAdapter extends RecyclerView.Adapter<SoundHolder> {
@Override
public SoundHolder onCreateViewHolder(ViewGroup parent, int viewType) {
LayoutInflater inflater = LayoutInflater.from(getActivity());
ListItemSoundBinding binding = DataBindingUtil
.inflate(inflater, R.layout.list_item_sound, parent, false);
return new SoundHolder(binding);
}
@Override
public void onBindViewHolder(SoundHolder holder, int position) {
}
@Override
public int getItemCount() {
return 0;
}
}
}
Chapter 20Data Binding and MVVM
382
Now wire up SoundAdapter in onCreateView(…).
Listing 20.11Wiring up SoundAdapter (BeatBoxFragment.java)
@Override
public View onCreateView(LayoutInflater inflater, ViewGroup container,
Bundle savedInstanceState) {
FragmentBeatBoxBinding binding = DataBindingUtil
.inflate(inflater, R.layout.fragment_beat_box, container, false);
binding.recyclerView.setLayoutManager(new GridLayoutManager(getActivity(), 3));
binding.recyclerView.setAdapter(new SoundAdapter());
return binding.getRoot();
}
Importing Assets
Now to add the sound files to your project and read them in at runtime. Rather than use the resources
system for this job, you will use raw assets. You can think of assets as stripped down resources: They
are packaged into your APK like resources, but without any of the configuration system tooling that
goes on top of resources.
In some ways, that is good. Because there is no configuration system, you can name assets whatever
you want and organize them with your own folder structure. In other ways, though, it is bad. Without
a configuration system, you cannot automatically respond to changes in pixel density, language, or
orientation, nor can you automatically use the assets in layout files or other resources.
Usually resources are the better deal. However, in cases where you only access files programmatically,
assets can come out ahead. Most games use assets for graphics and sound, for example – and so will
BeatBox.
Your first step will be to import your assets. Create an assets folder inside your project by right-
clicking on your app module and selecting New → Folder → Assets Folder. Leave the Change Folder
Location checkbox unchecked, and leave the Target Source Set set to main (Figure20.3).
Importing Assets
383
Figure 20.3Creating the assets folder
Click Finish to create your assets folder.
Next, right-click on assets to create a subfolder for your sounds by selecting New → Directory. Enter
sample_sounds for the directory name (Figure20.4).
Figure 20.4Creating the sample_sounds folder
Everything inside of the assets folder is deployed with your app. For the sake of convenience and
organization, you created a subfolder called sample_sounds. Unlike with resources, a subfolder is not
required. You include it to organize your sounds.
Chapter 20Data Binding and MVVM
384
So where can you find the sounds? You will be using a Creative Commons-licensed sound set we
initially found provided by the user plagasul at www.freesound.org/people/plagasul/packs/3/. We
have put them in a zip file for you at the following location:
www.bignerdranch.com/solutions/sample_sounds.zip
Download the zip file and unzip its contents into assets/sample_sounds (Figure20.5).
Figure 20.5Imported assets
(Make sure only .wav files are in there, by the way – not the .zip file you got them from.)
Build your app to make sure everything is hunky-dory. The next step will be to list those assets and
show them to the user.
Getting At Assets
BeatBox will end up doing a lot of work related to asset management: finding assets, keeping track of
them, and eventually playing them as sounds. To manage all this, create a new class called BeatBox in
com.bignerdranch.android.beatbox. Go ahead and add a couple of constants: one for logging and
one to remember which folder you saved your wrestling grunts in.
Listing 20.12New BeatBox class (BeatBox.java)
public class BeatBox {
private static final String TAG = "BeatBox";
private static final String SOUNDS_FOLDER = "sample_sounds";
}
Getting At Assets
385
Assets are accessed using the AssetManager class. You can get an AssetManager from any Context.
Since BeatBox will need one, give it a constructor that takes in a Context as a dependency, pulls out an
AssetManager, and stashes it away.
Listing 20.13Stashing an AssetManager for safekeeping (BeatBox.java)
public class BeatBox {
private static final String TAG = "BeatBox";
private static final String SOUNDS_FOLDER = "sample_sounds";
private AssetManager mAssets;
public BeatBox(Context context) {
mAssets = context.getAssets();
}
}
When getting at assets, in general you do not need to worry about which Context you are using. In
every situation you are likely to encounter in practice, every Context’s AssetManager will be wired up
to the same set of assets.
To get a listing of what you have in your assets, you can use the list(String) method. Write a
method called loadSounds() that looks in your assets with list(String).
Listing 20.14Looking at assets (BeatBox.java)
public BeatBox(Context context) {
mAssets = context.getAssets();
loadSounds();
}
private void loadSounds() {
String[] soundNames;
try {
soundNames = mAssets.list(SOUNDS_FOLDER);
Log.i(TAG, "Found " + soundNames.length + " sounds");
} catch (IOException ioe) {
Log.e(TAG, "Could not list assets", ioe);
return;
}
}
AssetManager.list(String) lists filenames contained in the folder path you pass in. By passing in
your sounds folder, you should see every .wav file you put in there.
Chapter 20Data Binding and MVVM
386
To verify that this is working correctly, create an instance of BeatBox in BeatBoxFragment.
Listing 20.15Creating BeatBox instance (BeatBoxFragment.java)
public class BeatBoxFragment extends Fragment {
private BeatBox mBeatBox;
public static BeatBoxFragment newInstance() {
return new BeatBoxFragment();
}
@Override
public void onCreate(Bundle savedInstanceState) {
super.onCreate(savedInstanceState);
mBeatBox = new BeatBox(getActivity());
}
...
}
Run your app and you should see some log output telling you how many sound files were found. We
provided 22 .wav files, so if you used our files, you should see:
…1823-1823/com.bignerdranch.android.beatbox I/BeatBox: Found 22 sounds
Wiring Up Assets for Use
Now that you have your asset filenames, you should present them to the user. Eventually, you will want
the files to be played, so it makes sense to have an object responsible for keeping track of the filename,
the name the user should see, and any other information related to that sound.
Create a Sound class to hold all of this. (Remember to let Android Studio generate your getters.)
Listing 20.16Creating Sound object (Sound.java)
public class Sound {
private String mAssetPath;
private String mName;
public Sound(String assetPath) {
mAssetPath = assetPath;
String[] components = assetPath.split("/");
String filename = components[components.length - 1];
mName = filename.replace(".wav", "");
}
public String getAssetPath() {
return mAssetPath;
}
public String getName() {
return mName;
}
}
Wiring Up Assets for Use
387
In the constructor, you do a little work to make a presentable name for your sound. First,
you split off the filename using String.split(String). Once you have done that, you use
String.replace(String, String) to strip off the file extension, too.
Next, build up a list of Sounds in BeatBox.loadSounds().
Listing 20.17Creating Sounds (BeatBox.java)
public class BeatBox {
...
private AssetManager mAssets;
private List<Sound> mSounds = new ArrayList<>();
public BeatBox(Context context) {
...
}
private void loadSounds() {
String[] soundNames;
try {
...
} catch (IOException ioe) {
...
}
for (String filename : soundNames) {
String assetPath = SOUNDS_FOLDER + "/" + filename;
Sound sound = new Sound(assetPath);
mSounds.add(sound);
}
}
public List<Sound> getSounds() {
return mSounds;
}
}
Then wire up SoundAdapter to a List of Sounds.
Listing 20.18Hooking up to Sound list (BeatBoxFragment.java)
private class SoundAdapter extends RecyclerView.Adapter<SoundHolder> {
private List<Sound> mSounds;
public SoundAdapter(List<Sound> sounds) {
mSounds = sounds;
}
...
@Override
public void onBindViewHolder(SoundHolder soundHolder, int position) {
}
@Override
public int getItemCount() {
return 0;
return mSounds.size();
}
}
Chapter 20Data Binding and MVVM
388
And then pass in BeatBox’s sounds in onCreateView(…).
Listing 20.19Passing in Sounds to adapter (BeatBoxFragment.java)
@Override
public View onCreateView(LayoutInflater inflater, ViewGroup container,
Bundle savedInstanceState) {
FragmentBeatBoxBinding binding = DataBindingUtil
.inflate(inflater, R.layout.fragment_beat_box, container, false);
binding.recyclerView.setLayoutManager(new GridLayoutManager(getActivity(), 3));
binding.recyclerView.setAdapter(new SoundAdapter());
binding.recyclerView.setAdapter(new SoundAdapter(mBeatBox.getSounds()));
return binding.getRoot();
}
With that, you should see a grid of buttons when you run BeatBox (Figure20.6).
Figure 20.6Empty buttons
To populate the buttons with titles, you will use some additional tools from your new data binding
utility belt.
Binding to Data
389
Binding to Data
With data binding, you can declare data objects within your layout file:
<layout xmlns:android="http://schemas.android.com/apk/res/android"
xmlns:tools="http://schemas.android.com/tools">
<data>
<variable
name="crime"
type="com.bignerdranch.android.criminalintent.Crime"/>
</data>
...
</layout>
And then use values from those objects directly in your layout file by using the binding mustache
operator –@{}:
<CheckBox
android:id="@+id/list_item_crime_solved_check_box"
android:layout_width="wrap_content"
android:layout_height="wrap_content"
android:layout_alignParentRight="true"
android:checked="@{crime.isSolved()}"
android:padding="4dp"/>
In an object diagram, that would look like Figure20.7:
Figure 20.7The ties that bind
Your goal right now is to put the sound names on their buttons. The most direct way to do that using
data binding is to bind directly to a Sound object in list_item_sound.xml, like Figure20.8:
Figure 20.8Direct hookup
Chapter 20Data Binding and MVVM
390
However, this causes some architectural issues. To see why, look at it from an MVC perspective
(Figure20.9).
Figure 20.9Broken MVC
The guiding principle behind any architecture is the Single Responsibility Principle. It says that
each class you make should have exactly one responsibility. MVC gave you an idea of what those
responsibilities should be: The model represents how your app works, the controller decides how to
display your app, and the view displays it on the screen the way you want it to look.
Using data binding as shown in Figure20.8 would break this division of responsibilities, because the
Sound model object would likely end up deciding how things are displayed. This would quickly make
your app a mess, as Sound.java would become littered with both kinds of code: code that represents
how your app works and code that decides how things are displayed.
Instead of muddying up the responsibility of Sound, you will introduce a new object called a view
model to use with data binding. This view model will take on the responsibility of deciding how things
are displayed (Figure20.10).
Figure 20.10Model-View-ViewModel
This architecture is called MVVM. Most of the work your controller classes once did at runtime to
format data for display will go in the view model. Wiring widgets up with that data will be handled
directly in the layout file using data binding to that view model. The controller (your activity or
fragment) will be in charge of things like initializing the binding and the view model and creating the
link between the two.
Creating a ViewModel
391
Creating a ViewModel
Let’s create your view model. Create a new class called SoundViewModel and give it two properties: a
Sound for it to use and a BeatBox to (eventually) play that sound with.
Listing 20.20Creating SoundViewModel (SoundViewModel.java)
public class SoundViewModel {
private Sound mSound;
private BeatBox mBeatBox;
public SoundViewModel(BeatBox beatBox) {
mBeatBox = beatBox;
}
public Sound getSound() {
return mSound;
}
public void setSound(Sound sound) {
mSound = sound;
}
}
These properties are the interface your adapter will use. For the layout file, you will want an additional
method to get the title that the button should display. Add it now to SoundViewModel.
Listing 20.21Adding binding methods (SoundViewModel.java)
public class SoundViewModel {
private Sound mSound;
private BeatBox mBeatBox;
public SoundViewModel(BeatBox beatBox) {
mBeatBox = beatBox;
}
public String getTitle() {
return mSound.getName();
}
public Sound getSound() {
return mSound;
Chapter 20Data Binding and MVVM
392
Binding to a ViewModel
Now to integrate the view model into your layout file. The first step is to declare a property on your
layout file, like so:
Listing 20.22Declaring the view model property (list_item_sound.xml)
<layout xmlns:android="http://schemas.android.com/apk/res/android"
xmlns:tools="http://schemas.android.com/tools">
<data>
<variable
name="viewModel"
type="com.bignerdranch.android.beatbox.SoundViewModel"/>
</data>
<Button
This defines a property named viewModel on your binding class, including a getter and setter. Within
your binding class, you can use viewModel in binding expressions.
Listing 20.23Binding your button title (list_item_sound.xml)
<layout xmlns:android="http://schemas.android.com/apk/res/android"
xmlns:tools="http://schemas.android.com/tools">
<data>
<variable
name="viewModel"
type="com.bignerdranch.android.beatbox.SoundViewModel"/>
</data>
<Button
android:layout_width="match_parent"
android:layout_height="120dp"
android:text="@{viewModel.title}"
tools:text="Sound name"/>
</layout>
Within the binding mustache, you can write simple Java expressions, including chained method calls,
math, and anything else you want to include. You also get some “syntactic sugar” – conveniences to
save you typing. For example, viewModel.title above is shorthand for viewModel.getTitle(). Data
binding knows how to translate your property reference into the appropriate method call.
The last step is to hook up your view model. Create a SoundViewModel and attach it to your binding
class. Then add a binding method to your SoundHolder.
Listing 20.24Hooking up the view model (BeatBoxFragment.java)
private class SoundHolder extends RecyclerView.ViewHolder {
private ListItemSoundBinding mBinding;
private SoundHolder(ListItemSoundBinding binding) {
super(binding.getRoot());
mBinding = binding;
mBinding.setViewModel(new SoundViewModel(mBeatBox));
}
public void bind(Sound sound) {
mBinding.getViewModel().setSound(sound);
mBinding.executePendingBindings();
}
}
Binding to a ViewModel
393
Inside your constructor, you construct and attach your view model. Then, in your bind method, you
update the data that view model is working with.
Calling executePendingBindings() is not normally necessary. Here, though, you are updating binding
data inside a RecyclerView, which updates views at a very high speed. By calling this method, you
force the layout to immediately update itself, rather than waiting a millisecond or two. This keeps your
RecyclerView looking spiffy.
Finally, finish hooking up your view model by implementing onBindViewHolder(…).
Listing 20.25Calling bind(Sound) method (BeatBoxFragment.java)
return new SoundHolder(binding);
}
@Override
public void onBindViewHolder(SoundHolder holder, int position) {
Sound sound = mSounds.get(position);
holder.bind(sound);
}
@Override
public int getItemCount() {
return mSounds.size();
}
Run your app and you will see titles on all the buttons on your screen (Figure20.11).
Figure 20.11Button titles filled in
Chapter 20Data Binding and MVVM
394
Observable data
All may appear to be well, but darkness lies hidden in your code. You can see it if you scroll down
(Figure20.12).
Figure 20.12Déjà vu
See the item “67_INDIOS2” at the bottom? It was at the top, too. Scroll up and down repeatedly, and
you will see other file titles repeatedly appearing in unexpected, seemingly random places.
This is happening because your layout has no way of knowing that you updated SoundViewModel’s
Sound inside SoundHolder.bind(Sound). Your view model does not talk back to the layout file, as
depicted in Figure20.10.
Your next job will be to add this connection. To do this, your view model needs to implement data
binding’s Observable interface. This interface lets your binding class set listeners on your view model
so that it can automatically receive callbacks when its fields are modified.
Implementing the whole interface is possible, but it is also a lot of work. We do not shy away from
hard work here at Big Nerd Ranch, but we prefer to avoid it when we can. So we will instead show you
how to do it the smart way, with data binding’s BaseObservable class.
Observable data
395
Three steps are required with this method:
1. Subclass BaseObservable in your view model.
2. Annotate your view model’s bindable properties with @Bindable.
3. Call notifyChange() or notifyPropertyChanged(int) each time a bindable property’s value
changes.
In SoundViewModel, this is only a few lines of code. Update SoundViewModel to be observable.
Listing 20.26Making view model observable (SoundViewModel.java)
public class SoundViewModel extends BaseObservable {
private Sound mSound;
private BeatBox mBeatBox;
public SoundViewModel(BeatBox beatBox) {
mBeatBox = beatBox;
}
@Bindable
public String getTitle() {
return mSound.getName();
}
public Sound getSound() {
return mSound;
}
public void setSound(Sound sound) {
mSound = sound;
notifyChange();
}
}
When you call notifyChange() here, it notifies your binding class that all of the Bindable fields on
your objects have been updated. The binding class then runs the code inside the binding mustaches
again to repopulate the view. So now, when setSound(Sound) is called, ListItemSoundBinding will
be notified and call Button.setText(String) as you specified in list_item_sound.xml.
Above, we mentioned another method: notifyPropertyChanged(int). The
notifyPropertyChanged(int) method does the same thing as notifyChange(), except it is more
particular. By writing notifyChange(), you say, “All of my bindable properties have changed; please
update everything.” By writing notifyPropertyChanged(BR.title), you can instead say, “Only
getTitle()’s value has changed.”
Run BeatBox one more time. This time, you should see the right thing when you scroll around
(Figure20.13).
Chapter 20Data Binding and MVVM
396
Figure 20.13All done
Accessing Assets
You have finished all the work for this chapter. You will develop BeatBox to actually use the content of
your assets in the next chapter.
Before you do, though, let’s discuss a bit more about how assets work.
Your Sound object has an asset file path defined on it. Asset file paths will not work if you try to open
them with a File; you must use them with an AssetManager:
String assetPath = sound.getAssetPath();
InputStream soundData = mAssets.open(assetPath);
This gives you a standard InputStream for the data, which you can use like any other InputStream in
Java.
Some APIs require FileDescriptors instead. (This is what you will use with SoundPool in the next
chapter.) If you need that, you can call AssetManager.openFd(String) instead:
String assetPath = sound.getAssetPath();
// AssetFileDescriptors are different from FileDescriptors,
AssetFileDescriptor assetFd = mAssets.openFd(assetPath);
// but you get can a regular FileDescriptor easily if you need to.
FileDescriptor fd = assetFd.getFileDescriptor();
For the More Curious: More About Data Binding
Complete coverage of data binding is outside the scope of this book. And yet, reader, we must
nevertheless try.
Lambda expressions
397
Lambda expressions
You can write short callbacks directly in your layout file by using lambda expressions. These are
simplified versions of Java’s lambda expressions:
<Button
android:layout_width="match_parent"
android:layout_height="120dp"
android:text="@{viewModel.title}"
android:onClick="@{(view) -> viewModel.onButtonClick()}"
tools:text="Sound name"/>
Like Java 8 lambda expressions, these are turned into implementations for the interface you use them
for. (In this case, View.OnClickListener.) Unlike Java 8 lambda expressions, these expressions must
use this exact syntax: The parameter must be in parentheses, and you must have exactly one expression
on the right-hand side.
Also, unlike in Java lambdas, you can omit the lambda parameters if you are not using them. So this
works fine, too:
android:onClick="@{() -> viewModel.onButtonClick()}"
More syntactic sugar
You also get a few additional bits of handy syntax for data binding. Particularly handy is the ability to
use backticks for double quotes:
android:text="@{`File name: ` + viewModel.title}"
Here, `File name` means the same thing as "File name".
Binding expressions also have a null coalescing operator:
android:text="@{`File name: ` + viewModel.title ?? `No file`}"
In the event that title is null, the ?? operator will yield the value "No file" instead.
In addition, there is automatic null handling provided for you in data binding. Even if viewModel is
null in the code above, data binding will provide appropriate null checks so that it does not crash the
app. Instead of crashing, the subexpression viewModel.title will yield "null".
BindingAdapters
By default, data binding interprets a binding expression as a property invocation. So the following:
android:text="@{`File name: ` + viewModel.title ?? `No file`}"
is translated into an invocation of the setText(String) method.
Sometimes, though, that is not enough, and you want some custom behavior to be applied for a
particular attribute. In those cases, you can write a BindingAdapter:
Chapter 20Data Binding and MVVM
398
public class BeatBoxBindingAdapter {
@BindingAdapter("app:soundName")
public static void bindAssetSound(Button button, String assetFileName) {
...
}
}
Simply create a static method in any class in your project and annotate it with @BindingAdapter,
passing in the name of the attribute you want to bind as a parameter. (Yes, this really works.) Whenever
data binding needs to apply that attribute, it will call your static method.
You will probably think of one or two operations you would like to use data binding with on the
standard library widgets. Many common operations already have binding adapters defined – for
example, TextViewBindingAdapter provides additional attributes for TextView. You can read these
binding adapters yourself by viewing the source in Android Studio. So, before you write your own
solution, type Command+Shift+O (Ctrl+Shift+O) to search for a class, open up the associated binding
adapters file, and check to see whether it already exists.
For the More Curious: Why Assets, Not Resources
Technically, you could have used resources in this chapter instead of assets. Resources can store
sounds. Stash a file like 79_long_scream.wav in res/raw, and you can get at it with the ID
R.raw.79_long_scream. With sounds stored as resources, you can do all the usual resource things, like
having different sounds for different orientations, languages, versions of Android, and so on.
So why did we choose assets? The biggest reason is that BeatBox has a lot of sounds: more than 20
different files. Dealing with them all one by one in the resources system would have been cumbersome.
Resources do not let you ship out all your sounds in one folder, nor do they allow you to give your
resources anything other than a totally flat structure.
This is exactly what the assets system is great for. Assets are like a little file system that ships with
your packaged application. With assets, you can use whatever folder structure you want.
So with assets, if you want to add a new sound file, all you have to do is add it to your sample_sounds
folder. Since they give you this kind of organizational ability, assets are commonly used for loading
graphics and sound in applications that have a lot of those things, like games.
For the More Curious: Non-Assets?
AssetManager has methods called openNonAssetFd(…). You might reasonably ask why a class
dedicated to assets would concern itself with non-assets. We might reasonably answer, “These
aren’t the droids you’re looking for,” so that you might go on believing that you never heard of
openNonAssetFd(…) in the first place. There is no reason that we know of to ever use this method, so
there is no real reason to learn about it. You did buy our book, though. So we might as well throw this
answer out there for fun:
Earlier we said that Android has two systems, assets and resources. The resources system has a nice
lookup system, but some resources are too big to fit inside that system. So these big resources – images
and raw sound files, usually – are actually stored in the assets system. Under the hood, Android opens
these things itself using the openNonAsset methods, not all of which are publicly available.
When would you need to use these? As far as we know, never. And now you know, too.
399
21
Unit Testing and Audio Playback
One reason MVVM architecture is so appealing is that it makes a critical programming practice easier:
unit testing. Unit testing is the practice of writing small programs that verify the standalone behavior of
each unit of your main app. Because BeatBox’s units are each classes, classes are what your unit tests
will test.
In this chapter, you will finally play all of the .wav files you loaded in the previous chapter. As you
build and integrate sound playback, you will write unit tests for your SoundViewModel’s integration
with BeatBox.
Android’s audio APIs are low level for the most part, but there is a tool practically tailor-made for the
app you are writing: SoundPool. SoundPool can load a large set of sounds into memory and control the
maximum number of sounds that are playing back at any one time. So, if your app’s user gets a bit too
excited and mashes all the buttons at the same time, it will not break your app or overtax your phone.
Ready? Time to get started.
Creating a SoundPool
Your first job is to build out sound playback inside BeatBox. To do that, first create a SoundPool object.
Listing 21.1Creating a SoundPool (BeatBox.java)
public class BeatBox {
private static final String TAG = "BeatBox";
private static final String SOUNDS_FOLDER = "sample_sounds";
private static final int MAX_SOUNDS = 5;
private AssetManager mAssets;
private List<Sound> mSounds = new ArrayList<>();
private SoundPool mSoundPool;
public BeatBox(Context context) {
mAssets = context.getAssets();
// This old constructor is deprecated but needed for compatibility
mSoundPool = new SoundPool(MAX_SOUNDS, AudioManager.STREAM_MUSIC, 0);
loadSounds();
}
...
}
Chapter 21Unit Testing and Audio Playback
400
Lollipop introduced a new way of creating a SoundPool using a SoundPool.Builder. However,
SoundPool.Builder is not available on your minimum-supported API (19), so you are using the older
SoundPool(int, int, int) constructor instead.
The first parameter specifies how many sounds can play at any given time. Here, you pass in 5. If five
sounds are playing and you try to play a sixth one, the SoundPool will stop playing the oldest one.
The second parameter determines the kind of audio stream your SoundPool will play on. Android has
a variety of different audio streams, each of which has its own independent volume settings. This is
why turning down the music does not also turn down your alarms. Check out the documentation for the
AUDIO_* constants in AudioManager to see the other options. STREAM_MUSIC will put you on the same
volume setting as music and games on the device.
And the last parameter? It specifies the quality for the sample rate converter. The documentation says it
is ignored, so you just pass in 0.
Loading Sounds
The next thing to do with your SoundPool is to load it up with sounds. The main benefit of using a
SoundPool over some other methods of playing audio is that SoundPool responds quickly: When you
tell it to play a sound, it will play the sound immediately, with no lag.
The trade-off for that is that you must load sounds into your SoundPool before you play them. Each
sound you load will get its own integer ID. To track this ID, add an mSoundId field to Sound and a
generated getter and setter to keep track of it.
Listing 21.2Adding sound ID field (Sound.java)
public class Sound {
private String mAssetPath;
private String mName;
private Integer mSoundId;
...
public String getName() {
return mName;
}
public Integer getSoundId() {
return mSoundId;
}
public void setSoundId(Integer soundId) {
mSoundId = soundId;
}
}
By making mSoundId an Integer instead of an int, you make it possible to say that a Sound has no
value set for mSoundId by assigning it a null value.
Loading Sounds
401
Now to load your sounds. Add a load(Sound) method to BeatBox to load a Sound into your
SoundPool.
Listing 21.3Loading sounds into SoundPool (BeatBox.java)
private void loadSounds() {
...
}
private void load(Sound sound) throws IOException {
AssetFileDescriptor afd = mAssets.openFd(sound.getAssetPath());
int soundId = mSoundPool.load(afd, 1);
sound.setSoundId(soundId);
}
public List<Sound> getSounds() {
return mSounds;
}
}
Calling mSoundPool.load(AssetFileDescriptor, int) loads a file into your SoundPool for later
playback. To keep track of the sound and play it back again (or unload it), mSoundPool.load(…)
returns an int ID, which you stash in the mSoundId field you just defined. And since calling
openFd(String) throws IOException, load(Sound) throws IOException, too.
Now load up all your sounds by calling load(Sound) inside BeatBox.loadSounds().
Listing 21.4Loading up all your sounds (BeatBox.java)
private void loadSounds() {
...
for (String filename : soundNames) {
try {
String assetPath = SOUNDS_FOLDER + "/" + filename;
Sound sound = new Sound(assetPath);
load(sound);
mSounds.add(sound);
} catch (IOException ioe) {
Log.e(TAG, "Could not load sound " + filename, ioe);
}
}
}
Run BeatBox to make sure that all the sounds loaded correctly. If they did not, you will see red
exception logs in Logcat.
Chapter 21Unit Testing and Audio Playback
402
Playing Sounds
BeatBox also needs to be able to play sounds. Add the play(Sound) method to BeatBox.
Listing 21.5Playing sounds back (BeatBox.java)
public BeatBox(Context context) {
mAssets = context.getAssets();
// This old constructor is deprecated but needed for compatibility
mSoundPool = new SoundPool(MAX_SOUNDS, AudioManager.STREAM_MUSIC, 0);
loadSounds();
}
public void play(Sound sound) {
Integer soundId = sound.getSoundId();
if (soundId == null) {
return;
}
mSoundPool.play(soundId, 1.0f, 1.0f, 1, 0, 1.0f);
}
private void loadSounds() {
Before playing your soundId, you check to make sure it is not null. This might happen if the Sound
failed to load.
Once you are sure you have a non-null value, you play the sound by calling SoundPool.play(int,
float, float, int, int, float). Those parameters are, respectively: the sound ID, volume on the
left, volume on the right, priority (which is ignored), whether the audio should loop, and playback rate.
For full volume and normal playback rate, you pass in 1.0. Passing in 0 for the looping value says “do
not loop.” (You can pass in -1 if you want it to loop forever. We speculate that this would be incredibly
annoying.)
With that method written, you are now ready to integrate sound playback into SoundViewModel. You
will perform this integration in a test-first manner – that is, you will first write a failing unit test and
then implement the integration to make the test pass.
Test Dependencies
Before you write your test, you will need to add a couple of tools to your testing environment: Mockito
and Hamcrest. Mockito is a Java framework that makes it easy to create simple mock objects. These
mock objects will help you isolate your tests of SoundViewModel so that you do not accidentally test
other objects at the same time.
Hamcrest, on the other hand, is a library of matchers. Matchers are tools that make it easy to “match”
conditions in your code and fail if your code does not match what you expect. You will use them to
verify that your code works as you expect it to.
You only need these two libraries in your test builds, so you will add them as test dependencies. Start
by right-clicking your app module and selecting Open Module Settings.
Creating a Test Class
403
Select the Dependencies tab at the top of the screen, click the + button at the bottom of the dialog, and
choose Library dependency. Type in “mockito” and press Return to search (Figure21.1).
Figure 21.1Importing Mockito
Select the org.mockito:mockito-core dependency and click OK. Then repeat the process for
Hamcrest, searching for hamcrest-junit and selecting org.hamcrest:hamcrest-junit.
Once you finish, you will see your two new dependencies appear in the dependencies list. There is
a dropdown on the right-hand side of the mockito-core and hamcrest-junit dependencies. This
dropdown allows you to choose between different dependency scopes. It only allows you to specify
integration test scope, though, so you will need to modify your build.gradle by hand.
Open your app module’s build.gradle and modify the dependency directives from compile to
testCompile.
Listing 21.6Changing scope of Mockito dependency (app/build.gradle)
dependencies {
compile fileTree(include: ['*.jar'], dir: 'libs')
androidTestCompile('com.android.support.test.espresso:espresso-core:2.2.2', {
exclude group: 'com.android.support', module: 'support-annotations'
})
compile 'com.android.support:appcompat-v7:24.2.0'
testCompile 'junit:junit:4.12'
compile 'com.android.support:recyclerview-v7:24.2.0'
compile testCompile 'org.mockito:mockito-core:2.2.1'
compile testCompile 'org.hamcrest:hamcrest-junit:2.0.0.0'
}
The testCompile scope means that these two dependencies will only be included in test builds of your
app. That way, you do not bloat your APK with additional unused code.
Creating a Test Class
The most convenient way to write unit tests is within a testing framework. The framework makes it
easier to write and run a suite of tests together and see their output in Android Studio.
JUnit is almost universally used as a testing framework on Android and has convenient integrations
into Android Studio. Your first job is to create a class for your JUnit tests to live in. To do this, open
up SoundViewModel.java and key in Command+Shift+T (Ctrl+Shift+T). Android Studio attempts to
Chapter 21Unit Testing and Audio Playback
404
navigate to a test class associated with the class you are looking at. If there is no test class (as is the
case here), you are given the option to create a new test class (Figure21.2).
Figure 21.2Trying to open a test class
Choose Create New Test... to create the new test class. Select JUnit4 for your testing library and check
the box marked setUp/@Before. Leave all the other fields as they are (Figure21.3).
Figure 21.3Creating a new test class
Click OK to continue to the next dialog.
The last step is to choose what kind of test class you will create. Tests in the androidTest folder are
integration tests. Integration tests run on an Android device or emulator. The advantage of that is that
you can test any behavior of your app at runtime. The downside is that since they must build and run an
APK on a device, they take forever to run. (See the section called For the More Curious: Espresso and
Integration Testing for more about integration tests.)
Tests in the test folder are unit tests. Unit tests are run on your local machine, without any of the
Android runtime available. Leaving out that baggage makes them quick.
Unit tests are the smallest kind of test you can write: a test of one component by itself. They should
not need your entire app or a device to run, and they should run quickly enough for you to run them
repeatedly as you work. So choose the test folder for your test class (Figure21.4) and click OK.
Setting Up Your Test
405
Figure 21.4Selecting a destination directory
Setting Up Your Test
Now to build out your SoundViewModel test. Your template starts out with a single method called
setUp():
Listing 21.7Your empty test class (SoundViewModelTest.java)
public class SoundViewModelTest {
@Before
public void setUp() throws Exception {
}
}
(You can find this class under the source set labeled “test” inside your app module.)
A test needs to do the same work for most objects: Build an instance of the object to test and create any
other objects that object depends on. Instead of writing this same code for every test, JUnit provides an
annotation called @Before. Code written inside a method marked @Before will be run once before each
test executes. By convention, most unit test classes have one method marked @Before named setUp().
Using mocked dependencies
Inside your setUp() method you will want to construct an instance of SoundViewModel to test. To
do that, you will need an instance of BeatBox, because SoundViewModel takes in a BeatBox as a
constructor argument.
In your app, you create an instance of BeatBox by… well, creating an instance of BeatBox:
SoundViewModel viewModel = new SoundViewModel(new BeatBox());
Chapter 21Unit Testing and Audio Playback
406
If you do that in a unit test, though, you create a problem: If BeatBox is broken, then tests you write in
SoundViewModel that use BeatBox might break, too. That is not what you want. SoundViewModel’s unit
tests should only fail when SoundViewModel is broken.
The solution is to use a mocked BeatBox. This mock object will be a subclass of BeatBox that has all
the same methods as BeatBox – but none of those methods will do anything. That way, your test of
SoundViewModel can verify that SoundViewModel itself is using BeatBox correctly, without depending
at all on how BeatBox works.
To create a mock object with Mockito, you call the mock(Class) static method, passing in the class
you want to mock. Create a mock of BeatBox and a field to store it in.
Listing 21.8Creating mock BeatBox (SoundViewModelTest.java)
public class SoundViewModelTest {
private BeatBox mBeatBox;
@Before
public void setUp() throws Exception {
mBeatBox = mock(BeatBox.class);
}
}
The mock(Class) method will need to be imported, the same as a class reference. This method will
automatically create a mocked out version of BeatBox for you. Pretty slick.
Now that you have your mock dependency, you can finish creating SoundViewModel. Create your
SoundViewModel and a Sound for it to use. (Sound is a simple data object with no behavior to break, so
it is safe not to mock it.)
Listing 21.9Creating a SoundViewModel test subject
(SoundViewModelTest.java)
public class SoundViewModelTest {
private BeatBox mBeatBox;
private Sound mSound;
private SoundViewModel mSubject;
@Before
public void setUp() throws Exception {
mBeatBox = mock(BeatBox.class);
mSound = new Sound("assetPath");
mSubject = new SoundViewModel(mBeatBox);
mSubject.setSound(mSound);
}
}
Anywhere else in this book, you would have named your SoundViewModel mSoundViewModel. Here,
though, you have named it mSubject. This is a convention we like to use in our tests at Big Nerd Ranch
for two reasons:
• It makes it clear that mSubject is the object under test (and the other objects are not).
• If any methods on SoundViewModel are ever moved to a different class (say,
BeatBoxSoundViewModel), the test methods can be cut and pasted over without renaming
mSoundViewModel to mBeatBoxSoundViewModel.
Writing Tests
407
Writing Tests
Now that your setUp() method is written, you are ready to write your tests. A test is a method in your
test class annotated with @Test.
Start by writing a test that asserts existing behavior in SoundViewModel: The getTitle() property is
connected to the Sound’s getName() property. Write a method that tests this.
Listing 21.10Testing the title property (SoundViewModelTest.java)
@Before
public void setUp() throws Exception {
mBeatBox = mock(BeatBox.class);
mSound = new Sound("assetPath");
mSubject = new SoundViewModel(mBeatBox);
mSubject.setSound(mSound);
}
@Test
public void exposesSoundNameAsTitle() {
assertThat(mSubject.getTitle(), is(mSound.getName()));
}
Two methods will show up red: the assertThat(…) method and the is(…) method. Key
in Option+Return (Alt+Enter) on assertThat(…) and select Static import method..., then
MatcherAssert.assertThat(…) from hamcrest-core-1.3. Do the same for the is(…) method,
selecting Is.is from hamcrest-core-1.3.
This test uses the is(…) Hamcrest matcher with JUnit’s assertThat(…) method. The code reads almost
like a sentence: “Assert that subject’s get title method is the same value as sound’s get name method.”
If those two methods returned different values, the test would fail.
To run all your unit tests, right-click app/java/com.bignerdranch.android.beatbox (test) and
select Run 'Tests in 'beatbox''. A display will pop up (Figure21.5).
Figure 21.5Passing tests
By default, the test display only shows failing tests, since those are the only tests that are interesting.
So this output means that everything is A-OK –your tests ran, and they passed.
Testing object interactions
Now for the real work: building out the integration between SoundViewModel and your new
BeatBox.play(Sound) method. A common way to go about this is to write a test that shows what you
expect a new method to do before you have written the method. You are going to write a new method
Chapter 21Unit Testing and Audio Playback
408
on SoundViewModel called onButtonClicked() that calls BeatBox.play(Sound). Write a test method
that calls onButtonClicked().
Listing 21.11Writing test for onButtonClicked()
(SoundViewModelTest.java)
@Test
public void exposesSoundNameAsTitle() {
assertThat(mSubject.getTitle(), is(mSound.getName()));
}
@Test
public void callsBeatBoxPlayOnButtonClicked() {
mSubject.onButtonClicked();
}
}
That method does not exist yet, so it shows up in red. Put your cursor over it and key in Option+Return
(Alt+Enter). Then select Create method 'onButtonClicked' and the method will be created for you.
Listing 21.12Creating onButtonClicked() (SoundViewModel.java)
public void setSound(Sound sound) {
mSound = sound;
notifyChange();
}
public void onButtonClicked() {
}
}
For now, leave it empty and key in Command+Shift+T (Ctrl+Shift+T) to return to
SoundViewModelTest.
Your test calls the method, but it should also verify that the method does what you say it does: calls
BeatBox.play(Sound). Mockito can help you do this odd-sounding job. All Mockito mock objects
keep track of which of their methods have been called as well as what parameters were passed in for
each call. Mockito’s verify(Object) method can then check to see whether those methods were called
the way you expected them to be called.
Call verify(Object) to ensure that onButtonClicked() calls BeatBox.play(Sound) with the Sound
object you hooked up to your SoundViewModel.
Listing 21.13Verifying that BeatBox.play(Sound) is called
(SoundViewModelTest.java)
assertThat(mSubject.getTitle(), is(mSound.getName()));
}
@Test
public void callsBeatBoxPlayOnButtonClicked() {
mSubject.onButtonClicked();
verify(mBeatBox).play(mSound);
}
}
Testing object interactions
409
The verify(Object) uses a fluent interface, much like the AlertDialog.Builder class you used
earlier in this book. It is an abbreviation for the following code:
verify(mBeatBox);
mBeatBox.play(mSound);
Calling verify(mBeatBox) says, “I am about to verify that a method was called on mBeatBox.” The
next method call after that is then interpreted as, “Verify that this method was called like this.” So your
call to verify(…) here means, “Verify that the play(…) method was called on mBeatBox with mSound as
a parameter.”
No such thing has happened, of course. SoundViewModel.onButtonClicked() is empty, so
mBeatBox.play(Sound) has not been called. This means that your test should fail. Because you are
writing the test first, that is a good thing – if your test does not fail at first, it must not be testing
anything.
Run your test to see it fail. You can follow the same steps from earlier, or key in Command+R (Ctrl+R)
to repeat the last “Run” command you performed. The result is shown in Figure21.6.
Figure 21.6Failing test output
The output says that your test expected a call to mBeatBox.play(Sound) but did not receive it:
Wanted but not invoked:
beatBox.play(
com.bignerdranch.android.beatbox.Sound@64cd705f
);
-> at ….callsBeatBoxPlayOnButtonClicked(SoundViewModelTest.java:28)
Actually, there were zero interactions with this mock.
Under the hood, verify(Object) made an assertion, just like assertThat(…) did. When that assertion
failed, it caused the test to fail and logged out this output describing what went wrong.
Now to fix your test. Implement onButtonClicked() to do what the test expects.
Listing 21.14Implementing onButtonClicked() (SoundViewModel.java)
public void setSound(Sound sound) {
mSound = sound;
notifyChange();
}
public void onButtonClicked() {
mBeatBox.play(mSound);
}
}
Chapter 21Unit Testing and Audio Playback
410
Rerun your test. This time you should see green, indicating that all your tests passed (Figure21.7).

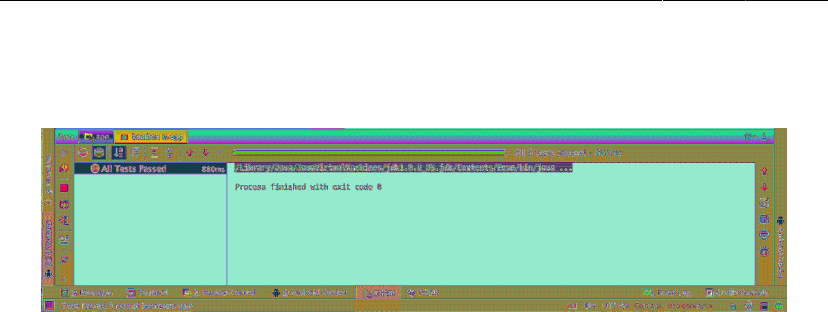

Figure 21.7All green, all good
Data Binding Callbacks
411
Data Binding Callbacks
One last step remains to get your buttons working: You need to hook up onButtonClicked() to your
button.
Just like you were able to use data binding to put data into your UI, you can use it to hook up click
listeners and the like by using lambda expressions. (To refresh your memory on lambda expressions,
see the section called Lambda expressions in Chapter20.)
Add a data binding callback expression to hook up your button to
SoundViewModel.onButtonClicked().
Listing 21.15Hooking up your button (list_item_sound.xml)
<Button
android:layout_width="match_parent"
android:layout_height="120dp"
android:onClick="@{() -> viewModel.onButtonClicked()}"
android:text="@{viewModel.title}"
tools:text="Sound name"/>
The next time you run BeatBox, your buttons should play sounds for you. However, if you try to run
BeatBox with the green run button now, your tests will run again. This is because right-clicking to run
the tests changed your run configuration – the setting that determines what Android Studio will do
when you click the run button.
To run your BeatBox app, click the run configuration selector next to the run button and switch back
over to the app run configuration (Figure21.8).
Figure 21.8Changing your run configuration
Now run BeatBox and click on your buttons. You should hear your app make aggressive yelling
sounds. Do not be afraid – this is what BeatBox was meant to do.
Chapter 21Unit Testing and Audio Playback
412
Unloading Sounds
The app works, but to be a good citizen you should clean up your SoundPool by calling
SoundPool.release() when you are done with it.
Listing 21.16Releasing your SoundPool (BeatBox.java)
public class BeatBox {
...
public void play(Sound sound) {
...
}
public void release() {
mSoundPool.release();
}
...
}
Then, add a matching BeatBox.release() method in BeatBoxFragment.
Listing 21.17Releasing your BeatBox (BeatBoxFragment.java)
public class BeatBoxFragment extends Fragment {
...
@Override
public View onCreateView(LayoutInflater inflater, ViewGroup container,
Bundle savedInstanceState) {
...
}
@Override
public void onDestroy() {
super.onDestroy();
mBeatBox.release();
}
...
}
Run your app again to make sure it works correctly with your new release() method. If you play a
long sound and rotate the screen or hit the Back button, you should now hear the sound stop.
Rotation and Object Continuity
413
Rotation and Object Continuity
Now you are a good citizen, which is nice. Unfortunately, your app no longer handles rotation
correctly. Try playing the 69_ohm-loko sound and rotating the screen: The sound will stop abruptly. (If
it does not, make sure you have built and run the app with your recent onDestroy() implementation.)
Here is the problem: On rotation, the BeatBoxActivity is destroyed. As this happens,
the FragmentManager destroys your BeatBoxFragment, too. In doing that, it calls
BeatBoxFragment’s waning lifecycle methods: onPause(), onStop(), and onDestroy(). In
BeatBoxFragment.onDestroy(), you call BeatBox.release(), which releases the SoundPool and
stops sound playback.
You have seen how Activity and Fragment instances die on rotation before, and you have solved these
issues using onSaveInstanceState(Bundle). However, that solution will not work this time, because it
relies on saving data out and restoring it using Parcelable data inside a Bundle.
Parcelable, like Serializable, is an API for saving an object out to a stream of bytes. Objects may
elect to implement the Parcelable interface if they are what we will call “stashable” here. Objects
are stashed in Java by putting them in a Bundle, by marking them Serializable so that they can be
serialized, or by implementing the Parcelable interface. Whichever way you do it, the same idea
applies: You should not be using any of these tools unless your object is stashable.
To illustrate what we mean by “stashable,” imagine watching a television program with a friend. You
could write down the channel you are watching, the volume level, and even the TV you are watching
the program on. Once you do that, even if a fire alarm goes off and the power goes out, you can look at
what you wrote down and get back to watching TV just like you were before.
So the configuration of your TV watching time is stashable. The time you spend watching TV is not,
though: Once the fire alarm goes off and the power goes out, that session is gone. You can return and
create a new session just like it, but you will experience an interruption no matter what you do. So the
session is not stashable.
Some parts of BeatBox are stashable – everything contained in Sound, for example. But SoundPool
is more like your TV watching session. Yes, you can create a new SoundPool that has all the same
sounds as an older one. You can even start playing again right where you left off. But you will always
experience a brief interruption, no matter what you do. That means that SoundPool is not stashable.
Non-stashability tends to be contagious. If a non-stashable object is critical to another object’s mission,
that other object is probably not stashable, either. Here, BeatBox has the same mission as SoundPool: to
play back sounds. Therefore, ipso facto, Q.E.D.: BeatBox is not stashable. (Sorry.)
The regular savedInstanceState mechanism preserves stashable data for you, but BeatBox is not
stashable. You need your BeatBox instance to be continuously available as your Activity is created
and destroyed.
What to do?
Chapter 21Unit Testing and Audio Playback
414
Retaining a fragment
Fortunately, fragments have a feature that you can use to keep the BeatBox instance alive across a
configuration change: retainInstance. Within your override of BeatBoxFragment.onCreate(…), set a
property on the fragment.
Listing 21.18Calling setRetainInstance(true) (BeatBoxFragment.java)
public static BeatBoxFragment newInstance() {
return new BeatBoxFragment();
}
@Override
public void onCreate(Bundle savedInstanceState) {
super.onCreate(savedInstanceState);
setRetainInstance(true);
mBeatBox = new BeatBox(getActivity());
}
@Override
public View onCreateView(LayoutInflater inflater, ViewGroup container,
Bundle savedInstanceState) {
By default, the retainInstance property of a fragment is false. This means it is not retained,
but is destroyed and re-created on rotation along with the activity that hosts it. Calling
setRetainInstance(true) retains the fragment. When a fragment is retained, the fragment is not
destroyed with the activity. Instead, it is preserved and passed along intact to the new activity.
When you retain a fragment, you can count on all of its instance variables (like mBeatBox) to keep the
same values. When you reach for them, they are simply there.
Run BeatBox again. Play the 69_ohm-loko sound, rotate the device, and confirm that playback
continues unimpeded.
Rotation and retained fragments
Let’s take a closer look at how retained fragments work. Retained fragments take advantage of the fact
that a fragment’s view can be destroyed and re-created without having to destroy the fragment itself.
During a configuration change, the FragmentManager first destroys the views of the fragments in
its list. Fragment views always get destroyed and re-created on a configuration change for the same
reasons that activity views are destroyed and re-created: If you have a new configuration, then you
might need new resources. Just in case better matching resources are now available, you rebuild the
view from scratch.
Next, the FragmentManager checks the retainInstance property of each fragment. If it is false,
which it is by default, then the FragmentManager destroys the fragment instance. The fragment
and its view will be re-created by the new FragmentManager of the new activity “on the other side”
(Figure21.9).
Rotation and retained fragments
415
Figure 21.9Default rotation with a UI fragment
On the other hand, if retainInstance is true, then the fragment’s view is destroyed but the fragment
itself is not. When the new activity is created, the new FragmentManager finds the retained fragment
and re-creates its view (Figure21.10).
Figure 21.10Rotation with a retained UI fragment
Chapter 21Unit Testing and Audio Playback
416
A retained fragment is not destroyed, but it is detached from the dying activity. This puts the fragment
in a retained state. The fragment still exists, but it is not hosted by any activity (Figure21.11).
Figure 21.11Fragment lifecycle
The retained state is only entered into when two conditions are met:
•setRetainInstance(true) has been called on the fragment
• the hosting activity is being destroyed for a configuration change (typically rotation)
A fragment is only in the retained state for an extremely brief interval – the time between being
detached from the old activity and being reattached to the new activity that is immediately created.
For the More Curious: Whether to Retain
Retained fragments: pretty nifty, right? Yes! They are indeed nifty. They appear to solve all the
problems that pop up from activities and fragments being destroyed on rotation. When the device
configuration changes, you get the most appropriate resources by creating a brand-new view, and you
have an easy way to retain data and objects.
For the More Curious: Espresso and Integration Testing
417
You may wonder why you would not retain every fragment or why fragments are not retained by
default. In general, we do not recommend using this mechanism unless you absolutely need to, for a
couple of reasons.
The first reason is simply that retained fragments are more complicated than unretained fragments.
When something goes wrong with them, it takes longer to get to the bottom of what went wrong.
Programs are always more complicated than you want them to be, so if you can get by without this
complication, you are better off.
The other reason is that fragments that handle rotation using saved instance state handle all lifecycle
situations, but retained fragments only handle the case when an activity is destroyed for a configuration
change. If your activity is destroyed because the OS needs to reclaim memory, then all your retained
fragments are destroyed, too, which may mean that you lose some data.
For the More Curious: Espresso and Integration
Testing
You may recall that SoundViewModelTest from earlier was a unit test. Your other option was to create
an integration test. So: What is an integration test?
In a unit test, the item under test is an individual class. In an integration, the item under test is
your whole app. They are usually written screen by screen. For example, you might test that when
the BeatBoxActivity screen is fired up, the first button displays the name of the first file from
sample_sounds: 65_cjipie.
Integration tests should pass when the app does what you expect, not when the app is implemented
how you expect. Changing the name of a button ID does not affect what the application does, but if
you write an integration test that says, “Call findViewById(R.id.button) and make sure the button it
finds is displaying the right text,” that test will break. So instead of using standard Android framework
tools like findViewById(int), integration tests are most often written with a UI testing framework
that makes it easier to say things like, “Make sure there is a button with the text I expect on the screen
somewhere.”
Espresso is a UI testing framework from Google for testing Android apps. You can include it by adding
com.android.support.test.espresso:espresso-core as an androidTestCompile artifact in your
app/build.gradle file.
Once you have Espresso included as a dependency, you can use it to make assertions about an activity
you have fired up to test. Here is an example test showing how to assert that a view exists on the screen
with the first sample_sounds test file name:
@RunWith(AndroidJUnit4.class)
public class BeatBoxActivityTest {
@Rule
public ActivityTestRule<BeatBoxActivity> mActivityRule =
new ActivityTestRule<>(BeatBoxActivity.class);
@Test
public void showsFirstFileName() {
onView(withText("65_cjipie"))
.check(matches(anything()));
}
}
Chapter 21Unit Testing and Audio Playback
418
A couple of annotations get this code up and running. The @RunWith(AndroidJUnit4.class)
annotation up top specifies that this is an Android instrumentation test that might want to work with
activities and other Android runtime toys. After that, the @Rule annotation on mActivityRule signals
to JUnit that it should fire up an instance of BeatBoxActivity before running each test.
With that setup done, you can make assertions about BeatBoxActivity in your test. In
showsFirstFileName(), the line onView(withText("65_cjipie")) finds a view with the text
"65_cjipie" on it to perform a test operation on. The call to check(matches(anything())) after that
then asserts that the view exists – if there is no view with that text, the check will fail. The check(…)
method is Espresso’s way to make assertThat(…)-type assertions about views.
Often you will want to click on a view, then make an assertion to verify the result of your click. You
can also use Espresso to click on views or otherwise interact with them:
onView(withText("65_cjipie"))
.perform(click());
When you interact with a view, Espresso will wait until your application is idle before continuing your
test. Espresso has built in ways of detecting when your UI is done updating, but if you need Espresso
to wait longer, you can use a subclass of IdlingResource to signal to Espresso that your app has not
settled down quite yet.
For more information about how to use Espresso to manipulate the UI and test it, see the Espresso
documentation at google.github.io/android-testing-support-library/docs/espresso.
Integration tests and unit tests each serve different purposes. Most people prefer to start with unit tests
because they run quickly enough to be run mindlessly, making it easy to establish a habit. Integration
tests take long enough that they cannot be run as frequently. Each gives you a distinct, important view
of the health of your app, though, so the best shops do both kinds of tests.
For the More Curious: Mocks and Testing
Mocking has a much different role in integration testing than it does in unit testing. Mock objects exist
to isolate the component under test by pretending to be other unrelated components. Unit tests test an
individual class; each class will have its own distinct dependencies, so each test class has a different set
of mock objects. Since the mock objects are different in each test class, and the behavior rarely matters,
mock frameworks that make it easy to create simple mock objects (like Mockito) are a great fit for unit
tests.
Integration tests, on the other hand, are meant to test the entire app as a single piece. Instead of
isolating pieces of the app from each other, you use mocks to isolate the app from anything external
it might interact with – for example, by providing a web service with fake data and responses. In
BeatBox, you would provide a fake SoundPool that could tell you when a particular sound file was
played. Because the mocks are larger and shared among many tests, and because it is more common to
implement mock behavior, it is better to avoid automatic mocking frameworks for integration tests and
instead manually write mock objects.
In either case, the same rule applies: Mock out the entities at the boundary of the component under
test. This focuses the scope of your test and keeps it from breaking except when the component itself is
broken.
Challenge: Playback Speed Control
419
Challenge: Playback Speed Control
In this challenge, you will add playback speed control to BeatBox to greatly expand the user’s
repertoire of possible sounds (Figure21.12). Within BeatBoxFragment, wire up a SeekBar (check out
the docs at developer.android.com/reference/android/widget/SeekBar.html) to control the rate
value SoundPool’s play(int, float, float, int, int, float) method accepts.
Figure 21.12BeatBox with playback speed control
421
22
Styles and Themes
Now that BeatBox sounds intimidating, it is time to make it look intimidating, too.
So far, BeatBox sticks with the default UI styles. The buttons are stock. The colors are stock. The app
does not stand out. It does not have its own brand.
We can restyle it. We have the technology.
Figure22.1 shows the better, stronger, faster – or at least more stylish – BeatBox.
Figure 22.1A themed BeatBox
Chapter 22Styles and Themes
422
Color Resources
Begin by defining a few colors that you will use throughout the chapter. Edit your colors.xml file in
res/values to match Listing 22.1.
Listing 22.1Defining a few colors (res/values/colors.xml)
<resources>
<color name="colorPrimary">#3F51B5</color>
<color name="colorPrimaryDark">#303F9F</color>
<color name="colorAccent">#FF4081</color>
<color name="red">#F44336</color>
<color name="dark_red">#C3352B</color>
<color name="gray">#607D8B</color>
<color name="soothing_blue">#0083BF</color>
<color name="dark_blue">#005A8A</color>
</resources>
Color resources are a convenient way to specify color values in one place that you reference throughout
your application.
Styles
Now, update the buttons in BeatBox with a style. A style is a set of attributes that you can apply to a
widget.
Navigate to res/values/styles.xml and add a style named BeatBoxButton. (When you created
BeatBox, your new project should have come with a built-in styles.xml file. If your project did not,
create the file.)
Listing 22.2Adding a style (res/values/styles.xml)
<resources>
<style name="AppTheme" parent="Theme.AppCompat.Light.DarkActionBar">
<item name="colorPrimary">@color/colorPrimary</item>
<item name="colorPrimaryDark">@color/colorPrimaryDark</item>
<item name="colorAccent">@color/colorAccent</item>
</style>
<style name="BeatBoxButton">
<item name="android:background">@color/dark_blue</item>
</style>
</resources>
Here, you create a style called BeatBoxButton. This style defines a single attribute,
android:background, and sets it to a dark blue color. You can apply this style to as many widgets as
you like and then update the attributes of all of those widgets in this one place.
Now that the style is defined, apply BeatBoxButton to your buttons in BeatBox.
Styles
423
Listing 22.3Using a style (res/layout/list_item_sound.xml)
<Button
style="@style/BeatBoxButton"
android:layout_width="match_parent"
android:layout_height="120dp"
android:onClick="@{() -> viewModel.onButtonClicked()}"
android:text="@{viewModel.title}"
tools:text="Sound name"/>
Run BeatBox and you will see that all of your buttons now have a dark blue background color
(Figure22.2).
Figure 22.2BeatBox with button styles
You can create a style for any set of attributes that you want to reuse in your application. Pretty handy.
Chapter 22Styles and Themes
424
Style inheritance
Styles also support inheritance: A style can inherit and override attributes from another style.
Create a new style called BeatBoxButton.Strong that inherits from BeatBoxButton and also bolds the
text.
Listing 22.4Inheriting from BeatBoxButton (res/values/styles.xml)
<style name="BeatBoxButton">
<item name="android:background">@color/dark_blue</item>
</style>
<style name="BeatBoxButton.Strong">
<item name="android:textStyle">bold</item>
</style>
(While you could have added the android:textStyle attribute to the BeatBoxButton style directly,
you created BeatBoxButton.Strong to demonstrate style inheritance.)
The naming convention here is a little strange. When you name your style BeatBoxButton.Strong, you
are saying that your theme inherits attributes from BeatBoxButton.
There is also an alternative inheritance naming style. You can specify a parent when declaring the
style:
<style name="BeatBoxButton">
<item name="android:background">@color/dark_blue</item>
</style>
<style name="StrongBeatBoxButton" parent="@style/BeatBoxButton">
<item name="android:textStyle">bold</item>
</style>
Stick with the BeatBoxButton.Strong style in BeatBox.
Update list_item_sound.xml to use your newer, stronger style.
Listing 22.5Using a bolder style (res/layout/list_item_sound.xml)
<Button
style="@style/BeatBoxButton.Strong"
android:layout_width="match_parent"
android:layout_height="120dp"
android:onClick="@{() -> viewModel.onButtonClicked()}"
android:text="@{viewModel.title}"
tools:text="Sound name"/>
Themes
425
Run BeatBox and verify that your button text is indeed bold, as in Figure22.3.
Figure 22.3A bolder BeatBox
Themes
Styles are cool. They allow you to define a set of attributes in one place and then apply them to as
many widgets as you want. The downside of styles is that you have to apply them to each and every
widget, one at a time. What if you had a more complex app with lots of buttons in lots of layouts?
Adding your BeatBoxButton style to them all could be a huge task.
That is where themes come in. Themes take styles a step further: They allow you to define a set of
attributes in one place, like a style – but then those attributes are automatically applied throughout your
app. Theme attributes can store a reference to concrete resources, such as colors, and they can also
store a reference to styles. In a theme, you can say, for example, “I want all buttons to use this style.”
And then you do not need to find every button widget and tell it to use the theme.
Chapter 22Styles and Themes
426
Modifying the theme
When you created BeatBox, it was given a default theme. Navigate to AndroidManifest.xml and look
at the theme attribute on the application tag.
Listing 22.6BeatBox’s theme (AndroidManifest.xml)
<manifest xmlns:android="http://schemas.android.com/apk/res/android"
package="com.bignerdranch.android.beatbox" >
<application
android:allowBackup="true"
android:icon="@mipmap/ic_launcher"
android:label="@string/app_name"
android:theme="@style/AppTheme">
...
</application>
</manifest>
The theme attribute is pointing to a theme called AppTheme. AppTheme was declared in the styles.xml
file that you modified earlier.
As you can see, a theme is also a style. But themes specify different attributes than a style does (as you
will see in a moment). Themes are also given superpowers by being declared in the manifest. This is
what causes the theme to be applied across the entire app automatically.
Navigate to the definition of the AppTheme theme by Command-clicking (Ctrl-clicking) on @style/
AppTheme. Android Studio will take you to res/values/styles.xml.
Listing 22.7BeatBox’s AppTheme (res/values/styles.xml)
<resources>
<style name="AppTheme" parent="Theme.AppCompat.Light.DarkActionBar">
...
</style>
<style name="BeatBoxButton">
<item name="android:background">@color/dark_blue</item>
</style>
...
</resources>
(As of this writing, when new projects are created in Android Studio, they are given an AppCompat
theme. If you do not have an AppCompat theme in your solution, follow the instructions from
Chapter13 to convert BeatBox to use the AppCompat library.)
AppTheme is inheriting attributes from Theme.AppCompat.Light.DarkActionBar. Within AppTheme,
you can add or override additional values from the parent theme.
The AppCompat library comes with three main themes:
•Theme.AppCompat – a dark theme
•Theme.AppCompat.Light – a light theme
Modifying the theme
427
•Theme.AppCompat.Light.DarkActionBar – a light theme with a dark toolbar
Change the parent theme to Theme.AppCompat to give BeatBox a dark theme as its base.
Listing 22.8Changing to a dark theme (res/values/styles.xml)
<resources>
<style name="AppTheme" parent="Theme.AppCompat.Light.DarkActionBar">
</style>
...
</resources>
Run BeatBox to see your new dark theme (Figure22.4).
Figure 22.4A dark BeatBox
Chapter 22Styles and Themes
428
Adding Theme Colors
With the base theme squared away, it is time to customize the attributes of BeatBox’s AppTheme.
In the styles.xml file, you will see three attributes. Update them to match Listing 22.9.
Listing 22.9Setting theme attributes (res/values/styles.xml)
<style name="AppTheme" parent="Theme.AppCompat">
<item name="colorPrimary">@color/colorPrimary red</item>
<item name="colorPrimaryDark">@color/colorPrimaryDark dark_red</item>
<item name="colorAccent">@color/colorAccent gray</item>
</style>
These theme attributes look similar to the style attributes that you set up earlier, but they specify
different properties. Style attributes specify properties for an individual widget, such as the textStyle
that you used to bold the button text. Theme attributes have a larger scope: They are properties that are
set on the theme that any widget can access. For example, the toolbar will look at the colorPrimary
attribute on the theme to set its background color.
These three attributes have a large impact. The colorPrimary attribute is the primary color for your
app’s brand. This color will be used as the toolbar’s background and in a few other places.
colorPrimaryDark is used to color the status bar, which shows up at the top of the screen. Typically
colorPrimaryDark will be a slightly darker version of your colorPrimary color. Status bar theming is
a feature that was added to Android in Lollipop. Keep in mind that the status bar will be black on older
devices (no matter what the theme specifies). Figure22.5 shows the effect of these two theme attributes
on BeatBox.
Figure 22.5BeatBox with AppCompat color attributes
Finally, you set colorAccent to a gray color. colorAccent should contrast with your colorPrimary
attribute; it is used to tint some widgets, such as an EditText.
Overriding Theme Attributes
429
You will not see the colorAccent attribute affect BeatBox because Buttons do not support tinting. You
still specify colorAccent because it is a good idea to think about these three color attributes together.
These colors should mesh, and the default colorAccent attribute from your parent theme may clash
with the other colors that you specified. This sets you up well for any future additions.
Run BeatBox to see the new colors in action. Your app should look like Figure22.5.
Overriding Theme Attributes
Now that the colors are worked out, it is time to dive in and see what theme attributes exist that you
can override. Be warned, theme spelunking is tough. There is little to no documentation about which
attributes exist, which ones you can override yourself, and even what the attributes do. You are going
off the map here. It is a good thing you brought along your guide (this book).
Your first goal is to change the background color of BeatBox by altering the theme. While you could
navigate to res/layout/fragment_beat_box.xml and manually set the android:background attribute
on your RecyclerView – and then repeat the process in every other fragment and activity layout file
that might exist – this would be wasteful. Wasteful of your time, obviously, but also wasteful of app
effort.
The theme is always setting a background color. By setting another color on top of that, you are doing
extra work. You are also writing code that is hard to maintain by duplicating the background attribute
throughout the app.
Theme spelunking
Instead, you want to override the background color attribute on your theme. To discover the name of
this attribute, take a look at how this attribute is set by your parent theme: Theme.AppCompat.
You might be thinking, “How will I know which attribute to override if I don’t know its name?” You
will not. You will read the names of the attributes and you will think, “That sounds right.” Then you
will override that attribute, run the app, and hope that you chose wisely.
What you want to do is search through the ancestors of your theme. To do this, you will keep on
navigating up to one parent after another until you find a suitable attribute.
Open your styles.xml file and Command-click (Ctrl-click) on Theme.AppCompat. Let’s see how deep
the rabbit hole goes.
(If you are unable to navigate through your theme attributes directly in Android Studio, or you want to
do this outside of Android Studio, you can find Android’s theme sources in the directory your-SDK-
directory/platforms/android-24/data/res/values directory.)
At the time of this writing, you are brought to a very large file with a focus on this line:
<style name="Theme.AppCompat" parent="Base.Theme.AppCompat" />
The theme, Theme.AppCompat, inherits attributes from Base.Theme.AppCompat. Interestingly,
Theme.AppCompat does not override any attributes itself. It just points to its parent.
Chapter 22Styles and Themes
430
Command-click on Base.Theme.AppCompat. Android Studio will tell you that this theme is resource
qualified. There are a few different versions of this theme depending on the version of Android that
you are on.
Choose the values/values.xml version and you will be brought to Base.Theme.AppCompat’s
definition (Figure22.6).
Figure 22.6Choosing the parent
(You chose the unqualified version because BeatBox supports API level 19 and higher. If you had
chosen the v21 version, you might have come across features that were added in API level 21.)
<style name="Base.Theme.AppCompat" parent="Base.V7.Theme.AppCompat">
</style>
Base.Theme.AppCompat is another theme that exists only for its name and does not override any
attributes. Continue along to its parent theme: Base.V7.Theme.AppCompat.
<style name="Base.V7.Theme.AppCompat" parent="Platform.AppCompat">
<item name="windowNoTitle">false</item>
<item name="windowActionBar">true</item>
<item name="windowActionBarOverlay">false</item>
...
</style>
You are getting closer. Scan through the list of attributes in Base.V7.Theme.AppCompat.
You will not see an attribute that seems to change the background color. Navigate to
Platform.AppCompat. You will see that this is resource qualified. Again, choose the values/
values.xml version.
<style name="Platform.AppCompat" parent="android:Theme">
<item name="android:windowNoTitle">true</item>
<!-- Window colors -->
<item name="android:colorForeground">@color/foreground_material_dark</item>
<item name="android:colorForegroundInverse">@color/
foreground_material_light</item>
...
</style>
Finally, here you see that the parent of the Platform.AppCompat theme is android:Theme.
Notice that the parent theme is not referenced just as Theme. Instead it has the android namespace in
front of it.
You can think of the AppCompat library as something that lives within your own app. When you
build your project, you include the AppCompat library and it brings along a bunch of Java and XML
files. Those files are just like the files that you wrote yourself. If you want to refer to something in the
Theme spelunking
431
AppCompat library, you do it directly. You would just write Theme.AppCompat, because those files
exist in your app.
Themes that exist in the Android OS, like Theme, have to be declared with the namespace that points
to their location. The AppCompat library uses android:Theme because the theme exists in the Android
OS.
You have finally arrived. Here you see many more attributes that you can override in your theme. You
can of course navigate to Platform.AppCompat’s parent, Theme, but this is not necessary. You will find
the attribute you need in this theme.
Right near the top, windowBackground is declared. It seems likely that this attribute is the background
for the theme.
<style name="Platform.AppCompat" parent="android:Theme">
<item name="android:windowNoTitle">true</item>
<!-- Window colors -->
<item name="android:colorForeground">@color/foreground_material_dark</item>
<item name="android:colorForegroundInverse">@color/
foreground_material_light</item>
<item name="android:colorBackground">@color/background_material_dark</item>
<item name="android:colorBackgroundCacheHint">@color/
abc_background_cache_hint_selector_material_dark</item>
<item name="android:disabledAlpha">@dimen/abc_disabled_alpha_material_dark</item>
<item name="android:backgroundDimAmount">0.6</item>
<item name="android:windowBackground">@color/background_material_dark</item>
...
</style>
This is the attribute that you want to override in BeatBox. Navigate back to your styles.xml file and
override the windowBackground attribute.
Listing 22.10Setting the window background (res/values/styles.xml)
<style name="AppTheme" parent="Theme.AppCompat">
<item name="colorPrimary">@color/red</item>
<item name="colorPrimaryDark">@color/dark_red</item>
<item name="colorAccent">@color/gray</item>
<item name="android:windowBackground">@color/soothing_blue</item>
</style>
Notice that you must use the android namespace when overriding this attribute, because
windowBackground is declared in the Android OS.
Chapter 22Styles and Themes
432
Run BeatBox, scroll down to the bottom of your recycler view, and verify that the background (where
it is not covered with a button) is a soothing blue, as in Figure22.7.
Figure 22.7BeatBox with a themed background
The steps that you just went through to find the windowBackground attribute are the same steps that
every Android developer takes when modifying an app’s theme. You will not find much documentation
on these attributes. Most people go straight to the source to see what is available.
To recap, you navigated through the following themes:
•Theme.AppCompat
•Base.Theme.AppCompat
•Base.V7.Theme.AppCompat
•Platform.AppCompat
You navigated through the theme hierarchy until you arrived at AppCompat’s root theme. As you
become more familiar with your theme options, you may opt to skip ahead to the appropriate theme in
the future. But it is nice to follow the hierarchy so you can see your theme’s roots.
Be aware that this theme hierarchy may change over time. But the task of walking the hierarchy will
not. You follow your theme hierarchy until you find the attribute that you want to override.
Modifying Button Attributes
433
Modifying Button Attributes
Earlier you customized the buttons in BeatBox by manually setting a style attribute in the res/
layout/list_item_sound.xml file. If you have a more complex app, with buttons throughout many
fragments, setting a style attribute on each and every button does not scale well. You can take your
theme a step further by defining a style in your theme for every button in your app.
Before adding a button style to your theme, remove the style attribute from your res/layout/
list_item_sound.xml file.
Listing 22.11Be gone! We have a better way
(res/layout/list_item_sound.xml)
<Button
style="@style/BeatBoxButton.Strong"
android:layout_width="match_parent"
android:layout_height="120dp"
android:onClick="@{() -> viewModel.onButtonClicked()}"
android:text="@{viewModel.title}"
tools:text="Sound name"/>
Run BeatBox again and verify that your buttons are back to the old, bland look.
Go theme spelunking again. This time, you are looking for buttonStyle. You will find it in
Base.V7.Theme.AppCompat.
<style name="Base.V7.Theme.AppCompat" parent="Platform.AppCompat">
...
<!-- Button styles -->
<item name="buttonStyle">@style/Widget.AppCompat.Button</item>
<item name="buttonStyleSmall">@style/Widget.AppCompat.Button.Small</item>
...
</style>
buttonStyle specifies the style of any normal button within your app.
The buttonStyle attribute points to a style resource rather than a value. When you updated the
windowBackground attribute, you passed in a value: the color. In this case, buttonStyle should point to
a style. Navigate to Widget.AppCompat.Button to see the button style.
<style name="Widget.AppCompat.Button" parent="Base.Widget.AppCompat.Button"/>
Widget.AppCompat.Button does not define any attributes itself. Navigate to its parent to see the goods.
You will find that there are two versions of the base style. Choose the values/values.xml version.
<style name="Base.Widget.AppCompat.Button" parent="android:Widget">
<item name="android:background">@drawable/abc_btn_default_mtrl_shape</item>
<item name="android:textAppearance">?android:attr/textAppearanceButton</item>
<item name="android:minHeight">48dip</item>
<item name="android:minWidth">88dip</item>
<item name="android:focusable">true</item>
<item name="android:clickable">true</item>
<item name="android:gravity">center_vertical|center_horizontal</item>
</style>
Every Button that you use in BeatBox is given these attributes.
Chapter 22Styles and Themes
434
Duplicate what happens in Android’s own theme in BeatBox. Change the parent of BeatBoxButton to
inherit from the existing button style. Also, remove your BeatBoxButton.Strong style from earlier.
Listing 22.12Creating a button style (res/values/styles.xml)
<resources>
<style name="AppTheme" parent="Theme.AppCompat">
<item name="colorPrimary">@color/red</item>
<item name="colorPrimaryDark">@color/dark_red</item>
<item name="colorAccent">@color/gray</item>
<item name="android:windowBackground">@color/soothing_blue</item>
</style>
<style name="BeatBoxButton" parent="Widget.AppCompat.Button">
<item name="android:background">@color/dark_blue</item>
</style>
<style name="BeatBoxButton.Strong">
<item name="android:textStyle">bold</item>
</style>
</resources>
You specified a parent of Widget.AppCompat.Button. You want your button to inherit all of the
properties that a normal button would receive and then selectively modify attributes.
If you do not specify a parent theme for BeatBoxButton, you will notice that your buttons devolve into
something that does not look like a button at all. Properties you expect to see, such as the text centered
in the button, will be lost.
Now that you have fully defined BeatBoxButton, it is time to use it. Look back at the buttonStyle
attribute that you found earlier when digging through Android’s themes. Duplicate this attribute in your
own theme.
Listing 22.13Using the BeatBoxButton style (res/values/styles.xml)
<resources>
<style name="AppTheme" parent="Theme.AppCompat">
<item name="colorPrimary">@color/red</item>
<item name="colorPrimaryDark">@color/dark_red</item>
<item name="colorAccent">@color/gray</item>
<item name="android:windowBackground">@color/soothing_blue</item>
<item name="buttonStyle">@style/BeatBoxButton</item>
</style>
<style name="BeatBoxButton" parent="Widget.AppCompat.Button">
<item name="android:background">@color/dark_blue</item>
</style>
</resources>
Notice that you do not use the android: prefix when defining buttonStyle. This is because the
buttonStyle attribute that you are overriding is implemented in the AppCompat library.
For the More Curious: More on Style Inheritance
435
You are now overriding the buttonStyle attribute and substituting your own style: BeatBoxButton.
Run BeatBox and notice that all of your buttons are dark blue (Figure22.8). You changed the look
of every normal button in BeatBox without modifying any layout files directly. Behold the power of
theme attributes in Android!
Figure 22.8The completely themed BeatBox
It sure would be nice if the buttons were more clearly buttons. In the next chapter, you will fix this
issue and make those buttons really shine.
For the More Curious: More on Style Inheritance
The description of style inheritance earlier in the chapter does not explain the full story. You may
have noticed a switch in inheritance style as you were exploring the theme hierarchy. The AppCompat
themes used the name of the theme to indicate inheritance until you arrive at the Platform.AppCompat
theme.
<style name="Platform.AppCompat" parent="android:Theme">
...
</style>
Here, the inheritance naming style changes to the more explicit parent attribute style. Why?
Chapter 22Styles and Themes
436
Specifying the parent theme in the theme name only works for themes that exist in the same package.
So you will see the Android OS themes use the theme-name inheritance style most of the time, and you
will see the AppCompat library do the same. But once the AppCompat library crosses over to a parent
outside of itself, the explicit parent attribute is used.
In your own applications, it is a good idea to follow the same convention. Specify your theme parent in
the name of your theme if you are inheriting from one of your own themes. If you inherit from a style
or theme in the Android OS, explicitly specify the parent attribute.
For the More Curious: Accessing Theme Attributes
Once attributes are declared in your theme, you can access them in XML or in code.
To access a theme attribute in XML, you use the notation that you saw on the
listSeparatorTextViewStyle attribute in Chapter7. When referencing a concrete value in XML,
such as a color, you use the @ notation. @color/gray points to a specific resource.
When referencing a resource in the theme, you use the ? notation:
<Button xmlns:android="http://schemas.android.com/apk/res/android"
xmlns:tools="http://schemas.android.com/tools"
android:id="@+id/list_item_sound_button"
android:layout_width="match_parent"
android:layout_height="120dp"
android:background="?attr/colorAccent"
tools:text="Sound name"/>
The ? notation says to use the resource that the colorAccent attribute on your theme points to. In your
case, this would be the gray color that you defined in your colors.xml file.
You can also use theme attributes in code, although it is much more verbose.
Resources.Theme theme = getActivity().getTheme();
int[] attrsToFetch = { R.attr.colorAccent };
TypedArray a = theme.obtainStyledAttributes(R.style.AppTheme, attrsToFetch);
int accentColor = a.getInt(0, 0);
a.recycle();
On the Theme object, you ask to resolve the attribute R.attr.colorAccent that is defined in your
AppTheme: R.style.AppTheme. This call returns a TypedArray, which holds your data. On the
TypedArray, you ask for an int value to pull out the accent color. From here, you can use that color to
change the background of a button, for example.
The toolbar and buttons in BeatBox are doing exactly this to style themselves based on your theme
attributes.
437
23
XML Drawables
Now that BeatBox has been themed, it is time to do something about those buttons.
Currently, the buttons do not show any kind of response when you press on them, and they are just blue
boxes. In this chapter, you will use XML drawables to take BeatBox to the next level (Figure23.1).
Figure 23.1BeatBox makeover
Android calls anything that is intended to be drawn to the screen a drawable, whether it is an abstract
shape, a clever bit of code that subclasses the Drawable class, or a bitmap image. In this chapter, you
will see state list drawables, shape drawables, and layer list drawables. All three are defined in XML
files, so we group them in the category of XML drawables.
Chapter 23XML Drawables
438
Making Uniform Buttons
Before creating any XML drawables, modify list_item_sound.xml.
Listing 23.1Spacing the buttons out (res/layout/list_item_sound.xml)
<layout xmlns:android="http://schemas.android.com/apk/res/android"
xmlns:tools="http://schemas.android.com/tools">
<data>
<variable
name="viewModel"
type="com.bignerdranch.android.beatbox.SoundViewModel"/>
</data>
<FrameLayout
android:layout_width="match_parent"
android:layout_height="wrap_content"
android:layout_margin="8dp">
<Button
android:layout_width="match_parent"
android:layout_height="120dp"
android:layout_width="100dp"
android:layout_height="100dp"
android:layout_gravity="center"
android:onClick="@{() -> viewModel.onButtonClicked()}"
android:text="@{viewModel.title}"
tools:text="Sound name"/>
</FrameLayout>
</layout>
You gave each button a width and height of 100dp so that when the buttons are circles later on they will
not be skewed.
Your recycler view will always show three columns, no matter what the screen size is. If there is extra
room, the recycler view will stretch those columns to fit the device. You do not want the recycler
view to stretch your buttons, so you wrapped your buttons in a frame layout. The frame layout will be
stretched and the buttons will not.
Run BeatBox and you will see that your buttons are all the same size and have some space between
them (Figure23.2).
Shape Drawables
439
Figure 23.2Spaced-out buttons
Shape Drawables
Now, make your buttons round with a ShapeDrawable. Since XML drawables are not density specific,
they are placed in the default drawable folder instead of a density-specific one.
In the project tool window, create a new file in res/drawable called button_beat_box_normal.xml.
(Why is this one “normal”? Because soon it will have a not-so-normal friend.)
Listing 23.2Making a round shape drawable
(res/drawable/button_beat_box_normal.xml)
<shape xmlns:android="http://schemas.android.com/apk/res/android"
android:shape="oval">
<solid
android:color="@color/dark_blue"/>
</shape>
This file creates an oval shape drawable that is filled in with a dark blue color. There are additional
customization options with shape drawables, including rectangles, lines, and gradients. Check out the
documentation at developer.android.com/guide/topics/resources/drawable-resource.html for
details.
Chapter 23XML Drawables
440
Apply button_beat_box_normal as the background for your buttons.
Listing 23.3Modifying the background drawable (res/values/styles.xml)
<resources>
<style name="AppTheme" parent="Theme.AppCompat">
...
</style>
<style name="BeatBoxButton" parent="android:style/Widget.Holo.Button">
<item name="android:background">@color/dark_blue</item>
<item name="android:background">@drawable/button_beat_box_normal</item>
</style>
</resources>
Run BeatBox. Your buttons are now nice circles (Figure23.3).
Figure 23.3Circle buttons
Press a button. You will hear the sound, but the button will not change its appearance. It would be
better if the button looked different once it was pressed.
State List Drawables
441
State List Drawables
To fix this, first define a new shape drawable that will be used for the pressed state of the button.
Create button_beat_box_pressed.xml in res/drawable. Make this pressed drawable the same as the
normal version but with a red background color.
Listing 23.4Defining a pressed shape drawable
(res/drawable/button_beat_box_pressed.xml)
<shape xmlns:android="http://schemas.android.com/apk/res/android"
android:shape="oval">
<solid
android:color="@color/red"/>
</shape>
Next, you are going to use this pressed version when the user presses the button. To do this, you will
make use of a state list drawable.
A state list drawable is a drawable that points to other drawables based on the state of something. A
button has a pressed and an unpressed state. You will use a state list drawable to specify one drawable
as the background when pressed and a different drawable when not pressed.
Define a state list drawable in your drawable folder.
Listing 23.5Creating a state list drawable
(res/drawable/button_beat_box.xml)
<selector xmlns:android="http://schemas.android.com/apk/res/android">
<item android:drawable="@drawable/button_beat_box_pressed"
android:state_pressed="true"/>
<item android:drawable="@drawable/button_beat_box_normal" />
</selector>
Now, modify your button style to use this new state list drawable as the button background.
Listing 23.6Applying a state list drawable (res/values/styles.xml)
<resources>
<style name="AppTheme" parent="Theme.AppCompat">
...
</style>
<style name="BeatBoxButton" parent="android:style/Widget.Holo.Button">
<item name="android:background">@drawable/button_beat_box_normal</item>
<item name="android:background">@drawable/button_beat_box</item>
</style>
</resources>
When the button is in the pressed state, button_beat_box_pressed will be used as the background.
Otherwise, button_beat_box_normal will be the background of the button.
Chapter 23XML Drawables
442
Run BeatBox and press a button. The button’s background changes (Figure23.4). Pretty slick, right?
Figure 23.4BeatBox, now with a pressed button state
State list drawables are a handy customization tool. Many other states are also supported, including
disabled, focused, and activated. Check out the documentation at developer.android.com/guide/
topics/resources/drawable-resource.html#StateList for details.
Layer List Drawables
443
Layer List Drawables
BeatBox is looking good. You now have round buttons and they visually respond to presses. Time for
something a little more advanced.
Layer list drawables allow you to combine two XML drawables into one. Armed with this tool, add a
dark ring around your button when in the pressed state.
Listing 23.7Using a layer list drawable
(res/drawable/button_beat_box_pressed.xml)
<layer-list xmlns:android="http://schemas.android.com/apk/res/android">
<item>
<shape xmlns:android="http://schemas.android.com/apk/res/android"
android:shape="oval">
<solid
android:color="@color/red"/>
</shape>
</item>
<item>
<shape
android:shape="oval">
<stroke
android:width="4dp"
android:color="@color/dark_red"/>
</shape>
</item>
</layer-list>
You specified two drawables in this layer list drawable. The first drawable is a red circle, as it was
before this change. The second drawable will be drawn on top of the first. In the second drawable, you
specified another oval with a stroke of 4dp. This will create a ring of dark red.
These two drawables combine to form the layer list drawable. You can combine more than two
drawables in a layer list to make something even more complex.
Chapter 23XML Drawables
444
Run BeatBox and press on a button or two. You will see a nice ring around the pressed interface
(Figure23.5). Even slicker.
Figure 23.5BeatBox complete
With the layer list drawable addition, BeatBox is now complete. Remember how plain BeatBox used to
look? You now have something special and uniquely identifiable. Making your app a pleasure to look
at makes it fun to use, and that will pay off in popularity.
For the More Curious: Why Bother with XML
Drawables?
You will always want a pressed state for your buttons, so state list drawables are a critical component
of any Android app. But what about shape drawables and layer list drawables? Should you use them?
XML drawables are flexible. You can use them for many purposes and you can easily update them in
the future. With a combination of layer list drawables and shape drawables, you can create complex
backgrounds without using an image editor. If you decide to change the color scheme in BeatBox,
updating the colors in an XML drawable is easy.
In this chapter, you defined your XML drawables in the drawable directory with no resource qualifiers
for the screen density. This is because XML drawables are density independent. With a standard
background that is an image, you will typically create multiple versions of that same image in different
densities so that the image will look crisp on most devices. XML drawables only need to be defined
once and will look crisp at any screen density.
For the More Curious: Mipmap Images
445
For the More Curious: Mipmap Images
Resource qualifiers and drawables are handy. When you need an image in your app, you generate the
image in a few different sizes and add the versions to your resource-qualified folders: drawable-mdpi,
drawable-hdpi, etc. Then you reference the image by name, and Android figures out which density to
use based on the current device.
However, there is a downside to this system. The APK file that you release to the Google Play Store
will contain all of the images in your drawable directories at each density that you added to your
project – even though many of them will not be used. That is a lot of bloat.
To reduce this bloat, you can generate separate APKs for each screen density. You would have an
mdpi APK of your app, an hdpi APK, and so on. (For more info on APK splitting, see the tools
documentation at developer.android.com/studio/build/configure-apk-splits.html.)
But there is one exception. You want to maintain every density of your launcher icon.
A launcher on Android is a Home screen application (you will learn much more about launchers in
Chapter24). When you press the Home button on your device, you are taken to the launcher.
Some newer launchers display app icons at a larger size than launchers have traditionally displayed
them. To make the larger icons look nice, these launchers will take an icon from the next density
bucket up. For example, if your device is an hdpi device, the launcher will use the xhdpi icon to
represent your app. But if the xhdpi version has been stripped from your APK, the launcher will have
to fall back to the lower resolution version.
Scaled-up low-res icons look fuzzy. You want your icon to look crisp.
The mipmap directory is Android’s solution to this problem. When APK splitting is enabled, mipmaps
are not pruned from the APKs. Otherwise, mipmaps are identical to drawables.
As of this writing, new projects in Android Studio are set up to use a mipmap resource for their
launcher icon (Figure23.6).
Figure 23.6Mipmap icons
We recommend putting just your launcher icon in the various mipmap directories. All other images
belong in the drawable directories.
Chapter 23XML Drawables
446
For the More Curious: 9-Patch Images
Sometimes (or maybe often), you will fall back to regular old image files for your button backgrounds.
But what happens to those image files when your button can be displayed at many different sizes?
If the width of the button is greater than the width of its background image, the image just stretches,
right? Is that always going to look good?
Uniformly stretching your background image will not always look right. Sometimes you need more
control over how the image will stretch.
In this section, you will convert BeatBox to use a 9-patch image as the background for the buttons
(more on what that means in just a moment). This is not because it is necessarily a better solution for
BeatBox – it is a way for you to see how a 9-patch works for those times when you want to use an
image file.
First, modify list_item_sound.xml to allow the button size to change based on the available space.
Listing 23.8Letting those buttons stretch
(res/layout/list_item_sound.xml)
<layout xmlns:android="http://schemas.android.com/apk/res/android"
xmlns:tools="http://schemas.android.com/tools">
<data>
<variable
name="viewModel"
type="com.bignerdranch.android.beatbox.SoundViewModel"/>
</data>
<FrameLayout
android:layout_width="match_parent"
android:layout_height="wrap_content"
android:layout_margin="8dp">
<Button
android:layout_width="100dp match_parent"
android:layout_height="100dp match_parent"
android:layout_gravity="center"
android:onClick="@{() -> viewModel.onButtonClicked()}"
android:text="@{viewModel.title}"
tools:text="Sound name"/>
</FrameLayout>
</layout>
Now the buttons will take up the available space, leaving an 8dp margin. The image in Figure23.7,
with a snazzy folded corner and shadow, will be your new button background.
Figure 23.7A new button background image
(res/drawable-xxhdpi/ic_button_beat_box_default.png)
For the More Curious: 9-Patch Images
447
In the solutions for this chapter (see the section called Adding an Icon in Chapter2), you can find
this image along with a pressed version in the xxhdpi drawable folder. Copy these two images into
your project’s drawable-xxhdpi folder and apply them as your button background by modifying
button_beat_box.xml.
Listing 23.9Applying the new button background images
(res/drawable/button_beat_box.xml)
<selector xmlns:android="http://schemas.android.com/apk/res/android">
<item android:drawable="@drawable/button_beat_box_pressed"
<item android:drawable="@drawable/ic_button_beat_box_pressed"
android:state_pressed="true"/>
<item android:drawable="@drawable/button_beat_box_normal"
<item android:drawable="@drawable/ic_button_beat_box_normal"
</selector>
Run BeatBox, and you will see the new button background (Figure23.8).
Figure 23.8BeastBox
Whoa. That looks… bad.
Why does it look like that? Android is uniformly stretching ic_button_beat_box_default.png,
including the dog-eared edge and the rounded corners. It would look better if you could specify which
parts of the image to stretch and which parts not to stretch. This is where 9-patch images come in.
A 9-patch image file is specially formatted so that Android knows which portions can and cannot be
scaled. Done properly, this ensures that the edges and corners of your background remain consistent
with the image as it was created.
Chapter 23XML Drawables
448
Why are they called 9-patches? A 9-patch breaks your image into a three-by-three grid – a grid with
nine sections, or patches. The corners of the grid remain unscaled, the sides are only scaled in one
dimension, and the center is scaled in both dimensions, as shown in Figure23.9.
Figure 23.9How a 9-patch scales
A 9-patch image is like a regular PNG image in everything except two aspects: Its filename ends with
.9.png, and it has an additional one-pixel border around the edge. This border is used to specify the
location of the center square of the 9-patch. Border pixels are drawn black to indicate the center and
transparent to indicate the edges.
You can create a 9-patch using any image editor, with the draw9patch tool provided as part of the
Android SDK, or using Android Studio.
First, convert your two new background images to 9-patch images by right-clicking on
ic_button_beat_box_default.png in the project tool window and selecting Refactor → Rename... to
rename the file to ic_button_beat_box_default.9.png. (If Android Studio warns you that a resource
with the same name already exists, click Continue.) Then, repeat the process to rename the pressed
version to ic_button_beat_box_pressed.9.png.
Next, double-click on the default image in the project tool window to open it in Android Studio’s built-
in 9-patch editor, as shown in Figure23.10. (If Android Studio does not open the editor, try closing the
file and collapsing your drawable folder in the project tool window. Then re-open the default image.)
For the More Curious: 9-Patch Images
449
In the 9-patch editor, first check the Show patches option to make your patches more visible. Now, fill
in black pixels on the top and left borders to mark the stretchable regions of the image (Figure23.10).
You can also drag the edges of the colored overlay to match the figure.
Figure 23.10Creating a 9-patch image
The black line at the top of the image specifies a region to stretch if this image is stretched horizontally.
The line on the left indicates which pixels to stretch if the image is stretched vertically.
Chapter 23XML Drawables
450
Repeat the process with the pressed version. Run BeatBox to see your new 9-patch image in action
(Figure23.11).
Figure 23.11New and improved
So the top and left borders of your 9-patch image indicate the areas of the image to stretch. What about
the bottom and right borders? You can use them to define an optional content region for the 9-patch
image. The content region is the area where content (usually text) should be rendered. If you do not
include a content region, it defaults to be the same as your stretchable region.
For the More Curious: 9-Patch Images
451
Use the content area to center the text within the buttons. Go back to
ic_button_beat_box_default.9.png and add the right and bottom lines as shown in Figure23.12.
Enable the Show content setting in the 9-patch editor. This setting updates the preview to highlight the
areas of the image that will hold your text.
Figure 23.12Defining the content area
Repeat the process for the pressed version of the image. Be extra sure that both your images are
updated with the correct content area lines. When 9-patch images are specified through state list
drawables (as they are in BeatBox), the content area does not behave as you might expect. Android
will set the content area as the background is initialized and will not change the content area while
you press on the button. That means that the content area from one of your two images is ignored! The
image that Android will take the content area from is not defined, so it is best to make sure that all of
your 9-patch images in a state list drawable have the same content area.
Chapter 23XML Drawables
452
Run BeatBox to see your nicely centered text (Figure23.13).
Figure 23.13New and more improved
Try rotating to landscape. The images are even more stretched, but your button backgrounds still look
good and your text is still centered.
Challenge: Button Themes
After completing the 9-patch image update, you may notice that something is not quite right with the
background of your buttons. Behind the dog ear, you can see something that looks like a shadow. You
may also notice that this shadow only shows up on Android version 21 and newer.
That shadow is part of the elevation that all buttons receive by default on Lollipop and newer (21+).
As you press the button, it appears to come closer to your finger (you will learn more about this in
Chapter35).
With this dog-eared image, you want to remove that shadow. Use your new theme spelunking skills to
determine how that shadow is applied. Is there some other type of button style that you can use as your
parent for the BeatBoxButton style?
453
24
More About Intents and Tasks
In this chapter, you will use implicit intents to create a launcher app to replace Android’s default
launcher app. Figure24.1 shows what this app, NerdLauncher, will look like.
Figure 24.1NerdLauncher final product
NerdLauncher will display a list of apps on the device. The user will press a list item to launch the app.
To get it working correctly, you will deepen your understanding of intents, intent filters, and how
applications interact in the Android environment.
Chapter 24More About Intents and Tasks
454
Setting Up NerdLauncher
Create a new Android application project named NerdLauncher. Select Phone and Tablet as the
form factor and API 19: Android 4.4 (KitKat) as the minimum SDK. Create an empty activity named
NerdLauncherActivity.
NerdLauncherActivity will host a single fragment and in turn should be a subclass of
SingleFragmentActivity. Copy SingleFragmentActivity.java and activity_fragment.xml into
NerdLauncher from the CriminalIntent project.
Open NerdLauncherActivity.java and change NerdLauncherActivity’s superclass to
SingleFragmentActivity. Remove the template’s code and override createFragment() to return a
NerdLauncherFragment. (Bear with the error caused by the return line in createFragment(). This will
be fixed in a moment when you create the NerdLauncherFragment class.)
Listing 24.1Another SingleFragmentActivity
(NerdLauncherActivity.java)
public class NerdLauncherActivity extends SingleFragmentActivityAppCompatActivity {
@Override
protected Fragment createFragment() {
return NerdLauncherFragment.newInstance();
}
@Override
protected void onCreate(Bundle savedInstanceState) {
/* Auto-generated template code... */
}
}
NerdLauncherFragment will display a list of application names in a RecyclerView. Add the
RecyclerView library as a dependency, as you did in Chapter8.
Rename layout/activity_nerd_launcher.xml to layout/fragment_nerd_launcher.xml to create a
layout for the fragment. Replace its contents with the RecyclerView shown in Figure24.2.
Figure 24.2Creating NerdLauncherFragment layout
(layout/fragment_nerd_launcher.xml)
Setting Up NerdLauncher
455
Finally, add a new class named NerdLauncherFragment that extends from
android.support.v4.app.Fragment. Add a newInstance() method and override onCreateView(…)
to stash a reference to the RecyclerView object in a member variable. (You will hook data up to the
RecyclerView in just a bit.)
Listing 24.2Basic NerdLauncherFragment implementation
(NerdLauncherFragment.java)
public class NerdLauncherFragment extends Fragment {
private RecyclerView mRecyclerView;
public static NerdLauncherFragment newInstance() {
return new NerdLauncherFragment();
}
@Override
public View onCreateView(LayoutInflater inflater, ViewGroup container,
Bundle savedInstanceState) {
View v = inflater.inflate(R.layout.fragment_nerd_launcher, container, false);
mRecyclerView = (RecyclerView) v.findViewById(R.id.app_recycler_view);
mRecyclerView.setLayoutManager(new LinearLayoutManager(getActivity()));
return v;
}
}
Run your app to make sure everything is hooked up correctly to this point. If so, you will be the proud
owner of an app titled NerdLauncher, displaying an empty RecyclerView (Figure24.3).
Figure 24.3NerdLauncher beginnings
Chapter 24More About Intents and Tasks
456
Resolving an Implicit Intent
NerdLauncher will show the user a list of launchable apps on the device. (A launchable app is an app
the user can open by clicking an icon on the Home or launcher screen.) To do so, it will query the
system (using the PackageManager) for launchable main activities. Launchable main activities are
simply activities with intent filters that include a MAIN action and a LAUNCHER category. You have seen
this intent filter in the AndroidManifest.xml file in your projects:
<intent-filter>
<action android:name="android.intent.action.MAIN" />
<category android:name="android.intent.category.LAUNCHER" />
</intent-filter>
In NerdLauncherFragment.java, add a method named setupAdapter() and call that method from
onCreateView(…). (Ultimately this method will create a RecyclerView.Adapter instance and set it
on your RecyclerView object. For now, it will just generate a list of application data.) Also, create
an implicit intent and get a list of activities that match the intent from the PackageManager. Log the
number of activities that the PackageManager returns.
Listing 24.3Querying the PackageManager (NerdLauncherFragment.java)
public class NerdLauncherFragment extends Fragment {
private static final String TAG = "NerdLauncherFragment";
private RecyclerView mRecyclerView;
public static NerdLauncherFragment newInstance() {
return new NerdLauncherFragment();
}
@Override
public View onCreateView(LayoutInflater inflater, ViewGroup container,
Bundle savedInstanceState) {
...
setupAdapter();
return v;
}
private void setupAdapter() {
Intent startupIntent = new Intent(Intent.ACTION_MAIN);
startupIntent.addCategory(Intent.CATEGORY_LAUNCHER);
PackageManager pm = getActivity().getPackageManager();
List<ResolveInfo> activities = pm.queryIntentActivities(startupIntent, 0);
Log.i(TAG, "Found " + activities.size() + " activities.");
}
}
Run NerdLauncher and check Logcat to see how many apps the PackageManager returned. (We got 30
the first time we tried it.)
Resolving an Implicit Intent
457
In CriminalIntent, you used an implicit intent to send a crime report. You presented an activity
chooser by creating an implicit intent, wrapping it in a chooser intent, and sending it to the OS with
startActivity(Intent):
Intent i = new Intent(Intent.ACTION_SEND);
... // Create and put intent extras
i = Intent.createChooser(i, getString(R.string.send_report));
startActivity(i);
You may be wondering why you are not using that approach here. The short explanation is that the
MAIN/LAUNCHER intent filter may or may not match a MAIN/LAUNCHER implicit intent that is sent via
startActivity(Intent).
startActivity(Intent) does not mean, “Start an activity matching this implicit intent.” It
means, “Start the default activity matching this implicit intent.” When you send an implicit
intent via startActivity(Intent) (or startActivityForResult(…)), the OS secretly adds the
Intent.CATEGORY_DEFAULT category to the intent.
Thus, if you want an intent filter to match implicit intents sent via startActivity(Intent), you must
include the DEFAULT category in that intent filter.
An activity that has the MAIN/LAUNCHER intent filter is the main entry point for the app that it belongs
to. It only wants the job of main entry point for that application. It typically does not care about being
the “default” main entry point, so it does not have to include the CATEGORY_DEFAULT category.
Because MAIN/LAUNCHER intent filters may not include CATEGORY_DEFAULT, you cannot reliably match
them to an implicit intent sent via startActivity(Intent). Instead, you use the intent to query the
PackageManager directly for activities with the MAIN/LAUNCHER intent filter.
The next step is to display the labels of these activities in NerdLauncherFragment’s RecyclerView. An
activity’s label is its display name – something the user should recognize. Given that these activities
are launcher activities, the label is most likely the application name.
You can find the labels for the activities, along with other metadata, in the ResolveInfo objects that the
PackageManager returned.
First, sort the ResolveInfo objects returned from the PackageManager alphabetically by label using the
ResolveInfo.loadLabel(PackageManager) method.
Listing 24.4Sorting alphabetically (NerdLauncherFragment.java)
public class NerdLauncherFragment extends Fragment {
...
private void setupAdapter() {
...
List<ResolveInfo> activities = pm.queryIntentActivities(startupIntent, 0);
Collections.sort(activities, new Comparator<ResolveInfo>() {
public int compare(ResolveInfo a, ResolveInfo b) {
PackageManager pm = getActivity().getPackageManager();
return String.CASE_INSENSITIVE_ORDER.compare(
a.loadLabel(pm).toString(),
b.loadLabel(pm).toString());
}
});
Log.i(TAG, "Found " + activities.size() + " activities.");
}
}
Chapter 24More About Intents and Tasks
458
Now define a ViewHolder that displays an activity’s label. Store the activity’s ResolveInfo in a
member variable (you will use it more than once later on).
Listing 24.5ViewHolder implementation (NerdLauncherFragment.java)
public class NerdLauncherFragment extends Fragment {
...
private void setupAdapter() {
...
}
private class ActivityHolder extends RecyclerView.ViewHolder {
private ResolveInfo mResolveInfo;
private TextView mNameTextView;
public ActivityHolder(View itemView) {
super(itemView);
mNameTextView = (TextView) itemView;
}
public void bindActivity(ResolveInfo resolveInfo) {
mResolveInfo = resolveInfo;
PackageManager pm = getActivity().getPackageManager();
String appName = mResolveInfo.loadLabel(pm).toString();
mNameTextView.setText(appName);
}
}
}
Resolving an Implicit Intent
459
Next add a RecyclerView.Adapter implementation.
Listing 24.6RecyclerView.Adapter implementation
(NerdLauncherFragment.java)
public class NerdLauncherFragment extends Fragment {
...
private class ActivityHolder extends RecyclerView.ViewHolder {
...
}
private class ActivityAdapter extends RecyclerView.Adapter<ActivityHolder> {
private final List<ResolveInfo> mActivities;
public ActivityAdapter(List<ResolveInfo> activities) {
mActivities = activities;
}
@Override
public ActivityHolder onCreateViewHolder(ViewGroup parent, int viewType) {
LayoutInflater layoutInflater = LayoutInflater.from(getActivity());
View view = layoutInflater
.inflate(android.R.layout.simple_list_item_1, parent, false);
return new ActivityHolder(view);
}
@Override
public void onBindViewHolder(ActivityHolder holder, int position) {
ResolveInfo resolveInfo = mActivities.get(position);
holder.bindActivity(resolveInfo);
}
@Override
public int getItemCount() {
return mActivities.size();
}
}
}
Last, but not least, update setupAdapter() to create an instance of ActivityAdapter and set it as the
RecyclerView’s adapter.
Listing 24.7Setting RecyclerView’s adapter (NerdLauncherFragment.java)
public class NerdLauncherFragment extends Fragment {
...
private void setupAdapter() {
...
Log.i(TAG, "Found " + activities.size() + " activities.");
mRecyclerView.setAdapter(new ActivityAdapter(activities));
}
...
}
Chapter 24More About Intents and Tasks
460
Run NerdLauncher, and you will see a RecyclerView populated with activity labels (Figure24.4).
Figure 24.4All your activities are belong to us
Creating Explicit Intents at Runtime
You used an implicit intent to gather the desired activities and present them in a list. The next step is to
start the selected activity when the user presses its list item. You will start the activity using an explicit
intent.
To create the explicit intent, you need to get the activity’s package name and class name from
the ResolveInfo. You can get this data from a part of the ResolveInfo called ActivityInfo.
(You can learn what data is available in different parts of ResolveInfo from its reference page:
developer.android.com/reference/android/content/pm/ResolveInfo.html.)
Update ActivityHolder to implement a click listener. When an activity in the list is pressed, use the
ActivityInfo for that activity to create an explicit intent. Then use that explicit intent to launch the
selected activity.
Creating Explicit Intents at Runtime
461
Listing 24.8Launching pressed activity (NerdLauncherFragment.java)
private class ActivityHolder extends RecyclerView.ViewHolder
implements View.OnClickListener {
private ResolveInfo mResolveInfo;
private TextView mNameTextView;
public ActivityHolder(View itemView) {
super(itemView);
mNameTextView = (TextView) itemView;
mNameTextView.setOnClickListener(this);
}
public void bindActivity(ResolveInfo resolveInfo) {
...
}
@Override
public void onClick(View v) {
ActivityInfo activityInfo = mResolveInfo.activityInfo;
Intent i = new Intent(Intent.ACTION_MAIN)
.setClassName(activityInfo.applicationInfo.packageName,
activityInfo.name);
startActivity(i);
}
}
Notice that in this intent you are sending an action as part of an explicit intent. Most apps will behave
the same whether you include the action or not. However, some may change their behavior. The same
activity can display different interfaces depending on how it is started. As a programmer, it is best to
declare your intentions clearly and let the activities you start do what they will.
In Listing 24.8, you get the package name and class name from the metadata and use them to create an
explicit intent using the Intent method:
public Intent setClassName(String packageName, String className)
This is different from how you have created explicit intents in the past. Before, you used an Intent
constructor that accepts a Context and a Class object:
public Intent(Context packageContext, Class<?> cls)
This constructor uses its parameters to get what the Intent really needs – a ComponentName. A
ComponentName is a package name and a class name stuck together. When you pass in an Activity
and a Class to create an Intent, the constructor determines the fully qualified package name from the
Activity.
You could also create a ComponentName yourself from the package and class names and use the
following Intent method to create an explicit intent:
public Intent setComponent(ComponentName component)
However, it is less code to use setClassName(…), which creates the component name behind the
scenes.
Chapter 24More About Intents and Tasks
462
Run NerdLauncher and launch some apps.
Tasks and the Back Stack
Android uses tasks to keep track of the user’s state within each running application. Each application
opened from Android’s default launcher app gets its own task. This is the desired behavior but,
unfortunately for your NerdLauncher, it is not the default behavior. Before you foray into forcing
applications to launch into their own tasks, let’s discuss what tasks are and how they work.
A task is a stack of activities that the user is concerned with. The activity at the bottom of the stack
is called the base activity, and whatever activity is on top is the activity that the user sees. When you
press the Back button, you are popping the top activity off of this stack. If you are looking at the base
activity and hit the Back button, it will send you to the Home screen.
By default, new activities are started in the current task. In CriminalIntent, whenever you started a new
activity, that activity was added to the current task (as shown in Figure24.5). This was true even if
the activity was not part of the CriminalIntent application, like when you started an activity to select a
crime suspect.
Figure 24.5CriminalIntent task
The benefit of adding an activity to the current task is that the user can navigate back through the task
instead of the application hierarchy (as shown in Figure24.6).
Figure 24.6Pressing the Back button in CriminalIntent
Switching between tasks
Using the overview screen, you can switch between tasks without affecting each task’s state, as
you first saw way back in Chapter3. For instance, if you start entering a new contact and switch to
checking your Twitter feed, you will have two tasks started. If you switch back to editing contacts,
your place in both tasks will be saved.
Switching between tasks
463
Try out the overview screen on your device or emulator. First, launch CriminalIntent from the Home
screen or from your app launcher. (If your device or emulator no longer has CriminalIntent installed,
open your CriminalIntent project in Android Studio and run it from there.) Select a crime from the
crime list. Then push the Home button to return to the Home screen. Next, launch BeatBox from the
Home screen or from your app launcher (or, if necessary, from Android Studio).
Open the overview screen by pressing the Recents button (Figure24.7).
Figure 24.7Overview screen versions
The overview screen displayed on the left in Figure24.7 is what users will see if they are running
KitKat. The overview screen displayed on the right is what users running Lollipop or later will see. In
both cases, the entry displayed for each app (known as a card from Lollipop forward) represents the
task for each app. A screenshot of the activity at the top of each task’s back stack is displayed. Users
can press on the BeatBox or CriminalIntent entry to return to the app (and to whatever activity they
were interacting with in that app).
Users can clear an app’s task by swiping on the card entry to remove the card from the task list.
Clearing the task removes all activities from the application’s back stack.
Try clearing CriminalIntent’s task, then relaunching the app. You will see the list of crimes instead of
the crime you were editing before you cleared the task.
Chapter 24More About Intents and Tasks
464
Starting a new task
Sometimes, when you start an activity, you want the activity added to the current task. Other times, you
want it started in a new task that is independent of the activity that started it.
Right now, any activity started from NerdLauncher is added to NerdLauncher’s task, as depicted in
Figure24.8.
Figure 24.8NerdLauncher’s task contains CriminalIntent
You can confirm this by clearing all the tasks displayed in the overview screen. Then start
NerdLauncher and click on the CriminalIntent entry to launch the CriminalIntent app. Open the
overview screen again. You will not see CriminalIntent listed anywhere. When CrimeListActivity
was started, it was added to NerdLauncher’s task (Figure24.9). If you press the NerdLauncher
task, you will be returned to whatever CriminalIntent screen you were looking at before starting the
overview screen.
Figure 24.9CriminalIntent not in its own task
Starting a new task
465
This will not do. Instead, you want NerdLauncher to start activities in new tasks (Figure24.10). That
way each application opened by pressing an item in the NerdLauncher list gets its own task, which
will allow users to switch between running applications via the overview screen, NerdLauncher, or the
Home screen, as they prefer.
Figure 24.10Launching CriminalIntent into its own task
To start a new task when you start a new activity, add a flag to the intent in
NerdLauncherFragment.java.
Listing 24.9Adding new task flag to intent (NerdLauncherFragment.java)
public class NerdLauncherFragment extends Fragment {
...
private class ActivityHolder extends RecyclerView.ViewHolder
implements View.OnClickListener {
...
@Override
public void onClick(View v) {
...
Intent i = new Intent(Intent.ACTION_MAIN)
.setClassName(activityInfo.applicationInfo.packageName,
activityInfo.name)
.addFlags(Intent.FLAG_ACTIVITY_NEW_TASK);
startActivity(i);
}
}
...
}
Chapter 24More About Intents and Tasks
466
Clear the tasks listed in your overview screen. Run NerdLauncher and start CriminalIntent. This time,
when you pull up the overview screen you will see a separate task for CriminalIntent (Figure24.11).
Figure 24.11CriminalIntent now in its own task
If you start CriminalIntent from NerdLauncher again, you will not create a second CriminalIntent task.
The FLAG_ACTIVITY_NEW_TASK flag by itself creates one task per activity. CrimeListActivity already
has a task running, so Android will switch to that task instead of starting a new one.
Try this out. Open the detail screen for one of the crimes in CriminalIntent. Use the overview screen to
switch to NerdLauncher. Press on CriminalIntent in the list. You will be right back where you were in
the CriminalIntent app, viewing the details for a single crime.
Using NerdLauncher as a Home Screen
Who wants to start an app to start other apps? It would make more sense to offer NerdLauncher as a
replacement for the device’s Home screen. Open NerdLauncher’s AndroidManifest.xml and add to its
main intent filter.
Using NerdLauncher as a Home Screen
467
Listing 24.10Changing NerdLauncherActivity’s categories
(AndroidManifest.xml)
<intent-filter>
<action android:name="android.intent.action.MAIN" />
<category android:name="android.intent.category.LAUNCHER" />
<category android:name="android.intent.category.HOME" />
<category android:name="android.intent.category.DEFAULT" />
</intent-filter>
By adding the HOME and DEFAULT categories, NerdLauncherActivity is asking to be offered as an
option for the Home screen. Press the Home button, and NerdLauncher will be offered as an option
(Figure24.12).
Figure 24.12Selecting Home app
(If you make NerdLauncher the Home screen, you can easily change it back later. Launch the
Settings app from NerdLauncher. If you are running Lollipop or later, go to Settings → Apps. Select
NerdLauncher from the app list. If you are running a pre-Lollipop version of Android, go to Settings
→ Applications → Manage Applications. Select All to find NerdLauncher. Once you have selected
NerdLauncher, you should be on the App Info screen. Scroll down to Launch by default and press
the CLEAR DEFAULTS button. The next time you press the Home button, you will be able to select
another default.)
Chapter 24More About Intents and Tasks
468
Challenge: Icons
You used ResolveInfo.loadLabel(PackageManager) in this chapter to present useful names in your
launcher. ResolveInfo provides a similar method called loadIcon() that retrieves an icon to display
for each application. For a small challenge, add an icon for each application to NerdLauncher.
For the More Curious: Processes vs Tasks
All objects need memory and a virtual machine to live in. A process is a place created by the OS for
your application’s objects to live in and for your application to run.
Processes may own resources managed by the OS, like memory, network sockets, and open files.
Processes also have at least one, possibly many, threads of execution. On Android, your process will
also always have exactly one virtual machine running.
While there are some obscure exceptions, in general every application component in Android is
associated with exactly one process. Your application is created with its own process, and this is the
default process for all components in your application.
(You can assign individual components to different processes, but we recommend sticking to the
default process. If you think you need something running in a different process, you can usually
achieve the same ends with multithreading, which is more straightforward to program in Android than
using multiple processes.)
Every activity instance lives in exactly one process and is referenced by exactly one task. But that is
where the similarities between processes and tasks end. Tasks contain only activities and often consist
of activities living in different application processes. Processes, on the other hand, contain all running
code and objects for a single application.
It can be easy to confuse processes and tasks because there is some overlap between the two
ideas and both are often referred to by an application name. For instance, when you launched
CriminalIntent from NerdLauncher, the OS created a CriminalIntent process and a new task for which
CrimeListActivity was the base activity. In the overview screen, this task was labeled CriminalIntent.
The task that an activity is referenced by can be different from the process it lives in. For example,
consider the CriminalIntent and contact applications and walk through the following scenario.
Open CriminalIntent, select a crime from the list (or add a new crime), and then press CHOOSE
SUSPECT. This launches the contacts application to choose a contact. The contact list activity is
added to the CriminalIntent task. This means that when your user presses the Back button to navigate
between different activities, he or she may be unknowingly switching between processes, which is
nifty.
For the More Curious: Processes vs Tasks
469
However, the contact list activity instance is actually created in the memory space of the contacts app’s
process, and it runs on the virtual machine living in the contacts application’s process. (The state of the
activity instances and task references of this scenario are depicted in Figure24.13.)
Figure 24.13Task referencing multiple processes
To explore the idea of processes versus tasks further, leave CriminalIntent up and running on the
contact list screen. (Make sure the contacts app itself is not listed on the overview screen. If so, clear
the contacts app task.) Press the Home button. Launch the contacts app from the Home screen. Select a
contact from the list of contacts (or select to add a new contact).
Chapter 24More About Intents and Tasks
470
When you do this, new contact list activity and contact details instances will be created in the contact
application’s process. A new task will be created for the contacts application, and that task will
reference the new contact list and contact details activity instances (as shown in Figure24.14).
Figure 24.14Process referenced by multiple tasks
In this chapter, you created tasks and switched between them. What about replacing Android’s default
overview screen, as you are able to do with the Home screen? Unfortunately, Android does not provide
a way to do this. Also, you should know that apps advertised on the Google Play Store as “task killers”
are, in fact, process killers. Such apps kill a particular process, which means they may be killing
activities referenced by other applications’ tasks.
For the More Curious: Concurrent Documents
471
For the More Curious: Concurrent Documents
If you are running your apps on a Lollipop or later device, you may have noticed some interesting
behavior with respect to CriminalIntent and the overview screen. When you opt to send a crime report
from CriminalIntent, the activity for the app you select from the chooser is added to its own task rather
than to CriminalIntent’s task (Figure24.15).
Figure 24.15Gmail launched into separate task
On Lollipop forward, the implicit intent chooser creates a new, separate task for activities launched
with the android.intent.action.SEND or action.intent.action.SEND_MULTIPLE actions. (On
older versions of Android, this does not happen, so Gmail’s compose activity would have been added
directly to CriminalIntent’s task.)
This behavior uses a notion new in Lollipop called concurrent documents. Concurrent documents allow
any number of tasks to be dynamically created for an app at runtime. Prior to Lollipop, apps could only
have a predefined set of tasks, each of which had to be named in the manifest.
Chapter 24More About Intents and Tasks
472
A prime example of concurrent documents in practice is the Google Drive app. You can open and edit
multiple documents, each of which gets its own separate task in the overview screen (Figure24.16).
If you were to take the same actions in Google Drive on a pre-Lollipop device, you would only see
one task in the overview screen. This is because of the requirement on pre-Lollipop devices to define
an app’s tasks ahead of time in the manifest. It was not possible pre-Lollipop to generate a dynamic
number of tasks for a single app.
Figure 24.16Multiple Google Drive tasks on Lollipop
You can start multiple “documents” (tasks) from your own app running on a Lollipop device by either
adding the Intent.FLAG_ACTIVITY_NEW_DOCUMENT flag to an intent before calling startActivity(…)
or by setting the documentLaunchMode on the activity in the manifest, like so:
<activity
android:name=".CrimePagerActivity"
android:label="@string/app_name"
android:parentActivityName=".CrimeListActivity"
android:documentLaunchMode="intoExisting" />
Using this approach, only one task per document will be created (so if you issue an intent with
the same data as an already existing task, no new task is created). You can force a new task
to always be created, even if one already exists for a given document, by either adding the
Intent.FLAG_ACTIVITY_MULTIPLE_TASK flag along with the Intent.FLAG_ACTIVITY_NEW_DOCUMENT
flag before issuing the intent, or by using always as the value for documentLaunchMode in your
manifest.
To learn more about the overview screen and changes that were made to it with the Lollipop release,
check out developer.android.com/guide/components/recents.html.
473
25
HTTP and Background Tasks
The apps that dominate the brains of users are networked apps. Those people fiddling with their phones
instead of talking to each other at dinner? They are maniacally checking their newsfeeds, responding to
text messages, or playing networked games.
To get started with networking in Android, you are going to create a new app called PhotoGallery.
PhotoGallery is a client for the photo-sharing site Flickr. It will fetch and display the most recent
public photos uploaded to Flickr. Figure25.1 gives you an idea of what the app will look like.
Figure 25.1Complete PhotoGallery
Chapter 25HTTP and Background Tasks
474
(We have added a filter to our PhotoGallery implementation to show only photos listed on Flickr
as having no known copyright restrictions. Visit www.flickr.com/commons/usage/ to learn more
about unrestricted images. All other photos on Flickr are the property of the person who posted them
and are subject to usage restrictions depending on the license specified by the owner. To read more
about permissions for using third-party content that you retrieve from Flickr, visit www.flickr.com/
creativecommons/.)
You will spend six chapters with PhotoGallery. It will take two chapters for you to get the basics
of downloading and parsing JSON and displaying images up and running. Once that is done, in
subsequent chapters you will add features that explore search, services, notifications, broadcast
receivers, and web views.
In this chapter, you will learn how to use Android’s high-level HTTP networking. Almost all day-to-
day programming of web services these days is based on the HTTP networking protocol. By the end
of the chapter, you will be fetching, parsing, and displaying photo captions from Flickr (Figure25.2).
(Retrieving and displaying photos will happen in Chapter26.)
Figure 25.2PhotoGallery at the end of the chapter
Creating PhotoGallery
475
Creating PhotoGallery
Create a new Android application project. Configure the app as shown in Figure25.3.
Figure 25.3Creating PhotoGallery
Click Next. When prompted, check Phone and Tablet as the target form factor and choose API 19:
Android 4.4 (KitKat) from the Minimum SDK dropdown.
Then have the wizard create an empty activity named PhotoGalleryActivity.
PhotoGallery will follow the same architecture you have been using so far. PhotoGalleryActivity
will be a SingleFragmentActivity subclass and its view will be the container view defined
in activity_fragment.xml. This activity will host a fragment – in particular, an instance of
PhotoGalleryFragment, which you will create shortly.
Copy SingleFragmentActivity.java and activity_fragment.xml into your project from a previous
project.
Chapter 25HTTP and Background Tasks
476
In PhotoGalleryActivity.java, set up PhotoGalleryActivity as a SingleFragmentActivity
by deleting the code that the template generated and replacing it with an implementation of
createFragment(). Have createFragment() return an instance of PhotoGalleryFragment.
(Bear with the error that this code will cause for the moment. It will go away after you create the
PhotoGalleryFragment class.)
Listing 25.1Activity setup (PhotoGalleryActivity.java)
public class PhotoGalleryActivity extends Activity SingleFragmentActivity {
@Override
protected Fragment createFragment() {
return PhotoGalleryFragment.newInstance();
}
@Override
protected void onCreate(Bundle savedInstanceState) {
/* Auto-generated template code... */
}
}
PhotoGallery will display its results in a RecyclerView, using the built-in GridLayoutManager to
arrange the items in a grid.
First, add the RecyclerView library as a dependency, as you did in Chapter8. Open the project
structure window and select the app module on the left. Select the Dependencies tab and click the
+ button. Select Library dependency from the drop-down menu that appears. Find and select the
recyclerview-v7 library and click OK.
Rename layout/activity_photo_gallery.xml to layout/fragment_photo_gallery.xml to create a
layout for the fragment. Then replace its contents with the RecyclerView shown in Figure25.4.
Figure 25.4A RecyclerView (layout/fragment_photo_gallery.xml)
Networking Basics
477
Finally, create the PhotoGalleryFragment class. Retain the fragment, inflate the layout you just
created, and initialize a member variable referencing the RecyclerView.
Listing 25.2Some skeleton code (PhotoGalleryFragment.java)
public class PhotoGalleryFragment extends Fragment {
private RecyclerView mPhotoRecyclerView;
public static PhotoGalleryFragment newInstance() {
return new PhotoGalleryFragment();
}
@Override
public void onCreate(Bundle savedInstanceState) {
super.onCreate(savedInstanceState);
setRetainInstance(true);
}
@Override
public View onCreateView(LayoutInflater inflater, ViewGroup container,
Bundle savedInstanceState) {
View v = inflater.inflate(R.layout.fragment_photo_gallery, container, false);
mPhotoRecyclerView = (RecyclerView) v.findViewById(R.id.photo_recycler_view);
mPhotoRecyclerView.setLayoutManager(new GridLayoutManager(getActivity(), 3));
return v;
}
}
(Wondering why you are retaining the fragment? Hold that thought – we will explain later in the
chapter, in the section called Cleaning Up AsyncTasks.)
Fire up PhotoGallery to make sure everything is wired up correctly before moving on. If all is well,
you will be the proud owner of a blank screen.
Networking Basics
You are going to have one class handle the networking in PhotoGallery. Create a new Java class and,
since you will be connecting to Flickr, name this class FlickrFetchr.
FlickrFetchr will start off small with only two methods: getUrlBytes(String) and
getUrlString(String). The getUrlBytes(String) method fetches raw data from a URL and
returns it as an array of bytes. The getUrlString(String) method converts the result from
getUrlBytes(String) to a String.
Chapter 25HTTP and Background Tasks
478
In FlickrFetchr.java, add implementations for getUrlBytes(String) and getUrlString(String)
(Listing 25.3).
Listing 25.3Basic networking code (FlickrFetchr.java)
public class FlickrFetchr {
public byte[] getUrlBytes(String urlSpec) throws IOException {
URL url = new URL(urlSpec);
HttpURLConnection connection = (HttpURLConnection)url.openConnection();
try {
ByteArrayOutputStream out = new ByteArrayOutputStream();
InputStream in = connection.getInputStream();
if (connection.getResponseCode() != HttpURLConnection.HTTP_OK) {
throw new IOException(connection.getResponseMessage() +
": with " +
urlSpec);
}
int bytesRead = 0;
byte[] buffer = new byte[1024];
while ((bytesRead = in.read(buffer)) > 0) {
out.write(buffer, 0, bytesRead);
}
out.close();
return out.toByteArray();
} finally {
connection.disconnect();
}
}
public String getUrlString(String urlSpec) throws IOException {
return new String(getUrlBytes(urlSpec));
}
}
This code creates a URL object from a string – like, say, https://www.bignerdranch.com. Then it
calls openConnection() to create a connection object pointed at the URL. URL.openConnection()
returns a URLConnection, but because you are connecting to an http URL, you can cast it to
HttpURLConnection. This gives you HTTP-specific interfaces for working with request methods,
response codes, streaming methods, and more.
HttpURLConnection represents a connection, but it will not actually connect to your endpoint until you
call getInputStream() (or getOutputStream() for POST calls). Until then, you cannot get a valid
response code.
Once you create your URL and open a connection, you call read() repeatedly until your connection
runs out of data. The InputStream will yield bytes as they are available. When you are done, you close
it and spit out your ByteArrayOutputStream’s byte array.
While getUrlBytes(String) does the heavy lifting, getUrlString(String) is what you will actually
use in this chapter. It converts the bytes fetched by getUrlBytes(String) into a String. Right now, it
may seem strange to split this work into two methods. However, having two methods will be useful in
the next chapter when you start downloading image data.
Asking permission to network
479
Asking permission to network
One other thing is required to get networking up and running: You have to ask permission. Just as
users would not want you secretly taking their pictures, they also do not want you to secretly download
ASCII pictures of farm animals.
To ask permission to network, add the following permission to your AndroidManifest.xml.
Listing 25.4Adding networking permission to manifest (AndroidManifest.xml)
<manifest
xmlns:android="http://schemas.android.com/apk/res/android"
package="com.bignerdranch.android.photogallery" >
<uses-permission android:name="android.permission.INTERNET" />
<application
...
</application>
</manifest>
When a user tries to download your app, a dialog showing these permissions is displayed. The user can
then accept or deny installation.
Android treats the INTERNET permission as not dangerous, since so many apps require it. As a result, all
you need to do to use this permission is declare it in your manifest. More dangerous permissions (like
the one allowing you to know the device’s location) also require a runtime request. (You will read more
about those in Chapter33.)
Using AsyncTask to Run on a Background Thread
The next step is to call and test the networking code you just added. However, you cannot simply call
FlickrFetchr.getUrlString(String) directly in PhotoGalleryFragment. Instead, you need to create
a background thread and run your code there.
The easiest way to work with a background thread is with a utility class called AsyncTask, which
creates a background thread for you and runs the code in the doInBackground(…) method on that
thread.
In PhotoGalleryFragment.java, add a new inner class called FetchItemsTask at the bottom of
PhotoGalleryFragment. Override AsyncTask.doInBackground(…) to get data from a website and log
it.
Chapter 25HTTP and Background Tasks
480
Listing 25.5Writing an AsyncTask, part I (PhotoGalleryFragment.java)
public class PhotoGalleryFragment extends Fragment {
private static final String TAG = "PhotoGalleryFragment";
private RecyclerView mPhotoRecyclerView;
...
private class FetchItemsTask extends AsyncTask<Void,Void,Void> {
@Override
protected Void doInBackground(Void... params) {
try {
String result = new FlickrFetchr()
.getUrlString("https://www.bignerdranch.com");
Log.i(TAG, "Fetched contents of URL: " + result);
} catch (IOException ioe) {
Log.e(TAG, "Failed to fetch URL: ", ioe);
}
return null;
}
}
}
Now, in PhotoGalleryFragment.onCreate(…), call execute() on a new instance of FetchItemsTask.
Listing 25.6Writing an AsyncTask, part II (PhotoGalleryFragment.java)
public class PhotoGalleryFragment extends Fragment {
private static final String TAG = "PhotoGalleryFragment";
private RecyclerView mPhotoRecyclerView;
@Override
public void onCreate(Bundle savedInstanceState) {
super.onCreate(savedInstanceState);
setRetainInstance(true);
new FetchItemsTask().execute();
}
...
}
The call to execute() will start your AsyncTask, which will then fire up its background thread and
call doInBackground(…). Run your code and you should see the amazing Big Nerd Ranch home page
HTML pop up in Logcat, as shown in Figure25.5.
Figure 25.5Big Nerd Ranch HTML in Logcat
Finding your log statements within the Logcat window can be tricky. It helps to search for something
specific. In this case, enter “PhotoGalleryFragment” into the Logcat search box, as shown.
You and Your Main Thread
481
Now that you have created a background thread and run some networking code on it, let’s take a closer
look at threads in Android.
You and Your Main Thread
Networking does not happen immediately. A web server may take as long as a second or two to
respond, and a file download can take even longer than that. Because networking can take so long,
Android disallows all networking on the main thread. If you try to do it, Android will throw a
NetworkOnMainThreadException.
Why? To understand that, you need to understand what a thread is, what the main thread is, and what
the main thread does.
A thread is a single sequence of execution. Code running within a single thread will execute one step
after another. Every Android app starts life with a main thread. The main thread, however, is not a
preordained list of steps. Instead, it sits in an infinite loop and waits for events initiated by the user or
the system. Then it executes code in response to those events as they occur (Figure25.6).
Figure 25.6Regular threads vs the main thread
Imagine that your app is an enormous shoe store, and that you only have one employee – The Flash.
(Who hasn’t dreamed of that?) There are a lot of things to do in a store to keep the customers happy:
arranging the merchandise, fetching shoes for customers, wielding the Brannock device. With The
Flash as your salesperson, everyone is taken care of in a timely fashion, even though there is only one
guy doing all the work.
For this situation to work, The Flash cannot spend too much time doing any one thing. What if a
shipment of shoes goes missing? Someone will have to spend a lot of time on the phone straightening it
out. Your customers will get mighty impatient waiting for shoes while The Flash is on hold.
Chapter 25HTTP and Background Tasks
482
The Flash is like the main thread in your application. It runs all the code that updates the UI. This
includes the code executed in response to different UI-related events – activity startup, button presses,
and so on. (Because the events are all related to the UI in some way, the main thread is sometimes
called the UI thread.)
The event loop keeps the UI code in sequence. It makes sure that none of these operations step on each
other while still ensuring that the code is executed in a timely fashion. So far, all of the code you have
written (except for the code you just wrote with AsyncTask) has been executed on the main thread.
Beyond the main thread
Networking is a lot like a phone call to your shoe distributor: It takes a long time compared to other
tasks. During that time, the UI will be completely unresponsive, which might result in an application
not responding, or ANR.
An ANR occurs when Android’s watchdog determines that the main thread has failed to respond to an
important event, like pressing the Back button. To the user, it looks like Figure25.7.
Figure 25.7Application not responding
In your store, you would solve the problem by (naturally) hiring a second Flash to call the shoe
distributor. In Android, you do something similar – you create a background thread and access the
network from there.
And what is the easiest way to work with a background thread? Why, AsyncTask.
You will get to see other things AsyncTask can do later this chapter. Before you do that, you will want
to do some real work with your networking code.
Fetching JSON from Flickr
483
Fetching JSON from Flickr
JSON stands for JavaScript Object Notation, a format that has become popular in recent years,
particularly for web services. Android includes the standard org.json package, which has classes that
provide simple access to creating and parsing JSON text. The Android developer documentation has
information about org.json, and you can get more information about JSON as a format at json.org.
Flickr offers a fine JSON API. All the details you need are available in the documentation at
www.flickr.com/services/api/. Pull it up in your favorite web browser and find the list of Request
Formats. You will be using the simplest – REST. This tells you that the API endpoint is https://
api.flickr.com/services/rest/. You can invoke the methods Flickr provides on this endpoint.
Back on the main page of the API documentation, find the list of API Methods. Scroll down to the
photos section, then locate and click on flickr.photos.getRecent. The documentation will report that this
method “Returns a list of the latest public photos uploaded to flickr.” That is exactly what you need for
PhotoGallery.
The only required parameter for the getRecent method is an API key. To get an API key, return to
www.flickr.com/services/api/ and follow the link for API keys. You will need a Yahoo ID to log
in. Once you are logged in, request a new, noncommercial API key. This usually only takes a moment.
Your API key will look something like 4f721bgafa75bf6d2cb9af54f937bb70. (You do not need the
“Secret,” which is only used when an app will access user-specific information or images.)
Once you have a key, you have all you need to make a request to the Flickr web service. Your GET
request URL will look something like this:
https://api.flickr.com/services/rest/?
method=flickr.photos.getRecent&api_key=xxx&format=json&nojsoncallback=1.
The Flickr response is in XML format by default. To get a valid JSON response, you need to specify
values for both the format and nojsoncallback parameters. Setting nojsoncallback to 1 tells Flickr
to exclude the enclosing method name and parentheses from the response it sends back. This is
necessary so that your Java code can more easily parse the response.
Copy the example URL into your browser, replacing the “xxx” value provided for the api_key with
your actual API key. This will allow you to see an example of what the response data will look like, as
shown in Figure25.8.
Figure 25.8Example JSON output
Time to start coding. First, add some constants to FlickrFetchr.
Chapter 25HTTP and Background Tasks
484
Listing 25.7Adding constants (FlickrFetchr.java)
public class FlickrFetchr {
private static final String TAG = "FlickrFetchr";
private static final String API_KEY = "yourApiKeyHere";
...
}
Make sure to replace yourApiKeyHere with the API key you generated earlier.
Now use the constants to write a method that builds an appropriate request URL and fetches its
contents.
Listing 25.8Adding fetchItems() method (FlickrFetchr.java)
public class FlickrFetchr {
...
public String getUrlString(String urlSpec) throws IOException {
return new String(getUrlBytes(urlSpec));
}
public void fetchItems() {
try {
String url = Uri.parse("https://api.flickr.com/services/rest/")
.buildUpon()
.appendQueryParameter("method", "flickr.photos.getRecent")
.appendQueryParameter("api_key", API_KEY)
.appendQueryParameter("format", "json")
.appendQueryParameter("nojsoncallback", "1")
.appendQueryParameter("extras", "url_s")
.build().toString();
String jsonString = getUrlString(url);
Log.i(TAG, "Received JSON: " + jsonString);
} catch (IOException ioe) {
Log.e(TAG, "Failed to fetch items", ioe);
}
}
}
Here you use a Uri.Builder to build the complete URL for your Flickr API request.
Uri.Builder is a convenience class for creating properly escaped parameterized URLs.
Uri.Builder.appendQueryParameter(String, String) will automatically escape query strings for
you.
Notice you added values for the method, api_key, format, and nojsoncallback parameters. You also
specified one extra parameter called extras, with a value of url_s. Specifying the url_s extra tells
Flickr to include the URL for the small version of the picture if it is available.
Fetching JSON from Flickr
485
Finally, modify the AsyncTask in PhotoGalleryFragment to call the new fetchItems() method.
Listing 25.9Calling fetchItems() (PhotoGalleryFragment.java)
public class PhotoGalleryFragment extends Fragment {
...
private class FetchItemsTask extends AsyncTask<Void,Void,Void> {
@Override
protected Void doInBackground(Void... params) {
try {
String result = new FlickrFetchr()
.getUrlString("https://www.bignerdranch.com");
Log.i(TAG, "Fetched contents of URL: " + result);
} catch (IOException ioe) {
Log.e(TAG, "Failed to fetch URL: ", ioe);
}
new FlickrFetchr().fetchItems();
return null;
}
}
}
Run PhotoGallery and you should see rich, fertile Flickr JSON in Logcat, like Figure25.9. (It will help
to search for “FlickrFetchr” in the Logcat search box.)
Figure 25.9Flickr JSON in Logcat
Unfortunately the Android Studio Logcat window does not wrap the output nicely as of this writing.
Scroll to the right to see more of the extremely long JSON response string. (Logcat can be finicky. Do
not panic if you do not get results like ours. Sometimes the connection to the emulator is not quite right
and the log messages do not get printed out. Usually it clears up over time, but sometimes you have to
rerun your application or even restart your emulator.)
Chapter 25HTTP and Background Tasks
486
Now that you have such fine JSON from Flickr, what should you do with it? You do what you do with
all data – put it in one or more model objects. The model class you are going to create for PhotoGallery
is called GalleryItem. Figure25.10 shows an object diagram of PhotoGallery.
Figure 25.10Object diagram of PhotoGallery
Note that Figure25.10 does not show the hosting activity so that it can focus on the fragment and the
networking code.
Create the GalleryItem class and add the following code:
Listing 25.10Creating model object class (GalleryItem.java)
public class GalleryItem {
private String mCaption;
private String mId;
private String mUrl;
@Override
public String toString() {
return mCaption;
}
}
Have Android Studio generate getters and setters for mCaption, mId, and mUrl.
Now that you have made model objects, it is time to fill them with data from the JSON you got from
Flickr.
Parsing JSON text
487
Parsing JSON text
The JSON response displayed in your browser and Logcat window is hard to read. If you pretty print
(format with white space) the response, it looks something like Figure25.11.
Figure 25.11JSON hierarchy
A JSON object is a set of name-value pairs enclosed between curly braces, { }. A JSON array is a
comma-separated list of JSON objects enclosed in square brackets, [ ]. You can have objects nested
within each other, resulting in a hierarchy.
Chapter 25HTTP and Background Tasks
488
The org.json API provides Java objects corresponding to JSON text, such as JSONObject
and JSONArray. You can easily parse JSON text into corresponding Java objects using the
JSONObject(String) constructor. Update fetchItems() to do just that.
Listing 25.11Reading JSON string into JSONObject (FlickrFetchr.java)
public class FlickrFetchr {
private static final String TAG = "FlickrFetchr";
...
public void fetchItems() {
try {
...
Log.i(TAG, "Received JSON: " + jsonString);
JSONObject jsonBody = new JSONObject(jsonString);
} catch (IOException ioe) {
Log.e(TAG, "Failed to fetch items", ioe);
} catch (JSONException je){
Log.e(TAG, "Failed to parse JSON", je);
}
}
}
The JSONObject constructor parses the JSON string you passed it, resulting in an object hierarchy that
maps to the original JSON text. The object hierarchy for the JSON returned from Flickr is shown in
Figure25.11.
Here you have a top-level JSONObject that maps to the outermost curly braces in the original JSON
text. This top-level object contains a nested JSONObject named photos. Within this nested JSONObject
is a JSONArray named photo. This array contains a collection of JSONObjects, each representing
metadata for a single photo.
Parsing JSON text
489
Write a method that pulls out information for each photo. Make a GalleryItem for each photo and add
it to a List.
Listing 25.12Parsing Flickr photos (FlickrFetchr.java)
public class FlickrFetchr {
private static final String TAG = "FlickrFetchr";
...
public void fetchItems() {
...
}
private void parseItems(List<GalleryItem> items, JSONObject jsonBody)
throws IOException, JSONException {
JSONObject photosJsonObject = jsonBody.getJSONObject("photos");
JSONArray photoJsonArray = photosJsonObject.getJSONArray("photo");
for (int i = 0; i < photoJsonArray.length(); i++) {
JSONObject photoJsonObject = photoJsonArray.getJSONObject(i);
GalleryItem item = new GalleryItem();
item.setId(photoJsonObject.getString("id"));
item.setCaption(photoJsonObject.getString("title"));
if (!photoJsonObject.has("url_s")) {
continue;
}
item.setUrl(photoJsonObject.getString("url_s"));
items.add(item);
}
}
}
This code uses convenience methods such as getJSONObject(String name) and
getJSONArray(String name) to navigate the JSONObject hierarchy. (These methods are also
annotated in Figure25.11.)
Flickr does not always return a url_s component for each image. You add a check here to ignore
images that do not have an image URL.
Chapter 25HTTP and Background Tasks
490
The parseItems(…) method needs a List and JSONObject. Update fetchItems() to call
parseItems(…) and return a List of GalleryItems.
Listing 25.13Calling parseItems(…) (FlickrFetchr.java)
public void List<GalleryItem> fetchItems() {
List<GalleryItem> items = new ArrayList<>();
try {
String url = ...;
String jsonString = getUrlString(url);
Log.i(TAG, "Received JSON: " + jsonString);
JSONObject jsonBody = new JSONObject(jsonString);
parseItems(items, jsonBody);
} catch (JSONException je) {
Log.e(TAG, "Failed to parse JSON", je);
} catch (IOException ioe) {
Log.e(TAG, "Failed to fetch items", ioe);
}
return items;
}
Run PhotoGallery to test your JSON parsing code. PhotoGallery has no way of reporting the contents
of your List right now, so you will need to set a breakpoint and use the debugger if you want to make
sure everything worked correctly.
From AsyncTask Back to the Main Thread
491
From AsyncTask Back to the Main Thread
To finish off, let’s switch to the view layer and get PhotoGalleryFragment’s RecyclerView to display
some captions.
First define a ViewHolder as an inner class.
Listing 25.14Adding a ViewHolder implementation
(PhotoGalleryFragment.java)
@Override
public View onCreateView(LayoutInflater inflater, ViewGroup container,
Bundle savedInstanceState) {
...
}
private class PhotoHolder extends RecyclerView.ViewHolder {
private TextView mTitleTextView;
public PhotoHolder(View itemView) {
super(itemView);
mTitleTextView = (TextView) itemView;
}
public void bindGalleryItem(GalleryItem item) {
mTitleTextView.setText(item.toString());
}
}
private class FetchItemsTask extends AsyncTask<Void,Void,Void> {
...
}
}
Chapter 25HTTP and Background Tasks
492
Next, add a RecyclerView.Adapter to provide PhotoHolders as needed based on a list of
GalleryItems.
Listing 25.15Adding a RecyclerView.Adapter implementation
(PhotoGalleryFragment.java)
public class PhotoGalleryFragment extends Fragment {
private static final String TAG = "PhotoGalleryFragment";
...
private class PhotoHolder extends RecyclerView.ViewHolder {
...
}
private class PhotoAdapter extends RecyclerView.Adapter<PhotoHolder> {
private List<GalleryItem> mGalleryItems;
public PhotoAdapter(List<GalleryItem> galleryItems) {
mGalleryItems = galleryItems;
}
@Override
public PhotoHolder onCreateViewHolder(ViewGroup viewGroup, int viewType) {
TextView textView = new TextView(getActivity());
return new PhotoHolder(textView);
}
@Override
public void onBindViewHolder(PhotoHolder photoHolder, int position) {
GalleryItem galleryItem = mGalleryItems.get(position);
photoHolder.bindGalleryItem(galleryItem);
}
@Override
public int getItemCount() {
return mGalleryItems.size();
}
}
...
}
From AsyncTask Back to the Main Thread
493
Now that you have the appropriate nuts and bolts in place for RecyclerView, add code to set up and
attach an adapter when appropriate.
Listing 25.16Implementing setupAdapter() (PhotoGalleryFragment.java)
public class PhotoGalleryFragment extends Fragment {
private static final String TAG = "PhotoGalleryFragment";
private RecyclerView mPhotoRecyclerView;
private List<GalleryItem> mItems = new ArrayList<>();
...
@Override
public View onCreateView(LayoutInflater inflater, ViewGroup container,
Bundle savedInstanceState) {
View v = inflater.inflate(R.layout.fragment_photo_gallery, container, false);
mPhotoRecyclerView = (RecyclerView) v.findViewById(R.id.photo_recycler_view);
mPhotoRecyclerView.setLayoutManager(new GridLayoutManager(getActivity(), 3));
setupAdapter();
return v;
}
private void setupAdapter() {
if (isAdded()) {
mPhotoRecyclerView.setAdapter(new PhotoAdapter(mItems));
}
}
...
}
The setupAdapter() method you just added looks at the current model state, namely the List
of GalleryItems, and configures the adapter appropriately on your RecyclerView. You call
setupAdapter() in onCreateView(…) so that every time a new RecyclerView is created, it is
reconfigured with an appropriate adapter. You also want to call it every time your set of model objects
changes.
Notice that you check to see whether isAdded() is true before setting the adapter. This confirms that
the fragment has been attached to an activity, and in turn that getActivity() will not be null.
Remember that fragments can exist unattached to any activity. Before now, this possibility has not
come up because your method calls have been driven by callbacks from the framework. In this
scenario, if a fragment is receiving callbacks, then it definitely is attached to an activity. No activity, no
callbacks.
However, now that you are using an AsyncTask you are triggering some callbacks from a background
thread. Thus you cannot assume that the fragment is attached to an activity. You must check to make
sure that your fragment is still attached. If it is not, then operations that rely on that activity (like
creating your PhotoAdapter, which in turn creates a TextView using the hosting activity as the context)
will fail. This is why, in your code above, you check that isAdded() is true before setting the adapter.
Chapter 25HTTP and Background Tasks
494
Now you need to call setupAdapter() after data has been fetched from Flickr. Your first instinct might
be to call setupAdapter() at the end of FetchItemsTask’s doInBackground(…). This is not a good
idea. Remember that you have two Flashes in the store now – one helping multiple customers, and one
on the phone with Flickr. What will happen if the second Flash tries to help customers after hanging up
the phone? Odds are good that the two Flashes will step on each other’s toes.
On a computer, this toe-stepping-on results in objects in memory becoming corrupted. Because of this,
you are not allowed to update the UI from a background thread, nor is it safe or advisable to do so.
What to do? AsyncTask has another method you can override called onPostExecute(…).
onPostExecute(…) is run after doInBackground(…) completes. More importantly, onPostExecute(…)
is run on the main thread, not the background thread, so it is safe to update the UI within it.
Modify FetchItemsTask to update mItems and call setupAdapter() after fetching your photos to
update the RecyclerView’s data source.
Listing 25.17Adding adapter update code (PhotoGalleryFragment.java)
private class FetchItemsTask extends AsyncTask<Void,Void,Void List<GalleryItem>> {
@Override
protected Void List<GalleryItem> doInBackground(Void... params) {
return new FlickrFetchr().fetchItems();
return null;
}
@Override
protected void onPostExecute(List<GalleryItem> items) {
mItems = items;
setupAdapter();
}
}
You made three changes here. First, you changed the type of the FetchItemsTask’s third generic
parameter. This parameter is the type of result produced by your AsyncTask. It sets the type of value
returned by doInBackground(…) as well as the type of onPostExecute(…)’s input parameter.
Second, you modified doInBackground(…) to return your list of GalleryItems. By doing this you fixed
your code so that it compiles properly. You also passed your list of items off so that it can be used from
within onPostExecute(…).
Finally, you added an implementation of onPostExecute(…). This method accepts as input the list you
fetched and returned inside doInBackground(…), puts it in mItems, and updates your RecyclerView’s
adapter.
With that, your work for this chapter is complete. Run PhotoGallery, and you should see text displayed
for each GalleryItem you downloaded (similar to Figure25.2).
Cleaning Up AsyncTasks
495
Cleaning Up AsyncTasks
In this chapter, your AsyncTask and other code was carefully structured so that you would not
have to keep track of the AsyncTask instance. For example, you retained the fragment (called
setRetainInstance(true)) so that rotation does not repeatedly fire off new AsyncTasks to fetch the
JSON data. However, in other situations you will need to keep a handle on your AsyncTasks, even
canceling and rerunning them at times.
For these more complicated uses, you will want to assign your AsyncTask to an instance variable. Once
you have a handle on it, you can call AsyncTask.cancel(boolean). This method allows you to cancel
an ongoing AsyncTask.
AsyncTask.cancel(boolean) can work in a more rude or less rude fashion. If you call
cancel(false), it will be polite and simply set isCancelled() to true. The AsyncTask can then
check isCancelled() inside of doInBackground(…) and elect to finish prematurely.
If you call cancel(true), however, it will be impolite and interrupt the thread doInBackground(…)
is on, if it is currently running. AsyncTask.cancel(true) is a more severe way of stopping the
AsyncTask. If you can avoid it, you should.
When and where should you cancel your AsyncTask? It depends. First, ask yourself whether the work
the AsyncTask is doing should stop if the fragment or activity is destroyed or goes out of view. If so,
you should cancel the AsyncTask instance in either onStop(…) (to cancel the task when the view is no
longer visible) or onDestroy(…) (to cancel the task when the fragment/activity instance is destroyed).
What if you want the work the AsyncTask is doing to survive the life of the fragment/activity and
its view? You could just let the AsyncTask run to completion, without canceling. However, this has
potential for memory leaks (e.g., the Activity instance being kept alive past when it should have been
destroyed) or problems related to updating or accessing the UI when it is in an invalid state. If you have
important work that must be completed regardless of what the user is doing, it is better to consider
alternative options, such as launching a Service (which you will learn more about in Chapter28).
Chapter 25HTTP and Background Tasks
496
For the More Curious: More on AsyncTask
In this chapter you saw how to use the last type parameter on AsyncTask, which specifies the return
type. What about the other two?
The first type parameter allows you to specify the type of input parameters you will pass to execute(),
which in turn dictates the type of input parameters doInBackground(…) will receive. You would use it
in the following way:
AsyncTask<String,Void,Void> task = new AsyncTask<String,Void,Void>() {
public Void doInBackground(String... params) {
for (String parameter : params) {
Log.i(TAG, "Received parameter: " + parameter);
}
return null;
}
};
Input parameters are passed to the execute(…) method, which takes a variable number of arguments:
task.execute("First parameter", "Second parameter", "Etc.");
Those variable arguments are then passed on to doInBackground(…).
The second type parameter allows you to specify the type for sending progress updates. Here is what
the code pieces look like:
final ProgressBar gestationProgressBar = /* A determinate progress bar */;
gestationProgressBar.setMax(42); /* Max allowed gestation period */
AsyncTask<Void,Integer,Void> haveABaby = new AsyncTask<Void,Integer,Void>() {
public Void doInBackground(Void... params) {
while (!babyIsBorn()) {
Integer weeksPassed = getNumberOfWeeksPassed();
publishProgress(weeksPassed);
patientlyWaitForBaby();
}
}
public void onProgressUpdate(Integer... params) {
int progress = params[0];
gestationProgressBar.setProgress(progress);
}
};
/* Call when you want to execute the AsyncTask */
haveABaby.execute();
Progress updates usually happen in the middle of an ongoing background process. The problem is that
you cannot make the necessary UI updates inside that background process. So AsyncTask provides
publishProgress(…) and onProgressUpdate(…).
Here is how it works: You call publishProgress(…) from doInBackground(…) in the background
thread. This will make onProgressUpdate(…) be called on the UI thread. So you can do
your UI updates in onProgressUpdate(…), but control them from doInBackground(…) with
publishProgress(…).
For the More Curious: Alternatives to AsyncTask
497
For the More Curious: Alternatives to AsyncTask
If you use an AsyncTask to load data, you are responsible for managing its lifecycle during
configuration changes, such as rotation, and stashing its data somewhere that lives through those
changes. Often, this is simplified by using setRetainInstance(true) on a Fragment and storing the
data there, but there are still situations where you have to intervene – and code you have to write to
ensure that everything happens correctly. Such situations include the user pressing the Back button
while the AsyncTask is running, or the fragment that launched the AsyncTask getting destroyed during
execution by the OS due to a low-memory situation.
Using a Loader is an alternative solution that takes some (but not all) of this responsibility off your
hands. A loader is designed to load some kind of data (an object) from some source. The source could
be a disk, a database, a ContentProvider, the network, or another process.
AsyncTaskLoader is an abstract Loader that uses an AsyncTask to move the work of loading data to
another thread. Almost all useful loader classes you create will be a subclass of AsyncTaskLoader. The
AsyncTaskLoader will do the job of fetching the data without blocking the main thread and delivering
the results to whomever is interested.
Why would you use a loader instead of, say, an AsyncTask directly? Well, the most compelling
reason is that the LoaderManager will keep your component’s loaders alive, along with their data,
between configuration changes like rotation. LoaderManager is responsible for starting, stopping, and
maintaining the lifecycle of any Loaders associated with your component.
If, after a configuration change, you initialize a loader that has already finished loading its data, it can
deliver that data immediately rather than trying to fetch it again. This works whether your fragment
is retained or not, which can make your life easier because you do not have to consider the lifecycle
complications that retained fragments can introduce.
Chapter 25HTTP and Background Tasks
498
Challenge: Gson
Deserializing JSON in Java objects, as you did in Listing 25.12, is a common task in app development
regardless of the platform. Lots of smart people have created libraries to simplify the process of
converting JSON text to Java objects and back again.
One such library is Gson (github.com/google/gson). Gson maps JSON data to Java objects for you
automatically. This means you do not need to write any parsing code. For this reason, Gson is currently
our favorite JSON parsing library.
For this challenge, simplify your JSON parsing code in FlickrFetchr by incorporating the Gson
library into your app.
Challenge: Paging
By default, getRecent returns one page of 100 results. There is an additional parameter you can use
called page that will let you return page two, three, and so on.
For this challenge, implement a RecyclerView.OnScrollListener that detects when you are at the
end of your results and replaces the current page with the next page of results. For a slightly harder
challenge, append subsequent pages to your results.
Challenge: Dynamically Adjusting the Number of
Columns
Currently the number of columns displayed in the grid is fixed at three. Update your code to provide a
dynamic number of columns so more columns appear in landscape and on larger devices.
A simple approach could involve providing an integer resource qualified for different orientations and/
or screen sizes. This is similar to the way you provided different layouts for different screen sizes in
Chapter17. Integer resources should be placed in the res/values folder(s). Check out the Android
developer documentation for more details.
Providing qualified resources does not offer much in the way of granularity. For a more difficult
challenge (and a more flexible implementation), calculate and set the number of columns each time
the fragment’s view is created. Calculate the number of columns based on the current width of the
RecyclerView and some predetermined constant column width.
There is only one catch: You cannot calculate the number of columns in
onCreateView() because the RecyclerView will not be sized yet. Instead, implement a
ViewTreeObserver.OnGlobalLayoutListener and put your column calculation code in
onGlobalLayout(). Add the listener to your RecyclerView using addOnGlobalLayoutListener().
499
26
Loopers, Handlers, and
HandlerThread
Now that you have downloaded and parsed JSON from Flickr, your next task is to download and
display images. In this chapter, you will learn how to use Looper, Handler, and HandlerThread to
dynamically download and display photos in PhotoGallery.
Preparing RecyclerView to Display Images
The current PhotoHolder in PhotoGalleryFragment simply provides TextViews for the
RecyclerView’s GridLayoutManager to display. Each TextView displays the caption of a GalleryItem.
To display photos, you are going to update PhotoHolder to provide ImageViews instead. Eventually,
each ImageView will display a photo downloaded from the mUrl of a GalleryItem.
Start by creating a new layout file for your gallery items called list_item_gallery.xml. This layout
will consist of a single ImageView (Figure26.1).
Figure 26.1Gallery item layout (res/layout/list_item_gallery.xml)
These ImageViews will be managed by RecyclerView’s GridLayoutManager, which means that
their width will vary. Their height, on the other hand, will remain fixed. To make the most of the
ImageView’s space, you have set its scaleType to centerCrop. This setting centers the image and then
scales it up so that the smaller dimension is equal to the view and the larger one is cropped on both
sides.
Chapter 26Loopers, Handlers, and HandlerThread
500
Next, update PhotoHolder to hold an ImageView instead of a TextView. Replace bindGalleryItem()
with a method to set the ImageView’s Drawable.
Listing 26.1Updating PhotoHolder (PhotoGalleryFragment.java)
private class PhotoHolder extends RecyclerView.ViewHolder {
private TextView mTitleTextView ImageView mItemImageView;
public PhotoHolder(View itemView) {
super(itemView);
mTitleTextView = (TextView) itemView;
mItemImageView = (ImageView) itemView.findViewById(R.id.item_image_view);
}
public void bindGalleryItem(GalleryItem item) {
mTitleTextView.setText(item.toString());
}
public void bindDrawable(Drawable drawable) {
mItemImageView.setImageDrawable(drawable);
}
}
Previously the PhotoHolder constructor assumed it would be passed a TextView directly. The
new version instead expects a view hierarchy that contains an ImageView with the resource ID
R.id.item_image_view.
Update PhotoAdapter’s onCreateViewHolder(…) to inflate the gallery_item file you created and pass
it to PhotoHolder’s constructor.
Listing 26.2Updating PhotoAdapter’s onCreateViewHolder(…)
(PhotoGalleryFragment.java)
public class PhotoGalleryFragment extends Fragment {
...
private class PhotoAdapter extends RecyclerView.Adapter<PhotoHolder> {
...
@Override
public PhotoHolder onCreateViewHolder(ViewGroup viewGroup, int viewType) {
TextView textView = new TextView(getActivity());
return new PhotoHolder(textView);
LayoutInflater inflater = LayoutInflater.from(getActivity());
View view = inflater.inflate(R.layout.gallery_item, viewGroup, false);
return new PhotoHolder(view);
}
...
}
...
}
Next, you will need a placeholder image for each ImageView to display until you download an image
to replace it. Find bill_up_close.png in the solutions file and put it in res/drawable. (See the section
called Adding an Icon in Chapter2 for more on the solutions.)
Preparing RecyclerView to Display Images
501
Update PhotoAdapter’s onBindViewHolder(…) to set the placeholder image as the ImageView’s
Drawable.
Listing 26.3Binding default image (PhotoGalleryFragment.java)
public class PhotoGalleryFragment extends Fragment {
...
private class PhotoAdapter extends RecyclerView.Adapter<PhotoHolder> {
...
@Override
public void onBindViewHolder(PhotoHolder photoHolder, int position) {
GalleryItem galleryItem = mGalleryItems.get(position);
photoHolder.bindGalleryItem(galleryItem);
Drawable placeholder = getResources().getDrawable(R.drawable.bill_up_close);
photoHolder.bindDrawable(placeholder);
}
...
}
...
}
Run PhotoGallery, and you should see an array of close-up Bills, as in Figure26.2.
Figure 26.2A Billsplosion
Chapter 26Loopers, Handlers, and HandlerThread
502
Downloading Lots of Small Things
Currently, PhotoGallery’s networking works like this: PhotoGalleryFragment executes an AsyncTask
that retrieves the JSON from Flickr on a background thread and parses the JSON into an array of
GalleryItems. Each GalleryItem now has a URL where a thumbnail-size photo lives.
The next step is to go and get those thumbnails. You might think that this additional networking code
could simply be added to FetchItemsTask’s doInBackground(…) method. Your GalleryItem array has
100 URLs to download from. You would download the images one after another until you had all 100.
When onPostExecute(…) executed, they would be displayed en masse in the RecyclerView.
However, downloading the thumbnails all at once causes two problems. The first is that it could take
a while, and the UI would not be updated until the downloading was complete. On a slow connection,
users would be staring at a wall of Bills for a long time.
The second problem is the cost of having to store the entire set of images. One hundred thumbnails will
fit into memory easily. But what if it were 1,000? What if you wanted to implement infinite scrolling?
Eventually, you would run out of space.
Given these problems, real-world apps often download images only when they need to be displayed
onscreen. Downloading on demand puts the responsibility on the RecyclerView and its adapter. The
adapter triggers the image downloading as part of its onBindViewHolder(…) implementation.
AsyncTask is the easiest way to get a background thread, but it is ill-suited for repetitive and long-
running work. (You can read why in the section called For the More Curious: AsyncTasks vs Threads at
the end of this chapter.)
Instead of using an AsyncTask, you are going to create a dedicated background thread. This is the most
common way to implement downloading on an as-needed basis.
Communicating with the Main Thread
Your dedicated thread will download photos, but how will it work with the RecyclerView’s adapter to
display them when it cannot directly access the main thread?
Think back to the shoe store with two Flashes. Background Flash has wrapped up his phone call to
the distributor. He needs to tell Main Flash that the shoes are back in stock. If Main Flash is busy,
Background Flash cannot do this right away. He would have to wait by the register to catch Main Flash
at a spare moment. This would work, but it would not be very efficient.
The better solution is to give each Flash an inbox. Background Flash writes a message about the shoes
being in stock and puts it on top of Main Flash’s inbox. Main Flash does the same thing when he wants
to tell Background Flash that the stock of shoes has run out.
The inbox idea turns out to be really handy. The Flash may have something that needs to be done soon,
but not right at the moment. In that case, he can put a message in his own inbox and then handle it
when he has time.
Communicating with the Main Thread
503
In Android, the inbox that threads use is called a message queue. A thread that works by using a
message queue is called a message loop; it loops again and again looking for new messages on its
queue (Figure26.3).
Figure 26.3Flash dance
A message loop consists of a thread and a looper. The Looper is the object that manages a thread’s
message queue.
The main thread is a message loop and has a looper. Everything your main thread does is performed by
its looper, which grabs messages off of its message queue and performs the task they specify.
You are going to create a background thread that is also a message loop. You will use a class called
HandlerThread that prepares a Looper for you.
Chapter 26Loopers, Handlers, and HandlerThread
504
Assembling a Background Thread
Create a new class called ThumbnailDownloader that extends HandlerThread. Then give it a
constructor, a stub implementation of a method called queueThumbnail(), and an override of the
quit() method that signals when your thread has quit. (Toward the end of the chapter, you will need
this bit of information.)
Listing 26.4Initial thread code (ThumbnailDownloader.java)
public class ThumbnailDownloader<T> extends HandlerThread {
private static final String TAG = "ThumbnailDownloader";
private boolean mHasQuit = false;
public ThumbnailDownloader() {
super(TAG);
}
@Override
public boolean quit() {
mHasQuit = true;
return super.quit();
}
public void queueThumbnail(T target, String url) {
Log.i(TAG, "Got a URL: " + url);
}
}
Notice that you gave the class a single generic argument, <T>. Your ThumbnailDownloader’s user,
PhotoGalleryFragment in this case, will need to use some object to identify each download and to
determine which UI element to update with the image once it is downloaded. Rather than locking the
user into a specific type of object as the identifier, using a generic makes the implementation more
flexible.
The queueThumbnail() method expects an object of type T to use as the identifier for the download
and a String containing the URL to download. This is the method you will have PhotoAdapter call in
its onBindViewHolder(…) implementation.
Assembling a Background Thread
505
Open PhotoGalleryFragment.java. Give PhotoGalleryFragment a ThumbnailDownloader member
variable. In onCreate(…), create the thread and start it. Override onDestroy() to quit the thread.
Listing 26.5Creating ThumbnailDownloader (PhotoGalleryFragment.java)
public class PhotoGalleryFragment extends Fragment {
private static final String TAG = "PhotoGalleryFragment";
private RecyclerView mPhotoRecyclerView;
private List<GalleryItem> mItems = new ArrayList<>();
private ThumbnailDownloader<PhotoHolder> mThumbnailDownloader;
...
@Override
public void onCreate(Bundle savedInstanceState) {
super.onCreate(savedInstanceState);
setRetainInstance(true);
new FetchItemsTask().execute();
mThumbnailDownloader = new ThumbnailDownloader<>();
mThumbnailDownloader.start();
mThumbnailDownloader.getLooper();
Log.i(TAG, "Background thread started");
}
@Override
public View onCreateView(LayoutInflater inflater, ViewGroup container,
Bundle savedInstanceState) {
...
}
@Override
public void onDestroy() {
super.onDestroy();
mThumbnailDownloader.quit();
Log.i(TAG, "Background thread destroyed");
}
...
}
You can specify any type for ThumbnailDownloader’s generic argument. However, recall that this
argument specifies the type of the object that will be used as the identifier for your download. In this
case, the PhotoHolder makes for a convenient identifier as it is also the target where the downloaded
images will eventually go.
A couple of safety notes. One: Notice that you call getLooper() after calling start() on your
ThumbnailDownloader (you will learn more about the Looper in a moment). This is a way to ensure
that the thread’s guts are ready before proceeding, to obviate a potential (though rarely occurring) race
condition. Until you call getLooper(), there is no guarantee that onLooperPrepared() has been called,
so there is a possibility that calls to queueThumbnail(…) will fail due to a null Handler.
Safety note number two: You call quit() to terminate the thread inside onDestroy(). This is critical. If
you do not quit your HandlerThreads, they will never die. Like zombies. Or rock and roll.
Chapter 26Loopers, Handlers, and HandlerThread
506
Finally, within PhotoAdapter.onBindViewHolder(…), call the thread’s queueThumbnail() method and
pass in the target PhotoHolder where the image will ultimately be placed and the GalleryItem’s URL
to download from.
Listing 26.6Hooking up ThumbnailDownloader
(PhotoGalleryFragment.java)
public class PhotoGalleryFragment extends Fragment {
...
private class PhotoAdapter extends RecyclerView.Adapter<PhotoHolder> {
...
@Override
public void onBindViewHolder(PhotoHolder photoHolder, int position) {
GalleryItem galleryItem = mGalleryItems.get(position);
Drawable placeholder = getResources().getDrawable(R.drawable.bill_up_close);
photoHolder.bindDrawable(placeholder);
mThumbnailDownloader.queueThumbnail(photoHolder, galleryItem.getUrl());
}
...
}
...
}
Run PhotoGallery and check out Logcat. When you scroll around the RecyclerView, you should see
lines in Logcat signaling that ThumbnailDownloader is getting each one of your download requests.
Now that you have a HandlerThread up and running, the next step is to create a message with the
information passed in to queueThumbnail(), and then put that message on the ThumbnailDownloader’s
message queue.
Messages and Message Handlers
Before you create a message, you need to understand what a Message is and the relationship it has with
its Handler (often called its message handler).
Message anatomy
Let’s start by looking closely at messages. The messages that a Flash might put in an inbox (its own
inbox or that of another Flash) are not supportive notes, like, “You run very fast, Flash.” They are tasks
that need to be handled.
A message is an instance of Message and contains several fields. Three are relevant to your
implementation:
what a user-defined int that describes the message
obj a user-specified object to be sent with the message
target the Handler that will handle the message
Handler anatomy
507
The target of a Message is an instance of Handler. You can think of the name Handler as being short
for “message handler.” When you create a Message, it will automatically be attached to a Handler. And
when your Message is ready to be processed, Handler will be the object in charge of making it happen.
Handler anatomy
To do any real work with messages, you will need an instance of Handler first. A Handler is not just
a target for processing your Messages. A Handler is your interface for creating and posting Messages,
too. Take a look at Figure26.4.
Figure 26.4Looper, Handler, HandlerThread, and Messages
Messages must be posted and consumed on a Looper, because Looper owns the inbox of Message
objects. So Handler always has a reference to its coworker, the Looper.
A Handler is attached to exactly one Looper, and a Message is attached to exactly one target Handler,
called its target. A Looper has a whole queue of Messages. Multiple Messages can reference the same
target Handler (Figure26.4).
Chapter 26Loopers, Handlers, and HandlerThread
508
Multiple Handlers can be attached to one Looper (Figure26.5). This means that your Handler’s
Messages may be living side by side with another Handler’s messages.
Figure 26.5Multiple Handlers, one Looper
Using handlers
Usually, you do not set a message’s target Handler by hand. It is better to build the message by calling
Handler.obtainMessage(…). You pass the other message fields into this method, and it automatically
sets the target to the Handler object the method was called on for you.
Handler.obtainMessage(…) pulls from a common recycling pool to avoid creating new Message
objects, so it is also more efficient than creating new instances.
Once you have obtained a Message, you call sendToTarget() to send the Message to its Handler. The
Handler will then put the Message on the end of Looper’s message queue.
In this case, you are going to obtain a message and send it to its target within the implementation
of queueThumbnail(). The message’s what will be a constant defined as MESSAGE_DOWNLOAD. The
message’s obj will be an object of type T, which will be used to identify the download. In this case,
obj will be the PhotoHolder that the adapter passed in to queueThumbnail().
When the looper pulls a Message from the queue, it gives the message to the message’s
target Handler to handle. Typically, the message is handled in the target’s implementation of
Handler.handleMessage(…).
Using handlers
509
Figure26.6 shows the object relationships involved.
Figure 26.6Creating a Message and sending it
In this case, your implementation of handleMessage(…) will use FlickrFetchr to download bytes
from the URL and then turn these bytes into a bitmap.
First, add the constant and member variables as shown in Listing 26.7.
Listing 26.7Adding constant and member variables
(ThumbnailDownloader.java)
public class ThumbnailDownloader<T> extends HandlerThread {
private static final String TAG = "ThumbnailDownloader";
private static final int MESSAGE_DOWNLOAD = 0;
private boolean mHasQuit = false;
private Handler mRequestHandler;
private ConcurrentMap<T,String> mRequestMap = new ConcurrentHashMap<>();
...
}
MESSAGE_DOWNLOAD will be used to identify messages as download requests. (ThumbnailDownloader
will set this as the what on any new download messages it creates.)
The newly added mRequestHandler will store a reference to the Handler responsible for queueing
download requests as messages onto the ThumbnailDownloader background thread. This handler will
also be in charge of processing download request messages when they are pulled off the queue.
The mRequestMap variable is a ConcurrentHashMap, a thread-safe version of HashMap. Here, using a
download request’s identifying object of type T as a key, you can store and retrieve the URL associated
with a particular request. (In this case, the identifying object is a PhotoHolder, so the request response
can be easily routed back to the UI element where the downloaded image should be placed.)
Chapter 26Loopers, Handlers, and HandlerThread
510
Next, add code to queueThumbnail(…) to update mRequestMap and to post a new message to the
background thread’s message queue.
Listing 26.8Obtaining and sending a message (ThumbnailDownloader.java)
public class ThumbnailDownloader<T> extends HandlerThread {
private static final String TAG = "ThumbnailDownloader";
private static final int MESSAGE_DOWNLOAD = 0;
private boolean mHasQuit = false;
private Handler mRequestHandler;
private ConcurrentMap<T,String> mRequestMap = new ConcurrentHashMap<>();
public ThumbnailDownloader() {
super(TAG);
}
@Override
public boolean quit() {
mHasQuit = true;
return super.quit();
}
public void queueThumbnail(T target, String url) {
Log.i(TAG, "Got a URL: " + url);
if (url == null) {
mRequestMap.remove(target);
} else {
mRequestMap.put(target, url);
mRequestHandler.obtainMessage(MESSAGE_DOWNLOAD, target)
.sendToTarget();
}
}
}
You obtain a message directly from mRequestHandler, which automatically sets the new Message
object’s target field to mRequestHandler. This means mRequestHandler will be in charge of
processing the message when it is pulled off the message queue. The message’s what field is set to
MESSAGE_DOWNLOAD. Its obj field is set to the T target value (a PhotoHolder in this case) that is
passed to queueThumbnail(…).
The new message represents a download request for the specified T target (a PhotoHolder from the
RecyclerView). Recall that PhotoGalleryFragment’s RecyclerView’s adapter implementation calls
queueThumbnail(…) from onBindViewHolder(…), passing along the PhotoHolder the image is being
downloaded for and the URL location of the image to download.
Notice that the message itself does not include the URL. Instead you update mRequestMap with
a mapping between the request identifier (PhotoHolder) and the URL for the request. Later you
will pull the URL from mRequestMap to ensure that you are always downloading the most recently
requested URL for a given PhotoHolder instance. (This is important because ViewHolder objects in
RecyclerViews are recycled and reused.)
Using handlers
511
Finally, initialize mRequestHandler and define what that Handler will do when downloaded messages
are pulled off the queue and passed to it.
Listing 26.9Handling a message (ThumbnailDownloader.java)
public class ThumbnailDownloader<T> extends HandlerThread {
private static final String TAG = "ThumbnailDownloader";
private static final int MESSAGE_DOWNLOAD = 0;
private boolean mHasQuit = false;
private Handler mRequestHandler;
private ConcurrentMap<T,String> mRequestMap = new ConcurrentHashMap<>();
public ThumbnailDownloader() {
super(TAG);
}
@Override
protected void onLooperPrepared() {
mRequestHandler = new Handler() {
@Override
public void handleMessage(Message msg) {
if (msg.what == MESSAGE_DOWNLOAD) {
T target = (T) msg.obj;
Log.i(TAG, "Got a request for URL: " + mRequestMap.get(target));
handleRequest(target);
}
}
};
}
@Override
public boolean quit() {
mHasQuit = true;
return super.quit();
}
public void queueThumbnail(T target, String url) {
...
}
private void handleRequest(final T target) {
try {
final String url = mRequestMap.get(target);
if (url == null) {
return;
}
byte[] bitmapBytes = new FlickrFetchr().getUrlBytes(url);
final Bitmap bitmap = BitmapFactory
.decodeByteArray(bitmapBytes, 0, bitmapBytes.length);
Log.i(TAG, "Bitmap created");
} catch (IOException ioe) {
Log.e(TAG, "Error downloading image", ioe);
}
}
}
Chapter 26Loopers, Handlers, and HandlerThread
512
You implemented Handler.handleMessage(…) in your Handler subclass within onLooperPrepared().
HandlerThread.onLooperPrepared() is called before the Looper checks the queue for the first time.
This makes it a good place to create your Handler implementation.
Within Handler.handleMessage(…), you check the message type, retrieve the obj value (which will
be of type T and serves as the identifier for the request), and then pass it to handleRequest(…). (Recall
that Handler.handleMessage(…) will get called when a download message is pulled off the queue and
ready to be processed.)
The handleRequest() method is a helper method where the downloading happens. Here you check for
the existence of a URL. Then you pass the URL to a new instance of your old friend FlickrFetchr. In
particular, you use the FlickrFetchr.getUrlBytes(…) method that you created with such foresight in
the last chapter.
Finally, you use BitmapFactory to construct a bitmap with the array of bytes returned from
getUrlBytes(…).
Run PhotoGallery and check Logcat for your confirming log statements.
Of course, the request will not be completely handled until you set the bitmap on the PhotoHolder that
originally came from PhotoAdapter. However, this is UI work, so it must be done on the main thread.
Everything you have seen so far uses handlers and messages on a single thread –
ThumbnailDownloader putting messages in ThumbnailDownloader’s own inbox. In the next section,
you will see how ThumbnailDownloader can use a Handler to post requests to a separate thread
(namely, the main thread).
Passing handlers
So far you are able to schedule work on the background thread from the main thread using
ThumbnailDownloader’s mRequestHandler. This flow is shown in Figure26.7.
Figure 26.7Scheduling work on ThumbnailDownloader from the main thread
Passing handlers
513
You can also schedule work on the main thread from the background thread using a Handler attached
to the main thread. This flow looks like Figure26.8.
Figure 26.8Scheduling work on the main thread from ThumbnailDownloader’s
thread
The main thread is a message loop with handlers and a Looper. When you create a Handler in the
main thread, it will be associated with the main thread’s Looper. You can then pass that Handler to
another thread. The passed Handler maintains its loyalty to the Looper of the thread that created it.
Any messages the Handler is responsible for will be handled on the main thread’s queue.
Chapter 26Loopers, Handlers, and HandlerThread
514
In ThumbnailDownloader.java, add the mResponseHandler variable seen above to hold a Handler
passed from the main thread. Then replace the constructor with one that accepts a Handler and sets the
variable. Also, add a listener interface that will be used to communicate the responses (downloaded
images) with the requester (the main thread).
Listing 26.10Handling a message (ThumbnailDownloader.java)
public class ThumbnailDownloader<T> extends HandlerThread {
private static final String TAG = "ThumbnailDownloader";
private static final int MESSAGE_DOWNLOAD = 0;
private boolean mHasQuit = false;
private Handler mRequestHandler;
private ConcurrentMap<T,String> mRequestMap = new ConcurrentHashMap<>();
private Handler mResponseHandler;
private ThumbnailDownloadListener<T> mThumbnailDownloadListener;
public interface ThumbnailDownloadListener<T> {
void onThumbnailDownloaded(T target, Bitmap thumbnail);
}
public void setThumbnailDownloadListener(ThumbnailDownloadListener<T> listener) {
mThumbnailDownloadListener = listener;
}
public ThumbnailDownloader(Handler responseHandler) {
super(TAG);
mResponseHandler = responseHandler;
}
...
}
The onThumbnailDownloaded(…) method defined in your new ThumbnailDownloadListener interface
will eventually be called when an image has been fully downloaded and is ready to be added to
the UI. Using this listener delegates the responsibility of what to do with the downloaded image
to a class other than ThumbnailDownloader (in this case, to PhotoGalleryFragment). Doing so
separates the downloading task from the UI updating task (putting the images into ImageViews), so that
ThumbnailDownloader could be used for downloading into other kinds of View objects as needed.
Passing handlers
515
Next, modify PhotoGalleryFragment to pass a Handler attached to the main thread to
ThumbnailDownloader. Also, set a ThumbnailDownloadListener to handle the downloaded image
once it is complete.
Listing 26.11Hooking up to response Handler (PhotoGalleryFragment.java)
@Override
public void onCreate(Bundle savedInstanceState) {
super.onCreate(savedInstanceState);
setRetainInstance(true);
new FetchItemsTask().execute();
Handler responseHandler = new Handler();
mThumbnailDownloader = new ThumbnailDownloader<>(responseHandler);
mThumbnailDownloader.setThumbnailDownloadListener(
new ThumbnailDownloader.ThumbnailDownloadListener<PhotoHolder>() {
@Override
public void onThumbnailDownloaded(PhotoHolder photoHolder,
Bitmap bitmap) {
Drawable drawable = new BitmapDrawable(getResources(), bitmap);
photoHolder.bindDrawable(drawable);
}
}
);
mThumbnailDownloader.start();
mThumbnailDownloader.getLooper();
Log.i(TAG, "Background thread started");
}
Remember that by default, the Handler will attach itself to the Looper for the current thread. Because
this Handler is created in onCreate(…), it will be attached to the main thread’s Looper.
Now ThumbnailDownloader has access via mResponseHandler to a Handler that is tied to the main
thread’s Looper. It also has your ThumbnailDownloadListener to do the UI work with the returning
Bitmaps. Specifically, the onThumbnailDownloaded implementation sets the Drawable of the originally
requested PhotoHolder to the newly downloaded Bitmap.
You could send a custom Message back to the main thread requesting to add the image to the UI,
similar to how you queued a request on the background thread to download the image. However, this
would require another subclass of Handler, with an override of handleMessage(…).
Instead, let’s use another handy Handler method – post(Runnable).
Handler.post(Runnable) is a convenience method for posting Messages that look like this:
Runnable myRunnable = new Runnable() {
@Override
public void run() {
/* Your code here */
}
};
Message m = mHandler.obtainMessage();
m.callback = myRunnable;
When a Message has its callback field set, it is not routed to its target Handler when pulled off the
message queue. Instead, the run() method of the Runnable stored in callback is executed directly.
Chapter 26Loopers, Handlers, and HandlerThread
516
In ThumbnailDownloader.handleRequest(), add the following code.
Listing 26.12Downloading and displaying images
(ThumbnailDownloader.java)
public class ThumbnailDownloader<T> extends HandlerThread {
...
private Handler mResponseHandler;
private ThumbnailDownloadListener<T> mThumbnailDownloadListener;
...
private void handleRequest(final T target) {
try {
final String url = mRequestMap.get(target);
if (url == null) {
return;
}
byte[] bitmapBytes = new FlickrFetchr().getUrlBytes(url);
final Bitmap bitmap = BitmapFactory
.decodeByteArray(bitmapBytes, 0, bitmapBytes.length);
Log.i(TAG, "Bitmap created");
mResponseHandler.post(new Runnable() {
public void run() {
if (mRequestMap.get(target) != url ||
mHasQuit) {
return;
}
mRequestMap.remove(target);
mThumbnailDownloadListener.onThumbnailDownloaded(target, bitmap);
}
});
} catch (IOException ioe) {
Log.e(TAG, "Error downloading image", ioe);
}
}
}
Because mResponseHandler is associated with the main thread’s Looper, all of the code inside of
run() will be executed on the main thread.
So what does this code do? First, you double-check the requestMap. This is necessary because the
RecyclerView recycles its views. By the time ThumbnailDownloader finishes downloading the Bitmap,
RecyclerView may have recycled the PhotoHolder and requested a different URL for it. This check
ensures that each PhotoHolder gets the correct image, even if another request has been made in the
meantime.
Next, you check mHasQuit. If ThumbnailDownloader has already quit, it may be unsafe to run any
callbacks.
Finally, you remove the PhotoHolder-URL mapping from the requestMap and set the bitmap on the
target PhotoHolder.
Passing handlers
517
Before running PhotoGallery and seeing your hard-won images, there is one last danger you need
to account for. If the user rotates the screen, ThumbnailDownloader may be hanging on to invalid
PhotoHolders. Bad things will happen if the corresponding ImageViews get pressed.
Write a clearQueue() method to clean all the requests out of your queue.
Listing 26.13Adding cleanup method (ThumbnailDownloader.java)
public class ThumbnailDownloader<T> extends HandlerThread {
...
public void queueThumbnail(T target, String url) {
...
}
public void clearQueue() {
mRequestHandler.removeMessages(MESSAGE_DOWNLOAD);
mRequestMap.clear();
}
private void handleRequest(final T target) {
...
}
}
Then clean out your downloader in PhotoGalleryFragment when your view is destroyed.
Listing 26.14Calling cleanup method (PhotoGalleryFragment.java)
public class PhotoGalleryFragment extends Fragment {
...
@Override
public View onCreateView(LayoutInflater inflater, ViewGroup container,
Bundle savedInstanceState) {
...
}
@Override
public void onDestroyView() {
super.onDestroyView();
mThumbnailDownloader.clearQueue();
}
@Override
public void onDestroy() {
...
}
...
}
With that, your work for this chapter is complete. Run PhotoGallery. Scroll around to see images
dynamically loading.
PhotoGallery has achieved its basic goal of displaying images from Flickr. In the next few chapters,
you will add more functionality, like searching for photos and opening each photo’s Flickr page in a
web view.
Chapter 26Loopers, Handlers, and HandlerThread
518
For the More Curious: AsyncTasks vs Threads
Now that you understand Handler and Looper, AsyncTask may not seem quite so magical. It is still
less work than what you have done here. So why not use AsyncTask instead of a HandlerThread?
There are a few reasons. The most fundamental one is that AsyncTask is not designed for it. It is
intended for work that is short-lived and not repeated too often. Your code in the previous chapter is
a place where AsyncTask shines. But if you are creating a lot of AsyncTasks or having them run for a
long time, you are probably using the wrong class.
A more compelling technical reason is that in Android 3.2, AsyncTask changed its implementation in
a significant way. Starting with Android 3.2, AsyncTask does not create a thread for each instance of
AsyncTask. Instead, it uses something called an Executor to run background work for all AsyncTasks
on a single background thread. That means that AsyncTasks will run one after the other. A long-
running AsyncTask will hog the thread, preventing other AsyncTasks from getting any CPU time.
It is possible to safely run AsyncTasks in parallel by using a thread pool executor instead, but we do not
recommend doing so. If you are considering doing this, it is usually better to do your own threading,
using Handlers to communicate back to the main thread when necessary.
For the More Curious: Solving the Image Downloading
Problem
This book is here to teach you about the tools in the standard Android library. If you are open to using
third-party libraries, though, there are a few libraries that can save you a whole lot of time in various
scenarios, including the image downloading work you implemented in PhotoGallery.
Admittedly, the solution you implemented in this chapter is far from perfect. When you start to need
caching, transformations, and better performance, it is natural to ask whether someone else has solved
this problem before you. The answer is yes: Someone has. There are several libraries available that
solve the image-loading problem. We currently use Picasso (square.github.io/picasso/) for image
loading in our production applications.
Picasso lets you do everything from this chapter in one line:
private class PhotoHolder extends RecyclerView.ViewHolder {
...
public void bindGalleryItem(GalleryItem galleryItem) {
Picasso.with(getActivity())
.load(galleryItem.getUrl())
.placeholder(R.drawable.bill_up_close)
.into(mItemImageView);
}
...
}
The fluent interface requires you specify a context using with(Context). You can specify the URL
of the image to download using load(String) and the ImageView object to load the result into using
into(ImageView). There are many other configurable options, such as specifying an image to display
until the requested image is fully downloaded (using placeholder(int) or placeholder(drawable)).
For the More Curious: StrictMode
519
In PhotoAdapter.onBindViewHolder(…), you would replace the existing code with a call through to
the new bindGalleryItem(…) method.
Picasso does all of the work of ThumbnailDownloader (along with the
ThumbnailDownloader.ThumbnailDownloadListener<T> callback) and the image-related work of
FlickrFetchr. This means you can remove ThumbnailDownloader if you use Picasso (you will still
need FlickrFetchr for downloading the JSON data). In addition to simplifying your code, Picasso
supports more advanced features such as image transformations and disk caching with minimal effort
on your part.
You can add Picasso to your project as a library dependency using the project structure window, just as
you have done for other dependencies (like RecyclerView).
A downside of Picasso is that it is intentionally limited so that it can remain small. As a result, it
cannot download and display animated images. If you have that need, then check out Google’s Glide
library or Facebook’s Fresco library. Between the two, Glide has the smaller footprint, but Fresco has
the edge on performance.
For the More Curious: StrictMode
There are some things you simply should not do in your Android app – mistakes that lead directly to
crashes and security holes. For example, executing a network request on the main thread will probably
result in an ANR error in poor network conditions.
Instead of Android happily allowing you to invoke a network request on the application’s main thread,
you get a NetworkOnMainThread exception and log message instead. This is because of StrictMode,
which noticed your mistake and helpfully let you know about it. StrictMode was introduced to help
you detect this and many other programming mistakes and security problems in your code.
Without any configuration, networking on the main thread is guarded against. StrictMode can also
help you detect other mistakes that could drag down your application’s performance. To enable all of
StrictMode’s recommended policies, call StrictMode.enableDefaults() (developer.android.com/
reference/android/os/StrictMode.html#enableDefaults()).
Once StrictMode.enableDefaults() has been called, you will hear about the following violations in
Logcat:
• networking on the main thread
• disk reads and writes on the main thread
• activities kept alive beyond their natural lifecycle (also known as an “activity leak”)
• unclosed SQLite database cursors
• cleartext network traffic not wrapped in SSL/TLS
For custom control over what happens when policy violations occur, you can configure the
ThreadPolicy.Builder and VmPolicy.Builder classes. You can specify whether you want an
exception to occur, a dialog to be shown, or just a log statement to alert you to the violation.
Chapter 26Loopers, Handlers, and HandlerThread
520
Challenge: Preloading and Caching
Users accept that not everything can be instantaneous. (Well, most users.) Even so, programmers strive
toward perfection.
To approach instantaneity, most real-world apps augment the code you have here in two ways: adding a
caching layer and preloading images.
A cache is a place to stash a certain number of Bitmap objects so that they stick around even when you
are done using them. A cache can only hold so many items, so you need a strategy to decide what to
keep when your cache runs out of room. Many caches use a strategy called LRU, or “least recently
used.” When you are out of room, the cache gets rid of the least recently used item.
The Android support library has a class called LruCache that implements an LRU strategy. For the first
challenge, use LruCache to add a simple cache to ThumbnailDownloader. Whenever you download the
Bitmap for a URL, stick it in the cache. Then, when you are about to download a new image, check the
cache first to see whether you already have it around.
Once you have built a cache, you can preload things into it before you actually need them. That way,
there is no delay for Bitmaps to download before displaying them.
Preloading is tricky to implement well, but it makes a huge difference for the user. For a second, more
difficult challenge, for every GalleryItem you display, preload Bitmaps for the previous 10 and the
next 10 GalleryItems.
521
27
Search
Your next task with PhotoGallery is to search photos on Flickr. You will learn how to integrate search
into your app using SearchView. SearchView is an action view class – a view that can be embedded
right into your Toolbar.
The user will be able to press on the SearchView, type in a query, and submit it. Submitting the query
will send the query string to Flickr’s search API and populate the RecyclerView with the search results
(Figure27.1). The query string itself will be persisted to the filesystem. This means the user’s last
query will be accessible across restarts of the app and even the device.
Figure 27.1App preview
Searching Flickr
Let’s begin with the Flickr side of things. To search Flickr, you call the flickr.photos.search
method. Here is what a GET request to search for the text “cat” looks like:
https://api.flickr.com/services/rest/?method=flickr.photos.search
&api_key=xxx&format=json&nojsoncallback=1&text=cat
Chapter 27Search
522
The method is set to flickr.photos.search. A new parameter, text, is added and set to whatever
string you are searching for (“cat,” in this case).
While the search request URL differs from the one you used to request recent photos, the format of
the JSON returned remains the same. This is good news, because it means you can use the same JSON
parsing code you already wrote, regardless of whether you are searching or getting recent photos.
First, refactor some of your old FlickrFetchr code to reuse the parsing code across both scenarios.
Start by adding constants for the reusable pieces of the URL, as shown in Listing 27.1. Cut the URI-
building code from fetchItems and paste it as the value for ENDPOINT. However, make sure to only
include the shaded parts. The constant ENDPOINT should not contain the method query parameter, and
the build statement should not be converted to a string using toString().
Listing 27.1Adding URL constants (FlickrFetchr.java)
public class FlickrFetchr {
private static final String TAG = "FlickrFetchr";
private static final String API_KEY = "yourApiKeyHere";
private static final String FETCH_RECENTS_METHOD = "flickr.photos.getRecent";
private static final String SEARCH_METHOD = "flickr.photos.search";
private static final Uri ENDPOINT = Uri
.parse("https://api.flickr.com/services/rest/")
.buildUpon()
.appendQueryParameter("api_key", API_KEY)
.appendQueryParameter("format", "json")
.appendQueryParameter("nojsoncallback", "1")
.appendQueryParameter("extras", "url_s")
.build();
...
public List<GalleryItem> fetchItems() {
List<GalleryItem> items = new ArrayList<>();
try {
String url = Uri.parse("https://api.flickr.com/services/rest/")
.buildUpon()
.appendQueryParameter("method", "flickr.photos.getRecent")
.appendQueryParameter("api_key", API_KEY)
.appendQueryParameter("format", "json")
.appendQueryParameter("nojsoncallback", "1")
.appendQueryParameter("extras", "url_s")
.build().toString();
String jsonString = getUrlString(url);
...
} catch (IOException ioe) {
Log.e(TAG, "Failed to fetch items", ioe);
} catch (JSONException je) {
Log.e(TAG, "Failed to parse JSON", je);
}
return items;
}
...
}
(The change you just made will result in an error in fetchItems(). You can ignore this error for now,
as you are about to rework fetchItems() into something new anyway.)
Searching Flickr
523
Rename fetchItems() to downloadGalleryItems(String url) to reflect its new, more general
purpose. It no longer needs to be public, either, so change its visibility to private.
Listing 27.2Refactoring Flickr code (FlickrFetchr.java)
public class FlickrFetchr {
...
public List<GalleryItem> fetchItems() {
private List<GalleryItem> downloadGalleryItems(String url) {
List<GalleryItem> items = new ArrayList<>();
try {
String jsonString = getUrlString(url);
Log.i(TAG, "Received JSON: " + jsonString);
JSONObject jsonBody = new JSONObject(jsonString);
parseItems(items, jsonBody);
} catch (IOException ioe) {
Log.e(TAG, "Failed to fetch items", ioe);
} catch (JSONException je) {
Log.e(TAG, "Failed to parse JSON", je);
}
return items;
}
...
}
The new downloadGalleryItems(String) method takes a URL as input, so there is no need to build
the URL inside. Instead, add a new method to build the URL based on method and query values.
Listing 27.3Adding helper method to build URL (FlickrFetchr.java)
public class FlickrFetchr {
...
private List<GalleryItem> downloadGalleryItems(String url) {
...
}
private String buildUrl(String method, String query) {
Uri.Builder uriBuilder = ENDPOINT.buildUpon()
.appendQueryParameter("method", method);
if (method.equals(SEARCH_METHOD)) {
uriBuilder.appendQueryParameter("text", query);
}
return uriBuilder.build().toString();
}
private void parseItems(List<GalleryItem> items, JSONObject jsonBody)
throws IOException, JSONException {
...
}
}
The buildUrl(…) method appends the necessary parameters, just as fetchItems() used to. But
it dynamically fills in the method parameter value. Additionally, it appends a value for the text
parameter only if the value specified for the method parameter is search.
Chapter 27Search
524
Now add methods to kick off the download by building a URL and calling
downloadGalleryItems(String).
Listing 27.4Adding methods to get recents and search (FlickrFetchr.java)
public class FlickrFetchr {
...
public String getUrlString(String urlSpec) throws IOException {
return new String(getUrlBytes(urlSpec));
}
public List<GalleryItem> fetchRecentPhotos() {
String url = buildUrl(FETCH_RECENTS_METHOD, null);
return downloadGalleryItems(url);
}
public List<GalleryItem> searchPhotos(String query) {
String url = buildUrl(SEARCH_METHOD, query);
return downloadGalleryItems(url);
}
private List<GalleryItem> downloadGalleryItems(String url) {
List<GalleryItem> items = new ArrayList<>();
...
return items;
}
...
}
FlickrFetchr is now equipped to handle both searching and getting recent photos. The
fetchRecentPhotos() and searchPhotos(String) methods serve as the public interface for getting a
list of GalleryItems from the Flickr web service.
Searching Flickr
525
You need to update your fragment code to reflect the refactoring you just completed in FlickrFetchr.
Open PhotoGalleryFragment and update FetchItemsTask.
Listing 27.5Hardwiring search query code (PhotoGalleryFragment.java)
public class PhotoGalleryFragment extends Fragment {
...
private class FetchItemsTask extends AsyncTask<Void,Void,List<GalleryItem>> {
@Override
protected List<GalleryItem> doInBackground(Void... params) {
return new FlickrFetchr().fetchItems();
String query = "robot"; // Just for testing
if (query == null) {
return new FlickrFetchr().fetchRecentPhotos();
} else {
return new FlickrFetchr().searchPhotos(query);
}
}
@Override
protected void onPostExecute(List<GalleryItem> items) {
mItems = items;
setupAdapter();
}
}
}
If the query string is not null (which for now is always the case), then FetchItemsTask will execute a
Flickr search. Otherwise FetchItemsTask will default to fetching recent photos, just as it did before.
Hardcoding the query allows you to test out your new search code even though you have not yet
provided a way to enter a query through the UI.
Chapter 27Search
526
Run PhotoGallery and see what you get. Hopefully, you will see a cool robot or two (Figure27.2).
Figure 27.2Hardcoded search results
Using SearchView
Now that FlickrFetchr supports searching, it is time to add a way for the user to enter a query and
initiate a search. Do this by adding a SearchView.
SearchView is an action view – a view that may be included within the toolbar. SearchView allows
your entire search interface to live within your application’s toolbar.
First, confirm that a toolbar (containing your app title) appears at the top of your app. If not, follow the
steps outlined in Chapter13 to add a toolbar to your app.
Using SearchView
527
Next, create a new menu XML file for PhotoGalleryFragment in res/menu/
fragment_photo_gallery.xml. This file will specify the items that should appear in the toolbar.
Listing 27.6Adding menu XML file
(res/menu/fragment_photo_gallery.xml)
<menu xmlns:android="http://schemas.android.com/apk/res/android"
xmlns:app="http://schemas.android.com/apk/res-auto">
<item android:id="@+id/menu_item_search"
android:title="@string/search"
app:actionViewClass="android.support.v7.widget.SearchView"
app:showAsAction="ifRoom" />
<item android:id="@+id/menu_item_clear"
android:title="@string/clear_search"
app:showAsAction="never" />
</menu>
You will see a couple of errors in the new XML, complaining that you have not yet defined the strings
you are referencing for the android:title attributes. Ignore those for now. You will fix them in a bit.
The first item entry in Listing 27.6 tells the toolbar to display a SearchView by specifying the value
android.support.v7.widget.SearchView for the app:actionViewClass attribute. (Notice the usage
of the app namespace for the showAsAction and actionViewClass attributes. Refer back to Chapter13
if you are unsure of why this is used.)
SearchView (android.widget.SearchView) was originally introduced long ago in API 11
(Honeycomb 3.0). However, SearchView was more recently included as part of the support library
(android.support.v7.widget.SearchView). So which version of SearchView should you use? You
have seen our answer in the code you just entered: the support library version. This may seem strange,
as your app’s minimum SDK is 19.
We recommend using the support library for the same reasons outlined in Chapter7. As features get
added with each new release of Android, the features are often back-ported to the support library.
A prime example is theming. With the release of API 21 (Lollipop 5.0), the native framework
SearchView supports many options for customizing the SearchView’s appearance. The only way to get
these fancy features on earlier versions of Android (down to API 7) is to use the support library version
of SearchView.
The second item in Listing 27.6 will add a Clear Search option. This option will always display in the
overflow menu because you set app:showAsAction to never. Later on you will configure this item so
that, when pressed, the user’s stored query will be erased from the disk. For now, you can ignore this
item.
Now it is time to address the errors in your menu XML. Open strings.xml and add the missing
strings.
Listing 27.7Adding search strings (res/values/strings.xml)
<resources>
...
<string name="search">Search</string>
<string name="clear_search">Clear Search</string>
</resources>
Chapter 27Search
528
Finally, open PhotoGalleryFragment. Add a call to setHasOptionsMenu(true) in onCreate(…) to
register the fragment to receive menu callbacks. Override onCreateOptionsMenu(…) and inflate the
menu XML file you created. This will add the items listed in your menu XML to the toolbar.
Listing 27.8Overriding onCreateOptionsMenu(…)
(PhotoGalleryFragment.java)
public class PhotoGalleryFragment extends Fragment {
...
@Override
public void onCreate(Bundle savedInstanceState) {
super.onCreate(savedInstanceState);
setRetainInstance(true);
setHasOptionsMenu(true);
new FetchItemsTask().execute();
...
}
...
@Override
public void onDestroy() {
...
}
@Override
public void onCreateOptionsMenu(Menu menu, MenuInflater menuInflater) {
super.onCreateOptionsMenu(menu, menuInflater);
menuInflater.inflate(R.menu.fragment_photo_gallery, menu);
}
private void setupAdapter() {
...
}
...
}
Using SearchView
529
Fire up PhotoGallery and see what the SearchView looks like. Pressing the search icon expands the
view to display a text box where you can enter a query (Figure27.3).
Figure 27.3SearchView collapsed and expanded
When the SearchView is expanded, an x icon appears on the right. Pressing the x icon one time clears
out what you typed. Pressing the x again collapses the SearchView back to a single search icon.
If you try submitting a query, it will not do anything yet. Not to worry. You will make your SearchView
more useful in just a moment.
Chapter 27Search
530
Responding to SearchView user interactions
When the user submits a query, your app should execute a search against the Flickr web
service and refresh the images the user sees with the search results. Fortunately, the
SearchView.OnQueryTextListener interface provides a way to receive a callback when a query is
submitted.
Update onCreateOptionsMenu(…) to add a SearchView.OnQueryTextListener to your SearchView.
Listing 27.9Logging SearchView.OnQueryTextListener events
(PhotoGalleryFragment.java)
public class PhotoGalleryFragment extends Fragment {
...
@Override
public void onCreateOptionsMenu(Menu menu, MenuInflater menuInflater) {
super.onCreateOptionsMenu(menu, menuInflater);
menuInflater.inflate(R.menu.fragment_photo_gallery, menu);
MenuItem searchItem = menu.findItem(R.id.menu_item_search);
final SearchView searchView = (SearchView) searchItem.getActionView();
searchView.setOnQueryTextListener(new SearchView.OnQueryTextListener() {
@Override
public boolean onQueryTextSubmit(String s) {
Log.d(TAG, "QueryTextSubmit: " + s);
updateItems();
return true;
}
@Override
public boolean onQueryTextChange(String s) {
Log.d(TAG, "QueryTextChange: " + s);
return false;
}
});
}
private void updateItems() {
new FetchItemsTask().execute();
}
...
}
In onCreateOptionsMenu(…), you pull the MenuItem representing the search box from the menu
and store it in searchItem. Then you pull the SearchView object from searchItem using the
getActionView() method.
Once you have a reference to the SearchView, you are able to set a SearchView.OnQueryTextListener
using the setOnQueryTextListener(…) method. You must override two methods in the
SearchView.OnQueryTextListener implementation: onQueryTextSubmit(String) and
onQueryTextChange(String).
The onQueryTextChange(String) callback is executed any time text in the SearchView text box
changes. This means that it is called every time a single character changes. You will not do anything
inside this callback for this app except log the input string.
Responding to SearchView user interactions
531
The onQueryTextSubmit(String) callback is executed when the user submits a query. The query
the user submitted is passed as input. Returning true signifies to the system that the search request
has been handled. This callback is where you will launch a FetchItemsTask to query for new results.
(Right now FetchItemsTask still has a hardcoded query. You will refactor FetchItemsTask in a bit so
that it uses a submitted query if there is one.)
updateItems() does not seem terribly useful just yet. Later on you will have several places where you
need to execute FetchItemsTask. The updateItems() method is a wrapper for doing just that.
As a last bit of cleanup, replace the line that creates and executes a FetchItemsTask with a call to
updateItems() in the onCreate(…) method.
Listing 27.10Cleaning up onCreate(…) (PhotoGalleryFragment.java)
public class PhotoGalleryFragment extends Fragment {
...
@Override
public void onCreate(Bundle savedInstanceState) {
super.onCreate(savedInstanceState);
setRetainInstance(true);
setHasOptionsMenu(true);
new FetchItemsTask().execute();
updateItems();
...
Log.i(TAG, "Background thread started");
}
...
}
Run your app and submit a query. The search results will still be based on the hardcoded query in
Listing 27.5, but you should see the images reload. You should also see log statements reflecting the
fact that your SearchView.OnQueryTextListener callback methods have been executed.
Note that if you use the hardware keyboard (e.g., from your laptop) to submit your search query on an
emulator, you will see the search executed two times, one after the other. It will look like the images
start to load, then load all over again. This is because there is a small bug in SearchView. You can
ignore this behavior because it is simply a side effect of using the emulator and will not affect your app
when it runs on a real Android device.
Chapter 27Search
532
Simple Persistence with Shared Preferences
The last piece of functionality you need to add is to actually use the query entered in the SearchView
when the search request is submitted.
In your app, there will only be one active query at a time. That query should be persisted (remembered
by the app) between restarts of the app (even after the user turns off the device). You will achieve this
by writing the query string to shared preferences. Any time the user submits a query, you will first
write the query to shared preferences, overwriting whatever query was there before. When a search is
executed against Flickr, you will pull the query string from shared preferences and use it as the value
for the text parameter.
Shared preferences are files on your filesystem that you read and edit using the SharedPreferences
class. An instance of SharedPreferences acts like a key-value store, much like Bundle, except that it
is backed by persistent storage. The keys are strings, and the values are atomic data types. If you look
at them you will see that the files are simple XML, but SharedPreferences makes it easy to ignore
that implementation detail. Shared preferences files are stored in your application’s sandbox, so you
should not store sensitive information (like passwords) there.
To get a specific instance of SharedPreferences, you can use the
Context.getSharedPreferences(String, int) method. However, in practice, you will often not care
too much about the specific instance, just that it is shared across the entire app. In that case, it is better
to use the PreferenceManager.getDefaultSharedPreferences(Context) method, which returns an
instance with a default name and private permissions (so that the preferences are only available from
within your application).
Add a new class named QueryPreferences, which will serve as a convenient interface for reading and
writing the query to and from shared preferences.
Listing 27.11Adding class to manage stored query (QueryPreferences.java)
public class QueryPreferences {
private static final String PREF_SEARCH_QUERY = "searchQuery";
public static String getStoredQuery(Context context) {
return PreferenceManager.getDefaultSharedPreferences(context)
.getString(PREF_SEARCH_QUERY, null);
}
public static void setStoredQuery(Context context, String query) {
PreferenceManager.getDefaultSharedPreferences(context)
.edit()
.putString(PREF_SEARCH_QUERY, query)
.apply();
}
}
PREF_SEARCH_QUERY is used as the key for the query preference. You will use this key any time you
read or write the query value.
The getStoredQuery(Context) method returns the query value stored in shared preferences. It does so
by first acquiring the default SharedPreferences for the given context. (Because QueryPreferences
does not have a Context of its own, the calling component will have to pass its context as input.)
Simple Persistence with Shared Preferences
533
Getting a value you previously stored is as simple as calling SharedPreferences.getString(…),
getInt(…), or whichever method is appropriate for your data type. The second input to
SharedPreferences.getString(PREF_SEARCH_QUERY, null) specifies the default return value that
should be used if there is no entry for the PREF_SEARCH_QUERY key.
The setStoredQuery(Context) method writes the input query to the default shared preferences
for the given context. In your code above, you call SharedPreferences.edit() to get an
instance of SharedPreferences.Editor. This is the class you use to stash values in your
SharedPreferences. It allows you to group sets of changes together in transactions, much like you do
with FragmentTransaction. If you have a lot of changes, this will allow you to group them together
into a single storage write operation.
Once you are done making all of your changes, you call apply() on your editor to make them visible
to other users of that SharedPreferences file. The apply() method makes the change in memory
immediately and then does the actual file writing on a background thread.
QueryPreferences is your entire persistence engine for PhotoGallery. Now that you have a way to
easily store and access the user’s most recent query, update PhotoGalleryFragment to read and write
the query as necessary.
First, update the stored query whenever the user submits a new query.
Listing 27.12Storing submitted query in shared preferences
(PhotoGalleryFragment.java)
public class PhotoGalleryFragment extends Fragment {
...
@Override
public void onCreateOptionsMenu(Menu menu, MenuInflater menuInflater) {
...
searchView.setOnQueryTextListener(new SearchView.OnQueryTextListener() {
@Override
public boolean onQueryTextSubmit(String s) {
Log.d(TAG, "QueryTextSubmit: " + s);
QueryPreferences.setStoredQuery(getActivity(), s);
updateItems();
return true;
}
@Override
public boolean onQueryTextChange(String s) {
Log.d(TAG, "QueryTextChange: " + s);
return false;
}
});
}
...
}
Chapter 27Search
534
Next, clear the stored query (set it to null) whenever the user selects the Clear Search item from the
overflow menu.
Listing 27.13Clearing stored query (PhotoGalleryFragment.java)
public class PhotoGalleryFragment extends Fragment {
...
@Override
public void onCreateOptionsMenu(Menu menu, MenuInflater menuInflater) {
...
}
@Override
public boolean onOptionsItemSelected(MenuItem item) {
switch (item.getItemId()) {
case R.id.menu_item_clear:
QueryPreferences.setStoredQuery(getActivity(), null);
updateItems();
return true;
default:
return super.onOptionsItemSelected(item);
}
}
...
}
Note that you call updateItems() after you update the stored query, just as you did in Listing 27.12.
This ensures that the images displayed in the RecyclerView reflect the most recent search query.
Simple Persistence with Shared Preferences
535
Last, but not least, update FetchItemsTask to use the stored query rather than a hardcoded string. Add
a custom constructor to FetchItemsTask that accepts a query string as input and stashes it in a member
variable. In updateItems(), pull the stored query from shared preferences and use it to create a new
instance of FetchItemsTask. All of these changes are shown in Listing 27.14.
Listing 27.14Using stored query in FetchItemsTask
(PhotoGalleryFragment.java)
public class PhotoGalleryFragment extends Fragment {
...
private void updateItems() {
String query = QueryPreferences.getStoredQuery(getActivity());
new FetchItemsTask(query).execute();
}
...
private class FetchItemsTask extends AsyncTask<Void,Void,List<GalleryItem>> {
private String mQuery;
public FetchItemsTask(String query) {
mQuery = query;
}
@Override
protected List<GalleryItem> doInBackground(Void... params) {
String query = "robot"; // Just for testing
if (querymQuery == null) {
return new FlickrFetchr().fetchRecentPhotos();
} else {
return new FlickrFetchr().searchPhotos(querymQuery);
}
}
@Override
protected void onPostExecute(List<GalleryItem> items) {
mItems = items;
setupAdapter();
}
}
}
Search should now work like a charm. Run PhotoGallery, try searching for something, and see what
you get.
Chapter 27Search
536
Polishing Your App
For a little bit of polish, pre-populate the search text box with the saved query when the user presses on
the search icon to expand the search view. SearchView’s View.OnClickListener.onClick() method
is called when the user presses the search icon. Hook into this callback and set the SearchView’s query
text when the view is expanded.
Listing 27.15Pre-populating SearchView (PhotoGalleryFragment.java)
public class PhotoGalleryFragment extends Fragment {
...
@Override
public void onCreateOptionsMenu(Menu menu, MenuInflater menuInflater) {
...
searchView.setOnQueryTextListener(new SearchView.OnQueryTextListener() {
...
});
searchView.setOnSearchClickListener(new View.OnClickListener() {
@Override
public void onClick(View v) {
String query = QueryPreferences.getStoredQuery(getActivity());
searchView.setQuery(query, false);
}
});
}
...
}
Run your app and play around with submitting a few searches. Revel at the polish your last bit of code
added. Of course, there is always more polish you could add….
Challenge: Polishing Your App Some More
You may notice that when you submit a query there is a bit of a lag before the RecyclerView starts to
refresh. For this challenge, make the response to the user’s query submission feel more immediate. As
soon as a query is submitted, hide the soft keyboard and collapse the SearchView.
As an extra challenge, clear the contents of the RecyclerView and display a loading indicator
(indeterminate progress bar) as soon as a query is submitted. Get rid of the loading indicator once the
JSON data has been fully downloaded. In other words, the loading indicator should not show once your
code moves on to downloading individual images.
537
28
Background Services
All the code you have written so far has been hooked up to an activity, which means that it is
associated with some screen for the user to look at.
But what if you do not need a screen? What if you need to do something out of sight and out of mind,
like play music or check for new blog posts on an RSS feed? For this, you need a service.
In this chapter, you will add a new feature to PhotoGallery that will allow users to poll for new search
results in the background. Whenever a new search result is available, the user will receive a notification
in the status bar.
Creating an IntentService
Let’s start by creating your service. In this chapter, you will use an IntentService. IntentService is
not the only kind of service, but it is probably the most common. Create a subclass of IntentService
called PollService. This will be the service you use to poll for search results.
Listing 28.1Creating PollService (PollService.java)
public class PollService extends IntentService {
private static final String TAG = "PollService";
public static Intent newIntent(Context context) {
return new Intent(context, PollService.class);
}
public PollService() {
super(TAG);
}
@Override
protected void onHandleIntent(Intent intent) {
Log.i(TAG, "Received an intent: " + intent);
}
}
This is a very basic IntentService. What does it do? Well, it is sort of like an activity. It
is a context (Service is a subclass of Context) and it responds to intents (as you can see in
onHandleIntent(Intent)). As a matter of convention – and to be a good citizen – you added
a newIntent(Context) method. Any component that wants to start this service should use
newIntent(Context).
Chapter 28Background Services
538
A service’s intents are called commands. Each command is an instruction to the service to do
something. Depending on the kind of service, that command could be serviced in a variety of ways.
An IntentService service pulls its commands off of a queue, as shown in Figure28.1.
Figure 28.1How IntentService services commands
When it receives its first command, the IntentService starts, fires up a background thread, and puts
the command on a queue.
The IntentService then services each command in sequence, calling onHandleIntent(Intent) on its
background thread for each command. New commands that come in go to the back of the queue. When
there are no commands left in the queue, the service stops and is destroyed.
This description only applies to IntentService. Later in the chapter, we will discuss the broader world
of services and how commands work.
Creating an IntentService
539
Because services, like activities, respond to intents, they must also be declared in your
AndroidManifest.xml. Add an element for PollService to your manifest.
Listing 28.2Adding service to manifest (AndroidManifest.xml)
<manifest
xmlns:android="http://schemas.android.com/apk/res/android"
package="com.bignerdranch.android.photogallery" >
<uses-permission android:name="android.permission.INTERNET" />
<application
... >
<activity
android:name=".PhotoGalleryActivity"
android:label="@string/app_name" >
...
</activity>
<service android:name=".PollService" />
</application>
</manifest>
Then add code to start your service inside PhotoGalleryFragment.
Listing 28.3Adding service startup code (PhotoGalleryFragment.java)
public class PhotoGalleryFragment extends Fragment {
private static final String TAG = "PhotoGalleryFragment";
...
@Override
public void onCreate(Bundle savedInstanceState) {
...
updateItems();
Intent i = PollService.newIntent(getActivity());
getActivity().startService(i);
Handler responseHandler = new Handler();
mThumbnailDownloader = new ThumbnailDownloader<>(responseHandler);
...
}
...
}
Fire this up and see what you get. You should see something like this in Logcat:
02-23 14:25:32.450 2692-2717/com.bignerdranch.android.photogallery I/PollService:
Received an intent: Intent { cmp=com.bignerdranch.android.photogallery/.PollService }
Chapter 28Background Services
540
What Services Are For
OK, we admit it: Looking at those Logcat statements was boring. But this code is really exciting!
Why? What can you do with it?
Time to go back to the Land of Make Believe, where we are no longer programmers but work in retail
shoe sales with superheroes who do our bidding.
Your Flash workers can work in two kinds of places in a store: the front of the store, where they talk to
customers, and the back of the store, where they do not. The back of the store may be larger or smaller,
depending on the store.
So far, all of your code has run in activities. Activities are your Android app’s storefront. All this code
is focused on a pleasant visual experience for your user/customer.
Services are the back end of your Android app. Things can happen there that the user never needs to
know about. Work can go on there long after the storefront has closed, when your activities are long
gone.
Enough about stores. What can you do with a service that you cannot do with an activity? Well, for
one, you can run a service while the user is occupied elsewhere.
Safe background networking
Your service is going to poll Flickr in the background. To perform networking in the background
safely, some additional code is required. Android provides the ability for a user to turn off networking
for backgrounded applications. If the user has a lot of power-hungry applications, this can be a big
performance improvement.
This does mean, however, that if you are doing networking in the background, you need to verify with
the ConnectivityManager that the network is available.
Add the code in Listing 28.4 to perform this check.
Safe background networking
541
Listing 28.4Checking for background network availability (PollService.java)
public class PollService extends IntentService {
private static final String TAG = "PollService";
...
@Override
protected void onHandleIntent(Intent intent) {
if (!isNetworkAvailableAndConnected()) {
return;
}
Log.i(TAG, "Received an intent: " + intent);
}
private boolean isNetworkAvailableAndConnected() {
ConnectivityManager cm =
(ConnectivityManager) getSystemService(CONNECTIVITY_SERVICE);
boolean isNetworkAvailable = cm.getActiveNetworkInfo() != null;
boolean isNetworkConnected = isNetworkAvailable &&
cm.getActiveNetworkInfo().isConnected();
return isNetworkConnected;
}
}
The logic for checking network availability is in isNetworkAvailableAndConnected(). Toggling the
background data setting to disallow downloading data in the background disables the network entirely
for use by background services. In this case, ConnectivityManager.getActiveNetworkInfo() returns
null, making it appear to the background service as though there is no active network available, even if
there really is.
If the network is available to your background service, it gets an instance of
android.net.NetworkInfo representing the current network connection. The code then checks
whether the current network is fully connected by calling NetworkInfo.isConnected().
If the app does not see a network available, or the device is not fully connected to a network,
onHandleIntent(Intent) will return without executing the rest of the method (and in turn will not
try to download data, once you have added the code to do so). This is good practice because your app
cannot download any data if it is not connected to the network.
One more thing. To use getActiveNetworkInfo(), you also need to acquire the
ACCESS_NETWORK_STATE permission. As you have seen, permissions are managed in your manifest.
Listing 28.5Acquiring network state permission (AndroidManifest.xml)
<manifest
xmlns:android="http://schemas.android.com/apk/res/android"
package="com.bignerdranch.android.photogallery" >
<uses-permission android:name="android.permission.INTERNET" />
<uses-permission android:name="android.permission.ACCESS_NETWORK_STATE" />
<application
... >
...
</application>
</manifest>
Chapter 28Background Services
542
Looking for New Results
Your service will be polling for new results, so it will need to know what the last result fetched was.
This is a perfect job for another SharedPreferences entry.
Update QueryPreferences to store the ID of the most recently fetched photo.
Listing 28.6Adding recent ID preference constant (QueryPreferences.java)
public class QueryPreferences {
private static final String PREF_SEARCH_QUERY = "searchQuery";
private static final String PREF_LAST_RESULT_ID = "lastResultId";
public static String getStoredQuery(Context context) {
...
}
public static void setStoredQuery(Context context, String query) {
...
}
public static String getLastResultId(Context context) {
return PreferenceManager.getDefaultSharedPreferences(context)
.getString(PREF_LAST_RESULT_ID, null);
}
public static void setLastResultId(Context context, String lastResultId) {
PreferenceManager.getDefaultSharedPreferences(context)
.edit()
.putString(PREF_LAST_RESULT_ID, lastResultId)
.apply();
}
}
The next step is to fill out your service. Here is what you need to do:
1. Pull out the current query and the last result ID from the default SharedPreferences.
2. Fetch the latest result set with FlickrFetchr.
3. If there are results, grab the first one.
4. Check to see whether it is different from the last result ID.
5. Store the first result back in SharedPreferences.
Looking for New Results
543
Return to PollService.java and put this plan into action. Listing 28.7 shows a long swath of code,
but it uses nothing you have not seen before.
Listing 28.7Checking for new results (PollService.java)
public class PollService extends IntentService {
private static final String TAG = "PollService";
...
@Override
protected void onHandleIntent(Intent intent) {
...
Log.i(TAG, "Received an intent: " + intent);
String query = QueryPreferences.getStoredQuery(this);
String lastResultId = QueryPreferences.getLastResultId(this);
List<GalleryItem> items;
if (query == null) {
items = new FlickrFetchr().fetchRecentPhotos();
} else {
items = new FlickrFetchr().searchPhotos(query);
}
if (items.size() == 0) {
return;
}
String resultId = items.get(0).getId();
if (resultId.equals(lastResultId)) {
Log.i(TAG, "Got an old result: " + resultId);
} else {
Log.i(TAG, "Got a new result: " + resultId);
}
QueryPreferences.setLastResultId(this, resultId);
}
...
}
See each part we discussed above? Good.
Run PhotoGallery, and you should see your app getting new results initially. If you have a search query
selected, you will probably see stale results when you subsequently start up the app.
Chapter 28Background Services
544
Delayed Execution with AlarmManager
To actually use your service in the background, you will need some way to make things happen when
none of your activities are running. Say, by making a timer that goes off every five minutes or so.
You could do this with a Handler by calling Handler.sendMessageDelayed(…) or
Handler.postDelayed(…). But this solution will probably fail if the user navigates away from all your
activities. The process will shut down, and your Handler messages will go kaput with it.
So instead of Handler, you will use AlarmManager, a system service that can send Intents for you.
How do you tell AlarmManager what intents to send? You use a PendingIntent. You can use
PendingIntent to package up a wish: “I want to start PollService.” You can then send that wish to
other components on the system, like AlarmManager.
Write a new method called setServiceAlarm(Context, boolean) inside PollService that turns an
alarm on and off for you. You will write it as a static method. That keeps your alarm code with the
other code in PollService that it is related to while allowing other components to invoke it. You will
usually want to turn it on and off from front-end code in a fragment or other controller.
Listing 28.8Adding alarm method (PollService.java)
public class PollService extends IntentService {
private static final String TAG = "PollService";
// Set interval to 1 minute
private static final long POLL_INTERVAL_MS = TimeUnit.MINUTES.toMillis(1);
public static Intent newIntent(Context context) {
return new Intent(context, PollService.class);
}
public static void setServiceAlarm(Context context, boolean isOn) {
Intent i = PollService.newIntent(context);
PendingIntent pi = PendingIntent.getService(context, 0, i, 0);
AlarmManager alarmManager = (AlarmManager)
context.getSystemService(Context.ALARM_SERVICE);
if (isOn) {
alarmManager.setRepeating(AlarmManager.ELAPSED_REALTIME,
SystemClock.elapsedRealtime(), POLL_INTERVAL_MS, pi);
} else {
alarmManager.cancel(pi);
pi.cancel();
}
}
...
}
The first thing you do in your method is construct your PendingIntent that starts PollService.
You do this by calling PendingIntent.getService(…), which packages up an invocation of
Context.startService(Intent). It takes in four parameters: a Context with which to send the intent,
a request code that you can use to distinguish this PendingIntent from others, the Intent object to
send, and finally a set of flags that you can use to tweak how the PendingIntent is created. (You will
use one of these in a moment.)
Being a good citizen: using alarms the right way
545
After that, you need to either set the alarm or cancel it.
To set the alarm, you call AlarmManager.setRepeating(…). This method also takes four parameters: a
constant to describe the time basis for the alarm (more on that in a moment), the time at which to start
the alarm, the time interval at which to repeat the alarm, and finally a PendingIntent to fire when the
alarm goes off.
Because you used AlarmManager.ELAPSED_REALTIME as the time basis value, you specified the start
time in terms of elapsed realtime: SystemClock.elapsedRealtime(). This triggers the alarm to go off
when the specified amount of time has passed. If you had used AlarmManager.RTC, you would instead
base the start time on “clock time” (e.g., System.currentTimeMillis()). This would trigger the alarm
to go off at a fixed point in time.
Canceling the alarm is done by calling AlarmManager.cancel(PendingIntent). You will also usually
want to cancel the PendingIntent. In a moment, you will see how canceling the PendingIntent also
helps you track the status of the alarm.
Add some quick test code to run your alarm from within PhotoGalleryFragment.
Listing 28.9Adding alarm startup code (PhotoGalleryFragment.java)
public class PhotoGalleryFragment extends Fragment {
private static final String TAG = "PhotoGalleryFragment";
...
@Override
public void onCreate(Bundle savedInstanceState) {
...
updateItems();
Intent i = PollService.newIntent(getActivity());
getActivity().startService(i);
PollService.setServiceAlarm(getActivity(), true);
Handler responseHandler = new Handler();
mThumbnailDownloader = new ThumbnailDownloader<>(responseHandler);
...
}
...
}
Finish typing in this code and run PhotoGallery. Then immediately hit the Back button and exit out of
the app.
Notice anything in Logcat? PollService is faithfully chugging along, running again every 60 seconds.
This is what AlarmManager is designed to do. Even if your process gets shut down, AlarmManager will
keep on firing intents to start PollService again and again. (This behavior is, of course, extremely
annoying. You may want to uninstall the app until we get it straightened out.)
Being a good citizen: using alarms the right way
How exact do you need your repeating to be? Repeatedly executing work from your background
service has the potential to eat up the user’s battery power and data service allotment. Furthermore,
waking the device from sleep (spinning up the CPU when the screen was off to do work on your
behalf) is a costly operation. Luckily, you can configure your alarm to have a lighter usage footprint in
terms of interval timing and wake requirements.
Chapter 28Background Services
546
Repeating alarms: not so exact
The setRepeating(…) method sets a repeating alarm, but that repetition is not exact. In other words,
Android reserves the right to move it around a little bit. As a result, 60 seconds is the lowest possible
interval time you can set for stock Android. (Other devices may elect to make this value higher.)
This is because alarms can really blow a hole in your phone’s battery management. Every time an
alarm fires, the device has to wake up and spin up an application. Many apps need to turn on the
phone’s radio to use the internet like PhotoGallery does, which results in even more battery usage.
If it were only your app, the exactness of the alarm would not matter. After all, if your alarm wakes up
every 15 minutes, and your app is the only 15-minute alarm running, then the phone will wake up and
turn on its radio four times an hour no matter how precise the alarm is.
If it were your app and nine other apps with exact 15-minute alarms, though, things change. Because
every alarm is exact, the device needs to wake up for each one. That means turning on the radio 40
times an hour instead of four times.
Inexactness means that Android is allowed to take the liberty of moving those alarms around, so that
they do not run exactly every 15 minutes. The result is that every 15 minutes, your device can wake up
and run all 10 of those 15-minute alarms at the same time. That would pull you back down to only four
wake-ups instead of 40, saving all kinds of battery in the process.
Some apps really do need exact alarms, of course. If that is your app, then you must use either
AlarmManager.setWindow(…) or AlarmManager.setExact(…), which allow you to set an exact alarm
to occur only once. The repeating part you have to handle yourself.
Time basis options
Another important decision is which time basis value to specify. There are two main options:
AlarmManager.ELAPSED_REALTIME and AlarmManager.RTC.
AlarmManager.ELAPSED_REALTIME uses the amount of time that has passed since the last boot of the
device (including sleep time) as the basis for interval calculations. ELAPSED_REALTIME is the best
choice for your alarm in PhotoGallery because it is based on the relative passage of time and thus does
not depend on clock time. (Also, the documentation recommends you use ELAPSED_REALTIME instead
of RTC if at all possible.)
AlarmManager.RTC uses clock time in terms of UTC. UTC should only be used for clock-basis
alarms. However, UTC does not respect locale, whereas the user’s idea of clock time includes locale.
Clock-basis alarms should respect locale somehow. This means you must implement your own locale
handling in conjunction with using the RTC time basis if you want to set a clock-time alarm. Otherwise,
use ELAPSED_REALTIME as the time basis.
If you use one of the time basis options outlined above, your alarm will not fire if the device is in
sleep mode (the screen is turned off), even if the prescribed interval has passed. If you need your
alarm to occur on a more precise interval or time, you can force the alarm to wake up the device
by using one of the following time basis constants: AlarmManager.ELAPSED_REALTIME_WAKEUP and
AlarmManager.RTC_WAKEUP. However, you should avoid using the wake-up options unless your alarm
absolutely must occur at a specific time.
PendingIntent
547
PendingIntent
Let’s talk a little bit more about PendingIntent. A PendingIntent is a token object. When you get
one here by calling PendingIntent.getService(…), you say to the OS, “Please remember that I want
to send this intent with startService(Intent).” Later on you can call send() on your PendingIntent
token, and the OS will send the intent you originally wrapped up in exactly the way you asked.
The really nice thing about this is that when you give that PendingIntent token to someone else and
they use it, it sends that token as your application. Also, because the PendingIntent itself lives in the
OS, not in the token, you maintain control of it. If you wanted to be cruel, you could give someone else
a PendingIntent object and then immediately cancel it, so that send() does nothing.
If you request a PendingIntent twice with the same intent, you will get the same PendingIntent.
You can use this to test whether a PendingIntent already exists or to cancel a previously issued
PendingIntent.
Managing alarms with PendingIntent
You can only register one alarm for each PendingIntent. That is how setServiceAlarm(Context,
boolean) works when isOn is false: It calls AlarmManager.cancel(PendingIntent) to cancel the
alarm for your PendingIntent and then cancels your PendingIntent.
Because the PendingIntent is also cleaned up when the alarm is canceled, you can check whether
that PendingIntent exists to see whether the alarm is active. This is done by passing in the
PendingIntent.FLAG_NO_CREATE flag to PendingIntent.getService(…). This flag says that if the
PendingIntent does not already exist, return null instead of creating it.
Write a new method called isServiceAlarmOn(Context) that uses PendingIntent.FLAG_NO_CREATE
to tell whether the alarm is on.
Listing 28.10Adding isServiceAlarmOn() method (PollService.java)
public class PollService extends IntentService {
...
public static void setServiceAlarm(Context context, boolean isOn) {
...
}
public static boolean isServiceAlarmOn(Context context) {
Intent i = PollService.newIntent(context);
PendingIntent pi = PendingIntent
.getService(context, 0, i, PendingIntent.FLAG_NO_CREATE);
return pi != null;
}
...
}
Because this PendingIntent is only used for setting your alarm, a null PendingIntent here means
that your alarm is not set.
Chapter 28Background Services
548
Controlling Your Alarm
Now that you can turn your alarm on and off (as well as tell whether it is on or off), let’s add an
interface to turn this thing on and off. Add another menu item to menu/fragment_photo_gallery.xml.
Listing 28.11Adding service toggle (menu/fragment_photo_gallery.xml)
<menu xmlns:android="http://schemas.android.com/apk/res/android"
xmlns:app="http://schemas.android.com/apk/res-auto">
<item android:id="@+id/menu_item_search"
... />
<item android:id="@+id/menu_item_clear"
... />
<item android:id="@+id/menu_item_toggle_polling"
android:title="@string/start_polling"
app:showAsAction="ifRoom" />
</menu>
Now you need to add a few strings – one to start polling and one to stop polling. (You will need a
couple of other ones later, too, for a status bar notification. Go ahead and add those as well.)
Listing 28.12Adding polling strings (res/values/strings.xml)
<resources>
...
<string name="search">Search</string>
<string name="clear_search">Clear Search</string>
<string name="start_polling">Start polling</string>
<string name="stop_polling">Stop polling</string>
<string name="new_pictures_title">New PhotoGallery Pictures</string>
<string name="new_pictures_text">You have new pictures in PhotoGallery.</string>
</resources>
Controlling Your Alarm
549
Now delete your old debug code for starting the alarm and add an implementation for the menu item.
Listing 28.13Implementing toggle menu item (PhotoGalleryFragment.java)
private static final String TAG = "PhotoGalleryFragment";
...
@Override
public void onCreate(Bundle savedInstanceState) {
super.onCreate(savedInstanceState);
...
updateItems();
PollService.setServiceAlarm(getActivity(), true);
Handler responseHandler = new Handler();
...
}
...
@Override
public boolean onOptionsItemSelected(MenuItem item) {
switch (item.getItemId()) {
case R.id.menu_item_clear:
QueryPreferences.setStoredQuery(getActivity(), null);
updateItems();
return true;
case R.id.menu_item_toggle_polling:
boolean shouldStartAlarm = !PollService.isServiceAlarmOn(getActivity());
PollService.setServiceAlarm(getActivity(), shouldStartAlarm);
return true;
default:
return super.onOptionsItemSelected(item);
}
}
With that, you should be able to toggle your alarm on and off. However, you will notice that the menu
item for polling always says Start polling, even if the polling is currently on. You need to toggle the
menu item title as you did for SHOW SUBTITLE in the CriminalIntent app (Chapter13).
Chapter 28Background Services
550
In onCreateOptionsMenu(…), check whether the alarm is on and change the text of
menu_item_toggle_polling to show the appropriate label to the user.
Listing 28.14Toggling the menu item (PhotoGalleryFragment.java)
public class PhotoGalleryFragment extends Fragment {
private static final String TAG = "PhotoGalleryFragment";
...
@Override
public void onCreateOptionsMenu(Menu menu, MenuInflater menuInflater) {
super.onCreateOptionsMenu(menu, menuInflater);
menuInflater.inflate(R.menu.fragment_photo_gallery, menu);
MenuItem searchItem = menu.findItem(R.id.menu_item_search);
final SearchView searchView = (SearchView) searchItem.getActionView();
searchView.setOnQueryTextListener(…);
searchView.setOnSearchClickListener(…);
MenuItem toggleItem = menu.findItem(R.id.menu_item_toggle_polling);
if (PollService.isServiceAlarmOn(getActivity())) {
toggleItem.setTitle(R.string.stop_polling);
} else {
toggleItem.setTitle(R.string.start_polling);
}
}
...
}
Next, in onOptionsItemSelected(MenuItem), tell PhotoGalleryActivity to update its toolbar
options menu.
Listing 28.15Invalidating your options menu (PhotoGalleryFragment.java)
@Override
public boolean onOptionsItemSelected(MenuItem item) {
switch (item.getItemId()) {
case R.id.menu_item_clear:
...
case R.id.menu_item_toggle_polling:
boolean shouldStartAlarm = !PollService.isServiceAlarmOn(getActivity());
PollService.setServiceAlarm(getActivity(), shouldStartAlarm);
getActivity().invalidateOptionsMenu();
return true;
default:
return super.onOptionsItemSelected(item);
}
}
With that, your code to toggle the options menu contents should work great. And yet… there is
something missing.
Notifications
551
Notifications
Your service is now running and doing its thing in the background. But the user never knows a thing
about it, so it is not worth much.
When your service needs to communicate something to the user, the proper tool is almost always a
notification. Notifications are items that appear in the notifications drawer, which the user can access
by dragging it down from the top of the screen.
To post a notification, you first need to create a Notification object. Notifications are created by
using a builder object, much like the AlertDialog that you used in Chapter12. At a minimum, your
Notification should have:
•ticker text to display in the status bar when the notification is first shown on pre-Lollipop devices
(starting with Android 5.0 [Lollipop], ticker text is no longer displayed in the status bar but is still
relevant for accessibility services)
• an icon to show in the status bar (appears after the ticker text goes away on pre-Lollipop devices)
• a view to show in the notification drawer to represent the notification itself
• a PendingIntent to fire when the user presses the notification in the drawer
Once you have created a Notification object, you can post it by calling notify(int, Notification)
on the NotificationManager system service.
First you need to add some plumbing code, as shown in Listing 28.16. Open PhotoGalleryActivity
and add a static newIntent(Context) method. This method will return an Intent instance
that can be used to start PhotoGalleryActivity. (Eventually PollService will call
PhotoGalleryActivity.newIntent(…), wrap the resulting intent in a PendingIntent, and set that
PendingIntent on a notification.)
Listing 28.16Adding newIntent(…) to PhotoGalleryActivity
(PhotoGalleryActivity.java)
public class PhotoGalleryActivity extends SingleFragmentActivity {
public static Intent newIntent(Context context) {
return new Intent(context, PhotoGalleryActivity.class);
}
@Override
protected Fragment createFragment() {
return PhotoGalleryFragment.newInstance();
}
}
Chapter 28Background Services
552
Make PollService notify the user that a new result is ready by creating a Notification and calling
NotificationManager.notify(int, Notification).
Listing 28.17Adding a notification (PollService.java)
@Override
protected void onHandleIntent(Intent intent) {
...
String resultId = items.get(0).getId();
if (resultId.equals(lastResultId)) {
Log.i(TAG, "Got an old result: " + resultId);
} else {
Log.i(TAG, "Got a new result: " + resultId);
Resources resources = getResources();
Intent i = PhotoGalleryActivity.newIntent(this);
PendingIntent pi = PendingIntent.getActivity(this, 0, i, 0);
Notification notification = new NotificationCompat.Builder(this)
.setTicker(resources.getString(R.string.new_pictures_title))
.setSmallIcon(android.R.drawable.ic_menu_report_image)
.setContentTitle(resources.getString(R.string.new_pictures_title))
.setContentText(resources.getString(R.string.new_pictures_text))
.setContentIntent(pi)
.setAutoCancel(true)
.build();
NotificationManagerCompat notificationManager =
NotificationManagerCompat.from(this);
notificationManager.notify(0, notification);
}
QueryPreferences.setLastResultId(this, resultId);
}
Let’s go over this from top to bottom. First, you configure the ticker text and small icon by calling
setTicker(CharSequence) and setSmallIcon(int). (Note that the icon resource referenced is
provided as part of the Android framework, denoted by the package name qualifier android in
android.R.drawable.ic_menu_report_image, so you do not have to pull the icon image into your
resource folder.)
After that, you configure the appearance of your Notification in the drawer itself. It is
possible to create a completely custom look and feel, but it is easier to use the standard look
for a notification, which features an icon, a title, and a text area. It will use the value from
setSmallIcon(int) for the icon. To set the title and text, you call setContentTitle(CharSequence)
and setContentText(CharSequence), respectively.
Next, you must specify what happens when the user presses your Notification. Like
AlarmManager, this is done using a PendingIntent. The PendingIntent you pass into
setContentIntent(PendingIntent) will be fired when the user presses your Notification in the
drawer. Calling setAutoCancel(true) tweaks that behavior a little bit. With setAutoCancel(true)
set, your notification will also be deleted from the notification drawer when the user presses it.
Finally, you get an instance of NotificationManagerCompat from the current context
(NotificationManagerCompat.from(this)) and call NotificationManagerCompat.notify(…)
to post your notification. The integer parameter you pass to notify(…) is an identifier for your
Challenge: Notifications on Android Wear
553
notification. It should be unique across your application. If you post a second notification with this
same ID, it will replace the last notification you posted with that ID. This is how you would implement
a progress bar or other dynamic visuals.
And that is it. Run your app and turn polling on. You should eventually see a notification icon appear
in the status bar. In the notification tray you will see a notification indicating that new photo results are
available.
After you are satisfied that everything is working correctly, change your alarm constant to be
something more sensible. (Using one of AlarmManager’s predefined interval constants ensures that
your app will get inexact repeating alarm behavior on pre-KitKat devices.)
Listing 28.18Changing to a sensible alarm constant (PollService.java)
public class PollService extends IntentService {
private static final String TAG = "PollService";
// Set interval to 1 minute
private static final long POLL_INTERVAL_MS = TimeUnit.MINUTES.toMillis(1);
private static final long POLL_INTERVAL_MS = TimeUnit.MINUTES.toMillis(15);
...
}
Challenge: Notifications on Android Wear
Since you used NotificationCompat and NotificationManagerCompat, your notifications will
automatically appear on an Android Wear device if the user has it paired with an Android device
running your app. Users who receive the notification on a Wear device can swipe left to be presented
with the option to open the app on the connected handheld device. Pressing Open on the Wear device
will issue the notification’s pending intent on the handheld device.
To test this, set up an Android Wear emulator and pair it with a handheld device running your app.
Details about how to do this can be found on developer.android.com.
For the More Curious: Service Details
We recommend using IntentService for most service tasks. If the IntentService pattern does
not suit your architecture for a particular app, you will need to understand more about services to
implement your own. Prepare for an infobomb, though – there are a lot of details and ins and outs to
using services.
What a service does (and does not do)
A service is an application component that provides lifecycle callbacks, just like an activity. Those
callbacks are even performed on the main UI thread for you, just like in an activity.
A service does not run any code on a background thread out of the box. This is the #1 reason we
recommend IntentService. Most nontrivial services will require a background thread of some kind,
and IntentService automatically manages the boilerplate code you need to accomplish that.
Chapter 28Background Services
554
Let’s see what lifecycle callbacks a service has.
A service’s lifecycle
For a service started with startService(Intent), life is fairly simple. There are three lifecycle
callbacks.
•onCreate(…) – called when the service is created.
•onStartCommand(Intent, int, int) – called once each time a component starts the service with
startService(Intent). The two integer parameters are a set of flags and a start ID. The flags
are used to signify whether this intent delivery is an attempt to redeliver an intent or is an attempt
to retry a delivery that never made it to (or never returned from) onStartCommand(Intent, int,
int). The start ID will be different for every call to onStartCommand(Intent, int, int), so it
may be used to distinguish this command from others.
•onDestroy() – called when the service no longer needs to be alive.
The onDestroy() callback is called when the service stops. This can happen in different ways,
depending on what type of service you have written. The type of service is determined by
the value returned from onStartCommand(…), which may be Service.START_NOT_STICKY,
START_REDELIVER_INTENT, or START_STICKY.
Non-sticky services
IntentService is a non-sticky service, so let’s start there. A non-sticky service stops when the
service itself says it is done. To make your service non-sticky, return either START_NOT_STICKY or
START_REDELIVER_INTENT.
You tell Android that you are done by calling either stopSelf() or stopSelf(int). The first
method, stopSelf(), is unconditional. It will always stop your service, no matter how many times
onStartCommand(…) has been called.
The second method, stopSelf(int), is conditional. This method takes in the start ID received in
onStartCommand(…). This method will only stop your service if this was the most recent start ID
received. (This is how IntentService works under the hood.)
So what is the difference between returning START_NOT_STICKY and START_REDELIVER_INTENT? The
difference is in how your service behaves if the system needs to shut it down before it is done. A
START_NOT_STICKY service will die and disappear into the void. START_REDELIVER_INTENT, on the
other hand, will attempt to start up the service again later, when resources are less constrained.
Choosing between START_NOT_STICKY and START_REDELIVER_INTENT is a matter of deciding how
important that operation is to your application. If the service is not critical, choose START_NOT_STICKY.
In PhotoGallery, your service is being run repeatedly on an alarm. If one invocation falls through the
cracks, it is not a big deal, so: START_NOT_STICKY. This is the default behavior for IntentService. To
switch to using START_REDELIVER_INTENT, call IntentService.setIntentRedelivery(true).
Sticky services
A sticky service stays started until something outside the service tells it to stop by calling
Context.stopService(Intent). To make your service sticky, return START_STICKY.
Bound services
555
Once a sticky service is started, it is “on” until a component calls Context.stopService(Intent). If
the service needs to be killed for some reason, it will be restarted again with a null intent passed into
onStartCommand(…).
A sticky service may be appropriate for a long-running service, like a music player, which needs to
stick around until the user tells it to stop. Even then, it is worth considering an alternative architecture
using non-sticky services. Sticky service management is inconvenient, because it is difficult to tell
whether the service is already started.
Bound services
In addition to all this, it is possible to bind to a service by using the bindService(Intent,
ServiceConnection, int) method. This allows you to call methods on the service directly.
ServiceConnection is an object that represents your service binding and receives all binding
callbacks.
In a fragment, your binding code would look something like this:
private ServiceConnection mServiceConnection = new ServiceConnection() {
public void onServiceConnected(ComponentName className,
IBinder service) {
// Used to communicate with the service
MyBinder binder = (MyBinder)service;
}
public void onServiceDisconnected(ComponentName className) {
}
};
@Override
public void onCreate(Bundle savedInstanceState) {
super.onCreate(savedInstanceState);
Intent i = new Intent(getActivity(), MyService.class);
getActivity().bindService(i, mServiceConnection, 0);
}
@Override
public void onDestroy() {
super.onDestroy();
getActivity().unbindService(mServiceConnection);
}
On the service’s side, binding introduces two additional lifecycle callbacks:
•onBind(Intent) – called every time the service is bound to and returns the IBinder object
received in ServiceConnection.onServiceConnected(ComponentName, IBinder)
•onUnbind(Intent) – called when a service’s binding is terminated
Local service binding
So what does MyBinder look like? If the service is a local service, then it may be a simple Java object
that lives in your local process. Usually this is used to provide a handle to directly call methods on your
service:
Chapter 28Background Services
556
private class MyBinder extends IBinder {
public MyService getService() {
return MyService.this;
}
}
@Override
public void onBind(Intent intent) {
return new MyBinder();
}
This pattern looks exciting. It is the only place in Android that enables one Android component to
directly talk to another. However, we do not recommend it. Since services are effectively singletons,
using them this way provides no major benefits over just using a singleton instead.
Remote service binding
Binding is more useful for remote services, because they give applications in other processes the ability
to invoke methods on your service. Creating a remote service binder is an advanced topic and beyond
the scope of this book. Check out the AIDL guide in the Android documentation or the Messenger
class for more details.
For the More Curious: JobScheduler and JobServices
In this chapter, you saw how to use AlarmManager, an IntentService, and PendingIntents to put
together a periodically executing background task. In doing that, you had to do a few things manually:
• schedule a periodic task
• check whether that periodic task was currently running
• check whether the network was currently up
You had to stitch a few different APIs together by hand to create one functioning background worker
that you could start and stop. It worked, but it was a lot of work.
In Android Lollipop (API 21), a new API was introduced called JobScheduler that can implement
these kinds of tasks on its own. It is also capable of more: For example, it can avoid starting up your
service at all if the network is unavailable. It can implement a “back off and retry” policy if your
request fails or restrict network access on a metered connection. You can also restrict updates so that
they only occur while the device is charging. Even where these are possible with AlarmManager and
IntentService, it is not easy.
JobScheduler allows you to define services to run particular jobs and then schedule them to run only
when particular conditions apply. Here is how it works: First, you create a subclass of JobService
to handle your job. A JobService has two methods to override: onStartJob(JobParameters) and
onStopJob(JobParameters). (Do not enter this code anywhere. It is only a sample for purposes of this
discussion.)
For the More Curious: JobScheduler and JobServices
557
public class PollService extends JobService {
@Override
public boolean onStartJob(JobParameters params) {
return false;
}
@Override
public boolean onStopJob(JobParameters params) {
return false;
}
}
When Android is ready to run your job, your service will be started and you will receive a call to
onStartJob(…) on your main thread. Returning false from this method means, “I went ahead and did
everything this job needs, so it is complete.” Returning true means, “Got it. I am working on this job
now, but I am not done yet.”
IntentService created a background thread for you, so you did not have to worry about threading. In
JobService, though, you must implement your own threading. You might do that with an AsyncTask:
private PollTask mCurrentTask;
@Override
public boolean onStartJob(JobParameters params) {
mCurrentTask = new PollTask();
mCurrentTask.execute(params);
return true;
}
private class PollTask extends AsyncTask<JobParameters,Void,Void> {
@Override
protected Void doInBackground(JobParameters... params) {
JobParameters jobParams = params[0];
// Poll Flickr for new images
jobFinished(jobParams, false);
return null;
}
}
When you are done with your job, you call jobFinished(JobParameters, boolean) to say that you
are done. Passing in true for the second parameter means that you were not able to get the job done
this time and it should be rescheduled for the future.
While your job is running, you may receive a call to the onStopJob(JobParameters) callback. This
means that your job needs to be interrupted. This can happen when, for example, you only want your
job to run when a WiFi connection is available. If the phone moves out of WiFi range while your job is
still running, you will get a call to onStopJob(…), which is your cue to drop everything immediately.
@Override
public boolean onStopJob(JobParameters params) {
if (mCurrentTask != null) {
mCurrentTask.cancel(true);
}
return true;
}
Chapter 28Background Services
558
When onStopJob(…) is called, your service is about to be shut down. No waiting is allowed: You must
stop your work immediately. Returning true here means that your job should be rescheduled to run
again in the future. Returning false means, “Okay, I was done anyway. Do not reschedule me.”
When you register your service in the manifest, you must export it and add a permission:
<service
android:name=".PollService"
android:permission="android.permission.BIND_JOB_SERVICE"
android:exported="true"/>
Exporting it exposes it to the world at large, but adding the permission restricts it back down so that
only JobScheduler can run it.
Once you have created a JobService, kicking it off is a snap. You can use JobScheduler to check on
whether your job has been scheduled.
final int JOB_ID = 1;
JobScheduler scheduler = (JobScheduler)
context.getSystemService(Context.JOB_SCHEDULER_SERVICE);
boolean hasBeenScheduled = false;
for (JobInfo jobInfo : scheduler.getAllPendingJobs()) {
if (jobInfo.getId() == JOB_ID) {
hasBeenScheduled = true;
}
}
If your job has not been scheduled, you can create a new JobInfo that says when you want your job to
run. Hmm, when should PollService run? How about something like this:
final int JOB_ID = 1;
JobScheduler scheduler = (JobScheduler)
context.getSystemService(Context.JOB_SCHEDULER_SERVICE);
JobInfo jobInfo = new JobInfo.Builder(
JOB_ID, new ComponentName(context, PollService.class))
.setRequiredNetworkType(JobInfo.NETWORK_TYPE_UNMETERED)
.setPeriodic(1000 * 60 * 15)
.setPersisted(true)
.build();
scheduler.schedule(jobInfo);
This schedules your job to run every 15 minutes, but only on WiFi or another unmetered network.
Calling setPersisted(true) also makes your job persisted so that it will survive a reboot. Check out
the reference documentation to see all the other ways you can configure a JobInfo.
JobScheduler and the future of background work
559
JobScheduler and the future of background work
In this chapter, we showed you how to implement background work without JobScheduler. Because
JobScheduler is only available on Lollipop and later, and there is no support library version available,
the AlarmManager-based solution shown in this chapter is the only approach from the standard libraries
that will work across all the versions of Android that PhotoGallery supports.
It is important to note, though, that AlarmManager’s days of performing this kind of work are probably
numbered. One of the highest priority goals for Android platform engineers in recent years has been
improving power efficiency. To do this, they have sought greater control on scheduling when apps use
the radio, WiFi, and other tools that can run through a battery quickly.
This is why AlarmManager’s commands have changed meaning over the years: Android knows that
developers use AlarmManager to schedule background work, so those APIs have been loosened and
tweaked to try to make your app play nicely with others.
At its heart, though, AlarmManager is a bad API for this purpose. It tells Android nothing about what
you are doing – you could be using the GPS radio or you could be updating the look of an app widget
on your user’s Home screen. Android does not know, so it must treat all alarms identically. That keeps
Android from making intelligent choices about power consumption.
This pressure means that as soon as JobScheduler is an option for most apps, AlarmManager will
fall out of favor. So while JobScheduler is not a compatible option today, we strongly recommend
switching your applications to use it as soon as you determine it is feasible.
If you want to do something today instead of planning an API switch in the future, you can use a
third-party compatibility library instead. As of this writing, Evernote’s android-job library is the best
option. You can find it at github.com/evernote/android-job.
Challenge: Using JobService on Lollipop
For an additional challenge, create a second implementation of PollService that subclasses
JobService and is run using JobScheduler. In your PollService startup code, check to see whether
you are on Lollipop. If so, use JobScheduler to schedule your JobService. Otherwise, fall back on
your old AlarmManager implementation.
For the More Curious: Sync Adapters
Yet another way to set up a regularly polling web service is to use a sync adapter. Sync adapters are
not adapters like you have seen before. Instead, their sole purpose is to sync data with a data source
(uploading, downloading, or both). Unlike JobScheduler, sync adapters have been around for a while,
so you do not have to worry about which version of Android you are running.
Like JobScheduler, sync adapters can be used as a replacement for the AlarmManager setup that you
have in PhotoGallery. Syncs from multiple applications are grouped together by default, without you
having to set flags a certain way. Furthermore, you do not have to worry about resetting the sync alarm
across reboots because sync adapters handle this for you.
Chapter 28Background Services
560
Sync adapters also integrate nicely with the OS from a user perspective. You can expose your app
as a sync-able account that the user can manage through the Settings → Accounts menu. This is
where users manage accounts for other apps that use sync adapters, such as Google’s suite of apps
(Figure28.2).
Figure 28.2Accounts settings
While using a sync adapter makes correct usage of scheduling repeating network work easier – and
allows you to get rid of the alarm management and pending intent code – a sync adapter does require
a bunch more code. First, a sync adapter does not do any of your web requests for you, so you still
have to write that code (e.g., FlickrFetchr). Second, it requires a content provider implementation to
wrap the data, account, and authenticator classes to represent an account on a remote server (even if the
server does not require authentication), as well as a sync adapter and sync service implementation. It
also requires working knowledge of bound services.
So if your application already uses a ContentProvider for its data layer and requires account
authentication, using a sync adapter is a good option for you to consider. It is a big advantage that sync
adapters integrate with the UI provided by the OS, too. JobScheduler does not do that. If none of those
considerations apply, the extra code required might not be worth it.
The online developer docs provide a tutorial on using sync adapters at developer.android.com/
training/sync-adapters/index.html. Check it out to learn more.
561
29
Broadcast Intents
In this chapter you will polish PhotoGallery in two big ways. First, you will make the app poll for
new search results and notify the user if new results are found, even if the user has not opened the
application since booting the device. Second, you will ensure that notifications about new results
are posted only if the user is not interacting with the app. (It is annoying and redundant to both get a
notification and see the results update in the screen when you are actively viewing an app.)
In making these updates, you will learn how to listen for broadcast intents from the system and how to
handle such intents using a broadcast receiver. You will also dynamically send and receive broadcast
intents within your app at runtime. Finally, you will use ordered broadcasts to determine whether your
application is currently running in the foreground.
Regular Intents vs Broadcast Intents
Things are happening all the time on an Android device. WiFi is going in and out of range, packages
are getting installed, and phone calls and text messages are coming and going.
When many components on the system need to know that some event has occurred, Android uses a
broadcast intent to tell everyone about it. Broadcast intents work similarly to the intents you already
know and love, except that they can be received by multiple components, called broadcast receivers, at
the same time (Figure29.1).
Figure 29.1Regular intents vs broadcast intents
Chapter 29Broadcast Intents
562
Activities and services should respond to implicit intents whenever they are used as part of a public
API. When they are not part of a public API, explicit intents are almost always sufficient. Broadcast
intents, on the other hand, only exist to send information to more than one listener. So while broadcast
receivers can respond to explicit intents, they are rarely, if ever, used this way, because explicit intents
can only have one receiver.
Receiving a System Broadcast: Waking Up on Boot
PhotoGallery’s background alarm works, but it is not perfect. If the user reboots the device, the alarm
will be forgotten.
Apps that perform an ongoing process for the user generally need to wake themselves up after the
device is booted. You can detect when boot is completed by listening for a broadcast intent with the
BOOT_COMPLETED action. The system sends out a BOOT_COMPLETED broadcast intent whenever the device
is turned on. You can listen for it by creating and registering a standalone broadcast receiver that filters
for the appropriate action.
Creating and registering a standalone receiver
A standalone receiver is a broadcast receiver that is declared in the manifest. Such a receiver can be
activated even if your app process is dead. (Later you will learn about dynamic receivers, which can
instead be tied to the lifecycle of a visible app component, like a fragment or activity.)
Just like services and activities, broadcast receivers must be registered with the system to do anything
useful. If the receiver is not registered with the system, the system will not send any intents its way
and, in turn, the receiver’s onReceive(…) will not get executed as desired.
Before you can register your broadcast receiver, you have to write it. Create a new Java class called
StartupReceiver that is a subclass of android.content.BroadcastReceiver.
Listing 29.1Your first broadcast receiver (StartupReceiver.java)
public class StartupReceiver extends BroadcastReceiver{
private static final String TAG = "StartupReceiver";
@Override
public void onReceive(Context context, Intent intent) {
Log.i(TAG, "Received broadcast intent: " + intent.getAction());
}
}
A broadcast receiver is a component that receives intents, just like a service or an activity. When an
intent is issued to StartupReceiver, its onReceive(…) method will be called.
Creating and registering a standalone receiver
563
Next, open AndroidManifest.xml and hook up StartupReceiver as a standalone receiver:
Listing 29.2Adding your receiver to the manifest (AndroidManifest.xml)
<manifest ...>
<uses-permission android:name="android.permission.INTERNET"/>
<uses-permission android:name="android.permission.ACCESS_NETWORK_STATE"/>
<uses-permission android:name="android.permission.RECEIVE_BOOT_COMPLETED" />
<application
...>
<activity
android:name=".PhotoGalleryActivity"
android:label="@string/app_name">
...
</activity>
<service android:name=".PollService"/>
<receiver android:name=".StartupReceiver">
<intent-filter>
<action android:name="android.intent.action.BOOT_COMPLETED"/>
</intent-filter>
</receiver>
</application>
</manifest>
Registering a standalone receiver to respond to an implicit intent works just like registering an activity
to do the same. You use the receiver tag with appropriate intent-filters. StartupReceiver will
be listening for the BOOT_COMPLETED action. This action also requires a permission, so you include an
appropriate uses-permission tag as well.
With your broadcast receiver declared in your manifest, it will wake up any time a matching broadcast
intent is sent – even if your app is not currently running. Upon waking up, the ephemeral broadcast
receiver’s onReceive(Context, Intent) method will be run, and then it will die, as shown in
Figure29.2.
Figure 29.2Receiving BOOT_COMPLETED
Chapter 29Broadcast Intents
564
Time to verify that StartupReceiver’s onReceive(…) is executed when the device boots up. First, run
PhotoGallery to install the most recent version on your device.
Next, shut down your device. If you are using a physical device, power it all the way off. If you are
using an emulator, the easiest way to shut it down is to quit out of the emulator by closing the emulator
window.
Turn the device back on. If you are using a physical device, use the power button. If you are using an
emulator, either rerun your application or start the device using the AVD Manager. Make sure you are
using the same emulator image you just shut down.
Now, open the Android Device Monitor by selecting Tools → Android → Android Device Monitor.
Click on your device in Android Device Monitor’s Devices tab. (If you do not see the device listed, try
unplugging and replugging your USB device or restarting the emulator.)
Search the Logcat results within the Android Device Monitor window for your log statement
(Figure29.3).
Figure 29.3Searching Logcat output
You should see a Logcat statement showing that your receiver ran. However, if you check your device
in the Devices tab, you will probably not see a process for PhotoGallery. Your process came to life just
long enough to run your broadcast receiver, and then it died again.
(Testing that the receiver executed can be unreliable when you are using Logcat output, especially if
you are using an emulator. If you do not see the log statement the first time through the instructions
above, try a few more times. Worst case, continue through the rest of the exercise. Once you get to the
part where you hook up notifications, you will have a more reliable way to check whether the receiver
is working.)
Using receivers
565
Using receivers
The fact that broadcast receivers live such short lives restricts the things you can do with them.
You cannot use any asynchronous APIs, for example, or register any listeners, because your
receiver will not be alive any longer than the call to onReceive(Context, Intent). Also, because
onReceive(Context, Intent) runs on your main thread, you cannot do any heavy lifting inside it.
That means no networking or heavy work with permanent storage.
But this does not make receivers useless. They are invaluable for all kinds of little plumbing code, such
as starting an activity or service (so long as you do not expect a result back) or resetting a recurring
alarm when the system finishes rebooting (as you will do in this exercise).
Your receiver will need to know whether the alarm should be on or off. Add a preference constant and
convenience methods to QueryPreferences to store this information in shared preferences.
Listing 29.3Adding alarm status preference (QueryPreferences.java)
public class QueryPreferences {
private static final String PREF_SEARCH_QUERY = "searchQuery";
private static final String PREF_LAST_RESULT_ID = "lastResultId";
private static final String PREF_IS_ALARM_ON = "isAlarmOn";
...
public static void setLastResultId(Context context, String lastResultId) {
...
}
public static boolean isAlarmOn(Context context) {
return PreferenceManager.getDefaultSharedPreferences(context)
.getBoolean(PREF_IS_ALARM_ON, false);
}
public static void setAlarmOn(Context context, boolean isOn) {
PreferenceManager.getDefaultSharedPreferences(context)
.edit()
.putBoolean(PREF_IS_ALARM_ON, isOn)
.apply();
}
}
Chapter 29Broadcast Intents
566
Next, update PollService.setServiceAlarm(…) to write to shared preferences when the alarm is set.
Listing 29.4Writing alarm status preference when alarm is set
(PollService.java)
public class PollService extends IntentService {
...
public static void setServiceAlarm(Context context, boolean isOn) {
...
if (isOn) {
alarmManager.setRepeating(AlarmManager.ELAPSED_REALTIME,
SystemClock.elapsedRealtime(), POLL_INTERVAL_MS, pi);
} else {
alarmManager.cancel(pi);
pi.cancel();
}
QueryPreferences.setAlarmOn(context, isOn);
}
...
}
Then your StartupReceiver can use it to turn the alarm on at boot.
Listing 29.5Starting alarm on boot (StartupReceiver.java)
public class StartupReceiver extends BroadcastReceiver{
private static final String TAG = "StartupReceiver";
@Override
public void onReceive(Context context, Intent intent) {
Log.i(TAG, "Received broadcast intent: " + intent.getAction());
boolean isOn = QueryPreferences.isAlarmOn(context);
PollService.setServiceAlarm(context, isOn);
}
}
Run PhotoGallery again. (You may want to change PollService.POLL_INTERVAL_MS back to a shorter
interval, such as 60 seconds, for testing purposes.) Turn polling on by pressing START POLLING in the
toolbar. Reboot your device. This time, background polling should be restarted after you reboot your
phone, tablet, or emulator.
Filtering Foreground Notifications
567
Filtering Foreground Notifications
With that sharp corner filed down a bit, let’s turn to another imperfection in PhotoGallery. Your
notifications work great, but they are sent even when the user already has the application open.
You can fix this problem with broadcast intents, too. But they will work in a completely different way.
First, you will send (and receive) your own custom broadcast intent (and ultimately will lock it down
so it can be received only by components in your application). Second, you will register a receiver
for your broadcast dynamically in code, rather than in the manifest. Finally, you will send an ordered
broadcast to pass data along a chain of receivers, ensuring a certain receiver is run last. (You do not
know how to do all this yet, but you will by the time you are done.)
Sending broadcast intents
The first part is straightforward: You need to send your own broadcast intent. Specifically, you will
send a broadcast notifying interested components that a new search results notification is ready to post.
To send a broadcast intent, create an intent and pass it into sendBroadcast(Intent). In this case, you
will want it to broadcast an action you define, so define an action constant as well.
Add these items in PollService.
Listing 29.6Sending a broadcast intent (PollService.java)
public class PollService extends IntentService {
private static final String TAG = "PollService";
private static final long POLL_INTERVAL_MS = TimeUnit.MINUTES.toMillis(15);
public static final String ACTION_SHOW_NOTIFICATION =
"com.bignerdranch.android.photogallery.SHOW_NOTIFICATION";
...
@Override
protected void onHandleIntent(Intent intent) {
...
String resultId = items.get(0).getId();
if (resultId.equals(lastResultId)) {
Log.i(TAG, "Got an old result: " + resultId);
} else {
...
NotificationManagerCompat notificationManager =
NotificationManagerCompat.from(this);
notificationManager.notify(0, notification);
sendBroadcast(new Intent(ACTION_SHOW_NOTIFICATION));
}
QueryPreferences.setLastResultId(this, resultId);
}
...
}
Now your app will send out a broadcast every time new search results are available.
Chapter 29Broadcast Intents
568
Creating and registering a dynamic receiver
Next, you need a receiver for your ACTION_SHOW_NOTIFICATION broadcast intent.
You could write a standalone broadcast receiver, like StartupReceiver, and register it in the manifest.
But that would not be ideal in this case. Here, you want PhotoGalleryFragment to receive the intent
only while it is alive. A standalone receiver declared in the manifest would always receive the intent
and would need some other way of knowing that PhotoGalleryFragment is alive (which is not easily
achieved in Android).
The solution is to use a dynamic broadcast receiver. A dynamic receiver is registered in code, not
in the manifest. You register the receiver by calling registerReceiver(BroadcastReceiver,
IntentFilter) and unregister it by calling unregisterReceiver(BroadcastReceiver). The receiver
itself is typically defined as an inner instance, like a button-click listener. However, since you need the
same instance in registerReceiver(…) and unregisterReceiver(BroadcastReceiver), you will
need to assign the receiver to an instance variable.
Create a new abstract class called VisibleFragment, with Fragment as its superclass. This class will
be a generic fragment that hides foreground notifications. (You will write another fragment like this in
Chapter30.)
Listing 29.7A receiver of VisibleFragment’s own (VisibleFragment.java)
public abstract class VisibleFragment extends Fragment {
private static final String TAG = "VisibleFragment";
@Override
public void onStart() {
super.onStart();
IntentFilter filter = new IntentFilter(PollService.ACTION_SHOW_NOTIFICATION);
getActivity().registerReceiver(mOnShowNotification, filter);
}
@Override
public void onStop() {
super.onStop();
getActivity().unregisterReceiver(mOnShowNotification);
}
private BroadcastReceiver mOnShowNotification = new BroadcastReceiver() {
@Override
public void onReceive(Context context, Intent intent) {
Toast.makeText(getActivity(),
"Got a broadcast:" + intent.getAction(),
Toast.LENGTH_LONG)
.show();
}
};
}
Note that to pass in an IntentFilter, you have to create one in code. Your IntentFilter here is
identical to the filter specified by the following XML:
<intent-filter>
<action android:name="com.bignerdranch.android.photogallery.SHOW_NOTIFICATION" />
</intent-filter>
Creating and registering a dynamic receiver
569
Any IntentFilter you can express in XML can also be expressed in code this way. Just call
addCategory(String), addAction(String), addDataPath(String), and so on to configure your filter.
When you use dynamically registered broadcast receivers, you must also take care to
clean them up. Typically, if you register a receiver in a startup lifecycle method, you call
Context.unregisterReceiver(BroadcastReceiver) in the corresponding shutdown method.
Here, you register inside onStart() and unregister inside onStop(). If instead you registered inside
onCreate(…), you would unregister inside onDestroy().
(Be careful with onCreate(…) and onDestroy() in retained fragments, by the way. getActivity()
will return different values in onCreate(…) and onDestroy() if the screen has rotated. If you
want to register/unregister in Fragment.onCreate(Bundle) and Fragment.onDestroy(), use
getActivity().getApplicationContext() instead.)
Next, modify PhotoGalleryFragment to be a subclass of your new VisibleFragment.
Listing 29.8Making your fragment visible (PhotoGalleryFragment.java)
public class PhotoGalleryFragment extends Fragment VisibleFragment {
...
}
Run PhotoGallery and toggle background polling a couple of times. You will see a nice toast pop up
(Figure29.4).
Figure 29.4Proof that your broadcast exists
Chapter 29Broadcast Intents
570
Limiting broadcasts to your app using private permissions
One issue with a broadcast like this is that anyone on the system can listen to it or trigger your
receivers. You are usually not going to want either of those things to happen.
You can preclude these unauthorized intrusions into your personal business in a couple of ways.
One way is to declare in your manifest that the receiver is internal to your app by adding an
android:exported="false" attribute to your receiver tag. This will prevent it from being visible to
other applications on the system.
Another way is to create your own permission by adding a permission tag to your
AndroidManifest.xml. This is the approach you will take for PhotoGallery.
Declare and acquire your own permission in AndroidManifest.xml.
Listing 29.9Adding a private permission (AndroidManifest.xml)
<manifest ...>
<permission android:name="com.bignerdranch.android.photogallery.PRIVATE"
android:protectionLevel="signature" />
<uses-permission android:name="android.permission.INTERNET" />
<uses-permission android:name="android.permission.ACCESS_NETWORK_STATE" />
<uses-permission android:name="android.permission.RECEIVE_BOOT_COMPLETED" />
<uses-permission android:name="com.bignerdranch.android.photogallery.PRIVATE" />
...
</manifest>
Notice that you define a custom permission with a protection level of signature. You will learn
more about protection levels in just a moment. The permission itself is a simple string, just like intent
actions, categories, and system permissions you have used. You must always acquire a permission to
use it, even when you defined it yourself. Them’s the rules.
Take note of the shaded constant value above, by the way. This string needs to appear in three more
places and must be identical in each place. You would be wise to copy and paste it rather than typing it
out by hand.
Limiting broadcasts to your app using private permissions
571
Now, use your permission by defining a corresponding constant in code and then passing it into your
sendBroadcast(…) call.
Listing 29.10Sending with a permission (PollService.java)
public class PollService extends IntentService {
...
public static final String ACTION_SHOW_NOTIFICATION =
"com.bignerdranch.android.photogallery.SHOW_NOTIFICATION";
public static final String PERM_PRIVATE =
"com.bignerdranch.android.photogallery.PRIVATE";
public static Intent newIntent(Context context) {
return new Intent(context, PollService.class);
}
...
@Override
protected void onHandleIntent(Intent intent) {
...
String resultId = items.get(0).getId();
if (resultId.equals(lastResultId)) {
Log.i(TAG, "Got an old result: " + resultId);
} else {
...
notificationManager.notify(0, notification);
sendBroadcast(new Intent(ACTION_SHOW_NOTIFICATION), PERM_PRIVATE);
}
QueryPreferences.setLastResultId(this, resultId);
}
...
}
To use your permission, you pass it as a parameter to sendBroadcast(…). Using the permission here
ensures that any application must use that same permission to receive the intent you are sending.
What about your broadcast receiver? Someone could create a broadcast intent to trigger it. You can fix
that by passing in your permission in registerReceiver(…), too.
Listing 29.11Setting permissions on a broadcast receiver
(VisibleFragment.java)
public abstract class VisibleFragment extends Fragment {
...
@Override
public void onStart() {
super.onStart();
IntentFilter filter = new IntentFilter(PollService.ACTION_SHOW_NOTIFICATION);
getActivity().registerReceiver(mOnShowNotification, filter,
PollService.PERM_PRIVATE, null);
}
...
}
Now, your app is the only app that can trigger that receiver.
Chapter 29Broadcast Intents
572
More about protection levels
Every custom permission has to specify a value for android:protectionLevel. Your permission’s
protectionLevel tells Android how it should be used. In your case, you used a protectionLevel of
signature.
The signature protection level means that if another application wants to use your permission, it has
to be signed with the same key as your application. This is usually the right choice for permissions
you use internally in your application. Because other developers do not have your key, they cannot get
access to anything this permission protects. Plus, because you do have your own key, you can use this
permission in any other app you decide to write later.
Table 29.1Values for protectionLevel
Value Description
normal This is for protecting app functionality that will not do anything dangerous like
accessing secure personal data or finding out where you are on a map. The user
can see the permission before choosing to install the app but is never explicitly
asked to grant it. android.permission.RECEIVE_BOOT_COMPLETED uses this
permission level, and so does the permission that lets your app vibrate the user’s
device.
dangerous This is for everything you would not use normal for – accessing personal data,
accessing hardware that might be used to spy on the user, or anything else that
could cause real problems. The camera permission, locations permissions,
and contacts permission all fall under this category. Starting in Marshmallow,
dangerous permissions require that you call requestPermission(…) at runtime
to ask the user to explicitly grant your app permission. (For more about how that
works, see Chapter33.)
signature The system grants this permission if the app is signed with the same certificate
as the declaring application and denies it otherwise. If the permission is granted,
the user is not notified. This is for functionality that is internal to an app –
as the developer, because you have the certificate and only apps signed with
the same certificate can use the permission, you have control over who uses
the permission. You used it here to prevent anyone else from seeing your
broadcasts. If you wanted, you could write another app that listens to them, too.
signatureOrSystem This is like signature, but it also grants permission to all packages in the
Android system image. This is for communicating with apps built into the
system image. If the permission is granted, the user is not notified. Most
developers do not need to use it.
Passing and receiving data with ordered broadcasts
Time to finally bring this baby home. The last piece is to ensure that your dynamically registered
receiver always receives the PollService.ACTION_SHOW_NOTIFICATION broadcast before any other
receivers and that it modifies the broadcast to indicate that the notification should not be posted.
Passing and receiving data with ordered broadcasts
573
Right now you are sending your own personal private broadcast, but so far you only have one-way
communication (Figure29.5).
Figure 29.5Regular broadcast intents
This is because a regular broadcast intent is conceptually received by everyone at the same time. In
reality, because onReceive(…) is called on the main thread, your receivers are not actually executed
concurrently. However, it is not possible to rely on their being executed in any particular order or to
know when they have all completed execution. As a result, it is a hassle for the broadcast receivers to
communicate with each other or for the sender of the intent to receive information from the receivers.
You can implement two-way communication using an ordered broadcast intent (Figure29.6). Ordered
broadcasts allow a sequence of broadcast receivers to process a broadcast intent in order. They also
allow the sender of a broadcast to receive results from the broadcast’s recipients by passing in a special
broadcast receiver, called the result receiver.
Figure 29.6Ordered broadcast intents
On the receiving side, this looks mostly the same as a regular broadcast. But you get an additional
tool: a set of methods used to change the return value of your receiver. Here, you want to cancel
the notification. This can be communicated by use of a simple integer result code. You will use the
setResultCode(int) method to set the result code to Activity.RESULT_CANCELED.
Chapter 29Broadcast Intents
574
Modify VisibleFragment to tell the sender of SHOW_NOTIFICATION whether the notification should be
posted. This information will also be sent to any other broadcast receivers along the chain.
Listing 29.12Sending a simple result back (VisibleFragment.java)
public abstract class VisibleFragment extends Fragment {
private static final String TAG = "VisibleFragment";
...
private BroadcastReceiver mOnShowNotification = new BroadcastReceiver() {
@Override
public void onReceive(Context context, Intent intent) {
Toast.makeText(getActivity(),
"Got a broadcast:" + intent.getAction(),
Toast.LENGTH_LONG)
.show();
// If we receive this, we're visible, so cancel
// the notification
Log.i(TAG, "canceling notification");
setResultCode(Activity.RESULT_CANCELED);
}
};
...
}
Because all you need to do is signal yes or no here, you only need the result code. If you needed to
return more complicated data, you could use setResultData(String) or setResultExtras(Bundle).
And if you wanted to set all three values, you could call setResult(int, String, Bundle). Once
your return values are set, every subsequent receiver will be able to see or modify them.
For those methods to do anything useful, your broadcast needs to be ordered. Write a new method to
send an ordered broadcast in PollService. This method will package up a Notification invocation
and send it out as a broadcast. Update onHandleIntent(…) to call your new method and, in turn, send
out an ordered broadcast instead of posting the notification directly to the NotificationManager.
Passing and receiving data with ordered broadcasts
575
Listing 29.13Sending an ordered broadcast (PollService.java)
public static final String PERM_PRIVATE =
"com.bignerdranch.android.photogallery.PRIVATE";
public static final String REQUEST_CODE = "REQUEST_CODE";
public static final String NOTIFICATION = "NOTIFICATION";
...
@Override
protected void onHandleIntent(Intent intent) {
...
String resultId = items.get(0).getId();
if (resultId.equals(lastResultId)) {
Log.i(TAG, "Got an old result: " + resultId);
} else {
Log.i(TAG, "Got a new result: " + resultId);
...
Notification notification = ...;
NotificationManagerCompat notificationManager =
NotificationManagerCompat.from(this);
notificationManager.notify(0, notification);
sendBroadcast(new Intent(ACTION_SHOW_NOTIFICATION), PERM_PRIVATE);
showBackgroundNotification(0, notification);
}
QueryPreferences.setLastResultId(this, resultId);
}
private void showBackgroundNotification(int requestCode, Notification notification) {
Intent i = new Intent(ACTION_SHOW_NOTIFICATION);
i.putExtra(REQUEST_CODE, requestCode);
i.putExtra(NOTIFICATION, notification);
sendOrderedBroadcast(i, PERM_PRIVATE, null, null,
Activity.RESULT_OK, null, null);
}
Context.sendOrderedBroadcast(Intent, String, BroadcastReceiver, Handler, int, String,
Bundle) has five additional parameters beyond the ones you used in sendBroadcast(Intent,
String). They are, in order: a result receiver, a Handler to run the result receiver on, and initial values
for the result code, result data, and result extras for the ordered broadcast.
The result receiver is a special receiver that runs after all the other recipients of your ordered broadcast
intent. In other circumstances, you would be able to use the result receiver to receive the broadcast and
post the notification object. Here, though, that will not work. This broadcast intent will often be sent
right before PollService dies. That means that your broadcast receiver might be dead, too.
Thus, your final broadcast receiver will need to be a standalone receiver, and you will need to enforce
that it runs after the dynamically registered receiver by different means.
Chapter 29Broadcast Intents
576
First, create a new BroadcastReceiver subclass called NotificationReceiver. Implement it as
follows:
Listing 29.14Implementing your result receiver
(NotificationReceiver.java)
public class NotificationReceiver extends BroadcastReceiver {
private static final String TAG = "NotificationReceiver";
@Override
public void onReceive(Context c, Intent i) {
Log.i(TAG, "received result: " + getResultCode());
if (getResultCode() != Activity.RESULT_OK) {
// A foreground activity cancelled the broadcast
return;
}
int requestCode = i.getIntExtra(PollService.REQUEST_CODE, 0);
Notification notification = (Notification)
i.getParcelableExtra(PollService.NOTIFICATION);
NotificationManagerCompat notificationManager =
NotificationManagerCompat.from(c);
notificationManager.notify(requestCode, notification);
}
}
Next, register your new receiver and assign it a priority. To ensure that NotificationReceiver
receives the broadcast after your dynamically registered receiver (so it can check to see whether
it should post the notification to NotificationManager), you need to set a low priority for
NotificationReceiver. Give it a priority of -999 so that it runs last. This is the lowest user-defined
priority possible (-1000 and below are reserved).
Also, since this receiver is only used by your application, you do not need it to be externally visible.
Set android:exported="false" to keep this receiver to yourself.
Listing 29.15Registering the notification receiver (AndroidManifest.xml)
<receiver android:name=".StartupReceiver">
<intent-filter>
<action android:name="android.intent.action.BOOT_COMPLETED" />
</intent-filter>
</receiver>
<receiver android:name=".NotificationReceiver"
android:exported="false">
<intent-filter android:priority="-999">
<action
android:name="com.bignerdranch.android.photogallery.SHOW_NOTIFICATION" />
</intent-filter>
</receiver>
Run PhotoGallery and toggle background polling a couple of times. You should see that notifications
no longer appear when you have the app in the foreground. (If you have not already done so, change
PollService.POLL_INTERVAL_MS to 60 seconds so that you do not have to wait 15 minutes to verify
that notifications still work in the background.)
Receivers and Long-Running Tasks
577
Receivers and Long-Running Tasks
So what do you do if you want a broadcast intent to kick off a longer-running task than the restrictions
of the main run loop allow?
You have two options. The first is to put that work into a service instead and start the service in your
broadcast receiver’s small window of opportunity. This is the method we recommend. A service can
take as long as it needs to service a request. It can queue up multiple requests and service them in order
or otherwise manage requests as it sees fit.
The second is to use the BroadcastReceiver.goAsync() method. This method returns a
BroadcastReceiver.PendingResult object, which can be used to provide a result at a later time. So
you could give that PendingResult to an AsyncTask to perform some longer-running work and then
respond to the broadcast by calling methods on PendingResult.
There is one downside to using the goAsync method: It is less flexible. You still have to service the
broadcast within 10 seconds or so, and you have fewer architectural options than you do with a service.
Of course, goAsync() has one huge advantage: You can set results for ordered broadcasts with it. If
you really need that, nothing else will do. Just make sure you do not take too long.
Chapter 29Broadcast Intents
578
For the More Curious: Local Events
Broadcast intents allow you to propagate information across the system in a global fashion. What if
you want to broadcast the occurrence of an event within your app’s process only? Using an event bus is
a great alternative.
An event bus operates on the idea of having a shared bus, or stream of data, that components within
your application can subscribe to. When an event is posted to the bus, subscribed components will be
activated and have their callback code executed.
EventBus by greenrobot is a third-party event bus library we use in our Android applications. Other
alternatives to consider include Square’s Otto, which is another event bus implementation, or using
RxJava Subjects and Observables to simulate an event bus.
Android does provide a local way to send broadcast intents, called LocalBroadcastManager. But we
find that the third-party libraries mentioned here provide a more flexible and easier-to-use API for
broadcasting local events.
Using EventBus
To use EventBus in your application, you must add a library dependency to your project. Once the
dependency is set up, you define a class representing an event (you can add fields to the event if you
need to pass data along):
public class NewFriendAddedEvent { }
You can post to the bus from just about anywhere in your app:
EventBus eventBus = EventBus.getDefault();
eventBus.post(new NewFriendAddedEvent());
Other parts of your app can subscribe to receive events by first registering to listen on the bus. Often
you will register and unregister activities or fragments in corresponding lifecycle methods, such as
onStart(…) and onStop(…):
// In some fragment or activity...
private EventBus mEventBus;
@Override
public void onCreate(Bundle savedInstanceState) {
super.onCreate(savedInstanceState);
mEventBus = EventBus.getDefault();
}
@Override
public void onStart() {
super.onStart();
mEventBus.register(this);
}
@Override
public void onStop() {
super.onStop();
mEventBus.unregister(this);
}
Using RxJava
579
You specify how a subscriber should handle an event by implementing a method with the appropriate
event type as input and adding the @Subscribe annotation to that method. Using the @Subscribe
annotation with no parameters means the event will be processed on the same thread it was sent from.
You could instead use @Subscribe(threadMode = ThreadMode.MAIN) to ensure that the event is
processed on the main thread if it happens to be issued from a background thread.
// In some registered component, like a fragment or activity...
@Subscribe(threadMode = ThreadMode.MAIN)
public void onNewFriendAdded(NewFriendAddedEvent event){
Friend newFriend = event.getFriend();
// Update the UI or do something in response to event...
}
Using RxJava
RxJava can also be used to implement an event broadcasting mechanism. RxJava is a library for
writing “reactive”-style Java code. That “reactive” idea is broad and beyond the scope of what we can
cover here. The short story is that it allows you to publish and subscribe to sequences of events and
gives you a broad set of generic tools for manipulating these event sequences.
So you could create something called a Subject, which is an object you can publish events to as well
as subscribe to events on.
Subject<Object, Object> eventBus =
new SerializedSubject<>(PublishSubject.create());
You can publish events to it:
Friend someNewFriend = ...;
NewFriendAddedEvent event = new NewFriendAddedEvent(someNewFriend);
eventBus.onNext(event);
and subscribe to events on it:
eventBus.subscribe(new Action1<Object>() {
@Override
public void call(Object event) {
if (event instanceof NewFriendAddedEvent) {
Friend newFriend = ((NewFriendAddedEvent)event).getFriend();
// Update the UI
}
}
})
The advantage of RxJava’s solution is that your eventBus is now also an Observable, RxJava’s
representation of a stream of events. That means that you get to use all of RxJava’s various event
manipulation tools. If that piques your interest, check out the wiki on RxJava’s project page:
github.com/ReactiveX/RxJava/wiki.
Chapter 29Broadcast Intents
580
For the More Curious: Detecting the Visibility of Your
Fragment
When you reflect on your PhotoGallery implementation, you may notice that you used the global
broadcast mechanism to broadcast the SHOW_NOTIFICATION intent. However, you locked the receiving
of that broadcast to items local to your app progress by using custom permissions. You may find
yourself asking, “Why am I using a global mechanism if I am just communicating things in my own
app? Why not a local mechanism instead?”
This is because you were specifically trying to solve the problem of knowing whether
PhotoGalleryFragment was visible. The combination of ordered broadcasts, standalone receivers,
and dynamically registered receivers you implemented gets the job done. There is not a more
straightforward way to do this in Android.
More specifically, LocalBroadcastManager would not work for PhotoGallery’s notification broadcast
and visible fragment detection, for two main reasons.
First, LocalBroadcastManager does not support ordered broadcasts (though it does provide a blocking
way to broadcast, namely sendBroadcastSync(Intent intent)). This will not work for PhotoGallery
because you need to force NotificationReceiver to run last in the chain.
Second, sendBroadcastSync(Intent intent) does not support sending and receiving a broadcast
on separate threads. In PhotoGallery you need to send the broadcast from a background thread (in
PollService.onHandleIntent(…)) and receive the intent on the main thread (by the dynamic receiver
that is registered by PhotoGalleryFragment on the main thread in onStart(…)).
As of this writing, the semantics of LocalBroadcastManager’s thread delivery are not well documented
and, in our experience, are not intuitive. For example, if you call sendBroadcastSync(…) from a
background thread, all pending broadcasts will get flushed out on that background thread regardless of
whether they were posted from the main thread.
This is not to say LocalBroadcastManager is not useful. It is simply not the right tool for the problems
you solved in this chapter.
581
30
Browsing the Web and WebView
Each photo you get from Flickr has a page associated with it. In this chapter, you are going to update
PhotoGallery so that users can press a photo to see its Flickr page. You will learn two different ways to
integrate web content into your apps, shown in Figure30.1. The first works with the device’s browser
app (left), and the second uses a WebView to display web content within PhotoGallery (right).
Figure 30.1Web content: two different approaches
Chapter 30Browsing the Web and WebView
582
One Last Bit of Flickr Data
For both ways, you need to get the URL for a photo’s Flickr page. If you look at the JSON you are
currently receiving for each photo, you can see that the photo page is not part of those results.
{
"photos": {
...,
"photo": [
{
"id": "9452133594",
"owner": "44494372@N05",
"secret": "d6d20af93e",
"server": "7365",
"farm": 8,
"title": "Low and Wisoff at Work",
"ispublic": 1,
"isfriend": 0,
"isfamily": 0,
"url_s":"https://farm8.staticflickr.com/7365/9452133594_d6d20af93e_m.jpg"
}, ...
]
},
"stat": "ok"
}
You might think that you are in for some more JSON request writing. Fortunately, that is not the case.
If you look at the “Web Page URLs” section of Flickr’s documentation at www.flickr.com/services/
api/misc.urls.html, you will see that you can create the URL for an individual photo’s page like so:
https://www.flickr.com/photos/user-id/photo-id
The photo-id seen here is the same as the value of the id attribute from your JSON. You are already
stashing that in mId in GalleryItem. What about user-id? If you poke around the documentation, you
will find that the owner attribute in your JSON is a user ID. So if you pull out the owner attribute, you
should be able to build the URL from your photo JSON:
https://www.flickr.com/photos/owner/id
One Last Bit of Flickr Data
583
Update GalleryItem to put this plan into action.
Listing 30.1Adding code for photo page (GalleryItem.java)
public class GalleryItem {
private String mCaption;
private String mId;
private String mUrl;
private String mOwner;
...
public void setUrl(String url) {
mUrl = url;
}
public String getOwner() {
return mOwner;
}
public void setOwner(String owner) {
mOwner = owner;
}
public Uri getPhotoPageUri() {
return Uri.parse("https://www.flickr.com/photos/")
.buildUpon()
.appendPath(mOwner)
.appendPath(mId)
.build();
}
@Override
public String toString() {
return mCaption;
}
}
Here, you create a new mOwner property and add a short method called getPhotoPageUri() to generate
photo page URLs as discussed above.
Chapter 30Browsing the Web and WebView
584
Now change parseItems(…) to read in the owner attribute.
Listing 30.2Reading in owner attribute (FlickrFetchr.java)
public class FlickrFetchr {
...
private void parseItems(List<GalleryItem> items, JSONObject jsonBody)
throws IOException, JSONException {
JSONObject photosJsonObject = jsonBody.getJSONObject("photos");
JSONArray photoJsonArray = photosJsonObject.getJSONArray("photo");
for (int i = 0; i < photoJsonArray.length(); i++) {
JSONObject photoJsonObject = photoJsonArray.getJSONObject(i);
GalleryItem item = new GalleryItem();
item.setId(photoJsonObject.getString("id"));
item.setCaption(photoJsonObject.getString("title"));
if (!photoJsonObject.has("url_s")) {
continue;
}
item.setUrl(photoJsonObject.getString("url_s"));
item.setOwner(photoJsonObject.getString("owner"));
items.add(item);
}
}
}
Easy peasy. Now to have fun with your new photo page URL.
The Easy Way: Implicit Intents
585
The Easy Way: Implicit Intents
You will browse to this URL first by using your old friend the implicit intent. This intent will start up
the browser with your photo URL.
The first step is to make your app listen to presses on an item in the RecyclerView. Update
PhotoGalleryFragment’s PhotoHolder to implement a click listener that will fire an implicit intent.
Listing 30.3Firing implicit intent when item is pressed
(PhotoGalleryFragment.java)
public class PhotoGalleryFragment extends VisibleFragment {
...
private class PhotoHolder extends RecyclerView.ViewHolder
implements View.OnClickListener {
private ImageView mItemImageView;
private GalleryItem mGalleryItem;
public PhotoHolder(View itemView) {
super(itemView);
mItemImageView = (ImageView) itemView.findViewById(R.id.item_image_view);
itemView.setOnClickListener(this);
}
public void bindDrawable(Drawable drawable) {
mItemImageView.setImageDrawable(drawable);
}
public void bindGalleryItem(GalleryItem galleryItem) {
mGalleryItem = galleryItem;
}
@Override
public void onClick(View v) {
Intent i = new Intent(Intent.ACTION_VIEW, mGalleryItem.getPhotoPageUri());
startActivity(i);
}
}
...
}
Next, bind the PhotoHolder to a GalleryItem in PhotoAdapter.onBindViewHolder(…).
Listing 30.4Binding GalleryItem (PhotoGalleryFragment.java)
private class PhotoAdapter extends RecyclerView.Adapter<PhotoHolder> {
...
@Override
public void onBindViewHolder(PhotoHolder photoHolder, int position) {
GalleryItem galleryItem = mGalleryItems.get(position);
photoHolder.bindGalleryItem(galleryItem);
Drawable placeholder = getResources().getDrawable(R.drawable.bill_up_close);
photoHolder.bindDrawable(placeholder);
mThumbnailDownloader.queueThumbnail(photoHolder, galleryItem.getUrl());
}
...
}
Chapter 30Browsing the Web and WebView
586
That is it. Start up PhotoGallery and press on a photo. Your browser app should pop up and load the
photo page for the item you pressed (similar to the image on the left in Figure30.1).
The Harder Way: WebView
Using an implicit intent to display the photo page is easy and effective. But what if you do not want
your app to open the browser?
Often, you want to display web content within your own activities instead of heading off to the
browser. You may want to display HTML that you generate yourself, or you may want to lock down
the browser somehow. For apps that include help documentation, it is common to implement it as
a web page so that it is easy to update. Opening a web browser to a help web page does not look
professional, and it prevents you from customizing behavior or integrating that web page into your own
UI.
When you want to present web content within your own UI, you use the WebView class. We are calling
this the “harder” way here, but it is pretty darned easy. (Anything is hard compared to using implicit
intents.)
The first step is to create a new activity and fragment to display the WebView. Start, as usual, by
defining a layout file and naming it fragment_photo_page.xml. Make ConstraintLayout the top-
level layout. In the visual editor, drag a WebView into the ConstraintLayout as a child. (You will find
WebView under the Containers section.)
Once the WebView is added, add a constraint for every side to its parent. That gives you the following
constraints:
• from the top of WebView to the top of its parent
• from the bottom of WebView to the bottom of its parent
• from the left of WebView to the left of its parent
• from the right of WebView to the right of its parent
Finally, change the height and width to Any Size and change all the margins to 0. Oh, and give your
WebView an ID: web_view.
You may be thinking, “That ConstraintLayout is not useful.” True enough – for the moment. You will
fill it out later in the chapter with additional “chrome.”
Next, get the rudiments of your fragment set up. Create PhotoPageFragment as a subclass of the
VisibleFragment class you created in the last chapter. You will need to inflate your layout file, extract
your WebView from it, and forward along the URL to display as a fragment argument.
The Harder Way: WebView
587
Listing 30.5Setting up your web browser fragment (PhotoPageFragment.java)
public class PhotoPageFragment extends VisibleFragment {
private static final String ARG_URI = "photo_page_url";
private Uri mUri;
private WebView mWebView;
public static PhotoPageFragment newInstance(Uri uri) {
Bundle args = new Bundle();
args.putParcelable(ARG_URI, uri);
PhotoPageFragment fragment = new PhotoPageFragment();
fragment.setArguments(args);
return fragment;
}
@Override
public void onCreate(Bundle savedInstanceState) {
super.onCreate(savedInstanceState);
mUri = getArguments().getParcelable(ARG_URI);
}
@Override
public View onCreateView(LayoutInflater inflater, ViewGroup container,
Bundle savedInstanceState) {
View v = inflater.inflate(R.layout.fragment_photo_page, container, false);
mWebView = (WebView) v.findViewById(R.id.web_view);
return v;
}
}
For now, this is just a skeleton. You will fill it out a bit more in a moment. But first, create the
containing PhotoPageActivity class using good old SingleFragmentActivity.
Listing 30.6Creating web activity (PhotoPageActivity.java)
public class PhotoPageActivity extends SingleFragmentActivity {
public static Intent newIntent(Context context, Uri photoPageUri) {
Intent i = new Intent(context, PhotoPageActivity.class);
i.setData(photoPageUri);
return i;
}
@Override
protected Fragment createFragment() {
return PhotoPageFragment.newInstance(getIntent().getData());
}
}
Chapter 30Browsing the Web and WebView
588
Switch up your code in PhotoGalleryFragment to launch your new activity instead of the implicit
intent.
Listing 30.7Switching to launch your activity (PhotoGalleryFragment.java)
public class PhotoGalleryFragment extends VisibleFragment {
...
private class PhotoHolder extends RecyclerView.ViewHolder
implements View.OnClickListener{
...
@Override
public void onClick(View v) {
Intent i = new Intent(Intent.ACTION_VIEW, mGalleryItem.getPhotoPageUri());
Intent i = PhotoPageActivity
.newIntent(getActivity(), mGalleryItem.getPhotoPageUri());
startActivity(i);
}
}
...
}
And, finally, add your new activity to the manifest.
Listing 30.8Adding activity to manifest (AndroidManifest.xml)
<manifest ... >
...
<application
...>
<activity
android:name=".PhotoGalleryActivity"
android:label="@string/app_name" >
...
</activity>
<activity
android:name=".PhotoPageActivity" />
<service android:name=".PollService" />
...
</application>
</manifest>
Run PhotoGallery and press on a picture. You should see a new empty activity pop up.
OK, now to get to the meat and actually make your fragment do something. You need to do three
things to make your WebView successfully display a Flickr photo page. The first one is straightforward
– you need to tell it what URL to load.
The second thing you need to do is enable JavaScript. By default, JavaScript is off. You do not always
need to have it on, but for Flickr, you do. (If you run Android Lint, it gives you a warning for doing
this. It is worried about cross-site scripting attacks. You can suppress this Lint warning by annotating
onCreateView(…) with @SuppressLint("SetJavaScriptEnabled").)
The Harder Way: WebView
589
Finally, you need to provide a default implementation of a class called WebViewClient. WebViewClient
is used to respond to rendering events on a WebView. We will discuss this class a bit more after you
enter the code.
Listing 30.9Loading URL into WebView (PhotoPageFragment.java)
public class PhotoPageFragment extends VisibleFragment {
...
@Override
public View onCreateView(LayoutInflater inflater, ViewGroup container,
Bundle savedInstanceState) {
View v = inflater.inflate(R.layout.fragment_photo_page, container, false);
mWebView = (WebView) v.findViewById(R.id.web_view);
mWebView.getSettings().setJavaScriptEnabled(true);
mWebView.setWebViewClient(new WebViewClient());
mWebView.loadUrl(mUri.toString());
return v;
}
}
Loading the URL has to be done after configuring the WebView, so you do that last. Before that, you
turn JavaScript on by calling getSettings() to get an instance of WebSettings and then calling
WebSettings.setJavaScriptEnabled(true). WebSettings is the first of the three ways you can
modify your WebView. It has various properties you can set, like the user agent string and text size.
After that, you add a WebViewClient to your WebView. To know why, let us first address what happens
without a WebViewClient.
A new URL can be loaded in a couple of different ways: The page can tell you to go to another URL
on its own (a redirect), or you can click on a link. Without a WebViewClient, WebView will ask the
activity manager to find an appropriate activity to load the new URL.
This is not what you want to have happen. Many sites (including Flickr’s photo pages) immediately
redirect to a mobile version of the same site when you load them from a phone browser. There is not
much point to making your own view of the page if it is going to fire an implicit intent anyway when
that happens.
If, on the other hand, you provide your own WebViewClient to your WebView, the process works
differently. Instead of asking the activity manager what to do, it asks your WebViewClient. And in the
default WebViewClient implementation, it says, “Go load the URL yourself!” And so the page will
appear in your WebView.
Run PhotoGallery, press an item, and you should see the item’s photo page displayed in the WebView
(just like the image on the right in Figure30.1).
Chapter 30Browsing the Web and WebView
590
Using WebChromeClient to spruce things up
Since you are taking the time to create your own WebView, let’s spruce it up a bit by adding a
progress bar and updating the toolbar’s subtitle with the title of the loaded page. Crack open
fragment_photo_page.xml once again.
Drag in a ProgressBar as a second child for your ConstraintLayout. Use the ProgressBar
(Horizontal) version of ProgressBar. Delete the WebView’s top constraint, and then set its height to
Fixed so that you can easily work with its constraint handles.
With that done, create the following additional constraints:
• from the ProgressBar to the top, right, and left of its parent
• from the WebView’s top to the bottom of the ProgressBar
With that done, change the height of the WebView back to Any Size, change the ProgressBar’s height to
wrap_content, and change the ProgressBar’s width to Any Size.
Finally, select the ProgressBar and move your attention to the properties window. Change the
visibility to gone and change the tools visibility to visible. Rename its ID to progress_bar.
Your result will look like Figure30.2.
Figure 30.2Adding a progress bar
Using WebChromeClient to spruce things up
591
To hook up the ProgressBar, you will use the second callback on WebView: WebChromeClient.
WebViewClient is an interface for responding to rendering events; WebChromeClient is an event
interface for reacting to events that should change elements of chrome around the browser. This
includes JavaScript alerts, favicons, and of course updates for loading progress and the title of the
current page.
Hook it up in onCreateView(…).
Listing 30.10Using WebChromeClient (PhotoPageFragment.java)
public class PhotoPageFragment extends VisibleFragment {
...
private WebView mWebView;
private ProgressBar mProgressBar;
...
@Override
public View onCreateView(LayoutInflater inflater, ViewGroup container,
Bundle savedInstanceState) {
View v = inflater.inflate(R.layout.fragment_photo_page, container, false);
mProgressBar = (ProgressBar)v.findViewById(R.id.progress_bar);
mProgressBar.setMax(100); // WebChromeClient reports in range 0-100
mWebView = (WebView) v.findViewById(R.id.web_view);
mWebView.getSettings().setJavaScriptEnabled(true);
mWebView.setWebChromeClient(new WebChromeClient() {
public void onProgressChanged(WebView webView, int newProgress) {
if (newProgress == 100) {
mProgressBar.setVisibility(View.GONE);
} else {
mProgressBar.setVisibility(View.VISIBLE);
mProgressBar.setProgress(newProgress);
}
}
public void onReceivedTitle(WebView webView, String title) {
AppCompatActivity activity = (AppCompatActivity) getActivity();
activity.getSupportActionBar().setSubtitle(title);
}
});
mWebView.setWebViewClient(new WebViewClient());
mWebView.loadUrl(mUri.toString());
return v;
}
}
Progress updates and title updates each have their own callback method,
onProgressChanged(WebView, int) and onReceivedTitle(WebView, String). The progress you
receive from onProgressChanged(WebView, int) is an integer from 0 to 100. If it is 100, you know
that the page is done loading, so you hide the ProgressBar by setting its visibility to View.GONE.
Chapter 30Browsing the Web and WebView
592
Run PhotoGallery to test your changes. It should look like Figure30.3.
Figure 30.3Fancy WebView
When you press on a photo, PhotoPageActivity pops up. A progress bar displays as the page loads
and a subtitle reflecting the subtitle received in onReceivedTitle(…) appears in the toolbar. Once the
page is loaded, the progress bar disappears.
Proper Rotation with WebView
593
Proper Rotation with WebView
Try rotating your screen. While it does work correctly, you will notice that the WebView has to
completely reload the web page. This is because WebView has too much data to save it all inside
onSaveInstanceState(…). It has to start from scratch each time it is re-created on rotation.
You may think the easiest way to resolve this problem would be to retain PhotoPageFragment.
However, this would not work, because WebView is part of the view hierarchy and is thus still destroyed
and re-created on rotation.
For some classes like this (VideoView is another one), the Android documentation recommends that
you allow the activity to handle the configuration change itself. This means that instead of the activity
being destroyed on rotation, it simply moves its views around to fit the new screen size. As a result,
WebView does not have to reload all of its data.
To tell PhotoPageActivity to handle its own darned configuration changes, make the following tweak
to AndroidManifest.xml.
Listing 30.11Handling configuration changes yourself (AndroidManifest.xml)
<manifest ... >
...
<activity
android:name=".PhotoPageActivity"
android:configChanges="keyboardHidden|orientation|screenSize" />
...
</manifest>
This attribute says that if the configuration changes because the keyboard was opened or closed, due to
an orientation change, or due to the screen size changing (which also happens when switching between
portrait and landscape after Android 3.2), then the activity should handle the change itself.
And that is it. Try rotating again and admire how smoothly the change is handled.
Dangers of handling configuration changes
That is so easy and works so well that you are probably wondering why you do not do this all the time.
It seems like it would make life so much easier. However, handling configuration changes on your own
is a dangerous habit.
First, resource qualifier-based configuration changes no longer work automatically. You instead have
to manually reload your view when a configuration change is detected. This can be more complicated
than it sounds.
Second, and more important, allowing the activity to handle configuration changes will likely cause
you to not bother with overriding Activity.onSavedInstanceState(…) to stash transient UI states.
Doing so is still necessary, even if the activity is handling configuration changes on its own, because
you still have to worry about death and re-creation in low-memory situations. (Remember, the activity
can be destroyed and stashed by the system at any time if it is not in the running state, as shown in
Figure3.14 on Page 71.)
Chapter 30Browsing the Web and WebView
594
For the More Curious: Injecting JavaScript Objects
In this chapter, you have seen how to use WebViewClient and WebChromeClient to respond to
specific events that happen in your WebView. However, it is possible to do even more than that by
injecting arbitrary JavaScript objects into the document contained in the WebView itself. Check out
the documentation at developer.android.com/reference/android/webkit/WebView.html and
scroll down to the addJavascriptInterface(Object, String) method. Using this, you can inject an
arbitrary object into the document with a name you specify:
mWebView.addJavascriptInterface(new Object() {
@JavascriptInterface
public void send(String message) {
Log.i(TAG, "Received message: " + message);
}
}, "androidObject");
And then invoke it like so:
<input type="button" value="In WebView!"
onClick="sendToAndroid('In Android land')" />
<script type="text/javascript">
function sendToAndroid(message) {
androidObject.send(message);
}
</script>
There are a couple of tricky parts about this. The first is that when you call send(String), the Java
method is not called on the main thread. It is called on a thread owned by WebView instead. So if you
want to update the Android UI, you will need to use a Handler to pass control back over to the main
thread.
The other part is that not many data types are supported. You have String, the core primitive types,
and that is it. Anything more sophisticated must be marshalled through a String, usually by converting
it to JSON before sending and then parsing it out when receiving.
Starting with API 17 (Jelly Bean 4.2) and up, only public methods annotated @JavascriptInterface
are exported to JavaScript. Prior to that, all public methods in the object hierarchy were accessible.
Either way, this could be dangerous. You are letting some potentially strange web page fiddle with your
program. So to be safe, it is a good idea to make sure you own the HTML in question – either that, or
be extremely conservative with the interface you expose.
For the More Curious: WebView Updates
595
For the More Curious: WebView Updates
WebView underwent a serious overhaul with the release of KitKat (Android 4.4, API 19). The new
WebView is based on the Chromium open source project. It now shares the same rendering engine used
by the Chrome for Android app, meaning pages should look and behave more consistently across the
two. (However, WebView does not have all the features Chrome for Android does. You can see a table
comparing the two at developer.chrome.com/multidevice/webview/overview.)
The move to Chromium meant some really exciting improvements for WebView, such as support
for new web standards like HTML5 and CSS3, an updated JavaScript engine, and improved
performance. From a development perspective, one of the most exciting new features is the added
support for remote debugging of WebView using Chrome DevTools (which can be enabled by calling
WebView.setWebContentsDebuggingEnabled()).
As of Lollipop (Android 5.0), the Chromium layer of WebView is updated automatically from the
Google Play Store. Users no longer wait for new releases of Android to receive security updates (and
new features). This is big news.
More recently, as of Nougat (Android 7.0), the Chromium layer for WebView comes directly from the
Chrome APK file, lowering memory and resource usage. Take solace in knowing that Google works to
keep the WebView components up to date.
Challenge: Using the Back Button for Browser History
You may have noticed that you can follow other links within the WebView once you launch
PhotoPageActivity. However, no matter how many links you follow, the Back button always brings
you immediately back to PhotoGalleryActivity. What if you instead want the Back button to bring
users through their browsing history within the WebView?
Implement this behavior by overriding the Back button method Activity.onBackPressed(). Within
that method you can use a combination of WebView’s browsing history methods (WebView.canGoBack()
and WebView.goBack()) to do the right thing. If there are items in the WebView’s browsing history, go
back to the previous item. Otherwise, allow the Back button to behave as normal by calling through to
super.onBackPressed().
Chapter 30Browsing the Web and WebView
596
Challenge: Supporting Non-HTTP Links
If you poke around within PhotoPageFragment’s WebView, you may stumble upon non-HTTP links.
For example, as of this writing, the photo detail page Flickr provides displays an Open in App button.
Pressing this button is supposed to launch the Flickr app if it is installed. If it is not installed, the
Google Play Store should launch and offer the option to install the Flickr app.
However, if you press Open in App, the WebView instead displays error text, as shown in Figure30.4.
Figure 30.4Open in App error
This is because you provided a WebViewClient that tells the WebView to always try to load the URI into
itself, even if the URI scheme is not supported by WebView.
To fix the error, you want non-HTTP URIs to be handled by the application that is the best fit for
the URI. Before a URI is loaded, check the scheme. If the scheme is not HTTP or HTTPS, issue an
Intent.ACTION_VIEW for the URI.
597
31
Custom Views and Touch Events
In this chapter, you will learn how to handle touch events by writing a custom subclass of View named
BoxDrawingView. The BoxDrawingView class will be the star of a new project named DragAndDraw
and will draw boxes in response to the user touching the screen and dragging. The finished product will
look like Figure31.1.
Figure 31.1Boxes drawn in many shapes and sizes
Chapter 31Custom Views and Touch Events
598
Setting Up the DragAndDraw Project
Create a new project named DragAndDraw. Select API 19 as the minimum SDK and create an empty
activity. Name the activity DragAndDrawActivity.
DragAndDrawActivity will be a subclass of SingleFragmentActivity that inflates the usual single-
fragment-containing layout. Copy SingleFragmentActivity.java and its activity_fragment.xml
layout file into the DragAndDraw project.
In DragAndDrawActivity.java, make DragAndDrawActivity a SingleFragmentActivity that creates
a DragAndDrawFragment (a class that you will create next).
Listing 31.1Modifying the activity (DragAndDrawActivity.java)
public class DragAndDrawActivity extends AppCompatActivity SingleFragmentActivity {
@Override
protected Fragment createFragment() {
return DragAndDrawFragment.newInstance();
}
@Override
protected void onCreate(Bundle savedInstanceState) {
...
}
}
To prepare a layout for DragAndDrawFragment, rename the activity_drag_and_draw.xml layout file
to fragment_drag_and_draw.xml.
DragAndDrawFragment’s layout will eventually consist of a BoxDrawingView, the custom view
that you are going to write. All of the drawing and touch-event handling will be implemented in
BoxDrawingView.
Create a new class named DragAndDrawFragment and make its superclass
android.support.v4.app.Fragment. Override onCreateView(…) to inflate
fragment_drag_and_draw.xml.
Listing 31.2Creating the fragment (DragAndDrawFragment.java)
public class DragAndDrawFragment extends Fragment {
public static DragAndDrawFragment newInstance() {
return new DragAndDrawFragment();
}
@Override
public View onCreateView(LayoutInflater inflater, ViewGroup container,
Bundle savedInstanceState) {
View v = inflater.inflate(R.layout.fragment_drag_and_draw, container, false);
return v;
}
}
Setting Up the DragAndDraw Project
599
Run DragAndDraw to confirm that your app is set up properly. It should look like Figure31.2.

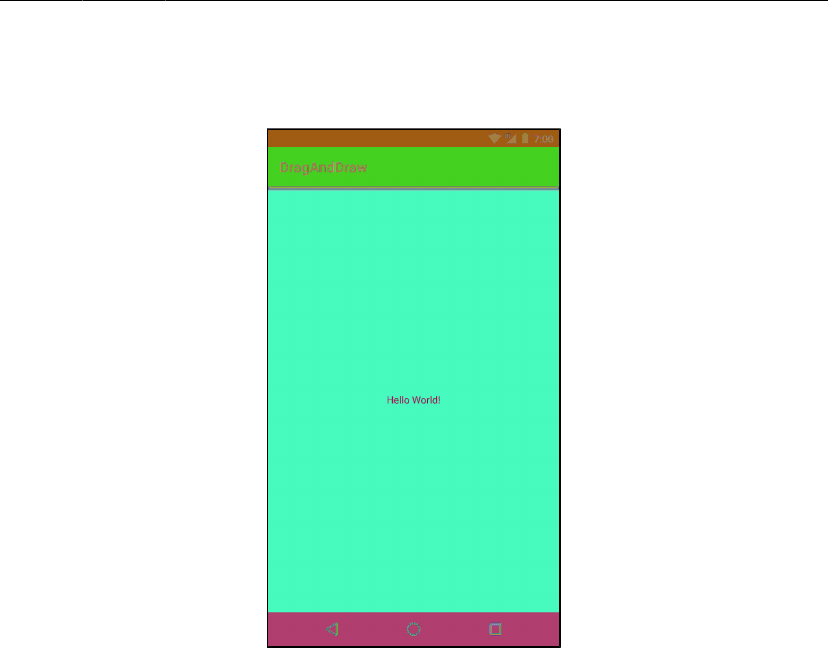

Figure 31.2DragAndDraw with default layout
Chapter 31Custom Views and Touch Events
600
Creating a Custom View
Android provides many excellent standard views and widgets, but sometimes you need a custom view
that presents visuals that are unique to your app.
While there are all kinds of custom views, you can shoehorn them into two broad categories:
simple A simple view may be complicated inside; what makes it “simple” is that it has no
child views. A simple view will almost always perform custom rendering.
composite Composite views are composed of other view objects. Composite views typically
manage child views but do not perform custom rendering. Instead, rendering is
delegated to each child view.
There are three steps to follow when creating a custom view:
1. Pick a superclass. For a simple custom view, View is a blank canvas, so it is the most common
choice. For a composite custom view, choose an appropriate layout class, such as FrameLayout.
2. Subclass this class and override the constructors from the superclass.
3. Override other key methods to customize behavior.
Creating BoxDrawingView
BoxDrawingView will be a simple view and a direct subclass of View.
Create a new class named BoxDrawingView and make View its superclass. In BoxDrawingView.java,
add two constructors.
Listing 31.3Initial implementation for BoxDrawingView
(BoxDrawingView.java)
public class BoxDrawingView extends View {
// Used when creating the view in code
public BoxDrawingView(Context context) {
this(context, null);
}
// Used when inflating the view from XML
public BoxDrawingView(Context context, AttributeSet attrs) {
super(context, attrs);
}
}
You write two constructors because your view could be instantiated in code or from a layout file. Views
instantiated from a layout file receive an instance of AttributeSet containing the XML attributes
that were specified in XML. Even if you do not plan on using both constructors, it is good practice to
include them.
Creating BoxDrawingView
601
Next, update your fragment_drag_and_draw.xml layout file to use your new view.
Listing 31.4Adding BoxDrawingView to layout
(fragment_drag_and_draw.xml)
<android.support.constraint.ConstraintLayout
android:id="@+id/activity_drag_and_draw"
xmlns:android="http://schemas.android.com/apk/res/android"
xmlns:app="http://schemas.android.com/apk/res-auto"
xmlns:tools="http://schemas.android.com/tools"
android:layout_width="match_parent"
android:layout_height="match_parent"
tools:context="com.bignerdranch.android.draganddraw.DragAndDrawActivity">
<TextView
android:layout_width="wrap_content"
android:layout_height="wrap_content"
android:text="Hello World!"
app:layout_constraintBottom_toBottomOf="@+id/activity_drag_and_draw"
app:layout_constraintLeft_toLeftOf="@+id/activity_drag_and_draw"
app:layout_constraintRight_toRightOf="@+id/activity_drag_and_draw"
app:layout_constraintTop_toTopOf="@+id/activity_drag_and_draw"/>
</android.support.constraint.ConstraintLayout>
<com.bignerdranch.android.draganddraw.BoxDrawingView
xmlns:android="http://schemas.android.com/apk/res/android"
android:layout_width="match_parent"
android:layout_height="match_parent" />
You must use BoxDrawingView’s fully qualified class name so that the layout inflater can find it. The
inflater works through a layout file creating View instances. If the element name is an unqualified class
name, then the inflater looks for a class with that name in the android.view and android.widget
packages. If the class lives somewhere else, then the layout inflater will not find it, and your app will
crash.
So, for custom classes and other classes that live outside of android.view and android.widget, you
must always specify the fully qualified class name.
Chapter 31Custom Views and Touch Events
602
Run DragAndDraw to confirm that all the connections are correct. All you will see is an empty view
(Figure31.3).
Figure 31.3BoxDrawingView with no boxes
The next step is to get BoxDrawingView listening for touch events and using the information from them
to draw boxes on the screen.
Handling Touch Events
One way to listen for touch events is to set a touch event listener using the following View method:
public void setOnTouchListener(View.OnTouchListener l)
This method works the same way as setOnClickListener(View.OnClickListener). You provide an
implementation of View.OnTouchListener, and your listener will be called every time a touch event
happens.
However, because you are subclassing View, you can take a shortcut and override this View method
instead:
public boolean onTouchEvent(MotionEvent event)
Handling Touch Events
603
This method receives an instance of MotionEvent, a class that describes the touch event, including its
location and its action. The action describes the stage of the event:
Action constants Description
ACTION_DOWN user’s finger touches the screen
ACTION_MOVE user moves finger on the screen
ACTION_UP user lifts finger off the screen
ACTION_CANCEL a parent view has intercepted the touch event
In your implementation of onTouchEvent(MotionEvent), you can check the value of the action by
calling the MotionEvent method:
public final int getAction()
Let’s get to it. In BoxDrawingView.java, add a log tag and then an implementation of
onTouchEvent(MotionEvent) that logs a message for each of the four different actions.
Listing 31.5Implementing BoxDrawingView (BoxDrawingView.java)
public class BoxDrawingView extends View {
private static final String TAG = "BoxDrawingView";
...
@Override
public boolean onTouchEvent(MotionEvent event) {
PointF current = new PointF(event.getX(), event.getY());
String action = "";
switch (event.getAction()) {
case MotionEvent.ACTION_DOWN:
action = "ACTION_DOWN";
break;
case MotionEvent.ACTION_MOVE:
action = "ACTION_MOVE";
break;
case MotionEvent.ACTION_UP:
action = "ACTION_UP";
break;
case MotionEvent.ACTION_CANCEL:
action = "ACTION_CANCEL";
break;
}
Log.i(TAG, action + " at x=" + current.x +
", y=" + current.y);
return true;
}
}
Notice that you package your X and Y coordinates in a PointF object. You want to pass these two
values together as you go through the rest of the chapter. PointF is a container class provided by
Android that does this for you.
Run DragAndDraw and pull up Logcat. Touch the screen and drag your finger. You should see a report
of the X and Y coordinates of every touch action that BoxDrawingView receives.
Chapter 31Custom Views and Touch Events
604
Tracking across motion events
BoxDrawingView is intended to draw boxes on the screen, not just log coordinates. There are a few
problems to solve to get there.
First, to define a box, you need two points: the origin point (where the finger was initially placed) and
the current point (where the finger currently is).
To define a box, then, requires keeping track of data from more than one MotionEvent. You will store
this data in a Box object.
Create a class named Box to represent the data that defines a single box.
Listing 31.6Adding Box (Box.java)
public class Box {
private PointF mOrigin;
private PointF mCurrent;
public Box(PointF origin) {
mOrigin = origin;
mCurrent = origin;
}
public PointF getCurrent() {
return mCurrent;
}
public void setCurrent(PointF current) {
mCurrent = current;
}
public PointF getOrigin() {
return mOrigin;
}
}
When the user touches BoxDrawingView, a new Box will be created and added to a list of existing boxes
(Figure31.4).
Figure 31.4Objects in DragAndDraw
Tracking across motion events
605
Back in BoxDrawingView, use your new Box object to track your drawing state.
Listing 31.7Adding drag lifecycle methods (BoxDrawingView.java)
public class BoxDrawingView extends View {
private static final String TAG = "BoxDrawingView";
private Box mCurrentBox;
private List<Box> mBoxen = new ArrayList<>();
...
@Override
public boolean onTouchEvent(MotionEvent event) {
PointF current = new PointF(event.getX(), event.getY());
String action = "";
switch (event.getAction()) {
case MotionEvent.ACTION_DOWN:
action = "ACTION_DOWN";
// Reset drawing state
mCurrentBox = new Box(current);
mBoxen.add(mCurrentBox);
break;
case MotionEvent.ACTION_MOVE:
action = "ACTION_MOVE";
if (mCurrentBox != null) {
mCurrentBox.setCurrent(current);
invalidate();
}
break;
case MotionEvent.ACTION_UP:
action = "ACTION_UP";
mCurrentBox = null;
break;
case MotionEvent.ACTION_CANCEL:
action = "ACTION_CANCEL";
mCurrentBox = null;
break;
}
Log.i(TAG, action + " at x=" + current.x +
", y=" + current.y);
return true;
}
}
Any time an ACTION_DOWN motion event is received, you set mCurrentBox to be a new Box with its
origin as the event’s location. This new Box is added to the list of boxes. (In the next section, when you
implement custom drawing, BoxDrawingView will draw every Box within this list to the screen.)
As the user’s finger moves around the screen, you update mCurrentBox.mCurrent. Then, when the
touch is canceled or when the user’s finger leaves the screen, you null out mCurrentBox to end your
draw motion. The Box is complete; it is stored safely in the list but will no longer be updated about
motion events.
Notice the call to invalidate() in the case of ACTION_MOVE. This forces BoxDrawingView to redraw
itself so that the user can see the box while dragging across the screen. Which brings you to the next
step: drawing the boxes to the screen.
Chapter 31Custom Views and Touch Events
606
Rendering Inside onDraw(Canvas)
When your application is launched, all of its views are invalid. This means that they have not drawn
anything to the screen. To fix this situation, Android calls the top-level View’s draw() method. This
causes that view to draw itself, which causes its children to draw themselves. Those children’s children
then draw themselves, and so on down the hierarchy. When all the views in the hierarchy have drawn
themselves, the top-level View is no longer invalid.
To hook into this drawing, you override the following View method:
protected void onDraw(Canvas canvas)
The call to invalidate() that you make in response to ACTION_MOVE in onTouchEvent(MotionEvent)
makes the BoxDrawingView invalid again. This causes it to redraw itself and will cause
onDraw(Canvas) to be called again.
Now let’s consider the Canvas parameter. Canvas and Paint are the two main drawing classes in
Android:
• The Canvas class has all the drawing operations you perform. The methods you call on Canvas
determine where and what you draw – a line, a circle, a word, or a rectangle.
• The Paint class determines how these operations are done. The methods you call on Paint
specify characteristics – whether shapes are filled, which font text is drawn in, and what color
lines are.
In BoxDrawingView.java, create two Paint objects in BoxDrawingView’s XML constructor.
Listing 31.8Creating your paint (BoxDrawingView.java)
public class BoxDrawingView extends View {
private static final String TAG = "BoxDrawingView";
private Box mCurrentBox;
private List<Box> mBoxen = new ArrayList<>();
private Paint mBoxPaint;
private Paint mBackgroundPaint;
...
// Used when inflating the view from XML
public BoxDrawingView(Context context, AttributeSet attrs) {
super(context, attrs);
// Paint the boxes a nice semitransparent red (ARGB)
mBoxPaint = new Paint();
mBoxPaint.setColor(0x22ff0000);
// Paint the background off-white
mBackgroundPaint = new Paint();
mBackgroundPaint.setColor(0xfff8efe0);
}
}
Armed with paint, you can now draw your boxes to the screen.
Rendering Inside onDraw(Canvas)
607
Listing 31.9Overriding onDraw(Canvas) (BoxDrawingView.java)
public BoxDrawingView(Context context, AttributeSet attrs) {
...
}
@Override
protected void onDraw(Canvas canvas) {
// Fill the background
canvas.drawPaint(mBackgroundPaint);
for (Box box : mBoxen) {
float left = Math.min(box.getOrigin().x, box.getCurrent().x);
float right = Math.max(box.getOrigin().x, box.getCurrent().x);
float top = Math.min(box.getOrigin().y, box.getCurrent().y);
float bottom = Math.max(box.getOrigin().y, box.getCurrent().y);
canvas.drawRect(left, top, right, bottom, mBoxPaint);
}
}
The first part of this code is straightforward: Using your off-white background paint, you fill the canvas
with a backdrop for your boxes.
Then, for each box in your list of boxes, you determine what the left, right, top, and bottom of the box
should be by looking at the two points for the box. The left and top values will be the minimum values,
and the bottom and right will be the maximum values.
After calculating these values, you call Canvas.drawRect(…) to draw a red rectangle onto the screen.
Run DragAndDraw and draw some red rectangles (Figure31.5).
Figure 31.5An expression of programmerly emotion
Chapter 31Custom Views and Touch Events
608
And that is it. You have now created a view that captures its own touch events and performs its own
drawing.
Challenge: Saving State
Figure out how to persist your boxes across orientation changes from within your View. This can be
done with the following View methods:
protected Parcelable onSaveInstanceState()
protected void onRestoreInstanceState(Parcelable state)
These methods do not work like Activity and Fragment’s onSaveInstanceState(Bundle). First,
they will only be called if your View has an ID. Second, instead of taking in a Bundle, they return and
process an object that implements the Parcelable interface. We recommend using a Bundle as the
Parcelable instead of implementing a Parcelable class yourself. (Implementing the Parcelable
interface is complicated. It is better to avoid doing so when possible.)
Finally, you must also maintain the saved state of BoxDrawingView’s parent, the View class. Save the
result of super.onSaveInstanceState() in your new Bundle and send that same result to the super
class when calling super.onRestoreInstanceState(Parcelable).
Challenge: Rotating Boxes
For a harder challenge, make it so that you can use a second finger to rotate your rectangles. To do this,
you will need to handle multiple pointers in your MotionEvent handling code. You will also need to
rotate your canvas.
When dealing with multiple touches, you need these extra ideas:
pointer index tells you which pointer in the current set of pointers the event is for
pointer ID gives you a unique ID for a specific finger in a gesture
The pointer index may change, but the pointer ID will not.
For more details, check out the documentation for the following MotionEvent methods:
public final int getActionMasked()
public final int getActionIndex()
public final int getPointerId(int pointerIndex)
public final float getX(int pointerIndex)
public final float getY(int pointerIndex)
Also look at the documentation for the ACTION_POINTER_UP and ACTION_POINTER_DOWN constants.
609
32
Property Animation
For an app to be functional, all you need to do is write your code correctly so that it does not crash. For
an app to be a joy to use, though, you need to give it more love than that. You need to make it feel like
a real, physical phenomenon playing out on your phone or tablet’s screen.
Real things move. To make your UI move, you animate its elements into new positions.
In this chapter, you will write an app called Sunset that shows a scene of the sun in the sky. When you
press on the scene, it will animate the sun down below the horizon, and the sky will change colors like
a sunset.
Building the Scene
The first step is to build the scene that will be animated. Create a new project called Sunset. Make sure
that your minSdkVersion is set to 19 and use the empty activity template. Name your main activity
SunsetActivity and add SingleFragmentActivity.java and activity_fragment.xml to your
project.
Now, build out your scene. A sunset by the sea should be colorful, so it will help to name a few colors.
Add a colors.xml file to your res/values folder, then add the following values to it:
Listing 32.1Adding sunset colors (res/values/colors.xml)
<resources>
<color name="colorPrimary">#3F51B5</color>
<color name="colorPrimaryDark">#303F9F</color>
<color name="colorAccent">#FF4081</color>
<color name="bright_sun">#fcfcb7</color>
<color name="blue_sky">#1e7ac7</color>
<color name="sunset_sky">#ec8100</color>
<color name="night_sky">#05192e</color>
<color name="sea">#224869</color>
</resources>
Rectangular views will make for a fine impression of the sky and the sea. But people will not buy a
rectangular sun, no matter how much you argue in favor of its technical simplicity. So, in the res/
drawable/ folder, add an oval shape drawable for a circular sun called sun.xml.
Listing 32.2Adding sun XML drawable (res/drawable/sun.xml)
<shape xmlns:android="http://schemas.android.com/apk/res/android"
android:shape="oval">
<solid android:color="@color/bright_sun" />
</shape>
Chapter 32Property Animation
610
When you display this oval in a square view, you will get a circle. People will nod their heads in
approval, and then think about the real sun up in the sky.
Next, build the entire scene out in a layout file. This layout will be used in SunsetFragment, which you
will build in a moment, so name it fragment_sunset.xml.
Listing 32.3Setting up the layout (res/layout/fragment_sunset.xml)
<LinearLayout xmlns:android="http://schemas.android.com/apk/res/android"
android:orientation="vertical"
android:layout_width="match_parent"
android:layout_height="match_parent">
<FrameLayout
android:id="@+id/sky"
android:layout_width="match_parent"
android:layout_height="0dp"
android:layout_weight="0.61"
android:background="@color/blue_sky">
<ImageView
android:id="@+id/sun"
android:layout_width="100dp"
android:layout_height="100dp"
android:layout_gravity="center"
android:src="@drawable/sun" />
</FrameLayout>
<View
android:layout_width="match_parent"
android:layout_height="0dp"
android:layout_weight="0.39"
android:background="@color/sea" />
</LinearLayout>
Check out the preview. You should see a daytime scene of the sun in a blue sky over a dark blue sea.
You may find yourself thinking about a trip you once took to the beach or aboard a boat.
Time to finally get this thing up and running on a device. Create a fragment called SunsetFragment
and add a newInstance() method. In onCreateView(…), inflate the fragment_sunset layout file and
return the resulting view.
Listing 32.4Creating SunsetFragment (SunsetFragment.java)
public class SunsetFragment extends Fragment {
public static SunsetFragment newInstance() {
return new SunsetFragment();
}
@Override
public View onCreateView(LayoutInflater inflater, ViewGroup container,
Bundle savedInstanceState) {
View view = inflater.inflate(R.layout.fragment_sunset, container, false);
return view;
}
}
Building the Scene
611
Now turn SunsetActivity into a SingleFragmentActivity that displays your fragment.
Listing 32.5Displaying SunsetFragment (SunsetActivity.java)
public class SunsetActivity extends SingleFragmentActivity {
@Override
protected Fragment createFragment() {
return SunsetFragment.newInstance();
}
@Override
protected void onCreate(Bundle savedInstanceState) {
...
}
}
Take a moment to run Sunset to make sure everything is hooked up correctly before moving on. It
should look like Figure32.1. Ahhh.
Figure 32.1Before sunset
Chapter 32Property Animation
612
Simple Property Animation
Now that you have the scene set up, it is time to make it do your bidding by moving parts of it around.
You are going to animate the sun down below the horizon.
But before you start animating, you will want a few bits of information handy in your fragment. Inside
of onCreateView(…), pull out a couple of views into fields on SunsetFragment.
Listing 32.6Pulling out view references (SunsetFragment.java)
public class SunsetFragment extends Fragment {
private View mSceneView;
private View mSunView;
private View mSkyView;
public static SunsetFragment newInstance() {
return new SunsetFragment();
}
@Override
public View onCreateView(LayoutInflater inflater, ViewGroup container,
Bundle savedInstanceState) {
View view = inflater.inflate(R.layout.fragment_sunset, container, false);
mSceneView = view;
mSunView = view.findViewById(R.id.sun);
mSkyView = view.findViewById(R.id.sky);
return view;
}
}
Now that you have those, you can write your code to animate the sun. Here is the plan: Smoothly move
mSunView so that its top is right at the edge of the top of the sea. You will do this by translating the
location of the top of mSunView to the bottom of its parent.
The first step is to find where the animation should start and end. Write this first step in a new method
called startAnimation().
Listing 32.7Getting tops of views (SunsetFragment.java)
@Override
public View onCreateView(LayoutInflater inflater, ViewGroup container,
Bundle savedInstanceState) {
...
}
private void startAnimation() {
float sunYStart = mSunView.getTop();
float sunYEnd = mSkyView.getHeight();
}
Simple Property Animation
613
The getTop() method is one of four methods on View that return the local layout rect for that view:
getTop(), getBottom(), getRight(), and getLeft(). A view’s local layout rect is the position and
size of that view in relation to its parent, as determined when the view was laid out. It is possible to
change the location of the view onscreen by modifying these values, but it is not recommended. They
are reset every time a layout pass occurs, so they tend not to hold their value.
In any event, the animation will start with the top of the view at its current location. It needs to end
with the top at the bottom of mSunView’s parent, mSkyView. To get it there, it should be as far down as
mSkyView is tall, which you find by calling getHeight(). The getHeight() method returns the same
thing as getBottom() - getTop().
Now that you know where the animation should start and end, create and run an ObjectAnimator to
perform it.
Listing 32.8Creating a sun animator (SunsetFragment.java)
private void startAnimation() {
float sunYStart = mSunView.getTop();
float sunYEnd = mSkyView.getHeight();
ObjectAnimator heightAnimator = ObjectAnimator
.ofFloat(mSunView, "y", sunYStart, sunYEnd)
.setDuration(3000);
heightAnimator.start();
}
Then hook up startAnimation() so that it is called every time the user presses anywhere in the scene.
Listing 32.9Starting animation on press (SunsetFragment.java)
public View onCreateView(LayoutInflater inflater, ViewGroup container,
Bundle savedInstanceState) {
View view = inflater.inflate(R.layout.fragment_sunset, container, false);
mSceneView = view;
mSunView = view.findViewById(R.id.sun);
mSkyView = view.findViewById(R.id.sky);
mSceneView.setOnClickListener(new View.OnClickListener() {
@Override
public void onClick(View v) {
startAnimation();
}
});
return view;
}
Run Sunset and press anywhere on the scene to run the animation (Figure32.2).
Chapter 32Property Animation
614
Figure 32.2Setting sun
You should see the sun move below the horizon.
Here is how it works: ObjectAnimator is a property animator. Instead of knowing specifically about
how to move a view around the screen, a property animator repeatedly calls property setter methods
with different values.
The following method call creates an ObjectAnimator:
ObjectAnimator.ofFloat(mSunView, "y", 0, 1)
When that ObjectAnimator is started, it will then repeatedly call mSunView.setY(float) with values
starting at 0 and moving up. Like this:
mSunView.setY(0);
mSunView.setY(0.02);
mSunView.setY(0.04);
mSunView.setY(0.06);
mSunView.setY(0.08);
...
… and so on, until it finally calls mSunView.setY(1). This process of finding values in between a
starting and ending point is called interpolation. Between each interpolated value, a little time will
pass, which makes it look like the view is moving.
View transformation properties
Property animators are great, but with them alone it would be impossible to animate a view as easily as
you just did. Modern Android property animation works in concert with transformation properties.
Your view has a local layout rect, which is the position and size it is assigned from the layout
process. You can move the view around after that by setting additional properties on the view, called
transformation properties. You have three properties to rotate the view (rotation, pivotX, and pivotY,
View transformation properties
615
shown in Figure32.3), two properties to scale the view vertically and horizontally (scaleX and scaleY,
shown in Figure32.4), and two properties to move the view around the screen (translationX and
translationY, shown in Figure32.5).
Figure 32.3View rotation
Figure 32.4View scaling
Figure 32.5View translation
Chapter 32Property Animation
616
All of these properties have getters and setters. For example, if you wanted to know the current
value of translationX, you would call getTranslationX(). If you wanted to set it, you would call
setTranslationX(float).
So what does the y property do? The x and y properties are conveniences built on top of local layout
coordinates and the transformation properties. They allow you to write code that simply says, “Put
this view at this X coordinate and this Y coordinate.” Under the hood, these properties will modify
translationX or translationY to put the view where you want it to be. That means that a call to
mSunView.setY(50) really means this:
mSunView.setTranslationY(50 - mSunView.getTop())
Using different interpolators
Your animation, while pretty, is abrupt. If the sun was really sitting there perfectly still in the sky,
it would take a moment for it to accelerate into the animation you see. To add this sensation of
acceleration, all you need to do is use a TimeInterpolator. TimeInterpolator has one role: to change
the way your animation goes from point A to point B.
Add a line of code to startAnimation() to make your sun speed up a bit at the beginning using an
AccelerateInterpolator.
Listing 32.10Adding acceleration (SunsetFragment.java)
private void startAnimation() {
float sunYStart = mSunView.getTop();
float sunYEnd = mSkyView.getHeight();
ObjectAnimator heightAnimator = ObjectAnimator
.ofFloat(mSunView, "y", sunYStart, sunYEnd)
.setDuration(3000);
heightAnimator.setInterpolator(new AccelerateInterpolator());
heightAnimator.start();
}
Run Sunset one more time and press to see your animation. Your sun should now start moving slowly
and accelerate to a quicker pace as it moves toward the horizon.
There are a lot of styles of motion you might want to use in your app, so there are a lot of different
TimeInterpolators. To see all the interpolators that ship with Android, look at the “Known Indirect
Subclasses” section in the reference documentation for TimeInterpolator.
Color evaluation
Now that your sun is animating down, let’s animate the sky to a sunset-y color. Inside of
onCreateView(…), pull all of the colors you defined in colors.xml into instance variables.
Color evaluation
617
Listing 32.11Pulling out sunset colors (SunsetFragment.java)
public class SunsetFragment extends Fragment {
...
private View mSkyView;
private int mBlueSkyColor;
private int mSunsetSkyColor;
private int mNightSkyColor;
...
public View onCreateView(LayoutInflater inflater, ViewGroup container,
Bundle savedInstanceState) {
...
mSkyView = view.findViewById(R.id.sky);
Resources resources = getResources();
mBlueSkyColor = resources.getColor(R.color.blue_sky);
mSunsetSkyColor = resources.getColor(R.color.sunset_sky);
mNightSkyColor = resources.getColor(R.color.night_sky);
mSceneView.setOnClickListener(new View.OnClickListener() {
...
});
return view;
}
Now add an additional animation to startAnimation() to animate the sky from mBlueSkyColor to
mSunsetSkyColor.
Listing 32.12Animating sky colors (SunsetFragment.java)
private void startAnimation() {
float sunYStart = mSunView.getTop();
float sunYEnd = mSkyView.getHeight();
ObjectAnimator heightAnimator = ObjectAnimator
.ofFloat(mSunView, "y", sunYStart, sunYEnd)
.setDuration(3000);
heightAnimator.setInterpolator(new AccelerateInterpolator());
ObjectAnimator sunsetSkyAnimator = ObjectAnimator
.ofInt(mSkyView, "backgroundColor", mBlueSkyColor, mSunsetSkyColor)
.setDuration(3000);
heightAnimator.start();
sunsetSkyAnimator.start();
}
This seems like it is headed in the right direction, but if you run it you will see that something is amiss.
Instead of moving smoothly from blue to orange, the colors will kaleidoscope wildly.
The reason this happens is that a color integer is not a simple number. It is four smaller numbers
schlupped together into one int. So for ObjectAnimator to properly evaluate which color is halfway
between blue and orange, it needs to know how that works.
When ObjectAnimator’s normal understanding of how to find values between the start and end is
insufficient, you can provide a subclass of TypeEvaluator to fix things. A TypeEvaluator is an object
Chapter 32Property Animation
618
that tells ObjectAnimator what value is, say, a quarter of the way between a start value and end value.
Android provides a subclass of TypeEvaluator called ArgbEvaluator that will do the trick here.
Listing 32.13Providing ArgbEvaluator (SunsetFragment.java)
private void startAnimation() {
float sunYStart = mSunView.getTop();
float sunYEnd = mSkyView.getHeight();
ObjectAnimator heightAnimator = ObjectAnimator
.ofFloat(mSunView, "y", sunYStart, sunYEnd)
.setDuration(3000);
heightAnimator.setInterpolator(new AccelerateInterpolator());
ObjectAnimator sunsetSkyAnimator = ObjectAnimator
.ofInt(mSkyView, "backgroundColor", mBlueSkyColor, mSunsetSkyColor)
.setDuration(3000);
sunsetSkyAnimator.setEvaluator(new ArgbEvaluator());
heightAnimator.start();
sunsetSkyAnimator.start();
}
Run your animation one more time, and you should see the sky fade to a beautiful orange color
(Figure32.6).
Figure 32.6Changing sunset color
Playing Animators Together
If all you need to do is kick off a few animations at the same time, then your job is simple: Call
start() on them all at the same time. They will all animate in sync with one another.
Playing Animators Together
619
For more sophisticated animation choreography, this will not do the trick. For example, to complete the
illusion of a sunset, it would be nice to show the sky turning from orange to a midnight blue after the
sun goes down.
This can be done by using an AnimatorListener, which tells you when an animation completes. So
you could write a listener that waits until the end of the first animation, at which time you can start the
second night sky animation. This is a huge hassle, though, and requires a lot of listeners. It is much
easier to use an AnimatorSet.
First, build out the night sky animation and delete your old animation start code.
Listing 32.14Building night animation (SunsetFragment.java)
private void startAnimation() {
...
sunsetSkyAnimator.setEvaluator(new ArgbEvaluator());
ObjectAnimator nightSkyAnimator = ObjectAnimator
.ofInt(mSkyView, "backgroundColor", mSunsetSkyColor, mNightSkyColor)
.setDuration(1500);
nightSkyAnimator.setEvaluator(new ArgbEvaluator());
heightAnimator.start();
sunsetSkyAnimator.start();
}
And then build and run an AnimatorSet.
Listing 32.15Building animator set (SunsetFragment.java)
private void startAnimation() {
...
ObjectAnimator nightSkyAnimator = ObjectAnimator
.ofInt(mSkyView, "backgroundColor", mSunsetSkyColor, mNightSkyColor)
.setDuration(1500);
nightSkyAnimator.setEvaluator(new ArgbEvaluator());
AnimatorSet animatorSet = new AnimatorSet();
animatorSet
.play(heightAnimator)
.with(sunsetSkyAnimator)
.before(nightSkyAnimator);
animatorSet.start();
}
An AnimatorSet is nothing more than a set of animations that can be played together. There are a few
ways to build one, but the easiest way is to use the play(Animator) method you used above.
When you call play(Animator), you get an AnimatorSet.Builder, which allows you to build a chain
of instructions. The Animator passed into play(Animator) is the “subject” of the chain. So the chain
of calls you wrote here could be described as, “Play heightAnimator with sunsetSkyAnimator; also,
play heightAnimator before nightSkyAnimator.” For complicated AnimatorSets, you may find it
necessary to call play(Animator) a few times, which is perfectly fine.
Run your app one more time and savor the soothing sunset you have created. Magic.
Chapter 32Property Animation
620
For the More Curious: Other Animation APIs
While property animation is the most broadly useful tool in the animation toolbox, it is not the only
one. Whether or not you are using them, it is a good idea to know about the other tools out there.
Legacy animation tools
One set of tools is the classes living in the android.view.animation package. This should not be
confused with the newer android.animation package, which was introduced in Honeycomb.
This is the legacy animation framework, which you should mainly know about so that you can ignore
it. If you see the word “animaTION” in the class name instead of “animaTOR”, that is a good sign that
it is a legacy tool you should ignore.
Transitions
Android 4.4 introduced a new transitions framework, which enables fancy transitions between view
hierarchies. For example, you might define a transition that explodes a small view in one activity into a
zoomed-in version of that view in another activity.
The basic idea of the transitions framework is that you can define scenes, which represent the state of a
view hierarchy at some point, and transitions between those scenes. Scenes can be described in layout
XML files, and transitions can be described in animation XML files.
When an activity is already running, as in this chapter, the transitions framework is not that useful. This
is where the property animation framework shines. However, the property animation framework is not
good at animating a layout as it is coming onto the screen.
Take CriminalIntent’s crime pictures as an example. If you were to try to implement a “zoom”
animation to the zoomed-in dialog of an image, you would have to figure out where the original image
was and where the new image would be on the dialog. ObjectAnimator cannot achieve an effect like
that without a lot of work. In that case, you would want to use the transitions framework instead.
Challenges
For the first challenge, add the ability to reverse the sunset after it is completed, so your user can press
for a sunset, and then press a second time to get a sunrise. You will need to build another AnimatorSet
to do this – AnimatorSets cannot be run in reverse.
For a second challenge, add a continuing animation to the sun. Make it pulsate with heat, or give it a
spinning halo of rays. (You can use the setRepeatCount(int) method on ObjectAnimator to make
your animation repeat itself.)
Another good challenge would be to have a reflection of the sun in the water.
Your final challenge is to add the ability to press to reverse the sunset scene while it is still happening.
So if your user presses the scene while the sun is halfway down, it will go right back up again
seamlessly. Likewise, if your user presses the scene while transitioning to night, it will smoothly
transition right back to a sunrise.
621
33
Locations and Play Services
In this chapter, you will start writing a new app called Locatr that performs a Flickr geosearch. It will
ask for runtime permission to find your current location, and then it will use that location to look for
pictures nearby (Figure33.1). Then, in the next chapter, you will show the picture on a map.
Figure 33.1Locatr at the end of this chapter
It turns out that this simple job – finding your current location – is more interesting than you might
expect. It requires integrating with Google’s set of libraries that live outside the standard library set,
called Google Play Services.
Chapter 33Locations and Play Services
622
Locations and Libraries
To see why, let’s talk a bit about what your average Android device can see and what tools Android
gives you to see those things yourself.
Out of the box, Android provides a basic Location API. This API lets you listen to location data from a
variety of sources. For most phones, those sources are fine location points from a GPS radio and coarse
points from cell towers or WiFi connections. These APIs have been around for as long as Android
itself. You can find them in the android.location package.
So the android.location APIs exist. But they fall short of perfection. Real-world applications make
requests like, “Use as much battery as you need to get as much accuracy as possible,” or “I need a
location, but I would rather not waste my battery life.” Rarely, if ever, do they need to make a request
as specific as, “Please fire up the GPS radio and tell me what it says.”
This starts to be a problem when your devices move around. If you are outside, GPS is best. If you
have no GPS signal, the cell tower fix may be best. And if you can find neither of those signals, it
would be nicer to get by with the accelerometer and gyroscope than with no location fix at all.
In the past, high-quality apps had to manually subscribe to all of these different data sources and switch
between them as appropriate. This was not straightforward or easy to do right.
Google Play Services
A better API was needed. However, if it were added to the standard library, it would take a couple of
years for all developers to be able to use it. This was annoying, because the OS had everything that a
better API would need: GPS, coarse location, and so forth.
Fortunately, the standard library is not the only way Google can get code into your hands. In addition
to the standard library, it provides Google Play Services. This is a set of common services that are
installed alongside the Google Play Store application. To fix the locations mess, Google shipped a new
locations service in Play Services called the Fused Location Provider.
Because these libraries live in another application, you must actually have that application installed.
This means that only devices with the Google Play Store app installed and up to date will be able to use
your application. This almost certainly means that your app will be distributed through the Play Store,
too. If your app is not available through the Play Store, you are unfortunately out of luck and will need
to use another location API.
For this exercise, if you will be testing on a hardware device, make sure that you have an up-to-date
Google Play Store app. But what if you are running on an emulator? Never fear – we will cover that in
a moment.
Creating Locatr
623
Creating Locatr
Now to get started. In Android Studio, create a new project called Locatr. Create an empty activity and
name it LocatrActivity. As you have for your other apps, set your minimum SDK to 19 and copy in
SingleFragmentActivity.java and activity_fragment.xml.
You will also want some additional code from PhotoGallery. You will be querying Flickr again,
so having your old query code will be handy. Open up your PhotoGallery solution (anything after
Chapter26 will do), select FlickrFetchr.java and GalleryItem.java, and right-click to copy them.
Then paste them into your Java code area in Locatr.
In a minute, you will get started on building out your UI. If you are using an emulator, though, read
this next section so that you can test all the code you are about to write. If you are not, feel free to skip
ahead to the section called Building Out Locatr.
Play Services and Location Testing on Emulators
If you are using an AVD emulator, you must first make sure that your emulator images are up to date.
To do that, open up your SDK Manager (Tools → Android → SDK Manager). Go down to the version
of Android that you plan to use for your emulator and ensure that the Google APIs System Images
are both installed and up to date (Figure33.2). If an update is available, click the button to install the
update and wait until it is ready to go before continuing.
Figure 33.2Ensuring your emulator is up to date
Chapter 33Locations and Play Services
624
Your AVD emulator also needs to have a target OS version that supports the Google APIs. When you
create an emulator, you can identify these target OS versions because they will say “with Google APIs”
on the right. Choose one with an API level of 21 or higher and you will be all set (Figure33.3).
Figure 33.3Choosing a Google APIs image
If you already have a suitable emulator but you had to update your images through the SDK earlier,
you will need to restart your emulator for it to work.
Mock location data
On an emulator you will also need some dummy (or mock) location updates to work with. Android
Studio provides an Emulator Control panel that lets you send location points to the emulator. This
works great on the old location services, but it does nothing on the new Fused Location Provider.
Instead, you have to publish mock locations programmatically.
We here at Big Nerd Ranch love to explain interesting things in minute detail. After the debacle that
was Snipe Hunting: The Big Nerd Ranch Guide, though, we prefer to explain useful things. So instead
of making you type out this mock location code, we have written it for you in a stand-alone app called
MockWalker. To use it, download and install the APK at this URL:
https://www.bignerdranch.com/solutions/MockWalker.apk
Mock location data
625
The easiest way to do that is to open the browser app in your emulator and type in the URL
(Figure33.4).

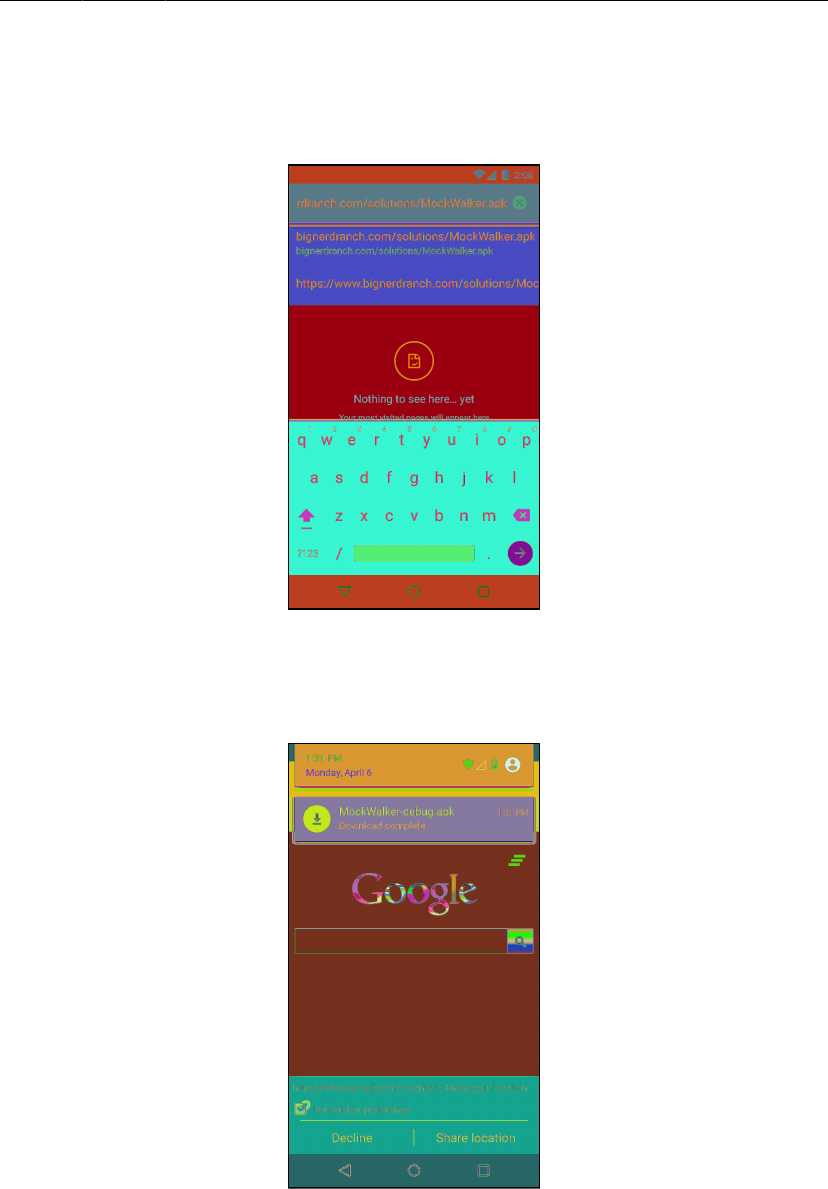

Figure 33.4Typing in the URL
When it is done, press the download notification item in the toolbar to open the APK (Figure33.5).
Figure 33.5Opening the download
Chapter 33Locations and Play Services
626
MockWalker will trigger a mock walk for you via a service that posts mock location data to Fused
Location Provider. It will pretend to walk in a loop around the Kirkwood neighborhood in Atlanta.
While the service is running, any time Locatr asks Fused Location Provider for a location fix, it will
receive a location posted by MockWalker.
Run MockWalker and press Start (Figure33.6). Its service will keep running after you exit the app.
(Do not exit the emulator, however. Leave the emulator running while you work on Locatr.) When you
no longer need those mock locations, open MockWalker again and press the Stop button.
Figure 33.6Running MockWalker
If you would like to know how MockWalker works, you can find its source code in the solutions folder
for this chapter (see the section called Adding an Icon in Chapter2 for more on the solutions). It uses a
few interesting things: RxJava and a sticky foreground service to manage the ongoing location updates.
If those sound interesting to you, check it out.
Building Out Locatr
627
Building Out Locatr
Time to create your interface. First, add a string for your search button in res/values/strings.xml.
Listing 33.1Adding search button text (res/values/strings.xml)
<resources>
<string name="app_name">Locatr</string>
<string name="search">Find an image near you</string>
</resources>
You will be using a fragment, as usual, so rename activity_locatr.xml to fragment_locatr.xml.
Change out the insides of its RelativeLayout to have an ImageView to display the image you find
(Figure33.7). (There are padding attribute values that come from the template code as of this writing.
They are not important, so feel free to leave them or delete them.)
Figure 33.7Locatr’s layout (res/layout/fragment_locatr.xml)
You also need a button to trigger the search. You can use your toolbar for that. Create res/menu/
fragment_locatr.xml and add a menu item to display a location icon. (Yes, this is the same filename
as res/layout/fragment_locatr.xml. This is no problem at all: Menu resources live in a different
namespace.)
Listing 33.2Setting up Locatr’s menu (res/menu/fragment_locatr.xml)
<menu xmlns:android="http://schemas.android.com/apk/res/android"
xmlns:app="http://schemas.android.com/apk/res-auto">
<item android:id="@+id/action_locate"
android:icon="@android:drawable/ic_menu_compass"
android:title="@string/search"
android:enabled="false"
app:showAsAction="ifRoom"/>
</menu>
The button is disabled in XML by default. Later on, you will enable it once you are connected to Play
Services.
Chapter 33Locations and Play Services
628
Now create a Fragment subclass called LocatrFragment that hooks up your layout and pulls out that
ImageView.
Listing 33.3Creating LocatrFragment (LocatrFragment.java)
public class LocatrFragment extends Fragment {
private ImageView mImageView;
public static LocatrFragment newInstance() {
return new LocatrFragment();
}
@Override
public View onCreateView(LayoutInflater inflater, ViewGroup container,
Bundle savedInstanceState) {
View v = inflater.inflate(R.layout.fragment_locatr, container, false);
mImageView = (ImageView) v.findViewById(R.id.image);
return v;
}
}
Hook up your menu item, too. Pull it out into its own instance variable so that you can enable it later
on.
Listing 33.4Adding menu to fragment (LocatrFragment.java)
public class LocatrFragment extends Fragment {
private ImageView mImageView;
public static LocatrFragment newInstance() {
return new LocatrFragment();
}
@Override
public void onCreate(Bundle savedInstanceState) {
super.onCreate(savedInstanceState);
setHasOptionsMenu(true);
}
@Override
public View onCreateView(LayoutInflater inflater, ViewGroup container,
Bundle savedInstanceState) {
...
}
@Override
public void onCreateOptionsMenu(Menu menu, MenuInflater inflater) {
super.onCreateOptionsMenu(menu, inflater);
inflater.inflate(R.menu.fragment_locatr, menu);
}
}
Setting Up Google Play Services
629
Now hook it up in LocatrActivity. Delete everything inside this class and replace it, like so:
Listing 33.5Hooking up Locatr fragment (LocatrActivity.java)
public class LocatrActivity extends SingleFragmentActivity {
@Override
protected Fragment createFragment() {
return LocatrFragment.newInstance();
}
}
With that, you should be ready to get into some trouble.
Setting Up Google Play Services
To get your location using the Fused Location Provider, you need to use Google Play Services. To get
those up and running, you will need to add a few standard bits of boilerplate to your app.
First, you need to add the Google Play Services library dependency. The services themselves live in the
Play Store app, but the Play Services library contains all the code to interface with them.
Open up your app module’s settings (File → Project Structure). Navigate to its dependencies and add
a library dependency. Type in the following dependency name: com.google.android.gms:play-
services-location:10.0.1. (As of this writing, this dependency will not show up in search results, so
type carefully.) This is the location portion of Play Services.
Over time, the version number for this library will change. If you want to see what the most up-to-date
version is, search the library dependencies for play-services. The com.google.android.gms:play-
services dependency will appear, along with a version number. This is the dependency that includes
everything in Play Services. If you want to use the latest version of the library, you can use the version
number from play-services for the more limited play-services-location library, too.
Which version number should you use, though? In your own practice, it is best to use the most recent
version you possibly can. But we cannot guarantee that the code in this book will work the same for
future versions. So for Locatr, use the version we wrote this code for: 10.0.1.
Chapter 33Locations and Play Services
630
Next, you need to verify that Play Services is available. Since the working parts live in another app
on your device, the Play Services library is not always guaranteed to be working. The library makes it
easy to verify this. Update your main activity to perform this check.
Listing 33.6Adding Play Services check (LocatrActivity.java)
public class LocatrActivity extends SingleFragmentActivity {
private static final int REQUEST_ERROR = 0;
@Override
protected Fragment createFragment() {
return LocatrFragment.newInstance();
}
@Override
protected void onResume() {
super.onResume();
GoogleApiAvailability apiAvailability = GoogleApiAvailability.getInstance();
int errorCode = apiAvailability.isGooglePlayServicesAvailable(this);
if (errorCode != ConnectionResult.SUCCESS) {
Dialog errorDialog = apiAvailability
.getErrorDialog(this, errorCode, REQUEST_ERROR,
new DialogInterface.OnCancelListener() {
@Override
public void onCancel(DialogInterface dialog) {
// Leave if services are unavailable.
finish();
}
});
errorDialog.show();
}
}
}
Normally you would not use a bare Dialog like this. However, in this case you will receive the same
errorCode every time LocatrActivity starts up, so the Dialog will always be displayed correctly.
Location permissions
You will also need some location permissions for your app to work. There are
two relevant permissions: android.permission.ACCESS_FINE_LOCATION and
android.permission.ACCESS_COARSE_LOCATION. Fine location is the GPS radio; coarse location is
derived from cell towers or WiFi access points.
In this chapter, you will be requesting a high-accuracy location fix, so you will definitely need
ACCESS_FINE_LOCATION. But it is also a good idea to request ACCESS_COARSE_LOCATION. If the fine
location provider is not available, this gives you permission to use the coarse provider as a backup.
Add these permissions to your manifest. Add an internet permission while you are at it, so that you can
query Flickr.
Using Google Play Services
631
Listing 33.7Adding permissions (AndroidManifest.xml)
<manifest xmlns:android="http://schemas.android.com/apk/res/android"
package="com.bignerdranch.android.locatr" >
<uses-permission
android:name="android.permission.ACCESS_FINE_LOCATION" />
<uses-permission
android:name="android.permission.ACCESS_COARSE_LOCATION" />
<uses-permission
android:name="android.permission.INTERNET" />
...
</manifest>
Both FINE_LOCATION and COARSE_LOCATION are dangerous permissions. That means that, unlike
INTERNET, this manifest code is not enough: You must also make a runtime request to use these
locations.
To handle that, you will need to write some more permissions code later in this chapter. For now,
though, you will move on with integrating Google Play Services.
Using Google Play Services
To use Play Services, you need to create a client. That client is an instance of the GoogleApiClient
class. You can find the documentation for this class (and all the other Play Services classes you will
be using in these two chapters) in the Play Services reference section at developer.android.com/
reference/gms-packages.html.
To create a client, create a GoogleApiClient.Builder and configure it. At a minimum, you want
to configure the instance with the specific APIs you will be using. Then call build() to create an
instance.
Inside your onCreate(Bundle), create an instance of GoogleApiClient.Builder and add the Location
Services API to your instance.
Listing 33.8Creating GoogleApiClient (LocatrFragment.java)
public class LocatrFragment extends Fragment {
private ImageView mImageView;
private GoogleApiClient mClient;
public static LocatrFragment newInstance() {
return new LocatrFragment();
}
@Override
public void onCreate(Bundle savedInstanceState) {
super.onCreate(savedInstanceState);
setHasOptionsMenu(true);
mClient = new GoogleApiClient.Builder(getActivity())
.addApi(LocationServices.API)
.build();
}
Chapter 33Locations and Play Services
632
Once you do that, you need to connect to the client. Google recommends always connecting to the
client in onStart() and disconnecting in onStop(). Calling connect() on your client will change what
your menu button can do, too, so call invalidateOptionsMenu() to update its visible state. (You will
call it one more time later, after you are told you have been connected.)
Listing 33.9Connecting and disconnecting (LocatrFragment.java)
@Override
public View onCreateView(LayoutInflater inflater, ViewGroup container,
Bundle savedInstanceState) {
...
}
@Override
public void onStart() {
super.onStart();
getActivity().invalidateOptionsMenu();
mClient.connect();
}
@Override
public void onStop() {
super.onStop();
mClient.disconnect();
}
@Override
public void onCreateOptionsMenu(Menu menu, MenuInflater inflater) {
If your client is not connected, your app will not be able to do anything. So for the next step, enable or
disable the button depending on whether the client is connected.
Listing 33.10Updating the menu button (LocatrFragment.java)
@Override
public void onCreateOptionsMenu(Menu menu, MenuInflater inflater) {
super.onCreateOptionsMenu(menu, inflater);
inflater.inflate(R.menu.fragment_locatr, menu);
MenuItem searchItem = menu.findItem(R.id.action_locate);
searchItem.setEnabled(mClient.isConnected());
}
Then add another call to getActivity().invalidateOptionsMenu() to update your menu
item when you find out that you are connected. Connection state information is passed through
two callback interfaces: ConnectionCallbacks and OnConnectionFailedListener. Hook up
a ConnectionCallbacks listener in onCreate(Bundle) to invalidate your toolbar when you are
connected.
Flickr Geosearch
633
Listing 33.11Listening for connection events (LocatrFragment.java)
@Override
public void onCreate(Bundle savedInstanceState) {
super.onCreate(savedInstanceState);
setHasOptionsMenu(true);
mClient = new GoogleApiClient.Builder(getActivity())
.addApi(LocationServices.API)
.addConnectionCallbacks(new GoogleApiClient.ConnectionCallbacks() {
@Override
public void onConnected(Bundle bundle) {
getActivity().invalidateOptionsMenu();
}
@Override
public void onConnectionSuspended(int i) {
}
})
.build();
}
If you are curious, you can hook up an OnConnectionFailedListener and see what it reports. But it is
not necessary.
With that, your Google Play Services hookup is ready.
Flickr Geosearch
The next step is to add the ability to search for geographic locations on Flickr. To do this, you perform
a regular search, but you also provide a latitude and longitude.
In Android, the location APIs pass around these location fixes in Location objects. So write a new
buildUrl(…) override that takes in a Location object and builds an appropriate search query.
Listing 33.12New buildUrl(Location) (FlickrFetchr.java)
private String buildUrl(String method, String query) {
...
}
private String buildUrl(Location location) {
return ENDPOINT.buildUpon()
.appendQueryParameter("method", SEARCH_METHOD)
.appendQueryParameter("lat", "" + location.getLatitude())
.appendQueryParameter("lon", "" + location.getLongitude())
.build().toString();
}
And now write a matching searchPhotos(Location) method.
Chapter 33Locations and Play Services
634
Listing 33.13New searchPhotos(Location) (FlickrFetchr.java)
public List<GalleryItem> searchPhotos(String query) {
...
}
public List<GalleryItem> searchPhotos(Location location) {
String url = buildUrl(location);
return downloadGalleryItems(url);
}
Getting a Location Fix
Now that you have everything set up, you are ready to get a location fix. Your window to the Fused
Location Provider API is a class named, appropriately enough, FusedLocationProviderApi.
There is one instance of this class. It is a singleton object that lives on LocationServices called
FusedLocationApi.
To get a location fix from this API, you need to build a location request. Fused location requests
are represented by LocationRequest objects. Create one and configure it in a new method called
findImage(). (There are two LocationRequest classes. Use the one with the complete name of
com.google.android.gms.location.LocationRequest.)
Listing 33.14Building a location request (LocatrFragment.java)
@Override
public void onCreateOptionsMenu(Menu menu, MenuInflater inflater) {
...
}
private void findImage() {
LocationRequest request = LocationRequest.create();
request.setPriority(LocationRequest.PRIORITY_HIGH_ACCURACY);
request.setNumUpdates(1);
request.setInterval(0);
}
}
LocationRequest objects configure a variety of parameters for your request:
•interval – how frequently the location should be updated
•number of updates – how many times the location should be updated
•priority – how Android should prioritize battery life against accuracy to satisfy your request
•expiration – whether the request should expire and, if so, when
•smallest displacement – the smallest amount the device must move (in meters) to trigger a
location update
Getting a Location Fix
635
When you first create a LocationRequest, it will be configured for accuracy within a city block,
with repeated slow updates until the end of time. In your code, you change this to get a single, high-
accuracy location fix by changing the priority and the number of updates. You also set the interval to 0
to signify that you would like a location fix as soon as possible.
The next step is to send off this request and listen for the Locations that come back. You do this by
adding a LocationListener. There are two versions of LocationListener you can import. Choose
com.google.android.gms.location.LocationListener. Add another method call to findImage().
Listing 33.15Sending LocationRequest (LocatrFragment.java)
public class LocatrFragment extends Fragment {
private static final String TAG = "LocatrFragment";
...
private void findImage() {
LocationRequest request = LocationRequest.create();
request.setPriority(LocationRequest.PRIORITY_HIGH_ACCURACY);
request.setNumUpdates(1);
request.setInterval(0);
LocationServices.FusedLocationApi
.requestLocationUpdates(mClient, request, new LocationListener() {
@Override
public void onLocationChanged(Location location) {
Log.i(TAG, "Got a fix: " + location);
}
});
}
If this were a longer-lived request, you would need to hold on to your listener and call
removeLocationUpdates(…) later to cancel the request. However, since you called setNumUpdates(1),
all you need to do is send this off and forget about it.
(Your call to requestLocationUpdates(…) will receive a dramatic red error indicator. Will this cause
problems? Yes, it will – but leave it as is for now; you will address those issues in a moment.)
Finally, to send this off you need to hook up your search button. Override onOptionsItemSelected(…)
to call findImage().
Listing 33.16Hooking up search button (LocatrFragment.java)
@Override
public void onCreateOptionsMenu(Menu menu, MenuInflater inflater) {
...
}
@Override
public boolean onOptionsItemSelected(MenuItem item) {
switch (item.getItemId()) {
case R.id.action_locate:
findImage();
return true;
default:
return super.onOptionsItemSelected(item);
}
}
Chapter 33Locations and Play Services
636
Run your app and press the search button. Sadly, your dramatic red error indicator will come due when
your app runs: You will see a message indicating that Locatr has stopped (Figure33.8).
Figure 33.8Permission: denied
If you check Logcat, you will see that a SecurityException was thrown:
FATAL EXCEPTION: main
Process: com.bignerdranch.android.locatr, PID: 7892
java.lang.SecurityException: Client must have ACCESS_FINE_LOCATION permission to
request PRIORITY_HIGH_ACCURACY locations.
at android.os.Parcel.readException(Parcel.java:1684)
at android.os.Parcel.readException(Parcel.java:1637)
...
at com.google.android.gms.location.internal.zzd
.requestLocationUpdates(Unknown Source)
at com.bignerdranch.android.locatr.LocatrFragment
.findImage(LocatrFragment.java:102)
at com.bignerdranch.android.locatr.LocatrFragment
.onOptionsItemSelected(LocatrFragment.java:89)
at android.support.v4.app.Fragment.performOptionsItemSelected(Fragment.java:2212)
...
at java.lang.reflect.Method.invoke(Native Method)
at com.android.internal.os.ZygoteInit$MethodAndArgsCaller
.run(ZygoteInit.java:886)
at com.android.internal.os.ZygoteInit.main(ZygoteInit.java:776)
For your call to requestLocationUpdates(…) to work, you must first ask permission.
Asking for Permission at Runtime
637
Asking for Permission at Runtime
Handling permissions at runtime requires you to do three things:
• check to see whether you have permission before performing the operation
• request permission if you do not already have it
• listen for the response to your permissions request
Requesting permission means displaying the system-standard permissions request UI. If this dialog
pops up in a place in your app where it is clear why you are asking your user for this permission, then
this is all you need to do.
Sometimes, though, the reason is not obvious. Users often deny requests that do not make sense to
them, so in those cases you will need to display a rationale. So those apps require a fourth step:
• check to see whether you need to display a rationale to the user
Since Locatr’s mission is on the obvious side, you will not implement a rationale in this exercise – at
least, not until the challenge at the end of this chapter.
Chapter 33Locations and Play Services
638
Checking for permissions
Your first step will be to pull your permissions information into your Java code. You can do this by
adding a constant array to the top of LocatrFragment that lists all the permissions you need.
Listing 33.17Adding permissions constants (LocatrFragment.java)
public class LocatrFragment extends Fragment {
private static final String TAG = "LocatrFragment";
private static final String[] LOCATION_PERMISSIONS = new String[]{
Manifest.permission.ACCESS_FINE_LOCATION,
Manifest.permission.ACCESS_COARSE_LOCATION,
};
private ImageView mImageView;
private GoogleApiClient mClient;
All standard Android permissions are declared in the Manifest.permission class for you to
use programmatically. So these two constants refer to the same string values you used in your
AndroidManifest.xml. With your permissions array declared, your next step is to ask for the
permissions you need.
Permission is granted for dangerous permissions on the basis of permission groups, not individual
permissions. A permission group contains several permissions that deal with the same kinds of
access. For example, ACCESS_FINE_LOCATION and ACCESS_COARSE_LOCATION are both in the LOCATION
permission group.
Table 33.1Permission groups
Permission group Permissions
CALENDAR READ_CALENDAR, WRITE_CALENDAR
CAMERA CAMERA
CONTACTS READ_CONTACTS, WRITE_CONTACTS, GET_ACCOUNTS
LOCATION ACCESS_FINE_LOCATION, ACCESS_COARSE_LOCATION
MICROPHONE RECORD_AUDIO
PHONE READ_PHONE_STATE, CALL_PHONE, READ_CALL_LOG, WRITE_CALL_LOG,
ADD_VOICEMAIL, USE_SIP, PROCESS_OUTGOING_CALLS
SENSORS BODY_SENSORS
SMS SEND_SMS, RECEIVE_SMS, READ_SMS, RECEIVE_WAP_PUSH, RECEIVE_MMS
STORAGE READ_EXTERNAL_STORAGE, WRITE_EXTERNAL_STORAGE
Once a permission is granted for any permission within the group, permission is granted for all
permissions in the group. Since both of your permissions are in the LOCATION group, you only need to
check whether you have one of those permissions.
Checking for permissions
639
Write a method to check whether you have access to the first permission in your
LOCATION_PERMISSIONS array.
Listing 33.18Writing a permission check (LocatrFragment.java)
private void findImage() {
...
}
private boolean hasLocationPermission() {
int result = ContextCompat
.checkSelfPermission(getActivity(), LOCATION_PERMISSIONS[0]);
return result == PackageManager.PERMISSION_GRANTED;
}
}
Because checkSelfPermission(…) is a relatively new method on Activity, introduced in
Marshmallow, you use ContextCompat’s checkSelfPermission(…) instead to avoid ugly conditional
code. It will take care of the compatibility behavior for you.
Next, add a check before calling findImage() to make sure you have the permission.
Listing 33.19Adding a permission check (LocatrFragment.java)
@Override
public boolean onOptionsItemSelected(MenuItem item) {
switch (item.getItemId()) {
case R.id.action_locate:
if (hasLocationPermission()) {
findImage();
}
return true;
default:
return super.onOptionsItemSelected(item);
}
}
Chapter 33Locations and Play Services
640
Now to write what should happen when you do not have location permission. In that case, you want to
call the requestPermissions(…) method.
Listing 33.20Requesting permission (LocatrFragment.java)
public class LocatrFragment extends Fragment {
private static final String TAG = "LocatrFragment";
private static final String[] LOCATION_PERMISSIONS = new String[]{
Manifest.permission.ACCESS_FINE_LOCATION,
Manifest.permission.ACCESS_COARSE_LOCATION,
};
private static final int REQUEST_LOCATION_PERMISSIONS = 0;
...
@Override
public boolean onOptionsItemSelected(MenuItem item) {
switch (item.getItemId()) {
case R.id.action_locate:
if (hasLocationPermission()) {
findImage();
} else {
requestPermissions(LOCATION_PERMISSIONS,
REQUEST_LOCATION_PERMISSIONS);
}
return true;
default:
return super.onOptionsItemSelected(item);
}
}
The requestPermissions(…) method is an asynchronous request. When you call it, Android will
display the system permissions dialog with a message appropriate to the permission you are requesting.
Checking for permissions
641
To respond to the system dialog, you write a corresponding implementation of
onRequestPermissionsResult(…). Android will call this callback when the user presses ALLOW or
DENY. Write an implementation that checks permission again and calls findImage() if the permission
was granted.
Listing 33.21Responding to a permissions request result
(LocatrFragment.java)
@Override
public boolean onOptionsItemSelected(MenuItem item) {
...
}
@Override
public void onRequestPermissionsResult(int requestCode, String[] permissions,
int[] grantResults) {
switch (requestCode) {
case REQUEST_LOCATION_PERMISSIONS:
if (hasLocationPermission()) {
findImage();
}
default:
super.onRequestPermissionsResult(requestCode, permissions, grantResults);
}
}
private void findImage() {
LocationRequest request = LocationRequest.create();
request.setPriority(LocationRequest.PRIORITY_HIGH_ACCURACY);
request.setNumUpdates(1);
The callback to onRequestPermissionsResult(int,String[],int[]) includes a parameter called
grantResults. If you like, you can check this parameter to see whether your permission was granted.
Here, you take a slightly simpler approach: When you call hasLocationPermission(), its call to
checkSelfPermission(…) will also tell you whether you have acquired the permission. So you can call
hasLocationPermission() one more time and accomplish the same thing with less code than it takes
to look into the contents of grantResults.
Chapter 33Locations and Play Services
642
Run Locatr and press on the menu item again. This time, you will see the system permissions dialog
pop up (Figure33.9).
Figure 33.9The LOCATION permission group dialog
If you press ALLOW, then the permission will be granted until the user uninstalls the app or turns the
permission off. If you press DENY, then it will be denied for the moment – the next time you press
the button, the dialog will be shown again. (For debugging, we prefer to clear the permissions state by
uninstalling. Uninstalling apps is much more fun to do on Android than turning permissions off, so that
is how we do it.)
With that done, you can verify that the location behavior works as you expect. Remember to have
MockWalker running if you are using an emulator. (If you have problems with the menu, flip back to
Chapter13 to integrate the AppCompat library.) Press the location button and accept the permission,
and you should see a line something like this logged out:
...D/libEGL: loaded /system/lib/egl/libGLESv2_MRVL.so
...D/GC: <tid=12423> OES20 ===> GC Version : GC Ver rls_pxa988_KK44_GC13.24
...D/OpenGLRenderer: Enabling debug mode 0
...I/LocatrFragment: Got a fix: Location[fused 33.758998,-84.331796 acc=38 et=...]
Checking for permissions
643
This shows you the latitude and longitude, accuracy, and the estimated time of the location fix. If
you plug your lat-lon pair into Google Maps, you should be able to pull up your current location
(Figure33.10).
Figure 33.10Our current location
Chapter 33Locations and Play Services
644
Find and Display an Image
Now that you have a location fix, it is time to use it. Write an async task to find a GalleryItem near
your location fix, download its associated image, and display it.
Put this code inside a new inner AsyncTask called SearchTask. Start by performing the search,
selecting the first GalleryItem that comes up.
Listing 33.22Writing SearchTask (LocatrFragment.java)
private void findImage() {
...
LocationServices.FusedLocationApi
.requestLocationUpdates(mClient, request, new LocationListener() {
@Override
public void onLocationChanged(Location location) {
Log.i(TAG, "Got a fix: " + location);
new SearchTask().execute(location);
}
});
}
private boolean hasLocationPermission() {
int result = ContextCompat
.checkSelfPermission(getActivity(), LOCATION_PERMISSIONS[0]);
return result == PackageManager.PERMISSION_GRANTED;
}
private class SearchTask extends AsyncTask<Location,Void,Void> {
private GalleryItem mGalleryItem;
@Override
protected Void doInBackground(Location... params) {
FlickrFetchr fetchr = new FlickrFetchr();
List<GalleryItem> items = fetchr.searchPhotos(params[0]);
if (items.size() == 0) {
return null;
}
mGalleryItem = items.get(0);
return null;
}
}
Saving out the GalleryItem here accomplishes nothing for now. But it will save you a bit of typing in
the next chapter.
Next, download that GalleryItem’s associated image data and decode it. Then display it on
mImageView inside onPostExecute(Void).
Find and Display an Image
645
Listing 33.23Downloading and displaying image (LocatrFragment.java)
private class SearchTask extends AsyncTask<Location,Void,Void> {
private GalleryItem mGalleryItem;
private Bitmap mBitmap;
@Override
protected Void doInBackground(Location... params) {
...
mGalleryItem = items.get(0);
try {
byte[] bytes = fetchr.getUrlBytes(mGalleryItem.getUrl());
mBitmap = BitmapFactory.decodeByteArray(bytes, 0, bytes.length);
} catch (IOException ioe) {
Log.i(TAG, "Unable to download bitmap", ioe);
}
return null;
}
@Override
protected void onPostExecute(Void result) {
mImageView.setImageBitmap(mBitmap);
}
}
With that, you should be able to find a nearby image on Flickr (Figure33.11). Fire up Locatr and press
your location button.
Figure 33.11The final product
Chapter 33Locations and Play Services
646
Challenge: Permissions Rationale
As mentioned above, the system permission dialog is not descriptive enough for many applications. In
those cases, you need to provide the user with a rationale.
Android has a preferred flow for displaying this rationale. As of this writing, it works as follows:
1. The first time the user asks, show the system dialog.
2. Any time the user asks after that, show a dialog with your explanation, then the system dialog
again.
3. If the user requests to deny the permission forever, never show the rationale or the system dialog
again.
This may seem a little complicated. Luckily, Android provides a method to help you
implement it: ActivityCompat’s shouldShowRequestPermissionRationale(…).
shouldShowRequestPermissionRationale(…) will return false before you first request a permission,
true after it has initially been denied, and then false if the user chooses to permanently deny the
permission.
For this challenge, implement a rationale DialogFragment that displays a short message: “Locatr uses
location data to find images near you on Flickr.” Use shouldShowRequestPermissionRationale(…) to
see whether the rationale should be displayed before calling requestPermission(…). If the rationale
is displayed, Locatr should wait until it is dismissed by the user to call requestPermission(…). (Hint:
You can detect dismissal by overriding DialogFragment.onCancel(…).)
Challenge: Progress
This simple app could use some more feedback in its interface. There is no immediate indication when
you press the button that anything has happened.
For this challenge, modify Locatr so that it responds immediately to a press by displaying a progress
indicator. The ProgressDialog class can show a spinning progress indicator that will do the trick
nicely. You will also need to track when SearchTask is running so that you can clear away the progress
when that is appropriate.
647
34
Maps
In this chapter, you will go one step further with LocatrFragment. In addition to searching for a nearby
image, you will find its latitude and longitude and plot it on a map.
Importing Play Services Maps
Before you get started, you need to import the mapping library. This is another Play Services
library. Open the project structure window and add this dependency to your app module:
com.google.android.gms:play-services-maps:10.0.1.
Mapping on Android
As enjoyable as it is to have data that tells you where your phone is, that data begs to be represented
visually. Mapping was probably the first truly killer app for smartphones, which is why Android has
had mapping since day one.
Mapping is big, complicated, and involves an entire support system of servers to provide base map
data. Most of Android can stand alone as part of the Android Open Source Project. Maps, however,
cannot.
So while Android has always had maps, maps have also always been separate from the rest of
Android’s APIs. The current version of the Maps API, version 2, lives in Google Play Services along
with the Fused Location Provider. So to use it, the same requirements apply as the ones you saw in the
section called Google Play Services in Chapter33: You have to either have a device with the Play Store
installed or an emulator with the Google APIs.
If you are making something with maps and happen to flip straight to this chapter, make sure that you
have followed the steps from the previous chapter before you start:
• ensure that your device supports Play Services
• import the appropriate Play Services library
• use GoogleApiAvailability at an appropriate entry point to ensure that an up-to-date Play Store
app is installed
Chapter 34Maps
648
Getting a Maps API Key
Using the Maps API also requires you to configure an API key in your manifest. To do that, you have
to create your own API key. This API key is used to ensure that your app is authorized to use Google’s
mapping services.
The specifics of how this works can change from time to time, so we recommend you visit Google’s
documentation to get over the initial bump: developers.google.com/maps/documentation/android/
start.
As of this writing, those instructions tell you to start a new project. That is a silly thing to do when
you already have an entire project’s worth of code. We instead recommend that you right-click your
com.bignerdranch.android.locatr package name and select New → Activity → Gallery..., then select
Google Maps Activity to create a new templated maps activity instead. Use the default name for the new
activity.
When you finish those instructions, you will have some new code in your app: a few new manifest
entries, a new string in a new file called values/google_maps_api.xml, and a new activity called
MapsActivity. Make sure that you follow the instructions within google_maps_api.xml to get a
functional API key. The google_maps_key string in your google_maps_api.xml file should look
similar to this, but with a different value for the key:
<!-- Our signing key (not yours) -->
<string name="google_maps_key" templateMergeStrategy="preserve" translatable="false">
AIzaSyClrnnYZEx0iYmJkIc0K4rdObrXcFkLl-U</string>
The key is tied to the signing key used to build the app. Our debug signing key is different from yours,
so our key will not work for you. (Our apologies if you took the time to type it out.)
Adding MapsActivity was necessary to build out the template XML, but you do not need
MapsActivity itself. You will be adapting LocatrFragment instead. So delete MapsActivity from your
app and remove its entry from the manifest:
Listing 34.1Removing MapsActivity’s manifest entry
(AndroidManifest.xml)
<manifest xmlns:android="http://schemas.android.com/apk/res/android"
package="com.bignerdranch.android.locatr">
...
<application ...>
...
<meta-data
android:name="com.google.android.geo.API_KEY"
android:value="@string/google_maps_key"/>
<activity
android:name=".MapsActivity"
android:label="@string/title_activity_maps">
</activity>
</application>
</manifest>
Getting a Maps API Key
649
As of this writing, the template will also automatically add the com.google.android.gms:play-
services artifact to your dependencies. Unfortunately, this artifact is gigantic and will immediately
cause you to blow out your method limit budget and fail to build. (Basic Android apps currently
support up to 65,536 methods in an APK. If you need more than that, you will need to use multidex, a
topic that is beyond the scope of this book.)
Fix this by removing the services dependency (but leave play-services-location and play-
services-maps).
Listing 34.2Removing Play Services dependency (app/build.gradle)
dependencies {
compile fileTree(include: ['*.jar'], dir: 'libs')
androidTestCompile('com.android.support.test.espresso:espresso-core:2.2.2', {
exclude group: 'com.android.support', module: 'support-annotations'
})
compile 'com.android.support:appcompat-v7:25.0.1'
compile 'com.google.android.gms:play-services-location:10.0.1'
compile 'com.google.android.gms:play-services-maps:10.0.1'
compile 'com.google.android.gms:play-services:10.0.1'
testCompile 'junit:junit:4.12'
}
With that, you are ready to go.
Chapter 34Maps
650
Setting Up Your Map
Now that you have the Maps API set up, you need to create a map. Maps are displayed, appropriately
enough, in a MapView. MapView is like other views, mostly, except in one way: For it to work correctly,
you have to forward all of your lifecycle events, like this:
@Override
public void onCreate(Bundle savedInstanceState) {
super.onCreate(savedInstanceState);
mMapView.onCreate(savedInstanceState);
}
This is a huge pain in the neck. It is far easier to let the SDK do that work for you instead by using a
MapFragment or, if you are using support library fragments, SupportMapFragment. The MapFragment
will create and host a MapView for you, including the proper lifecycle callback hookups.
Your first step is to wipe out your old UI entirely and replace it with a SupportMapFragment. This is
not as painful as it might sound. All you need to do is switch to using a SupportMapFragment, delete
your onCreateView(…) method, and delete everything that uses your ImageView.
Listing 34.3Switching to SupportMapFragment (LocatrFragment.java)
public class LocatrFragment extends SupportMapFragment Fragment{
private static final String TAG = "LocatrFragment";
private static final String[] LOCATION_PERMISSIONS = new String[]{
Manifest.permission.ACCESS_FINE_LOCATION,
Manifest.permission.ACCESS_COARSE_LOCATION,
};
private static final int REQUEST_LOCATION_PERMISSIONS = 0;
private ImageView mImageView;
private GoogleApiClient mClient;
...
@Override
public View onCreateView(LayoutInflater inflater, ViewGroup container,
Bundle savedInstanceState) {
View v = inflater.inflate(R.layout.fragment_locatr, container, false);
mImageView = (ImageView) v.findViewById(R.id.image);
return v;
}
...
private class SearchTask extends AsyncTask<Location,Void,Void> {
...
@Override
protected void onPostExecute(Void result) {
mImageView.setImageBitmap(mBitmap);
}
}
}
Setting Up Your Map
651
SupportMapFragment has its own override of onCreateView(…), so you should be all set. Run Locatr
to see a map displayed (Figure34.1).

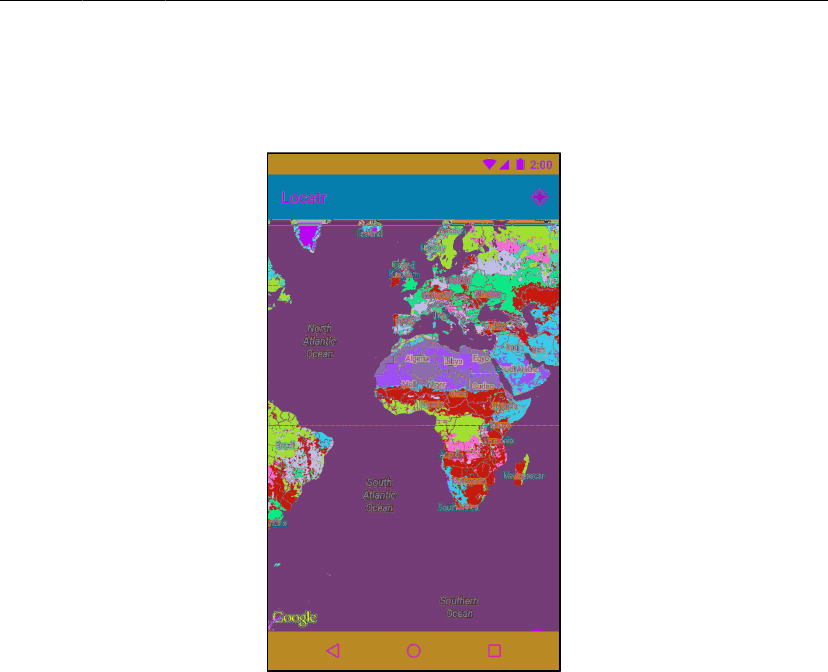

Figure 34.1A plain old map
Chapter 34Maps
652
Getting More Location Data
To actually plot your image on this map, you need to know where it is. Add an additional “extra”
parameter to your Flickr API query to fetch a lat-lon pair back for your GalleryItem.
Listing 34.4Adding lat-lon to query (FlickrFetchr.java)
private static final String API_KEY = "yourApiKeyHere";
private static final String FETCH_RECENTS_METHOD = "flickr.photos.getRecent";
private static final String SEARCH_METHOD = "flickr.photos.search";
private static final Uri ENDPOINT = Uri
.parse("https://api.flickr.com/services/rest/")
.buildUpon()
.appendQueryParameter("api_key", API_KEY)
.appendQueryParameter("format", "json")
.appendQueryParameter("nojsoncallback", "1")
.appendQueryParameter("extras", "url_s,geo")
.build();
Now add latitude and longitude to GalleryItem.
Listing 34.5Adding lat-lon properties (GalleryItem.java)
public class GalleryItem {
private String mCaption;
private String mId;
private String mUrl;
private double mLat;
private double mLon;
...
public Uri getPhotoPageUri() {
return Uri.parse("http://www.flickr.com/photos/")
.buildUpon()
.appendPath(mOwner)
.appendPath(mId)
.build();
}
public double getLat() {
return mLat;
}
public void setLat(double lat) {
mLat = lat;
}
public double getLon() {
return mLon;
}
public void setLon(double lon) {
mLon = lon;
}
@Override
public String toString() {
return mCaption;
}
}
Getting More Location Data
653
And then pull that data out of your Flickr JSON response.
Listing 34.6Pulling data from Flickr JSON response (FlickrFetchr.java)
private void parseItems(List<GalleryItem> items, JSONObject jsonBody)
throws IOException, JSONException {
JSONObject photosJsonObject = jsonBody.getJSONObject("photos");
JSONArray photoJsonArray = photosJsonObject.getJSONArray("photo");
for (int i = 0; i < photoJsonArray.length(); i++) {
JSONObject photoJsonObject = photoJsonArray.getJSONObject(i);
GalleryItem item = new GalleryItem();
item.setId(photoJsonObject.getString("id"));
item.setCaption(photoJsonObject.getString("title"));
if (!photoJsonObject.has("url_s")) {
continue;
}
item.setUrl(photoJsonObject.getString("url_s"));
item.setOwner(photoJsonObject.getString("owner"));
item.setLat(photoJsonObject.getDouble("latitude"));
item.setLon(photoJsonObject.getDouble("longitude"));
items.add(item);
}
}
Now that you are getting your location data, add some fields to your main fragment to store the current
state of your search. Add one field to stash the Bitmap you will display, one for the GalleryItem it is
associated with, and one for your current Location.
Listing 34.7Adding map data (LocatrFragment.java)
public class LocatrFragment extends SupportMapFragment {
...
private static final int REQUEST_LOCATION_PERMISSIONS = 0;
private Bitmap mMapImage;
private GalleryItem mMapItem;
private Location mCurrentLocation;
...
Next, save those bits of information out from within SearchTask.
Chapter 34Maps
654
Listing 34.8Saving out query results (LocatrFragment.java)
private class SearchTask extends AsyncTask<Location,Void,Void> {
private Bitmap mBitmap;
private GalleryItem mGalleryItem;
private Location mLocation;
@Override
protected Void doInBackground(Location... params) {
mLocation = params[0];
FlickrFetchr fetchr = new FlickrFetchr();
...
}
@Override
protected void onPostExecute(Void result) {
mMapImage = mBitmap;
mMapItem = mGalleryItem;
mCurrentLocation = mLocation;
}
}
With that, you have the data you need. Next up: making your map show it.
Working with Your Map
Your SupportMapFragment creates a MapView, which is, in turn, a host for the object that does the real
work: GoogleMap. So your first step is to acquire a reference to this master object. Do this by calling
getMapAsync(OnMapReadyCallback).
Listing 34.9Getting a GoogleMap (LocatrFragment.java)
public class LocatrFragment extends SupportMapFragment {
...
private static final int REQUEST_LOCATION_PERMISSIONS = 0;
private GoogleApiClient mClient;
private GoogleMap mMap;
private Bitmap mMapImage;
private GalleryItem mMapItem;
private Location mCurrentLocation;
@Override
public void onCreate(Bundle savedInstanceState) {
super.onCreate(savedInstanceState);
setHasOptionsMenu(true);
mClient = new GoogleApiClient.Builder(getActivity())
...
.build();
getMapAsync(new OnMapReadyCallback() {
@Override
public void onMapReady(GoogleMap googleMap) {
mMap = googleMap;
}
});
}
Working with Your Map
655
SupportMapFragment.getMapAsync(…) does what it says on the tin: It gets a map object
asynchronously. If you call this from within your onCreate(Bundle), you will get a reference to a
GoogleMap once it is created and initialized.
Now that you have a GoogleMap, you can update the look of that map according to the current state of
LocatrFragment. The first thing you will want to do is zoom in on an area of interest. You will want a
margin around that area of interest. Add a dimension value for that margin.
Listing 34.10Adding margin (res/values/dimens.xml)
<resources>
<!-- Default screen margins, per the Android Design guidelines. -->
<dimen name="activity_horizontal_margin">16dp</dimen>
<dimen name="activity_vertical_margin">16dp</dimen>
<dimen name="map_inset_margin">100dp</dimen>
</resources>
Now add an updateUI() implementation to perform the zoom.
Listing 34.11Zooming in (LocatrFragment.java)
private boolean hasLocationPermission() {
...
}
private void updateUI() {
if (mMap == null || mMapImage == null) {
return;
}
LatLng itemPoint = new LatLng(mMapItem.getLat(), mMapItem.getLon());
LatLng myPoint = new LatLng(
mCurrentLocation.getLatitude(), mCurrentLocation.getLongitude());
LatLngBounds bounds = new LatLngBounds.Builder()
.include(itemPoint)
.include(myPoint)
.build();
int margin = getResources().getDimensionPixelSize(R.dimen.map_inset_margin);
CameraUpdate update = CameraUpdateFactory.newLatLngBounds(bounds, margin);
mMap.animateCamera(update);
}
private class SearchTask extends AsyncTask<Location,Void,Void> {
Here is what you just did. To move your GoogleMap around, you built a CameraUpdate.
CameraUpdateFactory has a variety of static methods to build different kinds of CameraUpdate objects
that adjust the position, zoom level, and other properties around what your map is displaying.
Here, you created an update that points the camera at a specific LatLngBounds. You can think of a
LatLngBounds as a rectangle around a set of points. You can make one explicitly by saying what the
southwest and northeast corners of it should be.
Chapter 34Maps
656
More often, it is easier to provide a list of points that you would like this rectangle to encompass.
LatLngBounds.Builder makes it easy to do this: Simply create a LatLngBounds.Builder and call
.include(LatLng) for each point your LatLngBounds should encompass (represented by LatLng
objects). When you are done, call build(), and you get an appropriately configured LatLngBounds.
With that done, you can update your map in two ways: with moveCamera(CameraUpdate) or
animateCamera(CameraUpdate). Animating is more fun, so naturally that is what you used above.
Next, hook up your updateUI() method in two places: when the map is first received and when your
search is finished.
Listing 34.12Hooking up updateUI() (LocatrFragment.java)
@Override
public void onCreate(Bundle savedInstanceState) {
...
getMapAsync(new OnMapReadyCallback() {
@Override
public void onMapReady(GoogleMap googleMap) {
mMap = googleMap;
updateUI();
}
});
}
...
private class SearchTask extends AsyncTask<Location,Void,Void> {
...
@Override
protected void onPostExecute(Void result) {
mMapImage = mBitmap;
mMapItem = mGalleryItem;
mCurrentLocation = mLocation;
updateUI();
}
}
Drawing on the map
657
Run Locatr and press the search button. You should see your map zoom in on an area of interest that
includes your current location (Figure34.2). (Emulator users will need to have MockWalker running to
get a location fix.)
Figure 34.2Zoomed-in map
Drawing on the map
Your map is nice, but a little vague. You know that you are in there somewhere, and you know that the
Flickr photo is in there somewhere. But where? Let’s add specificity with some markers.
Drawing on a map is not the same as drawing on a regular view. It is a little easier, in fact. Instead of
drawing pixels to the screen, you draw features to a geographic area. And by “drawing,” we mean,
“build little objects and add them to your GoogleMap so that it can draw them for you.”
Actually, that is not quite right, either. It is, in fact, the GoogleMap object that makes these objects, not
you. Instead, you create objects that describe what you want the GoogleMap to create, called options
objects.
Add two markers to your map by creating MarkerOptions objects and then calling
mMap.addMarker(MarkerOptions).
Chapter 34Maps
658
Listing 34.13Adding markers (LocatrFragment.java)
private void updateUI() {
...
LatLng itemPoint = new LatLng(mMapItem.getLat(), mMapItem.getLon());
LatLng myPoint = new LatLng(
mCurrentLocation.getLatitude(), mCurrentLocation.getLongitude());
BitmapDescriptor itemBitmap = BitmapDescriptorFactory.fromBitmap(mMapImage);
MarkerOptions itemMarker = new MarkerOptions()
.position(itemPoint)
.icon(itemBitmap);
MarkerOptions myMarker = new MarkerOptions()
.position(myPoint);
mMap.clear();
mMap.addMarker(itemMarker);
mMap.addMarker(myMarker);
LatLngBounds bounds = new LatLngBounds.Builder()
...
}
When you call addMarker(MarkerOptions), the GoogleMap builds a Marker instance and adds it to the
map. If you need to remove or modify the marker in the future, you can hold on to this instance. In this
case, you will be clearing the map every time you update it. As a result, you do not need to hold on to
the Markers.
Run Locatr and press the search button, and you should see your two markers show up (Figure34.3).
Figure 34.3Geographic looming
For the More Curious: Teams and API Keys
659
And with that, your little geographic image finder is complete. You learned how to use two Play
Services APIs, you tracked your phone’s location, you registered for one of Google’s many web
services APIs, and you plotted everything on a map. Perhaps a nap is in order now that your app’s map
is in order.
For the More Curious: Teams and API Keys
When you have more than one person working on an app with an API key, debug builds start to be a
pain. Your signing credentials are stored in a keystore file, which is unique to you. On a team, everyone
will have his or her own keystore file and credentials. For new team members to work on the app, you
have to ask them for their SHA1 and then go update your API key’s credentials.
Or, at least, that is one option for how to manage the API key: Manage all of the signing hashes in your
project. If you want a lot of explicit control over who is doing what, that may be the right solution.
But there is another option: Create a debug keystore specifically for the project. Start by creating a
brand new debug keystore with Java’s keytool program.
Listing 34.14Creating a new keystore (terminal)
$ keytool -genkey -v -keystore debug.keystore -alias androiddebugkey \
--storepass android -keypass android -keyalg RSA -validity 14600
You will be asked a series of questions by keytool. Answer them honestly, as if no one were watching.
(Since this is a debug key, it is OK to leave the default value on everything but the name if you like.)
$ keytool -genkey -v -keystore debug.keystore -alias androiddebugkey \
--storepass android -keypass android -keyalg RSA -validity 14600
What is your first and last name?
[Unknown]: Bill Phillips
...
Chapter 34Maps
660
Once you have that debug.keystore file, move it into your app module’s folder. Then open up your
project structure, select your app module, and navigate to the Signing tab. Click the + button to add
a new signing config. Type debug in the Name field and debug.keystore for your newly created
keystore (Figure34.4).
Figure 34.4Configuring debug signing key
If you configure your API key to use this new keystore, then anyone else can use the same API key by
using the same keystore. Much easier.
Note that if you do this, you need to exercise some caution about how you distribute this new
debug.keystore. If you only share it in a private code repo, you should be fine. But do not publish this
keystore in a public repo where anybody can get to it, because that will allow anyone to use your API
key.
661
35
Material Design
One of the biggest changes to Android in recent years was the introduction of a new design style:
material design. This new visual language made a big splash when it was released with Android 5.0
(Lollipop), and it came accompanied by a wonderfully exhaustive style guide.
Of course, as developers we are usually only peripherally concerned with questions of design. Our
job is to get it done, no matter what “it” is. However, material design introduces some new interface
concepts in addition to the design sensibilities. If you familiarize yourself with them, you will find it
much easier to implement these new designs.
This final chapter is a little different from previous chapters. You can think of it as an enormous For
The More Curious section. There is no example app to work through, and most of this information is
not required reading.
For designers, material design emphasizes three big ideas:
•Material is the metaphor: The pieces of the app should act like physical, material objects.
•Bold, graphic, and intentional: App designs should jump off the page like they would in a well-
designed magazine or book.
•Motion provides meaning: The app should animate in response to actions taken by the user.
The only one of these that our book has nothing to say about is bold, graphic, and intentional. This is
a designer’s responsibility. If you are designing your own app, check out the material design guidelines
(developer.android.com/design/material/index.html) to see what they mean by that.
For the material is the metaphor part, designers need your help to build out the material surfaces. You
will need to know how to position them in three dimensions using z-axis properties, and you will need
to know how to use material widgets such as toolbars, floating action buttons, and snackbars.
Finally, to live up to the directive that motion provides meaning, you can learn a new set of animation
tools: state list animators, animated state list drawables (yes, you read that right – they are different
from state list animators), circular reveals, and shared element transitions. These can be used to add the
visual interest that bold designers crave.
Chapter 35Material Design
662
Material Surfaces
As a developer, the single most important idea you should be familiar with in material design is
the idea of material surfaces. Designers think of these as 1dp-thick bits of cardstock. These bits of
cardstock act like magically changeable bits of paper and ink: They can grow, they can show animated
pictures, and they can show changing text (Figure35.1).
Figure 35.1An interface with two material surfaces
However, as magical as they may be, they still behave like real pieces of paper. For example, one
sheet of paper cannot move right through another. The same logic applies when you animate material
surfaces: They cannot animate through one another.
Material Surfaces
663
Instead, surfaces exist and maneuver around one another in 3-D space. They can move up toward your
finger, or down and away (Figure35.2).
Figure 35.2A material design in 3-D space
To animate one surface across another, you move it up and across the other surface (Figure35.3).
Figure 35.3Animating one surface over another
Chapter 35Material Design
664
Elevation and Z values
The most apparent way users will see the depth in your interface is by seeing how elements of your app
cast shadows on one another. Some might think that a perfect world would be one where the designers
worry about drawing those shadows and we developers go eat bagels. (Opinions differ on what a
perfect world looks like.)
But doing that with a variety of surfaces in play – while animating, no less – is not possible for
designers to do by themselves. Instead, you let Android take care of drawing the shadows by giving
each of your Views an elevation.
Lollipop introduced a z-axis to the layout system, allowing you to specify where a view lives in 3-D
space. Elevation is like the coordinates assigned to your view in layout: You can animate your view
away from this position, but this is where it naturally lives (Figure35.4).
Figure 35.4Elevation on the Z plane
To set the elevation value, you can either call the View.setElevation(float) method or set the value
in your layout file.
Listing 35.1Setting elevation on a view in a layout file
<Button xmlns:android="http://schemas.android.com/apk/res/android"
android:layout_width="wrap_content"
android:layout_height="wrap_content"
android:elevation="2dp"/>
Because this is intended to be your baseline Z value, using the XML attribute is preferred. It is also
easier to use than setElevation(float), because the elevation attribute is silently ignored on older
versions of Android, so you do not need to worry about compatibility.
To change a View’s elevation, you use the translationZ and Z properties. These work exactly like
translationX, translationY, X, and Y, which you saw in Chapter32.
Z’s value is always elevation plus translationZ. If you assign a value to Z, it will do the math to
assign the right value to translationZ (Figure35.5).
Figure 35.5Z and translationZ
State list animators
665
State list animators
Material applications are often designed with many animated user interactions. Press a button on a
device running Lollipop or later to see one example: The button will animate up on the z-axis to meet
your finger. When you release your finger, it will animate back down.
To make implementing these animations easier, Lollipop introduced state list animators. State list
animators are the animation counterpart to the state list drawable: Instead of switching out one
drawable for another, they animate the view into a particular state. To implement an animation that
raises the button up when you press it, you can define a state list animator that looks like this in res/
animator:
Listing 35.2An example state list animator
<selector xmlns:android="http://schemas.android.com/apk/res/android">
<item android:state_pressed="true">
<objectAnimator android:propertyName="translationZ"
android:duration="100"
android:valueTo="6dp"
android:valueType="floatType"
/>
</item>
<item android:state_pressed="false">
<objectAnimator android:propertyName="translationZ"
android:duration="100"
android:valueTo="0dp"
android:valueType="floatType"
/>
</item>
</selector>
Chapter 35Material Design
666
This is great if you need to use a property animation. If you want to perform a framed animation, you
need to use another tool: the animated state list drawable.
The name “animated state list drawable” is a little confusing. It sounds similar to “state list animator,”
but the purpose is totally different. Animated state list drawables allow you to define images for each
state, like a normal state list drawable, but they also allow you to define frame animation transitions
between those states.
Back in Chapter23, you defined a state list drawable for BeatBox’s sound buttons. If a sadistic
designer (like our own Kar Loong Wong) wanted to have a multiframe animation each time the button
was pressed, you could modify your XML to look like Listing 35.3. (This version would need to live
inside a res/drawable-21 directory because this feature is not supported prior to Lollipop.)
Listing 35.3An animated state list drawable
<animated-selector xmlns:android="http://schemas.android.com/apk/res/android">
<item android:id="@+id/pressed"
android:drawable="@drawable/button_beat_box_pressed"
android:state_pressed="true"/>
<item android:id="@+id/released"
android:drawable="@drawable/button_beat_box_normal" />
<transition
android:fromId="@id/released"
android:toId="@id/pressed">
<animation-list>
<item android:duration="10" android:drawable="@drawable/button_frame_1" />
<item android:duration="10" android:drawable="@drawable/button_frame_2" />
<item android:duration="10" android:drawable="@drawable/button_frame_3" />
...
</animation-list>
</transition>
</animated-selector>
Here, each item in the selector gets an ID. You can then define a transition between different IDs to
play a multiframe animation. If you want to provide an animation when you release the button, too,
that requires an additional transition tag.
Animation Tools
667
Animation Tools
Material design introduced many nifty animations. Some of them can be achieved quickly. Others
require more work, but Android provides some tools to help you out.
Circular reveal
The circular reveal animation is used in material design to look like an ink flood-fill. A view or piece
of content is progressively revealed outward from a point of interaction, usually a point pressed by the
user. Figure35.6 gives you an idea of what a circular reveal can bring to the party.
Figure 35.6Circular reveal from pressing an item in BeatBox
You may remember using a simple version of this way back in Chapter6, where you used it to hide a
button. Here we will talk about another, slightly more involved way to use a circular reveal.
To create a circular reveal animation, you call the createCircularReveal(…) method on
ViewAnimationUtils. This method takes in quite a few parameters:
static Animator createCircularReveal(View view, int centerX, int centerY,
float startRadius, float endRadius)
Chapter 35Material Design
668
The View passed in is the View you would like to reveal. In Figure35.6, this view is a solid red view
that is the same width and height as the BeatBoxFragment. If you animate from a startRadius of 0 to
a large endRadius, this view will start out being completely transparent and then slowly be revealed
as the circle expands. The circle’s origin (in terms of the View’s coordinates) will be centerX and
centerY. This method returns an Animator, which works exactly like the Animator you used in
Chapter32.
The material design guidelines say that these animations should originate from the point where the user
touched the screen. So your first step is to find the screen coordinates of the view that the user touched,
as in Listing 35.4.
Listing 35.4Finding screen coordinates in a click listener
@Override
public void onClick(View clickSource) {
int[] clickCoords = new int[2];
// Find the location of clickSource on the screen
clickSource.getLocationOnScreen(clickCoords);
// Tweak that location so that it points at the center of the view,
// not the corner
clickCoords[0] += clickSource.getWidth() / 2;
clickCoords[1] += clickSource.getHeight() / 2;
performRevealAnimation(mViewToReveal, clickCoords[0], clickCoords[1]);
}
Then you can perform your reveal animation.
Listing 35.5Making and executing a reveal animation
private void performRevealAnimation(View view, int screenCenterX, int screenCenterY) {
// Find the center relative to the view that will be animated
int[] animatingViewCoords = new int[2];
view.getLocationOnScreen(animatingViewCoords);
int centerX = screenCenterX - animatingViewCoords[0];
int centerY = screenCenterY - animatingViewCoords[1];
// Find the maximum radius
Point size = new Point();
getActivity().getWindowManager().getDefaultDisplay().getSize(size);
int maxRadius = size.y;
if (Build.VERSION.SDK_INT >= Build.VERSION_CODES.LOLLIPOP) {
ViewAnimationUtils.createCircularReveal(view, centerX, centerY, 0, maxRadius)
.start();
}
}
Important note: The View must already be in the layout for this method to work.
Shared element transitions
669
Shared element transitions
Another kind of animation that is new to material design is the shared element transition, or hero
transition. This transition is meant for a specific situation: where two screens display some of the same
things.
Think back to your work on CriminalIntent. In that application, you had a thumbnail view of a picture
you took in CrimeDetailFragment. In one of the challenges, you were asked to construct another view
that zoomed in to a full-size visual of that picture. Your solution might have looked something like
Figure35.7.
Figure 35.7A zoomed-in picture view
This is a common interface pattern: You press one element, and the next view provides more detail for
that element.
A shared element transition is an animation for any situation where you are transitioning between two
screens that are displaying some of the same elements. In this case, both the big image on the right
and the small one on the left are displaying the same picture. The picture, in other words, is a shared
element.
Chapter 35Material Design
670
Beginning in Lollipop, Android provides techniques for accomplishing a transition between activities
or between fragments. Here, we will show you how it works with activities. The middle of the
animation looks like Figure35.8.
Figure 35.8Shared element transition
For activities, the basic implementation is a three-step process:
1. Turn on activity transitions.
2. Set transition name values for each shared element view.
3. Start your next activity with an ActivityOptions that will trigger the transition.
First, you have to turn on activity transitions. If your activity uses the AppCompat theme used
elsewhere in the book, then you can skip this step. (AppCompat inherits from the Material theme,
which turns on activity transitions for you.)
Shared element transitions
671
In our example, we gave our activity a transparent background by using @android:style/
Theme.Translucent.NoTitleBar. This theme does not inherit from the Material theme, so it does not
have activity transitions turned on. They have to be turned on manually, which can happen in either of
two ways. One option is to add a line of code to the activity, like this:
Listing 35.6Turning on activity transitions in code
@Override
public void onCreate(Bundle savedInstanceState) {
getWindow().requestFeature(Window.FEATURE_ACTIVITY_TRANSITIONS);
super.onCreate(savedInstanceState);
...
}
The other way is to tweak the style the activity uses and set the android:windowActivityTransitions
attribute to true.
Listing 35.7Turning on activity transitions in a style
<resources>
<style name="TransparentTheme"
parent="@android:style/Theme.Translucent.NoTitleBar">
<item name="android:windowActivityTransitions">true</item>
</style>
</resources>
The next step in the shared element transition is to tag each shared element view with a transition
name. This is done in a property on View introduced in API 21: transitionName. You can set it in
either XML or in code; depending on the circumstance, one or the other might be appropriate. In our
case, we set the transition name for the zoomed-in image by setting android:transitionName to
image in our layout XML, as in Figure35.9.
Figure 35.9Zoomed-in image layout
Chapter 35Material Design
672
Then we defined a static method startWithTransition(…) to set the same transition name on a view
to animate from.
Listing 35.8Starting with transition method
public static void startWithTransition(Activity activity, Intent intent,
View sourceView) {
ViewCompat.setTransitionName(sourceView, "image");
ActivityOptionsCompat options = ActivityOptionsCompat
.makeSceneTransitionAnimation(activity, sourceView, "image");
activity.startActivity(intent, options.toBundle());
}
ViewCompat.setTransitionName(View, String) is there to help out on older versions of Android,
where View will not have a setTransitionName(String) implementation.
In Listing 35.8, you can see the final step, too: making an ActivityOptions. The ActivityOptions
tells the OS what the shared elements are and what transitionName value to use.
There is a lot more to know about transitions and shared element transitions. They can also be used for
fragment transitions, for example. For more information, check out Google’s documentation for the
transitions framework at developer.android.com/training/transitions/overview.html.
View Components
673
View Components
The material design guidelines specify a few kinds of view components that were new in Lollipop. The
Android team provides implementations of many of these components. Let’s take a look at a few of the
views you are likely to run into.
Cards
The first new widget is a frame for other widgets: cards (Figure35.10).
Figure 35.10Cards
A card is a container for other kinds of content. It is elevated slightly, with a shadow behind it, and its
corners are slightly rounded.
This is not a design book, so we cannot provide advice on when and where to use cards. (See Google’s
material design documentation on the web if you are curious: www.google.com/design/spec.) We can
tell you how to make them, though: by using CardView.
CardView is a class provided in its own v7 support library, much like RecyclerView. You can include it
in your project by adding a dependency on com.android.support:cardview-v7 to your module.
Chapter 35Material Design
674
Once you do that, you can use CardView like any other ViewGroup in a layout. It is a FrameLayout
subclass, so you can use any of FrameLayout’s layout params for CardView’s children.
Listing 35.9Using CardView in a layout
<LinearLayout xmlns:android="http://schemas.android.com/apk/res/android"
xmlns:tools="http://schemas.android.com/tools"
android:layout_width="match_parent"
android:layout_height="match_parent"
android:orientation="vertical"
tools:context=".MainActivity">
<android.support.v7.widget.CardView
android:id="@+id/item"
android:layout_width="match_parent"
android:layout_height="200dp"
android:layout_margin="16dp"
>
...
</android.support.v7.widget.CardView>
</LinearLayout>
Because CardView is a support library class, it gives you some nice compatibility features on older
devices. Unlike other widgets, it will always project a shadow. (On older versions, it will simply draw
its own – not a perfect shadow, but close enough.) See CardView’s documentation for other minor
visual differences, if you are interested.
Floating action buttons
675
Floating action buttons
Another component you will often see is the floating action button, or FAB. You can see one in
Figure35.11.
Figure 35.11A floating action button
An implementation of the floating action button is available in Google’s design support
library. You can include this library in your project with this dependency on your module:
com.android.support:design:24.2.1.
Floating action buttons are little more than a solid-color circle with a custom circular shadow, provided
by an OutlineProvider. The FloatingActionButton class, a subclass of ImageView, takes care of the
circle and shadow for you. Simply place a FloatingActionButton in your layout file and set its src
attribute to the image that you want to display in your button.
While you could place your floating action button in a FrameLayout, the design support library also
includes the clever CoordinatorLayout. This layout is a subclass of FrameLayout that changes your
floating action button’s position based on the movement of other components. Now, when you display
a Snackbar (more on that in a moment), your FAB will move up so that the Snackbar does not cover it.
This will look like Listing 35.10.
Chapter 35Material Design
676
Listing 35.10Laying out a floating action button
<android.support.design.widget.CoordinatorLayout
xmlns:android="http://schemas.android.com/apk/res/android"
xmlns:tools="http://schemas.android.com/tools"
xmlns:app="http://schemas.android.com/apk/res-auto"
android:layout_width="match_parent"
android:layout_height="match_parent">
[... main content here ...]
<android.support.design.widget.FloatingActionButton
android:id="@+id/floating_action_button"
android:layout_width="wrap_content"
android:layout_height="wrap_content"
android:layout_gravity="bottom|right"
android:layout_margin="16dp"
android:src="@drawable/play"/>
</android.support.design.widget.CoordinatorLayout>
This code will place the button over the rest of the content in the bottom right, without interfering with
any of it.
Snackbars
Snackbars are a bit more involved than floating action buttons. They are little interaction components
that appear at the bottom of the screen (Figure35.12).
Figure 35.12A snackbar
More on Material Design
677
Snackbars animate up from the bottom of the screen. After a certain period of time, or after another
interaction on the screen, they automatically animate back down. Snackbars are similar in purpose to
toasts, but unlike toasts they are a part of your app’s own interface. A toast appears above your app and
will stick around even if you navigate away. Also, snackbars let you provide a button so that the user
can take immediate action.
Like floating action buttons, Android provides an implementation of snackbars in the design support
library.
Snackbars are constructed and displayed in a similar way as Toasts:
Listing 35.11Having a snack(bar)
Snackbar.make(container, R.string.munch, Snackbar.LENGTH_SHORT).show();
When constructing a Snackbar, pass in the view where the snackbar will be displayed, the text to
display, and the length of time that the snackbar should be visible for. Finally, call show() to display
the snackbar.
Snackbars can optionally provide an action on the right side. This is handy if the user performs a
destructive action, like deleting a crime, and you want to provide a way for the user to undo that action.
More on Material Design
In this chapter, we presented what amounts to a big grab bag of tools. Those tools are hardly any fun
if you let them sit and gather dust. So keep an eye out for ways to spiff up your application with some
depth or new animations.
One great place to look for inspiration is the material design specification itself, which is full of great
ideas: www.google.com/design/spec/material-design/introduction.html. You can also look in
the Google Play Store to see what other apps are doing and ask yourself, “How would I do that in my
own app?” You might end up with a niftier program than what you initially imagined.
679
36
Afterword
Congratulations! You are at the end of this guide. Not everyone has the discipline to do what you have
done – and learn what you have learned. Take a moment to give yourself a pat on the back.
This hard work has paid off: You are now an Android developer.
The Final Challenge
We have one last challenge for you: Become a good Android developer. Good developers are each
good in their own way, so you must find your own path from here on out.
Where might you start, then? Here are some places we recommend:
Write code. Now. You will quickly forget what you have learned here if you do not apply it. Contribute
to a project or write a simple application of your own. Whatever you do, waste no time: Write code.
Learn. You have learned a little bit about a lot of things in this book. Did any of them spark
your imagination? Write some code to play around with your favorite thing. Find and read more
documentation about it – or an entire book, if there is one. Also, check out the Android Developers
YouTube channel (www.youtube.com/user/androiddevelopers) and listen to the Android Developers
Backstage podcast for Android updates from Google.
Meet people. Local meetups are a good place to meet like-minded developers. Lots of top-notch
Android developers are active on Twitter and Google Plus. Attend Android conferences to meet other
Android developers (and maybe even us!).
Explore the open source community. Android development is exploding on www.github.com. When
you find a cool library, see what other projects its contributors are committing to. Share your own code,
too – you never know who will find it useful or interesting. We find the Android Weekly mailing list to
be a great way to see what is happening in the Android community (androidweekly.net).
Shameless Plugs
You can find all of us on Twitter. Bill is @billjings, Chris is @cstew, and Kristin is @kristinmars.
If you enjoyed this book, check out other Big Nerd Ranch Guides at www.bignerdranch.com/books.
We also have a broad selection of week-long courses for developers, where we make it easy to learn
this amount of stuff in only a week of time. And of course, if you just need someone to write great
code, we do contract programming, too. For more, go to our website at www.bignerdranch.com.
Chapter 36Afterword
680
Thank You
Without readers like you, our work would not exist. Thank you for buying and reading our book.
681
Index
Symbols
9-patch images, 446
<> (diamond notation), 160
?? (null coalescing) operator, 397
@+id, 20
@Before annotation, 405
@Override, 58
@Test annotation, 407
@{} (binding mustache) operator, 389, 392
A
aapt (Android Asset Packing tool), 30
accessibility
(see also Accessibility Scanner, Explore by
Touch, TalkBack)
about, 355, 365
android:contentDescription attribute, 362
android:focusable attribute, 364
color contrast and, 372
someView.setContentDescription(someStr…
…ing) method, 365
for touch targets, 372
accessibility focus, 358
Accessibility Scanner, 370
accessibility services, 355
action bar, toolbar vs, 267
action views, 526
ACTION_IMAGE_CAPTURE, 311
activities
(see also Activity class, fragments)
about, 2
abstract fragment-hosting activity, 162
adding to project, 91-112
as controllers, 37
back stack of, 112, 462
base, 462
child, 92, 105
creating new, 93
fragment transactions and, 325
handling configuration changes in, 593
hosting fragments, 126, 136-138
label (display name), 457
launcher, 109
lifecycle and fragments, 152
lifecycle diagram, 70
lifecycle of, 55, 63, 70, 71
managing fragments, 325-334
overriding methods, 56, 58
passing data between, 101-109
record, 70
rotation and, 63-68
stack of, 110
starting from fragments, 205
starting in current task, 462
starting in new task, 465
states of, 55, 70
tasks and, 462
UI flexibility and, 124
Activity class
as Context subclass, 26
getIntent(), 104, 208
lifecycle methods, 55-62
onActivityResult(…), 107
onCreate(Bundle), 55, 58
onCreateOptionsMenu(Menu), 256
onDestroy(), 55
onPause(), 55
onResume(), 55, 212
onSaveInstanceState(Bundle), 68-73
onStart(), 55
onStop(), 55
setContentView(…) method, 17
setResult(…), 105
startActivity(Intent), 99
startActivityForResult(…), 105
activity record, 70
ActivityInfo class, 460
ActivityManager class
back stack, 110, 112
starting activities, 100, 101, 107
ActivityNotFoundException, 101
Adapter class, 169
adapters
about, 169
implementing, 174
adb (Android Debug Bridge) driver, 46
add(…) method (FragmentTransaction), 149
addFlags(int) method (Intent), 465
AlarmManager class, 544, 547
AlertDialog class
about, 227-230
wrapping in DialogFragment, 228
Index
682
AlertDialog.Builder class
about, 230
create(), 230
setPositiveButton(…), 230
setTitle(int), 230
setView(…), 232
alias resources, 323-325
ancestral navigation, 260
Android Asset Packing tool (aapt), 30
Android Asset Studio, 253
Android Debug Bridge (adb) driver, 46
Android developer documentation, 120, 121
Android firmware versions, 113
Android Lint
as static analyzer, 85
compatibility and, 118-120
running, 85
Android SDK Manager, xxii
Android Studio
adding dependencies in, 131-133
AppCompat theme, 426
build process, 30
code completion, 26
code style preferences, 35
creating new classes, 34
creating new projects, 3-7
debugger, 80, 82
(see also debugging)
devices view, 46
editor, 8
Emulator Control, 624
extracting a method with, 241
generating getter and setter methods, 35, 36
graphical layout tool, 182, 353
installing, xxii
preferences, 35
project tool window, 8
project window, 8
run configurations, 411
tool windows, 8
variables view, 82
Android versions (see SDK versions)
Android Virtual Device Manager, 27
Android Virtual Devices (AVDs), creating, 27
Android XML namespace, 13
android.text.format.DateFormat class, 204
android.util.Log class (see Log class)
android.view.animation package, 620
android:background attribute, 422
android:configChanges attribute, 593
android:contentDescription attribute, 54, 362
android:documentLaunchMode attribute, 472
android:drawablePadding attribute, 51
android:drawableRight attribute, 51
android:focusable attribute, 364
android:icon attribute, 253
android:id attribute, 20
android:labelFor attribute, 368
android:layout_gravity attribute, 66
android:layout_height attribute, 14
android:layout_margin attribute, 202
android:layout_width attribute, 14
android:name attribute, 97
android:orientation attribute, 14
android:padding attribute, 202
android:protectionLevel attribute, 572
android:text attribute, 14
AndroidManifest.xml (see manifest)
animated state list drawables, 666
animation
about, 609-620
android.view.animation package, 620
interpolation, 614
property animation vs transitions framework,
620
running multiple animators, 618
simple property animation, 612-618
transformation properties and (see
transformation properties)
transitions framework, 620
translation, 612
animation tools, 667-672
AnimatorListener class, 619
AnimatorSet class, 619
anonymous inner classes, xx, 23, 24
API keys
maps, 648
when working with teams, 659
API levels (see SDK versions)
.apk file, 30, 445
app icon, 261
app namespace, 252
app/java directory, 17
app:showAsAction attribute, 251
AppCompat library
about, 131
Index
683
app namespace, 252
themes in, 426
toolbars with, 248, 249
AppCompatActivity class, 17
appendQueryParameter(…) method
(Uri.Builder), 484
application architecture, Single Responsibility
Principle, 390
application context, 288
AppTheme theme, 426
arguments bundle, 209-211
ArrayList class, 160
AssetManager class, 385, 398
assets
accessing, 396
importing, 382-384
managing, 384-386
presenting to user, 386-388
vs resources, 382, 398
AsyncTask class
cancel(boolean), 495
doInBackground(…), 479
for running on background thread, 479
HandlerThread vs, 518
onPostExecute(…), 494
onProgressUpdate(…), 496
publishProgress(…), 496
AsyncTaskLoader class, 497
AttributeSet class, 600
audio streams, 400
auto-completion, 26
AVDs (Android Virtual Devices), creating, 27
B
Back button, 60, 462, 595
back stack, 110
background threads
dedicated, 502
updating UI from, 494
using AsyncTask for, 479, 482
BaseObservable class, 394
beginTransaction() method
(FragmentTransaction), 149
Bitmap class, 313
BitmapFactory class, 313
bitmaps, scaling and displaying, 313-316
breakpoints
(see also debugging)
exception, 83, 84
setting, 80-83
broadcast intents
about, 561
ordered, 572-576
permissions and, 570, 571
registered in code, 568, 569
regular intents vs, 561
sending, 567
broadcast receivers
about, 561
dynamic, 568, 569
implementing, 562-564
intent filters and, 562
long-running tasks and, 577
permissions and, 570-572
standalone, 562
uses for, 565, 566
build errors, 21, 87
(see also debugging)
build process, 30
build target, 117
build.gradle, 116
Build.VERSION.SDK_INT, 119
Bundle class
for stashing objects, 413
for fragment arguments, 210, 211
in onCreate(Bundle), 68
in onSaveInstanceState(Bundle), 68
putCharSequence(…);, 210
putInt(…);, 210
putSerializable(…), 210
Button class
example, 10
vs ImageButton, 53
inheritance, 53
buttons
(see also Button class, ImageButton class)
9-patch images for, 446
adding icons to, 51
adding IDs, 20
drawables for, 437
floating action, 675, 676
modifying attributes, 433-435
positive, negative, and neutral, 230
Index
684
C
caching, 520
Calendar class, 237
Callbacks interface, 326-334
camera
about, 305-316
firing intent, 311
layouts for, 306, 307
taking pictures with intents, 311, 312
CameraUpdate class, 655
cancel(boolean) method (AsyncTask), 495
cancel(…) method (AlarmManager), 547
Canvas class, 606
cards (view component), 673
choosers, creating, 297
circular reveal animation, 667, 668
classes, importing, 21
close() method, 285
code completion, 26
codenames, version, 113
color
for animation, 616
themes and, 428
color resources, adding, 422
colorAccent attribute, 428
colorPrimary attribute, 428
colorPrimaryDark attribute, 428
colors.xml file, 422
commands (IntentService), 538
compatibility
Android Lint and, 118-120
fragments and, 130-133
importance of, xx, 114, 115
issues, 114
minimum SDK version and, 117
with support libraries, 130-133
using conditional code for, 119
wrapping code for, 118-120
compile SDK version, 117
compileSdkVersion, 116
ComponentName class, 461
components, 100
concurrent documents, 471, 472
configuration changes, 414
configuration qualifiers
about, 65
for language, 338
listed, 348
multiple, 351-353
precedence of, 349-353
for screen density, 48, 344
for screen orientation, 65
for screen size, 324, 335
ConnectivityManager class, 540
ConstraintLayout class
about, 183
converting layout to use, 184
constraints
about, 183
adding in graphical editor, 191
in XML, 194
removing, 187
warnings when insufficient, 187
contacts
getting data from, 300
permissions for, 302
container view IDs, 149
container views, 137
ContentProvider class, 300
ContentResolver class, 300
ContentValues class, 278
Context class
AssetManager, 385
basic file and directory methods in, 308
explicit intents and, 100
for opening database files, 271
getSharedPreferences(…), 532
references to, 288
resource IDs and, 26
Context.MODE_WORLD_READABLE, 308
controller objects, 37
conventions
class naming, 7
extra naming, 103
package naming, 4
variable naming, 21, 35
create() method (AlertDialog.Builder), 230
createChooser(…) method (Intent), 297
Cursor class, 282, 285
CursorWrapper class, 282
D
data binding
?? (null coalescing) operator in, 397
Index
685
@{} operator, 389, 392
and application architecture, 389
and view models, 392, 393
binding adapters, 397
binding classes, 378
enabling, 378
lambda expressions, 397
observable data, 394
/data/data directory, 269
database schema, 270
databases, SQLite, 269-288
Date class, 237
DatePicker class, 232
debug key, 30
debugging
(see also Android Lint)
about, 75
build errors, 87
crash, 76
crash on unconnected device, 77
database issues, 276
misbehaviors, 78
online help for, 87
R, 87
running app with debugger, 80
stopping debugger, 82
using breakpoints, 80-84
when working with teams, 659
DEFAULT (Intent), 466
default resources, 341
delayed execution, 544
density-independent pixel, 201
dependencies, adding, 131-133
dependency injectors, 180
detach(Fragment) method
(FragmentTransaction), 223
developer documentation, 120, 121
device configurations, 63
devices
configuring language settings, 338
hardware, 27
virtual, 27, 318
devices view, 46
Dialog class, 227
DialogFragment class
about, 228
onCreateDialog(Bundle), 230
show(…), 231
dialogs, 227-235
diamond notation, 160
dip (density-independent pixel), 201
documentation, 120, 121
doInBackground(…) method (AsyncTask), 479
dp (density-independent pixel), 201
draw() method (View), 606
drawables
9-patch images, 446
layer list, 443
referencing, 51
shape, 439
state list, 441
XML drawables, 437
drawing
Canvas, 606
in onDraw(Canvas), 606
Paint, 606
E
EditText class, 139
elevation, 664
emulator
creating a virtual device for, 27
for location testing, 623-626
installing, xxii
rotating, 51
running on, 27
search queries on, 531
for tablets, 318
Emulator Control (Android Studio), 624
errors, 21
(see also debugging)
escape sequence (in string), 40
EventBus, 578
exception breakpoints, 83, 84
exceptions, 76, 78
explicit intents
creating, 100
creating at runtime, 461
implicit intents vs, 289
purpose, 101
Explore by Touch, 359
extras
about, 102
fragments retrieving from activity, 207
as key-value pairs, 102
Index
686
naming, 103
putting, 102, 103
retrieving, 103
structure of, 102
F
File class
getCacheDir(…), 308
getDir(…), 308
getFilesDir(…), 308
FileDescriptor class, 396
FileInputStream class, 308
fileList(…) method (String), 308
FileOutputStream class, 308
fill_parent, 14
Flickr
API, 483
Geosearch, 633
searching in, 521-526
floating action buttons, 675, 676
FloatingActionButton class, 675, 676
fluent interface, 149
fragment arguments, 207, 209-211, 216
Fragment class
for asset management, 377
getActivity(), 206, 207
getArguments(…), 211
getTargetFragment(), 238
getTargetRequestCode(), 238
from native libraries, 156
newInstance(…), 210
onActivityResult(…), 235
onCreate(Bundle), 143
onCreateOptionsMenu(…), 256
onCreateView(…), 144
onOptionsItemSelected(MenuItem), 256,
259
onSaveInstanceState(Bundle), 143
setArguments(…), 210
setHasOptionsMenu(boolean), 256
setRetainInstance(…), 414
setTargetFragment(…), 238
SingleFragmentActivity, 377
startActivityForResult(…), 215
from support library, 130, 156
fragment transactions, 149, 150, 325, 328
(see also FragmentTransaction class)
FragmentManager class
adding fragments to, 148-150
fragment lifecycle and, 152
onResume(), 212
responsibilities, 148
role in rotation, 413, 414
FragmentPagerAdapter class, 223
fragments
(see also fragment transactions,
FragmentManager class)
about, 125
accessing extra in activity’s intent, 207
activities vs, 124
activity lifecycle and, 152
adding in code, 137
adding to FragmentManager, 148-152
adding to layout, 137
application architecture with, 153
arguments of, 209-211
as composable units, 124, 325
Callbacks interface, 326-334
compatibility and, 130-133
container view IDs, 149
container views for, 137, 321
creating, 139
creating from support library, 142
delegating functionality to activity, 326
hosting, 126, 136-138
implementing lifecycle methods, 143
inflating layouts for, 144
layout, 137
lifecycle diagram, 152
lifecycle methods, 152
lifecycle of, 136, 152
maintaining independence of, 209, 325
passing data between (same activity), 235
passing data with fragment arguments, 236
reasons for, 124, 125, 154
retaining, 414-417
rotation and, 414-416
setting listeners in, 145
starting activities from, 205
support libraries and, 130-133, 156
without support library, 156
UI flexibility and, 124
widgets and, 145
FragmentStatePagerAdapter class
about, 219
Index
687
getCount(), 219, 220
getItem(int), 219, 220
setOffscreenPageLimit(int), 222
FragmentTransaction class
add(…), 149
beginTransaction(), 149
detach(Fragment), 223
remove(Fragment), 223
FrameLayout class
about, 66
as container view for fragments, 137, 321
Fused Location Provider, 622
(see also FusedLocationProviderApi class)
FusedLocationProviderApi class, 634
G
gen directory, 18
getAction() method (MotionEvent), 603
getActivity() method (Fragment), 206, 207
getArguments(…) method (Fragment), 211
getBooleanExtra(…) method (Intent), 103
getBottom() method (View), 613
getCacheDir(…) method (File), 308
getCount() method
(FragmentStatePagerAdapter), 219, 220
getDefaultSharedPreferences(…) method
(PreferenceManager), 532
getDir(String name, int mode) method, 308
getFilesDir(…) method (File), 308
getHeight() method (View), 613
getInputStream() method
(HttpURLConnection), 478
getIntent() method (Activity), 104, 208
getItem(int) method
(FragmentStatePagerAdapter), 219, 220
getLeft() method (View), 613
getMapAsync(…) method (SupportMapFragment),
654
getOutputStream() method
(HttpURLConnection), 478
getRight() method (View), 613
getScaledBitmap(…) method, 313
getSharedPreferences(…) method (Context),
532
getTargetFragment() method (Fragment), 238
getTargetRequestCode() method (Fragment),
238
getter and setter methods, generating, 35, 36
getTop() method (View), 613
Google Drive, 472
Google Play Services
about, 622
Maps API from, 647
setting up, 629
using, 631-633
GoogleMap class, 654
graphical layout tool, 182, 353
GridLayoutManager class, 476
GridView class, 179
H
Handler class, 507, 515
handlers, 507-517
HandlerThread class
AsyncTask vs, 518
handling downloads, 503
hardware devices, 27
-hdpi suffix, 48
hero transitions (see shared element transitions)
hierarchical navigation, 260
HOME (Intent), 466
Home button, 61
Home screen, 466, 467
Honeycomb, 115
HTTP networking, 474, 477-479, 482
HttpURLConnection class
about, 478
getInputStream(), 478
getOutputStream(), 478
I
icons, 253-255
ImageButton class, 53
implicit intents
action, 295, 456
ACTION_CALL category, 304
ACTION_DIAL category, 304
ACTION_PICK category, 299
ACTION_SEND category, 296
benefits of using, 289
categories, 295, 456
CATEGORY_DEFAULT, 457
data, 295
explicit intents vs, 289, 294
Index
688
for browsing web content, 585
parts of, 295
sending with AlarmManager, 544
taking pictures with, 311, 312
inflating layouts, 17, 144
inheritance, 424, 435
InputStream class
for delivering bytes, 478
read(), 478
inSampleSize, 314
insert(…) method, 279
integration testing
mock objects, 418
vs unit testing, 404
Intent class
addFlags(…), 465
constructors, 100
createChooser(…), 297
getBooleanExtra(…), 103
putExtra(…), 102, 207
setClassName(…), 461
setComponent(…), 461
intent filters
about, 109
BOOT_COMPLETED, 563
explained, 295
SHOW_NOTIFICATION, 568
intent services
processing commands, 538
purpose, 537
Intent.FLAG_ACTIVITY_NEW_DOCUMENT class, 472
intents
(see also broadcast intents, explicit intents,
extras, implicit intents, Intent class)
communicating with, 100, 101
implicit vs explicit, 101, 289
permissions and, 302
regular vs broadcast, 561
taking pictures with, 311, 312
IntentService class
about, 537
commands, 538
interpolators, 616
invalidate() method (View), 605
isNetworkAvailableAndConnected() method
(ConnectivityManager), 541
J
JavaScript Object Notation (JSON), 483
JavaScript, enabling, 588
JavaScript, injecting objects, 594
JobScheduler class, 556
JobService class, 556
JSON (JavaScript Object Notation), 483
JSONObject class, 488
L
lambda expressions, 397
-land qualifier, 65
language settings, 338
LatLngBounds class, 655
launcher activities, 109
LAUNCHER category, 109, 457
layer list drawables, 443
layout attributes
android:background, 422
android:contentDescription, 54
android:drawablePadding, 51
android:drawableRight, 51
android:icon, 253
android:id, 20
android:layout_gravity, 66
android:layout_height, 14
android:layout_margin, 202
android:layout_width, 14
android:orientation, 14
android:text, 14
colorAccent, 428
colorPrimary, 428
colorPrimaryDark, 428
layout constraints (see constraints)
layout fragments, 137
layout parameters, 194
LayoutInflater class, 30, 144
layouts
about, 2
alternative, 64-68
for asset management, 376
for cameras, 306, 307
defining in XML, 12-14
design documentation, 204
inflating, 17, 144
landscape, 64-68
naming, 7
Index
689
previewing, 16, 96, 353
for property animation, 610
root element, 13
testing, 353
view hierarchy and, 13
-ldpi suffix, 48
lifecycle callbacks, 56
LinearLayout class, 10, 13
Lint (see Android Lint)
list(String) method, 385
list-detail interfaces, 123, 217, 317-329
List<E> interface, 160
listeners
about, 23
as interfaces, 23
setting in fragments, 145
setting up, 23-26
lists
displaying, 157
getting item data, 169
ListView class, 179
Loader class, 497
LoaderManager class, 497
loadLabel(PackageManager) method
(ResolveInfo), 457
local files, 269
local layout rect, 613
LocalBroadcastManager class, 578, 580
localization, 337-340
location
about, 621-645
adding GPS permissions for, 630
with Flickr Geosearch, 633
Fused Location Provider, 622
testing, 623-626
Location API, 622
LocationListener class, 635
LocationRequest class, 634
Log class
levels, 73
logging messages, 57
methods, 73
Log.d(String, String, Throwable) method,
78
Logcat, 59-62
(see also logging)
logging
of exceptions, 78
Log.d(String, String, Throwable), 78
messages, 57
of stack traces, 78
TAG constant, 57
Looper class, 503, 507
LRU (least recently used) caching strategy, 520
LRUCache class, 520
M
m prefix for variable names, 21, 35
MAIN category, 109, 457
main thread, 481
makeText(…) method (Toast), 25
manifest
(see also manifest attributes)
about, 97
adding network permissions to, 479
adding service to, 539
adding uses-permission INTERNET, 479
Android versions in, 116
build process and, 30
declaring Activity in, 97
manifest attributes
android:configChanges, 593
android:protectionLevel, 572
MapFragment class, 650
maps, 647-659
adding markers to, 657
API setup for, 648, 649
getting lat-lon data for, 652-654
working with, 654-657
Maps API
about, 648, 649
key, 648
MapView class, 650
margins, 202
master-detail interfaces, 123, 217, 317-329
matchers, for testing, 402
match_parent, 14
material design
about, 661-677
animation tools, 667-672
material surfaces, 662-666
view components, 673-677
mContext class, 288
-mdpi suffix, 48
MediaStore class, 311
Index
690
MediaStore.ACTION_IMAGE_CAPTURE, 311
MediaStore.EXTRA_OUTPUT, 311
MenuItem class, 259
menus
(see also toolbar)
about, 250
app:showAsAction attribute, 251
creating, 256
creating XML file for, 251
defining in XML, 250, 251
determining selected item, 259
populating with items, 256
as resources, 250
responding to selections, 259
Message class, 506
message handlers, 507-517
message loop, 503
message queue, 503
messages, 506-517
minimum required SDK, 116
minSdkVersion, 116
mipmap images, 445
mock objects, for testing, 402, 406, 418
model layer, 37
model objects, 37
model objects, from databases, 284-286
Model-View-Controller
about, 37
benefits, 38
drawbacks, 376
flow of control, 38
Model-View-ViewModel (MVVM), 376
motion events, handling, 602-605
MotionEvent class
about, 603
actions, 603
getAction(), 603
MVC (see Model-View-Controller)
MVVM (Model-View-ViewModel), 376
N
namespace
Android XML, 13
app, 252
naming conventions
for static variables, 159
for style inheritance, 424
navigation, 260
network, checking availability of, 540
networking (HTTP), 474, 477, 478, 482
networking permissions, 479
NetworkOnMainThreadException class, 481
newInstance(…) method (Fragment), 210
9-patch images, 446
Notification class, 551
NotificationManager class, 551
notifications
on Android Wear devices, 553
posting, 551-553
notify(…) method (NotificationManager), 551
null coalescing (??) operator, 397
NullPointerException, 77
O
ObjectAnimator class, 613
Observable interface, 394
onActivityResult(…) method (Activity), 107
onActivityResult(…) method (Fragment), 235
OnCheckedChangeListener interface, 146
onClick(View) method (onClickListener), 24
OnClickListener interface, 23
onCreate(Bundle) method (Activity), 55
onCreate(Bundle) method (Fragment), 143
onCreateDialog(Bundle) method
(DialogFragment), 230
onCreateOptionsMenu(Menu) method
(Activity), 256
onCreateOptionsMenu(…) method (Fragment),
256
onCreateView(…) method (Fragment), 144
onCreateViewHolder(…) method, 174, 500
onDestroy() method (Activity), 55
onDraw(Canvas) method (View), 606
onOptionsItemSelected(MenuItem) method
(Fragment), 256, 259
onPause() method (Activity), 55
onPostExecute(…) method (AsyncTask), 494
onProgressChanged(…) method
(WebChromeClient), 591
onProgressUpdate(…) method (AsyncTask), 496
OnQueryTextListener(…) interface
(SearchView), 530
onReceivedTitle(…) method
(WebChromeClient), 591
Index
691
onRestoreStateInstance(Parcelable) method
(View), 608
onResume() method (Activity), 55, 212
onResume() method (FragmentManager), 212
onSaveInstanceState(Bundle) method
(Activity class, 68-73
onSaveInstanceState(Bundle) method
(Fragment), 143
onSaveStateInstance() method (View), 608
onStart() method (Activity), 55
onStop() method (Activity), 55
onTextChanged(…) method (TextWatcher), 145
onTouchEvent(MotionEvent) method (View),
602
OnTouchListener interface (View), 602
openConnection() method (URL), 478
openFileInput(…) method (FileInputStream),
308
openFileOutput(…) method (FileInputStream),
308
openNonAssetFd(…) method, 398
options objects, 657
overflow menu, 251
@Override, 58
overview screen, 61, 462
P
PackageManager class
about, 302
querying, 311
resolveActivity(…), 302
packages, naming, 4
padding, 202
Paint class, 606
Parcelable interface, 413, 608
PendingIntent class, 547
permissions
adding to manifest, 479
location, 630
permission groups, 638
providing rationale, 646
requesting at runtime, 637-642
persistent data, 532-535
photos
designating file location for, 310
scaling and displaying bitmaps, 313-316
taking with intents, 311, 312
PhotoView class, 314
placeholders (in format strings), 293
Play Services (see Google Play Services)
PointF class, 603
post(…) method (Handler), 515
preferences (Android Studio), 35
preloading, 520
presses, responding to, 178
processes, 468, 470
progress indicator
hiding, 591
updating from background thread, 496
projects
adding resources, 49
app/java directory, 17
configuring, 5
creating, 3-7
gen directory, 18
layout, 7
res/layout directory, 18
res/menu directory, 250
res/values directory, 18
setting package name, 4
setting project name, 4
property animation (see animation)
protection level values, 572
publishProgress(…) method (AsyncTask), 496
putCharSequence(…); method (Bundle), 210
putExtra(…) method (Intent), 207
putInt(…); method (Bundle), 210
putSerializable(…) method (Bundle), 210
Q
query(…) method, 281
R
R class, 18
randomUUID() method, 134
read() method (InputStream), 478
Recents button, 61
RecyclerView class
about, 167-175
efficient reloading of, 216
for display grid, 476
setOnItemClickListener(…), 585
vs ListView and GridView, 179
release key, 30
Index
692
remove(Fragment) method
(FragmentTransaction), 223
request code (Activity), 105
res/layout directory, 18
res/menu directory, 250
res/values directory, 15, 18
resolveActivity(…) method (PackageManager),
302, 316
ResolveInfo class, 457
resource IDs
+ prefix in, 20
about, 18-20
resources
(see also configuration qualifiers, drawables,
layouts, menus, string resources)
about, 18
adding, 49
alias, 323-325
alternative, 349-353
vs assets, 382, 398
default, 341
localizing, 337-340
location of, 18
referencing in XML, 51
string, 14, 15
result code (Activity), 105
retained fragments, 414-417
retainInstance property (Fragment), 414
rotation
activity lifecycle and, 63-68
saving data across, 68-70
with DatePicker, 234
rows, inserting and updating, 279
running on device, 46, 47
RuntimeException class, 84
RxJava, 579
S
s prefix for variable names, 35
sandbox, 269
savedInstanceState, 413
scale-independent pixel, 201
schema, database, 270
screen orientation, 65
screen pixel density, 48, 200, 344
screen size, determining, 335
SDK versions
(see also compatibility)
build target, 117
codenames, 113
installing, xxii
listed, 113
minimum required, 116
target, 116
updating, xxiii
search
about, 521-536
in Flickr, 521-526
integrating into app, 521
user-initiated, 526-531
SearchView class
about, 526-531
bug, 531
OnQueryTextListener(…), 530
post-Honeycomb, 527
responding to user interactions, 530
Serializable class, 413
services
adding to manifest, 539
bound, 555
lifecycle of, 554
locally bound, 555
non-sticky, 554
notifying user, 551
purpose of, 537
remotely bound, 556
sticky, 554
setArguments(…) method (Fragment), 210
setClassName(…) method (Intent), 461
setComponent(ComponentName) method
(Intent), 461
setContentView(…) method (Activity), 17
setHasOptionsMenu(boolean) method
(Fragment), 256
setJavaScriptEnabled(…) method
(WebSettings), 589
setOffscreenPageLimit(int) method
(FragmentStatePagerAdapter), 222
setOnClickListener(OnClickListener)
method, 23
setOnItemClickListener(…) method
(RecyclerView), 585
setOnTouchListener(…) method (View), 602
setPositiveButton(…) method
(AlertDialog.Builder), 230
Index
693
setRepeating(…) method (AlarmManager), 546
setResult(…) method (Activity), 105, 215
setRetainInstance(…) method (Fragment), 414
setTargetFragment(…) method (Fragment), 238
setter methods, generating, 35, 36
setText(int) method (TextView), 105
setTitle(int) method (AlertDialog.Builder),
230
setView(…) method (AlertDialog.Builder),
232
shape drawables, 439
ShapeDrawable class, 439
shared element transitions, 669-672
SharedPreferences class, 532
shouldOverrideUrlLoading(…) method
(WebViewClient), 589
show() method (Toast), 26
show(…) method (DialogFragment), 231
simulator (see emulator)
Single Responsibility Principle, 390
SingleFragmentActivity class, 377
singletons, 159, 179
snackbars, 676, 677
solutions file, 48
SoundPool class
about, 399-413
audio playback, 402-412
creating, 399
loading sounds into, 400
rotation and object continuity with, 413
SoundPool.release(), 412
unloading sounds, 412
SoundPool.release() method, 412
sp (scale-independent pixel), 201
SQLite databases
about, 269-288
building, 271-276
debugging, 276
defining schema for, 270
inserting and updating rows, 279
model objects from, 284-286
reading from, 281-286
writing to, 278-280
SQLiteDatabase.query(…) method, 281
stack traces
in Logcat, 76
logging of, 78
startActivity(Intent) method (Activity), 99
startActivityForResult(…) method
(Activity), 105
startActivityForResult(…) method
(Fragment), 215
state list animators, 665
state list drawables, 441
STREAM_MUSIC, 400
string resources
about, 14
creating, 15
referencing, 51
String.replace(…) method, 387
String.split(…) method, 387
strings file, 14, 15
strings, format, 293
strings.xml, 15
String[] class, 308
styles
about, 203, 422-425
inheritance, 424, 435
modifying button attributes, 433-435
themes and, 203
styles.xml file, 422
support libraries, 130-133, 155, 156
(see also AppCompat library)
SupportMapFragment class, 650
SupportMapFragment.getMapAsync(…) method,
654
-sw600dp suffix, 324
sync adapters, 559
system icons, 253-255
T
tables, creating, 273
tablets
creating virtual devices for, 318
user interfaces for, 317-329
TAG constant, 57
TalkBack
about, 355
Android widgets’ inherent support, 359
android:hint attribute, 367
android:labelFor attribute and, 368
enabling, 356
linear navigation by swiping, 359
non-text elements and, 362-364
target fragments, 238
Index
694
target SDK version, 116
targetSdkVersion, 116
tasks
about, 462
and Back button, 462
vs processes, 468, 470
starting new, 464-466
switching between, 462
temporal navigation, 260
TextView class
and tools:text, 96
example, 10
inheritance, 53
setText(int), 105
TextWatcher interface, 145
theme attribute, 426
themes
about, 425-432
accessing attributes, 436
adding colors to, 428
modifying, 426
overriding attributes, 429-432
styles and, 203
threads
background (see background threads)
main, 481
message queue, 503
processes and, 468
as sequence of execution, 481
UI, 481
TimeInterpolator class, 616
tinting, 428
Toast class, 25
toasts, 25, 26
toolbar
action bar vs, 267
action views in, 526
app:showAsAction attribute, 251
features, 247
menu, 250
overflow menu, 251
tools:text attribute, 96
touch events, handling, 602-605
transformation properties
pivotX, 614
pivotY, 614
rotation, 614
scaleX, 614
scaleY, 614
translationX, 614
translationY, 614
translationZ, 664
transitions framework, for animation, 620
TypeEvaluator class, 617
U
UI fragments (see fragments)
UI thread, 482
unit testing
@Before annotation, 405
@Test annotation, 407
about, 399
Espresso tool, 417
Hamcrest tool, 402
vs integration testing, 404
JUnit testing framework, 403
matchers, 402
mock objects, 402, 406
Mockito tool, 402, 406
testing frameworks, 403
testing object interactions, 407
Up button, 260, 261
update(…) method, 279
Uri class, 311
Uri.Builder class, 484
URL class
for making URL from string, 478
openConnection(), 478
URLConnection class, 478
user interfaces
defined by layout, 2
for tablets, 317-329
laying out, 9-16
UUID.randomUUID() method, 134
V
variable names
conventions for, 35
prefixes for, 35
variables view, 82
versions (Android SDK) (see SDK versions)
versions (firmware), 113
View class
(see also views, widgets)
draw(), 606
Index
695
getBottom(), 613
getHeight(), 613
getLeft(), 613
getRight(), 613
getTop(), 613
invalidate(), 605
OnClickListener interface, 23
onDraw(Canvas), 606
onRestoreStateInstance(Parcelable), 608
onSaveStateInstance(), 608
onTouchEvent(MotionEvent), 602
setOnTouchListener(…), 602
subclasses, 9, 53
view components, 673-677
view hierarchy, 13
view layer, 37
view models, 390
view objects, 37
ViewGroup class, 13, 66
ViewHolder class, 168, 173, 458
ViewPager class
about, 217-225
internals of, 224
in support library, 219
views
adding in graphical editor, 190
creating custom views, 600
creation by RecyclerView, 167
custom, 600-602
invalid, 606
laying out in code, 225
persisting, 608
simple vs composite, 600
size settings, 188
touch events and, 602-605
using fully qualified name in layout, 601
ViewTreeObserver class, 316
virtual devices (see emulator)
W
web content
browsing via implicit intent, 585
displaying within an activity, 586
enabling JavaScript, 588
web rendering events, responding to, 589
WebChromeClient interface
about, 591
for enhancing appearance of WebView, 590
onProgressChanged(…), 591
onReceivedTitle(…), 591
WebSettings class, 589
WebView class
for presenting web content, 586
handling rotation, 593
WebViewClient class, 589
widgets
about, 9
attributes of, 13
Button, 10, 53
DatePicker, 232
defining in XML, 12-14
EditText, 139
FrameLayout, 66
ImageButton, 53
LinearLayout, 10, 13
margins, 202
padding, 202
references, 22
styles and, 422
from support library, 219
TextView, 10, 96
in view hierarchy, 13
as view layer, 37
wiring in fragments, 145
wiring up, 21
wrap_content, 14
X
-xhdpi, -xxhdpi, -xxxhdpi suffixes, 48
XML
Android namespace, 13
referencing resources in, 51
XML drawables (see drawables)
Z
Z values, 664
