HOSTAFORM® C 9021 | POM | Unfilled
Ticona - A business of Celanese
Page: 1Printed: 06. March 2007
Description
Chemical abbreviation according to ISO 1043-1: POM
Molding compound ISO 9988- POM-K, M-GNR, 03-002
POM copolymer
Standard-Injection molding type with high rigidity, hardness and
toughness; good chemical resistance to solvents, fuel and strong
alkalis as well as good hydrolysis resistance; high resistance to
thermal and oxidative degradation.
Fulfils EG-directive 2002/72/EU as well as the recommendation
XXXIII for consumer goods of the BgVV, corresponding to
FDA-regulation for food contact.
UL-registration for all colours and a thickness more than 1.5 mm as
UL 94 HB, temperature index UL 746 B electrical 110 °C, mechanical
90 °C.
Burning rate ISO 3795 and FMVSS 302 < 75 mm/min for a thickness more
than 1 mm.
Ranges of applications: automotive engineering, precision
engineering, electric and electronical industry, domestic
appliances.
FDA = Food and Drug Administration (USA)
BgVV = Bundesinstitut f•r gesundheitlichen Verbraucherschutz und
Veterin rmedizin
FMVSS = Federal Motor Vehicle Safety Standard (USA)
UL = Underwriters Laboratories (USA)
Physical properties Value Unit Test Standard
Density 1410 kg/m³ ISO 1183
Melt volume rate (MVR) 8cm³/10min ISO 1133
MVR test temperature 190 °C ISO 1133
MVR test load 2.16 kg ISO 1133
Mold shrinkage - parallel 2% ISO 294-4
Mold shrinkage - normal 1.8 % ISO 294-4
Water absorption (23°C-sat) 0.65 % ISO 62
Humidity absorption (23°C/50%RH) 0.2 % ISO 62
Mechanical properties Value Unit Test Standard
Tensile modulus (1mm/min) 2850 MPa ISO 527-2/1A
Tensile stress at yield (50mm/min) 64 MPa ISO 527-2/1A
Tensile strain at yield (50mm/min) 9% ISO 527-2/1A
Nominal strain at break (50mm/min) 30 % ISO 527-2/1A
Tensile creep modulus (1h) 2500 MPa ISO 899-1
Tensile creep modulus (1000h) 1300 MPa ISO 899-1
Charpy impact strength @ 23°C 180P kJ/m² ISO 179/1eU
Charpy impact strength @ -30°C 160 kJ/m² ISO 179/1eU
Charpy notched impact strength @ 23°C 6.5 kJ/m² ISO 179/1eA
HOSTAFORM® C 9021 | POM | Unfilled
Ticona - A business of Celanese
Page: 2Printed: 06. March 2007
Mechanical properties Value Unit Test Standard
Charpy notched impact strength @ -30°C 6kJ/m² ISO 179/1eA
Thermal properties Value Unit Test Standard
Melting temperature (10°C/min) 166 °C ISO 11357-1,-2,-3
DTUL @ 1.8 MPa 104 °C ISO 75-1/-2
Vicat softening temperature B50 (50°C/h 50N) 150 °C ISO 306
Coeff.of linear therm. expansion (parallel) 1.1 E-4/°C ISO 11359-2
Coeff.of linear therm. expansion (normal) 1.1 E-4/°C ISO 11359-2
Flammability @1.6mm nom. thickn. HB class UL94
thickness tested (1.6) 1.5 mm UL94
UL recognition (1.6) UL - UL94
Flammability at thickness h HB class UL94
thickness tested (h) 3mm UL94
UL recognition (h) UL - UL94
Electrical properties Value Unit Test Standard
Relative permittivity - 100 Hz 4- IEC 60250
Relative permittivity - 1 MHz 4- IEC 60250
Dissipation factor - 100 Hz 20 E-4 IEC 60250
Dissipation factor - 1 MHz 50 E-4 IEC 60250
Volume resistivity 1E12 Ohm*m IEC 60093
Surface resistivity 1E14 Ohm IEC 60093
Electric strength 35 kV/mm IEC 60243-1
Comparative tracking index CTI 600 - IEC 60112
Test specimen production Value Unit Test Standard
Processing conditions acc. ISO 9988 - Internal
Injection molding melt temperature 195 °C ISO 294
Injection molding mold temperature 85 °C ISO 294
Injection molding flow front velocity 200 mm/s ISO 294
Injection molding hold pressure 90 MPa ISO 294
Rheological Calculation properties Value Unit Test Standard
Density of melt 1200 kg/m³ Internal
Thermal conductivity of melt 0.155 W/(m K) Internal
Specific heat capacity of melt 2210 J/(kg K) Internal
Eff. thermal diffusivity 4.85E-8 m²/s Internal
Ejection temperature 165 °C Internal
HOSTAFORM® C 9021 | POM | Unfilled
Ticona - A business of Celanese
Page: 3Printed: 06. March 2007

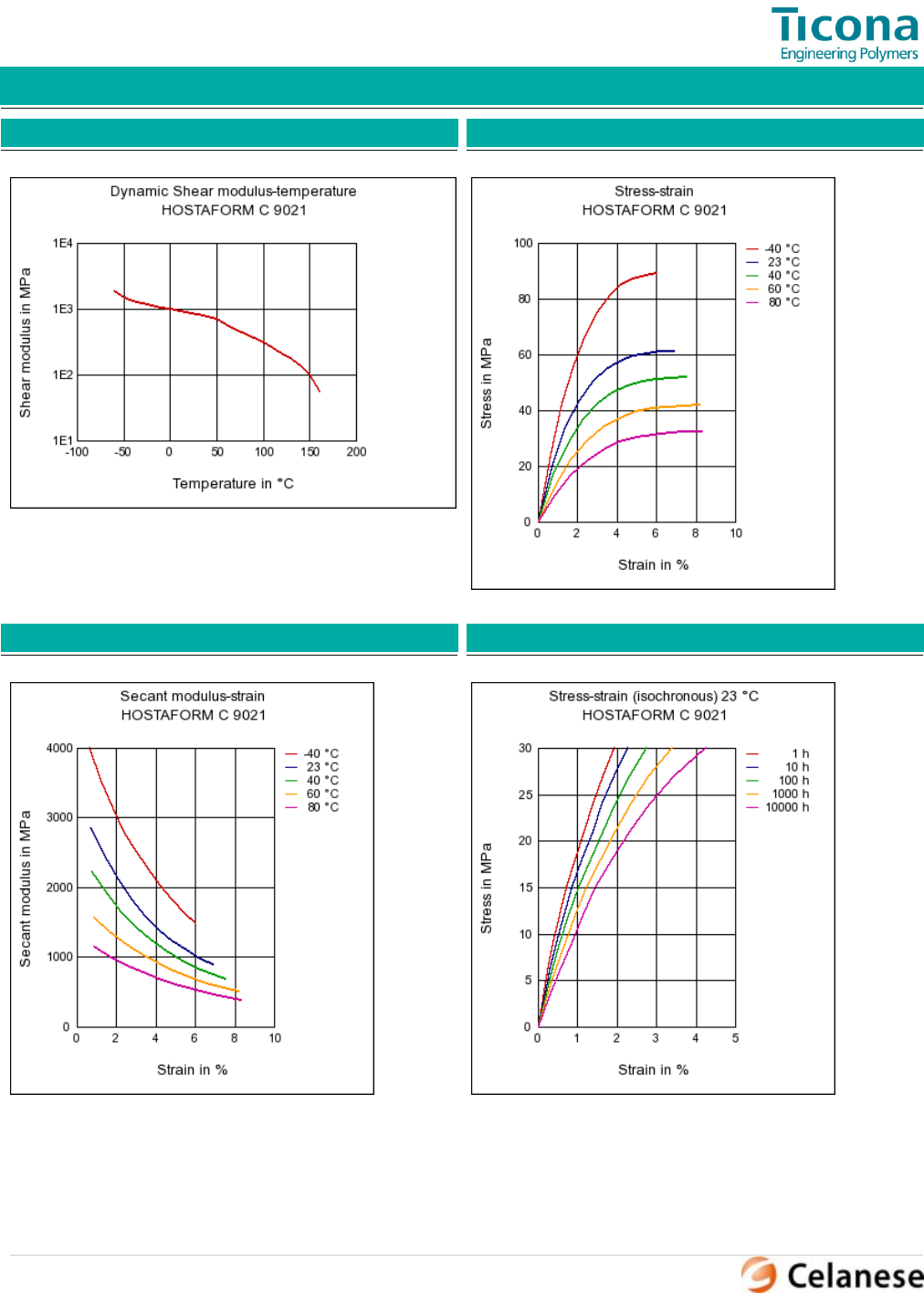

Dynamic Shear modulus-temperature Stress-strain
Secant modulus-strain Stress-strain (isochronous)
HOSTAFORM® C 9021 | POM | Unfilled
Ticona - A business of Celanese
Page: 4Printed: 06. March 2007
Creep modulus-time
Typical injection moulding processing conditions
Maximum residual moisture content: 0.1500%
Processing Temperatures:
Cavity Melt Hot Runner Die 4 3 2 1 Feeding Hopper
min (°C) 80 190 190 190 190 190 180 170 60 20
max (°C) 120 210 210 210 210 200 190 180 80 30
Processing Pressures:
Injection Pressure Holding Pressure Back Pressure
min (bar) 600 600 0
max (bar) 1200 1200 40
Injection speed: slow - medium
Screw speed:
HOSTAFORM® C 9021 | POM | Unfilled
Ticona - A business of Celanese
Page: 5Printed: 06. March 2007
Screw diameter (mm) 25 40 55
Screw speed (rpm) 120 100 70
Pre-drying conditions:
It is normally not necessary to dry HOSTAFORM. However, should there be surface moisture (condensate) on the molding
compound as a result of incorrect storage, drying is required. A circulating air drying cabinet can be used for this purpose if
the granul
The product can then be stored in standard conditions until processed.
Drying time: 3 - 4 h
Drying temperature: 120 - 140 °C
Special information:
No special information available.
Injection Molding
Standard injection moulding machines with three phase (15 to 25 D)
plasticating screws will fit.
Melt temperature 190-230 °C
Mould temperature 60-120 °C
Film Extrusion
Standard extruders with grooved feed zone and short compression
screws (minimum 25 D) will fit.
Melt temperature 180-190 °C
Other Extrusion
Standard extruders with grooved feed zone and short compression
screws (minimum 25 D) will fit.
Melt temperature 180-190 °C
Profile Extrusion
Standard extruders with grooved feed zone and short compression
screws (minimum 25 D) will fit.
Melt temperature 180-190 °C
HOSTAFORM® C 9021 | POM | Unfilled
Ticona - A business of Celanese
Page: 6Printed: 06. March 2007
Sheet Extrusion
Standard extruders with grooved feed zone and short compression
screws (minimum 25 D) will fit.
Melt temperature 180-190 °C
