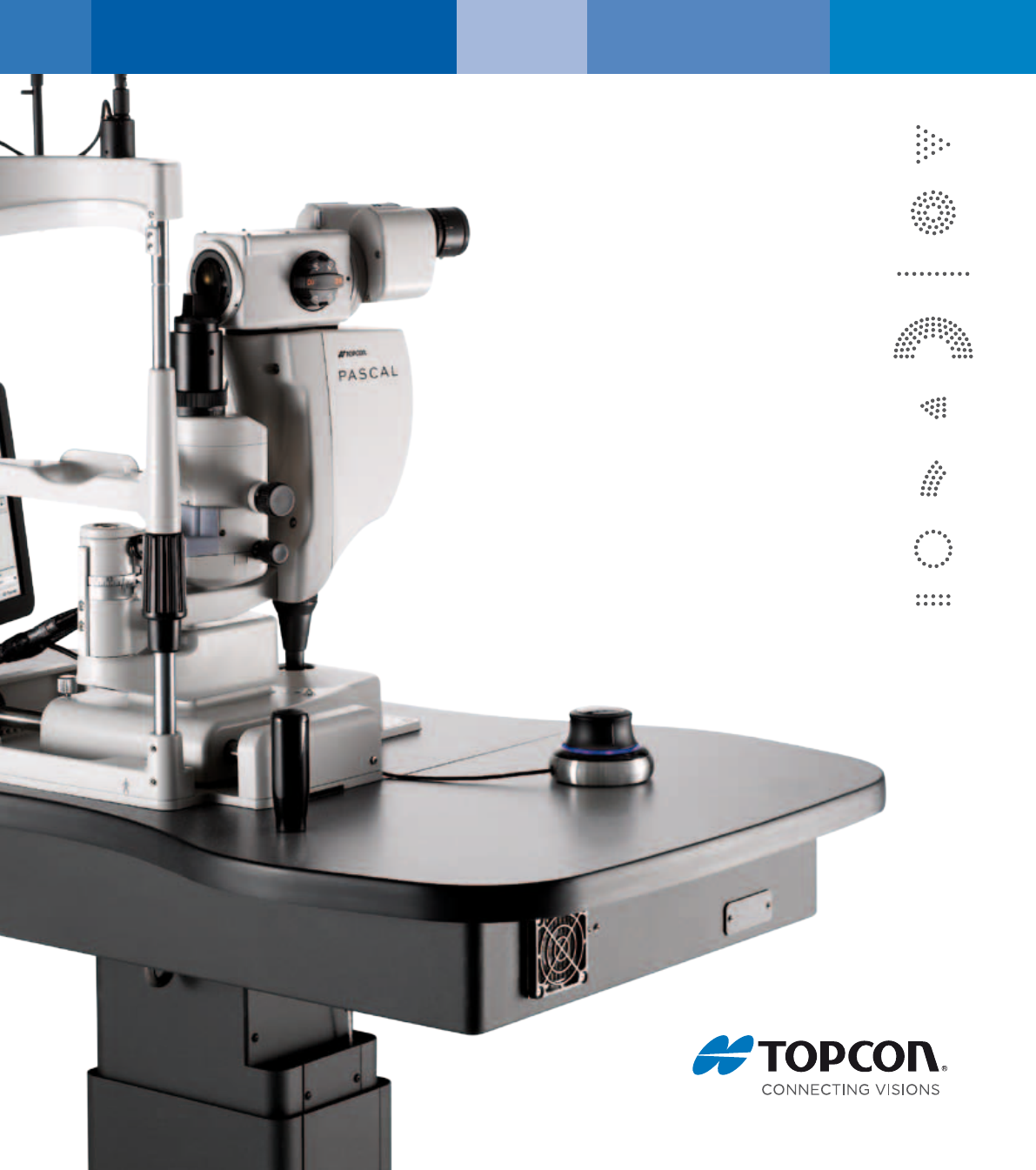

PASCAL Photocoagulator

Streamline

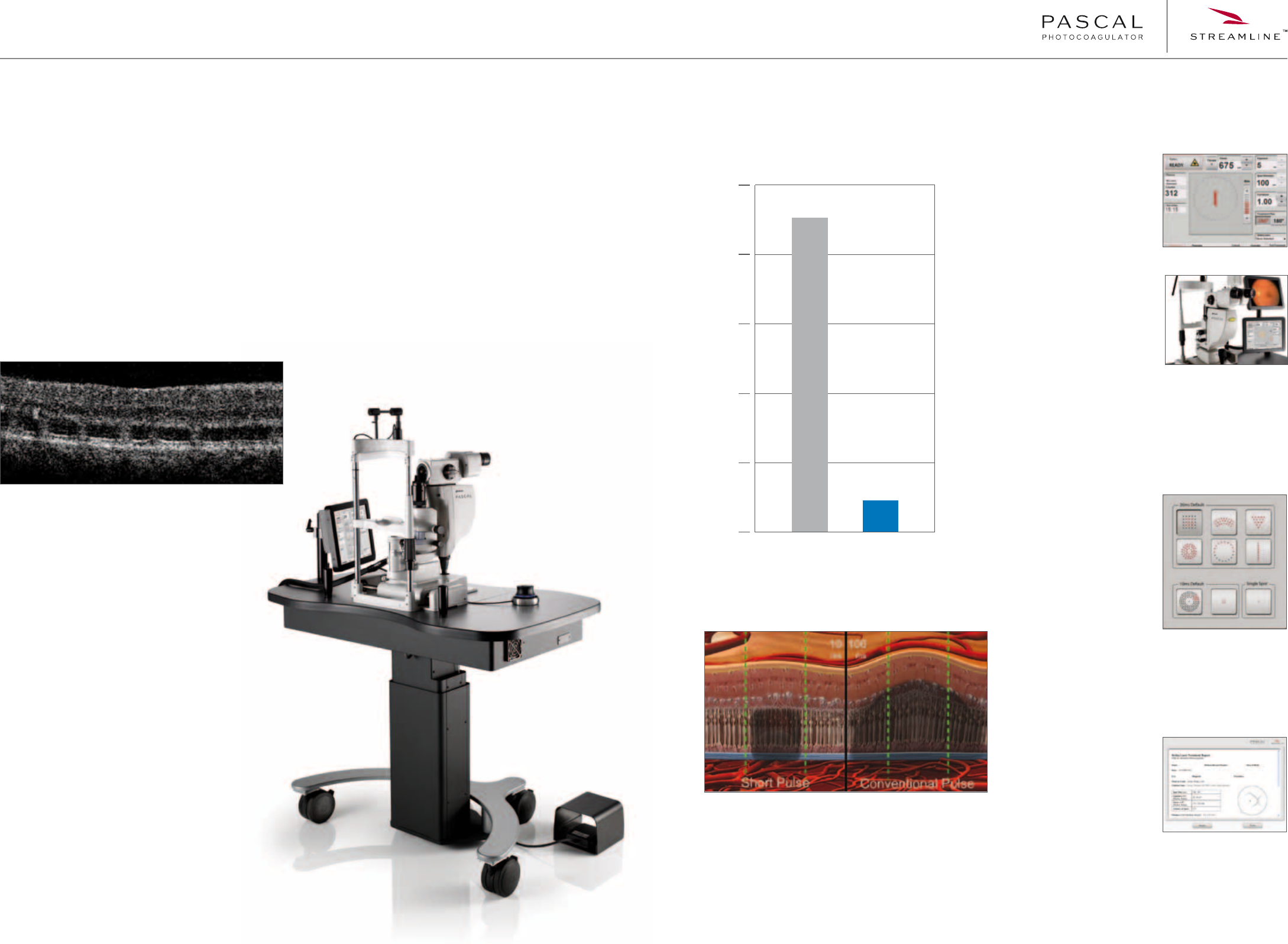

Visual Analog Scale for Pain Perception

Conventional

Laser

PASCAL

Printable Treatment Reports For Both

Retina And Glaucoma Procedures

Streamline Enhanced Patterns

PLT software

VTS monitor

PRECISE AND CONSISTENT OUTCOME WITH THE PASCAL METHOD:

The Pattern Continues

PASCAL Streamline™ Photocoagulator combines core Pascal®

technology with enhanced patterns and printed reporting.

Streamline continues the PASCAL legacy of improving the

photocoagulation experience for patiens, physicians and

practices by incorporating customer recommandations into a

palette of new patterns and features.

Threshold Pascal® 10ms burns remain highly localised in outer retina

OCT image provided by:

Prof. Paulo E. Stanga Consultant Ophthalmologist and Vitroretinal Surgeon, Manchester

Royal Eye Hospital Professor of Ophthalmology, University of Manchester

Less patient discomfort

Using lower power and shorter pulses result in less trauma and

less pain. The PASCAL Method has been validated with

numerous clinical papers.

Less ”spread” after treatment

Precision control with short pulse durations conﬁnes energy to

inhibit thermal spread after each laser application.

Less delay

The only system that uses 3 precision galvanometers, PASCAL

Streamline oers unparalleled laser output control. Using this

method greatly reduces lag time between pulses, thus oering

the fastest pattern treatment available.

The facts speak for themselves

PASCAL is the only scanning photocoagulator to-date with:

» 18 peer-reviewed clinical articles

» > 60 abstact presentations at scientiﬁc meetings

highlighting the safety, ecacy & other beneﬁts of the

PASCAL Methode of photocoagulation.

Enhanced Ergonomics

» Shorter working distance

» Enough space for contact laser lens use

» Added amber ﬁlter for improving retina observation

» Ergonomic 3D user controller

» enhances user comfort

» illuminated for easy location in a dark treatment room

» allows precise physician control over laser position and

power settings

» conveniently adjust and rotate laser patterns

More galvos

Utilizing 3 high speed galvanometers with a

Continuous laser source, PASCAL Streamline allows

more uniform spots, creating more precise lesions,

with complete consistency across the entire pattern

and treatment area.

More ecient

The only pattern scanner system that oers a continuous

laser source, the Streamline gives more consistent laser

lesions without the need for constant power adjustment.

More safety checks

Power, position and galvo performance are

monitored at a rate of 100,000 times per second

with a highly specialized FPGA system.

Versatile Streamline Module/Accessory

options

The PASCAL Streamline oers the following optional modules:

» PASCAL’s unique PLT (Pattern

Laser Trabeculoplasty) Software

for management of open-angle

glaucoma.

» Video option with added video

camera & monitor. Easily

observe all treatments on a

conveniently positioned,

independently rotatable, video

monitor.

» LIO for single spot indirect laser

photocoagulation.

Endpoint

Endpoint Management sharpens titration ability with ﬁne

gradation of laser output providing further precision in setting

visible or non-visible endpoints within the retina.

Powerful and simple enhanced retina

patterns

» Provides easy access to a

multitude of pattern variations

to suit almost any clinical need.

» With the touch of a ﬁnger,

create arrays, lines and

rectangles to best match the

treatment area.

» Triple ring patterns encapsulate

a retina tear in seconds.

» Without removing your eyes

from the oculars, the auto

advance feature automatically

adjusts the pattern for easy alignment and treatment

progression.

Printed Reporting

» Option for detailed printed

summary of each Streamline

procedure.

» Conﬁrmation of laser settings,

parameters and patterns used.

» Better documentation of

patient record and follow-up

notation.

Speciﬁcations

Laser 532 nm optically pumped semiconductor laser (OPSL)

Patterns Single spot, array, triple arc, wedge, triple ring, arc, line, octant

Power 0 - 2000 mW

Power control Dual slit lamp mounted controls & touch screen user interface

Treatment pulse durations 10 - 1000 ms (ms available in the PLT module)

Aim beam 635 ± 10 nm

Aim beam power Adjustable to < 1mW

Delivered spot size 60, 100, 200 and 400 µ m

Retinal spot size Determined by the product of the spot size and the contact lens

Laser magniﬁcation factor

Pattern position control Adjustable by joystick, pattern selection and electronic micromanipulator

Graphical user interface Adjustable touch screen control panel display (26,5 cm)

Mounted on slit lamp table

Slit lamp Custom slit lamp design

Slit lamp table Ergonomic design and wheelchair accessible

Magniﬁcation selection 5 step by drum rotation, 6x, 10x, 16x, 25x, 40x

Eyepiece 12.5x

Dimension Height: adjustable, 114 - 153 cm

Length: 97 - 112 cm

Width: 59 - 84 cm

Weight: 69,4 ± 4,5 kg

Input power requirement 100 - 240V - 50/60Hz 500VA

Cooling TEC / Air Cooled

* PC and Camera sold seperately.
