113151 Trailer Parts Catalog
User Manual: 113151
Open the PDF directly: View PDF
.
Page Count: 12
763-574-1820 | Fax: 763-574-1822 | solimar@solimarpne.com | www.solimarpneumatics.com 763-574-1820 | Fax: 763-574-1822 | solimar@solimarpne.com | www.solimarpneumatics.com 12
www.solimarpneumatics.com
TRAILER PARTS
CATALOG
Since 1985
To search this pdf on a PC press
“ctrl” + “F” simultaneously.
763-574-1820 | Fax: 763-574-1822 | solimar@solimarpne.com | www.solimarpneumatics.com
1

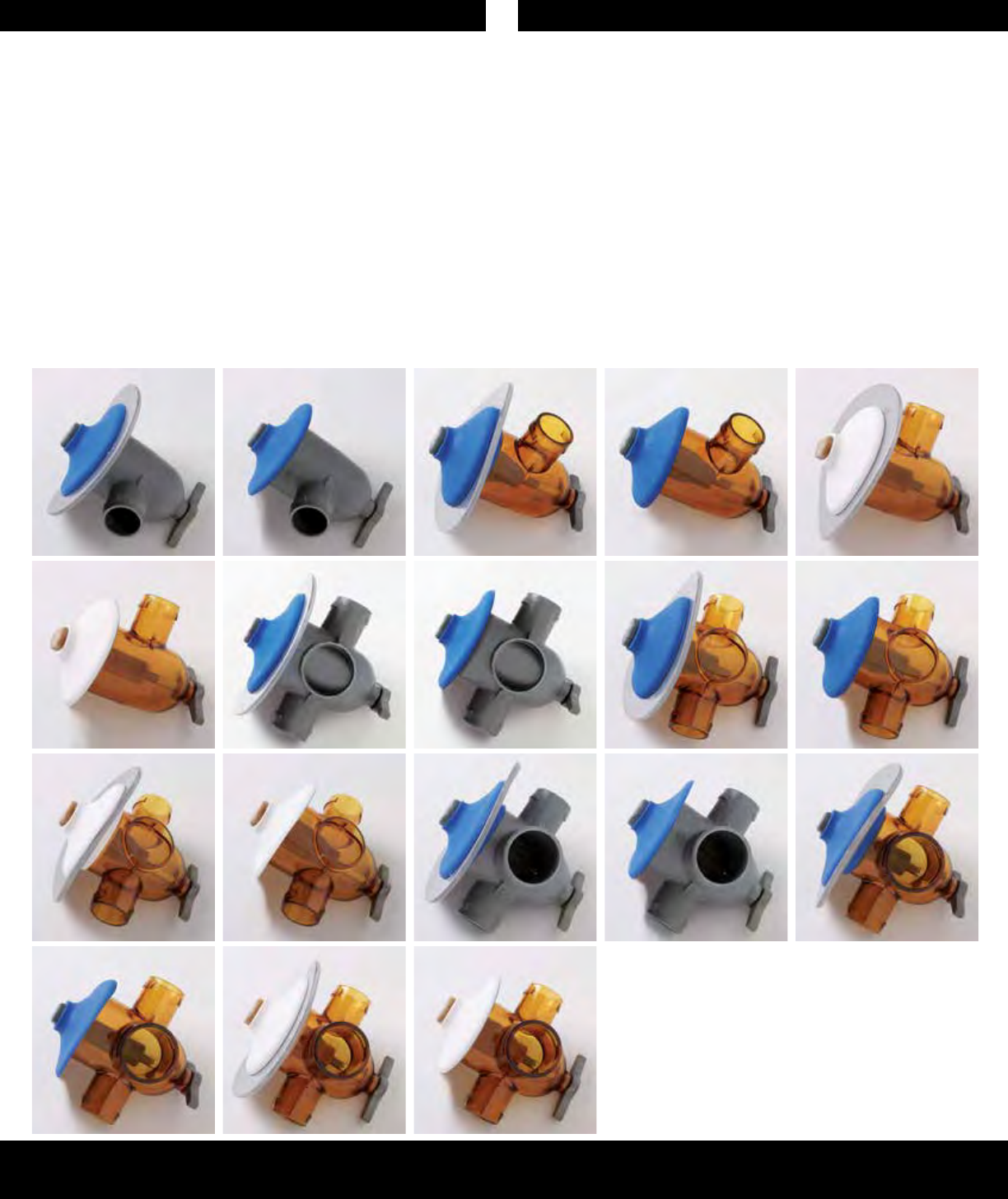

AERATOR ASSEMBLIES
One Port Aerator Assemblies
1. Grey with Hopper Saver ....................................... 111111
2. Grey ................................................................................. 113111
3. Clear with Hopper Saver. ..................................... 111141
4. Clear ............................................................................... 113141
5. Clear with Hopper Saver, White Disk ............ 221241
6. Clear, White Disk ..................................................... 223241
Two Port Aerator Assemblies
7. Grey with Hopper Saver ....................................... 111121
8. Grey ................................................................................ 113121
9. Clear with Hopper Saver ...................................... 111151
10. Clear ............................................................................... 113151
11. Clear with Hopper Saver, White Disk ............ 221251
12. Clear, White Disk ..................................................... 223251
ITEM PART #
1 3
79
11
2 4
6 8 10
12
Three Port Aerator Assemblies
13. Grey with Hopper Saver ....................................... 111131
14. Grey ................................................................................ 113131
15. Clear with Hopper Saver ...................................... 111161
16. Clear ............................................................................... 113161
17. Clear with Hopper Saver, White Disk ............ 221261
18. Clear, White Disk ..................................................... 223261
Aerator Assemblies are available in many variations. See next
page for options. Contact us if you are interested in an assembly
that is not listed.
13 1514
16 17 18
ITEM PART #
5
763-574-1820 | Fax: 763-574-1822 | solimar@solimarpne.com | www.solimarpneumatics.com 763-574-1820 | Fax: 763-574-1822 | solimar@solimarpne.com | www.solimarpneumatics.com 2

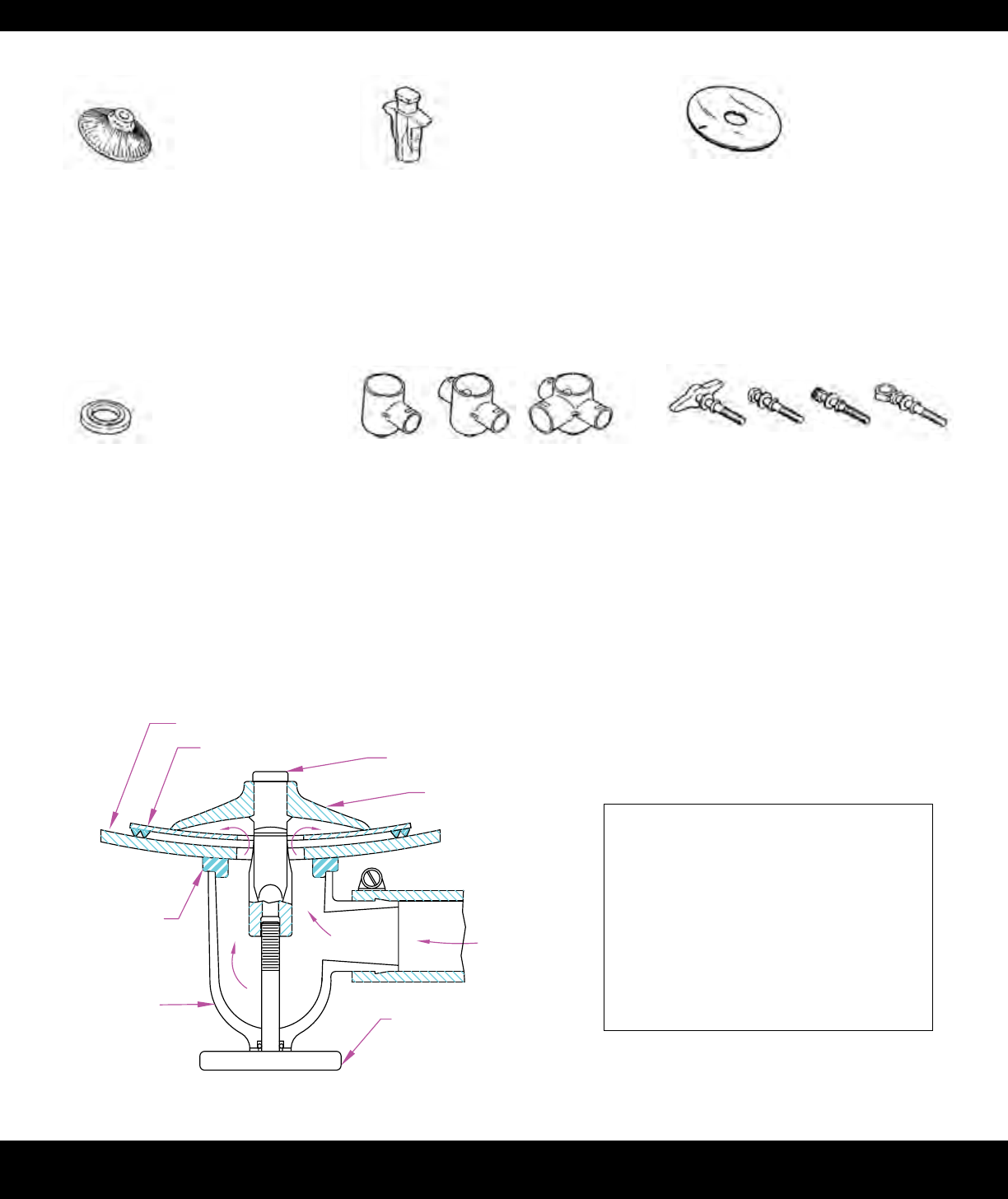

AERATOR ASSEMBLIES
DISK
1. 4124 - Blue Silicone Disk
2. 4134 - White Silicone Disk
3. 4164 - White EPDM Disk
4. 4154 - Black EPDM Disk
STEM
1. 4125 - Grey Stem, SS Insert
2. 4135 - White Stem, SS Insert
3. 4155 - Aluminum Stem
4. 4157 - Mild Steel Stem
HOPPER SAVER
1. 4126B - Stainless Steel
3. None
GASKET
1. 4127 - Blue Silicone Gasket
2. 4137 - White Silicone Gasket
3. 4147 - Black EPDM Gasket
MANIFOLD
1. 4121 - 1-Port Grey
2. 4122 - 2-Port Grey
3. 4123 - 3-Port Grey
4. 4621 - 1-Port Clear
5. 4622 - 2-Port Clear
6. 4623 - 3-Port Clear
FASTENER
1. 4129 - Tee-Handle Assembly
2. 4139 - Hex Bolt Assembly
3. 4149 - Socket Head Assembly
4. 4159 - T.I.R. Assembly
Ordering Example:
If you order: #121131
You have ordered:
“1” Disk — Blue Silicone
“2” Stem — White, Stainless Insert
“1” Hopper Saver
“1” Manifold Gasket — Blue Silicone
“3” Manifold — 3-Port, Grey
“1” Tee-Handle Assembly
MANIFOLD
GASKET
4127
MANIFOLD
412X
HOPPER WALL
HOPPER SAVER
4126 STEM
4125
BLUE DISK
4124
TEE HANDLE
4129
763-574-1820 | Fax: 763-574-1822 | solimar@solimarpne.com | www.solimarpneumatics.com
3

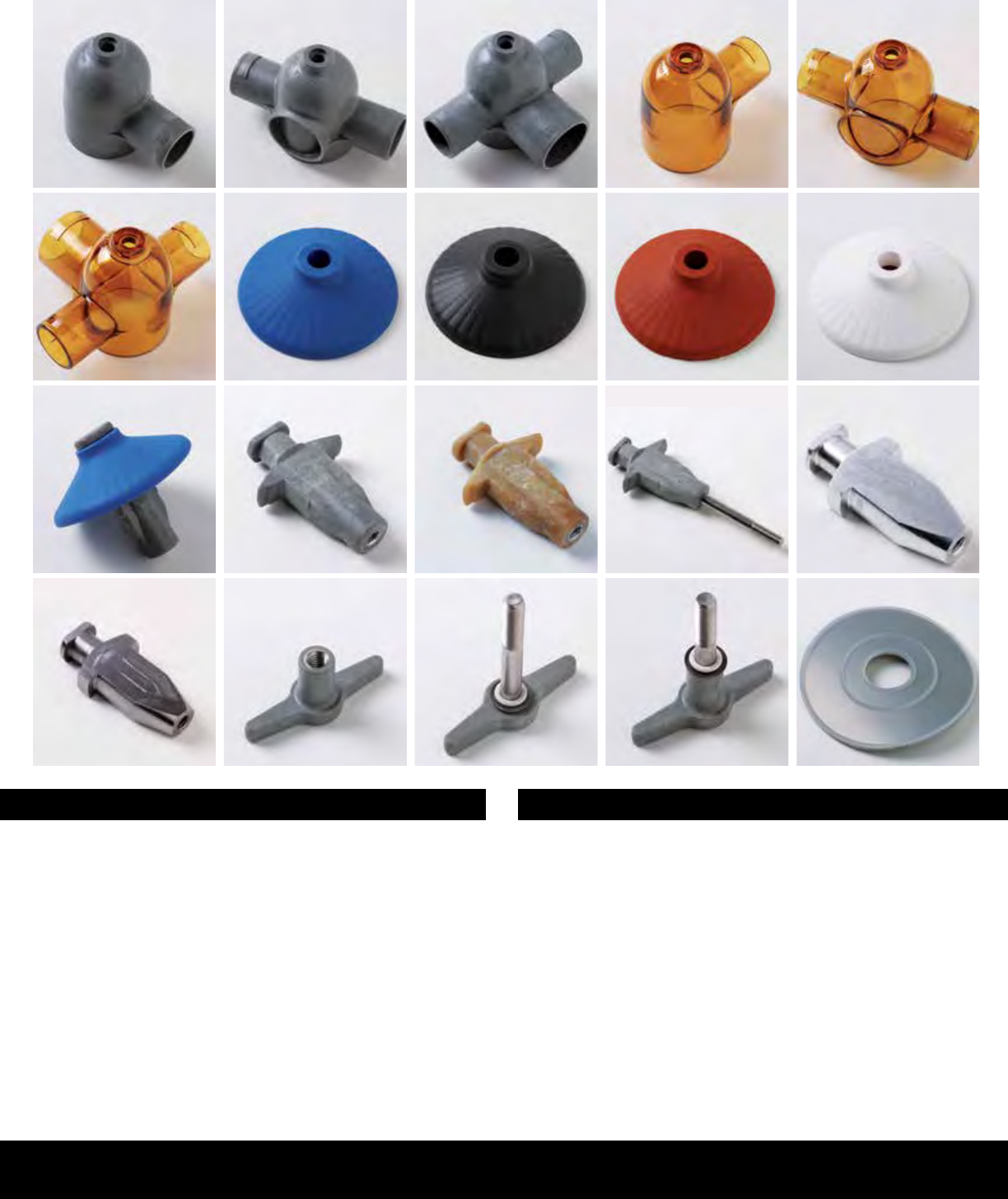

AERATOR SPARE PARTS
Manifolds
1. One Port, Grey ........................................................... 4121
2. Two Port, Grey ............................................................ 4122
3. Three Port, Grey. ...................................................... 4123
4. One Port, Clear ......................................................... 4621
5. Two Port, Clear ......................................................... 4622
6. Three Port, Clear ..................................................... 4623
Fluidizers
7. Blue Disk ...................................................................... 4124
8. Metal Detectable Disk ........................................... 4124MD
9. High Temperature Disk ......................................... 4124HT
10. White Disk................................................................... 4134
11. Blue Disk & Stem .................................................... 4150
ITEM PART #
Stems
12. Grey ................................................................................ 4125
13. White ............................................................................. 4135
14. External Fastener .................................................... 4145
15. Aluminum .................................................................... 4155
16. Carbon Steel .............................................................. 4157
Tee Handles
17. Raised ........................................................................... 4109
18. Assembly ..................................................................... 4129
19. Raised with Bolt........................................................ 4130
20. Hopper Saver, Stainless Steel ........................... 4126B
ITEM PART #
1 3
79
11
2 4
6 8 10
12 13 1514
16 17 18
5
19 20
763-574-1820 | Fax: 763-574-1822 | solimar@solimarpne.com | www.solimarpneumatics.com 763-574-1820 | Fax: 763-574-1822 | solimar@solimarpne.com | www.solimarpneumatics.com 4

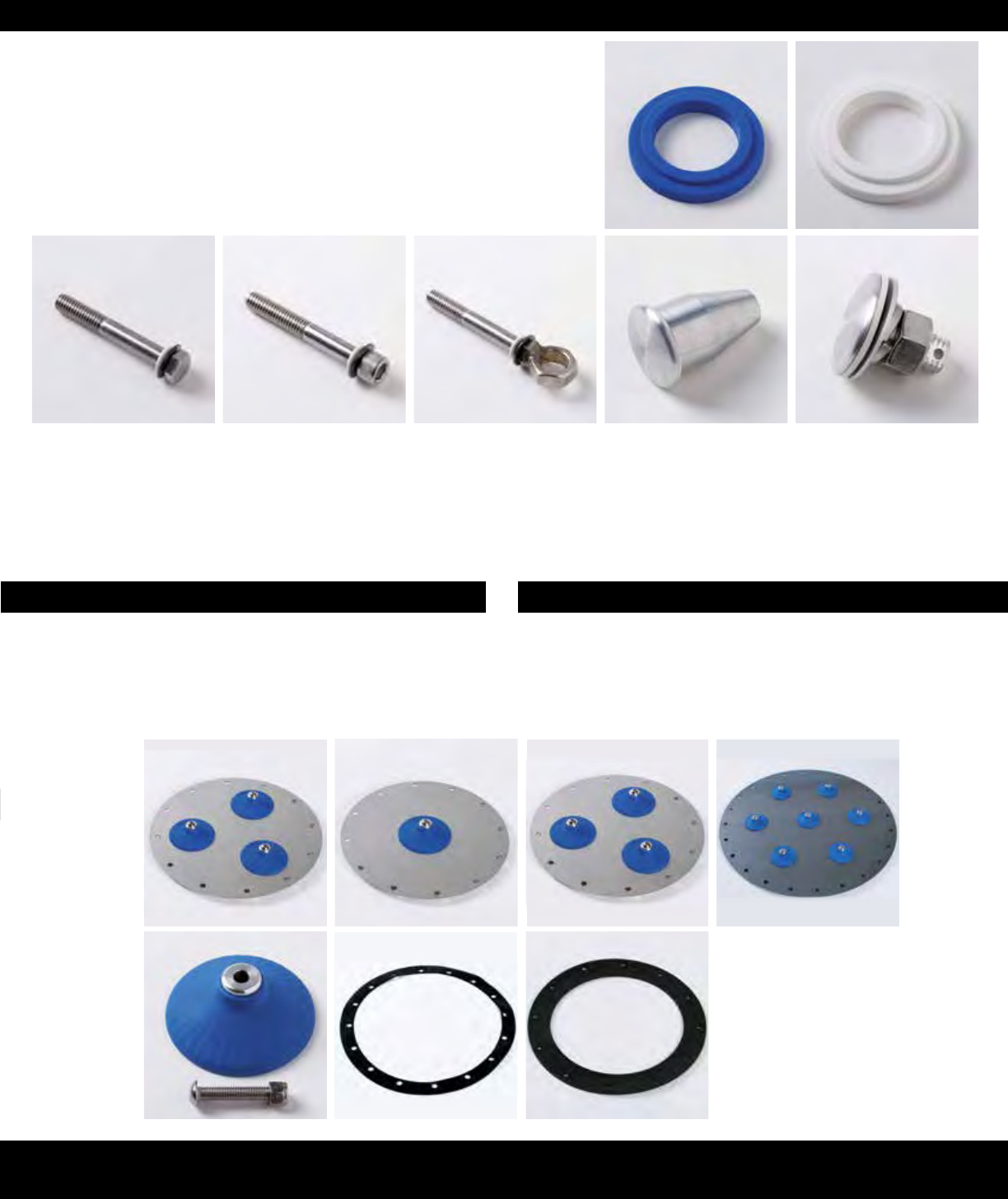

AERATOR SPARE PARTS
21. Gasket, Blue ............................................................... 4127
22. Gasket, White ............................................................ 4137
23. Hex Bolt Assembly .................................................. 4139
24. Socket Head Bolt Assembly ............................... 4149
25. TIR Bolt Assembly ................................................... 4159
26. Hopper Plug Assembly- 1½” .............................. 4167
27. Hopper Plug- External Fastened ....................... 4170
ITEM PART #
23 25
1
24 26
2221
2 3
5
4
67
27

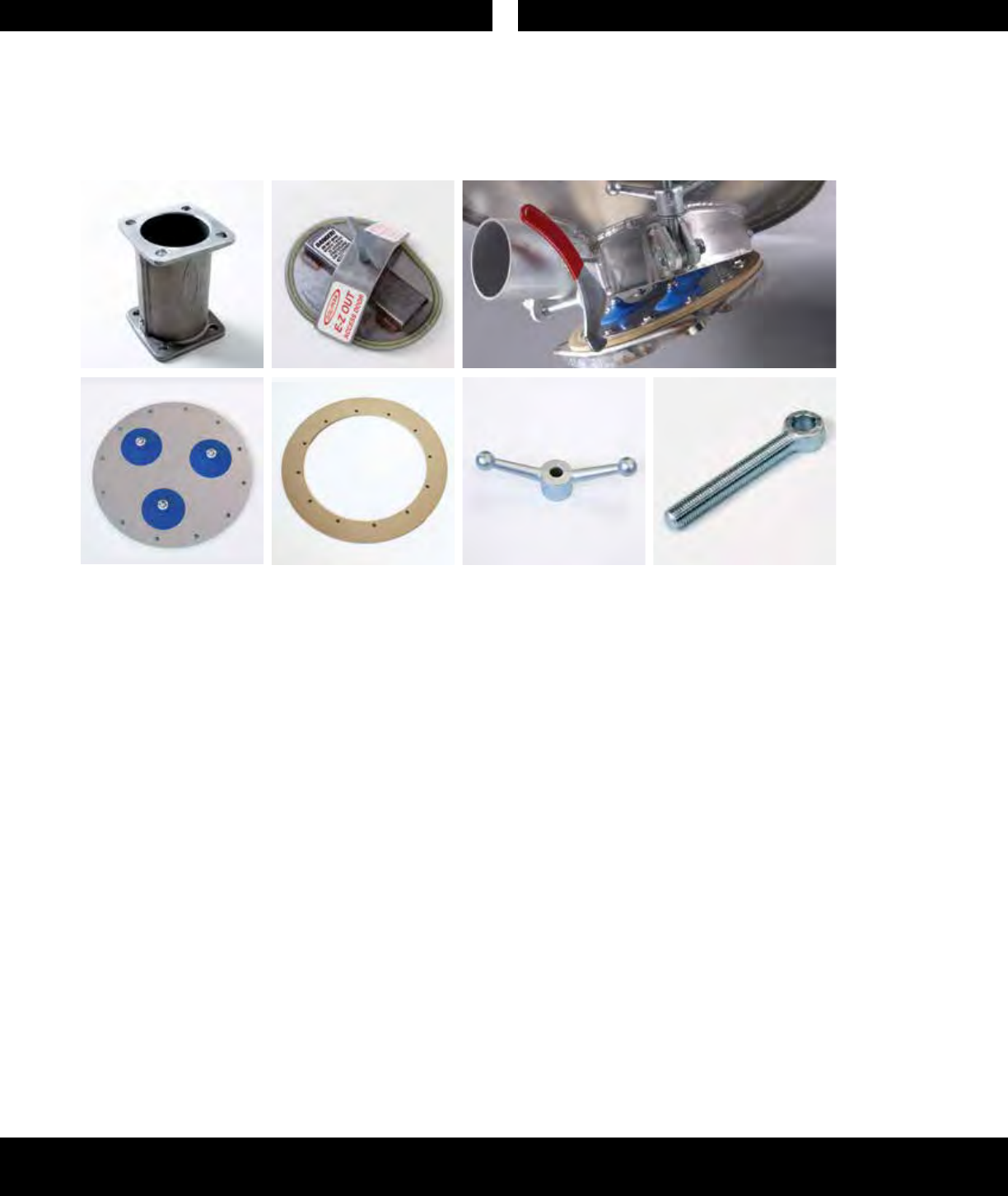

FLUIDIZER PLATES
& SPARE PARTS
1. Stainless Steel, 20" .................................................... 5050
2. Stainless Steel, 13" .................................................... 5051
3. Carbon Steel, 20" ....................................................... 5052
4. Carbon Steel, 30" ....................................................... 5055
ITEM PART #
5. Plenum Fluidizer........................................................... 4180
6. Gasket, 20” .................................................................... 5012
7. Gasket, 13” ................................................................... 5018
ITEM PART #
763-574-1820 | Fax: 763-574-1822 | solimar@solimarpne.com | www.solimarpneumatics.com
5

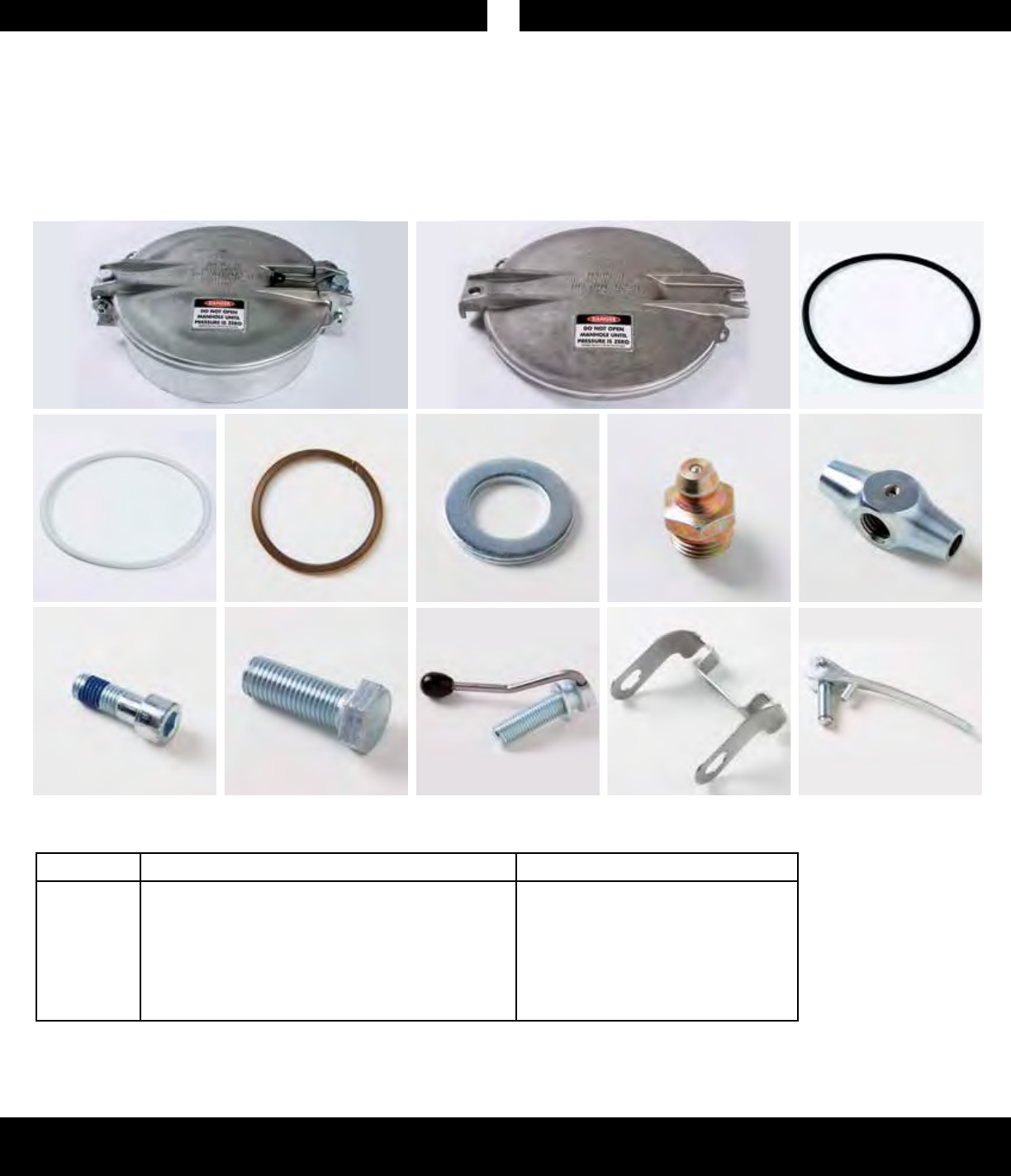

SOLIMAR MANHOLE
& SPARE PARTS
1. Solimar Manhole (shown) ....................................... 3910
Other Solimar Manhole Combinations listed below*
2. Solimar Manhole Cover Casting ............................. 3561
3. Gasket, Black ................................................................. 3543
4. Gasket, White ............................................................... 3570
5. Retaining Ring ............................................................... 3555
6. Safety Washer ............................................................. 3530
ITEM PART #
7. Grease Fitting, 1/8" ............................................... 3534
8. Pivot Block ................................................................... 3510
9. Pivot Bolt ...................................................................... 3516
10. Hinge Bolt .................................................................... 3531
11. Clamping Assembly ................................................ 3528
12. Safety Latch ............................................................... 3550
13. Cam Assembly .......................................................... 3582
ITEM PART #
1
5 7
9
4 6 8
10 11 1312
32
Assembly Collar Selection Gasket Material
39
0 3/8” x 4” Aluminum, Transverse Mounting
1 3/8” x 5” Aluminum, Longitudinal Mounting
2 1/4” x 4” Steel, Transverse Mounting
3 1/4” x 5” Steel, Longitudinal Mounting
4 1/4” x 4” SS, Transverse Mounting
5 1/4” x 5” SS, Longitudinal Mounting
0 SBR (black)
1 Neoprene, Oil Resistant (black)
2 EPDM (white)
3 Viton, High Temperature (black)
*Additional Solimar Manhole Combinations
Selection Example: Assembly desired is 3/8” x 5” Aluminum collar with a viton gasket
39 + 1 (3/8” x 5” Alum) + 3 (Viton) = Assembly #3913
763-574-1820 | Fax: 763-574-1822 | solimar@solimarpne.com | www.solimarpneumatics.com 763-574-1820 | Fax: 763-574-1822 | solimar@solimarpne.com | www.solimarpneumatics.com 6
2
3 4 6
5
87 9 10 11
12 1413 16
15

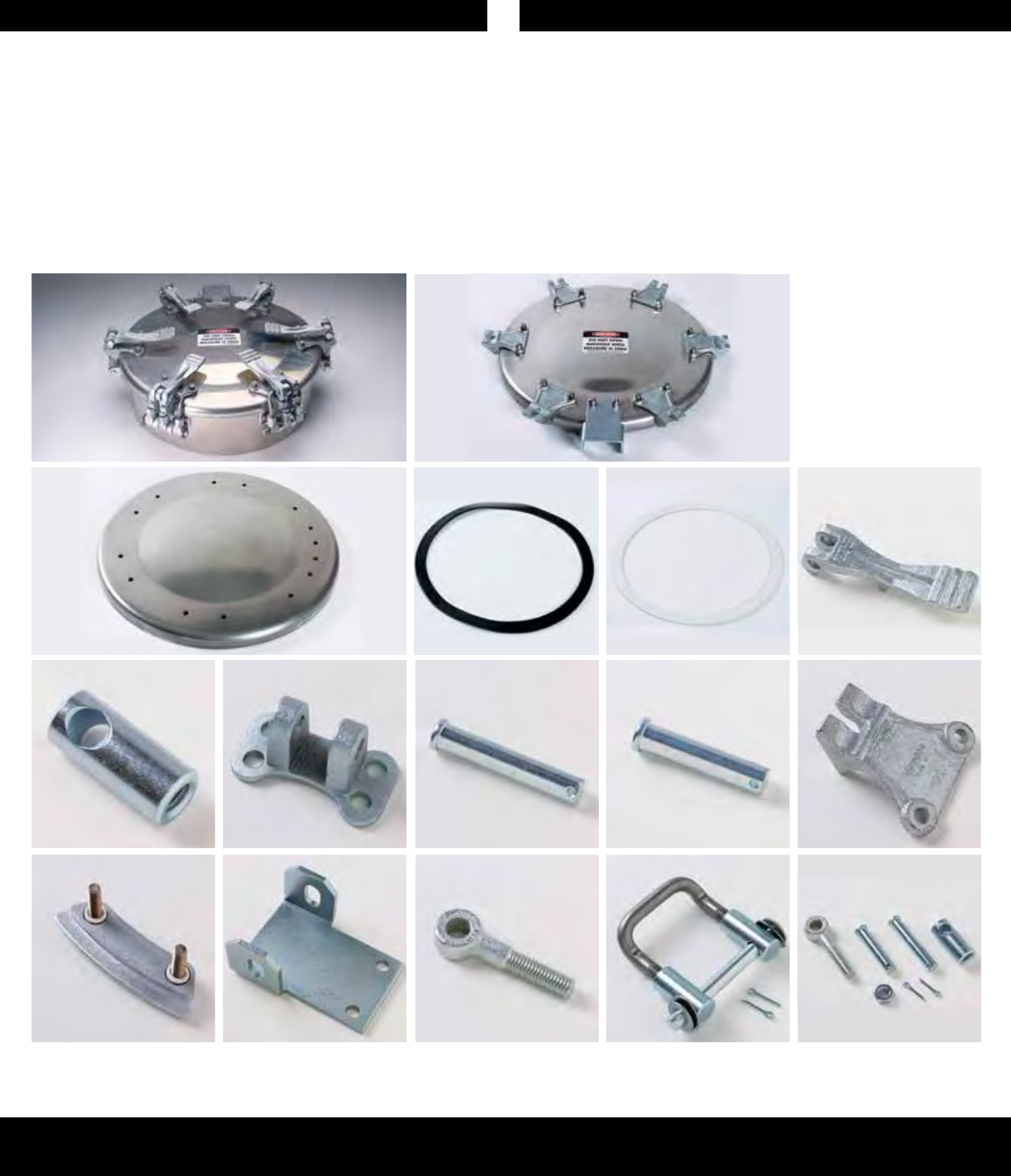

1. Butler Manhole, Complete Assembly ............. 901557
2. Butler Manhole Cover............................................ 901556
3. Butler Manhole Cover Blank, Aluminum ....... C-901559
4. Gasket, Black .............................................................. A-901603
5. Gasket, White ............................................................ 070099
6. Cam ................................................................................ B-070096
7. Pivot Block ................................................................... B-070097
8. Pivot Block Bracket ................................................. A-070465
ITEM PART #
BUTLER MANHOLE
& SPARE PARTS
1
9. Pivot Block Pin ........................................................... A-070468
10. Cam Pin ........................................................................ A-070469
11. Hold Down Lug .......................................................... C-070094
12. Gasket Retainer Lug .............................................. B-901546
13. Upper Hinge ............................................................... B-902370
14. Eye Bolt ......................................................................... A-070098
15. Safety Latch Assembly .......................................... C-384280
16. Service Kit ................................................................... 315294
ITEM PART #
763-574-1820 | Fax: 763-574-1822 | solimar@solimarpne.com | www.solimarpneumatics.com
7

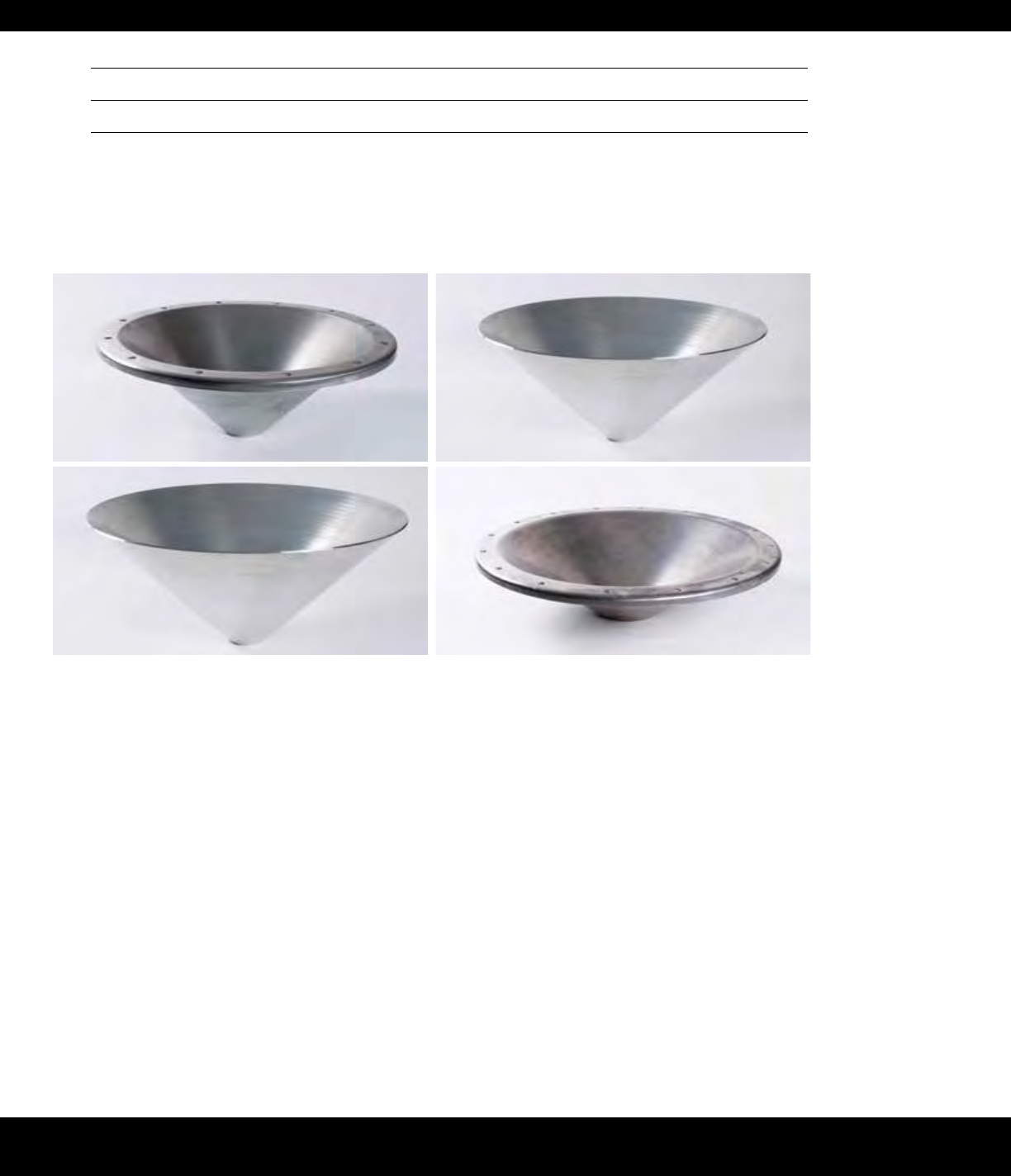

HOPPER CONES
& SPARE PARTS
1 2
ITEM ID OD SLOPE HEIGHT BOLT PATTERN PART #
1. Bolt-on 26" 31" 45˚10 7/8"[12] on 28 3/8" BC 5065
2. Weld-on 26" — 45˚10 7/8" — 5067
3. Weld-on 33" — 45˚14 5/8" — 5068
4. Bolt-on 30" 35" 38˚8 5/8"[16] on 32 3/4" 9106
ID= Inner Dimension OD= Outer Dimension
3 4
763-574-1820 | Fax: 763-574-1822 | solimar@solimarpne.com | www.solimarpneumatics.com 763-574-1820 | Fax: 763-574-1822 | solimar@solimarpne.com | www.solimarpneumatics.com 8
53/4

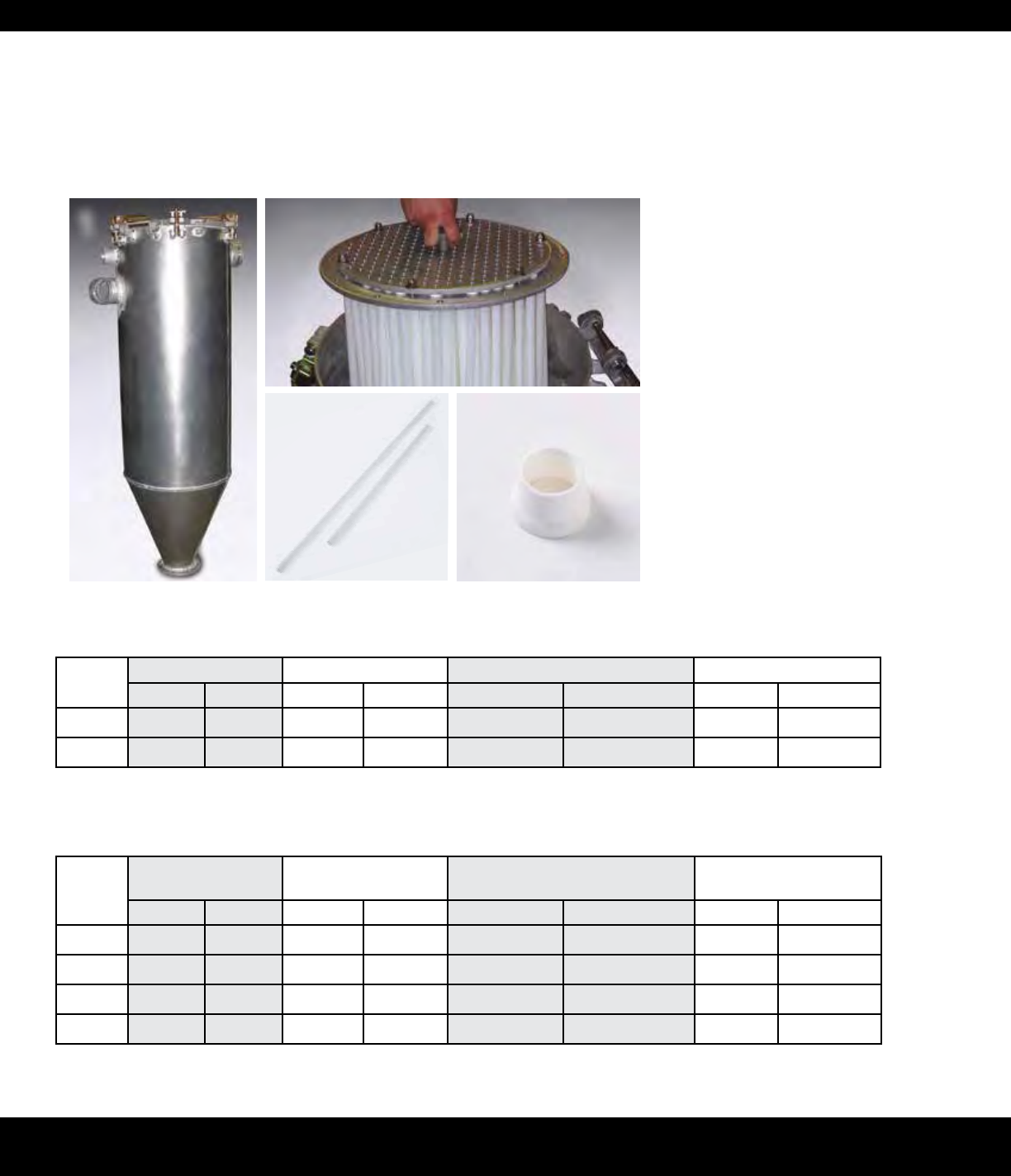

FILTERS
& SPARE PARTS
1. External Filter (See options below)
2. Internal Filter (See options below)
3. 24" Filter Tube ............................................................. 6029
4. 36" Filter Tube ............................................................. 6030
5. Grommet, White ......................................................... 6035
ITEM PART #
1 2
Model
Part #
Canister Diameter Filter Tube Length Filter Area Air Flow
Inches MM Inches MM Square Feet Square Meters SCFM M3/Hr.
6071 20 508 36 914 120 11.1 600 1019
6070 24 609 36 914 183 17 900 1529
External Filter Specifications
Model
Part #
Mounting Ring
Diameter Filter Tube Length Filter Area Air Flow
Inches MM Inches MM Square Feet Square Meters SCFM M3/Hr.
6054 20 508 24 609 80 7.4 400 680
6055 20 508 36 914 120 11.1 600 1019
6056 24 609 24 609 122 11.3 600 1019
6057 24 609 36 914 183 17 900 1529
Internal Filter Specifications
763-574-1820 | Fax: 763-574-1822 | solimar@solimarpne.com | www.solimarpneumatics.com
9
1. 3" Check Valve .............................................................. 6300
2. EZ-Out Access Door .................................................. 5100
3. Swing Away Assembly .............................................. 5500
ITEM PART #
ASSORTED PARTS
21 3
5 74 6
Swing Away Assembly Parts
4. 15 ½" Fluidizer Plate ................................................ 5060
5. Swing Away Gasket .................................................... 7850
6. Wing Nut ......................................................................... 7171
7. Eye Bolt ............................................................................ 7163
ITEM PART #
763-574-1820 | Fax: 763-574-1822 | solimar@solimarpne.com | www.solimarpneumatics.com 763-574-1820 | Fax: 763-574-1822 | solimar@solimarpne.com | www.solimarpneumatics.com 10
• The most trusted Aerator in the world
• High-quality, engineered solutions
• American made, globally accepted
• The Original Disk Aerator
We Move a World of Dry Bulk Materials
in More Than 75 Countries
Worldwide Leader
in Tank Aeration
Since 1985
763-574-1820 | Fax: 763-574-1822 | solimar@solimarpne.com | www.solimarpneumatics.com
11
8001 Ranchers Road NE
Minneapolis, MN 55432
USA
Phone: 763-574-1820
Fax: 763-574-1822
1-800-233-7109
email: solimar@solimarpne.com
www.solimarpneumatics.com
THE POWDER DISCHARGE SPECIALISTS
Since 1985
