Trimec
Trimec, ASSA ABLOY Australia’s leading brand for
electronic and electromechanical door security
solutions, has an undisputed global reputation as a
manufacturer of premium quality, reliable security
products due to high precision manufacturing in
state of the art facilities in Sydney, continued
investments in product innovation and stringent
processes for quality control.
Trimec specialises in electric strikes but also boasts
an impressive range of patented electromechanical
technologies including drop bolts and V locks.
Trimec products are tested to very high standards –
a testament to the superior quality, reliability and
lifecycle cost compared to similar, cheaper models.
In the UK, the Trimec portfolio of products are sold
and warranted through Adams Rite alongside
fellow ASSA ABLOY Group company brands from its
distribution centre in Wolverhampton.
Trimec customers have access to ASSA ABLOY’s
excellent customer service capability and expertise
in the UK underpinned by the TRICARE scheme.
2assaabloy.com.au
EL110 Electric Cabinet Lock 4
ES100 Series Electric Strike 6
ES110 Series Electric Strike 8
ES150 Surface Mounted Electric Strike 12
ES200 Series Non Monitored Electric Strike 14
ES2000 Series Monitored Electric Strike 16
ES2600 Series Monitored Electric Strike 18
ES300 Series Electric Strike 20
ES3000 Series Monitored Electric Strike 22
ES9000 Pre-Load Strike 24
Electric Strikes
3
4

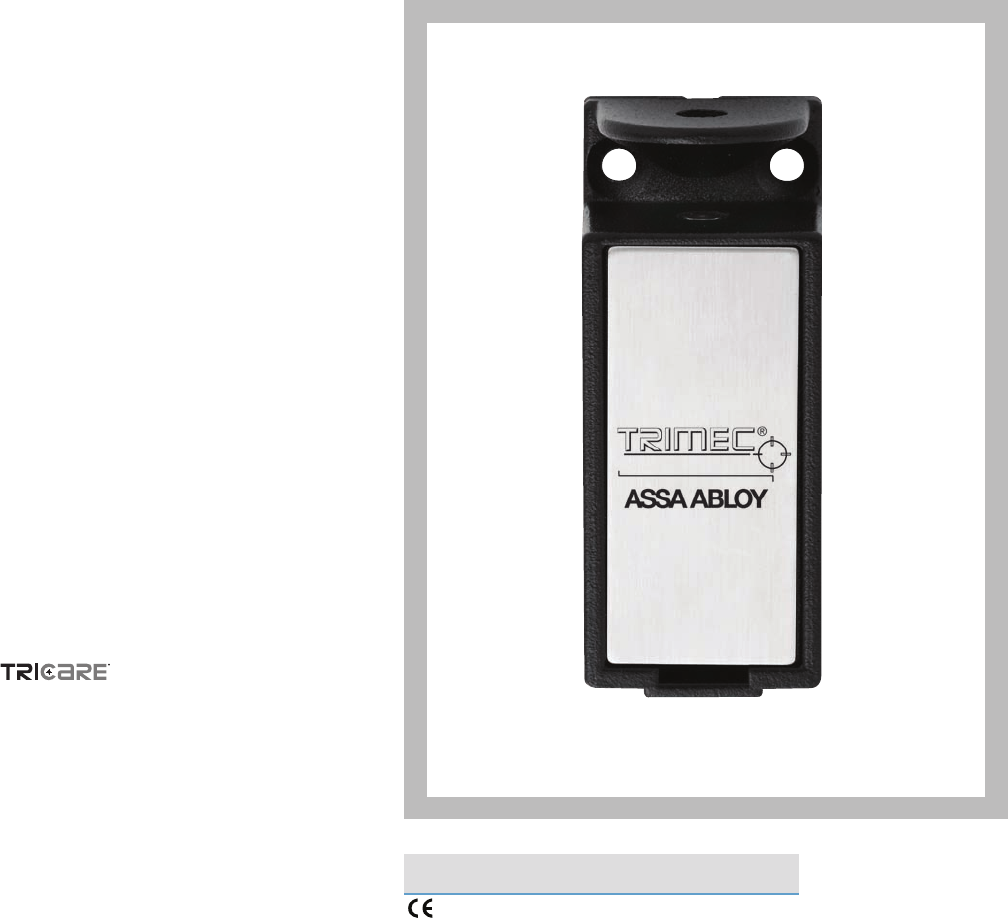

EL110 Electric Cabinet Lock
General Description
The EL110 electric cabinet lock is a compact,
cast aluminium lock specially designed for
cabinets having either swing or sliding doors.
The cabinet lock can be surface mounted either
vertically or horizontally and offers maximum
flexibility for ease of installation.
EL110 can also be controlled by any existing
access control system or simply controlled
through a remote keypad or keyswitch. The
EL110 is cost efficient, robust, easy to install and
suitable for one or multiple cabinet applications.
Key Features
•Fail safe/fail secure changeable on site
•Flexible alignment: has a 5mm XY adjustment
after installation
•Low current consumption: uses only
187mA @ 12Vdc
•Available in 12 or 24Vdc
•Self latching in fail secure mode
•Solenoid rated for continuous use
•Australian designed and made
•5 Year Warranty
Applications
• Cabinet locking
• Swing or sliding cabinet doors
Standards and Compliance
CE Approved
assaabloy.com.au
EL110 Electric Cabinet Lock
5
EL110 Electric Cabinet Lock
Product Description Part Number
12V Fail Safe Cabinet Lock 111301-000
12V Fail Secure Cabinet Lock 111302-000
24V Fail Safe Cabinet Lock 111303-000
24V Fail Secure Cabinet Lock 111304-000
Specification Statement
The strike which is to be surface mounted and
constructed of cast aluminium, should be self
latching when used in fail secure mode. The
lock must be capable of being changed from fail
safe to fail secure on site. Lock alignment must
be adjustable up to 5mm in both “x” and “y”
directions both during and after installation.
The lock should consume not greater than
187mA @12Vdc or 87mA @ 24Vdc and have a
solenoid rated for continuous use. Electrical
certifications must include CE and C –tick.
Ordering Information

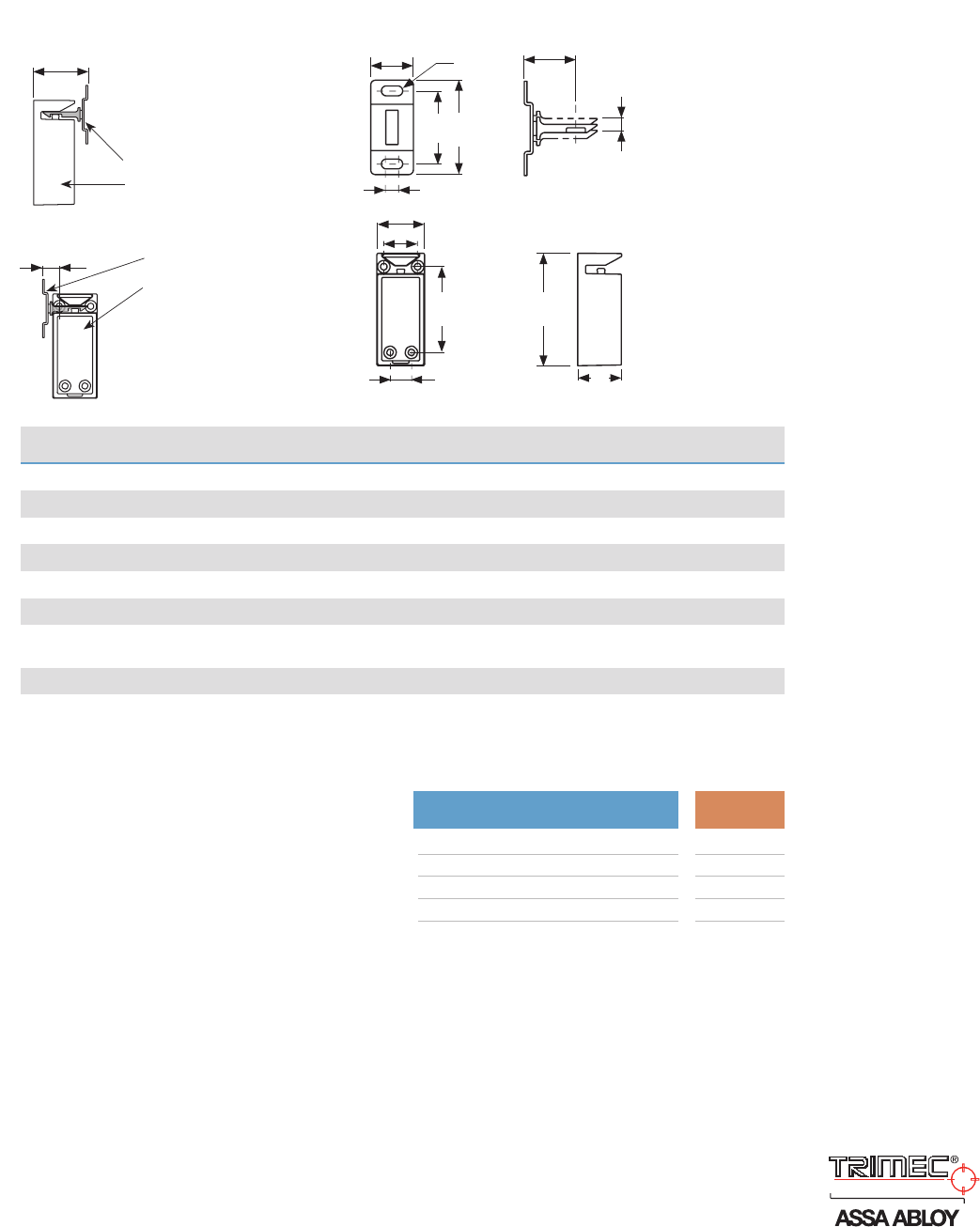

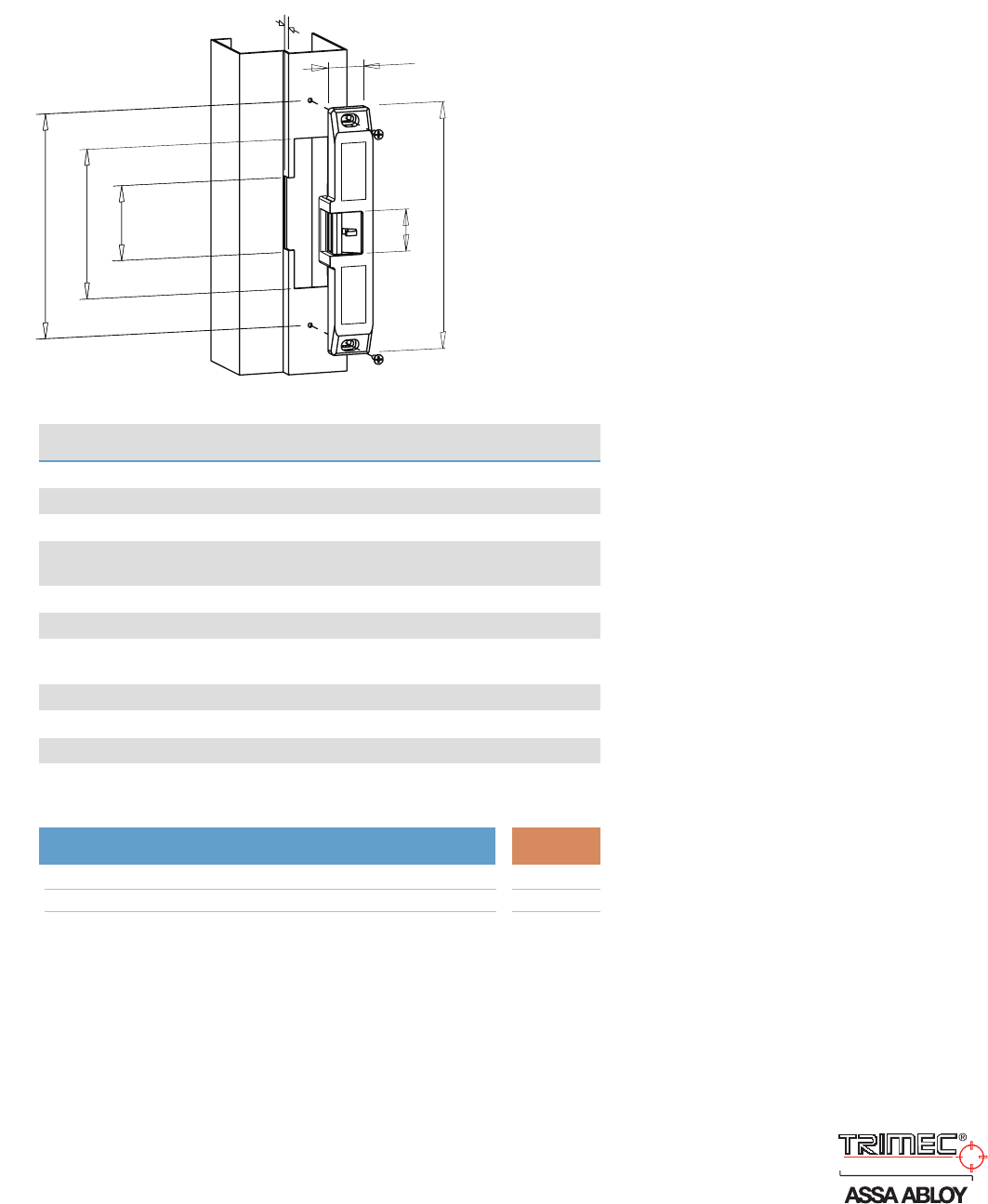

Lock and Strike Dimensions
18
39.9
31
R4
4.5mm Horizontal
Adjustment
22.5
5mm Sliding
Vertical Adjustment
55
13.5
21.5
30
72.7
28
Front Engagement
37
To prevent over- or
under-travel, set
distance between
back mounting face
of lock and striker to
37mm.
Striker
Lock
Side Engagement
11
To prevent over- or
under-travel, set
distance between back
mounting face of striker
and centre of nearest
fixing hole of lock to
11mm.
Lock
Striker
EL110 Technical Information
Voltage 12 or 24Vdc
Current 243 mA @ 12Vdc – 187mA @ 24Vdc
Solenoid Solenoids are rated for continuous use.
Monitoring None
Holding Force 680 kg Static Strength Rating
Endurance Cycle tested to 1,000,000 operations
Environment Operational temperature range -20°C to + 60°C
Weather resistant construction available. (IP56)
Body Cast Aluminium Construction
Keeper Stainless Steel
6

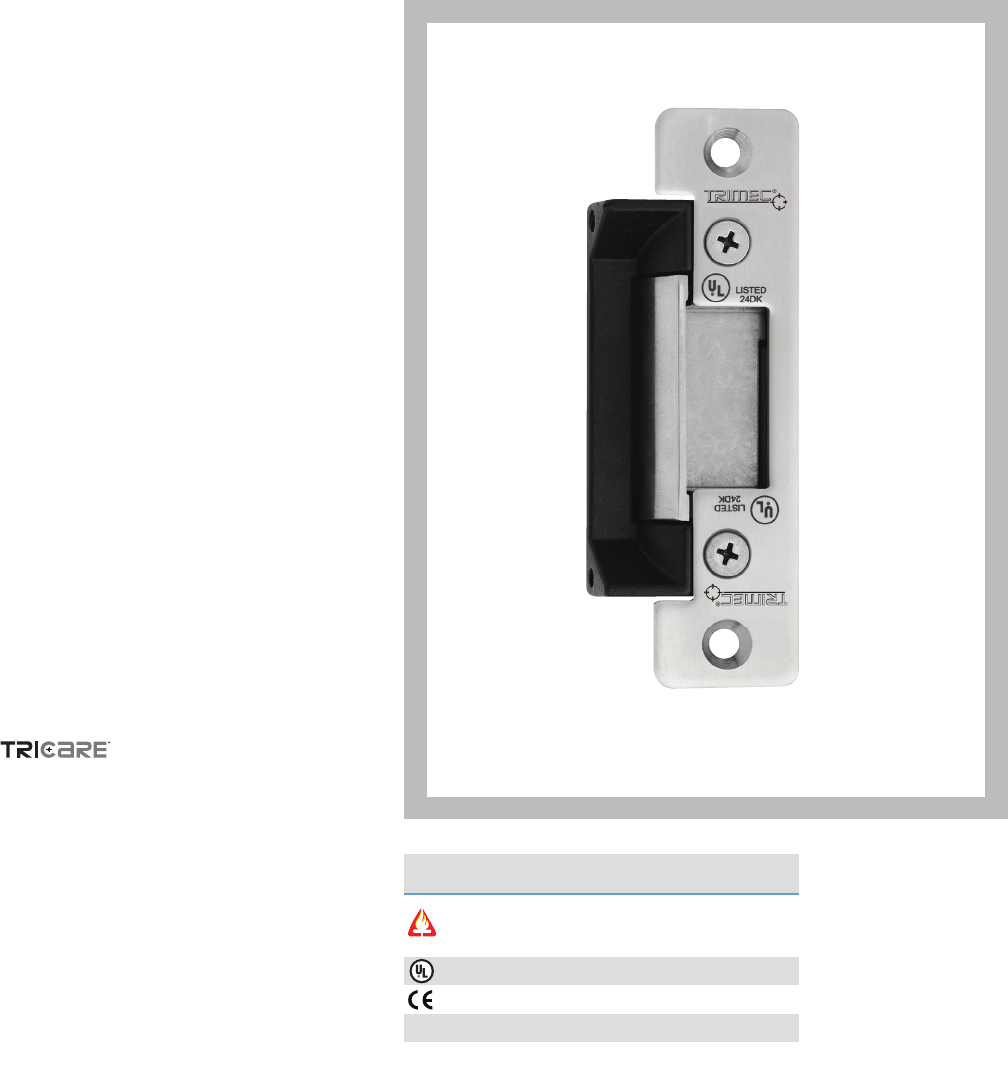

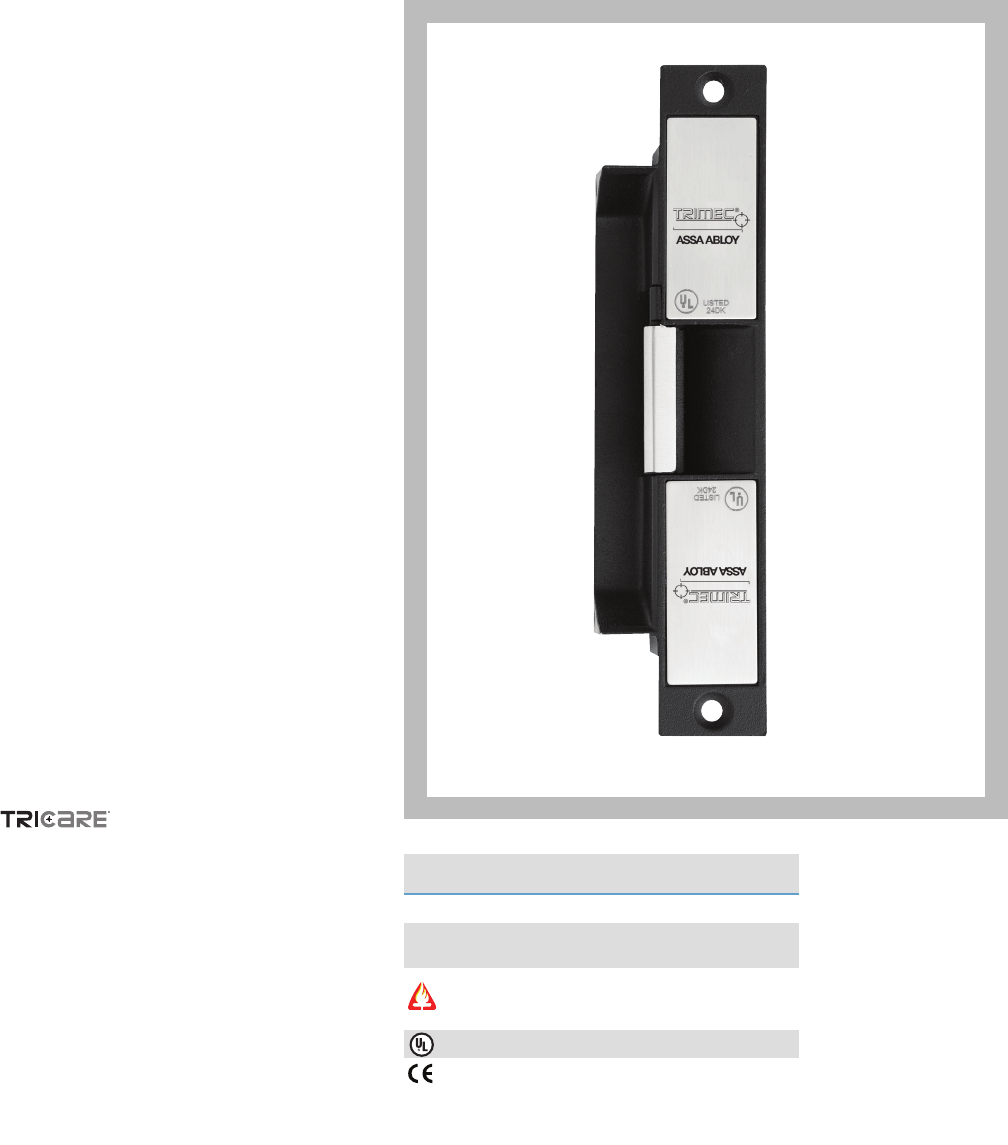

ES100 Series Electric Strike
General Description
The ES100 is a cost efficient robust electric strike
with a solid construction of one-piece cast
aluminium body and stainless steel striker. The
ES100 offers the same level of security and
reliability usually provided by more expensive
electric locking solutions.
Extension lips are available to accommodate the
installation of electric strikes on door frames
with different thickness. The ES100 product
range of patented electric strikes are suitable for
use with all access control installations where
flexibility, security and lower cost are required.
Key Features
•Fail safe/fail secure changeable on site
•Stainless steel striker for extra strength
and durability
•Stainless steel locking pins
•Available in 12 or 24Vdc
•Optional mounting kit
•Installation template
•IP56 weather resistant version available
•Suitable For 15mm latch with a 3mm door gap
•Australian designed and made
•5 Year Warranty
Applications
•Exposed areas (weather resistant models)
•High traffic areas
•Open in/open out doors
•Suitable for use with all access control systems
Standards and Compliance
Successfully fire rated up to 4hrs on fire door
assemblies in accordance with AS1905.1. 2005
(Part 1: Fire resistant door sets)
Approved to UL1034 (highest level)
CE Approved
Weather Resistant Version (IP56) available
Hour
4
assaabloy.com.au
7
ES100 Technical Information
Voltage
Current
Solenoid
Monitoring
Holding Force
Endurance
Environment
Body
Keeper
ES100 Series Electric Strike
Product Description Part Number
12V Electric Strike
12V Fail Safe Aluminium Faceplate (A) 110101-010
Note: For additional face plate options see page 10.
Product Description Part Number
Mounting Kit 220200-518
Pins-spring-stopkit (x5) 200110-100
Specification Statement
Where Power to Lock and Power to Open
functions may be required in the same building,
the strike must be interchangeable from either
“Power to Lock” or “Power to Open” on site.
The electric strike should not consume current
greater than 243mA @ 12Vdc or 187mA @
24Vdc and have a solenoid suitable for
continuous use. Certifications must include CE,
C-tick and 4hr fire rating.
The strike should have a minimum holding
force of 680kg, and an endurance rating of 1
million cycles.
Ordering Information Accessories
12 or 24Vdc
243 mA @ 12Vdc – 187mA @ 24Vdc
Solenoids are rated for continuous use.
None
680 kg Static Strength Rating
Cycle tested to 1,000,000 operations
Operational temperature range -20°C to + 60°C
Weather resistant construction available. (IP56)
Cast Aluminium Construction
Stainless Steel

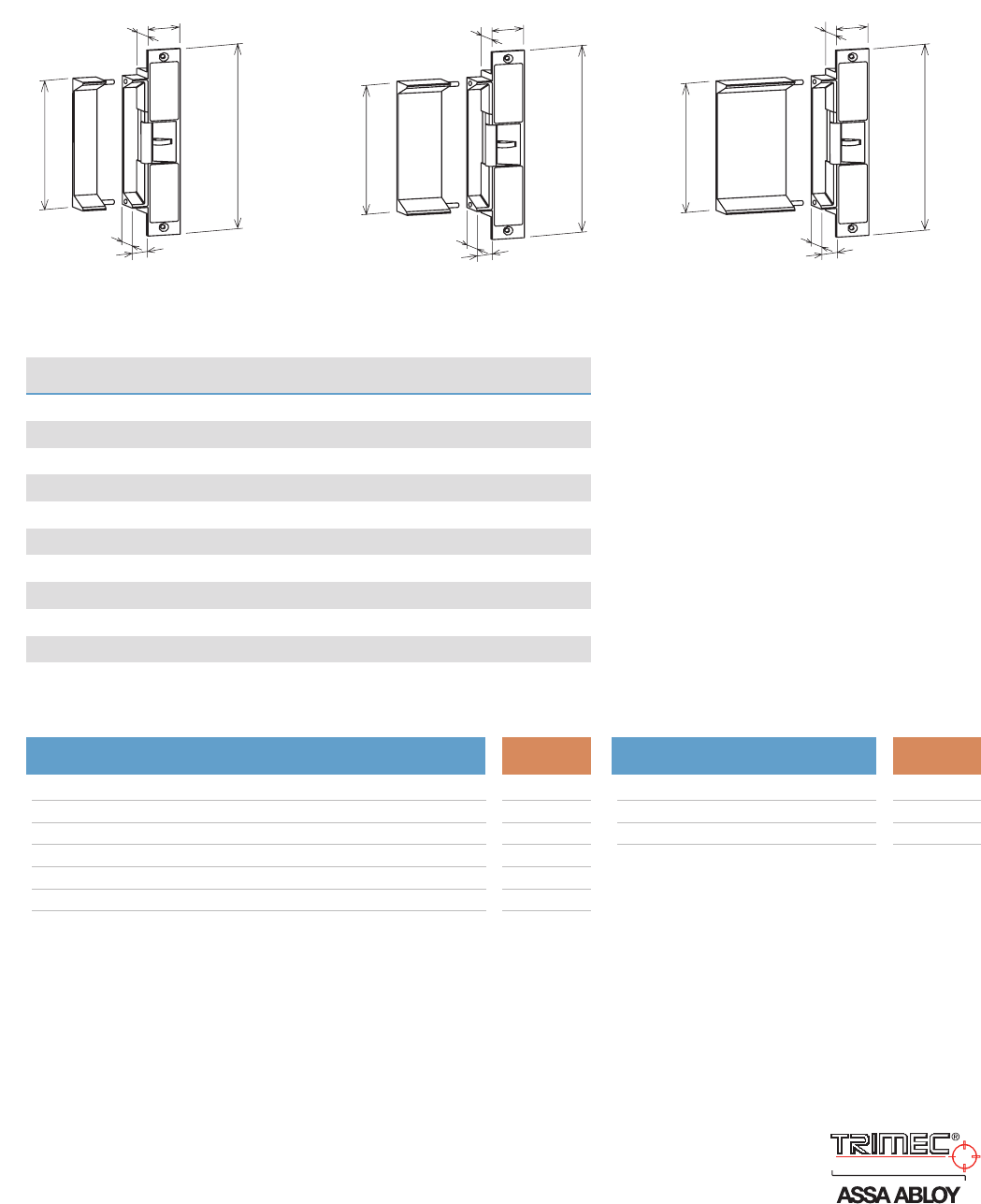

86mm
123.7mm
32mm
m
43mm
32mm
123.7mm
86mm
43mm
123.7mm
86mm
32mm
43mm
50mm
25mm
15mm
30mm
16m
m16m
m16m

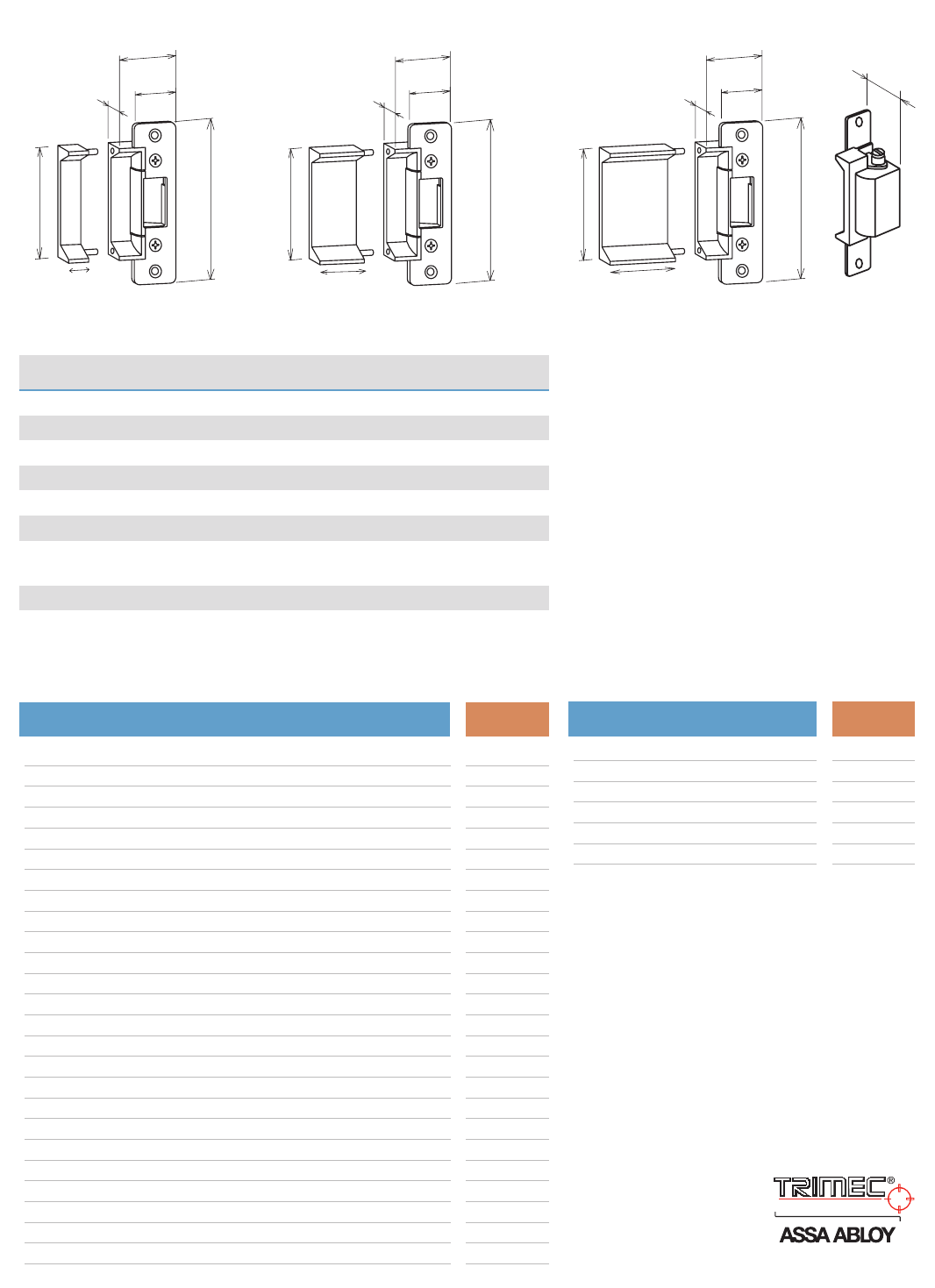

ES100 with 15mm ext lip
- “A” Plate
ES100 with 25mm ext lip
- “A” Plate
ES100 with 50mm ext lip
- “A” Plate
8

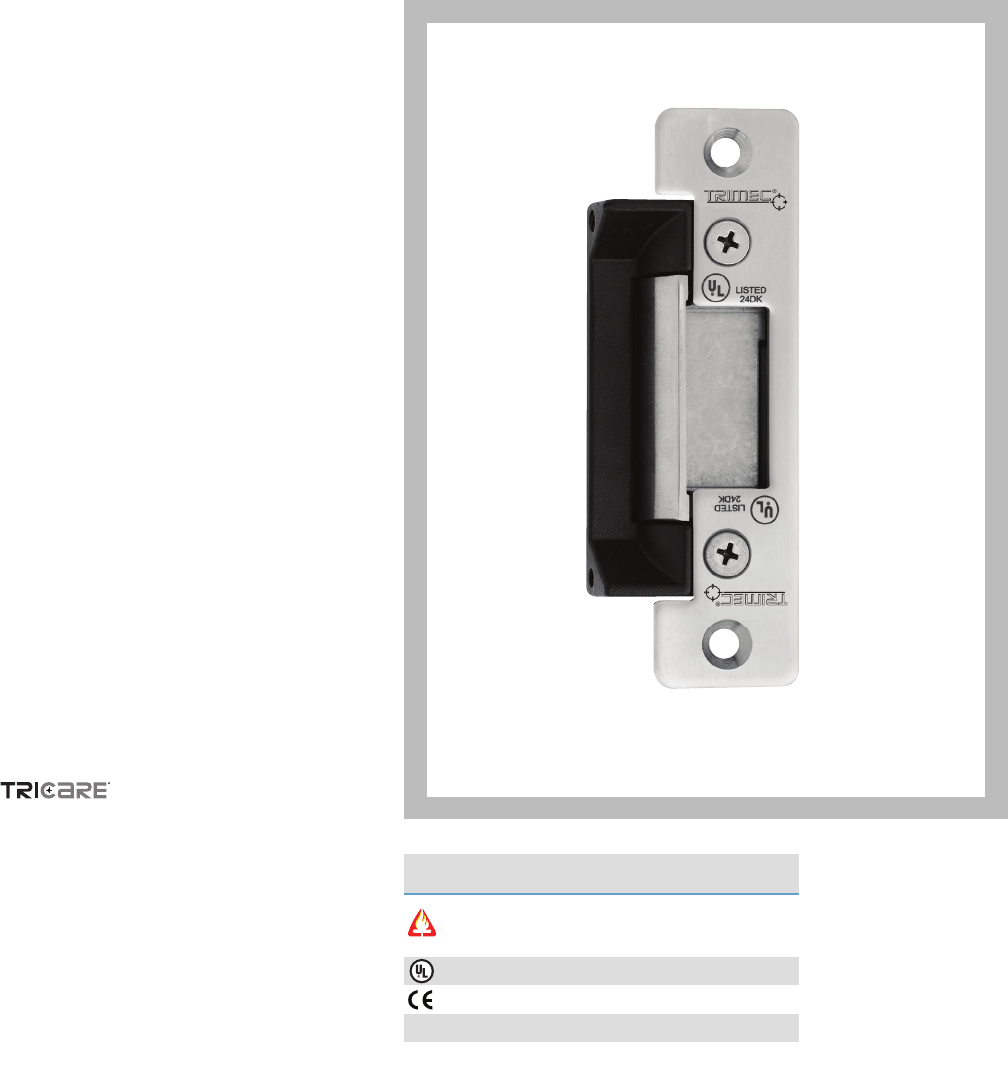

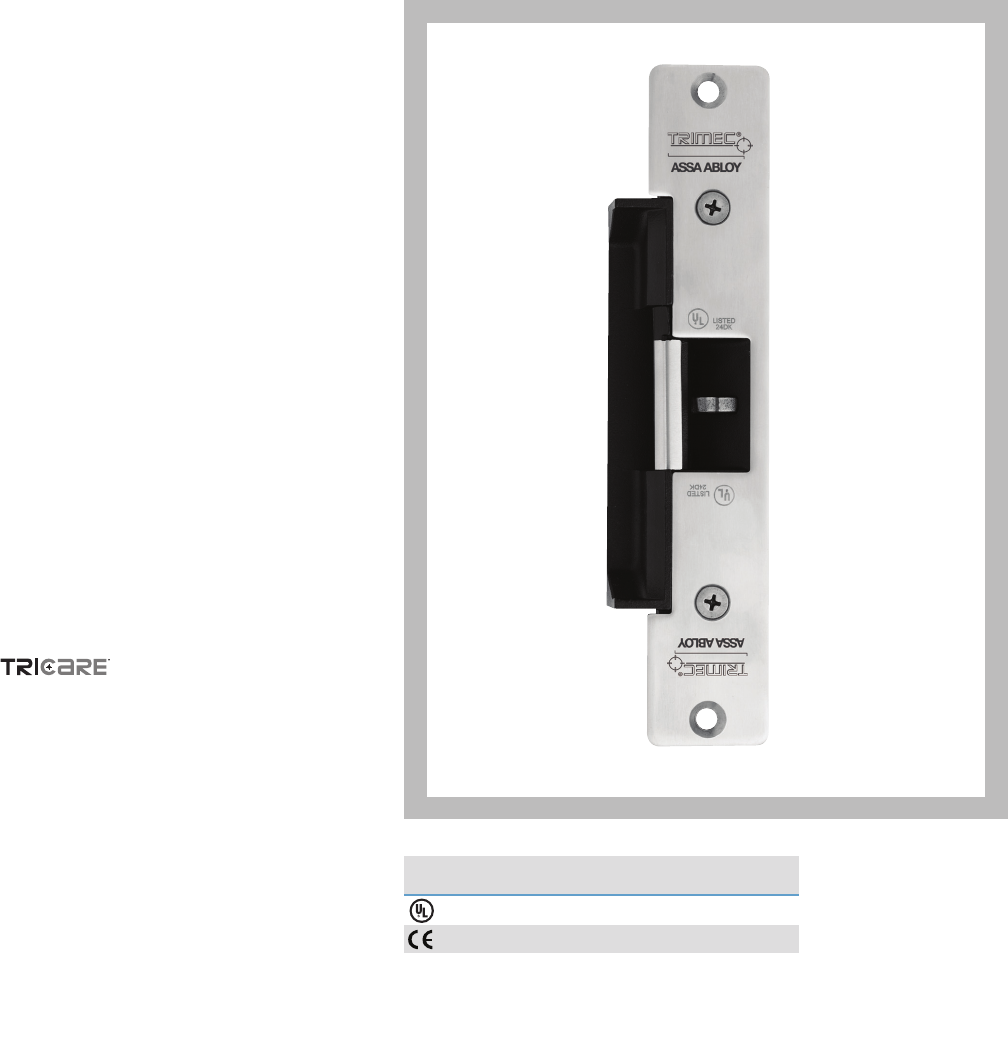

ES110 Series Electric Strike
General Description
The ES110 is a cost efficient robust electric strike
with a solid construction of one-piece cast
aluminium body and stainless steel striker.
Having a deeper than normal strike-keeper area,
ES110 is designed to work with an extensive
range of locks and offers the same level of
security and reliability usually provided by more
expensive electric locking solutions.
Extension lips are available to accommodate the
installation of electric strikes on door frames
with different thickness. The ES110 product
range of patented electric strikes are suitable for
use with all access control installations where
flexibility, security and lower cost are required.
Key Features
•Fail safe/fail secure changeable on site
•Stainless steel striker for extra strength and
durability
•Stainless steel locking pins
•Available in 12 or 24Vdc
•Optional mounting kit
•Installation template
•IP56 weather resistant version available
•Suitable For 18mm latch with a 3mm door gap
•Australian designed and made
•5 Year Warranty
Applications
•Exposed areas (weather resistant models)
•High traffic areas
•Open in/open out doors
•Suitable for use with all access control systems
assaabloy.com.au
Standards and Compliance
Successfully fire rated up to 4hrs on fire door
assemblies in accordance with AS1905.1. 2005
(Part 1: Fire resistant door sets)
Approved to UL1034 (highest level)
CE Approved
Weather Resistant Version (IP56) available
Hour
4
9
ES110 Series Electric Strike
Product Description Part Number
12V Electric Strike
12V Fail Safe Stainless Steel Face Plate (A) 110111-050
12V Fail Safe Weather Resistant Stainless Steel Face Plate (A) 110111-060
12V Fail Safe Long Stainless Steel Face plate (B) 110111-100
12V Fail Safe Weather Resistant Long Stainless Steel Faceplate (B) 110111-110
12V Fail Safe Adams Rite Faceplate Stainless Steel 110111-140
12V Fail Safe Weather Resistant Adams Rite Faceplate Stainless Steel 110111-160
12V Fail Safe Adams Rite Faceplate Stainless Steel - No Lip 110111-150
12V Fail Safe Stainless Steel Faceplate - No Lip 110111-190
12V Fail Secure Adams Rite Faceplate Stainless Steel 110112-140
12V Fail Secure Weather Resistant Adams Rite Faceplate Stainless Steel 110112-160
12V Fail Secure Long Stainless Steel Faceplate (B) 110112-100
12V Fail Secure Stainless Steel Faceplate - No Lip 110112-190
12V Fail Secure Stainless Steel Faceplate (A) 110112-050
12V Fail Secure Weather Resistant Stainless Steel Faceplate (A) 110112-060
24V Electric Strike
24V Fail Safe Stainless Steel Faceplate (A) 110113-050
24V Fail Safe Adams Rite Faceplate Stainless Steel 110113-140
24V Fail Safe Adams Rite Faceplate Stainless Steel - No Lip 110113-150
24V Fail Safe Weather Resistant Stainless Steel Faceplate 110113-060
24V Fail Safe Adams Rite Faceplate Stainless Steel 110113-160
24V Fail Safe Long Stainless Steel Faceplate (B) 110113-100
24V Fail Safe Weather Resistant Long Stainless Steel Faceplate (B) 110113-105
24V Fail Secure Stainless Steel Faceplate (A) 110114-050
24V Fail Secure Weather Resistant Adams Rite Faceplate Stainless Steel 110114-140
Note: For additional face plate options see page 10.
Product Description Part Number
15mm Extension Lip 220110-502
25mm Extension Lip 220110-503
50mm Extension Lip 220110-504
Mounting Kit 220200-518
Pins-spring-stopkit (x5) 200110-100
24V Solenoid 220100-502
Ordering Information Accessories

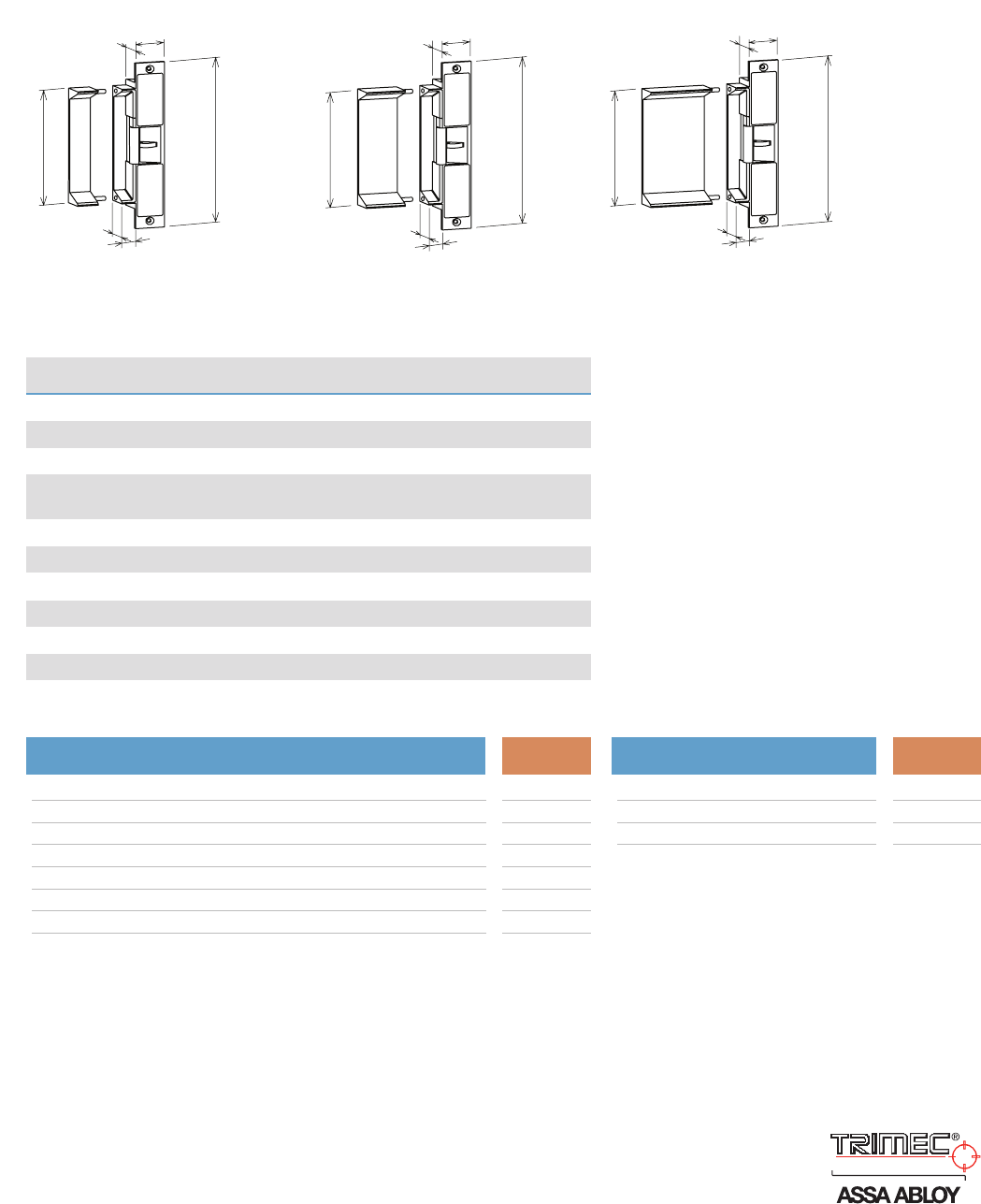

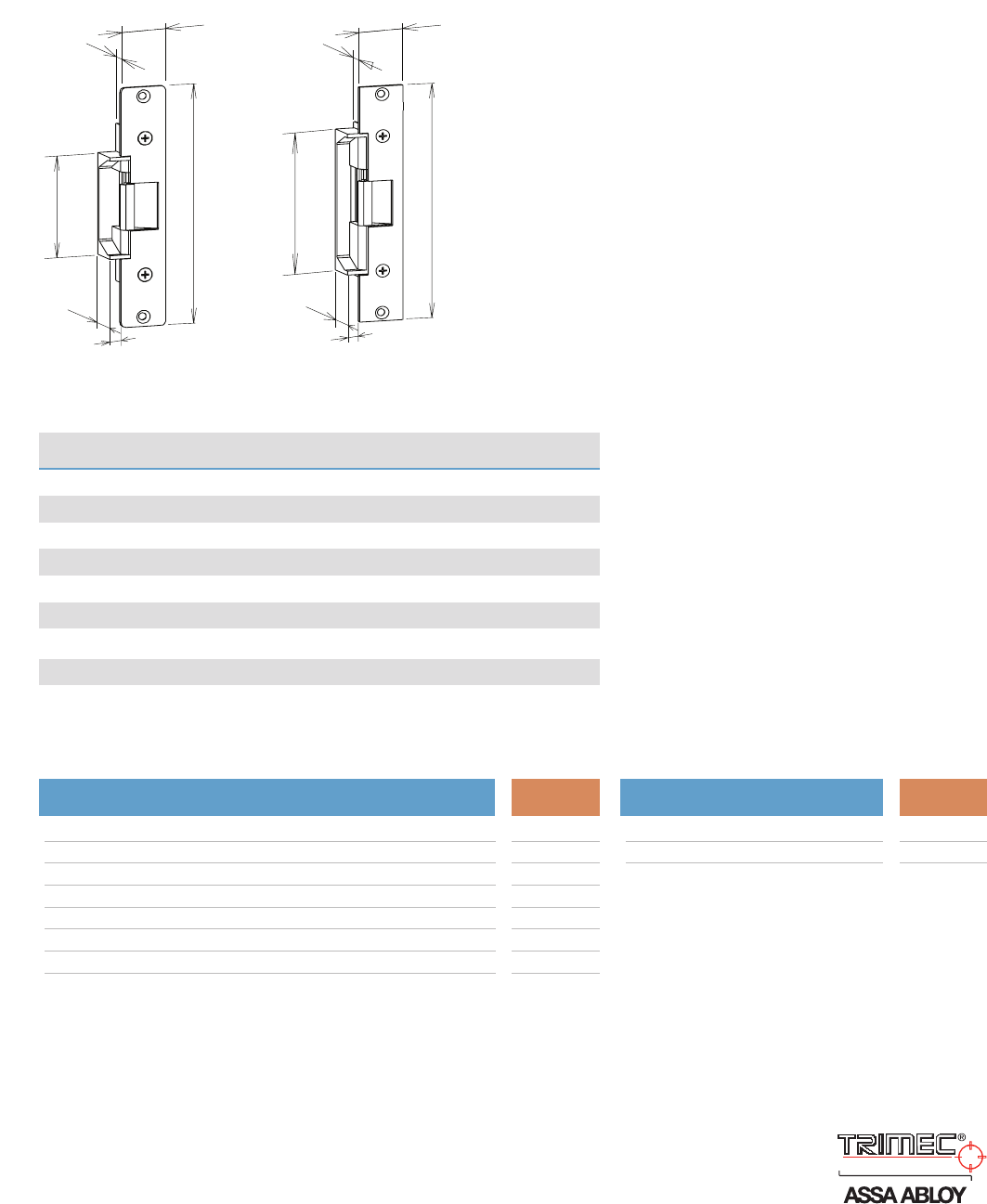

ES110 with 15mm ext lip
- “A” Plate
ES110 with 25mm ext lip
- “A” Plate
ES110 with 50mm ext lip
- “A” Plate
86mm
123.7mm
32mm
19mm
43mm
32mm
123.7mm
86mm
19mm
43mm
123.7mm
86mm
19mm
32mm
43mm
35mm
50mm
25mm
15mm
ES110 Technical Information
Voltage
Current
Solenoid
Monitoring
Holding Force
Endurance
Environment
Body
Keeper
Specification Statement
Where Power to Lock and Power to Open
functions may be required in the same building,
the strike must be interchangeable from either
“Power to Lock” or “Power to Open” on site.
The electric strike should not consume current
greater than 243mA @ 12Vdc or 187mA @
24Vdc and have a solenoid suitable for
continuous use. Certifications must include CE,
C-tick and 4hr fire rating.
The strike should have a minimum holding
force of 680kg, and an endurance rating of 1
million cycles.
12 or 24Vdc
243 mA @ 12Vdc – 187mA @ 24Vdc
Solenoids are rated for continuous use.
None
680 kg Static Strength Rating
Cycle tested to 1,000,000 operations
Operational temperature range -20°C to + 60°C
Weather resistant construction available. (IP56)
Cast Aluminium Construction
Stainless Steel
Faceplate Style l w a
B (ANSI Long) - SS 201.6 36.3 185.7
B (ANSI Long) - AL 201.6 36.3 185.7
Note: SS - Stainless Steel, AL - Aluminium
Part
Number
210100-530
210100-536
Ordering Information
D (Euro Sash RH)
[DIN Left] - SS
F (UK Sash RH)
[DIN Left] - SS
G (UK Sash LH)
[DIN Right] - SS
K (Short Sash LH)
[DIN Left] - SS
L (Short Sash RH)
[DIN Right] - SS
Part
Number
Ordering Information
Faceplate Style l w a
J - AL 201.6 32 16 185.7
Note: AL - Aluminium
Part
Number
210100-523
Ordering Information
10

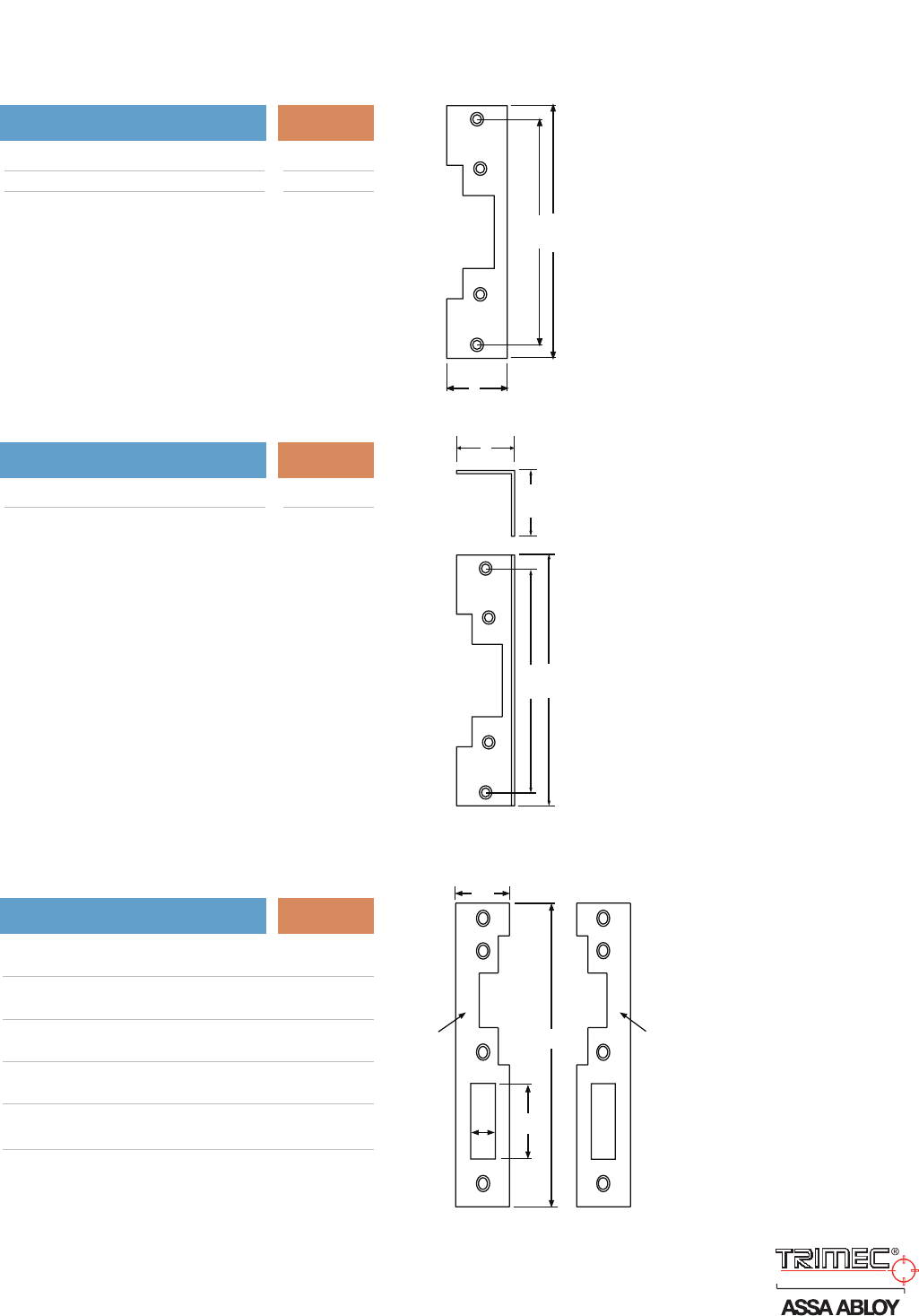

ES100 / ES110 Faceplate Options
assaabloy.com.au
end Plat
t
)
Left Hand Plate
(DIN Right)
w
l
a
b
w
a
d
l
l
a
w
Note: SS - Stainless Steely
Note: All face plates are sold separately
Faceplate Style l w a b
209
251
251
182
182
31.7
25
25
32
32
60
74
74
36.5
36.5
11.7
12
12
14.7
14.7
210100-538
210100-528
210100-527
219100-532
219100-534
11
12
ES150 Series Surface Mounted Electric Strike
General Description

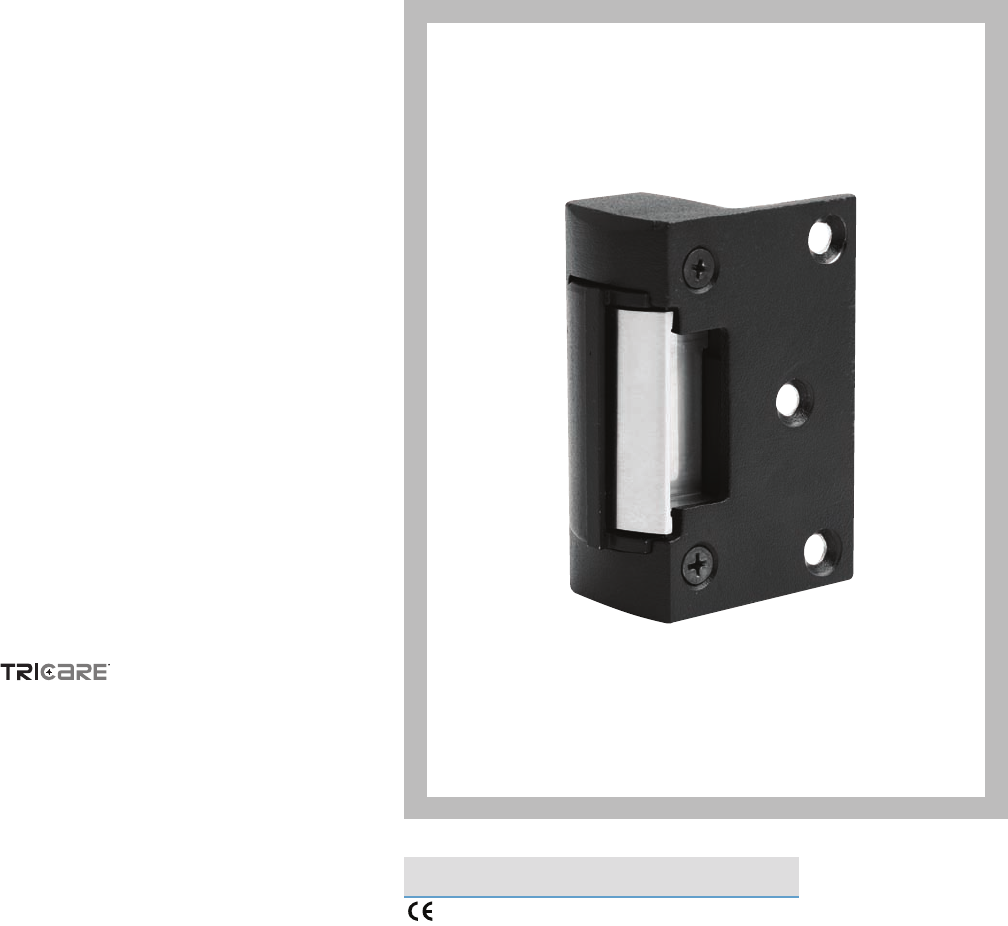

ES150 is a surface mounted electric strike
suitable for use with rim or surface type dead
latches. This strike is easy to install and can be
simply controlled by a keypad, keyswitch or
integrated into any access control system.
ES150 offers high levels of security and features
usually provided by more expensive electric
locking solutions. The electric strike can be easily
installed on steel and wooden door frames. A
Weather resistant version is also available for
exterior applications..
Key Features
•Fail safe/fail secure changeable on site
•Easy installation suitable for steel and wooden
door frames
•Stainless steel striker for extra strength and
durability
•Available in 12 or 24Vdc
•Solenoid rated for continuous use
•IP56 weather resistant version available
•Australian designed and made
•5 Year Warranty
Applications
•Surface or rim mounted applications
•Suitable for use with all access control systems
•Exposed areas (weather resistant model only)
assaabloy.com.au
Standards and Compliance
CE Approved
13
ES150 Series Surface Mounted Electric Strike
Specification Statement
The electric strike must be suitable for surface
mount applications for use with rim or surface
mount door locks.
Where Power To Lock and Power To Open
functions may be required in the same building,
an individual strike is interchangeable from
either “Power to Lock” or “Power to Open”
on site.
The electric strike should not consume current
greater than 243mA @ 12Vdc or 187mA @
24Vdc. Certifications must include CE and
C-Tick.
The strike should be tested to 1 million
operations and have a minimum holding force
not less than 680kg.
ES150 Technical Information
Voltage
Current
Solenoid
Monitoring
Holding Force
Endurance
Environment
Body
Keeper
Product Description Part Number
12V Fail Safe Surface Rim Strike 110151-000
12V Fail Safe Surface Rim Strike Weather Resistant 110151-010
12V Fail Secure Surface Rim Strike 110152-000
12V Fail Secure Surface Rim Strike Weather Resistant 110152-010
24V Fail Safe Surface Rim Strike 110153-000
24V Fail Secure Surface Rim Strike 110154-000
Ordering Information
12 or 24Vdc
243 mA @ 12Vdc – 187mA @ 24Vdc
Solenoids are rated for continuous use.
None
680 kg Static Strength Rating
Cycle tested to 1,000,000 operations
Operational temperature range -20°C to + 60°C
Weather resistant construction available. (IP56)
Solid Stainless Steel Construction
Stainless Steel

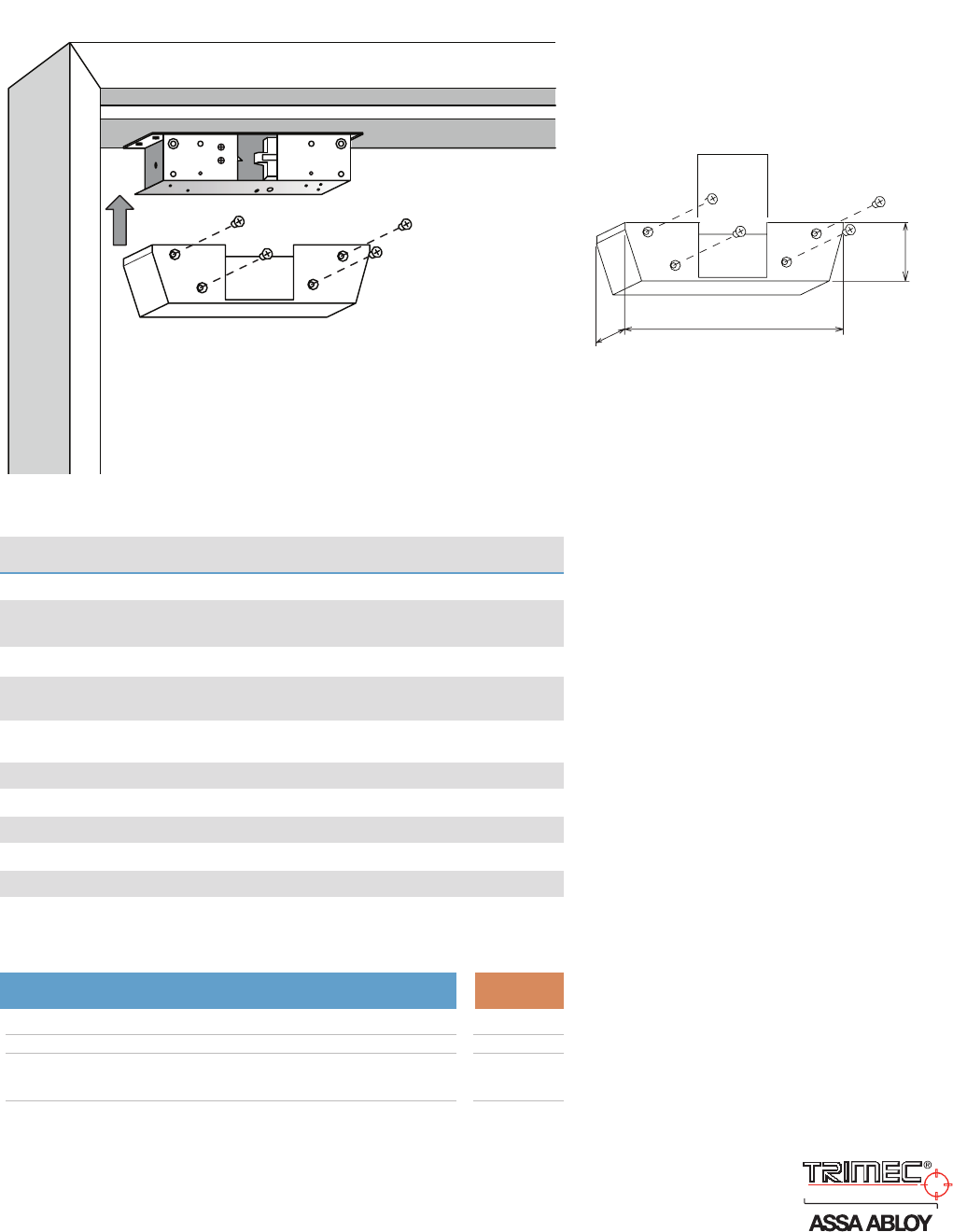

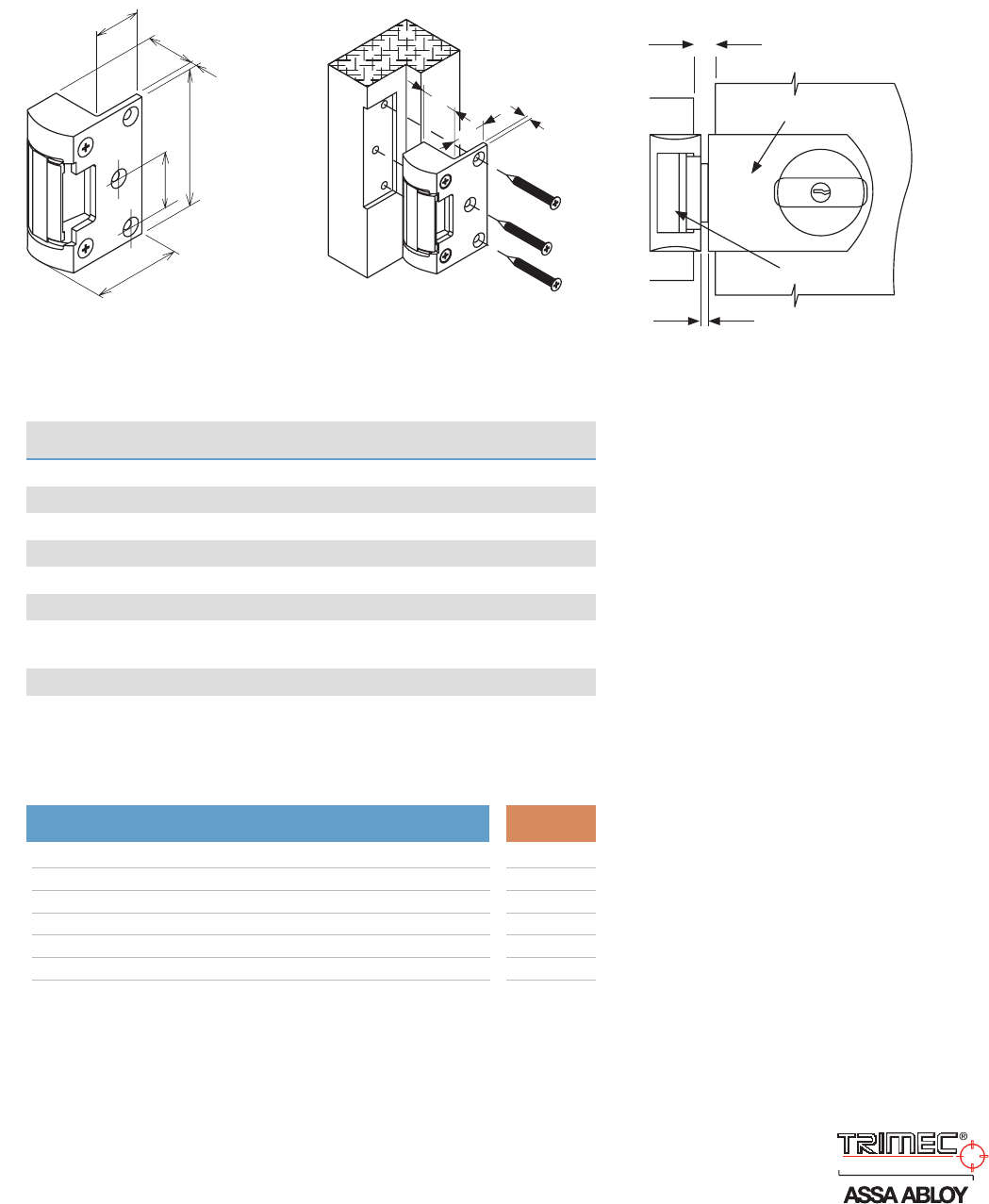

Ensure 1mm Working Gap without Mechanical Interference
Recommended 4mm gap
Minimum 1mm working gap
Latch
Strike
33
32
4
90mm
35
60mm
33mm
32mm
4mm
ES150
14
ES200 Series Electric Strike
General Description

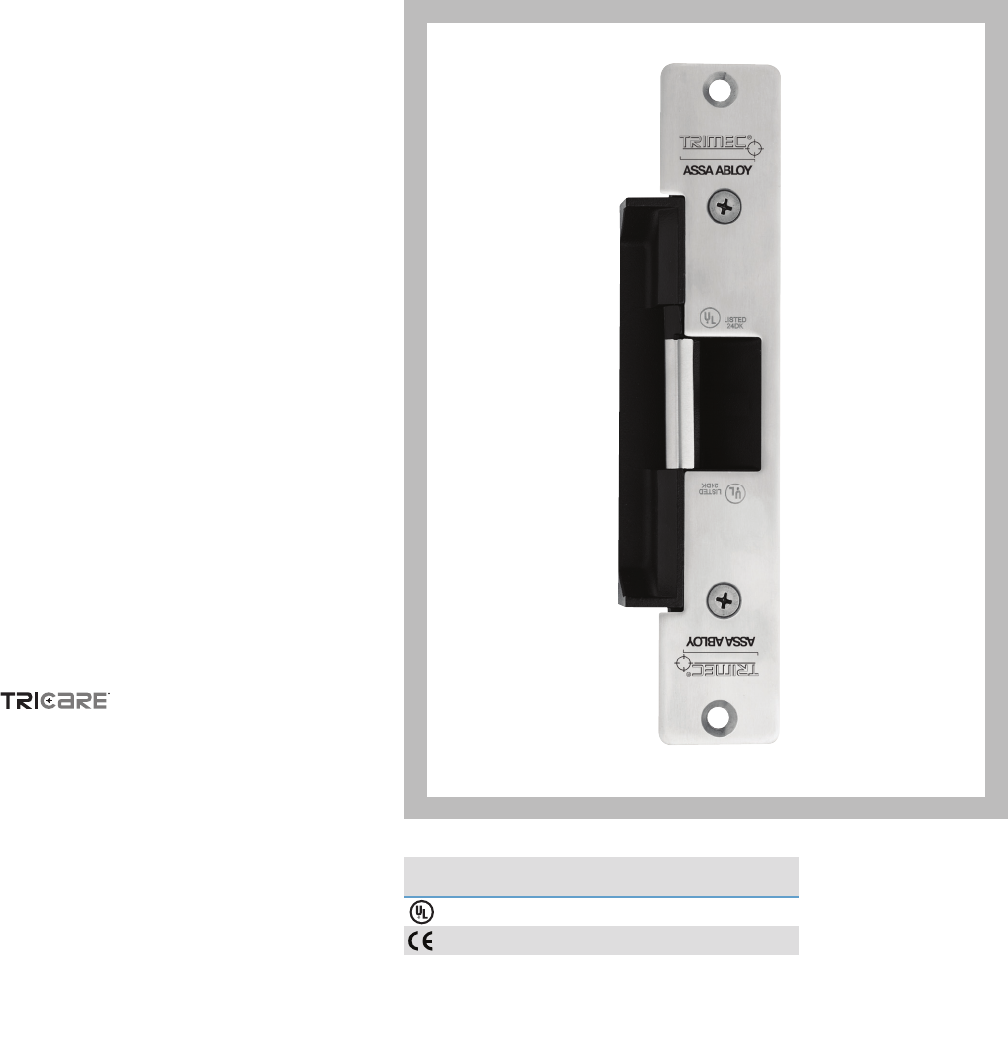

The ES200 series electric strikes are high security
products manufactured from solid stainless
steel and designed for use with all access control
systems. The strikes are suitable for use with
hinged doors which require either fire or
security control as part of a building
management system.
These strikes are flexible and can be changed
from fail safe to fail secure, mounted on the left
or right hand side of the door and are available
in 12 or 24Vdc.
They offer a strong, dependable and long-lasting
electric strike solution.
Key Features
•Fail safe/fail secure changeable on site
•High security
•4 Hour fire rating
•850kg holding force
•1 million cycles endurance rating
•Cast stainless steel body
•Stainless steel locking pins
•Low Current consumption - Max 175mA
@12Vdc
•Mounting kit supplied as standard
•Australian designed and made
•5 Year Warranty
Applications
•High traffic areas
•Fire rated door sets
•Open in/open out doors
•Suitable for use with all access control systems
Standards and Compliance
(Security) Australian Lock Standard (AS4145.2.1993)
(Durability) Australian Lock Standard
(AS4145.2.1993)
Successfully fire rated up to 4hrs on fire door
assemblies in accordance with AS1905.1. 2005
(Part 1: Fire resistant door sets)
Approved to UL1034 (highest level)
CE Approved
Hour
4
S3
D3
assaabloy.com.au
15
ES200 Series Electric Strike
Product Description Part Number
25mm Extension Lip 220200-505
12V Solenoid 220200-513
Mounting Kit 220200-519
Accessories
Specification Statement
The strike should be constructed of solid
stainless steel, have a minimum holding force
of 850kg and have an endurance rating of 1
million cycles. The one strike must be
changeable from fail safe to fail secure on site
where required. The strike should not consume
current greater than 175mA at 12Vdc and have
a solenoid rated for continuous use.
Certifications must include CE, C-Tick and 4 hr
fire rating.
ES200 Technical Information
Voltage
Current
Solenoid
Monitoring
Holding Force
Endurance
Latch
Environment
Body
Keeper
Product Description Part Number
12V Fail Safe Electric Strike 110201-000
12V Fail Safe Electric Strike with No Extension Lip 110201-010
12V Fail Secure Electric Strike 110202-000
12V Fail Secure Electric Strike with No Extension Lip 110202-010
24V Fail Safe Electric Strike 110203-000
24V Fail Secure Electric Strike with No Extension Lip 110203-010
Ordering Information
12 or 24Vdc
175 mA @ 12Vdc - 88 mA @ 24Vdc
Solenoids are rated for continuous use.
None
850kg Static Strength Rating
Cycle tested to 1,000,000 operations
Suitable for 15mm latch bolt with 3mm door gap
Operational temperature range -20°C to +60°C
Solid Stainless Steel Construction
Stainless Steel

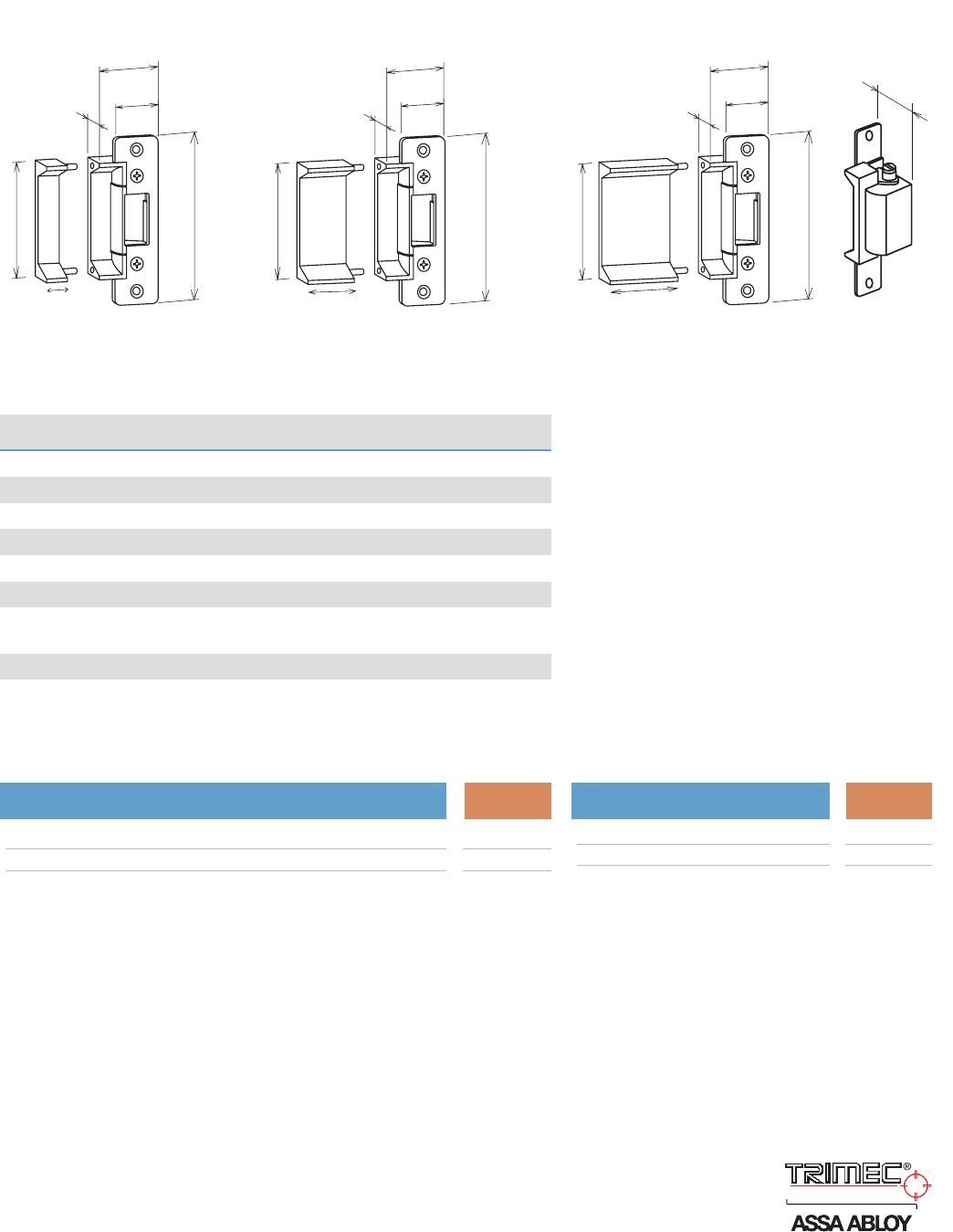

ES200 with 25mm Extension Lip ES200 with 50mm Extension Lip ES200 with 75mm Extension Lip
122mm
24.5mm
28.5mm
26.5mm
176mm
122mm
26.5mm
24.5mm
28.5mm
176mm
122mm
26.5mm
24.5mm
28.5mm
176mm
15.5mm 15.5mm 15.5mm
16

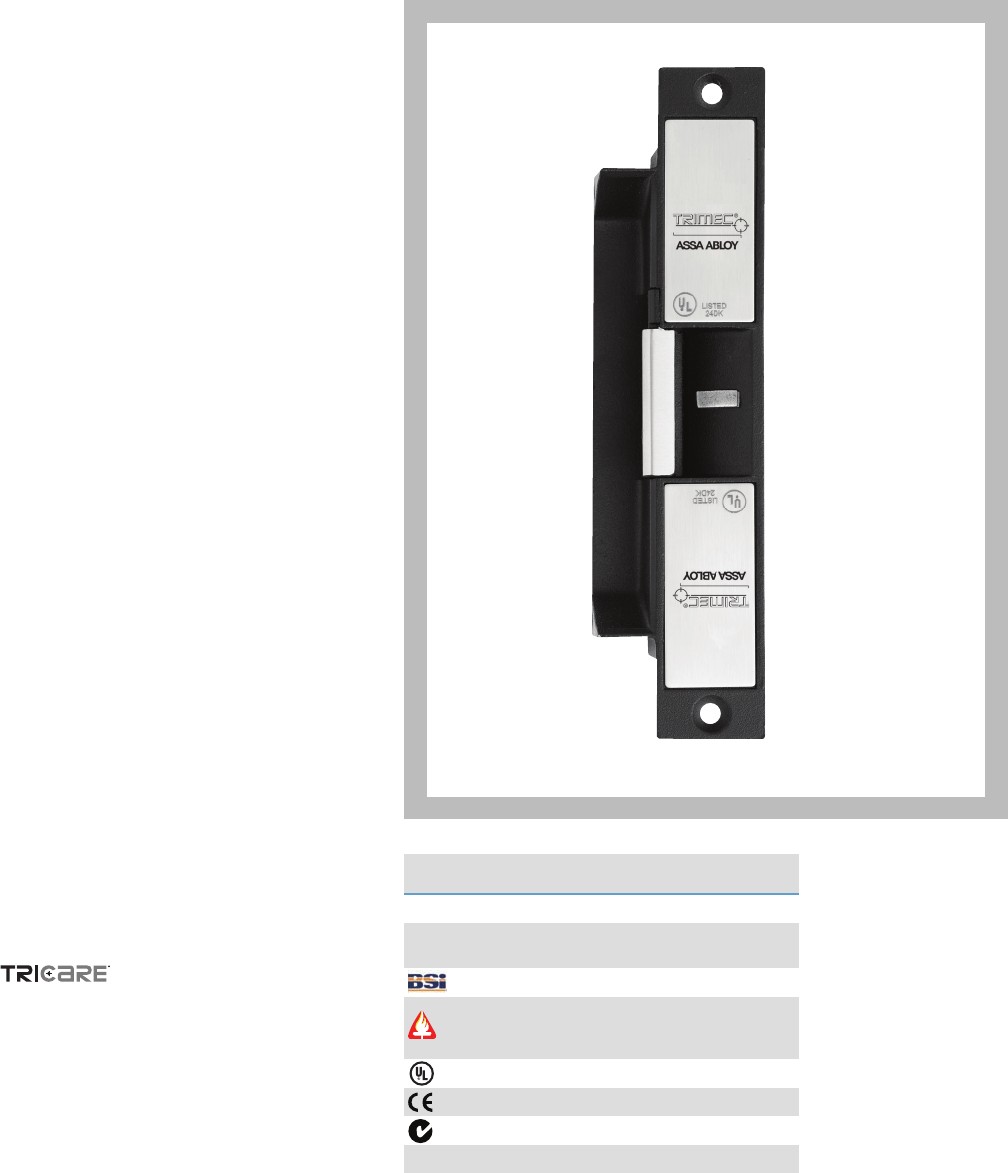

ES2000 Series Monitored Electric Strike
General Description

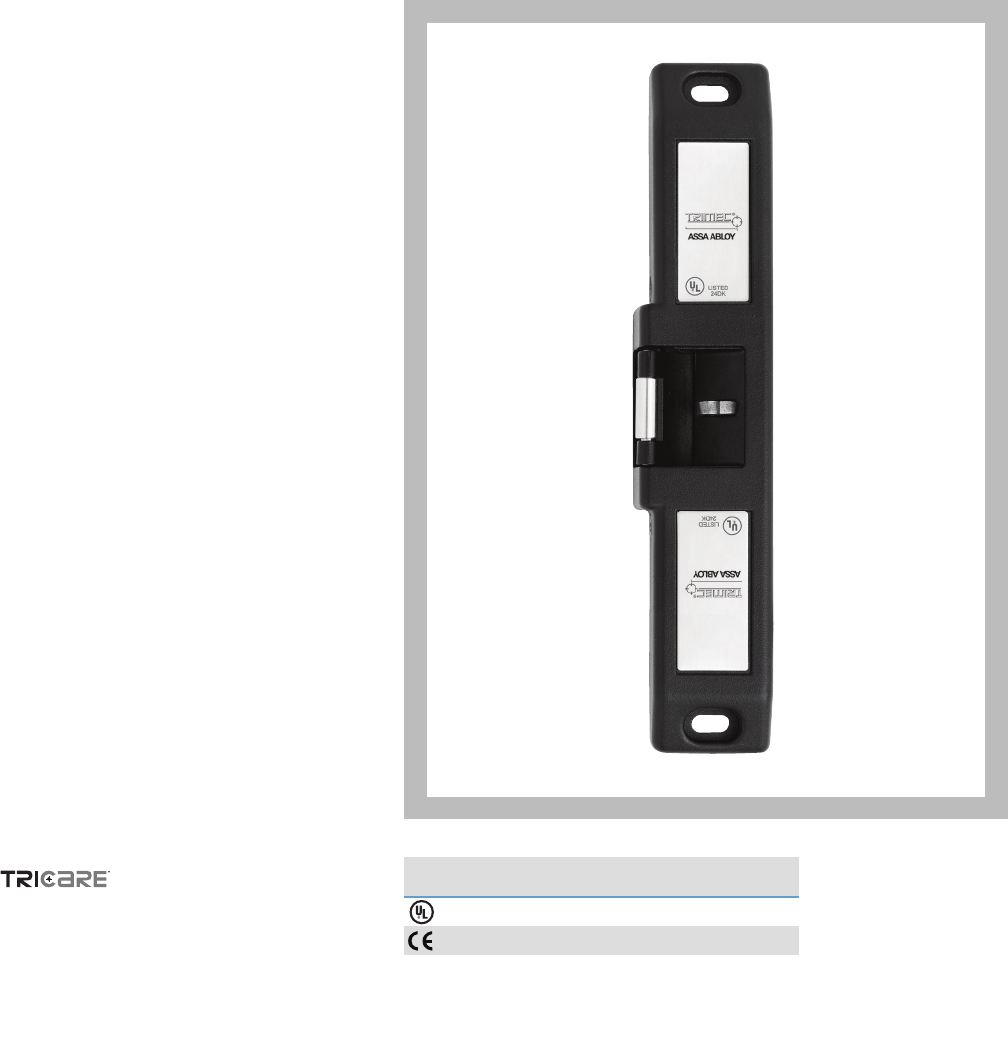

The ES2000 series electric strikes are fully
monitored high security products manufactured
from solid stainless steel and designed for use
with all access control systems. The strikes are
suitable for use with hinged doors which require
either fire or security control as part of a
building management system.
These strikes are flexible and can be changed
from fail safe to fail secure, mounted on the left
or right hand side of the door and are available
in 12 or 24Vdc.
They offer a strong, dependable and long-lasting
electric strike solution with a 850kg holding
force and endurance rating of 1 million cycles.
Key Features
•Fully monitored – strike locked and door
latched
•Fail safe/fail secure changeable on site
•High security
•4 Hour fire rating
•850kg holding force
•1 million cycles endurance rating
•Cast stainless steel body
•Stainless steel locking pins
•SCEC Endorsed
•Low Current consumption - Max 175ma
@12Vdc
•Solenoid rated for continuous use
•Mounting kit supplied as standard
•Australian designed and made
•5 Year Warranty
Applications
•High traffic areas
•Fire rated door sets
•Open in/open out doors
•Suitable for use with all access control systems
Standards and Compliance
(Security) Australian Lock Standard (AS4145.2.1993)
(Durability) Australian Lock Standard
(AS4145.2.1993)
BS 5872 Approved
Successfully fire rated up to 4hrs on fire door
assemblies in accordance with AS1905.1. 2005
(Part 1: Fire resistant door sets)
Approved to UL1034 (highest level)
CE Approved
C-Tick Certified
SCEC endorsed for secure areas
Hour
4
S3
D3
assaabloy.com.au
17
ES2000 Series Monitored Electric Strike
Product Description Part Number
25mm Extension Lip 220200-505
12V Solenoid 220200-513
Mounting Kit 220200-519
Accessories
Specification Statement
The strike should be constructed of solid
stainless steel, have a minimum holding force
of 850kg and have an endurance rating of 1
million cycles. Monitoring must include
independent door / latch & solenoid
monitoring. The one strike must be changeable
from fail safe to fail secure on site where
required. The strike should not consume
current greater than 175mA at 12Vdc and have
a solenoid rated for continuous use.
Certifications must include CE, C-Tick and 4 hr
fire rating.
ES2000 Technical Information
Voltage
Current
Solenoid
Monitoring
Holding Force
Endurance
Latch
Environment
Body
Keeper
Product Description Part Number
12V Fail Safe Electric Strike 112001-000
12V Fail Safe Electric Strike with no Extension Lip 112001-010
12V Fail Safe with Extension Lip Holes 112001-060
12V Fail Secure Electric Strike 112002-000
12V Fail Secure Electric Strike with no Extension Lip 112002-010
24V Fail Safe Electric Strike 112003-000
24V Fail Secure Electric Strike 112004-000
Ordering Information
12 or 24Vdc
175 mA @ 12Vdc - 88 mA @ 24Vdc
Solenoids are rated for continuous use.
Solenoid Monitor - 1 amp NO/NC microswitch
Door/Latch Monitor - 1 amp NO/NC microswitch
850kg Static Strength Rating
Cycle tested to 1,000,000 operations
Suitable for 15mm latch bolt with 3mm door gap
Operational temperature range -20°C to +60°C
Solid Stainless Steel Construction
Stainless Steel
ES2000 with 25mm Extension Lip ES2000 with 50mm Extension Lip ES2000 with 75mm Extension Lip
122mm
24.5mm
28.5mm
26.5mm
176mm
122mm
26.5mm
24.5mm
28.5mm
176mm
122mm
26.5mm
24.5mm
28.5mm
176mm
15.5mm 15.5mm 15.5mm
18

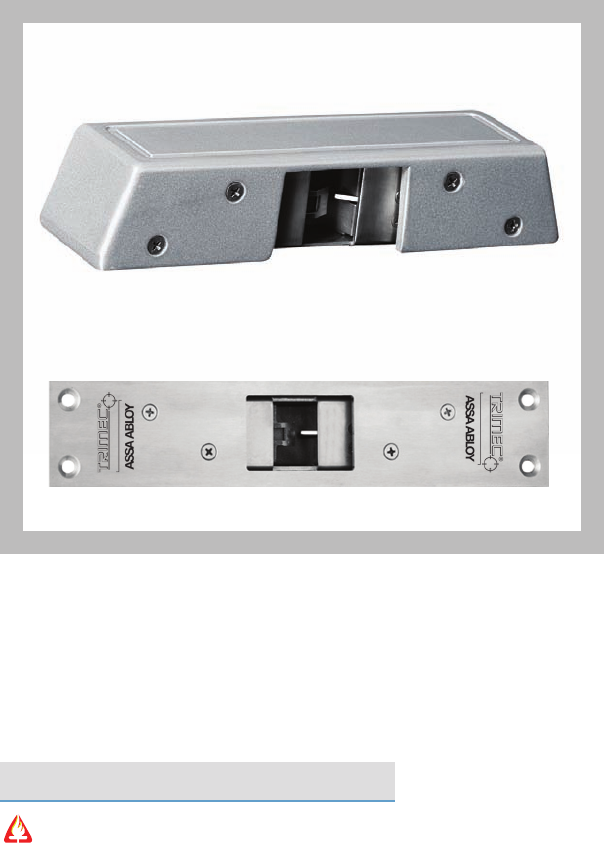

ES2600 Series Monitored Electric Strike
General Description
The ES2600 Series surface mounted electric
strikes are high security products manufactured
from solid stainless steel and designed to be
used with existing and new panic bars fitted to
emergency doors.
When used in conjunction with a standard
access control system, these strikes convert “Exit
only” doors with “Pullman type” latches into a
full access controlled door, thereby allowing
authorised access from the secure side.
The ES2600 series are fully monitored with both
solenoid and latch/door monitoring functions &
can be changed from fail safe to fail secure
on site.
Key Features
•Fail safe/fail secure changeable on site
•High security
•Available in 12 or 24Vdc
•650kg holding force
•1 million cycles endurance rating
•Body depth only 27mm
•Cast stainless steel body
•Low current consumption - max 175Ma @
12Vdc
•Continuously rated solenoid
•Installation template
•Australian designed and made
•5 Year Warranty
Applications
•For use with panic bars
•Surface mount
•Egress doors
•Fire rated door sets
•Open out door sets
•Suitable for use with all access control systems
assaabloy.com.au
Standards and Compliance
Approved to UL1034 (highest level)
CE Approved
19
ES2600 Series Monitored Electric Strike
Specification Statement
The strike should be constructed of solid
stainless steel, have a minimum holding force
of 650kg and have an endurance rating of 1
million cycles. Maximum penetration into the
door frame should not exceed 12mm. The one
strike must be changeable from fail safe to fail
secure on site where required. The strike
should not consume current greater than
175mA at 12Vdc and have a solenoid rated for
continuous use. Certifications must include CE
and C-Tick.
ES2600 Technical Information
Voltage
Current
Solenoid
Monitoring
Holding Force
Endurance
Additional
Environment
Body
Keeper
Product Description Part Number
12V Fail Safe with Roller Keeper for Panic Bar 112601-000
12V Fail Secure with Roller Keeper for Panic Bar 112602-000
Ordering Information
12 or 24Vdc
175 mA @ 12Vdc - 88 mA @ 24Vdc
Solenoids are rated for continuous use.
Solenoid Monitor - 1 amp NO/NC microswitch
Door/Latch Monitor - 1 amp NO/NC microswitch
650kg Static Strength Rating
Cycle tested to 1,000,000 operations
Anti friction roller (patented)
Suits panic bars with 15 to 20mm Pullman latch projection
Operational temperature range -20°C to +60°C
Solid Stainless Steel Construction
Stainless Steel
ES2600
213mm
145mm
70mm
40mm
234mm
11mm
40mm
20
ES300 Series Electric Strike
General Description
The ES300 series electric strikes are designed for
high security applications and manufactured
from solid stainless steel.
These long ANSI strikes offer a strong
dependable and long-lasting electric strike
solution and are suitable for use with any access
control system.
These strikes are extremely flexible and can be
changed from fail safe to fail secure and
mounted on the left or right hand side of the
door, thus reducing the amount of stock needed
to cover each application.
Key Features
•Fail safe/fail secure changeable on site
•Available in 12 or 24Vdc
•850kg holding force
•1 million cycles endurance rating
•Stainless Steel locking pins
•Continuously rated solenoid
•Optional mounting kit
•Australian designed and made
•5 Year Warranty
Applications
•Timber or metal doors
•Open in/open out doors
•Suitable for use with all access control systems
assaabloy.com.au
Standards and Compliance
Approved to UL1034 (highest level)
CE Approved
21
ES300 Series Electric Strike
Specification Statement
The strike should be constructed of solid
stainless steel, have a minimum holding force
of 850kg and have an endurance rating of 1
million cycles. The one strike must be
changeable from fail safe to fail secure on site
where required. The strike should not consume
current greater than 175mA @ 12Vdc and have
a solenoid rated for continuous use.
Certifications must include CE and C-Tick.
Product Description Part Number
12V Fail Safe Large Stainless Steel Faceplate - ANSI Ext Lip 110311-000
12V Fail Secure Large Stainless Steel Faceplate - ANSI Ext Lip 110312-000
12V Fail Safe Large Stainless Steel Faceplate 110321-000
12V Fail Safe Large Stainless Steel Faceplate - Wide Ext Lip (SEC) 110321-030
12V Fail Secure Large Stainless Steel Faceplate - Wide Ext Lip (SEC) 110322-030
24V Fail Safe Large Stainless Steel Faceplate - Wide Ext Lip (SEC) 110323-030
24V Fail Secure Large Stainless Steel Faceplate - Wide Ext Lip (SEC) 110324-030
Ordering Information

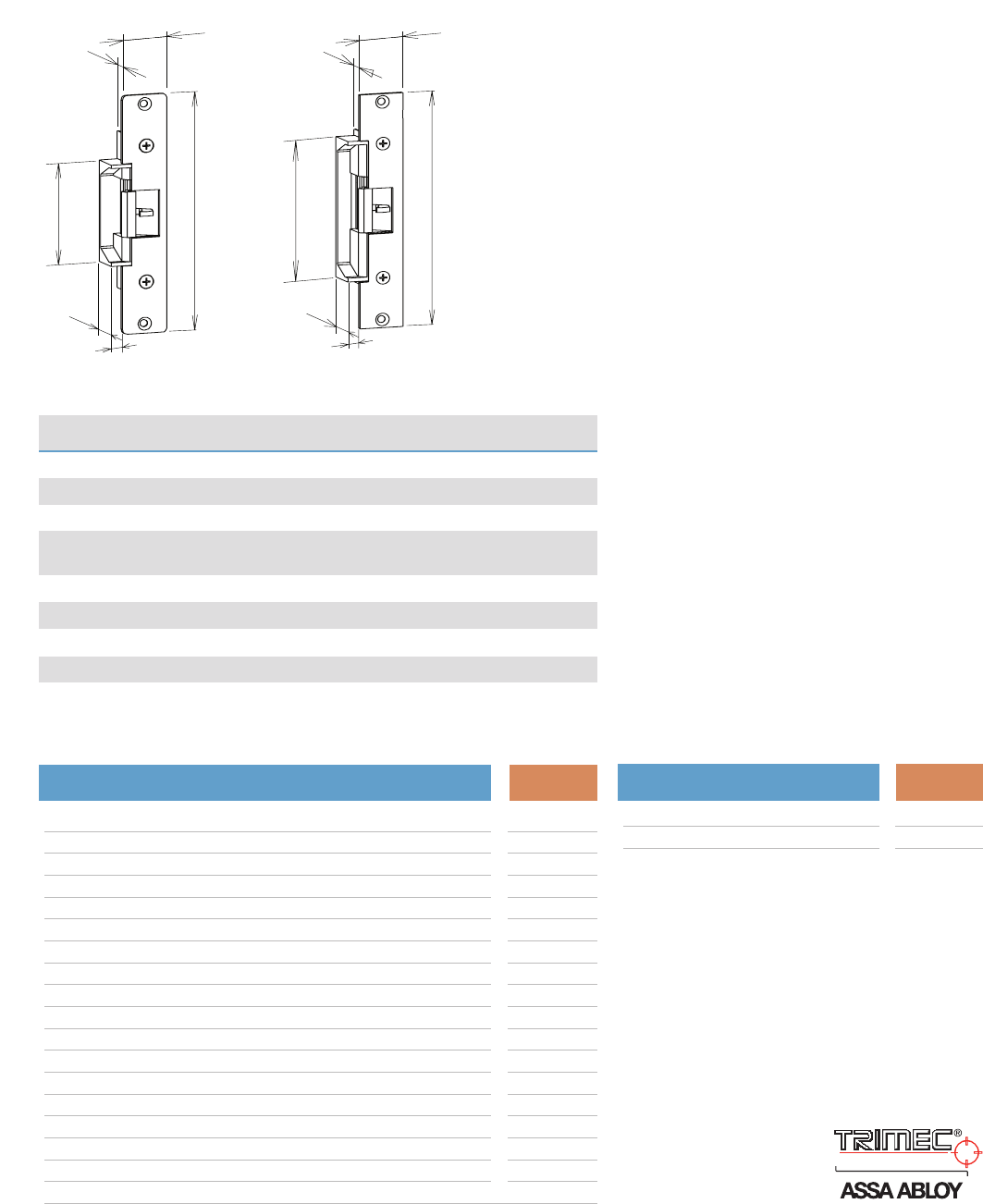

ES300 ANSI Extension Lip ES300 Wide Extension Lip
86mm
201.5mm
30.5mm
27.5mm
123mm
201.5mm
27.5mm
30.5mm
m36.3mm
11mm 11mm
36.3m
ES300 Technical Information
Voltage
Current
Solenoid
Monitoring
Holding Force
Endurance
Environment
Body
Keeper
12 or 24Vdc
175mA @ 12Vdc – 88mA @ 24Vdc
Solenoids rated for continuous use.
None
850kg static strength rating
Cycle tested to 1,000,000 operations
Operational temperature range -20ľc to +60ľc
Solid Stainless Steel Construction
Stainless Steel
Product Description Part Number
Mounting Kit 220200-519
25mm Extension Lip 220300-500
Accessories
22
ES3000 Monitored Series Electric Strike
General Description
The ES3000 series electric strikes are designed
for high security applications and manufactured
from solid stainless steel.
These long ANSI strikes offer a strong
dependable and long-lasting electric strike
solution and are suitable for use with any access
control system.
These strikes are extremely flexible and can be
changed from fail safe to fail secure and
mounted on the left or right hand side of the
door, thus reducing the amount of stock needed
to cover each application.
Key Features
•Fail safe/fail secure changeable on site
•Available in 12 or 24Vdc
•850kg holding force
•1 million cycles endurance rating
•Stainless Steel locking pins
•Continuously rated solenoid
•Optional mounting kit
•Australian designed and made
•5 Year Warranty
Applications
•Timber or metal doors
•Open in/open out doors
•Suitable for use with all access control systems
assaabloy.com.au
Standards and Compliance
Approved to UL1034 (highest level)
CE Approved
23
ES3000 Monitored Series Electric Strike
Specification Statement
The strike should be constructed of solid
stainless steel, have a minimum holding force
of 850kg and have an endurance rating of 1
million cycles. Monitoring must include
independent door / latch & solenoid
monitoring. The one strike must be changeable
from fail safe to fail secure on site where
required. The strike should not consume
current greater than 175mA @ 12Vdc and have
a solenoid rated for continuous use.
Certifications must include CE and C-Tick.
ES3000 ANSI Extension Lip ES3000 Harcor Face Plate Wide Extension Lip
86mm
201.5mm
30.5mm
27.5mm
123mm
201.5mm
27.5mm
30.5mm
31.6mm36.3mm
11mm 11mm
ES3000 Technical Information
Voltage
Current
Solenoid
Monitoring
Holding Force
Endurance
Environment
Body
Keeper
12 or 24Vdc
175 mA @ 12Vdc - 88 mA @ 24Vdc
Solenoids rated for continuous use.
Solenoid Monitor - 1 amp NO/NC microswitch
Door / Latch - 1 amp NO/NC microswitch
850kg static strength rating
Cycle tested to 1,000,000 operations
Operational temperature range -20°C to +60°C
Solid Stainless Steel Construction
Stainless Steel
Product Description Part Number
ES3000 Series - ANSI Extension LIP
12V Fail Safe Large Stainless Steel Faceplate 113101-000
12V Fail Safe Large Stainless Steel Faceplate - No Ext Lip 113101-010
12V Fail Safe Large Stainless Steel Faceplate - with Extension Lip Holes 113101-030
12V Fail Safe Large Stainless Steel Faceplate - 13mm Ext Lip 113101-040
12V Fail Safe Large Stainless Steel Faceplate 113102-000
24V Fail Safe Large Stainless Steel Faceplate 113103-000
24V Fail Safe Large Stainless Steel Faceplate - No Ext Lip 113103-010
24V Fail Safe Large Stainless Steel Faceplate - 13mm Ext Lip 113103-040
ES3000 Series - Wide Extension LIP
12V Fail Safe Large Stainless Steel Faceplate Lip 113201-000
12V Fail Safe Large Stainless Steel Faceplate (SEC) 113201-030
12V Fail Secure Large Stainless Steel Faceplate 113202-000
12V Fail Secure Large Stainless Steel Faceplate (SEC) 113202-030
24V Fail Safe Large Stainless Steel Faceplate 113203-000
24V Fail Safe Large Stainless Steel Faceplate (SEC) 113203-030
24V Fail Secure Large Stainless Steel Faceplate 113204-000
24V Fail Secure Large Stainless Steel Faceplate (SEC) 113204-030
Ordering Information
Product Description Part Number
Mounting Kit 220200-519
25mm Extension Lip 220300-500
Accessories
24

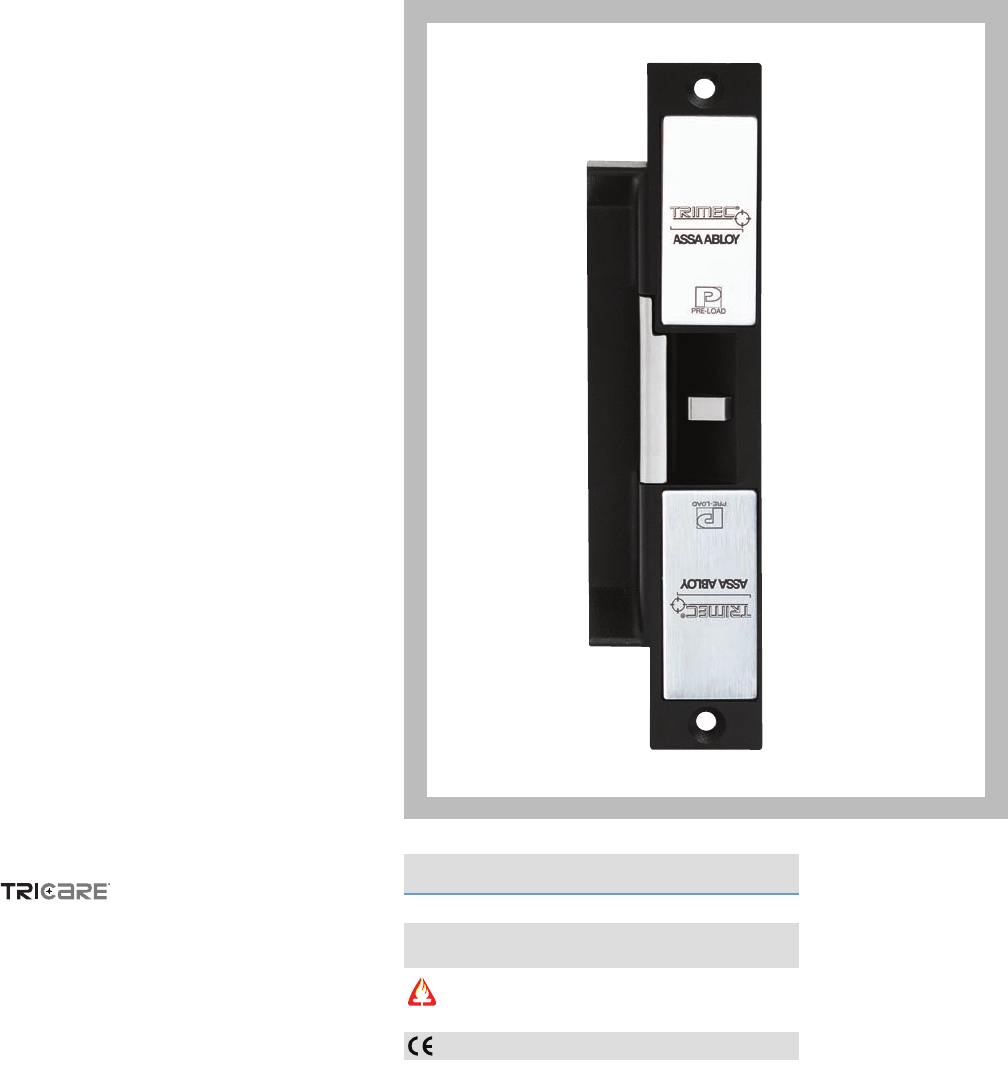

ES9000 Series Pre-Load Strike
General Description
The ES9000 has been designed to suit the
harshest commercial environments, and has the
unique feature of the ability to operate with up
to 25kg of pre-load pressure on the keeper.
Pre-load is a common condition that caused by
pulling on a door before it unlocks, the weight of
warped or drooping doors, seals on fire doors, or
by differential air pressure created when heating
and cooling systems are in use.
Standard features include multi voltage 10 -
30Vdc and field changeable settings from fail
safe tofail secure.
Built to last, this is a premium locking solution
that has been tested in excess of 2 million cycles
and boasts unique features like no other
available on the market today.
Key Features
•Operates under pre load up to 25kg
•Easy field selectable fail safe/fail secure
•Multi voltage 10-30Vdc
•1300kg holding force
•2.5 million cycles endurance rating
•Latch keeper is significantly quieter in
operation
•Weather resistant
•Mounting tabs as standard
•Non handed
•Australian designed and made
•5 Year Warranty
Applications
•High traffic areas
•Doors subjected to side load (pre load)
•Fire rated door sets
•Open in/open out doors
•Suitable for use with all access control systems
Standards and Compliance
(Security) Australian Lock Standard (AS4145.2.1993)
(Durability) Australian Lock Standard
(AS4145.2.1993)
Successfully fire rated up to 4hrs on fire door
assemblies in accordance with AS1905.1. 2005
(Part 1: Fire resistant door sets)
CE Approved
Hour
4
S3
D3
assaabloy.com.au
25

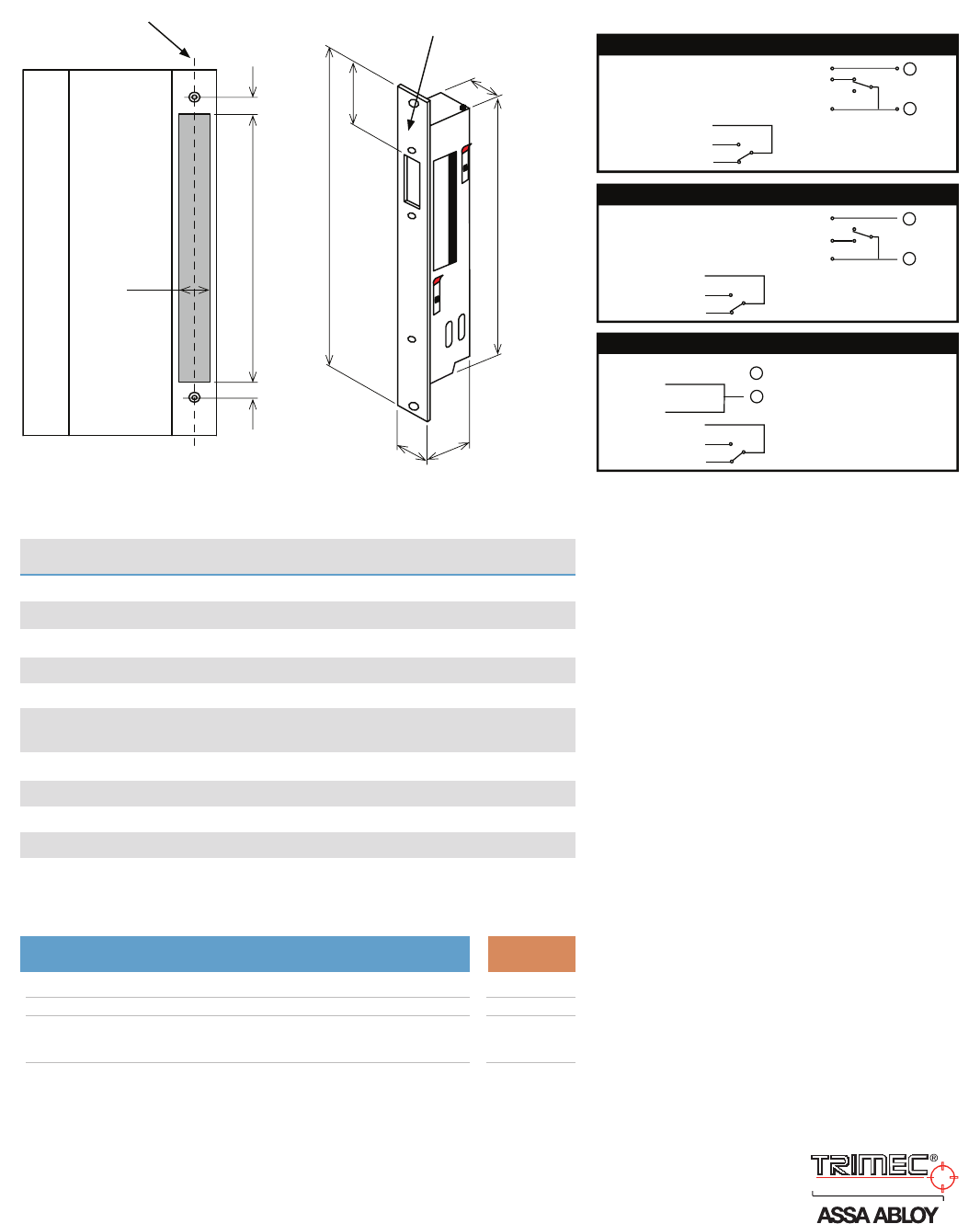

ES9000 Series Pre-Load Strike
Specification Statement
The electric strike should be fully monitored
and have independent door / latch and
solenoid monitor switches. Holding force for
the strike should be not less than 1300kg.
Where Power to Lock and Power to Open
functions may be required in the same
building, a single electric strike should be
interchangeable from either fail safe or fail
secure from the rear of the strike.
The electric strike should not consume current
greater than 250mA @ 12Vdc and have a
solenoid rated for continuous use. A fire rating
not less than 4 hours is required where
applicable. The strike must be capable of
operating with up to 25kg of pre-load
pressure applied to the keeper, be tested to
2.5 million operations and carry a minimum
warranty of 5 years.
ES9000 with 25mm Extension Lip ES900 with 50mm Extension Lip ES9000 with 75mm Extension Lip
122mm
24.5mm
28.5mm
26.5mm
176mm
122mm
26.5mm
24.5mm
28.5mm
176mm
122mm
26.5mm
24.5mm
28.5mm
176mm
15.5mm15.5mm15.5mm
ES9000 Pre-Load Strike Technical Information
Voltage
Current
Solenoids
Electrical protection
Monitoring
Holding Force
Endurance
Latching
Environment
Body
Keeper
10 – 30Vdc
250mA @12Vdc – 130mA @24Vdc
Solenoid rated for continuous use.
Polarity and back EMF protected
Solenoid Monitor - 1 amp NO/NC microswitch
Door / Latch - 1 amp NO/NC microswitch
1300kg static strength rating
1,200,000 cycles endurance rating @ 25kg pre-load
2,500,000 cycles general durability without pre-load conditions
Suitable for 15mm latch with 3mm door gap
Operational temperature range -20°C to +60°C
Solid Stainless Steel Construction
Stainless Steel
Product Description Part Number
ES9000 Pre - Load Multi Function Strike 119001-000
ES9000 Pre - Load Multi Function Strike - No Extension Lip 119001-010
ES9000 Pre - Load Multi Function Strike - 8mm Extension Lip 119001-020
ES9000 Pre - Load Multi Function Strike - with Extension Lip Holes 119001-060
Note: All ES9000 series electric strikes are supplied in Fail Safe configuration.
Ordering Information
26 assaabloy.com.au
TB25 Drop Bolt 28
TB25KO Drop Bolt 30
TB38 Drop Bolt 32
ES6000 Hook Lock 34
ES8000 V-Lock 36
Electromechanical Bolts
27
28

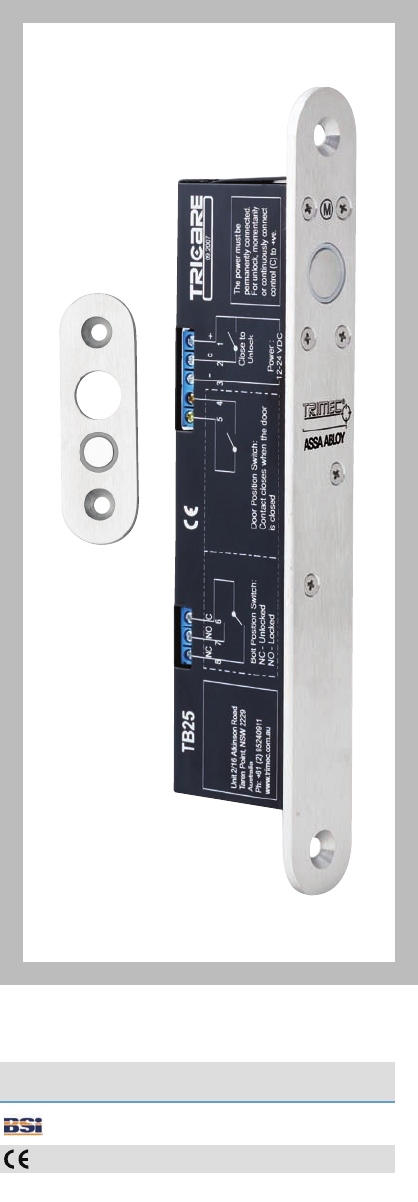

TB25 Drop Bolt
General Description
The TB25 range of drop bolts represent true
engineering innovation, design excellence and
the superior quality customers have come to
expect and demand from Trimec®. Designed for
use on swing-through, double action doors,
these drop bolts are ideal for applications where
an electric strike is impractical.
Key Features
•High Security. Bolt is deadlocked in the
extended position
•Bolt position monitored
•Door position monitor with integrated magnet
into the strike plate (no need to install a
separate reed switch)
•Multiple Orientation, drop bolts will work
horizontally or vertically
•Power to Lock/ Power to Open
•Continuously Rated Solenoid
•Tamper Proof. Lock cannot be defeated by
slipping a metal object between lock and
striker plate
•Intelligent Electronics. These intelligent bolts
will attempt to re-close the bolt 8 times,
allowing time for swing through doors to settle
in the closed position
•Thermal Protection. In the event of solenoid
overheat, a thermal fuse will operate,
eliminating any fire risk
Applications
•Glass doors
•Timer Doors
Standards and Compliance
British Standard BSEN 50081-1
BSEN 50082-1
CE Approved
assaabloy.com.au
29

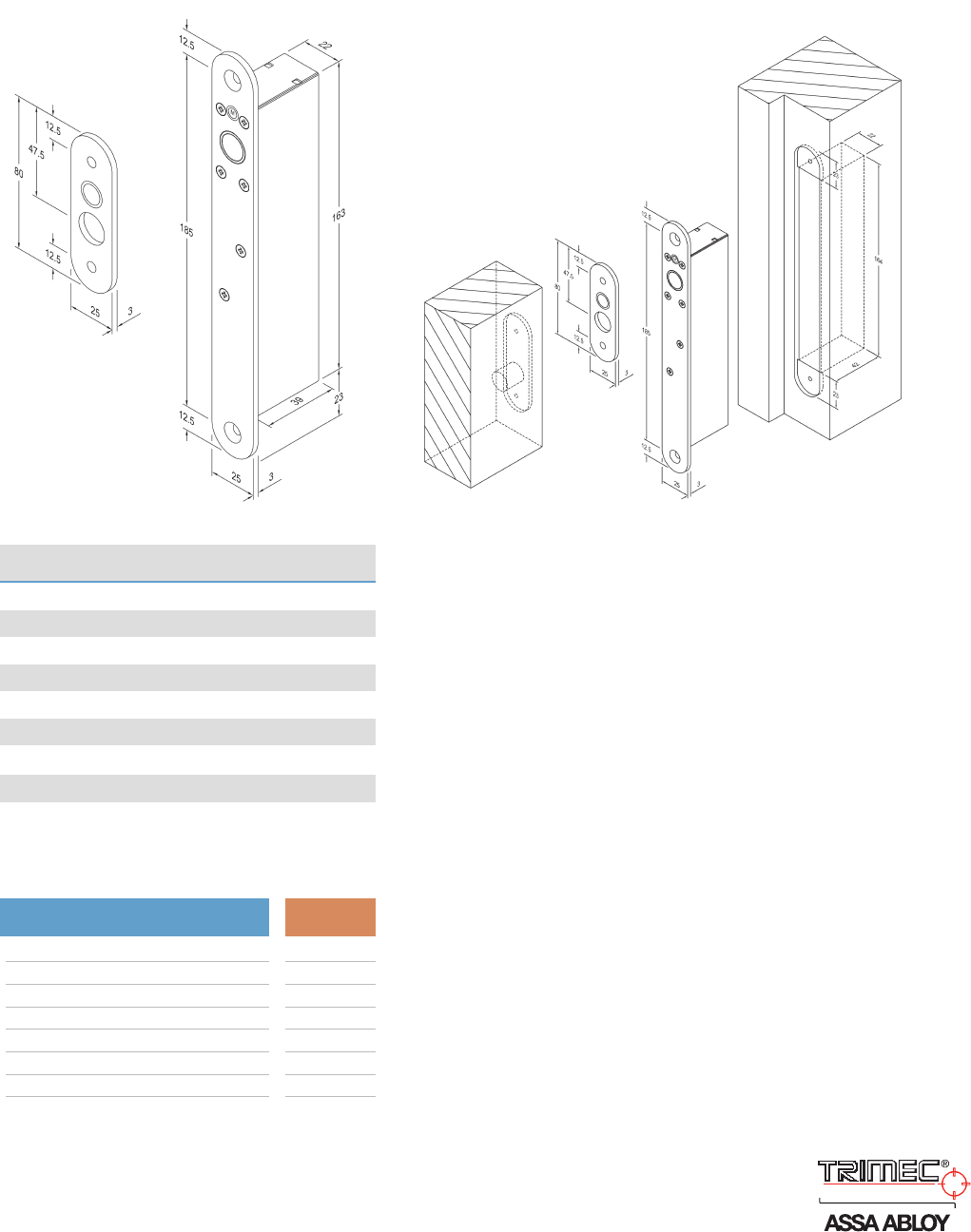

TB25 Drop Bolt Technical Information
Voltage
Current (Start)
Current (Holding)
Holding Force
Locking Mode
Dimensions (Mortice)
Bolt Length
Faceplate Size
Monitoring Contacts
TB25 Drop Bolt
Product Description Part Number
TB25 12-24VDC Fail Safe - Dropbolt 118251-000
TB25 12-24VDC Fail Secure - 25mm F/P 118252-000
TB25 12-24VDC Fail Safe 188251-010
TB25 12-24VDC Fail Safe - Square Corners 188251-020
TB25 12-24VDC Fail Secure 188251-010
TB25 12-24VDC Fail Safe 188252-010
TB25 12-24VDC Fail Safe - Square Corners 188252-020
Specification Statement
The bolt must be able to operate in horizontal
and vertical orientations. The position of the
bolt must be monitored as well as have an
integrated reed switch for door position
monitoring. The electronic functions must
include: 8 x lock and unlock attempts, 8 second
unlock delay, automatic relock after 8 seconds,
power reduction circuitry to limit the holding
current, and a one time thermal fuse cut-out in
case of solenoid overheating. Locking function
can be converted from Power to Lock (PTL) to
Power to Open (PTO). The faceplate and strike
plate must be finished in stainless steel.
Ordering Information
12 or 24Vdc
1100mA @ 12V, 1000mA @ 24V
210mA @ 12V, 90mA @ 24V
1000kg
PTL & PTO
164 x 22mm
12.7 x 16mm
10 x 25mm
Bolt & Door
30

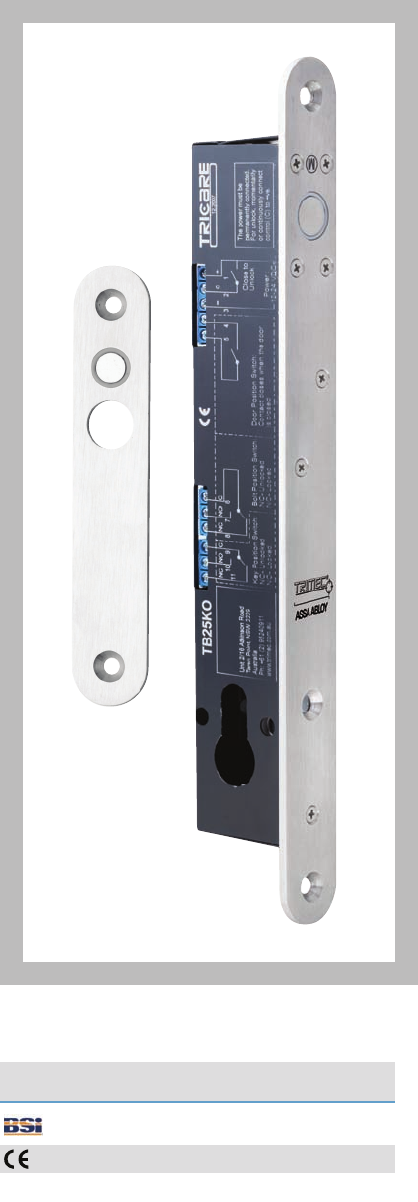

TB25KO Drop Bolt
General Description
The TB25KO range of drop bolts represent true
engineering innovation, design excellence and
the superior quality customers have come to
expect and demand from Trimec®. Designed for
use on swing-through, double action doors,
these drop bolts are ideal for applications where
an electric strike is impractical. The TB25KO
offer a unique mechanical override with in
integrated euro profile cylinder.
Key Features
•High Security. Bolt is deadlocked in the
extended position
•Mechanical key override in the event of power
failure. (Euro Profile Cylinder)
•Bolt position monitored
•Door position monitor with integrated magnet
into the strike plate (no need to install a
separate reed switch)
•Multiple Orientation, drop bolts will work
horizontally or vertically
•Power to Lock/ Power to Open
•Continuously Rated Solenoid
•Tamper Proof. Lock cannot be defeated by
slipping a metal object between lock and
striker plate
•Intelligent Electronics. These intelligent bolts
will attempt to re-close the bolt 8 times,
allowing time for swing through doors to settle
in the closed position
•Thermal Protection. In the event of solenoid
overheat, a thermal fuse will operate,
eliminating any fire risk
Applications
•Glass doors
•Timer Doorss
assaabloy.com.au
Standards and Compliance
British Standard BSEN 50081-1
BSEN 50082-1
CE Approved
31

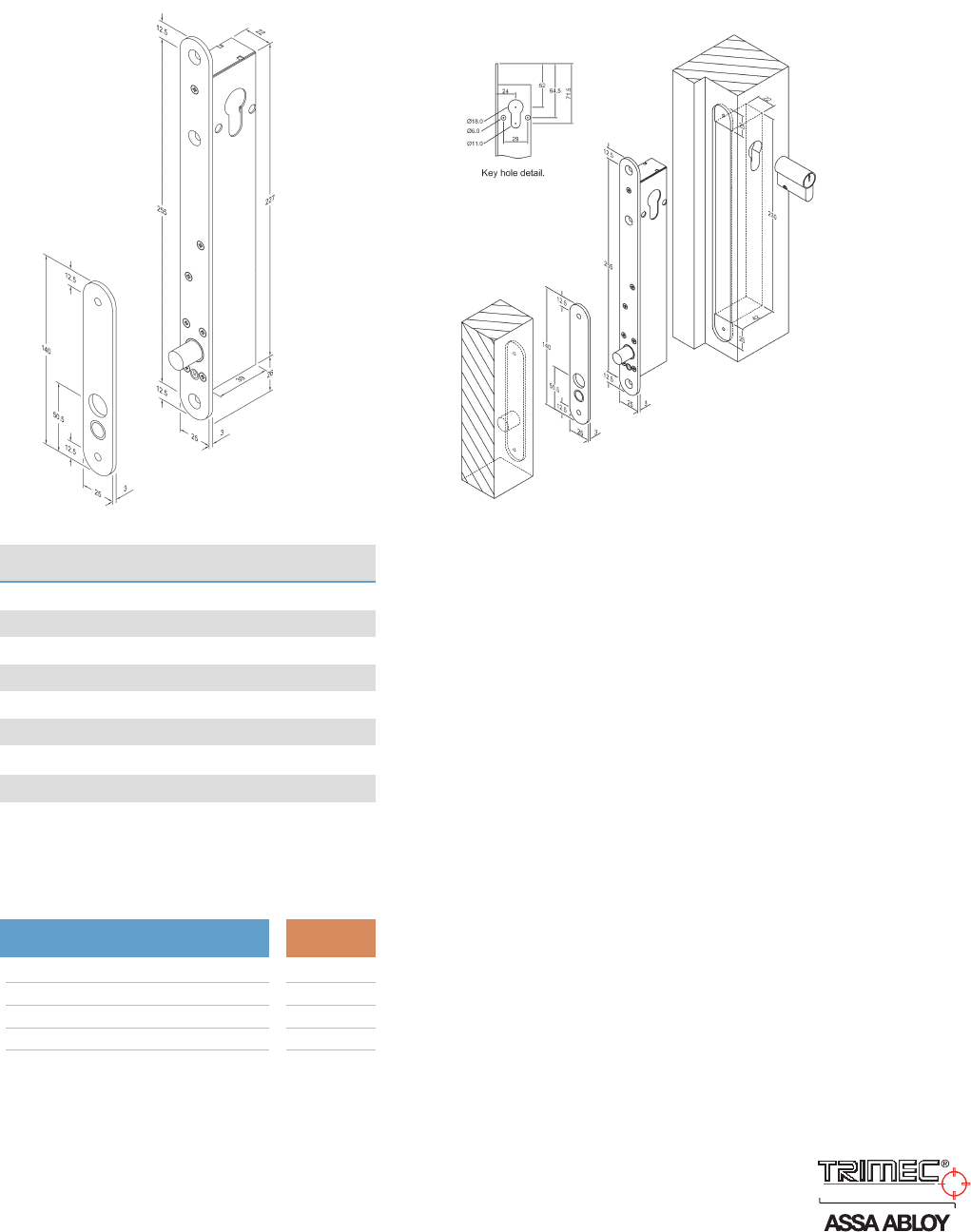

TB25KO Drop Bolt
Product Description Part Number
TB25KO 12-24VDC Fail Safe 25mm F/P 118251-500
TB25KO 12-24VDC Fail Secure 25mm 118252-500
TB25KO 12-24VDC Fail Safe 188251-510
TB25KO 12-24VDC Fail Secure 188252-510
Specification Statement
The bolt must be able to operate in horizontal
and vertical orientations. The position of the
bolt must be monitored as well as have an
integrated reed switch for door position
monitoring. The electronic functions must
include: 8 x lock and unlock attempts, 8 second
unlock delay, automatic relock after 8 seconds,
power reduction circuitry to limit the holding
current, and a one time thermal fuse cut-out in
case of solenoid overheating. Locking function
can be converted from Power to Lock (PTL) to
Power to Open (PTO). The faceplate and strike
plate must been finished in stainless steel. In
the event of a power failure the lock must be
mechanically overridden by means of a cylinder.
Ordering Information
TB25KO Drop Bolt Technical Information
Voltage
Current (Start)
Current (Holding)
Holding Force
Locking Mode
Dimensions (Mortice)
Bolt Length
Faceplate Size
Monitoring Contacts
12 or 24Vdc
1100mA @ 12V, 1000mA @ 24V
210mA @ 12V, 90mA @ 24V
1000kg
PTL & PTO
164 x 22mm
12.7 x 16mm
10 x 25mm
Bolt & Door
32

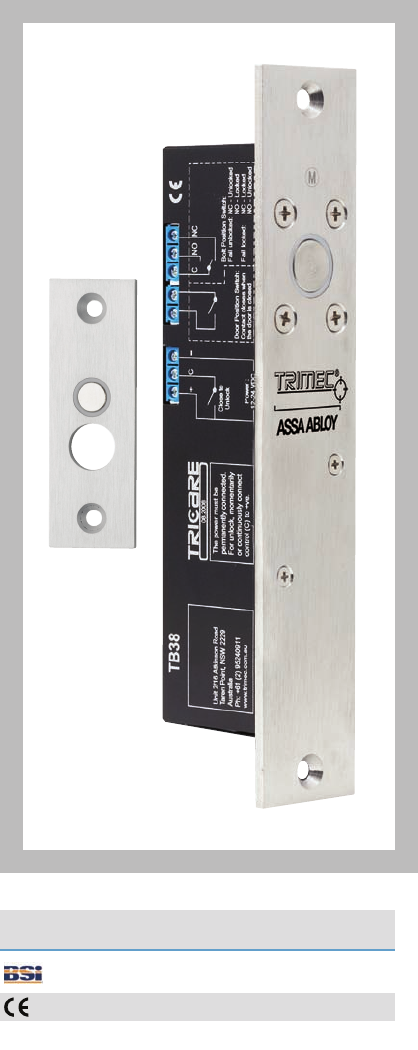

TB38 Drop Bolt
assaabloy.com.au
General Description
The TB38 range of drop bolts represent true
engineering innovation, design excellence and
the superior quality customers have come to
expect and demand from Trimec®. Designed for
use on swing-through, double action doors,
these drop bolts are ideal for applications where
an electric strike is impractical.
Key Features
•High Security. Bolt is deadlocked in the
extended position
•Bolt position monitored
•Door position monitor with integrated magnet
into the strike plate (no need to install a
separate reed switch)
•Multiple Orientation, drop bolts will work
horizontally or vertically
•Power to Lock/ Power to Open
•Continuously Rated Solenoid
•Tamper Proof. Lock cannot be defeated by
slipping a metal object between lock and
striker plate
•Intelligent Electronics. These intelligent bolts
will attempt to re-close the bolt 8 times,
allowing time for swing through doors to settle
in the closed position
•Thermal Protection. In the event of solenoid
overheat, a thermal fuse will operate,
eliminating any fire risk
Applications
•Glass doors
•Timer Doors Standards and Compliance
British Standard BSEN 50081-1
BSEN 50082-1
CE Approved
33

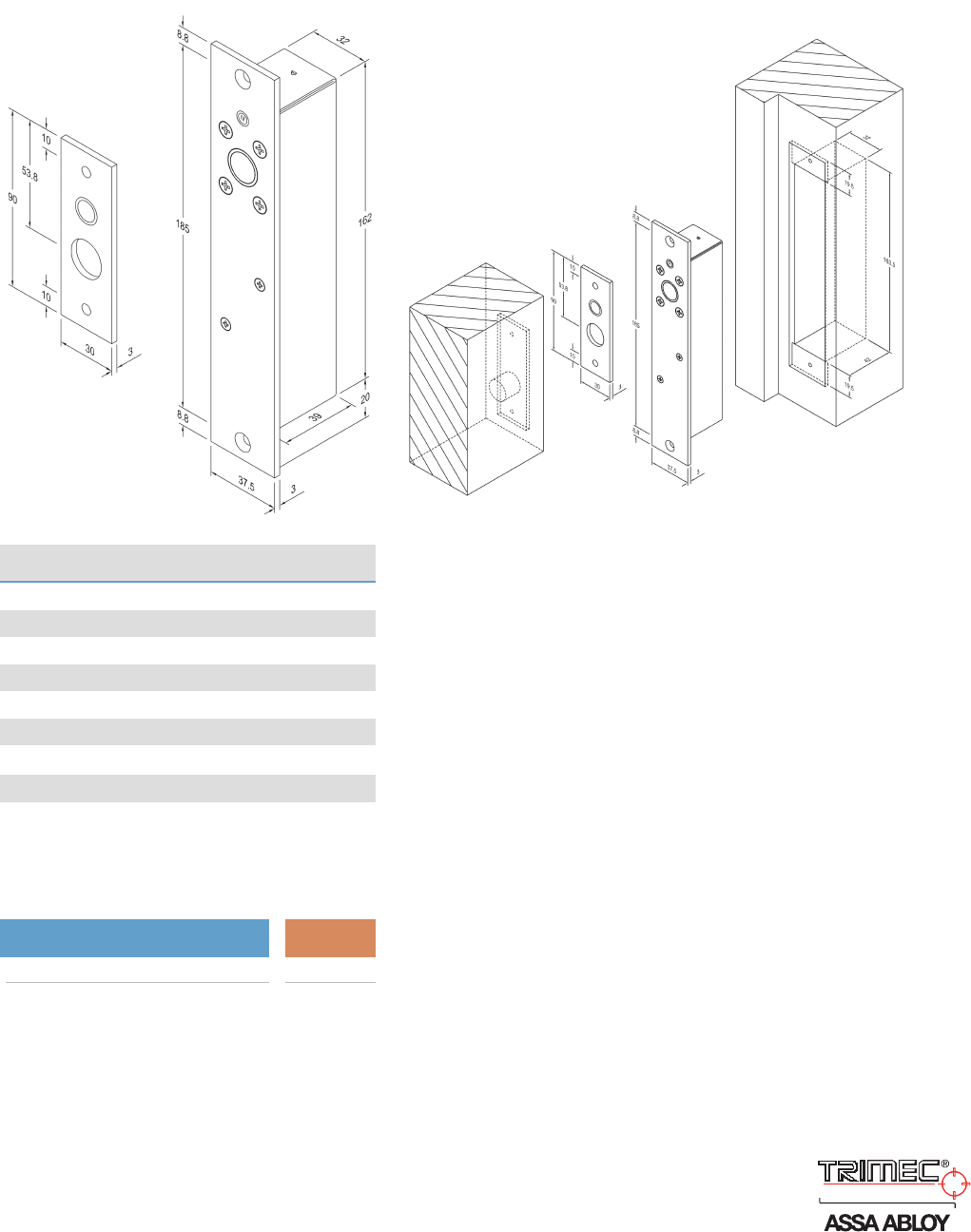

TB38 Drop Bolt
Product Description Part Number
TB38 12-24VDC Fail Safe 188381-010
Specification Statement
The bolt must be able to operate in horizontal
and vertical orientations. The position of the
bolt must be monitored as well as have an
integrated reed switch for door position
monitoring. The electronic functions must
include: 8 x lock and unlock attempts, 8 second
unlock delay, automatic relock after 8 seconds,
power reduction circuitry to limit the holding
current, and a one time thermal fuse cut-out in
case of solenoid overheating. Locking function
can be converted from Power to Lock (PTL) to
Power to Open (PTO). The faceplate and strike
plate must been finished in stainless steel.
Ordering Information
TB38 Drop Bolt Technical Information
Voltage
Current (Start)
Current (Holding)
Holding Force
Locking Mode
Dimensions (Mortice)
Bolt Length
Faceplate Size
Monitoring Contacts
12 to 24V
1400mA @ 12V, 1100mA @ 24V
260mA @ 12V, 105mA @ 24V
2000kg
PTL & PTO
164 x 33mm
14.3 x 14mm
202 x 38mm
Bolt & Door
34
ES6000 Hook Lock
General Description
ES6000 Hook Lock is suitable for swinging doors,
sliding doors and is easily attached to wood or
steel door frames. ES6000 is heavy duty
designed with its high preload (side load)
capability of up to 300 kg, high holding force of
up to 700 kg and up to 4 hour fire rating. Both
Power to Open and Power to Lock models are
available.
The ES6000 is available in both recess and
surface mounted versions.
The ES6000 recess mounted version is
completed with elegant satin stainless steel
faceplate. The surface mounted version is
completed with a cast aluminium cover that can
be supplied in a variety of colours to match
existing door frames.
ES6000 can be mounted vertically and
horizontally, with self-latching ability without
power for fire applications.
Key Features
•Power to Open or Power to Lock versions
available
•Side Load (Pre-Load) Capable: Operates freely
with up to 300 kg of side pressure
•Self Latching: Will self latch without power for
fire applications
•680kg holding force
•Robust Construction: Stainless steel
components used
•Low Profile: Will protrude only 40mm into
door headroom
•Multi Voltage: Automatic selection 12 to
30Vdc with back EMF protection and reverse
polarity protection
•Multi Orientation: Can be mounted vertically
or horizontally
•Low Current Consumption
12VDC- 250mA after 1 sec. (initial current 830mA)
24VDC- 140mA after 1 sec.(initial current 530mA)
•Monitored: locked and unlocked
•Tested to the 300kg preload capability
Standards and Compliance
Successfully fire rated up to 2hrs on fire door
assemblies in accordance with AS1905.1. 2005
(Part 1: Fire resistant door sets)
Hour
4
assaabloy.com.au
Applications
•Heavy Duty Applications
•Sliding & Swing door applications
•High Air Pressure Environments
(High Pre Load rating)
35
ES6000 Hook Lock
55
56
200
41
Specification Statement
This lock must be able to operate with up to
300kg of preload pressure, with a holding force
of 700kg. The lock must be multi voltage
selection 12 - 30 Volts with back EMF
protection for reverse polarity. Lock can be
mounted both horizontally or vertically. The
lock need to be subjected to vigorous testing
and a minimumof 2,000,000 cycles need to be
achieved.
ES6000 Hook Lock Technical Information
Voltage
Current
Monitoring
Strength
Endurance
Pre-Load
Environment
Lock Body
Lock Body
Lock Bolt
Supply Voltage 12-30Vdc Ground (OV)
12Vdc – 250 mA after 1 sec. (initial current 830 mA)
24Vdc – 140 mA after 1 sec. (initial current 530 mA)
Door locked (Solenoid) – Door Closed (Latch)
1500 lbs. (680kg) static strength rating
70 foot-lbs. dynamic strength rating
250,000 cycles endurance testing
Internal Testing achieved: 2,000,000 cycles of operation
660lbs (300kg) pre-load capability
Operational temperature range: -20°C to + 60°C
Cast Aluminium Construction
Solid Stainless Steel Construction
Solid Stainless Steel
Product Description Part Number
ES6001SIL Surface, Hook Lock Monitored, 12 - 24V Fail Safe Silver Cover 116001-010
ES6002SIL Surface, Hook Lock Monitored, 12 - 24V Fail Secure Silver Cover 116002-010
Accessories
ES6000 Roller Strike Assembly 220600-503
Ordering Information
36

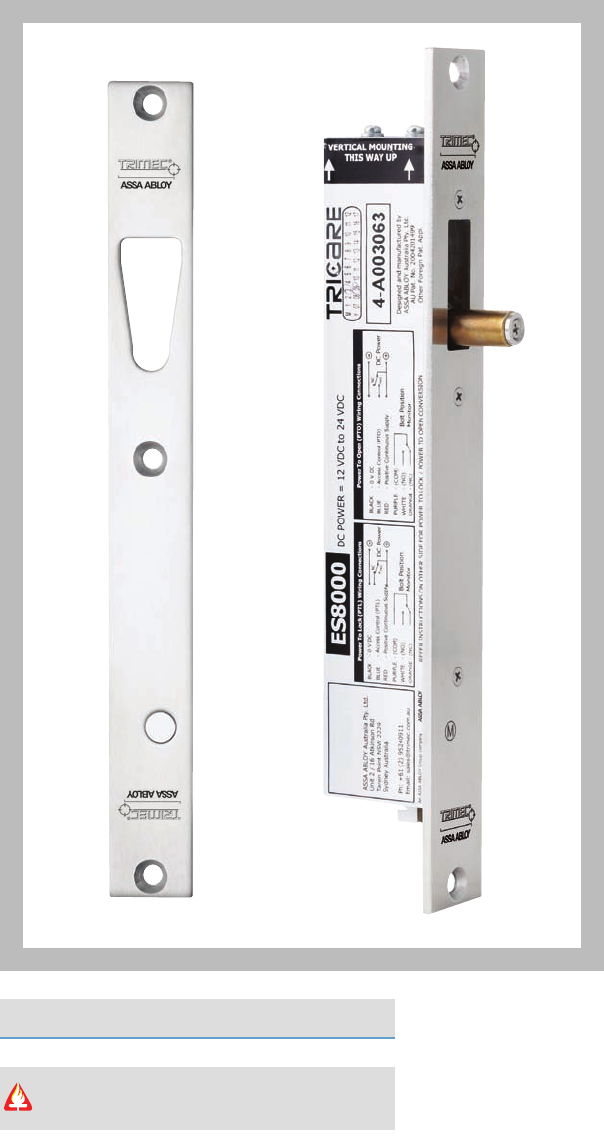

ES8000 V-Lock
General Description
The ES8000, also known as the V-lock is a high
torque motorised bolt that moves from the
vertical position to the horizontal state when
locked. The bolt moves into the V shaped strike
plate pulling the door aligned with the lock. The
high torque motorised bolt can be concealed
from view or surface mounted and has the
worlds first fail-open motor locking mechanism
which eliminates the need and cost of an
additional key override function.
Slim design with classic satin stainless steel
faceplate, and significant 7mm overall
(+/- 3.5mm) door misalignment tolerance
make ES8000 a product with great aesthetic
appearance as well as easy installation.
Key Features
•SIDE LOAD - PRE LOAD Capable Lock will
unlock with up to 15kg of side pressure, when
wired in 3 wire mode. (1 x Permanent Power,
(positive 12-24Vdc) wire. Negative (0 volt
return) wire, and 1 x Switching input (positive
12-24Vdc) wire
•Door misalignment of up to 3.5mm +/-
•Power to Lock (Fail Safe) / Power to Open
(Fail Secure) field configurable
•HIGH TORQUE Motorised locking and
unlocking (3 wire mode)
•High Speed Operation. Unlocks in less
than 1 second
•Surface Mount Accessory Kit. Ideal for 180°
swing through glass door applications
•Multiple Orientation – Interior DoorsCan be
mounted vertically or horizontally(For exterior
doors ES8000 must be mounted horizontally)
Applications
•Misaligned doors
•Timer Doors
•Glass Doors
Standards and Compliance
SCEC Endorsed (Intruder Resistant Bracket Required)
Successfully fire rated up to 4hrs on fire door
assemblies in accordance with AS1905.1. 2005
(Part 1: Fire resistant door sets)
Hour
4
assaabloy.com.au
37
ES8000 V-Lock
Bolt Position
Monitor
Power To Lock (PTL) Wiring Connections
- Access Control (PTL)
ORANGE
BLACK
BLUE
RED
PURPLE
WHITE
- 0 volts d.c.
- Positive Continuous Supply
- (COM)
- (NO)
- (NC)
-
+
DC Power
NC
NO
Bolt Position
Monitor
Power To Open (PTO) Wiring Connections
ORANGE
BLACK
BLUE
RED
PURPLE
WHITE
- 0 volts d.c.
- Access Control (PTO)
- Positive Continuous Supply
- (COM)
- (NO)
- (NC)
NC
NO
-
+
DC Power
Bolt Position
Monitor
Power To Lock 2 Wire Control (NOT RECOMMENDED)
ORANGE
BLACK
BLUE
RED
PURPLE
WHITE
- 0 volts d.c.
- (COM)
- (NO)
- (NC)
-
+
DC Power
Wiring below shows lock in locked position
256 1515
30
Door Jamb
LINE 2
M
Lock
Faceplate
30
24
42
256
50
210
Specification Statement
The lock must be a high torque motorised bolt
with Preload tolerance. The strike plate must be
shaped in a V format to accommodate for
misaligned doors. Lock will unlock with up to
15kg of side pressure and will be powered with
12-24v and draw no more than 1000mA. The
lock must be configurable for Power to Lock
(Fail Safe) or Power to Open (Fail Secure). The
lock must be triggered with a magnet
positioned in strike plate, and be monitored for
locked unlocked and door position.
ES8000 V-Lock Technical Information
Voltage
Current
Monitoring
Security
Strength
Side Load
Endurance
Environment
Lock Body
Bolt
12 to 24Vdc, Voltage Tolerance 12V (+15% - 0%) 24V(+/- 15%)
Minimum 1 Amp Regulated Supply
COM, NO, NC Voltage free changeover contacts rated at 48 dc/100mA)
Passed S3 (AS4145.2- 1993)
Maximum 1000kg (with supported strike plate)
Side Load rated: Motorised Unlocking – 15kg max at bolt
Fail Safe Unlocking – 3kg max at bolt
300,000 operations
Operational temperature range -20°C to + 60°C
Stainless Steel Lock Body and Faceplate
11mm diameter, 20.5mm projection
Product Description Part Number
ES8001 V-Lock 12vdc Fail Safe 30mm F/P 118001-010
ES8002 V-Lock 12vdc Fail Secure 30mm F/P 118002-010
Accessories
ES8000 V-Lock Glass door housing (Incl dress plate & fixing tape) 218000-000
Ordering Information
38 assaabloy.com.au
All TRICARE®protected products come with a
5 year return to factory warranty from date of
manufacture. The date of manufacture can be
determined by looking at the TRICARE®
sticker which indicates the month and year of
manufacture.
TRICARE®protects the installer by warranting
accidental damage that may occur to
TRICARE®protected product during
installation. This no question asked approach
removes frustration and embarrassment.
Any warranty claims on TRICARE®will be
replaced with NEW product. This ensures that
the wholesalers will always have new stock
on their shelves and not repaired stock.
“Protects the Customer, the
Installer and the Wholesaler”
39
Trimec®
The Meadows
Cannock Road
Wolverhampton WV10 ORR
United Kingdom
e: info@trimec-online.co.uk
w: www.trimec.com.au
ASSA ABLOY is the global leader in door opening
solutions, dedicated to satisfying end-user needs
for security, safety and convenience.
ASSA ABLOY is represented in all major regions,
in both mature and emerging markets, with
leading positions in Australia, Europe and
North America.
As the world’s leading lock group, ASSA ABLOY
offers a more complete product range of door
opening solutions than any other company on
the market.

Navigation menu
