Preface
1 Overview
2 Installation
3 Getting Started
4 Viewing Network Health Information
5 Viewing Fault Information
6 Viewing Network Configuration Information
7 Provisioning
8 Performing Administrative Tasks
B Redundant Tropos Control Servers for Failover
Glossary
Index
- Numerics
- A
- B
- C
- D
- E
- F
- G
- H
- I
- L
- M
- N
- O
- P
- Q
- R
- S
- T
- U
- V
- W

Tropos® Control Element

Management System User Guide

Release 7.5

Tropos Networks, Inc.

555 Del Rey Ave.

Sunnyvale, CA 94085 USA

www.troposnetworks.com

408-331-6800

Part No. 200033-75 Rev C0

2011_05_13_00

Tropos Control EMS User Guide ii

Networks, Inc. Tropos Networks, AMCE, TMCX, SABRE, CMDP, MESM and Metro-Scale Mesh Networking

Defined are trademarks of Tropos Networks, Inc. All other brand or product names are trademarks or registered

trademarks of their respective holder(s).

Information contained herein is subject to change without notice. The only warranties for Tropos products and services

are set forth in the express warranty statements accompanying such products and services. Nothing herein should be

construed as constituting an additional warranty. Tropos shall not be liable for technical or editorial errors or omissions

contained herein.

This product includes technology protected by U.S. Patents 6,704,301; 6,965,575; 7,016,328; 7,031,293; 7,058,021;

7,362,737; 7,376,087; 7,382,778; 7,397,789; 7,450,552; 7,460,489; 7,489,932; 7,499,409; 7,505,426; 7,542,421;

7,551,562; 7,564,781; 7,564,862; 7,580,393, 7,580,705; 7,586,879

Restricted Rights Legend

Use, duplication, or disclosure by the United States Government is subject to restrictions as set forth in subparagraph

(c)(1)(II) of the Rights in Technical Data and Computer Software clause at DFARS 252.227-7013.

Notwithstanding any other license agreement that may pertain to, or accompany the delivery of, this computer

software, the rights of the United States Government regarding its use, reproduction, and disclosure are as set forth in

the Commercial Computer Software-Restricted Rights clause at FAR52.227-19.

Important Note to Users

This software is provided by Tropos Networks, Inc. as is and any express or implied warranties, including, but not

limited to, implied warranties of merchantability and fitness for a particular purpose are disclaimed. In no event shall

Tropos Networks, or its affiliates, subsidiaries or suppliers be liable for any direct, indirect, incidental, special,

exemplary, or consequential damages (including, but not limited to, procurement of substitute goods or services; loss of

use, data or profits; or business interruption) however caused and on any theory of liability, whether in contract, strict

liability, or tort (including negligence or otherwise) arising in any way out of the use of this software, even if advised of

the possibility of such damage.

Tropos reserves the right to make changes without further notice to any products herein.

FCC Notice to Users and Operators

Tropos routers comply with Part 15 of the FCC rules. Operation of the Tropos router is subject to the following two

conditions:

1. This device may not cause harmful interference, and

2. This device must accept any interference received, including interference that may cause undesired operation.

This equipment has been tested and found to comply with the limits of a Class A digital device, pursuant to Part 15 of

the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the

equipment is operated in an office environment. This equipment generates, uses and radiates radio frequency energy,

and if not installed and used in accordance with the instructions, the device may cause harmful interference. However,

there is no guarantee that interference will not occur. If this equipment does cause interference to radio or television

reception, which can be determined by turning the equipment off and on, the user is encouraged to correct the

interference by using one of the following measures:

Reorient or relocate the receiving antenna.

Increase separation between the equipment and receiver.

Connect the equipment to an outlet on a circuit different from that to which the receiver is connected.

Consult the dealer or an experienced radio/TV technician.

Tropos Control EMS User Guide iii

This Part 15 radio device operates on a non-interference basis with other devices operating at this frequency. Any

changes or modification to said product not expressly approved by Tropos Networks could void the user's authority to

operate this device.

Tropos Control EMS User Guide iv

Contents

Preface . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . vii

1Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1

Product Overview. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2

Product Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

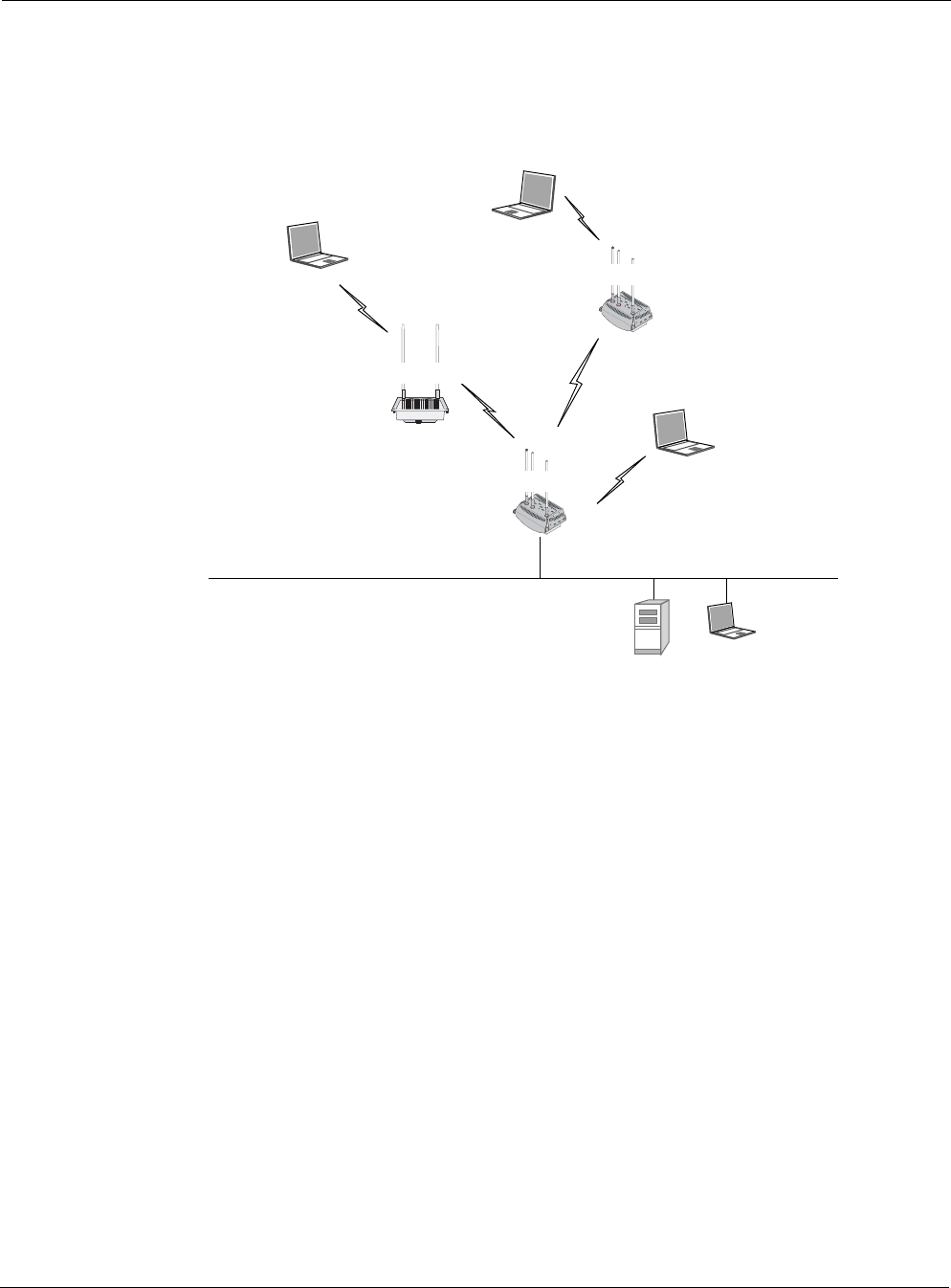

Mid-Tier Mesh Architecture . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

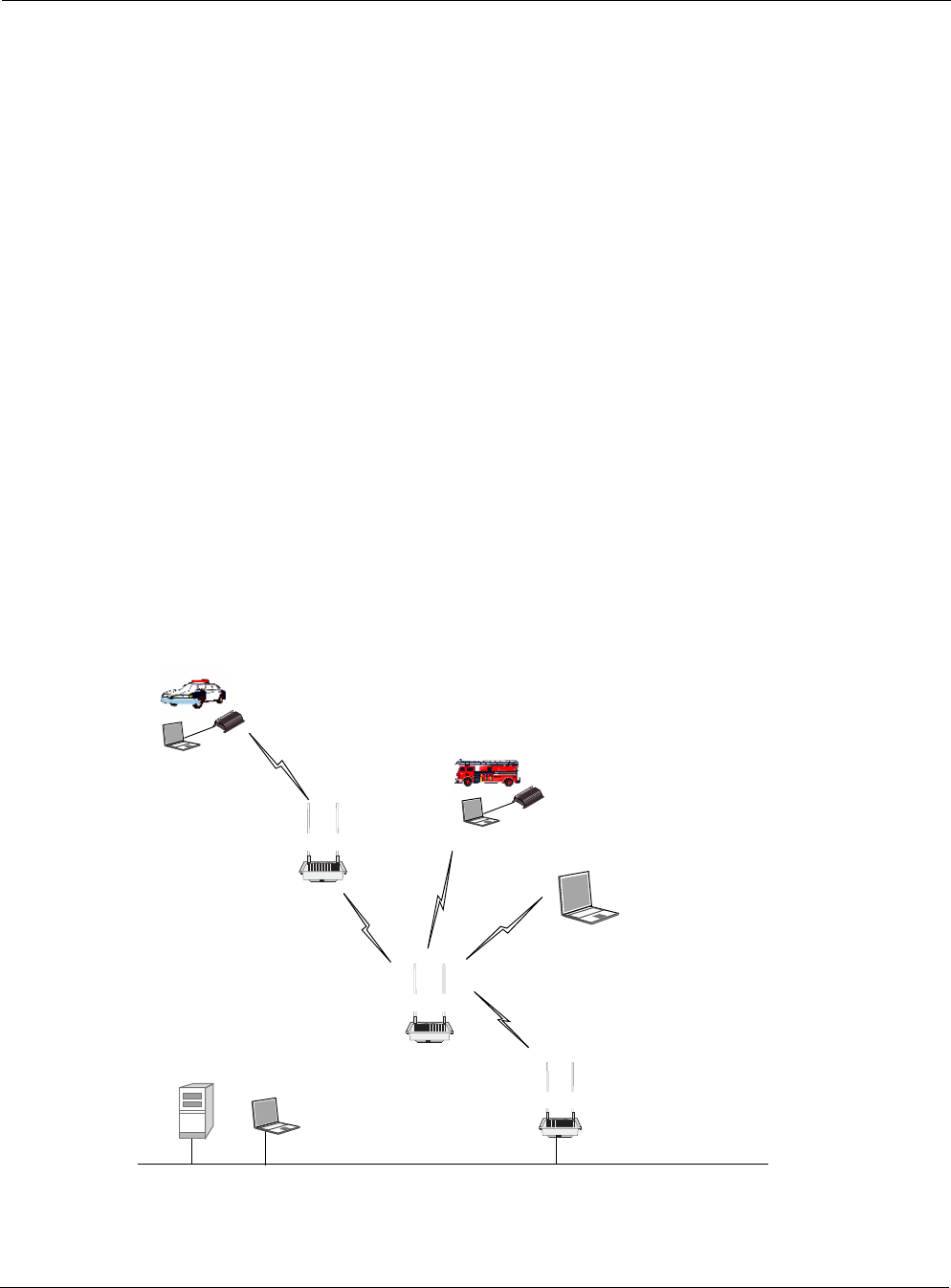

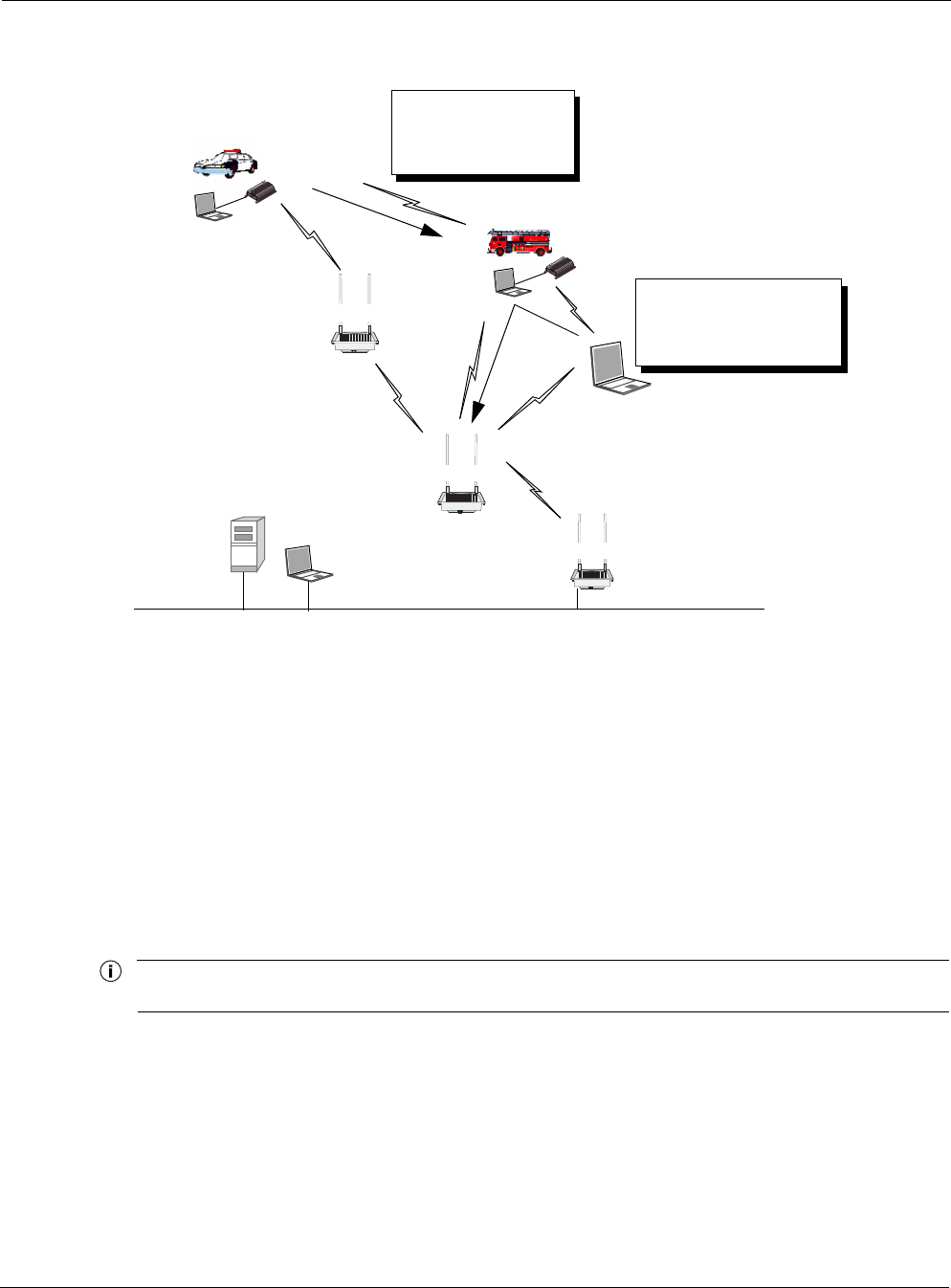

Mobile Router Networks . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

Network Management and Administration . . . . . . . . . . . . . . . . . . . . . 8

2Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

Pre-Installation Requirements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

Installing Tropos Control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

Updating ARP Cache Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

Uninstalling the System . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

Backing Up and Restoring the Tropos Control Server . . . . . . . . . . . 15

Upgrading the Server . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

Resetting the Administrative Password . . . . . . . . . . . . . . . . . . . . . . 16

3Getting Started . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17

Getting Ready to Manage the Network . . . . . . . . . . . . . . . . . . . . . . 18

Starting and Stopping the Server . . . . . . . . . . . . . . . . . . . . . . . . . . . 18

Using the Web Interface. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19

Accessing and Exiting the Web Interface . . . . . . . . . . . . . . . . . . . 19

Navigating the Web Interface . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20

Discovery . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23

4Viewing Network Health Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24

Preparing to Access the Network Health Panels . . . . . . . . . . . . . . . 25

Using the Dashboard . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25

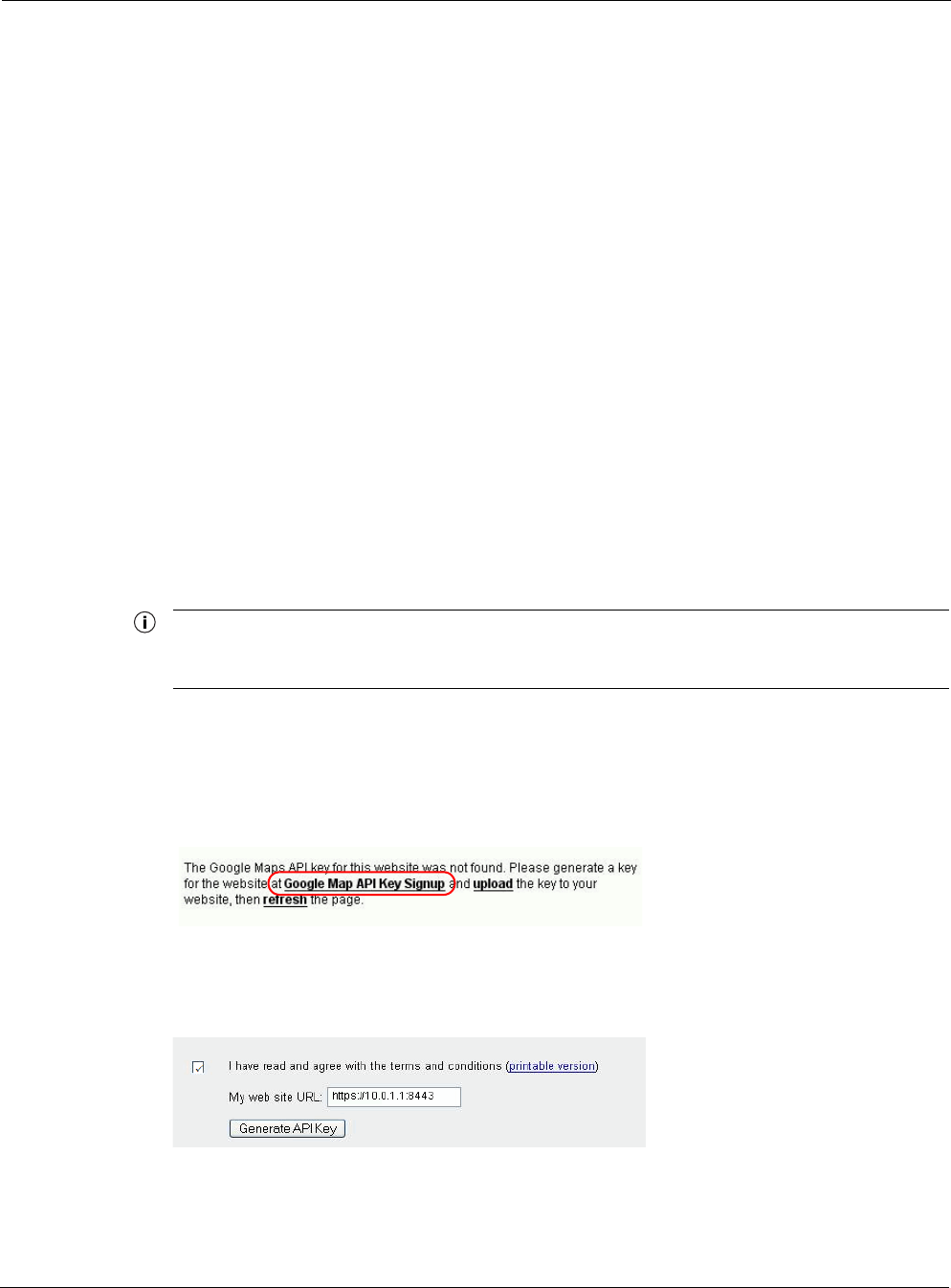

Viewing Geographic Maps . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27

Using the Network Optimization Panels. . . . . . . . . . . . . . . . . . . . . . 30

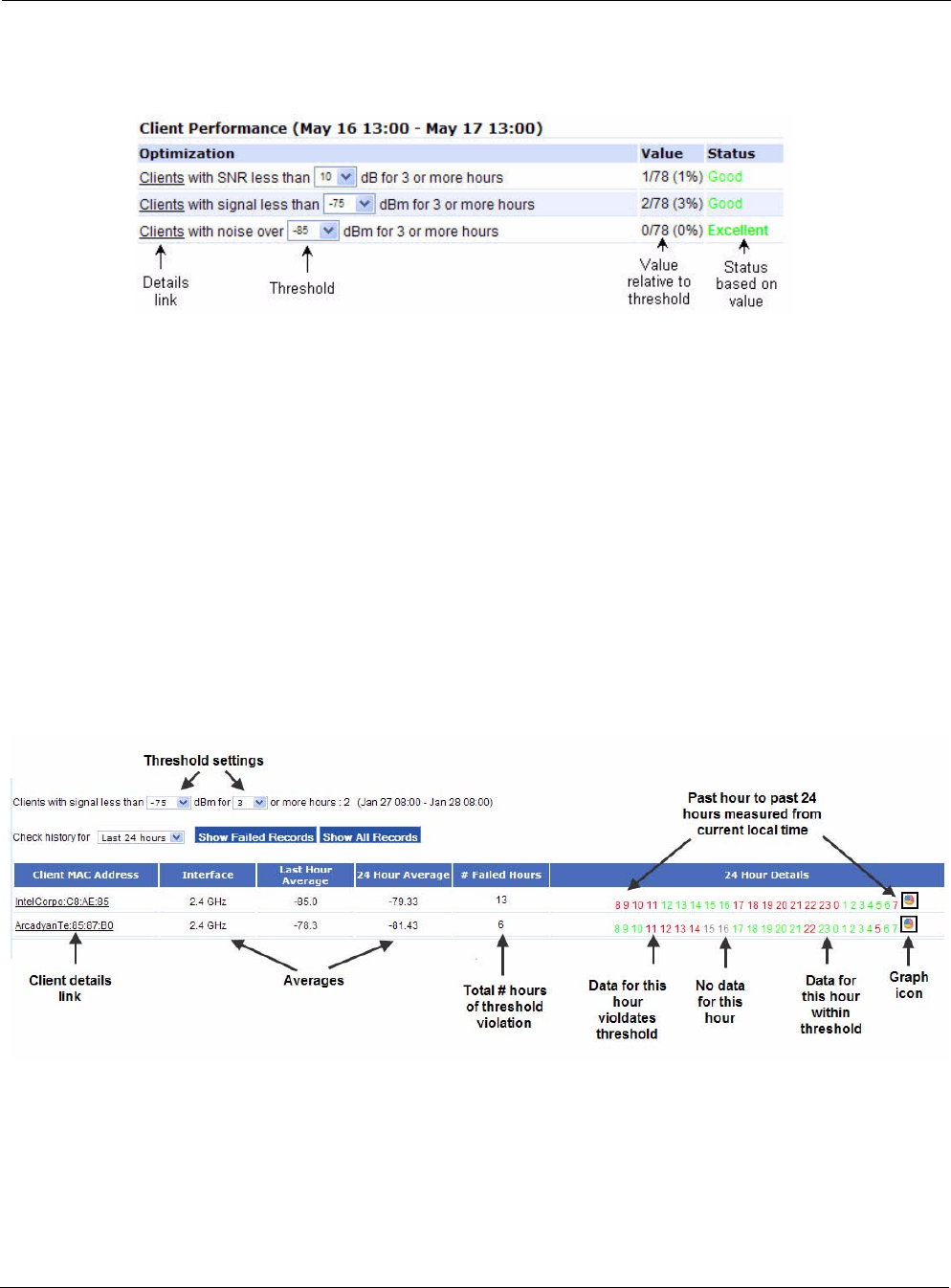

Using the Client Optimization Panels. . . . . . . . . . . . . . . . . . . . . . . . 34

Tropos Control EMS User Guide v

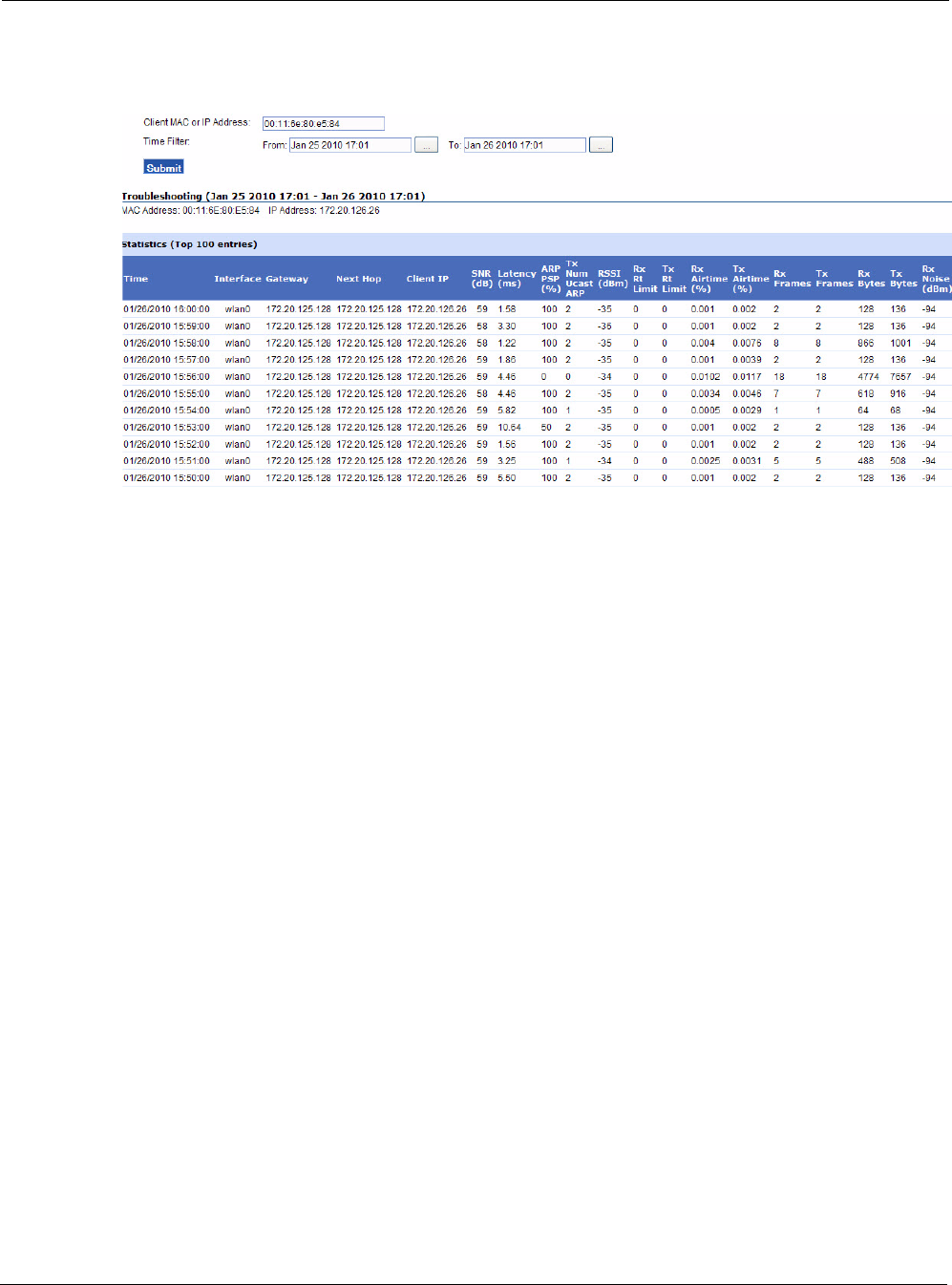

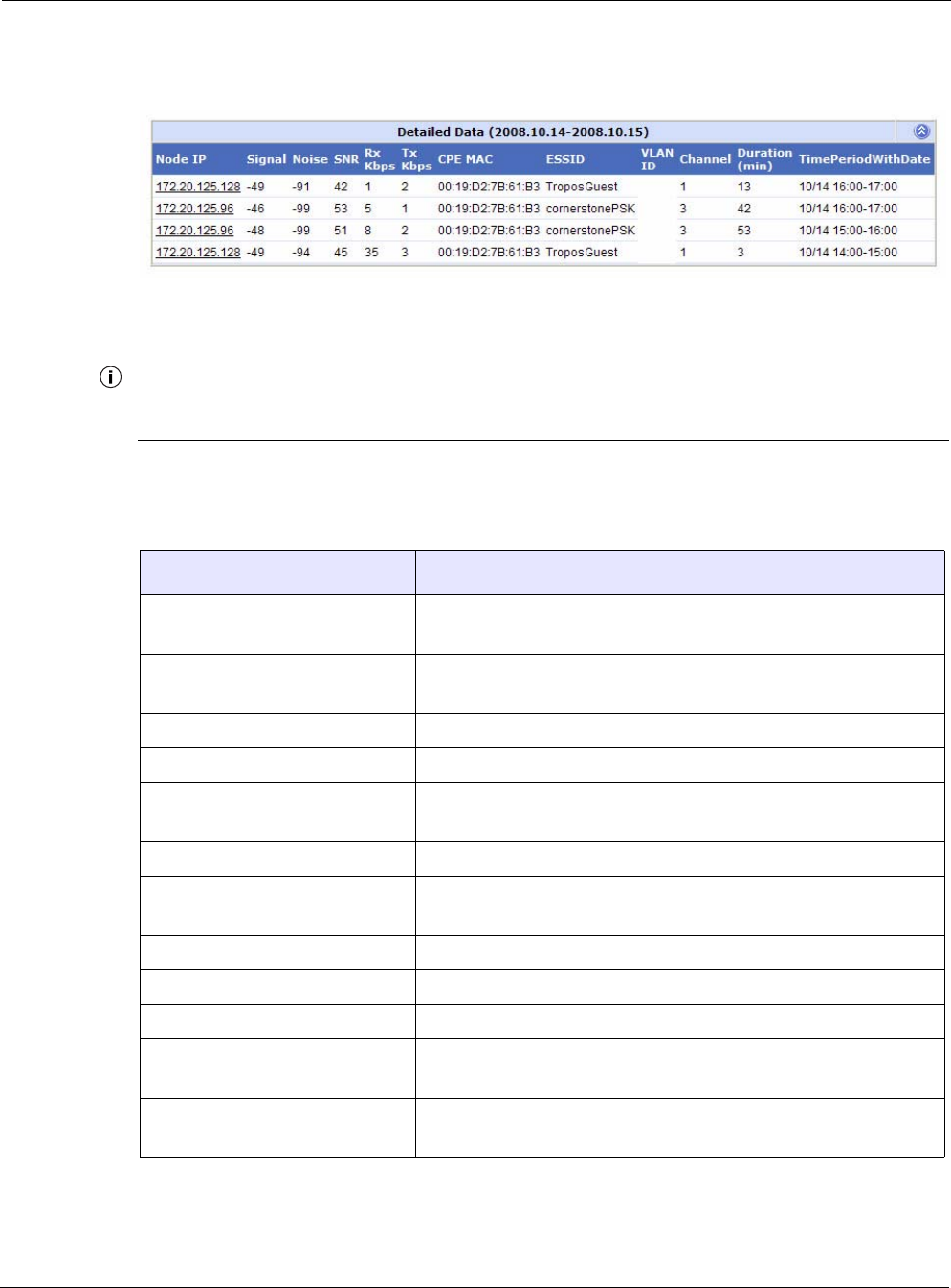

Understanding the Client Query Reports . . . . . . . . . . . . . . . . . . . 36

Using the Voice Optimization Panels . . . . . . . . . . . . . . . . . . . . . . . . 39

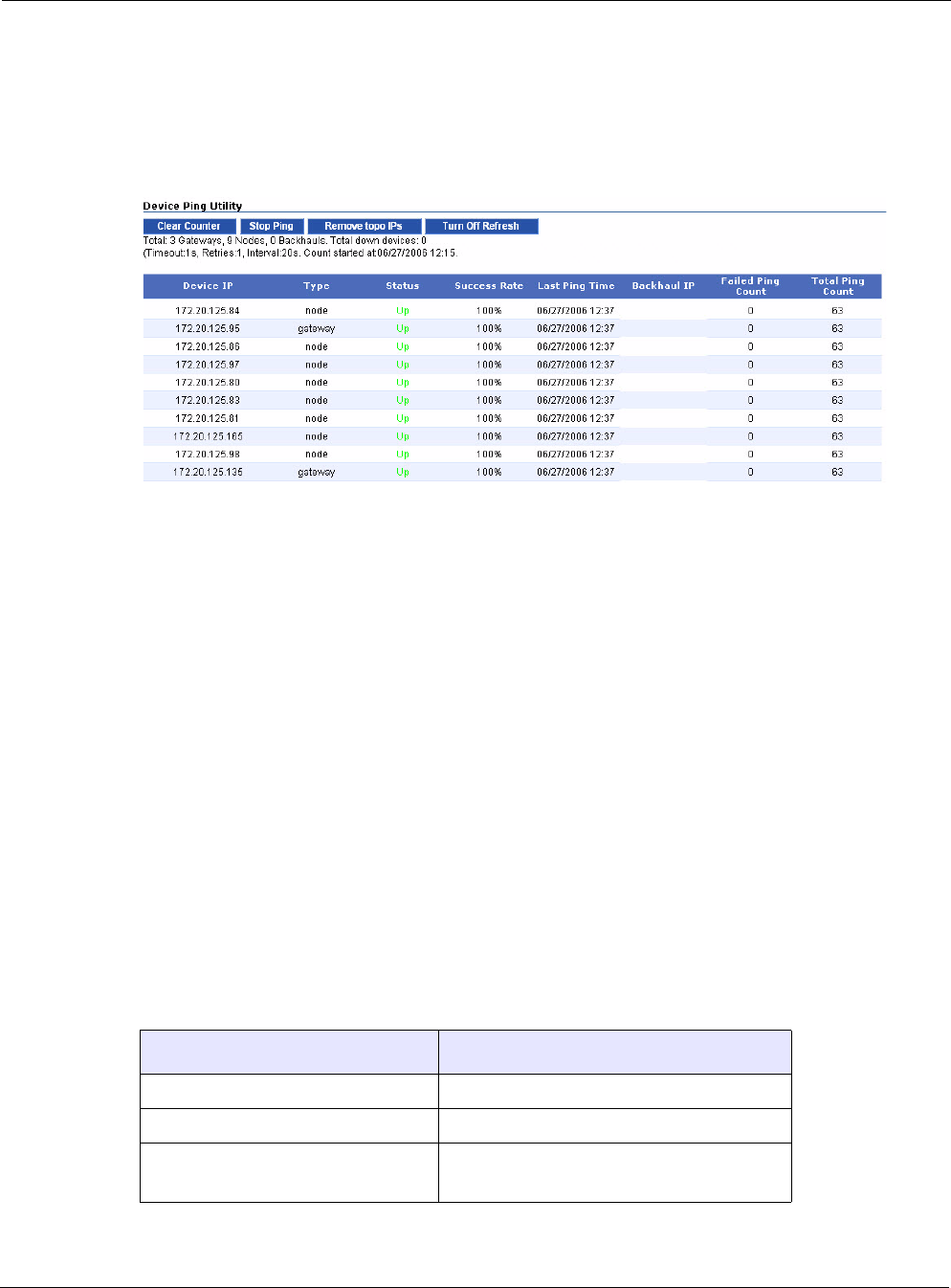

Using the Device Ping Utility . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40

Modifying Network Health Thresholds and Report Options . . . . . . . 42

Modifying Network Health Thresholds. . . . . . . . . . . . . . . . . . . . . . 42

Modifying Report Options . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44

5Viewing Fault Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 49

Viewing Network Events. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50

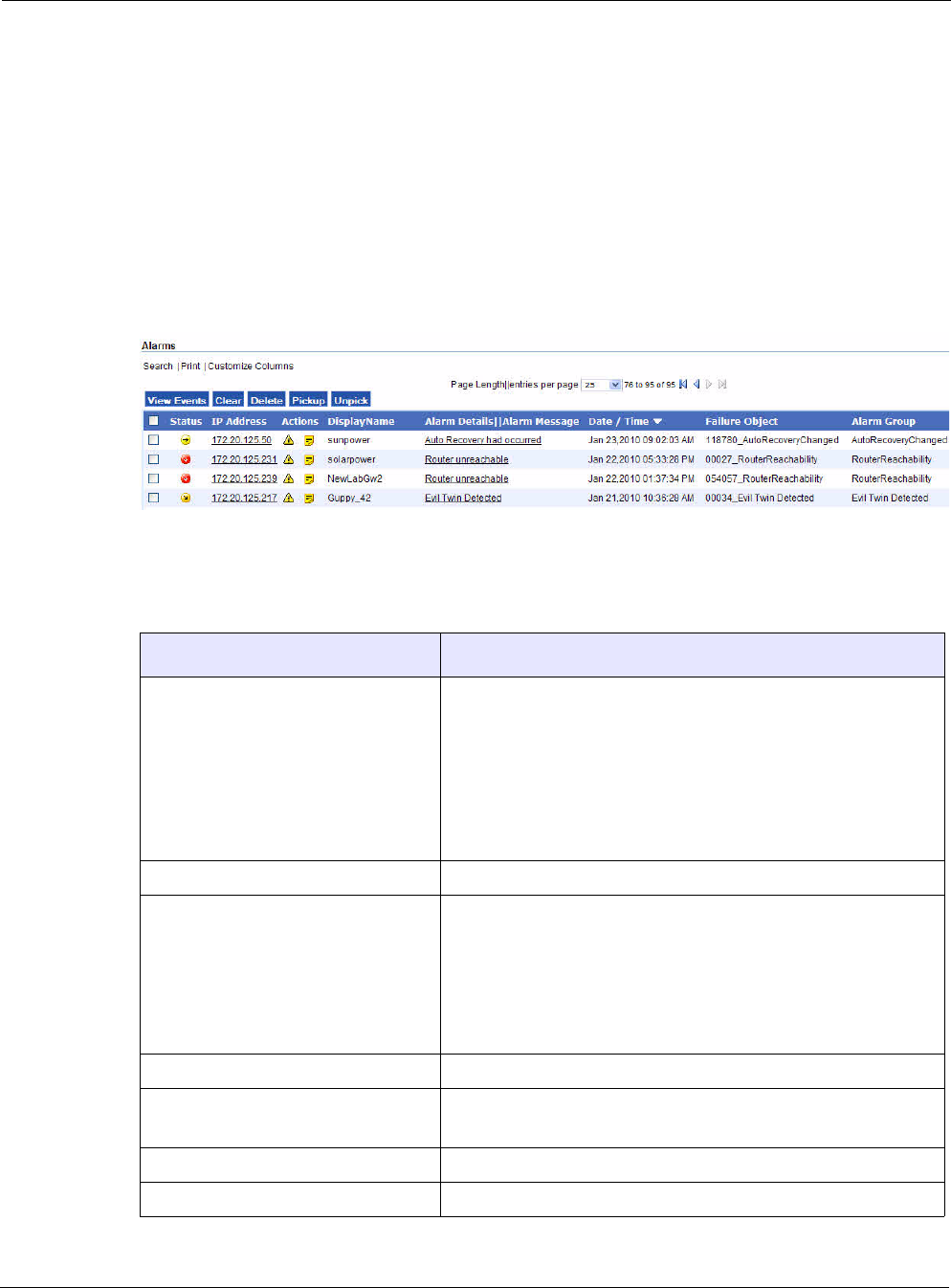

Viewing Alarms. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 51

Viewing Event Counts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 52

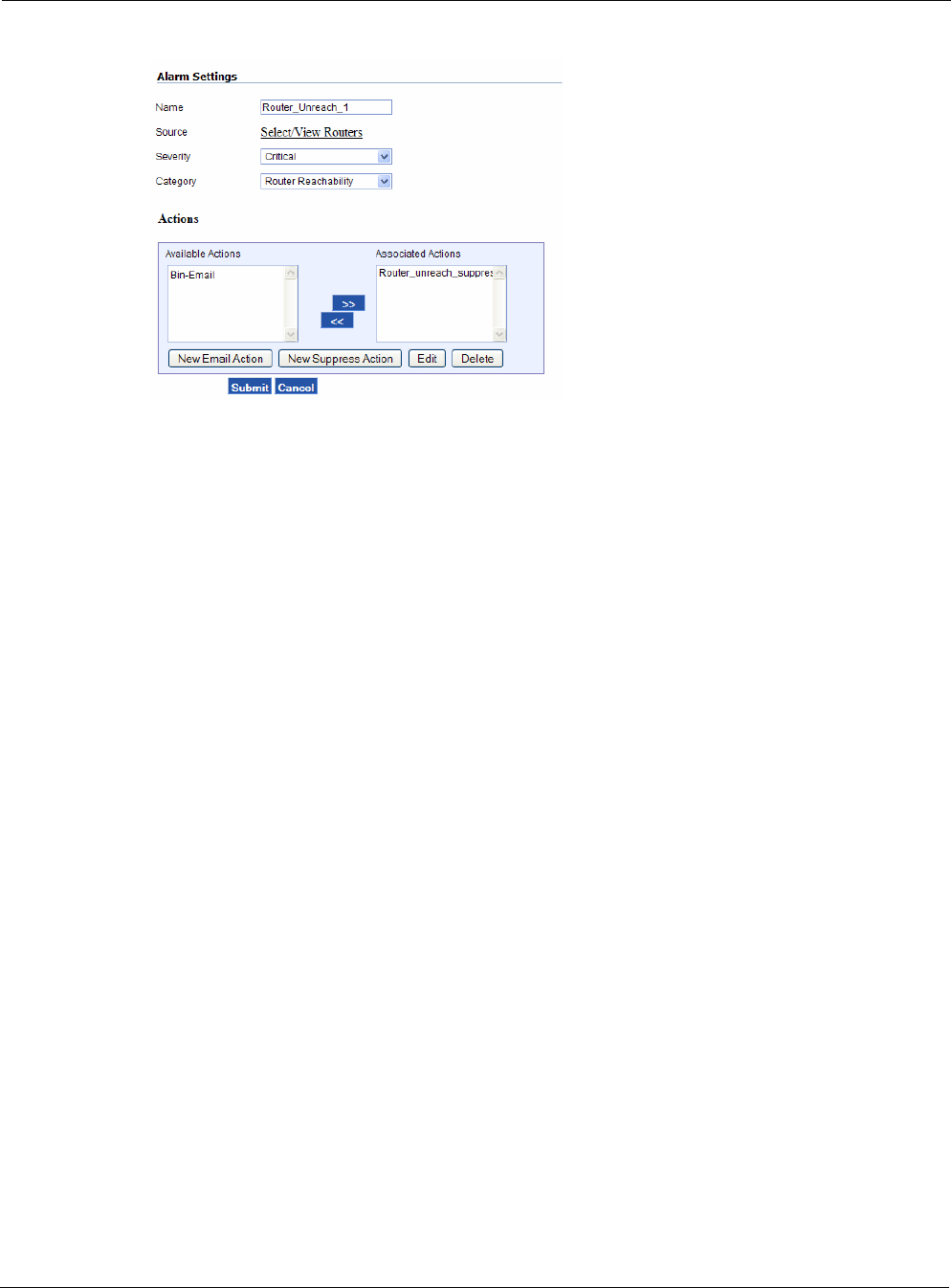

Configuring Alarms. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 53

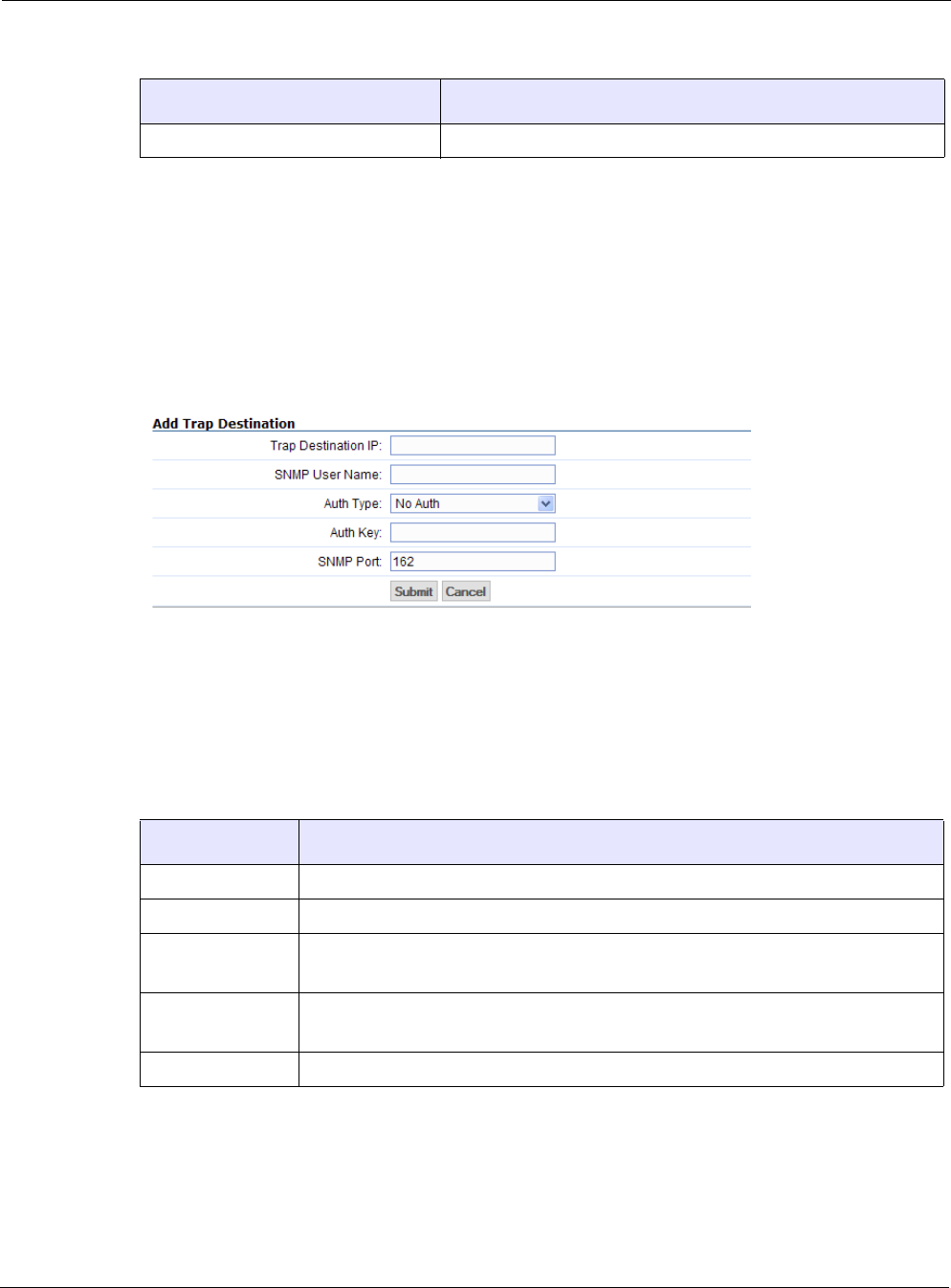

SNMP Trap Forwarding . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 57

6Viewing Network Configuration Information . . . . . . . . . . . . . . . . . . . . . . . 58

Network Configuration Panels . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 59

Configuration View Actions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 60

Updating the Device Database. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 62

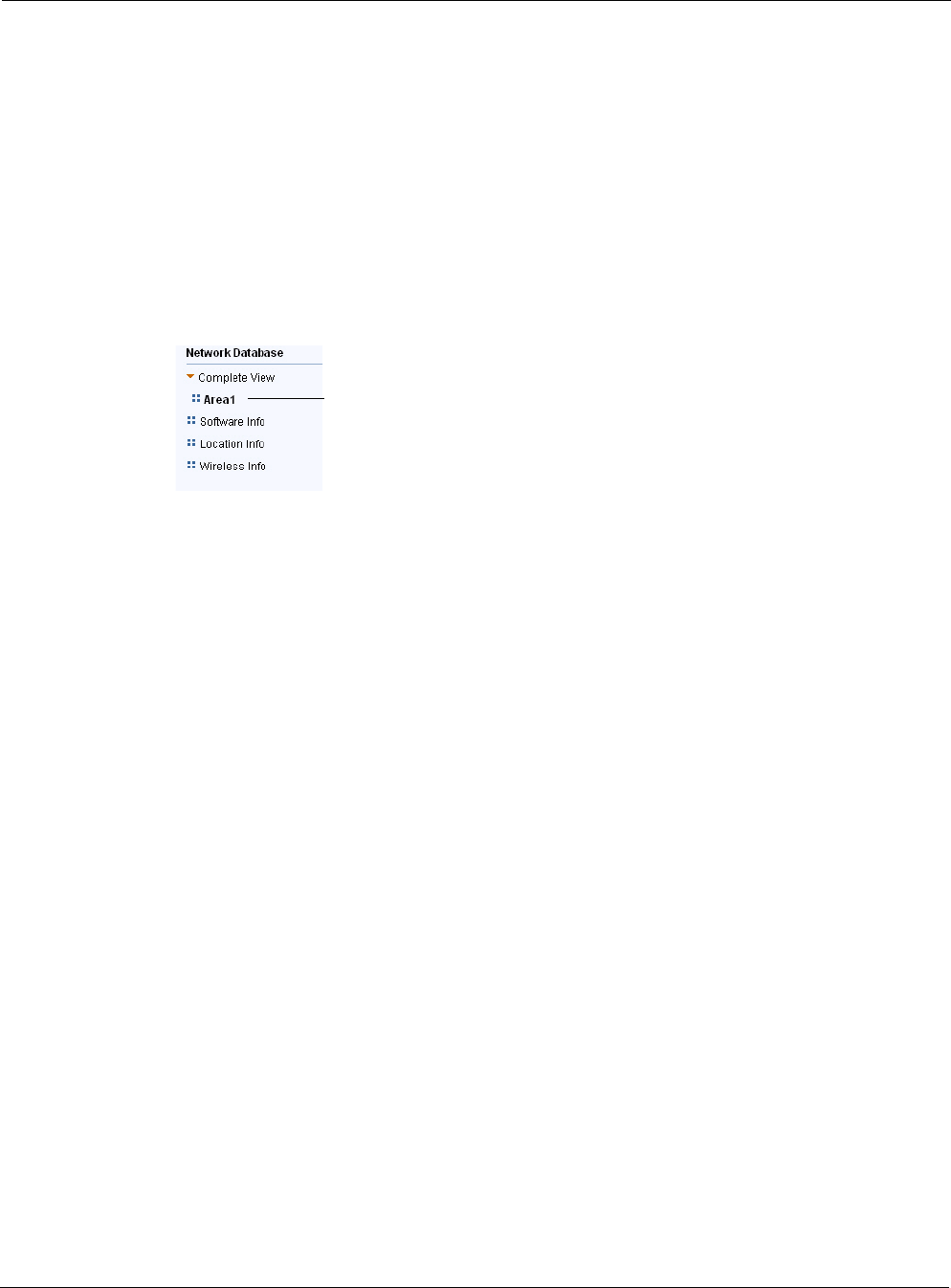

Creating Custom Views. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 64

Configuring Gateways for Multi-Subnet Roaming . . . . . . . . . . . . . . 65

7Provisioning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 68

About Provisioning Operations. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 69

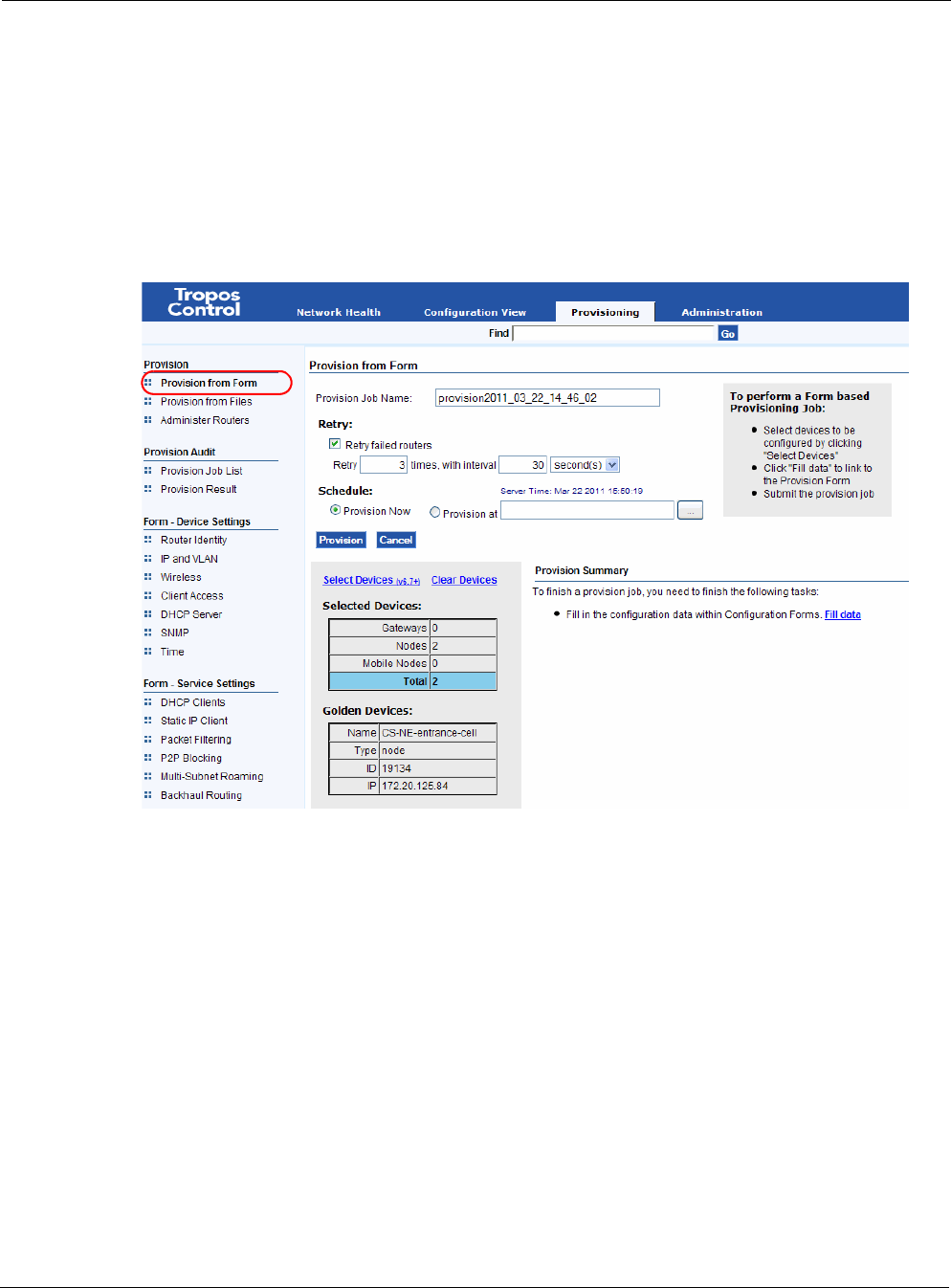

Provisioning Routers Using Web Forms . . . . . . . . . . . . . . . . . . . . . 74

Provisioning from Forms - Tasks. . . . . . . . . . . . . . . . . . . . . . . . . . 74

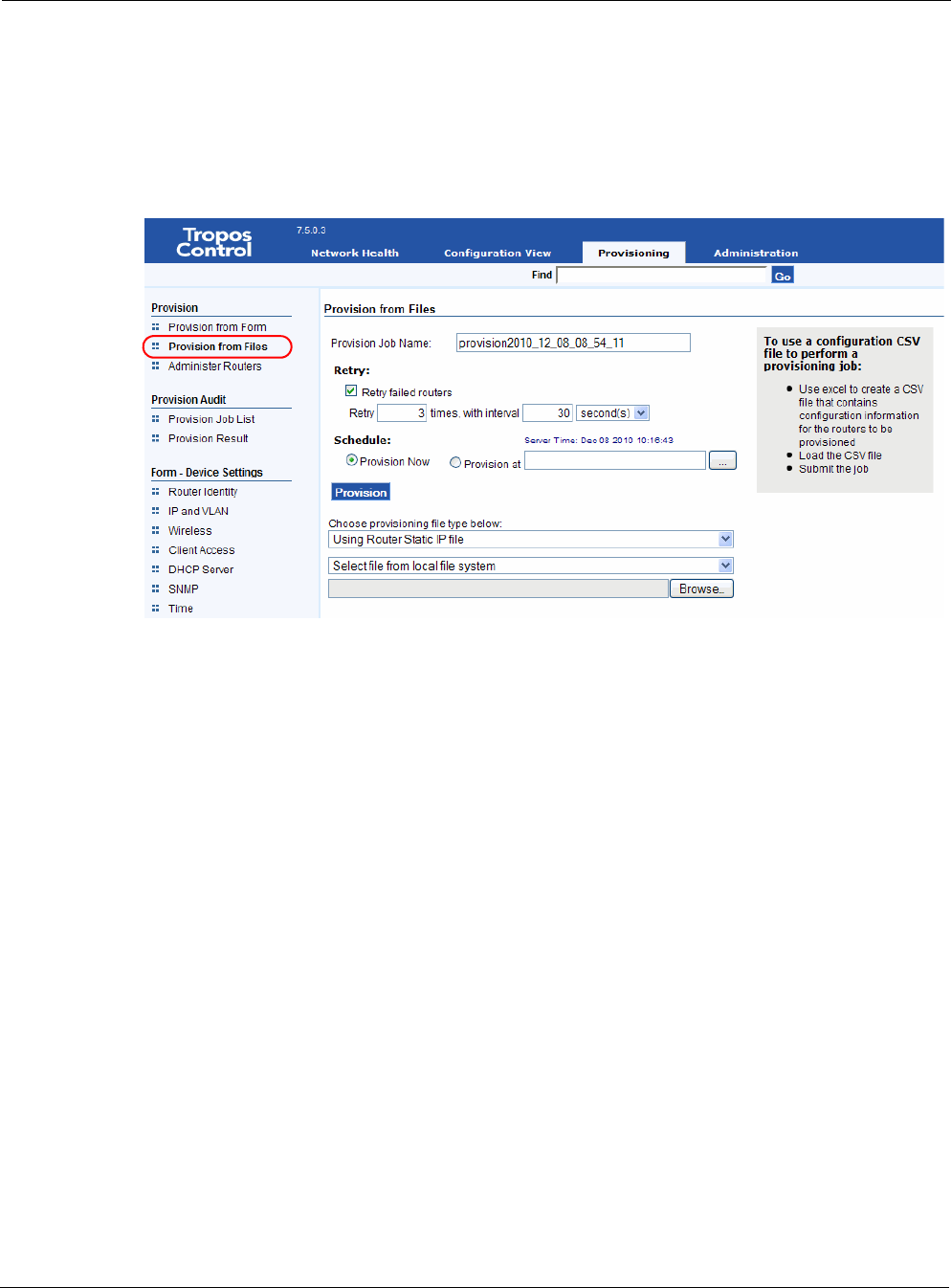

Provisioning Routers From a File. . . . . . . . . . . . . . . . . . . . . . . . . . . 76

Provisioning from Files - Tasks . . . . . . . . . . . . . . . . . . . . . . . . . . . 77

Provisioning Forms. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 78

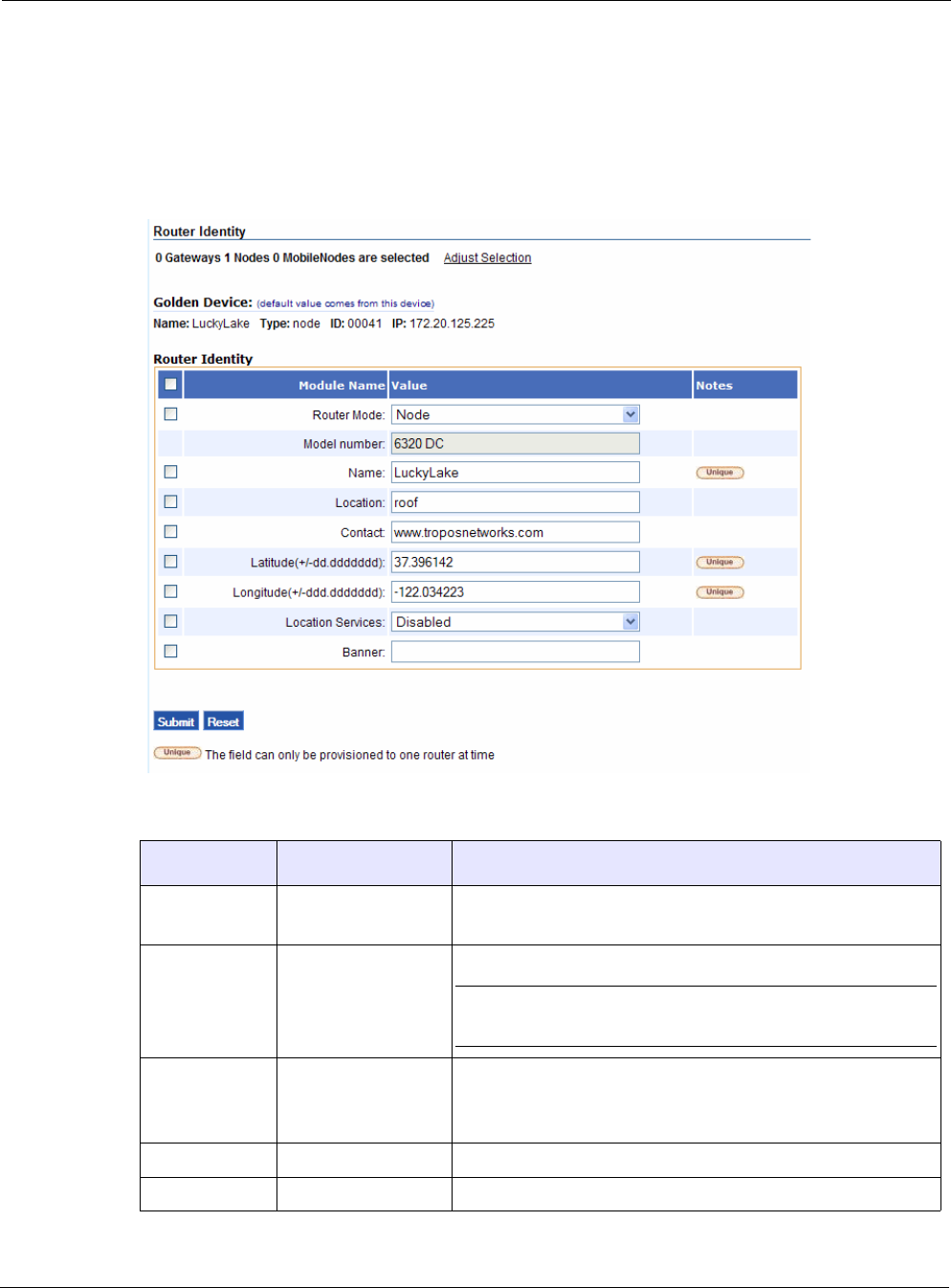

Router Identity Page . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 79

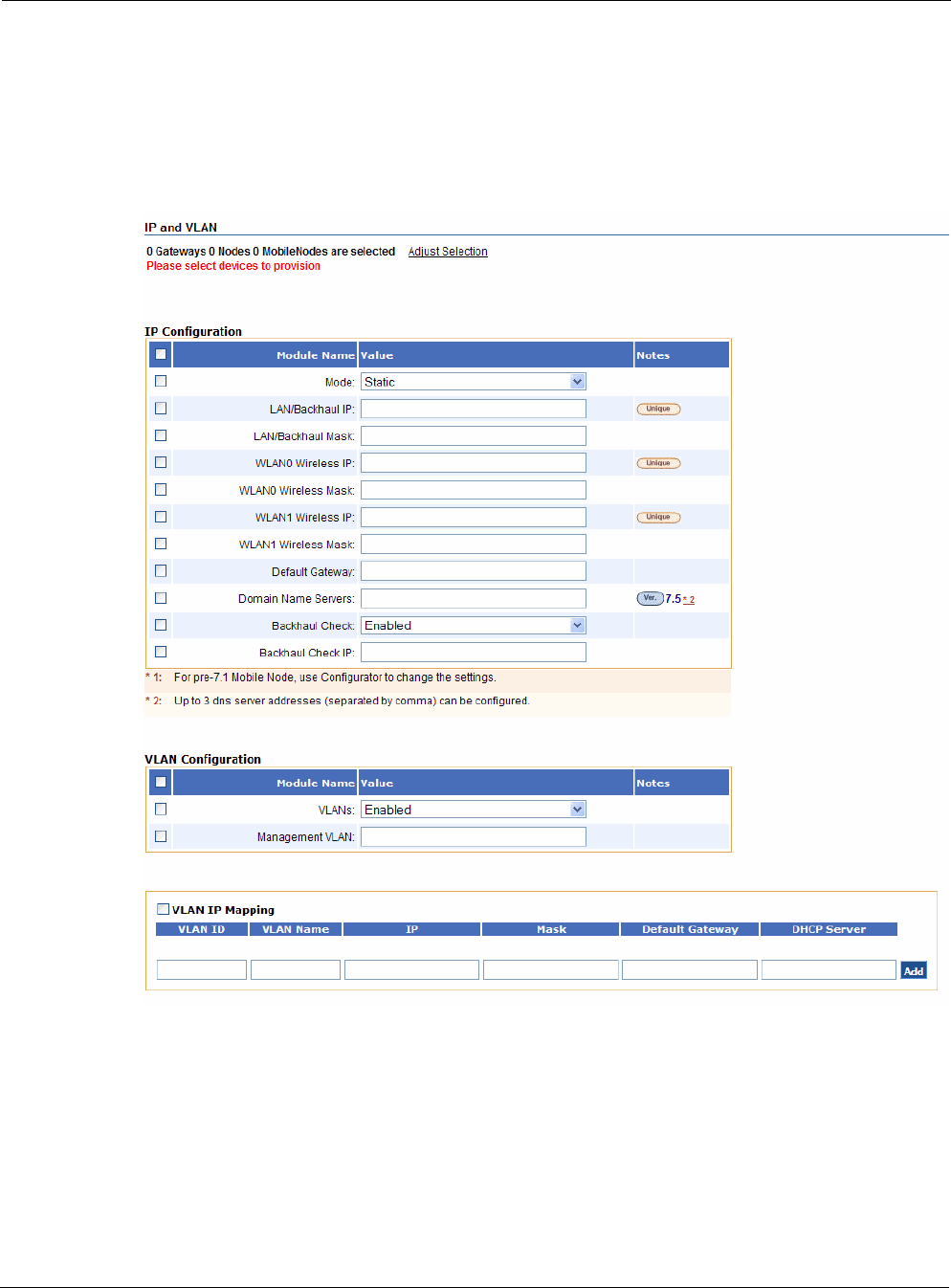

IP and VLAN Page . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 81

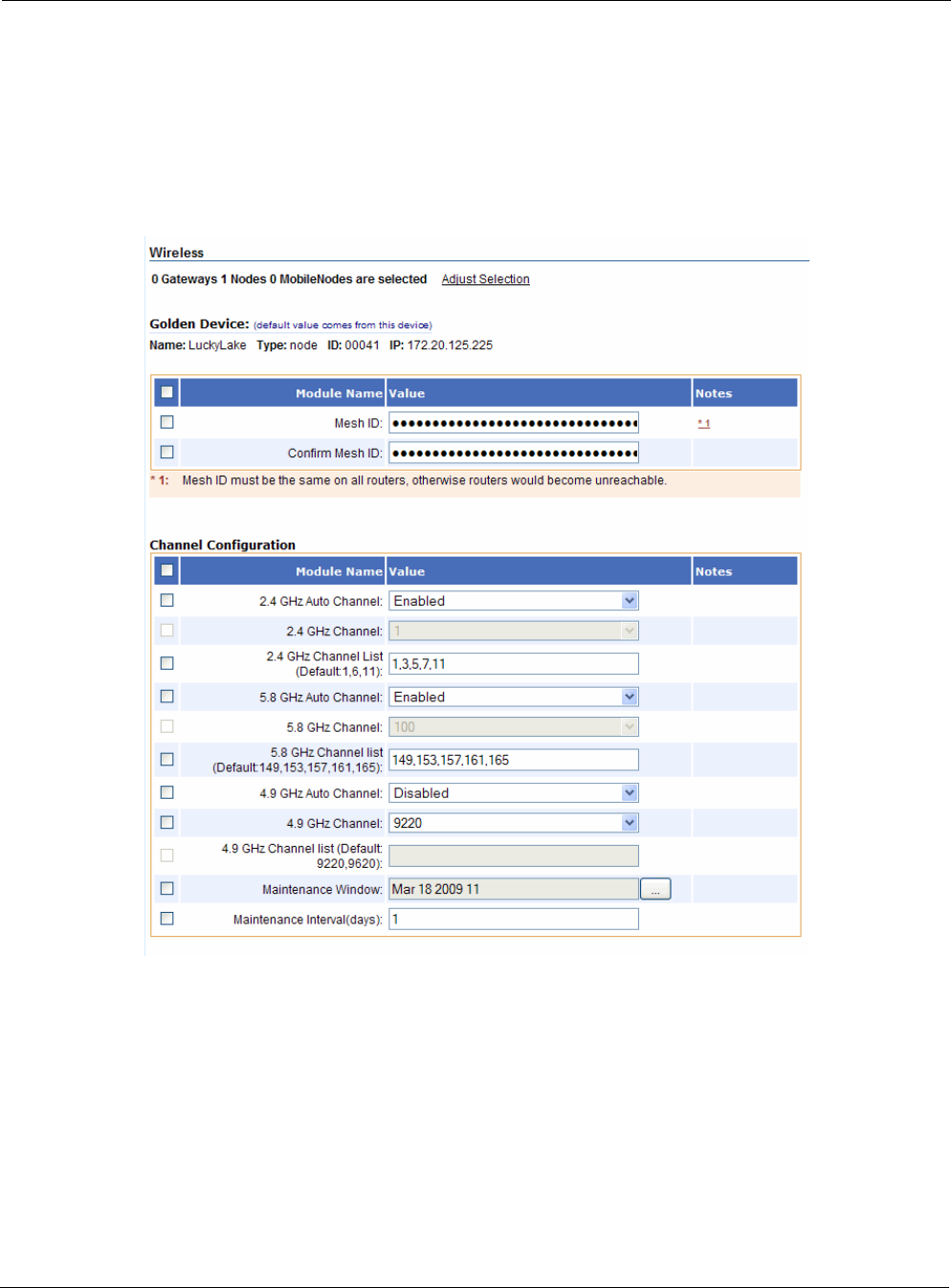

Wireless Page . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 86

Client Access. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 92

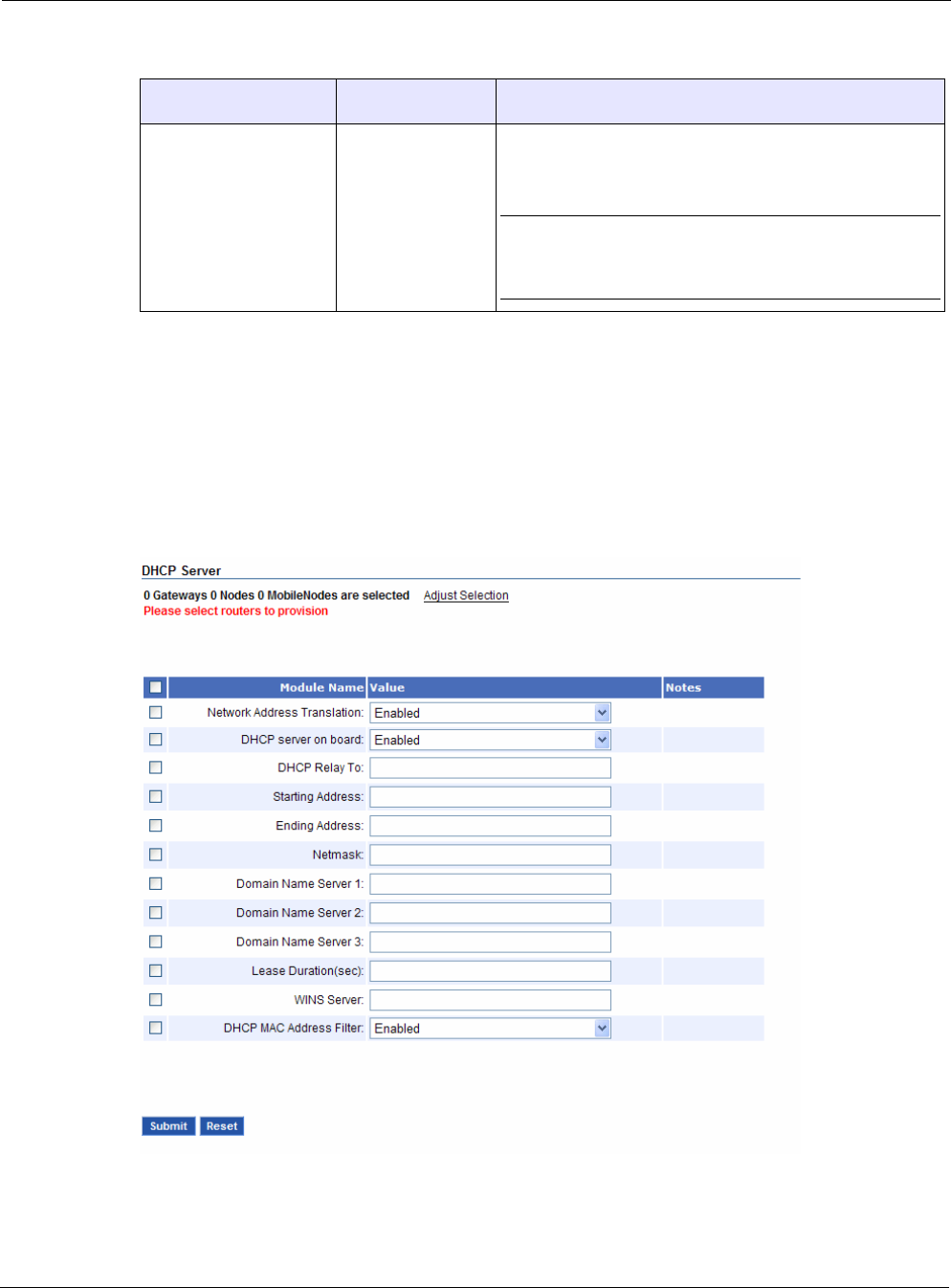

DHCP Server. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 97

SNMP . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 98

Time . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 100

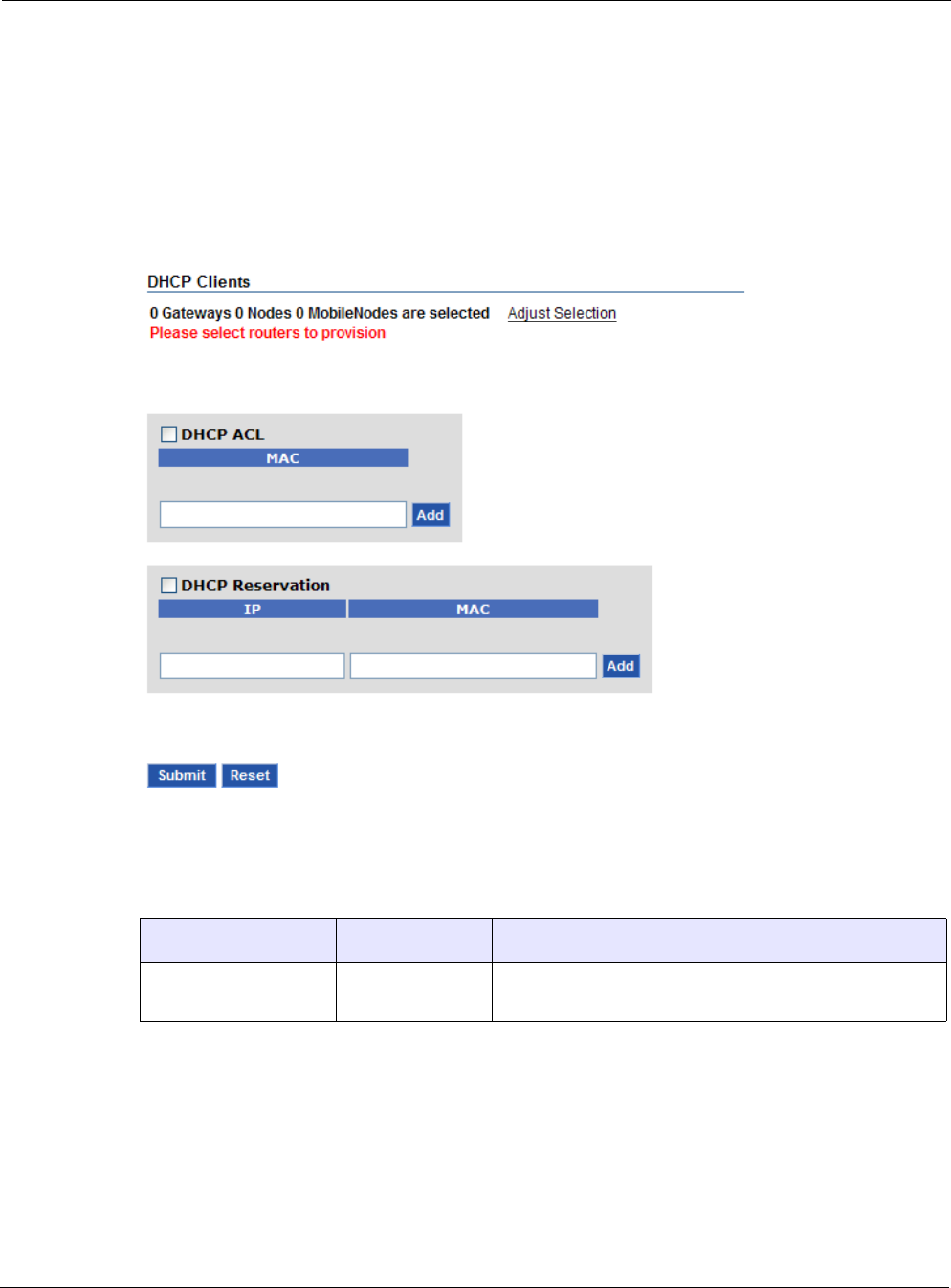

DHCP Clients . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 102

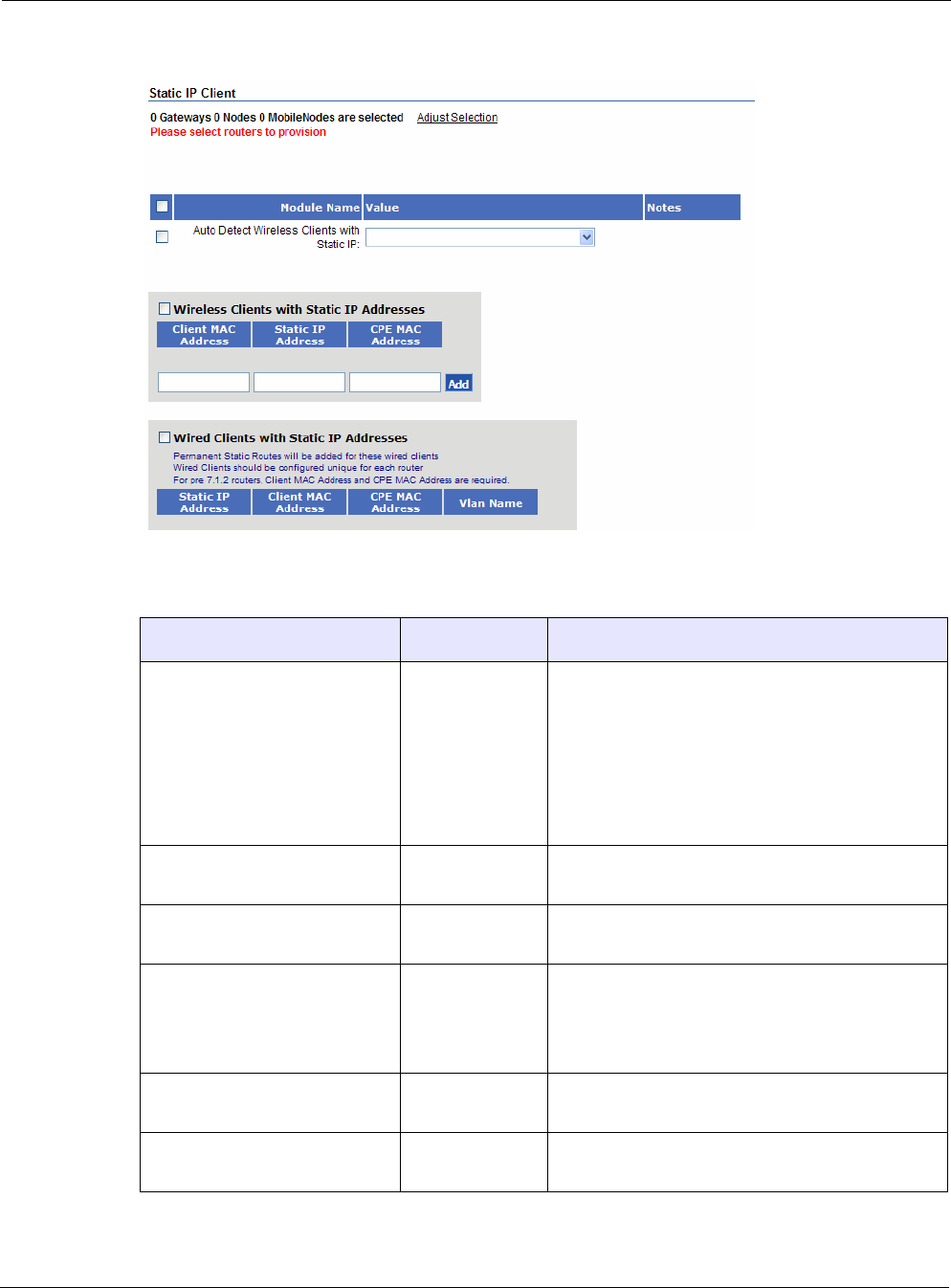

Static IP Client. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 103

Packet Filtering . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 105

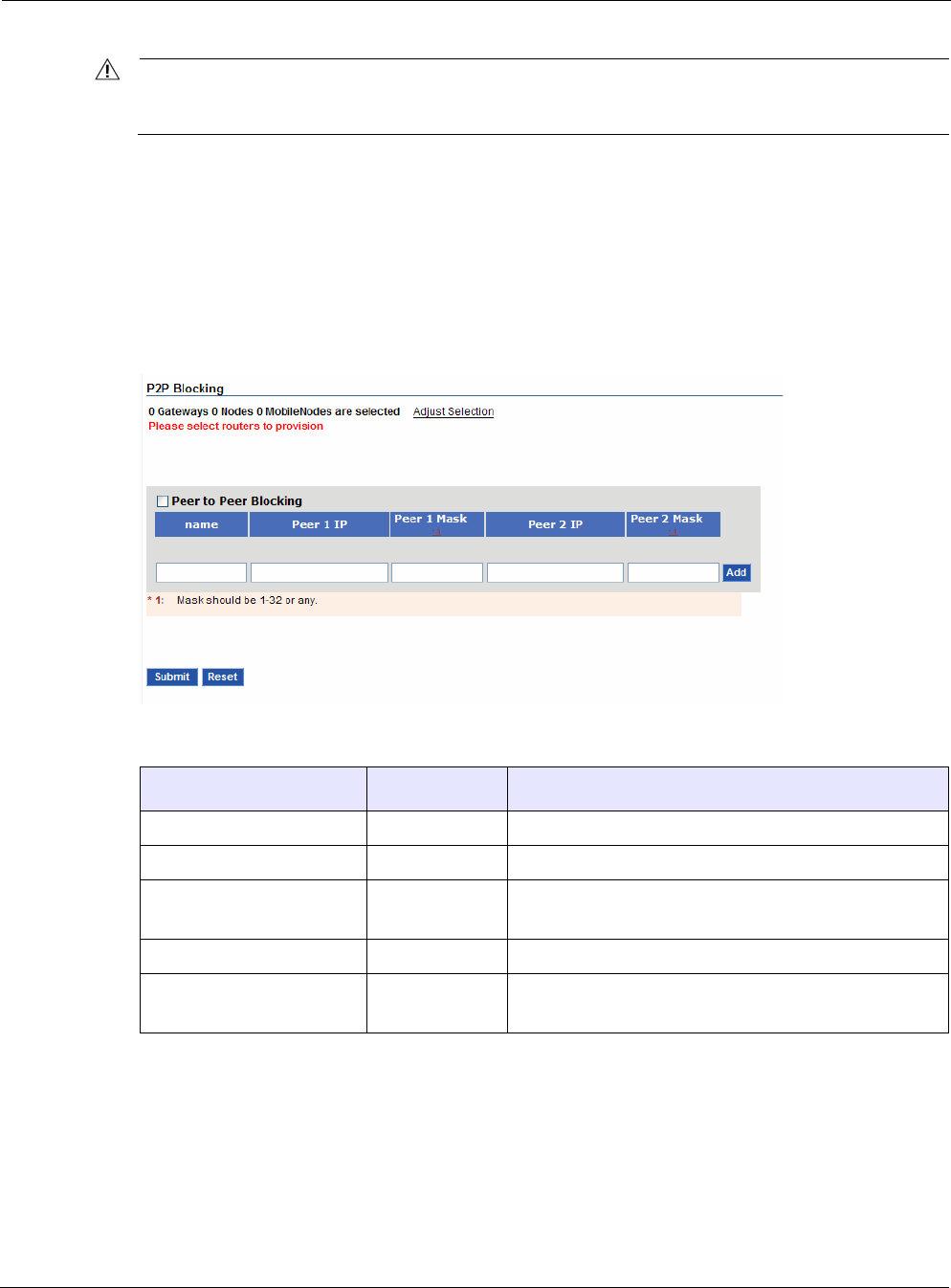

P2P Blocking. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 109

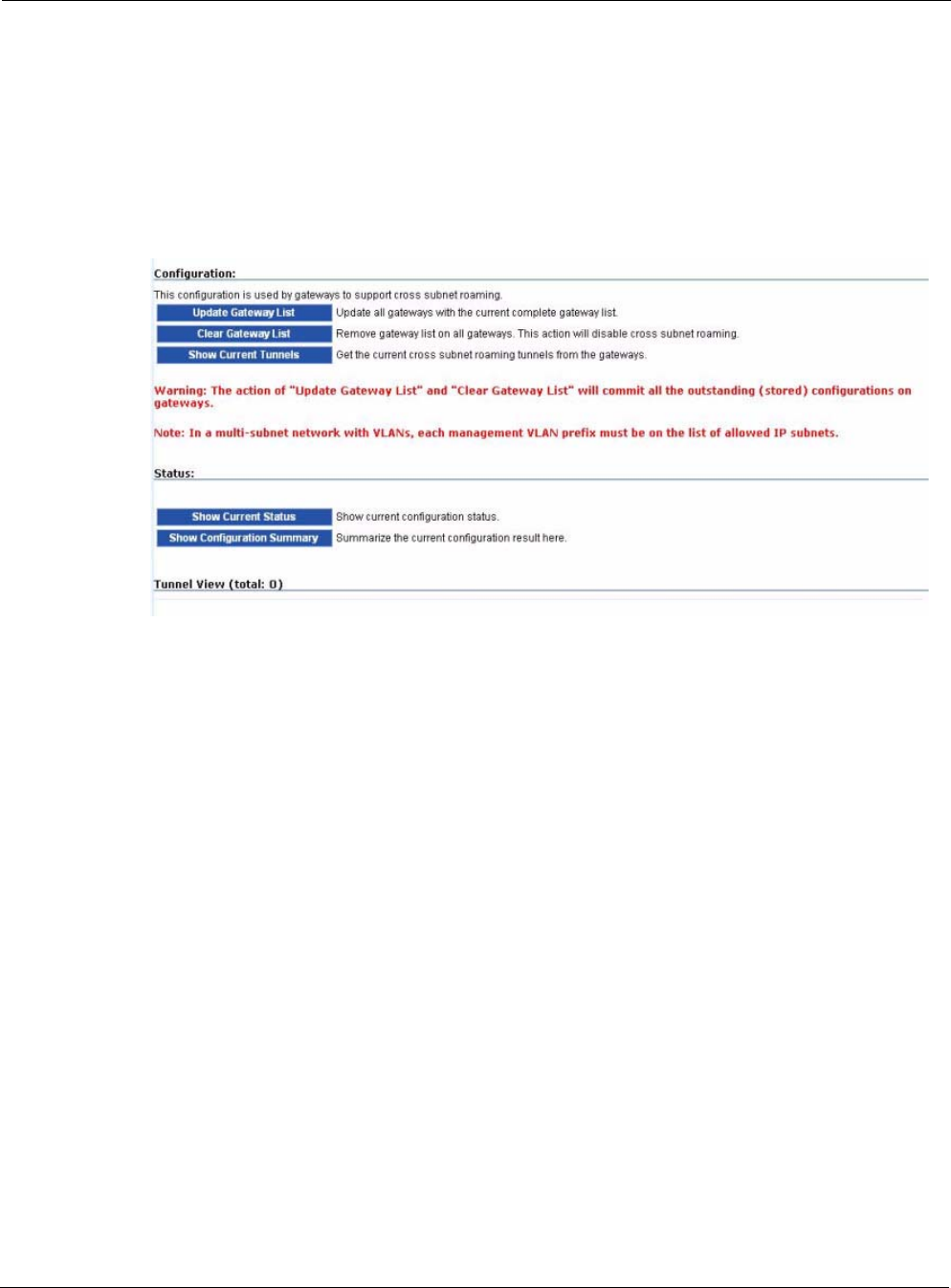

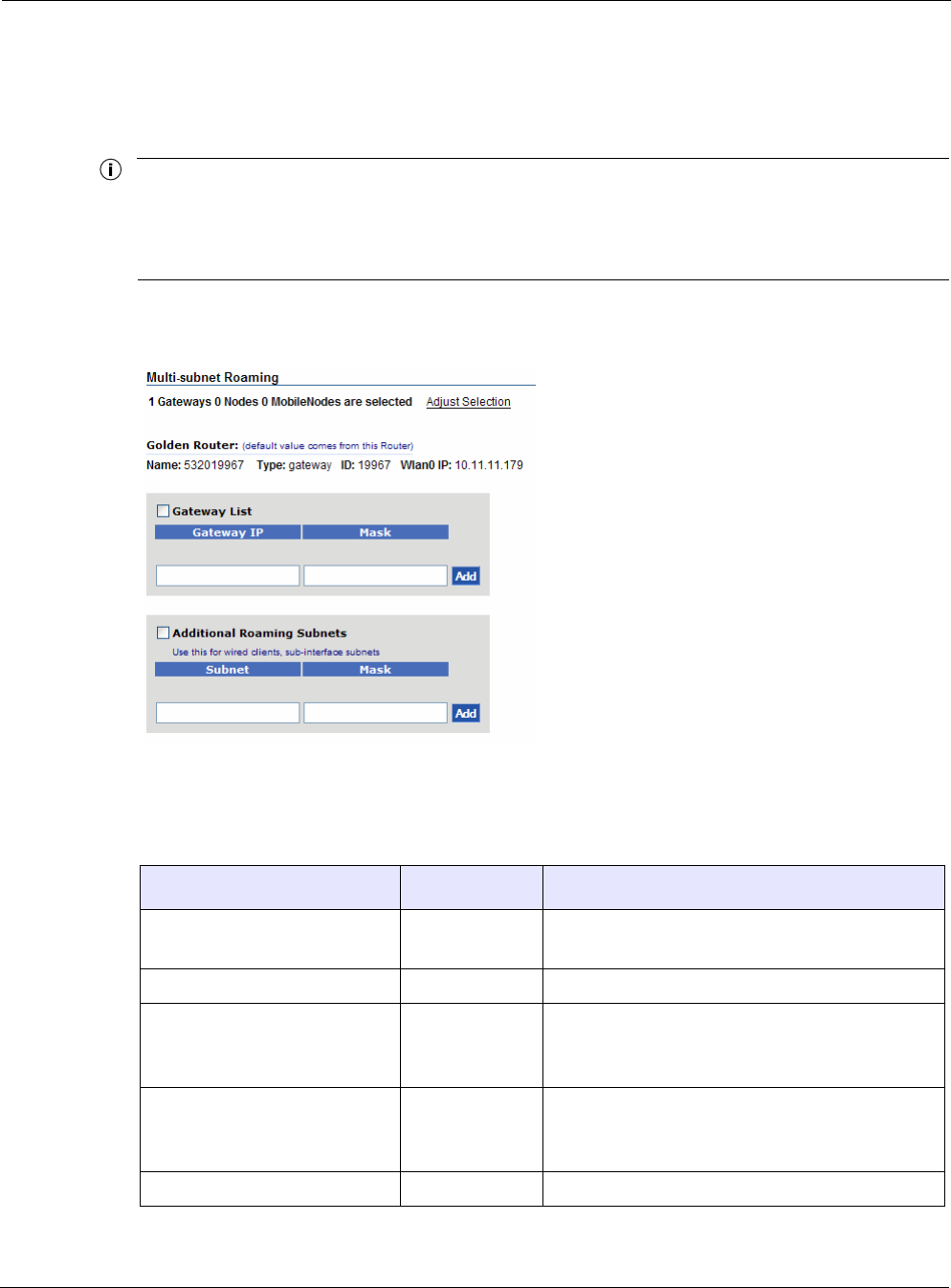

Multi-Subnet Roaming. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 110

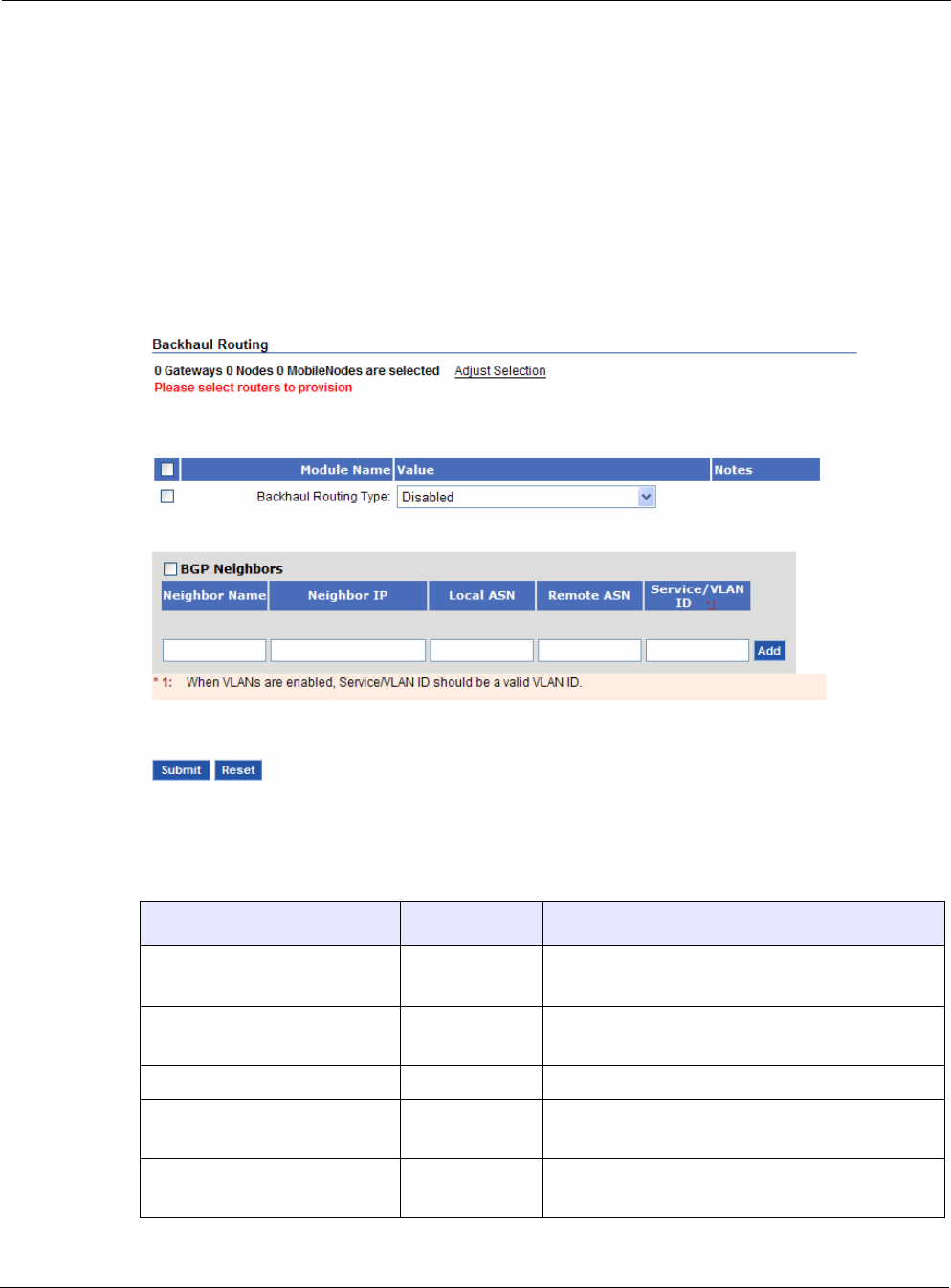

Backhaul Routing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 111

Rate Limiting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 112

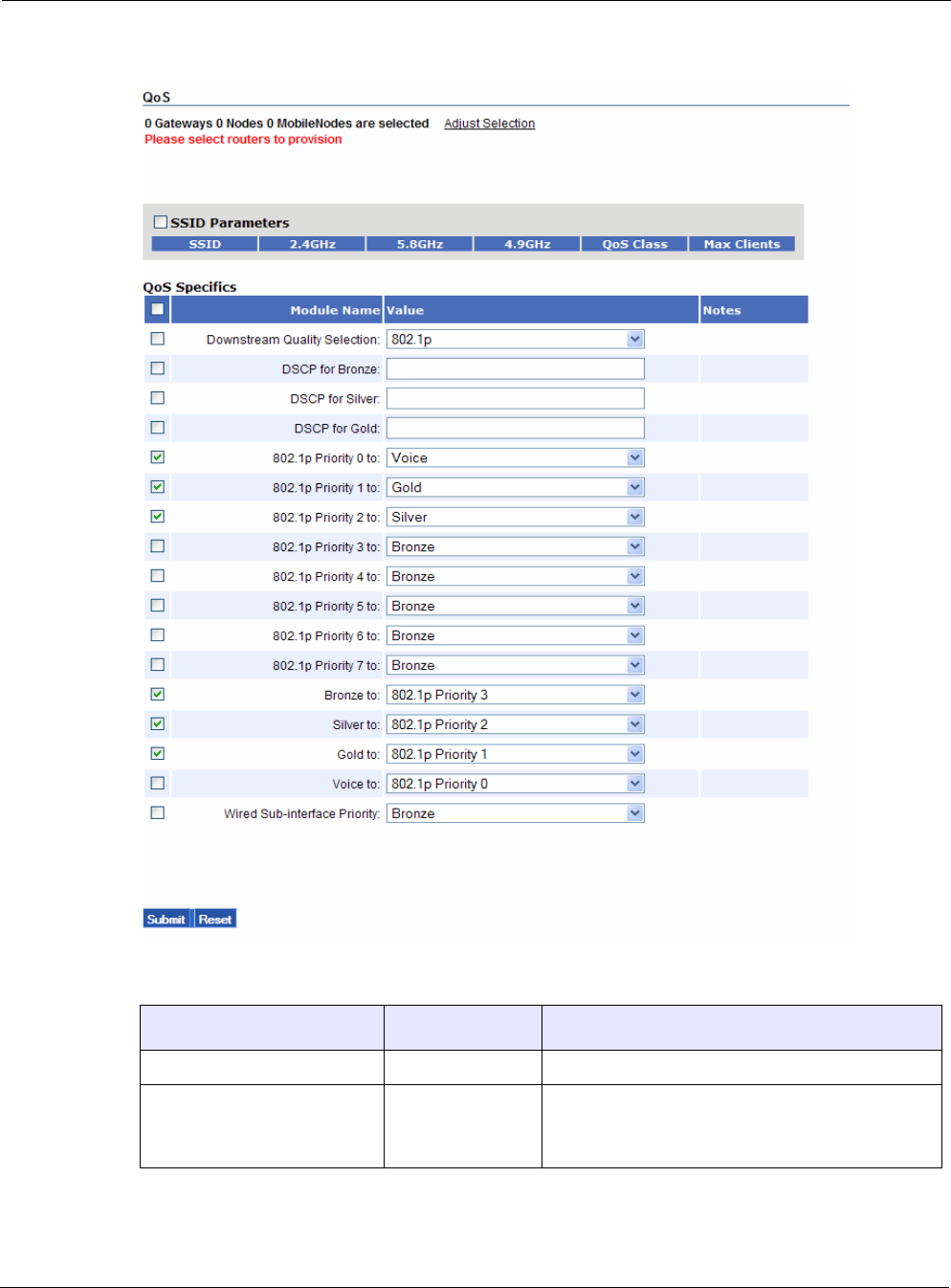

QoS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 115

Tropos Control EMS User Guide vi

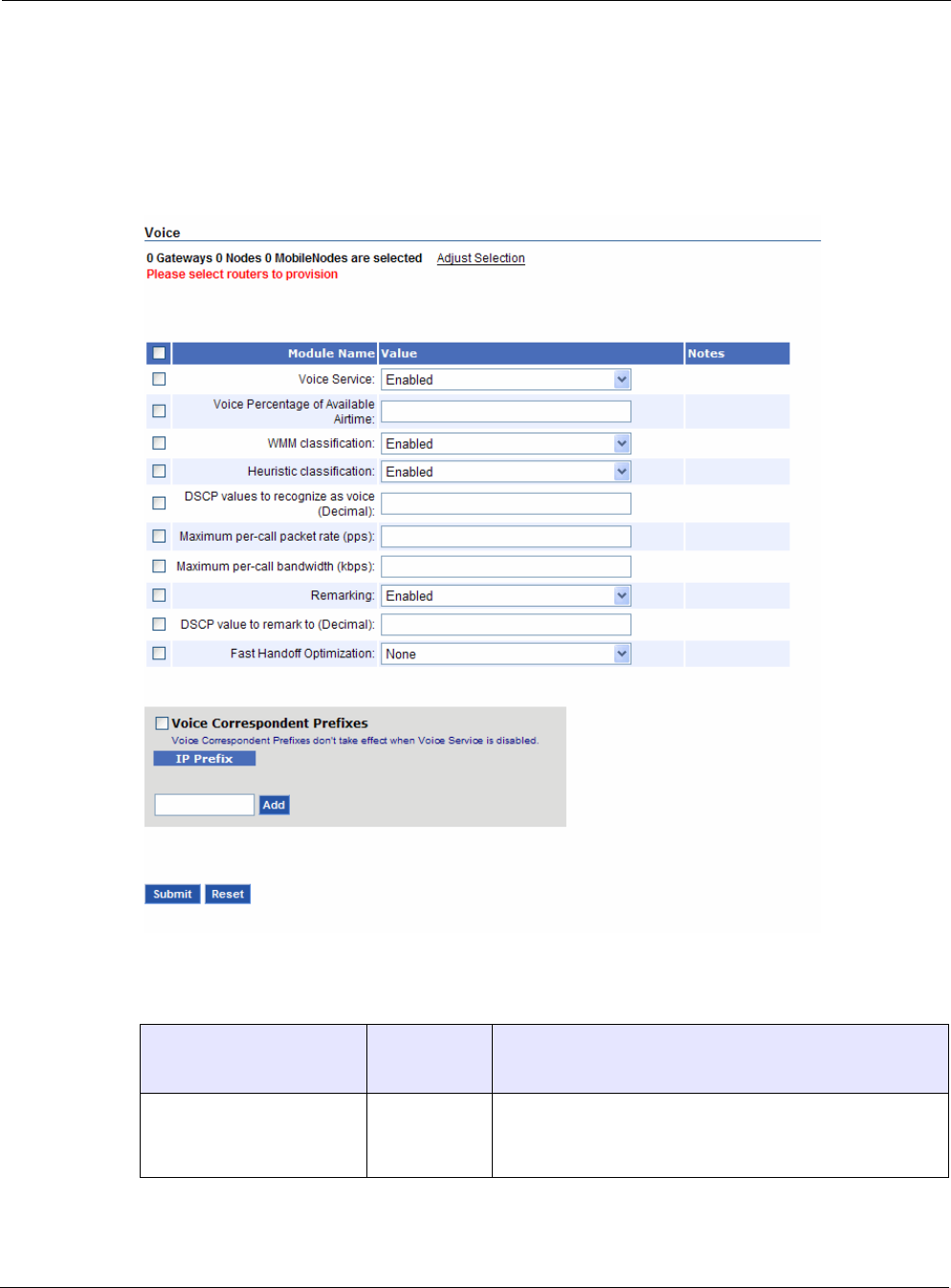

Voice . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 118

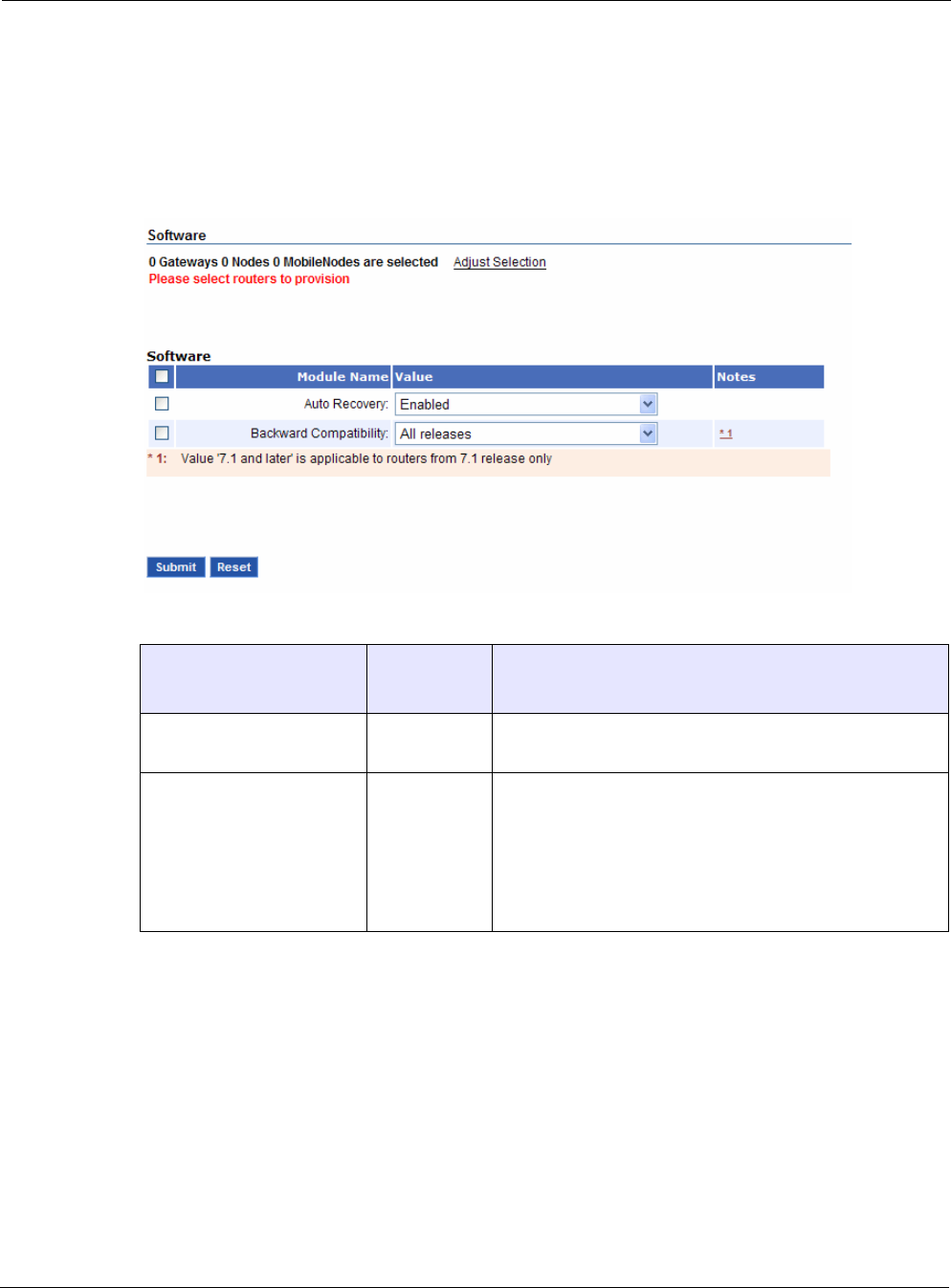

Software . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 120

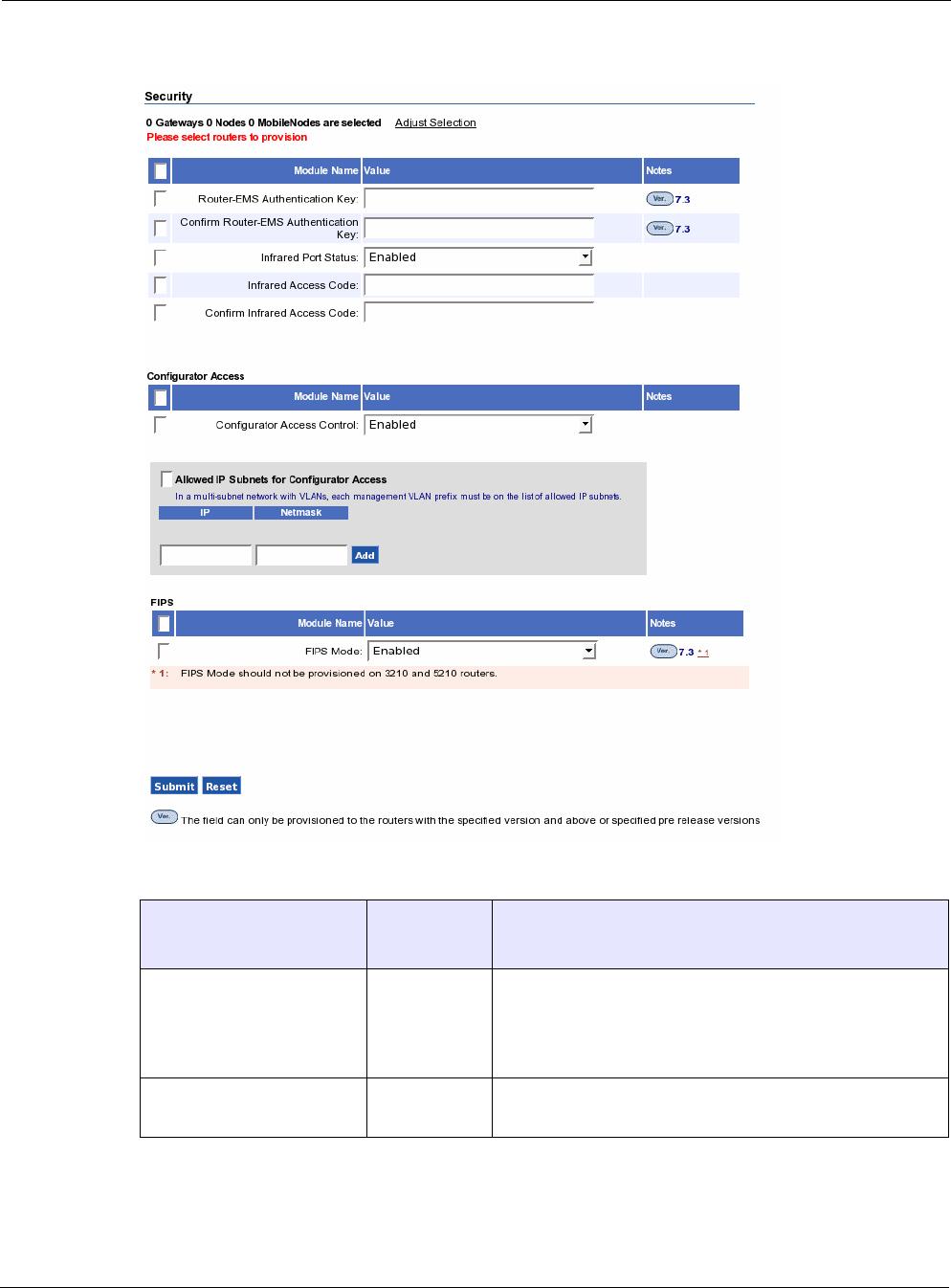

Security . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 120

Other Provisioning Operations . . . . . . . . . . . . . . . . . . . . . . . . . . . . 123

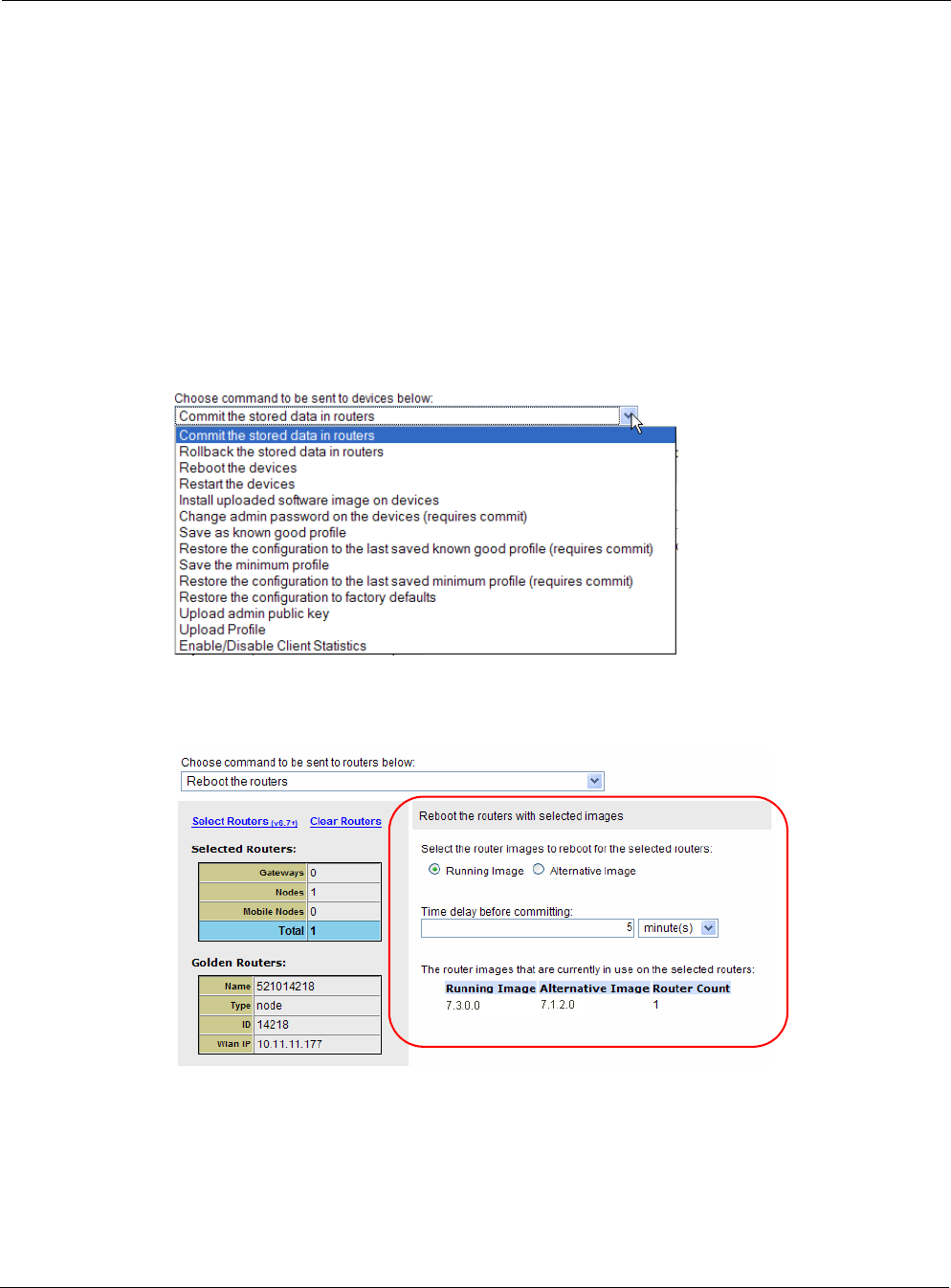

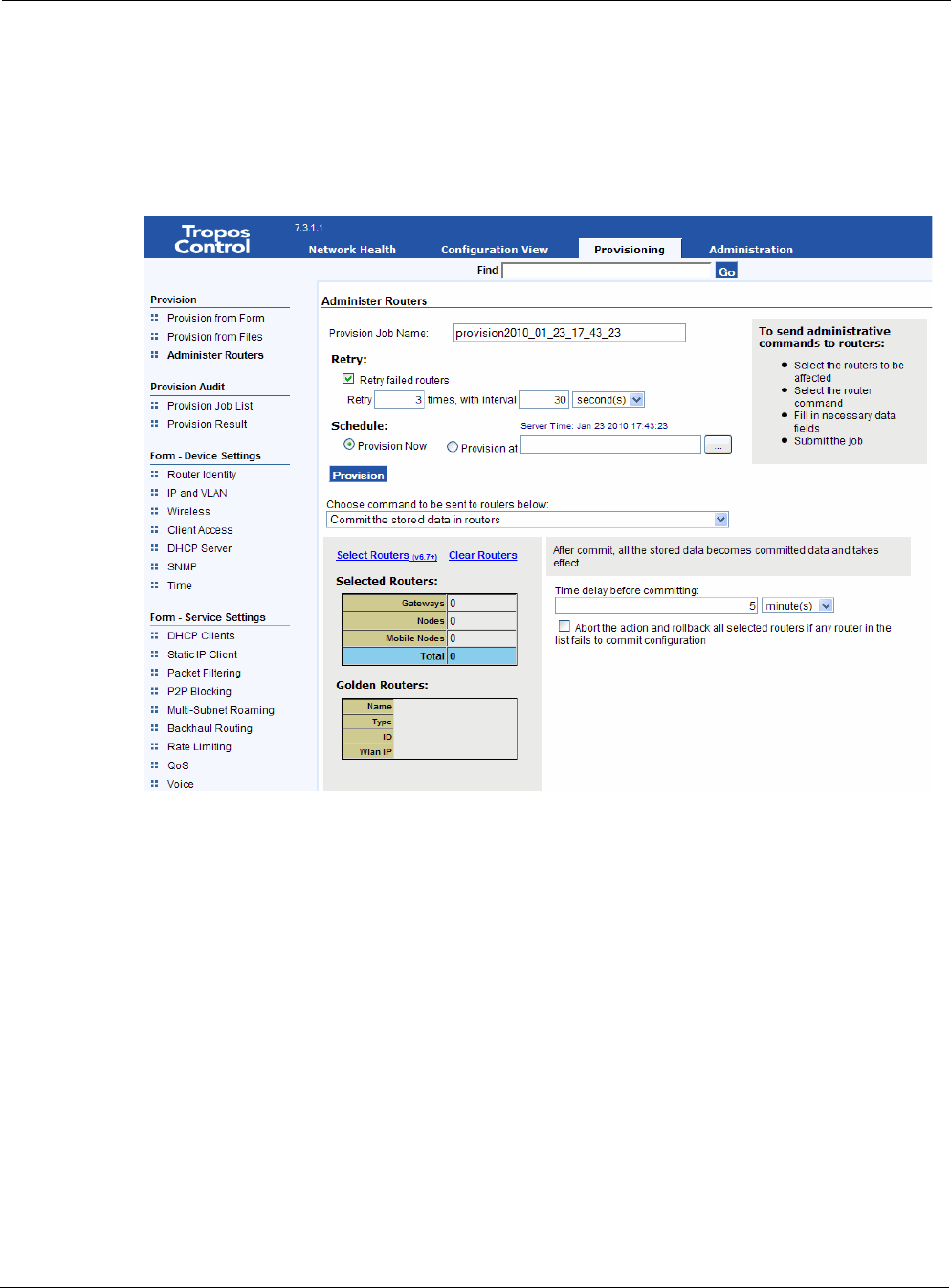

Provisioning Tasks - Administration . . . . . . . . . . . . . . . . . . . . . . 125

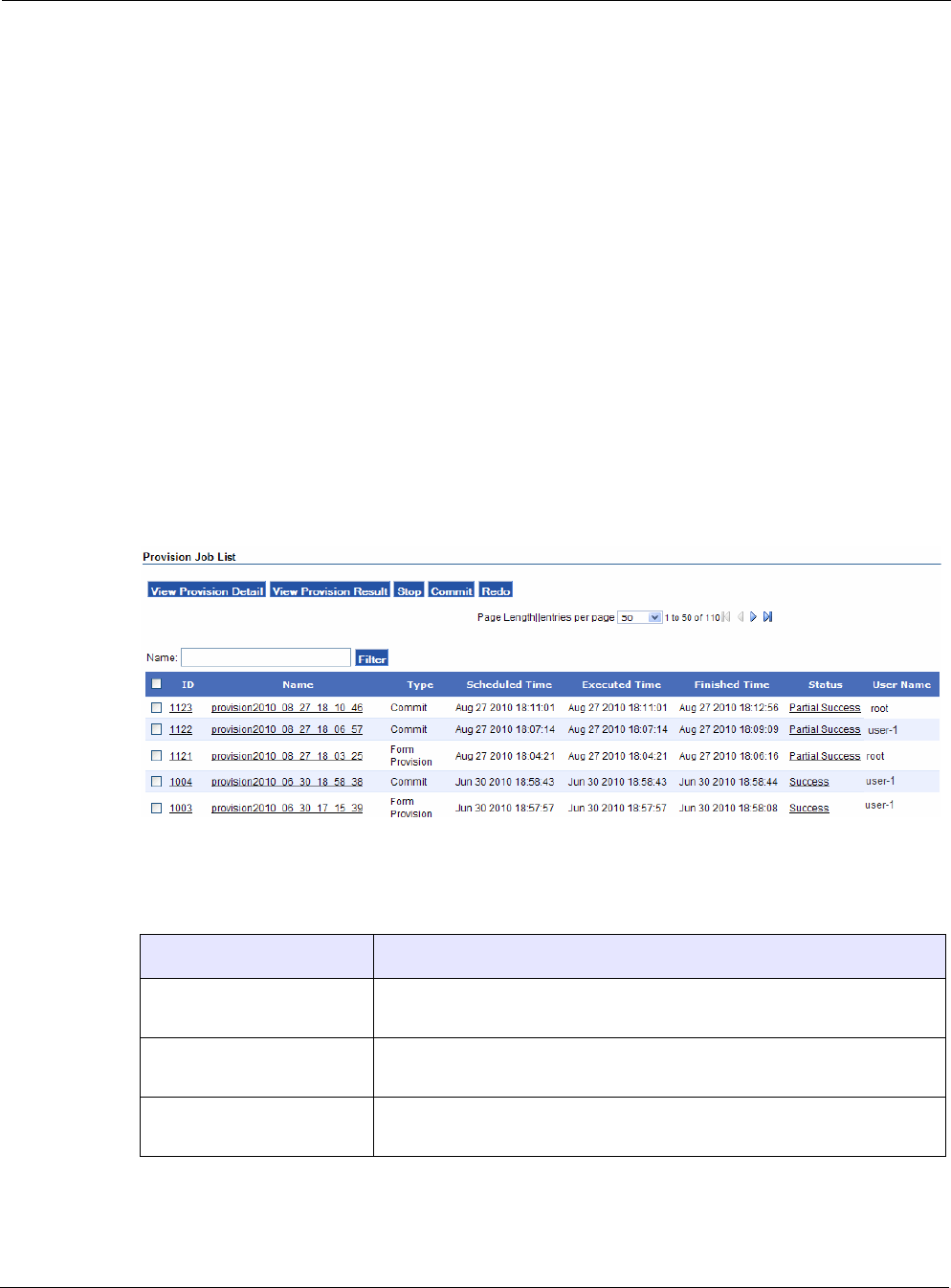

Auditing Provisioning Jobs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 126

8Performing Administrative Tasks . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .129

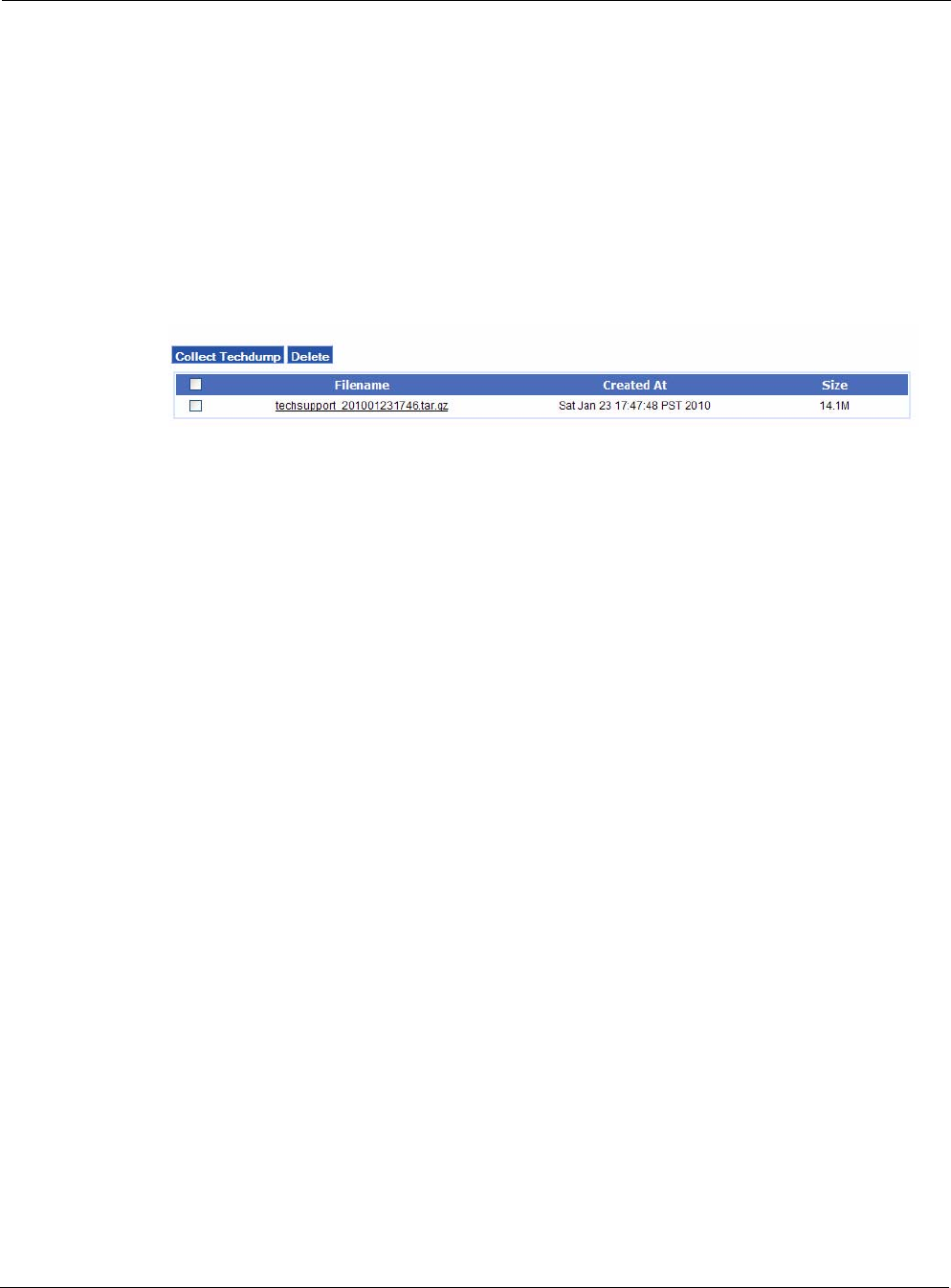

Generating Diagnostic Information. . . . . . . . . . . . . . . . . . . . . . . . . 130

Upgrading Router Software . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 131

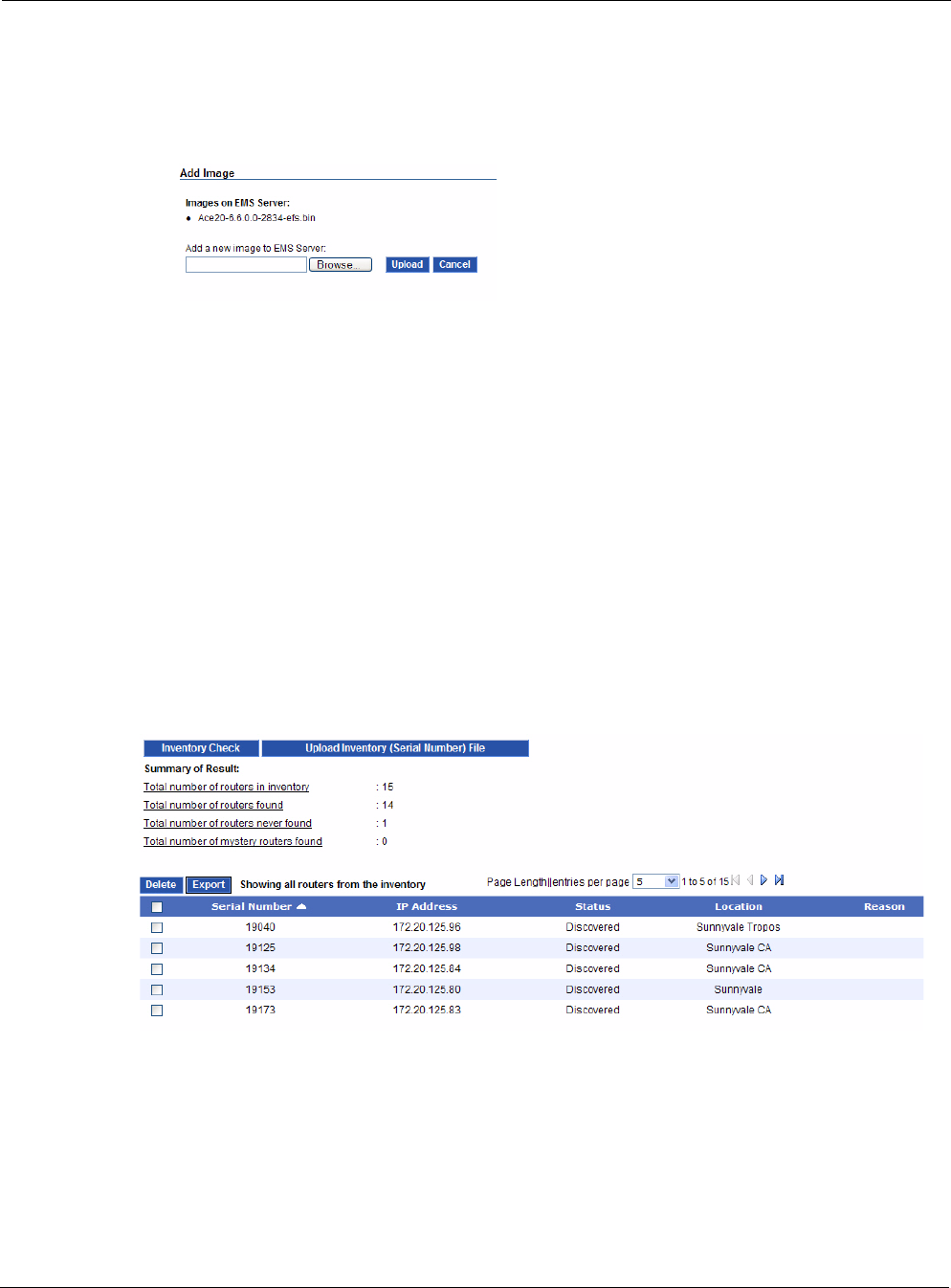

Tracking Router Inventory . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 134

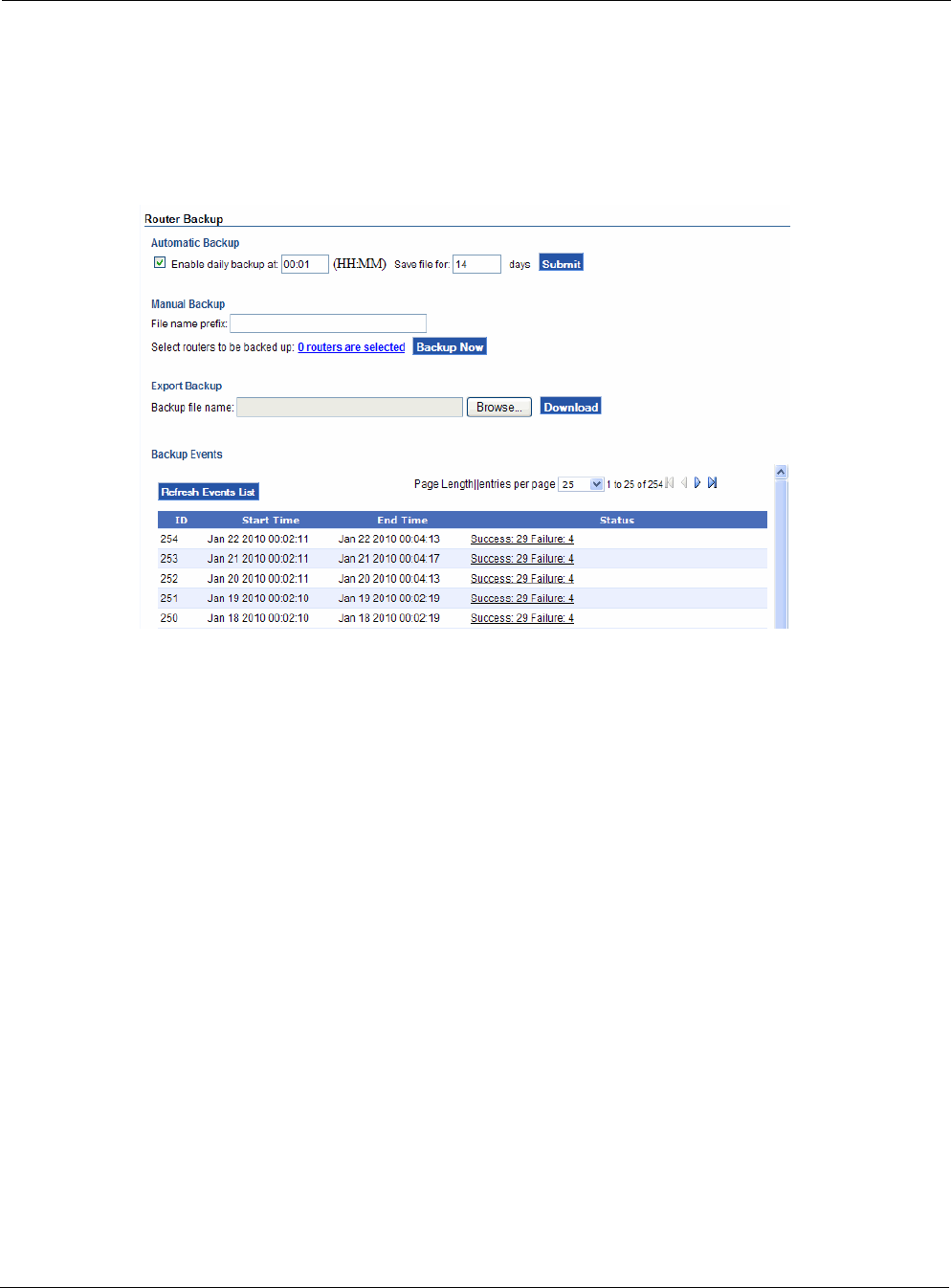

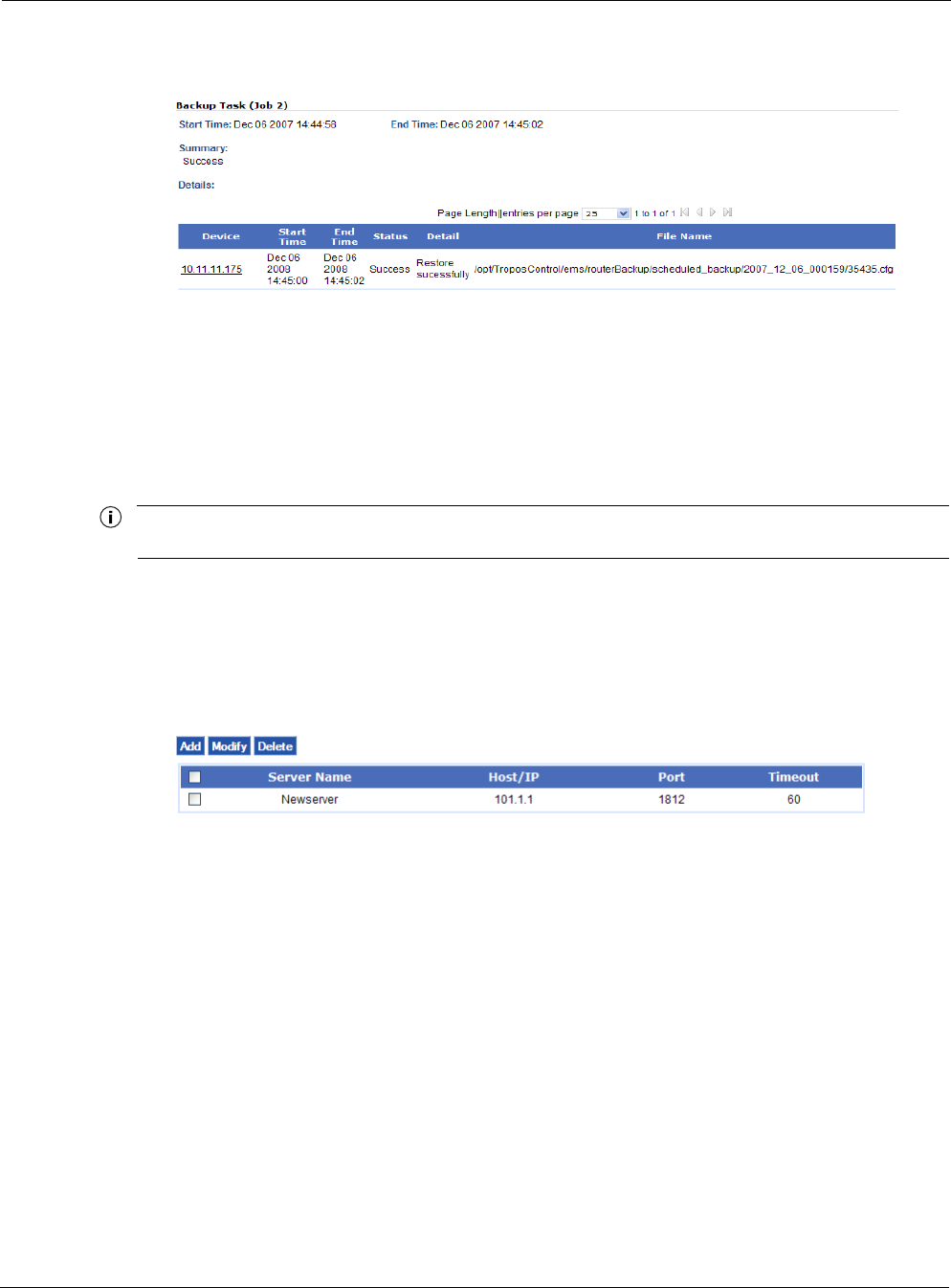

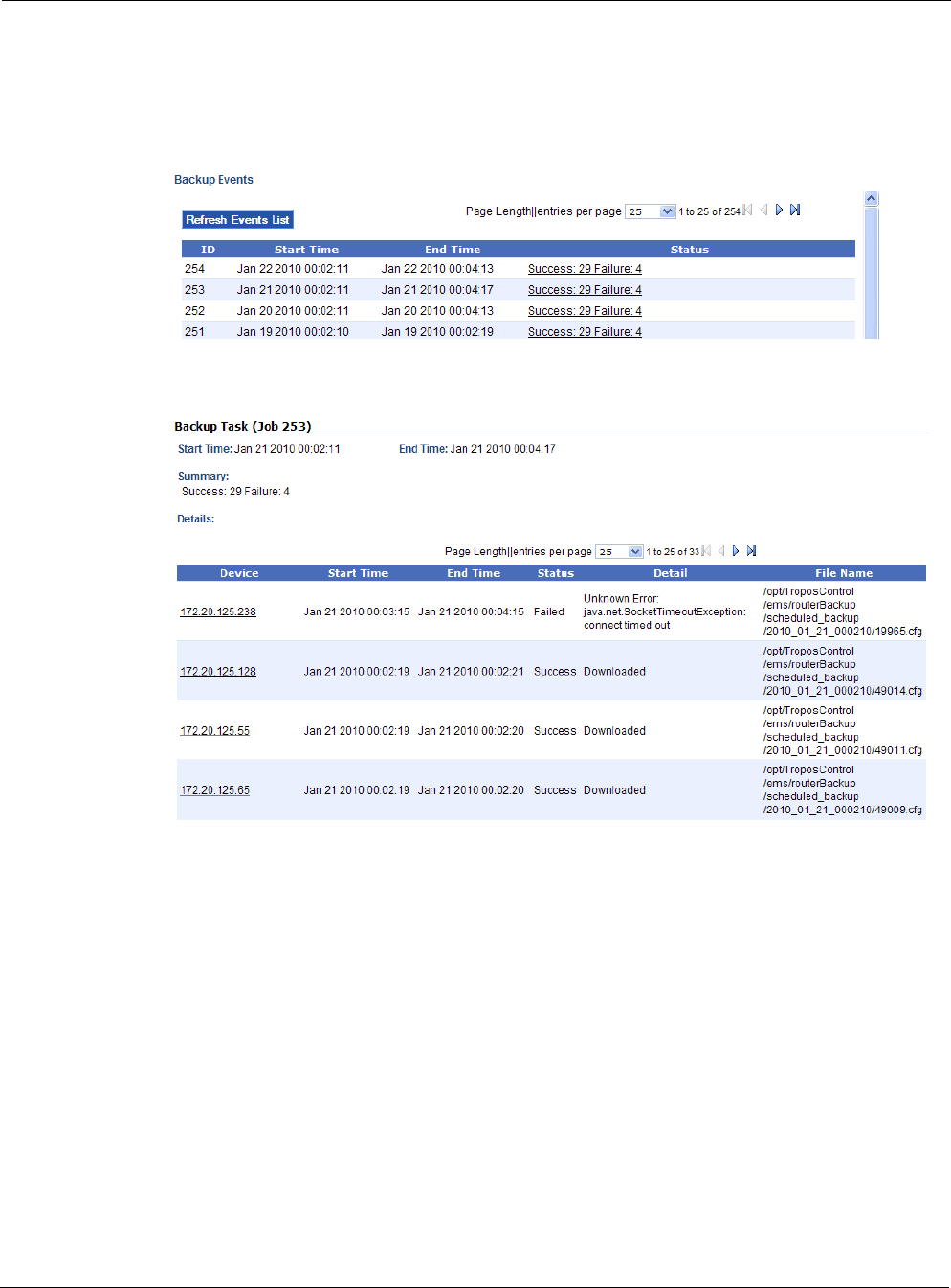

Backing Up Router Configurations. . . . . . . . . . . . . . . . . . . . . . . . . 136

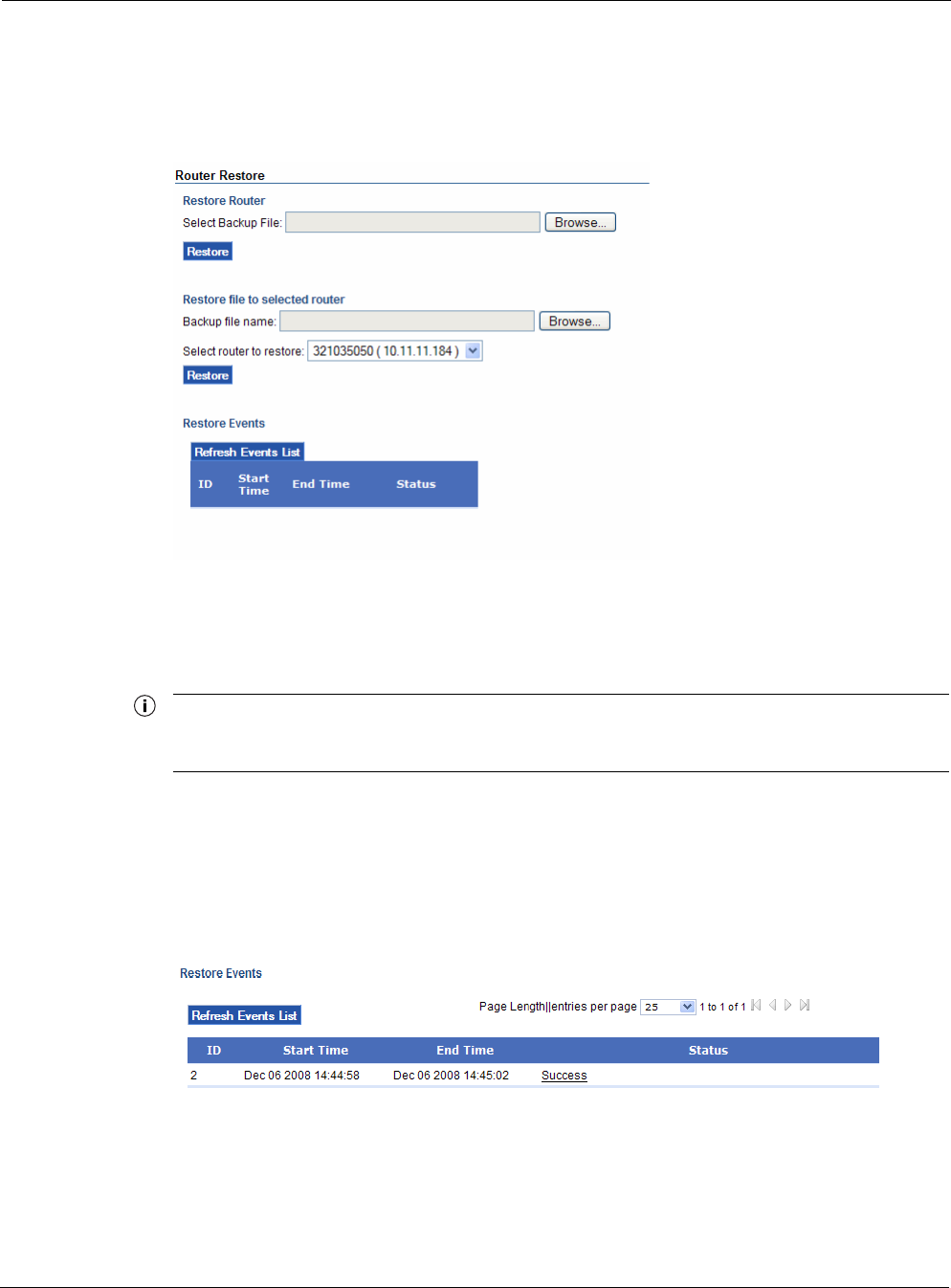

Restoring Router Configurations . . . . . . . . . . . . . . . . . . . . . . . . . . 140

Supporting RADIUS Authentication . . . . . . . . . . . . . . . . . . . . . . . . 143

Managing Administrative Users . . . . . . . . . . . . . . . . . . . . . . . . . . . 144

Using Router Auto Discovery . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 145

Viewing the User Audit Log . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 149

Configuring Banner Text . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 149

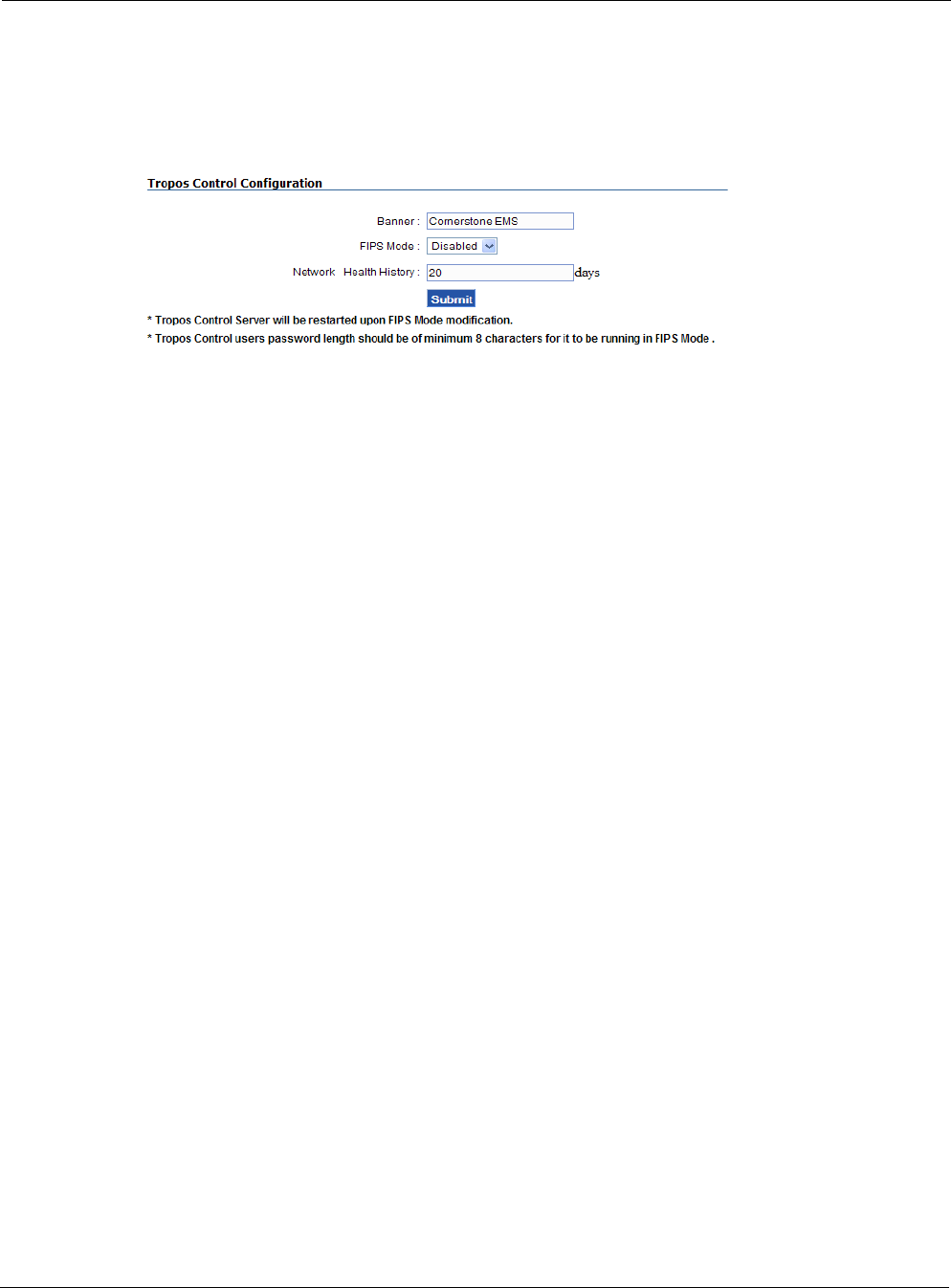

Configuring FIPS Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 150

A Redundant Tropos Control Servers for Failover . . . . . . . . . . . . . . . . . . 152

Primary and Secondary Servers . . . . . . . . . . . . . . . . . . . . . . . . . . 152

Set Up the Primary and Secondary Servers . . . . . . . . . . . . . . . . . 152

Set Up the Secondary Server as Backup. . . . . . . . . . . . . . . . . . . . 153

Perform Failover from the Primary to Secondary Server . . . . . . . . 153

Returning to the Primary Server when it Recovers . . . . . . . . . . . . 154

Glossary . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 155

Index . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 162

Tropos Control EMS User Guide vii

Preface

This guide contains the information and instructions needed to install, configure and use the

Tropos® Control Element Management System to manage your wireless network.

About this Guide

Tropos Control is a comprehensive, real-time management system for Tropos wireless networks.

The system allows you to view the status of all Tropos gateways and nodes, modify

configurations, and assess network performance, all from a central management station.

This guide contains information and instructions on installing, configuring, and optimizing

Tropos Control, and is divided into the following chapters:

Chapter 1, “Overview,” provides an overview of the Tropos network architecture and introduces

the system features.

Chapter 2, “Installation,” contains information needed to install the Tropos Control server,

including system requirements and step-by-step installation instructions.

Chapter 3, “Getting Started,” contains basic information on using Tropos Control, including how

to start and stop the server, establish a new wireless network, and perform discovery.

Chapter 4, “Viewing Network Health Information,” describes how to display detailed

information on network connectivity and performance using the Network Health panels in the

web interface.

Chapter 5, “Viewing Fault Information,” describes how to display alarm and network event

information using the Fault Management panels in the web interface.

Chapter 6, “Viewing Network Configuration Information,” describes how to display device

information using the Network Configuration panels in the web interface.

Chapter 7, “Provisioning,” describes how to use the web interface to provision Tropos routers

for operation in the wireless network.

Chapter 8, “Performing Administrative Tasks,” describes how to manage router inventory,

upgrade router software, and generate diagnostic information using the web interface.

“Glossary” contains definitions of terms relating to Tropos wireless networking.

Chapter 1 

Tropos Control EMS User Guide viii

Tropos Technical Support

If you need technical assistance, you can contact the Tropos Technical Assistance Center by

telephone, web, or email.

Supporting Documentation

Refer to the Tropos Control online help system for further assistance. For more information

about managing and configuring a Tropos wireless network, refer to the following documents

which are available on the installation CD or by download:

Release Notes -- Current product release information.

Tropos Mesh Router Quick Start Card -- Instructions on installing Tropos routers.

Tropos Mesh Router User Guide -- Information on configuring and maintaining Tropos

routers by way of the Tropos Configuration Utility.

Tropos Networks Mesh Router Installation Guide, Model 7320— Explains how to install the

Tropos 7320 router hardware.

Tropos Networks Mesh Router Installation Guide, Model 6320 and 6310-- Explains how to

install the Tropos 6320 and 6310 Mesh router hardware.

Tropos Networks Mesh Router Installation Guide, Model 5320 and 9532 -- Instructions on

installing the Tropos 5320 and 9532 router hardware.

Tropos Networks Mesh Router Installation Guide, Models 4310 and 9432— Explains how

to install the Tropos 4310 and 9432 mobile Mesh router hardware.

Tropos Networks Mesh Router Installation Guide, Models 4210 and 9422— Explains how

to install the Tropos 4210 and 9422 mobile Mesh router hardware.

Whom to contact How to contact

Technical Support Toll-free Number 1-877-987-6767

Website www.Tropos.com

Email Support@Tropos.com

Chapter 1 

Tropos Control EMS User Guide ix

Document Conventions

The document uses the conventions described here.

Nested menu items are separated by an angle bracket (>) (example: Start > Programs > Tropos

> Tropos Control EMS.

In parameter tables, default values are listed in bold italics. If there are only two choices, the

choices are separated by a vertical line (example: Enabled | Disabled).

Items shown in bold text most often represent a user selection. However, important names or

menus are occasionally bolded for emphasis.

Graphical user interface variables are presented in italic font. (example: host.domain.com)

Text entered in a command line is presented in bold courier font. Command output and

system file names are presented in

courier

font.

Command line variables and keyboard buttons are enclosed in brackets. (examples: <Alt>.

Keys to be pressed simultaneously are separated by the addition sign (+) (example: <Ctrl> + y).

Icon Notice Type Description

Note

Useful information (less urgent than Caution or

Warning).

Caution

Careful attention required to prevent loss of data

or damage to equipment.

Warning

Careful attention required to avoid bodily injury

(NOTE: activities involving electrical connections

require extreme caution, constant attention, and

strict adherence to standard safety practices).

Tropos Control EMS User Guide 1

1Overview

This chapter provides an overview of the Tropos Networks wireless network architecture and

introduces the features of the Tropos Control Element Management System.

Chapter contents:

Product Overview

Product Features

Mid-Tier Mesh Architecture

Network Management and Administration

Chapter 1 

Tropos Control EMS User Guide 2

Product Overview

Tropos routers make possible wireless computer networking by providing the infrastructure for

wireless hot spots and metropolitan scale wireless meshes. Table 1 lists the routers and

associated characteristics.

TABLE 1 Router Models

Router Model Characteristics

9532 • Outdoor use, FCC public safety applications

• 802.11a/b/g

• 2.4 GHz and 4.9 GHz

• AC power

9432

9422a

• Mobile router for use in vehicles, FCC public safety applications

• 802.11a/b/g

• 2.4 GHz and 4.9 GHz

• DC power

7320 • Outdoor use

• 802.11a/b/g/n

• 2.4 GHz and 5.8 GHz (FCC), 2.4 GHz and 5.4 GHz (ETSI)

• AC power

7320 DC • Outdoor use

• 802.11a/b/g/n

• 2.4 GHz and 5.8 GHz (FCC), 2.4 GHz and 5.4 GHz (ETSI)

• DC power

6320 • Outdoor use

• 802.11a/b/g/n

• 2.4 GHz and 5.8 GHz (FCC), 2.4 GHz and 5.4 GHz (ETSI)

• DC power

6310 • Outdoor use

• 802.11b/g/n

• 2.4 GHz

• DC power

5320 • Outdoor use

• 802.11a/b/g

• 2.4 GHz and 5.8 GHz (FCC), 2.4 GHz and 5.4 GHz (ETSI)

• AC power

5320 DC • Outdoor use

• 802.11a/b/g

• 2.4 GHz and 5.8 GHz (FCC), 2.4 GHz and 5.4 GHz (ETSI)

• DC power

Chapter 1 

Tropos Control EMS User Guide 3

The term mobile router refers to the Tropos 4310, 4210, 9432, and 9422 models, which are

designed for installation and use in moving vehicles. The term stationary routers (or fixed

routers) refers to all the other router models, which are designed to be installed in a fixed

location.

All Tropos routers are controlled by the Tropos Sphere Network Operating System. The Tropos

Control Element Management System (Tropos Control) described in this guide enables network-

wide control, management, and router configuration. The Tropos Configuration Utility,

described in the Tropos Networks Configuration Guide, provides an interface for direct

configuration of individual routers.

Note

The Tropos routers and the Tropos Control EMS server in your network must run compatible versions of software. For

compatibility information, refer to the Tropos Control EMS Release Notes for your release.

Product Features

Tropos Control includes the following features:

Network control from a single management station with convenient web interface (as well as

legacy client interface)

Quick, uniform bulk provisioning of router configuration and security settings

Automatic discovery and graphical placement of routers

Google map views of router location, status, and channels

Reporting of global positioning system (GPS) location data in network maps for mobile

nodes

Network health check with point-and-click graphs

5210a• Outdoor use

• 802.11b/g

• 2.4 GHz

• AC power

5210 DCa• Outdoor use

• 802.11b/g

• 2.4 GHz

• DC power

4310

4210a

• Mobile router for use in vehicles

• 802.11b/g

• 2.4 GHz

• DC power

a.For the 5210, 4210, and 9422 routers, software support is limited to the correction of ser-

vice affecting bugs. The 3110, 3210, and 5110 routers are no longer supported.

TABLE 1 Router Models (continued)

Router Model Characteristics

Chapter 1 

Tropos Control EMS User Guide 4

Overview of network performance and optimization priorities

Multiple views of network capacity and wireless link quality

Central configuration and software updates

Point-and-click access to configuration and security information

Support for Federal Information Processing Standards, version 140-2 (FIPS 140-2)

Link state and client connectivity information and monitoring

Quick access to the fault, performance, and statistical information

MAC address filtering

Rogue client blacklisting

Continuous alarm and event monitoring

Automatic collection and monitoring of performance data

Long term trend data

Performance reporting

Remote configuration and software updates

Comprehensive logging

Mid-Tier Mesh Architecture

Each stationary router can be configured to operate as a gateway or node. As a gateway, the

router establishes communications between the wired Ethernet network and other routers that

operate as nodes; nodes, in turn, form radio communications links with the clients (users) on the

network. Gateways can also service clients directly.

Note

Each Tropos mobile router is shipped from the factory with the mobile node setting, but can also operate as a

gateway. If a mobile router is operating as a gateway and the wired connection is disabled, the router automatically

reverts to mobile node operation.

A Tropos wireless network consists of gateways that are directly connected to the wired network

and nodes that deliver wireless communications support for clients and provide wireless

backhaul to other upstream Tropos nodes and gateways. The nodes and gateways form a meshed

cluster to route wireless signals dynamically from clients through the gateway and on to the

wired network.

Chapter 1 

Tropos Control EMS User Guide 5

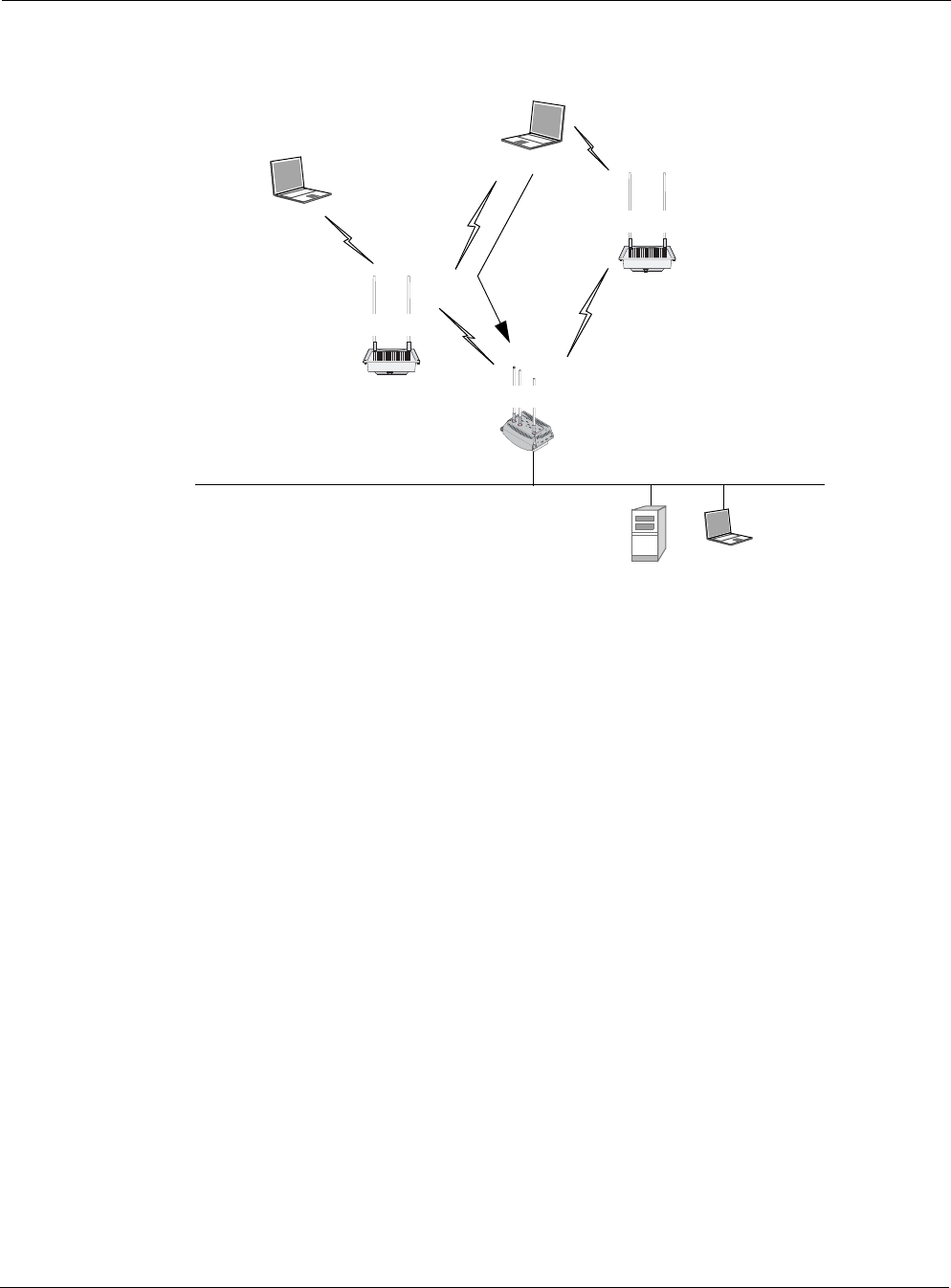

Figure 1 shows basic Tropos wireless network.

FIGURE 1 Typical Tropos Wireless Network

Tropos networks can be deployed on a small or large scale. The largest deployments are able to

support thousands of routers over a wide geographic area.

Each node communicates with standard 802.11 clients and passes data back through a wireless

link to a gateway that is attached to the wired network. All routers continually monitor the

quality of the wireless links and select the optimal path for routing traffic to the wired gateway.

By overcoming the effects of interference and multi-path fading across the mesh, the Tropos

network is able to deliver consistent throughput up to the maximum available.

Routing decisions are made by way of the Tropos Predictive Wireless Routing Protocol

(PWRP®), which manages network routing based on self-organizing principles. The PWRP

implements dynamic re-clustering to maximize available throughput and ensure reliability.

Dynamic re-clustering refers to the ability of the network to respond to changes in radio signal

availability and quality by modifying the paths that data packets take. When a node becomes

unavailable or the signal quality degrades due to distance or other ambient conditions, the

network automatically reorganizes to create another path from the client through the mesh of

nodes back the gateway and the wired network (Figure 2).

Wireless Client

Tropos Node

EMS Server and Client

Tropos Gateway

Tropos Node

Wireless Client

Chapter 1 

Tropos Control EMS User Guide 6

FIGURE 2 Rerouting in a Typical Tropos Wireless Network

Due to dynamic re-clustering, individual paths need not be engineered on a link-by-link basis.

The PWRP automatically sets up and maintains routes by dynamically identifying the path that

achieves the highest throughput between the wireless client and the wired backhaul connection.

Throughput maximization improves overall network performance, and lack of a system-wide

point of failure increases reliability.

Tropos wireless networks permit easy addition of new routers to support growth in the number

of client subscribers. New nodes may be added to extend coverage at any location that has

available power. As the number of subscribers continues to grow, gateways may also be added to

further increase coverage, performance, and reliability.

Mobile Router Networks

Tropos mobile routers extend the wireless network to mobile node operation. Installing mobile

routers in fire, police, or other public service vehicles allows for immediate high-bandwidth

access to network services. As with other Tropos routers, the mobile router dynamically

associates to upstream nodes or gateways.

Clients connect to the mobile router through a wireless or wired connection. In a typical vehicle

installation, the client computer is connected directly to the mobile router through a wired

interface connection.

Since mobile routers may be in motion, special rules apply to the association of wireless clients

to and from mobile routers. The following guidelines and properties apply:

Wireless Client

Tropos Node

Tropos Control Server and Client

Tropos Gateway

Tropos Node

Chapter 1 

Tropos Control EMS User Guide 7

A mobile node will always attempt to establish backhaul connection to an upstream

stationary Tropos node or gateway. If this is not possible, it will attempt to connect to

another mobile router.

A stationary Tropos node will not attempt to establish uplink to a mobile router.

Configuring a separate ESSID for mobile routers is recommended. Wireless clients

accessing this ESSID will always attempt to associate with mobile nodes, while clients

accessing other ESSIDs will always attempt to associate with stationary nodes. This

arrangement prevents typical stationary clients from associating to mobile nodes that may

move in and out of coverage, while also permitting special sets of wireless clients (such as

passengers on a bus with a mobile node installed) to associate with mobile nodes.

If any router loses backhaul connectivity, it shifts to standalone mode so as not to advertise

wireless service to associated clients. When connectivity is recovered, service is automatically

restored. (This process takes approximately ten seconds after connectivity is re-established.)

Because a mobile router is more likely to lose wireless connectivity than a stationary node,

clients associated with a mobile node may encounter more frequent service disruptions than

those associated to stationary nodes. To prevent unsuccessful data transmission attempts from

the client when upstream connectivity is lost, the downstream wired interface for the mobile is

immediately switched off when connectivity is lost.

Figure 3 shows a typical Tropos network with mobile nodes added, and Figure 4 illustrates

automatic rerouting actions if connectivity to the stationary Tropos network is interrupted.

FIGURE 3 Typical Tropos Mobile Network

Tropos Gateway

Tropos Node

Tropos 4310

Wired Client

Tropos Node

Tropos Control Server and Client

Chapter 1 

Tropos Control EMS User Guide 8

FIGURE 4 Rerouting in a Tropos Mobile Network

Network Management and Administration

The Tropos Control Element Management System (Tropos Control) enables network operators

to administer an entire Tropos network consisting of numerous gateways and nodes distributed

over a wide geographical area. Tropos Control presents geographic views of all the routers in a

network along with detailed configuration information. Operators can view network health

statistics, monitor performance, events, and alarms, and provision individual routers or groups of

routers. Support is also provided for batch updates of configurations and software.

Note

Multiple Tropos Control servers may be used to manage a network.

Individual routers may also be provisioned using Tropos Control or the Tropos Configuration

Utility. The Tropos Configuration Utility provides a secure HTTPS interface to access and

control individual routers, connecting through the wired Management port on the router or

association of a laptop client.

Tropos Gateway

Tropos Node

Tropos 4310

Wired Client

Tropos Node

Wireless clients attempt to

associate to stationary node or

gateway. If this fails, they can

associate to a mobile node.

Tropos Control Server and Client

If uplink to all stationary

nodes is lost, the mobile

router attempts to associate

to another mobile node.

Tropos Control EMS User Guide 9

2Installation

This chapter provides Tropos Control installation instructions.

Chapter contents:

Pre-Installation Requirements

Installing Tropos Control

Updating ARP Cache Settings

Uninstalling the System

Backing Up and Restoring the Tropos Control Server

Upgrading the Server

Resetting the Administrative Password

Chapter 2 

Tropos Control EMS User Guide 10

Pre-Installation Requirements

Sizing Requirements

Server and Client System Requirements

Supported Routers

Firewall Requirements

Sizing Requirements

Table 2 lists the minimum requirements for a Tropos Control server that uses an external Oracle

database and Table 3 lists the Oracle database requirements.

Server and Client System Requirements

CentOS 5 must be installed on the Tropos Control Server. Visit support@tropos.com for

instructions and to download a Tropos-customized CentOS installation image.

There should be only one user account created on the Tropos Control server.

Table 4 lists the client browser requirements for access to the Tropos Control web client.

Table 2 Tropos Control Server Requirements (Using an External Oracle

Database)

Size of Network

(# of devices) Minimum Number

of CPU cores

Minimum Memory

(RAM)

Requirements Minimum Disk

Requirements

< 500 2 2 GB 2 GB

500-2000 2 4 GB 4 GB

2000-5000 4 8 GB 8 GB

5000-6500 4 8 GB 8 GB

Table 3 Oracle Database Server Requirements

Size of Network

(# of devices) Minimum Number

of CPU cores

Minimum Memory

(RAM)

Requirements Minimum Disk

Requirements

< 500 2 2 GB 100 GB

500-2000 2 4 GB 300 GB

2000-5000 4 8 GB 500 GB

5000-6500 4 8 GB 600 GB

Chapter 2 

Tropos Control EMS User Guide 11

Supported Routers

We recommend that current customers upgrade existing TroposControl installations to

Release 7.5 only if all the routers in the network will be running Release 7.1 or later software.

Firewall Requirements

If the Tropos Control EMS server or routers are behind a firewall, then the ports listed in Table 5

must be opened on the firewall.

TABLE 4 Client Browser Requirements for Web Client Access

Web Browser Windows Linux

Internet Explorer 6 Yes N/A

Firefox 3.5 Yes Yes

TABLE 5 Firewall Ports

Port Number and

Type Protocol Direction Description

8443 - TCP HTTPS Both EMS Apache Server port

1099 - TCP RMI Both RMI Registry

Random/4567 - TCP TCP Both EMS FE Secondary Port

Random/5008 - TCP TCP Inbound only EMS Transport Provider

Random/16010 - TCP RMI Both This port is used by the EMS Server for RMI

communication

161 - UDP SNMP Both SNMP Request/Response

162 - UDP SNMP Both SNMP Informs (Traps)

5000 - TCP NUTTCP Both Performance Benchmarking

5001 - TCP NUTTCP Both Performance Benchmarking

22 - TCP SSH Both

80 - TCP HTTP Both Web Service

443 - TCP HTTPS Both Secured Web Service

7 - UDP ICMP/PING Both Ping utility

0,8 - UDP ECHO Both Echo request/reply

123 - UDP NTP Both NTP client

8900 - TCP TCP Both Used by EMS for router configuration

Chapter 2 

Tropos Control EMS User Guide 12

Installing Tropos Control

Complete the installation procedures in the following order:

1. Install CentOS.

2. Configure CentOS to operate in single user mode.

3. Install Tropos Control.

Install CentOS

Note

The partitioning portion of the CentOS installation process formats all partitions. Before starting the installation, verify

that you have backed up any data that you want to keep.

1. Download and install the pre-configured version of CentOS from support.tropos.com.

2. Boot the server from the CentOS CD.

3. Type install and press Enter. (If you need to abort the installation, just remove the CD and

reboot the machine.)

4. Click Next.

5. Click Yes when prompted to remove all partitions.

6. On the page that appears, click Edit in the Network Devices area. Select the check box to

enable IPv4 support, choose Manual Configuration, and enter the IP address and netmask

for the Tropos Control server. Clear the Enable IPv6 Support check box, and then click

OK.

7. In the Hostname area of the page, choose manually and enter a host name in the form

host.domain.com.

8. Enter IP addresses for the network gateway and primary and secondary DNS servers.

9. Click Next.

10. Click a dot on the map to choose the nearest city in your time zone. Verify the selection in

the menu below the map, and then click Next.

11. Enter and confirm a root password (minimum eight characters) and click Next.

1521 (default) TCP Both (connection port - only for Oracle database)

Consult your Oracle database administrator to

verify the right port before installing Tropos

Control

TABLE 5 Firewall Ports (continued)

Port Number and

Type Protocol Direction Description

Chapter 2 

Tropos Control EMS User Guide 13

The installation begins. This process may take up to 20 minutes. When the process is

complete, the system reboots automatically.

12. Remove the CD.

interface does not start automatically, enter the command startx.

Configure CentOS to operate in single user mode

1. Log in as the root user.

2. Edit the

/etc/passwd

and

/etc/shadow

files and remove all the users except root and the

pseudo-users. Make sure that the password fields in

/etc/shadow

for the pseudo-users are

either a star (*) or double exclamation mark (!!). This prevents users from logging in as the

pseudo-users.

3. Edit the

/etc/nsswitch.conf

system file and make

files

the only option for

passwd

shadow

, and

group

. This disables Network Information Service (NIS) and other name

services for users and groups.

4. In the

/etc/xinetd.d

directory, edit the files

eklogin

gssftp

klogin

krb5-telnet

kshell

rexec

rlogin

rsh

rsync

telnet

, and

tftp

, and set the value of

disable

yes

5. Reboot the system for the changes to take effect.

Install Tropos Control

1. Obtain a static IP address in your network for the Tropos Control server (management

station).

2. Obtain the Tropos Control software image (<imagefile>.bin) and copy it to a temporary

folder.

3. Set the permission on the image file to execute:

chmod +x <imagefile>.bin

4. If you are upgrading Tropos Control, stop the server.

service watchdog stop

5. Run the executable file.

./<imagefile>.bin

The installation wizard opens and asks whether you want to install a new release or upgrade

from a previous release. Select an option and choose OK.

If you choose Install Fresh 7.5, the wizard presents the following prompts:

a. License - Choose OK to accept the terms of the license agreement.

b. Administrative password - Enter the administrative password (minimum eight

characters) for the ems user, and choose Next. Reenter the password and choose Next.

c. Router password - Enter the router admin password (minimum eight characters) and

choose Next. Reenter the password and choose Next. For instructions on changing the

Chapter 2 

Tropos Control EMS User Guide 14

router admin password at a later time, see “Resetting the Administrative Password” on

page 16.

d. Select database - Enter Y if you want to use bundled MySQL database or N if you want

to use your own Oracle database.

e. (Oracle only) Enter host address - Enter the host IP address where the Oracle database is

running.

f. (Oracle only) Enter port number - Enter the port number used by the Oracle database.

g. (Oracle only) Enter global database name - Enter the Oracle global database name.

h. (Oracle only) Enter user name - Enter the user name to connect to Oracle database.

Note

The oracle user must have RESOURCE and Create Session privileges and must be a dedicated user for Tropos

Control (not shared with any other applications). If possible, there should be a dedicated tablespace associated with

the user.

i. (Oracle only) Enter password - Enter the password for the user.

If you choose Upgrade to 7.5, the installation begins automatically. If the existing Tropos

Control installation uses an Oracle database, then the upgrade process prompts for database

details as in step e - step i above. If the installation uses a MySQL database, the upgrade

continues without the need for any user intervention.

6. When the installation is complete, choose OK.

The server automatically starts, and you can access the web interface. See “Using the Web

Interface” on page 19.

Updating ARP Cache Settings

In environments where the devices under management are on the same subnet as the Tropos

Control Server, default Address Resolution Protocol (ARP) cache settings on the Linux server

should be changed. Execute the following commands to modify the ARP cache settings, and also

add the same command lines to the /etc/rc.local file.

echo "1024" > /proc/sys/net/ipv4/neigh/default/gc_thresh1

echo "4096" > /proc/sys/net/ipv4/neigh/default/gc_thresh2

echo "8192" > /proc/sys/net/ipv4/neigh/default/gc_thresh3

Uninstalling the System

Follow the steps in this section to remove the Tropos Control server from your system.

Note

For installations with an Oracle database: The uninstall script does not remove data from the Oracle database. It

removes only files and folders. After uninstalling Tropos Control, you must manually delete the data stored in the

database.

Chapter 2 

Tropos Control EMS User Guide 15

Uninstall Tropos Control

1. Go to the bin directory in the Tropos Control installation directory:

cd /<installdirectory>/bin

2. Shut down the Tropos Control server:

service watchdog stop

3. Run the uninstall command:

./uninstall.sh

The Tropos Control system is uninstalled and removed from the system.

Backing Up and Restoring the Tropos Control Server

Follow the procedures in this section to back up and restore the Tropos Control server.

Note

For installations with an Oracle database: The backup/restore script does not back up or restore any data from the

Oracle database. Follow the Oracle procedures to back up and restore your data.

Back up the TroposControl server

1. Go to the bin directory in the Tropos Control installation directory:

cd /<installdirectory>/binn

2. Execute the backup script:

./backup.sh /<installdirectory>

3. Enter the database password for the

root

account. This is the password for the ems user

account, not the root password for the machine.

The backup is created and stored in the current directory. The following files are created:

— backup file - Tropos_EMS_Backup_<date>.tar.gz

— checksum file - Tropos_EMS_Backup_<date>.md5

4. Move the backup and checksum files to /tmp or another temporary location that is not part of

the TC installation tree.

Restore the server

1. Copy the backup and checksum files to the bin directory in the Tropos Control installation

directory, and go to that directory:

cd /<installdirectory>/bin

2. Stop the server:

service watchdog stop

Chapter 2 

Tropos Control EMS User Guide 16

3. Execute the restore script, using the name of the previously-backed up tar.gz and .md5 files:

./restore_ems.sh /<installdirectory>

Tropos_EMS_Backup_<date>.tar.gz Tropos_EMS_Backup_<date>.md5

4. Enter Y to continue.

5. Enter the password for the root account, as prompted.

The database is restored and the server is restarted.

Upgrading the Server

Tropos Control upgrades are supported only from Release 7.3. If you have an earlier version of

Tropos Control, you must upgrade to Release 7.3 before upgrading to Release 7.5.

Upgrade the Tropos Control server from 7.3

Follow the procedure to install Tropos Control (“Install Tropos Control” on page 13). Choose

the Upgrade to Release 7.5 option.

Resetting the Administrative Password

Follow these steps to reset the Tropos Control administrative password.

Note

The administrative password must have a minimum of eight characters. The password change doesn't affect the

password stored in the router; it only changes the password that is stored in the Tropos Control server and used for

communication between Tropos Control and the routers.

Reset the administrative password

1. Go to /<installdirectory>/ems/bin and execute the following command:

./setRouterPasswd

2. Respond to the prompts to enter and confirm the password.

Tropos Control EMS User Guide 17

3Getting Started

This chapter describes how to start using Tropos Control to manage the network.

Chapter contents:

Getting Ready to Manage the Network

Starting and Stopping the Server

Using the Web Interface

Discovery

Chapter 3 

Tropos Control EMS User Guide 18

Getting Ready to Manage the Network

To use Tropos Control to manage the Tropos network, you must first configure each router to

recognize the Tropos Control server and verify that all routers are in the same wireless routing

domain. Use the Tropos Configuration Utility to perform these tasks, as outlined in this section.

For detailed information on using the Tropos Configuration Utility, see the Tropos Networks

User Guide.

Note

Use the following procedure for initial device configuration after installing Tropos Control. See “About Provisioning

Operations” on page 69 for information on configuring devices on an existing network.

Configure routers

1. Perform these tasks as described in the Tropos Mesh Router User Guide.

2. Open the Tropos Configuration Utility for the router.

3. Open the Passwords and Security page and enter the Router-EMS Authentication Key.

Confirm that each router in the network has the same wireless routing domain ID. If you

make a change, click Store Changes.

4. Commit any changes.

5. Repeat for all the routers to be managed by Tropos Control.

You can now use Tropos Control to discover and manage the routers.

Starting and Stopping the Server

Start the server

Issue the following command on the server:

service watchdog start

Stop the server

Issue the following command on the server:

service watchdog stop

Chapter 3 

Tropos Control EMS User Guide 19

Using the Web Interface

The web interface may be reached from the Tropos Control server or from any other web-

enabled computer on the network.

Accessing and Exiting the Web Interface

Follow the instructions in this section to access and exit the web interface, display details about

the current login session, and access the online help system.

Access the web interface

1. Open the following URL on a web browser that has a network connection to the Tropos

Control server:

https://<Tropos Control Server IP address>:8443

2. If security alerts appear about viewing pages over a secure connection, click Yes to proceed.

3. The login panel opens.

4. Log in with the user name and password used for Tropos Control client access. The default

user name is

root

, and the default password is

public

Chapter 3 

Tropos Control EMS User Guide 20

5. The system prompts you to change the password.

6. Enter and confirm a new password.

7. Click Submit.

The Tropos Control Web Interface opens to display the Network Health Dashboard.

Display session details

Click Clients in the upper right corner of the web interface.

Access online help

Click Help in the upper right corner of the web interface. The online help system (based on

this guide) opens in a new window.

Exit the web interface

Click Logout in the upper right corner of the web interface. The current user name is

presented along with the Logout link.

Navigating the Web Interface

The Tropos Control web interface (Figure 5) contains the following elements:

Tabs---Major categories of information:

— Network Health--- See “Viewing Network Health Information” on page 24.

— Provisioning---See “Provisioning” on page 68.

— Configuration View---See “Viewing Network Configuration Information” on page 58.

— Administration---See “Performing Administrative Tasks” on page 129.

Panels---Detailed information, which varies according to tab and side menu selection.

Chapter 3 

Tropos Control EMS User Guide 21

Side menu---Access to panels. Contents are specific to each tab, and expandable items are

marked with an arrow.

Alarm summary---Summary of the numbers of alarms of each level of severity.

Banner text--Optional configurable banner text.

FIGURE 5 Web Interface

Alarm summary

Side Menu

Panel

Tabs Banner text

Chapter 3 

Tropos Control EMS User Guide 22

Using Tables

Much of the information in the web interface is presented in tables.

Use checkboxes to choose one or more rows, or use the checkbox at the top of the column to

select all rows.

Click a column header to sort the column. Click once for an ascending sort (up arrow) and

twice for a descending sort (down arrow).

Some tables support multiple contiguous selection. Select the checkbox for the first chosen

entry and then hold down the Shift key while selecting the checkbox for the last chosen

entry.

Using Router Details Windows

Some of the panels list individual routers using an ID link.

Do one of the following to open a router details window:

Click an underlined router ID in any of web interface panels.

Enter the router IP address in the Find Device field at the top of the screen, and click GO.

This window contains the following tabs:

Gateway/Node Information---View summary information about the router.

Configurator---Open the Configuration Utility for the router.

Map---Open a Google Maps window showing the router location.

Chapter 3 

Tropos Control EMS User Guide 23

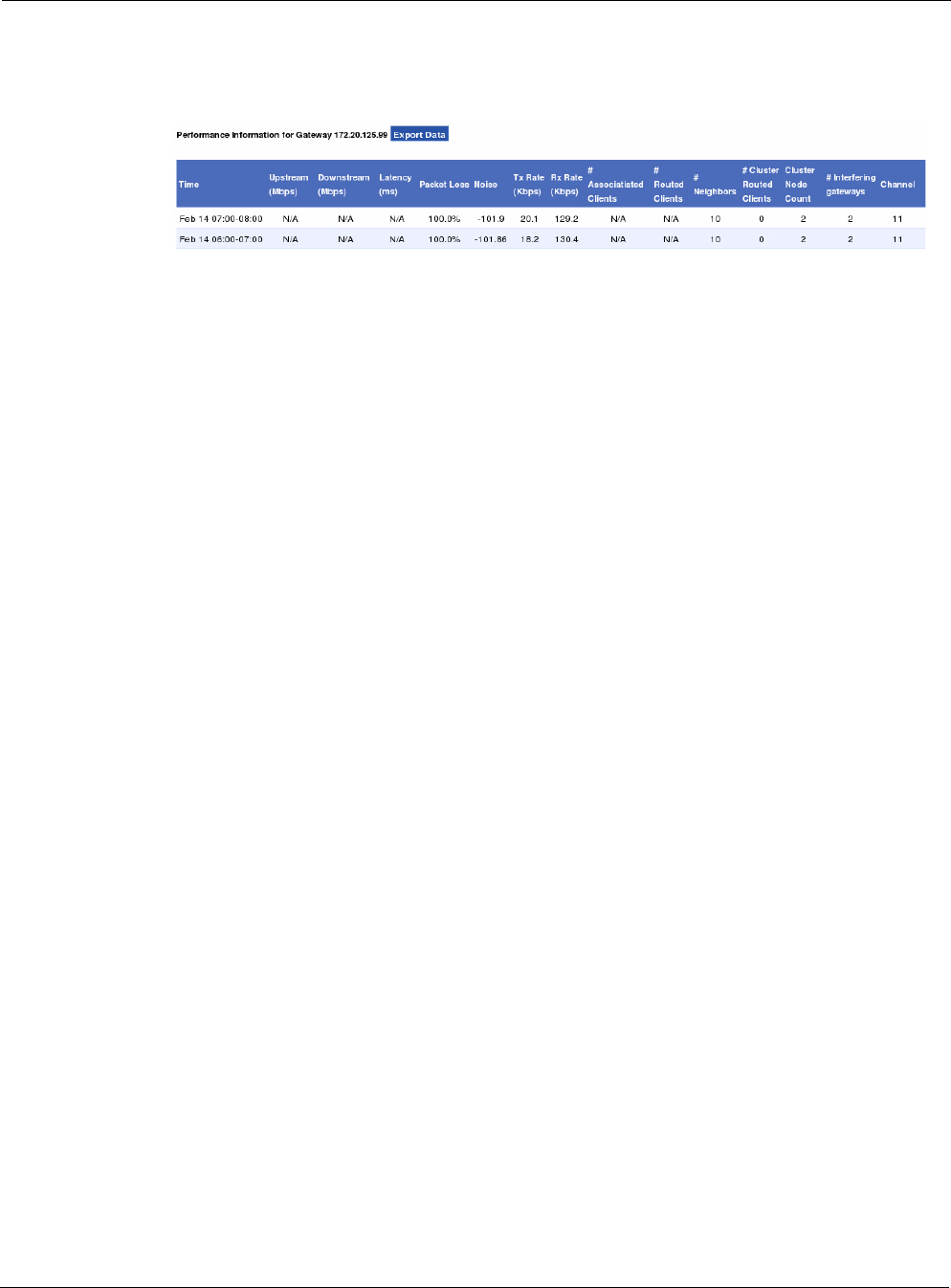

Performance History---View recent performance statistics for the router.

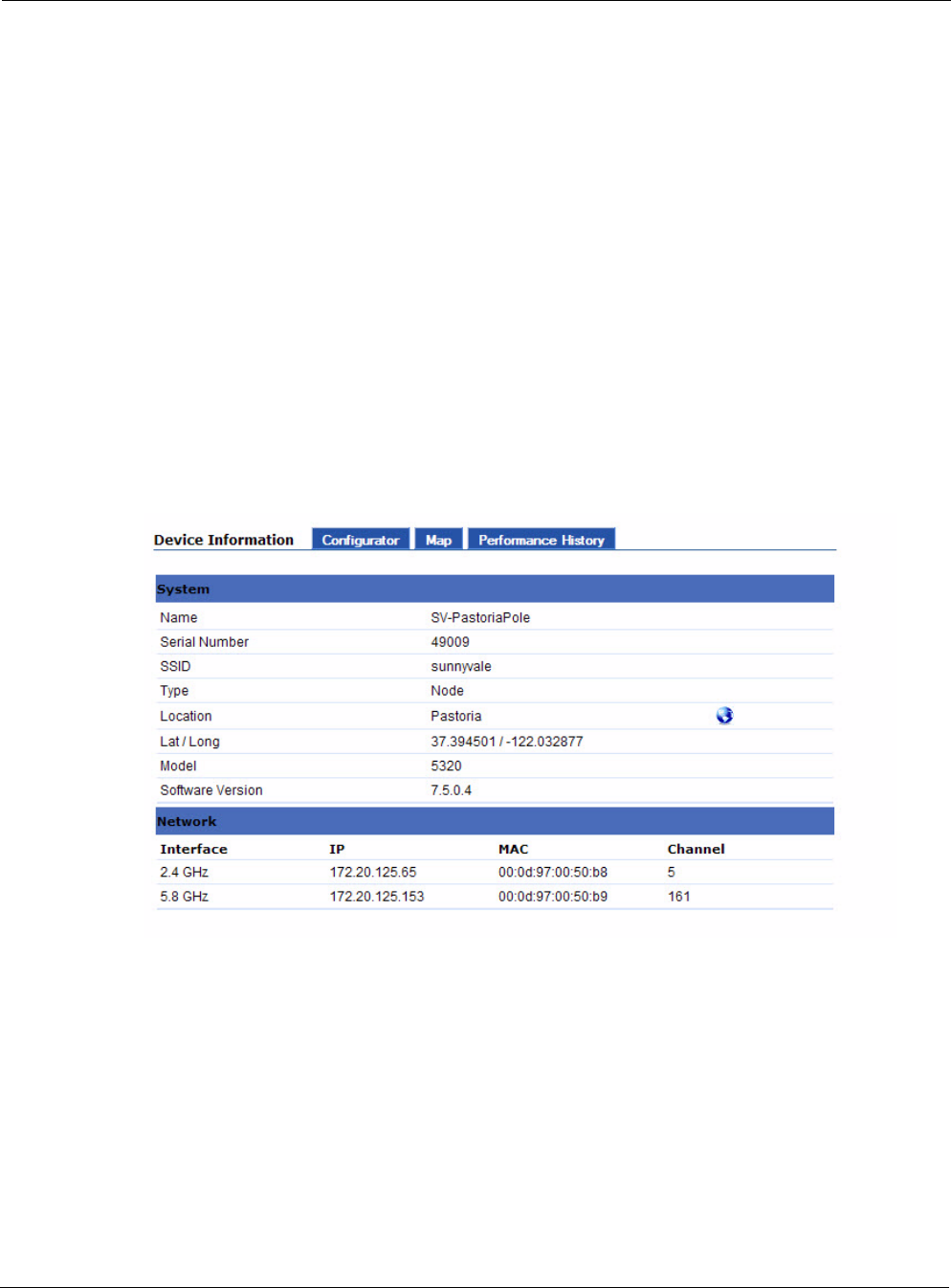

The following screen shows an example for a fixed gateway or node.

Discovery

Discovery is the formal process by which Tropos Control recognizes and establishes router

connections. To take advantage of Tropos Control management capabilities, the Tropos

gateways in the network must be discovered.

You can configure the system to perform discovery in the following ways:

Auto discovery---See “Using Router Auto Discovery” on page 145.

Manual discovery---See “Updating the Router Database” on page 61.

Discover from file---See “Discovering Gateways from a File” in the next section.

Discovering Gateways from a File

Data on the gateways in the network is stored on the Tropos Control server in the following

location and in the indicated format:

/<installdirectory>/ems/conf/server/discover_devices.txt

Format:

<device ip>=<snmp port>;<read only community>;<readwrite

community>;<management station ip>;<trap community>;<trap port>;<mesh

id>;<router auth key>

Example:

172.20.125.60=161;public;private;192.168.128.96;public;162;12341234121

2341234;123412341212341234

Each hour, the Tropos Control server automatically checks the discover_devices.txt file,

discovering all the gateways listed in the file that have not already been discovered and that have

registered the Tropos Control server. In large networks with numerous gateways, saving

discovery parameters to a file can streamline the process of performing discovery, and provides

for easy rediscovery if new software is installed.

Tropos Control EMS User Guide 24

4Viewing Network Health Information

This chapter describes the Network Health panels in the web interface and how network health

thresholds are defined.

Chapter contents:

Preparing to Access the Network Health Panels

Using the Dashboard

Using the Network Optimization Panels

Using the Client Optimization Panels

Using the Voice Optimization Panels

Using the Device Ping Utility

Modifying Network Health Thresholds

Chapter 4 

Tropos Control EMS User Guide 25

Preparing to Access the Network Health Panels

If client side certificates are enabled on the routers, you must configure the

/<installdirectory>/ems/networkhealth/certificateconf file to support Network Health. Configure

the following parameters in the file (the file contains an example for each):

CIPHER - Signature algorithm (for example, SHA1)

CLIENTCERT - location of certificate file

CLIENTCERTPASS - password for the key store file

CACERTKEY - location of the key file

Using the Dashboard

When you access the web interface, the Dashboard opens. The Dashboard presents summary

network status and performance information. The top line shows the total number of clients,

nodes, and gateways in the network. It also shows the number of gateways that are currently

operating as nodes, and vice versa. You can return to the Dashboard at any time by choosing

Dashboard from the side menu on the Network Health tab.

Chapter 4 

Tropos Control EMS User Guide 26

FIGURE 6 Dashboard

Chapter 4 

Tropos Control EMS User Guide 27

You can display information for the past day (1d), week (1w), month (1m), three months (3m),

or year (1yr) by clicking the appropriate link near the top of the page (see circled area in

Figure 6). If you choose the days option, you can view historical information for a specific time

period within the past week by selecting the time period (last 24 hours - 6 days ago) from the

drop-down list.

Graphs display the following information:

Number of Clients---Total number of distinct clients, color-coded and labeled by SSID.

Client Network Traffic---Total upstream (blue) and downstream (green) traffic for all clients

(MB).

Mesh Throughput---Average Upstream (blue) and downstream (green) wireless throughput

between nodes and the gateway (Mbps).

Backhaul Throughput---Average upstream (blue) and downstream (green) throughput

between the gateway and the Tropos Control server (Mbps).

Mesh Performance---Performance of the mesh for the past hour (Mbps).

Backhaul Performance---Backhaul performance for the past hour (Mbps).

Viewing Geographic Maps

You can view network routers in geographic context by using the Google Maps area on the right

side of the dashboard.

Note

If a map is not visible when you open the dashboard, you must first obtain a map key from Google. This

needs to be done only once. Make sure you have Internet connectivity from your browser.

Obtain the Google maps key

1. Open the web interface.

2. Click the Google Map API Key Signup link in the Google maps area of the dashboard.

3. Enter the IP address and port of the Tropos Control server:

4. https://<ipaddress>:8443

5. Select the checkbox to accept the terms and conditions for use of the key, and click

Generate API Key.

Chapter 4 

Tropos Control EMS User Guide 28

6. The key is generated and displayed.

7. Copy the key.

8. Click Upload in the Google Map area of the Tropos Control web interface.

9. Past the key into the space provided, and click Upload.

10. Click Close to close the upload window.

11. Click refresh to reopen the page and display the map.

Using the Geographic Maps

Each router is represented as an icon on the map. The following conventions apply to the maps:

Square icons represent gateways.

Round icons represent nodes, include mobile nodes.

Dual radio routers have a smaller square or circle inside.

Routers that are currently unreachable are shown with an X.

Routers and links sharing the same channel are shown in the same color.

Thin lines represent 2.4 GHz connections; thick lines represent 4.9, 5.4, or 5.8 GHz

connections.

If routers are clustered on the map, you may need to zoom in to display the individual icons.

If there are no Tropos routers shown on the map, the following message appears:

Chapter 4 

Tropos Control EMS User Guide 29

“We are sorry, but we don’t have maps at this zoom level for this region.”

If you see this message, zoom out and pan as necessary to bring your network into view.

You can perform the following operations:

View summary information about a router by clicking the router icon. Click the icon once to

change the zoom level and then click the router icon again to display the summary

information.

Find a specific router by entering the IP address and clicking Search.

Zoom in or out or pan by using the Google Maps controls.

Observe updates to the map when a mobile router moves.

View a standard map, satellite image, or hybrid map and satellite image by using the Google

Maps controls.

View a larger version of the map by clicking the Large Map link below the map area.

View detailed information about a router by clicking the underlined IP address in the bubble.

The Gateway/Node information window (Figure 7) opens to show additional information.

FIGURE 7 Gateway/Node Information Window

You can perform these actions from the Gateway/Node information window:

— Click Configurator to open the Configuration Utility. For more information on using the

utility, see the Tropos Networks Configuration Guide.

— Click Map to open a standard Google Maps window that shows the location of the

router.

Chapter 4 

Tropos Control EMS User Guide 30

— Click Performance History to open a window containing recent performance history for

the router.

— Click Export in the Performance History window to save the performance history in csv

format.

Using the Network Optimization Panels

The Network Optimization panels present statistics to help assess current and recent router

behavior and performance.

Thresholds are applied to a variety of performance metrics to determine whether problems exist

in the network. If the problem thresholds are not met, the cell is listed as problem free. You can

adjust the thresholds based on the network and user preferences for each network health report

by selecting from the drop-down lists below the optimization table (see figure). To save the

thresholds as defaults, select Save above thresholds as default thresholds and click Submit.

Access the panels

Open the Network Health tab and choose Network Optimization on the side menu.

The summary Optimization panel opens (Figure 8).

Chapter 4 

Tropos Control EMS User Guide 31

FIGURE 8 Network Optimization Panel

Chapter 4 

Tropos Control EMS User Guide 32

The Network Optimization panel presents summary statistics for the following categories:

Missing Data---Nodes, gateways, and all routers with errors in transmitting or receiving

data.

Backhaul performance---Gateways with throughput, latency, packet loss, and utilization

relative to specified thresholds.

Mesh performance---Mesh links, nodes, gateways, and all routers with performance

statistics relative to specified thresholds.

Each row in the network optimization panel describes the statistic, the current value (ratio and

percentage), and a description of the status, as in the following example.

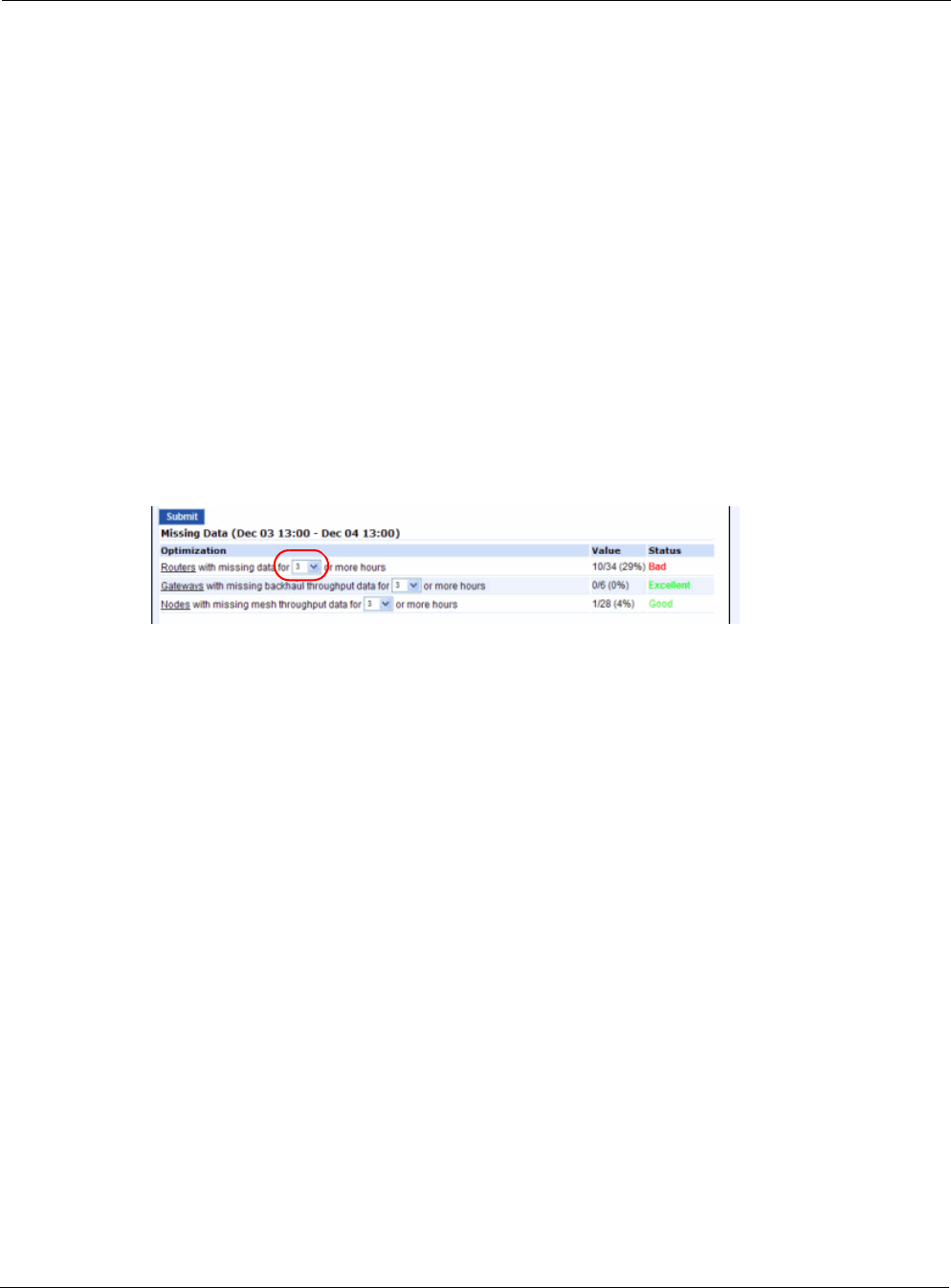

This example indicates that 1 of 22 routers have had latency greater than 20ms for 3 or more

hours (the other routers have had lower latency), which is considered good performance for this

metric.

Change status key or thresholds

1. Choose values from any of the pull-down lists on the optimization panel. To use the

thresholds as the new defaults, select Save above thresholds as default thresholds.

2. Click Submit.

View network optimization details

Click the underlined link for the parameter to open the associated details panel.

Chapter 4 

Tropos Control EMS User Guide 33

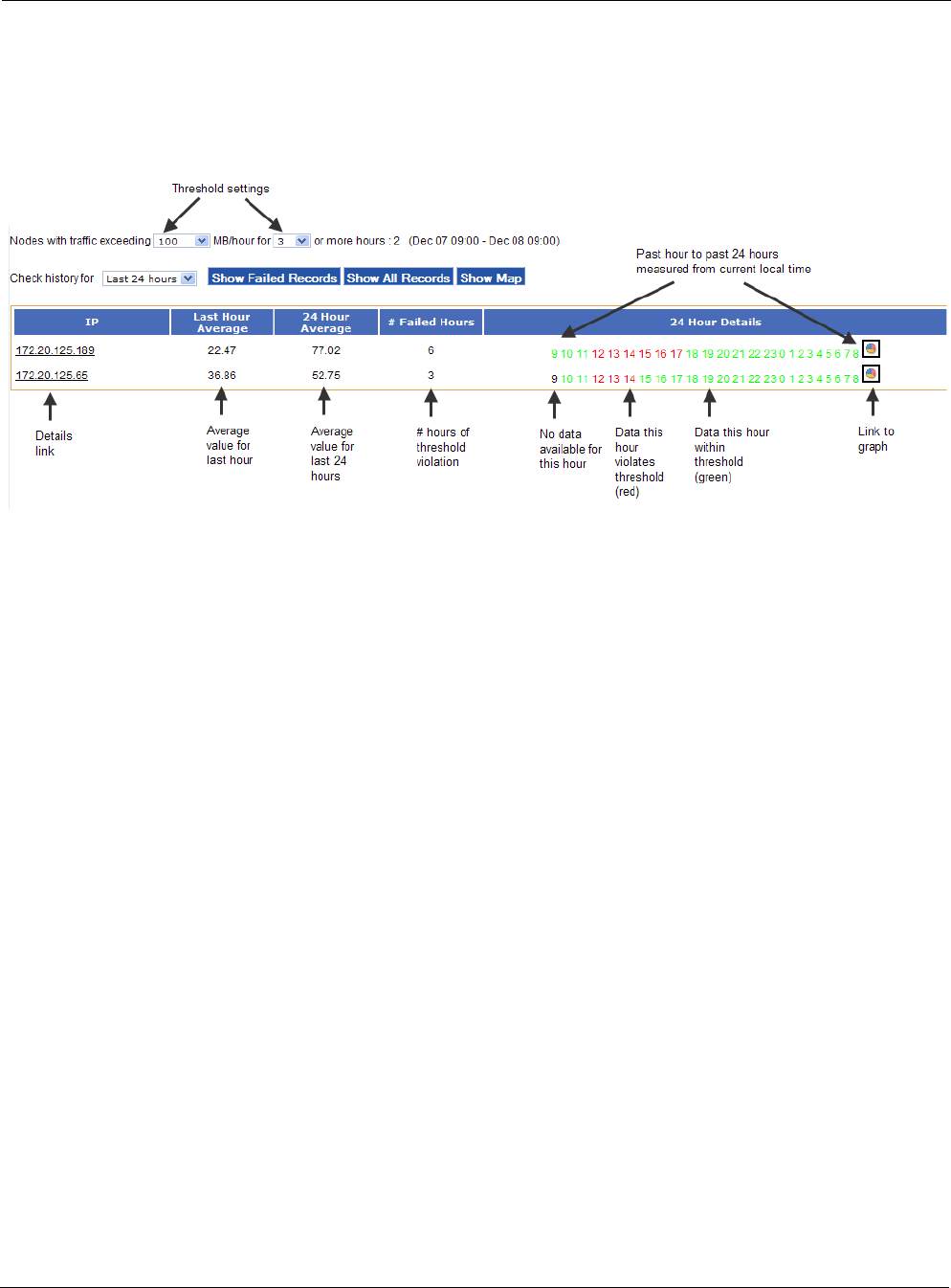

Each panel includes pull-down lists for setting thresholds, and a table containing statistics for

each hour in the selected time period. For 24-hour details, green numbers indicate that the data is

within threshold for that hour, red indicates that the data violates the threshold, and black

indicates that no data is available.

You can do the following on this panel:

Choose thresholds from the pull-down lists.

Click Show Fail Records to display all records for routers that violated the threshold during

the specified period.

Click Show All Records to display all records for the specified period.

Click Show Maps to open a Google Maps window showing the router location.

Click an underlined router link to open an information window for the router. For more

information, see the description of the Gateway/Node Information window in “Using the

Geographic Maps” on page 28.

Chapter 4 

Tropos Control EMS User Guide 34

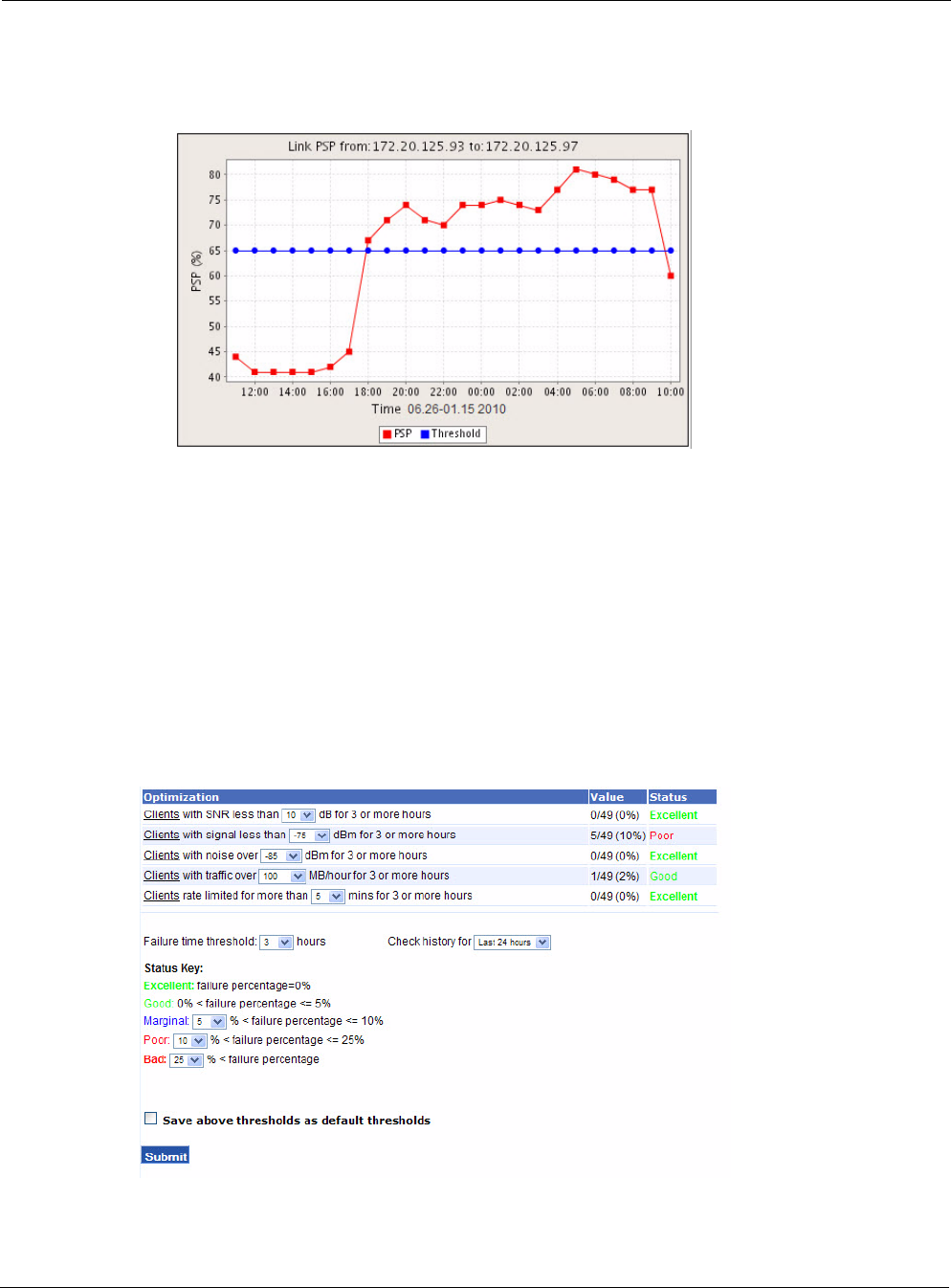

Click the graph icon on the right to display a graph of the data. For example, the next graph

shows link PSP data for a gateway.

Using the Client Optimization Panels

The Client Optimization panels present detailed statistics on client performance.

Access the panels

Open the Network Health tab and choose Client Optimization on the side menu.

The Client Optimization panel (Figure 9) opens.

FIGURE 9 Client Optimization Panel

Chapter 4 

Tropos Control EMS User Guide 35

Each row in the client optimization panel describes the statistic, the current value (ratio and

percentage) and a description of the status, as in the following example:

Change status key or thresholds

1. Choose values from any of the pull-down lists on the optimization panel. If you want to use

the thresholds as the new defaults, select Save above thresholds as default thresholds.

2. Click Submit.

View client optimization details

Click the underlined link for the parameter to open the associated details panel.

Each panel includes pull-down lists for setting thresholds, and a table containing statistics for

each hour in the selected time period. For the 24-hour details, green numbers indicate that the

data is within threshold for that hour, red indicates that the data violates the threshold, and black

indicates that no data is available.

You can do the following on this panel:

Choose thresholds from the pull-down lists.

Click Show Fail Records to display all records for routers that violated the threshold during

the specified period.

Click Show All Records to display all records for the specified period.

Chapter 4 

Tropos Control EMS User Guide 36

Click the graph icon on the right to display a graph of the data.

Click an underlined Client MAC address link to open the Client Query window for the

selected client (see next section). The MAC addresses include prefixes.

Understanding the Client Query Reports

You can access the detailed client information by clicking any of the MAC address links on the

Client Optimization page. The Client Query report presents information about the client’s

network activity over the past 24 hours.

Table 6 describes information summarized in the Client/CPE Average History Information area

at the top of the panel.

Chapter 4 

Tropos Control EMS User Guide 37

The Visited Node/Gateway History Average Information area lists statistics for node and

gateway associations. Each row presents information for a node or gateway to which the client

associated over the past 24 hours. Table 7 lists the information reported for each associated node

and gateway.

TABLE 6 Client/CPE Average History Information

Item Description

MAC Address MAC address of the client machine about which to be reported

IP Address IP address of the client machine about which to be reported

Rx Kbps Average Kbps received over the past 24 hours

Tx Kbps Average Kbps transmitted over the past 24 hours

Signal Average signal strength over the past 24 hours (dB)

Noise Average noise level over the past 24 hours (dB)

SNR Average signal-to-noise ratio over the past 24 hours

TABLE 7 Visited Node/Gateway History Average Information

Item Description

Type Node or gateway.

Node IP IP address of the node or gateway. To view this information, click the

underlined line to open the Configuration Utility for the particular

node or gateway.

Node ID Tropos identifier for the node or gateway.

Duration (min) Total number of minutes that the client was associated with the node

or gateway in the past 24 hours.

Signal Average signal strength for the period of association (dB). Click the

underlined line to open a signal and noise graph.

Noise Average signal strength for the period of association (dB).

SNR Average signal strength for the period of association.

Rx Kbps Average Kbps received for the period of association. Click the under-

lined link to open a graph of the data.

Tx Kbps Average Kbps transmitted over the past 24 hours.

Location GPS coordinates of the node or gateway, if available.

Chapter 4 

Tropos Control EMS User Guide 38

The Detail Data area, which opens when you click the double arrows on the Detail Data bar,

shows the pattern of associations over the past 24 hours.

Each row represents a period of association with one of the nodes or gateways listed in the

Visited Node/Gateway area.

Note

If a client associates with more than one node in a given hour, then there will be multiple entries for that time period in

the listing.

Table 7 lists the information reported for association.

TABLE 8 Detail Data

Item Description

Node IP IP address of the node or gateway. Click the underlined line to open

the Configuration Utility for the particular node or gateway.

Signal Average signal strength for the period of association (dB). Click the

underlined line to open a signal and noise graph.

Noise Average signal strength for the period of association (dB)

SNR Average signal strength for the period of association

Rx Kbps Average Kbps received for the period of association. Click the under-

lined link to open a graph of the data

Tx Kbps Average Kbps transmitted over the past 24 hours

CPE MAC MAC address of any customer premise equipment (CPE) between

the client and the node or gateway

ESSID ESSID of the node or gateway

VLAN ID ID of the VLAN to which the node or gateway belongs, if applicable

Channel Channel used for communication with the client

Duration (min) Total number of minutes that the client was associated with the node

or gateway in the past 24 hours.

Time Period With Date Interval of association, with the date (mm/dd) followed by start and

end times.

Chapter 4 

Tropos Control EMS User Guide 39

To display detailed client statistics and events, click Troubleshooting . Use the time filters at the

top of the page to restrict the display to a specified time period.

Using the Voice Optimization Panels

The Voice Optimization panels present detailed statistics on voice calls within the network. To

access the panel, open the Network Health tab and choose Voice Optimization on the side

menu.

Each row in the voice optimization panel describes the statistic, the current value (ratio and

percentage) and a description of the status.

Change status key or thresholds

1. Choose values from any of the pull-down lists on the optimization panel. If you want to use

the thresholds as the new defaults, select Save above thresholds as default thresholds.

2. Click Submit.

View voice optimization details

Click the underlined link for the parameter to open the associated details panel.

Each panel includes pull-down lists for setting thresholds, and a table containing statistics for

each hour in the selected time period. For the 24-hour details, green numbers indicate that the

data is within threshold for that hour, red indicates that the data violates the threshold, and black

indicates that no data is available.

Chapter 4 

Tropos Control EMS User Guide 40

You can do the following on this panel:

Choose thresholds from the pull-down lists.

Click Show Fail Records to display all records for routers that violated the threshold during

the specified period.

Click Show All Records to display all records for the specified period.

Click the graph icon on the right to display a graph of the data.

Click an underlined Client MAC address link to open the Client Query window for the

selected client (see next section).

Using the Device Ping Utility

The Device Ping Utility panel reports on ping operations for specified devices or for all

discovered routers. The Ping utility is off by default, but it can be turned on from the web

interface.

By default, the devices included in the ping list are listed in the device_pinglist.txt file, which is

found in the following location:

/<installdirectory>/ems/conf/tropos/device_pinglist.txt. The default file contents are as follows:

# number of threads to do ping

number_threads=20

# interval between every ping cycle, in seconds

ping_interval=20

# number of retries

retries=1

# timeout for each ping request in seconds

timeout=1

# list of IPAddress need to be pinged here

# for gateway use: IPAddress=G,<backhaul IPAddress>

# example: 192.168.128.3=G,192.168.128.4

# for node use: IPAddress=N

# example: 192.168.128.5=N

Add specific devices to the ping list

1. Open the device_pinglist.txt file.

2. Enter the IP addresses of the devices, according to the format given in the comment text. N

refers to note, G to gateway, and B to any non-Tropos device.

3. Save the file.

The entered devices will now appear in the device ping list.

Chapter 4 

Tropos Control EMS User Guide 41

View device ping results

1. Open the Network Health tab and choose Device Ping Utility from the side menu.

The Device Ping Utility panel (Figure 10) opens.

FIGURE 10 Device Ping Utility Panel

2. Perform any of the following operations:

— Click Start Ping to start performing ping operations. (The button is visible only if ping

operations are currently off.)

— Click Stop Ping to stop performing ping operations. (The button is visible only if ping

operations are currently on.)

— Click Clear Counter to clear current ping counts.

— Click Turn Off Refresh to prevent information from being automatically refreshed as

new ping results come in. (This button is visible only if refresh is currently turned on.)

— Click Turn On Refresh to allow information to be automatically refreshed as new ping

results come in. (This button is visible only if refresh is currently turned off.)

— Click Add IPs in topo DB to add all the discovered gateways and nodes to the list of

devices to which ping messages are sent. Devices specified in the device_pinglist.txt file

will continue to be included.

— Click Remove topo IPs to remove all the discovered gateways and nodes the list of

devices to which ping messages are sent. Devices specified in the device_pinglist.txt file

will continue to be included.

The Device Ping Utility table includes the following columns of information:

TABLE 9 Device Ping Utility Table

Column Description

Device IP IP address of device

Type Gateway, node, or backhaul

Status Up (responding to ping commands) or down

(not responding)

Chapter 4 

Tropos Control EMS User Guide 42

Modifying Network Health Thresholds and Report Options

The default Network Health thresholds and report selection options are appropriate for most

deployments; however, you can modify them, if necessary, by editing the appropriate

configuration files.

Modifying Network Health Thresholds

Thresholds are applied to a variety of performance metrics to determine whether problems exist

in the network. If the problem thresholds are not met, the cell is listed as problem free.

The thresholds are set in the file threshold.txt, which is in the following location:

/<installdirectory>/ems/networkhealth

If you choose to edit the file, be sure to maintain a backup copy with the default values.

Default file contents

# used for worst used link

# if linkpsp is below MINUSEDLINKPSP or MINUSEDLINKRPSP and the link

activity is above the MINUSEDLINKACTIVITY

# this link will be included into the Lowest used link

# link activity defined as the link was seen by node for a given hour.

# example: linkA was in the node 20 minutes, it means that this link's

activity is 20/60 = 0.33

# MINUSEDLINKPSP values = 0..1

# MINUSEDRPSP values = 0..1

# MIN

MINUSEDLINKPSP0.65

MINUSEDLINKRPSP0.65

MINUSEDLINKACTIVITY0

Success Rate Percentage of successful ping responses

Last Ping Time Time last ping request was sent

Backhaul IP IP address of device used to check backhaul

connectivity

Failed Ping Count Number of failed ping attempts

Total Ping Count Total number of ping attempts

TABLE 9 Device Ping Utility Table (continued)

Column Description

Chapter 4 

Tropos Control EMS User Guide 43

## used for deciding the redundant path

# if the linkpsp is > MINLINKACTIVITY and > MINLINKPSP, this link will

be counted as redundant path

MINLINKPSP0.65

MINLINKRPSP0.65

MINLINKACTIVITY0

# max hops is used to test if node should be put into highest hop count

# if hops is above this MAXHOPS, the node will be put into highest hop

count

MAXHOPS4

# is used for lowest psp

# if PSP is below this MINPSP, the node will be included into lowest

psp

# value between 0..1

MINPSP.65

# for lowest rpsp

# if rPSP is below this MINRPSP, the node will be included into lowest

rpsp

MINRPSP.65

# for high noise

# if noise is above this MAXNOISE, the node will be included into the

highest noise

MAXNOISE-80

# for reachability

# if the reachability is below this MINREACHABILITY, the node will be

included in the reachability category

MINREACHABILITY 97

# if client has snr below this LOWESTSNR, the client will be included

into the lowest SNR client

LOWESTSNR15

Chapter 4 

Tropos Control EMS User Guide 44

# if node has redundancy below this LOWESTREDUNDANCY, the node will be

included into the Insufficient Redundancy

LOWESTREDUNDANCY2

# if node throughput (up/down) is lower than MINTHROUGHPUT(UP/DOWN),

the node will be included into

# the Lowest estimated throughput

MINTHROUGHPUTUP 256

MINTHROUGHPUTDOWN 512

Modifying Report Options

Drop-down lists on the Network Optimization page determine the thresholds that apply to

network optimization reports.

These thresholds are controlled by the following files, which are located in

/<installdirectory>/conf/server/:

fhp_ems_networkhealth_report_threshold.properties.txt -- determines the possible choices

of values for the drop-drop list.

server_networkhealth_threshold.txt -- determines the default value that is preselected in the

drop-down list.

Note the following:

If you choose to edit these file, be sure to maintain a backup copy with the default values.

You can modify only the parameters that are in a given file. You cannot create new entries.

If you change a default values in the server_networkhealth_threshold.txt file, make sure that

the value is included in the possible selections for that parameter in the

fhp_ems_networkhealth_report_threshold.properties.

The parameters in the files map to values and report names as follows.

messageCountOptions=10000,5000,2000,1000,500,300,200,150,100,50,10 - it is used by

— message count report

BackhaulThroughputOptions=1.0,2.0,3.0,4.0,5.0,8.0,10.0,20.0,30.0,50.0,80.0 - it is used by

— Gateways with downstream throughput report

— Gateways with upstream throughput report

Chapter 4 

Tropos Control EMS User Guide 45

ThroughputOptions=0.25,0.5,0.75,1.0,1.5,2.0,2.5,3.0,3.5,4.0,5.0 - it is used by

— Nodes with downstream report

— Nodes with upstream report

LatencyOptions=2000,500,200,100,50,30,20,15,10,5,1 it is used by

— Devices with backhaul latency report

— Nodes with latency report

LinkOptions=30,40,50,60,65,70,80,90,100 it is used by

— Nodes with default PSP report

— Nodes with default RPSP report

— Nodes that are flapping with PSP report

— Nodes that are flapping with RPSP report

NoiseOptions=-150,-100,-90,-85,-80,-70,-60,-50 - it is used by

— Clients with noise report

— Routers with 2.4 GHz noise level report

— Routers with 5.8 GHz noise level report

— Routers with 24.9 GHz noise level report

ChChangeOptions=1,2,3,4,5,6,7,8,9,10 - it is used by

— Routers with 2.4 GHz channel change report

— Routers with 5.8 GHz channel change report

— Routers with 4.9 GHz channel change report

AirtimeOptions=40,50,60,70,80,90 - it is used by

— Routers with 2.4 GHz airtime report

— Routers with 5.8 GHz airtime report

— Routers with 4.9 GHz airtime report

MissingDataOptions=1,2,3,4,6,8,12,24 -it is used by the:

— Routers with missing data report

— Gateways with missing backhaul report

— Nodes with missing mesh throughput report

voiceMissingDataOptions=1 - not currently used

MissingDataOptionsWithZero=0,1,2,3,4,6,8,12,24 - not currently used

nodeNumberOptions=1,2,3,4,5,6,7,8,9,10,15,20,30,40,50,60,70,80 - it is used by

— Routers with 2.4 GHz associated client report

— Routers with 5.8 GHz associated client report

— Routers with 4.9 GHz associated client report

— Routers with 2.4 GHz routed client report

— Routers with 5.8 GHz routed client report

— Routers with 4.9 GHz routed client report

— Gateways with nodes report

Chapter 4 

Tropos Control EMS User Guide 46

gatewayNumberOptions=1,2,3,4,5,10,15,20,25,30,35,40 - it is used by

— Routers with neighbors report

— Gateway with interfering gateways (in 2.4 GHz channel) report

clientNumberOptions=1,5,10,30,50,70,80,90,100,120,150,200 - not currently used

clusterclientNumberOptions=1,10,20,30,50,80,100,120,150,200,300,500 - it is used by

— Clusters with clients report

trafficOptions=50,80,100,120,150,200,300,500,1000,2000,3000,4000,5000,10000 - it is

used by

— Gateways with backhaul utilization report.

— Nodes with traffic report

— Clients with traffic report

packetLossOptions=1,5,10,15,20,25,30,40 - it is used by

— Devices with backhaul packet loss report

— Nodes with packet loss report

hopCountOptions=1,2,3,4,5,6,7,8,9,10 - it is used by

— Nodes with hop count report

signalOptions=-100,-90,-85,-80,-75,-70,-60,-50 - it is used by

— Clients with signal report

SNROptions=1,5,10,15,20,25,30,50,80 - it is used by

— Clients with SNR report

ClientRateLimitOptions=1,5,10,20,30,40,50 - it is used by

— Clients rate limited report

marginalOptions=3,5,8,10,15,20,25,30,40 - it is used as marginal options

poorOptions=10,15,20,25,30,40,50,60,70 - it is used as poor options

badOptions=15,20,25,30,40,50,60,70,80,90 - it is used as bad options

voiceCallsOptions=0,1,2,3,4,5,6,7,8,9,10,25,50,100 - it is used by

— Routers with number of voice calls

voiceCallsDowngradedOptions=0,1,2,3,4,5,6,7,8,9,10,25,50,100 - it is used by

— Routers with number of downgraded voice calls

voiceCallsTimeOptions=0,10,30,60,120,240,360 - it is used by

— Routers with total minutes voice calls

Default fhp_ems_networkhealth_report_threshold.properties file:

messageCountOptions=10000,5000,2000,1000,500,300,200,150,100,50,10

BackhaulThroughputOptions=1.0,2.0,3.0,4.0,5.0,8.0,10.0,20.0,30.0,50.0,

80.0

ThroughputOptions=0.25,0.5,0.75,1.0,1.5,2.0,2.5,3.0,3.5,4.0,5.0

LatencyOptions=2000,500,200,100,50,30,20,15,10,5,1

LinkOptions=30,40,50,60,65,70,80,90,100

Chapter 4 

Tropos Control EMS User Guide 47

NoiseOptions=-150,-100,-90,-85,-80,-70,-60,-50

ChChangeOptions=1,2,3,4,5,6,7,8,9,10

AirtimeOptions=40,50,60,70,80,90

MissingDataOptions=1,2,3,4,6,8,12,24

voiceMissingDataOptions=1

MissingDataOptionsWithZero=0,1,2,3,4,6,8,12,24

nodeNumberOptions=1,2,3,4,5,6,7,8,9,10,15,20,30,40,50,60,70,80

gatewayNumberOptions=1,2,3,4,5,10,15,20,25,30,35,40

clientNumberOptions=1,5,10,30,50,70,80,90,100,120,150,200

clusterclientNumberOptions=1,10,20,30,50,80,100,120,150,200,300,500

trafficOptions=50,80,100,120,150,200,300,500,1000,2000,3000,4000,5000,

10000

packetLossOptions=1,5,10,15,20,25,30,40

hopCountOptions=1,2,3,4,5,6,7,8,9,10

signalOptions=-100,-90,-85,-80,-75,-70,-60,-50

SNROptions=1,5,10,15,20,25,30,50,80

ClientRateLimitOptions=1,5,10,20,30,40,50

marginalOptions=3,5,8,10,15,20,25,30,40

poorOptions=10,15,20,25,30,40,50,60,70

badOptions=15,20,25,30,40,50,60,70,80,90

voiceCallsOptions=0,1,2,3,4,5,6,7,8,9,10,25,50,100

voiceCallsDowngradedOptions=0,1,2,3,4,5,6,7,8,9,10,25,50,100

voiceCallsTimeOptions=0,10,30,60,120,240,360

Default server_networkhealth_thresholds.txt file

nodeMissingThroughputDataThreshold=3

nodeNoiseThreshold=-85

clientNoiseThreshold=-85

nodeRoutedClientThreshold=40

nodeAssociateClientThreshold=40

clientSignalThreshold=-75

clientRateLimitThreshold=5

voiceCallsDowngradedThreshold=10

gatewayMissingThroughputDataThreshold=3

missingStatsThreshold=3

nodeAssociateClient1Threshold=40

gatewayTrafficThreshold=300

nodeTrafficThreshold=100

poorThreshold=10

voiceCallsThreshold=10

gatewayInterferingCountThreshold=10

clientSNRThreshold=10

nodeMissingDataThreshold=3

failureTimeThreshold=3

Chapter 4 

Tropos Control EMS User Guide 48

clientTrafficThreshold=100

nodeNoise1Threshold=-85

nodeNoise4_9Threshold=-85;

nodeAssociateClient4_9Threshold=40

nodeRoutedClient4_9Threshold=40

nodeChChangeThreshold=1

nodeChChange1Threshold=1

nodeChChange4_9Threshold=1

nodeAirtimeThreshold=60

nodeAirtime1Threshold=60

nodeAirtime4_9Threshold=60

Tropos Control EMS User Guide 49

5Viewing Fault Information

This chapter describes the Fault Management panels in the web interface.

Chapter contents:

Viewing Network Events

Viewing Alarms

Viewing Event Counts

Configuring Alarms

Chapter 5 

Tropos Control EMS User Guide 50

Viewing Network Events

Network events convey general information or current status of devices within the network.

View network events

Open the Network Health tab and choose Network Events on the side menu.

The Network Events panel (Figure 11) opens to display a list of current events for devices

configured in the network.

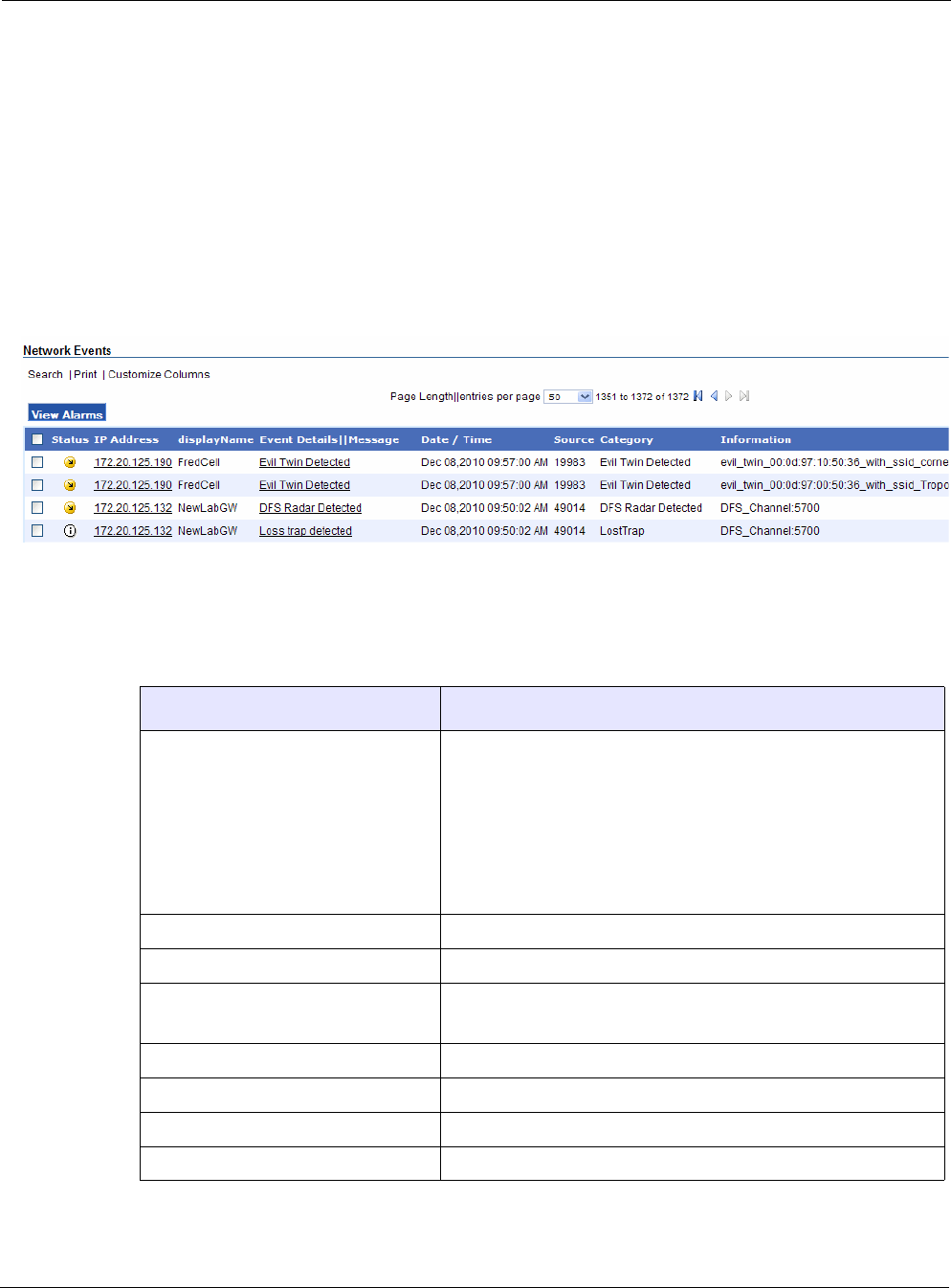

FIGURE 11 Network Events Panel

Table 10 lists the columns of information presented in the Network Events table.

TABLE 10 Network Events List

Item Description

• Status Color code for the severity of the event:

• Red---Critical

• Orange---Major

• Yellow---Minor

• Blue---Warning

• Green---Clear

• White---Informational

• IP address IP address of the router that generated the event.

• Display name The alphanumeric name assigned to the router.

• Event Details/Message Brief summary of the event message. Click the underlined link to

open the Event Properties window for the event.

• Date/Time Date and time that event occurred.

• Source Serial number of the router.

• Category Type of event.

• Information Full text of event message.

Chapter 5 

Tropos Control EMS User Guide 51

Viewing Alarms

Alarms call attention to serious events concerning devices in the network.

View alarms

Open the Network Health tab and choose Alarms on the side menu.

The Alarms panel (Figure 11) opens to display a list of current alarms for devices configured

in the network.

FIGURE 12 Alarms Panel

Table 11 lists the columns of information presented in the table.

TABLE 11 Alarms List

Item Description

Status Color code for the severity of an event:

• Red---Critical

• Orange---Major

• Yellow---Minor

• Blue---Warning

• Green---Clear

• White---Informational

IP address IP address of the router that generated the event.

Actions Icons for alarm pickup and annotation:

For alarm pickup, click the icon to assign the alarm to your user

ID.

For annotation, click the icon to open the pop-up Annotation win-

dow. Enter a comment and click Annotate. Click Close to close

the Annotation window.

Display Name The alphanumeric name assigned to the router.

Alarm Details/Message Brief summary of the alarm message. Click the underlined link to

open the Alarm Properties window for the event.

Date/Time Date and time that the event occurred.

Failure Object Code for the type of failure.

Chapter 5 

Tropos Control EMS User Guide 52

Viewing Event Counts

The Event Counts panel provides a consolidated summary of event for each router.

View alarms

1. Open the Network Health tab and choose Event Count on the side menu.

2. The Event Count panel (Figure 13) opens to display a summary of events by router IP

address.

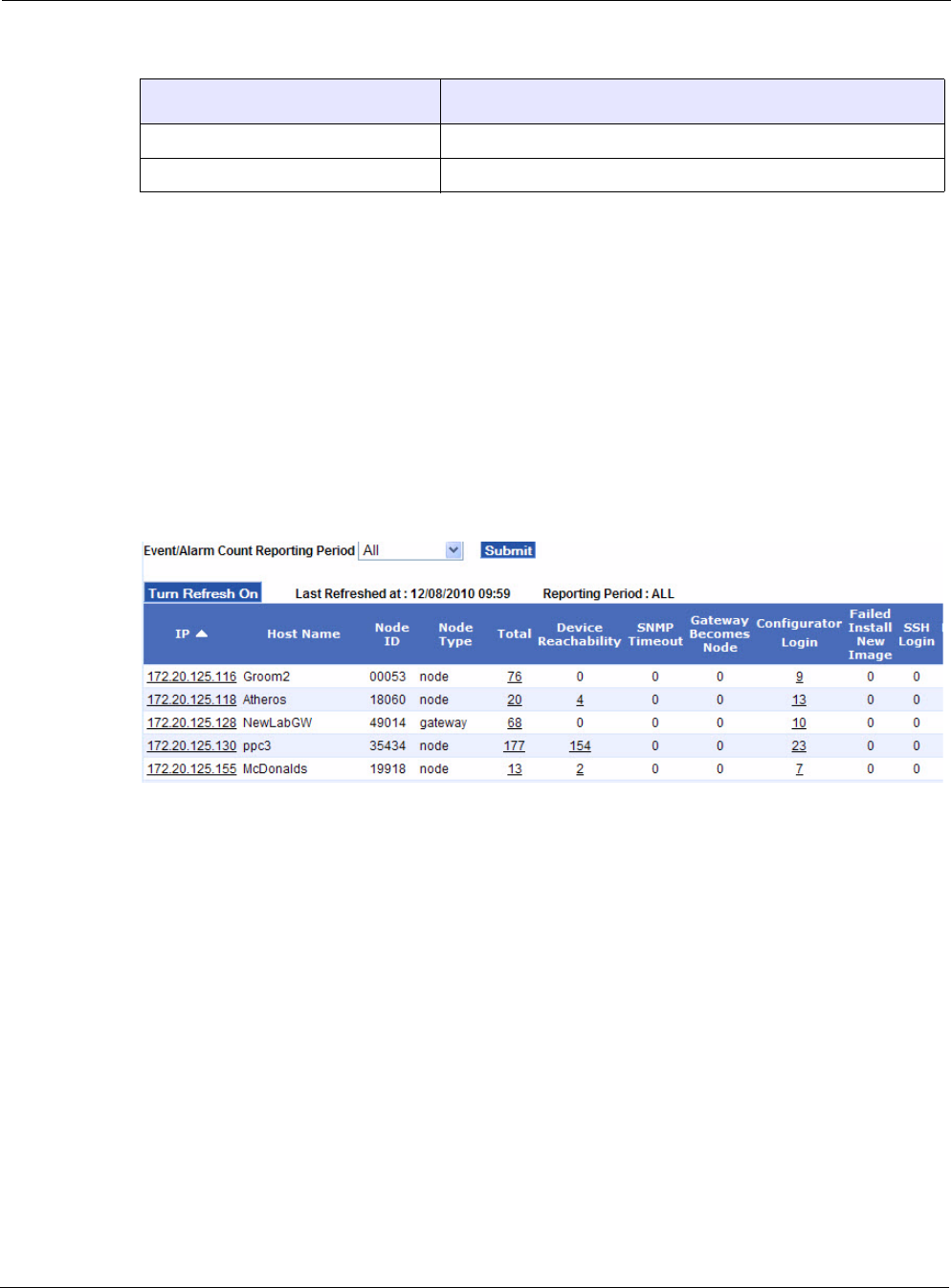

FIGURE 13 Event Count Panel

You can choose the following options from the Event Counts panel:

— To restrict the reporting time interval, select from the pull-down list at the top of the

panel, and click Submit.

— To display all the events for a given router, click an underlined link in the Total column.

— To display details about a router, click the underlined IP address.

— To access the Configuration Utility for the router, click the underlined IP address link.

— To open an SSH window to access the router CLI, click an underlined link in the SSH

column.

Table 12 lists the columns of information presented in the Event Count table.

Alarm Group Type of failure.

Information Full text of the event message.

TABLE 11 Alarms List (continued)

Item Description

Chapter 5 

Tropos Control EMS User Guide 53

Configuring Alarms

The Alarm Settings panel allows you to create alarm notifications based on filtering criteria. You

can set up an alarm actions to send email notification or an SNMP trap under specified

conditions, or create an exception whereby a notification is not sent in response to a condition.

TABLE 12 Event Count Information

Item Description

Node IP IP address of the router that generated the event

Host name Unique numeric ID assigned to the node

Node type Gateway, node, or mobile

Total Total event count

Router Reachability Count of events concerning the ability to reach other routers

SNMP Timeout Counts of SNMP timeout events

Gateway Becomes Node Number of times a gateway has lost uplink to the wired network

and automatically taken on node status

Configurator Login Number of times someone has logged into the Tropos Configura-

tion Utility to access the router

Failed Install New Image Number of times an attempt to install a new software image on

the router has failed

SSH Login Number of times someone has accessed the router CLI through

an SSH connection

Hardware Fault Number of times a hardware problem has been detected

Software Start Number of times the router software has been restarted

Others Count of other events that do not fit into the specific categories

list in this table

Chapter 5 

Tropos Control EMS User Guide 54

To manage alarm settings

1. Open the Network Health tab and choose Alarm Settings on the side menu to open the

panel and view the list of currently defined alarm actions.

FIGURE 14 Adding Alarm Actions

2. Perform any of the following actions on this panel.

— To add a new action, click Add Actions and follow the instructions in “To add new alarm

actions” on page 54.

— To edit an action, link the action name and modify settings as described in Table 13.

— To Delete the action, click the Delete icon.

— To activate an action, click the Enable link.

— To inactivate an action, click the Disable link.

— To export action settings, click Save Actions, specify a file name, and click Save.

Actions are saved in the /<installdirectory>/ems/conf directory.

— To load previously saved actions, click Load Actions. Specify the file name from the /

<installdirectory>/ems/conf directory, and click Load.

To add new alarm actions

1. Click Add Actions.

FIGURE 15 Adding Alarm Actions

Chapter 5 

Tropos Control EMS User Guide 55

2. Configure the settings in Table 13.

3. You can associate actions that have already been defined, or create new actions and then

associate them.

— To create a new email action, click New Email Action, configure the settings described

under New Email action in the table, and click Submit.

— To create a new email action, click New Suppression Action, specify a name for the

action, and click Submit.

— To associate actions, highlight them in the Available Actions column and use the arrows

to move it them to the Associated Actions column.

— To edit an existing action, select it and click Edit.

4. Click Submit to save the actions and return to the Alarm Settings page.

Chapter 5 

Tropos Control EMS User Guide 56

TABLE 13 Alarm Settings

Item Description

Name Enter a unique name to identify the action.

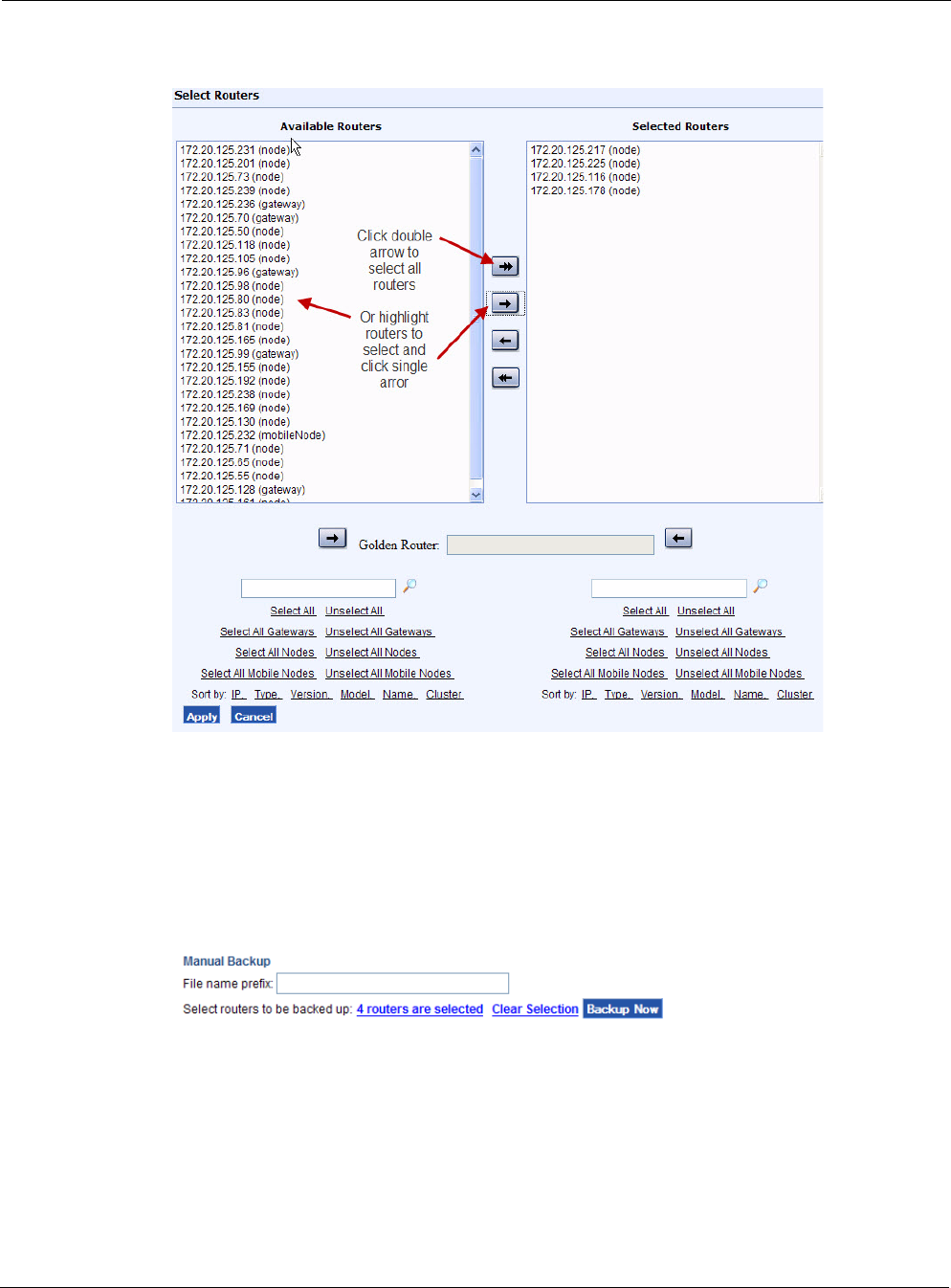

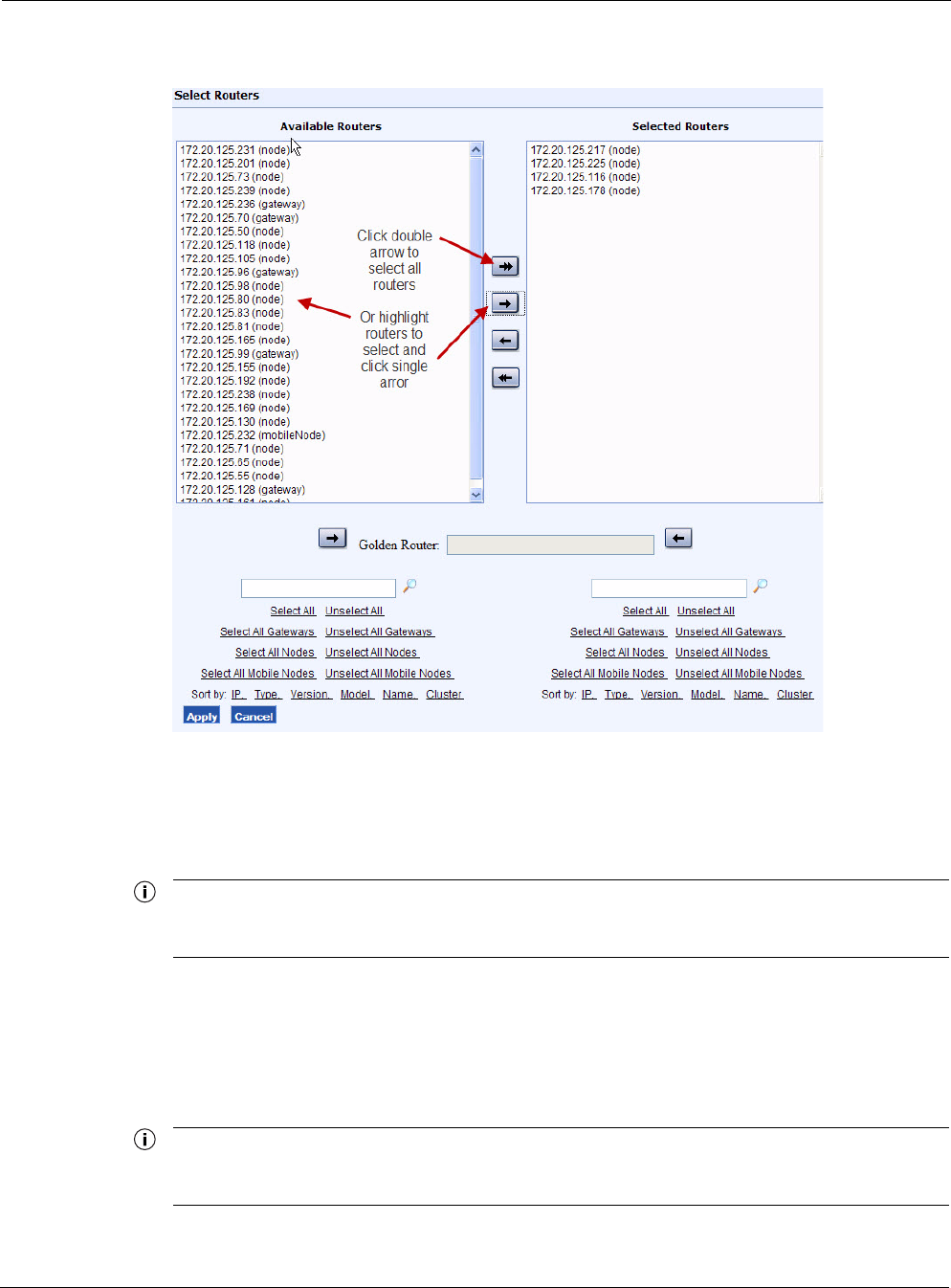

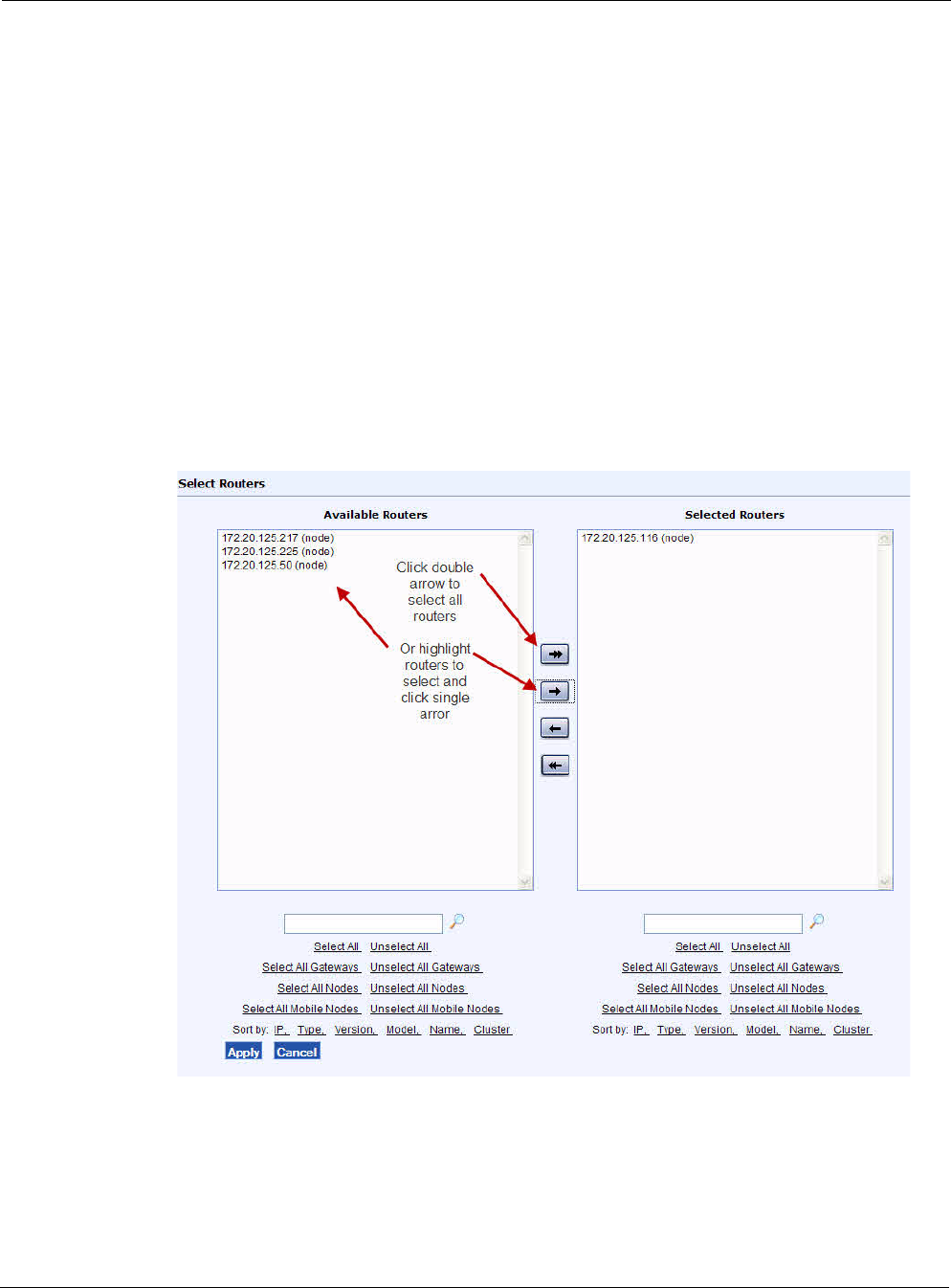

Source Click the link to select the devices to include in the action.

Select the devices that you want to include in the Available Rout-

ers list, and click the right-facing arrow to move them to the

Selected Routers area. You can use the links near the bottom of

the screen to select or sort the groups of devices in the list, or use

the double arrows to move the entire list.

Severity Select an alarm severity, or select All to include alarms of all

severities.

Category Select one of the following alarm categories or select Any Cate-

gory to include alarms in all categories:

• Router Reachability: There has been a change in the ability to

reach the device.

• Gateway Becomes Node: Gateway has lost its wired connec-

tion and switched to node operation.

• Switched to Battery: Router has lost power and switched to

battery operation.

• Configurator Login: User has logged into the router’s Configu-

ration Utility.

Note: The alarm categories take precedence over the severity

settings. For example, all router reachability alarms are of critical

severity. If you choose Router Reachability as the category with a

non-critical severity, the alarm action is still treated as critical.

New Email Action Specify the following settings:

• Notification Name: Name to identify the email action.

• SMTP Server: IP address or host name of the Simple Mail

Transfer Protocol (SMTP) server.

• SMTP Account Name: User name for access to the SMTP

server.

• Password: User password for access to the SMTP server.

• To Address: Email address that will appear in the To line of

the email notification.

• From Address: Email address that will appear in the To line of

the email notification.

• Aggregate after (secs): Number of seconds to enter if you

want to collect all matching alarms during that interval and

then send them in one email notification.

• Message: Body of the email notification.

• Select drop down list: Preset entries that you can add to the

message: category, severity, and source.

Chapter 5 

Tropos Control EMS User Guide 57

SNMP Trap Forwarding

Use the SNMP trap forwarding page to forward SNMPv3 traps to an external trap manager.

Forward SNMP traps

1. Open the Network Health tab and choose Trap Forwarding on the side menu.

2. Configure the settings in the following table.

3. Click Submit.

New Suppression Action Enter a name to identify the action.

TABLE 13 Alarm Settings (continued)

Item Description

TABLE 14 Alert Filter Settings

Item Description

Trap Destination IP Enter the IP address of the external server designated to receive the SNMP traps.

SNMP User Name User name for SNMP access.

Auth Type Choose the cryptographic algorithm (MD5, SHA, or No Auth) to use in authenticat-

ing communications between Tropos Control and the external server.

Auth Key Enter an authentication key to secure the communications between Tropos Control

and the external server designated to receive the SNMP traps.

SNMP Port Enter the Tropos Control server port to use for SNMP communications.

Tropos Router Reference Guide 58

6Viewing Network Configuration

Information

This chapter describes how to display device information using the Network Configuration

panels in the web interface.

Chapter contents:

Network Configuration Panels

Configuration View Actions

Updating the Device Database

Configuring Gateways for Multi-Subnet Roaming

Chapter 6 

Tropos Router Reference Guide 59

Network Configuration Panels

The Configuration View tab presents device information from the Tropos Control database. The

information shown in each panel is described in “Provisioning Forms” on page 78.

Note

The Configuration View displays only the menu items that are included in your product.

The Configuration View tab includes the following panels:

Complete View---General status information

Router Synchronization---Make router configurations consistent with each other

Inventory---List of routers in the database.

Router Identity---Identity and location information

Device and IP---Interface and network address information

Wireless---Information on wireless signal characteristics

DHCP Server---Status of the on-board DHCP server

Time---Time configuration and Network Time Protocol (NTP) server information

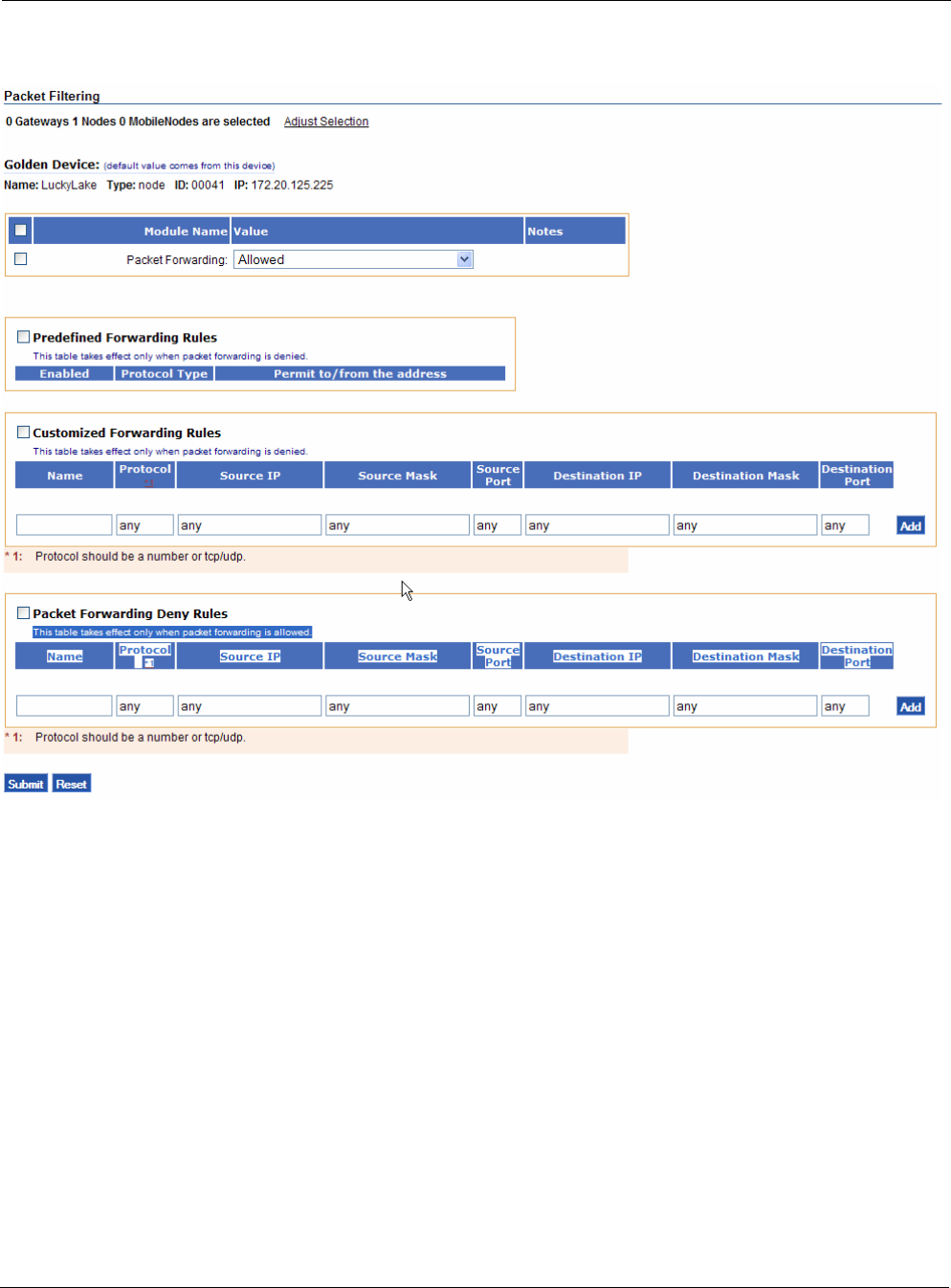

Packet Filtering Predefined Rules---Rules currently defined, listed by router and protocol

type

— Customized Rules---Special filtering rules

— Deny Rules---Rules to deny access

VLAN---VLAN configuration information

VLAN Information---Provides status information and lists the type of VLAN

Rate Limiting---Information status, caps, and triggers for rate limiting

QoS---Information on Quality of service (QoS) settings

QoS ESSID Parameters---Information on QoS settings defined for specific ESSIDs

Static IP Client---Information on clients that are configured with static IP addresses

P2P Blocking---Information on blocking of communications between clients in specified

subnets

Backhaul Routing---Information on neighboring Border Gateway Protocol (BGP) routers

that are one Layer 3 hop away

Multi-ESSID---Information on secondary ESSIDs and multiple BSSIDs

Router Access Control---Information on access restrictions for packet filtering

Multi-Subnet---Source and destination information for multi-subnet roaming

— Gateway List---Gateway information for multi-subnet roaming

— Additional Subnets---Subnets available for roaming

Voice---Information on voice parameters

Security--Information on security settings

SNMP users--List of current SNMP users

SNMP--List of configured SNMP trap destinations

Chapter 6 

Tropos Router Reference Guide 60

Configuration View Actions

You can perform all of the following actions from the Configuration View panels:

View configuration information

Search in a configuration view panel

Print the configuration view list

Export the configuration view list

View alarms or events for selected routers

Customize the configuration view columns

Add a device

Delete routers

Synchronize routers

Customize the configuration view columns

View configuration information

1. Open the web interface and choose Configuration View.

2. Choose the desired panel from the side menu.

Search in a configuration view panel

1. Click Search to open the Search window.

2. Choose an item to match from the pull-down list.

3. Choose the matching criterion from the pull-down list.

4. Enter the text to match. To match additional items:

a. Click More and choose additional criteria. You can continue to request more items by

clicking More repeatedly.

b. Select a radio button to match any one of the criteria (OR match) or all of the criteria

(AND match).

5. Click Search.

The window opens to display the matching items.

Print the configuration view list

1. Click Print to open a window containing a print-formatted version of the list.

2. Click Print.

Export the configuration view list

1. Click Export.

A pop-up window prompts you to open or save the view information in csv (comma-

separated) format.

2. Click Save, browse for a file location, enter the file name, and click Save.

Chapter 6 

Tropos Router Reference Guide 61

View alarms or events for selected routers

Select the routers, and click View Alarms or View Events.

The Events or Alarms panel opens to show the list for the selected routers.

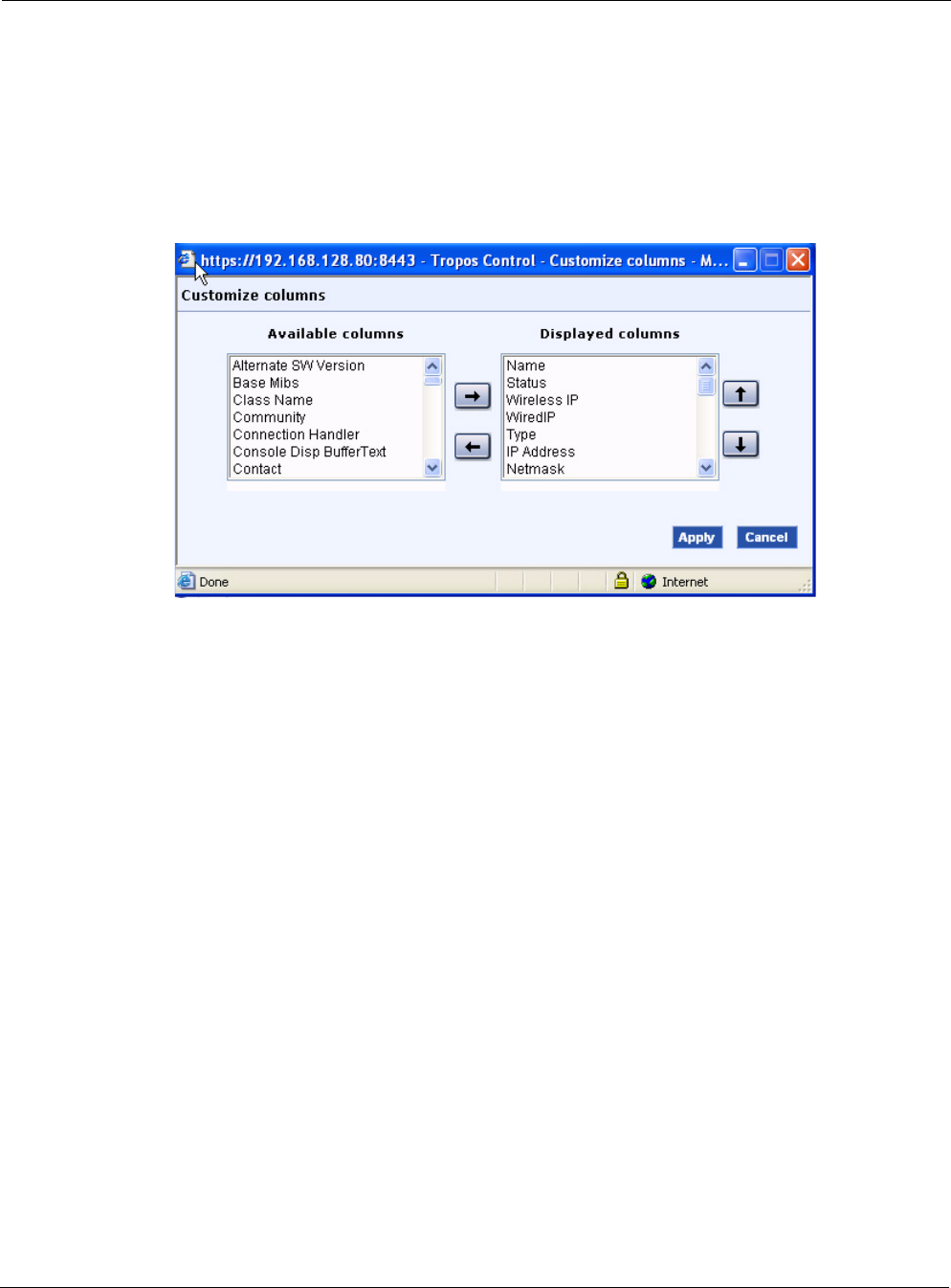

Customize the configuration view columns

1. Click Customize Columns to open the Customize Columns window.

2. Select columns from the Available Columns list and use the right-facing arrows to move the

selected columns to the Displayed Columns area.

3. To order the columns, use the upward and downward facing arrows.

4. Click Apply.

Chapter 6 

Tropos Router Reference Guide 62

Updating the Device Database

You can add devices and synchronize the device database from any of the Configuration View

panels. Use the buttons at the top of the panel.

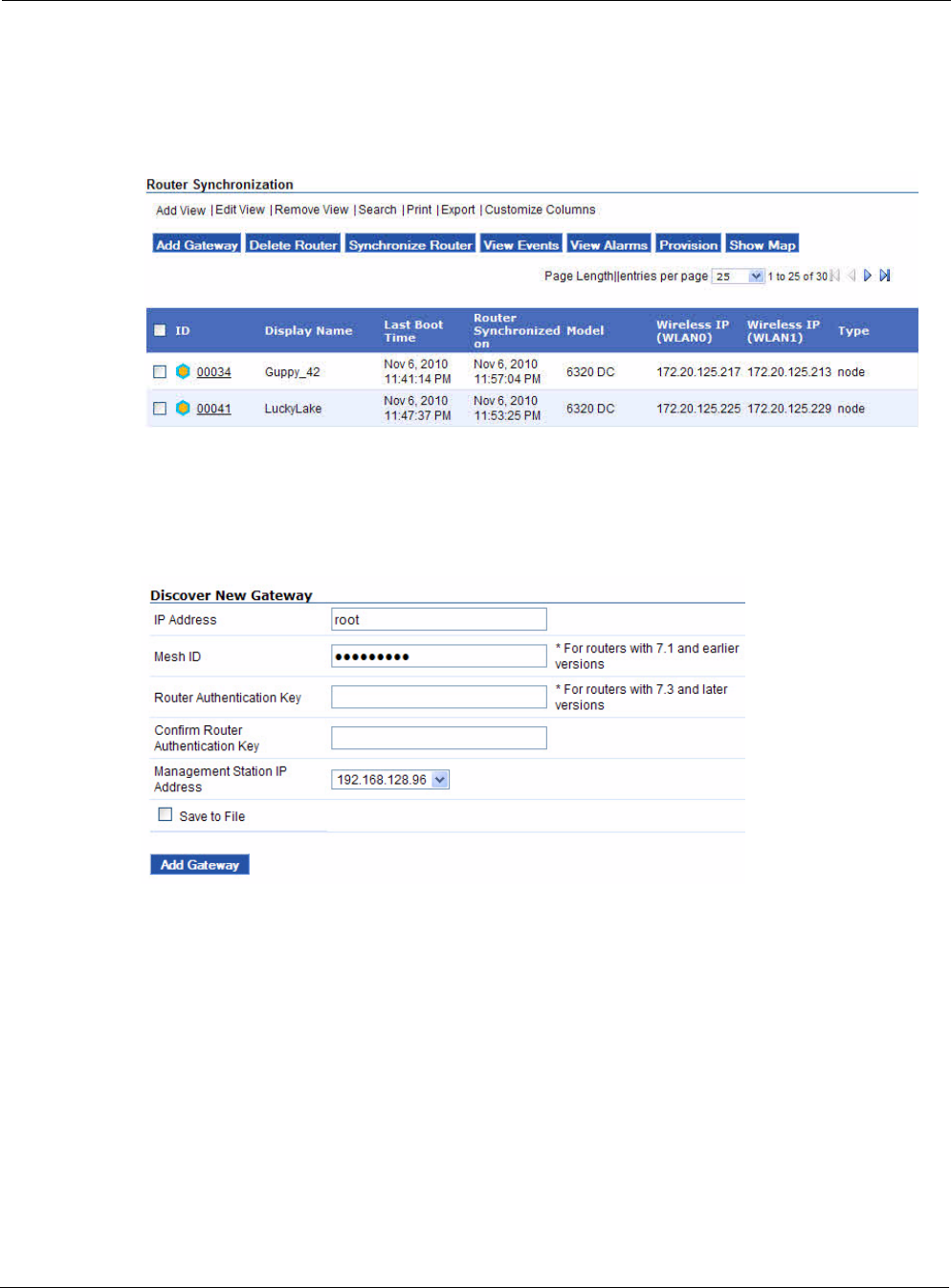

Add a device

1. Open the Configuration View panel and choose Add Gateway.

2. Click Add Gateway to open the Discover New Gateway window.

Chapter 6 

Tropos Router Reference Guide 63

3. Enter values as described in Table 15.

4. Click Add Gateway.

Tropos Control searches and discovers the indicated gateway, along with all the nodes in its

cluster. When the discovery process is complete, the gateways are added to the Configuration

View panels.

Delete routers

1. Select one or more routers, and click Delete Routers.

2. Click OK to confirm.

The selected routers are removed from the Tropos Control database.

Synchronize routers

The Synchronize Routers option writes the configuration information in the selected routers to

the Tropos Control database. Synchronization occurs automatically every 5 minutes. Use the

Synchronize Routers button to perform an immediate update or if a previous update was

unsuccessful. You can synchronize up to 10 routers at one time.

1. Select the routers in the table.

2. Click Synchronize Routers.

3. A pop-up message explains that the routers will be synchronized. Click OK to acknowledge

the message.

The information in the Tropos Control database is updated to match the information in the

selected routers. When the update is completed, any new information is reflected in the

Configuration View panels.

TABLE 15 Gateway Settings for Adding to the Device Database

Item Description

IP Address Enter the IP address of the gateway.

Mesh ID Enter and confirm the 16-character code that identifies the area of

the managed routers. Each managed router must be configured with

the same wireless routing domain ID.

Note: This is the same as the Mesh ID that is configured on the router.

Router Authentication Key

Confirm Router Authentication Key Enter and confirm 16-character ASCII authentication key for com-

munication between the router and Tropos Control.

Management Station IP Address Enter the IP address of the Tropos Control server in the Manage-

ment Station IP Address field, or select from the drop down menu.

Save to File Select to save the discovery parameters in the

/<installdirectory>/ems/conf/server/discover_devices.txt file.

Chapter 6 

Tropos Router Reference Guide 64

View Events or Alarms

1. Select the routers in the table.

2. Click View Events or View Alarms to open the Events or Alarms page for the selected

routers. See “Viewing Fault Information” on page 49 for more information.

Provision

1. Select the routers in the table.

2. Click Provision to open the Provisioning pages for the selected routers. See “Provisioning”

on page 68 for more information.

Show Map

1. Select the routers in the table.

2. Click Show Map to open a Google Maps window that shows the selected routers. See

“Viewing Geographic Maps” on page 27 for more information.

Creating Custom Views

You can save lists that match search criteria by creating custom views.

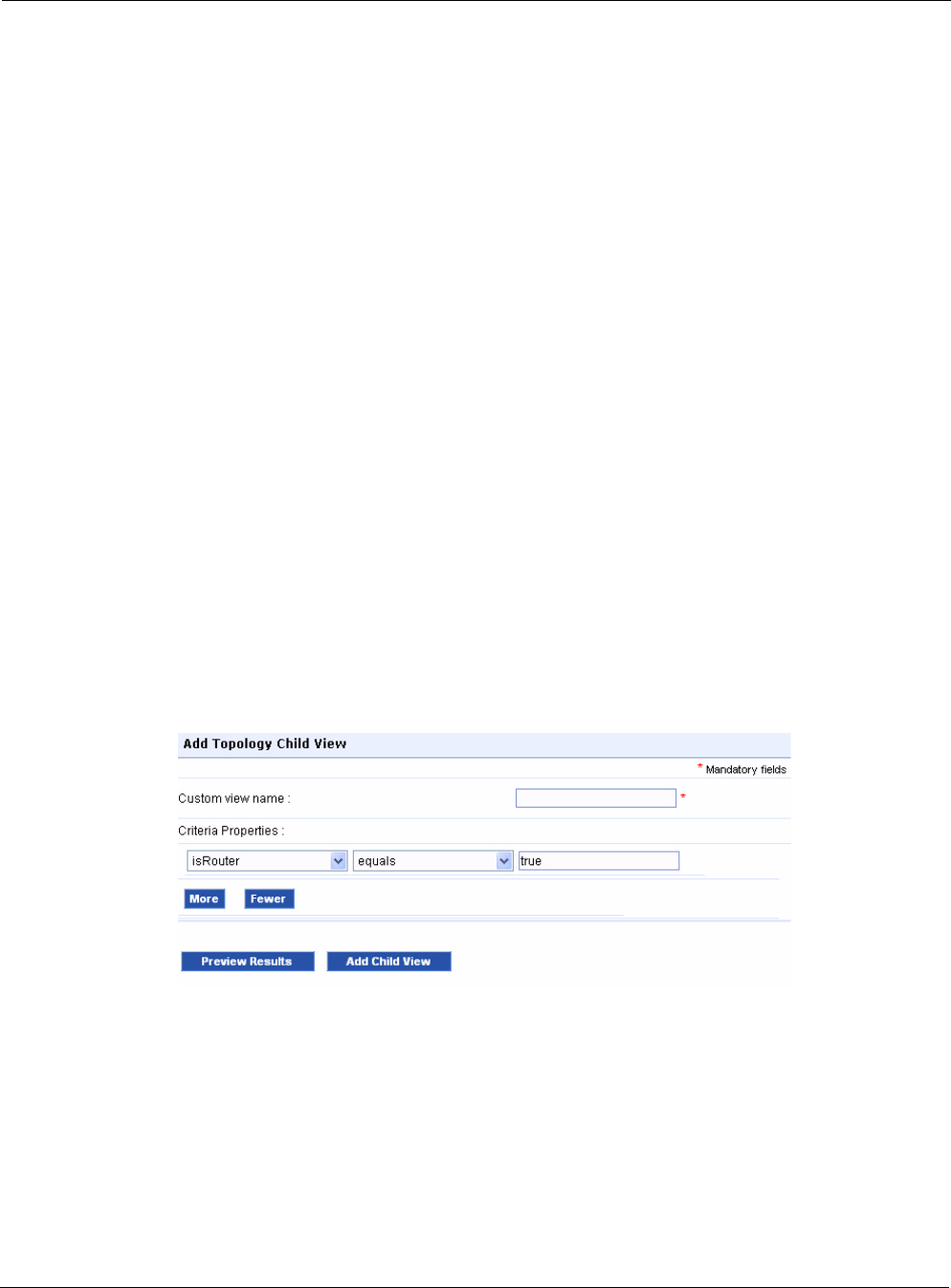

Create view

1. Open the Configuration View tab.

2. Open the view for which you want to create the child view.

3. Click the Add Child View link.

4. Enter the view name.

5. Choose an item to match from the pull-down list.

6. Choose the matching criterion from the pull-down list.

7. Enter the text to match.

Chapter 6 

Tropos Router Reference Guide 65

8. To match additional items:

a. Click More and choose additional criteria. You can continue to request more items by

clicking More repeatedly.

b. Select a radio button to match any one of the criteria (OR match) or all of the criteria

(AND match).

9. To preview the results, click Preview Results.

The matching list is presented at the bottom of the window.

10. To save the view, click Add Child View.

The new view is listed as a sub-item on the side menu.

Modify view

1. Click Edit View Criteria.

2. Make changes as desired.

3. Click Apply/Edit View Criteria.

Delete view

1. Click Remove View.

2. Click OK to confirm.

Configuring Gateways for Multi-Subnet Roaming

Multi-subnet roaming refers to the ability of client stations to retain links to the wireless network

when they move from one router subnet to another. To support multi-subnet roaming, each

gateway must store the IP address of all the gateways in the roaming domain.

During multi-subnet roaming, the client’s traffic is routed through its home gateway (the

gateway to which it was originally associated). If the home gateway loses its uplink while an

associated client is roaming, the client will lose connectivity, unless a redundant gateway is

operational in the same home subnet and included in the multi-subnet roaming list. To restore

connectivity, the old gateway must become available again or the client must obtain an IP

address from the new gateway.

To support multi-subnet roaming, you can configure Tropos Control to automatically distribute

the gateway list to all the gateways in the managed network. The distributed gateway list

includes all the gateways in the Tropos Control database. See “Multi-Subnet Roaming” on

page 110.

Child view

Chapter 6 

Tropos Router Reference Guide 66

Use the web interface to view the current multi-subnet roaming information and status and to

update all gateways with the latest gateway information. The information is presented in the

following panels.

Multi-Subnet

This panel lists all the interconnections between gateways and subnets. To access this panel,

open the Configuration View tab and choose Multi-Subnet.

Perform the following actions from this panel. To abort an operation before completion, click

Abort. When the operation is complete, the window opens and prompts you to export the file.

Action Description

Update Gateway List Send the current, complete Gateway List to all

gateways.

Clear Gateway List Remove the gateway list from all gateways. This

action disables multi-subnet roaming.

Show Current Tunnels Obtain the current multi-subnet roaming tunnels

from the gateways. When you click this button the

window reopens to show progress.

Show Current Status Show the status any current configuration jobs,

such as Update Gateway List or Clear Gateway

List.

Show Configuration Summary Show a summary of the current multi-subnet

roaming configuration in a new window.

Chapter 6 

Tropos Router Reference Guide 67

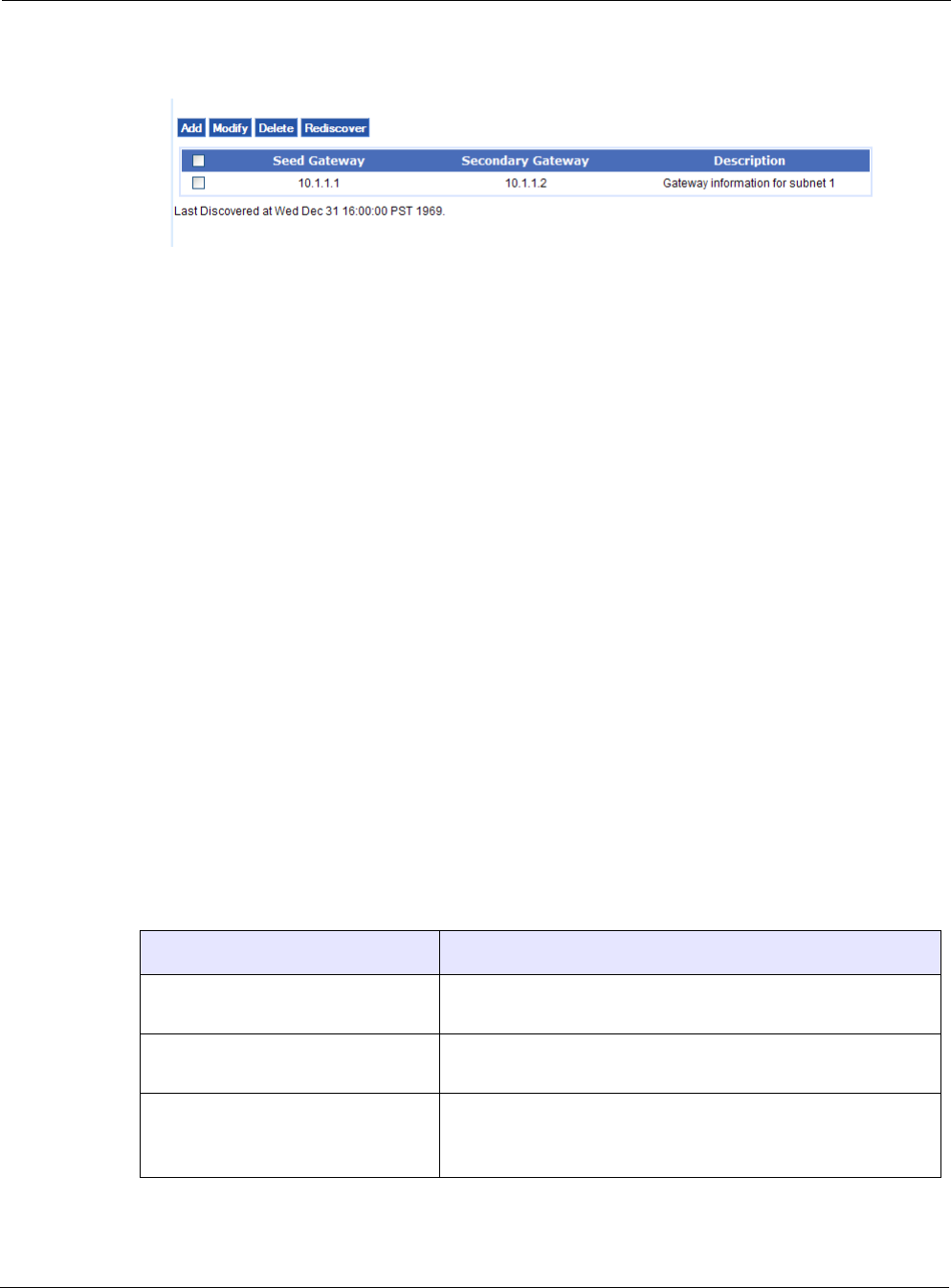

Gateway List

This panel displays the current gateway list. To access this panel, open the Configuration View

tab, choose Multi-Subnet, and then choose Gateway List.

Perform the following actions from this panel:

Export Result to File--Send the information for the items with selected check boxes to a

CSV file.

Provision--Open the Multi-Subnet Roaming provisioning form to provision the routers in

the list, as described in “Multi-Subnet Roaming” on page 110.

Tropos Control EMS User Guide 68

7Provisioning

Provisioning refers to the process of configuring Tropos routers to operate in the wireless

network. Tropos Control supports XML-based provisioning through the web interface to assure

that configurations are consistent across the network. This chapter explains how to provision

devices.

Chapter contents:

About Provisioning Operations

Provisioning Routers Using Web Forms

Provisioning Routers From a File

Provisioning Forms

Other Provisioning Operations

Auditing Provisioning Jobs

Chapter 7 

Tropos Control EMS User Guide 69

About Provisioning Operations

The web interface supports the following types of provisioning:

Provisioning from Forms---Use the web interface forms to specify the configuration

parameters to provision (“Provisioning Routers Using Web Forms” on page 74).

Provisioning from Files---Provision router identity or client black list/white list using

information stored in files (“Provisioning Routers From a File” on page 76).

Administrative Operations---Perform a variety of router administration tasks (“Other

Provisioning Operations” on page 123).

Caution

It is possible for conflicts to arise in applying provisioning changes if multiple administrators are logged in

and performing provisioning operations as the same time.

Each provisioning operation involves the tasks listed in Table 16.

TABLE 16 Provisioning Tasks

Step Task Description

1 Router selection Choose the routers that will receive the new configuration values (“Select

routers to provision” on page 70).

2 Configuration Specify any of the following changes to be made:

Configure values and store them on the Tropos Control server. See “Con-

figure router parameters” on page 75.

Specify the type of file provisioning and the source file. See “Specify the

type of provisioning and the source file.” on page 77.

Choose an administrative task. See “Other Provisioning Operations” on

page 123.

3 Schedule the provision-

ing job Send the stored configuration values or file to the designated routers

(“Schedule the provisioning job” on page 72).

4 Commit Activate the new configuration values on the designated routers (“Commit

the provisioning job” on page 73).

Chapter 7 

Tropos Control EMS User Guide 70

Select routers to provision

1. Open the Provisioning tab (Figure 16) and choose the panel for the type of provisioning that

you plan to implement.

FIGURE 16 Provisioning Tab

2. Click Select Devices.

Chapter 7 

Tropos Control EMS User Guide 71

A selection window opens.

3. Select the routers that you want to provision in the Available Routers list, and click the right-

facing arrow to move them to the Selected Routers area. You can use the links near the

bottom of the screen to select or sort the groups of routers in the list, or use the double

arrows to move the entire list.

Note

Choose only the routers that you want to provision with the same new parameter settings. Only the settings

that you specify as part of the provisioning process must be the same; all other settings can be different.

4. You can also select a golden router by highlighting the router and then clicking one of the

arrows adjacent to the Golden Router field. The golden router parameter values are the

values that are displayed when you open the individual provisioning forms. If you do not

explicitly choose a golden router, the first router in the list is automatically designated as

golden.

Note

The golden router is provisioned only if it is selected. If it is not selected, its values are displayed but it is not

including in the provisioning operation.

Chapter 7 

Tropos Control EMS User Guide 72

5. Click Apply.

The Provision from Form or Provision from Files panel reopens to show the number of

selected routers and information about the golden router.

You can now configure parameters on provisioning forms, specify provisioning files, or perform

other administrative operations. See “Provisioning Routers Using Web Forms” on page 74,

“Provisioning Routers From a File” on page 76, or “Other Provisioning Operations” on

page 123.

Note

To clear the list of selected routers, click Clear Routers.

Schedule the provisioning job

1. Open the Provisioning tab and choose the panel for the type of provisioning that you plan to

implement.

2. Enter a name for the provisioning job, or keep the default name assigned by the system. The

default name incorporates the date and time.

3. Specify the number of retries before the provisioning action is deemed to have failed and the

time interval between retries. Provisioning actions may fail if the router cannot be reached or

is not in a state to accept the configuration changes.

Chapter 7 

Tropos Control EMS User Guide 73

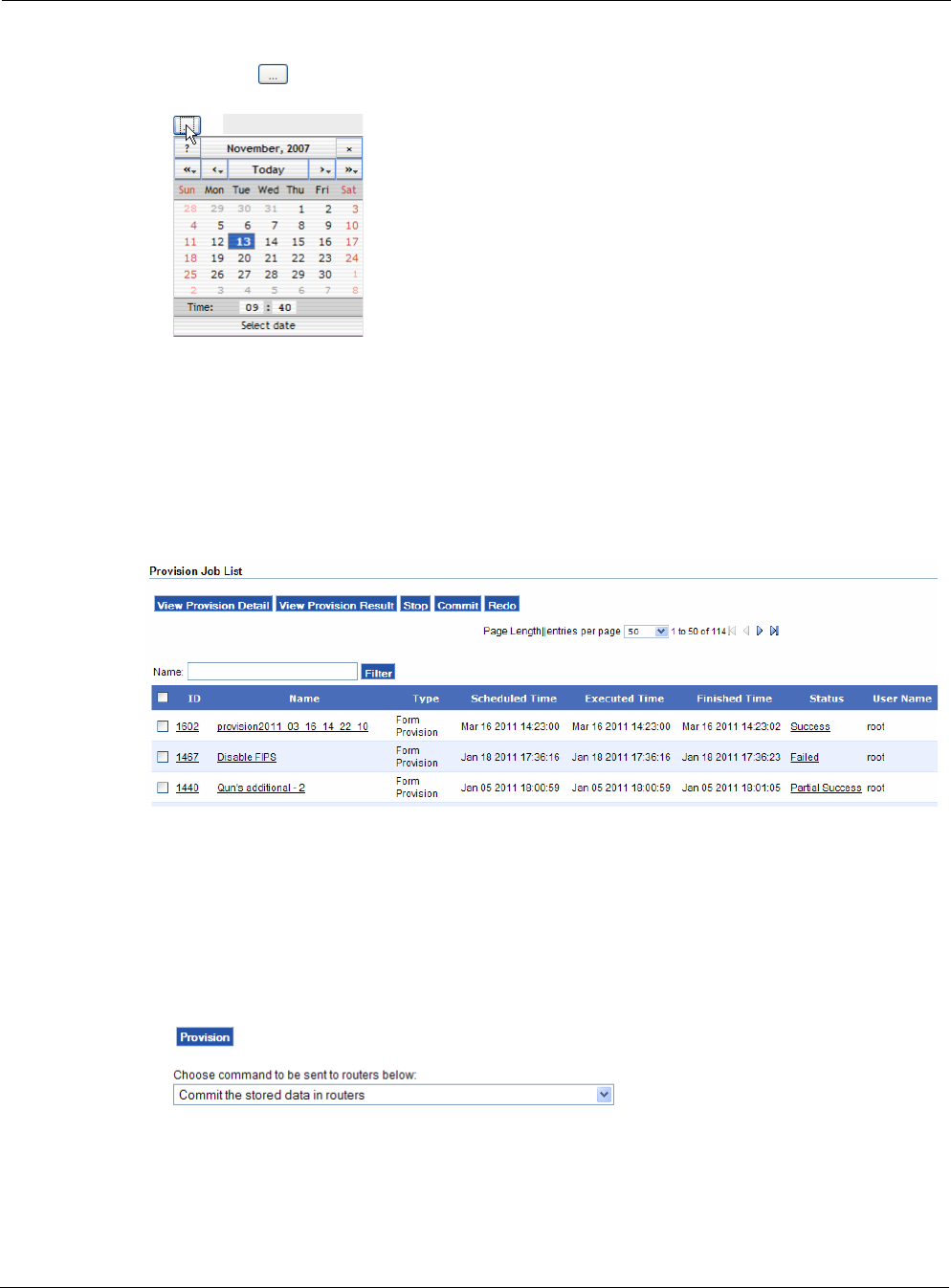

4. Choose Provision Now to begin the provisioning activity immediately, or choose Provision

At, click to open the calendar, and select a date and time.

At the specified time, the new parameter values are sent to the designated routers. You can now

view the provisioning job list and commit the new values.

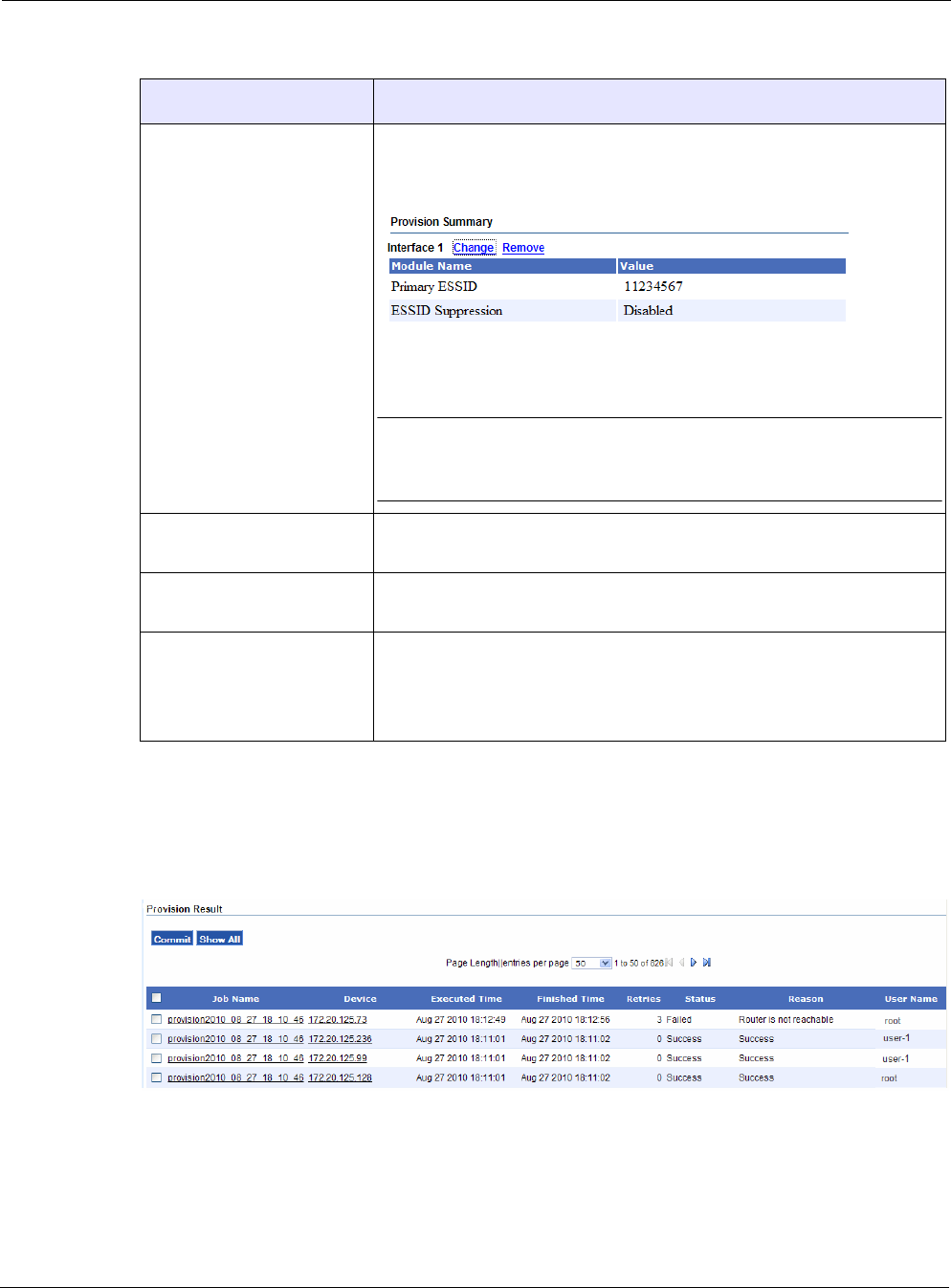

Commit the provisioning job

1. Open the Provisioning tab.

2. Choose Provision Job List from the side menu to open the Provision Job list.

3. Select checkboxes for the jobs that you want to commit.

4. Confirm that provisioning was successful for the selected jobs (Status column).

5. Click Commit.

The Provision from Form panel reopens to show that the requested commit command is to

commit the stored data to the routers.

6. Click Provisioning to commit the values that have been successfully provisioned on the

selected routers.

Chapter 7 

Tropos Control EMS User Guide 74

The provisioning process is now complete.

Provisioning Routers Using Web Forms

This section describes how to provision routers using the Provision from Form panel in the web

interface (Figure 17).

FIGURE 17 Provisioning from Form Panel

Provisioning from Forms - Tasks

Perform these tasks in the specified order to provision routers using web forms:

1. Select routers to provision (on page 70)

2. Configure router parameters (on page 75)

3. Schedule the provisioning job (on page 72)

4. Commit the provisioning job (on page 73)

Chapter 7 

Tropos Control EMS User Guide 75

Configure router parameters

1. Open the Provisioning tab and select the routers to provision (“Select routers to provision”

on page 70).

2. Choose one of the provisioning forms listed under Device Settings or Service Settings in the

side menu.

3. The selected formed opens, as in this Time form example. Configuration parameters from

the golden router are displayed.

4. Select checkboxes for each field that you want to provision, and modify the field value as

desired. See “Provisioning Forms” on page 78 for descriptions of the parameters on each

form.

Note

The fields with checkboxes selected are the ones that will be provisioned on the selected routers. All other

values will be ignored. If you modify a field value, the checkbox for that field is automatically selected.

5. Click Submit to save the values on the Tropos Control EMS server.

You can now schedule the provisioning job (“Schedule the provisioning job” on page 72).

Chapter 7 

Tropos Control EMS User Guide 76

Provisioning Routers From a File

This section describes how to provision routers using the Provision from Files panel in the web

interface (Figure 18).

FIGURE 18 Provisioning from Files Panel

You can provision the following types of information from a file:

Router identity---Identify the router for the managed network, applying basic identity and

location information.

The file must begin with the following line and conform to this format:

#uniqueid,display name,latitude,longitude,location,contact

Example:

#uniqueid,display name,latitude,longitude,location,contact

35036,Gateway,37.3935,-122.033,Sunnyvale CA 94085,www.company.com

Black list or white list---Identify clients that are permitted or denied access to the Tropos

network.

— ACL Block---Refuse association to the devices with specified MAC addresses.

— ACL Allow---Permit the devices with specifies MAC addresses to associate.

The following black list/white list provisioning operations are supported:

— Apply---Upload a file with MAC addresses to the selected router or routers.

— Retrieve---Copy a file with MAC addresses from the selected router or routers to the

Tropos Control server, storing the file in the cell configuration directory in the Tropos

Control installation directory.

The black list or white list file must consist of a list of MAC addresses, one per line.

Chapter 7 

Tropos Control EMS User Guide 77

Example:

00:11:22:33:44:55

aa:bb:cc:dd:ee:ff

Static IP addresses--Add routers with static IP address assignments.

The file must begin with the following line and conform to this format:

#uniqueid,wiredip,wiredmask,wlan0ip,wlan0mask,wlan1ip,wlan1mask,

defaultgw

Example:

#uniqueid,wiredip,wiredmask,wlan0ip,wlan0mask,wlan1ip,wlan1mask,

defaultgw

19040,172.20.125.95,255.255.255.0,172.20.125.96,255.255.255.0,,,172

.20.125.254

18505,,,172.20.125.105,255.255.255.0,,,

Provisioning from Files - Tasks

Perform these tasks in order to provision routers from files:

1. Select routers to provision (on page 70)

2. Specify the type of provisioning and the source file. (on page 77)

3. Schedule the provisioning job (on page 72)

4. Commit the provisioning job (on page 73)

Specify the type of provisioning and the source file.

1. Open the Provisioning tab and select the routers to provision (“Select routers to provision”

on page 70).

2. Select the type of provisioning:

For router identity:

— Choose Using Router Identity CSV file from the provisioning type pull-down list.

For black list/ white list:

— Choose Using Black List or White List file from the provisioning type pull-down list.

— Choose whether to provision the list to the routers or retrieve the list from the routers.

— Choose whether the clients in the list will be allowed to access the network or blocked

from accessing the network.

For static provisioning:

— Choose Using Router Static IP file from the provisioning type pull-down list.

3. Choose whether to select the file from your local file server or the Tropos Control server,

and browse to locate and open the file.

Chapter 7 

Tropos Control EMS User Guide 78

4. Click Provision.

Provisioning Forms

The following notes apply to use of the provisioning forms in the web interface:

Fields marked as unique can be provisioned only to one router at a time.

Fields marked with a version apply only to routers with the indicated software

release.

Fields that do not apply to the selected routers are grayed out (such as gateway-only fields if

only nodes are selected for provisioning).

Only the fields that have a check box selected are included in the provisioning job. When

you enter or modify a value, the associated check box is automatically selected.

This section lists the available provisioning forms and fields:

Device Settings

Router Identity Page

IP and VLAN Page

Wireless Page

Client Access

DHCP Server

SNMP

Time

Service Settings

DHCP Clients

Static IP Client

Packet Filtering

P2P Blocking

Multi-Subnet Roaming

Backhaul Routing

Rate Limiting

QoS

Voice

Administration

Software

Security

Chapter 7 

Tropos Control EMS User Guide 79

Router Identity Page

The Router Identity page (Figure 19) contains information on the physical identity and location

of the router. Table 17 describes the parameters on the page.

FIGURE 19 Router Identity

TABLE 17 Router Identity Settings

Field Range, Default Description

Router Mode Gateway | Node |

Mobile Node Identifies the setting for the type of router.

Model number TroposRouter Identifies the router (text string).

Note: The router name is not displayed in the wireless client utility

on the client’s PC. The router is identified only by MAC address.

Name TroposRouter Identifies the router (text string).

The router name is not displayed in the wireless client utility on

the client’s PC. The router is identified only by MAC address.

Location Sunnyvale Identifies the location where the router is installed.

Contact --- Identifies the person responsible for the router.

Chapter 7 

Tropos Control EMS User Guide 80

Longitude -180.00000 -

180.000000; 0 Represents the global longitudinal position of the router (fields

are in the format + /- ddd.dddddddd, with up to 8 digits permit-

ted to the right of the decimal point).

Latitude -90.00000 -

90.000000; 0 Represents the global latitudinal position of the router (fields

are in the format + /- ddd.dddddddd, with up to 8 digits permit-

ted to the right of the decimal point).

Location Ser-

vices Enabled | Disabled If enabled, allows router location information to be sent to a cli-

ent using a special XML call.

Banner Enabled | Disabled Optional text that is displayed above the information bar. See

Figure 5 on page 21. Allows you to specify the use characteris-

tics for the router, as required by NERC-CIP. The maximum

length is 128 characters and special characters such as @, &,

<, > are not supported.

TABLE 17 Router Identity Settings (continued)

Field Range, Default Description

Chapter 7 

Tropos Control EMS User Guide 81

IP and VLAN Page

The IP and VLAN Configuration page (Figure 20) lists network parameters for the router.

Table 18 describes all parameters on the page.

FIGURE 20 IP and VLAN (Excerpt)

Chapter 7 

Tropos Control EMS User Guide 82

TABLE 18 IP and VLAN Page Parameters

Field Range, Default Description

Mode DHCP | Static Method used to obtain the device IP address (static or

DHCP).

LAN/Backhaul IP

Address -- IP address of the LAN/backhaul interface (x.x.x.x/n format).

This field is grayed out if Mode is set to DHCP.

LAN/Backhaul Mask -- Subnet mask of the LAN/backhaul interface (x.x.x.x/n for-

mat). This field is active only if Mode is Static.

WLAN0 Wireless IP -- IP address of the wlan0 interface (x.x.x.x/n format). This

field is grayed out if Mode is set to DHCP.

WLAN0 Wireless Mask -- Subnet mask of the wlan0 interface (x.x.x.x/n format). This

field is active only if Mode is Static.

WLAN1 Wireless IP -- IP address of the wlan1 interface (x.x.x.x/n format). This

field is grayed out if Mode is set to DHCP.

WLAN1 Wireless Mask -- Subnet mask of the wlan1 interface (x.x.x.x/n format). This

field is active only if Mode is Static.

Default Gateway -- IP address of the default network device (not the device).

This field is active only if Mode is Static.

Domain Name Servers -- Specifies the name of a DNS server on the network (up to

three servers are supported).

Backhaul Check Disabled |

Enabled IP address of a device to be used to verify backhaul con-

nectivity.

Backhaul Check IP IP address of a device to be used to verify backhaul con-

nectivity.

VLAN Configuration

VLANs Disabled |

Enabled Indication of whether VLANs are enabled.

Management VLAN -- VLAN ID of the management VLAN.

VLAN IP Mapping

VLAN IP Mapping -- VLAN ID of the management VLAN.

VLAN ID Numeric identifier for the VLAN.

Note: Do not assign four-digit VLAN IDs in mixed

environments (networks that have some routers running

Release 7.1 software and some routers running Release 6.7

software).

VLAN Name Text name to identify the VLAN.

Chapter 7 

Tropos Control EMS User Guide 83

IP/Mask IP address and subnet mask of the VLAN interface

(x.x.x.x/n format).

Note: The IP/Mask, Default Gateway, and DHCP Server

fields are active only if Mode is static.

Default Gateway IP address of the default network routing gateway.

DHCP Server IP address of the server that supplies DHCP service for the

VLAN.

Wired Client Interface

Configuration

Wired Clients Disabled |

Enabled Indication of whether wired clients are supported on the

Management/Wired Interface.

Wired Clients

Interface Mode DHCP | Static Method used to obtain the IP address of the wired clients

(static or DHCP). This field is active only if Wired Clients is

enabled.

Wired Clients

IP/Mask -- Subnet for wired clients, specified by IP address and sub-

net mask (x.x.x.x/n format). This field is active only if Wired

Clients is enabled and Wired Clients Interface Mode is

Static.

VLAN Mode Access | Trunk Type of VLAN support for wired clients.

Trunk mode: Permits separate VLAN assignment for each

wired interface.

Access mode: Permits assignment of one VLAN for all

wired interfaces.

Access VLAN For access mode only, select the VLAN for all wired clients.

Wired Client Interface

VLAN Mapping List

VLAN Name -- For trunk mode only:

Select the VLAN name.

VLAN Name

IP/Mask -- For trunk mode only:

Enter the IP address/mask, and click Add. Repeat to

assign additional VLANs. Click Remove to delete an entry.

Device Settings

PoE Off, 12V, 24V, 48V Setting for PoE power output. Off indicates that PoE power

output is not available.

TABLE 18 IP and VLAN Page Parameters (continued)

Field Range, Default Description

Chapter 7 

Tropos Control EMS User Guide 84

PoE Port None, LAN, Mgmt,

LAN & Mgmt Port for PoE power output.

LAN/Backhaul Interface

Speed/Duplex Auto Characteristics of this interface.

Auto: Rate automatically negotiated with other devices

100base Tx-FD: 100 Mbit transmission, full-duplex setting

100base Tx-HD: 100 Mbit transmission, half-duplex setting

10base T-FD: 10 Mbit transmission, full-duplex setting

10base T-H: 10 Mbit transmission, half-duplex setting

Management/Wired

Interface Speed/Duplex Auto Characteristics of this interface.

Auto: Rate automatically negotiated with other devices

100base Tx-FD: 100 Mbit transmission, full-duplex setting

100base Tx-HD: 100 Mbit transmission, half-duplex setting

10base T-FD: 10 Mbit transmission, full-duplex setting

10base T-H: 10 Mbit transmission, half-duplex setting

LAN/Backhaul Interface

MTU -- Largest packet size (Maximum Transmission Unit) transmit-

ted over this interface. (bytes)

Management/Wired

Interface MTU -- Largest packet size (Maximum Transmission Unit) transmit-

ted over this interface. (bytes)

Advanced Settings

Backhaul Capacity 0-30

25 for one-radio

gateways and 30

for two-radio

gateways

Maximum capacity that the gateway can support. Typically

depends on the capacity of the link from the gateway to the

capacity injection layer. Nodes usually prefer a gateway

with higher backhaul capacity.

Layer 2 Emulation Enabled | Dis-

abled Indication of whether the network works with wireless

devices that operate at Layer 2 of the OSI hierarchy. If

enabled, the network appears as a wireless bridge or

access point to upstream wired Layer 2 devices.

DRSet Priority 1-10, 2Priority, or relative willingness, of the gateway to be a des-

ignated device (DR).

Subnet DRset Size 1-40, 10 Total number of gateways included in the set of DRs for

intra-subnet roaming.

Make sure that all gateways in the subnet have the same

Subnet DRSet size configured.

TABLE 18 IP and VLAN Page Parameters (continued)

Field Range, Default Description

Chapter 7 

Tropos Control EMS User Guide 85

DHCP Release Packets Allow | Drop Indication of whether DHCP release packets are allowed to

reach the DHCP server.

Choosing Drop reduces the number of client IP address

changes. The resulting RADIUS accounting data is cleaner

and easier to process.

This field is active only if Mode is DHCP.

Backhaul Check Failure

Threshold (Consecutive

Pings)

3 – 999999, 18 Number of failed ICMP ping messages that constitutes fail-

ure of the backhaul link.

Backhaul Check Restore

Threshold (Consecutive

Pings)

1 – 999999, 3Number of successful ICMP ping messages that causes

restoration of the backhaul link.

TABLE 18 IP and VLAN Page Parameters (continued)

Field Range, Default Description

Chapter 7 

Tropos Control EMS User Guide 86

Wireless Page

The Wireless page (Figure 22 and Figure 22) lists parameters required to configure radio

frequency (RF) communications in the Tropos wireless network. Table 19 describes all

parameters on the page.

FIGURE 21 Wireless Configuration (Top)

Chapter 7 

Tropos Control EMS User Guide 87

FIGURE 22 Wireless Configuration (Bottom)

Chapter 7 

Tropos Control EMS User Guide 88

TABLE 19 Wireless Page Parameters

Field Range, Default Description

Mesh ID

Confirm Mesh ID --- 16-character code that must be the same for all routers

in your network. To support multi-subnet roaming, the

Mesh ID must be the same for all networks in the roam-

ing domain, so when you first access the Configuration

Utility, you are prompted to change the value.

Channel

Configuration

Auto Channel

(entry for each wire-

less interface)

Enabled | Disabled Indication of whether auto channel functionality is

enabled or disabled.

Channel List

(entry for each wire-

less interface)

2.4 GHz: 1, 6, 11

5.8 GHz: 149, 153, 157,

161, 165

5.4 GHz: 100, 104,

108,112,116

Available channels for auto channel. Active only if Auto

Channel is enabled.

Channel

(entry for each wire-

less interface)

2.4 GHz: 1, 2, 3, 4, 5, 6,

7, 8, 9, 10, 11, auto

5.8 GHz: 149, 153, 157,

161, and 165

5.4 GHz: 100, 104, 108,

112, 116

4.9 GHz: 9220, 9620

Operating channel. Active only if Auto Channel is dis-

abled.

The default channel for the 5.4 GHz band is determined

automatically based on the calibration (country) code.

Maintenance Window --- Date and time at which the gateway begins a channel

scan. Active only if channel is auto.

Maintenance Interval 0-30, 0Frequency (days) at which the gateway performs the

channel scan. Active only if channel is auto.

Rate and Power

Configuration

Mesh Control

Transmit Rate (entry

for each wireless

interface)

Auto | Fixed (Mesh

Control Tx Rate) Bit rate for data traffic between routers. See PowerCurve

description for additional information.

This field is active only if PowerCurve is disabled.

Chapter 7 

Tropos Control EMS User Guide 89

PowerCurve On | Off Implementation of adjustments for efficient network

resource utilization. Choosing on activates the following

parameter changes and restrictions:

• Mesh unicast transmit rate is automatically set to

auto.

• Power attenuation settings apply only to router-router

control traffic. You can continue to assign data rates

for mesh control transmission.

Turning power curve adjustments off results in the fol-

lowing change:

• Power attenuation settings apply to all data and con-

trol traffic.

Mesh Unicast Trans-

mit Rate Auto | Fixed (Mesh

Control Tx Rate) Bit rate for data traffic between routers. See PowerCurve

description for additional information.

This field is active only if PowerCurve is disabled.

Transmit Power

Attenuation 0-15 dB

0 dB This is a global power attenuation that applies to all traf-

fic.

Additional Attenua-

tion for 802.11 Bea-

cons and

Management Frames

(entry for each wire-

less interface)

0-15 dB

0 dB Additional attenuation added on top of the Maximum

Power Attenuation and applied to 802.11 beacons and

management traffic.

Additional Client

Transmit Power Atten-

uation

0-15 dB Determines the reduction in power transmitted by the

router radio. Applies only to client links.

The total client attenuation is Transmit Power Attenua-

tion + Additional Client Transmit Power Attenuation

Advanced Settings

Support Mesh Links to

Downstream Routers

(entry for each wire-

less interface)

Enabled | Disabled Indication of whether downstream meshing is enabled

for each radio.

We recommend that you enable this field to support

downstream meshing for all applications.

TABLE 19 Wireless Page Parameters

Field Range, Default Description

Chapter 7 

Tropos Control EMS User Guide 90

Support Mesh Links to

Upstream Routers

(entry for each wire-

less interface, node

only)

Enabled | Disabled Indication of whether downstream meshing is enabled

for each radio.

We recommend that you enable this field for all except

4.9 GHz public safety applications. For 4.9 GHz public

safety applications, choose the following settings:

•Enabled---for 802.11b/g interface, static and mobile

nodes

•Disabled---for 802.11a interface (4.9 GHz), static

and mobile nodes.

RTS Threshold

(entry for each wire-

less interface)

2346 bytes Indicates the packet size for collision protection. When

the request to send (RTS) packet size is larger than the

threshold, collision protection is provided.

Each protected packet is preceded by an RTS (Request

To Send) frame. Default 2346 is recommended except in

congested environments, in which a setting between 500

and 1500 may improve reliability. Due to overhead and

possible loss in throughput, settings below 500 are not

recommended.

Maximum Link Dis-

tance

(entry for each wire-

less interface)

5 - 20, 4.2 Maximum distance permitted for a single wireless link

(km). Increase this value to avoid excessive timeouts in

areas where links between routers are long.

Transmit Diversity (2.4

GHz)

(802.11b/g interface

only; not supported on

6310 and 6320 rout-

ers)

auto, main, aux Antenna selection for transmission:

• Auto – automatically pick the Tx (transmit) antenna

(automatic transmit diversity)

• Main – use the main antenna only for transmit

• Aux – use the auxiliary antenna only for transmit

Note: The router receives wireless signals on both

antennas.

Evil Twin Detection Enabled | Disabled Indication of whether unauthorized devices that adver-

tise an ESSID used by the Tropos mesh are detected.

If an evil twin is detected, an SNMP inform is sent to Tro-

pos Control EMS, which reports the event.

TABLE 19 Wireless Page Parameters

Field Range, Default Description

Chapter 7 

Tropos Control EMS User Guide 91

DoS Detect Threshold 0 - 10,000 Number of management frames that are acceptable to

be sent within 5 seconds.

If this number is exceeded, a DoS attack is assumed and

an SNMP inform is sent to Tropos Control EMS, which

reports on the activity. The default value of 0 disables the

feature.

The following will trigger the DoS feature and send an

SNMP inform to Tropos Control EMS:

• The number of management frames set in the DOS

threshold is exceeded.

• A broadcast deauthentication packet is detected.

• A spoofing MAC address of a router is detected.

Note: The appropriate DoS threshold depends upon

network conditions. If the threshold is too high, you might

miss notification of a DoS attack; if the threshold is too low,

unnecessary SNMP informs might be generated. For

example, in a busy network with crowded channels, a

threshold in the range of 500 or more may be appropriate.

Mobile Node Forced

Standalone

(mobile node only)

Enabled | Disabled When enabled, the mobile node is forced to stay in stan-

dalone mode when the path quality falls out of the range

indicated in the watermark settings.

For example, if the watermark levels are 40 and 60 and

path quality of the mobile node falls to 30, then the

mobile node is forced to stay in standalone mode until

path quality reaches 60 level.

Low Path Quality

Watermark (mobile

node only)

-- Path quality level (1-80) that forces the mobile node to

standalone mode.

High Path Quality

Watermark (mobile

node only)

-- Path quality level (1-100) that, if reached, causes the

mobile node to leave standalone mode.

TABLE 19 Wireless Page Parameters

Field Range, Default Description

Chapter 7 

Tropos Control EMS User Guide 92

Client Access

The settings on the Client Access Configuration page (Figure 23) allow you to configure SSIDs,

authentication, and other settings that control client access to the wireless network.

Table 20 describes the settings on the page.

FIGURE 23 Client Access Page (Excerpt)

TABLE 20 Client Access Page Parameters

Field Range, Default Description

Multi-ESSID

Chapter 7 

Tropos Control EMS User Guide 93

SSID --- Enter a name that uniquely identifies the network on

which the router is operating.

Note: To fully support SSID-based VLANs, configure the

same VLAN ID and SSID-VLAN mappings on each router in

the network.

Hidden No | Yes Choose whether the router will include (No) or exclude

(Yes) the SSID from the packets it transmits. Hiding the

SSID makes it more difficult for unauthorized devices to

obtain the SSID.

Authentication Open

WEP

WPA1-PSK

WPA1-1x

WPA2-PSK AES

only

WPA1&2-PSK AES

only

WPA2-PSK

WPA1&2-PSK

WPA1-1X AES only

WPA1&2-1X AES

only

WPA2-1X

WPA1&2-1X

Select the authentication method.

PSK Passphrase

Confirm PSK Pass-

phrase

--- Enter a passphrase, if you choose one of the WPA-PSK

options.

BSSID Index (MAC

Address) 0-15, 0Indicates the BSSID index used for this secondary

ESSID.

Primary ESSID Pre-

ferred No | Yes Indicates whether this ESSID is the primary ESSID for this

BSSID.

VLAN --- Choose the VLAN for this SSID.

Note: To fully support SSID-based VLANs, configure the

same VLAN ID and SSID-VLAN mappings on each router in

the network.

2.4 GHz

5.8 GHz

4.9 GHz

--- Wireless interfaces for this SSID.

TABLE 20 Client Access Page Parameters (continued)

Field Range, Default Description

Chapter 7 

Tropos Control EMS User Guide 94

Standalone SSID

SSID --- Use this entry to configure a single SSID. Enter a name

that uniquely identifies the network on which the router is

operating. Choose an authentication type and enter a

PSK passphrase, as described above in this table.

Authentication Open

WEP

WPA1-PSK

WPA1-1x

WPA2-PSK AES

only

WPA1&2-PSK AES

only

WPA2-PSK

WPA1&2-PSK

WPA1-1X AES only

WPA1&2-1X AES

only

WPA2-1X

WPA1&2-1X

Select the authentication method.

PSK Passphrase

Confirm PSK Pass-

phrase

--- Enter a passphrase, if you choose one of the WPA-PSK

options.

WEP Configuration

WEP Type

(entry for each wireless

interface)

Hex64bit

Hex128bit

ASCII64bit

ASCII128bit

Choose the type of WEP key:

• Hex64bit---Hexadecimal string with 64-bit encryption

key (40-bit encryption plus 24-bit initialization number)

• Hex128bit---Hexadecimal string with 104-bit encryp-

tion key (40-bit encryption plus 24-bit initialization

number)

• ASCII64bit---ASCII string with 64-bit encryption key

(40-bit encryption plus 24-bit initialization number)

• ASCII128bit---ASCII string with 104-bit encryption key

(40-bit encryption plus 24-bit initialization number)

TABLE 20 Client Access Page Parameters (continued)

Field Range, Default Description

Chapter 7 

Tropos Control EMS User Guide 95

WEP Key

(entry for each wireless

interface)

--- Enter the encryption key, which is required for each WEP

type. The format depends on the WEP type:

• Hex64bit---Enter 5 hexadecimal characters

• Hex128bit---Enter 5 hexadecimal characters

• ASCII64bit---Enter 10 ASCII characters

• ASCII128bit---Enter 26 ASCII characters

Note: After you create a key, use it to program all client

devices and routers on the wireless network.

RADIUS

RADIUS Server --- Enter the IP address of the RADIUS server that authenti-

cates user requests for network access, if WPA1-1X or

WPA2-1X (or both) are selected as an authentication type.

RADIUS Authentication

Port 1812 Enter the port on the RADIUS server to be used for client

authentication requests, if WPA1-1X or WPA2-1X (or

both) are selected as an authentication type.

RADIUS Secret

Confirm RADIUS Secret mysecret Enter a shared secret code to verify the connection

between the RADIUS server and the router, if WPA1-1X

or WPA2-1X (or both) are selected as an authentication

type.

RADIUS Accounting

Server 0.0.0.0 Enter the IP address of the RADIUS accounting server, if

RADIUS accounting services are used to log client activ-

ity. An IP address of 0.0.0.0 disables this feature.

RADIUS Accounting

Port 1813 Enter the port on the accounting server to be used for

RADIUS accounting requests, if RADIUS accounting ser-

vices are used to log client activity.

RADIUS Accounting

Secret

Confirm RADIUS

Accounting Secret

--- Enter the shared secret code to verify the connection

between the accounting server and the router, if RADIUS

accounting services are used to log client activity.

RADIUS Accounting

Interval 900 Enter an interval (seconds) between RADIUS accounting

updates, if RADIUS accounting services are used to log

client activity. an interval of 0 disables interim updates.

TABLE 20 Client Access Page Parameters (continued)

Field Range, Default Description

Chapter 7 

Tropos Control EMS User Guide 96

Delay RADIUS Account-

ing Start for Authentica-

tion and IP

Yes | No Choose whether the RADIUS accounting session will

begin when the client associates to the router (No) or

when the client has associated, been authenticated and

obtained an IP address (Yes).

Because debugging information is gathered as part of the

debugging session, choosing No may help in trouble-

shooting authentication or IP addressing issues.

IPSec for RADIUS Disabled | Enabled Choose whether to enable IPSec security for communica-

tion with the RADIUS server.

IPSec Tunnel Endpoint -- Specify the IP address of the system that terminates the

RADIUS tunnel endpoint that starts at the router.

IPSec Preshared Key

Confirm IPSec Pre-

shared Kay

Specify the preshared key for authentication of the IPSec

tunnel.

Advanced Settings

Client Access Rule Deny | Allow Choose the type of rule:

• Deny---Clients in the list are denied access; all others

are permitted to associate.

• Allow---Only the clients in the list are permitted to

associate.

802.11b Support Disabled |

Short Preamble |

Long Preamble |

Mixed

Choose a value according to whether the router must

operate with older 802.11b devices that require a long

preamble in the 802.11 frame format.

• Short Preamble is more efficient, but incompatible with

some older 802.11 devices.

• Long Preamble ensures compatibility with most early

models of wireless clients.

• Mixed allows 802.11b clients using short or long pre-

amble to associate.

• Disabled prevents all 802.11b clients from associating

with the router.

Note: This setting does not apply to mobile routers.

Beacon Interval

(entry for each wireless

interface)

250 (802.11b/g)

100 (801.11a/n) Choose the time interval between the transmission of

802.11 beacons by the router (ms).

Beacon Rate

(entry for each wireless

interface)

11 (802.11b/g)

6 (801.11a/n) Enter the rate at which the router transmits 802.11 bea-

cons (Mbps).

TABLE 20 Client Access Page Parameters (continued)

Field Range, Default Description

Chapter 7 

Tropos Control EMS User Guide 97

DHCP Server

The DHCP Server page (Figure 24) lists DHCP parameter settings for routers. Table 21 lists all

parameters on the page along with an explanation of the purpose of each and how it should be

interpreted and used.

FIGURE 24 DHCP Server

IP to VLAN Mapping To create or edit IP to VLAN mappings, enter the VLAN ID

and the subnet (x.x.x.x/n format). Click Add after each

addition.

Note: Before you create IP to VLAN mappings, enable and

define VLANs on the IP and VLAN page. See “IP and VLAN

Page” on page 81.

TABLE 20 Client Access Page Parameters (continued)

Field Range, Default Description

Chapter 7 

Tropos Control EMS User Guide 98

SNMP

The SNMP page (Figure 25) lists the SNMP community for the router and specifies where to

send SNMP informs. To use Tropos Control to manage the router, you must register Tropos

Control to allow SNMP access to the router and to receive SNMP informs. This allows access to

the SNMP MIBs and use of Tropos Control. In addition, registering the IP address allows SNMP

TABLE 21 DHCP Server Page Parameters

Field Range, Default Description

Network address trans-

lation Enabled | Disabled Choose whether to enable Network Address Translation

(NAT) for IP address assignment. Enable NAT if either of

these conditions apply:

• You want to use internal addressing within your wire-

less network.

• The network has a single gateway that represents all

internal clients to the external network.

Note: When you enable NAT, the internal DHCP server on

the gateway is automatically enabled.

DHCP Server On Board Enable | Disable Indicates whether the DHCP server is enabled on the

router.

DHCP Relay To -- Specifies the IP address of the DHCP server that receives

the relayed DHCP requests.

Starting Address -- Specifies the first IP address in the address range for the

Tropos gateway.

Ending Address -- Specifies the last IP address in the address range for the

Tropos gateway DHCP server; the address range should

be large enough to accommodate all routers and users on

the network.

Netmask -- Specifies the subnet mask for the IP addresses provided

by the DHCP server.

Domain Name Server -- Specifies the IP address of the DNS server that supplies

name resolution for the DHCP server.

DHCP Server Lease

Time -- Specifies the time in seconds before the IP address

expires and must be renewed (it is recommended that you

assign lease times of at least 12 hours, or 43200 sec-

onds).

WINS Servers -- Specifies the IP address of a Windows name server to be

passed on to DHCP clients.

MAC Address Filter Enabled | Disabled Indicates whether MAC address filtering is enabled.

Chapter 7 

Tropos Control EMS User Guide 99

informs to be sent to that address. You can configure multiple IP addresses if you want other

addresses to have SNMP access and the ability to receive informs.

Table 22 lists the settings on the page along with an explanation of the purpose of each and how

they should be interpreted.

Note

Tropos Control does not support encrypted traps.

FIGURE 25 SNMP

Chapter 7 

Tropos Control EMS User Guide 100

Time

The time page (Figure 26) contains settings for Network Time Protocol (NTP) servers used to

synchronize time on the router, and may also be used to set the time manually. Table 23 lists

parameters and tasks on the page.

TABLE 22 SNMP Page Parameters

Field Range, Default Description

Trap Destinations -- IP address and SNMP community of the server that

receives SNMP traps.

These settings are for SNMPv2 traps, which apply

only to routers running pre-Release 7.5 software.

SNMP User Table -- SNMP user information:

• Security User Name - SNMP user

• Auth Type - MD5, SHA1, or No Authentication

• Auth Key - for the authentication protocol

• Priv Type - AES, DES, or none

• Priv Key - Privacy key for the privacy type

These settings are for SNMPv3 and apply only to rout-

ers running Release 7.5 and later software.

SNMPv3 Trap

Destinations -- Name, target IP address, and user name for each

SNMP trap destination.

These settings are for SNMPv3 and apply only to rout-

ers running Release 7.5 and later software.

SNMP Enable Manage-

ment Servers Enabled | Disabled Indication of whether SNMP is enabled or disabled for

management.

Allowed Management

Servers -- IP address of each Tropos Control server that is

allowed to manage this device.

Chapter 7 

Tropos Control EMS User Guide 101

FIGURE 26 Time Page

TABLE 23 Time Page Parameters and Tasks

Field Default Description

NTP Server --- Indicates the IP address or domain name of

an NTP server. If NTP is used, at least one

server must be specified; specify up to three

servers by entering comma-separated IP

addresses or host names.

Time Zone UTC Presents a list of time zones.

Note: Universal Time (UTC) is the same as

Greenwich Mean Time.

Set Router Time --- Permits manual setting of the date and time

using the pull-down lists. Manual time

changes take effect immediately. Click to

open a calendar and select a date and time.

Chapter 7 

Tropos Control EMS User Guide 102

DHCP Clients

The DHCP MAC Filter/Reservation page (Figure 27) contains parameters to configure the

internal DHCP server of the Tropos gateway in order to limit assignment of IP addresses to

wireless clients. Table 24 lists the settings on the page, which can be opened by clicking DHCP

Clients on the side menu.

FIGURE 27 DHCP Clients

TABLE 24 DHCP Clients Page Settings

Field Range, Default Description

MAC --- Specifies the MAC address of the client to be accepted.

Click Add to include this entry in the list.

Chapter 7 

Tropos Control EMS User Guide 103

Static IP Client

The Static IP Client Configuration page (Figure 28) contains settings for clients that require

static IP addresses rather than DHCP-supplied addresses. The Static IP Client Configuration

page also provides the ability to configure static IP addresses for clients behind customer

premise equipment (CPE), such as Wireless-to-Ethernet bridges. Table 25 lists the parameters on

the page.

Note

If you use auto-detection, you must enable it on all the gateways and nodes in the wireless routing domain (WRD). If

the WRD is changed in Tropos Control, all gateways and nodes must be deleted from the Tropos Control using the

Configuration View

Note

For static IP clients, you must add the client entries on all gateways in the wireless routing domain in order for the

clients to be able to roam across the full domain.

IP --- Specifies the IP address to be reserved for the client with

the specified MAC address. The reserved IP addresses

must be in the range of the DHCP server. Reservations

simply reserve an IP address for a particular MAC

address; they do not control access. Therefore, do not

enable ACL when adding reservations unless you would

like to control access as well.

Click Add to include this entry in the list.

MAC --- Specifies the MAC address to be reserved for the client

with the specified IP address.

Click Add to include this entry in the list.

TABLE 24 DHCP Clients Page Settings (continued)

Field Range, Default Description

Chapter 7 

Tropos Control EMS User Guide 104

FIGURE 28 Static IP Clients Page

TABLE 25 Static IP Client Page Parameters

Field Range, Default Description

Auto Detect Static Clients Enabled | Dis-

abled If enabled, allows the router to automatically detect

the presence of static IP clients and permit them to

be routed, even though their addresses are not

explicitly entered.

If security is an issue and you do not want to route

clients that are not explicitly recognized, you can

disable this feature.

Client MAC Address --- Specifies the MAC address of the client to be added

to the Static IP list.

Static IP Address --- Specifies the IP address of the client to be added to

the Static IP list.

CPE MAC Address --- Specifies the MAC address of any customer

premise equipment (CPE), in addition to the MAC

and IP addresses of the client connected to the

CPE.

Client MAC Address --- Specifies the MAC address of the client to be added

to the Static IP list.

Static IP Address --- Specifies the IP address of the client to be added to

the Static IP list.

Chapter 7 

Tropos Control EMS User Guide 105

Packet Filtering

Packet Filtering (Figure 29) determines the types of packets forwarded or rejected by the router.

Forwarding applies to packets that pass through the router, not those that begin or terminate at

the router. Usage for the Packet Filter Forwarding page differs according to whether the default

packet filter forwarding policy is Permitted or Denied (see Table 26).

CPE MAC Address --- Specifies the MAC address of any customer

premise equipment (CPE), in addition to the MAC

and IP addresses of the client connected to the

CPE.

VLAN Name --- Specifies the VLAN for the wired client.

TABLE 25 Static IP Client Page Parameters (continued)

Field Range, Default Description

Chapter 7 

Tropos Control EMS User Guide 106

FIGURE 29 Packet Filtering

Chapter 7 

Tropos Control EMS User Guide 107

TABLE 26 Packet Filtering Page Parameters

Field Range, Default Description

Packet Forwarding Allowed | Denied If enabled, allows all packets except those explic-

itly blocked. If disabled, blocks all packets except

those explicitly permitted.

Predefined Forwarding Rules -- Indicates whether this protocol has a forwarding

rule applied. The following information applies to

each rule:

• Enabled--Indicates whether the rule is active.

• Protocol Type---Indicates the protocol to

which the filtering applies. See Table 27.

• Permit to/from the address---Specifies the IP

address or subnet to which the filtering

applies. (Format a.b.c.d).

Customized Forwarding Rules -- Indicates whether a custom forwarding rule is

applied. The following information applies to each

rule:

• Name---Custom name for the filtering rule.

• Protocol---Protocol to be filtered.

• Source IP---IP address of the packet source.

• Source Mask (bits)---Subnet mask for the

packet source.

• Source Port---Port for the packet source.

• Destination IP---IP address of the packet ter-

mination point.

• Destination Mask (bits)---Number of maskbits

for the IP address where the packet will termi-

nate.

• Destination Port---Port where the packet will

be received.

Chapter 7 

Tropos Control EMS User Guide 108

Packet Forwarding Deny Rules -- Indicates whether a deny rule is applied. The fol-

lowing information applies to each rule:

• Name---Custom name for the filtering rule.

• Protocol---Protocol to be filtered.

• Source IP---IP address of the packet source.

• Source Mask (bits)---Subnet mask for the

packet source.

• Source Port---Port for the packet source.

• Destination IP---IP address of the packet ter-

mination point.

• Destination Mask (bits)---Number of maskbits

for the IP address where the packet will termi-

nate.

• Destination Port---Port where the packet will

be received.

TABLE 27 Packet Forwarding - Standard Permit Rules

Field Description

DHCP (Dynamic Host Configuration

Protocol) UDP ports 67/68

DNS (Domain and Host Name Ser-

vice) UDP ports 42/53

Cisco (Cisco VPN 3000 Concentrator

Series) UDP ports 500/10000

ICMP (Ping and Traceroute) Not applicable

HTTPS (Secure HTTP) TCP port 443

SSH (Secure Shell) TCP port 22

IPSec (Internet Protocol Security) protocol 50 UDP port 500

POP3 (Post Office Protocol 3) TCP port 110

HTTP (hypertext transfer protocol) TCP port 80

SMTP (simple mail transfer protocol) TCP port 25

Telnet TCP port 23

SNMP TCP port 161 and 162

TABLE 26 Packet Filtering Page Parameters (continued)

Field Range, Default Description

Chapter 7 

Tropos Control EMS User Guide 109

Caution

If DHCP is disabled, client devices and Tropos nodes cannot obtain the DHCP lease required for

operation. If HTTPS is disabled, all HTTPS traffic will be dropped.

P2P Blocking

Use the Peer-to-Peer Blocking page (Figure 30) to block clients in the same subnet or in

different subnet (VLANs) from communicating with each other. Table 28 lists parameters on the

page.

FIGURE 30 Peer-to-Peer Blocking Configuration Page

TABLE 28 Peer-to-Peer Blocking Parameters

Field Range, Default Description

Name --- Text name for the peer-to-peer block rule

Peer1 IP any IP address of one of the peers

Peer1 Mask any Subnet mask that applies to the first peer IP address

(bits)

Peer2 IP any IP address of the second peer

Peer2 Mask any Subnet mask that applies to the second peer IP address

(bits)

Chapter 7 

Tropos Control EMS User Guide 110

Multi-Subnet Roaming

The Multi-Subnet Roaming page (Figure 20) identifies the list of gateways available for roaming

across multiple subnets. Table 29 lists parameters on the page.

Note

During multi-subnet roaming, the client’s traffic is routed through its home gateway (to which it was originally

associated). If the home gateway loses its uplink while an associated client is roaming, the client will lose connectivity.

To restore connectivity, the old gateway must become available again or the client must obtain an IP address from the

new gateway.

FIGURE 31 Multi-Subnet Roaming Page

TABLE 29 Multi-Subnet Roaming Page Parameters

Field Range, Default Description

Gateway IP --- Specifies the IP address of a gateway to make

available for roaming.

Mask --- Specifies the subnet mask for the gateway.

Subnet Route --- Specifies the subnet of a mobile node or down-

stream interface associated with the subnet of this

gateway.

Subnet Mask --- Specifies the subnet mask of a mobile node or

downstream interface associated with the subnet of

this gateway.

Add/Delete --- Adds an entry to the list or deletes one from the list.

Chapter 7 

Tropos Control EMS User Guide 111

Backhaul Routing

The Backhaul Routing page (Figure 20) permits selection of advanced routing protocols such as

Border Gateway Protocol (BGP) to support backhaul traffic. The Tropos gateway establishes

BGP sessions with configured neighbors and exchanges routes for all multi-subnet roaming

clients. The clients’ upstream traffic is sent directly to the neighbor without requiring tunneling

between the home and foreign subnets.

Table 29 lists parameters on the page.

FIGURE 32 Backhaul Routing Page

TABLE 30 Backhaul Routing Page Parameters

Field Range, Default Description

Backhaul Routing Type Disabled |

Enabled Specifies whether gateway-to-gateway tunnels are

automatically set up for multi-subnet roaming.

Neighbor Name --- Specifies the name of an Internet or IP router that

will serve as a BGP neighbor.

Neighbor IP --- Specifies the IP address of the neighbor.

Local AS Number --- Identifies the assigned local autonomous system

(AS) number for the BGP neighbor.

Remote AS Number --- Identifies the assigned remote autonomous system

(AS) number for the BGP neighbor.

Chapter 7 

Tropos Control EMS User Guide 112

Rate Limiting

Rate Limiting page (Figure 33) contains settings to limit the bandwidth available to individual

clients. Rate limiting provides the joint benefits of limiting the impact of denial of service (DoS)

attacks and users who consume too much bandwidth. Users can exceed bandwidth in brief

bursts, but if they send more than the permitted amount of data (trigger) in a specified period of

time, they are temporarily subjected to rate limits.

Remote AS Number --- Identifies the assigned remote autonomous system

(AS) number for the BGP neighbor.

Service/VLAN ID --- Specifies the VLAN that is served by the BGP

neighbor. If VLANs are disabled, leave the Service/

VLAN ID field blank, or enter 0.

TABLE 30 Backhaul Routing Page Parameters (continued)

Field Range, Default Description

Chapter 7 

Tropos Control EMS User Guide 113

FIGURE 33 Rate Limiting Page

Chapter 7 

Tropos Control EMS User Guide 114

TABLE 31 Rate Limiting Parameters

Field Range, Default Description

Airtime Congestion Control Enabled | Dis-

abled Indication of whether congestion events are

detected and averted. If enabled, allows networks

to operate closer to their maximum capacity.

Downstream Trigger (kbits) --- Total quantity of data (kbits) that triggers the rate

limit if the client receives that amount of data in the

time interval specified in the Trigger Time field.

Upstream Trigger (kbits) --- Total quantity of data (kbits) that triggers the rate

limit if the client transmits that amount of data in the

time specified in the Trigger Time field.

Trigger Time (seconds) --- Length of time used to determine whether to trigger

rate limits (seconds).

Downstream Cap (kbits/sec) --- Rate limit for data sent downstream to the client

(kbits/sec).

Upstream Cap (kbits/sec) --- Rate limit for data sent upstream from the client

(kbits/sec).

Minimum Cap Duration (sec-

onds) --- Number of seconds that the rate limit applies, if trig-

gered.

ESSID --- ESSID to which a rate limiting multiplier applies.

Wireless Interface --- Wireless interfaces for this SSID.

Multiplier .2 - 10, 1Rate limiting multiplier that applies to the To client

cap and From client cap fields; traffic to and from

the subnet is restricted to the client caps times the

multiplier.

Examples:

• Multiplier 0: No traffic permitted to or from the

subnet

• Multiplier 2: Rate limit for the subnet is equal to

two times the To client cap and From client cap

settings

IP --- IP address of the subnet to which a rate limiting

multiplier applies.

Mask --- Subnet mask for the subnet to which a rate limiting

multiplier applies.

Chapter 7 

Tropos Control EMS User Guide 115

QoS

Quality of Service (QoS) refers to a set of methods for assigning preferential access to network

bandwidth based on pre-defined rules. QoS rules can assure that traffic for certain functional

organizations is always accommodated or that certain applications and users are given higher

priority. Tropos implements QoS by way of policies that reserve network bandwidth or assign

priorities for packet forwarding. Figure 34 shows the page, and Table 32 describes the page

settings.

Multiplier .2 - 10, 1Rate limiting multiplier that applies to the To client

cap and From client cap fields; traffic to and from

the subnet is restricted to the client caps times the

multiplier.

Examples:

• Multiplier 0: No traffic permitted to or from the

subnet

• Multiplier 2: Rate limit for the subnet is equal to

two times the To client cap and From client cap

settings

TABLE 31 Rate Limiting Parameters (continued)

Field Range, Default Description

Chapter 7 

Tropos Control EMS User Guide 116

FIGURE 34 QoS Page

TABLE 32 QoS Page

Field Range, Default Description

SSID --- Displays the currently configured ESSIDs.

2.4 GHz

5.8 GHz

4.9 GHz

--- Displays the wireless interfaces on the router.

Chapter 7 

Tropos Control EMS User Guide 117

QoS Class --- Class of service for the specified ESSID.

Note: This setting applies only to upstream traffic. To

apply a class of service to downstream traffic, you

must use an off-mesh device to pre-mark traffic in the

downstream direction (using 802.1p or DSCP).

Max Clients --- Indicates the maximum number of wireless clients

that can connect to this ESSID simultaneously.

This constraint is in addition to the constraint that

limits each radio to 50 clients total, regardless of the

ESSID.

Downstream Quality Selection DSCP Quality of traffic flows from the gateway's wired

interface to wireless clients. If 802.1p is chosen but

traffic does not have 802.1p tags because VLAN

(trunking) is not enabled, then all traffic is treated as

Silver traffic.

Note: 802.1p is a layer 2 header, while DSCP is part

of the layer 3 IP datagram.

DSCP for Bronze

DSCP for Silver

DSCP for Gold

24 (Bronze)

0 (Silver)

32 (Gold)

DSCP assigned to upstream traffic when remarking

is enabled. The value is chosen by the ESSID of the

client for upstream traffic.

If Downstream Quality Selection is set to DSCP,

these values classify traffic headed from a gate-

way's wired interface to the wireless client.

802.1p Priority N to Bronze | Silver |

Gold Voice Control of the QoS class of traffic flowing from a

gateway's wired interface to wireless clients and

from a node's sub-interface through the mesh. To

use these values, VLAN (trunking) and Down-

stream Quality Selection of 802.1p on the respec-

tive interfaces must be enabled.

Bronze to...

Silver to...

Gold to...

Voice to...

802.1p priority 0-7,

802.1p priority 0 Determination of 802.1p traffic marking from the

gateway's wired interface. The marking requires

VLAN (trunking) to be enabled.

Wired Sub-Interface Priority Bronze | Silver |

Gold Voice QoS class of all traffic received by a node on the

router’s wired sub-interface, if VLAN (trunking) is

not enabled on the sub-interface.

TABLE 32 QoS Page (continued)

Field Range, Default Description

Chapter 7 

Tropos Control EMS User Guide 118

Voice

Use the Voice page (Figure 35) to improve QoS for voice over IP (VoIP) traffic. Table 33 lists

the parameters on the page.

FIGURE 35 Voice Page

TABLE 33 Voice Parameters

Field Range,

Default Description

Voice Service Enabled | Dis-

abled Enables the voice QoS features. You must enable this field

and store changes to display all the rest of the fields on the

Voice page.

Chapter 7 

Tropos Control EMS User Guide 119

Voice Percentage of

Available Airtime 1-100; 50 Limits the amount of bandwidth available for prioritized

voice traffic (0-100).

WMM Classification Enabled | Dis-

abled Specifies whether the WMM extensions are enabled.

Heuristic classification Disabled |

Enabled Specifies whether heuristic priority rules are used in cases

where WMM and DSCP priorities are not available.

DSCP values to recognize

as voice (Decimal) 46 Specifies the incoming DSCP values that are recognized

as voice traffic. Use comma-separated entries for multiple

DSCP values.

Maximum per-call packet

rate (pps) 100 Limits the packet rate (packets per second) that can be

used for an individual voice call.

Maximum per-call bandwidth

(kbps) 150 Limits the bandwidth (kbps) that can be used for an individ-

ual call.

Remarking Enabled | Dis-

abled Specifies whether the DSCP field can be reassigned for

forwarded packets.

DSCP value to remark to

(Decimal) 46 Specifies the reassigned DSCP value, if remarking is

enabled.

Fast Handoff Optimization Pre-Fetch

Only | Packet

Snoop Only |

Pre-Fetch and

Packet Snoop |

None

Indicates the optimization method to reduce the time

required for handoff when clients move from one router to

another in the same ESS:

• Pre-Fetch Only---Perform ARP resolution upon receipt

of a qualified probe request.

• Packet Snoop Only---Determine client IP address by

inspecting the packets coming from the client.

• Pre-Fetch and Packet Snoop---Perform pre-fetch and

packet snoop.

• None---Do not use either handoff optimization method.

IP Prefix --- Identifies the IP addresses and netmasks (format a.b.c.d/n)

of any voice gateways that are used exclusively for voice

traffic.

TABLE 33 Voice Parameters (continued)

Field Range,

Default Description

Chapter 7 

Tropos Control EMS User Guide 120

Software

Use the Software page (Figure 36) to enable auto-recovery for the router and select backward

compatibility options. Table 34 lists the parameters on the page.

FIGURE 36 Software Page

Security

Use the Security page (Figure 36) to enable auto-recovery for the router and select backward

compatibility options. Table 34 lists the parameters on the page.

TABLE 34 Software Parameters

Field Range,

Default Description

Auto Recovery Enabled | Dis-

abled Enables the auto-recovery feature. Auto recovery helps the

router recover from failure during bootup.

Backward Compatibility All Releases |

6.7 and later |

7.1 and later

Indicates the mix of router software releases in the net-

work. If Release 7.1 is used throughput the network, select

the 7.1 and later option. If you have 6.7 software on some

routers, you must select the 6.7 and later option. The All

Releases option is most compatible in a mixed release

network, however, it is not as secure as the other choices.

Chapter 7 

Tropos Control EMS User Guide 121

FIGURE 37 Security Page

TABLE 35 Software Parameters

Field Range,

Default Description

Router-EMS Authentication

Key

Confirm Router-EMS

Authentication Key

16 ASCII char-

acters Specifies the key that is used to authenticate communica-

tions between devices and Tropos Control. Enter and con-

firm the key.

Infrared Port Status Enabled | Dis-

abled Enables or disabled access to the router by way of an infra-

red remote device.

Chapter 7 

Tropos Control EMS User Guide 122

Infrared Access Code

Confirm Infrared Access

Code

--- Specifies the security code for using the infrared remote

device.

Configurator Access Control Enabled |

Disabled Enables or disables access to the router Configuration util-

ity.

Allowed IP Subnets for

Configurator Access --- Restricts access to the Configuration utility to the specified

subnet. Click Add to add multiple subnets.

FIPS Mode Enabled |

Disabled Enables FIPS mode (FIPS 140-2) on the router (Release

7.3 and later routers only). See “Configuring FIPS Mode”

on page 150.

TABLE 35 Software Parameters (continued)

Field Range,

Default Description

Chapter 7 

Tropos Control EMS User Guide 123

Other Provisioning Operations

This section describes how to use the Administer Routers panel (Figure 38) to perform the

provisioning functions described in Table 36.

FIGURE 38 Administer Routers Panel

Chapter 7 

Tropos Control EMS User Guide 124

TABLE 36 Other Provisioning Operations

Operation Description Commit

Required

Commit the stored data in routers Activates the changes that have been provisioned on

the selected routers.

Rollback the stored data in routers Cancels the application of provisioned data that has not

yet been committed.

Provisioned data is saved in stored profiles on each

router. During commit, the data is written to committed

profiles. If a rollback operation is sent before commit, the

provisioned data are lost.

Reboot routers Restart the hardware and software on the selected rout-

ers.

Restart routers Restart the software on the selected routers.

Install an uploaded software image

on routers Install the uploaded software image on the selected

routers.

Change the administrative pass-

word on the routers Change the password used to administer the selected

routers. Yes

Save configuration as known good

profile Store the configuration on the selected routers, identify-

ing it as the last known good profile.

Restore the configuration to the last

saved known good profile Change the configuration on the selected routers to the

last good profile that was saved. Yes

Save the minimum profile Store the minimum profile on the selected routers.

Restore the configuration to the last

save minimum profile Change the configuration on the selected routers to the

last minimum profile that was saved. Yes

Restore the configuration to factory

defaults Change the configuration on the selected routers to the

factory defaults. Yes

Upload admin public key Upload a public key to restrict access to the router com-

mand line interface (CLI).

Upload Profile Upload a configuration profile to the specified routers.

You can select a profile from the Tropos Control server

or from your local computer.

Enable/Disable Client Statistics Enable or disable the collection of client statistics on the

specified routers.

Chapter 7 

Tropos Control EMS User Guide 125

Provisioning Tasks - Administration

Perform these tasks in the specified order to complete the operations listed in Table 36:

1. Select routers to provision (on page 70)

2. Schedule the provisioning job (on page 72)

3. Set up and commit the provisioning job (on page 75)

Set up and commit the provisioning job

1. Open the Administer Routers panel under the Provisioning tab and select the routers to

provision (“Select routers to provision” on page 70).

2. Choose the command from the pull-down list.

3. For some commands, additional settings are presented in the lower right area of the panel, as

in this example of the rebooting command.

4. Complete any additional settings, as described in Table 36.

5. Click Provision.

The job instructions are sent to the selected routers.

Chapter 7 

Tropos Control EMS User Guide 126

Some operations must be committed after provisioning. The operations that require commit

are indicated in the menu and also listed in Table 36.

6. To commit any required changes, select Commit the stored data in routers from the pull-

down list and click Provision.

The changes are activated on the selected routers.

Auditing Provisioning Jobs

This section describes how to track and audit provisioning jobs:

Use the Provision Job List---Check on the status of jobs and link to other status information.

Use the Provisioning Result panel---Check on the results of provisioning jobs and link to

other result information.

Use the Provision Job List

1. Choose Provisioning > Provision Job List to open the list (Figure 39).

FIGURE 39 Provision Job List

2. Choose from the options list in Table 37.

TABLE 37 Provision Job List Operations

Operation Description

Check job status View the Status column, and click the underlined link to open a window

that contains additional details about the job.

View job results Click the underlined ID link or select the checkbox for a job and click View

Provision Result.

Open the provision panel for

the selected job Click the underlined job name or select the checkbox for a job and click

View Provision Detail.

Chapter 7 

Tropos Control EMS User Guide 127

Use the Provisioning Result panel

1. Choose Provisioning > Provision Result to open the list (Figure 40).

FIGURE 40 Provision Results

2. Choose from the options list in Table 38.

Create a new job based on

the current Select the job to modify, and click Redo. A new panel opens to allow you

to modify or remove settings. For example:

After you modify the settings, click Provision to restart the provisioning

process.

Note: This option is useful if an existing job failed and you want to make

changes before resubmitting it or if you want to apply the same settings to

provision other routers.

Cancel a scheduled job Select checkboxes for the jobs you want to cancel, and click Stop. Click

OK to confirm.

Commit a job Select a checkbox for the job that you want to commit, and click Commit.

Click Provision on the panel that opens.

Control which jobs are listed. Use either or both of the following controls:

• Choose from the pull-down list at the top of the panel to select the

number of jobs to display on each page.

• Enter the job name and click Filter.

TABLE 37 Provision Job List Operations (continued)

Operation Description

Chapter 7 

Tropos Control EMS User Guide 128

TABLE 38 Provision Result Operations

Operation Description

View result information Examine the Time, Status, and Reason columns for information about the

specific job.

Open the provision panel for

the selected job Click the underlined job name.

View details for the selected

router Click the underlined device name to open a window with details about the

selected router.

Control which jobs are listed. Use any of the following controls:

• Choose from the pull-down list at the top of the panel to select the

number of jobs to display on each page.

• Click Show All to is to show all the provision results that are in the

database.

Commit a job Select a checkbox for the job that you want to commit, and click Commit.

Click Provision on the panel that opens.

Tropos Control EMS User Guide 129

8Performing Administrative Tasks

This chapter describes how to use the web interface to manage router inventory, upgrade router

software, and generate diagnostic information to assist Tropos Customer Support in

troubleshooting Tropos Control problems.

Chapter contents:

Generating Diagnostic Information.

Upgrading Router Software.

Tracking Router Inventory

Backing Up Router Configurations

Restoring Router Configurations

Supporting RADIUS Authentication

Managing Administrative Users

Using Router Auto Discovery

Viewing the User Audit Log

Configuring Banner Text

Chapter 8 

Tropos Control EMS User Guide 130

Generating Diagnostic Information

If the Tropos Control server has operational problems, you can use the Tech Support tab to

generate a diagnostic file that you can send to Tropos Customer Support for analysis.

Generate diagnostic files

1. Open the Administration tab and click Tech Support.

2. Click Collect Techdump.

The file is generated and listed in the panel.

3. Click the underlined file name. Browse to select a location, and click Save.

4. When requested, email the file to support@tropos.com.

If the web interface is not available, you can generate the techdump file from the command line.

Go to the support directory in the Tropos Control installation directory, and execute the

techdump.sh script. The script automatically generates the diagnostic tar file, which you can then

send to Tropos Customer Support:

cd /<installdirectory>/ems/support

./techdump.sh

Average disk space required : 58M

Available disk space : 107583M

| This command collects information from your server to send to

| customer support. When this process is complete, there will be a file

| in /<installdirectory>/ems/support called:

| techsupport_200708201045.tar.gz

| Please send all files to your support staff.

/<installdirectory>/ems/support

Cleaning old files (if any) :

Done.

Chapter 8 

Tropos Control EMS User Guide 131

Upgrading Router Software

Use the following router software upgrade panels under the Administration tab to install new

router software and manage the upgrade process:

Add Schedule---Schedule router upgrades. For instructions, see “Schedule router software

upgrades” on page 131.

Status---Check the status of a specific upgrade job. For instructions, see “Check upgrade job

status” on page 133.

History---Check the status of all upgrade jobs. For instructions, see “View upgrade job

history” on page 133.

Add Image---Upload router software images to the Tropos Control server. For instructions,

see “Upload a software image” on page 134.

Schedule router software upgrades

1. Open the Administration tab and click Router Software Update.

The Add Schedule panel (Figure 41) opens.

FIGURE 41 Add Schedule Panel

Chapter 8 

Tropos Control EMS User Guide 132

2. Enter a name to identify the upgrade job.

3. Choose Upload Now or click the Calendar icon and select a date and time to schedule the

upload.

4. Select the number of times to retry the upgrade process if the initial attempt fails.

5. Enter the user name and password for administrative access to the router or routers targeted

for upgrade.

6. Select a software image from the pull-down list. If the software image you want to use is not

in the list, click Add Image, and follow the instructions in “Upload a software image” on

page 134.

7. To choose the routers to be upgraded, click the Select Device link.

8. Use the arrows and links to highlight the desired routers and move them to the Selected

Routers area. Links are also available to sort the list for easier viewing. The single-headed

arrows move only the selected routers, while the double headed arrows move all routers in

the list.

9. Click Apply to save the list and return to the Add Schedule panel.

10. Click Submit to schedule the process of loading the new software on the selected routers.

Chapter 8 

Tropos Control EMS User Guide 133

11. The Status page opens to display the status of the scheduled job. The display is refreshed

every few seconds. You can click the underlined wireless IP link to display detailed

information about a router in the list.

12. When the scheduled job is complete and the software is loaded on the router, an Install

button is displayed on the Status panel. Click Install to install the new image on the router or

routers.

Check upgrade job status

1. Open the Administration tab and click Router Software Update > Status.

The Status panel opens. The panel refreshes every few seconds to show the current job

status.

Note

The Status panel opens automatically when you submit an upgrade job.

2. Use the controls at the top of the panel to choose the number entries to display and to

navigate from page to page. Click a column header to sort according to that column.

Clicking the column header again changes the sort order.

View upgrade job history

1. Open the Administration tab and click Router Software Update > History.

The History panel opens. The panel refreshes every few seconds to show the current job

status.

2. Use the controls at the top of the panel to choose the number entries to display and to

navigate from page to page. Click a column header to sort according to that column.

Clicking the column header again changes the sort order.

3. To open the status panel for a specific job, click the underlined job link.

Chapter 8 

Tropos Control EMS User Guide 134

Upload a software image

1. Open the Administration tab and click Router Software Update > Add Image.

The panel opens to show a list of uploaded images.

2. Click Browse to locate the new image, and then click Open in the Browse window to select

the image.

3. Click Upload.

The image is copied to the Tropos Control server and becomes available in the Select Image

pull-down list on the Add Schedule panel. For instructions on scheduling an upgrade using

the image, see “Schedule router software upgrades” on page 131.

Tracking Router Inventory

To manage the inventory of routers in your network, open the Tropos Control web interface

Administration tab, and click Inventory Tracking to open the Inventory Tracking panel

(Figure 42).

FIGURE 42 Inventory Tracking Panel

The upper part of the Inventory Tracking panel lists the information in Table 39. All the

routers in inventory are listed below the summary area, along with the information listed in

Table 40.

Chapter 8 

Tropos Control EMS User Guide 135

The following inventory-related functions are supported on this panel:

Verify inventory

Upload an inventory file

Export the inventory list

Delete routers from inventory

Verify inventory

1. Open the Administration tab and click Inventory Tracking.

2. Click Inventory Check.

Tropos Control compares the inventory contents with the list of most recently discovered

routers and presents the results in the table on the panel.

TABLE 39 Router Information

Item Description

Total number of routers in inventory Total number of router included in the inventory.

Total number of routers found Number of discovered routers.

Total number of routers never found Number of routers in inventory that have not been dis-

covered.

Total number of mystery routers found Number of routers that have been discovered but are

not in the inventory.

TABLE 40 Router Inventory Summary Information

Item Description

Serial number Router serial number.

IP Address Router IP address.

Status Discovered or Unknown.

Location Location as configured on the router’s Router Informa-

tion page.

Reason If discovery fails, reason that the router was not discov-

ered.

Chapter 8 

Tropos Control EMS User Guide 136

Upload an inventory file

1. Create a text file in which each row contains the serial number of a router, as in this

example:

19967

35435

14563

50310

2. Open the Administration tab and click Inventory Tracking.

3. Click Upload Inventory (Serial Number) File.

4. Browse to find locate the inventory file, and click Open.

The file is uploaded and the inventory is added to the list. Discovery and other monitoring

and management functions are automatically activated.

Export the inventory list

1. Open the Administration tab and click Inventory Tracking.

2. Select checkboxes for the routers you want to include in the export, and click Export.

3. Browse to find choose a save location, and click Save.

The file is saved in csv format.

Delete routers from inventory

You can remove routers from the inventory list. This action does not remove the routers from the

Tropos Control database. Use the map menu options as described under “Delete node, mobile

node, or fixed node” on page 47.

1. Open the Administration tab and click Inventory Tracking.

2. Select checkboxes for the routers you want to remove, and click Delete.

Backing Up Router Configurations

Follow the steps in the section to back up router configuration profiles on the Tropos Control

server. You can schedule daily backups, perform a manual backup, or export backed up

configuration profile. Daily backups include all routers.

Set up automatic daily backups---Set up the system to back up the configuration profiles of

all managed routers once per day.

Perform a manual backup---Backup the configuration profiles of selected routers on

demand.

Export a backed up configuration profile---Export a backed up configuration file to a

location of your choice.

View the Backup Events list---Monitor the status of backup operations.

Chapter 8 

Tropos Control EMS User Guide 137

Set up automatic daily backups

1. Open the Administration tab and click Router Backup.

The Router Backup panel (Figure 41) opens.

FIGURE 43 Router Backup Panel

2. Select Enable daily backup at and enter the time in HH:MM format.

3. Enter the number of days to keep the backup.

4. Click Submit.

The daily backup job is scheduled. Every day, the configuration profiles for all routers are

backed up at the specified time.

Perform a manual backup

1. Open the Administration tab and click Router Backup.

2. Click the underlined routers are selected link to choose the routers to include in the backup.

Chapter 8 

Tropos Control EMS User Guide 138

A selection window opens.

3. Select the routers that you want to back up Available Routers list, and click the right-facing

arrow to move them to the Selected Routers area. You can use the links near the bottom of

the screen to select or sort the groups of routers in the list, or use the double arrows to move

the entire list.

4. Click Apply.

The panel reopens to show the number of selected routers.

5. Enter a prefix to identify the backup job. Date and time information is automatically

appended to the prefix.

6. Click Backup Now.

The selected router configurations are backed up, and the Backup Events list at the bottom

of the panel is updated with status information.

Chapter 8 

Tropos Control EMS User Guide 139

Export a backed up configuration profile

1. Open the Administration tab and click Router Backup.

2. In the Export Backup area, click Browse to select the file to export.

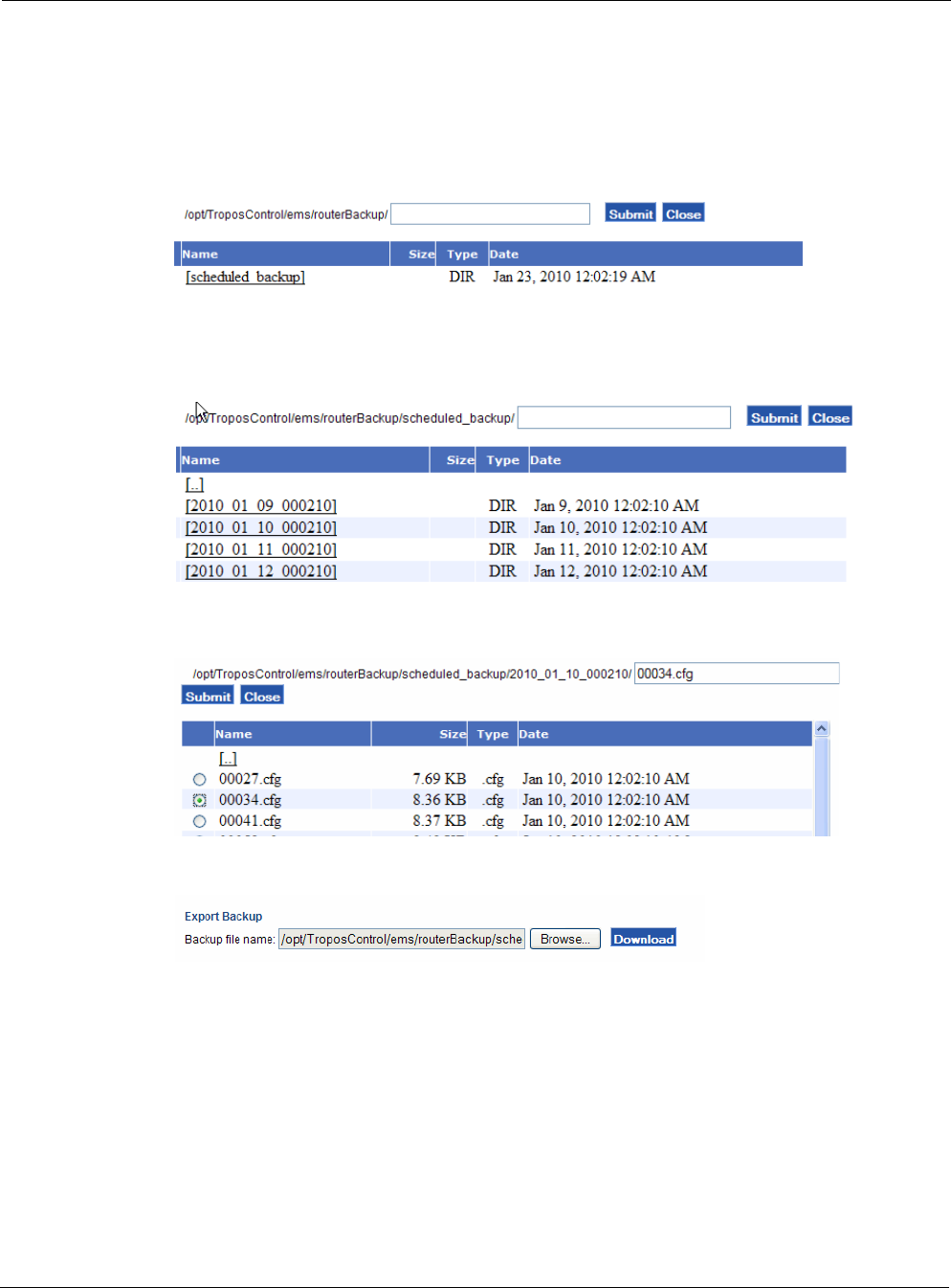

3. Click an underlined link to open the Manual or Scheduled backups directory.

4. Click the link for the job that you want to export.

5. Select the item to export and click Submit.

6. The main panel reopens to show the file name in the Export area.

7. Click Download to save the file in a location of your choice.

Chapter 8 

Tropos Control EMS User Guide 140

View the Backup Events list

1. Open the Administration tab and click Router Backup.

The Backup Events list is displayed at the bottom of the panel.

2. Click an underlined link in the Status column to display details about the job.

Restoring Router Configurations

Follow the steps in the section to restore router configurations that were previously backed up:

Restore router configuration to the same router---Restore a previously-backed up

configuration to the same router.

Restore router configuration to a different router---Restore a previously-backed up

configuration to a different router. This procedure is useful for restoring configurations after

a router has been replaced in the field.

View the Restore Events list---Monitor the status of restoration operations.

Chapter 8 

Tropos Control EMS User Guide 141

Restore router configuration to the same router

1. Open the Administration tab and click Router Restore.

The Router Restore panel (Figure 44) opens.

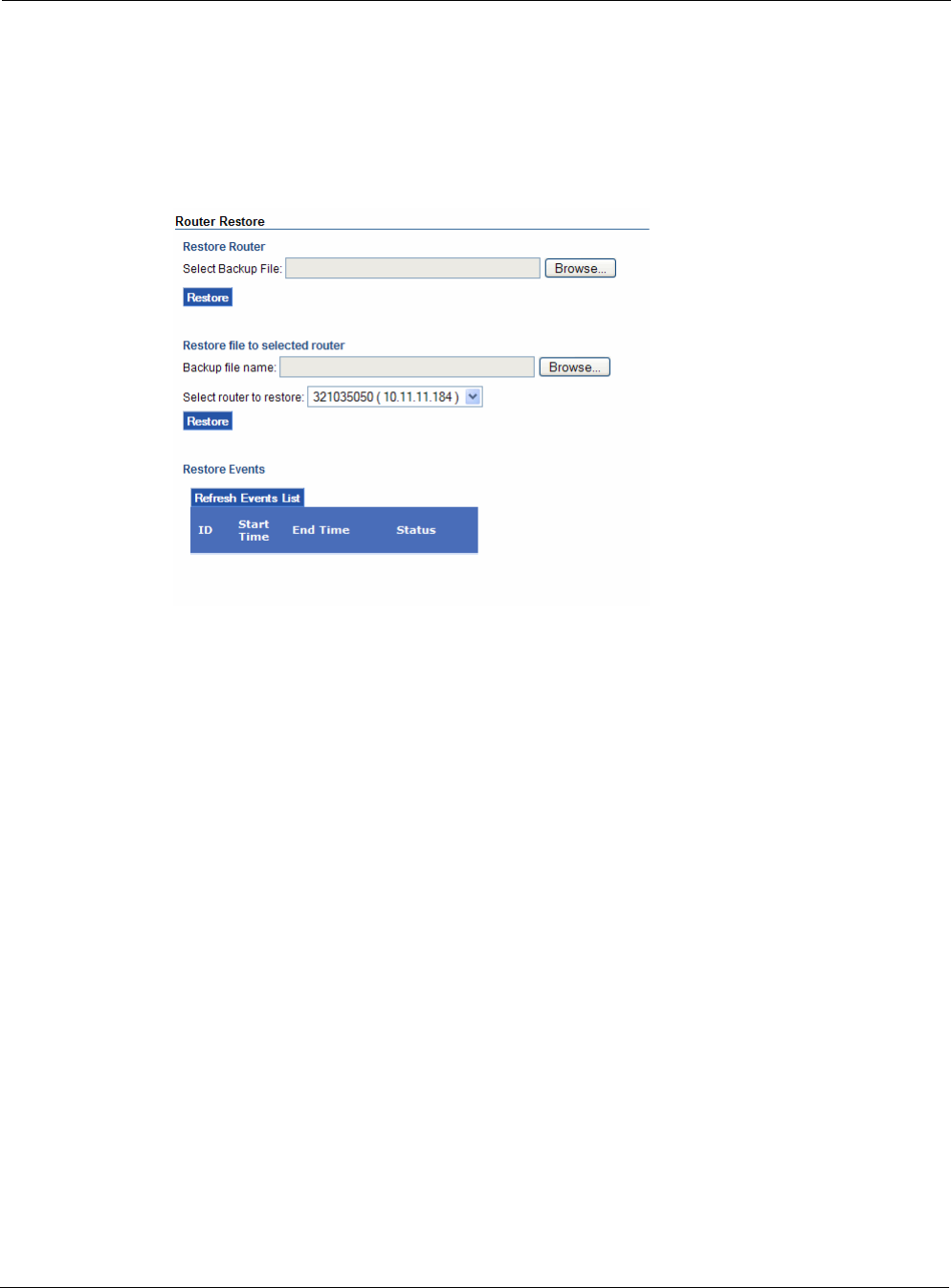

FIGURE 44 Router Restore Panel

2. Click Browse in the Restore Router area. Navigate to the directory containing the file, select

the file, and then click Submit.

3. Click Restore.

Chapter 8 

Tropos Control EMS User Guide 142

Restore router configuration to a different router

1. Open the Administration tab and click Router Restore.

The Router Restore panel opens.

2. Click Browse in the Restore filer to selected router area. Navigate to the directory

containing the file, select the file, and then click Submit.

3. Select the router to receive the restored file from the pull-down list.

Note

The router selected for restoration should be the same type of router (gateway, node, mobile node) that was

used to generate the backup file.

4. Click Restore.

View the Restore Events list

1. Open the Administration tab and click Router Restore.

The Restore Events list is displayed at the bottom of the panel.

Chapter 8 

Tropos Control EMS User Guide 143

2. Click an underlined link in the Status column to display details about the job.

Supporting RADIUS Authentication

You can configure the Tropos Control server to forward any authentication requests for access to

the Tropos Control server to an external RADIUS server.

Note

Password Authentication Protocol (PAP) is used as the authentication protocol.

Set up RADIUS authentication for access to the Tropos Control server

1. Open the Administration tab and click AAA Server.

A list of currently configured RADIUS servers is displayed.

2. Perform the following operations from this panel:

Add a new server:

a. Click Add.

b. Enter values as described in Table 41.

c. Click Submit.

The panel reopens to show the new server.

Modify a server entry:

a. Select the server and click Modify.

b. Change values as described in Table 41.

c. Click Submit.

Chapter 8 

Tropos Control EMS User Guide 144

The panel reopens to show the modified values.

Delete a server entry:

a. Select the server and click Delete.

b. Click OK to confirm.

Managing Administrative Users

You can use the web interface to set up administrative user accounts.

Note

Only the user with root privileges can set up other user accounts.

Manage administrative user accounts

1. Open the Administration tab and click AAA Server.

A list of currently configured users is displayed.

2. Perform the following operations from this panel:

Add a new user:

a. Click Add.

b. Enter values as described in Table 42.

TABLE 41 RADIUS Server Settings

Item Description

RADIUS Server Name Enter a name to identify the RADIUS server.

Server Host Name/IP Enter the IP address or host name of the server.

Server Port Number Enter the RADIUS server port number for authentication requests.

Default: 1812

Shared Secret Key

Confirm Shared Secret Key Enter and confirm the code used to verify the connection between the

RADIUS server and the router.

Timeout Enter the number of seconds after which an authentication request times

out. Range: 1-30 seconds; default: 5 seconds

Chapter 8 

Tropos Control EMS User Guide 145

c. Click Submit. The panel reopens to the list the new user.

Modify a user entry:

a. Select the user and click Modify.

b. Change values as described in Table 42.

c. Click Submit. The panel reopens to the list the modified values.

Delete a user:

a. Select the server and click Delete.

b. Click OK to confirm.

Using Router Auto Discovery

You can set up the system to automatically discover all routers in a network from a single

gateway (seed gateway). When auto discovery is configured, the Tropos Control server requests

that the seed gateway obtain the list of available gateways in the network. When the list is

obtained, the server contacts each gateway to obtain its local list of nodes. Auto discovery

operations are run once per day.

Note

If the network is composed of multiple subnets, a gateway from each subnet must be added.

TABLE 42 Administrative User Settings

Item Description

Username Enter a name that identifies the user.

Full Name Enter the full name of the user.

Role Select a role from the pull-down list.

• Root—Permitted to view all information and perform all tasks that relate to the

system and to the server platform.

• Read/Write—Permitted to view information and perform most tasks.

• Read Only—Permitted to view information but not make any changes to the sys-

tem.

Status Choose whether the user account is active (Enabled) or inactive (Disabled).

Authenticate with Choose whether authentication is performed from the server using username and

password, or by using a RADIUS server. If you choose Local, the password fields

are activated; if you choose Remote, the Preferred Server field is activated.

Preferred Server If RADIUS is chosen for the Authenticate with field, select the RADIUS server.

Password

Confirm Password If Local is chosen for the Authenticate with field, enter and confirm the password

used for access.

Chapter 8 

Tropos Control EMS User Guide 146

For resilience, a second gateway can be configured for each subnet. If the first (primary)

gateway is not reachable, the server contacts the secondary gateway to obtain the list of routers.

Note

For additional information on adding routers to the Tropos Control database, see “Tracking Router Inventory” on

page 134.

Configure SNMP parameters for auto discovery

1. Open the Administration tab and choose Auto Discovery > Configuration.

A list of currently configured seed gateways is displayed.

2. Configure parameters as listed in Table 43.

3. Click Submit.

Set up auto discovery

1. Make sure that auto discovery is enabled, as described in the previous procedure.

2. Open the Administration tab and click Auto Discovery > Seed List.

TABLE 43 Auto Discovery Configuration

Item Description

Enable Select to enable auto discovery.

SNMP Port Number Enter the port number for SNMP messages (default 161).

SNMP Read Community String Enter the write community string.

SNMP Write Community String Enter the read community string.

SNMP Trap Port Number Enter the port number for SNMP traps.

SNMP Trap Community String Enter the trap community string.

Chapter 8 

Tropos Control EMS User Guide 147

A list of currently configured seed gateways is displayed.

3. Perform the following operations from this panel:

Add a new gateway:

a. Click Add.

b. Enter values as described in Table 44.

c. Click Submit.

The panel reopens to the list the new user.

d. To rediscover the new gateway immediately, without waiting for the next daily auto

discovery, click Rediscover.

Modify a gateway entry:

a. Select the user and click Modify.

b. Change values as described in Table 44.

c. Click Submit.

The panel reopens to the list the modified values.

d. To rediscover the new gateway immediately, without waiting for the next daily auto

discovery, click Rediscover.

Delete a gateway entry:

a. Select the server and click Delete.

b. Click OK to confirm.

TABLE 44 Auto Discovery Settings

Item Description

Seed Gateway IP Enter the IP address of a gateway with nodes that you want to

include in the auto discovery.

Secondary Gateway IP Enter the IP address of a gateway to contact if the seed gateway

is not reachable.

Wireless Routing Domain ID

Confirm Wireless Routing Domain ID Enter and confirm the 16-character code that identifies the area

of the managed routers. All managed routers must be configured

with the same wireless routing domain ID.

Chapter 8 

Tropos Control EMS User Guide 148

Admin User Password

Confirm Admin User Password Enter and confirm the password required for access to the gate-

way.

Description Enter text to describe the gateway.

TABLE 44 Auto Discovery Settings (continued)

Item Description

Chapter 8 

Tropos Control EMS User Guide 149

Viewing the User Audit Log

The User Audit Log page shows the history of user sessions on the Tropos Control server.

View the user audit log

1. Open the Administration tab and click Use Audit Log.

The user login history is displayed.

2. Click Refresh Audit Log to update the list.

Configuring Banner Text

Use the Server Configuration page to configure optional banner text that is displayed in the

upper right portion of the each page, as shown in Figure 5 on page 21.

Configure banner text

1. Open the Administration tab and click Server Configuration.

2. Enter the banner text. The maximum length is 128 characters and special characters such as

@, &, <, > are not supported.

3. Click Submit.

Chapter 8 

Tropos Control EMS User Guide 150

Configuring FIPS Mode

Tropos supports the Federal Information Processing Standards, version 140-2 (FIPS 140-2),

which are general security standards for protection of sensitive information, required by

government agencies in the U.S. and Canada.

Note

Refer to the complete security policy for detailed FIPS instructions. The security policy is distributed to

Tropos FIPS customers along with router software and tamper-evident seals.

Note the following properties and restrictions:

For FIPS 140-2 support, FIPS mode must be enabled on the Tropos Control server and the

managed routers must be running Release 7.3 or later with FIPS mode enabled.

FIPS mode is disabled by default.

Changing to FIPS mode automatically causes the Tropos Control EMS server to restart.

After changing to FIPS mode, you must close and then reopen your web browser.

In FIPS mode, the Router-EMS Authentication key (not the mesh ID) is used to establish

communication between the routers and the Tropos Control EMS server.

FIPS 140-2 support includes a “zeroize” capability that automatically removes any clear text

critical security parameters (CSPs) and shuts down the system.

Caution

The zeroize function should be used only in extreme cases when it is necessary to remove sensitive

information. After zeroizing, the server software must be reinstalled.

Note

Tropos Control can manage both FIPS and non-FIPS enabled routers when running in FIPS disabled mode; however,

in this case the management is not FIPS 140-2 compliant.

Enable FIPS mode

1. Make sure that SSH access to the router is disabled.

2. Configure the Router-EMS Authentication Key for local authentication, as described in

“Security” on page 120. The password must have a minimum of eight characters. Do not

configure RADIUS authentication for Tropos Control users.

3. Open the Administration tab and click Server Configuration.

4. Select Enabled from the FIPS Mode drop-down list, and click Submit.

Chapter 8 

Tropos Control EMS User Guide 151

5. FIPS is enabled, and the Tropos Control EMS server restarts. After a few minutes, close and

reopen your browser and then log in. When you reopen the Server Configuration page, a

Zeroize button is displayed.

The Zeroize button allows you to immediately secure the system in the event of a potential

security problem. If you click the button, all critical security parameters stored in clear text are

automatically removed from the system. This action also shuts down the Tropos Control server.

Following shutdown, you must reinstall the server software.

Tropos Control EMS User Guide 152

BRedundant Tropos Control Servers for

Failover

This appendix describes how to configure primary and secondary Tropos Control servers so that

the secondary server takes over if the primary server is not available.

•Primary and Secondary Servers

•Set Up the Primary and Secondary Servers

•Set Up the Secondary Server as Backup

•Perform Failover from the Primary to Secondary Server

•Returning to the Primary Server when it Recovers

Primary and Secondary Servers

The primary Tropos Control Server is responsible for managing the Tropos network. As part of

its normal management function, the primary server maintains a current database of devices.

When a secondary server is configured, the primary server automatically copies the database to

the secondary server. If the primary server fails for any reason, the secondary server is able to

immediately take over the management functions and discover any routers that it has not already

discovered.

During failover, the secondary server can provide most management functions. An exception is

that the secondary server cannot execute network performance measurements. Implementation is

limited in that network performance data can run only on a single server. During normal

operations, performance measurements are disabled on the secondary server. Following failover,

they are enabled on the secondary server.

Set Up the Primary and Secondary Servers

Follow this process to download, install, and configure the primary and secondary servers:

1. Install Tropos Control on the primary and secondary servers, as described in Chapter 2,

“Installation.” Make sure that you install the same version of Tropos Control on both

servers. Also, if you are using an Oracle database, make sure to stop the primary server (by

Chapter A 

Tropos Control EMS User Guide 153

running the command service watchdog stop) before installing the secondary server. After

the secondary server is installed, power off the secondary server to keep it in standby mode.

2. If you are using MySQL, start both the primary and secondary servers. If you are using

Oracle, start only the primary server.

3. If you are using MySQL configure each server to discover the entire network, as described

in “Discovery” on page 19.

Set Up the Secondary Server as Backup

1. Log in to the primary server as root.

2. Install the “expect” software package on CentOS if it is not installed:

[root@localhost]# yum install expect

3. Install the redundancy file by issuing the following commands in a terminal window:

[root@localhost]# cd /<installdirectory>/ems/bin/redundancy

[root@localhost]# chmod a+x *

[root@localhost]# ./setupRedundantServer <Secondary IP Address> <Secondary

root password>

Example:

[root@localhost]# ./setupRedundantServer.sh 192.168.128.194 passwd

1 Checking for secure password-less logins to 192.168.128.194, please

wait... done

2 Querying the system for all the devices, please wait... done

3 Finding Control Server Installations on 192.168.128.194... done

4 Copying discover_devices.txt to 192.168.128.194:/opt/ControlServer/ems/

conf/server... done

5 Setting up crontab on 192.168.128.194... done

6 Setting up crontab on this server... done

[root@localhost]#

Perform Failover from the Primary to Secondary Server

Follow these steps to move operations to the secondary server upon service interruption or

failure of the primary server:

1. Disconnect the primary server from the network. Unexpected results may arise if the

primary server is still active and managing the network.

2. Issue the following commands on the secondary server to take over primary server

operations:

For Oracle database:

% service watchdog restart

Chapter A 

Tropos Control EMS User Guide 154

For MySQL database:

[root@localhost]# cd /<installdirectory>/ems/bin/redundancy

[root@localhost]# chmod a+x *

[root@localhost]# ./disableRedundancy.sh

Example:

[root@localhost redundancy]# ./disableRedundancy.sh

Disabling secure password-less logins to this server, please wait... done

Restoring crontab... done

[root@localhost redundancy]#

Make sure to provision all the gateways with the secondary server’s IP address in the SNMP

page for Trap-Receiver-Registration and EMS-Registration so that the secondary server receives

traps from the routers and generates alarms/notifications correctly.

Returning to the Primary Server when it Recovers

For the Oracle database, when the primary server becomes available again, first power off the

secondary server to keep it in standby mode and then start the EMS watchdog service on the

primary server.

For the MySQL database, when the primary server becomes available again, start the EMS

watchdog service on the primary server and make sure to run the setupRedundantServer.sh script

on it to enable redundancy and to keep the secondary server in standby mode.

Tropos Control EMS User Guide 155

Glossary

This glossary defines terms pertaining to wireless and networking technology.

802.11 IEEE wireless networking standards developed by IEEE. There are multiple

versions of the 802.11 specification; Tropos Networks products conform to

the 802.11b specification.

802.1x IEEE standard for port-based client authentication using a central authentica-

tion server to verify client identity.

AAA Server

Server that provides authentication, authorization and accounting services

over a network.

Adaptive Noise Immunity (ANI)

adaptive noise immunity (ANI).

Address Resolution Protocol (ARP)

Standard protocol for mapping an IP address to a hardware (MAC) address.

Airtime Congestion Control

Tropos Networks method of allowing networks to be operated close to their

maximum capacity by detecting and averting congestion events.

Autonomous System (AS)

Collection of networks under a single administrative structure and with a sin-

gle, well-defined routing policy.

Advanced Encryption Standard (AES)

Effective single-key encryption standard originally adopted by the National

Institute of Standards and Technology for use by U.S. government organiza-

tions and later adopted as an industry standard.

Backhaul Process of transmitting data so it can be sent over a backbone network, typi-

cally to the Internet. Tropos wireless networks provide wireless backhaul

from client stations through the wireless Tropos mesh to the wired network.

Chapter 1 

Tropos Control EMS User Guide 156

Basic Service Set (BSS)

The set of all wireless client stations controlled by a single Tropos router.

The BSS is identified by the BSS identifier (BSSID), often the MAC address

of the router.

Border Gateway Protocol (BGP)

Internet protocol that allows routers to share information and provides the

routing mechanism for same-subnet roaming in the Tropos network.

Certificate Authority (CA)

Trusted network entity that issues digital security credentials.

Call Admission Control (CAC)

Mechanism for improving QoS for VoIP communications by causing calls to

be rejected in the presence of contention.

Domain Name Service (DNS)

Standard used to convert alphanumeric Internet domain names to IP

addresses.

Dynamic Host Configuration Protocol (DHCP)

Protocol used for central, dynamic management of IP addresses. A DHCP

server leases DHCP addresses to individual network entities for a specified

period of time. Leases can be renewed automatically when the lease period

ends. DHCP assures flexibility in IP address assignment and precludes the

necessity of generating and entering static IP addresses for each network

entity.

Differentiated Services Code Point (DHCP)

Integer value that is included in the DS field of an IP header and which desig-

nates a specific QoS value.

Extended Service Set (ESS)

A wireless network that consists of multiple Tropos routers, each of which

provides wireless service to network clients.

Extensible Authentication Protocol (EAP)

Effective authentication protocol that supports multiple authentication meth-

ods, including passwords, tokens, certificates and public-key authentication.

ESSID Alphanumeric name that uniquely identifies the wireless network.

Federal Information Processing Standards (FIPS)

General security standards for protection of sensitive information, required

by government agencies in the U.S. and Canada.

Chapter 1 

Tropos Control EMS User Guide 157

Gateway Tropos router that connects directly to the wired network and provides back-

haul for downstream Tropos nodes and clients.

Generic Route Encapsulation (GRE)

Protocol used in creating virtual private networks between clients or between

clients and servers.

Global Positioning System (GPS)

Satellite navigation system used for accuracy positioning.

Hypertext Transfer Protocol (HTTP)

Protocol that manages data transfers between web browsers and servers.

Hypertext Transfer Protocol over SSL (HTTPS)

Secure version of HTTP based on Secure Sockets Layer (SSL).

Internet Control Message Protocol (ICMP)

Error and control message protocol for the Internet. ping uses ICMP echo

requests and replies.

Internet Protocol (IP)

Packet routing protocol operating at the network level which associates indi-

vidual addresses with network nodes.

IP address Method of identifying a network entity as a 32-bit number, usually presented

as four, period-separated 8-bit (3-digit) numbers according to the Internet

Protocol specification.

Internet Protocol Security (IPSec)

Internet security protocol used in virtual private networks (VPNs).

Management Information Base (MIB)

A set of objects that can be managed by SNMP or another network manage-

ment system.

Maximum Transmission Unit (MTU)

The largest packet size in bytes transmitted over the network.

Media Access Control (MAC) Address

Device-specific identifier, assigned during device manufacture, that uniquely

identifies a network node. MAC address filters can be used to limit assign-

ment of IP addresses to wireless clients.

Meshed cluster

Collection of Tropos gateways and nodes providing wireless communica-

tions services to network clients and establishing backhaul to the wired net-

work. Clients communicate with Tropos nodes, which communicate in turn

Chapter 1 

Tropos Control EMS User Guide 158

with other nodes, and finally to Tropos gateways, which connect to the wired

network.

Mobile node

Tropos router that is designed to be mounted in a moving vehicle.

Netmask (subnet mask)

The broadcast domain for a subnetwork, consisting of the subnet prefix for

an IP address (example: 255.255.255.0).

Network Address Translation (NAT)

Method whereby nodes within a local area network can access the Internet

without having a public Internet address assigned. Administrators can assign

local IP addresses from their own address pool and use NAT to translate

these into publicly-accessible addresses. NAT can also be used to map multi-

ple local nodes to a single globally-accessible IP address.

Network Mode

Optimization level for 802.11 beacons and probe responses.

Network Time Protocol (NTP)

Method of synchronizing clocks on network devices.

Node Tropos router that provides delivers wireless communications support for cli-

ents and provides wireless backhaul to other upstream Tropos nodes and

gateways.

Packet Success Probability (PSP)

The probability that a transmitted packet will be received successfully.

Ping Packet Internet Groper (ping)

Method of troubleshooting network connections by determining whether a

specific IP address is reachable and the amount of time required for the

addressed device to respond.

Post Office Protocol 3 (POP3)

Industry standard protocol that permits users to receive email from an email

server.

Power Over Ethernet (PoE)

Method of supplying electrical power to a device through an Ethernet net-

work data cable. This permits devices to be powered without a separate elec-

trical power connection.

Predictive Wireless Routing Protocol (PWRP)

Tropos technique for managing network routing based on self-organizing

principles.

Chapter 1 

Tropos Control EMS User Guide 159

Quality of Service (QoS)

Any of a variety approaches to guaranteeing network performance for speci-

fied uses. Tropos supports QoS through bandwidth reservations and priority-

based forwarding.

Remote Authentication Dial-In User Service (RADIUS)

Client/server protocol that allows organizations to store client account infor-

mation in a centrally located database and call up the information as needed

to verify client identity.

Request to send (RTS)

Signal sent from a transmitting device to a receiving device that requests

approval to send packets. To approve, the receiving device responds with a

clear to send (CTS) message.

Reverse Packet Success Probability (PSP)

The probability that a transmitted backhaul packet will be received success-

fully.

Roaming The ability to move from one wireless coverage area to another without loss

of service. Client initiated roaming occurs when the client detects loss of

association and associates with another router. Tropos supports client initi-

ated roaming throughout the wireless routing domain.

Router (Tropos)

Tropos Networks devices that provide the communications infrastructure for

wireless mesh networks.

Secure SHell (SSH)

Secure method of accessing a remote computer.

Service Set Identifier (SSID)

Alphanumeric identifier for a network, used interchangeably with ESSID.

Secure Sockets Layer (SSL)

A common protocol for message transmission security on the Internet. Exist-

ing as a program layer between Internet's Hypertext Transfer Protocol

(HTTP) and Transport Control Protocol (TCP) layers, SSL is a standard fea-

ture in Internet Explorer, Netscape, and most web server products.

Simple Mail Transfer Protocol (SMTP)

Protocol that governs transfer of email messages between email servers.

Simple Network Management Protocol (SNMP)

Protocol used for device and network management.

Chapter 1 

Tropos Control EMS User Guide 160

SNMP inform

SNMP message sent to a notification server, indicating noteworthy activity

or events.

Static IP Address

Permanent IP address assigned to a node in a TCP/IP network.

Subnet Portion of a larger network, distinguished by a subnet mask or broadcast

domain.

Subnet Mask

Method of addressing subnets. For example, the subnet mask 255.255.255.0

refers to the subnet in which the first three triplets of the IP address are fixed,

and the available subnet addresses use the last triplet of the IP address.

Telnet Terminal emulation protocol for connecting to a remote computer.

Temporal Key Integrity Protocol (TKIP)

Encryption standard included in the 802.11i specification, which improves

on WEP encryption by adding effective key mixing and message integrity

checks.

Transmission Control Protocol/Internet Protocol (TCP/IP)

The suite of protocols on which Internet communications are based.

Transport Layer Security (TLS)

Protocol that provides security for local and Internet applications. TLS is a

newer generation version of Secure Sockets Layer (SSL).

Tunneled Transport Layer Security (TTLS)

Security protocol that combines network-based certificates with token or

password authentication. Often used in conjunction with EAP.

Universal Time Coordinated (UTC)

Official world time, equivalent to Greenwich Mean Time.

User Datagram Protocol (UDP)

Protocol that shares many commons attributes with TCP but without the reli-

ability capabilities of TCP. UDP is often used for applications that can toler-

ate some level of error.

Virtual LAN (VLAN)

Logical grouping of client stations that enables them to function as if they are on the

same subnetwork, regardless of their actual physical location.

Virtual Private Network (VPN)

Network in which remote users are securely connected over the Internet and

operate as if connected locally.

Chapter 1 

Tropos Control EMS User Guide 161

Voice over IP (VoIP)

Network in which remote users are securely connected over the Internet and

operate as

Wi-Fi Protected Access (WPA)

Effective wireless authentication security solution introduced by the Wi-Fi

Alliance, an industry consortium. WPA is compatible with and now con-

tained in the IEEE 802.11i specification.

Windows Name Service (WINS)

Microsoft Windows standard for converting alphanumeric Internet domain

names to IP addresses.

Wired Equivalent Privacy (WEP)

Default security system for 802.11 networks.

Wireless Multimedia Extensions (WMM)

Wi-Fi Alliance standard that specifies QoS capabilities for wireless networks

with wireless traffic.

Wireless Network, or Wireless Local Area Network (WLAN)

Local area network based on 802.11 wireless communications.

Wi-Fi Multimedia (WMM)

IEEE 802.11e standard used voice QoS in 802.11 networks. Also known as

Wireless Multimedia Extensions (WME).

Tropos Control EMS User Guide

Index

Numerics

802.11 5

802.1p 117

additional client transmit power attenu-

ation 89

administration tab

inventory tracking 134

router software update 131

tech support 130

administration tag

diagnostic information 130

alarms

actions 51

color codes 51

configuration view button 64

filters 53

settings 53

viewing on web 51

ARP cache 14

AS number

local 111

remote 111, 112

auto-detect

static IP clients 104

automatic discovery 23

backhaul

mobile routers 7

standalone mode 7

backhaul routing 111

service/VLAN ID 112

BGP

and backhaul routing 111

Cisco 108

Client Access page 92

client optimization

statistics 34

client reports

detailed data 38

reported information 36

visited nodes and gateways 37

cluster 4

configuration information

viewing on web 59

Configuration Utility 3, 18, 68, 77

configuration view

actions 60

exporting list 60

panels 59

printing 60

searching 60

selecting alarms and events 61

contact person 79

CPE

and static IP clients 104

MAC address 104, 105

custom views 64

dashboard

information 25

database

Oracle 10

updating router 62

detailed data for client reports 38

DHCP

lease duration 98

netmask 98

packet filtering 108

server on board 98

DHCP Server page 97

diagnostic information 130

Differentiated Services Code Point.

See DSCP

discovery

automatic 23

manual 23

DNS 108

downstream quality selection 117

DSCP 117, 119

dynamic re-clustering 5

ESSID

with mobile routers 7

events

configuration view button 64

counts 52

list 50

fault information

alarms 51

network events 50

viewing on web 49

Federal Information Processing Stan-

dards (FIPS) 3

filters

alarm 53

configuring 53

FIPS

and EMS authentication 121

enabling 150

properties and restrictions 150

support 150

zeroize capability 150

gateway

about 4

adding cluster 62

and multi-subnet roaming 65

discovering 23

IP address, subnet mask 110

list 110

gateway list 66

HTTP 108

HTTPS 108

ICMP 108

installing

overview 12

Tropos Control 13

inventory

tracking router 134

inventory tracking 134

IP address

of Tropos Control server 13

IPSec 108

lease duration 98

local ASN 111

map

configuration view button 64

mesh ID

Tropos Control EMS User Guide

description 88

meshed cluster 4

mobile router

ESSID 7

losing backhaul 7

network 6

network example 7

rules 6

multi-ESSID

primary ESSID 93

secondary ESSID 93

multiplier for rate limiting 114, 115

multi-subnet roaming

BGP 111

configuring gateways 65

gateway list 66

Multi-Subnet Roaming page 110

network

events list 50

mobile router 6

routing 5

network events

viewing on web 50

network health

overview 20

thresholds file 30, 42

network optimization

actions 33

backhaul performance 32

change key or threshold 32, 35

mesh performance 32

missing data 32

statistics 32

view actions 40

view details 32, 35, 39

node

about 4

Oracle database 10

packet forwarding

permit rules 108

ping

operations 40

options 41

view results 41

POP3 108

Predictive Wireless Routing Protocol.

See PWRP

product

features 3

product overview 2

provisioning

configuration view button 64

QoS 115

rate limiting

multiplier 114, 115

Rate Limiting page 113, 116

remote ASN 111, 112

router

checking upgrade status 133

deleting 63

fixed 3

inventory tracking 134

mobile 3

models 2

scheduling upgrades 131

software update panel 131

stationary 3

synchronizing 63

tracking inventory 134

updating database 62

upgrade 131

Router Identity page 79

router-EMS authentication key 121,

150

routing 5

RTS 90

server

exiting 18

show map button 64

SMTP 108

SNMP 108

parameters 100

software

uploading image 134

SSH 108

standalone mode 7

Static IP Client page 104

static IP clients

auto-detect 104

sub-interface

wired priority 117

subnet route 110

synchronizing

router databases 63

system requirements

Tropos Control server 10

tables

in web interface 22

tech support panel 130

telnet 108

threshold

network optimization 32, 35

voice optimization 39

thresholds file 30, 42

Time page 101

time zone 101

Tropos Control Element Management

System (EMS) 3, 8

Tropos Control server

IP address 13

system requirements 10

Tropos Sphere Network Operating

System 3

tunnels, showing current roaming 66

uninstalling

server 15

upgrading

checking status 133

router software 131

UTC 101

VLAN ID

and backhaul routing 112

voice optimization

change key or threshold 39

statistics 39

view actions 35

voice over IP (VoIP)

Voice page 118

web interface

accessing 19

adding gateway cluster 62

configuration information 59

custom views 64

tables 22

WINS 98

wired sub-Interface priority 117
