CIMCON LIGHTING, INC.
Pradeep S. Malhotra
How to Communicate with SLCs

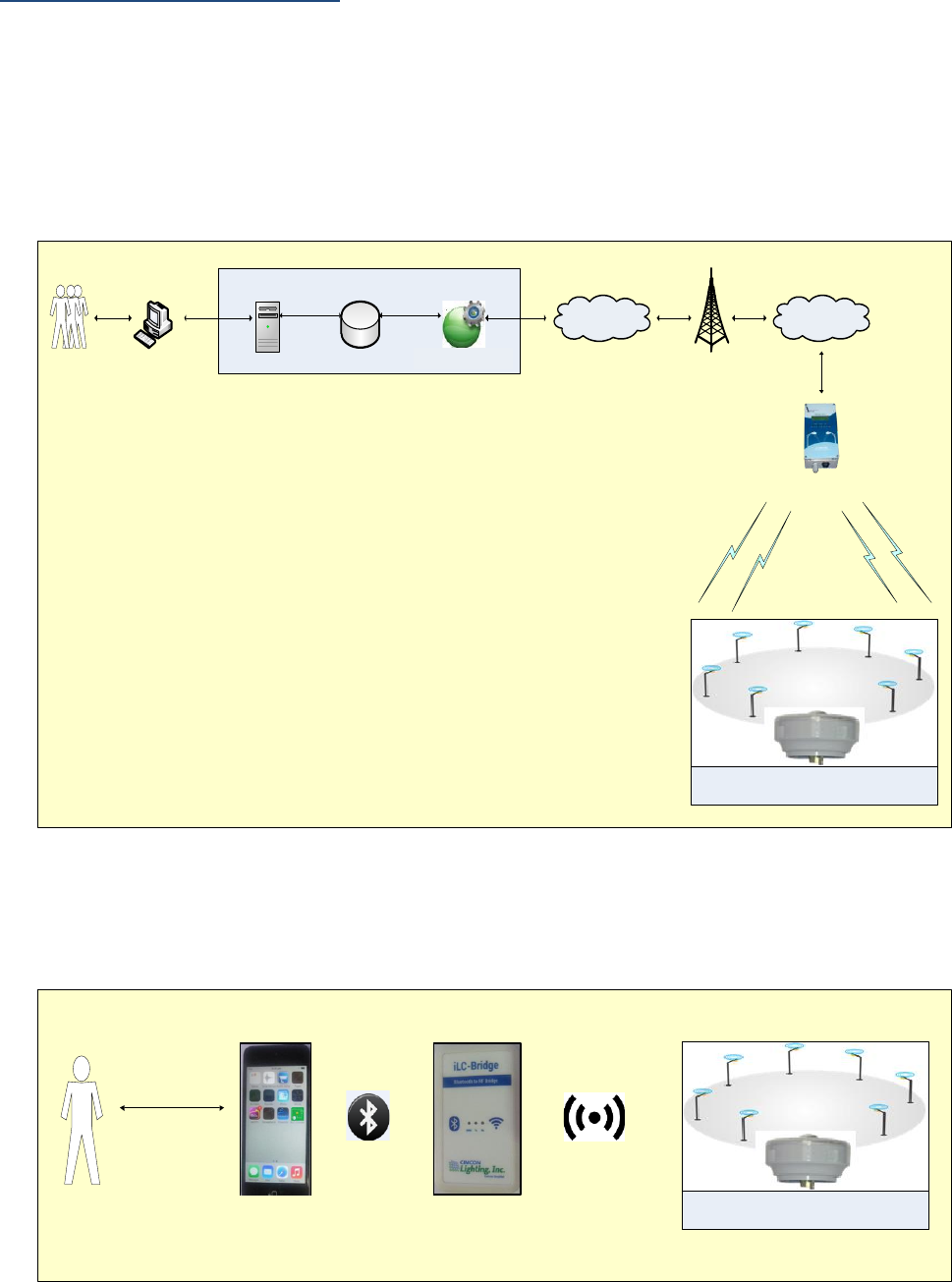

The following three methods can be used to communicate with SLCs,
1. Central Management Software–LG Application: By using this method, user can communicate
with SLCs via DCU. Communication between LG Application and SLCs is bidirectional. LG
Application sends command messages to DCU via Control Interface Windows Service. When
DCU receives command messages, it sends Acknowledgment message back to C.I. Then DCU
sends requested message further to SLC and waits for some time to get response from SLC.
Once DCU receives data message from SLC, it sends that message to LG via C.I.
Street Light Controller (SLC)
SLCs installed on each lamp
LightingGale Application – CENTRAL MANAGEMENT SOFTWARE
Telecom Service Provider
MS SQL 2008 R2 Work Station Control Interface
Data Coordinator Unit (DCU)
RF 2.4 GHz

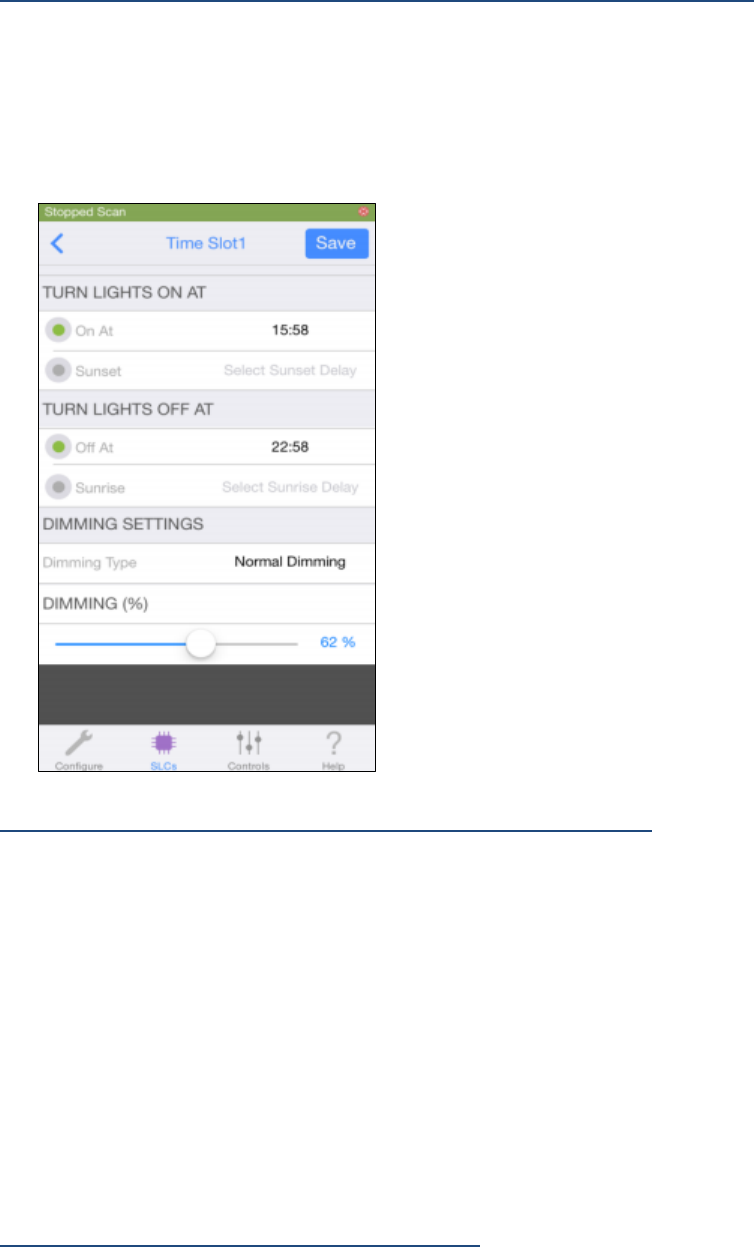

2. SLC Connect–IOS Application: By using this method, user can communicate with SLCs via
Bridge. Communication between SLC Connect and SLCs is bidirectional. SLC Connect, IOS
Application, communicates with Bridge via Bluetooth and then Bridge communicates with SLCs
via RF network.
End User Street Light Controller (SLC)
SLCs installed on each lamp
RF 2.4 GHz
IOS Device Bridge

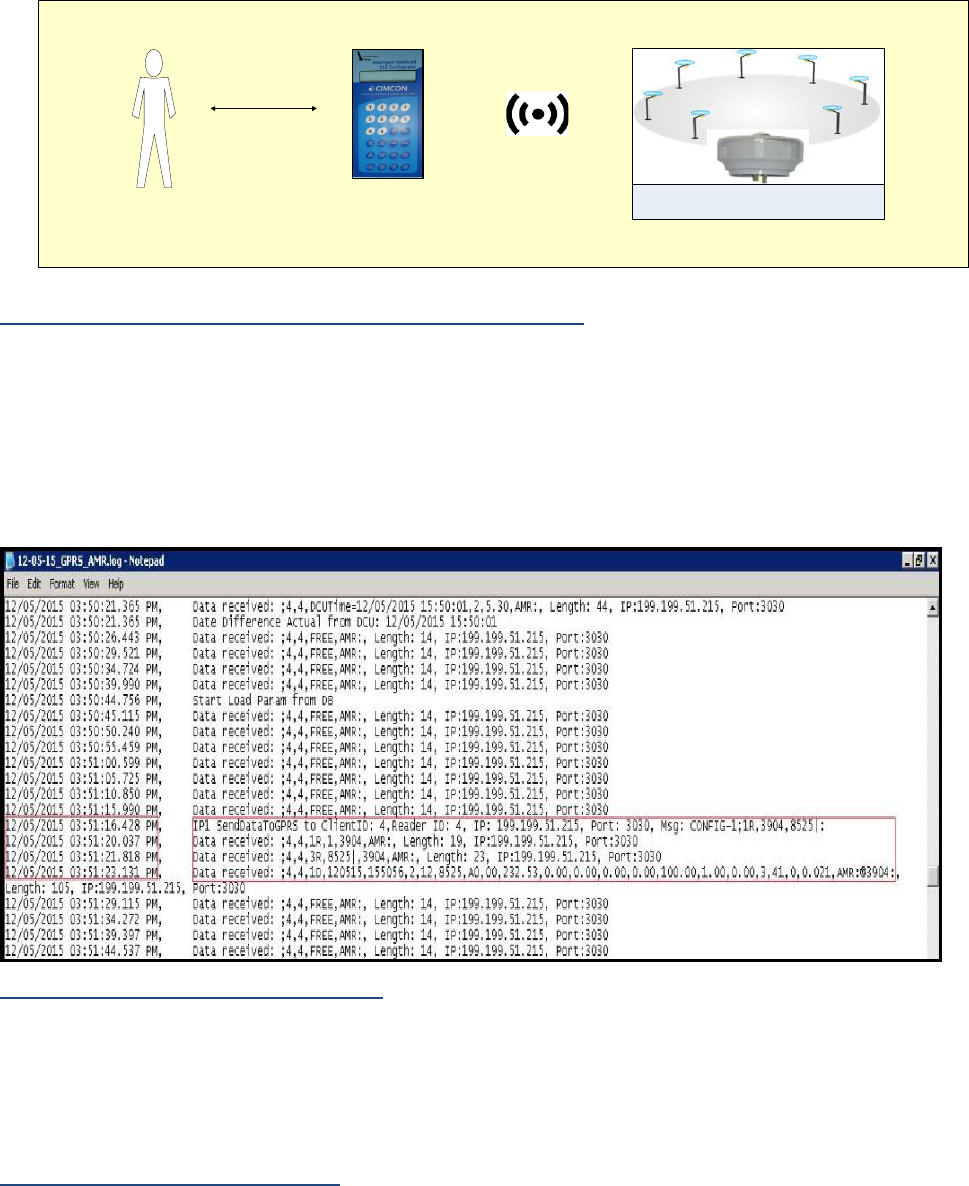

3. SLC Handheld Reader: By using this method, user can communicate with SLCs during
commissioning phase also. Communication between SLC Handheld Reader and SLCs is
bidirectional. SLC Handheld Reader communicates with SLCs via RF network.
End User Street Light Controller (SLC)
SLCs installed on each lamp
RF 2.4 GHz
SLC Handheld Reader

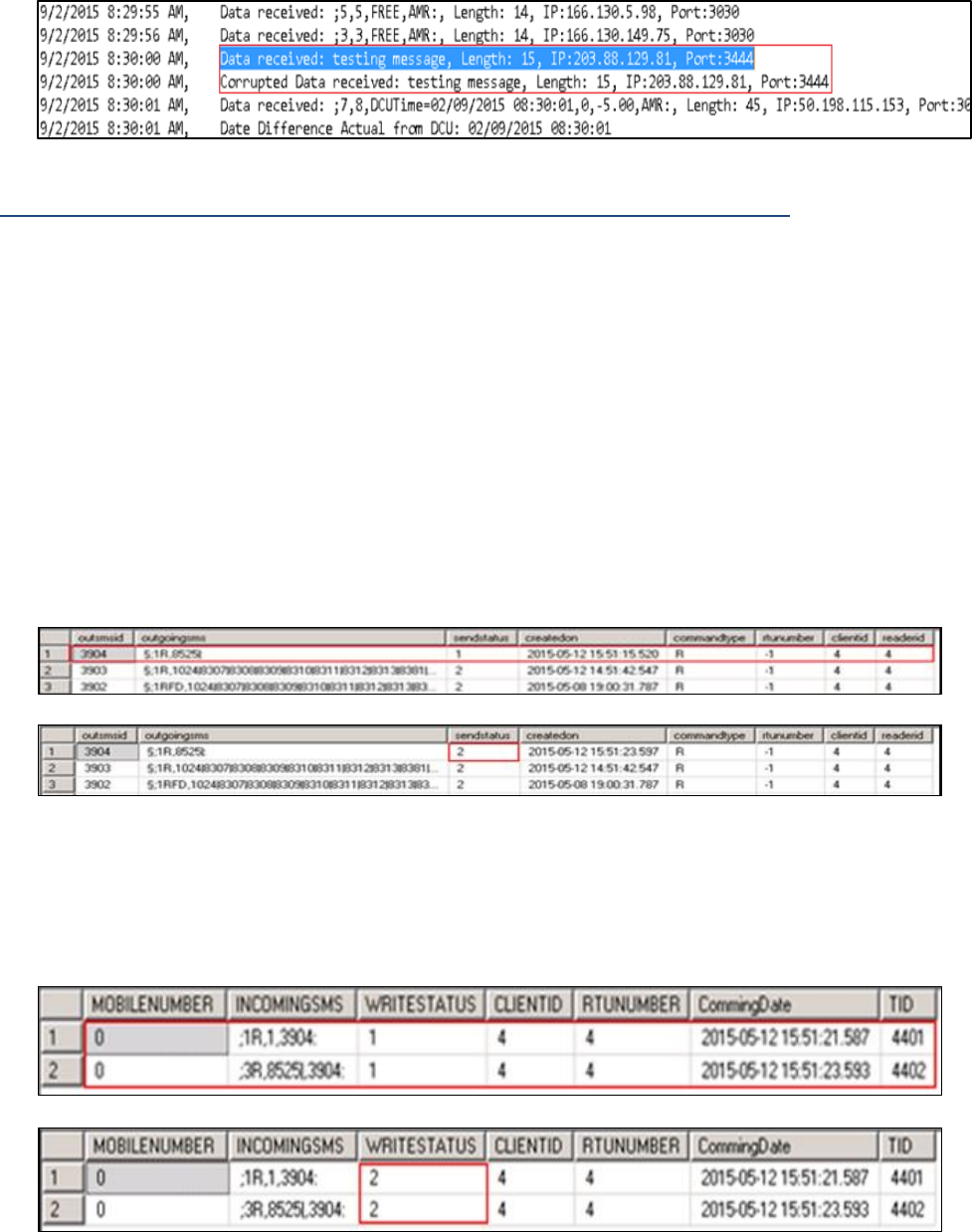

Flow of messages between Control Interface and DCU
Flow of data string messages between CI and DCU could be seen in “GPRS_AMR” log file which is
located at path “C:\CIMCON Software Inc\LightingGale Control Interface Service\Log” in
machine where Control Interface Windows Service is installed.
“GPRS_AMR” log file is used to diagnose a communication link failure in data flow structure of
LightingGale Application. “GPRS_AMR” log file shows date and time at which CI sent data string of
command message to DCU and received data strings of Acknowledgement message from DCU and
requested data message from SLCs via DCU.
WIFI Conflict Free Zigbee Channels
1. If WIFI Channels are 1, 6 and 11 then conflict free Zigbee channels to form RF network between
DCU and SLCs are 14, 15, 19, 20, 24 and 25.
2. If WIFI Channels are 1, 7 and 13 then conflict free Zigbee channels to form RF network between
DCU and SLCs are 15, 16, 21 and 22.

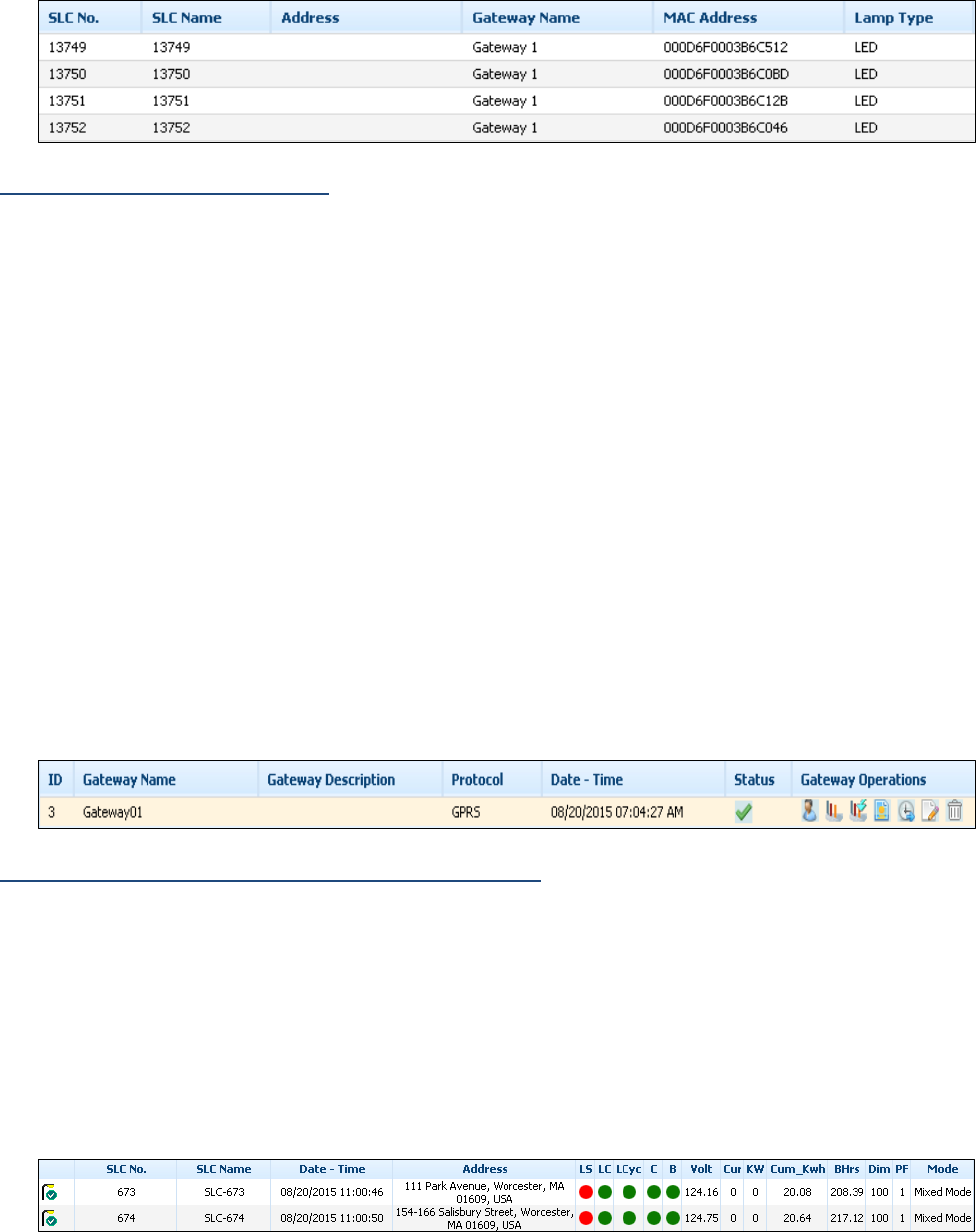

How to make SLCs visible in LG
1. Create LG instance for client.
2. Follow path Home > SLCs > Import Data > Import SLC Data to download SLC Import Sheet
format from LG.
3. Fill the required fields in downloaded sheet. Make sure SLC Number, SLC Name, MAC Address
and Lamp Type fields are filled otherwise, SLC will not be displayed in LG. Value in Gateway
Name field could be filled later based on the user’s requirement.
4. Import the list of SLCs sheet in LG.
How to make DCU active in LG
1. Create LG instance to get Client ID, Gateway ID and Live IP values which are needed to enter in
DCU via Gateway Web Console.
2. Connect DCU with PC or laptop via Ethernet cable.
3. Need to change the PC or Laptop network settings according to DCU IP 192.168.1.100 to open
DCU’s web page,
4. PC or Laptop IP: 192.168.1.99
a. Subnet Mask: 255.255.255.0
b. Gateway IP: 192.168.1.1
c. Network: 192.168.1.0
d. Broadcast: 192.168.1.255
5. Once the Gateway Web Console page is open, enter Client ID, Gateway ID and Live IP values in
6. If communication type is GPRS then enter APN Name, this should be provided by the telecom
service provider, for instance i2gold for AT&T, and then click submit button to save the settings
7. If communication type is Ethernet then enter static IP information, which is received from IT
persons of client, in DCU. Make sure to take screen shots of every web page for record.
8. When DCU is configured, ping the IP Address of DCU to check the connectivity link. If ping is
coming and DCU started sending messages to Control Interface at regular interval of time then
it means DCU is active.
How to make connectivity between DCU and SLCs
1. Once the DCU is showing active status in LG, follow the path Home > Controls > Configure
SLC > Set MAC Address in LG to load MAC addresses of SLCs in DCU.
2. Make sure SLCs are turned ON at client’s site.
3. When DCU is loaded with MAC IDs of SLCs, these SLCs will start sending ACTIVEMAC messages
to DCU. This means SLCs are now active in DCU. The number of active SLCs in DCU can be seen
either in Active SLCs field in web console page of DCU or in Hardware Initiated Commands
submenu of Track Network Commands in LG.
4. Send unicast read data command to SLCs and check the current data of SLCs in Status menu of
How to make DCUs and SLCs visible in LG map view
1. Enter the Latitude and Longitude positions of DCUs in LG. Follow the path Home > SLCs >
Gateway List > Add Gateway.
2. Enter the Latitude and Longitude positions of SLCs in LG.
a. Latitude and Longitude values of SLCs can be captured via Handheld Reader in field. OR
b. If SLCs are enabled with GPS feature then they automatically get their Latitude and
Longitude values. Follow below steps,
i. Once the SLCs are installed in the field, send Get Mode command to all SLCs from
ii. Latitude and Longitude positions of all SCLs will become visible in Set
Latitude/Longitude menu in LG. Follow path Home > Controls > Configure SLC
> Set Latitude/Longitude and update the Lat/Long values in LG. SLCs positions
will be visible in map view menu in LG.
iii. Make sure LG Address Detection service is running in backend. This will display
address of each SLC in Status menu as well as in SLC List submenu in LG.

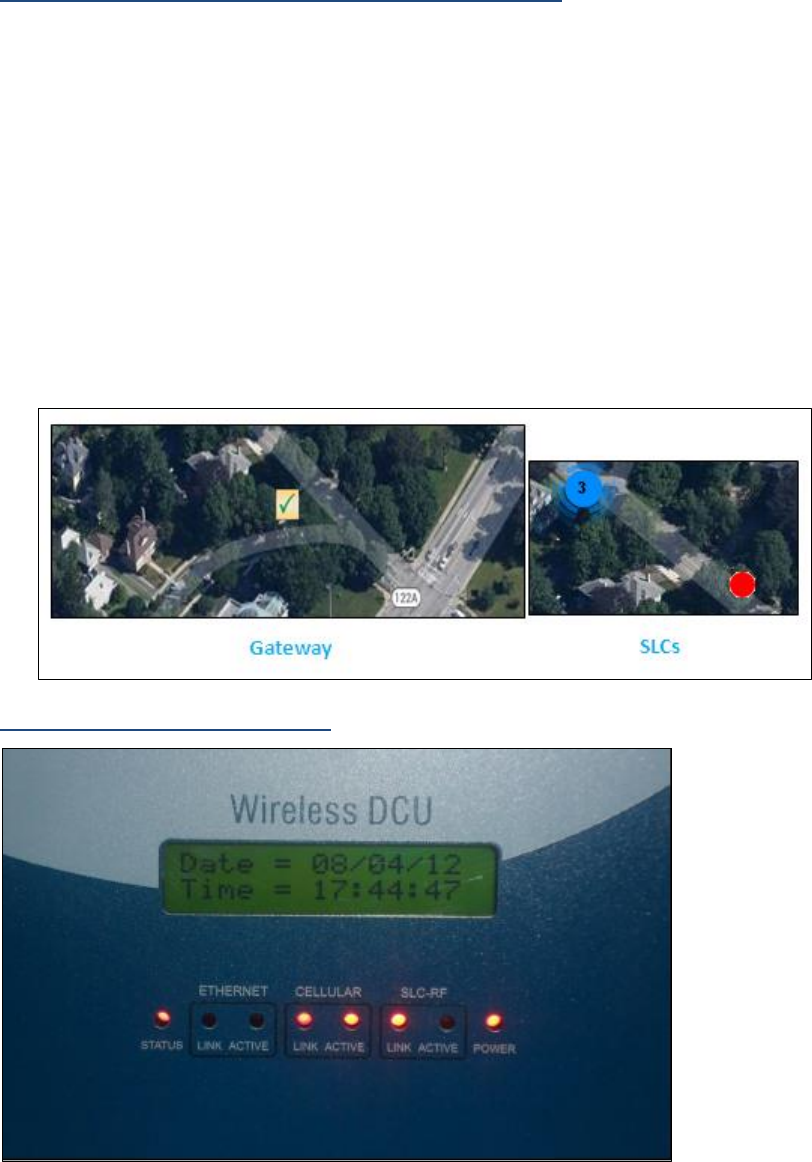

Functional Status LEDs of DCU
1. Power ON DCU.
2. Check the status of POWER LED on DCU. If it is ON continuously then DCU is powered ON.
3. Check the status of STATUS LED. If it is blinking, it means code is executing properly within
4. If communication type is ETHERNET. Check the status of ETHERNET ACTIVE LED. If it is
blinking, it means DCU sends ping request to CMS server and in return receives ping response
from CMS server. If it is OFF, it means DCU is not receiving ping response from CMS server.
5. If communication type is ETHERNET. Check the status of ETHERNET LINK LED. If it is ON, it
means data transmit over Ethernet. If it is OFF, it means data receive over Ethernet.
6. If communication type is GPRS. Check the status of CELLULAR ACTIVE LED. If it is blinking, it
means DCU sends ping request to CMS server and in return receives ping response from CMS
server. If it is OFF, it means DCU is not receiving ping response from CMS server.
7. If communication type is GPRS. Check the status of CELLULAR LINK LED. If it is ON, it means
data transmit over GPRS. If it is OFF, it means data receive over GPRS.
8. Check the status of SLC-RF ACTIVE LED. If it is blinking, it means DCU is connected with RF
9. Check the status of SLC-RF LINK LED. If it is ON, it means data transmit over RF. If it is OFF, it
means data receive over RF.
How to resolve DCU’s issues
If DCU is not showing active status in LG then reason could be anyone of the following,
1. Check the power supply to DCU.
2. Check whether DCU is powered ON or not.
3. Check the Control Interface Service in CMS Server. If it is down then restart it.

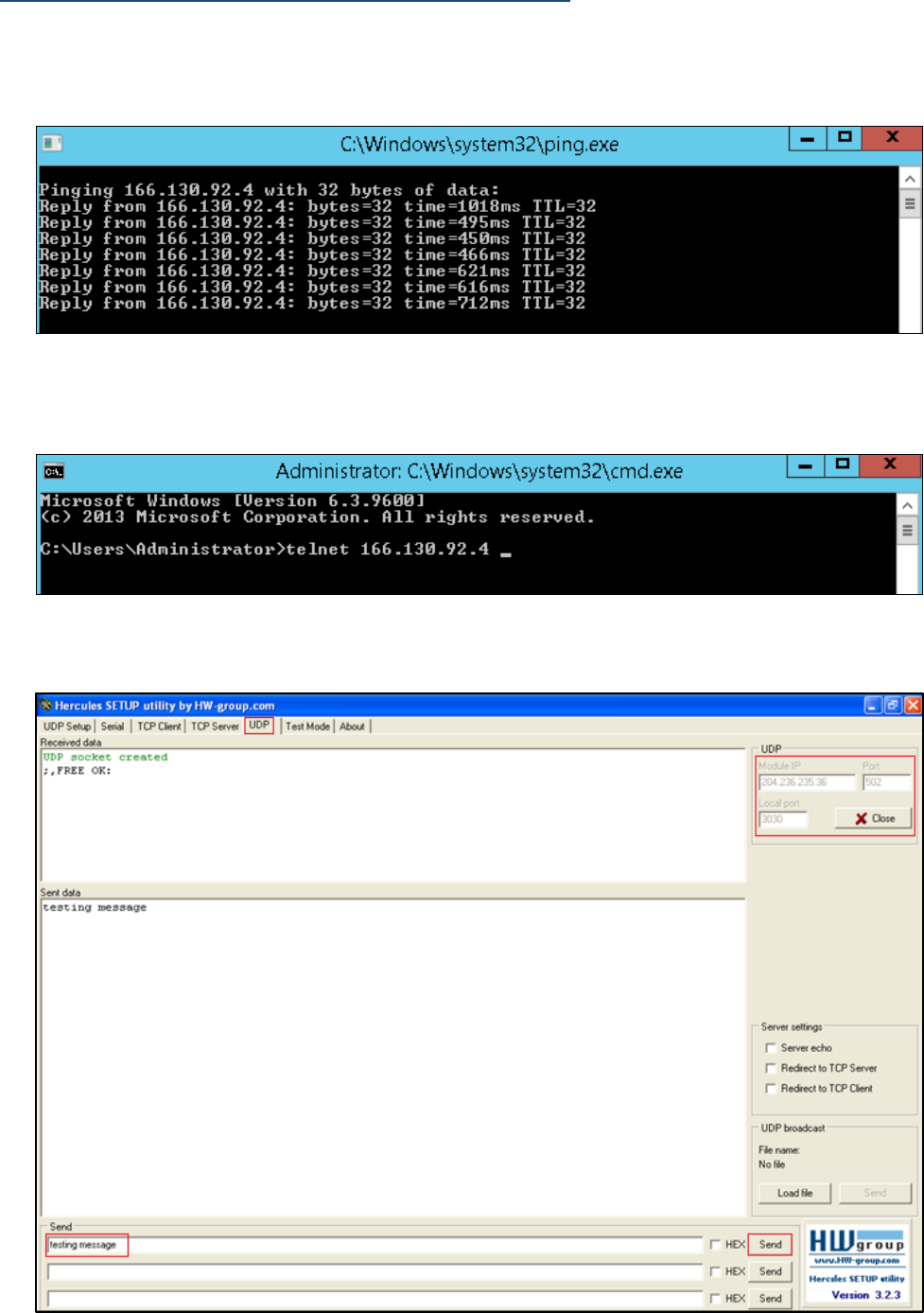

4. Check the ping response of static IP address of DCU. If ping response is getting then web page of
DCU should be accessible. Check the configuration settings in DCU like client ID, Gateway ID,
Live IP values etc.
5. If ping response is not getting then
a. If communication type is Ethernet then network issue at client site.
b. If communication type is GPRS then reason could be anyone of the following,
i. Insert SIM Card properly and then check whether registration OK message is
coming or not. Registration OK message can be seen in capture file of
HyperTerminal or in web console page of DCU or in log file of DCU.
ii. Check the DCU compatibility with 2G and/or 3G SIM Card.
iii. DCU with 2G feature consists of 1 Antenna socket (MTSMC – G2). Try to remove
and place antenna back and then check ping response.
iv. DCU with 3G feature consists of 2 Antenna sockets (MTSMC – H5). Try to
remove and place antenna back and then check ping response.
v. Check the status of SIM card at AT&T site. If status of card is not showing then
coordinate with AT&T’s officials.
6. If ping response is getting but not able to access web console of DCU then there are chances of
hardware or software faulty issues in DCU.

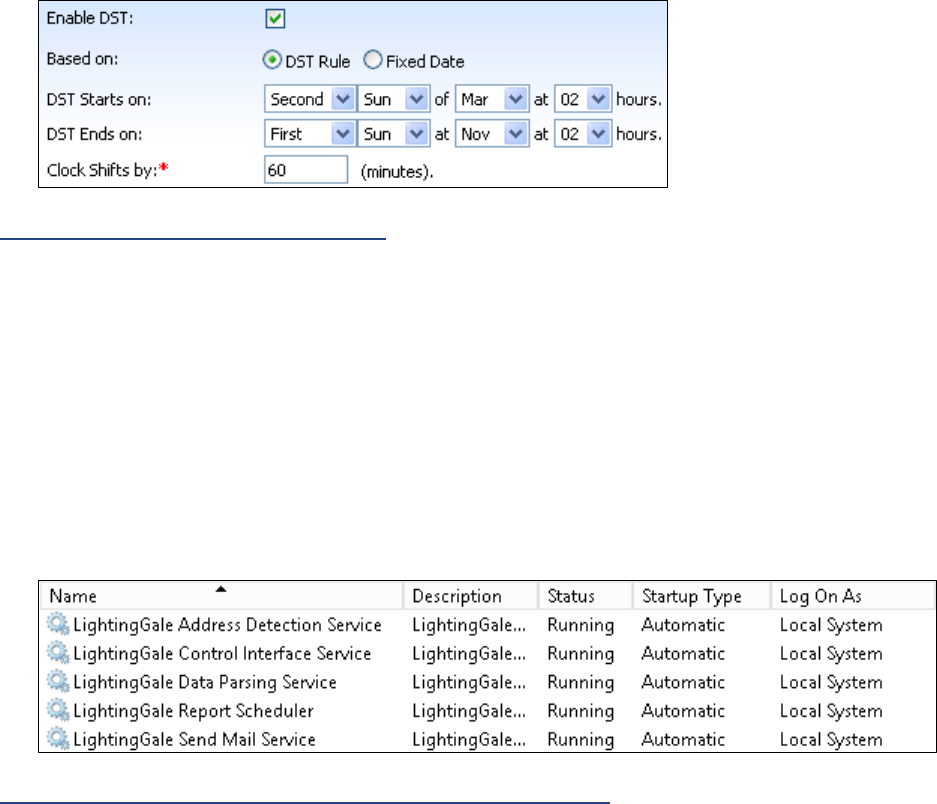

How to set DST Rule in DCU and SLCs
To avoid time inconsistency, DST rule must be set in both DCU and SLCs through LG.
1. Follow path Home > Controls > Get/Set System Parameters > Set Gateway DST Parameters
to set DST rule in DCU.
2. Follow path Home > Controls > Get/Set System Parameters > Get Gateway DST
Parameters to check the DST rule set in DCU.
3. Follow path Home > Controls > Get/Set System Parameters > Set SLC DST Parameters to
set DST rule in SLCs.
4. Follow path Home > Controls > Get/Set System Parameters > Get SLC DST Parameters to
check the DST rule set in SLCs.
5. Once the DST rule is applied in DCU and SLCs, follow the path Home > Controls > Configure
SLC > Set Clock Synchronization to set the RTC of DCU according to CMS time.
6. Send unicast read data commands to all active SLCs of DCU and check date and time values in
7. For instance, applicable DST rule in USA is
a. DST Starts: Second Sunday in March at 2 am
b. DST Ends: First Sunday in November at 2 am
c. Clock Shift: 60 minutes
Backend Services of LG Application
Make sure below mentioned Services are running in backend of LG Application. These Services are
installed on CMS Server.
1. LightingGale Address Detection Service: This Service allows LG to display addresses of SLCs
based on Latitude and Longitude positions of SLCs.
2. LightingGale Control Interface Service: This Service allows DCU to connect with LG Server.
3. LightingGale Data Parsing Service: This Service allows parsing of DCU and SLCs data in
Database before displaying data in frontend of LG.
4. LightingGale Report Scheduler: This Service allows LG to display various reports based on the
data received from DCU and SCLs in frontend.
5. LightingGale Send Mail Service: This Service allows LG to send email notifications to Users in
case of issues observed in DCU and SLCs based on the Alarms Status of Channels in LG.
How to setup Handheld Reader to detect SLCs and DCUs
1. Set Handheld Reader in PC Communication mode and then connect reader device with PC or
laptop via serial cable. Make sure SLC Reader application is installed on PC or laptop.
2. SLC Reader Application must be set at
a. Serial Port Name: Look into Device Manager in PC to get port number information.
b. Baud Rate: 9600
c. Data Bit: 8
d. Parity: None
e. Stop Bit: 1
3. Load SLCs information (SLC IDs and MAC IDs) and DCU information (DCU ID, Channel No. and
Extended PAN ID) in memory of Handheld Reader via SLC Reader Application.
a. Follow path Master > MAC Address Report in SLC Reader Application to upload SLCs
information in Handheld Reader.
b. Follow path Master > Set Parameters > DCU Network Security in SLC Reader
Application to upload DCU information in Handheld Reader.
4. Now Handheld Reader is ready to join RF network, to read data of SLCs and DCUs etc.
How to upload firmware in Handheld Reader by PICkit 3
1. Connect PICkit 3 with PC and Handheld Reader.
2. Open MPLAB IDE Application on PC or laptop and follow path Configure > Select Device.
3. Search and select Handheld Reader Device PIC24FJ64GA004. Programmers section in Select
Device must show PICkit 3.
4. Follow path Programmer > Select Programmer to select PICkit 3.
5. Follow path File > Import to select and upload firmware into Handheld Reader.
How to reset MAC ID of SLC in memory of DCU
Reset SLC Data command can be used to erase MAC IDs of all SLCs from the memory of DCU. But
there is no command which can erase MAC IDs of particular SLCs from the memory of DCU.
If MAC ID of SLC is active in memory of DCU and needed to be reset in DCU so that DCU will not
send and receive messages from this particular SLC then send SET MAC command to this SLC again.
This will reset the MAC ID of SLC in memory of SLC.
PAN ID Conflict between DCU and its SLCs
If 2 DCUs shared same RF parameters (extended PAN ID, Short PAN ID and Channel no.) and placed
at close distance to each other, PAN ID conflict could occur between DCUs and SLCs. If PAN ID
conflict occurs then Short PAN ID of SLCs will have different value than Short PAN ID of their DCU.
This will cause communication failure between DCU and its SLCs because SLCs left their existing RF
network with DCU.

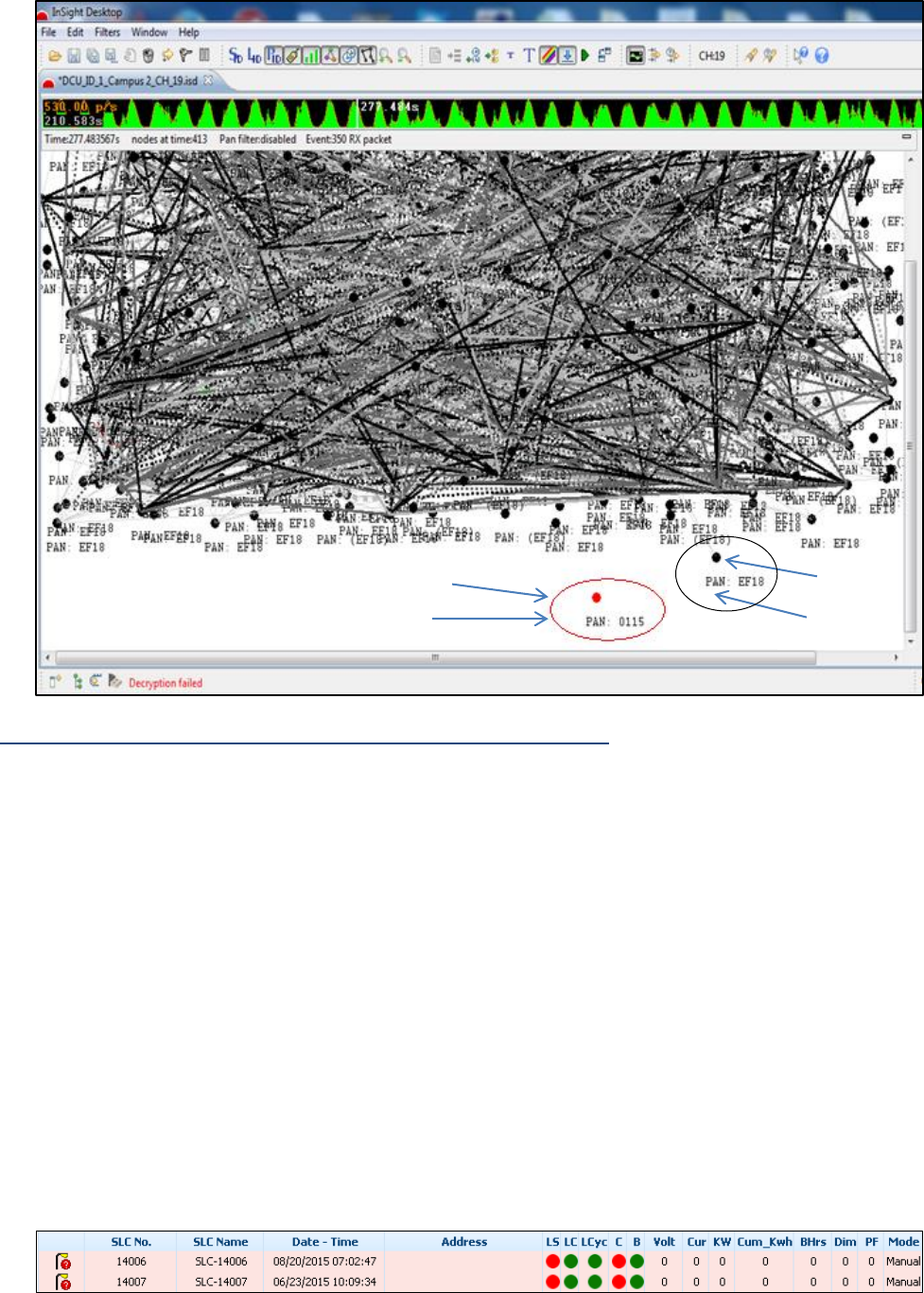

How to resolve PAN ID Conflict issue
1. Use RF sniffer chip along with Ember ISA-3 Adapter and Insight Desktop Application to detect
the PAN ID conflict in RF network of DCU and its SLCs.
2. Need to change the PC or Laptop network settings according to Ember Adapter’s IP
a. PC or Laptop IP: 192.168.1.100
b. Subnet Mask: 255.255.255.0
c. Gateway IP: 192.168.1.1
3. Once the difference in Short PAN IDs in SLCs and DCU are observed, change the Short PAN ID of
DCU with the value of Short PAN ID of SLCs in Gateway Web Console. This will allow SLCs to
form RF network with DCU again.
Cause of Communication Failure between DCU and its SLCs
When DCU is not able to communicate with its active SLC, communication failure occurred.
If communication failure is observed between DCU and its SLCs then reason could be any of the
1. SLC is not powered ON.
2. Power failure or power supplied to SLC is not consistent.
3. RF of SLC is faulty.
4. PAN ID conflict in RF network.
If power supply is fine and SLC is turned ON, check the RF connectivity of SLCs and DCU through
a. If Handheld Reader is able join the RF network and read the data of SLCs and DCU then
communication link must be formed between DCU and its SLCs.
b. If Handheld Reader could not detect SLCs/DCU then either RF faulty or PAN ID conflict in RF
network between DCU and its SLCs could be the reason of communication failure. Note:
Make sure SLCs and DCU information are loaded in Handheld Reader before using reader to
detect SLCs and DCU.
c. If Handheld Reader could not detect SLCs/DCU then use RF sniffer chip along with Ember
ISA-3 Adapter and Insight Desktop Application to check the RF parameters of DCU and SLCs.
Short PAN ID
Short PAN ID
PAN ID Conflict
How to change channel of SLC in field through LG
Steps to change channel remotely,
1. Power ON SLC.
2. Send unicast read data command to SLC via DCU to check whether SLC is sending current data
in LG or not.
3. If SLC is sending current data in LG, change channel of SLC through LG.
4. Now follow the below path in LG Application to change channel of SLC,
Home > Controls > Get/Set System Parameters > Change SLC RF Parameters

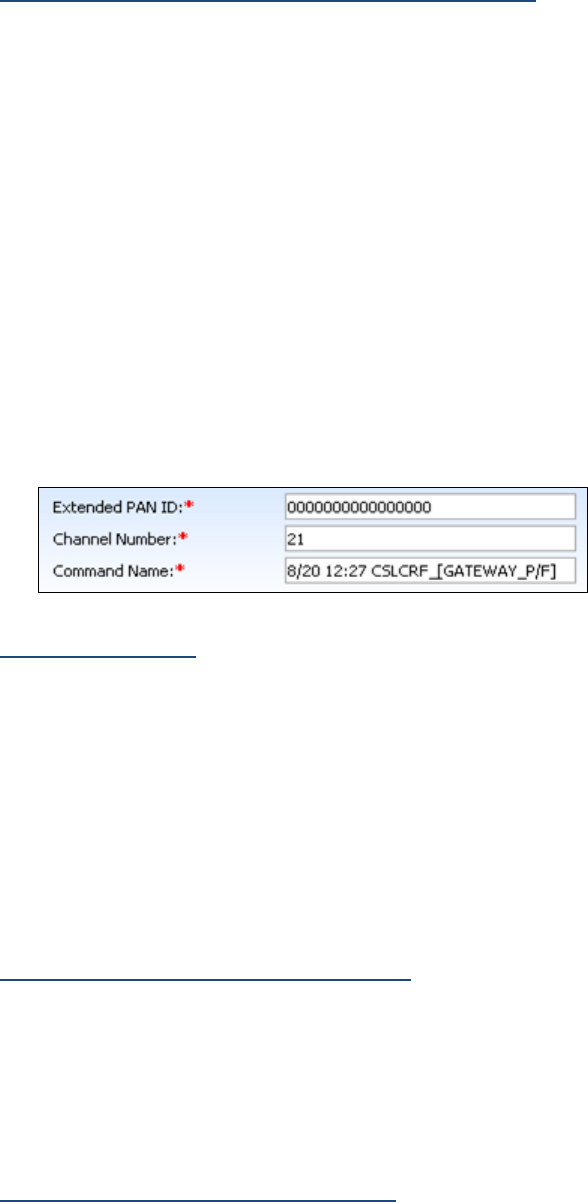

a. Keep Extended PAN ID field as 0000000000000000 and type channel number in
Channel Number field in Change SLC RF Parameters submenu of LG Application.
b. Change channel of one SLC at a time.
5. If there are more than one SLC then follow step 1 to 4 to change the channel of all other SLCs in
6. Once the channel change is done in all SLCs, change the DCU’s scan channel, which should be
same as that of channel set in SLCs.
7. Send unicast read data command to all SLCs via DCU to check current data in LG.
8. If current data of SLCs are coming in LG after channel change then channel of those SLCs is set
SLC GO LIVE Logic
During commissioning mode, SLC is set at production channel no. 11. Handheld Reader can be used
to read data of SLC in commissioning mode. Whenever SLC is powered ON, it will go through
dimming cycle process in commissioning mode. To stop repetition of dimming cycle, SLC needs to
be connected with DCU. To do so, GO LIVE command can be sent from Handheld Reader or IOS
device to SLC. Once GO LIVE Command is sent to SLC, it will leave its existing channel 11 to start
searching other channel. By this way SLC is entered into free join mode. It will never enter into
commissioning mode again.
During free join mode, SLC sends ID frame messages to DCUs. If any DCU is loaded with MAC ID of
that SLC, DCU passes its RF parameters (Extended PAN ID, Short PAN ID and Channel) to SLC. This
allows SLCs memory to store RF parameters. Thus, RF network is formed between SLC and DCU.
SLC GO LIVE Process using IOS Device
If end to end connectivity is formed between IOS device and SLCs via Bridge,
1. Send read data command to SLC(s) from IOS device to check parameters values of SLC.
2. If read data command is sent successfully and IOS device received desired values of SLC then
send GO LIVE command from IOS device to SLC(s). Once GO LIVE command is received by SLC,
it leaves channel 11 and tries to connect to other channel, make sure DCU is turned ON and
configured with different RF parameters. This will allow SLC to connect with DCU.
SLC GO LIVE using Handheld Reader
In commissioning mode, Handheld Reader can communicate with the SLC on Channel 11 only. After
setting the SLC ID and Channel 11 in the SLC reader with the Link to SLC key, the reader can
communicate with the SLC even though the SLC is not connected with a DCU. The “GO LIVE” button
will put the SLC into free join mode and search for a DCU. Note that if you want to keep the SLC still
in commissioning mode then don’t press the “GO LIVE” button else it will not be brought back to the
1. Press the ALT key to enable the shift function. Now press the Go Live button. Press the Enter
key then use and keys to select YES. Press the Enter key again to execute the command.
2. Now the SLC is commissioned and is in free join mode to join the DCU that has MAC ID of the
SLC loaded in its memory. Once it has joined the DCU, it will operate with all the parameters set
How to move SLC sets with RF parameters back into free joining mode
In case already connected SLC with DCU requires to be shifted back to free joining mode, follow
1. Power ON the SLC(s).
2. OTA the updated hex file in SLC by using Channel Changer Board.
3. Send Read Data command to SLC to make sure SLC is connected with DCU.
4. Verify uploaded hex file in SLC by sending SLC version command to SLC from LG Application.
5. If any parameters (Mode, Latitude, Longitude, DST, Set Fault, RTC Sync etc.) need to be set in
SLC then this step can be performed.
6. Erase MAC ID of SLC from the memory of DCU by sending Reset SLC Data command from LG
Application. This step can be verified by accessing Gateway Web Console.
7. Change existing channel of DCU to any other channel.
8. Read data of SLC from Handheld Reader and then send GO LIVE command to SLC from reader.
This step can be verified by the appearance of “Leave” message in Ember Desktop Application,
when RF sniffer channel was set at DCU’s new channel.
After performing above steps, SLC will try to join DCU at newly changed channel. As DCU does not
contain MAC ID of SLC, it will not be connected with DCU and will try to join another network. This
indicates that SLC is shifted back to free joining mode.
How to set motion sensor based dimming in SLCs through LG Application

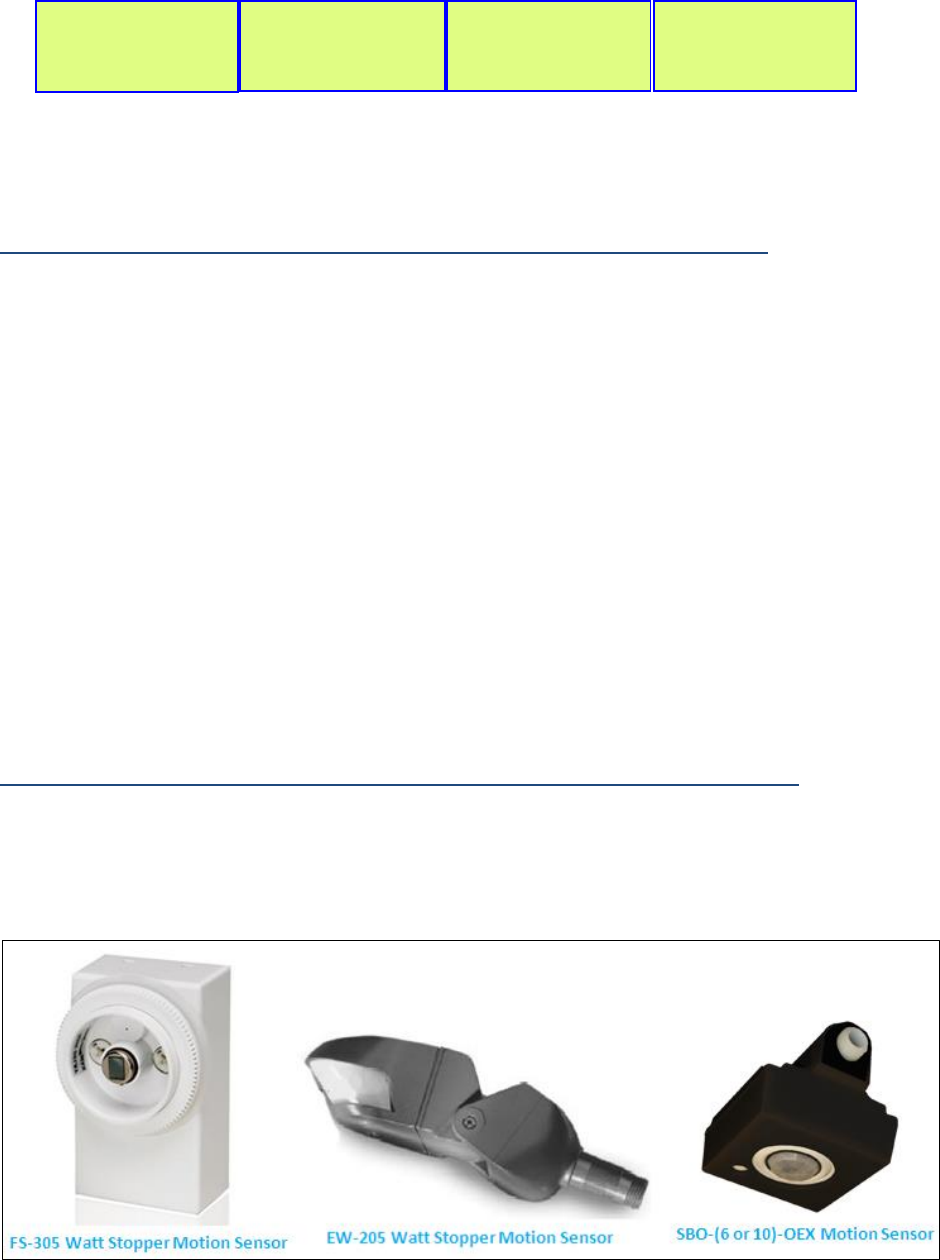

Following motion sensors are tested with SLC 3300 and SLC 3100 7P 480V in lab:
1. FS-305 Watt Stopper with FS-L4W Lens
2. EW-205 Watt Stopper
3. SBO-(6 or 10)-OEX
OVER = YES
LINK AGAIN TO

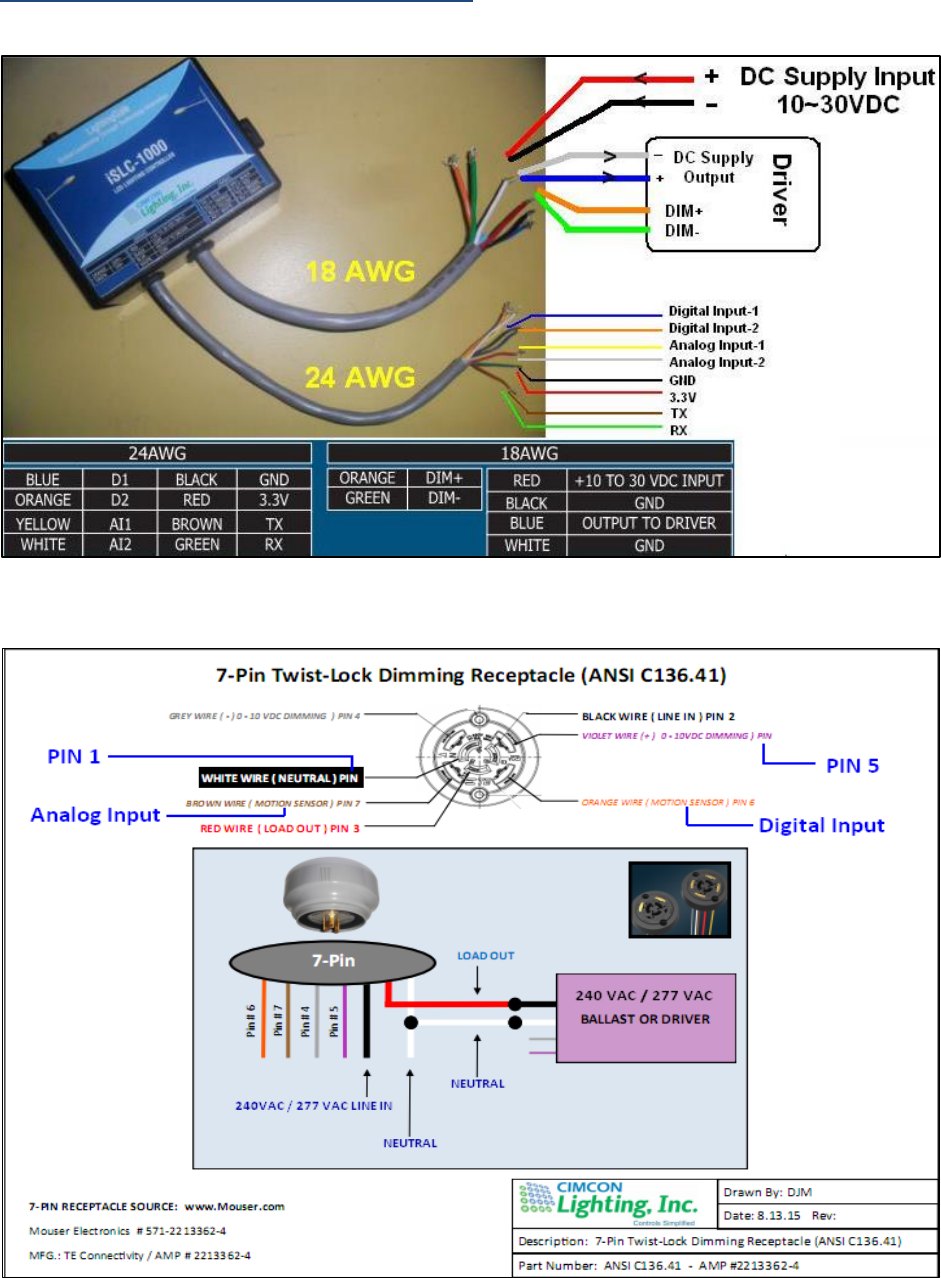

Make sure wires are connected properly between different hardware products.

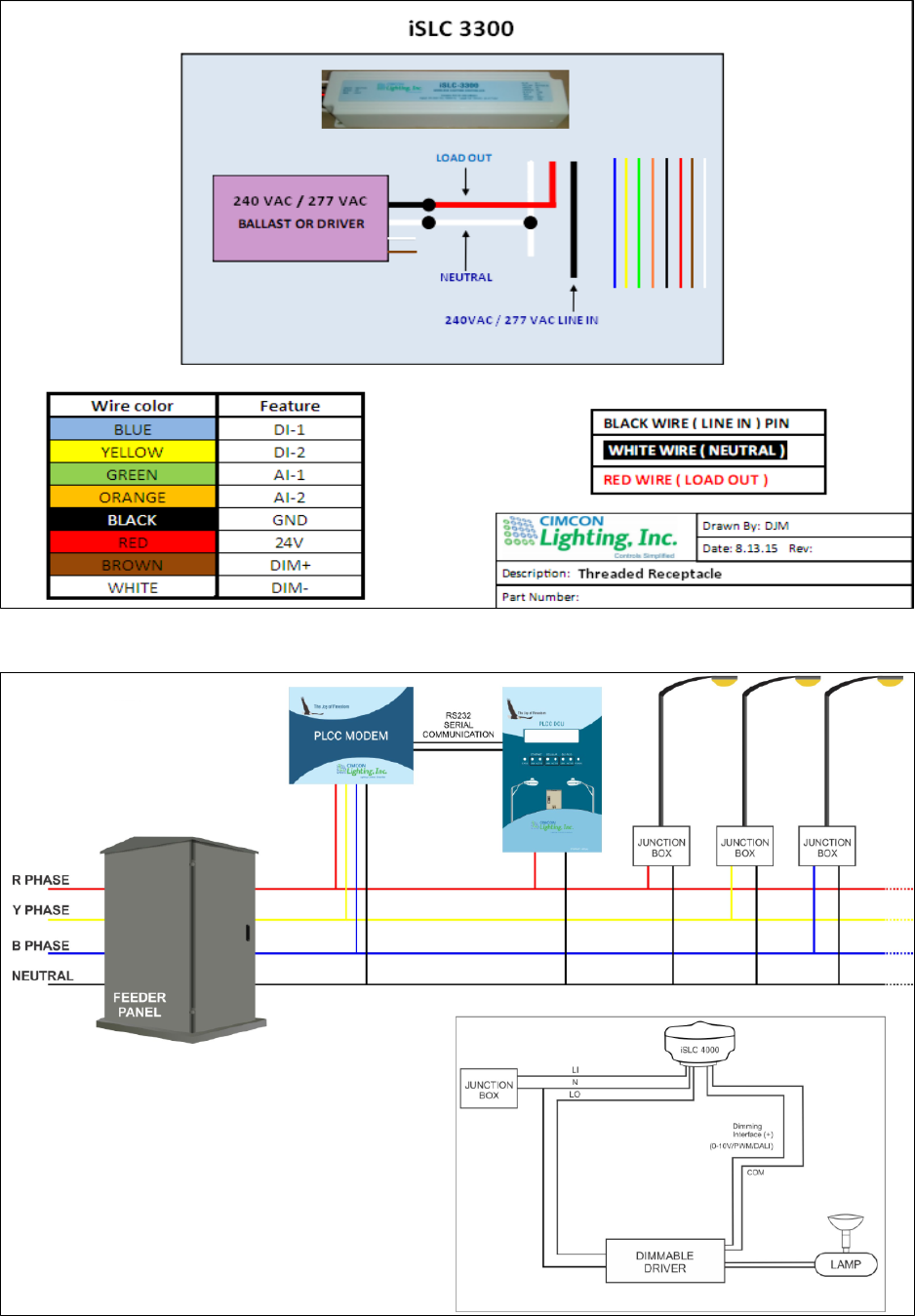

Wiring diagram of SLC–3300 with Motion Sensor

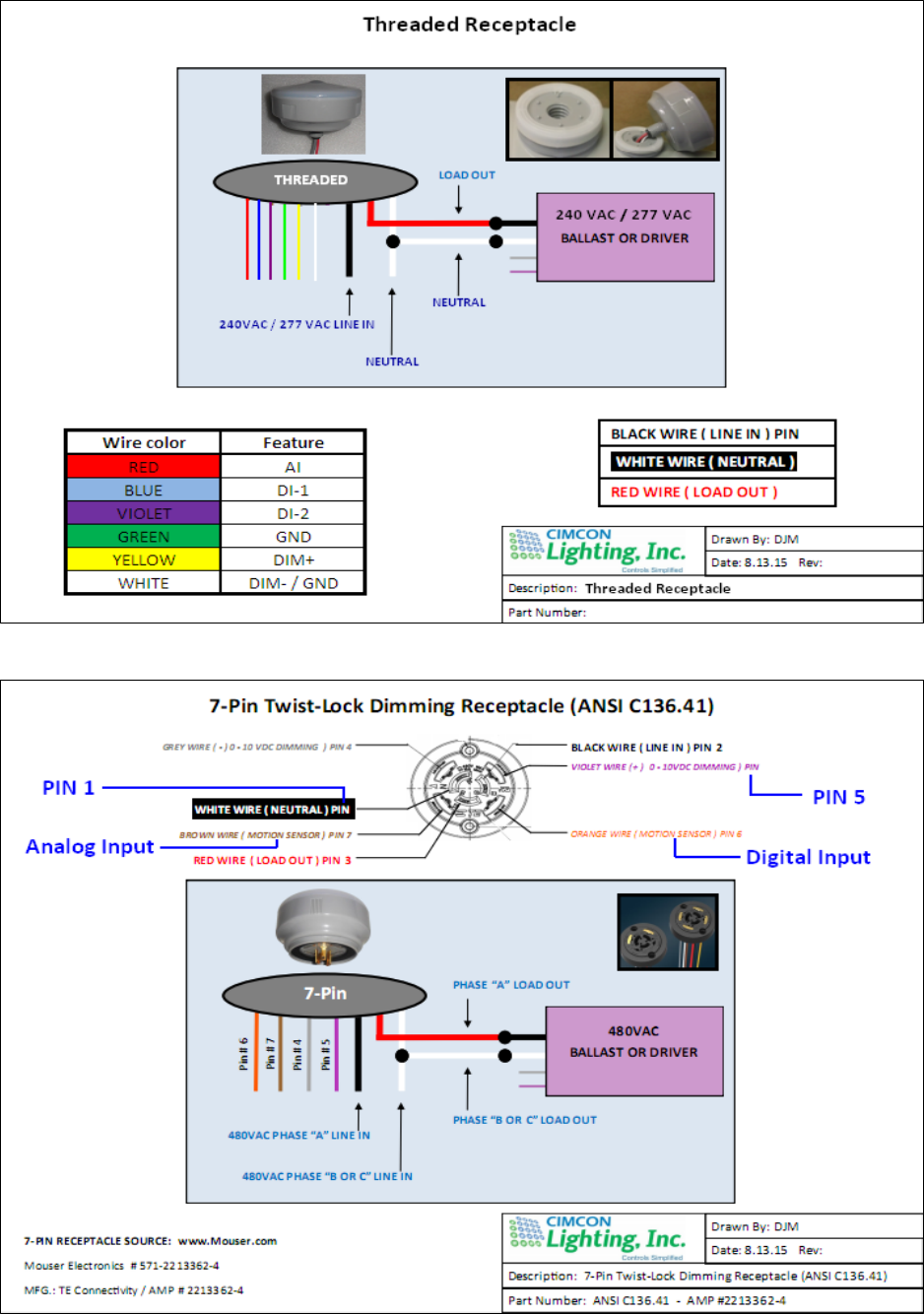

Wiring diagram of SLC 3100 7P 480V with Motion Sensor
Group of SLCs needs to be created before sending motion sensor based dimming command to DCU
via LG. User can create up to 8 different groups and particular SLC(s) can be included in multiple
groups based on the client’s requirement.
Steps to follow in LG,
1. At first set the SLC(s) in Manual Mode and then send read data command to verify connectivity
of SLCs with LG via DCU.

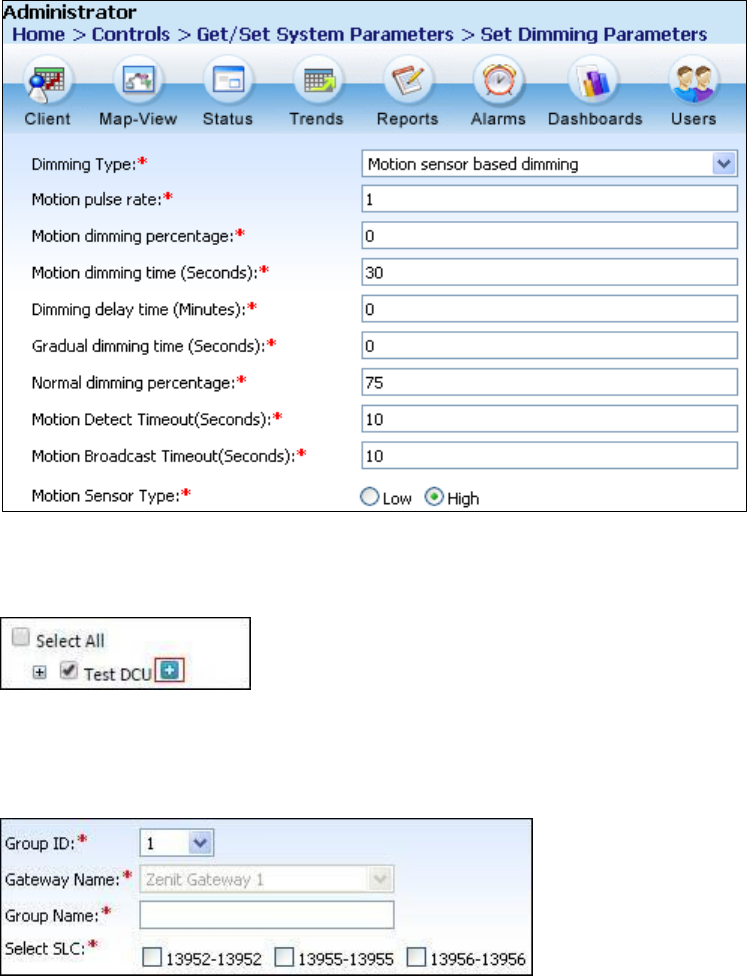

2. Follow path, Home > Controls > Get/Set System Parameters > Set Dimming Parameters, in
3. Select Dimming Type as “Motion sensor based dimming” and enter parameter values as per
client’s request. Motion Sensor Type can be selected as Low (0 V DC) or High (24 V DC). It
means Low Motion Sensor gets ON at 0 V DC, when motion is detected, and gets OFF at 24 V DC,
when no motion is detected. Similarly, High Motion Sensor gets ON at 24 V DC, when motion is
detected, and gets OFF at 0 V DC, when no motion is detected.
4. Click on + button on right side of Test DCU to create group of SLC(s) on which motion based
dimming will be applicable as shown below,
5. Select Group ID, type Group Name and select SLC(s) to create group. At the max, 8 different
groups can be created. Particular SLC(s) can be included in multiple groups depend upon SLCs
arrangement in field.
6. Once the group of SLCs is created, send command to DCU from LG.
7. Lamp will turn ON and brightness of lamp will be based on normal dimming percentage.
8. Now perform motion activity in front of Motion Sensor. This will allow Motion Sensor to detect
motion and to turn ON lamp as per motion dimming percentage.
9. Cover the Motion Sensor with opaque object so that it cannot detect motion. After adjustable
minimum ON time delay, lamp will be turned OFF.
How to set motion sensor based dimming in SLCs through IOS Device
If user wants to control motion based dimming of lamp from IOS device then motion sensor based
dimming command must be sent first to SLC via DCU from LG Application.
Steps to follow in IOS device,
1. Open IOS App and select Schedule menu to set ON and OFF schedule times.
2. Select dimming type as “Motion Based Dimming”, save schedule times and then send
command to SLC(s).
End to end connectivity check between IOS Device and SLCs
Whenever communication issue is occurred between IOS device and SLCs via Bridge, first of all
1. IOS device is connected with Bridge via Bluetooth.
2. SLCs are powered ON.
3. Bridge is connected with SLCs via RF network.
a. If “NWK” LED is blinking on the face of Bridge then it indicates RF network is formed
between Bridge and SLCs. It means Bridge is connected with SLC(s).
b. If “NWK” LED is ON continuously then it indicates Bridge is not able to detect RF
network and thus not connected with SLCs.
4. If end to end connectivity is fine but still read data command is not sent to SLC from IOS device,
make sure generated token contains correct SLC ID numbers and MAC Addresses.
5. If SLC ID and MAC Addresses are correctly entered in Token and end to end communication link
looks fine then check the RF parameters of SLC through RF Sniffer and/or Handheld Reader.
How to set Astro Mode in SLC via IOS Device
SLC Connect IOS Application has three modes,
1. Manual Mode
2. Photocell Mode
3. Mixed Mode
There is no separate Astro Mode option available in SLC Connect IOS Application. But there are two
methods to set Astro Mode in SLC from SLC Connect IOS Application.

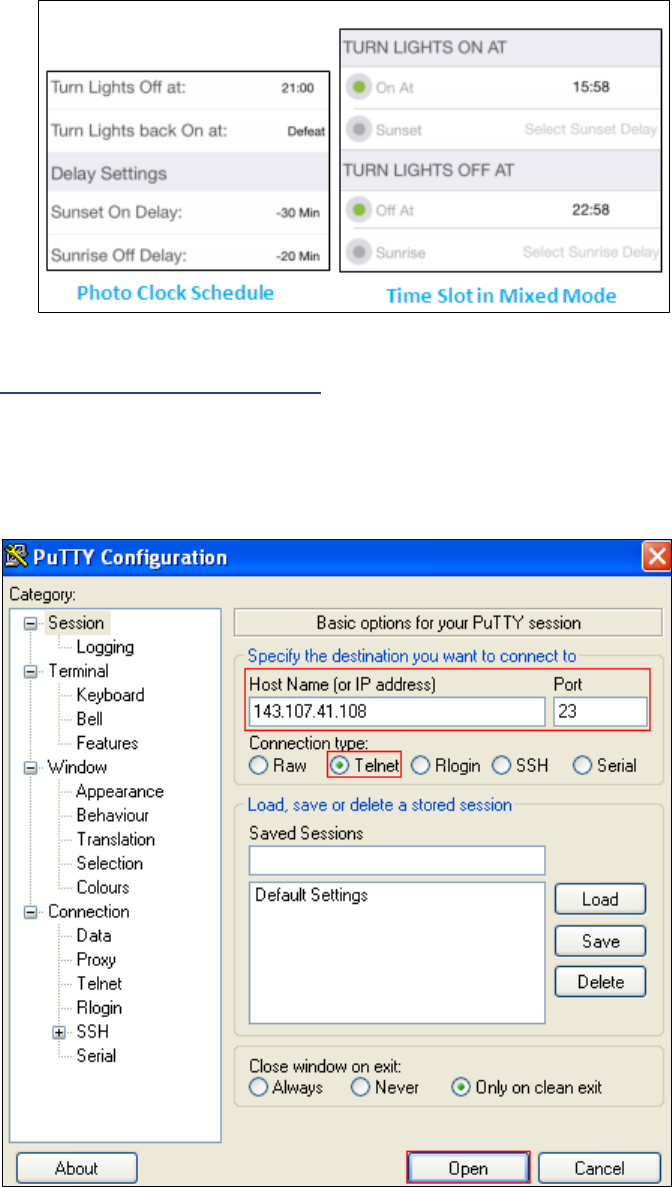

1. Photo Clock Schedule option can be used to set Astro Mode in SLC. This can be done by
setting Lights ON and OFF as “Defeat” and setting Sunrise and Sunset times as per client’s
2. Astro Mode can be set in SLC through Mixed Mode from IOS App.
How to access DCU via Telnet
When Ethernet or GPRS connectivity is fine with DCU but still user is not able to login into Gateway
Web Console page of DCU, Telnet can be used to access DCU for troubleshooting and controlling. In
order to access DCU via Telnet, PUTTY exe must be installed at Server where Control Interface
Windows Service is installed.

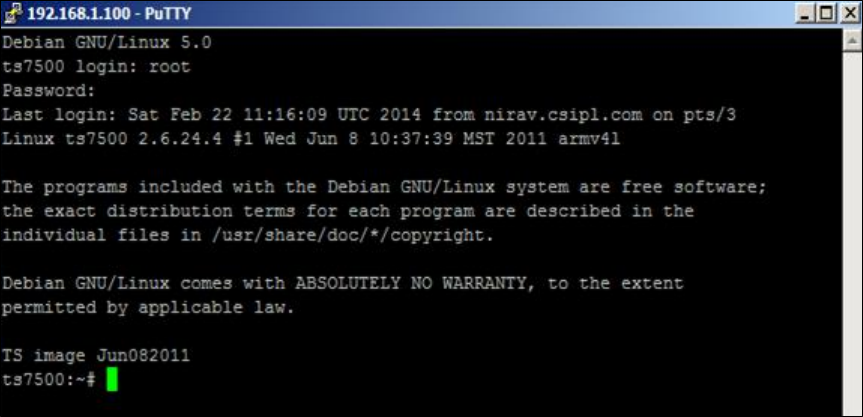

Login details to access DCU via Telnet,
Following Linux commands can be used to verify files loaded in DCU and to troubleshoot and
1. cd /home/eclipse/linux_dcu: After this command, enter and type command cat
web_para.txt. This command allows user to see DCU details like RF parameters, Live IP, port,
number of active SLCs etc.
2. cd /home/eclipse/linux_dcu: After this command, enter and type command ls. This
command allows user to see files like web_para.txt, DCU exe version etc.
3. cd /etc/init.d: After this command, enter and type command ls. This command allows user to
see files like dcu_script etc.
4. vi <file_name>: This command allows user to read and write content inside the files. For
example: vi dcu_script allows user to see content inside the dcu_script file. If user wants to exit
from file’s content then type shift+q, enter and type q!. If user wants to exit but want to safe the
file’s content then type w+q and enter.
5. cd /etc/ppp/peers: After this command, enter and type command ls. This command allows
user to see pppprovider and provider files. Those files are necessary for DCU to communicate
with Control Interface window service through GPRS. Then, enter and type command cat
pppprovider. This command allows user to see details inside pppprovider file.
6. cd /etc/chatscripts: After this command, enter and type command ls. This command allows
user to see chatprovider and other required files in chatscripts. Then, enter and type command
cat chatprovider. This command allows user to see details inside chatprovider file.
7. ps –aux: This command allows user to check and verify exe file loaded in DCU.
8. df –h: This command allows user to check the space availability in DCU’s memory. rm
/var/cache/apt/archives/*.deb and rm /var/lib/apt/lists/*ftp* commands allow user to
remove unwanted data in DCU’s memory.
9. nandctl ––stats: This command allows user to get information related to bad sectors in DCU’s
10. uname: This command allows user to check the name of the Kernel. User can also use uname –
r and uname –a to know the version of the Kernel.
11. reboot: This command allows user to restart DCU.
How to check connectivity link between two end nodes
The following three methods are used to check connectivity link between two end nodes,
1. Ping: Ping the IP address of Server where LG (CMS) application is installed from local machine
where LG instance will be used and vice-versa. User can also ping static IP address of DCU to
check Ethernet or GPRS connectivity.
2. Telnet: If communication ports on Server and local machine are based on TCP/IP then telnet IP
address along with port number of Server from local machine. If user wants to telnet DCU then
PUTTY exe must be installed at Server machine where C.I is installed. PUTTY can be used to
3. Hercules Utility: Telnet works for TCP/IP ports but not for UDP ports as later protocol does
not support handshake technique. Therefore, to check the flow of data package between CMS
server and client’s machine, Hercules utility is required.
Partial GPRS AMR log file of Control Interface
Database used by LG Application and Control Interface Windows Service
Database, MS SQL 2008 R2, acts as a bridge between LG Application and Control Interface Service.
Control Interface interacts with MS SQL 2008 R2 to get command messages initiated by user
through LG Application and then send command messages further to DCU. Incoming
acknowledgement and other messages from DCU/SLCs are stored in MS SQL 2008 R2 through
Control Interface. These messages are parsed and then displayed in front end of LG Application.
This way LG Application and Control Interface Windows Service interact with database, MS SQL
2008 R2, to display meaningful information received from DCU/SLCs at front end of LG application
Following are some of the useful tables in MS SQL 2008 R2,
1. OUTGOINGSMS Table: When any command message is sent from LG Application, SENDSTATUS
column of OUTGOINGSMS Table displays value 1. When DCU receives command message and
then send Acknowledgement message to CI, SENDSTATUS column of OUTGOINGSMS table is
updated with value 2.
2. TEMPINCOMINGSMS Table: CI sends data string of Acknowledgement message(s) received
from DCU to TEMPINCOMINGSMS Table and WRITESTATUS column displays value 1. When LG
Application reads data string of Acknowledgement message(s) present in TEMPINCOMINGSMS
Table, the WRITESTATUS column is updated with value 2 and then data in TEMPINCOMINGSMS
will be cleared after sometime.
3. ACKNOWLEDGESMS Table: When WRITESTATUS column is updated with value 2 in
TEMPINCOMINGSMS Table, it means data string of Acknowledgement message is transferred to
ACKNOWLEDGESMS Table. When User selects unacknowledged command in Track Network
Commands menu in LG Application, WRITESTATUS column will be updated with value 2 in
4. DIGITALDATA<clientID> Table: All 19 Status Parameters and their values (0 or 1) captured
from SLCs are stored in DIGITALDATA<clientID> Table. Archive records of these Status
Parameters of SLCs are stored in ARCHIVE_DIGITALDATA<clientID> Table.
5. ANALOGDATA<clientID> Table: All 11 Power Parameters and their values captured from SLCs
are stored in ANALOGDATA<clientID> Table. Archive records of these Power Parameters of
SLCs are stored in ARCHIVE_ANALOGDATA<clientID> Table.
How to troubleshoot when lamp is not getting ON in field but LG displays lamp ON
When lamp is not getting ON in the field but LG is displaying lamp ON in Status menu, check the
power supply and wiring connection between SLC and lamp fixture.
Wiring connection between SLC 3300 and lamp fixture
2 hot (Split Phase) could be supported by SLC and most of the Drivers.
If wiring connection seems fine then measure the voltage at following points:
1. Input voltage to SLC from power supply.
2. Input voltage to Driver from SLC’s output.
3. Dimming voltage going into Driver from SLC.
4. Output voltage from Driver to LED lamp.
If voltage at any of the above mentioned points is not showing expected value then there could be
any of the following issues:
1. Power supply issue
2. Light fixture design issue
3. Hardware issue
Comparison between DCU V.5 and DCU V.7
In DCU V.7, there are no changes in logic of Gateway Commands and Broadcast of Set Command to
SLC. New logic is applicable for SLC commands only. If all SLCs acknowledge in 1st retry then there
is no need to wait for 2nd and 3rd retries. For example, data string, ;19,18,3GQ,1|2|3|4|5,3648,AMR: ,
is sent to CI from DCU when all selected SLCs received response from DCU in 1st retry. SLCs data
messages will also be sent to CI from DCU.
1. Comparison based on Formats of Send and Receive Command Messages
In DCU V.5.0.17 and earlier, when multicast command is used to send multiple messages to DCU
via CI, DCU receives data string of each sent command message individually and sends
acknowledgment message of each received message individually to CI. Whereas, in DCU V.7,
when multicast command is used to send multiple messages to DCU via CI, DCU receives all sent
messages in single data string in which SLC numbers are separated with each other by pipes
and sends only one acknowledgment message to CI.
2. Comparison based on Acknowledgement messages received by CI
In DCU V.5.0.17 and earlier, CI receives acknowledgement message when DCU received the sent
command message. Whereas, in DCU V.7, CI receives first acknowledgement message when DCU
received the sent command message and receives second acknowledgement message when
DCU received response from SLCs.
3. Comparison based on DCU to SLC communication
In DCU V.7, DCU sends message further to SLCs and receives response from SCLs either in 1st
retry or in 2nd retry or in 3rd retry. This functionality is comprised in all Set, Get and Read
commands. Whereas, in DCU V.5, this functionality is available only in Read commands.
4. Comparison based on Total Turnaround Time
Turnaround Time: Total time taken between the submission of command message for
execution at SLC(s) and the return of complete output of command message to LG (with CI) is
referred as Turnaround Time.
Turnaround Time taken by DCU V.7 is lower than Turnaround Time taken by DCU V.5 and
LightingGale Application – CMS
Step 1: CI to DCU
Step 2: DCU to CI (ACK-1)
Step 3: 1st Attempt
Step 4: 2nd Attempt
OK FAIL FAIL
Step 5: 3rd Attempt
Work Station MS SQL 2008 R2
MS SQL 2008 R2 Control Interface
How to identify MAC ID of SLC
When MAC ID of SLC is unknown, the following methods will be useful to find MAC ID of SLC:
1. If SLC is in free joining mode then power ON the Test-DCU and SLC on test bench and check the
orphan file of DCU in web console page to get the MAC ID of SLC.
Partial Orphan File in web console page of a DCU,
2. If SLC is joined with any DCU in the past and the channel is known then power ON the SLC and
set OTA board at that particular channel to find the MAC ID of SLC in Ember Application Exe.
Partial Ember Application Exe,
3. If mode status (Commissioning mode (Channel – 11), Free-joining mode or joined) of SLC is
unknown then connect RF Sniffer Chip with ISA3 Ember Debug Adaptor and set Insight Desktop
Application on each channel (11 to 25) to find the MAC ID of SLC. The MAC ID of SLC along with
extended and short PAN IDs will be displayed in Insight Desktop Application at particular
channel on which SLC is joined.
Partial Insight Desktop Application,
RTC Sync Logic Followed By LG, DCU and SLCs
1. If there is a difference of 10 minutes between RTC of DCU and LG Server Time then LG sends
RTC sync to DCU automatically and DCU broadcasts the same to its SLCs.
2. If there is a difference of 10 minutes between RTC of few SLCs and RTC of DCU then DCU
broadcasts the RTC sync message to its SLCs at the end of log rate.
3. If there is a difference of time between majority of SLCs time and RTC of DCU then DCU
concludes that its own RTC got damaged and it tries to sync its own time from the SLCs time.
The reason to develop this logic in exe of DCU is, if DCU lost communication with LG system and
DCU’s RTC got corrupted then DCU would affect its SLCs time. Thus, when RTC of DCU got
damaged, DCU sets its own time from the SLCs time.
4. If GPS modem is inbuilt in DCU then DCU sets its own time from GPS.
Types of RF Polling performed By DCU
There are three types of RF polling performed by DCU.
Normal Polling: DCU broadcasts the message to its active SLCs and receives the data from its
active SLCs based on the Log Rate value set in DCU. Then DCU sends the data of its active SLCs to
Status Menu of LG Application through Ethernet or GPRS GSM or GPRS CDMA.
For example, if Log rate value set in DCU is 1 hour then DCU broadcasts the message to its active
SLCs after every 1 hour.
Log Rate value in DCU can be set through Web Console. It is beneficial to set the Log Rate value in
DCU at 3 or 4 hour, when more than 100 SLCs are controlled by DCU. By doing this,
The data processing load on DCU will be decreased.
The SIM Card/CDMA data will be saved, when mode of communication between LG Application
and DCU is GPRS GSM/CDMA.
The LG database will not be overloaded and performance of LG Application will be more
Astro Polling: DCU broadcasts the message to its active SLCs and receives the data from its active
SLCs based on the Latitude, Longitude and time zone values set in the SLCs. Astro Polling in DCU
occurs at the time of Sunset and Sunrise. It means Astro polling in DCU occurs twice in a day. DCU
will not perform the Normal Polling at the time of Astro Polling.
For example, if Sunset and Sunrise times are 6:30 PM and 6:00 AM respectively and Astro Polling is
performed by DCU at those times, Normal Polling will not be performed by DCU from 6:00 PM to
7:00 PM and from 5:00 AM to 7:00 AM in a day.
Event Polling: DCU broadcasts the message to its active SLCs just after the Astro Polling finishes.
Similar to Astor Polling, Event Polling in DCU also occurs twice in a day. Data collected by Event
Polling is useful for diagnostic purposes.
For example, if some SLCs in a group observe abnormal behavior for few minutes after the end of
Normal Polling then the unexpected results will be stored in the memory of SLCs temporarily and
when Event Polling is performed by DCU, the SLCs send the unexpected results data to DCU.
Overview of Status and Power Parameters in SLC
Abnormal Lamp Condition
When Astro polling starts then at that time DCU checks
the lamp status. If it is not according to the Astro
condition then this trip is generated by SLC.
When the LED driver or Ballast of the HID lamp fails,
Ballast trip is generated by SLC.
If SLC is active in DCU’s memory but it is not
communicating then LG displays Communication
When Lamp is ON even after the inbuilt photo sensor
detects daylight, Day Burning trip is generated by SLC.
This is not exists anymore. When dimming output of
the SLC is short due to any reason, this trip was
When inbuilt Energy Metering chip fails in SLC, EM
Fault trip is generated by SLC.
Event Over Flow
When 40 events get generated within 1 hour in SLC,
Event Over Flow trip is generated by SLC.
When Lamp fails, Lamp trip is generated by SLC.
This is applicable for HID lamps like Sodium vapor
which has the phenomenon of flickering or cycling
when they are nearing life.
This is to indicate whether Lamp is ON or OFF.
When inbuilt photo sensor stops working, Photocell
Fault trip is generated by SLC.
When inbuilt photo sensor in SLC starts toggling
frequently and toggle counter is more than 10 within
18 hour, photocell oscillating trip is generated by SLC.
This is to indicate the status, Normal or Faulty, of
inbuilt Photo sensor in SLC.
When inbuilt clock in SLC stops responding, RTC trip is
generated by SLC.
When relay inside the SLC has shorted and stopped
switching, Relay Wield trip is generated by SLC.
Voltage Under Over
When voltage measured by the SLC is beyond its high
limit or low limit, Voltage Under Over trip is generated
This is the cumulative ON time of the Lamp measured
This is the total power consumption of the Lamp and
Driver since the SLC was installed.
This is the current flowing in the circuit of LED fixture
measured by SLC.
This is the percentage command given by LG to
increase or decrease the brightness of light.
This is the energy consumption of lamp in wattage
measured by SLC.
Lamp Steady Current
This is the current measured by SLC when the LED or
HID lamp gets stable after it turns ON.
This is the mode under which the SLC is operating like
Schedule, Astro, Manual, Photocell etc.
This is the power factor measured by SLC.
This is the temperature of SLC measured by inbuilt
Energy Metering chip.
This is the line voltage measured by SLC.

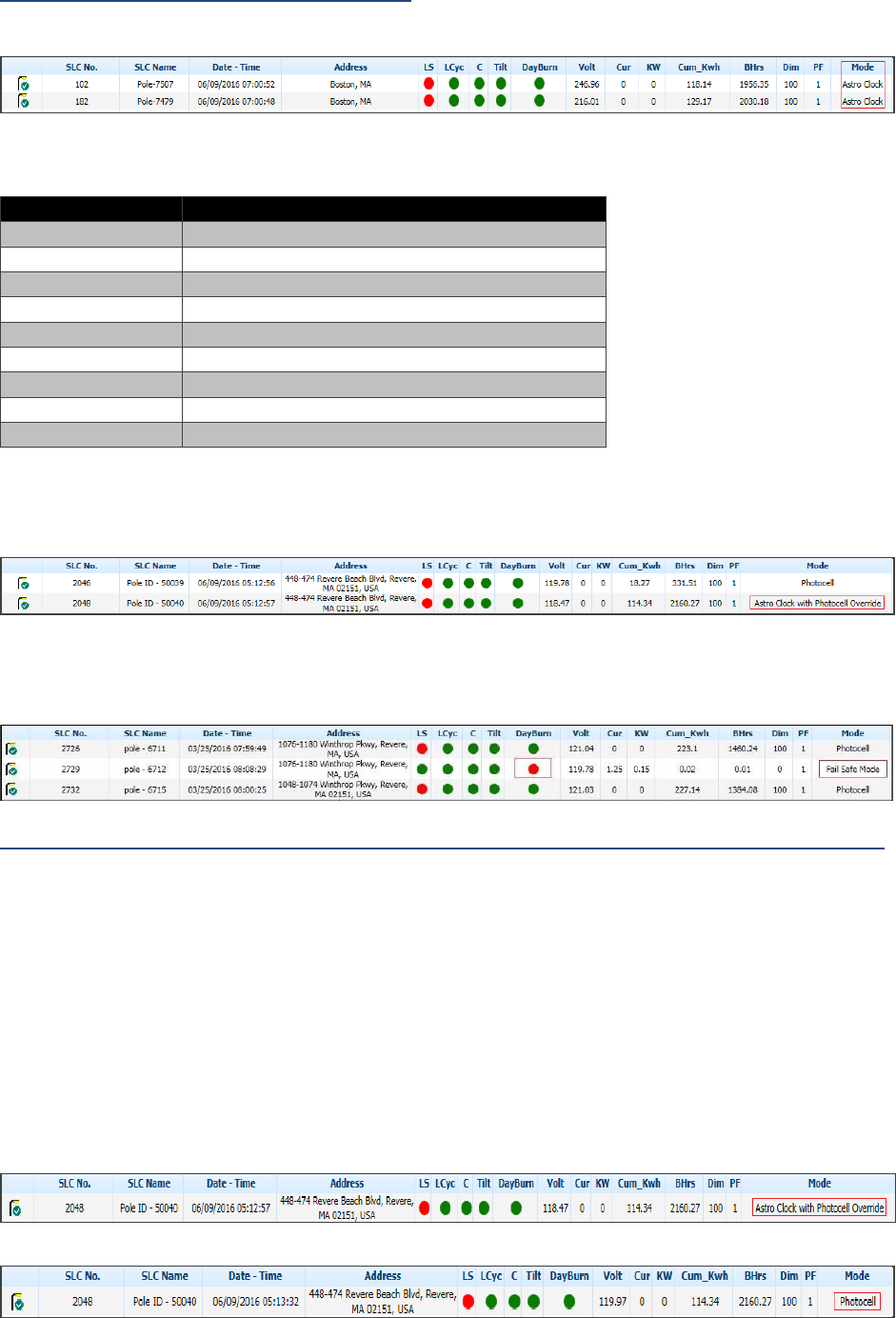

SLC Mode recognized by LG Application
LG displays the SLC mode along with other parameters in Status menu.
There are 8 SLC modes recognize by LG. Below table explains the Mode set in SLC and Mode
recognizes by LG,
Mode set in SLC
Mode recognized by LG
Astro Clock with Photocell Override Mode
Civil Twilight Mode
Civil Twilight with Photocell Override Mode
Fail Safe Mode
When SLC observed Photocell fault, it set the “Astro Clock with Photocell Override” mode in its
memory. Under Astro Clock with Photocell Override mode, user cannot set any other mode in SLC
unless the memory of SLC is erased by sending the “Reset SLC Trip” command from LG.
When SLC observed both RTC and Photocell faults, it set the “Fail Safe Mode” in its memory. Under
Fail Safe mode, SLC allows LED to remain ON in day time also. Thus, SLC experiences the Day
Burning Trip and sends the message to LG.
How to change mode of SLC when it is set on “Astro Clock with Photocell Override” mode
1. Follow the path Home > Controls > SLC Actions > Reset SLC Trip in LG and select the SLC that
is observing “Astro Clock with Photocell Override” in Status menu. Send the Reset SLC Trip
command to that SLC.
2. Follow the path Home > Controls > Configure SLC > Set Mode Configuration in LG to set the
“Photocell” Mode in that SLC again.
3. Follow the path Home > Controls > Get SLC Configurations > Get Mode in LG to verify the
mode set in the SLC.
4. Follow the path Home > Controls > SLC Actions > Read Data in LG to send the read data
command to the SLC to check the latest data along with Mode in Status Menu.
5. Follow the path Home > Status in LG to check the SLCs data sent to LG via DCU.
Wiring Diagrams of Different Types of SLCs
iSLC 1000 Wiring Diagram
iSLC 3100 7P 240/277 VAC Wiring Diagram
iSLC 3100 TN 240/277 VAC Wiring Diagram
iSLC 3100 7P 480 VAC Wiring Diagram
iSLC 3300 Wiring Diagram
iSLC 4000-7P PLCC Wiring Diagram
