Tubing Products

This page is part of a complete catalog which contains technical and safety data that must be reviewed when selecting a product

Category Page

Hydraulic Power & Control Pneumatic Power & Control Fluid Conveying Miscellaneous Products Indexes & Technical Information

1035

 1999-2016 Hydraulic Supply Co. • 1-800-507-9651 • www.hydraulic-supply.com

Tubing

Carbon Steel Tubing (Inch Sizes). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1036

Carbon Steel Tubing (Metric Sizes) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1037

Stainless Steel Tubing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1038

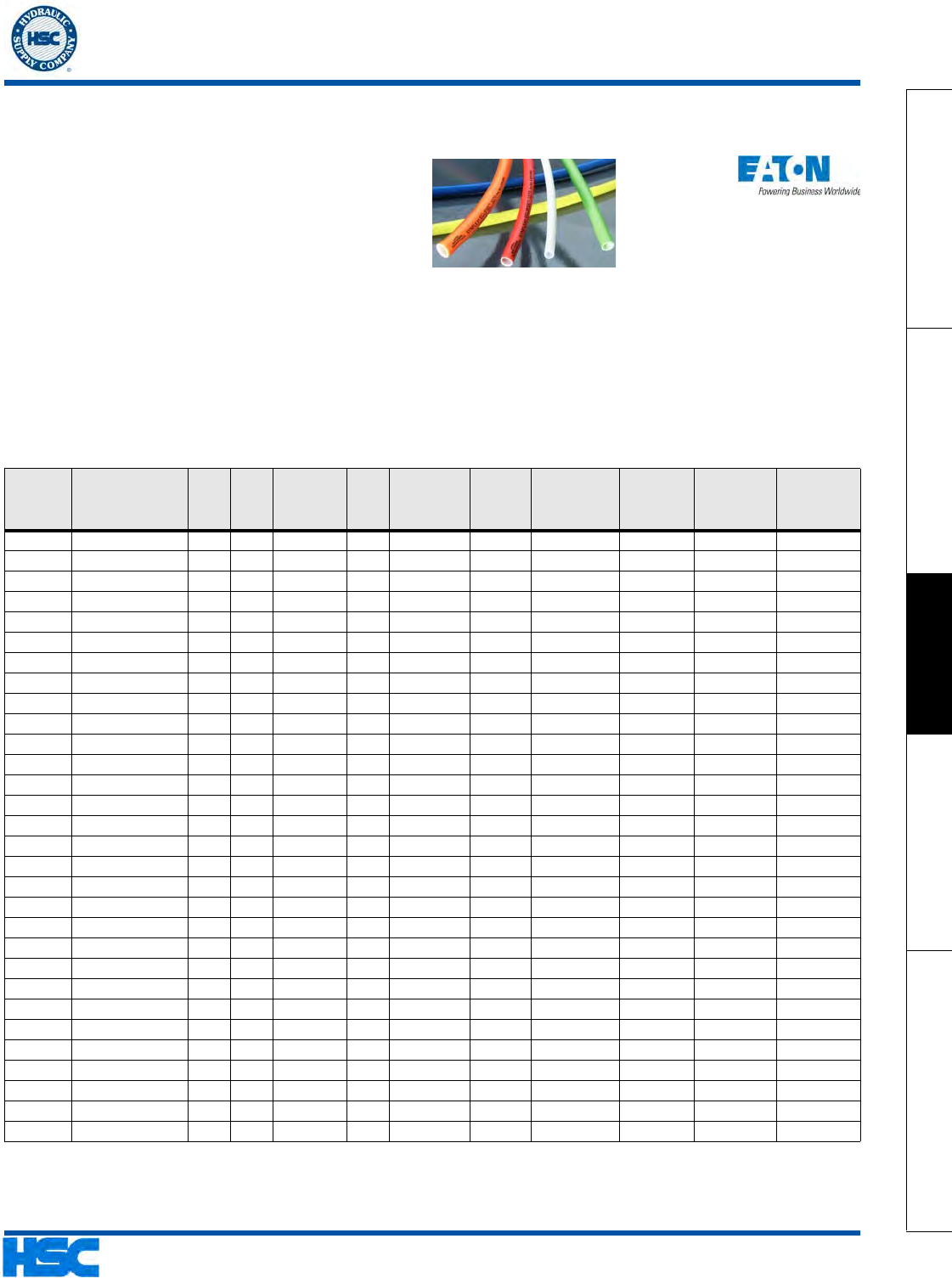

Polyethylene Tubing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1039

Urethane Tubing. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1042

Air Brake Tubing. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1043

PVC Tubing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1045

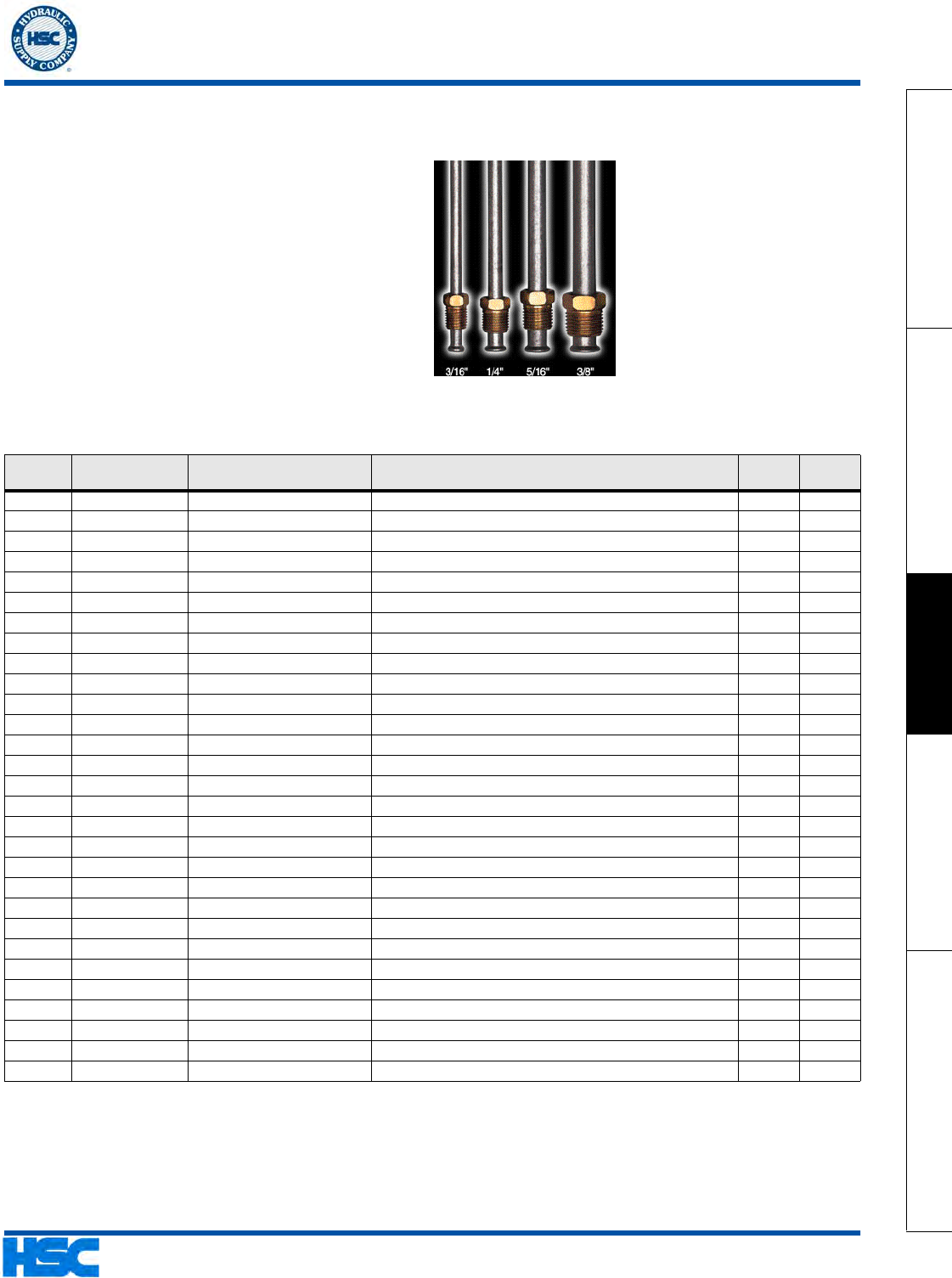

Steel Brake Line Assemblies . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1047

Steel Tube Fittings

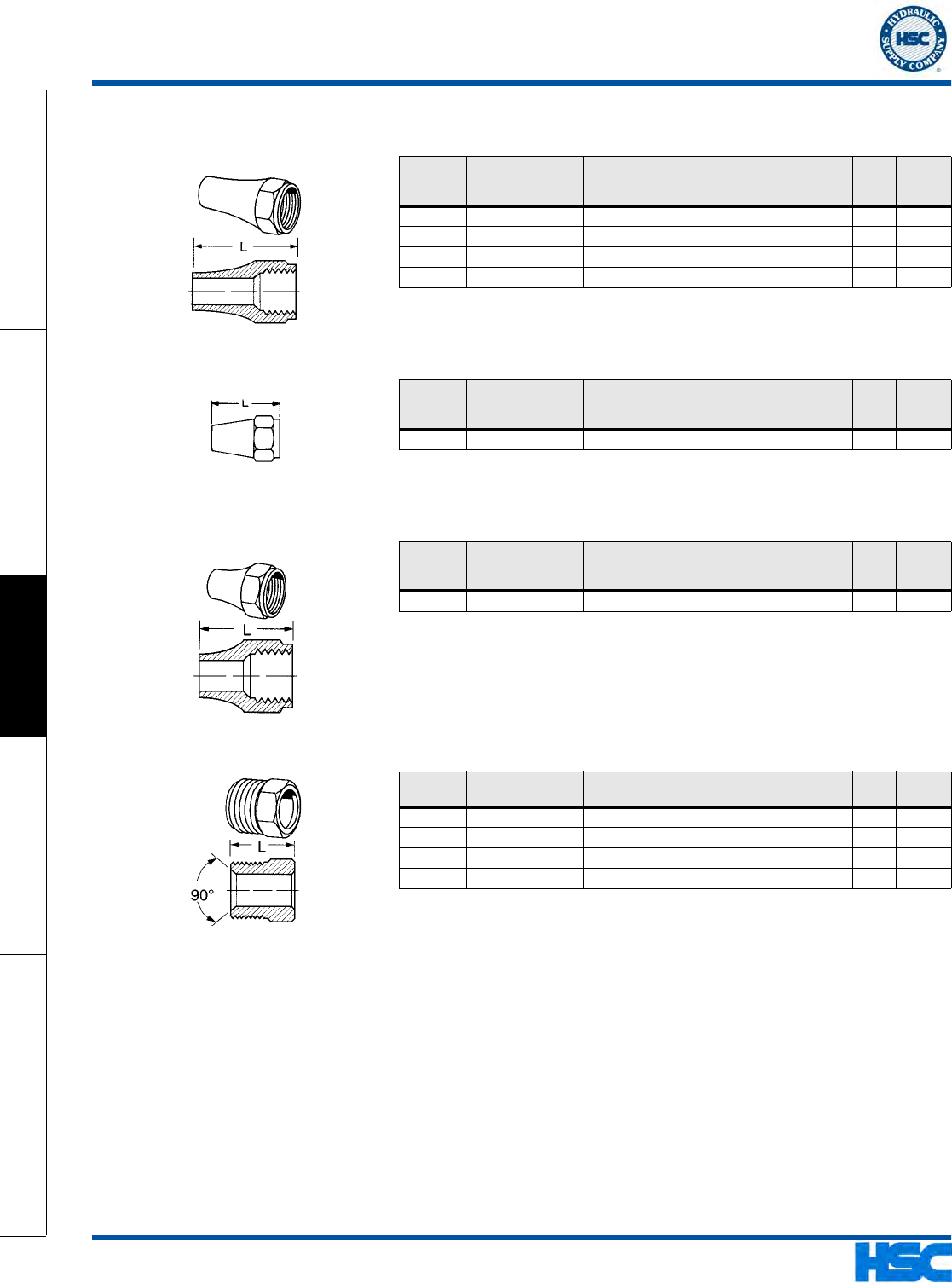

Flare & Inverted Flare Nuts, Flare Sleeves. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1048

Aeroquip® Versil Flare™ Nuts & Sleeves . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1049

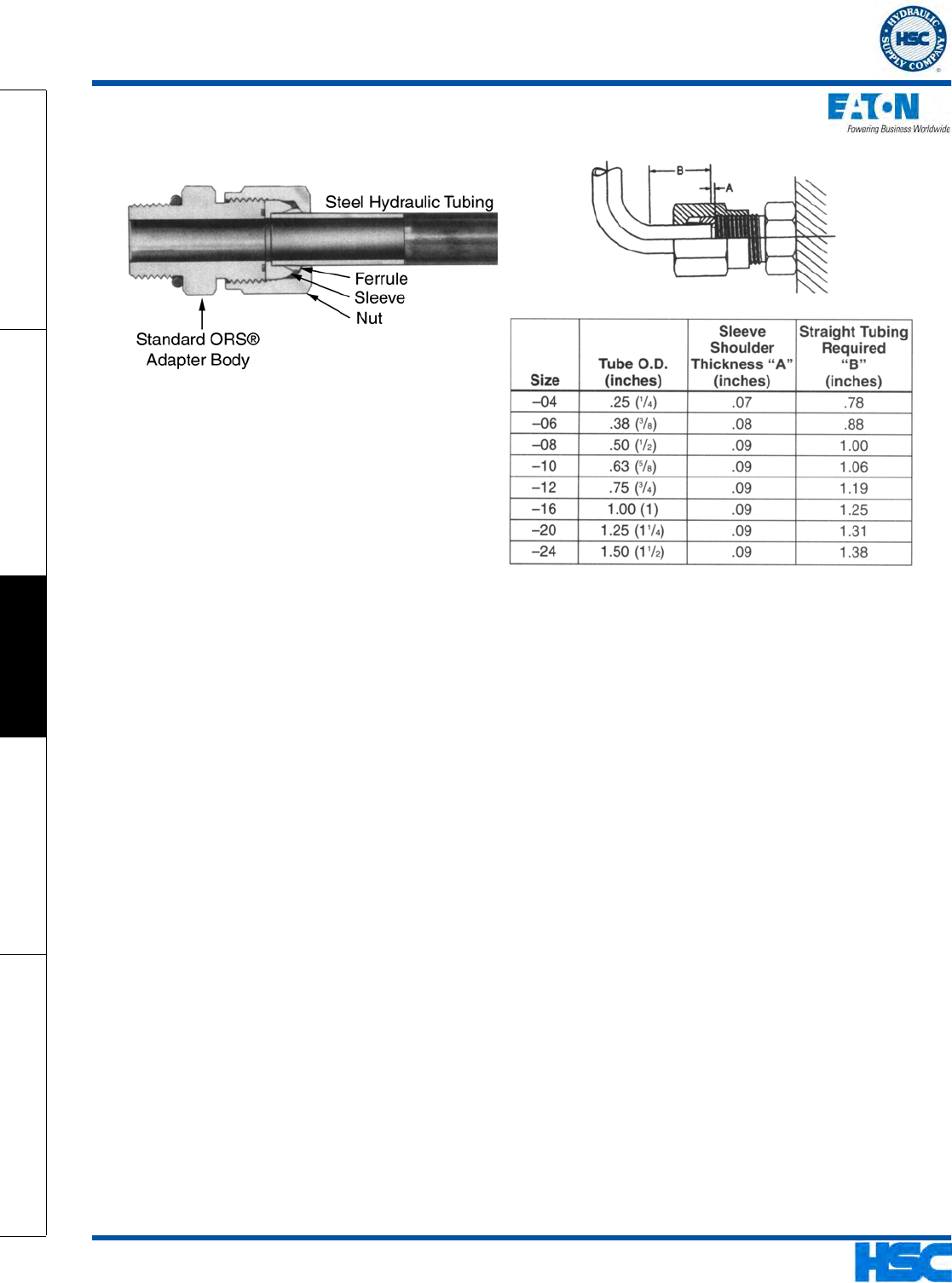

Aeroquip® ORS-TF® Tube Fittings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1051

Braze Type Tube Fittings - ORS® . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1052

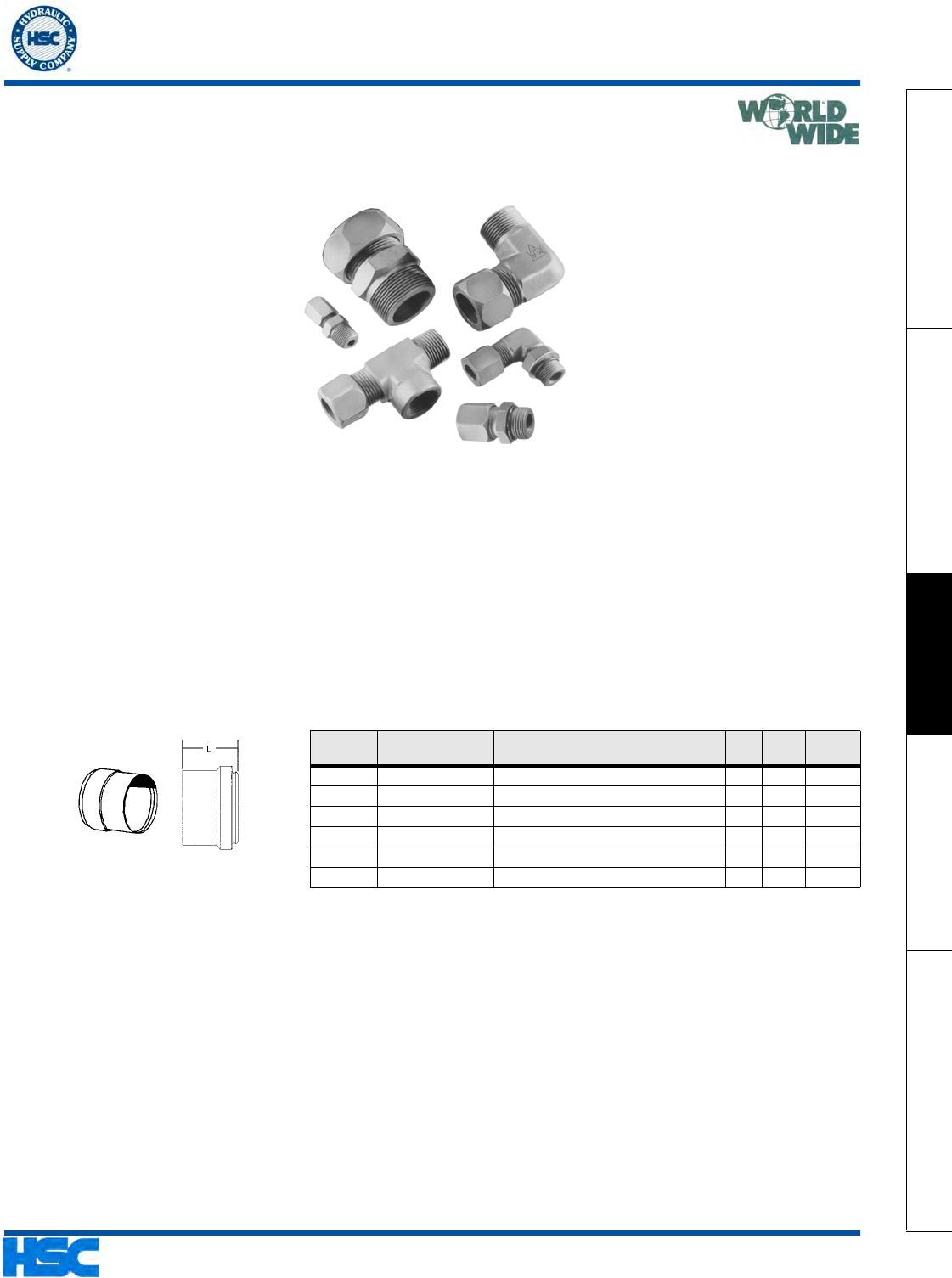

World Wide Flareless Fittings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1053

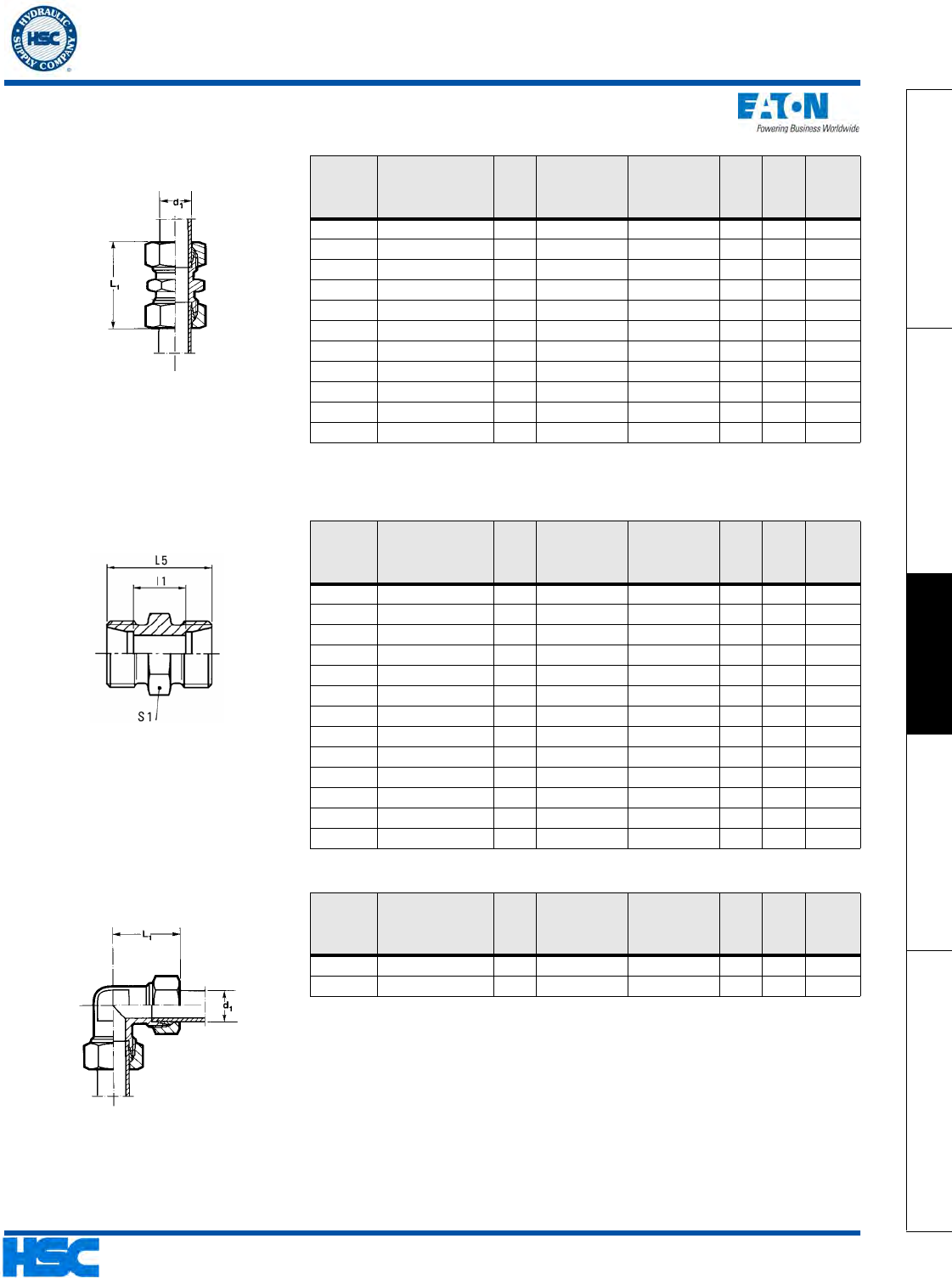

Eaton 7000 Series Ermeto® Flareless Fittings. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1054

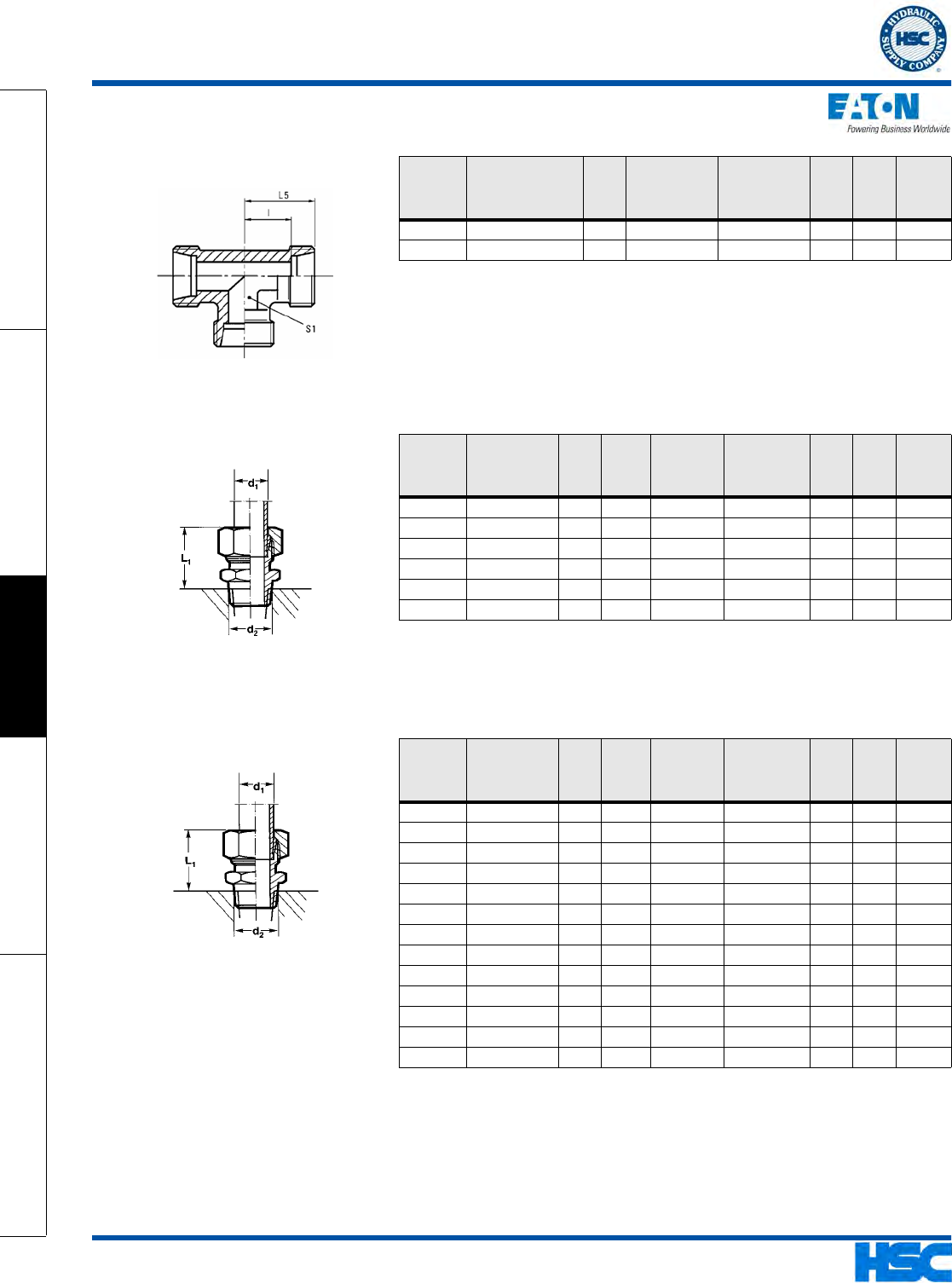

Metric Flareless Fittings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1056

Stainless Steel Tube Fittings

SSP Flare Nuts & Sleeves . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1064

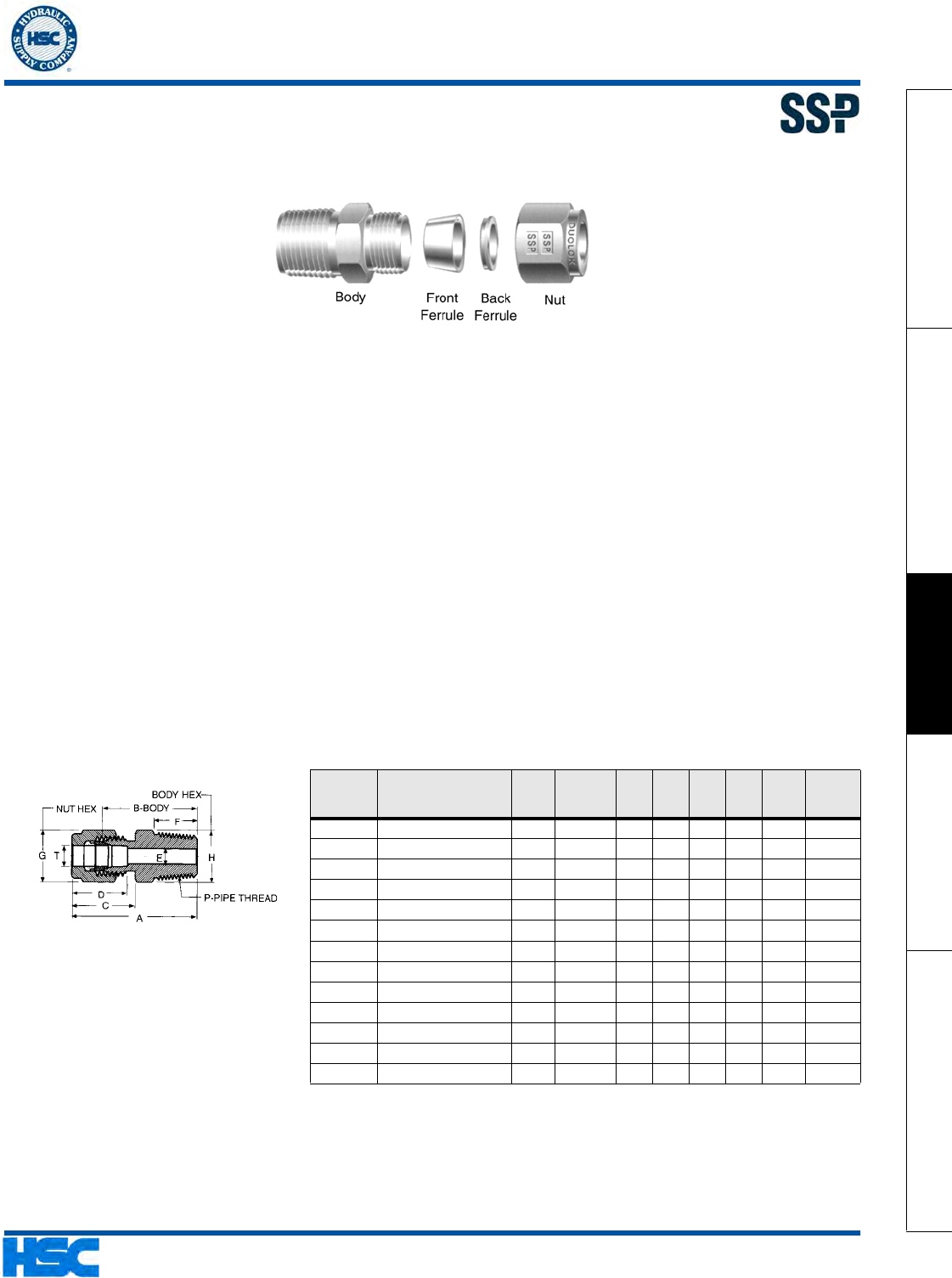

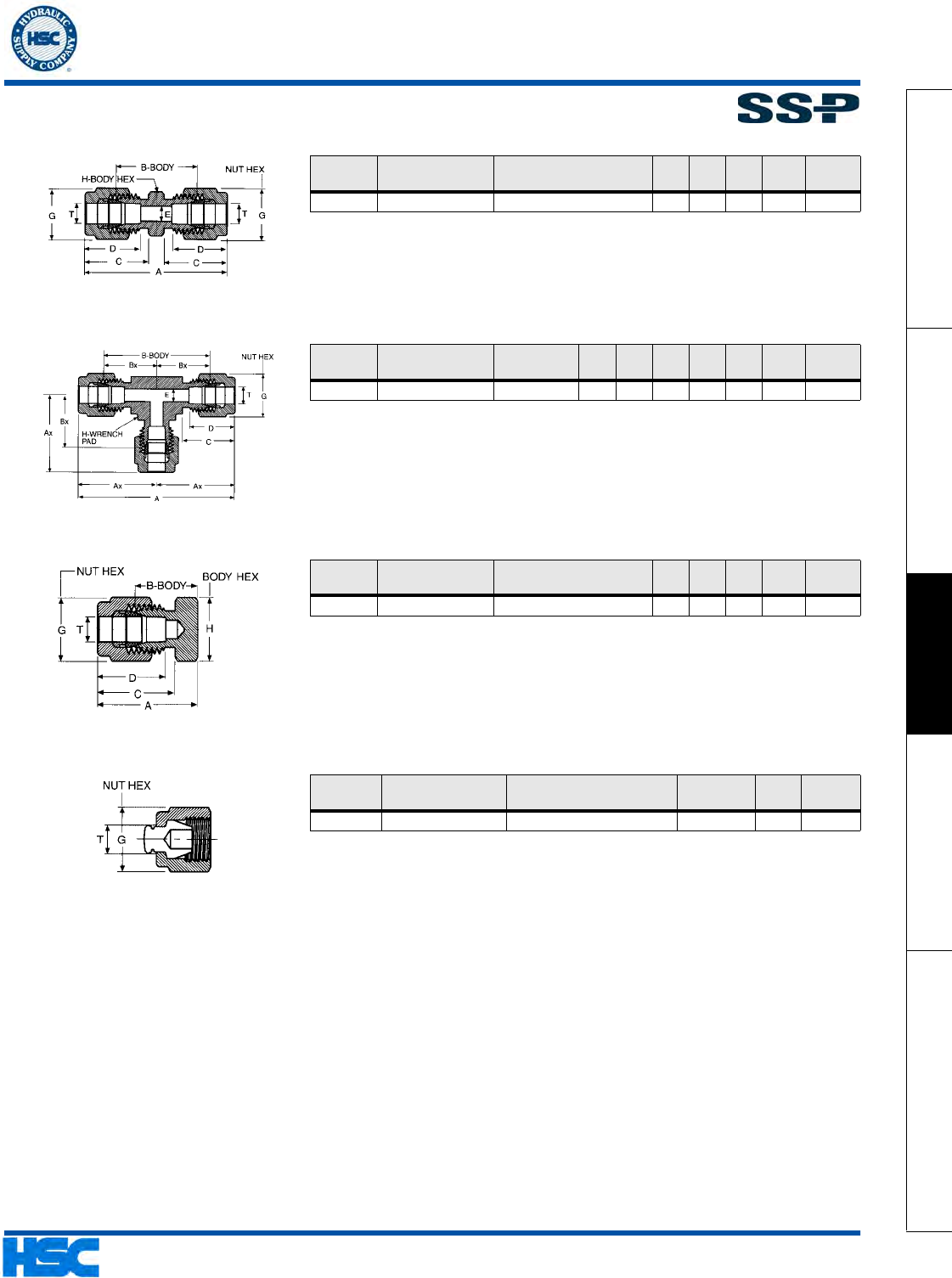

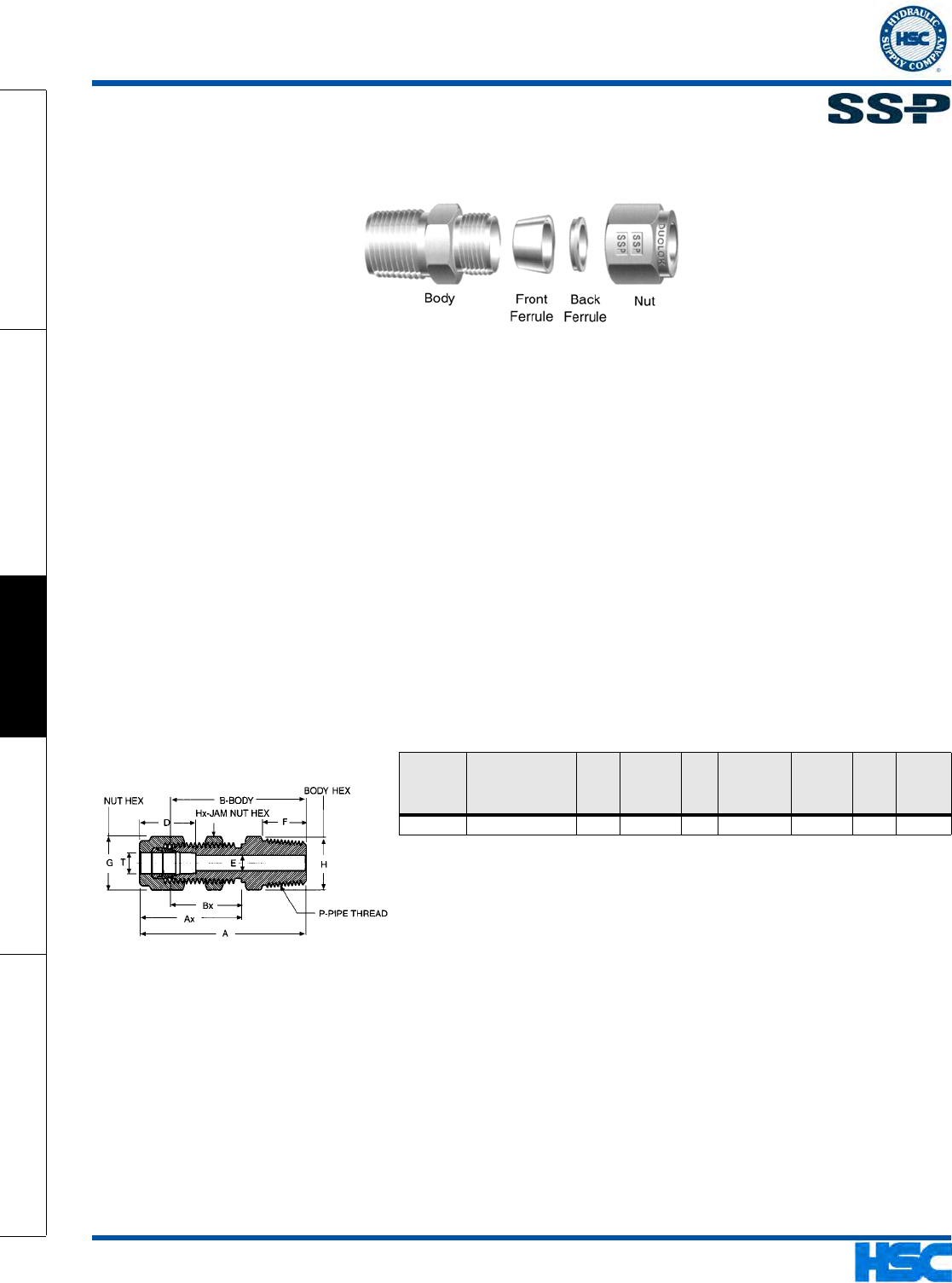

SSP Duolok® Flareless Tube Fittings (Swagelok® Interchange). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1065

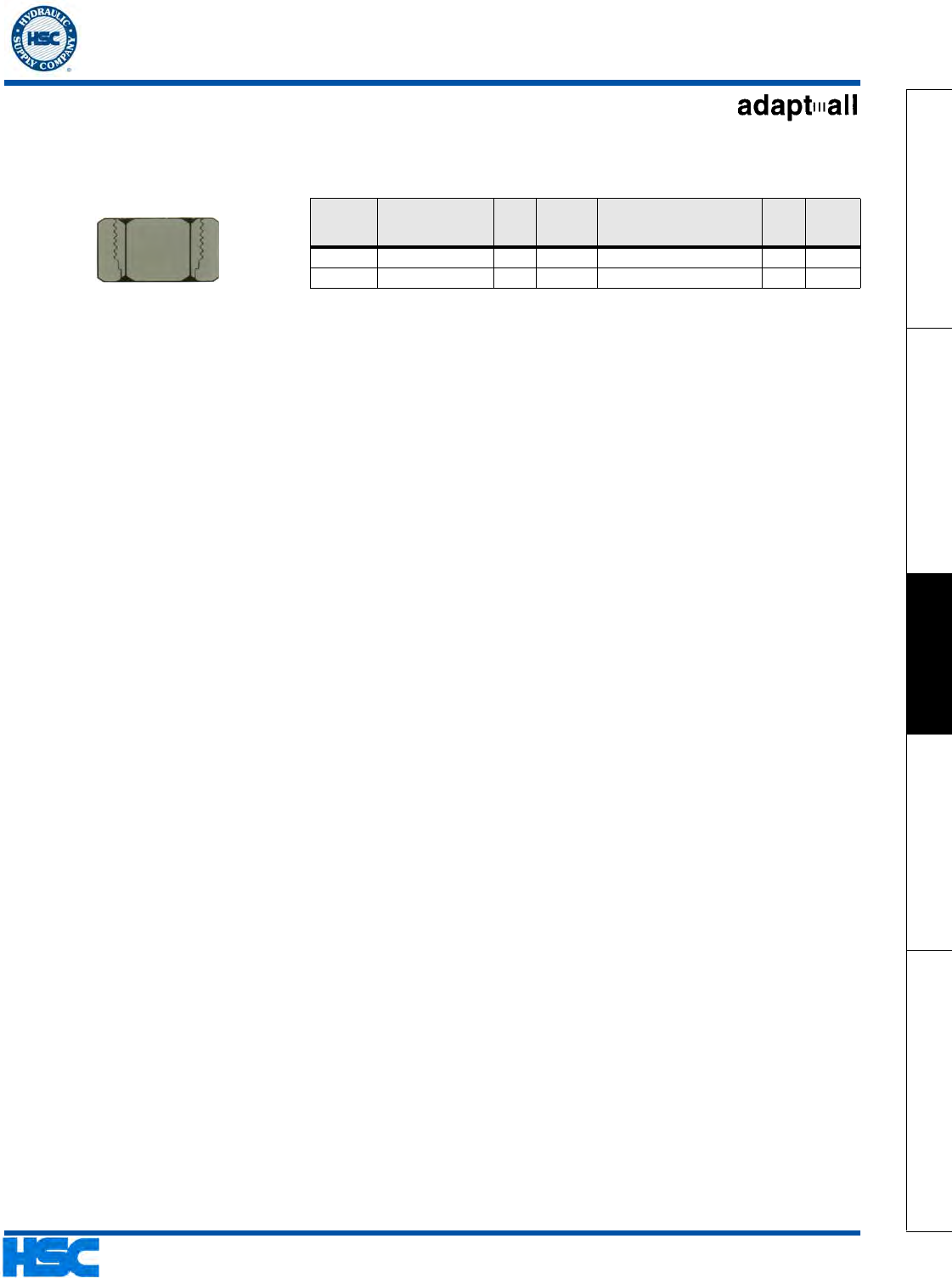

Adaptall Metric Flareless Fittings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1071

Brass Tube Fittings

Flare & Inverted Flare Nuts. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1072

Eaton Compression Fittings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1073

Eaton SelfAlign Fittings. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1077

Eaton Compression Fittings (Air Brake) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1080

SSP Duolok® Flareless Tube Fittings (Swagelok® Interchange). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1082

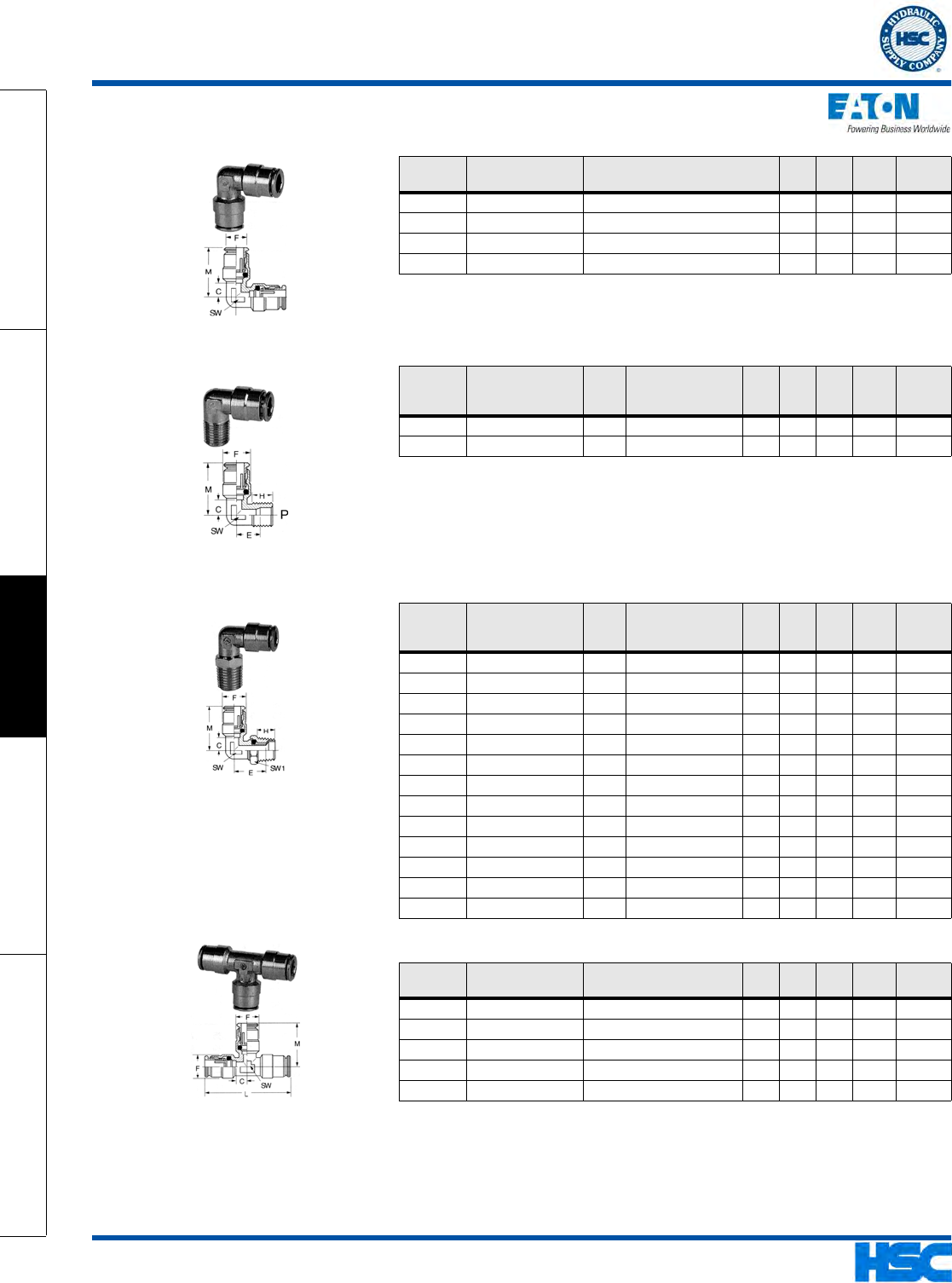

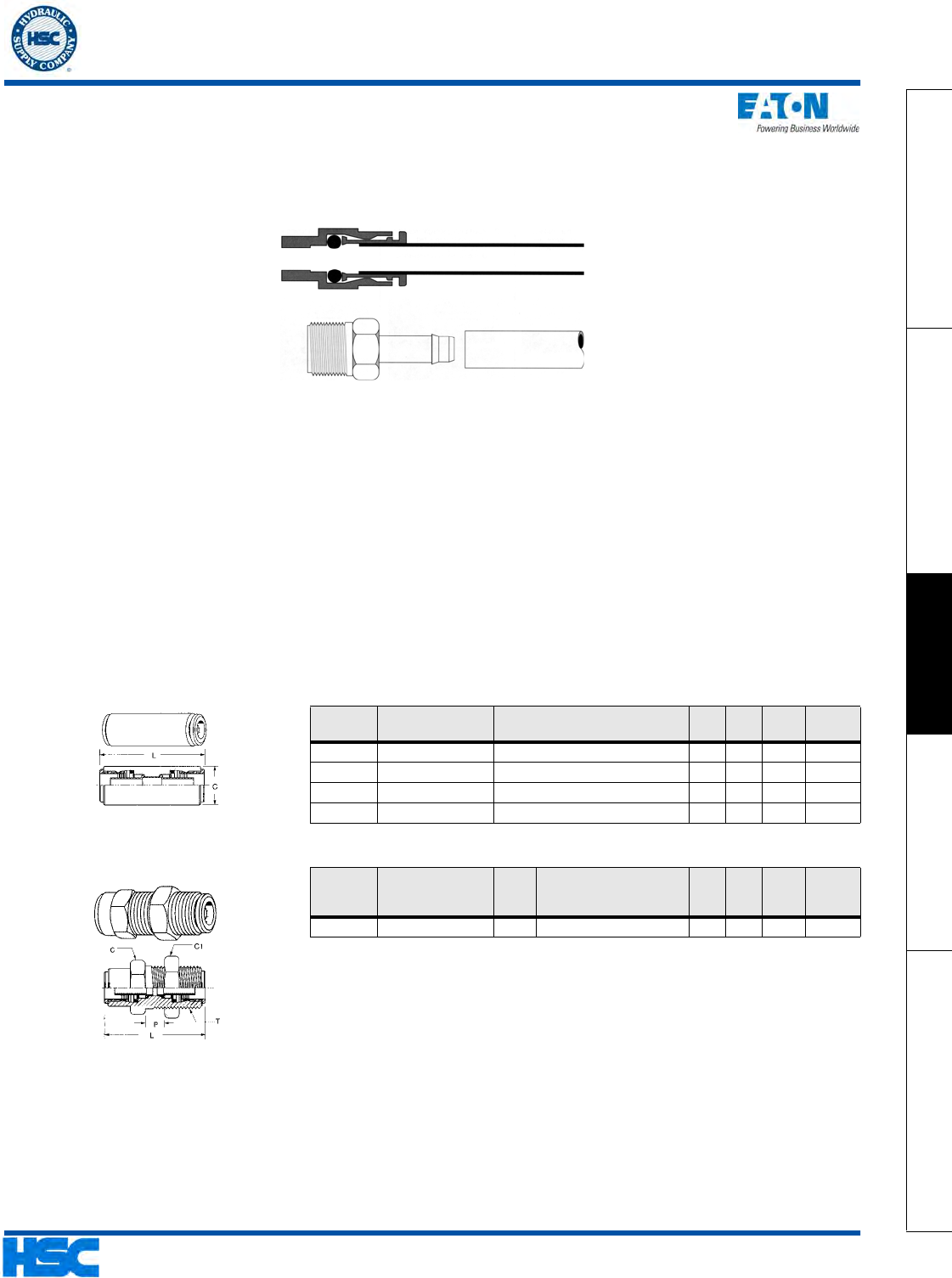

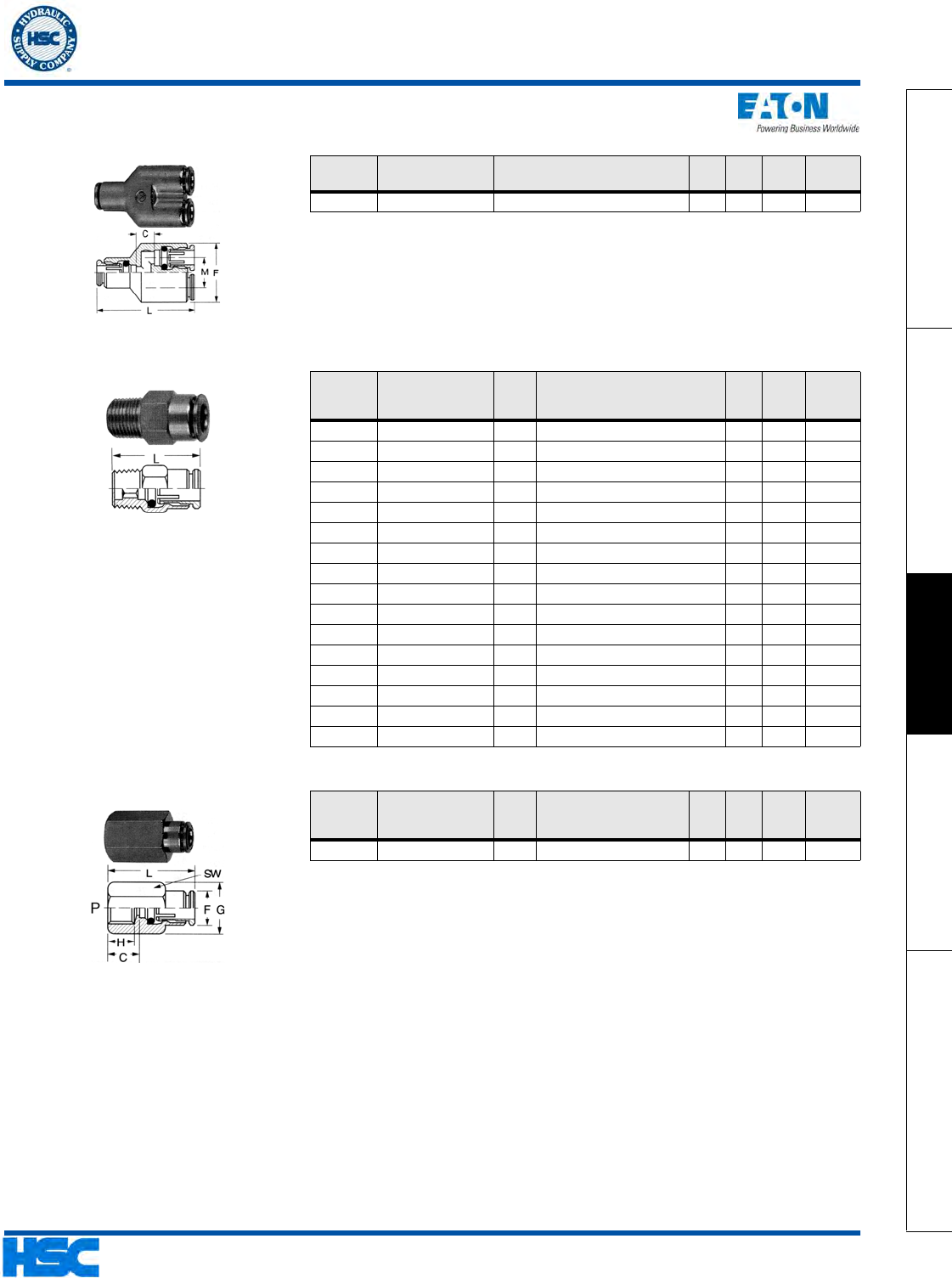

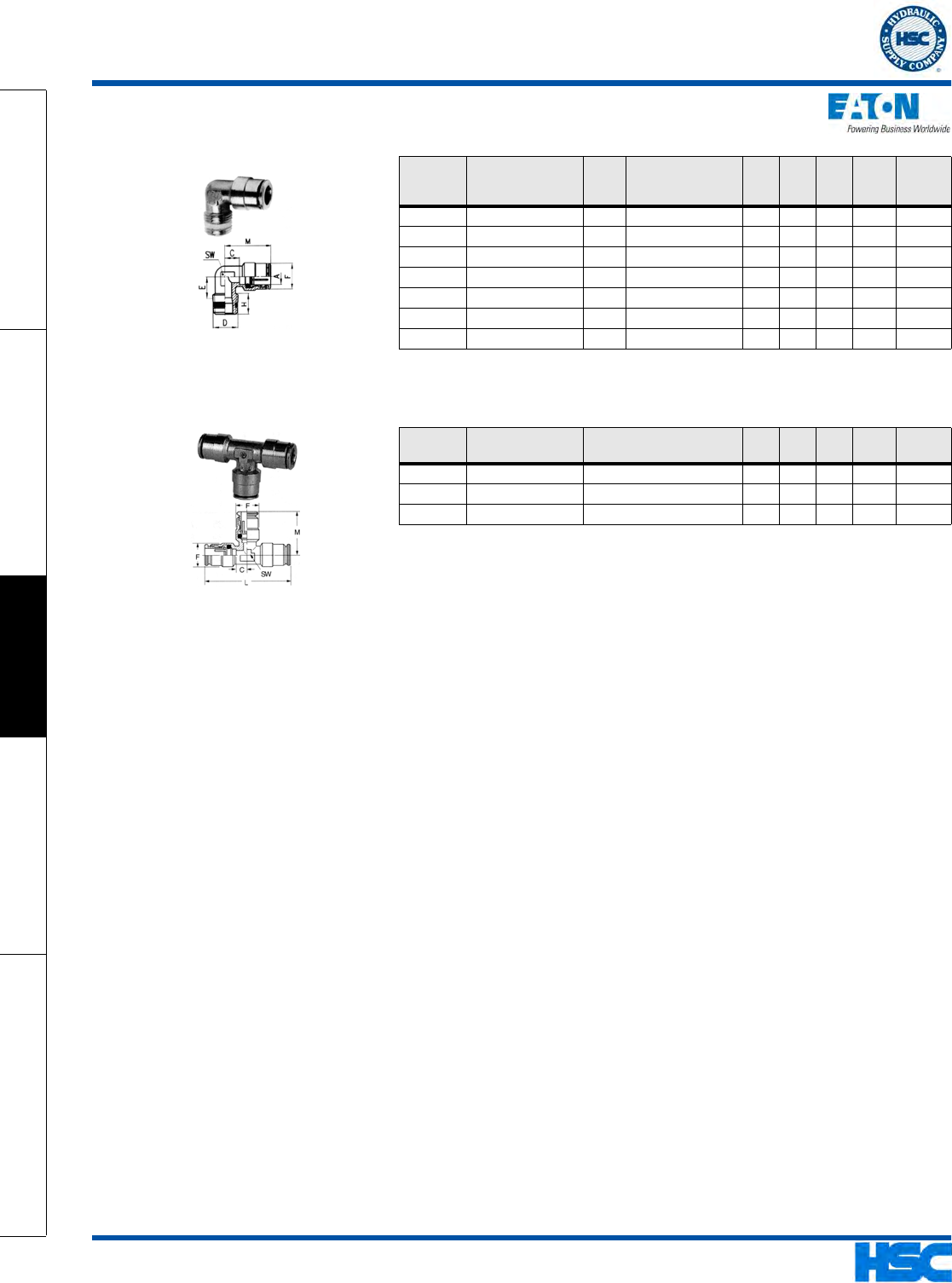

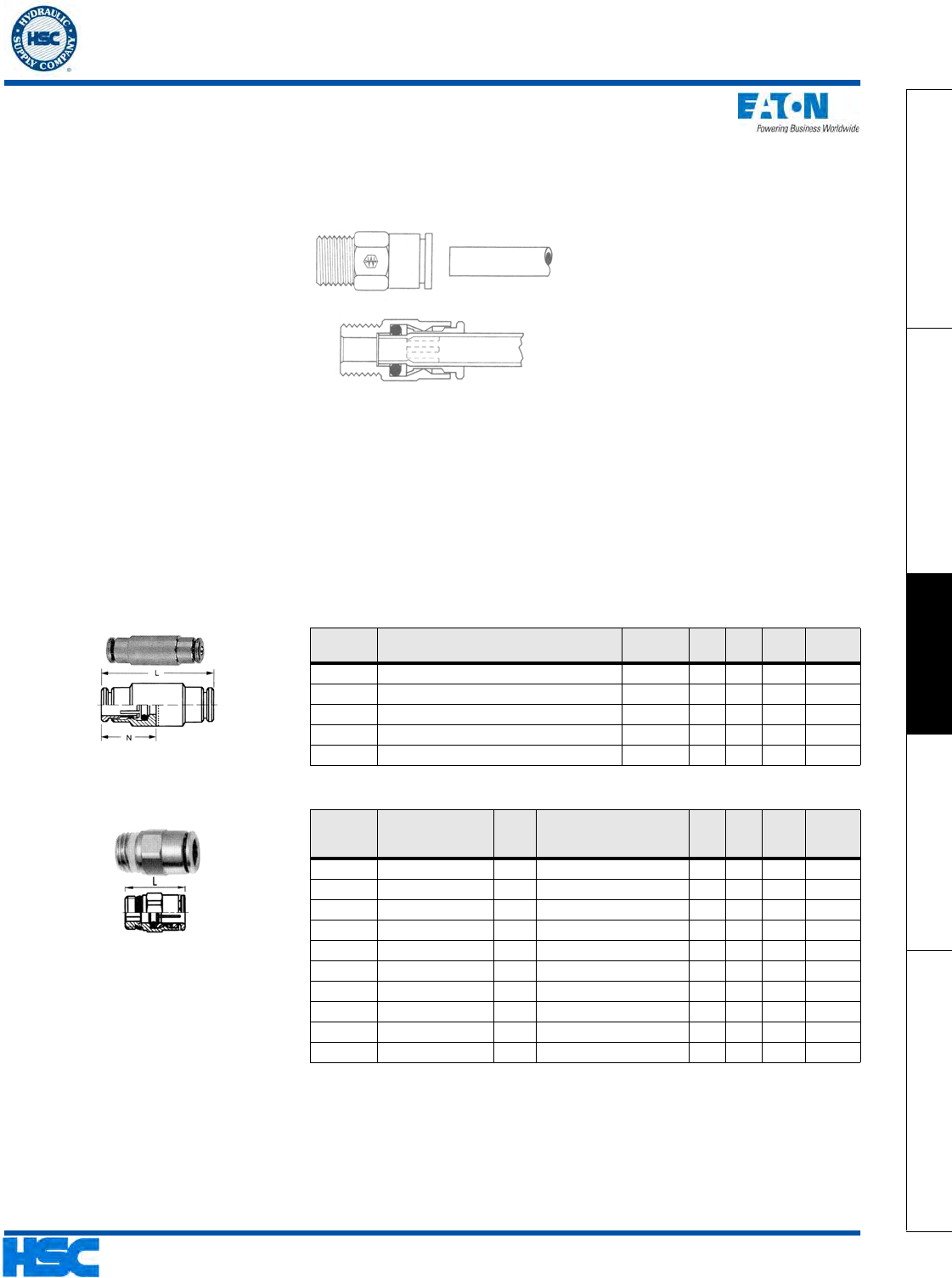

Eaton Push > Connect® Tube Fittings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1084

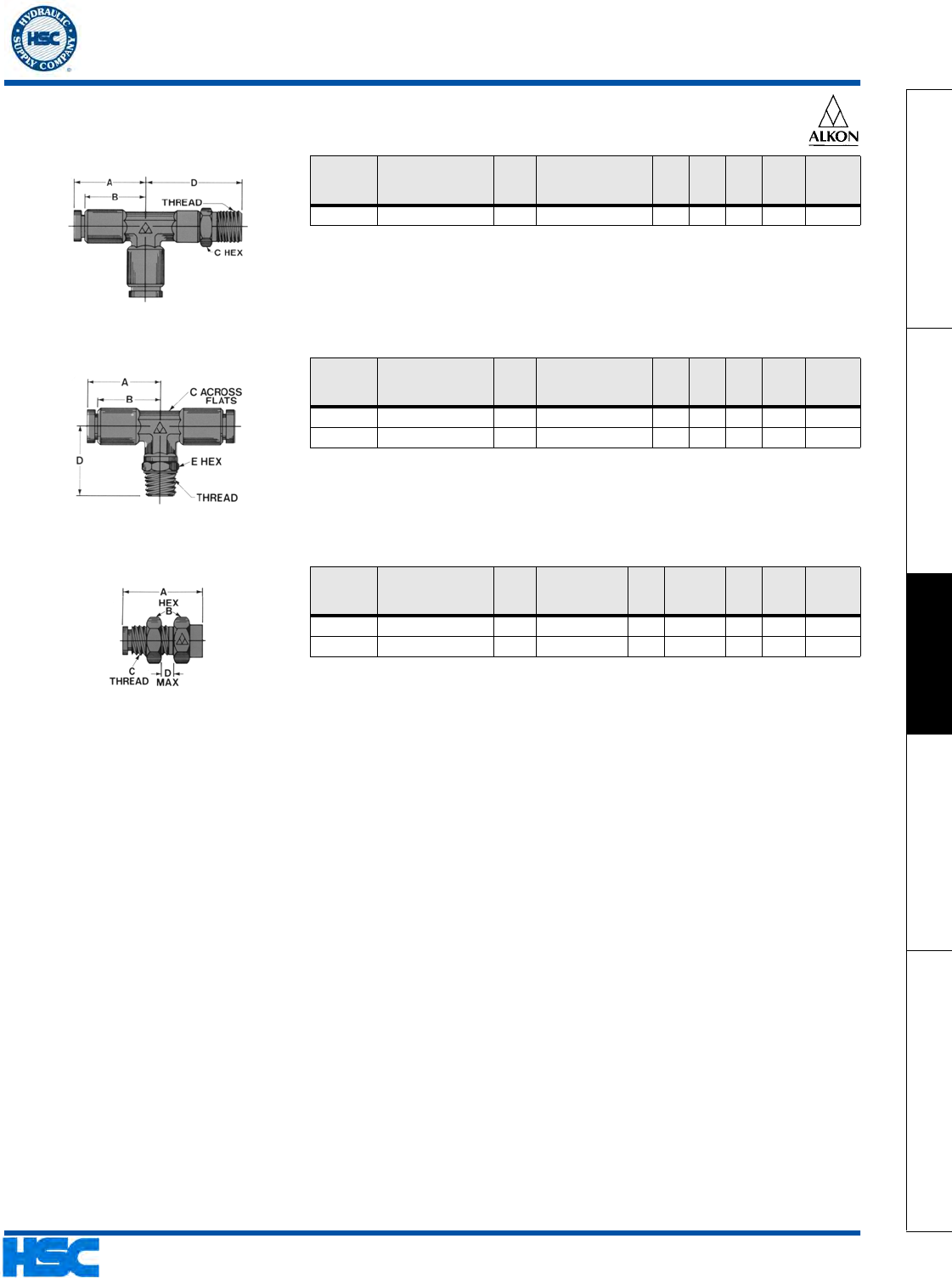

Alkon Push-In Tube Fittings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1088

Eaton Push > Connect® Tube Fittings (Metric) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1093

Eaton Quick > Connect® Air Brake Tube Fittings. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1095

Tubing Accessories

Aeroquip® Flaretite® Seals . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1098

Technical Information

SSP Duolok® Tube Fittings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1321

Eaton 7000 Series Ermeto® Tube Fittings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1327

Technical Information

SSP Duolok® Tube Fittings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1544

This page is part of a complete catalog which contains technical and safety data that must be reviewed when selecting a product

Tubing

Hydraulic Power & ControlPneumatic Power & ControlFluid ConveyingMiscellaneous ProductsIndexes & Technical Information

1036  1999-2016 Hydraulic Supply Co. • 1-800-507-9651 • www.hydraulic-supply.com

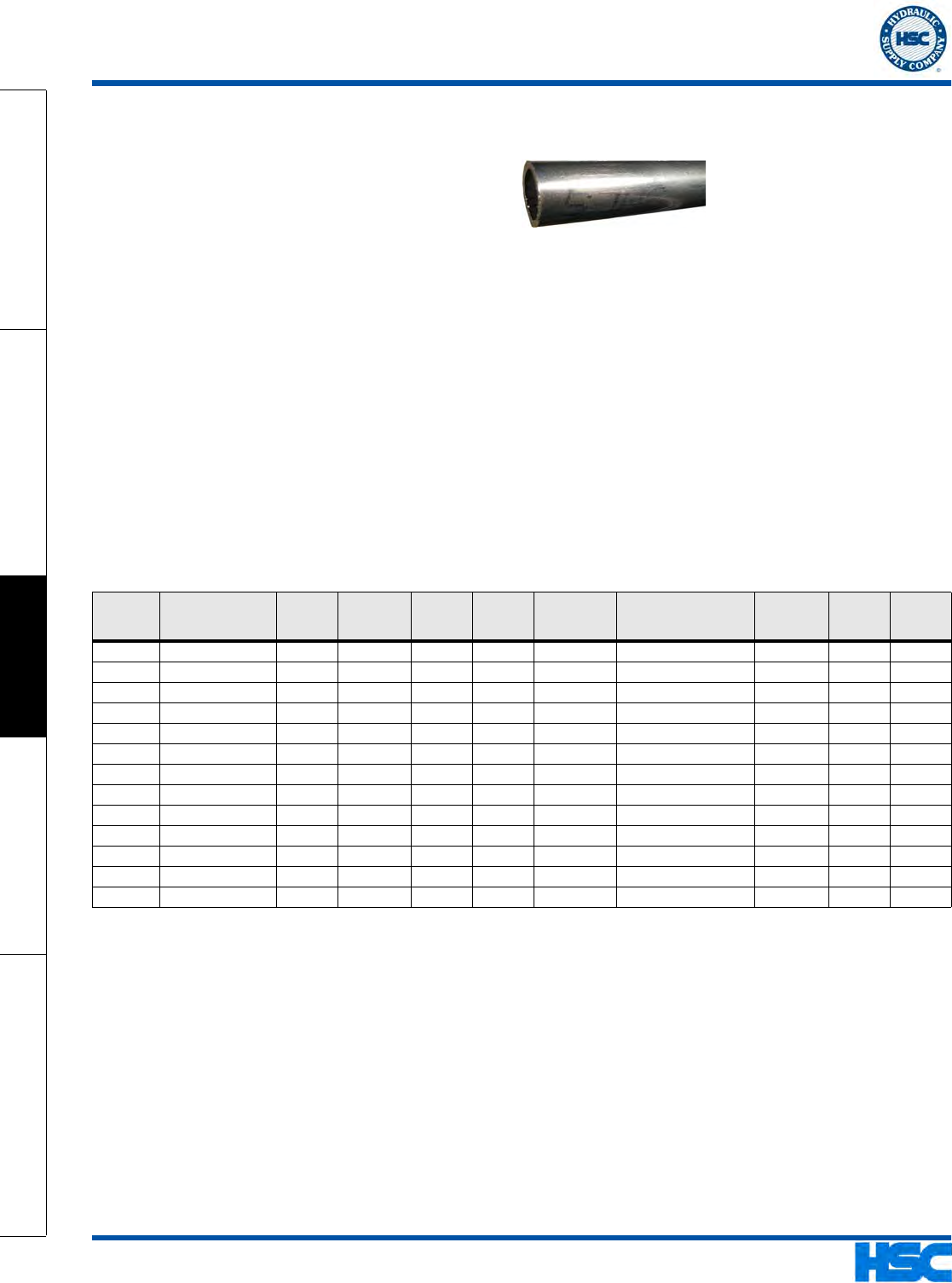

Carbon Steel Tubing

Tubing Material Specification: SAE J524 (seamless low carbon steel tubing annealed for bending & flaring).

Tensile strength 55,000 psi.

Pressure Ratings: Based on SAE Specification J1065 and using the more conservative Barlow formula where

P=(2TxS)/O (P=burst pressure T=wall thickness S=tensile strength O=outside diameter).

Note: A 6:1 safety factor is used in table below for applications where “considerable” hydraulic shock and

mechanical strain are present. For applications where hydraulic shock and mechanical strain is not

considerable, a 4:1 safety factor (higher working pressures) may be carefully considered. For applications where

hydraulic shock and mechanical strain is severe, an 8:1 safety factor (lower working pressures) should be

applied.

Note: Tubing design pressures have not been de-rated for elevated operating temperatures. Contact us for

application information regarding elevated temperatures.

Note: Tubing is stocked in 20 foot nominal lengths.

Flare Nuts & Sleeves: Flare Nuts & Sleeves (Steel) page 1048 Flare Nuts & Sleeves (Stainless Steel) page 1064

Flare Adapters: page 1110

Versil Flare™ Flareless Nuts & Ferrules: Versil Flare™ page 1049

Flareless Tube Fittings: Steel 7000 Series Ermeto® page 1053 Flareless (Steel) page 1055

Tubing Support Clamps: page 1269

Application: Please review important safety & application information starting on page 1519

Carbon Steel Tubing

Catalog

Part No. Model Number O.D. (in)

Wall

Thickness

(in) I.D. (in)

Inside

Area

(sq.in.)

Flow Rate

@ 15FPS

(gpm)

Maximum Working

Pressure 6:1 Safety

Factor (psi)

Burst

Pressure

(psi) Wt.

(per ft) Price

(per ft)

•C1BK42 3/16.035 0.1875 0.035 0.1175 0.01084 0.40 3422 20533 0.06

C1AF27 1/4.035 0.25 0.035 0.18 0.02543 0.90 2567 15400 0.08

•C1AF29 1/4.049 0.25 0.049 0.152 0.01814 0.80 3593 21560 0.11

•C1BR53 5/16.049 0.3125 0.049 0.215 0.03612 1.70 2875 17248 0.14

•C1BK88 3/8.049 0.375 0.049 0.277 0.06023 2.80 2396 14373 0.17

•C1BK90 3/8.065 0.375 0.065 0.245 0.04712 2.60 3178 19067 0.22

•C1AE75 1/2.049 0.50 0.049 0.402 0.12686 61797 10780 0.24

•C1AE77 1/2.065 0.50 0.065 0.37 0.10747 4.9 2383 14300 0.30

•C1AE79 1/2.083 0.50 0.083 0.334 0.08757 43043 18260 0.37

•C1BR56 5/8.065 0.63 0.065 0.495 0.19234 91907 11440 0.39

•C1BR57 5/8.095 0.63 0.095 0.435 0.14854 6.9 2787 16720 0.54

•C1BK53 3/4.049 0.75 0.049 0.652 0.33371 15.4 1198 7187 0.37

•C1BK54 3/4.065 0.75 0.065 0.62 0.30175 12 1589 9533 0.48

•C1BK56 3/4.095 0.75 0.095 0.56 0.24618 11 2322 13933 0.67

•C1BK58 3/4.109 0.75 0.109 0.532 0.22217 10.6 2664 15987 0.75

•C1AE64 1.065 1.0 0.065 0.87 0.59417 28.1 1192 7150 0.65

•C1AE66 1.120 1.0 0.12 0.76 0.45342 20.7 2200 13200 1.13

•C1EL47 1-1/4.095 1.25 0.095 1.06 0.88203 41.0 1393 8360 1.17

•C1AE34 1-1/4.120 1.25 0.12 1.01 0.80078 36.7 1760 10560 1.45

This page is part of a complete catalog which contains technical and safety data that must be reviewed when selecting a product

Tubing

Hydraulic Power & Control Pneumatic Power & Control Fluid Conveying Miscellaneous Products Indexes & Technical Information

1037

 1999-2016 Hydraulic Supply Co. • 1-800-507-9651 • www.hydraulic-supply.com

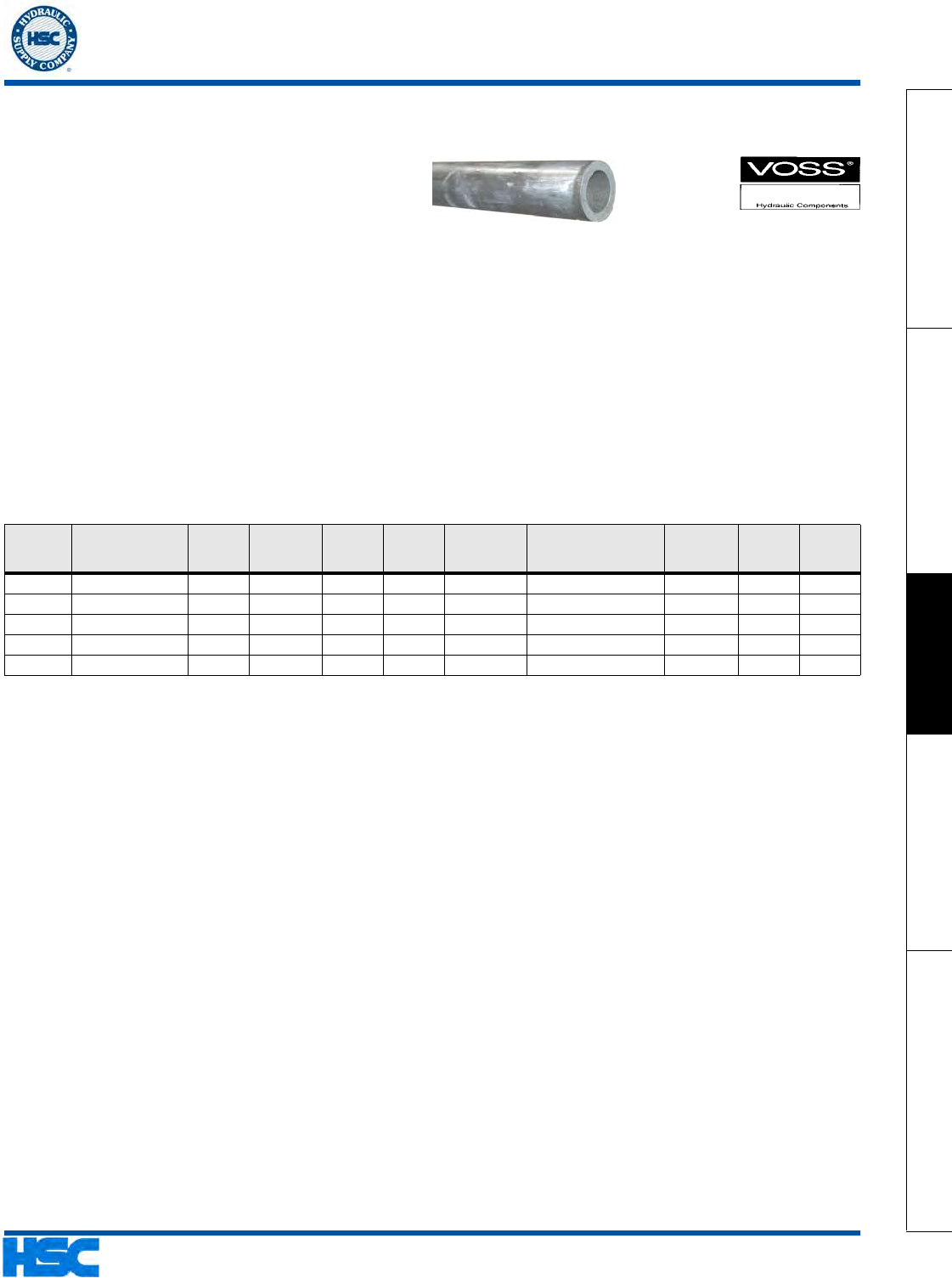

Carbon Steel Tubing (Metric)

Tubing Material Specifications: Seamless low carbon steel tubing annealed for bending & flaring. Tensile

strength 32-45 Kp/mm².

Note: A 6:1 safety factor is used in table below for applications where “considerable” hydraulic shock and

mechanical strain are present. For applications where hydraulic shock and mechanical strain is not

considerable, a 4:1 safety factor (higher working pressures) may be carefully considered. For applications where

hydraulic shock and mechanical strain is severe, an 8:1 safety factor (lower working pressures) should be

applied.

Note: Tubing design pressures have not been de-rated for elevated operating temperatures. Contact us for

application information regarding elevated temperatures.

Note: Tubing is stocked in 6 meter (20 foot) nominal lengths.

Flareless Metric Tube Fittings: Flareless Metric (Steel) page 1056

Tubing Support Clamps: page 1269

Application: Please review important safety & application information starting on page 1519

Carbon Steel Tubing (Metric)

Catalog

Part No. Voss Model O.D.

(mm)

Wall

Thickness

(mm) I.D. (mm)

Inside

Area

(sq.in.)

Flow Rate

@ 15FPS

(gpm)

Maximum Working

Pressure 6:1 Safety

Factor (psi)

Burst

Pressure

(psi) Wt.

(per ft) Price

(per ft)

•C1BN44 400-101 6 1.0 40.02015 1.10 3051 18306 0.08

•C1BN45 400-161 8 1.50 50.031 1.60 3440 20640 0.16

•C1BN48 400-271 12 2 8 0.0775 3.4 3051 18306 0.33

•C1ZT91 400-361 15 1.50 12 0.17515 8.19 1829 10977 0.33

•C1BN53 400-531 20 314 0.2387 10.7 2749 16494 0.85

Note: Kilograms per Square Centimeter x 14.22 = Pounds per Square Inch

This page is part of a complete catalog which contains technical and safety data that must be reviewed when selecting a product

Tubing

Hydraulic Power & ControlPneumatic Power & ControlFluid ConveyingMiscellaneous ProductsIndexes & Technical Information

1038  1999-2016 Hydraulic Supply Co. • 1-800-507-9651 • www.hydraulic-supply.com

Stainless Steel Tubing

Tubing Material Specifications: ASTM A269 B90 Seamless. Bright Annealed 316 Stainless Steel. Tensile

strength 75,000 psi.

Pressure Ratings: Based on using the more conservative Barlow formula where P=(2TxS)/O (P=burst pressure

T=wall thickness S=tensile strength O=outside diameter).

Note: A 6:1 safety factor is used in table below for applications where “considerable” hydraulic shock and

mechanical strain are present. For applications where hydraulic shock and mechanical strain is not excessive, a

4:1 safety factor (higher working pressures) may be carefully considered. For applications where hydraulic

shock and mechanical strain is severe a 8:1 safety factor (lower working pressures) should be applied.

Note: Tubing design pressures have not been de-rated for elevated operating temperatures. Contact us for

application information regarding elevated temperatures.

Note: Tubing is stocked in 20 foot nominal lengths.

Flare Nuts & Sleeves: Flare Nuts & Sleeves (Stainless Steel) page 1064 Flare Nuts & Sleeves (Steel) page 1048

Flare Adapters: page 1110

Flareless Tube Fittings: Flareless (Steel) page 1055 SSP Duolok® (Stainless Steel) page 1065

Tubing Support Clamps: page 1269

Application: Please review important safety & application information starting on page 1519

Stainless Steel Tubing

Catalog

Part No. Model Number O.D. (in)

Wall

Thickness

(in) I.D. (in)

Inside

Area

(sq.in.)

Flow Rate

@ 15FPS

(gpm)

Maximum Working

Pressure 6:1 Safety

Factor (psi)

Burst

Pressure

(psi) Wt.

(per ft) Price

(per ft)

•C1BK43 3/16.035-SS 0.1875 0.035 0.1175 0.01084 0.40 4667 28000 0.06

C1AF28 1/4.035-SS 0.25 0.035 0.18 0.02543 0.90 3500 21000 0.08

•C1EG59 1/4.049-SS 0.25 0.049 0.152 0.01814 0.70 4900 29400 0.11

•C1BR54 5/16.049-SS 0.3125 0.049 0.2145 0.03612 1.70 3920 23520 0.14

•C1BK87 3/8.035-SS 0.375 0.035 0.305 0.07306 3.4 2333 14000 0.13

•C1BK89 3/8.049-SS 0.375 0.049 0.277 0.06023 2.80 3267 19600 0.17

•C1AE76 1/2.049-SS 0.50 0.049 0.402 0.12686 62450 14700 0.24

•C1AE78 1/2.065-SS 0.50 0.065 0.37 0.10747 4.9 3250 19500 0.30

•C1EX71 5/8.065-SS 0.5625 0.065 0.4325 0.19234 92600 15600 0.39

•C1BK55 3/4.065-SS 0.75 0.065 0.62 0.30175 12 2167 13000 0.48

•C1BK57 3/4.095-SS 0.75 0.095 0.56 0.24618 11.1 3167 19000 0.67

•C1AE65 1.109-SS 1.0 0.109 0.788 0.48005 22 2725 16350 1.04

•C1AE35 1-1/4.120-SS 1.25 0.12 1.01 0.80078 36.7 2400 14400 1.45

This page is part of a complete catalog which contains technical and safety data that must be reviewed when selecting a product

Tubing

Hydraulic Power & Control Pneumatic Power & Control Fluid Conveying Miscellaneous Products Indexes & Technical Information

1039

 1999-2016 Hydraulic Supply Co. • 1-800-507-9651 • www.hydraulic-supply.com

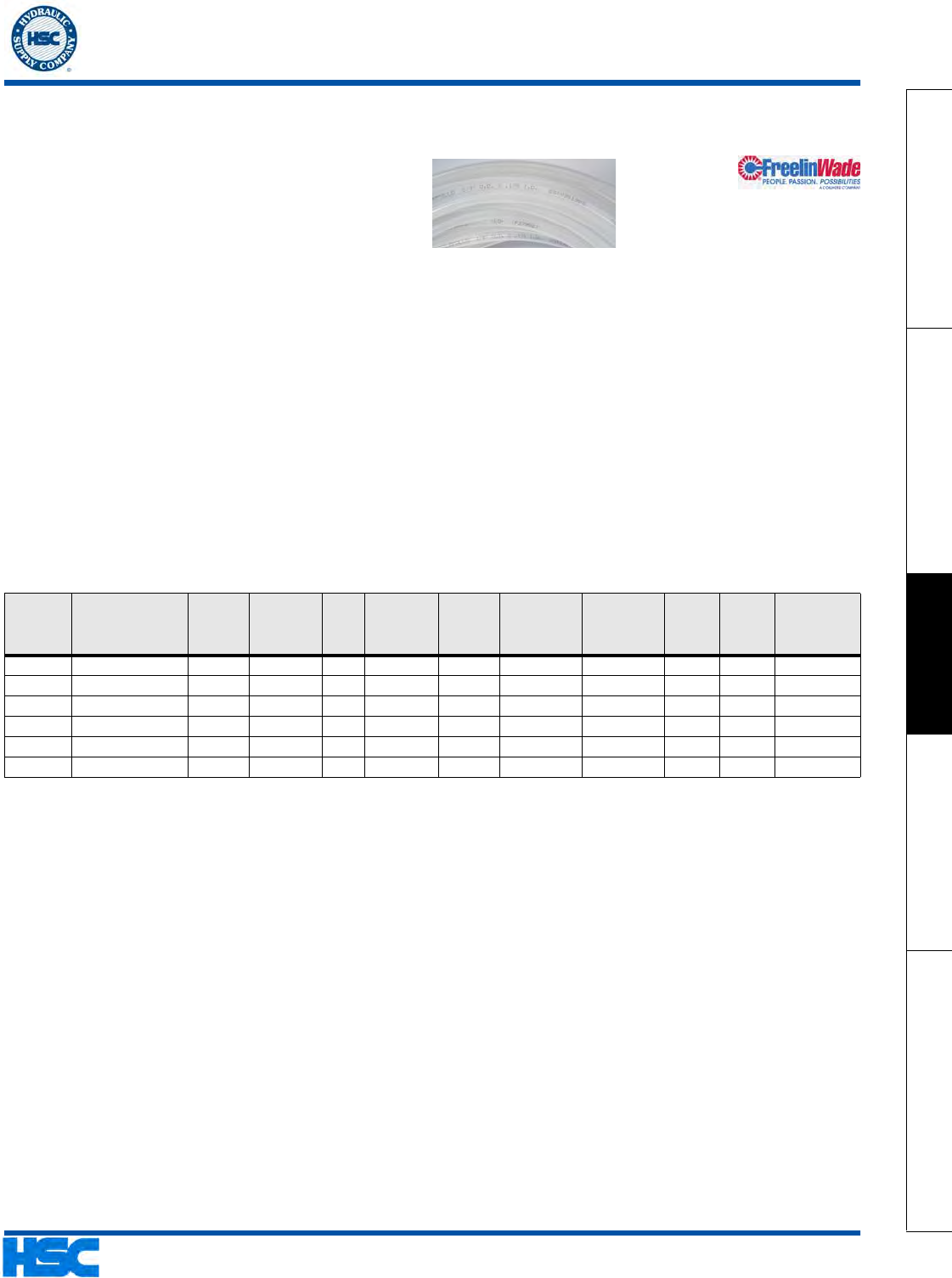

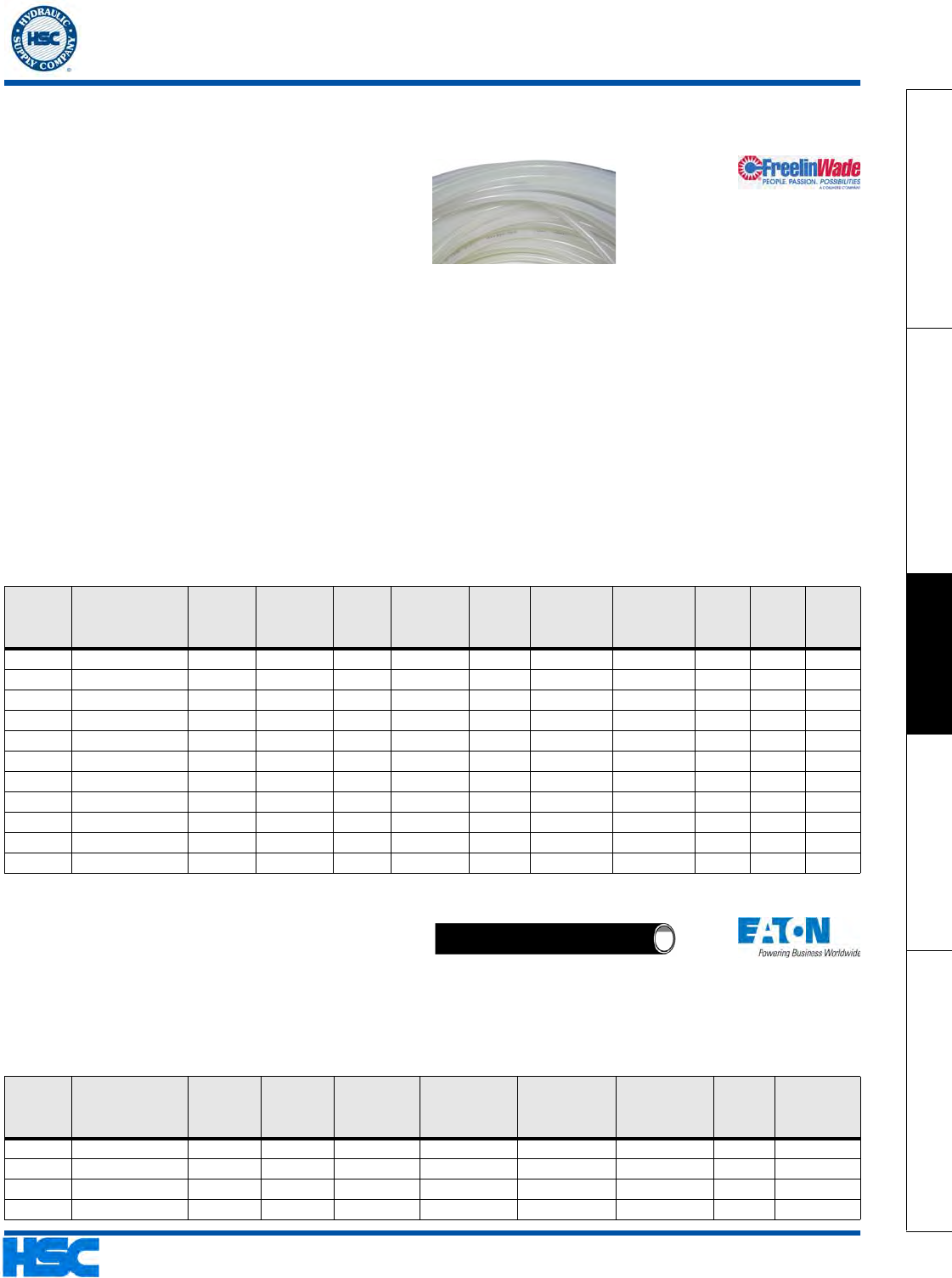

Polyethylene Tubing

Linear Low Density Polyethylene –

LLDPE

Features: LLDPE’s greatest advantage over low density polyethylene is its superior environmental stress crack

resistance (ESCR). Environmental stresses that can shorten the service life of tubing include: chemical

exposure, aging, connection to barb-type fittings, or high vibration connections with compression fittings. All

colors comply with FDA regulation 21 CFR 177.1520© for food contact applications. Freelin-Wade has chosen

to standardize on linear low density polyethylene and no longer offers low density polyethylene.

Application: General low pressure & low temperature applications, instrumentation, food processing. Please

review important safety & application information starting on page 1519

Operating Temperature Range: -40°F to 150°F.

Vacuum Rating: To 28"Hg

Diameter Tolerance: +/- 0.004"

Hardness: 50 Shore D

Working Pressure: 3:1 Safety Factor

Resin Compliance: FDA, NSF51

Fittings: Brass Push > Connect® page 1084 Brass Push > Connect® page 1084 Push-In (Brass) page 1088

Brass Compression page 1073

Polyethylene Tubing • Linear Low Density Polyethylene – LLDPE

Catalog

Part No. Freelin-Wade

Model O.D. (in)

Wall

Thickness

(in) I.D.

(in)

Minimum

Bend

Radius (in) Color

Maximum

Operating

Pressure

(psi)

Minimum

Burst

Pressure

(psi) Pkg.

Qty. (ft) Wt.

(pkg) Price (per

pkg)

•C1MJ15 1J-109-10 1/8 0.031 0.062 1/2 Natural 305 1220 100 0.40

•C1MP65 A43184 3/16 0.031 0.125 1Natural 200 800 100 0.94

•C1MN26 1J-048-01 1/4 0.040 0.170 1-1/4 Black 200 800 100 1.20

•C1MM341J-048-10 1/4 0.040 0.170 1-1/4 Natural 200 800 100 1.20

•C1MM351J-077-10 5/16 0.062 0.187 1-1/2 Natural 230 920 100 2.50

•C1MN27 1J-074-10 3/8 0.062 0.250 2Natural 190 760 100 2.76

Note: Polyethylene Tubing may be purchased by the foot or by the package.

This page is part of a complete catalog which contains technical and safety data that must be reviewed when selecting a product

Tubing

Hydraulic Power & ControlPneumatic Power & ControlFluid ConveyingMiscellaneous ProductsIndexes & Technical Information

1040  1999-2016 Hydraulic Supply Co. • 1-800-507-9651 • www.hydraulic-supply.com

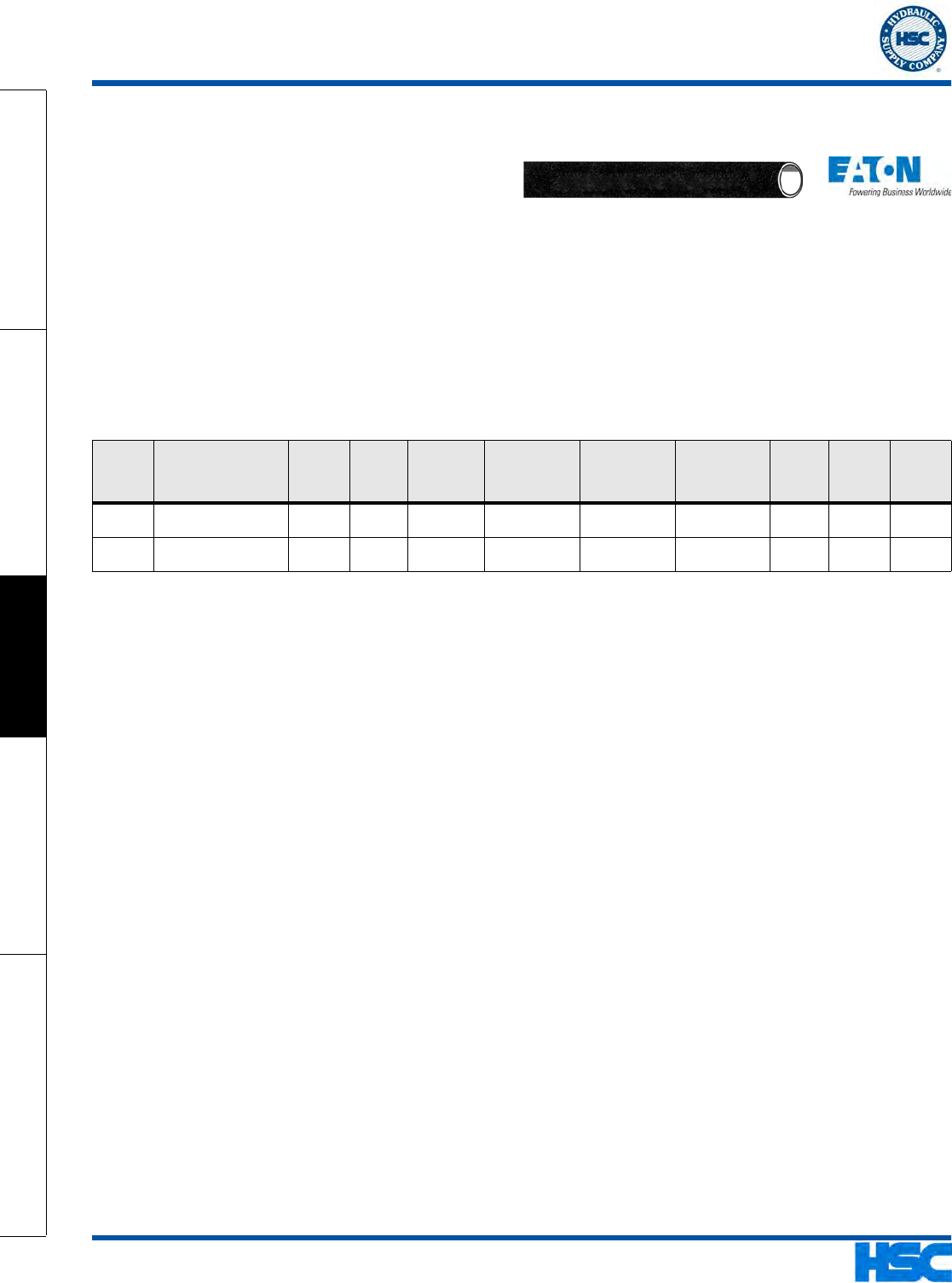

PT240 Polyethylene Tubing

Typical Application: Economical, flexible, low density Polyethylene has a wide range of uses in industrial and

agricultural applications.

Material: Natural off-white compound covered under 21CFR177.1520 regulations for food contact.

Temperature Range: -40°F to 135°F.

Available Colors: Natural off-white (NA), black (BK), yellow (YW), orange (OR), blue (BU), red (RD), green (GN).

FDA colors available on request.

Contains: Ultra-Violet Stabilizer in black tubing.

Fittings: , POLYLINE®, page 1077, Brass Push > Connect® page 1084, Push>Connect® Flow Controls,

Push>Connect® Plus, Molded Compression.

Chemical Compatibility Chart: Chemical Compatibility page 1543

PT240 Polyethylene Tubing

Catalog

Part No. Weatherhead Model Tube

O.D. (in) Tube

Wall (in) Color

Maximum

Working

Pressure (psi)

@ 70°F

Minimum

Burst

Pressure (psi)

@ 70°F

Minimum

Bend Radius

(in) @ 70°F Pkg Qty

(ft)

Wt.

(per 100

ft) Price

(per pkg)

•C1KN12 PT24004NA-500R 1/4 0.062 Natural

Off-White 200 600 0.75 500 1.50

•C1KN13 PT24006NA-200R 3/8 0.062 Natural

Off-White 135 400 1.50 200 2.40

Note: Tubing must be purchased by the package.

Note: These products are available only to select international accounts.

This page is part of a complete catalog which contains technical and safety data that must be reviewed when selecting a product

Tubing

Hydraulic Power & Control Pneumatic Power & Control Fluid Conveying Miscellaneous Products Indexes & Technical Information

1041

 1999-2016 Hydraulic Supply Co. • 1-800-507-9651 • www.hydraulic-supply.com

Nylon Tubing

Features: Nylon tubing (also referred to as polyamide) can withstand higher temperatures, making it an ideal

choice for a wide variety of applications. When compared to other Nylon resins, Freelin-Wade's tubing allows for

a lighter weight wall, greater flexibility and smaller bend radius. It is also more corrosion resistant than other

types of Nylon tubing because of its resistance moisture absorbtion. It's heat and UV stabilization makes it

resistant to stress-cracking, so it works well in sunny areas. It is chemical resistant which makes it a good choice

in areas where exposure to certain chemicals is a possibility.

Application: Pneumatics, hydraulic, vacuum, gasses, lubricants, oils, general chemicals, machine tool, coolant,

fuel, fresh & salt water. Please review important safety & application information starting on page 1519

Operating Temperature Range: -60°F to 200°F.

Vacuum Rating: To 28"Hg

Diameter Tolerance: < 1/2" +/- .004"; > 1/2" +/- .005"

Hardness: 78 Rockwell R

Resin Compliance: Meets UL94HB Testing Requirements

Fittings: Brass Push > Connect® page 1084 Push-In (Brass) page 1088 Brass Compression page 1073

Nylon Tubing

Catalog

Part No. Freelin Wade

Model O.D. Wall

Thickness I.D.

Minimum

Bend

Radius Color

Maximum

Operating

Pressure

(psi)

Minimum

Burst

Pressure

(psi) Pkg.

Qty. (ft) Wt.

(pkg)

Price

(per

pkg)

•C1MM421J-242-10 6 mm 0.65 mm 2.7 mm 17 mm Natural 340 1360 100 1.17

•C1MM431J-243-10 8 mm 1 mm 6 mm 38 mm Natural 250 1000 100 1.64

•C1MQ17 1J-244-10 10 mm 1 mm 8 mm 51 mm Natural 190 760 100 2.11

•C1MM441J-245-10 12 mm 1 mm 10 mm 76 mm Natural 150 600 100 2.55

•C1MM451J-247-10 0.125 in 0.023 in 0.080 in 0.375 in Natural 420 1680 100 0.35

•C1MM361J-202-10 0.188 in 0.025 in 0.138 in 0.625 in Natural 260 1040 100 0.55

•C1MM371J-204-01 0.250 in 0.035 in 0.180 in 1.000 in Black 290 1160 100 1.13

•C1MM381J-204-10 0.250 in 0.035 in 0.180 in 1.000 in Natural 290 1160 100 1.13

•C1MM391J-205-10 0.312 in 0.040 in 0.232 in 1.500 in Natural 240 960 100 1.64

•C1MM401J-206-10 0.375 in 0.050 in 0.275 in 1.500 in Natural 250 1000 100 2.45

•C1MM411J-207-10 0.500 in 0.062 in 0.375 in 2.250 in Natural 240 960 100 4.12

Note: Nylon Tubing may be purchased by the foot or by the package.

TP160 Polymide "Nylon 11" Tubing

Application: Flexible nylon tubing. Used for instrumentation; lubrication

and air lines; gas, chemical and oil processing; low pressure hydraulics.

Operating Temperature Range: -40°F to +200°F

Fittings: Brass Push > Connect® page 1084

TP160 Polymide "Nylon 11" Tubing

Catalog

Part No. Eaton Model Tube O.D.

(in) Tube Wall

(in)

Maximum

Working

Pressure

(psi) @ 70° F

Minimum

Burst

Pressure (psi)

@ 70°F

Minimum

Bend Radius

(in) @ 70°F Pkg Qty (ft) Wt.

(per ft) Price (per

pkg)

C1KN61 TP16002NA-100 1/8 0.023 250 1000 0.62 100 0.30

C1KN62 TP16004NA-100 1/4 0.040 250 1000 1.25 100 1.20

C1KN63 TP16005NA-100 5/16 0.040 250 1000 2.00 100 2.00

C1KN64 TP16008NA-100 1/2 0.062 250 1000 4.50 100 3.80

This page is part of a complete catalog which contains technical and safety data that must be reviewed when selecting a product

Tubing

Hydraulic Power & ControlPneumatic Power & ControlFluid ConveyingMiscellaneous ProductsIndexes & Technical Information

1042  1999-2016 Hydraulic Supply Co. • 1-800-507-9651 • www.hydraulic-supply.com

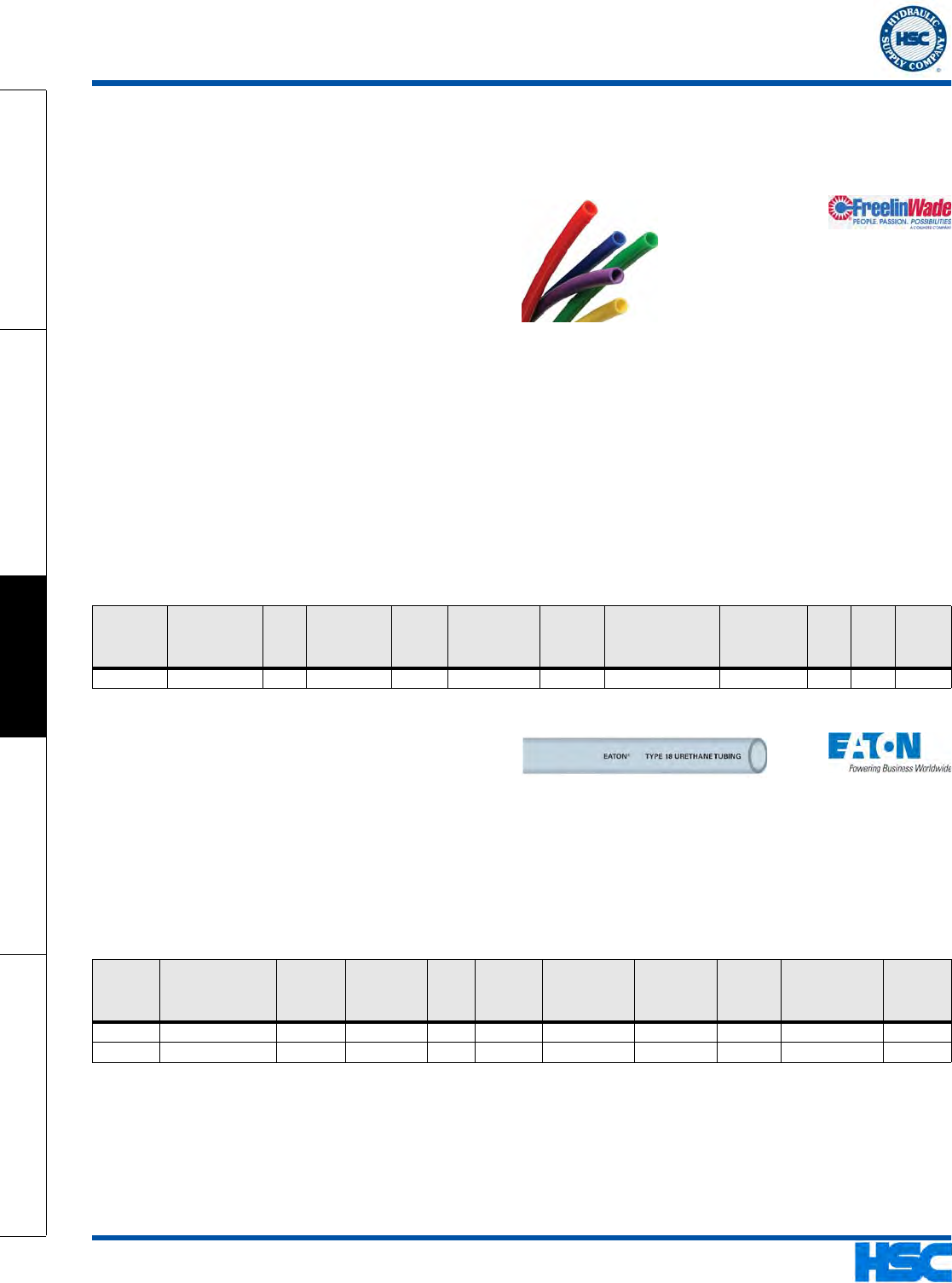

High Pressure Nylon Tubing

High Pressure Nylon 11: Freelin-Wade’s High Pressure Nylon tubing is made from a semi-rigid compound that

has outstanding tensile strength and chemical resistance, making it the ideal choice for chemical and oil

processing lines, tool lubricating systems and other applications that require a high quality Nylon material with

much higher burst ratings.

Temperature Range: -60°F to +200°F

Vacuum Rating: To 28" Hg

Diameter Tolerances: O.D. less than 0.5": ±.004"; O.D. greater than 0.5": ±.005"

Hardness: 108 Rockwell R

Working Pressure: 4:1 Safety Factor

UV Stabilized: Yes

Resin Compliance: Meets UL94HB Testing Requirements

Fittings: Brass Compression page 1073 Brass Push > Connect® page 1084

High Pressure Nylon Tubing

Catalog

Part No. Freelin-Wade

Model O.D.

(in)

Wall

Thickness

(in) I.D. (in)

Minimum

Bend Radius

(in) Color

Maximum

Operating

Pressure (psi)

Minimum

Burst

Pressure

(psi)

Pkg.

Qty.

(ft) Wt.

(pkg)

Price

(per

pkg)

•C1MQ18 1J-282-01 1/4 0.050 0.150 9/16 Black 800 3200 100 1.51

Urethane Tubing

Features: Ether grade urethane. Fuel resistant. Excellent abrasion & tear resistance. 87 shore a durometer. RoHS

compliant.

Application: General low pressure & low temperature applications, fuel lines, chemical transfer, powder transfer,

petroleum transfer, air transfer, abrasive fluid transfer. Please review important safety & application information

starting on page 1519

Operating Temperature Range: -40°F to 165°F

Fittings: Machined short shank Hose Barbs page 999

Urethane Tubing

Catalog

Part No. Eaton Model O.D. (in)

Wall

Thickness

(in) I.D.

(in) Color

Maximum

Operating

Pressure

(psi)

Minimum

Burst

Pressure

(psi) Pkg. Qty.

(ft) Wt. per ft. Price (per

pkg)

•C1KL40 EH01804-200R 0.38 0.062 0.25 Clear 50 150 200 0.03

•C1KL41 EH01806-100R 0.50 0.062 0.38 Clear 40 120 100 0.05

Note: Urethane tubing may be purchased by the foot or by the package.

Note: Stated working pressures are tested at 68°F. Working pressure decreases as temperature increases.

This page is part of a complete catalog which contains technical and safety data that must be reviewed when selecting a product

Tubing

Hydraulic Power & Control Pneumatic Power & Control Fluid Conveying Miscellaneous Products Indexes & Technical Information

1043

 1999-2016 Hydraulic Supply Co. • 1-800-507-9651 • www.hydraulic-supply.com

Air Brake Tubing

4245 & 3270 Eclipse 4247 Solstice

Features: Superior abrasion resistance over rubber and Nylon 11 • Easy burr-free cutting to assemble • Enhanced

flexibility over other nylon tubing • Improved flow performance over rubber & nylon.

Construction: 100% polyamide construction with polyester yarn reinforcement. UV stabilized, thermoformable.

Application: Truck & Trailer air brake systems, auxiliary air systems, formed tubes, formed and straight air brake

harness assemblies.

Operating Temperature Range: -65°F to 200°F.

Fittings: Brass Air Brake (Nylon Tubing) page 1080 Brass Quick > Connect® page 1095

Agency Listings: Meets the performance of SAE J844, J1131, J2494-3 DOT-FMVSS 106

Air Brake Tubing • 4245 & 3270 Eclipse 4247 Solstice

Catalog

Part No. Eaton Model Type O.D.

(in)

Wall

Thickness

(in) I.D.

(in)

Minimum

Bend

Radius (in) Color

Minimum

Burst

Pressure

(psi) Pkg Qty

(ft) Wt.

(lbs./100 ft) Price (per

pkg)

C1KU99 4245-0220-1000 A 1/8 0.02 0.08 0.25 Black 1000 1000 0.33

•C1KX92 4247-0410-0100 A 1/4 0.04 0.17 1.00 Black 1200 100 1.50

C1LX38 4247-0410-1000 A 1/4 0.04 0.17 1.00 Black 1200 1000 1.50

C1MJ92 4247-0412-1000 A 1/4 0.04 0.17 1.00 Red 1200 1000 1.50

C1MJ93 4247-0413-1000 A 1/4 0.04 0.17 1.00 Orange 1200 1000 1.50

C1MJ94 4247-0414-1000 A 1/4 0.04 0.17 1.00 Yellow 1200 1000 1.50

C1MJ95 4247-0415-1000 A 1/4 0.04 0.17 1.00 Green 1200 1000 1.50

C1MJ96 4247-0416-1000 A 1/4 0.04 0.17 1.00 Blue 1200 1000 1.50

C1MJ91 4245-0520-0500 A 5/16 0.04 0.23 1.13 Black 1000 500 1.54

•C1KZ21 3270-0610-0100 B 3/8 0.06 0.25 1.50 Black 1400 100 2.80

C1MJ44 3270-0610-0500 B 3/8 0.06 0.25 1.50 Black 1400 500 2.80

•C1MJ45 3270-0612-0500 B 3/8 0.06 0.25 1.50 Red 1400 500 2.80

C1MJ46 3270-0613-0500 B 3/8 0.06 0.25 1.50 Orange 1400 500 2.80

C1MJ47 3270-0614-0500 B 3/8 0.06 0.25 1.50 Yellow 1400 500 2.80

•C1MJ48 3270-0615-0500 B 3/8 0.06 0.25 1.50 Green 1400 500 2.80

•C1MJ49 3270-0616-0500 B 3/8 0.06 0.25 1.50 Blue 1400 500 2.80

•C1KU76 3270-0810-0100 B 1/2 0.06 0.38 2.00 Black 950 100 3.80

•C1JR67 3270-08104 B1/2 0.06 0.38 2.00 Black 950 1500 3.80

C1MJ50 3270-0810-0500 B 1/2 0.06 0.38 2.00 Black 950 500 3.80

•C1MJ52 3270-08124 B1/2 0.06 0.38 2.00 Red 950 1500 3.80

C1MJ51 3270-0812-0500 B 1/2 0.06 0.38 2.00 Red 950 500 3.80

C1MJ53 3270-0815-0500 B 1/2 0.06 0.38 2.00 Green 950 500 3.80

•C1JR68 3270-10103 B5/8 0.09 0.44 2.50 Black 900 750 7.00

C1MJ54 3270-1010-0250 B 5/8 0.09 0.44 2.50 Black 900 250 7.00

C1MJ55 3270-1012-0250 B 5/8 0.09 0.44 2.50 Red 900 250 7.00

C1MJ56 3270-1013-0250 B 5/8 0.09 0.44 2.50 Orange 900 250 7.00

C1MJ57 3270-1015-0250 B 5/8 0.09 0.44 2.50 Green 900 250 7.00

C1MJ58 3270-1016-0250 B 5/8 0.09 0.44 2.50 Blue 900 250 7.00

•C1MJ59 3270-1210-0250 B 3/4 0.09 0.57 3.00 Black 800 250 8.60

C1MJ60 3270-1215-0250 B 3/4 0.09 0.57 3.00 Green 800 250 8.60

Note: Air brake tubing sold only by the package.

This page is part of a complete catalog which contains technical and safety data that must be reviewed when selecting a product

Tubing

Hydraulic Power & ControlPneumatic Power & ControlFluid ConveyingMiscellaneous ProductsIndexes & Technical Information

1044  1999-2016 Hydraulic Supply Co. • 1-800-507-9651 • www.hydraulic-supply.com

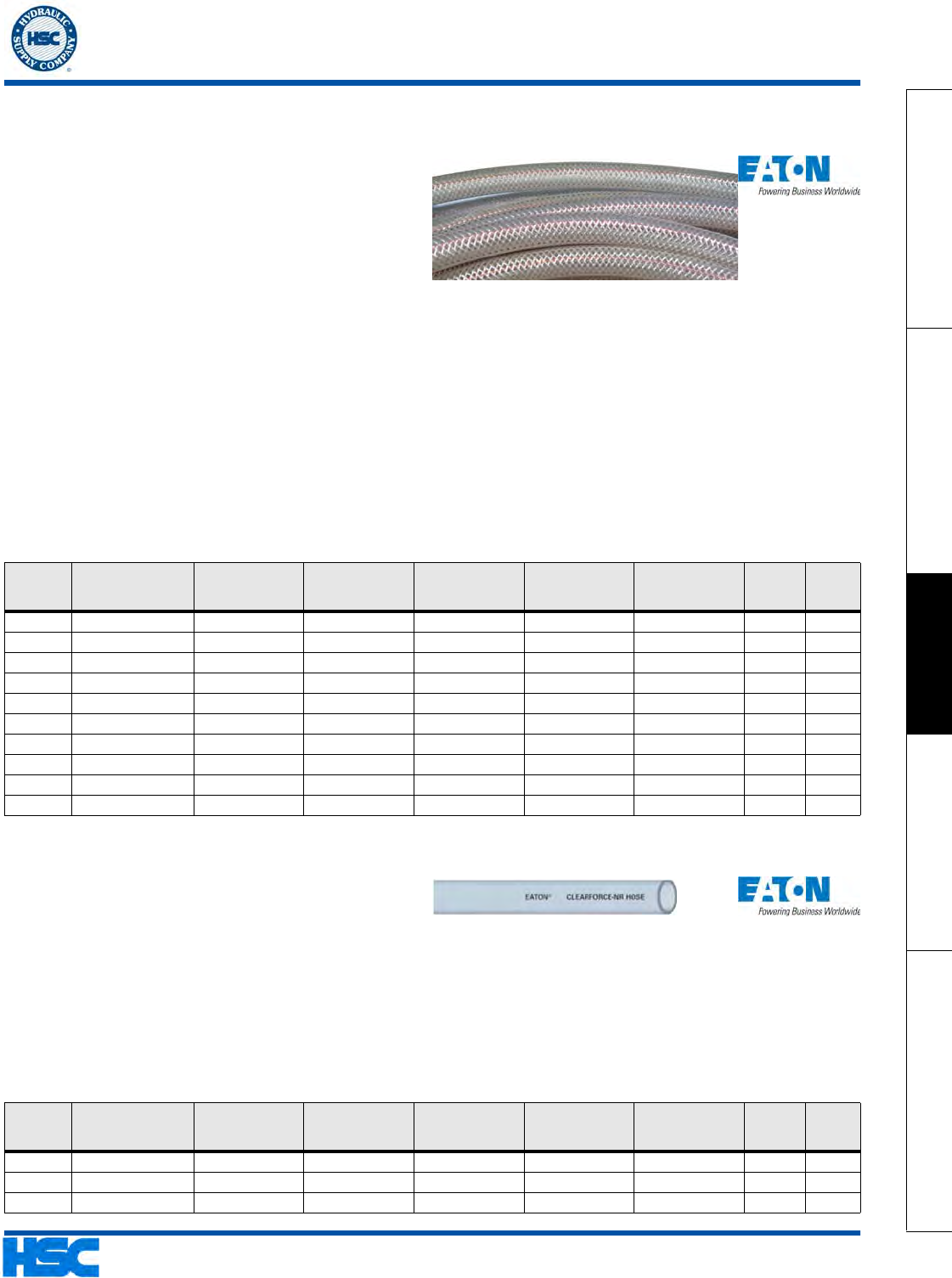

CLEARFORCE - NR PVC Hose -

Non-Toxic FDA

Un-pressurized Potable Water -

Drain - Vent

Application & Construction: Food Transfer, Drain Lines, Light Vacuum Lines, Sight Gauges. Temperature

Range 25°F to 150°F. Materials comply with FDA Specifications. NSF Certified under Standard NSF-51. Clear

PVC Tube. Light Weight, Non-Marking & Flexible. Self Extinguishing. RoHS compliant. Special packaging, cut

lengths available. Please review application requirements and limitations found in NAHAD Pressure Guideline

Chart page 1534

Fittings & Fitting Attachment Suggestions: Shank type fittings attached with stainless steel pinch clamps or

stainless steel worm gear clamps.

Fittings: Shank Type (Brass) page 999. Shank Type (Stainless Steel) page 1005

Fitting Attachment: Pinch Clamps page 1023. Worm Gear Clamps page 1022

CLEARFORCE - NR PVC Hose - Non-Toxic FDA • Un-pressurized Potable Water - Drain - Vent

Catalog

Part No. Eaton Model I.D. (in) O.D. (in)

Maximum

Working

Pressure (psi) Minimum Burst

Pressure (psi) Pkg. Qty. (ft)

Wt.

(per 100

ft) Price

(per ft)

•C1KM14 H160305-500R 0.19 0.310 55 165 500 2.60

•C1KM15 H160406-200R 0.25 0.380 55 165 200 3.20

•C1KV99 H160608-100 0.38 0.500 45 135 100 4.50

•C1KM16 H160608-125R 0.38 0.500 45 135 125 4.50

•C1KW12 H161216-100 0.75 1.000 35 105 100 18.04

•C1ML31 H161620-100 1.00 1.25 25 75 100 22.60

Note: Use of damaged hose or improper use may result in bodily injury or property damage. Please consult Eaton catalog or Technical Support

for proper application. Non-Reinforced PVC Tubing may be purchased by the package.

This page is part of a complete catalog which contains technical and safety data that must be reviewed when selecting a product

Tubing

Hydraulic Power & Control Pneumatic Power & Control Fluid Conveying Miscellaneous Products Indexes & Technical Information

1045

 1999-2016 Hydraulic Supply Co. • 1-800-507-9651 • www.hydraulic-supply.com

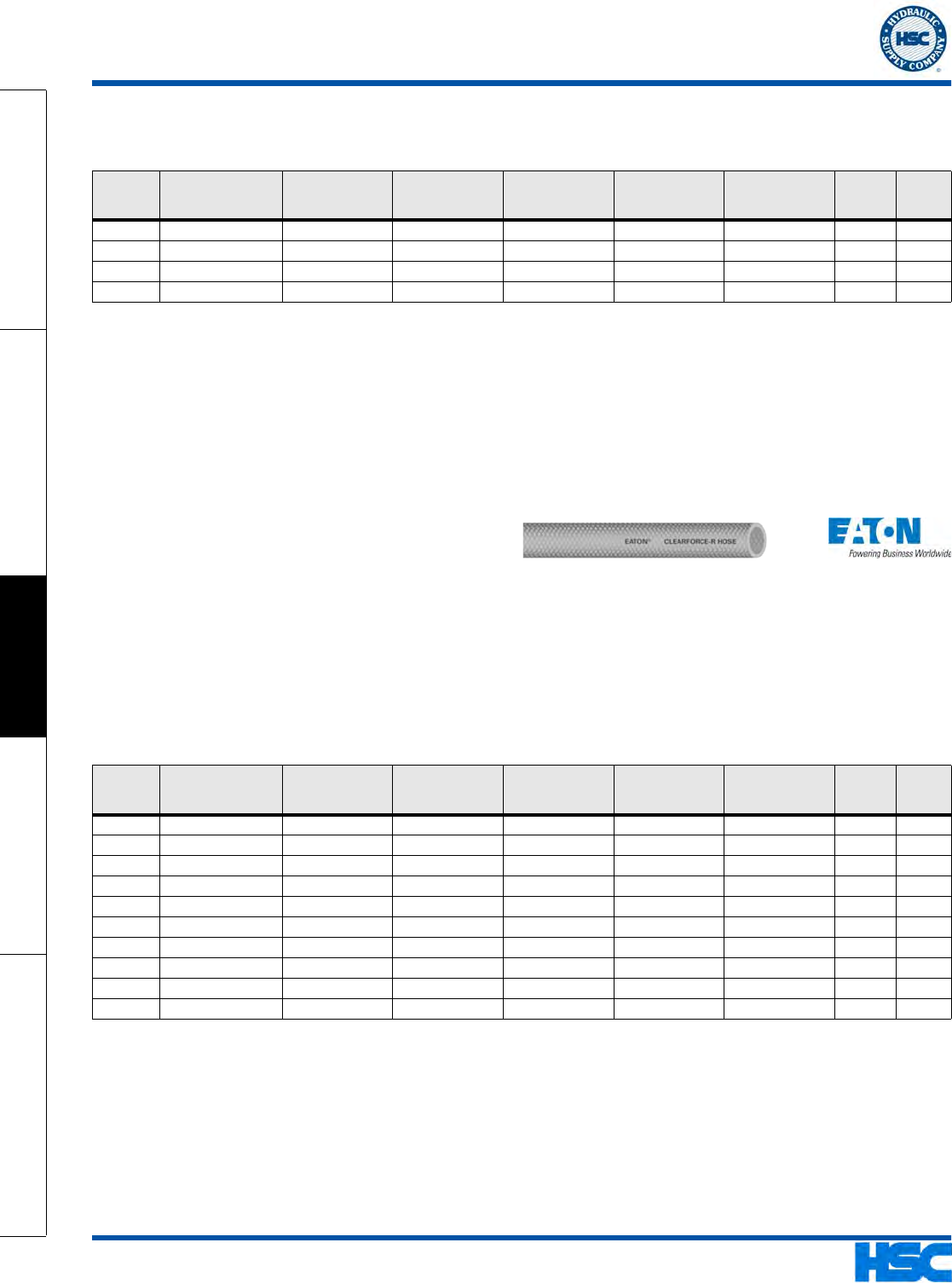

CLEARFORCE™-R Reinforced

Standard Duty PVC Hose

Application & Construction: Materials comply with FDA Specifications. NSF Certified under Standard NSF-51

plastic materials and components for use in food equipment. Non-toxic. White spiraled polyester yarn

reinforcement. Longitudinally reinforced with Blue Tracer Yarn to reduce elongation under pressure. Clear PVC

tube with clear PVC cover. Light weight, Non-marking, flexible. Self Extinguishing. Silicone-free.

Non-conductive. Compund hardness 75 Durometer, Shore A. RoHS compliant. Air lines, air breathing lines,

water lines, deionized, pure or distilled water, food & beverage dispensing, potable water transfer, light vacuum

lines, pneumatics, mild chemical resistance (call for details). Please review important safety & application

information starting on NAHAD Pressure Guideline Chart page 1534

Fittings & Fitting Attachment Suggestions: Shank type fittings attached with stainless steel pinch clamps or

stainless steel worm gear clamps.

Fittings: Shank Type (Brass) page 999. Shank Type (Stainless Steel) page 1005

Fitting Attachment: Pinch Clamps page 1023. Worm Gear Clamps page 1022

CLEARFORCE™-R Reinforced • Standard Duty PVC Hose

Catalog

Part No. Eaton Model I.D. (in) O.D. (in)

Maximum

Working

Pressure (psi) Minimum Bend

Radius (in) Pkg. Qty. (ft)

Wt.

(per 100

ft) Price

(per ft)

•C1KM19 H28504-125R 0.250 0.450 250 1.50 125 6.50

•C1KW13 H28506-300R 0.380 0.590 225 2.00 300 9.00

•C1KM20 H28506-75R 0.380 0.590 225 2.00 75 9.00

•C1KW14 H28508-300R 0.500 0.750 200 2.00 300 15.00

•C1KW15 H28510-300R 0.625 0.875 200 2.50 300 17.00

•C1KW16 H28512-300R 0.750 1.031 150 2.50 300 23.00

•C1KW17 H28516-200R 1.000 1.313 125 3.50 200 32.00

•C1KW18 H28520-100 1.250 1.688 100 100 58.00

•C1KW19 H28524-100 1.500 1.938 100 100 69.00

C1KW20 H28532-100 2.000 2.500 75 100 100.00

Note: Hose may be purchased by the foot or by the package. Use of damaged hose or improper use may result in bodily injury or property

damage. Please consult Eaton catalog or Technical Support for proper application.

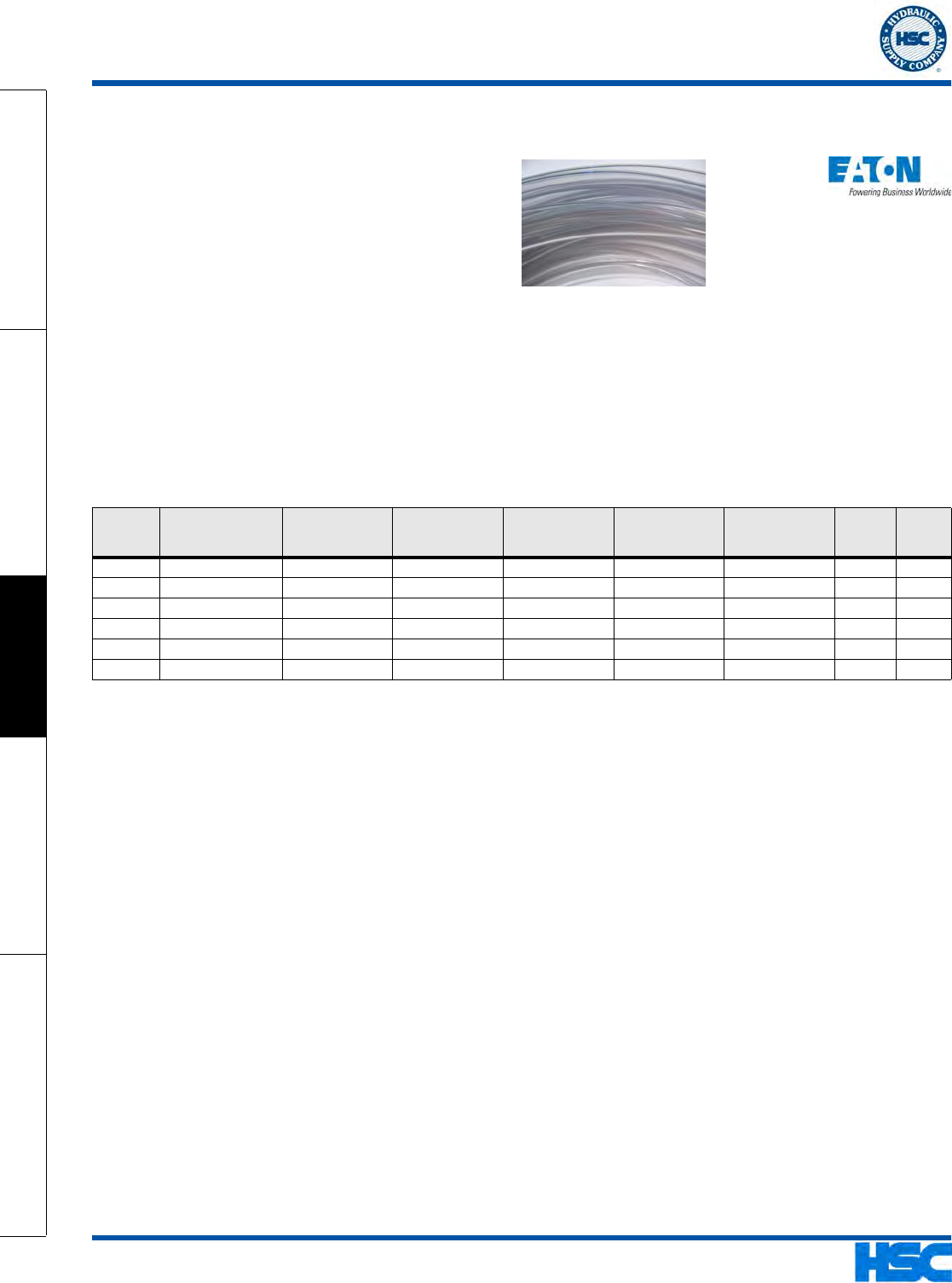

PVC Tubing (Clear)

Non-Reinforced - FDA Approved

Features: Eaton’s line of clear PVC tubing products are manufactured with materials which comply with FDA

Regulation 21 CFR 177.1520 and are NSF-51 listed. These products are lightweight, non-marking and flexible.

Application: These are excellent products for food and beverage transfer lines, air lines, drain lines, sight gauges,

potable water transfer, and pneumatic applications.

Operating Temperature Range: +15°F to +150°F

Fittings: Hose Barbs page 999. Hose Clamps page 1022 Crimp Ferrules page 1034

PVC Tubing (Clear) • Non-Reinforced - FDA Approved

Catalog

Part No. Eaton Model I.D. (in) O.D. (in)

Maximum

Working

Pressure (psi) Minimum Burst

Pressure (psi) Pkg. Qty. (ft)

Wt.

(per 100

ft) Price

(per ft)

•C1KM14 H160305-500R 0.19 0.310 55 165 500 2.60

•C1KM15 H160406-200R 0.25 0.380 55 165 200 3.20

•C1KV99 H160608-100 0.38 0.500 45 135 100 4.50

This page is part of a complete catalog which contains technical and safety data that must be reviewed when selecting a product

Tubing

Hydraulic Power & ControlPneumatic Power & ControlFluid ConveyingMiscellaneous ProductsIndexes & Technical Information

1046  1999-2016 Hydraulic Supply Co. • 1-800-507-9651 • www.hydraulic-supply.com

•C1KM16 H160608-125R 0.38 0.500 45 135 125 4.50

C1MS81 H161014-100 0.62 0.870 40 120 100

•C1KW12 H161216-100 0.75 1.000 35 105 100 18.04

•C1ML31 H161620-100 1.00 1.250 25 75 100 22.60

PVC Tubing (Clear)

Reinforced - FDA Approved

Features: Eaton’s line of clear PVC hose products are manufactured with materials which comply with FDA

Regulation 21 CFR 177.1520 and are NSF-51 listed. These products are lightweight, nonmarking and flexible.

Application: These are excellent products for food and beverage transfer lines, air lines, drain lines, sight gauges,

potable water transfer, and pneumatic applications which require higher pressure than our standard Clearforce

products can handle.

Operating Temperature Range: +15°F to +150°F

Fittings: Hose Barbs page 999. Hose Clamps page 1022 Crimp Ferrules page 1034

PVC Tubing (Clear) • Reinforced - FDA Approved

Catalog

Part No. Eaton Model I.D. (in) O.D. (in)

Maximum

Working

Pressure (psi) Minimum Bend

Radius (in) Pkg. Qty. (ft)

Wt.

(per 100

ft) Price

(per ft)

•C1KM19 H28504-125R 0.250 0.450 250 1.50 125 6.50

•C1KW13 H28506-300R 0.380 0.590 225 2.00 300 9.00

•C1KM20 H28506-75R 0.380 0.590 225 2.00 75 9.00

•C1KW14 H28508-300R 0.500 0.750 200 2.00 300 15.00

•C1KW15 H28510-300R 0.625 0.875 200 2.50 300 17.00

•C1KW16 H28512-300R 0.750 1.031 150 2.50 300 23.00

•C1KW17 H28516-200R 1.000 1.313 125 3.50 200 32.00

•C1KW18 H28520-100 1.250 1.688 100 100 58.00

•C1KW19 H28524-100 1.500 1.938 100 100 69.00

C1KW20 H28532-100 2.000 2.500 75 100 100.00

PVC Tubing (Clear) • Non-Reinforced - FDA Approved

Catalog

Part No. Eaton Model I.D. (in) O.D. (in)

Maximum

Working

Pressure (psi) Minimum Burst

Pressure (psi) Pkg. Qty. (ft)

Wt.

(per 100

ft) Price

(per ft)

This page is part of a complete catalog which contains technical and safety data that must be reviewed when selecting a product

Tubing

Hydraulic Power & Control Pneumatic Power & Control Fluid Conveying Miscellaneous Products Indexes & Technical Information

1047

 1999-2016 Hydraulic Supply Co. • 1-800-507-9651 • www.hydraulic-supply.com

Steel Brake Line Assemblies

Features: Superior rust protection with galvanized zinc coating.

Domestic Brake Lines: Standard Inverted Flare.

Steel Brake Line Assemblies

Catalog

Part No. AGS Model Style Size x Length (inches) Wt. Price

Each

•C1FY76 BL-308 Domestic 3/16 x 8 0.06

•C1FY77 BL-312 Domestic 3/16 x 12 0.07

•C1FY78 BL-320 Domestic 3/16 x 20 0.11

•C1FY79 BL-330 Domestic 3/16 x 30 0.14

•C1FY80 BL-340 Domestic 3/16 x 40 0.18

•C1FY81 BL-351 Domestic 3/16 x 51 0.22

•C1FY82 BL-360 Domestic 3/16 x 60 0.26

•C1FY83 BL-372 Domestic 3/16 x 72 0.31

•C1FY84 BL-408 Domestic 1/4 x 8 0.08

•C1FY85 BL-412 Domestic 1/4 x 12 0.10

•C1FY86 BL-420 Domestic 1/4 x 20 0.14

•C1FY87 BL-430 Domestic 1/4 x 30 0.19

•C1FY88 BL-440 Domestic 1/4 x 40 0.24

•C1FY89 BL-451 Domestic 1/4 x 51 0.29

•C1FY90 BL-460 Domestic 1/4 x 60 0.35

•C1FY91 BL-472 Domestic 1/4 x 72 0.41

•C1FY92 BL-508 Domestic 5/16 x 8 0.09

•C1FY93 BL-512 Domestic 5/16 x 12 0.11

•C1FY94 BL-520 Domestic 5/16 x 20 0.17

•C1FY97 BL-551 Domestic 5/16 x 51 0.37

•C1FY98 BL-560 Domestic 5/16 x 60 0.43

•C1FY99 BL-572 Domestic 5/16 x 72 0.51

•C1FZ11 BL-608 Domestic 3/8 x 8 0.13

•C1FZ12 BL-612 Domestic 3/8 x 12 0.17

•C1FZ13 BL-620 Domestic 3/8 x 20 0.24

•C1FZ14 BL-630 Domestic 3/8 x 30 0.32

•C1FZ15 BL-640 Domestic 3/8 x 40 0.41

•C1FZ16 BL-651 Domestic 3/8 x 51 0.51

•C1FZ17 BL-660 Domestic 3/8 x 60 0.58

This page is part of a complete catalog which contains technical and safety data that must be reviewed when selecting a product

Tube Fittings

Hydraulic Power & ControlPneumatic Power & ControlFluid ConveyingMiscellaneous ProductsIndexes & Technical Information

1048  1999-2016 Hydraulic Supply Co. • 1-800-507-9651 • www.hydraulic-supply.com

Catalog

Part No. Aeroquip Model

Tube

O.D.

(in) A

(in) B

(in) Wt. Price

Each

•C1AJ77 1290-3S 0.19 0.6 0.44 0.01

•C1AJ78 1290-4S 0.25 0.62 0.56 0.04

•C1AJ79 1290-5S 0.31 0.67 0.62 0.05

•C1AJ80 1290-6S 0.38 0.72 0.69 0.05

•C1AJ81 1290-8S 0.50 0.84 0.88 0.06

•C1AJ72 1290-10S 0.63 0.97 1.0 0.09

•C1AJ73 1290-12S 0.75 1.02 1.25 0.18

•C1AJ75 1290-16S 1.0 1.12 1.50 0.25

•C1AJ76 1290-20S 1.25 1.22 2.0 0.55

Catalog

Part No. Aeroquip Model

Tube

O.D.

(in) A

(in) Wt. Price

Each

•C1EP32 900605-3S 0.19 0.34 0.01

•C1CB30 900605-4S 0.25 0.41 0.01

•C1KT74 NB300-04Z 0.25 0.62 0.01

•C1CB31 900605-5S 0.31 0.44 0.01

C1CB32 900605-6S 0.38 0.50 0.01

•C1KT75 NB300-06Z 0.38 0.50 0.01

C1CB33 900605-8S 0.50 0.56 0.01

•C1KT76 NB300-08Z 0.50 0.56 0.01

•C1CB25 900605-10S 0.63 0.66 0.02

C1CB26 900605-12S 0.75 0.69 0.03

•C1KT77 NB300-12Z 0.75 0.68 0.03

•C1CB28 900605-16S 1.00 0.78 0.04

•C1KT78 NB300-16Z 1.00 0.78 0.04

•C1CB29 900605-20S 1.25 0.91 0.08

Note: NB is Eaton-Winner model.

Catalog

Part No. Model Number Tube O.D. (in) L (in) Wt. Price

Each

•C1FF65 2105X4 0.25 0.56 0.02

•C1BB97 2105X5 0.31 0.62 0.03

1290

JIC 37° Flare Nut

(Use with 900605 Tube Sleeve)

900605

JIC 37° Flare Sleeve

(Use with 1290 Flare Nut)

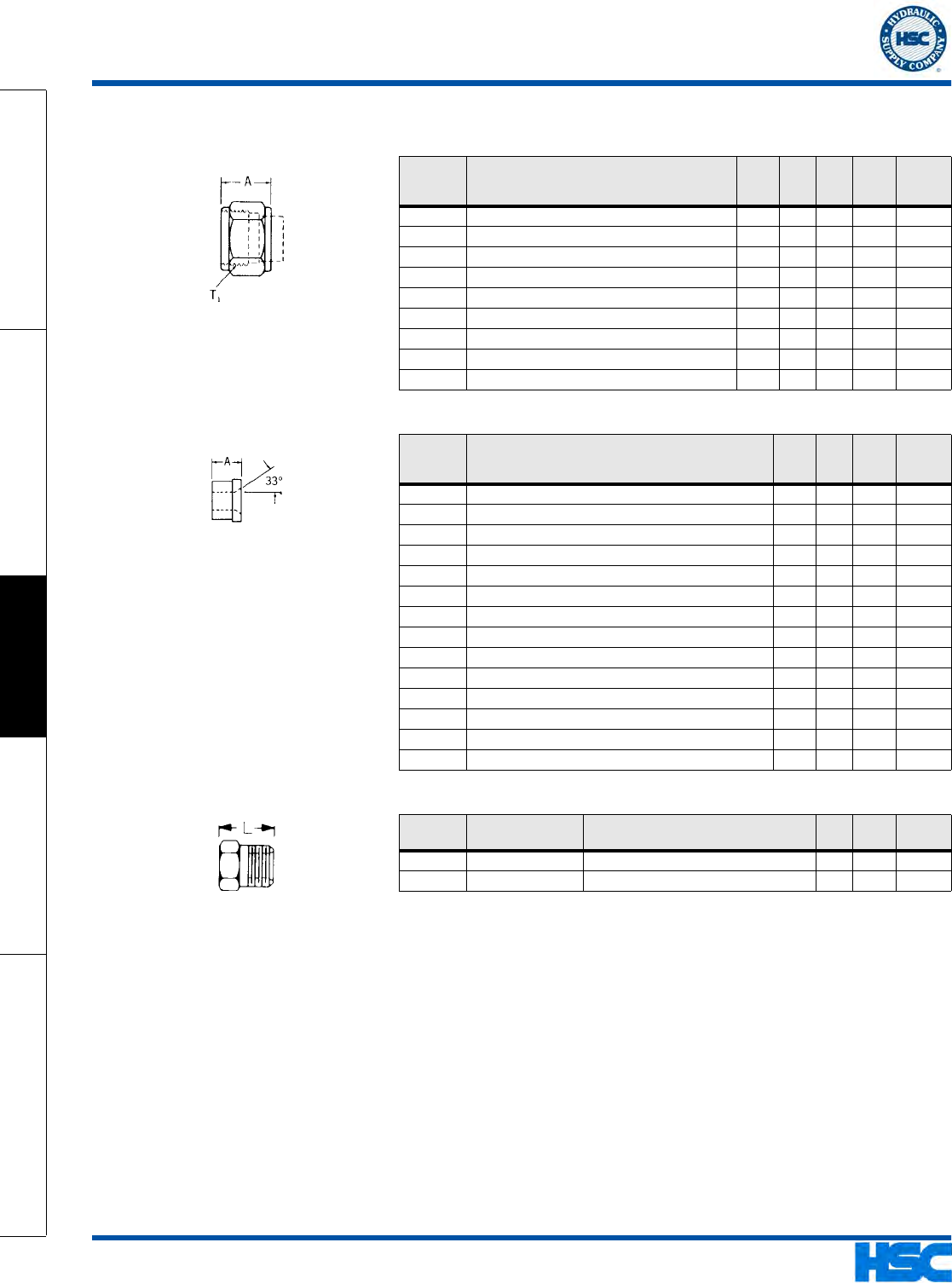

2105

Inverted Flare Tube Nut

Steel

Flare & Inverted Flare Nuts, Flare Sleeves

This page is part of a complete catalog which contains technical and safety data that must be reviewed when selecting a product

Tube Fittings

Hydraulic Power & Control Pneumatic Power & Control Fluid Conveying Miscellaneous Products Indexes & Technical Information

1049

 1999-2016 Hydraulic Supply Co. • 1-800-507-9651 • www.hydraulic-supply.com

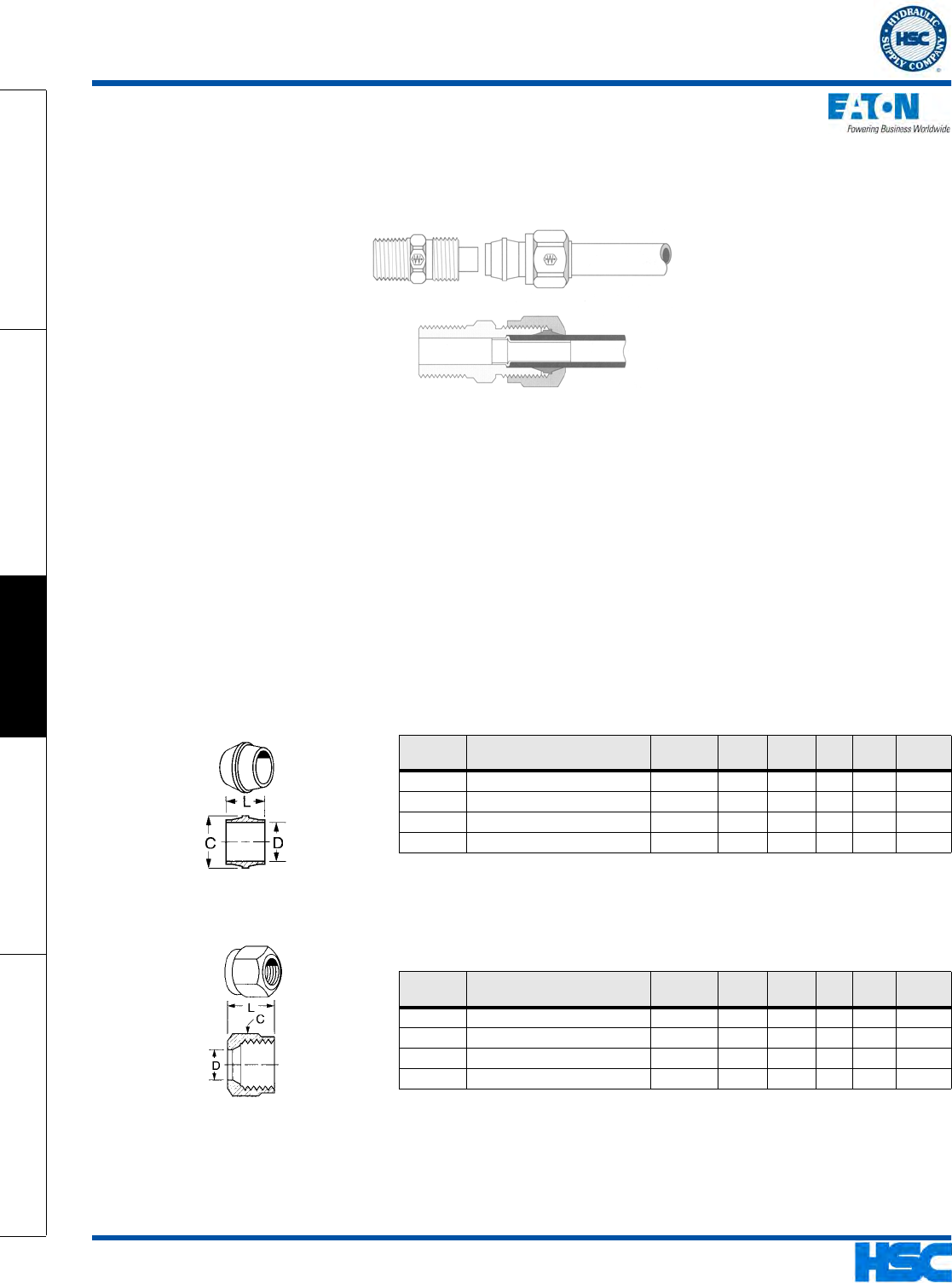

Features: Versil Flare™ Tube Fittings consist of a nut & ferrule (listed below) and a steel JIC 37° flare adapter.

List of steel JIC 37° flare adapters is on page 1110

Note: The maximum hardness of tubing used with this style fitting should not exceed Rockwell B65. (Stainless

steel tubing is not approved).

Assembly Instructions for Versil Flare™ Tube Fittings:

Tubing Cut Off: Cut tubing square (+/- 1°). Tube should be cut to fit tight against the face of the standard JIC 37°

flare body.

De burring: All cut tubes should be deburred, both internally and externally.

Cleaning: Clean all dirt and grit from the I.D. and O.D. of the tube.

Initial Assembly: Slide the nut and then the ferrule onto the tube, with the tapered end of the ferrule pointing

toward the nut. Lubricate all mating surfaces of the nut, ferrule and body with a heavy lubricant such as

Aeroquip 222070 lube. Place end of tube against standard JIC 37° flare body. Slide the ferrule and nut against

body and tighten the nut onto the body "hand tight". Mark the nut in relation to the body for location. Hold tube

against body and tighten nut a total of 1-1/4 turns (-3 through -10), and 1-1/2 turns (-12 through -32).

Reassembly: Slide nut against the body and tighten "hand tight". Mark the nut for location. Tighten nut a

minimum of one "hex" flat.

Re-Use: The Versil Flare™ flareless tube fitting is designed for a minimum of 10 reassemblies.

Catalog

Part No. Aeroquip Model

Tube

O.D.

(in) Thread T A

(in) Wt. Price

Each

•C1CR38 FC2875-04S 0.25 7/16-20 0.82 0.03

•C1CR40 FC2875-06S 0.38 9/16-18 0.86 0.05

•C1CR41 FC2875-08S 0.50 3/4-16 0.08 0.08

•C1CR42 FC2875-10S 0.63 7/8-14 1.12 0.11

Catalog

Part No. Aeroquip Model

Tube

O.D.

(in) A

(in) B

(in) Wt. Price

Each

•C1CV63 FF9605-04S 0.25 0.42 0.25 0.01

•C1CV65 FF9605-06S 0.38 0.46 0.38 0.01

•C1CV66 FF9605-08S 0.50 0.57 0.50 0.02

•C1CV67 FF9605-10S 0.63 0.58 0.62 0.02

•C1CV68 FF9605-12S 0.75 0.7 0.75 0.04

FC2875

Versil Flare™ Flareless Tube Nut

(Use with FF9605 Tube Ferrule and JIC

37° Flare Adapter)

FF9605

Versil Flare™ Flareless Tube Ferrule

(Use with FC2875 Tube Nut and JIC

37° Flare Adapter)

Steel

Versil Flare™ Nuts & Ferrules

 1999-2016 Hydraulic Supply Co. • 1-800-507-9651 • www.hydraulic-supply.com

This page is part of a complete catalog which contains technical and safety data that must be reviewed when selecting a product

Tube Fittings

Hydraulic Power & ControlPneumatic Power & ControlFluid ConveyingMiscellaneous ProductsIndexes & Technical Information

1050

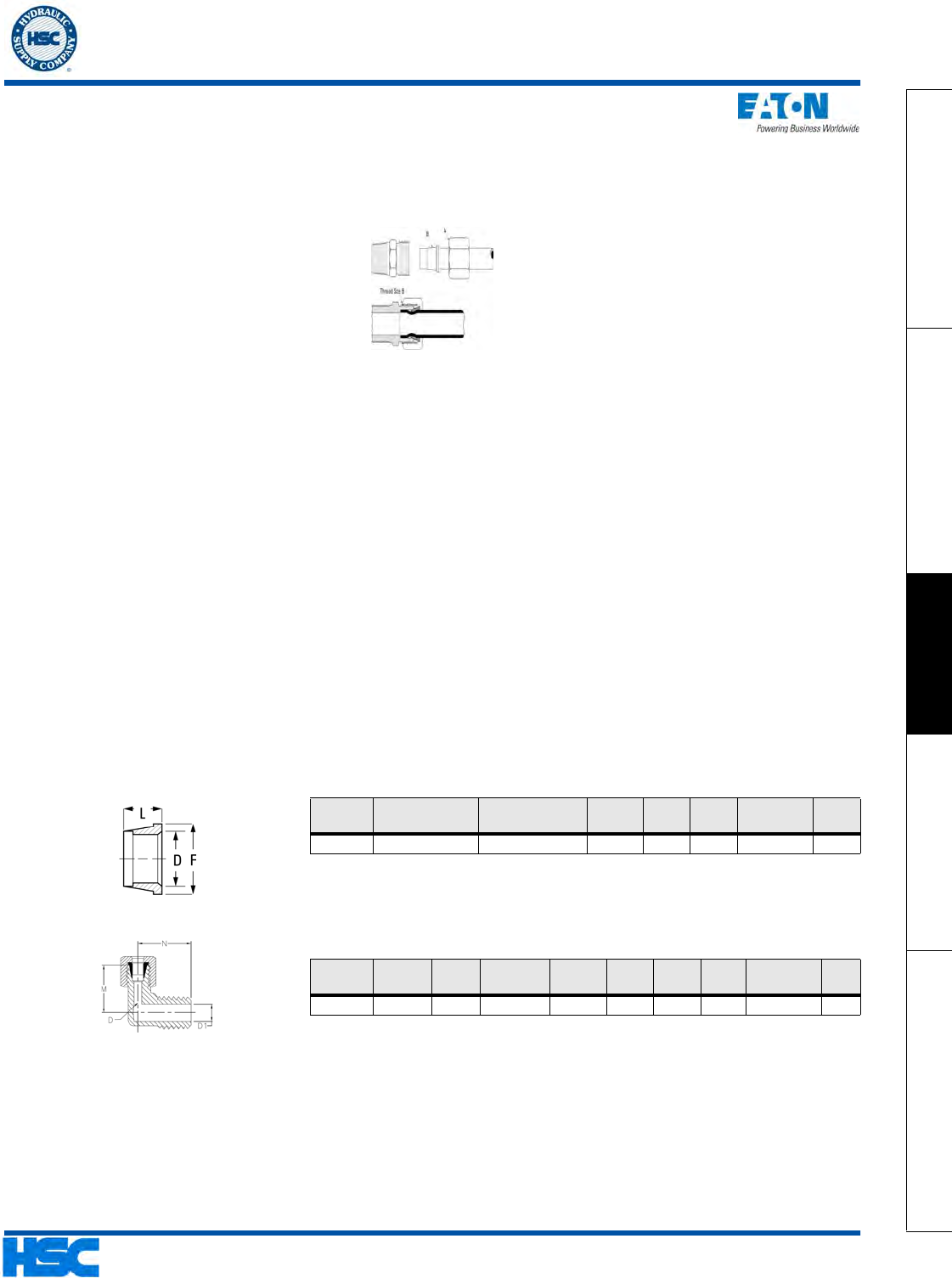

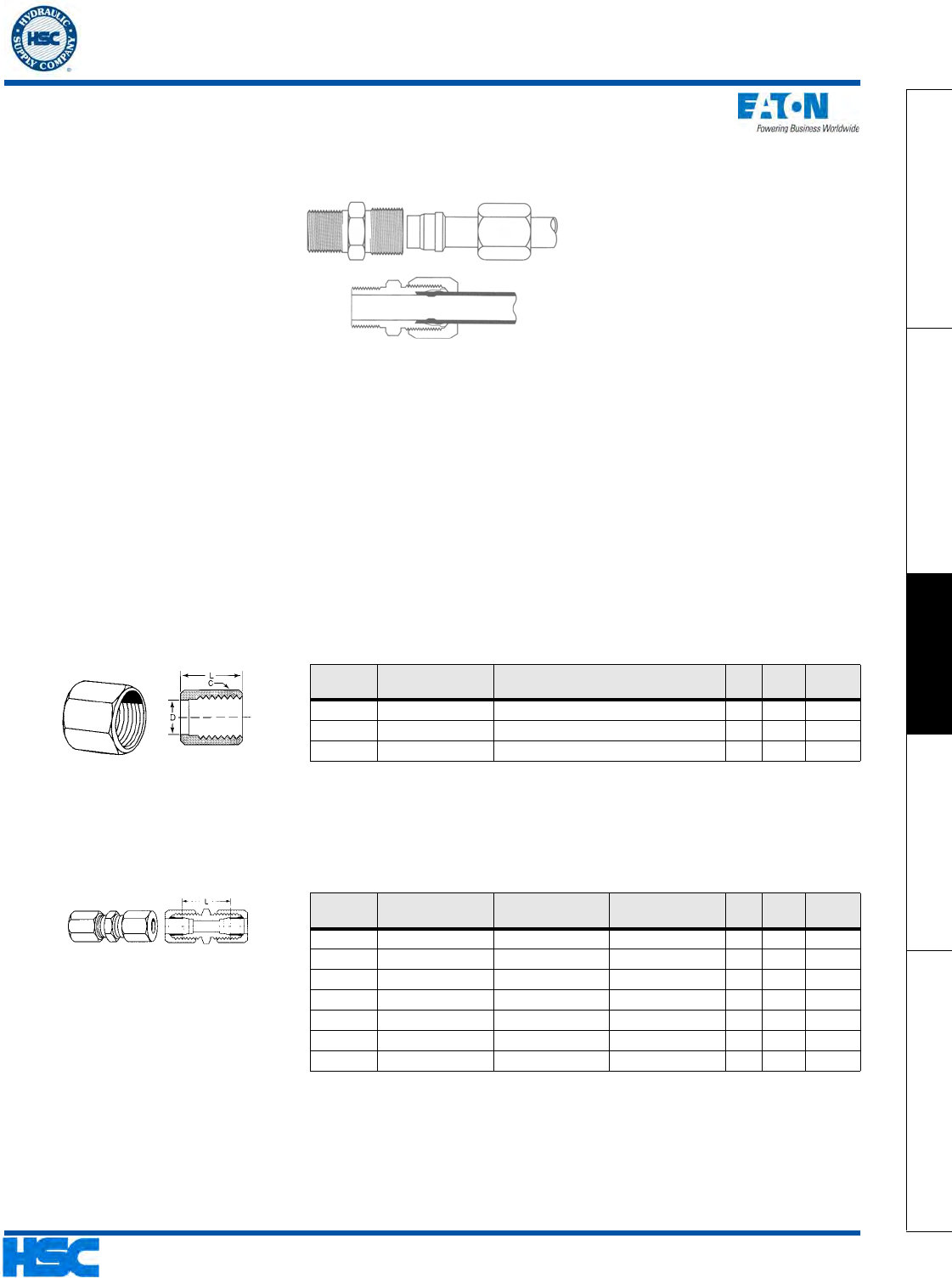

The patented ORS-TF® tube fitting is a compression type fitting that works on a variety of tubing. Recommended

wall thickness: 1/4" & 3/8" (.028 - .065). 1/2" (.035 - .120). 5/8" (.035 - .095). 3/4" (.049 - .120). 1" (.049 - .134).

1-1/4" (.049 - .156). 1-1/2" (.065 - .188).

Note: The maximum hardness of tubing used with this style fitting should not exceed Rockwell B65. (Stainless

steel tubing is not approved).

Assembly Instructions for ORS-TF® Tube Fittings:

1: Measure the length of tubing required, adjusted to account for the shoulder thickness of the sleeve. It is

imperative that the routing leave a length of unbent tubing to fully enter the ORS fitting. This straight length must

be free from surface defects, thin-out distortion and ovality.

2: Cut the measured tubing squarely (± 1°).

3: Deburr the tube ends internally and externally. After deburring, remove all contaminants from the interior and

exterior of the tube ends.

4: Inspect the ORS adapter and all ORS-TF components for damage. Sealing surfaces must be free from all

surface gouges, scratches, dirt and contaminants. Apply a thin film of a compatible lubricant to the O-ring prior

to installation.

5: Place the nut, ferrule and sleeve onto tubing, making sure the identification groove on the ferrule is toward the

nut. Assemble the nut to the adapter until "hand-tight" with the tubing fully inserted into the fitting until bottomed

out. Mark the nut in relation with the adapter, and tighten 1-1/2 turns with wrench. The ORS-TF sleeve cannot

be used to pre-set multiple tube assemblies. It may be used once for pre-setting.

6: The ORS-TF tube assemblies are designed for re-use and can be reinstalled by tightening the nut until a sharp

increase in resistance is felt (approximately 1/4 turn beyond "hand-tight").

7: WARNING: Tubing must be fully inserted into the fitting and the nut tightened as specified above to ensure

performance and to prevent leakage and potential fitting blow-off. Excessive tightening of the nut beyond the

recommended level may affect performance.

8: If connections must be temporarily disassembled, use a threaded plug to contain the ORS-TF components and

keep contaminants and dirt from entering the system.

Steel

ORS-TF® Tube Fittings

This page is part of a complete catalog which contains technical and safety data that must be reviewed when selecting a product

Tube Fittings

Hydraulic Power & Control Pneumatic Power & Control Fluid Conveying Miscellaneous Products Indexes & Technical Information

1051

 1999-2016 Hydraulic Supply Co. • 1-800-507-9651 • www.hydraulic-supply.com

Catalog

Part No. Aeroquip Model Dash

Size

Tube

O.D.

(in) A (in) E (in) F (in) Wt. Price

Each

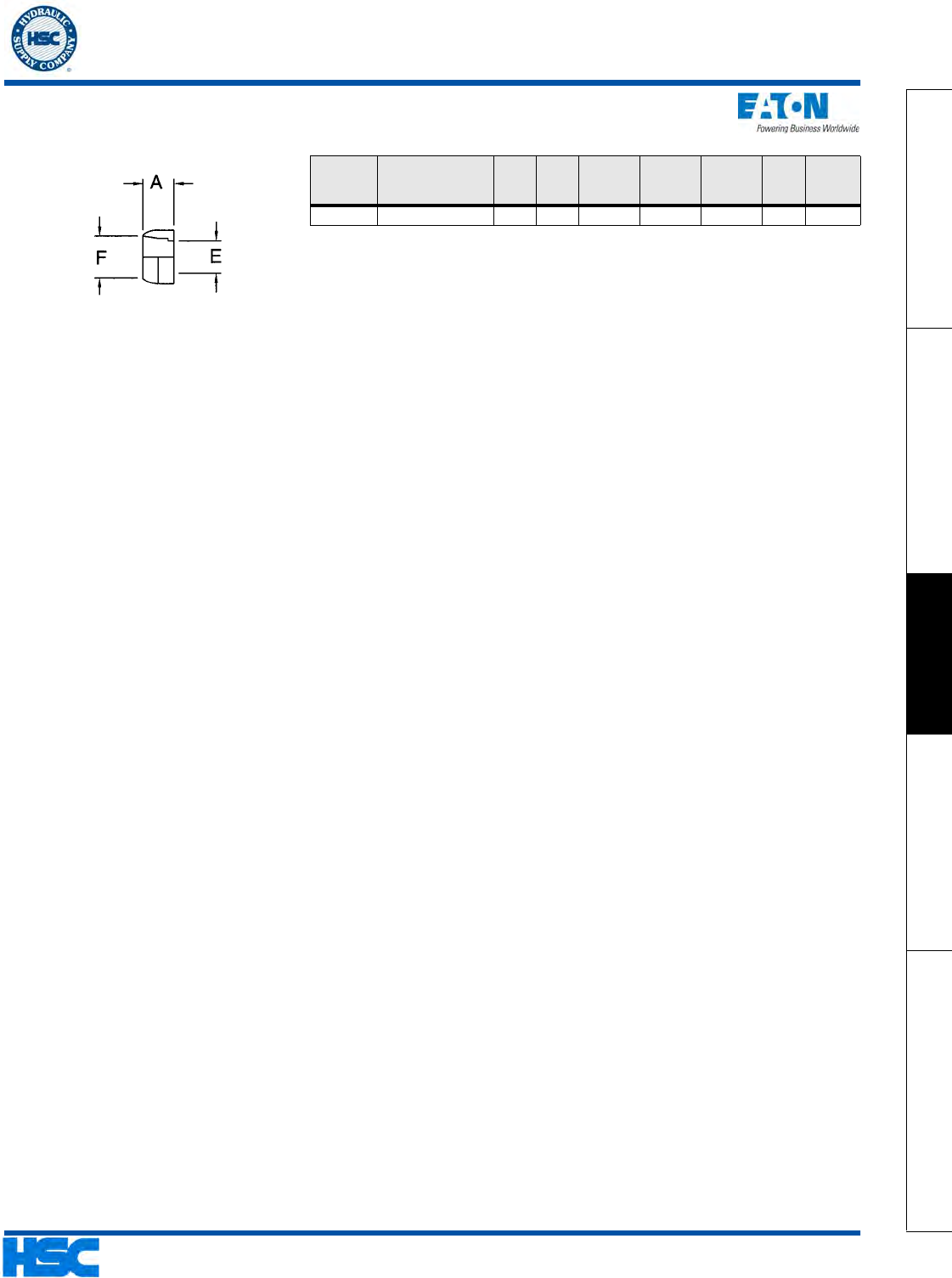

•C1GL86 FF90103-20S 20S 1.25 0.56 1.05 1.26 0.12

FF90103

ORS-TF® Sleeve

Steel

ORS-TF® Tube Fittings

This page is part of a complete catalog which contains technical and safety data that must be reviewed when selecting a product

Tube Fittings

Hydraulic Power & ControlPneumatic Power & ControlFluid ConveyingMiscellaneous ProductsIndexes & Technical Information

1052  1999-2016 Hydraulic Supply Co. • 1-800-507-9651 • www.hydraulic-supply.com

Catalog

Part No. Aeroquip Model Tube O.D. (in) Wt. Price

Each

•C1CV45 FF9075-06 0.38 0.06

•C1CV49 FF9075-74 0.50 0.08

FF9075

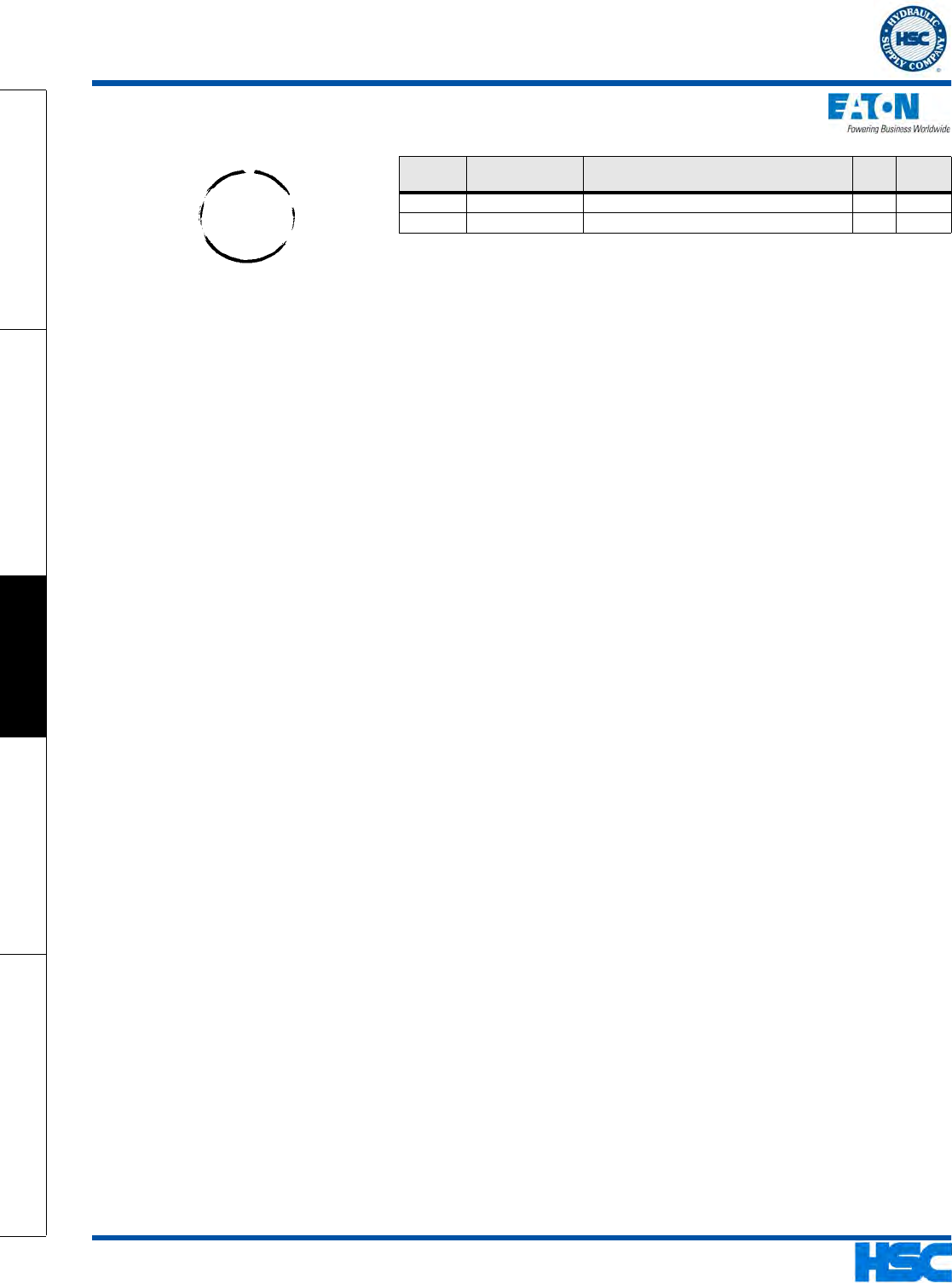

ORS® Silver Braze Ring

Steel

Braze Type Tube Fittings - ORS

This page is part of a complete catalog which contains technical and safety data that must be reviewed when selecting a product

Tube Fittings

Hydraulic Power & Control Pneumatic Power & Control Fluid Conveying Miscellaneous Products Indexes & Technical Information

1053

 1999-2016 Hydraulic Supply Co. • 1-800-507-9651 • www.hydraulic-supply.com

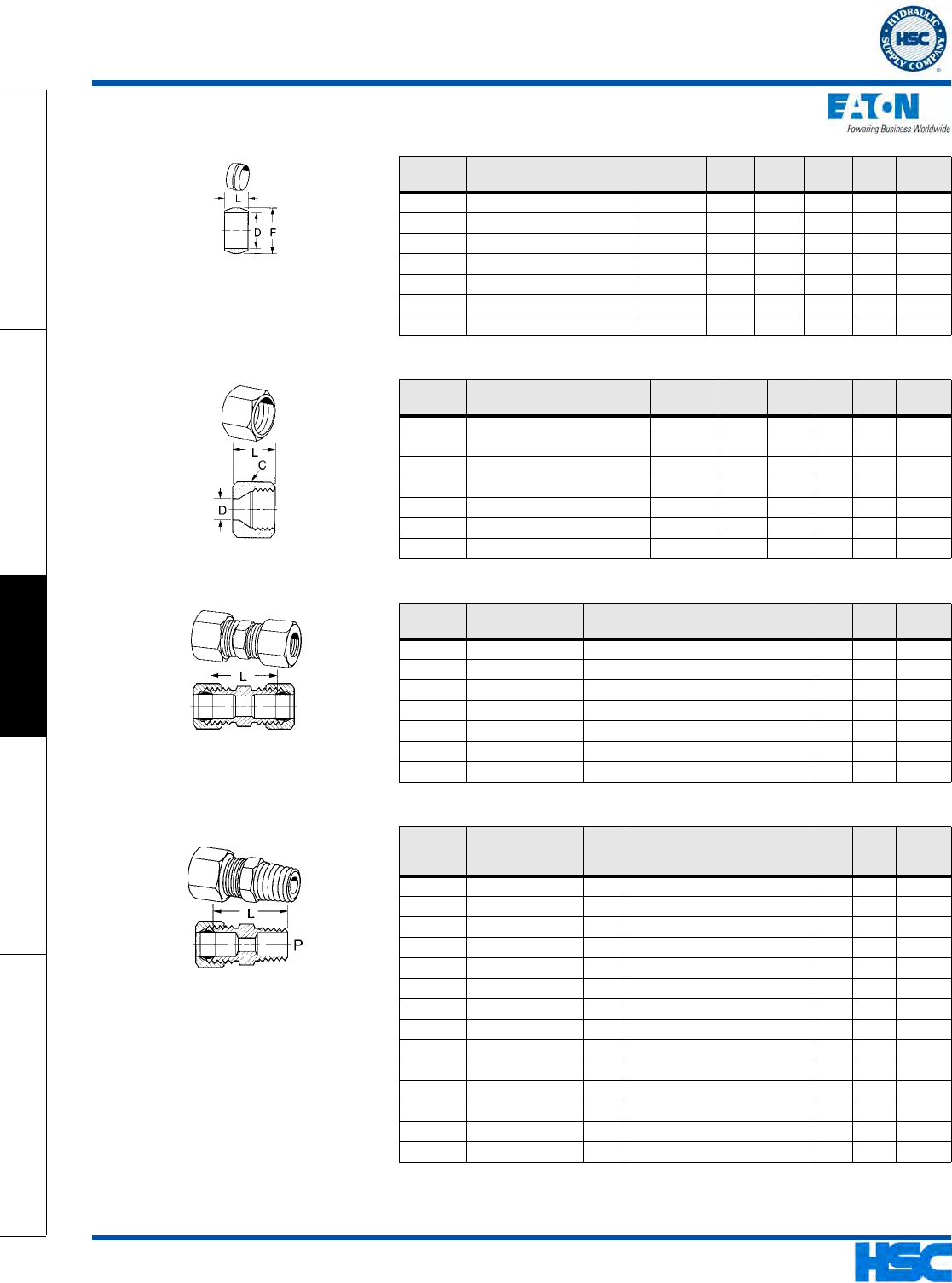

Eaton 7000 Series Ermeto® Steel Tube Fittings

Typical Application: Hydraulic, instrumentation and chemical processing systems. Highly recommended for high

pressure applications. For your particular application, please review the Important Safety Information starting on

page 1519

Pressure: Operating pressure depends on tube and fitting size. See Technical Information note below.

Vibration: Excellent resistance.

Temperature Range: -65°F to +400°F at maximum operating pressures. Has been used at 800°F and 1000 psi to

4000 psi depending on tube size. See Technical Information note below.

Material: AISI/SAE 12L14 carbon steel with exclusive Weathercote® finish, which fully resists the effects of

nonflammable hydraulic fluids.

Used With: Aluminum, hard or half copper, steel, stainless steel and extra heavy wall tubing that cannot be flared.

See Technical Information note below.

Features: An excellent high pressure fitting - NO TUBE FLARING. Used with extra heavy wall tubing. Broad

selection of sizes and styles.

Conformance: Meets specifications and standards of ASA, ASME and SAE.

Technical Information: page 1327

Catalog

Part No. Eaton Model Tube O.D. (in) L (in) Wt. Price

Each

•C1LX49 7105X4 0.25 0.70

•C1KY22 7105X6 0.375 0.75

•C1KV28 7105X8 0.50 0.84 0.08

Catalog

Part No. Eaton Model Tube O.D. (in) Tube O.D. (in) L (in) Wt. Price

Each

•C1KZ30 7305X3 3/16 3/16 1.11

•C1MK20 7305X4 1/4 1/4 1.18

•C1KY27 7305X5 5/16 5/16 1.18

•C1KZ31 7305X6 3/8 3/8 1.24

•C1JD63 7305X10 5/8 5/8 1.61 0.34

•C1JB60 7305X12 3/4 3/4 1.81 0.36

•C1KZ29 7305X16 1 1 1.81

7105

Nut

7305

Small Hex Union

Steel

Flareless Fittings - 7000 Series Ermeto®

This page is part of a complete catalog which contains technical and safety data that must be reviewed when selecting a product

Tube Fittings

Hydraulic Power & ControlPneumatic Power & ControlFluid ConveyingMiscellaneous ProductsIndexes & Technical Information

1054  1999-2016 Hydraulic Supply Co. • 1-800-507-9651 • www.hydraulic-supply.com

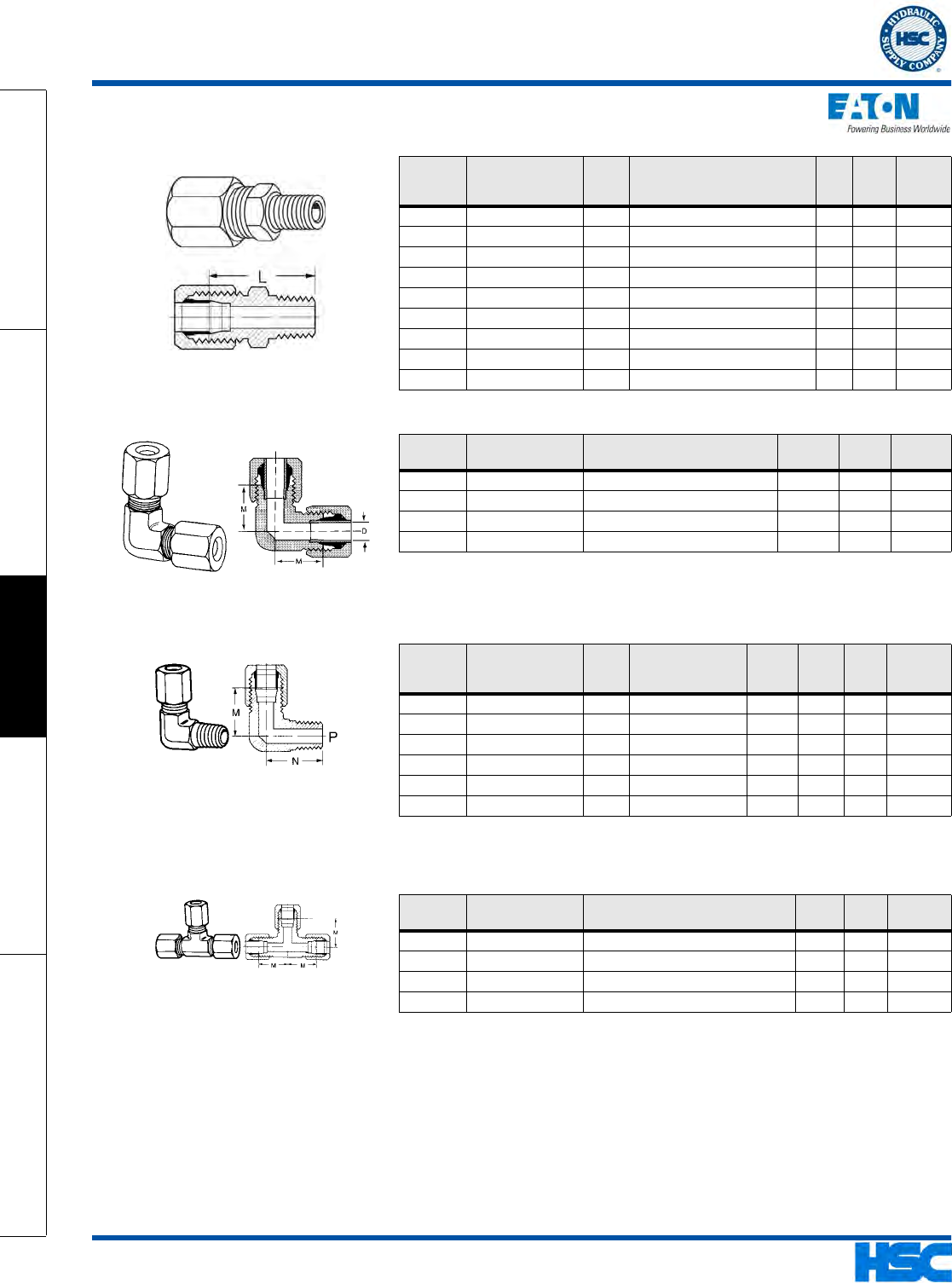

Catalog

Part No. Eaton Model

Tube

O.D.

(in) Thread P L (in) Wt. Price

Each

•C1LB56 7205X4 0.25 1/8-27 1.12 0.06

•C1JB57 7205X4X4 0.25 1/4-18 1.32 0.09

•C1KY26 7205X5X4 0.31 1/4-18 1.32 0.09

•C1JC57 7205X6 0.38 1/4-18 1.34 0.11

•C1LX50 7205X6X6 0.38 3/8-18 1.35 0.13

•C1HJ88 7205X8 0.50 3/8-18 1.44 0.17

•C1KZ28 7205X8X8 0.50 1/2-14 1.69 0.23

•C1JB52 7205X10 0.63 1/2-14 1.75 0.26

•C1JB53 7205X12 0.75 3/4-14 1.88 0.43

Catalog

Part No. Eaton Model Tube O.D. (in) M (in) Wt. Price

Each

•C1KY29 7505X4 1/4 0.89

•C1KZ34 7505X6 3/8 1.05 0.19

•C1FX38 7505X10 5/8 1.42 0.50

•C1FX39 7505X12 3/4 1.58 0.76

Catalog

Part No. Eaton Model

Tube

O.D.

(in) Male Pipe Thread

PM (in) N (in) Wt. Price

Each

•C1KZ32 7405X4 1/4 1/8-27 0.89 0.78 0.30

•C1KZ33 7405X5X4 5/16 1/4-18 1.03 1.09

•C1KY28 7405X5 5/16 1/8-27 0.95 0.81

•C1JB63 7405X6 3/8 1/4-18 1.05 1.09 0.14

•C1JB62 7405X10 5/8 1/2-14 1.42 1.47 0.38

•C1HL15 7405X12 3/4 3/4-14 1.58 1.59 0.61

Catalog

Part No. Eaton Model Tube O.D. (in) M (in) Wt. Price

Each

•C1KV44 7705X4 0.25 0.89 0.17

•C1KY31 7705X5 0.31 0.95 0.22

•C1JB67 7705X6 0.37 1.05 0.26

C1JB68 7705X8 0.50 1.25 0.48

7205

Male Pipe Connector

7505

90° Union Elbow

7405

90° Male Elbow

7705

Union Tee

Steel

Flareless Fittings - 7000 Series Ermeto®

This page is part of a complete catalog which contains technical and safety data that must be reviewed when selecting a product

Tube Fittings

Hydraulic Power & Control Pneumatic Power & Control Fluid Conveying Miscellaneous Products Indexes & Technical Information

1055

 1999-2016 Hydraulic Supply Co. • 1-800-507-9651 • www.hydraulic-supply.com

Steel Flareless Tube Fittings

Material: Forged Bodies: 12L14, Straight Bodies: 12L14, Cold Formed Nuts: C1110, Bar Stock Nut: 12L14,

Flareless Sleeves: 12L14.

Applications: For use with applications such as: Construction machinery, Textile machinery, Machine tools,

Chemical, Marine, Military, and most other high pressure hydraulic applications. Applications using thick wall

tubing where flaring is not practical. CAUTION: 7000 Flareless Fittings are NOT RECOMMENDED for use in

instrumentation applications where toxic and noxious gases are present. For your particular application, please

review the Important Safety Information starting on page 1519

Temperature Range: -30°F to 450°F. Straight thread fittings which use O-Rings to seal are restricted to the

temperature range of the material used to construct the O-Ring.

Pressure Ratings: Working Pressure up to 10,000 PSI. CAUTION: Working pressures will vary depending on

tube and fitting size. (For applications using extreme pressures at 5000 PSI or above (or) for application with

extreme pressure fluctuations, contact us for assistance).

Tubing: Steel Tubing page 1036

Catalog

Part No. World Wide

Model Tube O.D. (in) L (in) Wt. Price

Each

•C1KV29 7165AX04-WWF 0.25 0.36 0.01

•C1KV31 7165AX06-WWF 0.38 0.39 0.01

•C1KV32 7165AX08-WWF 0.50 0.43 0.07

•C1KV33 7165AX10-WWF 0.63 0.44 0.01

•C1KV34 7165AX12-WWF 0.75 0.48 0.03

•C1KV35 7165AX16-WWF 1.00 0.48 0.10

7165A

Ferrule

Steel

7000 Series Ermeto

This page is part of a complete catalog which contains technical and safety data that must be reviewed when selecting a product

Tube Fittings

Hydraulic Power & ControlPneumatic Power & ControlFluid ConveyingMiscellaneous ProductsIndexes & Technical Information

1056  1999-2016 Hydraulic Supply Co. • 1-800-507-9651 • www.hydraulic-supply.com

Design Features: Conforms in design & dimensions to latest DIN standards.

Construction: Forged or drawn high quality steel.

Working Pressure: Series LL: 100 bar with 4:1 safety factor. Series L: Varies from 100 to 250 bar (see tables)

with 4:1 safety factor. Series S: Varies from 160 to 630 bar (see tables) with 4:1 safety factor.

Operating Temperature Range: Up to 120°C.

Tubing: Metric Steel Tubing page 1037

Application: For your particular application, please review the Important Safety Information starting on page 1519

Catalog

Part No.

Eaton

Waltersheid

Model

Tube

O.D.

(mm) Series

Maximum

Operating

Pressure

(bar)

Thread

Size M

(mm) Wt. Price

Each

C1MM30 WAL039838 4LL 100 M 8x1.0 0.01

•C1MC87 WAL039840 6LL 100 M 10x1.0 0.01

•C1KW99 WAL039842 6 L 500 M 12x1.5 0.02

•C1KX18 WAL039852 6 S 800 M 14x1.5 0.04

•C1KX11 WAL039843 8 L 500 M 14x1.5 0.03

•C1KX19 WAL039853 8 S 800 M 16x1.5 0.05

•C1KX12 WAL039844 10 L500 M 16x1.5 0.04

•C1KX20 WAL039854 10 S800 M 18x1.5 0.07

•C1KX13 WAL039845 12 L400 M 18x1.5 0.04

•C1KX21 WAL039855 12 S630 M 20x1.5 0.07

•C1KX14 WAL039846 15 L400 M 22x1.5 0.09

•C1KX22 WAL039857 16 S630 M 24x1.5 0.14

•C1KX15 WAL039847 18 L400 M 26x1.5 0.14

•C1KX23 WAL039858 20 S420 M 30x2.0 0.22

•C1KX16 WAL039848 22 L250 M 30x2.0 0.18

•C1KX24 WAL039859 25 S420 M 36x2.0 0.45

•C1KX25 WAL039860 30 S420 M 42x2.0 0.48

Catalog

Part No.

Eaton

Waltersheid

Model

Tube

O.D.

(mm) Series

Maximum

Operating

Pressure

(bar) Wt. Price

Each

•C1KX26 WAL039862 4LL 100

•C1KX38 WAL372404 6 L 500

•C1KX39 WAL372405 8 L 500

•C1KX40 WAL372406 10 L500 0.10

•C1KX41 WAL372407 12 L400 0.01

•C1KX42 WAL372408 15 L400 0.01

•C1KX46 WAL372415 16 S630 15.00

•C1KX43 WAL372409 18 L400

•C1KX47 WAL372416 20 S420 0.14

•C1KX44 WAL372410 22 L250 0.02

•C1KX48 WAL372417 25 S420 0.03

•C1KX45 WAL372411 28 L250 0.03

C1KX49 WAL372418 30 S420 0.04

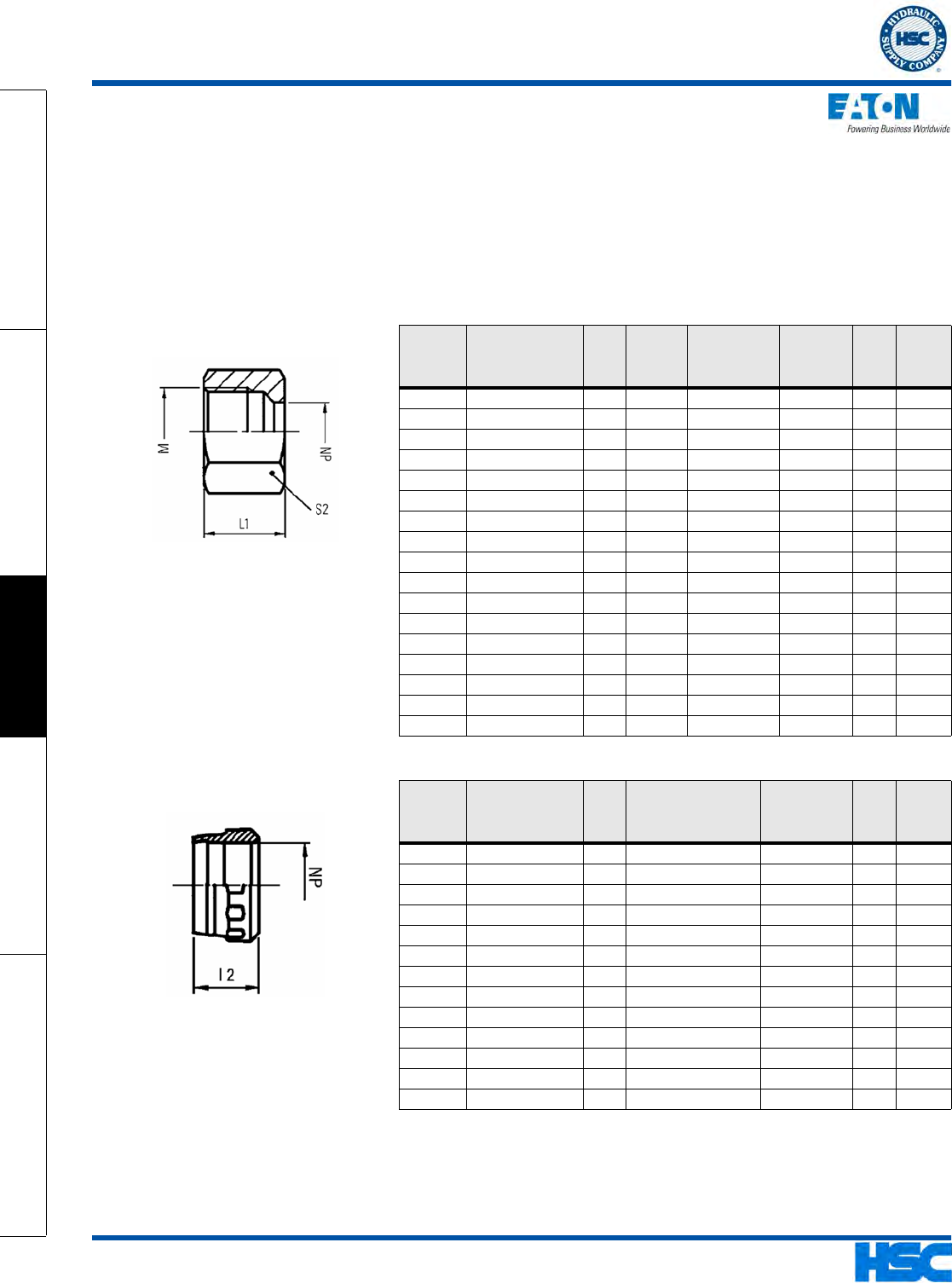

Walterscheid

Nut

Walterscheid

Profile Ring

Steel

Metric Flareless Fittings

1 millimeter = 0.03937 inches 1 bar = 14.5 psi °F = (°C x 1.8) + 32

This page is part of a complete catalog which contains technical and safety data that must be reviewed when selecting a product

Tube Fittings

Hydraulic Power & Control Pneumatic Power & Control Fluid Conveying Miscellaneous Products Indexes & Technical Information

1057

 1999-2016 Hydraulic Supply Co. • 1-800-507-9651 • www.hydraulic-supply.com

Catalog

Part No. Voss Model

Tube

O.D.

(mm) Series

Maximum

Operating

Pressure

(bar) L1

(mm) Wt. Price

Each

•C1AH76 112-001 6 L 250 39 0.08

•C1ER54 112-501 6 S 630 45 0.14

•C1AH77 112-051 8 L 250 40 0.11

•C1ER55 112-551 8 S 630 47 0.19

•C1AH78 112-101 10 L250 42 0.14

•C1ER73 112-601 10 S630 49 0.25

•C1AH88 112-151 12 L250 43 0.19

•C1ER91 112-651 12 S630 51 0.30

•C1AH92 112-751 16 S400 57 0.51

•C1AH93 112-801 20 S400 66 0.82

•C1GA81 112-901 30 S250 80 1.80

Catalog

Part No.

Eaton

Waltersheid

Model

Tube

O.D.

(mm) Series

Maximum

Operating

Pressure

(bar) L5

(mm) Wt. Price

Each

C1KW82 WAL037848 6 L 500 24 0.03

C1KW86 WAL037853 6 S 800 30

•C1KW83 WAL037849 8 L 500 25 0.04

C1KW87 WAL037854 8 S 800 32

•C1KW84 WAL037850 10 L500 27

C1KW88 WAL037855 10 S800 32 0.09

•C1KW89 WAL037856 12 S630 38 0.13

•C1MC91 WAL373366 15 L400 30

C1KW90 WAL037858 16 S630 38 0.19

•C1MC92 WAL373367 18 L400 31

C1KW91 WAL037859 20 S420 44 0.31

•C1KW92 WAL037860 25 S420 50 0.55

C1KW93 WAL037861 30 S420 54 0.73

Note: Order Nuts and Profile Ring separately. See page 1056

Catalog

Part No. Voss Model

Tube

O.D.

(mm) Series

Maximum

Operating

Pressure

(bar) L1

(mm) Wt. Price

Each

•C1AJ36 120-101 10 L250 30 0.21

•C1AJ40 120-251 18 L160 23.5 0.53

111 / 112

Straight Coupling

Walterscheid

Straight Union Connector

(Body Only)

119 / 120

Equal Elbow

Steel

Metric Flareless Fittings

1 millimeter = 0.03937 inches 1 bar = 14.5 psi °F = (°C x 1.8) + 32

This page is part of a complete catalog which contains technical and safety data that must be reviewed when selecting a product

Tube Fittings

Hydraulic Power & ControlPneumatic Power & ControlFluid ConveyingMiscellaneous ProductsIndexes & Technical Information

1058  1999-2016 Hydraulic Supply Co. • 1-800-507-9651 • www.hydraulic-supply.com

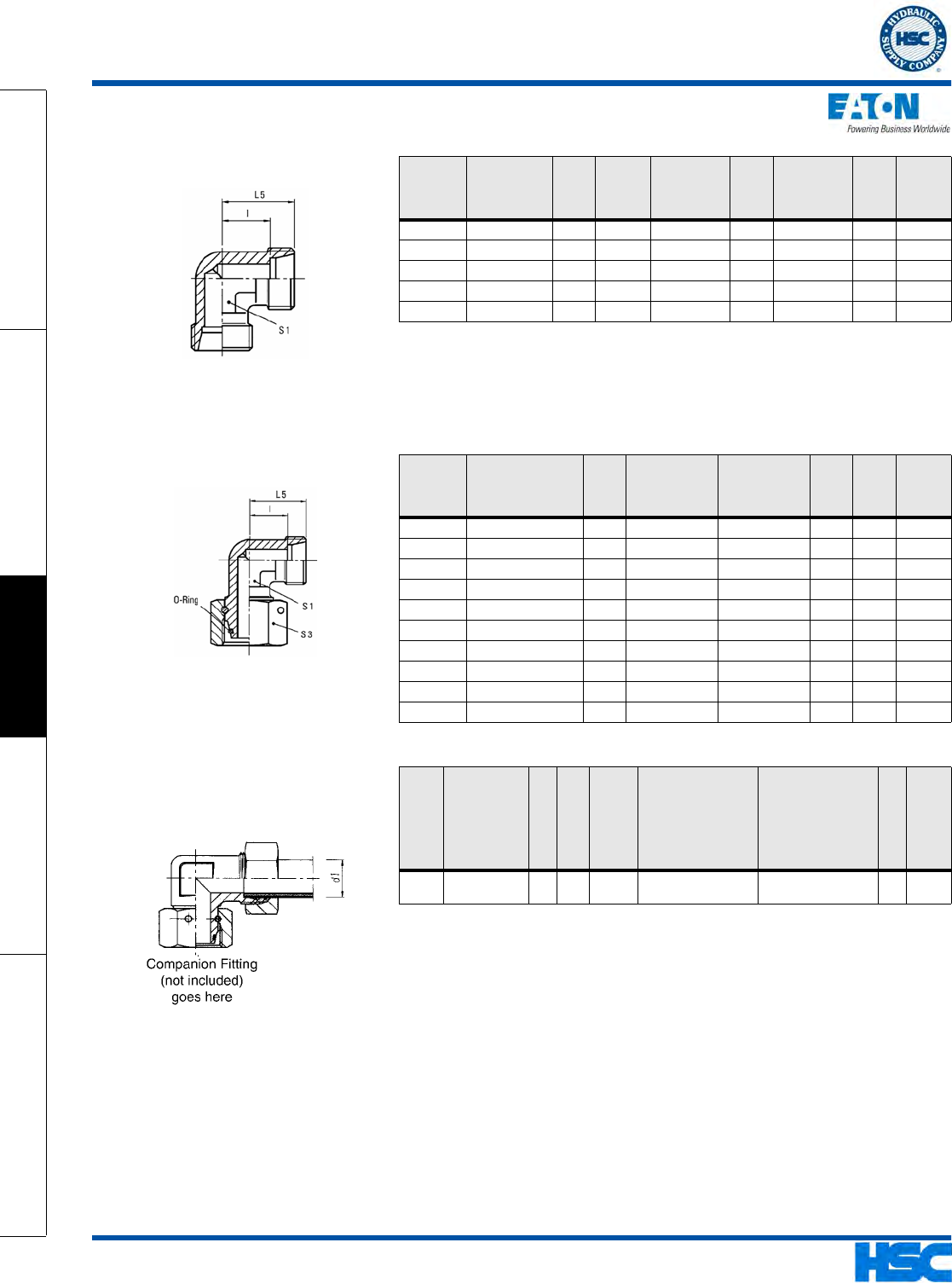

Catalog

Part No.

Eaton

Waltersheid

Model

Tube

O.D.

(mm) Series

Maximum

Operating

Pressure

(bar) L5

(mm) Includes

Ring/Nut? Wt. Price

Each

C1KW94 WAL037869 10 L500 22 No 0.07

C1KW96 WAL037879 10 S800 25 No

•C1KX51 WAL373400 16 S630 33 Ye s 0.63

C1KW95 WAL037872 18 L400 31 No 0.25

•C1KX52 WAL373402 25 S420 42 Ye s 1.77

Note: Order Nuts and Profile Ring separately. See page 1056

Catalog

Part No.

Eaton

Waltersheid

Model

Tube

O.D.

(mm) Series

Maximum

Operating

Pressure

(bar) L5

(mm) Wt. Price

Each

•C1KX27 WAL063877 6 L 500 21 0.10

C1KX33 WAL063887 6 S 800 23 0.10

C1KX28 WAL063878 8 L 500 21 0.09

C1KX29 WAL063879 10 L500 22 0.12

•C1KX30 WAL063880 12 L400 24 0.17

C1KX34 WAL063890 12 S630 29 0.24

C1KX31 WAL063881 15 L400 28 0.26

C1KX35 WAL063892 16 S630 33 0.43

C1KX32 WAL063882 18 L400 31 0.39

C1KX36 WAL063894 25 S420 42 1.18

Note: Order Nuts and Profile Ring separately. See page 1056

Catal

Part

No. Voss Model

O.D

. D1

m) Seri

Maxim

Operat

ing

Press

ure

(bar)

Companion

Fitting For Metric

Parallel Thread

Companion

Fitting For BSP

Parallel Thread Wt. Price

Each

•C1AL

12 158-021 6 L 250 184-391 (C1AL63)

M 10x1 184-191 (C1AL50)

R 1/8 0.0

Walterscheid

Elbow Union Connector

(Body Only)

Walterscheid

Elbow Swivel Connector

(Body Only)

158

Swivel Elbow

(Swivel Elbow part only)

Steel

Metric Flareless Fittings

1 millimeter = 0.03937 inches 1 bar = 14.5 psi °F = (°C x 1.8) + 32

This page is part of a complete catalog which contains technical and safety data that must be reviewed when selecting a product

Tube Fittings

Hydraulic Power & Control Pneumatic Power & Control Fluid Conveying Miscellaneous Products Indexes & Technical Information

1059

 1999-2016 Hydraulic Supply Co. • 1-800-507-9651 • www.hydraulic-supply.com

•C1AL

20 158-521 6 S 630 184-291 (C1AL58)

R 1/4 0.1

•C1AL

13 158-071 8 L 250 184-401 (C1AL64)

M 12x1.5 184-201 (C1AL51)

R 1/4 0.1

•C1AL

14 158-121 10 L250 184-411 (C1AL65)

M 14x1.5 184-211 (C1AL52)

R 1/4 0.1

•C1AL

15 158-171 12 L250 184-421 (C1AL66)

M 16x1.5 184-151 R 3/8 0.2

•C1AL

23 158-671 12 S630 0.3

•C1AL

16 158-221 15 L250 184-431 (C1AL67)

M 18x1.5 184-231 (C1AL54)

R 1/2 0.3

•C1AL

24 158-771 16 S400 184-541 (C1AL70)

M 22x1.5 184-341 (C1AL60)

R 1/2 0.5

•C1AL

17 158-271 18 L160 184-441 (C1AL68)

M 22x1.5 184-241 (C1AL55)

R 1/2 0.5

•C1KY

83 WAL374560 22 L250

•C1AL

26 158-871 25 S400 184-361 (C1AL62)

R 1 1.6

Note: Part Numbers beginning with WAL are manufactured by Eaton Walterscheid. Use

this swivel plus one of the companion fittings listed previously for a complete 90° swivel

elbow fitting.

Catalog

Part No. Voss Model

Tube

O.D.

(mm) Series

Maximum

Operating

Pressure

(bar) L1

(mm) Wt. Price

Each

•C1KY82 WAL373408 6 L 500 27

•C1LD23 WAL373419 8 S 800 32

•C1AK43 134-151 12 L250 32 0.30

Note: Part Numbers beginning with WAL are manufactured by Eaton Walterscheid.

Catal

Part

No. Voss Model

O.D

. D1

m) Seri

Maxim

Operat

ing

Press

ure

(bar)

Companion

Fitting For Metric

Parallel Thread

Companion

Fitting For BSP

Parallel Thread Wt. Price

Each

158

Swivel Elbow

(Swivel Elbow part only)

133 / 134

Equal Tee

Steel

Metric Flareless Fittings

1 millimeter = 0.03937 inches 1 bar = 14.5 psi °F = (°C x 1.8) + 32

This page is part of a complete catalog which contains technical and safety data that must be reviewed when selecting a product

Tube Fittings

Hydraulic Power & ControlPneumatic Power & ControlFluid ConveyingMiscellaneous ProductsIndexes & Technical Information

1060  1999-2016 Hydraulic Supply Co. • 1-800-507-9651 • www.hydraulic-supply.com

Catalog

Part No.

Eaton

Waltersheid

Model

Tube

O.D.

(mm) Series

Maximum

Operating

Pressure

(bar) L5

(mm) Wt. Price

Each

C1KW97 WAL037893 10 L500 22 0.09

•C1KW98 WAL037894 12 L400 24 0.13

Note: Order Nuts and Profile Ring separately. See page 1056

Catalog

Part No. Voss Model

Tube

O.D.

(mm) Series

Maximum

Operating

Pressure

(bar) Thread Size

D2 (mm) L1

(mm) Wt. Price

Each

•C1AG89 104-001 6 L 250 R 1/8 K 24.5 0.05

•C1AG91 104-051 8 L 250 R 1/4 K 27 0.09

•C1AH27 104-151 12 L250 R 3/8 K 28.5 0.14

•C1AH28 104-201 15 L250 R 1/2 K 30.5 0.22

•C1AH32 104-751 16 S400 R 1/2 K 38.5 0.35

•C1AH31 104-351 28 L100 R 1 K 37 0.55

Catalog

Part No. Voss Model

Tube

O.D.

(mm) Series

Maximum

Operating

Pressure

(bar) Thread Size

D2 (NPT) L1

(mm) Wt. Price

Each

•C1AH50 106-001 6 L 250 1/8-27 25 0.05

•C1AH51 106-051 8 L 250 1/4-18 28 0.09

•C1FJ54 106-551 8 S 630 1/4-18 33 0.13

•C1AH52 106-101 10 L250 1/4-18 29 0.10

•C1LD22 WAL373032 12 L315 3/8-18 17

•C1AH55 106-151 12 L250 3/8-18 29.5 0.14

•C1ZV46 106-651 12 S630 3/8-18 35.5 0.23

•C1MC89 WAL373034 15 L315 1/2-14 18

•C1AH61 106-751 16 S400 1/2-14 40.5 0.36

•C1AH57 106-251 18 L160 1/2-14 34.5 0.31

•C1AH62 106-801 20 S400 3/4-14 45.5 0.57

•C1AH58 106-301 22 L160 3/4-14 36.5 0.41

•C1AH63 106-851 25 S400 1-11-1/2 52.5 1.07

Note: Part Numbers beginning with WAL are manufactured by Eaton Walterscheid.

Walterscheid

Equal Tee

(Body Only)

103 / 104

Male Stud Coupling

BSP Taper

105 / 106

Male Stud Coupling

NPT

Steel

Metric Flareless Fittings

1 millimeter = 0.03937 inches 1 bar = 14.5 psi °F = (°C x 1.8) + 32

This page is part of a complete catalog which contains technical and safety data that must be reviewed when selecting a product

Tube Fittings

Hydraulic Power & Control Pneumatic Power & Control Fluid Conveying Miscellaneous Products Indexes & Technical Information

1061

 1999-2016 Hydraulic Supply Co. • 1-800-507-9651 • www.hydraulic-supply.com

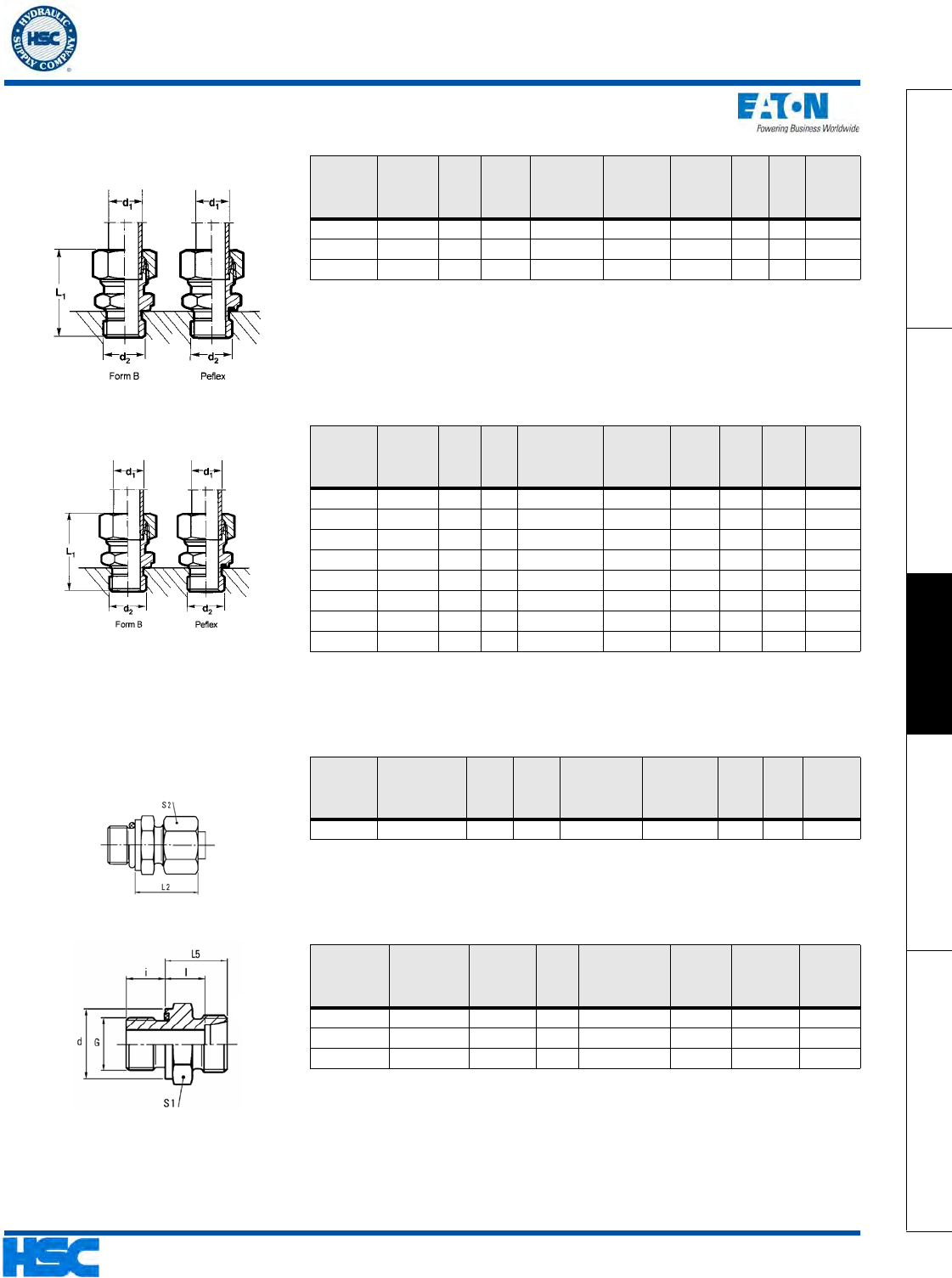

Catalog

Part No. Voss

Model

Tube

O.D.

(mm) Series

Maximum

Operating

Pressure

(bar)

Thread

Size D2

(mm) Type L1

(mm) Wt. Price

Each

•C1AL64 184-401 8 L 250 M 12x1.5 Peflex 25 0.09

•C1AL65 184-411 10 L250 M 14x1.5 Peflex 26 0.11

•C1AL67 184-431 15 L250 M 18x1.5 Peflex 29 0.22

Catalog

Part No. Voss

Model

Tube

O.D.

(mm) Serie

Maximum

Operating

Pressure

(bar)

Thread

Size D2

(mm) Type L1

(mm) Wt. Price

Each

•C1AL51 184-201 8 L 250 R 1/4 Peflex 25 0.10

•C1AL53 184-221 12 L250 R 3/8 Peflex 27 0.15

•C1AL54 184-231 15 L250 R 1/2 Peflex 29 0.26

•C1AL60 184-341 16 S400 R 1/2 Peflex 37 0.36

•C1AL55 184-241 18 L160 R 1/2 Peflex 31 0.31

•C1AL61 184-351 20 S400 R 3/4 Peflex 42 0.59

•C1AL56 184-251 22 L160 R 3/4 Peflex 33 0.42

•C1AL57 184-261 28 L100 R 1 Peflex 34 0.57

Catalog

Part No.

Eaton

Waltersheid

Model

Tube

O.D.

(mm) Series

Maximum

Operating

Pressure

(bar) Thread

Size L2

(mm) Wt. Price

Each

•C1MC90 WAL373165 12 L400 3/4-16 UNF 28

Catalog

Part No.

Eaton

Waltershei

d Model Tube O.D.

(mm) Serie

Maximum

Operating

Pressure

(bar) Thread

Size G Wt. Price

Each

C1KW78 WAL037616 8 L 500 G 1/4 0.06

•C1KW79 WAL037619 12 L400 G 3/8 0.09

C1KW80 WAL037623 28 L250 G 1 0.37

Note: Order Nuts and Profile Ring separately. See page 1056

109 / 184

Male Stud Coupling

110 / 184

Male Stud Coupling

BSP Parallel

Walterscheid

Male Stud Connect SAE O-Ring Boss

Walterscheid

BSPP with Seal

(Body Only)

Steel

Metric Flareless Fittings

1 millimeter = 0.03937 inches 1 bar = 14.5 psi °F = (°C x 1.8) + 32

This page is part of a complete catalog which contains technical and safety data that must be reviewed when selecting a product

Tube Fittings

Hydraulic Power & ControlPneumatic Power & ControlFluid ConveyingMiscellaneous ProductsIndexes & Technical Information

1062  1999-2016 Hydraulic Supply Co. • 1-800-507-9651 • www.hydraulic-supply.com

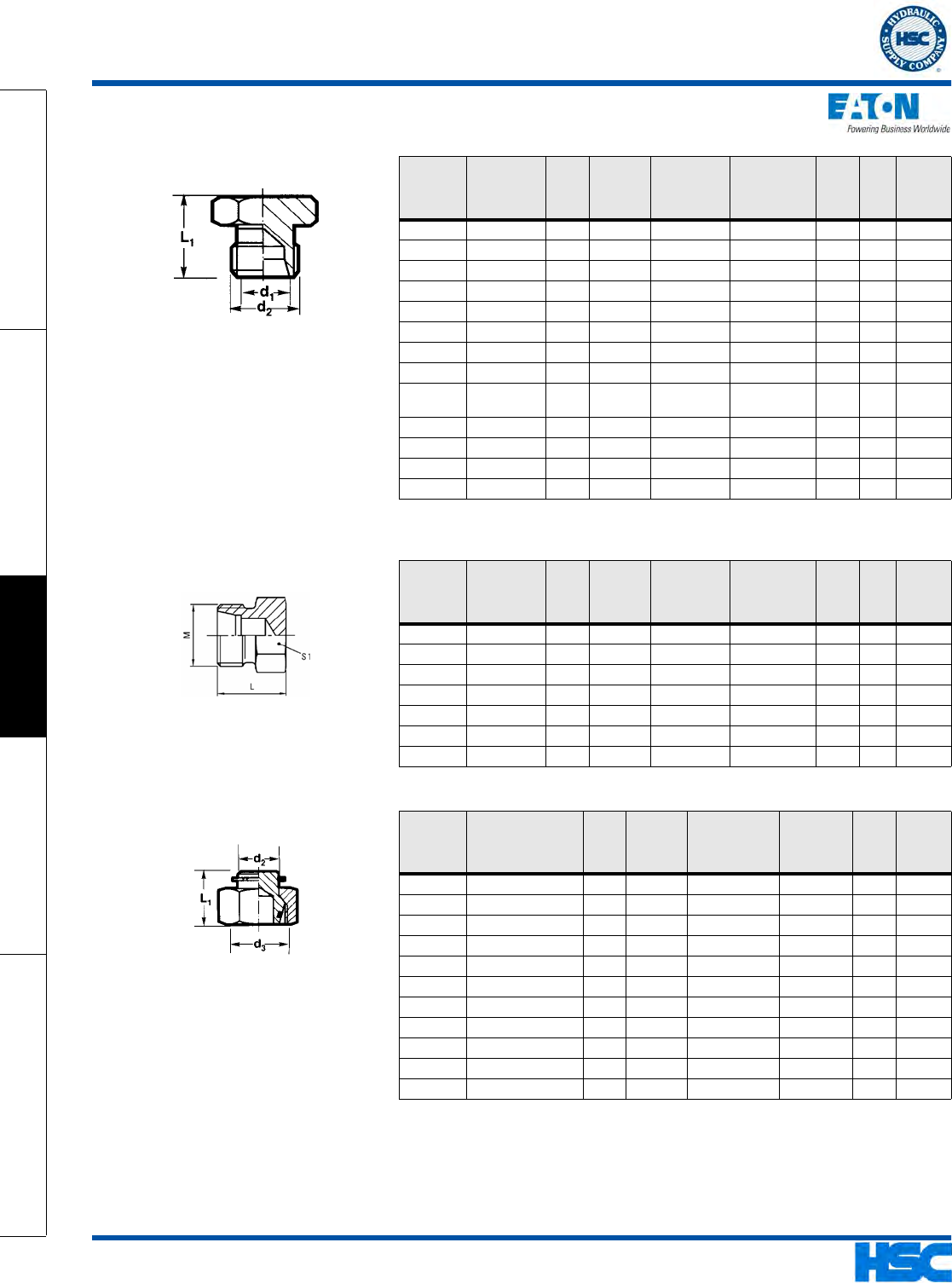

Catalog

Part No. Voss Model

Tube

O.D.

(mm) Series

Maximum

Operating

Pressure

(bar) Thread Size

D2 (mm) L1

(mm) Wt. Price

Each

•C1EW38 793-351 8 L 250 M 14x1.5 15 0.03

•C1FN22 793-451 8 S 630 M 16x1.5 20 0.06

•C1EW39 793-361 10 L250 M 16x1.5 16 0.04

•C1FP94 793-461 10 S630 M 18x1.5 20 0.07

•C1EW40 793-371 12 L250 M 18x1.5 17 0.05

•C1FP95 793-481 14 S630 M 22x1.5 24 0.14

•C1EW41 793-381 15 L250 M 22x1.5 18 0.09

•C1FN24 793-491 16 S400 M 24x1.5 24 0.16

•C1FN29 9203S-16-A

DAPTAL 16 Heavy M 24x1.5 24 0.17

•C1MV44 WAL063400 20 S420 M 30x2 28 0.29

•C1EW43 793-401 22 L160 M 30x2 21 0.19

•C1GH69 793-511 25 S400 M 36x2 32 0.49

•C1EW44 793-411 28 L100 M 36x2 22 0.32

Note: 9203S is Adaptall model.

Note: WAL is Eaton-Walterscheid

Catalog

Part No.

Eaton

Waltershei

d Model

Tube

O.D.

(mm) Series

Maximum

Operating

Pressure

(bar) Thread Size

M (mm) L

(mm) Wt. Price

Each

•C1KX54 WAL609765 6 L 500 M 12x1.5 17

•C1KX55 WAL609766 8 L 500 M 14x1.5 17 0.05

•C1KX37 WAL372285 10 L500 M 16x1.5 20

•C1KW65 WAL024051 12 S630 M 20x1.5 21

•C1MC88 WAL063859 16 S630 M 24x1.5 24

•C1LD21 WAL061866 18 L400 M 26x1.5 21

•C1KX56 WAL609768 22 L250 M 30x2.0 23 0.25

Catalog

Part No. Voss Model

Tube

O.D.

(mm) Series

Maximum

Operating

Pressure

(bar)

Thread

Size D3

(mm) Wt. Price

Each

•C1DU54 1193-041000 6 L 315 M 12x1.5 0.10

•C1DU55 1193-051000 8 L 315 M 14x1.5 0.05

•C1FR46 1193-151000 8 S 630 M 16x1.5 0.06

•C1DU56 1193-061000 10 L315 M 16x1.5 0.20

•C1DU57 1193-071000 12 L315 M 18x1.5 0.11

•C1FR48 1193-171000 12 S630 M 20x1.5 0.13

•C1FR49 1193-181000 14 S630 M 22x1.5 0.18

•C1DU58 1193-081000 15 L315 M 22x1.5 0.62

•C1EG60 1193-191000 16 S400 M 24x1.5 0.23

•C1EG62 1193-211000 25 S400 M 36x2 0.65

•C1DU61 1193-111000 28 L160 M 36x2 0.50

793

Tube Plug

Walterscheid

Tube Plug

1193

Blanking Plug

(For blanking off couplings)

Steel

Metric Flareless Fittings

1 millimeter = 0.03937 inches 1 bar = 14.5 psi °F = (°C x 1.8) + 32

This page is part of a complete catalog which contains technical and safety data that must be reviewed when selecting a product

Tube Fittings

Hydraulic Power & Control Pneumatic Power & Control Fluid Conveying Miscellaneous Products Indexes & Technical Information

1063

 1999-2016 Hydraulic Supply Co. • 1-800-507-9651 • www.hydraulic-supply.com

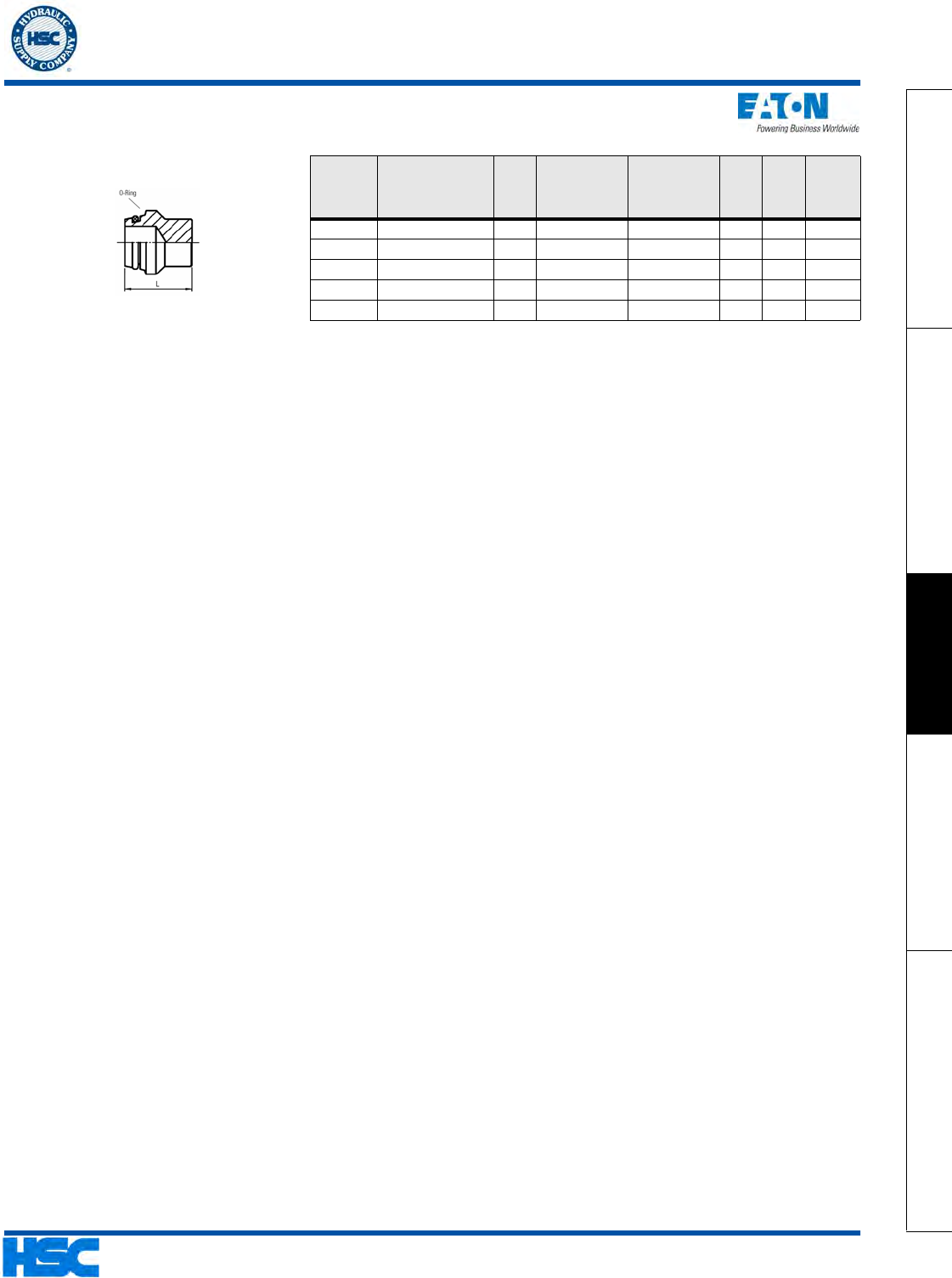

Catalog

Part No.

Eaton

Waltersheid

Model

Tube

O.D.

(mm) Series

Maximum

Operating

Pressure

(bar) L

(mm) Wt. Price

Each

•C1KX57 WAL612330 6 L 800 17

•C1LA18 WAL612341 16 S630 24

•C1KX58 WAL612335 18 L400 21 0.08

•C1KY84 WAL612336 22 L250 23

•C1MM31 WAL612343 25 S420 31

Walterscheid

Cap

Steel

Metric Flareless Fittings

1 millimeter = 0.03937 inches 1 bar = 14.5 psi °F = (°C x 1.8) + 32

This page is part of a complete catalog which contains technical and safety data that must be reviewed when selecting a product

Tube Fittings

Hydraulic Power & ControlPneumatic Power & ControlFluid ConveyingMiscellaneous ProductsIndexes & Technical Information

1064  1999-2016 Hydraulic Supply Co. • 1-800-507-9651 • www.hydraulic-supply.com

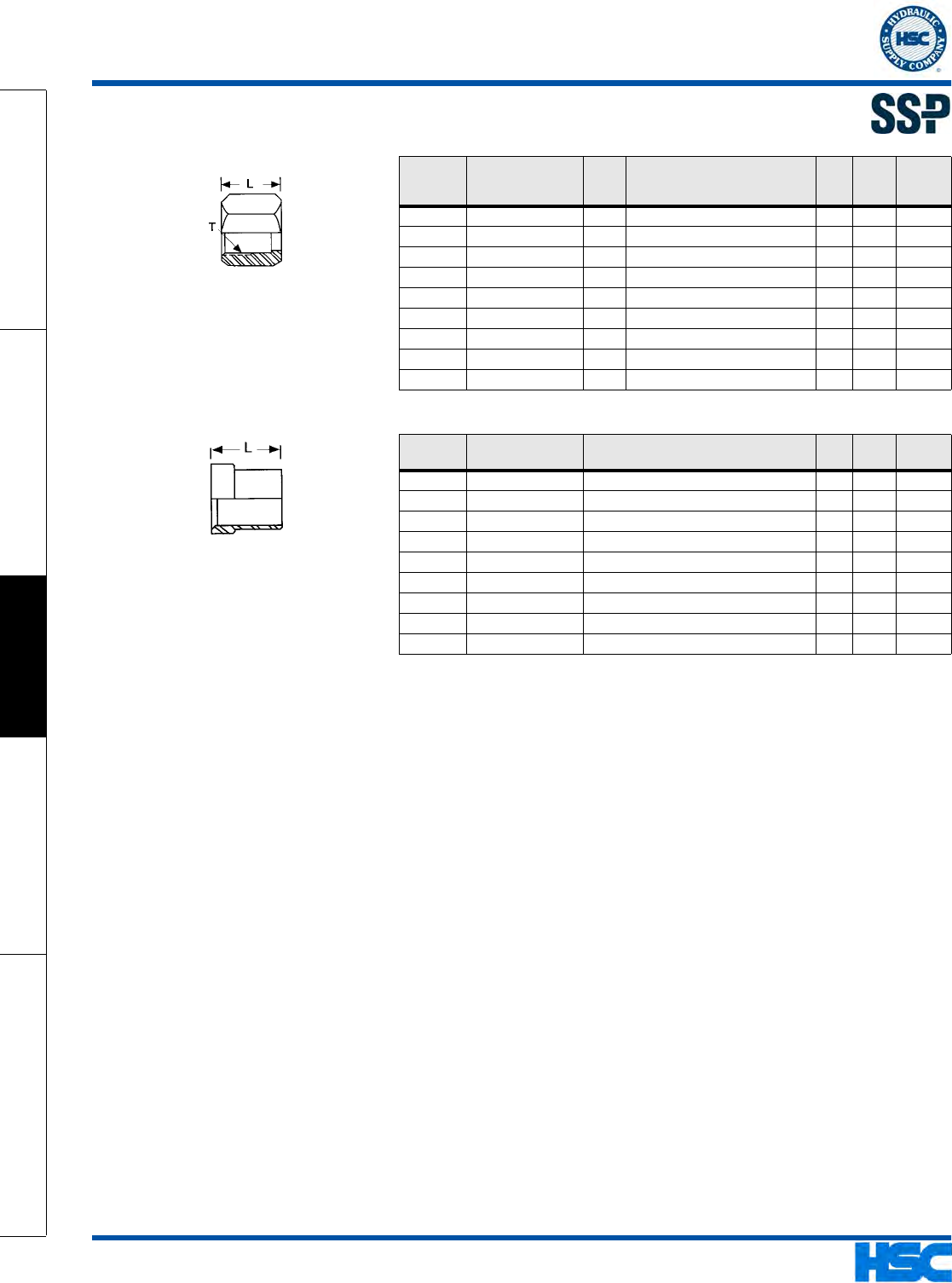

Catalog

Part No. SSP Model

Tube

O.D.

(in) Thread T L (in) Wt. Price

Each

•C1CZ67 J3N 0.19 3/8-24 0.6 0.01

•C1CZ92 J4N 0.25 7/16-20 0.61 0.03

•C1DA17 J5N 0.31 1/2-20 0.67 0.03

•C1DA43 J6N 0.38 9/16-18 0.72 0.04

•C1DA78 J8N 0.50 3/4-16 0.84 0.07

•C1CZ16 J10N 0.63 7/8-14 0.97 0.15

•C1CZ35 J12N 0.75 1-1/16-12 1.02 0.17

•C1CZ50 J16N 1.0 1-5/16-12 1.12 1.15

•C1GM93 J20N 1.25 1-5/8-12 1.22 0.54

Catalog

Part No. SSP Model Tube O.D. (in) L (in) Wt. Price

Each

•C1CZ68 J3S 0.19 0.34 0.01

•C1CZ94 J4S 0.25 0.41 0.01

•C1DA19 J5S 0.31 0.44 0.01

•C1DA45 J6S 0.38 0.50 0.01

•C1DA80 J8S 0.50 0.56 0.15

•C1CZ18 J10S 0.63 0.66 0.02

•C1CZ37 J12S 0.75 0.68 0.03

•C1CZ52 J16S 1.0 0.78 0.14

•C1JE70 J20S 1.25 0.91 0.07

J-N

JIC 37° Flare Nut

J-S

JIC 37° Flare Sleeve

Stainless Steel

Flare Nuts & Sleeves

This page is part of a complete catalog which contains technical and safety data that must be reviewed when selecting a product

Tube Fittings

Hydraulic Power & Control Pneumatic Power & Control Fluid Conveying Miscellaneous Products Indexes & Technical Information

1065

 1999-2016 Hydraulic Supply Co. • 1-800-507-9651 • www.hydraulic-supply.com

SSP Duolok® 316 Stainless Steel Tube Fittings (Swagelok® Interchange)

Features: Duolok® tube fittings provide a reliable, leak-proof connection in instrumentation and process tubing

systems. The double ferrule design compensates for the variations in tubing materials, hardness and thickness

of the tube wall to provide leak-tight connections in an extensive range of applications.

Materials: Straight fittings are machined from type 316 stainless steel cold-finished bear stock in accordance with

ASTM A-276 and ASTM A-479. Shaped bodies are machined from close-grained 316 stainless steel forgings in

accordance with ASTM A-182. All components are heat code traceable with certified material test reports

(CMTRs) available.

Pressure Ratings: Generally, Duolok® tube fittings are rated for pressures equal to the maximum allowable

working pressures of the tubing recommended for use with the fittings (stainless steel tubing). Some specially

designed fittings, bored-through fittings, AN fittings, O-Ring Seal fittings and SAE integral end fittings may have

a lower pressure rating than that of the tubing. Contact us for application assistance.

Temperature Factors: Duolok® tube fittings function reliably in an extremely wide range of operating

temperatures. Elevated temperatures will reduce the maximum working pressure capability of the tubing

system. For applications at elevated temperatures, contact us for application assistance.

Gageability: Duolok® tube fittings are designed, manufactured and quality controlled to be gaugeable for

sufficient pull-up during initial installation. Contact us for detailed assembly instructions.

Interchangeability: Duolok® tube fittings are designed, manufactured and quality controlled to be totally

interchangeable with the Swagelok® brand of tube fittings.

Tubing Selection: Stainless Steel Tubing page 1038

Assembly Instructions & Technical Information: page 1321 Also, please review the Important Safety

Information starting on page 1519

Catalog

Part No. SSP Model

Tube

O.D.

T (in) Thread P A

(in) B

(in) D

(in) E

(in) Wt. Price

Each

•C1FN97 ISSD4MC2 0.25 1/8-27 1.29 1.00 0.60 0.17 0.05

•C1FN98 ISSD4MC4 0.25 1/4-18 1.49 1.20 0.60 0.19 0.08

•C1FN99 ISSD4MC6 0.25 3/8-18 1.51 1.22 0.60 0.19 0.10

•C1FP28 ISSD6MC4 0.38 1/4-18 1.57 1.28 0.66 0.28 0.09

•C1FP29 ISSD6MC6 0.38 3/8-18 1.57 1.28 0.66 0.28 0.11

•C1FP30 ISSD6MC8 0.38 1/2-14 1.82 1.53 0.66 0.28 0.19

•C1FP48 ISSD8MC4 0.50 1/4-18 1.71 1.31 0.90 0.28 0.14

•C1FP49 ISSD8MC6 0.50 3/8-18 1.71 1.31 0.90 0.38 0.15

•C1FP50 ISSD8MC8 0.50 1/2-14 1.93 1.53 0.90 0.41 0.21

•C1GE14 ISSD10MC8 0.63 1/2-14 1.93 1.53 0.96 0.47 0.22

•C1FN86 ISSD12MC8 0.75 1/2-14 1.99 1.59 0.96 0.47 0.26

•C1FN85 ISSD12MC12 0.75 3/4-14 1.99 1.59 0.96 0.62 0.29

•C1FN89 ISSD16MC16 1.00 1-11-1/2 2.45 1.97 1.23 0.88 0.55

Male Connector

316 Stainless Steel

SSP Duolok® Tube Fittings (Swagelok® Interchange)

This page is part of a complete catalog which contains technical and safety data that must be reviewed when selecting a product

Tube Fittings

Hydraulic Power & ControlPneumatic Power & ControlFluid ConveyingMiscellaneous ProductsIndexes & Technical Information

1066  1999-2016 Hydraulic Supply Co. • 1-800-507-9651 • www.hydraulic-supply.com

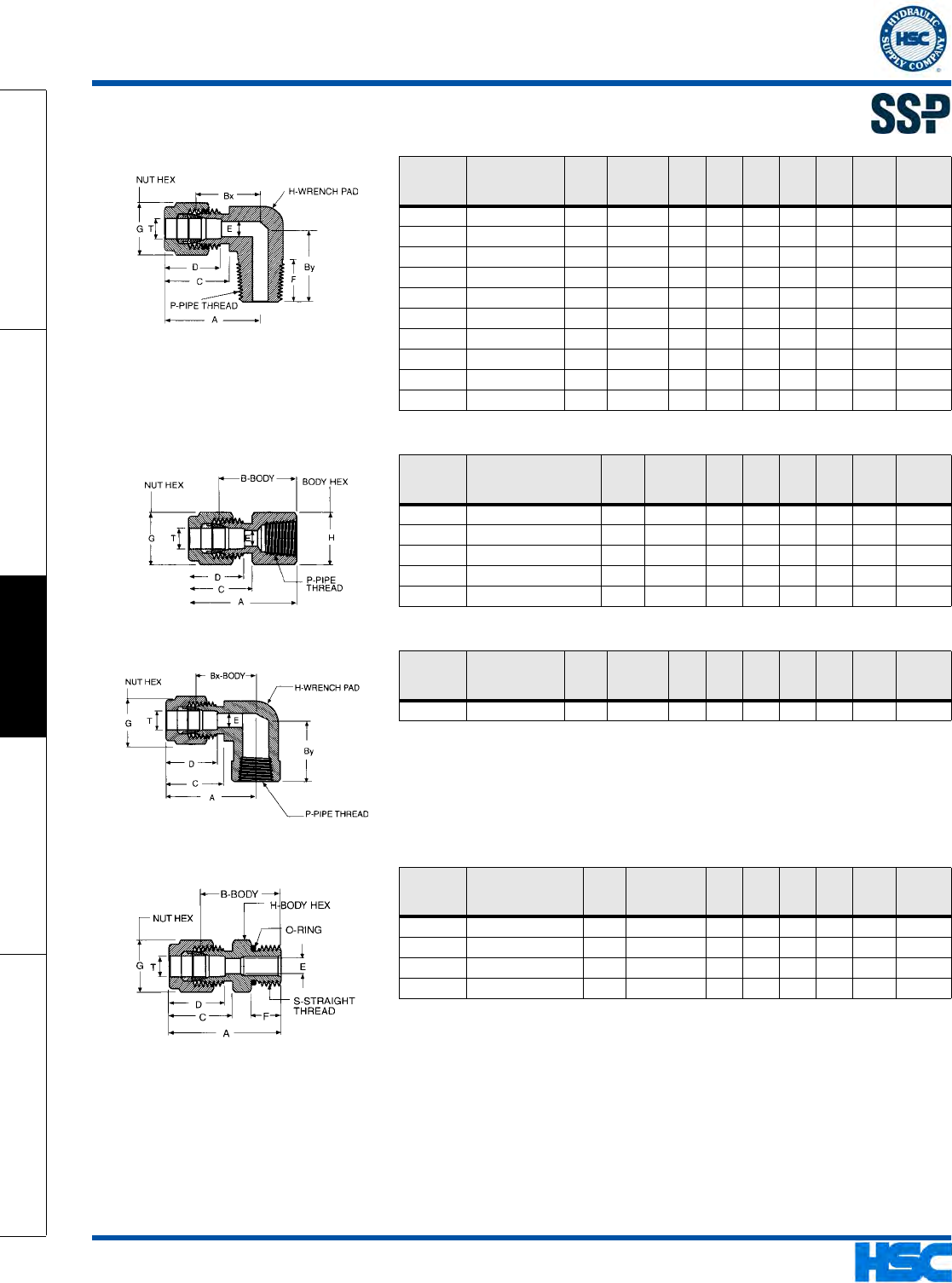

Catalog

Part No. SSP Model

Tube

O.D.

T (in) Thread P A

(in) Bx

(in) By

(in) D

(in) E

(in) Wt. Price

Each

•C1FP13 ISSD4ME2 0.25 1/8-27 1.06 0.77 0.74 0.60 0.17 0.08

•C1FP14 ISSD4ME4 0.25 1/4-18 1.06 0.77 0.92 0.60 0.19 0.09

•C1FP32 ISSD6ME4 0.38 1/4-18 1.20 0.91 1.00 0.66 0.28 0.13

•C1FP33 ISSD6ME6 0.38 3/8-18 1.23 0.94 1.03 0.66 0.28 0.17

•C1FP34 ISSD6ME8 0.38 1/2-14 1.31 1.02 1.30 0.66 0.28 0.29

•C1FP53 ISSD8ME6 0.50 3/8-18 1.42 1.02 1.11 0.90 0.38 0.24

•C1FP54 ISSD8ME8 0.50 1/2-14 1.42 1.02 1.30 0.90 0.41 0.31

•C1GF17 ISSD10ME8 0.63 1/2-14 1.50 1.10 1.38 0.96 0.47 0.34

•C1FQ88 ISSD12ME12 0.75 3/4-14 1.57 1.17 1.45 0.96 0.62 0.45

•C1KG16 ISSD16ME16 1.00 1-11-1/2 1.93 1.45 1.83 1.23 0.88 0.90

Catalog

Part No. SSP Model

Tube

O.D.

T (in) Thread P A

(in) B

(in) D

(in) E

(in) Wt. Price

Each

•C1FN94 ISSD4FC4 0.25 1/4-18 1.41 1.12 0.60 0.19 0.10

•C1FP23 ISSD6FC4 0.38 1/4-18 1.48 1.19 0.66 0.28 0.12

•C1FP44 ISSD8FC4 0.50 1/4-18 1.59 1.19 0.90 0.41 0.17

•C1FP45 ISSD8FC8 0.50 1/2-14 1.84 1.44 0.90 0.41 0.25

•C1GG88 ISSD12FC12 0.75 3/4-14 1.90 1.50 0.96 0.62 0.37

Catalog

Part No. SSP Model

Tube

O.D.

T (in) Thread P A

(in) Bx

(in) By

(in) D

(in) E

(in) Wt. Price

Each

•C1JB22 ISSD4FE4 0.25 1/4-18 1.17 0.88 0.88 0.60 0.19 0.15

Catalog

Part No. SSP Model

Tube

O.D.

T (in) Thread S A

(in) B

(in) D

(in) E

(in) Wt. Price

Each

•C1FP12 ISSD4MCST4 0.25 7/16-20 1.34 1.05 0.60 0.19 0.06

•C1FP31 ISSD6MCST6 0.38 9/16-18 1.46 1.17 0.66 0.28 0.10

•C1GC98 ISSD6MCST10 0.38 7/8-14 1.66 1.37 0.66 0.50 0.18

•C1FP51 ISSD8MCST8 0.50 3/4-16 1.65 1.25 0.90 0.41 0.17

Note: SAE O-Ring Boss O-Rings page 1267

Male Elbow

Female Connector

Female Elbow

MCST

Male Connector Straight Thread O-Ring

316 Stainless Steel

SSP Duolok® Tube Fittings (Swagelok® Interchange)

This page is part of a complete catalog which contains technical and safety data that must be reviewed when selecting a product

Tube Fittings

Hydraulic Power & Control Pneumatic Power & Control Fluid Conveying Miscellaneous Products Indexes & Technical Information

1067

 1999-2016 Hydraulic Supply Co. • 1-800-507-9651 • www.hydraulic-supply.com

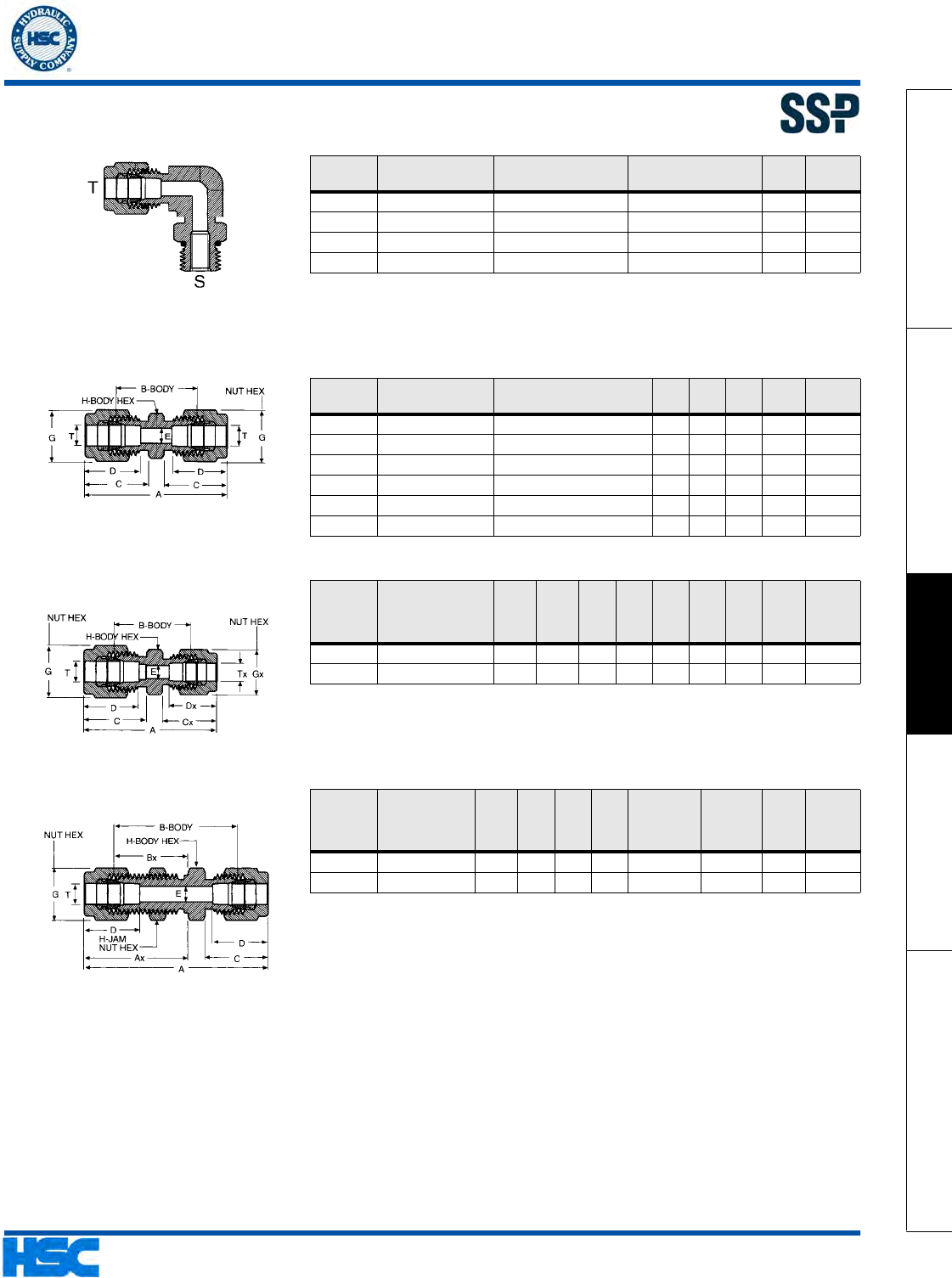

Catalog

Part No. SSP Model Tube O.D. T (in) Thread Wt. Price

Each

•C1GB86 ISSD4MEST4 0.25 7/16-20 0.09

•C1GB87 ISSD4MEST6 0.25 9/16-18 0.15

•C1GD11 ISSD6MEST6 0.38 9/16-18 0.16

•C1GB94 ISSD6MEST8 0.38 3/4-16 0.27

Note: SAE O-Ring Boss O-Rings page 1267

Catalog

Part No. SSP Model Tube O.D. T (in) A

(in) B

(in) E

(in) Wt. Price

Each

•C1FP17 ISSD4U 0.25 1.61 1.03 0.19 0.07

•C1FP38 ISSD6U 0.38 1.77 1.19 0.28 0.11

•C1FP59 ISSD8U 0.50 2.02 1.22 0.41 0.21

•C1GF19 ISSD10U 0.63 2.05 1.25 0.50 0.25

•C1FN88 ISSD12U 0.75 2.11 1.31 0.62 0.31

•C1FQ90 ISSD16U 1.00 2.55 1.59 0.88 0.64

Catalog

Part No. SSP Model

Tube

O.D.

T (in)

Tube

O.D.

(in) A

(in) B

(in) D

(in) Dx

(in) E

(in) Wt. Price

Each

•C1FP37 ISSD6RU4 0.38 0.25 1.70 1.12 0.66 0.60 0.19 0.10

•C1FP58 ISSD8RU6 0.50 0.38 1.91 1.22 0.90 0.66 0.28 0.17

Catalog

Part No. SSP Model

Tube

O.D.

T (in) A

(in) B

(in) E

(in)

Max Panel

Thickness

(in)

Panel

Hole

Drill Dia

(in) Wt. Price

Each

•C1FN91 ISSD4BU 0.25 2.27 1.69 0.19 0.40 29/64 0.12

•C1FP21 ISSD6BU 0.38 2.45 1.87 0.28 0.44 37/64 0.17

MEST

Male Connector Straight Thread O-Ring

90° Elbow

Union

Reducing Union

Bulkhead Union

316 Stainless Steel

SSP Duolok® Tube Fittings (Swagelok® Interchange)

 1999-2016 Hydraulic Supply Co. • 1-800-507-9651 • www.hydraulic-supply.com

This page is part of a complete catalog which contains technical and safety data that must be reviewed when selecting a product

Tube Fittings

Hydraulic Power & ControlPneumatic Power & ControlFluid ConveyingMiscellaneous ProductsIndexes & Technical Information

1068

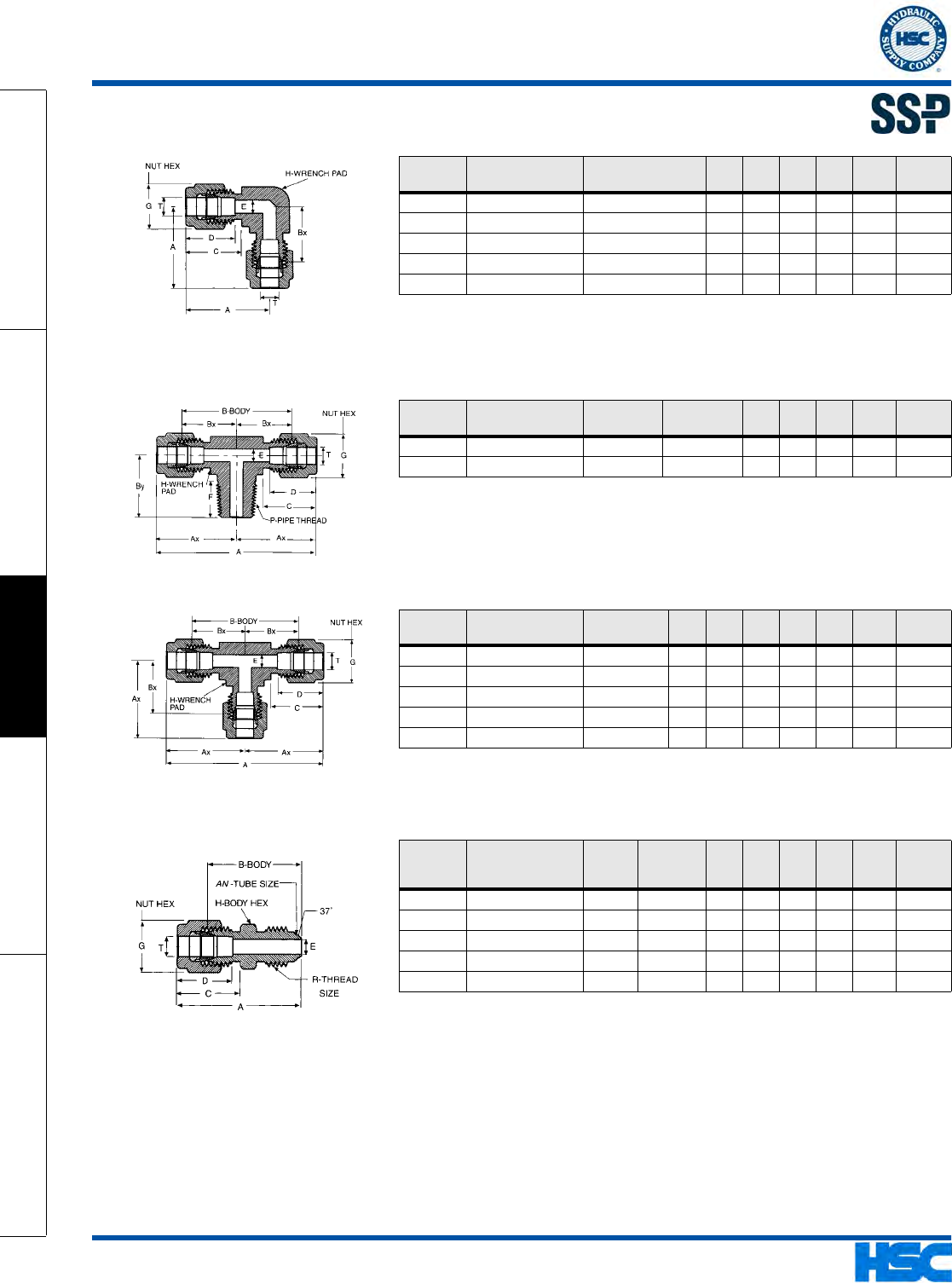

Catalog

Part No. SSP Model Tube O.D. T (in) A

(in) Bx

(in) D

(in) E

(in) Wt. Price

Each

•C1FP18 ISSD4UE 0.25 1.06 0.77 0.60 0.19 0.10

•C1FP39 ISSD6UE 0.38 1.20 0.91 0.66 0.28 0.16

•C1FP60 ISSD8UE 0.50 1.42 1.02 0.90 0.41 0.29

•C1FQ89 ISSD12UE 0.75 1.57 1.17 0.96 0.62 0.47

•C1HG39 ISSD16UE 1.00 1.93 1.45 1.23 0.88 0.95

Catalog

Part No. Catalog Part No. Tube O.D. T

(in) Thread P A

(in) B

(in) E

(in) Wt. Price

Each

•C1GF30 ISSD8MBT8 0.50 1/2-14 2.84 2.04 0.41 0.43

C1KG11 ISSD12MBT12 0.75 3/4-14 3.14 2.34 0.62 1.38

Catalog

Part No. SSP Model Tube O.D. T

(in) A

(in) Ax

(in) B

(in) Bx

(in) E

(in) Wt. Price

Each

•C1FP19 ISSD4UT 0.25 2.12 1.06 1.54 0.77 0.19 0.14

•C1FP40 ISSD6UT 0.38 2.40 1.20 1.82 0.91 0.28 0.22

•C1FP61 ISSD8UT 0.50 2.84 1.42 2.04 1.02 0.41 0.40

•C1KG14 ISSD12UT 0.75 3.14 1.57 2.34 1.17 0.62 1.36

•C1KG19 ISSD16UT 1.00 3.86 1.93 2.90 1.45 0.88 0.75

Catalog

Part No. SSP Model

Tube

O.D. T

(in) Thread R A

(in) B

(in) D

(in) E

(in) Wt. Price

Each

•C1FR25 ISSD4ANU4 0.25 7/16-20 1.48 1.19 0.60 0.17 0.06

•C1FR32 ISSD6ANU6 0.38 9/16-18 1.56 1.27 0.66 0.28 0.09

•C1GJ95 ISSD8ANU8 0.50 3/4-16 1.81 1.41 0.90 0.39 0.17

•C1GJ89 ISSD12ANU12 0.75 1-1/16-12 2.10 1.70 0.96 0.61 0.30

•C1KM60 ISSD16ANU16 1.00 1-5/16-12 2.42 1.94 1.23 0.84 0.75

Union Elbow

MBT

Male Branch Tee

Union Tee

ANU

AN Union

316 Stainless Steel

SSP Duolok® Tube Fittings (Swagelok® Interchange)

This page is part of a complete catalog which contains technical and safety data that must be reviewed when selecting a product

Tube Fittings

Hydraulic Power & Control Pneumatic Power & Control Fluid Conveying Miscellaneous Products Indexes & Technical Information

1069

 1999-2016 Hydraulic Supply Co. • 1-800-507-9651 • www.hydraulic-supply.com

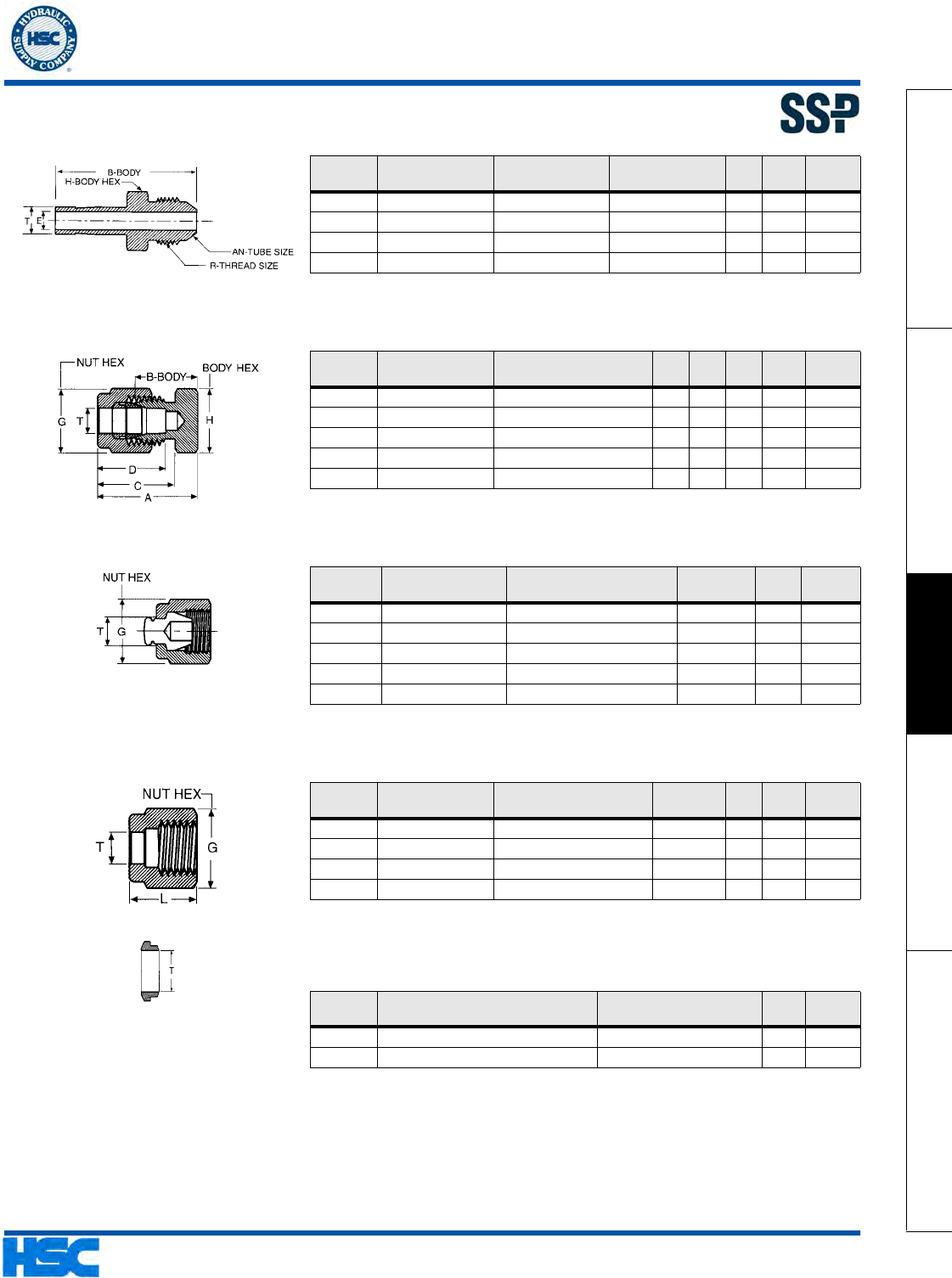

Catalog

Part No. SSP Model Tube O.D. T (in) Thread R B

(in) Wt. Price

Each

•C1FR24 ISSD4ANA4 0.25 7/16-20 1.46 0.03

•C1FR31 ISSD6ANA6 0.38 9/16-18 1.56 0.05

•C1GJ94 ISSD8ANA8 0.50 3/4-16 1.91 0.10

•C1GM27 ISSD12ANA12 0.75 1-1/16-12 2.21 0.23

Catalog

Part No. SSP Model Tube O.D. T (in) A

(in) B

(in) D

(in) Wt. Price

Each

•C1FN92 ISSD4CP 0.25 0.92 0.63 0.60 0.04

•C1FP22 ISSD6CP 0.38 1.01 0.72 0.66 0.07

•C1FP43 ISSD8CP 0.50 1.15 0.75 0.90 0.13

•C1JE68 ISSD12CP 0.75 1.24 0.84 0.96 0.21

•C1KG15 ISSD16CP 1.00 1.51 1.02 1.23 0.44

Catalog

Part No. SSP Model Tube O.D. T (in) G (in) Wt. Price

Each

•C1KG18 ISSD16P 0.31

•C1FP16 ISSD4P 0.25 9/16 0.03

•C1FP36 ISSD6P 0.38 11/16 0.04

•C1FP56 ISSD8P 0.50 7/8 0.09

•C1FN87 ISSD12P 0.75 1-1/8 0.14

Catalog

Part No. SSP Model Tube O.D. T (in) G (in) L (in) Wt. Price

Each

•C1FP15 ISSD4N 0.25 9/16 0.50 0.02

•C1FP35 ISSD6N 0.38 11/16 0.56 0.03

•C1FP55 ISSD8N 0.50 7/8 0.69 0.05

•C1GM87 ISSD12N 0.75 1-1/8 0.69 0.07

Catalog

Part No. SSP Model Tube O.D. T (in) Wt. Price

Each

C1GC83 ISSD10BF 0.63 0.01

•C1GC92 ISSD16BF 1.00 0.01

ANA

AN Adapter

Cap

Plug

Nut

Back Ferrule

316 Stainless Steel

SSP Duolok® Tube Fittings (Swagelok® Interchange)

 1999-2016 Hydraulic Supply Co. • 1-800-507-9651 • www.hydraulic-supply.com

This page is part of a complete catalog which contains technical and safety data that must be reviewed when selecting a product

Tube Fittings

Hydraulic Power & ControlPneumatic Power & ControlFluid ConveyingMiscellaneous ProductsIndexes & Technical Information

1070

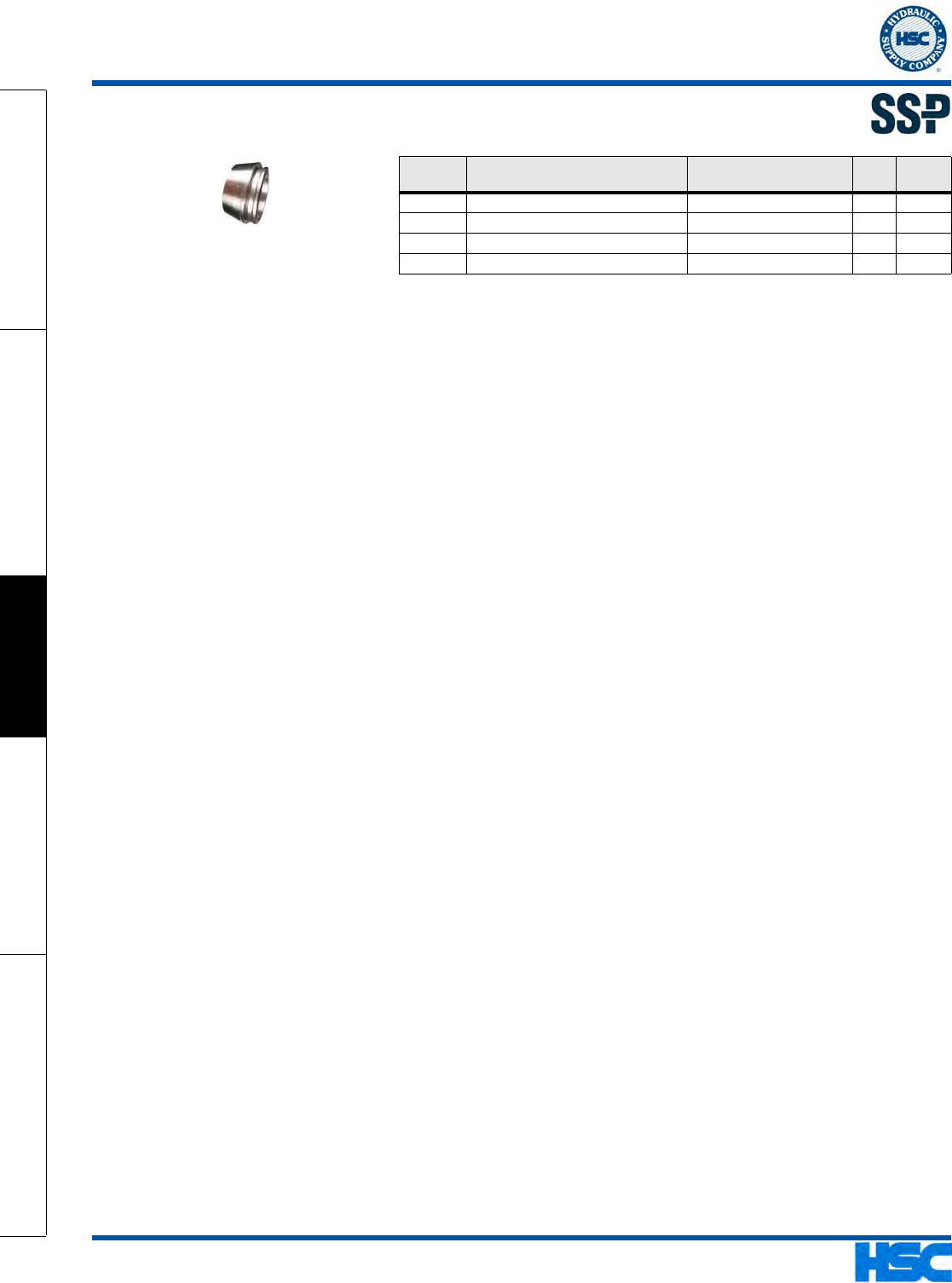

Catalog

Part No. SSP Model Tube O.D. T (in) Wt. Price

Each

•C1FN96 ISSD4FS 0.25 0.01

•C1FP27 ISSD6FS 0.38 0.01

•C1FP47 ISSD8FS 0.50 0.01

•C1KF99 ISSD12FS 0.75 0.01

Note: Each Ferrule Set consists of 1 Front Ferrule (FF) and 1 Back Ferrule (BF).

Ferrule Set

316 Stainless Steel

SSP Duolok® Tube Fittings (Swagelok® Interchange)

This page is part of a complete catalog which contains technical and safety data that must be reviewed when selecting a product

Tube Fittings

Hydraulic Power & Control Pneumatic Power & Control Fluid Conveying Miscellaneous Products Indexes & Technical Information

1071

 1999-2016 Hydraulic Supply Co. • 1-800-507-9651 • www.hydraulic-supply.com

Catalog

Part No. Adaptall Model

Tube

O.D.

(mm) Series Thread Size (mm) Wt. Price

Each

•C1FP72 SS9201L-08 8Light M 14x1.5 0.03

•C1FP74 SS9201L-12 12 Light M 18x1.5 0.06

SS9201

Tube Nut

Stainless Steel

Metric Flareless Fittings

This page is part of a complete catalog which contains technical and safety data that must be reviewed when selecting a product

Tube Fittings

Hydraulic Power & ControlPneumatic Power & ControlFluid ConveyingMiscellaneous ProductsIndexes & Technical Information

1072  1999-2016 Hydraulic Supply Co. • 1-800-507-9651 • www.hydraulic-supply.com

Catalog

Part No. Eaton Model

Tube

O.D.

(in) Thread L (in) Wt. Price

Each

•C1HP82 41X4 0.25 7/16-20 0.94 0.03

•C1HP83 41X5 0.31 1/2-20 1.12 0.04

•C1HP84 41X6 0.38 5/8-18 1.31 0.06

•C1HP85 41X8 0.50 3/4-16 1.62 0.09

Catalog

Part No. Model Number

Tube

O.D.

(in) Thread L (in) Wt. Price

Each

•C1BF78 241X10 0.63 7/8-14 1.88 0.21

Catalog

Part No. Eaton Model

Tube

O.D.

(in) Thread L (in) Wt. Price

Each

•C1HL59 1110X6 0.38 5/8-18 1.00 0.05

Catalog

Part No. Eaton Model Tube O.D. (in) L (in) Wt. Price

Each

•C1HL48 100X3 0.19 0.56 0.01

•C1HL49 100X4 0.25 0.56 0.01

•C1HL50 100X5 0.31 0.62 0.02

•C1HL51 100X6 0.38 0.66 0.03

Flare Nut (Long)

241

Flare Nut (Long)

1110

Flare Nut (Short)

100

Inverted Flare Tube Nut

Brass

Flare & Inverted Flare Nuts

This page is part of a complete catalog which contains technical and safety data that must be reviewed when selecting a product

Tube Fittings

Hydraulic Power & Control Pneumatic Power & Control Fluid Conveying Miscellaneous Products Indexes & Technical Information

1073

 1999-2016 Hydraulic Supply Co. • 1-800-507-9651 • www.hydraulic-supply.com

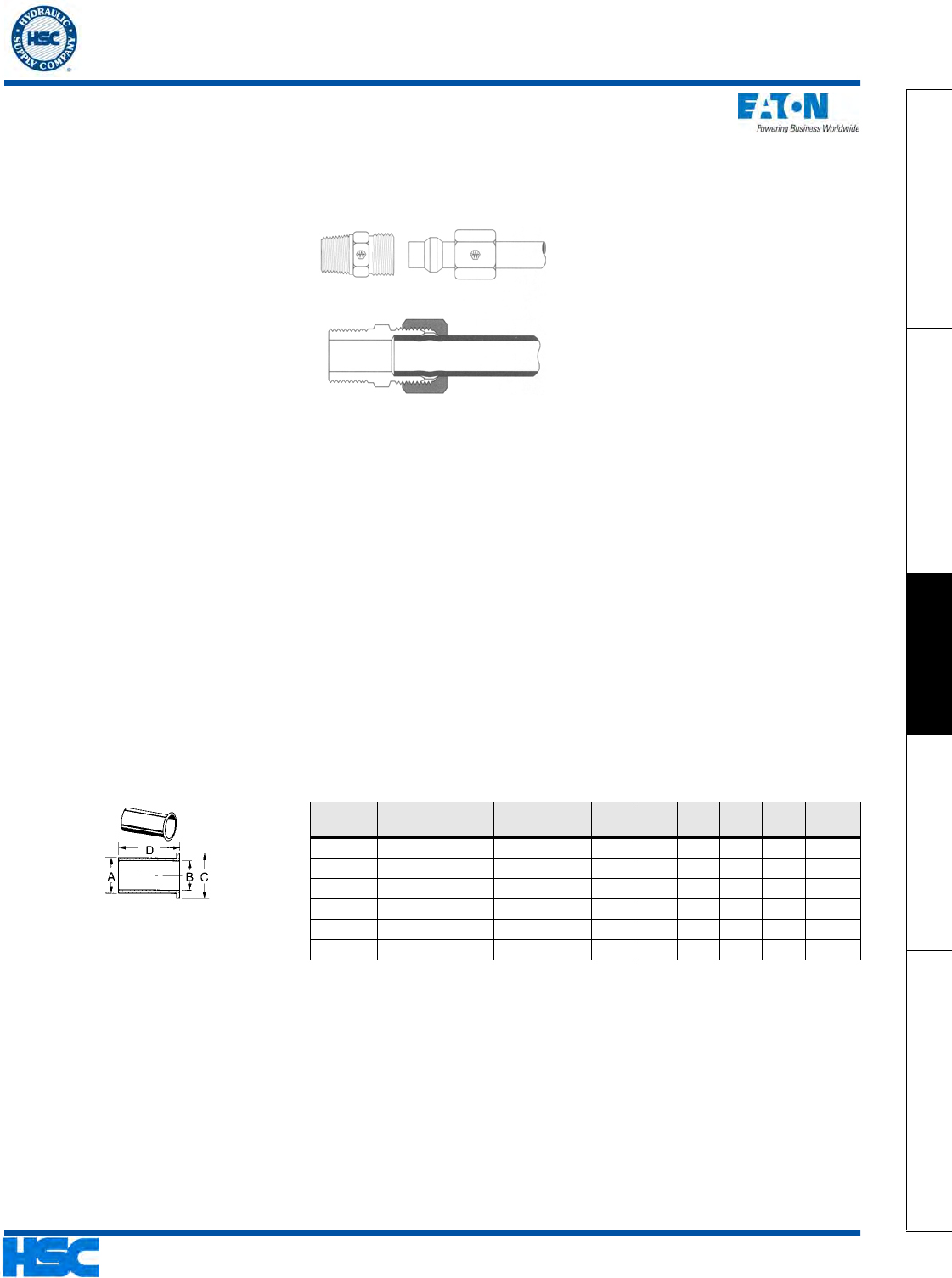

Brass Compression Tube Fittings

Used with Plastic, Copper & Aluminum Tubing

Typical Application: Instrumentation, hydraulic and pneumatic systems. For your particular application, please

review the Important Safety Information starting on page 1519

Pressure: Working pressure up to 2000 psi with a 4:1 safety factor depending on tube size. When using plastic

tubing, use the working pressure for type used.

Vibration: Fair resistance - use long nut when greater vibration resistance is needed.

Temperature Range: -65°F to +250°F with metal tubing. When using a compatible plastic tubing do not exceed

the tubing temperature range. (Refer to tubing temperature range.)

Material: CA360 Brass.

Used With: Aluminum, copper and plastic tubing. Plastic tubing, except for Eaton PT230, requires the 2030

insert. Not recommended for steel tubing.

Features: Low cost. Easy to assemble, no flaring. Available with long or short nut. Broad selection of styles and

sizes.

Conformance: Meets specifications and standards of ASA, ASME and SAE. Listed by Underwriter’s Laboratories

(available on special order) for flammable liquids.

Assembly Instructions: 1. Cut tubing to desired length. 2. Slide nut and then sleeve on tube. Threaded end “A”

of nut must face toward fitting. 3. Insert tubing into fitting body. Be sure tubing is bottomed on fitting shoulder.

4. Lubricate threads and assemble nut to fitting body. 5. Tighten nut hand tight. From that point, tighten with a

wrench the following number of turns past hand tight, by Tube Size: 1/8 thru 1/4 (1-1/4 turns), 5/16 (1-3/4 turns),

3/8 thru 1 (2-1/4 turns).

Catalog

Part No. Eaton Model Tube O.D. (in) A (in) B (in) C (in) D (in) Wt. Price

Each

•C1HN64 2030X4 1/4 1/8 3/32 11/64 19/32 0.00

•C1KJ55 2030X44 1/4 11/64 9/64 7/32 17/32 0.30

•C1HN65 2030X5 5/16 3/16 5/32 15/64 5/8 0.01

•C1HN66 2030X6 3/8 1/4 7/32 11/32 41/64 0.01

•C1HN67 2030X8 1/2 3/8 11/32 7/16 13/16 0.01

•C1HN63 2030X10 5/8 1/2 29/64 35/64 13/16 0.01

2030

Tube Support for Plastic Tubing

Brass

Compression Fittings - Plastic, Copper & Aluminum Tubing

 1999-2016 Hydraulic Supply Co. • 1-800-507-9651 • www.hydraulic-supply.com

This page is part of a complete catalog which contains technical and safety data that must be reviewed when selecting a product

Tube Fittings

Hydraulic Power & ControlPneumatic Power & ControlFluid ConveyingMiscellaneous ProductsIndexes & Technical Information

1074

Catalog

Part No. Eaton Model Tube O.D.

(in) D (in) F (in) L (in) Wt. Price

Each

•C1HQ65 60X2 1/8 0.13 0.19 0.19 0.01

•C1HQ66 60X3 3/16 0.19 0.27 0.22 0.01

•C1HQ67 60x4 1/4 0.26 0.34 0.25 0.01

•C1HQ68 60X5 5/16 0.32 0.41 0.25 0.01

•C1HQ69 60X6 3/8 0.38 0.47 0.25 0.01

•C1HQ70 60X8 1/2 0.51 0.59 0.38 0.01

•C1HQ64 60X10 5/8 0.63 0.72 0.38 0.01

Catalog

Part No. Eaton Model Tube O.D.

(in) C (in) D (in) L (in) Wt. Price

Each

•C1HQ74 61X2 1/8 3/8 0.13 0.38 0.01

•C1HQ75 61X3 3/16 7/16 0.19 0.41 0.01

•C1HQ76 61X4 1/4 1/2 0.26 0.44 0.01

•C1HQ77 61X5 5/16 9/16 0.32 0.44 0.02

•C1HQ78 61X6 3/8 5/8 0.38 0.47 0.02

•C1HQ79 61X8 1/2 13/16 0.51 0.62 0.05

•C1HQ73 61X10 5/8 15/16 0.63 0.62 0.05

Catalog

Part No. Eaton Model Tube O.D. (in) L (in) Wt. Price

Each

•C1HQ82 62X2 1/8 0.66 0.03

•C1HQ83 62X3 3/16 0.76 0.04

•C1HQ84 62X4 1/4 0.79 0.05

•C1HQ85 62X5 5/16 0.88 0.06

•C1HQ86 62X6 3/8 0.97 0.08

•C1HQ87 62X8 1/2 1.10 0.16

•C1HQ81 62X10 5/8 1.25 0.20

Catalog

Part No. Eaton Model

Tube

O.D.

(in) Thread P L (in) Wt. Price

Each

•C1HR15 68X2 1/8 1/8-27 0.78 0.02

•C1HR16 68X3 3/16 1/8-27 0.84 0.04

•C1HR17 68X4 1/4 1/8-27 0.88 0.04

•C1HR18 68X4X4 1/4 1/4-18 1.06 0.06

•C1HR19 68X5 5/16 1/8-27 0.91 0.04

•C1HR20 68X5X4 5/16 1/4-18 1.09 0.06

•C1HR22 68X6X2 3/8 1/8-27 0.97 0.05

•C1HR21 68X6 3/8 1/4-18 1.17 0.06

•C1HR23 68X6X6 3/8 3/8-18 1.16 0.09

•C1HR24 68X6X8 3/8 1/2-14 1.34 0.12

•C1HR26 68X8X4 1/2 1/4-18 1.22 0.11

•C1HR25 68X8 1/2 3/8-18 1.22 0.11

•C1HR27 68X8X8 1/2 1/2-14 1.41 0.18

•C1HR14 68X10 5/8 1/2-14 1.50 0.18

Compression Sleeve

Nut

(Ref. SAE No. 060101BA)

(Ref. SAE No. 060102BA)

Brass

Compression Fittings - Plastic, Copper & Aluminum Tubing

This page is part of a complete catalog which contains technical and safety data that must be reviewed when selecting a product

Tube Fittings

Hydraulic Power & Control Pneumatic Power & Control Fluid Conveying Miscellaneous Products Indexes & Technical Information

1075

 1999-2016 Hydraulic Supply Co. • 1-800-507-9651 • www.hydraulic-supply.com

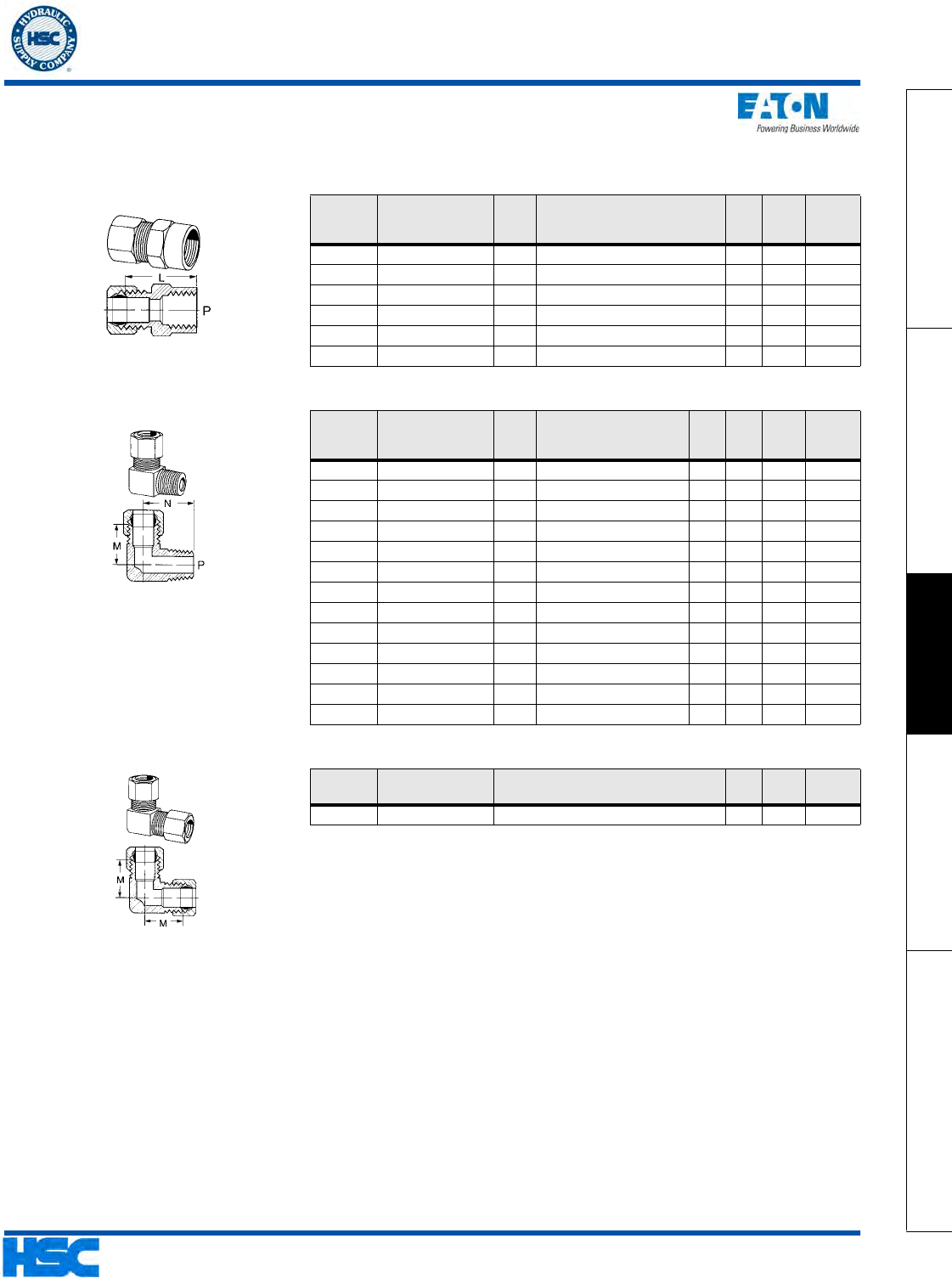

Catalog

Part No. Eaton Model

Tube

O.D.

(in) Thread P L (in) Wt. Price

Each

•C1HQ95 66X2 1/8 1/8-27 0.75 0.04

•C1HQ96 66X3 3/16 1/8-27 0.78 0.04

•C1HQ97 66X4 1/4 1/8-27 0.78 0.05

•C1HQ98 66X4X4 1/4 1/4-18 1.03 0.07

•C1HQ99 66X6 3/8 1/4-18 1.06 0.08

•C1HR11 66X8 1/2 3/8-18 1.12 0.12

Catalog

Part No. Eaton Model

Tube

O.D.

(in) Thread P M

(in) N

(in) Wt. Price

Each

•C1HR30 69X2 1/8 1/8-27 0.60 0.67 0.04

•C1HR31 69X3 3/16 1/8-27 0.62 0.69 0.05

•C1HR32 69X4 1/4 1/8-27 0.62 0.75 0.06

•C1HR33 69X4X4 1/4 1/4-18 0.62 0.75 0.09

•C1HR35 69X5X4 5/16 1/4-18 0.69 0.84 0.08

•C1HR37 69X6X2 3/8 1/8-27 0.69 0.69 0.07

•C1HR36 69X6 3/8 1/4-18 0.75 0.94 0.09

•C1HR38 69X6X6 3/8 3/8-18 0.84 0.94 0.12

•C1HV40 69X6X8 3/8 1/2-14 1.06 1.12 0.20

•C1HR40 69X8X4 1/2 1/4-18 0.84 0.94 0.16

•C1HR39 69X8 1/2 3/8-18 0.94 1.12 0.18

•C1HR41 69X8X8 1/2 1/2-14 0.94 1.31 0.32

•C1HR29 69X10 5/8 1/2-14 1.06 1.31 0.31

Catalog

Part No. Eaton Model Tube O.D. (in) M

(in) Wt. Price

Each

•C1HQ92 65X6 3/8 0.73 0.11

Female Connector

(Ref. SAE No. 060202BA)

90° Union Elbow

Brass

Compression Fittings - Plastic, Copper & Aluminum Tubing

 1999-2016 Hydraulic Supply Co. • 1-800-507-9651 • www.hydraulic-supply.com

This page is part of a complete catalog which contains technical and safety data that must be reviewed when selecting a product

Tube Fittings

Hydraulic Power & ControlPneumatic Power & ControlFluid ConveyingMiscellaneous ProductsIndexes & Technical Information

1076

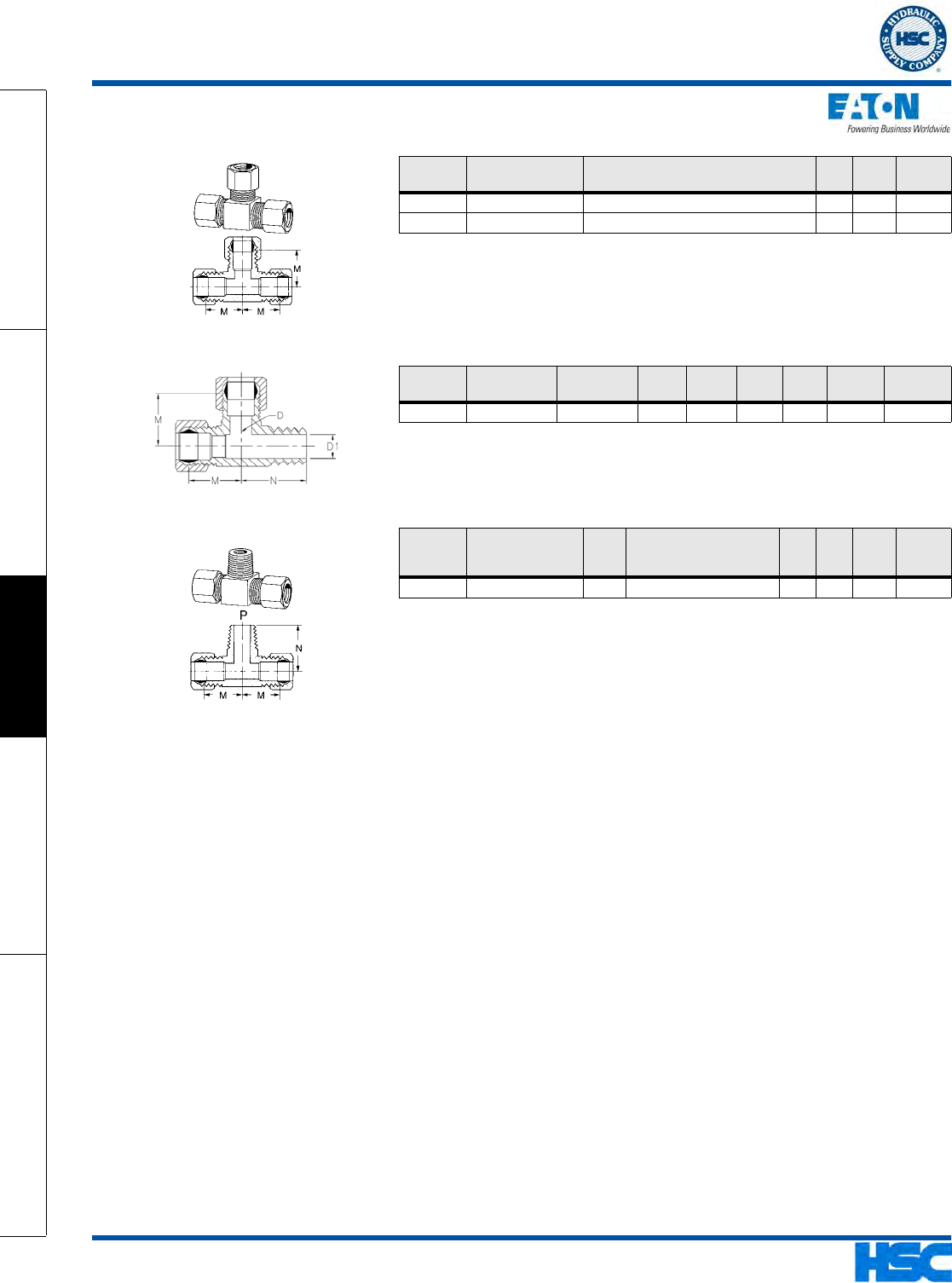

Catalog

Part No. Eaton Model Tube O.D. (in) M

(in) Wt. Price

Each

•C1HQ88 64X4 1/4 0.60 0.10

•C1HQ89 64X6 3/8 0.73 0.15

Catalog

Part No. Eaton Model Tube O.D.

(in) D (in) D1 (in) M (in) N (in) Wt. Price

Each

•C1MK19 71X6 3/8 0.312 0.344 0.75 0.94

Catalog

Part No. Eaton Model

Tube

O.D.

(in) Thread P M

(in) N

(in) Wt. Price

Each

•C1HR45 72X4X4X4 1/4 1/4-18 0.78 0.85 0.13

Union Tee

Male Run Tee

(Ref. SAE No. 060425BA)

Brass

Compression Fittings - Plastic, Copper & Aluminum Tubing

This page is part of a complete catalog which contains technical and safety data that must be reviewed when selecting a product

Tube Fittings

Hydraulic Power & Control Pneumatic Power & Control Fluid Conveying Miscellaneous Products Indexes & Technical Information

1077

 1999-2016 Hydraulic Supply Co. • 1-800-507-9651 • www.hydraulic-supply.com

Brass SelfAlign Tube Fittings

Used with Plastic, Copper & Aluminum Tubing

Typical Application: Instrumentation, hydraulic and pneumatic systems. For your particular application, please

review the Important Safety Information starting on page 1519

Pressure: Working pressure up to 2000 psi with a 4:1 safety factor depending on tube size. When using plastic

tubing, use the working pressure for type used.

Vibration: Fair resistance - use long nut when greater vibration resistance is needed.

Temperature Range: -65°F to +250°F with metal tubing. When using a compatible plastic tubing do not exceed

the tubing temperature range. (Refer to tubing temperature range.)

Material: CA360 Brass.

Used With: Aluminum, copper and plastic tubing. Plastic tubing, except for Eaton PT230 and TP160, requires the

2030x insert. Not recommended for steel tubing.

Features: Very low cost and reusable. Self aligning - no need to disassemble fitting to line up sleeve on tube. Easy

to assemble, no flaring. Available with long or short nut. Broad selection of styles and sizes.

Conformance: Meets specifications and standards of ASA, ASME and SAE. Listed by Underwriter’s Laboratories

(available on special order) for flammable liquids.

Assembly Instructions: 1. Cut tubing to desired length. 2. Slide nut and then sleeve on tube. Threaded end of nut

“A” and small end of sleeve “B” must face toward fitting. 3. Insert tubing into connector body. Be sure tubing is

bottomed on connector shoulder. 4. Lubricate threads and assemble nut to connector body. 5. Tighten with

wrench to the “ring grip” point. A. Ring Grip is the point when the cutting edge of the sleeve grips the tube. This

is determined by turning tube slowly but firmly by hand while tightening the nut with a wrench until tube can no

longer be turned by hand and a sharp increase in torque is noticed. 6. Tighten additional turns past “ring grip” as

indicated on chart.

Catalog

Part No. Eaton Model Tube Size D (in) F (in) L (in) Wt. Price

Each

C1KV20 601X5 5/16 0.318 0.44 0.26

Catalog

Part No. Eaton

Model Tube

Size Male Pipe

Thread D (in) D1 (in) M (in) N (in) Wt. Price

Each

C1KV25 691X5 5/16 1/8-27 0.25 0.25 0.62 0.75 0.06

601

SelfAlign Sleeve

691

SelfAlign 90° Male Elbow

Brass

SelfAlign - Plastic, Copper & Aluminum Tubing

 1999-2016 Hydraulic Supply Co. • 1-800-507-9651 • www.hydraulic-supply.com

This page is part of a complete catalog which contains technical and safety data that must be reviewed when selecting a product

Tube Fittings

Hydraulic Power & ControlPneumatic Power & ControlFluid ConveyingMiscellaneous ProductsIndexes & Technical Information

1078

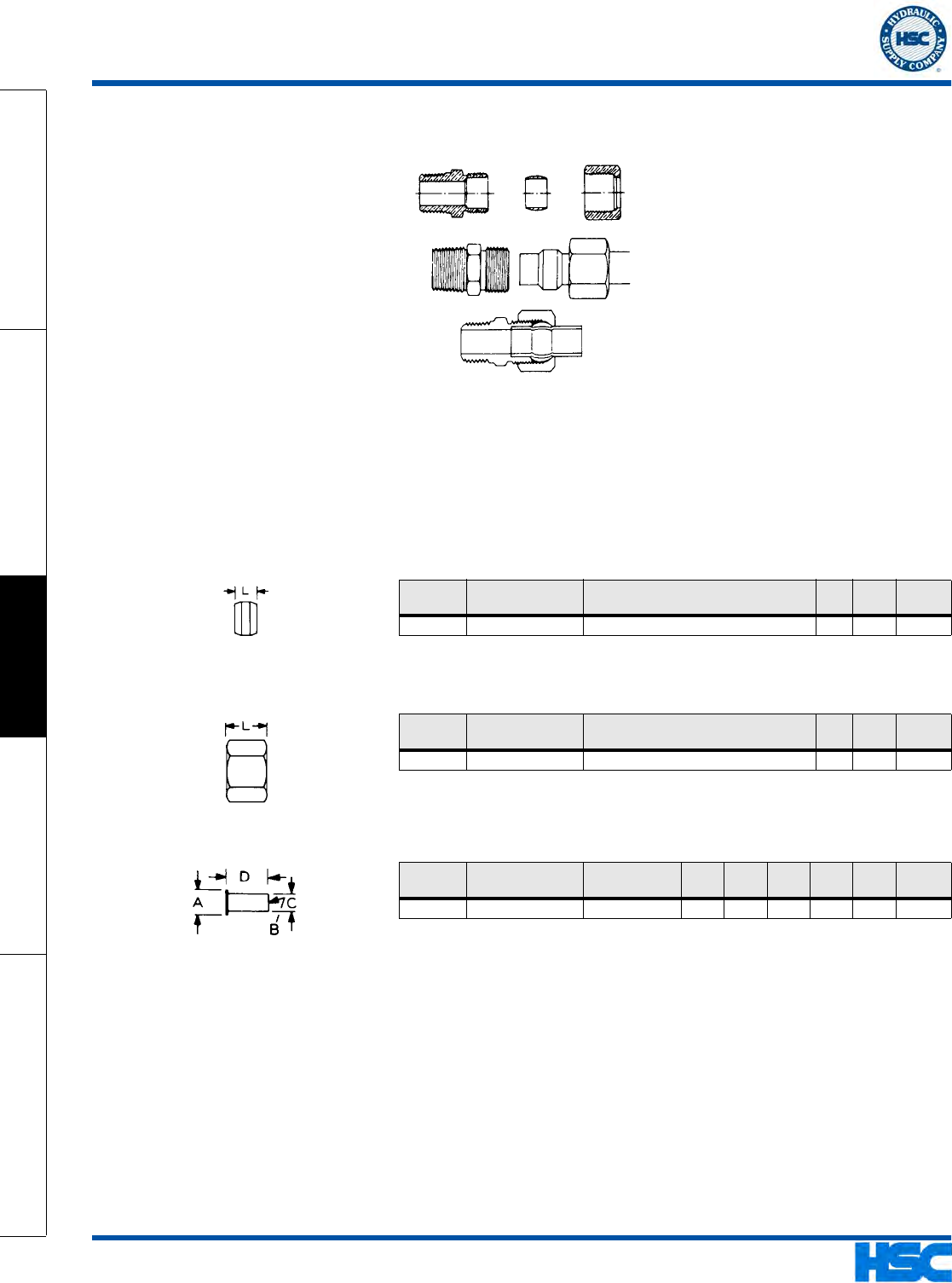

Design Features: Low cost. No flaring required. Easy to assemble.

Applications: Air, oil and water. Suitable for vacuum service. For your particular application, please review the

Important Safety Information starting on page 1519

Construction: Brass.

Working Pressure: 1/8” to 1/4” tubing sizes: 500 PSI with 4:1 safety factor (2000 PSI burst). 5/16” to 1/2” tubing

sizes: 250 PSI with 4:1 safety factor (1000 PSI burst). 3/4” to 1” tubing sizes: 188 PSI with 4:1 safety factor (750

PSI burst).

Operating Temperature Range: -65°F to 250°F.

Tubing: For use with copper & aluminum tubing. Not recommended for steel tubing.

Catalog

Part No. Model Number Tube O.D. (in) L (in) Wt. Price

Each

•C1BH71 260X12 0.75 0.44 0.01

Catalog

Part No. Model Number Tube O.D. (in) L (in) Wt. Price

Each

•C1BH79 261X12 0.75 0.69 0.08

Catalog

Part No. Model Number Tube O.D. (in) A (in) B (in) C (in) D (in) Wt. Price

Each

•C1BJ94 295X3 0.19 0.19 0.09 0.11 0.51 0.05

260

Sleeve

261

Nut

295

Insert

Brass

Compression Fittings - Copper & Aluminum Tubing

This page is part of a complete catalog which contains technical and safety data that must be reviewed when selecting a product

Tube Fittings

Hydraulic Power & Control Pneumatic Power & Control Fluid Conveying Miscellaneous Products Indexes & Technical Information

1079

 1999-2016 Hydraulic Supply Co. • 1-800-507-9651 • www.hydraulic-supply.com

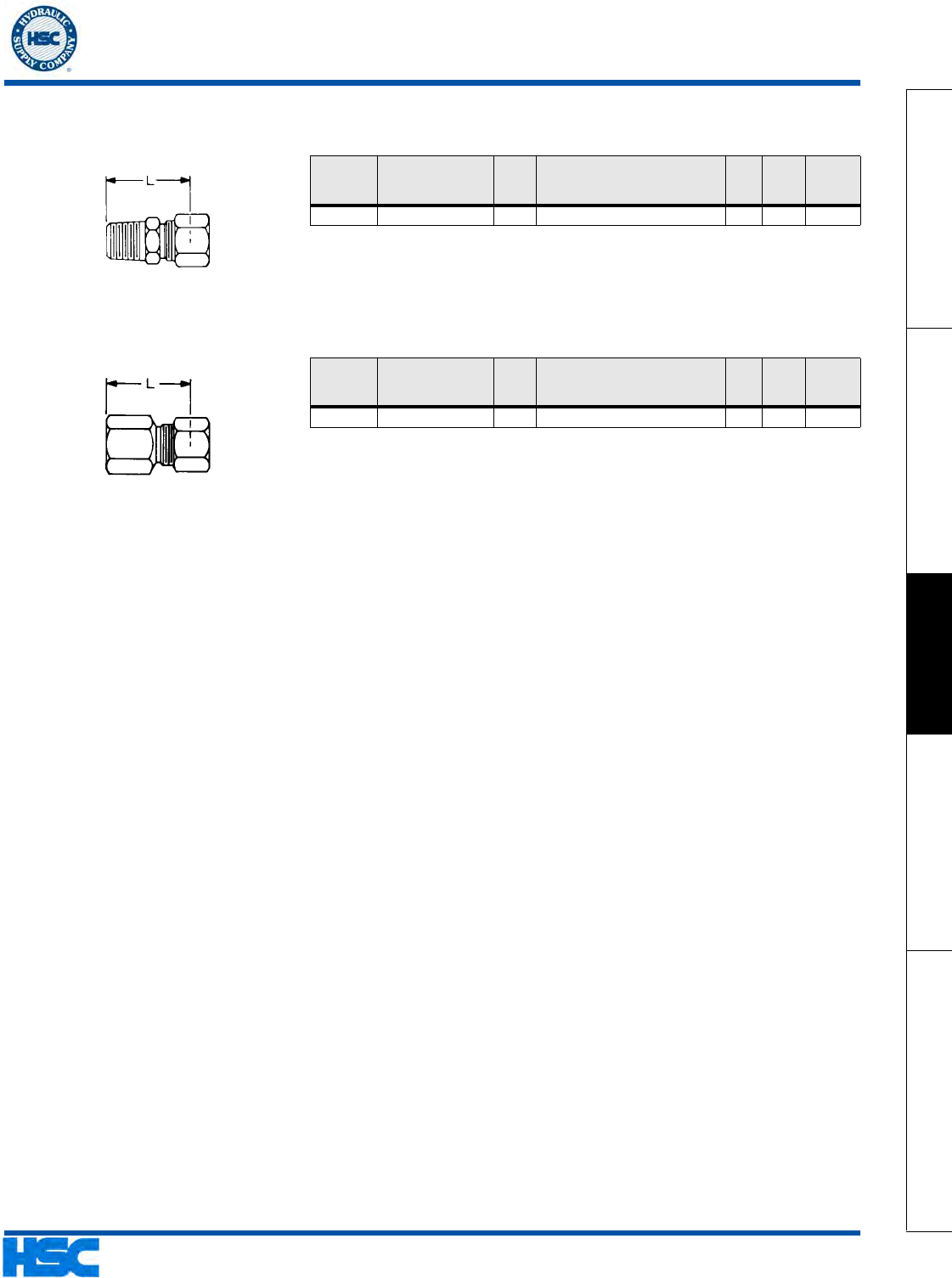

Catalog

Part No. Model Number

Tube

O.D.

(in) Pipe Thread L (in) Wt. Price

Each

•C1BJ33 268X12X12 0.75 3/4-14 1.50 0.30

Catalog

Part No. Model Number

Tube

O.D.

(in) Pipe Thread L (in) Wt. Price

Each

•C1EN25 266X5X4 0.31 1/4-18 2.00

268

Male Connector

(261 Nut and 260 Sleeve included)

266

Female Connector

(261 Nut and 260 Sleeve included)

Brass

Compression Fittings - Copper & Aluminum Tubing

 1999-2016 Hydraulic Supply Co. • 1-800-507-9651 • www.hydraulic-supply.com

This page is part of a complete catalog which contains technical and safety data that must be reviewed when selecting a product

Tube Fittings

Hydraulic Power & ControlPneumatic Power & ControlFluid ConveyingMiscellaneous ProductsIndexes & Technical Information

1080

Brass Air Brake Tube Fittings

Used with Nylon Air Brake Tubing

Typical Application: Air brake systems except where temperatures exceed +200°F or where battery acid can drip

on tubing. For your particular application, please review the Important Safety Information starting on page 1519

Pressure: Maximum operating pressure of 150 psi.

Vibration: Fair resistance.

Temperature Range: -40°F to +200°F.

Material: CA360 Brass.

Used With: NT100 Nylon Tubing - SAE J844 Type A and B.

Features: Easy to assemble (no tube preparation or flaring required.) Built in tube support.

Conformance: Meets specifications and standards of SAE and DOT FMVSS 571.106.

Assembly Instructions: 1. Cut tubing to desired length. 2. Slide nut and then sleeve on tubing. Threaded end of

nut “A” must face toward fitting body. 3. Insert tubing into the preassembled fitting. Be sure tubing is bottomed in

fitting. 4. Tighten nut to following torque based on Tube Size: 1/4 (85 to 115 in.lbs), 3/8 (12 to 17 ft.lbs), 1/2 (25

to 33 ft.lbs), 5/8 (26 to 35 ft.lbs), 3/4 (38 to 50 ft.lbs). A gauge ring also assures installation to specification.

Disassembly: Remove nut and pull tubing out of fitting body. Insert will remain in tubing.

Reassembly: Push tubing and insert into fitting body until it bottoms. Thread nut onto fitting body and torque as in

Step 4.

Catalog

Part No. Eaton Model Tube O.D.

(in) C (in) D (in) L (in) Wt. Price

Each

•C1HM72 1460X4 1/4 0.359 0.256 0.30 0.01

•C1HM73 1460X6 3/8 0.479 0.384 0.39 0.01

•C1HM74 1460X8 1/2 0.625 0.509 0.43 0.01

•C1HM71 1460X10 5/8 0.745 0.635 0.48 0.01

Catalog

Part No. Eaton Model Tube O.D.

(in) C (in) D (in) L (in) Wt. Price

Each

•C1HM76 1461X4 1/4 9/16 0.256 0.45 0.02

•C1HM77 1461X6 3/8 5/8 0.384 0.63 0.03

•C1HM78 1461X8 1/2 13/16 0.509 0.72 0.05

•C1HM75 1461X10 5/8 15/16 0.634 0.77 0.06

1460

Sleeve (Ref SAE 100115)

1461

Nut (Ref SAE 100110)

Brass

DOT Approved Air Brake - Nylon Air Brake Tubing

This page is part of a complete catalog which contains technical and safety data that must be reviewed when selecting a product

Tube Fittings

Hydraulic Power & Control Pneumatic Power & Control Fluid Conveying Miscellaneous Products Indexes & Technical Information

1081

 1999-2016 Hydraulic Supply Co. • 1-800-507-9651 • www.hydraulic-supply.com

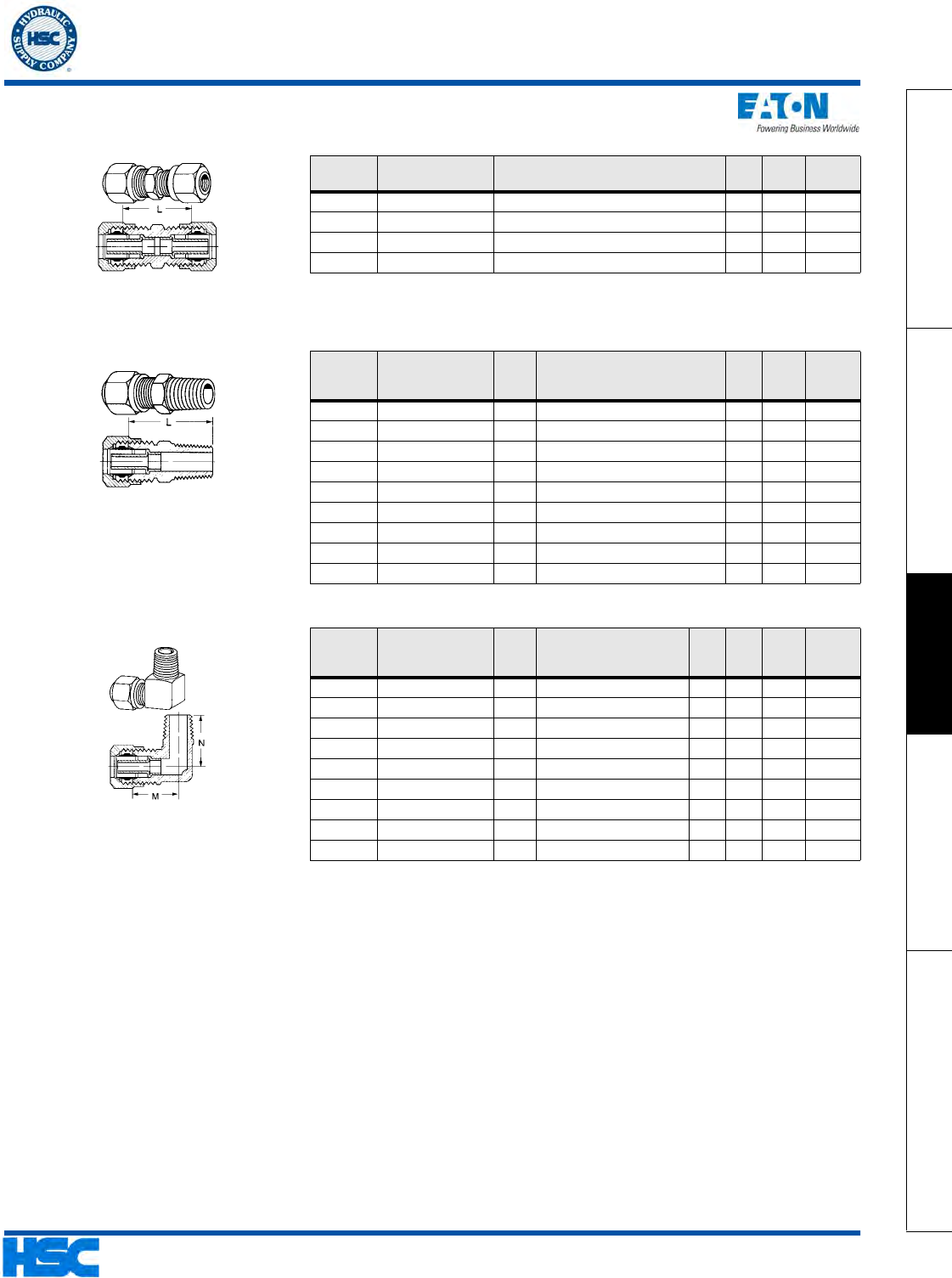

Catalog

Part No. Eaton Model Tube O.D. (in) L (in) Wt. Price

Each

•C1HM80 1462X4 1/4 0.85 0.07

•C1HM81 1462X6 3/8 1.10 0.10

•C1HM82 1462X8 1/2 1.31 0.19

•C1HM79 1462X10 5/8 1.43 0.25

Catalog

Part No. Eaton Model

Tube

O.D.

(in) Male Pipe Thread L (in) Wt. Price

Each

•C1HM85 1468X4 1/4 1/8-27 0.88 0.03

•C1JA99 1468X4X4 1/4 1/4-18 1.09 0.07

•C1JB11 1468X6 3/8 1/4-18 1.20 0.08

•C1JB12 1468X6X6 3/8 3/8-18 1.23 0.11

C1JB13 1468X6X8 3/8 1/2-14 1.42 0.13

•C1JB14 1468X8 1/2 3/8-18 1.32 0.13

•C1JB19 1468X8X8 1/2 1/2-14 1.51 0.20

•C1JA57 1468X10X6 5/8 3/8-18 1.38 0.17

•C1JA56 1468X10 5/8 1/2-14 1.57 0.20

Catalog

Part No. Eaton Model

Tube

O.D.

(in) Male Pipe Thread M

(in) N

(in) Wt. Price

Each

•C1HH67 1469X4 1/4 1/8-27 0.63 0.67 0.06

•C1HH68 1469x4x4 1/4 1/4-18 0.69 0.88 0.08

•C1HH83 1469X6 3/8 1/4-18 0.80 0.93 0.10

•C1HJ23 1469X6X6 3/8 3/8-18 0.85 0.92 0.14

•C1JB26 1469X6X8 3/8 1/2-14 0.95 1.11 0.19

•C1JB31 1469X8 1/2 3/8-18 0.94 1.00 0.20

•C1JB32 1469X8X8 1/2 1/2-14 1.04 1.19 0.26

•C1JB20 1469X10X6 5/8 3/8-18 1.01 1.06 0.26

•C1HM87 1469X10 5/8 1/2-14 1.10 1.25 0.30

1462

Union (Ref SAE 100101BA)

1468

Male Connector (Ref SAE 100102BA)

1469

90° Male Elbow (Ref SAE 100202BA)

Brass

DOT Approved Air Brake - Nylon Air Brake Tubing

 1999-2016 Hydraulic Supply Co. • 1-800-507-9651 • www.hydraulic-supply.com

This page is part of a complete catalog which contains technical and safety data that must be reviewed when selecting a product

Tube Fittings

Hydraulic Power & ControlPneumatic Power & ControlFluid ConveyingMiscellaneous ProductsIndexes & Technical Information

1082

SSP Duolok® Brass Tube Fittings (Swagelok® Interchange)

Features: Duolok® tube fittings provide a reliable, leak-proof connection in instrumentation and process tubing

systems. The double ferrule design compensates for the variations in tubing materials, hardness and thickness

of the tube wall to provide leak-tight connections in an extensive range of applications.

Materials: Straight fittings are machined from CA360 and CA345 premium brass bar stock in accordance with

ASTM B-16 and ASTM B-453. Shaped bodies are machined from precision forgings of CA-377 brass in

accordance with ASTM B-124.

Pressure Ratings: Generally, Duolok® tube fittings are rated for pressures equal to the maximum allowable

working pressures of the tubing recommended for use with the fittings (copper tubing). Some specially designed

fittings, bored-through fittings, AN fittings, O-Ring Seal fittings and SAE integral end fittings may have a lower

pressure rating than that of the tubing. Contact us for application assistance.

Temperature Factors: Duolok® tube fittings function reliably in an extremely wide range of operating

temperatures. Elevated temperatures will reduce the maximum working pressure capability of the tubing

system. For applications at elevated temperatures, contact us for application assistance.

Gageability: Duolok® tube fittings are designed, manufactured and quality controlled to be gaugeable for

sufficient pull-up during initial installation. Contact us for detailed assembly instructions.

Interchangeability: Duolok® tube fittings are designed, manufactured and quality controlled to be totally

interchangeable with the Swagelok® brand of tube fittings.

Tubing Selection: Copper Tubing.

Assembly Instructions & Technical Information: page 1321 Also, please review the Important Safety

Information starting on page 1519

Catalog

Part No. SSP Model

Tube

O.D.

T (in) Thread P A

(in)

Max Panel

Thickness

(in)

Panel

Hole

Drill Dia

(in) Wt. Price

Each

C1JB21 ISSD4BMC4 0.25 1/4-18 2.10 0.40 0.45 0.13

BMC

Bulkhead Male Connector

Brass

SSP Duolok® Tube Fittings (Swagelok® Interchange)

This page is part of a complete catalog which contains technical and safety data that must be reviewed when selecting a product

Tube Fittings

Hydraulic Power & Control Pneumatic Power & Control Fluid Conveying Miscellaneous Products Indexes & Technical Information

1083

 1999-2016 Hydraulic Supply Co. • 1-800-507-9651 • www.hydraulic-supply.com

Catalog

Part No. SSP Model Tube O.D. T (in) A

(in) B

(in) E

(in) Wt. Price

Each

•C1FN73 IBD6U 0.38 1.77 1.19 0.28 0.12

Catalog

Part No. SSP Model Tube O.D. T

(in) A

(in) Ax

(in) B

(in) Bx

(in) E

(in) Wt. Price

Each

•C1FN75 IBD6UT 0.38 2.40 1.20 1.82 0.91 0.28 0.23

Catalog

Part No. SSP Model Tube O.D. T (in) A

(in) B

(in) D

(in) Wt. Price

Each

•C1FN50 IBD4CP 0.25 0.92 0.63 0.60 0.05

Catalog

Part No. SSP Model Tube O.D. T (in) G (in) Wt. Price

Each

•C1FN59 IBD4P 0.25 9/16 0.03

Union

Union Tee

Cap

Plug

Brass

SSP Duolok® Tube Fittings (Swagelok® Interchange)

 1999-2016 Hydraulic Supply Co. • 1-800-507-9651 • www.hydraulic-supply.com

This page is part of a complete catalog which contains technical and safety data that must be reviewed when selecting a product

Tube Fittings

Hydraulic Power & ControlPneumatic Power & ControlFluid ConveyingMiscellaneous ProductsIndexes & Technical Information

1084

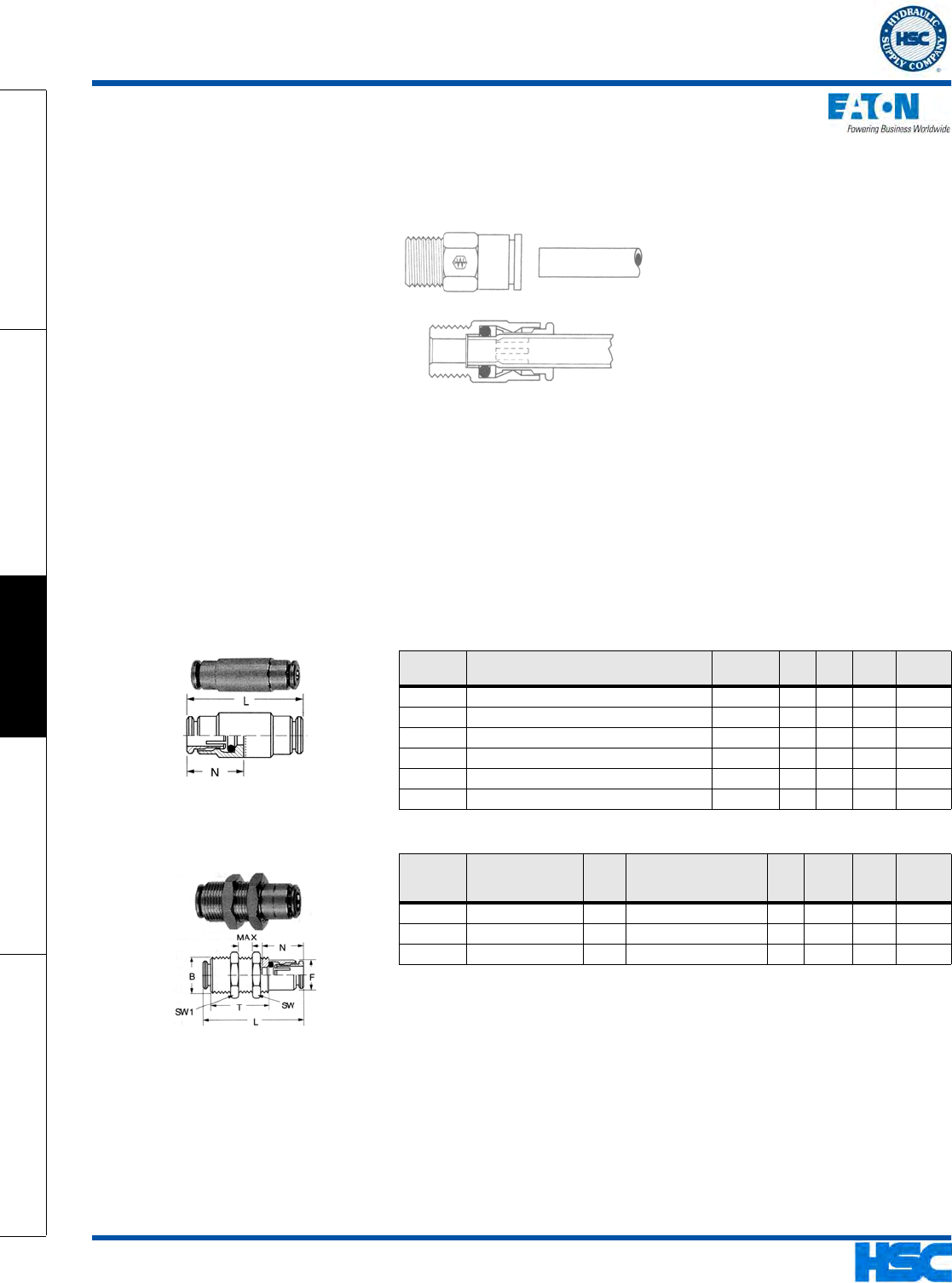

Push > Connect® Brass Tube Fittings

Used with Nylon & Polyethylene Tubing

Typical Application: Compressed pneumatic instrumentation, circuit, lubricant and cooling lines. For your

particular application, please review the Important Safety Information starting on page 1519

Pressure: Up to 250 psi depending on tube size. Fittings rated at 29.5 inches of mercury vacuum.

Sealing Method: O-Ring of Buna-N Construction. (Viton® available on request by special order.)

Temperature Range: -40°F to 200°F for these fittings. Also need to take into account when using a compatible

plastic tubing, do not exceed the tubing temperature range. (Refer to tubing temperature range).

Material: Brass, Nickel Plated.

Used With: PT230 and TP160 nylon, and PT240 Polyethylene tubing.

Features: Ease of assembly. No tools required, reusability of fittings and the time savings of assembly and

disassembly.

Assembly Instructions: 1. To connect, simply push the tubing into the fitting. 2. To disconnect, depress the collet

ring with two fingers and withdraw.

Catalog

Part No. Eaton Model Tube O.D.

(in) L (in) N

(in) Wt. Price

Each

•C1HL63 1162X2 1/8 1.26 0.59 0.03

•C1HL64 1162X2.5 5/32 1.18 0.55 0.02

•C1HL65 1162X4 1/4 1.40 0.64 0.04

•C1HY44 1162X5 5/16 1.23 0.69 0.05

•C1HL67 1162X6 3/8 1.67 0.79 0.09

•C1HL69 1162X8 1/2 1.75 0.83 0.09

Catalog

Part No. Eaton Model

Tube

O.D.

(in) B (in) L (in) Max

(in) Wt. Price

Each

•C1HM64 1174X4 1/4 M14 x 1 1.40 0.37 0.06

•C1HM65 1174X6 3/8 M18 x 1 1.67 0.47 0.12

•C1HM66 1174X8 1/2 M20 x 1 1.75 0.53 0.12

1162

Union

1174

Bulkhead Union

Brass

Push > Connect® Tube Fittings - Nylon & Polyethylene Tubing

This page is part of a complete catalog which contains technical and safety data that must be reviewed when selecting a product

Tube Fittings

Hydraulic Power & Control Pneumatic Power & Control Fluid Conveying Miscellaneous Products Indexes & Technical Information

1085

 1999-2016 Hydraulic Supply Co. • 1-800-507-9651 • www.hydraulic-supply.com

Catalog

Part No. Eaton Model Tube O.D. (in) F (in) L (in) Wt. Price

Each

•C1HL57 1107X4 1/4 0.96 1.52 0.06

Catalog

Part No. Eaton Model

Tube

O.D.

(in) Male Pipe Thread L (in) Wt. Price

Each

•C1HL99 1168X2A 1/8 10-32 UNF thread 0.85 0.01

•C1HL95 1168X2 1/8 1/8-27 0.85 0.02

•C1HL97 1168X2.5A 5/32 10-32 UNF thread 0.81 0.01

•C1HL96 1168X2.5 5/32 1/8-27 0.81 0.02

•C1HL98 1168X2.5X4 5/32 1/4-18 0.94 0.04

•C1HM12 1168X4A 1/4 10-32 UNF thread 0.91 0.02

•C1HM11 1168X4 1/4 1/8-27 0.98 0.02

•C1HM15 1168X4X4 1/4 1/4-18 1.08 0.04

•C1HM16 1168X4X6 1/4 3/8-18 1.10 0.08

•C1HY48 1168X5 5/16 1/8-27 1.14 0.04

•C1HY49 1168X5X4 5/16 1/4-18 1.14 0.04

•C1HM20 1168X6X2 3/8 1/8-27 1.38 0.06

•C1HM17 1168X6 3/8 1/4-18 1.38 0.07

•C1HM21 1168X6X6 3/8 3/8-18 1.18 0.08

•C1HM22 1168X8 1/2 3/8-18 1.36 0.08

•C1HM25 1168X8X8 1/2 1/2-14 1.36 0.10

Note: Models with Z suffix have sealant on threads.

Catalog

Part No. Eaton Model

Tube

O.D.

(in) Thread P F (in) L (in) Wt. Price

Each

•C1HL87 1166X4 1/4 1/8-27 0.46 1.06 0.05

1107

Union "Y"

1168

Male Connector

1166

Female Connector

Brass

Push > Connect® Tube Fittings - Nylon & Polyethylene Tubing

 1999-2016 Hydraulic Supply Co. • 1-800-507-9651 • www.hydraulic-supply.com

This page is part of a complete catalog which contains technical and safety data that must be reviewed when selecting a product

Tube Fittings

Hydraulic Power & ControlPneumatic Power & ControlFluid ConveyingMiscellaneous ProductsIndexes & Technical Information

1086

Catalog

Part No. Eaton Model Tube O.D. (in) F (in) M

(in) Wt. Price

Each

•C1HL83 1165X4 1/4 0.50 0.91 0.04

•C1HY46 1165X5 5/16 0.59 0.98 0.06

•C1HL84 1165X6 3/8 0.69 1.12 0.10

•C1HL85 1165X8 1/2 0.77 1.22 0.11

Catalog

Part No. Eaton Model

Tube

O.D.

(in) Thread P E

(in) F (in) M

(in) Wt. Price

Each

•C1HM34 1169X4 1/4 1/8-27 0.53 0.50 0.91 0.04

•C1HM40 1169X6 3/8 1/4-18 0.69 0.69 1.12 0.08

Catalog

Part No. Eaton Model

Tube

O.D.

(in) Thread P E

(in) F (in) M

(in) Wt. Price

Each

•C1HM33 1169X2S 1/8 1/8-27 0.71 0.39 0.83 0.04

•C1HM30 1169X2.5AS 5/32 10-32 UNF thread 0.53 0.39 0.79 0.03

•C1HM31 1169X2.5S 5/32 1/8-27 0.71 0.39 0.79 0.04

•C1GH24 1169X4S 1/4 1/8-27 0.73 0.50 0.91 0.40

•C1HM38 1169X4X4S 1/4 1/4-18 0.81 0.50 0.91 0.06

•C1HM39 1169X4X6S 1/4 3/8-18 0.87 0.50 0.93 0.09

•C1HY51 1169X5S 5/16 1/8-27 0.77 0.59 0.98 0.05

•C1HM44 1169X6X2S 3/8 1/8-27 0.75 0.64 1.10 0.09

•C1HM43 1169X6S 3/8 1/4-18 0.89 0.69 1.12 0.09

•C1JB97 1169X6X6S 3/8 3/8-18 0.91 0.69 1.12 0.12

•C1HM49 1169X8X4S 1/2 1/4-18 0.95 0.77 1.22 0.10

•C1HM48 1169X8S 1/2 3/8-18 0.95 0.77 1.22 0.12

•C1HM50 1169X8X8S 1/2 1/2-14 1.12 0.77 1.22 0.16

Note: Models with Z suffix have sealant on threads.

Catalog

Part No. Eaton Model Tube O.D. (in) F (in) L (in) M

(in) Wt. Price

Each

•C1HL73 1164X2 1/8 0.39 1.65 0.83 0.04

•C1HL74 1164X2.5 5/32 0.39 1.57 0.79 0.04

•C1HL75 1164X4 1/4 0.50 1.81 0.91 0.06

•C1HL77 1164X6 3/8 0.69 2.24 1.12 0.15

•C1HL79 1164X8 1/2 0.77 2.44 1.22 0.15

1165

Union Elbow

1169

Male Elbow

1169S

Swivel Male Elbow

1164

Union Tee

Brass

Push > Connect® Tube Fittings - Nylon & Polyethylene Tubing

This page is part of a complete catalog which contains technical and safety data that must be reviewed when selecting a product

Tube Fittings

Hydraulic Power & Control Pneumatic Power & Control Fluid Conveying Miscellaneous Products Indexes & Technical Information

1087

 1999-2016 Hydraulic Supply Co. • 1-800-507-9651 • www.hydraulic-supply.com

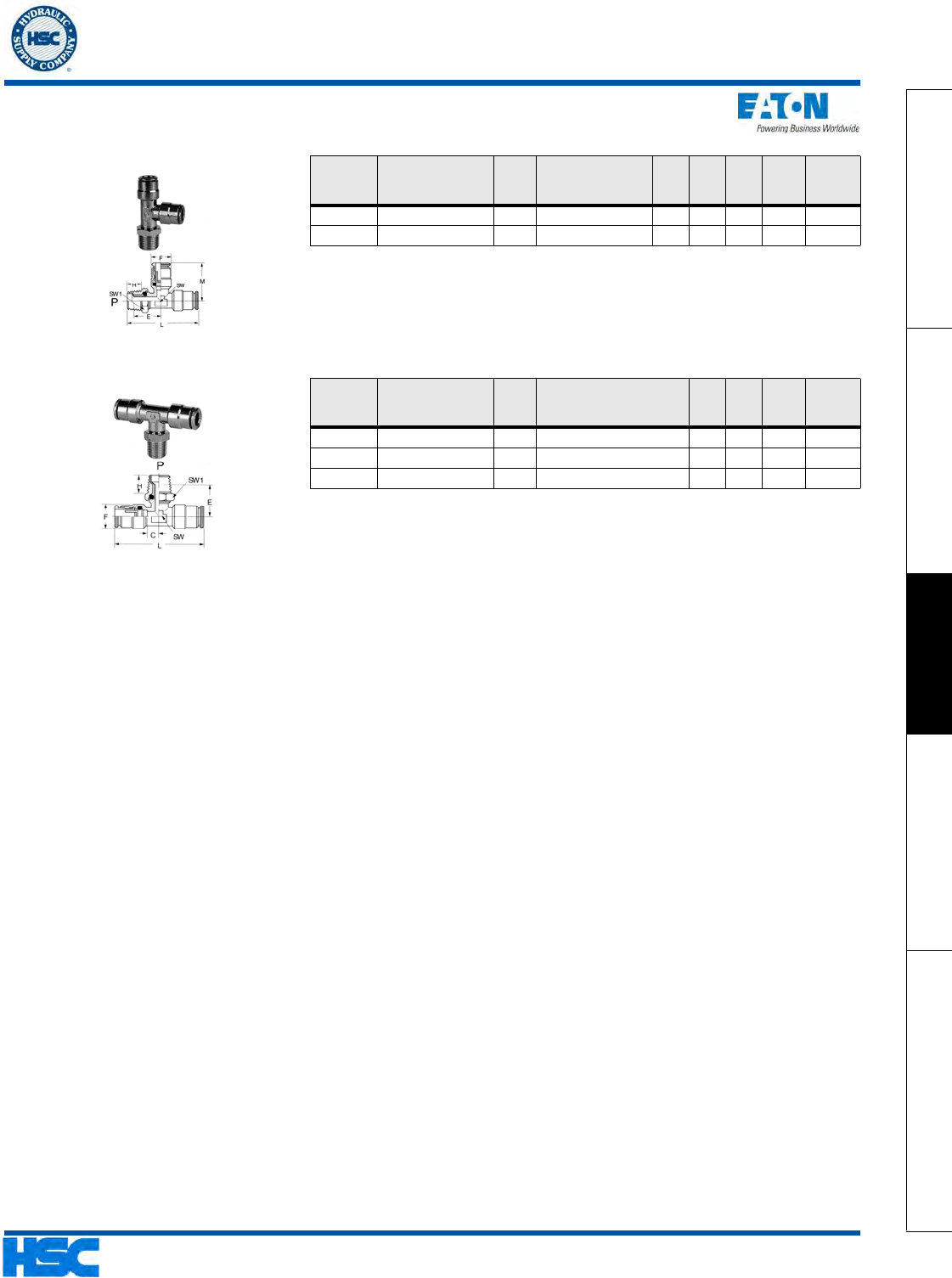

Catalog

Part No. Eaton Model

Tube

O.D.

(in) Thread P F (in) L (in) M

(in) Wt. Price

Each

•C1HM55 1171X4X4S 1/4 1/4-18 0.46 1.79 0.89 0.08

•C1HM56 1171X6X6S 3/8 3/8-18 0.64 2.26 1.10 0.16

Catalog

Part No. Eaton Model

Tube

O.D.

(in) Thread P F (in) L (in) Wt. Price

Each

•C1HM58 1172X2S 1/8 1/8-27 0.35 1.57 0.06

•C1GH25 1172X4S 1/4 1/8-27 0.46 1.77 0.07

•C1HN52 1172X6S 3/8 1/4-18 0.64 2.20 0.14

1171S

Swivel Male Run Tee

1172S

Swivel Male Branch Tee

Brass

Push > Connect® Tube Fittings - Nylon & Polyethylene Tubing

 1999-2016 Hydraulic Supply Co. • 1-800-507-9651 • www.hydraulic-supply.com

This page is part of a complete catalog which contains technical and safety data that must be reviewed when selecting a product

Tube Fittings

Hydraulic Power & ControlPneumatic Power & ControlFluid ConveyingMiscellaneous ProductsIndexes & Technical Information

1088

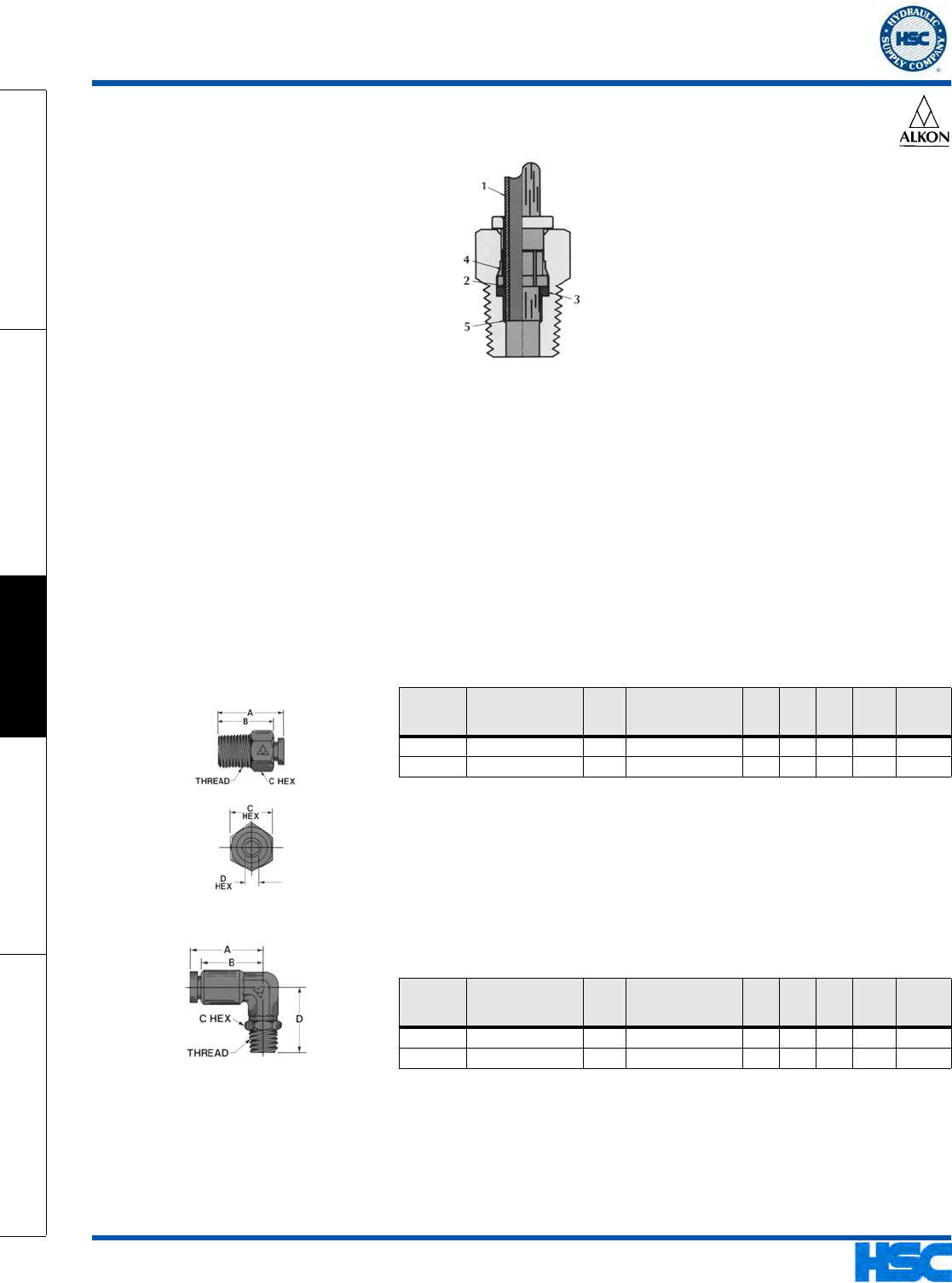

Application: For your particular application, please review the Important Safety Information starting on page 1519

Design Features: Quick connect & disconnect. Positive seal, no leaks. Pre-applied Teflon® based pipe sealant

on all male threads. Choice of stationary or swivel elbows and tees. Interior hex in straight connectors for Allen

key tightening. Full flow design.

Construction: Brass construction (Elbows and tees are forged brass). Buna-N O-rings are standard.

Working Pressure: Suitable for use up to the maximum working pressure of the thermoplastic tubing used.

Suitable for vacuum service.

Operating Temperature Range: -10°F to 200°F.

Tubing: Polyethylene Tubing page 1039Polyurethane Tubing (90 durometer and over), Polybutylene Tubing and

soft metal tubing.

How It Works: When tubing (1) is inserted into the fitting, it first passes through the gripping teeth (2). Just

beyond the gripping teeth is the o-ring (3) which provides the leak proof seal against the O.D. of the tube. The

gripping teeth grab the tube, which expands the insert. Pulling back on the tube only tightens the grip as the

insert moves into the camming surface (4). Pressure through the tube also serves to tighten the grip. The tube

bottoms against a positive stop (5) in a cavity providing tube support to prevent leakage.

Catalog

Part No. Alkon Model

Tube

O.D.

(in) Pipe Thread A

(in) B

(in) D

(in) Wt. Price

Each

•C1FJ14 AQ68-P-2X1 0.13 1/16 0.81 0.73 0.09 0.02

•C1CJ87 AQ68-P-3X2 0.19 1/8-18 1.04 0.90 0.16 0.03

Note: Internal hex "D" can be used for tightening with an Allen key.

Catalog

Part No. Alkon Model

Tube

O.D.

(in) Pipe Thread A

(in) B

(in) D

(in) Wt. Price

Each

•C1CK23 AQ69-PS-3X2 0.19 1/8-27 0.89 0.75 1.17 0.05

•C1CK31 AQ69-PS-6X4 0.38 1/4-18 1.08 0.94 1.45 0.11

AQ68-P

Male Connector

AQ69-PS

Swivel Male Elbow

Brass

Push-In Tube Fittings - Polyethylene & Nylon Tubing

This page is part of a complete catalog which contains technical and safety data that must be reviewed when selecting a product

Tube Fittings

Hydraulic Power & Control Pneumatic Power & Control Fluid Conveying Miscellaneous Products Indexes & Technical Information

1089

 1999-2016 Hydraulic Supply Co. • 1-800-507-9651 • www.hydraulic-supply.com

Catalog

Part No. Alkon Model

Tube

O.D.

(in) Pipe Thread A

(in) B

(in) D

(in) Wt. Price

Each

•C1CK39 AQ71-PS-6X4 0.38 1/4-18 1.08 0.94 1.45 0.08

Catalog

Part No. Alkon Model

Tube

O.D.

(in) Pipe Thread A

(in) B

(in) D

(in) Wt. Price

Each

•C1CK50 AQ72-PS-4X4 0.25 1/4-18 1.04 0.91 1.33 0.10

•C1CK51 AQ72-PS-6X4 0.38 1/4-18 1.10 0.97 1.45 0.12

Catalog

Part No. Alkon Model

Tube

O.D.

(in) Pipe Thread A

(in) Thread

(in) Wt. Price

Each

•C1CK58 AQ86-P-4X4 0.25 1/4-18 1.46 1/2-20 0.63 0.10

•C1CK59 AQ86-P-6X4 0.38 1/4-18 1.89 5/8-18 0.99 0.13

AQ71-PS

Swivel Male Run Tee

AQ72-PS

Swivel Male Branch Tee

AQ86-P

Female Bulkhead Union

Brass

Push-In Tube Fittings - Polyethylene & Nylon Tubing

This page is part of a complete catalog which contains technical and safety data that must be reviewed when selecting a product

Tube Fittings

Hydraulic Power & ControlPneumatic Power & ControlFluid ConveyingMiscellaneous ProductsIndexes & Technical Information

1090  1999-2016 Hydraulic Supply Co. • 1-800-507-9651 • www.hydraulic-supply.com

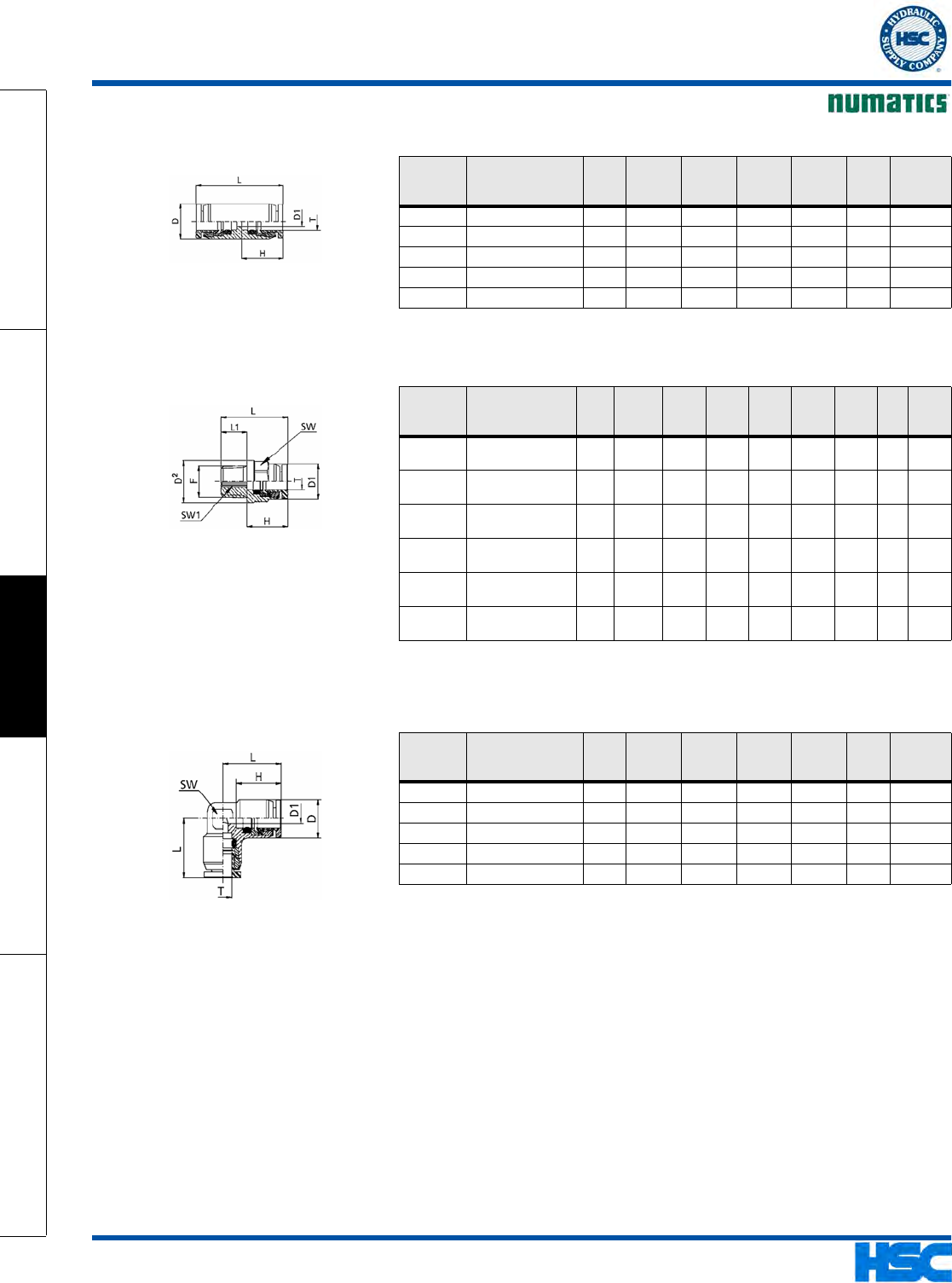

Catalog

Part No. Numatics Model

Tube

O.D.

(T) DD1 L H Wt. Price

Each

•C1LC17 INB100-532-000 5/32 0.394 0.094 0.984 0.472

•C1LC14 INB100-104-000 1/4 0.394 0.118 1.024 0.492

•C1LC16 INB100-516-000 5/16 0.591 0.236 1.299 0.630

•C1LC15 INB100-308-000 3/8 0.709 0.276 1.398 0.669

•C1LC13 INB100-102-000 1/2 0.787 0.413 1.575 0.748

Catalog

Part No. Numatics Model

Tube

O.D.

(T) Thread

(F) D1 D2 LL1 HWt. Price

Each

•C1LC21 INB103-104-020 1/4 1/8

NPTF0.472 0.551 0.886 0.374 0.531

•C1LC22 INB103-104-021 1/4 1/4

NPTF0.472 0.551 1.024 0.512 0.531

•C1LC23 INB103-104-022 1/4 3/8

NPTF0.472 0.709 1.024 0.512 0.531

•C1LC18 INB103-102-021 1/2 1/4

NPTF0.827 0.906 1.339 0.512 0.748

•C1LC19 INB103-102-022 1/2 3/8

NPTF0.827 0.906 1.339 0.512 0.748

•C1LC20 INB103-102-023 1/2 1/2

NPTF0.827 0.906 1.496 0.709 0.748

Catalog

Part No. Numatics Model

Tube

O.D.

(T) DD1 L H Wt. Price

Each

•C1LC28 INB106-532-000 5/32 0.394 0.118 0.657 0.492

•C1LC25 INB106-104-000 1/4 0.472 0.157 0.740 0.531

•C1LC27 INB106-516-000 5/16 0.591 0.236 0.858 0.630

•C1LC26 INB106-308-000 3/8 0.709 0.295 1.004 0.669

•C1LC24 INB106-102-000 1/2 0.827 0.413 1.161 0.748

INB100

Union

INB103

Male Connector

INB106

Union Elbow

Brass

Push Tube Fittings

This page is part of a complete catalog which contains technical and safety data that must be reviewed when selecting a product

Tube Fittings

Hydraulic Power & Control Pneumatic Power & Control Fluid Conveying Miscellaneous Products Indexes & Technical Information

1091

 1999-2016 Hydraulic Supply Co. • 1-800-507-9651 • www.hydraulic-supply.com

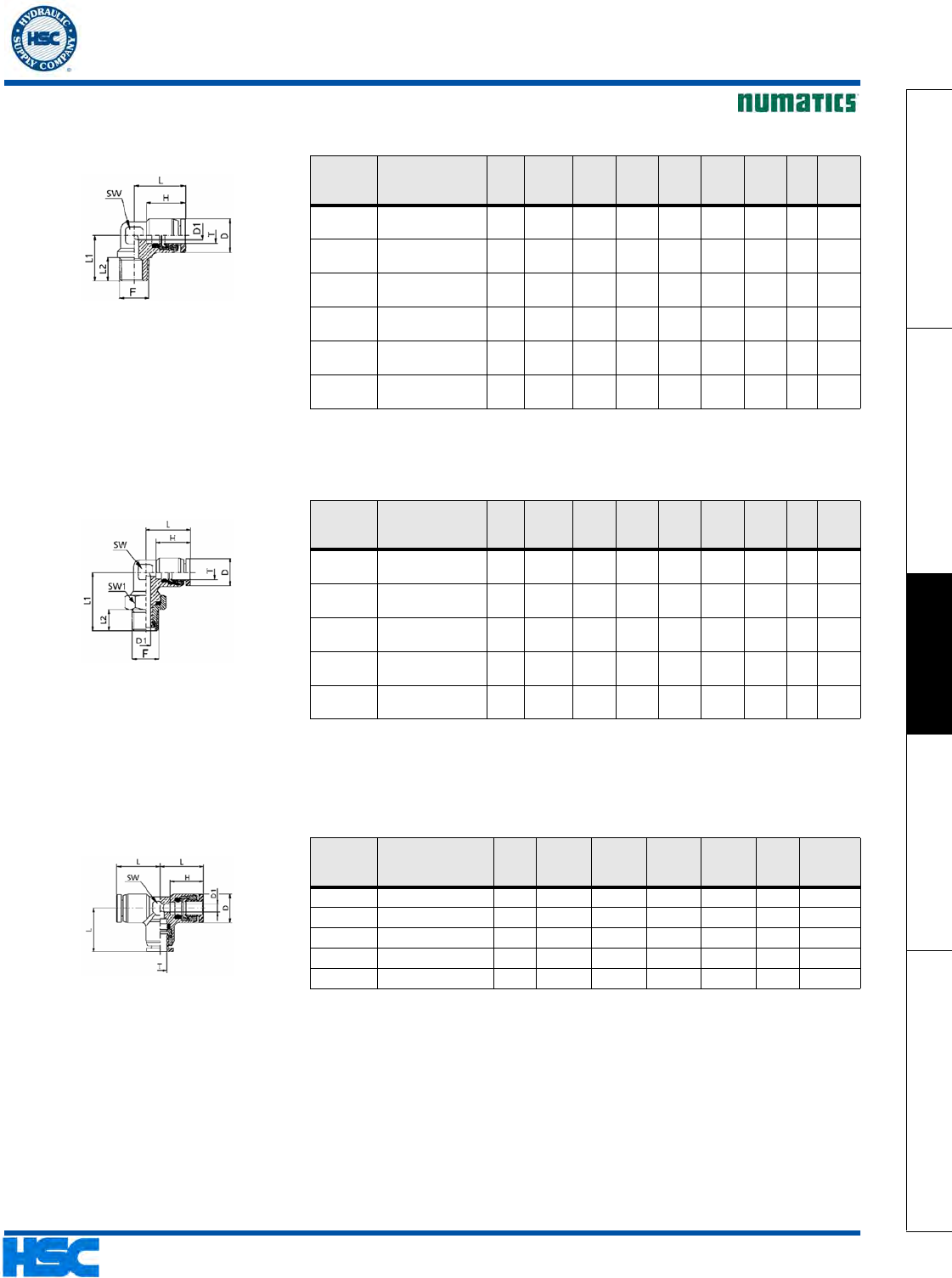

Catalog

Part No. Numatics Model

Tube

O.D.

(T) Thread

(F) DD1 LL1 L2 Wt. Price

Each

•C1LC33 INB107-532-020 5/32 1/8

NPT 0.394 0.118 0.657 0.650 0.374

•C1LC34 INB107-532-021 5/32 1/4

NPT 0.394 0.118 0.657 0.787 0.512

•C1LC29 INB107-104-020 1/4 1/8

NPT 0.472 0.157 0.740 0.693 0.531

•C1LC30 INB107-104-021 1/4 1/4

NPT 0.472 0.157 0.740 0.831 0.531

•C1LC32 INB107-308-022 3/8 1/4

NPT 0.709 0.295 1.004 0.945 0.685

•C1LC31 INB107-308-021 3/8 3/8

NPT 0.709 0.295 1.004 1.945 0.685

Catalog

Part No. Numatics Model

Tube

O.D.

(T) Thread

(F) DD1 LL1 L2 Wt. Price

Each

•C1LC37 INB109-104-020 1/4 1/8

NPT 0.472 0.157 0.740 0.906 0.374

•C1LC38 INB109-104-021 1/4 1/4

NPT 0.472 0.236 0.740 1.031 0.512

•C1LC39 INB109-104-022 1/4 3/8

NPT 0.472 0.236 0.740 1.071 0.512

•C1LC35 INB109-102-022 1/2 3/8

NPT 0.827 0.315 1.181 1.299 0.512

•C1LC36 INB109-102-023 1/2 1/2

NPT 0.827 0.315 1.181 1.476 0.709

Catalog

Part No. Numatics Model

Tube

O.D.

(T) DD1 L H Wt. Price

Each

•C1LC44 INB110-532-000 5/32 0.394 0.118 0.657 0.492

•C1LC41 INB110-104-000 1/4 0.472 0.157 0.740 0.531

•C1LC43 INB110-516-000 5/16 0.591 0.236 0.858 0.630

•C1LC42 INB110-308-000 3/8 0.709 0.295 1.004 0.669

•C1LC40 INB110-102-000 1/2 0.827 0.413 1.161 0.748

INB107

Fixed Elbow

INB109

Swivel Elbow

INB110

Union Tee

Brass

Push Tube Fittings

This page is part of a complete catalog which contains technical and safety data that must be reviewed when selecting a product

Tube Fittings

Hydraulic Power & ControlPneumatic Power & ControlFluid ConveyingMiscellaneous ProductsIndexes & Technical Information

1092  1999-2016 Hydraulic Supply Co. • 1-800-507-9651 • www.hydraulic-supply.com

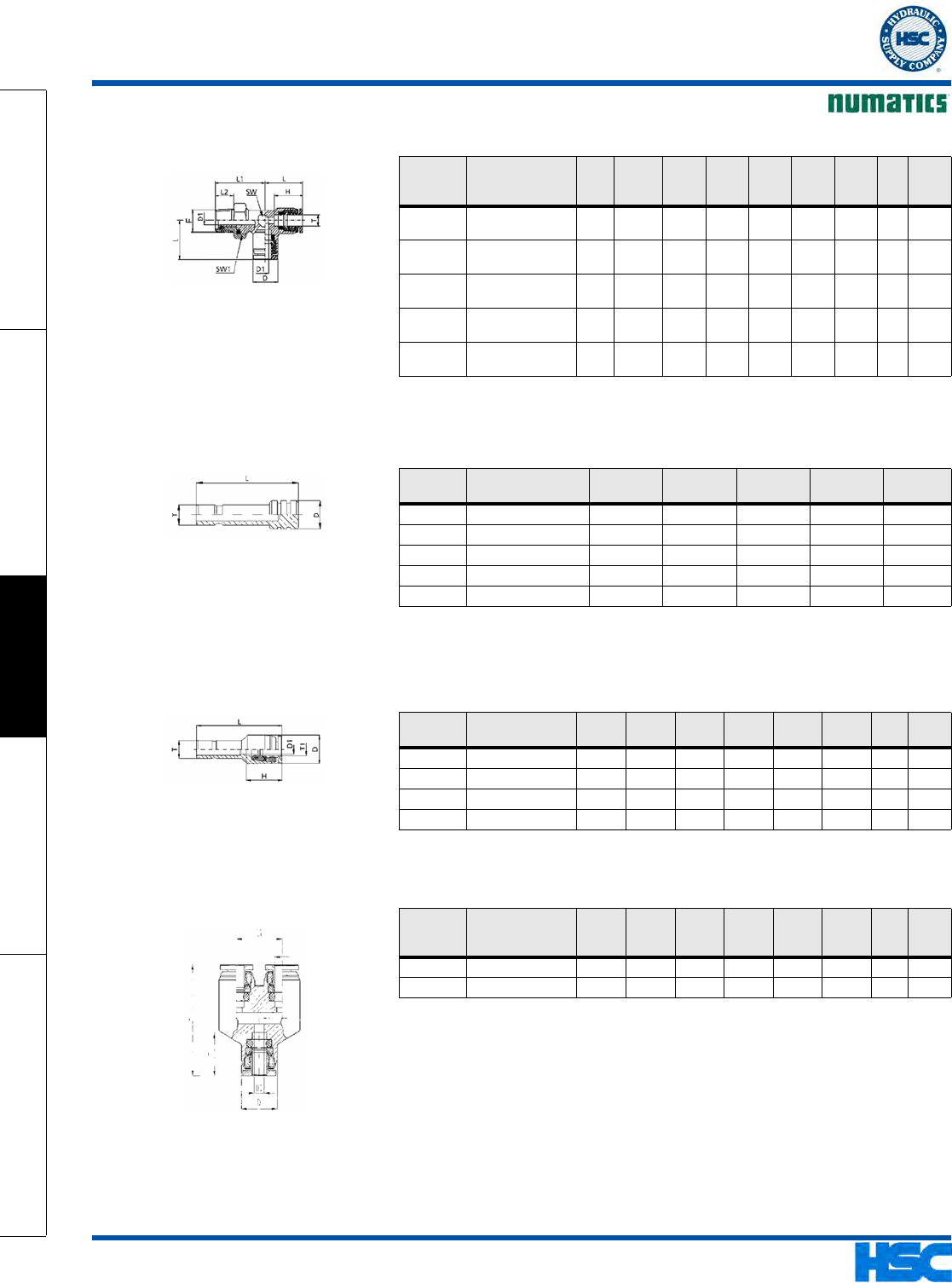

Catalog

Part No. Numatics Model

Tube

O.D.

(T) Thread

(F) DD1 LL1 L2 Wt. Price

Each

•C1LC47 INB116-104-020 1/4 1/8

NPT 0.472 0.157 0.740 0.996 0.374

•C1LC48 INB116-104-021 1/4 1/4

NPT 0.472 0.236 0.740 1.142 0.512

•C1LC49 INB116-104-022 1/4 3/8

NPT 0.472 0.236 0.740 1.181 0.512

•C1LC45 INB116-102-022 1/2 3/8

NPT 0.827 0.315 1.181 1.299 0.512

•C1LC46 INB116-102-023 1/2 1/2

NPT 0.827 0.315 1.181 1.476 0.709

Catalog

Part No. Numatics Model T D L Wt. Price

Each

•C1LC12 IN118-532-000 5/32 0.236 0.906

•C1LB98 IN118-104-000 1/4 0.315 0.984

•C1LC11 IN118-516-000 5/16 0.394 1.063

•C1LB99 IN118-308-000 3/8 0.472 1.102

•C1LB97 IN118-102-000 1/2 0.591 1.260

Catalog

Part No. Numatics Model TT1 DD1 L H Wt. Price

Each

•C1LC52 INB121-104-532 1/4 5/32 0.394 0.118 1.142 0.492

•C1LC53 INB121-308-104 3/8 1/4 0.472 0.157 1.339 0.531

•C1LC50 INB121-102-104 1/2 1/4 0.472 0.157 1.417 0.531

•C1LC51 INB121-102-308 1/2 3/8 0.669 0.295 1.673 0.669

Catalog

Part No. Numatics Model

Tube

O.D.

(T) L H L1 DD1 Wt. Price

Each

•C1LC55 INB131-532-000 5/32 1.280 0.492 0.512 0.394 0.118

•C1LC54 INB131-104-000 1/4 1.398 0.531 0.598 0.472 0.157

INB116

Swivel Run Tee

IN118

Plug

INB121

Reducer

INB131

Union Y

Brass

Push Tube Fittings

This page is part of a complete catalog which contains technical and safety data that must be reviewed when selecting a product

Tube Fittings

Hydraulic Power & Control Pneumatic Power & Control Fluid Conveying Miscellaneous Products Indexes & Technical Information

1093

 1999-2016 Hydraulic Supply Co. • 1-800-507-9651 • www.hydraulic-supply.com

Push > Connect® Brass Tube Fittings

Used with Metric Nylon & Polyethylene Tubing

Typical Application: Compressed pneumatic instrumentation, circuit, lubricant and cooling lines. For your

particular application, please review the Important Safety Information starting on page 1519

Pressure: Up to 250 psi depending on tube size. Fittings rated at 29.5 inches of mercury vacuum.

Sealing Method: O-Ring of Buna-N Construction. (Viton® available on request by special order.)

Temperature Range: -40°F to 200°F for these fittings. Also need to take into account when using a compatible

plastic tubing, do not exceed the tubing temperature range. (Refer to tubing temperature range).

Material: Brass, Nickel Plated.

Features: Ease of assembly. No tools required, reusability of fittings and the time savings of assembly and

disassembly.

Assembly Instructions: 1. To connect, simply push the tubing into the fitting. 2. To disconnect, depress the collet

ring with two fingers and withdraw.

Catalog

Part No. Eaton Model Tube O.D.

(mm) L

(mm) N

(mm) Wt. Price

Each

•C1HL66 1162X4M 430.0 14.0 0.02

•C1HL68 1162X6M 634.0 15.5 0.04

•C1HL70 1162X8M 838.0 17.5 0.05

•C1HL61 1162X10M 10 41.5 19.5 0.08

•C1HL62 1162X12M 12 44.5 21.0 0.10

Catalog

Part No. Eaton Model

Tube

O.D.

(mm) BSP Thread Size D F

(mm) L

(mm) Wt. Price

Each

•C1HM13 1168X4MX2PT 41/8-28 8.8 18.0 0.02

•C1HM14 1168X4MX4PT 41/4-19 8.8 19.5 0.03

•C1HM18 1168X6MX2PT 61/8-28 11.7 20.5 0.02

•C1HM19 1168X6MX4PT 61/4-19 9.8 20.0 0.03

•C1HM23 1168X8MX4PT 81/4-19 13.7 24.0 0.03

•C1HM24 1168X8MX6PT 83/8-19 13.7 23.5 0.06

•C1HL91 1168X10MX4PT 10 1/4-19 16.3 28.5

•C1HL92 1168X10MX6PT 10 3/8-19 16.3 25.5 0.06

•C1HL93 1168X12MX6PT 12 3/8-19 18.3 30.5 0.06

•C1HL94 1168X12MX8PT 12 1/2-14 18.3 27.0 0.08

1162M

Union

1168MPT

Male Connector (Universal

BSPT/BSPP)

Brass

Push > Connect® Metric Tube Fittings - Metric Nylon & Polyethylene Tubing

This page is part of a complete catalog which contains technical and safety data that must be reviewed when selecting a product

Tube Fittings

Hydraulic Power & ControlPneumatic Power & ControlFluid ConveyingMiscellaneous ProductsIndexes & Technical Information

1094  1999-2016 Hydraulic Supply Co. • 1-800-507-9651 • www.hydraulic-supply.com

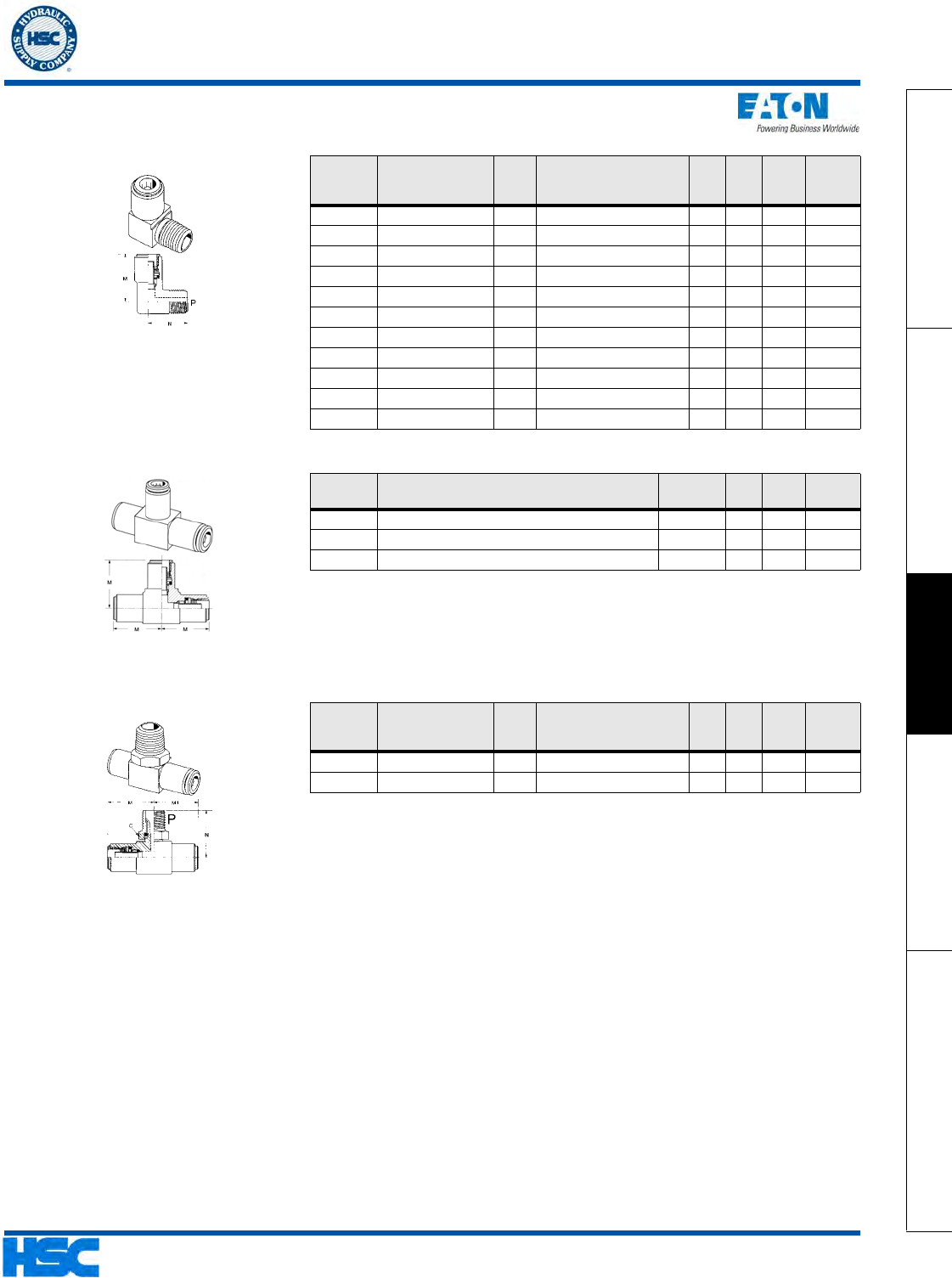

Catalog

Part No. Eaton Model

Tube

O.D.

(mm) BSPT Thread

Size D E

(mm) F

(mm) M

(mm) Wt. Price

Each

•C1HM35 1169X4MX2PTS 41/8-28 14.5 10.0 20.0 0.04

•C1HM41 1169X6MX2PTS 61/8-28 15.0 12.7 22.0 0.04

•C1HM42 1169X6MX4PTS 61/4-19 15.0 12.7 22.5 0.05

•C1HM46 1169X8MX4PTS 81/4-19 16.0 15.0 25.0 0.06

•C1HM47 1169X8MX6PTS 83/8-19 16.5 15.0 25.0 0.09

•C1HM26 1169X10MX4PTS 10 1/4-19 18.5 17.5 28.5 0.08

•C1HM28 1169X12MX6PTS 12 3/8-19 20.0 19.5 31.0 0.12

Catalog

Part No. Eaton Model Tube O.D. (mm) F

(mm) L

(mm) M

(mm) Wt. Price

Each

•C1HL76 1164X4M 410.0 40.0 20.0 0.04

•C1HL78 1164X6M 612.7 45.0 22.5 0.06

•C1HL80 1164X8M 815.0 50.0 25.0 0.09

1169MPTS

Swivel Male Elbow (Universal

BSPT/BSPP)

1164M

Union Tee

Brass

Push > Connect® Metric Tube Fittings - Metric Nylon & Polyethylene Tubing

This page is part of a complete catalog which contains technical and safety data that must be reviewed when selecting a product

Tube Fittings

Hydraulic Power & Control Pneumatic Power & Control Fluid Conveying Miscellaneous Products Indexes & Technical Information

1095

 1999-2016 Hydraulic Supply Co. • 1-800-507-9651 • www.hydraulic-supply.com

Quick > Connect® Brass Air Brake Tube Fittings

Used with Nylon Air Brake Tubing

Typical Application: Air brake systems except where temperatures exceed +200°F or where battery acid can drip

on tubing. Not for fuel, water or oil. For your particular application, please review the Important Safety

Information starting on page 1519

Pressure: Vacuum to 150 psi.

Vibration: Moderate vibration resistance.

Temperature Range: -40°F to +200°F.

Material: CA360 Brass (Body & Collet). EP (Ethylene Propylene) - O-ring.

Nylon Air Brake Tubing:

Features: Easy, fast assembly, one-piece fitting, reusable field serviceable.

Conformance: Meets D.O.T. FMVSS 571.106 and SAE J1131 air brake system performance requirements.

Assembly Instructions: 1. Using a tube cutter, make a square cut edge (maximum 15° cutting angle allowed). 2.

Insert tubing straight into fitting until a solid stop is felt. The tubing grip and seal (on O-ring) is now

accomplished. 3. Gently tug on tubing to ensure tubing is secure.

Disassembly: 1. Check to be sure there isn’t any air pressure. 2. Depress collet head using fingers or Eaton tube

release tool to release grip on tubing. 3. With the collet depressed, pull the tubing from the fitting.

Catalog

Part No. Eaton Model Tube O.D. (in) C

(in) L (in) Wt. Price

Each

•C1HM96 1862X4 1/4 0.53 1.62 0.07

•C1HM97 1862X6 3/8 0.69 1.94 0.13

•C1HM98 1862X8 1/2 0.83 1.96 0.18

•C1HM94 1862X10 5/8 0.96 2.51 0.29

Catalog

Part No. Eaton Model

Tube

O.D.

(in) Thread T L (in)

Max

(in) Wt. Price

Each

•C1HN42 1874X4X4 1/4 9/16-24 1.62 0.47 0.11

1862

Union (Ref SAE AA0101)

1874

Quick Connect Bulkhead Union (Ref

SAE AA0601)

(Ref SAE AA0601)

Brass

Quick > Connect® Air Brake - Nylon Air Brake Tubing

This page is part of a complete catalog which contains technical and safety data that must be reviewed when selecting a product

Tube Fittings

Hydraulic Power & ControlPneumatic Power & ControlFluid ConveyingMiscellaneous ProductsIndexes & Technical Information

1096  1999-2016 Hydraulic Supply Co. • 1-800-507-9651 • www.hydraulic-supply.com

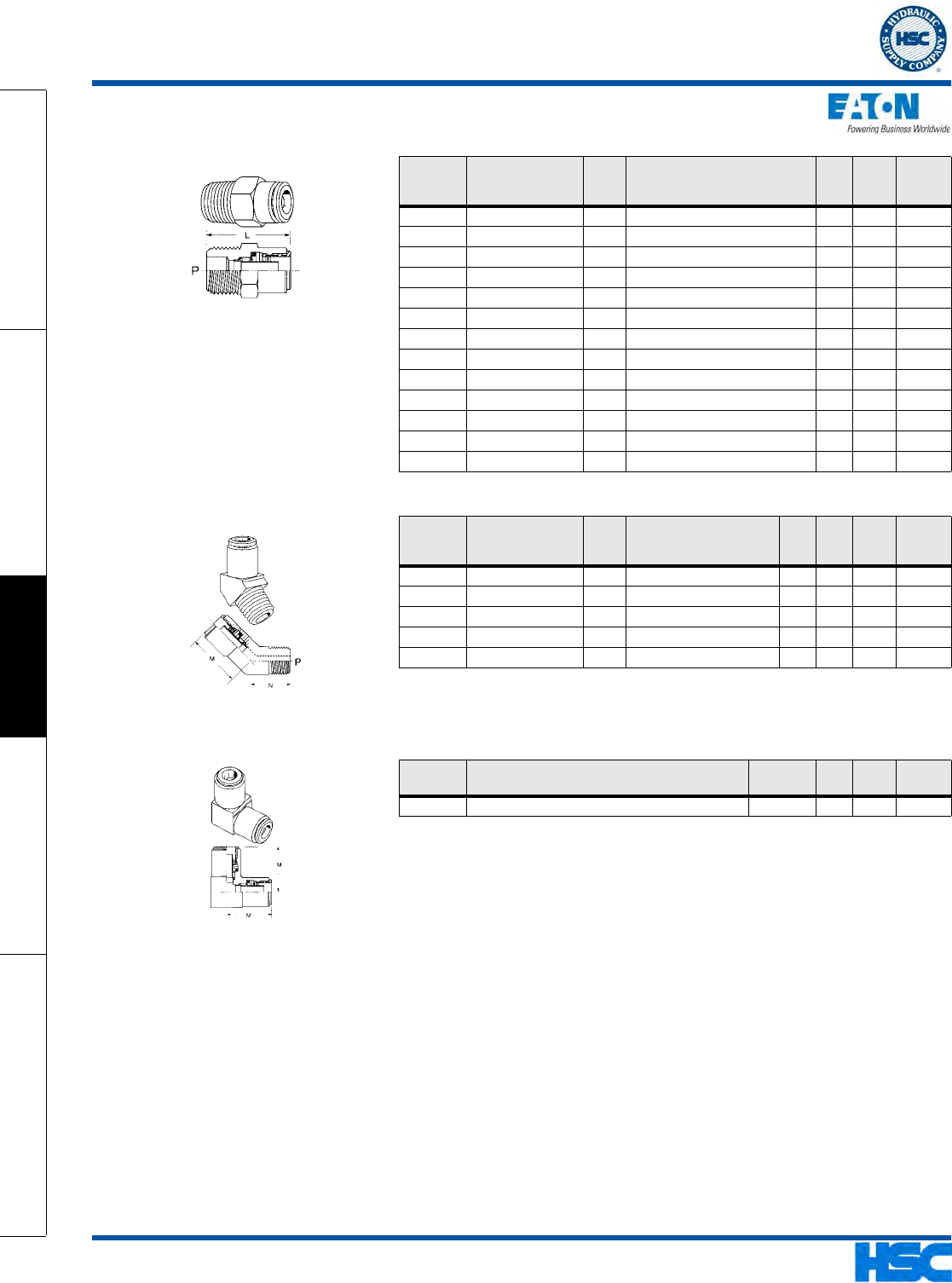

Catalog

Part No. Eaton Model

Tube

O.D.

(in) Thread P L (in) Wt. Price

Each

•C1HN16 1868X2.5X1 5/32 1/16 0.92 0.01

•C1HN17 1868X4 1/4 1/8-27 0.95 0.03

•C1HN18 1868X4X4 1/4 1/4-28 1.18 0.05

•C1HN19 1868X4X6 1/4 3/8-18 1.27 0.07

•C1HN21 1868X6X2 3/8 1/8-27 1.33 0.08

•C1HN20 1868X6 3/8 1/4-18 1.29 0.07

•C1HN22 1868X6X6 3/8 3/8-18 1.27 0.08

•C1HN23 1868X6X8 3/8 1/2-14 1.47 0.14

•C1HN25 1868X8X4 1/2 1/4-18 1.46 0.11

•C1HN24 1868X8 1/2 3/8-18 1.35 0.10

•C1HN26 1868X8X8 1/2 1/2-14 1.50 0.14

•C1HN15 1868X10X6 5/8 3/8-18 1.72 0.18

•C1HN14 1868X10 5/8 1/2-14 1.71 0.18

Catalog

Part No. Eaton Model

Tube

O.D.

(in) Thread P M

(in) N

(in) Wt. Price

Each

•C1HN46 1880X4 1/4 1/8-27 0.95 0.59 0.06

•C1HN48 1880X6X2 3/8 1/8-27 1.05 0.48 0.10

•C1HN47 1880X6 3/8 1/4-18 1.05 0.69 0.10

•C1HN49 1880X6X6 3/8 3/8-18 1.10 0.63 0.10

•C1HN45 1880X10 5/8 1/2-14 1.39 0.90 0.25

Catalog

Part No. Eaton Model Tube O.D.

(in) M

(in) Wt. Price

Each

•C1HN13 1865X8 1/2 1.24 0.16

1868

Male Connector (Ref SAE AA0102)

1880

45° Male Elbow (Ref SAE AA0302)

1865

90° Union Elbow (Ref SAE AA0201)

Brass

Quick > Connect® Air Brake - Nylon Air Brake Tubing

This page is part of a complete catalog which contains technical and safety data that must be reviewed when selecting a product

Tube Fittings

Hydraulic Power & Control Pneumatic Power & Control Fluid Conveying Miscellaneous Products Indexes & Technical Information

1097

 1999-2016 Hydraulic Supply Co. • 1-800-507-9651 • www.hydraulic-supply.com

Catalog

Part No. Eaton Model

Tube

O.D.

(in) Thread P M

(in) N

(in) Wt. Price

Each

•C1HN29 1869X4S 1/4 1/8-27 0.89 0.88 0.06

•C1HN30 1869X4X4S 1/4 1/4-18 0.99 1.06 0.09

•C1HN31 1869X4X6S 1/4 3/8-18 0.98 1.06 0.11

•C1HN33 1869X6X2S 3/8 1/8-27 1.03 0.97 0.10

•C1HN32 1869X6S 3/8 1/4-18 1.10 1.14 0.14

•C1HN34 1869X6X6S 3/8 3/8-18 1.12 1.15 0.15

•C1HN35 1869X6X8S 3/8 1/2-14 1.18 1.40 0.20

•C1HN36 1869X8S 1/2 3/8-18 1.13 1.27 0.22

•C1HN37 1869X8X8S 1/2 1/2-14 1.20 1.47 0.25

•C1HN28 1869X10X6S 5/8 3/8-18 1.35 1.34 0.27

•C1HN27 1869X10S 5/8 1/2-14 1.38 1.54 0.35

Catalog

Part No. Eaton Model Tube O.D.

(in) M

(in) Wt. Price

Each

•C1HM99 1864X4 1/4 0.93 0.11

•C1HN11 1864X6 3/8 1.15 0.21

•C1HN12 1864X8 1/2 1.22 0.32

Catalog

Part No. Eaton Model

Tube

O.D.

(in) Thread P M

(in) N

(in) Wt. Price

Each

•C1HN38 1872X4S 1/4 1/8-27 0.93 0.80 0.10

•C1HN40 1872X6S 3/8 1/4-18 1.15 1.14 0.20

1869S

Swivel 90° Male Elbow

(Ref SAE AA02DD)

1864

Union Tee (Ref SAE AA0401)

1872S

Swivel Male Branch Tee

(Ref SAE AA04FF)

Brass

Quick > Connect® Air Brake - Nylon Air Brake Tubing

This page is part of a complete catalog which contains technical and safety data that must be reviewed when selecting a product

Tubing Accessories

Hydraulic Power & ControlPneumatic Power & ControlFluid ConveyingMiscellaneous ProductsIndexes & Technical Information

1098  1999-2016 Hydraulic Supply Co. • 1-800-507-9651 • www.hydraulic-supply.com

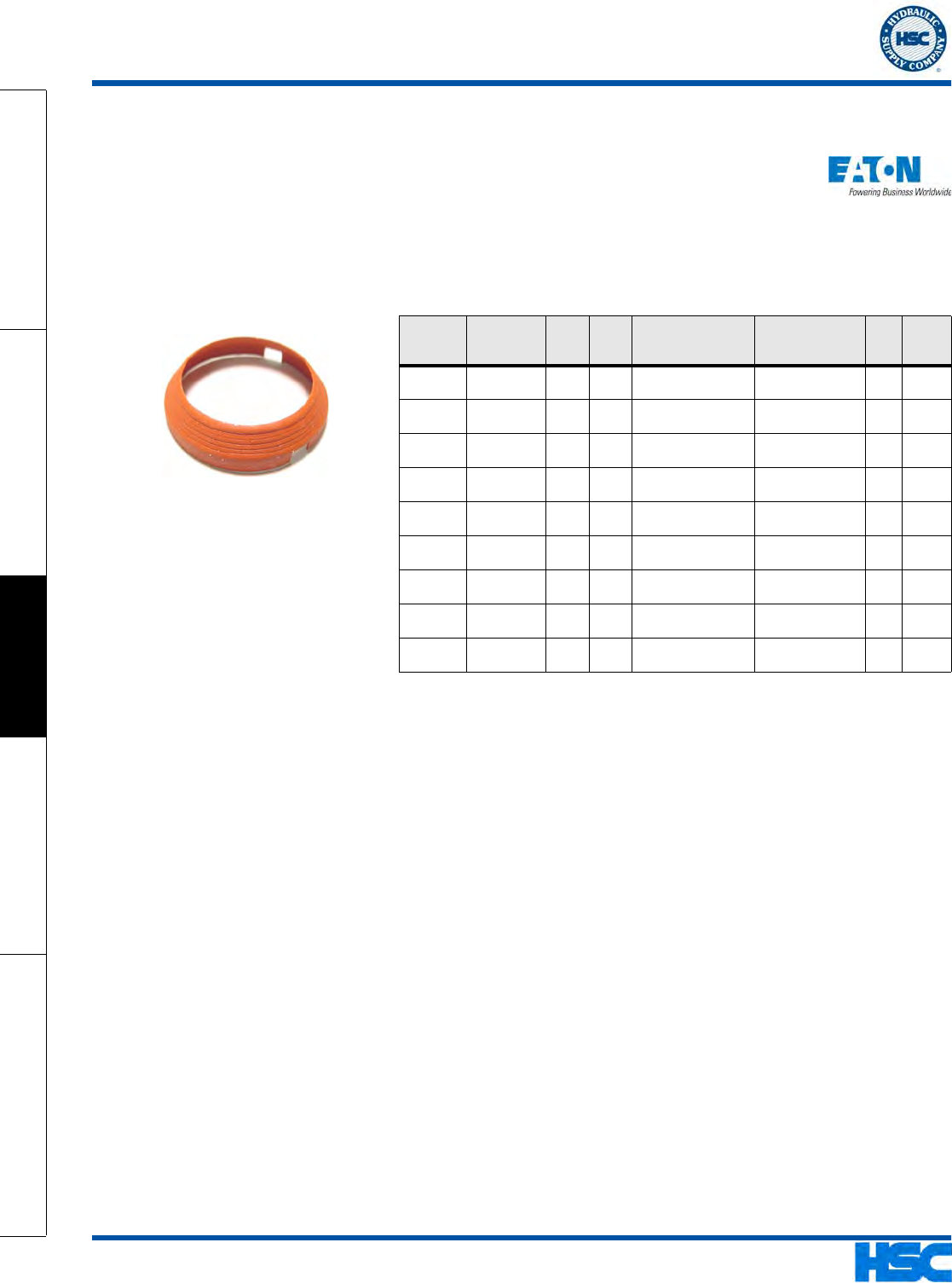

Flaretite® Seals

Features: Economical method to reduce minor leaks and weeping connections • Concentric ribbed insert design

provides for multiple contact points • Loctite® sealant locks the joint and fills surface imperfections • Built-in clip

attaches the seal to the nose of the JIC 37° connection • Eliminates electrolysis that causes corrosion • Allows

for a higher assembly torque without damage to mating surfaces • Allows for ± 1/2 degree mis-alignment.

Flaretite® Seals

Catalog

Part No. Aeroquip

Model

Tube

O.D.

(in) Dash

Size Material

Recommended

Assembly

Torque (lb-ft) Wt. Price

Each

•C1GJ46 FF13267 0.25 -04 Stainless Steel with

Loctite® Coating 14 0.01

•C1GJ47 FF13268 0.38 -06 Stainless Steel with

Loctite® Coating 26 0.01

•C1GJ48 FF13269 0.50 -08 Stainless Steel with

Loctite® Coating 55 0.01

•C1GJ49 FF13270 0.63 -10 Stainless Steel with

Loctite® Coating 80 0.01

•C1GJ50 FF13271 0.75 -12 Stainless Steel with

Loctite® Coating 110 0.01

•C1GJ51 FF13272 1.00 -16 Stainless Steel with

Loctite® Coating 140 0.01

•C1GJ52 FF13273 1.25 -20 Stainless Steel with

Loctite® Coating 190 0.01

•C1GJ53 FF13570 1.50 -24 Stainless Steel with

Loctite® Coating 220 0.01

•C1GJ54 FF13571 2.00 -32 Stainless Steel with

Loctite® Coating 325 0.01

Flaretite® Seals

This page is part of a complete catalog which contains technical and safety data that must be reviewed when selecting a product

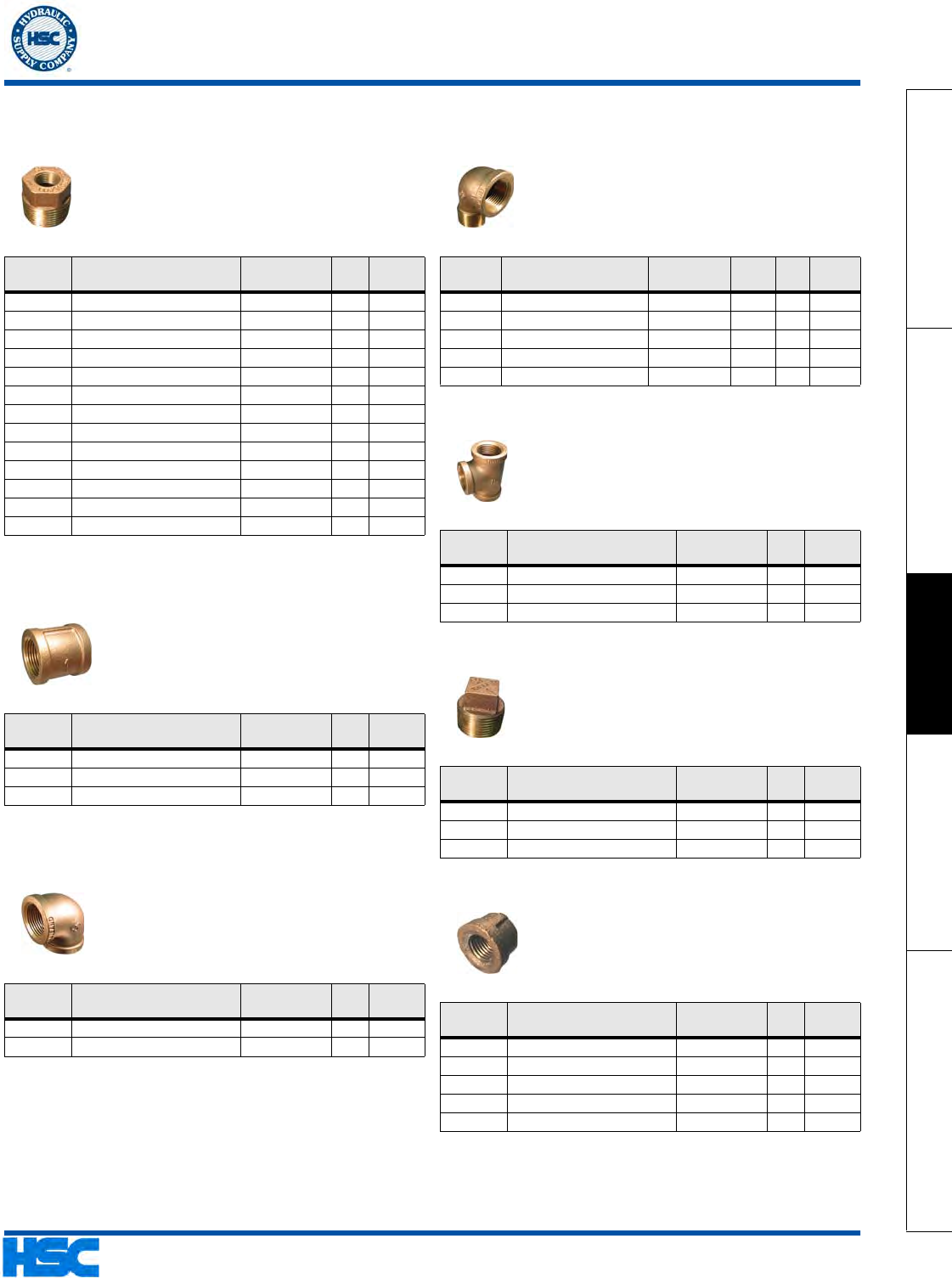

Pipe Fittings, Brass

Hydraulic Power & Control Pneumatic Power & Control Fluid Conveying Miscellaneous Products Indexes & Technical Information

1099

 1999-2016 Hydraulic Supply Co. • 1-800-507-9651 • www.hydraulic-supply.com

Hex Bushing

Catalog

Part No. Model Number Size Wt. Price

Each

•C1ET67 44-511 1 x 3/8 0.26

•C1ET68 44-512 1 x 1/2 0.21

•C1ET69 44-513 1 x 3/4 0.18

•C1ET70 44-516 1-1/4 x 1/2 0.37

•C1ET71 44-517 1-1/4 x 3/4 0.35

•C1ET72 44-518 1-1/4 x 1 0.36

•C1ET73 44-522 1-1/2 x 3/4 0.51

•C1ET74 44-523 1-1/2 x 1 0.61

•C1ET75 44-524 1-1/2 x 1-1/4 0.40

•C1ET76 44-528 2 x 3/4 0.91

•C1ET77 44-529 2 x 1 0.85

•C1ET78 44-530 2 x 1-1/4 0.74

•C1ET79 44-531 2 x 1-1/2 0.61

Coupling

Catalog

Part No. Model Number Size Wt. Price

Each

•C1ET55 44-415 1 0.44

•C1ET56 44-416 1-1/4 0.56

•C1ET57 44-418 2 1.06

90° Elbow

Catalog

Part No. Model Number Size Wt. Price

Each

•C1ET43 44-105 1 0.63

•C1ET44 44-106 1-1/4 1.13

90° Street Elbow

Catalog

Part No. Model Number Size Nickel

Plated Wt. Price

Each

•C1HD90 44-164 3/4 No 0.36

•C1ET47 44-165 1 No 0.59

•C1ET48 44-166 1-1/4 No 1.12

•C1ET49 44-167 1-1/2 No 1.39

•C1ET50 44-168 2 No 1.76

Tee

Catalog

Part No. Model Number Size Wt. Price

Each

•C1ET51 44-255 1 0.84

•C1ET53 44-257 1-1/2 1.66

•C1ET54 44-258 2 2.72

Square Head Plug

Catalog

Part No. Model Number Size Wt. Price

Each

•C1ET80 44-655 1 0.21

•C1ET81 44-656 1-1/4 0.32

•C1ET83 44-658 2 0.59

Cap

Catalog

Part No. Model Number Size Wt. Price

Each

•C1ET58 44-470 1/8 0.03

•C1ET61 44-473 1/2 0.13

•C1ET62 44-474 3/4 0.16

•C1ET63 44-475 1 0.31

•C1ET64 44-476 1-1/4 0.53

Brass

This page is part of a complete catalog which contains technical and safety data that must be reviewed when selecting a product

Pipe Fittings, Malleable Iron

Hydraulic Power & ControlPneumatic Power & ControlFluid ConveyingMiscellaneous ProductsIndexes & Technical Information

1100  1999-2016 Hydraulic Supply Co. • 1-800-507-9651 • www.hydraulic-supply.com

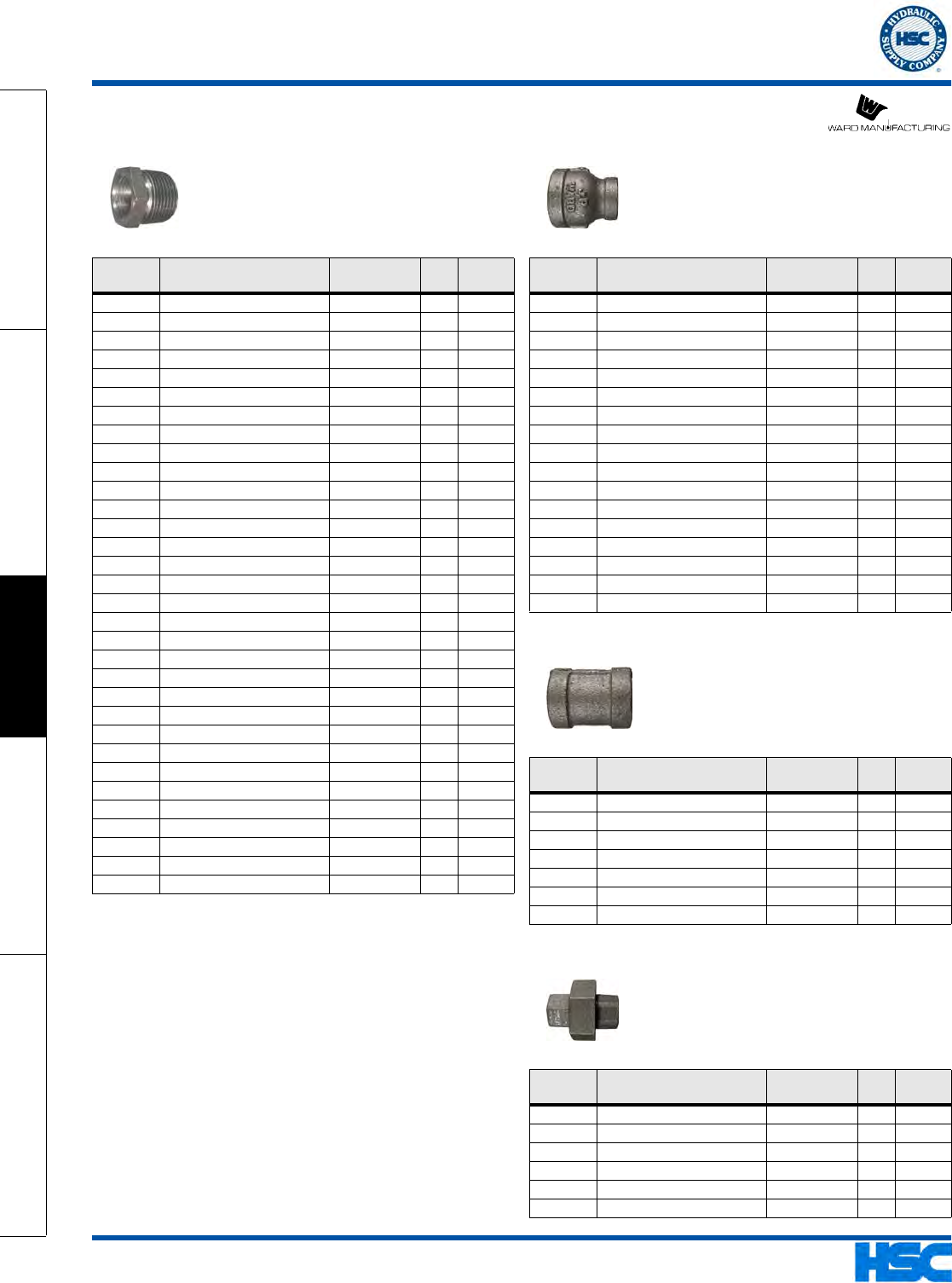

Hex Bushing

Catalog

Part No. Ward Model Size Wt. Price

Each

C1AF36 1/4X1/8-HEX/BUSHING 1/4 x 1/8 0.02

C1BK96 3/8X1/4-HEX/BUSHING 3/8 x 1/4 0.03

C1AE84 1/2X1/8-HEX/BUSHING 1/2 x 1/8 0.10

C1AE83 1/2X1/4-HEX-BUSHING 1/2 x 1/4 0.08

C1AE95 1/2X3/8-HEX/BUSHING 1/2 x 3/8 0.06

C1BK61 3/4X1/4-HEX/BUSHING 3/4 x 1/4 0.17

C1BK70 3/4X3/8-HEX/BUSHING 3/4 x 3/8 0.14

C1BK60 3/4X1/2-HEX/BUSHING 3/4 x 1/2 0.10

C1AT43 1X1/4-HEX/BUSHING 1 x 1/4 0.20

C1AT56 1X3/8-HEX/BUSHING 1 x 3/8 0.18

C1AT41 1X1/2-HEX/BUSHING 1 x 1/2 0.21

C1AE40 1-1/4X1/4-HEX/BUSHING 1-1/4 x 1/4 0.31

C1AE39 1-1/4X1/2-HEX/BUSHING 1-1/4 x 1/2 0.33

C1AE47 1-1/4X3/4-HEX/BUSHING 1-1/4 x 3/4 0.39

C1AE37 1-1/4X1-HEX/BUSHING 1-1/4 x 1 0.30

C1AE12 1-1/2X1/2-HEX/BUSHING 1-1/2 x 1/2 0.47

C1AE19 1-1/2X3/4-HEX/BUSHING 1-1/2 x 3/4 0.38

C1AE11 1-1/2X1-HEX/BUSHING 1-1/2 x 1 0.49

C1AD98 1-1/2X1-1/4/HEX-BUSH 1-1/2 x 1-1/4 0.34

C1BK29 2X1/2-HEX/BUSHING 2 x 1/2 0.72

C1BK33 2X3/4-HEX/BUSHING 2 x 3/4 0.60

•C1BK28 2X1-HEX/BUSHING 2 x 1 0.15

C1BK26 2X1-1/4-HEX/BUSHING 2 x 1-1/4 1.02

C1BK24 2X1-1/2-HEX/BUSHING 2 x 1-1/2 0.61

C1AT65 2-1/2X1-HEX/BUSHING 2-1/2 x 1 1.10

C1AT68 2-1/2X2-HEX/BUSHING 2-1/2 x 2 1.16

C1BN25 3X1-1/4-HEX/BUSHING 3 x 1-1/4 0.88

C1BN24 3X1-1/2-HEX/BUSHING 3 x 1-1/2 0.48

•C1BN27 3X2-HEX/BUSHING 3 x 2 1.50

C1BN26 3X2-1/2-HEX/BUSHING 3 x 2-1/2 1.63

•C1BR49 4X2-HEX/BUSHING 4 x 2 2.71

•C1BR50 4X3-HEX/BUSHING 4 x 3 3.00

Bell Reducer

Catalog

Part No. Ward Model Size Wt. Price

Each

C1AF35 1/4X1/8-BELL/REDUCER 1/4 x 1/8 0.08

C1BK94 3/8X1/4-BELL/REDUCER 3/8 x 1/4 0.12

C1AE82 1/2X1/4-BELL/REDUCER 1/2 x 1/4 0.16

C1AE94 1/2X3/8-BELL/REDUCER 1/2 x 3/8 0.17

C1BK69 3/4X3/8-BELL/REDUCER 3/4 x 3/8 0.24

C1FF70 3/4X1/2-BELL/REDUCER 3/4 x 1/2 0.28

C1AT42 1X1/4-BELL/REDUCER 1 x 1/4 0.36

C1AT40 1X1/2-BELL/REDUCER 1 x 1/2 0.51

C1AT53 1X3/4-BELL/REDUCER 1 x 3/4 0.42

C1AE38 1-1/4X1/2-BELL/REDUCE 1-1/4 x 1/2 0.53

C1AE36 1-1/4X1-BELL/REDUCER 1-1/4 x 1 0.65

C1AE18 1-1/2X3/4-BELL/REDUCE 1-1/2 x 3/4 0.86

•C1BK27 2X1-BELL/REDUCER 2 x 1 1.50

C1BK25 2X1-1/4-BELL/REDUCER 2 x 1-1/4 0.10

C1BK23 2X1-1/2-BELL/REDUCER 2 x 1-1/2 1.40

C1AT67 2-1/2X2-BELL/REDUCER 2-1/2 x 2 0.18

•C1FA67 3X2-BELL/REDUCER 3 x 2 3.35

Coupling

Catalog

Part No. Ward Model Size Wt. Price

Each

•C1BK82 3/8-COUPLING 3/8 0.20

•C1AE70 1/2-COUPLING 1/2 0.20

•C1BK47 3/4-COUPLING 3/4 0.34

•C1AE58 1-COUPLING 1 0.42

•C1AD92 1-1/2-COUPLING 1-1/2 0.91

•C1AT76 2-COUPLING 2 1.65

•C1AT63 2-1/2-COUPLING 2-1/2 2.65

Union

Catalog

Part No. Ward Model Size Wt. Price

Each

•C1AE74 1/2-UNION 1/2 0.39

•C1BK52 3/4-UNION 3/4 0.15

•C1AE63 1-UNION 1 0.85

•C1AE33 1-1/4-UNION 1-1/4 1.52

•C1AD96 1-1/2-UNION 1-1/2 1.82

•C1AT81 2-UNION 2 2.60

Malleable Iron • Class 150 • ANSI/ASME B 16.3

Rated Pressure: 300 PSI (-20°F to 150°F), 265 PSI @ 200°F, 225 PSI @ 250°F

This page is part of a complete catalog which contains technical and safety data that must be reviewed when selecting a product

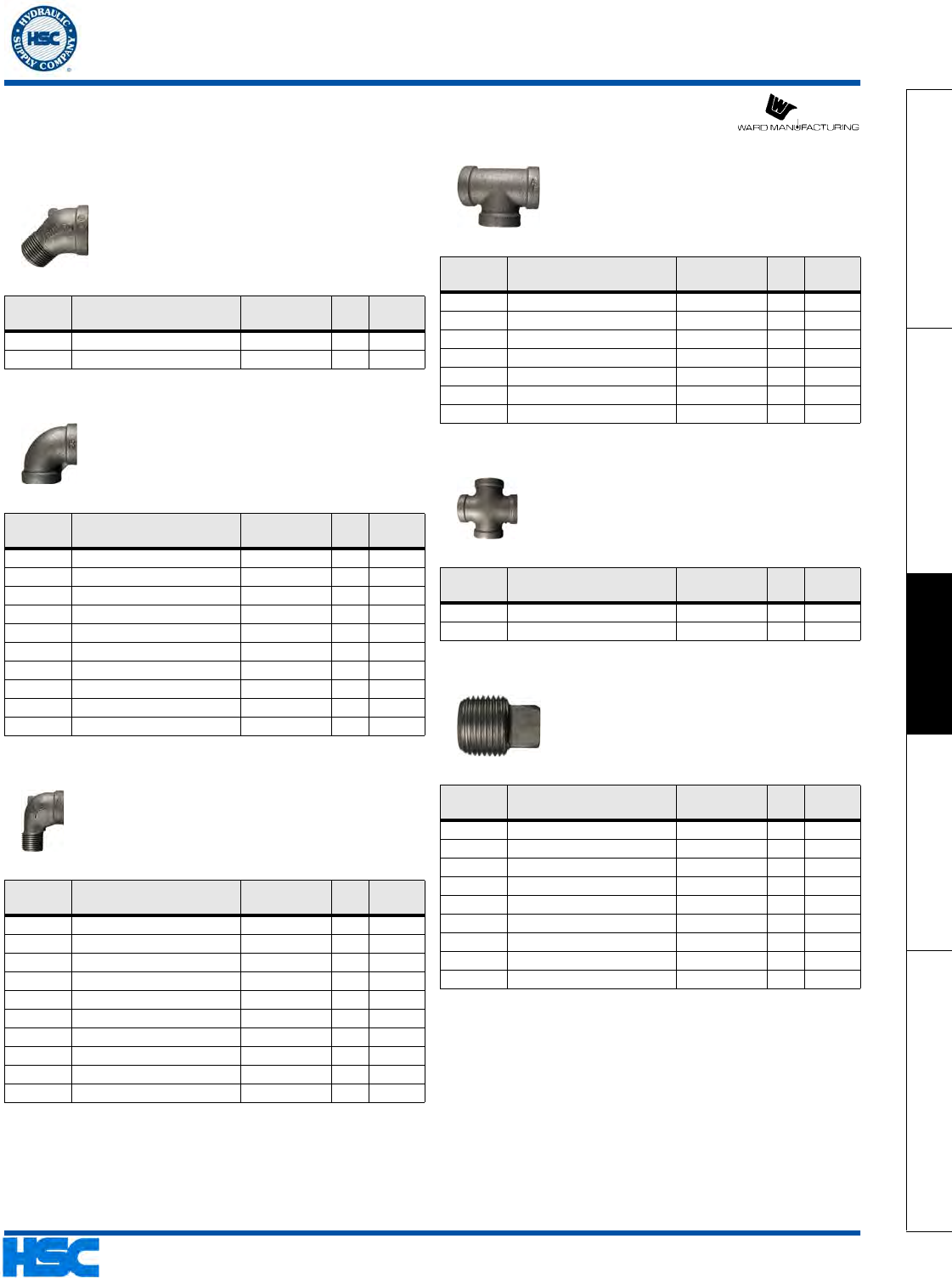

Pipe Fittings, Malleable Iron

Hydraulic Power & Control Pneumatic Power & Control Fluid Conveying Miscellaneous Products Indexes & Technical Information

1101

 1999-2016 Hydraulic Supply Co. • 1-800-507-9651 • www.hydraulic-supply.com

45° Street Elbow

Catalog

Part No. Ward Model Size Wt. Price

Each

C1HY11 3/4-45STREET/ELBOW 3/4 0.33

•C1ZZ64 1-45STREET/ELBOW 1 0.58

90° Elbow

Catalog

Part No. Ward Model Size Wt. Price

Each

•C1AF55 1/8-90ELBOW 1/8 0.06

•C1AF19 1/4-90ELBOW 1/4 0.12

•C1AE67 1/2-90ELBOW 1/2 0.50

•C1BK44 3/4-90ELBOW 3/4 0.15

•C1AE55 1-90ELBOW 1 0.69

•C1AE25 1-1/4-90ELBOW 1-1/4 1.05

•C1AD89 1-1/2-90ELBOW 1-1/2 1.50

•C1AT73 2-90ELBOW 2 2.14

•C1AT62 2-1/2-90ELBOW 2-1/2 1.50

•C1BK40 3-90ELBOW 3 5.00

90° Street Elbow

Catalog

Part No. Ward Model Size Wt. Price

Each

C1AF56 1/8-90STREET/ELBOW 1/8 0.07

C1AF20 1/4-90STREET/ELBOW 1/4 0.10

C1BK80 3/8-90STREET/ELBOW 3/8 0.18

C1AE68 1/2-90STREET/ELBOW 1/2 0.27

C1BK45 3/4-90STREET/ELBOW 3/4 0.43

•C1AE56 1-90STREET/ELBOW 1 0.71

C1AE26 1-1/4-90STREET/ELBOW 1-1/4 1.06

C1AD90 1-1/2-90STREET/ELBOW 1-1/2 1.47

•C1AT74 2-90STREET/ELBOW 2 2.69

•C1BK41 3-90STREET/ELBOW 3 5.00

Tee

Catalog

Part No. Ward Model Size Wt. Price

Each

•C1AF25 1/4-TEE 1/4 0.16

•C1AE73 1/2-TEE 1/2 0.44

•C1BK51 3/4-TEE 3/4 0.64

•C1AE62 1-TEE 1 0.95

•C1AE32 1-1/4-TEE 1-1/4 1.34

•C1AD95 1-1/2-TEE 1-1/2 1.89

•C1AT80 2-TEE 2 2.71

Cross

Catalog

Part No. Ward Model Size Wt. Price

Each

•C1AE59 1-CROSS 1 1.24

•C1AT77 2-CROSS 2 2.00

Plug

Catalog

Part No. Ward Model Size Wt. Price

Each

•C1AF59 1/8-PLUG 1/8 0.01

•C1AF23 1/4-PLUG 1/4 0.04

•C1BK83 3/8-PLUG 3/8 0.06

•C1AE72 1/2-PLUG 1/2 0.09

•C1BK49 3/4-PLUG 3/4 0.14

•C1AE60 1-PLUG 1 0.19

•C1AE30 1-1/4-PLUG 1-1/4 0.40

•C1AD94 1-1/2-PLUG 1-1/2 0.46

•C1AT78 2-PLUG 2 0.90

Malleable Iron • Class 150 • ANSI/ASME B 16.3

Rated Pressure: 300 PSI (-20°F to 150°F), 265 PSI @ 200°F, 225 PSI @ 250°F

This page is part of a complete catalog which contains technical and safety data that must be reviewed when selecting a product

Pipe Fittings, Malleable Iron

Hydraulic Power & ControlPneumatic Power & ControlFluid ConveyingMiscellaneous ProductsIndexes & Technical Information

1102  1999-2016 Hydraulic Supply Co. • 1-800-507-9651 • www.hydraulic-supply.com

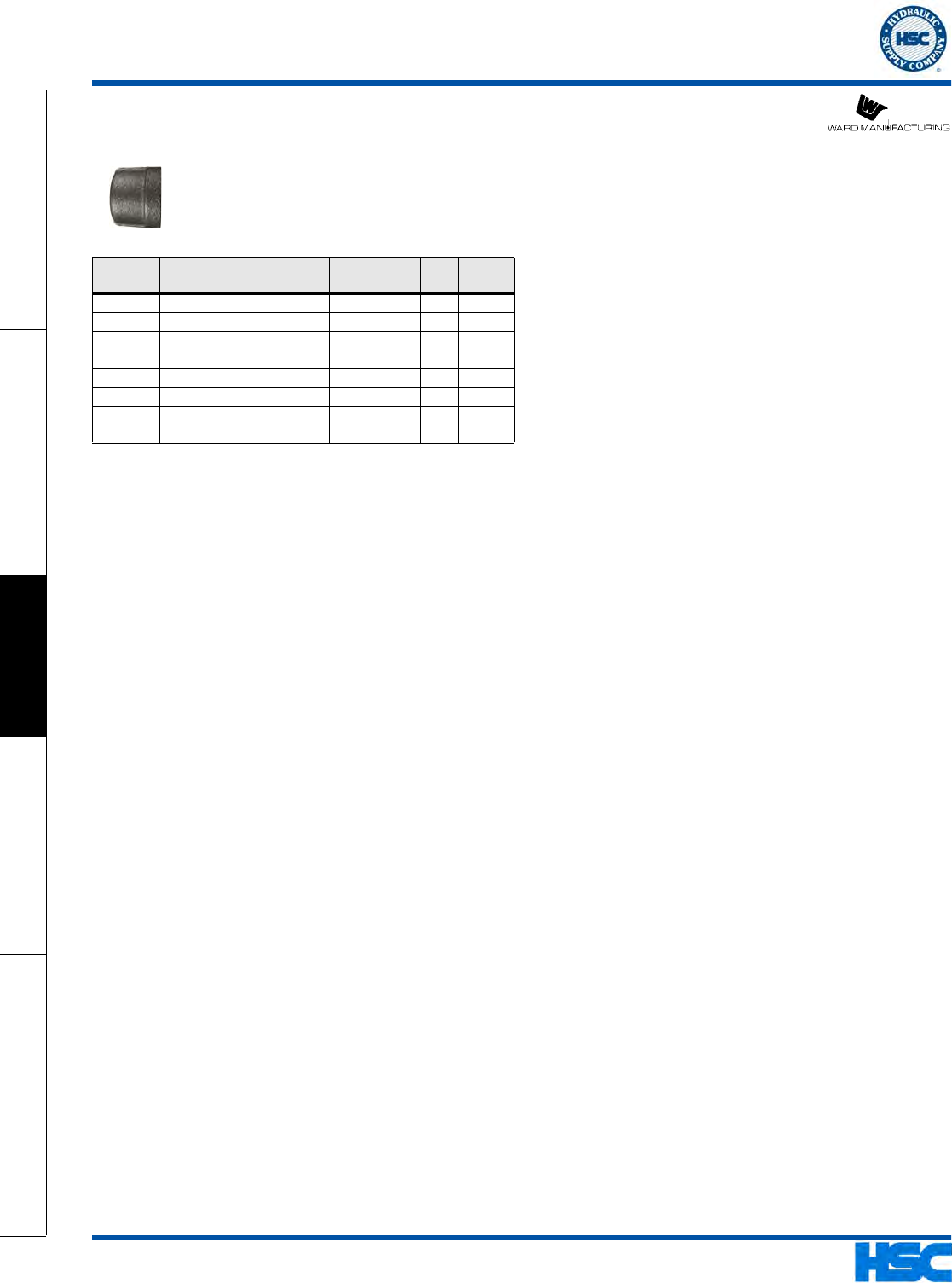

Cap

Catalog

Part No. Ward Model Size Wt. Price

Each

•C1AF21 1/4-CAP 1/4 0.02

•C1BK81 3/8-CAP 3/8 0.09

•C1AE69 1/2-CAP 1/2 0.17

•C1BK46 3/4-CAP 3/4 0.24

•C1AE57 1-CAP 1 0.50

•C1AE27 1-1/4-CAP 1-1/4 0.50

•C1AD91 1-1/2-CAP 1-1/2 0.72

•C1AT75 2-CAP 2 1.11

Malleable Iron • Class 150 • ANSI/ASME B 16.3

Rated Pressure: 300 PSI (-20°F to 150°F), 265 PSI @ 200°F, 225 PSI @ 250°F

This page is part of a complete catalog which contains technical and safety data that must be reviewed when selecting a product

Pipe Fittings, Steel

Hydraulic Power & Control Pneumatic Power & Control Fluid Conveying Miscellaneous Products Indexes & Technical Information

1103

 1999-2016 Hydraulic Supply Co. • 1-800-507-9651 • www.hydraulic-supply.com

Catalog

Part No. Model Number Size O.D.

(in) Length Wt. Price

Each

C1AF60 1/8-STEEL-COUPLING 1/8 0.90 0.03

C1DU50 1/2-STEEL-COUPLING 1/2 1.55 0.16

•C1AE61 1-STEEL-COUPLING 11.97 0.41

C1ZZ66 1-1/2-STEEL-COUPLING 1-1/2 2.00 0.67

•C1HD84 3-STEEL-COUPLING 33.43

Schedule 40 Coupling

Steel

This page is part of a complete catalog which contains technical and safety data that must be reviewed when selecting a product

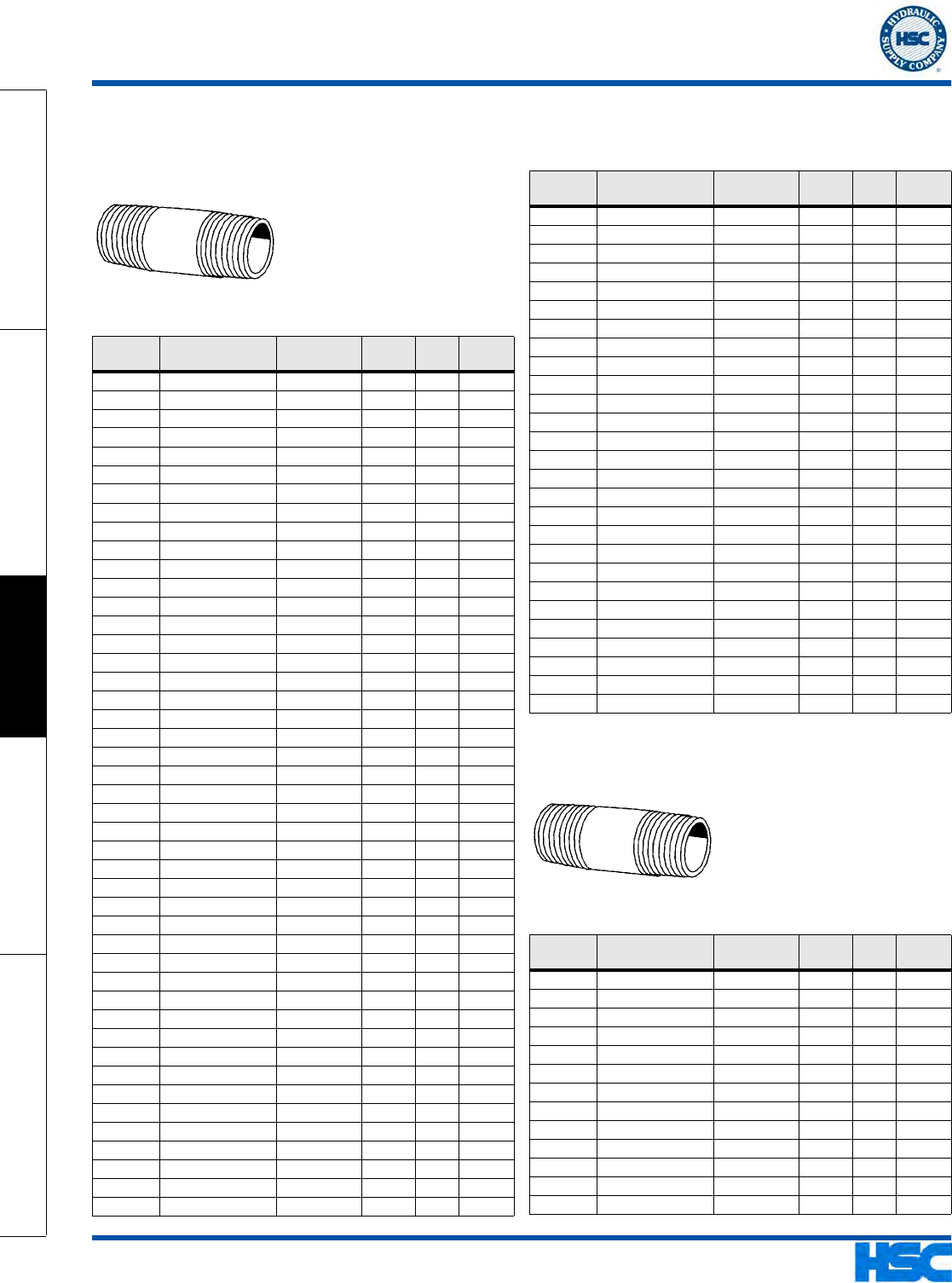

Pipe Nipples, Steel

Hydraulic Power & ControlPneumatic Power & ControlFluid ConveyingMiscellaneous ProductsIndexes & Technical Information

1104  1999-2016 Hydraulic Supply Co. • 1-800-507-9651 • www.hydraulic-supply.com

Schedule 40 Pipe Nipples

Catalog

Part No. Model Number Thread Length Wt. Price

Each

•C1AF81 1/8XCLOSE 1/8-27 0.625 0.02

•C1AF63 1/8X1-1/2 1/8-27 1.50 0.03

•C1AF77 1/8X5 1/8-27 5.00 0.10

•C1AF78 1/8X6 1/8-27 6.00 0.12

•C1AF80 1/8X8 1/8-27 8.00 0.20

•C1AF32 1/4X1-1/4 1/4-18 1.25 0.04

•C1AF30 1/4X1-1/2 1/4-18 1.50 0.05

•C1AF37 1/4X2 1/4-18 2.00 0.10

•C1AF38 1/4X2-1/2 1/4-18 2.50 0.08

•C1AF43 1/4X3 1/4-18 3.00 0.10

•C1AF46 1/4X4 1/4-18 4.00 0.13

•C1AF47 1/4X4-1/2 1/4-18 4.50 0.14

•C1AF52 1/4X6 1/4-18 6.00 0.20

•C1BL23 3/8XCLOSE 3/8-18 1.00 0.04

•C1BK91 3/8X1-1/2 3/8-18 1.50 0.06

•C1BK98 3/8X2 3/8-18 2.00 0.08

•C1BK99 3/8X2-1/2 3/8-18 2.50 0.05

•C1BL14 3/8X3-1/2 3/8-18 3.50 0.08

•C1BL21 3/8X6 3/8-18 6.00 0.40

•C1AE80 1/2X1-1/2 1/2-14 1.50 0.08

•C1AE85 1/2X2 1/2-14 2.00 0.25

•C1AE86 1/2X2-1/2 1/2-14 2.50 0.14

•C1AE89 1/2X3 1/2-14 3.00 0.19

•C1AE96 1/2X4 1/2-14 4.00 0.20

•C1AF11 1/2X5 1/2-14 5.00 0.34

•C1AF13 1/2X6 1/2-14 6.00 0.38

•C1BK76 3/4XCLOSE 3/4-14 1.38 0.09

•C1BK59 3/4X1-1/2 3/4-14 1.50 0.10

•C1BK63 3/4X2 3/4-14 2.00 0.05

•C1BK64 3/4X2-1/2 3/4-14 2.50 0.10

•C1BK66 3/4X3 3/4-14 3.00 0.22

•C1BK67 3/4X3-1/2 3/4-14 3.50 0.20

•C1BK71 3/4X4 3/4-14 4.00 0.35

•C1BK72 3/4X4-1/2 3/4-14 4.50 0.25

•C1BK74 3/4X6 3/4-14 6.00 0.60

•C1AT51 1X3-1/2 1-11-1/2 3.50 0.41

•C1AT60 1XCLOSE 1-11-1/2 1.50 0.13

•C1AT47 1x2 1-11-1/2 2.00 0.28

•C1AT48 1X2-1/2 1-11-1/2 2.50 0.25

•C1AT50 1X3 1-11-1/2 3.00 0.33

•C1AT57 1X4 1-11-1/2 4.00 0.47

•C1AT58 1X4-1/2 1-11-1/2 4.50 0.59

•C1AT59 1X6 1-11-1/2 6.00 0.15

•C1AE53 1-1/4XCLOSE 1-1/4-11-1/2 1.63 0.25

•C1AE42 1-1/4X2 1-1/4-11-1/2 2.00 0.05

•C1AE43 1-1/4X2-1/2 1-1/4-11-1/2 2.50 0.10

•C1AE44 1-1/4X3 1-1/4-11-1/2 3.00 0.43

•C1AE45 1-1/4X3-1/2 1-1/4-11-1/2 3.50 0.10

•C1AE48 1-1/4X4 1-1/4-11-1/2 4.00 0.63

•C1AE49 1-1/4X4-1/2 1-1/4-11-1/2 4.50 0.70

•C1AE52 1-1/4X6 1-1/4-11-1/2 6.00 0.99

•C1AE24 1-1/2XCLOSE 1-1/2-11-1/2 2.00 0.25

•C1AE13 1-1/2X2 1-1/2-11-1/2 2.00 0.33

•C1AE14 1-1/2X2-1/2 1-1/2-11-1/2 2.50 0.42

•C1AE15 1-1/2X3 1-1/2-11-1/2 3.00 3.00

•C1AE16 1-1/2X3-1/2 1-1/2-11-1/2 3.50 0.63

•C1AE20 1-1/2X4 1-1/2-11-1/2 4.00 0.69

•C1AE21 1-1/2X4-1/2 1-1/2-11-1/2 4.50 0.87

•C1AE22 1-1/2X5 1-1/2-11-1/2 5.00 0.93

•C1AE23 1-1/2X6 1-1/2-11-1/2 6.00 1.08

•C1BK38 2XCLOSE 2-11-1/2 2.00 0.39

•C1BK31 2X2-1/2 2-11-1/2 2.50 0.57

•C1BK32 2X3 2-11-1/2 3.00 0.10

•C1BK34 2X4 2-11-1/2 4.00 0.33

•C1BK35 2X5 2-11-1/2 5.00 0.50

•C1BK36 2X6 2-11-1/2 6.00 1.47

•C1AT71 2-1/2XCLOSE 2-11-1/2 2.50 0.83

•C1AT69 2-1/2X3-1/2 2-11-1/2 3.50 0.25

•C1AT70 2-1/2X4-1/2 2-11-1/2 4.50 1.43

•C1ZY63 3XCLOSE 3-8 2.75 0.40

•C1BR51 4XCLOSE 4-8 3.00

•C1BY51 6XCLOSE 6-8 2.88

Schedule 80 Pipe Nipples

Catalog

Part No. Model Number Thread Length Wt. Price

Each

•C1ZZ63 1/8X1-1/2-80 1/8-27 1.50 0.09

•C1AF69 1/8X2-80 1/8-27 2.00 0.06

•C1AF67 1/8X2-1/2-80 1/8-27 2.50 0.07

•C1EL48 1/4XCLOSE-80 1/4-18 1.00 0.03

•C1AF39 1/4X2-1/2-80 1/4-18 2.50 0.10

•C1AF44 1/4X3-80 1/4-18 3.00 0.12

•C1AF49 1/4X4-80 1/4-18 4.00 0.16

•C1AF51 1/4X5-80 1/4-18 5.00 0.21

•C1AF53 1/4X6-80 1/4-18 6.00 0.25

•C1BL24 3/8XCLOSE-80 3/8-18 1.06 0.04

•C1BL12 3/8X2-80 3/8-18 2.00 0.11

•C1BL16 3/8X3-80 3/8-18 3.00 0.16

•C1BL15 3/8X3-1/2-80 3/8-18 3.50 0.25

Schedule 40 Pipe Nipples

Catalog

Part No. Model Number Thread Length Wt. Price

Each

Steel

This page is part of a complete catalog which contains technical and safety data that must be reviewed when selecting a product

Pipe Nipples, Steel

Hydraulic Power & Control Pneumatic Power & Control Fluid Conveying Miscellaneous Products Indexes & Technical Information

1105

 1999-2016 Hydraulic Supply Co. • 1-800-507-9651 • www.hydraulic-supply.com

•C1BL20 3/8X5-80 3/8-18 5.00 0.50

•C1BL22 3/8X6-80 3/8-18 6.00 0.34

•C1AF17 1/2XCLOSE-80 1/2-14 1.13 0.08

•C1EV47 1/2X2-1/2-80 1/2-14 2.50 0.19

•C1AE92 1/2X3-80 1/2-14 3.00 0.30

•C1AE99 1/2X4-80 1/2-14 4.00 0.31

•C1AF14 1/2X6-80 1/2-14 6.00 0.47

•C1BK77 3/4XCLOSE-80 3/4-14 1.63 0.12

•C1BK65 3/4X2-80 3/4-14 2.00 0.20

•C1BK68 3/4X3-80 3/4-14 3.00 0.03

•C1BK73 3/4X4-80 3/4-14 4.00 0.44

•C1BK75 3/4X6-80 3/4-14 6.00 0.63

•C1AT61 1XCLOSE-80 1-11-1/2 1.50 0.19

•C1AT49 1X2-80 1-11-1/2 2.00 0.29

•C1AT52 1X3-80 1-11-1/2 3.00 0.47

•C1AE46 1-1/4X3-80 1-1/4-11-1/2 3.00 0.59

•C1AE50 1-1/4X4-80 1-1/4-11-1/2 4.00 0.86

•C1AE17 1-1/2X3-80 1-1/2-11-1/2 3.00 0.05

•C1BK39 2XCLOSE-80 2-11-1/2 2.00 2.00

•C1BK37 2X6-80 2-11-1/2 6.00 2.13

Schedule 80 Pipe Nipples

Catalog

Part No. Model Number Thread Length Wt. Price

Each

Steel

This page is part of a complete catalog which contains technical and safety data that must be reviewed when selecting a product

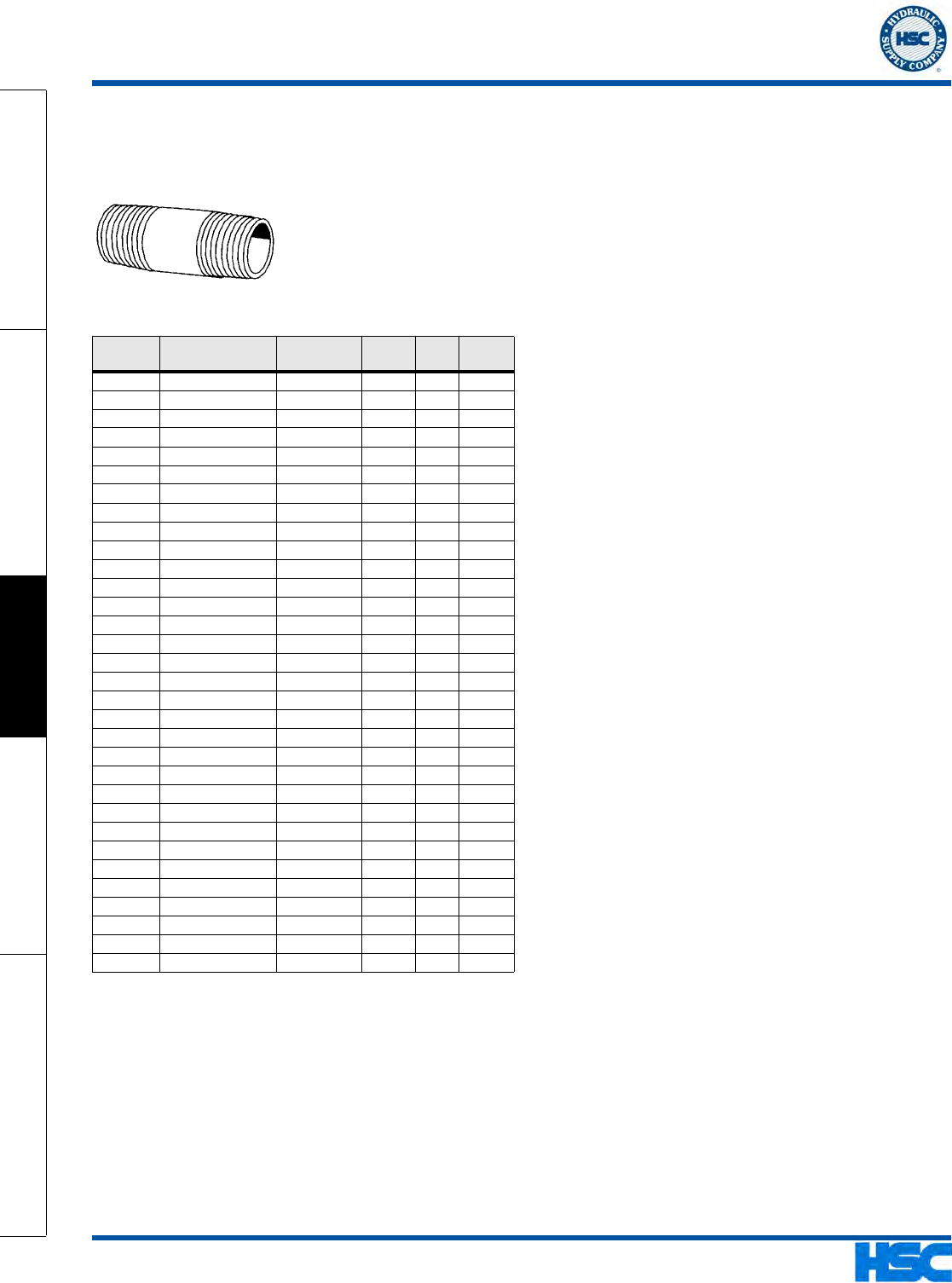

Pipe Nipples, Brass

Hydraulic Power & ControlPneumatic Power & ControlFluid ConveyingMiscellaneous ProductsIndexes & Technical Information

1106  1999-2016 Hydraulic Supply Co. • 1-800-507-9651 • www.hydraulic-supply.com

Brass Pipe Nipples

Catalog

Part No. Model Number Thread Length Wt. Price

Each

•C1AF82 1/8XCLOSE-B 1/8-27 0.75 0.03

•C1AF64 1/8X1-1/2-B 1/8-27 1.50 0.03

•C1AF68 1/8X2-1/2-B 1/8-27 2.50 0.05

•C1AF79 1/8X6-B 1/8-27 6.00 0.12

•C1AF54 1/4XCLOSE-B 1/4-18 1.00 0.05

•C1AF31 1/4X1-1/2-B 1/4-18 1.50 0.05

•C1AF42 1/4X2-B 1/4-18 2.00 0.06

•C1AF40 1/4X2-1/2-B 1/4-18 2.50 0.08

•C1AF45 1/4X3-B 1/4-18 3.00 0.10

•C1AF50 1/4X4-B 1/4-18 4.00 0.14

•C1BL25 3/8XCLOSE-B 3/8-18 1.00 0.04

•C1BL11 3/8X2-1/2-B 3/8-18 2.50 0.50

•C1FA64 3/8X5-B 3/8-18 5.00 0.24

•C1AF18 1/2XCLOSE-B 1/2-14 1.13 0.06

•C1AE81 1/2X1-1/2-B 1/2-14 1.50 0.09

•C1AE88 1/2X2-B 1/2-14 2.00 0.13

•C1AE91 1/2X3-1/2-B 1/2-14 3.50 0.24

•C1AE98 1/2X4-1/2-B 1/2-14 4.50 0.29

•C1AF15 1/2X6-B 1/2-14 6.00 0.42

•C1ES99 40-080 3/4-14 1.38 0.11

•C1ET11 40-081 3/4-14 1.50 0.11

•C1ET12 40-082 3/4-14 2.00 0.18

•C1ET14 40-084 3/4-14 3.00 0.27

•C1ET15 40-086 3/4-14 4.00 0.38

•C1ET18 40-100 1-11-1/2 1.50 0.16

•C1ET19 40-101 1-11-1/2 2.00 0.19

•C1ET20 40-103 1-11-1/2 3.00 0.38

•C1ET21 40-105 1-11-1/2 4.00 0.50

•C1ET22 40-107 1-11-1/2 5.00 0.60

•C1ET31 40-140 1-1/2-11-1/2 2.00 0.33

•C1ET32 40-141 1-1/2-11-1/2 2.00 0.40

•C1ET35 40-145 1-1/2-11-1/2 4.00 0.91

Brass

This page is part of a complete catalog which contains technical and safety data that must be reviewed when selecting a product

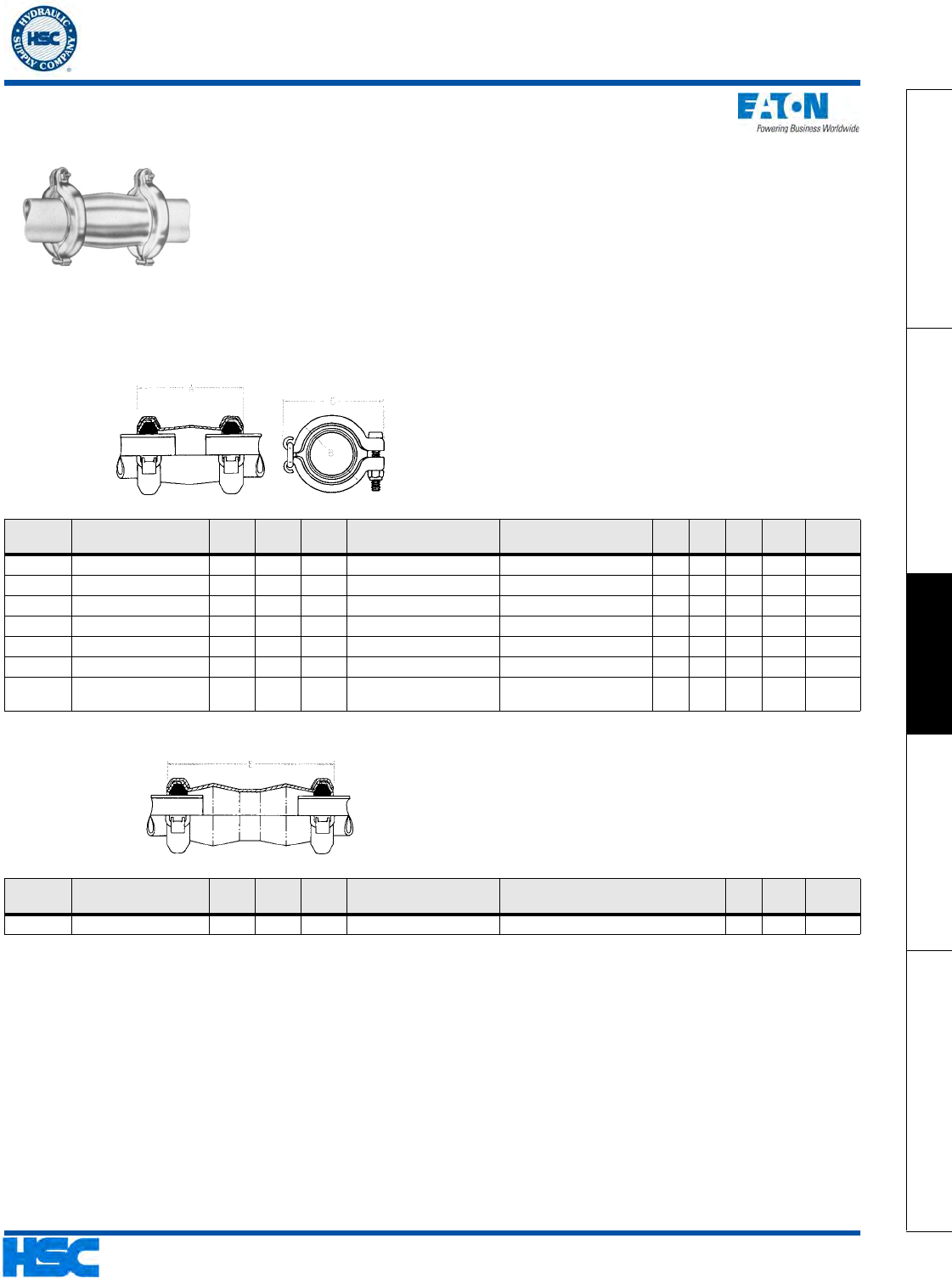

Flexmaster® Pipe & Tube Joints

Hydraulic Power & Control Pneumatic Power & Control Fluid Conveying Miscellaneous Products Indexes & Technical Information

1107

 1999-2016 Hydraulic Supply Co. • 1-800-507-9651 • www.hydraulic-supply.com

Styles Available: Flexmaster® joints are available in both standard and self-restrained

styles. The self-restrained style has a stainless steel gripping ring inside each gasket.

This feature allows the joint to maintain a firm grip on the pipe or tube, preventing

movement along the pipe or tube.

Misalignment: The bulged, straight-through Flexmaster® joints accommodate angular

misalignment up to 4° per end. (Tees, elbows and crosses up to 2° per end.

Pressure Rating: Flexmaster® joints are designed for up to 300 psi service, depending on application and size.

Note: The Flexmaster® joint is designed to seal pipe and tube connections. The Flexmaster® joint is not intended

to hold piping systems together. Normal hangars, guides, anchors and other external piping restraints must be

used to restrain the piping or tubing system from movement.

NH1600 / NH1650

Straight

NH1600 / NH1650

Catalog

Part No. Aeroquip Model Pipe

Size Pipe

O.D. Type Gasket Material Sleeve Material A

(in) B

(in) C

(in) Wt. Price

Each

C1JP76 NH1600C125B0325 1.25 1.660 STD Buna-N Plated Steel 3.25 2.71 3.85 1.30

C1DF70 NH1600C200B0400 22.375 STD Buna-N Plated Steel 43.43 4.6 1.86

C1FG15 NH1600C250B0650 2.50 2.875 STD Buna-N Plated Steel 6.50 4.73 6.23 5.67

C1DF72 NH1600C300B0650 33.5 STD Buna-N Plated Steel 6.5 5.36 6.87 6.00

C1JP77 NH1600C350B0650 3.50 4.000 STD Buna-N Plated Steel 6.50 5.86 7.38 7.61

C1DF73 NH1600C400B0650 44.5 STD Buna-N Plated Steel 6.5 6.36 7.89 8.39

C1KW39 NH1600C600B0650 66.625 STD Buna-N Plated Steel 6.50 8.86 11.2

Types: STD (Standard) SR (Self-Restrained)

NH1600 / NH1650

Straight (Long)

NH1600 / NH1650

Catalog

Part No. Aeroquip Model Pipe

Size Pipe

O.D. Type Gasket Material Sleeve Material E

(in) Wt. Price

Each

C1DF71 NH1600C200B0750 22.375 STD Buna-N Plated Steel 2.40

Types: STD (Standard) SR (Self-Restrained)

Joints for Rigid Pipe

This page is part of a complete catalog which contains technical and safety data that must be reviewed when selecting a product

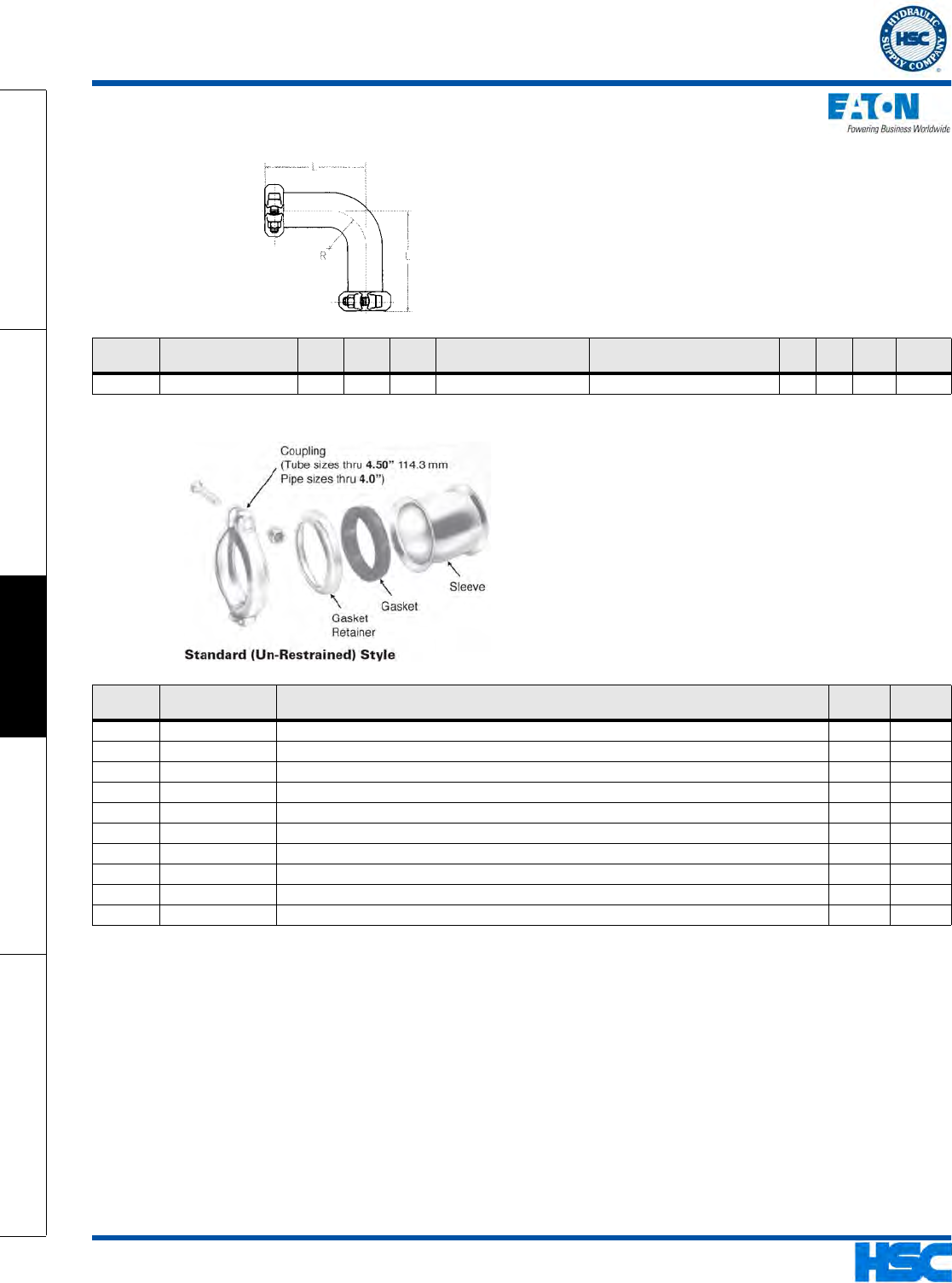

Flexmaster® Pipe & Tube Joints

Hydraulic Power & ControlPneumatic Power & ControlFluid ConveyingMiscellaneous ProductsIndexes & Technical Information

1108  1999-2016 Hydraulic Supply Co. • 1-800-507-9651 • www.hydraulic-supply.com

NH1602 / NH1652

90° Long Elbow

NH1602 / NH1652

Catalog

Part No. Aeroquip Model Pipe

Size Pipe

O.D. Type Gasket Material Sleeve Material L (in) R

(in) Wt. Price

Each

C1HK81 NH1602C200B 22.375 STD Buna-N Plated Steel 5.38 2.62 2.54

Types: STD (Standard) SR (Self-Restrained)

Flexmaster® Parts

Catalog

Part No. Aeroquip Model Description Wt. Price

Each

C1ML46 NH100085-200YF Coupling (includes Nut and Bolt) 2 Inch Pipe 0.40

C1MH39 NH100085-400YF Coupling (includes Nut and Bolt) 4 Inch Pipe

C1MH38 NH100085-250YF Coupling (includes Nut and Bolt) 2-1/2 Inch Pipe

•C1DF77 NK1000063C200 Standard buna-n gasket 2 Inch Pipe 0.07

C1HH91 NK1000063C250 Standard buna-n gasket 2-1/2 Inch Pipe 0.27

C1HJ20 NK1000063C300 Standard buna-n gasket 3 Inch Pipe 0.40

C1DF76 NK1000061C350 Self-restrained buna-n gasket 3-1/2 Inch Pipe 0.37

C1HJ21 NK1000063C400 Standard buna-n gasket 4 Inch Pipe 0.82

C1DF75 NK1000023-200 Gasket retainer 2 Inch Pipe 0.14

C1FD76 NK1000023-400 Gasket retainer 4 Inch Pipe 2.00

Joints for Rigid Pipe

This page is part of a complete catalog which contains technical and safety data that must be reviewed when selecting a product

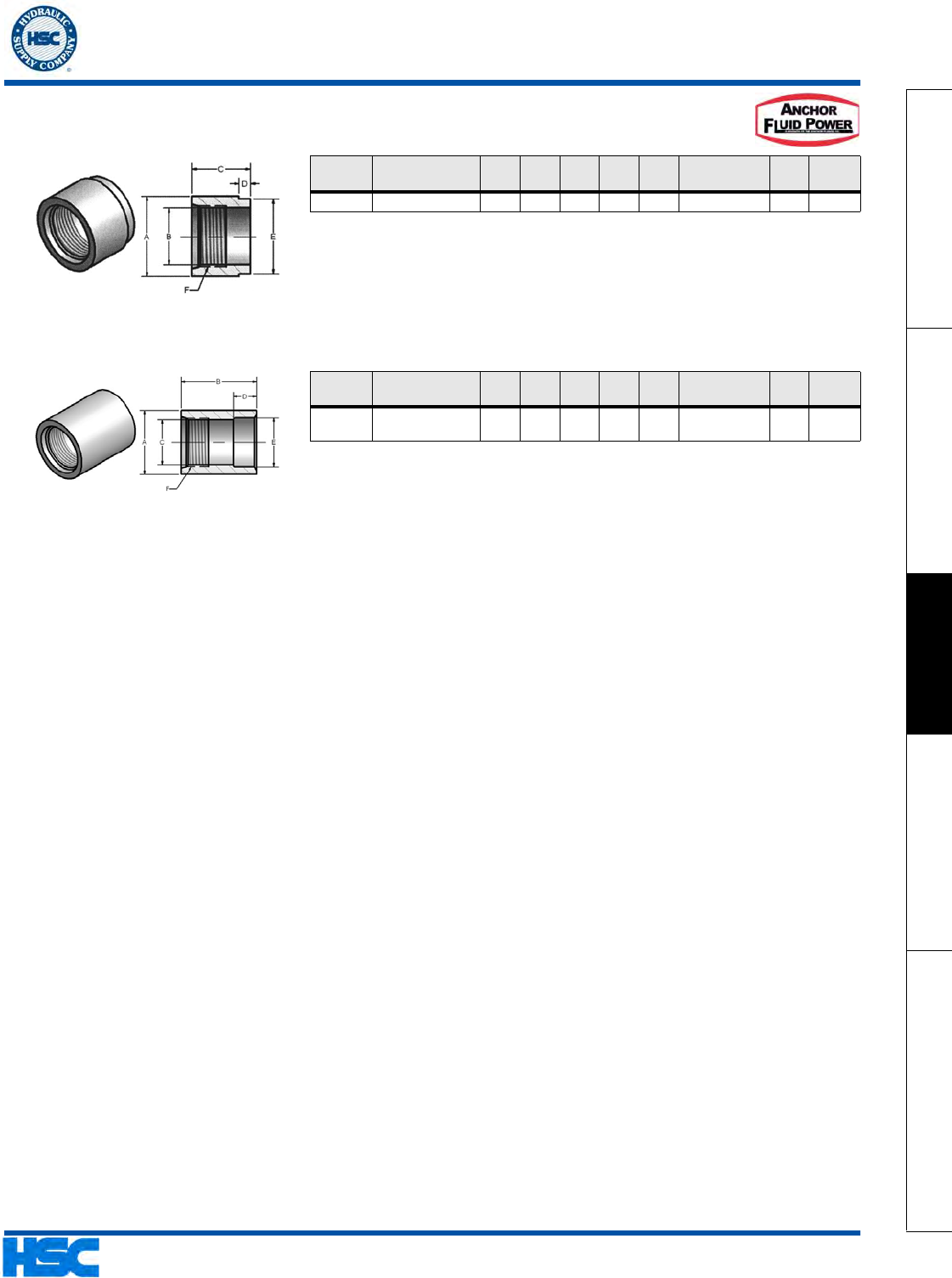

Weld Couplings

Hydraulic Power & Control Pneumatic Power & Control Fluid Conveying Miscellaneous Products Indexes & Technical Information

1109

 1999-2016 Hydraulic Supply Co. • 1-800-507-9651 • www.hydraulic-supply.com

Catalog

Part No. Anchor Model A (in) B (in) C (in) D (in) E (in) F (in) SAE

UN-2B Wt. Price

Each

•C1HX14 835-6 1.00 0.508 1.00 0.25 0.875 9/16-18 0.15

Anchor Model A (in) B (in) C (in) D (in) E (in) F (in) SAE

UN-2B Wt. Price

Each

C1JL72 1080

(Vescor Model) 1.875 0.625 0.855 9/16-18 0.35

835

SAE Half Coupling

AISI1020 Carbon Steel

820

SAE to Socket Weld Full Coupling

AISI1020 Carbon Steel

Steel Weld Couplings

HSC1 01814 0 Tubing Pipe

Navigation menu

Versions of this User Manual:

Views

Navigation
