UG_TV IP314PI_(v1.1R) UG TV IP314PI (v1.1R)

User Manual: UG_TV-IP314PI_(v1.1R) .trendnet.com - /TV-IP314PI(v1.1R)/manual/

Open the PDF directly: View PDF .
Page Count: 54

Contents

Product Overview ........................................................................... 4

Features ...................................................................................................................4

Hardware .................................................................................................................4

Performance ............................................................................................................4

Camera Management ..............................................................................................5

Package Contents ....................................................................................................5

Front View ...............................................................................................................6

Mounting .................................................................................................................6

Connectors ..............................................................................................................6

Warnings..................................................................................................................7

Cautions ...................................................................................................................7

Plan for installation location ........................................................... 8

Viewing angle ..........................................................................................................8

Weather Conditions.................................................................................................8

Hardware Installation ..................................................................... 9

Cabling .....................................................................................................................9

Waterproof cap .......................................................................................................9

Mount your camera .................................................................................................9

Setup Your Camera with CD .......................................................... 11

Access your Camera with the Web Browser .................................. 13

Logging-in to the Camera for the First Time (Windows) .......................................13

Logging-in to the Camera for the First Time (OS X) ...............................................15

Live View ................................................................................................................19

Playback .................................................................................................................20

Search for video recordings ..................................................................................................... 20

Time Line ................................................................................................................................. 20

Playback ................................................................................................................................... 21

Slice images from video playback ............................................................................................ 21

Download sections of video ..................................................................................................... 22

Download snapshots................................................................................................................ 22

Log .........................................................................................................................23

Search for logs ......................................................................................................................... 23

System Information ...............................................................................................24

System Configuration .................................................................... 25

Device Settings ......................................................................................................25

User Accounts ........................................................................................................26

Time Settings .........................................................................................................26

Daylight Savings .....................................................................................................27

Live View Settings ..................................................................................................27

Maintenance..........................................................................................................28

Network Settings .......................................................................... 29

TCP/IP ....................................................................................................................29

Port ........................................................................................................................30

DDNS ......................................................................................................................31

PPPoE .....................................................................................................................31

SNMP .....................................................................................................................32

802.1X ....................................................................................................................33

IP Address Filter .....................................................................................................34

Quality of Service (QoS) .........................................................................................34

UPnP ......................................................................................................................35

Video Settings ............................................................................... 35

Video Format .........................................................................................................35

Display Settings .....................................................................................................36

On Screen Display Settings ....................................................................................39

Text Overlay ...........................................................................................................39

Privacy Mask ..........................................................................................................40

Video Recording ....................................................................................................40

Events .......................................................................................... 41

Motion Detection ..................................................................................................41

Video Tampering ...................................................................................................43

Notification ............................................................................................................45

Snapshot ................................................................................................................45

Email ......................................................................................................................46

Network Storage .......................................................................... 47

Network Storage ....................................................................................................47

Storage Management ............................................................................................49

FTP Server ..............................................................................................................50

Appendix ...................................................................................... 51

Direct video access - RTSP .....................................................................................51

Regulations .................................................................................. 51

Federal Communication Commission Interference Statement .................................51

RoHS .....................................................................................................................51

Europe – EU Declaration of Conformity ................................................................52

Limited Warranty ......................................................................... 53

Product Overview

Features

The Indoor/Outdoor 4 MP PoE IR Network Camera, model TV-IP314PI,

provides powerful 4-megapixel night vision in complete darkness for up to 30

meters (100 ft.). Even in extreme environments, this ultra-compact camera

will function all year, thanks to an IP66 weather-rated housing. Use the

included pro-grade software to manage up to 32 TRENDnet cameras or

download the free iOS® or Android™ mobile app.

Hardware

Adjustable Bracket

Fully adjustable integrated mounting bracket provides installation flexibility

PoE

Save installation costs with Power over Ethernet (IEEE 802.3af)

Outdoor Ready

Outdoor IP66 weather rated and an operating temperature range of -30 ~

60 °C (-22 ~ 140 °F)

Performance

4 Megapixel

Record 2688 x 1520 pixel video at 20 fps in H.264+ compression

Night Vision

Night vision up to 30m (100 ft.) in complete darkness

Smart IR

Dynamic IR adjustment optimizes night visibility

WDR

120dB Wide Dynamic Range improves video quality in high contrast lighting

environments

Camera Management

Multi-Language Interface

Support for English, French, Spanish, German, and Russian

Advanced Playback

Advanced in-camera archived video review functionality

Storage

SMB/CIFS support with notification if storage drive is full

Motion Detection

Create motion detection windows with separate sensitivity settings and

event triggers

Recording Schedule

Define a weekly recording schedule

Tamper Detection

Receive tamper detection video clips via email

IPv6

IPv6 support

ONVIF / PSIA

ONVIF 2.4 and PSIA compliant

Free Apps

See live video on a mobile device with free iOS® and Android® apps

Complimentary Software

Complimentary pro-grade software to manage up to TRENDnet 32 cameras

Package Contents

TV-IP314PI package includes:

• TV-IP314PI

• Quick Installation Guide

• CD-ROM (Utility and User’s Guide)

• Camera mounting hardware

• (Optional power adapter not included)

If any package content is missing or damaged, please contact the retail store, online

retailer, or reseller/distributor from which the product was purchased.

Drilling Template

Mounting Screws

Network Cable

Waterproof Accessories

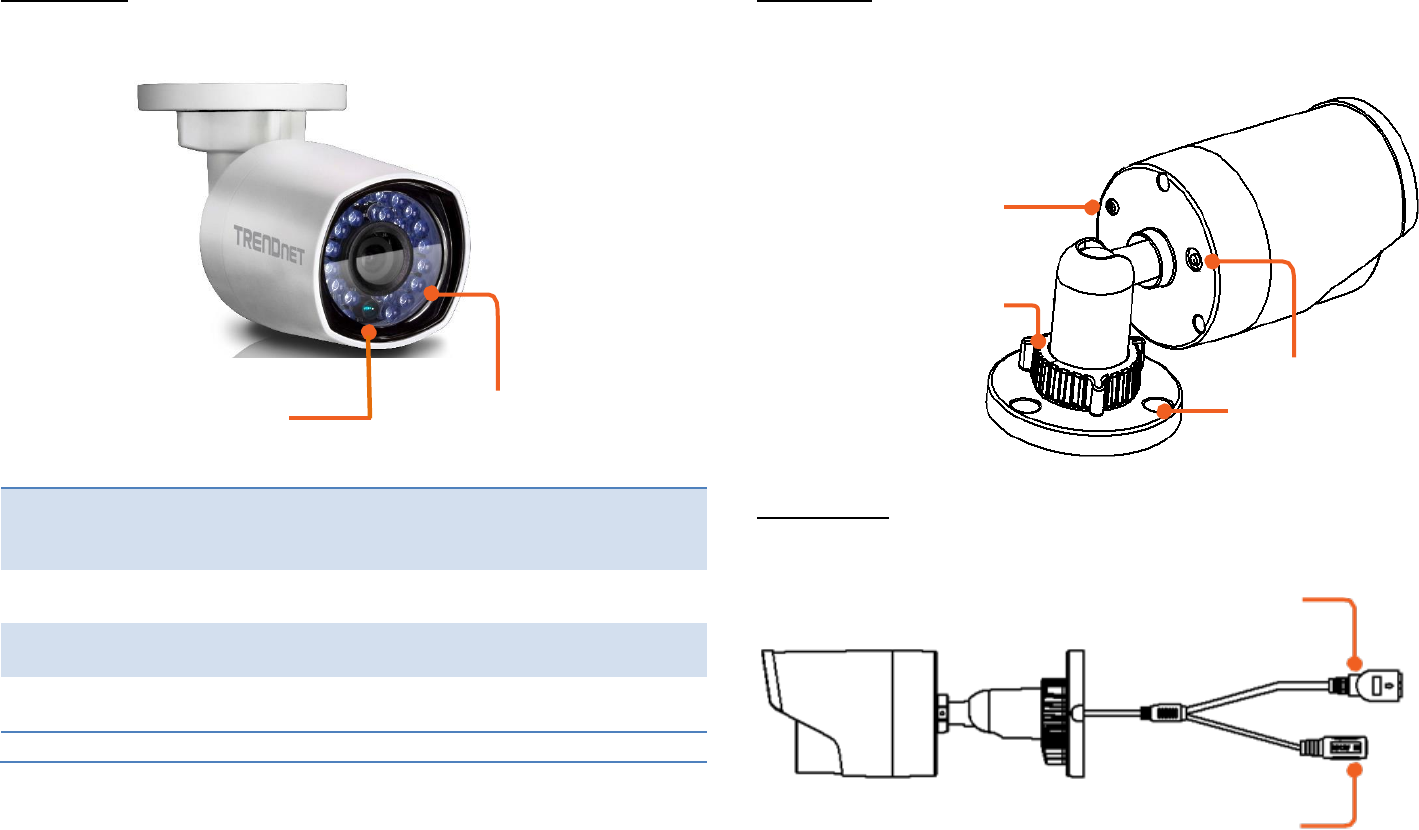

Front View

Reset Button

Push and hold the reset button then power on the camera.

Keep holding the reset button for more than 10 seconds to

reset configuration to factory default.

Grounding

Screw

Connects to electric ground.

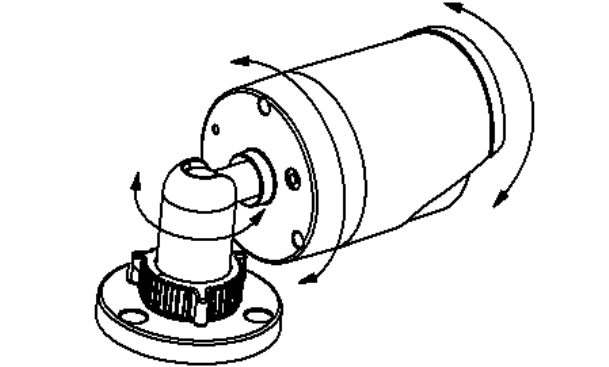

Lock Ring

Loosen to adjust the camera position. Tighten to hold the

camera position.

Ambient Light

Sensor

Detects the brightness in the environment and enable

day/night modes automatically.

IR LEDs

Infra-red LEDs for night vision.

Mounting

Connectors

IR LEDs

Grounding

Screw

Lock Ring

Reset Button

Mounting Base

Ambient Light Sensor

10/100 PoE Network Port

DC Power 12V DC 1A

(Optional)

Warnings

Serious injury or death may be caused if any of these warnings are neglected.

Follow these safety guards to prevent serious injury or death.

• If using the power adapter, please choose the power adapter that

meets the safety extra low voltage (SELV) standard or IEC60950-1 and

Limited Power Source standard.

• If the product does not work properly, please contact your dealer or

the nearest service center. Never attempt to disassemble the camera

yourself. Disassembling the product will void the warranty and may

cause harm or injury.

• To reduce the risk of fire or electrical shock, do not expose this product

to rain or water.

• The installation should be done by a qualified service person and

should conform to all construction and electric regulations and other

local codes.

Cautions

Injury or equipment damage may be caused if any of these cautions are

neglected. Follow these precautions to prevent potential injury or material

damage.

• Make sure the power supply voltage is correct before using the Camera.

• Do not drop the camera or subject to physical shock.

• Do not touch sensor modules with fingers. If cleaning is necessary, use

a clean cloth with a bit of ethanol and wipe it gently. If the camera will

not be used for an extended period of time, put on the lens cap to

protect the sensor from dirt.

• Do not aim the camera lens at the strong light such as the Sun or an

incandescent lamp. Strong light can damage the camera sensor.

• The sensor may be burned out by a laser beam, so when any laser

equipment is being used, make sure that the surface of the sensor will

not be exposed to the laser beam.

• Do not place the camera in extremely hot, cold temperatures (the

operating temperature should be between -10°C to 60°C), dusty or

damp environment, and do not expose it to high electromagnetic

radiation.

• To avoid heat accumulation, good ventilation is required for a proper

operating environment.

• Keep out of water and any liquid.

• While shipping, the camera should be packed in its original packing.

Plan for installation location

Viewing angle

The TV-IP314PI is a bullet camera with a focused viewing angle (83 horizontal)

that provides non-distorted and detailed images. Choose the location where

has good angle to shoot the image you expect to see. The motion detection

area should also be considered when installing the camera.

Weather Conditions

The TV-IP314PI is a small bullet camera, which fits most installations indoor

and outdoor. The camera can work under a wide range of weather conditions.

For severe weather conditions, a camera housing with temperature and

moisture control is recommended. Using the camera in milder weather

conditions will help extend the camera’s product life and preserve the quality

of the video image.

• Moisture: Avoid damp or moist environments whenever you can. The

TV-IP314PI is an IP66 grade water proof camera, and it will work in

moist environments. However, rain may affect the picture quality,

especially at night, water may reflect the light from the infra-red

illumination and degrade picture quality.

• Temperature: TV-IP314PI works within a specified temperature range.

Areas with severe temperatures should be avoided when installing the

camera. It’s recommended that you use an enclosure with a heater and

blower if you plan on using this camera outside of the specified

temperature range.

• Sunlight: Avoid direct sun light exposure. Direct sun light will damage

the image sensor. If sunlight is necessary for your viewing purposes,

provide protection for the image sensor.

• Lighting: Consider installing your camera faces the same direction of

the light sources. Shooting images with top-down position outdoor or

next to the existing light source are good choices. Avoid the light source

if it creates a shade that darkens the viewing area.

Hardware Installation

Cabling

It’s recommended that the wiring the cable in your home or office by a

professional. If you already have the cable deployed, make sure the cable and

the connectors meet the category 5 Ethernet cable standards. At least 2 pairs

of twisted lines are required for power and data. Poor cable quality may cause

unexpected problems. Testing your cable or running a new cable is suggested

for new camera installation.

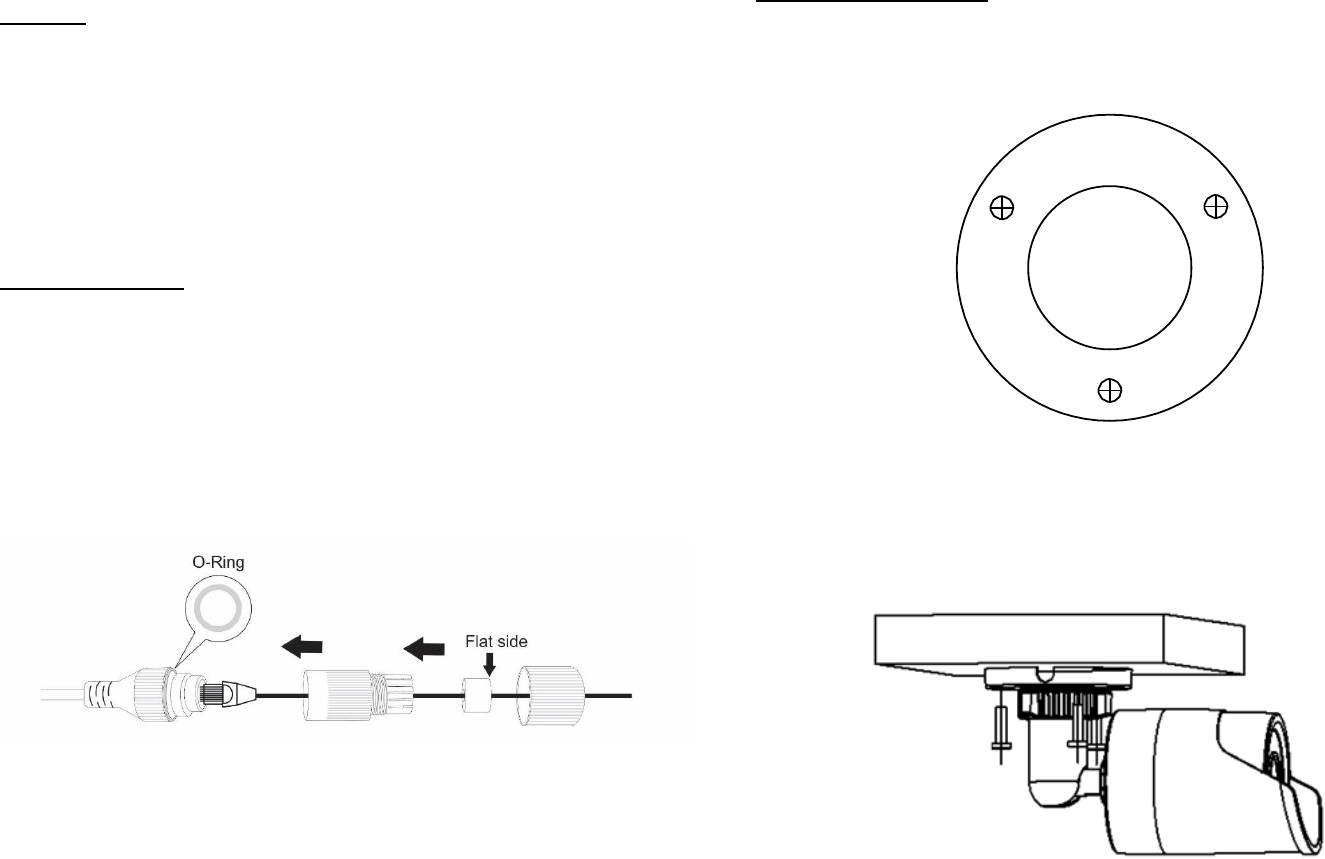

Waterproof cap

The TV-IP314PI itself is IP66 grade water and dust proof. There is a set of

network cable water proof caps that comes with the package as well. Run

your cable going through the accessories, and then crimp the cable with an

RJ45 module. Plug in the network cable and then tighten the waterproof cap

to prevent water running into camera through the cable.

Mount your camera

Drill the screw holes and the cable hole if necessary with the drill template

comes with the package.

Fix the mounting base on the ceiling or the wall with the screws that come

with the package. Route the cables to the cable hole.

Loosen the lock ring and then adjust the camera position. Tighten the lock

ring when you setup the camera position.

TRENDnet User’s Guide TV-IP314PI

Setup Your Camera with CD

1. Insert the Installation CD-ROM into your computer’s CD-ROM drive

to initiate the Auto-Run program. Choose your preferred language

and then click the Install Camera Utility.

2. Install the Camera Utility as instructed

3. Last, click Next to finish the installation.

4. This will also require you to Install WinPcap program if you don’t have

this installed before, please follow the on screen Instructions to

Install It.

TRENDnet User’s Guide TV-IP314PI

5. Restart the computer after the Installation.

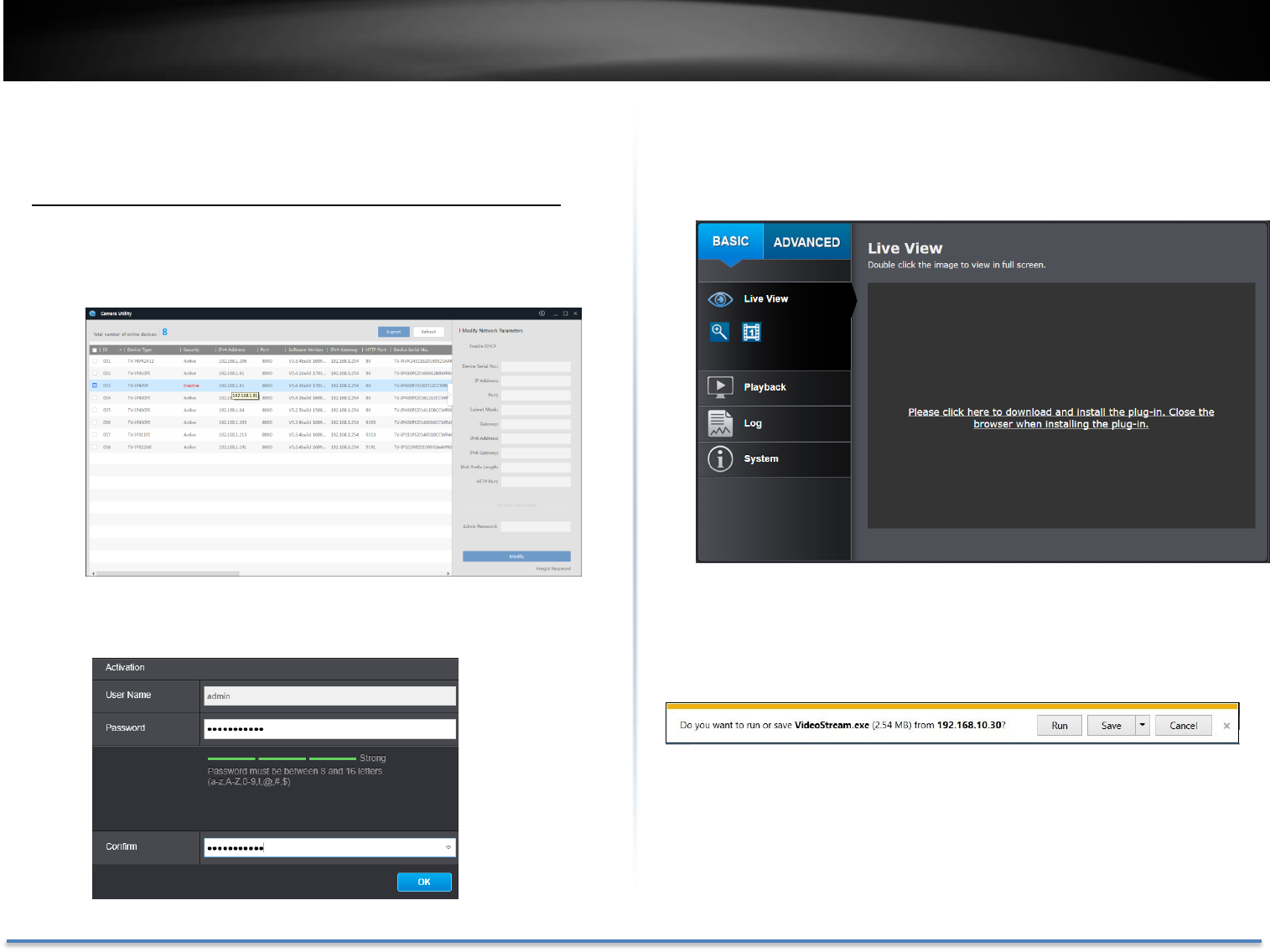

6. After the computer has restarted, double click on the Camera Utility icon

to launch the program.

7. Find the camera you would like to access and configure then double click

on the IP address.

8. Continue to the next section Access your Camera with the Web

Browser for detail configurations of the camera.

TRENDnet User’s Guide TV-IP314PI

Access your Camera with the Web Browser

Logging-in to the Camera for the First Time (Windows)

1. Find the camera from the Utility and double click on the IP address to

open the browser.

2. Activate the admin User Account by entering your desired password, and

then click OK.

3. The camera management page will detect if you installed the camera

video streaming plug-in or not. Click the link to download the plug-in from

the camera.

4. Download the plug-in to your computer and then and close your browser.

Launch the plug-in installation to install the plug-in.

TRENDnet User’s Guide TV-IP314PI

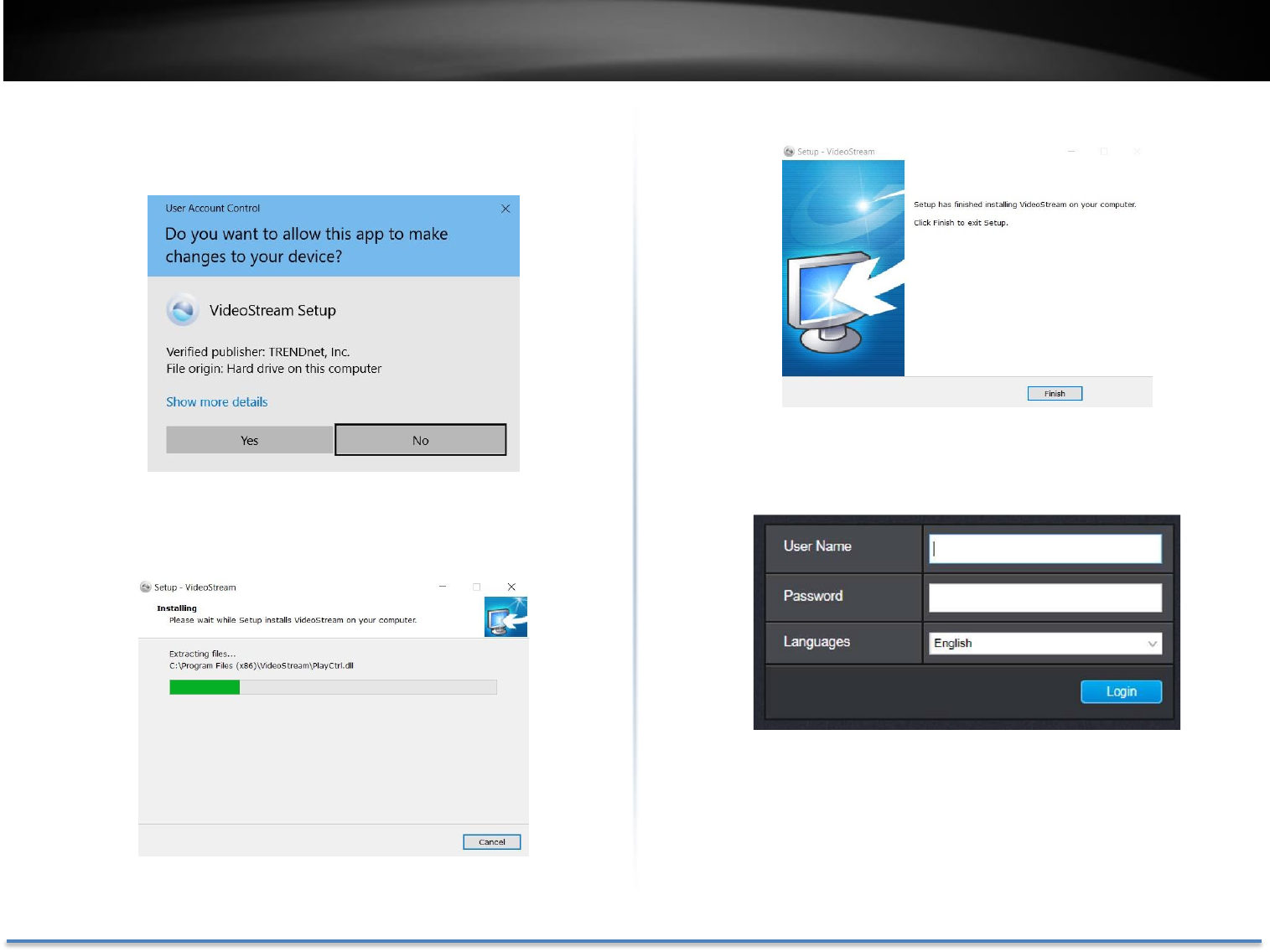

5. Permission request may show up depends on the Internet security

settings on your computer. Click Yes to install the plug- in.

6. Click Next to install the plug-in.

7. Click Finish to finish the installation.

8. Open the browser and login again, enter the user name admin and new

password again to start secured session.

TRENDnet User’s Guide TV-IP314PI

9. Refresh the browser and the Live View page will show up and begin

streaming video.

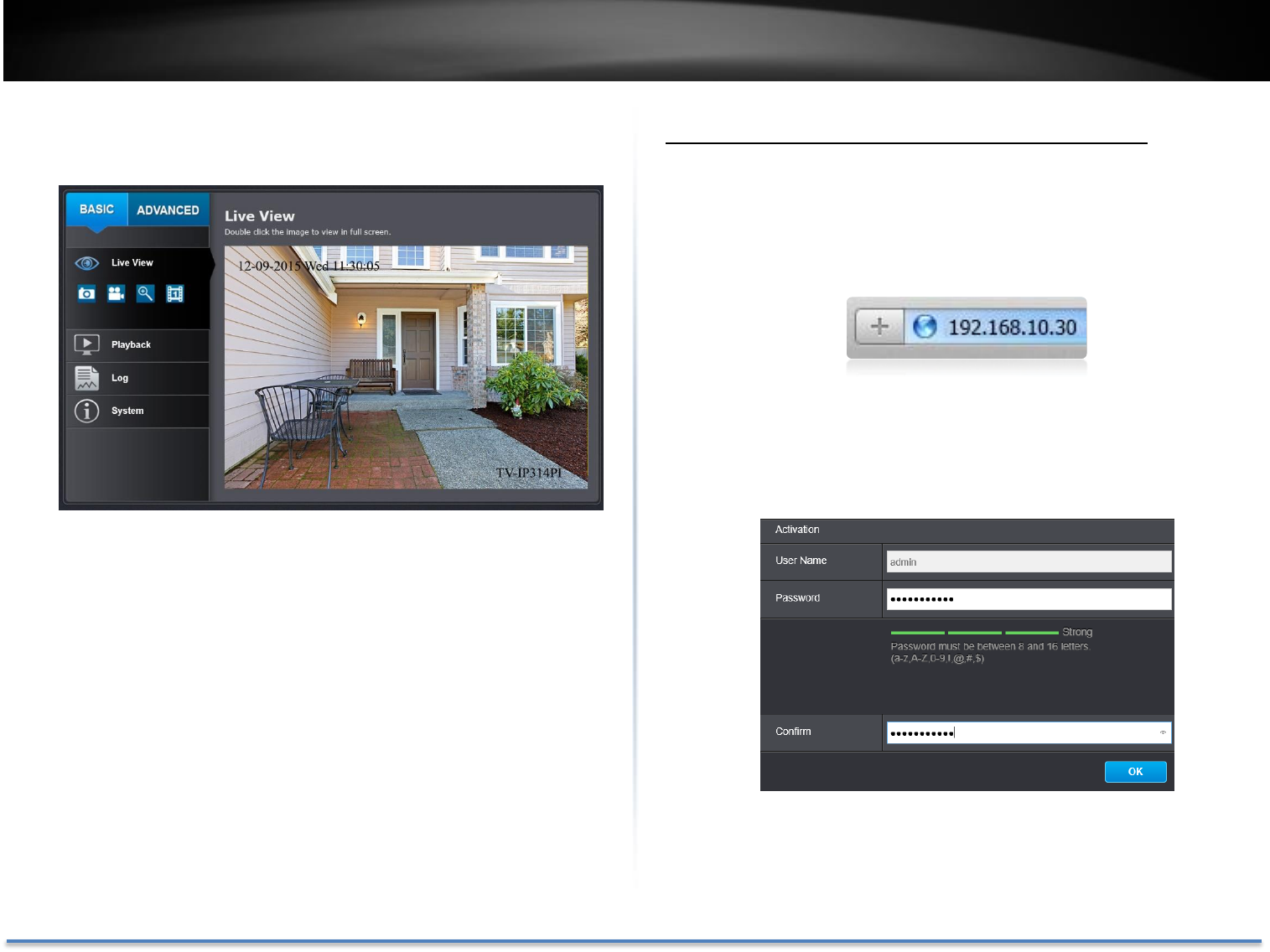

Logging-in to the Camera for the First Time (OS X)

1. Open the web browser on your computer. In the address bar, enter the

default IP address of the camera 192.168.10.30. If the camera is

connected to a router/network, please use the Windows Camera Utility

to find the exact IP address.

2. Activate the admin User Account by entering your desired password, and

then click OK.

TRENDnet User’s Guide TV-IP314PI

3. The camera management page will detect if you installed the camera

webcomponent plug-in or not. Click the link to download the plug-in from

the camera.

Note: Internet connection is required to download the plug-in. If you do not have

Internet access, you can find the plug-in on the CD comes with the package under

/Mac folder.

4. Quit your browser completely by command-Click on the browser icon

and then click Quit before installing the plug-in.

5. Go to the Finder and navigate to the Download folder. Command-Click

the WebComponents.pkg and then click Open. (If you are install the plug-

in from the CD when you don’t have internet connection, just browse to

/Mac folder and double click the WebComponents.pkg file.)

6. Click Open with  Installer to start installation.

TRENDnet User’s Guide TV-IP314PI

7. Click Continue to install the plug-in.

8. Select a destination to install the plug-in. Then click Continue.

9. Use the default location and click Install.

10. Enter your password and click Install Software

TRENDnet User’s Guide TV-IP314PI

11. Installation will process automatically.

12. Click Close to exit the installation.

13. Open the browser and login again with the default IP 192.168.10.30 or

the IP that was dynamically assigned by your router. Enter the user name,

admin, and the default password, admin, and then click OK.

14. The Live View page shows up and the video starts to stream.

TRENDnet User’s Guide TV-IP314PI

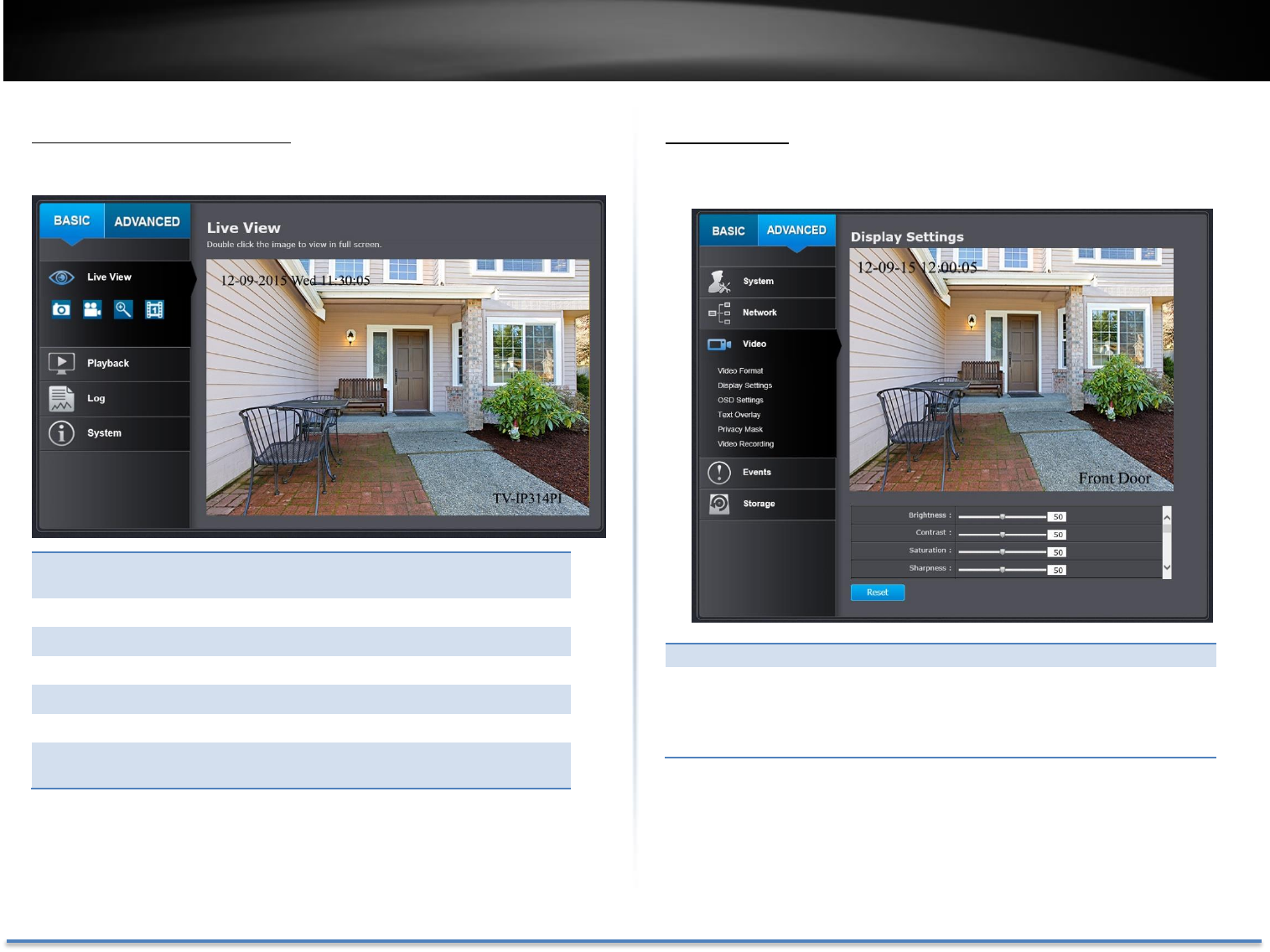

Live View

Snapshot

Click this icon to take a video snapshot.

After you log-in into the camera management page, you’ll see the Live View page.

Zoom

Click once to enable zoom. When

enabled, click and drag the area on the

picture to zoom in. Right click to

resume 100% zoom. Click the icon

again to disable zoom. The zoom

function works in full screen mode as

well.

Recording

Click once to start recording. Click it

again to stop recording. The status bar

will indicate if it is in recording state or

not.

Video Stream

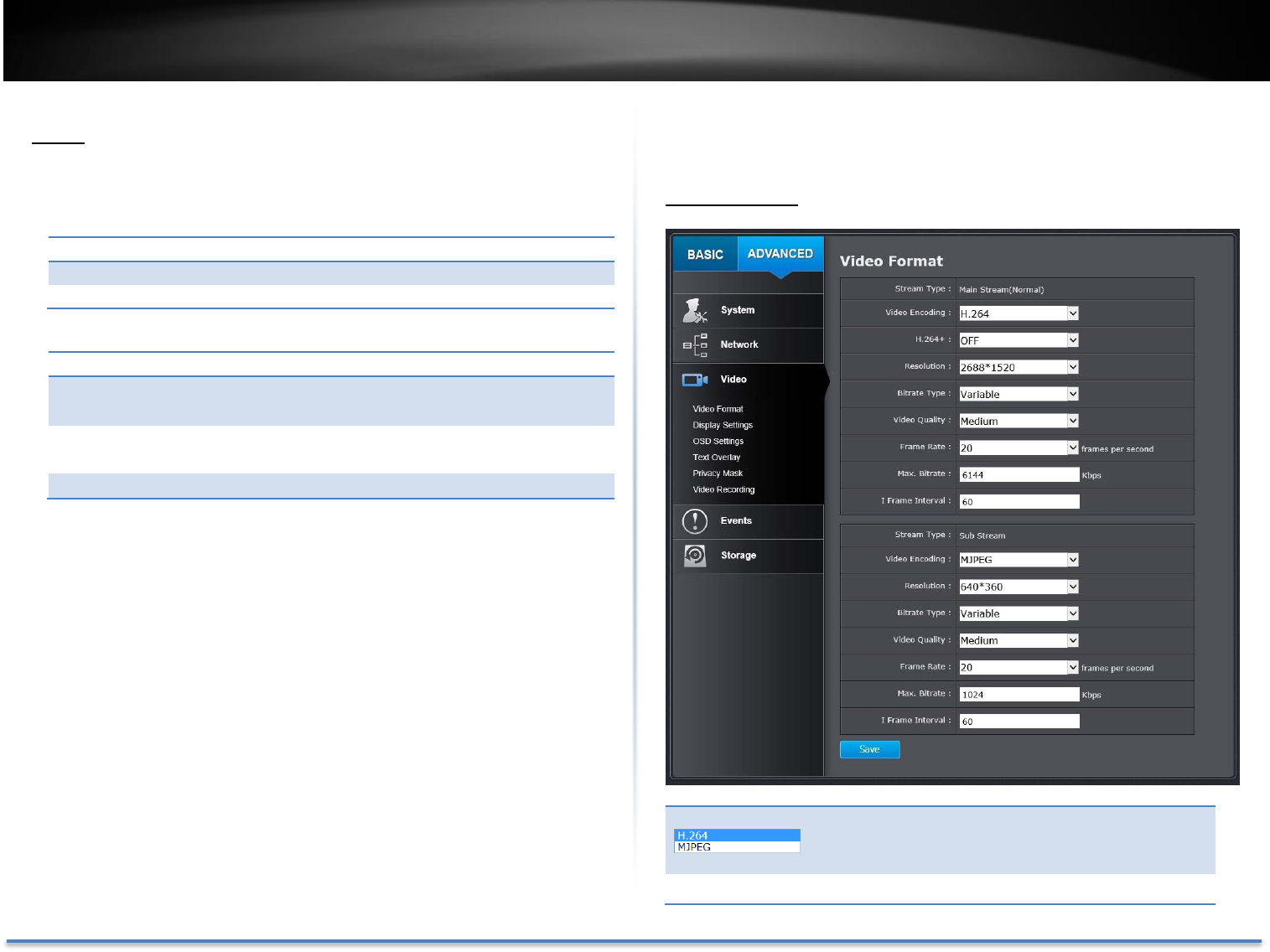

TV-IP314PI has two video streams:

H.264 and MJPEG. Switch to view the

different video streams by clicking this

icon.

Full Screen Mode

Click the picture to view in full screen

mode. Double click again or press

escape key on your keyboard to exit

full screen mode.

Status Bar

The status bar shows the status you

are at, including enabled the zoom,

recording video, and successfully

taking a snapshot.

TRENDnet User’s Guide TV-IP314PI

Playback

You can playback the video recording on the network storage and download

the video clip and snapshots to your local computer.

Search for video recordings

Click the date selection, and then choose a date as the date range of searching.

Click Search to start searching.

Time Line

There is a play back head in the center of the time line represented in a yellow

vertical line. To look for a specific video recording, move the time line by

clicking and dragging it. If the recording is short, zoom in by clicking

button. Click to zoom out the time scale. If you know the exact time of

the day you are looking for, click then enter the time you want to playback.

Different types of recordings are identified differently. The scheduled

recordings are marked in blue, and the recordings triggered by motion

detection are marked in red.

Click and drag the time line to move your time manually.

Click this button to zoom in the scale

Click this button to zoom out of the scale

Click this button to specify a specific time of the day.

then click to confirm selection and then click X to close

this dialog box.

TRENDnet User’s Guide TV-IP314PI

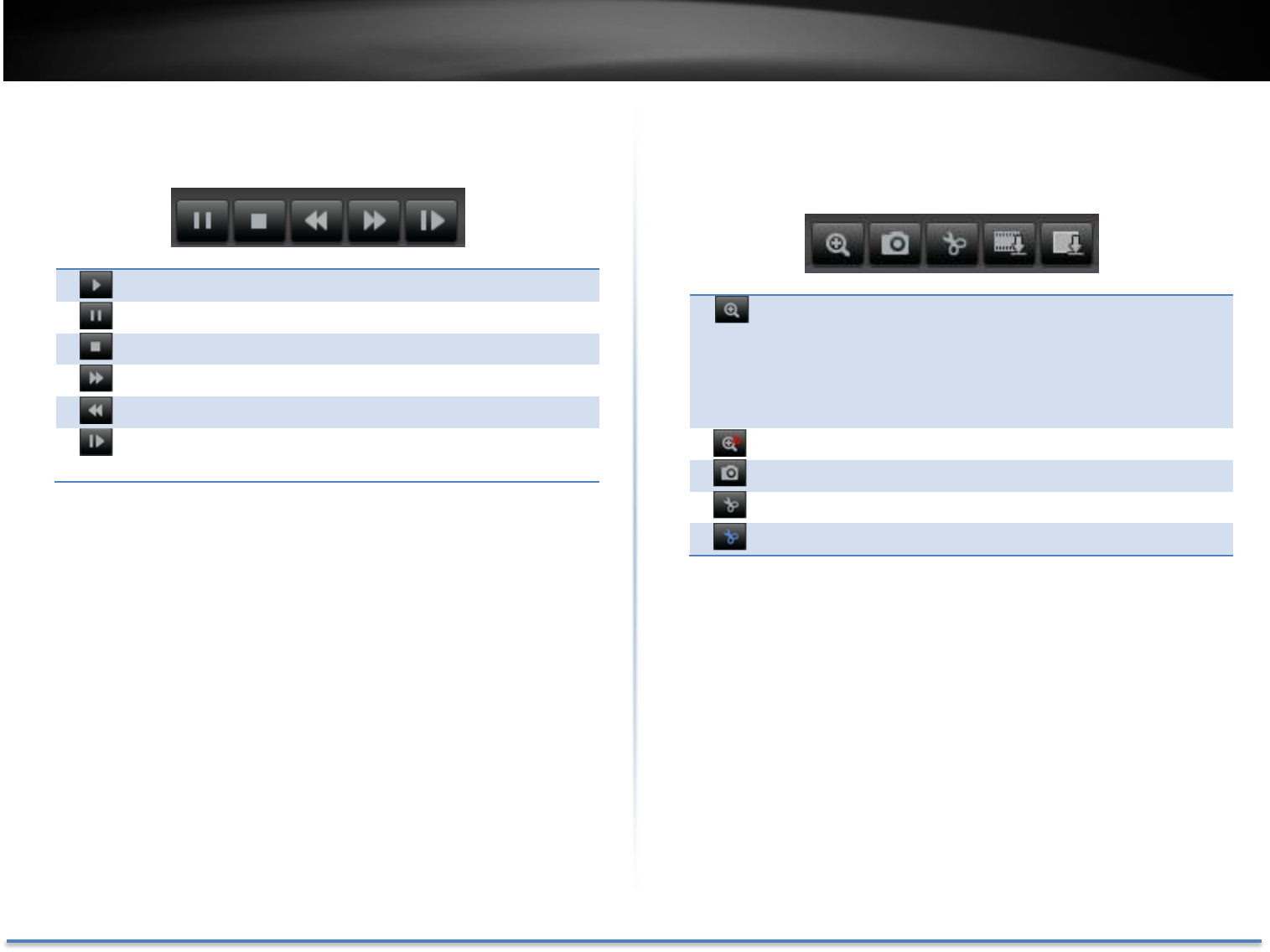

Playback

Use playback controls to play back the video recording.

Click this button to play the video.

Click this button to pause video playback.

Click this button to stop playback.

Click this button increase playback speed*.

Click this button decrease playback speed*.

Click to playback video frame by frame. Click again for

the next

ame

�

* Note: There are 5 steps of playback speed you can choose from: 1/4, 1/2, 1, 2, and

4 times of original speed.

Slice images from video playback

You can take snapshots from playback video or make new video clips from

the video you are playing back.

Click this button to enable zoom. Then click and drag on

the video to define the area you want to zoom in. Click

again to get back to 100% zoom.

Double click to show video in full screen and press

on keyboard to exit full screen mode.

Click this button to disable zoom.

Click this button to take a snapshot of current playback.

Click this button to start clipping a video from playback.

Click this button to stop clipping a video from playback.

TRENDnet User’s Guide TV-IP314PI

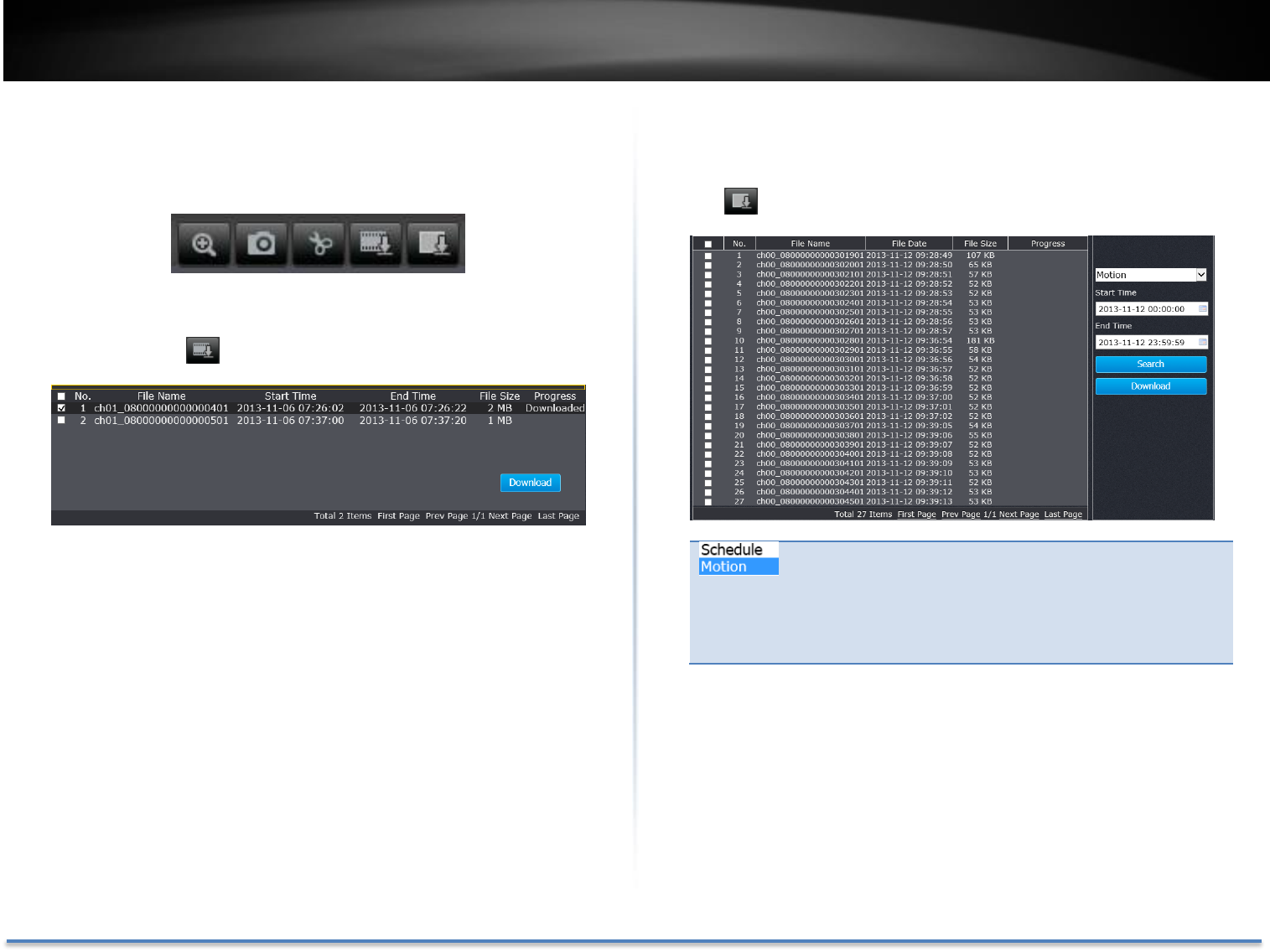

Download sections of video

To save complete video sections or snapshots, you can download the files

directly.

Click button to download video sections.

Check the time of the recording, select the videos you want to download, and

then click Download.

Download snapshots

Click button to list snapshots to download

Select the type of event that triggered the snapshots.

Choose the Start Time and End Time. Then, click Search

to find the snapshot list. Check the time of the snapshot,

and then select the snapshots you want to download,

then click Download.

TRENDnet User’s Guide TV-IP314PI

Log

The log of the TV-IP314PI will be saved on the network storage. You can

search the relevant records and save to your local computer. (See Network

Storage on page 47 to setup the storage.)

Search for logs

Click the type of log and then the Start Time and End Time. Click Search to

start searching.

Click First Page, Prev Page, Next Page, and Last Page to show the logs. Click

Save Log to save the logs to your computer.

TRENDnet User’s Guide TV-IP314PI

System Information

System Information page shows the camera’s basic information.

Basic Information

Device Name:

Human readable device name for easy

identification.

Firmware Version:

Firmware version

MAC Address:

The MAC address of Ethernet Interface

System Time:

The system time setup in the camera. Keeping this

time correct is important for recording, scheduled

control and logging accurately.

Device Name:

Human readable device name for easy

identification.

Network Information

IP Address:

IP address of the TV-IP314PI

Subnet Mask:

Network range of IP address

Default Gateway:

The default route going from the TV-IP314PI

subnet.

Primary DNS:

Primary DNS server address

Secondary DNS:

Secondary DNS server address

TRENDnet User’s Guide TV-IP314PI

System Configuration

Device Settings

Setup your camera name and location for easy identification. This camera

name will also be recognized by other network camera software as the name

of this camera. OSD, On Screen Display, camera name is referring to this

setting as well.

Names

Camera Name:

Name of the camera. The camera name setup

here can be discovered by other network camera

software and OSD, On Screen Display. The default

camera name is the model number: TV-IP314PI

Location:

Label where you installed this camera for reference

Authentication

RTSP:

TV-IP314PI’s video stream can be accessed with

RTSP, Real Time Streaming Protocol. Only the

administrator and users can view this video stream

Un-checking this box will allow everyone access to this video

stream without authentication. Default: Checked.

Service

Enable

Telnet:

TV-IP314PI embedded Telnet service for multiple camera

control for system developer. Default: disabled.

TRENDnet User’s Guide TV-IP314PI

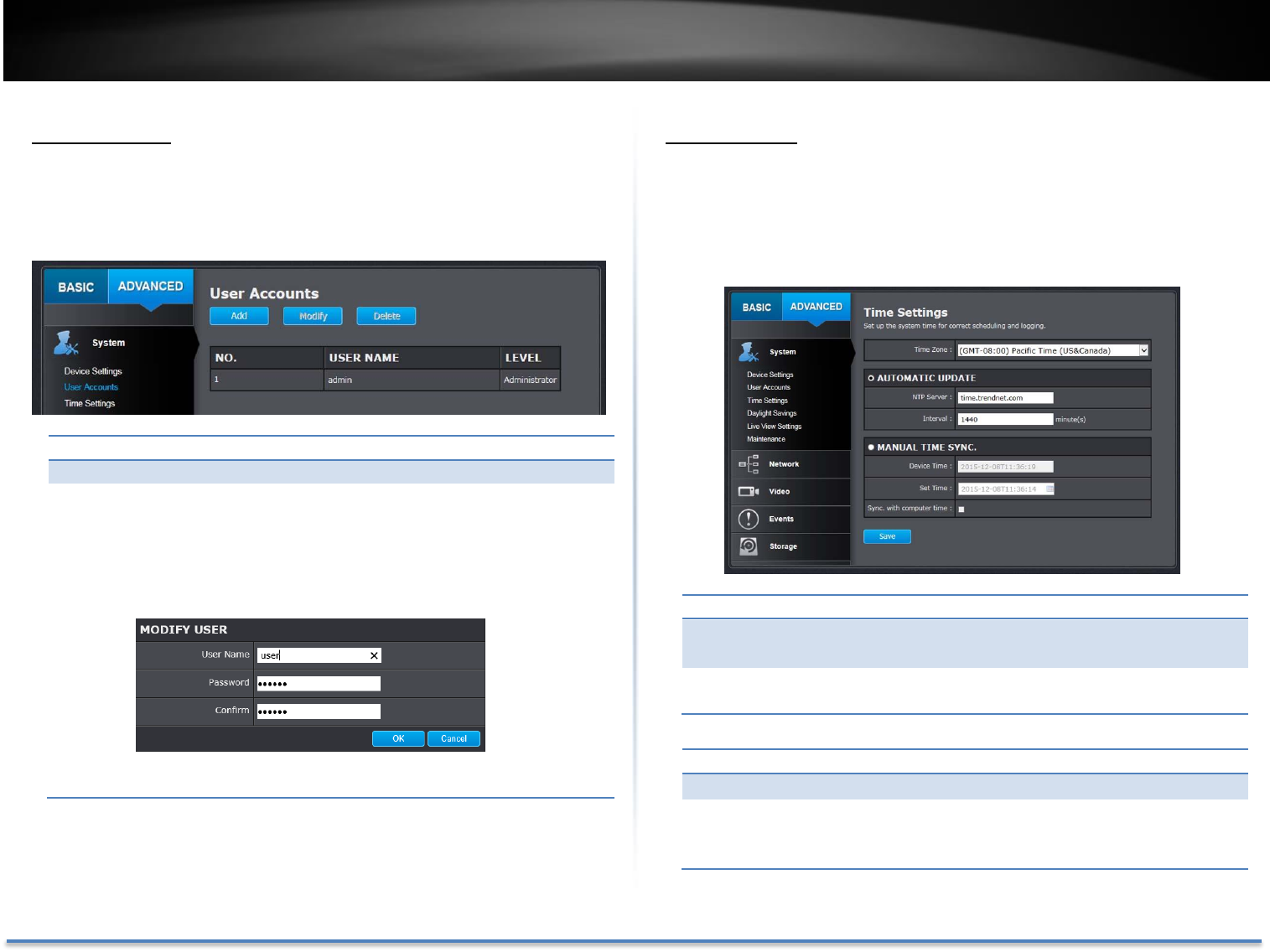

User Accounts

You can setup up to 16 user accounts to access the camera’s video stream

with a web browser or real time video stream (RTSP). Only one administrator

account can be setup to configure the TV-IP314PI and cannot be deleted.

User Accounts

Add:

Click Add button to add one user account

Modify:

To change a user’s name and password, highlight the user by

clicking on it. Then, click Modify button. You can change the

user’s name and password. You can also change the

administrator’s password here. But, the administrator’s name

is fixed, you cannot change that.

Click OK to save the changes.

Time Settings

The accuracy of the system clock is important for scheduling and accurate

logging. You can synchronize the system time with your computer, or

automatically check the time accuracy with a network time server (NTP

server).

Automatic Update

NTP

Server:

Specify a time server (NTP server) to synchronize with.

(e.g. pool.ntp.org)

Interval:

The time interval that the TV-IP314PI will synchronize the time

with NTP server. Default: 1440 minutes (24 hours)

Manual Time Sync

Device Time:

The system time of this camera.

Set Time:

Click the calendar icon and manually select the date.

Check the Sync. with computer time to copy the time

from your computer.

Click Save to save the changes

TRENDnet User’s Guide TV-IP314PI

Daylight Savings

Setup daylight savings.

Automatic Update

Enable DST:

Check this box if your time zone has daylight savings.

Start Time:

Enter the date that daylight savings starts

End Time:

Enter the date that daylight savings ends

DST Bias

Enter how much time the daylight saving adjusted by

daylight savings.

Click Save to save the changes

Live View Settings

Setup the live view video quality, file size and file saving directories.

Live View Parameters

Live View

Buffer:

Configure the buffer size for live view video stream. With

low buffer size setting, you can get real-time video

stream, but the video may be stop and go if the network

is congested. With high buffer setting, you can have

smooth video streaming, but the video is delayed from

the time happening. Medium size can have moderate

video stream smoothness and time delay.

TRENDnet User’s Guide TV-IP314PI

Record File Settings

Record file size:

This size of live view video recording. You can choose

256MB, 512MB, or 1GB a file. Smaller file size is good

for many short recordings.

Save record

files to:

Click Browse and then choose a new destination if you

want to save the file somewhere else.

Save

downloaded

files to:

Click Browse and then choose a new destination if you

want to save the file somewhere else.

Picture and Clip Settings

Save snapshots

live view to:

Click Browse and then choose a new destination if you

want to save the file somewhere else.

Save snapshots

when playback

to:

Click Browse and then choose a new destination if you

want to save the file somewhere else.

Save clips to:

Click Browse and then choose a new destination if you

want to save the file somewhere else.

Click Save to save the changes

Maintenance

You can restart, load camera settings and upgrade the camera firmware on

this page.

Reboot

Reboot:

Click this button to reboot this camera.

Reset

Reset:

Reset all camera parameters, except the IP parameters

and user information.

Default:

Load complete factory default to the camera.

TRENDnet User’s Guide TV-IP314PI

Inport Config. File

Config File:

To load previously saved settings, click Browse to find the

configuration file and then click Import.

Status:

Shows the status in loading configuration file.

Export Config. File

Export:

Click Export to download configuration file. The file will

be downloaded to the Download folder by default.

Remote Upgrade

Firmware:

Click Browse to find the latest firmware and then click

Upgrade.

Status:

Shows the status in firmware upgrade.

TRENDnet may periodically release firmware upgrades that might add

features or fix problems associated with your camera. To find out if there is a

firmware upgrade available for your device, please check your TRENDnet

model and version using the link.

http://www.trendnet.com/downloads/

1. If a firmware upgrade is available, download the firmware to your

computer.

2. Unzip the file to a folder on your computer.

3. Read the firmware upgrade instruction for specific version update

information.

4. Log into the TV-IP314PI.

5. Getting to this Maintenance page to upgrade firmware.

Network Settings

TCP/IP

Setup your basic IPv4 and IPv6 network settings on this page.

TRENDnet User’s Guide TV-IP314PI

Network Interface

MAC Address:

Click this button to reboot this camera.

Duplex and

Speed:

Choose one of the Ethernet duplex and speed to

match your network. Default: auto.

MTU:

Maximum transmission unit. The maximum field size

in the Ethernet packet.

Primary DNS:

Enter your first IPv4 or IPv6 DNS server address

Secondary DNS:

Enter your second IPv4 or IPv6 DNS server address

IPv4

DHCP:

Check this box if the IP address is assigned by DHCP

server.

IPv4 Address:

The IPv4 dynamic or static address

Subnet Mask:

Network range of the subnet

Default Gateway:

The default route going further from TV-IP314PI IPv4

subnet

IPv6

IPv6 Mode:

Choose Manual, DHCP, or Route Advertisement. Click

View Route Advertisement to find a route

advertisement.

IPv6 Address:

IPv6 address of TV-IP314PI

Prefix Length:

Length of network prefix

Default

Gateway:

The default route going further from TV-IP314PI IPv6

subnet

Port

You can change the service port numbers of TV-IP314PI and enable/disable

RTSP or HTTPS services.

Port Numbers

HTTP Port:

The default web access port. You can change the port

number. However, you cannot disable the web

service. The default port number is 80.

RTSP Port:

The Real-Time Streaming Protocol port for video

streaming. You can change the port number or

disable the service by uncheck the box. The default

port number is 554.

HTTPS Port:

The secured web service port. You can change the

port number, or you can disable the service by

uncheck the box. The default port number is 443.

Click Save to save the changes

*Note: To view the camera remotely, please make sure the HTTP and RTSP

ports are opened (port forwarded) on your network/router.

TRENDnet User’s Guide TV-IP314PI

DDNS

Dynamic Domain Name Service, DDNS, allows you to find your camera from

the Internet with an easy to remember domain name.

DDNS

Enable DDNS:

Check this box to enable DDNS Service.

DDNS Type:

Select a DDNS service provider.

Server Address:

Enter the DDNS server address.

Domain:

Enter your registered domain/host name on selected

DDNS service.

User Name:

Enter the account name.

Password:

Enter the password.

Confirm:

Enter the password again.

Click Save to save the changes

PPPoE

Setup PPPoE (ADSL) connection to connect your camera with your ISP,

Internet Service Provider.

PPPoE (ADSL)

Enable PPPoE:

Check this box to enable PPPoE connection.

Dynamic IP:

The IP address assigned by ISP

User Name:

Enter the account name.

Password:

Enter the password.

Confirm:

Enter the password again.

Click Save to save the changes

TRENDnet User’s Guide TV-IP314PI

SNMP

SNMP Settings allows you to assign the contact details, location, community

name and trap settings of SNMP. This is a networking management protocol

used to monitor network-attached devices. SNMP allows messages (called

protocol data units) to be sent to various parts of a network. Upon receiving

these messages, SNMP compatible devices (called agents) return data stored

in their Management Information Bases.

SNMP V1/V2

Enable SNMPv1:

Check this box to enable SNMP v1 management.

Enable SNMPv2c:

Check this box to enable SNMP v2c management.

Read SNMP

Community:

Specify the password to access the SNMP

community for read only access.

Write SNMP

Community:

Specify the password for access to the SNMP

community with read/write access.

Trap Address:

Specify the IP address for the SNMP trap

community.

Trap Port:

Specify the port number for the SNMP trap

community.

Trap Community:

Specify the name of SNMP trap community.

SNMP V3

Enable SNMPv3:

Check this box to enable SNMP v3 management.

Read User Name:

SNMP v3 member user name.

Security Level:

Choose one of the security levels.

Authentication

Algorithm:

Choose the authentication method to verify the

source of information: MD5 or SHA.

Authentication

Password:

Specify the authentication password between 8 to

32 letters.

Private-key

Algorithm:

Choose the privacy key to encrypt SNMP messages:

DES or AES.

Private-key

Password:

Specify the privacy key between 8 to 32 letters.

Write User

Name:

SNMP v3 manager user name.

Security Level:

Choose one of the security levels.

TRENDnet User’s Guide TV-IP314PI

Authentication

Algorithm:

Choose the authentication method to verify the

source of information: MD5 or SHA.

Authentication

Password:

Specify the authentication password between 8 to 32

letters.

Private-key

Algorithm:

Choose the privacy key to encrypt SNMP messages:

DES or AES.

Private-key

Password:

Specify the privacy key between 8 to 32 letters.

SNMP Other Settings

SNMP Port:

SNMP service port number.

Click Save to save the changes

802.1X

Setup 802.1X for remote authentication service.

802.1X Authentication

Enable IEEE

802.1X:

Check this box to enable 802.1X authentication

service.

EAPOL version:

Extensible Authentication Protocol (EAP) over LAN

(EAPoL). Choose version 1 or 2. This version number

has to match to your 802.1X service EAPOL version.

User Name:

Enter the account name.

Password:

Enter the password.

Confirm:

Enter the password again.

Click Save to save the changes

TRENDnet User’s Guide TV-IP314PI

IP Address Filter

Set up a list of clients allow only the clients on the list to access this camera

or to reject clients on the list from access this camera.

IP Address Filter

Enable IP

Address Filter:

Check this box to enable IP address filtering service.

IP Address Filter

Type:

Choose Forbidden to ban the listed IP addresses or

Allowed to allow listed host to access this camera.

Add:

Click Add to add a user account

Modify:

To modify an entry on the list, highlight the entry by

clicking on it. Then, click the Modify button.

Enter the IP address then click OK

Delete:

To delete an entry on the list, highlight the entry by

clicking on it. Then, click Delete

Clear:

To clear all entries, click Clear

Click Save to save the changes

Quality of Service (QoS)

Setup traffic prioritization tags the video packets to go through network

switches and routers with assigned priority. You can set the Differentiated

Services Code Point (DSCP) bits on outgoing data streams. The QoS capable

network device will forward different data in different priorities. The meaning

of the value is different in different DiffServ domains. Consult your network

manager for the setup details.

IP Address Filter

Video/Audio

DSCP:

Enter Video/Audio DSCP. Default: 0.

Event/Alarm

DSCP:

Enter Event/Alarm DSCP. Default: 0.

Management

DSCP:

Enter Management DSCP. Default: 0.

Click Save to save the changes

TRENDnet User’s Guide TV-IP314PI

UPnP

Universal Plug-and-Play is a device discovery protocol set. It allows your

camera to easily be found, for example, on a Windows operation system.

UPnP

Enable UPnP:

Check this box to enable UPnP connection.

Friendly Name:

The name that will be appeared when searched.

Port Mapping

Enable Port

Mapping:

Check this box to enable UPnP connection.

Port Mapping

Mode:

Choose Manual or Auto port mapping.

External Port:

Choose the port number for mapping.

Click Save to save the changes

Video Settings

Video Format

Video Encoding:

Choose the video stream you want to modify.

H.264 and MJPEG videos are always streaming and

can be configured separately.

H.264+

Higher compression option

TRENDnet User’s Guide TV-IP314PI

Resolution:

H.264

MJPEG

Bitrate Type:

Choose between variable bit rate or constant bit

rate for video compression. The default is variable

rate.

Video Quality:

Choose the video quality. The default is medium

quality.

Frame Rate:

Choose the capturing frame rate. The default value

is 30 frames per second. Reduce the frame rate to

reduce the capture file size.

Max. Bitrate:

Choose the maximum video sampling bit rate.

Default: 2048

I Frame Interval

An I Frame is a frame that records a complete

picture. Frames between I frames, (P frame or B

frame) only records the image differences between

two frames. Choose the I Frame Interval here. The

default is 60.

Click Save to save the changes

Sub stream can be used for lower resolution needed situation, for example

mobile app streaming or NVR streaming.

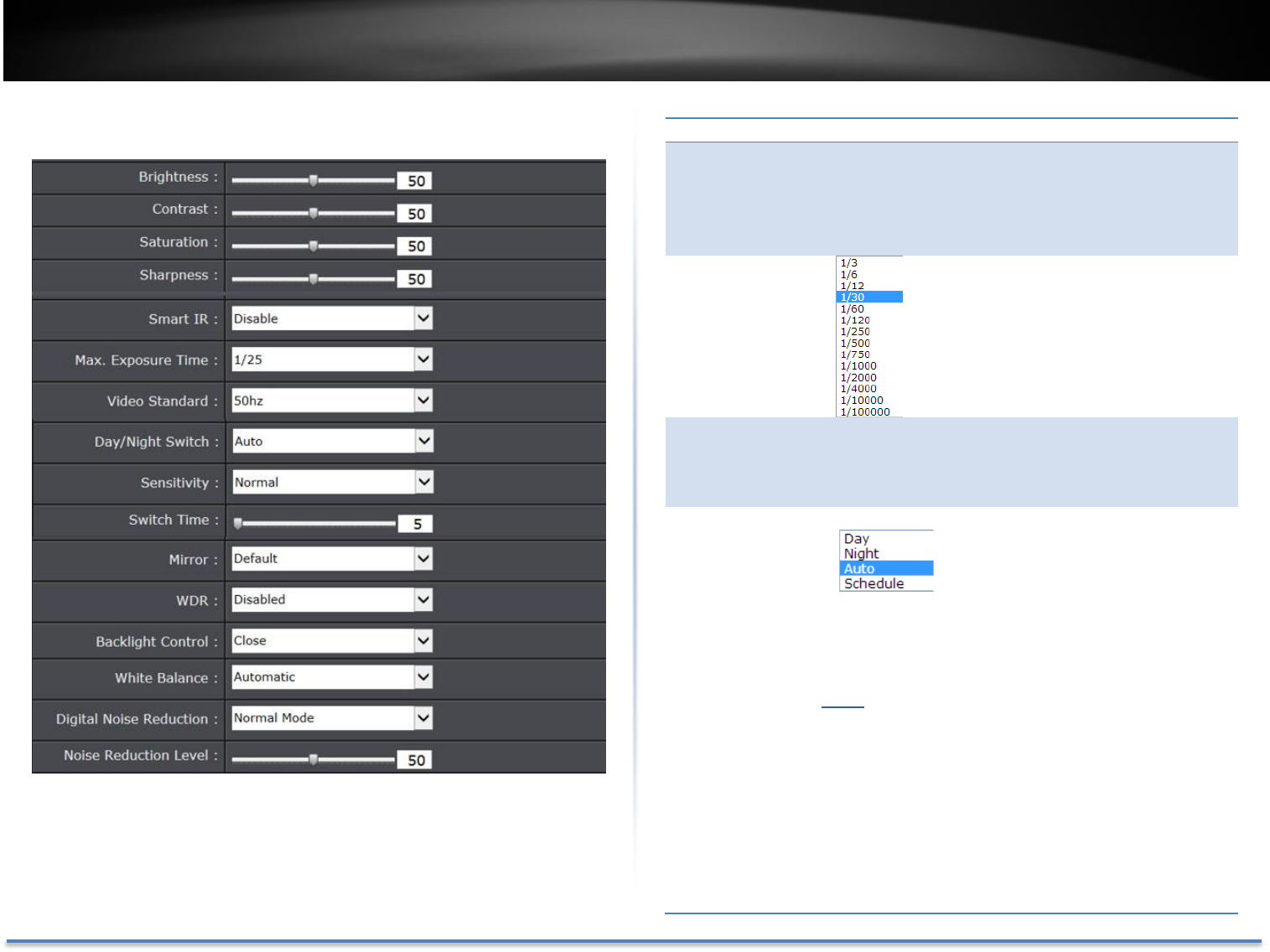

Display Settings

Adjust video image quality, lightness, and color settings here.

Brightness:

Use the slider or enter a number (0-100) to adjust the

image brightness. Default: 50

Contrast:

Use the slider or enter a number (0-100) to adjust the

image contrast. Default: 50

Saturation:

Use the slider or enter a number (0-100) to adjust the

color saturation. The greater number means the color

will be more saturated. Default: 50

Sharpness:

Use the slider or enter a number (0-100) to adjust the

image sharpness. Default: 50

TRENDnet User’s Guide TV-IP314PI

Light sensitivities

Smart IR:

Smart IR can adjust the strength of infrared lights at

night depending on the distance of an object to

maintain the maximum IR light distance and while

maintaining a clear picture when object is close by.

Default: On.

Max. Exposure

Time:

Adjust this value for exposure time for

each picture. You can choose a value

between 1/3 second to 1/100,000

second. The default value is 1/30 second

exposure time for each picture.

Video Standard:

This is the base frequency for the video refresh rate. It

is recommended to set to the same frequency of your

local video standard (NTSC: 60, PAL: 50). Default:

60Hz.

Day/Night

Switch:

Choose whether you want the

camera to be set to the day mode

(color video) or night mode (IR

enhanced black/white video). You

can manually set it to day mode or

night mode, adjust by lighting

(Auto), or pre-define schedule.

Auto:

Sensitivity: The light sensor sensitivity.

Switch Time: The time delayed to switch between

modes. Longer switch time can prevent unnecessary

mode flipping if an object is blocking the light source

temporarily. Range: 5-120 seconds, default: 5

seconds.

TRENDnet User’s Guide TV-IP314PI

Schedule:

Use quick selection or enter the time down below.

Click OK to confirm the time you want to set.

Start Time: The start time for day mode.

Stop Time: The start time for day mode.

Position adjustments

Mirror:

Choose horizontal, vertical or both to adapt to the

physical position of installation.

Image adjustments

Back Light

Compensation

and

Wide-Dynamic-

Range:

Back light compensation: Setup a fixed light source

position to compensate and adjust the image in the

dark.

Choose the area that you want to enhance (dark area,

not light source).

Note: By default, the WDR is disabled. Please enable WDR

to set up back light compensation.

WDR: Wide Dynamic Range compensates for the dark

area dynamically.

 WDR Level: The level of compensation. Range: 0-

100%, default: 20%.

White Balance:

Choose a color

temperature as the white

color and compensate the

color on the whole image.

Digital Noise

Reduction:

Choose the mode of noise reduction.

Normal Mode

Noise Reduction Level: Adjust the effect of digital

noise reduction. Range: 0-100%, default : 100%

Expert Mode

Space DNR Level: Adjust the special digital noise

reduction with adjacent pixels. Change the range (0-

100%) to change the adjacency effect, default : 50%

Time DNR Level: Adjust the 3D digital noise reduction.

Compare and reduce noise between video frames.

Range: 0-100%, default : 100%

Click Reset to reset the display adjustments

TRENDnet User’s Guide TV-IP314PI

On Screen Display Settings

Display the camera name and the time the video is shooting on the screen

Display

Name:

Check this box to display the product name that was

setup in the device settings

Display Date:

Check this box to display system time.

Display Week:

Check this box to display time of the week.

Time Format:

Select 12 or 24-hour time format.

Date Format:

Select the date format

Display Mode:

Choose how the text will show on the screen.

OSD Size:

Select the text size from 16 to 64 or adjusted by

screen size automatically.

Move the red box to position the text. Click Save to save the changes.

Text Overlay

Display extra information on the screen over the image.

Check Box:

Check this box to enable text overlay.

Text Field:

Enter the text you want to display. You can enter your

local language if you want. The text field allows

maximum 44 English letters or 20 non-English

characters.

Move the red box to position the text.

Click Save to save the changes

TRENDnet User’s Guide TV-IP314PI

Privacy Mask

Create a masking area to keep your privacy. You can create up to four

independent masking areas by clicking and dragging on the screen.

Enable Privacy Mask:

Check this box to enable privacy masking.

Stop Drawing:

Click this button to stop drawing.

Clear All:

Click this button to clear all the masking areas.

Click Save to save the changes

Video Recording

Pre-record:

Recording time before trigger event.

Post-record:

Recording time after trigger event.

Overwrite:

Select Yes to allow older recordings to be

overwritten.

Enable Record

Schedule:

Check this box and then click Save to enable video

recording.

Click Save to save the changes

TRENDnet User’s Guide TV-IP314PI

Edit:

Click Edit to edit the recording schedule. The Edit

Schedule window will pop up.

1. Select day of the week you want to edit.

2. Select All Day or Customized schedule of

the day.

3. Set the time period and the event you

want to trigger the video recording

continuous (always recording) or motion

detection.

4. Click Select All or the weekday you want

to have the same schedule on different

day.

5. Click another day of the week by clicking

on its tab to set the next schedule. Click

OK when you have finished your settings.

Events

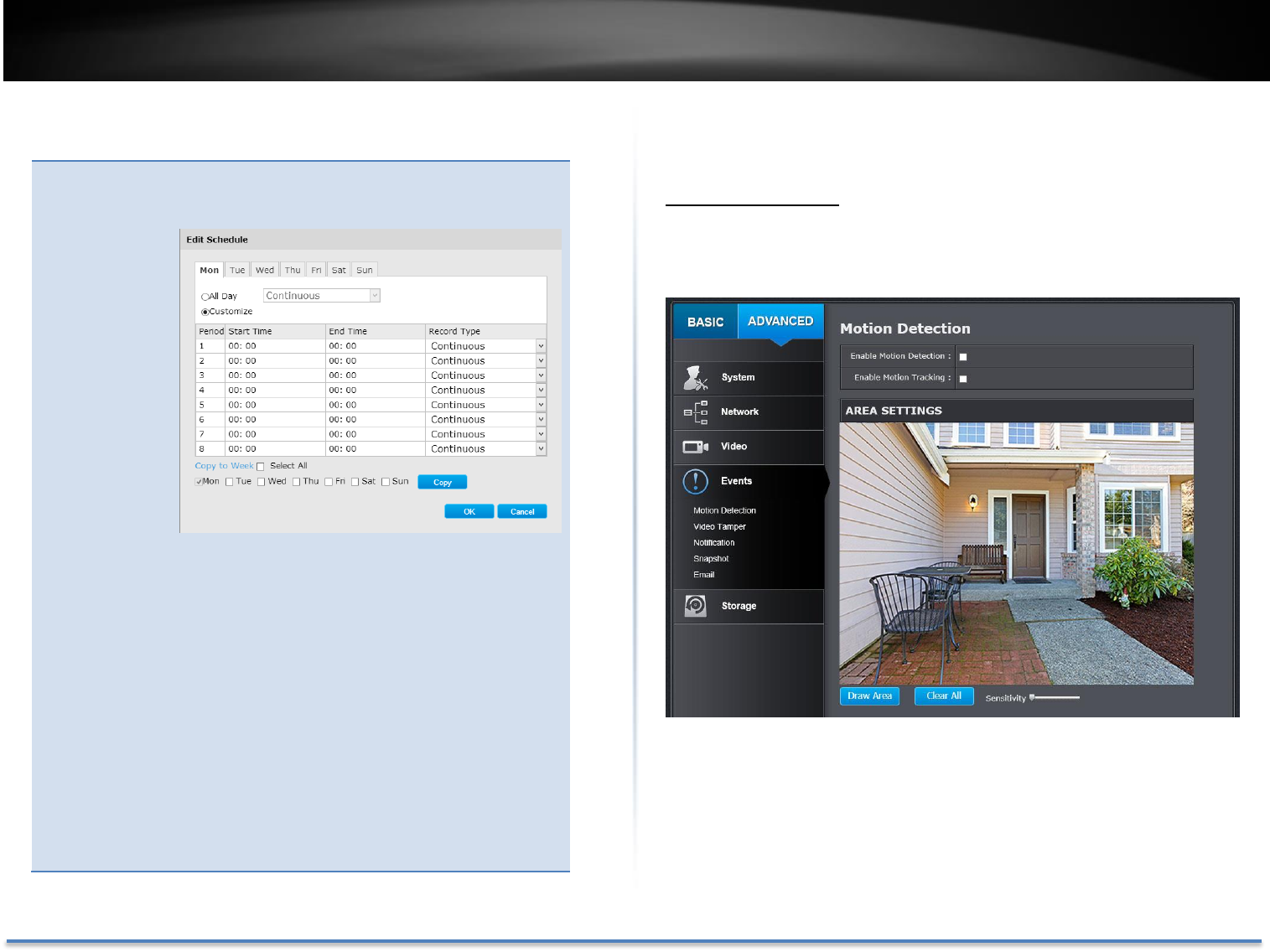

Motion Detection

Set up how the motion detection event will be triggered and what actions will

be triggered.

TRENDnet User’s Guide TV-IP314PI

Enable

Motion

Detection:

Check this box to enable motion detection. Click Save

to save the choice.

Enable

Motion

Tracking:

Check this box to enable motion tracking. Motion

tracking is a dynamic display that shows the current

status of motion detection. The motion tracking is

displayed with grids in green. The grid area represents

the camera motion is happening. Click Save to save the

choices.

Draw Area:

Click Draw Area button to start drawing. Click and

drag on the area you want to set up the motion

detection. You can draw up to 8 different areas. Click

Stop Drawing to stop drawing motion detection

areas.

The red grids represent the motion detection area.

Sensitivity:

Move the slider to adjust detection sensitivity.

Clear All:

Click this button to clear all the set up areas.

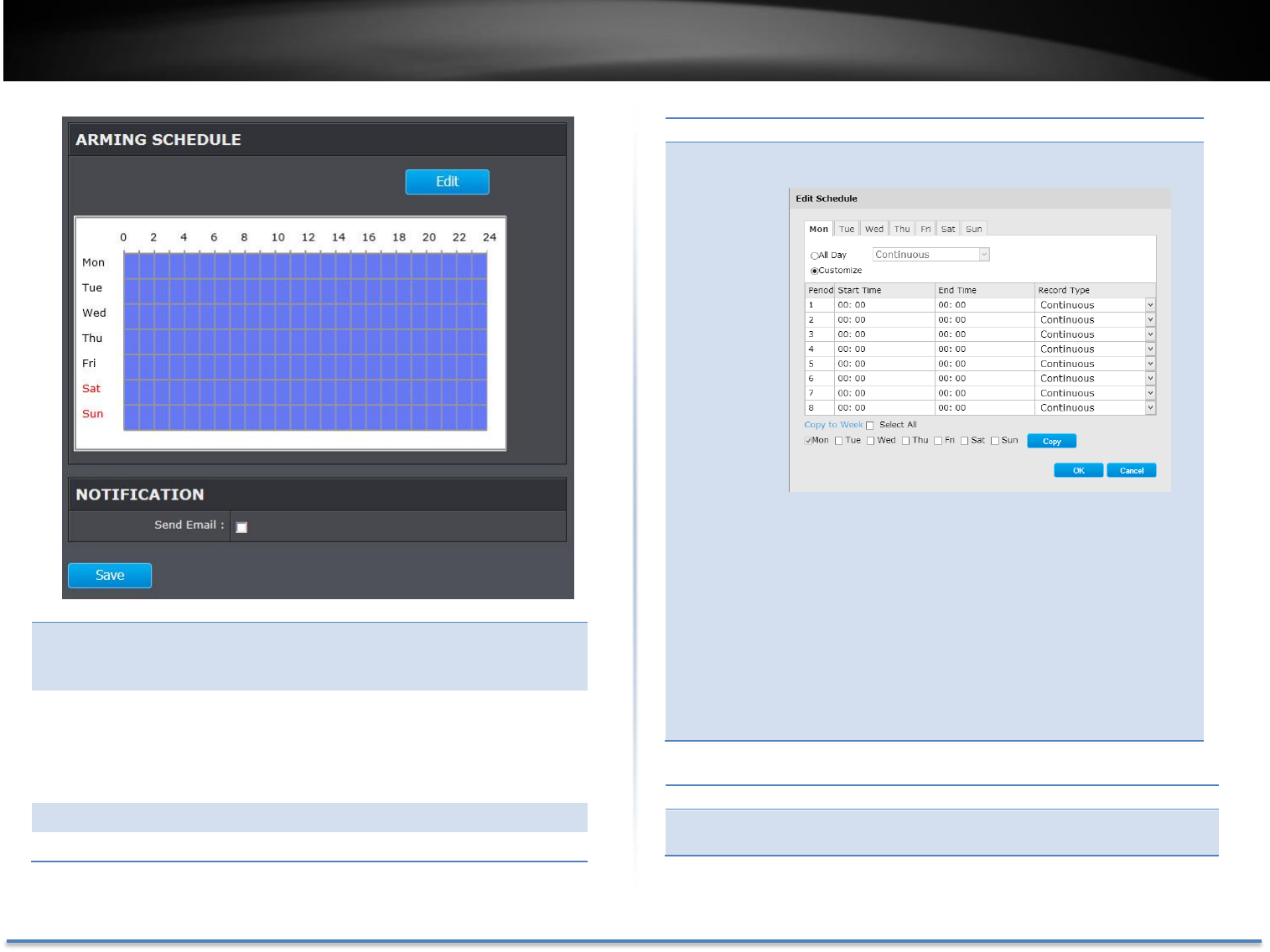

Arming Schedule

Edit:

Click Edit to edit the recording schedule. The Edit

Schedule window will pop up.

1. Select day of the week you want to edit.

2. Select All Day or Customized schedule of the

day.

TRENDnet User’s Guide TV-IP314PI

3. Set the time period and the event you want

to trigger the video recording continuous

(always recording) or motion detection.

4. Click Select All or the weekday you want to

have the same schedule on different day.

5. Click another day of the week by clicking on

its tab to set the next schedule. Click OK

when you have finished your settings.

Notification

Send Email:

Check this box to send an e-mail notification when

motion is detected.

Network

Storage:

Check this box to record video to network storage

when motion is detected.

Upload to FTP:

Check this box to send snapshots to an FTP server

when motion is detected.

Click Save to save the changes

Video Tampering

This is to detect if the camera has been tampered with and surveillance is

compromised. You can set up tamper proof notifications to alert the system

manager to check the camera.

TRENDnet User’s Guide TV-IP314PI

Enable

Tamper

Detection:

Check this box to enable tamper detection. Click Save

to save the settings.

Draw Area:

Click Draw Area button to start drawing. Click and drag

on the area you want to set up the tamper detection.

You can setup only one area for tamper detection.

Click Stop Drawing to stop drawing motion detection

areas. The gray block represents the detection area.

Sensitivity:

Move the slider to adjust detection sensitivity.

Clear All:

Click this button to clear all the set up areas.

Arming Schedule

Edit:

Click Edit to edit the recording schedule. The Edit

Schedule window will pop up.

1. Select day of the week you want to edit.

2. Select All Day or Customized schedule of the

day.

3. Set the time period and the event you want

to trigger the video recording continuous

(always recording) or motion detection.

4. Click Select All or the weekday you want to

have the same schedule on different day.

5. Click another day of the week by clicking on

its tab to set the next schedule. Click OK

when you have finished your settings.

Notification

Send Email:

Check this box to send an e-mail notification when

motion is detected.

Click Save to save the changes

TRENDnet User’s Guide TV-IP314PI

Notification

Provide notifications for other system events, set up your notifications here.

Notification

Type:

First, choose the exception type, and then choose

the corresponding action.

Send Email:

Check this box to send an e-mail notification when

motion is detected.

Click Save to save the changes

Snapshot

You can set up your camera to continuously taking snapshots or taking

snapshots only when events happening.

Continuous

Enable:

Check this box to take snapshots continuously.

Format:

Save snapshots in JPEG format

Resolution:

Uses the same resolution set in Video Format for the

snapshot resolution.

Quality:

Choose a compression quality for snapshots.

Interval:

State the time interval between snapshots. The default

interval is 10 seconds.

TRENDnet User’s Guide TV-IP314PI

Event triggered

Enable:

Check this box to take snapshots when an event is

occurred.

Format:

Save snapshots in JPEG format

Resolution:

Uses the same resolution set in Video Format for the

snapshot resolution.

Quality:

Choose a compression quality for snapshot.

Interval:

State the time interval between this series of

snapshots. The default interval is 1 second.

Capture

Number:

State how many snapshots you want to take in a single

triggered event. Default: 3 pictures.

Click Save to save the changes

Set up email accounts for notifications.

Sender

Sender:

Enter the name to be appeared as the email sender.

Sender’s

Address:

Enter sender’s email address.

SMTP Server:

Simple Mail Transportation Protocol Server address,

the outgoing email server address. It may be has

address as your incoming email server, maybe not.

Please ask your email service provider for detail.

SMTP Port:

Service port number for outgoing email.*

TRENDnet User’s Guide TV-IP314PI

Enable SSL:

Check this box if your service provider requires a SSL

secured connection.

Attach

Image/Interval:

Check Attach Image if you want to send a snapshot

image with the email notification and select the

interval of snapshots in seconds.

Authentication:

Check this box if your server requires a password in

order to send email. Most email servers require

authentication when sending an email.

User name:

Enter the user name of outgoing email account

Password:

Enter the password

Confirm:

Enter the password again to confirm that the

password was entered correctly.

Click Save to save the changes

Receiver

Receiver 1:

The first receiver’s name.

Receiver 1’s

Address:

The first receiver’s email address.

Receiver 2:

The second receiver’s name.

Receiver 2’s

Address:

The second receiver’s email address.

Receiver 3:

The third receiver’s name.

Receiver 3’s

Address:

The third receiver’s email address.

Click Save to save the changes

*Note: Many ISPs does not allow service port 25 going through their network. Other

popular ports are 587 and 465. Please consult your email service provider and ISP for

detail.

Network Storage

Network Storage must be setup before it can be managed. For storage

management, please refer to the next section.

The TV-IP314PI supports two formats of network storage file systems: NFS

and CIFS. NFS, Network File System, is natively supported by Linux computers

and most NAS, Network Attached Storage. CIFS, Common Internet File

System, is natively supported by Windows® systems and now is generally

supported by Linux. (OS X® file sharing is not standard SMB and not

compatible as a network storage disk here.)

You can add up to 8 network storages for your camera. The recordings will

subsequently be stored in these spaces. Save video from the first storage and

then the next when the first one is full. Click on the entry to change the

settings and click Save to save the settings.

TRENDnet User’s Guide TV-IP314PI

No:

The sequential number of the network storage.

Type:

The type of storage.

Server

Address:

Enter the IP address of your network storage.

File Path:

Enter the shared folder as file path for network storage. You

can create a folder under the shared folder and make it a

network volume here. Just create the folder and enter the

correct path name here.

Capacity:

Enter the size of the disk space you want to assign for this

storage. The minimum disk space requirement is 8GB. If you

do not want to limit the size and use the full physical disk

space, put number 0 in this field.

File System:

Choose between NFS or CIFS for file system. If you assign the

network storage on a Windows® computer, set it to CIFS.

User Name:

Enter the user name if the network storage requires user

name and password. Enter any non-blank letters if no

authentication is required.

Password:

Enter the password to access the network storage. Enter any

non-blank letters if no authentication is required.

Click Save to save the changes. The camera may reboot to make the

network storage available. Go to the next section to format and manage

your network storage.

Tip: To create a network storage on your Windows® based system, create a

shared folder and then test your set up with another computer. Enter the IP

address of the computer here and enter the shared folder name with a

leading forward slash. For example, if you have a shared folder named “SMB”,

enter “/SMB” in the File Path.

TRENDnet User’s Guide TV-IP314PI

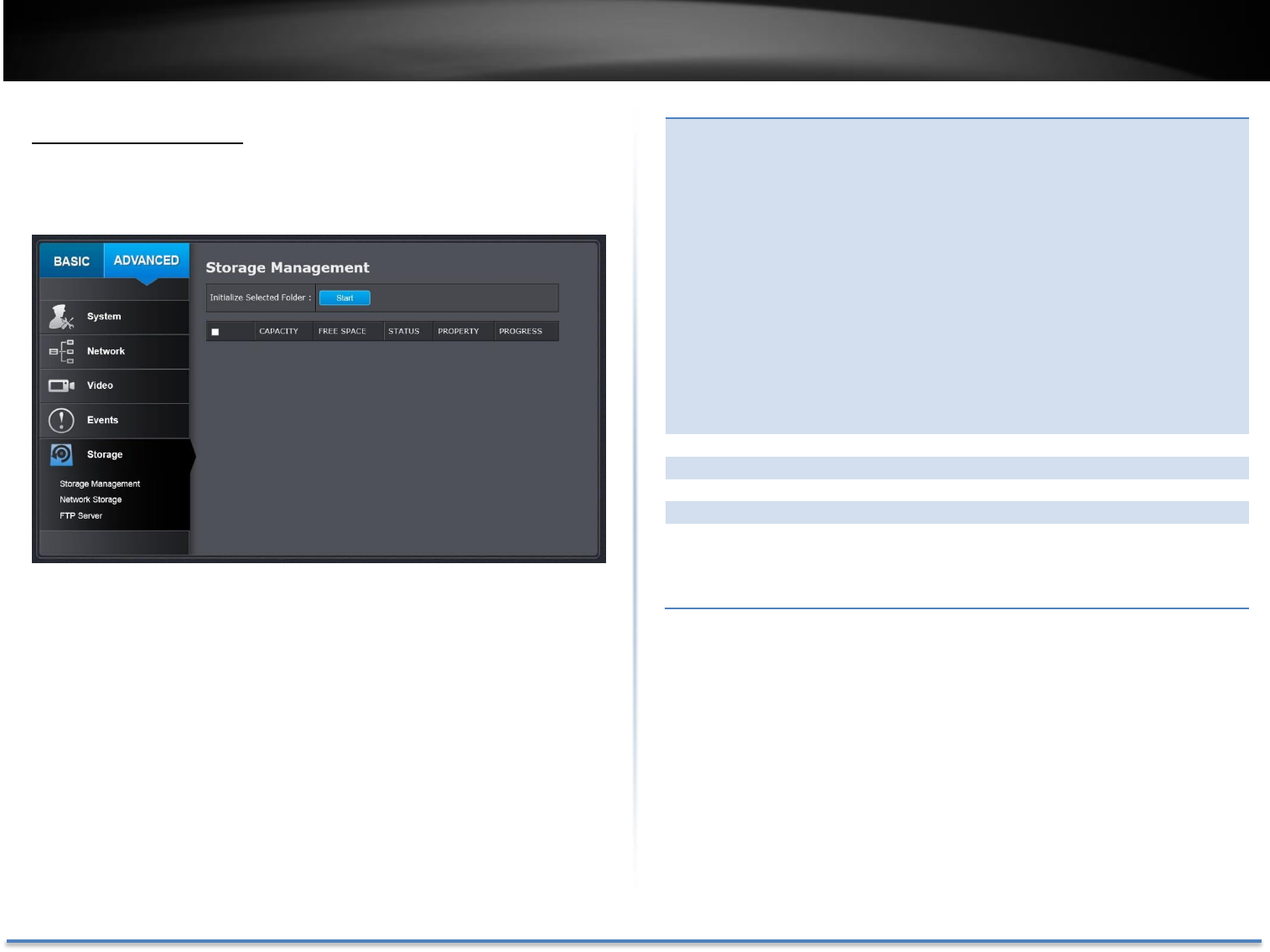

Storage Management

Network Storage must be setup before it can be managed. To setup storage,

please refer to the previous section.

Format:

Select a network storage volume and then click Format to

format your network storage. This action will format the

network volume (shared folder) for video recording.

Placeholder files (formatting files) will be created to make

sure disk allocation is appropriate and the file searching is

optimized.

The volume format is a proprietary user space storage

format. Meaning that you visit the shared folder and see

some structured files. Please do not modify these files

manually. Modifying these files may cause recording and

playback problems. Access your recording and system log via

the web management user interface to download the

recording and snapshots.

Capacity:

The total capacity this network storage can use.

Free Space:

The free space left for video recording, snapshot and log.

Status:

The connection status to the network storage.

Property:

This network storage is read only or can be read and write.

Progress:

The progress of ongoing task.

Note: The formatting progress depends on the size of the storage

and the network bandwidth. It takes a while if you are formatting

a big volume or the network connection is not stable.

TRENDnet User’s Guide TV-IP314PI

FTP Server

Enable Snapshot

to FTP:

Check this box if you want to store snapshots on the

FTP.

Server Address:

Enter the FTP server IP address.

Port:

Enter the service port number of the FTP server.

User

Name/Anonymous

Check Anonymous if the FTP server does not require

authentication. Enter the User Name if the FTP

server requires authentication.

Password:

Enter the password of the FTP account.

Confirm:

Enter the password again to make sure the password

was entered correctly.

UG_TV IP314PI_(v1.1R) UG TV IP314PI (v1.1R)

Navigation menu

Versions of this User Manual:

Views

Navigation
