Preface
Table of Contents
Product Overview
Installation Procedure
Plan for installation location
- Viewing angle
- Weather Conditions
Setup Your Camera with CD
Hardware Installation
Access your Camera with the Web Browser
System Configuration
Network Settings
Video Settings
Events
Network Storage
Appendix
Regulations
Limited Warranty

TRENDnet User’s Guide TV-IP321PI

Preface

This user’s guide is written to demonstrate the TV-IP321PI camera

installation and operation with firmware version 5.1.7 and above. Please

download and upgrade the camera firmware to the latest version by

visiting www.TRENDnet.com and then search of TV-IP321PI.

User’s Guide version: 1.2

Date: November 4, 2014

TRENDnet User’s Guide TV-IP321PI

Table of Contents

Preface ......................................................................................................... 2

Table of Contents ...................................................................................... 3

Product Overview .................................................................................... 5

Features ........................................................................................................................... 5

Hardware ........................................................................................................................ 5

Compact Fixed Dome ............................................................................................ 5

PoE ................................................................................................................................ 5

Outdoor Ready ......................................................................................................... 5

Vandal Resistant ..................................................................................................... 5

Performance .................................................................................................................. 5

1.3 Megapixel............................................................................................................ 5

Night Vision ............................................................................................................... 5

Smart IR ...................................................................................................................... 5

D-WDR......................................................................................................................... 5

Camera Management ................................................................................................. 6

Multi-Language Interface .................................................................................... 6

Advanced Playback ................................................................................................ 6

Dynamic DNS Support .......................................................................................... 6

Storage ........................................................................................................................ 6

Motion Detection .................................................................................................... 6

Recording Schedule ............................................................................................... 6

Tamper Detection ................................................................................................... 6

IPv6............................................................................................................................... 6

ONVIF .......................................................................................................................... 6

Free Apps ................................................................................................................... 6

Complimentary Software .................................................................................... 6

Package Contents ......................................................................................................... 6

Angle Adjustment ........................................................................................................ 7

Reset Button ................................................................................................................... 7

Warnings ......................................................................................................................... 8

Cautions ........................................................................................................................... 8

Installation Procedure ........................................................................... 9

Plan for installation location ................................................................ 9

Viewing angle ................................................................................................................ 9

Weather Conditions .................................................................................................... 9

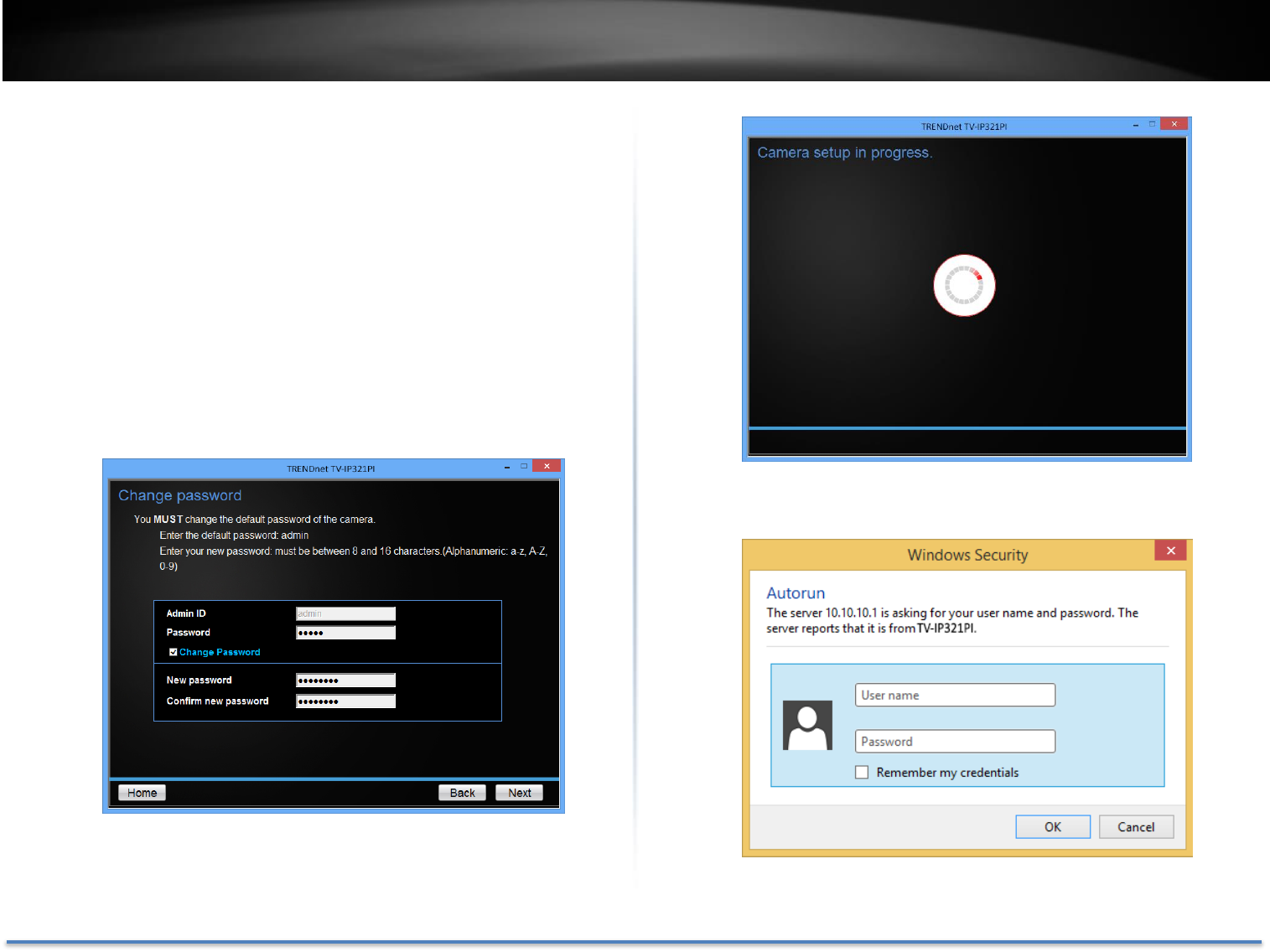

Setup Your Camera with CD ............................................................... 10

Hardware Installation ......................................................................... 14

Cabling ............................................................................................................................14

Waterproof cap ...........................................................................................................14

Mount your camera ...................................................................................................14

Access your Camera with the Web Browser .................................... 16

System Management and Default Settings ......................................................16

Logging-in to the Camera for the First Time (Windows) ............................16

Logging-in to the Camera for the First Time (OS X) ....................................19

Live View .......................................................................................................................24

Playback .........................................................................................................................25

Search for video recordings .............................................................................25

Time Line..................................................................................................................25

Playback ....................................................................................................................26

Slice images from video playback ..................................................................26

Download sections of video ..............................................................................27

Download snapshots ...........................................................................................27

TRENDnet User’s Guide TV-IP321PI

Log ................................................................................................................................... 28

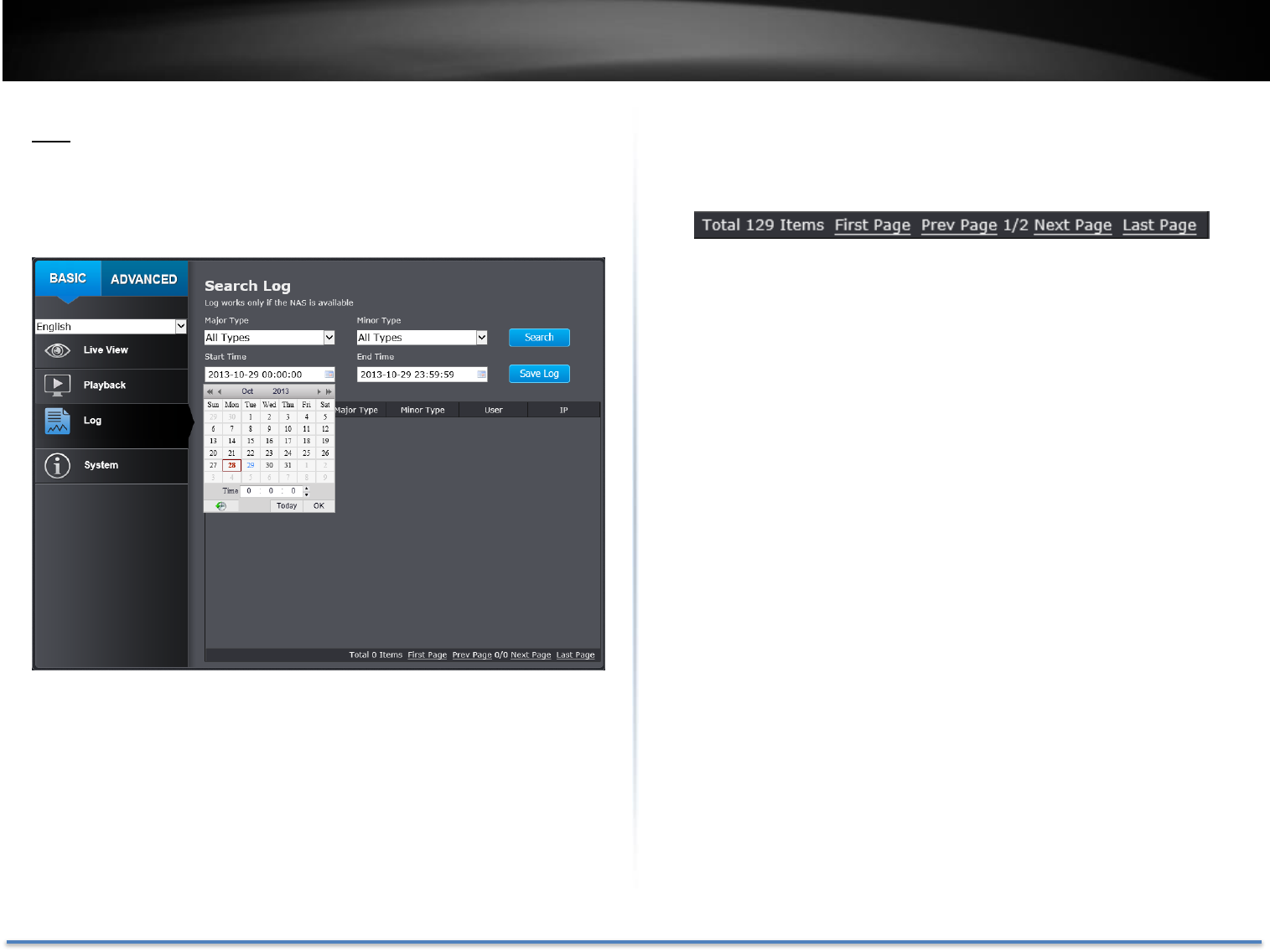

Search for logs ........................................................................................................ 28

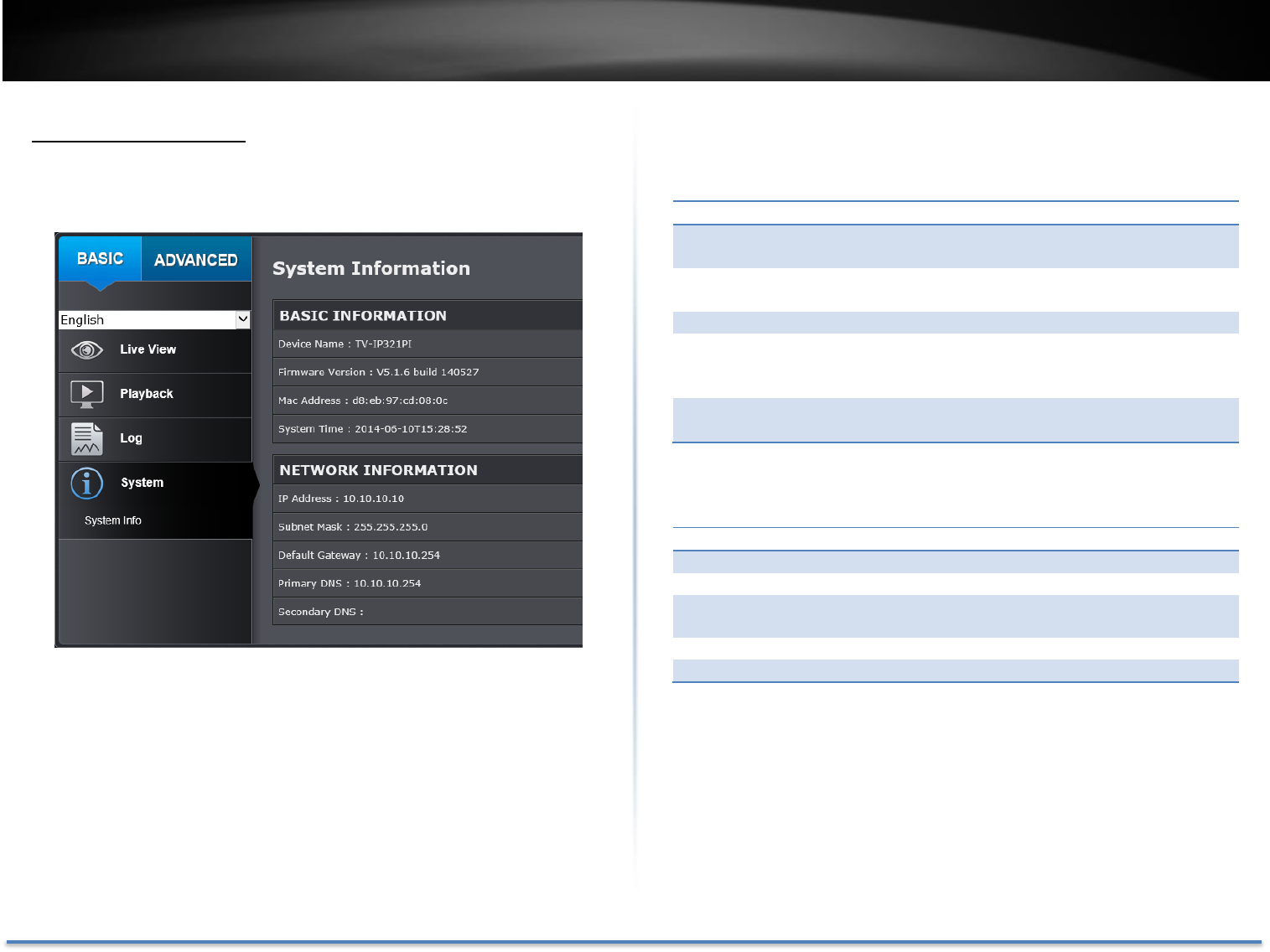

System Information .................................................................................................. 29

System Configuration ........................................................................... 30

Device Settings ............................................................................................................ 30

User Accounts.............................................................................................................. 31

Time Settings ............................................................................................................... 31

Daylight Savings ......................................................................................................... 32

Live View Settings ..................................................................................................... 33

Maintenance ................................................................................................................ 34

Network Settings ................................................................................... 35

TCP/IP ............................................................................................................................ 35

Port .................................................................................................................................. 36

DDNS ............................................................................................................................... 36

PPPoE ............................................................................................................................. 37

SNMP ............................................................................................................................... 37

802.1X ............................................................................................................................ 39

IP Address Filter ........................................................................................................ 39

Quality of Service (QoS) .......................................................................................... 40

UPnP ................................................................................................................................ 40

Video Settings ......................................................................................... 41

Video Format ............................................................................................................... 41

Display Settings .......................................................................................................... 42

On Screen Display Settings .................................................................................... 44

Text Overlay ................................................................................................................. 45

Privacy Mask ................................................................................................................ 45

Video Recording ......................................................................................................... 46

Events ........................................................................................................ 47

Motion Detection........................................................................................................47

Video Tampering ........................................................................................................49

Exception .......................................................................................................................51

Snapshot ........................................................................................................................52

Email ...............................................................................................................................53

Network Storage .................................................................................... 54

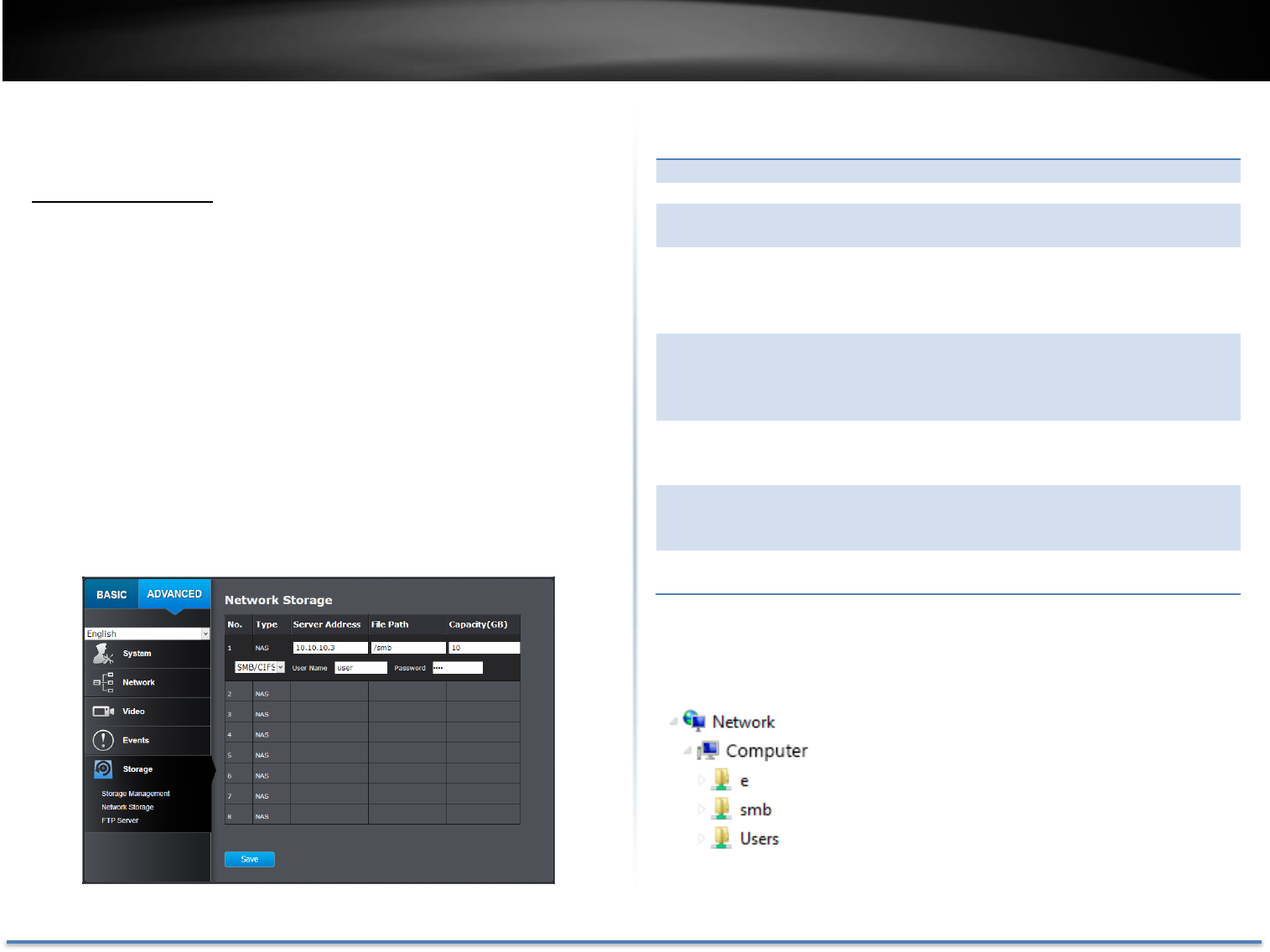

Network Storage ........................................................................................................54

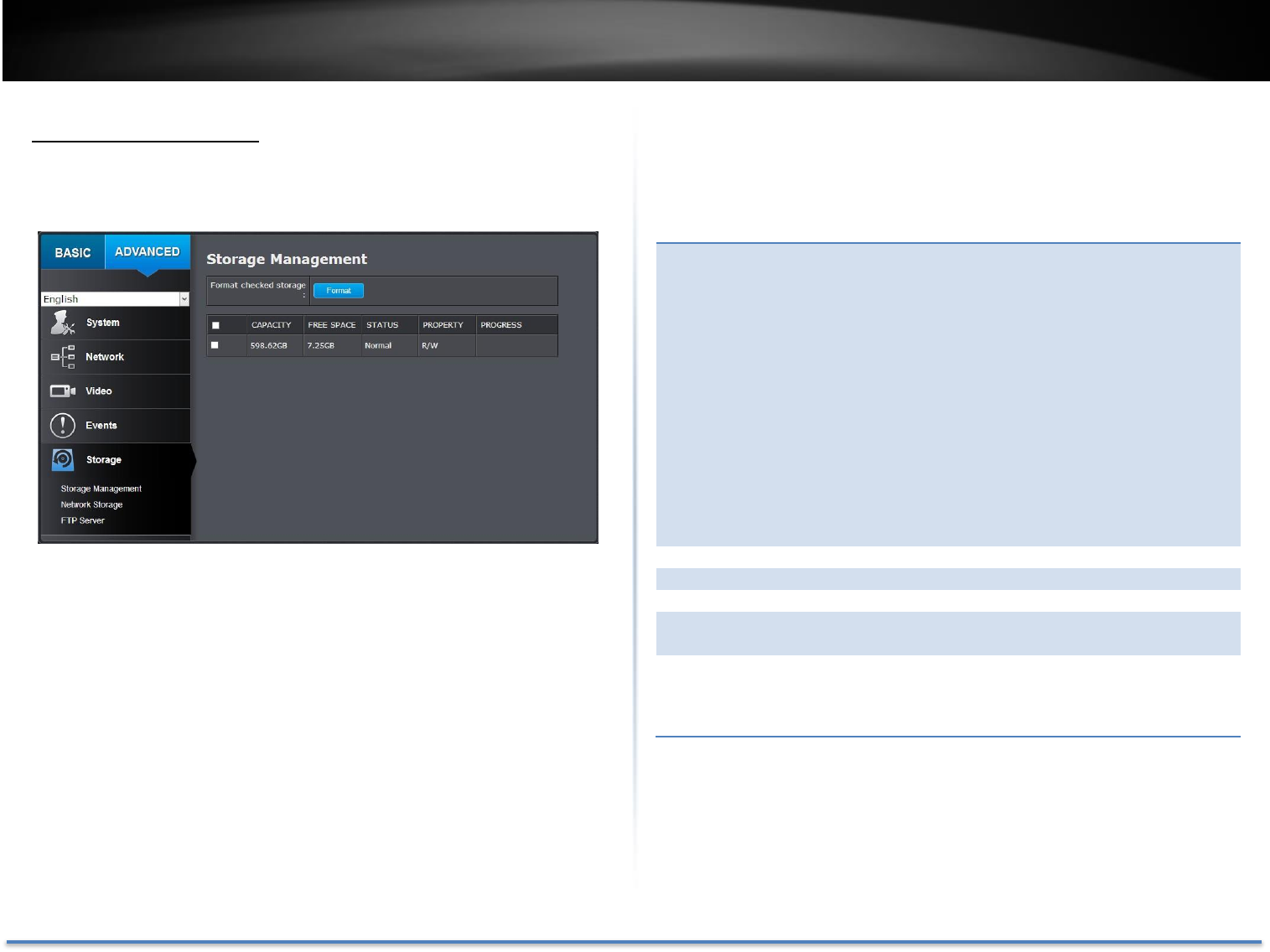

Storage Management ................................................................................................55

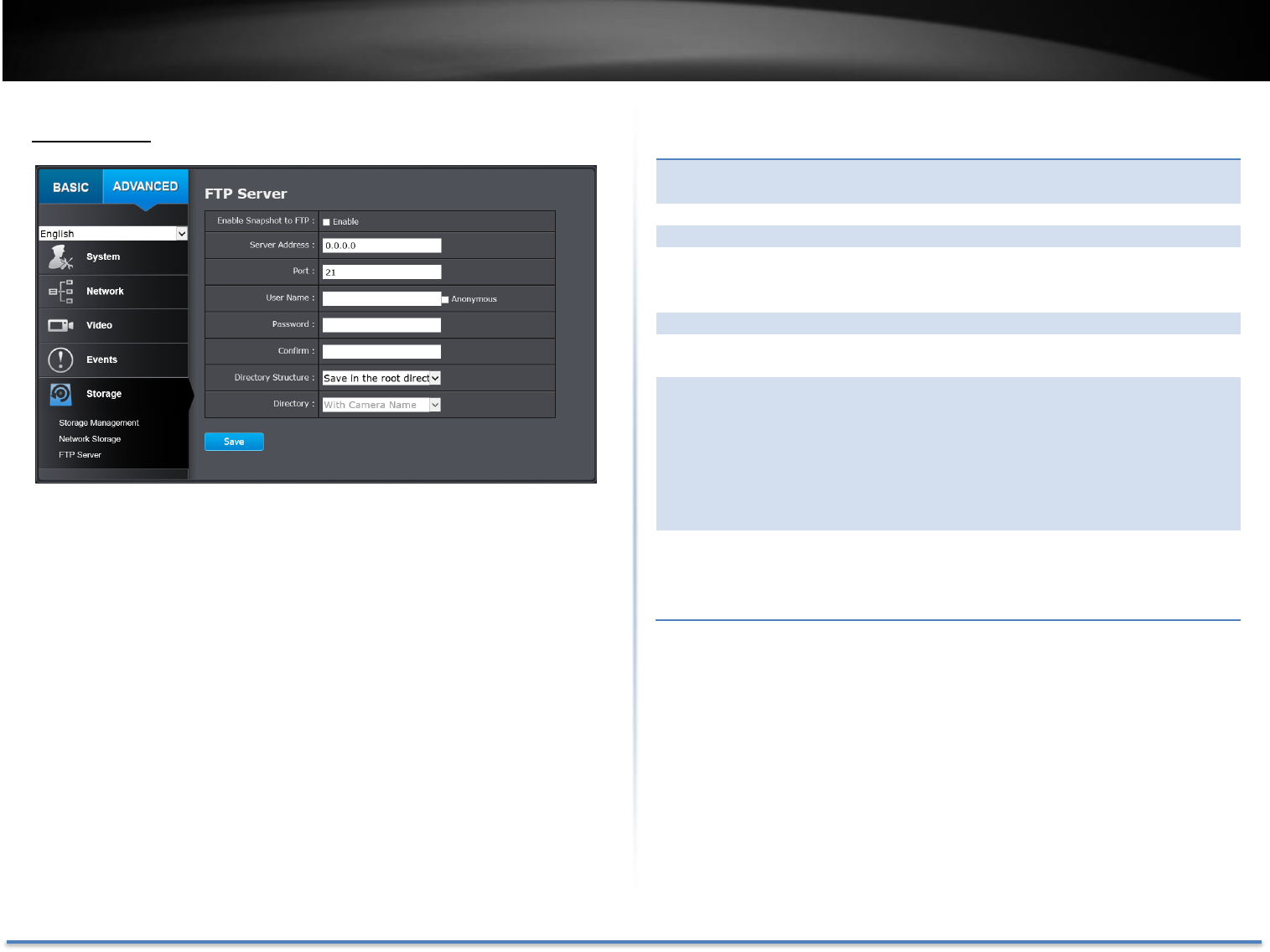

FTP Server ....................................................................................................................56

Appendix .................................................................................................. 57

Direct video access - RTSP .....................................................................................57

Direct video access - HTTP ....................................................................................57

Get better video stream on TRENDnet View Pro ..........................................57

Regulations .............................................................................................. 60

Federal Communication Commission Interference Statement ...................60

RoHS ................................................................................................................................60

Europe – EU Declaration of Conformity ...........................................................61

Limited Warranty .................................................................................. 62

TRENDnet User’s Guide TV-IP321PI

Product Overview

TV-IP321PI

Features

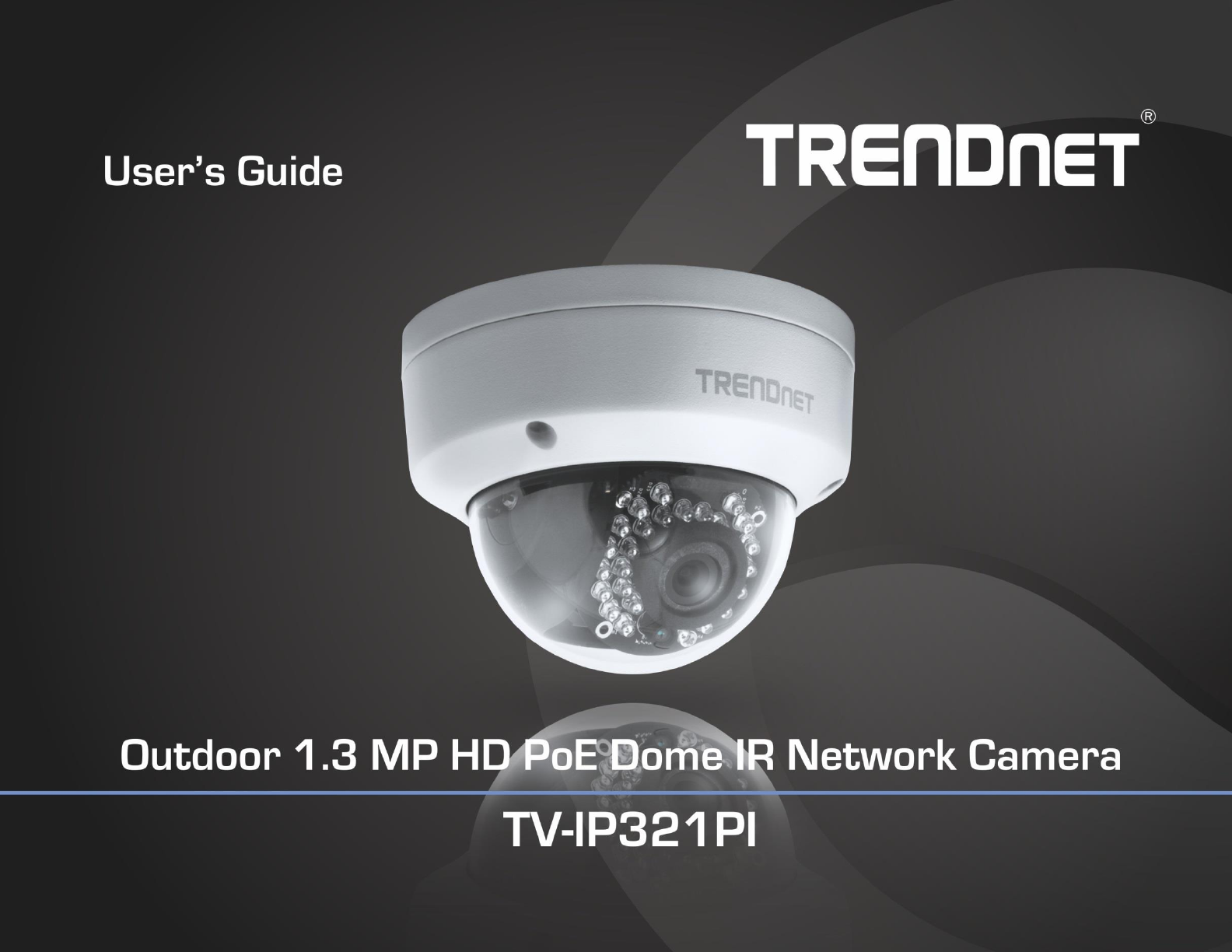

The Outdoor 1.3 MP HD PoE Dome IR Network Camera, model TV-

IP321PI, provides powerful 1.3 megapixel night vision in complete

darkness for up to 25 meters (82 ft.). This ultra-compact vandal resistant

fixed dome camera is outdoor ready with an IP66 weather rated housing.

It comes with a free Apple® and Android™ mobile app and

complimentary pro-grade software to manage up to 32 TRENDnet

cameras.

Hardware

Compact Fixed Dome

Manually pan 355 and tilt 75° to set the camera’s final viewing field

PoE

Save installation costs with Power over Ethernet (IEEE 802.3af)

Outdoor Ready

Outdoor IP66 weather rated and an operating temperature range of -30

– 60 °C (-22 – 140 °F)

Vandal Resistant

Impact protection rated: IEC60068-275Eh, 50J; EN50102, exceeding

IK10

Performance

1.3 Megapixel

Record 1280 x 960 pixel video at 30 fps in H.264 compression

Night Vision

Night vision up to 25 meters (82 ft.) in complete darkness

Smart IR

Dynamic IR adjustment optimizes night visibility

D-WDR

Digital Wide Dynamic Range improves video quality in high contrast

lighting environments

TRENDnet User’s Guide TV-IP321PI

Camera Management

Multi-Language Interface

Support for English, French, Spanish, German, and Russian

Advanced Playback

Advanced in-camera archived video review functionality

Dynamic DNS Support

Support for dyn.com and NO-IP.org

Storage

SMB/CIFS support with notification if storage drive is full

Motion Detection

Create motion detection windows with separate sensitivity settings and

event triggers

Recording Schedule

Define a weekly recording schedule

Tamper Detection

Receive tamper detection video clips via email

IPv6

IPv6 support

ONVIF

ONVIF compliant

Free Apps

See live video on a mobile device with free Apple® and Android® apps

Complimentary Software

Complimentary pro-grade software to manage up to TRENDnet 32

cameras

Package Contents

TV-IP321PI package includes:

• TV-IP321PI

• Multi-Language Quick Installation Guide

• CD-ROM (Utility and User’s Guide)

• Camera mounting hardware

• (Optional power adapter not included)

If any package content is missing or damaged, please contact the retail store,

online retailer, or reseller/distributor from which the product was purchased.

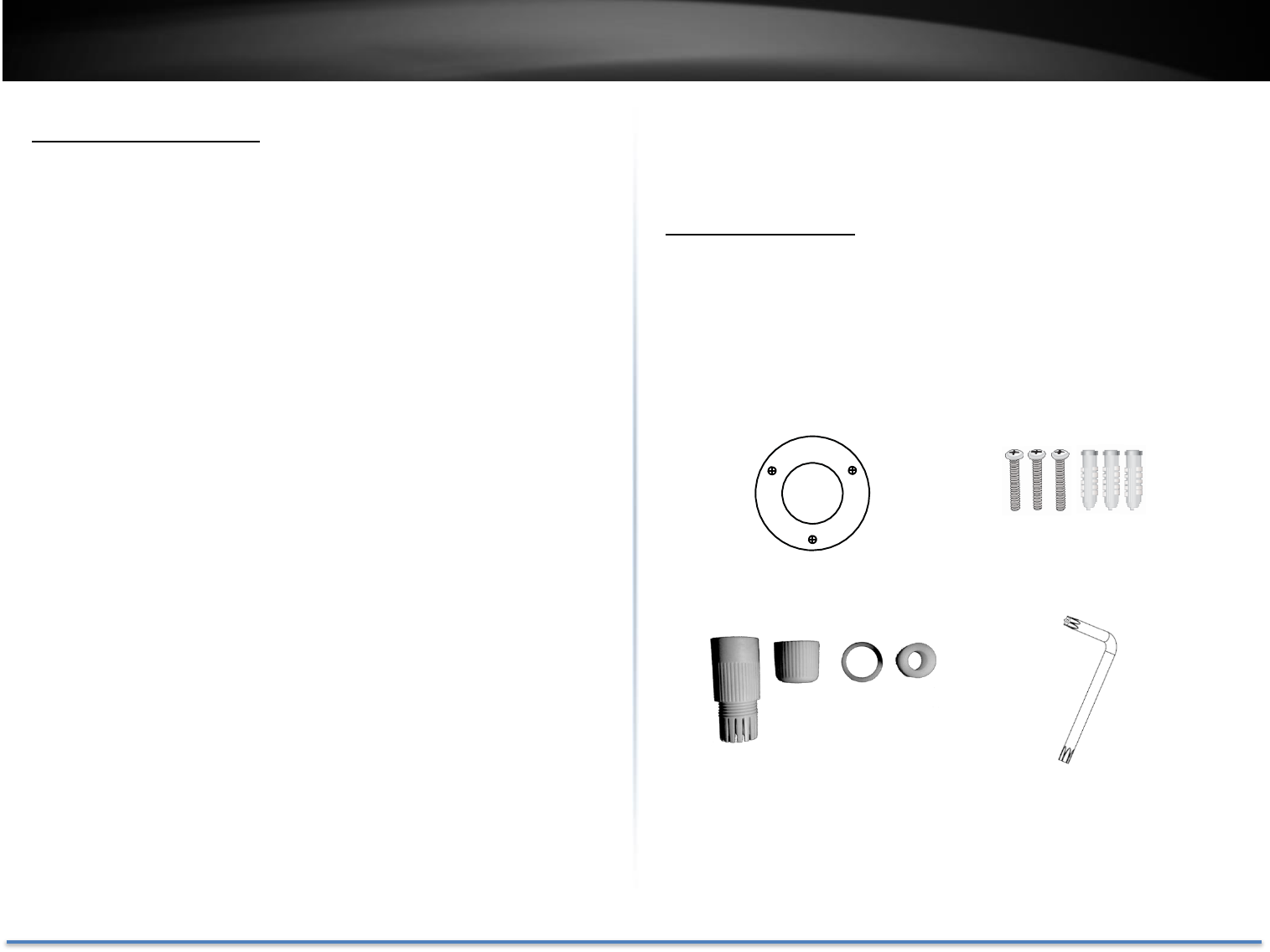

Drilling

Template

Mounting Screws

Network Cable

Waterproof Accessories

Torx Screw Driver

TRENDnet User’s Guide TV-IP321PI

1. Mounting base

2. Horizontal stand

3. Vertical stand

4. Lower dome

5. Cables

6. Infra-red lamps

7. Lens

8. Black Liner

9. Safety rope

Physical Descriptions

Angle Adjustment

Loosen the tilt lock screws, adjust the tilting position in a range from 15

to 90, and tighten the tilt lock screws.

Reset Button

Push and hold the reset button then power on the camera. Keep holding

the reset button for more than 10 seconds to reset configuration to

factory default.

Screw

Reset Button

10/100 PoE

Network Port

DC Power

12V DC 1A

(Optional)

TRENDnet User’s Guide TV-IP321PI

Warnings

Serious injury or death may be caused if any of these warnings are

neglected. Follow these safety guards to prevent serious injury or death.

• If using the power adapter, please choose the power adapter that

meets the safety extra low voltage (SELV) standard or IEC60950-1

and Limited Power Source standard.

• If the product does not work properly, please contact your dealer

or the nearest service center. Never attempt to disassemble the

camera yourself. Disassembling the product will void the warranty

and may cause harm or injury.

• To reduce the risk of fire or electrical shock, do not expose this

product to rain or water.

• The installation should be done by a qualified service person and

should conform to all construction and electric regulations and

other local codes.

Cautions

Injury or equipment damage may be caused if any of these cautions are

neglected. Follow these precautions to prevent potential injury or

material damage.

• Make sure the power supply voltage is correct before using the

Camera.

• Do not drop the camera or subject to physical shock.

• Do not touch sensor modules with fingers. If cleaning is necessary,

use a clean cloth with a bit of ethanol and wipe it gently. If the

camera will not be used for an extended period of time, put on the

lens cap to protect the sensor from dirt.

• Do not aim the camera lens at the strong light such as the Sun or an

incandescent lamp. Strong light can damage the camera sensor.

• The sensor may be burned out by a laser beam, so when any laser

equipment is being used, make sure that the surface of the sensor

will not be exposed to the laser beam.

• Do not place the camera in extremely hot, cold temperatures (the

operating temperature should be between -10°C to 60°C), dusty or

damp environment, and do not expose it to high electromagnetic

radiation.

• To avoid heat accumulation, good ventilation is required for a

proper operating environment.

• Keep out of water and any liquid.

• While shipping, the camera should be packed in its original

packing.

TRENDnet User’s Guide TV-IP321PI

Installation Procedure

There are number of factors involved in a successful camera installation.

Follow the suggested installation steps and go through the check lists.

This guide will help you make your camera installation smoothly and

easily.

• Plan for installation location, see page 9 (next paragraph)

• Setup Your Camera with CD, see page 10

• Hardware Installation, see page 14

Plan for installation location

Viewing angle

The TV-IP321PI is a dome camera with a focused viewing angle (70

horizontal) that provides non-distorted and detailed images. Choose the

location where has good angle to shoot the image you expect to see. The

motion detection area should also be considered when installing the

camera.

Weather Conditions

The TV-IP321PI is a small dome camera, which fits most installations

indoor and outdoor. The camera can work under a wide range of

weather conditions. For severe weather conditions, a camera housing

with temperature and moisture control is recommended. Using the

camera in milder weather conditions will help extend the camera’s

product life and preserve the quality of the video image.

• Moisture: Avoid damp or moist environments whenever you can.

The TV-IP321PI is an IP66 grade water proof camera, and it will

work in moist environments. However, rain may affect the picture

quality, especially at night, water may reflect the light from the

infra-red illumination and degrade picture quality. Install your

camera in dry weather when possible and sealing well when you

screw on the cap.

• Temperature: TV-IP321PI works within a specified temperature

range. Areas with severe temperatures should be avoided when

installing the camera. It’s recommended that you use an enclosure

with a heater and blower if you plan on using this camera outside

of the specified temperature range.

• Sunlight: Avoid direct sun light exposure. Direct sun light will

damage the image sensor. If sunlight is necessary for your viewing

purposes, provide protection for the image sensor.

• Lighting: Consider installing your camera faces the same direction

of the light sources. Shooting images with top-down position

outdoor or next to the existing light source are good choices. Avoid

the light source if it creates a shade that darkens the viewing area.

TRENDnet User’s Guide TV-IP321PI

Setup Your Camera with CD

1. Insert the Installation CD-ROM into your computer’s CD-ROM drive

to initiate the Auto-Run program. Choose your preferred language

and then click the Install Camera.

2. Write down the MAC Address of the camera.

3. Connect a PoE capable network cable to the camera’s network port

and then to a PoE switch and wait for the camera to boot up. Click

Next when you are done.

* A power adapter (sold separately) can be used instead of PoE switch.

4. Wait while the utility is searches for the camera.

TRENDnet User’s Guide TV-IP321PI

5. The installation wizard will list cameras found on your network. If

only one camera is found, it will be selected by default. If you have

more than one camera on the network, please choose the camera

you wish to set up by identifying its MAC address. Select the camera

and then click Next.

6. Select the DHCP option to assign IP address dynamically, or select

Fixed IP to assign the camera an IP address, and then click Next.

7. If you select Fixed IP, enter the IP address, subnet mask, default

gateway, and DNS server address. Please make sure the IP address

you are setting on the camera is in the same network of the

computer that you are using. Click Next.

TRENDnet User’s Guide TV-IP321PI

8. Enter a new password. The default password is admin. You are

required to change the password from the default setting to prevent

unauthorized access. Enter the default password: admin and enter

the new passwords for a brand new installation. The password must

be between 8 and 16 characters. (Alphanumeric: a-z, A-Z, 0-9, !, @, #,

Note: This camera installation wizard is also good for finding the camera if it

was setup with DHCP. The IP address may change dynamically with the DHCP

setting. If you want to access your camera again and you don’t know the IP

address, you can run this camera installation wizard again. If you have

already setup the password and want to keep the password unchanged, un-

check the Change Password box and click next to get the link to access your

camera.)

9. The setup wizard is verifying your installation. Enter the user name

admin and the password you’ve just set and then click OK.

TRENDnet User’s Guide TV-IP321PI

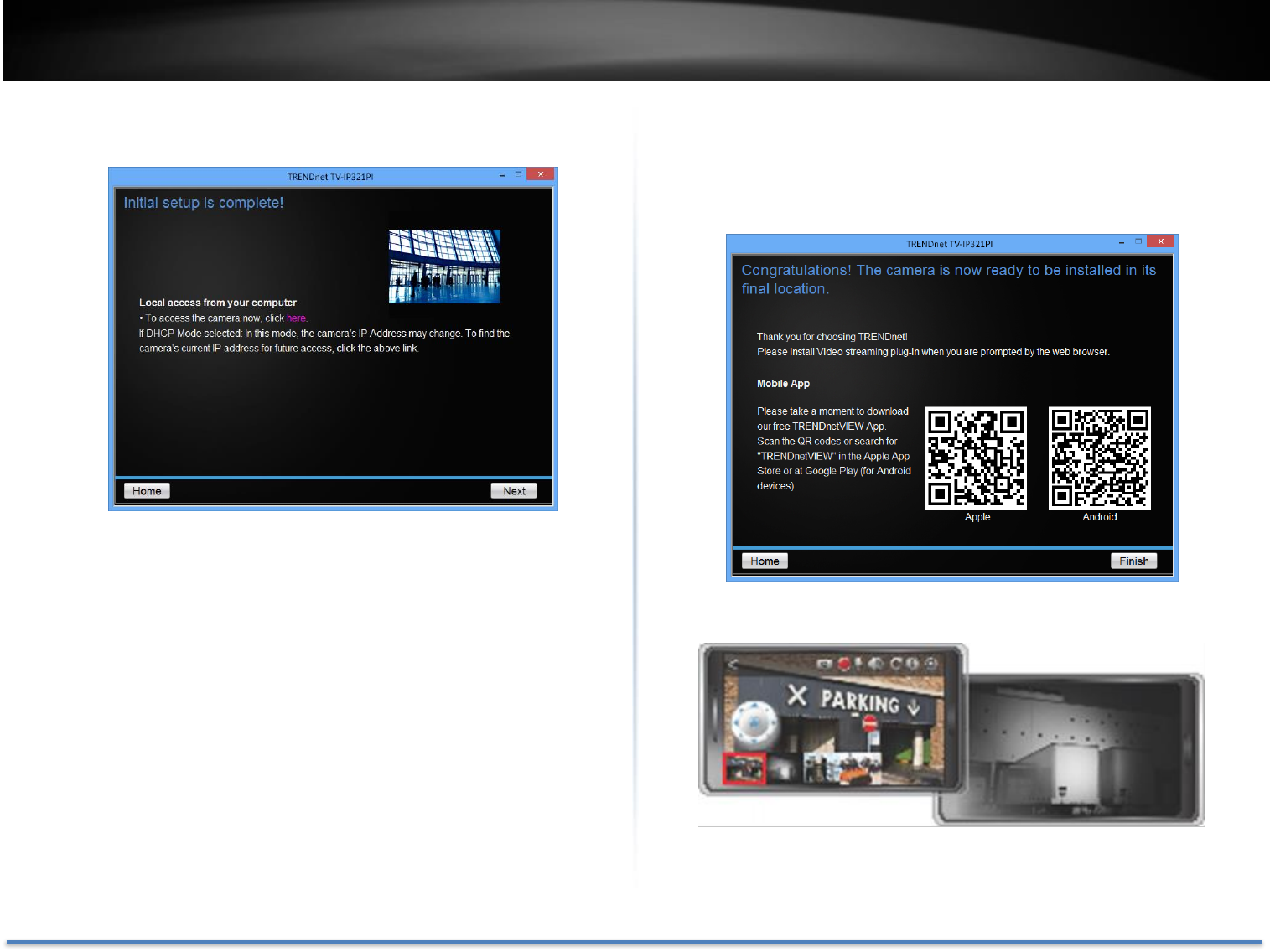

10. Click here to access to the camera’s web page or click Next for

mobile app installation.

11. Click Finish to exit the program or click Home to return to the main

screen. You can also download a free app to view video on your

mobile devices. Scan the QR code to find and install the

TRENDnetVIEW app.

Free App

Night Vision

TRENDnet User’s Guide TV-IP321PI

Hardware Installation

Cabling

It’s recommended that the wiring the cable in your home or office by a

professional. If you already have the cable deployed, make sure the cable

and the connectors meet the category 5 Ethernet cable standards. At

least 2 pairs of twisted lines are required for power and data. Poor cable

quality may cause unexpected problems. Testing your cable or running a

new cable is suggested for new camera installation.

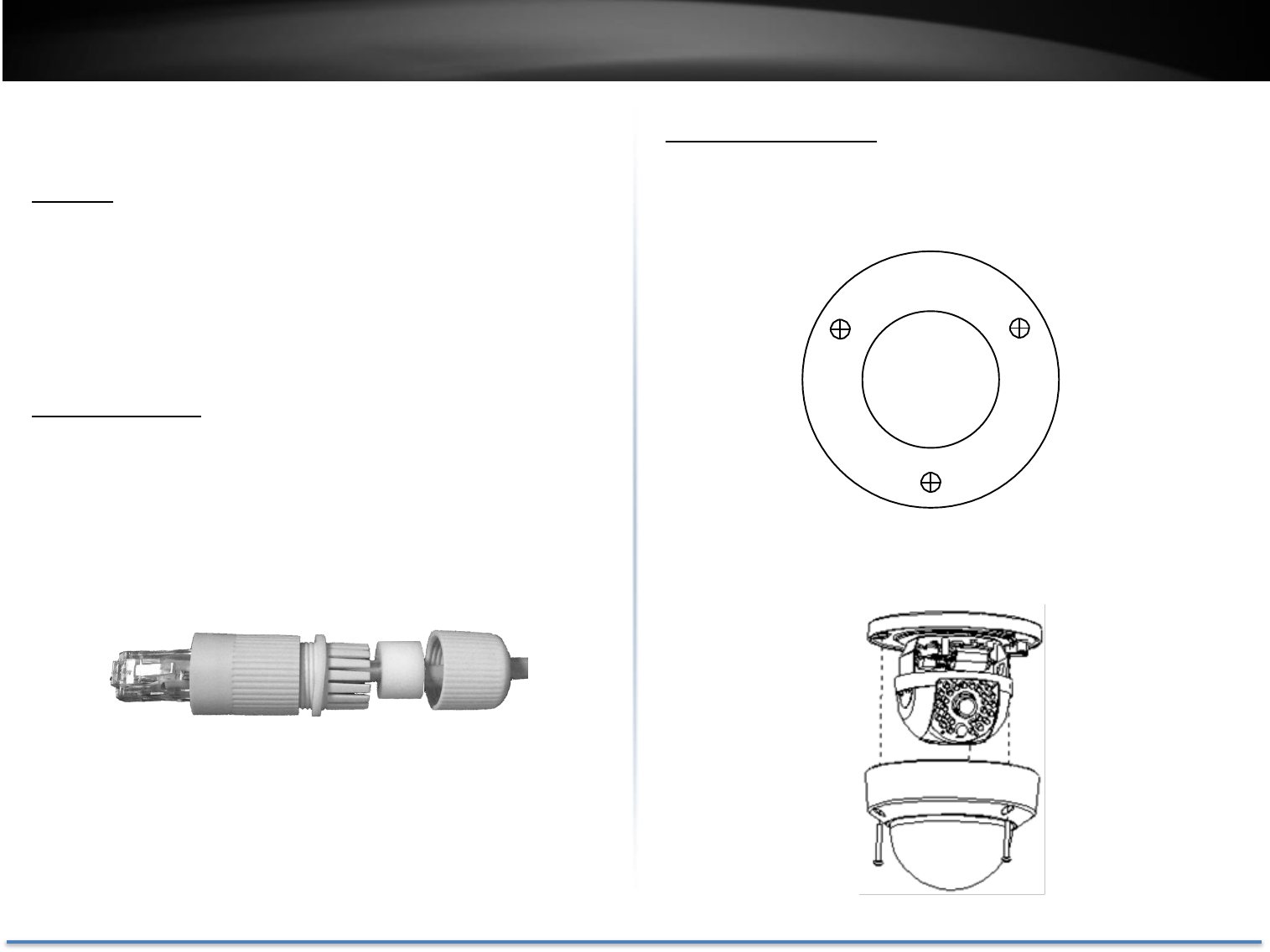

Waterproof cap

The TV-IP321PI itself is IP66 grade water and dust proof. There is a set

of network cable water proof caps that comes with the package as well.

Run your cable going through the accessories, and then crimp the cable

with an RJ45 module. Plug in the network cable and then tighten the

waterproof cap to prevent water running into camera through the cable.

Mount your camera

Try out the best camera video shooting position. Drill the screw holes

and the cable hole if necessary with the drill template comes with the

package.

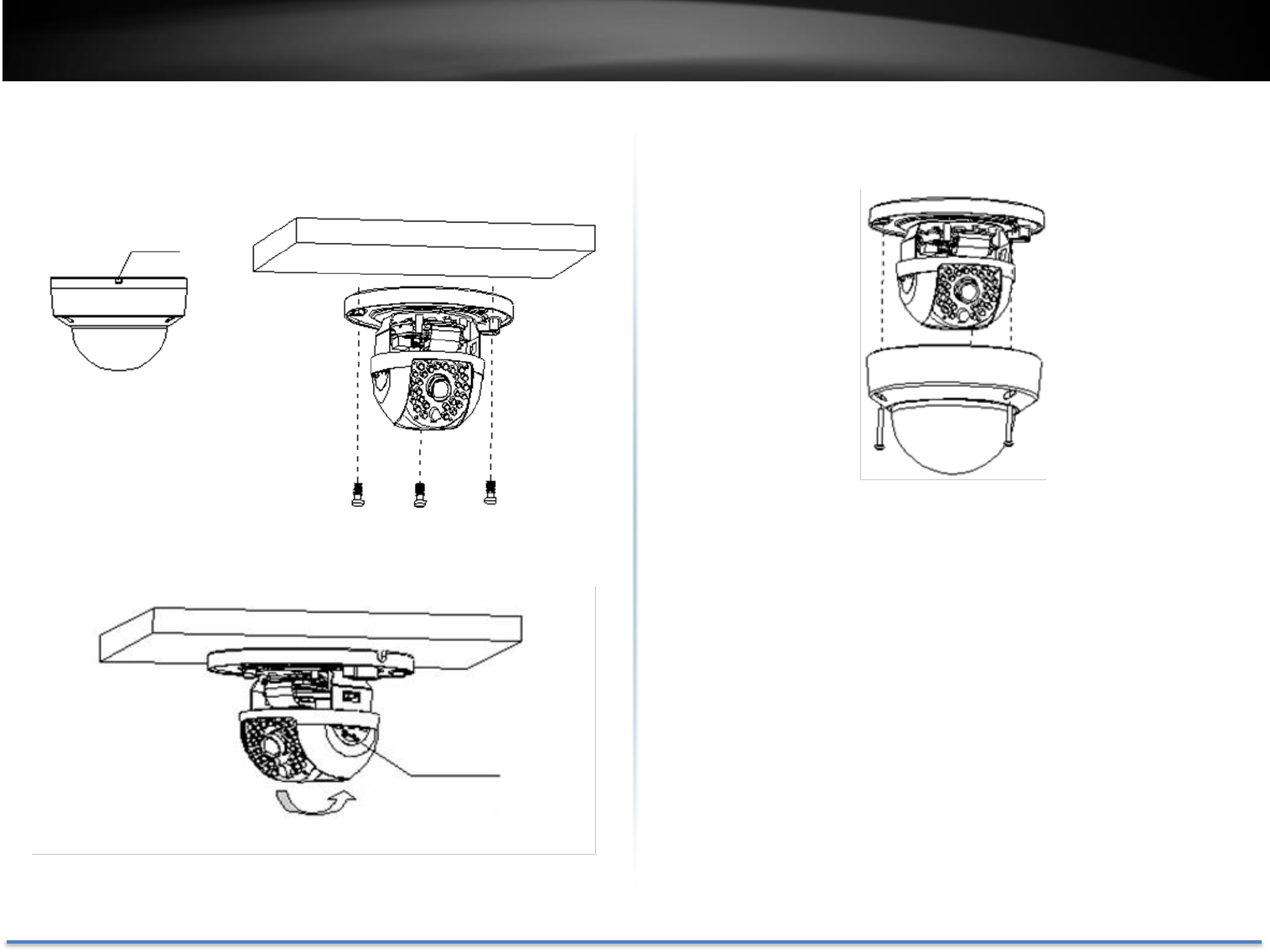

Loosen the screws with the torx screw driver which comes with the

package to remove the lower dome.

TRENDnet User’s Guide TV-IP321PI

Fix the mounting base on the ceiling with the screws that come with the

package. Route the cables into the ceiling or route it through the hole on

the side.

Loosen the tilt lock screws, adjust the tilting position in a range from 15

to 90, and tighten the tilt lock screws.

Fasten the lower dome back to the camera evenly and tightly. This

step is important to block the water and dust.

Screw

Cable

TRENDnet User’s Guide TV-IP321PI

Access your Camera with the Web Browser

System Management and Default Settings

It is recommended that you install your camera with the CD that comes

with the package and use accompanying TRENDnetVIEW Pro software

(version 2.4.3 or later) for Windows computers. The software is

included on the CD comes with the package. If you do not have the CD

with you, you can go to http://www.TRENDnet.com/support enter the

model number “TV-IP321PI” and download the software.

If you didn’t go through the TV-IP321PI CD installation wizard or you

have reset the TV-IP321PI to factory defaults by pressing and holding

reset button while power on the camera and keep holding the button for

over 10 seconds, your TV- IP321PI has following settings:

System

Default

Management

Dynamic assigned if there’s a DHCP server on the

network or self-assigned 192.168.10.30

Administrator

name

admin

Administrator

password

admin

If you want to access your camera directly instead of using software, you

can follow the steps specified in this chapter to login to your camera. A

web browser plug-in must be installed to watch video smoothly.

For Windows system, please go to the next paragraph.

For OS X system, please go directly to page 19

Logging-in to the Camera for the First Time (Windows)

1. Open the web browser on your computer. In the address bar, enter

the IP address you setup through the setup CD or 192.168.10.30.

(If you have a DHCP server on your network, the IP address will be

assigned dynamically. For example, if you have a home gateway on

your network and you plug-in the camera on the same network, you

can find the camera’s IP address on your home gateway.), and then

press Enter.

2. Enter the user name, admin, and the password you setup through

the setup CD or the default password, admin, and then click OK.

TRENDnet User’s Guide TV-IP321PI

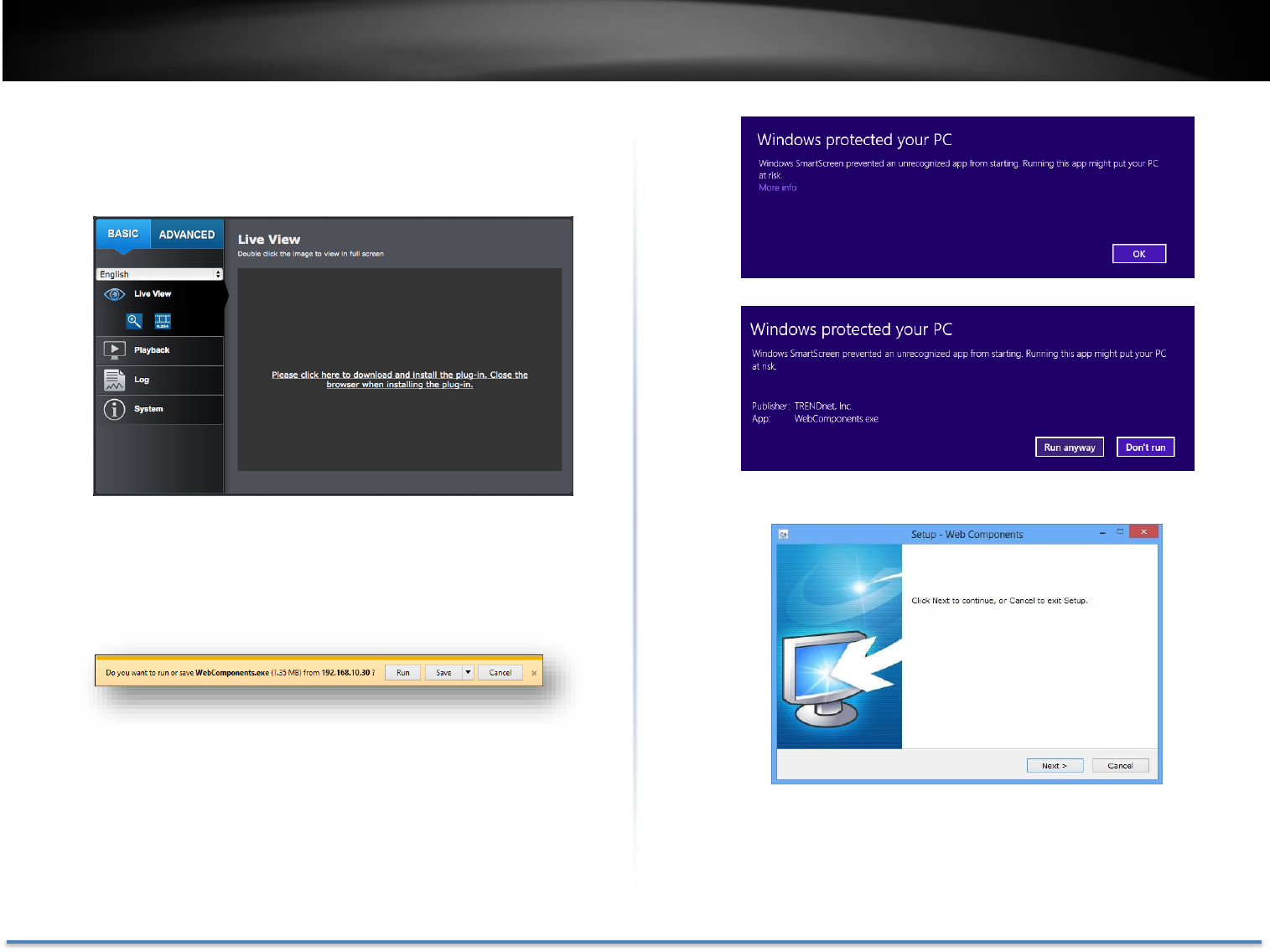

3. The camera management page will detect if you installed the camera

video streaming plug-in or not. Click the link to download the plug-in

from the TV-IP321PI camera.

4. Download the plug-in to your computer and then and close your

browser. Launch the plug-in installation to install the plug-in.

5. Permission request may show up depends on the Internet security

settings on your computer. Click More Info and then Run anyway

to install the plug- in.

6. Click Next to install the plug-in.

7. Click Finish to finish the installation.

TRENDnet User’s Guide TV-IP321PI

8. Open the browser and login again.

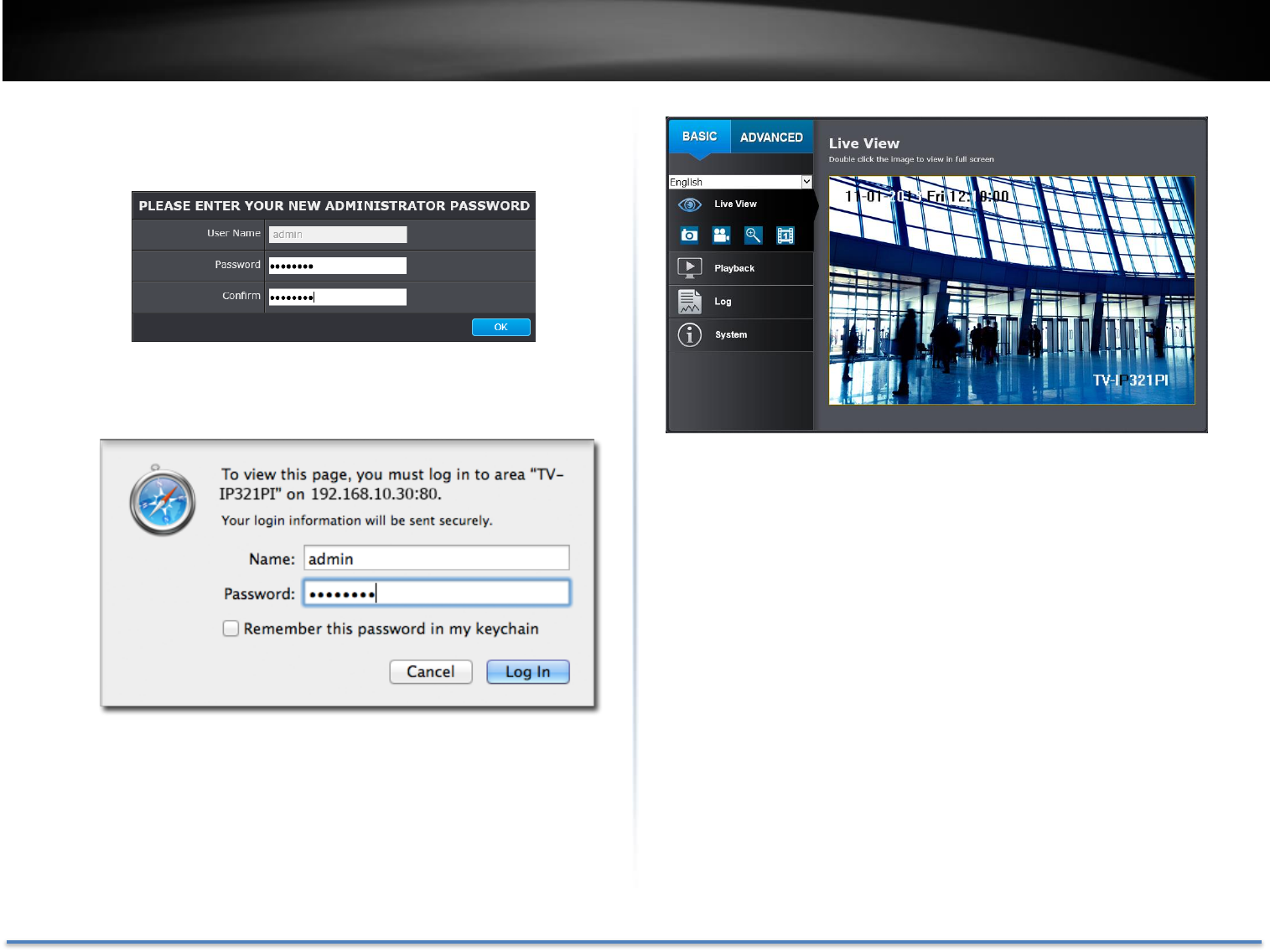

9. (Go to step 11 if you already changed your password with the setup

CD). The TV-IP321PI will ask you to change your password from

default setting. Please enter the new password twice and click OK.

The password must be between 8 and 16 characters. (Alphanumeric:

a-z, A-Z, 0-9, !, @, #, $).

10. Enter the user name admin and new password again to start

secured session.

11. The Live View page will show up and begin streaming video.

TRENDnet User’s Guide TV-IP321PI

Logging-in to the Camera for the First Time (OS X)

1. Open the web browser on your computer. In the address bar, enter

the IP address of the camera 192.168.10.30. (If you have a DHCP

server on your network, the IP address will be assigned dynamically.

For example, if you have a home gateway on your network and you

plug-in the camera on the same network, then you can find the

camera IP address on your home gateway), and then press Enter.

2. Enter the user name, admin, and the default password, admin, and

then click OK.

3. The camera management page will detect if you installed the camera

video streaming plug-in or not. Click the link to download the plug-in

from the TV-IP321PI camera.

Note: Internet connection is required to download the plug-in. If you do not

have Internet access, you can find the plug-in on the CD comes with the

package under /Mac folder.

TRENDnet User’s Guide TV-IP321PI

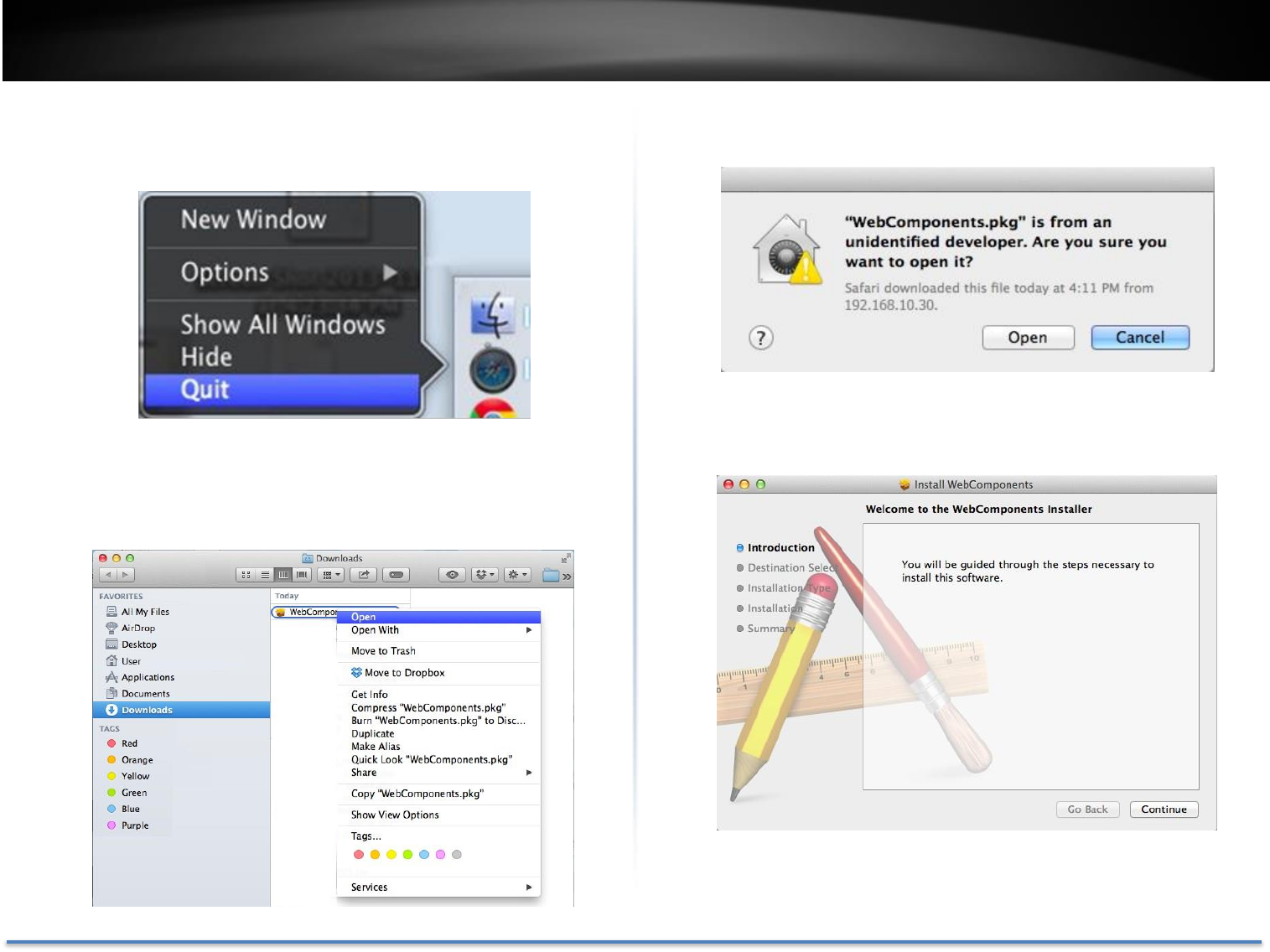

4. Quit your browser completely by command-Click on the browser

icon and then click Quit before installing the plug-in.

5. Go to the Finder and navigate to the Download folder. Command-

Click the WebComponents.pkg and then click Open. (If you are

install the plug-in from the CD, just browse to /Mac folder and

double click the WebComponents.pkg file.)

6. Click Open to start installation.

7. Click Continue to install the plug-in.

8. Select a destination to install the plug-in. Then click Continue.

TRENDnet User’s Guide TV-IP321PI

9. Use the default location and click Install.

10. Enter your password and click Install Software

11. Installation will process automatically.

12. Click Close to exit the installation.

TRENDnet User’s Guide TV-IP321PI

13. Open the browser and login again with the default IP 192.168.10.30

or the IP that was dynamically assigned by your router.

14. Enter the user name, admin, and the default password, admin, and

then click OK.

15. Click Trust (You’ll have to do this again when your camera changes

to a new IP address.)

16. The TV-IP321PI will ask you to change your password from the

default setting. Please enter the new password twice and click OK.

TRENDnet User’s Guide TV-IP321PI

The password must be between 8 and 16 characters. (Alphanumeric:

a-z, A-Z, 0-9, !, @, #, $).

17. Enter the user name admin and new password again to start

secured session.

18. The Live View page shows up and the video starts to stream.

TRENDnet User’s Guide TV-IP321PI

Live View

Snapshot

Click this icon to take a video snap-

shot.

After you log-in into the camera management page, you’ll see the Live View page.

Multi-Language

Change your preferred

language anytime.

Zoom

Click once to enable zoom. When

enabled, click and drag the area on

the picture to zoom in. Right click to

resume 100% zoom. Click the icon

again to disable zoom. The zoom

function works in full screen mode

as well.

Recording

Click once to start recording. Click it

again to stop recording. The status

bar will indicate if it is in recording

state or not.

Video Stream

TV-IP321PI has two video streams

for high quality viewing and low

bandwidth consumption. Switch to

view of different video streams by

clicking this icon.

Full Screen Mode

Click the picture to view in full

screen mode. Double click again or

press escape key on your keyboard

to exit full screen mode.

Status Bar

The status bar shows the status

you are at, including enabled the

zoom, recording video, and suc-

cessfully taking a snapshot.

Where can I find saved files?

Videos and snapshots captured

from Live View will save to your

computer. See Live View Settings on

page 33 for details.

TRENDnet User’s Guide TV-IP321PI

Playback

You can playback the video recording on the network storage and

download the video clip and snapshots to your local computer. (See

Network Storage on page 54 to setup the storage.)

Search for video recordings

Click the date selection, and then choose a date as the date range of

searching. Click Search to start searching.

Time Line

There is a play back head in the center of the time line represented in a

yellow vertical line. To look for a specific video recording, move the time

line by clicking and dragging it. If the recording is short, zoom in by

clicking button. Click to zoom out the time scale. If you know the

exact time of the day you are looking for, click then enter the time

you want to playback.

Different types of recordings are identified differently. The scheduled

recordings are marked in blue, and the recordings triggered by motion

detection are marked in red.

Click and drag the time line to move your time

manually.

Click this button to zoom in the scale

Click this button to zoom out of the scale

Click this button to specify a specific time of the day.

then click to confirm selection and then click X to

close this dialog box.

TRENDnet User’s Guide TV-IP321PI

Playback

Use playback controls to play back the video recording.

Click this button to play the video.

Click this button to pause video playback.

Click this button to stop playback.

Click this button increase playback speed*.

Click this button decrease playback speed*.

Click to playback video frame by frame. Click again for

the next

ame

�

* Note: There are 5 steps of playback speed you can choose from: 1/4, 1/2, 1, 2, and

4 times of original speed.

Slice images from video playback

You can take snapshots from playback video or make new video clips

from the video you are playing back.

Click this button to enable zoom. Then click and

drag on the video to define the area you want to

zoom in. Click again to get back to 100% zoom.

Double click to show video in full screen and press

on keyboard to exit full screen mode.

Click this button to disable zoom.

Click this button to take a snapshot of current playback.

Click this button to start clipping a video from

playback.

Click this button to stop clipping a video from playback.

Where can I find saved files?

Videos and snapshots captured from Playback will be saved to your computer

See

Live View Settings on page 33 for details.

TRENDnet User’s Guide TV-IP321PI

Download sections of video

To save complete video sections or snapshots, you can download the

files directly.

Click button to download video sections.

Check the time of the recording, select the videos you want to download,

and then click Download.

Download snapshots

Click button to list snapshots to download

Select the type of event that triggered the snapshots.

Choose the Start Time and End Time. Then, click

Search to find the snapshot list. Check the time of the

snapshot, and then select the snapshots you want to

download, then click Download.

Where can I find saved files?

Videos and snapshots captured from Playback will be saved to your computer

See

Live View Settings on page 33 for details.

TRENDnet User’s Guide TV-IP321PI

Log

The log of the TV-IP321PI will be saved on the network storage. You can

search the relevant records and save to your local computer. (See

Network Storage on page 54 to setup the storage.)

Search for logs

Click the type of log and then the Start Time and End Time. Click Search

to start searching.

Click First Page, Prev Page, Next Page, and Last Page to show the logs.

Click Save Log to save the logs to your computer.

Where can I find saved files?

Videos and snapshots captured from Playback will be saved to your computer

See

Live View Settings on page 33 for details.

TRENDnet User’s Guide TV-IP321PI

System Information

System Information page shows the TV-IP321PI’s basic information.

Click System then click System Info to show the page.

Basic Information

Device Name:

Human readable device name for easy

identification.

Firmware

Version:

Firmware version

MAC Address:

The MAC address of Ethernet Interface

System Time:

The system time setup in the camera. Keeping

this time correct is important for recording,

scheduled control and logging accurately.

Device Name:

Human readable device name for easy

identification.

Network Information

IP Address:

IP address of the TV-IP321PI

Subnet Mask:

Network range of IP address

Default

Gateway:

The default route going from the TV-IP321PI

subnet.

Primary DNS:

Primary DNS server address

Secondary DNS:

Secondary DNS server address

TRENDnet User’s Guide TV-IP321PI

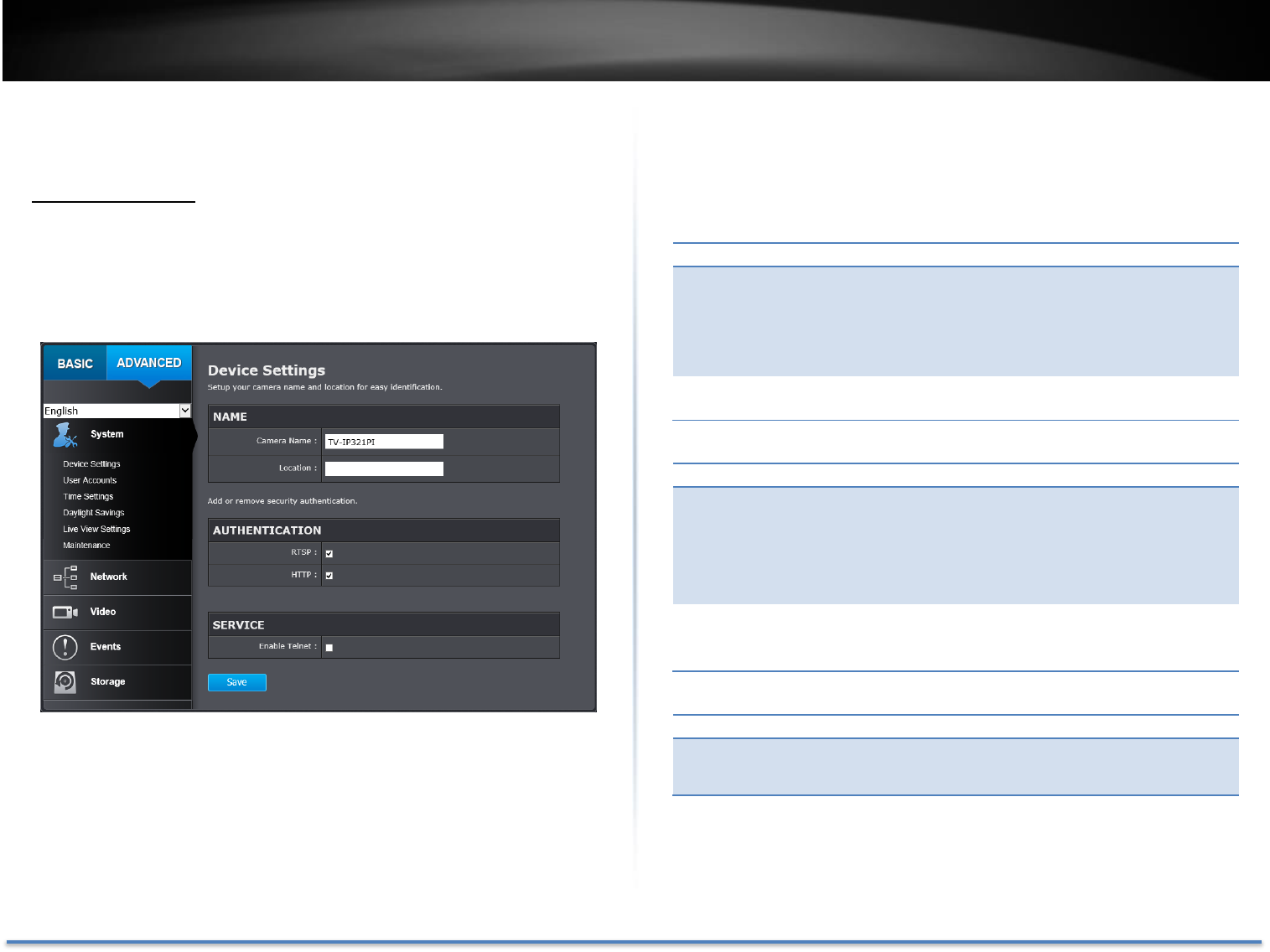

System Configuration

Device Settings

Setup your camera name and location for easy identification. This

camera name will also be recognized by other network camera software

as the name of this camera. OSD, On Screen Display, camera name is

referring to this setting as well.

Names

Camera Name:

Name of the camera. The camera name setup

here can be discovered by other network camera

software and OSD, On Screen Display. The

default camera name is the model number: TV-

IP321PI

Location:

Label where you installed this camera for

reference

Authentication

RTSP:

TV-IP321PI’s video stream can be accessed with

RTSP, Real Time Streaming Protocol. Only the

administrator and users can view this video stream

Un-checking this box will allow everyone access to this

video stream without authentication. Default: Checked.

HTTP:

TV-IP321PI can be accessed via password protected web

management interface. Un-checking this box will allow

anyone to access this camera and change its settings.

Service

Enable

Telnet:

TV-IP321PI embedded Telnet service for multiple camera

control for system developer. Default: disabled.

TRENDnet User’s Guide TV-IP321PI

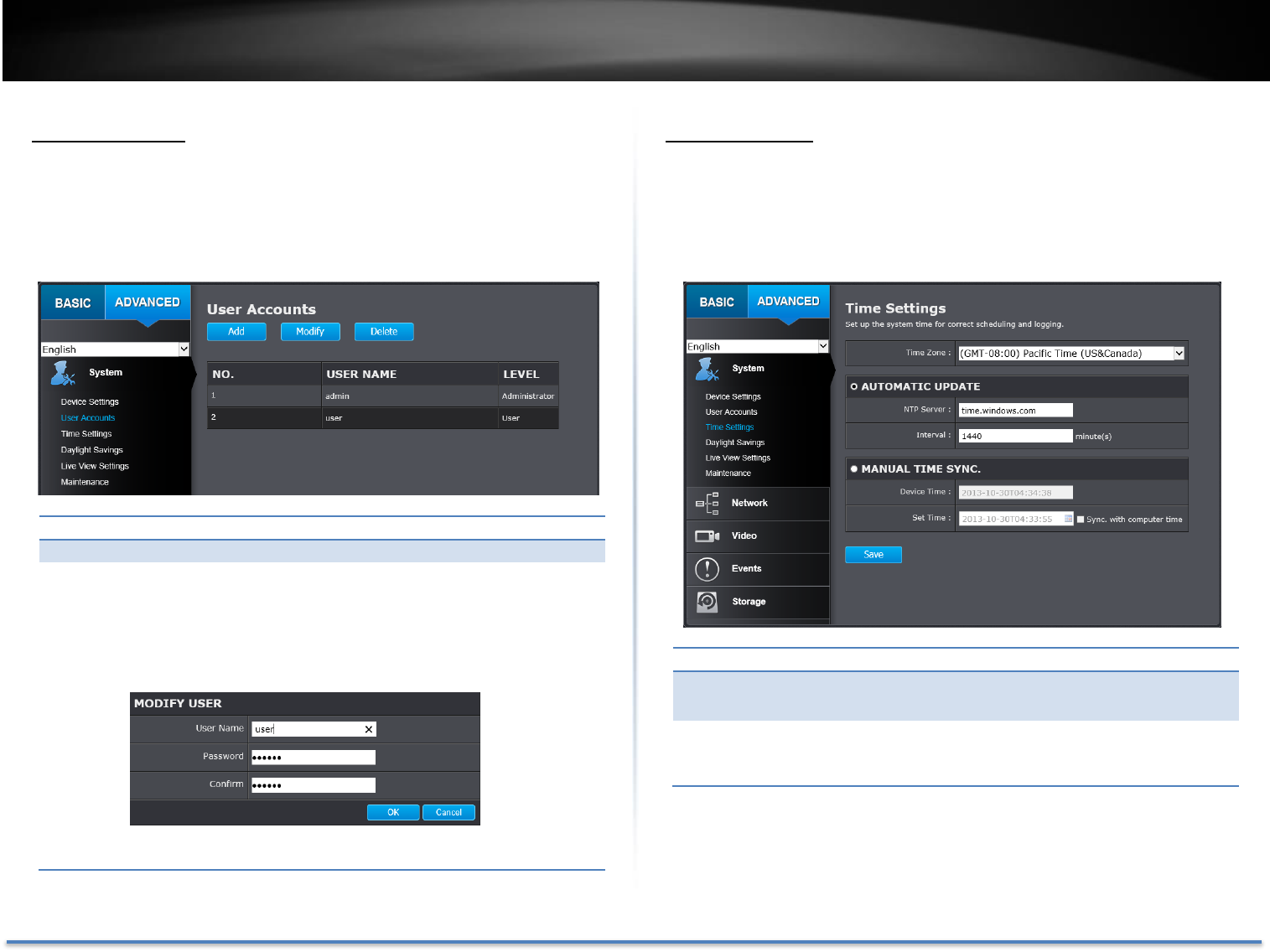

User Accounts

You can setup up to 16 user accounts to access the camera’s video

stream with a web browser or real time video stream (RTSP). Only one

administrator account can be setup to configure the TV-IP321PI and

cannot be deleted.

User Accounts

Add:

Click Add button to add one user account

Modify:

To change a user’s name and password, highlight the user

by clicking on it. Then, click Modify button. You can change

the user’s name and password. You can also change the

administrator’s password here. But, the administrator’s

name is fixed, you cannot change that.

Click OK to save the changes.

Time Settings

The accuracy of the system clock is important for scheduling and

accurate logging. You can synchronize the system time with your

computer, or automatically check the time accuracy with a network time

server (NTP server).

Automatic Update

NTP

Server:

Specify a time server (NTP server) to synchronize with.

(e.g. pool.ntp.org)

Interval:

The time interval that the TV-IP321PI will synchronize

the time with NTP server. Default: 1440 minutes (24

hours)

Click Save to save the changes

TRENDnet User’s Guide TV-IP321PI

Manual Time Sync

Device

Time:

The system time of this camera.

Set Time:

Click the calendar icon and manually select the date.

Check the Sync. with computer time to copy the time

from your computer.

Click Save to save the changes

Daylight Savings

Setup daylight savings.

Automatic Update

Enable DST:

Check this box if your time zone has daylight savings.

Start Time:

Enter the date that daylight savings starts

End Time:

Enter the date that daylight savings ends

DST Bias

Enter how much time the daylight saving adjusted by

daylight savings.

Click Save to save the changes

TRENDnet User’s Guide TV-IP321PI

Live View Settings

Setup the live view video quality, file size and file saving directories.

Live View Parameters

Live View

Buffer:

Configure the buffer size for live view video stream.

With low buffer size setting, you can get real-time

video stream, but the video may be stop and go if the

network is congested. With high buffer setting, you

can have smooth video streaming, but the video is

delayed from the time happening. Medium size can

have moderate video stream smoothness and time

delay.

Record File Settings

Record file

size:

This size of live view video recording. You can

choose 256MB, 512MB, or 1GB a file. Smaller file

size is good for many short recordings.

Save record

files to:

By default, files will be saved under the folder with

your user name, under the subdirectory

TRENDnet/RecordFiles. Click Browse and then

choose a new destination if you want to save the

file somewhere else.

Save

downloaded

files to:

By default, files will be saved under the folder with

your user name, under the subdirectory

TRENDnet/DownloadFiles. Click Browse and then

choose a new destination if you want to save the

file somewhere else.

Picture and Clip Settings

Save

snapshots in

live view to:

By default, files will be saved under the folder with

your user name, under the subdirectory

TRENDnet/SnapshotFiles. Click Browse and then

choose a new destination if you want to save the

file somewhere else.

Save

snapshots

when

playback to:

By default, files will be saved under the folder with

your user name, under the subdirectory

TRENDnet/PlaybackPics. Click Browse and then

choose a new destination if you want to save the

file somewhere else.

Save clips to:

By default, files will be saved under the folder with

your user name, under the subdirectory

TRENDnet/PlaybackFiles. Click Browse and then

choose a new destination if you want to save the

file somewhere else.

Click Save to save the changes

TRENDnet User’s Guide TV-IP321PI

Maintenance

You can restart, load camera settings and upgrade the camera firmware

on this page.

Reboot

Reboot:

Click this button to reboot this camera.

Reset

Reset:

Reset all camera parameters, except the IP

parameters and user information.

Default:

Load complete factory default to the camera.

Import Config. File

Config File:

To load previously saved settings, click Browse to

find the configuration file and then click Import.

Status:

Shows the status in loading configuration file.

Export Config. File

Export:

Click Export to download configuration file. The file

will be downloaded to the Download folder by default.

Remote Upgrade

Firmware:

Click Browse to find the latest firmware and then click

Upgrade.

Status:

Shows the status in firmware upgrade.

TRENDnet may periodically release firmware upgrades that might add

features or fix problems associated with your TRENDnet model and

version. To find out if there is a firmware upgrade available for your

device, please check your TRENDnet model and version using the link.

http://www.trendnet.com/downloads/

1. If a firmware upgrade is available, download the firmware to

your computer.

2. Unzip the file to a folder on your computer.

3. Read the firmware upgrade instruction for specific version

update information.

4. Log into the TV-IP321PI.

5. Getting to this Maintenance page to upgrade firmware.

TRENDnet User’s Guide TV-IP321PI

Network Settings

TCP/IP

Setup your basic IPv4 and IPv6 network settings on this page.

Network Interface

MAC Address:

Click this button to reboot this camera.

Duplex and

Speed:

Choose one of the Ethernet duplex and speed to

match your network. Default: auto.

MTU:

Maximum transmission unit. The maximum field

size in the Ethernet packet.

Primary DNS:

Enter your first IPv4 or IPv6 DNS server address

Secondary DNS:

Enter your second IPv4 or IPv6 DNS server

address

IPv4

DHCP:

Check this box if the IP address is assigned by

DHCP server.

IPv4 Address:

The IPv4 dynamic or static address

Subnet Mask:

Network range of the subnet

Default

Gateway:

The default route going further from TV-IP321PI

IPv4 subnet

IPv6

IPv6 Mode:

Choose Manual, DHCP, or Route Advertisement.

Click View Route Advertisement to find a route

advertisement.

IPv6 Address:

IPv6 address of TV-IP321PI

Prefix Length:

Length of network prefix

Default

Gateway:

The default route going further from TV-IP321PI

IPv6 subnet

TRENDnet User’s Guide TV-IP321PI

Port

You can change the service port numbers of TV-IP321PI and

enable/disable RTSP or HTTPS services.

Port Numbers

HTTP Port:

The default web access port. You can change the

port number. However, you cannot disable the

web service. The default port number is 80.

RTSP Port:

The Real-Time Streaming Protocol port for video

streaming. You can change the port number or

disable the service by uncheck the box. The

default port number is 554.

HTTPS Port:

The secured web service port. You can change the

port number, or you can disable the service by

uncheck the box. The default port number is 443.

Click Save to save the changes

DDNS

Dynamic Domain Name Service, DDNS, allows you to find your camera

from the Internet with an easy to remember domain name.

DDNS

Enable DDNS:

Check this box to enable DDNS Service.

DDNS Type:

Select a DDNS service provider.

Server Address:

Enter the DDNS server address.

Domain:

Enter your registered domain/host name on

selected DDNS service.

User Name:

Enter the account name.

Password:

Enter the password.

Confirm:

Enter the password again.

Click Save to save the changes

TRENDnet User’s Guide TV-IP321PI

PPPoE

Setup PPPoE (ADSL) connection to connect your camera with your ISP,

Internet Service Provider.

PPPoE (ADSL)

Enable PPPoE:

Check this box to enable PPPoE connection.

Dynamic IP:

The IP address assigned by ISP

User Name:

Enter the account name.

Password:

Enter the password.

Confirm:

Enter the password again.

Click Save to save the changes

SNMP

SNMP Settings allows you to assign the contact details, location,

community name and trap settings of SNMP. This is a networking

management protocol used to monitor network-attached devices. SNMP

allows messages (called protocol data units) to be sent to various parts

of a network. Upon receiving these messages, SNMP compatible devices

(called agents) return data stored in their Management Information

Bases.

TRENDnet User’s Guide TV-IP321PI

SNMP V1/V2

Enable

SNMPv1:

Check this box to enable SNMP v1 management.

Enable

SNMPv2c:

Check this box to enable SNMP v2c management.

Read SNMP

Community:

Specify the password to access the SNMP

community for read only access.

Write SNMP

Community:

Specify the password for access to the SNMP

community with read/write access.

Trap Address:

Specify the IP address for the SNMP trap

community.

Trap Port:

Specify the port number for the SNMP trap

community.

Trap

Community:

Specify the name of SNMP trap community.

SNMP V3

Enable

SNMPv3:

Check this box to enable SNMP v3 management.

Read User

Name:

SNMP v3 member user name.

Security Level:

Choose one of the security levels.

Authentication

Algorithm:

Choose the authentication method to verify the

source of information: MD5 or SHA.

Authentication

Password:

Specify the authentication password between 8 to

32 letters.

Private-key

Algorithm:

Choose the privacy key to encrypt SNMP

messages: DES or AES.

Private-key

Password:

Specify the privacy key between 8 to 32 letters.

Write User

Name:

SNMP v3 manager user name.

Security Level:

Choose one of the security levels.

Authentication

Algorithm:

Choose the authentication method to verify the

source of information: MD5 or SHA.

Authentication

Password:

Specify the authentication password between 8 to

32 letters.

Private-key

Algorithm:

Choose the privacy key to encrypt SNMP

messages: DES or AES.

Private-key

Password:

Specify the privacy key between 8 to 32 letters.

SNMP Other Settings

SNMP Port:

SNMP service port number.

Click Save to save the changes

TRENDnet User’s Guide TV-IP321PI

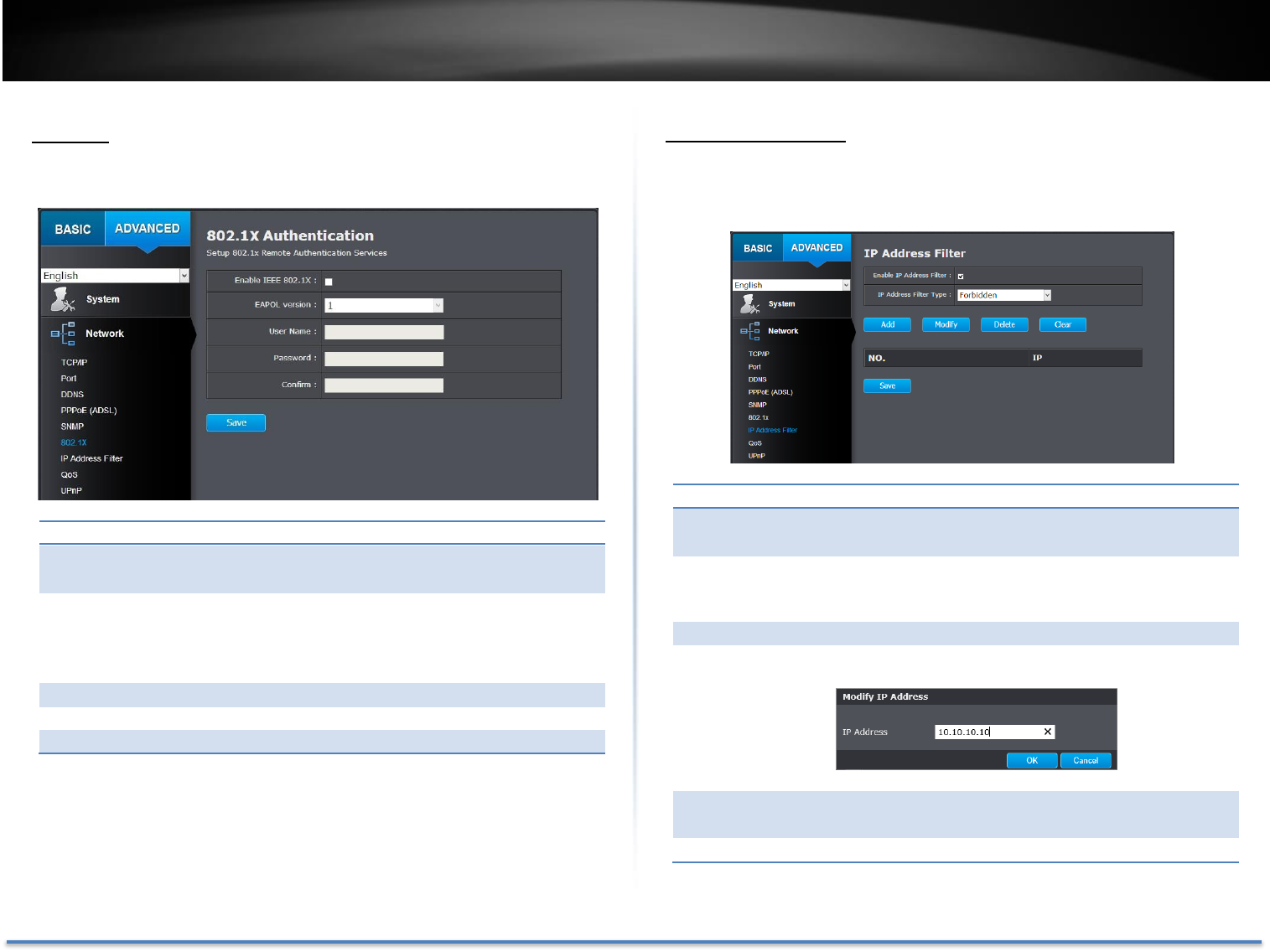

802.1X

Setup 802.1X for remote authentication service.

802.1X Authentication

Enable IEEE

802.1X:

Check this box to enable 802.1X authentication

service.

EAPOL version:

Extensible Authentication Protocol (EAP) over

LAN (EAPoL). Choose version 1 or 2. This version

number has to match to your 802.1X service

EAPOL version.

User Name:

Enter the account name.

Password:

Enter the password.

Confirm:

Enter the password again.

Click Save to save the changes

IP Address Filter

Set up a list of clients allow only the clients on the list to access this

camera or to reject clients on the list from access this camera.

IP Address Filter

Enable IP

Address Filter:

Check this box to enable IP address filtering

service.

IP Address

Filter Type:

Choose Forbidden to ban the listed IP addresses

or Allowed to allow listed host to access this

camera.

Add:

Click Add to add a user account

Modify:

To modify an entry on the list, highlight the entry

by clicking on it. Then, click the Modify button.

Enter the IP address then click OK

Delete:

To delete an entry on the list, highlight the entry

by clicking on it. Then, click Delete

Clear:

To clear all entries, click Clear

Click Save to save the changes

TRENDnet User’s Guide TV-IP321PI

Quality of Service (QoS)

Setup traffic prioritization tags the video packets to go through network

switches and routers with assigned priority. You can set the

Differentiated Services Code Point (DSCP) bits on outgoing data streams.

The QoS capable network device will forward different data in different

priorities. The meaning of the value is different in different DiffServ

domains. Consult your network manager for the setup details.

IP Address Filter

Video/Audio

DSCP:

Enter Video/Audio DSCP. Default: 0.

Event/Alarm

DSCP:

Enter Event/Alarm DSCP. Default: 0.

Management

DSCP:

Enter Management DSCP. Default: 0.

Click Save to save the changes

UPnP

Universal Plug-and-Play is a device discovery protocol set. It allows your

camera to easily be found, for example, on a Windows operation system.

UPnP

Enable UPnP:

Check this box to enable UPnP connection.

Friendly Name:

The name that will be appeared when searched.

Port Mapping

Enable Port

Mapping:

Check this box to enable UPnP connection.

Port Mapping

Mode:

Choose Manual or Auto port mapping.

External Port:

Choose the port number for mapping.

Click Save to save the changes

TRENDnet User’s Guide TV-IP321PI

Video Settings

Video Format

Adjust the format of video.

Stream Type:

Choose the video stream you want to modify. The

main stream is for high resolution with H.264

coding and the sub stream has lower resolution

for network streaming and you can choose H.264

or MJPEG coding.

Video

Encoding:

Choose the video coding. The H.264 coding has

higher better compression rate which will

consume smaller video file for storage and

transmission. MJPEG is a legacy coding creates

larger video file size and has robust file structure

and better device compatibility.

Resolution:

Main Stream

Sub Stream

Bitrate Type:

Choose between variable bit rate or constant bit

rate for video compression. The default is

variable rate.

Video Quality:

Choose the video (compression) quality. The

default is medium quality.

Frame Rate:

Choose the capturing frame rate. The default

value is 30 frames per second. Reduce the frame

rate to reduce the capture file size.

Max. Bitrate:

Choose the maximum video sampling bit rate.

Default: 2048

I Frame

Interval

An I Frame is a frame that records a complete

picture. Frames between I frames, (P frame or B

frame) only records the image differences

between two frames. Choose the I Frame Interval

here. The default is 60.

Click Save to save the changes

TRENDnet User’s Guide TV-IP321PI

Display Settings

Adjust video image quality, lightness, and color settings here.

Brightness:

Use the slider or enter a number (0-100) to adjust

the image brightness. Default: 50

Contrast:

Use the slider or enter a number (0-100) to adjust

the image contrast. Default: 50

Saturation:

Use the slider or enter a number (0-100) to adjust

the color saturation. The greater number means the

color will be more saturated. Default: 50

Sharpness:

Use the slider or enter a number (0-100) to adjust

the image sharpness. Default: 50

TRENDnet User’s Guide TV-IP321PI

Light sensitivities

Smart IR:

Smart IR can adjust the strength of infrared lights

at night depending on the distance of an object to

maintain the maximum IR light distance and while

maintaining a clear picture when object is close by.

Default: On.

Max. Exposure

Time:

Adjust this value for exposure time for

each picture. You can choose a value

between 1/3 second to 1/100,000

second. The default value is 1/30

second exposure time for each picture.

Video

Standard:

This is the base frequency for the video refresh

rate. It is recommended to set to the same

frequency of your local video standard (NTSC: 60,

PAL: 50). Default: 60Hz.

Day/Night

Switch:

Choose whether you want the

camera to be set to the day mode

(color video) or night mode (IR

enhanced black/white video).

You can manually set it to day

mode or night mode, adjust by

lighting (Auto), or pre-define

schedule.

Auto:

Sensitivity: The light sensor sensitivity.

Switch Time: The time delayed to switch between

modes. Longer switch time can prevent

unnecessary mode flipping if an object is blocking

the light source temporarily. Range: 5-120 seconds,

default: 5 seconds.

Schedule:

Use quick selection or enter the time down below.

Click OK to confirm the time you want to set.

Start Time: The start time for day mode.

Stop Time: The start time for day mode.

Position adjustments

Mirror:

Choose horizontal, vertical or both to adapt to the

physical position of installation.

TRENDnet User’s Guide TV-IP321PI

Image adjustments

Back Light

Compensation

and

Digital Wide-

Dynamic-Range:

Back light compensation: Setup a fixed light

source position to compensate and adjust the

image in the dark.

Choose the area that you want to enhance (dark

area, not light source).

Note: By default, the D-WDR is enabled. Please disable D-

WDR to set up back light compensation.

D-WDR: Digital Wide Dynamic Range compensates

for the dark area dynamically.

 D-WDR Level: The level of compensation.

Range: 0-100%, default: 20%.

White Balance:

Choose a color

temperature as the white

color and compensate the

color on the whole image.

Digital Noise

Reduction:

Choose the mode of noise reduction.

Normal Mode

Noise Reduction Level: Adjust the effect of digital

noise reduction. Range: 0-100%, default : 100%

Expert Mode

Space DNR Level: Adjust the special digital noise

reduction with adjacent pixels. Change the range

(0-100%) to change the adjacency effect, default :

50%

Time DNR Level: Adjust the 3D digital noise

reduction. Compare and reduce noise between

video frames. Range: 0-100%, default : 100%

Click Reset to reset the display adjustments

On Screen Display Settings

Display the camera name and the time the video is shooting on the screen.

Display Name:

Check this box to display the product name that

was setup in the device settings (refer to page

30 Device Settings to change the device name.)

Display Date:

Check this box to display system time.

Display Week:

Check this box to display time of the week.

Time Format:

Select 12 or 24-hour time format.

Date Format:

Select the date format

Display Mode:

Choose how the text will show on the screen.

OSD Size:

Select the text size from 16 to 64 or adjusted by

screen size automatically.

Move the red box to position the text. Click Save to save the changes.

TRENDnet User’s Guide TV-IP321PI

Text Overlay

Display extra information on the screen over the image.

Check Box:

Check this box to enable text overlay.

Text Field:

Enter the text you want to display. You can enter

your local language if you want. The text field

allows maximum 44 English letters or 20 non-

English characters.

Move the red box to position the text.

Click Save to save the changes

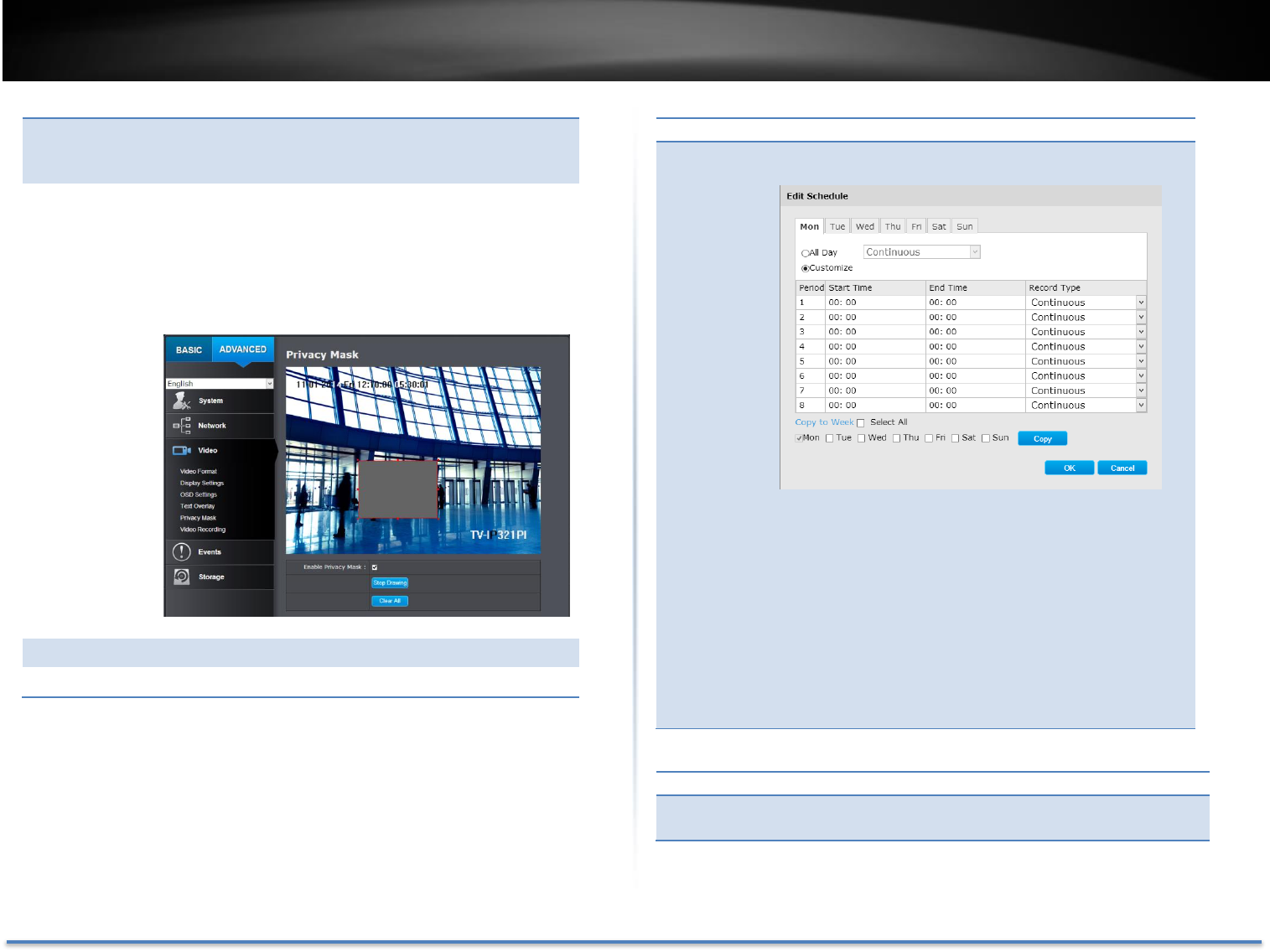

Privacy Mask

Create a masking area to keep your privacy. You can create up to four

independent masking areas by clicking and dragging on the screen.

Enable Privacy

Mask:

Check this box to enable privacy masking.

Stop Drawing:

Click this button to stop drawing.

Clear All:

Click this button to clear all the masking

areas.

Click Save to save the changes

TRENDnet User’s Guide TV-IP321PI

Video Recording

Pre-record:

Recording time before trigger event.

Post-record:

Recording time after trigger event.

Overwrite:

Select Yes to allow older recordings to be

overwritten.

Enable

Record

Schedule:

Check this box and then click Save to enable

video recording.

Click Save to save the changes

Edit:

Click Edit to edit the recording schedule. The

Edit Schedule window will pop up.

1. Select day of the week you want to edit.

2. Select All Day or Customized schedule

of the day.

3. Set the time period and the event you

want to trigger the video recording

continuous (always recording) or

motion detection.

4. Click Select All or the weekday you

want to have the same schedule on

different day.

5. Click another day of the week by clicking

on its tab to set the next schedule. Click

OK when you have finished your

settings.

TRENDnet User’s Guide TV-IP321PI

Events

Motion Detection

Set up how the motion detection event will be triggered and what

actions will be triggered.

Enable

Motion

Detectio

Check this box to enable motion detection. Click

Save to save the choice.

Enable

Motion

Tracking

Check this box to enable motion tracking. Motion

tracking is a dynamic display that shows the

current status of motion detection. The motion

tracking is displayed with grids in green. The grid

area represents the camera motion is happening.

Click Save to save the choices.

TRENDnet User’s Guide TV-IP321PI

Draw

Area:

Click Draw Area button to start drawing. Click

and drag on the area you want to set up the

motion detection. You can draw up to 8 different

areas. Click Stop Drawing to stop drawing motion

detection areas.

The red grids represent the motion detection area.

Sensitivit

Move the slider to adjust detection sensitivity.

Clear All:

Click this button to clear all the set up areas.

Arming Schedule

Edit:

Click Edit to edit the recording schedule. The Edit

Schedule window will pop up.

1. Select day of the week you want to edit.

2. Select All Day or Customized schedule of

the day.

3. Set the time period and the event you want

to trigger the video recording continuous

(always recording) or motion detection.

4. Click Select All or the weekday you want to

have the same schedule on different day.

5. Click another day of the week by clicking on

its tab to set the next schedule. Click OK

when you have finished your settings.

TRENDnet User’s Guide TV-IP321PI

Notification

Send Email:

Check this box to send an e-mail notification

when motion is detected.

Network

Storage:

Check this box to record video to network

storage when motion is detected.

Upload to FTP:

Check this box to send snapshots to an FTP

server when motion is detected.

Click Save to save the changes

Video Tampering

This is to detect if the camera has been tampered with and surveillance

is compromised. You can set up tamper proof notifications to alert the

system manager to check the camera.

TRENDnet User’s Guide TV-IP321PI

Enable

Tamper

Detection:

Check this box to enable tamper detection. Click

Save to save the settings.

Draw Area:

Click Draw Area button to start drawing. Click and

drag on the area you want to set up the tamper

detection. You can setup only one area for tamper

detection. Click Stop Drawing to stop drawing

motion detection areas. The gray block represents

the detection area.

Sensitivity:

Move the slider to adjust detection sensitivity.

Clear All:

Click this button to clear all the set up areas.

Arming Schedule

Edit:

Click Edit to edit the recording schedule. The Edit

Schedule window will pop up.

1. Select day of the week you want to edit.

2. Select All Day or Customized schedule of

the day.

3. Set the time period and the event you want

to trigger the video recording continuous

(always recording) or motion detection.

4. Click Select All or the weekday you want to

have the same schedule on different day.

5. Click another day of the week by clicking on

its tab to set the next schedule. Click OK

when you have finished your settings.

Notification

Send Email:

Check this box to send an e-mail notification

when motion is detected.

Click Save to save the changes

TRENDnet User’s Guide TV-IP321PI

Exception

Provide notifications for other system events, set up your notifications

here.

Notification

Exception

Type:

First, choose the exception type, and then

choose the corresponding action.

Send Email:

Check this box to send an e-mail notification

when motion is detected.

Click Save to save the changes

TRENDnet User’s Guide TV-IP321PI

Snapshot

You can set up your camera to continuously taking snapshots or taking

snapshots only when events happening.

Continuous

Enable:

Check this box to take snapshots continuously.

Format:

Save snapshots in JPEG format

Resolution:

Uses the same resolution set in Video Format for

the snapshot resolution.

Quality:

Choose a compression quality for snapshots.

Interval:

State the time interval between snapshots. The

default interval is 10 seconds.

Event triggered

Enable:

Check this box to take snapshots when an event is

occurred.

Format:

Save snapshots in JPEG format

Resolution:

Uses the same resolution set in Video Format for

the snapshot resolution.

Quality:

Choose a compression quality for snapshot.

Interval:

State the time interval between this series of

snapshots. The default interval is 1 second.

Capture

Number:

State how many snapshots you want to take in a

single triggered event. Default: 3 pictures.

Click Save to save the changes

TRENDnet User’s Guide TV-IP321PI

Set up email accounts for notifications.

Sender

Sender:

Enter the name to be appeared as the email

sender.

Sender’s

Address:

Enter sender’s email address.

SMTP Server:

Simple Mail Transportation Protocol Server

address, the outgoing email server address. It

may be has address as your incoming email

server, maybe not. Please ask your email service

provider for detail.

SMTP Port:

Service port number for outgoing email.*

Enable

SSL/TLS:

Check this box if your service provider requires a

SSL or TLS secured connection.

Attach

Image/Interval

Check Attach Image if you want to send a

snapshot image with the email notification and

select the interval of snapshots in seconds.

Authentication

Check this box if your server requires a password

in order to send email. Most email servers require

authentication when sending an email.

User name:

Enter the user name of outgoing email account

Password:

Enter the password

Confirm:

Enter the password again to confirm that the

password was entered correctly.

Click Save to save the changes

Receiver

Receiver 1:

The first receiver’s name.

Receiver 1’s

Address:

The first receiver’s email address.

Receiver 2:

The second receiver’s name.

Receiver 2’s

Address:

The second receiver’s email address.

Receiver 3:

The third receiver’s name.

Receiver 3’s

Address:

The third receiver’s email address.

Click Save to save the changes

*Note: Many ISPs does not allow service port 25 going through their network.

Other popular ports are 587 and 465. Please consult your email service provider

and ISP for detail.

TRENDnet User’s Guide TV-IP321PI

Network Storage

Network Storage must be setup before it can be managed. For storage

management, please refer to the next section.

The TV-IP321PI supports two formats of network storage file systems:

NFS and CIFS. NFS, Network File System, is natively supported by Linux

computers and most NAS, Network Attached Storage. CIFS, Common

Internet File System, is natively supported by Windows® systems and

now is generally supported by Linux. (OS X® file sharing is not standard

SMB and not compatible as a network storage disk here.)

You can add up to 8 network storages for your camera. The recordings

will subsequently be stored in these spaces. Save video from the first

storage and then the next when the first one is full. Click on the entry to

change the settings and click Save to save the settings.

No:

The sequential number of the network storage.

Type:

The type of storage.

Server

Address:

Enter the IP address of your network storage.

File Path:

Enter the shared folder as file path for network storage.

You can create a folder under the shared folder and make

it a network volume here. Just create the folder and enter

the correct path name here.

Capacity:

Enter the size of the disk space you want to assign for

this storage. The minimum disk space requirement is

8GB. If you do not want to limit the size and use the full

physical disk space, put number 0 in this field.

File

System:

Choose between NFS or CIFS for file system. If you assign

the network storage on a Windows® computer, set it to

CIFS.

User

Name:

Enter the user name if the network storage requires user

name and password. Enter any non-blank letters if no

authentication is required.

Password:

Enter the password to access the network storage. Enter

any non-blank letters if no authentication is required.

Click Save to save the changes. The camera may reboot to make the

network storage available. Go to the next section to format and manage

your network storage.

Tip: To create a network storage on your

Windows® based system, create a shared folder

and then test your set up with another computer.

Enter the IP address of the computer here and

enter the shared folder name with a leading

forward slash. For example, if you have a shared

folder named “SMB”, enter “/SMB” in the File

Path.

TRENDnet User’s Guide TV-IP321PI

Storage Management

Network Storage must be setup before it can be managed. To setup

storage, please refer to the previous section.

Format:

Select a network storage volume and then click Format

to format your network storage. This action will format

the network volume (shared folder) for video recording.

Placeholder files (formatting files) will be created to

make sure disk allocation is appropriate and the file

searching is optimized.

The volume format is a proprietary user space storage

format. Meaning that you visit the shared folder and see

some structured files. Please do not modify these files

manually. Modifying these files may cause recording and

playback problems. Access your recording and system

log via the web management user interface to download

the recording and snapshots.

Capacity:

The total capacity this network storage can use.

Free Space:

The free space left for video recording, snapshot and log.

Status:

The connection status to the network storage.

Property:

This network storage is read only or can be read and

write.

Progress:

The progress of ongoing task.

Note: The formatting progress depends on the size of the storage

and the network bandwidth. It takes a while if you are

formatting a big volume or the network connection is not stable.

TRENDnet User’s Guide TV-IP321PI

FTP Server

Enable Snapshot

to FTP:

Check this box if you want to store snapshots on

the FTP.

Server Address:

Enter the FTP server IP address.

Port:

Enter the service port number of the FTP server.

User

Name/Anonymo

us:

Check Anonymous if the FTP server does not

require authentication. Enter the User Name if the

FTP server requires authentication.

Password:

Enter the password of the FTP account.

Confirm:

Enter the password again to make sure the

password was entered correctly.

UG_TV IP321PI(v1.0R) UG TV

Navigation menu

Versions of this User Manual:

Views

Navigation
