4 your spares solution

Call us today on 01454 620500

SPARES & ACCESSORIES AVAILABLE FROM OVER 100 SUPPLIERS

Selco

5

your spares solution

www.uk-spares.com

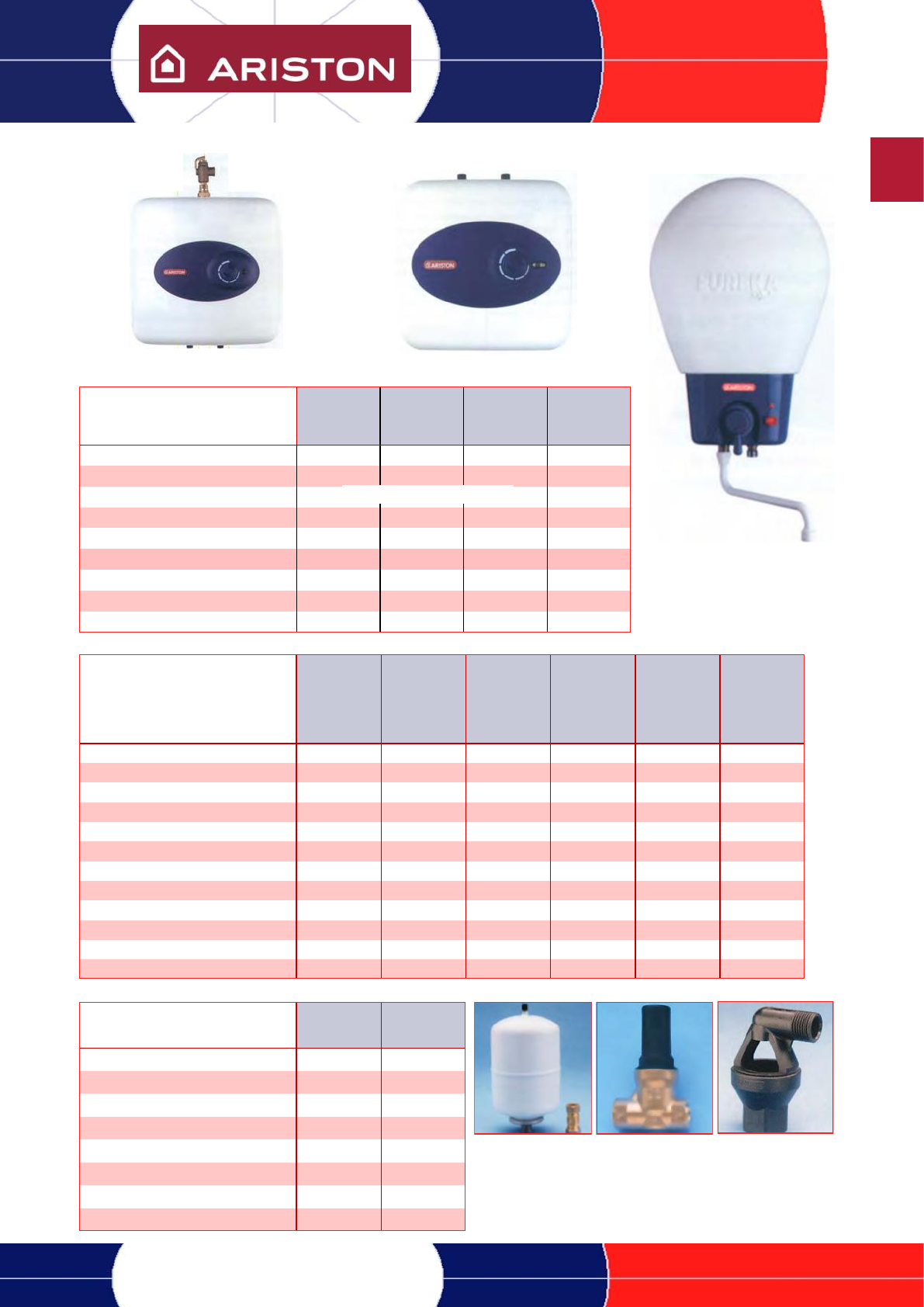

Europrisma Europrisma Europrisma Eureka

Description

EP 10/15 U

2kW

EP 10/15 U

3kW

EP 30 O

Magnesium Anode 574305 574305 570241 -

Heating Element (No Gasket) 65104011 810830 810830 410750

Thermostat 410658

Safety Valve (6 bar) 2 Port 572447 572447 - -

Temp. & Press. Relief Valve T Bar - 570100 570100 -

Gasket (Element) 570016 570016 570016 570118

Ceramic Cartridge - - - 410669

Thermofuse - - - 410660

Lever Assembly - - - 410666

Europrisma Under-Sink

Description

DIRECT INDIRECT

Wall Hung ST

50/80/100

Contract STD

100/125/150

210/300

Contract STI

125/150/210

300

Contract

Protech STD

100/125

150

Contract

Protech

STI 125/150

210/300

Super Bravo

SB

125/150/200

Magnesium Anode 65409010 919054 919054 - - 919037

Heating Element 816523 65101884 65101884 816557 816557 816524

Thermostat Kit (Direct) 935049 691216 - 691216 691216 935179

Thermostat Kit (Indirect) - - 921046 - 921046 935180

Regulation Thermostat (Direct) 921023 921023 - - - 921023

Thermal Cut Out (Direct) (Safety Stat) 921024 - - - - 921024

Regulation Thermostat (Indirect) - - 935184 - 935184 321026

Thermal Cut Out (Indirect) - - 935185 - 935185 321033

Temp. & Press. Relief Valve 969009 969040 969040 969046 969046 969009

Gasket (Element) 924001 924087 924087 924087 924087 924001

P.C.B. (Protech) - - - 925294 925294 -

Electrode (Titanium - Protech) - - - 340407 340407 -

High Capacity High Capacity

Description 500 STD UK 500 STI UK

Magnesium Anode Top 919049 919049

Magnesium Anode Bottom 919037 919037

Heating Element (6KW - incl. Anode) 816518 816518

Regulation Thermostat (Direct) 921044 921044

Regulation Thermostat (Indirect) - 935184

Thermal Cut Out (Indirect) - 935185

Temp. & Press. Relief Valve 969046 969046

Gasket (Element) 291056 291056

Optional Kit A:

Expansion Vessel

and Check Valve

Optional Kit B:

Pressure Reducer

with Integral

Line-Strainer

Optional Kit C:

Tundish for 10

and 15 Litre Units

Europrisma Over-Sink

Eureka

WATER HEATERS

Part Information Required

6 your spares solution

Call us today on 01454 620500

Boiler Models Pre 2003 Post 2003 Miscellaneous

Catering Element Sunvic Simmerstat EGO Simmerstat Thermostat Comments

C8T 59163 X X 082610811 -

C10E 082610802 9734 OBS USE 53832A X 2kW Element

C10T 082610801 X X 082620290 3kW Element

C20E 082610801 9734 OBS USE 53832A X -

C20T 082610801 X X 082620290 -

C30E 082610801 9734 OBS USE 53832A X -

C30T 082610801 X X 082620290 -

C18H2 10963B 9734 OBS USE 53832A X Threaded Base Element

C26H2 10963B 9734 OBS USE 53832A X Threaded Base Element

C18X2 10963B X X (Obsolete) Threaded Base Element

C26X2 10963B X X (Obsolete) Threaded Base Element

C26H2 10963B X X (Obsolete) Threaded Base Element

Wash Boilers Tap Comp Tap Top

& Catering Assembly Activating Lever Fibre Washer Rubber O - Ring

C8T 082620789 X X X

C10 - C30 082626777 082626760 9573 082610095

F24L, F33L 082608379 X 082608350 X

F44L 9876 OBS X 082608350 X

F46LR 082608379 X 082608350 X

Cygnet U01 082626778 082626760 9573 082610095

Cygnet U02 082626778 082626760 9573 082610095

Cygnet U03 082626778 082626760 9573 082610095

BURCO/CYGNET SPARES

Post Feb 2001 Pre 2003 Post 2003 Miscellaneous

Element Sunvic Simmerstat EGO Simmerstat Thermostat Comments

U01 Aid 082610802 9734 OBS USE 53832A X 2kW Element

U02 Aid 082610801 9734 OBS USE 53832A X Pre 2003 S/Stat - ‘Sunvic’

U03 Aid 082610801 9735 OBS USE 53832A X Post 2003 S/Stat - ‘EGO’

U32 082610802 X X 082620290 -

U34 082610801 X X 082620290 -

U36 082610801 X X 082620290 -

U42 082610802 X X 082620290 -

U44 082610801 X X 082620290 -

U46 082610801 X X 082620290 -

U52 082620570 X X 082620290 Concealed Round Element

U54 082620570 X X 082620290 Concealed Round Element

U56 082620570 X X 082620290 Concealed Round Element

Tap to Container

7

your spares solution

www.uk-spares.com

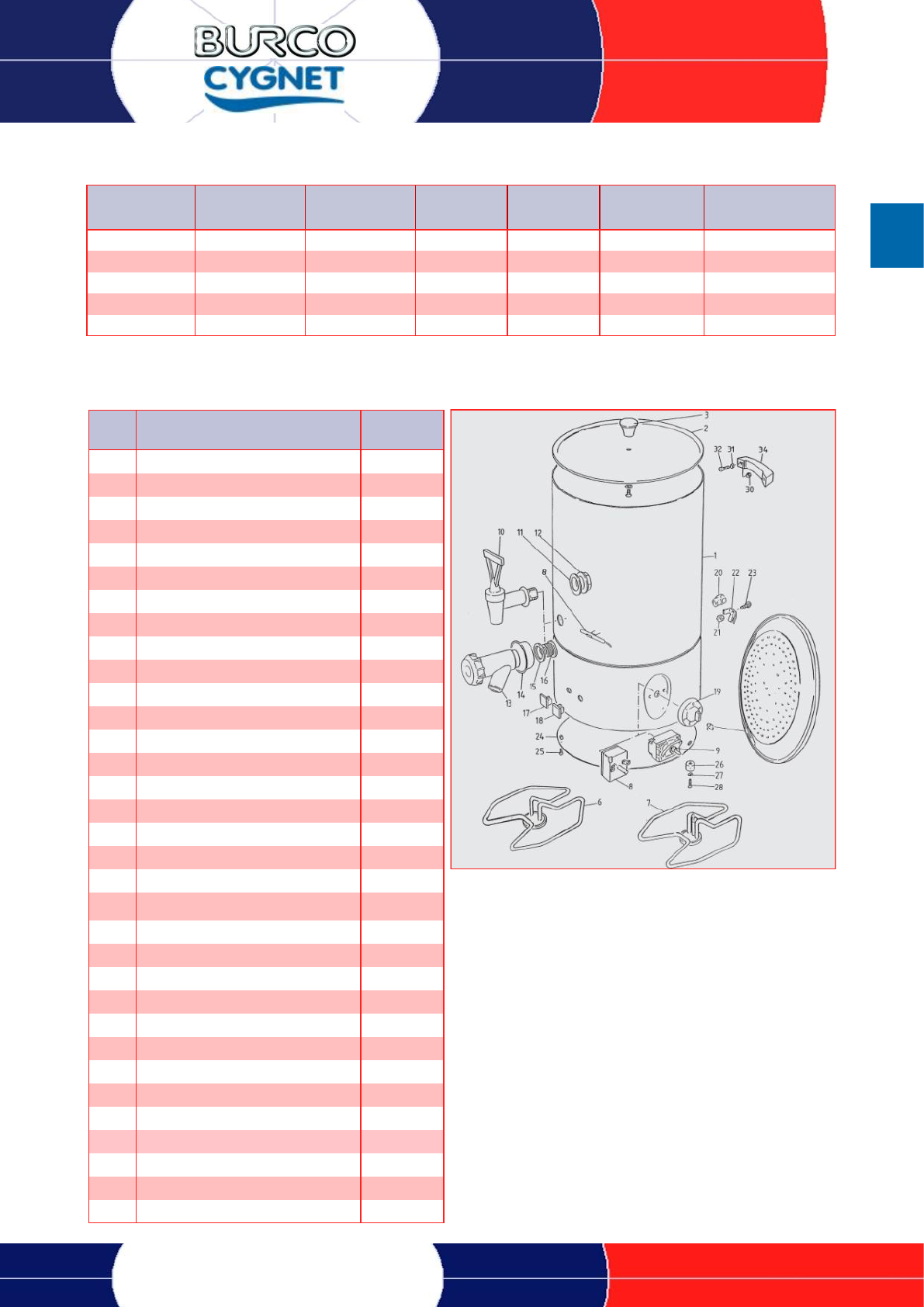

BURCO/CYGNET MISCELLANEOUS SPARES

Control Knob Control Knob Lid Lid Knob Single Urn Overheat or

‘Sunvic’ Stat EGO' Stat Assembly Only Handle (PK2) Element Cut-Out

C8T X 59107 082610821 X X 59108

C10 082610034 082620325 59144 9935 082626744 59035

C20/C30 082610034 082620325 082610434 9935 082626744 59035

F24, F33, F46LR 082610034 082620325 9741 9935 082626744 59035

F44L 082610034 082620325 4884 9935 082626744 59035

BURCO DEAN APPLICANCES LTD

Item

No Description Part No

1 Boiler Body

2 Boiler Lid C10 (old models) 57144

All C10/20/30 (new STHF) 082610434

3 Lid Knob 9935

6 Element 3KW 082610801

Element 2KW (C10E) 082610802

7 Element 3KW C/W STUD NLA

8 Thermostat C/W Capillary EGO 082620290

9 Energy Regulator EGO 62391

Energy Regulator INVENSYS 53832A

Energy Regulator Sunvic (use) 53832A

10 Tap Assembly Cat Boiler 082626777

Tap Top 082626760

11 Internal Sealing Washer 9573

12 Tap Backnut 9575

13 Tap Tap Assembly Washboiler 9875

14 Tap Plug 9422

15 Tap To Container Washer 082608350

16 Internal Rubber Washer Catering 082610095

17 Amber Neon 57175

18 Red Neon 082608382

19 Switch Knob For EGO 082620325

Switch Knob For Sunvic 082610034

20 Cable Bush NLA

21 Nut NLA

22 Name NLA

23 Screw NLA

24 Base Plate NLA

25 Base Plare Screw NLA

26 Rubber Foot C/W Screw 02253A

27 Washer NLA

29 Cover Plate (WASHBOILER) NLA

34 Carry Handle (Pack 2) 082626744

8 your spares solution

Call us today on 01454 620500

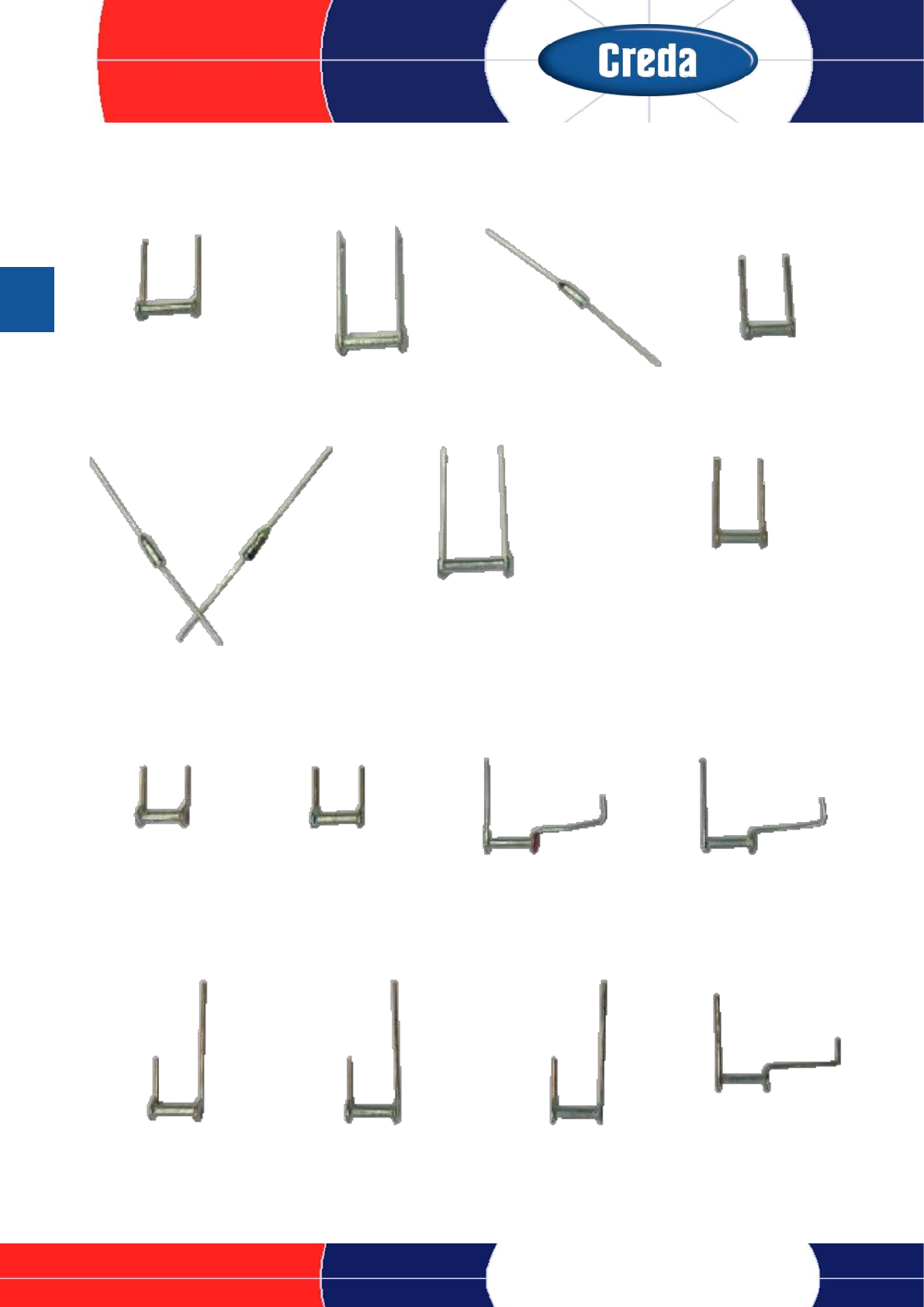

CREDA THERMAL LINKS

0850200 0850328 0850340/0850358

(Obsolete)

0850372

0850442/0850450

(Obsolete)

0850514

Obsolete 0850519

0850656 0850687

0851051 0851054

0851081 0851082 0851473 0851417

9

your spares solution

www.uk-spares.com

THERMAL LINKS TECHNICAL PARTS GUIDE

Old No. New No. °C Colour

701700009V 0850200 176 Yellow

751007048T 0850328 155 Alloy

790400006X 0850358 128 Brown

790400074X 0850358 128 Brown

790400135H 0850372 145 Blue

790500006M 0850442 (Obsolete) 152 Grey

790500076K 0850449 (Obsolete) 170 Black/Green

790500077J 0850450 (Obsolete) 170 Black/Green

790600007D 0850514 (Obsolete) 145 Alloy

790600153M 0850519 158 Red

791400330 0851473 145 Blue

791400143 0851051 158 Red

791400171 0851081 158 Red

791400329 0851417 145 Blue

791500008X 0850656 158 Red

791500036G 0850656 158 Red

791600039T 0850687 177 Yellow

791600081 0851054 177 Yellow

791600089 0851082 177 Yellow

10 your spares solution

Call us today on 01454 620500

Creda Models Input Stat Knob Output Stat Knob Thermal lINK

79041 NLA NLA NLA NLA NLA

79042 0850348 0850846 NLA 0850846 NLA

79043 NLA 0850846 NLA 0850846 NLA

79044 NLA 0850846 NLA 0850846 NLA

79045 0850369 0850846 0850375 0850846 0850372

79046 0850369 0850846 0850375 0850846 0850372

79047 0850830 0850846 0850375 0850846 0850372

79051 NLA NLA NLA NLA NLA

79052 0850830 0850846 NLA 0850846 NLA

79053 0850516 0850846 NLA 0850846 NLA

79054 0850516 0850846 NLA 0850846 NLA

79055 0850369 0850846 0850375 0850846 0850372

79056 0850369 0850846 0850375 0850846 0850372

79057 0850830 0850846 0850375 0850846 0850372

79059 0850370 - - - 0850372

79061 NLA NLA NLA NLA 0850514

79062 0850830 0850846 NLA 0850846 0850328

79063 0850830 0850846 NLA 0850846 0850328

79064 0850830 0850846 NLA 0850846 0850328

79065 0850369 0850846 0850375 0850846 0850519

79066 0850369 0850846 0850375 0850846 0850519

79067 0850830 0850846 0850375 0850846 0850372

79069 0850370 - - - 0850372

79131 0850565 - 0850563 - 0850656

79132 0850565 - 0850563 - 0850656

79134 0850565 - 0850563 - 0850656

79134N 0850565 - 0851287 - 0850656

79135 0850565 - 0850563 - 0850656

79135N 0850565 - 0851287 - 0850656

79141 6500059 0850846 0850589 0850846 0850656

79141C + 79141H 0851050 0851372 0850589 0851372 0851051

79142 0850598 0850846 Combined 0850846 0850656

79143 0850602 0850846 Combined 0850846 0850656

79144 0850598 0850846 Combined 0850846 0850656

79144C + 79144H 0851080 0851372 Combined 0851372 0851081

79144N 0851080 0851372 Combined 0851372 0851081

79145 0850598 0850846 Combined 0850846 0850656

79145C 0851080 0851372 Combined 0851372 0851081

79147C 0851080 0851372 Combined 0851372 0851081

79148 0851060 0851372 Combined 0851372 0851081

79151 6500059 0850846 0850589 0850846 0850656

79151C 0851050 0851372 0850589 0851372 0851051

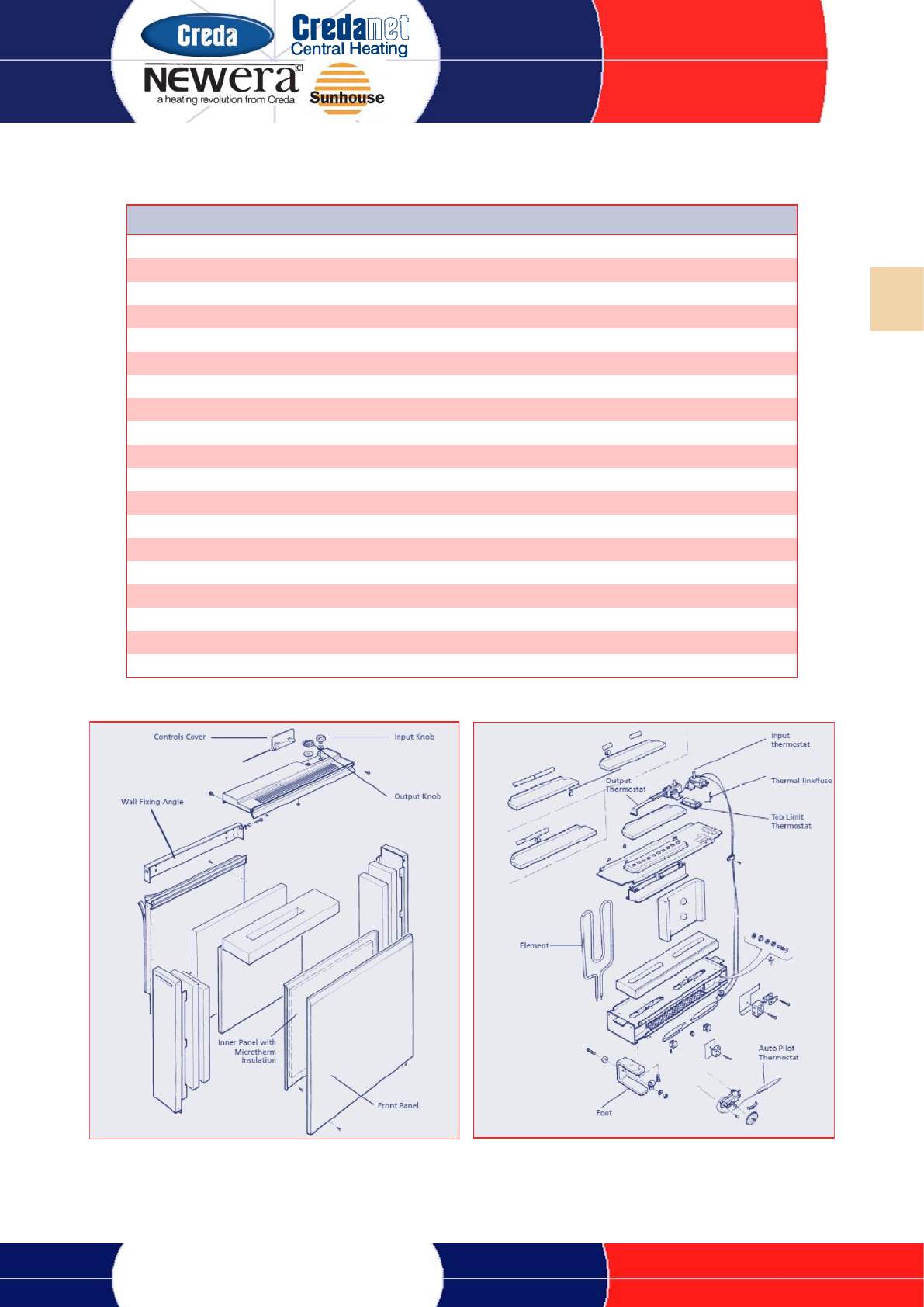

CREDA/SUNHOUSE STORAGE HEATERS

WORKING PARTS GUIDE

11

your spares solution

www.uk-spares.com

Creda Models Input Stat Knob Output Stat Knob Thermal lINK

79152 0850598 0850846 Combined 0850846 0850656

79153 0850602 0850846 Combined 0850846 0850656

79154 0850598 0850846 Combined 0850846 0850656

79154C + 79154H 0851080 0851372 Combined 0851372 0851081

79155 0850598 0850846 Combined 0850846 0850656

79155C 0851080 0851372 Combined 0851372 0851081

79157C 0851080 0851372 Combined 0851372 0851081

79158 0851060 0851372 Combined 0851372 0851081

79161 6500059 0850846 0850589 0850846 0850687

79161C 0851050 0851372 0850589 0851372 0851054

79162 0850598 0850846 Combined 0850846 0850687

79163 0850602 0850846 Combined 0850846 0850687

79164 0850598 0850846 Combined 0850846 0850687

79164C 0851080 0851372 Combined 0851372 0851082

79165 0850598 0850846 Combined 0850846 0850687

79165C 0851080 0851372 Combined 0851372 0851082

79167C 0851080 0851372 Combined 0851372 0851082

79168 0851060 0851372 Combined 0851372 0851081

79248 0851344 0851372 0851346 0851372 0851081

79258 0851344 0851372 0851346 0851372 0851081

79268 0851344 0851372 0851346 0851372 0851082

79331 0851050 - 0851287 - 0850656

79331S + 79331HS 0870090 - - - 0870079

79334 0851308 - 0851287 - 0850656

79334S + 79334HS - - - - 0870079

79341 + 79341H 0851427 0851423 0850589 0851423 0851417

79341S + 79341HS 9510023 0870055 0870053 0870055 0870023

79344 + 79344H 0851472 0851423 Combined 0851423 0851473

79344S + 79344HS 0870021 0870055 - 0870055 -

79348 + 79348H 0851496 0851423 0851346 0851423 0851473

79348S / 770501 0870021 0870055 0870109 0870055 -

79351 + 79351H 0851430 0851423 0850589 0851423 0851051

79351S 9510023 0870055 0870053 0870055 LIMIT STAT

79354 + 79354H 0851472 0851423 Combined 0851423 0851081

79354S 0870060 0870055 - 0870055 -

79358 + 79358H 0851496 0851423 0851346 0851423 0851081

79358S / 770601 0870021 0870055 0870109 0870055

79361 + 79361H 0851430 0851423 0850589 0851423 0851051

79361S 9510023 0870055 0870053 0870055 LIMIT STAT

79364 +79364H 0851472 0851423 Combined 0851423 0851081

79364S 0870060 0870055 - 0870055 -

79368 + 79368H 0851496 0851423 0851346 0851423 0851081

79368S / 770701 0870021 0870055 0870109 0870055 -

CREDA/SUNHOUSE STORAGE HEATERS

WORKING PARTS GUIDE

12 your spares solution

Call us today on 01454 620500

Sunhouse

Models Input Stat Knob Output Stat Knob Thermal Link

79149 0851080 0851372 Combined 0851372 0851081

79159 0851080 0851372 Combined 0851372 0851081

79169 0851080 0851372 Combined 0851372 0851082

79242 0851050 0851372 0851371 0851372 0851051

79252 0851050 0851372 0851371 0851372 0851051

79262 0851050 0851372 0851371 0851372 0851054

79342 0851050 0851372 0851371 0851372 0851051

79342S 0870022 0870003 - 0870003 0870023

79343 0851080 0851372 Combined 0851372 0851081

79343S 0870021 0870003 - 0870003 -

79352 0851050 0851372 0851371 0851372 0851051

79352S 0870022 0870003 - 0870003 0870023

79353 0851080 0851372 Combined 0851372 0851081

79353S 0870021 0870003 - 0870003 -

79362 0851050 0851372 0851371 0851372 0851054

79362S 0870022 0870003 - 0870003 0870023

79363 0851080 0851372 Combined 0851372 0851082

79363S 0870021 0870003 - 0870003 -

SUNHOUSE STORAGE HEATERS

WORKING PARTS GUIDE

13

your spares solution

www.uk-spares.com

Creda Model Transceiver Fan Assembly Electronic

Control Input Stat Input Knob Fan Switch Output Knob Thermal Link

70217K, 70217 0870133 0850272 X X X X X 0850687

70207K, 70207 0870133 0850251 X X X X X 0850687

70205H, 70205 X 0850251 0851300 0851303 NLA 0851387 0851304 0850687

70215H, 70215 X 0850272 0851300 0851303 NLA 0851387 0851304 0850687

70213C, 70213 X 0850272 0850244 0850248 0850846 0870201 NLA 0850687

70203C, 70203 X 0851251 0851312 0850248 0850846 X NLA 0850687

70211 X 0850272 0850244 0850248 0850846 0850135 0850895 0850687

70201 X 0850251 0850244 0850248 0850846 X 0850895 0850687

70305H X 0850251 0850244 0851302 NLA 0851387 NLA 0850687

70305 X 0850251 0850244 0851302 NLA 0851387 NLA 0850687

70305S X 0870245 X 0870022 0870202 0870248 0870202 0870242

70135H X 0850272 0850244 0851302 NLA 0851387 NLA 0850687

70315 X 0850272 0850244 0851302 NLA 0851387 NLA 0850687

70315S X 0870245 X 0870022 0870202 0870248 0870202 0870242

70379 x NLA

x NLA X 0850203 X 0851524 0851516 0851292

70379KS X 0870167 X 0870163 0870171 0870175 0870177 0870170,

0870184

70369 X NLA

X NLA X NLA NLA 0851524 0851516 0850200

70369KS X 0870167 X 0870163 0870171 0870175 0870177 0870170,

0870184

70389 X NLA

X NLA X NLA 0850802 0851524 0851516 0851199

70389KS X 0870166 X 0870163 0870171 0870175 0870177 0870170,

0870184

70156 X NLA

X NLA X 0850121 NLA X X 0850372

70158 X NLA

X NLA X 0850360 NLA 0851524 0850895 0850372

70159 X NLA

X NLA X 0850360 NLA 0851524 NLA 0850372

70166 x NLA

x NLA X 0850201 NLA X X 0850200

70168 x NLA

x NLA X NLA 0851524 NLA 0850200

70169 x NLA

x NLA X NLA NLA 0851524 NLA 0850200

70176 x NLA

x NLA X 0850201 X X 0850200

70178 x NLA

x NLA X NLA NLA 0851524 NLA 0850200

70179 x NLA

x NLA X NLA 0851524 NLA 0851292

70189 NLA

NLA X NLA NLA 0851524 NLA 0851199

70189V NLA

NLA X 0851293 NLA 0851524 NLA 0851292

CREDA/SUNHOUSE STORAGE HEATERS

WORKING PARTS GUIDE

14 your spares solution

Call us today on 01454 620500

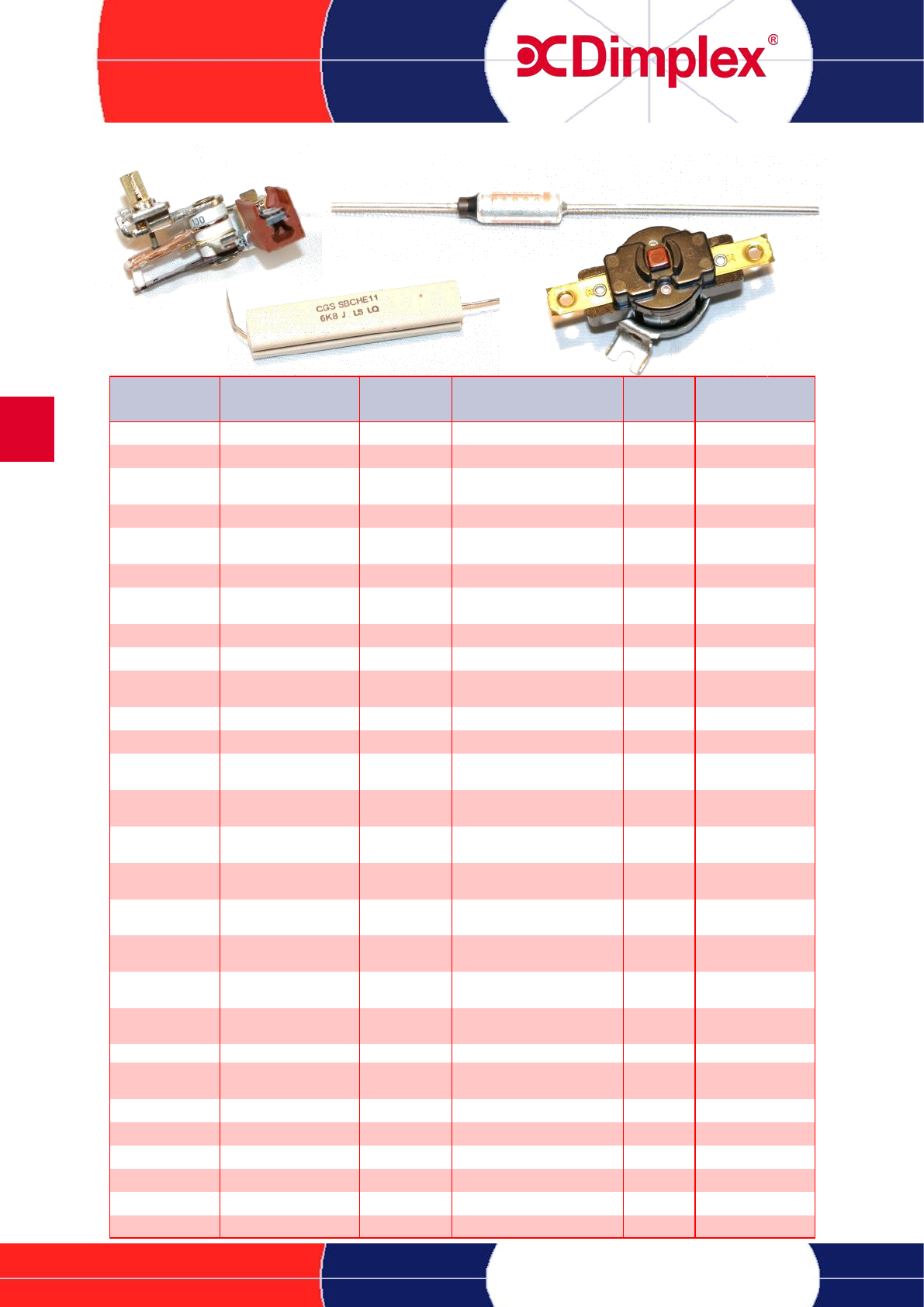

STORAGE HEATERS

MODEL NO: SERIES CODE CHARGE

CONTROLLER

CHARGE LIMITER C/W CUT-

OUT

CONTROL

KNOB

ACCELERATOR RE-

SISTER LINK

XL12/18/24 All XT9605 - XL9197 XT8305

XLN12 A - Dec 01 XT9605 - XL9197 -

XLN12 S/N: 0119899 Dec 01 XL01003 XL01004 (Obsolete) Need

Repair Kit XL9197 -

XLN18 A - Dec 01 XT9605 - XL9197 -

XLN18 S/N: 0022863 Dec 01 XL01003 XL01004 (Obsolete) Need

Repair Kit XL9197 -

XLN24 A - Dec 01 XT9605 - XL9197 -

XLN24 S/N: 0016755 Dec 01 XL01003 XL01004 (Obsolete) Need

Repair Kit XL9197 -

XLS12/XLS18 All 9510094 XL9708 XL9197 -

XLS24 All 9510094 XL9708 XL9197 -

XLSN12/18/24 05/WW -DEC/2001 9510094 XL9708 XL9197 -

XLSN12/18 A - 04/WW 9510094 XL9708 XL9197 -

XLSN24 A - 04/WW 9510094 XL9708 XL9197 -

XLSN12 S/N: 0013722 Dec 01 9510094 XL01002 (Obsolete) Need

Repair Kit XL9197 -

XLSN18 S/N: 0012638 Dec 01 9510094 XL01002 (Obsolete) Need

Repair Kit XL9197 -

XLSN24 S/N: 0344016 Dec 01 9510094 XL01002 (Obsolete) Need

Repair Kit XL9197 -

XL6N From 1997 - XL9701 (Obsolete now use

9511030) - -

XLS6N From 1997 XT8617 XL9701 (Obsolete now use

9511030) - -

XLT6 Early XL9002 XL9701 (Obsolete now use

9511030) - XL9003

XLT6 All - XL9701 (Obsolete now use

9511030) - XL9003

XLT6N 02/WW - XL9701 (Obsolete now use

9511030) - XL9003

XLT6N Early - 01/WW XL9002 - - XL9003

XLT6S From 01/WW XT8617 XL9701 (Obsolete now use

9511030) - -

CXL12/18/24 A - 01/WW XT9605 - XL9197 XT8305

CXL12/18/24N All XT9605 - XL9197 -

XT Range All XT9800 NLA NLA -

CXT Range All XT9800 NLA NLA -

XT Range Early XT9800 - NLA XT8305

CXT Range Early XT9800 - NLA XT8305

15

your spares solution

www.uk-spares.com

DIMPLEX STORAGE HEATERS

OTHER POPULAR STORAGE HEATER SPARES

QUARTZ HEATERS

TOWEL RAILS

Model No Series Code Charge Contoller Charge Controller

Limiter

Thermostat Room

PCB Control Knob

FCX 18/24 All Series - XA9203 XA9205 XL9197

FCX A 18/24 Early - 03/WW 9510094 XA9301 XA9205 XL9197

FCX A 18/24 04-06/WW - XA9408 XA9205 XL9197

FCX A 18/24 07-08/WW - - XA9501 XL9197

FXL 18/24 N All Series 9510023 XL9836 XL9817 XL9809

XF Range All Models XF9103 - - XF9105

Model No: Part No: Description Model No: Part No: Description

XL, XLN, CXL, XT, CXT,

XLS, FXL XT8321 Storage Element XF42 (Pre ‘97) XF9102 Storage Element

FCX, FCXA XA9200 Storage Element CXL XL9148 Convector Control

Knob

XF 28 (Pre ‘97) XF9100 Storage Element CXL, CXT XL9147 Convector Switch

On/Off

XF 35 (Pre ‘97) XF9101 Storage Element

Model No: Part No: Description Model No: Part No: Description

QX QXD Range QX8900 1500W Hal Lamp - Red QXD Vector QX9800 1500W Hal Lamp - Gold

QX QXD Range QX9600 1500W Hal Lamp - Neutral QXD Vector QX9801 2000W Hal Lamp - Gold

CXD 2000 CX06002

Part No: Description To Fit Model

Range Part No: Description To Fit Model Range

TR2012 Wall Brackets (4) Chrome TRC TR8404 Element Cartridge 175W TRS

TR2101 Wall Brackets (4) Brass TRB TR8405 Obsolete now use TR8404 TRS

TR2104 Wall Brackets (4) White TRS TR9200 Element Cartridge 60W TRC

TR2512 Wall Brackets (3) Chrome - Use S50 TR0801 Element Assy 45W S50, S45 LST

TR9111 Wall Brackets (3) White - Use TR2104 S50, S70 S45 LST TR9400 NLA S70

TR9405 Wall Brackets (4) LTR, LTW TR9609 Element Assy 130W RTR130

TR9617 NLA BR LT9404 Element/Cable Assy 120W LTR

TR20003 Wall Brackets (2) BRC TR00004 Element Assy 150W BR150

TR2212 NLA TRC TR9900 Element Assy 250W BR250

TR2301 Feet (2) Brass TRB TR9901 Element Assy 400W BR400

TR2304 NLA TRS TR9902 Element Assy 500W BR500

DX4123 Energy Regulator TRC S TR TR20001 Element Assy 200W BR200C

TR8400 Element Cartridge 90W TRC90 TR20002 Element Assy 350W BR350C

TR8401 Element Cartridge 120W TRS/ZTR TR8707 Terminal Cover (Black) TR Range, S50, RTR, ZTR

TR8402 Element Cartridge (See TR8400) TRC/TRB TR9100 Terminal Cover (White) TR Range, S70, S45 LST

TR8403 Element Cartridge 150W TRC TR02001 Terminal Cover (Black) c/w Lens TR Range, S50, RTR, ZTR

TR02003 Terminal Cover (White) c/w Lens TR Range, S70, S45 LST

16 your spares solution

Call us today on 01454 620500

OIL FILLED RADIATORS

Part No: Description To Fit Part No: Description To Fit

RD4001 Thermostat (1 Fix

Screw)

MKI Range

(PRE ‘97) NLA Castors (Metal) 4 MK2 ‘P’ Range

RD9705 Stat Assy (2 Fix Screw)

Less Cover

MK1 Range

(‘97 Onwards) RC9000 Castors (Plastic) 4 - Black MK2 ‘P’ Range

RD9706 Thermostat Cover MK1 Range

(‘97 Onwards) EX9208 Thermostat OFX (Series A & B)

RD9707 Thermostat Only

(Campini)

MK1 Range

(‘97 Onwards) OF9802 Thermostat OFX (Series C)

RD9708 Cut-Out (Campini) MK1 Range

(‘97 Onwards) OF9117 Thermostat OFX/TI (Series A & B)

RD9716 Control Knob MK1 Range

(‘97 Onwards) OF09004 Thermostat OFX/TI (Series C)

RD9713 Feet (2) MK1/MK2 ‘P’ Range OF9101 Stat Control Knob (Black) OFX (All Models/Series)

RP9101 Wall Brackets MK1/MK2 ‘P’ Range OF9402 Feet (2) OFX/OFX TI

(Series B & C Only)

RP4801 Thermostat MK2 ‘P’ Range OF9112 Wall Brackets (WW) OFX/OFX TI (Series A)

RP8204 Terminal Cover (White) MK2 ‘P’ Range OF9400 Wall Brackets (WW) OFX/OFX TI

(Series B & C)

RP9100 Terminal Cover (WW) MK2 ‘P’ Range OF9120 Timer Assy (24 Hr) OFX/TI (Series A - C)

RP4290 Control Knob (Clear) MK2 ‘P’ Range

Part No: Description To Fit Part No: Description To Fit

DC5007 Wall Brackets (4) DX20/DX30 Range PX9504 Thermostat

(Series H - Onwards) PLX Range

DX8518 Wall Brackets (4) DX25 TI PX9617 Cut-Out

(Series H - Onwards) PLX 075 - 200 Range

BK9102 Timer Assy (24 Hr) PLX/DX Timer Models NLA Cut-Out

(Series H - Onwards) PLX 300 Range

EX9208 Thermostat DX20/DX30 Range NLA Thermostat Knob PLX Range

DX9103 Thermostat Knob DX20/DX30 Range PX9114 S.P. Switch (Full/Half

Heat) PLX Range

DX9102 S.P. Switch DX20/DX30 Range PX9115 D.P. Switch (On/Off) PLX Range

PX8804 Thermostat (Series A-G) PLX Range 03/21115/

0 Sheathed Element 1kw HAW1000

OTHER POPULAR SPARES

17

your spares solution

www.uk-spares.com

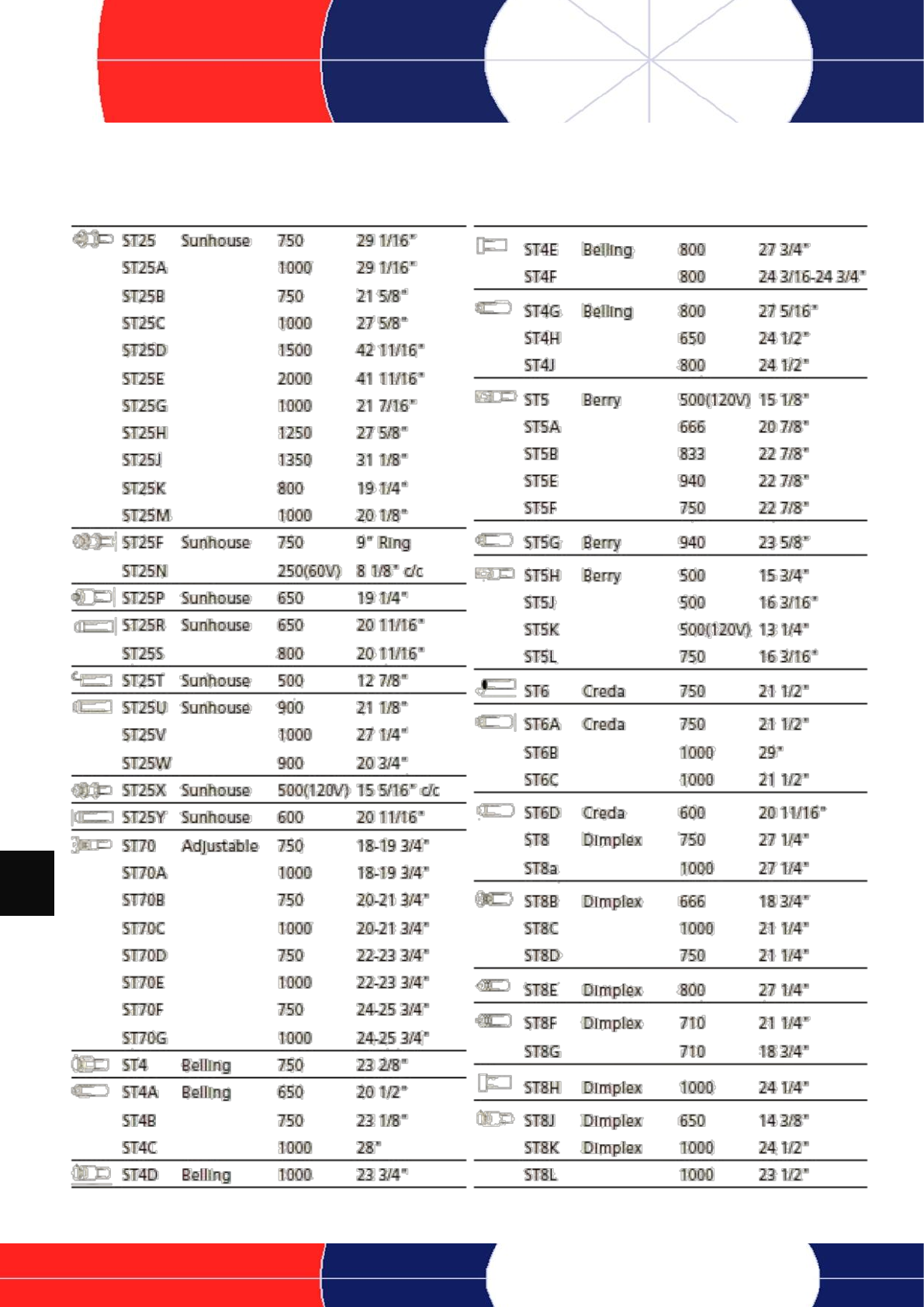

FIRE ELEMENTS - A COMPLETE GUIDE

Heater Series Element Wattage Heater Series Element Wattage

314TK B BF7204 800 842S A&B BF7200 1000

314TK C BF7402 800 843S A&B BF7201 1000

314TKE Bottom D-G BF7450 500 843S C&D BF9519 1000

314TKE Top/Mid D-G BF7451 750 852SE Top/Bottom ALL BF7202 800

314TK/TKE H BF9301 666 852SE Middle ALL BF7203 500

314CHE/316CHE All BF9301 666 BALMORAL C - F BF9100 666

316TKE Top/Middle D - G BF7451 750 BRK20 A BF9300 1000

316TK/TKE 1997 BF9301 666 CANTEBURY ALL BF9100 666

316TK C BF7401 650 FE20C/FE20GC A BF7319 1000

316TK/TKE B BF7205 650 FE20C B BF7410 1000

316TK/TKE Bottom D-G BF7450 500 FE20C 1997 E BF9300 1000

317L/LE/LGE C-I BF7402 800 FE20GC 1997 D - E BF9300 1000

317L/LE/LGE B BF7204 800 FE20GC B - C BF7410 1000

318LB B BF7204 800 FES20 ALL BF7453 1000

318LB C BF7402 800 FPL/FPS ALL FP8800 650

319AB C BF7402 800 IRD1000 ALL ST8A 1000

319AB B BF7204 800 IRD750 ALL ST8 750

320EC C BF7401 650 IRM750 ALL ST8D 750

320EC B BF7205 650 IRX750 A IM8500 750

323GD C BF7403 1000 IRX750 B IX9601 750

323GD B BF7206 1000 IRX500 - IX00001 500

329AS B BF7205 650 IRX1000 A IX8500 1000

329AS C BF7401 650 IRX1000 B IX9600 1000

330EC C BF7402 800 IRX1200 - IX00002 1200

330EC B BF7204 800 IRX1800 All IX00003 600

420LE All BF7452 660 IRX1800N - IX00003 600

430RCE Top/Mid A-J BF7451 750 LYM28E A-H BF7401 650

430RCE Bottom A-J BF7450 500 LYM28E I&J BF9301 666

430RCE K - 1997 BF9301 666 SALISBURY (Coal) ALL BF9100 666

529AS B BF7204 800 WIN28E ALL BF9100 666

529AS C BF7402 800 WINCHESTER ALL BF9100 666

842S C BF9000 650 WIM 20 - BF9100 666

842S 1997 D BF9450 650 YEOMINSTER - BF9300 1000

18 your spares solution

Call us today on 01454 620500

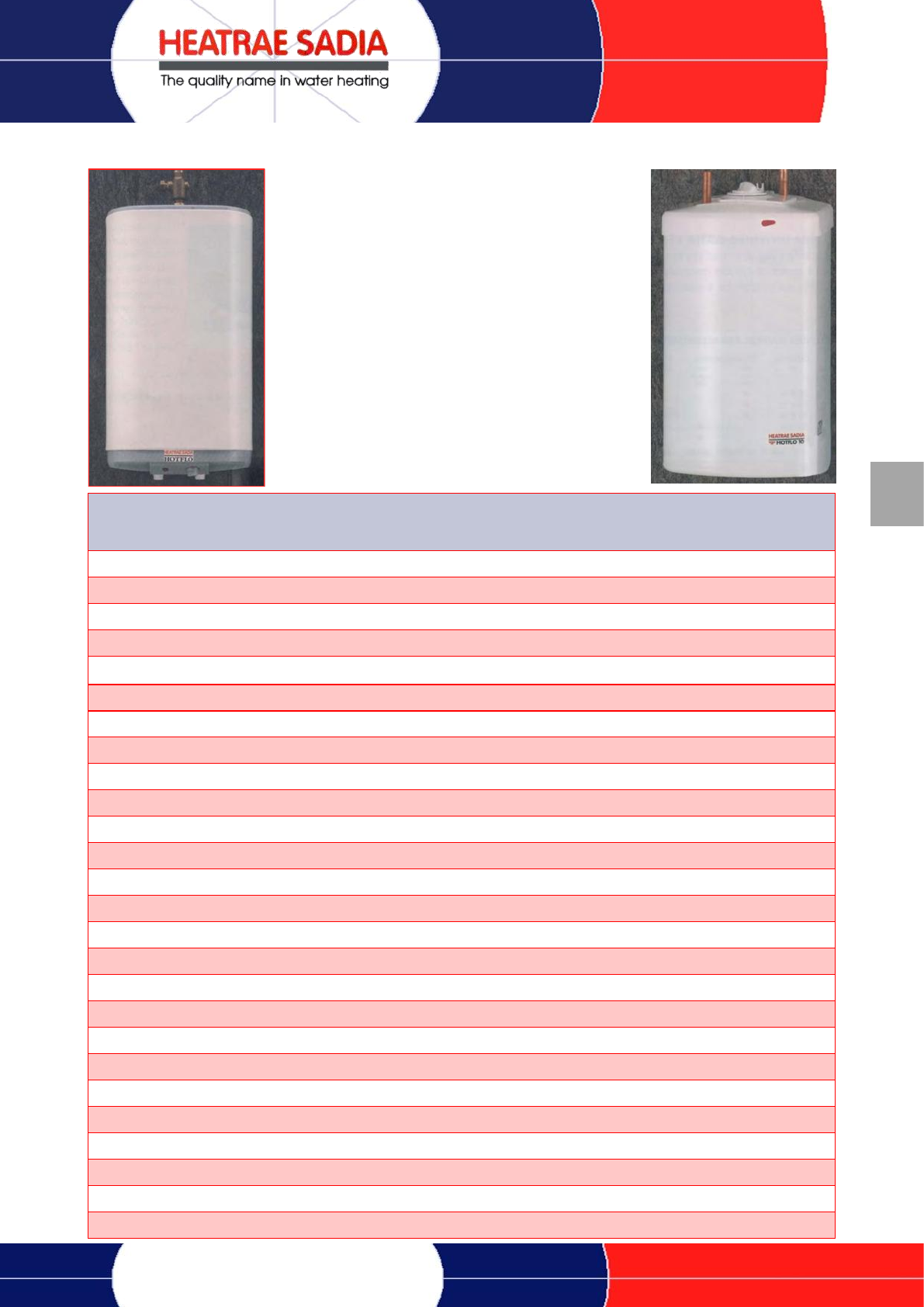

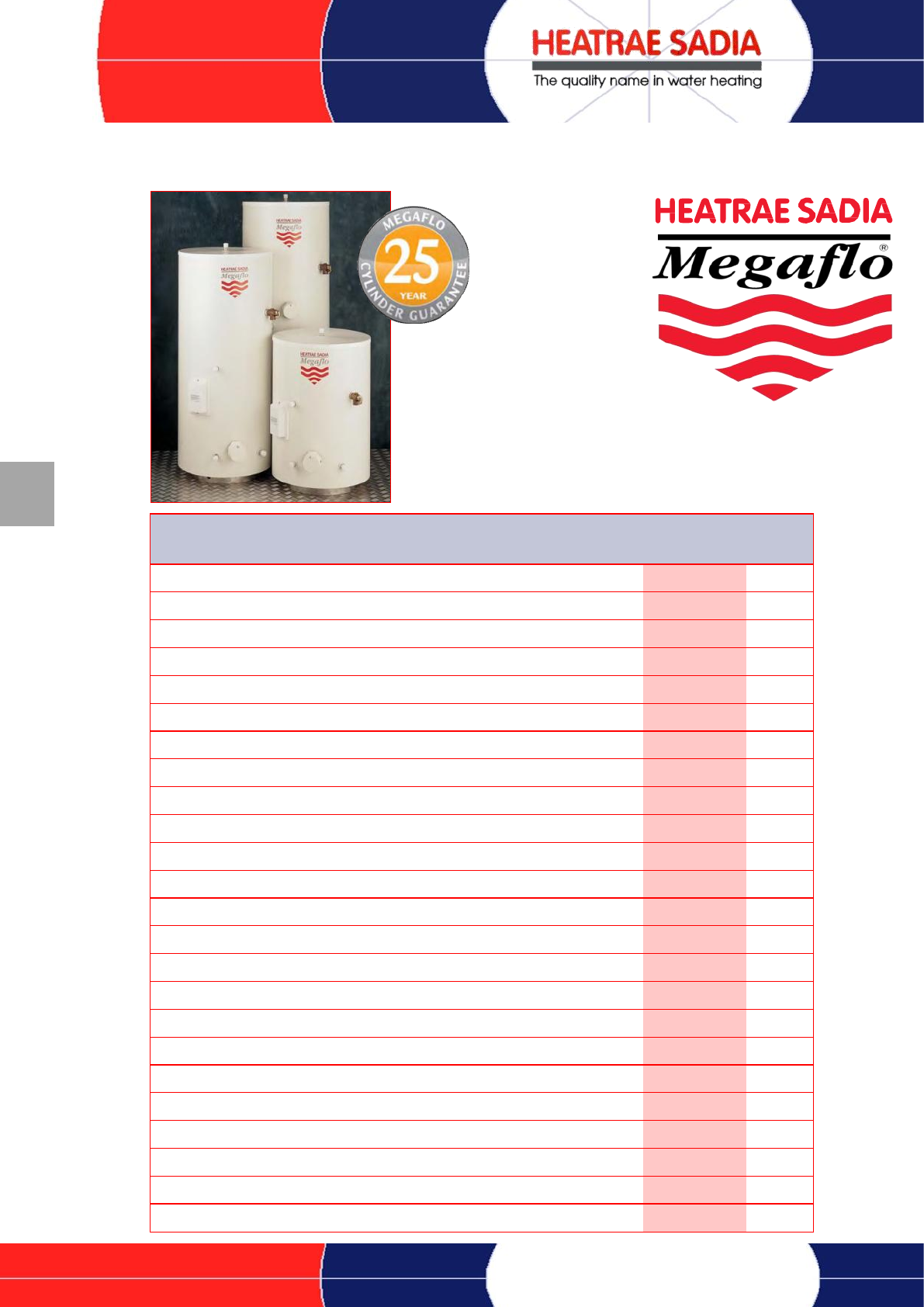

Description Internal Without Internal Fits

Air Volume Air Volume Both

TEMP & PRESS RELIEF VALVE- 10 BAR 605810 x

X TEMP & PRESS RELIEF VALVE – 7 BAR X 605821

COLD WATER COMBI VALVE 605817 Y

PRESSURE REDUCING CARTRIDGE – 3 BAR 605824 Y

EXPANSION RELIEF CARTRIDGE – 8 BAR 605825 Y

EXPANSION RELIEF VALVE – 8 BAR 605828 Y

TUNDISH 28MM 22MM 605811 Y

TUNDISH 15MM X 22 MM (NOV ’99) 605838 Y

SWEPT TEE 605812 Y

ELEMENT (WHITE PLASTIC CAP – IMMERSION HEATER) 606920 Y

THERMOSTAT C/W CUT OUT (ROUND CAP) 612026 Y

THERMOSTAT C/W CUT OUT (SQUARE BLUE CAP) 612209 Y

BLANKING PLUG FOR IMMERSION HEATER 605829 Y

SINGLE O RING FOR IMMERSION HEATER 611810 Y

22MM MOTORISED VALVE – 2 PORT 605819 Y

MK 4 INDIRECT THERMAL C/OUT (BLUE SPOT) X 612211

MK 4 HONEYWELL CYLINDER STAT X 612213

MK 5 THERMOSTAT C/W KNOB (INDIRECT UNITS) X 612597

MK 5 THERMAL C/OUT (INDIRECT UNITS) X 612598

EXPANSION VESSEL 8 LTR X 607660

EXPANSION VESSEL 12 LTR X 607661

EXPANSION VESSEL 18 LTR X 607662

BRACKET FOR EXPANSION VESSEL X 607666

TOP COVER 614100 Y

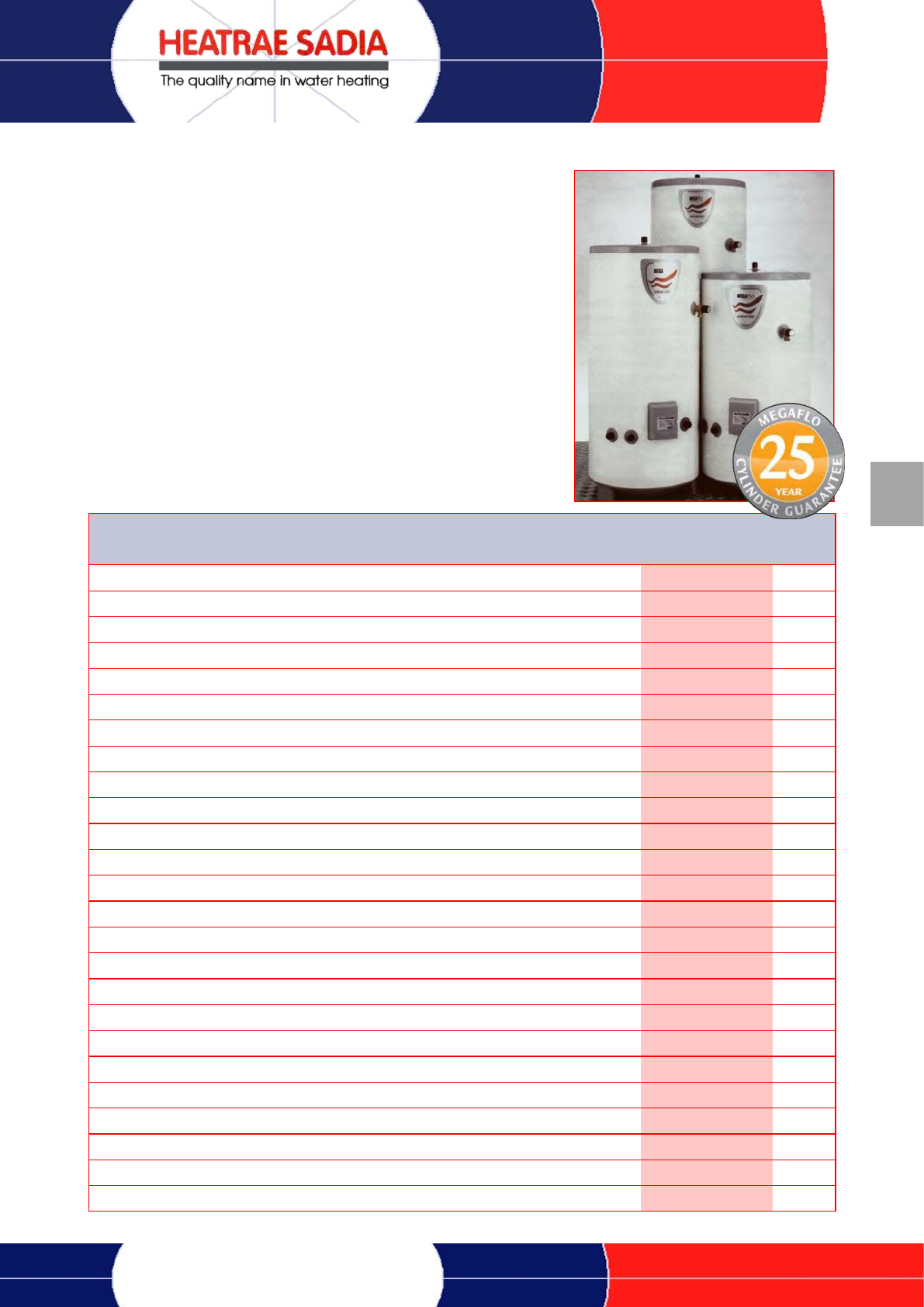

HEATRAE SADIA MEGAFLO (1995 - 2001)

19

your spares solution

www.uk-spares.com

HEATRAE SADIA MEGAFLO HE (Sept - 2001)

Description Internal Without Internal Fits

Air Volume Air Volume Both

ADDITIONAL ‘SWEPT TEE’ 970509 Y

ADDITIONAL ELEMENT C/W STAT (UPPER) 970510 Y

UPPER ELEMENT (STRAIGHT) 606964 Y

LOWER ELEMENT ‘L’ SHAPE 606963 Y

THERMOSTAT C/W CUT OUT (ROUND CAP) 612026 Y

GASKET FOR IMMERSION HEATER 611822 Y

BACKNUT FOR IMMERSION HEATER 607869 Y

KEY FOR IMMERSION HEATER 607861 Y

22MM MOTORISED VALVE – 2 PORT X 605819

CYLINDER THERMOSTAT- INDIRECT X 612697

THERMAL CUT-OUT- INDIRECT X 612698

TEMP – PRESS RELIEF VALVE – 10 BAR 605810 Y

TUNDISH 15 MM X 22 MM 605838 Y

COLD WATER CONTROL VALVE PACK – 3 BAR 605021 / 607028 605021 / 607028 Y

EXPANSION RELIEF CARTRIDGE – 8 BAR 607028 Y

EXPANSION RELIEF VALVE – ISOLATING VALVE 605871 Y

CHECK VALVE HOUSING 605872 Y

REDUCING VALVE CARTRIDGE – 3 BAR 605873 Y

REDUCING VALVE HOUSING BODY 605874 Y

EXPANSION CORE UNIT (TEE) 605880 Y

TERMINAL COVER 607836 X

TERMINAL COVER X 607837

COMPRESSION NUT/OLIVE PACK 607838 Y

TERMINAL BLOCK - 4 WAY X 607902

MOUNTING FOOT 607866 Y

20 your spares solution

Call us today on 01454 620500

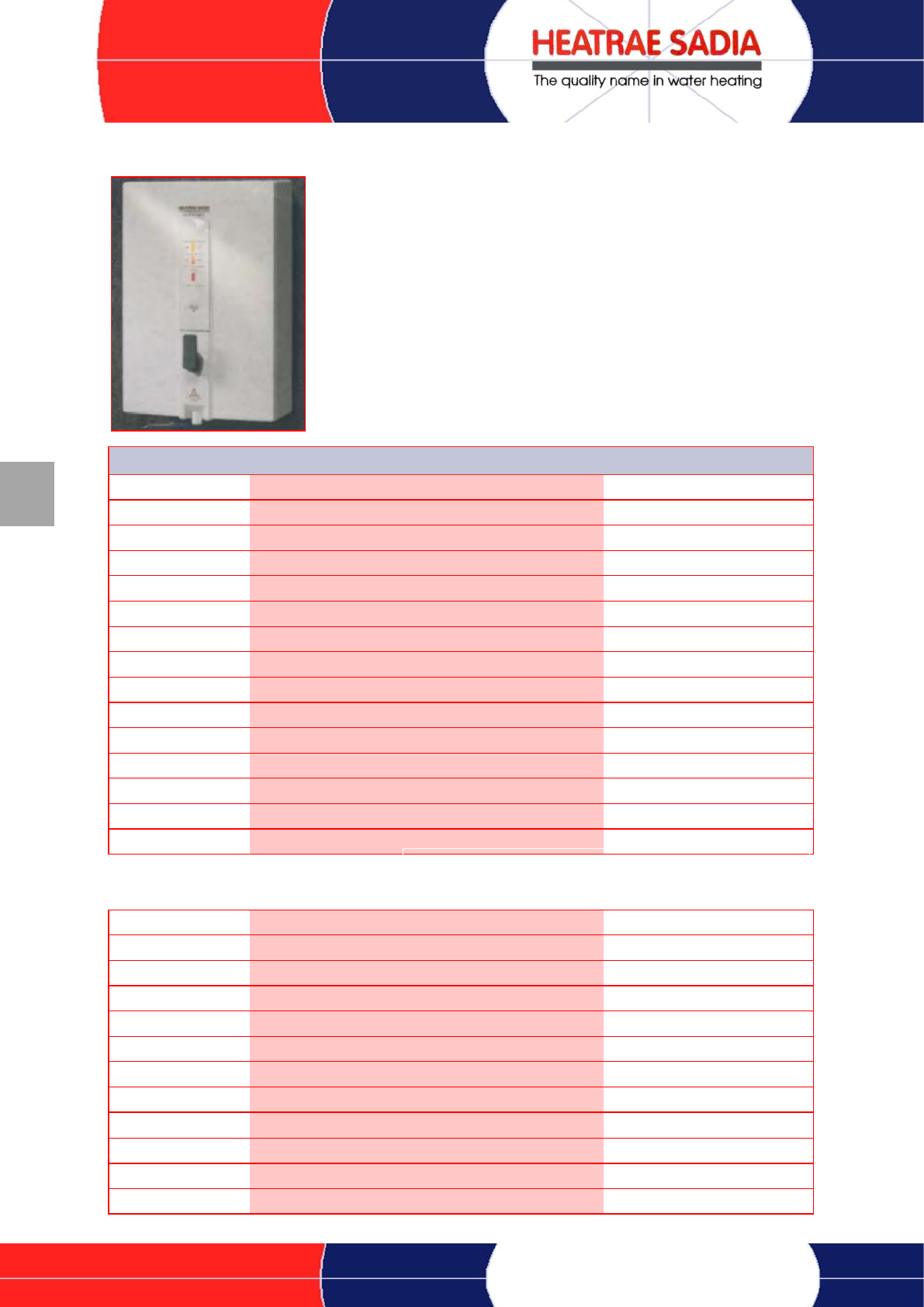

MK1 - MK2 - HEATRAE SUPREME BOILER 140/155/170

Part No: Description To Fit

604665 OUTLET SPOUT MK1, MK2

604668 OUTLET SPOUT TAP (PLASTIC) MK1

605465 OUTLET TAP ASSY MK1, MK2

605466 TAP LOCKING HANDLE MK1, MK2

605490 230V SOLENOID VALVE (Obsolete) MK2

605491 CONVERSION KIT (PCB/SOLENOID) MK1

605832 TAP STEM MK1, MK2

606765 ELEMENT PLATE ASSY 2.5KW MK1, MK2

607156 TAP PLATE/GASKET/SCREW MK1, MK2

607509 15 X 15 STRAIGHT PUSH FIT CONNECTOR MK1, MK2

607510 15 X 15 90 ELBOW PUSH FIT CONNECTOR MK1, MK2

607467 ADAPTER (FOR SOLENOID) MK2

608913 INNER CONTAINER 2.5L 140 MK1*, MK2

608914 INNER CONTAINER 5L 155 MK1*, MK2

608915 INNER CONTAINER 7.5L 170 MK1*, MK2

611731 TAP OUTLET CUP SEAL MK1, MK2

611732 DRAIN PLUG GASKET (PK10) MK1, MK2

611733 ELEMENT PLATE GASKET (PK10) MK1, MK2

612503 START/DRY CUT OUT (BOTTOM OF UNIT) MK1, MK2

612504 OVER TEMP CUT OUT (TOP OF UNIT) MK1, MK2

612506 WIRE SET 2.5L 140 MK1, MK2

612507 WIRE SET 5/7.5L 155/170 MK1, MK2

612508 THERMISTER PROBE ASSY MK1, MK2

612509 230V P.C.B. MK2 - (for MK1 - Use 605491)

614015 COVER ASSY 2.5L 140 MK2

614016 COVER ASSY 5L 155 MK2

614017 COVER ASSY 7.5L 170 MK2

MK1 White Body/Grey Facia around 3 Neons

(Pre 1996)

MK2 All White Body/Facia 3 Neons

(Post 1996)

* For MK1 Models - Use 604668 With Above Containers

21

your spares solution

www.uk-spares.com

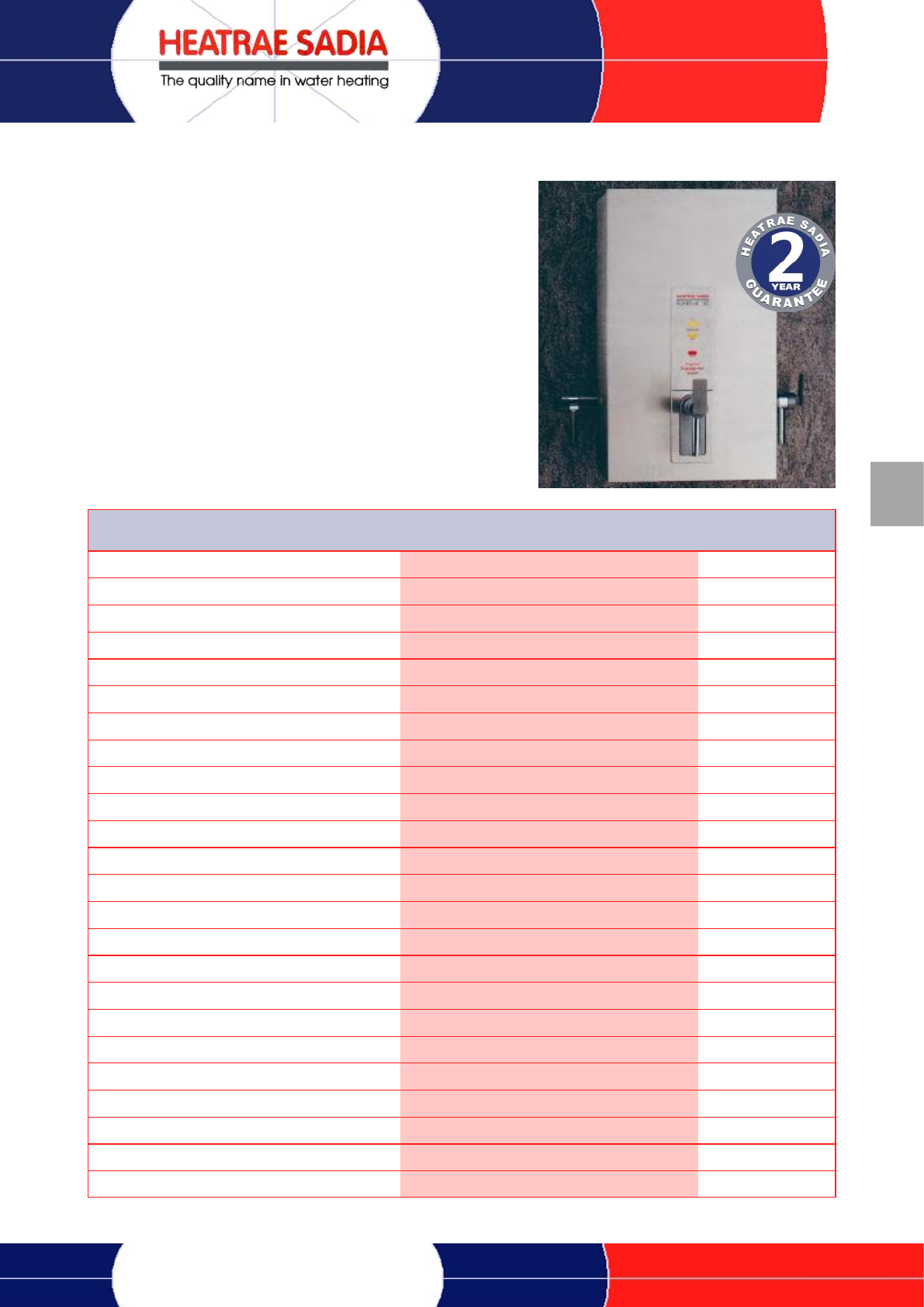

MK1 - MK2 - HEATRAE SUPREME BOILER 185/215

Part Description Model Ref. Part Number

COMPLETE/ ADDITIONAL TAP Supreme 185/215 605043

HANDLE TAP LOCKING Supreme 185/215 605466

TAP OUTLET-HEADWORK Supreme 185/215 605476

VALVE SOLENOID ASSY Supreme 185/215 605004

LIMITER FLOW ASSY Supreme 185/215 605478

VALVE BY-PASS Supreme 185/215 605479

TAP STEM Supreme 185/215 605832

ELEMENT PLATE ASSY 2.5KW Supreme 185/215 606766

SEAL TAP CUP OUTLET Supreme 185/215 611731

GASKET PLUG DRAIN Supreme 185/215 611732

GASKET ELEMENT PLATE ASSY( PK 2) Supreme 185/215 611734

O-RING OUTLET TAP (PK 2) Supreme 185/215 611735

CUTOUT START-DRY Supreme 185/215 612503

CUTOUT OVER-TEMP Supreme 185/215 612504

WIRE SET 185/215 LTR Supreme 185/215 612586

THERMISTOR PROBE ASSY Supreme 185/215 612587

RELAY Supreme 185/215 612588

SENSOR LEVEL ASSY - Less Wires (Wire set 612586) Supreme 215 612589

SENSOR LEVEL ASSY Supreme 185 612590

P.C.B (12V) CATERING UNIT ONLY) Supreme 185/215 612630

COVER FRONT Supreme 185 NLA

COVER FRONT Supreme 215 NLA

INNER CONTAINER Supreme 185 608921

INNER CONTAINER Supreme 215 608922

These units are supplied fitted with single tap assembly on front. Additional taps can be added on either side for high usage.

(As Illustrated)

22 your spares solution

Call us today on 01454 620500

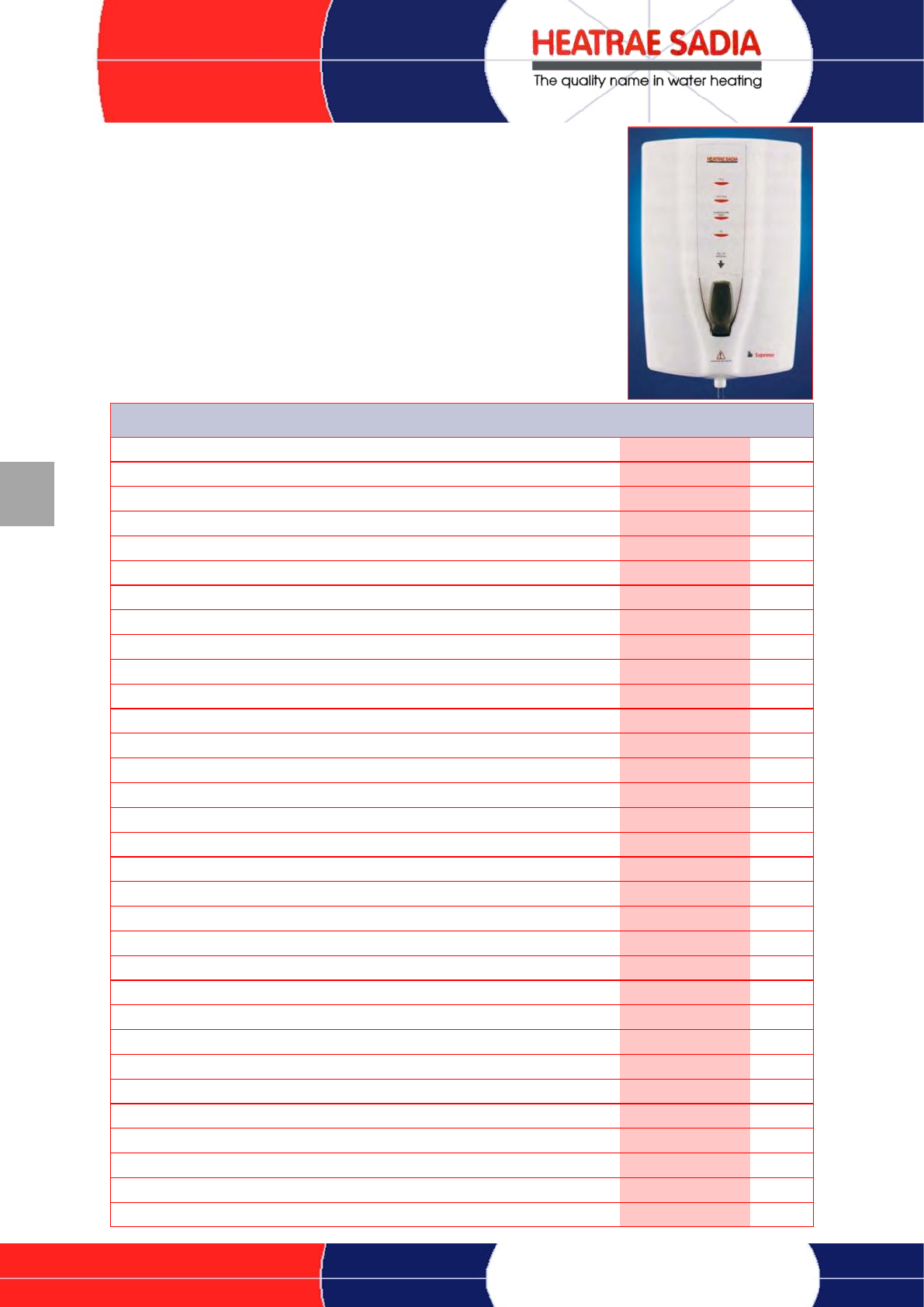

HEATRAE SUPREME BOILERS

140/155/170 for ‘99 & ‘02

Description Code - 99 Model Code—02 Model Fits Both

ELEMENT ASSEMBLY (INCORPORATING START DRY CUTOUT) ‘99 606929 X

ELEMENT ASSEMBLY (INCORPORATING START DRY CUTOUT) ‘02 X 606952

ELEMENT ASSEMBLY SEALING GASKET 611816 Y

START DRY CUTOUT (ELEMENT) 612691 Y

SOLENOID VALVE ASSEMBLY ‘99 605833 X

SOLENOID VALVE ASSEMBLY ‘02 X 605877

SOLENOID VALVE COIL 605839 Y

LEVEL SENSOR (FULL) ‘99 612640 X

LEVEL SENSOR (HALF FULL) ‘99 612641 X

LEVEL SENSOR ‘02 X 612692

ELECTRONICS ASSEMBLY ‘99 615038 X

ELECTRONICS ASSEMBLY (RED) ‘02 - PCB X 615043

INDICATOR BOARD 615039 Y

BOIL DRY THERMAL CUTOUT 612504 X

PRIMARY CUTOUT ‘02 X 612693

WIRING HARNESS (COMPLETE) ‘99 612638 X

WIRING HARNESS (COMPLETE) ‘02 X 612694

WIRING HARNESS (LOW VOLTAGE INC. THERMISTORS) ‘99 612637 X

WIRING HARNESS (LOW VOLTAGE INC. THERMISTORS) ‘02 612695 X

WIRING HARNESS (ELECTRONIC CONTROL TO INDICATOR BOARD 612636 Y

THERMISTOR (BOTTOM) CONTROL ‘99 612642 X

THERMISTOR (BOTTOM) CONTROL ‘02 X 612696

THERMISTOR (TOP) STEAM ‘99 612690 Y

OUTLET TAP HEADWORK 605834 Y

OUTLET TAP STEM 605832 Y

OUTLET TAP CUP SEAL 611731 Y

OUTLET SPOUT PLASTIC – TANK 604668 Y

OUTLET SPOUT METAL – TANK 604669 X

OUTLET SPOUT - COVER 604665 Y

FRONT COVER ASSEMBLY (140 MODEL) 614247 Y

FRONT COVER ASSEMBLY (155 MODEL) 614249 Y

FRONT COVER ASSEMBLY (170 MODEL) 614250 Y

Supreme MK3 1999

23

your spares solution

www.uk-spares.com

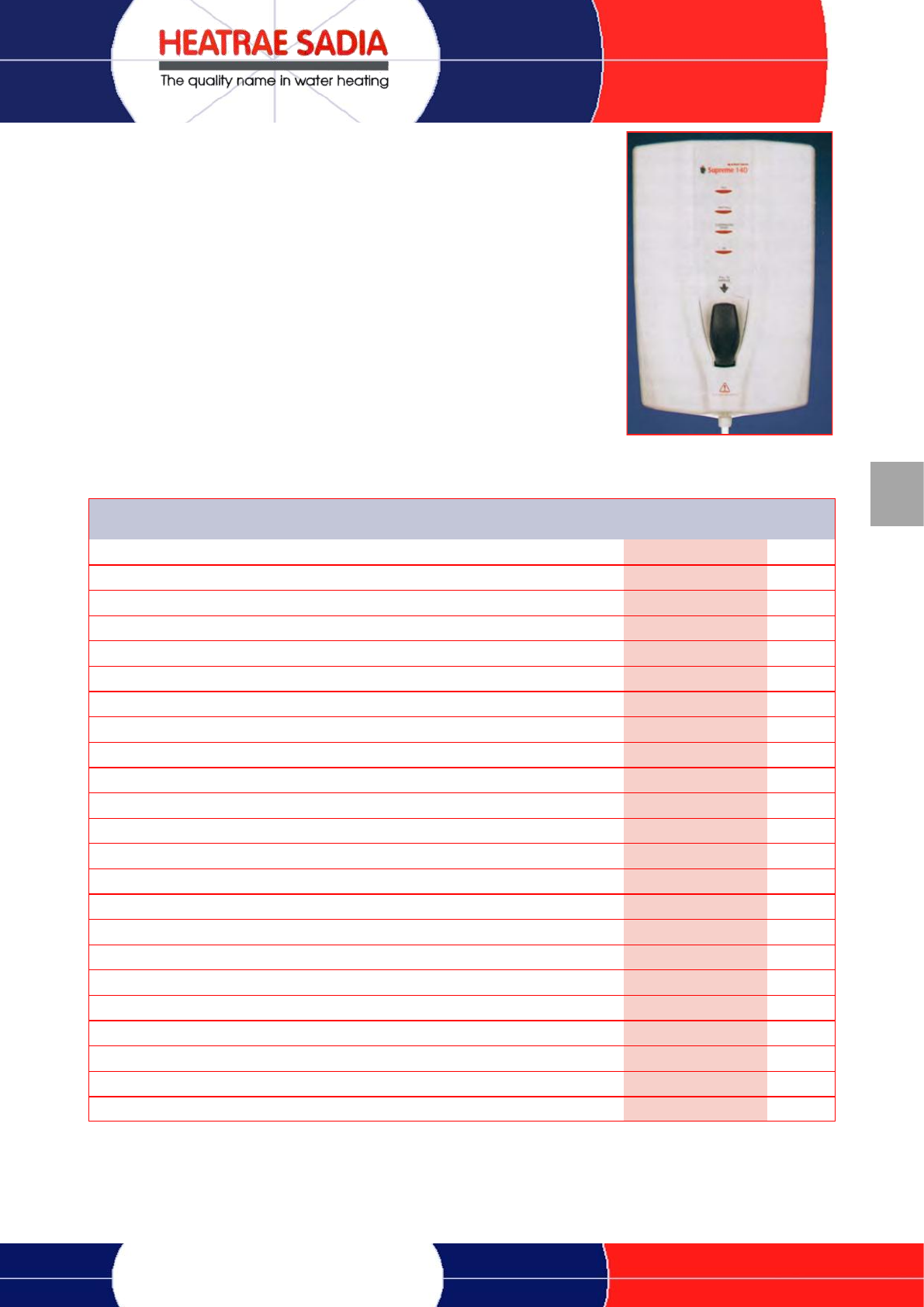

Description Code - 99 Model Code—02 Model Fits Both

FASCIA (Behind Lever Tap) 614248 Y

TANK (140 MODEL) ’99 608918 X

TANK (140 MODEL) ’02 X 608926

TANK (155 MODEL) ’99 608919 X

TANK (155 MODEL) ‘02 X 608927

TANK (170 MODEL) ’99 608920 X

TANK (170 MODEL) ’02 X 608928

STEAM CONDENSER ASSEMBLY (140 MODEL)’99 607538 X

STEAM CONDENSER ASSEMBLY (140 MODEL)’02 X 607574

STEAM CONDENSER ASSEMBLY (155 MODEL)’99 607539 X

STEAM CONDENSER ASSEMBLY (155 MODEL)’02 X 607575

STEAM CONDENSER ASSEMBLY (170 MODEL)’99 607540 X

STEAM CONDENSER ASSEMBLY (170 MODEL)’02 X 607576

STEAM CONDENSER SEALING GASKET 140 MODEL 611817 Y

STEAM CONDENSER SEALING GASKET 155 MODEL 611819 Y

STEAM CONDENSER SEALING GASKET 170 MODEL 611820 Y

‘O’ RING KIT 611818 Y

PUSH FIT CONNECTOR 15MM X15MM STRAIGHT 607509 Y

PUSH FIT CONNECTOR 15MM X 15MM ELBOW 607510 Y

FLOAT ’02 X 607577

MANIFOLD (140 MODEL) ’02 X 607578

MANIFOLD (155 MODEL) ’02 X 607579

MANIFOLD (170 MODEL) ’02 X 607580

Supreme MK4 2002

HEATRAE SUPREME BOILERS

140/155/170 for ‘99 & ‘02

24 your spares solution

Call us today on 01454 620500

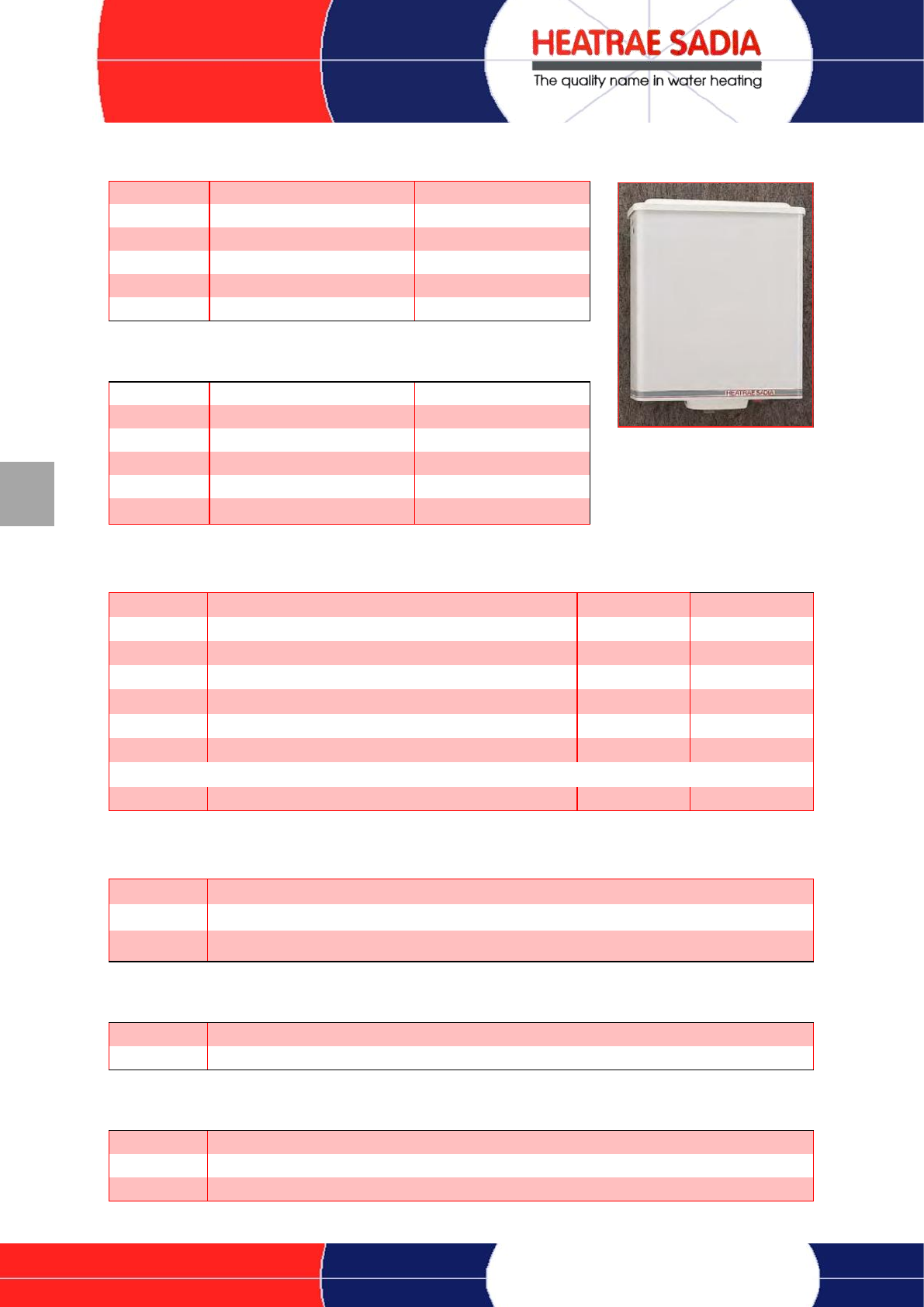

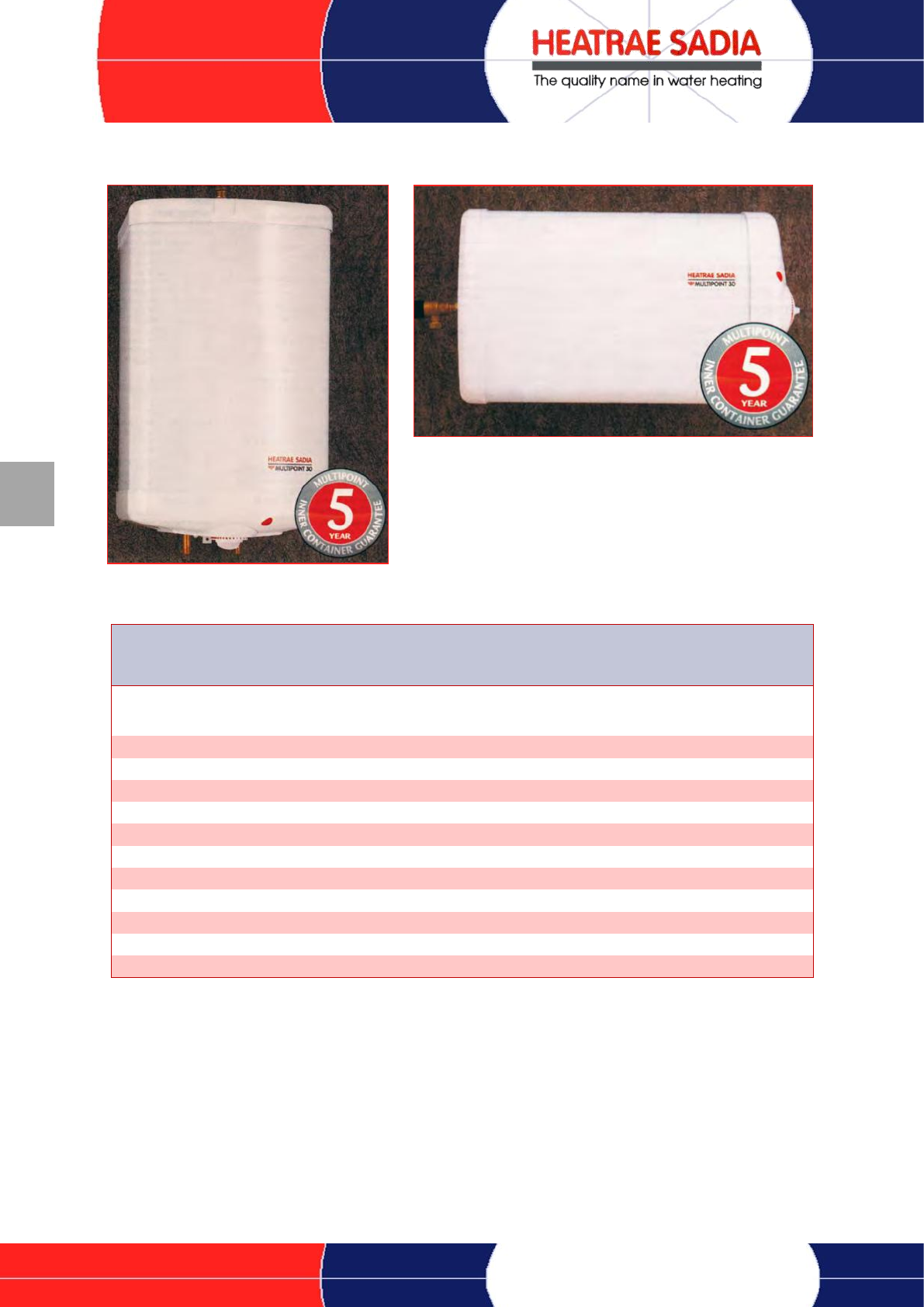

UTC MODELS

UTC

(pre ‘99 Model)

Description

Until 1999 13.6

ltr MK1 1.5kW &

3kW

From 1999 15

ltr MK2 1.5kW &

3kW

1.5KW MK1 ELEMENT C\W CUTOUT & STAT 606688 X

3 KW MK 1 ELEMENT C/W CUT-OUT & STAT 606720 X

THERMOSTAT 7” 16AMP ROD TYPE (MK1) 980031 X

THERMOSTAT 7 RESET(IF CUT-OUT REQD) S567 X

1.5KW MK2 ELEMENT ONLY X 606922

3KW MK2 ELEMENT ONLY X 606927

THERMOSTAT C\W CUT-OUT X 612633

GASKET FOR ELEMENT (MK1) 611547 X

GASKET FOR ELEMENT (MK2) X 611708

TERMINAL COVER (MK1) 607126 X

TERMINAL COVER C/W KNOB (MK2) X 614182

TOP COVER MOULDING X 614246

INDICATOR LIGHT X 607992

Description

MK1 Hair Dyer

Model-

95021074

MK2 Hair Dyer

Model-

95021084

HOSE & NOZZLE ASSY 608713 608713

FAN ASSEMBLY 607152 607152

HEATER BANK 1KW 601712 601712

TIME SWITCH ONLY 613402 613402

TIMER KNOB ONLY 613403 613405

OUTER CASE/COVER (MK1) OBS X

FRONT COVER (MK2 ONLY) X 614084

HAIR DRYER MODELS

MK 2

MK 1

HANDY - HAND WASH RANGE -(3kW - 7kW)

25

your spares solution

www.uk-spares.com

Part No Description Part No Description

604664 SWIVEL SPRAY NOZZLE 608851 BOTTOM COVER & WALL BRACKET

605450 FLOW VALVE SPRAY INLET ASSY 608852 INNER CONTAINER (NO CAP) AS ASSY

606300 ELEMENT PLATE 3 KW 612570 THERMAL CUT-OUT

607420 SHEAR PINS (PK10) 612571 WIRE SET (22OV)

607421 SPRAY RING SET 613400 PRESSURE SWITCH

607422 NEON ASSY 614010 TOP COVER C/W NEON LENS

HANDY - HAND WASH RANGE -(3kW - 7kW)

Description Handy Mk1 Handy II Handy 2001

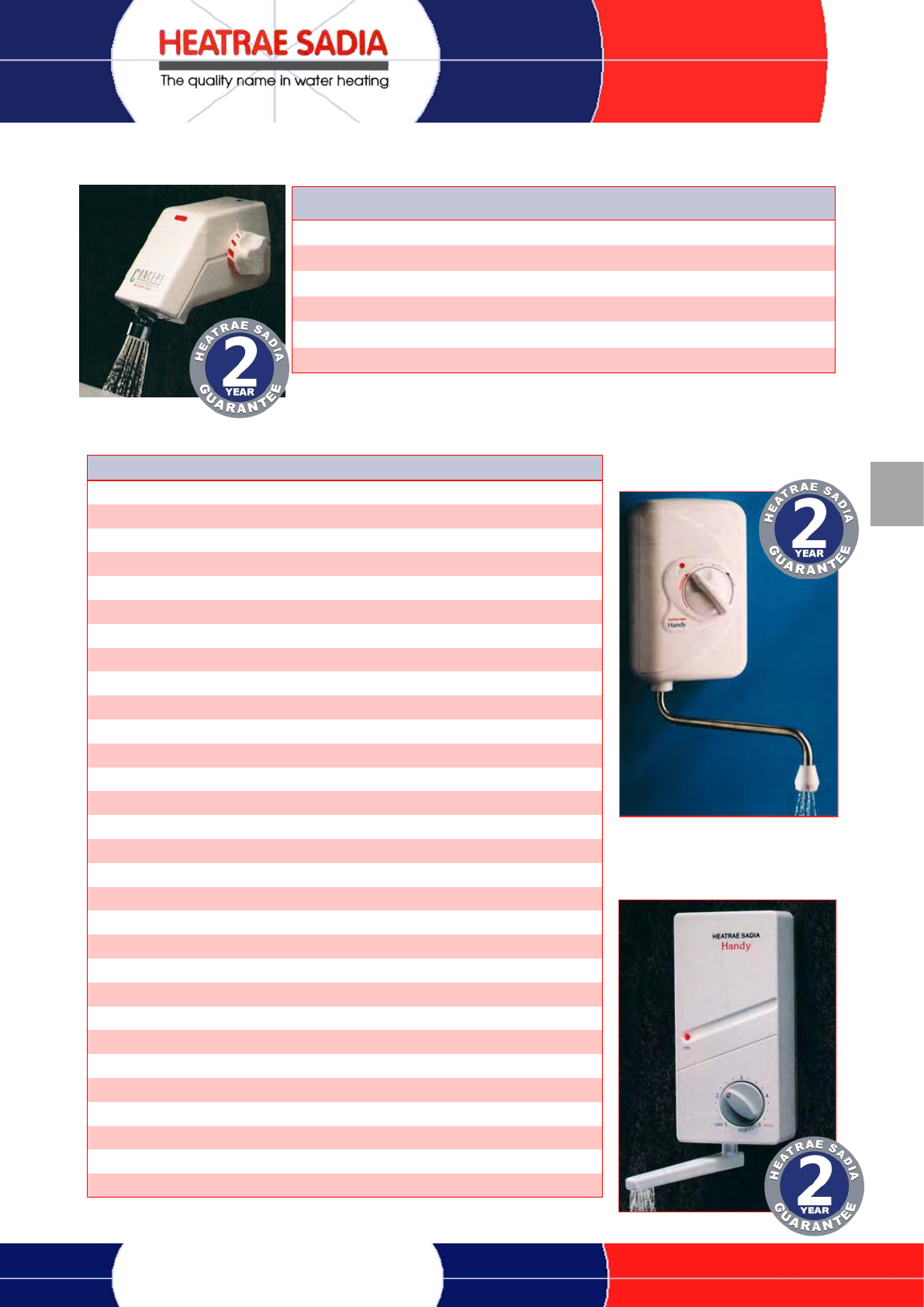

HEAT EXCHANGER 3KW NLA X X

HEAT EXCHANGER 3.1KW X NLA 608924

HEAT EXCHANGER 7 KW 608731 X X

HEAT EXCHANGER 7.2KW X NLA 608925

O RINGS (PK 10) FOR SPOUT 611723 611723 X

6” WHITE SPOUT & SPRAY PLATE 3 KW 604663 604663 X

6” WHITE SPOUT & SPRAY PLATE 7 KW NLA NLA X

CHROME SPOUT & BLACK NOZZLE X X NLA

SPOUT ASSY (LESS SPRAY PLATE) 3/7 KW X X 604673

SPRAY PLATE 7.2KW X X 604674

SPRAY PLATE 3.1 KW X X 604675

250 MM EXTENSION SPOUT NLA NLA X

CONTROL KNOB NLA NLA 605856

CONTROL VALVE (ON/OFF FLOW) 605410 X X

CONTROL VALVE (SINGLE TURN FLOW) X 605411 X

CONTROL VALVE (3.1 KW – 2001 MODEL) X X 605849

CONTROL VALVE (7.2 KW – 2001 MODEL) X X 605610

JOHN GUEST CONNECTOR X X 605850

THERMAL CUT-OUT 612572 612572 612610

PRESSURE RELIEF DIAPHRAM (PK 2) 611700 611700 X

PRESSURE RELIEF DEVICE (PRD 3.1 KW) 607237 607237 607557

PRESSURE RELIEF DEVICE (PRD 7.2 KW) 607237 607237 X

PRD (3.1 KW) & METAL BRACKET X X 607561

PRD 7.2 KW) & METAL BRACKET X X 607562

WIRE SET (3.1 KW OBS OBS 612682

WIRE SET (7.2 KW) OBS OBS 612683

PRESSURE SWITCH ASSY (3.1 KW) 613560 613560 613626

PRESSURE SWITCH ASSY (7.2 KW) 613527 613527 613627

FRONT COVER C/W KNOB OBS OBS 614270

NEON ASSY NLA NLA 615041

CONCEPT HAND WASH

26 your spares solution

Call us today on 01454 620500

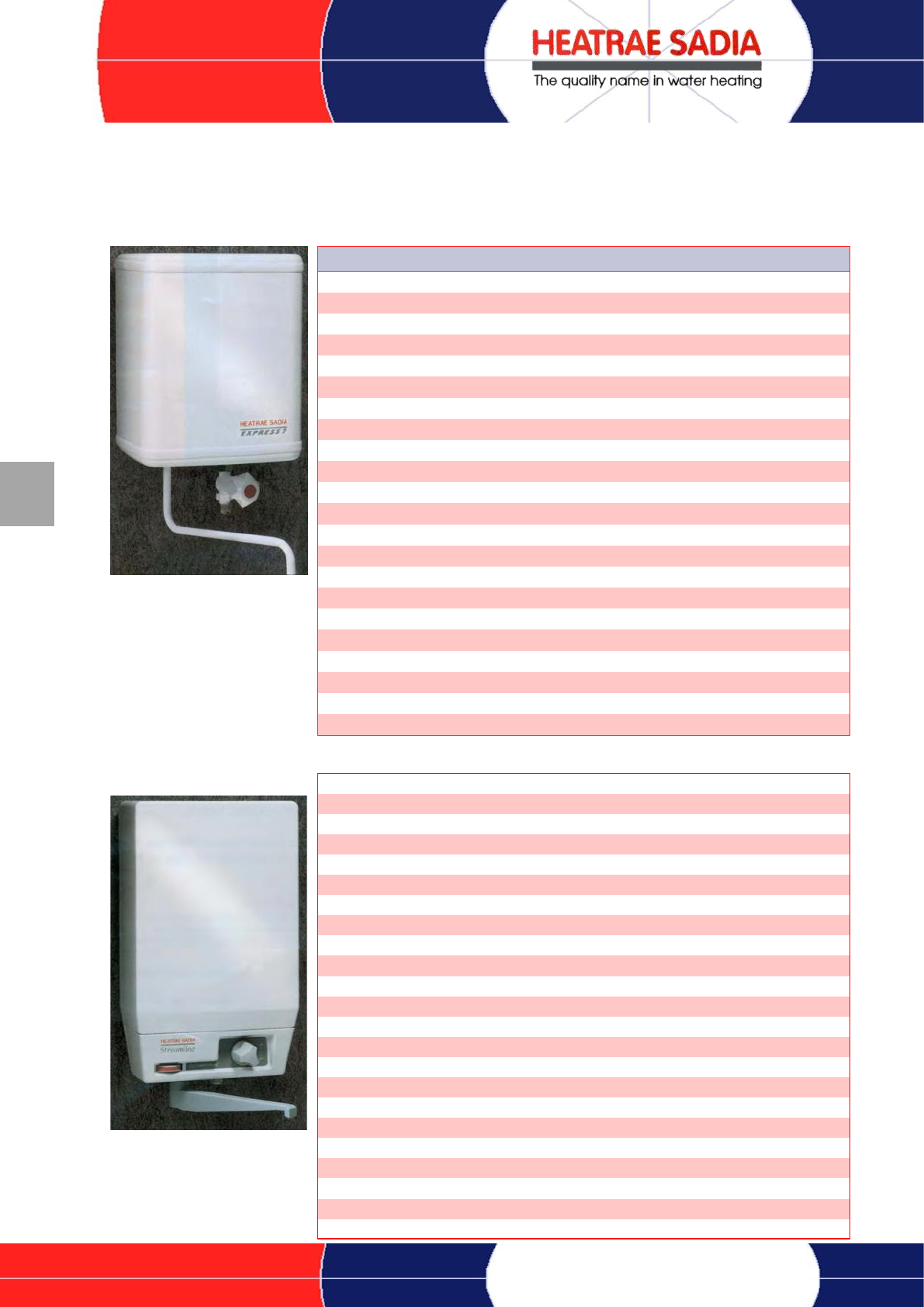

POINT OF USE HEATERS

Express Oversink Heater 7ltr + 15ltr Models

Versions Express ’84 - Grey Seals (around casing)

Versions Express ’91 - White Seals (around casing)

Express ’99 - White Seals (launched in Feb 2000)

}

Part No: Description To Fit

OBS 12” SPOUT ASSEMBLY - CHROME ’84 MODEL

604211 ADAPTER - 15MM X 0.5 SPOUT OUTLET ’91 MODEL ONWARDS

604212 12” SPOUT ASSEMBLY + ADAPTER 15MM - WHITE ’91 MODEL ONWARDS

604656 TELESCOPIC SPOUT CHROME + ADAPTER ‘91 MODEL ONWARDS

605431 R/ANGLED ON/OFF CONTROL VALVE ‘84 MODEL

605444 STRAIGHT ON/OFF CONTROL VALVE - 15X15MM ‘91 MODEL ONWARDS

606755 ELEMENT PLT ASSEMBLY 1KW 7LTR ‘84 MODEL

606756 ELEMENT PLT ASSEMBLY 3KW 7LTR ‘84 MODEL

606757 ELEMENT PLT ASSEMBLY 3KW 15LTR ‘84 MODEL

606762 ELEMENT PLT ASSEMBLY 1KW 7LTR ‘91 MODEL ONWARDS

606763 ELEMENT PLT ASSEMBLY 3KW 7LTR ‘91 MODEL ONWARDS

606764 ELEMENT PLT ASSEMBLY 3KW 15LTR ‘91 MODEL ONWARDS

607643 TERMINAL COVER ‘91 MODEL ONWARDS

611708 ELEMENT PLT GASKET (PK10) ‘84/91 MODEL

NLA DRAIN PLUG WASHER (PK10) ‘84/91 MODEL

612500 THERMAL CUT-OUT 128º ‘84/91 MODEL

612667 CAPILLARY THERMOSTAT ‘99 AS FROM - FEB 2000

612673 THERMAL CUT-OUT 96º ‘99 AS FROM - FEB 2000

970101 TELESCOPIC SPOUT 15/24” - CHROME ‘91 MODEL ONWARDS

970110 15X15 PUSH FIT CONNECTOR FOR UNDERSINK FITTING ‘91 MODEL ONWARDS

980031 7” ROD STEM THERMOSTAT ‘84/91 MODEL 7 LTR ONLY

980032 11” ROD STEM THERMOSTAT ‘84/91 MODEL 15 LTR ONLY

604200 12” COMMERCIAL CHROME SPOUT OVERSINK

604656 TELESCOPIC SPOUT 15/24” - CHROME OVERSINK

604659 PLASTIC SPOUT - GREY OVERSINK

605439 ON/OFF CONTROL VALVE C/W KNOB OVERSINK

605445 THERMOSTAT CONTROL KNOB - GREY (WHEEL TYPE) OVER/UNDER SINK

605446 CONTROL VALVE KNOB - GREY OVERSINK

606758 1KW ELEMENT PLT ASSEMBLY OVER/UNDER SINK

606759 3KW ELEMENT PLT ASSEMBLY OVER/UNDER SINK

607228 WALL BRACKET ASSEMBLY OVER/UNDER SINK

607852 INSULATION KIT 10LTR OVERSINK

607853 INSULATION KIT 7LTR OVERSINK

608784 INNER CONTAINER 7 LTR (LESS ELEMENT) OVER/UNDER SINK

608785 INNER CONTAINER 10 LTR (LESS ELEMENT) OVER/UNDER SINK

608786 FRONT COVER TOP (WHITE) 7 LTR OVER/UNDER SINK

608787 FRONT COVER TOP (WHITE) 10 LTR OVER/UNDER SINK

608789 FRONT COVER BOTTOM (WHITE) 10 LTR / 7 LTR OVER/UNDER SINK

611711 ELEMENT PLT GASKET (PK10)

611712 GROMMET SET (PK10)

611719 VALVE WASHERS (PK10)

612512 CAPILLARY THERMOSTAT

612515 THERMOSTAT LOCKING PIN (PK10)

612516 WIRE SET

612517 THERMAL CUT-OUT 128º

STREAMLINE OVER/UNDERSINK (PRE 2010)

27

your spares solution

www.uk-spares.com

POINT OF USE HEATERS

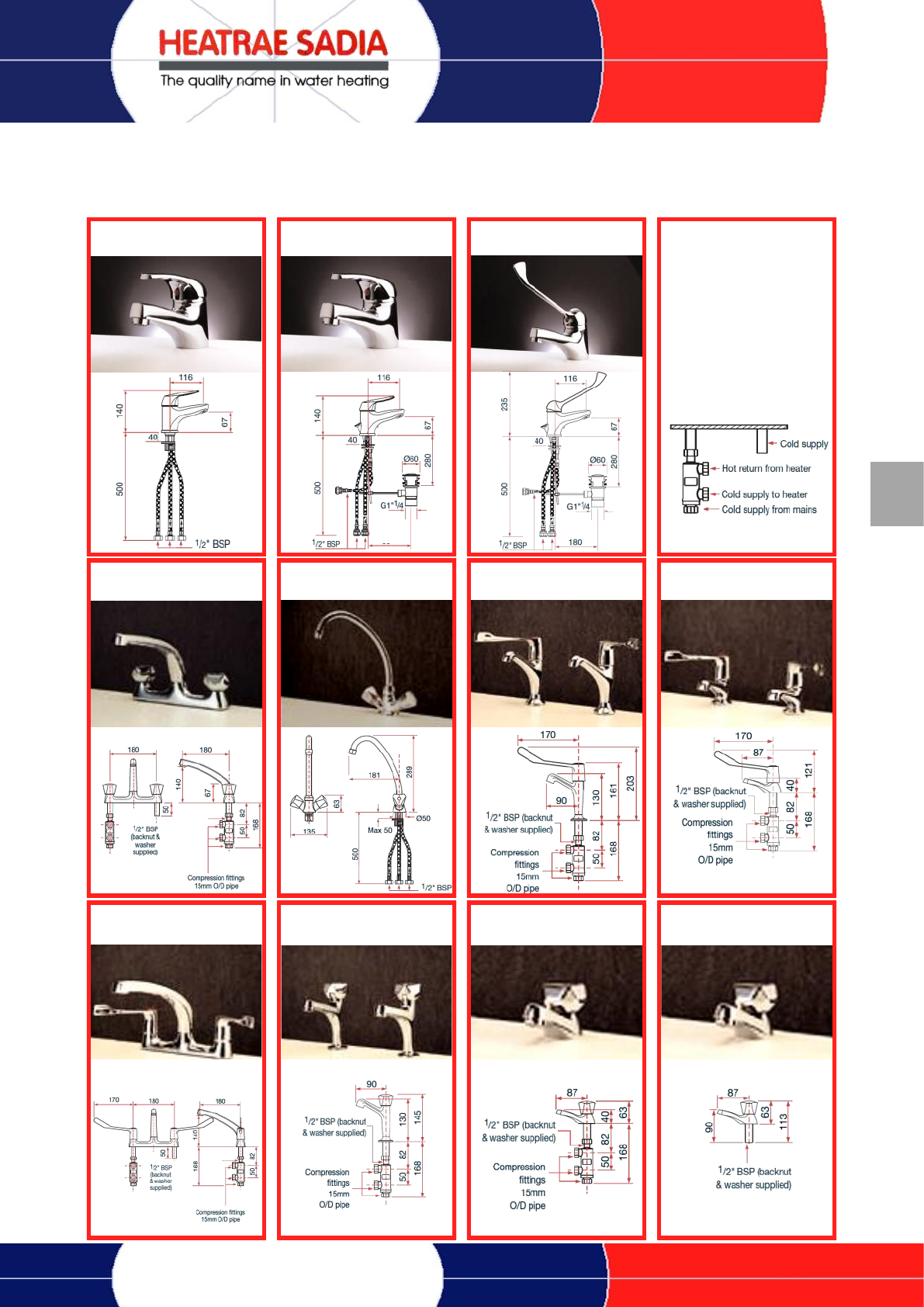

Streamline Under Sink Accessory Packs

Streamline 1000

Prod Code 95:970:340

Pack J

Prod Code 95:970:295

Pack K

Prod Code 95:970:296

Pack M

Prod Code 95:970:298

Pack P

Prod Code 95:970:299

Pack Q

Prod Code 95:970:310

Pack R

Prod Code 95:970:311

Pack S Hot Tap only

Prod Code 95:970:312

Pack T Cold Tap only

Prod Code 95:970:313

Streamline 2000

Prod Code 95:970:341

Streamline 1000 Elbow Lever

Prod Code 95:970:342

Water Connections for Packs

J, M, P, Q, R & S

80

28 your spares solution

Call us today on 01454 620500

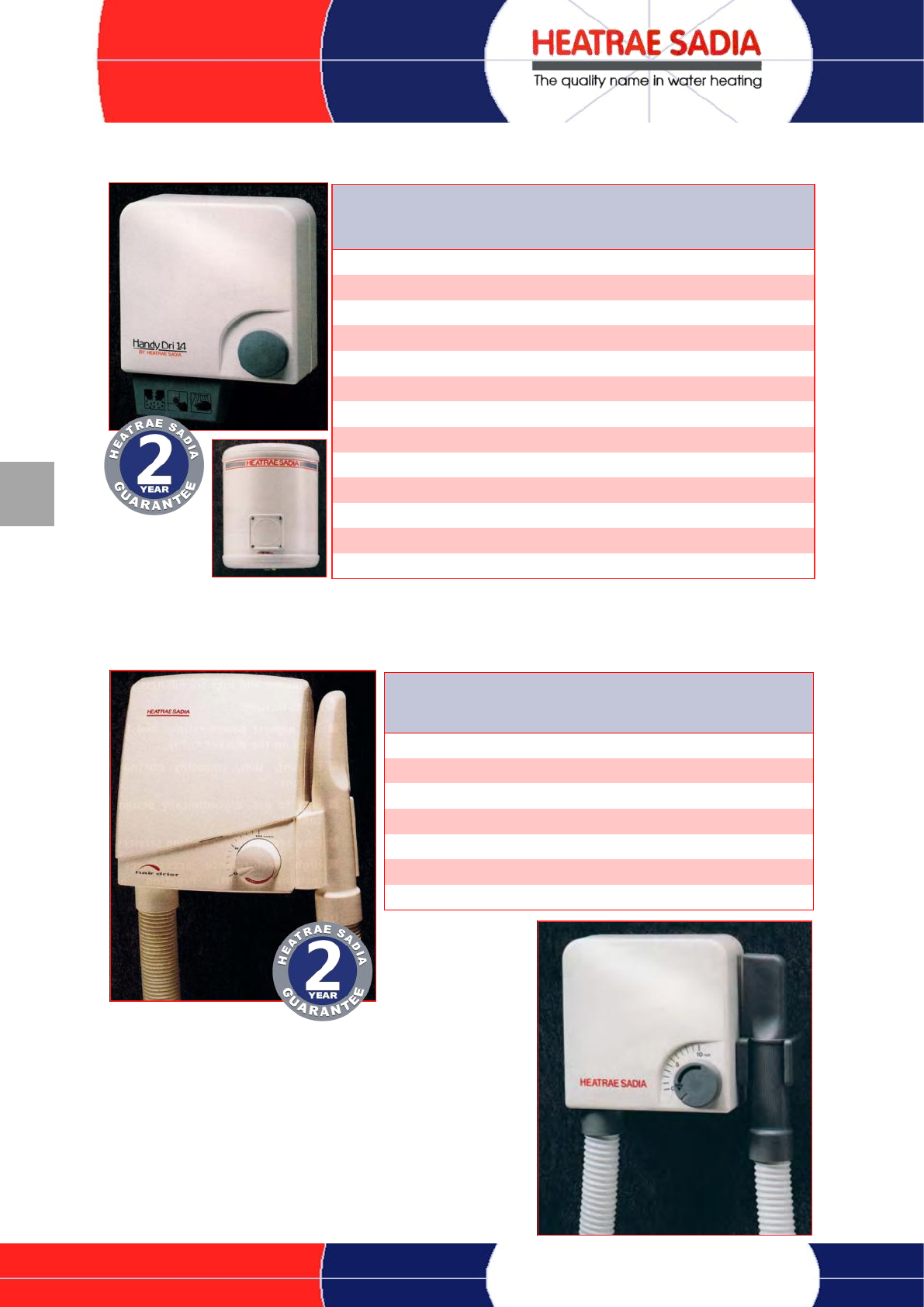

Hand Dryers

601710 HEATER BANK 1.4KW 1.4/14E (PRE 1997)

601716 HEATER BANK 1.8KW 1.4/18 (PRE 1997)

601711 HEATER BANK 1.9KW 19 (PRE 1997)

612441 PCB (EL TIME SWITCH) 14/19/14/18 (PRE 1997)

NLA PCB SMALL 14E

612447 PCB LARGE 14/14E (PRE 1997)

605302 FLOAT VALVE KIT FBM

606761 ELEMENT 6KW C/W STATS FBM125 6KW

606760 ELEMENT 3KW C/W STATS FB/FBM

607020 TERMINAL COVER FBM

980009 RE-SET THERMOSTAT 11” FBM

980025 CONTROL THERMOSTAT 11” FBM

IF PLATE ASSEMBLY IS SERVICEABLE ON ABOVE EPA’S THEN THE HELICAL ELEMENT CAN BE REPLACED.

FBM Rectangular Cistern Type

Elements - Point of Use, Cistern Fed

606675 ELEMENT PLATE ASSEMBLY B3 23 LITRE

606676 ELEMENT PLATE ASSEMBLY C3 55 LITRE

606677 ELEMENT PLATE ASSEMBLY (GASKET 611540) D3 68 LITRE

606684 ELEMENT PLATE ASSEMBLY BT23 23 LITRE

606698 ELEMENT PLATE ASSEMBLY BT34 34 LITRE

606685 ELEMENT PLATE ASSEMBLY BT55 58 LITRE

606686 ELEMENT PLATE ASSEMBLY BT68 68 LITRE

601503 HELICAL ELEMENT FOR ABOVE

UDB (Twin EPA)

606701 ELEMENT PLATE ASSEMBLY (NO ELEMENTS) BOTTOM UDB 91LTR & 136 LTR

606700 ELEMENT PLATE ASSEMBLY (NO ELEMENTS) TOP

602024 CORE ELEMENT FOR UDB 1KW 131/4”

606681 ELEMENT PLATE ASSEMBLY (Obsolete)

602011 CORE ELEMENT 1.5KW 151/4” FOR ABOVE

980032 11” 16 AMP B3/BT23/BT34/BT55/S TYPE/UDB/UDB/BT91

980033 18” 16 AMP C3/D3/BT68

980031 7” 16 AMP UTC

UDB/BT91 (Single EPA)

Thermostats

29

your spares solution

www.uk-spares.com

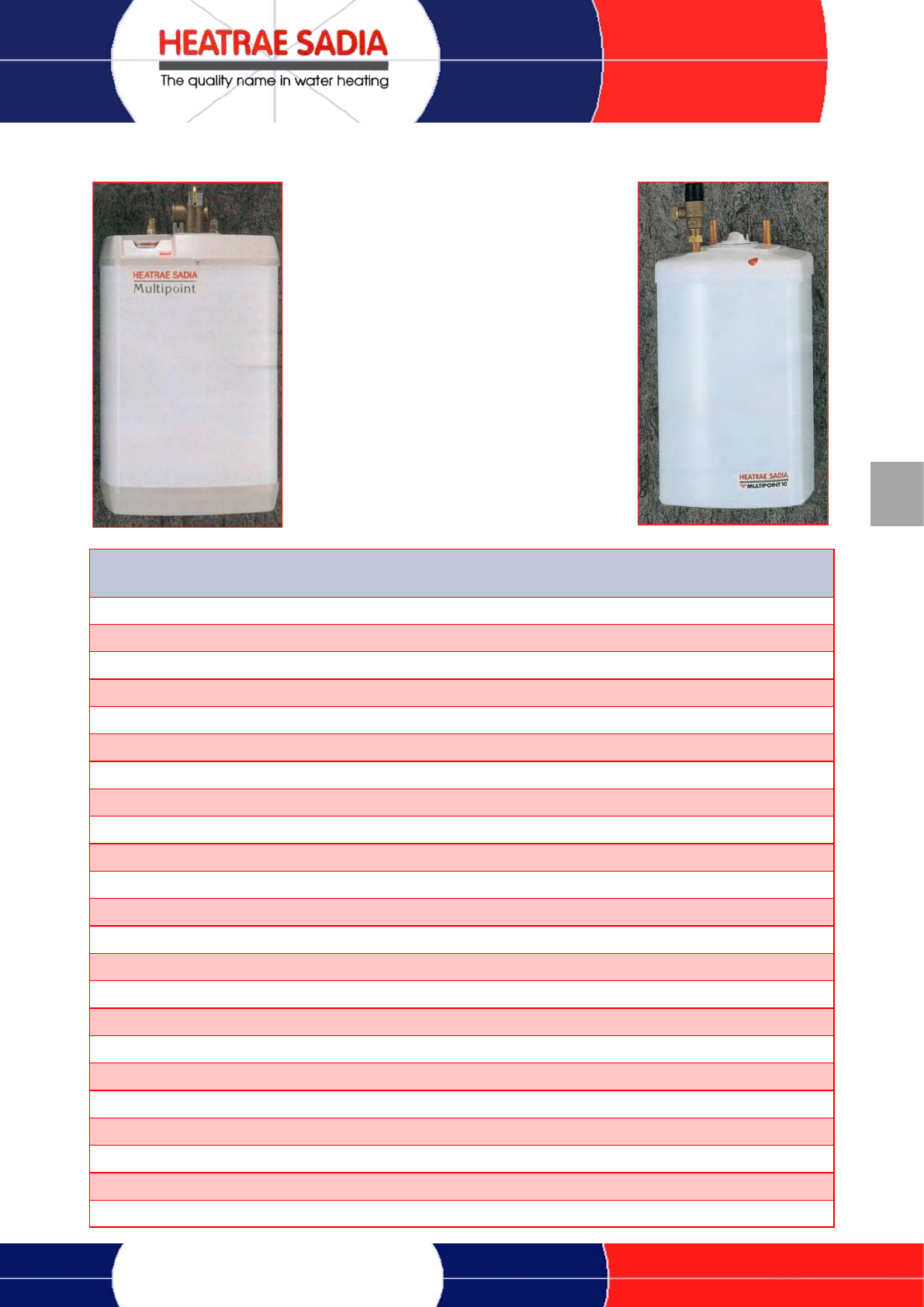

MULTIPOINT RANGES

Description 10/15L - 3KW

MP II (1989-99)

10/15L - 3KW/4.5KW MP

(’99 Model)

CONTROL KNOB FOR THERMOSTAT NLA X

CAPILLARY THERMOSTAT 612667 X

ROD THERMOSTAT/CUP-OUT 3KW (RED CAP) X 612633

ROD THERMOSTAT/CUT-OUT 4.5KW X 612634

THERMAL CUT-OUT 612666 X

ELEMENT ASSY 10 LTR 3KW 606792 606921

ELEMENT ASSY 15 LTR 3KW 606793 606922

ELEMENT ASSY 10 LTR 4.5 KW X 606923

ELEMENT ASSY 15 LTR 4.5 X 606924

GASKET FOR ELEMENT ASSY 611713 611708

INDICATOR LIGHT 3KW X 607992

INDICATOR LIGHT 4.5 KW X 607993

NEON LIGHT ASSY 607985 X

TEMP – PRESSURE VALVE-6.5 BAR HT55 607610 X

TEMPERATURE & PRESSURE RELIEF VALVE 7.0 BAR DN15 X 607994

EXPANSION RELIEF VALVE-6 BAR (BLUE CAP) 607986 607986

CHECK VALVE 1/2” 607987 607987

EXPANSION VESSEL – 2 LTR 4.1 BAR 607988 607988

PRESSURE LIMITER 1/2” BSP 607989 607989

TUNDISH 1/2” MALE 3/4” FEMALE 607991 X

LINE STRAINER 1/2”BSP 607990 X

TOP COVER MOULDING X 614181

TERMINAL COVER C/W STAT KNOB X 614182

Multipoint II

1989 - 1999

Multipoint

1999

10/15L - 3kW

MP II (1989-99)

10/15L - 3KW/4.5kW

MP (’99 Model)

30 your spares solution

Call us today on 01454 620500

MULTIPOINT RANGES (cont)

30 and 50 Litre Vertical

30 and 50 Litre Horizontal

Multipoint

Description 30 and 50 Litre

1kW - 3kW 3kW

Vertical Horizontal

ELEMENT ASSY 1KW 606925 X

ELEMENT ASSY 3KW 606926 606933

CAPILLARY THERMOSTAT 612667 612667

THERMAL CUT-OUT 612666 612666

INDICATOR LIGHT 607995 607995

ELEMENT PLATE GASKET 611708 611708

EXPANSION RELIEF VALVE 607986 607986

TEMP & PRESSURE VALVE 607994 607994

CHECK VALVE 1/2” BSP 607987 607987

EXPANSION VESSEL 607675 607675

PRESSURE REDUCING VALVE 607989 607989

TERMINAL COVER C/W STAT KNOB 614184 614184

31

your spares solution

www.uk-spares.com

HEATRAE SADIA HOTFLO

Description 10/15L - 2.4KW/4.5KW 10/15L - 2.2KW

(1989-99) (’99 Model)

TEMP & PRESSURE RELIEF VALVE VALVE – 7 BAR 605806 970359

EXPANSION RELIEF VALVE – 6 BAR 607986 607986

CHECK VALVE 1/2” 607987 607987

EXPANSION VESSEL 2LTR – 4.1BAR 607988 607988

PRESSURE LIMITER 1/2” BSP 607989 607989

STAT CONTROL KNOB (GREY) 605823 X

TERMINAL COVER (GREY) 607670 X

TERMINAL COVER C/W KNOB (WHITE) X 614182

TOP COVER MOULDING (WHITE) X 614186

DISPLAY PANEL (GREY) 607672 X

NEON ASSY 607671 X

INDICATOR LIGHT X 607992

ELEMENT PLATE ASSY – 2.4KW 606913 X

ELEMENT PLATE ASSY – 4.5 KW 606914 X

THEMOSTAT – 2.4KW MODEL 612217 X

THEMOSTAT – 4.5KW MODEL 612219 X

THERMAL CUT-OUT – 2.4KW MODEL 612218 X

THERMAL CUT-OUT – 4.5 KW MPDEL 612220 X

10 LTR INNER CONTAINER (INCL ELEMENT) X 608916

15 LTR INNER CONTAINER (INCL ELEMENT) X 608917

THERMOSTAT C/W CUT-OUT (ROD TYPE) X 612633

WALL BRACKET 607656 X

ANODE (90008874) 10 LTR 607658 X

ANODE (90008875) 15 LTR 607659 X

TANK FLANGE GASKET (PK 2) 611801 X

CONTROL KNOB GASKET (PK 2) 611802 X

Hotflo 10/15 Litre 2.4kW/4.5kW 1989 - 1999

Hotflo 10/15 Litre 2.2kw 1999 Onwards

32 your spares solution

Call us today on 01454 620500

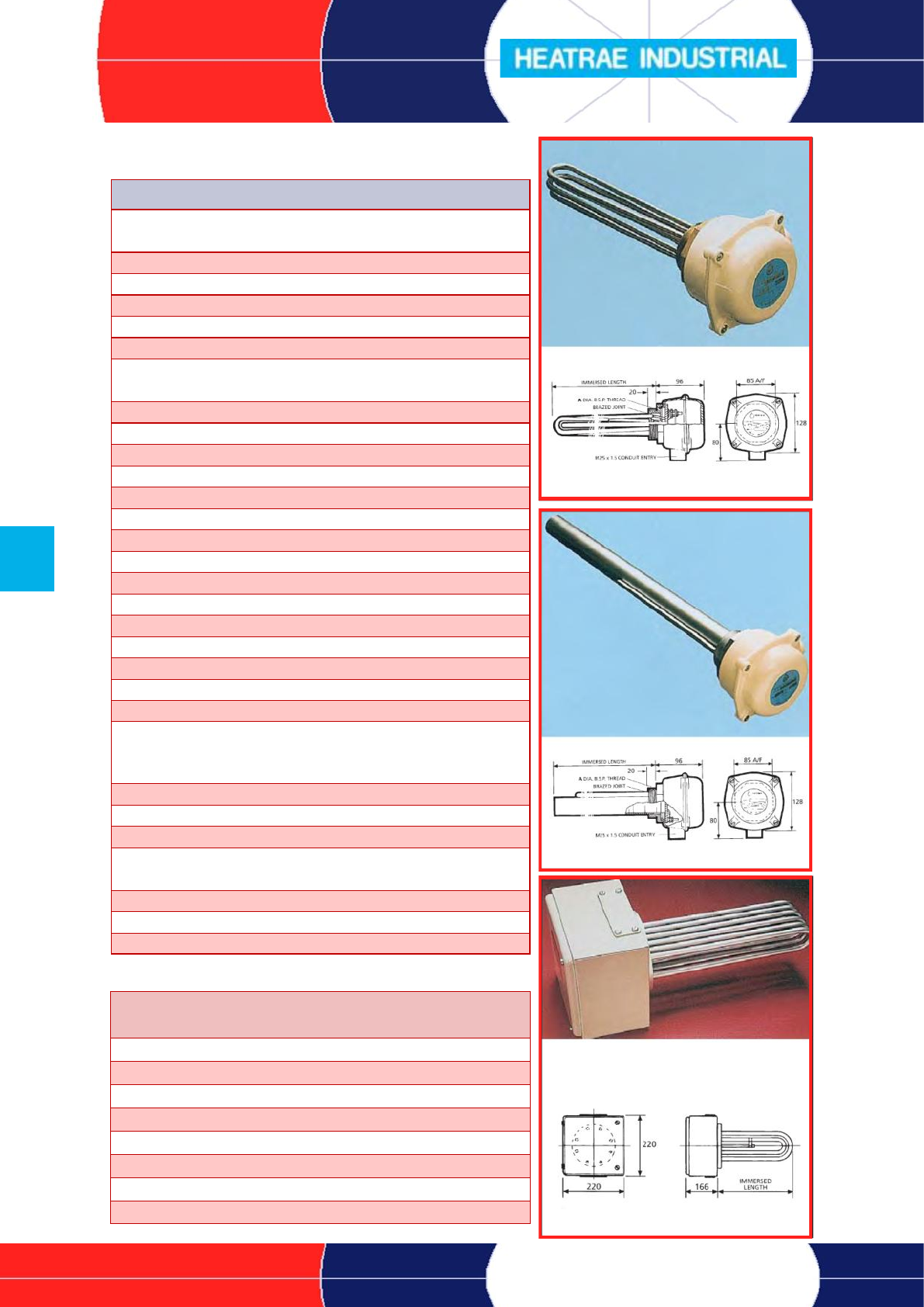

Product Immersed Length” kW Loading

*2” B.S.P. Head (rod type)

5R111 11 1

5R215 15 2

5R311 11 3

5R615 15 6

5R926 26 9

5R1234 34 12

*2¹⁄₄” B.S.P. Head (rod type)

6R111 11 1

6R215 15 2

6R311 11 3

6R330 30 3

6R411 11 4

6R415 15 4

6R615 15 6

6R630 30 6

6R642 42 6

6R724 24 7

6R916 16 9

6R923 23 9

6R926 26 9

6R936 36 9

6R1223 23 12

6R1234 34 12

*2” B.S.P. Head (core type)

5C219 19 2

5C327 27 3

5C438 38 4

5C650 50 6

*2¹⁄₄” B.S.P. Head (core type)

6C219 19 2

6C327 27 3

6C438 38 4.5

6C650 50 6

IMMERSION HEATERS

All above heaters are available from stock

Part No: Loading KW 415V Immersed Length

(mm) Number Elements

1RB 1216 12 405 6

1RB 1816 18 405 6

1RB 2416 24 405 9

1RB 2717 27 432 9

1RB 3027 30 685 6

1RB 3627 36 685 9

1RB 4527 45 685 9

1RB 5436 54 915 9

All rod-type immersion heaters supplied with a control stat 40/88 deg.

C 11” C’ Range thermostats are ‘Special’ order only

11” Control thermostat 0° - 40°C Part No. 10005076

33

your spares solution

www.uk-spares.com

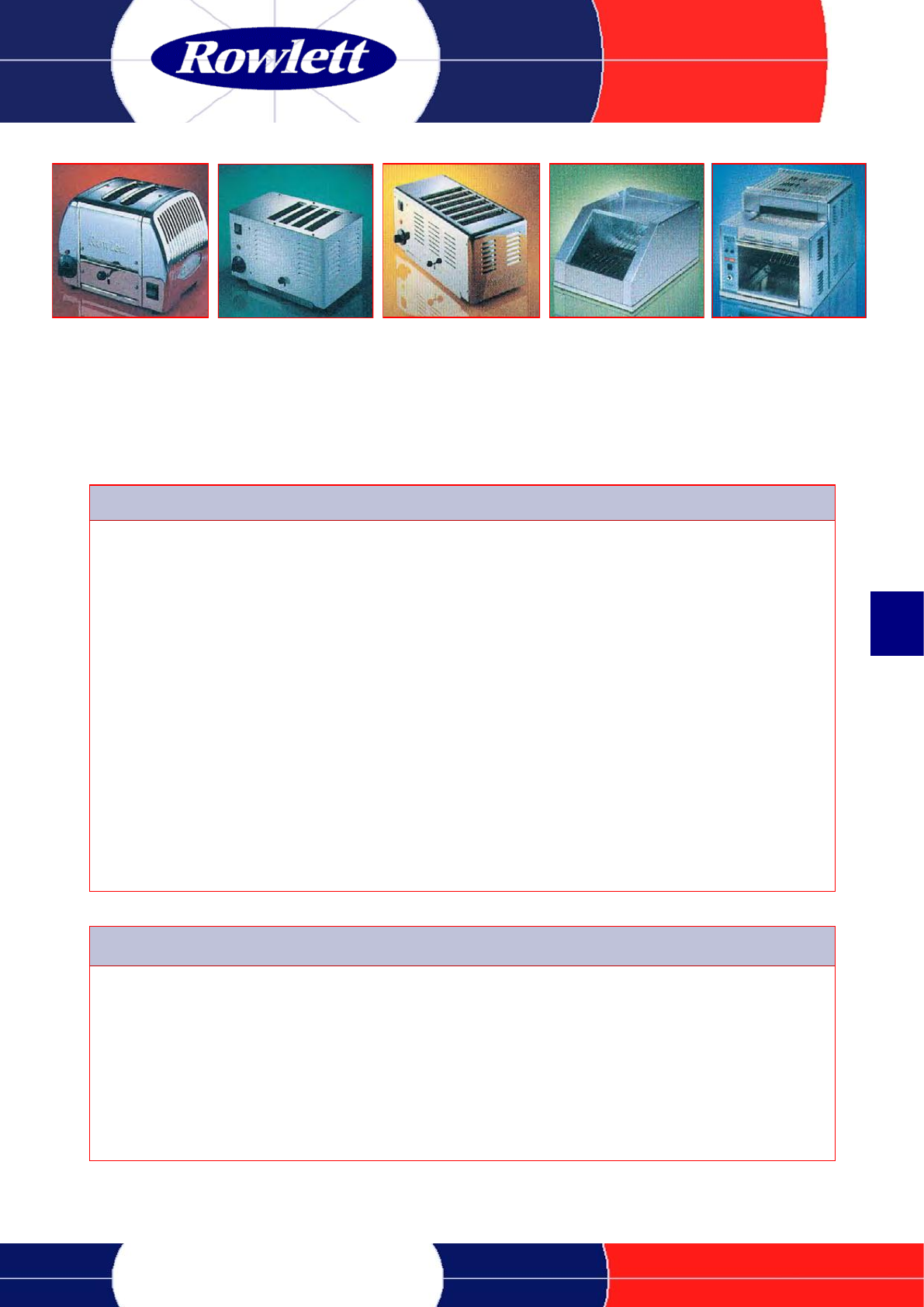

SINGLE ELEMENTS

ROWLETT MODEL DESCRIPTION

ME201 9R MIDDLE ELEMENT 500W

ELEMENT/4T167 9R MIDDLE ELEMENT 450W 6 SLICE TOASTER

ME204 9R END ELEMENT 400W

ELEMENT/4T168 9R END ELEMENT 270W 6 SLICE TOASTER

ME001 2 SLICE ELEMENT SET

ME203 3 SLICE ELEMENT SET

ME211 4 SLICE ELEMENT SET

ME301 6 SLICE ELEMENT SET

ME401 8 SLICE ELEMENT SET

ME501 10 SLICE ELEMENT SET

ME601 12 SLICE ELEMENT SET

DUALIT DESCRIPTION

00442 END ELEMENT 6 SLOT

00443 CENTRE ELEMENT 6 SLOT

00454 END ELEMENT 2 SLOT

00455 END ELEMENT 3 SLOT

00456 END ELEMENT 4 SLOT

00457 CENTRE ELEMENT 2/3/4 SLOT

Bread Toasters

34 your spares solution

Call us today on 01454 620500

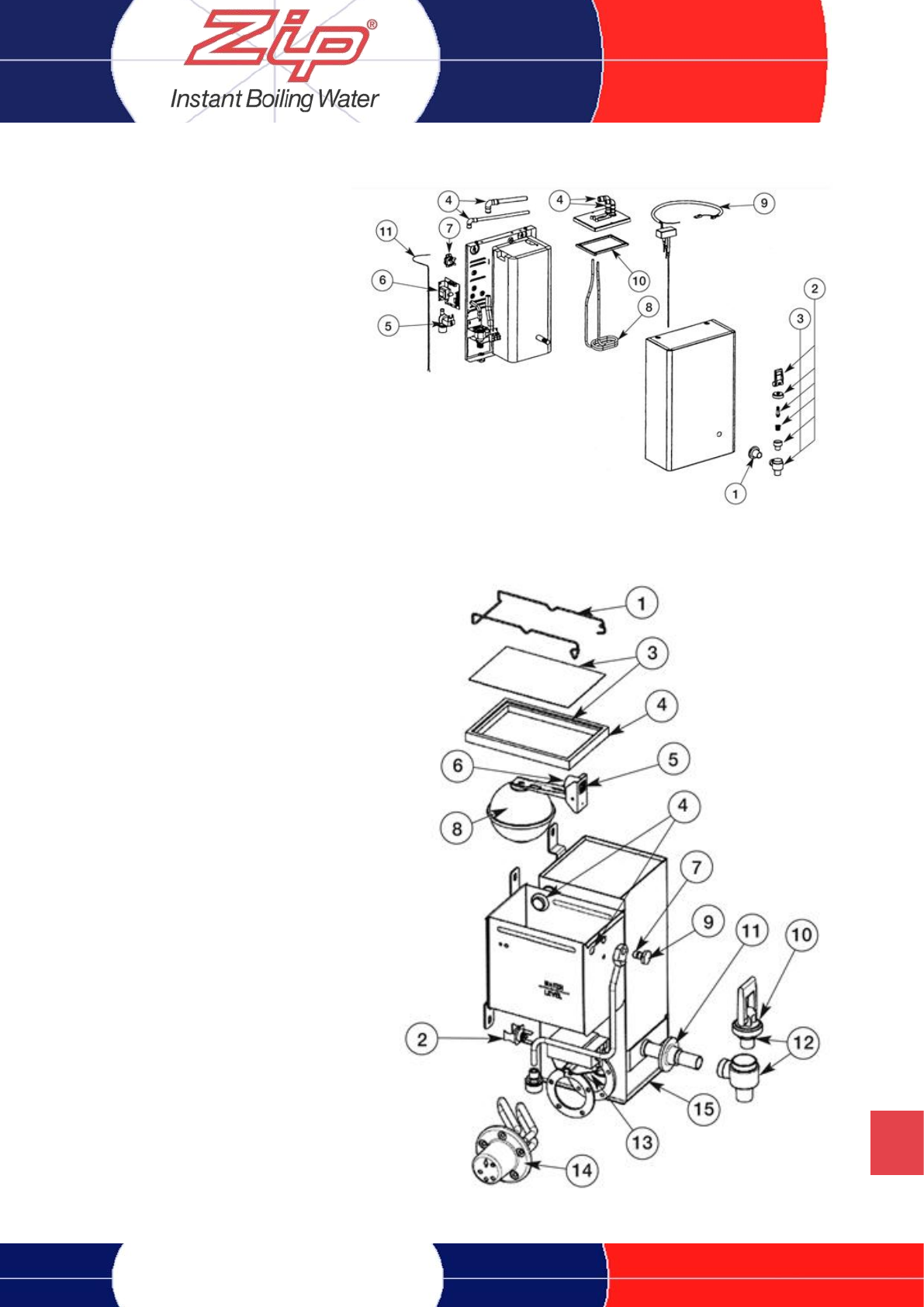

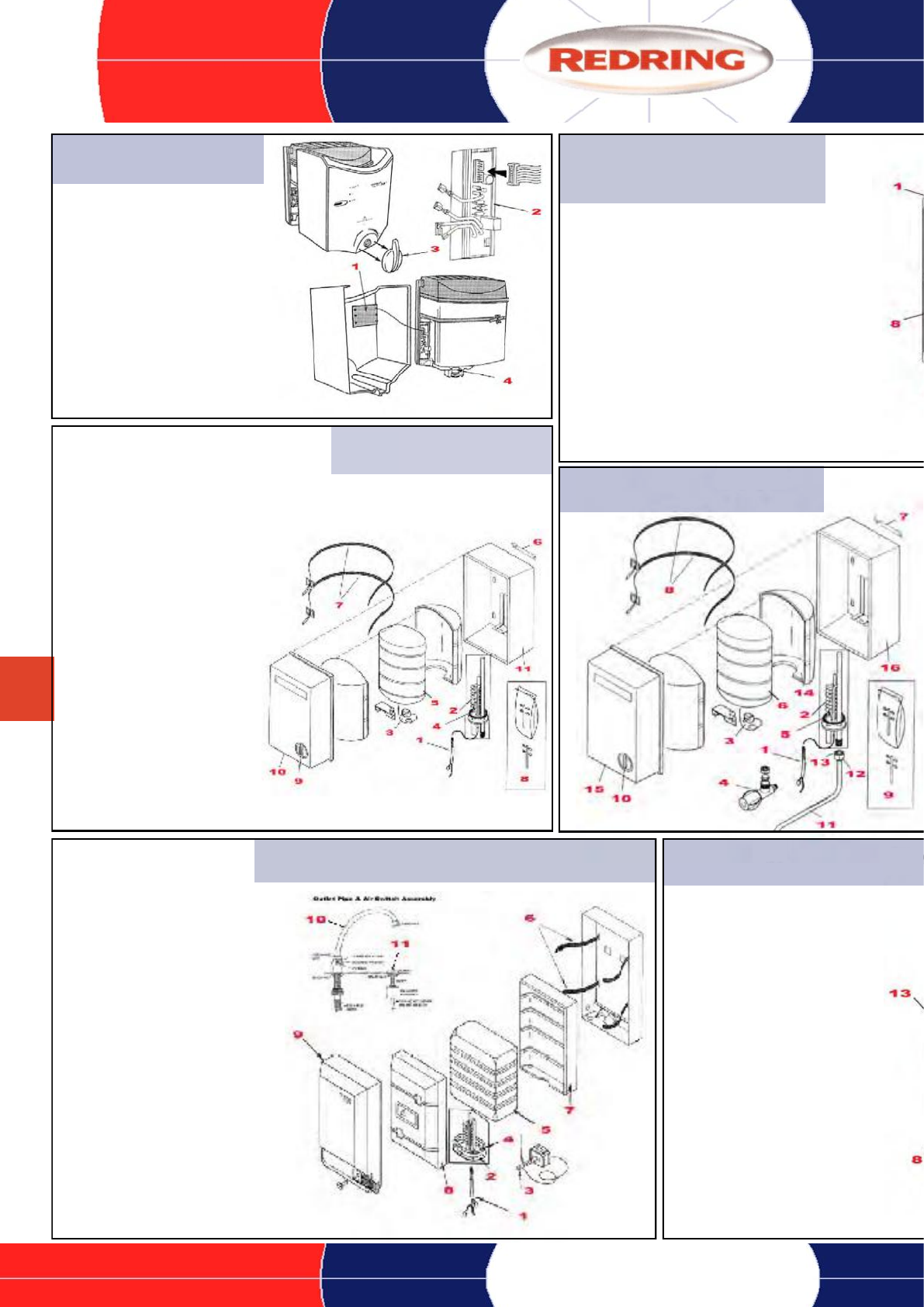

SB2 4 Litre 22714601

SB2 2.5 Litre 22714401

1 95719614 LOGIC BOARD ASSY

2 95719615 POWER PCB ASSY

3 95719608 CONTOL KNOB

4 95719611 OUTLET VALVE

N/I 95719621 ELEMENT ASSY

N/I 95719613 TERMINAL BLOCK

N/I 95719616 SOLENOID VALVE

N/I 95719617 FLOAT SWITCH

N/I 95719618 CABLE PACK

N/I 95719609 OUTLET SPOUT

N/I 95719619 SCALE TRAP

N/I 95719620 INLET ELBOW ASSY (INCLUDES FLOW REGULATOR)

1 93793701 BACKPLATE

2 93793726 CYCLING CUT-OUT [POST 05/92]

3 93793703 TERMINAL BLOCK

4 93793709 CABLE CLAMP & RUBBER BOOT

5 93793712 FILTER ASSEMBLY

6 93793723 MANUAL RESET CUT-OUT [POST 05/92]

7 93793749 ELEMENT / HEAT EXCHANGER 12KW

7 93793744 ELEMENT / HEAT EXCHANGER 10.8KW

7 93793724 ELEMENT / HEAT EXCHANGER 9.5KW

8 93793743 FLOW SWITCH 10.8/12KW

8 93793706 FLOW SWITCH 9.5KW

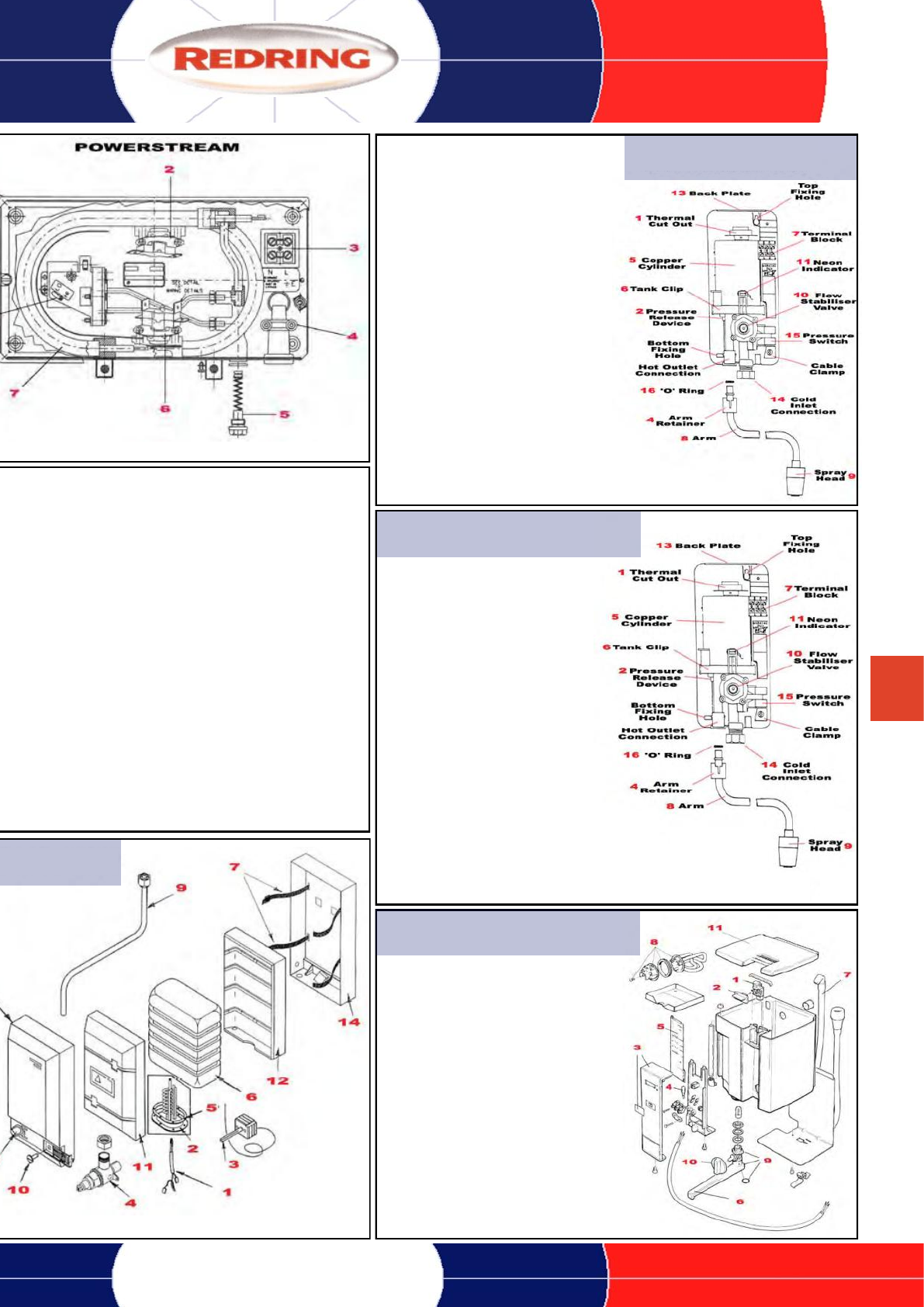

Powerstream 12kW 45793202

Powerstream 10.8kW 45793204

Powerstream 9.5kW 45793201

WS7 3kW 44780001 (1980 - Current)

WS7 1kwW44780002 (1980 - Current)

1 94784217 THERMAL FUSE (3 WIRES)

2 94780441 1KW ELEMENT*

3 94780439 THERMOSTAT (Cotherm)

4 94780425 TANK TO ELEMENT SEAL (WASHER)

5 94780428 WATER TANK (BOTTLE)

6 94780430 FIXING KIT

7 94780426 INSULATION STRAPPING KIT

8 94780429 TANK TO ELEMENT CLIPS - HARDWARE KIT

9 94780423 THERMOSTAT KNOB

10 NLA FRONT COVER

11 NLA REAR CASE ASSY

N/I 94780447 SOLENOID

N/I 94780446 ACTUATOR (C/W MICROSWITCH)

N/I 94780444 AIR SWITCH (PUSH BUTTON & TUBE)

N/I 94780445 3MM DIA. TUBE

N/I 94780437 SWIVEL SPOUT ASSY

N/I 94780411 PACK OF 4 RESTRICTORS

N/I NLA REAR INSULATION

WS7U 3kW - 44780020

WS7U 1kW - 44780021

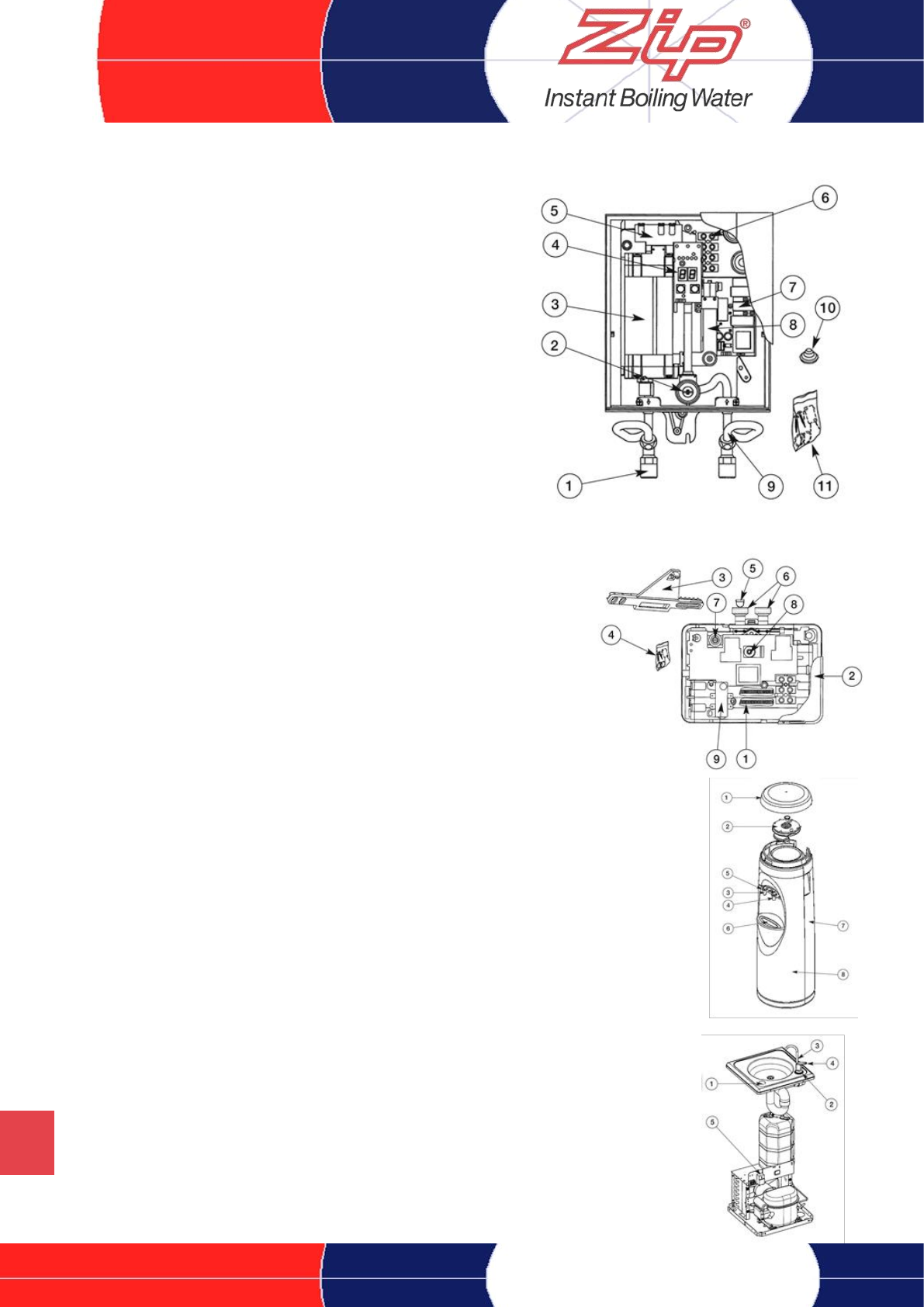

CONTOUR 7000 Remote 3kW 44784020 (1996 - CURRENT)

CONTOUR 7000 1kW 44784021 (1996 - 1999)

1 94784217 THERMAL FUSE

2 94784220 3KW ELEMENT / HEATER ASSY (INC.FUSE)

2 94784219 1KW ELEMENT / HEATER ASSY (INC.FUSE)

3 94784218 THERMOSTAT (Cotherm)

4 94784209 TANK TO ELEMENT SEAL

5 94784212 WATER TANK

6 94784210 INSULATION STRAPPING

7 94784214 REAR INSULATION

8 94784213 FRONT INSULATION

9 94784221 FRONT COVER

10 94780437 SWIVEL SPOUT ASSY

11 94780444 AIR SWITCH (PUSH BUTTON & TUBE)

N/I 94784216 TERMINAL BLOCK

N/I 94780445 3MM DIA. TUBE

N/I 94780446 ACTUATOR (C/W MICROSWITCH)

N/I 94784224 SOLENOID VALVE

N/I 94784231 INLET ELBOW

N/I 94780411 PACK OF 4 RESTRICTORS

1 94784203 THERMAL FUSE (2 WIRES)

2 94784206 3KW ELEMENT / HEATERS ASSY (INC. FUSE)

2 94784219 1KW ELEMENT / HEATERS ASSY (INC. FUSE)

3 94784204 THERMOSTAT

4 94784226 CONTROL TAP (NO CONTROL KNOB)

5 94784209 TANK TO ELEMENT SEAL

6 94784212 WATER TANK

7 94784210 INSULATION STRAPPING

8 94784225 FLOW CONTROL KNOB

9 94780419 STANDARD SWIVEL ARM 300MM

10 94784208 THERMOSTAT KNOB (BEHIND GRILLE)

11 94784213 FRONT INSULATION

12 94784214 REAR INSULATION

13 94784207 FRONT COVER

14 94784215 REAR CASE

15 94784230 INLET ELBOW

16 94780411 PACK OF 4 RESTRICTORS

17 94784216 TERMINAL BLOCK

CONTOUR 7000 3kW 44784001 (1996 - CURRENT)

CONTOUR 7000 1kW 44784002 (1996 - 1999)

35

your spares solution

www.uk-spares.com

1 94780449 THERMAL FUSE 10AMP (2 WIRES)

2 94780414 3KW ELEMENT/HEATER ASSY (INC. FUSE)

2 94780415 1KW ELEMENT/HEATER ASSY (INC. FUSE)

3 94784204 THERMOSTAT

3 94780439 THERMOSTAT (COTHERM)

4 94780418 CONTROL TAP/INLET VALVE

5 94780425 TANK TO ELEMENT SEAL (WASHER)

6 94780428 WATER TANK (BOTTLE)

7 94780430 FIXING KIT

8 94780426 INSULATION STRAPPING KIT

9 94780411 PACK OF 4 RESTRICTORS

10 94780423 THERMOSTAT KNOB

11 94780419 STANDARD SWIVEL ARM 300MM

12 94780422 SWIVEL ARM NUT

13 94780420 SWIVEL ARM O’RING SEAL

17 94780429 TANK TO ELEMENT CLIPS-HARDWARE KIT

18 94780421 SPLIT BUSH

19 84780404 SWIVEL ARM - 450MM

20 84780405 SWIVEL ARM - 600MM

1 93764455 THERMAL CUT-OUT

2 93795817 PRV WASHER

4 93768323 OUTLET ARM RETAINER

5 93768304 ELEMENT / CYLINDER ASSY I3V

6 93768309 TANK CLIP

7 93768306 TERMINAL BLOCK

8 93768315 SPRAY ARM ASSY 13V 200MM C/W HEAD

9 93768317 VORTEX HEAD I3V

10 93768319 FLOW / STABILISER VALVE I3V

11 93768311 NEON & CABLE I3V

12 93768329 BACKPLATE

13 93768310 INLET COUPLING PACK

14 93795804 MICROSWITCH (PRESSURE)

15 93760841 OUTLET O`RING

16 93768303 LEVER / CONTROL KNOB & INSERT I3V

N/I 93768307 TANK BASE ASSY I3V

N/I 85768322 EXTENDED SPRAY ARM 380MM - NO HEAD

N/I 85768330 SHORTENED SPRAY ARM 100MM - NO HEAD

N/I 93768301 FRONT COVER I3V

1 93764455 PRV WASHER

2 93795817 OUTLET ARM RETAINER

4 93768323 ELEMENT / CYLINDER ASSY

5 93768305 TANK CLIP

6 93768309 TERMINAL BLOCK

7 93768306 SPRAY ARM ASSY I7V 200MM C/W HEAD

8 93768316 VORTEX SPRAY HEAD I7V

9 93768318 FLOW / STABILISER VALVE

10 93768320 NEON

11 93768312 BACKPLATE

13 93768329 INLET COUPLING PACK

14 93768310 MICROSWITCH (PRESSURE)

15 93795804 OUTLET O`RING

16 93760841 LEVER / CONTROL KNOB & INSERT

N/I 93768303 TANK BASE ASSY I7V

N/I 93768308 EXTENDED SPRAY ARM 380MM - NO HEAD

N/I 85768322 SHORTENED SPRAY ARM 100MM - NO HEAD

N/I 85768330 FRONT COVER I7V

N/I 93768302 FRONT COVER I7V

1 95716213 STEAM SWITCH COMPLETE (STAT)

2 95716244 STEAM SWITCH KNOB

3 95716215 FRONT TRIM

4 95716214 NEON & CABLE

5 95716216 SIGHT GLASS

6 95716217 OUTLET ARM ASSY

7 95716209 INLET FILLER HOSE

8 95716211 ELEMENT C/W CUT-OUT

9 95716242 OUTLET VALVE C/W KNOB & ARM

10 95716243 OUTLET VALVE KNOB

11 95716234 LID

N/I 89716203 EXTENDED OUTLET SPOUT

N/I 89716202 EXTENDED INLET HOSE (2M)

N/I 89716201 PLUMBING-IN KIT

1 94784203 THERMAL FUSE (2 WIRES)

2 94784206 3KW ELEMENT / HEATERS ASSY (INC. FUSE)

2 94784219 1KW ELEMENT / HEATERS ASSY (INC. FUSE)

3 94784204 THERMOSTAT

4 94784226 CONTROL TAP (NO CONTROL KNOB)

5 94784209 TANK TO ELEMENT SEAL

6 94784212 WATER TANK

7 94784210 INSULATION STRAPPING

8 94784225 FLOW CONTROL KNOB

9 94780419 STANDARD SWIVEL ARM 300MM

10 94784208 THERMOSTAT KNOB (BEHIND GRILLE)

11 94784213 FRONT INSULATION

12 94784214 REAR INSULATION

13 94784207 FRONT COVER

14 94784215 REAR CASE

15 94784230 INLET ELBOW

16 94780411 PACK OF 4 RESTRICTORS

17 94784216 TERMINAL BLOCK

14, 15 & 16 No Longer Available

CONTOUR 7000 3kW 44784001 (1996 - CURRENT)

CONTOUR 7000 1kW 44784002 (1996 - 1999)

Instant 3 Vortex 17V Handwash

43769701

Corvette 28717201

Aquaboil 28716501

Instant 3 Vortex 13V Handwash

43769701

36 your spares solution

Call us today on 01454 620500

A7, A10, A15, A7/2 UNTIL 2000

HEATER PLATE ASSEMBLY 3KW S1159 CAT NOS: HAU7, HAU10, AL083,

HEATER PLATE ASSEMBLY 1.2KW S1160 AL153, AL156, ALK01

HEATER PLATE ASSEMBLY 3KW (A10) S1161

HEATER PLATE ASSEMBLY 1.2KW (A10) S1162 HAU7

12” SWANNECK A7/A10/15 (SPOUT) S1165 1.5KW ELEMENT NLA

THERMOSTAT (A10) S8207 RANCO CUT-OUT S1250

THERMOSTAT (A7) S8208 DIAMOND ‘H’ 7” STAT S8212

HEATER PLATE GASKET S101 PTRV S1252

THERMAL CUT-OUT S1167

INLET VALVE ASSEMBLY HAU10

A7/10/15 STRAIGHT 605857 3KW ELEMENT S4301

H/PLATE WASHER S4207

AU7 CUT-OUT NLA

HEATER PLATE ASSEMBLY 3KW S2601 THERMOSTAT 612685

HEATER PLATE ASSEMBLY 1.2KW NLA PTRV S1252

THERMAL CUT-OUT S1167

N.B. OTHER ITEMS AS A7 AL083

3KW ELEMENT (MK11) HORIZONTAL S4206

AU10 H/PLATE WASHER S4207

HEATER PLATE ASSEMBLY 3KW S2611 D/P CUT-OUT NLA

HEATER PLATE ASSEMBLY 1.2KW S2612 CONTROL STAT 612685

THERMAL CUT-OUT S2613 PTRV S1252

THERMOSTAT S483

AL153

AS10 3KW ELEMENT (MK11) HORIZONTAL S4208

HEATER PLATE ASSEMBLY 3KW S1159 H/PLATE WASHER S4207

HEATER PLATE ASSEMBLY 1.2KW S2612 D/P CUT-OUT NLA

THERMAL CUT-OUT S2613 CONTROL STAT 612685

THERMOSTAT S483 PTRV S1252

J7, JM7, J12, JM12 AL156

J7, JM7 HEATER PLATE ASSEMBLY 3KW S1159 6KW ELEMENT (MK11) HORIZONTAL S4209

J12, JM12 HEATER PLATE ASSEMBLY 3KW S1161 H/PLATE WASHER S4207

JM7, JM12 SWANNECK 300MM (11 3/4”) S1165 D/P CUT-OUT NLA

JM7, JM12 TELESCOPIC SWANNECK S2606 CONTROL STAT 612685

THERMOSTAT S484 PTRV S1252

THERMAL CUT-OUT S1167 TUN DISH S5520

CONTROL RELAY S8501

DF23/34/55/68/91

HEATER PLATE ASSEMBLY 3KW ‘INCOLOY’ S474 ALK01 EXPANSION KIT

HEATER PLATE GASKET S101 EXPANSION VESSEL (3.5 BAR) 607988

THERMOSTAT 11" S8203 NON-RETURN VALVE 607987

PRESSURE LIMITER (3 BAR) 605830

DFE/25/35/55/70/90 EXPANSION RELIEF VALVE (6 BAR) 607986

HEATER PLATE ASSEMBLY 3KW COPPER S3403 LINE STRAINER S5506

HEATER PLATE GASKET S101

P.C.B. CONVERSION KIT

(STAT ELEC SENSOR/PROBE CUT-OUT) NLA

F/PAN COVER/AIR INLET 25/35L S3408

F/PAN COVER/AIR INLET 45/55/70L S3409

SANTON STORAGE WATER HEATERS

HIGH PRESSURE HEATERS UNTIL 2000

Tribune Classic

Premier

37

your spares solution

www.uk-spares.com

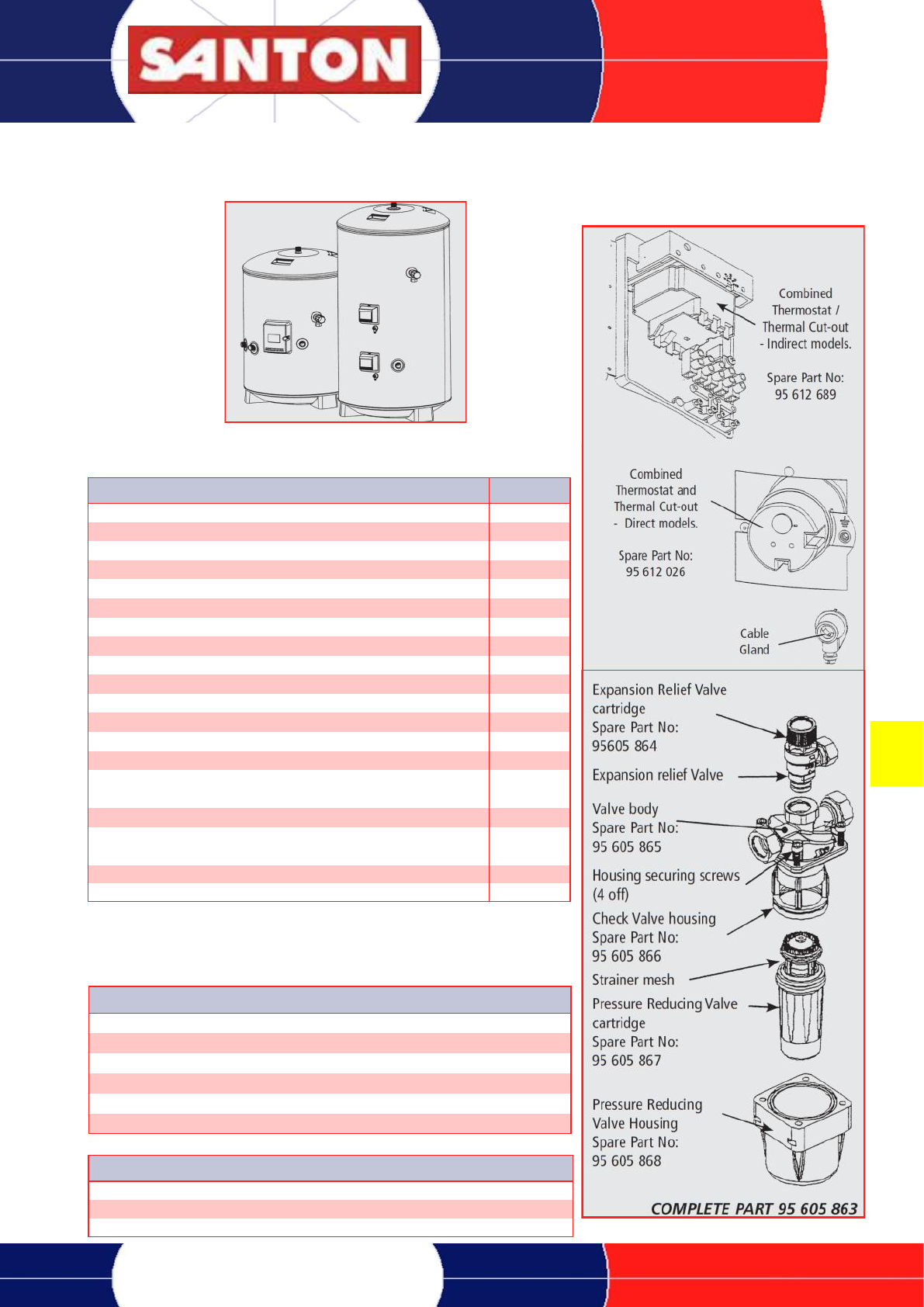

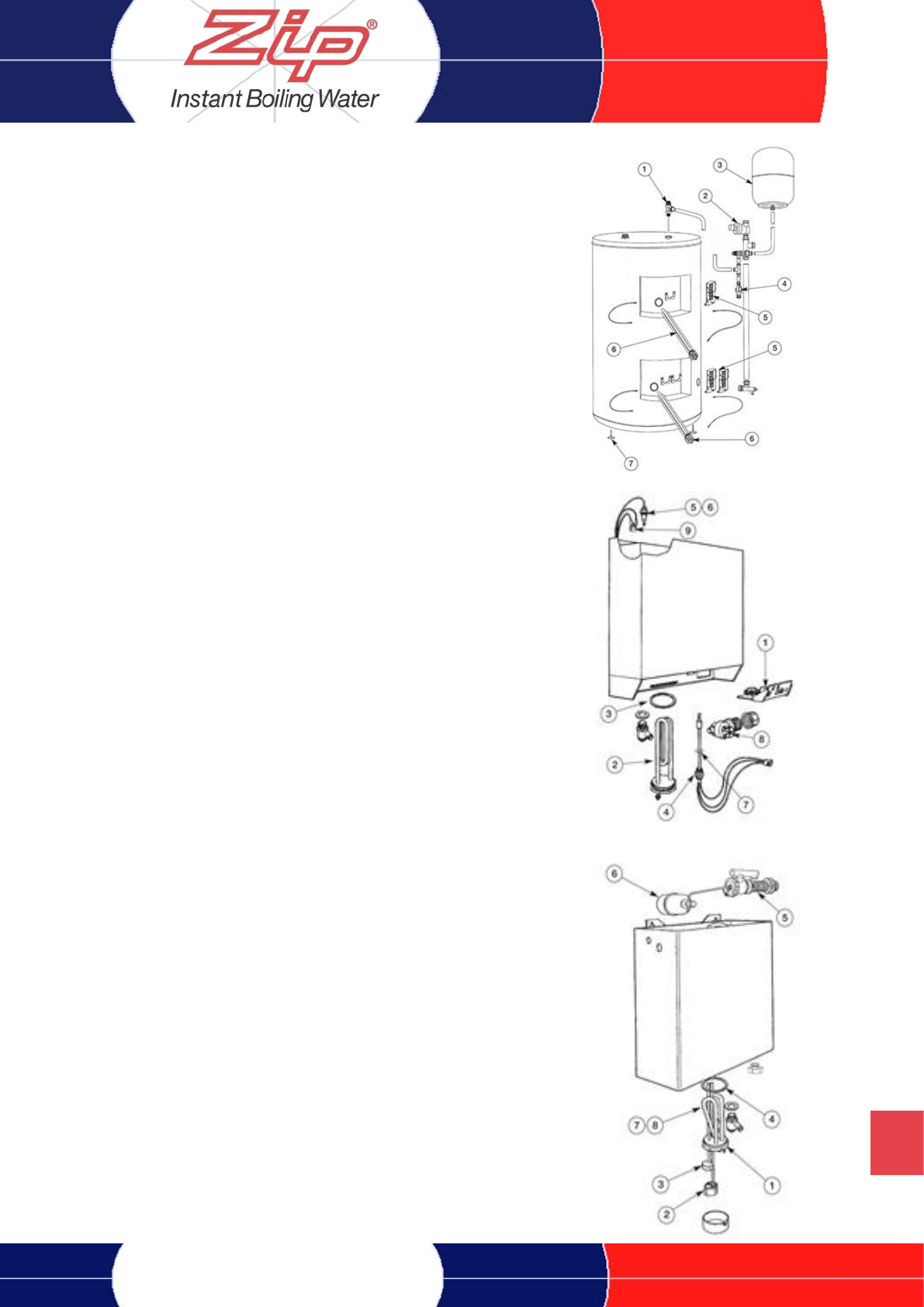

Description Part No

IMMERSION HEATER (LOWER) 95606963

IMMERSION HEATER (UPPER) 95606964

IMMERSION HEATER GASKET 95611822

IMMERSION HEATER BACKNUT 95607869

IMMERSION HEATER KEY 95607861

TUNDISH 95605838

EXPANSION RELIEF VALVE CARTRIDGE - 6BAR 95605864

COLD WATER COMBINATION VALVE BODY 95605863

CHECK VALVE HOUSING 95605866

PRESSURE REDUCING VALVE CARTRIDGE - 3.5BAR 95605867

PRESSURE REDUCING VALVE HOUSING 95605868

EXPANSION VESSEL 12 LITRE (100, 120 AND 150 LITRE MODELS) 95607863

EXPANSION VESSEL 18 LITRE (170 AND 210 LITRE MODELS) 95607864

EXPANSION VESSEL 24 LITRE 95607612

DIRECT UNITS ONLY (PP- - -E)

COMBINED THERMOSTAT AND THERMAL CUT-OUT (PRE 2006) 95612026

TERMINAL HOUSING 95607836

INDIRECT UNITS ONLY (PP - - -B)

COMBINED THERMOSTAT AND THERMAL CUT-OUT 95612689

MOTORISED VALVE 2 PORT 95605819

TERMINAL HOUSING 95607865

Premier Plus Unvented Hot Water Systems

Un-

vented mains pressure water heater - 100, 120, 150, 170 and

210 litre direct and indirect models

SPARE PARTS - A full range of spare parts are available for the Premier Plus range. Re-

fer to the Technical Data label on the unit to identify the model installed and ensure the

correct part is ordered.

IMPORTANT NOTE

On earlier DIRECT models the indirect type combined thermostat

and thermal cut-out was fitted. In this instance spare part number

95 607 862 should be To identify the thermostat fitted refer to the

following diagrams and compare with that fitted to your unit.

Cold Water Combination Valve - Exploded View

Tribune/Classic

Description Inlet Outlet Rating Ref

EXPANSION RELIEF 1/2” Male 1/2” Female 3.5bar S9533

EXPANSION RELIEF 15mm Comp 15mm Comp 4bar S9505

EXPANSION RELIEF 3/4” Male 3/4” Male 3.5bar S9507

TEMP & PRESSURE 3/4” Male 3/4” Female 4bar 90C S9532

TEMP & PRESSURE 3/4” Male 22mm Comp 4.5bar 90-95C S9506

PRESSURE REDUCING 3/4” Female 3/4” Female 1.8bar S6101

Tribune Valves To summarise, there are only 9 different valves available:-

3 Expansion valves, 2 Temperature and pressure, 1 Temperature and pressure relief

valves relief valves & 3 Valves for Premier units

Premier

Description Rating Ref

3.5BAR PRESSURE REDUCING VALVE 3.5bar 605846

6BAR EXPANSION VALVE 15 X 22MM 6bar S6222

10BAR TEMP - PRESSURE VALVE TPR 22 10bar S6223

Pre 2006 models

38 your spares solution

Call us today on 01454 620500

AH10, AH15 AQUAHEAT - UNVENTED

Description Ref

HEATER PLATE ASSEMBLY NLA

GASKET 611801

ANODE - (AH10) 607658

ANODE - (AH15) 607659

CAPILLARY THERMOSTAT 612631

THERMAL CUT OUT 612632

THERMOSTAT KNOB NLA

PRESSURE RELIEF VALVE 607986

NEON INDICATOR S6604

TERMINAL COVER PLATE S6606

AH30, AH50 AQUAHEAT - UNVENTED

HEATER PLATE ASSEMBLY 606916

GASKET 611801

ANODE - (AH30) 607673

ANODE - (AH50) 607674

CAPILLARY THERMOSTAT 612631

THERMAL CUT OUT 612632

TEMPERATURE & PRESSURE RELIEF VALVE S6610

THERMOSTAT KNOB S6611

PRESSURE RELIEF VALVE 607986

NEW INDICATOR S6604

TERMINAL COVER S6606

FH324, FH424 SANSPRAY

COVER C/W SWITCH FOR TIMER UNIT S1150

TIMER ASSEMBLY S2202

SOLENOID S2116

PRESSURE SWITCH ASSEMBLY S2109

SPRAY OUTLET ASSEMBLY S1073

P. RELIEF DIAPHRAGM (PK3) S969

CISTERN TYPE DFB25, DFB50, DFB75

3KW HEATER PLATE ASSEMBLY (MK2) S6512

3KW HEATER PLATE ASSEMBLY (MK1) S6501

HEATER PLATE GASKET S101

FLOAT SWITCH S6502

THERMOSTAT (MK2) S6513

THERMOSTAT (MK1) USE 56513 NLA

THERMAL CUT OUT (MK2) S6514

THERMAL CUT OUT (MK1) NLA

SOLENOID VALVE S6505

NON RETURN VALVE (MK2) S6515

NON RETURN VALVE (MK1) NLA

INLET VALVE S6507

THERMOSTATIC BLENDER & GASKETS S6516

PRESSURE REDUCING VALVE S6510

MK1 S/N 00

MK2 S/N DFO

Santon Tribune Classic (White Casing)

Description (SEE PICTURE 2) Ref

IMMERSION HEATER GASKET S6100

EY311 IMMERSION HEATER NLA

3/4” PRESSURE RELIEF VALVE S6101

PRESSURE & TEMPERATURE RELIEF VALVE 4 BAR S9506

COMBINED THERMOSTAT & CUT OUT NLA

INDIRECT FITTING KIT S6104

DIRECT FITTING KIT NLA

PRIMARY COMPRESSION NUTS S6106

TEMPERATURE RELIEF VALVE GASKET S6107

PREMIER (GREY/BLACK CASING)

Description (SEE PICTURE 1)

THERMOSTAT & CUT OUT S6211

3.0KW ELEMENT (DIRECT MODELS) S6212

1.5KW ELEMENT (INDIRECT MODELS) S6213

19 LITRE EXPANSION VESSEL 607864

PRESSURE REDUCING VALVE 3.5 BAR 605846

PRESSURE & TEMPERATURE RELIEF VALUE 10BAR S6223

MOTORISED VALVE (22MM) 605819

RANGE MK1 - DARK GREEN CASING/

DARK BLUE EXP VESS MK2 - LIGHT GREEN CASING

19 LITRE EXPANSION VESSEL 607864

PRESSURE GAUGE NLA

PRESSURE RELIEF VALVE 4 BAR S9505

PRESSURE & TEMPERATURE RELIEF VALVE 4.5BAR S9506

MOTORISED VALVE (22MM) 605819

NON RETURN VALVE (22MM) NLA

PRESSURE REDUCING VALVE 3/4” 2 BAR NLA

PRESSURE REDUCING VALVE 1” 2.1 BAR NLA

PRESSURE REDUCING VALVE 3/4” 1.8 BAR S6101

EY311 IMMERSION HEATER NLA

PRESSURE & TEMPERATURE RELIEF VALVE 4 BAR S9532

PRESSURE RELIEF VALVE 1/2” MALE 3.5 BAR S9533

PRESSURE RELIEF VALVE 1/2” FEMALE 3 BAR NLA

28MM NON RETURN VALVE NLA

LINE STRAINER NLA

PRESSURE RELIEF VALVE 2” NLA

R25, R45, R70, R115

HEATER PLATE ASSEMBLY (BOLT ON) S3407

HEATER PLATE GASKET S101

11” CONTROL THERMOSTAT S8207

7” RESET THERMOSTAT S567

OR

EY311 SCREW IN IMMERSION HEATER (PRE JAN 2001) EY311C

EY311 SCREW IN IMMERSION HEATER (POST JAN 2001) EY311E

CONTROL THERMOSTAT S484

RESET THERMOSTAT 980009

OTHER PARTS

BALL VALUE ASSEMBLY S5512

BY LAW 30 KIT S3412

FEED PAN COVER (R25) S3408

FEED PAN COVER (R45 R70) S3409

FEED PAN COVER (R115) S3411

SANTON - End of Line Spares

We still have available,

these listed spares in stock.

But once sold they will no longer

be available.

39

your spares solution

www.uk-spares.com

SANTON SPARES - New Models since 2000

Aqua-Dri Hand Drier - 1.5kW 2002 - 94020009

95601721 FAN & HEATER UNIT

95604676 AIR OUTLET NOZZLE

95607901 SPAX SCREW

95614282 FRONT COVER

95614283 LOWER HOUSING

95614284 MOUNTING PLATE

95615042 CIRCUIT BOARD

EV 2001 3.1 kW - 94020002 & Sector 3.1kW 94020004

95614199 SECTOR COVER FRONT & CONTROL KNOB

95614277 SANTON FRONT COVER & CONTROL KNOB

95604673 OUTLET SPOUT ASSEMBLY (LESS SPRAY PLATE)

95614269 SANTON WASH FRONT COVER & CONTROL KNOB

95605853 ESQUIRE/SANTON WASH/SECTOR/ALTO PC CONTROL KNOB

95607561 PRESSURE RELIEF DEVICE (3.1 KW) & PRD METAL BRACKET

95605862 SANTON CONTROL KNOB

95605849 VALVE (3.1KW)

95613626 PRESSURE SWITCH ASSEMBLY (3.1KW)

95608924 INNER CONTAINER (3.1KW) & CUT-OUT

95604675 SPRAY PLATE (3.1KW)

95607553 TERMINAL BLOCK

95605850 JOHN GUEST CONNECTOR

95611821 NUT CONNECTOR, TOP & BOTTOM 'O' RINGS

95607554 SPLASH SHIELD

95607555 BLUE INLET ELBOW (3.1 KW)

95607556 RELEASE CABLE TIE

95607557 PRD METAL BRACKET

95607558 COVER SCREW (X2)

95612682 WIRE SET 3.1KW

95612610 THERMAL CUT-OUT

EV 2001 7.2kW - 94020003 & Sector 7.2kW 94020005

95614199 SECTOR COVER FRONT & CONTROL KNOB

95614277 SANTON FRONT COVER & CONTROL KNOB

95604673 OUTLET SPOUT ASSEMBLY (LESS SPRAY PLATE)

95605853 ESQUIRE/SECTOR/ALTO PC CONTROL KNOB

95607562 PRESSURE RELIEF DEVICE (7.2KW) & PRD METAL BRACKET

95605862 SANTON CONTROL KNOB

95605852 VALVE (7.2KW)

95613627 PRESSURE SWITCH ASSEMBLY (7.2KW)

95608925 INNER CONTAINER (7.2KW) & CUT-OUT

95604674 SPRAY PLATE (7.2KW)

95607553 TERMINAL BLOCK

95605850 JOHN GUEST CONNECTOR

95611821 NUT CONNECTOR, TOP & BOTTOM 'O' RINGS

95607554 SPLASH SHIELD

95607559 WHITE INLET ELBOW (7.2KW)

95607556 RELEASE CABLE TIE

95607557 PRD METAL BRACKET

95607558 COVER SCREW (X2)

95612683 WIRE SET 7.2KW

95612610 THERMAL CUT-OUT

Aquarius O/Sink A7/3,A7/1,A10/3,A10/1 94010001/2/3/4

95606934 ELEMENT PLATE ASSEMBLY 1.2KW

95606763 ELEMENT PLATE ASSEMBLY 3KW

95611708 ELEMENT PLATE ASSEMBLY GASKET (PK OF TEN)

95612688 OVER TEMPERATURE CUT-OUT

95612667 THERMOSTAT- CAPILLARY

95605857 CONTROL VALVE

95607509 SPOUT ADAPTOR

95604678 SPOUT (12”) COMPLETE WITH ADAPTOR

95614272 TOP COVER MOULDING

95614273 TERMINAL COVER

Aquarius U/Sink AU7/3, AU7/1, AU10/3, AU10/1

- 94010008/9/10/11 from 2001

95606936 ELEMENT PLATE ASSEMBLY 7 LITRE 1.2KW

95606937 ELEMENT PLATE ASSEMBLY 7 LITRE 3KW

95606938 ELEMENT PLATE ASSEMBLY 10 LITRE 1.2KW

95606949 ELEMENT PLATE ASSEMBLY 10 LITRE 3KW

95611708 ELEMENT PLATE ASSEMBLY GASKET

95612667 THERMOSTAT- CAPILLARY

95612688 OVER TEMPERATURE CUT-OUT

95614272 TOP COVER MOULDING

95614273 TERMINAL COVER

Heatstore 10Ltr 3kW Oversink (HS55/3/ION) - 94010005

95606763 ELEMENT - 3KW

95614265 TOP MOULDING

95614267 TERMINAL COVER

95612667 THERMOSTAT- CAPILLARY

95612688 THERMOSTAT - ‘OVER TEMPERATURE CUT OUT’

95605855 CONTROL VALVE

95611708 GASKET

95604678 SPOUT

95607509 ADAPTOR

95604213 TELE’ SPOUT

Heatstore 7Ltr 3kW Oversink (HS55/3/7N) - 94010006

95606763 ELEMENT - 3KW

95614265 TOP MOULDING

95614267 TERMINAL COVER

95612667 THERMOSTAT - CAPILLARY

95612688 THERMOSTAT - ‘OVER TEMPERATURE CUT OUT’

95605855 CONTROL VALVE

95611708 GASKET

95604678 SPOUT

95607509 ADAPTOR

95604213 TELE’ SPOUT

95606934 ELEMENT - 1.2KW

95614265 TOP MOULDING

95614267 TERMINAL COVER

95612667 THERMOSTAT - CAPILLARY

95612688 THERMOSTAT - ‘OVER TEMPERATURE CUT OUT’

95605855 CONTROL VALVE

95611708 GASKET

95604678 SPOUT

95607509 ADAPTOR

95604213 TELE’ SPOUT

Heatstore 7Ltr 1.2kW Oversink (HS55/1/7N) - 94010007

40 your spares solution

Call us today on 01454 620500

SANTON SPARES - New Models since 2000

SECTOR 7LTR 1.2KW VENTED OVERSINK (S1

POU) - 94010016 (S1 POU)

95606934 ELEMENT 1.2KW

95614272 TOP MOULDING

95614273 TERMINAL COVER

95612667 THERMOSTAT- CAPILLARY

95612688 T’STAT - 'OVER TEMPERATURE CUT OUT'

95605857 CONTROL VALVE

95611708 GASKET

95604678 SPOUT

95607509 ADAPTOR

95604213 TELE' SPOUT

SECTOR 7LTR 3KW VENTED OVERSINK (S3POU)

- 94010017

95606763 ELEMENT 3KW

95614272 TOP MOULDING

95614273 TERMINAL COVER

95612667 THERMOSTAT- CAPILLARY

95612688 T’STAT - 'OVER TEMPERATURE CUT OUT'

95605857 CONTROL VALVE

95611708 GASKET

95604678 SPOUT

95607509 ADAPTOR

95604213 TELE' SPOUT

AQUAHEAT AH7/2.2, AH10/2.2. AH15/2.2 -

94050001/02/03

95606939 ELEMENT PLATE ASSEMBLY - 7 LITRE 2.2KW

95606940 ELEMENT PLATE ASSEMBLY - 10 LITRE 2.2KW

95606950 ELEMENT PLATE ASSEMBLY - 15 LITRE 2.2KW

95612687 COMBINED T’STAT/THERMAL CUT-OUT

95607992 INDICATOR LIGHT

95611708 ELEMENT PLATE GASKET

95607986 PRESSURE (EXPANSION) RELIEF VALVE

95605854 TEMPERATURE/PRESSURE RELIEF VALVE

95614272 TOP COVER MOULDING (7&10 LITRE)

95614276 TOP COVER MOULDING (15 LITRE)

95614274 TERMINAL COVER (7&10 LITRE)

95614275 TERMINAL COVER (15 LITRE)

AQUALINE AL07/3. AL10/3. AL15/3. AL15/4.5 -

94050012/13/14/15

95606942 ELEMENT PLATE ASSEMBLY - 7 LITRE 3KW

95606921 ELEMENT PLATE ASSEMBLY - 10 LITRE 3KW

95606944 ELEMENT PLATE ASSEMBLY - 15 LITRE 3KW

95606945 ELEMENT PLATE ASSEMBLY - 15 LITRE 4.5KW

95612687 COMBINED T’STAT/THERMAL CUT-OUT 3KW

95612634 COMBINED T’STAT/THERMAL CUT-OUT

4.5KW

95607992 INDICATOR LIGHT (3KW)

95611708 ELEMENT PLATE GASKET

95607986 PRESSURE (EXPANSION) RELIEF VALVE

95605876 TEMPERATURE/PRESSURE RELIEF VALVE

95605875 THERMOSTATIC BLENDING VALVE

95614272 TOP COVER MOULDING (7&10 LITRE)

95614276 TOP COVER MOULDING (15 LITRE)

95614274 TERMINAL COVER (7&10 LITRE)

95614275 TERMINAL COVER (15 LITRE)

95607993 INDICATOR LIGHT (4.5KW)

HEATSTORE 10LTR 3KW UNDERSINK (HS10U) -

94010008

95606921 ELEMENT - 3KW

95614265 TOP MOULDING

95614266 TERMINAL COVER

95612687 COMBINED T’STAT/THERMAL CUT-OUT

95605854 T&P VALVE

95611708 GASKET

95607992 NEON - 3KW

HEATSTORE 15LTR 3KW UNDERSINK (HS15U) -

94010009

95606922 ELEMENT - 3KW

95614265 TOP MOULDING

95614266 TERMINAL COVER

95612687 COMBINED T’STAT/THERMAL CUT-OUT

95605854 T&P VALVE

95611708 GASKET

95607992 NEON - 3KW

HEATSTORE 30LTR 3KW OVERSINK (HS30U) -

94010010

95606922 ELEMENT PLATE ASSY - 30/50 LITRE 3KW

95614265 THERMOSTAT

95614266 THERMAL CUT-OUT

95607995 INDICATOR LIGHT

95611811 ELEMENT PLATE GASKET

95607986 PRESSURE (EXPANSION) RELIEF VALVE

95607994 TEMPERATURE/PRESSURE RELIEF VALVE

95607987 CHECK VALVE

95607988 EXPANSION VESSEL

95607989 PRESSURE REDUCING VALVE

95614184 TERMINAL COVER C/W T’STAT KNOB

HEATSTORE 50LTR 3KW OVERSINK (HS50U) -

94010011

95606921 ELEMENT PLATE ASSY - 30/50 LITRE 3KW

95980041 THERMOSTAT

95980042 THERMAL CUT-OUT

95607995 INDICATOR LIGHT

95611811 ELEMENT PLATE GASKET

95607986 PRESSURE (EXPANSION) RELIEF VALVE

95607994 TEMPERATURE/PRESSURE RELIEF VALVE

95607987 CHECK VALVE

95607988 EXPANSION VESSEL

95607989 PRESSURE REDUCING VALVE

95614184 TERMINAL COVER C/W T’STAT KNOB

SECTOR 10LTR 2.2KW UNVENTED UNDERSINK

(S103UNV) - 94050016

95606940 ELEMENT 2.2KW

95614272 TOP MOULDING

95614274 TERMINAL COVER

95612687 THERMOSTAT ROD COMBINED STAT/

THERMAL CUTOUT

95605854 T&P VALVE

95607986 PRESSURE RELIEF VALVE

95611708 GASKET

95607992 NEON - 3KW

SECTOR 15LTR 2.2KW UNVENTED UN-

DERSINK (S15UNV) - 94050017

95606941 ELEMENT 2.2KW

95614272 TOP MOULDING

95614274 TERMINAL COVER

95612687 THERMOSTAT ROD COMBINED STAT/

THERMAL CUTOUT

95605854 T&P VALVE

95607986 PRESSURE RELIEF VALVE

95611708 GASKET

95607992 NEON - 3KW

95980043 THERMOSTAT

95612634 THERMAL CUT-OUT

95607995 INDICATOR LIGHT

95611811 ELEMENT PLATE GASKET

95607986 PRESSURE (EXPANSION) RELIEF VALVE

95607994 TEMPERATURE/PRESSURE RELIEF VALVE

95607987 CHECK VALVE

95607988 EXPANSION VESSEL

95607989 PRESSURE REDUCING VALVE

95614184 TERMINAL COVER C/W T’STAT KNOB

HEATSTORE 50LTR 3KW OVERSINK (HS50U) -

94010011

95606921 ELEMENT PLATE ASSY - 30/50 LITRE 3KW

95980041 THERMOSTAT

95980042 THERMAL CUT-OUT

95607995 INDICATOR LIGHT

95611811 ELEMENT PLATE GASKET

95607986 PRESSURE (EXPANSION) RELIEF VALVE

95607994 TEMPERATURE/PRESSURE RELIEF VALVE

95607987 CHECK VALVE

95607988 EXPANSION VESSEL

95607989 PRESSURE REDUCING VALVE

95614184 TERMINAL COVER C/W T’STAT KNOB

SECTOR 10LTR 2.2KW UNVENTED UN-

DERSINK (S103UNV) - 94050016

95606940 ELEMENT 2.2KW

95614272 TOP MOULDING

95614274 TERMINAL COVER

95612687 THERMOSTAT ROD COMBINED STAT/

THERMAL CUTOUT

95605854 T&P VALVE

95607986 PRESSURE RELIEF VALVE

95611708 GASKET

95607992 NEON - 3KW

SECTOR 15LTR 2.2KW UNVENTED UN-

DERSINK (S15UNV) - 94050017

95606941 ELEMENT 2.2KW

95614272 TOP MOULDING

95614274 TERMINAL COVER

95612687 THERMOSTAT ROD COMBINED STAT/

THERMAL CUTOUT

95605854 T&P VALVE

95607986 PRESSURE RELIEF VALVE

95611708 GASKET

95607992 NEON - 3KW

41

your spares solution

www.uk-spares.com

Model No Element Charge Control Room Temp Fuse Link Input Knob Output Knob

Input Stat Output Stat

FS18 91406 91391 91392 - - -

FS24 91407 91391 91392 - - -

WF12 90628 90592 - 90442 90586 90587

WF18 90629 90592 - 90442 90586 90587

WF24 90630 90592 - 90442 90586 90587

WM712/718/724 80087 90383A - 90508 NLA NLA

WMS/X Range Element Charge Control Room Temp Fuse Link Input Knob Output Knob

Models: 1989-1996 Spade End Pin End Top Right Bottom

WMS/WMX 712 80087 or 91515 90383A 91031 - Obsolete 91696

WMS/WMX 718 80087 or 91515 90383A 91031 - Obsolete 91696

WMS/WMX 724 80087 or 91515 90383A 91031 - Obsolete 91696

WMX 706 ONLY 80087 or 91515 Obsolete - - - -

Models:

Jan 97-Sept 97

WMS/WMX 712 80087 or 91515 92025 91031 - 91641 91696

WMS/WMX 718 80087 or 91515 92025 91031 - 91641 91696

WMS/WMX 724 80087 or 91515 92026 91031 - 91641 91696

WMX706 ONLY 80087 or 91515 92025 - - - -

Models:

Oct 97 (N Range) Limit Stat

WMS712N XT8321 9510023 WM99000 - 9511002 9511002

WMS718N XT8321 9510023 WM99000 - 9511002 9511002

WMS724N XT8321 9510023 WM99000 - 9511002 9511002

WMX706N XT8321 9510037 - - - -

WMX712N XT8321 9510015 - - 9511002 9511002

WMX718N XT8321 9510015 - - 9511002 9511002

WMX724N XT8321 9510015 - - 9511002 9511002

Berry Ranges

4400, 4401 Obsolete 4500/052 NLA 2101/029 Obsolete Obsolete

4500, 4501 Obsolete 4500/052 NLA 2101/029 Obsolete Obsolete

4600, 4601 Obsolete 4500/052 NLA 2101/029 Obsolete Obsolete

4402, 4502, 4602 Obsolete 4502/022 NLA 2101/029 Obsolete Obsolete

Storage Heaters

42 your spares solution

Call us today on 01454 620500

Selco

ECaps No Type Watts F/C ECaps No Type Watts F/C

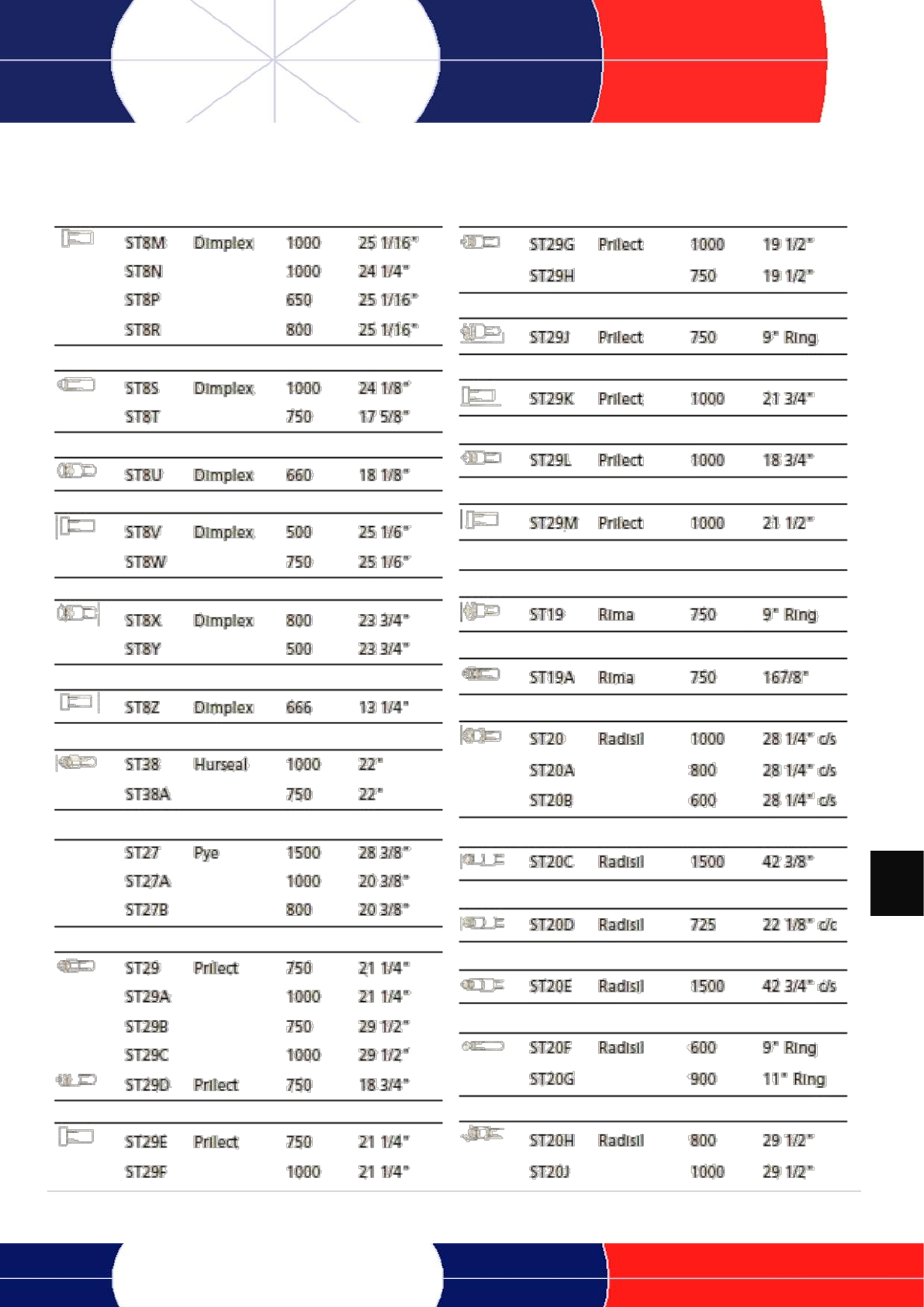

INFRA-RED SILICA TUBE ELEMENTS

43

your spares solution

www.uk-spares.com

INFRA-RED SILICA TUBE ELEMENTS

Selco

INFRA-RED SILICA TUBE ELEMENTS

ECaps No Type Watts F/C ECaps No Type Watts F/C

44 your spares solution

Call us today on 01454 620500

T30i SPARES

T70i SPARES

1 COVER ASSEMBLY 81200010

2 SWIVEL ARM ASSEMBLY 82700080

3 OPTIONAL 300M SWIVEL ARM 82700100

4 SPRAYHEAD ASSEMBLY 83302080

5 STABILISING VALVE ASSEMBLY 3kW 82600270

7kW 82600720

6 TERMINAL BLOCK (not pictured) 22007020

7 THERMAL CUT-OUT Obsolete

8 MICROSWITCH 22003230

9 PRESSURE RELIEF DEVICE 83301330

10 OUTLET PIPE ASSEMBLY 7051619

11 HEATER CAN ASSEMBLY 3kW 84500010

7kW 84500020

12 CABLE CLAMP (not pictured) 7050082

13 SWITCH AND WIRE KIT 3kW 83304040

(not pictured) 7kW 83304050

14 FILTER (not pictured) 7052161

1 COVER ASSEMBLY 85700050

2 TERMINAL BLOCK 82200070

3 OUTLET PIPE ASSEMBLY Obsolete

4 SELECTOR SWITCH ASSEMBLY 82500050

5 THERMAL CUT--OUT - NO.1 22003570

6 CAN ASSEMBLY 7kW 2060001

CAN ASSEMBLY 8kW 2060002

7 PRESSURE RELIEF DEVICE 83301330

8 CARTRIDGE ASSEMBLY (not pictured) 82400110

9 STABILISER VALVE ASSEMBLY Obsolete

10 CABLE CLAMP (not pictured) 7050082

11 SOLENOID VALVE ASSEMBLY

(EATON) 83300450

(EATON EB) 83300310

12 TRIMPLATE 7051220

13 MICROSWITCH 22003230

14 WIRE KIT (not pictured) 83303170

45

your spares solution

www.uk-spares.com

T70si SPARES

T80i SPARES

1 COVER ASSEMBLY 84800010

2 TERMINAL BLOCK 22007020

3 OUTLET PIPE ASSEMBLY 85000160

4 SELECTOR SWITCH ASSEMBLY 82500150

5 STABILISER VALVE ASSEMBLY 82600550

6 THERMAL CUT-OUT 22009860

7 CAN ASSEMBLY 7KW 84500430

CAN ASSEMBLY 8KW 84500450

8 PRESSURE RELIEF DEVICE 82800450

9 SOLENOID VALVE ASSEMBLY 83300450

10 TRIM - COVER 7052245

11 TRIM - BACKPLATE 7052244

1 COVER ASSEMBLY 81400010

2 CAN ASSEMBLY 7.5kW 2060029

CAN ASSEMBLY 8.5kW 85600030

CAN ASSEMBLY 9.5kW 85600090

3 STABILISER VALVE ASSEMBLY 82600250

4 SOLENOID 83300450

5 CARTRIDGE ASSEMBLY 82400170

6 THERMAL CUT-OUT 22003570

7 TERMINAL BLOCK & WIRES 82200070

8 START/STOP SWITCH 83300000

9 TRIMPLATE 70512200

10 OUTLET PIPE ASSEMBLY 83303160

11 SELECTOR SWITCH 82500050

12 MICROSWITCH 22003230

13 PRESSURE RELIEF DEVICE 83301330

14 WIRE KIT (not pictured) 83304060

46 your spares solution

Call us today on 01454 620500

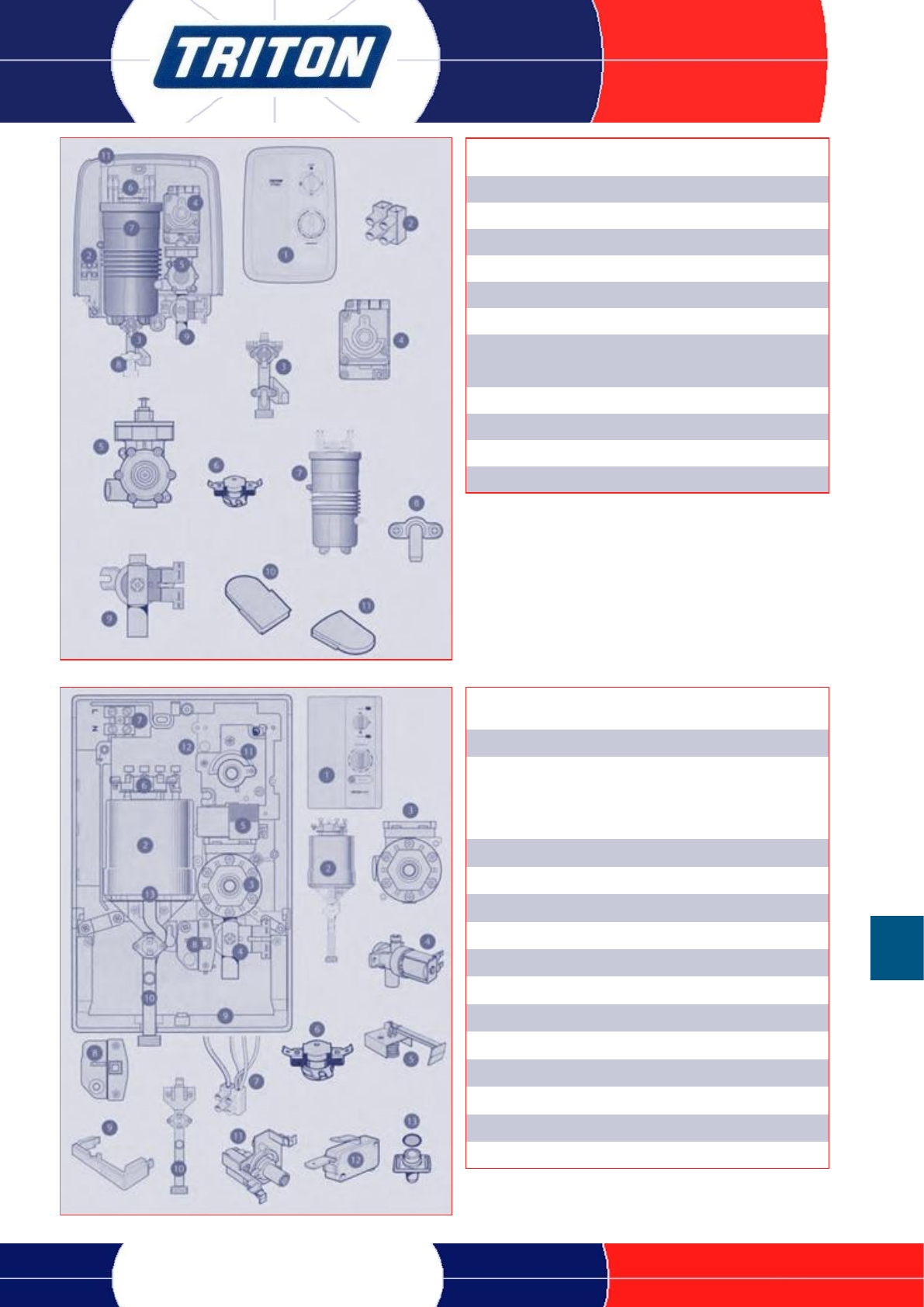

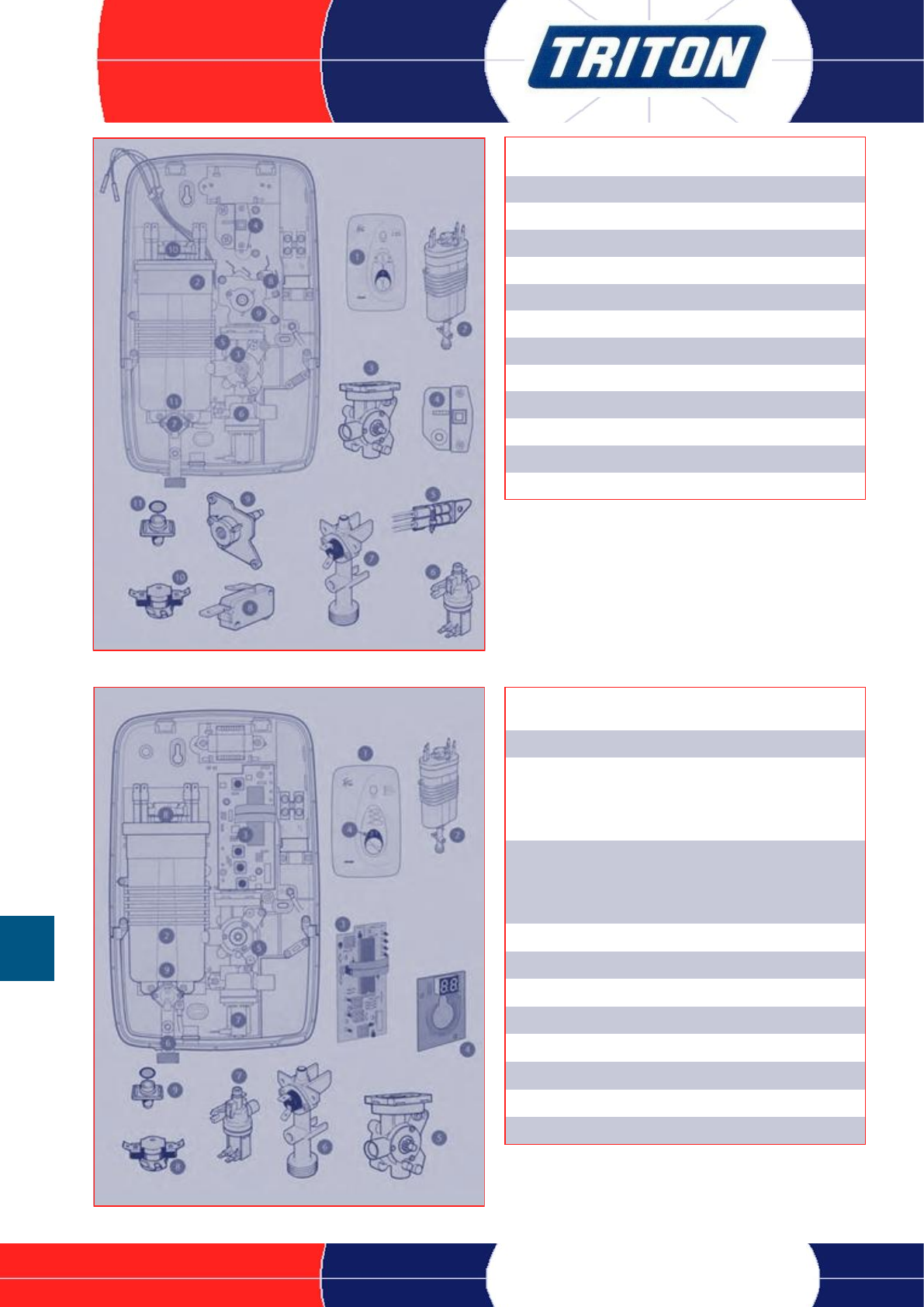

Topaz T80i SPARES

Topaz T100i SPARES

1 COVER ASSEMBLY 85800040

2 CAN ASSEMBLY 8.5kW 84500300

3 STABILISER VALVE ASSEMBLY 82600320

4 PUSH BUTTON SWITCH ASSEMBLY 83305520

5 BACKLIGHT NEON 82300130

6 SOLENOID VALVE 83304130

7 OUTLET PIPE ASSEMBLY 85000140

8 MICROSWITCH 22003230

9 SELECTOR SWITCH ASSEMBLY 82500090

10 THERMAL CUT-OUT 22005300

11 PRESSURE RELIEF DEVICE 83301330

12 WIRE KIT (NOT PICTURED) 83304140

1 COVER ASSEMBLY 85100050

2a. CAN ASSEMBLY

(2 ELEMENTS CAN) 8.5kW 84500300

(2 ELEMENTS CAN) 9.5kW 84500290

2b. CAN ASSEMBLY

(3 ELEMENTS CAN) 8.5kW 84500220

(3 ELEMENTS CAN) 9.5kW 84500230

3 POWER PCB 83305850

4 CONTROL PCB 7071826

5 STABILISER VALVE ASSEMBLY 82600320

6 OUTLET PIPE ASSEMBLY 83304160

7 SOLENOID VALVE ASSEMBLY 83304130

8 THERMAL CUT-OUT 22005300

9 PRESSURE RELIEF DEVICE 83301330

10 WIRE KIT (not pictured) 83304170

47

your spares solution

www.uk-spares.com

T80si SPARES

T100e/T100e Care

1 COVER ASSEMBLY 84900010

2 CAN ASSEMBLY 7.5kW 84500440

CAN ASSEMBLY 8.5kW 84500460

CAN ASSEMBLY 9.5kW 84500470

3 STABILISER VALVE ASSEMBLY 82600550

4 SOLENOID 83300450

5 SELECTOR SWITCH 82500160

6 THERMAL CUT-OUT 22009860

7 OUTLET PIPE ASSEMBLY 85000160

8 THERMAL BLOCK 22007020

9 PRESSURE RELIEF DEVICE 82800450

10 START/STOP SWITCH 83305380

11 INSERT TRIM - COVER 7052245

12 INSERT TRIM - BACKPLATE 7052244

1 COVER ASSEMBLY 81100050

2 CAN ASSEMBLY 7kW 2060001

CAN ASSEMBLY 8kW 2060002

3 PRINTED CIRCUIT BOARD 83301390

4 STABILISER VALVE 82600160

5 SOLENOID VALVE ASSEMBLY 83300450

6 CARTRIDGE ASSEMBLY 82400050

7a. OUTLET PIPE ASSEMBLY 85000040

C/W CUTOUT

7b. OUTLET PIPE ASSEMBLY 83301380

WITHOUT CUTOUT

8 THERMAL CUT-OUT 22003570

9 PRESSURE RELIEF DEVICE 83301330

10 WIRE KIT (not included) 83300510

48 your spares solution

Call us today on 01454 620500

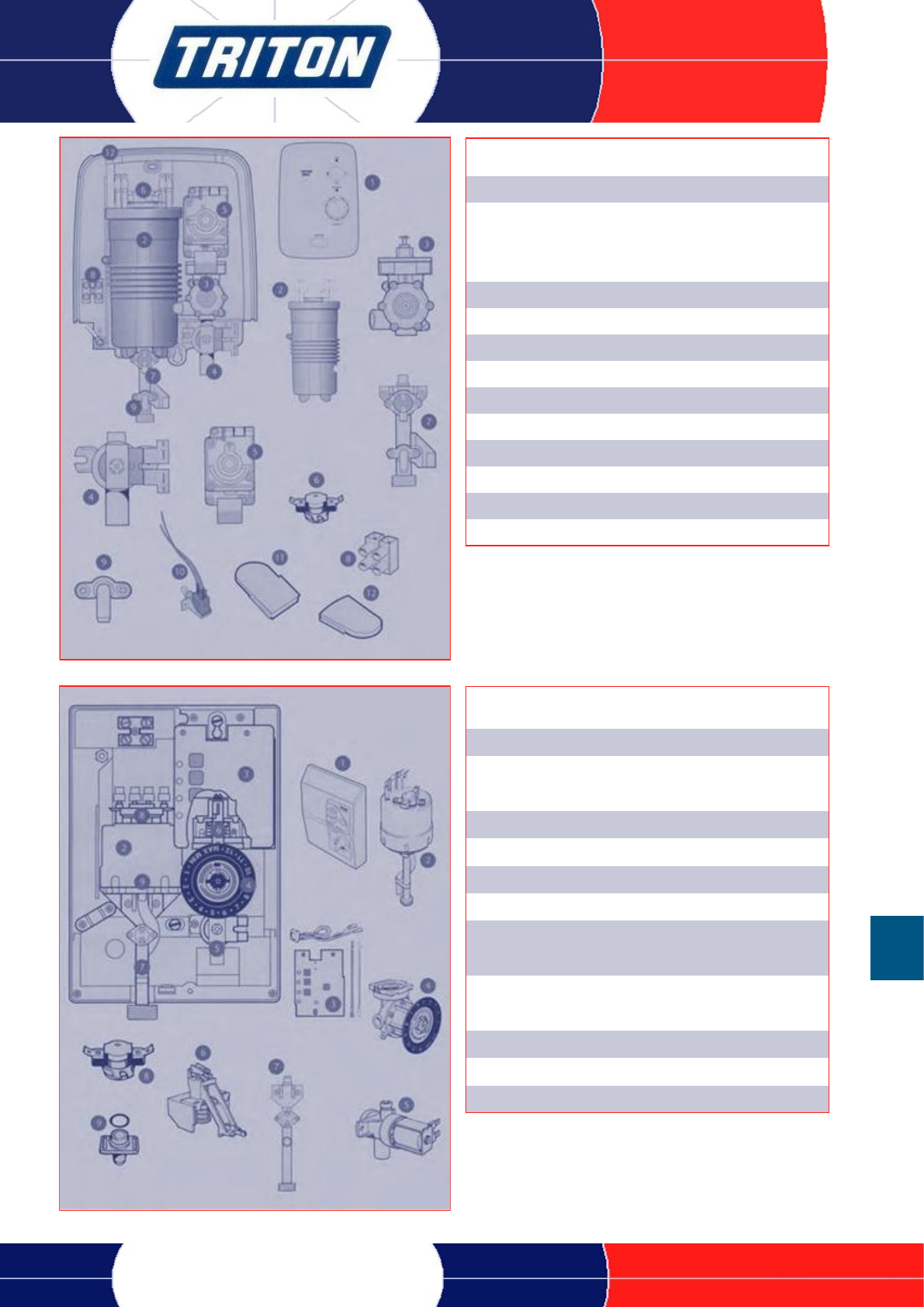

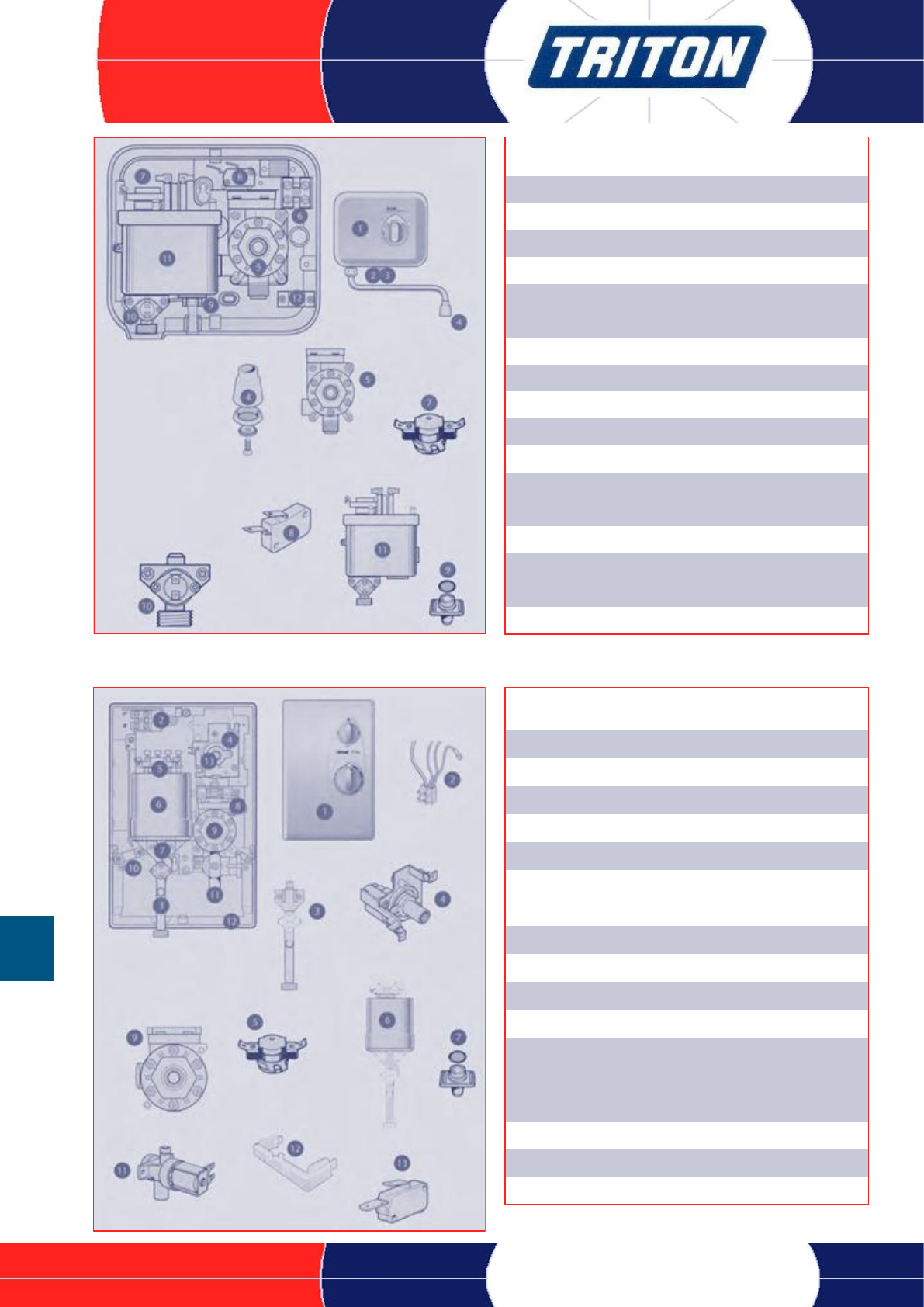

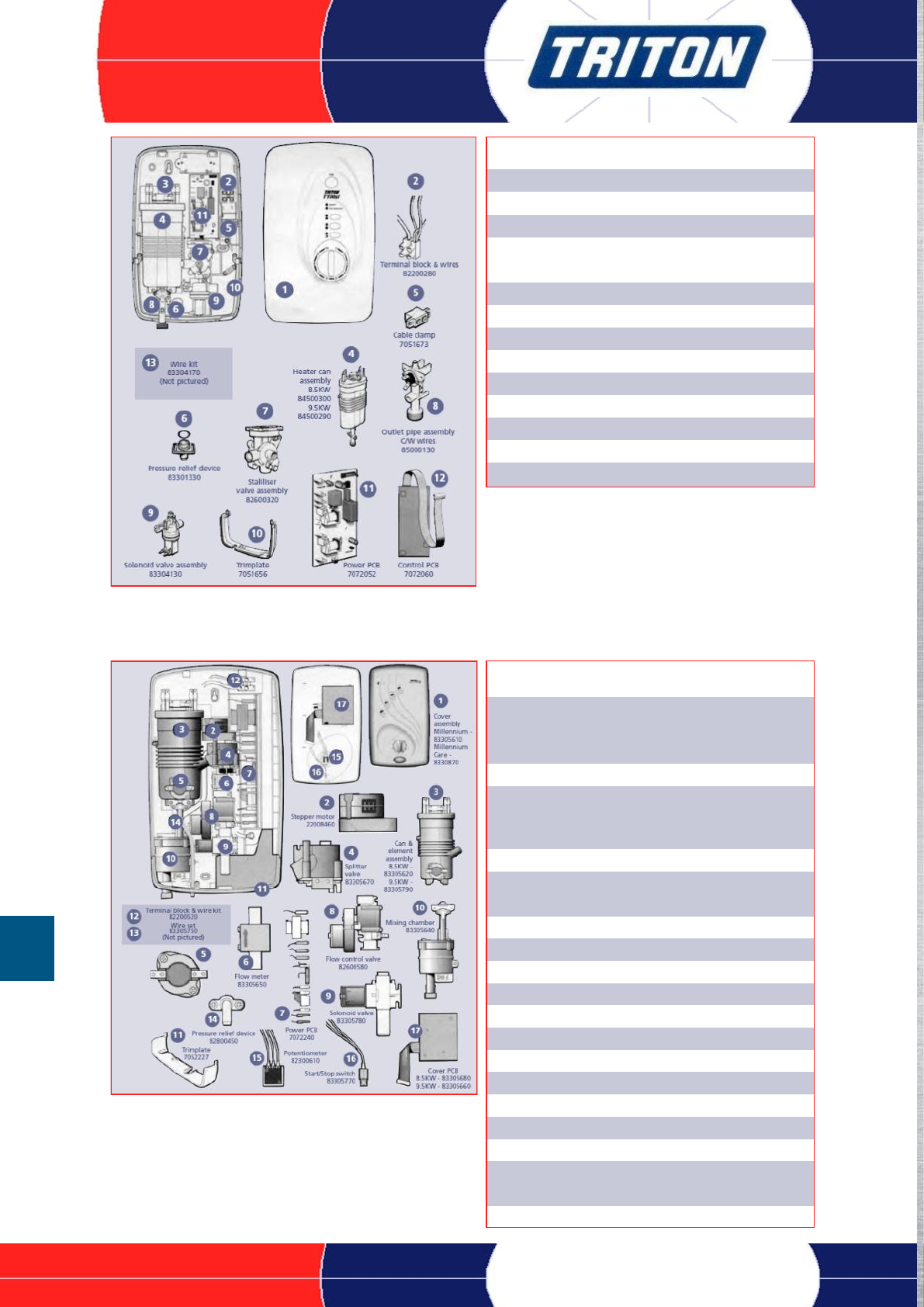

T100Si SPARES

Millenium/Care

1 COVER ASSEMBLY 85100100

2 TERMINAL BLOCK AND WIRES 82200280

3 THERMAL CUT-OUT (not pictured) 22005300

4 HEATER CAN ASSEMBLY 8.5KW 84500300

9.5KW 84500290

5 CABLE CLAMP 7051673

6 PRESSURE RELIEF DEVICE 83301330

7 STABILISER VALVE ASSEMBLY 82600530

8 OUTLET PIPE ASSEMBLY 85000130

9 SOLENOID VALVE ASSEMBLY 83304130

10 TRIMPLATE 7051656

11 POWER PCB 7072052

12 CONTROL PCB 7072060

13 WIRE KIT (not illustrated) 83304170

1 COVER ASSEMBLY

MILLENNIUM 83305610

MILLENNIUM CARE 83305870

2 STEPPER MOTOR 22008460

3 CAN & ELEMENT ASSEMBLY 8.5KW - 83305620

9.5KW - 83305790

4 SPLITTER VALVE 83305670

5 THERMAL CUT-OUTS - SIDE 83305740

THERMAL CUT-OUTS - TOP 22009570

6 FLOW METER 83305650

7 POWER PCB 7072240

8 FLOW CONTROL VALVE 82600580

9 SOLONOID VALVE 83305780

10 MIXING CHAMBER 83305640

11 TRIMPLATE 7052227

12 TERMINAL BLOCK AND WIRES 82200520

13 WIRE KIT (not pictured) 83305750

14 PRESSURE RELIEF DEVICE 82800450

15 POTENTIOMETER 82300610

16 START/STOP SWITCH 83305770

17 COVER PCB 8.5KW - 3305680

9.5KW - 3305660

18 WIRE KIT (not pictured) 83305750

STORAGE HEATERS

50 your spares solution

Call us today on 01454 620500

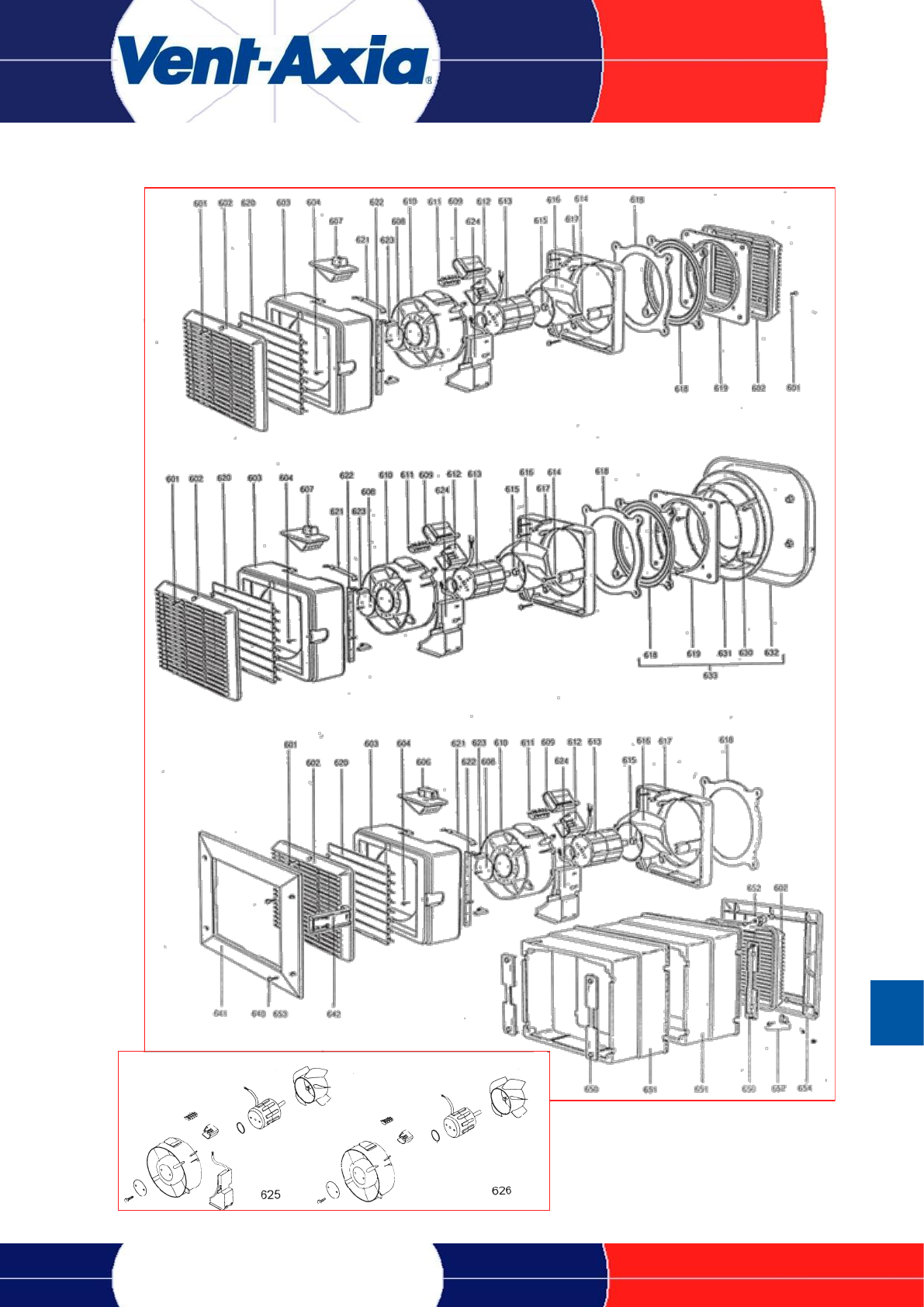

Diagram Description Size 6 Size 7 Size 9 Size 12

601 GRILLE RETAINING SCREWS & WASHERS 460437 460437 460437 460437

602 GRILLE WITH CAPTIVE RETAINING SCREW - INTERNAL 466452 466453 466454 466455

GRILLE WITH CAPTIVE RETAINING SCREW - EXTERNAL 466504 466505 466506 466507

603 HOUSING 466499 466500 466501 466502

HOUSING C/W SHUTTER BLADE ASSY 466456 466457 466458 466459

604 HOUSING SCREWS, SET OF 2 460436 460436 460436 460436

606 CONNECTOR C/W SIDE- ENTRY CLAMP 466503 466503 466503 466503

607 CONNECTOR C/W TOP- ENTRY CLAMP 466793 466793 466793 466793

608 MOTOR ACCESSORY PACK 460017 460017 460017 460017

609 CAPACITOR PACK 240V 460153 460154 460155 460156

120V 460617 460617 460619 460620

610 MOTOR BODY MOULDING 460032 460067 460057 460043

611 TERMINAL BLOCK 460121 460121 460121 460121

612 CAPACITOR SOCKET ASSY 460291 460292 460292 460293

613 MOTOR 220-240V 466711 466712 466713 466714

120V 466715 466716 466717 466718

MOTOR-TX & TL IN-LINE ONLY 452796 TBA 452797 452798

614 FIXING SCREWS (SET OF 4) 460427 460427 460427

(SET OF 6) 460428

615 IMPELLER COMPRESSION RING 460151 460151 460109 460109

616 IMPELLER INC. COMPRESSION RING 460429 460430 460431 460432

617 HOUSING BASE 466434 466435 466436 466437

618 GASKET - EACH 460051 460052 460053 460054

619 MOUNTING PLATE 466444 466445 466446 466447

620 SHUTTER BLADE - EACH 460039 460068 460060 460048

621 SHUTTER RETURN SPRING 460088 460088 460088 460088

622 SHUTTER ACUTATOR LEVER 460036 460069 460061 460050

623 LEVER RETAINER (SET OF 2) 460433 460433 460433

(SET OF 3) 460434

624 SHUTTER ACUTATOR 220-240V 460002 460002 460004 460004

1 20V 460365 460366 460367 460450

625 TX MOTOR CORE SUB ASSY 452586 452587 452588 452589

626 TL MOTOR CORE SUB ASSY 452590 452591 452592 452593

630 ROOF COWL FIXING SCREWS(SET OF 8) 460421 460421 460421 460421

631 DEFLECTOR 460072 460082 460082 460075

632 COWL 460073 460083 460083 460076

633 COWL,DELF,GASKET & MOUNTING PLATE 466483 466484 466485 466486

640 PANEL FRAME SCREWS (SET OF 4) 460422 460422 460422 460422

641 INTERNAL GRILLE FRAME 466438 466439 466440 466441

642 FRAME CLAMP(SET 2 WITH SCREWS) 467725 467725 467725 467726

650 LINER BRACKET (SET OF 4) 460435 460435 460435 460435

651 WALL LINER - PER SECTION 460094 460095 460096 460086

652 GRILLE RETAINING SET 460425 460425 460425 460425

653 WALL FRAME SCREWS (SET OF 8) 460426 460426 460426 460426

654 EXTERNAL GRILLE FRAME C/W

+652 RETAINING SET 466861 466862 466863 466864

MK1 SILVER MOTOR

MK2 BLACK MOTOR

T-Series Spares MK1

51

your spares solution

www.uk-spares.com

T-Series Spares MK1

52 your spares solution

Call us today on 01454 620500

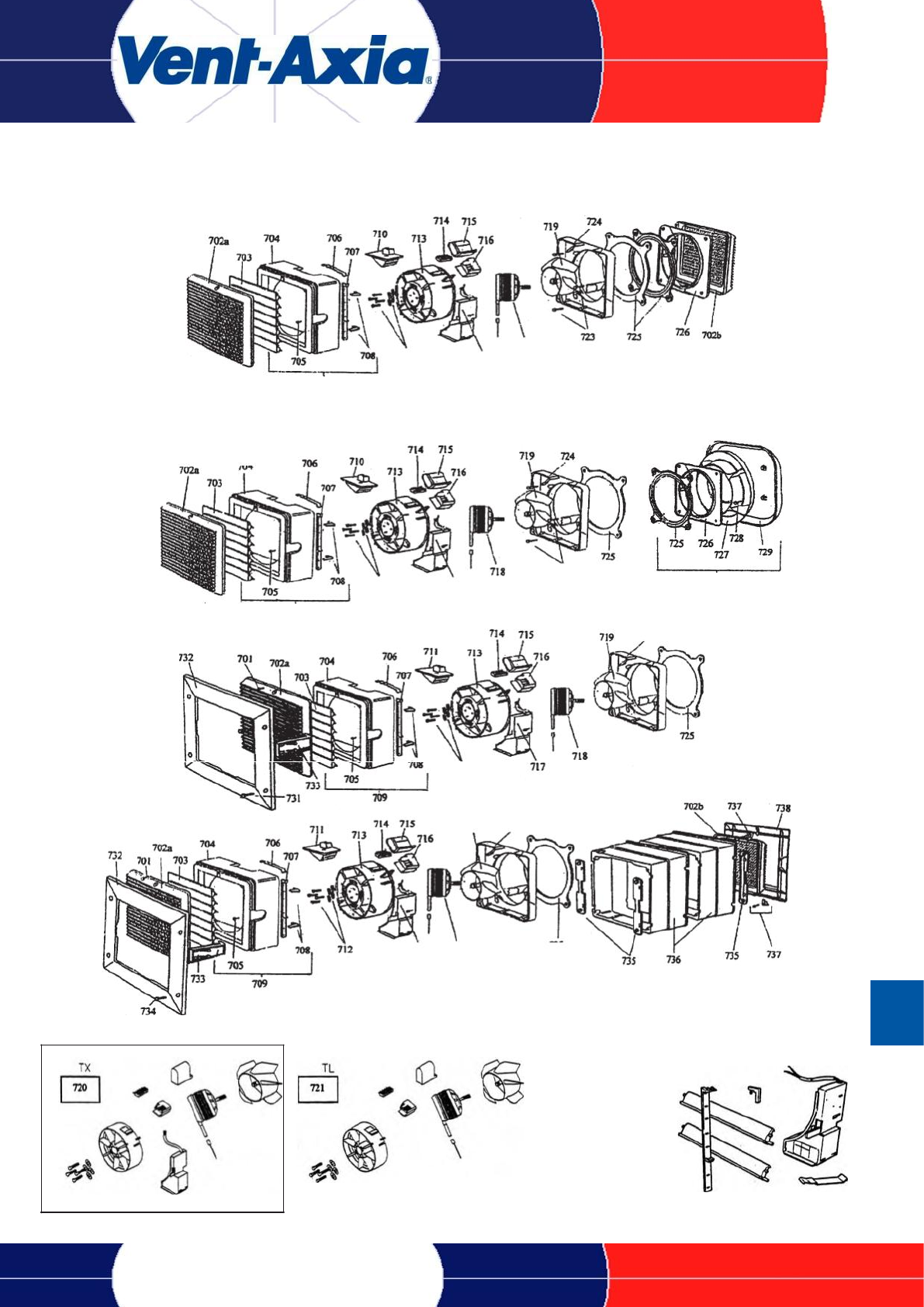

T-Series Spares MK2

Diagram Description Size 6 Size 7 Size 9 Size 12

701 GRILLE RETAINING SCREWS & WASHERS 460437 460437 460437 460437

702 GRILLE WITH CAPTIVE RETAINING SCREW

a INTERNAL GRILLE 466452 466453 466454 466455

b EXTERNAL GRILLE 466504 466505 466506 466507

703 SHUTTER BLADE - EACH 460039 460068 460060 460048

704 HOUSING ON 466499 466500 466501 466502

705 HOUSING SCREWS, SET OF 2 460436 460436 460436 460436

706 SHUTTER RETURN SPRING 460088 460088 460088 460088

707 SHUTTER ACUTATOR LEVER 460036 460069 460061 460050

708 LEVER RETAINER 6/7/9 (SET OF 2) 460433 460433 460433

12”- (SET OF 3) 460434

709 HOUSING C/W SHUTTER BLADE ASSY 466456 466457 466458 466459

710 CONNECTOR CLW TOP ENTRY CLAMP 466793 466793 466793 466793

711 CONNECTOR C/W SIDE-ENTRY DAMP 466503 466503 466503 466503

712 MOTOR SCREW PACK (PACK OF 4) 458315 458315 458315 458315

713 MOTOR HOUSING-SLOTTED 458222 458223 458224 458225

714 TERMINAL BLOCK 460121 460121 460121 460121

715 CAPACITOR PACK - YELLOW 240V 458307 458308 458309 458310

716 CAPACITOR SOCKET ASSY-YELLOW 458234 458235 458235 458236

717 SHUTTER ACUTATOR 220-240V 460002 460002 460004 460004

718 EXTERNAL ROTOR MOTOR 220-240V 458226 458226 458227 458228

719 IMPELLER INC. COMP.RING-SLOTTED 458261 458259 458258 458260

720 TX MOTOR CORE SUB ASSY-EXT ROTOR 458240 458241 458242 458243

721 TL MOTOR CORE SUB ASSY-EXT ROTOR 458244 458245 458246 458247

722 SHUTTER PACK ASSEMBLY 460530 460531 460532 460533

723 FIXING SCREWS 6/7/9 (SET OF 4) 460427 460427 460427

12" (SET OF 6) 460428

724 HOUSING BASE 466434 466435 466436 466437

725 GASKET - EACH 460051 460052 460053 460054

726 MOUNTING PLATE 466444 466445 466446 466447

727 DEFLECTOR 460072 460082 460082 460075

728 ROOF COWL FIXING SCREWS(SET OF 8) 460421 460421 460421 460421

729 COWL 460073 460083 460083 460076

730 COWL ,DELF,GASKET 8 MOUNTING PLATE 466483 466484 466485 466486

731 PANEL FRAME SCREWS (SET OF 4) 460422 460422 460422 460422

732 INTERNAL GRILLE FRAME 466438 466439 466440 466441

733 FRAME CLAMP(SET 2 WITH SCREWS) 467725 467725 467725 467726

734 WALL FRAME SCREWS (SET OF 8) 460426 460426 460426 460426

735 LINER BRACKET (SET OF 4) 460435 460435 460435 460435

736 WALL LINER - PER SECTION 460094 460095 460096 460086

737 GRILLE RETAINING SET 460425 460425 460425 460425

738 + EXTERNAL GRILLE FRAME C/W

737 RETAINING SET 466861 466862 466863 466864

ACCESSORY PACK - (NOT ILLUSTRATED)

WINDOW / ROOF 456029 456029 456029 456030

WAIL 466663 466663 466663 466661

PANEL 466664 466664 466664 466662

53

your spares solution

www.uk-spares.com

T-Series Spares MK2

54 your spares solution

Call us today on 01454 620500

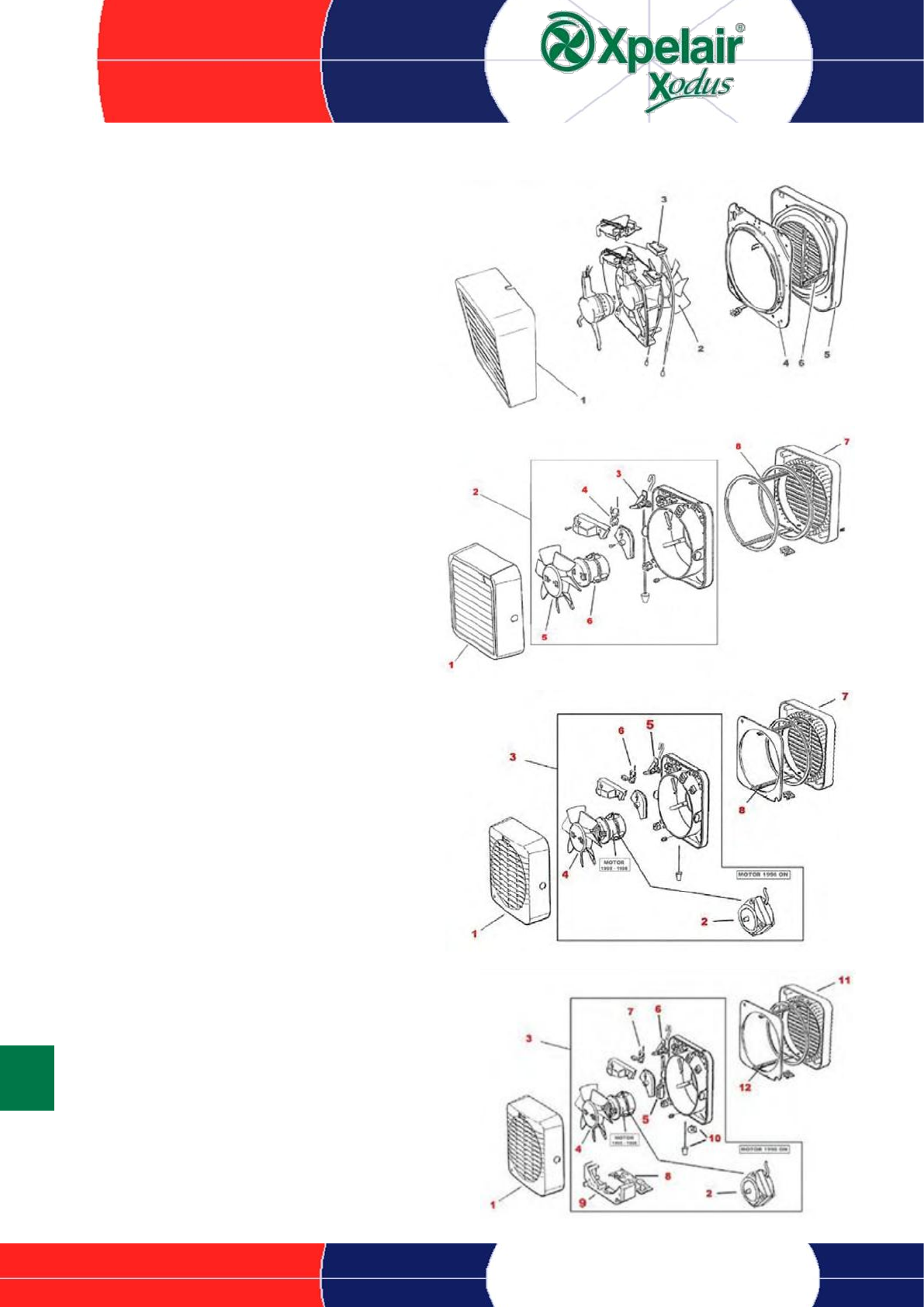

6” Fans

GXC6 00063AW GX6 00211AW

1 41041SK SHUTTER ASSY (GXC6)

40502SK SHUTTER ASSY (GX6)

2 40505SK IMPELLER ASSY (STD/POLLY.)

3 40506SK SOCKET ASSY

4 40508SK INNER CLAMP PLATE ASSY

5 40509SK OUTER GRILLE ASSY (BROWN)

6 41785SK LADDER STRIP KIT 3"

N/I 40587SK STORM COWL (WHITE)

N/I 07631SW RETAINING SCREW

N/I 40503SK SOLENOID GX6

GXC6 89864AW GX6 89863AW

1 41000SK INNER GRILLE ASSY

2 N/A MOTOR DUCT ASSY (GXC6)

3 41005SK CORD ACTUATOR ASSY (GXC6)

4 41009SK ISOLATOR SWITCH ASSY

5 N/A IMPELLER

6 N/A MOTOR ASSY

7 41010SK OUTER GRILLE ASSY

8 41785SK LADDER STRIP KIT 3"

N/I 40587SK STORM COWL (WHITE)

N/I 410045K ACTUATOR LINKAGE (GX6)

N/I 40985K WAX ACTUATOR (6X6)

GXC6 90018AW GX6 90019AW

1 41577SK INNER GRILLE/SHUTTER ASSY (GX6/GXC6)

2 41514SK MOTOR ASSY

3 41576SK GXC6 MOTOR DUCT ASSY 415785K - GX6

4 41575SK IMPELLER ASSY

5 41005SK CORD ACTUATOR ASSY (GXC6)

6 41009SK ISOLATOR SWITCH ASSY

7 41010SK OUTER GRILLE ASSY

8 41785SK LADDER STRIP KIT 3"

N/I 40587SK STORM COWL (WHITE)

N/I 41004SK ACTUATOR LINKAGE GX6

N/I 40984SK WAX ACTUATOR GX6

1 41146SK INNER GRILLE ASSY

2 41514SK MOTOR ASSY

3 N/A MOTOR / DUCT ASSY ( GXC6T / GX6T )

4 41575SK IMPELLER ASSY

5 40984SK WAX ACTUATOR

6 41004SK ACTUATOR LINKAGE ASSY (GX6)

7 41089SK ISOLATING SWITCH

8 41526SK PCB ASSY ( GX6T / GXC6T )

9 41523SK GX6T / GXC6T TIMER COVER

10 41521SK PULL SWITCH ASSY GXC6T

11 41010SK OUTER GRILLE ASSY

12 41785SK LADDER STRIP KIT 3"

N/I 40587SK STORM COWL (WHITE)

GXC6T 90161AW GX6T 90158AW

Ancilliaries for above units: GXL20 - Long Length Ladder Strips, RC6 - Roof Cowl,, WK6/300 WK6/450 - Extended Wall Tube

55

your spares solution

www.uk-spares.com

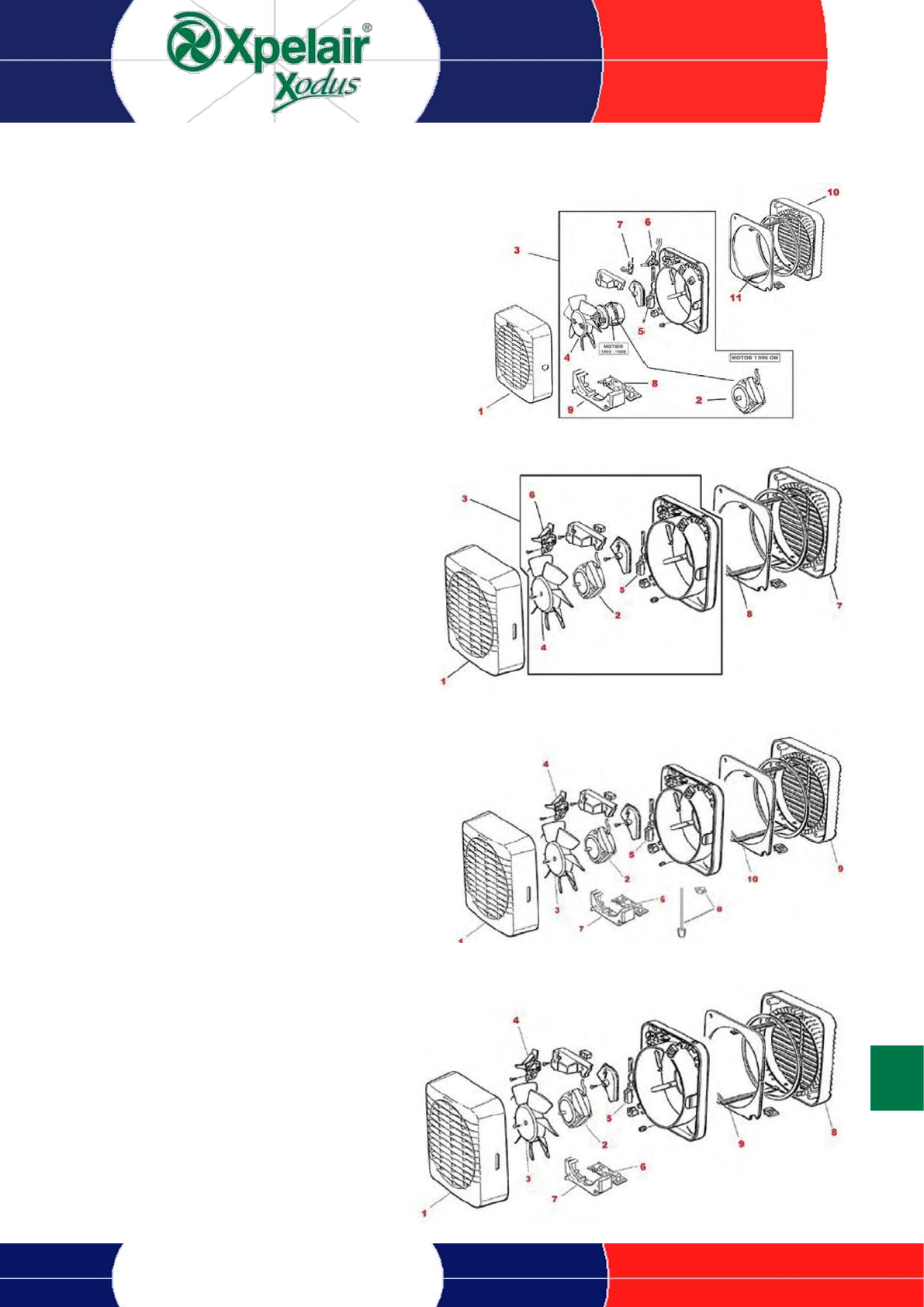

6” Fans

1 41146SK INNER GRILLE ASSY

2 41514SK MOTOR ASSY

3 41092SK MOTOR / DUCT ASSY (N/A - GX6HT2)

4 41575SK IMPELLER ASSY

5 40984SK WAX ACTUATOR

6 41004SK ACTUATOR LINKAGE ASSY

7 41089SK ISOLATING SWITCH

8 41527SK PCB ASSY (GX6HT) 41525SK - GX6HT2

9 41524SK GX6HT TIMER COVER

10 41010SK OUTER GRILLE ASSY

11 41785SK LADDER STRIP KIT 3"

N/I 40587SK STORM COWL (WHITE)

1 41577SK INNER GRILLE ASSY 2000

2 41514SK MOTOR ASSY

3 41578SK MOTOR / DUCT ASSY (GX6) 415785K

(GX6)

4 41575SK IMPELLER ASSY

5 40984SK WAX ACTUATOR (GX6)

6 41004SK ACTUATOR LINKAGE ASSY (GX6)

7 41010SK OUTER GRILLE ASSY

8 41785SK LADDER STRIP KIT 3"

N/I 40587SK STORM COWL (WHITE)

N/I 410055K CORD ACTUATOR ASSY (GXC6)

1 41577SK INNER GRILLE ASSY

2 41514SK MOTOR ASSY

3 41575SK IMPELLER ASSY

4 41004SK ACTUATOR LINKAGE ASSY (GX6)

5 40984SK WAX ACTUATOR

6 41526SK PCB ASSY

7 41523SK TIMER COVER

8 41521SK PULL SWITCH ASSY (GXC6T)

9 41010SK OUTER GRILLE ASSY

10 41785SK LADDER STRIP KIT 3"

N/I 40587SK STORM COWL (WHITE)

1 41577SK INNER GRILLE ASSY

2 41514SK MOTOR ASSY

3 41575SK IMPELLER ASSY

4 41004SK ACTUATOR LINKAGE ASSY

5 40984SK WAX ACTUATOR

6 41527SK PCB ASSY (GX6HT) 415255K (GX6HT2)

7 41524SK TIMER COVER

8 41010SK OUTER GRILLE ASSY

9 41785SK LADDER STRIP KIT 3"

N/I 40587SK STORM COWL (WHITE)

GX6HT 90814AW GX6HT2

GX6 90800AW GXC6 90850AW

GX6HT 90159AW GX6HT2 90160AW

Ancilliaries : GXL20 - Long Length Ladder Strips, RC6 - Roof Cowl,, XXRED6 - WALL REDUCTION PLATE 6

GXC6T 90861AW GX6T 90812AW

56 your spares solution

Call us today on 01454 620500

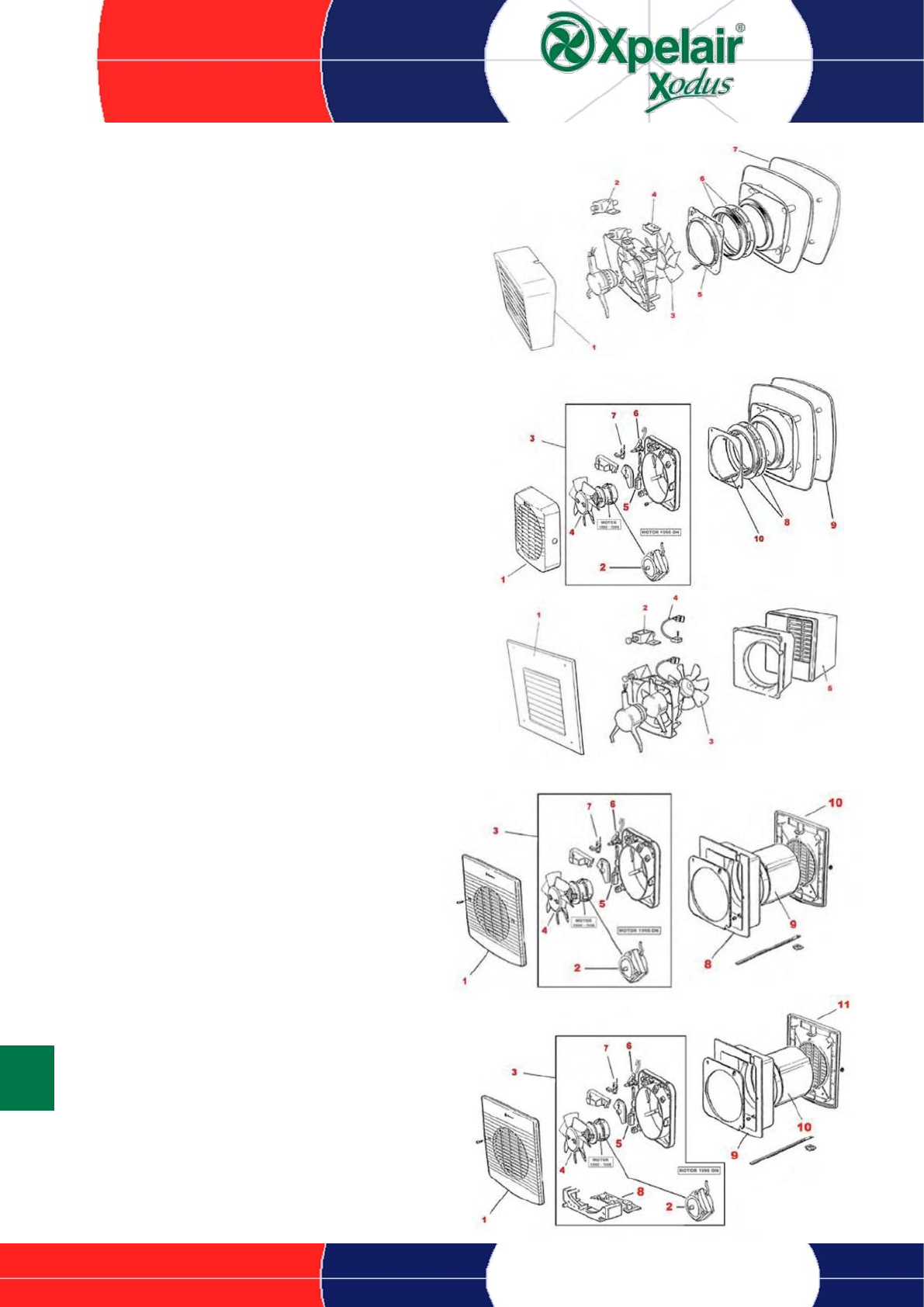

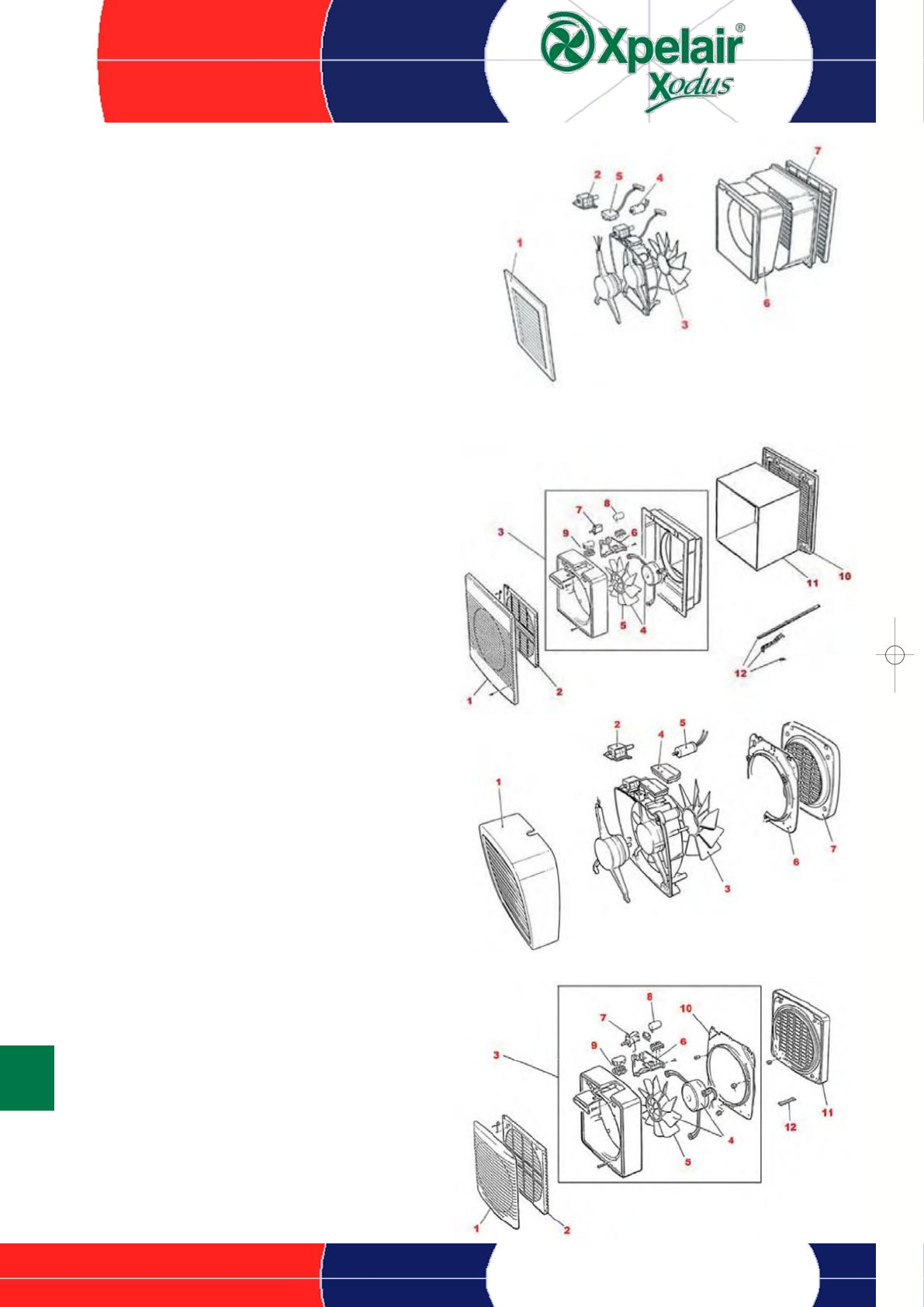

6” Fans

1 40502SK SHUTTER ASSY (RX6 - 41041SK)

2 40503SK SOLENOID ASSY (RX6)

3 40505SK IMPELLER ASSY (STD./POLLY.)

4 40506SK SOCKET ASSY

5 40508SK INNER CLAMP PLATE ASSY

6 40516SK OUTER CLAMP PLATE ASSY

7 40517SK OUTER COWL

N/I 41785SK LADDER STRIP KIT 3"

N/I 07631SW RETAINING SCREW

1 41577SK INNER GRILLE / SHUTTER ASSY

2 41514SK MOTOR ASSY

3 41578SK MOTOR / DUCT ASSY (90423AW ONLY)

4 41575SK IMPELLER ASSY

5 40984SK WAX ACTUATOR

6 41004SK ACTUATOR LINKAGE ASSY

7 41009SK ISOLATOR SWITCH ASSY (90423AW ONLY)

8 40516SK OUTER CLAMP PLATE ASSY

9 40517SK OUTER COWL

10 41785SK LADDER STRIP KIT 3"

1 40513SK SHUTTER ASSY

2 40503SK SOLENOID ASSY

3 40505SK IMPELLER ASSY (STD./POLLY.)

4 40507SK SOCKET ASSY

5 N/A OUTER GRILLE / WALL BOX

N/I 41785SK LADDER STRIP KIT 3"

1 40945SK INTERNAL GRILLE ASSY

2 41514SK MOTOR ASSY

3 41578SK MOTOR / DUCT ASSY (90067AW ONLY)

4 41575SK IMPELLER ASSY

5 40984SK WAX ACTUATOR

6 41004SK ACTUATOR LINKAGE ASSY (90067AW ONLY)

7 41009SK ISOLATOR SWITCH ASSY (90067AW ONLY)

8 40946SK FAN MOUNTING BOX ASSY

9 15955SA WALL TUBE / LINER

10 16361SY OUTER GRILLE

1 40945SK INTERNAL GRILLE ASSY

2 41514SK MOTOR ASSY

3 N/A MOTOR / DUCT ASSY

4 41575SK IMPELLER ASSY

5 40984SK WAX ACTUATOR

6 41004SK ACTUATOR LINKAGE ASSY (90162AW ONLY)

7 41009SK ISOLATOR SWITCH ASSY (90162AW ONLY)

8 41526SK PCB ASSY

9 40946SK FAN MOUNTING BOX ASSY

10 15955SA WALL TUBE / LINER

11 16361SY OUTER GRILLE

WX6T 90162AW 1996 - 2000 WX6T 90823AW 2000 - CURRENT

WX6 90067AW 1996 - 2000 WX6 90822AW 2000 - CURRENT

RX6 90423AW 1995 - 2000 RX6 90818AW 2000 - CURRENT

WX6 00072AW

RX6 00224AW RXC6 00070AW

57

your spares solution

www.uk-spares.com

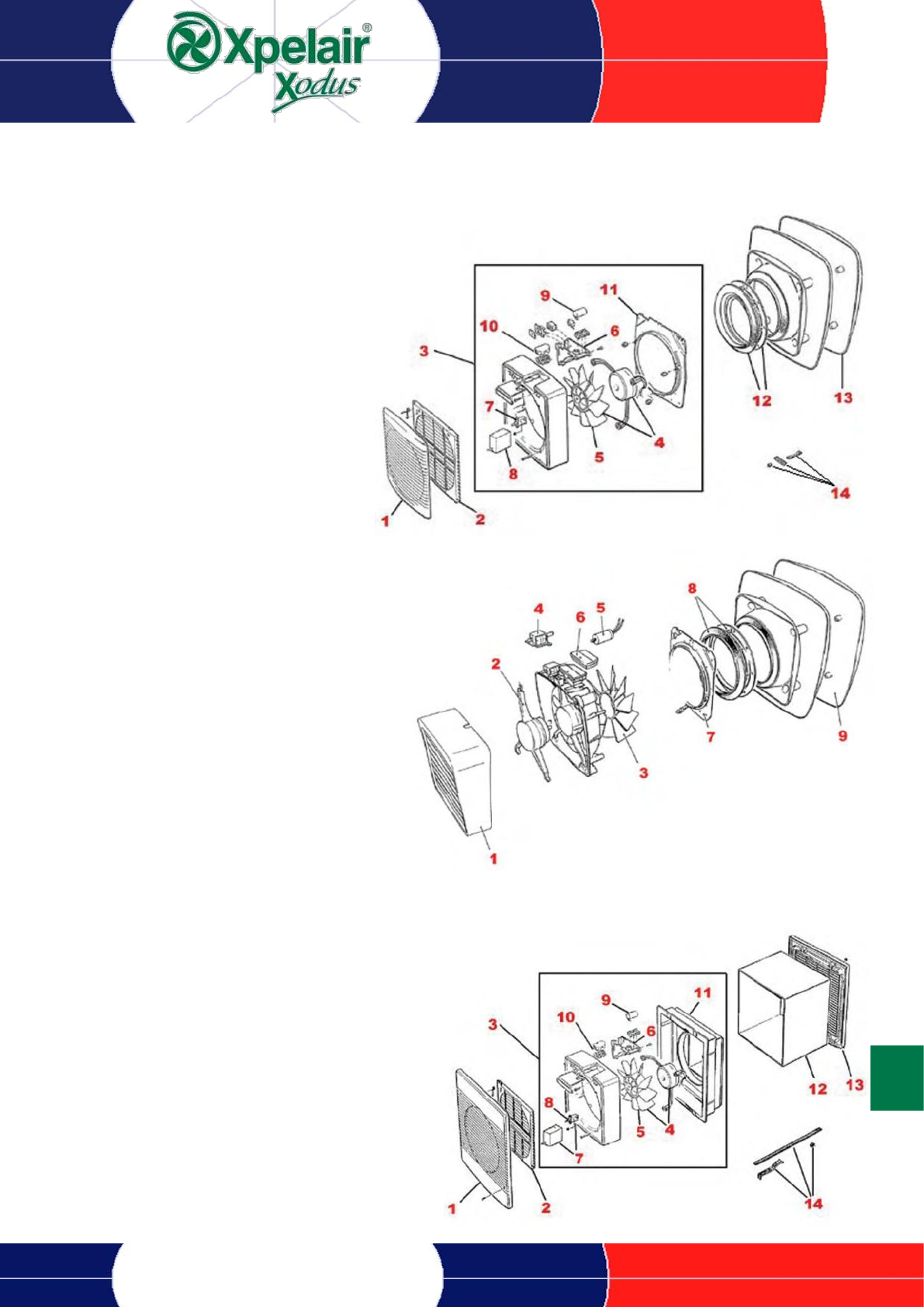

9” Fans

1 41710SK 9" INNER GRILLE ASSY MK2 / 3

2 40983SK 9" SHUTTER MK2 / 3

3 41400SK GX9 MOTOR DUCT ASSY MK3 / MK2

4 41408SK 9" MOTOR / IMPELLER ASSY MK3 (MK2 - N/A)

5 41416SK 9" IMPELLER MK3, (MK2 - 405265K)

6 41405SK GX9 ELECTRICAL MODULE ASSY MK3

409765K GX9 ELECTRICAL MODULE ASSY MK2

7 40984SK WAX ACTUATOR MK2/3

8 41404SK GX9 SHUTTER OPERATION ASSY MK3 ONLY

9 41406SK GX9 CAPACITOR ASSY MK3,

162355A GX9 CAPACITOR ASSY MK2

10 40980SK 5 WAY CONNECTOR MK2/3

11 41403SK GX9/C9 INNER CLAMP PLATE

ASSY MK3 (MK2 - 409785K)

12 40550SK OUTER CLAMP ASSY MK2/3

13 40551SK OUTER COWL KIT MK2/3

14 41785SK LADDER STRIP KIT 3” MK2/3

1 10994SW SHUTTER ASSY

2 N/A MOTOR ASSY

3 40526SK IMPELLER ASSY

4 40530SK SOLENOID ASSY

5 40531SK CAPACITOR ASSY

6 40555SK SOCKET ASSY

7 40527SK INNER CLAMP PLATE ASSY

8 40550SK OUTER CLAMP ASSY

9 40551SK OUTER COWL KIT

N/I 07631SW RETAINING SCREW

N/I 41785SK LADDER STRIP KIT 3”

1 40966SK WX9 INNER GRILLE MK2/3

2 40983SK 9" SHUTTER MK2/3

3 41401SK WX9 MOTOR DUCT ASSY MK3, MK2 - 414005K

4 41408SK 9" MOTOR / IMPELLER ASSY MK3, MK2 - N/A

5 41416SK 9" IMPELLER MK3, MK2 - 405265K

6 41405SK ELECTRICAL MODULE ASSY MK3 MK2 - 162355A

7 41404SK GX9 SHUTTER OPERATION ASSY MK3 99

8 40984SK WAX ACTUATOR MK2/3

9 41406SK CAPACITOR ASSY MK3 99

10 40980SK 5 WAY CONNECTOR MK2/3

11 40968SK FAN MOUNTING BOX MK2/ 3

12 16854SA WALL LINER MK2/3

13 40967SK WX9 OUTER GRILLE ASSY MK2/3

14 41518SK WX9 / 12 FIXING KIT

RX9 90424AW-MK3 1999 - CURRENT RX9 90424AW-MK2 1995 - 1999

ANCILLARIES: EG - EXTERNAL LOUVRE GRILLE FC5/FC10/FC15/FC50 - FIVE CORE CABLE GXL20 - LONG LENGTH LADDER STRIPS,

IG - INTERIOR LOUVRE GRILLE WK12/8, WK12/11 - WALL KIT XRP6 - ROOF MOUNTING PLATE XRP9/12 - ROOF MOUNTING PLATE

RX9 00131AW 1983 - 1994

ANCILLARIES: EG - EXTERNAL LOUVRE GRILLE FC5/FC10/FC15/FC50 - FIVE CORE CABLE GXL20 - LONG LENGTH LADDER STRIPS,

IG - INTERIOR LOUVRE GRILLE WK12/8, WK12/11 - WALL KIT XRP6 - ROOF MOUNTING PLATE XRP9/12 - ROOF MOUNTING PLATE

WX9 89996AW- MK3 1999 - CURRENT WX9 89996AW- MK2 1995 - 1999

58 your spares solution

Call us today on 01454 620500

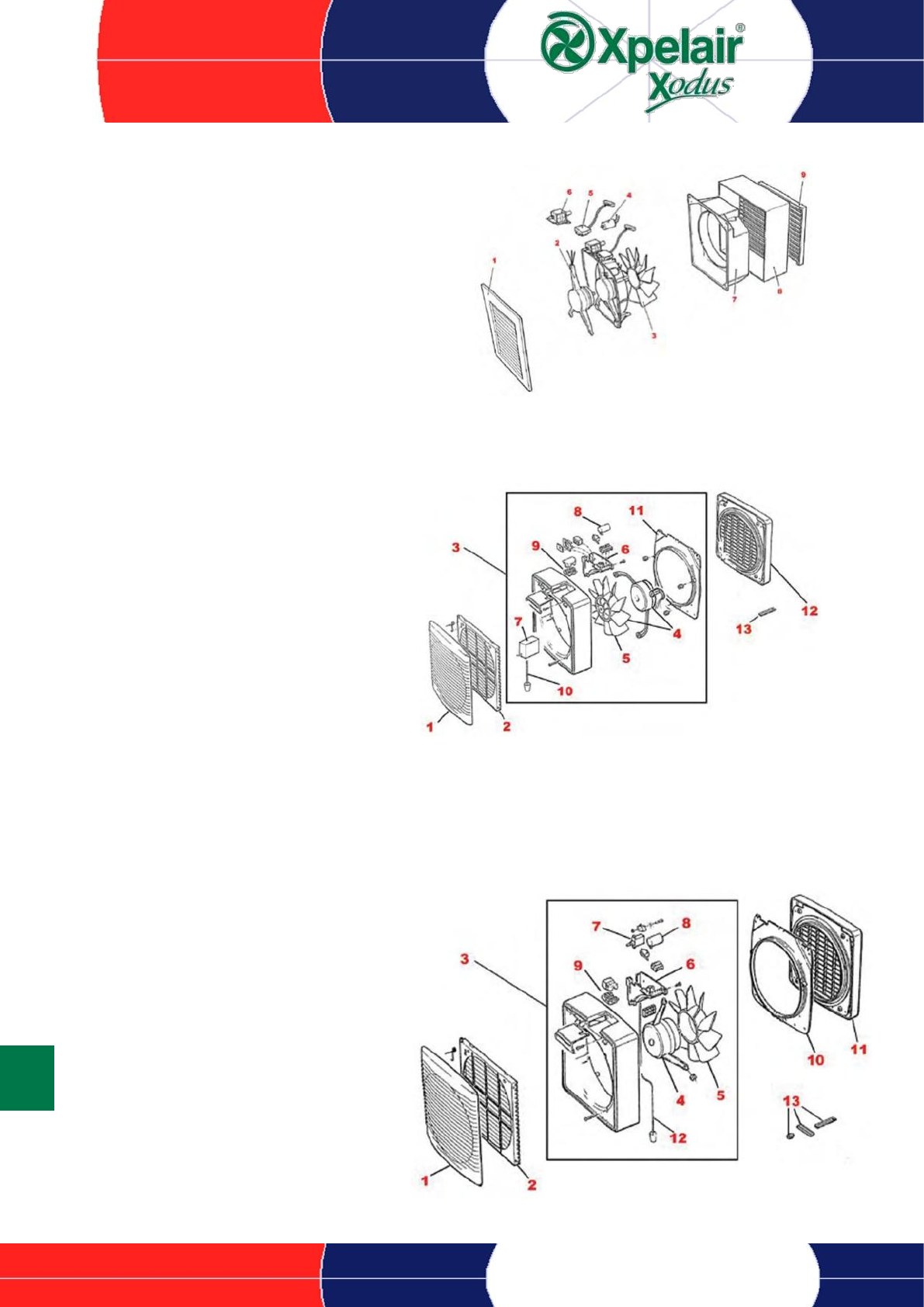

9” Fans

1 41395SX WX9 SHUTTER ASSY

2 N/A MOTOR ASSY

3 40526SK IMPELLER ASSY

4 40531SK CAPACITOR ASSY

5 40556SK SOCKET ASSY

6 40530SK SOLENOID ASSY

7 N/A WALL DUCT MK1

8 N/A WX9 SURROUND MK1

9 40544SK WX9 OUTER GRILLE MK1

1 40983SK 9" SHUTTER

2 41710SK 9" INNER GRILLE ASSY

3 41409SK GXC9 MOTOR DUCT ASSY, GX9 - 41400SK

4 41408SK 9" MOTOR / IMPELLER ASSY

5 41416SK 9" IMPELLER

6 41402SK GXC9 ELECTRICAL MODULE ASSY

41405SK GX9 ELECTRICAL MODULE ASSY

7 41410SK GXC9 SHUTTER OPERATION ASSY, GX9 - 41404SK

8 41411SK GXC9 CAPACITOR ASSY, GX9 - 41406SK

9 40981SK GXC9 3 WAY SOCKET, GX9 - 41406SK

10 40935SK PULLCORD ASSY GXC9

11 41403SK GX9/C9 INNER CLAMP PLATE ASSY MK3

12 40979SK OUTER GRILLE ASSY

13 41519SK GX9 / GX12 FIXING PACK

N/I 40984SK WAX ACTUATOR GX9

N/I 40588SK STORM COWL

1 40983SK 9" SHUTTER MK2 / 3

2 41710SK 9" INNER GRILLE ASSY

3 41409SK GXC9 MOTOR DUCT ASSY MK3 GX9 - 41400SK

4 40975SK GXC9 MOTOR ASSY MK2 GX9 - N/A

5 40526SK IMPELLER ASSY

6 40976SK GXC9 ELECTRICAL MODULE ASSY GX9 MK2

(GXC9 - N/A)

7 40984SK WAX ACTUATOR

8 16268SA GXC9 CAPACITOR ASSY 16235SA - GX9

9 40981SK 3 WAY SOCKET MK2 40980SK - GX9

10 40978SK 9" INNER CLAMP PLATE ASSY

11 40979SK OUTER GRILLE ASSY

13 41519SK GX9 / GX12 FIXING PACK

12 40935SK PULLCORD ASSY

N/I 40588SK GX9/GXC9 STORM COWL

GXC9 89995AW-MK2 GX9 89994AW-MK2

GXC9 89995AW-MK3 GX9 89994AW-MK3

WX9 00127AW 1983 - 1994

ANCILLARIES: DC9 - DARK ROOM COWL (GX9, GXC9) DGW/B - AIR REPLACEMENT DOOR GRILLE GXDP - DISTANCE PIECE SET, GXDW9 - DOUBLE WINDOW KIT

GXL20 - LONG LENGTH LADDER STRIPS RC - ROOF COWL, WK9/8, WK9/11, - WALL KIT

ANCILLARIES: DC9 - DARK ROOM COWL (GX9, GXC9) DGW/B - AIR REPLACEMENT DOOR GRILLE GXDP - DISTANCE PIECE SET, GXDW9 - DOUBLE WINDOW KIT

GXL20 - LONG LENGTH LADDER STRIPS RC - ROOF COWL, WK9/8, WK9/11, - WALL KIT

59

your spares solution

www.uk-spares.com

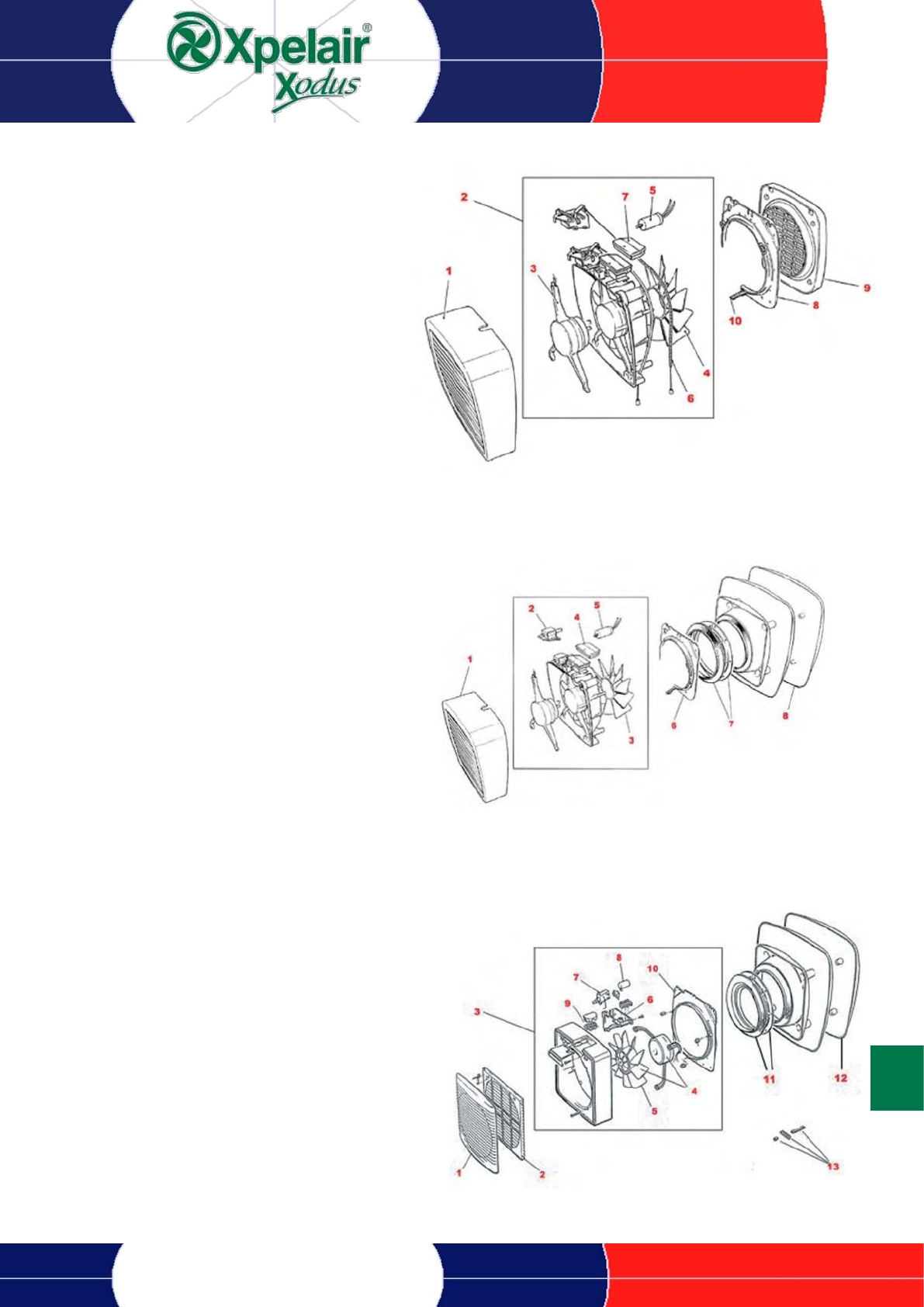

9” Fans 9” Fans

1 10988SW SHUTTER ASSY

2 40519SK MOTOR / DUCT ASSY (GXC9)

3 40560SK MOTOR ASSY (GXC9) N/A - GX9

4 40526SK IMPELLER ASSY

5 40532SK CAPACITOR ASSY (GXC9) 405315K - GX9

6 40527SK INNER CLAMP PLATE ASSY

7 40555SK SOCKET ASSY

8 40521SK PULCORD ASSY (GXC9)

9 40528SK OUTER GRILLE ASSY [BROWN]

10 41785SK LADDER STRIP KIT 3"

N/I 07631SW RETAINING SCREW

N/I 40588SK STORM COWL

N/I 40530SK SOLONOID GX9

1 N/A SHUTTER ASSY

2 40539SK SOLENOID ASSY

3 40536SK IMPELLER ASSY MK1/2

4 40555SK SOCKET ASSY

5 N/A CAPACITOR ASSY

6 N/A INNER CLAMP PLATE GX12 MK1

7 40552SK RX12 OUTER CLAMP PLATE ASSY

8 40554SK OUTER COWL KIT

N/I 07631SW RETAINING SCREW

N/I 41785SK LADDER STRIP KIT 3"

1 40810SK INNER GRILLE MK2 / 3

2 40811SK 12" SHUTTER ASSY MK2 / 3

3 41418SK MOTOR / DUCT ASSY MK3 99 / MK2

4 41415SK MOTOR / ASSY MK3 99 MK2 - N/A

5 41431SK IMPELLER ASSY MK3 99 MK2 - 40536SK

6 41407SK 12" ELECTRICAL MODULE ASSY MK2 / MK3

7 40984SK WAX ACTUATOR MK2 / MK3

8 41424SK CAPACITOR ASSY MK3 99 MK2 - N/A

9 40980SK 5 WAY CONNECTOR MK2 / 3

10 40552SK RX12 OUTER CLAMP PLATE ASSY MK2 / 3

11 40554SK OUTER COWL KIT MK2 / 3

12 41785SK LADDER STRIP KIT 3" MK2 / 3

13 SUPERSEDED BY 41423SK: 12" INNER CLAMP

PLATE MK2 / 3

RX12 90425AW-MK3 1999 - CURRENT RX12 90425AW-MK2 1995 - 1999

RX12 00139AW 1983 - 1994

GXC9 00116AW GX9 00108AW

ANCILLARIES: GXL20 - LONG LENGTH LADDER STRIPS, XRP9/12 - ROOF MOUNTING PLATE

ANCILLARIES: DC9 - DARK ROOM COWL (GX9, GXC9) DGW/B - AIR REPLACEMENT DOOR GRILLE GXDP - DISTANCE PIECE SET, GXDW9 - DOUBLE WIN-

DOW KIT GXL20 - LONG LENGTH LADDER STRIPS RC - ROOF COWL, WK9/8, WK9/11, - WALL KIT

60 your spares solution

Call us today on 01454 620500

12” Fans

GX12 00120AW 1983 - 1994

1 11003SX WX12 SHUTTER ASSY

2 40539SK SOLENOID ASSY

3 40536SK IMPELLER ASSY MK1/2

4 N/A CAPACITOR ASSY

5 40556SK SOCKET ASSY

6 N/A WX12 OUTER DUCT BOX MK1

7 40548SK WX12 OUTER GRILLE MK1 (OBSOLETE)

8 N/A WX9 SURROUND MK1

9 40544SK WX9 OUTER GRILLE MK1

1 40818SK WX12 INNER GRILLE MK2 / 3

2 40811SK 12" SHUTTER ASSY MK2 / 3

3 41421SK WX12 MOTOR / DUCT ASSY MK3 99 41418SK -

MK2

4 41415SK MOTOR / ASSY MK3 99 N/A MK2

5 41431SK IMPELLER ASSY MK3 99 40536SK - MK2

6 41407SK 12" ELECTRICAL MODULE ASSY MK2 / 3

7 40984SK WAX ACTUATOR MK2 / 3

8 41424SK WX12 CAPACITOR ASSY MK3 99 N/A - MK2

9 40980SK 5 WAY CONNECTOR MK2 / 3

10 16855SA WX12 WALL LINER MK2 / 3

11 40819SK WX12 OUTER GRILLE MK2 / 3

12 41518SK WX9 / 12 FIXING KIT MK2 / 3

1 N/A GX12 SHUTTER ASSY

2 40539SK SOLENOID ASSY

3 40536SK IMPELLER ASSY MK1/2

4 40555SK SOCKET ASSY

5 N/A CAPACITOR ASSY

6 N/A INNER CLAMP PLATE GX12 MK1

1 40810SK GX12 INNER GRILLE MK2 / 3

2 40811SK 12" SHUTTER ASSY MK2 / 3

3 41418SK GX12 MOTOR / DUCT ASSY MK3 99 / MK2

4 41415SK GX12 MOTOR / ASSY MK3 99 ONLY

5 41431SK IMPELLER ASSY MK3 99 405365K - MK1 / 2

6 41407SK 12" ELECTRICAL MODULE ASSY MK2 / 3

7 40984SK WAX ACTUATOR MK2 / 3

8 41424SK GX12 / WX12 CAPACITOR ASSY MK3 99

(MK2 - NLA)

9 40980SK 5 WAY CONNECTOR MK2 / 3

10 41423SK 12" INNER CLAMP PLATE ASSY MK3 99 / MK2

11 41519SK GX9 / GX12 FIXING PACK MK2 / 3

12 40816SK OUTER GRILLE ASSY MK2 / 3

WX12 00133AW 1983 -1994

GX12 90012AW-MK3 1999 - CURRENT GX12 90012AW-MK2 1995 - 1999

WX12 90011AW-MK3 1999 - CURRENT WX12 90011AW-MK2 1995 - 1999

62 your spares solution

Call us today on 01454 620500

SP1026 ARM EXTENSION (30”) SP5786 CLEANING HOLE GASKET

SP1614T 10-50 LITRE THERMAL CUT-OUT SP6500 VENT GAUZE

SP2646A DISC VALVE ASSEMBLY KIT SP6563A SCREW PACK

SP2647A JUMPER BODY ASSEMBLY SP6590 HG2050 CONTACTOR

SP2734A CAPSULE TIN PLATED SP6593A BALL VALVE

SP3845A TAP ASSEMBLY THREADED SP81230 FLOW RESTRICTOR

SP3947A HG2050 THERMOSTAT KIT

1 SP90487 CISTERN LID CLAMP KIT 16 SP90503 STRAP & KEY KIT 1.5—3 LITRES

1 SP6245 CISTERN CLAMP KIT FOR 10-40 LITRES 16 SP90504 STRAP & KEY KIT 5 & 7.5 LITRES

2 SP90488 CISTERN LID GASKET KIT 17 SP90505 TAP NUT KIT

2 SP90120 CISTERN LID GASKET KIT FOR 10-40 LITRES 18 SP90506 TAP EXTENSION

3 SP90490 GASKET KIT 19 SP80563 ELEMENT KIT 1.5KW 110V 1.5 & 3 LITRES

4 SP90083 FLOAT VALVE KIT, WITH FLOAT 19 SP90485 ELEMENT KIT 1.5KW 240V 1.5 & 3 LITRES

5 SP90069 JUMPER VALVE KIT, WITH SEALS 19 SP90486 ELEMENT KIT 2.4KW 240V 5 .0 & 7.5 LITRES

6 SP90102 CISTERN FLOAT KIT, WITH NUT & SCREW 19 SP90530 ELEMENT KIT 3.0KW 240V 10 - 40 LITRES

7 SP90493 TRANSFER TUBE KIT—1.5KW 20 SP90491 CLEANING HOLE COVER KIT

7 SP90494 TRANSFER TUBE KIT—2.4KW 21 SP90492 DRAIN CAP & SEAL KIT

7 SP90531 TRANSFER TUBE KIT - 3KW 21 SP90522 CISTERN JET NOZZLE KIT

8 SP90495 BANJO SCREW SP90132 HOT TANK LID & GASKETS FOR 5 & 7.5 LITRES

9 SP90496 O-RING KIT SP90131 HOT TANK LID & GASKETS FOR 1.5 & 3.0 LITRES

10 SP90517 FASCIA & LENS KIT SP90130 LID CLIPS

11 SP90110 FASCIA LIGHT KIT SP3947A THERMOSTAT KIT 40 LITRES

12 SP90081 THERMOSTAT KIT 1.5-25 LITRES SP81230 FLOW RESTRICTOR

13 SP1614T OVERLOAD KIT 10—40 LITRES SP6590 CONTACTOR 40 LITRE

13 SP90127 OVERLOAD KIT, OTHER HS MODELS SP88296 CISTERN TANK 1.5 - 7.5 LITRES

14 SP90501 TAP TOP KIT SP88318 CISTREN TANK 10 - 40 LITRES

15 SP90502 TAP ASSEMBLY COMPLETE

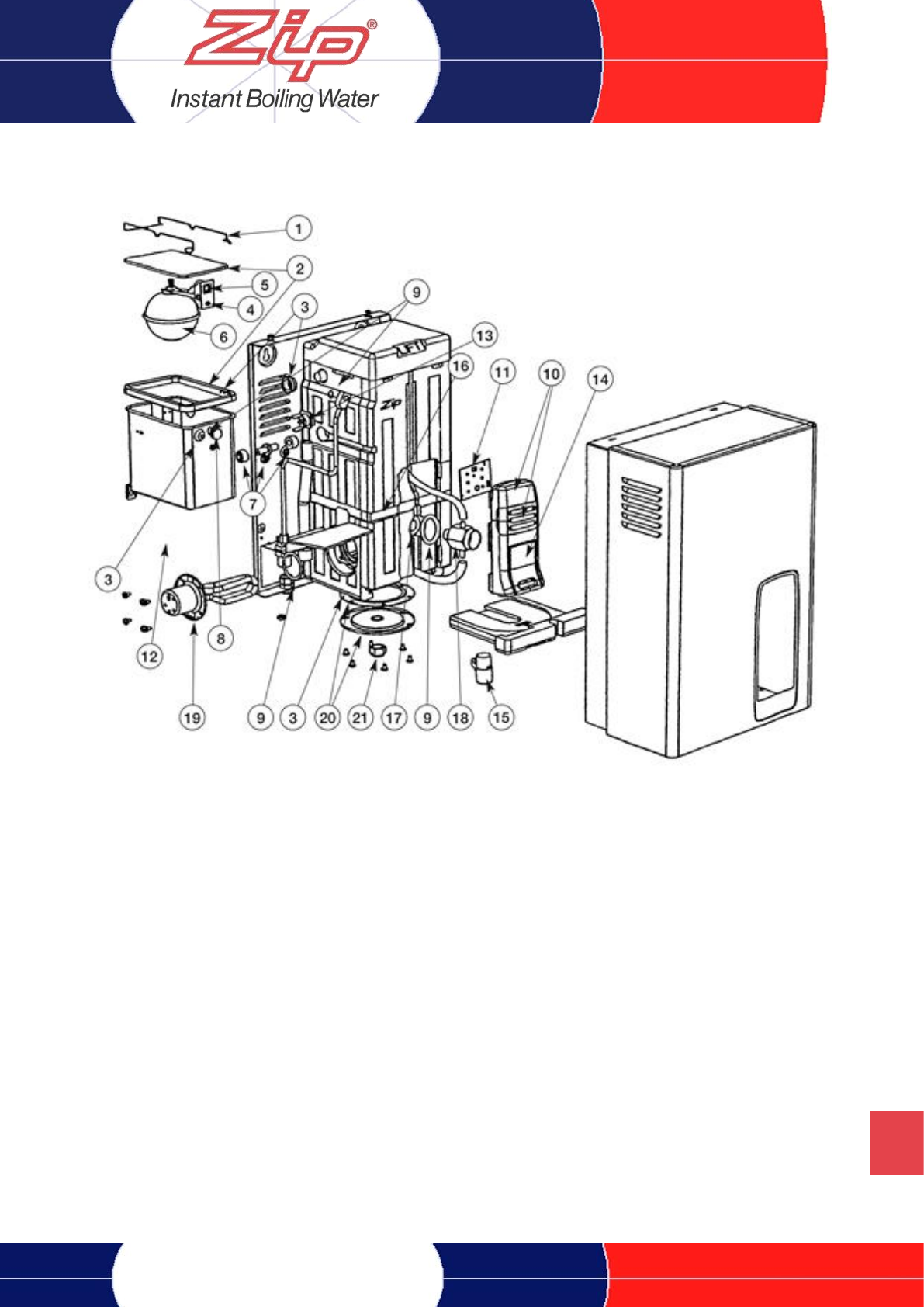

Hydroboil Plus HS (HS202 - HS208, HS302 - HS308)

Hydroboil HS Series

Hydroboil HG Series

63

your spares solution

www.uk-spares.com

1 SP90487 CISTERN LID CLAMP KIT 14 SP90560 TAP HANDLE KIT—STAINLESS STEEL

2 SP90488 CISTERN LID GASKET KIT 15 SP90510 OUTLET NOZZLE KIT—WHITE

3 SP90490 GASKET KIT 15 SP90562 OUTLET NOZZLE KIT—STAINLESS STEEL

4 SP90083 FLOAT VALVE KIT, WITH FLOAT 16 SP90503 STRAP & KEY KIT 1.5 & 3 LITRES

5 SP90069 JUMPER VALVE KIT, WITH SEALS 16 SP90504 STRAP & KEY KIT 5 & 7.5 LITRES

6 SP90102 CISTERN FLOAT KIT, WITH NUT & SCREW 17 SP90505 TAP NUT KIT

7 SP90493 TRANSFER TUBE KIT—1.5KW 18 SP80509 TAP BODY KIT

7 SP90494 TRANSFER TUBE KIT—2.4KW 19 SP90485 ELEMENT KIT 1.5KW

8 SP90495 BANJO SCREW 19 SP90486 ELEMENT KIT 2.4KW

9 SP90496 O-RING KIT 20 SP90491 CLEANING HOLE COVER KIT

10 SP90557 FASCIA & LENS KIT—WHITE 21 SP90492 DRAIN CAP & SEAL KIT

10

SP90558 FASCIA & LENS KIT—STAINLESS STEEL SP90132 HOT TANK LID & GASKETS FOR 5 & 7.5 LI-

TRES

11

SP90591 PCB LIGHTS KIT SP90131 HOT TANK LID & GASKETS FOR 1.5 & 3.0

LITRES

12 SP90081 THERMOSTAT KIT 1.5-7.5 LITRES SP90130 LID CLIPS

13 SP90127 OVERLOAD KIT SP90748 PCB KIT

Hydroboil Plus HS (HS202 - HS208, HS302 - HS308)

64 your spares solution

Call us today on 01454 620500

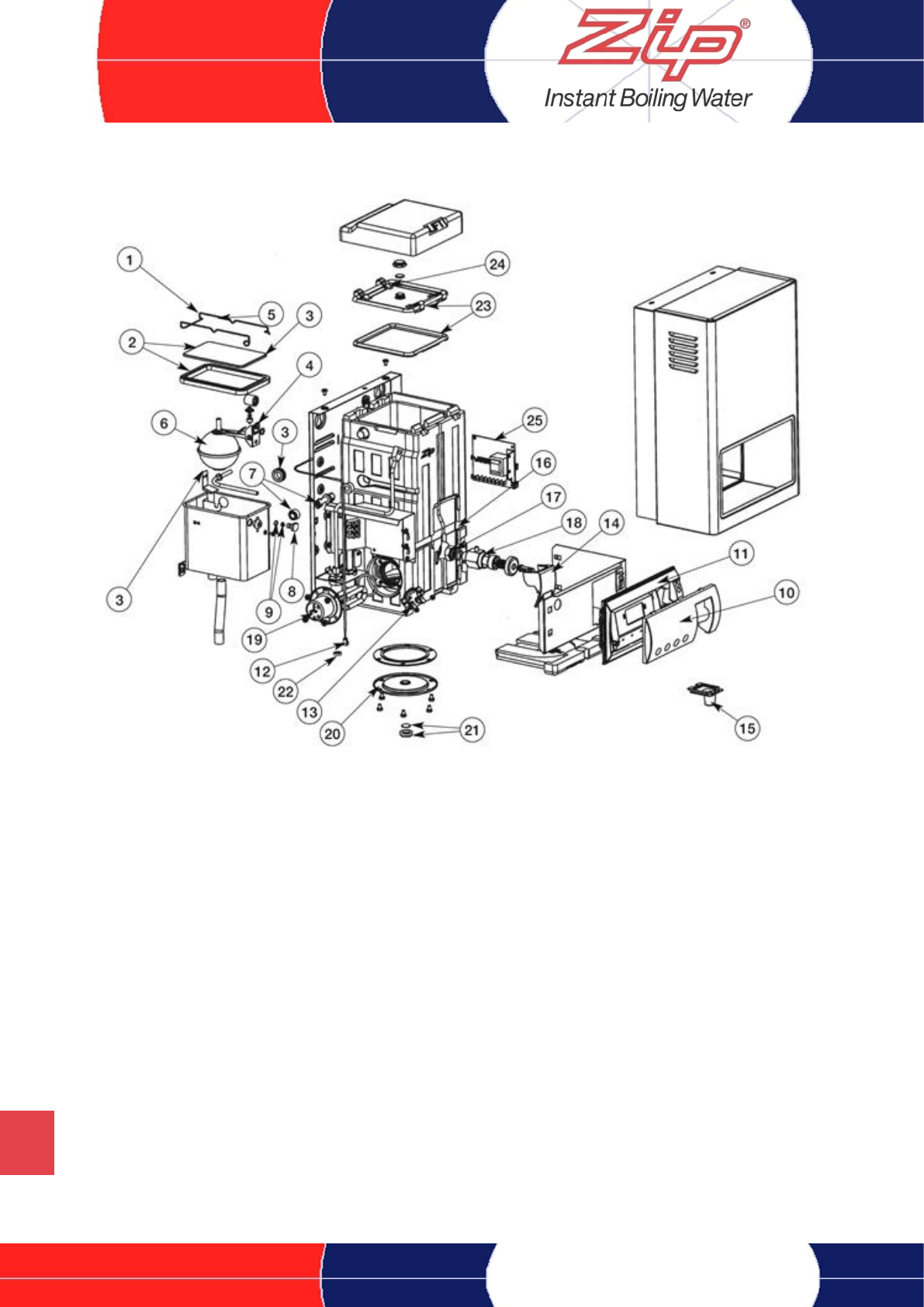

Econoboil HS4 (HS403 - HS407)

1 SP90487 CISTERN LID CLAMP KIT 16 SP90503 3 LITRE STRAP AND KEY KIT

2 SP90488 CISTERN LID AND GASKET KIT 16 SP90504 5 & 7.5 LITRE STRAP AND KEY KIT

3 SP90490 GASKET KIT 17 SP90505 TAP NUT KIT

4 SP90083 FLOAT VALVE KIT WITH FLOAT 18 SP90509 TAP BODY KIT

5 SP90069 JUMPER VALVE KIT WITH SEALS 19 SP90485 1.5KW ELEMENT KIT

6 SP90102 CISTERN FLOAT KIT WITH NUT AND SCREW 19 SP90486 2.4KW ELEMENT KIT

7 SP90493 METERING TUBE KIT 1.5KW 20 SP90491 CLEANING HOLE COVER KIT

7 SP90494 METERING TUBE KIT 2.4KW 21 SP90492 DRAIN CAP AND SEAL KIT

8 SP90495 BANJO SCREW 22 SP90107 FILTER KIT COLD INLET BUSH

9 SP90496 O RING KIT 23 SP90135 3 LITRE LID, GASKET AND CLIPS

10 SP90743 FASCIA LENS KIT 23 SP90136 5 LITRE LID, GASKET AND CLIPS

11 SP90742 FASCIA ASSEMBLY—GREY 23 SP90213 7.5 LITRE LID, GASKET AND CLIPS

12 SP90620 SENSOR PROBE 24 SP90130 CLIPS FOR CURLED TANK KIT

13 SP90579 OVERLOAD KIT 25 SP90748 PCB KIT

14 SP90732 TAP HANDLE KIT SP99269 SAFETY BUTTON

15 SP90745 OUTLET NOZZLE KIT

Econoboil HS5 (HS503 - HS505)

Hydroboil Plus HP (HP003 - HP007, HP103 - HP107)

65

your spares solution

www.uk-spares.com

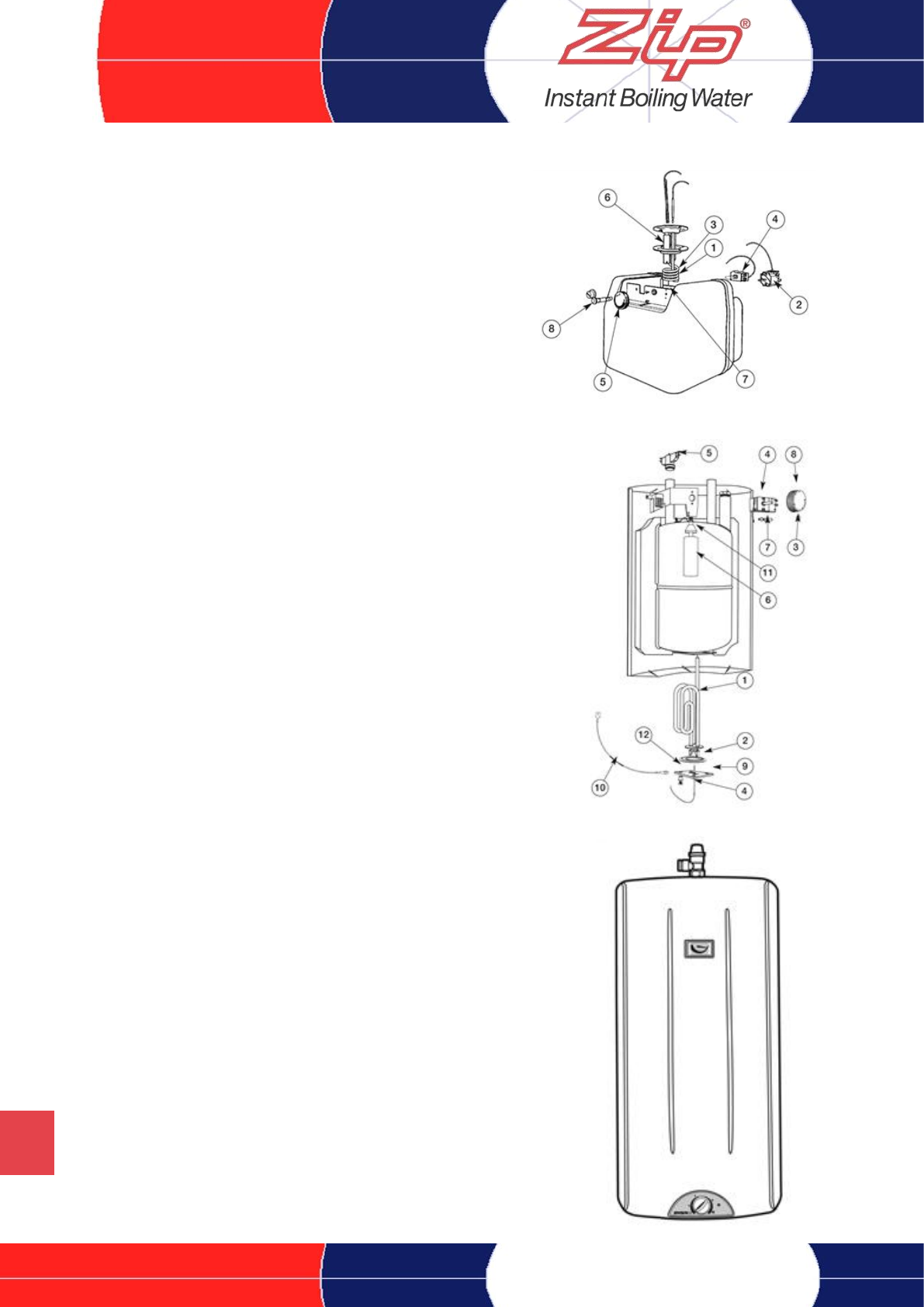

Econoboil HS4 (HS403 - HS407)

1 SP90512 ESCUTCHEON

2 SP90502 TAP ASSEMBLY

3 SP90501 TAP TOP KIT

4 SP90588 SILICON ELBOWS

5 SP90578 SOLENOID ASSEMBLY

6 SP90586 PCB KIT

7 SP90579 OVERLOAD

8 SP90585 7.5 LITRE ELEMENT

8 SP90584 5 LITRE ELEMENT KIT

8 SP90583 3 LITRE ELEMENT KIT

9 SP90577 7.5 LITRE LEVEL SENSOR KIT

9 SP90576 5 LITRE LEVEL SENSOR KIT

9 SP90575 3 LITRE LEVEL SENSOR KIT

10 SP90581 5 & 7.5 LITRE TANK GASKET KIT

10 SP90580 3 LITRE TANK GASKET KIT

11 SP90587 TEMPERATURE PROBE

Econoboil HS5 (HS503 - HS505)

1 SP90487 CISTERN LID CLIP KIT

2 SP90579 OVERLOAD KIT

3 SP90458 CISTERN LID & GASKET KIT

4 SP90490 GASKET KIT

5 SP90083 FLOAT VALVE KIT WITH FLOAT

6 SP90069 JUMPER VALVE KIT WITH SEALS

7 SP90496 O RING KIT

8 SP90102 CISTERN FLOAT KIT WITH NUT AND SCREW

9 SP90495 BANJO UNION SCREW KIT

10 SP90501 TAP TOP ASSEMBLY

11 SP90512 ESCUTCHEON KIT

12 SP90502 TAP ASSEMBLY KIT COMPLETE

13 SP90081 THERMOSTAT KIT

14 SP90045 ELEMENT KIT 1500W 3 LITRE

14 SP90085 ELEMENT KIT 2400W 5-7.5 LITRE

15 SP90175 DRAIN PLUG KIT

SP90493 TRANSFER TUBE KIT 3 LITRES

SP90494 TRANSFER TUBE KIT 5 LITRES

66 your spares solution

Call us today on 01454 620500

HydroTap Mk 2

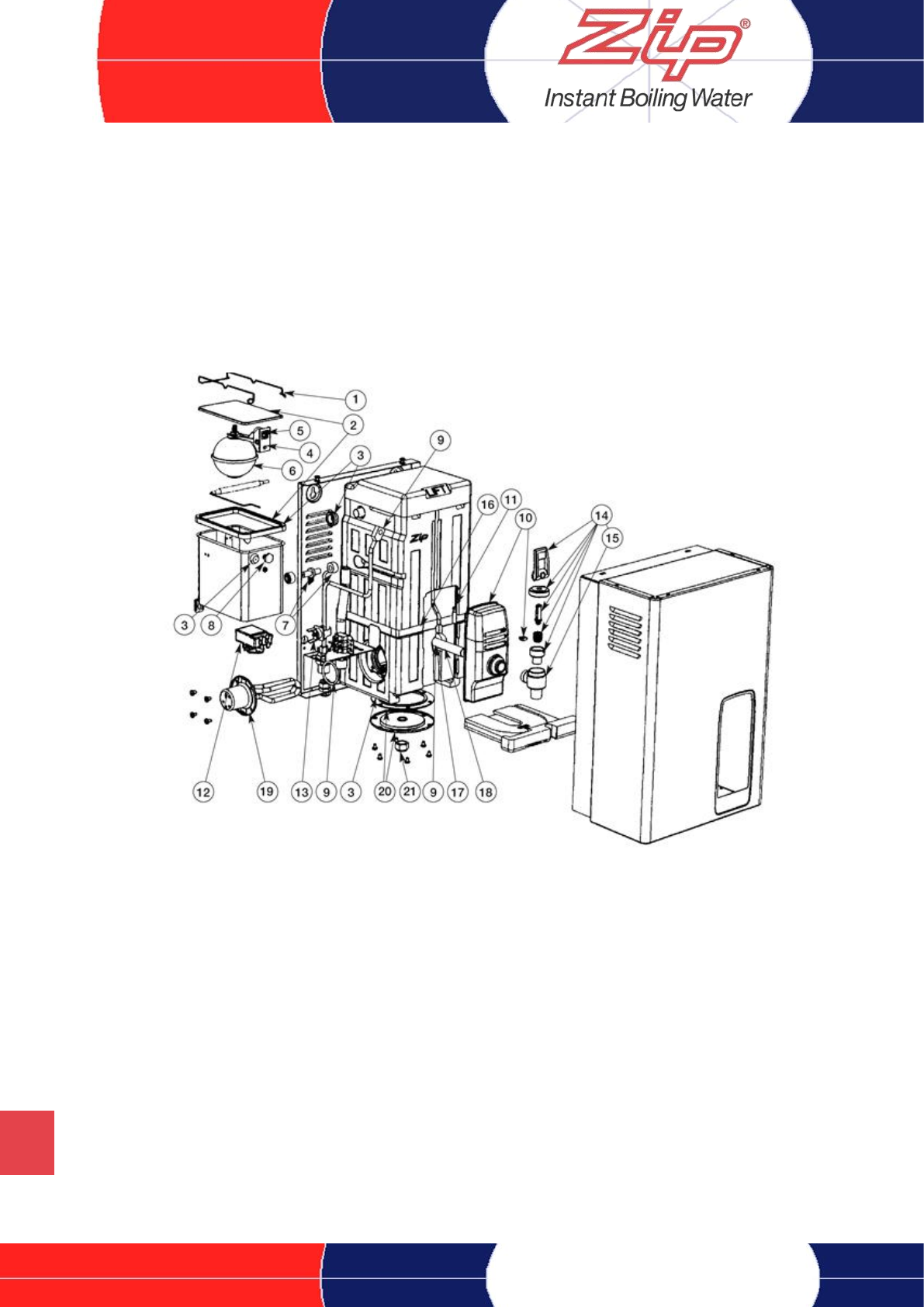

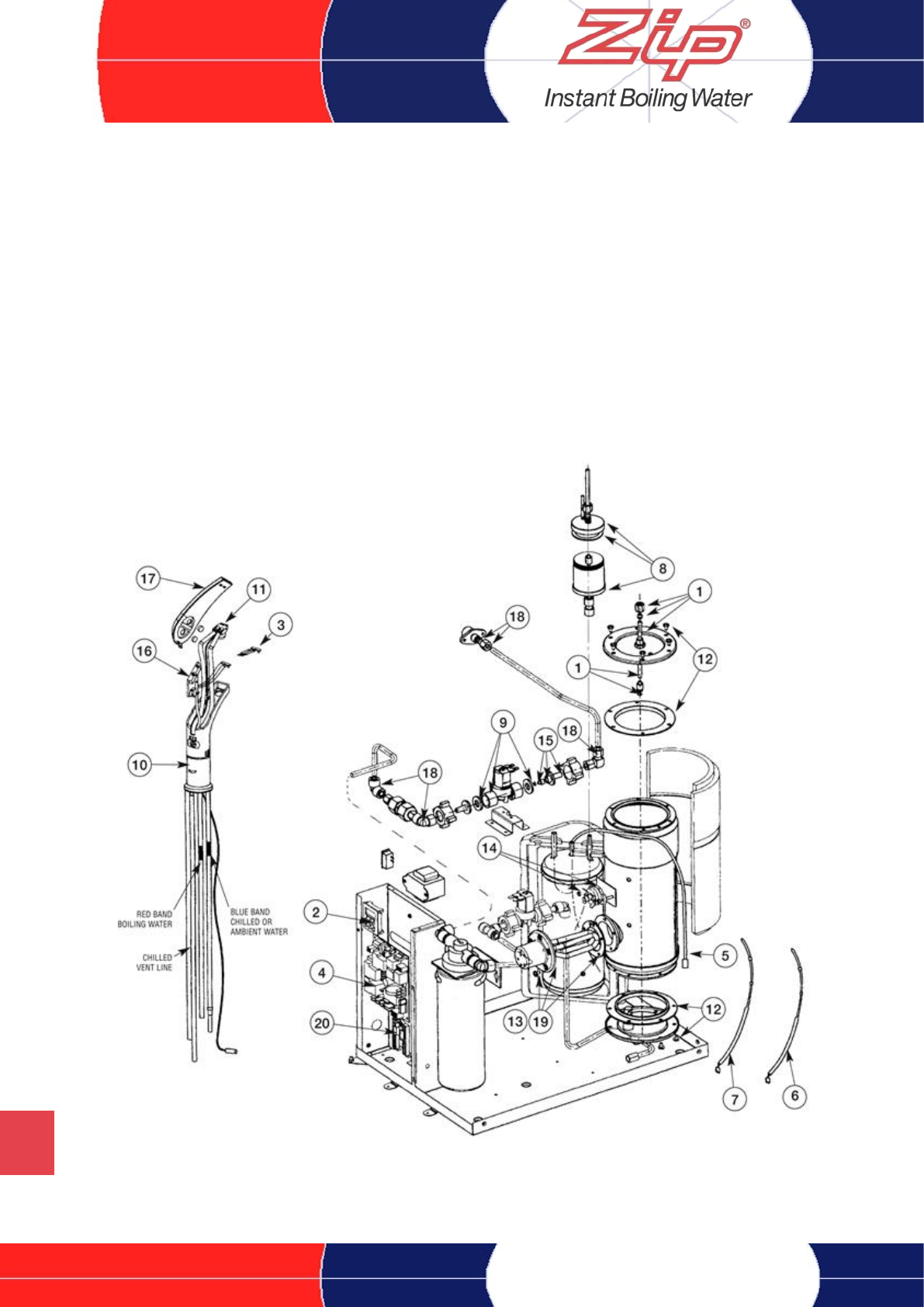

1 SP90027 VENTURI BOILING KIT 11 SP90035 NOZZLE HEAD KIT

2 SP90059 TIMER KIT 12 SP90052 GASKET & SCREW KIT

3 SP90061 TAP HEAD PCB LOOM KIT 13 SP90356 ELEMENT & SCREW, ABC 10/30 & B10

4 SP90067 MAIN PCB KIT FOR ABC MODELS 14 SP90462 OVERLOAD KIT

4 SP90129 MAIN PCB FOR ABA/ABB/B 15 SP90078 FLOW RESTRICTOR KIT

5 SP90068 SENSOR PROBE BLUE KIT 16 SP90033 PCB & LEAD KIT

6 SP90071 SENSOR PROBE RED KIT 17 SP90038 TAP TOP (BOILING/CHILLED)

7 SP90073 SENSOR PROBE ORANGE KIT 17 SP90112 TAP TOP (BOILING)

8 SP90077 VENTURI CHILL CHAMBER 18 SP90084 JOHN GUEST FITTINGS

9 SP90079 SOLENOID VALVE KIT 19 SP90357 ELEMENT ABC30/30, B30, ABA/30, ABB30

10 SP90113 TAP COMPLETE (BOILING ONLY) 20 SP90066 LEVEL SENSOR

10 SP90518 TAP COMPLETE (BOILING/CHILLED) SP90018 FAN ASSEMBLY

SP99113 FILTER HOUSING

HydroTap MK1 (2000-2005)

67

your spares solution

www.uk-spares.com

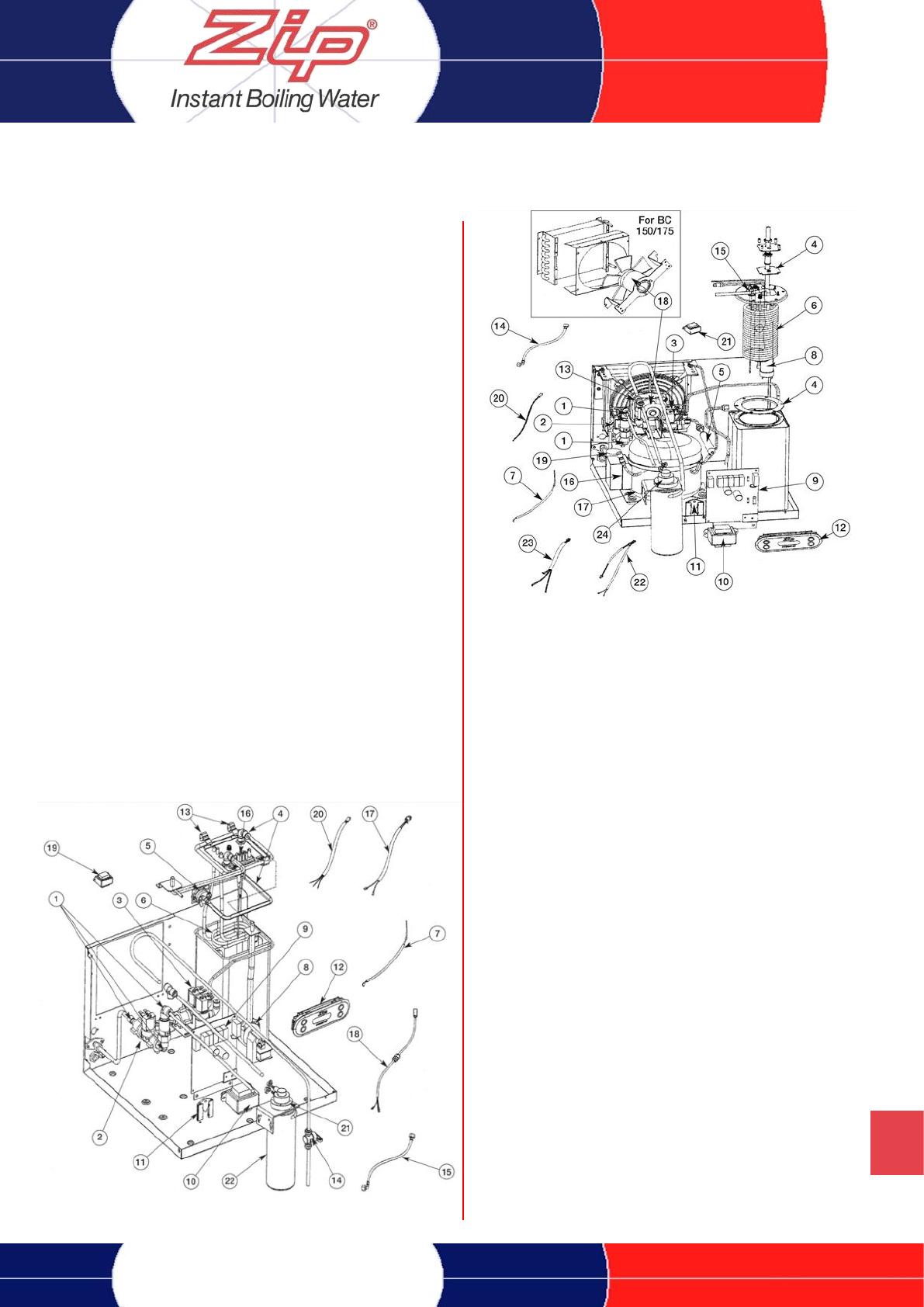

HydroTap Mk 2

1 SP90613 PLUMBING & FITTINGS KIT

2 SP90614 SAFETY SOLENOID KIT

3 SP90615 DOUBLE SOLENOID KIT

4 SP90616 GASKET & ELBOWS KIT (BC100/125)

4 SP90617 GASKET & ELBOWS KIT (BC150/175)

5 SP90579 OVERLOAD KIT

6 SP90618 1.5KW ELEMENT

6 SP90619 1.8KW ELEMENT

7 SP90620 HOT SENSOR PROBE KIT

8 SP90621 HOT PUMP KIT

9 SP90622 PCB KIT

10 SP90623 TRANSFORMER KIT

11 SP90624 LEAK SENSOR KIT

12 SP90625 CONTROL PANEL KIT

13 SP90130 CLIPS KIT

14 SP90628 STOP VALVE & JOHN GUEST FITTING KIT

15 SP90056 FLEXIBLE INLET HOSE KIT

16 SP90629 HOT LEVEL SENSOR KIT (BC100/125)

16 SP90630 HOT LEVEL SENSOR KIT (BC150/175)

17 SP90186 LOOM OVERLOAD KIT

18 SP90190 LOOM & GLAND MAIN PCB TO TAP

19 SP90652 TRANSFORMER KIT AUXILIARY FAN

20 SP90189 LOOM HOT LEVEL SENSOR KIT

21 SP99108 FILTER HEAD KIT

22 ZT002 SUBMICRON REPLACEMENT FILTER

SP90648 TAP COMPLETE (BOILING & CHILLED)

SP90653 TAP COMPLETE (BOILING ONLY)

SP90692 HOT TANK COMPLETE 100/125

SP90693 HOT TANK COMPLETE 150/175

SP90647 SPRING & HUB

1 SP90613 PLUMBING & FITTINGS KIT

2 SP90614 SAFETY SOLENOID KIT

3 SP90615 DOUBLE SOLENOID KIT

4 SP90631 GASKET & ELBOWS KIT

5 SP90626 DRYER FILTER KIT WITH NUT & TUBE

6 SP90632 EVAPORATOR KIT BC100/125

6 SP90641 EVAPORATOR KIT BC150/175

7 SP90633 SENSOR PROBE KIT COLD

8 SP90634 PUMP KIT COLD

9 SP90622 PCB KIT

10 SP90623 TRANSFORMER KIT

11 SP90624 LEAK SENSOR KIT

12 SP90625 CONTROL PANEL KIT

13 SP90628 STOP VALVE & JOHN GUEST FITTING KIT

14 SP90056 FLEXIBLE BRAIDED INLET HOSE

15 SP90635 LEVEL SENSOR KIT COLD TANK BC100/125

15 SP90627 LEVEL SENSOR KIT COLD TANK BC150/175

16 SP90636 RELAY COMPRESSOR KIT BC100/125

16 SP90024 RELAY COMPRESSOR KIT BC150/175

17 SP90637 COMPRESSOR KIT BC100/125

17 SP90023 COMPRESSOR KIT BC150/175

18 SP90639 FAN MOTOR KIT BC100/125

18 SP90640 FAN MOTOR KIT BC150/175

19 SP90437 CAPACITOR KIT BC100/125

19 SP90020 CAPACITOR KIT BC150/175

20 SP90185 LOOM LEVEL SENSOR KIT

21 SP90652 TRANSFORMER KIT—AUXILIARY FAN

22 SP90188 LOOM SOLENOIDS KIT

23 SP90187 LOOM—COMPRESSOR TO FAN KIT

24 SP99108 FILTER HEAD KIT

SP90648 TAP COMPLETE (BOILING & CHILLED)

SP90193 TAP COMPLETE (CHILLED ONLY)

SP99183 FAN BLADE & COWLING

SP90651 AUXILLIARY FAB WITH DIN PLUG KIT

Boiling Module Chilling Module

68 your spares solution

Call us today on 01454 620500

Tudor / Contract Mk 3 & 4 (5 litres)

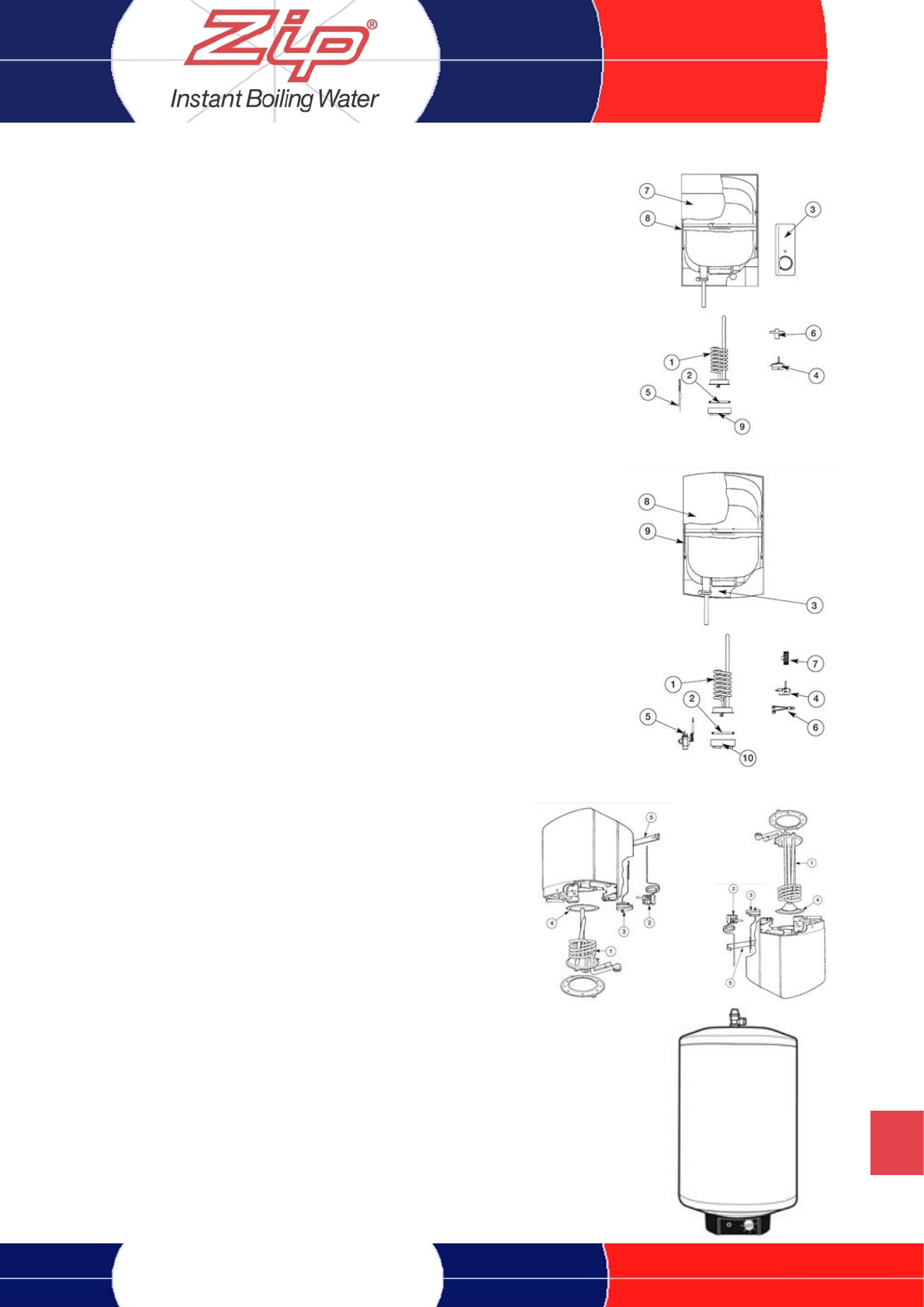

1 IN86020 CONNECTING SET WITH CABLE SEAL, SEALS AND SCREWS

2 IN86229 FLOW ADJUSTMENT SCREW WITH FINE FILTER

3 IN86856 ILX006 TUBULAR HEATING ELEMENT

2 IN86809 ILX009 TUBULAR HEATING ELEMENT

3 IN86230 ILX012 HEATING CARTRIDGE

4 IN86240 DISPLAY PANEL

5 IN86820 ILX006/009 SAFETY THERMAL CUT-OUT

5 IN81320 ILX012 SAFETY THERMAL CUT-OUT

6 IN86255 ILX006/009 3 POLE CONNECTING TERMINAL

6 IN86250 ILX012 4 POLE CONNECTING TERMINAL

7 IN86836 ILX006 MAIN PCB

7 IN86839 ILX009 MAIN PCB

7 IN86260 ILX012 MAIN PCB

8 IN86270 FLOW SENSOR

9 IN86280 COLD WATER INLET

10 IN82180 CABLE SEAL

11 IN86792 SPARE PARTS WITH SEALS, SCREWS. MICRO SWITCH ETC

IN86560 COMPLETE INTEGRATED FILTER VALVE

IN86072 TEMPERATURE SENSOR

1 IN80327 HEATING SPIRALS (1 FOR ES3, 2 FOR ES6)

2 IN95622 FRONT COVER

3 IN80352 COMPLETE FIXING KIT (WALL BRACKET WITH SCREWS AND FIXING PLUGS)

3a IN80689 WALL BRACKET (WITHOUT FIXING KIT)

4 IN80353 SET OF SMALL SPARE PARTS (SEALS, NOZZLE FOR CABLE ENTRY ETC)

5 IN80080 FILTER SIEVE (FINE FILTER)

6 IN80750 WATER CONNECTION SET, INCL TWO WATER CONNECTIONS AND SEALS ETC

7 IN80372 FLOW ADJUSTMENT SCREW WITH SEAL FOR ES3

7 IN803721 FLOW ADJUSTMENT SCREW WITH SEAL FOR ES6

8 IN86072 TEMPERATURE SENSOR

9 IN80427 SAFETY THERMAL CUT-OUT INCLUDING EXCHANGE INSTRUCTION, SEALS ETC

1 SC1531 LID

2 SC0119 FLOAT VALVE ASSEMBLY

3 SC1108 WHITE TAP

4 SC1121 BLUE TAP

5 SC3111 TAP WASHER

6 SC1549 DRIP TRAY

7 SC4009 THERMOSTAT

8 SC2023 COMPRESSOR

ZB201 WALL BRACKET

1 SP3657 WATER REGULATOR (BUBBLER)

2 SP3659 WATER REGULATOR (CARAFFE) PRIOR TO 1996

3 SP81108 CARAFE FILLER

4 SP80168 HANDLE (CARAFE FILL)

5 SP7036 THERMOSTAT

SP87674 FILTRATION KIT FOR CH103 & CH104

SP87675 FILTRATION KIT FOR CH102

SP88360 FILTER HOUSING

SP2624 BUBBLER

Instantaneous - ES

Chilltower

Chillmaster

Varipoint (10, 15 ltr)

Varipoint (30,50,80,100 ltr)

Instantaneous - Inline

Tudor / Contract Mk 3 & 4 (10 litres)

69

your spares solution

www.uk-spares.com

Tudor / Contract Mk 3 & 4 (5 litres)

1 CT0111/4 HEATING ELEMENT

2 CT0116/4 GASKET

3 CT0130 LENS RED FOR TUDOR

3 CT0131 LENS BLANK FOR CONTRACT

4 CT0119/4 THERMOSTAT

5 CT0120 THERMAL FUSE CONTRACT

5 CT0121/4 RE-SETTABLE CUT-OUT TUDOR

6 CT0106/3 CONTROL KNOB WITH SPRING

7 CT0103/3 COVER—FRONT 5 LITRE

8 CT0101/3 COVER—BACK 5 LITRE

9 CT0115/4 RETAINING NUT

CT0137 OUTLET SPOUT 350MM

CT0138 CONTROL VALVE

1 CT0111/4 HEATING ELEMENT

2 CT0116/4 GASKET

3 CT0130 LENS RED FOR TUDOR

3 CT0131 LENS BLANK FOR CONTRACT

4 CT0119/4 THERMOSTAT

5 CT0121/4 RE-SETTABLE CUT-OUT FOR TUDOR

5 CT0120 THERMAL FUSE FOR CONTRACT

6 CT0129/4 LIGHT INDICATOR

7 AQ0337 CONTROL KNOB WITH SPRING

8 CT0104/4UB COVER—FRONT FOR TUDOR

8 CT0104/4 COVER—FRONT FOR TUDOR P4/102

8 CT0105/4 COVER—FRONT FOR CONTRACT

9 AQ0344 COVER—BACK 10 LITRE

10 CT0115/4 RETAINING NUT

CT0137 OUTLET SPOUT 350MM

CT0138 CONTROL VALVE

1 VP0301 ELEMENT 2.2 KW FOR OVERBASIN MODELS

2 VP0302 ELEMENT 2.2KW FOR UNDERBASIN MODELS

3 VP0303 THERMOSTAT

4 VP0304 RESETTABLE CUT-OUT

5 VP0317 ELEMENT GASKET

VP0322 WALL FIXING BRACKET

VP0330 ELEMENT, PLATE & GASKET

VP0331 GASKET

VP0332 RESETTABLE CUT-OUT

VP0333 THERMOSTAT

VP0334 SIGNAL LAMP

AQ0317 TEMPERATURE & PRESSURE RELIEF VALVE

Varipoint (10, 15 ltr)

Varipoint (30,50,80,100 ltr)

Tudor / Contract Mk 3 & 4 (10 litres)

70 your spares solution

Call us today on 01454 620500

AQUAFLO

1 AQ0201 ELEMENT FOR 10/15 LITRE

2 AQ0202 THERMOSTAT

3 AQ0203 ELEMENT FOR 5 LITRE

4 AQ0204 RESETTABLE CUT-OUT

5 AQ0205 TEMPERATURE CONTROL KNOB

6 AQ0208/M SACRIFICIAL ANODE

7 AQ0209 INTERNAL WIRING LOOM

8 AQ0226 NEON

AQ0262 ELEMENT FOR 30 LITRE

AQ0217 FIXING SCREWS PACK

1 AQ0330 ELEMENT

2 AQ0331 GASKET

3 AQ0332 LENS

4 AQ0333 THERMOSTAT

5 AQ0334 RESETTABLE CUT-OUT

6 AQ0335 SACRIFICIAL ANODE 10 & 15 LITRE

6 AQ0347 SACRIFICIAL ANODE 5 LITRE

7 AQ0336 LIGHT INDICATOR

8 AQ0337 CONTROL KNOB WITH SPRING

9 AQ0338 HEATING FLANGE

10 AQ0339 EARTHING WIRE WITH RESISTOR

11 AQ0345 ANODE GASKET

12 AQ0346 INSULATING BUSH

AQ0318 600W ELEMENT

AQ0301 1000W ELEMENT

AQ0302 GASKET

AQ0303 NEON LENS

AQ0319 THERMOSTAT

AQ0305 THERMAL FUSE (RESETTABLE CUT-OUT)

AQ0320 SACRIFICIAL ANODE FOR 30 LITRE

AQ0306 SACRIFICIAL ANODE FOR 50 LITRE

AQ0307 SACRIFICIAL ANODE FOR 80 & 100 LITRE

AQ0308 NEON LIGHT INDICATOR

AQ0311 TEMPERATURE INDICATOR

AQ0312 ELEMENT FLANGE FOR 50,80 & 100 LITRES

AQ0322 ELEMENT FLANGE FOR 30 LITRES

AQ0313 SCREW HOLDER

AQ0314 ANODE GASKET

AQ0315 INSULATING BUSH

AQ0317 TEMPERATURE & PRESSURE RELIEF VALVE

AQ0309 CONTROL KNOB

AQ0310 THERMOMETER (OLD MODEL)

AQ0316 CONTROL PANEL

XL

RCH

Aquapoint II (AP50, AP100, AP150, AP300)

Aquapoint III (AP3/05, AP3/10, AP3/15)

Aquapoint III (AP3/30, AP3/50, AP3/80, AP3/100)

71

your spares solution

www.uk-spares.com

AQUAFLO

1 SQ94117 PRESSURE AND TEMPERATURE RELIEF VALVE

2 SQ94118 INLET MANIFOLD KIT

EXP0921 EXPANSION RELIEF VALVE

3 EXP0926 EXPANSION VESSEL - 8 LITRE

3 EXP0927 EXPANSION VESSEL—18 LITRE

3 EXP0928 EXPANSION VESSEL—24 LITRE

EXP0929 RELIEF MANIFOLD

EXP0931 MANIFOLD

4 SQ94121 TUNDISH

5 SA79919 PRIMARY CYLINDER THERMOSTAT

SA79918 SECONDARY CYLINDER THERMOSTAT

6 SA70062 IMMERSION HEATERS

SA33100 ELECTRIC COVER

7 SA77112 SET OF FEET

1 XL0814/S CONTROL BOARD

2 XL0816 ELEMENT

3 XL0817 ELEMENT GASKET

4 XL0818/S THERMISTOR / LOW LEVEL PROBE

5 XL0819/S HIGH LEVEL PROBE XL25

6 XL0820/S HIGH LEVEL PROBE XL50/75

7 XL0821 PROBE ‘O’ RING

8 XL0822 SOLENOID VALVE

9 XL0829 RESETTABLE CUT-OUT

1 RC0400 ELEMENT 3 KW, GASKET & PLUG-IN THERMOSTATS

2 RC00403 CONTROL THERMOSTAT - NEW TYPE

3 RC0404 RESETTABLE THERMOSTAT - NEW TYPE

4 RC0405 COMBINED THERMOSTAT/CUT-OUT

RC0406 COMBINED THERMOSTAT/CUT-OUT - NEW TYPE

5 RC0410 BALL VALVE

6 RC0411 FLOAT

7 RC0400/2 ELEMENT 2KW, GASKET & PLUG-IN THERMOSTAT

8 RC0400/6 ELEMENT 6KW, GASKET & PLUG-IN THERMOSTAT

XL

RCH

72 your spares solution

Call us today on 01454 620500

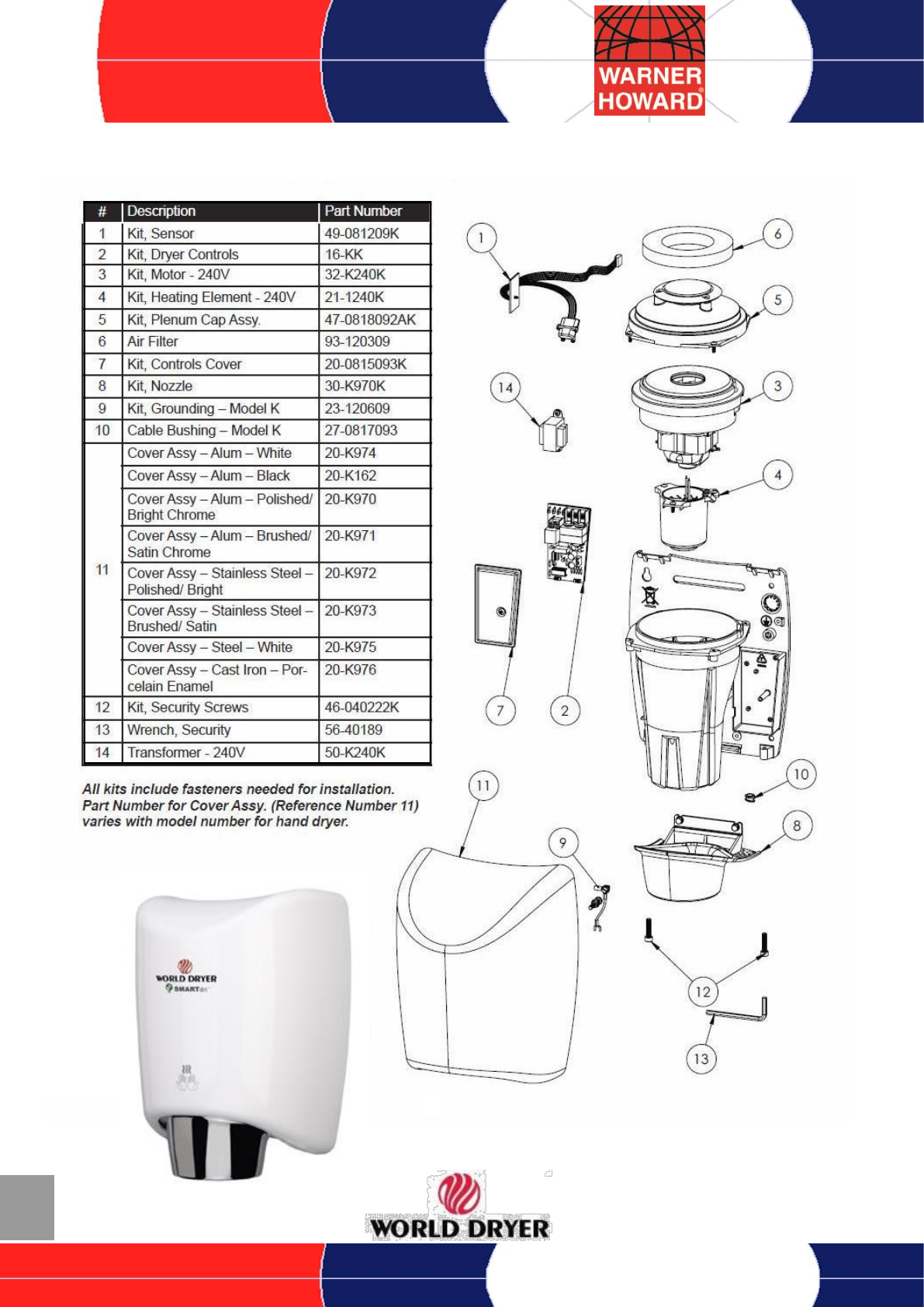

K48 Smartdri

73

your spares solution

www.uk-spares.com

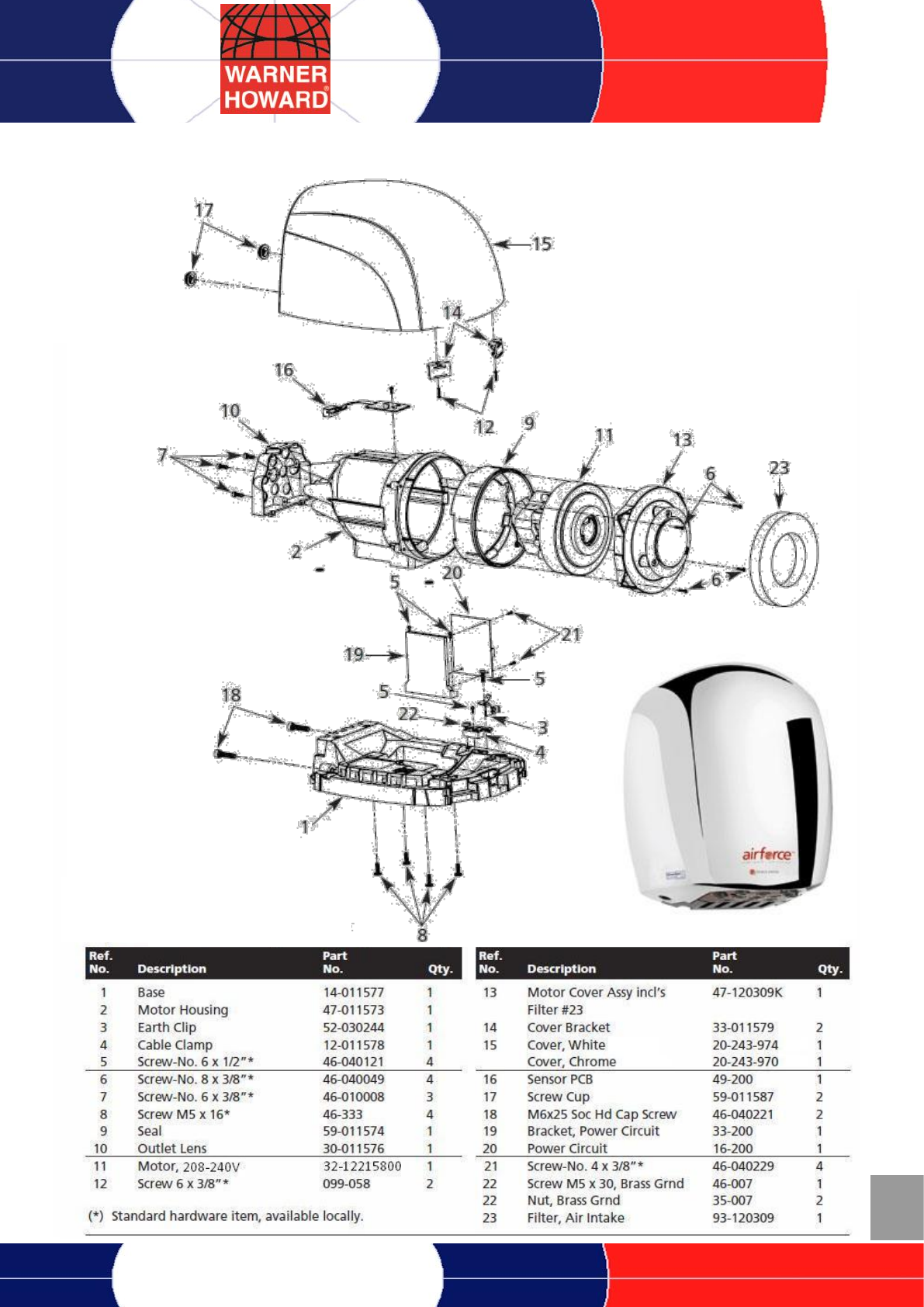

J48 Airforce

74 your spares solution

Call us today on 01454 620500

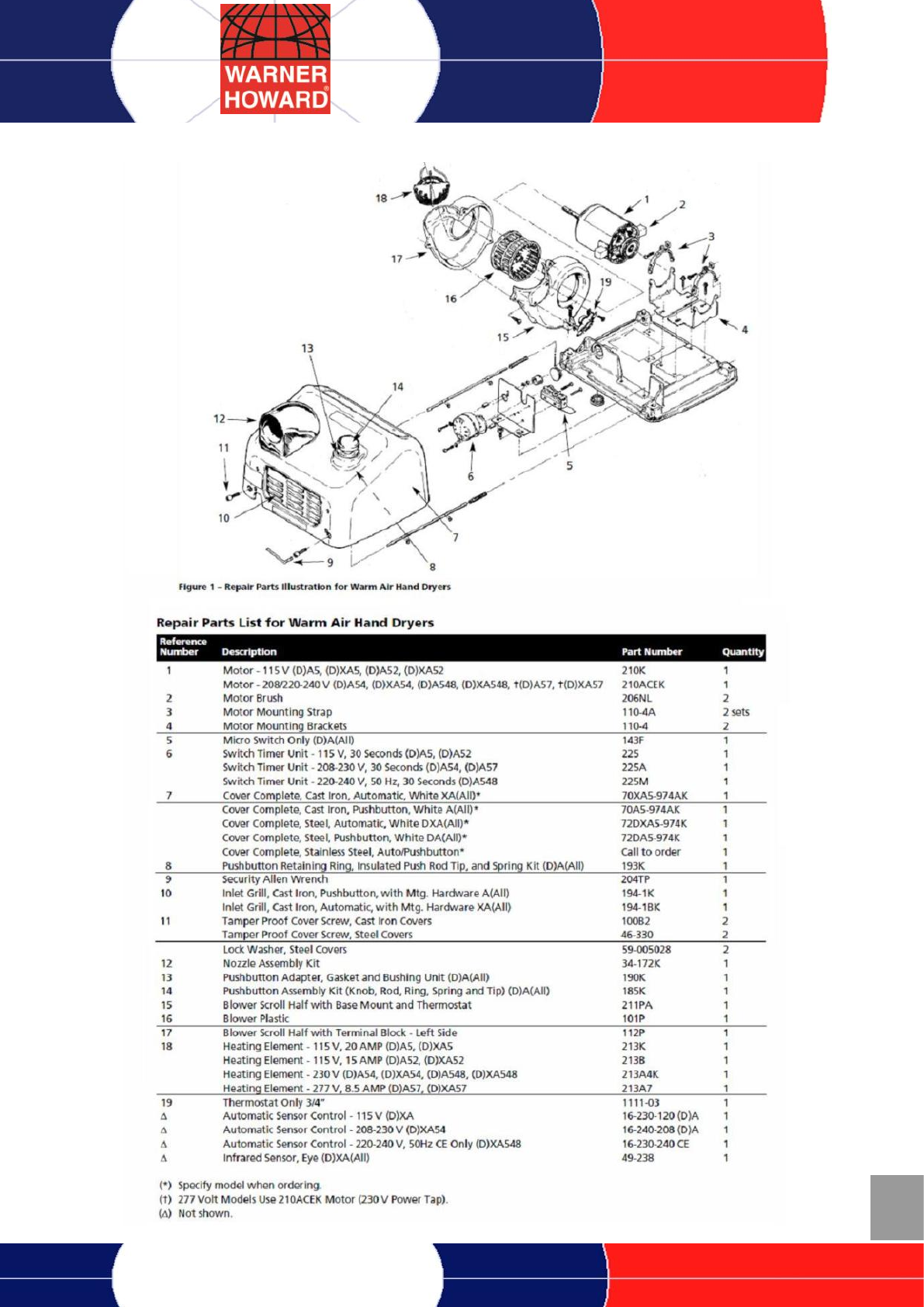

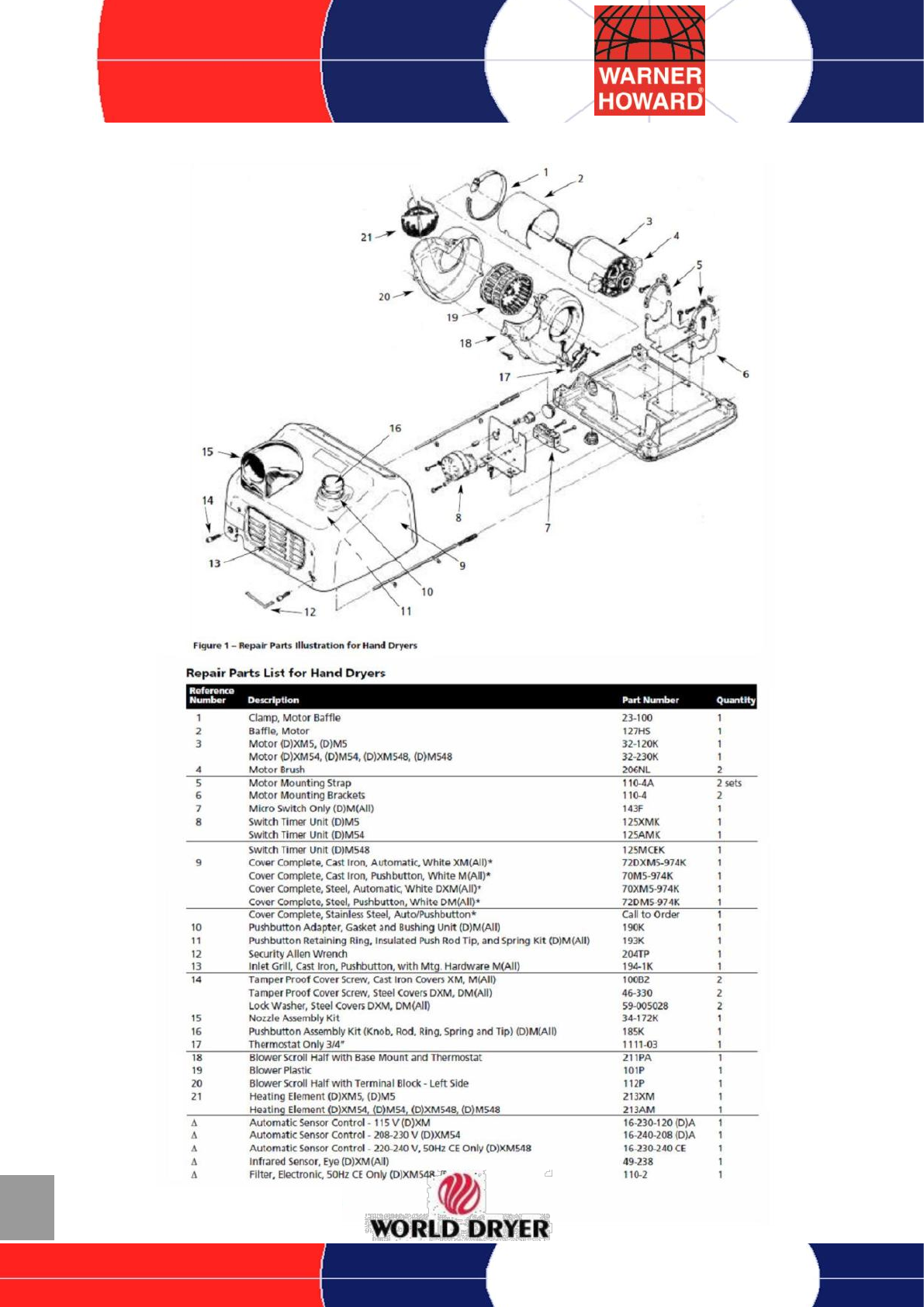

(D)M & (D)XM

(*) Specify model when ordering

(∆) Not shown

75

your spares solution

www.uk-spares.com

(D)A & (D)XA

UK Spares

Unit 1155, Aztec West

Almondsbury

Bristol, BS32 4TF

01454 620 500 tel

01454 620 660 fax

www.uk-spares.com

UK SPARES BROCHURE 79331S Brochure9

Navigation menu

Versions of this User Manual:

Views

Navigation
