Realtek Ameba-1 Alink user guide
The document describes how to porting Alink into Ameba SDK and demonstrates how to use
Alibaba ONEAPK to make Ameba connect to Ali Cloud and how to update new firmware over
the air.
_______________________________________________________________
June 14, 2016 2
Table of Contents
1 Introduction .................................................................................................................................. 3
2 Porting Alink patch ....................................................................................................................... 4
2.1 Add files to SDK folder ........................................................................................................... 4
2.2 Add files to IAR project .......................................................................................................... 5
2.3 Other Configuration ............................................................................................................... 5
2.3.1 platform_opts.h .............................................................................................................. 5
2.3.2 alink.c ............................................................................................................................... 6
2.3.3 example_entry.c ............................................................................................................. 6
2.3.4 lwipopts.h ........................................................................................................................ 6
2.3.5 config_rsa.h ..................................................................................................................... 6
2.3.6 FreeRTOSConfig.h ........................................................................................................... 6
2.3.7 image2.icf ........................................................................................................................ 7
3 Access Ali Cloud Example(Android) ............................................................................................. 7
3.1 One key configuration ........................................................................................................... 7
3.2 Soft AP configuration ........................................................................................................... 11
4 OTA .............................................................................................................................................. 15
_______________________________________________________________
June 14, 2016 3
1 Introduction
Ali Cloud provides an open security-rich and reliable cloud services for traditional hardware
businesses and aspiring provide development platform for those interested in the development
of the IOT enthusiasts. Internet based services include, but are not limited to: one-stop access
to services, data analysis services, after-sales service support, firmware upgrade service (OTA)
and equipment sharing services.
Alink is used to help the smart device to connect to the target AP and register to Ali cloud. It
provides two ways to configure Wi-Fi for the smart device: One-key configuration and Soft AP
configuration.
One-key configuration: A smart device will enter One-key configuration as default. It
adjusts channels from 1 to 13 circularly to receive and analysis configuration packets sent from
the mobile ONEAPK in promiscuous mode. By doing this for a short moment, the smart device
can lock to the exact channel and get enough information of the target AP. After getting the
target AP profile, it will try to link with the AP automatically.
Soft AP configuration: If the smart device does not get the target AP profile after one
minute using One-key configuration, it will switch to Soft AP configuration. Firstly, the smart
device will enter Soft AP mode, broadcast itself with the SSID alink_* and create a TCP server
waiting client in. Secondly, ONEAPK in smart phone will make its Wi-Fi link with the Soft AP and
connect to the TCP server as a client. Thirdly, the smart phone transfers the profile of the target
AP which has internet access to the smart device through the TCP connection. Fourthly, the
smart device switches to STA mode and try to link with the target AP. At last, the smart device
will send broadcast UDP to declare successful connection and the smart phone will
acknowledge a unicast UDP to declare the configuration is successful.
Alibaba provides a test APK named ONEAPK to help the developers to verify Alink configuration
and Ali cloud service for smart devices. The ONEAPK logo is like and you can get it by
scanning the two-dimensional code shown as follows. The download URL is
https://open.alink.aliyun.com/download/.
_______________________________________________________________
June 14, 2016 4
The table below shows some keywords and their descriptions in this document.
Keyword
Description
UUID
A UUID identifies a unique type of products. Each device will obtain
a unique UUID from Ali cloud during registration process.
Key/Secret
Used for identity authentication. It is produced by Alibaba when
one type of device registers to Ali IOT platform.
The combination of UUID and Key/Secret can identify a unique smart device. Different devices
of the same type must have different UUID.
To know more details about Ali Cloud service and to configure more function options, you can
login Alibaba Smart living official website: https://open.alink.aliyun.com/.
2 Porting Alink patch
2.1 Add files to SDK folder
Step 1Extract Ameba released SDK, eg. sdk-ameba1-v3.4b3.
Step 2Create “alink” folder in $sdk\component\common\application\.
Step 3Copy alink.c alink_export.h alink_export_rawdata.h aws_lib.h
aws_platform.h platform_porting.h and lib_alink.a from
3.4b_patch_alink_v1.1_(v01).zip to $sdk\component\common\application\alink
_______________________________________________________________
June 14, 2016 5
Step 4Copy “device_lock.h” from 3.4b_patch_alink_v1.1_(v01).zip to
$sdk\component\os\os_dep\include\.(remarksonly fo sdk_v3.4)
Step 5Copy “device_lock.c” from 3.4b_patch_alink_v1.1_(v01).zip to
$sdk\component\os\os_dep. (remarksonly fo sdk_v3.4)
Step6Replace "dhcp" folder which located at $sdk\component\common\network\. (remarks
only fo sdk_v3.4)

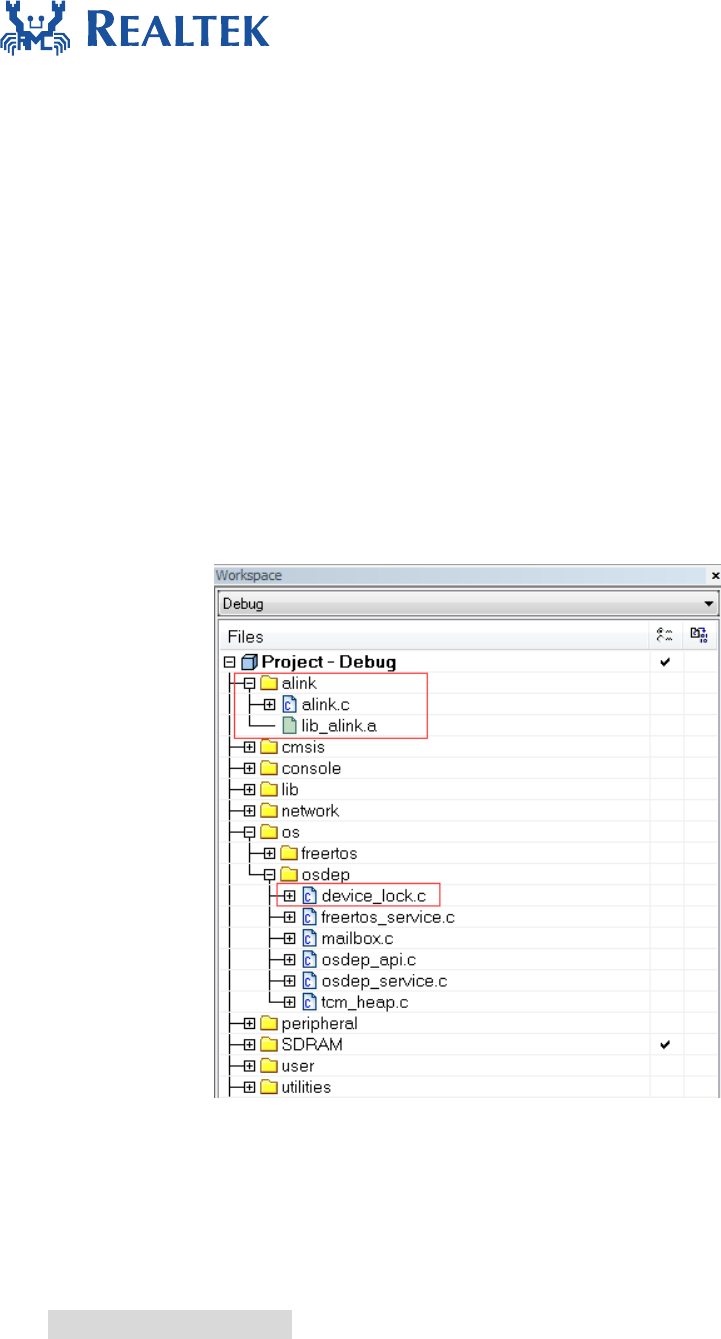

2.2 Add files to IAR project
Step 1: Open IAR project and add a new group alink.
Step 2: Add alink.c and lib_alink.a into alink group.
Step 3: Add device_lock.c into osdep group.
2.3 Other Configuration
2.3.1 platform_opts.h
The file location is $sdk\ project\realtek_ameba1_va0_example\inc\platform_opts.h. Please
add CONFIG_ALINK define as follows.
#define CONFIG_ALINK 1
_______________________________________________________________
June 14, 2016 6
2.3.2 alink.c
The file location is $sdk\component\common\application\alink.c. You can add PASS_THROUGH
define as follows.
#define PASS_THROUGH
PASS_THROUGH is defined only when using a iPhone, if defined, pass through mode will be
enabled or JSON message mode will be enabled. Please mark it as default.
2.3.3 example_entry.c
The file location is $sdk\component\common\example\example_entry.c. You can add alink
entry here if needed.
void example_entry(void)
{
……
#if CONFIG_ALINK
example_alink();
#endif
……
}
2.3.4 lwipopts.h
The file location is $sdk\ component\common\api\network\include\lwipopts.h. If the following
define does not exist, please add it, otherwise just change to 1.
#define LWIP_IGMP 1
#define LWIP_TCP_KEEPALIVE 1
2.3.5 config_rsa.h
The file location is $sdk\component\common\network\ssl\polarssl-
1.3.8\include\polarssl\config_rsa.h. Please mark the following defines in order to ensure the
establishment of SSL connection with Ali cloud.
//#define POLARSSL_SSL_PROTO_SSL3
//#define POLARSSL_SSL_PROTO_TLS1
//#define POLARSSL_SSL_PROTO_TLS1_1
2.3.6 FreeRTOSConfig.h
The file location is $sdk\project\realtek_ameba1_va0_example\inc\FreeRTOSConfig.h. Change
configTOTAL_HEAP_SIZE from 60K to 70K because Alink need more heap.
#define configTOTAL_HEAP_SIZE ( ( size_t ) ( 70 * 1024 ) ).
_______________________________________________________________
June 14, 2016 7

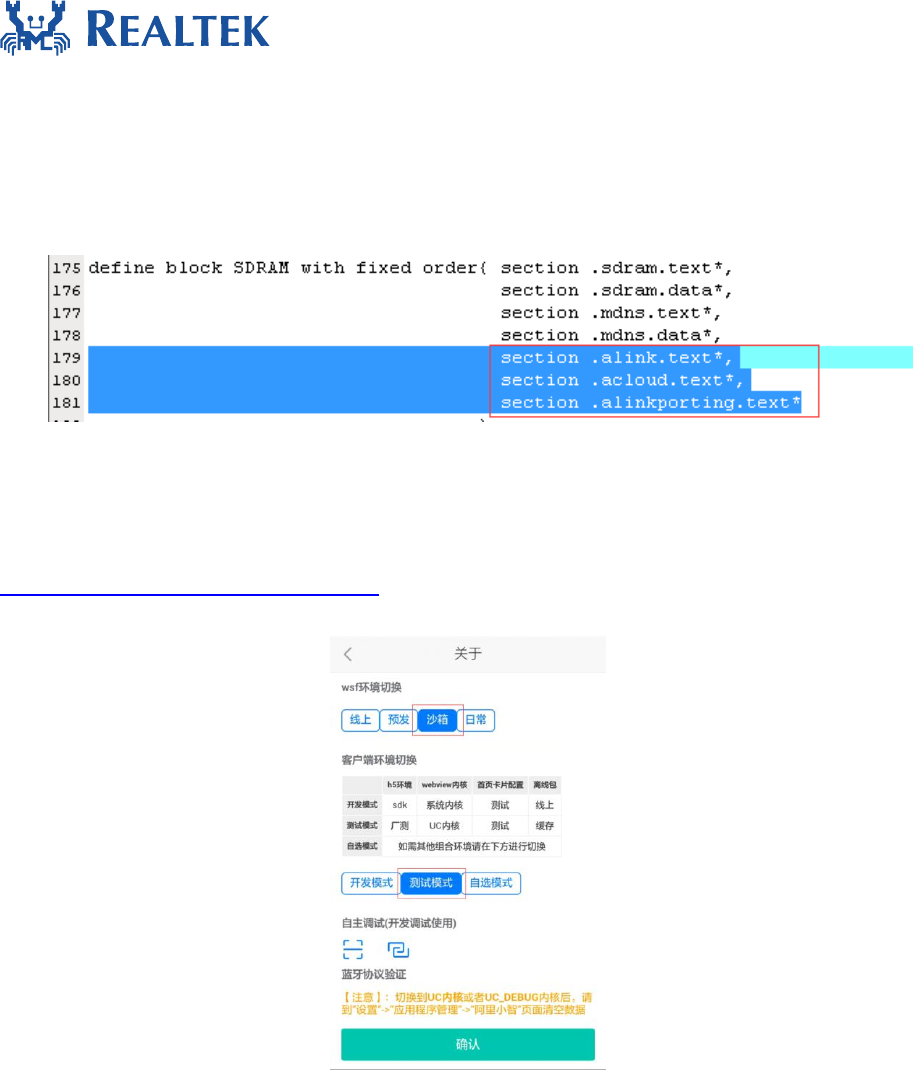

2.3.7 image2.icf
The file location is $sdk\ project\realtek_ameba1_va0_example\EWARM-RELEASE\image2.icf.
Please notice that alink acloud and alinkporting code should only be placed at SDRAM now
since SRAM is not enough to run acloud. Please add section “.alink.text”.acloud.text” and
.alinkporting.text to SDRAM block as follows.
3 Access Ali Cloud Example(Android)
Please download ONEAPP and install to your smart phone at first. The download link is
http://open.alink.aliyun.com/download/. Then click APP to find setting entry:
Setting =>About=> Environment configure
After configuring environment, close APP and kill the process.
3.1 One key configuration
Now we will step by step demonstration One-key configuration.

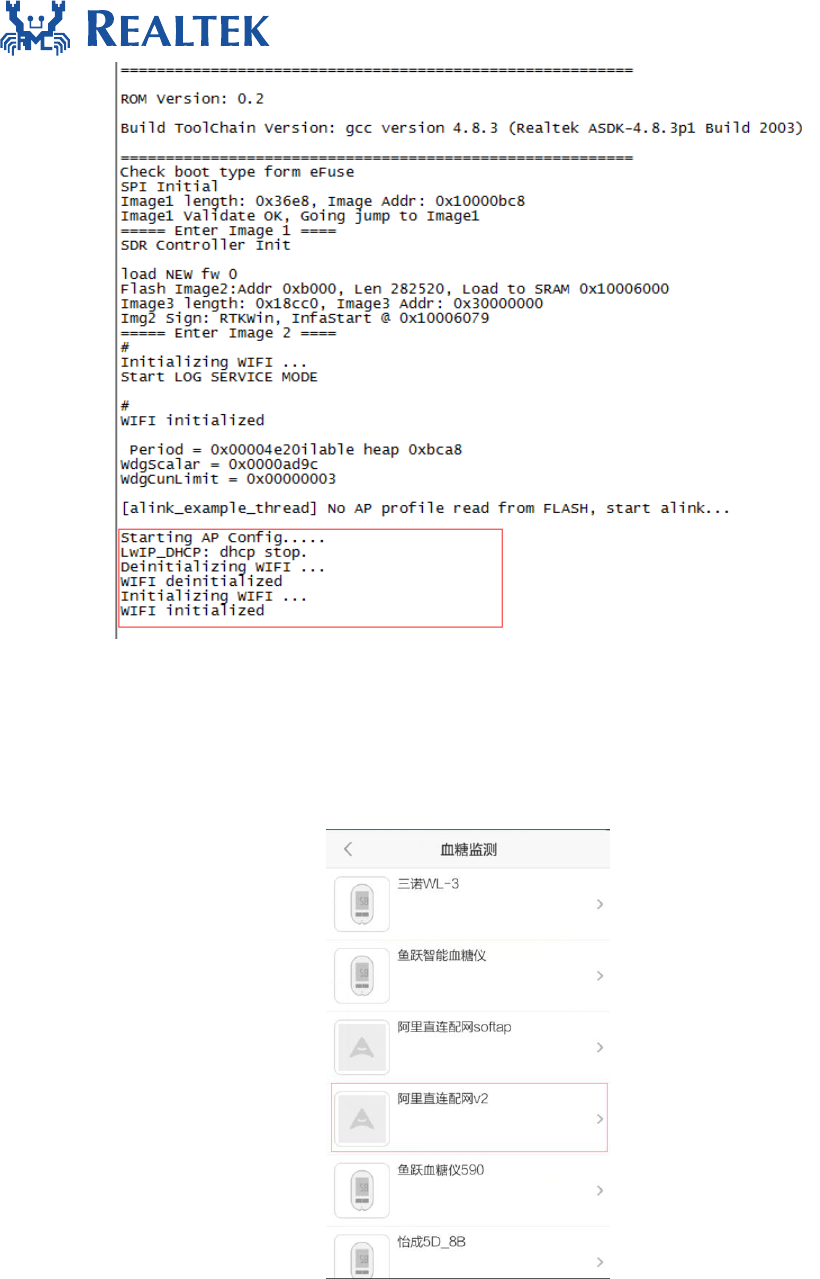

Step 1: Power on your smart device (ameba development board). It will enter one key
configuration as default if no saved AP profile in the flash.
_______________________________________________________________
June 14, 2016 8
Step 2Make sure that WiFi device on your phone has connected to a target AP with internet
access.

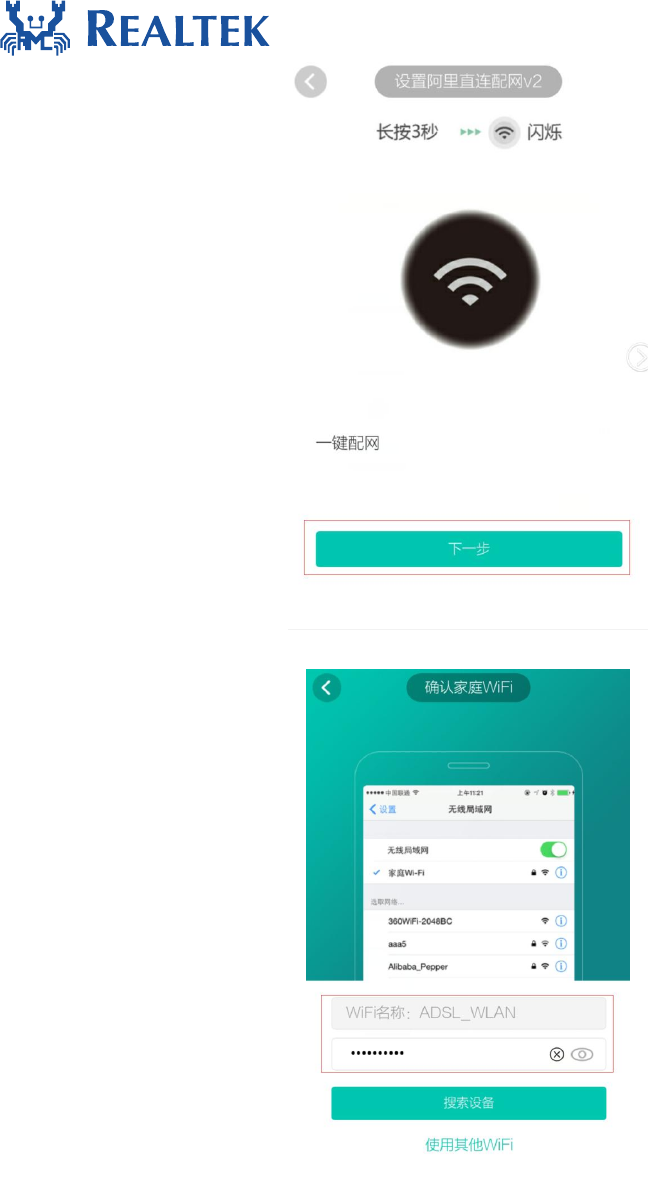

Step 3Open ONEAPK, Add Device=> Search by category => Device classes, find the entry of
One key configure network.
Then clicknext stepbutton to enter configure AP interface
_______________________________________________________________
June 14, 2016 9

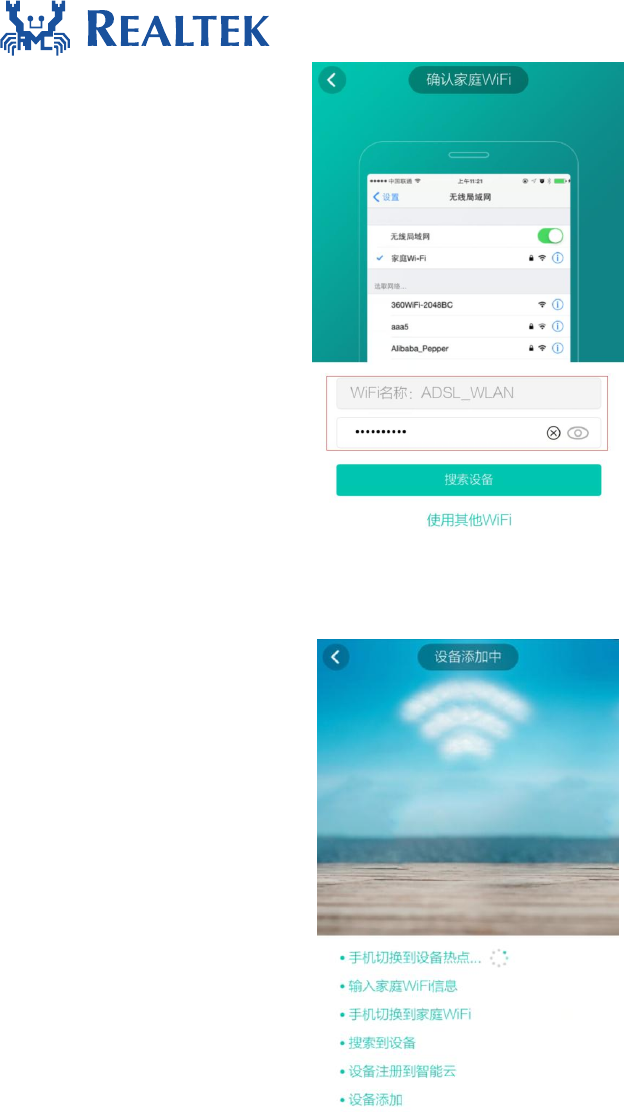

Input the right passphrase of the target AP
Click “search for devicesbutton to start configuration
_______________________________________________________________
June 14, 2016 10

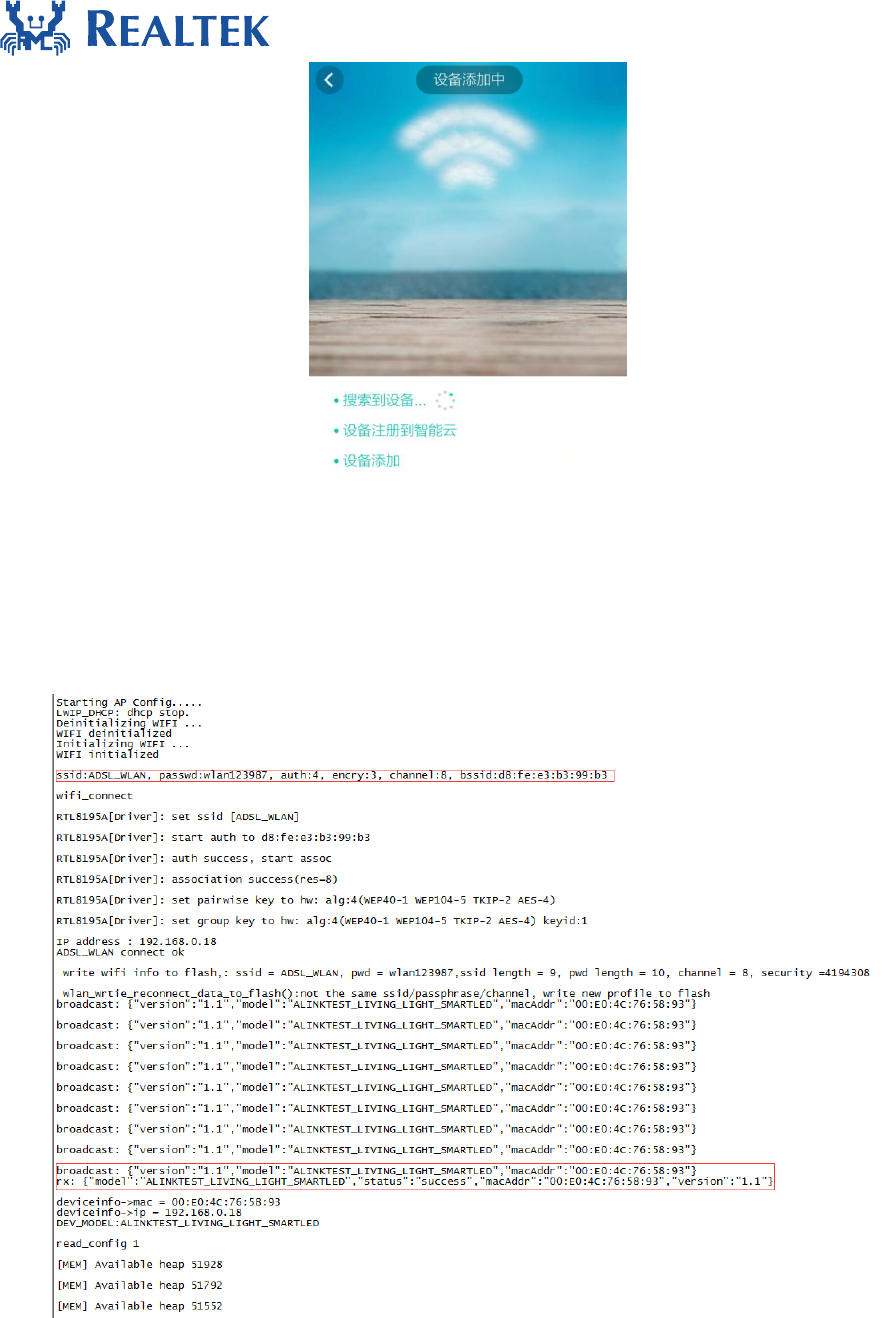

Step 4After a few seconds, ameba will get the target AP’s profile and connect to the target
AP. After link built and IP address gotten, ameba and smart phone will exchange UDPs to
discover each other and complete binding process. Then ameba will register to Ali cloud.
_______________________________________________________________
June 14, 2016 11

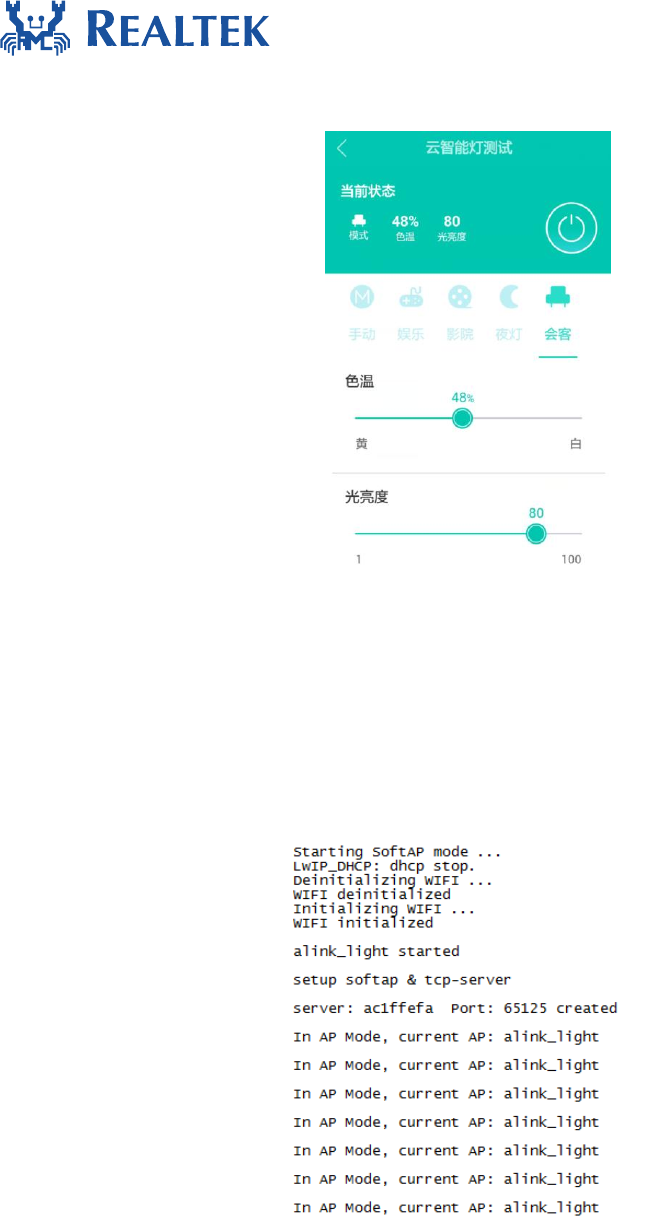

Step 5If the smart device registers to smart cloud successfully, the smart phone ONEAPK will
automatically jump to the following page, then you can control your smart device now.
3.2 Soft AP configuration
Step 1Power on your smart device (ameba development board).After about one minute, it
will leave One-key configuration mode and enter Soft AP configuration mode which means the
smart device will enter Soft AP mode, broadcast itself with the SSID alink_* and create a TCP
server waiting TCP client in.
Step 2Make sure that WiFi device on your phone has connected to a target AP with internet
access.
_______________________________________________________________
June 14, 2016 12
Step 3Open ONEAPK, Add Device=> Search by category => Device classes, find the entry of
Soft AP configure network.
Click confirm the device into the SoftAP configure network state button to enter configure
AP interface.
Input the right passphrase for the target AP.
_______________________________________________________________
June 14, 2016 13
Click “search for devicesbutton to start configuration.
After doing this, ONEAPK will make its Wi-Fi link with the Soft AP and connect to the TCP server
as a TCP client. Then the smart phone will transfer the target APs profile to the smart device
through the TCP connection.
_______________________________________________________________
June 14, 2016 14

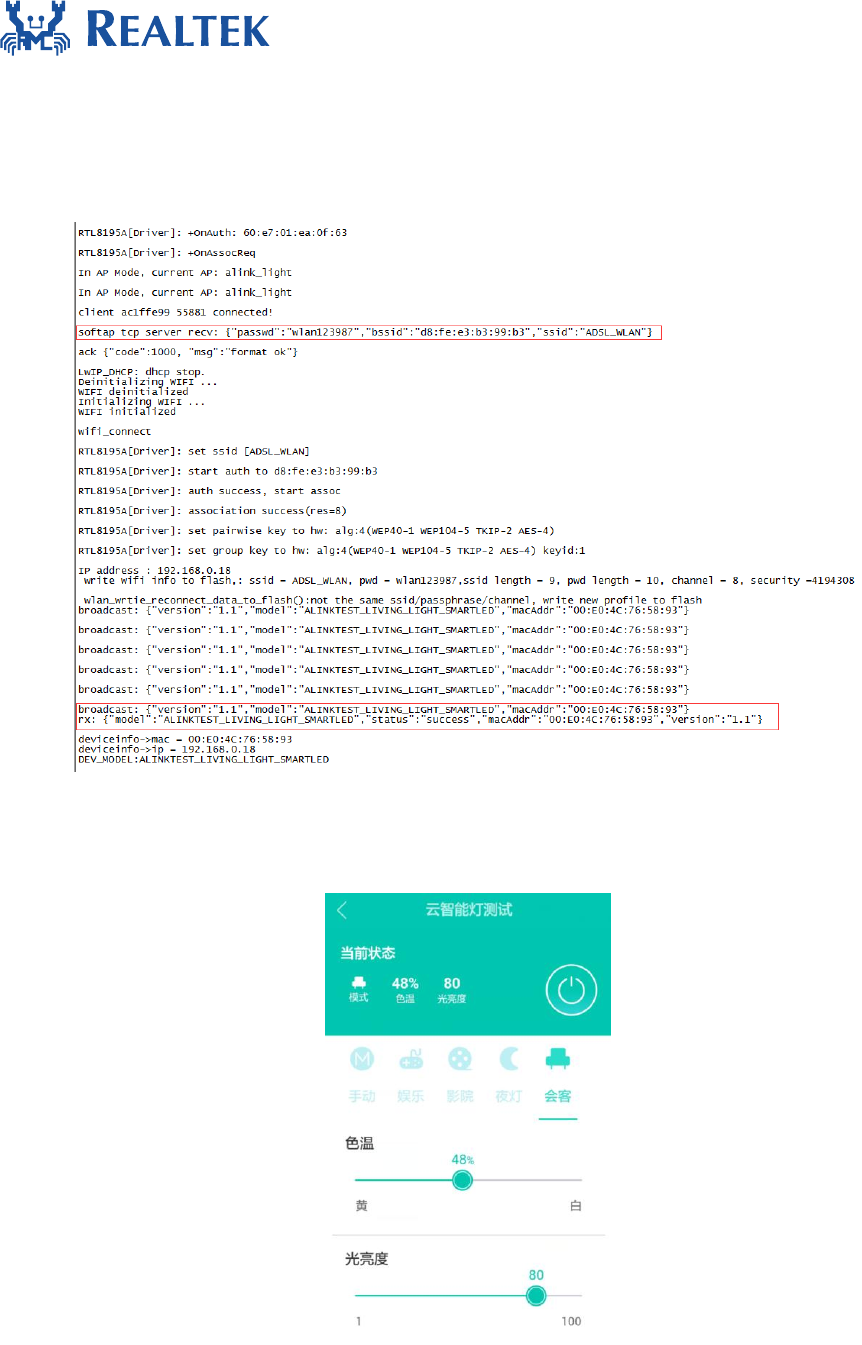

Step 4: The smart device switches to STA mode and try to link with the target AP. After link
built and IP address got, the smart device will send broadcast UDP to declare successful
connection and the smart phone will acknowledge a unicast UDP to declare the configuration is
successful. Then the smart device will register to Ali cloud.
Step 5If the smart device registers to smart cloud successfully, the smart phone ONEAPK will
automatically jump to the following page, then you can control your smart device now.
_______________________________________________________________
June 14, 2016 15
4 OTA
Over The Air function is achieved to upgrade the new firmware. Here goes an example of OTA
test.

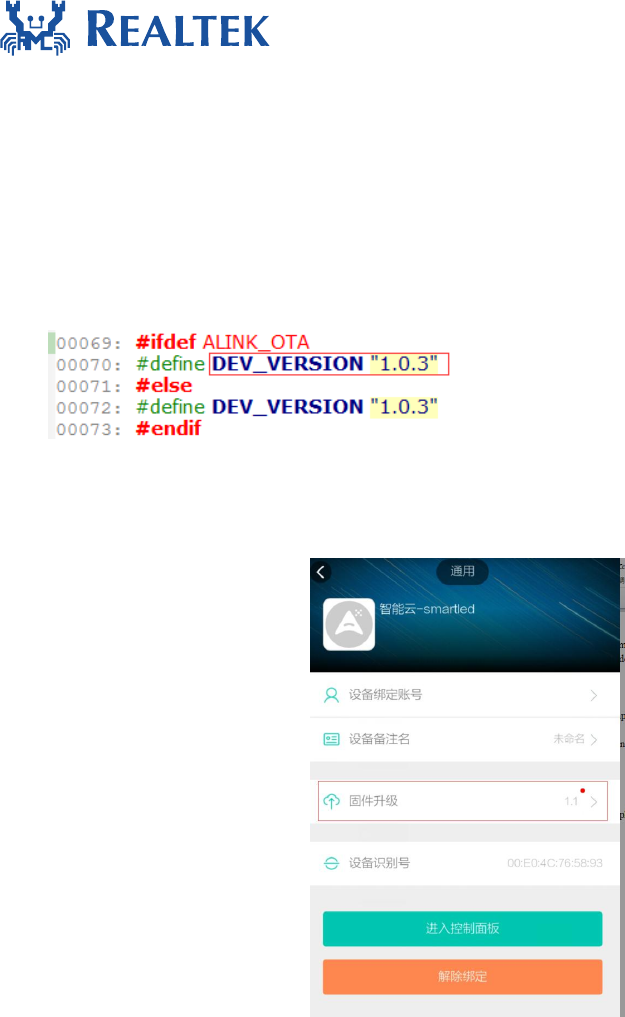

Assume that the current assigned version number running in the smart device is "1.0.3" which
can be modified in alink.c file.
And a new firmware ota.binwith a higher assigned version number "1.1" is placed in Ali cloud
which you can view from ONEAPK->Setting-> Device management -> Current device.
Step 1: Click " firmware upgrade " to jump to the following upgrade page.
_______________________________________________________________
June 14, 2016 16
Step 2Click " upgrade now" to start to download the new firmware.
As device’s serial log shows, it begins to download firmware.
In ONEAPK, it will show the download percentage like this:
_______________________________________________________________
June 14, 2016 17
Step 3After download completed, the device will automatically reboot. The devices serial log
shows as follows.
In ONEAPP, when the progress bar reaches 100%, click "confirm" to finish upgrading firmware.
Then it will jump to the following page, it shows Your smart devices firmware is the newest.
