Supplying a Complete Line of Quality Seals
DEMAND QUALITY…
DEMAND U.S. SEAL MFG.
For Over 50 Years
*US Seal 2010 catalog w cover 9/14/10 2:59 PM Page 1
DEMAND QUALITY… DEMAND U.S. SEAL MFG.
U.S.Seal Mfg. remains the premier supplier of mechanical pump seals and related
products. Our quality products are available through our ever growing network of
domestic and international distributors. Literature downloads are available at
www.ussealmfg.com.
U.S. Seal Mfg. - your single source for all replacement seals for both domestic and
off-shore equipment.
See Inside Cover for Material Code, Head and Mating Ring Types

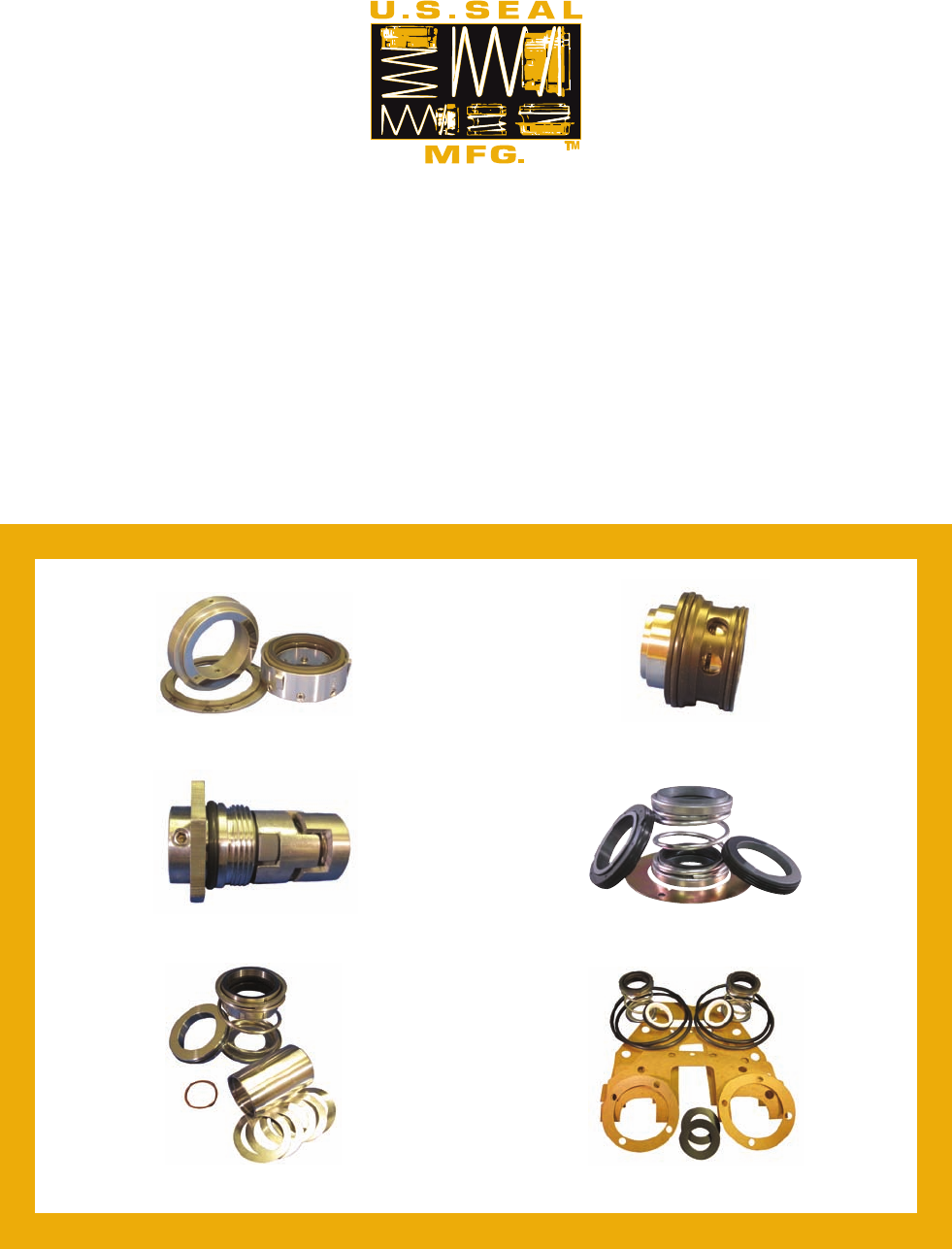

Now Available from U.S. Seal Mfg.
➞
Armstrong Replacement Seals
Grundfos Replacement Seals
Gorman-Rupp Replacement Seals Replacement Seal Kits
Ebara Replacement Seals
Flygt Plug-InTMReplacement Seals
*US Seal 2010 catalog w cover 9/14/10 2:59 PM Page 2
U.S. SEAL MFG. MATERIAL CODE
SECONDARY SEALS PRIMARY RINGS METAL PARTS MATING RINGS SPRINGS
B. Buna A. Bronze D. Brass A. Bronze E. Monel®
N. Neoprene C. Carbon E. Monel G. Cast Iron F. Stainless Steel
Q. EPR H. Glass Filled PTFE F. Stainless Steel J. Ceramic P. Plated Steel
T. PTFE L. Silicon Carbide P. Plated Steel K. Ni-Resist
V
.Viton®M. Molded Plastic L. Silicon Carbide
X. AFLAS®R. Silicon Carbide (CVR) O. Stellite
Y. Kalrez®S. Tooled Steel S. Tooled Steel
Z. Tungsten Carbide Z. Tungsten Carbide
BCFZF
SecondarySeal Primary Ring Metal Parts Mating Ring Spring
(Buna) (Carbon) (Stainless Steel) (Tungsten Carbide) (Stainless Steel)
U.S. SEAL MFG. Head Types
Type A
Equal to:
John Crane Type 6
Type B
Equal to:
John Crane Type 6A
Type C
Equal to:
John Crane Type 21
Type D
Equal to:
John Crane Type 2
Type E
Equal to:
John Crane Type 1
Type K
Equal to:
John Crane Type 21 Dbl.
Type T
Equal to:
John Crane Type 1 Dbl.
Type U
Equal to:
John Crane Type 1 w/Sp. Adpt.
Type V
Equal to:
John Crane Type 8 D
Type R
Equal to:
John Crane Type 2 Dbl.
Type S
Equal to:
John Crane Type 8 Spec
11 27251 2 3 9
Type E Balanced
Equal to:
John Crane Type 1
Balanced
U.S. SEAL MFG. Mating Ring Designs
(Available in a wide variety of materials)
Type G
Equal to:
John Crane Types
2100 & 2106
Type W
Equal to:
John Crane Types 9 & 9T
Type Q
Equal to:
John Crane Type 11A
Type X
Equal to:
John Crane Types 8-1 & 8-1T
5 28
AFLAS®is a registered trademarkof Asahi Glass Co., Ltd.
Kalrez®is a registered trademark of DuPont Performance Elastomers, LLC
Viton®is a registered trademark of DuPont Performance Elastomers, LLC
Monel®is a registered trademarkof Special Metals Corporation
Cup Mtd. L-Shaped O-Ring
8
Shaft
Mounted Floating Clamped-In
(Full) IMO Style
Shaft
Mounted
Shaft
Mounted
Square
Cross-Section
*US Seal 2010 catalog w cover 9/14/10 2:59 PM Page 3
SECONDARY SEAL TEMPERATURE LIMITS
ASpring Holder
BSpring
CRubber Bellows
DDisc
•SELF ALIGNING
• COMPLETELY ASSEMBLED FOR
EASY INSTALLATION
• EXCEPTIONALLY BROAD
APPLICATION RANGE
• WIDE TEMPERATURE RANGE
EPrimary Ring
FMating Ring Assembly
GRetainer
HDrive Band
TYPICAL TYPE “D”SEAL PARTS
•LOW, MEDIUM OR HIGH
PRESSURE APPLICATIONS
• AVAILABLE FOR STANDARD
OR LIMITED GLAND DEPTHS
• AUTOMATIC COMPENSATION FOR
MATING RING WEAR AND SHAFT
END PLAY
DESIGN AND CONSTRUCTION FEATURES
AFLAS®+450°F Buna +225°F EPR +300°F Neoprene +175°F Viton®+400°F
ABC D E
F
G
H
*US Seal 2010 catalog w cover 9/14/10 2:59 PM Page 4
U.S. Seal Mfg. - Quality Mechanical Seals . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2
Features of Seal Types A - X . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3
Seal Sizing Guide . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4
Inch and Metric Conversion Chart . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5
Pump Manufacturers’ Cross-Reference . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6-83
Dimensional Cross-Reference . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .84-129
Commercial Appliance Replacement Seals . . . . . . . . . . . . . . . . . . . . . . . . . . . .130-131
Choose the Right Seal For Your Pool & Spa Pump . . . . . . . . . . . . . . . . . . . . . . . . . .132
SCS Series - Silicon Carbide Seals for Pool & Spa Pumps . . . . . . . . . . . . . . . . . . . .133
Aquascape Pump Replacement Seals . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .133
Pool & Spa Pump Replacement Seals . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .134-136
Material Recommendation Chart .....................................137-141
Seal Installation Instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .142
Identifying Causes of Seal Leakage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .143
Warranty . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .143
Replacement Seal Kits . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .144-147
Value Guard - Inch Sizes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .148-153
Armstrong Replacement Seals . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .154
Bell & Gossett Replacement Seals . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .154
Gorman-Rupp Replacement Seals . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .155
Value Guard - Metric Sizes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .156-165
Grundfos Replacement Seals . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .166-167
Flygt Replacement Seals . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .168-170
Flygt Plug-In™ Replacement Seals . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .171
Metric Seal Designs for Submersible Pumps . . . . . . . . . . . . . . . . . . . . . . . . . . .172-173
Honda Trash Pump Replacement Seals . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .174
Roto-Jet Replacement Seals . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .174
Smith & Loveless Replacement Seals . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .174
Travaini Replacement Seals . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .175
Labyrinth Seals . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .176
Cyclone Abrasive Separators . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .177
Packing - Includes Packing, PTFE Lantern Ring Strip and Tools . . . . . . . . . . . .178-183
U.S. SEALUBE - Seal Installation Lubricant . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .184
Premium Seal Index . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .185-204
Unable to Find the Seal You Require? Need To Send A Sample? . . . . . . . . . . . . . . .205
1
HOW TO USE THIS CATALOG
Using the Pump Manufacturers’
Cross-Reference (Pages 6-83),
identify the correct replacement
seal for the pump manufacturers’
part number.
Locate the needed shaft size,
then the head and mating ring type.
Cross-reference with the material
code to obtain the correct U.S. Seal
Mfg. part number.
If part number is not found, refer to
the Seal Sizing Guide onPage 4.
With this information, turn to the
Dimensional Cross-Reference
section (Pages 84-129).
CONTENTS PAGE
*US Seal 2010 catalog w cover 9/14/10 2:59 PM Page 5
2
Our seals are designed to give long life, provide automatic self-adjustment
and reduce maintenance costs. Additionally, mechanical seals offer these
important advantages.
ABSOLUTE SEALING
Proper selection and installation of our seals results in less pumpage loss,
cleaner facilities, less fire hazard, no danger from fumes and no contamination
of the fluid being pumped.
NO RUBBING FRICTION BETWEEN SHAFT AND SEAL PARTS
Replace packing with a mechanical seal and avoid expensive shaft or sleeve
replacements.
FLEXIBLE SEALS MEANS LONGER SERVICE LIFE
Compared to packing, mechanical seals are more flexible, and are able to
compensate for shaft deflection, axial and radial end play, vibration and seal
face wear.
LESS FRICTION MEANS VALUABLE POWER SAVINGS
Mechanical seals use less friction than packing. Therefore, they require less
horsepower consumption.
PRECISION LAPPED SEALING SURFACES
Positively control leakage and eliminate “break in” runs.
HIGHER SPEEDS AND PRESSURES
Our seals are designed for higher speeds and pressures.
FLAT SURFACES OF MATING FACES
Sealing surfaces are precision lapped to a flatness of one to three light
bands, which maintains the necessary face film lubrication, resulting in
positiveleakage control.
BROAD SELECTION OF MATERIALS OF CONSTRUCTION
Our seals come in a wide variety of materials. Choose the correct
combination of elastomer,metallurgy and sealing faces for your application.
See pages 137-141 for the Material Recommendation Chart.
U.S. SEAL MFG.
Quality Mechanical Seals
MECHANICAL SEALS CAN BE FOUND IN …
•Centrifugal Pumps •Pool and Spa Pumps
• Compressors • Progressive Cavity Pumps
• Gear Boxes • Rotary Lobe Pumps
• Gear Pumps • Slurry Pumps
• Jet Pumps • Submersible Pumps
•Petrochemical Pumps •Turbine Pumps
*US Seal 2010 catalog w cover 9/14/10 2:59 PM Page 6

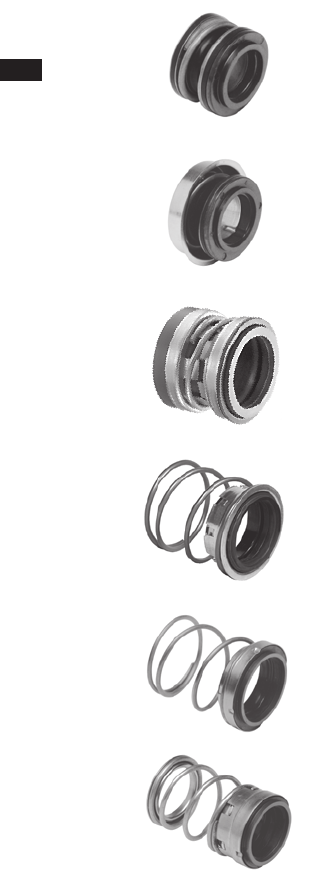

FEATURES OF SEAL TYPES A, B, C, D, E, G, Q, W, X
TYPE A (Shaft Diameters 5/16" through 1")
FEATURES: Compact, unitized, single spring, elastomer bellows seal. The factory-assembled, one piece design
permits fast, easy installation and the full-convolution elastomer bellows provide maximum flexibility in compensating
for shaft movement and wear.
SERVICES: Centrifugal water pumps, deep and shallow well jet pumps, swimming pool pumps and wastewater
pumps. Pressures to 75 PSI. Temperature: -40°F to +400°F.
TYPE B (Shaft Diameters 3/8" through 1")
FEATURES: Afull-convolution elastomer bellows provide maximum flexibility in compensating for shaft movement
while torsional stress on the bellowsis controlled by a dent and grove positive drive arrangement.
SERVICES: Small centrifugal water pumps, submersible pumps and swimming pool pumps.
Pressures to 75 PSI. Temperature: -40°F to +400°F.
TYPE C (Shaft Diameters 5/16" through 5-1/2")
FEATURES: Elastomer bellows seal, non-clogging, single coil spring, The drive band’s notch design eliminates
overstressing of the bellows.
SERVICES: Centrifugal, hydraulic, rotary and turbine pumps, compressors, mixers, blenders and chillers.
Pressures to 150 PSI. Temperature: -40°F to +400°F.
TYPE D, E (Shaft Diameters 1/2" through 5-1/2")
FEATURES: Self adjusting elastomer bellows compensate for abnormal shaft end play
and primary face sealing wear. Effects of radial and axial shaft end play are minimized by
uniform spring pressure.
Positivedriveis transmitted through the drive band and drive notches, which absorb
breakout and running torque. Damaging stresses on the elastomer bellows are prevented.
Slippage is eliminated, thus protecting shaft and sleeveagainst wear and scoring. The
result is long seal life.
The seal’s large single-coil spring is much sturdier than a multiple spring construction design. The spring is non-clogging, self-cleaning and
will not foul up due to fluid contact. Corrosion and clogging problems are eliminated.
SERVICES: Used throughout industry in all types of rotary shaft equipment such as pumps, mixers, blenders, agitators and compressors.
Seals can be used in an extremely wide range of services from water and steam to chemicals and corrosives.
Pressures to 350 PSI. T
emperature: -40°Fto +425°F
Balanced Seals - Pressures to 1200 PSI. Temperature: -40°F to +450°F (dependent upon sealed fluid, RPMs, seal size, and seal face materials)
TYPE G (Shaft Diameters 7/16" through 1")
FEATURES: Acompact unitized single spring elastomeric bellows shaft seal. Innovative full convolution bellows
and interlocking drive band design allows for positive drive and greater tolerance to misalignment. Interference fit of
primary ring insures positivedrivewhile avoiding high face distortions associated with crimped designs.
SERVICES: Small centrifugal pumps used in Pool & Spa, Well Water, & HVAC applications.
Pressures to 150 PSI. Temperature -20°F to +300°F.
TYPE Q (Shaft Diameters1/2" through 2 -1/4")
FEATURES: Press fitted, rubber diaphragm protects metal components, spring loaded
SERVICES: Icemaker and appliance applications, general purpose food service.
Pressures to 30 PSI. Temperature -40°F to +400°F.
TYPE W (Shaft Diameters 1/2" through 6")
FEATURES: Multi Spring, PTFE wedge design for use in extreme temperatures / chemical applications.
Unitized construction. Also available in a balanced design
SERVICES:
Corrosive fluid applications, extreme temperatures. Pressures to 350 PSI. Temperature -75°F to
+
500°F.
TYPE X (Shaft Diameters 1/4" through 6")
FEATURES: Multi Spring, O-ring design, unitized construction, flexible design compensates for shaft
misalignment for high performance and longer seal life. Also available in a balanced design.
SERVICES: Wide usage in chemicals and corrosives.Pressures to 350 PSI. T
emperature -20°Fto +400°F.
TYPE D TYPE E
3
*US Seal 2010 catalog w cover 9/14/10 2:59 PM Page 7
4
SEAL SIZING GUIDE
1.Remove seal to be replaced from shaft and/or sleeve.
2. Make note of materials used for the old seal parts using U.S. Seal Mfg. Material Code found on the front cover fold-out.
3. Identify Head type (see front cover fold-out.) Use caliper to measure inside diameter (ID) and outside
diameter (OD)
SEAL HEADS – TYPE A and B
Identify seal head type - Determine Shaft Size:
Measure the inside diameter (ID) (dimension A)
Measure the outside diameter (OD) (dimension B)
The operating height is generally the same for all A and B seals
ofthe same shaft size. More positive identification will result from
calculating the mating ring dimensions below. If unable to positively
identify the seal, consult U.S. Seal Mfg.
SEAL HEADS – TYPE C, D and E
Identify seal head type - Determine Shaft Size:
Measure ID of the bellows (dimension A) as installed in the seal head.
Add approximately .016" additional for rubber squeeze.
Measure the head OD (dimension B)
Step 1. Measure the total free length (dimension C) of the rotating
portion of the assembled seal. (Do not include the mating ring).
Step 2. Disassemble seal and measure the free length of the spring
(dimension D).
Step 3. Takehalf of the measurement obtained in step 2.
Step 4. Subtract the figure obtained in step 3 from the
measurement (dimension C) in step 1. The result is the approximate
operating height of the seal.
SEAL HEADS – TYPE K, Rand T
Identify seal head type - Determine Shaft Size:
Measure the inside diameter of the bellows (dimension A).
Add approximately .016" additional for rubber squeeze.
Measure the head OD (dimension B)
Calculate the operating height of the seal as follows:
Step 1. Measure the total length of the rotating seal (dimension C).
(Not compressed).
Step 2. Multiply the total length (dimension C) by .73. The result is
the approximate operating height of the seal.
MATING RING and GASKET
Identify the mating ring design from those shown on inside of front cover.
Measure OD of the gasket while assembled on mating ring and subtract
approximately .016"additional for rubber squeeze to obtain counterbore
dimension (dimension D).
Measure the combined insert and gasket width (dimension E).
Use the Dimensional Cross Reference by Shaft Size guide
(pgs. 84-129) to find the part number of the seal you need, start
with Shaft Size and find the line in the tables that matches
the dimensions and material code.
MATING RING
COUNTER-
BORE (D)
EMATING RING
THICKNESS (E)
TYPE A TYPE B
SEAL
OD (B) SHAFT
SIZE (A)
SEAL
OD (B) SHAFT
SIZE (A)
TYPE C, D, and E
SPRING LENGTH (D)
TOTAL LENGTH (C)
(NOT COMPRESSED)
SHAFT
SIZE (A)
SEAL
OD (B)
BACK
FRONT
TYPE K, R, and T
SHAFT
SIZE (A)
SEAL
OD (B)
TOTAL LENGTH (C)
(NOT COMPRESSED)
*US Seal 2010 catalog w cover 9/14/10 2:59 PM Page 8
INCH AND METRIC CONVERSION CHART
5
Fraction Decimal MM Fraction Decimal MM MM Inches MM Inches
1/64 .0156 0.397 33/64 .5156 13.097 .1 .0039 46 1.811
1/32 .0312 0.794 17/32 .5312 13.494 .2 .0079 47 1.850
3/64 .0468 1.191 35/64 .5468 13.891 .3 .0118 48 1.889
1/16 .0625 1.588 9/16 .5625 14.288 .4 .0157 49 1.929
5/64 .0781 1.984 37/64 .5781 14.684 .5 .0197 50 1.968
3/32 .0937 2.381 19/32 .5937 15.081 .6 .0236 51 2.007
7/64 .1099 2.778 39/64 .6093 15.478 .7 .0276 52 2.047
1/8 .1250 3.175 5/8 .6250 15.875 .8 .0315 53 2.086
9/64 .1406 3.572 41/64 .6406 16.272 .9 .0354 54 2.126
5/32 .1562 3.969 21/32 .6562 16.669 1 .0394 55 2.165
11/64 .1718 4.366 43/64 .6718 17.066 2 .0787 56 2.204
3/16 .1875 4.763 11/16 .6875 17.463 3 .1181 57 2.244
13/64 .2031 5.159 45/64 .7031 17.859 4 .1575 58 2.283
7/32 .2187 5.556 23/32 .7187 18.256 5 .1969 59 2.322
15/64 .2343 5.953 47/64 .7343 18.653 6 .2362 60 2.362
1/4 .2500 6.350 3/4 .7500 19.050 7 .2752 61 2.401
17/64 .2656 6.747 49/64 .7656 19.447 8 .3150 62 2.440
9/32 .2812 7.144 25/32 .7812 19.844 9 .3543 63 2.480
19/64 .2968 7.541 51/64 .7968 20.241 10 .3937 64 2.519
5/16 .3125 7.938 13/16 .8125 20.638 11 .4331 65 2.559
21/64 .3281 8.334 53/64 .8281 21.034 12 .4724 66 2.598
11/32 .3437 8.731 27/32 .8437 21.431 13 .5118 67 2.637
23/64 .3593 9.128 55/64 .8593 21.828 14 .5512 68 2.677
3/8 .3750 9.525 7/8 .8750 22.225 15 .5906 69 2.716
25/64 .3906 9.922 57/64 .8906 22.622 16 .6299 70 2.755
13/32 .4062 10.319 29/32 .9062 23.019 17 .6693 71 2.795
27/64 .4218 10.716 59/64 .9218 23.416 18 .7087 72 2.834
7/16 .4375 11.113 15/16 .9375 23.813 19 .7480 73 2.874
29/64 .4531 11.509 61/64 .9531 24.209 20 .7874 74 2.913
15/32 .4687 11.906 31/32 .9687 24.606 21 .8268 75 2.952
31/64 .4843 12.303 63/64 .9843 25.003 22 .8661 76 2.992
1/2 .5000 12.700 1 1.000 25.400 23 .9055 77 3.031
24 .9449 78 3.070
25 .9843 79 3.110
26 1.023 80 3.149
27 1.063 81 3.189
28 1.102 82 3.228
29 1.141 83 3.267
30 1.181 84 3.307
31 1.221 85 3.346
32 1.259 86 3.385
33 1.299 87 3.425
34 1.338 88 3.464
35 1.378 89 3.503
36 1.417 90 3.543
37 1.456 91 3.582
38 1.496 92 3.622
39 1.535 93 3.661
40 1.574 94 3.700
41 1.614 95 3.740
42 1.653 96 3.779
43 1.692 97 3.818
44 1.732 98 3.858
45 1.771 99 3.897
100 3.937
See Pages 156-165 for Metric Seal Selection
*US Seal 2010 catalog w cover 9/14/10 2:59 PM Page 9
U.S. Seal Mating Mating Shaft Material
Part No. Head Ring Ring OD Dia. Code Notes Pump Nameplate Data Mfg. Part No.
PUMP MANUFACTURERS’ CROSS-REFERENCE
6
ABS USA
PS-851 A 1 1.375 3/4 BCFJF 11107939
PS-446 C 1 2.500 1-3/4 BCFJF 11116013
PS-267 C 1 2.750 2 BCFJF 11116014
PS-1679 C 1 3.125 2-1/4 BCFJF 11116015
PS-2116 C 3 3.875 3 BCFJF 11116016
A-C PUMP (Div. of ITT INDUSTRIES)
PS-150 B — — 1/2 BMF-F
PS-200 A 1 1.250 5/8 BMFJF Model C1 Close Coupled Pumps 52-104-969-803
Types: CR, DDH, DG, DGH, HH, HHS 52-104-969-813
R, RH, RHS, RS, WH 52-104-969-823
PS-507V- A 3 1.250 5/8 VCFKF I 52-115-403-801
P66
PS-642 B — — 5/8 BMF-F 52-105-071-801
PS-447V- B 8 — 5/8 VCFJF A/I 52-114-660-803
P66
PS-118 C 1 1.187 5/8 BCFJF
PS-359 C 1 1.250 5/8 BCFJF 52-104-945-804
PS-7689 C 1 1.250 5/8 QCFKF I 52-126-378-801
PS-735 D 3 1.250 5/8 BCDJF 52-104-945-805
PS-647 B — — 3/4 BMF-F
PS-358 C 1 1.375 3/4 BCFJF
PS-750 D 1 1.375 3/4 BCDJF
PS-703 D 1 1.500 7/8 BCDJF
PS-360 A 1 1.625 1 BCFJF 52-104-969-806
52-104-969-816
PS-357 C 1 1.625 1 BCFKF 52-113-094-802
PS-460 D 1 1.625 1 BCFKF 52-104-945-804
PS-754 E 1 1.625 1 BCFJF
PS-937 E — — 1 BCF-F 52-110-870-809
PS-557 E 3 1.625 1 BCFJF 52-104-870-809
PS-754V E 3 1.625 1 VCFJF 52-116-831-801
52-116-831-804
PS-276 T 1 1.625 1 BCFJF 52-105-275-808
PS-277 T1 1.625 1 BCFKF 52-105-275-858
T9-1000 WT — — 1 TCF-F 316SS 52-108-896-803
PS-355 C11.750 1-1/8 BCFKF 52-104-946-803
PS-348 C — — 1-1/8 BCF-F
PS-605 D 1 1.750 1-1/8 BCFKF 52-104-945-803
PS-204 E11.750 1-1/8 BCFJF SJH, Size 3 x 2-1/2, 2-1/2 x 2 08-216-526-001
PS-867 E 3 1.750 1-1/8 BCFKF 52-104-870-806
PS-185 C 1 1.875 1-1/4 BCFJF 52-113-592-801
PS-2122 C 1 1.875 1-1/4 BCFJF 52-114-901-807
PS-756 C 1 1.875 1-1/4 BCFKF
PS-598 C 3 1.875 1-1/4 BCFKF
PS-466 C12.000 1-1/4 BCFJF
PS-2230 C 3 2.000 1-1/4 BCFJF Series 2000
PS-1018 C 3 2.000 1-1/4 BCFKF Series 2000 52-118-510-801
PS-1018- C3 2.000 1-1/4 QCFKF I 52-126-211-801
EPR-P66
PS-2200 C 3 2.000 1-1/4 VCFKF I 52-114-659-808
PS-1015 E — — 1-1/4 BCF-F 52-110-870-807
PS-361 E 1 1.875 1-1/4 BCFJF Model C16 with 215T & 52-104-609-817
Smaller Frame Motors 52-105-609-813
F2L-1, F2L-3, F2L-5 and F2L-6 52-114-605-805
PS-137 E 1 1.875 1-1/4 BCFKF 52-106-609-813
52-106-609-817
PS-108 E1 1.875 1-1/4 NCPKP 52-105-383-807
PS-546 E 3 1.875 1-1/4 BCFJF 52-104-870-807
52-114-890-807
PS-2211 T 3 1.875 1-1/4 BCFJF 52-105-275-801
PS-177 C 1 2.000 1-3/8 BCFJF MAXEAL®-V 52-115-605-801
Sizes 6x4x12, 8x5x12, 8x6x12
PS-2134 C12.000 1-3/8 BCFJF 52-121-998-801
NOTE:
A. MOUNTS ON SHAFT
I. ABRASION RESISTANT CARBON (P66)
*US Seal 2010 catalog w cover 9/14/10 2:59 PM Page 10
7
NOTE:
PUMP MANUFACTURERS’ CROSS-REFERENCE
I. ABRASION RESISTANT CARBON (P66)
A-C PUMP (Div. of ITT INDUSTRIES) (continued)
PS-210 C 1 2.000 1-3/8 BCFKF Custom V 52-114-713-801
PS-1667 C 1 2.000 1-3/8 BCFKF Series 8000 52-117-036-801
PS-1667- C 1 2.000 1-3/8 QCFKF I 52-126-489-801
EPR-P66
PS-210V- C 3 2.000 1-3/8 VCFKF I 52-114-659-801
P66
PS-4087 E — — 1-3/8 VCF-F 316SS 52-118-671-802
52-118-671-803
PS-354 E 1 2.000 1-3/8 BCFJF SS-HH, SS-DH, SS-L, SS-CH 52-111-322-801
PS-677 E 1 2.000 1-3/8 BCFKF 52-105-382-801
PS-677V E 3 2.000 1-3/8 VCFKF 52-118-679-801
T9-1375 WT — — 1-3/8 TCF-F 316SS 52-118-672-802
PS-758 C 1 2.125 1-1/2 BCFJF 52-112-870-801
PS-553 C 3 2.125 1-1/2 BCFKF 52-118-591-001
PS-382 D 1 2.125 1-1/2 BCFJF 52-104-945-801
52-104-945-806
PS-371 D 1 2.125 1-1/2 BCFKF 52-101-848-082
52-104-946-801
PS-314 E 3 2.000 1-1/2 BCFJF Type-SH 4 x 3 08-301-766-066-04
PS-316 E 3 2.000 1-1/2 BCFKF 4 x 2-1/2 SKH 08-301-766-020-36
PS-4088 E Bal. 3 2.000 1-1/2 QCFJF I 52-161-209-801
PS-238 C 1 2.375 1-5/8 BCFJF 52-110-870-811
52-114-043-805
PS-239 C 1 2.375 1-5/8 BCFKF 52-118-511-002
52-118-512-002
PS-2202 C 3 2.625 1-5/8 BCFJF Series 2000 52-119-056-802
PS-1019 C 3 2.625 1-5/8 BCFKF Series 2000 52-118-510-802
PS-2201 C 3 2.625 1-5/8 QCFKF I 52-126-211-802
PS-4288 C 3 2.625 1-5/8 QCFZF 52-126-874-801
PS-609 E 1 2.312 1-5/8 BCDJF Type-KSH 08-303-611-07-001
08-306-539-015-03
52-115-315-801
PS-281 R 3 2.375 1-5/8 BCDKF
PS-446 C1 2.500 1-3/4 BCFJF MAXEAL®-V Series 5000 52-115-605-802
PS-2135 C 1 2.500 1-3/4 BCFJF 52-121-998-802
PS-1674 C 1 2.500 1-3/4 BCFKF Series 8000 52-117-036-802
PS-1674- C 1 2.500 1-3/4 QCFKF I 52-126-489-802
EPR-P66
PS-436V-C32.500 1-3/4 VCFKF I 52-114-659-802
P66
PS-2109 E — — 1-3/4 BCF-F 52-110-870-802
PS-317 E 1 2.487 1-3/4 BCFJF 5 x 5 KSG 08-303-611-07-004
PS-205 E12.500 1-3/4 BCFJF MAXEAL VII®C16, C17S,F2-2 08-212-616-001
F2-5, F2-8, F2L-2, and F2L-4
PS-366 E 1 2.500 1-3/4 BCFKF 52-110-871-802
PS-535 E 3 2.500 1-3/4 BCFJF 52-104-870-802
52-122-588-806
52-104-870-802
PS-262 E 3 2.500 1-3/4 BCFKF 52-114-890-802
PS-1197 K 1 2.500 1-3/4 BCFKF
PS-1608 C 1 2.625 1-7/8 BCFKF 52-114-713-805
PS-2114 C 3 2.625 1-7/8 BCFJF 52-122-693-805
52-127-471-805
PS-312- C 3 2.625 1-7/8 QCFKF I 52-126-488-801
EPR-P66
PS-2069 E12.625 1-7/8 BCFJF 3x2MM-2
PS-2070 E 1 2.625 1-7/8 BCFKF 3 x 2 MM-2 08-301-766-02-065
PS-2071 E3 2.625 1-7/8 BCFJF 52-122-588-814
PS-7884 E Bal. 3 2.500 1-7/8 BCFKF 52-121-754-802
PS-318 K12.625 1-7/8 BCFJF Models: NSW, NSWV 52-110-280-03-801
PS-1693 K 1 2.625 1-7/8 BCFKF 52-110-280-801
PS-7352 K 1 2.625 1-7/8 BCFKF 52-110-280-807
PS-1105 V 25 2.640 1-7/8 BMFJF Model F7N-2, 4 x 4 x 11
U.S. Seal Mating Mating Shaft Material
Part No. Head Ring Ring OD Dia. Code Notes Pump Nameplate Data Mfg. Part No.
*US Seal 2010 catalog w cover 9/14/10 2:59 PM Page 11
U.S. Seal Mating Mating Shaft Material
Part No. Head Ring Ring OD Dia. Code Notes Pump Nameplate Data Mfg. Part No.
PUMP MANUFACTURERS’ CROSS-REFERENCE
NOTE:
I. ABRASION RESISTANT CARBON (P66)
8
A-C PUMP (Div. of ITT INDUSTRIES) (continued)
PS-2133 C 1 2.750 2 BCFJF 52-119-056-803
52-121-998-803
PS-267 C 1 2.750 2 BCFJF 52-122-693-807
PS-1017 C 1 2.750 2 BCFKF Series 8000 52-117-036-803
PS-1017- C 1 2.750 2 BCFZF 52-161-177-803
TC-SEAT
PS-3674 C 1 2.750 2 QCFKF I 52-126-489-803
PS-3580 C 1 2.750 2 QCFZF I 52-126-872-803
PS-1020 C 3 3.000 2 BCFKF Series 2000 52-118-510-803
PS-1020- C 3 3.000 2 QCFKF I Series 2000 52-126-211-803
EPR-P66
PS-2112 E — — 2 BCF-F 52-110-870-803
52-110-871-803
PS-2112V E — — 2 VCF-F 316SS 52-115-539-803
PS-319 E 1 2.687 2 BCFJF MAXEAL®VII Series 2000 52-115-315-803
08-212-617-001
PS-478 E 1 2.687 2 BCFKF MAXEAL®VII and KS
PS-530 E 3 2.750 2 BCFJF 52-104-870-803
52-116-823-810
PS-477 E 3 2.750 2 BCFKF 52-123-692-801
PS-477V E 3 2.750 2 VCFKF 52-115-946-803
PS-477V- E 3 2.750 2 VCFZF 52-115-720-807
TC-SEAT
PS-1040 K 3 2.750 2 BCFKF 52-237-862-801
PS-7196V K 3 2.750 2 VCFJF 52-237-862-802
PS-1687 D 1 3.000 2-1/8 BCFKF 52-104-945-802
FA-3502 E — — 2-1/8 BCF-F 316SS 52-129-173-802
PS-327 E 3 3.000 2-1/8 BCFJF 52-129-172-801
PS-1678 C 3 3.125 2-1/4 BCFJF 52-122-693-804
PS-323 E 1 3.125 2-1/4 BCDJF CUSTOM Vll, KS, C17, 8 x 8 SH 08-216-036-001
PS-351 E 1 3.125 2-1/4 BCDKF 08-630-132-009
PS-849 E 3 3.125 2-1/4 BCDKF 52-104-870-804
PS-1688 E 3 3.125 2-1/4 BCFJF 52-122-588-808
PS-351V E 3 3.125 2-1/4 VCDKF 52-114-660-804
PS-279 E33.375 2-1/2 BCFJF Model F2-6
PS-349 E 3 3.375 2-1/2 BCFKF 52-104-870-805
PS-349V E 3 3.375 2-1/2 VCFKF 52-115-946-804
PS-836 C 3 3.500 2-3/4 BCFJF 52-122-693-806
PS-483 C 3 3.500 2-3/4 BCFKF 52-114-713-804
PS-483- C 3 3.500 2-3/4 QCFKF I 52-126-488-803
EPR-P66
PS-838 E 3 3.500 2-3/4 V/BCFJF 08-210-902-045
52-114-890-810
52-115-315-805
PS-321 E 3 3.500 2-3/4 V/BCFKF CUSTOM Vll 08-216-035-001
52-104-870-808
PS-321V E33.500 2-3/4 VCFKF 52-114-660-805
PS-7936 E 3 3.500 2-3/4 VCFZF 316SS 52-121-756-805
PS-322 K 3 3.500 2-3/4 BCFKF NSWG, NSWV, Series 300 52-109-719-802
PS-324 E 3 3.875 3 BCDJF 12 x 12 SD 08-210-902-04-037
PS-2141 K33.875 3BCFKF 52-237-805-801
PS-2141- K 3 3.875 3 BLFLF 52-237-805-808
SC-SC
PS-6228 K3 3.875 3 VCFJF 52-237-805-803
PS-7244 K 3 4.125 3-1/4 BCFKF 52-237-806-801
PS-4113 T34.375 3-1/2 BCFKF 52-115-082-801
PS-8028 X 3 4.750 3-7/8 VCFKF I 08-217-897-801
PS-2140 K 3 6.000 5 BCFKF 52-115-055-801
52-238-383-801
ACE ENGINEERING
PS-633 C 1 1.250 5/8 BCFKF 1743-2CS
PS-112 C 1 1.375 3/4 BCFKF 2043-3CS
*US Seal 2010 catalog w cover 9/14/10 2:59 PM Page 12
U.S. Seal Mating Mating Shaft Material
Part No. Head Ring Ring OD Dia. Code Notes Pump Nameplate Data Mfg. Part No.
9
ACE PUMP CORP.
PS-100 A 1 1.187 5/8 BMFJF ACH-25, 33, 50, 75, 100, ACL-75
ACO & BCH-25, 33, 50, 75
PS-953 A 1 1.187 5/8 BCFJF 30210F
PS-447V B 8 — 5/8 VCFJF A 80040F, ECL-7SG
PS-4114 B 8 1.109 5/8 Special Z-ECL-7V
PS-202 B 11 — 5/8 BMFJF A BAC-7B / 40110
PS-202V B 11 — 5/8 VCFJF A BAC-7V-40151F
BAC-7VC
BAC-7VT-40150
PS-800 C 1 1.156 5/8 BMFJF H
PS-1016 C 1 1.187 5/8 N/BCFJF B
PS-1091 C 1 1.187 5/8 VCFJF 30240F
PS-102 D 1 1.250 5/8 BCDKF
PS-851 A 1 1.375 3/4 BCFJF ACH-150,200,300 & 500, ACX-H150 30220F
BCH-100, 200, 300
PS-752 D 1 1.375 3/4 BCDKF
PS-360 A 1 1.625 1 BCFJF BCH-300, 500, 750, 1000
Models 100S, 133S, 150S, 175S
PS-360V- A 1 1.625 1 VCFJF 42120F, GE-7-V
CMS
PS-185V- C 1 1.875 1-1/4 VCFJF 30265F
CMS
PS-185V- C 1 1.875 1-1/4 VLFLF 30266F
SC-SC
PS-185V C 3 1.875 1-1/4 VCFJF BAC-7-750V, BAC-7-850V
ACURA SPA SYSTEMS, INC.
PS-601 B1 1.375 3/4 BMFJF
Aquaheat, Aquaheat Plus,Magnaflow,1090-A
Magnaflow 56, Maverick, Supercharger,
Supercharger II
ADAMATION, INC.
PS-3401 Q 9 — 1 NMDKF A 75-7050-020
PS-758 C 1 2.125 1-1/2 BCFJF 55-6301-364-6193
ADVANCED PROCESS TECHNOLOGY, INC.
PS-112V C 3 1.375 3/4 VCFKF 90551
PS-756V C3 1.875 1-1/4 VCFKF 90119
ADVANTAGE ENGINEERING, INC.
PS-552 C 3 1.250 5/8 BCFJF 6480000
PS-552- C 3 1.250 5/8 QCFJF I 6491000
EPR-P66
PS-633V- C 3 1.250 5/8 VCFKF I 6490000, 6495301
P66
PS-598- C 3 1.875 1-1/4 QCFKF 6495612
EPR
PS-553 C 3 2.125 1-1/2 BCFKF 6480000
PS-4361 C 3 2.500 1-3/4 BCFKF 6480005
AERMOTOR PUMPS
PS-100 A 1 1.187 5/8 BMFJF 17038
PS-200 A 1 1.250 5/8 BMFJF SJ-45
PS-274 E11.250 5/8 BCDJF
PS-487 E 1 1.250 5/8 BCDKF
PS-201 A11.375 3/4 BMFJF SJ-47
PS-275 C 1 1.375 3/4 BCFJF
AGCHEMICAL EQUIPMENT
PS-202V B 11 — 7/8 VCFKF A 000015
PS-360V- A 1 1.625 1 VCFJF GL-7V
CMS
PS-235 C11.625 1 BCFJF BM-7274
PS-235V C 3 1.625 1 VCFJF 9MFP, 16PK, CC1-1/2, CC 2-3 BM-7274X
PUMP MANUFACTURERS’ CROSS-REFERENCE
NOTE:
A. MOUNTS ON SHAFT
B. TAPERED SPRING
H. SPRING HOLDER NOT INCLUDED
I. ABRASION RESISTANT CARBON (P66)
*US Seal 2010 catalog w cover 9/14/10 2:59 PM Page 13
U.S. Seal Mating Mating Shaft Material
Part No. Head Ring Ring OD Dia. Code Notes Pump Nameplate Data Mfg. Part No.
PUMP MANUFACTURERS’ CROSS-REFERENCE
10
AG CHEMICAL EQUIPMENT (continued)
PS-756V C 3 1.875 1-1/4 VCFKF 703225
PS-3940 C 3 1.875 1-1/4 VRFLF 513745, 513747
PS-466 C 1 2.000 1-1/4 BCFJF BM-7275
PS-466V C 1 2.000 1-1/4 VCFJF BM-7275X
AIR-O-LATOR CORP.
PS-618 C 3 1.875 1-1/4 BCFJF 37SM-125CC
PS-598- C 3 1.875 1-1/4 BLFLF 37SM-125SC
SC-SC
PS-816 C 3 2.125 1-1/2 BCFJF 37SM-150CC
PS-553- C 3 2.125 1-1/2 BLFLF 37SM-150SC
SC-SC
PS-2217 C 3 2.125 1-1/2 BZFZF 37SM-150TC
PS-550 C 3 2.500 1-3/4 BCFJF 37SM-175CC
PS-436- C 3 2.500 1-3/4 BLFLF 37SM-175SC
SC-SC
PS-436- C 3 2.500 1-3/4 BZFZF 37SM-175TC
TC-TC
PS-532 C 3 2.750 2 BCFJF 37SM-200CC
ALCO
PS-832 D 3 2.750 2 BCDKF Models 244D and 539 2250033-2, 5250013-3
ALLIED PUMP CORP.
PS-507 A 1 1.250 5/8 BMFKF
ALLIS CHALMERS (See A-C PUMP)
AMERICAN DISH SERVICE
PS-162 A 1 1.000 1/2 BMFJF
AMERICAN MACHINE AND TOOL CO. (AMT)
PS-200 A 1 1.250 5/8 BMFJF MS-626V
PS-200V- A 1 1.250 5/8 VCFJF 1640-161-91
CMS
PS-642 B — — 5/8 BMF-F
PS-933V C — — 5/8 VCF-F 1646-005-0
PS-201 A1 1.375 3/4 BMFJF MS-756-B
PS-348V C — — 1-1/8 VCF-F 1645-000-00
PS-356 C1 1.750 1-1/8 BCFJF 287-15A/B
AMERICAN-MARSH PUMPS
PS-633V C31.250 5/8 VCFKF 890031
PS-112V C 3 1.375 3/4 VCFKF 890004
PS-687V C 3 1.500 7/8 VCFKF 890036
PS-185 C 1 1.875 1-1/4 BCFJF 10-1400-02
PS-756 C 1 1.875 1-1/4 BCFKF 890003
PS-2208 C 1 1.875 1-1/4 BZFZF 10-1400-02S4
PS-185V- C 1 1.875 1-1/4 VCFJF 800-011-869
CMS
PS-756V C 3 1.875 1-1/4 VCFKF 890044
PS-758 C12.125 1-1/2 BCFJF 10-1401-01
PS-446 C 1 2.500 1-3/4 BCFJF 10-1402-00
PS-267 C1 2.750 2 BCFJF 10-1403-09
PS-267V C 3 2.750 2 VCFJF 890023
AMERICAN PRODUCTS
PS-150 B——1/2 BMF-F
PS-1000 B11.250 5/8 BMFJF Americana II®,Bronze-Bronze®397012
Eagle®Maxim, Power-Glass®,Ultra-Flo®397020
PS-201 A 1 1.375 3/4 BMFJF Americana®,Bronze-Noryl®395005
AMPCO PUMPS CO.
PS-359V- C 1 1.250 5/8 VCFJF GS625002
CMS
PS-633V- C 1 1.250 5/8 VCFKF GS625003
CMS
*US Seal 2010 catalog w cover 9/14/10 2:59 PM Page 14
U.S. Seal Mating Mating Shaft Material
Part No. Head Ring Ring OD Dia. Code Notes Pump Nameplate Data Mfg. Part No.
11
NOTE:
PUMP MANUFACTURERS’ CROSS-REFERENCE
A. MOUNTS ON SHAFT
G. MOUNTS IN PLASTIC
I. ABRASION RESISTANT CARBON (P66)
AMPCO PUMPS CO. (continued)
PS-357 C 1 1.625 1 BCFKF GS5009976
PS-356V- C 1 1.750 1-1/8 VCFJF GS1125008
CMS
PS-7908 C 1 1.875 1-1/4 BCFJF 316SS/I GS4810341, GS5097400
PS-756 C 1 1.875 1-1/4 BCFKF GS5009974
PS-756- C 1 1.875 1-1/4 QCFKF GS8105960
EPR
PS-
2122V-
C 1 1.875 1-1/4 VCFJF GS8106850
CMS
PS-3543 C 1 2.375 1-5/8 VCFZF 316SS/I GS5098409
AMPRO-DIACLEAR
PS-163 B 1 1.000 1/2 BMFJF Dia Cast, Lexan®-200 Series AP-504D
PS-1000 B 1 1.250 5/8 BMFJF Dura-Flo®,Noryl®Turbo, XL 600 AP-304D
ANTHONY
PS-100 A 1 1.187 5/8 BMFJF 04547
PS-1000 B 1 1.250 5/8 BMFJF 04380
A.O. SMITH CORP.
PS-162 A 1 1.000 1/2 BMFJF 55831, 64135
PS-506 A 1 1.000 1/2 BMFKF 9708-1, 9708-4
PS-752 D 1 1.375 3/4 BCDKF
APOLLO DENTAL PRODUCTS, INC.
PS-218 A — — 5/8 BCF-F MMS71110
AQUA-CHEM
PS-358 C 1 1.375 3/4 BCFJF 925-7520
PS-235 C 1 1.625 1 BCFJF 925-7526
PS-251 E 3 1.625 1 BCFKF 925-7509
PS-618 C 3 1.875 1-1/4 BCFJF 925-7563
PS-177 C 1 2.000 1-3/8 BCFJF 925-7523
PS-2114 C 3 2.625 1-7/8 BCFJF 925-7562
AQUA-FLO
PS-2131 A 1 — 5/8 BMFJF G Flo-Master®,Tub-Master®91049000
PS-200 A 1 1.250 5/8 BMFJF Circ-Master®,Dominator®–High Head 92500150
Dominator®–Medium Head, Flo-Master®92500151
Pond-Flo, Tub-Master®
PS-200V-A1 1.250 5/8 VCFJF 92500152
CMS
PS-642 B — — 5/8 BMF-F
PS-1021 B 8 — 5/8 BMFJF A K-81159 PU10
PS-1000 B 1 1.250 5/8 BMFJF A, B, and D-Series 92509040
A, C, and D-Series, Dominator®92500050
High and Medium head – pre 1995
PS-201 A 1 1.375 3/4 BMFJF
PS-309 C 1 1.500 7/8 BCFJF AC Series 92500000
PS-361 E1 1.875 1-1/4 BCFJF
ARBEE CORP.
PS-235 C11.625 1 BCFJF
PS-351 E 1 3.125 2-1/4 BCDKF
ARDE BARINCO, INC.
PS-3765 K 1 3.000 2-1/8 VCFRF A63-18V
ARMSTRONG PUMPS, INC. (For Additional Listings - See Page 154)
PS-8066
XSpecial
1 .864 1/4 QCFLF Gemini / 10 180200-277, 880200-277
PS-401A C 1 .938 1/2 BCFJF 816549-091
PS-3844 C1.938 1/2 BCFJF 816706-001, 816706-002
816706-021, 916706-021
PS-392 C 1 .938 1/2 B/QMFJF 816032-000
PS-3843 C 1 .938 1/2 VCFJF 116706-021,116706-023
816706-003, 816706-004
816706-023, 916706-023
*US Seal 2010 catalog w cover 9/14/10 2:59 PM Page 15
U.S. Seal Mating Mating Shaft Material
Part No. Head Ring Ring OD Dia. Code Notes Pump Nameplate Data Mfg. Part No.
ARMSTRONG PUMPS, INC. (continued) (For Additional Listings - See Page 154)
PS-359V- C 1 1.250 5/8 VCFJF 810134-000, 910134-000
CMS
PS-358V C 3 1.375 3/4 VCFJF 816707-001, 816707-002
PS-750- D 1 1.375 3/4 BCDJF I 116707-001
P66
PS-752 D 1 1.375 3/4 BCDKF
PS-750V- D 1 1.375 3/4 VCDJF I 116707-003, 116707-004
CMS-P66
PS-750V D 3 1.375 3/4 VCDJF 816707-003
PS-8006 XB2 27 2.375 1-1/8 VCFJF 316SS 975002-003
PS-3029 C 1 1.750 1-1/4 BCFJF B 975000-958
PS-979 C 1 1.750 1-1/4 BCFKF B
PS-185- C 1 1.875 1-1/4 QCFJF I 975000-991
EPR-P66
PS-618- C 3 1.875 1-1/4 QCFJF I 810150-125
EPR-P66
PS-2203 C 3 1.875 1-1/4 QCFKF I
PS-3023 D 1 1.875 1-1/4 QCFLF I 975000-981, 975000-982
9975000-981
PS-976 D 1 1.750 1-1/4 BCFJF 825458-001
PS-977 D 1 1.750 1-1/4 BCFKF
PS-517 D 3 1.875 1-1/4 BCFKF 810150-137
PS-517- D 3 1.875 1-1/4 BCFZF 810150-133
TC-SEAT
PS-383V D 3 1.875 1-1/4 VCFKF 810150-127
PS-3030 C 1 2.375 1-5/8 QCFJF I 975000-993
PS-7017 C 3 2.375 1-5/8 QCFKF I 975000-961
PS-514 D 1 2.375 1-5/8 BCDJF
PS-461 D 1 2.375 1-5/8 BCDKF
PS-3025 D 1 2.375 1-5/8 QCFLF I 975000-983, 975000-984
9975000-983
PS-8040 XB2 27 2.843 1-5/8 VCFJF 316SS 975000-956, 975002-033
PS-205 E 1 2.500 1-3/4 BCFJF 425920-001
PS-338- C 3 3.000 2-1/8 QCFJF 975000-997, 9975000-997
EPR
PS-543V C 3 3.000 2-1/8 VCFKF D101166-108
PS-3035 D 1 3.000 2-1/8 QCFLF I 975000-987, 975000-985
9975000-987
PS-8035 XB2 27 3.375 2-1/8 VCFJF 316SS 975000-957, 975002-073
PS-853 C 3 3.375 2-1/2 BCFKF E Model 4600 12x10x12.5 D101166-010
ARNESON PRODUCTS, INC.
PS-200 A11.250 5/8 BMFJF Pool Sweep A-8
ASTRAL POOL
PS-200 A 1 1.250 5/8 BMFJF Sena Series 1800
PS-1000 B 1 1.250 5/8 BMFJF Sena Series 1600
ATLANTIC FLUIDICS (Div. of TUTHILL VACUUM SYSTEMS)
PS-1000 B11.250 5/8 BMFJF
PS-601 B 1 1.375 3/4 BMFJF
PS-356 C 1 1.750 1-1/8 BCFJF
PS-185 C1 1.875 1-1/4 BCFJF
PS-177 C 1 2.000 1-3/8 BCFJF
AURORA PUMP (For Replacement Seal Kits - See Page144)
PS-7520 C 1 1.250
.590 (15MM)
VCFKF I 712-6444-749
PS-129 D 1 1.250
.590 (15MM)
BCFJF #4 Series Pump 712-0703-754
PS-1675 D 1 1.250
.590 (15MM)
BCFKF 14AS114ABF 712-0703-752
PS-100 A 1 1.187 5/8 BMFJF 712-7042-750
PS-2204 A 1 1.250 5/8 VCFZF 712-2042-767
PS-290 C11.250 5/8 BCFJF BJ, BJH, BJV, 712-1003-753
BJF w/Motors thru3/4 HP 1750 RPM
Thru 1-1/2 HP 3500 RPM
PS-633 C 1 1.250 5/8 BCFKF 712-1003-749
NOTE:
PUMP MANUFACTURERS’ CROSS-REFERENCE
B. TAPERED SPRING
E. LOCK COLLAR SOLD SEPARATELY
I. ABRASION RESISTANT CARBON (P66)
12
*US Seal 2010 catalog w cover 9/14/10 2:59 PM Page 16
13
U.S. Seal Mating Mating Shaft Material
Part No. Head Ring Ring OD Dia. Code Notes Pump Nameplate Data Mfg. Part No.
AURORA PUMP (continued) (For Replacement Seal Kits - See Page 144)
PS-358 C 1 1.375 3/4 BCFJF BJ, BJH, BJV,
BJF W/Motors 1HP 1750 RPM Up
2HP 3500 RPM Up.
Types: GAPB, GAHA, GAFA, GAVA
Models: GA-4, 5, 6, 7 and 9.
PS-2229 C 1 1.375 3/4 BCFKF 712-1004-749
PS-7843 C 1 1.375 3/4 VCFJF 712-1004-764
712-1004-769A
PS-2229V- C 1 1.375 3/4 VCFKF I 712-1004-745
P66
PS-752 D 1 1.375 3/4 BCDKF 712-0705-755
PS-135 D 1 1.500
.787 (20MM)
BCDJF #5 Series Turbine Pump 712-0707-752
712-0707-754
PS-614 D 1 1.500
.787 (20MM)
BCDKF 712-0707-755
PS-3900 D 1 1.625 1 BCDKF I 712-6452-755
PS-380 D 1 1.625 1 BCFJF 712-0709-754
PS-460- D 1 1.625 1 BCFKF I 712-0709-755
P66
PS-356 C 1 1.750 1-1/8 BCFJF
BC, BCH, BCV, BCF
712-0907-753
and GBH w/Frames 56 thru 256U.
Type: GBHA & GBVA w/Mtr. Frs. 143T, 145T,
182T & 184T. Type: GBPA w/Power Frame 1.
Type OJ Power Series, 2 x 2 1/2 x 9-10-12
PS-355- C 1 1.750 1-1/8 BCFKF I 712-0907-749
P66
PS-7325
C 1 1.750 1-1/8 QCFZF 712-0907-769
PS-356V- C 1 1.750 1-1/8 VCFJF 712-0907-764
CMS
PS-355V- C 1 1.750 1-1/8 VCFKF 712-0907-745
CMS
PS-801 C 3 1.750 1-1/8 BCFJF 712-2732-753
PS-2226 C 3 1.750 1-1/8 QCFZF I 712-0937-769
PS-384 E 1 1.750 1-1/8 BCFKF 712-0454-749
PS-867 E 3 1.750 1-1/8 BCFKF 712-0354-756
PS-136 D 1 1.875
1.181 (30MM)
BCDJF #6 Series Turbine Pump 712-0713-754
PS-1179- D 1 1.875
1.181 (30MM)
BCDKF I 712-0713-755
P66
PS-1179V- D 1 1.875
1.181 (30MM)
VCDKF I 712-0713-774
P66
PS-3938 D 1 1.875
1.181 (30MM)
VCFZF I 712-0713-727
PS-306 E11.875 1-3/16 BCDJF GGU, KCM, KCMF, KGG, KU, KUF 712-0305-754
PS-185 C1 1.875 1-1/4 BCFJF 712-0908-753
PS-137 E 1 1.875 1-1/4 BCFKF GMC & GAC 712-0306-755
PS-758 C 1 2.125 1-1/2 BCFJF BC,BCH,BCV &GBH W/Motor Frame 712-1010-753
284U & Up. GBHA & GBVA W/Motor Frame
213T & Up. OJ Power Series #2.
PS-2232 C 1 2.125 1-1/2 BCFKF I 712-0910-759
PS-2209 C 1 2.125 1-1/2 BZFZF 712-0910-678
PS-7632 C 1 2.125 1-1/2 QCFZF I 712-0910-769
PS-659V- C 1 2.125 1-1/2 VCFKF I 712-0910-745
CMS-P66
PS-7747 C 1 2.125 1-1/2 VCFZF I 712-0910-767
PS-553 C3 2.125 1-1/2 BCFKF 712-0940-749
PS-758V C 3 2.125 1-1/2 VCFJF 712-0910-764
PS-382 D 1 2.125 1-1/2 BCFJF 712-0718-754
PS-305 E 1 2.125 1-1/2 BCFJF
PS-7933 E 1 2.125 1-1/2 QCFZF I 712-0409-769
PS-395 E 3 2.125 1-1/2 BCFJF 712-0459-753
PS-258 E 3 2.125 1-1/2 BCFKF 712-0359-753
712-0359-764
PS-7562 E 3 2.125 1-1/2 QCFZF I 712-0359-769
PS-4368 E5 2.125 1-1/2 QCFZF I 712-1432-769
PS-664 E 3 2.375 1-9/16 BCDJF 712-0310-754
PS-446 C 1 2.500 1-3/4 BCFJF Type OJ Power Series #3 712-1012-753
NOTE:
PUMP MANUFACTURERS’ CROSS-REFERENCE
I. ABRASION RESISTANT CARBON (P66)
*US Seal 2010 catalog w cover 9/14/10 2:59 PM Page 17
U.S. Seal Mating Mating Shaft Material
Part No. Head Ring Ring OD Dia. Code Notes Pump Nameplate Data Mfg. Part No.
NOTE:
PUMP MANUFACTURERS’ CROSS-REFERENCE
I. ABRASION RESISTANT CARBON (P66)
14
AURORA PUMP (continued) (For Replacement Seal Kits - See Page 144)
PS-448- C 1 2.500 1-3/4 BCFKF I 712-1012-749
P66
PS-446V- C 1 2.500 1-3/4 VCFJF 712-1012-764
CMS
PS-4153 C 1 2.500 1-3/4 VCFJF 316SS
PS-448V- C 1 2.500 1-3/4 VLFLF 712-1012-576
SC-SC
PS-436- C 3 2.500 1-3/4 BCFKF I 712-1042-749
P66
PS-7035 C 3 2.500 1-3/4 QCFZF I 712-1042-769
PS-366- E 1 2.500 1-3/4 BCFKF I 712-0412-749
P66
PS-7736 E 1 2.500 1-3/4 QCFZF I 712-0412-769
712-0462-769
PS-366V- E 1 2.500 1-3/4 VCFKF I 712-0412-745
CMS-P66
PS-535 E 3 2.500 1-3/4 BCFJF 712-0462-753
PS-4429 E 5 2.500 1-3/4 BCFZF I 712-1433-747
PS-4372 E 5 2.500 1-3/4 QCFZF I 712-1433-769
PS-267 C 1 2.750 2 BCFJF Type OJ Power Series #4 712-1014-753
PS-842- C 1 2.750 2 BCFKF I 712-1014-749
P66
PS-2219 C 1 2.750 2 BZFZF 712-1014-678
PS-267V- C 1 2.750 2 VCFJF 712-1014-764
CMS
PS-842V- C 1 2.750 2 VCFKF I 712-1014-745
P66-CMS
PS-332 C 3 2.750 2 BCFKF 712-1044-749
PS-3708 E 1 2.750 2 BCFZF I 712-1434-747
PS-479V E 3 2.750 2 VCFJF
PS-1678 C 3 3.125 2-1/4 BCFJF
PS-7766 K 3 3.125 2-1/4 BCFJF 712-6478-753
PS-7060 K 3 3.281 2-1/4 BCFKF I 712-6410-749
PS-268- C 1 3.250 2-3/8 BCFJF 712-1017-753
CMS
PS-492- C 1 3.250 2-3/8 BCFKF I 712-0917-749
CMS-P66 712-2717-749
PS-268 C 3 3.250 2-3/8 BCFJF Type OJ Power Series #5 712-1047-753
PS-492 C33.250 2-3/8 BCFKF 712-1047-749
PS-492- C 3 3.250 2-3/8 BCFKF I 712-1017-749
P66
PS-268V C 3 3.250 2-3/8 VCFJF I 712-1047-764
PS-4006 E1 3.250 2-3/8 BCFZF I 712-1435-747
PS-278 E 3 3.250 2-3/8 BCFJF 712-0467-753
PS-350 E 3 3.250 2-3/8 BCFKF 712-0462-756
712-0467-756
PS-278V E33.250 2-3/8 VCFJF 712-0467-764
PS-269 C 3 3.375 2-1/2 BCFJF SPHER-Flo Series 4A-4B 712-1012-739
712-1048-753
PS-3924 E 3 3.250 2-1/2 BCFJF 712-6390-756
PS-279 E3 3.375 2-1/2 BCFJF 712-0468-753
PS-349 E 3 3.375 2-1/2 BCFKF 712-0468-756
PS-349- E 3 3.375 2-1/2 BCFKF I 712-0468-755
P66
PS-2205- E 3 3.375 2-1/2 QCFKF I
EPR
PS-1695 K 3 3.375 2-1/2 BCFKF 712-2743-749
PS-270 C 3 3.750 2-7/8 BCFJF Type OJ Power Series #6
PS-841- E33.750 2-7/8 BCFKF I 712-0471-755
P66
PS-2116 C 3 3.875 3 BCFJF 712-7010-739
PS-3836 U 3 3.875 3 BCFJF 712-7038-753
PS-3553 T 3 4.781 3-5/8 BCFKF I 712-6415-749
*US Seal 2010 catalog w cover 9/14/10 2:59 PM Page 18
U.S. Seal Mating Mating Shaft Material
Part No. Head Ring Ring OD Dia. Code Notes Pump Nameplate Data Mfg. Part No.
15
NOTE:
PUMP MANUFACTURERS’ CROSS-REFERENCE
B. TAPERED SPRING
H. SPRING HOLDER NOT INCLUDED
I. ABRASION RESISTANT CARBON (P66)
AURORA PUMP (continued) (For Replacement Seal Kits - See Page 144)
PS-8054 V 3 4.781 3-5/8 BCFKF I 712-6416-749
PS-272 C 3 4.625 3-3/4 BCFJF 5C, 5D
PS-4414 V 3 6.781 5 BCFKF 712-6421-749
AUTOMATIC ICE & BEVERAGE
PS-6312 Q Special 1.625 1 BMD/PAP 9121026-91
BAKER-HYDRO (Div. of WATERCO USA)
PS-200 A 1 1.250 5/8 BMFJF 35B1178
PS-3985 B 1 1.375 3/4 BCFJF 634016
BAKER MFG. CO.
PS-1050 C — — 1/2 BCF-F E93B
PS-1050V C — — 1/2 VCF-F E93V
PS-933V C — — 5/8 VCF-F
PS-732 C 3 1.250 5/8 BCFKF F18AM, F18 AMP
PS-208 C — — 7/8 BCF-F H93B
PS-617 C 3 1.500 7/8 BCFKF H18AM, H18AMP
PS-309V C 3 1.500 7/8 VCFJF H18FMV
PS-687V C 3 1.500 7/8 VCFKF H18BMV, H18BMVF
H18BMVP
PS-4318 D 3 1.500 7/8 NCFLF H18MNN
BALDWIN-LIMA-HAMILTON (PATERSON PUMP CO.)
PS-371 D 1 2.125 1-1/2 BCFKF 600-28-267
PS-288 D1 2.500 1-3/4 BCDKF 600-28-284
BALTIMORE AIRCOIL CO.
PS-299 A — — 5/8 BMF-F 300329
PS-974 A — — 3/4 BCF-F 300331
BALZER, INC.
PS-618 C 3 1.875 1-1/4 BCFJF 33013
PS-598- C 3 1.875 1-1/4 BLFLF 36755
SC-SC
BANJO CORP.
PS-3985 B 1 1.375 3/4 BCFJF 12713BN, 12733BN
PS-4056 B 1 1.375 3/4 QCFJF 12713, 12733
PS-3986 B11.375 3/4 VCFJF 12713V,12733V
PS-601V B 3 1.375 3/4 VCFJF 127135
PS-3785 C 1 1.625 1 VCFJF 17035, 17135
PS-3959 K 1 1.625 1 VCFJF 17235
PS-3813 C 1 2.125 1-1/2 VCFJF B/H 18025, 18125
BARNARD-LEAS MFG.
PS-200V A 3 1.250 5/8 VCFJF 5-0-17
BARNES, JOHN S.
PS-400 C — — 1/2 BMF-F PA-4947
PS-933 C — — 5/8 BCF-F PA-2408
PS-508 D 1 1.250 5/8 BCDJF 5080
PS-358 C11.375 3/4 BCFJF 3SE2042L 67562
PS-578 D — — 7/8 BCD-F PA-2421
PS-397 C — — 1 BCF-F PA-1525
PS-348 C——1-1/8 BCF-F PA-4386
PS-383 D 1 1.875 1-1/4 BCFKF Y-42
PS-461 D 1 2.375 1-5/8 BCDKF Y-45
PS-223 D — — 1-7/8 BCD-F PA-3684
BEACH RUSS
PS-400 C — — 1/2 BMF-F
PS-678 K — — 5/8 BCF-F
PS-564 C——3/4 BCF-F
PS-145 K — — 3/4 BCF-F
PS-141 R — — 1 BCF-F
PS-185 C 1 1.875 1-1/4 BCFJF
*US Seal 2010 catalog w cover 9/14/10 2:59 PM Page 19
U.S. Seal Mating Mating Shaft Material
Part No. Head Ring Ring OD Dia. Code Notes Pump Nameplate Data Mfg. Part No.
NOTE:
PUMP MANUFACTURERS’ CROSS-REFERENCE
B. TAPERED SPRING
I. ABRASION RESISTANT CARBON (P66)
16
BELL & GOSSETT (Div. of ITT CORP.) (For Additional Listings - See Page 154)
PS-8066 Special 1 .864 1/4 QCFLF 189144
PS-400A — 1 .938 1/2 B - - J - 118619
PS-401 C — — 1/2 BCF-F 118614
PS-400 C — — 1/2 BMF-F Cast Iron 3/4 thru 3 PZ-3118, 118680
Booster Pumps Type: E and H1 PZ-4118
Type: E1, 1-1/4, 1-1/2HV
PS-401A C 1 .938 1/2 BCFJF For PD-35, PD-37 Series 1522 Kit #3, 186681
PS-393 C 1 .938 1/2 BMFKF
PS-392 C 1 .938 1/2 B/QMFJF Bronze 3/4 thru 3 Boosters BPD 35, Kit #7,189102, 189182
BPD 37-Series 1522-PD 35 & PD 37 Kit 118681, 3TC29
-Series 60AA 1522 Cast Iron 200AB-F58
PS-7712 C 1 1.125 1/2 BMFJF Kit #20
PS-4349 G 1 .938 1/2 QLFLF P86261
PS-516 A 1 1.250 5/8 BCFJF DP0304
PS-200 A 1 1.250 5/8 BMFJF 180013
PS-118 C 1 1.187 5/8 BCFJF 186879
PS-359 C 1 1.250 5/8 BCFJF 180014
PS-2160 C 1 1.250 5/8 BCFJF DP0302
PS-399 D — — 3/4 BCD-F PW2Z-3188
P-18008-0601
PS-437 D 1 1.275 3/4 BCDJF 1512-PD-39, BPD-39 and 60A Kit #2, 172553, 185260
186433, 186499
PS-4024 G 1 1.275 3/4 QLFLF P86262
PS-309 C 1 1.500 7/8 BCFJF DP0294
PS-397 C — — 1 BCF-F
PS-235 C 1 1.625 1 BCFJF 180011, 650PF
PS-398 D — — 1 BCF-F PW1Z-4118
PS-348 C — — 1-1/8 BCF-F Universal Straight thru M Type PHD-118A
PS-356 C 1 1.750 1-1/8 BCFJF 180017
PS-3712 D 3 1.750 1-1/8 VCFZF I DP0-476
PS-384 E 1 1.750 1-1/8 BCFKF
PS-978 C 1 1.750 1-1/4 BCFJF B All Iron-Series 1510, 1515, 1531 Kit #4 & 10
(Small Frame) Types M1 and M2 186692,186860, 186862
PS-979 C 1 1.750 1-1/4 BCFKF B Kit #4 & 10
PS-978- C 1 1.750 1-1/4 QCFLF B P75423
EPR-SC
PS-978- C11.750 1-1/4 QCFZF B 186861
EPR-TC
PS-4204 C 1 1.750 1-1/4 QRFLF
PS-978V C 1 1.750 1-1/4 VCFJF B 185060
PS-185- C 1 1.875 1-1/4 BCFJF I P70511
P66
PS-185V-C11.875 1-1/4 VCFJF P70513, 186877
CMS
PS-416 D — — 1-1/4 BCF-F
PS-976 D 1 1.750 1-1/4 BCFJF Series 1510, 1515, 1531 Universal Kit #1, 186680, 185011
(Small Frame) Types M1 and M2
PS-977 D 1 1.750 1-1/4 BCFKF
PS-6261 G 1 1.875 1-1/4 QCFJF 316SS/I P75221
PS-6260 G 1 1.875 1-1/4 QCFZF 316SS/I P75223
PS-6264 G11.875 1-1/4 VCFJF 316SS/I P75225
PS-177 C12.000 1-3/8 BCFJF 52-115-605-801 / DP0298
PS-172 C — — 1-3/8 BCF-F AC5228
PS-172- C — — 1-3/8 BCF-F I P63336
P66
PS-376- D——1-3/8 QCD-F I P63316
EPR-P66
PS-491 D 1 2.000 1-3/8 BCDJF 186827
PS-186 D 1 2.000 1-3/8 BCDKF VSC 4 x 4x 9-3/4, 5 x 5 x 9-3/4, P77084
5 x 5 x 12, 6 x 6 x 9-3/4
PS-7803 D 1 2.000 1-3/8 QCDZF I 186834
PS-186V D 1 2.000 1-3/8 VCDKF
PS-224 E3 2.125 1-1/2 NCFKF
PS-238 C12.375 1-5/8 BCFJF 186544
*US Seal 2010 catalog w cover 9/14/10 2:59 PM Page 20
17
U.S. Seal Mating Mating Shaft Material
Part No. Head Ring Ring OD Dia. Code Notes Pump Nameplate Data Mfg. Part No.
NOTE:
PUMP MANUFACTURERS’ CROSS-REFERENCE
A. MOUNTS ON SHAFT
I. ABRASION RESISTANT CARBON (P66)
*** COMPLETE WITH MATING RING ADAPTOR
BELL & GOSSETT (Div. of ITT CORP.) (continued) (For Additional Listings - See Page 154)
PS-238- C 1 2.375 1-5/8 QCFJF
EPR
PS-4288 C 3 2.625 1-5/8 QCFZF AC3048
PS-514 D 1 2.375 1-5/8 BCDJF Series 1531, 1510 Universal Kit #8
(Large Frame) M2 and C 186543
PS-461 D 1 2.375 1-5/8 BCDKF Kit #8
PS-514- D 1 2.375 1-5/8 QCDZF I 185225
EPR-P66
PS-6262 G 1 2.375 1-5/8 QCFJF 316SS/I P75222
PS-6263 G 1 2.375 1-5/8 QCFZF 316SS/I P75224
PS-2108 C — — 1-3/4 BCF-F AC5229
PS-2108- C — — 1-3/4 BCF-F I P63337
P66
PS-550 C 3 2.500 1-3/4 BCFJF 52-112-693-802
PS-446V C 3 2.500 1-3/4 VCFJF F4992S
PS-237 D 1 2.500 1-3/4 BCDJF 186826
PS-288 D 1 2.500 1-3/4 BCDKF VSC 6 x 6 x 12, 8 x 8 x 10-1/2 &13 P77033
PS-7652 D 1 2.500 1-3/4 QCDZF I 186835
PS-2111 C — — 2 BCF-F AC0642, AC5230
PS-4345 C 3 3.000 2 BCFJF I P70517
PS-3027 C 3 3.000 2 QCFZF AC3049
PS-4357 G 25 2.750 2 QCFLF VSX P5001889
PS-3019 G 25 2.750 2 QLFLF 316SS P5001028
PS-3020 G 3 3.000 2-1/8 QCFJF 316SS P75396
PS-1676 C 3 3.125 2-1/4 BCFKF 52-118-949-802
PS-594 D 3 3.250 2-3/8 BCDKF VSC 10 x 10 x 13, 12 x 12 x 13 P81905
PS-834 D 3 3.250 2-3/8 BCDJF VSC 10 x 10 x 13, 12 x 12 x 13 186828
PS-3804 G 25 3.375 2-1/2 QCFLF VSX P5001891
PS-7909 D 3 3.375 2-5/8 BCFJF I P75572, 185377
PS-328- E 3 3.375 2-5/8 BCFJF I
P66
PS-838 E 3 3.500 2-3/4 V/BCFJF 52-122-588-813
PS-3802 G 3 3.875 3 QCFLF VSX-VSH 18 x 10 x 22A P5001893
PS-3793 G 3 4.375 3-1/2 QCFLF VSX-VSC 14 x 16 x 17 P5001895
BEMATEK SYSTEMS, INC.
PS-2111V C — — 2 VCF-F 20178-P2347
BENNETT PUMPS
PS-400 C— — 1/2 BMF-F 541-M-1003 541-M-1003
PS-157 C — — 3/4 BCF-F 541-M-1001 541-M-1001
BERKELEY (See PENTAIR, INC. for Additional Part Numbers)
PS-516 A 1 1.250 5/8 BCFJF S-20788, S-20789
S-20994
PS-200 A 1 1.250 5/8 BMFJF New Style Mid-Jet S4 Models: HS, S-08019, S-20790
CIMPS,CIMPHS,CIXPS,CIXPRS,
C1-1/4MPS, B1-1/2APKS, D1-1/2MPKS
PS-202 B 11 — 5/8 BMFJF A BM-3081 Mid-Jet 49-53 S-05053, S-05645
B1MRS, B1MRHS, B1XRHS S-16844, S-20900
B1- 1/4MRS, B1-1/2MRS S-20996
PS-202V B 11 — 5/8 VCFJF A S-18150
PS-3960 G 1 1.250 5/8 BCFJF S-08019
PS-851 A 1 1.375 3/4 BCFJF S-20794, S-21961
PS-973 A 1 1.375 3/4 BCFKF S-22380
PS-201 A 1 1.375 3/4 BMFJF New Style: C1-1/2TPLS, C2TPMS, S-05646, S-20791
C2-1/2TPMS,B1-1/2MQKS S-20792, S-21962
C2TPMS, C2-1/2TPMS, B1XQHS
B1-1/4MQS, B1-1/2MQS
PS-921 A 1 1.375 3/4 BMFKF S-20793, S-32280
PS-201V-A11.375 3/4 VCFJF S-18662
CMS
PS-440 B 11 — 3/4 BMFJF A S-20997
PS-7618 B 11 1.375 3/4 BCFJF *** S-06405
PS-750 D11.375 3/4 BCDJF Model 142MPKS, 1-1/2MQKS S-05647
*US Seal 2010 catalog w cover 9/14/10 2:59 PM Page 21
U.S. Seal Mating Mating Shaft Material
Part No. Head Ring Ring OD Dia. Code Notes Pump Nameplate Data Mfg. Part No.
NOTE:
PUMP MANUFACTURERS’ CROSS-REFERENCE
A. MOUNTS ON SHAFT
18
BERKELEY (continued) (See PENTAIR, INC. for Additional Part Numbers)
PS-752 D 1 1.375 3/4 BCDKF S-20780
PS-2008 D 1 1.375 3/4 BCFJF S-20779
PS-360 A 1 1.625 1 BCFJF S-08742, S-09583
S-20795, S-20796
PS-460 D 1 1.625 1 BCFKF S-20781
PS-754 E 1 1.625 1 BCFJF S-14867, S-20763
PS-236 E 1 1.625 1 BCFKF S-20764, S-20765
PS-356 C 1 1.750 1-1/8 BCFJF S-32690
PS-2227 C 1 1.750 1-1/8 BCFJF S-32689
PS-604 D 1 1.750 1-1/8 BCFJF S-16812
PS-605 D 1 1.750 1-1/8 BCFKF S-20783
PS-204 E 1 1.750 1-1/8 BCFJF BZR, BZQ S-07216, S-20766
PS-384 E 1 1.750 1-1/8 BCFKF BZR, BZQ
S-20767, S-20768, S-20995
PS-185 C 1 1.875 1-1/4 BCFJF S-32014
PS-2122 C 1 1.875 1-1/4 BCFJF S-32013
PS-381 D 1 1.875 1-1/4 BCFJF Model 2TPKHS, 3TQKHS, 2TQKIS, S-05649, S-20784
3TQKHS, 22TQKHS, 2TRKHS S-20785
PS-383 D 1 1.875 1-1/4 BCFKF S-20786
PS-361 E 1 1.875 1-1/4 BCFJF All Models A Line Pump except 6YPH, S-05648
4EPBL & 6YP S-20770
PS-137 E 1 1.875 1-1/4 BCFKF
S-15368, S-20769
PS-1185 E 1 1.875 1-1/4 NCPJP S-20771
PS-883 K 1 1.875 1-1/4 BCFJF S-39485
PS-305 E 1 2.125 1-1/2 BCFJF Models 6YPH, 4EPBL, B1-1/2TQLS, S-05650
B2TQMS,2-1/2TQMS,B3TQMS S-20774
PS-374 E 1 2.125 1-1/2 BCFKF S-15385
PS-258 E 3 2.125 1-1/2 BCFKF S-20773, S-20775
PS-374V E 3 2.125 1-1/2 VCFKF S-15538
PS-821 D 3 2.375 1-5/8 BCDJF S-16656
PS-446 C 1 2.500 1-3/4 BCFJF S-32015
PS-2142 C 1 2.500 1-3/4 BCFJF S-32692
PS-237 D 1 2.500 1-3/4 BCDJF S-16768
PS-288 D 1 2.500 1-3/4 BCDKF
PS-205 E 1 2.500 1-3/4 BCFJF A Line Pump, Model B3TPMS S-07277, S-20776, S-20777
PS-366 E 1 2.500 1-3/4 BCFKF
PS-593 D 3 2.625 1-7/8 BCDKF S-20787, S-20993
PS-2069 E 1 2.625 1-7/8 BCFJF S-15213, S-20778
S-32693, S-32694
PS-2072 E32.625 1-7/8 BCFKF S-20884
PS-479 E 1 2.750 2 BCFJF S-13481
PS-338 C 3 3.000 2-1/8 BCFJF S-32016
PS-537 E 1 3.000 2-1/8 BCFJF S-15894, S-15950
PS-353 E1 3.000 2-1/8 BCFKF S-16076
PS-327 E 3 3.000 2-1/8 BCFJF S-17274
PS-835 D 3 3.375 2-1/2 BCDJF S-18337
PS-463 D 3 3.375 2-1/2 BCDKF S-30320
BLACKMER (DOVER CORP.)
PS-303 D 1 1.500 7/8 BCDKF 333030
PS-9007 W Special 2.156 1 TCFJF 316SS 333102
PS-9338 W 27 1.812 1-1/16 TCFKF 331277
BLAKESLEE, INC.
PS-235V C 3 1.625 1 VCFJF PUMPAKS Models 30-010 thru 30-023 32-036
PS-3401 Q 9 — 1 NMDKF A 02255
BLUE, JOHN CO.
PS-879 K 1 1.625 1 BCFJF S-3565
BOWSER
PS-564 C— — 3/4 BCF-F 27A09
PS-466 C 1 2.000 1-1/4 BCFJF 28A09
BRADEN WINCH
PS-201 A11.375 3/4 BMFJF
*US Seal 2010 catalog w cover 9/14/10 2:59 PM Page 22
U.S. Seal Mating Mating Shaft Material
Part No. Head Ring Ring OD Dia. Code Notes Pump Nameplate Data Mfg. Part No.
19
PUMP MANUFACTURERS’ CROSS-REFERENCE
NOTE:
I. ABRASION RESISTANT CARBON (P66)
N. NON-STANDARD SPRING HOLDER
BSM PUMP CORP.
PS-181 C 20 Plate 5/8 NCPGP Models: 2S, 102 and 220, 225, 713-9020-270
240, 245 with 5/8" Shaft
PS-358 C 1 1.375 3/4 BCFJF 466-142-1
PS-182 C 20 Plate 3/4 NCPGP Models: 3S, 53, 55, 103 713-9030-270
PS-235 C 1 1.625 1 BCFJF 466-137-1
PS-185 C 1 1.875 1-1/4 BCFJF 213-744-274
PS-185- C 1 1.875 1-1/4 BCFJF I 466-292, 713-9245-270
P66
PS-185V- C 1 1.875 1-1/4 VCFJF 466-292-1
CMS
PS-186 D 1 2.000 1-3/8 BCDKF 466-143-1
PS-237 D 1 2.500 1-3/4 BCDJF 213-752-274
BUFFALO PUMPS
PS-290 C 1 1.250 5/8 BCFJF Models: BPL, BPM, BPO CC-10900
PS-235 C 1 1.625 1 BCFJF Models: BPL, BPM, BPO CC-10901
PS-384 E 1 1.750 1-1/8 BCFKF Model 1-1/2, 2 & 3SL,
1-1/2 & 2SA W/ Solid Shafts, 2-1/2SW
PS-137 E 1 1.875 1-1/4 BCFKF 1-1/2, 2 & 3SL, SA Sleeved 231-31-330
PS-354 E 1 2.000 1-3/8 BCFJF
PS-677 E 1 2.000 1-3/8 BCFKF
PS-2104 E — — 1-3/8 BCF-F 231-31-412
231-31-1012, 231-31-1573
PS-374 E 1 2.125 1-1/2 BCFKF 4SL, 3SA, 2RR, 284 Stage,
6SLH & 4HSM
PS-744 E 1 2.375 1-5/8 BCDKF 5SL, 4S, Large Frame 13564-6
PS-2070 E 1 2.625 1-7/8 BCFKF 6SL, 4RR, 6HSM, 2 Stage 13564-8
D1 Dbl. Suction, 4SL Extra Heavy
PS-7869 E 1 2.625 1-7/8 QCFZF I 231-31-1150
231-31-1620
PS-279 E 3 3.375 2-1/2 BCFJF 231-31-1724
PS-349 E 3 3.375 2-1/2 BCFKF Model 8SL
PS-350 E 3 3.250 2-3/8 BCFKF D2 Dbl. Suction Pumps, 6S & 6SU
BURKS PUMPS (Div. of CRANE PUMPS & SYSTEMS)
PS-1002 C1 1.000 1/2 BCFJF N 21727
PS-200 A11.250 5/8 BMFJF 17038
PS-290 C 1 1.250 5/8 BCFJF 8514 ,23846
PS-290V C 1 1.250 5/8 VCFJF 9652, 9676, 9762, 3CJSM
PS-2206 C 3 1.250 5/8 QCFKF 20764-C
PS-1156V C 1 1.250 5/8 VCFKF 20498-C
PS-201 A 1 1.375 3/4 BMFJF 17039
PS-358 C 1 1.375 3/4 BCFJF Series CS-Turbine Pump
PS-358V C 3 1.375 3/4 VCFJF 9813
PS-185 C11.875 1-1/4 BCFJF 9917
PS-756- C 1 1.875 1-1/4 QCFKF 21271
EPR
PS-185V- C 1 1.875 1-1/4 VCFJF 9926
CMS
PS-598- C3 1.875 1-1/4 QCFKF 23559
EPR
PS-381 D11.875 1-1/4 BCFJF 33066-1-1/2
PS-4044 C 1 2.125 1-3/8 BCFJF
PS-238 C12.375 1-5/8 BCFJF 21136
PS-238V- C 1 2.375 1-5/8 VCFJF 21189
CMS
PS-1068 C 1 2.500 1-3/4 BCFKF M3842-C
BYRON JACKSON - (Div. of FLOWSERVE)
PS-775 D31.500 7/8 BCDJF Series 400 D-30903
PS-428 R 1 1.500 7/8 BCDJF Series 400 D-30904
PS-2033 D 3 1.625 1 BCFJF Series 513 D-30433
PS-382 D 1 2.125 1-1/2 BCFJF
*US Seal 2010 catalog w cover 9/14/10 2:59 PM Page 23
U.S. Seal Mating Mating Shaft Material
Part No. Head Ring Ring OD Dia. Code Notes Pump Nameplate Data Mfg. Part No.
CAMAC INDUSTRIES
PS-358V- C 1 1.375 3/4 VCFJF Series 50
CMS
PS-883V- K 1 1.875 1-1/4 VCFJF 254
CMS
CAMERON COMPRESSION SYSTEMS
PS-185 C 1 1.875 1-1/4 BCFJF 2-01S-073-003
PS-805- C 3 2.000 1-3/8 BCFJF I Z109-500
P66
PS-239 C 1 2.375 1-5/8 BCFKF 2-01S-077-001
CARTER PUMPS, INC.
PS-100 A 1 1.187 5/8 BMFJF 1S-5010
PS-200 A 1 1.250 5/8 BMFJF 1S-5005A, 1S-5054
PS-290 C 1 1.250 5/8 BCFJF Humdinger Pump 1S-5023, 1S-5035
PS-201 A 1 1.375 3/4 BMFJF 1S-5039
PS-360 A 1 1.625 1 BCFJF 2S-5050, 2S-5089
2S-5054, 2S-5112
PS-383 D 1 1.875 1-1/4 BCFKF 2S-5116, 2S-5119
3S-5239
PS-186 D 1 2.000 1-3/8 BCDKF 4S-5106, 4S-5151
PS-553 C 3 2.125 1-1/2 BCFKF
PS-446 C 1 2.500 1-3/4 BCFJF 4S-5052
PS-147 D — — 1-3/4 BCD-F 4S-5052
PS-237 D 1 2.500 1-3/4 BCDJF 6S-5202
PS-288 D 1 2.500 1-3/4 BCDKF 5S-5029
CARVER PUMP CO.
PS-200 A 1 1.250 5/8 BMFJF B20-1, B1-2-1-1/4
PS-359 C 1 1.250 5/8 BCFJF BB20-1
PS-201 A 1 1.375 3/4 BMFJF K1/2, L20-11
PS-358 C 1 1.375 3/4 BCFJF Model T14C6
PS-188 E 1 1.500 7/8 BCFJF
PS-229 E 3 1.500 7/8 BCFKF 091-087-02-0212
PS-360 A 1 1.625 1 BCFJF KN-3LC
PS-356 C 1 1.750 1-1/8 BCFJF A300-810
PS-627 C11.750 1-1/8 BCFJF B 26C6, 2-1/2YC7, 2YC7, 3YC9
PS-185 C 1 1.875 1-1/4 BCFJF K2L-20-9
PS-525 C 3 1.875 1-1/4 BCFKF B
PS-466 C 1 2.000 1-1/4 BCFJF 090-125-01-0101
PS-466V C 1 2.000 1-1/4 VCFJF 090-125-01-0103
PS-4131 C 1 2.000 1-1/4 VCFJF 316SS 090-125-01-0114
PS-466V- C 1 2.000 1-1/4 VCFLF 090-125-01-0166
SC-SEAT
PS-381 D 1 1.875 1-1/4 BCFJF KN-2H-2L-3N
PS-264- E 3 1.875 1-1/4 BCFKF I 090-125-02-0236
P66
PS-4049 E 3 1.875 1-1/4 VCFLF 316SS 090-125-02-1269
PS-681 U 1 1.875 1-1/4 BCD/FJF 1, 1-1/4, 1-1/2, 2, 3, 4L, 1-1/4,1-1/2, 2,
2-1/2, 3, 4LA,1LB,1-1/4, 2, 2-1/2,
3,4H,1-1/4, 1-1/2, 2, 2-1/2, 3, 4HA
PS-186 D 1 2.000 1-3/8 BCDKF 4B, 4BB, 4GHB, 4GHC
PS-745 E1 2.375 1-5/8 BCDJF 090-162-02-4608
PS-822 E 3 2.375 1-5/8 BCDKF
PS-1699- E 3 2.375 1-5/8 BCFKF I 090-162-02-0236
P66
PS-1683V E 3 2.375 1-5/8 VCFJF 090-162-02-0203
PS-262- E 3 2.500 1-3/4 QCFKF I 090-175-02-0246
EPR-P66
PS-7252 E12.625 1-3/4 BCFJF 090-175-01-0110
PS-2130 E 3 2.625 1-3/4 BCFJF
PS-4141 E 3 2.625 1-3/4 QCFZF I 090-175-01-0137
PS-4261 E 3 2.625 1-3/4 VCFJF 090-175-01-0114
PS-4228 E 3 2.625 1-3/4 VCFZF 316SS/I 090-175-01-0105
PS-8059 XBT 3 2.375 1-7/8 QCFZF 316SS/I 090-187-02-99AZ
PUMP MANUFACTURERS’ CROSS-REFERENCE
20 NOTE:
B. TAPERED SPRING
I. ABRASION RESISTANT CARBON (P66)
*US Seal 2010 catalog w cover 9/14/10 2:59 PM Page 24
U.S. Seal Mating Mating Shaft Material
Part No. Head Ring Ring OD Dia. Code Notes Pump Nameplate Data Mfg. Part No.
21
PUMP MANUFACTURERS’ CROSS-REFERENCE
NOTE:
A. MOUNTS ON SHAFT
I. ABRASION RESISTANT CARBON (P66)
CARVER PUMP CO. (continued)
PS-8010 X Bal. 3 2.375 1-7/8 VCFZF 316SS/I 090-187-02-9958
PS-3522 E 3 2.750 2 BCFKF 316SS/I 090-200-02-0236
PS-477 E 3 2.750 2 BCFKF
PS-3999 E 3 2.750 2 VCFZF 316SS 091-200-02-1678
PS-353V E 3 3.000 2-1/8 VCFKF 090-212-02-0204
PS-3576 E 3 3.125 2-1/4 VCFJF 316SS/I 090-225-02-02EG
PS-2098V E 3 3.250 2-3/8 VCFKF 090-237-02-0204
CATERPILLAR
PS-642 B — — 5/8 BMF-F 4S-7805
PS-647 B — — 3/4 BMF-F 1N-9177
PS-235 C 1 1.625 1 BCFJF 6N-4743, 6N-9313
C-B TOOL CO. (LANCASTER PUMP DIVISION)
PS-150 B — — 1/2 BMF-F 4761
PS-200 A 1 1.250 5/8 BMFJF 2661
PS-201 A 1 1.375 3/4 BMFJF 1661
PS-357 C 1 1.625 1 BCFKF 4400 Series
CENTRAL SCIENTIFIC (CENCO) (HYVAC PRODS.)
PS-452 B 9 — 5/8 BMFJF A P-35332
PS-441 B 9 — 3/4 BMFKF A P-35334
PS-112 C 1 1.375 3/4 BCFKF
PS-1026 D 1 1.437 3/4 BCDKF P-35219
PS-547 C 3 2.000 1-3/8 BCFKF P-29538
CENTREX
PS-299 A — — 5/8 BMF-F
PS-360 A 1 1.625 1 BCFJF 201-491,201-493
CH&E MFG CO.
PS-516 A 1 1.250 5/8 BCFJF W105-7A
PS-200 A 1 1.250 5/8 BMFJF W105-7
PS-200V- A 1 1.250 5/8 VLFLF W105-7C
SC-SC
PS-851 A 1 1.375 3/4 BCFJF W105-1
PS-201V- A 1 1.375 3/4 VCFJF W105-1V
CMS
PS-1125- C 1 1.375 3/4 BLFLF W105-1D
SC-SC
PS-145 K — — 3/4 BCF-F W105-8
PS-7434 C11.625 1 BCFJF W105-2
PS-380 D 1 1.625 1 BCFJF W105-10
PS-185- C11.875 1-1/4 BLFLF W105-15A
SC-SC
PS-758 C 1 2.125 1-1/2 BCFJF W105-4
PS-758- C 1 2.125 1-1/2 BLFLF W105-4C
SC-SC
PS-541 K 1 2.125 1-1/2 BCFJF W105-6A
PS-541V- K 1 2.125 1-1/2 VCFJF W105-6AV
CMS
PS-432 R1 2.125 1-1/2 BCFKF W105-6
PS-449 K 1 2.500 1-3/4 BCFJF W105-11A
CHALLENGE MFG.
PS-642 B — — 5/8 BMF-F
PS-647 B — — 3/4 BMF-F
PS-235 C 1 1.625 1 BCFJF D-97
PS-357V C 3 1.625 1 VCFKF D-98
PS-355 C11.750 1-1/8 BCFKF E-97
PS-659 C 1 2.125 1-1/2 BCFKF H-97
PS-659V C32.125 1-1/2 VCFKF H-98
CHAMPION INDUSTRIES
PS-200 A11.250 5/8 BMFJF 106467
PS-447- B 8 — 5/8 QCFJF A/I 108426
EPR
*US Seal 2010 catalog w cover 9/14/10 2:59 PM Page 25
U.S. Seal Mating Mating Shaft Material
Part No. Head Ring Ring OD Dia. Code Notes Pump Nameplate Data Mfg. Part No.
PUMP MANUFACTURERS’ CROSS-REFERENCE
22 NOTE:
H. SPRING HOLDER NOT INCLUDED
CHAMPION INDUSTRIES (continued)
PS-3100 Q — — 1 NMDKF Unitized 110276
PS-758 C 1 2.125 1-1/2 BCFJF 110611
CHEMINEER, INC. (Unit of ROBBINS & MYERS)
PS-238V C 3 2.375 1-5/8 VCFJF 472-00082
CHICAGO PUMP (Div. of YEOMANS CHICAGO CORP.)
PS-100 A 1 1.187 5/8 BMFJF 2665171
PS-200 A 1 1.250 5/8 BMFJF 2658090
PS-263 D 1 1.187 5/8 BCDKF 266910
PS-750 D 1 1.375 3/4 BCDJF 2655888, 2663071
PS-265 D 3 1.375 3/4 BCDKF 2675337
PS-250 D 3 1.500 7/8 BCDKF 2675339
PS-188 E 1 1.500 7/8 BCFJF 2657110, 2663072
PS-229 E 3 1.500 7/8 BCFKF 267338
PS-380 D 1 1.625 1 BCFJF 2613940, 2663369
PS-252 D 3 1.625 1 BCFKF 2675341
PS-754 E 1 1.625 1 BCFJF 2655887
PS-251 E 3 1.625 1 BCFKF 2675340
PS-604 D 1 1.750 1-1/8 BCFJF 2658071
PS-605 D 1 1.750 1-1/8 BCFKF 2655131
PS-254 D 3 1.750 1-1/8 BCFKF 2675344
PS-253 E 3 1.750 1-1/8 BCFKF 2675343
PS-306 E 1 1.875 1-3/16 BCDJF 2655886
PS-255 E 3 1.875 1-3/16 BCDKF 2675345
PS-361 E 1 1.875 1-1/4 BCFJF 2657093, 2663048
PS-256 E 3 1.875 1-1/4 BCFKF 2675347
PS-264 E 3 1.875 1-1/4 BCFKF 2675318
PS-354 E 1 2.000 1-3/8 BCFJF 2655089
PS-257 E 3 2.000 1-3/8 BCFKF 2675350 000
PS-258 E 3 2.125 1-1/2 BCFKF 2675351
PS-259 E 3 2.125 1-1/2 BCFKF 2675352 000
PS-868 T 1 2.125 1-1/2 BCFJF VPM-LLC4
PS-446 C 1 2.500 1-3/4 BCFJF 117185
PS-262 E 3 2.500 1-3/4 BCFKF VPM-LMC4 2675354
CLAY EQUIPMENT
PS-185 C 1 1.875 1-1/4 BCFJF 0-902718-0
PS-758 C 1 2.125 1-1/2 BCFJF 0-902719-0
CLAYTON MARK
PS-501 A 1 1.250 5/8 BMFJF 29304B
CLEARWATER INDUSTRIES
PS-163 B 1 1.000 1/2 BMFJF 516069
CLEAVER-BROOKS, INC.
PS-358 C 1 1.375 3/4 BCFJF 925-65
CLEVELAND GEAR CO.
PS-5082 C 1 1.750 1 BCFKF H Z1032N
PS-254 D 3 1.750 1-1/8 BCFKF Z1028C
PS-326V D 3 1.937 1-1/4 VCFKF Reducer 70 Z1028D
PS-4363 D 3 2.187 1-1/2 BCFGF Z1028E
PS-3026 D 3 2.437 1-5/8 BCDGF Z1028F
PS-333 D 3 2.812 2 NCPGP Reducer 400 Z1028G
PS-335V D 3 3.375 2-1/2 VCPGP Z1028H
PS-3713 D 3 4.000 3 NCPGP Z1028J
CLIMAX ENGINE
PS-299 A — — 5/8 BMF-F 125-101
PS-380 D11.625 1 BCFJF
CLOW CORP. (YEOMANS CHICAGO CORP.)
PS-185 C11.875 1-1/4 BCFJF C3-2-57
PS-2208 C11.875 1-1/4 BZFZF C3-2-72
PS-756V- C11.875 1-1/4 VCFKF C3-2-142
CMS
*US Seal 2010 catalog w cover 9/14/10 2:59 PM Page 26
U.S. Seal Mating Mating Shaft Material
Part No. Head Ring Ring OD Dia. Code Notes Pump Nameplate Data Mfg. Part No.
23
PUMP MANUFACTURERS’ CROSS-REFERENCE
CLOW CORP. (YEOMANS CHICAGO CORP.) (continued)
PS-383V D 3 1.875 1-1/4 VCFKF C3-2-12
PS-883 K 1 1.875 1-1/4 BCFJF C3-2-82
PS-210V C 3 2.000 1-3/8 VCFKF C3-2-51
PS-758 C 1 2.125 1-1/2 BCFJF C3-2-73
PS-2209 C 1 2.125 1-1/2 BZFZF C3-2-58
PS-446 C 1 2.500 1-3/4 BCFJF C3-2-59
PS-2210 C 1 2.500 1-3/4 BCFZF C3-2-93
PS-436V C 3 2.500 1-3/4 VCFKF C3-2-100
PS-449 K 1 2.500 1-3/4 BCFJF C3-2-43
PS-267 C 1 2.750 2 BCFJF C3-2-60
PS-842- C 1 2.750 2 BCFZF C3-2-94
TC-SEAT
PS-1145 C 1 2.750 2 VCFKF C3-2-98
PS-2143 K 1 2.750 2 BCFJF C3-2-47
PS-7196 K 3 2.750 3 BCFJF
PS-3562 T 3 2.937 2-1/16 BCFKF C3-2-153
PS-844 C 1 3.000 2-1/8 BCFJF C3-2-83
PS-887 K 1 3.000 2-1/8 BCFJF C3-2-44
PS-1679 C 1 3.125 2-1/4 BCFJF C3-2-61
PS-1676V C 3 3.125 2-1/4 VCFKF C3-2-99
PS-2158 K 1 3.375 2-1/2 BCFJF C3-2-53
PS-3518 K 1 3.875 3 BCFJF C3-2-45
COLT-AUTOSAN
PS-754 E 1 1.625 1 BCFJF 97049
COLUMBIA
PS-142 B 1 1.000 1/2 BMFJF
COMPAIR LeROI
PS-299 A — — 5/8 BMF-F 125-101
PS-687V C 3 1.500 7/8 VCFKF 125-907
PS-598 C 3 1.875 1-1/4 BCFKF
PS-210V C 3 2.000 1-3/8 VCFKF Model No A204-1455 125-940
PS-467 C 1 2.125 1-3/8 BCFKF
PS-1062 C 3 2.125 1-3/8 VCFKF 125-188-2
PS-6002 D33.375 2-5/8 VCFKF 125-848
PS-6155 C 2 3.500 2-3/4 VCFKF 125-711
CONSOLIDATED DIESEL ELECTRIC
PS-758 C 1 2.125 1-1/2 BCFJF 0338-0275
CONSTRUCTION MACHINE (See CRANE PUMPS & SYSTEMS)
CONTINENTAL PUMP
PS-290 C 1 1.250 5/8 BCFJF V8-15Q
PS-359 C11.250 5/8 BCFJF V8-15A, U8-15Q
PS-359- C 1 1.250 5/8 QCFJF
EPR-CMS
PS-358 C 1 1.375 3/4 BCFJF U8-56QA/R
PS-358V- C 1 1.375 3/4 VCFJF U8-56F
CMS
COOPER ENERGY SERVICES (See CAMERON COMPRESSION SYSTEMS)
CORCORAN CO.
PS-358V C3 1.375 3/4 VCFJF
CORKEN, INC.
PS-756V C31.875 1-1/4 VCFKF 2994-XD
CORNELL PUMP CO.
PS-618 C 3 1.875 1-1/4 BCFJF A17161J-40, A17161P-40
PS-546 E31.875 1-1/4 BCFJF A15002C-40, A15002E-40
A17161X-40
PS-264 E 3 1.875 1-1/4 BCFKF A15002B-40
PS-137V E 3 1.875 1-1/4 VCFKF A15002D-40
*US Seal 2010 catalog w cover 9/14/10 2:59 PM Page 27
U.S. Seal Mating Mating Shaft Material
Part No. Head Ring Ring OD Dia. Code Notes Pump Nameplate Data Mfg. Part No.
PUMP MANUFACTURERS’ CROSS-REFERENCE
24
CORNELL PUMP CO. (continued)
PS-2211 T 3 1.875 1-1/4 BCFJF A15002H-40
PS-3607 T 3 1.875 1-1/4 NAFGF A15002I-40
PS-864 E 3 2.000 1-3/8 BCFJF A15003J-40
PS-821 D 3 2.375 1-5/8 BCDJF A15005H-40
PS-1697 D 3 2.375 1-5/8 BCFKF A17064M-40
PS-3772 D 3 2.375 1-5/8 VZFLF A17064X-40
PS-595 E 3 2.375 1-5/8 BCDJF A15005D-40
PS-822 E 3 2.375 1-5/8 BCDKF A15005C-40
PS-1683 E 3 2.375 1-5/8 BCFJF A15005A-40
PS-1699 E 3 2.375 1-5/8 BCFKF A15005Y-40
PS-1699V E 3 2.375 1-5/8 VCFKF A15005X-40
PS-550 C 3 2.500 1-3/4 BCFJF A15006F-40, A15006M-40
PS-436- C 3 2.500 1-3/4 BZFLF A15006J-40
TC-VS-SC
PS-532 C 3 2.750 2 BCFJF A15007J-40, A20777G-40
PS-833 D 3 2.750 2 BCDJF A15007D-40, A17264P-40
PS-2075 D 3 2.750 2 BCFJF A15007M-40
PS-530 E 3 2.750 2 BCFJF A15007B-40
PS-2143 K 1 2.750 2 BCFJF A15007J-40
PS-468 D 3 3.250 2-1/2 BCDJF A15008E-40
PS-463- D 3 3.375 2-1/2 BZFLF A17258W-40
TC-SC A205226U-40
PS-3888 D 3 3.375 2-1/2 VZFLF A16421D-40, A20526R-40
PS-279 E 3 3.375 2-1/2 BCFJF A15008A-40
PS-349V- E 3 3.375 2-1/2 VZFLF A20526F-40
TC-SC
PS-2158 K 1 3.375 2-1/2 BCFJF A15008R-40
PS-1613 K 3 3.375 2-1/2 BCFJF A15008R-40
PS-6219 D 3 3.875 3 BZFLF A169721-40
PS-4033 D 3 3.875 3 VZFLF A169720-40, A20564P-40
PS-324 E 3 3.875 3 BCDJF A15009A-40
PS-7873 K 3 3.875 3 BCFJF A15009G-40
CRANE-DEMING (Div. of CRANE PUMPS & SYSTEMS)
PS-1002 C1 1.000 1/2 BCFJF N 58125
PS-106 C11.000 1/2 BCFKF N 58216
PS-1002V C 1 1.000 1/2 VCFJF N 55716
PS-200 A 1 1.250 5/8 BMFJF Fig. 4910-63, 4357, 4358
PS-501 A 1 1.250 5/8 BMFJF Fig. 4910, 11, 12, 13 / 4963, 4966, 4967
PS-507 A 1 1.250 5/8 BMFKF
PS-200V- A 1 1.250 5/8 VCFJF 40861
CMS
PS-507V- A 1 1.250 5/8 VCFKF 8009530
CMS
PS-493 C11.187 5/8 BCFKF 0006841, 0006876
PS-359 C1 1.250 5/8 BCFJF 34427
PS-633 C 1 1.250 5/8 BCFKF 0115515
PS-359V- C 1 1.250 5/8 VCFJF 0115835
CMS
PS-226 D 1 1.187 5/8 BCDKF 0006875, 0020444
PS-201 A 1 1.375 3/4 BMFJF Fig. 4910, 4911, 3305, 3352, 4352
PS-750 D 1 1.375 3/4 BCDJF
PS-208 C— — 7/8 BCF-F 6880
PS-687 C 1 1.500 7/8 BCFKF Fig. 4001 30877
PS-309V C31.500 7/8 VCFJF 84876
PS-687V C 3 1.500 7/8 VCFKF 84877
PS-790 D 1 1.437 7/8 BCDJF Fig. 4001, Dwg. 112-041
PS-703 D 1 1.500 7/8 BCDJF Fig. 4001, Dwg. 116-386 30876
PS-892 K 1 1.500 7/8 BCFJF Fig. 4001 0030894
PS-878 K 1 1.500 7/8 BCFKF Fig. 4001 30895
PS-428 R 1 1.500 7/8 BCDJF Fig. 4001, Dwg. 113-068
PS-2145 C31.437 1BCFJF 65187
PS-3755 C 3 1.437 1 VCFJF 75513
PS-235 C11.625 1BCFJF 30878
NOTE:
N. NON-STANDARD SPRING HOLDER
*US Seal 2010 catalog w cover 9/14/10 2:59 PM Page 28
25
U.S. Seal Mating Mating Shaft Material
Part No. Head Ring Ring OD Dia. Code Notes Pump Nameplate Data Mfg. Part No.
PUMP MANUFACTURERS’ CROSS-REFERENCE
CRANE-DEMING (Div. of CRANE PUMPS & SYSTEMS) (continued)
PS-357 C 1 1.625 1 BCFKF Fig. 4011, Dwg. 115-313 30879
PS-460 D 1 1.625 1 BCFKF Fig. 4011
PS-879 K 1 1.625 1 BCFJF 30896
PS-891 K 1 1.625 1 BCFKF 30897
PS-141 R — — 1 BCF-F Fig. 3302-04 #2
PS-429 R 1 1.625 1 BCFJF 30896
PS-430 R 1 1.625 1 BCFKF 30897
PS-608 E 1 1.687 1-1/8 BCFKF Fig. 4012, Size 1A
PS-384 E 1 1.750 1-1/8 BCFKF 29177
PS-185 C 1 1.875 1-1/4 BCFJF 0030880, 0070713
PS-756 C 1 1.875 1-1/4 BCFKF 30881
PS-185V- C 1 1.875 1-1/4 VCFJF 0088458, 0088459
CMS
PS-598- C 3 1.875 1-1/4 BCFZF 8030880
TC SEAT
PS-756V C 3 1.875 1-1/4 VCFKF 84881
PS-381 D 1 1.875 1-1/4 BCFJF
PS-383 D 1 1.875 1-1/4 BCFKF 7180
PS-546 E 3 1.875 1-1/4 BCFJF Model: AVS 0078876, 0078879
PS-883 K 1 1.875 1-1/4 BCFJF 30898
PS-890 K 1 1.875 1-1/4 BCFKF 30899
PS-1187 T 1 1.875 1-1/4 BCFJF 45935
PS-186 D 1 2.000 1-3/8 BCDKF 30882
PS-209 K — — 1-3/8 BCF-F
PS-2234 E 3 2.062 1-7/16 BCFKF Models: 1523, 1535 36636
PS-758 C 1 2.125 1-1/2 BCFJF 30884
PS-659 C 1 2.125 1-1/2 BCFKF Fig. 4021HD 30885
PS-2209 C 1 2.125 1-1/2 BZFZF 8030885
PS-659V- C 1 2.125 1-1/2 VCFKF 84885
CMS
PS-382 D 1 2.125 1-1/2 BCFJF Fig. 4021HD
PS-541 K 1 2.125 1-1/2 BCFJF 0030900
PS-884 K 1 2.125 1-1/2 BCFKF 0030901
PS-431 R 1 2.125 1-1/2 BCFJF
PS-432 R12.125 1-1/2 BCFKF
PS-238 C 1 2.375 1-5/8 BCFJF 0030886
PS-239 C 1 2.375 1-5/8 BCFKF 0030887
PS-238V-C 1 2.375 1-5/8 VCFJF 106330
CMS
PS-239V- C 1 2.375 1-5/8 VCFKF 106331
CMS
PS-446 C 1 2.500 1-3/4 BCFJF Model 7360 0030888
PS-448 C 1 2.500 1-3/4 BCFKF 0030889
PS-2207 C32.500 1-3/4 VCFZF 117779
PS-237 D 1 2.500 1-3/4 BCDJF
PS-535 E32.500 1-3/4 BCFJF Model 3065 0078882
PS-2109 E— — 1-3/4 BCF-F 0078877
PS-449 K 1 2.500 1-3/4 BCFJF Fig.7182- Fig.4031 0030904
PS-213 R — — 1-3/4 BCD-F
PS-2144 T 3 2.500 1-3/4 BCFJF 45936
PS-340 C 1 2.625 1-7/8 BCFJF 46389
PS-1608 C 1 2.625 1-7/8 BCFKF 0046390
PS-312 C32.625 1-7/8 BCFKF
PS-543 C 1 3.000 2-1/8 BCFKF 0030891, 425650999
PS-543V C3 3.000 2-1/8 VCFKF 119412
PS-353 E 1 3.000 2-1/8 BCFKF
PS-2086 E 3 3.000 2-1/8 BCFKF
PS-2126 T 3 3.000 2-1/8 BCFJF 45937
PS-1679 C 1 3.125 2-1/4 BCFJF 0030892
PS-1676 C 3 3.125 2-1/4 BCFKF 0030893
PS-1676V C 3 3.125 2-1/4 VCFKF 75520
CRANE PUMPS & SYSTEMS
PS-3000 G 1 26MM 12MM BLFLF 112566B
*US Seal 2010 catalog w cover 9/14/10 2:59 PM Page 29
U.S. Seal Mating Mating Shaft Material
Part No. Head Ring Ring OD Dia. Code Notes Pump Nameplate Data Mfg. Part No.
PUMP MANUFACTURERS’ CROSS-REFERENCE
26
CRANE PUMPS & SYSTEMS (continued)
PS-633- C 1 1.250 5/8 QCFKF 124476
EPR-CMS
PS-7547 C 1 1.250 5/8 VLFLF 005080SK
PS-732 C 3 1.250 5/8 BCFKF 21752
PS-5625 Special 1 1.250 5/8 QC-J- 23568
PS-3916 C 3 1.375 3/4 BCFJF 110395
PS-767 C 3 1.375 3/4 BCFJF 63599
PS-9339 W 2 1.375 3/4 TCFJF 316SS 21741
PS-8064 X 3 1.375 3/4 BLFLF 316SS 083459-A
PS-309 C 1 1.500 7/8 BCFJF M-3824-B, 30876
PS-687V- C 1 1.500 7/8 VCFKF 120941
CMS
PS-774 C 3 1.500 7/8 BCFJF 111131
PS-197 K — — 7/8 BCF-F M-3046
PS-8065 X 3 1.500 7/8 BLFLF 316SS 082827-A
PS-235 C 1 1.625 1 BCFJF M-4292-B
PS-357 C 1 1.625 1 BCFKF 5MPK, 6MFP, 9MFP, 16PK, M-4292-C
CC1-1/2-1-1/2, CC1-1/2-2
PS-2145 C 3 1.437 1 BCFJF 68157
PS-235V C 3 1.625 1 VCFJF M-4292-G, 7841-0
PS-604 D 1 1.750 1-1/8 BCFJF M-4274-C
PS-521 D 1 1.875 1-1/8 BCFKF
PS-4302 C 1 1.750 1-3/16 BCFJF 21942-P
PS-756 C 1 1.875 1-1/4 BCFKF 19146, 110697
PS-185V- C 1 1.875 1-1/4 VCFJF 23109
CMS
PS-185V- C 1 1.875 1-1/4 VCFZF 118359
TC-SEAT
PS-466 C 1 2.000 1-1/4 BCFJF M-3957-C
PS-598- C 3 1.875 1-1/4 BCFZF 121918
TC-SEAT
PS-756V C 3 1.875 1-1/4 VCFKF 20500-C, 84881
PS-1015 E — — 1-1/4 BCF-F 78876
PS-7323 K 1 1.875 1-1/4
BZ/CFZ/JF
60817
PS-467 C12.125 1-3/8 BCFKF M-3983-C
PS-177V C 3 2.000 1-3/8 VCFJF 7842-0
PS-758 C 1 2.125 1-1/2 BCFJF 0030884, 070713
PS-2209 C1 2.125 1-1/2 BZFZF 0030885A
PS-238 C 1 2.375 1-5/8 BCFJF 0030886
PS-7806 C 1 2.375 1-5/8 VLFLF 125579
PS-239V C 3 2.375 1-5/8 VCFKF 23150
PS-2212 C 1 2.500 1-3/4 BCFJF M-3842-F
PS-1068 C 1 2.500 1-3/4 BCFKF M-3842-C
PS-446- C12.500 1-3/4 BZFZF 71559
TC-TC
PS-550 C32.500 1-3/4 BCFJF 125852
PS-4035
C/X Special
12.500 1-3/4 BCFJF M-9262
PS-213 R — — 1-3/4 BCD-F M-2653
PS-340 C 1 2.625 1-7/8 BCFJF 46389
PS-1028 C 1 2.750 2 BCFKF M-4414-C
PS-2219 C 1 2.750 2 BZFZF 71560
PS-1145 C 3 2.750 2 VCFKF 0-536026-E
PS-7892 EBal. 32.625 2BCFKF 9054995
PS-7196 K 3 2.750 2 BCFJF 00103045
PS-543 C1 3.000 2-1/8 BCFKF 0030891
PS-1679 C 1 3.125 2-1/4 BCFJF 0030892
PS-468 D 3 3.250 2-1/2 BCDJF M-4272-B
PS-6205 C 1 3.500 2-3/4 BCFJF 85980
PS-6908 C 1 3.500 2-3/4 BZFZF 85981
PS-2153- C 1 3.875 3 BCFJF 085983
CMS
CREPACO
PS-397 C — — 1 BCF-F 549S6407F
*US Seal 2010 catalog w cover 9/14/10 2:59 PM Page 30
U.S. Seal Mating Mating Shaft Material
Part No. Head Ring Ring OD Dia. Code Notes Pump Nameplate Data Mfg. Part No.
27
NOTE:
PUMP MANUFACTURERS’ CROSS-REFERENCE
A. MOUNTS ON SHAFT
I. ABRASION RESISTANT CARBON (P66)
CREPACO (continued)
PS-397V C — — 1 VCF-F 549S6408F
PS-154 C — — 1-1/4 BCF-F 549S6407
PS-3730 C — — 1-3/8 NCF-F 549P122960
CUMMINS WAGNER
PS-1619 B 1 1.625 1 BCDJF 3089056
CURTIS
PS-605 D 1 1.750 1-1/8 BCFKF
PS-288 D 1 2.500 1-3/4 BCDKF RMB-414
DAKON
PS-150 B — — 1/2 BMF-F Seat is Impeller
DARLEY, W.S. & CO.
PS-4246 D 3 1.675 1-1/4 BCDLF 1841203
PS-448 C 1 2.500 1-3/4 BCFKF 1842300
DAYTON (See TEEL PUMP)
DEAN PUMP (Div. of MET-PRO CORP.)
PS-3589 E 5 1.625 1 VCFZF
DECATUR PUMP
PS-501 A 1 1.250 5/8 BMFJF 20888
PS-359 C 1 1.250 5/8 BCFJF
PS-290 C 1 1.250 5/8 BCFJF 8514
PS-290V C 1 1.250 5/8 VCFJF 9762
PS-750 D 1 1.375 3/4 BCDJF
PS-358 C 1 1.375 3/4 BCFJF 8991
PS-185 C 1 1.875 1-1/4 BCFJF 9917
PS-598- C 3 1.875 1-1/4 QCFKF 21271
EPR
PS-185V C 3 1.875 1-1/4 VCFJF 9926
DEFCO, INC.
PS-359V- C 1 1.250 5/8 VCFJF A2518
CMS
PS-360V-A1 1.625 1 VCFJF
CMS
DeLAVAL (See IMO INDUSTRIES, INC.)
DELAVAN MFG. & CO.
PS-1061 A 1 1.250 9/16 VCFJF 34943
DELTATSYSTEMS, INC.
PS-732- C3 1.250 5/8 QCFKF I 108-00001-00
EPR-P66
PS-2167- C11.437 7/8 QCFJF I108-00006-00
EPR-P66
PS-2224 C 3 1.437 7/8 QCFKF I 108-00002-00
DEMING (See CRANE PUMPS & SYSTEMS)
DEMPSTER INDUSTRIES, LLC
PS-162 A11.000 1/2 BMFJF
PS-200 A1 1.250 5/8 BMFJF 907-06030
PS-202 B 11 — 5/8 BMFJF A
PS-441 B9—3/4 BMFKF AUtility Pump 907-06001
PS-440 B 11 — 3/4 BMFJF A Primo Jet®and Converto Jet 907-06006
PS-358 C 1 1.375 3/4 BCFJF 907-06043
PS-309 C 1 1.500 7/8 BCFJF 907-06033
PS-309V C 3 1.500 7/8 VCFJF 907-06034
PS-598 C 3 1.875 1-1/4 BCFKF 907-06035
PS-756V C31.875 1-1/4 VCFKF 907-06046
*US Seal 2010 catalog w cover 9/14/10 2:59 PM Page 31
U.S. Seal Mating Mating Shaft Material
Part No. Head Ring Ring OD Dia. Code Notes Pump Nameplate Data Mfg. Part No.
NOTE:
PUMP MANUFACTURERS’ CROSS-REFERENCE
A. MOUNTS ON SHAFT
28
DENISON HYDRAULICS (Parker Hannifin HPD)
PS-5108 C 2 1.562 3/4 VCFKF
PS-5138 C Plate 2.875 1-1/8 BCFGF 623-11278-0
PS-5676 C 2 2.187 1-3/8 B/VCFJF 316SS Old Design 623-00006-0
PS-5711 C 2 2.187 1-3/8 B/VCFKF 316SS New Design 623-00006-0
PS-5676V C 2 2.187 1-3/8 VCFJF 623-00006-5
PS-5074 C 3 2.000 1-3/8 BCFKF
PS-5720 C 2 2.125 1-1/2 BCFKF 623-00012-0
PS-5002 D 2 2.500 1-11/16 BCFKF 623-12260-0
PS-5194 D 2 2.500 1-11/16 VCFKF 623-12263-0
PS-5342 C 2 3.000 1-7/8 BCFJF Old Design 623-00016-0
PS-5712 C 2 3.000 1-7/8 B/VCFKF New Design 623-00016-0
PS-5679 C 2 3.000 1-7/8 QCFJF 623-00016-4
PS-5717 C 2 3.000 1-7/8 VCFJF 623-00016-5
PS-5011 C Plate 3.528 1-7/8 BCFGF 623-00002-0
PS-5721 C Plate Plate 1-7/8 VCFGF 623-00002-5
PS-5706 C 2 3.000 2-1/8 VCFKF 316SS 623-00015-5
PS-5005 D 2 3.000 2-3/16 BCFKF 623-12322-0
PS-5719 D 2 3.000 2-3/16 QCFKF 623-12330-0
PS-5024 D 2 3.000 2-3/16 VCFKF 623-12331-0
DETROIT HARVESTER HOWELL
PS-298 A — — 1/2 BMF-F 3-6
PS-299 A — — 5/8 BMF-F H,SM-F,PM,1/4HP,-New style replaces 4-6
old style eared carbon. Seat is Impeller
PS-100 A 1 1.187 5/8 BMFJF
DEUBLIN CO.
PS-397 C — — 1 BCF-F 954-211
DeVILBISS
PS-508 D 1 1.250 5/8 BCDJF QM-4507
PS-358 C 1 1.375 3/4 BCFJF QM-4509
PS-752 D 1 1.375 3/4 BCDKF QMW-4509
DIACLEAR
PS-142 B 1 1.000 1/2 BMFJF 36100
DISCFLO CORP.
PS-338V- C 3 3.000 2-1/8 VLFLF P-170-1000036
SC-SC
PS-3877 C 3 3.375 2-1/2 VLFLF P-170-1000035
DIXIE PUMP
PS-200 A 1 1.250 5/8 BMFJF
PS-201 A 1 1.375 3/4 BMFJF
DOERR
PS-359 C1 1.250 5/8 BCFJF
DOMESTIC PUMP (Div. of ITT CORP.)
PS-200 A11.250 5/8 BMFJF 180013
PS-359 C11.250 5/8 BCFJF 180014
PS-201 A 1 1.375 3/4 BMFJF
PS-358 C 1 1.375 3/4 BCFJF 180010
PS-360 A 1 1.625 1 BCFJF
PS-235 C 1 1.625 1 BCFJF 180011
PS-177 C 1 2.000 1-3/8 BCFJF 180015
DOUGHBOY INDUSTRIES (Div. of HOFFINGER INDUSTRIES)
PS-671 B 1 .875 3/8 BMFJF 306-1003
PS-200 A 1 1.250 5/8 BMFJF 306-1006
PS-1000 B11.250 5/8 BMFJF 306-1002
PS-642 B — — 5/8 BMF-F 308-1264
PS-202 B11 —5/8 BMFJF A 306-1001
DOUGLAS MOTOR CORP.
PS-201 A 1 1.375 3/4 BMFJF 47406
PS-210 C 1 2.000 1-3/8 BCFKF 46154
*US Seal 2010 catalog w cover 9/14/10 2:59 PM Page 32
U.S. Seal Mating Mating Shaft Material
Part No. Head Ring Ring OD Dia. Code Notes Pump Nameplate Data Mfg. Part No.
29
NOTE:
PUMP MANUFACTURERS’ CROSS-REFERENCE
A. MOUNTS ON SHAFT
I. ABRASION RESISTANT CARBON (P66)
N. NON-STANDARD SPRING HOLDER
DOWDELL CO., J.L. (DOWCO PUMP)
PS-202 B 11 — 5/8 BMFJF A D1101S-5/8
PS-440 B 11 — 3/4 BMFJF A D1101S-3/4
DRESSER INDUSTRIES (See COMPAIR LeROI)
PS-200 A 1 1.250 5/8 BMFJF 125-101/113-1
PS-618 C 3 1.875 1-1/4 BCFJF
PS-1062 C 3 2.125 1-3/8 VCFKF
PS-436V C 3 2.500 1-3/4 VCFKF 125-693-2
DRESSER RAND
PS-768 C 3 1.375 3/4 BCFKF SEL 244
PS-553 C 3 2.125 1-1/2 BCFKF W27658P2
PS-3931 E 2 2.312 1-5/8 BCDKF W35548P1
PS-3952
ESpecial
3 3.031 2 NCDKF 000-049-082
PS-611 E 3 2.812 2-1/8 BCFJF
PS-556 U 1 3.000 2-1/8 BCFKF 720025J1
PS-4172 E 3 3.875 3-7/8 VCFKF 316SS 050-825-201
DUFF-NORTON
PS-933 C — — 5/8 BCF-F 732015C
PS-185 C 1 1.875 1-1/4 BCFJF 464901C
DUNHAM, C.A.
PS-508 D 1 1.250 5/8 BCDJF Model D 614
DUNHAM-BUSH (MEPCO: Marshall Engineered Products Co.)
PS-1002 C 1 1.000 1/2 BCFJF N S-996
PS-106 C 1 1.000 1/2 BCFKF N S-996 New
PS-118 C 1 1.187 5/8 BCFJF
PS-359 C 1 1.250 5/8 BCFJF S-472
PS-552- C 1 1.250 5/8 BLFLF S-5099
SC-SC
PS-633V- C 1 1.250 5/8 VCFKF S-2143, S-5549
CMS
PS-552- C 3 1.250 5/8 QCFJF S-5011
EPR
PS-552- C 3 1.250 5/8 QCFJF I S-4940
EPR-P66
PS-732- C 3 1.250 5/8 QCFKF I S-4981
EPR-P66
PS-633V- C 3 1.250 5/8 VCFZF S-472-TC-V
TC SEAT
PS-750 D 1 1.375 3/4 BCDJF 40088878W
PS-2027- D 3 1.500 3/4 QCFZF S-5579
EPR-TC-
SEAT
PS-188 E 1 1.500 7/8 BCFJF 40090790W
PS-982 C 1 1.625 1 BCFKF 860
PS-499 C3 1.625 1 BCFKF GA-1781-4
PS-983 C 1 1.750 1-1/8 BCFKF 861, ML-8702
PS-185 C 1 1.875 1-1/4 BCFJF S-4998
PS-756 C11.875 1-1/4 BCFKF S-3179
PS-756V- C 1 1.875 1-1/4 VCFKF S-5548
CMS
PS-618- C3 1.875 1-1/4 QCFJF I S-4982, S-5085
EPR-P66
PS-239 C 1 2.375 1-5/8 BCFKF S-3291
PS-3616 C12.375 1-5/8 QCFKF S-4932
DURIRON (See FLOWSERVE CORP.)
PS-866 E 3 1.750 1-1/8 BCFJF
PS-867 E31.750 1-1/8 BCFKF
PS-886 T 3 1.750 1-1/8 BCFJF
PS-918 T 3 1.750 1-1/8 BCFKF
PS-2069 E1 2.625 1-7/8 BCFJF
PS-2072 E 3 2.625 1-7/8 BCFKF
*US Seal 2010 catalog w cover 9/14/10 2:59 PM Page 33
U.S. Seal Mating Mating Shaft Material
Part No. Head Ring Ring OD Dia. Code Notes Pump Nameplate Data Mfg. Part No.
NOTE:
PUMP MANUFACTURERS’ CROSS-REFERENCE
A. MOUNTS ON SHAFT
C. COMPLETE WITH COLLAR
N. NON-STANDARD SPRING HOLDER
30
DURIRON (continued) (See FLOWSERVE CORP.)
PS-742 T 1 2.625 1-7/8 BCFJF
PS-743 T 1 2.625 1-7/8 BCFKF
PS-4392 E 3 3.625 2-5/8 QCFLF C
DURO
PS-452 B 9 — 5/8 BMFJF A 5486
PS-508 D 1 1.250 5/8 BCDJF 5485
PS-102 D 1 1.250 5/8 BCDKF Models: DV-30, 50, 70, 100, B-170
VX-30, 50, 70, 100 DJ-70, 100, SJ70, 100
EAST SIDE MFG.
PS-100 A 1 1.187 5/8 BMFJF P-28322
PS-200 A 1 1.250 5/8 BMFJF
PS-1000 B 1 1.250 5/8 BMFJF Model BTH
PS-359 C 1 1.250 5/8 BCFJF
PS-201 A 1 1.375 3/4 BMFJF
PS-358 C 1 1.375 3/4 BCFJF
PS-750 D 1 1.375 3/4 BCDJF MF-1
PS-360 A 1 1.625 1 BCFJF Series C, CM and CH P-28175
EASTERN ENGINEERING (See PULSAFEEDER)
ECONOMY PUMP (PATERSON PUMP CO.)
PS-100 A 1 1.187 5/8 BMFJF
PS-360 A 1 1.625 1 BCFJF
PS-1067 E 1 1.875 1-1/8 BCFKF 2 x 2 MD
EDWARDS ENGINEERING
PS-3578V C 1 1.175 7/16 VCFJF C-316
PS-867V E 3 1.750 1-1/8 VCFKF 220000
ELECTROMOTIVE DIV.
PS-632 C 1 1.000 1/2 BCFKF N 822832
PS-602 D 1 1.562 7/8 BCDJF 5876888
ELKINGTON DISHWASHER
PS-3440 C 1 1.750 1 BCFJF DT Series
ENPO-CORNELL PUMP CO.
PS-961 B 1 1.250 5/8 BCFJF
PS-452 B 9 — 5/8 BMFJF A
PS-201 A11.375 3/4 BMFJF
PS-360 A 1 1.625 1 BCFJF
PS-466 C 1 2.000 1-1/4 BCFJF M-3957-F
PS-466V C 1 2.000 1-1/4 VCFJF M-3957-G
PS-546 E 3 1.875 1-1/4 BCFJF
PS-467 C 1 2.125 1-3/8 BCFKF M-3983-C
PS-1683 E 3 2.375 1-5/8 BCFJF
PS-2212 C 1 2.500 1-3/4 BCFJF M-3842-F
PS-1068 C 1 2.500 1-3/4 BCFKF M-3842-C
PS-449 K12.500 1-3/4 BCFJF
PS-2139 C 1 2.750 2 BCFJF M 4414-F
PS-842 C 1 2.750 2 BCFKF M-4414-C
PS-1040 K 3 2.750 2 BCFKF
PS-1041 K33.250 2-3/8 BCFKF
PS-1613 K 3 3.375 2-1/2 BCFJF
ENVIRONMENT ONE CORP.
PS-2033 D 3 1.625 1 BCFJF A-2021B110
ESSICK
PS-358 C 1 1.375 3/4 BCFJF 9014009
PS-175 K 1
1.375/1.500
3/4 BCFJF 9014225
PS-185 C 1 1.875 1-1/4 BCFJF 9014025
PS-177 C12.000 1-3/8 BCFJF 9014027
PS-495 K12.000 1-3/8 BCFJF 9014140
EUROPLAST LTD.
PS-201 A11.375 3/4 BMFJF 60985AA
*US Seal 2010 catalog w cover 9/14/10 2:59 PM Page 34
31
U.S. Seal Mating Mating Shaft Material
Part No. Head Ring Ring OD Dia. Code Notes Pump Nameplate Data Mfg. Part No.
PUMP MANUFACTURERS’ CROSS-REFERENCE
EVERITE
PS-150 B — — 1/2 BMF-F Seat Is Impeller 1205
PS-200 A 1 1.250 5/8 BMFJF 2544
PS-501 A 1 1.250 5/8 BMFJF
PS-359 C 1 1.250 5/8 BCFJF 2584
FAIRBANKS MORSE (See PENTAIR, INC. for Additional Part Numbers)
PS-506 A 1 1.000 1/2 BMFKF Models: 49 and 59 Circulating Pumps 91325
PS-200 A 1 1.250 5/8 BMFJF Models: H, HC, HV 82723, 82470-75
PS-501 A 1 1.250 5/8 BMFJF H500, 649, 650 Shallow Well and 82635-60, 82702-75
All Model 49 Ejectors to 1 HP.
Models 300, 500 and 750 VS-VD
PS-507 A 1 1.250 5/8 BMFKF For UL 25 Westco Shallow Well 82480-60
PS-359 C 1 1.250 5/8 BCFJF Submersible Motor
PS-508 D 1 1.250 5/8 BCDJF Model 49 82480-75
PS-102 D 1 1.250 5/8 BCDKF 82698
PS-201 A 1 1.375 3/4 BMFJF Models: AC, AEC, AS, AES
PS-877 C 1 1.375 3/4 BCFJF Model 5553B-Build Together Pump HYDE2, 82738-60
PS-750 D 1 1.375 3/4 BCDJF 40088878
PS-188 E 1 1.500 7/8 BCFJF 1-1/4 Fig. 5553E, Mtr Frm. up to 184 HYD1Q1
PS-229 E 3 1.500 7/8 BCFKF Westco BR545
PS-235 C 1 1.625 1 BCFJF CND-1726D-1726C
LV411900X01
PS-356 C 1 1.750 1-1/8 BCFJF 1-1/2, 2, 3, 4 Fig.5553N, Frm. 213 & Up HYD1AC
PS-204 E 1 1.750 1-1/8 BCFJF 1-1/4 Fig. 5553E, Mtr. Frm. 213 & Up HYD1Q2
PS-6812 C 1 1.875 1-3/16 BCFJF LV7140047753
PS-8074 X Bal. 3 1.687 1-3/16 Special HYD1BT3
PS-185 C 1 1.875 1-1/4 BCFJF HYD1AC2
PS-756 C 1 1.875 1-1/4 BCFKF HYD1BX8
PS-381 D 1 1.875 1-1/4 BCFJF Westco 2G
PS-510 D 1 2.000 1-1/4 BCFJF Models: 5554, 5554A HYD1E2
PS-883 K 1 1.875 1-1/4 BCFJF HYD1AD2
PS-865 E 3 2.000 1-3/8 BCFKF HYD1Q3
PS-1104 V 25 2.140 1-3/8 BMFJF Frame 25
PS-8079 XB5 31.937 1-7/16 Special 316SS HYD1BT6
PS-758 C 1 2.125 1-1/2 BCFJF LV740048753
PS-305 E 1 2.125 1-1/2 BCFJF ND2502-A1
PS-395 E 3 2.125 1-1/2 BCFJF 3˝ & 4˝ Fig. 5821, 2˝ & 3˝ Fig. 5822, HYD1AA1, HYD1X3
2˝ & 2-1/2˝ Fig. 5823, 3˝ Fig. 5874A
PS-395- E 3 2.125 1-1/2 QCFJF FMB088775CO1
EPR
PS-515 E 3 2.250 1-1/2 BCFJF 2˝ Fig. 5812, 3˝, 4˝ Fig. 5811 HYD1A2
PS-514 D12.375 1-5/8 BCDJF ND1246-A4
PS-1683 E32.375 1-5/8 BCFJF HYD1BG1
PS-446 C 1 2.500 1-3/4 BCFJF HYD1AC3, HYD1AD1
PS-550 C 3 2.500 1-3/4 BCFJF HYD1CB2
PS-6241 C32.500 1-3/4 BLFLF HYD1EH2
PS-3963 C 3 2.500 1-3/4 BLFZF HYD1CM2
PS-3719 C 3 2.500 1-3/4 B/VLFZF HYD1DJ2
PS-3687 C 3 2.500 1-3/4 BZFZF HYD1CD2
PS-3718V C 3 2.500 1-3/4 VCFJF HYD1CR2
PS-449 K12.500 1-3/4 BCFJF Models: 5421 BP
,KTPA-10031 HYD1AD1
PS-6246 K12.500 1-3/4 BCFJF HYD1AD7
PS-6242 T3 2.500 1-3/4 VCFJF 316SS HYD1EN2
PS-1070 U 3 2.375 1-3/4 BCFJF 5˝ Fig. 5821, 6˝ Fig. 5821, 4˝ Fig. 5822 HYD1AA3
3˝ Fig. 5823, 4˝ Fig. 5874A, 3˝ Fig. 5876A
2˝ Fig. 5972A, 2-1/2˝ Fig. 5972A
PS-519 U 3 2.500 1-3/4 BCFJF Fig. 5822A, Size 4 HYD1T2
PS-2069 E 1 2.625 1-7/8 BCFJF HYD1E4
PS-2070 E 1 2.625 1-7/8 BCFKF HYD1Q4
PS-3964 T 3 2.625 1-7/8 BCFJF HYD1CW1
PS-898 U 3 2.500 1-7/8 BCFJF 8˝ Fig. 5821, 5˝ & 6˝ Fig. 5822 HYD1AA4
4˝ & 5˝ Fig. 5823, 5˝ Fig. 5874A
PS-2146 V 3 2.625 1-7/8 BMFJF HYD1S16
PS-1105 V 25 2.640 1-7/8 BMFJF Frame 28
*US Seal 2010 catalog w cover 9/14/10 2:59 PM Page 35
U.S. Seal Mating Mating Shaft Material
Part No. Head Ring Ring OD Dia. Code Notes Pump Nameplate Data Mfg. Part No.
PUMP MANUFACTURERS’ CROSS-REFERENCE
32
FAIRBANKS MORSE (continued) (See PENTAIR, INC. for Additional Part Numbers)
PS-8077
XSpecial
3 2.500 1-7/8 VCFJF 316SS HYD1BT10
PS-7781 C 1 2.750 2 BCFJF HYD1CB1
PS-7781- C 1 2.750 2 BLFZF HYD1CK2, HYD1CN2
SC-TC
PS-4015 C 3 2.750 2 BCFKF HYD1CE2
PS-332 C 3 2.750 2 BCFKF HYD1BX1
PS-6238 C 3 2.750 2 BLFLF HYD1EH1
PS-3721 C 3 2.750 2 BLFZF HYD1CM1, HYD1DJ1
PS-6247V C 3 2.750 2 VCFKF HYD1CS2
PS-4178 C 3 2.750 2 VLFLF HYD151
PS-530 E 3 2.750 2 BCFJF HYD1BG2
PS-2143 K 1 2.750 2 BCFJF
PS-338 C 3 3.000 2-1/8 BCFJF Frame 30 Model 5500 HYD1AC4
PS-327 E 3 3.000 2-1/8 BCFJF HYD1Q5
PS-887 K 1 3.000 2-1/8 BCFJF HYD1AD3
PS-1107- V 1 3.187 2-1/8 BCFJF Frame 32 HYD1S
CMS
PS-1102 V 3 3.140 2-1/8 BCFJF Frame 32 HYD1S5
PS-7782 C 1 3.125 2-1/4 BCFKF HYD1CE1
PS-1676 C 3 3.125 2-1/4 BCFKF HYD1BX10
PS-3966 C 3 3.125 2-1/4 BLFZF HYD1CN1
PS-6248 C 3 3.125 2-1/4 VCFKF HYD1CS1
PS-7431 K 1 3.125 2-1/4 BCFJF HYD1AD9
PS-269 C 3 3.375 2-1/2 BCFJF
HYD1AD4, FMB027764A01
PS-853 C 3 3.375 2-1/2 BCFKF HYD1BX3
PS-6254 E 3 3.500 2-1/2 BCFJF HYD1CX2
PS-279 E 3 3.375 2-1/2 BCFJF 8˝ Fig. 5822, 6˝ & 8˝ Fig. 5823, HYD1AA6, HYD1BG3
5˝ & 6˝ Fig. 5824, 5˝ Fig. 5972
PS-1613 K 3 3.375 2-1/2 BCFJF HYD1AD10
PS-4072 T 3 3.500 2-1/2 BCFJF HYD1CW2
PS-6244 T 3 3.500 2-1/2 VCFJF HYD1EN4
PS-6243 T 3 3.500 2-1/2 VLFZF HYD1ES4, FMB1403087
PS-2147 V 3 3.500 2-1/2 BCFJF HYD1S17
PS-3994 C 3 3.500 2-3/4 BCFJF HYD1CB3
PS-6239 C 3 3.500 2-3/4 BLFLF HYD1EH3
PS-4366 C 3 3.500 2-3/4 BLFZF HYD1CM3
PS-2154- C 3 3.500 2-3/4 B/VCFZF FMB060882X01
TC-SEAT
PS-3661 C33.500 2-3/4 VLFZF HYD1DJ3
PS-2148 K 3 3.500 2-3/4 BCFJF HYD1AD11
PS-328 E 3 3.375 2-5/8 BCFJF HYD1AA8, HYD1Q6
PS-542 E 3 3.375 2-5/8 BCFKF HYD1Q6
PS-329 E3 3.750 2-7/8 BCFJF HYD1Q7
PS-2153 C 3 3.875 3 BCFJF HYD1EF3
PS-2115 C 3 3.875 3 BCFKF HYD1BX4
PS-3600 C 3 3.875 3 BCFKF HYD1CE3
PS-2115- C33.875 3BCFZF FMB060882X02
TC-SEAT
PS-6240 C 3 3.875 3 BLFLF HYD1EH4
PS-3701 C 3 3.875 3 BLFZF HYD1CM4
PS-6249- C3 3.875 3 BLFZF HYD1CN3
SC-TC
PS-2153- C 3 3.875 3 BZFZF HYD1CD4
TC-TC
PS-6249 C 3 3.875 3 BZFZF HYD1CK3
PS-6250 C 3 3.875 3 VCFKF HYD1CS3
PS-475 E 3 3.875 3 BCDKF HYD1BE4
PS-324SS E 3 3.875 3 BCFJF HYD1BG4
PS-3969 E34.000 3 BCFJF HYD1CX3
PS-7993 T 3 4.000 3 BCFJF HYD1CW3
PS-3836 U 3 3.875 3 BCFJF HYD1AA7
PS-7215 V 3 4.000 3 BCFJF 316SS HYD1S18
PS-4069 V 3 4.000 3 BCFZF FMB061419X01
*US Seal 2010 catalog w cover 9/14/10 2:59 PM Page 36
33
U.S. Seal Mating Mating Shaft Material
Part No. Head Ring Ring OD Dia. Code Notes Pump Nameplate Data Mfg. Part No.
NOTE:
PUMP MANUFACTURERS’ CROSS-REFERENCE
A. MOUNTS ON SHAFT
B. TAPERED SPRING
H. SPRING HOLDER NOT INCLUDED
I. ABRASION RESISTANT CARBON (P66)
FAIRBANKS MORSE (continued) (See PENTAIR, INC. for Additional Part Numbers)
PS-1069 V 3 4.750 3-1/8 BCFJF HYD1S8
PS-4127 C 3 4.125 3-1/4 BCFJF HYD1EF4
PS-6258 C 3 4.125 3-1/4 BCFKF HYD1CE4
PS-3702 C 3 4.125 3-1/4 BLFZF HYD1CN4
PS-6251 C 3 4.125 3-1/4 BZFZF HYD1CK4
PS-6253 C 3 4.125 3-1/4 VCFJF HYD1CR4
PS-6252 C 3 4.125 3-1/4 VCFKF HYD1CS4
PS-330 E 3 4.125 3-1/4 BCDJF HYD1Q8
PS-6245 C 3 4.375 3-1/2 BCFKF HYD1BX6
PS-6256 D 3 4.375 3-1/2 BLFZF HYD1DC3
PS-4019 E 3 4.375 3-1/2 BCFJF I HYD1BG5
PS-4101 E 3 4.375 3-1/2 BCFKF HYD1BE5
PS-3499 E 3 4.625 3-5/8 BCFJF HYD1CX4
PS-3684 T 3 4.625 3-5/8 BCFJF HYD1CW4
PS-6237 T 3 4.625 3-5/8 BCFZF FMB213293X01
PS-3779 V 3 4.625 3-5/8 BCFJF HYD1S19
PS-4014 D 3 4.625 3-3/4 BLFZF HYD1DB3, HYD1DC1
FEDERAL PUMP
PS-293 A 14 .815 5/8 BMFKF Seat is Metal to Metal Press Fit
PS-245 C 1 1.625 1 BCFJF B/H
PS-248 C 1 1.625 1 BCFKF B/H
PS-380 D 1 1.625 1 BCFJF
PS-246 C 1 1.875 1-1/4 BCFJF B/H
PS-249 C 1 1.875 1-1/4 BCFKF B/H
PS-381 D 1 1.875 1-1/4 BCFJF
PS-547 C 3 2.000 1-3/8 BCFKF
PS-682 C 1 2.156 1-1/2 BCFJF B/H
PS-247 C 1 2.156 1-1/2 BCFKF B/H
PS-382 D 1 2.125 1-1/2 BCFJF
PS-446 C 1 2.500 1-3/4 BCFJF
PS-205 E 1 2.500 1-3/4 BCFJF
FINISH THOMPSON, INC.
PS-359- C 1 1.250 5/8 QCFJF J101256
EPR-CMS
FINN CORP.
PS-185 C 1 1.875 1-1/4 BCFJF 080485
FLINT & WALLING (Div. of ZOELLER PUMP CO.)
PS-165 B 9 .906 1/2 BMFJF A 132891/92
PS-800 C11.156 5/8 BMFJF H Models:BPA, C, C6267,CA AC-16,131100, 132377
PS-201 A 1 1.375 3/4 BMFJF 81, 82, 83, 605, 607, 609 Shallow Well 126544, 126545
64, 65, 66, 67, 68 Deep Well
PS-687 C 1 1.500 7/8 BCFKF 121224
PS-357 C 1 1.625 1 BCFKF Series C211 129868
PS-204 E 1 1.750 1-1/8 BCFJF
PS-185 C11.875 1-1/4 BCFJF 136557
FLOWSERVE CORP. (See DURIRON, IDP and WORTHINGTON)
PS-928 C — — 9/16 BCF-F 05595400, 27337583
PS-3542 C 3 1.031 9/16 VCFKF 74744277
PS-516 A 1 1.250 5/8 BCFJF 74297284
PS-528 A 1 1.375 5/8 BMFJF 28518652
PS-637 A 3 1.250 5/8 BMFJF 60311669
PS-933 C — — 5/8 BCF-F 055955-00, 27337591
PS-359V- C 1 1.250 5/8 VCFJF 74315409
CMS
PS-626 C 1 1.375 5/8 VCFJF PO2099-00,28518660
PS-7635 C 3 1.062 5/8 VCFKF 74744285
PS-951- C 3 1.375 5/8 QCFKF 74264060
EPR
PS-951 C 3 1.375 5/8 VCFKF PO2752-00, 74262767
PS-564 C — — 3/4 BCF-F 024439-00, 27197623
*US Seal 2010 catalog w cover 9/14/10 2:59 PM Page 37
U.S. Seal Mating Mating Shaft Material
Part No. Head Ring Ring OD Dia. Code Notes Pump Nameplate Data Mfg. Part No.
NOTE:
PUMP MANUFACTURERS’ CROSS-REFERENCE
I. ABRASION RESISTANT CARBON (P66)
34
FLOWSERVE CORP. (continued) (See DURIRON, IDP and WORTHINGTON)
PS-2236 C 3 1.375 3/4 BCFJF 60721792, 60980901
PS-2235 C 3 1.375 3/4 VCFJF 60724572
PS-4229- C 3 1.375 3/4 QCFZF 68865831
TC-SEAT
PS-7994 E 3 1.187 3/4 VCFKF 1802AJCTYPIR075XP171
PS-602 D 1 1.562 7/8 BCDJF 60110418
PS-936 E — — 7/8 BCF-F 024440-00, 27197631
PS-7859V E 3 1.312 7/8 VCFKF 316SS 74744301
PS-7896 E 3 1.500 7/8 VCEZE 60311578
PS-845 U 3 1.562 15/16 BCFGF 27252691
PS-560V U 3 1.562 15/16 VCFKF 031446-01, 74744319
PS-252 D 3 1.625 1 BCFKF 82230962
PS-348 C — — 1-1/8 BCF-F PO2885-00, 28518934
68885854
PS-348V C — — 1-1/8 VCF-F PO2889-00, 74262874
PS-356 C 1 1.750 1-1/8 BCFJF 74908260
PS-801 C 3 1.750 1-1/8 BCFJF 60954526
PS-355V C 3 1.750 1-1/8 VCFKF 39633201
PS-605 D 1 1.750 1-1/8 BCFKF CPM-10055, 60110442
PS-604 D 1 1.750 1-1/8 BCFJF 60110434
PS-607 E 1 1.687 1-1/8 BCFJF 60110327, 60110335
PS-384 E 1 1.750 1-1/8 BCFKF 60110616
PS-867 E 3 1.750 1-1/8 BCFKF 69237592
PS-204V E 3 1.750 1-1/8 VCFJF 60954682
PS-867V- E 3 1.750 1-1/8 VCFZF 60954716
TC-SEAT
FA-607 E — — 1-1/8 BCF-F 053129-00, 68885870
68885896,74308461
FA-608V E — — 1-1/8 VCF-F 60954690
PS-1637 E 3 1.812 1-1/8 B/VCFKF 60514254
T9-1125 WT — — 1-1/8 TCF-F 316SS PO2877-00, 25818801
60954914
PS-723 T 1 1.875 1-3/16 BCDJF 60111267
PS-618 C3 1.875 1-1/4 BCFJF 60721800, 60980918
60980919
PS-618- C 3 1.875 1-1/4 QCFJF I 74737990
EPR-P66
PS-2203 C 3 1.875 1-1/4 QCFKF I 68867910
PS-7436 C31.875 1-1/4 QCFZF I 60671328
PS-756V C 3 1.875 1-1/4 VCFKF 74898800
PS-618V- C 3 1.875 1-1/4 VCFZF 60727401
TC-SEAT
PS-7972 G11.875 1-1/4 BLFLF
Model 4MSX7 - See PS-7971 for Upper Seal
81955064 - Lower Seal
PS-394 U31.875 1-1/4 BCF/DKF 031448-00
PS-172 C — — 1-3/8 BCF-F PO2886-00, 28518868
PS-172- C — — 1-3/8 QCF-F I 74332321, 80631400
EPR-P66
PS-172V C— — 1-3/8 VCF-F PO2890-00, 28518884
PS-4163 E — — 1-3/8 QCF-F 316SS 74712241
PS-2104V E — — 1-3/8 VCF-F 74816034
PS-4087 E — — 1-3/8 VCF-F 316SS PO2874-00
PS-3925 E 3 2.125 1-3/8 VCFJF 74816117
PS-7971 G1 2.000 1-3/8 BCFJF See PS-7972 for Lower Seal 81955072 - Upper Seal
PS-3014 G 1 2.000 1-3/8 BLFZF 316SS 81981193
PS-725 T 1 2.000 1-3/8 BCFJF 60111275
PS-561SS U12.000 1-3/8 BCFKF 05049800, 02645700
27215094
PS-2106 E— — 1-1/2 BCF-F 05484500, 27335819
68886167, 68886175
69170181
PS-2106V E — — 1-1/2 VCF-F 60506169, 60549581
74332164, 80612400
PS-258 E 3 2.125 1-1/2 BCFKF 68886100, 68886118
*US Seal 2010 catalog w cover 9/14/10 2:59 PM Page 38
35
U.S. Seal Mating Mating Shaft Material
Part No. Head Ring Ring OD Dia. Code Notes Pump Nameplate Data Mfg. Part No.
NOTE:
PUMP MANUFACTURERS’ CROSS-REFERENCE
C. COMPLETE WITH COLLAR
I. ABRASION RESISTANT CARBON (P66)
FLOWSERVE CORP. (continued) (See DURIRON, IDP and WORTHINGTON)
PS-305V E 3 2.125 1-1/2 VCFJF 68886068
PS-4034 E 3 2.312 1-1/2 BCFZF 60514148
PS-1648 E 3 2.312 1-1/2 B/VCFKF 60514130, 60514288
PS-1651 E 3 2.312 1-1/2 VCFJF H/HC 60514122
PS-1652 E 3 2.312 1-1/2 VCFKF 60514726
PS-239- C 3 2.375 1-5/8 QCFKF 60727328
EPR
PS-609 E 1 2.312 1-5/8 BCDJF 60110343
PS-610 E 1 2.312 1-5/8 BCFKF 60110350
PS-2108 C — — 1-3/4 BCF-F 28518876
PS-2108- C — — 1-3/4 BRF-F 80996900
P90
PS-2108V C — — 1-3/4 VCF-F 74262882, PO2891-00
PS-2109 E — — 1-3/4 BCF-F 28518785
PS-7950 E 3 2.500 1-3/4 QCFZF I 74840992
PS-366V E 3 2.500 1-3/4 VCFKF 74780065
PS-3016 G 1 2.500 1-3/4 BLFLF 81974883
PS-4216 G 1 2.500 1-3/4 BLFZF 81974917
PS-4263 T 3 2.500 1-3/4 VCFJF 316SS 68885862
PS-3884 U 1 2.500 1-3/4 VCFZF
PS-2072 E 3 2.625 1-7/8 BCFKF 60433083, 60434321
68885987
PS-1659 E 3 2.625 1-7/8 VCFJF 60954757
PS-1660 E 3 2.625 1-7/8 VCFKF 60954807
PS-4193 E 3 2.625 1-7/8 VCFZF 316SS
FA-513V E — — 1-7/8 VCF-F 60954765
PS-3648 EBal. Special 2.687 1-7/8 VCFZF 60502697
PS-3017 G 1 2.625 1-7/8 BCFJF 81974875
PS-3018 G 1 2.625 1-7/8 BLFLF 81974909
FA-8094V X — — 1-7/8 VCF-F 60954542
PS-530 E 3 2.750 2 BCFJF 60110780
PS-477 E 3 2.750 2 BCFKF 60110756, 69261352
PS-456- U 3 2.750 2 QCFKF 753294-41
EPR
PS-3591 U 3 2.750 2 QCFZF I 753294-90
PS-456V U 3 2.750 2 VCFKF 753295-40
FA-2120 C — — 2-1/8 BCF-F PO2888-00
PS-1612 E3 2.812 2-1/8 BCFKF 601103-76
PS-278V E 3 3.250 2-3/8 VCFJF 609697-97
FA-2098 E — — 2-3/8 BCF-F 605283-61
FA-350V E — — 2-3/8 VCF-F 609698-05
PS-3936V- E Bal. 3 3.125 2-3/8 VCFZF 801909-54
TC-SEAT
PS-3008 G 1 3.250 2-3/8 BCFJF 81974891
PS-3022 G13.250 2-3/8 BLFZF 81974941
PS-2205- E33.375 2-1/2 QCFKF I60647260
EPR
PS-349V E 3 3.375 2-1/2 VCFKF 75514554
PS-4392 E 3 3.625 2-5/8 QCFLF C
PS-8102 X Bal. 3 3.375 2-3/4 VCFZF 316SS
PS-475 E 3 3.875 3 BCDKF 60434883
PS-5252 E 3 3.875 3 BCFKF 74841065
PS-325SS U 3 4.125 3-1/4 BCFKF 69261378
PS-7986 U34.625 3-3/4 BCDKF 60311578
FLOWAY (Div. of WEIR SPECIALTY PUMPS)
PS-252 D 3 1.625 1 BCFKF 542949-2010
PS-264 E 3 1.875 1-1/4 BCFKF 545305-1010, 231-31-413
FLYGT (Div. of ITT CORP.) (See Pages 168-171)
FMC FOODTECH
PS-397 C——1BCF-F 401-50-0001
PS-2105 C — — 1-1/2 BCF-F 401-50-0006
*US Seal 2010 catalog w cover 9/14/10 2:59 PM Page 39
U.S. Seal Mating Mating Shaft Material
Part No. Head Ring Ring OD Dia. Code Notes Pump Nameplate Data Mfg. Part No.
PUMP MANUFACTURERS’ CROSS-REFERENCE
36 NOTE:
A. MOUNTS ON SHAFT
I. ABRASION RESISTANT CARBON (P66)
FOOTE BROTHERS
PS-383 D 1 1.875 1-1/4 BCFKF
PS-186 D 1 2.000 1-3/8 BCDKF
PS-371 D 1 2.125 1-1/2 BCFKF
PS-462 D 1 2.750 2 BCDKF
FRANKLIN ELECTRIC CO., INC. (LITTLE GIANT PUMP CO., MONARCH PUMPS)
PS-200 A 1 1.250 5/8 BMFJF 106196105
PS-200V- A 1 1.250 5/8 VCFJF 240316
CMS
PS-452 B 8 — 5/8 BMFJF A
PS-1021 B 8 — 5/8 BMFJF A 292456101
PS-877 C 1 1.375 3/4 BCFJF 106196102
PS-360 A 1 1.625 1 BCFJF 240180
PS-360V- A 1 1.625 1 VCFJF 240369
CMS
PS-2122 C 1 1.875 1-1/4 BCFJF 106196101
PS-185V- C 1 1.875 1-1/4 VCFJF 240359
CMS
FRANKLIN PUMP SYSTEMS (Div. of JACUZZI)
PS-200 A 1 1.250 5/8 BMFJF 10000206
PS-201 A 1 1.375 3/4 BMFJF 10150209
PS-877 C 1 1.375 3/4 BCFJF 10120301
PS-235 C 1 1.625 1 BCFJF 10129906
PS-2122 C 1 1.875 1-1/4 BCFJF 10036903
PS-2142 C 1 2.500 1-3/4 BCFJF 10037000
FREDERICK PUMP & ENGINE
PS-952 A 1 1.250 5/8 BCFJF
PS-360 A 1 1.625 1 BCFJF
PS-185 C 1 1.875 1-1/4 BCFJF
PS-756V C 3 1.875 1-1/4 VCFKF 80912
PS-1042 U 1 2.500 1-3/4 BCFJF
FRICK CO.
PS-492- C 1 3.250 2-3/8 BCFKF 80BA2-47 P-81905
CMS
PS-4028
K
3Special
4.500 2-7/8 NCFGF Model No MRI-90
FYBROC (Div. of MET-PRO CORP.)
PS-8057 XB2 27 3.562 2-1/8 VCFJF 316SS 0895C010
G.E. OSMONICS
PS-4272 C 1 1.250 5/8 BCFJF 316SS 1113515
PS-552- C 3 1.250 5/8 QCFJF I 1114630
EPR-P66
PS-2016 E 1 1.250 5/8 BCFJF 1113517
PS-548 C 3 1.625 1 BCFJF 1121167
PS-235V C 3 1.625 1 VCFJF
PS-791 E31.625 1 BCFKF 1114326
PS
-791-EPR-
E 3 1.625 1 QCFZF 1201945
TC-SEAT
PS-791V- E 3 1.625 1 VCFZF 1201946
TC-SEAT
PS-2047V D 3 2.000 1-3/8 VCFJF 3011311
GALION
PS-157 C — — 3/4 BCF-F
PS-397 C — — 1 BCF-F
GARDNER DENVER
PS-441 B 9 — 3/4 BMFKF A 60BN-1
PS-373 C 1 1.375 3/4 BCFKF 60AY-10
PS-360 A 1 1.625 1 BCFJF 60BT-11
PS-370 A 1 1.625 1 BCFKF 60BT-1
PS-357V C 3 1.625 1 VCFKF 60DD-799
PS-236 E11.625 1BCFKF 60AY-2,16 &18
*US Seal 2010 catalog w cover 9/14/10 2:59 PM Page 40
37
U.S. Seal Mating Mating Shaft Material
Part No. Head Ring Ring OD Dia. Code Notes Pump Nameplate Data Mfg. Part No.
NOTE:
PUMP MANUFACTURERS’ CROSS-REFERENCE
B. TAPERED SPRING
GARDNER DENVER (continued)
PS-605 D 1 1.750 1-1/8 BCFKF 60BC-10
PS-384 E 1 1.750 1-1/8 BCFKF 60AY-11 &13
PS-383 D 1 1.875 1-1/4 BCFKF 60BC-3
PS-6036 D 2 1.875 1-1/4 VCPFP 60DD-597
PS-186 D 1 2.000 1-3/8 BCDKF 60BC-14
PS-6048 D 3 2.000 1-3/8 VCPSP 60DD-594
PS-354 E 1 2.000 1-3/8 BCFJF
PS-7367 C Special 2.718 1-7/16 VCFGF 60DD-52
PS-6055 E 28 2.718 1-7/16 VCPGP 60DD-105
PS-382 D 1 2.125 1-1/2 BCFJF
PS-371 D 1 2.125 1-1/2 BCFKF
PS-374 E 1 2.125 1-1/2 BCFKF 60AY-21
PS-239V C 3 2.375 1-5/8 VCFKF 60BC-2-5
PS-6005 C 3 2.375 1-5/8 VCFKF 60DD-86
PS-6075 D 3 2.375 1-5/8 VCPSP 60DD-592
PS-436V C 3 2.500 1-3/4 VCFKF 60DD-596
PS-312V C 3 2.625 1-7/8 VCFKF 60DD-98
PS-593 D 3 2.625 1-7/8 BCDKF 60BC-9,12
PS-6094 D 3 2.625 1-7/8 VCPSF 60DD-599
PS-2070 E 1 2.625 1-7/8 BCFKF 60AY-20
PS-543V C 3 3.000 2-1/8 VCFKF 60DD-600
PS-1676V C 3 3.125 2-1/4 VCFKF 60DD-104
PS-5358 D 3 3.125 2-1/4 Special 60DD-595
PS-351 E 1 3.125 2-1/4 BCDKF 60AY-15
PS-463 D 3 3.375 2-1/2 BCDKF 60BC-8
PS-6154 C 27 4.406 2-3/4 VCFGF 60DD54
GARWOOD INDUSTRIES
PS-303 D 1 1.500 7/8 BCDKF 206556
PS-227 D 1 1.750 1 BCFKF
PS-210 C 1 2.000 1-3/8 BCFKF 2016264
PS-376 D — — 1-3/8 BCD-F 2039056
GEARMASTER
PS-1043 C 1 1.000 1/2 BMFJF A34-3970
GECO SALES
PS-1000 B 1 1.250 5/8 BMFJF
GENERAL MOTORS CORP. (GMC)
PS-642 B — — 5/8 BMF-F 5121751
PS-933 C— — 5/8 BCF-F 5186571
PS-752 D 1 1.375 3/4 BCDKF 5186113
PS-192 C 3 2.125 1-1/2 NCFGF
GENERAL PUMP
PS-200 A 1 1.250 5/8 BMFJF
PS-810 C 1 1.250 5/8 N/BCFJF B 1-1/2 HP to 2 HP
GEORGIA PACIFIC PUMP
PS-200 A 1 1.250 5/8 BMFJF
GG INDUSTRIES
PS-200 A 1 1.250 5/8 BMFJF P-M03885
PS-642 B——5/8 BMF-F P-M03857, P-M07909
PS-1000 B11.250 5/8 BMFJF P-Seal 4 / P-Seal 5 Mark III
GILBERT BARKER (GILBARCO, INC.)
PS-1000 B 1 1.250 5/8 BMFJF K81159X
PS-756 C11.875 1-1/4 BCFKF K74050X
PS-514 D12.375 1-5/8 BCDJF
PS-461 D 1 2.375 1-5/8 BCDKF
GLT, INC.
PS-6313 Q11.019 1/2 BCFJF 185694-1
PS-1085V C 1 1.250 5/8 VCFJF B 114696
PS-6318 Q 9 1.578 1-1/8 VMFAF 117071
*US Seal 2010 catalog w cover 9/14/10 2:59 PM Page 41
U.S. Seal Mating Mating Shaft Material
Part No. Head Ring Ring OD Dia. Code Notes Pump Nameplate Data Mfg. Part No.
PUMP MANUFACTURERS’ CROSS-REFERENCE
38 NOTE:
N. NON-STANDARD SPRING HOLDER
GORMAN-RUPP CO. (For Additional Listings - See Page 155)
PS-150 B — — 1/2 BMF-F Seat is Impeller S8243-4
PS-788 B 1 1.000 1/2 BMFKF
PS-106 C 1 1.000 1/2 BCFKF N 25271-801
PS-106V C 1 1.000 1/2 VCFKF N 25271-802
PS-218 A — — 5/8 BCF-F 12873-002
PS-200 A 1 1.250 5/8 BMFJF S756, S1531
PS-507 A 1 1.250 5/8 BMFKF
PS-882 B — — 5/8 BCF-F 8243-12
PS-118 C 1 1.187 5/8 BCFJF S809
PS-359 C 1 1.250 5/8 BCFJF S765, 25271-824
PS-1080 C 1 1.250 5/8 NCFKF 25270-113
PS-1045 C 3 1.250 5/8 VCFJF
PS-102 D 1 1.250 5/8 BCDKF S217
PS-795 S 8 1.187 5/8 NAPSP GS-625
PS-851 A 1 1.375 3/4 BCFJF S1190
PS-601 B 1 1.375 3/4 BMFJF Model: 83E-F13 26822-008
PS-564 C — — 3/4 BCF-F S32
PS-112 C 1 1.375 3/4 BCFKF S1679
PS-358 C 1 1.375 3/4 BCFJF S936, S1575
PS-358V- C 1 1.375 3/4 VCFJF 25271-850
CMS
PS-373V C 1 1.375 3/4 VCFKF 25271-021
PS-750 D 1 1.375 3/4 BCDJF S383
PS-752 D 1 1.375 3/4 BCDKF
PS-792 S Special 1.500 3/4 NAPSP GS-750
PS-617 C 3 1.500 7/8 BCFKF 25271-159
PS-2027V D 3 1.500 7/8 VCFKF 25271-855
PS-360 A 1 1.625 1 BCFJF S2147
PS-397 C — — 1 BCF-F S237
PS-235 C 1 1.625 1 BCFJF S1906, S1832
PS-357 C 1 1.625 1 BCFKF
PS-499 C 3 1.625 1 BCFKF 25271-869
PS-357V C 3 1.625 1 VCFKF 25271-870
PS-380 D 1 1.625 1 BCFJF S1415
PS-460 D 1 1.625 1 BCFKF S363, S364
PS-4253 D Bal. 3 1.500 1 VCFKF 316SS 25276-251
PS-236 E11.625 1BCFKF
PS-557 E 3 1.625 1 BCFJF 25271-032
PS-791 E 3 1.625 1 BCFKF S388
PS-793 S81.750 1NAPSP Model: 13A2-B GS-1000
PS-9018 W 27 2.156 1 TCFJF 316SS S1212
PS-348 C — — 1-1/8 BCF-F 92055-1112
PS-867 E31.750 1-1/8 BCFKF 25271-039
PS-867V E 3 1.750 1-1/8 VCFKF 25271-037
PS-756 C 1 1.875 1-1/4 BCFKF S1621
PS-185- C11.875 1-1/4 QCFJF 25271-893
EPR
PS-598 C 3 1.875 1-1/4 BCFKF 25271-889
PS-185V C31.875 1-1/4 VCFJF 25271-888
PS-756V C 3 1.875 1-1/4 VCFKF 25271-836, 25271-886
PS-381 D 1 1.875 1-1/4 BCFJF S321
PS-383 D11.875 1-1/4 BCFKF S37, S493
PS-517 D 3 1.875 1-1/4 BCFKF S493C
PS-981 D 3 1.875 1-1/4 BCFKF S321A
PS-383V D31.875 1-1/4 VCFKF 25271-192
PS-361 E 1 1.875 1-1/4 BCFJF S335
PS-137 E 1 1.875 1-1/4 BCFKF S350
PS-546 E31.875 1-1/4 BCFJF 42029, 25271-044
PS-137V E 3 1.875 1-1/4 VCFKF 25271-043
PS-6259 G 1 1.875 1-1/4 VCFJF 316SS 25276-633
PS-794 S 8 2.125 1-1/4 NAPSP Model: 14C2B GS-1250
PS-2234 E32.062 1-7/16 BCFKF 25271-051
PS-2234V E 3 2.062 1-7/16 VCFKF 25271-056
PS-758 C 1 2.125 1-1/2 BCFJF S1150
*US Seal 2010 catalog w cover 9/14/10 2:59 PM Page 42
39
U.S. Seal Mating Mating Shaft Material
Part No. Head Ring Ring OD Dia. Code Notes Pump Nameplate Data Mfg. Part No.
PUMP MANUFACTURERS’ CROSS-REFERENCE
NOTE:
A. MOUNTS ON SHAFT
H. SPRING HOLDER NOT INCLUDED
N. NON-STANDARD SPRING HOLDER
GORMAN-RUPP CO. (continued) (For Additional Listings - See Page 155)
PS-553 C 3 2.125 1-1/2 BCFKF 25271-907
PS-659V C 3 2.125 1-1/2 VCFKF
PS-371 D 1 2.125 1-1/2 BCFKF S283, S317, S774
PS-534 D 3 2.125 1-1/2 BCFKF S1934
PS-371V D 3 2.125 1-1/2 VCFKF 25271-207
PS-7079 D 28 2.375 1-1/2 VZFZF 12364A
PS-374 E 1 2.125 1-1/2 BCFKF S239
PS-8002 X 3 2.125 1-1/2 BCFJF 25271-554
PS-382 D 1 2.125 1-1/2 BCFJF Models S4A1, S4B1, S6A1, S6B1, S1934
S6C1, S8A1, S8B1
PS-239V C 3 2.375 1-5/8 VCFKF 25271-921
PS-544 C 3 2.375 1-5/8 BCFKF 25271-922
PS-2058 E 1 2.375 1-5/8 BCFKF 25271-061
PS-1683 E 3 2.375 1-5/8 BCFJF 25271-064
PS-446 C 1 2.500 1-3/4 BCFJF S1822
PS-2212 C 1 2.500 1-3/4 BCFJF Model S8C1 25271-947
PS-446V- C 1 2.500 1-3/4 VCFJF 25271-942
CMS
PS-436 C 3 2.500 1-3/4 BCFKF 25271-943
PS-267 C 1 2.750 2 BCFJF 25271-971
PS-267V- C 1 2.750 2 VCFJF
CMS
PS-1145 C 3 2.750 2 VCFKF 25271-983
PS-332 C 3 2.750 2 BCFKF S1929
PS-1688 E 3 3.125 2-1/4 BCFJF 25271-095
PS-463 D 3 3.375 2-1/2 BCDKF
PS-3888 D 3 3.375 2-1/2 VZFLF 26835-541
PS-349V- E 3 3.375 2-1/2 VZFLF 26835-544, 26835-546
TC-SC
PS-6219 D 3 3.875 3 BZFLF 26835-548
PS-4033 D 3 3.875 3 VZFLF 26835-542
PS-7835V C 3 4.125 3-1/4 VCFJF 25271-994
GOULDS PUMPS (Div. of ITT INDUSTRIES)
PS-631 C 1 1.000 1/2 BCFJF N
PS-1002 C 1 1.000 1/2 BCFJF N Fig . 3604 74207-0050
PS-1002V C 1 1.000 1/2 VCFJF N 74208-0050, 74209-0050
PS-702 A 1 1.187 5/8 BMFJF Balanced Flow BF-03, 10K1, 10K6, 70470-5062
Series: LS, LD, G, O, M, XS05, 15, 20, 72598-1062, 20-83-1100
30, 50, Jetomatic,
Fig. 3642, 3742, Fig 3672
PS-701 A 1 1.187 5/8 BMFKF Balanced Flow BF-03, Figs.: 3648, 3628, 10K2, 72598-3062
3728, 3748, 3642, 3742, 3638, 3738,
3788, and 3811
PS-518- A 1 1.187 5/8 BLFLF 10K63
SC-SC
PS-702- A 1 1.187 5/8 QCFJF 10K110, 72598-8082
EPR
PS-3977 A 1 1.187 5/8 VLFLF 10K105, 3481008,
72598 7062
PS-702V A 1 1.187 5/8 VCFJF 10K24
PS-4240 A1 1.187 5/8 BCFJF 10K10
PS-200V-A11.250 5/8 VLFLF 10K120
SC-SC
PS-600 B 1 1.187 5/8 BMFJF Fig. 3231
PS-700 B 1 1.187 5/8 BMFJF Cellar Drainer Fig. 3631 10K7
PS-1000V B 3 1.250 5/8 VCFJF 696-0442
PS-3926 B 9 1.062 5/8 VCFKF 316SS 10K127
PS-411V B 11 — 5/8 VCFJF A 15K20
PS-1155 C 1 1.187 5/8 BCFJF
PS-493 C 1 1.187 5/8 BCFKF Fig. 3377 and 3371 Multi Stage 10K3
PS-4222 C1 1.187 5/8 QCFLF 316SS/H 10K18
PS-3707 C 1 1.187 5/8 QLFLF 316SS/H Does Not Require Springholder 10K81
PS-4226 C1 1.187 5/8 VLFLF 316SS/H
PS-1155V C 1 1.187 5/8 VCFJF 10K24
*US Seal 2010 catalog w cover 9/14/10 2:59 PM Page 43
U.S. Seal Mating Mating Shaft Material
Part No. Head Ring Ring OD Dia. Code Notes Pump Nameplate Data Mfg. Part No.
NOTE:
PUMP MANUFACTURERS’ CROSS-REFERENCE
B. TAPERED SPRING
C. COMPLETE WITH COLLAR
H. SPRING HOLDER NOT INCLUDED
I. ABRASION RESISTANT CARBON (P66)
40
GOULDS PUMPS (Div. of ITT INDUSTRIES) (continued)
PS-4031 C 1 1.187 5/8 VCFLF 10K46, 10K55
PS-3613 C 1 1.187 5/8 VLFLF
PS-6267 G 1 1.187 5/8 QLFLF 10K167, A00576C 1
PS-8104 XA 9 1.062 5/8 YCFKF 10K109
PS-1522 A — — 3/4 BMF-F 7501000
PS-750 D 1 1.375 3/4 BCDJF 10K4
PS-3996 C 1 1.500 7/8 VCFLF 10K40
PS-303 D 1 1.500 7/8 BCDKF 70470-4087
PS-703 D 1 1.500 7/8 BCDJF XS15, 20, 50 Aqua Lawn Jetomatic, 10K8
Fig. 3629, 3649, 3729,3749, 3639, 3739,
3678 and 3789
PS-397V C — — 1 VCF-F 41355000000
PS-235 C 1 1.625 1 BCFJF 10K12, 84001-2
PS-754 E 1 1.625 1 BCFJF Fig. 3169M, 3750S, 3655, 3450, 3650, 70783-1100
3750 & 3755
PS-236 E 1 1.625 1 BCFKF 69127-2100
PS-557 E 3 1.625 1 BCFJF 91666-1000
91670-1000
PS-3976 E 3 1.625 1 VCFJF 316SS Model 3655 / 3755 S
PS-8020 XB2
3Special
1.750 1 VCFJF 316SS
PS-710 E 1 1.750 1-1/16 BCFJF Fig. 3405, 3305S 70783-3106
PS-356 C 1 1.750 1-1/8 BCFJF Fig. 3643 10K21
PS-355- C 1 1.750 1-1/8 BLFLF 10K28
SC-SC
PS-356- C 1 1.750 1-1/8 BLFZF 10K22
SC-TC
PS-588 C 3 1.750 1-1/8 BCFKF B Fig. 3643 10K9, 76407-1112
PS-185 C 1 1.875 1-1/4 BCFJF Fig. 3656 9152071001
PS-2208 C 1 1.875 1-1/4 BZFZF 9152071002
PS-185V- C 1 1.875 1-1/4 VCFJF 10K25
CMS
PS-3886 C 1 1.875 1-1/4 VCFJF 316SS A06101A02
PS-3538 C 1 1.875 1-1/4 VCFLF 316SS 10K27, 76407 8125
PS-4176 C 1 1.875 1-1/4 VCFZF 316SS A06101A07
PS-4150 C 1 1.875 1-1/4 VLFLF 316SS 10K64, 10K188
PS-510 D 1 2.000 1-1/4 BCFJF 51010
PS-361 E11.875 1-1/4 BCFJF 2” Fig. 3460
PS-2128 E31.875 1-1/4 BCFJF
PS-2129 E 3 1.875 1-1/4 BCFKF
PS-177 C 1 2.000 1-3/8 BCFJF
PS-7919 C 3 2.000 1-3/8 B/VLFLF
PS-4194 D 1 2.000 1-3/8 VLFLF A015616E000
PS-354 E12.000 1-3/8 BCFJF Fig. 3345, 3320
PS-677 E 1 2.000 1-3/8 BCFKF
PS-864 E 3 2.000 1-3/8 BCFJF 3196ST
PS-865 E 3 2.000 1-3/8 BCFKF 3196ST
PS-3901 E 3 2.000 1-3/8 VCFJF
316SS/C/H
A04710A01
T9-1375 WT — — 1-3/8 TCF-F 316SS 90432001
PS-705 E 3 2.062 1-7/16 BCFJF Fig. 3405M, 3305M 70783-3143
PS-2106- E — — 1-1/2 BCF-F I 91671-0001
P66
PS-305 E12.125 1-1/2 BCFJF Fig. 3169, 3650, 3655, 3750 70783-1150
For Group M and K, 2-1/2” Fig. 3430
PS-374 E 1 2.125 1-1/2 BCFKF
PS-395 E 3 2.125 1-1/2 BCFJF 776A908-2
PS-238- C12.375 1-5/8 QCFLF 10K20
EPR-SC
PS-238V- C 1 2.375 1-5/8 VCFJF 10K26
CMS
PS-238V- C 1 2.375 1-5/8 VCFLF 10K45
SC-CMS
PS-7806 C 1 2.375 1-5/8 VLFLF 10K65, 10K189
PS-818 C3 2.375 1-5/8 BCFJF 45162000000
46983000000
*US Seal 2010 catalog w cover 9/14/10 2:59 PM Page 44
41
U.S. Seal Mating Mating Shaft Material
Part No. Head Ring Ring OD Dia. Code Notes Pump Nameplate Data Mfg. Part No.
PUMP MANUFACTURERS’ CROSS-REFERENCE
NOTE:
B. TAPERED SPRING
C. COMPLETE WITH COLLAR
I. ABRASION RESISTANT CARBON (P66)
GOULDS PUMPS (Div. of ITT INDUSTRIES) (continued)
PS-238V C 3 2.375 1-5/8 VCFJF 46983000000
46984000000
PS-238V- C 3 2.375 1-5/8 VCFLF A05632E000
SC-SEAT
PS-544V- C 3 2.375 1-5/8 VLFLF 10K186
SC-SC
PS-7497 C 25 2.500 1-5/8 B/VCFJF A05669E000
PS-7497V C 25 2.500 1-5/8 VCFJF A05670E000
PS-446 C 1 2.500 1-3/4 BCFJF 10K181-Lower Seal 10K157, 9152091001
See PS-267 for Upper Seal
PS-446- C 1 2.500 1-3/4 BLFLF 10K31
SC-SC
PS-446V- C 1 2.500 1-3/4 VCFJF 9152091003
CMS
PS-3719 C 3 2.500 1-3/4 B/VLFZF 10K83
PS-2108 C — — 1-3/4 BCF-F 92055 1175
PS-7867 E — — 1-3/4 BCF-F 316SS/C/I
PS-1684 E 3 2.312 1-3/4 BCFJF 3316, 3405 Group M
PS-4326 E 3 2.312 1-3/4 VCFJF 316SS/C
PS-535 E 3 2.500 1-3/4 BCFJF 3196MT - 3735/36M
PS-262 E 3 2.500 1-3/4 BCFKF
PS-3902 E 3 2.500 1-3/4 VCFJF 316SS/C 3196MT A04754A01
PS-1078 E 27 3.000 1-3/4 BCFJF 3316-3405M
PS-3754 V 3 2.750 1-3/4 BCFJF 43424000000
PS-267 C 1 2.750 2 BCFJF 10K181-Upper Seal, 10K182-Lower Seal 9152101002
See PS-446 for Lower Seal
PS-2219 C 1 2.750 2 BZFZF 9152101001
PS-3993 C 3 2.750 2 BCFJF 10K142
PS-3721 C 3 2.750 2 BLFZF 10K85, 76407 9200
PS-267V- C 3 2.750 2 VLFLF 43434000000
SC-SC
PS-707 E 3 2.875 2-1/16 BCDKF Fig. 3305, 3405, 3306, 3406 Group L
PS-1679 C 1 3.125 2-1/4 BCFJF 10K182-Upper Seal 9152111001
PS-848 E 3 3.125 2-1/4 BCDJF
PS-849 E 3 3.125 2-1/4 BCDKF
PS-3951 E 27 3.906 2-1/4 VCFKF 3405 L 10x12-14
PS-4089 E 3 3.500 2-3/4 VCFLF 316SS 3410 L Pump
PS-2153- C 1 3.875 3 BCFJF 9152141005
CMS
PS-8060 X 3 5.375 4-3/8 VCFKF 316SS Fig. 3415 Group M
GRAHAM ENGINEERING CORP.
PS-1688 E 3 3.125 2-1/4 BCFJF 65100021
GRAINGER (See TEEL PUMP)
GRISWOLD PUMP CO.
PS-2122 C 1 1.875 1-1/4 BCFJF 10036903
PS-758 C 1 2.125 1-1/2 BCFKF
PS-446 C 1 2.500 1-3/4 BCFJF 10037002
PS-2142 C 1 2.500 1-3/4 BCFJF 10037000
PS-448V- C 1 2.500 1-3/4 VCFKF 10037002CNV
CMS
PS-448V- C 1 2.500 1-3/4 VLFLF 10037002SSV
SC-SC
GRUNDFOS CBS, INC. (For Additional Listings - See Pages 166-167)
PS-1618 C 1 1.250 5/8 BCFJF B 14032695, 91868262
PS-974 A — — 3/4 BCF-F 91867994
PS-768 C 3 1.375 3/4 BCFKF 91868257
PS-112V C 3 1.375 3/4 VCFKF 91868215
PS-154 C — — 1-1/4 BCF-F 91868171
PS-185 C 1 1.875 1-1/4 BCFJF 91868317
PS-1109V C 3 1.875 1-1/4 VCFKF 91868217
PS-361- E11.875 1-1/4 BCFJF I 91867954
P66
*US Seal 2010 catalog w cover 9/14/10 2:59 PM Page 45
U.S. Seal Mating Mating Shaft Material
Part No. Head Ring Ring OD Dia. Code Notes Pump Nameplate Data Mfg. Part No.
NOTE:
PUMP MANUFACTURERS’ CROSS-REFERENCE
A. MOUNTS ON SHAFT
I. ABRASION RESISTANT CARBON (P66)
N. NON-STANDARD SPRING HOLDER
42
GRUNDFOS CBS, INC. (continued) (For Additional Listings - See Pages 166-167)
PS-264- E 3 1.875 1-1/4 BCFKF I 91867962
P66
PS-137V- E 3 1.875 1-1/4 VCFKF I 91867976
P66
PS-3974 D Bal. 1 1.875 1-3/8 BCFJF 91867955
PS-2105 C — — 1-1/2 BCF-F 91868172
PS-2106 E — — 1-1/2 BCF-F 91868014
PS-2108 C — — 1-3/4 BCF-F 91868173
PS-2108V C — — 1-3/4 VCF-F 91868252
PS-2142 C 1 2.500 1-3/4 BCFJF 91868269
PS-2151 C 3 2.500 1-3/4 BCFKF 91868260
PS-2151- C 3 2.500 1-3/4 BCFZF 91868230
TC-SEAT
PS-2151V C 3 2.500 1-3/4 VCFKF 91868219
PS-2109 E — — 1-3/4 BCF-F 91868003, 91868293
PS-2109- E — — 1-3/4 QCF-F 91868466
EPR
PS-205 E 1 2.500 1-3/4 BCFJF 91867956
PS-205V- E 1 2.500 1-3/4 VCFJF 96702875
CMS
PS-262 E 3 2.500 1-3/4 BCFKF 91867963
PS-449 K 1 2.500 1-3/4 BCFJF 91868291
PS-674 T 1 2.500 1-3/4 BCFJF 91868024
PS-477- E 3 2.750 2 BCFKF I 91868207
P66
PS-2111 C — — 2 BCF-F 91868174
PS-3537 C 1 3.125 2-1/4 BCFJF 91868272
FA-2098 E — — 2-3/8 BCF-F 91868099
GUSHER PUMPS
PS-164 B 9 — 1/2 BMFKF A
PS-1002 C 1 1.000 1/2 BCFJF N 84076-3
PS-701V A 1 1.187 5/8 VCFKF 84090
PS-957 A 1 1.187 5/8 BCFJF 84081
PS-359 C 1 1.250 5/8 BCFJF 84000-2, 84000-30
PS-1079 C 1 1.250 5/8 NCFJF
PS-1080 C 1 1.250 5/8 NCFKF
PS-359V- C 1 1.250 5/8 VCFJF 84000-24
CMS
PS-359V- C 1 1.250 5/8 VCFLF 84000-38
SC-CMS
PS-441 B9—3/4 BMFKF A84082
PS-358V- C 1 1.375 3/4 VZFZF 84064-6
TC-TC
PS-309 C 1 1.500 7/8 BCFJF 84079-2
PS-3941 C 1 1.500 7/8 VLFLF 84079-9
PS-2026 D 3 1.500 7/8 BCFJF 84138-1
PS-370 A 1 1.625 1 BCFKF 84089
PS-235 C 1 1.625 1 BCFJF 84001-2, 84001-12
PS-235V- C 1 1.625 1 VCFJF 84001-10
CMS
PS-235V- C 1 1.625 1 VLFLF 84001-14
SC-SC
PS-2216V- C 1 1.625 1 VZFZF 84176-2
CMS
PS-2122 C11.875 1-1/4 BCFJF 84002-31
PS-2123 C 1 1.875 1-1/4 BCFKF 84002-17
PS-1081 C11.875 1-1/4 NCFJF
PS-1083 C 1 1.875 1-1/4 NCFJF
PS-1082 C11.875 1-1/4 NCFKF
PS-1084 C 1 1.875 1-1/4 NCFKF
PS-1084- C11.875 1-1/4 NCFZF 84002-27, 84008-27
TC-SEAT
PS-2215 C 1 1.875 1-1/4 QCFJF I 84002-18, 84002-3
84002-55
*US Seal 2010 catalog w cover 9/14/10 2:59 PM Page 46
43
U.S. Seal Mating Mating Shaft Material
Part No. Head Ring Ring OD Dia. Code Notes Pump Nameplate Data Mfg. Part No.
PUMP MANUFACTURERS’ CROSS-REFERENCE
NOTE:
C. COMPLETE WITH COLLAR
I. ABRASION RESISTANT CARBON (P66)
GUSHER PUMPS (continued)
PS-4053 C 1 1.875 1-1/4 QLFLF 84002-57
PS-185V- C 1 1.875 1-1/4 VCFJF 84217-3
CMS
PS-2123V- C 1 1.875 1-1/4 VCFKF 84002-12
CMS
PS-2123V- C 1 1.875 1-1/4 VCFZF 84002-34
TC-CMS
PS-185V- C 1 1.875 1-1/4 VLFLF 84217-1
SC-SC
PS-7805 C 1 1.875 1-1/4 VLFLF 84002-22, 84002-50
PS-2122V- C 1 1.875 1-1/4 VZFLF 84002-41, 84002-58
TC-SC-CMS
84002-59
PS-210- C 1 2.000 1-3/8 BCFZF 84105-14
TC-SEAT
PS-177V- C 1 2.000 1-3/8 VCFJF 84144-2
CMS
PS-210V- C 1 2.000 1-3/8 VCFKF 84105-7
CMS
PS-177V- C 1 2.000 1-3/8 VLFLF 84015-18
SC-SC
PS-210V- C 3 2.000 1-3/8 VZFLF 84105-5
TC-SC
PS-758 C 1 2.125 1-1/2 BCFJF 84109-1
PS-758V- C 1 2.125 1-1/2 VLFLF 84109-2
SC-SC
PS-2107 C — — 1-5/8 BCF-F 84004-55
PS-238 C 1 2.375 1-5/8 BCFJF 84004-28
PS-239 C 1 2.375 1-5/8 BCFKF 84004-18
PS-238- C 1 2.375 1-5/8 BZFLF 84002-40
TC-SC
PS-3664 C 1 2.375 1-5/8 BZFZF 84004-30
PS-238- C 1 2.375 1-5/8 QCFJF 84004-34
EPR
PS-7902 C 1 2.375 1-5/8 VCFJF 84004-46
PS-238V- C 1 2.375 1-5/8 VCFJF 84004-26
CMS
PS-239V- C 1 2.375 1-5/8 VCFKF 84004-7
CMS
PS-238V- C 1 2.375 1-5/8 VCFZF I 84004-20
P66-TC
PS-7806 C12.375 1-5/8 VLFLF 84004-23, 84004-39
PS-238V-C12.375 1-5/8 VZFLF 84004-42, 84004-48
TC-SC-CMS
84004-49, 84004-55
PS-2057 E 1 2.375 1-5/8 BCFJF 84005-2, 84005-15
PS-2058V- E 1 2.375 1-5/8 VCFZF 84005-28
TC-SEAT
PS-1699E- E 3 2.375 1-5/8 QCFZF I 84005-27
TC-P66
PS-446V- C 1 2.500 1-3/4 VCFJF 84006-11
CMS
PS-7561 E32.500 1-3/4 VCFZF C/I 84007-15
PS-7901 E Bal. 1 2.375 1-3/4 BCFJF 84004-46
PS-9106 W 2 2.500 1-3/4 TCFJF 316SS 84010-01
PS-267 C 1 2.750 2 BCFJF 84176-1
PS-267V- C 1 2.750 2 VCFJF 84176-2
CMS
PS-6224 C 1 2.750 2 VLFLF 84176-4
PS-1613 K 3 3.375 2-1/2 BCFJF 84059-5
HAIGHT PUMP
PS-825 D 3 2.500 1-3/4 BCDKF AP13.518X
PS-237V D 3 2.500 1-3/4 VCDJF AP13.518Y
*US Seal 2010 catalog w cover 9/14/10 2:59 PM Page 47
U.S. Seal Mating Mating Shaft Material
Part No. Head Ring Ring OD Dia. Code Notes Pump Nameplate Data Mfg. Part No.
PUMP MANUFACTURERS’ CROSS-REFERENCE
44 NOTE:
B. TAPERED SPRING
G. MOUNTS IN PLASTIC
H. SPRING HOLDER NOT INCLUDED
N. NON-STANDARD SPRING HOLDER
HALE PRODUCTS, INC.
PS-201 A 1 1.375 3/4 BMFJF 292-5040-00-3
PS-851 A 1 1.375 3/4 BCFJF 296-5040-00
PS-360 A 1 1.625 1 BCFJF 296-5010-00
PS-235 C 1 1.625 1 BCFJF Model: 20FD 106434 25D-G444, 1001-02-20-00
PS-1048 C 1 1.625 1 BCFJF H 296-5060-00-0
PS-548 C 3 1.625 1 BCFJF 296-5060-06-0
PS-1049 C 3 1.625 1 BCFJF H
PS-356 C 1 1.750 1-1/8 BCFJF 296-5220-00
PS-177 C 1 2.000 1-3/8 BCFJF 296-5250-99
PS-495 K 1 2.000 1-3/8 BCFJF 296-5070-00
PS-347 C 1 2.125 1-1/2 BCFJF B/H
PS-758 C 1 2.125 1-1/2 BCFJF 296-5021-03
PS-378 C 1 2.125 1-1/2 BCFKF B/H 296-5020-06
PS-659 C 1 2.125 1-1/2 BCFKF 296-5021-01
PS-2209 C 1 2.125 1-1/2 BZFZF 296-5021-06-0
PS-267 C 1 2.750 2 BCFJF 296-5210-00
HALL SCOTT
PS-200 A 1 1.250 5/8 BMFJF
PS-750 D 1 1.375 3/4 BCDJF Pump 390
HAYWARD GORDON
PS-436- C 3 2.500 1-3/4 BZFZF 54099158
TC-TC
HAYWARD INDUSTRIES, INC.
PS-2131 A 1 — 5/8 BMFJF G Power-Flo LX, Power-Flo®Matrix, SPX1500KA
Power-Flo II®,Turbo Flo®
PS-200 A 1 1.250 5/8 BMFJF Cast Iron SPX1250XZ2C
PS-3960 G 1 1.250 5/8 BCFJF SPX1250XZ2
SPX-2700SA
PS-3890 G 1 1.381 5/8 BCFJF NorthStar, Tri-Star SPX-3200SA, SPX-4000,
SPX4000SA, SPX4000SA2
PS-201 A 1 1.375 3/4 BMFJF Max-Flo®,Super Pump®,Super Pump II®
SPX1600Z2, SPX1600Z2G
PS-370 A 1 1.625 1 BCFKF
HOBARTCORP.
PS-631 C 1 1.000 1/2 BCFJF N R23682
PS-663 Q 1 1.000 1/2 BMFJF C115710
PS-6313 Q 1 1.019 1/2 BCFJF 185694-4
PS-1085V C 1 1.250 5/8 VCFJF B A104329, 00-114696
PS-235 C 1 1.625 1 BCFJF R79205
PS-539 C 1 1.625 1 BCFJF H R87809
PS-754 E 1 1.625 1 BCFJF
PS-754V E 3 1.625 1 VCFJF A104330
PS-6318 Q 9 1.578 1-1/8 VMFAF 00-117071
PS-6317 Q 9 2.000 1-3/8 VMPSP 00-114144
PS-3854 Q 25 2.000 1-3/8 BMPAP C114144
PS-4041 Q 1 3.375 2-1/4 VMPSP 00-117072
HOLLAND PUMP MFG.
PS-2209 C12.125 1-1/2 BZFZF
PS-2060- D 1 2.500 1-3/4 BZFZF 6TP
TC-TC
PS-340 C 1 2.625 1-7/8 BCFJF
PS-340- C12.625 1-7/8 BZFZF 8TP
TC-TC
HOMART-SEARS
PS-162 A11.000 1/2 BMFJF 259-043, W6476
PS-100 A 1 1.187 5/8 BMFJF 42G2377W
PS-508 D 1 1.250 5/8 BCDJF 759-31
HOMELITE
PS-200 A 1 1.250 5/8 BMFJF 62729
PS-711 A 3 1.187 5/8 BMFJF A-62861-2
PS-201 A 1 1.375 3/4 BMFJF A-75911
*US Seal 2010 catalog w cover 9/14/10 2:59 PM Page 48
45
U.S. Seal Mating Mating Shaft Material
Part No. Head Ring Ring OD Dia. Code Notes Pump Nameplate Data Mfg. Part No.
NOTE:
PUMP MANUFACTURERS’ CROSS-REFERENCE
A. MOUNTS ON SHAFT
B. TAPERED SPRING
H. SPRING HOLDER NOT INCLUDED
HOMELITE (continued)
PS-601 B 1 1.375 3/4 BMFJF 43271
PS-601V- B 1 1.375 3/4 VCFJF Models AP302,AP502
CMS
PS-360 A 1 1.625 1 BCFJF A-62403
PS-1086 A 3 2.000 1 BCFJF A-62713, A-62713-1
PS-235 C 1 1.625 1 BCFJF 47046
PS-466 C 1 2.000 1-1/4 BCFJF 46150
HOYT CORP.
PS-6301 Q 3 3.000 2-1/4 NMPAP 28-488
HYDROMATIC PUMP CO. (See PENTAIR, INC. for Additional Part Numbers)
PS-1621 Q 9 — 1/2 BMFJF A 05484-000-1
PS-299 A — — 5/8 BMF-F
00083-002-1, 00083-007-1
PS-200 A 1 1.250 5/8 BMFJF
00083-000, 00083-001
14525A010
PS-200V- A 1 1.250 5/8 VCFJF 00083-010-1
CMS
PS-447 B 8 — 5/8 BCFJF A 07548-000-1
PS-359 C 1 1.250 5/8 BCFJF 01556-000-1
PS-6216 C 1 1.250 5/8 VZFZF 11397-001-1
PS-851 A 1 1.375 3/4 BCFJF 17048-000-1
PS-201V- A 1 1.375 3/4 VCFJF 17048-001-1
CMS
PS-1622 B 9 — 3/4 BMFJF A 04917-000-1
PS-358 C 1 1.375 3/4 BCFJF 00100-000-1
PS-703 D 1 1.500 7/8 BCDJF 11716A011
PS-235 C 1 1.625 1 BCFJF HPLX200 00300-000-1
PS-235- C 1 1.625 1 BLFLF 00300-004-1
SC-SC
PS-2216 C 1 1.625 1 BZFZF 00696-000-1
PS-235V- C 1 1.625 1 VCFJF 00300-001-1
CMS
PS-2216V- C 1 1.625 1 VZFZF 00300-003-1
CMS
PS-185 C1 1.875 1-1/4 BCFJF 04916-000-1
PS-185- C1 1.875 1-1/4 BLFLF 04916-003-1
SC-SC
PS-2208 C 1 1.875 1-1/4 BZFZF 04916-001-1
PS-185E- C 1 1.875 1-1/4 QCFLF 04916-005-1
SC-CMS
PS-185V-C11.875 1-1/4 VCFJF 04916-002-1
CMS
PS-185V- C 1 1.875 1-1/4 VZFLF 04916-006-1
TC-SC
PS-185V- C 1 1.875 1-1/4 VZFZF 04916-004-1
TC-TC
PS-347 C 1 2.125 1-1/2 BCFJF B/H 08100-000-5
PS-758 C 1 2.125 1-1/2 BCFJF 00920-001-1
PS-758- C 1 2.125 1-1/2 BLFLF 00920-013-1
SC-SC
PS-758-SC- C 1 2.125 1-1/2 BLFZF 00920-011-1
TC-CMS
PS-2209 C 1 2.125 1-1/2 BZFZF 00920-004-1
PS-7409 C 1 2.125 1-1/2 VCFJF 316SS 00920-003-1, 00920-005-1
00920-007-1
PS-659V-C12.125 1-1/2 VZFZF 00920-009-1, 00920-014-1
TC-VS-TC
PS-446 C 1 2.500 1-3/4 BCFJF 11049-001-1
PS-446- C12.500 1-3/4 BZFZF 11049-002-1
TC-TC
PS-2212- C 1 2.500 1-3/4 BZFZF 21181A015
TC-TC
PS-340 C 1 2.625 1-7/8 BCFJF 14859-000-1
*US Seal 2010 catalog w cover 9/14/10 2:59 PM Page 49
U.S. Seal Mating Mating Shaft Material
Part No. Head Ring Ring OD Dia. Code Notes Pump Nameplate Data Mfg. Part No.
NOTE:
PUMP MANUFACTURERS’ CROSS-REFERENCE
B. TAPERED SPRING
46
HYDROMATIC PUMP CO. (continued) (See PENTAIR, INC. for Additional Part Numbers)
PS-340- C 1 2.625 1-7/8 BZFLF 14859-003-1
TC-SC
PS-340- C 1 2.625 1-7/8 BZFZF 14859-001-1
TC-TC
PS-267 C 1 2.750 2 BCFJF 01957-000-1
PS-267-SC- C 1 2.750 2 BLFLF 01957-005-1
SC-CMS
PS-2219 C 1 2.750 2 BZFZF 01957-002-1
PS-3810V- C 1 2.750 2 VCFJF 01957-010-1
CMS
PS-267V- C 1 2.750 2 VCFJF 01957-001-1
CMS
PS-6218 C 1 2.750 2 VZFZF 01957-004-1
PS-1087 C 1 3.125 2-1/4 BCFJF 08073-000-1
PS-7064 C 1 3.125 2-1/4 BZFZF 08073-001-1
PS-1679V- C 1 3.125 2-1/4 VCFJF 08073-003-1
CMS
PS-3530 E 3 3.125 2-1/4 B/VZFZF 1100148SC2
PS-1088 C 3 3.875 3 BCFJF B 03718-000-1
PS-761 D 3 3.875 3 BCDJF 43421-001-1
HYPRO CORP. (See PENTAIR, INC. for Additional Part Numbers)
PS-1050 C — — 1/2 BCF-F 10522C
PS-3001 G 3 1.000 1/2 VCFJF 24608
PS-3002 G 3 1.000 1/2 VCFJF 316SS 24766
PS-516 A 1 1.250 5/8 BCFJF 9501-3, 2120-0008
PS-200V- A 1 1.250 5/8 VCFJF Model Nos. 9203, 9401C, 9300C-HM 2120-0009
CMS
PS-200V A 3 1.250 5/8 VCFJF 9501-4, 9202-C
PS-3741 B 1 1.250 5/8 VLFLF 24466
PS-359V C 3 1.250 5/8 VCFJF
PS-4442 C 3 1.250 5/8 VCFKF 2120-0003
PS-3006 G 1 1.250 5/8 BCFJF 316SS 24275
PS-4220 G 1 1.250 5/8 VCFJF 24609
PS-3005 G 3 1.250 5/8 VLFLF 316SS 2120-0039
PS-851 A 1 1.375 3/4 BCFJF 2120-0010
PS-201V- A 1 1.375 3/4 VCFJF 9000 Series 2120-0011
CMS
PS-201V A 3 1.375 3/4 VCFJF 9501-50
PS-3009 G11.500 7/8 BCFJF 316SS 24458
PS-360 A 1 1.625 1 BCFJF 24607, 2120-0054
PS-360V- A 1 1.625 1 VCFJF 2120-0034, 24611
CMS
PS-397 C — — 1 BCF-F 21399
PS-3012 G 1 1.750 1-1/8 BLFLF 316SS 23906
PS-3015 G 25 2.000 1-3/8 VLFLF 316SS 2120-0043
ICEE DISTRIBUTORS
PS-6234 C 1 1.250 5/8 BCFJF 0-ID1339
IMO INDUSTRIES, INC.
PS-2138 C
Special
1.360 1/2 BCFGF PP046JCE
PS-3729 X3 1.000 1/2 BCFKF PP046JRF
PS-7727
XSpecial
3 1.000 1/2 VCFGF PP046JRH
PS-4313 C
3Special
1.500 5/8 VCFGF PP046JC/C
PS-752 D 1 1.375 3/4 BCDKF PP046DP
PS-687 C 1 1.500 7/8 BCFKF PP046H
PS-3824 C 28 2.438 1 VCFKF PP046JM
PS-1034V C28 2.438 1VCFKF PP046JCH
PS-7991 D25 1.625 1 BCPGP PP046DF
PS-4255 D Bal. 3 1.500 1 VCFZF PP046KDA
PS-8091 X 3 1.625 1 VCFRF 316SS PP046JZC
PS-1044 C 28 2.834 1-3/16 BCFKF PP046JL
PS-1044V C 28 2.834 1-3/16 VCFKF PP046JHG
PS-4152 C 3 1.875 1-1/4 BCFGF PP046JLC/C
*US Seal 2010 catalog w cover 9/14/10 2:59 PM Page 50
U.S. Seal Mating Mating Shaft Material
Part No. Head Ring Ring OD Dia. Code Notes Pump Nameplate Data Mfg. Part No.
47
NOTE:
PUMP MANUFACTURERS’ CROSS-REFERENCE
A. MOUNTS ON SHAFT
I. ABRASION RESISTANT CARBON (P66)
IMO INDUSTRIES, INC. (continued)
PS-598- C 3 1.875 1-1/4 BCFLF PP046JFF
SC-SEAT
PS-1036 C 28 2.835 1-1/4 BCFKF PP046JH, PP046JH/C
PS-1036V C 28 2.835 1-1/4 VCFKF PP046JN
PS-4431 D 3 1.875 1-1/4 VLFLF
PS-8073 X 28 2.832 1-1/4 VCFKF 316SS PP046JBS, PP046JBS/CR
PS-3979 C
Special
2.740 1-1/2 BCFKF PP046JAH
PS-371 D 1 2.125 1-1/2 BCFKF PP046DAA
PS-1035 C 28 3.544 1-5/8 BCFKF PP046JK
PS-1039 C 28 3.544 1-5/8 VCFKF PP046JR, PP046JRC
PS-436- C 3 2.500 1-3/4 BCFLF PP046JDT
SC-SEAT
PS-1038 C 28 3.544 1-3/4 BCFKF PP046JG
PS-1038V C 28 3.544 1-3/4 VCFKF PP046JGJ
PS-8058 X 3 2.500 1-3/4 VCFLF 316SS PP046JWF
PS-462 D 1 2.750 2 BCDKF PP046BP
PS-1676 C 3 3.125 2-1/4 BCFKF PP046JCD
PS-1677 C 28 5.118 2-3/8 BCFKF PP046FBY
PS-8003 X 3 3.250 2-3/8 VCFLF 316SS PP046JTT
PS-3862 X 3 4.375 3.500 VCFKF 316SS PP046JZM
INGERSOLL-DRESSER PUMPS AND COMPRESSORS (See FLOWSERVE CORP.)
PS-164 B 9 — 1/2 BMFKF A
PS-200 A 1 1.250 5/8 BMFJF CPM-6252C1, CPM-
6258C1
PS-507V A 3 1.250 5/8 VCFKF CPM-625271, CPM-625871
PS-600 B 1 1.187 5/8 BMFJF Bronze Fitted KRVSA-3/4, 1-1/4, CPM-10015
Model B 1/4 to 1-1/2 HP Motors
PS-616 B 1 1.187 5/8 BMFKF Iron Fitted KRVSA-3/4, 1-1/4, CPM-10029, 60110269
Model B 1/4 to 1-1/2 HP Motors
PS-359 C 1 1.250 5/8 BCFJF 1x 4, -3/4,1,1-1/4, 2 x 5 HK & HOK CPM-6251C1
PS-633 C 1 1.250 5/8 BCFKF 1x 4, 3/4, 1, 1-1/4, 1-1/2, 2 x 5 HK CPM-625171
PS-760 A 3 1.375 3/4 BMFJF SMP 1000 & SMP 2000 CPM-10600A
PS-601 B 1 1.375 3/4 BMFJF CPM-10034, 60116225
PS-606 B 11.375 3/4 BMFKF CPM-10035, 60110301
PS-564 C — — 3/4 BCF-F 02443900
PS-3654 C 1 1.375 3/4 BCFKF SMP2000
PS-2236 C 3 1.375 3/4 BCFJF SMP2000 1802ATY210RM075BF1C1
60721792, 60980901
PS-2235 C 3 1.375 3/4 VCFJF CPM-10606A, 60724572
PS-7994 E31.187 3/4 VCFKF 1802AJCTYPIR075XP171
PS-303 D11.500 7/8 BCDKF SMP2000 W-11448, W-20168
PS-602 D 1 1.562 7/8 BCDJF KRVS-1-1/2, 2, 3 1/4 to 1-1/2 HP CPM-10052
PS-603 D 1 1.562 7/8 BCDKF KRVS CPM-10053
PS-7859V E 3 1.312 7/8 VCFKF 316SS 1802AJCTYP1R088BF171
PS-560V U 3 1.562 15/16 VCFKF 7GA 1802AJCTYP1R094
03144601, 74744319
PS-801 C31.750 1-1/8 BCFJF 3 x 5 HK, 3 x 6 HK & HOK CPM-1121C1, 60487089
PS-2226 C3 1.750 1-1/8 QCFZF I 3 x 5 HK, 3 x 6 HK, HOK CPM-112171
PS-355V C 3 1.750 1-1/8 VCFKF 39633201, 39757141
PS-604 D 1 1.750 1-1/8 BCFJF Bronze Fitted KRVS-1, 1-1/2, CPM-10054
2.3 2 to 25 HP Motors CPM-10026, 60110434
PS-605 D 1 1.750 1-1/8 BCFKF Iron Fitted KRVS-1, 1-1/2, CPM-10055, 60110442
2.3 2 to 25 HP Motors
PS-521 D 1 1.875 1-1/8 BCFKF W-31826
PS-607 E 1 1.687 1-1/8 BCFJF Bronze Fitted 1, 2 RVN-1 1-1/2, 2, 3 RVNL CPM-10043, 60110327
1-1/2, 2 RVand RVH-3RVS ,1-1/2 RVL
PS-608 E11.687 1-1/8 BCFKF Iron Fitted 1, 2 RVN-1 1-1/2, 2, 3 RVNL CPM-10044, CPM-10087
1-1/2, 2 RV and RVH-3RVS,1-1/2 RVL 60110335
PS-867 E 3 1.750 1-1/8 BCFKF 68885865, 69237592
PS-4421 E 3 1.750 1-1/8 QCFJF 316SS
PS-204V E 3 1.750 1-1/8 VCFJF CPM-10715A, 60954682
PS-867V E 3 1.750 1-1/8 VCFKF CPM-10715B, 68885847
PS-867V- E 3 1.750 1-1/8 VCFZF 1802AJCTYP1A112XF1D1
TC-SEAT 60954716
*US Seal 2010 catalog w cover 9/14/10 2:59 PM Page 51
U.S. Seal Mating Mating Shaft Material
Part No. Head Ring Ring OD Dia. Code Notes Pump Nameplate Data Mfg. Part No.
NOTE:
PUMP MANUFACTURERS’ CROSS-REFERENCE
I. ABRASION RESISTANT CARBON (P66)
48
INGERSOLL-DRESSER PUMPS AND COMPRESSORS
(continued) (See FLOWSERVE CORP.)
PS-1636 E 3 1.812 1-1/8 B/VCFJF H/HC/VOC/HOC CPM-10465A, CPM-10470A
PS-1637 E 3 1.812 1-1/8 B/VCFKF H/HC/VOC/HOC CPM-10406B, CPM-10465B
CPM-10470B
PS-619 E 3 1.812 1-1/8 BCFJF Long Nose Carbon CPM-10217A, CPM-10220A
PS-948 E 3 1.812 1-1/8 BCFKF Long Nose Carbon CPM-10220B, CPM-10217B
PS-1668 E 3 1.812 1-1/8 BCFZF CPM-10465C, CPM-10470C
PS-1639V E 3 1.812 1-1/8 VCFKF CPM-10406B
PS-1172V E 3 1.812 1-1/8 VCFJF 6 VOC 7 HOC CPM-10406A
PS-3511 T 3 1.750 1-1/8 VCFJF HOC2 & VOC 2 1802AJCTYP1DBLXF1C1
PS-343 E 1 1.875 1-3/16 BCDKF CPM-118S429X2
PS-310 E 1 1.875 1-3/16 BCDJF CPM-118S429X5
PS-723 T 1 1.875 1-3/16 BCDJF Models DHV and DMV CPM-118S429X4, 60111267
PS-724 T 1 1.875 1-3/16 BCDKF Models DHV and DMV CPM-118S429X3
PS-185 C 1 1.875 1-1/4 BCFJF CPM-10601A
PS-756 C 1 1.875 1-1/4 BCFKF W-44104
PS-618 C 3 1.875 1-1/4 BCFJF SMP 3000 & SMP 2000 1802ATY210RM125BF1C1
60721800, 60980918
609809-19, CPM-10601A
PS-185V C 3 1.875 1-1/4 VCFJF CPM-10613A
PS-598- C 3 1.875 1-1/4 QCFKF CPM-10604A
EPR 1802TY210RM028F171
PS-756V C 3 1.875 1-1/4 VCFKF 74898800
PS-618V- C 3 1.875 1-1/4 VCFZF CPM-10709, 60727401
TC-SEAT
PS-2203 C 3 1.875 1-1/4 QCFKF I
1802ATY210RM125028F171
68867910
PS-416 D — — 1-1/4 BCF-F 74898800, W-32652
PS-3973 U 2 1.875 1-1/4 BCPKF
PS-467 C 1 2.125 1-3/8 BCFKF W-28861, W-21642
PS-354 E 1 2.000 1-3/8 BCFJF CPM-137S429X5
PS-677 E 1 2.000 1-3/8 BCFKF CPM-137S429X2
PS-3925 E 3 2.125 1-3/8 VCFJF 1802AJCTYPEA138XF1C1
74816117
PS-725 T 1 2.000 1-3/8 BCFJF CPM-137S429X4
60111275
PS-726 T12.000 1-3/8 BCFKF CPM-137S429X3
PS-371 D 1 2.125 1-1/2 BCFKF W-27658
PS-2106 E — — 1-1/2 BCF-F 3879AJCTYP1A150BF1-1
68886183, 68886175
PS-2106V E—— 1-1/2 VCF-F CPM-10369ABC
CPM-10407ABC
3879AJCTYPA150XF-I
80612400
PS-305 E 1 2.125 1-1/2 BCFJF GTB CPM-10367A
CPM-10368B
PS-395 E32.125 1-1/2 BCFJF CPM-10132
PS-258 E 3 2.125 1-1/2 BCFKF GTB CPM-10129, CPM-10367B
CPM-10368B, 6886100
PS-305V E 3 2.125 1-1/2 VCFJF GTB CPM-10369A, 68886068
1802AJCTYP1A150XF1C1
PS-374V E 3 2.125 1-1/2 VCFKF GTB CPM-10369B
1802AJCTYPIRXP171
1802AJCTYP1A150XF171
PS-620 E32.312 1-1/2 BCFJF Long Nose Carbon CPM-10218A
CPM-10221A
PS-629 E 3 2.312 1-1/2 BCFKF Long Nose Carbon CPM-10218B
CPM-10221B
PS-4034 E 3 2.312 1-1/2 BCFZF CPM-10466C, 60514148
PS-1647 E32.312 1-1/2 B/VCFJF H/HC CPM-10466A
CPM-10471A
PS-1648 E 3 2.312 1-1/2 B/VCFKF H/HC CPM-10466B, CPM-10471B
60514288
PS-1651 E 3 2.312 1-1/2 VCFJF H/HC CPM-10473A, 60514122
PS-620V E 3 2.312 1-1/2 VCFJF Long Nose Carbon CPM-10224A
*US Seal 2010 catalog w cover 9/14/10 2:59 PM Page 52
U.S. Seal Mating Mating Shaft Material
Part No. Head Ring Ring OD Dia. Code Notes Pump Nameplate Data Mfg. Part No.
49
NOTE:
PUMP MANUFACTURERS’ CROSS-REFERENCE
I. ABRASION RESISTANT CARBON (P66)
INGERSOLL-DRESSER PUMPS AND COMPRESSORS
(continued) (See FLOWSERVE CORP.)
PS-1652 E 3 2.312 1-1/2 VCFKF H/HC CPM-10473B, 60514726
PS-1691 E 3 2.312 1-1/2 VCFKF Long Nose Carbon CPM-10224B
PS-1692 E 3 2.312 1-1/2 VCFZF Long Nose Carbon CPM-10224C
PS-818 C 3 2.375 1-5/8 BCFJF SMP 3000 CPM-10602A, 60721818
PS-609 E 1 2.312 1-5/8 BCDJF 2, 3, 4 and 5RVL-3 RVH-1-1/2 ORVL CPM-10045, 60110343
PS-484 E 1 2.312 1-5/8 BCDKF X33548P1
PS-346 E 1 2.312 1-5/8 BCFJF 3 RVL CPM-10028
PS-610 E 1 2.312 1-5/8 BCFKF 2, 3, 4 and 5RVL-3 RVH-1-1/2 ORVL CPM-10046, 60110350
PS-859-TC- E 3 2.500 1-3/4 BCFZF S-Line Series 100 CPM-10347
SEAT
PS-7950 E 3 2.500 1-3/4 QCFZF I 748409-92
PS-4139 E 3 2.625 1-3/4 VCFKF 1802ATCTYP1R175XF171
PS-674 T 1 2.500 1-3/4 BCFJF 3, 4, 5 RVL and CRVL CPM-10024
PS-722 E 1 2.625 1.771 BCFJF CPM-177S429X5
PS-719 E 1 2.625 1.771 BCFKF CPM-177S429X2
PS-727 T 1 2.625 1.771 BCFJF CPM-177S429X4
PS-728 T 1 2.625 1.771 BCFKF CPM-177S429X3
PS-340- C 1 2.625 1-7/8 QCFJF CPM-10656
EPR-CMS
PS-2069 E 1 2.625 1-7/8 BCFJF CPM-10370A
PS-2071 E 3 2.625 1-7/8 BCFJF CPM-10371A
PS-2072 E 3 2.625 1-7/8 BCFKF 3GT CPM-10158, CPM-10370B
CPM-10371B
1802AJCTYP1A188B/XF171
6043421,68885987
PS-1659 E 3 2.625 1-7/8 VCFJF GTB CPM-10372A
1802AJCTYPA188XF1C1
60954757
PS-1660 E 3 2.625 1-7/8 VCFKF GTB CPM-10372B, 60954807
68859601
PS-1661 E 3 2.625 1-7/8 VCFZF CPM-10716C
1802AJCTYP1A188-XF1D1
PS-949 E 3 2.687 1-7/8 BCFKF Long Nose Carbon CPM-10219B
CPM-10222B
PS-1662 E 3 2.687 1-7/8 B/VCDJF VOC/HOC CPM-10467A
PS-1664 E 3 2.687 1-7/8 B/VCFJF VOC/HOC Long Nose Carbon
CPM-10219A, CPM-10222A
CPM-10461A, CPM-10467B
CPM 10472B
PS-1663 E 3 2.687 1-7/8 B/VCDJF H/HC/VOC/HOC
PS-7020 E 3 2.687 1-7/8 VCFJF
CPM-10225A, CPM-10408A
PS-1653 T 3 2.687 1-7/8 VCFJF HOC 6 x 4 x 13 CPM-10278
PS-530 E 3 2.750 2 BCFJF
PS-477 E 3 2.750 2 BCFKF S Line Item 206 CPM-200S429X2
CPM-200S429X7
PS-342 E 3 2.750 2 NCPKP 1-1/2, 2 and 3 VM-1-1/2 and 3 VL CPM-10130
3VLA Vertical Pumps and S Line CPM-200S429X1
PS-611 E 3 2.812 2-1/8 BCFJF All Bronze Fitted Pumps
1-1/2, 2 MRV-5 RVH, 6 RVL, 50RVL D CPM-10047
PS-1612 E 3 2.812 2-1/8 BCFKF All Iron Fitted Pumps CPM-10048, 60110376
1-1/2, 2 MRV-5 RVH, 6 RVL, 50RVL D
PS-2086 E 3 3.000 2-1/8 BCFKF Series 100S CPM-10351
PS-278 E 3 3.250 2-3/8 BCFJF HOC CPM-10469A
PS-350 E 3 3.250 2-3/8 BCFKF 4GT/S/HOC CPM-10159, CPM-10469B
PS-278V E 3 3.250 2-3/8 VCFJF HOC 1802AJCTYP1A238-XF1C1
6003427, 60969797
PS-2098V E 3 3.250 2-3/8 VCFKF CPM
-10718B, CPM-10251B
PS-279 E 3 3.375 2-1/2 BCFJF CPM-10134
PS-349 E 3 3.375 2-1/2 BCFKF S Line Item 208 CPM-250S429X2
CPM-250S429X7
69261360
PS-321 E 3 3.500 2-3/4 V/BCFKF S Line Series 100 CPM-10355
PS-475 E 3 3.875 3 BCDKF 6GT
PS-325SS U 3 4.125 3-1/4 BCFKF S Line 211, 8 x 14SD,10 x 14SD CPM-325S429X2
69261378
*US Seal 2010 catalog w cover 9/14/10 2:59 PM Page 53
U.S. Seal Mating Mating Shaft Material
Part No. Head Ring Ring OD Dia. Code Notes Pump Nameplate Data Mfg. Part No.
NOTE:
PUMP MANUFACTURERS’ CROSS-REFERENCE
I. ABRASION RESISTANT CARBON (P66)
N. NON-STANDARD SPRING HOLDER
50
INSINGER MACHINE CO.
PS-204 E 1 1.750 1-1/8 BCFJF B15
ITT INDUSTRIES (See A-C Pump, Bell & Gossett, Domestic Pump, Jabsco, Marlow)
ITT R&CW (ITT RESIDENTIAL & COMMERCIAL WATER PUMPS)
PS-3926 B 9 1.062 5/8 VCFKF 316SS A00202C 1
PS-544V- C 3 2.375 1-5/8 VLFLF 76407 3625
SC-SC
PS-3993 C 3 2.750 2 BCFJF 76407 1200
JABSCO (Div. of ITT INDUSTRIES)
PS-642 B — — 5/8 BMF-F Seat is Impeller 1/2” Motor Pump
PS-382 D 1 2.125 1-1/2 BCFJF
3200 and 3200-01, 3200-21
JACUZZI (Div. of STA-RITE INDUSTRIES)
PS-162 A 1 1.000 1/2 BMFJF 10-563
PS-631 C 1 1.000 1/2 BCFJF N Model 5AM 10-564
PS-200 A 1 1.250 5/8 BMFJF Cygnet K,KM, Vector LVLA, J, JCM, 10-467, 10-1436-00
LCM, LCU and LR Series 10-0002-06
PS-290 C 1 1.250 5/8 BCFJF 10-1202, 10-1203
7524000
PS-359 C 1 1.250 5/8 BCFJF 10-478, 10-506
PS-102 D 1 1.250 5/8 BCDKF 10-502
PS-201 A 1 1.375 3/4 BMFJF Model 5RP, SF, Magnum, RC-Series 10-477,10-486, 10-120
10-1390-04,10-1502-09
PS-358 C 1 1.375 3/4 BCFJF 10-479
PS-877 C 1 1.375 3/4 BCFJF 8M 10-1203-01, 10-1203-19
PS-683 C 1 1.500 3/4 BCFJF 10-100
PS-750 D 1 1.375 3/4 BCDJF 10-503
PS-235 C 1 1.625 1 BCFJF 10M 10-504, 10-1299-06
PS-204 E 1 1.750 1-1/8 BCFJF 10-505
PS-185 C 1 1.875 1-1/4 BCFJF 10-0369-29, 10-1400-02
PS-2122 C 1 1.875 1-1/4 BCFJF 10-0369-03
PS-209 K — — 1-3/8 BCF-F 10-315, 10-328
PS-758 C 1 2.125 1-1/2 BCFJF 10-1348-07
PS-2142 C 1 2.500 1-3/4 BCFJF 10-0307-00
PS-205 E 1 2.500 1-3/4 BCFJF 10-330
PS-213 R — — 1-3/4 BCD-F 10-323
PS-874 D1 3.125 2-1/4 BCDJF 10-365
JAEGER
PS-201 A 1 1.375 3/4 BMFJF
PS-360 A 1 1.625 1 BCFJF
PS-356 C 1 1.750 1-1/8 BCFJF 80237
PS-177 C 1 2.000 1-3/8 BCFJF 81031-1
PS-461 D 1 2.375 1-5/8 BCDKF 66319-1
PS-876 D12.625 2 BCDKF 66435-1
JANDY
PS-1000 B 1 1.250 5/8 BMFJF P84-60 P55
PS-3890 G 1 1.381 5/8 BCFJF PB-460Q P84-3
PS-4280 G 1 1.381 5/8 VCFJF FHP, JEP, MHP, PHP, SHP, SWF, WFTR R00479400
PS-4231 G1
1.250/1.381
5/8 3/4 BCFJF R0445500
PS-601 B11.375 3/4 BMFJF HHP, HHPU R0338200
JOHNSON CONTROLS
PS-4026 D 3 2.500 1-3/4 NCFKF 029 22359 001
PS-6147 C — — 2-1/2 NCF-F 522M0007H01
PS-6151 D — — 2-5/8 NCP-P I 02913450 000
PS-4028 K
3Special
4.500 2-7/8 NCFGF 523B0201G01
JOYMFG. (See SULLIVAN PALATEK)
KADYINTERNATIONAL
PS-687 C 1 1.500 7/8 BCFKF 91381
PS-210 C 1 2.000 1-3/8 BCFKF 91379
PS-3541 T 3 2.000 1-3/8 VZFZF 316SS 118563
*US Seal 2010 catalog w cover 9/14/10 2:59 PM Page 54
U.S. Seal Mating Mating Shaft Material
Part No. Head Ring Ring OD Dia. Code Notes Pump Nameplate Data Mfg. Part No.
51
PUMP MANUFACTURERS’ CROSS-REFERENCE
NOTE:
A. MOUNTS ON SHAFT
N. NON-STANDARD SPRING HOLDER
KENCO
PS-162 A 1 1.000 1/2 BMFJF Type 62, 63, 64, 65
PS-163 B 1 1.000 1/2 BMFJF AE001A1
PS-165 B 9 .906 1/2 BMFJF A 59A,140A
PS-200 A 1 1.250 5/8 BMFJF Model 139A New Style
PS-452 B 9 — 5/8 BMFJF A Model 109A New Style
PS-762 A 3 1.375 3/4 BMFKF Model 114 6A001A1
KINNEY VACUUM PUMP (Div. of TUTHILL VACUUM SYSTEMS)
PS-358 C 1 1.375 3/4 BCFJF KC2.5-15, KS-13
KC-5, KC-8(491)
PS-358V C 3 1.375 3/4 VCFJF 65046
PS-197 K — — 7/8 BCF-F SK-549
PS-357 C 1 1.625 1 BCFKF KS-27-47
PS-159 D 3 1.625 1 NCPGP VSM-778-8811 65024
PS-355 C 1 1.750 1-1/8 BCFKF KC-46
PS-177V C 3 2.000 1-3/8 VCFJF 065046-A-000
PS-659 C 1 2.125 1-1/2 BCFKF KD-110, KDH-130
PS-238V- C 1 2.375 1-5/8 VCFJF 065241-A000
CMS
PS-366 E 1 2.500 1-3/4 BCFKF KD-220, KDH-220
PS-462 D 1 2.750 2 BCDKF
PS-658 R 1 2.750 2 BCDKF KBM-1200, MB-17
KLEIN PRODUCTS OF KANSAS, INC.
PS-547 C 3 2.000 1-3/8 BCFKF 33011197
KRAISSL CO.
PS-150 B — — 1/2 BMF-F Seat is Impeller
LABCONCO CORP.
PS-6308 Q 9 1.250 .687 Special A 4485800
LANCASTER PUMP CO.
PS-150 B — — 1/2 BMF-F Laundro Pak Seat is Impeller 376 4761
PS-1002 C 1 1.000 1/2 BCFJF N Converto, Supreme Jet, MTR Jet, 1061
Type M 901 thru 906, Type P, all models
PS-200 A 1 1.250 5/8 BMFJF 2661
PS-1000 B11.250 5/8 BMFJF 5236
PS-151 B 1 1.375 5/8 BMFJF Types S & SD Lancaster
Dutchman-1182, 1183, 1192, 1193 2461
PS-1005A B 1 1.375 5/8 BMFKF 2561
PS-447 B 8 — 5/8 BCFJF A Model 570, 575, 1775
PS-493 C 1 1.187 5/8 BCFKF 5256
PS-201 A 1 1.375 3/4 BMFJF Types S & SD Lancaster Dutchman-
1182, 1183, 1192, 1193 1661
PS-358 C 1 1.375 3/4 BCFJF Self Priming Pump Model 673 1361
PS-703 D 1 1.500 7/8 BCDJF Turbo Pak Model 523BF- 524 BG 429 7/8
PS-360 A 1 1.625 1 BCFJF Type M-907 and M-908 7561
PS-381 D1 1.875 1-1/4 BCFJF Type M-909 and M-910 909-61
LEAR SIEGLER (See SHERWOOD BRASS)
LECOURTENAY
WHEN SEAL IS MOUNTED ON A SHAFT,USE THE FOLLOWING
PS-866 E 3 1.750 1-1/8 BCFJF Models 3BA2, 2-1/2 -BA8
PS-546 E 3 1.875 1-1/4 BCFJF Model 3BA7 11481
PS-864 E 3 2.000 1-3/8 BCFJF Models 4BA7, 3BA8, 4BA6, 6B3
PS-595 E 3 2.375 1-5/8 BCDJF Models 5BA6, 2-1/2 M7A 11485-8
PS-2069 E12.625 1-7/8 BCFJF Models 4BA8, 5BA7
PS-530 E 3 2.750 2 BCFJF Model 8BA5 11393
PS-327 E33.000 2-1/8 BCFJF Model 5MB7 15168-9, 23305
PS-848 E3 3.125 2-1/4 BCDJF Models 6BA8, 8BA6, 10BA4/5 11479-80, 23300, 23304
PS-328 E 3 3.375 2-5/8 BCFJF Models 6B8, 10BA6, 10BA7 15165-7, 23301
PS-329 E 3 3.750 2-7/8 BCFJF Model 8BA8
WHEN SEAL IS MOUNTED ON A SLEEVE, USE THE FOLLOWING
PS-546 E 3 1.875 1-1/4 BCFJF Model 3B4 11481
*US Seal 2010 catalog w cover 9/14/10 2:59 PM Page 55
U.S. Seal Mating Mating Shaft Material
Part No. Head Ring Ring OD Dia. Code Notes Pump Nameplate Data Mfg. Part No.
PUMP MANUFACTURERS’ CROSS-REFERENCE
52 NOTE:
A. MOUNTS ON SHAFT
H. SPRING HOLDER NOT INCLUDED
I. ABRASION RESISTANT CARBON (P66)
N. NON-STANDARD SPRING HOLDER
LECOURTENAY (continued)
PS-864 E 3 2.000 1-3/8 BCFJF Model 6B3
PS-595 E 3 2.375 1-5/8 BCDJF Model 4B6 11485-8
PS-530 E 3 2.750 2 BCFJF Model 5BA6 11393
PS-327 E 3 3.000 2-1/8 BCFJF Models 6BA5, 6BA6 15168-9, 23305
PS-848 E 3 3.125 2-1/4 BCDJF Models 4BA8, 5BA7, 8B5 11479-80, 23300, 23304
PS-278 E 3 3.250 2-3/8 BCFJF Model 8BA5 15170-1
PS-328 E 3 3.375 2-5/8 BCFJF Models 8BA6, 6BA8, 10BA4/5 15170-7, 23301
PS-324 E 3 3.875 3 BCDJF Models 6B8,10BA6,10BA7 11489-93
NOTE: Lecourtenay seals are also available with Ni-Resist mating rings.
LEHIGH
PS-752 D 1 1.375 3/4 BCDKF D-811
PS-108 E 1 1.875 1-1/4 NCPKP D-845
LELAND FARADAY
PS-142 B 1 1.000 1/2 BMFJF
PS-163 B 1 1.000 1/2 BMFJF Model LFP-43000
PS-1000 B 1 1.250 5/8 BMFJF Models LFP-2075, 2100, 2150, 2200
PS-800 C 1 1.156 5/8 BMFJF H
Models LFP-333-615, 14107-14120, 34105-34320
PS-877 C 1 1.375 3/4 BCFJF Models LFP-533-1100, 5050, 5075, 5100
LEROY SOMER NORTH AMERICA
PS-3893 C
3Special
1.500 7/8 VCFGF 90243401
PS-3943 C
3Special
2.125 1-1/2 VCFGF 90348301
PS-3945 C
3Special
1.875 1-1/4 VCFGF 90311601
PS-3584 C
3Special
2.000 1-3/8 VCFGF 90300001
PS-3939 C
3Special
2.375 1-5/8 VCFKF 90352401
LEWIS, CHARLES S. & CO.(Div. of WEIR GROUP)
PS-381 D 1 1.875 1-1/4 BCFJF
PS-381- D 1 1.875 1-1/4 NCFJF 1732
NEO
PS-3555 D 1 1.875 1-1/4 QLFLF 10282
PS-205 E 1 2.500 1-3/4 BCFJF
PS-205- E 1 2.500 1-3/4 BCFJF I 21353
P66
PS-366 E 1 2.500 1-3/4 BCFKF 10283
LIBERTY PUMPS
PS-4064 Special Special .950 1/2 BMFJF Unitized 50980A0
PS-4065 Special Special 1.110 5/8 BMFJF Unitized 5120000
PS-4066 Special Special 1.334 3/4 BLFLF Unitized 5633000
LINK BELT
PS-357 C 1 1.625 1 BCFKF WB-35
PS-355 C1 1.750 1-1/8 BCFKF WB-40
PS-461 D 1 2.375 1-5/8 BCDKF WB-60
PS-288 D 1 2.500 1-3/4 BCDKF WB-70
LITTLE GIANT PUMP CO. (Div. of FRANKLIN ELECTRIC CO., INC.)
PS-150 B — — 1/2 BMF-F Seat is Impeller 926030
PS-163 B11.000 1/2 BMFJF 926024, 926029
PS-165 B9.906 1/2 BMFJF A 108112, 926031
PS-961 B 1 1.250 5/8 BCFJF 926034
PS-1000 B 1 1.250 5/8 BMFJF Pump 10 &12
PS-933 C — — 5/8 BCF-F 926052
PS-552 C 3 1.250 5/8 BCFJF 926053
PS-356V C3 1.750 1-1/8 VCFJF 926042, 926043
LOCKWOOD PUMP
PS-301 A 1 1.375 3/4 BMFJF
PS-360 A 1 1.625 1 BCFJF CM Pump
LOGANSPORT
PS-400 C — — 1/2 BMF-F P-9509
PS-106 C1 1.000 1/2 BCFKF N P-17251
PS-109 D — — 5/8 BCD-F SF-4, SF-10 P-14883
PS-564 C——3/4 BCF-F SF-80, 100, 125, 150 P-9518
*US Seal 2010 catalog w cover 9/14/10 2:59 PM Page 56
53
U.S. Seal Mating Mating Shaft Material
Part No. Head Ring Ring OD Dia. Code Notes Pump Nameplate Data Mfg. Part No.
PUMP MANUFACTURERS’ CROSS-REFERENCE
NOTE:
A. MOUNTS ON SHAFT
B. TAPERED SPRING
LOMART
PS-150 B — — 1/2 BMF-F Seat is Impeller
PS-142 B 1 1.000 1/2 BMFJF
PS-163 B 1 1.000 1/2 BMFJF 40-027, 40-029
PS-1000 B 1 1.250 5/8 BMFJF
LOUIS PUMP
PS-370 A 1 1.625 1 BCFKF
LOU-RICH, INC.
PS-6305 Q 2 1.625 1 BMDAF 13417
LUITWEILER PUMP
PS-201 A 1 1.375 3/4 BMFJF
PS-361 E 1 1.875 1-1/4 BCFJF
LYCO WAUSAU, INC.
PS-446 C 1 2.500 1-3/4 BCFJF 1100-17
McDONALD A-Y
PS-166 A 1 1.187 5/8 BMFJF 5MCD1
PS-501 A 1 1.250 5/8 BMFJF 3000, 4000 and 4100 Jet Well 5MCD4
PS-201 A 1 1.375 3/4 BMFJF 5MCD5
PS-521 D 1 1.875 1-1/8 BCFKF 5MCD2
MAGNETROL (See SCHAUB ENGINEERING CO.)
MAGNUM PRODUCTS, LLC.
PS-516 A 1 1.250 5/8 BCFJF 48273
PS-185- C 1 1.875 1-1/4 BLFLF 48253
SC-SC
MANITOWOC CO., INC.
PS-360 A 1 1.625 1 BCFJF 003705011
MARLOW(Div. of ITT INDUSTRIES)
PS-151 B 1 1.375 5/8 BMFJF 42513-00
PS-2161 B 1 1.375 5/8 BMFJF SCT Series, Stainless Steel 46328-00
PS-411 B 11 — 5/8 BMFJF A Model H23EC-A 1-1/2 HP, 2AF Series 25353-00, 25353-20
26467-00, 23736-00
PS-411V B 11 — 5/8 VCFJF A 27678-00, 29163-00
29163Z
PS-201 A 1 1.375 3/4 BMFJF Argonaut®,Mardur®38592-00
PS-405 A 27 1.625 1 B/VCFJF 26473-00
PS-413 C 27 1.625 1 BCFJF 20760-00, 25355-00
PS-978 C 1 1.750 1-1/4 BCFJF B L Series 45672-20
PS-979 C 1 1.750 1-1/4 BCFKF B
PS-923 C 25 2.250 1-1/4 BCFJF B 27452-00, 27233-20
PS-416 D — — 1-1/4 BCF-F 27453-00
PS-416A D 25 2.250 1-1/4 BCFJF 3B Series 27223-00, 27224-00
27225-00, 3B28EC-C2
PS-7919 C 3 2.000 1-3/8 B/VLFLF 43350-00
PS-929 C 25 2.000 1-3/8 BCFJF 25481-00
PS-404 D 25 2.000 1-3/8 BCDJF 25356-00, 26477-00
25356-20
PS-8048 XT 3 2.125 1-3/8 VCFJF 316SS 45184000000
PS-818 C 3 2.375 1-5/8 BCFJF 46983-00
PS-544V- C 3 2.375 1-5/8 VLFLF 43435-00
SC-SC
PS-7497 C 25 2.500 1-5/8 B/VCFJF 28146-00
PS-514 D 1 2.375 1-5/8 BCDJF L Series 45673-20
PS-446 C1 2.500 1-3/4 BCFJF 25357-00
PS-550 C3 2.500 1-3/4 BCFJF Model 6 EL 47182-00
PS-267 C 1 2.750 2 BCFJF 25358-00
PS-478 E 1 2.687 2 BCFKF
PS-7963 K 3 3.000 2 BCFJF 43426000000
*US Seal 2010 catalog w cover 9/14/10 2:59 PM Page 57
U.S. Seal Mating Mating Shaft Material
Part No. Head Ring Ring OD Dia. Code Notes Pump Nameplate Data Mfg. Part No.
PUMP MANUFACTURERS’ CROSS-REFERENCE
54
MASSEY FERGUSON
PS-642 B — — 5/8 BMF-F 892-563M1
PS-647 B — — 3/4 BMF-F 1019-293M1
MEGATOR CORP.
PS-359V- C 1 1.250 5/8 VCFJF 5079V
CMS
PS-359 C 1 1.250 5/8 BCFJF 5079
PS-358 C 1 1.375 3/4 BCFJF 5479
PS-309 C 1 1.500 7/8 BCFJF 5679
PS-309V C 3 1.500 7/8 VCFJF 5679V
PS-356 C 1 1.750 1-1/8 BCFJF 5879
PS-357V- C 1 1.750 1-1/8 VCFJF 5879V
CMS
PS-185 C 1 1.875 1-1/4 BCFJF 5779
PS-758 C 1 2.125 1-1/2 BCFJF 5979
PS-758V- C 1 2.125 1-1/2 VCFJF 5979V
CMS
MEMPHIS PUMP & MFG. CO., INC.
PS-100 A 1 1.187 5/8 BMFJF 0625-6BC
PS-118 C 1 1.187 5/8 BCFJF
PS-1091 C 1 1.187 5/8 VCFJF
PS-508 D 1 1.250 5/8 BCDJF
PS-201 A 1 1.375 3/4 BMFJF
PS-1093 C 1 1.375 3/4 VCFJF
PS-1092 C 1 1.375 3/4 VCFKF
PS-1094 C 1 1.625 1 VCFJF
MEPCO: (Marshall Engineered Products Co.) (See DUNHAM-BUSH)
METAL MASTER
PS-150 B — — 1/2 BMF-F Seat is Impeller 12515
PS-680 A 1 1.187 5/8 BCFJF 19023
PS-702 A 1 1.187 5/8 BMFJF Close Coupled Circulator 15110
PS-200 A 1 1.250 5/8 BMFJF
PS-153 A 1 1.250 5/8 BMFKF Swim Pool Pump
PS-151 B 1 1.375 5/8 BMFJF Circulator Hi Lift
MET-PRO CORP.
PS-1000V B31.250 5/8 VCFJF 6960440
PS-3962
WSpecial
2 1.250 5/8 TCFJF 6960444
PS-397V C — — 1 VCF-F 6765570
PS-937V E— — 1 VCF-F 6765583
PS-236V E 3 1.625 1 VCFKF 6764554
T9-1000 WT — — 1 TCF-F 316SS 6765575
PS-9349 WT 27 2.000 1 TCFZF 316SS
PS-2104V E—— 1-3/8 VCF-F 6767102
PS-1056V C 3 2.500 1-3/4 VCFKF 6765941
PS-1056V- C 3 2.500 1-3/4 VCFLF 6765942
SC-SEAT
PS-366V E 3 2.500 1-3/4 VCFKF 6764540, 6765965
MEYER-MOJONNIER
PS-227 D 1 1.750 1 BCFKF 750062149
MIDCO MFG.
PS-600 B 1 1.187 5/8 BMFJF
PS-601 B 1 1.375 3/4 BMFJF
MIDLAND PRODUCTS (Div. of CRANE PUMPS & SYSTEMS)
PS-201 A 1 1.375 3/4 BMFJF 6070-0
PS-360 A 1 1.625 1 BCFJF Models 5M, 7M and 18M 6007-0
PS-177 C 1 2.000 1-3/8 BCFJF Models 40M and 40W
PS-805 C3 2.000 1-3/8 BCFJF 6368-0
PS-550 C32.500 1-3/4 BCFJF 6412-0
PS-532 C 3 2.750 2 BCFJF 6428-0
*US Seal 2010 catalog w cover 9/14/10 2:59 PM Page 58
55
U.S. Seal Mating Mating Shaft Material
Part No. Head Ring Ring OD Dia. Code Notes Pump Nameplate Data Mfg. Part No.
PUMP MANUFACTURERS’ CROSS-REFERENCE
NOTE:
A. MOUNTS ON SHAFT
B. TAPERED SPRING
N. NON-STANDARD SPRING HOLDER
MILE HIGH EQUIPMENT CO.
PS-6312 Q Special 1.625 1 BMD/PAP 9121026-91
PS-6311 Q Special 2.375 1-5/8 N/BMDAF 9121025-91
MILRECO
PS-448 C 1 2.500 1-3/4 BCFKF RMB-414
MONARCH PUMPS (Div. of FRANKLIN ELECTRIC CO., INC.)
PS-200 A 1 1.250 5/8 BMFJF 240160
PS-200V- A 1 1.250 5/8 VCFJF ATH, AT600 240136
CMS
PS-851 A 1 1.375 3/4 BCFJF 240260
PS-201 A 1 1.375 3/4 BMFJF 240170, MS17
PS-201V- A 1 1.375 3/4 VCFJF BSGF 6&8, B2U 240344, MS44
CMS
PS-460 D 1 1.625 1 BCFKF 240060
PS-185 C 1 1.875 1-1/4 BCFJF 240070
PS-185V- C 1 1.875 1-1/4 VCFJF 8BSGF 240359
CMS
PS-756V- C 1 1.875 1-1/4 VCFKF 240362
CMS
PS-186 D 1 2.000 1-3/8 BCDKF 240367
PS-3972 K 3
2.500/2.125
1-1/2 VLFLF
PS-448 C 1 2.500 1-3/4 BCFKF 240120
PS-835 D 3 3.375 2-1/2 BCDJF 240363
PS-838 E 3 3.500 2-3/4 V/BCFJF 240290
MONTGOMERY WARD
PS-358 C 1 1.375 3/4 BCFJF 24181
MORETRENCH
PS-7766 K 3 3.125 2-1/4 BCFJF
MOYNO, INC.
PS-631 C 1 1.000 1/2 BCFJF N
PS-1002 C 1 1.000 1/2 BCFJF N 3204215000
PS-4214 C 1 1.000 1/2 BCFJF 3206480000
PS-1002- C 1 1.000 1/2 QCFJF N 3206497000
EPR
PS-1002V C 1 1.000 1/2 VCFJF N 3206037000
PS-200 A 1 1.250 5/8 BMFJF
PS-359 C 1 1.250 5/8 BCFJF 3202424000
PS-1119 C 1 1.250 5/8 BCFJF EM & EC Pumps 3202423000
PS-359- C 1 1.250 5/8 QCFJF 3206379000
EPR-CMS
PS-359V-C11.250 5/8 VCFJF 3206501000
CMS
PS-633V- C 3 1.250 5/8 VZFLF
TC-SC
PS-851 A1 1.375 3/4 BCFJF 8-65C 3201625000
PS-358 C 1 1.375 3/4 BCFJF 3203945000
PS-360 A 1 1.625 1 BCFJF EC-67
PS-548 C31.625 1BCFJF 3201750000
PS-380 D 1 1.625 1 BCFJF
PS-262 E32.500 1-3/4 BCFKF
MP PUMPS, INC.
PS-4055 A 1 1.000 5/16 BCFJF 33976
PS-114 A1 1.000 5/16 BMDJF
PS-162 A 1 1.000 1/2 BMFJF 21609
PS-165 B 9 .906 1/2 BMFJF A
PS-113 B 1 1.093 5/8 BMFJF 13385
PS-447V B 8 — 5/8 VCFJF A Model 2430 21580
PS-358 C11.375 3/4 BCFJF 15151
PS-112 C 1 1.375 3/4 BCFKF 15112
PS-128V C 3 1.375 3/4 VCFJF B 15110, 15150, 15131, 15200, 15241 26640
PS-3788 G31.375 3/4 VCFJF 30061
*US Seal 2010 catalog w cover 9/14/10 2:59 PM Page 59
U.S. Seal Mating Mating Shaft Material
Part No. Head Ring Ring OD Dia. Code Notes Pump Nameplate Data Mfg. Part No.
PUMP MANUFACTURERS’ CROSS-REFERENCE
56 NOTE:
A. MOUNTS ON SHAFT
B. TAPERED SPRING
H. SPRING HOLDER NOT INCLUDED
I. ABRASION RESISTANT CARBON (P66)
MP PUMPS, INC. (continued)
PS-9339 W 2 1.375 3/4 TCFJF 316SS 30054
PS-703 D 1 1.500 7/8 BCDJF 9524
PS-245V- C 1 1.625 1 VCFJF B/H 22272 - Old Style
CMS
PS-248V- C 1 1.625 1 VCFKF B/H 22274
CMS
PS-380 D 1 1.625 1 BCFJF 14233
PS-4195 G 1 1.625 1 VCFJF 316SS 22272 - New Style
PS-604 D 1 1.750 1-1/8 BCFJF
PS-347 C 1 2.125 1-1/2 BCFJF B/H 14421, 14424
PS-347V- C 1 2.125 1-1/2 VCFJF B/H 22361
CMS
PS-382 D 1 2.125 1-1/2 BCFJF
PS-3992 G 1 2.125 1-1/2 VCFJF 31374
PS-7587 W 2 2.125 1-1/2 TCFJF 316SS 26565
PS-446V- C 1 2.500 1-3/4 VCFJF 26685
CMS
PS-7959 D 3 2.500 1-3/4 VRFZF 26752
MTH TOOL CO., INC.
PS-933- C — — 5/8 BCF-F I 12-2739-01-457
P66
PS-208V- C — — 7/8 VCF-F I 12-1068-01-494
P66
MURPHY DIESEL
PS-358 C 1 1.375 3/4 BCFJF MD-4090
PS-1095 C — — 1 BCF-F MD-7980B1
MUSKIN
PS-163 B 1 1.000 1/2 BMFJF 09-2001
PS-142 B 1 1.000 1/2 BMFJF 09-2013
MYERS, F.E. (See PENTAIR, INC. for Additional Part Numbers)
PS-1621 Q 9 — 1/2 BMFJF A 21607A001
PS-162 A 1 1.000 1/2 BMFJF 21607A015
PS-200 A 1 1.250 5/8 BMFJF 10840A1, A2, A3 14525A000, 1425A010
16275A
PS-200V- A 1 1.250 5/8 VCFJF 21181A044
CMS
PS-3845 B81.299 5/8 BMFJF 25053A000
PS-359 C 1 1.250 5/8 BCFJF 22447A
PS-359V- C 1 1.250 5/8 VCFJF 21181A021
CMS
PS-508 D 1 1.250 5/8 BCDJF 10840A1
PS-968 A11.437 3/4 BCFJF 11416A000
PS-101 A 1 1.437 3/4 BMFJF Models H, HN, K, MHN 11416A, A2, A3
PS-902 B 9 — 3/4 BMFKF A 21579A
PS-1125 C1 1.375 3/4 BCFJF 25370A000
PS-7277 C 1 1.437 3/4 BCFJF 21181A17
PS-7514 C 1 1.437 3/4 BCFJF
PS-309 C 1 1.500 7/8 BCFJF 21576A000
PS-3907 C 1 1.500 7/8 BCFJF 21576A010
PS-3749 C 1 1.500 7/8 BCFJF 21576A011
PS-7130 C 1 1.500 7/8 BCFJF WG-20-21-15
PS-703 D 1 1.500 7/8 BCDJF Model 125 Centro-Thrift 11716A1
PS-983V C3 1.750 1-1/8 VCFKF 21181A6
PS-204 E 1 1.750 1-1/8 BCFJF 8824A1
PS-185 C 1 1.875 1-1/4 BCFJF 22577A000
PS-185- C 1 1.875 1-1/4 BLFLF 21181A062
SC-SC
PS-2208 C 1 1.875 1-1/4 BZFZF 21181A019
PS-381 D 1 1.875 1-1/4 BCFJF Model 2695 21181A016, 15218A
PS-758 C 1 2.125 1-1/2 BCFJF 22922A000
PS-2209 C 1 2.125 1-1/2 BZFZF 21181A013
*US Seal 2010 catalog w cover 9/14/10 2:59 PM Page 60
57
U.S. Seal Mating Mating Shaft Material
Part No. Head Ring Ring OD Dia. Code Notes Pump Nameplate Data Mfg. Part No.
PUMP MANUFACTURERS’ CROSS-REFERENCE
NOTE:
A. MOUNTS ON SHAFT
B. TAPERED SPRING
I. ABRASION RESISTANT CARBON (P66)
MYERS, F.E. (continued) (See PENTAIR, INC. for Additional Part Numbers)
PS-758V- C 1 2.125 1-1/2 VCFJF 21181A002
CMS
PS-659V- C 1 2.125 1-1/2 VZFZF 21181A064
TC-VS-TC
PS-238 C 1 2.375 1-5/8 BCFJF 21181A032
PS-2212 C 1 2.500 1-3/4 BCFJF 22883A000
PS-446 C 1 2.500 1-3/4 BCFJF 11049-001-1
PS-237 D 1 2.500 1-3/4 BCDJF 300 FS-VG4D
PS-7138 C 1 3.125 2-1/4 BCFJF 23605A000
PS-7138- C 1 3.125 2-1/4 BZFZF 21181A020
TC-TC
PS-7936 E 3 3.500 2-3/4 VCFZF 316SS 21576A011
PS-1088 C 3 3.875 3 BCFJF B 25449A000
NASH_ELMO (Div. of GARDNER DENVER NASH)
PS-100 A 1 1.187 5/8 BMFJF HTG Pump
PS-100V- A 1 1.187 5/8 VCFJF PK-0389
CMS
PS-452 B 9 — 5/8 BMFJF A S1-1/4C
PS-600 B 1 1.187 5/8 BMFJF PK-0339
PS-600V- B 1 1.187 5/8 VCFJF PK-0654
CMS
PS-764 A 1 1.375 3/4 BCFJF PK-0482
PS-204 E 1 1.750 1-1/8 BCFJF 11 Vertical PK-0295
PS-866 E 3 1.750 1-1/8 BCFJF PK-0754
PS-282 U 3 1.750 1-1/8 BCFKF PK-0334
PS-177 C 1 2.000 1-3/8 BCFJF MH-50, MH-80 PK-0874
PS-177V C 3 2.000 1-3/8 VCFJF PK-2044
PS-354 E 1 2.000 1-3/8 BCFJF AL 621 PK-0475
PS-864 E 3 2.000 1-3/8 BCFJF PK-0873
PS-758 C 1 2.125 1-1/2 BCFJF PK-0791
PS-2223 C 3 2.125 1-1/2 VCFZF PK-0959
PS-382 D 1 2.125 1-1/2 BCFJF MPS-673 PK-0624
PS-817 D 3 2.125 1-1/2 BCFJF PK-0302, PK-0306
PS-305 E 1 2.125 1-1/2 BCFJF MP-40 PK-0678
PS-884 K 1 2.125 1-1/2 BCFKF MPS-40
PS-238V C 3 2.375 1-5/8 VCFJF PK-3437
PS-550 C32.500 1-3/4 BCFJF AT-94 PK-0900
PS-446V- C 3 2.500 1-3/4 VCFJF I PK-1531
P66
PS-340 C12.625 1-7/8 BCFJF PK-0893
PS-4436 C 1 3.000 2-1/8 VCFJF PK-3438
PS-9122 W 2 3.000 2-1/8 TCFJF 316SS PK-2510
PS-874 D13.125 2-1/4 BCDJF 1-1/2 H-6 PK-0341
PS-2089 D 3 3.125 2-1/4 BCFJF PK-0479
PS-268V C 3 3.250 2-3/8 VCFJF PK-3439
PS-269V C33.375 2-1/2 VCFJF PK-1772
PS-838 E33.500 2-3/4 V/BCFJF PK-0523
PS-9314 W 2 1.687 2-3/4 TCFJF 316SS PK-3368
PS-2116 C33.875 3 BCFJF AD-303 PK-0937
PS-9140 W23.875 3 TCFJF 316SS PK-2522
PS-9351 W 2 4.875 4 TCFJF 316SS PK-2549
NEPTUNE
PS-150 B — — 1/2 BMF-F Seat is Impeller
OBERDORFER PUMPS
PS-671 B 1 .875 3/8 BMFJF IGCC Pump 32373
PS-671V- B 1 .875 3/8 VCFJF
CMS
PS-1098 B 1 .875 1/2 BMFJF Model 142 32482
PS-3003 G31.000 1/2 BCFJF 32592
PS-642 B — — 5/8 BMF-F 4GP, 9GP, RA-TV, RB-TB A-5377, A-6019
PS-600 B11.187 5/8 BMFJF 4GP, 9GP, RA-TV, RB-TB
PS-933V C — — 5/8 VCF-F 9798A
*US Seal 2010 catalog w cover 9/14/10 2:59 PM Page 61
U.S. Seal Mating Mating Shaft Material
Part No. Head Ring Ring OD Dia. Code Notes Pump Nameplate Data Mfg. Part No.
NOTE:
58
PUMP MANUFACTURERS’ CROSS-REFERENCE
B. TAPERED SPRING
I. ABRASION RESISTANT CARBON (P66)
OBERDORFER PUMPS (continued)
PS-359 C 1 1.250 5/8 BCFJF A-5935
PS-4346 C 3 1.187 5/8 VCFJF 316SS 33109
PS-235 C 1 1.625 1 BCFJF 32315
PS-235V- C 1 1.625 1 VCFJF 32372
CMS
OHLER PUMP
PS-141 R — — 1 BCF-F
PS-235 C 1 1.625 1 BCFJF
PS-357 C 1 1.625 1 BCFKF
PS-185 C 1 1.875 1-1/4 BCFJF
PS-186 D 1 2.000 1-3/8 BCDKF
PS-209 K — — 1-3/8 BCF-F
PACER PUMPS
PS-601 B 1 1.375 3/4 BMFJF 714-11
PS-601V B 3 1.375 3/4 VCFJF 714-14
PAC-FAB (PENTAIR POOL PRODUCTS, INC.)
PS-952 A 1 1.250 5/8 BCFJF AV-7 Pump 23822
PS-200 A 1 1.250 5/8 BMFJF Challenger®,Dynamite, Dynamo®,354545
Dynatron®,Pinnacle®
PS-201 A 1 1.375 3/4 BMFJF Hydropump®354001
PACIFIC PUMPING CO. (PACO) (For Replacement Seal Kits - See Pages 145-146)
PS-516 A 1 1.250 5/8 BCFJF 14010242
PS-200 A 1 1.250 5/8 BMFJF SL-7101, SL-7741
K102-1, 91909744
PS-628 A 3 1.250 5/8 BMFKF K100-7, 14008630
K102-7, 91909687
91909747
PS-1618 C 1 1.250 5/8 BCFJF B 14032695
PS-2149 C 3 1.250 5/8 BCFKF B 14032688
PS-508 D 1 1.250 5/8 BCDJF SL-7100
PS-973 A 1 1.375 3/4 BCFKF K101-7, 91909722
PS-201 A 1 1.375 3/4 BMFJF K101-1, 91909719
PS-768 C 3 1.375 3/4 BCFKF 14032689
PS-112V C 3 1.375 3/4 VCFKF 14032363
PS-750 D 1 1.375 3/4 BCDJF Model 1-1/2LRV, 1-1/4JS
PS-752 D11.375 3/4 BCDKF SL-7104
PS-703 D 1 1.500 7/8 BCDJF SL-7098
PS-235 C 1 1.625 1 BCFJF SL-7735
PS-380 D 1 1.625 1 BCFJF SL-7087
PS-460 D11.625 1BCFKF SL-7106
PS-754 E 1 1.625 1 BCFJF 14007521
PS-204 E 1 1.750 1-1/8 BCFJF SL-7770
PS-2122 C 1 1.875 1-1/4 BCFJF K105-1, 14032698
K107-1, 91909832
91909909
PS-185 C 1 1.875 1-1/4 BCFJF 14033710
PS-756 C 1 1.875 1-1/4 BCFKF SL-7094
PS-1109 C 3 1.875 1-1/4 BCFKF K105-7, 14032691
91909838
PS-756V C31.875 1-1/4 VCFKF K107-6, 91909912
PS-1109V C 3 1.875 1-1/4 VCFKF K105-6, 14032365
91909837
PS-154 C — — 1-1/4 BCF-F 14032143
PS-361 E11.875 1-1/4 BCFJF Model 2CLSU-3ALR 14007099
PS-361- E 1 1.875 1-1/4 BCFJF I 14007083
P66
PS-137 E 1 1.875 1-1/4 BCFKF SL-8102
PS-264- E 3 1.875 1-1/4 BCFKF I 14008102
P66
PS-137V-E31.875 1-1/4 VCFKF I K600-6, 91911824
P66
*US Seal 2010 catalog w cover 9/14/10 2:59 PM Page 62
U.S. Seal Mating Mating Shaft Material
Part No. Head Ring Ring OD Dia. Code Notes Pump Nameplate Data Mfg. Part No.
59
NOTE:
PUMP MANUFACTURERS’ CROSS-REFERENCE
A. MOUNTS ON SHAFT
N. NON-STANDARD SPRING HOLDER
PACIFIC PUMPING CO. (PACO) (continued) (For Replacement Seal Kits - See Pages 145-146)
PS-3974 D Bal. 1 1.875 1-3/8 BCFJF 14007089
PS-758 C 1 2.125 1-1/2 BCFJF
PS-371 D 1 2.125 1-1/2 BCFKF
PS-2106 E — — 1-1/2 BCF-F 14010219
PS-305 E 1 2.125 1-1/2 BCFJF SL-8223
PS-374 E 1 2.125 1-1/2 BCFKF
PS-2108 C — — 1-3/4 BCF-F 14032145, 14032355
PS-446 C 1 2.500 1-3/4 BCFJF K104-1, 91909802
PS-2142 C 1 2.500 1-3/4 BCFJF 14032700
PS-2150 C 3 2.500 1-3/4 BCFJF K106-1, 91909874
K108-1, 91909944
PS-2151 C 3 2.500 1-3/4 BCFKF 14032693, K303-7
PS-2151V C 3 2.500 1-3/4 VCFKF K106-6, 91909878
K108-6, 91909947
PS-2151V- C 3 2.500 1-3/4 VCFZF 14032384
TC-SEAT
PS-205 E 1 2.500 1-3/4 BCFJF Model 3CLSU SL-7090, 14007090
PS-366 E 1 2.500 1-3/4 BCFKF SL-8398
PS-262 E 3 2.500 1-3/4 BCFKF KP3014-516 14008148,14008650
14009965, 29-5015-47001
K307-71
PS-449 K 1 2.500 1-3/4 BCFJF 14033023
FA-1875 C — — 1-7/8 BCF-F 14033944
FA-513V E — — 1-7/8 VCF-F 14034032
PS-2111 C — — 2 BCF-F 14032146
PS-479 E 1 2.750 2 BCFJF K602-1, 91911836
PS-843 E 1 2.750 2 BCFKF K602-7, 91911839
PS-530 E 3 2.750 2 BCFJF K602-6, 91911838
PS-477 E 3 2.750 2 BCFKF
PS-3537 C 1 3.125 2-1/4 BCFJF 14032701
PS-323 E 1 3.125 2-1/4 BCDJF 14001709, 14007709
PS-351 E 1 3.125 2-1/4 BCDKF 14017123, 29-60122-47001
K308-71
PS-1688 E 3 3.125 2-1/4 BCFJF K111-1, 91910192
PS-2094V E33.125 2-1/4 VCFKF K111-6, 91910195
PAUL MUELLER CO.
PS-1002 C11.000 1/2 BCFJF N 9841604
PS-356 C 1 1.750 1-1/8 BCFJF 9840339
PEABODY-BARNES MFG.
PS-163 B 1 1.000 1/2 BMFJF 18189
PS-165 B 9 .906 1/2 BMFJF A 29726
PS-200 A 1 1.250 5/8 BMFJF For Comet, Rocket Econo, 25,31,33,
35,48,49,50,52,102DM and 740DM 11397-12839, 12703
PS-359 C 1 1.250 5/8 BCFJF 18873A
PS-552 C 3 1.250 5/8 BCFJF 23701
PS-508 D 1 1.250 5/8 BCDJF 5080
PS-201 A 1 1.375 3/4 BMFJF Vertical Single and Multi Stage 152,152DM,
202D, 202DM, 302D 302DM and 502DM 13110, 14017122
PS-358 C 1 1.375 3/4 BCFJF 15344, 67562
PS-235 C 1 1.625 1 BCFJF 18004-30090
PS-236 E11.625 1BCFKF 8022
PS-879 K 1 1.625 1 BCFJF 64434
PS-185 C11.875 1-1/4 BCFJF Models: 18ACG, 18, 19, 23 & 26 CCG 70713
PS-598 C 3 1.875 1-1/4 BCFKF 3TACG Int 1020 33289
PS-383 D11.875 1-1/4 BCFKF 12074
PS-1118 K 1 1.875 1-1/4 BH/CFJF 39485
PS-7323 K11.875 1-1/4
BZ/CFZJF
60817
PS-228 K 3 1.875 1-1/4 BCFKF Model 3TCCG 25328A
PS-177 C 1 2.000 1-3/8 BCFJF 52601
PS-547 C 3 2.000 1-3/8 BCFKF 39463
PS-758 C 1 2.125 1-1/2 BCFJF 24998
PS-553 C 3 2.125 1-1/2 BCFKF 31000
PS-237 D 1 2.500 1-3/4 BCDJF 13301
*US Seal 2010 catalog w cover 9/14/10 2:59 PM Page 63
U.S. Seal Mating Mating Shaft Material
Part No. Head Ring Ring OD Dia. Code Notes Pump Nameplate Data Mfg. Part No.
NOTE:
60
I. ABRASION RESISTANT CARBON (P66)
PUMP MANUFACTURERS’ CROSS-REFERENCE
PEABODY-BARNES MFG. (continued)
PS-2237 K 1 2.625 1-7/8 BCFJF 51938
PS-332 C 3 2.750 2 BCFKF 53626
PEERLESS (For Replacement Seal Kits - See Page 147)
PS-162 A 1 1.000 1/2 BMFJF 2665554
PS-100 A 1 1.187 5/8 BMFJF 2665171
PS-200 A 1 1.250 5/8 BMFJF 2658090
PS-300 A 1 1.250 5/8 BMFJF Convertible & Single Stage Jet Water King 2655294-V12271
1181377-2665624
PS-637 A 3 1.250 5/8 BMFJF 2692269 000
PS-263 D 1 1.187 5/8 BCDKF 2675336
PS-508 D 1 1.250 5/8 BCDJF 2666910
PS-301 A 1 1.375 3/4 BMFJF Single Stage Jet: J2G, J3G 1J, 2655293, 26650131
2J,3J, 15J, 75J,1GJ
PS-750 D 1 1.375 3/4 BCDJF 2655888, 2663071
PS-265 D 3 1.375 3/4 BCDKF 2675337
PS-303 D 1 1.500 7/8 BCDKF 2655239, 2664873
PS-250 D 3 1.500 7/8 BCDKF 2675339, 269042101
PS-188 E 1 1.500 7/8 BCFJF 2663072, 2657110
PS-229 E 3 1.500 7/8 BCFKF 2675338
PS-778 A 3 1.625 1 BCFKF 2692914
PS-380 D 1 1.625 1 BCFJF PE-200, PE-300, PE-500 Fluidyne 2613940, 2663369
PS-252 D 3 1.625 1 BCFKF 2664873, 269042102
PS-252- D 3 1.625 1 QCFKF 2675341 000
EPR
PS-754 E 1 1.625 1 BCFJF 2655887
PS-251 E 3 1.625 1 BCFKF 2675340, 2656324
PS-801 C 3 1.750 1-1/8 BCFJF 269987501000
PS-529 C 3 1.750 1-1/8 BCFKF 269794701000
PS-604 D 1 1.750 1-1/8 BCFJF 2658071
PS-605 D 1 1.750 1-1/8 BCFKF TVB-58, Turbine Vane Pump 2655131
PS-254 D 3 1.750 1-1/8 BCFKF 2675344, 2655131
PS-204 E 1 1.750 1-1/8 BCFJF 2663077
PS-253 E 3 1.750 1-1/8 BCFKF Model 300-90
2675343, 2664886, 2675317
PS-306 E 1 1.875 1-3/16 BCDJF 2655886
PS-255 E3 1.875 1-3/16 BCDKF 2675345, 269042103
PS-1109- C31.875 1-1/4 BCFJF 269986601 000
CER
PS-1109 C 3 1.875 1-1/4 BCFKF 2687165 000
PS-1109- C 3 1.875 1-1/4 QCFKF 2687626 000, 2687926 000
EPR
PS-2122V C 3 1.875 1-1/4 VCFJF 269986602 000
PS-1109V C 3 1.875 1-1/4 VCFKF 268716501
PS-361 E11.875 1-1/4 BCFJF PB-3, 3 x 4 x 10 2657093, 2663048
PS-256 E 3 1.875 1-1/4 BCFKF 2664893, 2675347
PS-264 E 3 1.875 1-1/4 BCFKF 2675318, 2687266
PS-547 C 3 2.000 1-3/8 BCFKF 269794702
PS-354 E 1 2.000 1-3/8 BCFJF 2655089, 2663075
PS-677 E 1 2.000 1-3/8 BCFKF 2663368, 2675349
PS-257 E 3 2.000 1-3/8 BCFKF 2675350
PS-1110 C 3 2.125 1-1/2 BCFKF F2-1044AM,1230AM, 1240AM, 3AE14 2687166 000
PS-2221 C 3 2.125 1-1/2 QCFKF 2691073
PS-1110V C 3 2.125 1-1/2 VCFKF 2687166 007
PS-2223- C3 2.125 1-1/2 VCFLF
SC-SEAT
PS-382 D12.125 1-1/2 BCFJF 2656981, 2675353
PS-2106- E—— 1-1/2 BCF-F I 2689751 000
P66
PS-305 E 1 2.125 1-1/2 BCFJF 2663008, 2675108
PS-258 E 3 2.125 1-1/2 BCFKF 2675351, 2691073
PS-259 E 3 2.125 1-1/2 BCFKF 2675352
PS-550 C 3 2.500 1-3/4 BCFJF 269359803 000
PS-436 C32.500 1-3/4 BCFKF AD IV-V 2693598 000
PS-436- C 3 2.500 1-3/4 QCFKF 2675319 000
EPR
*US Seal 2010 catalog w cover 9/14/10 2:59 PM Page 64
U.S. Seal Mating Mating Shaft Material
Part No. Head Ring Ring OD Dia. Code Notes Pump Nameplate Data Mfg. Part No.
61
PUMP MANUFACTURERS’ CROSS-REFERENCE
NOTE:
A. MOUNTS ON SHAFT
B. TAPERED SPRING
I. ABRASION RESISTANT CARBON (P66)
PEERLESS (continued) (For Replacement Seal Kits - See Page 147)
PS-825 D 3 2.500 1-3/4 BCDKF PE-Pumps 2675356
PS-2109 E — — 1-3/4 BCF-F 2689752 000
PS-205 E 1 2.500 1-3/4 BCFJF 2663044
PS-262 E 3 2.500 1-3/4 BCFKF 2675355
PS-535 E 3 2.500 1-3/4 BCFJF MTP Frame
PS-262- E 3 2.500 1-3/4 QCFKF I 2675354 000
EPR-P66
PS-2114 C 3 2.625 1-7/8 BCFJF 269987701000
PS-312 C 3 2.625 1-7/8 BCFKF 269794703
PS-2072 E 3 2.625 1-7/8 BCFKF Type AD Fig. 5130 2676205
PS-332 C 3 2.750 2 BCFKF Type AD Group IV, 8AE-12 2693599000, 504293
PS-477- E 3 2.750 2 QCFKF 2675320 000
EPR
PS-353 E 1 3.000 2-1/8 BCFKF Model 6A-16
PS-327 E 3 3.000 2-1/8 BCFJF Model 6A-16
PS-1676 C 3 3.125 2-1/4 BCFKF 2692217000
PS-492 C 3 3.250 2-3/8 BCFKF 2693666000
PS-483 C 3 3.500 2-3/4 BCFKF 2693601000
PS-475 E 3 3.875 3 BCDKF 6˝ 6TU16
PELLERIN MILNOR CORP.
PS-750 D 1 1.375 3/4 BCDJF 24S020
PENBERTHY INJECTOR
PS-162 A 1 1.000 1/2 BMFJF D-1104
PS-165 B 9 .906 1/2 BMFJF A
PS-1112 Q 9 — 1/2 BMFJF A 14036
PENTAIR, INC.
(See AURORA, BERKELEY, FAIRBANKS MORSE, HYDROMATIC, HYPRO, MYERS, F.E., STA-RITE)
PS-359 C 1 1.250 5/8 BCFJF 01556-000-1
PS-633- C 1 1.250 5/8 BZFZF 21181A024
TC-TC
PS-2216V- C 1 1.625 1 VZFZF 00300-002-1
CMS
PS-185 C 1 1.875 1-1/4 BCFJF 22577A000
PS-2208 C 1 1.875 1-1/4 BZFZF 21181A019
PS-758-SC- C1 2.125 1-1/2 BLFZF 00920-011-1
TC-CMS
PS-2209 C12.125 1-1/2 BZFZF 00920-004-1
PS-7409 C1 2.125 1-1/2 VCFJF 316SS 00920-005-1, 00920-007-1
PS
-1088-TC-
C 1 3.875 3 BZFZF B 25449A001
TC-CMS
PS-1088V- C 1 3.875 3 VZFZF B 37180021
TC-TC-CMS
PENTAIR POOL PRODUCTS
PS-961 B 1 1.250 5/8 BCFJF 071734S, 071734-SP
PS-4352 C 3 3.875 3 BLFZF B 60 MPH & 60 MMPH 037180041
PERFECTING (Div. of DUFF-NORTON)
PS-359 C 1 1.250 5/8 BCFJF 732015
PS-356 C 1 1.750 1-1/8 BCFJF 732049
PS-177 C 1 2.000 1-3/8 BCFJF 732057
PESCO
PS-507 A 1 1.250 5/8 BMFKF
PFAUDLER, INC.
PS-359 C 1 1.250 5/8 BCFJF 1621350
PS-3893 C
3Special
1.500 7/8 VCFGF 3515444
PS-356 C 1 1.750 1-1/8 BCFJF 1621492
PS-3943 C
3Special
2.125 1-1/2 VCFGF 3512911
PS-3584 C
3Special
2.000 1-3/8 VCFGF 3512910
PHILLIPS GASKET (See CATERPILLAR)
PIONEER (See DETROIT HARVESTER HOWELL)
*US Seal 2010 catalog w cover 9/14/10 2:59 PM Page 65
U.S. Seal Mating Mating Shaft Material
Part No. Head Ring Ring OD Dia. Code Notes Pump Nameplate Data Mfg. Part No.
NOTE:
62
PUMP MANUFACTURERS’ CROSS-REFERENCE
A. MOUNTS ON SHAFT
N. NON-STANDARD SPRING HOLDER
PIQUA MACHINE (See ENPO-CORNELL PUMP CO.)
POWER PRODUCTS (See TECUMSEH PRODUCTS CO.)
PRECISION SCIENTIFIC
PS-1043 C 1 1.000 1/2 BMFJF 342005
PS-732 C 3 1.250 5/8 BCFKF 342003
PS-1113 C 1 1.375 3/4 BCFKF 342027
PS-499 C 3 1.625 1 BCFKF 342012
PREMIER
PS-201 A 1 1.375 3/4 BMFJF
Series 120T, MKII 225/255, 300, 325/355, 725/756
31-812
PS-1000 B 1 1.250 5/8 BMFJF
Series 220/225 ( Pre 1988 ), 455/456, 500, 600
31-813
PRICE PUMP CO.
PS-1002V C 1 1.000 1/2 VCFJF N Model S95M
PS-516 A 1 1.250 5/8 BCFJF 0118
PS-447 B 8 — 5/8 BCFJF A Model SE100, E100B, PRYCO-50, 75, 95 0538
PS-447V B 8 — 5/8 VCFJF A 0539
PS-359 C 1 1.250 5/8 BCFJF 0841
PS-359V C 3 1.250 5/8 VCFJF Model “S” Motor Pumps 0553
PS-4155 G 1 1.250 5/8 VLFLF 0541
PS-3885 K 1 1.178 5/8 VCFJF 0985
PS-9155 W 2 1.250 5/8 TLFLF 316SS Model LT-25
PS-201 A 1 1.375 3/4 BMFJF Model SP-15
PS-601 B 1 1.375 3/4 BMFJF PRYCO-100, 125, 150
PS-358 C 1 1.375 3/4 BCFJF 1112
PS-358V- C 1 1.375 3/4 VCFJF 0549
CMS
PS-1094 C 1 1.625 1 VCFJF 8304-211
PS-758 C 1 2.125 1-1/2 BCFJF Models E150, E200
PS-7409 C 1 2.125 1-1/2 VCFJF 316SS 0122
PS-7587 W 2 2.125 1-1/2 TCFJF 316SS 0123
PS-446- C 1 2.500 1-3/4 QCFJF 3724
EPR
PS-446V- C 1 2.500 1-3/4 VCFJF 3516
CMS
PROCON PRODUCTS
PS-4060 G 1 1.181 7/16 BCFJF 1034-A7
PS-4061 G 1 1.181 7/16 QCFJF For Home Water Systems 1034-A4W
PS-4062 G 1 1.181 7/16 QCFJF 1034-A4
PS-4063 G 1 1.181 7/16 VCFJF 1034-A2
PROSSER PUMP (Div. of CRANE PUMPS & SYSTEMS)
PS-1002 C 1 1.000 1/2 BCFJF N 558312-2, 558312-21
PS-359 C 1 1.250 5/8 BCFJF 5 HP 2-31001
PS-687 C 1 1.500 7/8 BCFKF 15 HP Mod # 9-16034-1 2-31006
PS-756 C 1 1.875 1-1/4 BCFKF 25 and 40 HP Mod # 9-26032-3
PULSAFEEDER (Div. of IDEX CORP.)
PS-1065 C 3 .875 3/8 BCFJF 307328
PS-1050V C — — 1/2 VCF-F Y0900121-316
PS-933V C — — 5/8 VCF-F Y0900421-316
PS-552 C 3 1.250 5/8 BCFJF Model 2-17 Type 107 307414
PUREX/HYDROTECH (See PAC-FAB)
PS-100 A11.187 5/8 BMFJF L Series™ P28280
PS-952 A 1 1.250 5/8 BCFJF AV-7 Pump P23822
PS-501 A 1 1.250 5/8 BMFJF Aquatron®P28322/071733
PS-1000 B 1 1.250 5/8 BMFJF Whisperflo®P28323/071734
PS-201 A 1 1.375 3/4 BMFJF AH Series™, L Series™ P28300/071728
PS-360 A 1 1.625 1 BCFJF C Series P28175/071725
QUINCY COMPRESSOR
PS-6090 E 3 2.500 1-3/4 B/VCFKF 22578-1
PS-2152V C33.500 2-3/4 VCFKF 22592-1
PS-6177 C 3 4.250 3-3/8 VCFKF 22593-1
*US Seal 2010 catalog w cover 9/14/10 2:59 PM Page 66
63
U.S. Seal Mating Mating Shaft Material
Part No. Head Ring Ring OD Dia. Code Notes Pump Nameplate Data Mfg. Part No.
NOTE:
PUMP MANUFACTURERS’ CROSS-REFERENCE
A. MOUNTS ON SHAFT
N. NON-STANDARD SPRING HOLDER
RAINBOW IRRIGATION PUMPS
PS-185 C 1 1.875 1-1/4 BCFJF 14821
PS-446 C 1 2.500 1-3/4 BCFJF 13470
RAPID DAYTON (See TAIT)
RED JACKET (VEEDER- ROOT CO.)
PS-106 C 1 1.000 1/2 BCFKF N Deep and Shallow Well Type A & B Multi-Stage
Pumps Models 25A, 33A, 50A, 75A, 100A 540
PS-518 A 1 1.187 5/8 BCFKF 076-183
PS-100 A 1 1.187 5/8 BMFJF SW-DW Jet Pump
C76-78A, C76-98A, C176-037
PS-701 A 1 1.187 5/8 BMFKF C76-134
PS-711 A 3 1.187 5/8 BMFJF 076-182
PS-493 C 1 1.187 5/8 BCFKF For Centri-Jet “R” and Centri-Jet V 25R, 500
33R, 50R, 75R, 100, 101,150, 151
PS-102 D 1 1.250 5/8 BCDKF Deep Well & Shallow Well Type H, 530
Models 25H, 33H, 50H, 75H, 100H
PS-201 A 1 1.375 3/4 BMFJF 76-129, 76-189
PS-902 B 9 — 3/4 BMFKF A Centri Jet X Pumps 33X and 50X C76-99A, 555
“CJ”, “CJM” and “SJ” Pumps
PS-750 D 1 1.375 3/4 BCDJF All Types HB Centrifugal Jet Pumps 560
PS-370 A 1 1.625 1 BCFKF 76-132
PS-460 D 1 1.625 1 BCFKF 545
REDA PUMP
PS-508 D 1 1.250 5/8 BCDJF 17197A
PS-188 E 1 1.500 7/8 BCFJF 13131A
PS-703 D 1 1.500 7/8 BCDJF 14011A
PS-380 D 1 1.625 1 BCFJF 13977A
PS-382 D 1 2.125 1-1/2 BCFJF 15114A
RELIANCE ELECTRIC (Div. of BALDOR ELECTRIC CO.)
PS-356 C 1 1.750 1-1/8 BCFJF 64262-12L
PS-185 C 1 1.875 1-1/4 BCFJF Motor Frame 140 64262-12A
PS-2208 C 1 1.875 1-1/4 BZFZF Motor Frame 140 64262-20A
PS-185V- C 1 1.875 1-1/4 VCFJF Motor Frame 140 64262-13A
CMS
PS-185V-C 1 1.875 1-1/4 VZFZF Motor Frame 140 64262-20AA
TC-TC
PS-618- C 3 1.875 1-1/4 BZFZF Motor Frame 140 64262-15E
TC-TC
PS-381 D 1 1.875 1-1/4 BCFJF Motor Frame 140 64262-8A
PS-381- D 1 1.875 1-1/4 BLFLF 64262-39A
SC-SC
PS-6229 K 3 1.875 1-1/4 BCFJF 316SS 64262-41D
PS-4134
XSpecial
Special 1.875 1-3/8 B/NCPGF 64147-24R
PS-758 C 1 2.125 1-1/2 BCFJF Motor Frame 140 or 180 64262-12B
PS-758- C 1 2.125 1-1/2 BLFLF Motor Frame 140 or 180 64262-39B
SC-SC
PS-2209 C12.125 1-1/2 BZFZF Motor Frame 140 or 180 64262-20B
PS-7409 C 1 2.125 1-1/2 VCFJF 316SS Motor Frame 140 or 180 64262-13B
PS-758V- C 1 2.125 1-1/2 VLFLF Motor Frame 140 or 180 64262-39BB
SC-SC
PS-659V- C 1 2.125 1-1/2 VZFZF Motor Frame 140 or 180 64262-20BB
TC-VS-TC
PS-382 D 1 2.125 1-1/2 BCFJF Motor Frame 140 or 180 64262-8B
PS-446 C 1 2.500 1-3/4 BCFJF Motor Frame 180 or 210 64262-12C
PS-446- C 1 2.500 1-3/4 BZFZF Motor Frame 180 or 210 64262-20C
TC-TC
PS-446V- C 1 2.500 1-3/4 VCFJF Motor Frame 180 or 210 64262-13C
CMS
PS-448V- C 1 2.500 1-3/4 VLFLF Motor Frame 180 or 210 64262-39CC
SC-SC
PS-446V-C1 2.500 1-3/4 VZFZF Motor Frame 180 or 210 64262-20CC
TC-TC
PS-436- C 3 2.500 1-3/4 BLFLF Motor Frame 180 or 210 64262-39C
SC-SC
*US Seal 2010 catalog w cover 9/14/10 2:59 PM Page 67
U.S. Seal Mating Mating Shaft Material
Part No. Head Ring Ring OD Dia. Code Notes Pump Nameplate Data Mfg. Part No.
PUMP MANUFACTURERS’ CROSS-REFERENCE
64
RELIANCE ELECTRIC (continued) (Div. of BALDOR ELECTRIC CO.)
PS-436- C 3 2.500 1-3/4 BZFZF Motor Frame 140 or 180 64262-15C
TC-TC
PS-2207 C 3 2.500 1-3/4 VCFZF Motor Frame 180 or 210 64262-23C
PS-237 D 1 2.500 1-3/4 BCDJF Motor Frame 180 or 210 64262-8C
PS-6217 D 1 2.500 1-3/4 VZFLF 316SS Motor Frame 180 or 210 64262-25CC
PS-267 C 1 2.750 2 BCFJF Motor Frame 210 or 250 64262-12D
PS-267- C 1 2.750 2 BLFLF Motor Frame 210 or 250 64262-39D
SC-SC-CMS
PS-2219 C 1 2.750 2 BZFZF Motor Frame 210 or 250 64262-20D
PS-267V- C 1 2.750 2 VCFJF Motor Frame 210 or 250 64262-13D
CMS
PS-6224 C 1 2.750 2 VLFLF Motor Frame 210 or 250 64262-39DD
PS-6218 C 1 2.750 2 VZFZF Motor Frame 210 or 250 64262-25DD
PS-6213 C 1 2.750 2 VZFZF 316SS Motor Frame 210 or 250 64262-20DD
PS-267V- C 3 2.750 2 VCFZF Motor Frame 210 or 250 64262-23D
TC-SEAT
PS-7196 K 3 2.750 2 BCFJF 64262-41E
PS-1057 C 3 3.000 2-1/8 B/VCFKF 611725-5B
PS-1679 C 1 3.125 2-1/4 BCFJF Motor Frame 250 64262-12E
PS-1680- C 1 3.125 2-1/4 BLFLF Motor Frame 250 64262-39E
SC-SC
PS-7064 C 1 3.125 2-1/4 BZFZF Motor Frame 250 64262-20E
PS-1678V C 3 3.125 2-1/4 VCFJF Motor Frame 250 64262-13E
PS-6233 C 3 3.125 2-1/4 VCFLF 64262-67A
PS-7766 K 3 3.125 2-1/4 BCFJF 64262-41C
PS-6205 C 1 3.500 2-3/4 BCFJF Motor Frame 320 64262-18F
PS-2154- C 1 3.500 2-3/4 BLFLF Motor Frame 320 64262-39N
SC-SC-CMS
PS-6220 C 1 3.500 2-3/4 BZFLF Motor Frame 320 64262-25N
PS-6908 C 1 3.500 2-3/4 BZFZF Motor Frame 320 64262-20N
PS-483V- C 3 3.500 2-3/4 VCFZF 64262-23G
TC-SEAT
PS-6207 C 3 3.500 2-3/4 VCFJF Motor Frame 320 64262-18N
PS-2154V- C 3 3.500 2-3/4 VLFLF Motor Frame 320 64262-39NN
SC-SC
PS-2154V- C 3 3.500 2-3/4 VZFZF Motor Frame 320 64262-20NN
TC-TC
PS-2153- C 1 3.875 3 BLFLF Motor Frame 320 64262-39M
SC-SC-CMS
PS-7875 C 1 3.875 3 BZFZF Motor Frame 360 64262-20H
PS-7998 C13.875 3 BZFZF Motor Frame 360 64262-20M
PS-2153V- C 1 3.875 3 VLFLF Motor Frame 320 64262-39MM
SC-SC-CMS
PS-3539 C 1 3.875 3 VZFZF Motor Frame 360 64262-20MM
PS-6214 C 1 3.875 3 VZFZF Motor Frame 320 64262-20HH
PS-2116 C 3 3.875 3 BCFJF Motor Frame 360 64262-12G
PS-2153 C 3 3.875 3 BCFJF Motor Frame 320 64262-18G
PS-6206V C 3 3.875 3 VCFJF Motor Frame 320 64262-18L
PS-6225 C 3 3.875 3 VLFLF Motor Frame 360 64262-39HH
PS-6202 D 1 3.875 3 BZFZF Motor Frame 360 64262-8H, 64262-62HH
PS-6219 D 3 3.875 3 BZFLF Motor Frame 360 64262-25H
PS-6232 D 3 3.875 3 VZFLF Motor Frame 360 64262-62AA
PS-6228 K 3 3.875 3 VCFJF 64262-41B
PS-6226 C 3 4.125 3-1/4 VLFLF Motor Frame 360 64262-39KK
PS-7172 D 3 4.125 3-1/4 BCFJF Motor Frame 360 64262-8J, 64262-63C
PS-3827 D 3 4.125 3-1/4 BZFZF Motor Frame 360 64262-8K and 20K
PS-6201 D 3 4.125 3-1/4 VCFJF Motor Frame 360 64262-8F and 36KK
PS-6227 K 3 4.125 3-1/4 VCFJF 64262-41A
PS-6204 C 3 4.375 3-1/2 BCFJF 64262-12K
PS-6221 D 3 4.375 3-1/2 V/BZFZF 64262-33A
PS-3745 D 3 4.375 3-1/2 VZFZF 64262-37PP
PS-6203 D 3 4.625 3-3/4 VCFJF 64262-8M
PS-6230 D 3 6.625 5-5/8 VCFJF 64262-42D
PS-6231 D 3 6.375 5-3/8 VZFLF 64262-43F
*US Seal 2010 catalog w cover 9/14/10 2:59 PM Page 68
U.S. Seal Mating Mating Shaft Material
Part No. Head Ring Ring OD Dia. Code Notes Pump Nameplate Data Mfg. Part No.
65
PUMP MANUFACTURERS’ CROSS-REFERENCE
REXNORD INDUSTRIES, LLC.
PS-201 A 1 1.375 3/4 BMFJF X7718
PS-578 D — — 7/8 BCD-F X203565
PS-188 E 1 1.500 7/8 BCFJF X203224
PS-141 R — — 1 BCF-F X6185
PS-154 C — — 1-1/4 BCF-F X7387
PS-185 C 1 1.875 1-1/4 BCFJF X8023
PS-137 E 1 1.875 1-1/4 BCFKF X203691
PS-169 K — — 1-1/4 BCF-F X6186
PS-172 C — — 1-3/8 BCF-F X7389
PS-177 C 1 2.000 1-3/8 BCFJF X2U59-1
PS-209 K — — 1-3/8 BCF-F X6187
PS-223 D — — 1-7/8 BCD-F X7235
PS-593 D 3 2.625 1-7/8 BCDKF 2U59-6
PS-196 D — — 2 BCD-F X7380
RICE
PS-200 A 1 1.250 5/8 BMFJF 21-024
PS-201 A 1 1.375 3/4 BMFJF 12-023
PS-750 D 1 1.375 3/4 BCDJF 0330-9-6
ROBBINS & MYERS (See MOYNO, INC.)
ROMAR FILTER
PS-200 A 1 1.250 5/8 BMFJF 618-001
ROPER PUMP CO.
PS-1050 C — — 1/2 BCF-F G3-29, G14-263
PS-1050- C — — 1/2 QCF-F G3-65
EPR
PS-400 C — — 1/2 BMF-F G14-222-403, G14-263X
PS-1050V C — — 1/2 VCF-F G14-32
PS-933 C — — 5/8 BCF-F G14-116
PS-933V C — — 5/8 VCF-F G14-13
PS-633 C 1 1.250 5/8 BCFKF G14-225
PS-564 C — — 3/4 BCF-F G14-117
PS-768 C 3 1.375 3/4 BCFKF G14-226
PS-112V C 3 1.375 3/4 VCFKF G14-471
PS-752 D 1 1.375 3/4 BCDKF G14-261, G14-266
PS-208 C — — 7/8 BCF-F G14-324
PS-617 C 3 1.500 7/8 BCFKF G14-227
PS-687V C 3 1.500 7/8 VCFKF G14-477
PS-703 D 1 1.500 7/8 BCDJF
PS-935 E 1 1.500 7/8 BCFKF 316SS
PS-397 C — — 1 BCF-F G14-320
PS-397V C — — 1 VCF-F G14-51
PS-235 C11.625 1 BCFJF G14-338X
PS-499 C 3 1.625 1 BCFKF 1AM-27 G14-338
PS-499- C 3 1.625 1 QCFKF G14-312
EPR
PS-357V C 3 1.625 1 VCFKF
PS-7207 C 3 1.750 1 VCFKF Model No: P2-C1219
PS-3619 C31.750 1VCFKF G4-398
PS-937 E — — 1 BCF-F G14-120, G14-250
PS-236 E 1 1.625 1 BCFKF G14-343
PS-891 K1 1.625 1 BCFKF G4-94
PS-2155 C 3 1.750 1-1/16 BCFKF G14-489
PS-127 D 1 1.750 1-1/16 BCDKF G14-288
PS-348 C — — 1-1/8 BCF-F G14-278, G4-334
PS-529 C 3 1.750 1-1/8 BCFKF G4-313
PS-355V C 3 1.750 1-1/8 VCFKF G4-15, G4-375
PS-154 C——1-1/4 BCF-F G14-429
PS-154V C — — 1-1/4 VCF-F G3-10, G3-36
PS-756 C 1 1.875 1-1/4 BCFKF
PS-598 C3 1.875 1-1/4 BCFKF
PS-416 D — — 1-1/4 BCF-F G14-121, G14-122
*US Seal 2010 catalog w cover 9/14/10 2:59 PM Page 69
U.S. Seal Mating Mating Shaft Material
Part No. Head Ring Ring OD Dia. Code Notes Pump Nameplate Data Mfg. Part No.
66
PUMP MANUFACTURERS’ CROSS-REFERENCE
NOTE:
A. MOUNTS ON SHAFT
I. ABRASION RESISTANT CARBON (P66)
ROPER PUMP CO. (continued)
PS-172 C — — 1-3/8 BCF-F G14-512
PS-172V C — — 1-3/8 VCF-F G14-510
PS-467 C 1 2.125 1-3/8 BCFKF G14-579
PS-186 D 1 2.000 1-3/8 BCDKF G14-248
PS-2156 C 3 2.250 1-7/16 BCFKF G4-112
PS-2156V C 3 2.250 1-7/16 VCFKF G4-142
PS-2105 C — — 1-1/2 BCF-F G14-430
PS-2105V C — — 1-1/2 VCF-F G3-35
PS-553 C 3 2.125 1-1/2 BCFKF G4-267, G14-230
PS-7975 C
3Special
2.125 1-1/2 VCFKF G4-75, G14-475
PS-939 D — — 1-1/2 BCF-F G14-123, G14-124
PS-371 D 1 2.125 1-1/2 BCFKF
PS-1145 C 3 2.750 2 VCFKF G4-46
PS-543V C 3 3.000 2-1/8 VCFKF G4-41
PS-1676V C 3 3.125 2-1/4 VCFKF
PS-942 D — — 2-1/4 BCD-F G14-125
PS-941 D 1 3.125 2-1/4 BCDKF G14-223
ROTH PUMP CO.
PS-1120 C 1 1.062 1/2 BCFJF Size 00-100 F8A030VF
PS-118 C 1 1.187 5/8 BCFJF Size 0 and 10 F8B015VF / 086VL
PS-348V C — — 1-1/8 VCF-F F8E011UF
PS-7884V EBal. 3 2.500 1-7/8 VCFKF F7J2002FS
FA-10047 C — — 2 VCF-F F8H056UF
RUTH BERRY
PS-102 D 1 1.250 5/8 BCDKF 610
PS-201 A 1 1.375 3/4 BMFJF 601, 601A
PS-750 D 1 1.375 3/4 BCDJF 620
RUTHMAN COMPANIES
PS-164 B 9 — 1/2 BMFKF A Model 55-4520 906
PS-165 B 9 .906 1/2 BMFJF A
PS-452 B 9 — 5/8 BMFJF A
PS-633 C 1 1.250 5/8 BCFKF
PS-902 B 9 — 3/4 BMFKF A
PS-360 A11.625 1 BCFJF
PS-235 C 1 1.625 1 BCFJF
SCHAUB ENGINEERING CO.
PS-493 C 1 1.187 5/8 BCFKF 12-3113-001
PS-1123 C11.625 1BCFKF 12-3113-002
PS-598 C 3 1.875 1-1/4 BCFKF 12-3113-003
SCOT PUMP (Div. of ARDOX CORP.)
PS-516 A 1 1.250 5/8 BCFJF
101.000.110C, 118.000.102
118.000.110
PS-952 A 1 1.250 5/8 BCFJF 118.000.340
PS-200 A 1 1.250 5/8 BMFJF 101.000.340
PS-501 A 1 1.250 5/8 BMFJF 118.000.340D
PS-200V- A 1 1.250 5/8 VCFJF
CMS
PS-359V- C 1 1.250 5/8 VCFJF 101.000.103
CMS
PS-3550 C 1 1.250 5/8 VRFRF 101.000.239
PS-732- C3 1.250 5/8 QCFKF 101.000.173
EPR
PS-633V C3 1.250 5/8 VCFKF 101.000.120, 101.000.316
PS-633V-C31.250 5/8 VCFKF I101.000.225X
P66
PS-9309 W 3 1.187 5/8 QRFRF 101.000.242
PS-201 A 1 1.375 3/4 BMFJF 101.000.102
PS-201V- A 1 1.375 3/4 VCFJF FPK, FG-FKG 3 & 5 HP 101.000.115
CMS
PS-112V C 3 1.375 3/4 VCFKF 101.003.171
PS-360 A 1 1.625 1 BCFJF 101.000.159
*US Seal 2010 catalog w cover 9/14/10 2:59 PM Page 70
U.S. Seal Mating Mating Shaft Material
Part No. Head Ring Ring OD Dia. Code Notes Pump Nameplate Data Mfg. Part No.
67
PUMP MANUFACTURERS’ CROSS-REFERENCE
NOTE:
A. MOUNTS ON SHAFT
I. ABRASION RESISTANT CARBON (P66)
N. NON-STANDARD SPRING HOLDER
SCOT PUMP (Div. of ARDOX CORP.) (continued)
PS-185 C 1 1.875 1-1/4 BCFJF 101.000.104
101.000.104A
PS-185- C 1 1.875 1-1/4 BCFJF I 101.000.294
P66
PS-756- C 1 1.875 1-1/4 QCFKF
101.000.124C, 101.000.203
EPR
PS-185V- C 1 1.875 1-1/4 VCFJF FP-FPD, FG-FKG 8 & 16 101.000.194
CMS
PS-756V- C 1 1.875 1-1/4 VCFKF 101.000.124
CMS
PS-2203 C 3 1.875 1-1/4 QCFKF I 101.000.124A
PS-185V C 3 1.875 1-1/4 VCFJF
PS-756V C 3 1.875 1-1/4 VCFKF
PS-3872 E 1 1.875 1-1/4 QCFKF
PS-883V- K 1 1.875 1-1/4 VCFJF 101.000.210
CMS
PS-228V- K 1 1.875 1-1/4 VCFKF 101.000.164
CMS
PS-758 C 1 2.125 1-1/2 BCFJF
101.000.168, 118.000.343
118.000.344
PS-758V C 3 2.125 1-1/2 VCFJF HYD 556 101.000.175
PS-659V C 3 2.125 1-1/2 VCFKF 101.000.182
PS-446 C 1 2.500 1-3/4 BCFJF 101.000.196
PS-446- C 1 2.500 1-3/4 BCFJF I 118.000.388
P66
PS-436V C 3 2.500 1-3/4 VCFKF 101.000.221
PS-836- C 1 3.500 2-3/4 BCFJF 137.001.692
CMS
SCOTSMAN ICE SYSTEMS
PS-380 D 1 1.625 1 BCFJF
PS-6305 Q 2 1.625 1 BMDAF 02-1300-01
PS-4133 Q Special 2.500 1-3/4 Special 02-0929-02
SERFILCO
PS-1002 C 1 1.000 1/2 BCFJF N 55-434
PS-358 C 1 1.375 3/4 BCFJF 55-407
PS-309 C 1 1.500 7/8 BCFJF 55-488
PS-758V- C 1 2.125 1-1/2 VCFJF 55-481
CMS
SETHCO (Div. of MET-PRO CORP.)
PS-1002V C 1 1.000 1/2 VCFJF N
PS-1050 C — — 1/2 BCF-F 760P04-320
PS-359 C 1 1.250 5/8 BCFJF
SHERWOOD BRASS
PS-631 C11.000 1/2 BCFJF N 5789
PS-1002 C 1 1.000 1/2 BCFJF N 10522
PS-200 A 1 1.250 5/8 BMFJF 10159
PS-447 B 8 — 5/8 BCFJF A 12859
PS-452 B 9 — 5/8 BMFJF A 8388
PS-508 D 1 1.250 5/8 BCDJF 10523
PS-578 D — — 7/8 BCD-F 8570
PS-703 D 1 1.500 7/8 BCDJF 8578
PS-188 E 1 1.500 7/8 BCFJF 9791
SHETLER PUMP
PS-200 A 1 1.250 5/8 BMFJF
PS-201 A 1 1.375 3/4 BMFJF
SHIPPENSBURG (SHIPCO)
PS-356- C11.750 1-1/8 QCFJF SDPS-00155
EPR
SID HARVEY INDUSTRIES, INC.
PS-1050
C
——
1/2 BCF-F
*US Seal 2010 catalog w cover 9/14/10 2:59 PM Page 71
U.S. Seal Mating Mating Shaft Material
Part No. Head Ring Ring OD Dia. Code Notes Pump Nameplate Data Mfg. Part No.
PUMP MANUFACTURERS’ CROSS-REFERENCE
68 NOTE:
B. TAPERED SPRING
H. SPRING HOLDER NOT INCLUDED
SIEMENS WATER TECHNOLOGIES
PS-4437
D 2 2.000 2-1/8 BCDKF WTU18080
SIGMUND PUMP
PS-356 C 1 1.750 1-1/8 BCFJF
PS-355V C 3 1.750 1-1/8 VCFKF
PS-758 C 1 2.125 1-1/2 BCFJF
PS-659V C 3 2.125 1-1/2 VCFKF
PS-267 C 1 2.750 2 BCFJF
SIHI PUMPS AMERICAS
PS-544 C 3 2.375 1-5/8 BCFKF 501 483
PS-1057 C 3 3.000 2-1/8 B/VCFKF 501 90
PS-3606 C 3 3.000 2-1/8 VCFLF 43092920
SIMFLO PUMPS, INC.
PS-618 C 3 1.875 1-1/4 BCFJF 059-0220MA
PS-7702 E Bal. 3 1.875 1-3/8 BCFJF 059-0180MA
PS-4159 E Bal. 3 2.125 1-5/8 VCFJF 059-0200MA
PS-2114 C 3 2.625 1-7/8 BCFJF 059-0270MA
PS-532 C 3 2.750 2 BCFJF 059-0280MA
PS-1678 C 3 3.125 2-1/4 BCFJF 059-0290MA
PS-269 C 3 3.375 2-1/2 BCFJF 059-0300MA
PS-7703 E Bal. 3 3.375 2-5/8 BCFJF 059-0201MA
SIMMONS PUMP CORP.
PS-200 A 1 1.250 5/8 BMFJF Model 6
SKIDMORE PUMP
PS-663 Q 1 1.000 1/2 BMFJF 50648
PS-100 A 1 1.187 5/8 BMFJF 142-54049
PS-536 C 3 1.187 5/8 BCFJF 53497
PS-290 C 1 1.250 5/8 BCFJF 142-54099
PS-359 C 1 1.250 5/8 BCFJF 50625-1
PS-508 D 1 1.250 5/8 BCDJF Condensate Pump 142-54052, P15, P15A
PS-309 C 1 1.500 7/8 BCFJF 142-54055, 50625-2
PS-356 C 1 1.750 1-1/8 BCFJF 142-54058, 50625-3
SMITH & LOVELESS, INC. (For Additional Listings - See Page 174)
PS-1104 V 25 2.140 1-3/8 BMFJF Frame 25
PS-1105 V 25 2.640 1-7/8 BMFJF Frame 28
PS-1102 V33.140 2-1/8 BCFJF Frame 32
PS-1107- V 1 3.187 2-1/8 BCFJF
CMS
SOMAT CO.
PS-359 C11.250 5/8 BCFJF 54300
PS-309 C 1 1.500 7/8 BCFJF 54302
PS-801 C 3 1.750 1-1/8 BCFJF 54310
PS-529 C3 1.750 1-1/8 BCFKF 54311
PS-544 C 3 2.375 1-5/8 BCFKF 54325
PS-332 C 3 2.750 2 BCFKF 54326
PS-6302 Q 1 3.375 2-1/4 BMPAP 54306
SPECIALTY PACKAGING
PS-1085V C 1 1.250 5/8 VCFJF B 00-114696
PS-539 C 1 1.625 1 BCFJF H 00-104330
PS-6318 Q 9 1.578 1-1/8 VMFAF 00-117071
PS-6317 Q92.000 1-3/8 VMPSP 00-114144
PS-758V- C 1 2.125 1-1/2 VCFJF 00-223422
CMS
PS-4041 Q13.375 2-1/4 VMPSP 00-117072
SPP PUMPS
PS-359 C11.250 5/8 BCFJF
PS-633 C 1 1.250 5/8 BCFKF
PS-355 C 1 1.750 1-1/8 BCFKF
PS-356 C 1 1.750 1-1/8 BCFJF
*US Seal 2010 catalog w cover 9/14/10 2:59 PM Page 72
U.S. Seal Mating Mating Shaft Material
Part No. Head Ring Ring OD Dia. Code Notes Pump Nameplate Data Mfg. Part No.
69
PUMP MANUFACTURERS’ CROSS-REFERENCE
NOTE:
A. MOUNTS ON SHAFT
B. TAPERED SPRING
H. SPRING HOLDER NOT INCLUDED
SPP PUMPS (continued)
PS-758 C 1 2.125 1-1/2 BCFJF
PS-659 C 1 2.125 1-1/2 BCFKF
PS-267 C 1 2.750 2 BCFJF
PS-842 C 1 2.750 2 BCFKF
STA-RITE INDUSTRIES (See PENTAIR, INC. for Additional Part Numbers)
PS-4225 G 1 23MM 12MM QCFLF
PS-1615 B 1 1.000 3/8 BMFJF Model 297A U109-173
PS-162 A 1 1.000 1/2 BMFJF U109-103
PS-142 B 1 1.000 1/2 BMFJF
PS-163 B 1 1.000 1/2 BMFJF LT Series
U109-68 SS, U109-321SS
PS-663 Q 1 1.000 1/2 BMFJF U109-100
PS-100 A 1 1.187 5/8 BMFJF AJ Series, Dura-Glas Pre 1998, U9-469, U109-6
Dyna-Glas and Dyna-Max, Max-E-Glass U109-6A, U109-93SS
pre 1998, PLBC Series Pre 1995 17351-0102S
PLBC Series
PS-200 A 1 1.250 5/8 BMFJF Dura-Glas®,Max-E-Glas®17304-0100
Series PE, PEA, P2R and P2RA
PS-501 A 1 1.250 5/8 BMFJF
PS-1000 B 1 1.250 5/8 BMFJF CF/CFA Series, HP Series U109-136SS
PS-118 C 1 1.187 5/8 BCFJF
U109-87, U9-102, U109-118
PS-493 C 1 1.187 5/8 BCFKF U9-1
PS-1618 C 1 1.250 5/8 BCFJF B
PS-4267 G 1 1.187 5/8 BCFJF U9-6
PS-4165 G 1 1.187 5/8 VLFLF 316SS U9-437
PS-4390 G 1 1.250 5/8 VLFLF 17304-0102
PS-851 A 1 1.375 3/4 BCFJF 37400-0027S
PS-201 A 1 1.375 3/4 BMFJF DJ/JS/JT Series Pre 01/01, Dura-Glas II U9-122, U109-358SS
Pre 1998, Dura-Jet, Dyna-Glas/Dyna-Max,
U109-372SS
Dyna-Jet, JW/JWPASeries, 17351-0101
Max-E-Glas II Pre 1998
PS-201V- A 1 1.375 3/4 VCFJF 37400-0028S
CMS
PS-1622 B 9 — 3/4 BMFJF A
PS-4048 B 9 1.312 3/4 BLFLF U9-394SS
PS-128 C 1 1.375 3/4 BCFJF B U9-99
PS-358 C 1 1.375 3/4 BCFJF U109-99
PS-877 C 1 1.375 3/4 BCFJF U109-267
PS-750 D 1 1.375 3/4 BCDJF U9-43
PS-4265 G11.375 3/4 BCFJF DJ/JS/JT Series,
Dyna-Glass/Dyna Max
after 6/00 JW/JWPA Series after 1/01
Dura-Glass II and Max-E
Glas II
(Series P4E, P4EA, P4R, P4RA)
PS-3868 G 1 1.375 3/4 VCFJF Dura-Glass II and Max-E Glas II
(Series P4E, P4EA, P4R, P4RA)
Max-E-Pro (Series P6E & P6RA)
PS-687 C 1 1.500 7/8 BCFKF U9-18, 20, 22, 25, 29, 32
U109-21, U109-30
PS-774 C31.500 7/8 BCFJF U109-170
PS-235 C 1 1.625 1 BCFJF 16504
PS-380 D 1 1.625 1 BCFJF Model-AS-H-3U9-39, U109-47
PS-127 D1 1.750 1-1/16 BCDKF U109-31
PS-204 E 1 1.750 1-1/8 BCFJF U109-96
PS-866 E 3 1.750 1-1/8 BCFJF U109-96SS
PS-867 E 3 1.750 1-1/8 QCFKF U9-307
EPR
PS-185 C 1 1.875 1-1/4 BCFJF CC/C Series, D Series CC/C Series, U109-200
DSeries pre 8/00 CSPH/CCSPH Series U109-433SS,32014
PS-246 C 1 1.875 1-1/4 BCFJF B/H CC/C Series, D Series U109-220
PS-804 D31.875 1-1/4 BCFJF CC/C Series, D Series
PS-3883 G 1 1.875 1-1/4 BCFJF U9-433SS
PS-6265 G 1 1.875 1-1/4 VLFLF U9-451SS
PS-758 C 1 2.125 1-1/2 BCFJF 16554
PS-446 C 1 2.500 1-3/4 BCFJF CCPH/CCSPH Series S-32015
*US Seal 2010 catalog w cover 9/14/10 2:59 PM Page 73
U.S. Seal Mating Mating Shaft Material
Part No. Head Ring Ring OD Dia. Code Notes Pump Nameplate Data Mfg. Part No.
70 NOTE:
A. MOUNTS ON SHAFT
I. ABRASION RESISTANT CARBON (P66)
PUMP MANUFACTURERS’ CROSS-REFERENCE
STA-RITE INDUSTRIES (continued) (See PENTAIR, INC. for Additional Part Numbers)
PS-2142 C 1 2.500 1-3/4 BCFJF S-32692
PS-535 E 3 2.500 1-3/4 BCFJF U109-251
PS-340 C 1 2.625 1-7/8 BCFJF S-32694
PS-327 E 3 3.000 2-1/8 BCFJF U109-252
STEIN SAM ASSOC.
PS-397 C — — 1 BCF-F 401-50-0001
PS-2105 C — — 1-1/2 BCF-F 401-50-0006
STERLING FLUID SYSTEMS
PS-200 A 1 1.250 5/8 BMFJF 1181377 000
PS-529 C 3 1.750 1-1/8 BCFKF 269794701 0000
PS-816 C 3 2.125 1-1/2 BCFJF 504290
PS-1057 C 3 3.000 2-1/8 B/VCFKF 501908
PS-483 C 3 3.500 2-3/4 BCFKF 502365
STERLING, INC.
PS-3723 C 3 1.437 5/8 QCFJF I 081.00036.00
081.00036.01
PS-3981 C 3 1.437 5/8 QCFKF I 081.00037.00
PS-7872 C 3 1.437 5/8 VCFKF I 081.00039.00
PS-3826 C 1 1.437 7/8 QCFJF I 081.00034-00
PS-2224 C 3 1.437 7/8 QCFKF I 081.00024.00
081.00024.02
PS-3678 C 3 1.437 7/8 QCFLF I 081.00035.00
PS-4017 C 3 1.437 7/8 VCFKF I 081.00027.00
PS-758 C 1 2.125 1-1/2 BCFJF 081.00017.00
STERLING MACHINERY
PS-201 A 1 1.375 3/4 BMFJF
PS-564 C — — 3/4 BCF-F
PS-358 C 1 1.375 3/4 BCFJF 1616
PS-145 K — — 3/4 BCF-F
PS-175 K 1
1.375/1.500
3/4 BCFJF
PS-303 D 1 1.500 7/8 BCDKF J81-E
PS-1681 D 3 1.437 7/8 BCDKF
PS-185 C 1 1.875 1-1/4 BCFJF 1636
PS-177 C12.000 1-3/8 BCFJF 1706
PS-178 R 1 2.000 1-3/8 BCDJF
PS-209 K — — 1-3/8 BCF-F
PS-629 E 3 2.312 1-1/2 BCFKF 133861
PS-216 K — — 1-1/2 BCF-F
PS-213 R — — 1-3/4 BCD-F
PS-217 R 1 2.500 1-3/4 BCDKF
PS-853 C33.375 2-1/2 BCFKF 13498, 20125-H
STEROCORP.
PS-447 B 8 —- 5/8 BCFJF A
PS-3440 C 1 1.750 1 BCFJF P571697
STEVENS PUMP CO.
PS-200 A11.250 5/8 BMFJF 16-062-03
STONE BENNETT
PS-499 C 3 1.625 1 BCFKF 30016
STONE CONST.
PS-851 A11.375 3/4 BCFJF 32223, 322231H
PS-185 C1 1.875 1-1/4 BCFJF 37692
PS-758 C 1 2.125 1-1/2 BCFJF 37691, 376911H
PS-446 C 1 2.500 1-3/4 BCFJF 377281H
PS-360 A 1 1.625 1 BCFJF 32224, 322241H
SULLAIR CORP.
PS-6120 K
3Special
3.000 2-1/8 VCFZF 250038-066
PS-6121 K
3Special
3.000 2-1/8 VCFZ/KF I 250038-068
PS-6138 C
3Special
3.375 2-1/2 VCFKF 250038-093
*US Seal 2010 catalog w cover 9/14/10 3:00 PM Page 74
U.S. Seal Mating Mating Shaft Material
Part No. Head Ring Ring OD Dia. Code Notes Pump Nameplate Data Mfg. Part No.
71
NOTE:
H. SPRING HOLDER NOT INCLUDED
I. ABRASION RESISTANT CARBON (P66)
N. NON-STANDARD SPRING HOLDER
PUMP MANUFACTURERS’ CROSS-REFERENCE
SULLAIR CORP. (continued)
PS-6141 K
3Special
3.375 2-1/2 VCFKF 250038-080
PS-6140 K
3Special
3.375 2-1/2 VCFZF 250038-079
PS-6173 C
3Special
3.875 3 VCFKF 250035-751
PS-6172 C
3Special
3.875 3 VCFKF H 250035-750
PS-6169 K
3Special
3.875 3 NCFKF 250035-734
PS-6171 K
3Special
3.875 3 VCFKF 250035-736
PS-3961 K — — 3-3/8 VCF-F 250014-770
SULLIVAN-PALATEK, INC.
PS-1053 C 3 1.875 1-1/4 B/VCFKF 519056-08
PS-6180 C 3 2.000 1-3/8 VCFGF 519056-25
PS-210V C 3 2.000 1-3/8 VCFKF
PS-534 D 3 2.125 1-1/2 BCFKF RP-250, RP-365A-222599
PS-1055 C — — 1-3/4 BCF-F RPV-125
PS-1056V C 3 2.500 1-3/4 VCFKF 519056-6
PS-4276 C 3 3.000 2-1/8 B/VCFKF 519056-13
PS-853 C 3 3.375 2-1/2 BCFKF Model 600
PS-6174 E 3 3.875 3 VCDGP 519056-15
SUPERIOR EQUIPMENT SOLUTIONS
PS-3100 Q — — 1 NMDKF 75-7050-020
SWABY MFG. CO.
PS-359 C 1 1.250 5/8 BCFJF
PS-758 C 1 2.125 1-1/2 BCFJF
PS-446 C 1 2.500 1-3/4 BCFJF
PS-2120 C 1 3.375 2-1/2 BCFJF
SWIMQUIP
PS-201 A 1 1.375 3/4 BMFJF XL VI/XL VII Series 37407-0009
SYNCROFLO, INC.
PS-921 A 1 1.375 3/4 BMFKF 13-690-0600
PS-360 A 1 1.625 1 BCFJF 13-650-0610
PS-370 A 1 1.625 1 BCFKF 13-690-0610
PS-235 C 1 1.625 1 BCFJF 13-690-0710
PS-185 C 1 1.875 1-1/4 BCFJF 13-950-0880
PS-756 C 1 1.875 1-1/4 BCFKF 13-690-2112
PS-1109 C 3 1.875 1-1/4 BCFKF 13-690-0611
PS-361 E 1 1.875 1-1/4 BCFJF 13-650-1010
PS-137 E 1 1.875 1-1/4 BCFKF 13-690-0650
PS-3991 E Bal. 3 1.875 1-3/8 BCFKF 13-690-0612
PS-238 C12.375 1-5/8 BCFJF 13-950-0886
PS-1019 C 3 2.625 1-5/8 BCFKF 13-690-2515
PS-205 E 1 2.500 1-3/4 BCFJF 13-650-3011
TACO, INC. (For Replacement Seal Kits - See Page 147)
PS-8100
XSpecial
1.875 1/4 QCFLF 185-026
PS-163 B 1 1.000 1/2 BMFJF 106-031
PS-3561 C 1 .938 1/2 BCFJF 180-097, 180-108
PS-3563 C 1 .938 1/2 QCFLF 180-240
PS-1002 C11.000 1/2 BCFJF NSeries 1616 121-008
PS-106 C 1 1.000 1/2 BCFKF N 131-031
PS-3583 C 1 1.000 1/2 BCFKF 121-136
PS-3004 G11.000 1/2 QCFLF 185-135
PS-3568 G 1 1.000 1/2 QLFLF 185-151
PS-200 A1 1.250 5/8 BMFJF 172-009, 172-017
PS-200V A 3 1.250 5/8 VCFJF 172-006
PS-1000V B 3 1.250 5/8 VCFJF 1600-305
PS-359 C 1 1.250 5/8 BCFJF 121-009, 122-009
PS-633 C11.250 5/8 BCFKF
Series 131-9, 132-9, 133-9, 138-9, 1600-9
170-102RP
,1600-170RP
PS-3525 C 3 1.250 5/8 QCFKF I 1600-170
PS-3586 G 1 1.250 5/8 QCFJF 1600-846C
PS-358 C11.375 3/4 BCFJF 180-206
PS-752 D 1 1.375 3/4 BCDKF 142-043
PS-360 A 1 1.625 1 BCFJF 170-021, 170-095
*US Seal 2010 catalog w cover 9/14/10 3:00 PM Page 75
U.S. Seal Mating Mating Shaft Material
Part No. Head Ring Ring OD Dia. Code Notes Pump Nameplate Data Mfg. Part No.
72
PUMP MANUFACTURERS’ CROSS-REFERENCE
NOTE:
I. ABRASION RESISTANT CARBON (P66)
N. NON-STANDARD SPRING HOLDER
TACO, INC. (continued) (For Replacement Seal Kits - See Page 147)
PS-754 E 1 1.625 1 BCFJF 900-012
PS-356 C 1 1.750 1-1/8 BCFJF 950-670RP, 951-3161BRP
PS-355 C 1 1.750 1-1/8 BCFKF 950-664RP
PS-529- C 3 1.750 1-1/8 QCFKF 950-664BRP
EPR
PS-355V C 3 1.750 1-1/8 VCFKF 950-667RP
PS-204 E 1 1.750 1-1/8 BCFJF 900-024
PS-384 E 1 1.750 1-1/8 BCFKF 840-128
PS-867 E 3 1.750 1-1/8 BCFKF 840-128BRP
PS-264 E 3 1.875 1-1/4 BCFKF 840-011
PS-758 C 1 2.125 1-1/2 BCFJF 950-671RP
PS-758- C 1 2.125 1-1/2 QCFJF 951-3162BRP
EPR
PS-659V C 3 2.125 1-1/2 VCFKF 950-668RP
PS-305 E 1 2.125 1-1/2 BCFJF 862-029
PS-374 E 1 2.125 1-1/2 BCFKF 862-172
PS-544 C 3 2.375 1-5/8 BCFKF 950-673RP
PS-4068 C 3 2.375 1-5/8 QCFZF I 950-676RP
PS-340- C 1 2.625 1-7/8 QCFJF 951-2968RP
EPR-CMS
PS-267 C 1 2.750 2 BCFJF 950-672RP
PS-842 C 1 2.750 2 BCFKF 950-666RP
PS-1145 C 3 2.750 2 VCFKF 950-669RP
PS-479 E 1 2.750 2 BCFJF Model 6012
PS-1676 C 3 3.125 2-1/4 BCFKF 950-674RP
PS-1676- C 3 3.125 2-1/4 QCFKF I 950-674
EPR
PS-1676V- C 3 3.125 2-1/4 VCFZF 950-677RP
TC-SEAT
PS-483 C 3 3.500 2-3/4 BCFKF 950-675RP
TAIT
PS-162 A 1 1.000 1/2 BMFJF W-6476
PS-201 A 1 1.375 3/4 BMFJF 25062
PS-921 A 1 1.375 3/4 BMFKF 24820
PS-1125 C1 1.375 3/4 BCFJF 16519
PS-703 D 1 1.500 7/8 BCDJF 24584
PS-360 A 1 1.625 1 BCFJF
PS-380 D 1 1.625 1 BCFJF 24963
PS-598 C31.875 1-1/4 BCFKF W-16524
PS-805 C 3 2.000 1-3/8 BCFJF 16538
PS-267 C1 2.750 2 BCFJF
TECUMSEH PRODUCTS CO.
PS-350 E33.250 2-3/8 BCFKF K-509-9
TEEL PUMP
PS-392 C 1 .938 1/2 B/QMFJF 5NC03
PS-631 C 1 1.000 1/2 BCFJF N 5P380, 5P418
PS-1002 C11.000 1/2 BCFJF N 1P609, IP610 1R305
PS-3542 C 3 1.031 9/16 VCFKF 5P419
PS-100 A 1 1.187 5/8 BMFJF 2P141, 2P894-2P899, 3P683-684-685 1R311, 5P403, 5P404
3P-686-687-690-692-715-716
PS-516 A 1 1.250 5/8 BCFJF 1P746-851-860-896-897-952-955-996 1R303, 5P407
1P998, 2P004-006-390,2P091, 2P092
3P551-3P553 3P577
PS-200 A 1 1.250 5/8 BMFJF 1R312, 5P405, 5P406
PS-501 A 1 1.250 5/8 BMFJF 1R315, 5P409, 5P410
PS-200V A31.250 5/8 VCFJF 1P862, 2P486 opt. for 1P746-851 1R300, 5P408
1P854-856-860-884-896-897-952-955
1P996-998-2P004-006-290 3P551-553 3P577
PS-113 B 1 1.093 5/8 BMFJF 1P795 1R302, 5P366
PS-600 B 1 1.187 5/8 BMFJF 5P367
PS-1000 B 1 1.250 5/8 BMFJF 2P356, 2P360, 2P363, 2P366 1R317, 1R318
5P368, 5P369
*US Seal 2010 catalog w cover 9/14/10 3:00 PM Page 76
U.S. Seal Mating Mating Shaft Material
Part No. Head Ring Ring OD Dia. Code Notes Pump Nameplate Data Mfg. Part No.
73
PUMP MANUFACTURERS’ CROSS-REFERENCE
NOTE:
A. MOUNTS ON SHAFT
B. TAPERED SPRING
H. SPRING HOLDER NOT INCLUDED
TEEL PUMP (continued)
PS-1152 B 1 1.250 5/8 BMFKF 1R318
PS-447 B 8 — 5/8 BCFJF A
1P787-793-796-798-831-837, 2P498-503-852
1R306, 1P831, 5P402
3P736
PS-447V B 8 — 5/8 VCFJF A
Optional for 1P787-793-796-798-831-1P837
1R324, 5P365
2P498-503
PS-800 C 1 1.156 5/8 BMFJF H
1P-849-850-879, 3P547-550- 571-599-648
1R307, 5P387, 5P421
1P979-984, 2P019-280, PC-18-2PC56
PS-359 C 1 1.250 5/8 BCFJF 1P898, 3P569A, 3P570A 1P557, 1R310, 5P386
PS-2160 C 1 1.250 5/8 BCFJF 3P511, 3P512, 3P579, 1P861 1R298, 5P420
PS-359V C 3 1.250 5/8 VCFJF 1P555, 1P804, 3P569, 3P570 5NC07, 5P385
PS-508 D 1 1.250 5/8 BCDJF 1R316, 5P382, 5P384
PS-851 A 1 1.375 3/4 BCFJF 1P855-868-869-895, 1P913,
1P950
5P414, 1R299
2P007-008, 2P333, 3P525 3P526, 3P600
PS-201 A 1 1.375 3/4 BMFJF 5P411, 5P412, 1R313
PS-101 A 1 1.437 3/4 BMFJF 5P416, 1R319
PS-201V A 3 1.375 3/4 VCFJF 1P946;Optional for 1P855-868-869 5P413, 1R245
1P895-913-950-979-984,
2P007-008,3P525-526-600
PS-877 C 1 1.375 3/4 BCFJF Optional for 1P700-702-799-803-947 5P389, 1R308
1P949, 2P391, 2P392, 2P393, 2P394
PS-877V C 1 1.375 3/4 VCFJF
1P700-702-799-803-947-949, 2P391 2P392,
5P388, 1R309
2P393, 2P394
PS-750 D 1 1.375 3/4 BCDJF 5P383
PS-188V E 3 1.500 7/8 VCFJF 5NC27
PS-360 A 1 1.625 1 BCFJF 5NC01, 5P417
PS-235 C 1 1.625 1 BCFJF 5P390
PS-380 D 1 1.625 1 BCFJF 5P423
PS-754 E 1 1.625 1 BCFJF 5P370
PS-356 C 1 1.750 1-1/8 BCFJF 2P015, 2P141, 3P582-601-604-609,
3P653-656-663, 3P664, 3P703-704-705-706
,
3P707, 3P7371R301, 3P-608, 5P391
PS-355 C 1 1.750 1-1/8 BCFKF 5P392
PS-529 C 3 1.750 1-1/8 BCFKF 5P393
PS-204 E 1 1.750 1-1/8 BCFJF 5P373
PS-253 E 3 1.750 1-1/8 BCFKF 5P372
PS-204V E 3 1.750 1-1/8 VCFJF 5NC29
PS-185 C 1 1.875 1-1/4 BCFJF 2P142, 3P660, 3P661, 3P662 5P394, IR439
PS-246 C 1 1.875 1-1/4 BCFJF B/H 5P395
PS-756 C 1 1.875 1-1/4 BCFKF 5P396
PS-361 E 1 1.875 1-1/4 BCFJF 5P374
PS-177 C 1 2.000 1-3/8 BCFJF 5P397
PS-705 E 3 2.062 1-7/16 BCFJF 5P375
PS-758 C 1 2.125 1-1/2 BCFJF 5P398
PS-609 E 1 2.312 1-5/8 BCDJF 5P377
PS-484 E 1 2.312 1-5/8 BCDKF 5P376
PS-448 C 1 2.500 1-3/4 BCFKF 5P399
PS-205 E 1 2.500 1-3/4 BCFJF 5P378
PS-1659 E 3 2.625 1-7/8 VCFJF 5NC35
PS-479V E 3 2.750 2 VCFJF 5NC36
PS-322 K 3 3.500 2-3/4 BCFKF 5P401
TERRA PRODUCTS
PS-601V B 3 1.375 3/4 VCFJF 127135
PS-245V C 3 1.625 1 VCFJF B/H 17035
THELCO CORP.
PS-348 C — — 1-1/8 BCF-F SU1774
PS-348V C——1-1/8 VCF-F SU1778
T9-1125 WT — — 1-1/8 TCF-F 316SS SU1766
PS-172 C — — 1-3/8 BCF-F SU1775
PS-172V C — — 1-3/8 VCF-F SU1789
PS-2108 C——1-3/4 BCF-F SU1776
PS-2108V C — — 1-3/4 VCF-F SU1780
THERMO KING
PS-159 D3 1.625 1 NCPGP 220203, 220378
PS-1128 D 3 1.875 1-1/4 NCPKF 1210A02G01
*US Seal 2010 catalog w cover 9/14/10 3:00 PM Page 77
U.S. Seal Mating Mating Shaft Material
Part No. Head Ring Ring OD Dia. Code Notes Pump Nameplate Data Mfg. Part No.
74
PUMP MANUFACTURERS’ CROSS-REFERENCE
NOTE:
A. MOUNTS ON SHAFT
N. NON-STANDARD SPRING HOLDER
THERMOTRON INDUSTRIES
PS-3833 C 2 1.750 1-1/8 BCFKF 555824
PS-239 C 1 2.375 1-5/8 BCFKF 1246366
THOMSEN®GROUP, LLC.
PS-9700 C 1 1.625 .970 VCFJF 9122-VL
PS-185V- C 1 1.875 1-1/4 VCFJF 9123-VL
CMS
THRUSH PUMPS
PS-163 B 1 1.000 1/2 BMFJF
PS-106 C 1 1.000 1/2 BCFKF N GT, GTB, GTN Series Circulators 1/3
PS-600 B 1 1.187 5/8 BMFJF AA-190, AA-199
PS-290 C 1 1.250 5/8 BCFJF 1-1/2TV3/4, 2TV3/4, J #s 1, 2, 3, 4
PS-633V- C 1 1.250 5/8 VCFKF TX-022/024
CMS
PS-208 C — — 7/8 BCF-F 9765-0260
PS-687 C 1 1.500 7/8 BCFKF 1-1/2ATV1, 1-1/2TVI, 2TVB1-1/2, 2VTB1,
2TV1, 2TV1-1/2, 2TV2, 3TV1, 3TV1-1/2,
3TV2, N#’s 1, 2, 3, 4
PS-687V C 3 1.500 7/8 VCFKF TX-026/028
PS-348 C — — 1-1/8 BCF-F 9765-0300
PS-355 C 1 1.750 1-1/8 BCFKF
2TV3, 2-1/2TV3, 2-1/2TV5, 3TV3, 3TV5, 5ATV3,
5ATV5, 5TV3, 5TV5, Series R #s 1, 2, 3, 4
PS-154 C — — 1-1/4 BCF-F 9765-0520
PS-598- C 3 1.875 1-1/4 QCFKF 7307-000-1
EPR
PS-756V C 3 1.875 1-1/4 VCFKF TX-052/054
PS-172 C — — 1-3/8 BCF-F 9765-0340
PS-210 C 1 2.000 1-3/8 BCFKF 2-1/2TV7-1/2, 3TV7-1/2, 3TV1,
5ATV7-1/2, 2-1/2TV10, 4TV10
5TV15, Series V #’s 3, 4
PS-210V C 3 2.000 1-3/8 VCFKF TX-035/036
PS-2107 C — — 1-5/8 BCF-F 9765-0560
PS-239V C 3 2.375 1-5/8 VCFKF TX-056/058
TOLEDO
PS-501 A11.250 5/8 BMFJF A14067
TONKAFLOW (See G.E. OSMONICS)
TORO CO.
PS-200V- A 1 1.250 5/8 VCFJF 42088
CMS
PS-200V- A 3 1.250 5/8 VCFLF 99-0582
SC-SEAT
TRANE, INC.
PS-192 C 3 2.125 1-1/2 NCFGF X10063400000
TRIPLEX HEATING
PS-165 B 9 .906 1/2 BMFJF A
PS-452 B9—5/8 BMFJF A
PS-202 B11 — 5/8 BMFJF A
TRUPAR
PS-507 A 1 1.250 5/8 BMFKF P-1190
PS-102 D1 1.250 5/8 BCDKF P-11048
PS-201 A 1 1.375 3/4 BMFJF P-11201
TRW(See REDAPUMP)
TUTHILL PUMP CO.
PS-633 C 1 1.250 5/8 BCFKF 2C1B9
PS-768 C31.375 3/4 BCFKF 3C1B9
PS-499 C 3 1.625 1 BCFKF 5C1B9
PS-4189 E 3 2.250 1 BCPKF CC0919-1A
*US Seal 2010 catalog w cover 9/14/10 3:00 PM Page 78
75
NOTE:
I. ABRASION RESISTANT CARBON (P66)
N. NON-STANDARD SPRING HOLDER
U.S. Seal Mating Mating Shaft Material
Part No. Head Ring Ring OD Dia. Code Notes Pump Nameplate Data Mfg. Part No.
PUMP MANUFACTURERS’ CROSS-REFERENCE
TUTHILL VACUUM SYSTEMS
PS-358V- C 1 1.375 3/4 VCFJF 065046 A000
CMS
PS-768 C 3 1.375 3/4 BCFKF 065238 A000
PS-252 D 3 1.625 1 BCFKF 065024 A00
PS-529- C 3 1.750 1-1/8 QCFKF I 065277 00EP
EPR-P66
PS-355V C 3 1.750 1-1/8 VCFKF 065049 A000
PS-154V C — — 1-1/4 VCF-F 065220 0000
PS-185V- C 1 1.875 1-1/4 VCFJF 065239 A001
CMS
PS-4123 D 3 2.000 1-3/8 VCFKF 005019-2-B
PS-758V- C 1 2.125 1-1/2 VCFJF 065240 A000
CMS
PS-534 D 3 2.125 1-1/2 BCFKF
PS-4408 D 3 2.125 1-1/2 B/VCPKP 065018 A000
PS-238V- C 1 2.375 1-5/8 VCFJF 065241 A000
CMS
PS-446V C 3 2.500 1-3/4 VCFJF 065289 A000
FA-1875 C — — 1-7/8 BCF-F 065215 0000
FA-1875V C — — 1-7/8 VCF-F 065219 0000
FA-2120 C — — 2-1/8 BCF-F 065214 0000
PS-1678V C 3 3.125 2-1/4 VCFJF 065242 A00
UNITED SERVICE EQUIPMENT
PS-1133 C 1 1.181 7/16 BCFJF 1034A7
U.S. ELECTRICAL MOTOR
PS-358 C 1 1.375 3/4 BCFJF PUL-2112
PS-356 C 1 1.750 1-1/8 BCFJF
PS-320 C 1 2.250 1-1/2 BCFJF Frame 213
U.S. FILTER
PS-1002V C 1 1.000 1/2 VCFJF N 7802910
PS-290V C 1 1.250 5/8 VCFJF 7802918
PS-1687 D 1 3.000 2-1/8 BCFKF U18080
VERTIFLO PUMP CO.
PS-358 C 1 1.375 3/4 BCFJF SJ-2112-C1-00
PS-358V- C 1 1.375 3/4 VCFJF SJ-2112-C1-X2
CMS
PS-112V- C 1 1.375 3/4 VCFKF SJ-2112-71-X0
CMS
PS-7305 C 1 1.375 3/4 VLFLF 316SS SJ-2112-S1-X2
PS-756 C 1 1.875 1-1/4 BCFKF SJ-2120-71-00
PS-3886 C 1 1.875 1-1/4 VCFJF 316SS SJ-2120-C1-X2
PS-185V- C 1 1.875 1-1/4 VCFJF SJ-2120-C1-X0
CMS
PS-758 C 1 2.125 1-1/2 BCFJF SJ-2124-C1-02
PS-659 C 1 2.125 1-1/2 BCFKF SJ-2124-71-00
PS-758V- C 1 2.125 1-1/2 VCFJF SJ-2124-C1-X0
CMS
PS-7409 C 1 2.125 1-1/2 VCFJF 316SS SJ-2124-C1-X2
PS-659V- C 1 2.125 1-1/2 VCFKF SJ-2124-71-X0
CMS
PS-238 C 1 2.375 1-5/8 BCFJF SJ-2126-C1-00
PS-239 C 1 2.375 1-5/8 BCFKF SJ-2126-71-00
PS-238V- C 1 2.375 1-5/8 VCFJF SJ-2126-C1-X0
CMS
PS-239V- C 1 2.375 1-5/8 VCFKF SJ-2126-71-X0
CMS
PS-844 C 1 3.000 2-1/8 BCFJF SJ-2134-C1-00
VIC CLEANING MACHINE
PS-162 A 1 1.000 1/2 BMFJF 22-907
PS-701 A1 1.187 5/8 BMFKF 42-607
*US Seal 2010 catalog w cover 9/14/10 3:00 PM Page 79
U.S. Seal Mating Mating Shaft Material
Part No. Head Ring Ring OD Dia. Code Notes Pump Nameplate Data Mfg. Part No.
76
PUMP MANUFACTURERS’ CROSS-REFERENCE
VICO (BALBOA WATER GROUP)
PS-2136 A 1
1.375/ 1.750
3/4 BCFJF SuperFlo, UltraFlo, Ultima PPSFSeal
VIKING INSTRUMENT
PS-162 A 1 1.000 1/2 BMFJF 1-3438-3
VIKING PUMP, INC. (Div. of IDEX CORP.)
PS-6321 C 3 1.125 1/2 BCFKF 2-471-051-999-00
PS-3735 C 3 1.125 1/2 VCFKF 2-471-052-999-00
PS-7948 E Special 1.193 1/2 BCPKF 2-471-003-999-00
PS-7948N E Special 1.193 1/2 NCPKF 2-471-019-999-00
PS-7948V E Special 1.193 1/2 VCPKF 2-471-017-999-00
PS-9320
WSpecial
Special 1.193 1/2 TCPKF 316SS 2-471-004-999-00
PS-1625 C 3 1.250 5/8 BCFKF 2-472-014-999-00
PS-1625- C 3 1.250 5/8 QCFKF 2-472-016-999-00
EPR
PS-1626 C 3 1.250 5/8 VCFKF 2-472-015-999-00
PS-9321 W 2 1.250 5/8 TCFKF 316SS 2-472-006-999-00
PS-9322 WT 28 1.490 5/8 TCFOF 316SS 2-472-012-990-00
PS-7087 D 3 1.375 3/4 BCPKF 2-473-003-999-00
PS-7613 D 3 1.375 3/4 NCPKF 2-473-009-999-00
PS-7613V D 3 1.375 3/4 VCPKF 2-473-018-999-00
PS-3935 W 2 1.375 3/4 TCFKF 316SS 2-473-038-999-00
PS-9324 W 2 1.375 3/4 TCFKF 316SS 2-473-006-999-00
PS-9323
WSpecial
2 1.375 3/4 TCFKF 316SS 2-473-001-999-00
PS-9325
WSpecial
2 1.375 3/4 TCFOF 316SS 2-473-034-999-00
PS-460 D 1 1.625 1 BCFKF 2-475-002-999-00
PS-6328 D 3 1.625 1 BCPKF 2-475-001-999-00
PS-6329 D 3 1.625 1 NCPKF 2-475-005-999-00
PS-1630V D 3 1.625 1 VCPKF 2-475-010-999-00
PS-6331 E 3 1.625 1 BCPKF 2-475-115-999-00
PS-3803 E 3 1.625 1 VCFKF 2-475-012-999-00
PS-1631 T 3 1.625 1 NCPKF 2-475-004-999-00
PS-9313 W 2 1.625 1 TCFKF 316SS 2-475-019-999-00
PS-9334 W 2 1.625 1 TCFOF 316SS 2-475-025-999-00
PS-7967 E 3 2.000 1-1/8 BCPKF 2-476-001-999-00
PS-3653 E3 2.000 1-1/8 NCPGF 2-476-006-999-00
PS-6334 E3 2.000 1-1/8 VCPKF 2-476-012-999-00
PS-7232 W 2 2.000 1-1/8 TCFKF 316SS 2-476-003-999-00
PS-9327 W 2 2.000 1-1/8 TCFOF 316SS 2-476-005-999-00
PS-9328 W 28 2.354 1-1/8 TCFKF 316SS 2-476-123-999-00
PS-9329 W 28 2.354 1-1/8 Special 316SS 2-476-133-999-00
PS-3731 Special 31.625 1-1/8 BCPKP 2-476-018-999-00
PS-6339 D 3 1.875 1-1/4 BCPKF 2-477-100-999-00
PS-3934 D 3 1.875 1-1/4 NCPKF 2-477-019-999-00
PS-1632V D31.875 1-1/4 VCPKF 2-477-020-999-00
PS-3611 WT 2 1.875 1-1/4 TCFOF 316SS 2-477-140-999-06
PS-9003 WT 2 2.343 1-1/4 TCFKF 316SS 2-477-018-999-00
PS-7105 C 3 2.250 1-7/16 BCFKF 2-477-288-999-00
335-00-180-243
PS-4067 E 3 2.125 1-7/16 VCFKF 2-477-042-999-00
PS-6340 E 3 2.171 1-7/16 BCPKF 2-477-173-999-00
PS-6342 E3 2.171 1-7/16 VCPKF 2-477-180-999-00
PS-4189 E 3 2.250 1-7/16 BCPKF
PS-1634 E 3 2.250 1-7/16 BCPKP 2-477-008-999-00
PS-3848 E 3 2.312 1-7/16 BCPKF 2-477-001-999-00
PS-6344 E 3 2.312 1-7/16 NCPKF 2-477-429-999-00
PS-6338 E32.312 1-7/16 VCPKF 2-477-038-999-00
335-00-210-024
PS-4140 E 3 2.375 1-7/16 VCFLF 2-477-669-999-00
PS-1633 T32.187 1-7/16 NCPKF 2-477-006-999-00
PS-9227 W 2 2.312 1-7/16 TCFKF 316SS 2-477-003-999-00
PS-9307 W 2 2.312 1-7/16 TCFOF 316SS 2-477-005-999-00
PS-9304 W 2 2.687 1-7/16 TCFKF 316SS 2-477-116-999-00
PS-9330 W Special 2.484 1-7/16 TCFKF 316SS 2-477-179-999-00
*US Seal 2010 catalog w cover 9/14/10 3:00 PM Page 80
U.S. Seal Mating Mating Shaft Material
Part No. Head Ring Ring OD Dia. Code Notes Pump Nameplate Data Mfg. Part No.
77
PUMP MANUFACTURERS’ CROSS-REFERENCE
NOTE:
B. TAPERED SPRING
VIKING PUMP, INC. (Div. of IDEX CORP.) (continued)
PS-9331 W 28 2.687 1-7/16 Special 316SS 2-477-346-999-00
PS-819 D 3 2.375 1-5/8 BCDKF 2-478-011-999-00
PS-6348 E 3 2.375 1-5/8 BCPKF 2-478-041-999-00
PS-6349 E 3 2.375 1-5/8 VCPKF 2-478-046-999-00
PS-9017 WT 28 2.875 1-5/8 TCFKF 316SS 2-478-040-999-00
PS-9332 WT 28 2.875 1-5/8 TCFOF 316SS 2-478-026-999-00
PS-7580 E 3 3.437 2-7/16 BCPKP 2-480-001-999-00
PS-3751 E 3 3.437 2-7/16 VCPKF 2-480-004-999-00
PS-9333 W 28 4.000 2-7/16 TCFKF 316SS 2-480-051-999-00
PS-3505 U 3 4.375 3-7/16 VCPKF 2-481-006-999-00
VILTER MFG., INC.
PS-6175 R 3 3.875 3 NCPGP A-33489-A
VULCAN-HART
PS-1618 C 1 1.250 5/8 BCFJF B
PS-508 D 1 1.250 5/8 BCDJF
PS-360 A 1 1.625 1 BCFJF 97505
PS-236 E 1 1.625 1 BCFKF 97049
PS-1167 C 1 1.750 1-1/8 BCFKF B
PS-604 D 1 1.750 1-1/8 BCFJF
WATER ACE PUMP CO. (Part of Pentair Pump Group)
PS-3845 B 8 1.299 5/8 BMFJF Models RSP-7,10,15 25053A000
WATERCO USA
PS-3985 B 1 1.375 3/4 BCFJF Supatuf 634016
PS-185 C 1 1.875 1-1/4 BCFJF 19B5032
PS-446 C 1 2.500 1-3/4 BCFJF 19B5033
WATEROUS CO.
PS-499 C 3 1.625 1 BCFKF
PS-3010 G 3 1.625 1 BCFLF V-3386
PS-605 D 1 1.750 1-1/8 BCFKF V-1467
PS-3013 G 25 1.750 1-1/8 VCFLF 316SS V-3505
PS-598 C 3 1.875 1-1/4 BCFKF V-2145
PS-383V D 3 1.875 1-1/4 VCFKF V-1150
PS-6266 G 3 1.875 1-1/4 BCFLF 316SS V-3218
PS-659V C 3 2.125 1-1/2 VCFKF
WATERWAY PLASTICS
PS-671 B 1 .875 3/8 BMFJF Tiny Mite 811-4000A
PS-1000 B 1 1.250 5/8 BMFJF 319-3100B
WATTS
PS-680 A11.187 5/8 BCFJF Close Coupled Circulator
PS-1000 B 1 1.250 5/8 BMFJF
WAUKESHA CHERRY-BURRELL
PS-239V C 3 2.375 1-5/8 VCFKF PG4-45, 5164130809
PS-267V C 3 2.750 2 VCFJF PG4-46
PS-1145 C12.750 2VCFKF PG4-46, 5065080809
PS-1676 C 3 3.125 2-1/4 BCFKF 5065711207
WAUKESHA MOTORS
PS-642 B — — 5/8 BMF-F 102320 & 20B
PS-1522 A — — 3/4 BMF-F 810350
PS-201 A 1 1.375 3/4 BMFJF 152243-B
PS-647 B — — 3/4 BMF-F 120828
PS-752 D 1 1.375 3/4 BCDKF
PS-685 R 1 1.500 7/8 BCDKF 108025
PS-1619 B 1 1.625 1 BCDJF 117177G-J
PS-380 D 1 1.625 1 BCFJF
PS-604 D 1 1.750 1-1/8 BCFJF
157475, 157475E, 157475K
PS-185 C 1 1.875 1-1/4 BCFJF 178033
WAYNE COMBUSTION SYSTEMS
PS-162 A 1 1.000 1/2 BMFJF 15717 / 56106
*US Seal 2010 catalog w cover 9/14/10 3:00 PM Page 81
78
U.S. Seal Mating Mating Shaft Material
Part No. Head Ring Ring OD Dia. Code Notes Pump Nameplate Data Mfg. Part No.
PUMP MANUFACTURERS’ CROSS-REFERENCE
NOTE:
B. TAPERED SPRING
I. ABRASION RESISTANT CARBON (P66)
WAYNE COMBUSTION SYSTEMS (continued)
PS-163 B 1 1.000 1/2 BMFJF 15863 / 56108
PS-400 C — — 1/2 BMF-F 15189
PS-1137 Q 1 1.000 1/2 BMFJF 15780 / 56107
PS-200 A 1 1.250 5/8 BMFJF Series SJ-CJX 15559 / 56104
PS-642 B — — 5/8 BMF-F
PS-1000 B 1 1.250 5/8 BMFJF 15996 / 56109
PS-1155 C 1 1.187 5/8 BCFJF Series J and S 15529
PS-201 A 1 1.375 3/4 BMFJF 15693 / 56105
PS-201V A 3 1.375 3/4 VCFJF 16229
WAYNE PUMPS
PS-974 A — — 3/4 BCF-F 16829
PS-1522 A — — 3/4 BMF-F 16725
PS-150 B — — 1/2 BMF-F 16722
WDM PUMPS
PS-864V E 3 2.000 1-3/8 VCFJF MSIXFCEA138
PS-436V C 3 2.500 1-3/4 VCFKF MS21XFNRAC134
WEBER INDUSTRIES, INC.
PS-359V- C 1 1.250 5/8 VCFJF 70X120-M
CMS
PS-851 A 1 1.375 3/4 BCFJF 70X107-M
PS-358V- C 1 1.375 3/4 VCFJF 70X121-M
CMS
PS-356V- C 1 1.750 1-1/8 VCFJF 70X118-M
CMS
PS-185V- C 1 1.875 1-1/4 VCFJF 70X123-M
CMS
PS-446V- C 1 2.500 1-3/4 VCFJF 70X125-M
CMS
WEBSTER ELECTRIC
PS-218 A — — 5/8 BCF-F
PS-467 C 1 2.125 1-3/8 BCFKF 151-26815
WEIL PUMP CO., INC.
PS-100 A 1 1.187 5/8 BMFJF 1-1/4" Submersible 17-30009-005
PS-600 B11.187 5/8 BMFJF
PS-1000 B 1 1.250 5/8 BMFJF
PS-933- C — — 5/8 BCF-F I 330.016.000
P66
PS-989 C11.187 5/8 N/BCFJF B
PS-851 A 1 1.375 3/4 BCFJF 17-62372-008
PS-358 C 1 1.375 3/4 BCFJF 205.016.101
PS-358V- C 1 1.375 3/4 VCFJF 205.093.101
CMS
PS-750 D 1 1.375 3/4 BCDJF X1397, X2372
PS-617 C31.500 7/8 BCFKF X3452
PS-380 D 1 1.625 1 BCFJF X992
PS-2033 D3 1.625 1 BCFJF 17-62427-000
PS-754 E 1 1.625 1 BCFJF X993
PS-356 C11.750 1-1/8 BCFJF 137-000-129
PS-604 D11.750 1-1/8 BCFJF X2428
PS-802 D 3 1.750 1-1/8 BCFJF 17-62428-008
PS-204 E 1 1.750 1-1/8 BCFJF
PS-384 E 1 1.750 1-1/8 BCFKF X-217UKY
PS-866 E31.750 1-1/8 BCFJF 17-61117-008
PS-381 D 1 1.875 1-1/4 BCFJF X2174, X-2429UKY
PS-804 D 3 1.875 1-1/4 BCFJF 17-62429-006
PS-1623 K 3 2.125 1-1/4 BCFJ/KF 17-05511-001
PS-210 C12.000 1-3/8 BCFKF Model AS
PS-758 C 1 2.125 1-1/2 BCFJF 205.228.001
PS-758- C 1 2.125 1-1/2 BLFLF 205.229.001
SC-SC
PS-758V- C12.125 1-1/2 VCFJF 205.228.002
CMS
*US Seal 2010 catalog w cover 9/14/10 3:00 PM Page 82
U.S. Seal Mating Mating Shaft Material
Part No. Head Ring Ring OD Dia. Code Notes Pump Nameplate Data Mfg. Part No.
79
PUMP MANUFACTURERS’ CROSS-REFERENCE
NOTE:
B. TAPERED SPRING
H. SPRING HOLDER NOT INCLUDED
I. ABRASION RESISTANT CARBON (P66)
WEIL PUMP CO., INC.
PS-758V- C 1 2.125 1-1/2 VLFLF 205.229.002
SC-SC
PS-926 C 3 2.312 1-1/2 BCFJF
PS-514 D 1 2.375 1-5/8 BCDJF Model AYM-2-1/2x3
PS-1142 K 3 2.500 1-3/4 BCFJ/KF 17-05514-005
PS-2069 E 1 2.625 1-7/8 BCFJF Model AYM-4x5
PS-267 C 1 2.750 2 BCFJF 205.258.001
PS-847 D 3 3.125 2-1/4 BCDKF Model AYM 5 & 6 17-62550-009
WEINMAN (Div. of CRANE PUMPS & SYSTEMS)
PS-501 A 1 1.250 5/8 BMFJF Types- 4, 5, 6 & 8ACK, 4&6AEK
PS-4371 A 1 1.250 5/8 VCFJF I Q26-77-Y25
PS-3816 A 1 1.250 5/8 VCFKF I Q26-77-Y6
PS-309 C 1 1.500 7/8 BCFJF Q26-394-Y2
PS-188 E 1 1.500 7/8 BCFJF Type 2SB Q26-177-Y3
PS-245 C 1 1.625 1 BCFJF B/H Types- 4AE, 6AC, 6AE, & 6AC Q26-201-Y2
PS-248 C 1 1.625 1 BCFKF B/H Types- 4AE, 6AC, 6AE, & 6AC Q26-143-Y34
PS-380 D 1 1.625 1 BCFJF Q26-78-Y3
PS-204 E 1 1.750 1-1/8 BCFJF Q26-184-Y3
PS-384 E 1 1.750 1-1/8 BCFKF Q26-102-Y35
PS-546 E 3 1.875 1-1/4 BCFJF Q26-243-Y2
PS-228 K 3 1.875 1-1/4 BCFKF FR#11, 3UE-B11, 4UD-B11, 4UE-B11 Q26-190-Y34
PS-185 C 1 1.875 1-1/4 BCFJF Q26-166-Y2
Q26-395-Y2
Q26-395-Y21
PS-246 C 1 1.875 1-1/4 BCFJF B/H Group A-Type 1G, 1-1/4G, 1-1/2G, 1-1/2K, Q26-166-Y2
1-1/2KH, 2G, GB, and KB. Grp. B-7-1/2.
HP & Less at 1750: 20 HP & less at
3500 RPM Types. 1-1/2KH, 2K, 2-1/2G,
2-1/2K, 3G, 3K, 4GL, and 4G
PS-2122 C 1 1.875 1-1/4 BCFJF Q26-243-Y2
PS-185- C 1 1.875 1-1/4 BCFJF I Q26-395-Y21
P66
PS-249 C 1 1.875 1-1/4 BCFKF B/H Q26-276-Y34
PS-2123 C 1 1.875 1-1/4 BCFKF Q26-102-Y34
PS-756 C1 1.875 1-1/4 BCFKF 1G2A30P12G-D Q26-395-Y34
PS-185- C 1 1.875 1-1/4 BLFLF Q26-395-Y39
SC-SC
PS-1082 C 1 1.875 1-1/4 NCFKF Q26-395-Y24
PS-185V-C11.875 1-1/4 VCFJF I Q26-395-Y25
CMS-P66
PS-756V C3 1.875 1-1/4 VCFKF Q26-395-Y6
PS-381 D 1 1.875 1-1/4 BCFJF Q26-79-Y3
PS-383 D 1 1.875 1-1/4 BCFKF Q26-5-Y35
PS-361 E 1 1.875 1-1/4 BCFJF When Seal is Mounted on Shaft: Q26-243-Y3
2L-4, 5, 6, 3L-6, 4L3, 5L3
PS-137 E 1 1.875 1-1/4 BCFKF Q26-102-Y35
PS-264 E 3 1.875 1-1/4 BCFKF Q26-243-Y34, Q26-243-Y35
PS-7702 EBal. 31.875 1-3/8 BCFJF Q26-415-Y34
PS-4145 E Bal. 3 1.875 1-3/8 BCFZF Q26-318-Y10
PS-3769 EBal. 3 1.875 1-3/8 VCZFZ I Q26-318-Y17
PS-347 C 1 2.125 1-1/2 BCFJF B/H Group B-10 HP, Over at 1750; 25 HP Q26-167-Y2
Over at 3500 RPM 1-1/2KH, 2K, 2-1/2G,
2-1/2K, 3G, 3K, 4GL, 4G.
Group C TYP.- 2-1/2KH.
PS-378 C 1 2.125 1-1/2 BCFKF B/H Q26-175-Y34
PS-382 D 1 2.125 1-1/2 BCFJF Q26-167-Y3
PS-305 E12.125 1-1/2 BCFJF When Seal is Mounted on Sleeve: Q26-264-Y3
2L-4, 2L-5, 3L-6, 4L-2, 4L-3, 5L-3.
When Seal is Mounted on Shaft:
2-1/2JC, 3L-4, 3L-5, 4L-1, 5L-2, 6L-2, 6L03.
PS-374 E12.125 1-1/2 BCFKF Q26-265-Y35
PS-395 E 3 2.125 1-1/2 BCFJF Q26-178-Y2, Q26-178-Y3
PS-258 E 3 2.125 1-1/2 BCFKF Q26-178-Y35
*US Seal 2010 catalog w cover 9/14/10 3:00 PM Page 83
80 NOTE:
I. ABRASION RESISTANT CARBON (P66)
U.S. Seal Mating Mating Shaft Material
Part No. Head Ring Ring OD Dia. Code Notes Pump Nameplate Data Mfg. Part No.
PUMP MANUFACTURERS’ CROSS-REFERENCE
WEINMAN (Div. of CRANE PUMPS & SYSTEMS) (continued)
PS-305V- E 3 2.125 1-1/2 VCFJF I Q26-178-Y25
P66
PS-374V E 3 2.125 1-1/2 VCFKF Q26-178-Y16
PS-818 C 3 2.375 1-5/8 BCFJF Q26-373-Y12
PS-544 C 3 2.375 1-5/8 BCFKF Q26-373-Y34
PS-238V C 3 2.375 1-5/8 VCFJF Q26-373-Y25
PS-239V C 3 2.375 1-5/8 VCFKF Q26-373-Y16
PS-745 E 1 2.375 1-5/8 BCDJF When Seal is Mounted on Shaft: Q26-240-Y13
Type 3JC, 4L-4, 5L-1, 8L-3
PS-744 E 1 2.375 1-5/8 BCDKF Q26-241-Y35
PS-822 E 3 2.375 1-5/8 BCDKF Q26-240-Y35
PS-1699 E 3 2.375 1-5/8 BCFKF Q26-240-Y34
PS-7787 E 3 2.375 1-5/8 QCDZF I Q26-240-Y30
PS-1699V- E 3 2.375 1-5/8 VCFKF I Q26-240-Y6
P66
PS-205 E 1 2.500 1-3/4 BCFJF When Seal is Mounted on Sleeve: Q26-222-Y13
Type 3L-4, 3L-5, 4L-1, 5L-2, 6L-2, 6L-3. Q26-217-Y13
When Seal is Mounted on Shaft: 2-1/2JC.
PS-205- E 1 2.500 1-3/4 BCFJF I Q26-179-Y21
P66
PS-366 E 1 2.500 1-3/4 BCFKF Q26-223-Y35
PS-205V- E 1 2.500 1-3/4 VCFJF Q26-179-Y25
CMS
PS-535 E 3 2.500 1-3/4 BCFJF Q26-217-Y2, Q26-217-Y25
PS-262 E 3 2.500 1-3/4 BCFKF
Q26-217-Y35, Q26-217-Y34
PS-3540 E 3 2.500 1-3/4 QZFZF
PS-7774 EBal. 3 2.375 1-3/4 BCFJF Q26-319-Y10
PS-2231 EBal. 3 2.375 1-3/4 BCFKF Q26-304-Y2
PS-7821
EBal.
3 2.375 1-3/4
BCFZF
PS-449 K 1 2.500 1-3/4 BCFJF Frame #12-3UE, 4UD, 4UE-B12
Frame #13: 4UF,5UF, 6UG-B13 Q26-191-Y12
PS-2170 U 3 2.500 1-3/4 BCFJF Q26-179-Y13
PS-479 E 1 2.750 2 BCFJF When Seal is Mounted on Shaft: Q26-267-Y13
Type 6L-1, 8L-2, 10L-2,10L-3. When Seal
Mounted on Sleeve: 4L-4, 5L-1 and 8L-3
PS-477 E 3 2.750 2 BCFKF Q26-268-Y35
PS-7892 EBal. 32.625 2 BCFKF Q26-305-Y34
PS-385A U 3 2.750 2 BCFKF 3JC and 5LI Split Case Q26-180-Y35
PS-4391 U 3 2.750 2 VLFLF 8L2
PS-3784 E Bal. 3 3.000 2-1/4 BCFJF Q26-306-Y12
PS-3643 E Bal. 3 3.000 2-1/4 BCFKF Q26-306-Y34
PS-7749 E Bal. 3 3.000 2-1/4 BCFKF Q26-306-Y10
PS-3656 E Bal. 3 3.000 2-1/4 VCFZF I Q26-306-Y17
PS-2097- E13.250 2-3/8 BCFJF Q26-181-Y12
CMS
PS-350 E3 3.250 2-3/8 BCFKF Q26-181-Y34, Q26-181-Y35
Q26-275-Y35
PS-278 E 3 3.250 2-3/8 BCFJF
When Seal is Mounted on Shaft: 8L-1, 12L-2 Q26-273-Y03
When Seal is Mounted on Sleeve:
6L-1, 8L-2, 10L-3
PS-350V- E 3 3.250 2-3/8 VCFZF I Q26-181-Y17
P66-TC
PS-2158 K13.375 2-1/2 BCFJF Q26-406-Y12
PS-279 E 3 3.375 2-1/2 BCFJF Pump Type 10L-2, Seal is Mtd. on Sleeve Q26-182-Y13
PS-349 E 3 3.375 2-1/2 BCFKF Q26-198-Y35
PS-7927 E Bal. 3 3.375 2-5/8 BCFKF Q26-340-Y34
PS-324 E 3 3.875 3 BCDJF Type 8L-1, 12L-2 Seal is Mtd. on Sleeve Q26-199-Y13
PS-475 E 3 3.875 3 BCDKF Q26-183-Y35
PS-5252 E 3 3.875 3 BCFKF Q26-183-Y34
WEIR SPECIALTY PUMPS
PS-758 C12.125 1-1/2 BCFJF 157258
PS-7409 C 1 2.125 1-1/2 VCFJF 316SS 157256
PS-2209 C 1 2.125 1-1/2 BZFZF 52597
*US Seal 2010 catalog w cover 9/14/10 3:00 PM Page 84
U.S. Seal Mating Mating Shaft Material
Part No. Head Ring Ring OD Dia. Code Notes Pump Nameplate Data Mfg. Part No.
81
PUMP MANUFACTURERS’ CROSS-REFERENCE
WEIR SPECIALTY PUMPS (continued)
PS-3558 K 3 2.375 1-1/2 BCFJF 157319
PS-4304 K 1 2.500 1-3/4 VZFZF 157472
PS-267 C 1 2.750 2 BCFJF 157259
PS-267V- C 1 2.750 2 VCFJF 157554
CMS
PS-4343 K 3 2.750 2 BZ/CFZ/JF 804820
PS-1679 C 1 3.125 2-1/4 BCFJF 52600
PS-2120 C 1 3.375 2-1/2 BCFJF 157599
PS-324SS E 3 3.875 3 BCFJF 157474
WELLS BLOOMFIELD
PS-359 C 1 1.250 5/8 BCFJF 35902
WEMCO (Div. of WEIR SPECIALTY PUMPS)
PS-541 K 1 2.125 1-1/2 BCFJF 157174
WESTINGHOUSE
PS-663 Q 1 1.000 1/2 BMFJF 69782
WHEELER, C.H.
PS-218 A — — 5/8 BCF-F
PS-702 A 1 1.187 5/8 BMFJF Reuse Brass Seat Housing
WHITE
PS-701 A 1 1.187 5/8 BMFKF
PS-200 A 1 1.250 5/8 BMFJF
WORTHINGTON (See FLOWSERVE CORP.)
PS-928 C — — 9/16 BCF-F 1 GA 055954-00, 74744277
PS-200 A 1 1.250 5/8 BMFJF Model 1-1/40CS-5, 1-1/4OM-5 043008-00
PS-507 A 1 1.250 5/8 BMFKF 1-1/2PM3
PS-528 A 1 1.375 5/8 BMFJF Delta 512 and 520 PO2098-00, 285186052
PS-200V A 3 1.250 5/8 VCFJF
PS-933 C — — 5/8 BCF-F 2GAR, 2GA 055955-00
PS-359 C 1 1.250 5/8 BCFJF 050675-00
PS-359V- C 1 1.250 5/8 VCFJF 74315409
CMS
PS-626 C 1 1.375 5/8 VCFJF Delta 520 PO2099-00
PS-951 C 3 1.375 5/8 VCFKF Delta 512 and 520 PO2752-00, 7426767
PS-201 A11.375 3/4 BMFJF 1-1/2PE, 3 & 4
PS-564 C — — 3/4 BCF-F 3 & 4 GA Pumps 024439-00
PS-373 C11.375 3/4 BCFKF Frame 1A,DN2 026493-00, 026492-00
PS-768 C3 1.375 3/4 BCFKF SEL 244
PS-578 D — — 7/8 BCD-F 5 & 6 AUM
PS-936 E — — 7/8 BCF-F 5 & 6 GAUM 024440-00, 27197631
PS-560SS U 2 1.562 15/16 BCFKF Frame 1 026456-00, 031446-00
PS-370 A 1 1.625 1 BCFKF
PS-348 C — — 1-1/8 BCF-F PO2885-00, 28518934
68885854
PS-801 C 3 1.750 1-1/8 BCFJF Frame 1 D-812, 820, 1012, 1020 PO2885-00 w/ PO2897-00
PS-529 C3 1.750 1-1/8 BCFKF Frame 1 D-812, 820, 1012, 1020 PO2885-00 w/ PO2893-00
PS-356V C 3 1.750 1-1/8 VCFJF Frame 1 D-812, 820, 1012, 1020 PO2889-00 w/ PO2897-00
PS-355V C 3 1.750 1-1/8 VCFKF Frame 1 D-812, 820, 1012, 1020 PO2889-00 w/ PO2893-00
PS-866 E 3 1.750 1-1/8 BCFJF Frame 1 D-1011, 1021 PO2869-00 w/ PO2897-00
PS-867 E31.750 1-1/8 BCFKF Frame 1 D-1011, 1021 PO2869-00 w/ PO2893-00
PS-282 U 3 1.750 1-1/8 BCFKF 2-1/2 LR10 051610-00, 053129-00
PS-394 U 3 1.875 1-1/4 BCF/DKF 2, 2-1/2 GRM1, 3GRWMCI 03144800, 74295924
PS-805 C32.000 1-3/8 BCFJF Frame 2 D-812, 820, 1012, 1020 PO2886-00 w/ PO2898-00
PS-547 C 3 2.000 1-3/8 BCFKF Frame 2 D-812, 820, 1012, 1020 PO2886-00 w/ PO2894-00
PS-177V C 3 2.000 1-3/8 VCFJF Frame 2 D-812, 820, 1012, 1020 PO2890-00 w/ PO2898-00
PS-210V C 3 2.000 1-3/8 VCFKF Frame 2 D-812, 820, 1012, 1020 PO2890-00 w/ PO2894-00
PS-864 E 3 2.000 1-3/8 BCFJF Frame 2 D-811, 821, 1011, 1021 PO2870-00 w/ PO2898-00
PS-865 E 3 2.000 1-3/8 BCFKF Frame 2 D-811, 821, 1011, 1021 PO2870-00 w/ PO2894-00
PS-561SS U12.000 1-3/8 BCFKF Frame 2 2-1/2 LR-13 050498-00, 026457-00
272150-94
PS-2106V E — — 1-1/2 VCF-F 605061-69
*US Seal 2010 catalog w cover 9/14/10 3:00 PM Page 85
U.S. Seal Mating Mating Shaft Material
Part No. Head Ring Ring OD Dia. Code Notes Pump Nameplate Data Mfg. Part No.
82
PUMP MANUFACTURERS’ CROSS-REFERENCE
NOTE:
A. MOUNTS ON SHAFT
WORTHINGTON (continued) (See FLOWSERVE CORP.)
PS-258 E 3 2.125 1-1/2 BCFKF 3LR-9, 4,5,& 6LR-10, 3LR-12, 4LR-12, 051612-00 w/ 053130-00
1-1/2LLR-7, 1-1/2LLR-10, 2LLR-9
PS-395 E 3 2.125 1-1/2 BCFJF 3LR-9, 4,5 & 6LR-10, 3LR-12, 051708-00 w/ 053130-00
4LR-121-1/2LLR-7, 1-1/2LLR-10, 2LLR-9
PS-458 U 3 2.375 1-5/8 BCDKF 4LR-14, 5LR-13, 4LR-11 051613-00 w/ 053132-00
PS-2108 C — — 1-3/4 BCF-F PO2887-00, 28518876
PS-2108V C — — 1-3/4 VCF-F PO2891-00
PS-550 C 3 2.500 1-3/4 BCFJF Frame 3 D-812, 820, 1012, 1020 PO2887-00 w/ PO2899-00
PS-436 C 3 2.500 1-3/4 BCFKF Frame 3 D-812, 820, 1012, 1020 PO2887-00 w/ PO2895-00
PS-7679 C 3 2.500 1-3/4 VLFLF
PS-535 E 3 2.500 1-3/4 BCFJF Frame 3 D-811, 821, 1011, 1021 PO2871-00 w/ PO2899-00
PS-262 E 3 2.500 1-3/4 BCFKF Frame 3 D-811, 821, 1011, 1021 PO2871-00 w/ PO2895-00
PS-555 U 1 2.500 1-3/4 BCFD/KF Frame 3 026458-00
PS-555SS U 1 2.500 1-3/4 BCFKF Frame 3 050499-00
PS-2070 E 1 2.625 1-7/8 BCFKF 4GRWM 031449-00
PS-1108 V 1 2.625 1-7/8 BMFJF 4FNC-10
PS-477 E 3 2.750 2 BCFKF 2˝ HBL, 4GRM, 5GRWM 031450-00
PS-456 U 3 2.750 2 BCFKF 5LR-15, 6LR-13, 6LR-16, 8LR-13 051614-00 w/ 053133-00
PS-385A U 3 2.750 2 BCFKF 8LR-14
PS-854 C 3 2.875 2-1/8 BCFJF Frame 4 D-1012, 1020 PO2888-00 w/ PO2900-00
PS-855 C 3 2.875 2-1/8 BCFKF Frame 4 D-1012, 1020 PO2888-00 w/ PO2896-00
PS-856 E 3 2.875 2-1/8 BCFJF Frame 4 D-1011, 1021 PO2872-00 w/ PO2900-00
PS-857 E 3 2.875 2-1/8 BCFKF Frame 4 D-1011, 1021 PO2872-00 w/ PO2896-00
PS-556 U 2 3.000 2-1/8 BCFKF Frame 4 026459-00, 050500-00
PS-475 E 3 3.875 3 BCDKF 6LR-18, 10LR-15 055426-00 w/ 055425-00
PS-330 E 3 4.125 3-1/4 BCDJF 6 UZD-1
YOEMANS CHICAGO CORP. (See CLOW CORP.)
YORK (See JOHNSON CONTROLS)
ZODIAC POOL SYSTEMS, INC. (See JANDY)
ZOELLER PUMP CO.
PS-4218 B — — 1/2 BCF-F 009567
PS-3033 Q 8 .906 1/2 BCFKF 005095
PS-7929 B 1 1.250 5/8 VLFLF 012240
PS-447 B 8 — 5/8 BCFJF A 001016, 001017
PS-397 C — — 1 BCF-F 007767
PS-356 C 1 1.750 1-1/8 BCFJF 006510
PS-4443 C 1 1.750 1-1/8 BCFLF 011125
PS-355- C 1 1.750 1-1/8 BLFLF 011124
SC-SC
PS-356V- C 1 1.750 1-1/8 VLFLF 011126
SC-SC
PS-185 C 11.875 1-1/4 BCFJF 008165
PS-185- C11.875 1-1/4 BLFLF 011128
SC-SC
PS-2208 C11.875 1-1/4 BZFZF 008166
PS-185V- C 1 1.875 1-1/4 VCFJF 008177
CMS
PS-185V- C 1 1.875 1-1/4 VCFLF 011131
SC-SEAT
PS-4150 C11.875 1-1/4 VLFLF 316SS 011130
PS-758 C12.125 1-1/2 BCFJF 006500
PS-758- C12.125 1-1/2 BCFLF 007024
SC-SEAT
PS-629-TC C 1 2.125 1-1/2 BCFZF 007024
PS-758- C 1 2.125 1-1/2 BLFLF 007023
SC-SC
PS-2209 C 1 2.125 1-1/2 BZFZF 007011
PS-758V- C 1 2.125 1-1/2 VCFJF 007027
CMS
*US Seal 2010 catalog w cover 9/14/10 3:00 PM Page 86
83
U.S. Seal Mating Mating Shaft Material
Part No. Head Ring Ring OD Dia. Code Notes Pump Nameplate Data Mfg. Part No.
PUMP MANUFACTURERS’ CROSS-REFERENCE
ZOELLER PUMP CO. (continued)
PS-758V- C 1 2.125 1-1/2 VCFLF 011133
SC-SEAT
PS-758V- C 1 2.125 1-1/2 VLFLF 011134
SC-SC
PS-659V- C 1 2.125 1-1/2 VZFZF 007026, 008180
TC-VS-TC
PS-446 C 1 2.500 1-3/4 BCFJF 008168
PS-446- C 1 2.500 1-3/4 BZFZF 008169
TC-TC
PS-340 C 1 2.625 1-7/8 BCFJF 007131
PS-340- C 1 2.625 1-7/8 BZFLF 011139
TC-SC
PS-340- C 1 2.625 1-7/8 BZFZF 007440
TC-TC
U.S. SEAL MFG. recommends using U.S. SEALUBE
as a lubricant when installing our seals.
Please call us for information on our
LUBE-PP (1cc Pillow Pak), LUBE-10ML (10ml Tube),
LUBE-4OZ (4 oz. Bottle), and LUBE-8OZ (8 oz. Bottle).
*US Seal 2010 catalog w cover 9/14/10 3:00 PM Page 87
84
SEAL HEAD MATING RING
Fig. OD Oper. Hgt. Fig. OD Thick.
DIMENSIONAL CROSS-REFERENCE BY SHAFT SIZE
.250 (1/4")
XSpecial .781 .398 1 .875 .140 QCFLF PS-8100
XSpecial .781 .482 1 .864 .140 QCFLF PS-8066
.312 (5/16")
A 1.062 .656 1 1.000 .312 BCFJF PS-4055
A 1.062 .656 1 1.000 .312 BMDJF PS-114
C .812 .812 3 .875 .312 VCFJF PS-1064V
.375 (3/8")
B1.125 .375 1 .875 .165 BMFJF PS-671
B 1.125 .375 1 .875 .165 VCFJF PS-671V-CMS
B 1.125 .375 1 1.000 .203 BMFJF PS-1615
C .812 .812 3 .875 .312 BCFJF PS-1065
C.812 .812 3 .875 .312 VCFJF PS-1065V
.437 (7/16")
C .875 .718 1 1.175 .240 VCFJF PS-3578V
C .875 .750 1 1.181 .285 BCFJF PS-1133
G.866 .769 1 1.181 .281 BCFJF PS-4060
G .866 .769 1 1.181 .281 QCFJF PS-4061
G .866 .769 1 1.181 .281 QCFJF PS-4062
G .866 .769 1 1.181 .281 VCFJF PS-4063
.472 (12MM)
G 22MM 15MM 1 23MM 6MM QCFLF PS-4225
G 22MM 15MM 1 26MM 5MM BLFLF PS-3000
.500 (1/2")
A 1.062 .656 — — — BMF-F PS-298
A 1.062 .656 1 1.000 .290 BMFKF PS-506
A 1.062 .656 1 1.000 .312 BMFJF PS-162
B 1.125 .547 — — — BCF-F PS-4218
B 1.125 .547 — — — BMF-F PS-150
B 1.125 .547 — — — BLF-F FA-4360
B1.125 .547 9 — .312 BMFKF A PS-164
B1.125 .547 1.875 .165 BMFJF PS-1098
B1.125 .547 9.906 .312 BMFJF A PS-165
B 1.125 .547 1 1.000 .218 BMFJF PS-142
B1.125 .547 1 1.000 .290 BMFKF PS-788
B 1.125 .547 1 1.000 .312 BMFJF PS-163
B1.125 .547 11.000 .312 VCFJF PS-163V
C——1.938 .225 B - - J - PS-400A
C.922 .605 Special 1.360 .300 BCFGF PS-2138
C.922 .750 1 1.000 .312 BCFKF PS-3583
C .937 .594 1 1.000 .187 BCFJF PS-4214
C.937 .611 1.938 .250 BCFJF PS-3561
C.937 .611 1 .938 .250 QCFLF PS-3563
C.937 .625 1 .938 .213 BCFJF PS-3844
C .937 .625 1 .938 .213 VCFJF PS-3715
C .937 .625 1 .938 .218 VCFJF PS-3843
C.937 .718 ———BMF-F PS-400
C.937 .718 — — — VCF-F PS-400V
C.937 .718 1 .938 .225 B/QCFJF I PS-392-P66
C.937 .718 1 .938 .225 B/QMFJF PS-392
C .937 .718 1 .938 .225 BMFKF PS-393
C.937 .718 1 .938 .225 V/QCFJF PS-392V
C.937 .718 1.938 .225 V/QCFJF I PS-392V-P66
C.937 .718 1 1.000 .218 BMFJF PS-1043
C .937 .718 1 1.062 .312 BCFJF PS-1120
NOTE:
A. MOUNTS ON SHAFT
I. ABRASION RESISTANT CARBON (P66)
Material U.S. Seal Mfg.
Code NOTES Part No.
*US Seal 2010 catalog w cover 9/14/10 3:00 PM Page 88
85
NOTE:
A. MOUNTS ON SHAFT
I. ABRASION RESISTANT CARBON (P66)
N. NON-STANDARD SPRING HOLDER
DIMENSIONAL CROSS-REFERENCE BY SHAFT SIZE
.500 (1/2") (continued)
C .937 .750 1 1.125 .237 BMFJF PS-7712
C .937 .812 — — — BCF-F PS-401
C .937 .812 — — — BCF-F I PS-401-P66
C.937 .812 — — — QCF-F PS-1050-EPR
C.937 .812 — — — BCF-F PS-1050
C .937 .812 — — — VCF-F PS-1050V
C .937 .812 1 .938 .225 BCFJF PS-401A
C.937 .812 1 .938 .225 BCFJF PS-1012
C.937 .812 1 .938 .225 QCFJF PS-1012-EPR
C .937 .812 1 .938 .225 VCFJF PS-1012V
C .937 .812 1 .938 .250 BCFKF PS-984
C .937 .812 1 1.000 .312 BCFJF N PS-631
C .937 .812 1 1.000 .312 BCFJF N PS-1002
C .937 .812 1 1.000 .312 BCFJF I/N PS-1002-P66
C .937 .812 1 1.000 .312 BCFKF N PS-106
C .937 .812 1 1.000 .312 BCFKF N PS-632
C .937 .812 1 1.000 .312 QCFJF N PS-1002-EPR
C .937 .812 1 1.000 .312 QCFKF N PS-106-EPR
C .937 .812 1 1.000 .312 VCFJF N PS-1002V
C .937 .812 1 1.000 .312 VCFKF N PS-106V
C .937 .812 3 1.000 .312 B/VCFJF PS-4045
C .937 .840 3 1.125 .265 BCFKF PS-6321
C .937 .840 3 1.125 .265 VCFKF PS-3735
E .937 1.140 Special 1.193 .656 BCPKF PS-7948
E .937 1.140 Special 1.193 .656 NCPKF PS-7948N
E .937 1.140 Special 1.193 .656 VCPKF PS-7948V
G .945 .591 1 .938 .294 QLFLF PS-4349
G .945 .591 1 1.000 .312 QCFLF PS-3004
G .945 .591 1 1.000 .312 QLFLF PS-3568
G .945 .656 3 1.000 .312 BCFJF PS-3003
G.945 .812 3 1.000 .312 VCFJF PS-3001
G .945 .812 3 1.000 .312 VCFJF 316SS PS-3002
Q 1.125 .390 1 .938 .225 BMFJF PS-749
Q 1.125 .390 1 1.000 .312 BMFJF PS-663
Q 1.139 .390 1 1.019 .208 BCFJF PS-6313
Q 1.125 .390 9 — .171 BMFJF A PS-1621
Q1.125 .390 9—.218 BMFJF A PS-4038
Q 1.125 .390 9 — .312 BMFJF A PS-1112
Q 1.125 .408 8 .906 .218 BCFKF PS-3033
Q1.125 .408 9 — .218 BMFJF A PS-1149
Q 1.125 .418 1 1.000 .187 BMFJF PS-1137
WSpecial .937 1.109 Special 1.193 .656 TCPKF PS-9320
X.875 .527 3 1.000 .312 BCFKF PS-3729
X1.031 .812 3 1.000 .312 VCFKF 316SS PS-3800
XSpecial .875 .527 3 1.000 .312 VCFGF PS-7727
Special 1.125 .344 Special .950 Special BMFJF Unitized PS-4064
.562 (9/16")
A1.218 .718 1 1.250 .406 VCFJF PS-1061
C 1.000 .808 3 1.031 .312 VCFKF PS-3542
C 1.062 .812 — — — BCF-F PS-928
.590 (15MM)
C 1.062 .875 1 1.250 .406 BCFKF I PS-3830
C1.062 .875 11.250 .406 VCFKF I PS-7520
D 1.312 .875 1 1.250 .406 BCFJF PS-129
SEAL HEAD MATING RING
Fig. OD Oper. Hgt. Fig. OD Thick.
Material U.S. Seal Mfg.
Code NOTES Part No.
*US Seal 2010 catalog w cover 9/14/10 3:00 PM Page 89
DIMENSIONAL CROSS-REFERENCE BY SHAFT SIZE
86 NOTE:
G. MOUNTS IN PLASTIC
I. ABRASION RESISTANT CARBON (P66)
.590 (15MM) (continued
D 1.312 .875 1 1.250 .406 BCFKF PS-1675
.625 (5/8")
A1.218 .718 — — — BCF-F PS-218
A 1.218 .718 — — — BMF-F PS-299
A 1.218 .718 1 — .562 BCFJF G PS-2172
A 1.218 .718 14 .815 .312 BMFKF PS-293
A1.218 .718 14 .815 .312 VCFKF PS-293V
A 1.218 .718 1 1.187 .288 BCFJF PS-680
A 1.218 .718 1 1.187 .288 BMFJF PS-702
A 1.218 .718 1 1.187 .288 BMFKF PS-701
A 1.218 .718 1 1.187 .288 QCFJF PS-702-EPR
A 1.218 .718 1 1.187 .288 VCFJF PS-702V
A 1.218 .718 1 1.187 .288 VCFKF PS-701V
A 1.218 .718 1 1.187 .296 BCFJF PS-4240
A 1.218 .718 1 1.187 .296 BCFKF PS-518
A 1.218 .718 1 1.187 .296 BLFLF PS-518-SC-SC
A 1.218 .718 1 1.187 .296 VCFLF PS-4284
A 1.218 .718 1 1.187 .343 BCFJF PS-957
A 1.218 .718 1 1.187 .343 BLFLF PS-100-SC-SC
A 1.218 .718 1 1.187 .343 BMFJF PS-100
A 1.218 .718 1 1.187 .343 BMFKF PS-1150
A 1.218 .718 1 1.187 .343 QCFJF PS-100-EPR
A 1.218 .718 1 1.187 .343 VCFJF PS-100V-CMS
A 1.218 .718 1 1.187 .343 VCFJF I PS-100V-CMS-P66
A 1.218 .718 1 1.187 .343 VLFLF
PS-100V-SC-SC-CMS
A 1.218 .718 3 1.187 .343 BMFJF PS-711
A 1.218 .718 3 1.187 .343 VCFJF PS-100V
A1.218 .718 1 Special 1.250 .125 VCFJF PS-4424
A 1.218 .718 1 1.250 .406 BCFJF PS-516
A 1.218 .718 1 1.250 .406 BCFKF PS-524
A 1.218 .718 1 1.250 .406 BLFLF PS-200-SC-SC
A 1.218 .718 1 1.250 .406 BLFZF PS-4355
A 1.218 .718 1 1.250 .406 BMFJF PS-200
A 1.218 .718 1 1.250 .406 BMFJF PS-300
A1.218 .718 1 1.250 .406 BMFKF PS-507
A 1.218 .718 1 1.250 .406 QCFJF PS-200-EPR
A 1.218 .718 1 1.250 .406 QCFKF PS-524-EPR
A1.218 .718 1 1.250 .406 VCFJF PS-200V-CMS
A 1.218 .718 1 1.250 .406 VCFJF I PS-200V-CMS-P66
A1.218 .718 1 1.250 .406 VCFKF PS-507V-CMS
A 1.218 .718 1 1.250 .406 VCFZF PS-2204
A 1.218 .718 1 1.250 .406 VLFLF PS-200V-SC-SC
A 1.218 .718 3 1.250 .406 BMFJF PS-637
A1.218 .718 31.250 .406 BMFKF PS-628
A1.218 .718 3 1.250 .406 VCFJF PS-200V
A 1.218 .718 3 1.250 .406 VCFJF PS-300V
A 1.218 .718 3 1.250 .406 VCFKF PS-507V
A 1.218 .718 3 1.250 .406 VCFKF I PS-507V-P66
A1.218 .718 3 1.250 .406 VCFLF PS-200V-SC-SEAT
A 1.218 .718 31 1.250 — BMJFJ G PS-2131
A 1.218 .718 31 1.250 — VCFJF G PS-2131V
A 1.218 .718 1 1.375 .562 BMFJF PS-528
A1.218 .718 11.375 .562 VCFJF PS-528V
A1.218 .734 11.187 .296 VLFLF PS-3977
SEAL HEAD MATING RING
Fig. OD Oper. Hgt. Fig. OD Thick.
Material U.S. Seal Mfg.
Code NOTES Part No.
*US Seal 2010 catalog w cover 9/14/10 3:00 PM Page 90
NOTE: 87
A. MOUNTS ON SHAFT
I. ABRASION RESISTANT CARBON (P66)
DIMENSIONAL CROSS-REFERENCE BY SHAFT SIZE
.625 (5/8") (continued)
A 1.218 .811 1 1.187 .288 BCFKF PS-955
A 1.218 .811 1 1.187 .343 BCFJF PS-953
A 1.218 .811 1 1.187 .343 BMFJF PS-166
A 1.218 .811 1 1.250 .406 BCFJF PS-952
A1.218 .811 1 1.250 .406 BCFJF I PS-952-P66
A 1.218 .811 1 1.250 .406 BCFKF PS-954
A1.218 .811 1 1.250 .406 BMFJF PS-501
A 1.218 .811 1 1.250 .406 BMFKF PS-153
A 1.218 .811 1 1.250 .406 VCFJF PS-501V-CMS
A1.218 .811 1 1.250 .406 VCFJF PS-3864
A1.218 .811 1 1.250 .406 VCFJF I PS-4371
A 1.218 .811 1 1.250 .406 VCFKF PS-153V-CMS
A 1.218 .811 1 1.250 .406 VCFKF I PS-3816
A1.218 .811 1 1.250 .406 VLFLF 316SS PS-1903
A 1.218 .811 3 1.250 .406 VCFJF PS-501V
A1.218 .811 3 1.250 .406 VCFKF PS-153V
A 1.218 .843 1 1.250 .406 VCFKF PS-954V-CMS
B 1.437 .603 1 1.250 .406 VLFLF PS-3741
B 1.437 .615 — — — BCF-F PS-882
B 1.437 .615 — — — BMF-F PS-642
B 1.437 .615 8 — .215 BCFJF A PS-447
B 1.437 .615 8 — .215 BCFKF A PS-453
B 1.437 .615 8 — .215 BMFJF A PS-1021
B 1.437 .615 8 — .215 QCFJF A/I PS-447-EPR
B 1.437 .615 8 — .215 VCFJF A PS-447V
B 1.437 .615 8 — .215 VCFJF A/I PS-447V-P66
B 1.437 .615 8 — .215 VCFKF A PS-453V
B 1.437 .615 8 — .215 VLFSF PS-4248V
B 1.437 .615 9 — .312 BMFJF A PS-452
B 1.437 .615 11 — .375 BMFJF A PS-202
B 1.437 .615 11 — .375 VCFJF A PS-202V
B 1.437 .615 11 — .487 BMFJF A PS-411
B 1.437 .615 11 — .487 VCFJF A PS-411V
B 1.437 .615 9 1.062 .520 VCFKF 316SS PS-3926
B 1.437 .615 1 1.093 .218 BMFJF PS-113
B 1.437 .615 1 1.093 .218 V/BCFJF PS-1089
B 1.437 .615 8 1.109 .213 Special PS-4114
B 1.437 .615 1 1.187 .288 BCFKF PS-522
B 1.437 .615 1 1.187 .288 BMFJF PS-700
B 1.437 .615 1 1.187 .288 BMFKF PS-616
B 1.437 .615 3 1.187 .288 BMFJF PS-716
B 1.437 .615 1 1.187 .343 BCFJF PS-963
B 1.437 .615 1 1.187 .343 BMFJF PS-600
B 1.437 .615 1 1.187 .343 VCFJF PS-600V-CMS
B 1.437 .615 3 1.187 .343 BMFJF PS-717
B 1.437 .615 3 1.187 .343 VCFJF PS-600V
B 1.437 .615 1 1.250 .125 VLFLF PS-7929
B 1.437 .615 1 1.250 .406 BCFJF PS-961
B 1.437 .615 1 1.250 .406 BCFKF PS-964
B 1.437 .615 1 1.250 .406 BMFJF PS-1000
B 1.437 .615 1 1.250 .406 BMFKF PS-1152
B 1.437 .615 1 1.250 .406 VCFJF PS-1000V-CMS
B 1.437 .615 1 1.250 .406 VCFJF PS-3865
B 1.437 .615 1 1.250 .406 VLFLF 316SS PS-1905
SEAL HEAD MATING RING
Fig. OD Oper. Hgt. Fig. OD Thick.
Material U.S. Seal Mfg.
Code NOTES Part No.
*US Seal 2010 catalog w cover 9/14/10 3:00 PM Page 91
DIMENSIONAL CROSS-REFERENCE BY SHAFT SIZE
.625 (5/8") (continued)
B 1.437 .615 3 1.250 .406 BMFJF PS-715
B 1.437 .615 3 1.250 .406 BMFKF PS-712
B1.437 .615 3 1.250 .406 VCFJF PS-1000V
B 1.437 .615 1 1.375 .288 BMFJF PS-151
B 1.437 .615 1 1.375 .406 BMFJF PS-2161
B 1.437 .615 1 1.375 .406 BMFKF PS-1005A
B 1.440 .425 Special 1.030 — BMFSF PS-4403
B 1.637 .753 8 1.299 .213 BMFJF PS-3845
C1.046 .859/.734 1 1.187 .296 QCFLF 316SS/H PS-4222
C 1.046 .859 1 1.187 .296 QLFLF 316SS/H PS-3707
C 1.046 .859 1 1.187 .296 VCFLF PS-4031
C 1.046 .859 1 1.187 .296 VLFLF PS-3613
C 1.046 .859 1 1.187 .296 VLFLF 316SS/H PS-4226
C 1.046 .859 25 1.042 .312 VLFLF PS-4310
C 1.062 .609 1 1.250 .406 BCFJF PS-6234
C 1.062 .609 1 1.250 .406 VCFKF PS-1626-CMS
C 1.062 .609 3 1.250 .406 BCFKF PS-1625
C 1.062 .609 3 1.250 .406 QCFKF PS-1625-EPR
C 1.062 .609 3 1.250 .406 VCFKF PS-1626
C 1.062 .715 1 1.187 .343 VCFJF PS-1091
C 1.062 .718 3 1.187 .281 VCFJF 316SS PS-4346
C 1.062 .718 1 1.250 .406 BCFJF PS-2160
C 1.062 .718 1 1.250 .406 BCFJF I PS-7524
C 1.062 .718 1 1.250 .406 VCFJF I PS-7524V
C 1.062 .718 3 1.250 .406 VCFJF PS-1045
C 1.062 .718 3 Special 1.500 .406 VCFGF PS-4313
C 1.062 .765 1 1.187 .288 N/BCFJF B PS-989
C 1.062 .765 1 1.187 .343 N/BCFJF B PS-1016
C 1.062 .765 1 1.250 .406 N/BCFJF B PS-810
C 1.062 .765 1 1.250 .406 VCFJF B PS-810V-CMS
C 1.062 .812 3 1.250 .406 QCFKF PS-2206
C 1.062 .812 3 1.250 .406 VCFZF I PS-4402
C 1.062 .843 20 Plate .375 NCPGP PS-181
C 1.062 .875 — — — BCF-F PS-933
C 1.062 .875 — — — BCF-F I PS-933-P66
C1.062 .875 ———VCF-F PS-933V
C 1.062 .875 1 1.187 .288 BCFJF PS-1155
C 1.062 .875 1 1.187 .288 BCFKF PS-493
C1.062 .875 1 1.187 .288 VCFJF PS-1155V
C 1.062 .875 1 1.187 .288 VCFKF PS-493V
C 1.062 .875 1 1.187 .288 VCFZF
PS-1155V-TC-SEAT
C 1.062 .875 1 1.187 .296 BCFLF PS-3747
C1.062 .875 11.187 .296 QCFJF PS-2214
C 1.062 .875 1 1.187 .343 BCFJF PS-118
C1.062 .875 11.187 .343 BCFKF PS-1154
C 1.062 .875 1 1.187 .343 VCFJF PS-118V-CMS
C 1.062 .875 1 1.187 .343 VCFJF I PS-118V-CMS-P66
C1.062 .875 3 1.187 .343 BCFJF PS-536
C1.062 .875 3 1.187 .343 VCFJF PS-118V
C 1.062 .875 3 1.250 .312 VCFKF PS-4442
C 1.062 .875 3 1.250 .375 QCFKF I PS-3525
C1.062 .875 1 1.250 .406 BCFJF PS-290
C 1.062 .875 1 1.250 .406 BCFJF PS-359
C1.062 .875 11.250 .406 BCFJF I PS-290-P66
NOTE:
88
B. TAPERED SPRING
H. SPRING HOLDER NOT INCLUDED
I. ABRASION RESISTANT CARBON (P66)
SEAL HEAD MATING RING
Fig. OD Oper. Hgt. Fig. OD Thick.
Material U.S. Seal Mfg.
Code NOTES Part No.
*US Seal 2010 catalog w cover 9/14/10 3:00 PM Page 92
NOTE: 89
B. TAPERED SPRING
H. SPRING HOLDER NOT INCLUDED
I. ABRASION RESISTANT CARBON (P66)
DIMENSIONAL CROSS-REFERENCE BY SHAFT SIZE
.625 (5/8") (continued)
C 1.062 .875 1 1.250 .406 BCFJF I PS-359-P66
C 1.062 .875 1 1.250 .406 BCFJF 316SS PS-4272
C 1.062 .875 1 1.250 .406 BCFKF PS-633
C1.062 .875 1 1.250 .406 BCFKF PS-1156
C 1.062 .875 1 1.250 .406 BLFLF PS-552-SC-SC
C 1.062 .875 1 1.250 .406 BZFZF PS-633-TC-TC
C 1.062 .875 1 1.250 .406 NCFJF PS-1079
C 1.062 .875 1 1.250 .406 NCFKF PS-1080
C1.062 .875 1 1.250 .406 QCFJF PS-359-EPR-CMS
C 1.062 .875 1 1.250 .406 QCFJF I PS-359-EPR-P66
C 1.062 .875 1 1.250 .406 QCFKF PS-633-EPR-CMS
C 1.062 .875 1 1.250 .406 QCFZF I
PS-359-EPR-P66-TC
C 1.062 .875 1 1.250 .406 QLFLF
PS-290-EPR-SC-SC
C 1.062 .875 1 1.250 .406 VCFJF PS-290V
C 1.062 .875 1 1.250 .406 VCFJF I PS-290V-P66
C 1.062 .875 1 1.250 .406 VCFJF PS-359V-CMS
C 1.062 .875 1 1.250 .406 VCFJF I PS-359V-CMS-P66
C 1.062 .875 1 1.250 .406 VCFKF PS-633V-CMS
C 1.062 .875 1 1.250 .406 VCFLF PS-359V-SC-CMS
C 1.062 .875 1 1.250 .406 VLFLF PS-7547
C 1.062 .875 1 1.250 .406 VZFZF PS-6216
C 1.062 .875 3 1.250 .406 BCFJF PS-552
C 1.062 .875 3 1.250 .406 BCFKF PS-732
C 1.062 .875 3 1.250 .406 QCFJF PS-552-EPR
C 1.062 .875 3 1.250 .406 QCFJF I PS-552-EPR-P66
C 1.062 .875 3 1.250 .406 QCFKF PS-732-EPR
C 1.062 .875 3 1.250 .406 QCFKF I PS-732-EPR-P66
C 1.062 .875 3 1.250 .406 VCFJF PS-359V
C 1.062 .875 3 1.250 .406 VCFJF I PS-359V-P66
C 1.062 .875 3 1.250 .406 VCFKF PS-633V
C 1.062 .875 3 1.250 .406 VCFKF PS-1156V
C1.062 .875 3 1.250 .406 VCFKF I PS-633V-P66
C1.062 .875 31.250 .406 VCFZF PS-633V-TC-SEAT
C 1.062 .875 3 1.250 .406 VZFLF PS-633V-TC-SC
C 1.062 .875 1 1.375 .406 BCFJF PS-3791
C 1.062 .875 3 1.375 .406 QCFKF PS-951-EPR
C 1.062 .875 3 1.375 .406 VCFKF PS-951
C 1.062 .875 3 1.437 .312 QCFJF I PS-3723
C 1.062 .875 3 1.437 .312 QCFKF I PS-3981
C1.062 .875 31.437 .312 VCFKF I PS-7872
C 1.062 .968/1.093 1 1.250 .406 BCFJF PS-1119
C 1.062 .968/1.093 1 1.250 .406 VCFJF PS-1119V
C1.062 1.187 1 1.156 .312 BMFJF H PS-800
C1.062 1.187 11.156 .312 V/BMFJF H PS-800V
C 1.093 .718 1 1.250 .406 QCFKF I PS-4356
C 1.093 .718 1 1.250 .406 QCFKF I PS-7689
C 1.187 .875 1 1.375 .406 VCFJF PS-626
C 1.312 .875 1 1.250 .406 VRFRF PS-3550
C1.312 .937 1 1.250 .406 BCFJF B PS-1618
C1.312 .937 11.250 .406 V/BCFJF B PS-1085
C1.312 .937 11.250 .406 VCFJF B PS-1085V
C 1.312 .937 3 1.250 .406 BCFKF B PS-2149
D 1.312 .875 — — — BCD-F PS-109
D 1.312 .875 1 1.187 .288 BCDJF PS-531
SEAL HEAD MATING RING
Fig. OD Oper. Hgt. Fig. OD Thick.
Material U.S. Seal Mfg.
Code NOTES Part No.
*US Seal 2010 catalog w cover 9/14/10 3:00 PM Page 93
DIMENSIONAL CROSS-REFERENCE BY SHAFT SIZE
.625 (5/8") (continued)
D1.312 .875 1 1.187 .288 BCDKF PS-226
D 1.312 .875 1 1.187 .288 BCFKF PS-2007
D 1.312 .875 1 1.187 .343 BCDKF PS-263
D 1.312 .875 1 1.187 .343 BCFJF PS-2004
D 1.312 .875 1 1.187 .343 VCFKF PS-263V
D 1.312 .875 3 1.187 .343 BCDJF PS-737
D 1.312 .875 1 1.250 .406 BCDJF PS-508
D 1.312 .875 1 1.250 .406 BCDKF PS-102
D1.312 .875 1 1.250 .406 BCFJF PS-2000
D1.312 .875 1 1.250 .406 VCDJF PS-508V-CMS
D 1.312 .875 1 1.250 .406 VCDJF I PS-508V-P66-CMS
D 1.312 .875 3 1.250 .406 BCDJF PS-735
D 1.312 .875 3 1.250 .406 BCDKF PS-734
D 1.312 .875 3 1.250 .406 BCFJF PS-2002
D 1.312 .875 3 1.250 .406 VCDJF PS-508V
D 1.312 .875 3 1.250 .406 VCDKF PS-102V
D 1.375 .875 3 1.250 .406 VCFVZ PS-4375
E 1.093 1.312 1 1.187 .288 BCDJF PS-740
E 1.093 1.312 1 1.187 .288 BCDKF PS-486
E 1.093 1.312 3 1.187 .288 BCDJF PS-748
E 1.093 1.312 1 1.187 .343 BCDJF PS-485
E 1.093 1.312 1 1.187 .343 BCFJF PS-2020
E 1.093 1.312 1 1.187 .343 BCFKF PS-2021
E 1.093 1.312 3 1.187 .343 BCFJF PS-2022
E 1.093 1.312 3 1.187 .343 BCFKF PS-2023
E 1.093 1.312 2 1.250 .343 BCDKF PS-1158
E 1.093 1.312 1 1.250 .406 BCDJF PS-274
E 1.093 1.312 1 1.250 .406 BCDKF PS-487
E 1.093 1.312 1 1.250 .406 BCFJF PS-2016
E 1.093 1.312 1 1.250 .406 BCFKF PS-2017
E1.093 1.312 3 1.250 .406 BCDJF PS-739
E 1.093 1.312 3 1.250 .406 BCDV/KF PS-738
E 1.093 1.312 3 1.250 .406 BCFKF PS-2015
E 1.093 1.312 3 1.250 .406 VCDJF PS-274V
G 1.024 .718 1 1.187 .296 QLFLF PS-6267
G 1.024 .718 1 1.187 .343 BCFJF PS-4267
G1.024 .718 1 1.187 .343 VCFJF PS-3866
G 1.024 .718 1 1.187 .343 VLFLF 316SS PS-1900
G 1.024 .718 1 1.187 .343 VLFLF 316SS PS-4165
G1.024 .718 11.250 .406 BCFJF PS-3006
G 1.024 .718 1 1.250 .406 BCFJF PS-3960
G1.024 .718 1 1.250 .406 QCFJF PS-3586
G1.024 .718 1 1.250 .406 VCFJF PS-3867
G 1.024 .718 1 1.250 .406 VCFJF G PS-3869
G 1.024 .718 1 1.250 .406 VLFLF PS-4155
G 1.024 .718 1 1.250 .406 VLFLF PS-4390
G 1.024 .718 1 1.250 .406 VLFLF 316SS PS-1901
G 1.024 .718 3 1.250 .406 VCFLF PS-4059
G 1.024 .718 3 1.250 .406 VLFLF 316SS PS-3005
G 1.024 .718 31 1.250 — BCFJF G PS-4275
G 1.024 .718 31 1.250 — VLFLF 316SS/G PS-1906
G1.024 .718 11.381 .406 VCFJF PS-4280
G 1.024/1.260 .718 1 1.371/1.375 .406 VCFJF PS-4231
G1.024 .734 11.381 .406 BCFJF PS-3890
90 NOTE:
G. MOUNTS IN PLASTIC
I. ABRASION RESISTANT CARBON (P66)
SEAL HEAD MATING RING
Fig. OD Oper. Hgt. Fig. OD Thick.
Material U.S. Seal Mfg.
Code NOTES Part No.
*US Seal 2010 catalog w cover 9/14/10 3:00 PM Page 94
NOTE: 91
A. MOUNTS ON SHAFT
DIMENSIONAL CROSS-REFERENCE BY SHAFT SIZE
.625 (5/8") (continued)
G 1.024 .734 1 1.381 .406 VCFLF 316SS PS-1907
G 1.024 .875 1 1.250 .406 VCFJF PS-4220
K 1.047 1.030 1 1.178 .156 VCFJF PS-3885
K 1.062 1.187 — — — BCF-F PS-678
S 1.312 1.395 8 1.187 .125 NAPSP PS-795
W 1.187 .750 2 1.250 .406 TLFLF 316SS PS-9155
W 1.187 .750 2 1.250 .531 TCFKF PS-9321
W1.187 .750 3 1.312 .406 HRFRF 316SS PS-9309
WSpecial 1.437 622 2 1.250 .390 TCFJF PS-3962
WT 1.082 .937 28 1.490 .625 TCFOF PS-9322
XA 1.400 .615 9 1.062 .520 YCFKF PS-8104
Special 1.251 .718 1 1.250 .406 QC-J- PS-5625
Special 1.440 .760 Special 1.110 Special BMFJF Unitized PS-4065
.687 (11/16")
Q 1.593 .433 9 1.250 .156 Special A PS-6308
.750 (3/4")
A 1.343 .718 — — — BCF-F PS-974
A 1.343 .718 — — — BMF-F PS-1522
A 1.343 .718 1 1.375 .281 BCFJF PS-764
A 1.343 .718 1 1.375 .281 BMFJF PS-301
A 1.343 .718 1 1.375 .406 BCFJF PS-851
A 1.343 .718 1 1.375 .406 BCFKF PS-973
A 1.343 .718 1 1.375 .406 BMFJF PS-201
A 1.343 .718 1 1.375 .406 BMFKF PS-921
A 1.343 .718 1 1.375 .406 VCFJF PS-201V-CMS
A 1.343 .718 1 1.375 .406 VLFLF PS-1908
A 1.343 .718 1 1.375/1.750 .406 BCFJF PS-2136
A 1.343 .718 3 1.375 .406 VCFJF PS-201V
A 1.343 .718 3 1.375 .406 BMFJF PS-760
A 1.343 .718 3 1.375 .406 BMFKF PS-762
A1.343 .718 11.437 .406 BCFJF PS-968
A 1.343 .718 1 1.437 .406 BMFJF PS-101
A 1.343 .718 1 1.437 .406 VCFJF PS-101V
A 1.343 .718 1 1.500 .250 BMFJF PS-1525
B 1.575 .615 — — — BMF-F PS-647
B 1.575 .615 9 — .312 BMFJF A PS-1622
B1.575 .615 9 — .312 BMFKF A PS-902
B 1.575 .615 9 — .312 VMFJF A PS-1622V
B 1.575 .615 9 — .375 BMFKF A PS-441
B 1.575 .615 11 — .437 BMFJF A PS-440
B 1.575 .615 9 1.312 .312 BLFLF PS-4048
B 1.575 .615 1 1.375 .406 BCFJF PS-3985
B 1.575 .615 1 1.375 .406 BMFJF PS-601
B1.575 .615 1 1.375 .406 BMFKF PS-606
B 1.575 .615 1 1.375 .406 QCFJF PS-4056
B 1.575 .615 1 1.375 .406 VCFJF PS-3986
B1.575 .615 1 1.375 .406 VCFJF PS-601V-CMS
B 1.575 .615 1 1.375 .406 VLFLF 316SS PS-1904
B 1.575 .615 3 1.375 .406 BMDKF PS-766
B 1.575 .615 3 1.375 .406 BMFJF PS-765
B1.575 .615 31.375 .406 VCFJF PS-601V
B 1.575 .615 11 1.375 .406 BCFJF PS-7618
C 1.062 .875 3 1.062 .406 VCFKF PS-7635
SEAL HEAD MATING RING
Fig. OD Oper. Hgt. Fig. OD Thick.
Material U.S. Seal Mfg.
Code NOTES Part No.
*US Seal 2010 catalog w cover 9/14/10 3:00 PM Page 95
DIMENSIONAL CROSS-REFERENCE BY SHAFT SIZE
.750 (3/4") (continued)
C 1.171 .875 1 1.375 .406 VCFJF PS-7843
C 1.187 .656 2 1.562 .312 VCFKF PS-5108
C 1.187 .718 1 1.375 .281 BCFJF PS-944
C 1.187 .718 1 1.375 .281 QCFJF PS-944-EPR
C1.187 .718 1 1.375 .281 VCFJF PS-944V
C 1.187 .718 1 1.375 .406 BCFJF PS-877
C1.187 .718 1 1.375 .406 BCFJF PS-1125
C 1.187 .718 1 1.375 .406 BCFJF I PS-1125-P66
C1.187 .718 1 1.375 .406 BCFKF PS-1113
C 1.187 .718 1 1.375 .406 BCFKF PS-3654
C 1.187 .718 1 1.375 .406 BLFLF PS-1125-SC-SC
C 1.187 .718 1 1.375 .406 QCFJF PS-1125-EPR
C 1.187 .718 1 1.375 .406 VCFJF PS-877V
C 1.187 .718 1 1.375 .406 VCFJF PS-1093
C1.187 .718 1 1.375 .406 VCFKF PS-1092
C 1.187 .718 1 1.375 .406 VZFZF PS-1092-TC-TC
C 1.187 .718 3 1.375 .406 BCFJF PS-2236
C 1.187 .718 3 1.375 .406 QCFJF PS-4229
C 1.187 .718 3 1.375 .406 QCFZF PS-4229-TC-SEAT
C 1.187 .718 3 1.375 .406 VCFJF PS-2235
C 1.187 .718 3 1.375 .406 VCFKF PS-4285
C 1.187 .718 3 1.375 .406 VLFZF PS-2235-SC-TC
C 1.187 .718 1 1.437 .406 BCFJF PS-7514
C 1.187 .843 1 1.375 .406 BCFJF B PS-128
C 1.187 .843 3 1.375 .406 VCFJF B PS-128V
C 1.187 .875 — — — BCF-F PS-157
C 1.187 .875 1 1.312 .406 BCFJF PS-1514
C 1.187 .875 1 1.312 .406 VCFJF PS-1514V
C 1.187 .875 1 1.375 .281 BCFJF PS-1510
C 1.187 .875 1 1.375 .281 VCFJF PS-1510V
C 1.187 .875 1 1.375 .406 BCFJF PS-358
C 1.187 .875 1 1.375 .406 BCFJF I PS-358-P66
C 1.187 .875 1 1.375 .406 BCFKF PS-112
C 1.187 .875 1 1.375 .406 BCFKF PS-1160
C 1.187 .875 1 1.375 .406 BCFKF PS-2229
C1.187 .875 11.375 .406 QCFJF PS-358-EPR
C1.187 .875 11.375 .406 QCFKF PS-112-EPR
C1.187 .875 11.375 .406 VCFJF PS-358V-CMS
C 1.187 .875 1 1.375 .406 VCFJF I PS-358V-CMS-P66
C 1.187 .875 1 1.375 .406 VCFKF PS-112V-CMS
C 1.187 .875 1 1.375 .406 VCFKF I PS-2229V-P66
C 1.187 .875 1 1.375 .406 VCFZF PS-358V-TC-CMS
C 1.187 .875 1 1.375 .406 VLFLF PS-358V-SC-SC
C1.187 .875 1 1.375 .406 VLFLF 316SS PS-7305
C1.187 .875 1 1.375 .406 VZFZF PS-358V-TC-TC
C1.187 .875 3 1.375 .406 BCFJF PS-767
C1.187 .875 3 1.375 .406 BCFJF PS-3916
C 1.187 .875 3 1.375 .406 BCFKF PS-768
C 1.187 .875 3 1.375 .406 VCFJF PS-358V
C 1.187 .875 3 1.375 .406 VCFJF I PS-358V-P66
C 1.187 .875 3 1.375 .406 VCFKF PS-112V
C 1.187 .875 1 1.437 .406 BCFJF PS-7277
C1.187 .875 11.500 .250 BCFJF PS-683
C1.187 .906 20 Plate Plate NCPGP PS-182
NOTE:
92
B. TAPERED SPRING
I. ABRASION RESISTANT CARBON (P66)
SEAL HEAD MATING RING
Fig. OD Oper. Hgt. Fig. OD Thick.
Material U.S. Seal Mfg.
Code NOTES Part No.
*US Seal 2010 catalog w cover 9/14/10 3:00 PM Page 96
NOTE: 93
G. MOUNTS IN PLASTIC
I. ABRASION RESISTANT CARBON (P66)
DIMENSIONAL CROSS-REFERENCE BY SHAFT SIZE
.750 (3/4") (continued)
C1.187 .920 1 1.375 .406 BCFJF PS-1754
C 1.187 1.187 1 1.375 .406 BLFLF PS-3922
C 1.187 1.312 — — — BCF-F PS-564
C 1.187 1.312 1 1.375 .406 BCFJF PS-275
C 1.187 1.312 1 1.375 .406 BCFKF PS-373
C1.187 1.312 1 1.375 .406 QCFJF PS-275-EPR
C 1.187 1.312 1 1.375 .406 VCFKF PS-373V
C1.187 1.312 3 1.375 .406 BCFJF PS-771
C 1.187 1.312 3 1.375 .406 BCFKF PS-773
C1.187 1.312 3 1.375 .406 VCFJF PS-275V
D1.437 .875 — — — BCD-F PS-399
D 1.437 .875 1 1.275 .281 BCDJF PS-437
D 1.437 .875 1 1.275 .281 BCDJF I PS-437-P66
D 1.437 .875 1 1.275 .281 VCDJF PS-437V
D1.437 .875 1 1.275 .281 VCDJF I PS-437V-P66
D1.437 .875 1 1.275 .281 VLDLF PS-437V-SC-SC
D 1.437 .875 1 1.375 .281 BCDJF PS-1162
D 1.437 .875 1 1.375 .406 BCDJF PS-750
D 1.437 .875 1 1.375 .406 BCDKF PS-752
D 1.437 .875 1 1.375 .406 QCDJF PS-750-EPR
D 1.437 .875 1 1.375 .406 BCFJF PS-2008
D 1.437 .875 1 1.375 .406 BCFKF PS-2009
D 1.437 .875 1 1.375 .406 VCDJF PS-750V-CMS
D 1.437 .875 3 1.375 .406 BCDKF PS-265
D 1.437 .875 3 1.375 .406 BCFJF PS-2010
D 1.437 .875 3 1.375 .406 VCDJF PS-750V
D 1.437 .875 3 1.375 .406 VCDKF PS-752V
D 1.437 .875 1 1.437 .406 BCDJF PS-1161
D1.437 1.000 1 1.437 .406 BCDKF PS-1026
D1.500 .687 31.375 .250 BCPKF PS-7087
D1.500 .687 3 1.375 .250 NCPKF PS-7613
D1.500 .687 3 1.375 .250 VCPKF PS-7613V
E1.218 1.250 31.187 .406 VCFKF PS-7994
E1.218 1.250 31.375 .406 V/BCFJF PS-2014
E1.218 1.375 31.187 .406 VCPKP PS-7960
G1.260 .718 1 1.375 .406 BCFJF PS-4265
G 1.260 .718 1 1.375 .406 VCFJF PS-3868
G1.260 .718 1 1.375 .406 VLFLF 316SS PS-1902
G1.260 .718 32 1.375/1.750 .406 VCFJF G PS-3870
G1.260 .718 32 1.375/1.750 .406 BCFJF G PS-4274
G1.260 .875 11.275 .281 QLFLF PS-4024
G1.535 .787 31.375 .406 VCFJF PS-3788
K1.187 1.187 ———BCF-F PS-145
K 1.187 1.187 1 1.375/1.500 .281/.250 BCFJF PS-175
K 1.187 1.187 1 1.375 .406 BCFJF PS-1604
S 1.625 1.953 Special 1.500 .250 NAPSP PS-792
W1.312 .875 2 1.375 .375 TCFKF 316SS PS-3935
W1.312 .875 2 1.375 .375 TCFKF 316SS PS-9324
W1.312 .875 21.375 .406 TCFJF 316SS PS-9339
WSpecial 1.500 .875 21.375 .312 TCFOF 316SS PS-9325
WSpecial 1.500 .875 21.375 .343 TCFKF 316SS PS-9323
X1.312 .875 31.375 .406 BLFLF 316SS PS-8064
XSpecial 1.312 .875 5 1.375 .406 QCFZF 316SS PS-8101
Special 1.575 .437 Special 1.334 Special BLFLF Unitized PS-4066
SEAL HEAD MATING RING
Fig. OD Oper. Hgt. Fig. OD Thick.
Material U.S. Seal Mfg.
Code NOTES Part No.
*US Seal 2010 catalog w cover 9/14/10 3:00 PM Page 97
DIMENSIONAL CROSS-REFERENCE BY SHAFT SIZE
NOTE:
94
I. ABRASION RESISTANT CARBON (P66)
.787 (20MM)
C1.375 .781 1 1.500 .406 BCFJF PS-4042
D 1.562 .937 1 1.500 .406 BCDJF PS-135
D 1.562 .937 1 1.500 .406 BCDKF PS-614
D 1.562 .937 3 1.500 .406 VCFKF PS-614V
.875 (7/8")
C 1.312 .718 3 1.437 .265 QCFLF I PS-3678
C1.312 .718 3 1.437 .265 VCFKF I PS-4017
C 1.312 .718 1 1.500 .406 BCFJF PS-3907
C 1.312 .812 1 1.437 .265 BCFJF PS-2167
C 1.312 .812 1 1.437 .265 QCFJF I PS-2167-EPR-P66
C 1.312 .812 1 1.437 .265 QCFJF I PS-3826
C 1.312 .812 3 1.437 .265 BCFKF PS-2169
C 1.312 .812 3 1.437 .265 QCFKF I PS-2224
C 1.312 .812 3 1.437 .265 VCFKF PS-2169V
C 1.312 .812 1 1.500 .218 BCFJF PS-3749
C 1.312 .812 1 1.500 .406 BCFJF PS-7130
C 1.312 .843 1 1.500 .406 BCFZF PS-3970
C 1.312 .875
3Special
1.500 .468 VCFGF PS-3893
C 1.312 .919 1 1.500 .406 VCFLF PS-3996
C 1.312 .937 — — — BCF-F PS-208
C 1.312 .937 — — — VCF-F PS-208V
C 1.312 .937 — — — VCF-F I PS-208V-P66
C 1.312 .937 1 1.437 .265 BCFJF PS-2166
C 1.312 .937 1 1.437 .265 QCFJF PS-2166-EPR
C 1.312 .937 1 1.437 .265 VCFJF PS-2166V
C 1.312 .937 3 1.437 .265 BCFKF PS-2168
C 1.312 .937 1 1.500 .406 BCELE PS-4395
C 1.312 .937 1 1.500 .406 BCFJF PS-309
C 1.312 .937 1 1.500 .406 BCFKF PS-687
C 1.312 .937 1 1.500 .406 BLFLF
PS-309-SC-SC-CMS
C1.312 .937 1 1.500 .406 BZFZF
PS-309-TC-TC-CMS
C 1.312 .937 1 1.500 .406 VCFJF PS-309V-CMS
C 1.312 .937 1 1.500 .406 VCFJF I PS-309V-P66-CMS
C1.312 .937 1 1.500 .406 VCFKF PS-687V-CMS
C 1.312 .937 1 1.500 .406 VCFZF PS-309V-TC-CMS
C1.312 .937 1 1.500 .406 VLFLF PS-3941
C 1.312 .937 3 1.500 .406 BCFJF PS-774
C 1.312 .937 3 1.500 .406 BCFKF PS-617
C 1.312 .937 3 1.500 .406 VCFJF PS-309V
C1.312 .937 31.500 .406 VCFJF I PS-309V-P66
C 1.312 .937 3 1.500 .406 VCFKF PS-687V
C 1.312 .937 3 1.500 .406 VLFLF PS-309V-SC-SC
C1.312 .937 1 1.562 .406 BCFJF PS-1163
C 1.312 .937 1 1.562 .406 BCFKF PS-294
D1.562 .937 — — — BCD-F PS-578
D 1.562 .937 1 1.437 .265 BCDJF PS-790
D 1.562 .937 3 1.437 .265 BCDKF PS-1681
D 1.562 .937 3 1.437 .265 VCDKF PS-1681V
D1.562 .937 11.500 .406 BCDJF PS-703
D1.562 .937 1 1.500 .406 BCDJF I PS-703-P66
D 1.562 .937 1 1.500 .406 BCDKF PS-303
D 1.562 .937 1 1.500 .406 BCFJF PS-2024
D 1.562 .937 1 1.500 .406 VCDKF PS-303V-CMS
D1.562 .937 1 1.500 .406 VCFJF PS-703V-CMS
SEAL HEAD MATING RING
Fig. OD Oper. Hgt. Fig. OD Thick.
Material U.S. Seal Mfg.
Code NOTES Part No.
*US Seal 2010 catalog w cover 9/14/10 3:00 PM Page 98
NOTE: 95
H. SPRING HOLDER NOT INCLUDED
I. ABRASION RESISTANT CARBON (P66)
DIMENSIONAL CROSS-REFERENCE BY SHAFT SIZE
SEAL HEAD MATING RING
Fig. OD Oper. Hgt. Fig. OD Thick.
Material U.S. Seal Mfg.
Code NOTES Part No.
.875 (7/8") (continued)
D1.562 .937 3 1.500 .406 BCDJF PS-775
D 1.562 .937 3 1.500 .406 BCDKF PS-250
D 1.562 .937 3 1.500 .406 BCDZF I PS-4307
D 1.562 .937 3 1.500 .406 BCFJF PS-2026
D1.562 .937 3 1.500 .406 BCFKF PS-2027
D1.562 .937 3 1.500 .406 NCFLF PS-4318
D 1.562 .937 3 1.500 .406 QCFZF
PS-2027-EPR-TC-SEAT
D 1.562 .937 3 1.500 .406 VCDKF PS-303V
D1.562 .937 3 1.500 .406 VCFJF PS-703V
D1.562 .937 3 1.500 .406 VCFKF PS-2027V
D 1.562 .937 1 1.562 .406 BCDJF PS-602
D 1.562 .937 1 1.562 .406 BCDKF PS-603
DBalanced 1.625 1.250 — — — XCF-F FA-4408
E 1.406 1.375 — — — BCF-F PS-936
E 1.406 1.375 3 1.312 .406 VCFKF 316SS PS-7859V
E 1.406 1.375 1 1.500 .406 BCFJF PS-188
E 1.406 1.375 1 1.500 .406 BCFKF 316SS PS-935
E 1.406 1.375 1 1.500 .406 BCFKF PS-2029
E 1.406 1.375 1 1.500 .406 VCFKF 316SS PS-935V-CMS
E 1.406 1.375 3 1.500 .406 BCFJF PS-776
E 1.406 1.375 3 1.500 .406 BCFKF PS-229
E 1.406 1.375 3 1.500 .406 VCEZE PS-7896
E 1.406 1.375 3 1.500 .406 VCFJF PS-188V
E 1.406 1.375 3 1.500 .406 VCFZF 316SS PS-7992
E 1.406 1.375 3 1.500 .406 VZFLF 316SS PS-3507
G 1.398 .787 1 1.500 .406 BCFJF 316SS PS-3009
K 1.281 1.250 — — — BCF-F PS-197
K 1.281 1.250 1 1.500 .406 BCFJF PS-892
K 1.281 1.250 1 1.500 .406 BCFKF PS-878
K 1.281 1.250 3 1.500 .406 VCFJF PS-892V
R 1.562 1.625 1 1.500 .406 BCDJF PS-428
R1.562 1.625 1 1.500 .406 BCDKF PS-685
X 1.437 .937 3 1.500 .406 BLFLF 316SS PS-8065
.937 (15/16")
U 1.437 1.656 2 1.562 .406 BCFKF PS-560SS
U 1.437 1.656 3 1.562 .406 VCFKF PS-560V
U1.437 1.656 31.562 .406 BCFGF PS-845
.970
C1.687 1.000 1 1.625 .375 VCFJF PS-9700
.984 (25MM)
D 1.812 1.000 1 1.655 .437 VCFKF I PS-7918
1.000 (1")
A1.687 .812 ——— BCF-F PS-975
A1.687 .812 11.625 .437 BCFJF PS-360
A 1.687 .812 1 1.625 .437 BCFKF PS-370
A 1.687 .812 1 1.625 .437 VCFJF PS-360V-CMS
A 1.687 .812 3 1.625 .437 BCFJF PS-777
A1.687 .812 3 1.625 .437 BCFKF PS-778
A 1.687 .812 3 1.625 .437 VCFJF PS-360V
A 1.687 .812 27 1.625 .625 B/VCFJF PS-405
A 1.687 .812 3 2.000 .406 BCFJF PS-1086
B 1.625 .874 1 1.625 .437 BCDJF PS-1619
C 1.437 .750 1 1.625 .437 BCFJF H PS-1048
C1.437 .750 3 1.625 .437 BCFJF H PS-1049
*US Seal 2010 catalog w cover 9/14/10 3:00 PM Page 99
DIMENSIONAL CROSS-REFERENCE BY SHAFT SIZE
NOTE:
96
B. TAPERED SPRING
H. SPRING HOLDER NOT INCLUDED
I. ABRASION RESISTANT CARBON (P66)
1.000 (1") (continued)
C1.437 1.562 1 1.625 .437 BCFJF H PS-539
C 1.437 1.562 1 1.625 .437 BCFKF H PS-779
C 1.437 1.562 1 1.625 .437 VCFKF H PS-779V-CMS
C 1.437 1.562 1 1.750 .437 BCFKF H PS-5082
C 1.500 .812 1 1.625 .437 BCFJF PS-5039
C 1.671 1.062 1 1.625 .375 BCFJF PS-4081
C 1.687 .812 — — — BCF-F PS-1095
C 1.687 .812 1 1.625 .437 BCFJF PS-7434
C1.687 .812 1 1.625 .437 VCFJF PS-1094
C1.687 .834 1 1.625 .406 BCFKF PS-1123
C 1.687 1.000 — — — BCF-F PS-397
C 1.687 1.000 — — — VCF-F PS-397V
C 1.687 1.000 3 1.062 .437 VCFKF PS-3619
C 1.687 1.000 3 1.437 .437 BCFJF PS-2145
C 1.687 1.000 3 1.437 .437 VCFJF PS-3755
C 1.687 1.000 1 1.625 .437 BCFJF PS-235
C 1.687 1.000 1 1.625 .437 BCFJF I PS-235-P66
C 1.687 1.000 1 1.625 .437 BCFJF B/H PS-245
C 1.687 1.000 1 1.625 .437 BCFJF B/H/I PS-245-P66
C 1.687 1.000 1 1.625 .437 BCFKF B/H PS-248
C 1.687 1.000 1 1.625 .437 BCFKF PS-357
C 1.687 1.000 1 1.625 .437 BCFZF B/H PS-245-TC-SEAT
C 1.687 1.000 1 1.625 .437 BLFLF PS-235-SC-SC
C 1.687 1.000 1 1.625 .437 BZFZF PS-2216
C 1.687 1.000 1 1.625 .437 QCFJF PS-235-EPR
C 1.687 1.000 1 1.625 .437 QCFJF B/H PS-245-EPR
C 1.687 1.000 1 1.625 .437 QCFKF B/H PS-248-EPR
C 1.687 1.000 1 1.625 .437 QCFZF I PS-4379
C 1.687 1.000 1 1.625 .437 VCFJF PS-235V-CMS
C 1.687 1.000 1 1.625 .437 VCFJF I PS-235V-CMS-P66
C1.687 1.000 1 1.625 .437 VCFJF B/H PS-245V-CMS
C 1.687 1.000 1 1.625 .437 VCFKF PS-357V-CMS
C 1.687 1.000 1 1.625 .437 VCFKF B/H PS-248V-CMS
C 1.687 1.000 1 1.625 .437 VLFLF PS-235V-SC-SC
C 1.687 1.000 1 1.625 .437 VZFZF PS-2216V-CMS
C 1.687 1.000 3 1.625 .437 BCFJF PS-548
C1.687 1.000 3 1.625 .437 BCFKF PS-499
C 1.687 1.000 3 1.625 .437 QCFKF PS-499-EPR
C 1.687 1.000 3 1.625 .437 QCFZF PS-4350
C1.687 1.000 31.625 .437 VCFJF PS-235V
C 1.687 1.000 3 1.625 .437 VCFJF I PS-235V-P66
C1.687 1.000 3 1.625 .437 VCFJF B/H PS-245V
C1.687 1.000 3 1.625 .437 VCFKF B/H PS-248V
C 1.687 1.000 3 1.625 .437 VCFKF PS-357V
C 1.687 1.000 27 1.625 .625 BCFJF PS-413
C 1.687 1.000 3 1.750 .437 VCFKF PS-3619
C 1.687 1.000 3 1.750 .437 VCFKF PS-7207
C 1.687 1.000 28 2.438 .437 BCFKF PS-3824
C 1.687 1.000 28 2.438 .437 VCFKF PS-1034V
C 1.687 1.312 1 1.625 .437 BCFJF B PS-4359
C 1.687 1.562 1 1.625 .437 BCFKF PS-982
C1.687 1.562 11.625 .437 VCFKF PS-982V-CMS
C 1.687 1.625 1 1.750 .437 BCFKF PS-2163
C1.687 1.625 11.750 .437 BCFJF PS-3440
SEAL HEAD MATING RING
Fig. OD Oper. Hgt. Fig. OD Thick.
Material U.S. Seal Mfg.
Code NOTES Part No.
*US Seal 2010 catalog w cover 9/14/10 3:00 PM Page 100
NOTE: 97
I. ABRASION RESISTANT CARBON (P66)
DIMENSIONAL CROSS-REFERENCE BY SHAFT SIZE
1.000 (1") (continued)
C 1.687 1.625 1 1.750 .437 V/BCFJF PS-3440V
C 1.687 1.755 1 1.625 .437 VCFJF B PS-4254
C 1.763 1.062 1 1.625 .437 VCFJF PS-3785
D 1.750 1.000 3 1.625 .312 BCPKF PS-6328
D 1.750 1.000 3 1.625 .312 BCPLF PS-6326
D 1.750 1.000 3 1.625 .312 NCPKF PS-6329
D 1.750 1.000 3 1.625 .312 VCPKF PS-4137
D 1.750 1.000 3 1.625 .312 VLFZF PS-4394
D 1.812 1.000 3 1.625 .312 BCPKF PS-1630
D 1.812 1.000 3 1.625 .312 VCPKF PS-1630V
D 1.812 1.000 1 1.625 .437 BCDKF I PS-3900
D 1.812 1.000 1 1.625 .437 VLFZF PS-4297
D1.812 1.000 3 1.625 .437 NCPGP PS-159
D 1.812 1.000 25 1.625 .500 BCPGP PS-7991
D 1.812 1.062 — — — BCF-F PS-398
D 1.812 1.062 1 1.625 .437 BCFJF PS-380
D 1.812 1.062 1 1.625 .437 BCFKF PS-460
D1.812 1.062 1 1.625 .437 BCFKF I PS-460-P66
D 1.812 1.062 1 1.625 .437 VCFJF PS-380V-CMS
D 1.812 1.062 1 1.625 .437 VCFKF PS-460V-CMS
D 1.812 1.062 3 1.625 .437 BCFJF PS-2033
D 1.812 1.062 3 1.625 .437 BCFKF PS-252
D 1.812 1.062 3 1.625 .437 BCFKF I PS-252-P66
D 1.812 1.062 3 1.625 .437 QCFKF PS-252-EPR
D 1.812 1.062 3 1.625 .437 VCFJF PS-380V
D 1.812 1.062 3 1.625 .437 VCFKF PS-460V
D 1.812 1.062 1 1.750 .437 BCFJF PS-2164
D 1.812 1.062 1 1.750 .437 BCFKF PS-227
DBalanced 1.812 1.312 3 1.500 .406 VCFKF 316SS PS-4253
DBalanced 1.812 1.312 3 1.500 .406 VCFZF PS-4255
E1.500 1.187 3 1.625 .437 BCFKF PS-251
E1.500 1.187 3 1.625 .312 VCFKF PS-3803
E 1.500 1.562 — — — BCF-F PS-937
E 1.500 1.562 — — — VCF-F PS-937V
E 1.500 1.562 1 1.625 .437 BCFJF PS-754
E 1.500 1.562 1 1.625 .437 BCFKF PS-236
E 1.500 1.562 1 1.625 .437 NCFKF PS-236N
E 1.500 1.562 1 1.625 .437 VCFJF PS-754V-CMS
E 1.500 1.562 1 1.625 .437 VCFKF PS-236V-CMS
E 1.500 1.562 1 1.625 .437 VCFZF PS-3625
E1.500 1.562 31.625 .437 BCFJF PS-557
E1.500 1.562 31.625 .437 BCFKF PS-791
E 1.500 1.562 3 1.625 .437 BCPKF PS-6331
E1.500 1.562 3 1.625 .437 QCFZF
PS-791-EPR-TC-SEAT
E1.500 1.562 3 1.625 .437 QLFLF PS-4210
E1.500 1.562 3 1.625 .437 VCFJF PS-754V
E1.500 1.562 3 1.625 .437 VCFJF 316SS PS-3976
E 1.500 1.562 3 1.625 .437 VCFKF PS-236V
E 1.500 1.562 3 1.625 .437 VCFZF PS-791V-TC-SEAT
E 1.500 1.562 3 1.625 .437 VCFZF 316SS PS-4412
E1.500 1.562 51.625 .437 VCFZF PS-3589
G 1.535 .813 3 1.625 .437 BCFLF PS-3010
G 1.535 .937 1 1.625 .437 VCFJF 316SS PS-4195
G1.535 .937 11.625 .437 VCFJF 316SS PS-3011
SEAL HEAD MATING RING
Fig. OD Oper. Hgt. Fig. OD Thick.
Material U.S. Seal Mfg.
Code NOTES Part No.
*US Seal 2010 catalog w cover 9/14/10 3:00 PM Page 101
DIMENSIONAL CROSS-REFERENCE BY SHAFT SIZE
NOTE:
98
A. MOUNTS ON SHAFT
B. TAPERED SPRING
I. ABRASION RESISTANT CARBON (P66)
1.000 (1") (continued)
K1.671 1.625 3 1.875 .312 BCFKF PS-4362
K 1.687 1.625 1 1.625 .437 BCFJF PS-879
K 1.687 1.625 1 1.625 .437 BCFKF PS-891
C 1.687 1.000 1 1.625 .437 BCFJF/BLFLF PS-4301
K1.687 1.625 1 1.625 .437 BLFZF PS-879-SC-TC
K 1.687 1.625 1 1.625 .437 VCFJF PS-3959
Q 1.875 .438 2 1.625 .312 BMDAF PS-6305
Q 1.875 .438 Special 1.625 .312 BMDJF PS-6306
Q1.875 .985 — — — NMDKF Unitized PS-3100
Q 1.906 .471 9 — .421 NMDKF A PS-3401
Q 1.925 .885 Special 1.625 .312 BMD/PAP PS-6312
R 1.750 1.875 — — — BCF-F PS-141
R 1.750 1.875 1 1.625 .437 BCFJF PS-429
R 1.750 1.875 1 1.625 .437 BCFKF PS-430
S 1.904 1.906 8 1.750 .250 NAPSP PS-793
T 1.500 1.968 3 1.625 .312 NCPKF PS-1631
T 1.500 2.312 1 1.625 .437 BCFJF PS-276
T 1.500 2.312 1 1.625 .437 BCFKF PS-277
W 1.562 1.000 2 1.625 .437 TCFKF 316SS PS-9313
W 1.562 1.000 2 1.625 .437 TCFOF 316SS PS-9334
W 1.562 1.000 Special 2.156 .656 TCFJF 316SS PS-9007
W 1.562 1.000 27 2.156 .812 TCFJF 316SS PS-9018
WT 1.437 1.000 — — — TCF-F 316SS T9-1000
WT 1.437 1.000 27 2.000 .625 TCFZF 316SS PS-9349
X 1.562 1.000 3 1.625 .437 VCFRF 316SS PS-8091
XB2 1.750 1.000 3 Special 1.750 .437 VCFJF 316SS PS-8020
1.062 (1-1/16")
C 1.812 1.062 3 1.750 .437 BCFKF PS-2155
D 1.875 1.062 1 1.750 .437 BCDKF PS-127
D 1.875 1.062 3 1.750 .437 BCFJF PS-797
E 1.625 1.593 1 1.750 .437 BCFJF PS-710
E 1.625 1.593 1 1.750 .437 BCFKF PS-498
E 1.625 1.593 3 1.750 .437 BCFJF PS-798
E 1.625 1.593 3 1.750 .437 BCFKF PS-799
W 1.625 1.000 27 1.812 .437 TCFKF 316SS PS-9338
1.125 (1-1/8")
C 1.625 1.031 Plate 2.875 .375 BCFGF PS-5138
C 1.812 1.062 — — — BCF-F PS-348
C1.812 1.062 ——— VCF-F PS-348V
C 1.812 1.062 1 1.750 .437 BCFJF PS-356
C 1.812 1.062 1 1.750 .437 BCFJF I PS-356-P66
C1.812 1.062 1 1.750 .437 BCFJF B PS-627
C 1.812 1.062 1 1.750 .437 BCFJF PS-2227
C1.812 1.062 1 1.750 .437 BCFJF B PS-1682
C 1.812 1.062 1 1.750 .437 BCFKF PS-355
C 1.812 1.062 1 1.750 .437 BCFKF I PS-355-P66
C 1.812 1.062 1 1.750 .437 BCFKF B PS-1167
C1.812 1.062 11.750 .437 BCFLF PS-4443
C1.812 1.062 1 1.750 .437 BLFLF PS-355-SC-SC
C 1.812 1.062 1 1.750 .437 BLFZF PS-356-SC-TC
C 1.812 1.062 1 1.750 .437 QCFJF PS-356-EPR
C 1.812 1.062 1 1.750 .437 QCFJF I PS-356-EPR-P66
C1.812 1.062 1 1.750 .437 QCFLF I PS-3965
C 1.812 1.062 1 1.750 .437 QCFZF I PS-7325
SEAL HEAD MATING RING
Fig. OD Oper. Hgt. Fig. OD Thick.
Material U.S. Seal Mfg.
Code NOTES Part No.
*US Seal 2010 catalog w cover 9/14/10 3:00 PM Page 102
NOTE: 99
B. TAPERED SPRING
I. ABRASION RESISTANT CARBON (P66)
DIMENSIONAL CROSS-REFERENCE BY SHAFT SIZE
1.125 (1-1/8") (continued)
C1.812 1.062 1 1.750 .437 VCEZE PS-4295
C 1.812 1.062 1 1.750 .437 VCFJF PS-356V-CMS
C 1.812 1.062 1 1.750 .437 VCFJF I PS-356V-CMS-P66
C 1.812 1.062 1 1.750 .437 VCFKF PS-355V-CMS
C1.812 1.062 1 1.750 .437 VCFKF I PS-4047
C1.812 1.062 1 1.750 .437 VLFLF PS-356V-SC-SC
C 1.812 1.062 2 1.750 .437 BCFKF PS-3833
C 1.812 1.062 3 1.750 .437 BCFJF PS-801
C 1.812 1.062 3 1.750 .437 BCFKF PS-529
C 1.812 1.062 3 1.750 .437 BCFKF B PS-588
C 1.812 1.062 3 1.750 .437 QCFKF PS-529-EPR
C1.812 1.062 3 1.750 .437 QCFKF I PS-529-EPR-P66
C 1.812 1.062 3 1.750 .437 QCFZF I PS-2226
C 1.812 1.062 3 1.750 .437 VCFJF PS-356V
C 1.812 1.062 3 1.750 .437 VCFKF PS-355V
C 1.812 1.062 3 1.750 .437 VCFLF PS-355V-SC-SEAT
C 1.812 1.062 3 1.750 .437 VCFLF I PS-529V-SC-P66
C 1.812 1.562 1 1.750 .437 BCFKF PS-983
C 1.812 1.562 3 1.750 .437 VCFKF PS-983V
D 1.875 1.062 1 1.750 .437 BCFJF PS-604
D 1.875 1.062 1 1.750 .437 BCFKF PS-605
D 1.875 1.062 1 1.750 .437 QCFJF PS-604-EPR
D 1.875 1.062 1 1.750 .437 VCFJF PS-604V-CMS
D 1.875 1.062 1 1.750 .437 VCFKF I PS-3918
D 1.875 1.062 3 1.750 .437 BCFJF PS-802
D 1.875 1.062 3 1.750 .437 BCFKF PS-254
D 1.875 1.062 3 1.750 .437 VCFKF PS-605V
D 1.875 1.062 1 1.875 .437 BCFKF PS-521
D 1.937 1.062 1 1.750 .437 BLFZF PS-4223
D 1.937 1.062 3 1.750 .437 VCFZF I PS-3712
E 1.625 1.187 3 1.750 .437 BCFKF PS-253
E 1.625 1.625 — — — BCF-F FA-607
E 1.625 1.625 — — — VCF-F FA-608V
E 1.625 1.625 1 1.687 .437 BCFJF PS-607
E 1.625 1.625 1 1.687 .437 BCFKF PS-608
E 1.625 1.625 1 1.687 .437 VCFJF PS-607V
E1.625 1.625 1 1.750 .437 BCFJF PS-204
E1.625 1.625 11.750 .437 BCFJF I PS-204-P66
E1.625 1.625 1 1.750 .437 BCFKF PS-384
E1.625 1.625 11.750 .437 QCFJF PS-204-EPR
E 1.625 1.625 1 1.750 .437 VCFJF I PS-204V-CMS-P66
E 1.625 1.625 3 1.750 .437 BCFJF PS-866
E1.625 1.625 3 1.750 .437 BCFKF PS-867
E 1.625 1.625 3 1.750 .437 QCFJF 316SS PS-4421
E 1.625 1.625 3 1.750 .437 QCFKF PS-867-EPR
E 1.625 1.625 3 1.750 .437 QCFKF I PS-885-EPR-P66
E 1.625 1.625 3 1.750 .437 VCFJF PS-204V
E 1.625 1.625 3 1.750 .437 VCFKF PS-867V
E1.625 1.625 3 1.750 .437 VCFLF PS-4300
E 1.625 1.625 3 1.750 .437 VCFZF PS-867V-TC-SEAT
E 1.625 1.625 3 1.812 .437 BCFJF PS-1172
E 1.625 1.625 3 1.812 .437 BCFKF PS-1173
E 1.625 1.625 3 1.812 .437 BCFKF PS-948
E 1.625 1.625 3 1.812 .437 BCFZF PS-1668
E1.625 1.625 3 1.812 .437 B/VCFJF PS-1636
SEAL HEAD MATING RING
Fig. OD Oper. Hgt. Fig. OD Thick.
Material U.S. Seal Mfg.
Code NOTES Part No.
*US Seal 2010 catalog w cover 9/14/10 3:00 PM Page 103
DIMENSIONAL CROSS-REFERENCE BY SHAFT SIZE
NOTE:
I. ABRASION RESISTANT CARBON (P66)
100
1.125 (1-1/8") (continued)
E 1.625 1.625 3 1.812 .437 B/VCFKF PS-1637
E1.625 1.625 3 1.812 .437 VCFJF PS-1172V
E1.625 1.625 3 1.812 .437 VCFKF PS-1639V
E 1.625 1.625 1 1.875 .437 BCFKF PS-1067
E 1.625 2.000 3 1.812 .437 BCFJF PS-619
E 1.625 2.000 3 1.812 .437 VCFJF PS-619V
E1.937 1.333 2 2.000 .375 BCPKF PS-7967
E 1.937 1.333 3 2.000 .375 NCPGF PS-3653
E 1.937 1.333 2 2.000 .375 VCPKF PS-6334
G 1.654 1.024 1 1.750 .437 BLFLF PS-4425
G1.654 1.024 1 1.750 .437 BLFLF 316SS PS-3012
G 1.654 1.062 25 1.750 .437 VCFLF 316SS PS-3013
K 1.812 1.625 — — — BCF-F PS-215
K1.812 1.625 1 1.750 .437 BCFJF PS-1176
K 1.812 1.625 1 1.750 .437 BCFKF PS-1177
K 1.812 1.625 1 1.750 .437 VL/CFL/JF PS-4177
Q 1.578 .402 9 1.578 .234 VMFAF PS-6318
Special 1.875 1.109 3 1.625 .312 BCPKP PS-3731
T 1.625 2.125 3 1.750 .437 VCFJF PS-3511
T 1.625 2.375 3 1.750 .437 BCFJF PS-886
T 1.625 2.375 3 1.750 .437 BCFKF PS-918
T 1.625 2.375 3 1.812 .437 BCFJF PS-1178
U 1.625 1.688 3 1.750 .437 BCFKF PS-282
XB2 1.875 1.000 27 2.375 1.000 VCFJF 316SS PS-8006
W 1.687 1.062 28 2.354 .752 TCFKF 316SS PS-9328
W 1.687 1.062 28 2.354 .752 Special 316SS PS-9329
W 1.692 1.062 2 2.000 .484 TCFKF 316SS PS-7232
W 1.692 1.062 2 2.000 .484 TCFOF 316SS PS-9327
WT 1.562 1.000 — — — TCF-F 316SS T9-1125
1.181 (30MM)
D 2.000 1.062 1 1.875 .437 BCDJF PS-136
D2.000 1.062 11.875 .437 BCDKF PS-1179
D 2.000 1.062 1 1.875 .437 BCDKF I PS-1179-P66
D 2.000 1.062 1 1.875 .437 VCDKF PS-1179V
D 2.000 1.062 1 1.875 .437 VCDKF I PS-1179V-P66
D 2.000 1.062 3 1.875 .437 VCDJF PS-136V
D2.000 1.062 1 1.875 .437 VCFZF I PS-3938
1.187 (1-3/16")
C 1.812 .937 1 1.750 .437 BCFJF PS-4302
C 1.937 1.062 1 1.875 .437 BCFJF PS-6812
C1.937 1.062 1 1.875 .437 BCFKF PS-2162
C 1.937 1.062 28 2.834 .500 BCFKF PS-1044
C 1.937 1.062 28 2.834 .500 VCFKF PS-1044V
D2.062 1.000 1 1.875 .437 NCPJP PS-297
D 2.062 1.062 3 1.875 .437 NCDKD PS-4298
E 1.812 1.187 1 1.875 .437 BCDJF PS-306
E 1.812 1.187 1 1.875 .437 BCDKF PS-1180
E 1.812 1.187 3 1.875 .437 BCDKF PS-255
E 1.812 1.187 3 1.875 .437 VCFJF PS-306V
E 1.812 1.625 1 1.875 .437 BCDJF PS-310
E 1.812 1.625 1 1.875 .437 BCDKF PS-343
T1.812 2.375 11.875 .437 BCDJF PS-723
T 1.812 2.375 1 1.875 .437 BCDKF PS-724
T 1.812 2.375 1 1.875 .437 VCDJF PS-723V-CMS
XBalanced 1.687 1.125 3 1.687 .437 Special PS-8074
SEAL HEAD MATING RING
Fig. OD Oper. Hgt. Fig. OD Thick.
Material U.S. Seal Mfg.
Code NOTES Part No.
*US Seal 2010 catalog w cover 9/14/10 3:00 PM Page 104
101
NOTE:
B. TAPERED SPRING
H. SPRING HOLDER NOT INCLUDED
I. ABRASION RESISTANT CARBON (P66)
DIMENSIONAL CROSS-REFERENCE BY SHAFT SIZE
1.250 (1-1/4")
C1.921 1.062 1 1.875 .437 VCFLF 316SS PS-3538
C 1.937 .906 3 Special 1.875 .437 VCFGF PS-3945
C 1.937 1.062 — — — BCF-F PS-154
C 1.937 1.062 — — — VCF-F PS-154V
C 1.937 1.062 1 1.750 .365 BCFJF B PS-978
C 1.937 1.062 1 1.750 .365 BCFJF B PS-3029
C 1.937 1.062 1 1.750 .365 BCFJF B/I PS-978-P66
C 1.937 1.062 1 1.750 .365 BCFKF B PS-979
C1.937 1.062 1 1.750 .365 BCFKF B/I PS-979-P66
C1.937 1.062 1 1.750 .365 BCFZF B PS-978-TC-SEAT
C 1.937 1.062 1 1.750 .365 BLFZF B PS-978-SC-TC
C 1.937 1.062 1 1.750 .365 QCFJF B PS-978-EPR
C 1.937 1.062 1 1.750 .365 QCFJF B/I PS-978-EPR-P66
C 1.937 1.062 1 1.750 .365 QCFKF B PS-979-EPR
C1.937 1.062 1 1.750 .365 QCFZF B PS-978-EPR-TC
C 1.937 1.062 1 1.750 .365 QLFLF B
PS-978-EPR-SC-SC
C 1.937 1.062 1 1.750 .365 QRFLF PS-4204
C 1.937 1.062 1 1.750 .365 VCFJF B PS-978V
C 1.937 1.062 1 1.750 .365 VCFJF B/I PS-978V-P66
C 1.937 1.062 1 1.750 .365 VCFKF B PS-979V
C 1.937 1.062 1 1.750 .365 VCFKF B/I PS-979V-P66
C 1.937 1.062 1 1.750 .365 VCFLF B/I PS-978V-SC-P66
C 1.937 1.062 1 1.750 .365 VCFZF B/I PS-978V-P66-TC
C 1.937 1.062 1 1.750 .365 VLFLF B PS-978V-SC-SC
C 1.937 1.062 1 1.750 .365 VRFJF B PS-978V-P90
C 1.937 1.062 1 1.875 .437 BCEJE PS-3933
C 1.937 1.062 1 1.875 .437 BCFJF PS-185
C 1.937 1.062 1 1.875 .437 BCFJF I PS-185-P66
C 1.937 1.062 1 1.875 .437 BCFJF B/H PS-246
C 1.937 1.062 1 1.875 .437 BCFKF B/H PS-249
C 1.937 1.062 1 1.875 .437 BCFKF PS-756
C 1.937 1.062 1 1.875 .437 BCFKF I PS-756-P66
C 1.937 1.062 1 1.875 .437 BCFZF PS-185-TC-SEAT
C 1.937 1.062 1 1.875 .437 BLFLF PS-185-SC-SC
C 1.937 1.062 1 1.875 .437 BRFLF PS-4211
C 1.937 1.062 1 1.875 .437 BZFZF PS-2208
C1.937 1.062 1 1.875 .437 NCFJF PS-1081
C 1.937 1.062 1 1.875 .437 NCFKF PS-1082
C 1.937 1.062 1 1.875 .437 QCFJF PS-185-EPR
C1.937 1.062 11.875 .437 QCFJF I PS-185-EPR-P66
C 1.937 1.062 1 1.875 .437 QCFKF PS-756-EPR
C1.937 1.062 1 1.875 .437 QCFKF I PS-2203-CMS
C1.937 1.062 1 1.875 .437 QCFLF PS-185E-SC-CMS
C 1.937 1.062 1 1.875 .437 VCFJF PS-185V-CMS
C 1.937 1.062 1 1.875 .437 VCFJF I PS-185V-CMS-P66
C 1.937 1.062 1 1.875 .437 VCFJF B/H PS-246V-CMS
C 1.937 1.062 1 1.875 .437 VCFJF B/H/I PS-246V-CMS-P66
C 1.937 1.062 1 1.875 .437 VCFJF 316SS PS-3886
C1.937 1.062 11.875 .437 VCFKF B/H PS-249V-CMS
C 1.937 1.062 1 1.875 .437 VCFKF PS-756V-CMS
C 1.937 1.062 1 1.875 .437 VCFKF I PS-756V-CMS-P66
C1.937 1.062 11.875 .437 VCFLF PS-185V-SC-SEAT
C 1.937 1.062 1 1.875 .437 VCFZF PS-185V-TC-SEAT
C1.937 1.062 11.875 .437 VCFZF 316SS PS-4176
SEAL HEAD MATING RING
Fig. OD Oper. Hgt. Fig. OD Thick.
Material U.S. Seal Mfg.
Code NOTES Part No.
*US Seal 2010 catalog w cover 9/14/10 3:00 PM Page 105
DIMENSIONAL CROSS-REFERENCE BY SHAFT SIZE
NOTE:
B. TAPERED SPRING
H. SPRING HOLDER NOT INCLUDED
I. ABRASION RESISTANT CARBON (P66)
102
1.250 (1-1/4") (continued)
C 1.937 1.062 1 1.875 .437 VLFLF 316SS PS-4150
C 1.937 1.062 1 1.875 .437 VLFLF PS-185V-SC-SC
C 1.937 1.062 1 1.875 .437 VLFZF PS-185V-SC-TC
C 1.937 1.062 1 1.875 .437 VZFLF PS-185V-TC-SC
C 1.937 1.062 1 1.875 .437 VZFZF PS-185V-TC-TC
C1.937 1.062 3 1.875 .437 BCFGF PS-4152
C 1.937 1.062 3 1.875 .437 BCFJF PS-618
C1.937 1.062 3 1.875 .437 BCFKF B PS-525
C 1.937 1.062 3 1.875 .437 BCFKF PS-598
C1.937 1.062 3 1.875 .437 BCFLF PS-598-SC-SEAT
C 1.937 1.062 3 1.875 .437 BCFZF PS-598-TC-SEAT
C 1.937 1.062 3 1.875 .437 BLFLF PS-598-SC-SC
C1.937 1.062 3 1.875 .437 B/VCFKF PS-1053
C 1.937 1.062 3 1.875 .437 BZFZF PS-618-TC-TC
C 1.937 1.062 3 1.875 .437 QCFJF I PS-618-EPR-P66
C 1.937 1.062 3 1.875 .437 QCFKF PS-598-EPR
C 1.937 1.062 3 1.875 .437 QCFKF I PS-2203
C1.937 1.062 3 1.875 .437 QCFLF PS-185-EPR-SC
C 1.937 1.062 3 1.875 .437 QCFZF PS-185-EPR-TC
C 1.937 1.062 3 1.875 .437 QCFZF I PS-7436
C 1.937 1.062 3 1.875 .437 VCFJF PS-185V
C 1.937 1.062 3 1.875 .437 VCFJF I PS-185V-P66
C 1.937 1.062 3 1.875 .437 VCFJF B/H PS-246V
C 1.937 1.062 3 1.875 .437 VCFKF B/H PS-249V
C 1.937 1.062 3 1.875 .437 VCFKF PS-756V
C 1.937 1.062 3 1.875 .437 VCFKF I PS-756V-P66
C 1.937 1.062 3 1.875 .437 VCFLF PS-756V-SC-SEAT
C 1.937 1.062 3 1.875 .437 VCFZF PS-618V-TC-SEAT
C 1.937 1.062 3 1.875 .437 VLFZF PS-756V-SC-TC
C1.937 1.062 3 1.875 .437 VRFLF PS-3940
C 1.937 1.062 3 Special 1.875 .437 VCFKF PS-7938
C 1.937 1.062 1 2.000 .437 BCFJF PS-466
C 1.937 1.062 1 2.000 .437 BCFJF I PS-466-P66
C 1.937 1.062 1 2.000 .437 BCFKF PS-1018-CMS
C 1.937 1.062 1 2.000 .437 BLFLF PS-466-SC-SC
C1.937 1.062 12.000 .437 VCFJF PS-466V
C 1.937 1.062 1 2.000 .437 VCFJF I PS-466V-P66
C 1.937 1.062 1 2.000 .437 VCFJF 316SS PS-4131
C1.937 1.062 1 2.000 .437 VCFLF PS-466V-SC-SEAT
C1.937 1.062 3 2.000 .437 BCFJF PS-2230
C1.937 1.062 3 2.000 .437 BCFJF I PS-7343
C 1.937 1.062 3 2.000 .437 BCFKF PS-1018
C 1.937 1.062 3 2.000 .437 BCFKF I PS-1018-P66
C 1.937 1.062 3 2.000 .437 BLFLF PS-1018-SC-SC
C 1.937 1.062 3 2.000 .437 QCFKF PS-1018-EPR
C1.937 1.062 32.000 .437 QCFKF I PS-1018-EPR-P66
C 1.937 1.062 3 2.000 .437 VCFJF PS-2230V
C 1.937 1.062 3 2.000 .437 VCFKF I PS-2200
C1.937 1.062 32.000 .437 VCFKF PS-1018V
C 1.937 1.062 28 2.835 .660 BCFKF PS-1036
C1.937 1.062 28 2.835 .660 VCFKF PS-1036V
C1.937 1.250 25 2.250 .625 BCFJF B PS-923
C 1.937 1.250 25 2.250 .625 QCFJF B PS-923-EPR
C1.937 1.250 25 2.250 .625 VCFJF B PS-923V
SEAL HEAD MATING RING
Fig. OD Oper. Hgt. Fig. OD Thick.
Material U.S. Seal Mfg.
Code NOTES Part No.
*US Seal 2010 catalog w cover 9/14/10 3:00 PM Page 106
103
NOTE:
I. ABRASION RESISTANT CARBON (P66)
DIMENSIONAL CROSS-REFERENCE BY SHAFT SIZE
1.250 (1-1/4") (continued)
C1.937 1.625 1 1.875 .437 BCFJF PS-2122
C 1.937 1.625 1 1.875 .437 BCFJF I PS-2122-P66
C 1.937 1.625 1 1.875 .437 BCFJF 316SS/I PS-7908
C 1.937 1.625 1 1.875 .437 BCFKF PS-2123
C 1.937 1.625 1 1.875 .437 BCFKF I PS-2123-P66
C 1.937 1.625 1 1.875 .437 BRFJF PS-4247
C 1.937 1.625 1 1.875 .437 NCFJF PS-1083
C 1.937 1.625 1 1.875 .437 NCFKF PS-1084
C1.937 1.625 1 1.875 .437 NCFZF PS-1084-TC-SEAT
C1.937 1.625 1 1.875 .437 QCFJF I PS-2215
C 1.937 1.625 1 1.875 .437 QLFLF PS-4053
C 1.937 1.625 1 1.875 .437 VCFJF PS-2122V-CMS
C 1.937 1.625 1 1.875 .437 VCFKF PS-2123V-CMS
C 1.937 1.625 1 1.875 .437 VCFZF PS-2123V-TC-CMS
C 1.937 1.625 1 1.875 .437 VLFLF PS-7805
C 1.937 1.625 1 1.875 .437 VRFJF PS-3829
C 1.937 1.625 1 1.875 .437 VZFLF
PS-2122V-TC-SC-CMS
C 1.937 1.625 3 1.875 .437 BCFJF PS-1109-CER
C 1.937 1.625 3 1.875 .437 BCFKF PS-1109
C 1.937 1.625 3 1.875 .437 BCFKF I PS-1109-P66
C 1.937 1.625 3 1.875 .437 QCFKF PS-1109-EPR
C 1.937 1.625 3 1.875 .437 QCFLF I PS-4336
C 1.937 1.625 3 1.875 .437 VCFJF PS-2122V
C 1.937 1.625 3 1.875 .437 VCFKF PS-1109V
D 2.000 .875 3 1.875 .375 BCPKF PS-6337
D 2.000 1.000 3 1.875 .375 BCPKF PS-6339
D 2.000 1.000 3 1.875 .375 NCPKF PS-1632
D 2.000 1.000 3 1.875 .375 NCPKF PS-3934
D 2.000 1.000 3 1.875 .375 VCPKF PS-1632V
D 2.000 1.000 3 1.875 .437 BCFKF PS-981
D2.000 1.000 3 1.937 .437 BCFKF PS-326
D 2.000 1.000 3 1.937 .437 VCFKF PS-326V
D 2.000 1.031 3 1.875 .437 NCPKF PS-1128
D 2.000 1.062 — — — BCF-F PS-416
D 2.000 1.062 1 1.750 .365 BCFJF PS-976
D 2.000 1.062 1 1.750 .365 BCFKF PS-977
D2.000 1.062 1 1.750 .365 VCFJF PS-976V
D 2.000 1.062 2 1.875 .187 VCPFP PS-6036
D 2.000 1.062 1 1.875 .437 BCFJF PS-381
D2.000 1.062 11.875 .437 BCFJF I PS-381-P66
D 2.000 1.062 1 1.875 .437 BCFKF PS-383
D2.000 1.062 1 1.875 .437 BLFLF PS-381-SC-SC
D2.000 1.062 1 1.875 .437 NCFJF PS-381-NEO
D 2.000 1.062 1 1.875 .437 QCFJF PS-381-EPR
D 2.000 1.062 1 1.875 .437 QCFLF I PS-3023
D 2.000 1.062 1 1.875 .437 QLFLF PS-3555
D 2.000 1.062 1 1.875 .437 VCFJF PS-381V-CMS
D 2.000 1.062 3 1.875 .437 BCDLF PS-4246
D 2.000 1.062 3 1.875 .437 BCFJF PS-804
D 2.000 1.062 3 1.875 .437 BCFKF PS-517
D 2.000 1.062 3 1.875 .437 BCFZF PS-517-TC-SEAT
D2.000 1.062 31.875 .437 VCFJF PS-381V
D 2.000 1.062 3 1.875 .437 VCFKF PS-383V
D2.000 1.062 31.875 .437 VCFLF I PS-4071
SEAL HEAD MATING RING
Fig. OD Oper. Hgt. Fig. OD Thick.
Material U.S. Seal Mfg.
Code NOTES Part No.
*US Seal 2010 catalog w cover 9/14/10 3:00 PM Page 107
DIMENSIONAL CROSS-REFERENCE BY SHAFT SIZE
1.250 (1-1/4") (continued)
D2.000 1.062 3 1.875 .437 VCFLF PS-4073
D 2.000 1.062 3 1.875 .437 VLFLF PS-4431
D 2.000 1.062 1 2.000 .437 BCFJF PS-510
D 2.062 1.062 25 2.250 .625 BCFJF PS-416A
Special 2.312 1.187 3 1.875 .437 NCPKF PS-8049
E 1.812 1.062 3 1.875 .437 VCFLF 316SS PS-4049
E 1.812 1.187 1 1.875 .437 QCFLF 316SS PS-3528
E 1.812 1.187 3 1.875 .437 BCFKF PS-256
E1.812 1.625 — — — BCF-F PS-1015
E1.812 1.625 1 1.875 .437 BCFJF PS-361
E 1.812 1.625 1 1.875 .437 BCFJF I PS-361-P66
E 1.812 1.625 1 1.875 .437 BCFKF PS-137
E 1.812 1.625 1 1.875 .437 BCFZF PS-4428
E 1.812 1.625 1 1.875 .437 BLFLF PS-361-SC-SC
E 1.812 1.625 1 1.875 .437 BLFZF PS-361-SC-TC
E 1.812 1.625 1 1.875 .437 NCPJP PS-1185
E 1.812 1.625 1 1.875 .437 NCPKP PS-108
E 1.812 1.625 1 1.875 .437 QCFJF PS-361-EPR
E 1.812 1.625 1 1.875 .437 QCFJF I PS-361-EPR-P66
E 1.812 1.625 1 1.875 .437 QCFKF PS-3872
E 1.812 1.625 1 1.875 .437 QCFLF 316SS PS-3515
E 1.812 1.625 1 1.875 .437 VCFJF PS-361V-CMS
E 1.812 1.625 1 1.875 .437 VCFJF I PS-361V-CMS-P66
E 1.812 1.625 1 1.875 .437 VCFKF PS-137V-CMS
E 1.812 1.625 1 1.875 .437 VLFZF
PS-361V-SC-TC-CMS
E 1.812 1.625 3 1.875 .437 BCFJF PS-546
E 1.812 1.625 3 1.875 .437 BCFKF PS-264
E 1.812 1.625 3 1.875 .437 BCFKF I PS-264-P66
E 1.812 1.625 3 1.875 .437 B/VCFZF I PS-264-TC-P66
E 1.812 1.625 3 1.875 .437 QCFLF PS-4306
E1.812 1.625 3 1.875 .437 QCFZF I PS-7769
E 1.812 1.625 3 1.875 .437 VCFJF PS-361V
E 1.812 1.625 3 1.875 .437 VCFJF I PS-361V-P66
E 1.812 1.625 3 1.875 .437 VCFKF PS-137V
E 1.812 1.625 3 1.875 .437 VCFKF I PS-137V-P66
E 1.812 1.625 3 1.875 .437 VLFLF PS-264V-SC-SC
E1.812 1.625 1 2.000 .437 BCFJF I PS-6802
E 1.812 1.625 1 2.000 .437 BCFKF PS-1186
E 1.812 1.625 1 2.000 .437 VCFZF I PS-3638
E1.812 2.281 31.875 .437 BCFJF PS-2128
E 1.812 2.281 3 1.875 .437 BCFKF PS-2129
E1.812 2.281 3 1.875 .437 VCFKF PS-2129V
E1.812 2.281 3 1.875 .437 VCFZF I PS-7719
G 1.811 1.024 1 1.875 .437 BCFJF PS-3883
G 1.811 1.024 1 1.875 .437 VLFLF PS-6265
G 1.811 1.062 1 1.875 .437 BLFLF PS-7972
G 1.811 1.062 1 1.875 .437 QCFJF 316SS/I PS-6261
G 1.811 1.062 1 1.875 .437 QCFZF 316SS/I PS-6260
G 1.811 1.062 1 1.875 .437 VCFJF 316SS PS-6259
G 1.811 1.062 1 1.875 .437 VCFJF 316SS/I PS-6264
G 1.811 1.062 3 1.875 .437 BCFLF 316SS PS-6266
K1.923 1.734 11.875 .437 VLFLF PS-4179
K 1.937 1.625 — — — BCF-F PS-169
K1.937 1.625 11.875 .437 B/HCFJF PS-1118
104 NOTE:
I. ABRASION RESISTANT CARBON (P66)
SEAL HEAD MATING RING
Fig. OD Oper. Hgt. Fig. OD Thick.
Material U.S. Seal Mfg.
Code NOTES Part No.
*US Seal 2010 catalog w cover 9/14/10 3:00 PM Page 108
105
I. ABRASION RESISTANT CARBON (P66)
NOTE:
DIMENSIONAL CROSS-REFERENCE BY SHAFT SIZE
1.250 (1-1/4") (continued)
K 1.937 1.625 1 1.875 .437 VCFKF PS-228V-CMS
K 1.937 1.625 3 1.875 .437 BCFJF 316SS PS-6229
K 1.937 1.625 3 1.875 .437 BCFKF PS-228
K1.937 1.625 3 1.875 .437 VCFKF PS-228V
K1.937 1.625 3 1.875 .437 VCFKF I PS-228V-P66
K 1.937 1.750 1 1.875 .437 BCFJF PS-883
K 1.937 1.750 1 1.875 .437 BZ/CFZ/JF PS-7323
K 1.937 1.750 1 1.875 .437 VCFJF PS-883V-CMS
K1.937 1.875 1 1.875 .437 BCFKF PS-890
K1.937 1.875 1 1.875 .437 BLFLF PS-4305
K 1.937 2.000 3 2.125 .375 BCFJ/KF PS-1623
S 2.296 2.218 8 2.125 .281 NAPSP PS-794
T 1.812 1.937 3 2.000 .312 BCKFK PS-4377
T 1.812 2.375 1 1.875 .437 BCFJF PS-1187
T1.812 2.375 3 1.875 .437 BCFJF PS-2211
T 1.812 2.375 3 1.875 .437 NAFGF PS-3607
T 1.812 2.375 3 1.875 .437 NCFGF I PS-4197
T1.812 2.375 3 1.875 .437 NCPKP PS-308
U 1.750 1.625 2 1.875 .437 BCPKF PS-3973
U 1.750 1.625 2 1.875 .500 BCPGF PS-4385
U 1.750 1.625 3 1.875 .437 BCF/DKF PS-394
U 1.750 2.406 1 1.875 .437 BC/DFJF PS-681
WT 1.687 1.000 2 1.875 .359 TCFOF 316SS PS-3611
WT 1.687 1.000 2 2.343 .375 TCFKF 316SS PS-9003
X 1.875 1.062 28 2.832 .665 VCFKF 316SS PS-8073
XB2 2.000 1.000 27 2.606 .960 VCFLF 316SS / I PS-8095
1.375 (1-3/8")
C 1.886 .850 3 2.000 .250 BCFKF PS-5074
C 1.937 .925 2 2.187 .375 B/VCFJF 316SS PS-5676
C 1.937 .925 2 2.187 .375 B/VCFKF 316SS PS-5711
C 1.937 .925 2 2.187 .375 VCFJF 316SS PS-5676V
C 2.046 .850 3 2.000 .250 VCFGF PS-6180
C 2.062 .900 25 2.000 .500 BCFJF PS-929
C 2.062 .906 3 Special 2.000 .437 VCFGF PS-3584
C 2.062 1.125 — — — BCF-F PS-172
C 2.062 1.125 — — — BCF-F I PS-172-P66
C 2.062 1.125 — — — NCF-F PS-3730
C 2.062 1.125 — — — QCF-F I PS-172-EPR-P66
C 2.062 1.125 — — — VCF-F PS-172V
C 2.062 1.125 — — — VLF-F PS-172V-SC
C 2.062 1.125 1 2.000 .437 BCFJF PS-177
C 2.062 1.125 1 2.000 .437 BCFJF I PS-177-P66
C 2.062 1.125 1 2.000 .437 BCFKF PS-210
C 2.062 1.125 1 2.000 .437 BCFZF PS-210-TC-SEAT
C 2.062 1.125 1 2.000 .437 BLFZF
PS-177-SC-TC-CMS
C 2.062 1.125 1 2.000 .437 QCFJF PS-177-EPR
C 2.062 1.125 1 2.000 .437 VCFJF PS-177V-CMS
C 2.062 1.125 1 2.000 .437 VCFJF I
PS-177V-CMS-P66
C 2.062 1.125 1 2.000 .437 VCFKF PS-210V-CMS
C 2.062 1.125 1 2.000 .437 VCFLF PS-177V-SC-SEAT
C 2.062 1.125 1 2.000 .437 VLFLF PS-177V-SC-SC
C 2.062 1.125 1 2.000 .437 VZFZF PS-210V-TC-TC
C 2.062 1.125 3 2.000 .437 BCFJF PS-805
C 2.062 1.125 3 2.000 .437 BCFJF I PS-805-P66
SEAL HEAD MATING RING
Fig. OD Oper. Hgt. Fig. OD Thick.
Material U.S. Seal Mfg.
Code NOTES Part No.
*US Seal 2010 catalog w cover 9/14/10 3:00 PM Page 109
DIMENSIONAL CROSS-REFERENCE BY SHAFT SIZE
1.375 (1-3/8") (continued)
C 2.062 1.125 3 2.000 .437 BCFKF PS-547
C 2.062 1.125 3 2.000 .437 BCFKF I PS-547-P66
C 2.062 1.125 3 2.000 .437 BLFLF PS-547-SC-SC
C2.062 1.125 3 2.000 .437 B/VLFLF PS-7919
C 2.062 1.125 3 2.000 .437 QCFKF PS-210-EPR
C2.062 1.125 3 2.000 .437 QCFLF I
PS-210-EPR-P66-SC
C 2.062 1.125 3 2.000 .437 QLFLF PS-4328
C 2.062 1.125 3 2.000 .437 VCFJF PS-177V
C 2.062 1.125 3 2.000 .437 VCFJF I PS-177V-P66
C 2.062 1.125 3 2.000 .437 VCFKF PS-210V
C 2.062 1.125 3 2.000 .437 VCFKF I PS-210V-P66
C 2.062 1.125 3 2.000 .437 VCFLF PS-210V-SC-SEAT
C 2.062 1.125 3 2.000 .437 VCFZF PS-210V-TC-SEAT
C 2.062 1.125 3 2.000 .437 VLFZF PS-210V-SC-TC
C 2.062 1.125 3 2.000 .437 VZFLF PS-210V-TC-SC
C 2.062 1.125 3 2.125 .437 QCFKF PS-4057
C 2.062 1.156 3 2.125 .406 VCFKF PS-1062
C 2.062 1.187 1 2.125 .375 BCFJF PS-4044
C 2.062 1.187 1 2.125 .437 BCFKF PS-467
C 2.062 1.687 1 2.000 .437 BCFJF PS-2134
C 2.062 1.687 1 2.000 .437 BCFJF I PS-2134-P66
C 2.062 1.687 1 2.000 .437 BCFKF PS-1667
C 2.062 1.687 1 2.000 .437 QCFKF I PS-1667-EPR-P66
C 2.062 1.687 1 2.000 .437 VCFJF I
PS-2134V-CMS-P66
C 2.062 1.687 1 2.000 .437 VCFKF PS-1667V
CBalanced 2.062 1.437 — — — BCF-F FA-4268
CBalanced 2.062 1.437 3 1.875 .437 BCFJF PS-7697
CBalanced 2.062 1.437 3 1.875 .437 BCFKF PS-7795
CBalanced 2.062 1.437 3 1.875 .437 VCFKF PS-7695
D 2.000 1.256 3 2.000 .437 VCFKF PS-4123
D 2.187 1.093 25 2.000 .500 BCDJF PS-404
D 2.187 1.125 — — — BCD-F PS-376
D 2.187 1.125 — — — QCD-F I PS-376-EPR-P66
D2.187 1.125 — — — VCD-F PS-376V
D 2.187 1.125 1 2.000 .437 BCDJF PS-491
D 2.187 1.125 1 2.000 .437 BCDJF I PS-491-P66
D 2.187 1.125 1 2.000 .437 BCDKF PS-186
D 2.187 1.125 1 2.000 .437 BCFJF PS-2045
D 2.187 1.125 1 2.000 .437 BCFKF PS-2046
D 2.187 1.125 1 2.000 .437 VCDJF PS-491V-CMS
D2.187 1.125 1 2.000 .437 VCDJF I
PS-491V-CMS-P66
D2.187 1.125 1 2.000 .437 VCFKF PS-186V-CMS
D 2.187 1.125 1 2.000 .437 VLFLF PS-4194
D 2.187 1.125 3 2.000 .437 BCDJF PS-806
D 2.187 1.125 3 2.000 .437 BCDKF PS-807
D 2.187 1.125 3 2.000 .437 BCFJF PS-2047
D 2.187 1.125 3 2.000 .437 BCFKF PS-2048
D2.187 1.125 3 2.000 .437 VCDJF PS-491V
D 2.187 1.125 3 2.000 .437 VCDKF PS-186V
D 2.187 1.125 3 2.000 .437 VCFJF PS-2047V
D 2.187 1.125 3 2.000 .437 VCFZF PS-186V-TC-SEAT
D 2.250 1.006 3 2.000 .218 VCPSP PS-6048
D2.250 1.125 12.000 .437 BCDZF PS-3932
D 2.250 1.125 1 2.000 .437 QCDZF I PS-7803
106 NOTE:
I. ABRASION RESISTANT CARBON (P66)
SEAL HEAD MATING RING
Fig. OD Oper. Hgt. Fig. OD Thick.
Material U.S. Seal Mfg.
Code NOTES Part No.
*US Seal 2010 catalog w cover 9/14/10 3:00 PM Page 110
107
NOTE:
C. COMPLETE WITH COLLAR
H. SPRING HOLDER NOT INCLUDED
I. ABRASION RESISTANT CARBON (P66)
1.375 (1-3/8") (continued)
DBalanced 2.250 1.437 1 1.875 .437 BCFJF PS-3974
DBalanced 2.250 1.437 1 1.875 .437 BCFKF PS-7798
E 1.875 1.187 1 2.000 .437 QLFLF
PS-257E-SC-SC-CMS
E 1.875 1.187 3 2.000 .437 BCFKF PS-257
E1.875 1.187 3 2.000 .437 VCFKF PS-257V
E 1.875 1.625 3 2.125 .437 VCFLF PS-3783
E1.875 1.687 — — — BCF-F PS-2104
E 1.875 1.687 — — — VCF-F PS-2104V
E1.875 1.687 1 2.000 .437 BCFJF PS-354
E 1.875 1.687 1 2.000 .437 BCFJF I PS-354-P66
E 1.875 1.687 1 2.000 .437 BCFKF PS-677
E 1.875 1.687 1 2.000 .437 BZFZF
PS-677-TC-TC-CMS
E 1.875 1.687 3 2.000 .437 BCFJF PS-864
E 1.875 1.687 3 2.000 .437 BCFKF PS-865
E1.875 1.687 3 2.000 .437 BCFKF I PS-865-P66
E 1.875 1.687 3 2.000 .437 BCFLF PS-865-SC-SEAT
E 1.875 1.687 3 2.000 .437 VCFJF PS-354V
E 1.875 1.687 3 2.000 .437 VCFJF I PS-354V-P66
E 1.875 1.687 3 2.000 .437 VCFJF PS-864V
E 1.875 1.687 3 2.000 .437 VCFKF PS-677V
E 1.875 1.687 3 2.000 .437 VLFLF PS-865V-SC-SC
E 1.875 1.687 3 2.125 .437 VCFJF PS-3925
E 1.875 1.687 3 2.125 .437 VCFLF PS-3984
E 1.875 2.031 — — — VCF-F 316SS PS-4087
E 1.875 2.031 3 2.000 .437 VCFJF
316SS/C/H
PS-3901
E 1.875 2.031 3 2.000 .437 VLFLF C PS-4277
E 1.875 2.031 3 2.000 .437 XLFLF 316SS PS-4384
E 2.000 2.031 3 2.000 .437 XZFLF 316SS/C PS-4433
EBalanced 1.875 2.000 3 1.875 .437 BCFJF PS-7702
EBalanced 1.875 2.000 3 1.875 .437 BCFKF PS-3991
EBalanced 1.875 2.000 3 1.875 .437 BCFKF PS-4170
EBalanced 1.875 2.000 3 1.875 .437 BCFZF PS-4145
EBalanced 1.875 2.000 3 1.875 .437 QCFZF 316SS PS-3799
EBalanced 1.875 2.000 3 1.875 .437 VCFKF 316SS PS-4420
EBalanced 1.875 2.000 3 1.875 .437 VCFZF I PS-3769
G1.929 1.024 12.000 .437 BCFJF PS-7971
G1.929 1.024 12.000 .437 BLFZF 316SS PS-3014
G1.929 1.024 25 2.000 .437 VLFLF 316SS PS-3015
K 2.062 1.625 — — — BCF-F PS-209
K 2.062 1.625 1 2.000 .437 BCFJF PS-495
K 2.062 1.625 1 2.000 .437 QCFJF PS-495-EPR
Q 2.515 .625 25 2.000 .281 BMPAP PS-3854
Q 2.515 .625 Special 2.000 .281 BMPAP PS-6300
Q 3.241 .908 9 2.000 .281 VMPSP PS-6317
R 2.187 2.187 1 2.000 .437 BCDJF PS-178
T 1.875 2.437 1 2.000 .437 BCFJF PS-725
T 1.875 2.437 1 2.000 .437 BCFKF PS-726
T 1.875 2.437 1 2.000 .437 VCFJF PS-725V
T 1.875 2.437 3 2.000 .437 VZFZF 316SS PS-3541
T 1.875 2.812 3 2.000 .437 VCFJF 316SS PS-4206
U 1.875 2.125 1 2.000 .437 BCFKF PS-561SS
U1.875 2.125 3 2.000 .437 VCFKF PS-561V
V1.937 1.937 25 2.140 .437 BMFJF PS-1104
WT 1.937 1.062 —— — TCF-F 316SS T9-1375
DIMENSIONAL CROSS-REFERENCE BY SHAFT SIZE
SEAL HEAD MATING RING
Fig. OD Oper. Hgt. Fig. OD Thick.
Material U.S. Seal Mfg.
Code NOTES Part No.
*US Seal 2010 catalog w cover 9/14/10 3:00 PM Page 111
DIMENSIONAL CROSS-REFERENCE BY SHAFT SIZE
108 NOTE:
B. TAPERED SPRING
H. SPRING HOLDER NOT INCLUDED
I. ABRASION RESISTANT CARBON (P66)
1.375 (1-3/8") (continued)
XSpecial 3.500 .701 Special 1.875 .312 B/NCPGF PS-4134
XT 1.937 1.062 3 2.125 .437 VCFJF 316SS PS-8048
1.437 (1-7/16")
C 2.125 1.125 3 2.250 .625 BCFKF PS-2156
C 2.125 1.125 3 2.250 .625 VCFKF PS-2156V
C2.125 1.125 Special 2.718 .654 VCFGF PS-7367
C2.125 1.250 3 2.250 .375 BCFKF PS-7105
C 2.125 1.250 3 2.250 .375 VCFKF PS-7105V
E 1.937 1.219 3 2.250 .375 BCPKF PS-4189
E 1.937 1.244 3 2.375 .531 VCFLF PS-4140
E 1.937 1.250 3 2.250 .375 BCPKP PS-1634
E 1.937 1.250 3 2.250 .375 VCPKF PS-1634V
E 1.937 1.688 3 2.062 .437 BCFJF PS-705
E 1.937 1.688 3 2.062 .437 BCFKF PS-2234
E 1.937 1.688 3 2.062 .437 VCFKF PS-2234V
E 1.937 1.688 3 2.125 .437 VCFKF PS-4067
E 1.937 1.688 3 2.171 .437 BCPKF PS-6340
E 1.937 1.688 3 2.171 .437 VCPKF PS-6342
E 1.937 1.688 28 2.718 .654 VCPGP PS-6055
E 2.110 .859 3 2.312 .360 BCPKF PS-3848
E 2.110 1.516 3 2.312 .360 NCPKF PS-943
E 2.110 1.516 3 2.312 .360 NCPKF PS-6344
E 2.110 1.516 3 2.312 .360 VCPKF PS-6338
R 2.250 1.625 3 2.062 .437 VCFKF PS-4400
T 2.109 2.125 3 2.187 .375 NCPKF PS-1633
W 2.062 1.125 2 2.312 .421 TCFKF 316SS PS-9227
W 2.062 1.125 2 2.312 .421 TCFOF 316SS PS-9307
W 2.062 1.125 2 2.687 .625 TCFKF 316SS PS-9304
W 2.062 1.125 Special 2.484 .675 TCFKF 316SS PS-9330
W2.062 1.125 28 2.500 .625 TCFKF 316SS PS-6341
W 2.062 1.125 28 2.687 .625 Special 316SS PS-9331
XB5 2.125 1.500 3 1.937 .437 Special 316SS PS-8079
1.500 (1-1/2")
C 2.062 1.125 2 2.125 .423 BCFKF PS-5720
C 2.187 .906 3 Special 2.125 .437 VCFGF PS-3943
C 2.187 1.125 — — — BCF-F PS-2105
C 2.187 1.125 — — — VCF-F PS-2105V
C2.187 1.125 — — — VZF-F PS-2105V-TC
C2.187 1.125 12.125 .437 BCFJF B/H PS-347
C 2.187 1.125 1 2.125 .437 BCFJF B/H/I PS-347-P66
C 2.187 1.125 1 2.125 .437 BCFJF PS-758
C2.187 1.125 1 2.125 .437 BCFJF I PS-758-P66
C 2.187 1.125 1 2.125 .437 BCFKF B/H PS-378
C 2.187 1.125 1 2.125 .437 BCFKF PS-659
C 2.187 1.125 1 2.125 437 BCFKF I PS-2232
C 2.187 1.125 1 2.125 .437 BCFLF PS-758-SC-SEAT
C 2.187 1.125 1 2.125 .437 BCFZF PS-659-TC
C2.187 1.125 12.125 .437 BLFLF PS-758-SC-SC
C 2.187 1.125 1 2.125 .437 BLFZF
PS-758-SC-TC-CMS
C 2.187 1.125 1 2.125 .437 BZFZF PS-2209
C2.187 1.125 1 2.125 .437 QCFJF I PS-7953
C 2.187 1.125 1 2.125 .437 QCFJF PS-758-EPR-CMS
C2.187 1.125 1 2.125 .437 QCFLF
PS-758-EPR-SC-SEAT
C 2.187 1.125 1 2.125 .437 QCFZF I PS-7632
SEAL HEAD MATING RING
Fig. OD Oper. Hgt. Fig. OD Thick.
Material U.S. Seal Mfg.
Code NOTES Part No.
*US Seal 2010 catalog w cover 9/14/10 3:00 PM Page 112
109
NOTE:
B. TAPERED SPRING
H. SPRING HOLDER NOT INCLUDED
I. ABRASION RESISTANT CARBON (P66)
DIMENSIONAL CROSS-REFERENCE BY SHAFT SIZE
1.500 (1-1/2") (continued)
C 2.187 1.125 1 2.125 .437 QLFLF PS-7937
C2.187 1.125 1 2.125 .437 VCFJF B/H PS-347V-CMS
C 2.187 1.125 1 2.125 .437 VCFJF PS-758V-CMS
C 2.187 1.125 1 2.125 .437 VCFJF I
PS-758V-P66-CMS
C 2.187 1.125 1 2.125 .437 VCFJF 316SS PS-7409
C 2.187 1.125 1 2.125 .437 VCFKF I
PS-659V-CMS-P66
C2.187 1.125 1 2.125 .437 VCFKF B/H PS-378V-CMS
C 2.187 1.125 1 2.125 .437 VCFKF PS-659V-CMS
C 2.187 1.125 1 2.125 .437 VCFLF PS-758V-SC-SEAT
C 2.187 1.125 1 2.125 .437 VCFZF I PS-7747
C 2.187 1.125 1 2.125 .437 VLFLF PS-758V-SC-SC
C 2.187 1.125 1 2.125 .437 VLFZF PS-7792V-CMS
C 2.187 1.125 1 2.125 .437 VZFZF
PS-659V-TC-VS-TC
C 2.187 1.125 3 2.125 .437 BCFJF PS-816
C 2.187 1.125 3 2.125 .437 BCFKF PS-553
C 2.187 1.125 3 2.125 .437 BCFKF I PS-7674
C 2.187 1.125 3 2.125 .437 BLFLF PS-553-SC-SC
C 2.187 1.125 3 2.125 .437 BZFZF PS-2217
C 2.187 1.125 3 2.125 .437 QCFJF PS-758-EPR
C 2.187 1.125 3 2.125 .437 QCFZF PS-4438
C 2.187 1.125 3 2.125 .437 VCFJF PS-758V
C 2.187 1.125 3 2.125 .437 VCFKF PS-659V
C 2.187 1.125 3 2.125 .437 VCFKF I PS-659V-P66
C 2.187 1.125 3 2.125 .437 VCFLF PS-2223-SC-SEAT
C 2.187 1.125 3 2.125 .437 VCFZF PS-2223
C 2.187 1.125 3 2.125 .437 VCFZF 316SS PS-3704
C 2.187 1.125 3 2.125 .437 VLFZF PS-4447
C2.187 1.125 3 Special 2.125 .437 VCFKF PS-7975
C 2.187 1.125 1 2.156 .437 BCFJF B/H PS-682
C2.187 1.125 1 2.156 .437 BCFJF PS-7694
C2.187 1.125 1 2.156 .437 BCFKF B/H PS-247
C2.187 1.125 1 2.250 .437 BCFJF PS-320
C 2.187 1.125 3 2.312 .437 BCFJF PS-926
C 2.187 1.125 3 2.312 .437 VCFJF I PS-4212
C 2.187 1.125 Special 2.740 .875 BCFKF PS-3979
C2.187 1.437 3 2.125 .437 NCFGF PS-192
C2.187 1.687 1 2.125 .437 BCFJF PS-7201
C2.187 1.687 3 2.125 .437 BCFJF PS-7166
C2.187 1.687 3 2.125 .437 BCFKF PS-1110
C 2.187 1.687 3 2.125 .437 VCFKF PS-1110V
C 2.187 1.687 3 2.125 .437 QCFKF PS-2221
C 2.312 1.093 1 2.125 .437 VCFJF B/H PS-3813
CBalanced 2.187 1.437 3 2.000 .437 BCFJF PS-3880
D 2.312 1.125 — — — BCF-F PS-939
D2.312 1.125 12.125 .437 BCFJF PS-382
D2.312 1.125 1 2.125 .437 BCFJF I PS-382-P66
D 2.312 1.125 1 2.125 .437 BCFKF PS-371
D 2.312 1.125 1 2.125 .437 VCFKF PS-371V-CMS
D2.312 1.125 1 2.125 .437 VLFLF PS-3642
D 2.312 1.125 3 2.125 .437 BCFJF PS-817
D 2.312 1.125 3 2.125 .437 BCFKF PS-534
D 2.312 1.125 3 2.125 .437 VCFKF PS-371V
D2.312 1.125 32.125 .437 VLFLF PS-371V-SC-SC
D2.312 1.125 3 2.125 .437 XLFZF PS-4365
SEAL HEAD MATING RING
Fig. OD Oper. Hgt. Fig. OD Thick.
Material U.S. Seal Mfg.
Code NOTES Part No.
*US Seal 2010 catalog w cover 9/14/10 3:00 PM Page 113
DIMENSIONAL CROSS-REFERENCE BY SHAFT SIZE
110 NOTE:
C. COMPLETE WITH COLLAR
I. ABRASION RESISTANT CARBON (P66)
1.500 (1-1/2") (continued)
D2.312 1.125 1 2.156 .437 BCFJF PS-283
D 2.375 1.000 3 2.187 .437 BCFGF PS-4363
D2.375 1.119 3 2.125 .443 BLFLF PS-7874
D 2.375 1.125 3 2.125 .437 B/VCPKP PS-4408
D 2.375 1.125 28 2.375 .618 VZFZF PS-7079
DSpecial 2.375 1.094 3 2.125 .437 XLFLF PS-4423
E 2.000 1.187 1 2.125 .437 QCFLF
PS-259-EPR-CMS-SC
E 2.000 1.187 3 2.125 .437 BCFKF PS-259
E 2.000 1.688 — — — BCF-F PS-2106
E2.000 1.688 — — — BCF-F I PS-2106-P66
E 2.000 1.688 — — — VCF-F PS-2106V
E 2.000 1.688 3 2.000 .437 BCFJF PS-314
E 2.000 1.688 3 2.000 .437 BCFKF PS-316
E 2.000 1.688 1 2.125 .437 BCFJF PS-305
E 2.000 1.688 1 2.125 .437 BCFJF I PS-305-P66
E 2.000 1.688 1 2.125 .437 BCFJF PS-2117
E 2.000 1.688 1 2.125 .437 BCFKF PS-374
E 2.000 1.688 1 2.125 .437 BCFKF I PS-374-P66
E 2.000 1.688 1 2.125 .437 BLFLF PS-305-SC-SC
E 2.000 1.688 1 2.125 .437 BZFZF PS-4354
E 2.000 1.688 1 2.125 .437 QCFJF PS-305-EPR
E 2.000 1.688 1 2.125 .437 QCFJF I PS-305-EPR-P66
E 2.000 1.688 1 2.125 .437 QLFLF PS-4407
E 2.000 1.688 1 2.125 .437 QCFZF I PS-7933
E 2.000 1.688 1 2.125 .437 VCFJF PS-305V-CMS
E 2.000 1.688 1 2.125 .437 VCFJF I
PS-305V-CMS-P66
E 2.000 1.688 1 2.125 .437 VCFKF PS-374V-CMS
E 2.000 1.688 1 2.125 .437 VCFZF PS-305V-TC-SEAT
E2.000 1.688 3 2.125 .437 BCFJF PS-395
E 2.000 1.688 3 2.125 .437 BCFKF PS-258
E 2.000 1.688 3 2.125 .437 BCFKF I PS-258-P66
E2.000 1.688 3 2.125 .437 NCFKF PS-224
E2.000 1.688 3 2.125 .437 QCFJF PS-395-EPR
E2.000 1.688 32.125 .437 QCFKF PS-5259
E 2.000 1.688 3 2.125 .437 QCFZF I PS-4167
E 2.000 1.688 3 2.125 .437 QCFZF I PS-7562
E 2.000 1.688 3 2.125 .437 QCFZF C/I PS-7930
E 2.000 1.688 3 2.125 .437 VCFJF PS-305V
E2.000 1.688 3 2.125 .437 VCFJF I PS-305V-P66
E2.000 1.688 3 2.125 .437 VCFKF I PS-258V-P66
E2.000 1.688 32.125 .437 VCFKF PS-374V
E2.000 1.688 32.125 .437 VCFZF PS-1646
E 2.000 1.688 3 2.125 .437 VCFZF I PS-7889
E 2.000 1.688 5 2.125 .437 QCFZF I PS-4368
E 2.000 1.688 1 2.156 .437 BCFKF PS-2137
E 2.000 1.688 3 2.250 .437 BCFJF PS-515
E 2.000 1.688 3 2.250 .437 VCFJF PS-515V
E2.000 1.688 3 2.312 .437 BCFZF PS-4034
E2.000 1.688 3 2.312 .437 B/VCFJF PS-1647
E2.000 1.688 32.312 .437 B/VCFKF PS-1648
E2.000 1.688 32.312 .437 VCFJF PS-1651
E 2.000 1.688 3 2.312 .437 VCFKF PS-1652
E 2.000 1.688 3 2.312 .437 VLFZF PS-4404
E2.000 1.688 32.500 .500 VCFZF PS-4201
SEAL HEAD MATING RING
Fig. OD Oper. Hgt. Fig. OD Thick.
Material U.S. Seal Mfg.
Code NOTES Part No.
*US Seal 2010 catalog w cover 9/14/10 3:00 PM Page 114
111
NOTE:
I. ABRASION RESISTANT CARBON (P66)
DIMENSIONAL CROSS-REFERENCE BY SHAFT SIZE
1.500 (1-1/2") (continued)
E2.000 2.062 3 2.312 .437 BCFJF PS-620
E 2.000 2.062 3 2.312 .437 BCFKF PS-629
E 2.000 2.062 3 2.312 .437 VCFJF PS-620V
E 2.000 2.062 3 2.312 .437 VCFZF PS-1692
EBalanced 2.000 2.000 3 2.000 .437 QCFJF I PS-4088
EBalanced 2.000 2.000 3 2.000 .437 VCFZF I PS-3615
G 2.125 1.181 1 2.125 .437 VCFJF PS-3992
K 2.171 1.625 3 2.375 .437 BCFJF PS-3558
K 2.187 1.625 — — — BCF-F PS-216
K2.187 1.625 1 2.125 .437 BCFJF PS-541
K 2.187 1.625 1 2.125 .437 BCFKF PS-884
K 2.187 1.625 1 2.125 .437 VCFJF PS-541V-CMS
K2.187 1.625 3 2.500/2.125 .437 VLFLF PS-3972
R 2.312 1.875 1 2.125 .437 BCFJF PS-431
R 2.312 1.875 1 2.125 .437 BCFKF PS-432
T2.000 2.437 1 2.125 .437 BCFJF PS-868
X 2.312 .937 3 2.125 .437 BCFJF PS-8002
W 2.125 1.125 2 2.125 .437 TCFJF 316SS PS-7587
1.562 (1-9/16")
E 2.250 1.688 1 2.375 .500 BCDKF PS-1194
E 2.250 1.688 3 2.375 .500 BCDJF PS-664
E 2.250 1.688 3 2.375 .500 BCDKF PS-1193
1.625 (1-5/8")
C 2.500 1.062 3 2.375 .375 VCFKF PS-6005
C 2.500 1.125 3 Special 2.375 .500 VCFKF PS-3939
C2.500 1.312 25 2.500 .812 B/VCFJF PS-7497
C 2.500 1.312 25 2.500 .812 VCFJF PS-7497V
C 2.500 1.375 — — — BCF-F PS-2107
C 2.500 1.375 1 2.375 .500 BCFJF PS-238
C 2.500 1.375 1 2.375 .500 BCFJF I PS-238-P66
C2.500 1.375 1 2.375 .500 BCFKF PS-239
C 2.500 1.375 1 2.375 .500 BCFKF I PS-239-P66
C2.500 1.375 1 2.375 .500 BCFLF PS-4389
C 2.500 1.375 1 2.375 .500 BCFLF I PS-3967
C 2.500 1.375 1 2.375 .500 BLFLF PS-238-SC-SC
C 2.500 1.375 1 2.375 .500 BLFZF
PS-238-SC-TC-CMS
C2.500 1.375 1 2.375 .500 BZFLF PS-238-TC-SC
C2.500 1.375 1 2.375 .500 BZFZF PS-3664
C 2.500 1.375 1 2.375 .500 QCFJF PS-238-EPR
C 2.500 1.375 1 2.375 .500 QCFKF PS-3616
C 2.500 1.375 1 2.375 .500 QCFLF PS-238-EPR-SC
C2.500 1.375 1 2.375 .500 VCFJF PS-7902
C 2.500 1.375 1 2.375 .500 VCFJF PS-238V-CMS
C2.500 1.375 1 2.375 .500 VCFJF 316SS
PS-238V-CMS-316SS
C 2.500 1.375 1 2.375 .500 VCFKF PS-239V-CMS
C2.500 1.375 1 2.375 .500 VCFLF PS-238V-SC-CMS
C2.500 1.375 12.375 .500 VCFZF IPS-238V-P66-TC
C 2.500 1.375 1 2.375 .500 VCFZF 316SS/I PS-3543
C 2.500 1.375 1 2.375 .500 VLFLF PS-7806
C2.500 1.375 1 2.375 .500 VZFLF
PS-238V-TC-SC-CMS
C 2.500 1.375 3 2.375 .500 BCFJF PS-818
C 2.500 1.375 3 2.375 .500 BCFJF I PS-818-P66
C2.500 1.375 3 2.375 .500 BCFKF PS-544
C 2.500 1.375 3 2.375 .500 QCFKF PS-239-EPR
SEAL HEAD MATING RING
Fig. OD Oper. Hgt. Fig. OD Thick.
Material U.S. Seal Mfg.
Code NOTES Part No.
*US Seal 2010 catalog w cover 9/14/10 3:00 PM Page 115
DIMENSIONAL CROSS-REFERENCE BY SHAFT SIZE
112 NOTE:
I. ABRASION RESISTANT CARBON (P66)
1.625 (1-5/8") (continued)
C 2.500 1.375 3 2.375 .500 QCFKF I PS-7017
C 2.500 1.375 3 2.375 .500 QCFZF I PS-4068
C 2.500 1.375 3 2.375 .500 VCFJF PS-238V
C 2.500 1.375 3 2.375 .500 VCFKF PS-239V
C2.500 1.375 3 2.375 .500 VCFLF PS-238V-SC-SEAT
C 2.500 1.375 3 2.375 .500 VCFZF PS-239V-TC-SEAT
C2.500 1.375 3 2.375 .500 VCFZF I PS-3523
C 2.500 1.375 3 2.375 .500 VLFLF PS-544V-SC-SC
C 2.500 1.375 1 2.625 .500 BCFJF PS-2202-CMS
C 2.500 1.375 1 2.625 .500 BCFKF PS-1019-CMS
C2.500 1.375 1 2.625 .500 BCFKF I
PS-1019-CMS-P66
C 2.500 1.375 3 2.625 .500 BCFJF PS-2202
C 2.500 1.375 3 2.625 .500 BCFJF I PS-2202-P66
C 2.500 1.375 3 2.625 .500 BCFKF PS-1019
C 2.500 1.375 3 2.625 .500 BLFLF PS-1019-SC-SC
C 2.500 1.375 3 2.625 .500 QCFKF I PS-2201
C 2.500 1.375 3 2.625 .500 QCFZF PS-4288
C 2.500 1.375 3 2.625 .500 VCFJF PS-2202V
C 2.500 1.375 3 2.625 .500 VCFKF PS-1019V
C 2.500 1.375 3 2.625 .500 VCFKF I PS-1019V-P66
C 2.500 1.375 3 2.625 .500 VCFZF PS-1019-TC-SEAT
C 2.500 1.375 3 2.625 .500 VLFLF PS-1019V-SC-SC
C 2.500 1.375 28 3.544 1.250 BCFKF PS-1035
C 2.500 1.375 28 3.544 1.250 VCFKF PS-1039
C 2.625 1.375 1 2.375 .500 QCFJF I PS-3030
D 2.687 1.375 3 2.375 .500 VCFLF PS-4076
D 2.687 1.375 3 2.375 .500 VCFLF I PS-4074
D 2.718 1.062 3 2.375 .375 VCPSP PS-6075
D 2.718 1.125 3 2.437 .500 BCDGF PS-3026
D 2.718 1.125 3 2.437 .500 NCPGF PS-331
D 2.718 1.375 1 2.375 .500 BCDJF PS-514
D 2.718 1.375 1 2.375 .500 BCDJF I PS-514-P66
D 2.718 1.375 1 2.375 .500 BCDKF PS-461
D 2.718 1.375 1 2.375 .500 BCFJF PS-2055
D2.718 1.375 1 2.375 .500 BCFKF PS-2056
D2.718 1.375 1 2.375 .500 BLDLF PS-514-SC-SC
D 2.718 1.375 1 2.375 .500 BLFZF PS-4361
D 2.718 1.375 1 2.375 .500 QCDJF PS-514-EPR
D 2.718 1.375 1 2.375 .500 QCDJF I PS-514-EPR-P66
D 2.718 1.375 1 2.375 .500 QCDZF PS-514-EPR-TC
D 2.718 1.375 1 2.375 .500 QCDZF I
PS-514-EPR-P66-TC
D 2.718 1.375 1 2.375 .500 QCFLF I PS-3025
D 2.718 1.375 1 2.375 .500 VCDJF PS-514V-CMS
D 2.718 1.375 1 2.375 .500 VCDJF I
PS-514V-P66-CMS
D 2.718 1.375 1 2.375 .500 VCDKF PS-461V-CMS
D 2.718 1.375 1 2.375 .500 VCDLF I
PS-514V-P66-SC-CMS
D 2.718 1.375 1 2.375 .500 VLDLF
PS-514V-SC-SC-CMS
D 2.718 1.375 3 2.375 .500 BCDJF PS-821
D2.718 1.375 32.375 .500 BCDKF PS-819
D2.718 1.375 32.375 .500 BCFJF PS-1698
D2.718 1.375 32.375 .500 BCFKF PS-1697
D 2.718 1.375 3 2.375 .500 BCFZF PS-1697-TC-SEAT
D 2.718 1.375 3 2.375 .500 VCDJF PS-514V
D 2.718 1.375 3 2.375 .500 VCDJF I PS-514V-P66
SEAL HEAD MATING RING
Fig. OD Oper. Hgt. Fig. OD Thick.
Material U.S. Seal Mfg.
Code NOTES Part No.
*US Seal 2010 catalog w cover 9/14/10 3:00 PM Page 116
113
NOTE:
I. ABRASION RESISTANT CARBON (P66)
DIMENSIONAL CROSS-REFERENCE BY SHAFT SIZE
1.625 (1-5/8") (continued)
D 2.718 1.375 3 2.375 .500 VCDKF PS-461V
D 2.718 1.375 3 2.375 .500 VLDLF PS-514V-SC-SC
D 2.718 1.375 3 2.375 .500 VZFLF PS-3772
D 2.718 1.375 28 3.544 1.250 BCFKF PS-4435
E2.250 1.375 3 2.375 .500 BCPKF PS-6348
E2.250 1.375 3 2.375 .500 VCPKF PS-6349
E 2.250 2.000 1 2.312 .500 BCFJF PS-346
E2.250 2.000 1 2.312 .500 BCDKF PS-484
E 2.250 2.000 1 2.312 .500 BCDJF PS-609
E2.250 2.000 1 2.312 .500 VCDJF PS-609V
E2.250 2.000 1 2.312 .500 BCFKF PS-610
E 2.250 2.000 1 2.312 .500 VCFKF PS-610V
E 2.250 2.000 2 2.312 .562 BCDKF PS-3931
E 2.250 2.000 1 2.375 .500 BCDJF PS-745
E 2.250 2.000 1 2.375 .500 BCDJF I PS-745-P66
E 2.250 2.000 1 2.375 .500 BCDKF PS-744
E 2.250 2.000 1 2.375 .500 BCFJF PS-2057
E 2.250 2.000 1 2.375 .500 BCFKF PS-2058
E 2.250 2.000 1 2.375 .500 VCDJF PS-745V-CMS
E 2.250 2.000 1 2.375 .500 VCFZF
PS-2058V-TC-SEAT
E 2.250 2.000 3 2.375 .500 BCDJF PS-595
E 2.250 2.000 3 2.375 .500 BCDKF PS-822
E 2.250 2.000 3 2.375 .500 BCDKF I PS-822-P66
E 2.250 2.000 3 2.375 .500 BCFJF PS-1683
E 2.250 2.000 3 2.375 .500 BCFJF I PS-1683-P66
E 2.250 2.000 3 2.375 .500 BCFKF PS-1699
E 2.250 2.000 3 2.375 .500 BCFKF I PS-1699-P66
E 2.250 2.000 3 2.375 .500 QCDZF I PS-7787
E 2.250 2.000 3 2.375 .500 QCFZF I PS-1699E-TC-P66
E 2.250 2.000 3 2.375 .500 VCDJF PS-745V
E 2.250 2.000 3 2.375 .500 VCDKF PS-744V
E 2.250 2.000 3 2.375 .500 VCFJF PS-1683V
E 2.250 2.000 3 2.375 .500 VCFKF I PS-1699V-P66
E 2.250 2.000 3 2.375 .500 VCFKF PS-1699V
E2.250 2.000 3 2.375 .500 VCFZF I PS-1699V-TC-P66
E2.250 2.000 32.375 .500 VLFZF I PS-1699V-SC-TC
EBalanced 2.250 2.375 3 2.125 .437 BCFJF PS-4374
EBalanced 2.250 2.375 3 2.125 .437 VCFJF PS-4159
EBalanced 2.250 2.375 3 2.125 .437 VCFZF 316SS PS-4269
G 2.205 1.375 1 2.375 .500 QCFJF 316SS/I PS-6262
G2.205 1.375 1 2.375 .500 QCFZF 316SS/I PS-6263
K2.500 2.125 1 2.375 .500 BCFJF PS-1195
Q2.812 .973 Special 2.375 .390 N/BMDAF PS-6311
R 2.718 2.125 1 2.375 .500 BCDKF PS-281-CMS
R 2.718 2.125 3 2.375 .500 BCDKF PS-281
U 2.250 2.093 1 2.375 .500 BCDKF PS-458-CMS
U 2.250 2.093 3 2.375 .500 BCDKF PS-458
WT 2.250 1.156 28 2.875 .625 TCFKF 316SS PS-9017
WT 2.250 1.156 28 2.875 .625 TCFOF 316SS PS-9332
XB2 2.437 1.156 27 2.843 1.000 VCFJF 316SS PS-8040
1.687 (1-11/16")
D2.875 .875 22.500 .312 BCFKF PS-5002
D2.875 .875 2 2.500 .312 VCFKF PS-5194
SEAL HEAD MATING RING
Fig. OD Oper. Hgt. Fig. OD Thick.
Material U.S. Seal Mfg.
Code NOTES Part No.
*US Seal 2010 catalog w cover 9/14/10 3:00 PM Page 117
DIMENSIONAL CROSS-REFERENCE BY SHAFT SIZE
1.750 (1-3/4")
C 2.392 1.375 1 2.500 .500 BCFJF PS-5389-CMS
C/X Special 2.609 1.250 1 2.500 .500 BCFJF PS-4035
C 2.625 1.062 3 2.500 .500 BLFLF PS-6241
C2.625 1.062 3 2.500 .500 BLFZF PS-3963
C 2.625 1.062 3 2.500 .500 BZFZF PS-3687
C 2.625 1.062 3 2.500 .500 VCFJF PS-3718V
C 2.625 1.125 — — — BCF-F PS-1055
C 2.625 1.125 1 2.500 .500 BCFJF PS-2212
C 2.625 1.125 1 2.500 .500 BCFKF PS-1068
C 2.625 1.125 1 2.500 .500 BZFZF PS-2212-TC-TC
C 2.625 1.125 3 2.500 .500 BCFKF PS-1056
C 2.625 1.125 3 2.500 .500 B/VLFZF PS-3719
C 2.625 1.125 3 2.500 .500 VCFKF PS-1056V
C 2.625 1.125 3 2.500 .500 VCFLF
PS-1056V-SC-SEAT
C 2.625 1.375 — — — BCF-F PS-2108
C 2.625 1.375 — — — BCF-F I PS-2108-P66
C 2.625 1.375 — — — BRF-F PS-2108-P90
C 2.625 1.375 — — — QCF-F I PS-2108-EPR-P66
C 2.625 1.375 — — — VCF-F PS-2108V
C 2.625 1.375 1 2.500 .500 BCFJF PS-446
C 2.625 1.375 1 2.500 .500 BCFJF I PS-446-P66
C 2.625 1.375 1 2.500 .500 BCFJF 316SS PS-446-316SS
C 2.625 1.375 1 2.500 .500 BCFKF PS-448
C 2.625 1.375 1 2.500 .500 BCFKF I PS-448-P66
C 2.625 1.375 1 2.500 .500 BCFLF PS-446-SC-SEAT
C 2.625 1.375 1 2.500 .500 BCFZF PS-2210
C 2.625 1.375 1 2.500 .500 BLFLF PS-446-SC-SC
C 2.625 1.375 1 2.500 .500 BLFZF
PS-446-SC-TC-CMS
C 2.625 1.375 1 2.500 .500 BZFZF PS-446-TC-TC
C 2.625 1.375 1 2.500 .500 QCFJF PS-446-EPR
C 2.625 1.375 1 2.500 .500 QCFJF I PS-446-EPR-P66
C 2.625 1.375 1 2.500 .500 QCFKF PS-448-EPR
C 2.625 1.375 1 2.500 .500 VCFJF 316SS PS-4153
C 2.625 1.375 1 2.500 .500 VCFJF PS-446V-CMS
C 2.625 1.375 1 2.500 .500 VCFJF I
PS-446V-CMS-P66
C 2.625 1.375 1 2.500 .500 VCFKF PS-448V-CMS
C2.625 1.375 12.500 .500 VCFKF I
PS-448V-CMS-P66
C 2.625 1.375 1 2.500 .500 VCFZF PS-446V-TC-SEAT
C 2.625 1.375 1 2.500 .500 VCFZF I PS-448V-TC-P66
C 2.625 1.375 1 2.500 .500 VLFLF PS-7820
C 2.625 1.375 1 2.500 .500 VLFZF PS-448V-SC-TC
C 2.625 1.375 1 2.500 .500 VZFZF PS-446V-TC-TC
C 2.625 1.375 3 2.500 .500 BCFJF PS-550
C2.625 1.375 3 2.500 .500 BCFKF PS-436
C2.625 1.375 3 2.500 .500 BCFKF I PS-436-P66
C2.625 1.375 3 2.500 .500 BCFLF PS-436-SC-SEAT
C 2.625 1.375 3 2.500 .500 BLFLF PS-436-SC-SC
C 2.625 1.375 3 2.500 .500 BZFLF PS-436-TC-VS-SC
C 2.625 1.375 3 2.500 .500 BZFZF PS-436-TC-TC
C 2.625 1.375 3 2.500 .500 QCFKF PS-436-EPR
C 2.625 1.375 3 2.500 .500 QCFLF I PS-7607
C 2.625 1.375 3 2.500 .500 QCFZF I PS-7035
C 2.625 1.375 3 2.500 .500 VCFJF PS-446V
C2.625 1.375 32.500 .500 VCFJF IPS-446V-P66
114 NOTE:
I. ABRASION RESISTANT CARBON (P66)
SEAL HEAD MATING RING
Fig. OD Oper. Hgt. Fig. OD Thick.
Material U.S. Seal Mfg.
Code NOTES Part No.
*US Seal 2010 catalog w cover 9/14/10 3:00 PM Page 118
115
NOTE:
I. ABRASION RESISTANT CARBON (P66)
DIMENSIONAL CROSS-REFERENCE BY SHAFT SIZE
1.750 (1-3/4") (continued)
C 2.625 1.375 3 2.500 .500 VCFKF PS-436V
C 2.625 1.375 3 2.500 .500 VCFKF I PS-436V-P66
C 2.625 1.375 3 2.500 .500 VCFLF PS-446V-SC-SEAT
C 2.625 1.375 3 2.500 .500 VCFZF PS-2207
C 2.625 1.375 3 2.500 .500 VLFLF PS-7679
C 2.625 1.375 3 2.500 .500 VLFZF PS-446V-SC-TC
C 2.625 1.375 3 2.500 .500 VZFZF PS-436V-TC-TC
C 2.625 1.375 3 2.625 .500 BCFJF PS-387
C2.625 1.375 28 3.544 1.188 BCFKF PS-1038
C 2.625 1.375 28 3.544 1.188 VCFKF PS-1038V
C 2.625 2.000 1 2.500 .500 BCFJF PS-2135
C2.625 2.000 1 2.500 .500 BCFJF I PS-2135-P66
C 2.625 2.000 1 2.500 .500 BCFJF PS-2142
C 2.625 2.000 1 2.500 .500 BCFKF PS-1674
C 2.625 2.000 1 2.500 .500 BCFZF PS-1674-TC-SEAT
C 2.625 2.000 1 2.500 .500 BLFLF PS-2135-SC-SC
C 2.625 2.000 1 2.500 .500 QCFKF I PS-1674-EPR-P66
C 2.625 2.000 1 2.500 .500 VZFZF
PS-1674V-TC-TC-CMS
C 2.625 2.000 3 2.500 .500 BCFJF PS-2150
C 2.625 2.000 3 2.500 .500 BCFKF PS-2151
C 2.625 2.000 3 2.500 .500 BCFZF PS-2151-TC-SEAT
C 2.625 2.000 3 2.500 .500 QCFKF I PS-2151-EPR-P66
C 2.625 2.000 3 2.500 .500 VCFKF PS-2151V
C 2.625 2.000 3 2.500 .500 VCFZF
PS-2151V-TC-SEAT
D 2.750 1.375 — — — BCD-F PS-147
D 2.750 1.375 1 2.500 .500 BCDJF PS-237
D 2.750 1.375 1 2.500 .500 BCDJF I PS-237-P66
D 2.750 1.375 1 2.500 .500 BCDKF PS-288
D 2.750 1.375 1 2.500 .500 BCDZF PS-237-TC-SEAT
D 2.750 1.375 1 2.500 .500 BCFJF PS-2059
D2.750 1.375 12.500 .500 BCFKF PS-2060
D 2.750 1.375 1 2.500 .500 BLDLF PS-237-SC-SC
D2.750 1.375 1 2.500 .500 BZDZF PS-237-TC-TC
D2.750 1.375 1 2.500 .500 BZFZF PS-2060-TC-TC
D 2.750 1.375 1 2.500 .500 QCDZF I PS-7652
D 2.750 1.375 1 2.500 .500 VCDJF PS-237V-CMS
D 2.750 1.375 1 2.500 .500 VCDKF PS-288V-CMS
D 2.750 1.375 1 2.500 .500 VZFLF 316SS PS-6217
D 2.750 1.375 3 2.500 .500 BCDJF PS-826
D2.750 1.375 3 2.500 .500 BCDKF PS-825
D2.750 1.375 3 2.500 .500 BCFJF PS-2061
D 2.750 1.375 3 2.500 .500 BCFKF PS-2062
D 2.750 1.375 3 2.500 .500 VCDJF PS-237V
D 2.750 1.375 3 2.500 .500 VCDJF I PS-237V-P66
D 2.750 1.375 3 2.500 .500 VCDKF PS-288V
D 2.750 1.375 3 2.500 .500 VRFZF PS-7959
D2.750 1.375 32.500 .500 XCFJF PS-4399
D2.806 1.031 32.500 .281 NCFKF PS-4026
E 2.375 1.312 1 2.500 .500 QCFJF PS-4187
E 2.375 1.312 1 2.500 .500 VCFZF 316SS PS-3024
E 2.375 1.312 1 2.625 .500 BCFJF PS-7252
E2.375 1.312 3 2.625 .500 QCFLF PS-4290
E 2.375 1.312 3 2.625 .500 QCFZF I PS-4141
E 2.375 1.312 3 2.625 .500 VCFJF PS-4261
SEAL HEAD MATING RING
Fig. OD Oper. Hgt. Fig. OD Thick.
Material U.S. Seal Mfg.
Code NOTES Part No.
*US Seal 2010 catalog w cover 9/14/10 3:00 PM Page 119
DIMENSIONAL CROSS-REFERENCE BY SHAFT SIZE
1.750 (1-3/4") (continued)
E 2.375 1.312 3 2.625 .500 VCFKF PS-4232
E 2.375 1.312 3 2.625 .500 VCFZF 316SS/I PS-4228
E 2.375 1.437 3 2.500 .500 B/VCFKF PS-6090
E 2.375 1.875 3 2.500 .500 NCFKF PS-4315
E2.375 1.937 3 2.500 .500 QCFZF I PS-7950
E 2.375 2.000 — — — BCF-F PS-2109
E 2.375 2.000 — — — BCF-F I PS-2109-P66
E 2.375 2.000 — — — QCF-F PS-2109-EPR
E 2.375 2.000 — — — QCF-F I PS-2109-EPR-P66
E 2.375 2.000 — — — XCF-F PS-2109-AFLAS
E2.375 2.000 3 2.312 .500 BCFJF PS-1684
E 2.375 2.000 1 2.487 .500 BCFJF PS-317
E 2.375 2.000 1 2.500 .500 BCFJF PS-205
E 2.375 2.000 1 2.500 .500 BCFJF I PS-205-P66
E 2.375 2.000 1 2.500 .500 BCFKF PS-366
E 2.375 2.000 1 2.500 .500 BCFKF I PS-366-P66
E 2.375 2.000 1 2.500 .500 BCFLF PS-4327
E 2.375 2.000 1 2.500 .500 BCFZF PS-366-TC-CMS
E 2.375 2.000 1 2.500 .500 BZFZF PS-366-TC-TC
E 2.375 2.000 1 2.500 .500 QCFZF I PS-7736
E 2.375 2.000 1 2.500 .500 VCFJF PS-205V-CMS
E 2.375 2.000 1 2.500 .500 VCFJF I
PS-205V-CMS-P66
E 2.375 2.000 1 2.500 .500 VCFKF PS-366V-CMS
E 2.375 2.000 1 2.500 .500 VCFKF I
PS-366V-CMS-P66
E 2.375 2.000 1 2.500 .500 VCFZF PS-205V-TC-SEAT
E 2.375 2.000 1 2.500 .500 VZFZF
PS-205V-TC-TC-CMS
E 2.375 2.000 3 2.500 .500 BCEJE PS-3673
E 2.375 2.000 3 2.500 .500 BCFJF PS-535
E 2.375 2.000 3 2.500 .500 BCFKF PS-262
E2.375 2.000 3 2.500 .500 BCFZF PS-859-TC-SEAT
E 2.375 2.000 3 2.500 .500 BCFZF I PS-535-P66-TC
E 2.375 2.000 3 2.500 .500 QCFJF PS-535-EPR
E 2.375 2.000 3 2.500 .500 QCFKF I PS-262-EPR-P66
E 2.375 2.000 3 2.500 .500 QZFZF PS-3540
E 2.375 2.000 3 2.500 .500 VCFJF PS-205V
E 2.375 2.000 3 2.500 .500 VCFJF I PS-205V-P66
E2.375 2.000 3 2.500 .500 VCFKF PS-366V
E 2.375 2.000 3 2.500 .500 VCFLF 316SS PS-7924
E2.375 2.000 32.500 .500 VLFLF PS-7488
E 2.375 2.000 3 2.500 .500 XCFLF I PS-4186
E2.375 2.000 5 2.500 .500 BCFZF I PS-4429
E 2.375 2.000 5 2.500 .500 QCFZF I PS-4372
E2.375 2.000 32.625 .500 BCFJF PS-2130
E 2.375 2.000 3 2.625 .500 VCFKF PS-4139
E 2.375 2.000 27 3.000 1.000 BCFJF PS-1078
E 2.375 2.375 — — — BCF-F
316SS/C/I
PS-7867
E2.375 2.375 3 2.312 .500 BCFZF C PS-4233
E 2.375 2.375 3 2.312 .500 VCFJF 316SS/C PS-4326
E 2.375 2.375 3 2.500 .500 VCFJF 316SS/C PS-3902
E2.375 2.375 3 2.500 .500 VCFKF C PS-3637
E 2.375 2.375 3 2.500 .500 VCFLF C PS-7839
E2.375 2.375 32.500 .500 VCFZF C/I PS-7561
EBalanced 2.375 2.312 3 2.500 .500 VCFJF 316SS PS-4221
EBalanced 2.375 2.375 1 2.375 .500 BCFJF PS-7901
116 NOTE:
C. COMPLETE WITH COLLAR
I. ABRASION RESISTANT CARBON (P66)
SEAL HEAD MATING RING
Fig. OD Oper. Hgt. Fig. OD Thick.
Material U.S. Seal Mfg.
Code NOTES Part No.
*US Seal 2010 catalog w cover 9/14/10 3:00 PM Page 120
117
NOTE:
I. ABRASION RESISTANT CARBON (P66)
N. NON-STANDARD SPRING HOLDER
DIMENSIONAL CROSS-REFERENCE BY SHAFT SIZE
1.750 (1-3/4") (continued)
EBalanced 2.375 2.375 1 2.375 .500 BCFKF PS-2231-CMS
EBalanced 2.375 2.375 3 2.375 .500 BCFJF PS-7774
EBalanced 2.375 2.375 3 2.375 .500 BCFKF PS-2231
EBalanced 2.375 2.375 3 2.375 .500 BCFZF PS-7821
G2.402 1.181 1 2.500 .500 BLFLF PS-3016
G 2.402 1.181 1 2.500 .500 BLFZF PS-4216
K 2.609 1.625 1 2.500 .500 BCFJF PS-6246
K 2.609 2.125 1 2.500 .500 BCFJF PS-449
K2.609 2.125 1 2.500 .500 BCFKF PS-1197
K 2.609 2.125 3 2.500 .500 BCFJF PS-4353
K 2.609 2.125 3 2.500 .500 BCFJ/KF PS-1142
K 2.625 1.625 1 2.500 .500 VZFZF PS-4304
Q 3.000 .689 Special 2.500 .412 Special PS-4133
R 2.750 2.125 — — — BCD-F PS-213
R 2.750 2.125 1 2.500 .500 BCDKF PS-217
T 2.375 2.281 3 2.500 .500 VCFJF PS-6242
T 2.375 2.750 3 2.500 .500 BCFJF PS-2144
T 2.375 2.875 1 2.500 .500 BCFJF PS-674
T 2.375 2.875 1 2.500 .500 BCFKF PS-675
T 2.375 2.875 3 2.500 .500 VCFJF 316SS PS-4263
T 2.375 2.937 3 2.500 .500
VCFJF/VCFJF
PS-4283
T 2.375 2.937 3 2.500 .500
VCFJF/VCFLF
PS-4405
U 2.375 2.000 3 2.500 .500 BCFJF PS-2170
U 2.375 2.000 3 2.500 .500 BCF/DKF PS-2157
U 2.375 2.000 3 2.500 .500 BCFKF PS-7090
U 2.375 2.250 3 2.375 .500 BCFJF PS-1070
U 2.375 2.500 1 2.500 .500 BCFJF PS-1042
U 2.375 2.500 1 2.500 .500 BCF/DKF PS-555
U 2.375 2.500 1 2.500 .500 BCFKF PS-555SS
U 2.375 2.500 1 2.500 .500 VCFZF PS-3884
U 2.375 2.500 3 2.500 .500 BCFJF PS-519
U 2.375 2.500 3 2.500 .500 BCFJF I PS-519-P66
U2.375 2.500 3 2.500 .500 BCFKF PS-1199
V 2.437 2.250 3 2.750 .625 BCFJF PS-3754
W 2.500 1.375 2 2.500 .500 TCFJF 316SS PS-9106
WT 2.312 1.375 3 2.500 .500 T/VCFJF 316SS PS-9023
X 2.500 1.375 3 2.500 .500 VCFLF 316SS PS-8058
1.771 (45MM)
E 2.500 2.125 1 2.625 .500 BCFJF PS-722
E 2.500 2.125 1 2.625 .500 BCFKF PS-719
T2.500 3.000 12.625 .500 BCFJF PS-727
T 2.500 3.000 1 2.625 .500 BCFKF PS-728
1.875 (1-7/8")
C2.561 1.000 Plate 3.528 .437 BCFGF PS-5011
C2.561 1.000 Plate Plate Plate VCFGF PS-5721
C 2.645 1.110 2 3.000 .404 BCFJF PS-5342
C 2.645 1.110 2 3.000 .404 QCFJF PS-5679
C 2.645 1.110 2 3.000 .404 VCFJF PS-5717
C2.645 1.125 2 3.000 .474 B/VCFKF N PS-5712
C 2.750 1.500 — — — BCF-F FA-1875
C 2.750 1.500 — — — VCF-F FA-1875V
C 2.750 1.500 1 2.625 .500 BCFJF PS-340
C2.750 1.500 12.625 .500 BCFJF I PS-340-P66
C2.750 1.500 12.625 .500 BCFKF PS-1608
SEAL HEAD MATING RING
Fig. OD Oper. Hgt. Fig. OD Thick.
Material U.S. Seal Mfg.
Code NOTES Part No.
*US Seal 2010 catalog w cover 9/14/10 3:00 PM Page 121
DIMENSIONAL CROSS-REFERENCE BY SHAFT SIZE
1.875 (1-7/8") (continued)
C 2.750 1.500 1 2.625 .500 BZFLF PS-340-TC-SC
C 2.750 1.500 1 2.625 .500 BZFZF PS-340-TC-TC
C 2.750 1.500 1 2.625 .500 QCFJF PS-340-EPR-CMS
C 2.750 1.500 1 2.625 .500 QCFZF
PS-340-EPR-TC-CMS
C2.750 1.500 1 2.625 .500 VCFJF PS-340V-CMS
C 2.750 1.500 3 2.625 .500 BCFJF PS-2114
C2.750 1.500 3 2.625 .500 BCFKF PS-312
C 2.750 1.500 3 2.625 .500 QCFKF I PS-312-EPR-P66
C 2.750 1.500 3 2.625 .500 VCFJF PS-340V
C 2.750 1.500 3 2.625 .500 VCFKF PS-312V
C 2.921 .688 3 2.451 .312 VCFKF PS-4219
D 2.875 1.500 — — — BCD-F PS-223
D 2.875 1.500 1 2.625 .500 BCDJF PS-828
D 2.875 1.500 1 2.625 .500 BCDKF PS-1097
D 2.875 1.500 3 2.625 .500 BCDKF PS-593
D 2.875 1.500 3 2.625 .500 BCFJF PS-4333
D 2.875 1.500 3 2.625 .500 VCPSF PS-6094
DBalanced 2.875 1.875 1 2.500 .500 BCDZF PS-3818
E 2.500 1.531 3 2.625 .500 VCFZF 316SS PS-4193
E 2.500 1.531 3 2.625 .500 VZFZF 316SS PS-4166
E 2.500 2.062 3 2.625 .500 VCFZF PS-1661
E 2.500 2.125 — — — VCF-F FA-513V
E 2.500 2.125 1 2.625 .500 BCDKF PS-513
E 2.500 2.125 1 2.625 .500 BCFJF PS-2069
E 2.500 2.125 1 2.625 .500 BCFKF PS-2070
E 2.500 2.125 1 2.625 .500 QCFZF I PS-7869
E 2.500 2.125 1 2.625 .500 VCFJF PS-1659V-CMS
E 2.500 2.125 3 2.625 .500 BCFJF PS-2071
E 2.500 2.125 3 2.625 .500 BCFKF PS-2072
E 2.500 2.125 3 2.625 .500 BCFKF 316SS PS-7898
E 2.500 2.125 3 2.625 .500 BCFLF PS-586-SC-SEAT
E 2.500 2.125 3 2.625 .500 BLFLF PS-586-SC-SC
E 2.500 2.125 3 2.625 .500 BLFLF 316SS PS-4270
E 2.500 2.125 3 2.625 .500 BZFZF PS-2072-TC-TC
E2.500 2.125 3 2.625 .500 VCFJF PS-1659
E2.500 2.125 3 2.625 .500 VCFKF PS-1660
E 2.500 2.125 3 2.625 .500 VLFZF PS-586V-SC-TC
E 2.500 2.125 3 2.687 .500 B/VCDJF PS-1662
E 2.500 2.125 3 2.687 .500 B/VCDKF PS-1663
E2.500 2.125 32.687 .500 VCFJF PS-7020
E 2.500 2.125 3 2.687 .500 VCFKF PS-4171V
E 2.500 2.437 3 2.687 .500 BCFKF PS-949
E 2.500 2.437 3 2.687 .500 B/VCFJF PS-1664
EBalanced 2.500 2.500 3 2.500 .500 BCFJF PS-7827
EBalanced 2.500 2.500 3 2.500 .500 BCFKF PS-7884
EBalanced 2.500 2.500 3 2.500 .500 VCFJF PS-4417
EBalanced 2.500 2.500 3 2.500 .500 VCFKF PS-7884V
EBalanced 2.500 2.500 Special 2.687 .500 VCFZF PS-3648
G2.520 1.181 12.625 .500 BCFJF PS-3017
G2.520 1.181 12.625 .500 BLFLF PS-3018
K2.750 1.750 12.625 .500 BCFJF PS-2237
K 2.750 1.750 1 2.625 .500 BZ/CFL/JF PS-4426
K 2.750 1.843 1 2.625 .500 BZ/CFZ/JF PS-4217
K2.750 2.125 1 2.625 .500 BCFKF PS-7352
118 NOTE:
I. ABRASION RESISTANT CARBON (P66)
SEAL HEAD MATING RING
Fig. OD Oper. Hgt. Fig. OD Thick.
Material U.S. Seal Mfg.
Code NOTES Part No.
*US Seal 2010 catalog w cover 9/14/10 3:00 PM Page 122
119
NOTE:
C. COMPLETE WITH COLLAR
I. ABRASION RESISTANT CARBON (P66)
DIMENSIONAL CROSS-REFERENCE BY SHAFT SIZE
1.875 (1-7/8") (continued)
K 2.750 3.000 1 2.625 .500 BCFJF PS-318
K 2.750 3.000 1 2.625 .500 BCFKF PS-1693
T 2.500 2.343 25 2.650 .406 BCFJF PS-4046
T2.500 2.500 3 2.625 .437 BCFJF PS-3964
T2.500 3.000 1 2.625 .500 BCFJF PS-742
T 2.500 3.000 1 2.625 .500 BCFKF PS-743
T 2.500 3.000 3 2.687 .500 VCFJF PS-1653
U2.500 2.437 3 2.500 .500 BCFJF PS-898
V2.500 2.000 1 2.625 .500 BMFJF PS-1108
V 2.500 2.000 3 2.625 .437 BMFJF PS-2146
V 2.500 2.000 25 2.640 .406 BMFJF PS-1105
WT 2.510 1.375 3 2.625 .500 Q/TCFZF 316SS PS-9119
XBalanced 2.500 1.750 3 2.375 .500 VCFZF 316SS/I PS-8010
XBT 2.510 1.750 3 2.375 .500 QCFZF 316SS PS-8059
XSpecial 2.500 1.500 3 2.000 .500 VCFJF 316SS PS-8077
XT 2.510 1.750 3 2.625 .437 VCFJF 316SS PS-8076
2.000 (2")
C 2.510 1.062 1 2.750 .500 BCFJF PS-7781
C 2.875 1.062 1 2.750 .500 BLFZF PS-7781-SC-TC
C 2.875 1.062 3 2.750 .500 BCFJF PS-3993
C 2.875 1.062 3 2.750 .500 BCFKF PS-4015
C 2.875 1.062 3 2.750 .500 BLFLF PS-6238
C 2.875 1.062 3 2.750 .500 BLFZF PS-3721
C 2.875 1.062 3 2.750 .500 VCFKF PS-6247V
C 2.875 1.062 3 2.750 .500 VLFLF PS-4178
C 2.875 1.250 1 2.750 .500 BCFJF PS-2139
C 2.875 1.250 1 2.750 .500 BCFKF PS-1028
C 2.875 1.250 1 2.750 .500 VCFJF PS-3810V-CMS
C 2.875 1.250 3 2.750 .500 BCFJF PS-4416
C 2.875 1.250 3 2.750 .500 BCFKF PS-3875
C2.875 1.500 — ——BCF-F PS-2111
C 2.875 1.500 — — — VCF-F FA-10047
C 2.875 1.500 1 2.750 .500 BCFJF PS-267
C2.875 1.500 1 2.750 .500 BCFJF I PS-267-P66
C 2.875 1.500 1 2.750 .500 BCFKF PS-842
C2.875 1.500 1 2.750 .500 BCFKF I PS-842-P66
C 2.875 1.500 1 2.750 .500 BCFZF PS-842-TC SEAT
C 2.875 1.500 1 2.750 .500 BLFLF
PS-267-SC-SC-CMS
C 2.875 1.500 1 2.750 .500 BZFZF PS-2219
C2.875 1.500 12.750 .500 QCFJF PS-267-EPR
C 2.875 1.500 1 2.750 .500 QCFZF I PS-3580
C 2.875 1.500 1 2.750 .500 VCFJF PS-267V-CMS
C2.875 1.500 1 2.750 .500 VCFJF I
PS-267V-CMS-P66
C 2.875 1.500 1 2.750 .500 VCFKF PS-842V
C2.875 1.500 1 2.750 .500 VCFKF I
PS-842V-P66-CMS
C 2.875 1.500 1 2.750 .500 VLFLF PS-6224
C 2.875 1.500 1 2.750 .500 VLFZF
PS-267V-SC-TC-CMS
C 2.875 1.500 1 2.750 .500 VZFZF PS-6218
C2.875 1.500 12.750 .500 VZFZF 316SS PS-6213
C2.875 1.500 3 2.750 .500 BCFJF PS-532
C 2.875 1.500 3 2.750 .500 BCFKF PS-332
C 2.875 1.500 3 2.750 .500 BCFZF PS-267-TC-SEAT
C 2.875 1.500 3 2.750 .500 BLFZF C PS-267-SC-TC-LC
C2.875 1.500 3 2.750 .500 BLFZF
PS-267-SC-TC-SEAT
SEAL HEAD MATING RING
Fig. OD Oper. Hgt. Fig. OD Thick.
Material U.S. Seal Mfg.
Code NOTES Part No.
*US Seal 2010 catalog w cover 9/14/10 3:00 PM Page 123
DIMENSIONAL CROSS-REFERENCE BY SHAFT SIZE
120 NOTE:
I. ABRASION RESISTANT CARBON (P66)
2.000 (2") (continued)
C 2.875 1.500 3 2.750 .500 QCFZF I PS-7309
C 2.875 1.500 3 2.750 .500 VCFJF PS-267V
C 2.875 1.500 3 2.750 .500 VCFKF PS-1145
C 2.875 1.500 3 2.750 .500 VCFZF PS-267V-TC-SEAT
C 2.875 1.500 3 2.750 .500 VLFLF PS-267V-SC-SC
C2.875 1.500 3 3.000 .500 BCFJF I PS-4345
C 2.875 1.500 3 3.000 .500 BCFKF PS-1020
C2.875 1.500 3 3.000 .500 QCFJF I PS-4287
C 2.875 1.500 3 3.000 .500 QCFKF I PS-1020-EPR-P66
C 2.875 1.500 3 3.000 .500 QCFZF PS-3027
C 2.875 1.500 3 3.000 .500 VCFKF PS-1020V
C 2.875 1.500 28 4.330 1.060 BCFKF PS-1037
C 2.875 1.500 28 4.330 1.060 VCFKF PS-1037V
C2.875 2.125 1 2.750 .500 BCFJF PS-2133
C 2.875 2.125 1 2.750 .500 BCFJF I PS-2133-P66
C 2.875 2.125 1 2.750 .500 BCFKF PS-1017
C 2.875 2.125 1 2.750 .500 BCFZF PS-1017-TC-SEAT
C 2.875 2.125 1 2.750 .500 QCFKF I PS-3674
D 3.000 1.500 — — — BCD-F PS-196
D 3.000 1.500 1 2.625 .500 BCDKF PS-876
D 3.000 1.500 1 2.750 .500 BCDJF PS-445
D 3.000 1.500 1 2.750 .500 BCDKF PS-462
D 3.000 1.500 1 2.750 .500 BCFJF PS-2073
D 3.000 1.500 1 2.750 .500 VCDJF PS-445V-CMS
D 3.000 1.500 1 2.750 .500 VLFZF
PS-2073V-SC-TC-CMS
D 3.000 1.500 3 2.750 .500 BCDJF PS-833
D 3.000 1.500 3 2.750 .500 BCDKF PS-832
D 3.000 1.500 3 2.750 .500 BCFJF PS-2075
D 3.000 1.500 3 2.750 .500 BCFKF PS-2076
D 3.000 1.500 3 2.750 .500 NCPGP PS-193
D 3.000 1.500 3 2.750 .500 VCDJF PS-445V
D3.000 1.500 3 2.750 .500 VCDKF PS-462V
D 3.093 1.125 3 2.812 .500 NCPGP PS-333
ESpecial 2.625 1.843 3 3.031 .500 NCDKF PS-3952
E 2.625 2.125 — — — BCF-F PS-2112
E 2.625 2.125 — — — VCF-F 316SS PS-2112V
E 2.625 2.125 — — — VCF-F 316SS/I PS-2112V-P66
E2.625 2.125 1 2.687 .500 BCFJF PS-319
E2.625 2.125 1 2.687 .500 BCFJF I PS-319-P66
E 2.625 2.125 1 2.687 .500 BCFKF PS-478
E 2.625 2.125 1 2.750 .500 BCFJF PS-479
E 2.625 2.125 1 2.750 .500 BCFKF PS-843
E 2.625 2.125 1 2.750 .500 BCFZF I PS-3708
E2.625 2.125 1 2.750 .500 BLFZF PS-479-SC-TC
E2.625 2.125 1 2.750 .500 VCFJF I
PS-479V-CMS-P66
E2.625 2.125 1 2.750 .500 VCFZF PS-479V-TC-CMS
E 2.625 2.125 3 2.750 .500 BCFJF PS-530
E 2.625 2.125 3 2.750 .500 BCFKF PS-477
E 2.625 2.125 3 2.750 .500 BCFKF I PS-477-P66
E 2.625 2.125 3 2.750 .500 BCFKF 316SS/I PS-3522
E 2.625 2.125 3 2.750 .500 BCFZF PS-477-TC-SEAT
E2.625 2.125 32.750 .500 BLFLF 316SS PS-4432
E2.625 2.125 32.750 .500 BZFLF PS-477-TC-SC
E 2.625 2.125 3 2.750 .500 BZFZF PS-477-TC-TC
SEAL HEAD MATING RING
Fig. OD Oper. Hgt. Fig. OD Thick.
Material U.S. Seal Mfg.
Code NOTES Part No.
*US Seal 2010 catalog w cover 9/14/10 3:00 PM Page 124
121
NOTE:
C. COMPLETE WITH COLLAR
I. ABRASION RESISTANT CARBON (P66)
DIMENSIONAL CROSS-REFERENCE BY SHAFT SIZE
2.000 (2") (continued)
E2.625 2.125 3 2.750 .500 NCPKP PS-342
E 2.625 2.125 3 2.750 .500 QCFJF PS-4376
E 2.625 2.125 3 2.750 .500 QCFKF PS-477-EPR
E 2.625 2.125 3 2.750 .500 QCFLF PS-477-EPR-SC
E2.625 2.125 3 2.750 .500 QCFZF I PS-3639
E 2.625 2.125 3 2.750 .500 VCFJF PS-479V
E 2.625 2.125 3 2.750 .500 VCFKF PS-477V
E 2.625 2.125 3 2.750 .500 VCFZF PS-477V-TC-SEAT
E2.625 2.125 3 2.750 .500 VCFZF 316SS PS-3999
E 2.625 2.125 3 2.750 .500 VZFZF PS-477V-TC-TC
E 2.625 2.125 3 3.000 .500 BCFKF PS-4312
EBalanced 2.625 2.500 1 2.625 .500 BCFJF PS-7910
EBalanced 2.625 2.500 3 2.625 .500 BCFKF PS-7892
EBalanced 2.625 2.500 3 2.625 .500 BCFZF PS-4291
EBalanced 2.625 2.500 3 2.625 .500 VCFJF PS-4419
EBalanced 2.625 2.500 3 2.625 .500 VCFKF PS-7890
G 2.598 1.500 25 2.750 .500 QCFLF PS-4357
G 2.598 1.500 25 2.750 .500 QCFLF 316SS PS-3019
K 2.859 2.125 3 2.750 .500 BCFKF PS-1040
K 2.859 2.125 3 2.750 .500 BZ/CFZ/JF PS-4343
K 2.875 1.500 1 2.775 .500 BL/CFZ/CF PS-4294
K 2.875 2.125 1 2.750 .500 BCFJF PS-2143
K 2.875 2.125 3 2.750 .500 BCFJF PS-7196
K 2.875 2.125 3 2.750 .500 VCFJF PS-7196V
K 2.875 2.125 3 3.000 .500 BCFJF PS-7963
R 3.000 2.125 1 2.750 .500 BCDJF PS-1610
R 3.000 2.125 1 2.750 .500 BCDKF PS-658
U 2.625 2.000 3 2.750 .500 BCFKF PS-385A
U 2.625 2.000 3 2.750 .500 VLFLF PS-4391
U 2.625 2.000 3 2.750 .500 VZFLF C PS-7616
U 2.625 2.218 1 2.750 .500 BCFKF PS-456-CMS
U 2.625 2.218 3 2.750 .500 BCFKF PS-456
U2.625 2.218 3 2.750 .500 QCFKF PS-456-EPR
U 2.625 2.218 3 2.750 .500 QCFZF I PS-3591
U 2.625 2.218 3 2.750 .500 VCFKF PS-456V
U2.625 2.218 3 2.750 .500 VCFZF PS-456V-TC-SEAT
U 2.625 2.218 3 2.750 .500 VLFLF PS-456V-SC-SC
Special 2.750 .750 Special 2.750 .375 BCFAF PS-4052
2.062 (2-1/16")
E 2.812 2.375 3 2.875 .562 BCDKF PS-707
T2.812 3.375 3 2.937 .562 BCFKF PS-3562
2.125 (2-1/8")
C 2.812 1.197 2 3.000 .500 VCFKF 316SS PS-5706
C2.968 1.687 33.000 .562 QCFZF PS-4314
C3.000 1.687 — — — BCF-F FA-2120
C 3.000 1.687 3 2.875 .562 BCFJF PS-854
C 3.000 1.687 3 2.875 .562 BCFKF PS-855
C 3.000 1.687 1 3.000 .562 BCFJF PS-844
C3.000 1.687 1 3.000 .562 BCFKF PS-543
C 3.000 1.687 1 3.000 .562 VCFJF PS-4436
C 3.000 1.687 3 3.000 .562 BCFJF PS-338
C 3.000 1.687 3 3.000 .562 B/VCFKF PS-1057
C3.000 1.687 33.000 .562 VCFJF PS-338V
C3.000 1.687 33.000 .562 VCFKF PS-543V
SEAL HEAD MATING RING
Fig. OD Oper. Hgt. Fig. OD Thick.
Material U.S. Seal Mfg.
Code NOTES Part No.
*US Seal 2010 catalog w cover 9/14/10 3:00 PM Page 125
122 NOTE:
C. COMPLETE WITH COLLAR
I. ABRASION RESISTANT CARBON (P66)
DIMENSIONAL CROSS-REFERENCE BY SHAFT SIZE
2.125 (2-1/8") (continued)
C 3.000 1.687 3 3.000 .562 VCFLF PS-3606
C 3.000 1.687 3 3.000 .562 VLFLF PS-338V-SC-SC
C3.000 2.375 3 3.000 .562 VCFKF PS-4276
D3.250 1.687 1 3.000 .562 BCFJF PS-1686
D 3.250 1.687 1 3.000 .562 BCFKF PS-1687
D 3.250 1.687 1 3.000 .562 QCFLF I PS-3035
D 3.250 1.687 2 3.000 .562 BCDKF PS-4437
D3.250 1.687 3 3.000 .562 BCFJF PS-2093
D 3.250 1.687 3 3.000 .562 VCFLF I PS-4079
D 3.250 1.687 3 3.000 .562 VCFLF PS-4080
E 2.812 2.312 3 2.875 .562 BCFKF C PS-4243
E 2.812 2.375 — — — BCF-F 316SS FA-3502
E 2.812 2.375 3 2.812 .437 BCFJF PS-611
E 2.812 2.375 3 2.812 .437 BCFJF I PS-611-P66
E 2.812 2.375 3 2.812 .437 BCFKF PS-1612
E 2.812 2.375 3 2.812 .437 VCFKF PS-1612V
E 2.812 2.375 3 2.875 .562 BCFJF PS-856
E 2.812 2.375 3 2.875 .562 BCFKF PS-857
E 2.812 2.375 3 2.875 .562 VCFZF PS-857V-TC-SEAT
E 2.812 2.375 3 2.875 .562 VZFLF PS-859V-TC-SC
E 2.812 2.375 1 3.000 .562 BCFJF PS-537
E 2.812 2.375 1 3.000 .562 BCFKF PS-353
E 2.812 2.375 3 3.000 .562 BCFJF PS-327
E 2.812 2.375 3 3.000 .562 BCFKF PS-2086
E 2.812 2.375 3 3.000 .562 VCFJF PS-327V
E 2.812 2.375 3 3.000 .562 VCFKF PS-353V
E 2.812 2.375 3 3.000 .562 VLFJF 316SS PS-4434
EBalanced 2.812 2.750 3 2.750 .500 BCFJF 316SS PS-3714
EBalanced 2.812 2.750 3 2.750 .500 VCFJF 316SS PS-4418
G 2.717 1.181 3 3.000 .562 QCFJF 316SS PS-3020
K 2.968 2.125 1 3.000 .562 VCFZF PS-3765-TC-SEAT
K2.968 2.125 1 3.000 .562 VCFRF PS-3765
K3.000 2.125 13.000 .562 BCFJF PS-887
K 3.000 2.125 3 Special 3.000 .562 VCFKF PS-6120
K 3.000 2.125 3 Special 3.000 .562 VCFZ/KF I PS-6121
T2.812 3.375 3 3.000 .562 BCFJF PS-2126
T 2.812 3.375 3 3.000 .562 BLFZF PS-4388
U 2.812 2.812 1 3.000 .562 BCFKF PS-556
V 2.750 1.625 1 3.187 .875 BCFJF PS-1107-CMS
V 2.750 2.562 3 3.140 .562 BCFJF PS-1102
W 3.000 1.687 2 3.000 .562 TCFJF 316SS PS-9122
XB2 3.125 1.156 27 3.375 1.000 VCFJF 316SS PS-8035
XB2 3.125 1.312 27 3.562 1.000 VCFJF 316SS PS-8057
2.187 (2-3/16")
D 3.468 .969 2 3.000 .406 BCFKF PS-5005
D3.468 .969 23.000 .406 QCFKF PS-5719
D 3.468 .969 2 3.000 .406 VCFKF PS-5024
2.250 (2-1/4")
C2.938 2.375 3 3.125 .562 VCDKF PS-4383
C 3.125 1.187 1 3.125 .562 BCFJF PS-7138
C 3.125 1.187 1 3.125 .562 BZFZF PS-7138-TC-TC
C 3.125 1.187 1 3.125 .562 VLFZF
PS-7138V-SC-TC-CMS
C3.125 1.187 33.125 .562 BLFZF PS-3966
C 3.125 1.187 3 3.125 .562 VCFKF PS-6248
SEAL HEAD MATING RING
Fig. OD Oper. Hgt. Fig. OD Thick.
Material U.S. Seal Mfg.
Code NOTES Part No.
*US Seal 2010 catalog w cover 9/14/10 3:00 PM Page 126
123
NOTE:
I. ABRASION RESISTANT CARBON (P66)
DIMENSIONAL CROSS-REFERENCE BY SHAFT SIZE
2.250 (2-1/4") (continued)
C 3.125 1.437 1 3.125 .562 BCFJF PS-1087
C3.125 1.437 1 3.125 .562 BZFZF PS-7064
C 3.125 1.688 1 3.125 .562 BCFJF PS-1679
C 3.125 1.688 1 3.125 .562 BCFJF I PS-1679-P66
C 3.125 1.688 1 3.125 .562 BCFKF PS-7782
C 3.125 1.688 1 3.125 .562 BCFKF PS-1680
C3.125 1.688 1 3.125 .562 BCFKF I PS-1680-P66
C 3.125 1.688 1 3.125 .562 BLFLF PS-1680-SC-SC
C 3.125 1.688 1 3.125 .562 VCFJF PS-1679V-CMS
C3.125 1.688 1 3.125 .562 VCFKF PS-1680V
C 3.125 1.688 1 3.125 .562 VZFZF PS-3773
C 3.125 1.688 3 3.125 .562 BCFJF PS-1678
C 3.125 1.688 3 3.125 .562 BCFKF PS-1676
C 3.125 1.688 3 3.125 .562 BCFKF I PS-1676-P66
C 3.125 1.688 3 3.125 .562 B/VCFZF PS-1676-TC-SEAT
C 3.125 1.688 3 3.125 .562 QCFKF I PS-1676-EPR
C 3.125 1.688 3 3.125 .562 QCFKF I PS-1676-EPR-P66
C 3.125 1.688 3 3.125 .562 QCFZF I PS-7750
C 3.125 1.688 3 3.125 .562 VCFJF PS-1678V
C 3.125 1.688 3 3.125 .562 VCFKF PS-1676V
C 3.125 1.688 3 3.125 .562 VCFZF
PS-1676V-TC-SEAT
C 3.125 1.695 3 3.125 .500 VCFLF PS-6233
C 3.125 2.375 1 3.125 .562 BCFJF PS-3537
D 3.375 1.688 — — — BCD-F PS-942
D 3.375 1.688 1 3.125 .562 BCDJF PS-874
D 3.375 1.688 1 3.125 .562 BCDKF PS-941
D 3.375 1.688 1 3.125 .562 BCFJF PS-2087
D 3.375 1.688 1 3.125 .562 BCFKF PS-2088
D 3.375 1.688 3 3.125 .562 BCDJF PS-846
D3.375 1.688 3 3.125 .562 BCDKF PS-847
D3.375 1.688 3 3.125 .562 BCFJF PS-2089
D3.375 1.688 3 3.125 .562 BCFKF PS-2090
D 3.375 1.688 3 3.125 .562 VCDKF PS-941V
D 3.468 1.688 3 3.125 .562 Special PS-5358
E 2.938 2.375 1 3.125 .562 BCDJF PS-323
E2.938 2.375 1 3.125 .562 BCDJF I PS-323-P66
E2.938 2.375 1 3.125 .562 BCDKF PS-351
E2.938 2.375 1 3.125 .562 BCFJF PS-2091
E2.938 2.375 1 3.125 .562 BCFKF PS-2092
E 2.938 2.375 1 3.125 .562 BLFZF
PS-323-SC-TC-CMS
E 2.938 2.375 1 3.125 .562 VCDKF PS-351V-CMS
E 2.938 2.375 3 3.125 .562 BCDJF PS-848
E 2.938 2.375 3 3.125 .562 BCDKF PS-849
E 2.938 2.375 3 3.125 .562 BCFJF PS-1688
E2.938 2.375 33.125 .562 BCFKF PS-2094
E2.938 2.375 3 3.125 .562 B/VZFZF PS-3530
E 2.938 2.375 3 3.125 .562 QCFLF 316SS/I PS-4409
E 2.938 2.375 3 3.125 .562 VCDKF PS-351V
E2.938 2.375 3 3.125 .562 VCFJF 316SS PS-1688V
E 2.938 2.375 3 3.125 .562 VCFJF 316SS/I PS-3576
E 2.938 2.375 3 3.125 .562 VCFKF PS-2094V
E 2.938 2.375 27 3.906 1.000 VCFKF PS-3951
EBalanced 2.938 2.750 33.000 .562 BCFJF PS-3784
EBalanced 2.938 2.750 3 3.000 .562 BCFKF PS-3643
SEAL HEAD MATING RING
Fig. OD Oper. Hgt. Fig. OD Thick.
Material U.S. Seal Mfg.
Code NOTES Part No.
*US Seal 2010 catalog w cover 9/14/10 3:00 PM Page 127
124 NOTE:
C. COMPLETE WITH COLLAR
I. ABRASION RESISTANT CARBON (P66)
DIMENSIONAL CROSS-REFERENCE BY SHAFT SIZE
2.250 (2-1/4") (continued)
EBalanced 2.938 2.750 3 3.000 .562 BCFZF PS-7749
EBalanced 2.938 2.750 3 3.000 .562 VCFLF I PS-4380
EBalanced 2.938 2.750 3 3.000 .562 VCFZF I PS-3656
K3.109 2.562 3 3.281 .562 BCFKF I PS-7060
K 3.125 1.875 1 3.125 .562 BCFJF PS-7431
K 3.125 2.125 3 3.125 .562 BCFJF PS-7766
Q 3.500 .750 3 3.000 .406 NMPAP PS-6301
Q3.625 .750 1 3.375 .281 BMPAP PS-6302
Q 3.660 .750 1 3.375 .281 VMPSP PS-4041
T 2.938 3.375 3 3.125 .562 BCDJF PS-2132
2.375 (2-3/8")
C 3.219 1.813 1 3.250 .562 BCFJF PS-268-CMS
C 3.219 1.813 1 3.250 .562 BCFJF I PS-268-CMS-P66
C 3.219 1.813 1 3.250 .562 BCFKF PS-492-CMS
C 3.219 1.813 1 3.250 .562 BCFKF I PS-492-CMS-P66
C 3.219 1.813 1 3.250 .562 VCFKF PS-492V-CMS
C 3.219 1.813 3 3.250 .562 BCFJF PS-268
C 3.219 1.813 3 3.250 .562 BCFJF I PS-268-P66
C 3.219 1.813 3 3.250 .562 BCFKF PS-492
C 3.219 1.813 3 3.250 .562 BCFKF I PS-492-P66
C 3.219 1.813 3 3.250 .562 VCFJF PS-268V
C 3.219 1.813 3 3.250 .562 VCFJF I PS-268V-P66
C 3.219 1.813 3 3.250 .562 VCFZF PS-492V-TC-SEAT
C 3.219 1.813 28 5.118 1.060 BCFKF PS-1677
D 3.500 1.813 3 3.250 .562 BCDJF PS-834
D 3.500 1.813 3 3.250 .562 BCDJF I PS-834-P66
D 3.500 1.813 3 3.250 .562 BCDKF PS-594
D 3.500 1.813 3 3.250 .562 BCDKF I PS-594-P66
D 3.500 1.813 3 3.250 .562 BCFKF PS-2095
D 3.500 1.813 3 3.250 .562 QCFJF PS-834-EPR
E3.062 2.500 — — — BCF-F FA-2098
E3.062 2.500 ———VCF-F FA-350V
E 3.062 2.500 1 3.250 .562 BCFJF PS-2097-CMS
E 3.062 2.500 1 3.250 .562 BCFKF PS-350-CMS
E3.062 2.500 1 3.250 .562 BCFZF I PS-4006
E 3.062 2.500 3 3.250 .562 BCFJF PS-278
E 3.062 2.500 3 3.250 .562 BCFJF I PS-278-P66
E 3.062 2.500 3 3.250 .562 BCFKF PS-350
E 3.062 2.500 3 3.250 .562 VCFJF PS-278V
E 3.062 2.500 3 3.250 .562 VCFKF PS-2098V
E3.062 2.500 33.250 .562 VCFZF I PS-350V-P66-TC
E 3.062 2.500 3 3.250 .562 VZFLF 316SS PS-7935
E 3.062 2.875 3 3.250 .562 QLFLF C PS-4162
EBalanced 3.062 2.875 3 3.125 .562 VCFZF
PS-3936V-TC-SEAT
G 3.150 1.299 1 3.250 .562 BCFJF PS-3008
G3.150 1.299 13.250 .562 BLFZF PS-3022
K 3.219 2.125 3 3.250 .562 BCFJF PS-1694
K 3.219 2.125 3 3.250 .562 BCFKF PS-1041
X3.250 1.687 3 3.250 .562 VCFLF 316SS PS-8003
XBalanced 3.250 2.125 33.000 .500 VCFLF 316SS PS-8069
2.437 (2-7/16")
E 3.312 1.687 3 3.437 .375 BCPKP PS-7580
E3.312 1.687 33.437 .375 VCPKF PS-3751
W 3.312 1.687 28 4.000 .750 TCFKF 316SS PS-9333
SEAL HEAD MATING RING
Fig. OD Oper. Hgt. Fig. OD Thick.
Material U.S. Seal Mfg.
Code NOTES Part No.
*US Seal 2010 catalog w cover 9/14/10 3:00 PM Page 128
125
NOTE:
C.COMPLETE WITH COLLAR
I. ABRASION RESISTANT CARBON (P66)
DIMENSIONAL CROSS-REFERENCE BY SHAFT SIZE
2.500 (2-1/2")
C 3.344 1.500 — — — NCF-F PS-6147
C 3.344 1.813 1 3.375 .562 BCFJF PS-2120
C3.344 1.813 3 3.375 .562 BCFJF PS-269
C 3.344 1.813 3 3.375 .562 BCFKF PS-853
C 3.344 1.813 3 3.375 .562 VCFJF PS-269V
C 3.515 1.813 3 Special 3.375 .562 VCFKF PS-6138
C 3.515 1.862 3 3.375 .562 VLFLF PS-3877
D3.625 1.813 3 3.250 .437 BCDJF PS-468
D 3.625 1.813 3 3.250 .437 BCDKF PS-469
D 3.625 1.813 3 3.375 .562 BCDJF PS-835
D 3.625 1.813 3 3.375 .562 BCDKF PS-463
D 3.625 1.813 3 3.375 .562 BZFLF PS-463-TC-SC
D 3.625 1.813 3 3.375 .562 VCDKF PS-463V
D 3.625 1.813 3 3.375 .562 VZFLF PS-3888
D 3.718 1.250 3 3.375 .562 VCPGP PS-335V
E 3.062 2.500 3 3.375 .562 QCFZF I PS-7985
E 3.187 1.813 3 3.500 .422 BCFJF PS-6254
E 3.187 2.500 3 3.250 .562 BCPKF PS-3924
E 3.187 2.500 3 3.250 .562 QCFZF I PS-3516
E 3.187 2.500 1 3.375 .562 BCFJF I PS-279-CMS-P66
E 3.187 2.500 1 3.375 .562 BLFZF PS-4411
E 3.187 2.500 3 3.375 .562 BCFJF PS-279
E 3.187 2.500 3 3.375 .562 BCFKF PS-349
E 3.187 2.500 3 3.375 .562 BCFKF I PS-349-P66
E 3.187 2.500 3 3.375 .562 BCFKF I PS-2205
E 3.187 2.500 3 3.375 .562 BCFZF PS-349-TC-SEAT
E 3.187 2.500 3 3.375 .562 QCFKF I PS-2205-EPR
E 3.187 2.500 3 3.375 .562 VCFKF PS-349V
E 3.187 2.500 3 3.375 .562 VCFLF PS-349V-SC-SEAT
E 3.187 2.500 3 3.375 .562 VLFZF PS-279V-SC-TC
E3.187 2.500 3 3.375 .562 VZFLF PS-349V-TC-SC
G 3.268 1.811 25 3.375 .562 QCFLF PS-3804
K 3.375 1.750 3 Special 3.375 .562 VCFZF PS-6140
K 3.344 1.750 3 Special 3.375 .562 VCFKF PS-6141
K 3.344 2.125 1 3.375 .562 BCFJF PS-2158
K3.344 2.125 1 3.375 .562 BLFLF PS-4311
K3.344 2.125 33.375 .562 BCFJF PS-1613
K 3.344 2.125 3 3.375 .562 BCFKF PS-1695
T 3.187 2.656 3 3.500 .422 BCFJF PS-4072
T3.187 2.656 3 3.500 .422 VCFJF PS-6244
T 3.187 2.656 3 3.500 .422 VLFZF PS-6243
V 3.187 2.375 3 3.500 .562 BCFJF PS-2147
XB1 3.375 2.063 3 3.125 .562 VCFZF 316SS PS-8103
2.625 (2-5/8")
D 3.875 1.937 — — — NCP-P I PS-6151
D 3.875 1.937 3 3.375 .625 BCFJF I PS-7909
D 3.875 1.937 3 3.375 .625 VCFKF PS-6002
E 3.375 2.625 3 3.625 .593 QCFLF C PS-4392
E3.375 2.750 33.375 .625 BCFJF PS-328
E 3.375 2.750 3 3.375 .625 BCFJF I PS-328-P66
E 3.375 2.750 3 3.375 .625 BCFKF PS-542
EBalanced 3.375 3.125 3 3.375 .562 BCFJF PS-7703
EBalanced 3.375 3.125 3 3.375 .562 BCFZF PS-7773
EBalanced 3.375 3.125 3 3.375 .562 BCFKF PS-7927
SEAL HEAD MATING RING
Fig. OD Oper. Hgt. Fig. OD Thick.
Material U.S. Seal Mfg.
Code NOTES Part No.
*US Seal 2010 catalog w cover 9/14/10 3:00 PM Page 129
126 NOTE:
I. ABRASION RESISTANT CARBON (P66)
DIMENSIONAL CROSS-REFERENCE BY SHAFT SIZE
2.750 (2-3/4")
C 3.625 1.687 27 4.406 .779 VCFGF PS-6154
C 3.750 1.125 1 3.500 .625 BCFJF PS-6205
C3.750 1.125 1 3.500 .625 BCFZF PS-2154-TC-CMS
C3.750 1.125 1 3.500 .625 BLFLF
PS-2154-SC-SC-CMS
C 3.750 1.125 1 3.500 .625 BLFZF
PS-2154-SC-TC-CMS
C 3.750 1.125 1 3.500 .625 BZFLF PS-6220
C 3.750 1.125 1 3.500 .625 BZFZF PS-6908
C3.750 1.125 1 3.500 .625 VZFZF PS-4381
C 3.750 1.125 3 3.500 .625 BCFJF PS-2154
C 3.750 1.125 3 3.500 .625 B/VCFZF PS-2154-TC-SEAT
C 3.750 1.125 3 3.500 .625 VCFJF PS-6207
C 3.750 1.125 3 3.500 .625 VLFLF PS-2154V-SC-SC
C 3.750 1.125 3 3.500 .625 VZFZF PS-2154V-TC-TC
C 3.750 1.500 3 3.500 .625 BCFJF PS-3994
C 3.750 1.500 3 3.500 .625 BLFLF PS-6239
C 3.750 1.500 3 3.500 .625 BLFZF PS-4366
C 3.750 1.500 3 3.500 .625 VLFZF PS-3661
C 3.750 1.937 1 3.500 .625 BCFJF PS-836-CMS
C 3.750 1.937 1 3.500 .625 BZFZF PS-4308
C 3.750 1.937 3 3.500 .625 BCFJF PS-836
C 3.750 1.937 3 3.500 .625 BCFJF I PS-836-P66
C 3.750 1.937 3 3.500 .625 BCFKF PS-483
C 3.750 1.937 3 3.500 .625 QCFKF I PS-483-EPR-P66
C 3.750 1.937 3 3.500 .625 VCFKF PS-6155
C 3.750 1.937 3 3.500 .625 VCFZF PS-483V-TC-SEAT
C 3.750 2.000 3 3.500 .625 VCFKF PS-2152V
D 4.000 1.937 3 3.500 .625 BCFJF PS-837
D4.000 1.937 3 3.500 .625 BCFJF I PS-837-P66
D 4.000 1.937 3 3.500 .625 BCFKF PS-464
E 3.500 2.750 3 3.500 .625 BCFZF I PS-321-P66-TCO
E 3.500 2.750 3 3.500 .625 V/BCFJF PS-838
E3.500 2.750 3 3.500 .625 V/BCFJF I PS-838-P66
E3.500 2.750 33.500 .625 V/BCFKF PS-321
E 3.500 2.750 3 3.500 .625 VCFKF PS-321V
E 3.500 2.750 3 3.500 .625 VCFLF 316SS PS-4089
E3.500 2.750 3 3.500 .625 VCFZF 316SS PS-7936
K 3.750 2.500 3 3.500 .625 BCFJF PS-2148
K 3.750 3.750 1 3.500 .625 BCFJF PS-322-CMS
K 3.750 3.750 3 3.500 .625 BCFKF PS-322
W 3.625 1.687 2 3.500 .625 TCFJF 316SS PS-9314
XBalanced 3.625 2.062 3 3.375 .562 VCFZF 316SS PS-8102
2.875 (2-7/8")
C 3.875 2.062 3 3.750 .625 BCFJF PS-270
C3.875 2.062 3 3.750 .625 BCFKF PS-839
E 3.625 2.875 3 3.750 .625 BCFJF PS-329
E3.625 2.875 33.750 .625 BCFJF I PS-329-P66
E 3.625 2.875 3 3.750 .625 BCFKF PS-841
E 3.625 2.875 3 3.750 .625 BCFKF I PS-841-P66
E 3.625 2.875 3 3.750 .625 QCFKF PS-841-EPR
K4.500 1.700 3Special 4.500 .292 NCFGF PS-4028
V 3.625 2.250 3 3.750 .625 VCFJF/VCFJF PS-4296
3.000 (3")
C3.843 1.125 3Special 3.875 .625 VCFKF PS-6173
C 4.000 1.125 1 3.875 .625 BCFJF PS-2153-CMS
SEAL HEAD MATING RING
Fig. OD Oper. Hgt. Fig. OD Thick.
Material U.S. Seal Mfg.
Code NOTES Part No.
*US Seal 2010 catalog w cover 9/14/10 3:00 PM Page 130
127
NOTE:
B.TAPERED SPRING
H. SPRING HOLDER NOT INCLUDED
I. ABRASION RESISTANT CARBON (P66)
DIMENSIONAL CROSS-REFERENCE BY SHAFT SIZE
3.000 (3") (continued)
C 4.000 1.125 1 3.875 .625 BCFZF PS-2153-TC-CMS
C4.000 1.125 1 3.875 .625 BLFLF
PS-2153-SC-SC-CMS
C 4.000 1.125 1 3.875 .625 BZFZF PS-7998
C 4.000 1.125 1 3.875 .625 VLFLF
PS-2153V-SC-SC-CMS
C 4.000 1.125 1 3.875 .625 VLFZF PS-4378
C 4.000 1.125 1 3.875 .625 VZFZF PS-3539
C4.000 1.125 1 3.875 .625 VZFZF PS-6214
C 4.000 1.125 1 3.875 .625 VZFZF PS-2153V-TC-TC
C 4.000 1.125 3 3.875 .625 BCFJF PS-2153
C4.000 1.125 3 3.875 .625 BCFKF PS-4367
C 4.000 1.125 3 3.875 .625 BLFZF PS-6249-SC-TC
C 4.000 1.125 3 3.875 .625 BZFZF PS-2153-TC-TC
C 4.000 1.125 3 3.875 .625 BZFZF PS-6249
C 4.000 1.125 3 3.875 .625 VCFJF PS-6206V
C 4.000 1.125 3 3.875 .625 VCFKF PS-6250
C 4.062 1.312 1 3.875 .625 BCFJF B PS-1088-CMS
C 4.062 1.312 1 3.875 .625 BZFZF B
PS-1088-TC-TC-CMS
C 4.062 1.312 1 3.875 .625 VZFZF B
PS-1088V-TC-TC-CMS
C 4.062 1.312 3 3.875 .625 BCFJF B PS-1088
C 4.062 1.312 3 3.875 .625 BLFZF B PS-4352
C 4.062 1.312 3 3.875 .625 B/VZFZF B PS-1088-TC-TC
C 4.062 1.312 3 3.875 .625 VCFJF B PS-1088V
C 4.062 1.312 3 3.875 .625 VZFZF B PS-1088V-TC-TC
C 4.000 1.500 3 3.875 .625 BCFKF PS-3600
C 4.000 1.500 3 3.875 .625 BLFLF PS-6240
C 4.000 1.500 3 3.875 .625 BLFZF PS-3701
C 4.000 2.062 1 3.875 .625 BCFJF PS-1696-CMS
C 4.000 2.062 1 3.875 .625 BZFZF PS-7875
C 4.000 2.062 1 3.875 .625 VCFJF PS-4086
C4.000 2.062 3 3.875 .625 BCFJF PS-2116
C4.000 2.062 3 3.875 .625 BCFKF PS-2115
C4.000 2.062 3 3.875 .625 BCFZF PS-2115-TC-SEAT
C 4.000 2.062 3 3.875 .625 BLFLF PS-2116-SC-SC
C 4.000 2.062 3 3.875 .625 VLFLF PS-6225
C 4.000 2.062 3 Special 3.875 .625 VCFKF H PS-6172
D4.250 2.062 1 3.875 .625 BZFZF PS-6202
D4.250 2.062 3 3.875 .625 BCDJF PS-761
D4.250 2.062 3 3.875 .625 BCDKF PS-465
D4.250 2.062 3 3.875 .625 BZFLF PS-6219
D 4.250 2.062 3 3.875 .625 VCDKF PS-465V
D 4.250 2.062 3 3.875 .625 VZFLF PS-6232
D 4.250 2.062 3 3.875 .625 VZFZF PS-3776
D 4.250 2.062 3 3.875 .781 VZFLF PS-4033
D 4.250 2.062 3 4.000 .625 NCPGP PS-3713
D4.250 2.062 34.000 .625 VCDGF PS-4324
E3.750 2.625 3 4.000 .500 BCFJF PS-3969
E 3.750 2.813 1 3.875 .625 BCDJF I PS-324-P66-CMS
E 3.750 2.813 3 3.875 .625 BCDJF PS-324
E3.750 2.813 3 3.875 .625 BCDKF PS-475
E 3.750 2.813 3 3.875 .625 BCFJF PS-324SS
E 3.750 2.813 3 3.875 .625 BCFKF PS-5252
E 3.750 2.813 3 3.875 .625 VCFJF PS-324SSV
E3.750 2.875 33.875 .625 VCDGP PS-6174
E 3.750 2.875 3 3.875 .625 VCDKF PS-1060V
SEAL HEAD MATING RING
Fig. OD Oper. Hgt. Fig. OD Thick.
Material U.S. Seal Mfg.
Code NOTES Part No.
*US Seal 2010 catalog w cover 9/14/10 3:00 PM Page 131
DIMENSIONAL CROSS-REFERENCE BY SHAFT SIZE
128 NOTE:
C. COMPLETE WITH COLLAR
3.000 (3") (continued)
E 3.750 2.875 3 3.875 .625 VCFKF 316SS PS-4172
E 3.750 2.875 3 4.000 .500 BCFJF PS-4082
G3.898 2.062 1 3.875 .625 VLFLF 316SS PS-3021
G 3.898 2.062 3 3.875 .625 QCFLF PS-3802
K 3.968 1.750 3 Special 3.875 .625 NCFKF PS-6169
K 3.968 1.750 3 Special 3.875 .625 VCFKF PS-6171
K 4.000 2.062 3 3.875 .625 BZFZF PS-4196
K4.000 2.125 3 3.875 .625 BCFJF PS-7873
K 4.000 2.500 1 3.875 .625 BCFJF PS-3518
K 4.000 2.500 3 3.875 .625 BCFKF PS-2141
K 4.000 2.500 3 3.875 .625 BLFLF PS-2141-SC-SC
K 4.000 2.500 3 3.875 .625 VCFJF PS-6228
R 4.250 2.750 3 3.875 .625 BCDKF PS-284
R 4.250 3.000 3 3.875 .562 NCPGP PS-6175
T 3.750 3.125 3 4.000 .500 BCFJF PS-7993
U 3.750 3.000 3 3.875 .625 BCFJF PS-3836
V 3.750 2.750 3 4.000 .500 BCFJF 316SS PS-7215
V 3.750 2.750 3 4.000 .500 BCFZF PS-4069
W 3.812 1.687 2 3.875 .625 TCFJF 316SS PS-9140
3.125 (3-1/8")
V 3.875 3.062 3 4.750 .781 BCFJF PS-1069
X 3.937 1.687 3 4.000 .781 VCFZF 316SS PS-8086
3.250 (3-1/4")
C 4.406 1.562 3 4.125 .781 BCFJF PS-4127
C 4.406 1.562 3 4.125 .781 BCFKF PS-6258
C 4.406 1.562 3 4.125 .781 BLFZF PS-3702
C 4.406 1.562 3 4.125 .781 BZFZF PS-6251
C 4.406 1.562 3 4.125 .781 VCFJF PS-6253
C4.406 1.562 3 4.125 .781 VCFKF PS-6252
C 4.250 2.187 3 4.125 .781 VCFJF PS-7835V
C 4.250 2.187 3 4.125 .781 VLFLF PS-6226
D 4.187 2.187 3 4.125 .781 BZFZF PS-3827
D4.687 2.187 3 4.125 .781 BCFJF PS-7172
D4.687 2.187 34.125 .781 VCFJF PS-6201
D 4.687 2.187 3 4.500 .781 BCFKF PS-4175
E 4.125 3.125 3 4.125 .781 BCDJF PS-330
K4.187 2.625 3 4.125 .781 VCFJF PS-6227
K 4.250 2.875 3 4.125 .781 BCFKF PS-7244
U 4.125 3.032 3 4.125 .781 BCFJF PS-4192
U 4.125 3.032 3 4.125 .781 BCFKF PS-325SS
U 4.125 3.032 3 4.125 .781 VCFKF PS-325SSV
UBalanced 4.125 3.812 5 3.875 .625 BCFZF C PS-4393
3.375 (3-3/8")
C 4.500 2.187 3 4.250 .781 VCFKF PS-6177
K 4.421 1.750 — — — VCF-F PS-3961
3.437 (3-7/16")
U 4.375 2.937 3 4.375 .781 VCPKF PS-3505
3.500 (3-1/2")
C 4.625 2.187 3 4.375 .781 BCFJF PS-6204
C 4.625 2.187 3 4.375 .781 BCFKF PS-6245
C 4.625 2.187 3 4.375 .781 QCFZF PS-4164
D4.937 2.187 34.375 .781 V/BZFZF PS-6221
D 4.937 2.187 3 4.375 .781 VZFZF PS-3745
SEAL HEAD MATING RING
Fig. OD Oper. Hgt. Fig. OD Thick.
Material U.S. Seal Mfg.
Code NOTES Part No.
*US Seal 2010 catalog w cover 9/14/10 3:00 PM Page 132
129
NOTE:
I. ABRASION RESISTANT CARBON (P66)
DIMENSIONAL CROSS-REFERENCE BY SHAFT SIZE
A. MOUNTS ON SHAFT H. SPRING HOLDER NOT INCLUDED
B. TAPERED SPRING I. ABRASION RESISTANT CARBON (P66)
C. COMPLETE WITH COLLAR N. NON-STANDARD SPRING HOLDER
G. MOUNTS IN PLASTIC
NOTES
On the head styles C,Dand E, springholders maybe included with seal but may not be necessary for the seal installation.
Inspect old seal to verify if the springholder is required.
3.500 (3-1/2") (continued)
D 5.031 1.500 3 4.375 .781 BLFZF PS-6256
E 4.375 3.125 3 4.375 .781 BCFJF I PS-4019
E4.375 3.125 3 4.375 .781 BCFKF PS-3858
E4.375 3.625 3 4.375 .781 BCFKF PS-4101
G 4.402 2.189 3 4.375 .625 QCFLF PS-3793
R 4.937 3.125 3 4.375 .781 BCFJF PS-4236
T 4.375 3.562 3 4.375 .781 BCFKF PS-4113
X4.375 1.687 3 4.375 .781 VCFKF 316SS PS-3862
W 4.375 1.687 3 4.375 .781 T/VCFKF 316SS PS-9352
W 4.375 1.687 3 4.375 .781 T/VCFZF 316SS PS-9337
3.625 (3-5/8")
E 4.500 3.250 3 4.625 .781 BCFJF PS-4043
E 4.500 3.750 3 4.625 .562 BCFJF PS-3499
T 4.500 3.875 3 4.625 .562 BCFZF PS-6237
T 4.500 3.875 3 4.781 .781 BCFKF I PS-3553
T 4.625 3.875 3 4.625 .562 BCFJF PS-3684
V 4.375 2.625 3 4.625 .562 BCFJF PS-3779
V 4.500 3.875 3 4.781 .781 BCFKF I PS-8054
3.750 (3-3/4")
C 4.875 2.312 3 4.625 .781 BCFJF PS-272
D 5.250 2.312 3 4.625 .781 VCFJF PS-6203
D 5.406 1.562 3 4.625 .781 BLFZF PS-4014
E 4.625 3.250 3 4.625 .781 BCFJF PS-4278
U 4.625 3.500 3 4.625 .781 BCDKF PS-7986
3.875 (3-7/8")
X 4.750 1.688 3 4.750 .781 VCFKF I PS-8028
4.000 (4")
EBalanced 4.880 3.750 3 4.625 .781 BCFJF PS-7853
W4.875 1.687 2 4.875 .781 TCFJF 316SS PS-9351
4.375 (4-3/8")
X 5.250 1.687 3 5.375 .781 VCFKF 316SS PS-8060
4.750 (4-3/4")
D 6.500 3.000 3 5.750 .781 BCFJF PS-4199
XB1 5.750 2.062 3 5.500 .781 BCFLF 316SS PS-8067
5.000 (5")
C 6.375 2.937 3 6.000 .781 VCFJF PS-4430
E6.375 4.125 3 6.000 .781 BCFJF PS-4209
K6.375 3.781 36.000 .781 BCFKF PS-2140
V 6.125 4.968 3 6.781 .781 BCFKF PS-4414
X 6.000 1.688 3 6.000 .781 VLFZF 316SS PS-8087
5.375 (5-3/8")
D 7.375 2.750 3 6.375 .781 VZFLF PS-6231
5.625 (5-5/8")
D 7.687 2.750 3 6.625 .781 VCFJF PS-6230
SEAL HEAD MATING RING
Fig. OD Oper. Hgt. Fig. OD Thick.
Material U.S. Seal Mfg.
Code NOTES Part No.
*US Seal 2010 catalog w cover 9/14/10 3:00 PM Page 133
U.S. Seal Mating Mating Shaft Material
Part No. Head Ring Ring OD Dia. Code Notes Pump Nameplate Data Mfg. Part No.
COMMERCIAL APPLIANCE REPLACEMENT SEALS
NOTE:
A. MOUNTS ON SHAFT
B.TAPERED SPRING
E. LOCK COLLAR, IF REQUIRED, SOLD SEPERATELY
H. SPRING HOLDER NOT INCLUDED
I. ABRASION RESISTANT CARBON (P66)
130
PS-5625 (See Elgin Sweeper Co.)PS-3100 (See Champion Industries)
ADAMATION, INC. - (Dishwashers)
PS-3401 Q 9 — 1 NMDKF A 75-7050-020
PS-758 C 1 2.125 1-1/2 BCFJF 55-6301-364-6193
AUTOMATIC ICE & BEVERAGE - (Ice Machines)
PS-6312 Q Special 1.625 1 Special 9121026-91
BLAKESLEE, INC. - (Dishwashers and Prep Equipment)
PS-235V C 3 1.625 1 VCFJF PUMPAKS Models 30-010 - 30-023 32-036
PS-3401 Q 9 1.781 1 NMDKF A 02255
CHAMPION INDUSTRIES - (Dishwashers)
PS-200 A 1 1.250 5/8 BMFJF 106467
PS-447- B 8 — 5/8 QCFJF A/I 108426
EPR
PS-3100 Q — — 1 NMDKF Unitized 110276
PS-758 C 1 2.125 1-1/2 BCFJF 110611
ELGIN SWEEPER CO. - (Street Sweepers)
PS-5625 Special 1 1.250 5/8 QC-J-
GLT, INC. - (Dishwashers / Disposals)
PS-6313 Q 1 1.019 1/2 BCFJF 185694-1
PS-1085V C 1 1.250 5/8 VCFJF B 114696
PS-6318 Q 9 1.578 1-1/8 VMFAF 117071
HOBARTCORP. -(Dishwashers/Disposals)
PS-631 C 1 1.000 1/2 BCFJF N R-23682
PS-663 Q 1 1.000 1/2 BMFJF C115710
PS-6313 Q 1 1.019 1/2 BCFJF 185694-4
PS-1085V C 1 1.250 5/8 VCFJF B A104329, 00-114696
PS-235 C 1 1.625 1 BCFJF R-79205
PS-539 C 1 1.625 1 BCFJF H R-87809
PS-754V E 3 1.625 1 VCFJF A104330
PS-6318 Q9 1.578 1-1/8 VMFAF 00-117071
PS-6317 Q 9 2.000 1-3/8 VMPSP 00-114144
PS-3854 Q 25 2.000 1-3/8 BMPAP C-114144
PS-4041 Q 1 3.375 2-1/4 VMPSP 00-117072
HOYT CORP. -(Washers)
PS-6301 Q 3 3.000 2-1/4 NMPAP 28-488
ICEE DISTRIBUTORS, INC. -(Frozen Drink Machines)
PS-6234 C 1 1.250 5/8 BCFJF 0-ID1339
INSINGER MACHINE CO. -(Dishwashers)
PS-204 E 1 1.750 1-1/8 BCFJF E B15
JACKSON MSC, INC. - (Dishwashers)
PS-1089 B 1 1.093 5/8 V/BCFJF 5330-300-09-27
PS-3440 C 1 1.750 1 BCFJF 5330-011-71-98
*US Seal 2010 catalog w cover 9/14/10 3:00 PM Page 134
131
COMMERCIAL APPLIANCE REPLACEMENT SEALS
NOTE:
A. MOUNTS ON SHAFT
H. SPRING HOLDER NOT INCLUDED
PS-4133 (See Scotsman Ice Systems)
KNIGHT EQPT. - (Dishwashers)
PS-200- A 1 1.250 5/8 QCFJF 9600745
EPR
LABCONCO CORP. - (Dishwashers)
PS-6308 Q 9 1.250 11/16 Special A 4485800
LOU-RICH MACHINE TOOL - (Ice Machines)
PS-6305 Q 2 1.625 1 BMDAF 13417
MANITOWOC CO., INC. - (Ice Machines)
PS-360 A 1 1.625 1 BCFJF 003705011
MILE HIGH EQUIPMENT CO. - (Ice Machines)
PS-6312 Q
Special
1.625 1 Special 9121026-91
PS-6311 Q
Special
2.375 1-5/8
N/BMDAF
9121025-91
PELLERIN MILNOR CORP. - (Laundry Equipment)
PS-750 D 1 1.375 3/4 BCDJF 24S020
SCOTSMAN ICE SYSTEMS - (Ice Machines)
PS-380 D 1 1.625 1 BCFJF
PS-6305 Q 2 1.625 1 BMDAF 02-1300-01
PS-4133 Q
Special
2.500 1-3/4 Special 02-0929-02
SOMAT CORP. - (Ice Machines)
PS-359 C 1 1.250 5/8 BCFJF 54300
PS-309 C 1 1.500 7/8 BCFJF 54302
PS-529 C 3 1.750 1-1/8 BCFKF 54311
PS-801 C 3 1.750 1-1/8 BCFJF 54310
PS-544 C 3 2.375 1-5/8 BCFKF 54325
PS-332 C 3 2.750 2 BCFKF 54326
PS-6302 Q 1 3.375 2-1/4 BMPAP 54306
SPECIALTY PACKAGING - (Dishwashers / Disposals)
PS-539 C 1 1.625 1 BCFJF H 00-104330
PS-6318 Q 9 1.578 1-1/8 VMFAF 00-117071
PS-6317 Q 9 2.000 1-3/8 VMPSP 00-114144
PS-758V-C12.125 1-1/2 VCFJF 00-223422
CMS
PS-4041 Q 1 3.375 2-1/4 VMPSP 00-117072
STERO CO. - (Dishwashers)
PS-3440 C 1 1.750 1 BCFJF P571697
SUPERIOR EQUIPMENT SOLUTIONS - (Dishwashers)
PS-3100 Q
——
1 NMDKF Unitized 75-7050-020
PS-3440 (Stero Co.)
U.S. Seal Mating Mating Shaft Material
Part No. Head Ring Ring OD Dia. Code Notes Pump Nameplate Data Mfg. Part No.
*US Seal 2010 catalog w cover 9/14/10 3:00 PM Page 135
CHOOSE THE RIGHT SEAL
FOR YOUR POOL & SPA PUMP
132
If your seals look like either
of these, you have a problem...
Ask us how to fix this.
Premium Seals
Buna/Graphitic Plastic -
These seals are industry
standard for general
pool applications, and
include PS-100, 200,
201, 501, 601, 1000
and 2131.
These seals are
NOT RECOMMENDED
for spas, ozonators or
chlorine generators
using salt.
Silicon Carbide Seals
Viton®/Silicon Carbide -
When only the best will do,
these are the seals to use.
Superior corrosion
resistance, forgiving to
start up errors and available
in our most popular sizes.
Provide your customers
with the best - Order our
SCS Series of seals:
PS-1900 - PS-1909.
Buna/Carbon Seals
Buna/Carbon Graphite -
These seals are recommended
for spa applications.
They have sintered carbon,
which provides better
resistance to abrasion,
heatand chemicals.
These seals include our
PS-952, 961, 3890, 3960,
3985, 4265, 4266, 4267,
4274 and 4275.
Ozone/Salt Service Seals
Viton®/Carbon Graphite -
Great for applications
involving ozonators or
chlorine generators
using salt.
These applications
require tough seals...
Request our PS-3864,
3865, 3866, 3867,
3868, 3869, 3870,
3874, 3986 and 4280.
Our U.S.SEALUBE is a water
based formula specifically
designed to lubricate rubber,
making the installation of
mechanical seals fast and easy.
It provides a high degree of
lubricity to all rubber components.
It maintains its wetness for a short
period of time. But unlike PTFE
or silicone based lubricants which
penetrate the elastomer and never
allow the elastomer to grip the
shaft or bore, U.S. SEALUBE
evaporates.
Once the evaporation takes place,
the component is dry to the touch.
The lubricity is gone and will not
return, even in the presence of
moisture.
Your seal is now locked in place.
Install mechanical seals like a Pro.
Use only U.S. SEALUBE.
There ARE Different Seals for Different Applications
Stop Using the WRONG SEAL
Stop Using the WRONG LUBRICANT
*US Seal 2010 catalog w cover 9/14/10 3:00 PM Page 136
133
SCS SERIES FOR POOL & SPA PUMPS
SCS Series PS-1900 PS-1901 PS-1902 PS-1903 PS-1904 PS-1905 PS-1906 PS-1907 PS-1908 PS-1909
Ozone / Salt PS-3866 PS-3867 PS-3868 PS-3864 PS-3986 PS-3865 PS-3869 PS-4280
PS-201V-CMS
PS-3874
Buna / Carbon PS-4267 PS-3960 PS-4265 PS-952 PS-3985 PS-961 PS-4275 PS-3890 PS-851 PS-4266
Premium Seal PS-100 PS-200 PS-201 PS-501 PS-601 PS-1000 PS-2131 — PS-201 PS-360
Value Guard VG-100 VG-200 VG-201 VG-501 VG-601 VG-1000 VG-2131 — VG-201 VG-360
AQUASCAPE PUMP REPLACEMENT SEALS
Value Guard Seal Material d D1 L L1
PartNo. Type Code Seal Dia. Mating Ring Bore Oper.Hgt. Mating Ring Thk.
VGM-2966 VGMH VCFLF / VLFLF 12 25 30.3 5
VGM-2967 VGMH VCFLF / VLFLF 12 26 30.3 5
VGM-2968 VGMH VCFLF / VLFLF 12 28 30.3 5
VGM-2969 VGMH VCFLF / VLFLF 14 26 38.3 5
VGM-2970 VGMH VCFLF / VLFLF 14 28 38.3 5
VGM-2971 VGMH VCFLF / VLFLF 14 30 38.3 5
•Double Seal • Unbalanced • Bi-Directional • Elastomer Bellows
PS-1904 PS-1906
SILICON CARBIDE SEALS
◆When Only the Best Will Do
◆Superior Corrosion and
Abrasion Resistance
◆Available in our Most
Popular Sizes
Used In Decorative Ponds and Waterfalls
*US Seal 2010 catalog w cover 9/14/10 3:00 PM Page 137
134
POOL & SPA PUMP REPLACEMENT SEALS
Acura Spa Aquaheat 1090-A PS-1904 PS-3986 PS-3985 PS-601 VG-601
Systems Aquaheat Plus 1090-A PS-1904 PS-3986 PS-3985 PS-601 VG-601
Magnaflow 1090-A PS-1904 PS-3986 PS-3985 PS-601 VG-601
Magnaflow 56 1090-A PS-1904 PS-3986 PS-3985 PS-601 VG-601
Maverick 1090-A PS-1904 PS-3986 PS-3985 PS-601 VG-601
Supercharger 1090-A PS-1904 PS-3986 PS-3985 PS-601 VG-601
Supercharger II 1090-A PS-1904 PS-3986 PS-3985 PS-601 VG-601
American Americana®395005 PS-1902 PS-3868 PS-4265 PS-201 VG-201
Products Americana II®397012 PS-1905 PS-3865 PS-961 PS-1000 VG-1000
Bronze-Bronze 397012 PS-1905 PS-3865 PS-961 PS-1000 VG-1000
Bronze-Noryl®395005 PS-1902 PS-3868 PS-4265 PS-201 VG-201
Eagle®397012 PS-1905 PS-3865 PS-961 PS-1000 VG-1000
Eagle®397020 PS-1905 PS-3865 PS-961 PS-1000 VG-1000
Maxim™ 397012 PS-1905 PS-3865 PS-961 PS-1000 VG-1000
Power-Glass®397012 PS-1905 PS-3865 PS-961 PS-1000 VG-1000
Ultra-Flo®397020 PS-1905 PS-3865 PS-961 PS-1000 VG-1000
Ampro- Dia Cast AP-504D — — — PS-163 VG-163
Diaclear Dura-Flo®AP-304D PS-1905 PS-3865 PS-961 PS-1000 VG-1000
Lexan®-200 Series AP-504D — — — PS-163 VG-163
Noryl®Turbo AP-304D PS-1905 PS-3865 PS-961 PS-1000 VG-1000
XL 600 AP-304D PS-1905 PS-3865 PS-961 PS-1000 VG-1000
Anthony 04380 PS-1905 PS-3865 PS-961 PS-1000 VG-1000
04547 PS-1900 PS-3866 PS-4267 PS-100 VG-100
Aqua-Flo A-Series 92500050 PS-1905 PS-3865 PS-961 PS-1000 VG-1000
A&BSeries 92509040 PS-1905 PS-3865 PS-961 PS-1000 VG-1000
AC-Series 92500000 — — PS-309 — VG-309
C-Series 92500050 PS-1905 PS-3865 PS-961 PS-1000 VG-1000
D-Series 92500040 PS-1905 PS-3865 PS-961 PS-1000 VG-1000
D-Series 92500050 PS-1905 PS-3865 PS-961 PS-1000 VG-1000
Circ-Master®92500151 PS-1901 PS-3867 PS-3960 PS-200 VG-200
Dominator®
High Head /
Med Head 92500150 PS-1901 PS-3867 PS-3960 PS-200 VG-200
-Pre 1995 92500050 PS-1905 PS-3865 PS-961 PS-1000 VG-1000
Flo-Master®91049000 PS-1906 PS-3869 PS-4275 PS-2131 VG-2131
Flo-Master®92500150 PS-1901 PS-3867 PS-3960 PS-200 VG-200
Pond-Flo 92500151 PS-1901 PS-3867 PS-3960 PS-200 VG-200
Tub-Master®91049000 PS-1906 PS-3869 PS-4275 PS-2131 VG-2131
Tub-Master®92500150 PS-1901 PS-3867 PS-3960 PS-200 VG-200
Arneson Pool Sweep A-8 PS-1901 PS-3867 PS-3960 PS-200 VG-200
Astral Pool Sena Series 1600 PS-1905 PS-3865 PS-961 PS-1000 VG-1000
Sena Series 1800 PS-1901 PS-3867 PS-3960 PS-200 VG-200
Baker-Hydro35B1178 PS-1901 PS-3867 PS-3960 PS-200 VG-200
634016 PS-1904 PS-3986 PS-3985 — —
Columbia — — — PS-142 VG-142
Diaclear 36100 ———PS-142 VG-142
Doughboy 306-1002 PS-1905 PS-3865 PS-961 PS-1000 VG-1000
306-1006 PS-1901 PS-3867 PS-3960 PS-200 VG-200
HaywardCast Iron SPX1250XZ2 PS-1901 PS-3867 PS-3960 PS-200 VG-200
Max-Flo™ SPX1600Z2 PS-1902 PS-3868 PS-4265 PS-201 VG-201
Max-Flo II™ SPX2700SA PS-1901 PS-3867 PS-3960 PS-200 VG-200
NorthStar™SP4000SA PS-1907 PS-4280 PS-3890 — —
Power-Flo II™ SPX1500KA PS-1906 PS-3869 PS-4275 PS-2131 VG-2131
Power-Flo LX™ SPX1500KA PS-1906 PS-3869 PS-4275 PS-2131 VG-2131
Power-Flo Matrix™ SPX1500KA PS-1906 PS-3869 PS-4275 PS-2131 VG-2131
Super Pump®SPX1600Z2 PS-1902 PS-3868 PS-4265 PS-201 VG-201
Super Pump II™ SPX1600Z2 PS-1902 PS-3868 PS-4265 PS-201 VG-201
TriStar SPX3200SA PS-1907 PS-4280 PS-3890 — —
Turbo-Flo®SPX1500KA PS-1906 PS-3869 PS-4275 PS-2131 VG-2131
Pump Pump Mfg. SCS Ozone / Buna / Premium Value
Mfg. Model No. Series Salt Carbon Seal Guard
*US Seal 2010 catalog w cover 9/14/10 3:00 PM Page 138
135
POOL & SPA PUMP REPLACEMENT SEALS
Marlow 2AF-Series 25353-00 — — — PS-411 VG-411
3B-Series 27223-00 — — PS-416A — VG-416A
4SPC 28146200000 — — PS-7497 — —
Argonaut®38592-00 PS-1902 PS-3868 PS-4265 PS-201 VG-201
L-Series 186862 — — PS-978 — VG-978
L-Series 186543 — — PS-514 — VG-514
Mardur®38592-00 PS-1902 PS-3868 PS-4265 PS-201 VG-201
SCT Series SS 46328-00 — — — PS-2161 —
Jacuzzi 8M 10-1203-01 — — PS-877 — VG-877
10M 10-1299-06 — — PS-235 — VG-235
Cygnet 10-0002-06 PS-1901 PS-3867 PS-3960 PS-200 VG-200
A, J, JCM Series 10-0002-06 PS-1901 PS-3867 PS-3960 PS-200 VG-200
K,KM Series 10-0002-06 PS-1901 PS-3867 PS-3960 PS-200 VG-200
LCM-Series 10-1436-00 PS-1901 PS-3867 PS-3960 PS-200 VG-200
LCU-Series 10-1436-00 PS-1901 PS-3867 PS-3960 PS-200 VG-200
LR-Series 10-0002-06 PS-1901 PS-3867 PS-3960 PS-200 VG-200
Magnum®10-1502-09 PS-1902 PS-3868 PS-4265 PS-201 VG-201
RC-Series 10-1502-09 PS-1902 PS-3868 PS-4265 PS-201 VG-201
Vector (LVL) 10-0002-06 PS-1901 PS-3867 PS-3960 PS-200 VG-200
Jandy FHP, JEP R0479400 PS-1907 PS-4280 — PS-3890 —
MHP, PHP R0479400 PS-1907 PS-4280 — PS-3890 —
SHP,SWF,WFTR R0479400 PS-1907 PS-4280 — PS-3890 —
HHP, HHPU R0338200 PS-1904 PS-3986 PS-3985 PS-601 VG-601
MHPM R0445500 — PS-4231 ———
PB4-60 P55 PS-1905 PS-3865 PS-961 PS-1000 VG-1000
PB4-60Q P84-3 PS-1907 PS-4280 — PS-3890 —
Lomart 40-027 — — — PS-163 VG-163
40-029 — — — PS-163 VG-163
Muskin 09-2001 — — — PS-163 VG-163
09-2013 — — — PS-142 VG-142
Pentair / AH Series™ 071728 PS-1902 PS-3868 PS-4265 PS-201 VG-201
Pac Fab
Purex / Aquatron®071733 PS-1903 PS-3864 PS-952 PS-501 VG-501
HydrotechChallenger®354545 PS-1901 PS-3867 PS-3960 PS-200 VG-200
C-Series 071725 PS-1909 PS-3874 PS-4266 PS-360 VG-360
Dynamite®354545 PS-1901 PS-3867 PS-3960 PS-200 VG-200
Dynamo®,Dynatron®354545 PS-1901 PS-3867 PS-3960 PS-200 VG-200
Hydropump®354001 PS-1902 PS-3868 PS-4265 PS-201 VG-201
L-Series™ 17351-0102 PS-1900 PS-3866 PS-4267 PS-100 VG-100
L-Series™ 071728 PS-1902 PS-3868 PS-4265 PS-201 VG-201
Pinnacle®354545 PS-1901 PS-3867 PS-3960 PS-200 VG-200
Whisperflo®071734 PS-1905 PS-3865 PS-961 PS-1000 VG-1000
Premier 120T Series 31-812 PS-1902 PS-3868 PS-4265 PS-201 VG-201
220/225 Series
Pre 1988 31-813 PS-1905 PS-3865 PS-961 PS-1000 VG-1000
225/255 MKII Series 31-812 PS-1902 PS-3868 PS-4265 PS-201 VG-201
300/325/355 Series 31-812 PS-1902 PS-3868 PS-4265 PS-201 VG-201
455/456 Series 31-813 PS-1905 PS-3865 PS-961 PS-1000 VG-1000
500/600 Series 31-813 PS-1905 PS-3865 PS-961 PS-1000 VG-1000
725/756 Series 31-812 PS-1902 PS-3868 PS-4265 PS-201 VG-201
Speck 2920343310 — — — — VGM-2920
Pumps 2920060603 PS-1901 PS-3867 PS-3960 PS-200 VG-200
60603-200 PS-1901 PS-3867 PS-3960 PS-200 VG-200
Sta-Rite AJ Series U109-93SS PS-1900 PS-3866 PS-4267 PS-100 VG-100
Industries CC/C Series U109-433SS — — PS-185 — VG-185
Pre Aug. 2000 U109-220 — — PS-185 — VG-185
CF/CFA Series U109-136SS PS-1905 PS-3865 PS-961 PS-1000 VG-1000
CSPH/CCSPH Series S-32014 ——PS-185 —VG-185
Pump Pump Mfg. SCS Ozone / Buna / Premium Value
Mfg. Model No. Series Salt Carbon Seal Guard
*US Seal 2010 catalog w cover 9/14/10 3:00 PM Page 139
136
POOL & SPA PUMP REPLACEMENT SEALS
Sta-Rite CSPH/CCSPH Series S-32015 — — PS-446 — VG-446
Industries DSeries U109-433SS — — PS-185 — VG-185
(continued) Pre Aug.2000 U109-220 — — PS-185 — VG-185
DJ/JS/JT Series 37400-0027S PS-1908 PS-201V-CMS PS-851 PS-201 VG-201
Pre Jan.2001 U109-358SS PS-1908 PS-201V-CMS PS-851 PS-201 VG-201
Dura-Glas®Pre 1998 U109-93SS PS-1900 PS-3866 PS-4267 PS-100 VG-100
Dura-Glas®Series
PE, PEA,
P2R, P2RA 17304-0100 PS-1901 PS-3867 PS-3960 PS-200 VG-200
Dura-GlasII®Pre 1998 U109-372SS PS-1908 PS-201V-CMS PS-851 PS-201 VG-201
Dura-GlasII®U109-358SS PS-1908 PS-201V-CMS PS-851 PS-201 VG-201
Dura-GlasII®Series
P4E, P4EA,
P4R, P4RA 37400-0027S PS-1908 PS-201V-CMS PS-851 — —
Dura-GlasII®Series
P4E, P4EA,
P4R, P4RA 37400-0028S PS-1908 PS-201V-CMS — — —
Dura-Jet U109-358SS PS-1908 PS-201V-CMS PS-851 PS-201 VG-201
After Jan.2001 37400-0027 PS-1908 PS-201V-CMS PS-851 PS-201 VG-201
Dyna-Glas®/Dyna-Max®U109-358SS PS-1908 PS-201V-CMS PS-851 PS-201 VG-201
After June 2000 37400-0027S PS-1908 PS-201V-CMS PS-851 PS-201 VG-201
Dyna-Jet™ 17351- 0101S PS-1908 PS-201V-CMS PS-851 PS-201 VG-201
HP-Series U109-136SS PS-1905 PS-3865 PS-961 PS-1000 VG-1000
JW/JWPA Series U109-358SS PS-1908 PS-201V-CMS PS-851 PS-201 VG-201
After Jan. 2001 37400-0027S PS-1908 PS-201V-CMS PS-851 PS-201 VG-201
LT Series U109-68SS — — — PS-163 VG-163
Max-E-Glas®Pre 1998 U109-93SS PS-1900 PS-3866 PS-4267 PS-100 VG-100
Max-E-Glas®Series
PE, PEA,
P2R, P2RA 17304-0100 PS-1901 PS-3867 PS-3960 PS-200 VG-200
Max-E-GlasII®U109-358SS PS-1908 PS-201V-CMS PS-851 PS-201 VG-201
Max-E-GlasII®U109-372SS PS-1908 PS-201V-CMS PS-851 PS-201 VG-201
Max-E-GlasII®Series
P4E, P4EA,
P4R, P4RA 37400-0027S PS-1908 PS-201V-CMS PS-851 PS-201 VG-201
Max-E-GlasII®Series
P4E, P4EA,
P4R, P4RA 37400-0028S PS-1908 PS-201V-CMS — — —
Max-E-Pro™ Series
P6E, P6RA 37400-0028S PS-1908 PS-201V-CMS — — —
PLBC Series 17351-0102S PS-1900 PS-3866 PS-4267 PS-100 VG-100
PLBC Series
Pre 1995 U109-93SS PS-1900 PS-3866 PS-4267 PS-100 VG-100
Super Max 354545 S PS-1901 PS-3867 PS-3960 PS-200 VG-200
Swim Quip XL, VI/XL, VII Series 37407-0009 PS-1908 PS-201V-CMS PS-851 PS-201 VG-201
Vico SuperFlo
UltraFlo,Ultima PPSFSEAL — PS-3870 PS-4274 — —
Water Ace RSP-7,10,15 25053A000 — — — PS-3845 —
Waterco USA Supatuf 634016 PS-1904 PS-3986 PS-3985 ——
Waterway319-3100B PS-1905 PS-3865 PS-961 PS-1000 VG-1000
Plastics 811-4000A — — — PS-671 —
Wayne Water 15693 PS-1902 PS-3868 PS-4265 PS-201 VG-201
Systems
Pump Pump Mfg. SCS Ozone / Buna / Premium Value
Mfg. Model No. Series Salt Carbon Seal Guard
*US Seal 2010 catalog w cover 9/14/10 3:00 PM Page 140
137
Non Pusher Seals - U.S. Seal Mfg. Type A, B, C, D, E, G, K, Q, S, T, U Pusher Seals - U.S. Seal Mfg. Type V,W,X
Arrangement S=Single D=Double
MATERIAL RECOMMENDATION CHART
SEAL
FAMILY SECONDARY SEALS SEAL FACES METAL PARTS
NON-
PUSHER
PUSHER
ARRANGEMENT
BUNA
VITON®
EPR
PTFE
CARBON
CAST
IRON/
NIRESIST
CERAMIC
TC
RB SIC
ALPHA
SIC
304 SS
316 SS
ALLOY
20
Acetone ✓✓S✓✓ ✓✓✓✓ ✓✓✓✓ ✓
Acetyl Chloride ✓D✓✓✓ ✓✓✓✓✓
Acetylene, Gas ✓✓D✓ ✓✓✓✓✓✓✓✓✓✓✓ ✓
Ammonia, Anhydrous ✓✓D✓✓ ✓ ✓ ✓✓✓ ✓
Ammonium Carbonate, <60% ✓✓S✓✓✓ ✓ ✓✓✓✓✓
Ammonium Hydroxide, <30% ✓✓S✓✓ ✓✓✓ ✓✓✓ ✓
Ammonium Nitrate ✓✓S✓✓✓✓✓✓✓✓✓✓
Ammonium Phosphate (Dibasic), <40% ✓✓S✓✓✓✓✓✓✓✓✓✓
Amyl Alcohol ✓✓S✓✓ ✓ ✓ ✓ ✓✓✓ ✓
Asphalt (Crude Oil Residue) ✓✓S✓✓✓ ✓✓✓✓✓✓
Asphalt, Emulsified ✓✓S✓✓✓✓✓✓✓✓✓
Barium Hydroxide, <50% ✓✓D✓✓✓✓ ✓ ✓✓ ✓ ✓✓✓ ✓
Beer ✓✓S✓✓✓✓ ✓ ✓✓ ✓ ✓✓✓ ✓
Beer Wort ✓✓S✓✓✓✓✓ ✓✓✓✓✓✓✓
Beet Sugar ✓✓S✓✓✓✓✓ ✓✓✓✓✓✓✓
Bentonite ✓✓S✓✓ ✓ ✓ ✓✓✓
Benzene, Benzol ✓ ✓ D✓ ✓ ✓ ✓✓ ✓ ✓✓✓ ✓
Boric Acid, <30% ✓✓S✓✓✓✓✓ ✓ ✓✓✓✓✓
Bunker C Fuel Oil ✓✓S✓ ✓ ✓ ✓✓ ✓✓✓✓✓✓
Butadiene (Monomer) ✓ ✓ D✓✓✓✓✓✓✓✓✓✓✓
Butane,Gas ✓ ✓ D✓ ✓ ✓ ✓✓✓✓✓✓✓✓✓
Butane, Liquid ✓✓S✓ ✓ ✓✓✓✓✓✓✓✓✓ ✓
Buttermilk ✓S✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓✓
Butyl Alcohol (N), <10% ✓ ✓ S✓✓✓ ✓✓✓✓✓✓✓
Butyl Alcohol (Sec), <15% ✓✓S✓✓✓ ✓✓✓✓✓✓✓
Butyl Alcohol (Tert) ✓✓S✓✓✓ ✓✓✓✓✓✓✓
Calcium Sulfate, <10% ✓✓S✓✓ ✓ ✓ ✓ ✓✓✓ ✓
Calgon ✓✓S✓✓ ✓✓ ✓✓✓✓✓✓✓
Carbon Dioxide, Gas ✓✓D✓ ✓✓✓ ✓✓✓✓ ✓✓✓ ✓
Carbon Dioxide, Liquid ✓✓S✓✓✓✓✓ ✓✓ ✓✓✓✓
Carbon Monoxide ✓✓D✓ ✓✓✓✓✓✓✓✓✓✓✓ ✓
Carbonic Acid, <10% ✓✓S✓✓✓ ✓ ✓ ✓ ✓✓✓ ✓
Castor Oil ✓✓S✓✓✓✓✓✓✓✓✓✓✓
Cement Slurry✓✓S✓✓✓✓ ✓✓✓✓✓✓
Chocolate ✓S✓✓ ✓✓ ✓✓✓✓✓✓✓
Citric Acid, <10% ✓✓S✓✓✓✓✓ ✓ ✓✓✓✓✓
Clay Slurry ✓✓S✓✓✓✓✓ ✓✓✓✓✓✓
Coal Slurry ✓✓S✓✓ ✓✓ ✓✓✓✓✓✓✓
Cocoa Butter ✓✓S✓✓✓✓✓✓ ✓ ✓✓✓ ✓
Coconut Oil ✓✓S✓✓ ✓✓ ✓✓✓✓✓✓✓
Cooling Tower Water ✓✓S✓✓✓✓✓ ✓✓✓✓✓✓✓
Copper Acetate,<20% ✓✓D✓✓✓✓✓✓✓✓✓
Copper Ammonium Acetate, <20% ✓✓D✓✓ ✓ ✓ ✓ ✓
Copper Nitrate, <15% ✓✓S✓✓✓ ✓ ✓✓✓✓✓
Copper Sulfate, <15% ✓✓S✓✓✓✓✓ ✓ ✓✓✓✓✓
CornMash ✓✓S✓✓✓✓✓✓✓✓✓✓ ✓
CornOil ✓✓S✓✓✓✓✓✓✓✓✓✓✓
Cotton Seed Oil ✓✓S✓✓ ✓✓ ✓✓✓✓✓✓✓
CONTINUED NEXT PAGE
FLUID
*US Seal 2010 catalog w cover 9/14/10 3:00 PM Page 141
Non Pusher Seals - U.S. Seal Mfg. Type A, B, C, D, E, G, K, Q, S, T, U Pusher Seals - U.S. Seal Mfg. Type V,W,X
Arrangement S=Single D=Double
138
MATERIAL RECOMMENDATION CHART
SEAL
FAMILY SECONDARY SEALS SEAL FACES METAL PARTS
NON-
PUSHER
PUSHER
ARRANGEMENT
BUNA
VITON®
EPR
PTFE
CARBON
CAST
IRON/
NIRESIST
CERAMIC
TC
RB SIC
ALPHA
SIC
304 SS
316 SS
ALLOY
20
Crude Oil ✓✓S✓✓✓ ✓✓✓✓✓✓
Cutting Oil (Typical) ✓✓S✓ ✓ ✓✓✓✓✓✓✓✓✓ ✓
Cyclohexane ✓✓S✓ ✓ ✓ ✓✓✓✓✓✓✓✓✓
Cyclohexanol ✓✓D✓✓ ✓✓ ✓✓✓✓✓✓✓
Detergent (Typical), >15% ✓✓S✓✓✓✓✓ ✓✓ ✓✓✓✓
Dichlorohydrin ✓✓D✓✓ ✓ ✓ ✓ ✓✓✓
Diesel Fuel ✓✓S✓ ✓ ✓ ✓✓✓✓✓✓✓✓✓
Diethyl Carbonate ✓✓D✓✓ ✓ ✓✓ ✓ ✓✓ ✓ ✓
Di-isobutyl Ketone ✓✓D✓✓ ✓ ✓✓ ✓ ✓✓ ✓ ✓
Di-isopropyl Ketone ✓✓S✓✓ ✓ ✓✓ ✓ ✓✓ ✓ ✓
Dimethyl Ether ✓✓S✓✓✓✓✓✓✓✓✓✓
DyeLiquors ✓✓S✓✓✓ ✓✓✓✓✓✓✓
Ethane,Gas ✓✓D✓✓ ✓ ✓✓✓✓ ✓✓✓✓ ✓
Ethane, Liquid ✓✓S✓ ✓ ✓✓✓✓✓✓✓✓✓ ✓
Ethane/Propane Mix ✓✓S✓ ✓ ✓✓✓✓✓✓✓✓✓ ✓
Ethanol (10% Mixture w/Gasoline) ✓✓S✓ ✓ ✓ ✓✓✓✓✓✓✓✓ ✓
Ethyl Alcohol (Ethanol) ✓ ✓ S✓ ✓ ✓ ✓✓ ✓ ✓✓✓ ✓
Ethyl Bromide ✓✓S✓✓✓ ✓✓✓✓✓✓✓
Ethyl Formate ✓✓S✓✓✓ ✓ ✓✓✓✓
Ethylbenzene ✓✓✓✓✓✓✓✓✓✓
Ethylene Glycol ✓ ✓ ✓ ✓✓✓✓✓ ✓✓✓✓✓✓✓
Ferric Nitrate ✓S✓✓✓✓✓ ✓ ✓✓✓ ✓
Ferric Sulfate,<15% ✓ ✓ S✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓✓ ✓
Fruit (Juice & Pulp), Typical ✓ ✓ S✓✓✓✓ ✓ ✓✓ ✓ ✓✓ ✓ ✓
Fuel Oil #5 & #6 ✓✓S✓✓✓✓✓✓✓✓✓✓
Fumaric Acid ✓✓S✓✓ ✓✓ ✓ ✓✓✓
Gasoline ✓✓S✓ ✓ ✓✓✓✓ ✓✓✓✓ ✓
Gelatin ✓✓S✓✓✓✓✓ ✓✓✓✓✓✓✓
Glycerine (Glycerol) ✓✓S✓✓✓✓✓ ✓✓✓✓✓✓✓
Gypsum Slurry ✓✓S✓✓✓✓✓ ✓✓✓✓✓✓
Heat Transfer Fluids (Calflo, Dowtherm,
Duratherm, Mobiltherm, Multitherm,
Paratherm, Texatherm, Thermex, Thermina,
Therminol, Ucon) ✓✓S✓✓✓✓ ✓✓✓✓✓✓
Helium, Gas ✓✓D✓ ✓✓✓✓✓✓✓✓✓✓✓ ✓
Heptane, Liquid ✓✓S✓ ✓ ✓ ✓✓✓✓✓✓✓✓✓
Hexane, Liquid ✓✓S✓ ✓ ✓ ✓✓✓✓✓✓✓✓✓
Hexanol (Hexyl Alcohol) ✓✓S✓✓ ✓✓ ✓✓✓✓✓✓✓
Hydraulic Oil ✓✓S✓✓✓✓ ✓✓✓✓✓✓
Hydrogen Chloride, Dry Gas ✓✓D✓✓✓ ✓ ✓ ✓ ✓✓✓ ✓
Hydrogen Peroxide, <30% ✓✓S✓✓✓ ✓ ✓ ✓ ✓✓✓
Hydrogen, Gas ✓✓D✓✓✓✓ ✓ ✓✓✓ ✓✓✓ ✓
Isobutyl Acetate ✓✓S✓✓ ✓ ✓✓ ✓ ✓✓ ✓ ✓
Isobutyl Alcohol ✓✓S✓✓✓ ✓✓✓✓ ✓✓✓✓ ✓
Isopentane ✓S✓✓ ✓✓ ✓✓✓✓✓✓
Isopropyl Alcohol (Isopropanol) ✓✓S✓✓✓✓✓✓✓✓✓✓✓✓
Jet Fuel JP-3, 4, 5, 6, 8 ✓✓S✓✓✓✓✓✓✓✓✓✓✓✓
Kaolin (clay) Slurry ✓✓S✓✓✓✓✓ ✓✓✓✓✓✓✓
CONTINUED NEXT PAGE
FLUID
*US Seal 2010 catalog w cover 9/14/10 3:00 PM Page 142
139
Non Pusher Seals - U.S. Seal Mfg. Type A, B, C, D, E, G, K, Q, S, T, U Pusher Seals - U.S. Seal Mfg. Type V,W,X
Arrangement S=Single D=Double
MATERIAL RECOMMENDATION CHART
SEAL
FAMILY SECONDARY SEALS SEAL FACES METAL PARTS
NON-
PUSHER
PUSHER
ARRANGEMENT
BUNA
VITON®
EPR
PTFE
CARBON
CAST
IRON/
NIRESIST
CERAMIC
TC
RB SIC
ALPHA
SIC
304 SS
316 SS
ALLOY
20
Kerosene ✓✓S✓ ✓ ✓ ✓✓✓✓✓✓✓✓✓
Ketchup ✓✓S✓✓✓✓✓✓✓✓✓✓
Lactic Acid, <70% ✓✓S✓✓✓✓✓ ✓ ✓✓✓✓✓
Lard ✓✓S✓✓ ✓✓ ✓✓✓✓✓✓✓
Lauric Acid ✓✓S✓✓ ✓✓ ✓✓✓✓
Linseed Oil ✓✓S✓✓ ✓✓ ✓✓✓✓✓✓✓
Liquid Natural Gas (LNG) ✓✓S✓ ✓ ✓ ✓✓✓✓✓✓✓✓ ✓
Liquid Petroleum Gas (LPG) ✓✓S✓ ✓ ✓ ✓✓✓✓✓✓✓✓✓
Lithium Bromide ✓✓D✓✓ ✓ ✓ ✓ ✓✓✓ ✓
Lubricating Oil ( Petroleum Based) ✓✓S✓✓ ✓ ✓✓✓✓✓✓✓✓ ✓
Maelic Acid ✓✓S✓✓✓ ✓ ✓✓✓✓
Magnesium Hydroxide, <10% ✓✓S✓✓✓ ✓ ✓✓✓ ✓ ✓✓ ✓
Magnesium Hydroxide, >10% ✓✓S✓✓✓ ✓ ✓✓✓ ✓ ✓✓ ✓
Magnesium Sulfate, <40% ✓✓S✓✓✓ ✓✓✓✓✓✓✓
Magnesium Sulfate, <5% ✓✓S✓✓✓✓✓ ✓✓✓✓✓✓✓
Mercury✓ ✓ D✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓✓ ✓
Methane, Gas ✓✓D✓ ✓ ✓ ✓ ✓✓✓ ✓✓✓ ✓
Methanol (Methyl Alcohol) ✓✓S✓✓ ✓ ✓✓ ✓ ✓✓ ✓ ✓
Methyl Benzoate ✓S✓ ✓ ✓✓✓ ✓✓✓✓
Methyl Ethyl Ketone (MEK) ✓✓S✓✓ ✓ ✓ ✓ ✓✓ ✓ ✓
Milk ✓✓S✓✓✓✓✓ ✓ ✓✓✓✓
Molasses ✓✓S✓✓✓✓✓ ✓✓✓✓✓✓✓
Naphtha, Coal Tar ✓ ✓ S✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓
Naphthalene S ✓✓✓ ✓✓✓✓✓✓
Nickel Sulfate ✓ ✓ D✓✓✓✓ ✓✓✓✓ ✓✓✓✓ ✓
Nitrogen, Gas ✓D✓✓ ✓ ✓✓✓ ✓✓✓✓ ✓
Nitrogen, Liquid ✓✓D✓ ✓✓✓✓✓✓✓✓✓✓✓ ✓
OliveOil ✓✓S✓✓✓✓✓✓✓✓✓✓✓✓
Ozone, <12% ✓✓S✓✓✓ ✓ ✓✓ ✓ ✓✓✓ ✓
Paint, Oil Based ✓✓D✓✓ ✓✓✓✓
Paint, Water Based ✓✓S✓ ✓ ✓✓✓✓✓ ✓✓✓ ✓
Palm Oil ✓✓S✓✓✓✓✓✓✓✓✓✓
Palmitic Acid ✓✓S✓✓✓✓✓✓✓✓✓✓✓
Paraffin, Molten ✓✓S✓✓ ✓✓ ✓✓✓✓✓✓✓
Paraformaldehyde, <30% ✓✓S✓✓ ✓✓✓✓ ✓✓✓✓ ✓
Paraldehyde ✓✓D✓✓ ✓ ✓✓ ✓ ✓✓ ✓ ✓
Peanut Oil ✓✓S✓✓ ✓✓ ✓✓✓✓✓ ✓
Penicillin ✓✓S✓✓✓ ✓✓✓✓✓✓✓
Pentane ✓✓S✓✓✓✓ ✓✓✓✓✓✓✓
Perchloroethylene ✓✓S✓✓✓ ✓✓✓✓✓✓✓
Petroleum Oil ✓✓S✓✓✓✓✓✓✓✓✓
Phenylacetic Acid ✓✓S✓✓ ✓✓✓✓✓ ✓✓✓ ✓
Phthalic Acid ✓S✓✓ ✓ ✓✓ ✓ ✓✓ ✓ ✓
Pine Oil ✓✓D✓✓ ✓✓ ✓ ✓✓✓
Pitch ✓✓S✓✓✓ ✓✓ ✓✓✓
Polyethylene Glycol ✓S✓✓✓✓✓✓✓✓ ✓
Polyvinyl Acetate, Slurry ✓✓D✓✓✓ ✓✓✓✓✓✓✓
Potassium Bicarbonate, <30% ✓✓S✓✓ ✓ ✓✓ ✓ ✓✓✓
CONTINUED NEXT PAGE
FLUID
*US Seal 2010 catalog w cover 9/14/10 3:00 PM Page 143
Non Pusher Seals - U.S. Seal Mfg. Type A, B, C, D, E, G, K, Q, S, T, U Pusher Seals - U.S. Seal Mfg. Type V,W,X
Arrangement S=Single D=Double
140
MATERIAL RECOMMENDATION CHART
SEAL
FAMILY SECONDARY SEALS SEAL FACES METAL PARTS
NON-
PUSHER
PUSHER
ARRANGEMENT
BUNA
VITON®
EPR
PTFE
CARBON
CAST
IRON/
NIRESIST
CERAMIC
TC
RB SIC
ALPHA
SIC
304 SS
316 SS
ALLOY
20
Potassium Carbonate (Potash), <20% ✓✓S✓✓ ✓ ✓ ✓✓✓ ✓
Potassium Carbonate (Potash), >20% ✓✓S✓✓ ✓ ✓ ✓ ✓✓✓ ✓
Potassium Dichromate, <55% ✓S✓✓✓✓✓ ✓ ✓✓✓ ✓
Potassium Hydroxide, <10% ✓✓D✓✓✓✓ ✓ ✓✓✓✓✓
Potassium Hydroxide, <10% ✓S✓✓ ✓ ✓✓ ✓✓ ✓
Potassium Permanganate, <10% ✓✓S✓✓ ✓ ✓✓ ✓✓✓ ✓
Potassium Sulfate, <25% ✓✓S✓✓✓✓✓ ✓ ✓✓✓✓✓
Propane, Gas ✓✓S✓✓ ✓✓ ✓ ✓✓✓✓✓
Propane, Liquid ✓✓D✓ ✓ ✓ ✓✓✓✓✓✓✓✓✓
Propyl Alcohol (Propanol) ✓S✓ ✓✓✓ ✓✓✓✓✓✓✓✓ ✓
Propylene ✓✓S✓ ✓ ✓✓✓✓ ✓✓✓✓ ✓
Propylene Glycol ✓✓S✓✓✓ ✓✓✓✓✓✓
Pyridine (Chlorinated) ✓✓S✓✓✓ ✓✓✓✓✓✓✓
R-22 & Mineral Oil/Alkybenzene ✓S✓✓✓✓✓✓✓✓✓✓
Rapeseed Oil ✓S✓✓✓ ✓✓✓✓ ✓✓✓✓ ✓
Refrigerant 11 (CFC) ✓✓S✓✓ ✓ ✓✓✓✓✓
Refrigerant 12 (CFC) ✓ ✓ S✓ ✓ ✓ ✓✓ ✓ ✓✓✓ ✓
Refrigerant 13 (CFC) ✓✓S✓ ✓✓✓✓✓✓✓✓✓✓✓
Refrigerant 22 (HCFC) ✓✓S✓ ✓✓✓ ✓✓✓✓ ✓
Refrigerant 113 (CFC) ✓ ✓ S✓✓✓✓✓✓✓✓✓✓✓
Refrigerant 114 (CFC) ✓ ✓ S✓ ✓ ✓ ✓✓✓✓✓✓✓✓
Refrigerant 134A (HFC) ✓✓S✓✓ ✓ ✓✓ ✓ ✓✓ ✓ ✓
Refrigerant 502 (CFC) ✓ ✓ S✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓✓
Rosin Size✓S✓✓✓ ✓✓✓✓✓✓✓
Salicylic Acid ✓✓S✓✓✓ ✓ ✓✓ ✓ ✓✓✓ ✓
Sewage, Sludge ✓✓S✓✓✓✓✓ ✓✓✓✓✓✓✓
Sewage, Treated ✓✓S✓✓ ✓✓ ✓✓✓✓✓✓
Silicone Fluid ✓✓S✓✓✓✓✓ ✓ ✓✓✓✓✓
Sodium Acetate, <10% ✓✓S✓✓ ✓ ✓✓ ✓ ✓✓ ✓ ✓
Sodium Bicarbonate ✓✓S✓✓✓✓✓ ✓✓ ✓✓✓✓
Sodium Borate (Borax) ✓✓D✓✓✓✓✓ ✓✓✓✓✓✓
Sodium Carbonate (Soda Ash) ✓✓S✓✓✓✓✓ ✓✓✓✓✓✓✓
Sodium Metasilicate ✓✓S✓✓✓✓✓✓✓
Sodium Nitrate,<90% ✓✓S✓✓✓✓✓✓✓✓✓✓
Sodium Nitrite, <70% ✓✓S✓✓ ✓ ✓✓ ✓ ✓✓ ✓ ✓
Sodium Perchlorate ✓✓D✓✓ ✓ ✓✓ ✓ ✓✓ ✓
Sodium Phosphate, Dibasic, <20% ✓D✓✓✓✓✓ ✓ ✓✓✓ ✓
Sodium Phosphate, Tribasic ✓✓S✓✓✓ ✓ ✓✓✓✓✓✓✓
Sodium Sulfite,<50% ✓✓S✓✓✓✓ ✓ ✓✓ ✓ ✓✓ ✓ ✓
Soybean Oil ✓✓S✓✓ ✓✓ ✓ ✓✓✓✓
Starch ✓✓S✓✓✓✓✓ ✓✓✓✓✓✓
Sugar,Carbonated Juice, <55% ✓✓S✓✓✓ ✓ ✓✓✓✓
Sugar, Clear Juice, <50% ✓✓S✓✓ ✓✓ ✓✓✓✓✓✓✓
Sugar, Diffuser Juice, <55% ✓✓S✓✓ ✓✓ ✓✓✓✓✓✓✓
Sugar, Limed Juice, <55% ✓✓S✓✓✓✓✓ ✓✓✓✓✓✓✓
Sugar,Molten ✓✓S✓✓✓✓✓✓✓✓✓✓✓✓
Sugar,Syrup,<80% ✓✓S✓✓✓✓✓ ✓✓✓✓✓✓
Sulfolane ✓✓S✓✓ ✓ ✓✓ ✓ ✓✓ ✓ ✓
CONTINUED NEXT PAGE
FLUID
*US Seal 2010 catalog w cover 9/14/10 3:00 PM Page 144
141
Non Pusher Seals - U.S. Seal Mfg. Type A, B, C, D, E, G, K, Q, S, T, U Pusher Seals - U.S. Seal Mfg. Type V,W,X
Arrangement S=Single D=Double
MATERIAL RECOMMENDATION CHART
SEAL
FAMILY SECONDARY SEALS SEAL FACES METAL PARTS
NON-
PUSHER
PUSHER
ARRANGEMENT
BUNA
VITON®
EPR
PTFE
CARBON
CAST
IRON/
NIRESIST
CERAMIC
TC
RB SIC
ALPHA
SIC
304 SS
316 SS
ALLOY
20
Sulfur Dioxide, Dry ✓✓S✓✓ ✓ ✓✓ ✓ ✓✓ ✓ ✓
Sulfur, Molten ✓✓D✓✓✓ ✓ ✓✓✓✓
Tall Oil ✓✓S✓✓ ✓✓ ✓✓✓✓✓✓
Tallow ✓S✓✓ ✓✓ ✓✓✓✓✓✓✓
Tannic Acid ✓✓S✓✓✓✓✓ ✓✓✓✓✓✓✓
Tar (Coal) ✓✓S✓✓✓ ✓✓✓✓✓✓✓
Tartaric Acid, >20% ✓✓S✓✓ ✓✓ ✓✓✓✓✓✓
Terephthalic Acid, Slurry ✓✓S✓✓ ✓ ✓✓ ✓ ✓✓✓
Titanium Dioxide, Slurry ✓✓S✓✓ ✓✓✓✓✓ ✓✓✓ ✓
Toluene ✓✓S✓✓✓ ✓✓✓✓✓✓✓
Transformer Oil ✓✓S✓ ✓ ✓✓✓✓✓✓✓✓✓ ✓
Transmission Fluid ✓✓S✓ ✓ ✓✓✓✓✓✓✓✓ ✓
Trichloroethane, Dry ✓✓S✓ ✓ ✓✓✓✓✓✓✓✓ ✓
Trichloroethylene, Dry ✓✓S✓ ✓ ✓✓✓✓ ✓✓✓✓ ✓
Triethylene Glycol (TEG) ✓✓D✓✓ ✓ ✓ ✓ ✓✓ ✓
Tung Oil ✓ ✓ S✓ ✓ ✓ ✓ ✓ ✓✓✓✓✓
Turpentine ✓✓S✓ ✓ ✓ ✓✓✓✓✓✓✓✓ ✓
Urea, >5% ✓✓S✓✓ ✓ ✓✓ ✓ ✓✓ ✓ ✓
Varnish (Resin) ✓ ✓ S✓ ✓ ✓ ✓✓ ✓✓✓
Vegetable Juice ✓✓D✓✓✓ ✓✓✓✓✓✓✓
Vegetable Oil ✓✓S✓✓ ✓✓ ✓✓✓✓✓✓✓
Water, Boiler Feed ✓✓S✓✓✓✓✓ ✓✓✓✓✓✓✓
Water,Chlorinated (<500 PPM) ✓ ✓ S✓ ✓ ✓ ✓ ✓✓✓✓✓
Water, Clean ✓✓S✓✓ ✓✓ ✓✓✓✓✓✓
Water, Condensate ✓ ✓ S✓✓✓✓ ✓ ✓✓ ✓ ✓✓✓ ✓
Water, Fresh River or Lake ✓✓S✓✓✓✓✓ ✓✓✓✓✓✓
Water, Produced ✓✓S✓✓✓✓✓ ✓✓✓✓✓✓✓
Water, Sour (H 2S Only) ✓✓S✓✓✓✓ ✓✓✓✓✓✓
Water, Ultra Pure (>10 Mohm/cm) ✓✓S✓✓ ✓ ✓✓ ✓ ✓✓✓
Whiskey ✓✓S✓✓✓✓✓ ✓ ✓✓✓✓✓
Wine ✓✓S✓✓✓✓✓ ✓✓ ✓✓✓
Xylen /Xylol (Ortho) ✓✓S✓✓✓✓✓✓✓✓✓ ✓
Y
east ✓S✓✓✓✓ ✓ ✓✓ ✓ ✓✓✓ ✓
Zinc Nitrate ✓✓S✓✓✓✓✓ ✓✓✓✓✓✓✓
Zinc Sulfate, <45% ✓✓S✓✓✓✓✓ ✓ ✓✓✓✓
CAUTION: THIS CHARTIS AS A GUIDE ONL
YFOR THE SELECTION OF A MATERIAL.
WE SUGGEST TESTS BE RUN FOR COMPATIBILITY, OR CONTACT U.S. SEAL MFG. FOR THEIR RECOMMENDATIONS.
FLUID
*US Seal 2010 catalog w cover 9/14/10 3:00 PM Page 145
142
SEAL INSTALLATION INSTRUCTIONS
1. Disassemble pump cavity to expose defective seal. Removal of old seal and assembly
of new seal requires careful operations and precautions.
CAUTION: Lapped and polished faces of new seal are easily scratched and damaged.
PROTECT FROM DAMAGE, DIRT and FINGER PRINTS.
2. Carefully remove old seal head and mating ring taking care not to scratch shaft or
mating ring counterbore. NOTE HOW OLD SEAL IS ASSEMBLED, TO BE SURE
REPLACEMENT SEAL IS INSTALLED IN IDENTICAL MANNER.
3. Clean shaft and counterbore surfaces using fine emery cloth or equivalent. Remove
rust, burrs, and wipe clean.
4. Shaft, mating ring counterbore and rubber members of seal head and mating ring
should be lubricated with U.S. SEALUBE, which is a water based formula specifically
designed to lubricate rubber. Check seal surfaces to be sure they are free of any dirt,
grit or lubricants.
5. Press seal mating ring firmly into counterbore to be sure it is bottomed square.
SLIDE SEAL HEAD ALONG SHAFT MAKING SURE THATSPRING IS CORRECTLY
ENGAGED INTO SEAL.
6. Re-assemble pump and remember that trouble free operation of a pump includes
making a correct seal installation.
U.S. SEAL MFG. recommends using U.S. SEALUBE
as a lubricant when installing our seals.
Please call us for information on our
LUBE-PP (1cc Pillow Pak), LUBE-10ML (10ml Tube),
LUBE-4OZ (4 oz. Bottle), and LUBE-8OZ (8 oz. Bottle).
*US Seal 2010 catalog w cover 9/14/10 3:00 PM Page 146
143
IDENTIFYING CAUSES OF SEAL LEAKAGE
U.S. Seal Mfg. warranties its seals, material and work-
manship will meet applicable manufacturers’ specifications
and will perform according to industry standards, providing
the purchaser has selected the correct seal and material
and proper installation has been made bythe end user.
Since it is beyond our control to assure proper selection of
materials or ensure proper installation, U.S. Seal Mfg.
assumes no responsibility for damage after its products
have been installed.
Anyproduct found to be defective prior to use or installation
will be replaced without cost or the purchase price
will be refunded at our option. This is the maximum of our
liability. The sale of any U.S. Seal Mfg. product under any
other warranty or guarantee, expressed or implied, is not
authorized by U.S. Seal Mfg.
The foregoing is in addition to Seller’s Standard Terms
and Conditions of Sale which shall apply to all sales.
Copies available upon request.
WARRANTY
Symptom Possible Cause Corrective Procedure
1. Cracked or broken Seal ran dry and heated up. Check to insure seal chamber is full
mating ring When liquid reached seal faces, of liquid before starting pump.
it was cooler and caused On high temperature applications,
thermal cracks. insure proper flushing at seal faces.
2. Carbon washer Dirty system Have system cleaned and flushed.
scored and grooved Consider installation of a cyclone
abrasive separator (see page 177).
3. Short seal life in Treatment level and temperature Advise U.S. Seal Mfg. of product
treated system higher than anticipated. temperature and PPM Treatment level,
for alternate seal recommendation.
4. Primary ring Seal improperly installed. Check installation instructions for
worn unevenly proper assembly.
5. Bellows hard Temperature too high. Cool seal chamber.
and brittle. Pump may have run dry and Use EPR or Viton®elastomers,
Rapid carbon wear cavitated. high temperature carbon, Ni-Resist or
Tungsten Carbide mating rings.
6. Bellows soft and Bellows not compatible with Consult U.S. Seal Mfg. for
sticky. Appears to be material being pumped. recommendation, advising
dissolving pumpage and temperature.
7. Retainer drive tabs Vibration or coupling misalignment. Realign pump and motor.
badly worn or broken Periodic loss of lubrication at Insure proper flushing at seal faces.
seal faces.
8. Flexible bellows Coupling misalignment. Realign pump and motor.
broken.
9. Seal wears out shaft. Shaft end play. Replace bearings.
Radial shaft movement. Replace shaft.
Shaft not straight.
*US Seal 2010 catalog w cover 9/14/10 3:00 PM Page 147
VGK-1087
VGK-1125
144
REPLACEMENT SEAL KITS
Kits include Mechanical Seal and Everything Needed for Its Installation
Kits for HOFFMAN
Value Guard Seal Material Aurora
Part No. Dia. Code Small Bore No.
VGK-1124 1.125 BCFKF 476-0250-644
VGK-1126 1.125 VCFKF —
VGK-1127 1.125 BCFJF —
VGK-1128 1.125 VCFJF —
Kits for AURORA
Kits for Hoffman Pumps include gaskets and mechanical seal.
Value Guard Seal Material Aurora
Part No. Dia. Code Small Bore No.
VGK-1125 1.500 BCFKF 476-0253-644
VGK-1129 1.500 VCFKF —
VGK-1130 1.500 BCFJF —
VGK-1131 1.500 VCFJF —
Kits for Aurora Pumps include gaskets, pins, o-rings, sleeve, and mechanical seal.
Aurora and Hoffman are not affiliated with U.S. Seal Mfg.
Products supplied are manufactured or purchased by U.S. Seal Mfg. from sources other than the companies listed.
VGK-1124
Value Guard Seal Material Hoffman
Part No. Dia. Code Part No.
VGK-1087 .625 BCFJF 180013
VGK-1088 .625 BCFJF 180014
VGK-1085 .750 BCFJF 180010
VGK-1086 1.000 BCFJF 180011
VGK-1089 1.375 BCFJF 180015
*US Seal 2010 catalog w cover 9/14/10 3:00 PM Page 148
145
REPLACEMENT SEAL KITS
Kits include Mechanical Seal and Everything Needed for Its Installation
Value Guard Seal Material Old New
Part No. Dia. Code Paco No. Paco No.
Kits for PACO - End Suction Pumps
VGK-1006 .625 BCFJF K100-1 91909684
VGK-1007 .625 BCFKF K100-6 91909686
VGK-1008 .625 BCFKF K100-7 91909687
VGK-1012 .625 BCFJF K102-1 91909744
VGK-1013 .625 VCFKF K102-6 91909746
VGK-1014 .625 BCFKF K102-7 91909747
VGK-1009 .750 BCFJF K101-1 91909719
VGK-1010 .750 VCFKF K101-6 91909721
VGK-1011 .750 VCFKF K101-7 91909722
VGK-1054 .875 BCFJF K1503-1 91910735
VGK-1018 1.250 BCFJF K105-1 91909832
VGK-1019 1.250 VCFKF K105-6 91909837
VGK-1020 1.250 BCFKF K105-7 91909838
VGK-1024 1.250 BCFJF K107-1 91909909
VGK-1025 1.250 VCFKF K107-6 91909912
VGK-1026 1.250 BCFKF K107-7 91909913
VGK-1061 1.250 BCFJF K453-1 91911801
VGK-1062 1.250 VCFKF K453-6 —
VGK-1063 1.250 BCFKF K453-7 —
VGK-1070 1.250 BCFJF K600-1 91911821
VGK-1071 1.250 VCFKF K600-6 91911824
Paco is not affiliated with U.S. Seal Mfg.
Products supplied are manufactured or purchased by U.S. Seal Mfg. from sources other than the company listed.
Value Guard Seal Material Old New
Part No. Dia. Code Paco No. Paco No.
VGK-1072 1.250 BCFKF K600-7 91911825
VGK-1073 1.250 BCFJF K601-1 91911832
VGK-1074 1.250 VCFKF K601-6 91911834
VGK-1075 1.250 BCFKF K601-7 91911835
VGK-1079 1.250 BCFJF K607-1 —
VGK-1080 1.250 VCFKF K607-6 91911848
VGK-1081 1.250 BCFKF K607-7 —
VGK-1082 1.250 BCFJF K608-1 —
VGK-1083 1.250 VCFKF K608-6 91911850
VGK-1084 1.250 BCFKF K608-7 —
VGK-1058 1.250 BCFJF K1815-1 91910839
VGK-1059 1.250 VCFKF K1815-6 91910841
VGK-1060 1.250 BCFKF K1815-7 91910842
VGK-1055 1.375 BCFJF K1575-1 —
VGK-1056 1.375 VCFKF K1575-6 —
VGK-1057 1.375 BCFKF K1575-7 91910804
VGK-1015 1.750 BCFJF K104-1 91909802
VGK-1016 1.750 VCFKF K104-6 91909805
VGK-1017 1.750 BCFKF K104-7 91909806
VGK-1021 1.750 BCFJF K106-1 91909874
Kits for Paco End-Suction Pumps include gaskets, o-rings, shaft key, impeller bolt, impeller washer,
and mechanical seal. Loctite®is included, if required for installation.
VGK-1021VGK-1077
*US Seal 2010 catalog w cover 9/14/10 3:00 PM Page 149
146
REPLACEMENT SEAL KITS
Kits include Mechanical Seal and Everything Needed for Its Installation
Value Guard Seal Material Paco
Part No. Dia. Code Part No.
Kits for PACO - Split Case Pumps
VGK-1003 1.750 BCFJF K0308-1
VGK-1003B 1.750 BCFJF K0308-1
VGK-1004 1.750 VCFKF K0308-6
VGK-1004B 1.750 VCFKF K0308-6
VGK-1005 1.750 BCFKF K0308-7
VGK-1005B 1.750 BCFKF K0308-7
VGK-1000 1.750 BCFJF K0303-1
VGK-1000B 1.750 BCFJF K0303-1
VGK-1001 1.750 VCFKF K0303-6
VGK-1001B 1.750 VCFKF K0303-6
VGK-1002 1.750 BCFKF K0303-7
VGK-1002B 1.750 BCFKF K0303-7
VGK-1002
Value Guard Seal Material Old New
Part No. Dia. Code Paco No. Paco No.
Kits for PACO - End Suction Pumps (continued)
VGK-1022 1.750 VCFKF K106-6 91909878
VGK-1023 1.750 BCFKF K106-7 91909879
VGK-1027 1.750 BCFJF K108-1 91909944
VGK-1028 1.750 VCFKF K108-6 91909947
VGK-1029 1.750 BCFKF K108-7 91909948
VGK-1033 1.750 BCFJF K110-1 91910149
VGK-1034 1.750 VCFKF K110-6 91910150
VGK-1035 1.750 BCFKF K110-7 91910151
VGK-1042 1.750 BCFJF K127-1 91910609
VGK-1043 1.750 VCFKF K127-6 91910611
VGK-1044 1.750 BCFKF K127-7 91910612
VGK-1045 1.750 BCFJF K128-1 91910629
VGK-1046 1.750 VCFKF K128-6 91910631
VGK-1047 1.750 BCFKF K128-7 91910632
VGK-1051 1.750 BCFJF K141-1 91910715
VGK-1052 1.750 VCFKF K141-6 91910717
VGK-1053 1.750 BCFKF K141-7 91910718
VGK-1064 1.750 BCFJF K454-1 91911802
VGK-1065 1.750 VCFKF K454-6 —
Value Guard Seal Material Old New
Part No. Dia. Code Paco No. Paco No.
VGK-1066 1.750 BCFKF K454-7 91911803
VGK-1076 2.000 BCFJF K602-1 91911836
VGK-1077 2.000 VCFKF K602-6 91911838
VGK-1078 2.000 BCFKF K602-7 91911839
VGK-1030 2.250 BCFJF K109-1 91910061
VGK-1031 2.250 VCFKF K109-6 91910065
VGK-1032 2.250 BCFKF K109-7 91910066
VGK-1036 2.250 BCFJF K111-1 91910192
VGK-1037 2.250 VCFKF K111-6 91910195
VGK-1038 2.250 BCFKF K111-7 91910196
VGK-1048 2.250 BCFJF K140-1 91910707
VGK-1049 2.250 VCFKF K140-6 91910708
VGK-1050 2.250 BCFKF K140-7 91910709
VGK-1067 2.250 BCFJF K455-1 91911806
VGK-1068 2.250 VCFKF K455-6 —
VGK-1069 2.250 BCFKF K455-7 —
VGK-1039 2.750 BCFJF K112-1 91910246
VGK-1040 2.750 VCFKF K112-6 91910252
VGK-1041 2.750 BCFKF K112-7 91910250
Kits for Paco-End Suction Pumps include gaskets, o-rings, shaft key, impeller bolt, impeller washer, and
mechanical seal Loctite®is included if required for installation
Kits for the Paco Split Case Pumps include gaskets, o-rings, slingers, and mechanical seals.
The kits with the letter B in the part number include the above PLUS the bearings and oil seal.
Paco is not affiliated with U.S. Seal Mfg.
Products supplied are manufactured or purchased by U.S. Seal Mfg. from sources other than the company listed.
*US Seal 2010 catalog w cover 9/14/10 3:00 PM Page 150
147
Peerless and Taco are not affiliated with U.S. Seal Mfg.
Products supplied are manufactured or purchased by U.S. Seal Mfg. from sources other than the companies listed.
Kits for TACO
REPLACEMENT SEAL KITS
Kits include Mechanical Seal and Everything Needed for Its Installation
Kits for Taco Pumps include gaskets, o-rings, sleeve*, rubber bonded washer, and mechanical seal.
*These kits do not include sleeve.
Kits for PEERLESS
Value Guard Seal Material Peerless
Part No. Dia. Code Part No.
VGK-1090 1.250 BCFKF BSE-2 (Ni-Resist)
VGK-1123 1.250 BCFJF BSE-2 (Ceramic)
VGK-1120 1.250 VCFJF BSE-2 (Vit / Cer)
VGK-1092 1.250 VCFKF BSE-2 (Vit / Nir)
VGK-1091 1.500 BCFKF BSE-3 (Ni-Resist)
VGK-1121 1.500 BCFJF BSE-3 (Ceramic)
VGK-1122 1.500 VCFJF BSE-3 (Vit / Cer)
VGK-1093 1.500 VCFKF BSE-3 (Vit / Nir)
VGK-1132 1.250 BCFKF ISE-2 (Ni-Resist)
VGK-1133 1.250 BCFJF ISE-2 (Ceramic)
VGK-1135 1.250 VCFJF ISE-2 (Vit / Cer)
VGK-1134 1.250 VCFKF ISE-2 (Vit / Nir)
Value Guard Seal Material Peerless
Part No. Dia. Code Part No.
VGK-1136 1.500 BCFKF ISE-3 (Ni-Resist)
VGK-1137 1.500 BCFJF ISE-3 (Ceramic)
VGK-1138 1.500 VCFJF ISE-3 (Vit / Cer)
VGK-1139 1.500 VCFKF ISE-3 (Vit / Nir)
Kits for Peerless Pumps include gaskets, sleeve, impeller bolt, impeller washer, key and mechananical seal.
Value Guard Seal Material Taco
Part No. Dia. Code Part No.
VGK-1094 * .500 BCFKF 1600-055RP
VGK-1095 * .625 BCFJF 1600-170ERP
VGK-1096 * .625 BCFKF 1600-170RP
VGK-1097 * .625 BCFJF 1600-868CRP
VGK-1098 1.125 BCFKF 840-128BRP
VGK-1102 1.125 BCFJF 950-664BRP
VGK-1105 1.125 VCFZF 950-667BRP
VGK-1108 1.125 BCFJF 950-670BRP
VGK-1112 1.125 BCFKF 951-3159BRP
VGK-1114 1.125 BCFJF 951-3161BRP
VGK-1116 1.125 BCFKF 953-1549-1BRP
VGK-1117 1.125 BCFJF 953-1549-3BRP
VGK-1099 1.500 BCFKF 862-171BRP
VGK-1100 1.500 BCFKF 862-172BRP
VGK-1119 1.500 BCFJF 862-172ERP
VGK-1103 1.500 BCFKF 950-665BRP
VGK-1106 1.500 VCFZF 950-668BRP
VGK-1109 1.500 BCFJF 950-671BRP
Value Guard Seal Material Taco
Part No. Dia. Code Part No.
VGK-1113 1.500 BCFKF 951-3160BRP
VGK-1115 1.500 BCFJF 951-3162BRP
VGK-1118 1.500 BCFJF 953-1549-6BRP
VGK-1101 1.875 BCFJF 950-1369BRP
VGK-1111 1.875 BCFJF 951-2968BRP
VGK-1104 2.000 BCFKF 950-666BRP
VGK-1107 2.000 VCFZF 950-669BRP
VGK-1110 2.000 BCFJF 950-672BRP
VGK-1090
VGK-1098
*US Seal 2010 catalog w cover 9/14/10 3:00 PM Page 151
148
SEAL HEAD TYPES
MATING RING DESIGNS
VALUE GUARD MATERIAL CODE
B. Buna C. Carbon F. Stainless Steel J. Ceramic F. Stainless Steel
Q. EPR L. Silicon Carbide K. Ni-Resist
V
.Viton®M. Molded Plastic L. Silicon Carbide
ELASTOMER PRIMARY RING METAL PARTS MATING RING SPRING
Buna Elastomer Carbon Primary Ring Stainless Steel Parts Ni-Resist Mating Ring Stainless Steel Spring
See Pages 156-165 for the Value Guard Metric Line.
Type AV Type BV Type HV
Type HDV Type HTV
1. Cup Mounted 8. Shaft Mounted3. O-Ring 11. Shaft Mounted 25. Floating
9. Shaft Mounted
*US Seal 2010 catalog w cover 9/14/10 3:00 PM Page 152
149
INCH SIZES
.500 (1/2")
AV .928 .656 1 1.000 .312 BMFJF VG-162
BV 1.125 .537 —— — BMF-F VG-150
BV 1.125 .537 1 1.000 .218 BMFJF VG-142
BV 1.125 .537 1 1.000 .312 BMFJF VG-163
HV .898 .718 1 .938 .225 BCFJF VG-392
HV .898 .718 1 .938 .225 VCFJF VG-392V
HV .898 .812 1 1.000 .312 BCFJF VG-1002
HV .898 .812 1 1.000 .312 BCFKF VG-106
.625 (5/8")
AV 1.200 .718 Special ——BMFJ/MF G VG-2131
AV 1.200 .718 1 1.187 .288 BMFJF VG-702
AV 1.200 .718 1 1.187 .288 BMFKF VG-701
AV 1.200 .718 1 1.187 .343 BMFJF VG-100
AV 1.200 .718 1 1.187 .343 VCFJF VG-100V-CMS
AV 1.200 .718 3 1.187 .343 VCFJF VG-100V
AV 1.200 .718 1 1.250 .406 BCFJF VG-516
AV 1.200 .718 1 1.250 .406 BMFJF VG-200
AV 1.200 .718 1 1.250 .406 VCFJF VG-200V-CMS
AV 1.200 .718 3 1.250 .406 VCFJF VG-200V
AV 1.200 .718 1 1.375 .562 BMFJF VG-528
AV 1.200 .812 1 1.250 .406 BMFJF VG-501
AV 1.200 .812 3 1.250 .406 VCFJF VG-501V
BV 1.437 .615 1 1.187 .288 BMFJF VG-700
BV 1.437 .615 1 1.187 .343 BMFJF VG-600
BV 1.437 .615 1 1.187 .343 VMFJF VG-600V
BV 1.437 .615 1 1.250 .406 BCFJF VG-961
BV 1.437 .615 1 1.250 .406 BMFJF VG-1000
BV 1.437 .615 8 —.215 BCFJF A VG-447
BV 1.437 .615 8 —.215 VCFJF A VG-447V
BV 1.437 .615 11 —.487 BMFJF A VG-411
HTV 1.055 .875 1 1.250 .406 BCFJF B VG-508
HTV 1.055 .875 1 1.250 .406 BCFKF B VG-102
HV 1.055 .718 1 1.250 .406 BCFJF VG-2160
HV 1.055 .844 1 1.187 .343 BCFJF VG-118
HV 1.055 .844 1 1.250 .406 BCFJF VG-290
HV 1.055 .844 1 1.250 .406 VCFJF VG-290V
HV 1.055 .875 1 1.250 .406 BCFJF VG-359
HV 1.055 .875 1 1.250 .406 BCFKF VG-633
HV 1.055 .875 1 1.250 .406 VCFJF VG-359V-CMS
HV 1.055 .875 3 1.250 .406 BCFJF VG-552
HV 1.055 .875 3 1.250 .406 VCFJF VG-359V
HV 1.055 .875 1 1.250 .406 VCFKF VG-633V
HV 1.055 1.187 1 1.156 .312 BCFJF VG-800
HV 1.055 1.312 1 1.250 .406 BCFJF VG-274
HV 1.055 1.312 1 1.250 .406 BCFKF VG-487
.750 (3/4")
AV1.295 .718 11.375 .406 BMFJF VG-201
AV1.295 .718 11.375 .406 VCFJF VG-201V-CMS
AV1.295 .718 3 1.375 .406 VCFJF VG-201V
AV1.295 .718 1 1.437 .406 BMFJF VG-101
BV 1.575 .615 11.375 .406 BMFJF VG-601
BV 1.575 .615 31.375 .406 VCFJF VG-601V
BV 1.575 .615 9—.281 BMFKF AVG-902
NOTE:
A. MOUNTS ON SHAFT
B.TAPERED SPRING
G. MOUNTS IN PLASTIC
SEAL HEAD MATING RING
Fig. OD Oper. Hgt. Fig. OD Thick.
Material Value Guard
Code Notes Part No.
*US Seal 2010 catalog w cover 9/14/10 3:00 PM Page 153
150
INCH SIZES
NOTE:
B. TAPERED SPRING
.750 (3/4") (continued)
HTV 1.161 .843 1 1.375 .406 BCFJF B VG-128
HV 1.161 .718 1 1.375 .406 BCFJF VG-877
HV 1.161 .718 1 1.375 .406 VCFJF VG-877V-CMS
HV 1.161 .875 1 1.275 .281 BCFJF VG-437
HV 1.161 .875 1 1.275 .281 VCFJF VG-437V
HV 1.161 .875 1 1.375 .406 BCFJF VG-358
HV 1.161 .875 1 1.375 .406 BCFKF VG-112
HV 1.161 .875 1 1.375 .406 VCFJF VG-358V-CMS
HV 1.161 .875 3 1.375 .406 VCFJF VG-358V
HV 1.161 .875 3 1.375 .406 VCFKF VG-112V
.875 (7/8")
HDV 1.323 1.625 1 1.500 .406 BCFJF VG-428
HV 1.323 .812 1 1.437 .265 BCFJF VG-790
HV 1.323 .812 1 1.437 .265 VCFJF VG-790V-CMS
HV 1.323 .937 1 1.500 .406 BCFJF VG-309
HV 1.323 .937 1 1.500 .406 BCFKF VG-687
HV 1.323 .937 3 1.500 .406 BCFJF VG-774
HV 1.323 .937 3 1.500 .406 BCFKF VG-617
HV 1.323 .937 1 1.500 .406 VCFJF VG-309V
HV 1.323 1.375 1 1.500 .406 BCFJF VG-188
HV 1.323 1.375 1 1.500 .406 BCFKF VG-935
HV 1.323 1.375 3 1.500 .406 BCFJF VG-776
HV 1.323 1.375 3 1.500 .406 BCFKF VG-229
1.000 (1")
AV 1.552 .812 1 1.625 .437 BCFJF VG-360
HDV 1.539 1.625 1 1.625 .437 BCFJF VG-879
HDV 1.539 1.625 1 1.625 .437 BCFKF VG-891
HDV 1.539 1.875 1 1.625 .437 BCFJF VG-429
HDV 1.539 1.875 1 1.625 .437 BCFKF VG-430
HTV 1.539 1.000 1 1.625 .437 BCFJF B VG-245
HTV 1.539 1.000 1 1.625 .437 VCFJF B VG-245V-CMS
HTV 1.539 1.000 25 1.625 .625 BCFLF B VG-413
HV 1.539 1.000 1 1.625 .437 BCFJF VG-235
HV 1.539 1.000 1 1.625 .437 BCFKF VG-357
HV 1.539 1.000 1 1.625 .437 VCFJF VG-235V-CMS
HV 1.539 1.000 3 1.625 .437 BCFJF VG-548
HV 1.539 1.000 3 1.625 .437 BCFKF VG-499
HV 1.539 1.000 3 1.625 .437 VCFJF VG-548V
HV 1.539 1.562 1 1.625 .437 BCFJF VG-754
HV 1.539 1.562 1 1.625 .437 BCFKF VG-236
HV 1.539 1.562 3 1.625 .437 BCFJF VG-557
HV 1.539 1.562 3 1.625 .437 BCFKF VG-791
1.062 (1-1/16")
HV 1.673 1.157 3 1.750 .345 VCFLF VG-110608V
1.125 (1-1/8")
HV 1.673 1.062 1 1.750 .437 BCFJF VG-356
HV 1.673 1.062 1 1.750 .437 BCFJF VG-356
HV 1.673 1.062 1 1.750 .437 BCFKF VG-355
HV 1.673 1.062 1 1.750 .437 VCFJF VG-356V-CMS
HV 1.673 1.062 1 1.750 .437 VCFKF VG-355V
HV 1.673 1.062 3 1.750 .437 BCFJF VG-801
HV 1.673 1.062 3 1.750 .437 BCFKF VG-529
SEAL HEAD MATING RING
Fig. OD Oper. Hgt. Fig. OD Thick.
Material Value Guard
Code Notes Part No.
*US Seal 2010 catalog w cover 9/14/10 3:00 PM Page 154
151
NOTE:
B. TAPERED SPRING
INCH SIZES
1.125 (1-1/8") (continued)
HV 1.673 1.062 3 1.750 .437 VCFJF VG-356V
HV 1.673 1.625 1 1.750 .437 BCFJF VG-204
HV 1.673 1.625 1 1.750 .437 BCFKF VG-384
HV 1.673 1.625 1 1.750 .437 VCFJF VG-204V-CMS
HV 1.673 1.625 3 1.750 .437 BCFJF VG-866
HV 1.673 1.625 3 1.750 .437 BCFKF VG-867
1.250 (1-1/4")
HTV 1.795 1.062 1 1.765 .365 BCFJF B VG-978
HTV 1.795 1.062 1 1.765 .365 BCFKF B VG-979
HTV 1.795 1.062 1 1.765 .365 VCFJF B VG-978V
HTV 1.795 1.062 1 1.875 .437 BCFJF B VG-246
HTV 1.795 1.062 1 1.875 .437 BCFKF B VG-249
HTV 1.795 1.062 1 1.875 .437 VCFJF B VG-246V-CMS
HTV 1.795 1.062 25 2.250 .625 BCFJF B VG-416A
HV 1.795 1.062 1 1.875 .437 BCFJF VG-185
HV 1.795 1.062 1 1.875 .437 BCFKF VG-756
HV 1.795 1.062 1 1.875 .437 VCFJF VG-185V-CMS
HV 1.795 1.062 1 1.875 .437 VCFKF VG-756V-CMS
HV 1.795 1.062 3 1.875 .437 VCFJF VG-185V
HV 1.795 1.062 3 1.875 .437 VCFKF VG-756V
HV 1.795 1.062 1 2.000 .437 BCFJF VG-466
HV 1.795 1.062 1 2.000 .437 VCFJF VG-466V-CMS
HV 1.795 1.062 3 2.000 .437 BCFJF VG-2230
HV 1.795 1.062 3 2.000 .437 BCFKF VG-1018
HV 1.795 1.625 1 1.875 .437 BCFJF VG-361
HV 1.795 1.625 1 1.875 .437 BCFJF VG-2122
HV 1.795 1.625 1 1.875 .437 BCFKF VG-137
HV 1.795 1.625 3 1.875 .437 BCFJF VG-546
HV 1.795 1.625 3 1.875 .437 BCFKF VG-1109
1.375 (1-3/8")
HDV 1.929 1.875 1 2.140 .437 BCFJF VG-1104
HTV 1.929 .900 25 2.000 .500 BCFLF B VG-929
HV 1.929 1.125 1 2.000 .437 BCFJF VG-177
HV 1.929 1.125 1 2.000 .437 BCFKF VG-210
HV 1.929 1.125 3 2.000 .437 BCFJF VG-805
HV 1.929 1.125 3 2.000 .437 BCFKF VG-547
HV 1.929 1.687 1 2.000 .437 BCFJF VG-354
HV 1.929 1.687 1 2.000 .437 BCFKF VG-677
HV 1.929 1.687 3 2.000 .437 BCFJF VG-864
HV 1.929 1.687 3 2.000 .437 BCFKF VG-865
1.500 (1-1/2")
HTV 2.047 1.125 1 2.125 .437 BCFJF B VG-347
HV 2.047 1.125 1 2.125 .437 BCFJF VG-758
HV 2.047 1.125 1 2.125 .437 BCFKF VG-659
HV 2.047 1.125 1 2.125 .437 VCFJF VG-758V-CMS
HV 2.047 1.125 1 2.125 .437 VCFKF VG-659V-CMS
HV 2.047 1.125 3 2.125 .437 BCFJF VG-816
HV 2.047 1.125 3 2.125 .437 BCFKF VG-553
HV 2.047 1.125 3 2.125 .437 VCFJF VG-758V
HV 2.047 1.125 3 2.125 .437 VCFKF VG-659V
HV 2.047 1.688 1 2.125 .437 BCFJF VG-305
HV 2.047 1.688 1 2.125 .437 BCFKF VG-374
SEAL HEAD MATING RING
Fig. OD Oper. Hgt. Fig. OD Thick.
Material Value Guard
Code Notes Part No.
*US Seal 2010 catalog w cover 9/14/10 3:00 PM Page 155
152 NOTE:
B. TAPERED SPRING
INCH SIZES
1.500 (1-1/2") (continued)
HV 2.047 1.688 3 2.125 .437 BCFJF VG-395
HV 2.047 1.688 3 2.125 .437 BCFKF VG-1110
1.625 (1-5/8")
HTV 2.252 1.312 25 2.500 .812 BCFLF B VG-7497
HTV 2.252 1.375 1 2.375 .500 BCFJF B VG-514
HV 2.252 1.375 1 2.375 .500 BCFJF VG-238
HV 2.252 1.375 1 2.375 .500 BCFKF VG-239
HV 2.252 1.375 1 2.375 .500 VCFJF VG-238V-CMS
HV 2.252 1.375 3 2.625 .500 BCFKF VG-1019
HV 2.252 2.000 1 2.375 .500 BCFJF VG-745
HV 2.252 2.000 1 2.375 .500 BCFKF VG-744
HV 2.252 2.000 3 2.375 .500 BCFJF VG-1683
HV 2.252 2.000 3 2.375 .500 BCFKF VG-822
1.750 (1-3/4")
HV 2.394 1.375 1 2.625 .500 BCFJF VG-7252
HV 2.394 1.375 1 2.500 .500 BCFJF VG-446
HV 2.394 1.375 1 2.500 .500 BCFKF VG-448
HV 2.394 1.375 1 2.500 .500 VCFJF VG-446V-CMS
HV 2.394 1.375 3 2.500 .500 BCFJF VG-550
HV 2.394 1.375 3 2.500 .500 BCFKF VG-436
HV 2.394 1.375 3 2.500 .500 VCFJF VG-550V
HV 2.394 2.000 1 2.500 .500 BCFJF VG-205
HV 2.394 2.000 1 2.500 .500 BCFKF VG-366
HV 2.394 2.000 3 2.500 .500 BCFJF VG-535
HV 2.394 2.000 3 2.500 .500 BCFKF VG-262
1.875 (1-7/8")
HDV 2.516 2.000 1 2.640 .406 BCFJF VG-1105
HV 2.516 1.500 1 2.625 .500 BCFJF VG-340
HV 2.516 1.500 1 2.625 .500 BCFKF VG-1608
HV 2.516 1.500 3 2.625 .500 BCFJF VG-2114
HV 2.516 1.500 3 2.625 .500 BCFKF VG-593
HV 2.516 2.125 1 2.625 .500 BCFJF VG-523
HV 2.516 2.125 1 2.625 .500 BCFKF VG-513
HV 2.516 2.125 3 2.625 .500 BCFJF VG-2071
HV 2.516 2.125 3 2.625 .500 BCFKF VG-2072
2.000 (2")
HV 2.583 1.500 1 2.750 .500 BCFJF VG-267
HV 2.583 1.500 1 2.750 .500 BCFKF VG-842
HV 2.583 1.500 3 2.750 .500 BCFJF VG-532
HV 2.583 1.500 3 2.750 .500 BCFKF VG-332
HV 2.583 2.125 1 2.750 .500 BCFJF VG-479
HV 2.583 2.125 1 2.750 .500 BCFKF VG-843
HV 2.583 2.125 3 2.750 .500 BCFJF VG-530
HV 2.583 2.125 3 2.750 .500 BCFKF VG-477
2.125 (2-1/8")
HDV 2.819 2.250 1 3.187 .562 BCFJF VG-1107
HDV 2.819 2.562 1 3.140 .562 BCFJF VG-1102
HV 2.819 1.687 1 3.000 .562 BCFJF VG-844
HV 2.819 1.687 3 3.000 .562 BCFJF VG-338
HV 2.819 1.687 3 3.000 .562 BCFKF VG-543
HV 2.819 2.375 1 3.000 .562 BCFJF VG-537
HV 2.819 2.375 1 3.000 .562 BCFKF VG-353
SEAL HEAD MATING RING
Fig. OD Oper. Hgt. Fig. OD Thick.
Material Value Guard
Code Notes Part No.
*US Seal 2010 catalog w cover 9/14/10 3:00 PM Page 156
153
INCH SIZES
2.125 (2-1/8") (continued)
HV 2.819 2.375 3 3.000 .562 BCFJF VG-327
HV 2.819 2.375 3 3.000 .562 BCFKF VG-2086
2.250 (2-1/4")
HV 3.027 1.688 1 3.125 .562 BCFJF VG-1679
HV 3.027 1.688 1 3.125 .562 BCFKF VG-1680
HV 3.027 1.688 3 3.125 .562 BCFJF VG-1678
HV 3.027 1.688 3 3.125 .562 BCFKF VG-1676
HV 3.027 2.375 1 3.125 .562 BCFJF VG-323
HV 3.027 2.375 1 3.125 .562 BCFKF VG-351
HV 3.027 2.375 3 3.125 .562 BCFJF VG-848
HV 3.027 2.375 3 3.125 .562 BCFKF VG-849
2.375 (2-3/8")
HV 3.087 1.813 1 3.250 .562 BCFJF VG-268-CMS
HV 3.087 1.813 1 3.250 .562 BCFKF VG-492-CMS
HV 3.087 1.813 3 3.250 .562 BCFJF VG-268
HV 3.087 1.813 3 3.250 .562 BCFKF VG-492
HV 3.087 2.500 1 3.250 .562 BCFJF VG-2097-CMS
HV 3.087 2.500 1 3.250 .562 BCFKF VG-350-CMS
HV 3.087 2.500 3 3.250 .562 BCFJF VG-2097
HV 3.087 2.500 3 3.250 .562 BCFKF VG-350
2.500 (2-1/2")
HV 3.197 1.813 3 3.375 .562 BCFJF VG-269
HV 3.197 1.813 3 3.375 .562 BCFKF VG-853
HV 3.197 2.500 3 3.375 .562 BCFJF VG-279
HV 3.197 2.500 3 3.375 .562 BCFKF VG-349
2.625 (2-5/8")
HV 3.327 1.937 3 3.375 .625 BCFJF VG-7909
HV 3.327 2.750 3 3.375 .625 BCFJF VG-328
HV 3.327 2.750 3 3.375 .625 BCFKF VG-542
2.750 (2-3/4")
HV 3.528 1.937 3 3.500 .625 BCFJF VG-836
HV 3.528 1.937 3 3.500 .625 BCFKF VG-483
HV 3.528 2.750 3 3.500 .625 BCFJF VG-838
HV 3.528 2.750 3 3.500 .625 BCFKF VG-321
HDV 3.528 3.750 1 3.500 .625 BCFKF VG-322-CMS
HDV 3.528 3.750 3 3.500 .625 BCFKF VG-322
3.000 (3")
HV 3.803 2.062 3 3.875 .625 BCFJF VG-761
HV 3.803 2.062 3 3.875 .625 BCFKF VG-465
HV 3.803 2.813 3 3.875 .625 BCFJF VG-324
HV 3.803 2.813 3 3.875 .625 BCFKF VG-475
SEAL HEAD MATING RING
Fig. OD Oper. Hgt. Fig. OD Thick.
Material Value Guard
Code Notes Part No.
*US Seal 2010 catalog w cover 9/14/10 3:00 PM Page 157
Type VGXB2
Type VGRO
154
◆External seal design
◆Pressure balanced
◆Temperature to 450°F
◆Set screw driven for positive drive
◆Multiple springs create consistent face pressure
◆Unitized rotating assembly simplifies installation
ARMSTRONG and BELL & GOSSETT
REPLACEMENT SEALS
Value Guard Seal Shaft Materials of Armstrong
Part No. Type Dia. Construction Part No.
VG-975002304 VGXB2 1-1/8 AFLAS®/Antimony Carbon / SC / 316SS 975002-304
VG-975002334 VGXB2 1-5/8 AFLAS®/Antimony Carbon / SC / 316SS 975002-334
VG-975002374 VGXB2 2-1/8 AFLAS®/Antimony Carbon / SC / 316SS 975002-374
VG-975002394 VGXB2 2-5/8 AFLAS®/Antimony Carbon / SC / 316SS 975002-394
Features
ARMSTRONG SERIES 4300 PUMPS
Value Guard Seal Shaft Materials of Bell & Gossett
Part No. Type Dia. Construction Part No.
VG-P75202 VGXB2 1-1/4 AFLAS®/Antimony Carbon / SC / 316SS P75202
VG-975002334 VGXB2 1-5/8 AFLAS®/AntimonyCarbon / SC / 316SS P75203
BELL & GOSSETT SERIES 80-SC PUMPS
◆Temperature to 450°F
◆Set screw driven for positive drive
◆Multiple springs create consistent face pressure
◆Unitized rotating assembly simplifies installation
Value Guard Seal Shaft Materials of Bell & Gossett
Part No. Type Dia. Construction Part No.
VG-P85070 VGRO 1-1/4 AFLAS®/TC / Antimony Carbon / 304SS P85070
VG-185050 VGRO 1-5/8 AFLAS®/TC / Antimony Carbon / 304SS 185050
VG-185051 VGRO 2 AFLAS®/TC / Antimony Carbon / 304SS 185051
VG-185052 VGRO 2-5/8 AFLAS®/TC / Antimony Carbon / 304SS 185052
VG-185053 VGRO 3-3/4 AFLAS®/TC / Antimony Carbon / 304SS 185053
VG-185054 VGRO 2-5/8 AFLAS®/SC / Antimony Carbon / 304SS 185054
VG-185055 VGRO 3-3/4 AFLAS®/SC / Antimony Carbon / 304SS 185055
Features
BELL & GOSSETT MODELS 80-S, 1510-S, 1531-S, VSC-S*, VSCS-S*
For Additional Listing of Armstrong, see pages 11-12, for Bell & Gossett, see pages 16-17
*Split Case Pumps - Require 2 Seals *
*US Seal 2010 catalog w cover 9/14/10 3:00 PM Page 158
155
GORMAN-RUPP REPLACEMENT SEALS
Value Guard Seal Shaft Material
Part No. Type Dia. Code
VG-7079 VGD 1-1/2 VZFZF T3, T4, T6 12364A
VG-7080 VGD 1-1/2 VLFLF T3, T4, T6 —
VG-7081 VGD 1-7/8 VZFZF T8 —
VG-7082 VGD 1-7/8 VLFLF T8 —
VG-7083 VGD 2-3/4 VZFZF T10 —
VG-7084 VGD 2-3/4 VLFLF T10 —
◆Tungsten Carbide & Silicon Carbide
faces for severe abrasive service
◆Solid drive band extends seal life during
periods of vibration and cavitation
◆Full convolution elastomer bellows
for maximum self aligning capabilities
◆Pump sleeve, o-ring and impeller shim
kit supplied for ease of installation
Features
For Additional Listing of Gorman-Rupp, see pages 38-39
SSERIES - Submersible Pump
TSERIES - Self Priming Pump
Gorman-Rupp
Model No. Part No.
Value Guard Seal Shaft Material
Part No. Type Dia. Code
VG-7100 VGR 1 BCFKF / BZFZF S3A1 46512-044
VG-7101 * VGD 1-1/2 VZFZF S4A1, S4B1, S6C1 12430
VG-7101 * VGD 1-1/2 VZFZF S6B1, S8A1, S8B1 12430A
Gorman-Rupp
Model No. Part No.
Value Guard Seal Shaft Material
PartNo. Type Dia. Code
VG-7102 ** VGD 1-3/4 VZFZF S8C1 46512-055
Gorman-Rupp
Model No. Part No.
Type VGD
*Use PS-382 for Upper Seal
*Use PS-2122 for Upper Seal
Also Used on
All Prime Models S3, S4, S6, S8, S9, S10 / Wemco Models WSP3A, 4A, 6A, 8A, 10A
*US Seal 2010 catalog w cover 9/14/10 3:00 PM Page 159
156
METRIC SIZES
Type VGMA
*Other materials available upon request *
Shaft Head Oper. Mating
Mating Ring
Value Guard
Dia. OD Hgt. Thick Part
dD L D1 L1 No.
618 8 22.0 4.0 VGM-8062
8a 20 11 26.0 4.0 VGM-8063
8b 20 11 22.0 4.0 VGM-8064
8c 24 11 26.0 8.0 VGM-8065
9 24 11 26.0 8.0 VGM-8020
10 24 11 26.0 8.0 VGM-8021
11 24 11 26.0 8.0 VGM-8022
12a 24 13 26.0 8.0 VGM-8066
12b 24 13 26.0 8.0 VGM-8060
12c 32 13 35.0 8.0 VGM-8067
13 24 13 26.0 8.0 VGM-8023
14a 28 13 28.5 7.0 VGM-8068
14b 28 13 28.5 8.0 VGM-8024
14c 32 13 29.5 8.0 VGM-8070
14d 32 13 35.0 8.0 VGM-8071
15a 32 13 29.5 8.0 VGM-8025
15b 32 13 38.0 8.0 VGM-8072
15c 35 13 38.0 8.0 VGM-8073
16a 32 13 29.5 8.0 VGM-8026
16b 35 13 38.0 8.0 VGM-8074
16c 39 13 38.0 8.0 VGM-8075
16d 39 13 42.0 8.0 VGM-8076
17 39 13 42.0 8.0 VGM-8027
18 39 13 42.0 8.0 VGM-8028
19 39 13 42.0 8.0 VGM-8029
20a 39 13 42.0 8.0 VGM-8077
20b 42 13 45.0 10.0 VGM-8078
22 42 13 45.0 10.0 VGM-8030
23 47 14 50.0 10.0 VGM-8079
24 47 14 50.0 10.0 VGM-8031
25a 42 14 50.0 10.0 VGM-8032
25b 47 14 50.0 10.0 VGM-8080
26 47 14 50.0 10.0 VGM-8081
28 54 15 57.0 10.0 VGM-8033
30 54 15 57.0 10.0 VGM-8034
32 54 15 57.0 10.0 VGM-8035
35 60 16 63.0 10.0 VGM-8082
38 65 18 68.0 12.0 VGM-8036
40 65 18 68.0 12.0 VGM-8037
45 70 20 73.0 12.0 VGM-8083
50 85 23 88.0 15.0 VGM-8084
55 85 23 88.0 15.0 VGM-8085
60 105 30 110.0 15.0 VGM-8086
70 105 32 110.0 15.0 VGM-8087
65 105 32 110.0 15.0 VGM-8098
Ring OD
Carbon Rotating Face
Ceramic Mating Ring
Buna Elastomer
304SS Metallurgy
D
d
D
D1
LL1
d
D
D1
L1
L
Features
Materials*
Similar To:
AES B01, BT/Burgmann AR
Roten 37B, Vulcan 18
Single Seal - Unbalanced
Bi-Directional
Elastomer Bellows
*US Seal 2010 catalog w cover 9/14/10 3:00 PM Page 160
Shaft
Dia.
d
Head
OD
D
Oper.
Hgt.
L
Mating
Ring
OD
D1
Mating
Ring
OD
D2
Mating
Ring
Thick
L1
Mating
Ring
Thick
L4
Value
Guard
Part
No.
157
METRIC SIZES
Type VGMB
*Other materials available upon request *
10 20 15 18.1 — 5.5 — VGM-8000
10 20 15 — 21 — 7.0 VGM-8000D
11 22 18 20.6 — 5.5 — VGM-8001
12 22 18 20.6 — 5.5 — VGM-8002
12 22 18 — 23 — 7.0 VGM-8002D
13 25 22 23.1 — 6.0 — VGM-8003
14 25 22 23.1 — 6.0 — VGM-8004
14 25 22 — 25 — 7.0 VGM-8004D
15 29 22 26.9 — 7.0 — VGM-8005
16 29 23 26.9 — 7.0 — VGM-8006
16 29 23 — 27 — 7.0 VGM-8006D
17 29 23 26.9 — 7.0 — VGM-8007
18 33 24 30.9 — 8.0 — VGM-8008
18 33 24 — 33 — 10.0 VGM-8008D
19 33 25 30.9 — 8.0 — VGM-8009
20 33 25 30.9 — 8.0 — VGM-8010
20 33 25 — 35 — 10.0 VGM-8010D
22 38 25 35.4 — 8.0 — VGM-8011
22 38 25 — 37 — 10.0 VGM-8011D
24 38 27 35.4 — 8.0 — VGM-8012
24 38 27 — 39 — 10.0 VGM-8012D
25 40 27 38.2 — 8.5 — VGM-8013
25 40 27 — 40 — 10.0 VGM-8013D
28 46 29 43.3 — 9.0 — VGM-8014
28 46 29 — 43 — 10.0 VGM-8014D
30 46 30 43.3 — 9.0 — VGM-8015
30 46 30 — 45 — 10.0 VGM-8015D
32 46 30 43.3 — 9.0 — VGM-8016
32 46 30 — 48 — 10.0 VGM-8016D
33 48 39 53.5 — 11.5 — VGM-8099
33 48 39 — 48 — 10.0 VGM-8099D
35 50 39 53.5 — 11.5 — VGM-8017
35 50 39 — 50 — 10.0 VGM-8017D
38 55 39 60.5 11.5 — VGM-8018
38 55 39 —56 —13.0 VGM-8018D
40 55 39 60.5 — 11.5 — VGM-8019
40 55 39 —58 —13.0 VGM-8019D
Features
Materials*
D2 and L4 columns refer to DIN 24960
(Corresponding Part Numbers end in D)
Single Seal - Unbalanced
Uni-Directional
Conical Spring
Ceramic Rotating Face
Carbon Mating Ring
Buna Elastomer
304SS Metallurgy
Similar To:
AES T04, BT/ Burgmann FN
Roten 3, Vulcan 13
*US Seal 2010 catalog w cover 9/14/10 3:00 PM Page 161
L1
D
L
d
L
Similar To:
AES B02 & BO12, Burgmann MG1 & MG12
Vulcan 19 & 192
Features
To DIN 24960 (VGMC-12)
Single Seal - Unbalanced
Bi-Directional
Elastomer Bellows
D
d
L
For Mating Ring Part Numbers, See Pages 164-165
Shaft Head VGMC-1 VGMC-1 VGMC-1 VGMC-12 VGMC-12 VGMC-12
Dia. OD Oper. Hgt. Head Part No. Head Part No. Oper. Hgt. Head Part No. Head Part No.
d D L Buna / Carbon Viton®/ SC L1 Buna / Carbon Viton®/ SC
10 22.5 14.5 HD-8090M HD-8125M 25.9 HD-8154M HD-8189M
12 25.0 15.0 HD-8091M HD-8126M 25.9 HD-8155M HD-8190M
14 28.5 17.0 HD-8092M HD-8127M 28.4 HD-8156M HD-8191M
15 28.5 17.0 HD-8093M HD-8128M 28.4 HD-8157M HD-8192M
16 28.5 17.0 HD-8094M HD-8129M 28.4 HD-8158M HD-8193M
18 32.0 19.5 HD-8095M HD-8130M 30.0 HD-8159M HD-8194M
20 37.0 21.5 HD-8096M HD-8131M 30.0 HD-8160M HD-8195M
22 37.0 21.5 HD-8097M HD-8132M 30.0 HD-8161M HD-8196M
24 42.5 22.5 HD-8098M HD-8133M 32.5 HD-8162M HD-8197M
25 42.5 23.0 HD-8099M HD-8038M 32.5 HD-8163M HD-8198M
28 49.0 26.5 HD-8100M HD-8046M 35.0 HD-8164M HD-8199M
30 49.0 26.5 HD-8101M HD-8134M 35.0 HD-8165M HD-8200M
32 53.5 27.5 HD-8102M HD-8135M 35.0 HD-8166M HD-8201M
33 53.5 27.5 HD-8103M HD-8136M 35.0 HD-8167M HD-8202M
35 57.0 28.5 HD-8104M HD-8137M 35.0 HD-8168M HD-8203M
38 59.0 30.0 HD-8105M HD-8138M 36.0 HD-8169M HD-8204M
40 62.0 30.0 HD-8106M HD-8139M 36.0 HD-8170M HD-8205M
42 65.5 30.0 HD-8107M HD-8140M 36.0 HD-8171M HD-8206M
43 65.5 30.0 HD-8108M HD-8141M 36.0 HD-8172M HD-8207M
45 68.0 30.0 HD-8109M HD-8047M 36.0 HD-8173M HD-8208M
48 70.5 30.5 HD-8110M HD-8142M 36.0 HD-8174M HD-8209M
50 74.0 30.5 HD-8111M HD-8048M 36.0 HD-8175M HD-8210M
53 78.5 33.0 HD-8112M HD-8143M 36.5 HD-8176M HD-8211M
55 81.0 35.0 HD-8113M HD-8144M 36.5 HD-8177M HD-8212M
58 85.5 37.0 HD-8114M HD-8145M 41.5 HD-8178M HD-8213M
60 88.5 38.0 HD-8115M HD-8146M 41.5 HD-8179M HD-8214M
65 93.5 40.0 HD-8116M HD-8147M 41.5 HD-8180M HD-8215M
68 96.5 40.0 HD-8117M HD-8148M 41.5 HD-8181M HD-8216M
70 99.5 40.0 HD-8118M HD-8049M 48.7 HD-8182M HD-8217M
75 107.0 40.0 HD-8119M HD-8050M 48.7 HD-8183M HD-8218M
80 112.0 40.0 HD-8120M HD-8149M 48.0 HD-8184M HD-8219M
85 120.0 41.0 HD-8121M HD-8150M 46.0 HD-8185M HD-8220M
90 127.0 45.0 HD-8122M HD-8151M 51.0 HD-8186M HD-8221M
95 132.0 46.0 HD-8123M HD-8152M 51.0 HD-8187M HD-8222M
100 137.0 47.0 HD-8124M HD-8153M 51.0 HD-8188M HD-8223M
158
METRIC SIZES
Types VGMC-1 and VGMC-12
*Other materials available upon request *
*US Seal 2010 catalog w cover 9/14/10 3:00 PM Page 162
D
L
d
Similar To:
Burgmann M2
D
d
L
L5
D1
L5
D1
159
METRIC SIZES
Type VGMD
*Other materials available upon request *
Mating Ring Information
Features Materials *
To DIN 24960
Single Seal - Unbalanced
Uni-Directional
Conical Spring
Carbon Rotating Face
Silicon Carbide Mating Ring
Viton®Elastomer
304SS Metallurgy
Mating Rings sold seperately.
Seal also uses Mating Ring styles
VGM-G4 and VGM-G6.
See pages 164-165
for part numbers.
G9 Mating Ring Specify Rotation
Shaft Head Oper. Mating Ring Mating Ring Right Hand Left Hand
Dia. OD Hgt. OD Thick Rotary Rotary
dD L D1 L5 Viton®/ Carbon Viton®/ Carbon
6 15 - - - HD-8224MRH HD-8224MLH
8 18 - - - HD-8225MRH HD-8225MLH
10 20 17.5 21 10.0 HD-8226MRH HD-8226MLH
12 22 17.5 23 10.0 HD-8227MRH HD-8227MLH
14 25 17.5 25 10.0 HD-8228MRH HD-8228MLH
15 27 - 27 10.0 HD-8229MRH HD-8229MLH
16 27 19.5 27 10.0 HD-8230MRH HD-8230MLH
18 30 20.5 33 11.5 HD-8231MRH HD-8231MLH
20 32 22.0 35 11.5 HD-8232MRH HD-8232MLH
22 35 23.5 37 11.5 HD-8233MRH HD-8233MLH
24 38 25.0 39 11.5 HD-8234MRH HD-8234MLH
25 40 26.5 40 11.5 HD-8235MRH HD-8235MLH
26 41 - 43 11.5 HD-8236MRH HD-8236MLH
28 43 26.5 45 11.5 HD-8237MRH HD-8237MLH
30 47 - 48 11.5 HD-8238MRH HD-8238MLH
32 48 - 48 11.5 HD-8239MRH HD-8239MLH
35 53 - 50 11.5 HD-8240MRH HD-8240MLH
38 56 - 56 14.0 HD-8241MRH HD-8241MLH
D
*US Seal 2010 catalog w cover 9/14/10 3:00 PM Page 163
160
METRIC SIZES
Type VGME-1
*Other materials available upon request *
D
L
d
Mating Ring Information
To DIN 24960
Single Seal - Unbalanced
Uni-Directional
Conical Spring
304SS Rotating Face
Carbon Mating Ring
Viton®Elastomer
304SS Metallurgy
Features Materials *
Similar To:
AES T02, Burgmann M3N
Vulcan 8B
L6
D2
G-9 Mating Ring G-13 Mating Ring Specify Rotation
Shaft Head Oper. Mating Mating Mating Right Hand Left Hand
Dia. OD Hgt. Ring OD
Ring Thick
Rotary Rotary
dD L D1 L5 D4 L8 Viton®/ 304SS Viton®/ 304SS
10 19 15.5 21 10.0 19.2 7.1 HD-8242MRH HD-8242MLH
12 21 16.0 23 10.0 21.6 7.6 HD-8243MRH HD-8243MLH
14 23 16.5 25 10.0 24.6 7.6 HD-8244MRH HD-8244MLH
15 24 18.0 27 10.0 24.6 8.6 HD-8245MRH HD-8245MLH
16 26 18.0 27 10.0 28.0 9.0 HD-8246MRH HD-8246MLH
18 29 19.5 33 11.5 30.0 10.0 HD-8247MRH HD-8247MLH
20 31 22.0 35 11.5 35.0 9.5 HD-8248MRH HD-8248MLH
22 33 21.5 37 11.5 35.0 9.5 HD-8249MRH HD-8249MLH
24 35 23.5 39 11.5 38.0 9.5 HD-8250MRH HD-8250MLH
25 36 26.5 40 11.5 38.0 9.5 HD-8251MRH HD-8251MLH
28 40 26.5 43 11.5 42.0 11.0 HD-8252MRH HD-8252MLH
30 43 26.5 45 11.5 45.0 11.0 HD-8253MRH HD-8253MLH
32 46 28.5 48 11.5 48.0 11.0 HD-8254MRH HD-8254MLH
33 47 28.5 48 11.5 50.0 11.5 HD-8255MRH HD-8255MLH
35 49 28.5 50 11.5 52.0 11.5 HD-8256MRH HD-8256MLH
38 53 33.5 56 14.0 55.0 11.5 HD-8257MRH HD-8257MLH
40 56 36.0 58 14.0 58.0 11.5 HD-8258MRH HD-8258MLH
42 59 37.5 61 14.0 60.0 14.3 HD-8259MRH HD-8259MLH
43 59 38.5 61 14.0 62.0 14.3 HD-8260MRH HD-8260MLH
45 61 39.5 63 14.0 64.0 14.3 HD-8261MRH HD-8261MLH
48 64 46.0 66 14.0 68.4 14.3 HD-8262MRH HD-8262MLH
50 66 45.0 70 15.0 69.3 14.3 HD-8263MRH HD-8263MLH
53 69 47.0 73 15.0 72.3 15.3 HD-8264MRH HD-8264MLH
55 71 49.0 75 15.0 75.4 15.3 HD-8265MRH HD-8265MLH
58 76 55.0 78 15.0 78.4 15.3 HD-8266MRH HD-8266MLH
60 78 55.0 80 15.0 80.4 15.3 HD-8267MRH HD-8267MLH
65 84 55.0 85 15.0 85.4 15.3 HD-8268MRH HD-8268MLH
68 88 55.0 90 18.0 91.5 16.0 HD-8269MRH HD-8269MLH
70 90 57.0 92 18.0 92.0 15.3 HD-8270MRH HD-8270MLH
75 98 62.0 97 18.0 99.0 15.3 HD-8271MRH HD-8271MLH
80 100 61.8 105 18.2 104.0 16.3 HD-8272MRH HD-8272MLH
D4
L8
d
D
L
L5
D1
L5
D1
Ring OD
Mating
Ring Thick
Mating Rings sold seperately.
See pages 164-165 for part numbers.
*US Seal 2010 catalog w cover 9/14/10 3:00 PM Page 164
161
METRIC SIZES
Type VGME-2
*Other materials available upon request *
Features Mating Ring Information
Shrink-Fitted Carbon Rotating Face
Silicon Carbide Mating Ring
Viton®Elastomer
304SS Metallurgy
To DIN 24960
Single Seal - Unbalanced
Uni-Directional
Conical Spring
Materials *
G9 Mating Ring Specify Rotation
Shaft Head Oper. Mating Ring Mating Ring Right Hand Left Hand
Dia. OD Hgt. OD Thick Rotary Rotary
dDL1 D1 L5 Viton®/ Carbon Viton®/ Carbon
10 19 16.9 21 10.0 HD-8088MRH HD-8088MLH
12 21 17.4 23 10.0 HD-8089MRH HD-8089MLH
14 23 17.4 25 10.0 HD-8320MRH HD-8320MLH
15 24 17.4 27 10.0 HD-8321MRH HD-8321MLH
16 26 19.5 27 10.0 HD-8322MRH HD-8322MLH
18 29 20.5 33 11.5 HD-8323MRH HD-8323MLH
20 31 22.0 35 11.5 HD-8324MRH HD-8324MLH
22 33 23.5 37 11.5 HD-8325MRH HD-8325MLH
24 35 25.0 39 11.5 HD-8326MRH HD-8326MLH
25 36 26.5 40 11.5 HD-8327MRH HD-8327MLH
28 40 26.5 43 11.5 HD-8328MRH HD-8328MLH
30 43 25.0 45 11.5 HD-8329MRH HD-8329MLH
32 46 28.5 48 11.5 HD-8330MRH HD-8330MLH
33 47 28.5 48 11.5 HD-8331MRH HD-8331MLH
35 49 28.5 50 11.5 HD-8332MRH HD-8332MLH
38 53 32.2 56 14.0 HD-8333MRH HD-8333MLH
40 56 34.7 58 14.0 HD-8334MRH HD-8334MLH
42 59 37.3 61 14.0 HD-8335MRH HD-8335MLH
43 59 37.3 61 14.0 HD-8336MRH HD-8336MLH
45 61 39.2 63 14.0 HD-8337MRH HD-8337MLH
48 64 44.7 66 14.0 HD-8338MRH HD-8338MLH
50 66 45.7 70 15.0 HD-8339MRH HD-8339MLH
53 69 49.0 73 15.0 HD-8340MRH HD-8340MLH
55 71 49.0 75 15.0 HD-8341MRH HD-8341MLH
58 76 52.0 78 15.0 HD-8342MRH HD-8342MLH
60 78 55.0 80 15.0 HD-8343MRH HD-8343MLH
65 84 54.3 85 15.0 HD-8344MRH HD-8344MLH
68 88 55.3 90 18.0 HD-8345MRH HD-8345MLH
70 90 56.3 92 18.0 HD-8346MRH HD-8346MLH
75 98 56.3 97 18.0 HD-8347MRH HD-8347MLH
80 100 59.3 105 18.2 HD-8348MRH HD-8348MLH
Similar To:
Burgmann M32
d
D
L1
d
D
L1
L5
D1
L5
D1
Mating Rings sold seperately.
Seal also uses Mating Ring styles
VGM-G4 and VGM-G6.
See pages 164-165
for part numbers.
*US Seal 2010 catalog w cover 9/14/10 3:00 PM Page 165
162
METRIC SIZES
Type VGME-3
*Other materials available upon request *
Similar To:
AES T01 DIN,
Vulcan 8 DIN,
Burgmann 37G
Shrink-Fitted Silicon Carbide
Rotating Face
Silicon Carbide Mating Ring
Viton®Elastomer
304SS Metallurgy
To DIN 24960
Single Seal - Unbalanced
Uni-Directional
Conical Spring
G-9 Mating Ring Specify Rotation
Features Mating Ring Information Materials *
d
D
L2
Shaft Head Oper. Mating Ring Mating Ring Right Hand Left Hand
Dia. OD Hgt. OD Thick Rotary Rotary
dDL4 D1 L5 Viton®/ SC Viton®/ SC
10 19 - 21 10.0 HD-8349MRH HD-8349MLH
12 21 - 23 10.0 HD-8350MRH HD-8350MLH
14 23 16.5 25 10.0 HD-8351MRH HD-8351MLH
15 24 16.5 27 10.0 HD-8352MRH HD-8352MLH
16 26 16.5 27 10.0 HD-8353MRH HD-8353MLH
18 29 18.0 33 11.5 HD-8354MRH HD-8354MLH
20 31 19.0 35 11.5 HD-8355MRH HD-8355MLH
22 33 20.5 37 11.5 HD-8356MRH HD-8356MLH
24 35 22.0 39 11.5 HD-8357MRH HD-8357MLH
25 36 23.5 40 11.5 HD-8358MRH HD-8358MLH
28 40 24.5 43 11.5 HD-8359MRH HD-8359MLH
30 43 24.5 45 11.5 HD-8360MRH HD-8360MLH
32 46 28.0 48 11.5 HD-8361MRH HD-8361MLH
33 47 28.0 48 11.5 HD-8362MRH HD-8362MLH
35 49 28.0 50 11.5 HD-8363MRH HD-8363MLH
38 53 31.0 56 14.0 HD-8364MRH HD-8364MLH
40 56 34.0 58 14.0 HD-8365MRH HD-8365MLH
42 59 35.0 61 14.0 HD-8366MRH HD-8366MLH
43 59 36.0 61 14.0 HD-8367MRH HD-8367MLH
45 61 36.5 63 14.0 HD-8368MRH HD-8368MLH
48 64 42.0 66 14.0 HD-8369MRH HD-8369MLH
50 66 43.0 70 15.0 HD-8370MRH HD-8370MLH
53 69 43.0 73 15.0 HD-8371MRH HD-8371MLH
55 71 47.0 75 15.0 HD-8372MRH HD-8372MLH
58 76 50.0 78 15.0 HD-8373MRH HD-8373MLH
60 78 51.0 80 15.0 HD-8374MRH HD-8374MLH
65 84 52.0 85 15.0 HD-8375MRH HD-8375MLH
68 88 52.7 90 18.0 HD-8376MRH HD-8376MLH
70 90 54.0 92 18.0 HD-8377MRH HD-8377MLH
75 98 54.0 97 18.0 HD-8378MRH HD-8378MLH
80 100 58.0 105 18.2 HD-8379MRH HD-8379MLH
d
D
L4
L5
D1
L5
D1
Mating Rings sold seperately.
Seal also uses Mating Ring styles
VGM-G4 and VGM-G6.
See pages 164-165 for part numbers.
*US Seal 2010 catalog w cover 9/14/10 3:00 PM Page 166
d
D
D1
LL1
To DIN 24960
Single Seal - Unbalanced
Bi-Directional
Elastomer Bellows
Carbon or Silicon Carbide
Rotating Face
Silicon Carbide Mating Ring
Buna or Viton®Elastomer
304SS Metallurgy
Similar To:
AES PO3, Sealol Type 43
Vulcan 24
Features Mating Ring Information Materials *
Rotary Rotary
Shaft Head Oper. Mating Ring Mating Ring
Dia. OD Hgt. OD Thick Part No. Part No.
dDL D1 L4 Buna / Carbon Viton®/SC
12 22.8 23.9 23 6.6 HD-8273M HD-8293M
14 22.8 26.4 25 6.6 HD-8274M HD-8294M
16 26.4 26.4 27 6.6 HD-8275M HD-8295M
18 29.5 27.5 33 6.6 HD-8276M HD-8296M
20 33.6 27.5 35 7.5 HD-8039M HD-8297M
22 33.6 27.5 37 7.5 HD-8277M HD-8298M
24 39.1 30.0 39 7.5 HD-8040M HD-8299M
25 39.1 30.0 40 7.5 HD-8041M HD-8300M
28 42.5 32.5 43 7.5 HD-8278M HD-8301M
30 45.6 32.5 45 7.5 HD-8042M HD-8302M
32 45.6 32.5 48 7.5 HD-8279M HD-8303M
33 49.0 32.5 48 7.5 HD-8280M HD-8304M
35 49.0 32.5 50 7.5 HD-8281M HD-8305M
38 52.0 34.0 56 9.0 HD-8282M HD-8306M
40 57.2 34.0 58 9.0 HD-8283M HD-8307M
43 60.6 34.0 61 9.0 HD-8043M HD-8308M
45 60.6 34.0 63 9.0 HD-8284M HD-8309M
48 63.8 34.0 66 9.0 HD-8285M HD-8310M
50 65.6 34.5 70 9.5 HD-8286M HD-8311M
55 76.9 34.5 75 11.0 HD-8044M HD-8312M
58 78.4 39.5 78 11.0 HD-8287M HD-8313M
60 78.4 39.5 80 11.0 HD-8045M HD-8314M
63 81.2 39.5 83 11.0 HD-8288M HD-8315M
65 84.5 39.5 85 11.0 HD-8289M HD-8316M
68 89.6 37.2 90 11.3 HD-8290M HD-8317M
70 89.6 44.7 92 11.3 HD-8291M HD-8318M
75 96.6 44.7 97 11.3 HD-8292M HD-8319M
d
L
D
D1
L4
D1
L4
L4
D1
Mating Rings sold seperately.
Seal shown with Mating Ring
styles VGM-G6 and VGM-G60.
See pages 164-165 for part numbers.
163
METRIC SIZES
Type VGMH
*Other materials available upon request *
*US Seal 2010 catalog w cover 9/14/10 3:00 PM Page 167
164
METRIC SIZES
Type VGM-G Mating Rings
*Other materials available upon request *
Shaft Ring VGM-G60 VGM-G6 VGM-G9 VGM-G9
Dia. OD Thick Viton®/SC Viton®/SC Viton®/Carbon Viton®/SC
d D1 L4 Part No. Part No. D1 L5 Part No. Part No.
10 21 6.6 STG60VSC10 STG6VSC10 21 10.0 STG9VCA10 STG9VSC10
12 23 6.6 STG60VSC12 STG6VSC12 23 10.0 STG9VCA12 STG9VSC12
14 25 6.6 STG60VSC14 STG6VSC14 25 10.0 STG9VCA14 STG9VSC14
15 27 6.6 STG60VSC15 STG6VSC15 27 10.0 STG9VCA15 STG9VSC15
16 27 6.6 STG60VSC16 STG6VSC16 27 10.0 STG9VCA16 STG9VSC16
18 33 7.5 STG60VSC18 STG6VSC18 33 11.5 STG9VCA18 STG9VSC18
20 35 7.5 STG60VSC20 STG6VSC20 35 11.5 STG9VCA20 STG9VSC20
22 37 7.5 STG60VSC22 STG6VSC22 37 11.5 STG9VCA22 STG9VSC22
24 39 7.5 STG60VSC24 STG6VSC24 39 11.5 STG9VCA24 STG9VSC24
25 40 7.5 STG60VSC25 STG6VSC25 40 11.5 STG9VCA25 STG9VSC25
28 43 7.5 STG60VSC28 STG6VSC28 43 11.5 STG9VCA28 STG9VSC28
30 45 7.5 STG60VSC30 STG6VSC30 45 11.5 STG9VCA30 STG9VSC30
32 48 7.5 STG60VSC32 STG6VSC32 48 11.5 STG9VCA32 STG9VSC32
33 48 7.5 STG60VSC33 STG6VSC33 48 11.5 STG9VCA33 STG9VSC33
35 50 7.5 STG60VSC35 STG6VSC35 50 11.5 STG9VCA35 STG9VSC35
38 56 9.0 STG60VSC38 STG6VSC38 56 14.0 STG9VCA38 STG9VSC38
40 58 9.0 STG60VSC40 STG6VSC40 58 14.0 STG9VCA40 STG9VSC40
42 61 9.0 STG60VSC42 STG6VSC42 61 14.0 STG9VCA42 STG9VSC42
43 61 9.0 STG60VSC43 STG6VSC43 61 14.0 STG9VCA43 STG9VSC43
45 63 9.0 STG60VSC45 STG6VSC45 63 14.0 STG9VCA45 STG9VSC45
48 66 9.0 STG60VSC48 STG6VSC48 66 14.0 STG9VCA48 STG9VSC48
50 70 9.5 STG60VSC50 STG6VSC50 70 15.0 STG9VCA50 STG9VSC50
53 73 11.0 STG60VSC53 STG6VSC53 73 15.0 STG9VCA53 STG9VSC53
55 75 11.0 STG60VSC55 STG6VSC55 75 15.0 STG9VCA55 STG9VSC55
58 78 11.0 STG60VSC58 STG6VSC58 78 15.0 STG9VCA58 STG9VSC58
60 80 11.0 STG60VSC60 STG6VSC60 80 15.0 STG9VCA60 STG9VSC60
65 85 11.0 STG60VSC65 STG6VSC65 85 15.0 STG9VCA65 STG9VSC65
68 90 11.3 STG60VSC68 STG6VSC68 90 18.0 STG9VCA68 STG9VSC68
70 92 11.3 STG60VSC70 STG6VSC70 92 18.0 STG9VCA70 STG9VSC70
75 97 11.3 STG60VSC75 STG6VSC75 97 18.0 STG9VCA75 STG9VSC75
80 105 12.0 STG60VSC80 STG6VSC80 105 18.2 STG9VCA80 STG9VSC80
85 110 14.0 STG60VSC85 STG6VSC85 110 18.2 STG9VCA85 STG9VSC85
90 115 14.0 STG60VSC90 STG6VSC90 115 18.2 STG9VCA90 STG9VSC90
95 120 14.0 STG60VSC95 STG6VSC95 120 17.2 STG9VCA95 STG9VSC95
100 125 14.0 STG60VSC100 STG6VSC100 125 17.2 STG9VCA100 STG9VSC100
D1
L4
Standard Materials:
VGM-G60, VGM-G6 & VGM-G9,
Viton®/ Silicon Carbide
VGM-G9 also available in
Viton®/ Carbon
Features
To DIN 24960
G60 G6 G9
D1
L4 L5
D1
L4 L4
D1
D1
L5
D1
Mating
Ring
Mating Ring
OD Thick
Mating
Ring
Mating
*US Seal 2010 catalog w cover 9/14/10 3:00 PM Page 168
165
METRIC SIZES
Type VGM-G Mating Rings
*Other materials available upon request *
Shaft Seat Ring Ring VGM-G13 VGM-G50 Ring Ring VGM-G4 VGM-G606
Dia. OD Thick OD
Viton®/Carbon
Viton®/SC OD Thick Viton®/SC Viton®/Carbon
dD4 L8 D2 L6 Part No. Part No. D3 L7 Part No. D1 L4 Part No.
10 19.2 7.1 24.60 9.0 STG13VCA10 STG50VSC10 19.2 6.6 STG4VSC10 21 6.6 STG606VCA10
12 21.6 7.6 27.80 9.0 STG13VCA12 STG50VSC12 21.6 5.6 STG4VSC12 23 6.6 STG606VCA12
14 24.6 7.6 30.95 10.5 STG13VCA14 STG50VSC14 24.6 5.6 STG4VSC14 25 6.6 STG606VCA14
15 24.6 8.6 30.95 10.5 STG13VCA15 STG50VSC15 24.6 6.6 STG4VSC15 27 6.6 STG606VCA15
16 28.0 9.0 30.95 10.5 STG13VCA16 STG50VSC16 28.0 7.5 STG4VSC16 27 6.6 STG606VCA16
18 30.0 10.0 34.15 10.5 STG13VCA18 STG50VSC18 30.0 8.0 STG4VSC18 33 7.5 STG606VCA18
20 35.0 9.5 35.70 10.5 STG13VCA20 STG50VSC20 35.0 7.5 STG4VSC20 35 7.5 STG606VCA20
22 35.0 9.5 37.30 10.5 STG13VCA22 STG50VSC22 35.0 7.5 STG4VSC22 37 7.5 STG606VCA22
24 38.0 9.5 40.50 10.5 STG13VCA24 STG50VSC24 38.0 7.5 STG4VSC24 39 7.5 STG606VCA24
25 38.0 9.5 40.50 10.5 STG13VCA25 STG50VSC25 38.0 7.5 STG4VSC25 40 7.5 STG606VCA25
28 42.0 11.0 47.65 12.0 STG13VCA28 STG50VSC28 42.0 9.0 STG4VSC28 43 7.5 STG606VCA28
30 45.0 11.0 50.80 12.0 STG13VCA30 STG50VSC30 45.0 10.5 STG4VSC30 45 7.5 STG606VCA30
32 48.0 11.0 50.80 12.0 STG13VCA32 STG50VSC32 48.0 10.5 STG4VSC32 48 7.5 STG606VCA32
33 50.0 11.5 54.00 12.0 STG13VCA33 STG50VSC33 50.0 11.0 STG4VSC33 48 7.5 STG606VCA33
35 52.0 11.5 54.00 12.0 STG13VCA35 STG50VSC35 52.0 11.0 STG4VSC35 50 7.5 STG606VCA35
38 55.0 11.5 57.15 12.0 STG13VCA38 STG50VSC38 55.0 10.3 STG4VSC38 56 9.0 STG606VCA38
40 58.0 11.5 60.35 12.0 STG13VCA40 STG50VSC40 58.0 10.8 STG4VSC40 58 9.0 STG606VCA40
42 60.0 14.3 63.50 12.0 STG13VCA42 STG50VSC42 60.0 12.0 STG4VSC42 61 9.0 STG606VCA42
43 62.0 14.3 63.50 12.0 STG13VCA43 STG50VSC43 62.0 12.0 STG4VSC43 61 9.0 STG606VCA43
45 64.0 14.3 63.50 12.0 STG13VCA45 STG50VSC45 64.0 11.6 STG4VSC45 63 9.0 STG606VCA45
48 68.4 14.3 66.70 12.0 STG13VCA48 STG50VSC48 68.4 11.6 STG4VSC48 66 9.0 STG606VCA48
50 69.3 14.3 69.85 13.5 STG13VCA50 STG50VSC50 69.3 11.6 STG4VSC50 70 9.5 STG606VCA50
53 72.3 15.3 73.05 13.5 STG13VCA53 STG50VSC53 72.3 12.3 STG4VSC53 73 11.0 STG606VCA53
55 75.4 15.3 76.20 13.5 STG13VCA55 STG50VSC55 75.4 13.3 STG4VSC55 75 11.0 STG606VCA55
58 78.4 15.3 79.40 13.5 STG13VCA58 STG50VSC58 78.4 13.3 STG4VSC58 78 11.0 STG606VCA58
60 80.4 15.3 79.40 13.5 STG13VCA60 STG50VSC60 80.4 13.3 STG4VSC60 80 11.0 STG606VCA60
65 85.4 15.3 92.10 16.0 STG13VCA65 STG50VSC65 85.4 13.0 STG4VSC65 85 11.0 STG606VCA65
68 91.5 16.0 95.25 16.0 STG13VCA68 STG50VSC68 91.5 13.7 STG4VSC68 90 11.3 STG606VCA68
70 92.0 15.3 95.25 16.0 STG13VCA70 STG50VSC70 92.0 13.0 STG4VSC70 92 11.3 STG606VCA70
75 99.0 15.3 101.60 16.0 STG13VCA75 STG50VSC75 99.0 14.0 STG4VSC75 97 11.3 STG606VCA75
80 104.0 16.3 114.30 20.0 STG13VCA80 STG50VSC80 104.0 15.0 STG4VSC80 105 12.0 STG606VCA80
85 INQ INQ 117.50 20.0 STG13VCA85 STG50VSC85 109.0 14.8 STG4VSC85 110 14.0 STG606VCA85
90 INQ INQ 123.85 20.0 STG13VCA90 STG50VSC90 114.0 14.8 STG4VSC90 115 14.0 STG606VCA90
95 INQ INQ 127.00 20.0 STG13VCA95 STG50VSC95 120.3 15.8 STG4VSC95 120 14.0 STG606VCA95
100 INQ INQ 133.35 20.0
STG13VCA100 STG50VSC100
123.3 15.8
STG4VSC100
125 14.0
STG606VCA100
G13 G50 G4 G606
Standard Materials:
VGM-G50 & VGM-G4, Viton®/ Silicon Carbide
VGM-G13 & VGM-G606, Viton®/ Carbon
L6
D2
L8
D4
L6
D2
L6
D2
D3
L7
D3
L4
D1
L4
D1
Mating Mating
Ring
Thick
Mating MatingMating
Ring Ring
OD Thick
MatingMating
*US Seal 2010 catalog w cover 9/14/10 3:00 PM Page 169
166
GRUNDFOS REPLACEMENT SEALS
Used in CR / CRI / CRN Series Vertical Multistage Centrifugal Pumps
BELLOWS COMPONENT SEAL
Grundfos Type B
Value Guard Type VGM706B
Pump Models CR2, CRN2 (S), CR4, CRN4 (S), CR8
Value Guard Seal Shaft Material Grundfos
Part No. Type MM Code Part No.
VGMG-1300 VGM706B 12 QLFLF 405096
VGMG-1301 VGM706B 12 VLFLF 405347
VGMG-1302 VGM706B 12 VZFZF 405347TC
Pump Models CR8, CRN 8 (S), CR16, CRN16 (S)
Value Guard Seal Shaft Material Grundfos
Part No. Type MM Code Part No.
VGMG-1303 VGM706B 16 QLFLF 425763
VGMG-1304 VGM706B 16 VLFLF 425672
VGMG-1305 VGM706B 16 VZFZF 425672TC
O-RING COMPONENT SEAL
Value Guard Type VGM706E
Value Guard Seal Shaft Material Grundfos
Part No. Type MM Code Part No.
VGMG-1400 VGM706E 12 VZFZF —
VGMG-1401 VGM706E 16 VZFZF —
*US Seal 2010 catalog w cover 9/14/10 3:00 PM Page 170
167
GRUNDFOS REPLACEMENT SEALS
Used in CR / CRI / CRN Series Vertical Multistage Centrifugal Pumps
CARTRIDGE STYLE-Threaded Retainer
Grundfos Type H
Value Guard Type VGM706C
Pump Models CR, CR8 CRI, CRN1, CRN3, CRN5, CRNE1, CRNE3-23HS
Value Guard Seal Shaft Material Grundfos
Part No. Type MM Code Part No.
VGMG-1500 VGM706C 12 QCFZF 96455082
VGMG-1501 VGM706C 12 QZFZF 96455086
VGMG-1502 VGM706C 12 VCFZF 96455083
VGMG-1503 VGM706C 12 VLFLF 96455087
VGMG-1504 VGM706C 12 VZFZF 96455085
Pump Models CR, CRI, CRN10, CRN15, CRN20
Value Guard Seal Shaft Material Grundfos
Part No. Type MM Code Part No.
VGMG-1505 VGM706C 16 QCFZF 96511836
VGMG-1506 VGM706C 16 QZFZF 96511840
VGMG-1507 VGM706C 16 VCFZF 96511837
VGMG-1508 VGM706C 16 VLFLF 96511845
VGMG-1509 VGM706C 16 VZFZF 96511841
CARTRIDGE STYLE - Clamped Retainer
Grundfos Type E
Value GuardType VGM706C
Value Guard Seal Shaft Material Grundfos
Part No. Type MM Code Part No.
VGMG-1510 VGM706C 22 QCFZF 96416584
VGMG-1511 VGM706C 22 QZFZF 96433365
VGMG-1512 VGM706C 22 VCFZF 96525459
VGMG-1513 VGM706C 22 VLFLF 96525490
VGMG-1514 VGM706C 22 VZFZF 96436728
Pump Models CR, CRN32, CRN45, CRN64, CRN90
*US Seal 2010 catalog w cover 9/14/10 3:00 PM Page 171
168
FLYGT REPLACEMENT SEALS
2066 LOWER VGF-2066LLZA PD 20 Silicon / Tungsten / Bronze
2066 UPPER VGF-2066ULZA PD 20 Silicon / Tungsten / Bronze
2066 O-RING KIT VGF-2066-OKIT Standard 20 Buna
2102.040 LOWER VGF-2102-040LLLA PD 22 Silicon / Silicon / Bronze
2102.040 LOWER VGF-2102-040LZZA PD 22 Tungsten / Tungsten / Bronze
2102.040 UPPER VGF-2102-040ULLA PD 22 Silicon / Silicon / Bronze
2102.040 UPPER VGF-2102-040UZZA PD 22 Tungsten / Tungsten / Bronze
2102 O-RING KIT VGF-2102-OKIT Standard 22 Buna
2102.041 LOWER VGF-2102-041LLLA PD 22 Silicon / Silicon / Bronze
2102.041 LOWER VGF-2102-041LZZA PD 22 Tungsten / Tungsten / Bronze
2102.041 UPPER VGF-2102-041ULLA PD 22 Silicon / Silicon / Bronze
2102.041 UPPER VGF-2102-041UZZA PD 22 Tungsten / Tungsten / Bronze
2125 LOWER VGF-2125LZZA PD 28 Tungsten / Tungsten / Bronze
2125 UPPER VGF-2125UZZA PD 28 Tungsten / Tungsten / Bronze
2125 O-RING KIT VGF-2125-OKIT Standard 28 Buna
2140 LOWER VGF-2125LZZA PD 28 Tungsten / Tungsten / Bronze
2140 UPPER VGF-2125UZZA PD 28 Tungsten / Tungsten / Bronze
2140 O-RING KIT VGF-2140-OKIT Standard 28 Buna
2151 UPPER VGF-2151UCJA PD 35 Carbon / Ceramic / Bronze
2151 UPPER VGF-2151ULLA PD 35 Silicon / Silicon / Bronze
2151 UPPER VGF-3126UZLA PD 35 Tungsten / Silicon / Bronze
2151 UPPER VGF-2151UZZA PD 35 Tungsten / Tungsten / Bronze
2151 O-RING KIT VGF-2151-OKIT Standard 35 Buna
2151.010 LOWER VGF-3126LZLF RSC 35 Tungsten / Silicon / 316SS
2151.010 LOWER VGF-3126LZZF RSC 35 Tungsten / Tungsten / 316SS
2151.011 LOWER VGF-2151-011LZZF Special 35 Tungsten / Tungsten / 316SS
2201 LOWER LT VGF-3126LZLF RCS 35 Tungsten / Silicon / 316SS
2201 LOWER LT VGF-3126LZZF RCS 35 Tungsten / Tungsten / 316SS
2201 UPPER VGF-3152UCLM TL 45 Carbon / Silicon / Plastic
2201 UPPER VGF-3152ULLM TL 45 Silicon / Silicon / Plastic
2201 UPPER VGF-3152UZLM TL 45 Tungsten / Silicon / Plastic
2201 UPPER VGF-3152UZZM TL 45 Tungsten / Tungsten / Plastic
2201 O-RING KIT VGF-3152-OKIT Standard 45 Buna
2201.011 ( HT,MT ) VGF-2201-011ZZF Special 35 Tungsten / Tungsten / 316SS
2201.320.430 UPPER VGF-2201.320/.430ULLM TL 45 Silicon / Silicon / Plastic
2201.320.430 UPPER VGF-2201.320/.430UZZM TL 45 Tungsten / Tungsten / Plastic
2250 LOWER VGF-2250LZZA TL 60 Tungsten / Tungsten / Bronze
2250 UPPER VGF-3201UCZA TL 60 Carbon / Tungsten / Bronze
2250 UPPER VGF-3201UCZM TL 60 Carbon / Tungsten / Plastic
2250 UPPER VGF-3201UZZA TL 60 Tungsten / Tungsten / Bronze
2250 UPPER VGF-3201UZZM TL 60 Tungsten / Tungsten / Plastic
2250 O-RING KIT VGF-2250-OKIT Standard 60 Buna
2400 LOWER VGF-3201LZZF RSC 60 Tungsten / Tungsten / 316SS
2400 UPPER VGF-3201UCZA TL 60 Carbon / Tungsten / Bronze
2400 UPPER VGF-3201UCZM TL 60 Carbon / Tungsten / Plastic
2400 UPPER VGF-3201UZZA TL 60 Tungsten / Tungsten / Bronze
2400 UPPER VGF-3201UZZM TL 60 Tungsten / Tungsten / Plastic
2400 O-RING KIT VGF-2400-OKIT Standard 60 Buna
3066 See 3085 Series SL 20
3066 O-RING KIT VGF-3066-OKIT Standard 20 Buna
3067 See 3085 Series SL 20
3067 O-RING KIT VGF-3067-OKIT Standard 20 Buna
3067 See 3085 Series SL 20
Flygt Value Guard Seal Shaft Materials
Model No. Part No. Type MM of Construction
*US Seal 2010 catalog w cover 9/14/10 3:00 PM Page 172
Flygt Value Guard Seal Shaft Materials
Model No. Part No. Type MM of Construction
169
FLYGT REPLACEMENT SEALS
3068 O-RING KIT VGF-3068-OKIT Standard 20 Buna
3082 LOWER VGF-2102-040LZZA PD 22 Tungsten / Tungsten / Bronze
3082 UPPER VGF-2102-040UZZA PD 22 Tungsten / Tungsten / Bronze
3082 O-RING KIT VGF-3082-OKIT Standard 22 Buna
3085 IND LOW VGF-3085ILZLA SL 20 Tungsten / Silicon / Bronze
3085 IND LOW VGF-3085ILZZA SL 20 Tungsten / Tungsten / Bronze
3085 LOWER VGF-3085LLLM SL 20 Silicon / Silicon / Plastic
3085 LOWER VGF-3085LLZM SL 20 Silicon / Tungsten / Plastic
3085 LOWER VGF-3085LZZM SL 20 Tungsten / Tungsten / Plastic
3085 UP or LOW VGF-3085LLLM SL 20 Silicon / Silicon / Plastic
3085 UPPER VGF-3085UCJM SL 20 Carbon / Ceramic / Plastic
3085 UPPER VGF-3085UCLM SL 20 Carbon / Silicon / Plastic
3085 UPPER VGF-3085ULLM SL 20 Silicon / Silicon / Plastic
3085 O-RING KIT VGF-3085-OKIT Standard 20 Buna
3101 LOWER VGF-3101LZZA PD 28 Tungsten / Tungsten / Bronze
3101 UPPER VGF-2125UZZA PD 28 Tungsten / Tungsten / Bronze
3101 O-RING KIT VGF-3101-OKIT Standard 28 Buna
3102 LOWER VGF-3102LLLM SL 25 Silicon / Silicon / Plastic
3102 LOWER VGF-3102LZLM SL 25 Tungsten / Silicon / Plastic
3102 LOWER VGF-3102LZZM SL 25 Tungsten / Tungsten / Plastic
3102 UPPER VGF-3102UCLM SL 25 Carbon / Silicon / Plastic
3102 UPPER VGF-3102UCZM SL 25 Carbon / Tungsten / Plastic
3102 UPPER VGF-3102ULLM SL 25 Silicon / Silicon / Plastic
3102 UPPER VGF-3102UZZM SL 25 Tungsten / Tungsten / Plastic
3102 O-RING KIT VGF-3102-OKIT Standard 25 Buna
3126 LOWER VGF-3126LLZF RSC 35 Silicon / Tungsten / 316SS
3126 LOWER VGF-3126LZLF RSC 35 Tungsten / Silicon / 316SS
3126 UPPER VGF-3126UCJA PD 35 Carbon / Ceramic / Bronze
3126 UPPER VGF-3126UCLA PD 35 Carbon / Silicon / Bronze
3126 UPPER VGF-3126ULLA PD 35 Silicon / Silicon / Bronze
3126 UPPER VGF-3126UZLA PD 35 Tungsten / Silicon / Bronze
3126 UPPER VGF-3126UZZA PD 35 Tungsten / Tungsten / Bronze
3126 O-RING KIT VGF-3126-OKIT Standard 35 Buna
3126 / 3127 IND VGF-3127IZLF Special 35 Tungsten / Silicon / 316SS
3127 UP or LOW VGF-3127LLLM SL 35 Silicon / Silicon / Plastic
3127 UP or LOWVGF-3127LZLM SL 35 Tungsten / Silicon / Plastic
3127 UP or LOW VGF-3127LZZM SL 35 Tungsten / Tungsten / Plastic
3127 UPPER VGF-3127UCJM SL 35 Carbon / Ceramic / Plastic
3127 UPPER VGF-3127UCLM SL 35 Carbon / Silicon / Plastic
3127 UPPER VGF-3127UCZM SL 35 Carbon / Tungsten / Plastic
3127 O-RING KIT VGF-3127-OKIT Standard 35 Buna
3140 LOWER VGF-3152LZLF RSC 45 Tungsten / Silicon / 316SS
3140 LOWER VGF-3152LZZF RSC 45 Tungsten / Tungsten / 316SS
3140 UPPER VGF-3152UCLM TL 45 Carbon / Silicon / Plastic
3140 UPPER VGF-3152UCZM TL 45 Carbon / Tungsten / Plastic
3140 UPPER VGF-3152ULLM TL 45 Silicon / Silicon / Plastic
3140 UPPER VGF-3152UZLM TL 45 Tungsten / Silicon / Plastic
3140 UPPER VGF-3152UZZM TL 45 Tungsten / Tungsten / Plastic
3140 O-RING KIT VGF-3140-OKIT Standard 45 Buna
3152 LOWER VGF-3152LZLF RSC 45 Tungsten / Silicon / 316SS
3152 LOWER VGF-3152LZZF RSC 45 Tungsten / Tungsten / 316SS
3152 UPPER VGF-3152UCLM TL 45 Carbon / Silicon / Plastic
3152 UPPER VGF-3152UCZM TL 45 Carbon / Tungsten / Plastic
*US Seal 2010 catalog w cover 9/14/10 3:00 PM Page 173
Flygt Value Guard Seal Shaft Materials
Model No. Part No. Type MM of Construction
170
Type PD Type RSC Type SL Type TL
FLYGT SEAL TYPES
FLYGT REPLACEMENT SEALS
3152 UPPER VGF-3152ULLM TL 45 Silicon / Silicon / Plastic
3152 UPPER VGF-3152UZLM TL 45 Tungsten / Silicon / Plastic
3152 UPPER VGF-3152UZZM TL 45 Tungsten / Tungsten / Plastic
3152 O-RING KIT VGF-3152-OKIT Standard 45 Buna
3170 LOWER VGF-3201LZZF RSC 60 Tungsten / Tungsten / 316SS
3170 UPPER VGF-3201UCZA TL 60 Carbon / Tungsten / Bronze
3170 UPPER VGF-3201UCZM TL 60 Carbon / Tungsten / Plastic
3170 UPPER VGF-3201UZZA TL 60 Tungsten / Tungsten / Bronze
3170 UPPER VGF-3201UZZM TL 60 Tungsten / Tungsten / Plastic
3170 GASKET VGF-3201GASK Special 60 Buna
3170 O-RING KIT VGF-3201-OKIT Standard 60 Buna
3201 LOWER VGF-3201LZZF RSC 60 Tungsten / Tungsten / 316SS
3201 UPPER VGF-3201UCZA TL 60 Carbon / Tungsten / Bronze
3201 UPPER VGF-3201UCZM TL 60 Carbon / Tungsten / Plastic
3201 UPPER VGF-3201UZZA TL 60 Tungsten / Tungsten / Bronze
3201 UPPER VGF-3201UZZM TL 60 Tungsten / Tungsten / Plastic
3201 GASKET VGF-3201GASK Special 60 Buna
3201 O-RING KIT VGF-3201-OKIT Standard 60 Buna
3300 LOWER VGF-3300LZZF RSC 90 Tungsten / Tungsten / 316SS
3300 UPPER VGF-3300UCZM New Style 90 Carbon / Tungsten / Plastic
3300 UPPER VGF-3300UZZF New Style 90 Tungsten / Tungsten / 316SS
3300 UPPER VGF-3300UZZM New Style 90 Tungsten / Tungsten / Plastic
3300 UPPER VGF-3300UCZF Special TL 90 Carbon / Tungsten / 316ss
3300 UPPER VGF-3300UZZF Special TL 90 Tungsten / Tungsten / 316SS
3300 GASKET VGF-3300GASK Special 90 Buna
3300 O-RING KIT VGF-3300-OKIT Standard 90 Buna
3530 LOWER VGF-3530LZZF Special TL 120 Tungsten / Tungsten / 316SS
3530 UPPER See 3300 Series Special TL 90 Carbon / Tungsten / 316SS
*US Seal 2010 catalog w cover 9/14/10 3:00 PM Page 174
◆Compact design
◆Double cartridge seal
◆Faces are protected during installation
◆Factory assembled as a unit
◆Fool proof mounting
◆Springs are isolated from the pump media
Supplied with either SC (Silicon Carbide) or TC (Tungsten Carbide) faces
171
FLYGT PLUG-INTM REPLACEMENT SEALS
Flygt Part Materials Value Guard Shaft
Model No. Description of Construction Part No. MM
All these models use the same seal. Double Cartridge Buna / (TC/TC ) ( TC/TC) / Plastic VGF-2610-CZZ 22
The O-kits are model specific Double Cartridge Viton®/(TC/TC ) ( TC/TC) / Plastic VGF-2610V-CZZ 22
2610 O-Ring Kit Buna VGF-2610-OKIT 22
2620 O-Ring Kit Buna VGF-2620-OKIT 22
2630 O-Ring Kit Buna VGF-2630-OKIT 22
2640 O-Ring Kit Buna VGF-2640-OKIT 22
4610 / 4620 O-Ring Kit Buna VGF-4610-OKIT 22
4610 / 4620 O-Ring Kit Viton®VGF-4610V-OKIT 22
All these models use the same seal. Double Cartridge Buna / (SC/SC ) ( SC/SC) / Plastic VGF-4630CLLM 25
The O-kits are model specific Double Cartridge Viton®/(SC/SC ) ( SC/SC) / Plastic VGF-4630VCLLM 25
4630 / 4640 O-Ring Kit Buna VGF-4630-OKIT 25
4630 / 4640 O-Ring Kit Viton®VGF-4630V-OKIT 25
4630 / 4640 Adapter Plate Stainless VGF-4630-ADPT 25
All these models use the same seal. Double Cartridge Viton®/(TC/TC ) ( TC/TC) / Plastic VGF-3153CZZ 35
2670 O-Ring Kit Buna VGF-2160-OKIT 35
3153 O-Ring Kit Buna VGF-3153-OKIT 35
3153 O-Ring Kit Viton®VGF-3153V-OKIT 35
5100.210 / 5100.220 O-Ring Kit Buna VGF-5100-OKIT 35
5100.210 / 5100.220 O-Ring Kit Viton®VGF-5100V-OKIT 35
5100.211 O-Ring Kit Buna VGF-5100-211-OKIT 35
5100.221 O-Ring Kit Buna VGF-5100-221-OKIT 35
All these models use the same seal. Double Cartridge Viton®/(TC/TC ) ( TC/TC) / 316SS VGF-3171CZZ 45
3171 O-Ring Kit Buna VGF-3170-OKIT 45
3171 O-Ring Kit Viton®VGF-3170V-OKIT 45
4650 / 4660 O-Ring Kit Buna VGF-4650-OKIT 45
4650 / 4660 O-Ring Kit Viton®VGF-4650V-OKIT 45
5100.250 O-Ring Kit Buna VGF-5100-250-OKIT 45
5100.251 O-Ring Kit Buna VGF-5100-251-OKIT 45
5100.260 O-Ring Kit Buna VGF-5100-260-OKIT 45
5100.260 O-Ring Kit Viton®VGF-5100-260V-OKIT 45
All these models use the same seal. Double Cartridge Viton®/(TC/TC ) ( TC/TC) / 316SS VGF-3202CZZ 60
3202 O-Ring Kit Buna VGF-3202-OKIT 60
3202 O-Ring Kit Viton®VGF-3202V-OKIT 60
4670/4680 O-Ring Kit Buna VGF-4670-OKIT 60
4670/4680 O-Ring Kit Viton®VGF-4670V-OKIT 60
5100.3 O-Ring Kit Buna VGF-5100-3-OKIT 60
5100.31 O-Ring Kit Buna VGF-5100-31-OKIT 60
5150.3 O-Ring Kit Buna VGF-5150-3-OKIT 60
5150.31 O-Ring Kit Buna VGF-5150-31-OKIT 60
All these models use the same seal. Double Cartridge Viton®/(TC/TC ) ( TC/TC) / 316SS VGF-3301CZZ 90
3301 O-Ring Kit Buna VGF-3301-OKIT 90
3301 O-Ring Kit Viton®VGF-3301V-OKIT 90
5150.35 O-Ring Kit Buna VGF-5150-35-OKIT 90
5150.36 O-Ring Kit Buna VGF-5150-36-OKIT 90
FLYGT PLUG-INTM REPLACEMENT SEALS
*US Seal 2010 catalog w cover 9/14/10 3:00 PM Page 175
172
Value Guard Seal Shaft Material BJM
Part No. Type MM Code Part No.
METRIC SEAL DESIGNS FOR SUBMERSIBLE PUMPS
VGM-01325E VGMA 20 BCFJF / BLFLF M01325E
VGM-01325V VGMA 20 VCFJF / VLFLF M01325V
VGM-01352CV VGMA 25 VCFJF / VLFLF M01352CV
VGM-8030V * VGM562 30 VCFJF / VLFLF M01368V
VGM-01362E VGMA 32 QCFJF/ QLFLF M01362E
VGM-01362V VGMA 32 VCFJF / VLFLF M01362V
VGM-01366E VGMA 35 QCFJF / QLFLF M01366E
VGM-01366V VGMA 35 VCFJF / VLFLF M01366V
VGM-1355 * VGM562 45 BLFLF / BLFLF M01355
VGM-1355V * VGM562 45 VLFLF / VLFLF M01355V Type VGMA
*Include retaining plate
BJM PUMPS
Value Guard Seal Shaft Material
PartNo. Type MM Code
VGM-2981V * VGM562 13 VLFLF / VCFJF
VGM-2982V * VGM562 14 VLFLF / VCFJF
VGM-2979V * VGM562 15 VLFLF / VCFJF
VGM-2974V * VGM562 16 VLFLF / VCFJF
VGM-2980V VGM562 20 VLFLF / VCFJF
VGM-2975V VGM562 25 VLFLF / VCFJF
VGM-8030V VGM562 30 VLFLF / VCFJF
VGM-2976V VGM562 35 VLFLF / VCFJF
VGM-2977V VGM562 40 VLFLF / VCFJF
VGM-2978V VGM562 45 VLFLF / VCFJF
VGM-2983V VGM562 50 VLFLF / VCFJF
*Supplied with cup mounted mating rings and no retaining plate
EBARA
Type VGM562 with Plate
*US Seal 2010 catalog w cover 9/14/10 3:00 PM Page 176
173
METRIC SEAL DESIGNS FOR SUBMERSIBLE PUMPS
Value Guard Seal Shaft Material GPM
Part No. Type MM Code Part No.
VGM-8500 VGMHD 40 VLFLF / VLFLF 30154-050
VGM-1969 VGMHD 50 VLFLF / VLFLF —
VGM-2362 VGMHD 60 VLFLF / VLFLF —
VGM-2756 VGMHD 70 VLFLF / VLFLF 84-40404-050/84-60406-040/84-BCLH4-050
Type VGMHD
GPM, INC. (Eliminator)
Value Guard Seal Shaft Material HANJIN
Part No. Type MM Code Part Model No.
VGM-2921 VGM562 20 VLFLF / VCFJF SP-1026
VGM-2922 VGM562 25 VLFLF / VCFJF HTV-3-5.5-18 / HTV-4-4.5-18
VGM-2923 VGM562 30 VLFLF / VCFJF SP-2026 / HTV-4-11-48 / HTV-4-15-48
VGM-2924 VGM562 35 VLFLF / VCFJF SP-3026
VGM-2925 VGM562 40 VLFLF / VCFJF SP-4026
VGM-2926 VGM562 45 VLFLF / VCFJF SP-5026
HANJIN Series 2921/ 2924 / 2926
Type VGM562
TSURUMI
WILO EMU®
Value Guard Seal Shaft Material TSURUMI
Part No. Type MM Code Part No.
VGMW-14HL VGM562 14 VLFLF / VLFLF W-14HL / 025-290-19
VGMHT-2530N VGM562 25/30 VLFLF / VLFLF HT-2530N / 025-000-01 / 025-302-15
VGMHT
-3035N VGM562 30/35 VLFLF / VLFLF HT-3035N / 025-000-02 / 025-303-16
VGMH-35 VGM562 35 VLFLF / VLFLF H-35 / 025-195-13
VGMHT-3540N VGM562 35/40 VLFLF / VLFLF HT-3540N / 025-000-03 / 025-304-17
VGMHT
-4550N VGM562 45/50 VLFLF / VLFLF HT-4550N / 025-000-04 / 025-305-18
VGMH-50T VGM562 50 VLFLF / VLFLF H-50T / 025-268-18
VGMH-60 VGM562 60 VLFLF / VLFLF H-60 / 025-199-17
VGMH-70 VGM562 70 VLFLF / VLFLF H-70 / 025-200-12
Value Guard Seal Shaft Material WILO EMU®
Part No. Type MM Code Part No.
VGM-2961 VGM763 35 VLFLF (316SS) 6037442
VGM-2962 VGM763 50 VLFLF (316SS) 6037443
VGM-2963 VGM763 75 VLFLF (316SS) 6037444
Type VGM763
Type VGM562
*US Seal 2010 catalog w cover 9/14/10 3:00 PM Page 177
174
HONDA TRASH PUMP REPLACEMENT SEALS
Value Guard Seal Shaft Material Honda Honda
Part No. Type MM Code Model No. Seal No.
VGM-2964 VGM-BV 20 BCFJF WT20X, WT30X —
VGM-8502 VGM-BV 20 VLFLF WT20X, WT30X 78130-YB4-901
VGM-2965 VGM-BV 30 BCFJF WT40X —
VGM-8501 VGM-BV 30 VLFLF WT40X —
ROTO-JET REPLACEMENT SEALS
Value Guard Seal Shaft Material Roto-Jet Roto-Jet
Part No. Type Dia. Code Head Part No. Mating Ring Part No.
VG-3001 VGXAB 2-1/2 VLFZF 06604721JC 0652046-002
◆Roto-Jet pumps are used in high pressure
wash systems.
Where Used
SMITH & LOVELESS REPLACEMENT SEALS
Value Guard Seal Shaft Material Smith & Loveless Smith & Loveless
PartNo. Type Dia. Code Model No. Seal No.
VG-3315 HV 1-7/8 BCFJF B-Shaft H87A28
VG-1105 HDV1-7/8 BCFJF B-Shaft H60A119
VG-3316 HV 2-1/8 BCFJF C-Shaft H87A97
VG-1107 HDV 2-1/8 BCFJF C-Shaft H60A120
Flooded Suction, Non-Clog Sewage Pumps
For Additional Listing of Smith & Loveless, see page 68
Type VGXAB
Type HDV
Type VGM-BV
*US Seal 2010 catalog w cover 9/14/10 3:00 PM Page 178
175
Type VGMH Mating Mating Type VGMC-12 Mating
Travaini RSD U.S. Seal Mfg. Shaft Ring OD Ring Thick U.S. Seal Mfg. Ring Thick
Part No. Part No. Part No. d D1 L1 Part No. L2
950022SAC915 RSD-8251 VGM-8251 22 37 10 VGM-8251Z 7.5
950022SAC916 RSD-8252 VGM-8251 22 37 10 VGM-8251Z 7.5
950028SAC915 RSD-8253 VGM-8253 28 43 10 VGM-8253Z 7.5
950028SAC916 RSD-8254 VGM-8253 28 43 10 VGM-8253Z 7.5
950035SAC915 RSD-8255 VGM-8255 35 50 10 VGM-8255Z 7.5
950035SAC916 RSD-8256 VGM-8255 35 50 10 VGM-8255Z 7.5
950043SAC912 RSD-8258 VGM-8258 43 61 11 VGM-8258Z 9
950043SAC915 RSD-8259 VGM-8258 43 61 11 VGM-8258Z 9
950043SAC916 RSD-8260 VGM-8258 43 61 11 VGM-8258Z 9
950055SAC915 RSD-8261 VGM-8261 55 75 13 VGM-8261Z 11
950055SAC916 RSD-8262 VGM-8261 55 75 13 VGM-8261Z 11
950075SAC915 RSD-8263 VGM-8263 75 97 13 VGM-8263Z 11.3
◆ToDIN 24960
◆Bi-Directional
TRAVAINI REPLACEMENT SEALS
◆Carbon Rotating Face
◆SC - Stationary Face
Type VGMH Type VGMC-12
Materials Features
◆Viton®Elastomers
◆304SS Metallurgy
◆Elastomer Bellows
◆Unbalanced
VGMC-12
Shown with G6.
G60 is Optional
VGMH
Shown with LS3.
*US Seal 2010 catalog w cover 9/14/10 3:00 PM Page 179
Type L Type M
LABYRINTH SEALS
176
U.S.Seal Mfg.
Part No.
Type L Type M
PS-5601 PS-5016 20 28 10
PS-5602 PS-5017 22 30 10
PS-5603 PS-5630 25 37 10
PS-5604 PS-5680 28 39 10
PS-5605 PS-5631 30 42 10
PS-5062 PS-5632 32 45 10
PS-5606 PS-5633 35 47 10
PS-5607 PS-5634 40 52 10
PS-5038 PS-5635 42 55 10
PS-5051 PS-5636 45 55 10
PS-5608 PS-5681 48 62 10
PS-5048 PS-5637 50 62 10
PS-5609 PS-5682 52 68 10
PS-5610 PS-5638 55 68 10
PS-5611 PS-5683 58 72 10
PS-5612 PS-5684 60 72 10
PS-5627 PS-5645 60 80 10
PS-5613 PS-5686 63 80 10
Sizes
Size in MM
ID OD Width
U.S. Seal Mfg. Mini-Maze - The One Piece, All Metal, Labyrinth Seal that...
U.S.Seal Mfg.
Part No.
Type L Type M
PS-5628 PS-5687 65 80 10
PS-5614 PS-5639 65 85 10
PS-5615 PS-5688 68 85 10
PS-5616 PS-5689 70 85 10
PS-5629 PS-5646 70 90 10
PS-5617 PS-5690 72 90 10
PS-5618 PS-5036 75 90 10
PS-5619 PS-5691 80 100 10
PS-5049 PS-5648 90 110 10
PS-5050 PS-5640 100 120 10
PS-5620 PS-5641 110 130 15
PS-5621 PS-5692 120 140 15
PS-5622 PS-5642 130 150 15
PS-5623 PS-5693 140 170 15
PS-5624 PS-5643 150 180 15
PS-5014 PS-5694 160 190 20
PS-5626 PS-5695 170 210 20
PS-5015 PS-5644 180 210 20
Sizes
Size in MM
ID OD Width
◆Presses into position in seconds
◆Seals in grease or other lubricants
◆Stops dust, sand and metal chips from
entering bearing cavities
◆Has almost unlimited life -
no wear as in lip or face-type seals
◆Type L is a package type labyrinth seal consisting
of twoprecision rings,an aluminum outer ring and
asteel inner ring, that are permanently mated.
◆The Type M is for applications where
higher pressure must be sealed or
where labyrinth leakage must be minimal.
◆Temperature -350°F to +600°F
◆Pressure - Splash or very tight pressures (to 1 PSI)
under dynamic head conditions.
◆Speed - to 30,000 fpm.
Product Description
Specifications
*US Seal 2010 catalog w cover 9/14/10 3:00 PM Page 180
177
CYCLONE ABRASIVE SEPARATORS
21/4"
1 1/2"
9/64"
1 1/4" DIA.
1 33/64"
1 1/2" DIA.
CLEAN LIQUID
1 1/2"
FEED 5 1/2"
ABRASIVE
DISCHARGE 1 1/2" DIA.
1/2 NPT
(3X)
FEED FROM
PUMP
DISCHARGE
ABRASIVE RETURN
TO PUMP
CLEAN FLUSH
1/2" - 14NPT
DISCHARGE
6 9/32"
2 5/16"
21/8" DIA.
2 1/8"
1/2" - 14NPT
CLEAN LIQUID
DISCHARGE
1/2" - 14NPT
FEED
Material: Nylon
Temperature Range: 0°F to +240°F
Pressures up to 650 PSI
Material: 316SS
Temperature Range: -20°F to +400°F
Pressures up to 2000 PSI
Required Operating Conditions
Minimum pressure differential of 20 PSI should be maintained between
pump suction and pump discharge.
Specific gravity of the particles being separated must be greater than
the liquid.
Minimum particle size removed is 1 micron. Solids content of the
pumped fluid should not exceed 10%.
Our cyclone separators provide a simple yet effective method of keeping
abrasives away from the sealing faces, thereby increasing seal life and
reducing maintenance costs.
Connected to the discharge side of the pump, the separator takes the
abrasive-laden fluid and removes the foreign particles.
The clean fluid from the separator is injected into the stuffing box
providing a positive circulation and cool environment for the seal.
Cyclone separators are only effective with products in suspension, such as sand, iron oxide, or dirt.
Product dissolved in the liquid can not be removed byacyclone separator
SUCTION
PUMP
TO SEAL
TO SEAL
DISCHARGE
*US Seal 2010 catalog w cover 9/14/10 3:00 PM Page 181
Product Description
Style 58 combines the chemical-resistant and
low-friction generation characteristics of continuous
PTFE filament yarns with the superior heat dissipation
and self-lubricating properties of graphite.
An excellent choice for chemical resistance, this
nonabrasive packing provides excellent conformability,
adjustability and flexibility. A superior, low-maintenance
choice where minimum field adjustment and fast
break-in and start-up are necessary.
Style 58 Packing is ideal for controlled leakage and
extrusion resistance at high pressures and shaft
speeds. When used as a multipurpose packing,
inventory costs are greatly reduced.
Applications
Air, ammonia, chemicals, condensate, corrosives, gases,
liquor,oils,paper stock, solvents,steam and water
Typical Equipment
Agitators, digesters, expansion joints, mixers, pumps,
reciprocating and rotating equipment, valve stems
Industries Served
•Agriculture • Oil & Gas
•Chemical • Pharmaceutical
•General Industry • Power Generation
•Marine • Pulp & Paper
•Municipal • Steel & Metals
Performance Capabilities
• Temperature:
-350°F to 500°F
• Pressure:
Pump 20 bar / 300 psi
Valve 275 bar / 4000 psi
•Speed:
15 mps / 3000 fpm
• pH Range:
0 to 14
Construction Features
Interlace Braid
Style 58 has individual continuous filament yarns which
are impregnated with a high-purity graphite and
high-temperature lubricant.
The graphite and lubricant assist with break-in, reduce
friction, and dissipate heat throughout the stuffing box.
One Pound Box
Cross U.S. Seal Mfg. Feet /
Section Part Number Box
1/8" USP-012501058 89.93
3/16" USP-018701058 39.34
1/4" USP-025001058 22.01
5/16" USP-031201058 14.13
3/8" USP-037501058 9.78
7/16" USP-043701058 7.20
1/2" USP-050001058 5.50
9/16" — —
5/8" ——
3/4" — —
7/8" ——
1" ——
PACKING - STYLE 58
PFTE Based Packing - General and Chemical Service
Call U.S. Seal Mfg. for additional styles and sizes.
178
Replaces: American Braiding - 8000T, 8100BIL, 8200BIL / Chemstar - 165, 165LA, 3165 / Chesterton - 1750, 1760
Garlock - Packmaster 6, 5100 / John Crane - C1070 / Marlow - 462 / New England Braiding - 102
Palmetto 1389 / Phelps - 2024 / Sepco - ML 3600, ML 4002, ML 8002 / Teadit - 2007 / Utex - 210, 244, 246
Ten Pound Box
Cross U.S. Seal Mfg. Feet /
Section Part Number Box
1/8" — —
3/16" — —
1/4" — —
5/16" — —
3/8" — —
7/16" ——
1/2" — —
9/16" USP-056210058 43.56
5/8" USP-062510058 35.22
3/4" USP-075010058 24.46
7/8" USP-087510058 17.97
1" USP-100010058 13.74
Five Pound Box
Cross U.S. Seal Mfg. Feet /
Section Part Number Box
1/8" USP-012505058 449.64
3/16" USP-018705058 196.70
1/4" USP-025005058 110.06
5/16" USP-031205058 70.66
3/8" USP-037505058 48.91
7/16" USP-043705058 36.02
1/2" USP-050005058 27.51
9/16" — —
5/8" ——
3/4" — —
7/8" ——
1" ——
*US Seal 2010 catalog w cover 9/14/10 3:00 PM Page 182
179
Product Description
Style 302 is a cost effective general service packing.
It contains no graphite.
Constructed of the highest quality synthetic fibers and
lubricants and designed to handle a wide range of
fluids at moderate to high temperatures, pressures
and shaft speeds.
Style 302 packing is thoroughly impregnated with PTFE
in order to enhance chemical resistance, lubricity and
dimensional stability which help to ensure even gland
load distribution promoting longer packing life.
Applications
Gases, mild acids and caustics, non abrasives, oils,
solvents, steam, water
Typical Equipment
Rotating and reciprocating equipment, valves and
expansion joints
Industries Served
•Agriculture • Oil & Gas
•General Industry • Power Generation
•Marine • Pulp & Paper
•Municipal •Wastewater
Performance Capabilities
• Temperature:
-170°F to 500°F
• Pressure:
Pump Up to 20 bar / 300 psi
Valve Up to 68 bar / 1000 psi
• Speed:
Up to 11 mps / 2250 fpm
• pH Range:
2to 12
Construction Features
Interlace Braid
Style 302 has spun synthetic fibers thoroughly
impregnated with PTFE dispersion plus a general
service compatible lubricant.
PACKING - STYLE 302
Synthetic Packing - General Service
Call U.S. Seal Mfg. for additional styles and sizes.
One Pound Box
Cross U.S. Seal Mfg. Feet /
Section Part Number Box
1/8" USP-012501302 116.28
3/16" USP-018701302 54.73
1/4" USP-025001302 29.06
5/16" USP-031201302 18.66
3/8" USP-037501302 12.91
7/16" USP-043701302 9.51
1/2" USP-050001302 7.27
9/16" — —
5/8" ——
3/4" — —
7/8" ——
1" ——
Replaces: American Braiding - 3000N, 3000T / Chemstar - 1152, 11621B / Chesterton - 412W, 1710, 1774
Garlock - Packmaster 1, 7223, 8922 / John Crane - 1335 / Marlow - 250 / New England Braiding - 142
Palmetto 1347AF, 1392 / Phelps - 2072, 2172 / Sepco - ML2225, ML2550 / Teadit - 2019 / Utex - 234, 237
Ten Pound Box
Cross U.S. Seal Mfg. Feet /
Section Part Number Box
1/8" — —
3/16" — —
1/4" — —
5/16" — —
3/8" — —
7/16" ——
1/2" — —
9/16" USP-056210302 57.50
5/8" USP-062510302 40.84
3/4" USP-075010302 32.28
7/8" USP-087510302 23.72
1" USP-100010302 18.16
Five Pound Box
Cross U.S. Seal Mfg. Feet /
Section Part Number Box
1/8" USP-012505302 581.40
3/16" USP-018705302 273.67
1/4" USP-025005302 145.31
5/16" USP-031205302 93.28
3/8" USP-037505302 64.54
7/16" USP-043705302 47.55
1/2" USP-050005302 36.33
9/16" — —
5/8" ——
3/4" — —
7/8" ——
1" ——
*US Seal 2010 catalog w cover 9/14/10 3:00 PM Page 183
Product Description
Style 303 is a cost effective graphite-coated general
service packing constructed of the highest quality
synthetic fibers and lubricants designed to handle a
wide range of fluids at moderate to high temperatures,
pressures, and shaft speeds.
Style 303 packing is thoroughly impregnated with
lubricants to fill braided voids in order to reduce
product penetration.
An external graphite coating is added for lubricity and
to enhance heat dissipation for increased packing life.
Applications
Gases, mild acids and caustics, non abrasives, oils,
solvents, steam, water
Typical Equipment
Rotating and reciprocating equipment, valves and
expansion joints
Industries Served
•Agriculture • Oil & Gas
•General Industry • Power Generation
•Marine • Pulp & Paper
•Municipal • Wastewater
Performance Capabilities
• Temperature:
-170°F to 500°F
• Pressure:
Pump Up to 20 bar / 300 psi
Valve Up to 68 bar / 1000 psi
•Speed:
Up to 10 mps / 2000 fpm
• pH Range:
4 to 10
Construction Features
Interlace Braid
Style 303 has spun synthetic fibers treated with a
proprietary blend of petroleum-based lubricants plus
an external coating of graphite
PACKING - STYLE 303
Graphite-Coated Packing - General Service
Call U.S. Seal Mfg. for additional styles and sizes.
180
One Pound Box
Cross U.S. Seal Mfg. Feet /
Section Part Number Box
1/8" USP-012501303 151.52
3/16" USP-018701303 72.52
1/4" USP-025001303 33.32
5/16" USP-031201303 25.91
3/8" USP-037501303 17.94
7/16" USP-043701303 13.21
1/2" USP-050001303 10.09
9/16" — —
5/8" ——
3/4" — —
7/8" ——
1" ——
Replaces:American Braiding - 3000G / Chemstar - 1398, 1430 / Garlock - Packmaster 2 or 3
Garlock-8909, 8913 / John Crane - 1340 / Marlow - 259 / New England Braiding - 142G
Palmetto 1007AF, 1030AF / Phelps - 2075, 2175, 2176 / Sepco - ML402 / Teadit - 2255 / Utex - 233, 236
Five Pound Box
Cross U.S. Seal Mfg. Feet /
Section Part Number Box
1/8" — —
3/16" ——
1/4" — —
5/16" — —
3/8" — —
7/16" — —
1/2" — —
9/16" USP-056205303 39.78
5/8" USP-062505303 31.89
3/4" USP-075005303 22.98
7/8" USP-087505303 16.46
1" USP-100005303 12.94
Three Pound Box
Cross U.S. Seal Mfg. Feet /
Section Part Number Box
1/8" USP-012503303 454.55
3/16" USP-018703303 217.55
1/4" USP-025003303 99.97
5/16" USP-031203303 77.74
3/8" USP-037503303 53.91
7/16" USP-043703303 39.62
1/2" USP-050003303 30.26
9/16" — —
5/8" ——
3/4" — —
7/8" ——
1" ——
*US Seal 2010 catalog w cover 9/14/10 3:00 PM Page 184
181
Product Description
Style 792 is a firm, yet pliable packing manufactured
from the purest PTFE filaments.
Also an excellent choice for chemical resistance, this
packing is free from color contamination for applica-
tions where color contamination can not be tolerated.
Style 792 contains a food grade lubricant which pro-
vides faster break-in and reduced shaft wear.
Applications
Food & Beverage packaging
Pharmaceutical production
Typical Equipment
Rotating & reciprocating equipment, valves
Industries Served
• Food & Beverage
•Pharmaceutical
Performance Capabilities
• Temperature:
-450°F to 500°F
• Pressure:
Pump 20 bar / 300 psi
Valve 170 bar / 2500 psi
• Speed:
10 mps / 2000 fpm
• pH Range:
0to 14
Construction Features
Lattice Braid
Style 792’s PTFE filament is compliant
with FDA regulation 21 CFR 177.1550.
PACKING - STYLE 792
PTFE (FDA Compliant) Braided Packing for Food & Beverage Service
One Pound Box
Cross U.S. Seal Mfg. Feet /
Section Part Number Box
1/8" USP-012501792 89.93
3/16" USP-018701792 39.34
1/4" USP-025001792 22.01
5/16" USP-031201792 14.13
3/8" USP-037501792 9.78
7/16" USP-043701792 7.20
1/2" USP-050001792 5.50
9/16" — —
5/8" ——
3/4" — —
7/8" ——
1" ——
Replaces: American Braiding - 244FDA / Chemstar - 154 FDA / Chesterton - 425, 1725
Garlock - 5904 / John Crane - C1056 / New England Braiding- 110
Palmetto 1367FS / Phelps - 2031 / Sepco - ML2236FDA / Teadit - 2006FDA / Utex - 245
Ten Pound Box
Cross U.S. Seal Mfg. Feet /
Section Part Number Box
1/8" — —
3/16" ——
1/4" — —
5/16" — —
3/8" — —
7/16" — —
1/2" — —
9/16" USP-056210792 43.52
5/8" USP-062510792 35.22
3/4" USP-075010792 24.46
7/8" USP-087510792 17.97
1" USP-100010792 13.74
Five Pound Box
Cross U.S. Seal Mfg. Feet /
Section Part Number Box
1/8" USP-012505792 449.64
3/16" USP-018705792 196.70
1/4" USP-025005792 110.06
5/16" USP-031205792 70.66
3/8" USP-037505792 48.91
7/16" USP-043705792 36.02
1/2" USP-050005792 27.51
9/16" — —
5/8" ——
3/4" — —
7/8" ——
1" ——
*US Seal 2010 catalog w cover 9/14/10 3:00 PM Page 185
182
Product Description
PTFE lantern rings are widely used in applications
where outside lubrication is necessary in order to keep
packing lubricated, cool, and flushed of abrasives and
chemicals. The use of lantern rings greatly increases
the life of compression packing, resulting in less
maintenance and downtime over the life of the
equipment.
PFTE lantern rings will handle a wide range of fluids,
offering maximum corrosion resistance and, unlike
metallic rings, will not gall or score shafts or sleeves.
They have also been successfully used in bearing
assemblies as a conduit for grease or oil. The lantern
ring works in aiding movement of the lubricant without
risk of contamination or excess stuffing box wear.
Applications
Air, ammonia, boiler feed water, chemicals,
condensate,corrosives,gases, liquor, oils,
paper stock, solvents, steam, water
Typical Equipment
Rotating and reciprocating equipment, valves
Industries Served
•Chemical •Pharmaceutical
•General Industry • Power Generation
•Mining & Minerals • Pulp & Paper
•Municipal • Steel & Metals
•Oil & Gas • Wastewater
Performance Capabilities
• Temperature:
-400°F to 500°F
•Pressure:
Pump 68 bar / 1000 psi
• Speed:
Not Applicable
• pH Range:
0 to 14
Construction Features
4Foot Strip
PTFE LANTERN RING STRIP
Height Width PartNumber
1/4" 3/8" USP-02500375LRS
5/16" 7/16" USP-03120437LRS
3/8" 1/2" USP-03750500LRS
7/16" 9/16" USP-04370562LRS
1/2" 5/8" USP-05000625LRS
9/16" 11/16" USP-05620687LRS
5/8" 3/4" USP-06250750LRS
3/4" 7/8" USP-07500875LRS
7/8" 1" USP-08751000LRS
Height Width Part Number
1/4" 1/2" USP-02500500LRS
5/16" 5/8" USP-03120625LRS
3/8" 3/4" USP-03750750LRS
7/16" 7/8" USP-04370875LRS
1/2" 1" USP-05001000LRS
9/16" 1" USP-05621000LRS
5/8" 1" USP-06251000LRS
3/4" 1" USP-07501000LRS
1" 1" USP-10001000LRS
If the products featured will be used in a potentially dangerous and/or hazardous process, your U.S. Seal Mfg. representative should be consulted prior to their selection and use. In the interest of
continuous development, U.S. Seal Mfg. reserves the right to alter designs and specifications without prior notice. It is dangerous to smoke while handling products made from PTFE. Old and new
PFTE products must not be incinerated.
*US Seal 2010 catalog w cover 9/14/10 3:00 PM Page 186
PACKING HOOKS - "T" Handled, Flexible with Replaceable Cork Screw Tips
183
TOOL KITS - Contain an Assortment of Hooks, Picks and Replacement Tips
Hook Hook Used for U.S. Seal Mfg. Replaceable Tip
Size Length Packing Size Part No. Part No.
Midget 6-1/2" 5/32" and Up USP-PKG MGT —
Small 7-1/2" 5/16" and Up USP-PKG HOOK SM USP-REPL-TIP-SM
Medium 11" 7/16" and Up USP-PKG HOOK MED USP-REPL-TIP-MED
Large 14" 1/2" and Up USP-PKG HOOK LG USP-REPL-TIP-LG
PACKING ACCESSORIES
PACKING CUTTERS
USP-TOOL KIT LG
USP-TOOL KIT MED (as shown)
◆Contains 36 pcs.
◆Hooks, picks, tips, thread adapters, brush sets,
packing cutting knifewith leather sheath, tool box
◆Contains 17 pcs.
◆Hooks,picks,tips,wrench, case only
USP-TOOL KIT SMALL
◆Contains 11 pcs.
◆Hooks, picks, tips, wrench, case only
Hand Held Packing Cutter
U.S. Seal Mfg. Type of Max. Cross
Size PartNo. Cuts Section
Hand Held USP-HT-PKG-CUT Butt Up to 3/4"
Diagonal Up to 5/8"
Guillotine Packing Cutter
U.S. Seal Mfg. Type of Max. Cross Packing
Size Part No. Cuts Section Ring ID
Small USP-SM-PKG-CUT Butt Up to 1" Up to 4"
Diagonal Up to 3/4"
Medium USP-MED-PKG-CUT Butt Up to 1" Up to 10"
Diagonal Up to 3/4"
Hand Held
Guillotine
*US Seal 2010 catalog w cover 9/14/10 3:00 PM Page 187
184
SEAL INSTALLATION LUBRICANT
U.S. SEALUBE
Part No. Available In
LUBE-PP 1cc Pillow Pak
LUBE-10 ML 10 ml Tube
LUBE-4OZ 4 oz. Bottle
LUBE-8OZ 8 oz. Bottle
Our U.S. SEALUBE is a water
based formula specifically
designed to lubricate rubber, making
the installation of mechanical seals
fast and easy.
It provides a high degree of lubricity
to all rubber components.
It maintains its wetness for a short
period of time. But unlike PTFE or
silicone based lubricants which
penetrate the elastomer and never
allow the elastomer to grip the shaft
or bore, U.S. SEALUBE evaporates.
Once the evaporation takes place,
the component is dry to the touch.
The lubricity is gone and will not
return, even in the presence of
moisture. Your seal is now locked
in place.
Install mechanical seals like a Pro.
Use only U.S. SEALUBE.
During installation,
chances are the
installation lubricant will
come in contact with
sealing faces.
Once a PTFE or silicone
based product touches
the seal faces, it is
nearly impossible to
remove.
When the pump is
started, the PTFE or
silicone draws the
carbon from the primary
ring, and smears this
material on the face of
the mating ring, causing
a build-up which even-
tually destroys the seal.
Protect your seals
from this certain death.
Use only U.S. SEALUBE
for your seal installa-
tions.
How Does This Happen?
How Can This Be Prevented?
U.S. SEALUBE
PTFE or Silicone Based Lubricants Destroy Seals
*US Seal 2010 catalog w cover 9/14/10 3:00 PM Page 188
U.S. Seal Mfg. Shaft Head Mating Material
Part No. Dia. Type Ring Code
PREMIUM SEAL INDEX
185
FA-350V 2.375 E — VCF-F
FA-513V 1.875 E — VCF-F
FA-607 1.125 E — BCF-F
FA-608V 1.125 E — VCF-F
FA-1875 1.875 C — BCF-F
FA-1875V 1.875 C — VCF-F
FA-2098 2.375 E — BCF-F
FA-2120 2.125 C — BCF-F
FA-3502 2.125 E — BCF-F
FA-4268 1.375 C Bal. — BCF-F
FA-4360 .500 B — BLF-F
FA-4408 .875 D Bal. — XCF-F
FA-10047 2.000 C — VCF-F
PS-100 .625 A 1 BMFJF
PS-100-EPR .625 A 1 QCFJF
PS-100-SC-SC .625 A 1 BLFLF
PS-100V .625 A 3 VCFJF
PS-100V-CMS .625 A 1 VCFJF
PS-100V-CMS-P66 .625 A 1 VCFJF
PS-100V-SC-SC-CMS .625 A 1 VLFLF
PS-101 .750 A 1 BMFJF
PS-101V .750 A 1 VCFJF
PS-102 .625 D 1 BCDKF
PS-102V .625 D 3 VCDKF
PS-106 .500 C 1 BCFKF
PS-106-EPR .500 C 1 QCFKF
PS-106V .500 C 1 VCFKF
PS-108 1.250 E 1 NCPKP
PS-109 .625 D — BCD-F
PS-112 .750 C 1 BCFKF
PS-112-EPR .750 C 1 QCFKF
PS-112V .750 C 3 VCFKF
PS-112V-CMS .750 C 1 VCFKF
PS-113 .625 B 1 BMFJF
PS-114 .312 A 1 BMDJF
PS-118 .625 C1 BCFJF
PS-118V .625 C3VCFJF
PS-118V-CMS .625 C 1 VCFJF
PS-118V-CMS-P66 .625 C 1 VCFJF
PS-127 1.062 D 1 BCDKF
PS-128 .750 C 1 BCFJF
PS-128V .750 C 3 VCFJF
PS-129 .590 D 1 BCFJF
PS-135 .787 D 1 BCDJF
PS-136 1.181 D 1 BCDJF
PS-136V 1.181 D3VCDJF
PS-137 1.250 E 1 BCFKF
PS-137V 1.250 E 3 VCFKF
PS-137V-CMS 1.250 E 1 VCFKF
PS-137V-P66 1.250 E 3 VCFKF
PS-141 1.000 R — BCF-F
PS-142 .500 B 1 BMFJF
PS-145 .750 K — BCF-F
PS-147 1.750 D — BCD-F
PS-150 .500 B—BMF-F
PS-151 .625 B 1 BMFJF
PS-153 .625 A 1 BMFKF
PS-153V .625 A 3 VCFKF
PS-153V-CMS .625 A 1 VCFKF
PS-154 1.250 C — BCF-F
PS-154V 1.250 C — VCF-F
U.S. Seal Mfg. Shaft Head Mating Material
Part No. Dia. Type Ring Code
PS-157 .750 C — BCF-F
PS-159 1.000 D 3 NCPGP
PS-162 .500 A 1 BMFJF
PS-163 .500 B 1 BMFJF
PS-163V .500 B 1 VCFJF
PS-164 .500 B 9 BMFKF
PS-165 .500 B 9 BMFJF
PS-166 .625 A 1 BMFJF
PS-169 1.250 K — BCF-F
PS-172 1.375 C — BCF-F
PS-172-EPR-P66 1.375 C — QCF-F
PS-172-P66 1.375 C — BCF-F
PS-172V 1.375 C — VCF-F
PS-172V-SC 1.375 C — VLF-F
PS-175 .750 K 1 BCFJF
PS-177 1.375 C 1 BCFJF
PS-177-EPR 1.375 C 1 QCFJF
PS-177-P66 1.375 C 1 BCFJF
PS-177-SC-TC-CMS 1.375 C 1 BLFZF
PS-177V 1.375 C 3 VCFJF
PS-177V-CMS 1.375 C 1 VCFJF
PS-177V-CMS-P66 1.375 C 1 VCFJF
PS-177V-P66 1.375 C 3 VCFJF
PS-177V-SC-SC 1.375 C 1 VLFLF
PS-177V-SC-SEAT 1.375 C 1 VCFLF
PS-178 1.375 R 1 BCDJF
PS-181 .625 C 20 NCPGP
PS-182 .750 C 20 NCPGP
PS-185 1.250 C 1 BCFJF
PS-185-EPR 1.250 C 1 QCFJF
PS-185-EPR-P66 1.250 C 1 QCFJF
PS-185-EPR-SC 1.250 C 3 QCFLF
PS-185-EPR-TC 1.250 C 3 QCFZF
PS-185E-SC-CMS 1.250 C 1 QCFLF
PS-185-P66 1.250 C 1 BCFJF
PS-185-SC-SC 1.250 C1 BLFLF
PS-185-TC-SEAT1.250 C1BCFZF
PS-185V 1.250 C 3 VCFJF
PS-185V-CMS 1.250 C 1 VCFJF
PS-185V-CMS-P66 1.250 C 1 VCFJF
PS-185V-P66 1.250 C 3 VCFJF
PS-185V-SC-SC 1.250 C 1 VLFLF
PS-185V-SC-SEAT 1.250 C 1 VCFLF
PS-185V-SC-TC 1.250 C 1 VLFZF
PS-185V-TC-SC 1.250 C 1 VZFLF
PS-185V-TC-SEAT1.250 C1 VCFZF
PS-185V-TC-TC 1.250 C 1 VZFZF
PS-186 1.375 D 1 BCDKF
PS-186V 1.375 D 3 VCDKF
PS-186V-CMS 1.375 D 1 VCFKF
PS-186V-TC-SEAT 1.375 D 3 VCFZF
PS-188 .875 E 1 BCFJF
PS-188V .875 E 3 VCFJF
PS-192 1.500 C 3 NCFGF
PS-193 2.000 D3NCPGP
PS-196 2.000 D — BCD-F
PS-197 .875 K — BCF-F
PS-200 .625 A 1 BMFJF
PS-200-EPR .625 A 1 QCFJF
PS-200-SC-SC .625 A 1 BLFLF
PS-200V .625 A 3 VCFJF
*US Seal 2010 catalog w cover 9/14/10 3:00 PM Page 189
U.S. Seal Mfg. Shaft Head Mating Material
Part No. Dia. Type Ring Code
U.S. Seal Mfg. Shaft Head Mating Material
Part No. Dia. Type Ring Code
PREMIUM SEAL INDEX
186
PS-200V-CMS .625 A 1 VCFJF
PS-200V-CMS-P66 .625 A 1 VCFJF
PS-200V-SC-SC .625 A 1 VLFLF
PS-200V-SC-SEAT .625 A 3 VCFLF
PS-201 .750 A 1 BMFJF
PS-201V .750 A 3 VCFJF
PS-201V-CMS .750 A 1 VCFJF
PS-202 .625 B 11 BMFJF
PS-202V .625 B 11 VCFJF
PS-204 1.125 E 1 BCFJF
PS-204-EPR 1.125 E 1 QCFJF
PS-204-P66 1.125 E 1 BCFJF
PS-204V 1.125 E 3 VCFJF
PS-204V-CMS-P66 1.125 E 1 VCFJF
PS-205 1.750 E 1 BCFJF
PS-205-P66 1.750 E 1 BCFJF
PS-205V 1.750 E 3 VCFJF
PS-205V-CMS 1.750 E 1 VCFJF
PS-205V-CMS-P66 1.750 E 1 VCFJF
PS-205V-P66 1.750 E 3 VCFJF
PS-205V-TC-SEAT 1.750 E 1 VCFZF
PS-205V-TC-TC-CMS 1.750 E 1 VZFZF
PS-208 .875 C — BCF-F
PS-208V .875 C — VCF-F
PS-208V-P66 .875 C — VCF-F
PS-209 1.375 K — BCF-F
PS-210 1.375 C 1 BCFKF
PS-210-EPR 1.375 C 3 QCFKF
PS-210-EPR-P66-SC 1.375 C 3 QCFLF
PS-210-TC-SEAT 1.375 C 1 BCFZF
PS-210V 1.375 C 3 VCFKF
PS-210V-CMS 1.375 C 1 VCFKF
PS-210V-P66 1.375 C 3 VCFKF
PS-210V-SC-SEAT 1.375 C 3 VCFLF
PS-210V-SC-TC 1.375 C 3 VLFZF
PS-210V-TC-SC 1.375 C 3 VZFLF
PS-210V-TC-SEAT1.375 C3VCFZF
PS-210V-TC-TC 1.375 C 1 VZFZF
PS-213 1.750 R — BCD-F
PS-215 1.125 K — BCF-F
PS-216 1.500 K — BCF-F
PS-217 1.750 R 1 BCDKF
PS-218 .625 A — BCF-F
PS-223 1.875 D — BCD-F
PS-224 1.500 E 3 NCFKF
PS-226 .625 D1BCDKF
PS-227 1.000 D 1 BCFKF
PS-228 1.250 K 3 BCFKF
PS-228V 1.250 K 3 VCFKF
PS-228V-CMS 1.250 K 1 VCFKF
PS-228V-P66 1.250 K 3 VCFKF
PS-229 .875 E 3 BCFKF
PS-235 1.000 C 1 BCFJF
PS-235-EPR 1.000 C 1 QCFJF
PS-235-P66 1.000 C1BCFJF
PS-235-SC-SC 1.000 C 1 BLFLF
PS-235V 1.000 C 3 VCFJF
PS-235V-CMS 1.000 C 1 VCFJF
PS-235V-CMS-P66 1.000 C 1 VCFJF
PS-235V-P66 1.000 C 3 VCFJF
PS-235V-SC-SC 1.000 C 1 VLFLF
PS-236 1.000 E 1 BCFKF
PS-236N 1.000 E 1 NCFKF
PS-236V 1.000 E 3 VCFKF
PS-236V-CMS 1.000 E 1 VCFKF
PS-237 1.750 D 1 BCDJF
PS-237-P66 1.750 D 1 BCDJF
PS-237-SC-SC 1.750 D 1 BLDLF
PS-237-TC-SEAT 1.750 D 1 BCDZF
PS-237-TC-TC 1.750 D 1 BZDZF
PS-237V 1.750 D 3 VCDJF
PS-237V-CMS 1.750 D 1 VCDJF
PS-237V-P66 1.750 D 3 VCDJF
PS-238 1.625 C 1 BCFJF
PS-238-EPR 1.625 C 1 QCFJF
PS-238-EPR-SC 1.625 C 1 QCFLF
PS-238-P66 1.625 C 1 BCFJF
PS-238-SC-SC 1.625 C 1 BLFLF
PS-238-SC-TC-CMS 1.625 C 1 BLFZF
PS-238-TC-SC 1.625 C 1 BZFLF
PS-238V 1.625 C 3 VCFJF
PS-238V-CMS 1.625 C 1 VCFJF
PS-238V-CMS-316SS 1.625 C 1
VCFJF(316SS)
PS-238V-P66-TC 1.625 C 1 VCFZF
PS-238V-SC-CMS 1.625 C 1 VCFLF
PS-238V-SC-SEAT 1.625 C 3 VCFLF
PS-238V-TC-SC-CMS 1.625 C 1 VZFLF
PS-239 1.625 C 1 BCFKF
PS-239-EPR 1.625 C 3 QCFKF
PS-239-P66 1.625 C 1 BCFKF
PS-239V 1.625 C 3 VCFKF
PS-239V-CMS 1.625 C 1 VCFKF
PS-239V-TC-SEAT1.625 C 3 VCFZF
PS-245 1.000 C 1 BCFJF
PS-245-EPR 1.000 C 1 QCFJF
PS-245-P66 1.000 C 1 BCFJF
PS-245-TC-SEAT1.000 C 1 BCFZF
PS-245V 1.000 C3VCFJF
PS-245V-CMS 1.000 C 1 VCFJF
PS-246 1.250 C 1 BCFJF
PS-246V 1.250 C 3 VCFJF
PS-246V-CMS 1.250 C 1 VCFJF
PS-246V-CMS-P66 1.250 C 1 VCFJF
PS-247 1.500 C 1 BCFKF
PS-248 1.000 C 1 BCFKF
PS-248-EPR 1.000 C 1 QCFKF
PS-248V 1.000 C3VCFKF
PS-248V-CMS 1.000 C 1 VCFKF
PS-249 1.250 C 1 BCFKF
PS-249V 1.250 C 3 VCFKF
PS-249V-CMS 1.250 C 1 VCFKF
PS-250 .875 D 3 BCDKF
PS-251 1.000 E 3 BCFKF
PS-252 1.000 D 3 BCFKF
PS-252-EPR 1.000 D 3 QCFKF
PS-252-P66 1.000 D3BCFKF
PS-253 1.125 E 3 BCFKF
PS-254 1.125 D 3 BCFKF
PS-255 1.187 E 3 BCDKF
PS-256 1.250 E 3 BCFKF
PS-257 1.375 E 3 BCFKF
PS-257E-SC-SC-CMS 1.375 E 1 QLFLF
*US Seal 2010 catalog w cover 9/14/10 3:00 PM Page 190
U.S. Seal Mfg. Shaft Head Mating Material
Part No. Dia. Type Ring Code
U.S. Seal Mfg. Shaft Head Mating Material
Part No. Dia. Type Ring Code
PREMIUM SEAL INDEX
187
PS-257V 1.375 E 3 VCFKF
PS-258 1.500 E 3 BCFKF
PS-258-P66 1.500 E 3 BCFKF
PS-258V-P66 1.500 E 3 VCFKF
PS-259 1.500 E 3 BCFKF
PS-259-EPR-CMS-SC 1.500 E 1 QCFLF
PS-262 1.750 E 3 BCFKF
PS-262-EPR-P66 1.750 E 3 QCFKF
PS-263 .625 D 1 BCDKF
PS-263V .625 D 1 VCFKF
PS-264 1.250 E 3 BCFKF
PS-264-P66 1.250 E 3 BCFKF
PS-264-TC-P66 1.250 E 3 B/VCFZF
PS-264V-SC-SC 1.250 E 3 VLFLF
PS-265 .750 D 3 BCDKF
PS-267 2.000 C 1 BCFJF
PS-267-EPR 2.000 C 1 QCFJF
PS-267-P66 2.000 C 1 BCFJF
PS-267-SC-SC-CMS 2.000 C 1 BLFLF
PS-267-SC-TC-LC 2.000 C 3 BLFZF
PS-267-SC-TC-SEAT 2.000 C 3 BLFZF
PS-267-TC-SEAT 2.000 C 3 BCFZF
PS-267V 2.000 C 3 VCFJF
PS-267V-CMS 2.000 C 1 VCFJF
PS-267V-CMS-P66 2.000 C 1 VCFJF
PS-267V-SC-SC 2.000 C 3 VLFLF
PS-267V-SC-TC-CMS 2.000 C 1 VLFZF
PS-267V-TC-SEAT 2.000 C 3 VCFZF
PS-268 2.375 C 3 BCFJF
PS-268-CMS 2.375 C 1 BCFJF
PS-268-CMS-P66 2.375 C 1 BCFJF
PS-268-P66 2.375 C 3 BCFJF
PS-268V 2.375 C 3 VCFJF
PS-268V-P66 2.375 C 3 VCFJF
PS-269 2.500 C 3 BCFJF
PS-269V 2.500 C3 VCFJF
PS-270 2.875 C3BCFJF
PS-272 3.750 C 3 BCFJF
PS-274 .625 E 1 BCDJF
PS-274V .625 E 3 VCDJF
PS-275 .750 C 1 BCFJF
PS-275-EPR .750 C 1 QCFJF
PS-275V .750 C 3 VCFJF
PS-276 1.000 T 1 BCFJF
PS-277 1.000 T 1 BCFKF
PS-278 2.375 E3BCFJF
PS-278-P66 2.375 E 3 BCFJF
PS-278V 2.375 E 3 VCFJF
PS-279 2.500 E 3 BCFJF
PS-279-CMS-P66 2.500 E 1 BCFJF
PS-279V-SC-TC 2.500 E 3 VLFZF
PS-281 1.625 R 3 BCDKF
PS-281-CMS 1.625 R 1 BCDKF
PS-282 1.125 U 3 BCFKF
PS-283 1.500 D1BCFJF
PS-284 3.000 R 3 BCDKF
PS-288 1.750 D 1 BCDKF
PS-288V 1.750 D 3 VCDKF
PS-288V-CMS 1.750 D 1 VCDKF
PS-290 .625 C 1 BCFJF
PS-290-EPR-SC-SC .625 C 1 QLFLF
PS-290-P66 .625 C 1 BCFJF
PS-290V .625 C 1 VCFJF
PS-290V-P66 .625 C 1 VCFJF
PS-293 .625 A 14 BMFKF
PS-293V .625 A 14 VCFKF
PS-294 .875 C 1 BCFKF
PS-297 1.187 D 1 NCPJP
PS-298 .500 A — BMF-F
PS-299 .625 A — BMF-F
PS-300 .625 A 1 BMFJF
PS-300V .625 A 3 VCFJF
PS-301 .750 A 1 BMFJF
PS-303 .875 D 1 BCDKF
PS-303V .875 D 3 VCDKF
PS-303V-CMS .875 D 1 VCDKF
PS-305 1.500 E 1 BCFJF
PS-305-EPR 1.500 E 1 QCFJF
PS-305-EPR-P66 1.500 E 1 QCFJF
PS-305-P66 1.500 E 1 BCFJF
PS-305-SC-SC 1.500 E 1 BLFLF
PS-305V 1.500 E 3 VCFJF
PS-305V-CMS 1.500 E 1 VCFJF
PS-305V-CMS-P66 1.500 E 1 VCFJF
PS-305V-P66 1.500 E 3 VCFJF
PS-305V-TC-SEAT 1.500 E 1 VCFZF
PS-306 1.187 E 1 BCDJF
PS-306V 1.187 E 3 VCFJF
PS-308 1.250 T 3 NCPKP
PS-309 .875 C 1 BCFJF
PS-309-SC-SC-CMS .875 C 1 BLFLF
PS-309-TC-TC-CMS .875 C 1 BZFZF
PS-309V .875 C 3 VCFJF
PS-309V-CMS .875 C 1 VCFJF
PS-309V-P66 .875 C 3 VCFJF
PS-309V-P66-CMS .875 C 1 VCFJF
PS-309V-SC-SC .875 C 3 VLFLF
PS-309V-TC-CMS .875 C1VCFZF
PS-310 1.187 E 1 BCDJF
PS-312 1.875 C 3 BCFKF
PS-312-EPR-P66 1.875 C 3 QCFKF
PS-312V 1.875 C 3 VCFKF
PS-314 1.500 E 3 BCFJF
PS-316 1.500 E 3 BCFKF
PS-317 1.750 E 1 BCFJF
PS-318 1.875 K 1 BCFJF
PS-319 2.000 E1BCFJF
PS-319-P66 2.000 E 1 BCFJF
PS-320 1.500 C 1 BCFJF
PS-321 2.750 E 3 V/BCFKF
PS-321-P66-TCO 2.750 E 3 BCFZF
PS-321V 2.750 E 3 VCFKF
PS-322 2.750 K 3 BCFKF
PS-322-CMS 2.750 K 1 BCFJF
PS-323 2.250 E 1 BCDJF
PS-323-P66 2.250 E1BCDJF
PS-323-SC-TC-CMS 2.250 E 1 BLFZF
PS-324 3.000 E 3 BCDJF
PS-324-P66-CMS 3.000 E 1 BCDJF
PS-324SS 3.000 E 3 BCFJF
PS-324SSV 3.000 E 3 VCFJF
PS-325SS 3.250 U 3 BCFKF
*US Seal 2010 catalog w cover 9/14/10 3:00 PM Page 191
U.S. Seal Mfg. Shaft Head Mating Material
Part No. Dia. Type Ring Code
U.S. Seal Mfg. Shaft Head Mating Material
Part No. Dia. Type Ring Code
PREMIUM SEAL INDEX
188
PS-325SSV 3.250 U 3 VCFKF
PS-326 1.250 D 3 BCFKF
PS-326V 1.250 D 3 VCFKF
PS-327 2.125 E 3 BCFJF
PS-327V 2.125 E 3 VCFJF
PS-328 2.625 E 3 BCFJF
PS-328-P66 2.625 E 3 BCFJF
PS-329 2.875 E 3 BCFJF
PS-329-P66 2.875 E 3 BCFJF
PS-330 3.250 E 3 BCDJF
PS-331 1.625 D 3 NCPGF
PS-332 2.000 C 3 BCFKF
PS-333 2.000 D 3 NCPGP
PS-335V 2.500 D 3 VCPGP
PS-338 2.125 C 3 BCFJF
PS-338-EPR 2.125 C 3 QCFJF
PS-338V 2.125 C 3 VCFJF
PS-338V-SC-SC 2.125 C 3 VLFLF
PS-340 1.875 C 1 BCFJF
PS-340-EPR-CMS 1.875 C 1 QCFJF
PS-340-EPR-TC-CMS 1.875 C 1 QCFZF
PS-340-P66 1.875 C 1 BCFJF
PS-340-TC-SC 1.875 C 1 BZFLF
PS-340-TC-TC 1.875 C 1 BZFZF
PS-340V 1.875 C 3 VCFJF
PS-340V-CMS 1.875 C 1 VCFJF
PS-342 2.000 E 3 NCPKP
PS-343 1.187 E 1 BCDKF
PS-346 1.625 E 1 BCFJF
PS-347 1.500 C 1 BCFJF
PS-347-P66 1.500 C 1 BCFJF
PS-347V-CMS 1.500 C 1 VCFJF
PS-348 1.125 C — BCF-F
PS-348V 1.125 C — VCF-F
PS-349 2.500 E 3 BCFKF
PS-349-P66 2.500 E3 BCFKF
PS-349-TC-SEAT2.500 E3BCFZF
PS-349V 2.500 E 3 VCFKF
PS-349V-SC-SEAT 2.500 E 3 VCFLF
PS-349V-TC-SC 2.500 E 3 VZFLF
PS-350 2.375 E 3 BCFKF
PS-350-CMS 2.375 E 1 BCFKF
PS-350V-P66-TC 2.375 E 3 VCFZF
PS-351 2.250 E 1 BCDKF
PS-351V 2.250 E 3 VCDKF
PS-351V-CMS 2.250 E1VCDKF
PS-353 2.125 E 1 BCFKF
PS-353V 2.125 E 3 VCFKF
PS-354 1.375 E 1 BCFJF
PS-354-P66 1.375 E 1 BCFJF
PS-354V 1.375 E 3 VCFJF
PS-354V-P66 1.375 E 3 VCFJF
PS-355 1.125 C 1 BCFKF
PS-355-P66 1.125 C 1 BCFKF
PS-355-SC-SC 1.125 C1BLFLF
PS-355V 1.125 C 3 VCFKF
PS-355V-CMS 1.125 C 1 VCFKF
PS-355V-SC-SEAT 1.125 C 3 VCFLF
PS-356 1.125 C 1 BCFJF
PS-356-EPR 1.125 C 1 QCFJF
PS-356-EPR-P66 1.125 C 1 QCFJF
PS-356-P66 1.125 C 1 BCFJF
PS-356-SC-TC 1.125 C 1 BLFZF
PS-356V 1.125 C 3 VCFJF
PS-356V-CMS 1.125 C 1 VCFJF
PS-356V-CMS-P66 1.125 C 1 VCFJF
PS-356V-SC-SC 1.125 C 1 VLFLF
PS-357 1.000 C 1 BCFKF
PS-357V 1.000 C 3 VCFKF
PS-357V-CMS 1.000 C 1 VCFKF
PS-358 .750 C 1 BCFJF
PS-358-EPR .750 C 1 QCFJF
PS-358-P66 .750 C 1 BCFJF
PS-358V .750 C 3 VCFJF
PS-358V-CMS .750 C 1 VCFJF
PS-358V-CMS-P66 .750 C 1 VCFJF
PS-358V-P66 .750 C 3 VCFJF
PS-358V-SC-SC .750 C 1 VLFLF
PS-358V-TC-TC .750 C 1 VZFZF
PS-359 .625 C 1 BCFJF
PS-359-EPR-CMS .625 C 1 QCFJF
PS-359-EPR-P66 .625 C 1 QCFJF
PS-359-EPR-P66-TC .625 C 1 QCFZF
PS-359-P66 .625 C 1 BCFJF
PS-359V .625 C 3 VCFJF
PS-359V-CMS .625 C 1 VCFJF
PS-359V-CMS-P66 .625 C 1 VCFJF
PS-359V-P66 .625 C 3 VCFJF
PS-359V-SC-CMS .625 C 1 VCFLF
PS-360 1.000 A 1 BCFJF
PS-360V 1.000 A 3 VCFJF
PS-360V-CMS 1.000 A 1 VCFJF
PS-361 1.250 E 1 BCFJF
PS-361-EPR 1.250 E 1 QCFJF
PS-361-EPR-P66 1.250 E 1 QCFJF
PS-361-P66 1.250 E 1 BCFJF
PS-361-SC-SC 1.250 E1 BLFLF
PS-361-SC-TC 1.250 E1BLFZF
PS-361V 1.250 E 3 VCFJF
PS-361V-CMS 1.250 E 1 VCFJF
PS-361V-CMS-P66 1.250 E 1 VCFJF
PS-361V-P66 1.250 E 3 VCFJF
PS-361V-SC-TC-CMS 1.250 E 1 VLFZF
PS-366 1.750 E 1 BCFKF
PS-366-P66 1.750 E 1 BCFKF
PS-366-TC-CMS 1.750 E 1 BCFZF
PS-366-TC-TC 1.750 E1BZFZF
PS-366V 1.750 E 3 VCFKF
PS-366V-CMS 1.750 E 1 VCFKF
PS-366V-CMS-P66 1.750 E 1 VCFKF
PS-370 1.000 A 1 BCFKF
PS-371 1.500 D 1 BCFKF
PS-371V 1.500 D 3 VCFKF
PS-371V-CMS 1.500 D 1 VCFKF
PS-371V-SC-SC 1.500 D 3 VLFLF
PS-373 .750 C1BCFKF
PS-373V .750 C 1 VCFKF
PS-374 1.500 E 1 BCFKF
PS-374-P66 1.500 E 1 BCFKF
PS-374V 1.500 E 3 VCFKF
PS-374V-CMS 1.500 E 1 VCFKF
PS-376 1.375 D — BCD-F
*US Seal 2010 catalog w cover 9/14/10 3:00 PM Page 192
U.S. Seal Mfg. Shaft Head Mating Material
Part No. Dia. Type Ring Code
U.S. Seal Mfg. Shaft Head Mating Material
Part No. Dia. Type Ring Code
PREMIUM SEAL INDEX
189
PS-376-EPR-P66 1.375 D — QCD-F
PS-376V 1.375 D — VCD-F
PS-378 1.500 C 1 BCFKF
PS-378V-CMS 1.500 C 1 VCFKF
PS-380 1.000 D 1 BCFJF
PS-380V 1.000 D 3 VCFJF
PS-380V-CMS 1.000 D 1 VCFJF
PS-381 1.250 D 1 BCFJF
PS-381-EPR 1.250 D 1 QCFJF
PS-381-NEO 1.250 D 1 NCFJF
PS-381-P66 1.250 D 1 BCFJF
PS-381-SC-SC 1.250 D 1 BLFLF
PS-381V 1.250 D 3 VCFJF
PS-381V-CMS 1.250 D 1 VCFJF
PS-382 1.500 D 1 BCFJF
PS-382-P66 1.500 D 1 BCFJF
PS-383 1.250 D 1 BCFKF
PS-383V 1.250 D 3 VCFKF
PS-384 1.125 E 1 BCFKF
PS-385A 2.000 U 3 BCFKF
PS-387 1.750 C 3 BCFJF
PS-392 .500 C 1 B/QMFJF
PS-392-P66 .500 C 1 B/QCFJF
PS-392V .500 C 1 V/QCFJF
PS-392V-P66 .500 C 1 V/QCFJF
PS-393 .500 C 1 BMFKF
PS-394 1.250 U 3 BCF/DKF
PS-395 1.500 E 3 BCFJF
PS-395-EPR 1.500 E 3 QCFJF
PS-397 1.000 C — BCF-F
PS-397V 1.000 C — VCF-F
PS-398 1.000 D — BCF-F
PS-399 .750 D — BCD-F
PS-400 .500 C — BMF-F
PS-400A .500 C 1 B - - J -
PS-400V .500 C— VCF-F
PS-401 .500 C—BCF-F
PS-401A .500 C 1 BCFJF
PS-401-P66 .500 C — BCF-F
PS-404 1.375 D 25 BCDJF
PS-405 1.000 A 27 B/VCFJF
PS-411 .625 B 11 BMFJF
PS-411V .625 B 11 VCFJF
PS-413 1.000 C 27 BCFJF
PS-416 1.250 D — BCF-F
PS-416A 1.250 D25 BCFJF
PS-428 .875 R 1 BCDJF
PS-429 1.000 R 1 BCFJF
PS-430 1.000 R 1 BCFKF
PS-431 1.500 R 1 BCFJF
PS-432 1.500 R 1 BCFKF
PS-436 1.750 C 3 BCFKF
PS-436-EPR 1.750 C 3 QCFKF
PS-436-P66 1.750 C 3 BCFKF
PS-436-SC-SC 1.750 C3BLFLF
PS-436-SC-SEAT 1.750 C 3 BCFLF
PS-436-TC-TC 1.750 C 3 BZFZF
PS-436-TC-VS-SC 1.750 C 3 BZFLF
PS-436V 1.750 C 3 VCFKF
PS-436V-P66 1.750 C 3 VCFKF
PS-436V-TC-TC 1.750 C 3 VZFZF
PS-437 .750 D 1 BCDJF
PS-437-P66 .750 D 1 BCDJF
PS-437V .750 D 1 VCDJF
PS-437V-P66 .750 D 1 VCDJF
PS-437V-SC-SC .750 D 1 VLDLF
PS-440 .750 B 11 BMFJF
PS-441 .750 B 9 BMFKF
PS-445 2.000 D 1 BCDJF
PS-445V 2.000 D 3 VCDJF
PS-445V-CMS 2.000 D 1 VCDJF
PS-446 1.750 C 1 BCFJF
PS-446-316SS 1.750 C 1
BCFJF(316SS)
PS-446-EPR 1.750 C 1 QCFJF
PS-446-EPR-P66 1.750 C 1 QCFJF
PS-446-P66 1.750 C 1 BCFJF
PS-446-SC-SC 1.750 C 1 BLFLF
PS-446-SC-SEAT 1.750 C 1 BCFLF
PS-446-SC-TC-CMS 1.750 C 1 BLFZF
PS-446-TC-TC 1.750 C 1 BZFZF
PS-446V 1.750 C 3 VCFJF
PS-446V-CMS 1.750 C 1 VCFJF
PS-446V-CMS-P66 1.750 C 1 VCFJF
PS-446V-P66 1.750 C 3 VCFJF
PS-446V-SC-SEAT 1.750 C 3 VCFLF
PS-446V-SC-TC 1.750 C 3 VLFZF
PS-446V-TC-SEAT 1.750 C 1 VCFZF
PS-446V-TC-TC 1.750 C 1 VZFZF
PS-447 .625 B 8 BCFJF
PS-447-EPR .625 B 8 QCFJF
PS-447V .625 B 8 VCFJF
PS-447V-P66 .625 B 8 VCFJF
PS-448 1.750 C 1 BCFKF
PS-448-EPR 1.750 C 1 QCFKF
PS-448-P66 1.750 C 1 BCFKF
PS-448V-CMS 1.750 C 1 VCFKF
PS-448V-CMS-P66 1.750 C 1 VCFKF
PS-448V-SC-TC 1.750 C1VLFZF
PS-448V-TC-P66 1.750 C 1 VCFZF
PS-449 1.750 K 1 BCFJF
PS-452 .625 B 9 BMFJF
PS-453 .625 B 8 BCFKF
PS-453V .625 B 8 VCFKF
PS-456 2.000 U 3 BCFKF
PS-456-CMS 2.000 U 1 BCFKF
PS-456-EPR 2.000 U 3 QCFKF
PS-456V 2.000 U3VCFKF
PS-456V-SC-SC 2.000 U 3 VLFLF
PS-456V-TC-SEAT 2.000 U 3 VCFZF
PS-458 1.625 U 3 BCDKF
PS-458-CMS 1.625 U 1 BCDKF
PS-460 1.000 D 1 BCFKF
PS-460-P66 1.000 D 1 BCFKF
PS-460V 1.000 D 3 VCFKF
PS-460V-CMS 1.000 D 1 VCFKF
PS-461 1.625 D1BCDKF
PS-461V 1.625 D 3 VCDKF
PS-461V-CMS 1.625 D 1 VCDKF
PS-462 2.000 D 1 BCDKF
PS-462V 2.000 D 3 VCDKF
PS-463 2.500 D 3 BCDKF
PS-463-TC-SC 2.500 D 3 BZFLF
*US Seal 2010 catalog w cover 9/14/10 3:00 PM Page 193
U.S. Seal Mfg. Shaft Head Mating Material
Part No. Dia. Type Ring Code
U.S. Seal Mfg. Shaft Head Mating Material
Part No. Dia. Type Ring Code
PREMIUM SEAL INDEX
190
PS-507V-CMS .625 A 1 VCFKF
PS-507V-P66 .625 A 3 VCFKF
PS-508 .625 D 1 BCDJF
PS-508V .625 D 3 VCDJF
PS-508V-CMS .625 D 1 VCDJF
PS-508V-P66-CMS .625 D 1 VCDJF
PS-510 1.250 D 1 BCFJF
PS-513 1.875 E 1 BCDKF
PS-514 1.625 D 1 BCDJF
PS-514-EPR 1.625 D 1 QCDJF
PS-514-EPR-P66 1.625 D 1 QCDJF
PS-514-EPR-P66-TC 1.625 D 1 QCDZF
PS-514-EPR-TC 1.625 D 1 QCDZF
PS-514-P66 1.625 D 1 BCDJF
PS-514-SC-SC 1.625 D 1 BLDLF
PS-514V 1.625 D 3 VCDJF
PS-514V-CMS 1.625 D 1 VCDJF
PS-514V-P66 1.625 D 3 VCDJF
PS-514V-P66-CMS 1.625 D 1 VCDJF
PS-514V-P66-SC-CMS 1.625 D 1 VCDLF
PS-514V-SC-SC 1.625 D 3 VLDLF
PS-514V-SC-SC-CMS 1.625 D 1 VLDLF
PS-515 1.500 E 3 BCFJF
PS-515V 1.500 E 3 VCFJF
PS-516 .625 A 1 BCFJF
PS-517 1.250 D 3 BCFKF
PS-517-TC-SEAT 1.250 D 3 BCFZF
PS-518 .625 A 1 BCFKF
PS-518-SC-SC .625 A 1 BLFLF
PS-519 1.750 U 3 BCFJF
PS-519-P66 1.750 U 3 BCFJF
PS-521 1.125 D 1 BCFKF
PS-522 .625 B 1 BCFKF
PS-524 .625 A 1 BCFKF
PS-524-EPR .625 A 1 QCFKF
PS-525 1.250 C3 BCFKF
PS-528 .625 A1BMFJF
PS-528V .625 A 1 VCFJF
PS-529 1.125 C 3 BCFKF
PS-529-EPR 1.125 C 3 QCFKF
PS-529-EPR-P66 1.125 C 3 QCFKF
PS-529V-SC-P66 1.125 C 3 VCFLF
PS-530 2.000 E 3 BCFJF
PS-531 .625 D 1 BCDJF
PS-532 2.000 C 3 BCFJF
PS-534 1.500 D3BCFKF
PS-535 1.750 E 3 BCFJF
PS-535-EPR 1.750 E 3 QCFJF
PS-535-P66-TC 1.750 E 3 BCFZF
PS-536 .625 C 3 BCFJF
PS-537 2.125 E 1 BCFJF
PS-539 1.000 C 1 BCFJF
PS-541 1.500 K 1 BCFJF
PS-541V-CMS 1.500 K 1 VCFJF
PS-542 2.625 E3BCFKF
PS-543 2.125 C 1 BCFKF
PS-543V 2.125 C 3 VCFKF
PS-544 1.625 C 3 BCFKF
PS-544V-SC-SC 1.625 C 3 VLFLF
PS-546 1.250 E 3 BCFJF
PS-547 1.375 C 3 BCFKF
PS-463V 2.500 D 3 VCDKF
PS-464 2.750 D 3 BCFKF
PS-465 3.000 D 3 BCDKF
PS-465V 3.000 D 3 VCDKF
PS-466 1.250 C 1 BCFJF
PS-466-P66 1.250 C 1 BCFJF
PS-466-SC-SC 1.250 C 1 BLFLF
PS-466V 1.250 C 1 VCFJF
PS-466V-P66 1.250 C 1 VCFJF
PS-466V-SC-SEAT 1.250 C 1 VCFLF
PS-467 1.375 C 1 BCFKF
PS-468 2.500 D 3 BCDJF
PS-469 2.500 D 3 BCDKF
PS-475 3.000 E 3 BCDKF
PS-477 2.000 E 3 BCFKF
PS-477-EPR 2.000 E 3 QCFKF
PS-477-EPR-SC 2.000 E 3 QCFLF
PS-477-P66 2.000 E 3 BCFKF
PS-477-TC-SC 2.000 E 3 BZFLF
PS-477-TC-SEAT 2.000 E 3 BCFZF
PS-477-TC-TC 2.000 E 3 BZFZF
PS-477V 2.000 E 3 VCFKF
PS-477V-TC-SEAT 2.000 E 3 VCFZF
PS-477V-TC-TC 2.000 E 3 VZFZF
PS-478 2.000 E 1 BCFKF
PS-479 2.000 E 1 BCFJF
PS-479-SC-TC 2.000 E 1 BLFZF
PS-479V 2.000 E 3 VCFJF
PS-479V-CMS-P66 2.000 E 1 VCFJF
PS-479V-TC-CMS 2.000 E 1 VCFZF
PS-483 2.750 C 3 BCFKF
PS-483-EPR-P66 2.750 C 3 QCFKF
PS-483V-TC-SEAT 2.750 C 3 VCFZF
PS-484 1.625 E 1 BCDKF
PS-485 .625 E 1 BCDJF
PS-486 .625 E1 BCDKF
PS-487 .625 E1BCDKF
PS-491 1.375 D 1 BCDJF
PS-491-P66 1.375 D 1 BCDJF
PS-491V 1.375 D 3 VCDJF
PS-491V-CMS 1.375 D 1 VCDJF
PS-491V-CMS-P66 1.375 D 1 VCDJF
PS-492 2.375 C 3 BCFKF
PS-492-CMS 2.375 C 1 BCFKF
PS-492-CMS-P66 2.375 C 1 BCFKF
PS-492-P66 2.375 C3BCFKF
PS-492V-CMS 2.375 C 1 VCFKF
PS-492V-TC-SEAT 2.375 C 3 VCFZF
PS-493 .625 C 1 BCFKF
PS-493V .625 C 1 VCFKF
PS-495 1.375 K 1 BCFJF
PS-495-EPR 1.375 K 1 QCFJF
PS-498 1.062 E 1 BCFKF
PS-499 1.000 C 3 BCFKF
PS-499-EPR 1.000 C3QCFKF
PS-501 .625 A 1 BMFJF
PS-501V .625 A 3 VCFJF
PS-501V-CMS .625 A 1 VCFJF
PS-506 .500 A 1 BMFKF
PS-507 .625 A 1 BMFKF
PS-507V .625 A 3 VCFKF
*US Seal 2010 catalog w cover 9/14/10 3:00 PM Page 194
U.S. Seal Mfg. Shaft Head Mating Material
Part No. Dia. Type Ring Code
U.S. Seal Mfg. Shaft Head Mating Material
Part No. Dia. Type Ring Code
PREMIUM SEAL INDEX
191
PS-547-P66 1.375 C 3 BCFKF
PS-547-SC-SC 1.375 C 3 BLFLF
PS-548 1.000 C 3 BCFJF
PS-550 1.750 C 3 BCFJF
PS-552 .625 C 3 BCFJF
PS-552-EPR .625 C 3 QCFJF
PS-552-EPR-P66 .625 C 3 QCFJF
PS-552-SC-SC .625 C 1 BLFLF
PS-553 1.500 C 3 BCFKF
PS-553-SC-SC 1.500 C 3 BLFLF
PS-555 1.750 U 1 BCF/DKF
PS-555SS 1.750 U 1 BCFKF
PS-556 2.125 U 1 BCFKF
PS-557 1.000 E 3 BCFJF
PS-560SS .937 U 2 BCFKF
PS-560V .937 U 3 VCFKF
PS-561SS 1.375 U 1 BCFKF
PS-561V 1.375 U 3 VCFKF
PS-564 .750 C — BCF-F
PS-578 .875 D — BCD-F
PS-586-SC-SC 1.875 E 3 BLFLF
PS-586-SC-SEAT 1.875 E 3 BCFLF
PS-586V-SC-TC 1.875 E 3 VLFZF
PS-588 1.125 C 3 BCFKF
PS-593 1.875 D 3 BCDKF
PS-594 2.375 D 3 BCDKF
PS-594-P66 2.375 D 3 BCDKF
PS-595 1.625 E 3 BCDJF
PS-598 1.250 C 3 BCFKF
PS-598-EPR 1.250 C 3 QCFKF
PS-598-SC-SC 1.250 C 3 BLFLF
PS-598-SC-SEAT1.250 C 3 BCFLF
PS-598-TC-SEAT 1.250 C 3 BCFZF
PS-600 .625 B 1 BMFJF
PS-600V .625 B 3 VCFJF
PS-600V-CMS .625 B 1 VCFJF
PS-601 .750 B1BMFJF
PS-601V .750 B 3 VCFJF
PS-601V-CMS .750 B 1 VCFJF
PS-602 .875 D 1 BCDJF
PS-603 .875 D 1 BCDKF
PS-604 1.125 D 1 BCFJF
PS-604-EPR 1.125 D 1 QCFJF
PS-604V-CMS 1.125 D 1 VCFJF
PS-605 1.125 D 1 BCFKF
PS-605V 1.125 D3VCFKF
PS-606 .750 B 1 BMFKF
PS-607 1.125 E 1 BCFJF
PS-607V 1.125 E 1 VCFJF
PS-608 1.125 E 1 BCFKF
PS-609 1.625 E 1 BCDJF
PS-609V 1.625 E 1 VCDJF
PS-610 1.625 E 1 BCFKF
PS-610V 1.625 E 1 VCFKF
PS-611 2.125 E3BCFJF
PS-611-P66 2.125 E 3 BCFJF
PS-614 .787 D 1 BCDKF
PS-614V .787 D 3 VCFKF
PS-616 .625 B 1 BMFKF
PS-617 .875 C 3 BCFKF
PS-618 1.250 C 3 BCFJF
PS-618-EPR-P66 1.250 C 3 QCFJF
PS-618-TC-TC 1.250 C 3 BZFZF
PS-618V-TC-SEAT 1.250 C 3 VCFZF
PS-619 1.125 E 3 BCFJF
PS-619V 1.125 E 3 VCFJF
PS-620 1.500 E 3 BCFJF
PS-620V 1.500 E 3 VCFJF
PS-626 .625 C 1 VCFJF
PS-627 1.125 C 1 BCFJF
PS-628 .625 A 3 BMFKF
PS-629 1.500 E 3 BCFKF
PS-631 .500 C 1 BCFJF
PS-632 .500 C 1 BCFKF
PS-633 .625 C 1 BCFKF
PS-633-EPR-CMS .625 C 1 QCFKF
PS-633-TC-TC .625 C 1 BZFZF
PS-633V .625 C 3 VCFKF
PS-633V-CMS .625 C 1 VCFKF
PS-633V-P66 .625 C 3 VCFKF
PS-633V-TC-SC .625 C 3 VZFLF
PS-633V-TC-SEAT .625 C 3 VCFZF
PS-637 .625 A 3 BMFJF
PS-642 .625 B — BMF-F
PS-647 .750 B — BMF-F
PS-647 .750 B — BMF-F
PS-658 2.000 R 1 BCDKF
PS-659 1.500 C 1 BCFKF
PS-659-TC 1.500 C 1 BCFZF
PS-659V 1.500 C 3 VCFKF
PS-659V-CMS 1.500 C 1 VCFKF
PS-659V-CMS-P66 1.500 C 1 VCFKF
PS-659V-P66 1.500 C 3 VCFKF
PS-659V-TC-VS-TC 1.500 C 1 VZFZF
PS-663 .500 Q 1 BMFJF
PS-664 1.562 E 3 BCDJF
PS-671 .375 B1 BMFJF
PS-671V-CMS .375 B1VCFJF
PS-674 1.750 T 1 BCFJF
PS-675 1.750 T 1 BCFKF
PS-677 1.375 E 1 BCFKF
PS-677-TC-TC-CMS 1.375 E 1 BZFZF
PS-677V 1.375 E 3 VCFKF
PS-678 .625 K — BCF-F
PS-680 .625 A 1 BCFJF
PS-681 1.250 U 1 BC/DFJF
PS-682 1.500 C1BCFJF
PS-683 .750 C 1 BCFJF
PS-685 .875 R 1 BCDKF
PS-687 .875 C 1 BCFKF
PS-687V .875 C 3 VCFKF
PS-687V-CMS .875 C 1 VCFKF
PS-700 .625 B 1 BMFJF
PS-701 .625 A 1 BMFKF
PS-701V .625 A 1 VCFKF
PS-702 .625 A1BMFJF
PS-702-EPR .625 A 1 QCFJF
PS-702V .625 A 1 VCFJF
PS-703 .875 D 1 BCDJF
PS-703-P66 .875 D 1 BCDJF
PS-703V .875 D 3 VCFJF
PS-703V-CMS .875 D 1 VCFJF
*US Seal 2010 catalog w cover 9/14/10 3:00 PM Page 195
U.S. Seal Mfg. Shaft Head Mating Material
Part No. Dia. Type Ring Code
U.S. Seal Mfg. Shaft Head Mating Material
Part No. Dia. Type Ring Code
PREMIUM SEAL INDEX
192
PS-705 1.437 E 3 BCFJF
PS-707 2.062 E 3 BCDKF
PS-710 1.062 E 1 BCFJF
PS-711 .625 A 3 BMFJF
PS-712 .625 B 3 BMFKF
PS-715 .625 B 3 BMFJF
PS-716 .625 B 3 BMFJF
PS-717 .625 B 3 BMFJF
PS-719 1.771 E 1 BCFKF
PS-722 1.771 E 1 BCFJF
PS-723 1.187 T 1 BCDJF
PS-723V-CMS 1.187 T 1 VCDJF
PS-724 1.187 T 1 BCDKF
PS-725 1.375 T 1 BCFJF
PS-725V 1.375 T 1 VCFJF
PS-726 1.375 T 1 BCFKF
PS-727 1.771 T 1 BCFJF
PS-728 1.771 T 1 BCFKF
PS-732 .625 C 3 BCFKF
PS-732-EPR .625 C 3 QCFKF
PS-732-EPR-P66 .625 C 3 QCFKF
PS-734 .625 D 3 BCDKF
PS-735 .625 D 3 BCDJF
PS-737 .625 D 3 BCDJF
PS-738 .625 E 3 BCDV/KF
PS-739 .625 E 3 BCDJF
PS-740 .625 E 1 BCDJF
PS-742 1.875 T 1 BCFJF
PS-743 1.875 T 1 BCFKF
PS-744 1.625 E 1 BCDKF
PS-744V 1.625 E 3 VCDKF
PS-745 1.625 E 1 BCDJF
PS-745-P66 1.625 E 1 BCDJF
PS-745V 1.625 E 3 VCDJF
PS-745V-CMS 1.625 E 1 VCDJF
PS-748 .625 E3 BCDJF
PS-749 .500 Q1BMFJF
PS-750 .750 D 1 BCDJF
PS-750-EPR .750 D 1 QCDJF
PS-750V .750 D 3 VCDJF
PS-750V-CMS .750 D 1 VCDJF
PS-752 .750 D 1 BCDKF
PS-752V .750 D 3 VCDKF
PS-754 1.000 E 1 BCFJF
PS-754V 1.000 E 3 VCFJF
PS-754V-CMS 1.000 E1VCFJF
PS-756 1.250 C 1 BCFKF
PS-756-EPR 1.250 C 1 QCFKF
PS-756-P66 1.250 C 1 BCFKF
PS-756V 1.250 C 3 VCFKF
PS-756V-CMS 1.250 C 1 VCFKF
PS-756V-CMS-P66 1.250 C 1 VCFKF
PS-756V-P66 1.250 C 3 VCFKF
PS-756V-SC-SEAT 1.250 C 3 VCFLF
PS-756V-SC-TC 1.250 C3 VLFZF
PS-758 1.500 C 1 BCFJF
PS-758-EPR 1.500 C 3 QCFJF
PS-758-EPR-CMS 1.500 C 1 QCFJF
PS-758-EPR-SC-SEAT 1.500 C 1 QCFLF
PS-758-P66 1.500 C 1 BCFJF
PS-758-SC-SC 1.500 C 1 BLFLF
PS-758-SC-SEAT 1.500 C 1 BCFLF
PS-758-SC-TC-CMS 1.500 C 1 BLFZF
PS-758V 1.500 C 3 VCFJF
PS-758V-CMS 1.500 C 1 VCFJF
PS-758V-P66-CMS 1.500 C 1 VCFJF
PS-758V-SC-SC 1.500 C 1 VLFLF
PS-758V-SC-SEAT 1.500 C 1 VCFLF
PS-760 .750 A 3 BMFJF
PS-761 3.000 D 3 BCDJF
PS-762 .750 A 3 BMFKF
PS-764 .750 A 1 BCFJF
PS-765 .750 B 3 BMFJF
PS-766 .750 B 3 BMDKF
PS-767 .750 C 3 BCFJF
PS-768 .750 C 3 BCFKF
PS-771 .750 C 3 BCFJF
PS-773 .750 C 3 BCFKF
PS-774 .875 C 3 BCFJF
PS-775 .875 D 3 BCDJF
PS-776 .875 E 3 BCFJF
PS-777 1.000 A 3 BCFJF
PS-778 1.000 A 3 BCFKF
PS-779 1.000 C 1 BCFKF
PS-779V-CMS 1.000 C 1 VCFKF
PS-788 .500 B 1 BMFKF
PS-790 .875 D 1 BCDJF
PS-791 1.000 E 3 BCFKF
PS-791-EPR-TC-SEAT 1.000 E 3 QCFZF
PS-791V-TC-SEAT 1.000 E 3 VCFZF
PS-792 .750 S 8 NAPSP
PS-793 1.000 S Special NAPSP
PS-794 1.250 S 8 NAPSP
PS-795 .625 S 8 NAPSP
PS-797 1.062 D 3 BCFJF
PS-798 1.062 E 3 BCFJF
PS-799 1.062 E3 BCFKF
PS-800 .625 C1BMFJF
PS-800V .625 C 1 V/BMFJF
PS-801 1.125 C 3 BCFJF
PS-802 1.125 D 3 BCFJF
PS-804 1.250 D 3 BCFJF
PS-805 1.375 C 3 BCFJF
PS-805-P66 1.375 C 3 BCFJF
PS-806 1.375 D 3 BCDJF
PS-807 1.375 D 3 BCDKF
PS-810 .625 C1N/BCFJF
PS-810V-CMS .625 C 1 VCFJF
PS-816 1.500 C 3 BCFJF
PS-817 1.500 D 3 BCFJF
PS-818 1.625 C 3 BCFJF
PS-818-P66 1.625 C 3 BCFJF
PS-819 1.625 D 3 BCDKF
PS-821 1.625 D 3 BCDJF
PS-822 1.625 E 3 BCDKF
PS-822-P66 1.625 E3BCDKF
PS-825 1.750 D 3 BCDKF
PS-826 1.750 D 3 BCDJF
PS-828 1.875 D 1 BCDJF
PS-832 2.000 D 3 BCDKF
PS-833 2.000 D 3 BCDJF
PS-834 2.375 D 3 BCDJF
*US Seal 2010 catalog w cover 9/14/10 3:00 PM Page 196
U.S. Seal Mfg. Shaft Head Mating Material
Part No. Dia. Type Ring Code
U.S. Seal Mfg. Shaft Head Mating Material
Part No. Dia. Type Ring Code
PREMIUM SEAL INDEX
193
PS-834-EPR 2.375 D 3 QCFJF
PS-834-P66 2.375 D 3 BCDJF
PS-835 2.500 D 3 BCDJF
PS-836 2.750 C 3 BCFJF
PS-836-CMS 2.750 C 1 BCFJF
PS-836-P66 2.750 C 3 BCFJF
PS-837 2.750 D 3 BCFJF
PS-837-P66 2.750 D 3 BCFJF
PS-838 2.750 E 3 V/BCFJF
PS-838-P66 2.750 E 3 V/BCFJF
PS-839 2.875 C 3 BCFKF
PS-841 2.875 E 3 BCFKF
PS-841-EPR 2.875 E 3 QCFKF
PS-841-P66 2.875 E 3 BCFKF
PS-842 2.000 C 1 BCFKF
PS-842-P66 2.000 C 1 BCFKF
PS-842-TC SEAT 2.000 C 1 BCFZF
PS-842V 2.000 C 1 VCFKF
PS-842V-P66-CMS 2.000 C 1 VCFKF
PS-843 2.000 E 1 BCFKF
PS-844 2.125 C 1 BCFJF
PS-845 .937 U 3 BCFGF
PS-846 2.250 D 3 BCDJF
PS-847 2.250 D 3 BCDKF
PS-848 2.250 E 3 BCDJF
PS-849 2.250 E 3 BCDKF
PS-851 .750 A 1 BCFJF
PS-853 2.500 C 3 BCFKF
PS-854 2.125 C 3 BCFJF
PS-855 2.125 C 3 BCFKF
PS-856 2.125 E 3 BCFJF
PS-857 2.125 E 3 BCFKF
PS-857V-TC-SEAT 2.125 E 3 VCFZF
PS-859-TC-SEAT 1.750 E 3 BCFZF
PS-859V-TC-SC 1.750 E 3 VZFLF
PS-864 1.375 E3 BCFJF
PS-864V 1.375 E3VCFJF
PS-865 1.375 E 3 BCFKF
PS-865-P66 1.375 E 3 BCFKF
PS-865-SC-SEAT1.375 E 3 BCFLF
PS-865V-SC-SC 1.375 E 3 VLFLF
PS-866 1.125 E 3 BCFJF
PS-867 1.125 E 3 BCFKF
PS-867-EPR 1.125 E 3 QCFKF
PS-867V 1.125 E 3 VCFKF
PS-867V-TC-SEAT1.125 E3 VCFZF
PS-868 1.500 T 1 BCFJF
PS-874 2.250 D 1 BCDJF
PS-876 2.000 D 1 BCDKF
PS-877 .750 C 1 BCFJF
PS-877V .750 C 1 VCFJF
PS-878 .875 K 1 BCFKF
PS-879 1.000 K 1 BCFJF
PS-879-SC-TC 1.000 K 1 BLFZF
PS-882 .625 B—BCF-F
PS-883 1.250 K 1 BCFJF
PS-883V-CMS 1.250 K 1 VCFJF
PS-884 1.500 K 1 BCFKF
PS-885-EPR-P66 1.125 E 3 QCFKF
PS-886 1.125 T 3 BCFJF
PS-887 2.125 K 1 BCFJF
PS-890 1.250 K 1 BCFKF
PS-891 1.000 K 1 BCFKF
PS-892 .875 K 1 BCFJF
PS-892V .875 K 3 VCFJF
PS-898 1.875 U 3 BCFJF
PS-902 .750 B 9 BMFKF
PS-918 1.125 T 3 BCFKF
PS-921 .750 A 1 BMFKF
PS-923 1.250 C 25 BCFJF
PS-923-EPR 1.250 C 25 QCFJF
PS-923V 1.250 C 25 VCFJF
PS-926 1.500 C 3 BCFJF
PS-928 .562 C — BCF-F
PS-929 1.375 C 25 BCFJF
PS-933 .625 C — BCF-F
PS-933-P66 .625 C — BCF-F
PS-933V .625 C — VCF-F
PS-935 .875 E 1 BCFKF
PS-935V-CMS .875 E 1 VCFKF
PS-936 .875 E — BCF-F
PS-937 1.000 E — BCF-F
PS-937V 1.000 E — VCF-F
PS-939 1.500 D — BCF-F
PS-941 2.250 D 1 BCDKF
PS-941V 2.250 D 3 VCDKF
PS-942 2.250 D — BCD-F
PS-943 1.437 E 3 NCPKF
PS-944 .750 C 1 BCFJF
PS-944-EPR .750 C 1 QCFJF
PS-944V .750 C 1 VCFJF
PS-948 1.125 E 3 BCFKF
PS-949 1.875 E 3 BCFKF
PS-951 .625 C 3 VCFKF
PS-951-EPR .625 C 3 QCFKF
PS-952 .625 A 1 BCFJF
PS-952-P66 .625 A1 BCFJF
PS-953 .625 A1BCFJF
PS-954 .625 A 1 BCFKF
PS-954V-CMS .625 A 1 VCFKF
PS-955 .625 A 1 BCFKF
PS-957 .625 A 1 BCFJF
PS-961 .625 B 1 BCFJF
PS-963 .625 B 1 BCFJF
PS-964 .625 B 1 BCFKF
PS-968 .750 A 1 BCFJF
PS-973 .750 A1BCFKF
PS-974 .750 A — BCF-F
PS-975 1.000 A — BCF-F
PS-976 1.250 D 1 BCFJF
PS-976V 1.250 D 1 VCFJF
PS-977 1.250 D 1 BCFKF
PS-978 1.250 C 1 BCFJF
PS-978-EPR 1.250 C 1 QCFJF
PS-978-EPR-P66 1.250 C 1 QCFJF
PS-978-EPR-SC-SC 1.250 C1QLFLF
PS-978-EPR-TC 1.250 C 1 QCFZF
PS-978-P66 1.250 C 1 BCFJF
PS-978-SC-TC 1.250 C 1 BLFZF
PS-978-TC-SEAT 1.250 C 1 BCFZF
PS-978V 1.250 C 1 VCFJF
PS-978V-P66 1.250 C 1 VCFJF
*US Seal 2010 catalog w cover 9/14/10 3:00 PM Page 197
U.S. Seal Mfg. Shaft Head Mating Material
Part No. Dia. Type Ring Code
U.S. Seal Mfg. Shaft Head Mating Material
Part No. Dia. Type Ring Code
PREMIUM SEAL INDEX
194
PS-978V-P66-TC 1.250 C 1 VCFZF
PS-978V-P90 1.250 C 1 VRFJF
PS-978V-SC-P66 1.250 C 1 VCFLF
PS-978V-SC-SC 1.250 C 1 VLFLF
PS-979 1.250 C 1 BCFKF
PS-979-EPR 1.250 C 1 QCFKF
PS-979-P66 1.250 C 1 BCFKF
PS-979V 1.250 C 1 VCFKF
PS-979V-P66 1.250 C 1 VCFKF
PS-981 1.250 D 3 BCFKF
PS-982 1.000 C 1 BCFKF
PS-982V-CMS 1.000 C 1 VCFKF
PS-983 1.125 C 1 BCFKF
PS-983V 1.125 C 3 VCFKF
PS-984 .500 C 1 BCFKF
PS-989 .625 C 1 N/BCFJF
PS-1000 .625 B 1 BMFJF
PS-1000V .625 B 3 VCFJF
PS-1000V-CMS .625 B 1 VCFJF
PS-1002 .500 C 1 BCFJF
PS-1002-EPR .500 C 1 QCFJF
PS-1002-P66 .500 C 1 BCFJF
PS-1002V .500 C 1 VCFJF
PS-1005A .625 B 1 BMFKF
PS-1012 .500 C 1 BCFJF
PS-1012-EPR .500 C 1 QCFJF
PS-1012V .500 C 1 VCFJF
PS-1015 1.250 E — BCF-F
PS-1016 .625 C 1 N/BCFJF
PS-1017 2.000 C 1 BCFKF
PS-1017-TC-SEAT 2.000 C 1 BCFZF
PS-1018 1.250 C3 BCFKF
PS-1018-CMS 1.250 C 1 BCFKF
PS-1018-EPR 1.250 C 3 QCFKF
PS-1018-EPR-P66 1.250 C 3 QCFKF
PS-1018-P66 1.250 C3 BCFKF
PS-1018-SC-SC 1.250 C3BLFLF
PS-1018V 1.250 C 3 VCFKF
PS-1019 1.625 C 3 BCFKF
PS-1019-CMS 1.625 C 1 BCFKF
PS-1019-CMS-P66 1.625 C 1 BCFKF
PS-1019-SC-SC 1.625 C 3 BLFLF
PS-1019-TC-SEAT 1.625 C 3 VCFZF
PS-1019V 1.625 C 3 VCFKF
PS-1019V-P66 1.625 C 3 VCFKF
PS-1019V-SC-SC 1.625 C3VLFLF
PS-1020 2.000 C 3 BCFKF
PS-1020-EPR-P66 2.000 C 3 QCFKF
PS-1020V 2.000 C 3 VCFKF
PS-1021 .625 B 8 BMFJF
PS-1026 .750 D 1 BCDKF
PS-1028 2.000 C 1 BCFKF
PS-1034V 1.000 C 28 VCFKF
PS-1035 1.625 C 28 BCFKF
PS-1036 1.250 C28 BCFKF
PS-1036V 1.250 C 28 VCFKF
PS-1037 2.000 C 28 BCFKF
PS-1037V 2.000 C 28 VCFKF
PS-1038 1.750 C 28 BCFKF
PS-1038V 1.750 C 28 VCFKF
PS-1039 1.625 C 28 VCFKF
PS-1040 2.000 K 3 BCFKF
PS-1041 2.375 K 3 BCFKF
PS-1042 1.750 U 1 BCFJF
PS-1043 .500 C 1 BMFJF
PS-1044 1.187 C 28 BCFKF
PS-1044V 1.187 C 28 VCFKF
PS-1045 .625 C 3 VCFJF
PS-1048 1.000 C 1 BCFJF
PS-1049 1.000 C 3 BCFJF
PS-1050 .500 C — BCF-F
PS-1050-EPR .500 C — QCF-F
PS-1050V .500 C — VCF-F
PS-1053 1.250 C 3 B/VCFKF
PS-1055 1.750 C — BCF-F
PS-1056 1.750 C 3 BCFKF
PS-1056V 1.750 C 3 VCFKF
PS-1056V-SC-SEAT 1.750 C 3 VCFLF
PS-1057 2.125 C 3 B/VCFKF
PS-1060V 3.000 E 3 VCDKF
PS-1061 .562 A 1 VCFJF
PS-1062 1.375 C 3 VCFKF
PS-1064V .312 C 3 VCFJF
PS-1065 .375 C 3 BCFJF
PS-1065V .375 C 3 VCFJF
PS-1067 1.125 E 1 BCFKF
PS-1068 1.750 C 1 BCFKF
PS-1069 3.125 V 3 BCFJF
PS-1070 1.750 U 3 BCFJF
PS-1078 1.750 E 27 BCFJF
PS-1079 .625 C 1 NCFJF
PS-1080 .625 C 1 NCFKF
PS-1081 1.250 C 1 NCFJF
PS-1082 1.250 C 1 NCFKF
PS-1083 1.250 C 1 NCFJF
PS-1084 1.250 C 1 NCFKF
PS-1084-TC-SEAT1.250 C 1 NCFZF
PS-1085 .625 C1V/BCFJF
PS-1085V .625 C 1 VCFJF
PS-1086 1.000 A 3 BCFJF
PS-1087 2.250 C 1 BCFJF
PS-1088 3.000 C 3 BCFJF
PS-1088-CMS 3.000 C 1 BCFJF
PS-1088-TC-TC 3.000 C 3 B/VZFZF
PS-1088-TC-TC-CMS 3.000 C 1 BZFZF
PS-1088V 3.000 C 3 VCFJF
PS-1088V-TC-TC 3.000 C3VZFZF
PS-1088V-TC-TC-CMS 3.000 C 1 VZFZF
PS-1089 .625 B 1 V/BCFJF
PS-1091 .625 C 1 VCFJF
PS-1092 .750 C 1 VCFKF
PS-1092-TC-TC .750 C 1 VZFZF
PS-1093 .750 C 1 VCFJF
PS-1094 1.000 C 1 VCFJF
PS-1095 1.000 C — BCF-F
PS-1097 1.875 D1BCDKF
PS-1098 .500 B 1 BMFJF
PS-1102 2.125 V 3 BCFJF
PS-1104 1.375 V 25 BMFJF
PS-1105 1.875 V 25 BMFJF
PS-1107-CMS 2.125 V 1 BCFJF
PS-1108 1.875 V 1 BMFJF
*US Seal 2010 catalog w cover 9/14/10 3:00 PM Page 198
U.S. Seal Mfg. Shaft Head Mating Material
Part No. Dia. Type Ring Code
U.S. Seal Mfg. Shaft Head Mating Material
Part No. Dia. Type Ring Code
195
PREMIUM SEAL INDEX
PS-1109 1.250 C 3 BCFKF
PS-1109-CER 1.250 C 3 BCFJF
PS-1109-EPR 1.250 C 3 QCFKF
PS-1109-P66 1.250 C 3 BCFKF
PS-1109V 1.250 C 3 VCFKF
PS-1110 1.500 C 3 BCFKF
PS-1110V 1.500 C 3 VCFKF
PS-1112 .500 Q 9 BMFJF
PS-1113 .750 C 1 BCFKF
PS-1118 1.250 K 1 B/HCFJF
PS-1119 .625 C 1 BCFJF
PS-1119V .625 C 1 VCFJF
PS-1120 .500 C 1 BCFJF
PS-1123 1.000 C 1 BCFKF
PS-1125 .750 C 1 BCFJF
PS-1125-EPR .750 C 1 QCFJF
PS-1125-P66 .750 C 1 BCFJF
PS-1125-SC-SC .750 C 1 BLFLF
PS-1128 1.250 D 3 NCPKF
PS-1133 .437 C 1 BCFJF
PS-1137 .500 Q 1 BMFJF
PS-1142 1.750 K 3 BCFJ/KF
PS-1145 2.000 C 3 VCFKF
PS-1149 .500 Q 9 BMFJF
PS-1150 .625 A 1 BMFKF
PS-1152 .625 B 1 BMFKF
PS-1154 .625 C 1 BCFKF
PS-1155 .625 C 1 BCFJF
PS-1155V .625 C 1 VCFJF
PS-1155V-TC-SEAT .625 C 1 VCFZF
PS-1156 .625 C 1 BCFKF
PS-1156V .625 C 3 VCFKF
PS-1158 .625 E 2 BCDKF
PS-1160 .750 C 1 BCFKF
PS-1161 .750 D 1 BCDJF
PS-1162 .750 D1 BCDJF
PS-1163 .875 C1BCFJF
PS-1167 1.125 C 1 BCFKF
PS-1172 1.125 E 3 BCFJF
PS-1172V 1.125 E 3 VCFJF
PS-1173 1.125 E 3 BCFKF
PS-1176 1.125 K 1 BCFJF
PS-1177 1.125 K 1 BCFKF
PS-1178 1.125 T 3 BCFJF
PS-1179 1.181 D 1 BCDKF
PS-1179-P66 1.181 D1BCDKF
PS-1179V 1.181 D 1 VCDKF
PS-1179V-P66 1.181 D 1 VCDKF
PS-1180 1.187 E 1 BCDKF
PS-1185 1.250 E 1 NCPJP
PS-1186 1.250 E 1 BCFKF
PS-1187 1.250 T 1 BCFJF
PS-1193 1.562 E 3 BCDKF
PS-1194 1.562 E 1 BCDKF
PS-1195 1.625 K1BCFJF
PS-1197 1.750 K 1 BCFKF
PS-1199 1.750 U 3 BCFKF
PS-1510 .750 C 1 BCFJF
PS-1510V .750 C 1 VCFJF
PS-1514 .750 C 1 BCFJF
PS-1514V .750 C 1 VCFJF
PS-1522 .750 A — BMF-F
PS-1525 .750 A 1 BMFJF
PS-1604 .750 K 1 BCFJF
PS-1608 1.875 C 1 BCFKF
PS-1610 2.000 R 1 BCDJF
PS-1612 2.125 E 3 BCFKF
PS-1612V 2.125 E 3 VCFKF
PS-1613 2.500 K 3 BCFJF
PS-1615 .375 B 1 BMFJF
PS-1618 .625 C 1 BCFJF
PS-1619 1.000 B 1 BCDJF
PS-1621 .500 Q 9 BMFJF
PS-1622 .750 B 9 BMFJF
PS-1622V .750 B 9 VMFJF
PS-1623 1.250 K 3 BCFJ/KF
PS-1625 .625 C 3 BCFKF
PS-1625-EPR .625 C 3 QCFKF
PS-1626 .625 C 3 VCFKF
PS-1626-CMS .625 C 1 VCFKF
PS-1630 1.000 D 3 BCPKF
PS-1630V 1.000 D 3 VCPKF
PS-1631 1.000 T 3 NCPKF
PS-1632 1.250 D 3 NCPKF
PS-1632V 1.250 D 3 VCPKF
PS-1633 1.437 T 3 NCPKF
PS-1634 1.437 E 3 BCPKP
PS-1634V 1.437 E 3 VCPKF
PS-1636 1.125 E 3 B/VCFJF
PS-1637 1.125 E 3 B/VCFKF
PS-1639V 1.125 E 3 VCFKF
PS-1646 1.500 E 3 VCFZF
PS-1647 1.500 E 3 B/VCFJF
PS-1648 1.500 E 3 B/VCFKF
PS-1651 1.500 E 3 VCFJF
PS-1652 1.500 E 3 VCFKF
PS-1653 1.875 T3 VCFJF
PS-1659 1.875 E3VCFJF
PS-1659V-CMS 1.875 E 1 VCFJF
PS-1660 1.875 E 3 VCFKF
PS-1661 1.875 E 3 VCFZF
PS-1662 1.875 E 3 B/VCDJF
PS-1663 1.875 E 3 B/VCDJF
PS-1664 1.875 E 3 B/VCFJF
PS-1667 1.375 C 1 BCFKF
PS-1667-EPR-P66 1.375 C 1 QCFKF
PS-1667V 1.375 C1VCFKF
PS-1668 1.125 E 3 BCFZF
PS-1674 1.750 C 1 BCFKF
PS-1674-EPR-P66 1.750 C 1 QCFKF
PS-1674-TC-SEAT 1.750 C 1 BCFZF
PS-1674V-TC-TC-CMS 1.750 C 1 VZFZF
PS-1675 .590 D 1 BCFKF
PS-1676 2.250 C 3 BCFKF
PS-1676-EPR 2.250 C 3 QCFKF
PS-1676-EPR-P66 2.250 C3QCFKF
PS-1676-P66 2.250 C 3 BCFKF
PS-1676-TC-SEAT 2.250 C 3 B/VCFZF
PS-1676V 2.250 C 3 VCFKF
PS-1676V-TC-SEAT 2.250 C 3 VCFZF
PS-1677 2.375 C 28 BCFKF
PS-1678 2.250 C 3 BCFJF
*US Seal 2010 catalog w cover 9/14/10 3:00 PM Page 199
U.S. Seal Mfg. Shaft Head Mating Material
Part No. Dia. Type Ring Code
U.S. Seal Mfg. Shaft Head Mating Material
Part No. Dia. Type Ring Code
196
PREMIUM SEAL INDEX
PS-1678V 2.250 C 3 VCFJF
PS-1679 2.250 C 1 BCFJF
PS-1679-P66 2.250 C 1 BCFJF
PS-1679V-CMS 2.250 C 1 VCFJF
PS-1680 2.250 C 1 BCFKF
PS-1680-P66 2.250 C 1 BCFKF
PS-1680-SC-SC 2.250 C 1 BLFLF
PS-1680V 2.250 C 1 VCFKF
PS-1681 .875 D 3 BCDKF
PS-1681V .875 D 3 VCDKF
PS-1682 1.125 C 1 BCFJF
PS-1683 1.625 E 3 BCFJF
PS-1683-P66 1.625 E 3 BCFJF
PS-1683V 1.625 E 3 VCFJF
PS-1684 1.750 E 3 BCFJF
PS-1686 2.125 D 1 BCFJF
PS-1687 2.125 D 1 BCFKF
PS-1688 2.250 E 3 BCFJF
PS-1688V 2.250 E 3 VCFJF
PS-1691 1.500 E 3 VCFKF
PS-1692 1.500 E 3 VCFZF
PS-1693 1.875 K 1 BCFKF
PS-1694 2.375 K 3 BCFJF
PS-1695 2.500 K 3 BCFKF
PS-1696-CMS 3.000 C 1 BCFJF
PS-1697 1.625 D 3 BCFKF
PS-1697-TC-SEAT 1.625 D 3 BCFZF
PS-1698 1.625 D 3 BCFJF
PS-1699 1.625 E 3 BCFKF
PS-1699E-TC-P66 1.625 E 3 QCFZF
PS-1699-P66 1.625 E 3 BCFKF
PS-1699V 1.625 E3 VCFKF
PS-1699V-P66 1.625 E 3 VCFKF
PS-1699V-SC-TC 1.625 E 3 VLFZF
PS-1699V-TC-P66 1.625 E 3 VCFZF
PS-1754 .750 C1 BCFJF
PS-1900 .625 G1
VLFLF(316SS)
PS-1901 .625 G 1
VLFLF(316SS)
PS-1902 .750 G 1
VLFLF(316SS)
PS-1903 .625 A1
VLFLF(316SS)
PS-1904 .750 B 1
VLFLF(316SS)
PS-1905 .625 B 1
VLFLF(316SS)
PS-1906 .625 G 31
VLFLF(316SS)
PS-1907 .625 G 1
VLFLF(316SS)
PS-1908 .750 A 1 VLFLF
PS-2000 .625 D1BCFJF
PS-2002 .625 D 3 BCFJF
PS-2004 .625 D 1 BCFJF
PS-2007 .625 D 1 BCFKF
PS-2008 .750 D 1 BCFJF
PS-2009 .750 D 1 BCFKF
PS-2010 .750 D 3 BCFJF
PS-2014 .750 E 3 V/BCFJF
PS-2015 .625 E 3 BCFKF
PS-2016 .625 E1BCFJF
PS-2017 .625 E 1 BCFKF
PS-2020 .625 E 1 BCFJF
PS-2021 .625 E 1 BCFKF
PS-2022 .625 E 3 BCFJF
PS-2023 .625 E 3 BCFKF
PS-2024 .875 D 1 BCFJF
PS-2026 .875 D 3 BCFJF
PS-2027 .875 D 3 BCFKF
PS-2027-EPR-TC-SEAT .875 D 3 QCFZF
PS-2027V .875 D 3 VCFKF
PS-2029 .875 E 1 BCFKF
PS-2033 1.000 D 3 BCFJF
PS-2045 1.375 D 1 BCFJF
PS-2046 1.375 D 1 BCFKF
PS-2047 1.375 D 3 BCFJF
PS-2047V 1.375 D 3 VCFJF
PS-2048 1.375 D 3 BCFKF
PS-2055 1.625 D 1 BCFJF
PS-2056 1.625 D 1 BCFKF
PS-2057 1.625 E 1 BCFJF
PS-2058 1.625 E 1 BCFKF
PS-2058V-TC-SEAT 1.625 E 1 VCFZF
PS-2059 1.750 D 1 BCFJF
PS-2060 1.750 D 1 BCFKF
PS-2060-TC-TC 1.750 D 1 BZFZF
PS-2061 1.750 D 3 BCFJF
PS-2062 1.750 D 3 BCFKF
PS-2069 1.875 E 1 BCFJF
PS-2070 1.875 E 1 BCFKF
PS-2071 1.875 E 3 BCFJF
PS-2072 1.875 E 3 BCFKF
PS-2072-TC-TC 1.875 E 3 BZFZF
PS-2073 2.000 D 1 BCFJF
PS-2073V-SC-TC-CMS 2.000 D 1 VLFZF
PS-2075 2.000 D 3 BCFJF
PS-2076 2.000 D 3 BCFKF
PS-2086 2.125 E 3 BCFKF
PS-2087 2.250 D 1 BCFJF
PS-2088 2.250 D 1 BCFKF
PS-2089 2.250 D 3 BCFJF
PS-2090 2.250 D 3 BCFKF
PS-2091 2.250 E1 BCFJF
PS-2092 2.250 E1BCFKF
PS-2093 2.125 D 3 BCFJF
PS-2094 2.250 E 3 BCFKF
PS-2094V 2.250 E 3 VCFKF
PS-2095 2.375 D 3 BCFKF
PS-2097-CMS 2.375 E 1 BCFJF
PS-2098V 2.375 E 3 VCFKF
PS-2104 1.375 E — BCF-F
PS-2104V 1.375 E — VCF-F
PS-2105 1.500 C—BCF-F
PS-2105V 1.500 C — VCF-F
PS-2105V-TC 1.500 C — VZF-F
PS-2106 1.500 E — BCF-F
PS-2106-P66 1.500 E — BCF-F
PS-2106V 1.500 E — VCF-F
PS-2107 1.625 C — BCF-F
PS-2108 1.750 C — BCF-F
PS-2108-EPR-P66 1.750 C — QCF-F
PS-2108-P66 1.750 C—BCF-F
PS-2108-P90 1.750 C — BRF-F
PS-2108V 1.750 C — VCF-F
PS-2109 1.750 E — BCF-F
PS-2109-AFLAS 1.750 E — XCF-F
PS-2109-EPR 1.750 E — QCF-F
PS-2109-EPR-P66 1.750 E — QCF-F
*US Seal 2010 catalog w cover 9/14/10 3:00 PM Page 200
U.S. Seal Mfg. Shaft Head Mating Material
Part No. Dia. Type Ring Code
U.S. Seal Mfg. Shaft Head Mating Material
Part No. Dia. Type Ring Code
197
PREMIUM SEAL INDEX
PS-2109-P66 1.750 E — BCF-F
PS-2111 2.000 C — BCF-F
PS-2112 2.000 E — BCF-F
PS-2112V 2.000 E — VCF-F
PS-2112V-P66 2.000 E — VCF-F
PS-2114 1.875 C 3 BCFJF
PS-2115 3.000 C 3 BCFKF
PS-2115-TC-SEAT 3.000 C 3 BCFZF
PS-2116 3.000 C 3 BCFJF
PS-2116-SC-SC 3.000 C 3 BLFLF
PS-2117 1.500 E 1 BCFJF
PS-2120 2.500 C 1 BCFJF
PS-2122 1.250 C 1 BCFJF
PS-2122-P66 1.250 C 1 BCFJF
PS-2122V 1.250 C 3 VCFJF
PS-2122V-CMS 1.250 C 1 VCFJF
PS-2122V-TC-SC-CMS 1.250 C 1 VZFLF
PS-2123 1.250 C 1 BCFKF
PS-2123-P66 1.250 C 1 BCFKF
PS-2123V-CMS 1.250 C 1 VCFKF
PS-2123V-TC-CMS 1.250 C 1 VCFZF
PS-2126 2.125 T 3 BCFJF
PS-2128 1.250 E 3 BCFJF
PS-2129 1.250 E 3 BCFKF
PS-2129V 1.250 E 3 VCFKF
PS-2130 1.750 E 3 BCFJF
PS-2131 .625 A 1 BMJFJ
PS-2131V .625 A 1 VCFJF
PS-2132 2.250 T 3 BCDJF
PS-2133 2.000 C 1 BCFJF
PS-2133-P66 2.000 C 1 BCFJF
PS-2134 1.375 C 1 BCFJF
PS-2134-P66 1.375 C 1 BCFJF
PS-2134V-CMS-P66 1.375 C 1 VCFJF
PS-2135 1.750 C 1 BCFJF
PS-2135-P66 1.750 C1 BCFJF
PS-2135-SC-SC 1.750 C1BLFLF
PS-2136 .750 A 1 BCFJF
PS-2137 1.500 E 1 BCFKF
PS-2138 .500 C Special BCFGF
PS-2139 2.000 C 1 BCFJF
PS-2140 5.000 K 3 BCFKF
PS-2141 3.000 K 3 BCFKF
PS-2141-SC-SC 3.000 K 3 BLFLF
PS-2142 1.750 C 1 BCFJF
PS-2143 2.000 K1BCFJF
PS-2144 1.750 T 3 BCFJF
PS-2145 1.000 C 3 BCFJF
PS-2146 1.875 V 3 BMFJF
PS-2147 2.500 V 3 BCFJF
PS-2148 2.750 K 3 BCFJF
PS-2149 .625 C 3 BCFKF
PS-2150 1.750 C 3 BCFJF
PS-2151 1.750 C 3 BCFKF
PS-2151-EPR-P66 1.750 C3QCFKF
PS-2151-TC-SEAT 1.750 C 3 BCFZF
PS-2151V 1.750 C 3 VCFKF
PS-2151V-TC-SEAT 1.750 C 3 VCFZF
PS-2152V 2.750 C 3 VCFKF
PS-2153 3.000 C 3 BCFJF
PS-2153-CMS 3.000 C 1 BCFJF
PS-2153-SC-SC-CMS 3.000 C 1 BLFLF
PS-2153-TC-CMS 3.000 C 1 BCFZF
PS-2153-TC-TC 3.000 C 3 BZFZF
PS-2153V-SC-SC-CMS 3.000 C 1 VLFLF
PS-2153V-TC-TC 3.000 C 1 VZFZF
PS-2154 2.750 C 3 BCFJF
PS-2154-SC-SC-CMS 2.750 C 1 BLFLF
PS-2154-SC-TC-CMS 2.750 C 1 BLFZF
PS-2154-TC-CMS 2.750 C 1 BCFZF
PS-2154-TC-SEAT 2.750 C 3 B/VCFZF
PS-2154V-SC-SC 2.750 C 3 VLFLF
PS-2154V-TC-TC 2.750 C 3 VZFZF
PS-2155 1.062 C 3 BCFKF
PS-2156 1.437 C 3 BCFKF
PS-2156V 1.437 C 3 VCFKF
PS-2157 1.750 U 3 BCF/DKF
PS-2158 2.500 K 1 BCFJF
PS-2160 .625 C 1 BCFJF
PS-2161 .625 B 1 BMFJF
PS-2162 1.187 C 1 BCFKF
PS-2163 1.000 C 1 BCFKF
PS-2164 1.000 D 1 BCFJF
PS-2166 .875 C 1 BCFJF
PS-2166-EPR .875 C 1 QCFJF
PS-2166V .875 C 1 VCFJF
PS-2167 .875 C 1 BCFJF
PS-2167-EPR-P66 .875 C 1 QCFJF
PS-2168 .875 C 3 BCFKF
PS-2169 .875 C 3 BCFKF
PS-2169V .875 C 3 VCFKF
PS-2170 1.750 U 3 BCFJF
PS-2172 .625 A 1 BCFJF
PS-2200 1.250 C 3 VCFKF
PS-2201 1.625 C 3 QCFKF
PS-2202 1.625 C 3 BCFJF
PS-2202-CMS 1.625 C1 BCFJF
PS-2202-P66 1.625 C3BCFJF
PS-2202V 1.625 C 3 VCFJF
PS-2203 1.250 C 3 QCFKF
PS-2203-CMS 1.250 C 1 QCFKF
PS-2204 .625 A 1 VCFZF
PS-2205 2.500 E 3 BCFKF
PS-2205-EPR 2.500 E 3 QCFKF
PS-2206 .625 C 3 QCFKF
PS-2207 1.750 C 3 VCFZF
PS-2208 1.250 C1BZFZF
PS-2209 1.500 C 1 BZFZF
PS-2210 1.750 C 1 BCFZF
PS-2211 1.250 T 3 BCFJF
PS-2212 1.750 C 1 BCFJF
PS-2212-TC-TC 1.750 C 1 BZFZF
PS-2214 .625 C 1 QCFJF
PS-2215 1.250 C 1 QCFJF
PS-2216 1.000 C 1 BZFZF
PS-2216V-CMS 1.000 C1 VZFZF
PS-2217 1.500 C 3 BZFZF
PS-2219 2.000 C 1 BZFZF
PS-2221 1.500 C 3 QCFKF
PS-2223 1.500 C 3 VCFZF
PS-2223-SC-SEAT 1.500 C 3 VCFLF
PS-2224 .875 C 3 QCFKF
*US Seal 2010 catalog w cover 9/14/10 3:00 PM Page 201
U.S. Seal Mfg. Shaft Head Mating Material
Part No. Dia. Type Ring Code
U.S. Seal Mfg. Shaft Head Mating Material
Part No. Dia. Type Ring Code
198
PREMIUM SEAL INDEX
PS-2226 1.125 C 3 QCFZF
PS-2227 1.125 C 1 BCFJF
PS-2229 .750 C 1 BCFKF
PS-2229V-P66 .750 C 1 VCFKF
PS-2230 1.250 C 3 BCFJF
PS-2230V 1.250 C 3 VCFJF
PS-2231 1.750 E Bal. 3 BCFKF
PS-2231-CMS 1.750 E Bal. 1 BCFKF
PS-2232 1.500 C 1 BCFKF
PS-2234 1.437 E 3 BCFKF
PS-2234V 1.437 E 3 VCFKF
PS-2235 .750 C 3 VCFJF
PS-2235-SC-TC .750 C 3 VLFZF
PS-2236 .750 C 3 BCFJF
PS-2237 1.875 K 1 BCFJF
PS-3000 .472 G 1 BLFLF
PS-3001 .500 G 3 VCFJF
PS-3002 .500 G 3 VCFJF
PS-3003 .500 G 3 BCFJF
PS-3004 .500 G 1 QCFLF
PS-3005 .625 G 3 VLFLF
PS-3006 .625 G 1 BCFJF
PS-3008 2.375 G 1 BCFJF
PS-3009 .875 G 1 BCFJF
PS-3010 1.000 G 3 BCFLF
PS-3011 1.000 G 1
VCFJF(316SS)
PS-3012 1.125 G 1
BLFLF(316SS)
PS-3013 1.125 G 25
VCFLF(316SS)
PS-3014 1.375 G 1 BLFZF
PS-3015 1.375 G 25 VLFLF
PS-3016 1.750 G 1 BLFLF
PS-3017 1.875 G 1 BCFJF
PS-3018 1.875 G 1 BLFLF
PS-3019 2.000 G 25 QCFLF
PS-3020 2.125 G 3 QCFJF
PS-3021 3.000 G1 VLFLF
PS-3022 2.375 G1BLFZF
PS-3023 1.250 D 1 QCFLF
PS-3024 1.750 E 1
VCFZF(316SS)
PS-3025 1.625 D 1 QCFLF
PS-3026 1.625 D 3 BCDGF
PS-3027 2.000 C 3 QCFZF
PS-3029 1.250 C 1 BCFJF
PS-3030 1.625 C 1 QCFJF
PS-3033 .500 Q 8 BCFKF
PS-3035 2.125 D1QCFLF
PS-3100 1.000 Q — NMDKF
PS-3401 1.000 Q 9 NMDKF
PS-3440 1.000 C 1 BCFJF
PS-3440V 1.000 C 1 V/BCFJF
PS-3499 3.625 E 3 BCFJF
PS-3505 3.437 U 3 VCPKF
PS-3507 .875 E 3 VZFLF
PS-3511 1.125 T 3 VCFJF
PS-3515 1.250 E1
QCFLF(316SS)
PS-3516 2.500 E 3 QCFZF
PS-3518 3.000 K 1 BCFJF
PS-3522 2.000 E 3 BCFKF
PS-3523 1.625 C 3 VCFZF
PS-3525 .625 C 3 QCFKF
PS-3528 1.250 E 1
QCFLF(316SS)
PS-3530 2.250 E 3 B/VZFZF
PS-3537 2.250 C 1 BCFJF
PS-3538 1.250 C 1
VCFLF(316SS)
PS-3539 3.000 C 1 VZFZF
PS-3540 1.750 E 3 QZFZF
PS-3541 1.375 T 3 VZFZF
PS-3542 .562 C 3 VCFKF
PS-3543 1.625 C 1
VCFZF(316SS)
PS-3550 .625 C 1 VRFRF
PS-3553 3.625 T 3 BCFKF
PS-3555 1.250 D 1 QLFLF
PS-3558 1.500 K 3 BCFJF
PS-3561 .500 C 1 BCFJF
PS-3562 2.062 T 3 BCFKF
PS-3563 .500 C 1 QCFLF
PS-3568 .500 G 1 QLFLF
PS-3576 2.250 E 3 VCFJF
PS-3578V .437 C 1 VCFJF
PS-3580 2.000 C 1 QCFZF
PS-3583 .500 C 1 BCFKF
PS-3584 1.375 C 3 Special VCFGF
PS-3586 .625 G 1 QCFJF
PS-3589 1.000 E 5 VCFZF
PS-3591 2.000 U 3 QCFZF
PS-3600 3.000 C 3 BCFKF
PS-3606 2.125 C 3 VCFLF
PS-3607 1.250 T 3 NAFGF
PS-3611 1.250 WT 2
TCFOF(316SS)
PS-3613 .625 C 1 VLFLF
PS-3615 1.500 EBal. 3 VCFZF
PS-3616 1.625 C 1 QCFKF
PS-3619 1.000 C 3 VCFKF
PS-3625 1.000 E 1 VCFZF
PS-3637 1.750 E 3 VCFKF
PS-3638 1.250 E 1 VCFZF
PS-3639 2.000 E3 QCFZF
PS-3642 1.500 D1VLFLF
PS-3643 2.250 E Bal. 3 BCFKF
PS-3648 1.875 E Bal. Special VCFZF
PS-3653 1.125 E 3 NCPGF
PS-3654 .750 C 1 BCFKF
PS-3656 2.250 E Bal. 3 VCFZF
PS-3661 2.750 C 3 VLFZF
PS-3664 1.625 C 1 BZFZF
PS-3673 1.750 E 3 BCEJE
PS-3674 2.000 C1QCFKF
PS-3678 .875 C 3 QCFLF
PS-3684 3.625 T 3 BCFJF
PS-3687 1.750 C 3 BZFZF
PS-3701 3.000 C 3 BLFZF
PS-3702 3.250 C 3 BLFZF
PS-3707 .625 C 1 QLFLF
PS-3708 2.000 E 1 BCFZF
PS-3712 1.125 D 3 VCFZF
PS-3713 3.000 D3NCPGP
PS-3714 2.125 E Bal. 3 BCFJF
PS-3715 .500 C 1 VCFJF
PS-3718V 1.750 C 3 VCFJF
PS-3719 1.750 C 3 B/VLFZF
PS-3721 2.000 C 3 BLFZF
PS-3723 .625 C 3 QCFJF
*US Seal 2010 catalog w cover 9/14/10 3:00 PM Page 202
199
U.S. Seal Mfg. Shaft Head Mating Material
Part No. Dia. Type Ring Code
U.S. Seal Mfg. Shaft Head Mating Material
Part No. Dia. Type Ring Code
PREMIUM SEAL INDEX
PS-3729 .500 X 3 BCFKF
PS-3730 1.375 C — NCF-F
PS-3731 1.125 Special 3 BCPKP
PS-3735 .500 C 3 VCFKF
PS-3741 .625 B 1 VLFLF
PS-3745 3.500 D 3 VZFZF
PS-3747 .625 C 1 BCFLF
PS-3749 .875 C 1 BCFJF
PS-3751 2.437 E 3 VCPKF
PS-3754 1.750 V 3 BCFJF
PS-3755 1.000 C 3 VCFJF
PS-3765 2.125 K 1 VCFRF
PS-3765-TC-SEAT 2.125 K 1 VCFZF
PS-3769 1.375 E Bal. 3 VCFZF
PS-3772 1.625 D 3 VZFLF
PS-3773 2.250 C 1 VZFZF
PS-3776 3.000 D 3 VZFZF
PS-3779 3.625 V 3 BCFJF
PS-3783 1.375 E 3 VCFLF
PS-3784 2.250 E Bal. 3 BCFJF
PS-3785 1.000 C 1 VCFJF
PS-3788 .750 G 3 VCFJF
PS-3791 .625 C 1 BCFJF
PS-3793 3.500 G 3 QCFLF
PS-3799 1.375 E Bal. 3 QCFZF
PS-3800 .500 X 3 VCFKF
PS-3802 3.000 G 3 QCFLF
PS-3803 1.000 E 3 VCFKF
PS-3804 2.500 G 25 QCFLF
PS-3810V-CMS 2.000 C 1 VCFJF
PS-3813 1.500 C 1 VCFJF
PS-3816 .625 A 1 VCFKF
PS-3818 1.875 D Bal. 1 BCDZF
PS-3824 1.000 C 28 BCFKF
PS-3826 .875 C 1 QCFJF
PS-3827 3.250 D3 BZFZF
PS-3829 1.250 C1VRFJF
PS-3830 .590 C 1 BCFKF
PS-3833 1.125 C 2 BCFKF
PS-3836 3.000 U 3 BCFJF
PS-3843 .500 C 1 VCFJF
PS-3844 .500 C 1 BCFJF
PS-3845 .625 B 8 BMFJF
PS-3848 1.437 E 3 BCPKF
PS-3854 1.375 Q 25 BMPAP
PS-3858 3.500 E3BCFKF
PS-3862 3.500 X 3
VCFKF(316SS)
PS-3864 .625 A 1 VCFJF
PS-3865 .625 B 1 VCFJF
PS-3866 .625 G 1 VCFJF
PS-3867 .625 G 1 VCFJF
PS-3868 .750 G 1 VCFJF
PS-3869 .625 G 1 VCFJF
PS-3870 .750 G 1 VCFJF
PS-3872 1.250 E1QCFKF
PS-3875 2.000 C 3 BCFKF
PS-3877 2.500 C 3 VLFLF
PS-3883 1.250 G 1 BCFJF
PS-3884 1.750 U 1 VCFZF
PS-3885 .625 K 1 VCFJF
PS-3886 1.250 C 1
VCFJF(316SS)
PS-3888 2.500 D 3 VZFLF
PS-3890 .625 G 1 BCFJF
PS-3893 .875 C 3 Special VCFGF
PS-3900 1.000 D 1 BCDKF
PS-3901 1.375 E 3 VCFJF
PS-3902 1.750 E 3 VCFJF
PS-3907 .875 C 1 BCFJF
PS-3916 .750 C 3 BCFJF
PS-3918 1.125 D 1 VCFKF
PS-3924 2.500 E 3 BCPKF
PS-3925 1.375 E 3 VCFJF
PS-3926 .625 B 9
VCFKF(316SS)
PS-3931 1.625 E 2 BCDKF
PS-3934 1.250 D 3 NCPKF
PS-3935 .750 W 2 TCFKF
PS-3936V-TC-SEAT 2.375 E Bal. 3 VCFZF
PS-3938 1.181 D 1 VCFZF
PS-3939 1.625 C 3 Special VCFKF
PS-3940 1.250 C 3 VRFLF
PS-3941 .875 C 1 VLFLF
PS-3943 1.500 C 3 Special VCFGF
PS-3945 1.250 C 3 Special VCFGF
PS-3951 2.250 E 27 VCFKF
PS-3952 2.000 E Special 3 NCDKF
PS-3959 1.000 K 1 VCFJF
PS-3960 .625 G 1 BCFJF
PS-3961 3.375 K — VCF-F
PS-3962 .625 W Special 2 TCFJF
PS-3963 1.750 C 3 BLFZF
PS-3964 1.875 T 3 BCFJF
PS-3965 1.125 C 1 QCFLF
PS-3966 2.250 C 3 BLFZF
PS-3967 1.625 C 1 BCFLF
PS-3969 3.000 E 3 BCFJF
PS-3970 .875 C 1 BCFZF
PS-3972 1.500 K3 VLFLF
PS-3973 1.250 U2BCPKF
PS-3974 1.375 D Bal. 1 BCFJF
PS-3976 1.000 E 3
VCFJF(316SS)
PS-3977 .625 A 1 VLFLF
PS-3979 1.500 C Special BCFKF
PS-3981 .625 C 3 QCFKF
PS-3984 1.375 E 3 VCFLF
PS-3985 .750 B 1 BCFJF
PS-3986 .750 B 1 VCFJF
PS-3991 1.375 EBal. 3BCFKF
PS-3992 1.500 G 1 VCFJF
PS-3993 2.000 C 3 BCFJF
PS-3994 2.750 C 3 BCFJF
PS-3996 .875 C 1 VCFLF
PS-3999 2.000 E 3
VCFZF(316SS)
PS-4006 2.375 E 1 BCFZF
PS-4014 3.750 D 3 BLFZF
PS-4015 2.000 C 3 BCFKF
PS-4017 .875 C3VCFKF
PS-4019 3.500 E 3 BCFJF
PS-4024 .750 G 1 QLFLF
PS-4026 1.750 D 3 NCFKF
PS-4028 2.875 K 3 Special NCFGF
PS-4031 .625 C 1 VCFLF
PS-4033 3.000 D 3 VZFLF
*US Seal 2010 catalog w cover 9/14/10 3:00 PM Page 203
200
U.S. Seal Mfg. Shaft Head Mating Material
Part No. Dia. Type Ring Code
U.S. Seal Mfg. Shaft Head Mating Material
Part No. Dia. Type Ring Code
PREMIUM SEAL INDEX
PS-4034 1.500 E 3 BCFZF
PS-4035 1.750 C/X Special 1 BCFJF
PS-4038 .500 Q 9 BMFJF
PS-4041 2.250 Q 1 VMPSP
PS-4042 .787 C 1 BCFJF
PS-4043 3.625 E 3 BCFJF
PS-4044 1.375 C 1 BCFJF
PS-4045 .500 C 3 B/VCFJF
PS-4046 1.875 T 25 BCFJF
PS-4047 1.125 C 1 VCFKF
PS-4048 .750 B 9 BLFLF
PS-4049 1.250 E 3
VCFLF(316SS)
PS-4052 2.000 Special Special BCFAF
PS-4053 1.250 C 1 QLFLF
PS-4055 .312 A 1 BCFJF
PS-4056 .750 B 1 QCFJF
PS-4057 1.375 C 3 QCFKF
PS-4059 .625 G 3 VCFLF
PS-4060 .437 G 1 BCFJF
PS-4061 .437 G 1 QCFJF
PS-4062 .437 G 1 QCFJF
PS-4063 .437 G 1 VCFJF
PS-4064 .500 Special Special BMFJF
PS-4065 .625 Special Special BMFJF
PS-4066 .750 Special Special BLFLF
PS-4067 1.437 E 3 VCFKF
PS-4068 1.625 C 3 QCFZF
PS-4069 3.000 V 3 BCFZF
PS-4071 1.250 D 3 VCFLF
PS-4072 2.500 T 3 BCFJF
PS-4073 1.250 D 3 VCFLF
PS-4074 1.625 D 3 VCFLF
PS-4076 1.625 D 3 VCFLF
PS-4079 2.125 D 3 VCFLF
PS-4080 2.125 D 3 VCFLF
PS-4081 1.000 C1 BCFJF
PS-4082 3.000 E3BCFJF
PS-4086 3.000 C 1 VCFJF
PS-4087 1.375 E — VCF-F
PS-4088 1.500 EBal. 3 QCFJF
PS-4089 2.750 E 3 VCFLF
PS-4101 3.500 E 3 BCFKF
PS-4113 3.500 T 3 BCFKF
PS-4114 .625 B 8 Special
PS-4123 1.375 D 3 VCFKF
PS-4127 3.250 C3BCFJF
PS-4131 1.250 C 1
VCFJF(316SS)
PS-4133 1.750 Q Special Special
PS-4134 1.375 X Special Special B/NCPGF
PS-4137 1.000 D 3 VCPKF
PS-4139 1.750 E 3 VCFKF
PS-4140 1.437 E 3 VCFLF
PS-4141 1.750 E 3 QCFZF
PS-4145 1.375 EBal. 3 BCFZF
PS-4150 1.250 C1
VLFLF(316SS)
PS-4152 1.250 C 3 BCFGF
PS-4153 1.750 C 1
VCFJF(316SS)
PS-4155 .625 G 1 VLFLF
PS-4159 1.625 E Bal. 3 VCFJF
PS-4162 2.375 E 3 QLFLF
PS-4164 3.500 C 3 QCFZF
PS-4165 .625 G 1 VLFLF
PS-4166 1.875 E 3 VZFZF
PS-4167 1.500 E 3 QCFZF
PS-4170 1.375 E Bal. 3 BCFKF
PS-4171V 1.875 E 3 VCFKF
PS-4172 3.000 E 3 VCFKF
PS-4175 3.250 D 3 BCFKF
PS-4176 1.250 C 1
VCFZF(316SS)
PS-4177 1.125 K 1 VL/CFL/JF
PS-4178 2.000 C 3 VLFLF
PS-4179 1.250 K 1 VLFLF
PS-4186 1.750 E 3 XCFLF
PS-4187 1.750 E 1 QCFJF
PS-4189 1.437 E 3 BCPKF
PS-4192 3.250 U 3 BCFJF
PS-4193 1.875 E 3 VCFZF
PS-4194 1.375 D 1 VLFLF
PS-4195 1.000 G 1
VCFJF(316SS)
PS-4196 3.000 K 3 BZFZF
PS-4197 1.250 T 3 NCFGF
PS-4199 4.750 D 3 BCFJF
PS-4201 1.500 E 3 VCFZF
PS-4204 1.250 C 1 QRFLF
PS-4206 1.375 T 3 VCFJF
PS-4209 5.000 E 3 BCFJF
PS-4210 1.000 E 3 QLFLF
PS-4211 1.250 C 1 BRFLF
PS-4212 1.500 C 3 VCFJF
PS-4214 .500 C 1 BCFJF
PS-4216 1.750 G 1 BLFZF
PS-4217 1.875 K 1 BZ/CFZ/JF
PS-4218 .500 B — BCF-F
PS-4219 1.875 C 3 VCFKF
PS-4220 .625 G 1 VCFJF
PS-4221 1.750 E Bal. 3 VCFJF
PS-4222 .625 C1 QCFLF
PS-4223 1.125 D1BLFZF
PS-4225 .472 G 1 QCFLF
PS-4226 .625 C 1 VLFLF
PS-4228 1.750 E 3 VCFZF
PS-4229 .750 C 3 QCFJF
PS-4229-TC-SEAT .750 C 3 QCFZF
PS-4231 .625 G 1 VCFJF
PS-4232 1.750 E 3 VCFKF
PS-4233 1.750 E 3 BCFZF
PS-4236 3.500 R3BCFJF
PS-4240 .625 A 1 BCFJF
PS-4243 2.125 E 3 BCFKF
PS-4246 1.250 D 3 BCDLF
PS-4247 1.250 C 1 BRFJF
PS-4248V .625 B 8 VLFSF
PS-4253 1.000 D Bal. 3
VCFKF(316SS)
PS-4254 1.000 C 1 VCFJF
PS-4255 1.000 DBal. 3 VCFZF
PS-4261 1.750 E3VCFJF
PS-4263 1.750 T 3
VCFJF(316SS)
PS-4265 .750 G 1 BCFJF
PS-4267 .625 G 1 BCFJF
PS-4269 1.625 E Bal. 3 VCFZF
PS-4270 1.875 E 3 BLFLF
PS-4272 .625 C 1 BCFJF
*US Seal 2010 catalog w cover 9/14/10 3:00 PM Page 204
201
U.S. Seal Mfg. Shaft Head Mating Material
Part No. Dia. Type Ring Code
U.S. Seal Mfg. Shaft Head Mating Material
Part No. Dia. Type Ring Code
PREMIUM SEAL INDEX
PS-4274 .750 G 32 BCFJF
PS-4275 .625 G 31 BCFJF
PS-4276 2.125 C 3 VCFKF
PS-4277 1.375 E 3 VLFLF
PS-4278 3.750 E 3 BCFJF
PS-4280 .625 G 1 VCFJF
PS-4283 1.750 T 3 VCFJF/VCFJF
PS-4284 .625 A 1 VCFLF
PS-4285 .750 C 3 VCFKF
PS-4287 2.000 C 3 QCFJF
PS-4288 1.625 C 3 QCFZF
PS-4290 1.750 E 3 QCFLF
PS-4291 2.000 E Bal. 3 BCFZF
PS-4294 2.000 K 1 BL/CFZ/CF
PS-4295 1.125 C 1 VCEZE
PS-4296 2.875 V 3 VCFJF/VCFJF
PS-4297 1.000 D 1 VLFZF
PS-4298 1.187 D 3 NCDKD
PS-4300 1.125 E 3 VCFLF
PS-4301 1.000 C 1 BCFJF/BLFLF
PS-4302 1.187 C 1 BCFJF
PS-4304 1.750 K 1 VZFZF
PS-4305 1.250 K 1 BLFLF
PS-4306 1.250 E 3 QCFLF
PS-4307 .875 D 3 BCDZF
PS-4308 2.750 C 1 BZFZF
PS-4310 .625 C 25 VLFLF
PS-4311 2.500 K 1 BLFLF
PS-4312 2.000 E 3 BCFKF
PS-4313 .625 C 3Special VCFGF
PS-4314 2.125 C 3 QCFZF
PS-4315 1.750 E 3 NCFKF
PS-4318 .875 D 3 NCFLF
PS-4324 3.000 D 3 VCDGF
PS-4326 1.750 E 3 VCFJF
PS-4327 1.750 E1 BCFLF
PS-4328 1.375 C3QLFLF
PS-4333 1.875 D 3 BCFJF
PS-4336 1.250 C 3 QCFLF
PS-4343 2.000 K 3 BZ/CFZ/JF
PS-4345 2.000 C 3 BCFJF
PS-4346 .625 C 3 VCFJF
PS-4349 .500 G 1 QLFLF
PS-4350 1.000 C 3 QCFZF
PS-4352 3.000 C 3 BLFZF
PS-4353 1.750 K3BCFJF
PS-4354 1.500 E 1 BZFZF
PS-4355 .625 A 1 BLFZF
PS-4356 .625 C 1 QCFKF
PS-4357 2.000 G 25 QCFLF
PS-4359 1.000 C 1 BCFJF
PS-4361 1.625 D 1 BLFZF
PS-4362 1.000 K 3 BCFKF
PS-4363 1.500 D 3 BCFGF
PS-4365 1.500 D3XLFZF
PS-4366 2.750 C 3 BLFZF
PS-4367 3.000 C 3 BCFKF
PS-4368 1.500 E 5 QCFZF
PS-4371 .625 A 1 VCFJF
PS-4372 1.750 E 5 QCFZF
PS-4374 1.625 E Bal. 3 BCFJF
PS-4375 .625 D 3 VCFVZ
PS-4376 2.000 E 3 QCFJF
PS-4377 1.250 T 3 BCKFK
PS-4378 3.000 C 1 VLFZF
PS-4379 1.000 C 1 QCFZF
PS-4380 2.250 E Bal. 3 VCFLF
PS-4381 2.750 C 1 VZFZF
PS-4383 2.250 C 3 VCDKF
PS-4384 1.375 E 3 XLFLF
PS-4385 1.250 U 2 BCPGF
PS-4388 2.125 T 3 BLFZF
PS-4389 1.625 C 1 BCFLF
PS-4390 .625 G 1 VLFLF
PS-4391 2.000 U 3 VLFLF
PS-4392 2.625 E 3 QCFLF
PS-4393 3.250 U Bal. 5 BCFZF
PS-4394 1.000 D 3 VLFZF
PS-4395 .875 C 1 BCELE
PS-4399 1.750 D 3 XCFJF
PS-4400 1.437 R 3 VCFKF
PS-4402 .625 C 3 VCFZF
PS-4403 .625 B Special BMFSF
PS-4404 1.500 E 3 VLFZF
PS-4405 1.750 T 3 VCFJF/VCFLF
PS-4407 1.500 E 1 QLFLF
PS-4408 1.500 D 3 B/VCPKP
PS-4409 2.250 E 3 QCFLF
PS-4411 2.500 E 1 BLFZF
PS-4412 1.000 E 3
VCFZF(316SS)
PS-4414 5.000 V 3 BCFKF
PS-4416 2.000 C 3 BCFJF
PS-4417 1.875 EBal. 3 VCFJF
PS-4418 2.125 E Bal. 3 VCFJF
PS-4419 2.000 E Bal. 3 VCFJF
PS-4420 1.375 E Bal. 3 VCFKF
PS-4421 1.125 E3
QCFJF(316SS)
PS-4423 1.500 DSpecial 3XLFLF
PS-4424 .625 A 1 Special VCFJF
PS-4425 1.125 G 1 BLFLF
PS-4426 1.875 K 1 BZ/CFL/JF
PS-4428 1.250 E 1 BCFZF
PS-4429 1.750 E 5 BCFZF
PS-4430 5.000 C 3 VCFJF
PS-4431 1.250 D 3 VLFLF
PS-4432 2.000 E 3 BLFLF
PS-4433 1.375 E3XZFLF
PS-4434 2.125 E 3 VLFJF
PS-4435 1.625 D 28 BCFKF
PS-4436 2.125 C 1 VCFJF
PS-4437 2.125 D 2 BCDKF
PS-4438 1.500 C 3 QCFZF
PS-4442 .625 C 3 VCFKF
PS-4443 1.125 C 1 BCFLF
PS-4447 1.500 C 3 VLFZF
PS-5002 1.687 D2BCFKF
PS-5005 2.187 D 2 BCFKF
PS-5011 1.875 C Plate BCFGF
PS-5024 2.187 D 2 VCFKF
PS-5039 1.000 C 1 BCFJF
PS-5074 1.375 C 3 BCFKF
PS-5082 1.000 C 1 BCFKF
*US Seal 2010 catalog w cover 9/14/10 3:00 PM Page 205
202
U.S. Seal Mfg. Shaft Head Mating Material
Part No. Dia. Type Ring Code
U.S. Seal Mfg. Shaft Head Mating Material
Part No. Dia. Type Ring Code
PREMIUM SEAL INDEX
PS-5108 .750 C 2 VCFKF
PS-5138 1.125 C Plate BCFGF
PS-5194 1.687 D 2 VCFKF
PS-5252 3.000 E 3 BCFKF
PS-5259 1.500 E 3 QCFKF
PS-5342 1.875 C 2 BCFJF
PS-5358 2.250 D 3 Special
PS-5389-CMS 1.750 C 1 BCFJF
PS-5625 .625 Special 1 QC-J-
PS-5676 1.375 C 2
B/VCFJF(316SS)
PS-5676V 1.375 C 2
VCFJF(316SS)
PS-5679 1.875 C 2 QCFJF
PS-5706 2.125 C 2 VCFKF
PS-5711 1.375 C 2
B/VCFKF(316SS)
PS-5712 1.875 C 2 B/VCFKF
PS-5717 1.875 C 2 VCFJF
PS-5719 2.187 D 2 QCFKF
PS-5720 1.500 C 2 BCFKF
PS-5721 1.875 C Plate VCFGF
PS-6002 2.625 D 3 VCFKF
PS-6005 1.625 C 3 VCFKF
PS-6036 1.250 D 2 VCPFP
PS-6048 1.375 D 3 VCPSP
PS-6055 1.437 E 28 VCPGP
PS-6075 1.625 D 3 VCPSP
PS-6090 1.750 E 3 B/VCFKF
PS-6094 1.875 D 3 VCPSF
PS-6120 2.125 K 3 Special VCFKF
PS-6121 2.125 K 3 Special VCFZ/KF
PS-6138 2.500 C 3Special VCFKF
PS-6140 2.500 K 3 Special VCFZF
PS-6141 2.500 K3Special VCFKF
PS-6147 2.500 C — NCF-F
PS-6151 2.625 D — NCP-P
PS-6154 2.750 C 27 VCFGF
PS-6155 2.750 C3 VCFKF
PS-6169 3.000 K3Special NCFKF
PS-6171 3.000 K 3 Special VCFKF
PS-6172 3.000 C 3 Special VCFKF
PS-6173 3.000 C 3 Special VCFKF
PS-6174 3.000 E 3 VCDGP
PS-6175 3.000 R 3 NCPGP
PS-6177 3.375 C 3 VCFKF
PS-6180 1.375 C 3 VCFGF
PS-6201 3.250 D 3 VCFJF
PS-6202 3.000 D1BZFZF
PS-6203 3.750 D 3 VCFJF
PS-6204 3.500 C 3 BCFJF
PS-6205 2.750 C 1 BCFJF
PS-6206V 3.000 C 3 VCFJF
PS-6207 2.750 C 3 VCFJF
PS-6213 2.000 C 1 VZFZF
PS-6216 .625 C 1 VZFZF
PS-6217 1.750 D1
VZFLF(316SS)
PS-6218 2.000 C1VZFZF
PS-6219 3.000 D 3 BZFLF
PS-6220 2.750 C 1 BZFLF
PS-6221 3.500 D 3 V/BZFZF
PS-6224 2.000 C 1 VLFLF
PS-6225 3.000 C 3 VLFLF
PS-6226 3.250 C 3 VLFLF
PS-6227 3.250 K 3 VCFJF
PS-6228 3.000 K 3 VCFJF
PS-6229 1.250 K 3
BCFJF(316SS)
PS-6230 5.625 D 3 VCFJF
PS-6231 5.375 D 3 VZFLF
PS-6232 3.000 D 3 VZFLF
PS-6233 2.250 C 3 VCFLF
PS-6234 .625 C 1 BCFJF
PS-6237 3.625 T 3 BCFZF
PS-6238 2.000 C 3 BLFLF
PS-6239 2.750 C 3 BLFLF
PS-6240 3.000 C 3 BLFLF
PS-6241 1.750 C 3 BLFLF
PS-6242 1.750 T 3 VCFJF
PS-6243 2.500 T 3 VLFZF
PS-6244 2.500 T 3 VCFJF
PS-6245 3.500 C 3 BCFKF
PS-6246 1.750 K 1 BCFJF
PS-6247V 2.000 C 3 VCFKF
PS-6248 2.250 C 3 VCFKF
PS-6249 3.000 C 3 BZFZF
PS-6249-SC-TC 3.000 C 3 BLFZF
PS-6250 3.000 C 3 VCFKF
PS-6251 3.250 C 3 BZFZF
PS-6252 3.250 C 3 VCFKF
PS-6253 3.250 C 3 VCFJF
PS-6254 2.500 E 3 BCFJF
PS-6256 3.500 D 3 BLFZF
PS-6258 3.250 C 3 BCFKF
PS-6259 1.250 G 1 VCFJF
PS-6260 1.250 G 1
QCFZF(316SS)
PS-6261 1.250 G 1
QCFJF(316SS)
PS-6262 1.625 G 1 QCFJF
PS-6263 1.625 G 1 QCFZF
PS-6264 1.250 G 1
VCFJF(316SS)
PS-6265 1.250 G1 VLFLF
PS-6266 1.250 G3
BCFLF(316SS)
PS-6267 .625 G 1 QLFLF
PS-6300 1.375 Q Special BMPAP
PS-6301 2.250 Q 3 NMPAP
PS-6302 2.250 Q 1 BMPAP
PS-6305 1.000 Q 2 BMDAF
PS-6306 1.000 Q Special BMDJF
PS-6308 .687 Q 9 Special
PS-6311 1.625 Q Special N/BMDAF
PS-6312 1.000 QSpecial BMD/PAP
PS-6313 .500 Q 1 BCFJF
PS-6317 1.375 Q 9 VMPSP
PS-6318 1.125 Q 9 VMFAF
PS-6321 .500 C 3 BCFKF
PS-6326 1.000 D 3 BCPLF
PS-6328 1.000 D 3 BCPKF
PS-6329 1.000 D 3 NCPKF
PS-6331 1.000 E 3 BCPKF
PS-6334 1.125 E2VCPKF
PS-6337 1.250 D 3 BCPKF
PS-6338 1.437 E 3 VCPKF
PS-6339 1.250 D 3 BCPKF
PS-6340 1.437 E 3 BCPKF
PS-6341 1.437 W 28
TCFKF(316SS)
PS-6342 1.437 E 3 VCPKF
*US Seal 2010 catalog w cover 9/14/10 3:00 PM Page 206
203
U.S. Seal Mfg. Shaft Head Mating Material
Part No. Dia. Type Ring Code
U.S. Seal Mfg. Shaft Head Mating Material
Part No. Dia. Type Ring Code
PREMIUM SEAL INDEX
PS-6344 1.437 E 3 NCPKF
PS-6348 1.625 E 3 BCPKF
PS-6349 1.625 E 3 VCPKF
PS-6802 1.250 E 1 BCFJF
PS-6812 1.187 C 1 BCFJF
PS-6908 2.750 C 1 BZFZF
PS-7017 1.625 C 3 QCFKF
PS-7020 1.875 E 3 VCFJF
PS-7035 1.750 C 3 QCFZF
PS-7060 2.250 K 3 BCFKF
PS-7064 2.250 C 1 BZFZF
PS-7079 1.500 D 28 VZFZF
PS-7087 .750 D 3 BCPKF
PS-7090 1.750 U 3 BCFKF
PS-7105 1.437 C 3 BCFKF
PS-7105V 1.437 C 3 VCFKF
PS-7130 .875 C 1 BCFJF
PS-7138 2.250 C 1 BCFJF
PS-7138-TC-TC 2.250 C 1 BZFZF
PS-7138V-SC-TC-CMS 2.250 C 1 VLFZF
PS-7166 1.500 C 3 BCFJF
PS-7172 3.250 D 3 BCFJF
PS-7196 2.000 K 3 BCFJF
PS-7196V 2.000 K 3 VCFJF
PS-7201 1.500 C 1 BCFJF
PS-7207 1.000 C 3 VCFKF
PS-7215 3.000 V 3 BCFJF
PS-7232 1.125 W 2
TCFKF(316SS)
PS-7244 3.250 K 3 BCFKF
PS-7252 1.750 E 1 BCFJF
PS-7277 .750 C 1 BCFJF
PS-7305 .750 C 1
VLFLF(316SS)
PS-7309 2.000 C 3 QCFZF
PS-7323 1.250 K 1 BZ/CFZ/JF
PS-7325 1.125 C 1 QCFZF
PS-7343 1.250 C3 BCFJF
PS-7352 1.875 K1BCFKF
PS-7367 1.437 C Special VCFGF
PS-7409 1.500 C 1 VCFJF
PS-7431 2.250 K 1 BCFJF
PS-7434 1.000 C 1 BCFJF
PS-7436 1.250 C 3 QCFZF
PS-7488 1.750 E 3 VLFLF
PS-7497 1.625 C 25 B/VCFJF
PS-7497V 1.625 C 25 VCFJF
PS-7514 .750 C1BCFJF
PS-7520 .590 C 1 VCFKF
PS-7524 .625 C 1 BCFJF
PS-7524V .625 C 1 VCFJF
PS-7547 .625 C 1 VLFLF
PS-7561 1.750 E 3 VCFZF
PS-7562 1.500 E 3 QCFZF
PS-7580 2.437 E 3 BCPKP
PS-7587 1.500 W2
TCFJF(316SS)
PS-7607 1.750 C3QCFLF
PS-7613 .750 D 3 NCPKF
PS-7613V .750 D 3 VCPKF
PS-7616 2.000 U 3 VZFLF
PS-7618 .750 B 11 BCFJF
PS-7632 1.500 C 1 QCFZF
PS-7635 .750 C 3 VCFKF
PS-7652 1.750 D 1 QCDZF
PS-7674 1.500 C 3 BCFKF
PS-7679 1.750 C 3 VLFLF
PS-7689 .625 C 1 QCFKF
PS-7694 1.500 C 1 BCFJF
PS-7695 1.375 C Bal. 3 VCFKF
PS-7697 1.375 C Bal. 3 BCFJF
PS-7702 1.375 E Bal. 3 BCFJF
PS-7703 2.625 E Bal. 3 BCFJF
PS-7712 .500 C 1 BMFJF
PS-7719 1.250 E 3 VCFZF
PS-7727 .500 X Special 3 VCFGF
PS-7736 1.750 E 1 QCFZF
PS-7747 1.500 C 1 VCFZF
PS-7749 2.250 E Bal. 3 BCFZF
PS-7750 2.250 C 3 QCFZF
PS-7766 2.250 K 3 BCFJF
PS-7769 1.250 E 3 QCFZF
PS-7773 2.625 E Bal. 3 BCFZF
PS-7774 1.750 E Bal. 3 BCFJF
PS-7781 2.000 C 1 BCFJF
PS-7781-SC-TC 2.000 C 1 BLFZF
PS-7782 2.250 C 1 BCFKF
PS-7787 1.625 E 3 QCDZF
PS-7792V-CMS 1.500 C 1 VLFZF
PS-7795 1.375 C Bal. 3 BCFKF
PS-7798 1.375 DBal. 1 BCFKF
PS-7803 1.375 D 1 QCDZF
PS-7805 1.250 C 1 VLFLF
PS-7806 1.625 C 1 VLFLF
PS-7820 1.750 C 1 VLFLF
PS-7821 1.750 EBal. 3 BCFZF
PS-7827 1.875 E Bal. 3 BCFJF
PS-7835V 3.250 C 3 VCFJF
PS-7839 1.750 E 3 VCFLF
PS-7843 .750 C1 VCFJF
PS-7853 4.000 EBal. 3BCFJF
PS-7859V .875 E 3 VCFKF
PS-7867 1.750 E — BCF-F
PS-7869 1.875 E 1 QCFZF
PS-7872 .625 C 3 VCFKF
PS-7873 3.000 K 3 BCFJF
PS-7874 1.500 D 3 BLFLF
PS-7875 3.000 C 1 BZFZF
PS-7884 1.875 EBal. 3 BCFKF
PS-7884V 1.875 EBal. 3VCFKF
PS-7889 1.500 E 3 VCFZF
PS-7890 2.000 E Bal. 3 VCFKF
PS-7892 2.000 E Bal. 3 BCFKF
PS-7896 .875 E 3 VCEZE
PS-7898 1.875 E 3 BCFKF
PS-7901 1.750 E Bal. 1 BCFJF
PS-7902 1.625 C 1 VCFJF
PS-7908 1.250 C1
BCFJF(316SS)
PS-7909 2.625 D3BCFJF
PS-7910 2.000 E Bal. 1 BCFJF
PS-7918 .984 D 1 VCFKF
PS-7919 1.375 C 3 B/VLFLF
PS-7924 1.750 E 3 VCFLF
PS-7927 2.625 E Bal. 3 BCFKF
PS-7929 .625 B 1 VLFLF
*US Seal 2010 catalog w cover 9/14/10 3:00 PM Page 207
204
U.S. Seal Mfg. Shaft Head Mating Material
Part No. Dia. Type Ring Code
U.S. Seal Mfg. Shaft Head Mating Material
Part No. Dia. Type Ring Code
PREMIUM SEAL INDEX
PS-7930 1.500 E 3 QCFZF
PS-7933 1.500 E 1 QCFZF
PS-7935 2.375 E 3 VZFLF
PS-7936 2.750 E 3 VCFZF
PS-7937 1.500 C 1 QLFLF
PS-7938 1.250 C 3 Special VCFKF
PS-7948 .500 E Special BCPKF
PS-7948N .500 E Special NCPKF
PS-7948V .500 E Special VCPKF
PS-7950 1.750 E 3 QCFZF
PS-7953 1.500 C 1 QCFJF
PS-7959 1.750 D 3 VRFZF
PS-7960 .750 E 3 VCPKP
PS-7963 2.000 K 3 BCFJF
PS-7967 1.125 E 2 BCPKF
PS-7971 1.375 G 1 BCFJF
PS-7972 1.250 G 1 BLFLF
PS-7975 1.500 C 3 Special VCFKF
PS-7985 2.500 E 3 QCFZF
PS-7986 3.750 U 3 BCDKF
PS-7991 1.000 D 25 BCPGP
PS-7993 3.000 T 3 BCFJF
PS-7994 .750 E 3 VCFKF
PS-7998 3.000 C 1 BZFZF
PS-8002 1.500 X 3 BCFJF
PS-8003 2.375 X 3 VCFLF
PS-8006 1.125 XB2 27
VCFJF(316SS)
PS-8010 1.875 X Bal. 3
VCFZF(316SS)
PS-8020 1.000 XB2 3 Special
VCFJF(316SS)
PS-8028 3.875 X 3 VCFKF
PS-8035 2.125 XB2 27
VCFJF(316SS)
PS-8040 1.625 XB2 27
VCFJF(316SS)
PS-8048 1.375 XT 3 VCFJF
PS-8049 1.250 Special 3 NCPKF
PS-8054 3.625 V 3 BCFKF
PS-8057 2.125 XB2 27
VCFJF(316SS)
PS-8058 1.750 X3VCFLF
PS-8059 1.875 XBT 3 QCFZF
PS-8060 4.375 X 3
VCFKF(316SS)
PS-8064 .750 X 3 BLFLF
PS-8065 .875 X 3 BLFLF
PS-8066 .250 X Special 1 QCFLF
PS-8067 4.750 XB1 3
BCFLF(316SS)
PS-8069 2.375 X Bal. 3
VCFLF(316SS)
PS-8073 1.250 X28
VCFKF(316SS)
PS-8074 1.187 XBal. 3Special
PS-8076 1.875 XT 3 VCFJF
PS-8077 1.875 X Special 3 VCFJF
PS-8079 1.437 XB5 3 Special
PS-8086 3.125 X 3 VCFZF
PS-8087 5.000 X 3
VLFZF(316SS)
PS-8091 1.000 X 3
VCFRF(316SS)
PS-8095 1.250 XB2 27
VCFLF(316SS)
PS-8100 .250 X Special 1 QCFLF
PS-8101 .750 X Special 5 QCFZF
PS-8102 2.750 X Bal. 3
VCFZF(316SS)
PS-8103 2.500 XB1 3
VCFZF(316SS)
PS-8104 .625 XA 9 YCFKF
PS-9003 1.250 WT 2
TCFKF(316SS)
PS-9007 1.000 W Special
TCFJF(316SS)
PS-9017 1.625 WT 28
TCFKF(316SS
)
PS-9018 1.000 W 27
TCFJF(316SS)
PS-9023 1.750 WT 3
T/VCFJF(316SS)
PS-9106 1.750 W 2
TCFJF(316SS)
PS-9119 1.875 WT 3
Q/TCFZF(316SS)
PS-9122 2.125 W 2
TCFJF(316SS)
PS-9140 3.000 W 2
TCFJF(316SS)
PS-9155 .625 W 2
TLFLF(316SS)
PS-9227 1.437 W 2
TCFKF(316SS)
PS-9304 1.437 W 2
TCFKF(316SS)
PS-9307 1.437 W 2
TCFOF(316SS)
PS-9309 .625 W 3
HRFRF(316SS)
PS-9313 1.000 W 2
TCFKF(316SS)
PS-9314 2.750 W 2
TCFJF(316SS)
PS-9320 .500 W Special Special
TCPKF(316SS)
PS-9321 .625 W 2
TCFKF(316SS)
PS-9322 .625 WT 28
TCFOF(316SS)
PS-9323 .750 W Special 2
TCFKF(316SS)
PS-9324 .750 W 2
TCFKF(316SS)
PS-9325 .750 W Special 2
TCFOF(316SS)
PS-9327 1.125 W 2
TCFOF(316SS)
PS-9328 1.125 W 28
TCFKF(316SS)
PS-9329 1.125 W 28
Special(316SS)
PS-9330 1.437 W Special
TCFKF(316SS)
PS-9331 1.437 W28
Special(316SS)
PS-9332 1.625 WT 28
TCFOF(316SS)
PS-9333 2.437 W 28
TCFKF(316SS)
PS-9334 1.000 W 2
TCFOF(316SS)
PS-9337 3.500 W3
T/VCFZF(316SS)
PS-9338 1.062 W 27
TCFKF(316SS)
PS-9339 .750 W 2
TCFJF(316SS)
PS-9349 1.000 WT 27
TCFZF(316SS)
PS-9351 4.000 W 2
TCFJF(316SS)
PS-9352 3.500 W3
T/VCFKF(316SS)
PS-9700 .970 C1VCFJF
T9-1000 1.000 WT — TCFF(316SS)
T9-1125 1.125 WT — TCFF(316SS)
T9-1375 1.375 WT — TCFF(316SS)
DEMAND QUALITY . . .
DEMAND U.S. SEAL MFG.
*US Seal 2010 catalog w cover 9/14/10 3:00 PM Page 208
205
A. Shaft / SleeveOD
B. Counterbore of Stuffing Box
C. Bore of Gland for Mating Ring Unit or Housing
If pump is equipped with a stuffing box,
what is the counterbore?
D.Width of Mating Ring
E. Operating Height of Seal
F
.OD of Seal
Your Name and Company
Phone: Fax:
E-mail
E
BF D
A
C
G
H
UNABLE TO FIND THE SEAL YOU REQUIRE?
Complete this worksheet and fax to U.S. Seal Mfg. at 877-849-7325
OR
E-mail completed worksheet and pictures to info@ussealmfg.com
EQUIPMENT DATA
1. Pump Mfg. Name. (Found on Nameplate)
2. Model No.
3. Serial No.
4. Seal Part No.
SEAL DESIGN - See Front Cover Fold-Out
1. Head Type
2. Mating Ring Type
3. Manufacturer
4. Manufacturers’ Part No.
OPERATING CONDITIONS
1. Product Handled
2. If Concentrated, What % ?
3. Temperature F. C.
DIMENSIONAL DATA
Need ToSend a Sample For Identification?
-Please include this completed form.
-It is most important that we know the service conditions. i.e. What Are You Pumping?
-Samples must be clean. Please include a copy of the MSDS form.
-Please Note - Seals received not cleaned will be returned without identification.
*US Seal 2010 catalog w cover 9/14/10 3:00 PM Page 209
DISTRIBUTED BY:
155 Pierce Street • Somerset, NJ 08873
Tel: (800) 243-5489 • Fax: (877) 849-7325
www.ussealmfg.com
©U.S. Seal Mfg. 2010
Catalog No.1010
Catalog Price $10.00
