UTSI NJTC 20032315 IAN 02EX 200323150117 Issue 1.7

User Manual: IAN-02EX

Open the PDF directly: View PDF PDF.
Page Count: 154 [warning: Documents this large are best viewed by clicking the View PDF Link!]

IAN-02 EX
ISSUE 1.7
PART NUMBER UTSI-NJTC-200323150117
RELEASE 1.0
ADMINISTRATOR MANUAL
iAN-02EX
IAN-02 EX
ISSUE 1.7
PART NUMBER UTSI-NJTC-200323150117
IAN-02EX
®
RELEASE 1.0
ADMINISTRATOR MANUAL
Copyright © 2005, UTStarcom, Inc. All rights reserved. No part of this documentation may be reproduced in any form or by
any means or used to make any derivative work (such as translation, transformation, or adaptation) without prior written
permission from UTStarcom, Inc.
UTStarcom, Inc. reserves the right to revise this documentation and to make changes in content from time to time without
obligation on the part of UTStarcom, Inc. to provide notification of such revision or change.
UTStarcom, Inc. provides this documentation without warranty of any kind, either implied or expressed, including, but not
limited to, the implied warranties of merchantability and fitness for a particular purpose. UTStarcom may make improvements
or changes in the product(s) and/or the program(s) described in this documentation at any time.
UNITED STATES GOVERNMENT LEGENDS:
If you are a United States government agency, then this documentation and the software described herein are provided to you
subject to the following:
United States Government Legend:
All technical data and computer software is commercial in nature and developed solely
at private expense. Software is delivered as Commercial Computer Software as defined in DFARS 252.227-7014 (June 1995)
or as a commercial item as defined in FAR 2.101(a) and as such is provided with only such rights as are provided in
UTStarcom's standard commercial license for the Software. Technical data is provided with limited rights only as provided in
DFAR 252.227-7015 (Nov 1995) or FAR 52.227-14 (June 1987), whichever is applicable. You agree not to remove or deface
any portion of any legend provided on any licensed program or documentation contained in, or delivered to you in conjunction
with, this User Guide.
UTStarcom, the UTStarcom logo, PAS, mSwtich, Airstar, WACOS, Netman, Total Control, and CommWorks are registered
trademarks of UTStarcom, Inc. and its subsidiaries. The UTStarcom name, Airstar, AN-2000, WACOS, Netman and the
CommWorks logo are trademarks of UTStarcom, Inc. and its subsidiaries.
Intel and Pentium are registered trademarks of the Intel Corporation or its subsidiaries in the United States and other
countries. Microsoft, Windows, Windows NT, and NetMeeting are registered trademarks of Microsoft Corporation. Sun, Java,
and Solaris are trademarks or registered trademarks of Sun Microsystems, Inc. Oracle is a registered trademark of Oracle
Corporation. HP, HP-UX, and HP Openview are trademarks or registered trademarks of the Hewlett-Packard Company.
Other brand and product names may be registered trademarks or trademarks of their respective holders.
Part Number UTSI-NJTC-200323150117
iAN-02EX
June 2005
Administrator Manual
C
ONTENTS
A
BOUT
T
HIS
G
UIDE
Conventions ............................................................................................................................. 13
Notices................................................................................................................................ 13
Figures and Screen Captures............................................................................................. 14
Text ..................................................................................................................................... 14
Related Documentation............................................................................................................ 14
Contacting Customer Service .................................................................................................. 14
Contacting Technical Documentation....................................................................................... 14
1
O
VERVIEW
Overview .................................................................................................................................. 17
Package Contents.................................................................................................................... 18
System Requirements.............................................................................................................. 18
2
H
ARDWARE
I
NSTALLATION

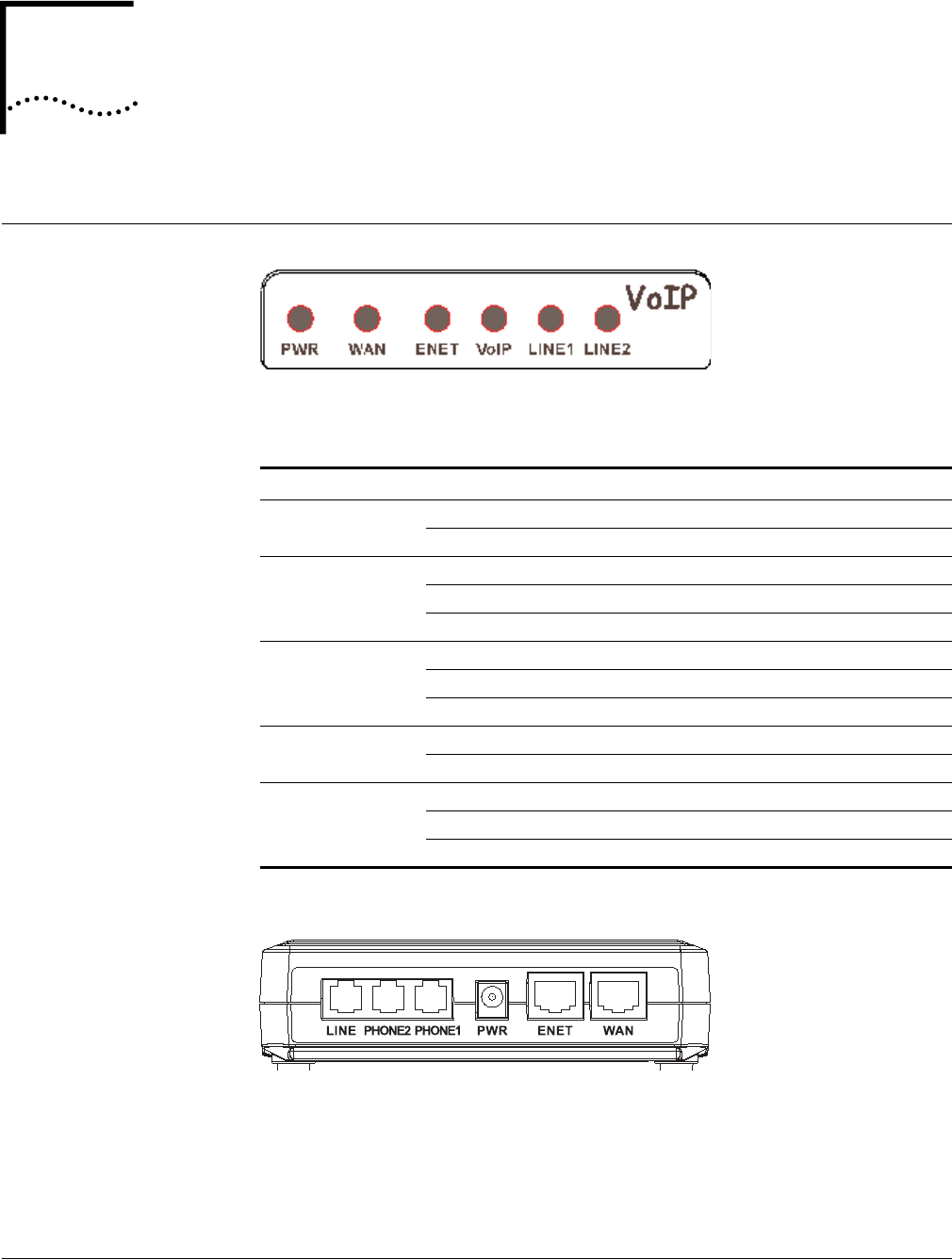

Panel & LEDs........................................................................................................................... 21
Installation Procedure .............................................................................................................. 22
3
T
ECHNICAL
S
PECIFICATION
4
C
ONFIGURING

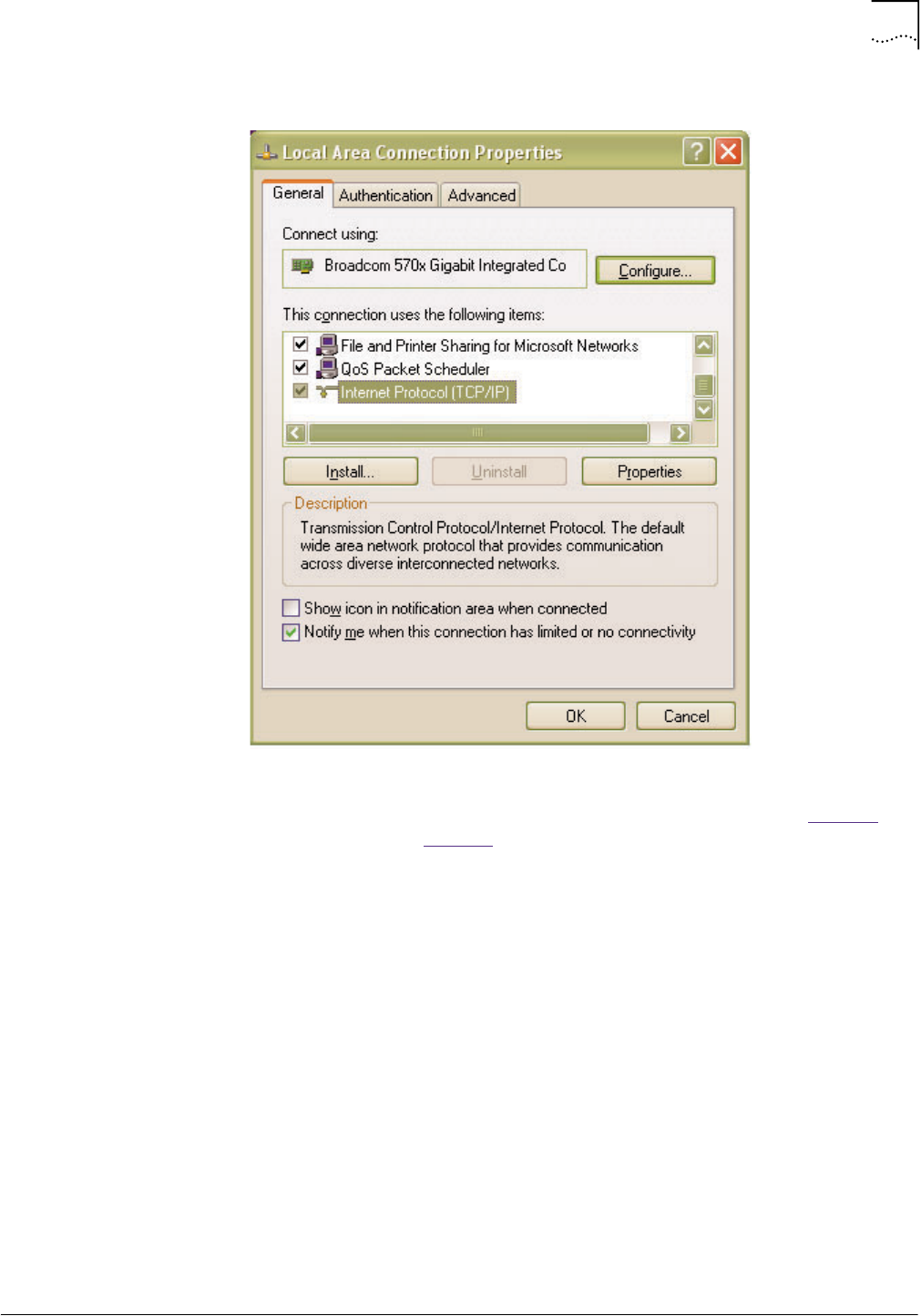

TCP/IP P
ROTOCOL
Gateway Mode......................................................................................................................... 27
Bridge Mode............................................................................................................................. 30
............................................................................................................................................ 31
Web Browser............................................................................................................................ 33
5
C
ONFIGURATION
Configuring via Web Browser...................................................................................................38
Status ....................................................................................................................................... 40

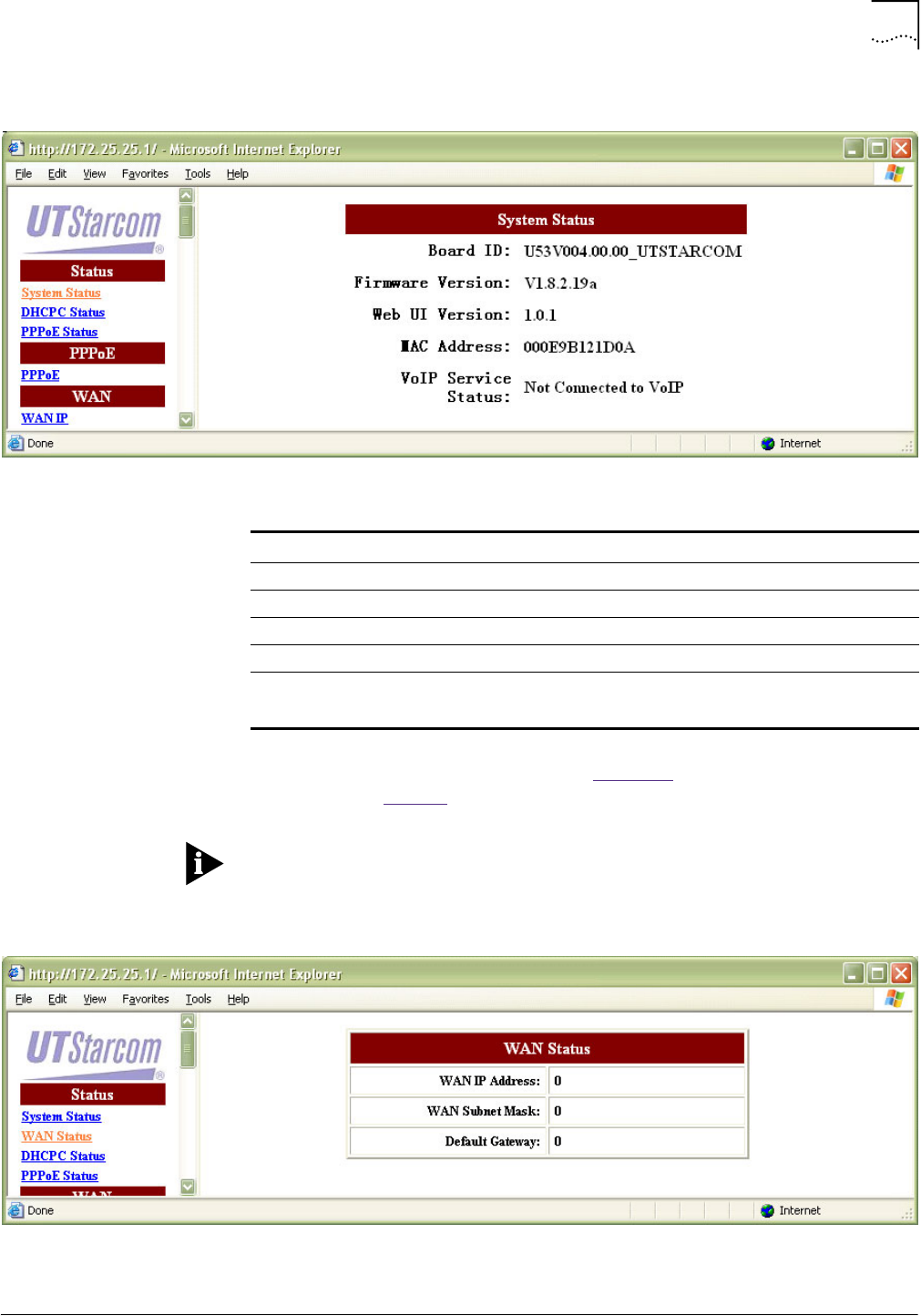

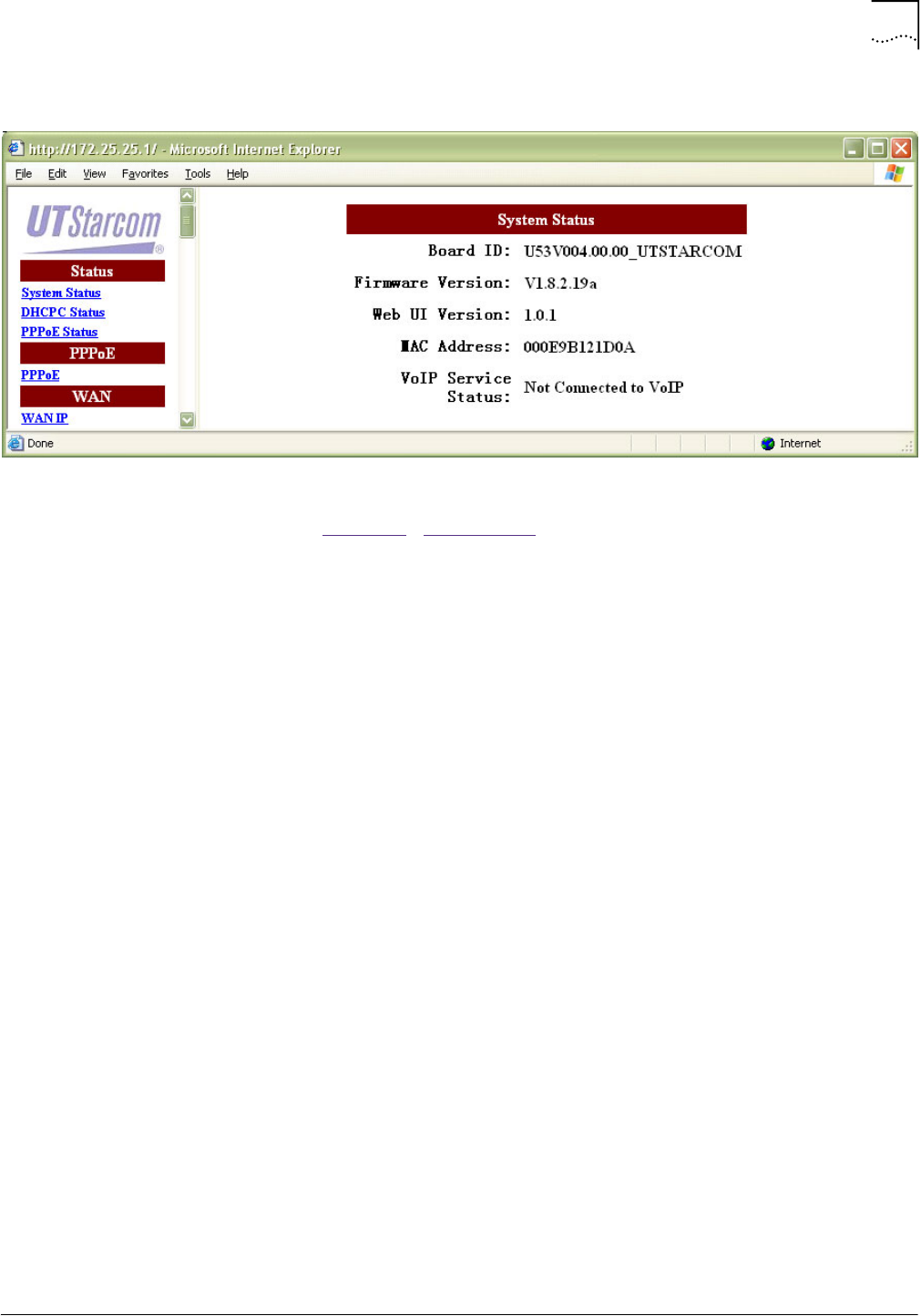

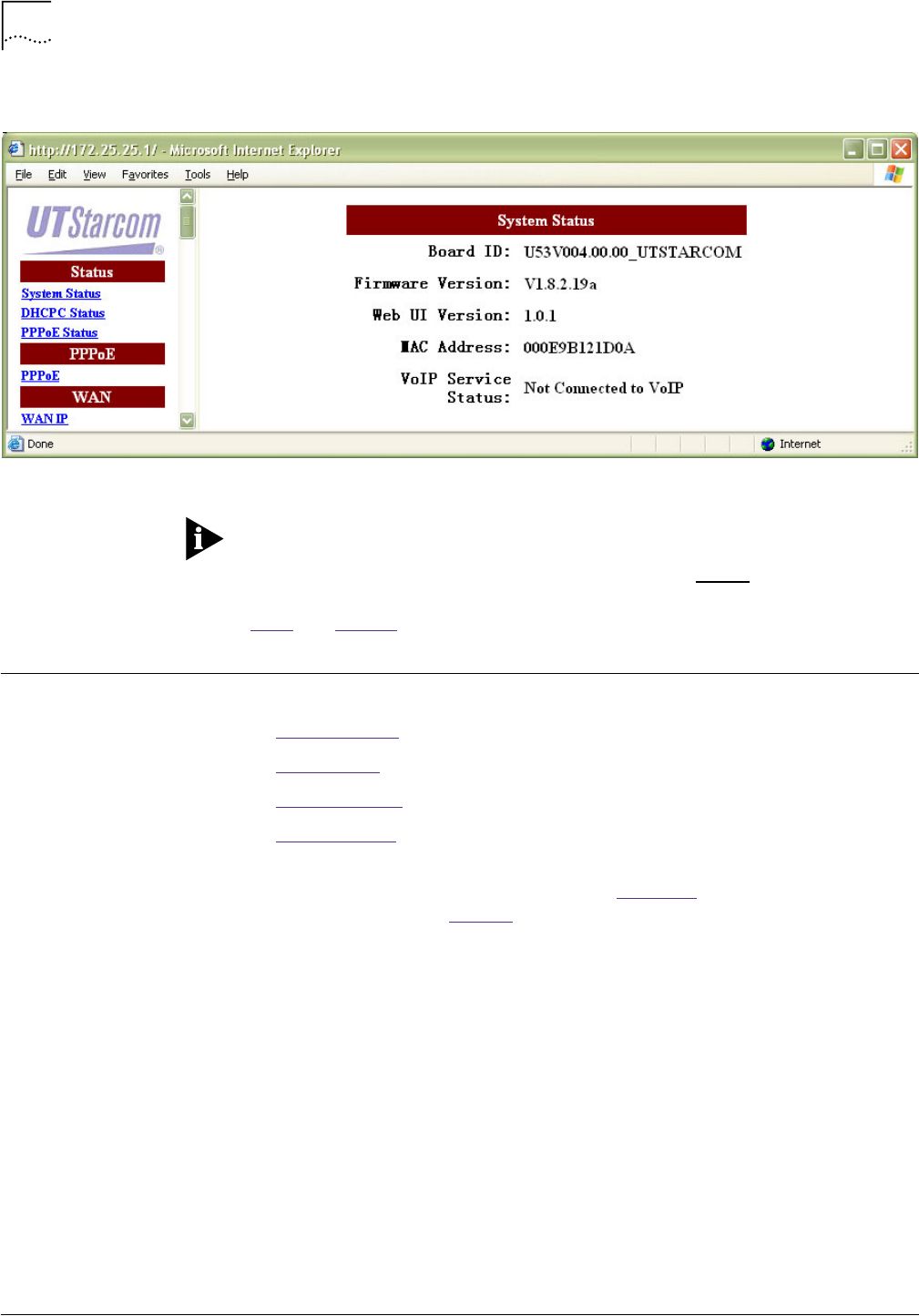

System Status..................................................................................................................... 40
WAN Status ........................................................................................................................ 41
DHCPC Status .................................................................................................................... 42
PPPoE Status..................................................................................................................... 43

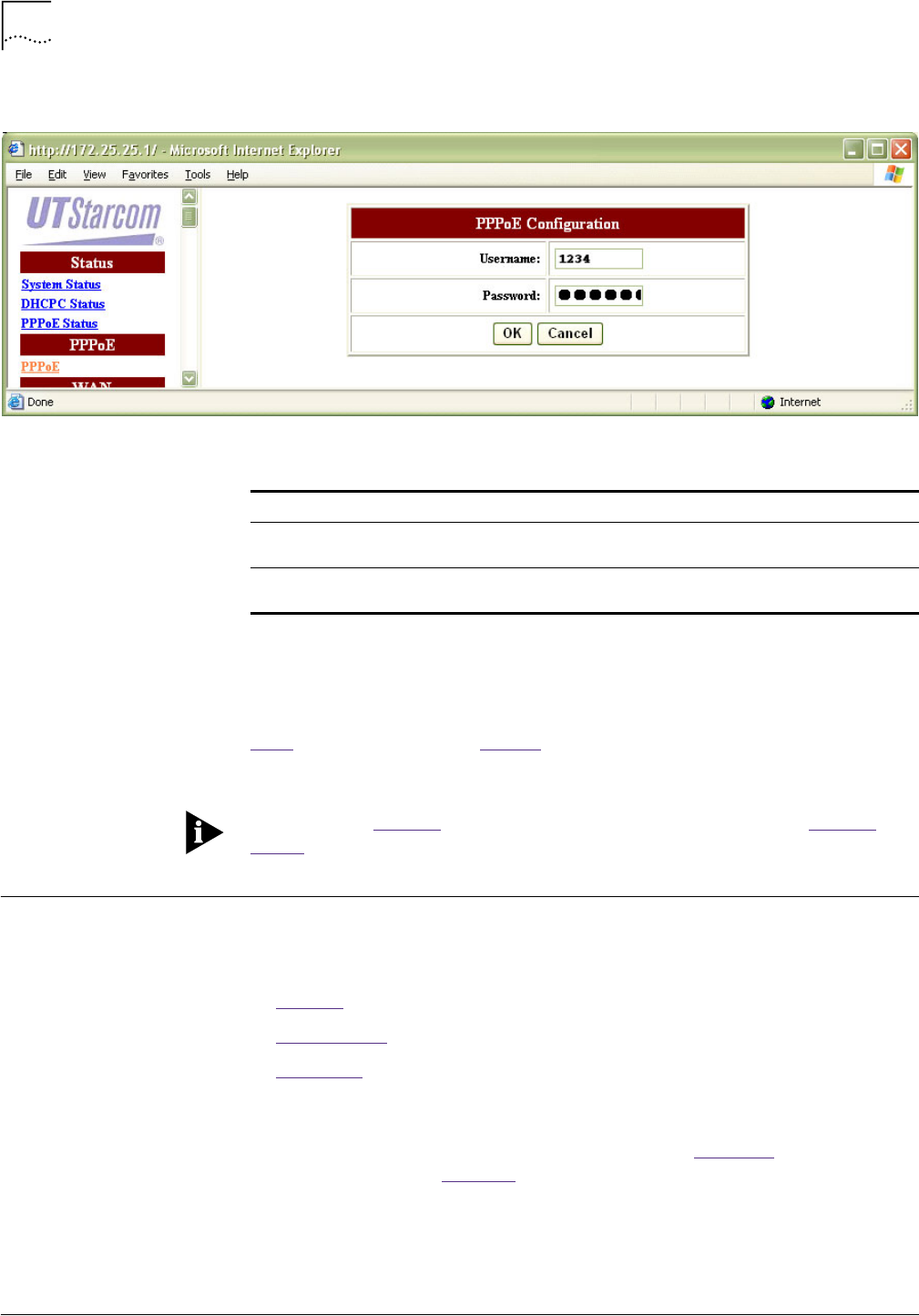

PPPoE ..................................................................................................................................... 43
PPPoE ................................................................................................................................ 43
WAN......................................................................................................................................... 44

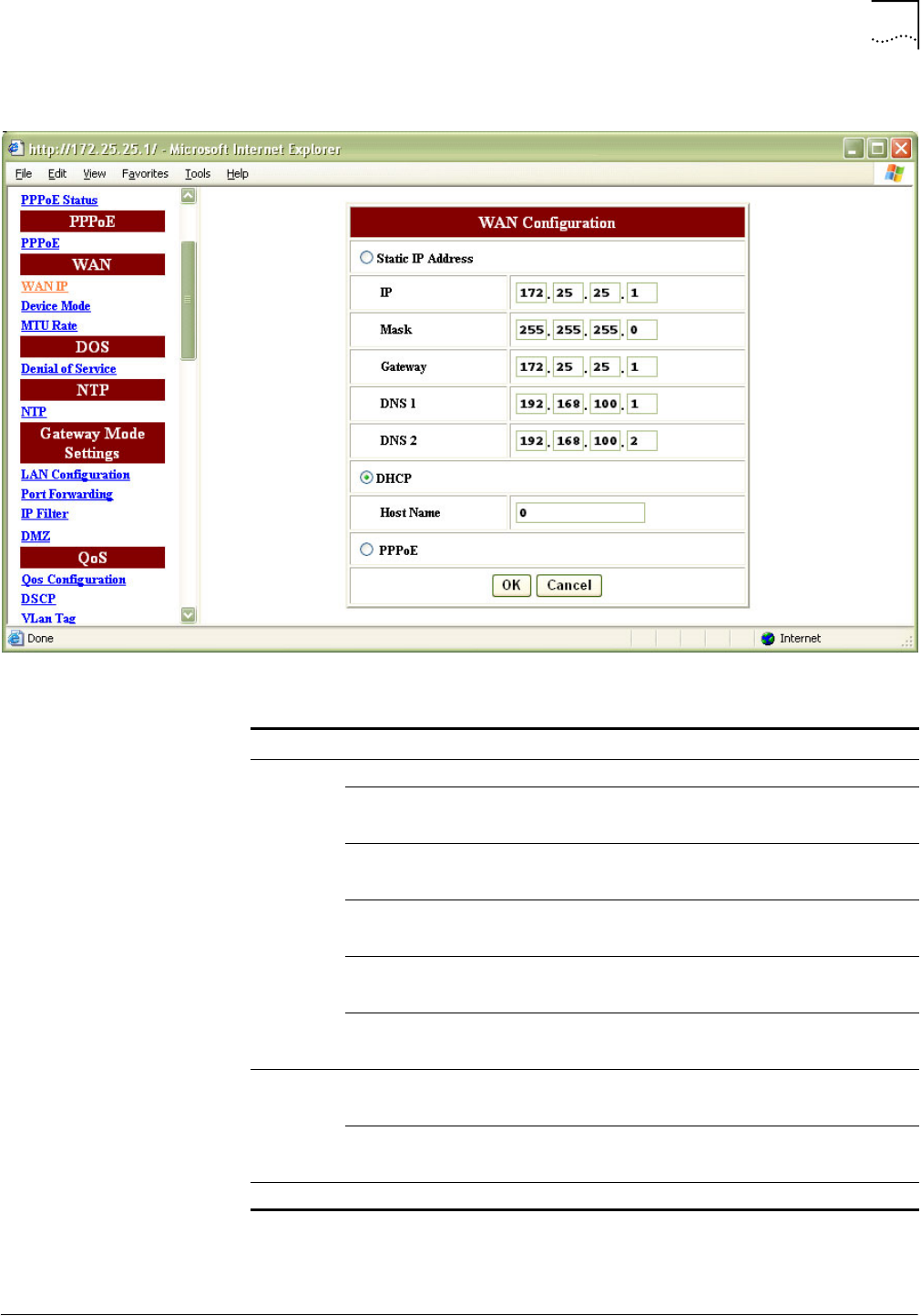

WAN IP............................................................................................................................... 44
Device Mode....................................................................................................................... 46
6
iAN-02EX
Part Number UTSI-NJTC-200323150117
Administrator Manual
June 2005
MTU Rate ........................................................................................................................... 46
DOS ......................................................................................................................................... 47
Denial of Service ................................................................................................................ 47
NTP.......................................................................................................................................... 48
NTP .................................................................................................................................... 48
Gateway Mode Settings...........................................................................................................49

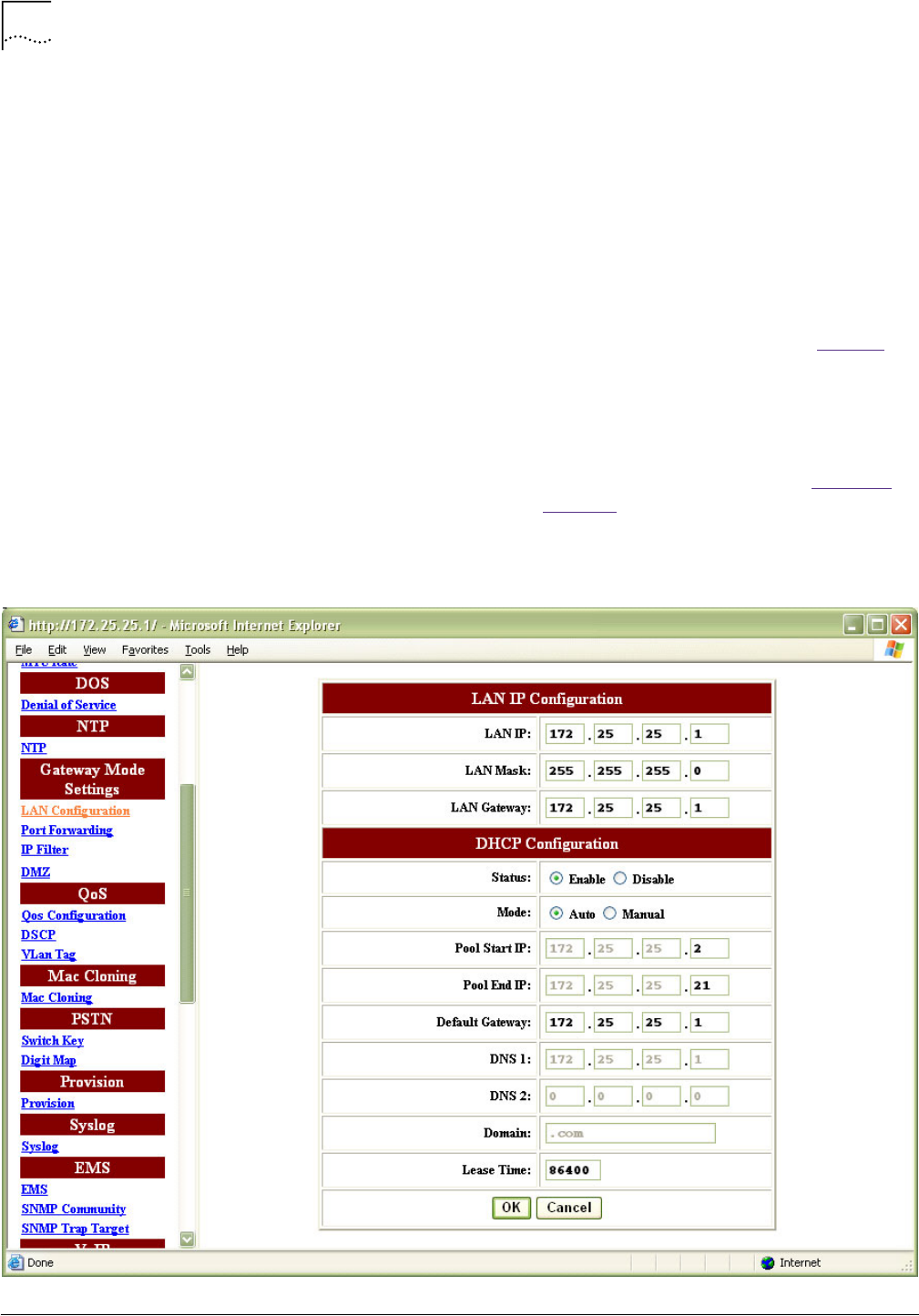

LAN Configuration .............................................................................................................. 50
Port Forwarding.................................................................................................................. 51

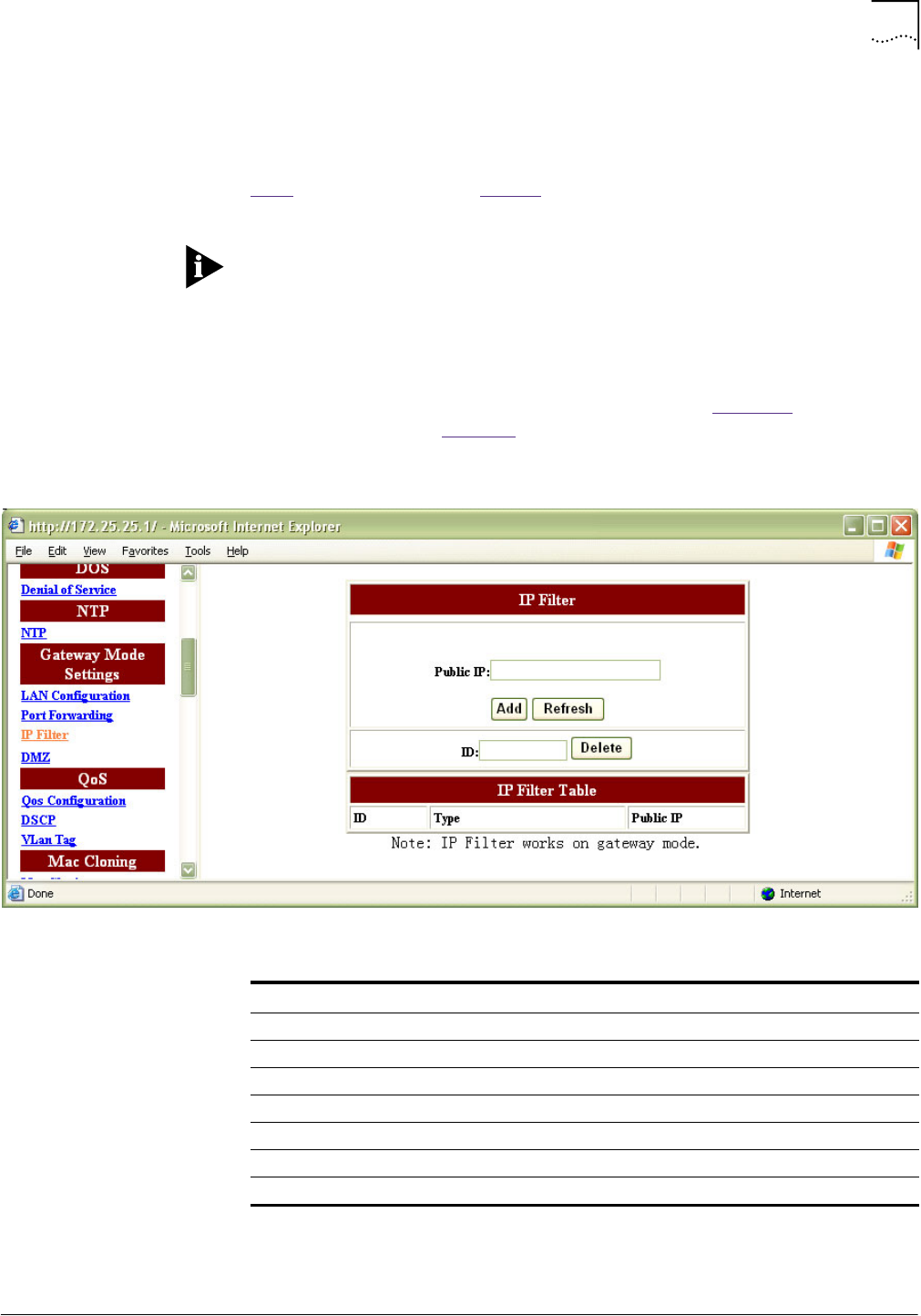

IP Filter ............................................................................................................................... 53

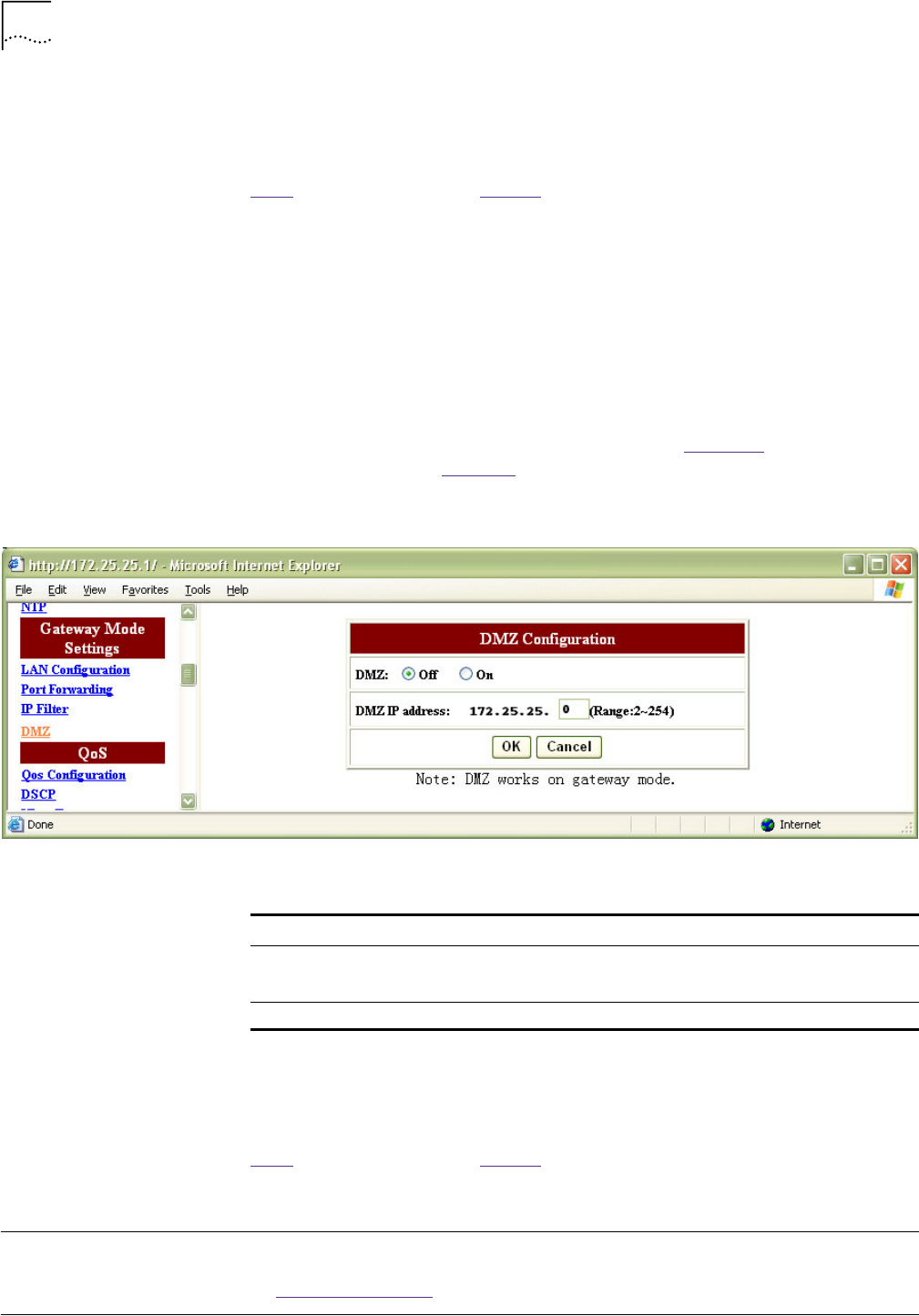

DMZ.................................................................................................................................... 54
QoS.......................................................................................................................................... 54

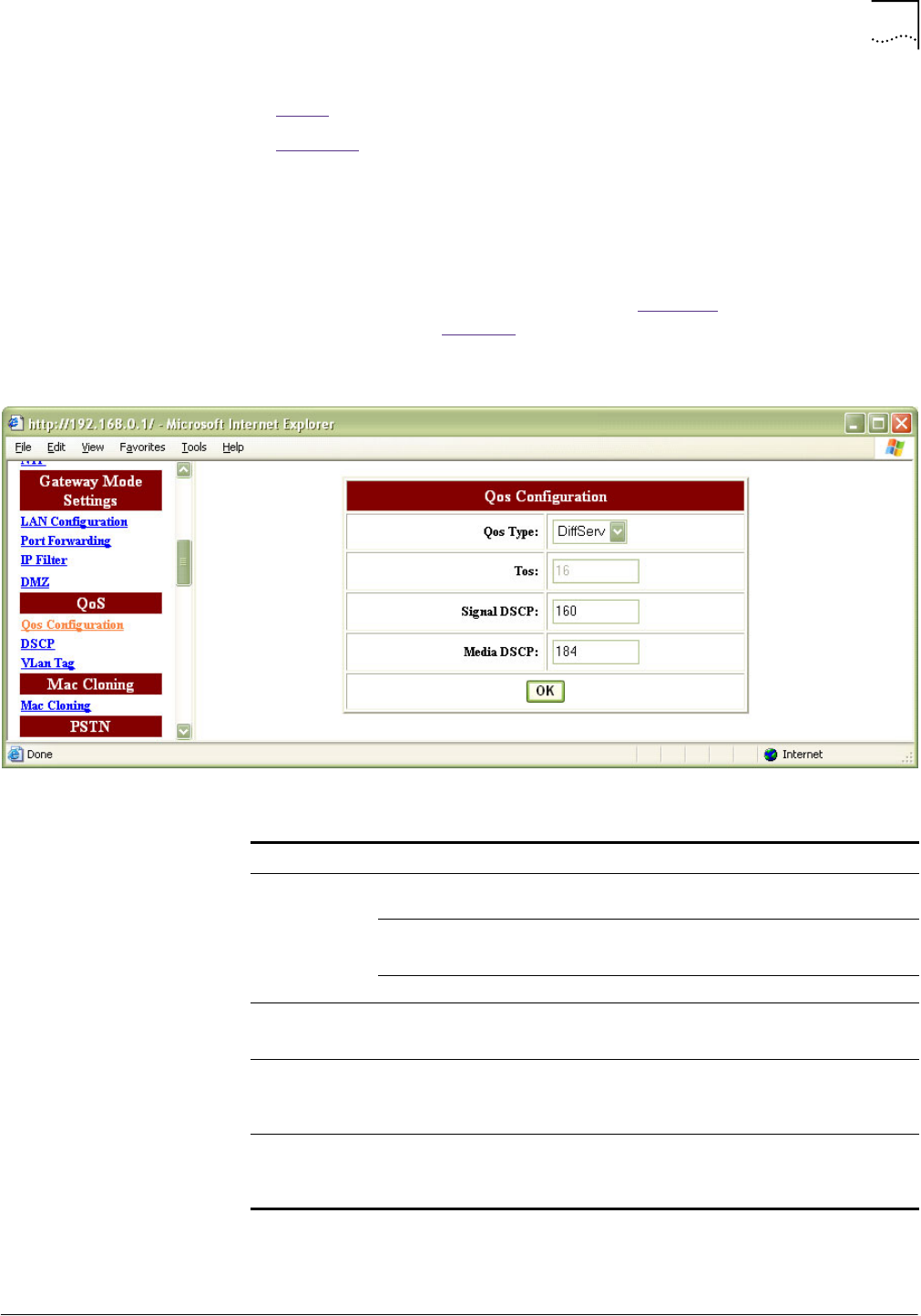

QoS Configuration.............................................................................................................. 55

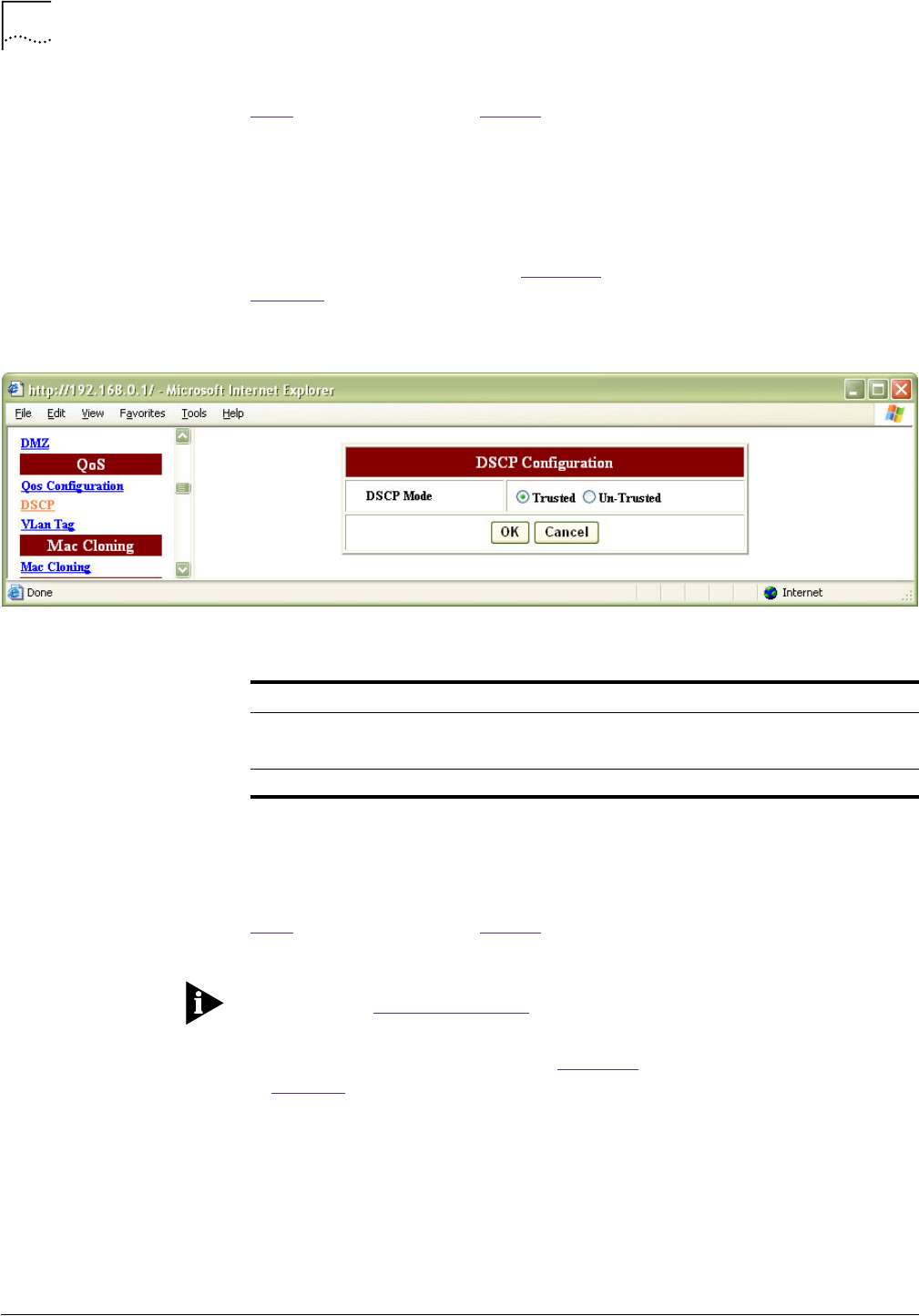

DSCP ................................................................................................................................. 56
VLan Tag ............................................................................................................................ 56
Mac Cloning............................................................................................................................. 57
Mac Cloning ....................................................................................................................... 57
PSTN ....................................................................................................................................... 58

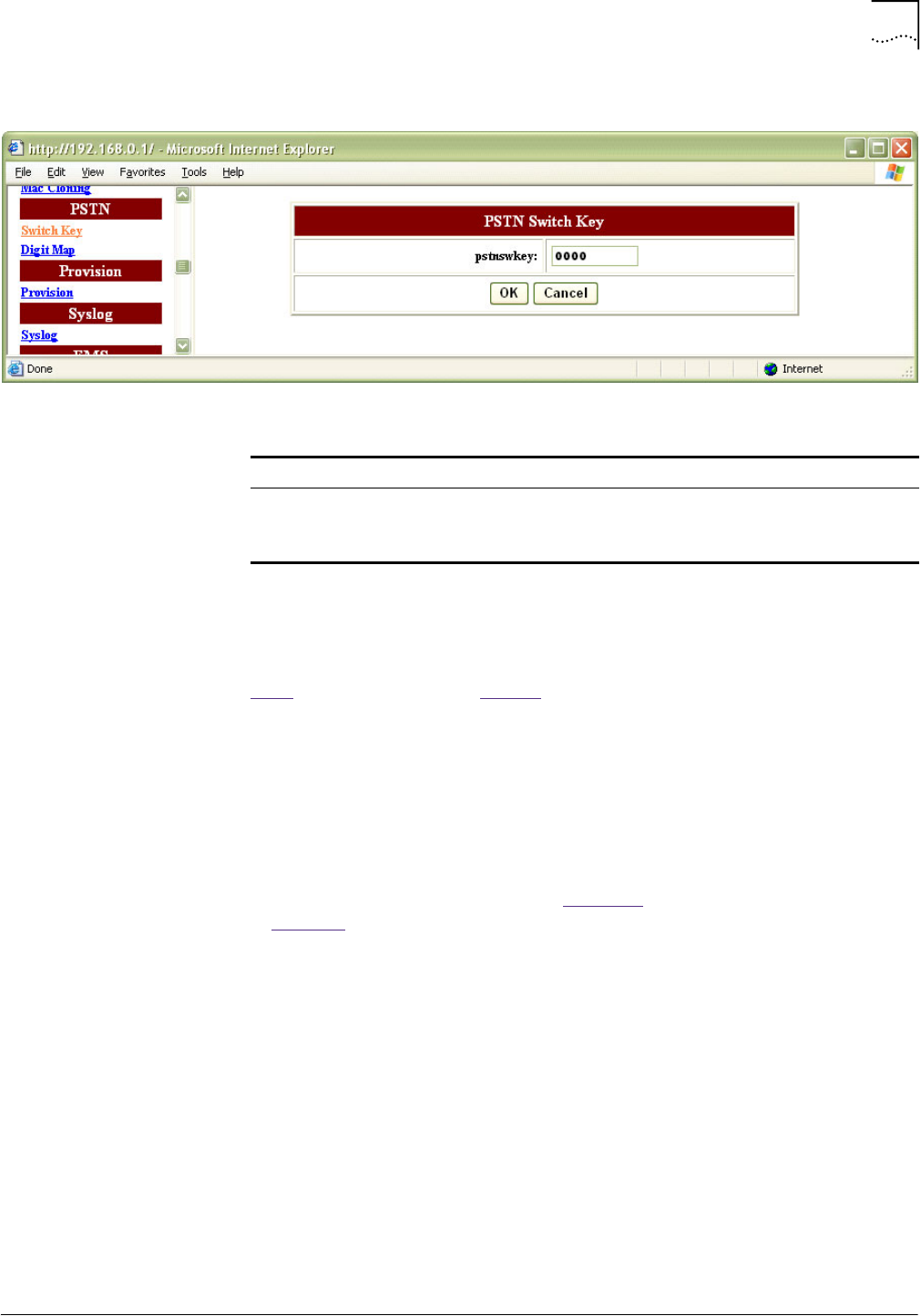

Switch Key.......................................................................................................................... 58
Digit Map ............................................................................................................................ 59
Provision .................................................................................................................................. 60

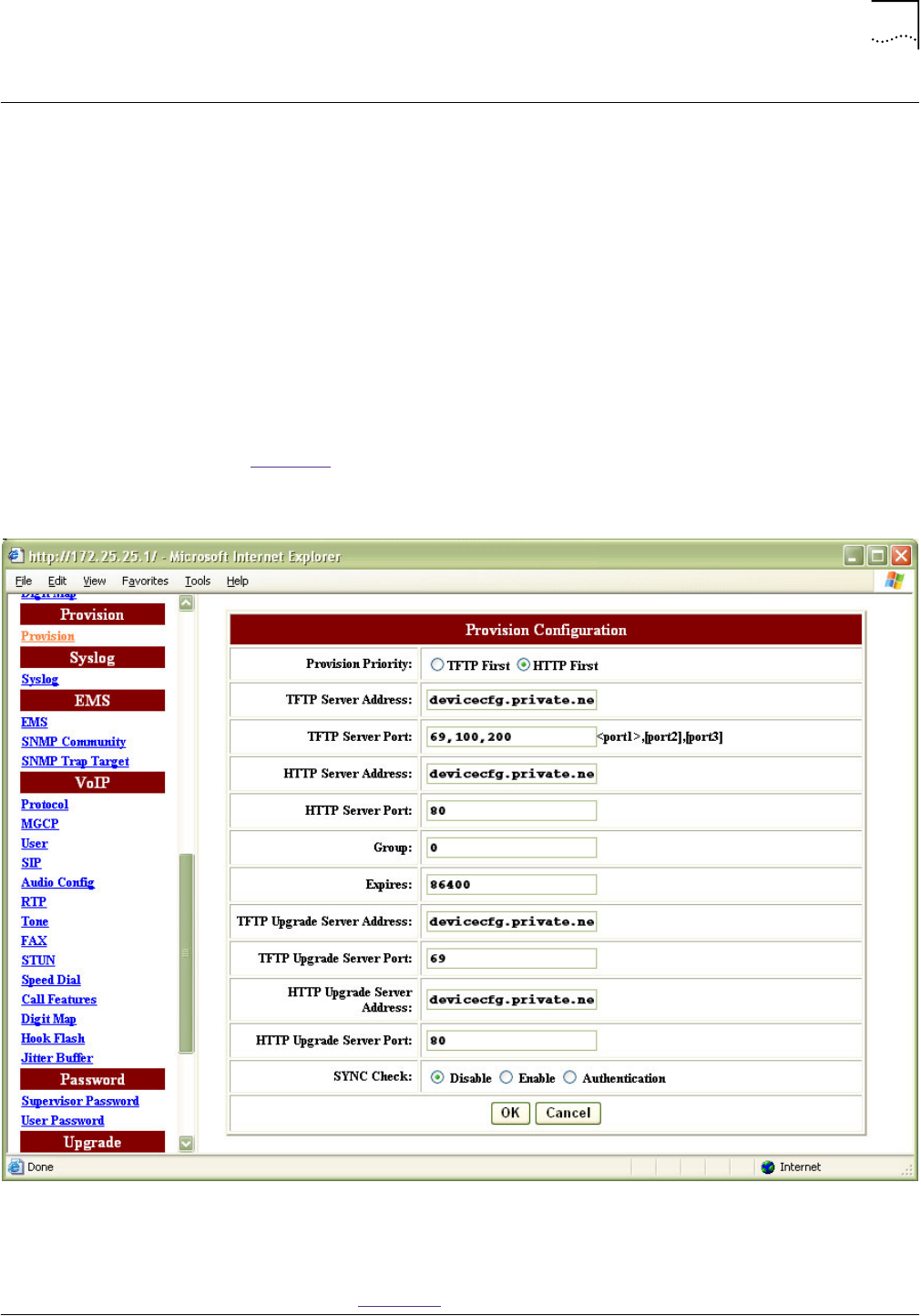

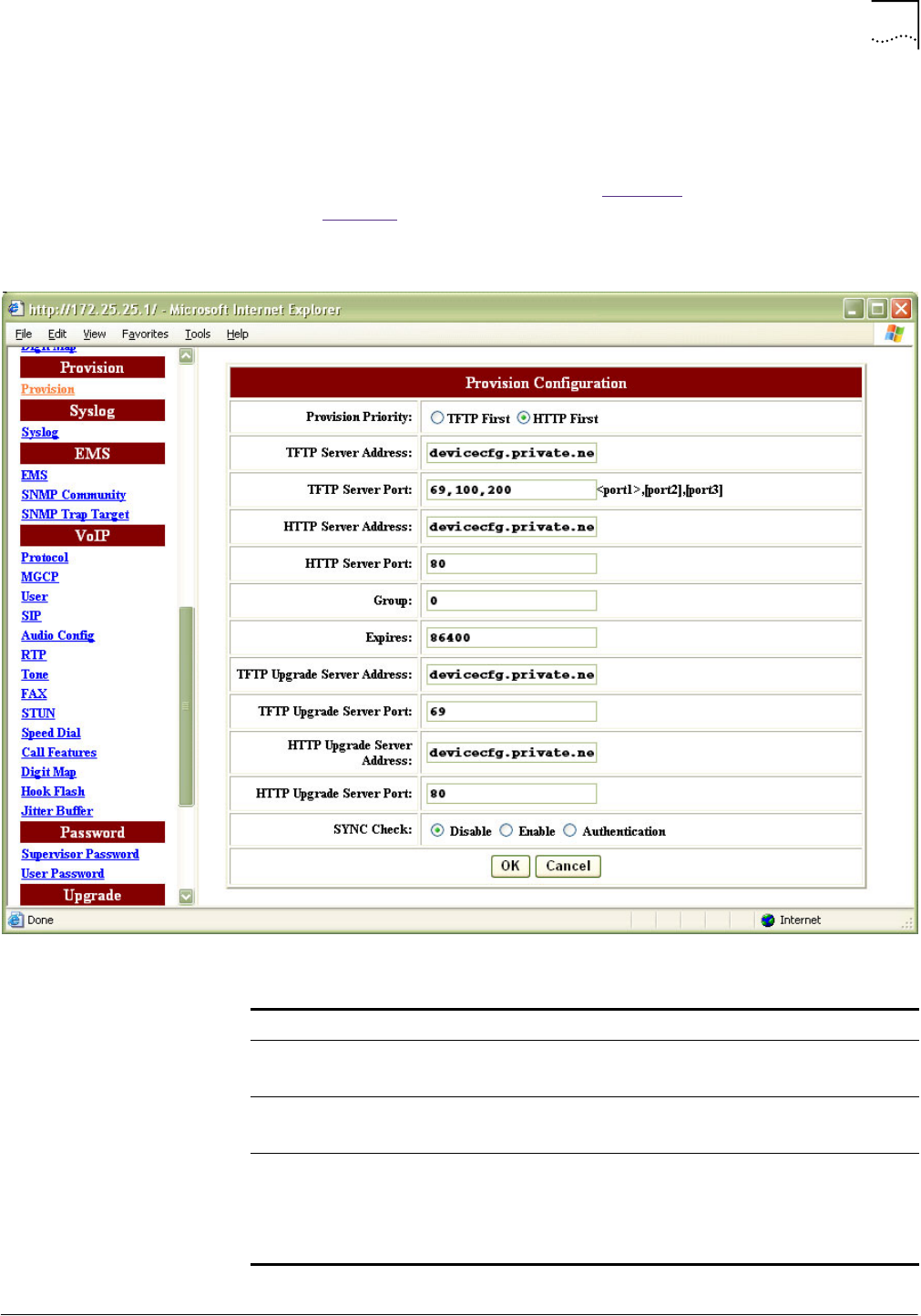

Provision............................................................................................................................. 61
Syslog ...................................................................................................................................... 62
Syslog................................................................................................................................. 62
Element Management System (EMS)...................................................................................... 63
EMS.................................................................................................................................... 63

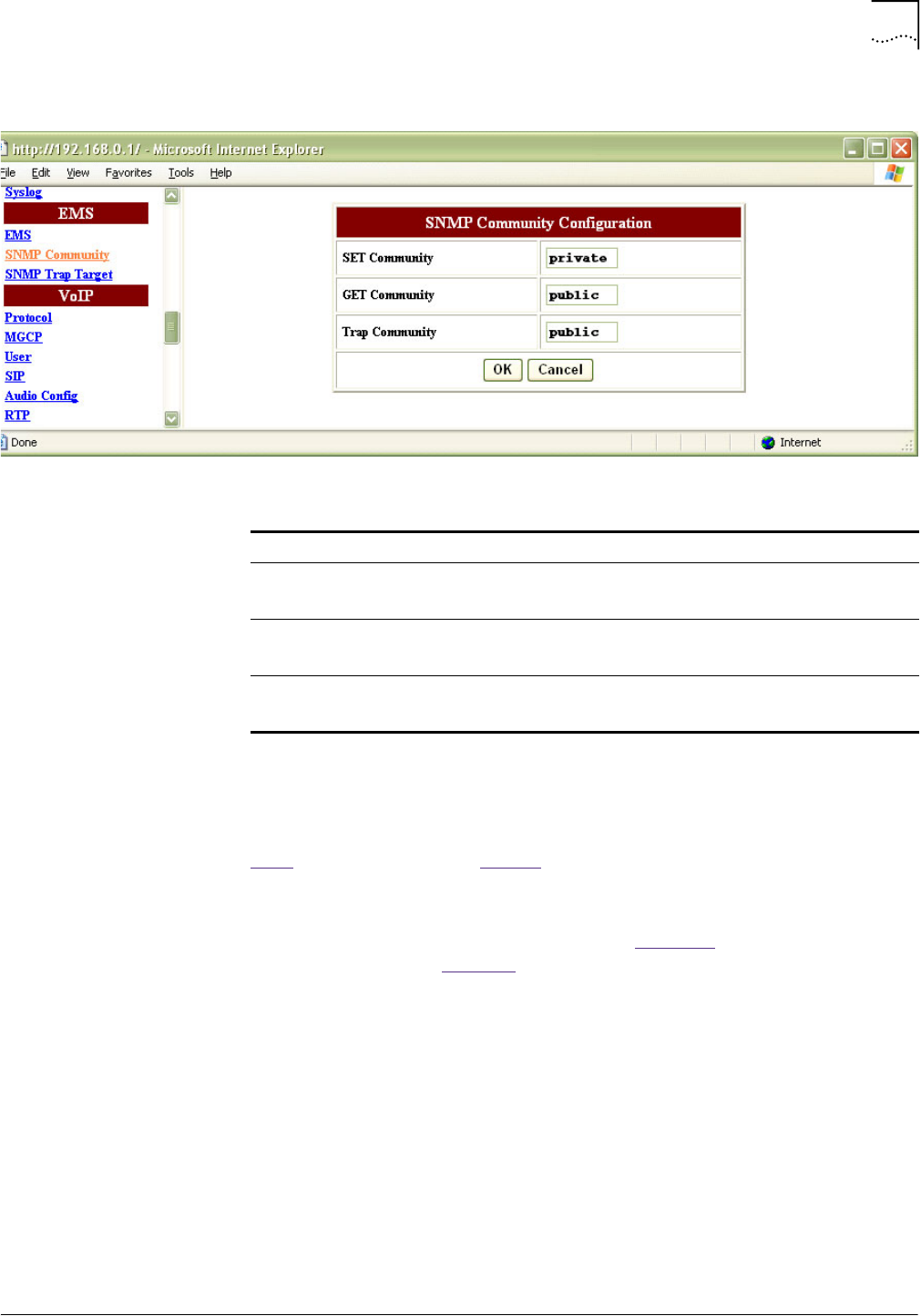

SNMP Community.............................................................................................................. 64

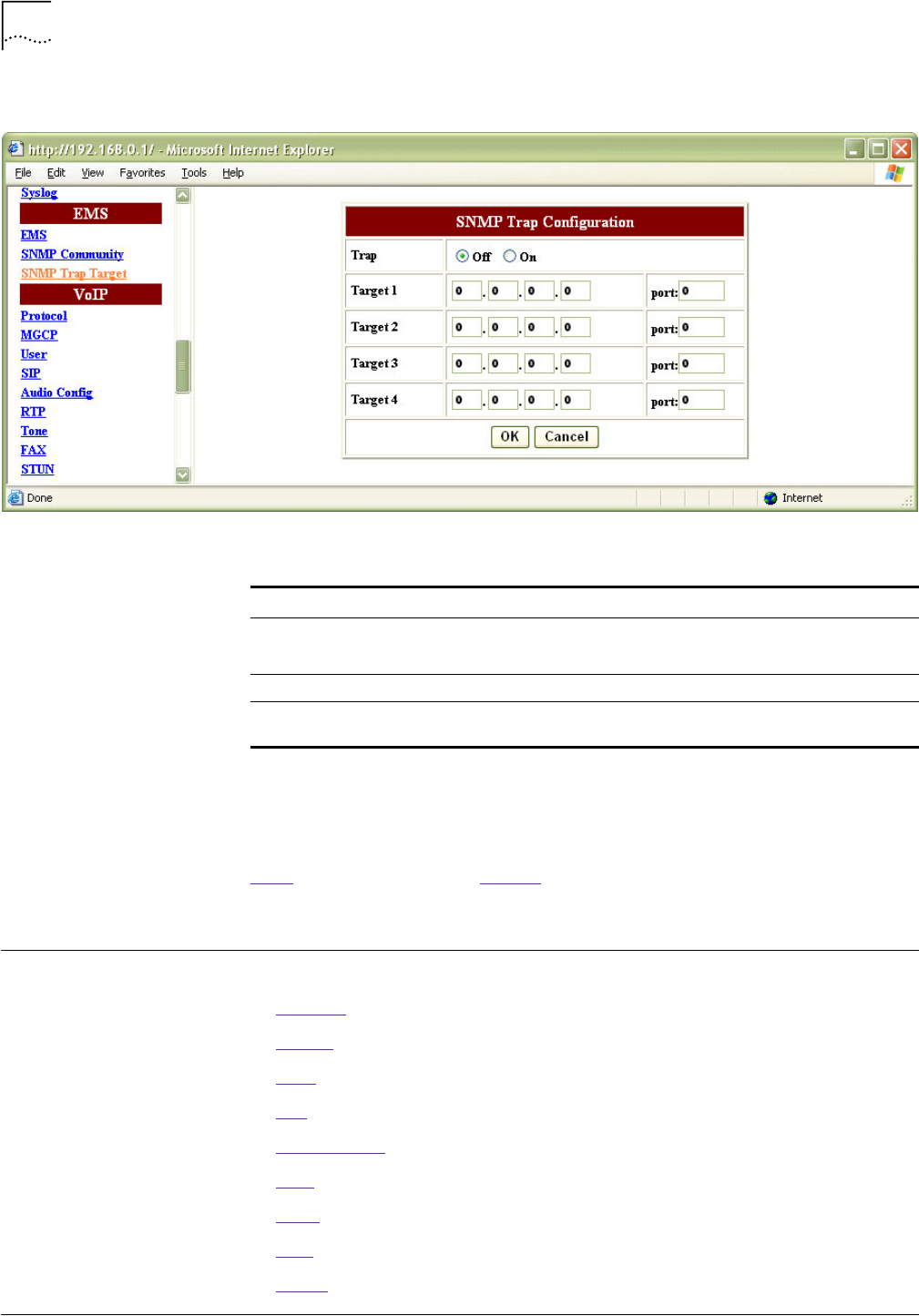

SNMP Trap Target.............................................................................................................. 65
VoIP ......................................................................................................................................... 66

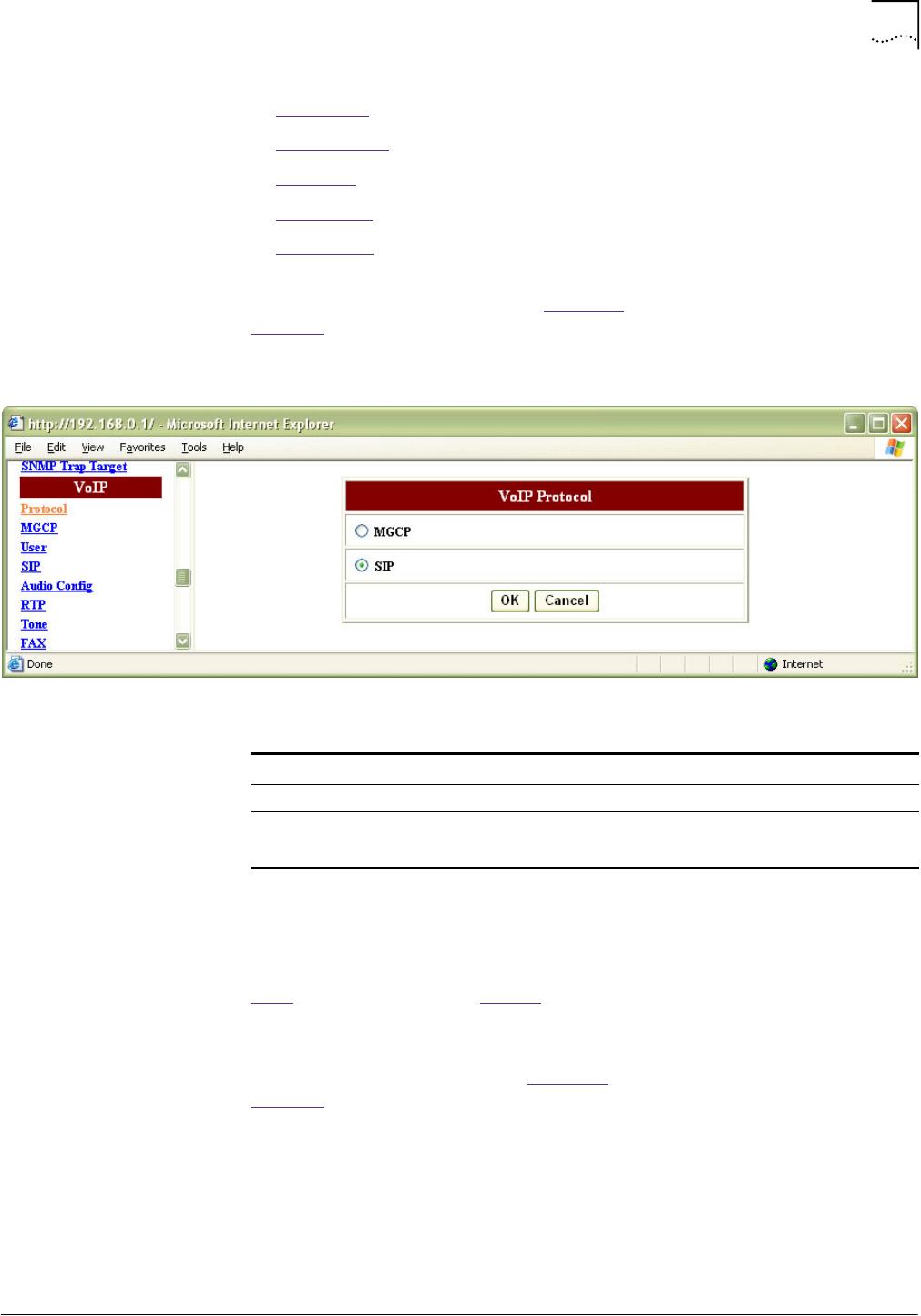

Protocol .............................................................................................................................. 67

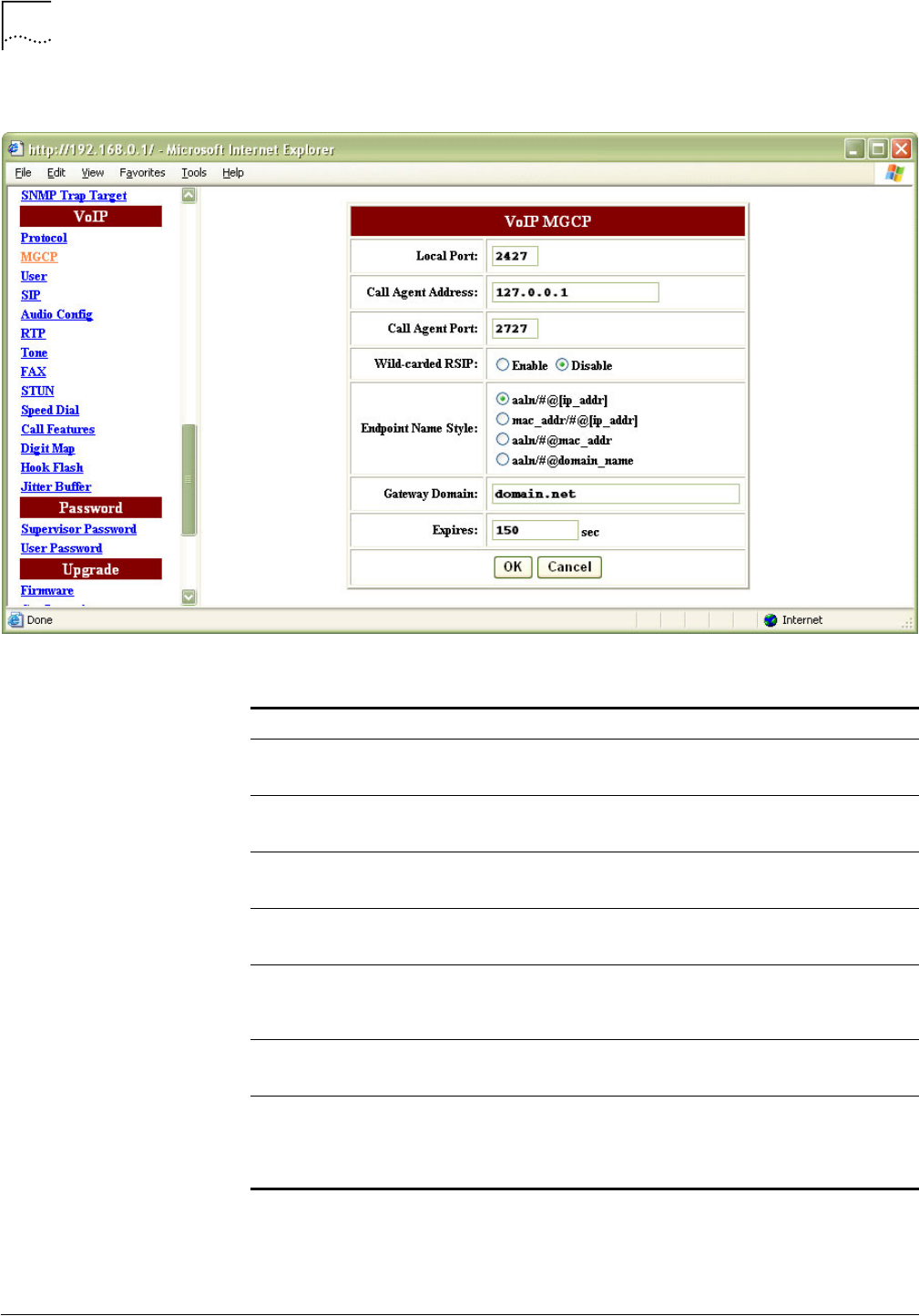

MGCP................................................................................................................................. 67
User.................................................................................................................................... 69

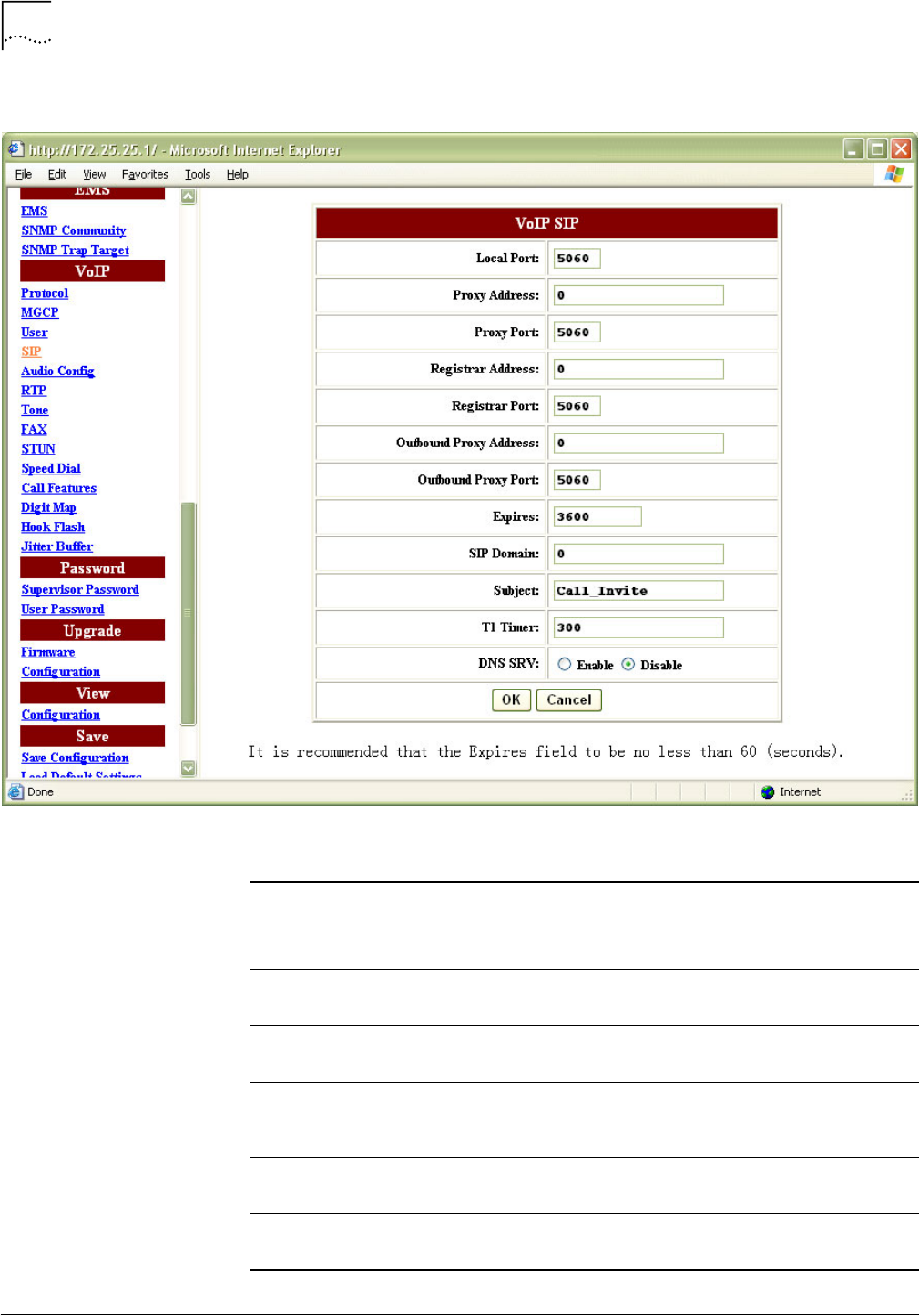

SIP...................................................................................................................................... 69

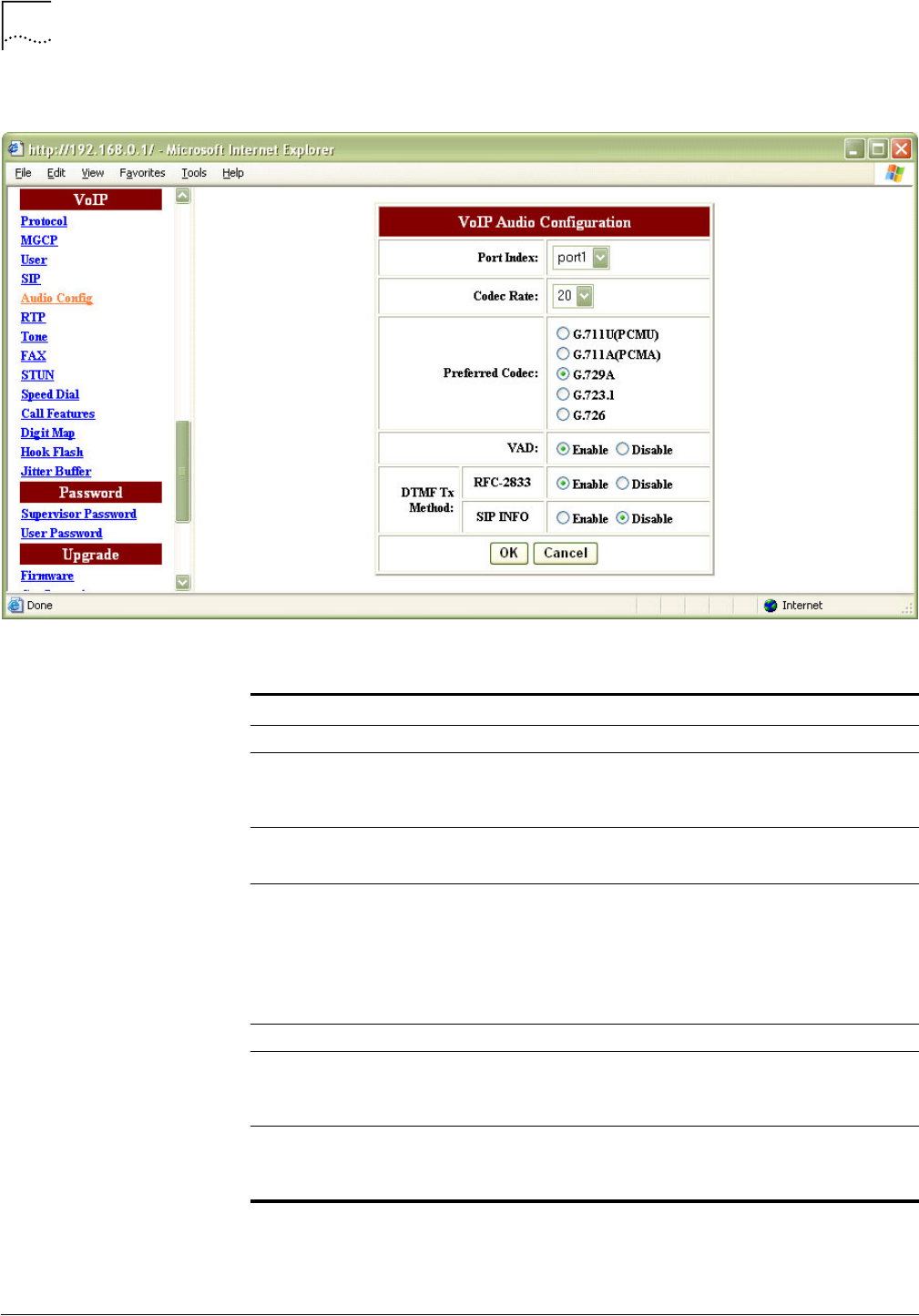

Audio Config....................................................................................................................... 71
RTP .................................................................................................................................... 73

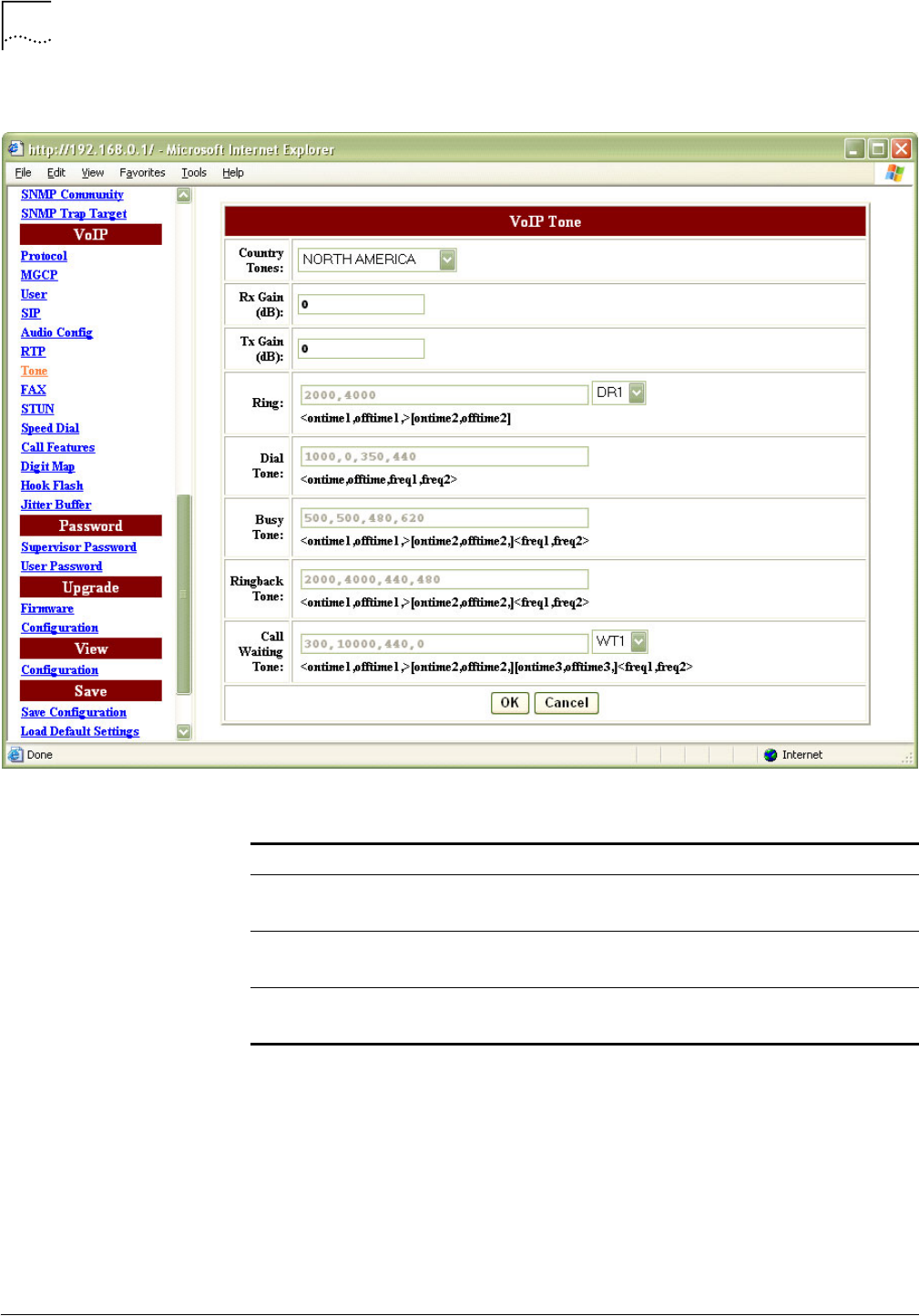

Tone.................................................................................................................................... 73

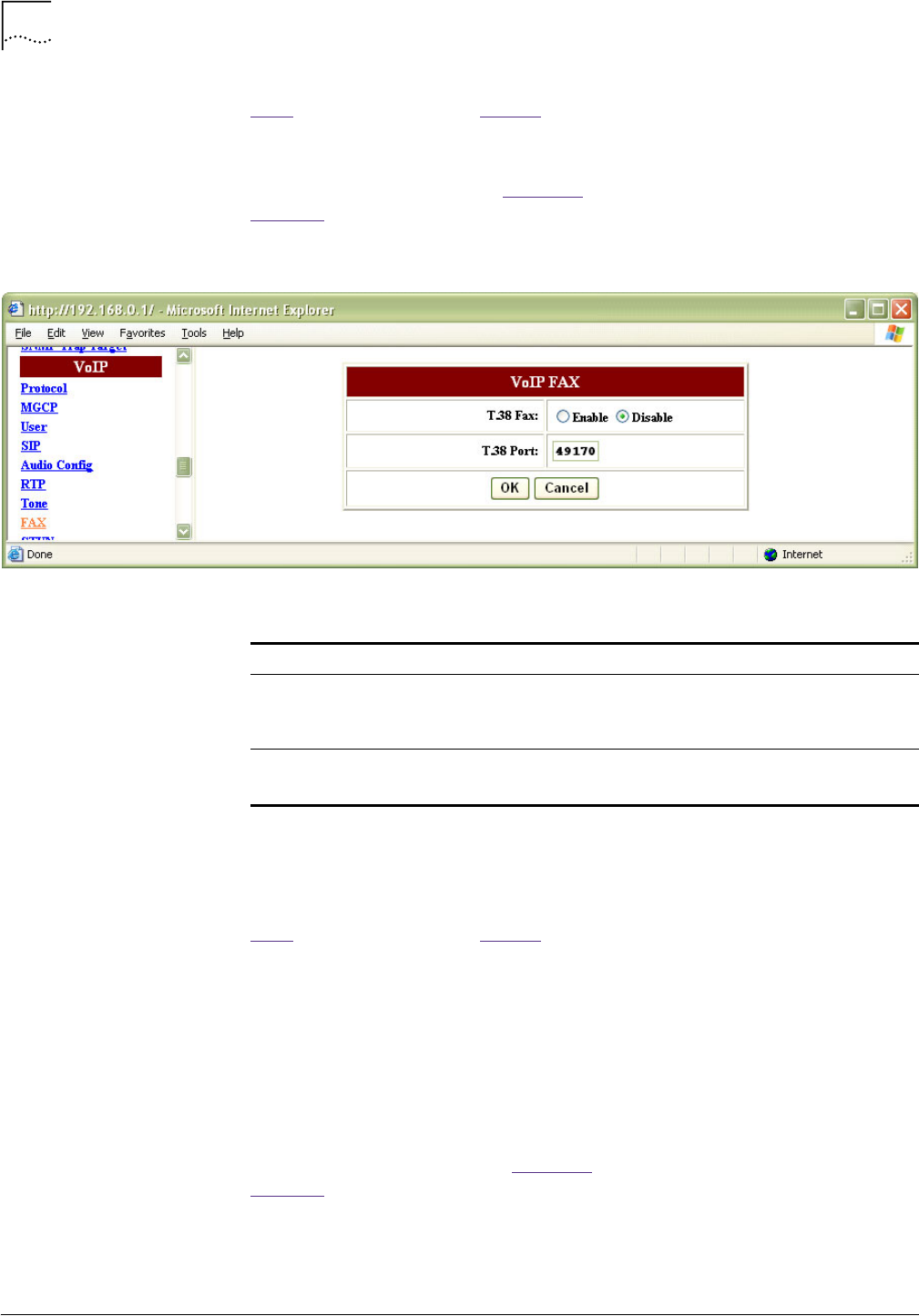

FAX..................................................................................................................................... 76

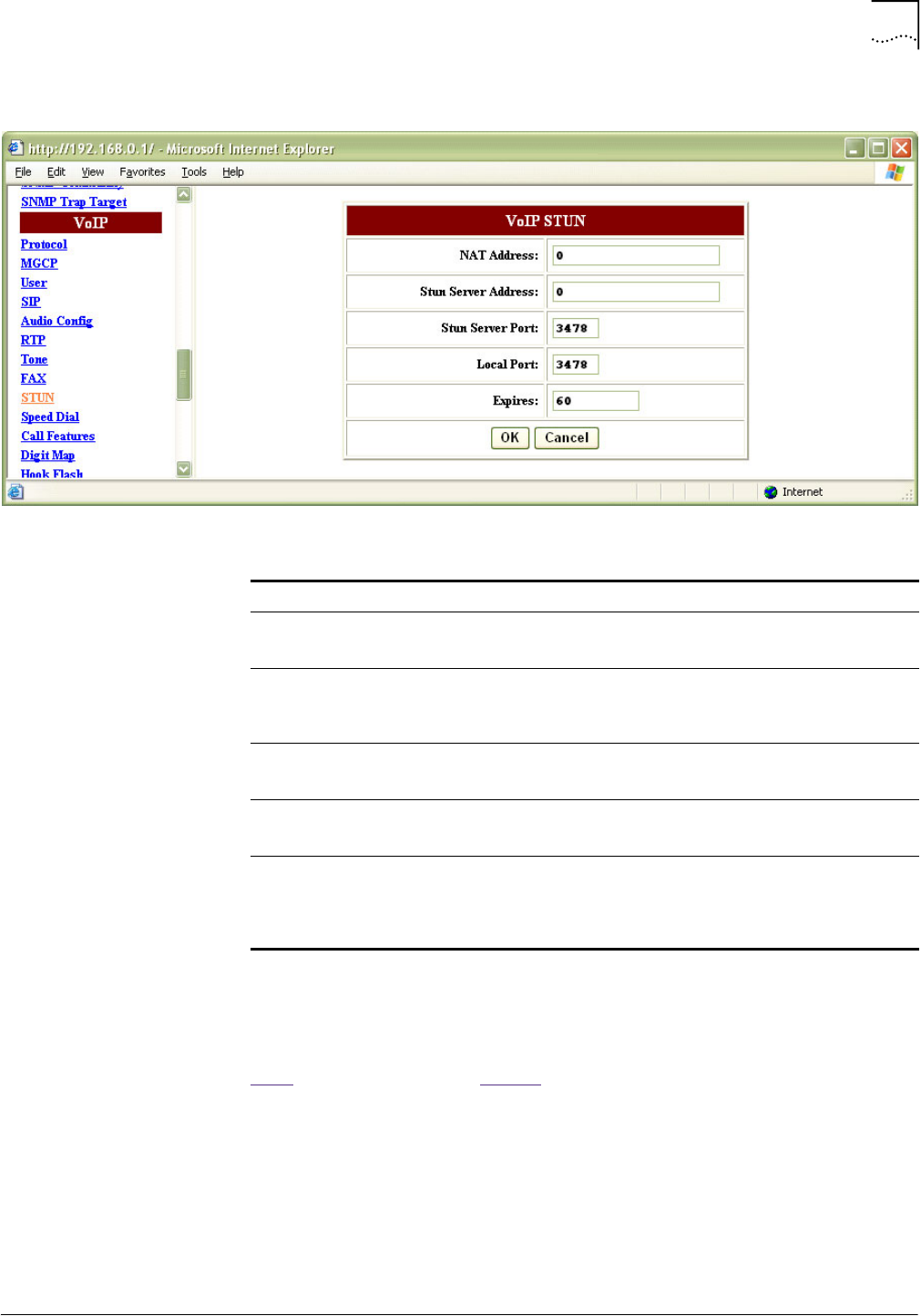

STUN.................................................................................................................................. 76

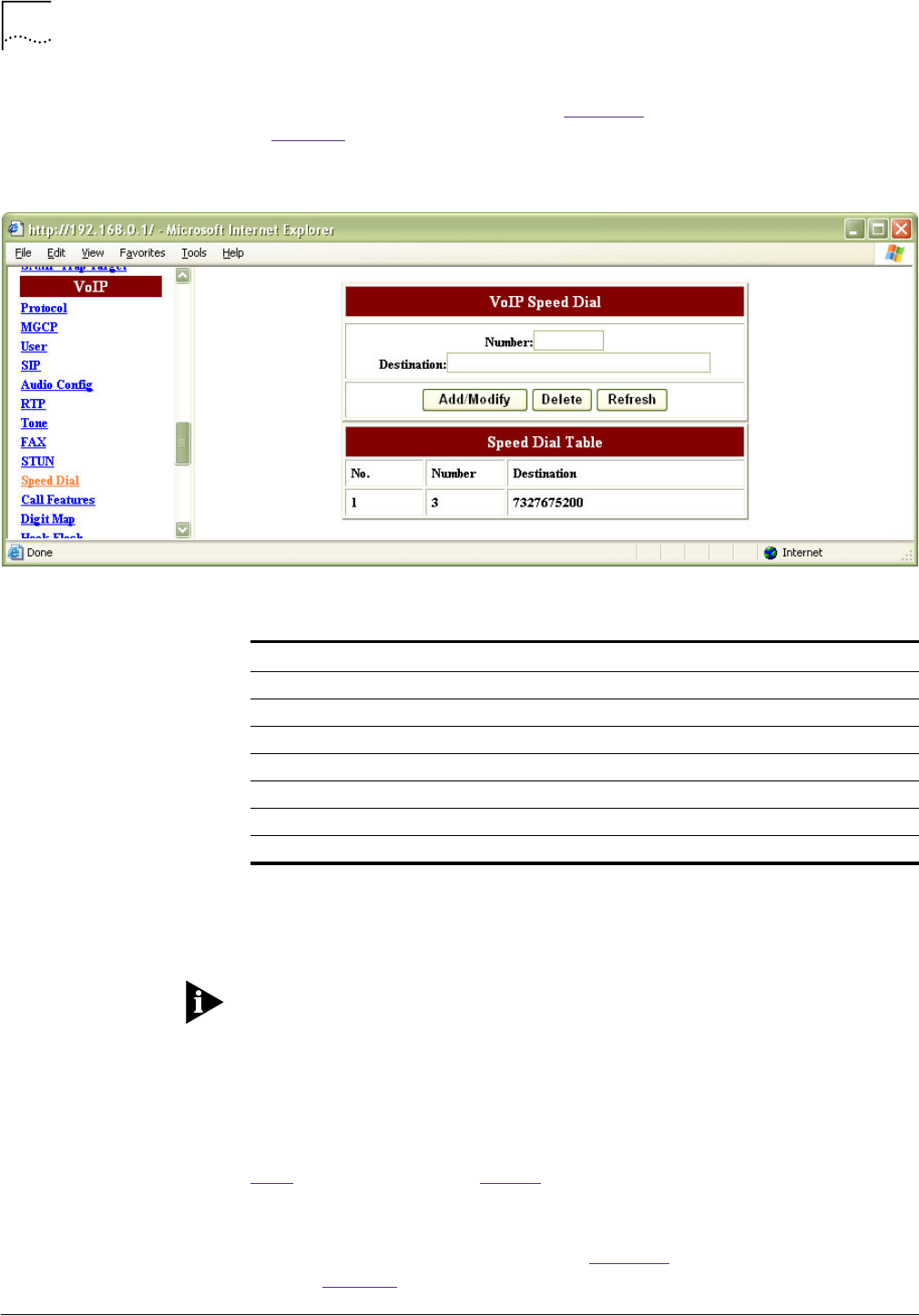

Speed Dial .......................................................................................................................... 77
Call Features ...................................................................................................................... 78
Digit Map ............................................................................................................................ 81

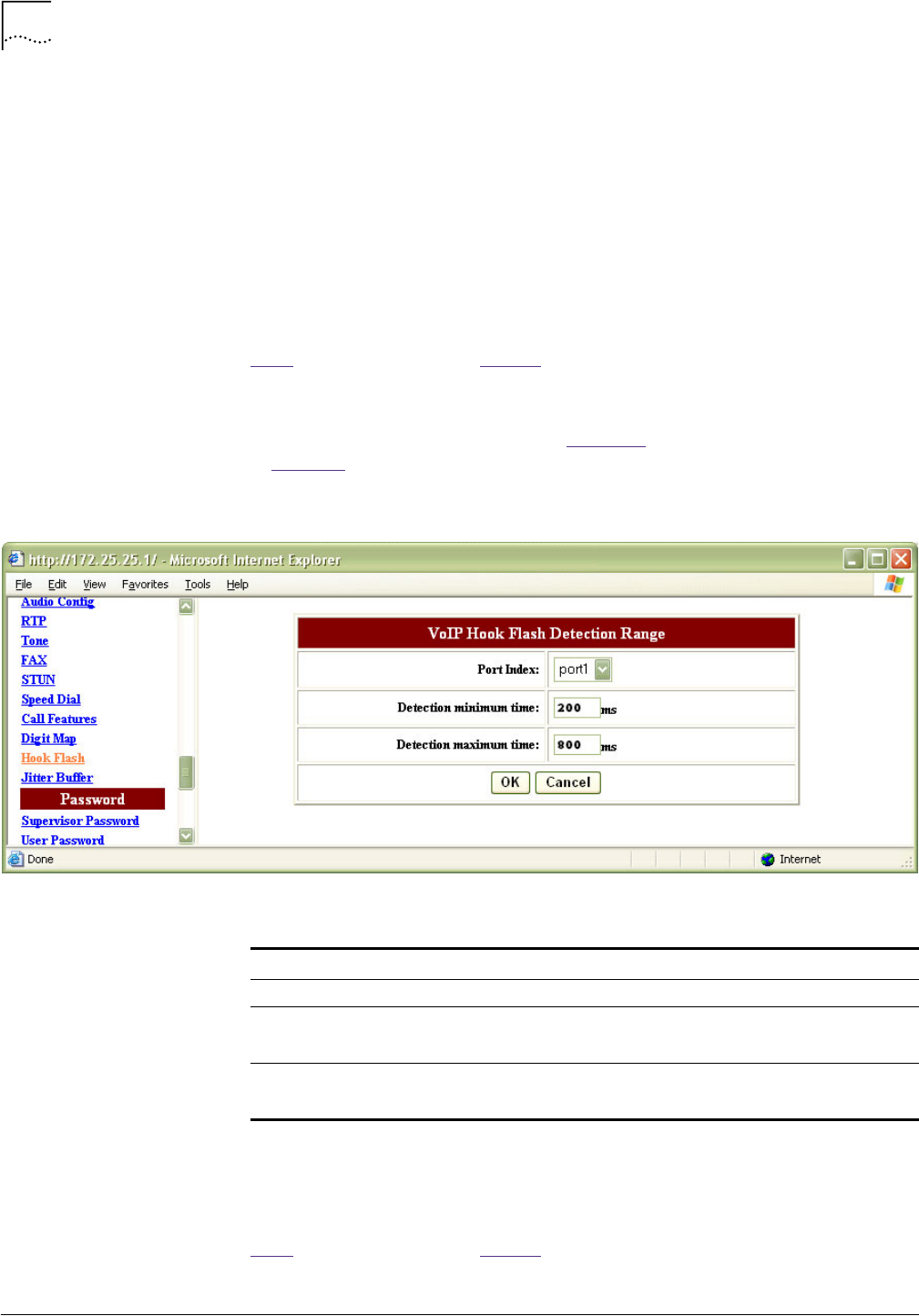

Hook Flash ......................................................................................................................... 82
Jitter Buffer ......................................................................................................................... 83

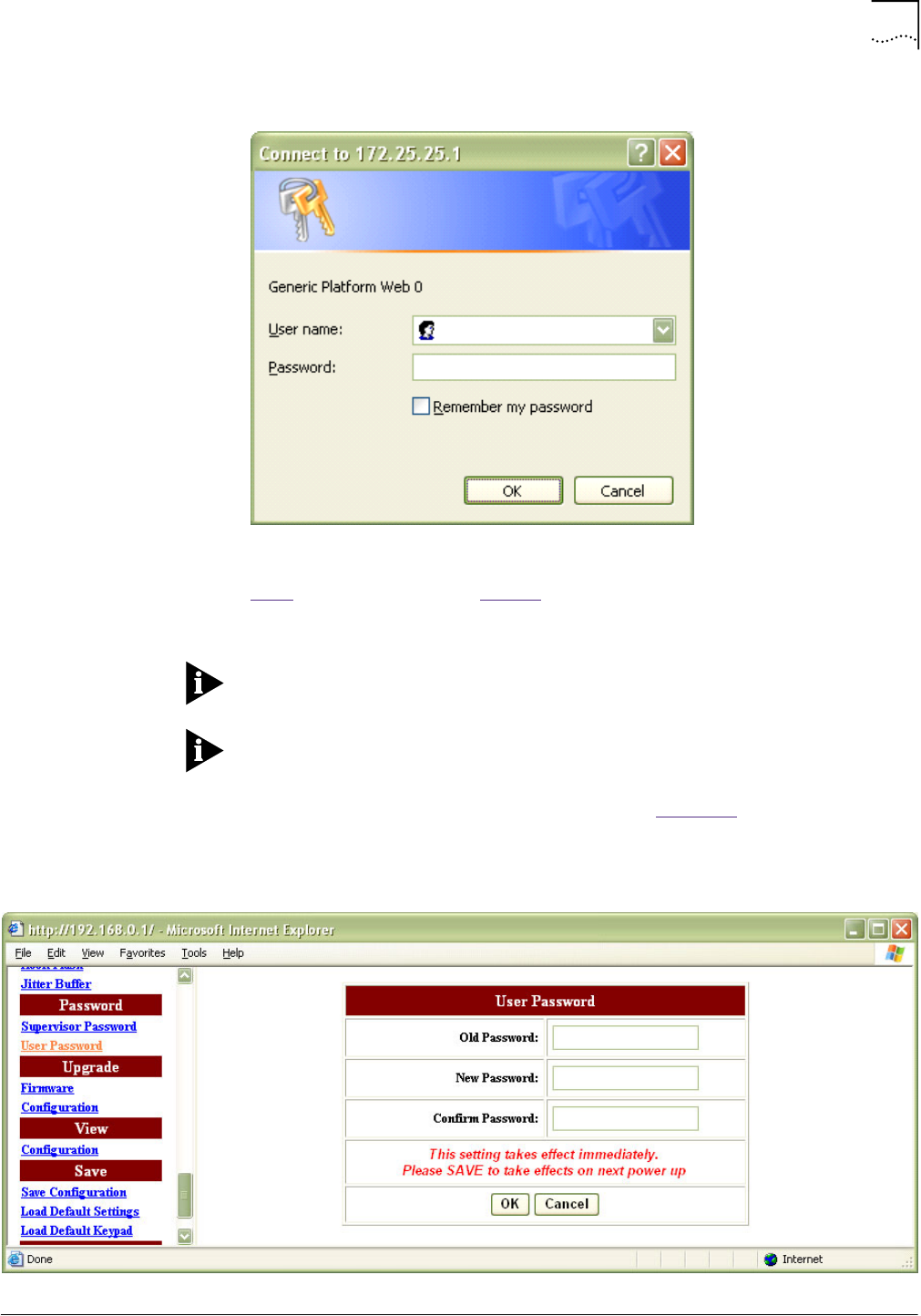

Password ................................................................................................................................. 83
Supervisor Password ......................................................................................................... 83
User Password ...................................................................................................................85
Upgrade ................................................................................................................................... 87
Firmware ............................................................................................................................ 87
7
Part Number UTSI-NJTC-200323150117
iAN-02EX
June 2005
Administrator Manual
Configuration ...................................................................................................................... 87
View ......................................................................................................................................... 89
Configuration ...................................................................................................................... 89
Save......................................................................................................................................... 90
Save Configuration ............................................................................................................. 90
Load Default Settings ......................................................................................................... 91
Load Default Settings using FXS Ports .............................................................................. 91

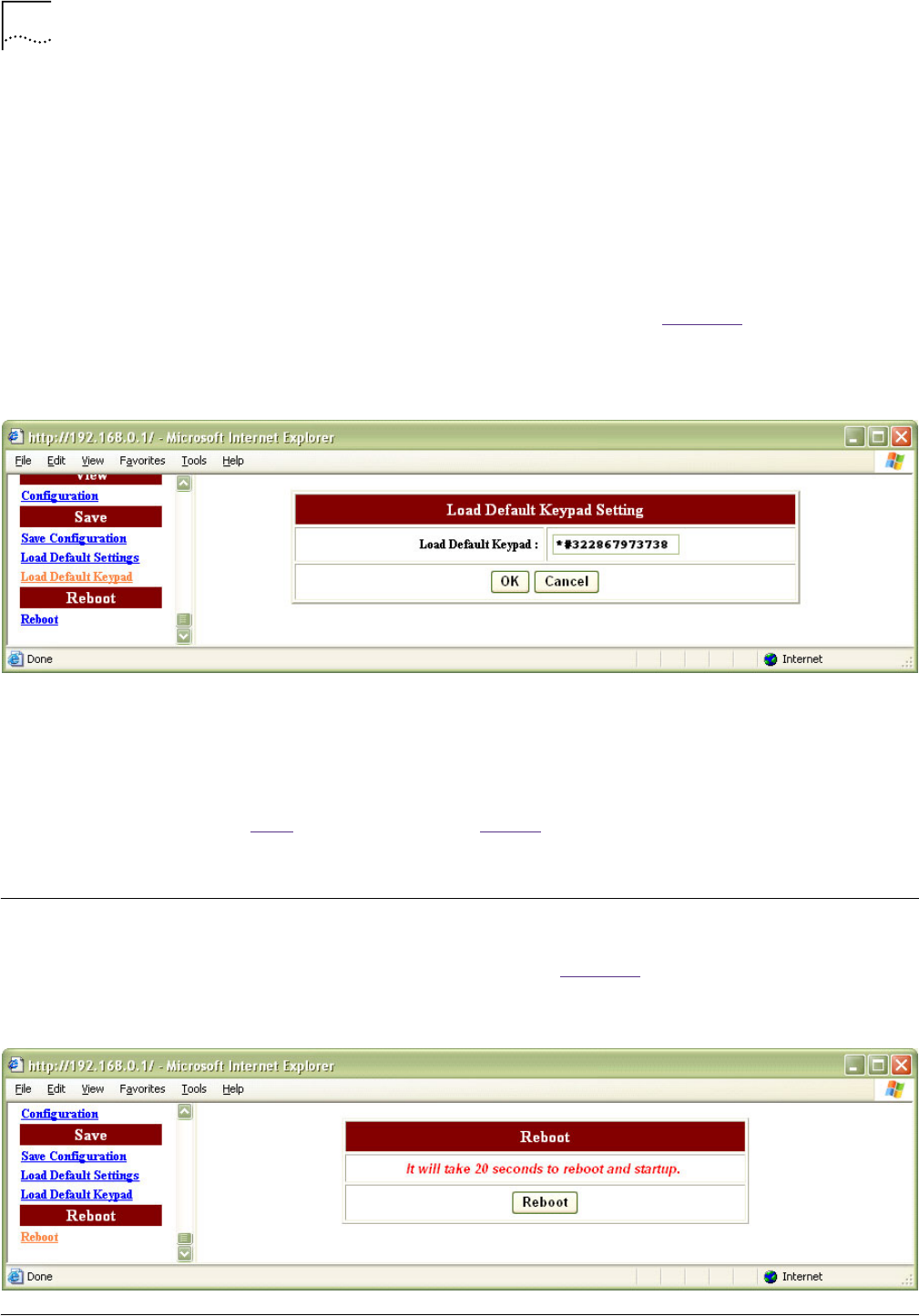

Load Default Keypad .......................................................................................................... 92
Reboot ..................................................................................................................................... 92
Reboot ................................................................................................................................ 92
A
T
ROUBLESHOOTING
B
I
AN-02EX P
ROVISIONING
M
ETHODOLOGY

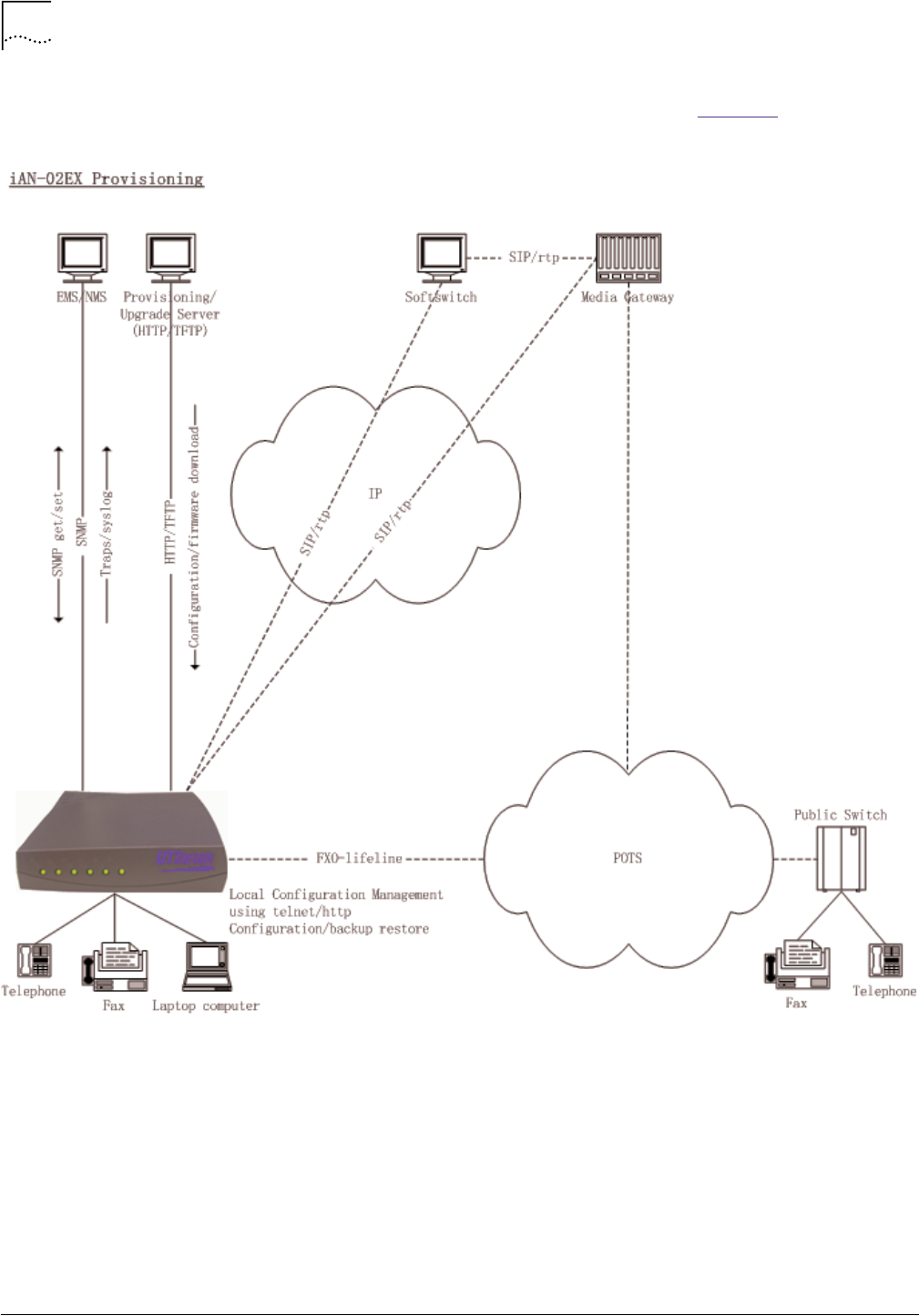

Provisioning overview .............................................................................................................. 97
Provisioning Features .............................................................................................................. 99
GUI Settings for Provisioning/Upgrade Server ................................................................... 99
Provisioning Process rules..................................................................................................... 101
Auto-Configuration............................................................................................................ 101
Brief description on HTTP/TFTP Provisioning servers ..................................................... 101
TFTP Provisioning servers.......................................................................................... 101
Port hunting feature..................................................................................................... 101
HTTP Provisioning servers............................................................................................... 101
Selection Prority for HTTP or TFTP servers..................................................................... 102
Frequency of Upgrade...................................................................................................... 102
Provisioning Server configuration files ............................................................................. 102
File format of the configuration File .................................................................................. 103
General Configuration File naming convention ........................................................... 103
Group Configuration File ............................................................................................. 104
MAC address specific Configuration File .................................................................... 104
Encryption Engine ............................................................................................................ 105
Provisioning mechanism with MD5 based crypto utility: ............................................. 105
Usage of the Simple Crypt Utility on a Windows platform:.......................................... 105
Encryption tools........................................................................................................... 105
Sample configuration file <abconfig.cfg> for firmware version "V1.8.2.19a"............... 105
Firmware Upgrade............................................................................................................ 113
File naming convention ............................................................................................... 114
Provisioning Default Values.............................................................................................. 114
UTStarcom, Provisioning Default Flag Values.................................................................. 114
Sample Provisioning Flow Behavior ................................................................................. 115
Provisioning Flow ............................................................................................................. 115
C
D
EFAULT
S
ETTING
& V
ALUE
Default Value and Value Range ............................................................................................. 117
8
iAN-02EX
Part Number UTSI-NJTC-200323150117
Administrator Manual
June 2005
D
I
AN-02EX SNMP MIB R
EFERENCE
MIB Scalar Objects ................................................................................................................ 129
systemInformationTable......................................................................................................... 139
currentAlarmTable.................................................................................................................. 140
rgPortTable ............................................................................................................................ 140
rgVoipSpeedDialTable............................................................................................................ 141
rgVoipDigitmapTable.............................................................................................................. 142
rgCallHistoryTable.................................................................................................................. 142
rgHistoryAlarmTable .............................................................................................................. 144
Trap........................................................................................................................................ 145
rgStart............................................................................................................................... 145
rgRestarting...................................................................................................................... 145
rgPortFault........................................................................................................................ 146
rgSoftSwitchDown ............................................................................................................ 146
rgLoadSuccess................................................................................................................. 147
rgLoadFail ........................................................................................................................ 147
rgShakeHandToEMS........................................................................................................ 148
rgAlarmStatusChange ...................................................................................................... 148
rgLedChange.................................................................................................................... 149
Syntax Types ......................................................................................................................... 149
E
U
PGRADE
P
ROCEDURE
Upgrade Procedure ............................................................................................................... 151
Upgrade Notes....................................................................................................................... 152
LAN side ip-address change ............................................................................................ 152
WAN side Static ip-address configuration. ....................................................................... 152
9
Part Number UTSI-NJTC-200323150117
iAN-02EX
June 2005
Administrator Manual
L
IST
OF
T
ABLES
Table 1 Notice Icon Descriptions......................................................................................... 13
Table 2 Text Convention Descriptions................................................................................. 14
Table 3 LED......................................................................................................................... 21
Table 4 Technical Specifications ......................................................................................... 23
Table 5 Feature Lists........................................................................................................... 37
Table 6 Status - System Status Field Description ............................................................... 41
Table 7 Status - WAN Status Field Description................................................................... 42
Table 8 Status - DHCP Status Field Description................................................................. 42
Table 9 Status - PPPoE Status Field Description................................................................ 43
Table 10 PPPoE - PPPoE Field Description ......................................................................... 44
Table 11 WAN - WAN IP Field Description ........................................................................... 45
Table 12 WAN - Device Mode Field Description ................................................................... 46
Table 13 WAN - MTU Rate Field Description........................................................................ 47
Table 14 DOS - Denial of Service Field Description.............................................................. 48
Table 15 NTP - NTP Field Description .................................................................................. 49
Table 16 Gateway Mode Settings - LAN Configuration Field Description ............................. 51
Table 17 Gateway Mode Settings - Port Forwarding Field Description................................. 52
Table 18 Gateway Mode Settings - IP Filter Field Description .............................................. 53
Table 19 Gateway Mode Settings - DMZ Field Description................................................... 54
Table 20 QoS - QoS Configuration Field Description............................................................ 55
Table 21 QoS - DSCP Field Description ............................................................................... 56
Table 22 QoS - VLan Tag Field Description.......................................................................... 57
Table 23 Mac Cloning - Mac Cloning Field Description......................................................... 58
Table 24 PSTN - Switch Key Field Description ..................................................................... 59
Table 25 PSTN - Digit Map Field Description........................................................................ 60
Table 26 Provision - Provision Field Description ................................................................... 61
Table 27 Syslog - Syslog Field Description ........................................................................... 63
Table 28 EMS - EMS Field Description................................................................................. 64
Table 29 EMS - SNMP Community Field Description ........................................................... 65
Table 30 EMS - SNMP Trap Target Field Description........................................................... 66
Table 31 VoIP - Protocol Field Description............................................................................ 67
Table 32 VoIP - MGCP Field Description .............................................................................. 68
Table 33 VoIP - User Field Description ................................................................................. 69
Table 34 VoIP - SIP Field Description................................................................................... 70
Table 35 VoIP - Audio Config Field Description .................................................................... 72
Table 36 VoIP - RTP Field Description.................................................................................. 73
Table 37 VoIP - Tone Field Description................................................................................. 74
Table 38 VoIP - FAX Field Description.................................................................................. 76
Table 39 VoIP - STUN Field Description............................................................................... 77
Table 40 VoIP - Speed Dial Field Description ....................................................................... 78
Table 41 VoIP - Call Feature Field Description ..................................................................... 79
Table 42 VoIP - Digit Map Field Description.......................................................................... 81
Table 43 VoIP - Hook Flash Field Description....................................................................... 82
Table 44 VoIP - Jitter Buffer Field Description ...................................................................... 83
Table 45 Save - Load Default Settings Field Description ...................................................... 91
Table 46 abconfig.cfg Default Value and Value Range....................................................... 117
Table 47 MIB Scalar Objects Table..................................................................................... 129
Table 48 System Information Table..................................................................................... 139
Table 49 Current Alarm Table ............................................................................................. 140
Table 50 rg Port Table......................................................................................................... 141
Table 51 rg Voip Speed Dial Table...................................................................................... 142
Table 52 rg Voip Digitmap Table ......................................................................................... 142
10
iAN-02EX
Part Number UTSI-NJTC-200323150117
Administrator Manual
June 2005
Table 53 rg Call History Table..............................................................................................143
Table 54 rg History AlarmTable............................................................................................144
Table 55 rgStart Table..........................................................................................................145
Table 56 Trap Variables .......................................................................................................145
Table 57 rgRestarting Table.................................................................................................145
Table 58 Trap Variables .......................................................................................................146
Table 59 rgPortFault Table...................................................................................................146
Table 60 Trap Variables .......................................................................................................146
Table 61 rgSoftSwitchDown Table .......................................................................................146
Table 62 Trap Variables .......................................................................................................147
Table 63 rgLoadSuccess Table............................................................................................147
Table 64 Trap Variables .......................................................................................................147
Table 65 rgLoadFail Table ...................................................................................................147
Table 66 Trap Variables .......................................................................................................148
Table 67 rgShakeHandToEMS Table ..................................................................................148
Table 68 Trap Variables .......................................................................................................148
Table 69 rgAlarmStatusChange Table .................................................................................148
Table 70 Trap Variables .......................................................................................................149
Table 71 rgLedChange Table...............................................................................................149
Table 72 Trap Variables .......................................................................................................149
Table 73 Syntax Types Table...............................................................................................149
11
Part Number UTSI-NJTC-200323150117
iAN-02EX
June 2005
Administrator Manual
LIST OF FIGURES

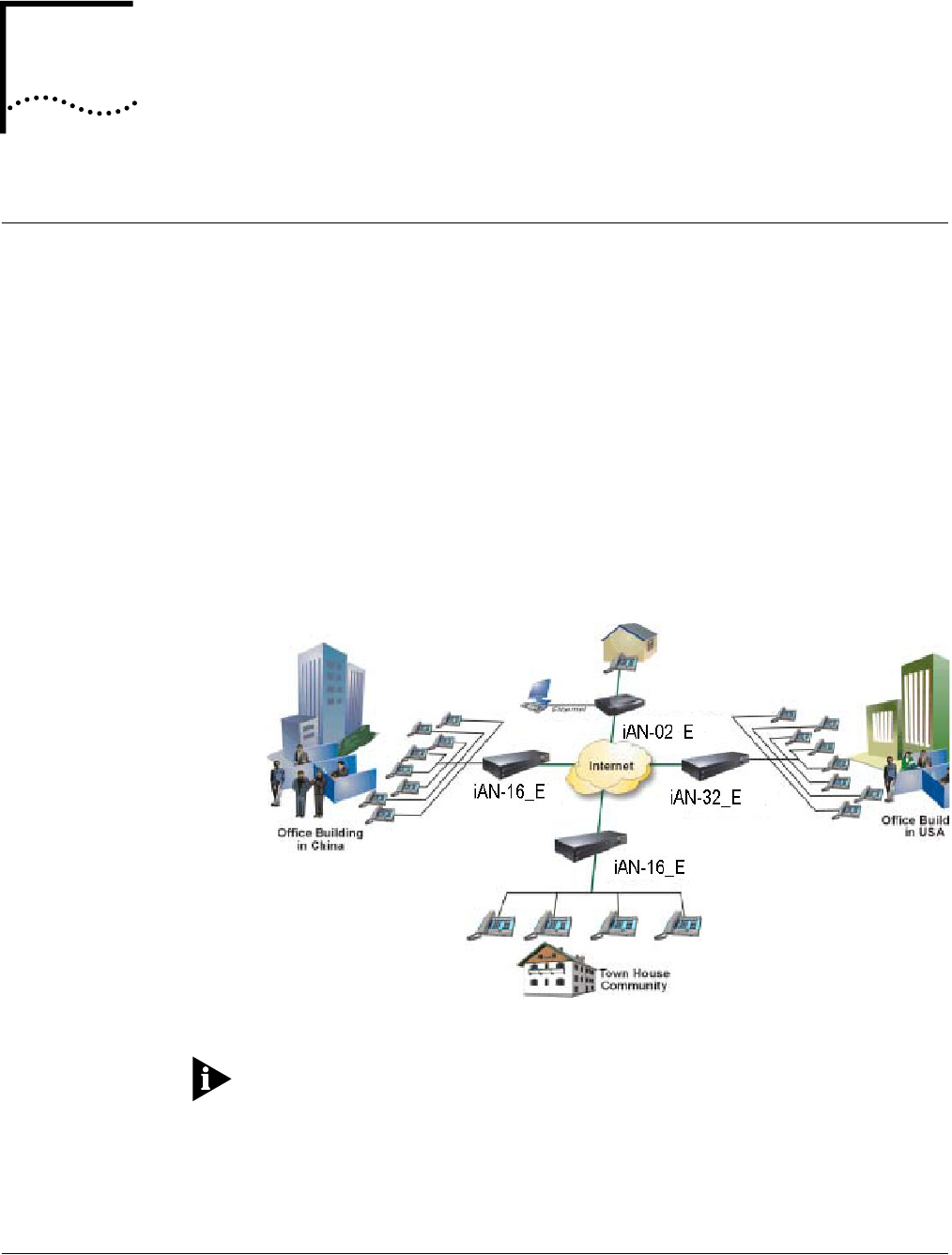

Figure 1 iAN Product Deployment Schematic .................................................................... 17
Figure 2 Front Panel of 2-Port VoIP Gateway .................................................................... 21
Figure 3 Rear Panel of 2-Port VoIP Gateway ..................................................................... 21

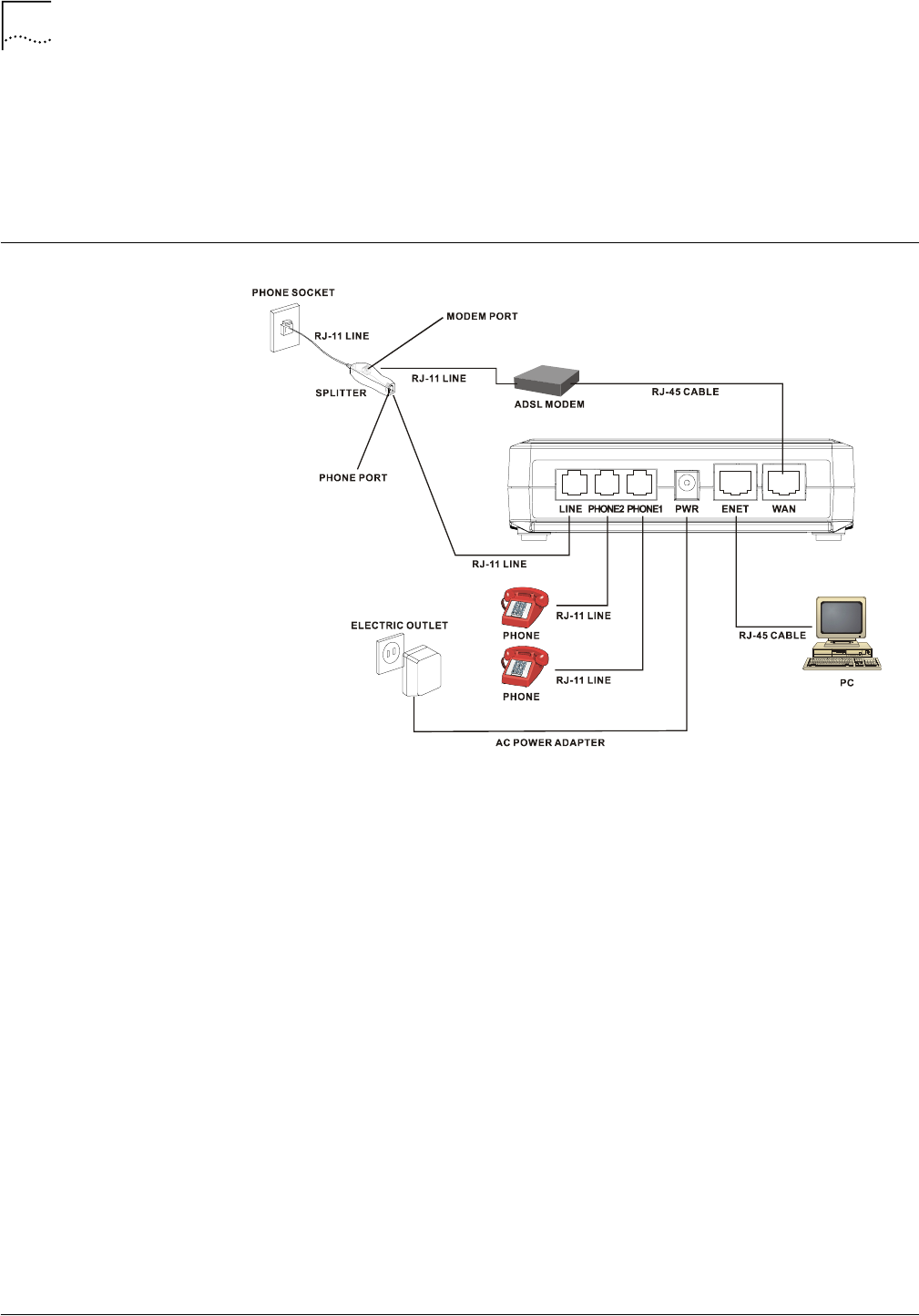

Figure 4 Installation Diagram .............................................................................................. 22

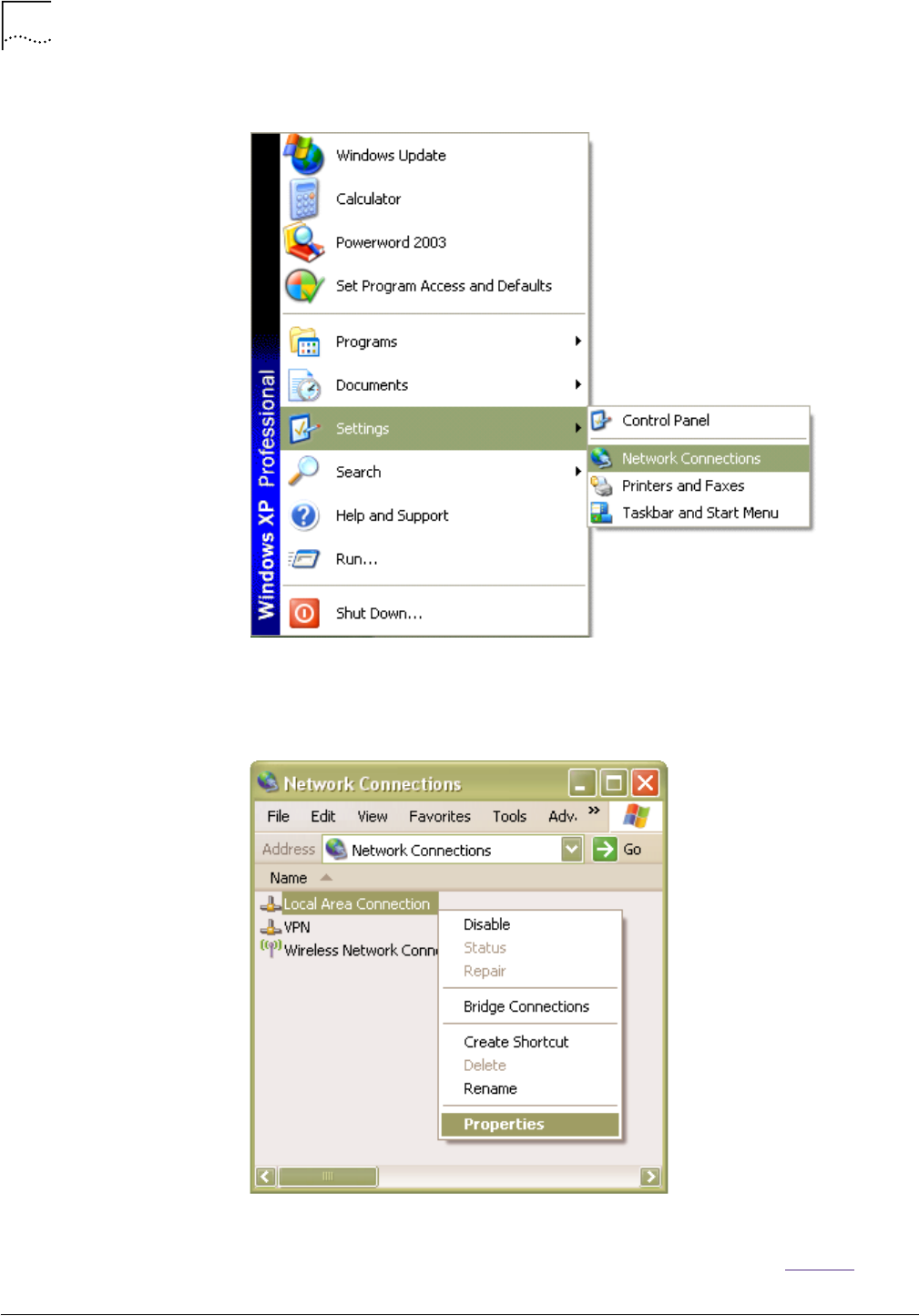

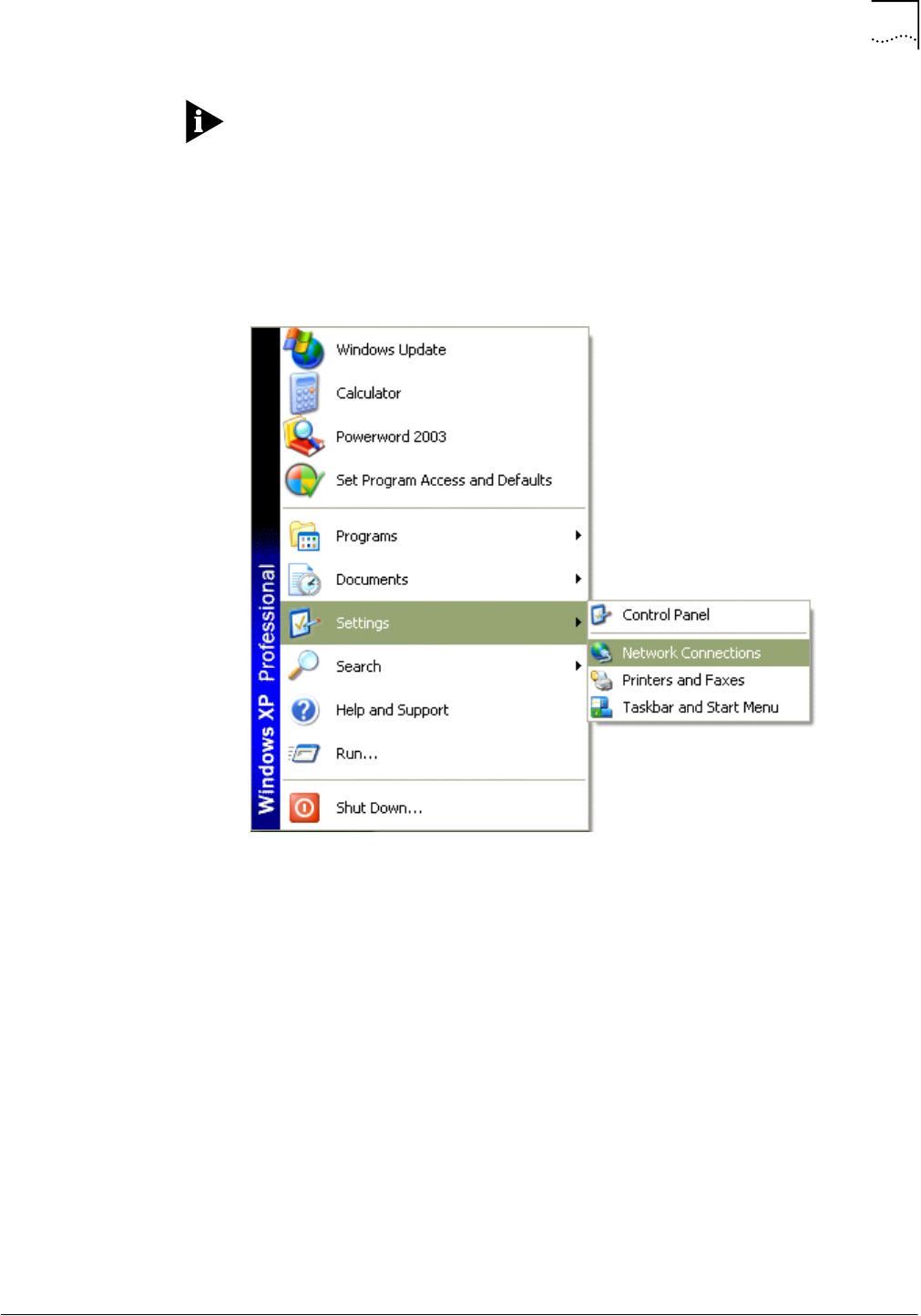

Figure 5 Settings - Network Connections - Gateway Mode ................................................ 28
Figure 6 Local Area Connection - Properties - Gateway Mode .......................................... 28
Figure 7 Local Area Connection Properties - Gateway Mode ............................................ 29

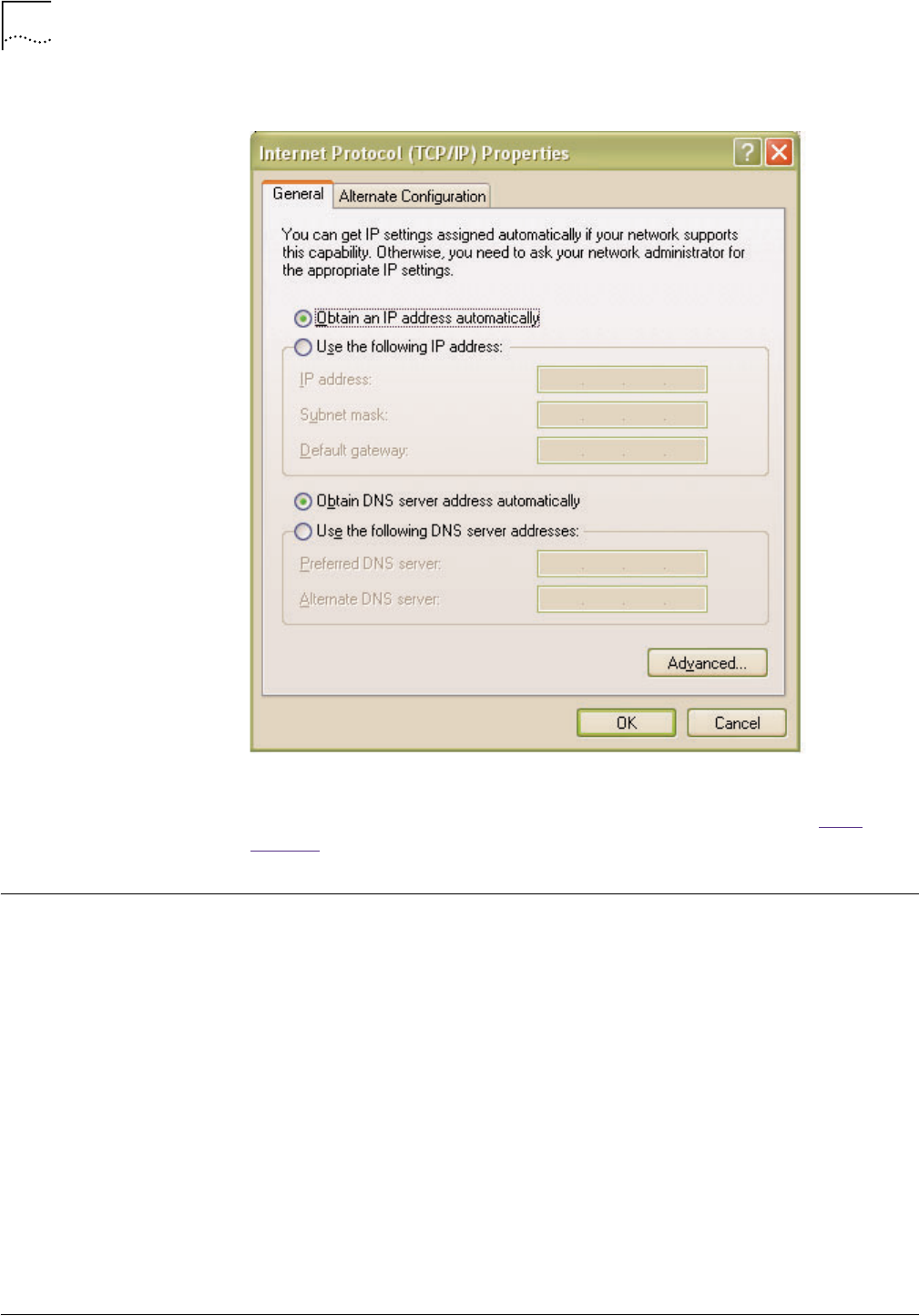

Figure 8 Internet Protocol (TCP/IP) Properties - Gateway Mode ....................................... 30
Figure 9 Settings - Network Connections - Bridge Mode .................................................... 31

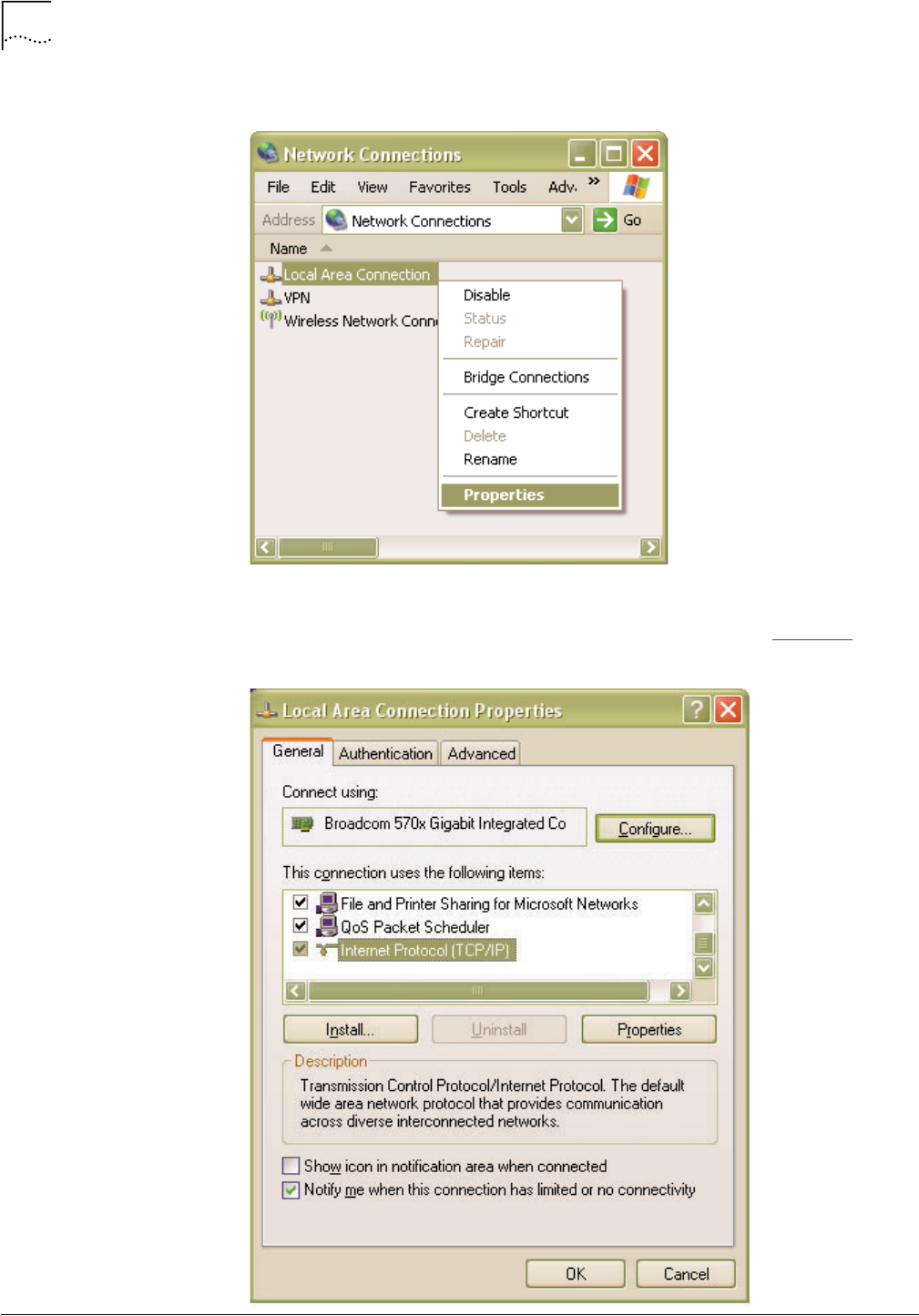

Figure 10 Local Area Connection - Properties - Bridge Mode .............................................. 32
Figure 11 Local Area Connection Properties - Bridge Mode ................................................ 32
Figure 12 Internet Protocol (TCP/IP) Properties - Bridge Mode ........................................... 33

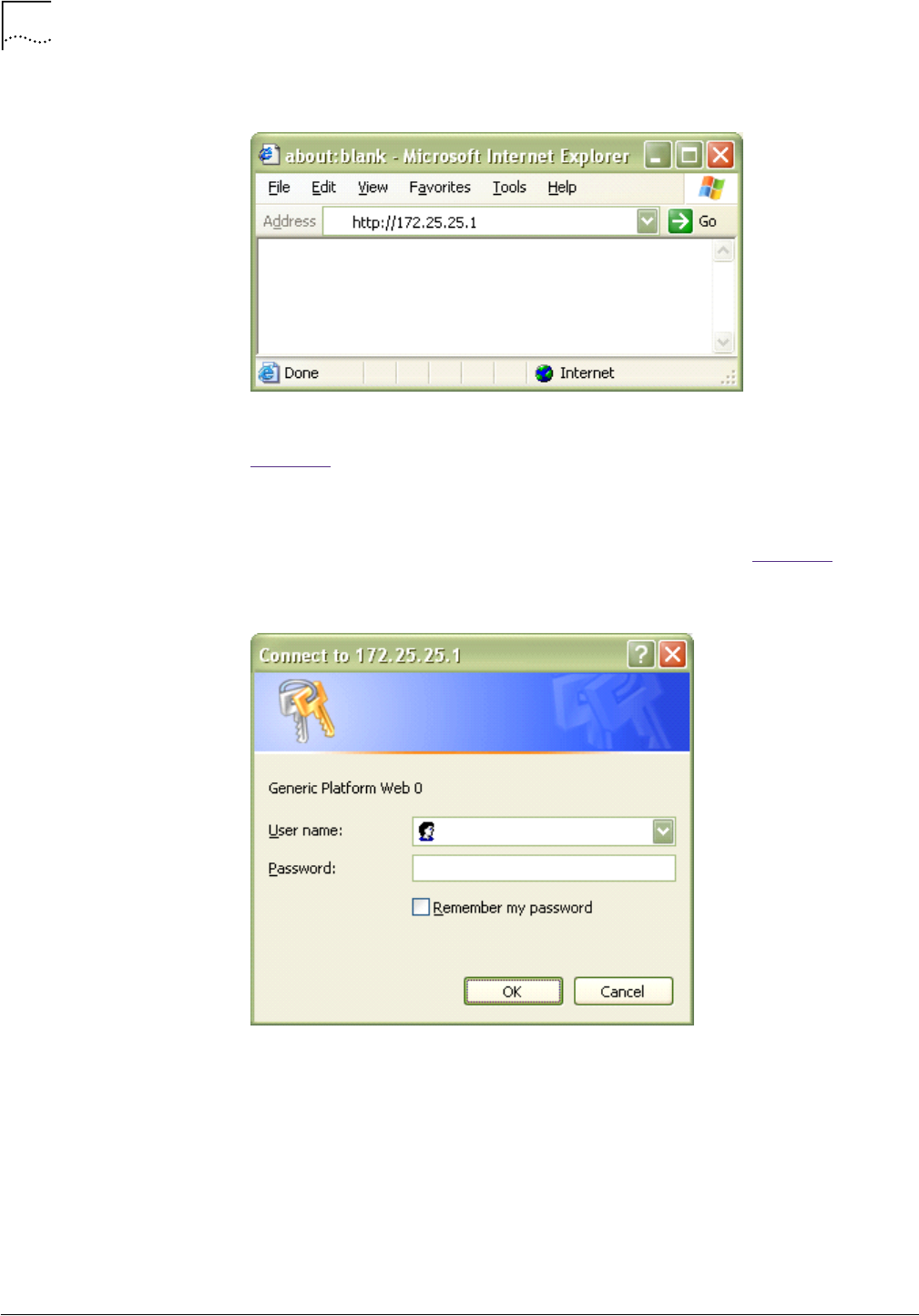

Figure 13 Starting Web Browser Window - Gateway Mode ................................................. 34
Figure 14 User Name / Password Window - Gateway Mode ............................................... 34
Figure 15 Web Configuration Main Menu - Gateway Mode .................................................. 35
Figure 16 Starting Web Browser Window - Gateway Mode ................................................. 39
Figure 17 User Name / Password Window - Gateway Mode ............................................... 39
Figure 18 Web Configuration Main Menu - Gateway Mode .................................................. 40
Figure 19 Status - System Status ......................................................................................... 41
Figure 20 Status - WAN Status ............................................................................................. 41
Figure 21 Status - DHCP Status ........................................................................................... 42
Figure 22 Status - PPPoE Status ......................................................................................... 43
Figure 23 PPPoE - PPPoE ................................................................................................... 44
Figure 24 WAN - WAN IP ..................................................................................................... 45
Figure 25 WAN - Device Mode ............................................................................................. 46

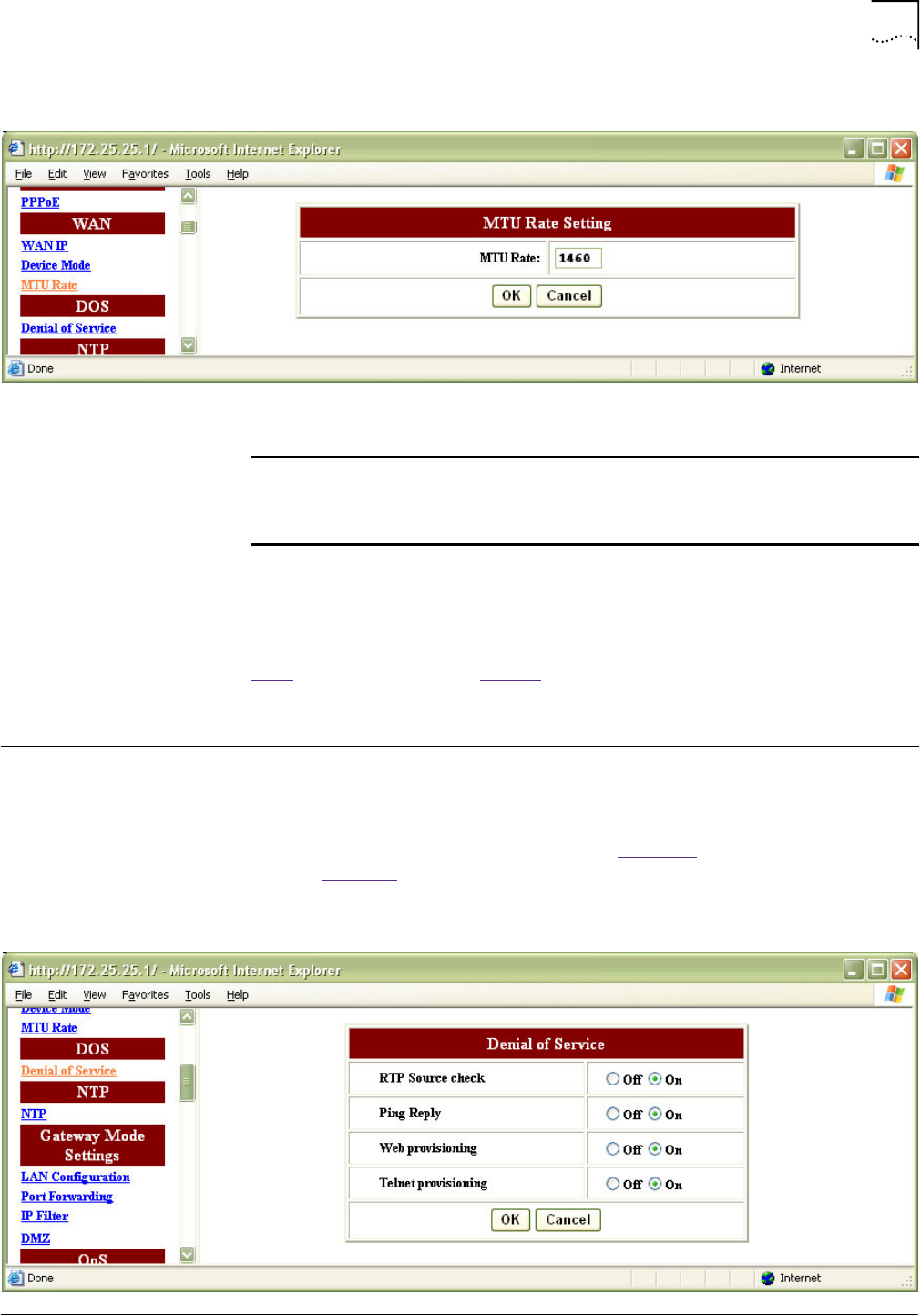

Figure 26 WAN - MTU Rate .................................................................................................. 47
Figure 27 DOS - Denial of Service ....................................................................................... 47

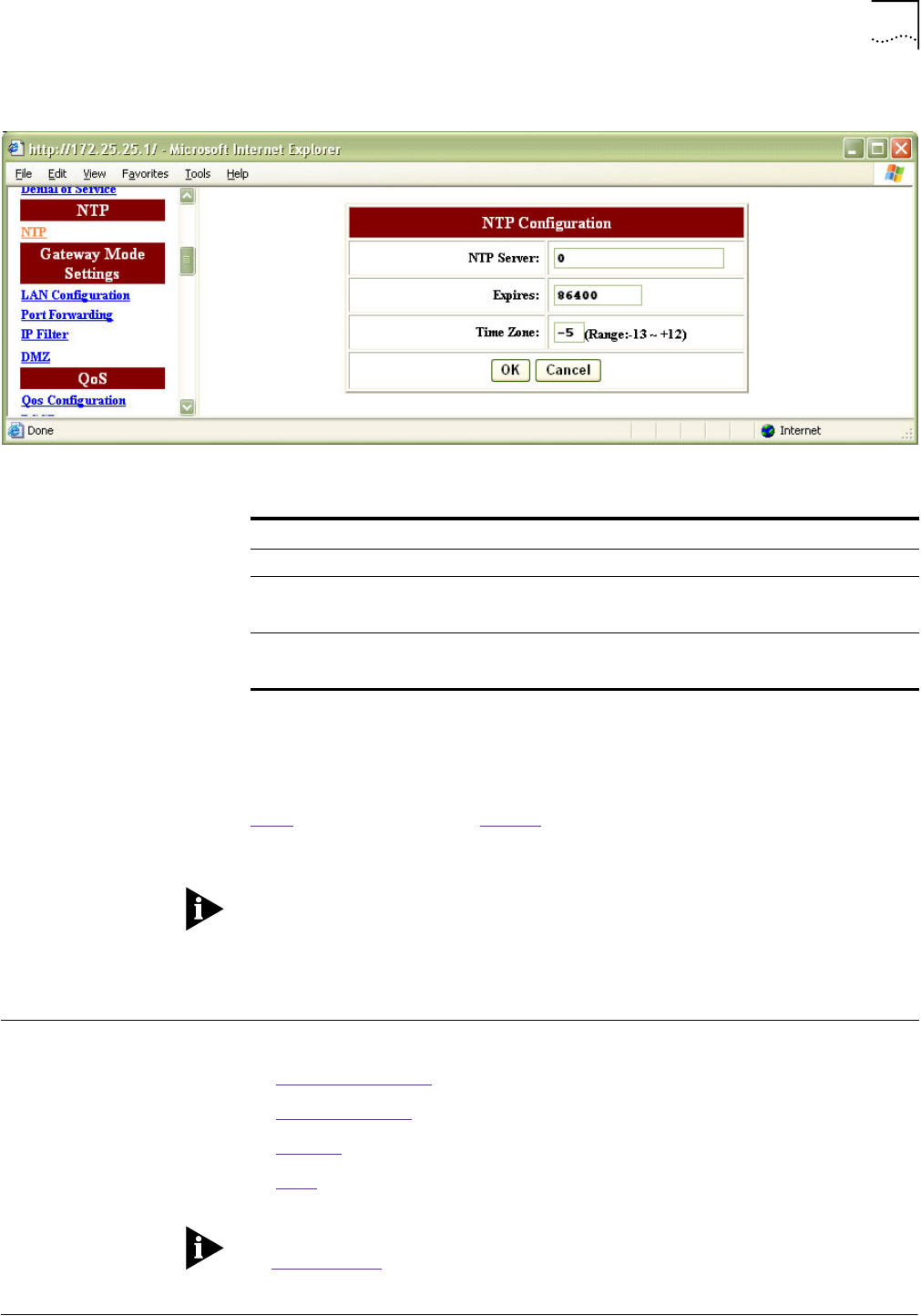

Figure 28 NTP - NTP ............................................................................................................49
Figure 29 Gateway Mode Settings - LAN Configuration ....................................................... 50

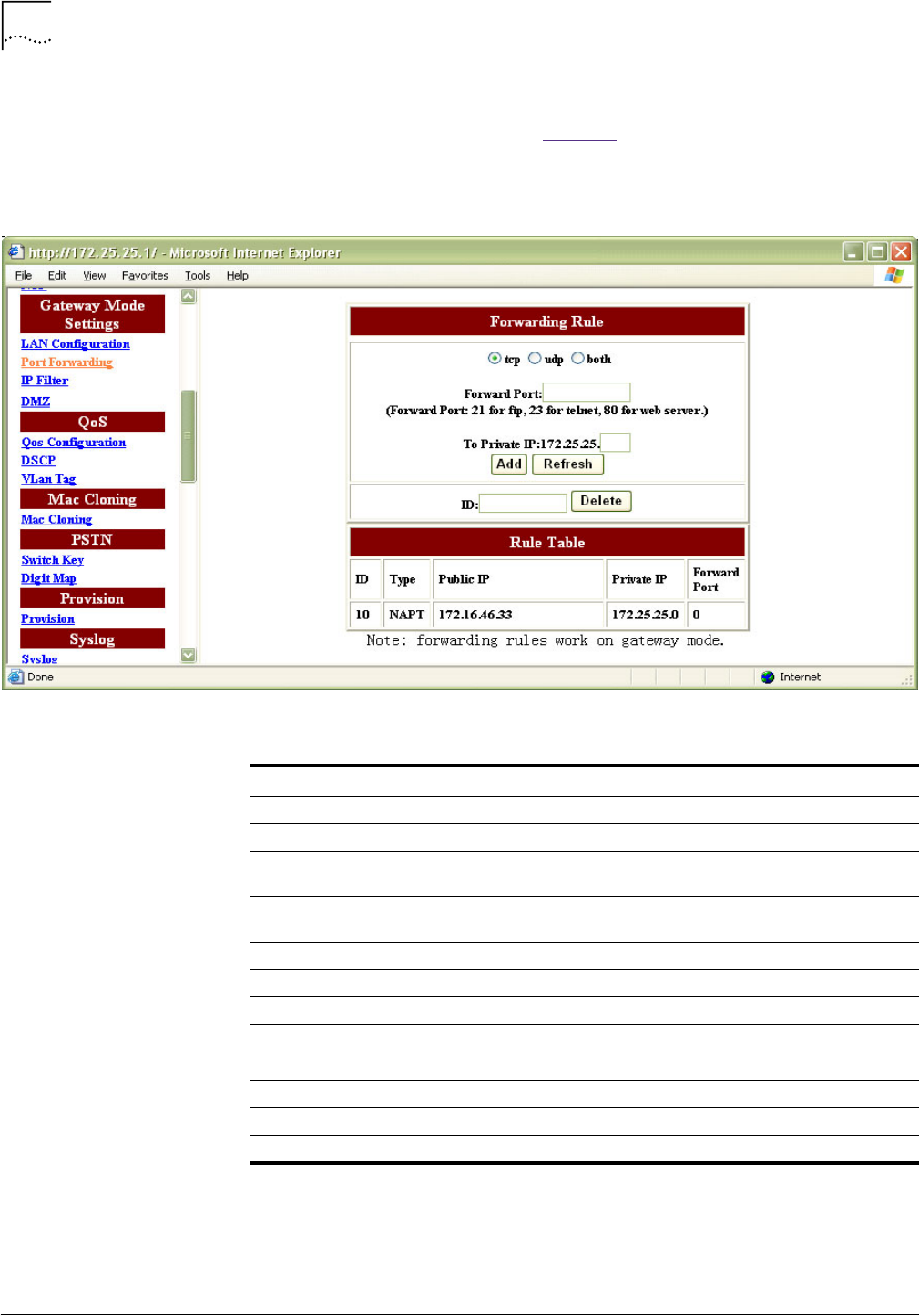

Figure 30 Gateway Mode Settings - Port Forwarding ........................................................... 52
Figure 31 Gateway Mode Settings - IP Filter ........................................................................ 53
Figure 32 Gateway Mode Settings - DMZ ............................................................................ 54
Figure 33 QoS - QoS Configuration ...................................................................................... 55
Figure 34 QoS - DSCP ......................................................................................................... 56
Figure 35 QoS - VLan Tag .................................................................................................... 57
Figure 36 Mac Cloning - Mac Cloning .................................................................................. 58
Figure 37 PSTN - Switch Key ............................................................................................... 59
Figure 38 PSTN - Digit Map .................................................................................................. 60
Figure 39 Provision - Provision ............................................................................................. 61

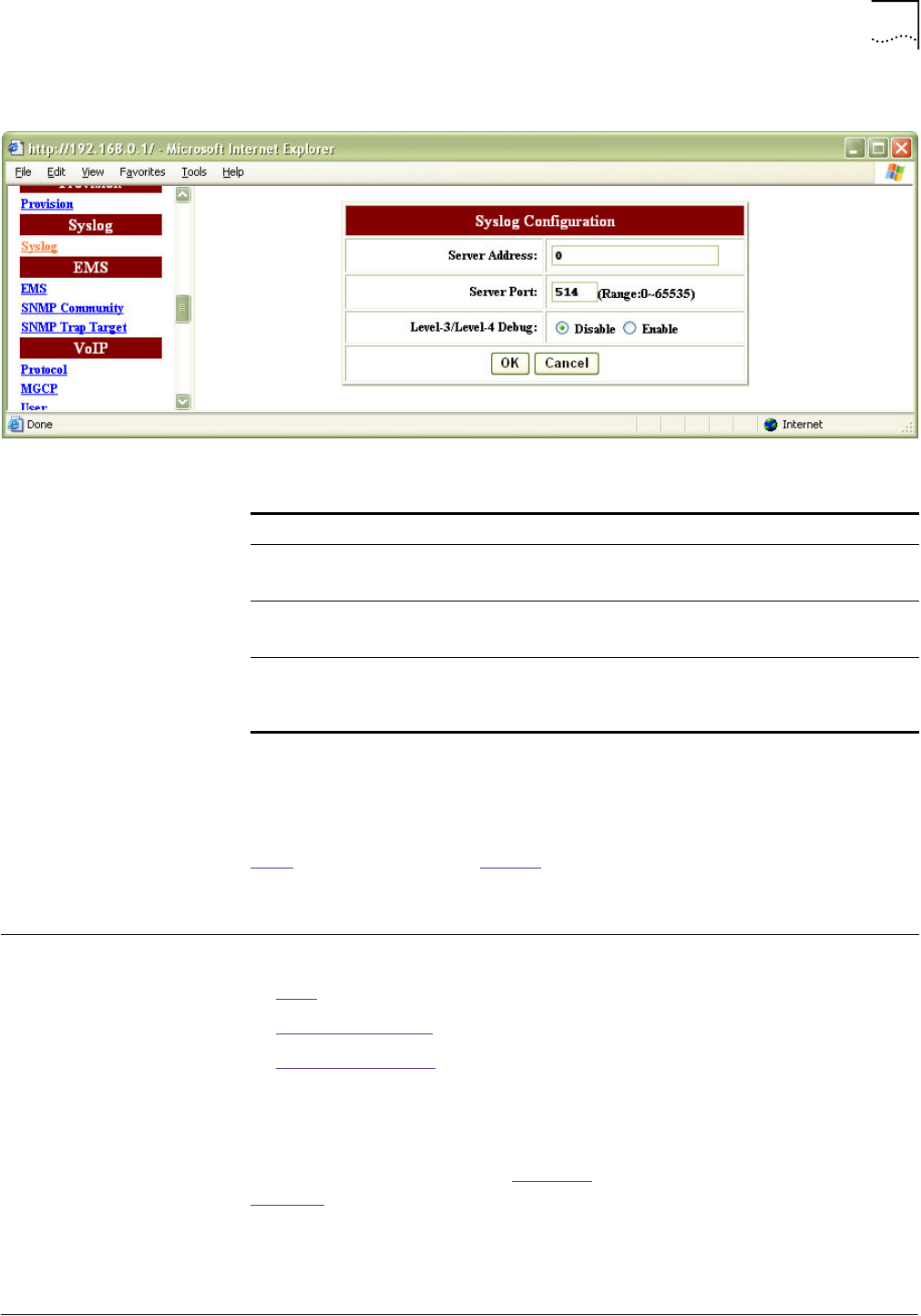

Figure 40 Syslog - Syslog ..................................................................................................... 63

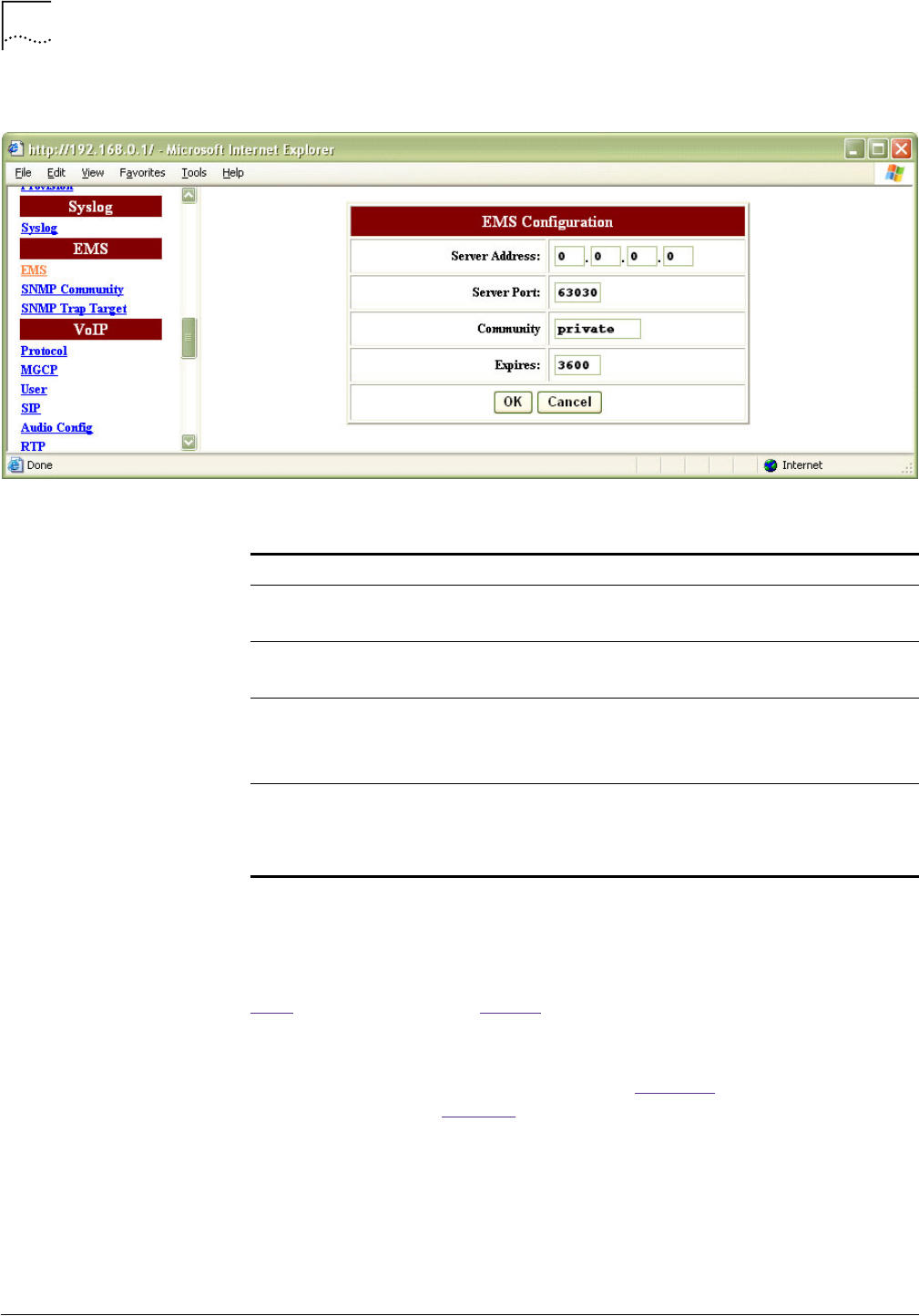

Figure 41 EMS - EMS ........................................................................................................... 64
Figure 42 EMS - SNMP Community ..................................................................................... 65
Figure 43 EMS - SNMP Community ..................................................................................... 66
Figure 44 VoIP - Protocol ..................................................................................................... 67
Figure 45 VoIP - MGCP ........................................................................................................ 68
Figure 46 VoIP - User ........................................................................................................... 69
Figure 47 VoIP - SIP ............................................................................................................. 70
Figure 48 VoIP - Audio Config .............................................................................................. 72
Figure 49 VoIP - RTP ...........................................................................................................73
Figure 50 VoIP - Tone ..........................................................................................................74
Figure 51 VoIP - Fax ............................................................................................................. 76
Figure 52 VoIP - Stun ........................................................................................................... 77
12
iAN-02EX
Part Number UTSI-NJTC-200323150117
Administrator Manual
June 2005
Figure 53 VoIP - Speed Dial ................................................................................................. 78
Figure 54 VoIP - Call Feature ............................................................................................... 79
Figure 55 VoIP - Digit Map ................................................................................................... 81
Figure 56 VoIP - Hook Flash ................................................................................................ 82
Figure 57 VoIP - Jitter Buffer ................................................................................................ 83

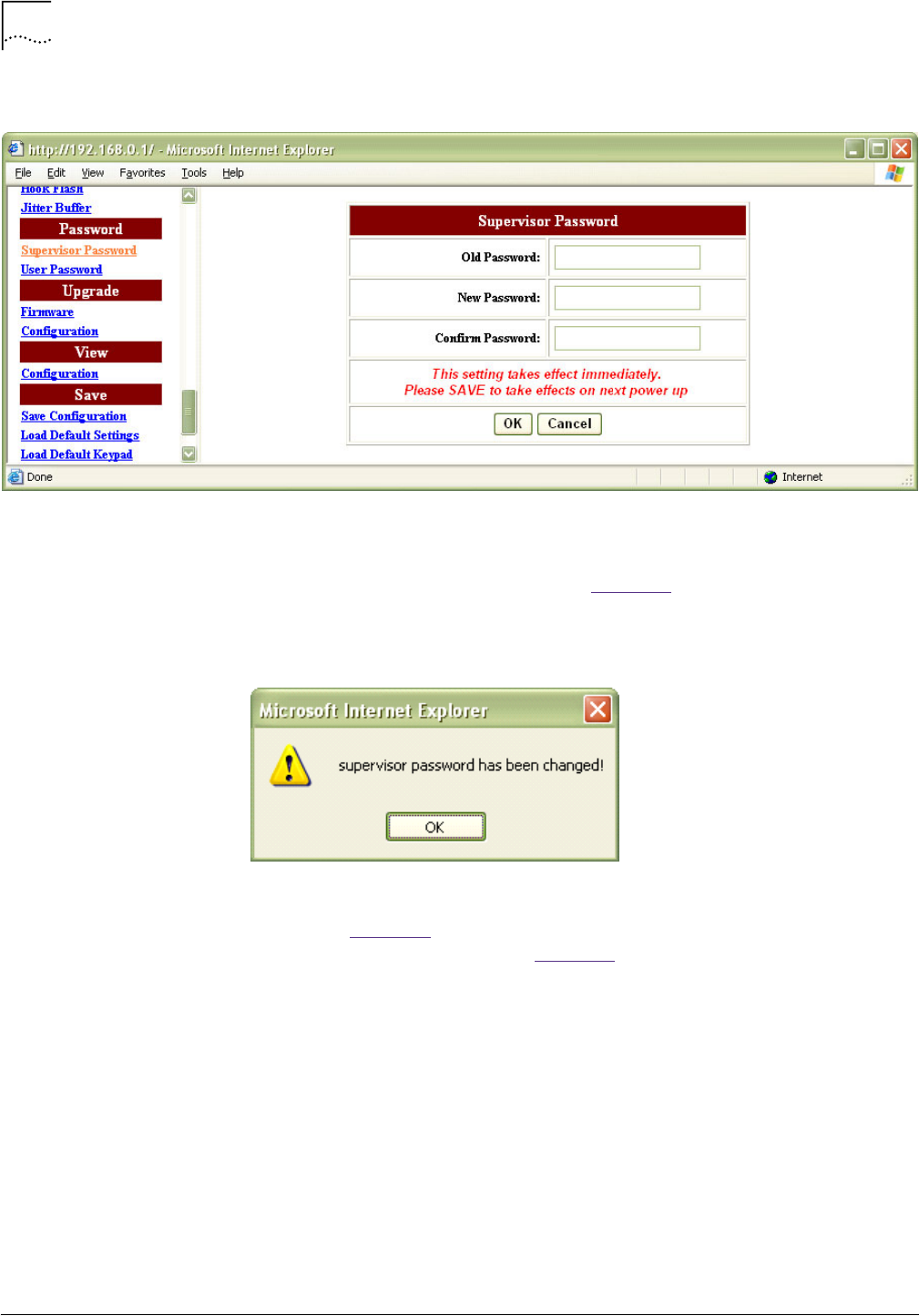

Figure 58 Password - Supervisor Password ........................................................................ 84
Figure 59 Password - Supervisor Password - Confirmation ................................................. 84
Figure 60 Password - Supervisor Password - Re-login ........................................................ 85
Figure 61 Password - User Password .................................................................................. 85
Figure 62 Password - User Password - Confirmation .......................................................... 86
Figure 63 Password - User Password - Re-login ................................................................. 86
Figure 64 Upgrade - Firmware ............................................................................................. 87
Figure 65 Upgrade - Configuration ....................................................................................... 88
Figure 66 Upgrade - Configuration File - Apply .................................................................... 88
Figure 67 View - Configuration ............................................................................................. 89
Figure 68 View - Configuration - abconfig.cfg ...................................................................... 89

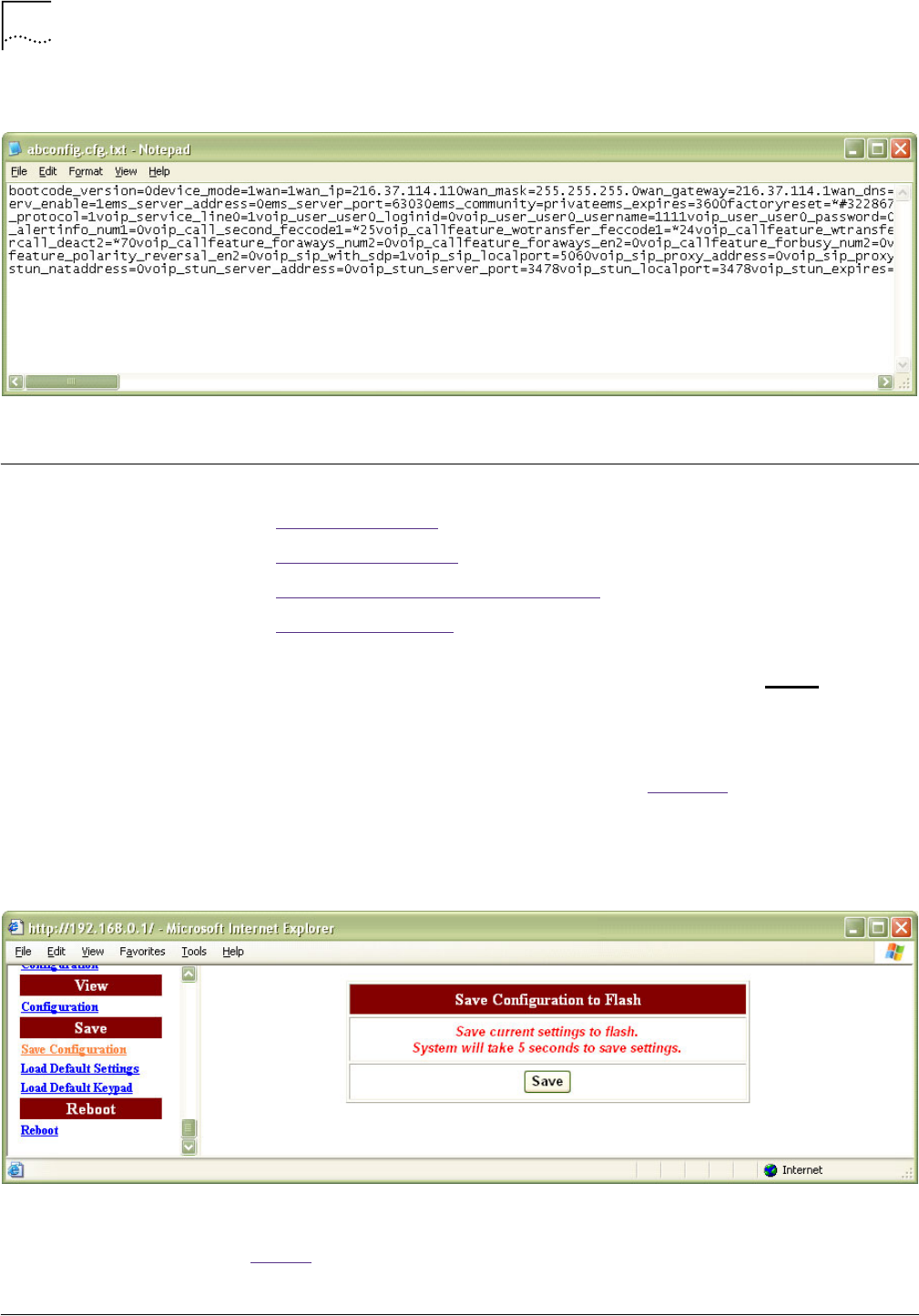

Figure 69 View - Configuration - abconfig.cfg.txt .................................................................. 90
Figure 70 Save - Save Configuration ................................................................................... 90
Figure 71 Save - Load Default Settings ................................................................................ 91
Figure 72 Save - Load Default Keypad ................................................................................ 92
Figure 73 Reboot - Reboot ................................................................................................... 92
Figure 74 Provisioning / Upgrade Scenario .......................................................................... 98
Figure 75 Provisioning / Upgrade Server GUI Settings ........................................................ 99
Part Number UTSI-NJTC-200323150117
iAN-02EX
June 2005
Administrator Manual
A
BOUT
T
HIS
G
UIDE
This chapter lists guide conventions and related documentation, and describes
how to contact customer service and technical documentation.
Release notes are issued with some products—visit our website at
http://support.utstar.com
. If the information in the release notes differs from
the information in this guide, follow the instructions in the release notes.
Conventions
This guide may contain notices, figures, screen captures, and certain text
conventions.
Notices
Table 1 lists notice icons used in this guide.
Table 1
Notice Icon Descriptions
Icon Notice Type Description
Information Note Information that contains important features or
instructions but is not hazard-related.
Caution or Warning Cautions are preceded with the word
Caution
. This
type of caution indicates a potentially hazardous
situation which, if not avoided, may result in minor or
moderate injury. It may also alert against unsafe
practices and potential program, data, system, or
device damage.
Warnings are preceded with the word
Warning
. This
type of warning indicates a potentially hazardous
situation which, if not avoided, could result in death or
serious injury.
Caution or Warning
due to potential
electrical hazard
Cautions due to potential electrical hazards are
preceded with the word
Caution
. This type of caution
indicates a potential electrical hazard. This hazard, if
not avoided, may result in minor or moderate injury. It
may also alert against unsafe practices and potential
program, data, system, or device damage.
Warnings due to potential electrical hazards are
preceded with the word
Warning
. This type of warning
indicates a potential electrical hazard. This hazard, if
not avoided, could result in death or serious injury.
ESD Information that indicates proper grounding precautions
are required before handling a product.
14
About This Guide
iAN-02EX
Part Number UTSI-NJTC-200323150117
Administrator Manual
June 2005
Figures and Screen
Captures
This guide provides figures and screen captures as examples. These examples
contain sample data. This data may vary from the actual data on an installed
system.
Text
Table 2 lists text conventions in this guide.
Related
Documentation
This documents contain additional information about the iAN-02EX Release 1.0:
■
iAN-02 EX Command Line Interface (CLI) User Manual
UTSI-NJTC-20040647
Contacting Customer
Service
For information about customer service, including support, training, code
releases and updates, contracts, and documentation, visit our website at
http://support.utstar.com
.
Refer to the documentation CD-ROM for information about product warranty.
Before contacting technical support, have this information available:
■
Contract number
■
Problem description
■
Symptoms
■
Known causes
■
Product information
■
Software and hardware versions
■
Serial numbers
■
Trouble locating and clearing attempts
Contacting Technical
Documentation
To provide comments on this documentation, send an e-mail to:
techdoc.feedback@utstar.com
Table 2
Text Convention Descriptions
Convention Description
Text represented as a
screen
display
This typeface
represents text that appears on a terminal
screen, for example
login:
.
Text represented as
user
entry
.
This typeface
represents commands entered by the
user, for example,
cd $HOME
.
Text represented as
menu
,
sub-menu
,
tab
, and
field
names
This typeface
represents all menu, sub-menu, tab, and field
names within procedures, for example:
On the
File
menu, click
New
.
Text represented by <
variable
> This typeface represents a required variable, for example:
<
filename
>
Contacting Technical Documentation
15
Part Number UTSI-NJTC-200323150117
iAN-02EX
June 2005
Administrator Manual
Please include the name and part number of the guide being referenced. If
applicable, provide the chapter and page number.
16
About This Guide
iAN-02EX
Part Number UTSI-NJTC-200323150117
Administrator Manual
June 2005
Part Number UTSI-NJTC-200323150117
iAN-02EX
June 2005
Administrator Manual
1
O
VERVIEW
Overview
The iAN-02EX is a Customer Premises Equipment that enables Voice over IP. It
interfaces regular POTS telephones with IP based telephony networks.
It is standalone device which provides a cost effective voice communication over
an existing broadband connection.
The iAN-02EX is a standard's based communication devices that deliver true,
next-generation voice-over-IP (VoIP) terminations to businesses and residences
worldwide. This is designed to address the needs of enterprise companies,
small-office environments, and the emerging VoIP managed voice services and
local services market by helping companies to cost-effectively turn their analog
telephones into IP devices.
Figure 1
iAN Product Deployment Schematic
Note: The iAN-16/32_E is a product from the iAN family with 16 and 32 POTS
interfaces
The iAN-02EX CPE equipment has the following interfaces:
■
WAN Interface: 1 RJ45 10/100 Base-TX Auto-Negotiate
■
LAN Interface: 1 RJ45 10/100 Base-TX Auto-Negotiate
18
Chapter 1: Overview
iAN-02EX
Part Number UTSI-NJTC-200323150117
Administrator Manual
June 2005
■
Phone Interface: 2 FXS/POTS Interface to connect regular analogue phone
■
PSTN Interface: 1 FXO / PSTN Life line Interface (Optional)
■
Power Supply Connector
Key Features of iAN-02EX:
■
IOP (Inter-Operability) with major soft-switch vendors
■
Multi-facet signaling supporting MGCP, SIP & H323
■
SNMP based EMS for VoIP deployments
■
Supports remote software upgrades
■
Plug & Play, Auto Configuration / Auto Provisioning
■
Auto Switch to PSTN in case of power failure (Optional)
The iAN-02EX box has two Voice ports. Each of the two voice ports on the
supports independent telephone numbers, giving you two separate lines. In
addition, the internal Ethernet switch allows for a direct connection to a
10/100BASE-T Ethernet network via an RJ-45 interface, with single LAN
connectivity for both the iAN-02EX box and a co-located PC or other
Ethernet-based device.
Note: H323 is not available in the factory shipped firmware. Separate firmware is
needed for this application.
Package Contents
Carefully unpack your package and make sure that you have the following
items. If you find anything missing, mismatched or damaged, promptly contact
your dealer who you purchased your product from for help.
■
One VoIP Residential Gateway
■
One RJ-11 telephone line for first telephone
■
One RJ-11 telephone line for second telephone (optional)
■
One RJ-11 telephone line for PSTN backup use (optional)
■
One RJ-45 Ethernet cable
■
One power adapter
■
One user manual
System Requirements
■
One RJ-45 Broadband Internet connection via cable modem or ADSL
modem
■
One PC with 10Mbps, 100Mbps, or 10/100 Mbps Ethernet card installed
■
TCP/IP protocol for each PC
■
Microsoft Internet Explorer 4.0 or later (5.0 is strongly recommended for web
configuration)
System Requirements
19
Part Number UTSI-NJTC-200323150117
iAN-02EX
June 2005
Administrator Manual
■
One or two standard touch-tone telephone(s)
■
Subscribe to a VoIP service provider for VoIP services
20
Chapter 1: Overview
iAN-02EX
Part Number UTSI-NJTC-200323150117
Administrator Manual
June 2005
Part Number UTSI-NJTC-200323150117
iAN-02EX
June 2005
Administrator Manual
2
H
ARDWARE
I
NSTALLATION
Panel & LEDs
Figure 2
Front Panel of 2-Port VoIP Gateway
Figure 3
Rear Panel of 2-Port VoIP Gateway
■
LINE: RJ-11 connector, connected to PSTN back-up line
■
PHONE1 & PHON2: RJ-11 connectors, connected to IP telephones
■
PWR: Power connector, connected to the power adapter packaged with the
VoIP Gateway
Table 3
LED
LED Color Status Description
PWR Green On When the 2-port VoIP Gateway is powered on
Off No power supply
WAN Green Blinking When data is being transmitted or received
On When ADSL connection is established
Off When there is no ADSL connection
ENET Green Blinking When data is being transmitted or received
On When Ethernet connection is established
Off When there is no Ethernet connection
VoIP Green On When VoIP telephone service is ready
Off When VoIP telephone service is not ready
LINE1 &
LINE2
Green Blinking When there is an incoming call (the telephone is ringing)
On When the telephone is in use
Off Switches to PSTN back-up line
22
Chapter 2: Hardware Installation
iAN-02EX
Part Number UTSI-NJTC-200323150117
Administrator Manual
June 2005
■
ENET: Ethernet RJ-45 connector, connected to PC using a RJ-45 Ethernet
cable
■
WAN: Ethernet RJ-45 connector, connected to WAN access device, such as
the cable modem or ADSL modem
Installation Procedure
Figure 4
Installation Diagram
1LINE:
Plug one end of the RJ-11 telephone line into the LINE port and plug the
other end into the phone port of the splitter. Then connect the splitter to the
phone socket in the wall using a RJ-11 telephone line. The LINE port is for
back-up use. The telephone is using VoIP service by default. However, if the
2-port VoIP Gateway loses WAN connection or the VoIP function is not
available, the 2-port VoIP Gateway will make the telephone to use PSTN (Public
Switched Telephone Network) service.
2 PHONE1 & PHONE2:
Plug one end of the RJ-11 telephone line into the
PHONE1 or PHONE2 port and plug the other end into the phone socket on a
telephone set.
3PWR:
Plug one end of the power adapter into the PWR port and plug the other
end into an electric outlet in the wall.
4ENET:
Plug one end of the RJ-45 Ethernet cable into the ENET port and plug
the other end into the Ethernet socket of NIC on your PC.
5WAN:
Plug one end of the RJ-45 Ethernet cable into the WAN port and plug the
other end into the Ethernet port of the Internet service device, such as the cable
modem or ADSL modem. Then connect the cable modem or ADSL modem to
the modem port of the splitter using a RJ-11 telephone line.
Part Number UTSI-NJTC-200323150117
iAN-02EX
June 2005
Administrator Manual
3
T
ECHNICAL
S
PECIFICATION
Table 4
Technical Specifications
Item Specifications
MANAGEMENT AND PROVISIONING Automatic System firmware/Configuration download via TFTP/HTTP servers
Authentication based on user name, password and login ID
Flexibility to use TFTP only, HTTP only or both TFTP/HTTP
Configurable TFTP/ HTTP priority order selection
TFTP port enable/disable, TFTP port hunting up to 3 ports
Configurable TFTP/HTTP feature with enable/disable flags
URL based entry for TFTP/HTTP provisioning
3 Optional config for provisioning
Encryption utility available for Config file for download
Auto sensing of TFTP port and disable download function, if Port unavailable
2 Logins for Maintenance with Online debug capability with 4 debug levels
System Telnet and CLI interface for maintenance operations
EMS (Element Management System) support based on SNMP traps
Reset to factory default via digit map.
Message Log on to Syslog server
Enable/Disable WAN provisioning
24
A
PPENDIX
: T
ECHNICAL
S
PECIFICATION
iAN-02EX
Part Number UTSI-NJTC-200323150117
Administrator Manual
June 2005
VOICE FEATURES Call hold
Configurable (*, #) feature codes
Call transfer with/without consultation
Call Waiting and per call Call-Waiting Blocking
3 Party Conference
Call forward (Always, busy, no answer)
DND (Do not disturb)
VoIP Speed dial
Per Port VoIP Digit Map
PSTN Digit Map
Configurable PSTN access code
Configurable Tone definition
Distinctive Ring
Fax
Caller Number/Name display
Caller ID Blocking
Per Call Caller ID Blocking
Anonymous call rejection
Repeat Dialing on busy with configurable timers
MWI (Message Wait Indication) with Stutter dial tone support
VMWI (Visual Message wait indication)
Configurable Hook-flash timing and Jitter buffer values
Configurable hold behavior using flash with/without feature code
DATA FEATURES Configurable Device Mode (Gateway or Bridge)
Advanced Routing function
Static/Dynamic WAN-IP-Addressing
Configurable DHCP range for LAN side
MAC cloning, STUN and firewall capability
NAT, Port forwarding, IP-Filtering and DMZ
VPN Pass through
NTP Server capability
Fax (Transparent and Fax relay)
INTERFACES
CUSTOMER SIDE 2 RJ11 FXS Ports, RJ45 connector (10/100Base-T Ethernet, IEEE 802.3)
NETWORK SIDE 1 RJ11 PSTN Port / RJ45 WAN Port / RJ45 LAN Port
Table 4
Technical Specifications
Item Specifications
25
Part Number UTSI-NJTC-200323150117
iAN-02EX
June 2005
Administrator Manual
LEDs Ethernet LAN: 10/100M, Link/Activity
WAN: 10/100M, Link/Activity
VoIP Ready
LINE1: Activity
LINE2: Activity
Power
SUPPORTED SPECIFICATION AND APPLICATIONS
DATA NETWORKING ARP Address Resolution Protocol
MAC Address (IEEE 802.3)
TCP (RFC 793), UDP (RFC 768)
DHCP Client/Server (RFC 2131)
IPV4 (RFC 791/RFC 1883)
NAT (RFC 3022)
STUN (RFC 3489)
NTP (RFC 1305)
ICMP (RFC 792)
PPPoE (RFC-2516)
MD5 (RFC 1321)
Type of Service (TOS) (RFC 1349)
DiffServ (RFC 2475)
RTP (RFC 1889/1890), RTCP (RFC 1890)
TFTP (RFC 1350), HTTP Client/Server (RFC 2131)
Https factory installed certificate
ITU-T T.30 Fax mode, ITU-T T.38 Fax Mode
PPPoE (RFC 2516)
ITU-T T.30 Fax Mode
ITU-T T.38 Fax Mode
CALL CONTROL / VOIP FEATURES SIP (RFC 3261), MGCP and H.323
SIP-Event (RFC-3265)
SIP Proxy redundancy A-Records, DNS-SRV
RTCP Attribute in SDP (RFC 3605)
Wild-Card RSIP definition.
Configurable End-Point-Styling.
Heart Beat (MGCP) functionality for Call Agents.
Disable/Enable Registrar
RTP/RTCP (RFC 3550)
RTP Payload for DTMF Digits, Telephony Tones and Signals (RFC 2833)
Tone Generation (GR-506) and Custom definable.
Call ID (Bell Core GR-30, DTMF)
Table 4
Technical Specifications
Item Specifications
26
A
PPENDIX
: T
ECHNICAL
S
PECIFICATION
iAN-02EX
Part Number UTSI-NJTC-200323150117
Administrator Manual
June 2005
VOICE ALGORITHMS G.711 (A-law or mLaw), G.723.1 (6.3 kbps, 5.3 kbps)
G.726 (16/24/32/40 kbps), G.729 a/b
Line Echo Cancellation [32ms (min) ~ 128ms (max)]
Adaptive Jitter Buffer (Up to 90ms jitter)
Asymmetrical Codes (Allows upstream and downstream to use different codecs)
AGC (Auto Gain Control), AEC (Auto Echo Cancellation)
Voice Activity Detection (VAD) and Comfort Noise (CNG)
Echo Cancellation G.165/G.168 and Attenuation and Gain Adjustment
SLIC SPECIFICATION Signaling: Loop Start and Polarity Reversal
Ringing source: Internal, 5 REN (Indoor Loops)
Loop current: 20 mA
UNIVERSAL POWER ADAPTER AC adapter: 12 VDC (120 VAC / 60 Hz or 220 VAC / 50 Hz input)
Power consumption: 6.0 watts (typical)
UNIT DIMENSIONS W x D x H: 190mm x 130mm x 30mm
Mounting Horizontal or Vertical
WEIGHT 1.9 lbs (Approx.)
ENVIRONMENTAL
Operating (System Ambient) 0° C to 40° C -197 to 7000 feet
Humidity 8% to 95% non-condensing
Shipping & Storage -25° C to 65° C, Low humidity for Low temperatures,
90% at 45° C and 30% at 65° C
REGULATORY COMPLIANCE CE, FCC part 15 Class B, UL certified
Table 4
Technical Specifications
Item Specifications
Part Number UTSI-NJTC-200323150117
iAN-02EX
June 2005
Administrator Manual
4
C
ONFIGURING
TCP/IP P
ROTOCOL
The iAN-02EX ATA has two modes of operation to communicate from a PC to
the iAN-02EX ATA:
■
Gateway Mode
■
Bridge Mode
The factory default mode is Gateway mode. After the PC is properly configured,
the ATA can be accessed with the procedures listed in Web Browser.
Gateway Mode
To communicate and configure iAN-02EX, the PC on your LAN must install
TCP/IP protocol. Make sure that the TCP/IP protocol of the PC is configured for
Obtain IP address from DHCP
and is connected to the
ENET
(Ethernet) port of
the ATA. In doing so the PC obtains an IP address of 172.25.25.2 from the
iAN-02EX.
The iAN-02EX assumes an IP address of 172.25.25.1 without network
connectivity. This IP address is used for communicating with the iAN-02EX via
the Web UI or Telnet, with the PC connected to the ENET port.
The iAN-02EX assumes a DHCP IP address on the WAN side if connected to
the network. In this case user can communicate with the same IP address
172.25.25.1 with PC connected to the ENET port. PC in the network can
communicate with the DHCP IP address allocated to iAN-02EX.
Following the procedures below to configure TCP/IP protocol for Windows 2000
or Windows XP operating system.
1
From the
Start
menu, click
Settings
and then select
Network Connections
.
28
Chapter 4: Configuring TCP/IP Protocol
iAN-02EX
Part Number UTSI-NJTC-200323150117
Administrator Manual
June 2005
Figure 5
Settings - Network Connections - Gateway Mode
2
Right click
Local Area Connection
and select
Properties
.
Figure 6
Local Area Connection - Properties - Gateway Mode
3
Select
Internet Protocol (TCP/IP)
and then click
Properties
in Figure 7.
Gateway Mode
29
Part Number UTSI-NJTC-200323150117
iAN-02EX
June 2005
Administrator Manual
Figure 7
Local Area Connection Properties - Gateway Mode
4
Select the radio button for
Obtain an IP address automatically
in Figure 8 and
click
OK
to return to Figure 7. Click
OK
to exit.
30
Chapter 4: Configuring TCP/IP Protocol
iAN-02EX
Part Number UTSI-NJTC-200323150117
Administrator Manual
June 2005
Figure 8
Internet Protocol (TCP/IP) Properties - Gateway Mode
The Configuration for Windows 2000/XP is now completed. Refer toWeb
Browser for configuration procedures via web browser.
Bridge Mode
To communicate and configure iAN-02EX, the PC on your LAN must install
TCP/IP protocol. Make sure that the PC is configured with static IP address of
172.25.25.100 and is connected to the
ENET
(Ethernet) port of the ATA. Ensure
that the WAN port is not connected.
The iAN-02EX assumes an IP address of 172.25.25.1 without network
connectivity. This IP address is used for communicating with the iAN-02EX via
the Web UI or Telnet, with the PC connected to the ENET port.
The iAN-02EX assumes a DHCP IP address on the WAN side if connected to
the network. In the Bridge mode, the PC that connects to the ENET port also is
allocated a DHCP IP address. In this case user can communicate with the PC in
the network or PC connected to the ENET port using the DHCP IP allocated to
the user.
Bridge Mode
31
Part Number UTSI-NJTC-200323150117
iAN-02EX
June 2005
Administrator Manual
Note: the ISP normally has to provide 2 IP addresses, one for the ATA and one
for the PC connected to the LAN port.
Following the procedures below to configure TCP/IP protocol for Windows 2000
or Windows XP operating system.
1
From the
Start
menu, click
Settings
and then select
Network Connections
.
Figure 9
Settings - Network Connections - Bridge Mode
2
Right click
Local Area Connection
and select
Properties
.
32
Chapter 4: Configuring TCP/IP Protocol
iAN-02EX
Part Number UTSI-NJTC-200323150117
Administrator Manual
June 2005
Figure 10
Local Area Connection - Properties - Bridge Mode
3
Select Internet Protocol (TCP/IP) and then click
Properties
in Figure 11.
Figure 11
Local Area Connection Properties - Bridge Mode
Web Browser
33
Part Number UTSI-NJTC-200323150117
iAN-02EX
June 2005
Administrator Manual
4
Select the radio button for Using the following IP address in Figure 12. Set IP
address as
172.25.25.100
and set Subnet mask as
255.255.255.0
. Click
OK
to
confirm the settings and return to Figure 11. Click
OK
again to exit.
Figure 12
Internet Protocol (TCP/IP) Properties - Bridge Mode
The Configuration for Windows 2000/XP is now completed. Refer to Web
Browser for configuration procedures via web browser.
Web Browser
Once the TCP/IP of the PC is properly configured, please proceed the following
steps:
1
Start a web browser window.
2
Enter the default IP address,
172.25.25.1
, of this device in the address box to
access the web configuration menu.
34
Chapter 4: Configuring TCP/IP Protocol
iAN-02EX
Part Number UTSI-NJTC-200323150117
Administrator Manual
June 2005
Figure 13
Starting Web Browser Window - Gateway Mode
3
Figure 14 prompts for user name and password. The web configuration menu
provides two operation modes: user mode and supervisor mode. For user
mode, enter the predefined user name as
user
and password as
12345
. For the
supervisor mode, enter the predefined user name as
supervisor
and password
as
utstar
. Click OK to access the configuration as shown in Figure 15.
Figure 14
User Name / Password Window - Gateway Mode
Web Browser
35
Part Number UTSI-NJTC-200323150117
iAN-02EX
June 2005
Administrator Manual
Figure 15
Web Configuration Main Menu - Gateway Mode
Refer to Chapter 5 - Configuration for more details of web configuration
operations.
36
Chapter 4: Configuring TCP/IP Protocol
iAN-02EX
Part Number UTSI-NJTC-200323150117
Administrator Manual
June 2005
Part Number UTSI-NJTC-200323150117
iAN-02EX
June 2005
Administrator Manual
5
C
ONFIGURATION
iAN-02EX Gateway implements a Web server allowing user configure this
device via the Web interface. This Interface provides comprehensive system
management scheme, including system configuration, performance monitoring,
system maintenance and administration. Refer to Table 5 for the features and
functions available to "Supervisor" vs. "User" privileges.
Table 5
Feature Lists
Features Functions User Level Supervisor Level
Status System Status VV
WAN Status V
DHCPC Status VV
PPPoE Status VV
PPPoE PPPoE VV
WAN WAN IP VV
Device Mode VV
MTU Rate V
DOS Denial of Service V
NTP NTP V
Gateway Mode Settings LAN Configuration VV
Port Forwarding VV
IP Filter VV
DMZ VV
QoS QoS Configuration V
DSCP V
VLan Tag V
Mac Cloning Mac Cloning VV
PSTN Switch Key VV
Digit Map VV
Provision Provision V
Syslog Syslog V
Element Management
System (EMS)
EMS V
SNMP Community V
SNMP Trap Target V
38
Chapter 5: Configuration
iAN-02EX
Part Number UTSI-NJTC-200323150117
Administrator Manual
June 2005
Note: Unless otherwise noted, this chapter uses Gateway Mode with Supervisor
level in all examples. Please note that some sections may not apply to Bridge
Mode or User level login.
Configuring via Web
Browser
Once the TCP/IP of the PC is properly configured, please proceed the following
steps:
1
Start a web browser window.
2
For Gateway mode, enter the default IP address of 172.25.25.1 to access the
web configuration menu. For Bridge Mode, enter the default IP address of
172.25.25.1.
VoIP Protocol V
MGCP V
User V
SIP V
Audio Config V
RTP V
Tone V
FAX V
STUN V
Speed Dial VV
Call Features V
Digit Map V
Hook Flash V
Jitter Buffer V
Password Supervisor Password V
User Password VV
Upgrade Firmware V
Configuration V
View Configuration V
Save Save Configuration VV
Load Default Settings V
Load Default Settings
using FXS Ports
V
Load Default Keypad V
Reboot Reboot VV
Table 5
Feature Lists
Features Functions User Level Supervisor Level
Configuring via Web Browser
39
Part Number UTSI-NJTC-200323150117
iAN-02EX
June 2005
Administrator Manual
Figure 16
Starting Web Browser Window - Gateway Mode
3
Figure 17 prompts for user name and password. The web configuration menu
provides two operation modes: user mode and supervisor mode. For user
mode, enter the predefined user name as
user
with password as
12345
. For the
supervisor mode, enter the predefined user name as
supervisor
with password
as
utstar
. Click
OK
to access the configuration as shown in Figure 18.
Figure 17
User Name / Password Window - Gateway Mode
40
Chapter 5: Configuration
iAN-02EX
Part Number UTSI-NJTC-200323150117
Administrator Manual
June 2005
Figure 18
Web Configuration Main Menu - Gateway Mode
Note: Click
OK
on any page to apply the modification. Navigating to another
page without clicking
OK
does not save any modifications and the configuration
are ignored. After making all necessary settings, you
MUST
Save
the
configurations and then
Reboot
for the new settings to take effect. Refer to
Save and Reboot for more information.
Status
The Status provision contains the following sections:
■
System Status
■
WAN Status
■
DHCPC Status
■
PPPoE Status
System Status
Click
System Status
in the
Status
section. Figure 19 prompts for current
system status. Refer to Table 6 for more information of the parameters.
Status
41
Part Number UTSI-NJTC-200323150117
iAN-02EX
June 2005
Administrator Manual
Figure 19
Status - System Status
WAN Status
Click
WAN Status
in the
Status
section. Figure 20 prompts for current WAN
status. Refer to Table 7 for more information of the parameters.
Note: This section is applicable for User mode only. It is not applicable for
Supervisor mode.
Figure 20
Status - WAN Status
Table 6
Status - System Status Field Description
Field Description
Board ID The ID number of this module
Firmware Version The current firmware version number
Web GUI Version The current Web UI version number
MAC Address The unique hardware number of this module
VoIP Service Status The current VoIP connection status
Value range: Connected to VoIP / Not Connected to VoIP.
42
Chapter 5: Configuration
iAN-02EX
Part Number UTSI-NJTC-200323150117
Administrator Manual
June 2005
Note: The parameters contain meaningful data only when static IP address
scheme is used for WAN connection. All parameters are 0 or null when static IP
is not used. Refer to WAN IP for WAN connection mode configuration.
DHCPC Status
Click
DHCPC Status
in the
Status
section. Figure 21 prompts for current DHCP
status. Refer to Table 8 for more information of the parameters.
Figure 21
Status - DHCP Status
Note: The parameters contain meaningful data only when DHCP scheme is
used for WAN connection. All parameters are 0 or null when DHCP is not used.
Refer to WAN IP for WAN connection mode configuration.
Table 7
Status - WAN Status Field Description
Field Description
WAN IP Address The IP address of the WAN
WAN Subnet Mask The subnet mask of the WAN
Default Gateway The gateway address of the WAN
Table 8
Status - DHCP Status Field Description
Field Description
IP The IP address of the iAN-02EX VoIP gateway
Subnet Mask The subnet mask of the iAN-02EX VoIP gateway
Broadcast The DHCP broadcast address
Gateway The gateway address of the iAN-02EX VoIP gateway
DNS1 The IP address of domain name server 1
DNS2 The IP address of domain name server 2
NTP Server The IP address of network time protocol server
PPPoE
43
Part Number UTSI-NJTC-200323150117
iAN-02EX
June 2005
Administrator Manual
PPPoE Status
Click
PPPoE Status
in the
Status
section. Figure 22 prompts for current PPPoE
status. Refer to Table 9 for more information of the parameters.
Figure 22
Status - PPPoE Status
Note: The parameters contain meaningful data only when PPPoE scheme is
used for WAN connection. All parameters are 0 or null when PPPoE is not used.
Refer to WAN IP for WAN connection mode configuration.
PPPoE
PPPoE
A valid pair of user name and password is required when PPPoE mode is
selected for obtaining the WAN IP address for the iAN-02EX VoIP gateway.
Click
PPPoE
in the
PPPoE
section. Figure 23 prompts for current PPPoE
status. Refer to Table 10 for more information of the parameters.
Table 9
Status - PPPoE Status Field Description
Field Description
Service Name The service group name
AC Name Specific server account details
Local IP The Client IP address
Remote IP The Server IP address
DNS1 The IP address of domain name server 1
DNS2 The IP address of domain name server 2
WIN1 The IP address of WIN Server 1
WIN2 The IP address of WIN Server 2
44
Chapter 5: Configuration
iAN-02EX
Part Number UTSI-NJTC-200323150117
Administrator Manual
June 2005
Figure 23
PPPoE - PPPoE
Configure the parameters accordingly. Click
OK
to confirm the modification or
click
Cancel
to discard the modification.
Save the configuration and Reboot the module for the new configuration to take
effect.
Note: Refer to WAN IP for PPPoE mode configuration and refer to PPPoE
Status for PPPoE status.
WAN
The WAN port is the connection of the iAN-02EX module to the existing
broadband device such as cable modem or ADSL CPE. The WAN provision
contains the following sections:
■
WAN IP
■
Device Mode
■
MTU Rate
WAN IP
iAN-02EX supports three methods of obtaining the WAN IP address; static,
DHCP or PPPoE. Click
WAN IP
in the
WAN
section. Figure 24 prompts for
configuration. Refer to Table 11 for more information of the parameters.
Table 10
PPPoE - PPPoE Field Description
Field Description
Username User name for PPPoE registration recognized by the Internet
service provider
Password Password for PPPoE registration recognized by the Internet
service provider
WAN
45
Part Number UTSI-NJTC-200323150117
iAN-02EX
June 2005
Administrator Manual
Figure 24
WAN - WAN IP
Configure the parameters accordingly. Click
OK
to confirm the modification or
click
Cancel
to discard the modification.
Table 11
WAN - WAN IP Field Description
Field Description
Static IP Address To configure a static IP address.
IP The static IP address of the iAN-02EX VoIP gateway
Default: 171.25.25.1
Mask The subnet mask of the iAN-02EX VoIP gateway
Default: 255.255.255.0
Gateway The network gateway address of the iAN-02EX VoIP gateway
Default: 172.25.25.1
DNS 1 The IP address of domain name server 1.
Default: 192.168.100.1
DNS 2 The IP address of domain name server 2.
Default: 192.168.100.2
DHCP To obtain an IP address through DHCP.
Default connection mode.
Host Name The name of the DHCP host.
Default: 0
PPPoE To obtain an IP address through PPPoE.
46
Chapter 5: Configuration
iAN-02EX
Part Number UTSI-NJTC-200323150117
Administrator Manual
June 2005
Save the configuration and Reboot the module for the new configuration to take
effect.
Note: Refer to DHCPC Status for PPPoE status.
Device Mode
iAN-02EX has two operational modes: Bridge mode and Gateway mode. With
bridge mode, iAN-02EX acts as a transparent bridge to pass traffic between the
module and an end-user device. The WAN port and the LAN (ENET) port share
the same IP address. With gateway mode, iAN-02EX acts as a NAT device and
so that a group of users can use a private IP address in a LAN environment. The
WAN port and the LAN (ENET) port have distinct IP addresses.
Click
Device Mode
in the
WAN
section. Figure 25 prompts for configuration.
Refer to Table 12 for more information of the parameters.
Figure 25
WAN - Device Mode
Configure the parameters accordingly. Click
OK
to confirm the modification or
click
Cancel
to discard the modification.
Save the configuration and Reboot the module for the new configuration to take
effect.
MTU Rate
Click
MTU Rate
in the
WAN
section. Figure 26 prompts for configuration. Refer
to Table 13 for more information of the parameters.
Table 12
WAN - Device Mode Field Description
Field Description
Bridge The LAN port (ENET) is bridged to the WAN Port.
NAT function is disabled.
Gateway NAT is applied between the LAN (ENET) and WAN Port.
Default mode.
DOS
47
Part Number UTSI-NJTC-200323150117
iAN-02EX
June 2005
Administrator Manual
Figure 26
WAN - MTU Rate
Configure the parameters accordingly. Click
OK
to confirm the modification or
click
Cancel
to discard the modification.
Save the configuration and Reboot the module for the new configuration to take
effect.
DOS
DOS (Denial of service) provides access control for RTP packets, web/telnet
provisioning, etc.
Denial of Service
Click
Denial of Service
in the
DOS
section. Figure 27 prompts for configuration.
Refer to Table 14 for more information of the parameters.
Figure 27
DOS - Denial of Service
Table 13
WAN - MTU Rate Field Description
Field Description
MTU Rate Specify the network MTU rate
Default: 1460
48
Chapter 5: Configuration
iAN-02EX
Part Number UTSI-NJTC-200323150117
Administrator Manual
June 2005
Configure the parameters accordingly. Click
OK
to confirm the modification or
click
Cancel
to discard the modification.
Save the configuration and Reboot the module for the new configuration to take
effect.
NTP
NTP (network time protocol) is a protocol that allows local computers to
synchronize the clocks. When a NTP client initiates a time request exchange
with the NTP server, the client can adjust its local clock to exactly match the
clock at the server's computer. Accurate time information is critical for
monitoring the device with system log.
The device will synchronize itself with an external NTP server automatically
when one of the following conditions occurs:
■
Rebooting the device
■
The
Expires
time having run out
NTP
Click
NTP
in the
NTP
section. Figure 28 prompts for configuration. Refer to
Table 15 for more information of the parameters.
Table 14
DOS - Denial of Service Field Description
Item Description
RTP Source Check Enable / disable RTP source checking. When enabled, RTP
packets with source ip/port not presented in remote SDP are
dropped.
Ping Reply Enable / disable ping reply to ICMP request
Web Provisioning Enable / disable web provisioning from WAN side.
For Gateway mode only.
Telnet Provisioning Enable / disable telnet provisioning from WAN side.
For Gateway mode only.
Gateway Mode Settings
49
Part Number UTSI-NJTC-200323150117
iAN-02EX
June 2005
Administrator Manual
Figure 28
NTP - NTP
Configure the parameters accordingly. Click
OK
to confirm the modification or
click
Cancel
to discard the modification.
Save the configuration and Reboot the module for the new configuration to take
effect.
Note: The Time Zone does not adjust automatically to the North America
daylight saving time. Adjust the value manually when needed. -4 is the time
zone with daylight saving and -5 is without daylight saving. The value can also
be modified through the configuration file.
Gateway Mode
Settings
The Gateway Mode Settings provision contains the following sections:
■
LAN Configuration
■
Port Forwarding
■
IP Filter
■
DMZ
Note: The functions described in this section apply only to Gateway mode. Refer
to Device Mode for device mode configuration.
Table 15
NTP - NTP Field Description
Item Description
NTP Server The IP address of the network time protocol server.
Expires The period that the VoIP gateway retrieves time from NTP server.
Default: 86400 seconds
Time Zone The time difference between the local time and GMT.
Default: -5
50
Chapter 5: Configuration
iAN-02EX
Part Number UTSI-NJTC-200323150117
Administrator Manual
June 2005
LAN Configuration
When the module operates in the Gateway mode, it supports the NAT (NAPT)
feature. It means the WAN and LAN interfaces are located in different network
segments and therefore the data traffic needs to be routed between the two
interfaces.
To properly communicate with iAN-02EX, an IP address must also be assigned
to the LAN port of the user's PC. There are 2 ways to assign a proper IP
address to the user PC's LAN port:
■
Manual configuration of the user PC: This is required if the user configures
the iAN-02EX WAN port with a static IP address as described in WAN IP.
■
Dynamic IP assignment with DHCP: iAN-02EX can act as a DHCP server
which dynamically assigns an IP address to user's PC located in the
LAN-side network.
Click
LAN Configuration
in the
Gateway Mode Settings
section. Figure 29
prompts for configuration. Refer to Table 16 for more information of the
parameters.
Figure 29
Gateway Mode Settings - LAN Configuration
Gateway Mode Settings
51
Part Number UTSI-NJTC-200323150117
iAN-02EX
June 2005
Administrator Manual
Configure the parameters accordingly. Click
OK
to confirm the modification or
click
Cancel
to discard the modification.
Save the configuration and Reboot the module for the new configuration to take
effect.
Port Forwarding
A NAPT application creates a firewall between LAN and WAN. A firewall keeps
unwanted traffic away from user computers in the LAN. A tunnel can be created
through user firewall so that a distant server on the Internet can communicate
with one of the user computers in the LAN via a single port.
Table 16
Gateway Mode Settings - LAN Configuration Field Description
Item Description
LAN IP Configuration
LAN IP The LAN IP address
Default: 172.25.25.1
LAN Netmask The LAN netmask
Default: 255.255.255.0
LAN Gateway The LAN gateway IP address.
Default: 172.25.25.1
DHCP Configuration
Status To enable/disable DHCP server's dynamic IP address
assignment.
Default: Enable
Mode To automatically obtain or manually assign the DNS server
address.
Default: Auto
Pool Start IP The starting IP address of the IP address pool.
Default: 172.25.25.1
Pool End IP The ending IP address of the IP address pool.
Default: 172.25.25.21
Default Gateway The default network gateway IP address.
Default: 172.25.25.1
DNS 1 The IP address of domain name server 1. Configurable with
Manual mode.
Default: 172.25.25.1
DNS 2 The IP address of domain name server 2. Configurable with
Manual mode.
Default: 0.0.0.0
Domain The domain name.
Default: .com
Lease Time The time duration for which the settings will be in effect.
Default: 86400 seconds
52
Chapter 5: Configuration
iAN-02EX
Part Number UTSI-NJTC-200323150117
Administrator Manual
June 2005
Click
Port Forwarding
in the
Gateway Mode Settings
section. Figure 30
prompts for configuration. Refer to Table 17 for more information of the
parameters.
Figure 30
Gateway Mode Settings - Port Forwarding
Configure the parameters accordingly and click
Add
to create a new entry. Click
Refresh
to obtain the latest configuration information.
Table 17
Gateway Mode Settings - Port Forwarding Field Description
Field Description
Forwarding Rule
tcp / udp / both Forward the packets based on tcp, udp or both
Forward Port The port number of the tcp or udp packets the user wants to check
against with the configured rules.
To Private IP The IP Address of the user's PC on the LAN-side network where
packets of matching criteria will be forwarded to.
ID The ID of the port-forwarding rule from the rule table.
Rule Table
ID A unique ID number assigned by the system.
Type NAPT
Port Forwarding
Public IP The originating IP address to be forwarded from.
Private IP The destination IP address to be forwarded to
Forward Port The originating port to be forwarded from.
Gateway Mode Settings
53
Part Number UTSI-NJTC-200323150117
iAN-02EX
June 2005
Administrator Manual
Enter the corresponding ID number listed in the table and click
Delete
to remove
the entry.
Save the configuration and Reboot the module for the new configuration to take
effect.
Note: Rule ID # 10 is a module default entry. Do not delete this entry.
IP Filter
iAN-02EX provides the option to block access from the IP addresses specified
in the IP filter.
Click
IP Filter
in the
Gateway Mode Settings
section. Figure 31 prompts for
configuration. Refer to Table 18 for more information of the parameters.
Figure 31
Gateway Mode Settings - IP Filter
Configure the parameters accordingly and click
Add
to create a new entry. Click
Refresh
to obtain the latest configuration information.
Table 18
Gateway Mode Settings - IP Filter Field Description
Field Description
IP Filter
Public IP The public IP address to be blocked.
ID The ID of the filter rule from the IP filter table.
IP Filter Table
ID A unique ID number assigned by the system.
Type IP filter.
Public IP The public IP address to be blocked.
54
Chapter 5: Configuration
iAN-02EX
Part Number UTSI-NJTC-200323150117
Administrator Manual
June 2005
Enter the corresponding ID number listed in the table and click
Delete
to remove
the entry.
Save the configuration and Reboot the module for the new configuration to take
effect.
DMZ
DMZ (De-Militarized Zone) is a firewall feature governing real-time information
exchanged through the VOIP gateway device. DMZ allows a single computer on
the LAN side network to expose all of its ports to the Internet, which means the
exposed computer is no longer behind the firewall. When a packet enters the
VOIP gateway, the packet is transferred to the DMZ if it is not filtered nor
port-forwarded.
Click
DMZ
in the
Gateway Mode Settings
section. Figure 32 prompts for
configuration. Refer to Table 19 for more information of the parameters.
Figure 32
Gateway Mode Settings - DMZ
Configure the parameters accordingly. Click
OK
to confirm the modification or
click
Cancel
to discard the modification.
Save the configuration and Reboot the module for the new configuration to take
effect.
QoS
The QoS configuration contains the following sections:
■
QoS Configuration
Table 19
Gateway Mode Settings - DMZ Field Description
Field Description
DMZ Off: Disable DMZ. Default.
On: Enable DMZ
DMZ IP Address The IP address of the DMZ
QoS
55
Part Number UTSI-NJTC-200323150117
iAN-02EX
June 2005
Administrator Manual
■
DSCP
■
VLan Tag
QoS Configuration
iAN-02EX supports the function of attaching ToS (Type of Service) or DSCP
(Differentiated Services Code Point) information on outgoing packets so these
packets may be processed with higher priority.
Click
QoS Configuration
in the
QoS
section. Figure 33 prompts for
configuration. Refer to Table 20 for more information of the parameters.
Figure 33
QoS - QoS Configuration
Configure the parameters accordingly. Click
OK
to confirm the modification.
Table 20
QoS - QoS Configuration Field Description
Field Description
QoS Type Disable No QoS / packet priority to be placed on outgoing
packets
Diff Serv Use DiffServer as packet priority mechanism
Default.
Tos Use TOS marking as packet priority mechanism
Tos TOS value. This parameter is applicable only if the QoS type is Tos.
Default: 16
Signal DSCP The diffserve priority value for signaling packets. This parameter is applicable
only if the QoS type is DiffServ.
Default: 160
Media DSCP The diffserve priority value for media / RTP packets. This parameter is
applicable only if the QoS type is DiffServ.
Default: 184
56
Chapter 5: Configuration
iAN-02EX
Part Number UTSI-NJTC-200323150117
Administrator Manual
June 2005
Save the configuration and Reboot the module for the new configuration to take
effect.
DSCP
iAN-02EX provides the option to retain or remove the outgoing packet priority for
To S .
Click
DSCP
in the
QoS
section. Figure 34 prompts for configuration. Refer to
Table 21 for more information of the parameters.
Figure 34
QoS - DSCP
Configure the parameters accordingly. Click
OK
to confirm the modification or
click
Cancel
to discard the modification.
Save the configuration and Reboot the module for the new configuration to take
effect.
Note: Refer to QoS Configuration for ToS configuration.
VLan Tag
Click
VLAN Tag
in the
QoS
section. Figure 35 prompts for configuration. Refer
to Table 22 for more information of the parameters.
Table 21
QoS - DSCP Field Description
Field Description
Trusted Retain the DSCP priority associated with outgoing packets.
Default.
Un-Trusted Remove the DSCP priority associated with outgoing packets.
Mac Cloning
57
Part Number UTSI-NJTC-200323150117
iAN-02EX
June 2005
Administrator Manual
Figure 35
QoS - VLan Tag
Configure the parameters accordingly. Click
OK
to confirm the modification or
click
Cancel
to discard the modification.
Save the configuration and Reboot the module for the new configuration to take
effect.
Mac Cloning
MAC cloning is to present a user defined MAC address to the WAN. It is useful
when the ISP has restrictions on the MAC address.
Mac Cloning
Click
Mac Cloning
in the
Mac Cloning
section. Figure 36 prompts for
configuration. Refer to Table 23 for more information of the parameters.
Table 22
QoS - VLan Tag Field Description
Field Description
VLan Tag To disable/enable VLan tag
Default: Disable
Data Priority The priority value for data packet
Default: 0
Data VLan ID The data VLan ID
Default: 4
Voice Priority The priority value for voice packet
Default: 1
Voice VLan ID The voice VLan ID
Default: 3
58
Chapter 5: Configuration
iAN-02EX
Part Number UTSI-NJTC-200323150117
Administrator Manual
June 2005
Figure 36
Mac Cloning - Mac Cloning
Configure the parameters accordingly. Click
OK
to confirm the modification or
click
Cancel
to discard the modification.
Save the configuration and Reboot the module for the new configuration to take
effect.
PSTN
The PSTN section is applicable ONLY if there is PSTN connectivity on the Line
port of the iAN-02EX VoIP Gateway. The PSTN configuration contains the
following sections:
■
Switch Key
■
Digit Map
Switch Key
This function allows the users to set the PSTN access number / switch number.
Normally, the telephone is using VoIP service unless the VoIP service is not
available. However, the user can manually switch from VoIP mode to PSTN
mode by entering 4-digit switch key.
Click
Switch Key
in the
PSTN
section. Figure 37 prompts for configuration.
Refer to Table 24 for more information of the parameters.
Table 23
Mac Cloning - Mac Cloning Field Description
Field Description
Mac Cloning To disable/enable MAC cloning
Default: Disable
Mac Address The Mac address to be assigned to the WAN.
Default: 000000000000
PSTN
59
Part Number UTSI-NJTC-200323150117
iAN-02EX
June 2005
Administrator Manual
Figure 37
PSTN - Switch Key
Configure the parameters accordingly. Click
OK
to confirm the modification or
click
Cancel
to discard the modification.
Save the configuration and Reboot the module for the new configuration to take
effect.
Digit Map
This function allows the users to set PSTN digit map. Normally the telephone is
using VoIP service unless the VoIP service is not available. However, the user
can set up a list of numbers with specific prefix and total length to switch from
VoIP mode to PSTN mode. The module supports up to 10 PSTN digit maps.
Click
Digit Map
in the
PSTN
section. Figure 38 prompts for configuration. Refer
to Table 25 for more information of the parameters.
Table 24
PSTN - Switch Key Field Description
Field Description
Pstnswkey The PSTN switch key for swathing from VoIP mode to PSTN
mode.
Default: 0000
60
Chapter 5: Configuration
iAN-02EX
Part Number UTSI-NJTC-200323150117
Administrator Manual
June 2005
Figure 38
PSTN - Digit Map
Configure the parameters accordingly and click
Add
/
Modify
to create / modify
an entry.
Note: The modify function only allows length modification of an existing digit
map. To modify the prefix for an existing digit map, delete the current digit map
and create a new one.
Enter the corresponding Prefix number listed in the table and click
Delete
to
remove the entry. Click
Refresh
to obtain the latest configuration information.
Save the configuration and Reboot the module for the new configuration to take
effect.
Provision
iAN-02EX VoIP Gateway supports download of provisioning and configuration
data from a server on the network. The Gateway downloads the configuration
from provision server and compares the parameters of the downloaded setting
Table 25
PSTN - Digit Map Field Description
Item Description
PSTN Digitmap
Prefix Enter the prefix of the telephone number to be
added/modified/deleted
Length Enter the total length of the telephone number. The length is
ranged from 0~64. "0" means the length is not fixed.
Digit Map Table
No. The digit map ID number.
Prefix The prefix of the telephone number.
Length The length of the telephone number.
Provision
61
Part Number UTSI-NJTC-200323150117
iAN-02EX
June 2005
Administrator Manual
and the existing local setting. If the downloaded setting parameter is newer, then
it will overwrite the existing local setting parameters.
Provision
Click
Provision
in the
Provision
section. Figure 39 prompts for configuration.
Refer to Table 26 for more information of the parameters.
Figure 39
Provision - Provision
Table 26
Provision - Provision Field Description
Item Description
Provision Priority The priority of the provision server.
Default: TFTP First
TFTP Server Address The IP address or URL of the TFTP provision server.
Default: devicecfg.private.net/devicecfg/utstarcom/config
TFTP Server Port The port numbers of the TFTP provision server. When enabled,
port 1 is required and port 2 & 3 are optional. When specified, port
2 is used if port 1 is not available. Port 3 is used if port 1 and port 2
are not available.
Default: 69, 100, 200
62
Chapter 5: Configuration
iAN-02EX
Part Number UTSI-NJTC-200323150117
Administrator Manual
June 2005
Configure the parameters accordingly. Click
OK
to confirm the modification or
click
Cancel
to discard the modification.
Save the configuration and Reboot the module for the new configuration to take
effect.
Refer to Appendix B for more information of provision procedures and rules.
Syslog
This iAN-02EX VoIP Gateway supports sending system log (sending UDP
packets via Syslog port (514)) and keeping log messages in Log server.
Syslog
Click
Syslog
in the
Syslog
section. Figure 40 prompts for configuration. Refer
to Table 27 for more information of the parameters.
HTTP Server Address The IP address or URL of the HTTP provision server.
Default: devicecfg.private.net/devicecfg/utstarcom/config
HTTP Server Port The port numbers of the HTTP provision server.
Default: 80
Group The group the VoIP gateway belongs to. The maximum length is
64.
Default: 0
Expires The period (in seconds) that the VoIP gateway retrieves
configuration files from Provision server. The valid period for this
device's IP address assigned by DHCP server or PPPoE server.
Enter the value provided by user's ISP.
Default: 3600 seconds
TFTP Upgrade Server
Address
The IP address or URL of the TFTP upgrade server.
Default: devicecfg.private.net/firmware/utstarcom
TFTP Upgrade Server Port The port numbers of the TFTP upgrade server.
Default: 69
HTTP Upgrade Server
Address
The IP address or URL of the HTTP upgrade server.
Default: devicecfg.private.net/firmware/utstarcom
HTTP Upgrade Server Port The port numbers of the HTTP upgrade server.
Default: 80
Sync Check Enable/Disable SIP proxy to trigger sync check event. When
enabled, ATA reboots and starts the default provisioning process if
SIP proxy triggers sync check event.
Default: Disable
Note: Authentication option will be supported in future release.
Table 26
Provision - Provision Field Description
Item Description
Element Management System (EMS)
63
Part Number UTSI-NJTC-200323150117
iAN-02EX
June 2005
Administrator Manual
Figure 40
Syslog - Syslog
Configure the parameters accordingly. Click
OK
to confirm the modification or
click
Cancel
to discard the modification.
Save the configuration and Reboot the module for the new configuration to take
effect.
Element Management
System (EMS)
The EMS configuration contains the following sections:
■
EMS
■
SNMP Community
■
SNMP Trap Target
////////////////////////////////
EMS
Click
EMS
in the
EMS
section. Figure 41 prompts for configuration. Refer to
Table 28 for more information of the parameters.
Table 27
Syslog - Syslog Field Description
Item Description
Server Address The IP address of syslog server.
Default: 0, disable syslog server
Server Port The port number of syslog server.
Default: 514
Level-3/Level-4 Debug Disable / enable sending level-3/level-4 debug messages to
syslog server
Default: Disable
64
Chapter 5: Configuration
iAN-02EX
Part Number UTSI-NJTC-200323150117
Administrator Manual
June 2005
Figure 41
EMS - EMS
Configure the parameters accordingly. Click
OK
to confirm the modification or
click
Cancel
to discard the modification.
Save the configuration and Reboot the module for the new configuration to take
effect.
SNMP Community
Click
SNMP Community
in the
EMS
section. Figure 42 prompts for
configuration. Refer to Table 29 for more information of the parameters.
Table 28
EMS - EMS Field Description
Item Description
Server Address The IP Address of the EMS server
0: Disable syslog server
Server Port The port number of the EMS server
Default: 63030
Community The community used by the EMS server
Value range: Public community / Private community
Default: private
Expires The period that the VoIP Gateway sends keeping-alive message
to EMS server. This is to check the connection status in case the
VoIP Gateway is accidentally disconnected from the EMS server.
Default: 3600 seconds
Element Management System (EMS)
65
Part Number UTSI-NJTC-200323150117
iAN-02EX
June 2005
Administrator Manual
Figure 42
EMS - SNMP Community
Configure the parameters accordingly. Click
OK
to confirm the modification or
click
Cancel
to discard the modification.
Save the configuration and Reboot the module for the new configuration to take
effect.
SNMP Trap Target
Click
SNMP Community
in the
EMS
section. Figure 43 prompts for
configuration. Refer to Table 30 for more information of the parameters.
Table 29
EMS - SNMP Community Field Description
Item Description
Set Community The community for the set function on EMS.
Default: private
Get Community The community for the get function on EMS.
Default: public
Trap Community The Community used when the user processes the traps.
Default: public
66
Chapter 5: Configuration
iAN-02EX
Part Number UTSI-NJTC-200323150117
Administrator Manual
June 2005
Figure 43
EMS - SNMP Community
Configure the parameters accordingly. Click
OK
to confirm the modification or
click
Cancel
to discard the modification.
Save the configuration and Reboot the module for the new configuration to take
effect.
VoIP
The VoIP configuration contains the following sections:
■
Protocol
■
MGCP
■
User
■
SIP
■
Audio Config
■
RTP
■
Tone
■
FAX
■
STUN
Table 30
EMS - SNMP Trap Target Field Description
Field Description
Trap Disable / enable SNMP trap
Default: Off
Target 1~ 4 Specify the IP address to which the traps of the VOIP
Port 1~ 4 Specify the Port to which the traps of the VOIP Gateway will be
sent
VoIP
67
Part Number UTSI-NJTC-200323150117
iAN-02EX
June 2005
Administrator Manual
■
Speed Dial
■
Call Features
■
Digit Map
■
Hook Flash
■
Jitter Buffer
Protocol
Click
Protocol
in the
VoIP
section. Figure 44 prompts for configuration. Refer to
Table 31 for more information of the parameters.
Figure 44
VoIP - Protocol
Configure the parameters accordingly. Click
OK
to confirm the modification or
click
Cancel
to discard the modification.
Save the configuration and Reboot the module for the new configuration to take
effect.
MGCP
Click
MGCP
in the
VoIP
section. Figure 45 prompts for configuration. Refer to
Table 32 for more information of the parameters.
Table 31
VoIP - Protocol Field Description
Field Description
MGCP MGCP voice signaling protocol
SIP SIP voice signaling protocol
Default.
68
Chapter 5: Configuration
iAN-02EX
Part Number UTSI-NJTC-200323150117
Administrator Manual
June 2005
Figure 45
VoIP - MGCP
Configure the parameters accordingly. Click
OK
to confirm the modification or
click
Cancel
to discard the modification.
Table 32
VoIP - MGCP Field Description
Item Description
Local Port This port number to receive/send data from/to the call agent.
Default: 2427
Call Agent Address The IP address of call agent.
Default: 127.0.0.1
Call Agent Port This port number to receive/send data from/to the VoIP gateway.
Default: 2727
Wild-carded RSIP Enable / disable wild carded RSIP
Default: disable
Endpoint Name Style Style: aaln/#@[ip_addr], mac_addr/#@[ip_addr],
aaln/#@mac_addr, aaln/#@domain_name.
Default: aaln/#@[ip_addr]
Gateway Domain The domain name of the gateway
Default: domain.net
Expires The period that the VoIP gateway sends keeping-alive message to
the call agent. This is check the connection status in case the VoIP
gateway is accidentally disconnected from the call agent.
Default: 150 seconds.
VoIP
69
Part Number UTSI-NJTC-200323150117
iAN-02EX
June 2005
Administrator Manual
Save the configuration and Reboot the module for the new configuration to take
effect.
Note: Refer to Protocol for disable/enable MGCP mode.
User
Click
User
in the
VoIP
section. Figure 46 prompts for configuration. Refer to
Table 33 for more information of the parameters.
Figure 46
VoIP - User
Configure the parameters accordingly. Click
OK
to confirm the modification or
click
Cancel
to discard the modification.
Save the configuration and Reboot the module for the new configuration to take
effect.
Note: Certain SIP proxies use login ID for authentication purpose. Configure the
login ID as specified by SIP proxy. If login ID is not required, keep the login ID as
0.
SIP
Click
SIP
in the
VoIP
section. Figure 47 prompts for configuration. Refer to
Table 34 for more information of the parameters.
Table 33
VoIP - User Field Description
Protocol Description
User Check Box To select/deselect the user
Username The name (or phone number) of the user
Password The password for this user
Display name The user name to be displayed
Login ID The ID for this user
70
Chapter 5: Configuration
iAN-02EX
Part Number UTSI-NJTC-200323150117
Administrator Manual
June 2005
Figure 47
VoIP - SIP
Table 34
VoIP - SIP Field Description
Item Description
Local Port The port number of the SIP stack.
Default: 5060
Proxy Address The IP address of SIP proxy
Default: 0, disable
Proxy Port The port number used by SIP Proxy
Default: 5060
Registrar Address The IP Address of Registration server. Registration Server is often
the same as SIP Proxy Server.
Default: 0, disable
Registrar Port The port number of Registration server.
Default: 5060
Outbound Proxy Address Specifies the IP Address of SIP Outbound Proxy server.
Default: 0, disable
VoIP
71
Part Number UTSI-NJTC-200323150117
iAN-02EX
June 2005
Administrator Manual
Configure the parameters accordingly. Click
OK
to confirm the modification or
click
Cancel
to discard the modification.
Save the configuration and Reboot the module for the new configuration to take
effect.
Note: The following values needs to be configured accordingly before disabling
the register:
■
The value of registrar address/port is 0.
■
The value of proxy address cannot be 0.
Audio Config
Click
Audio Config
in the
VoIP
section. Figure 48 prompts for configuration.
Refer to Table 35 for more information of the parameters.
Outbound Proxy Port Specifies the port number of SIP Proxy server. Generally the
default is 5060.
Expires The period (in seconds) that the VoIP Gateway sends
keeping-alive message to Registration server. This is to check the
connection status in case the VoIP Gateway is accidentally
disconnected from the Registration server.
Default: 3600
SIP Domain The domain name for the URL to be registered.
Default: 0
Subject The content of the subject header in outgoing INVITE message.
This is used to indicate the title of the call.
Default: Call_Invite
T1 Timer Default: 300
DNS SRV To enable / disable DNS service. When enabled, ATA handles
DNS-SRV as the first priority and if it fails, ATA will do DNS-A
records.
Default: Disabled
Table 34
VoIP - SIP Field Description
Item Description
72
Chapter 5: Configuration
iAN-02EX
Part Number UTSI-NJTC-200323150117
Administrator Manual
June 2005
Figure 48
VoIP - Audio Config
Configure the parameters accordingly. Click
OK
to confirm the modification or
click
Cancel
to discard the modification.
Table 35
VoIP - Audio Config Field Description
Item Description
Port Index Port 1 / Port 2
Codec Rate The period (in milliseconds) that the VoIP Gateway sends voice
packets to call party. This value must be a multiple of 10.
Default: 20
Preferred Codec The preferred method of voice compression on per port basis.
Default: G.729A
VAD (Voice Activity
Detection)
Enable: sending packets only while the user is speaking. This will
save the bandwidth but cause time delay.
Disable: sending packets no matter the user is speaking or not.
This will improve the voice quality to be more smoothly but
increase more traffic load.
Default: Enable
DTMF Tx Method
RFC-2833 Enable/disable RFC-2833 on per port basis. If both RFC-2833 and
SIP-INFO are disabled, ATA takes DTMF pass through.
Default: Enable
SIP INFO Enable/disable SIP info on per port basis. If both RFC-2833 and
SIP-INFO are disabled, ATA takes DTMF pass through.
Default: Disable
VoIP
73
Part Number UTSI-NJTC-200323150117
iAN-02EX
June 2005
Administrator Manual
Save the configuration and Reboot the module for the new configuration to take
effect.
RTP
Click
RTP
in the
VoIP
section. Figure 49 prompts for configuration. Refer to
Table 36 for more information of the parameters.
Figure 49
VoIP - RTP
Configure the parameters accordingly. Click
OK
to confirm the modification or
click
Cancel
to discard the modification.
Save the configuration and Reboot the module for the new configuration to take
effect.
Tone
iAN-02EX supports configuration of pre-configured audible tones based on the
geographical location.
Click
Tone
in the
VoIP
section. Figure 50 prompts for configuration. Refer to
Table 37 for more information of the parameters.
Table 36
VoIP - RTP Field Description
Item Description
RTP Port RTP port number
Default: 13456
74
Chapter 5: Configuration
iAN-02EX
Part Number UTSI-NJTC-200323150117
Administrator Manual
June 2005
Figure 50
VoIP - Tone
Table 37
VoIP - Tone Field Description
Item Description
Country Tones Custom Specific Tone
North America
Rx Gain (dB) Adjusts the receiving audio gain to be higher or lower.
Default: 0
Tx Gain (dB) Adjusts the transmitting audio gain to be higher or lower.
Default: 0
VoIP
75
Part Number UTSI-NJTC-200323150117
iAN-02EX
June 2005
Administrator Manual
Note:
■
If the country tone is set to North America, the dial tone, busy tone and
ringback tone cannot be modified. If the country tone is set to Custom
Specific Tone, the ring tone (RT1 - RT8) and call waiting tone (WT1 -
WT4) are grayed out.
■
DR1 - DR8 are defined as per Telcordia specification GR-506.
■
DR6 - DR8 are user specific and can be customized.
■
WT1 - WT4 are defined as per Telcordia specification GR-30.
Configure the parameters accordingly. Click
OK
to confirm the modification or
click
Cancel
to discard the modification.
Ring The ringing cadence.
<ontime,offtime (in milliseconds)>
Select the tone from the drop down box for DR1 to DR8. DR1 to
DR5 are preconfigured and DR6 to DR8 can be modified.
■
DR1 <2000, 4000>
■
DR2 <800, 400, 800, 4000>
■
DR3 <400, 200, 400, 200, 800, 4000>
■
DR4 <300, 200, 1000, 200, 300, 4000>
■
DR5 <500, 500>
■
DR6 <2000, 4000>
■
DR7 <2000, 4000>
■
DR8 <2000, 4000>
Dial Tone The dialing tone pattern. Adjustable when the country tone is
Custom Specific Tone.
■
<ontime,offtime (in milliseconds),freq1,freq2 (in Hz)>
Busy Tone The busy tone pattern. Adjustable when the country tone is
Custom Specific Tone.
■
<ontime,offtime (in milliseconds),freq1,freq2 (in Hz)>
Ring back Tone The ringing back tone pattern. Adjustable when the country tone is
Custom Specific Tone.
■
<ontime,offtime (in milliseconds),freq1,freq2 (in Hz)>
Call Waiting Tone The call waiting tone pattern.
■
<ontime,offtime (in milliseconds),freq1,freq2 (in Hz)>
Select the tone from the drop down box for WT1 to WT4:
■
WT1 <300, 10000, 440, 0>
■
WT2 <100, 100, 100, 10000, 440, 0>
■
WT3 <100, 100, 100, 100, 100, 10000, 440, 0>
■
WT4 <100, 100, 300, 100, 100, 10000, 440, 0>
Table 37
VoIP - Tone Field Description
Item Description
76
Chapter 5: Configuration
iAN-02EX
Part Number UTSI-NJTC-200323150117
Administrator Manual
June 2005
Save the configuration and Reboot the module for the new configuration to take
effect.
FAX
Click
Fax
in the
VoIP
section. Figure 51 prompts for configuration. Refer to
Table 38 for more information of the parameters.
Figure 51
VoIP - Fax
Configure the parameters accordingly. Click
OK
to confirm the modification or
click
Cancel
to discard the modification.
Save the configuration and Reboot the module for the new configuration to take
effect.
STUN
iAN-02EX supports simple traversal of user datagram protocol (UDP) through
network address translation (STUN). This function allows application to discover
the presence and the types of NATs and firewalls between itself and the public
Internet. It also provides the ability for applications to determine the public IP
address allocated by the NAT.
Click
Stun
in the
VoIP
section. Figure 52 prompts for configuration. Refer to
Table 39 for more information of the parameters.
Table 38
VoIP - FAX Field Description
Item Description
T.38 Fax Enable/disable data-resending mechanism in case of any missing
data during transmission
Default: Enable
T.38 Port The port number for for sending/receiving T.38 packets
Default: 49170
VoIP
77
Part Number UTSI-NJTC-200323150117
iAN-02EX
June 2005
Administrator Manual
Figure 52
VoIP - Stun
Configure the parameters accordingly. Click
OK
to confirm the modification or
click
Cancel
to discard the modification.
Save the configuration and Reboot the module for the new configuration to take
effect.
Speed Dial
The speed dial is used to set up a list of telephone numbers and SIP addresses
for the frequently called callee. In this list, a shorter number is assigned to the
called party instead of original phone numbers or addresses. The module
supports up to 10 speed dial numbers.
Table 39
VoIP - STUN Field Description
Item Description
NAT Address The IP address of NAT firewall.
Default: 0
Stun Server Address The IP address of STUN (Simple Traversal of User Datagram)
server.
Default: 0
Stun Server Port The port number of STUN server.
Default: 3478
Local Port The local port number of STUN client.
Default: 3478
Expires The period that the VoIP Gateway sends STUN message to STUN
server. This is to check the connection status in case the VoIP
gateway is accidentally disconnected from STUN server.
Default: 60 seconds
78
Chapter 5: Configuration
iAN-02EX
Part Number UTSI-NJTC-200323150117
Administrator Manual
June 2005
Click
Speed Dial
in the
VoIP
section. Figure 53 prompts for configuration. Refer
to Table 40 for more information of the parameters.
Figure 53
VoIP - Speed Dial
Configure the parameters accordingly and click
Add
/
Modify
to create / modify
an entry.
Note: The modify function only allows destination modification of an existing
speed dial. To modify the number for an existing speed dial, delete the current
speed dial and create a new one.
Enter the corresponding speeddial number listed in the table and click
Delete
to
remove the entry. Click
Refresh
to obtain the latest configuration information.
Save the configuration and Reboot the module for the new configuration to take
effect.
Call Features
Click
Call Features
in the
VoIP
section. Figure 54 prompts for configuration.
Refer to Table 41 for more information of the parameters.
Table 40
VoIP - Speed Dial Field Description
Item Description
VoIP Speed Dial
Number The speed dial number of the call party.
Destination The SIP address or PSTN number of the called party
Speed Dial Table
No. The ID number for a speed dial entry
Number The assigned speed dial number for a called party.
Destination The full address of the called party.
VoIP
79
Part Number UTSI-NJTC-200323150117
iAN-02EX
June 2005
Administrator Manual
Figure 54
VoIP - Call Feature
Table 41
VoIP - Call Feature Field Description
Field Description
Port Index Port 1 or Port 2
General Feature Code Disconnect Code
Call Hold Enable/disable the Call Hold feature.
This must be supported by the Call Agent.
80
Chapter 5: Configuration
iAN-02EX
Part Number UTSI-NJTC-200323150117
Administrator Manual
June 2005
Configure the parameters accordingly. Click
OK
to confirm the modification.
Save the configuration and Reboot the module for the new configuration to take
effect.
Note: The features mentioned above are subject to SIP-Proxy or Soft switch
support; therefore some features may not work when enabled.
Note: For the features to work properly, call flows of the SIP-Proxy and call
agent (softswitch) are needed for customization.
Call Waiting Enable/disable the Call waiting tone
Per Call Deactivate: disactivate call waiting for 1 call
Call Transfer
(CT)
Without
Consultation
CT to another station without prior talking to the receiving station by pressing flash and then dialing
the Feature Code and the end station number
With
Consultation
CT to another station with prior talking to the receiving station by pressing flash and then dialing the
Feature Code and consulting the the end station if the station wants to take the call perform transfer
using the Feature Code.
Three-Way Conference Enable/disable the 3-way conference feature.
Call
Forwarding
Always Enable/disable the Call Forwarding Always.
On - Code used to enable Call Forwarding Always on a per call basis from the PSTN Phone
Off - Code used to disable Call Forwarding Always on a per call basis from the PSTN Phone
Destination - The destination telephone number the call needs to be forwarded if CF is always
turned on
Busy Enable/disable the Call Forwarding Busy.
On - Code used to enable Call Forwarding Busy on a per call basis from the PSTN Phone
Off - Code used to disable Call Forwarding Busy on a per call basis from the PSTN Phone
Destination - The destination telephone number the call needs to be forwarded if Port is busy
No-Answer Enable/disable the Call Forwarding No-Answer.
On - Code used to enable Call Forwarding No-Answer on a per call basis from the PSTN Phone
Off - Code used to disable Call Forwarding No-Answer on a per call basis from the PSTN Phone
Destination - The destination telephone number the call needs to be forwarded if Port is not
answered
Number of Ring - Number of rings after which call is forwarded
DND (Do Not Disturb) Enable/disable the DND feature
Calling Line ID Blocking Enable/disable the Calling Line ID Blocking feature
Per Call Deactivate: disactivate calling line ID blocking for 1 call
Anonymous Call Rejection Enable/disable the Anonymous Call Rejection feature
Priority Reversal Enable/disable the Priority Reversal feature (Currently not available in this release).
Repeat Dialing On Busy Enable/disable the Repeat Dialing On Busy feature (Currently not available in this release)
Repeat time - The time to repeat the dialing
Stop Time - The time to stop repeating dialing
Table 41
VoIP - Call Feature Field Description
Field Description
VoIP
81
Part Number UTSI-NJTC-200323150117
iAN-02EX
June 2005
Administrator Manual
Digit Map
In contrast to the PSTN digit map, the VOIP digit map allows VOIP calls made
with leading digits and length matching the rules specified to be dialed out
immediately.
Click
Digit Map
in the
VoIP
section. Figure 55 prompts for configuration. Refer
to Table 42 for more information of the parameters.
Figure 55
VoIP - Digit Map
Table 42
VoIP - Digit Map Field Description
Item Description
Port Number Port 1 / Port 2
Leading Digits The prefix or leading digits of the telephone number(s) to be
dialed.
Length The total length of the telephone number. "0" means the length is
not fixed.
Send # Enable: send the digit number at end of dial string is sent to the
SIP-Proxy.
Disable: the digit number at end of dial string is taken as a
terminator.
Default: Enable
82
Chapter 5: Configuration
iAN-02EX
Part Number UTSI-NJTC-200323150117
Administrator Manual
June 2005
Configure the parameters accordingly and click
Add
o create a new entry.
Select an entry in the
Digit Map Rule
table and modify the parameters
accordingly. Click
Modify
to confirm the modification.
Select an entry in the
Digit Map Rule
table and click
Delete
to remove the entry.
Configure
Send #
and click
OK
to confirm the modification.
Save the configuration and Reboot the module for the new configuration to take
effect.
Hook Flash
Click
Hook Flash
in the
VoIP
section. Figure 56 prompts for configuration. Refer
to Table 43 for more information of the parameters.
Figure 56
VoIP - Hook Flash
Configure the parameters accordingly. Click
OK
to confirm the modification or
click
Cancel
to discard the modification.
Save the configuration and Reboot the module for the new configuration to take
effect.
Table 43
VoIP - Hook Flash Field Description
Protocol Description
Port Index Port 1 / Port 2
Detection Minimum Time The minimum time to detect hook flash
Default: 200 ms
Detection Maximum Time The maximum time to detect hook flash
Default: 800 ms
Password
83
Part Number UTSI-NJTC-200323150117
iAN-02EX
June 2005
Administrator Manual
Jitter Buffer
Click
Jitter Buffer
in the
VoIP
section. Figure 57 prompts for configuration.
Refer to Table 44 for more information of the parameters.
Figure 57
VoIP - Jitter Buffer
Configure the parameters accordingly. Click
OK
to confirm the modification or
click
Cancel
to discard the modification.
Save the configuration and Reboot the module for the new configuration to take
effect.
Password
The Password configuration contains the following sections:
■
Supervisor Password
■
User Password
Supervisor Password
Click
Supervisor Password
in the
Password
section. Figure 58 prompts for
configuration.
Table 44
VoIP - Jitter Buffer Field Description
Protocol Description
Jitter Buffer Minimum Time The minimum jitter that the adaptive jitter buffer can handle
Value range: 5 - 150 ms
Jitter Buffer Maximum Time The maximum jitter that the adaptive jitter buffer can handle
Value range: 5 - 150 ms
Jitter Buffer Target Time This is the adaptive jitter buffer which attempts to hold the packets
to the target holding time. This is the minimum delay the jitter
buffer that adds to the system.
Value range: 5 - 150 ms
84
Chapter 5: Configuration
iAN-02EX
Part Number UTSI-NJTC-200323150117
Administrator Manual
June 2005
Figure 58
Password - Supervisor Password
Configure the parameters accordingly. Click
OK
to confirm the modification or
click
Cancel
to discard the modification. Figure 59 prompts for modification
confirmation.
Figure 59
Password - Supervisor Password - Confirmation
Click
OK
in Figure 59 and the system requires the user to re-login with the new
supervisor password as shown in Figure 60. Enter the new password and click
OK
to login.
Password
85
Part Number UTSI-NJTC-200323150117
iAN-02EX
June 2005
Administrator Manual
Figure 60
Password - Supervisor Password - Re-login
Save the configuration and Reboot the module for the new configuration to take
effect.
Note: The password will be used for authentication. It is strongly recommended
that the user resets the default password for administrative security.
Note: The default supervisor password is
utstar
.
User Password
Click
User Password
in the
Password
section. Figure 61 prompts for
configuration.
Figure 61
Password - User Password
86
Chapter 5: Configuration
iAN-02EX
Part Number UTSI-NJTC-200323150117
Administrator Manual
June 2005
Configure the parameters accordingly. Click
OK
to confirm the modification or
click
Cancel
to discard the modification. Figure 62 prompts for modification
confirmation.
Figure 62
Password - User Password - Confirmation
Click
OK
in Figure 62. If currently the ATA is in user mode, the system requires
the user to re-login with the new user password as shown in Figure 63. Enter the
new password and click
OK
to login.
Figure 63
Password - User Password - Re-login
Save the configuration and Reboot the module for the new configuration to take
effect.
Note: The password will be used for authentication. It is strongly recommended
that the user resets the default password for administrative security.
Note: The default user password is
12345
.
Upgrade
87
Part Number UTSI-NJTC-200323150117
iAN-02EX
June 2005
Administrator Manual
Upgrade
The Upgrade configuration contains the following sections:
■
Firmware
■
Configuration
Firmware
This feature allows the user to upgrade the firmware on the iAN-02EX VoIP
Gateway from the web browser. The firmware on the iAN-02EX VoIP Gateway is
stored on FLASH ROM.
Download the new firmware to the local machine. Click
Firmware
in the
Upgrade
section. Figure 64 prompts for configuration. Click
Browse
to locate
the new firmware on the local machine and click
Upgrade
to start the process.
Figure 64
Upgrade - Firmware
After the upgrade is completed, Reboot the module for the new configuration to
take effect.
Note: Do not power off the unit during the upgrade process.
Configuration
This feature allows the user to upgrade the configuration file on the iAN-02EX
VoIP Gateway from the web browser. The configuration on the iAN-02EX VoIP
Gateway is stored on FLASH ROM.
Download the new configuration file to the local machine. Click
Configuration
in the
Upgrade
section. Figure 65 prompts for configuration. Click
Browse
to
locate the new configuration on the local machine and click
Apply
.
88
Chapter 5: Configuration
iAN-02EX
Part Number UTSI-NJTC-200323150117
Administrator Manual
June 2005
Figure 65
Upgrade - Configuration
Click
Confirm
in Figure 66 to confirm the upgrade or
Cancel
to cancel.
Figure 66
Upgrade - Configuration File - Apply
After the upgrade is completed, Reboot the module for the new configuration to
take effect.
Note: Do not power off the unit during the upgrade process.
View
89
Part Number UTSI-NJTC-200323150117
iAN-02EX
June 2005
Administrator Manual
View
The abconfig.cfg contains all the configuration information of the ATA. User can
modify the configuration with the
Configuration
Click
Configuration
in the
View
section. Click the configuration file listed in
Figure 67 to display the details shown in Figure 68.
Figure 67
View - Configuration
Figure 68
View - Configuration - abconfig.cfg
Right click
abconfig.cfg
in Figure 67 and click
Save Target As
to backup the
configuration file to a local directory. The backup file is displayed in Figure 69.
Refer to Appendix C.- Default Value and Value Range for the default settings.
90
Chapter 5: Configuration
iAN-02EX
Part Number UTSI-NJTC-200323150117
Administrator Manual
June 2005
Figure 69
View - Configuration - abconfig.cfg.txt
Save
The Save configuration contains the following sections:
■
Save Configuration
■
Load Default Settings
■
Load Default Settings using FXS Ports
■
Load Default Keypad
Save Configuration
Whenever there's new configuration or modification, the user
MUST
save the
new configuration data and then restart the device for the new settings to take
effect.
Click
Save Configuration
in the
Save
section. Figure 70 prompts for
confirmation. Click
Save
to to write the new configuration data into the FLASH
Memory immediately.
Figure 70
Save - Save Configuration
Reboot the module for the new configuration to take effect.
Save
91
Part Number UTSI-NJTC-200323150117
iAN-02EX
June 2005
Administrator Manual
Note: Do not power off the unit during the save process.
Load Default Settings
Click
Load Default Settings
in the
Save
section. Figure 71 prompts for
configuration. Refer to Table 45 for more information of the parameters.
Figure 71
Save - Load Default Settings
Click
Load
to load the configuration data immediately.
Reboot the module for the new configuration to take effect.
Note: Do not power off the unit during the load process.
Load Default Settings
using FXS Ports
iAN-02EX also supports the function to restore to default settings using the FXS
ports.
Table 45
Save - Load Default Settings Field Description
Field Description
Default Load all default values that includes all network related fields
Default and Keep Current
Settings
Load all default values while excluding the following network
related fields:
WAN:
■
Wan Type (Static IP/DHCP/PPPoE)
■
IP address
■
Mask address
■
Gateway IP address
LAN:
■
IP address
■
Mask address
■
Gateway IP address
■
DNS1 IP address
■
DNS2 IP address
92
Chapter 5: Configuration
iAN-02EX
Part Number UTSI-NJTC-200323150117
Administrator Manual
June 2005
From the ATA simply dial *#
322867973738
. The ATA will restore the default
settings and reboot automatically.
This access is pre-configured on the ATA and cannot be changed. After reboot,
the ATA will restore the default values. This is useful in the event of the service
operator is unable to telnet or access the Web-base management of the ATA.
This feature is available even if network is not available on the ATA.
Load Default Keypad
Click
Load Default Keypad
in the
Save
section. Figure 72 prompts for
configuration.
Figure 72
Save - Load Default Keypad
Configure the parameters accordingly. Click
OK
to confirm the modification or
click
Cancel
to discard the modification.
Save the configuration and Reboot the module for the new configuration to take
effect.
Reboot
Reboot
Click
Reboot
in the
Reboot
section. Figure 73 prompts for confirmation.
Figure 73
Reboot - Reboot
Reboot
93
Part Number UTSI-NJTC-200323150117
iAN-02EX
June 2005
Administrator Manual
Click
Reboot
to restart the system and update the configuration data stored in
the FLASH Memory.
Note: Do not power off the unit during the reboot process.
94
Chapter 5: Configuration
iAN-02EX
Part Number UTSI-NJTC-200323150117
Administrator Manual
June 2005
Part Number UTSI-NJTC-200323150117
iAN-02EX
June 2005
Administrator Manual
A
T
ROUBLESHOOTING
This section provides possible problems that may be encountered while using
the iAN-02EX VoIP Gateway and suggested solutions to them. If you follow the
suggested solutions below but the iAN-02EX VoIP Gateway still does not work
properly, contact technical support for further advice.
Q:
Power LED does not light up.
■
S:
First check the AC adapter rating. The input rating must meet the
specification of the country. The AC adapter must be DC 10V/1.2A output.
■
S:
If the AC adapter output is correct. The problem will be on the VoIP
Gateway. Please replace the VoIP Gateway.
Q:
Ethernet interface cannot work.
■
S:
Make sure the Ethernet adapter card installed in the PC is workable. The
technician can use Hub/Switch to test it.
■
S:
Make sure the Ethernet cable is workable, and the connection between
PC and the VoIP Gateway is secure.
Q:
Broadband access cannot work.
■
S:
Make sure the Ethernet cable is workable, and the connection between
Broadband device and the VoIP Gateway is secure.
■
S:
Check the DHCP or PPPoE server setting. You have to enter correct
username and password for PPPoE registration.
Q:
Cannot download the proper configuration file.
■
S:
Check if the connection between Provisioning Server and the VoIP
Gateway is secure.
■
S:
Check if the file name and setting of Provisioning file are correct.
Q:
VoIP LED does not light up.
■
S:
Check if configuration file indicates correct IP address and information of
Soft-Switch.
■
S:
Check if the VoIP Gateway is able to connect to Soft-Switch.
■
S:
Check if the authorization content between the VoIP Gateway and
Soft-Switch are the same.
96
A
PPENDIX
A: T
ROUBLESHOOTING
iAN-02EX
Part Number UTSI-NJTC-200323150117
Administrator Manual
June 2005
Q:
Cannot use PSTN backup line.
■
S:
Disconnect the VoIP Gateway from the power supply and then check if
PSTN backup line is workable.
■
S:
Check the settings of "PSTN switch key and digit map" are correct.
Part Number UTSI-NJTC-200323150117
iAN-02EX
June 2005
Administrator Manual
B
I
AN-02EX P
ROVISIONING
M
ETHODOLOGY
Provisioning overview
UTStarcom iAN-02EX supports extensive device provisioning mechanisms. This
includes firmware upgrade and configuring parameters modification on the
device.
The devices are generally provisioned independently using the following
methods.
a
Using the HTTP/TFTP provisioning/Upgrade server via the WAN side access
connection of ATA towards the network.
b
Using the GUI "firmware upgrade tab" and "Config upgrade tab" via the
laptop/desktop computer connected to LAN side of the ATA.
c
Using the TFTP server and Telnet Console via the laptop/desktop computer
connected to the LAN side of the ATA.
98
A
PPENDIX
B:
I
AN-02EX P
ROVISIONING
M
ETHODOLOGY
iAN-02EX
Part Number UTSI-NJTC-200323150117
Administrator Manual
June 2005
Typical provisioning/upgrade scenario is as shown in Figure 74.
Figure 74
Provisioning / Upgrade Scenario
In this mechanism, the device configuration/firmware can be defined on a
centralized server called the Provisioning/Upgrade server (Refer section 3).
This configuration/firmware can be downloaded to the device manually or can
be fetched from the device periodically. The device configuration can be defined
in a flat file format (Refer section 3.8.4.), which can be either encrypted or
non-encrypted ((Refer section 3.8)
Provisioning Features
99
Part Number UTSI-NJTC-200323150117
iAN-02EX
June 2005
Administrator Manual
Provisioning Features
The UTStarcom iAN-02EX supports two main features in its design.
a
Remote Configuration - Auto upgrade of ATA (Analog Telephone Adapter)
configuration using remote Provisioning server and configuration files.
b
Remote Firmware Upgrade - Auto upgrade of ATA firmware using remote
Upgrade Server and firmware file.
The Provisioning and Upgrade servers can use both TFTP/HTTP protocol in
order to transact the configuration and firmware files to the ATA.
The rules and provisioning methodology are explained in the subsequent
sections.
GUI Settings for
Provisioning/Upgrade
Server
Figure 75 shows the provisioning tab on the GUI.
Figure 75
Provisioning / Upgrade Server GUI Settings
User needs to setup the provisioning / Upgrade servers and ports in order to
start up the process. The detailed description of the provisioning process is as
described in Chapter 5.
100
A
PPENDIX
B:
I
AN-02EX P
ROVISIONING
M
ETHODOLOGY
iAN-02EX
Part Number UTSI-NJTC-200323150117
Administrator Manual
June 2005
Following are the default values used for provisioning/upgrade server.
■
Provisioning priority defines the provisioning/upgrade server priority example
HTTP protocol first, TFTP protocol second.
Default value=0 [HTTP first and TFTP second]
■
Provisioning TFTP Server Address is set to default UTStarcom provisioning
server.
This server is used for transacting all configuration files using TFTP protocol.
Default values=devicecfg.private.net/devicecfg/utstarcom/config
■
Provisioning TFTP server ports are set to port 69 (1st-Priority), port 100
(2nd-Priority) and port 200(3rd Priority). These are TFTP ports used on the
TFTP servers and their order of prority.
Default values=69,100,200
■
Provisioning HTTP Server Address is set to default UTStarcom, provisioning
server.
This server is used for transacting all configuration files using HTTP protocol.
Default values=HTTP Address:
devicecfg.private.net/devicecfg/utstarcom/config
■
Provisioning HTTP server port is set to 80.
This is the HTTP port to be used for the HTTP Provisioning server.
Default values=80
■
User enters Group name in the group field. This information is used in the
group configuration file.
Default values=0
■
Provisioning expiry timer is set currently to 86400 seconds (24 hours). This
implies that the ATA will restart its next provisioning cycle after this
provisioning timer expires.
■
Upgrade TFTP Server Address is set to default UTStarcom, provisioning
server.
This server is used for transacting the firmware file using TFTP protocol.
Default values= devicecfg.private.net/firmware/utstarcom
■
Upgrade TFTP server port is set to 69.
This is the TFTP port to be used for the TFTP Upgrade server.
Default values=69
■
Upgrade HTTP Server Address is set to the default UTStarcom provisioning
server.
This server is used for transacting the firmware file using HTTP protocol.
Default values=devicecfg.private.net/firmware/utstarcom
■
Upgrade HTTP server port is set to 80.
This is the HTTP port to be used for the HTTP Upgrade server.
Provisioning Process rules
101
Part Number UTSI-NJTC-200323150117
iAN-02EX
June 2005
Administrator Manual
Default values=80
■
Sync Check is a feature where the SIP proxy initiates a sync check event in a
SIP message. The ATA restarts the entire provisioning process to keep in
sync with the provisioning and upgrade servers. The Authentication feature is
utilized to authenticate the requesting ATA. Currently this feature has been
disabled on the ATA's. In order to activate this feature, the SIP-Proxy should
support this feature.
Note: Factory shipped V1.8.2.2a version does not have these provisioning
features. User has to upgrade the unit to V1.8.2.19a or later version in order to
utilize these provisioning features.
Provisioning Process
rules
Auto-Configuration
The UTStarcom iAN-02EX supports remote auto configuration updates using
remote provisioing (HTTP/TFTP) server. It has the capability to access a remote
Provisioning HTTP or TFTP server and download the configuration files and
perform auto updates.
Brief description on
HTTP/TFTP Provisioning
servers
TFTP Provisioning servers
Provisioning TFTP server can be defined as either an IP-address or a URL.
User has the flexibility to disable HTTP and TFTP. This could be achieved by
putting the values as, HTTP/TFTP server=0
Port hunting feature
3 ports can be defined for TFTP servers. If timeout occurs on one port then the
ATA will hunt the remaining 2 ports as defined by the user.
During the hunting process the ATA will look for the 3 configuration files on all 3
ports.
If it finds the configuration file on one port then it will not look for this
configuration file in the remaining 2 ports. This is done in order to reduce the
total provisioning time.
If the value for a particular port is zero, then the port will not be tried.
If all configuration files/Firmware files are received during this process, the
TFTP port hunting system will not try an HTTP configuration file search.
HTTP Provisioning
servers
Provisioning HTTP server can be defined either as an IP-address or a URL.
102
A
PPENDIX
B:
I
AN-02EX P
ROVISIONING
M
ETHODOLOGY
iAN-02EX
Part Number UTSI-NJTC-200323150117
Administrator Manual
June 2005
HTTP will have only one port e.g. port 80 or 8080. If the value for this particular
port is zero, then the port will not be tried and the HTTP process will not occur.
User has the flexibility to disable TFTP and only enable HTTP. This could be
achieved by putting the value as, TFTP server=0
If all configuration files/Firmware files are received during this process, then the
HTTP port hunting system will not try a TFTP configuration file search.
Selection Prority for
HTTP or TFTP servers
User can define the priority for provisioning. Following are the priorities available
for configuration using the definition mentioned in the HTTP/TFTP
provisioning/upgrade server definition.
■
HTTP 1st, TFTP 2nd
■
TFTP 1st, HTTP 2nd
■
HTTP only
■
TFTP only
Frequency of Upgrade
The frequency of auto updates can be set depending on the provisioning expiry
timer.
The time for next update is calculated from the last reboot of the ATA.
Provisioning process is generally started in the following conditions.
1
Always on "power on".
2
After expiry timer defined by user.
3
On Sync check request from SIP-Proxy.
Provisioning Server
configuration files
User will have 3 Sets of files on the TFTP/HTTP server. Mainly the Provisioning
(TFTP/HTTP) servers will contain these file e.g. General, MAC and Group file.
User can place these Configuration files on the Provisioing server for each ATA
in separate directory as defined in the URL.
The General and group files will not be encrypted and they will only have
general and group information depending on the area they are installed.
The MAC file is always encrypted and will have all critical data required by the
ATA, which needs to be protected.
Provisioning Process rules
103
Part Number UTSI-NJTC-200323150117
iAN-02EX
June 2005
Administrator Manual
The iAN-02EX ATA supports three types of Configuration files:
■
General Configuration File: This is used to configure all the general
parameters of the ATA.
■
Group Configuration File: This is used to configure the parameters that are
similar to a specific group of ATAs. The GUI interface of the ATA has a field to
set the group to which the ATA belongs and then the ATA can download the
group specific configuration from the group specific cfg file.
■
MAC address specific Configuration File: This is used to configure the unique
parameters specific to a particular ATA.
Note: In case of the same parameter is in any of these files, the priority order is
highest for MAC address specific configuration file, followed by the group
configuration file, the last being the general configuration file.
Internally the ATA maintains one configuration file, which contains parameters
taken from all of the above configuration files.
File format of the
configuration File
General Configuration File naming convention
The General file contains only the general information of the ATA. It is
represented as: U53V005.00.00_UTSTARCOM-GENERAL.CFG.
File format is as follows:
<Board id>_<company>-<General>.cfg
Example: U53V005.00.00_UTSTARCOM-GENERAL.CFG
<Board id>= U53V005.00.00
<Company>=UTSTARCOM
<Type>=GENERAL
This file should include the general settings that are applicable to all units
deployed.
The ATA compares the board ID and the company name fields on the cfg file to
that which is set in the hardware. If it matches then ONLY the ATA considers
this configuration file authentic and downloads it and takes the configuration
parameters.
If there is a change in the parameter values compared to what is stored in the
ATA, the ATA makes changes to the configuration and performs an auto reboot
to bring the new configuration into effect.
104
A
PPENDIX
B:
I
AN-02EX P
ROVISIONING
M
ETHODOLOGY
iAN-02EX
Part Number UTSI-NJTC-200323150117
Administrator Manual
June 2005
Group Configuration File
The Group file contains the group information for a set of ATA's. It is
represented as: U53V005.00.00_UTSTARCOM- ISELIN.CFG.
File format is as follows:
<Board id>_<company>-<group name>.cfg
<Board id>= U53V005.00.00
<Company>=UTSTARCOM
<Type>=Group
Example: U53V005.00.00_UTSTARCOM-ISELIN.CFG
This file should include the settings that are common to a specific group of
users.
Any parameter value in this file supersedes the value from the GENERAL.cfg, in
case of duplications.
The ATA compares the board ID and the company name fields on the cfg file to
that which is set in the hardware. If it matches then ONLY the ATA considers
this configuration file authentic and downloads it and takes the configuration
parameters.
If there is a change in the parameter values compared to what is stored in the
ATA, the ATA makes changes to the configuration and performs an auto reboot
to bring the new configuration into effect.
MAC address specific Configuration File
The MAC file contains the encrypted information using the MAC ID as the key.
The MAC file is represented as:
U53V005.00.00_UTSTARCOM-00028A59FF35.CFG.
File format is as follows:
<Board id>_<company>-<device MAC>.cfg
<Board id>= U53V005.00.00
<Company>=UTSTARCOM
<Type>=MAC ID example 00028A59FF35
This file should include settings that are specific to a particular ATA.
For example this MAC file is used to encrypt the username and password for
SIP proxy/registrar. This file will be used to set the telephone number for each
subscriber.
Provisioning Process rules
105
Part Number UTSI-NJTC-200323150117
iAN-02EX
June 2005
Administrator Manual
Please note that this file needs to be encrypted before putting it on the
provisioning server.
UTStarcom provides an encryption engine (crypt.exe). The encryption key is
the MAC address of the specified device. This program is available for lab
testing only as it is limited to encrypting one file at a time.
After encryption the file name changes from .cfg to .enc. Rename this file as a
CFG file.
Encryption Engine
UTStarcom supplies the MD5 based encryption engine "Crypt.exe" which can
run in a windows environment. Other variants for different operating systems like
Linux or Sun Solaris are also available.
Provisioning mechanism with MD5 based crypto utility:
1
This is used only for the Mac-specific configuration files. The other .cfg files are
kept in .cfg format (plain- text format) on the provisioning server.
2
2. Use the ATA MAC as the secret key.
For example use "00028A59FF26" to encrypt the file.
Then create the filename as:
U53V005.00.00_UTSTARCOM-00028A59FF26.CFG
After encryption the file is called *.ENC
U53V005.00.00_UTSTARCOM -00028A59FF26.ENC
3
The ATA will then use its own MAC for decryption and will update the ATA with
the new configuration settings.
Usage of the Simple Crypt Utility on a Windows platform:
1
Only for test convenience and has the limitation of encrypting one file at a time.
2
Click File->Settings to determine whether creating new (en, de) crypted file or
just overwriting the source file.
Encryption tools
The encryption tools/kits are available on the Windows; Linux or Sun Solaris
platforms. Please contact your UTStarcom, Inc Network Consultant or Sales
representative for further details and files.
Sample configuration file <abconfig.cfg> for firmware version
"V1.8.2.19a".
bootcode_version=V1.6.7
device_mode=1
wan=1
106
A
PPENDIX
B:
I
AN-02EX P
ROVISIONING
M
ETHODOLOGY
iAN-02EX
Part Number UTSI-NJTC-200323150117
Administrator Manual
June 2005
wan_ip=172.25.25.1
wan_mask=255.255.255.0
wan_gateway=172.25.25.1
wan_dns=192.168.100.1
wan_dns3=0.0.0.0
pppoe_username=1234
pppoe_password=0000
provision_priority=0
provision_server_address=devicecfg.private.net/devicec
fg/utstarcom/config
provision_server_port=69,100,200
provision_http_server_address=devicecfg.private.net/de
vicecfg/utstarcom/config
provision_http_server_port=80
provision_group=0
provision_expires=86400
provision_server_address_backup=0
provision_sync_check=0
upgrade_server_address=devicecfg.private.net/firmware/
utstarcom
upgrade_server_port=69
upgrade_http_server_address=devicecfg.private.net/firm
ware/utstarcom
upgrade_http_server_port=80
upgrade_filename=U53V004.00.00_UTSTARCOM-V1.8.2.19a.cp
r
upgrade_provisapp_filename=U53V004.00.00_UTSTARCOM-pro
visapp.V0.0.1.cpr
provisapp_enable=1
wan_provisioning=1
debug_level=0
default_t1=300
dscp=1
dmz=0
dmz_ip=0.0.0.0
dhcp_start=172.25.25.2
dhcp_end=172.25.25.21
Provisioning Process rules
107
Part Number UTSI-NJTC-200323150117
iAN-02EX
June 2005
Administrator Manual
dhcp_mode=auto
dhcp_df_gw=172.25.25.1
dhcp_dns=172.25.25.1
dhcp_dns2=0.0.0.0
dhcp_hostname=0
dhcp_wins=172.25.25.1
dhcp_domain=.com
dhcp_lease_time=86400
dhcp_resrv_ip=192.168.100.100
dhcp_resrv_mac=00-00-00-00-00-00
dos_rtp_check=1
dos_ping_reply=1
dos_http_serv_enable=1
dos_telnet_serv_enable=1
ems_server_address=0
ems_server_port=63030
ems_community=private
ems_expires=3600
factoryreset=*#322867973738
lan_ip=172.25.25.1
lan_mask=255.255.255.0
lan_gateway=172.25.25.1
lan_dns1=192.168.100.1
lan_dns2=192.168.100.2
lan_proto=dhcp
mac_spoofing_enable=0
mac_spoofing_mac_address=000000000000
network_mtu_rate=1460
ntp_server_address=0
ntp_timezone=-5
ntp_expires=86400
pstn_switchkey=0000
pstn_offhookdelaytime=1
port_forward_1=tcp,0.0.0.0,0
port_forward_2=tcp,0.0.0.0,0
108
A
PPENDIX
B:
I
AN-02EX P
ROVISIONING
M
ETHODOLOGY
iAN-02EX
Part Number UTSI-NJTC-200323150117
Administrator Manual
June 2005
port_forward_3=tcp,0.0.0.0,0
port_forward_4=tcp,0.0.0.0,0
port_forward_5=tcp,0.0.0.0,0
port_forward_6=tcp,0.0.0.0,0
port_forward_7=tcp,0.0.0.0,0
port_forward_8=tcp,0.0.0.0,0
port_forward_9=tcp,0.0.0.0,0
port_forward_10=tcp,0.0.0.0,0
supervisor_password=utstar
snmp_sendtrap=0
snmp_get=public
snmp_set=private
snmp_trap=public
snmp_target1=0.0.0.0
snmp_target2=0.0.0.0
snmp_target3=0.0.0.0
snmp_target4=0.0.0.0
snmp_port1=0
snmp_port2=0
snmp_port3=0
snmp_port4=0
syslog_server_address=0
syslog_server_port=514
syslog_lvl34_debug=0
user_password=12345
voip_protocol=1
voip_service_line0=1
voip_user_user0_loginid=0
voip_user_user0_username=0
voip_user_user0_password=0
voip_user_user0_displayname=0
voip_user_user0_prefix=0
voip_service_line1=1
voip_user_user1_loginid=0
voip_user_user1_username=0
Provisioning Process rules
109
Part Number UTSI-NJTC-200323150117
iAN-02EX
June 2005
Administrator Manual
voip_user_user1_password=0
voip_user_user1_displayname=0
voip_user_user1_prefix=0
voip_mgcp_localport=2427
voip_mgcp_callagent_address=127.0.0.1
voip_mgcp_callagent_port=2427
voip_mgcp_wildrsip=0
voip_mgcp_epid=domain.net
voip_mgcp_epidstyle=0
voip_mgcp_expires=150
voip_callfeature_enable=1
voip_callfeature_wotransfer_en1=1
voip_callfeature_hold_en1=1
voip_callfeature_wait_en1=1
voip_callfeature_wttransfer_en1=1
voip_callfeature_alertinfo_en1=0
voip_callfeature_wait_disccode1=#88
voip_callfeature_waiting_percall_deact1=*70
voip_callfeature_foraways_num1=0
voip_callfeature_foraways_en1=0
voip_callfeature_forbusy_num1=0
voip_callfeature_forbusy_en1=0
voip_callfeature_forno_num1=0
voip_callfeature_forno_en1=0
voip_callfeature_for_ringnum1=3
voip_callfeature_alertinfo_num1=0
voip_call_second_feccode1=*25
voip_callfeature_wotransfer_feccode1=*24
voip_callfeature_wtransfer_trancode1=#44
voip_callfeature_waiting_act1=*99
voip_callfeature_waiting_deact1=#99
voip_callfeature_foraways_act1=*75
voip_callfeature_foraways_deact1=#75
voip_callfeature_forbusy_act1=*76
voip_callfeature_forbusy_deact1=#76
110
A
PPENDIX
B:
I
AN-02EX P
ROVISIONING
M
ETHODOLOGY
iAN-02EX
Part Number UTSI-NJTC-200323150117
Administrator Manual
June 2005
voip_callfeature_forno_act1=*77
voip_callfeature_forno_deact1=#77
voip_callfeature_dnd_en1=0
voip_callfeature_blockclid_en1=0
voip_callfeature_blockclid_percall_act1=*67
voip_callfeature_rej_priv_en1=0
voip_callfeature_conference_en1=1
voip_callfeature_conference_code1=#92
voip_callfeature_busyredial_en1=1
voip_callfeature_busyredial_code1=#5
voip_callfeature_busyredial_repeat1=10
voip_callfeature_busyredial_stop1=60
voip_callfeature_polarity_reversal_en1=0
voip_callfeature_wotransfer_en2=1
voip_callfeature_hold_en2=1
voip_callfeature_wait_en2=1
voip_callfeature_wttransfer_en2=1
voip_callfeature_alertinfo_en2=0
voip_callfeature_wait_disccode2=#88
voip_callfeature_waiting_percall_deact2=*70
voip_callfeature_foraways_num2=0
voip_callfeature_foraways_en2=0
voip_callfeature_forbusy_num2=0
voip_callfeature_forbusy_en2=0
voip_callfeature_forno_num2=0
voip_callfeature_forno_en2=0
voip_callfeature_for_ringnum2=0
voip_callfeature_alertinfo_num2=0
voip_call_second_feccode2=*25
voip_callfeature_wotransfer_feccode2=*24
voip_callfeature_wtransfer_trancode2=#44
voip_callfeature_waiting_act2=*99
voip_callfeature_waiting_deact2=#99
voip_callfeature_foraways_act2=*75
voip_callfeature_foraways_deact2=#75
Provisioning Process rules
111
Part Number UTSI-NJTC-200323150117
iAN-02EX
June 2005
Administrator Manual
voip_callfeature_forbusy_act2=*76
voip_callfeature_forbusy_deact2=#76
voip_callfeature_forno_act2=*77
voip_callfeature_forno_deact2=#77
voip_callfeature_dnd_en2=0
voip_callfeature_blockclid_en2=0
voip_callfeature_blockclid_percall_act2=*67
voip_callfeature_rej_priv_en2=0
voip_callfeature_conference_en2=1
voip_callfeature_conference_code2=#92
voip_callfeature_busyredial_en2=1
voip_callfeature_busyredial_code2=#5
voip_callfeature_busyredial_repeat2=10
voip_callfeature_busyredial_stop2=60
voip_callfeature_polarity_reversal_en2=0
voip_sip_with_sdp=1
voip_sip_localport=5060
voip_sip_proxy_address=0
voip_sip_proxy_port=5060
voip_sip_registrar_address=0
voip_sip_registrar_port=5060
voip_sip_outbound_address=0
voip_sip_outbound_port=5060
voip_sip_expires=3600
voip_sip_domain=0
voip_sip_subject=Call_Invite
voip_sip_proxyrequire=0
voip_sip_dnssrv=0
voip_sip_redundancy=1
voip_sip_authenticate=0
voip_codec_rate_user0=20
voip_codec_rate_user1=20
voip_codec_prefer_user0=2
voip_codec_prefer_user1=2
voip_codec_vad_user0=1
112
A
PPENDIX
B:
I
AN-02EX P
ROVISIONING
M
ETHODOLOGY
iAN-02EX
Part Number UTSI-NJTC-200323150117
Administrator Manual
June 2005
voip_codec_vad_user1=1
voip_rtp_port=13456
voip_rtp_qos_type=1
voip_rtp_qos_tos=16
voip_qos_dscp_media=184
voip_qos_dscp_signal=160
voip_endpoint_rxgain=0
voip_endpoint_txgain=0
voip_endpoint_ring=2000,4000
voip_endpoint_ring_dr6=2000,4000
voip_endpoint_ring_dr7=2000,4000
voip_endpoint_ring_dr8=2000,4000
voip_endpoint_ring_field=0
voip_endpoint_dialtone=1000,0,350,440
voip_endpoint_busytone=500,500,480,620
voip_endpoint_ringbacktone=2000,4000,440,480
voip_endpoint_callwaittone=300,10000,440,0
voip_endpoint_callwaittone_field=0
voip_endpoint_flash_user0=200,800
voip_endpoint_flash_user1=200,800
voip_fax_t38=0
voip_fax_t38port=49170
voip_stun_nataddress=0
voip_stun_server_address=0
voip_stun_server_port=3478
voip_stun_localport=3478
voip_stun_expires=60
voip_country=12
voip_digitmap1=1111|1xxxxxxxxxx|911|411|*x.#
voip_digitmap2=1111|1xxxxxxxxxx|911|411|*x.#
voip_send_#1=1
voip_send_#2=1
voip_nte_user0=1
voip_nte_user1=1
voip_info_user0=0
Provisioning Process rules
113
Part Number UTSI-NJTC-200323150117
iAN-02EX
June 2005
Administrator Manual
voip_info_user1=0
voip_jitterbufMin=0
voip_jitterbufMax=150
voip_jitterbufTarget=0
vlan_tag_priority_port0=0
vlan_tag_priority_port1=0
vlan_tag_vlan_id_port0=4
vlan_tag_vlan_id_port1=4
vlan_tag_enable=0
vlan_tag_add_port0=0
vlan_tag_add_port1=0
vlan_tag_remove_port0=0
vlan_tag_remove_port1=0
vlan_tag_replace_port0=0
vlan_tag_replace_port1=0
vlan_tag_voice_priority=1
vlan_tag_voice_vlan_id=3
Firmware Upgrade
The UTStarcom iAN-02EX supports remote firmware upgrade using HTTP or
TFTP servers. The frequency of auto updates can be set using the provisioning
expiry timer.
Firmware is the main software image, which the ATA needs to perform all tasks
in real time. Firmware upgrades are required for adding new features or to
resolves bugs.
The ATA supports a mechanism to remotely access a HTTP or TFTP server and
download a new firmware image.
The ATA verifies the file name as mentioned in the .cfg file to authenticate board
id of the ATA and the firmware image. After a successful download the ATA
performs an auto reboot to bring the new firmware image into effect.
During the period of firmware upgrade three LEDs on the unit blink
simultaneously. In the event of an unsuccessful firmware download the ATA
continues to function on the old image.
In order to enable remote Firmware upgrade, the items below are essential:
1
Make sure upgrade_server_address and upgrade_filename are included in the
config file to be downloaded to the device.
114
A
PPENDIX
B:
I
AN-02EX P
ROVISIONING
M
ETHODOLOGY
iAN-02EX
Part Number UTSI-NJTC-200323150117
Administrator Manual
June 2005
2
Ensure that the firmware filename follows the format <board_id>-<version>.cpr.
3
Make sure that the filename version matches the actual version of the firmware.
For example: V2.8.2.19a must have the file name <board_id>- V2.8.2.19a.cpr
File naming convention
The file naming convention is expressed as follows:
Example: U53V004.00.00_UTSTARCOM-V1.8.2.Xa.cpr
<Board id>_<company>.cpr
<Board id>= U53V005.00.00
<Company>=UTSTARCOM
<.cpr>= firmware file extension.
The user will have to place this file on the Upgrade Server at the specific
location where the ATA will download this file.
Example: UTSI generic release is called V1.8.2.Xa.
Note: The GUI does not allow entry of the firmware file name, this can be
configured only by CLI or using the configuration file on the ATA.
Provisioning Default
Values
The default provisioning priority is HTTP first priority, TFTP second priority. It
has been noticed in the field that the provisioning of configuration files and
firmware is faster when using the HTTP protocol.
TFTP Address: devicecfg.private.net/devicecfg/utstarcom/config
TFTP ports 69, 100, 200
HTTP Address: devicecfg.private.net/devicecfg/utstarcom/config
HTTP port 80
TFTP upgrade Server Address: devicecfg.private.net/firmware/utstarcom
TFTP ports 69
HTTP Upgrade Server Address: devicecfg.private.net/firmware/utstarcom
HTTP port 80
UTStarcom,
Provisioning Default
Flag Values
Provision_priority=0
Provision_server_address=devicecfg.private.net/devicecfg/utstarcom/config
Provisioning Process rules
115
Part Number UTSI-NJTC-200323150117
iAN-02EX
June 2005
Administrator Manual
Provision_server_port=69,100,200
Provision_http_server_address=devicecfg.private.net/devicecfg/utstarcom/c
onfig
Provision_http_server_port=80
Provision_group=0
Provision_expires=86400
Provision_server_address_backup=0
Provision_sync_check=0
Upgrade_server_address=devicecfg.private.net/firmware/utstarcom
Upgrade_server_port=69
Upgrade_http_server_address=devicecfg.private.net/firmware/utstarcom
Upgrade_http_server_port=80
Upgrade_filename=U53V004.00.00_UTSTARCOM-V1.8.2.19a.cpr
Sample Provisioning
Flow Behavior
In the default provisioning process the Provisioning/Upgrade HTTP servers
have been given priority over the Provisioning/Upgrade TFTP servers.
By default, the ATA will be using the default UTStarcom, Inc provisioning
servers.
Provisioning/Upgrade HTTP servers are enabled on port 80
Provisioning/Upgrade TFTP servers are enabled on 3 ports. They are 69, 100
and 200.
Configuration group file feature is not used during the provisioning configuration
file search.
Expiry, by default, is set to 24 hours (86400 seconds).
Sync feature has been disabled in this flow.
Firmware upgrade is done for the file defined in the upgrade_filename flag.
Provisioning Flow
1
Step1:
ATA will first check the provisioning flag set in the current configuration.
By default the ATA will look for HTTP server.
2
Step2:
116
A
PPENDIX
B:
I
AN-02EX P
ROVISIONING
M
ETHODOLOGY
iAN-02EX
Part Number UTSI-NJTC-200323150117
Administrator Manual
June 2005
ATA will look for general, group (currently disabled) and MAC [Encrypted]
configuration file from the HTTP server. If these files are received by the ATA the
subsequent TFTP configuration file search is stopped.
3
Step3:
Once these files are received the ATA will compare the configuration within the
ATA and reboot to assume the new configuration.
4
Step4:
After the completion of configuration file update, the ATA will recheck the
3-configuration files status and proceed for the Upgrade firmware process. The
ATA will check the current firmware version and if required will download the
new firmware and reboot when the download is complete.
5
Step5:
If the HTTP server is not available for some reason the system will go into the
TFTP configuraiton file provisioning.
During this operation the ATA will look for the 3 configuration files on each port.
If the configuraiton file is available on one port the same configuration file is not
tried again on subsequent ports.
If the port value is zero on any given port then that particular port will not be
tried.
Once these files are received the ATA will compare the configuration within the
ATA and reboot to assume the new configuration.
6
Step6:
After the completion of configuration file update(s), the ATA will recheck the 3-
configuration files status and proceed for the Upgrade firmware process. The
ATA will check the current firmware version and if required will download the
new firmware and reboot when the download is complete.
Part Number UTSI-NJTC-200323150117
iAN-02EX
June 2005
Administrator Manual
C
D
EFAULT
S
ETTING
& V
ALUE
Default Value and
Value Range
Table 46
abconfig.cfg Default Value and Value Range
Field Default Value Valid Range
bootcode_version V1.6.7 Read-only.
device_mode 1 0: Bridge Mode
1: Gateway Mode
wan 1 0: Static IP
1: DHCP client
2: PPPoE client
wan_ip 172.25.25.1 Valid IP address
wan_mask 255.255.255.0 Valid Netmask
wan_gateway 172.25.25.1 Valid IP address
wan_dns 172.25.25.1 Valid IP address
pppoe_username 1234 A generic string with up to 32 characters.
pppoe_password 0000 A generic string with up to 32 characters.
provision_priority 0 Provision priority=0 HTTP Ist and TFTP 2nd
Provision priority=1 TFTP Ist and HTTP 2nd
Provision priority=0 HTTP only (Set TFTP
provisioning/upgrade server value=0)
Provision priority=1 TFTP only (Set HTTP
provisioning/upgrade server value=0)
provision_server_address devicecfg.private.net/devicecfg/
utstarcom/config
Valid IP address or URL
0: Disable
provision_server_port 69, 100, 200 Valid port number
0: Disable (Port not used)
provision_http_server_address devicecfg.private.net/devicecfg/
utstarcom/config
Valid IP address or URL
0: Disable
provision_http_server_port 80 Valid port number
provision_group 0 Enter any group number or name.
0: Disable
provision_expires 86400 Time in seconds
provision_server_address_backup 0 Valid IP address
118
A
PPENDIX
C: D
EFAULT
S
ETTING
& V
ALUE
iAN-02EX
Part Number UTSI-NJTC-200323150117
Administrator Manual
June 2005
upgrade_server_address devicecfg.private.net/firmware/
utstarcom
Valid IP address or URL
0: Disable
upgrade_server_port 69 Valid port number
upgrade_http_server_address devicecfg.private.net/firmware/
utstarcom
Valid IP address or URL
0: Disable
upgrade_http_server_port 80 Valid port number
upgrade_filename 0 A valid file with cpr extension.
upgrade_provisapp_filename U53V004.00.00_UTSTARCOM
-provisapp.V0.0.1.cpr
Read-only.
provision_sync_check=0 0:disable 0: disable
1: enable
2: enable and authenticate
(Currently authenticate feature not implemented)
provisapp_enable 1 Flag for enable/disable recovery image upgrade
0: disable
1: enable
wan_provisioning 1 0: disable
1: enable
wan_dns3 0.0.0.0 Valid IP address
debug_level 0 0: do not show debug messages
1: show ERROR
2: show ERROR and WARNING
3: show ERROR, WARNING and INFO
4: show ERROR, WARNING, INFO and DEBUG
default_t1 Generic: 500 SIP-RFC 3261 T1 Timer value
Range: 100 to 5000
dscp 1 1: trusted mode
2: un-trusted mode
Dmz 0 0: disable DMZ1: enable DMZ
Dmz_ip 0.0.0.0 Valid IP address
dhcp_start 172.25.25.2 Valid IP address
dhcp_end 172.25.25.21 Valid IP address
dhcp_mode auto Auto
Manual
dhcp_df_gw 172.25.25.1 Valid IP address
dhcp_dns 172.25.25.1 Valid IP address
dhcp_dns2 0.0.0.0 Valid IP address
dhcp_hostname 0 Valid host name
dhcp_wins 172.25.25.1 Valid IP address
dhcp_domain .com Valid domain name
dhcp_lease_time 86400 Time in seconds
Table 46
abconfig.cfg Default Value and Value Range
Field Default Value Valid Range
Default Value and Value Range
119
Part Number UTSI-NJTC-200323150117
iAN-02EX
June 2005
Administrator Manual
dhcp_resrv_ip 192.168.100.100 Valid IP address
dhcp_resrv_mac 00-00-00-00-00-00 Valid MAC address
dos_rtp_check 1 0: disable RTP checking
1: enable RTP checking
dos_ping_reply 1 0: disable ping reply
1: enable ping reply
dos_http_serv_enable 1 0: disable web access
1: enable web access
dos_telnet_serv_enable 1 0: disable telnet access
1: enable telnet access
ems_server_address 0 Valid IP address
0: Disable
ems_server_port 63030 Valid port number
ems_community Private PrivatePublic
ems_expires 3600 Time in seconds maximum value=86400
Factoryreset *#322867973738 Default set to *#322867973738 used to set ATA to the
factory default settings.
lan_ip 172.25.25.1 Valid IP address
lan_mask 255.255.255.0 Valid Netmask
lan_gateway 172.25.25.1 Valid IP address
lan_dns1 192.168.100.1 Valid IP address
lan_dns2 192.168.100.1 Valid IP address
lan_proto Dhcp Enable / Disable DHPCS
0: static
1: dhcp
mac_spoofing_enable 0 0: disable mac cloning
1: enable mac cloning
mac_spoofing_mac_address 000000000000 Valid MAC address
network_mtu_rate 1460 Transport layer MTU
Range: 28 to1460,
ntp_server_address 0 Valid IP address
0: Disable
ntp_timezone -5 -13 to +12
ntp_expires 86400 Time in seconds
pstn_switchkey 0000 Valid 4 digits number
pstn_offhookdelaytime 0 Time in seconds
port_forward_1 tcp,0.0.0.0,0 Protocol, valid IP, valid Port
port_forward_2 tcp,0.0.0.0,0 Protocol, valid IP, valid Port
port_forward_3 tcp,0.0.0.0,0 Protocol, valid IP, valid Port
port_forward_4 tcp,0.0.0.0,0 Protocol, valid IP, valid Port
port_forward_5 tcp,0.0.0.0,0 Protocol, valid IP, valid Port
Table 46
abconfig.cfg Default Value and Value Range
Field Default Value Valid Range
120
A
PPENDIX
C: D
EFAULT
S
ETTING
& V
ALUE
iAN-02EX
Part Number UTSI-NJTC-200323150117
Administrator Manual
June 2005
port_forward_6 tcp,0.0.0.0,0 Protocol, valid IP, valid Port
port_forward_7 tcp,0.0.0.0,0 Protocol, valid IP, valid Port
port_forward_8 tcp,0.0.0.0,0 Protocol, valid IP, valid Port
port_forward_9 tcp,0.0.0.0,0 Protocol, valid IP, valid Port
port_forward_10 tcp,0.0.0.0,0 Protocol, valid IP, valid Port
supervisor_password utstar A generic string with up to 20 characters.
snmp_sendtrap 0 0: disable traps
1: enable traps.
snmp_get public public private
snmp_set private public private
snmp_trap public public private
snmp_target1 0.0.0.0 Valid IP address
snmp_target2 0.0.0.0 Valid IP address
snmp_target3 0.0.0.0 Valid IP address
snmp_target4 0.0.0.0 Valid IP address
snmp_port1 0 Valid port number
snmp_port2 0 Valid port number
snmp_port3 0 Valid port number
snmp_port4 0 Valid port number
syslog_server_address 0 Valid IP address
0: Disable
syslog_server_port 514 Valid port number
user_password 12345 A characters string
voip_protocol 1 0: MGCP1: SIP
voip_service_line0 1 0: disable line 0
1: enable line 0
voip_user_user0_loginid 0 0: Take username as the login ID
voip_user_user0_username 0 A characters string
voip_user_user0_password 0 A characters string
voip_user_user0_displayname 0 A characters string
voip_user_user0_prefix(generic) 0 1 digit number.
voip_service_line1 1 0: disable line 0
1: enable line 0
voip_user_user1_loginid 0 0: Take username as the login ID
voip_user_user1_username 0 A characters string
voip_user_user1_password 0 A characters string
voip_user_user1_displayname 0 A characters string
voip_user_user1_prefix 0 1 digit number.
voip_mgcp_localport 2427 Valid port number
voip_mgcp_callagent_address 127.0.0.1 Valid IP address
voip_mgcp_callagent_port 2727 Valid port number
Table 46
abconfig.cfg Default Value and Value Range
Field Default Value Valid Range
Default Value and Value Range
121
Part Number UTSI-NJTC-200323150117
iAN-02EX
June 2005
Administrator Manual
voip_mgcp_wildrsip 0 0: Wild-carded RSIP disable
1: Wild-carded RSIP enable
voip_mgcp_epid domain.net Valid domain name
voip_mgcp_epidstyle 0 0: aaln/#@[ip_addr]
1: mac_addr/#@[ip_addr]
2: aaln/#@mac_addr
3: aaln/#@domain_name
voip_mgcp_expires 150 Time in seconds.
voip_callfeature_enable 1 0: Disable
1: Enable
voip_callfeature_wotransfer_en1 1 0: Disable for port 1
1: Enable for port 1
voip_callfeature_hold_en1 1 0: Disable for port 1
1: Enable for port 1
voip_callfeature_wait_en1 1 0: Disable for port 1
1: Enable for port 1
voip_callfeature_wttransfer_en1 1 0: Disable for port 1
1: Enable for port 1
voip_callfeature_alertinfo_en1 0 0: Disable for port 1
1: Enable for port 1
voip_callfeature_wait_disccode1 #88 A "#" character followed by 2 digits number.
voip_callfeature_waiting_percall_deact1 *70 A "*" character followed by 2 digits number.
voip_callfeature_foraways_num1 0 A generic string with up to 50 characters.
voip_callfeature_foraways_en1 0 0: Disable for port 1
1: Enable for port 1
voip_callfeature_forbusy_num1 0 A generic string with up to 50 characters.
voip_callfeature_forbusy_en1 0 0: Disable for port 1
1: Enable for port 1
voip_callfeature_forno_num1 0 A generic string with up to 50 characters.
voip_callfeature_forno_en1 0 0: Disable for port 1
1: Enable for port 1
voip_callfeature_for_ringnum1 3 0 to 10
voip_callfeature_alertinfo_num1 0 A generic string with up to 32 characters.
voip_call_second_feccode1 *25 A "*" character followed by 2 digits number.
voip_callfeature_wotransfer_feccode1 *24 A "*" character followed by 2 digits number.
voip_callfeature_wtransfer_trancode1 #44 A "#" character followed by 2 digits number.
voip_callfeature_waiting_act1 *99 A "*" character followed by 2 digits number.
voip_callfeature_waiting_deact1 #99 A "#" character followed by 2 digits number.
voip_callfeature_foraways_act1 *75 A "*" character followed by 2 digits number.
voip_callfeature_foraways_deact1 #75 A "#" character followed by 2 digits number.
Table 46
abconfig.cfg Default Value and Value Range
Field Default Value Valid Range
122
A
PPENDIX
C: D
EFAULT
S
ETTING
& V
ALUE
iAN-02EX
Part Number UTSI-NJTC-200323150117
Administrator Manual
June 2005
voip_callfeature_forbusy_act1 *76 A "*" character followed by 2 digits number.
voip_callfeature_forbusy_deact1 #76 A "#" character followed by 2 digits number.
voip_callfeature_forno_act1 *77 A "*" character followed by 2 digits number.
voip_callfeature_forno_deact1 #77 A "#" character followed by 2 digits number.
voip_callfeature_dnd_en1 0 0: Disable for port 1
1: Enable for port 1
voip_callfeature_blockclid_en1 0 0: Disable for port 1
1: Enable for port 1
voip_callfeature_blockclid_percall_act1 *67 A "*" character followed by 2 digits number.
voip_callfeature_rej_priv_en1 0 0: Disable for port 1
1: Enable for port 1
voip_callfeature_conference_en1 1 0: Disable for port 1
voip_callfeature_conference_code1 #92 A "#" character followed by 2 digits number.
voip_callfeature_busyredial_en1 1 0: Disable for port 1
1: Enable for port 1
voip_callfeature_busyredial_code1 #5 A "#" character followed by 2 digits number.
voip_callfeature_busyredial_repeat1 10 Time in seconds. Must be less then the value in
voip_callfeature_busyredial_stop1.
voip_callfeature_busyredial_stop1 60 Time in seconds. Must be greater then the value in
voip_callfeature_busyredial_repeat1
voip_callfeature_polarity_reversal_en1 0 0: Disable for port 1
1: Enable for port 1
voip_callfeature_wotransfer_en2 1 0: Disable for port 2
1: Enable for port 2
voip_callfeature_hold_en2 1 0: Disable for port 2
1: Enable for port 2
voip_callfeature_wait_en2 1 0: Disable for port 2
1: Enable for port 2
voip_callfeature_wttransfer_en2 1 0: Disable for port 2
1: Enable for port 2
voip_callfeature_alertinfo_en2 0 0: Disable for port 2
1: Enable for port 2
voip_callfeature_wait_disccode2 #88 A "#" character followed by 2 digits number.
voip_callfeature_waiting_percall_deact2 *70 A "*" character followed by 2 digits number.
voip_callfeature_foraways_num2 0 A generic string with up to 50 characters.
voip_callfeature_foraways_en2 0 0: Disable for port 2
1: Enable for port 2
voip_callfeature_forbusy_num2 0 A generic string with up to 50 characters.
voip_callfeature_forbusy_en2 0 0: Disable for port 2
1: Enable for port 2
Table 46
abconfig.cfg Default Value and Value Range
Field Default Value Valid Range
Default Value and Value Range
123
Part Number UTSI-NJTC-200323150117
iAN-02EX
June 2005
Administrator Manual
voip_callfeature_forno_num2 0 A generic string with up to 50 characters.
voip_callfeature_forno_en2 0 0: Disable for port 2
1: Enable for port 2
voip_callfeature_for_ringnum2 0 0 to 10
voip_callfeature_alertinfo_num2 0 A generic string with up to 32 characters.
voip_call_second_feccode2 *25 A "*" character followed by 2 digits number.
voip_callfeature_wotransfer_feccode2 *24 A "*" character followed by 2 digits number.
voip_callfeature_wtransfer_trancode2 #44 A "#" character followed by 2 digits number.
voip_callfeature_waiting_act2 *99 A "*" character followed by 2 digits number.
voip_callfeature_waiting_deact2 #99 A "#" character followed by 2 digits number.
voip_callfeature_foraways_act2 *75 A "*" character followed by 2 digits number.
voip_callfeature_foraways_deact2 #75 A "#" character followed by 2 digits number.
voip_callfeature_forbusy_act2 *76 A "*" character followed by 2 digits number.
voip_callfeature_forbusy_deact2 #76 A "#" character followed by 2 digits number.
voip_callfeature_forno_act2 *77 A "*" character followed by 2 digits number.
voip_callfeature_forno_deact2 #77 A "#" character followed by 2 digits number.
voip_callfeature_dnd_en2 0 0: Disable for port 2
1: Enable for port 2
voip_callfeature_blockclid_en2 0 0: Disable for port 2
1: Enable for port 2
voip_callfeature_blockclid_percall_act2 *67 A "*" character followed by 2 digits number.
voip_callfeature_rej_priv_en2 0 0: Disable for port 2
1: Enable for port 2
voip_callfeature_conference_en2 1 0: Disable for port 2
1: Enable for port 2
voip_callfeature_conference_code2 #92 A "#" character followed by 2 digits number.
voip_callfeature_busyredial_en2 1 0: Disable for port 2
1: Enable for port 2
voip_callfeature_busyredial_code2 #5 A "#" character followed by 2 digits number.
voip_callfeature_busyredial_repeat2 10 Time in seconds. Must be less then the value in
voip_callfeature_busyredial_stop2.
voip_callfeature_busyredial_stop2 60 Time in seconds. Must be greater then the value in
voip_callfeature_busyredial_repeat2
voip_callfeature_polarity_reversal_en2 0 0: Disable for port 2
1: Enable for port 2
voip_sip_with_sdp 1 0= without SDP
1=with SDP
voip_sip_localport 5060 Valid port number
voip_sip_proxy_address 0 Valid IP address
0: Disable
voip_sip_proxy_port 5060 Valid port number
Table 46
abconfig.cfg Default Value and Value Range
Field Default Value Valid Range
124
A
PPENDIX
C: D
EFAULT
S
ETTING
& V
ALUE
iAN-02EX
Part Number UTSI-NJTC-200323150117
Administrator Manual
June 2005
voip_sip_registrar_address 0 Valid IP address
0: Disable
voip_sip_registrar_port 5060 Valid port number
voip_sip_outbound_address 0 Valid IP address
0: Disable
voip_sip_outbound_port 5060 Valid port number
voip_sip_expires 3600 Time in seconds
voip_sip_domain 0 0: use local IP address as the domain name
voip_sip_subject Call_Invite A character string.
0: Disable
voip_sip_proxyrequire 0 A generic string with up to 64 characters.
voip_sip_dnssrv 0 Flag for enable/disable DNS-SRV
0: disable
1: enable
voip_sip_redundancy 1 Flag for enable/disable redundancy
0: disable
1: enable
voip_sip_authenticate 0 Flag for enable/disable authentication
0: disable
1: enable
voip_codec_rate0 20 Line1 (FXS-port1) codec rate values102030
voip_codec_rate1 20 Line2 (FXS-port2) codec rate values 102030
voip_codec_prefer0 2 Line1 (FXS-port1) prefer codec type
0: PCMU (G.711 u-law)
1: PCMA (G.711 A-law)
2: G.729A
3: G.723.1
4: G.726
voip_codec_prefer1 2 Line2 (FXS-port2) prefer codec type
0: PCMU (G.711 u-law)
1: PCMA (G.711 A-law)
2: G.729A
3: G.723.1
4: G.726
voip_codec_vad0 1 Line1 (FXS-port1) VAD functionality
0: disable
1: enable
voip_codec_vad1 1 Line2 (FXS-port2) VAD functionality
0: disable
1: enable
Table 46
abconfig.cfg Default Value and Value Range
Field Default Value Valid Range
Default Value and Value Range
125
Part Number UTSI-NJTC-200323150117
iAN-02EX
June 2005
Administrator Manual
voip_rtp_port 13456 Valid port number
voip_rtp_qos_type 1 0: disable
1: DiffServ
2: Tos
voip_rtp_qos_tos 16 0 to 3600
voip_qos_dscp_media 184 0 to 3600
voip_qos_dscp_signal 160 0 to 3600
voip_endpoint_rxgain 0 -36 to +18 dB
voip_endpoint_txgain 0 -36 to +18 dB
voip_endpoint_ring 2000,4000 <ontime,offtime>
or
<ontime1,offtime1,ontime2,offtime2>
voip_endpoint_ring_dr6 2000,4000 <ontime,offtime>
or
<ontime1,offtime1,ontime2,offtime2>
voip_endpoint_ring_dr7 2000,4000 <ontime,offtime>
or
<ontime1,offtime1,ontime2,offtime2>
voip_endpoint_ring_dr8 2000,4000 <ontime,offtime>
or
<ontime1,offtime1,ontime2,offtime2>
voip_endpoint_ring_field 0
voip_endpoint_dialtone 1000,0,350,440 <ontime,offtime,freq1,freq2>
voip_endpoint_busytone 500,500,480,620 <ontime,offtime,freq1,freq2>
or
<ontime1,offtime1,ontime2,offtime2,freq1,freq2>
voip_endpoint_ringbacktone 2000,4000,440,480
voip_endpoint_callwaittone 300,10000,440,0 <ontime,offtime,freq1,freq2>
or
<ontime1,offtime1,ontime2,offtime2,freq1,freq2>
or
<ontime1,offtime1,ontime2,offtime2,ontime3,offtime3,fr
eq1,freq2>
voip_endpoint_callwaittone_field 0
voip_endpoint_flash0 200,800 Line1 (FXS-port1) Hook- flash range: (Enter valid
number in (ms)) for <min, max>hookflash limits.
Min: lower bound of detecting hook flash. (In
Milli-seconds)
Max: upper bound of detecting hook flash. (In
Milli-seconds)
Table 46
abconfig.cfg Default Value and Value Range
Field Default Value Valid Range
126
A
PPENDIX
C: D
EFAULT
S
ETTING
& V
ALUE
iAN-02EX
Part Number UTSI-NJTC-200323150117
Administrator Manual
June 2005
voip_endpoint_flash1 200,800 Line1 (FXS-port2) Hook-flash range: (Enter valid
number in (ms)) for <min, max>hookflash limits.
Min: lower bound of detecting hook flash. (In
Milli-seconds)
Max: upper bound of detecting hook flash. (In
Milli-seconds)
voip_fax_t38 0 0: disable
1: enable
voip_fax_t38port 49170 Valid port number
voip_stun_nataddress 0 Valid IP address
0: Disable
voip_stun_server_address 0 Valid IP address
0: Disable
voip_stun_server_port 3478 Valid port number
voip_stun_localport 3478 Valid port number
voip_stun_expires 60 Time in seconds
voip_country 12 0 = Custom Specific Values
12= NORTH AMERICA
voip_digitmap1 Generic:
1111|1xxxxxxxxxx|911|411|*x.#
Custom Specific Values
voip_digitmap2 Generic:
1111|1xxxxxxxxxx|911|411|*x.#
Custom Specific Values
voip_nte_user0 1 RFC-2833
0=disable
1=enable
voip_nte_user1 1 RFC-2833
0=disable
1=enable
voip_info user0 0 SIP-INFO
0=disable
1=enable
voip_info_user1 0 SIP-INFO
0=disable
1=enable
voip_jitterbufMin 0 0 to 150
voip_jitterbufMax 150 0 to 150
voip_jitterbufTarget 0 0 to 150
vlan_tag_priority_port0 0 0 - 65535
vlan_tag_priority_port1 0 0 - 65535
vlan_tag_vlan_id_port0 4 0 to 100
vlan_tag_vlan_id_port1 4 0 to 100
Table 46
abconfig.cfg Default Value and Value Range
Field Default Value Valid Range
Default Value and Value Range
127
Part Number UTSI-NJTC-200323150117
iAN-02EX
June 2005
Administrator Manual
vlan_tag_enable 0 0: disable
1: enable
vlan_tag_add_port0 0 0: disable
1: enable
vlan_tag_add_port1 0 0: disable
1: enable
vlan_tag_remove_port0 0 0: disable
1: enable
vlan_tag_remove_port1 0 0: disable
1: enable
vlan_tag_replace_port0 0 0: disable
1: enable
vlan_tag_replace_port1 0 0: disable
1: enable
vlan_tag_voice_priority 1 0 to 8
vlan_tag_voice_vlan_id 3 0 to 100
Table 46
abconfig.cfg Default Value and Value Range
Field Default Value Valid Range
128
A
PPENDIX
C: D
EFAULT
S
ETTING
& V
ALUE
iAN-02EX
Part Number UTSI-NJTC-200323150117
Administrator Manual
June 2005
Part Number UTSI-NJTC-200323150117
iAN-02EX
June 2005
Administrator Manual
D
I
AN-02EX SNMP MIB R
EFERENCE
MIB Scalar Objects as defined in UTSI-VOIPRG-MIB.mib are listed below.
Note: Please contact your UTStarcom, Inc Network Consultant or Sales
representative for the UTSI-VOIPRG-MIB.mib file.
MIB Scalar Objects
Table 47
MIB Scalar Objects Table
Node / OID Description Settings
System Status
1.3.6.1.4.1.4684.1.1.0
read-only current
The device status. It will be queried by SNMP platform. INTEGER
■
normal(1)
■
minor(2)
■
major(3)
systemVersion
1.3.6.1.4.1.4684.1.2.0
read-only current
System software version. It will be queried by SNMP
platform for matching LCT and GW SW version.
DisplayString (0..20)
currentAlarmNum
1.3.6.1.4.1.4684.5.1.1.1.1.1.5.1.0
read-only current
The number of entries in current alarm table INTEGER
rgCommonReset
1.3.6.1.4.1.4684.5.4.1.1.0
read-write current
Reset system. Trigger(1), Normal(2). INTEGER
■
trigger(1)
■
normal(2)
rgCommonFactoryReset
1.3.6.1.4.1.4684.5.4.1.2.0
read-write current
Reset to factory default setting. Trigger(1), Normal(2). INTEGER
■
trigger(1)
■
normal(2)
rgCommonHardwareVersion
1.3.6.1.4.1.4684.5.4.1.3.0
read-only current
Hardware version. DisplayString (0..255)
rgCommonFirmwareVersion
1.3.6.1.4.1.4684.5.4.1.4.0
ead-only current
software version. DisplayString (0..255)
rgCommonBootVersion
1.3.6.1.4.1.4684.5.4.1.5.0
read-only current
Boot code version. DisplayString (0..255)
130
A
PPENDIX
D:
I
AN-02EX SNMP MIB R
EFERENCE
iAN-02EX
Part Number UTSI-NJTC-200323150117
Administrator Manual
June 2005
rgCommonDeviceType
1.3.6.1.4.1.4684.5.4.1.6.0
read-only current
Device type of device. DisplayString (0..255)
rgCommonDeviceDescription
1.3.6.1.4.1.4684.5.4.1.7.0
read-only current
A textual description of the system device. This value should
include the full name and version identification of the
system's hardware type, software operating-system, and
networking software.It is mandatory that this only contain
printable ASCII characters.
DisplayString (0..255)
rgCommonLastBuildDate
1.3.6.1.4.1.4684.5.4.1.100.0
read-only current
Last build date of system software DisplayString (0..255)
rgCommonLastBuildTime
1.3.6.1.4.1.4684.5.4.1.101.0
read-only current
Last build time of system software DisplayString (0..255)
rgSysDescription
1.3.6.1.4.1.4684.5.4.2.1.0
read-write current
The description of system. DisplayString (0..255)
rgSysDateTime
1.3.6.1.4.1.4684.5.4.2.2.0
read-only current
Current system date and time in GMT. DisplayString (0..255)
rgSysPhysAddr
1.3.6.1.4.1.4684.5.4.2.3.0
read-only current
Physical address of system. DisplayString (0..255)
rgSysIpAddr
1.3.6.1.4.1.4684.5.4.2.4.0
read-only current
The IP address of system. IpAddress
rgSysSubnetMask
1.3.6.1.4.1.4684.5.4.2.5.0
read-only current
The net mask of system. IpAddress
rgSysDefGateway
1.3.6.1.4.1.4684.5.4.2.6.0
read-only current
The deafult gateway of system. IpAddress
rgSysPassSupervisor
1.3.6.1.4.1.4684.5.4.2.7.0
read-only current
Login password for supervisor. DisplayString (0..255)
rgSysPassUser
1.3.6.1.4.1.4684.5.4.2.8.0
read-only current
Login password for user. DisplayString (0..255)
Table 47
MIB Scalar Objects Table
Node / OID Description Settings
MIB Scalar Objects
131
Part Number UTSI-NJTC-200323150117
iAN-02EX
June 2005
Administrator Manual
rgSysLedPower
1.3.6.1.4.1.4684.5.4.2.9.0
read-only current
LED display status for power supply indicator. INTEGER
■
on(1)
■
off(2)
■
blink(3)
rgSysLedLan
1.3.6.1.4.1.4684.5.4.2.10.0
read-only current
LED display status for LAN linking indicator. INTEGER
■
on(1)
■
off(2)
■
blink(3)
rgSysLedWan
1.3.6.1.4.1.4684.5.4.2.11.0
read-only current
LED display status for WAN linking indicator. INTEGER
■
on(1)
■
off(2)
■
blink(3)
rgSysLedVrdy
1.3.6.1.4.1.4684.5.4.2.12.0
read-only current
LED display status for VoIP ready indicator. INTEGER
■
on(1)
■
off(2)
■
blink(3)
rgSysInternetAccessMode
1.3.6.1.4.1.4684.5.4.2.13.0
read-write current
The method of Internet(WAN) access. INTEGER
■
static(1)
■
dhcp(2)
■
pppoe(3)
rgSysNteEnable
1.3.6.1.4.1.4684.5.4.2.14.0
read-write current
Enable/Disable NTE function INTEGER
■
on(1)
■
off(2)
default = off
rgPortNumTotal
1.3.6.1.4.1.4684.5.4.3.1.0
read-only current
The total port number of VoIP Gateway(FXS interface). Integer32
rgPortNumUsable
1.3.6.1.4.1.4684.5.4.3.2.0
read-only current
The usable port number of VoIP Gateway(FXS interface). Integer32
rgPortNumBusy
1.3.6.1.4.1.4684.5.4.3.3.0
read-only current
The busy port number of VoIP Gateway(FXS interface). Integer32
rgPortNumFault
1.3.6.1.4.1.4684.5.4.3.4.0
read-only current
The fault port number of VoIP Gateway(FXS interface). Integer32
rgPortNumForbidden
1.3.6.1.4.1.4684.5.4.3.5.0
read-only current
The forbidden port number of VoIP Gateway(FXS interface). Integer32
Table 47
MIB Scalar Objects Table
Node / OID Description Settings
132
A
PPENDIX
D:
I
AN-02EX SNMP MIB R
EFERENCE
iAN-02EX
Part Number UTSI-NJTC-200323150117
Administrator Manual
June 2005
rgVoipProtocol
1.3.6.1.4.1.4684.5.4.4.1.0
read-write current
VoIP signaling protocol. INTEGER
■
mgcp(1)
■
sip(2)
■
h323(3)
rgVoipMgcpLocalport
1.3.6.1.4.1.4684.5.4.4.2.1.0
read-write current
The local listening port of MGCP stack. INTEGER (1..65535)
rgVoipMgcpPriCallAgentAddress
1.3.6.1.4.1.4684.5.4.4.2.2.0
read-write current
The network IP address of the primary CallAgent. IpAddress
rgVoipMgcpPriCallAgentPort
1.3.6.1.4.1.4684.5.4.4.2.3.0
read-write current
The port number of the primary CallAgent. INTEGER (1..65536)
rgVoipMgcpSecCallAgentAddress
1.3.6.1.4.1.4684.5.4.4.2.4.0
read-write current
The network IP address of the secondary CallAgent. IpAddress
rgVoipMgcpSecCallAgentPort
1.3.6.1.4.1.4684.5.4.4.2.5.0
read-write current
The port number of the secondary CallAgent. INTEGER (1..65536)
rgVoipMgcpExpires
1.3.6.1.4.1.4684.5.4.4.2.6.0
read-write current
The period(in seconds) of sending keep alive message to
callagent.
Integer32
rgVoipMgcpWildRsip
1.3.6.1.4.1.4684.5.4.4.2.7.0
read-write current
Enable / Disable sending RSIP with wildcarded endpoint id. INTEGER
■
on(1)
■
off(2)
default = off
rgVoipMgcpEpIdStyle
1.3.6.1.4.1.4684.5.4.4.2.8.0
read-write current
Specify endpoint id style. INTEGER
■
aaln-IpAddr(0)
■
macAddr-IpAddr(1)
■
aaln-MacAddr(2)
■
aaln-DomainName(3)
rgVoipSipLocalport
1.3.6.1.4.1.4684.5.4.4.3.1.0
read-write current
The local listening port of SIP stack. INTEGER (1..65536)
rgVoipSipProxyAddress
1.3.6.1.4.1.4684.5.4.4.3.2.0
read-write current
The network IP addresss of SIP proxy. IpAddress
Table 47
MIB Scalar Objects Table
Node / OID Description Settings
MIB Scalar Objects
133
Part Number UTSI-NJTC-200323150117
iAN-02EX
June 2005
Administrator Manual
rgVoipSipProxyPort
1.3.6.1.4.1.4684.5.4.4.3.3.0
read-write current
The port number of SIP proxy. INTEGER (1..65536)
rgVoipSipRegistrarAddress
1.3.6.1.4.1.4684.5.4.4.3.4.0
read-write current
The network IP address of SIP registrar. IpAddress
rgVoipSipRegistrarPort
1.3.6.1.4.1.4684.5.4.4.3.5.0
read-write current
The port number of SIP registrar. INTEGER (1..65536)
rgVoipSipExpires
1.3.6.1.4.1.4684.5.4.4.3.6.0
read-write current
The period(in seconds) that the SIP registration will expire. Integer32
rgVoipSipDomain
1.3.6.1.4.1.4684.5.4.4.3.7.0
read-write current
The SIP domain name for the URI to be registered. e.g., if
the settings are, username : 1234 domain : iptel.org
registrar: 195.37.77.101 then the URI sip:1234@iptel.org will
be registered in 195.37.77.101.
DisplayString (0..255)
rgVoipSipSubject
1.3.6.1.4.1.4684.5.4.4.3.8.0
read-write current
The content of the SIP subject header in outgoing INVITE
message. This is used to indicate the title of the call.
DisplayString (0..255)
rgVoipH323Localport
1.3.6.1.4.1.4684.5.4.4.4.1.0
read-write current
The local listening port of H.323 stack. INTEGER (1..65536)
rgVoipH323GatekeeperAddress
1.3.6.1.4.1.4684.5.4.4.4.2.0
read-write current
The network IP address of H.323 gatekeeper. IpAddress
rgVoipH323GatekeeperPort
1.3.6.1.4.1.4684.5.4.4.4.3.0
read-write current
The listening port of H.323 gatekeeper. INTEGER (1..65536)
rgVoipH323Expires
1.3.6.1.4.1.4684.5.4.4.4.4.0
read-write current
The period(in seconds) of sending keep alive message to
gatekeeper.
Integer32
rgVoipH323Faststart
1.3.6.1.4.1.4684.5.4.4.4.5.0
read-write current
Enable/Disable H.323 fast connect procedure. TruthValue
rgVoipCodecRate
1.3.6.1.4.1.4684.5.4.4.5.0
read-write current
The preferred codec rate (packet period) in milliseconds. INTEGER (1..256)
Table 47
MIB Scalar Objects Table
Node / OID Description Settings
134
A
PPENDIX
D:
I
AN-02EX SNMP MIB R
EFERENCE
iAN-02EX
Part Number UTSI-NJTC-200323150117
Administrator Manual
June 2005
rgVoipCodecPrefer
1.3.6.1.4.1.4684.5.4.4.6.0
read-write current
The preferred codec. (e.g., PCMU(G.711 u-law),
PCMA(G.711 A-law), G.729A, G.723.1).
INTEGER
■
pcmu(1)
■
pcma(2)
■
g729a(3)
■
g7231(4)
default = pcmu
rgVoipCodecVad
1.3.6.1.4.1.4684.5.4.4.7.0
read-write current
Enable/Disable Voice Activity Detection(VAD). INTEGER
■
on(1)
■
off(2)
rgVoipFaxT38
1.3.6.1.4.1.4684.5.4.4.8.0
read-write current
Enable/Disable T.38 fax. INTEGER
■
on(1)
■
off(2)
rgVoipFaxT38Port
1.3.6.1.4.1.4684.5.4.4.9.0
read-write current
The port number to send/receive T.38 packets. INTEGER (1..65536)
rgVoipPstnSwitchkey
1.3.6.1.4.1.4684.5.4.4.10.0
read-write current
The keys of switching from VoIP mode to PSTN mode. DisplayString (0..255)
rgVoipRtpPort
1.3.6.1.4.1.4684.5.4.4.11.0
read-write current
Specify the port number to send/receive RTP packets. port :
used by 1st RTP session port + 2: used by 2nd RTP session
INTEGER (1..65536)
rgVoipRtpTos
1.3.6.1.4.1.4684.5.4.4.12.0
read-write current
The IP TOS(type of service) of RTP packet. INTEGER (1..256)
rgVoipRxGain
1.3.6.1.4.1.4684.5.4.4.13.0
read-write current
The adjustment of receive audio gain value in dB. dB: -36 ~
+18.
INTEGER (-36..18)
rgVoipTxGain
1.3.6.1.4.1.4684.5.4.4.14.0
read-write current
The adjustment of transmit audio gain value in dB. dB: -36 ~
+18.
INTEGER (-36..18)
rgVoipSpeedDialCount
1.3.6.1.4.1.4684.5.4.4.15.1.0
read-only current
The entry count of PSTN redialing digitmap. Integer32
rgVoipDigitmapCount
1.3.6.1.4.1.4684.5.4.4.16.1.0
read-only current
The entry count of PSTN redialing digitmap. Integer32
rgCallHistoryVoipInCount
1.3.6.1.4.1.4684.5.4.5.2.0
read-only current
The incoming count of Call History entry. Counter32
Table 47
MIB Scalar Objects Table
Node / OID Description Settings
MIB Scalar Objects
135
Part Number UTSI-NJTC-200323150117
iAN-02EX
June 2005
Administrator Manual
rgCallHistoryVoipOutCount
1.3.6.1.4.1.4684.5.4.5.3.0
read-only current
The outgoing count of Call History entry. Counter32
rgCallHistoryVoipOutSuccess
1.3.6.1.4.1.4684.5.4.5.4.0
read-only current
The total number of successful placed outgoing call. Counter32
rgCallHistoryVoipOutFail
1.3.6.1.4.1.4684.5.4.5.5.0
read-only current
The total number of failed placed outgoing call. Counter32
rgCallHistoryPstnInCount
1.3.6.1.4.1.4684.5.4.5.6.0
read-only current
The incoming count of Call History entry. Counter32
rgCallHistoryPstnOutCount
1.3.6.1.4.1.4684.5.4.5.7.0
read-only current
The outgoing count of Call History entry. Counter32
mgToneType
1.3.6.1.4.1.4684.5.4.6.1.0
read-write current
Select the tone type you want to config. ring(1) : or
ringback(2): or dial(3) : busy(4) : or callwait(5): or
INTEGER
■
ring(1)
■
ringback(2)
■
dial(3)
■
busy(4)
■
callwait(5)
mgToneOnTime1
1.3.6.1.4.1.4684.5.4.6.2.0
read-write current
The active time of ring tone cadence. INTEGER (1..65536)
mgToneOffTime1
1.3.6.1.4.1.4684.5.4.6.3.0
read-write current
The inactive time of ring tone cadence. INTEGER (1..65536)
mgToneOnTime2
1.3.6.1.4.1.4684.5.4.6.4.0
read-write current
The active time of ring tone cadence. 0 means we don't need
this object value.
INTEGER (0..65536)
default = 0
mgToneOffTime2
1.3.6.1.4.1.4684.5.4.6.5.0
read-write current
The inactive time of ring tone cadence. 0 means we don't
need this object value.
INTEGER (0..65536)
default = 0
mgToneFreq1
1.3.6.1.4.1.4684.5.4.6.6.0
read-write current
The first frequency of tone type cadence. Integer32
mgToneFreq2
1.3.6.1.4.1.4684.5.4.6.7.0
read-write current
The second frequency of tone type cadence. Integer32
Table 47
MIB Scalar Objects Table
Node / OID Description Settings
136
A
PPENDIX
D:
I
AN-02EX SNMP MIB R
EFERENCE
iAN-02EX
Part Number UTSI-NJTC-200323150117
Administrator Manual
June 2005
mgToneOperation
1.3.6.1.4.1.4684.5.4.6.8.0
read-write current
Enable/Disable tone modulation by tone type. INTEGER
■
on(1)
■
off(2)
rgMgtDhcpServerIp
1.3.6.1.4.1.4684.5.4.7.1.0
read-only current
The network IP address of the local DHCP server for LAN. IpAddress
rgMgtPriDnsIp
1.3.6.1.4.1.4684.5.4.7.2.0
read-only current
The network IP address of primary DNS server. IpAddress
rgMgtSecDnsIp
1.3.6.1.4.1.4684.5.4.7.3.0
read-only current
The network IP address of secondary DNS server. IpAddress
rgMgtPppoeServer
1.3.6.1.4.1.4684.5.4.7.4.0
read-only current
The network IP address of PPPoE server. IpAddress
rgMgtPppoeUsername
1.3.6.1.4.1.4684.5.4.7.5.0
read-write current
Specify the user name of PPPoE client. DisplayString (0..255)
rgMgtPppoePassword
1.3.6.1.4.1.4684.5.4.7.6.0
read-write current
Specify the password of PPPoE client. DisplayString (0..255)
rgMgtProvisionServerAddress
1.3.6.1.4.1.4684.5.4.7.7.0
read-write current
The network IP address of the provision server. IpAddress
rgMgtProvisionServerPort
1.3.6.1.4.1.4684.5.4.7.8.0
read-write current
The port number of the provision server. INTEGER (1..65536)
rgMgtProvisionServerGroup
1.3.6.1.4.1.4684.5.4.7.9.0
read-write current
The group that device belongs to. DisplayString (0..255)
rgMgtProvisionServerExpires
1.3.6.1.4.1.4684.5.4.7.10.0
read-write current
The period(in seconds) of retrieving configuration from
provision server.
Integer32
rgMgtNtpServerAddress
1.3.6.1.4.1.4684.5.4.7.15.0
read-write current
The network IP address of the NTP server. IpAddress
rgMgtNtpTimezone
1.3.6.1.4.1.4684.5.4.7.16.0
read-write current
The time zone of current location for NTP. INTEGER (-12..12)
Table 47
MIB Scalar Objects Table
Node / OID Description Settings
MIB Scalar Objects
137
Part Number UTSI-NJTC-200323150117
iAN-02EX
June 2005
Administrator Manual
rgMgtNtpExpires
1.3.6.1.4.1.4684.5.4.7.17.0
read-write current
The period(in seconds) of retrieving time from NTP server. Integer32
rgMgtNtpSync
1.3.6.1.4.1.4684.5.4.7.18.0
read-write current
Synchronize local time with ntp server. INTEGER
■
on(1)
■
off(2)
default = off
rgMgtSyslogServerAddress
1.3.6.1.4.1.4684.5.4.7.19.0
read-write current
The network IP address of the syslog server. IpAddress
rgMgtSyslogServerPort
1.3.6.1.4.1.4684.5.4.7.20.0
read-write current
The port number of the syslog server. INTEGER (1..65536)
rgMgtVoipStunNatAddress
1.3.6.1.4.1.4684.5.4.7.21.0
read-write current
The network IP address of the NAT firewall. Should be
specified if this device is located behind a NAT firewall. The
NAT firewall should also activate port mapping or DMZ
funtions to forward incoming voip signaling packet and RTP
packets to this device. Make sure the STUN(Simple
Traversal of User Datagram) server address is 0 if you want
to specify nataddress by yourself. If the IP address of the
NAT firewall is unknown, specify STUN server to determine
it automatically.
IpAddress
rgMgtVoipStunServerIp
1.3.6.1.4.1.4684.5.4.7.22.0
read-write current
The network IP address of STUN(Simple Traversal of User
Datagram) server. It is used to detecting the IP address of
the NAT firewall. If this function is enabled, after detecting
the IP address of the NAT firewall, 'nataddress' will be
changed automatically.
IpAddress
rgMgtVoipStunServerPort
1.3.6.1.4.1.4684.5.4.7.23.0
read-write current
The port number of the STUN server. INTEGER (1..65536)
rgMgtVoipStunLocalport
1.3.6.1.4.1.4684.5.4.7.24.0
read-write current
The local listening port number of the STUN client. INTEGER (1..65536)
rgMgtVoipStunExpires
1.3.6.1.4.1.4684.5.4.7.25.0
read-write current
The period(in seconds) of sending STUN message to STUN
server.
Integer32
rgEmsSnmpGetCommunity
1.3.6.1.4.1.4684.5.4.8.1.0
read-write current
The snmp get community name of system. DisplayString (0..255)
rgEmsSnmpSetCommunity
1.3.6.1.4.1.4684.5.4.8.2.0
read-write current
The snmp set community name of system. DisplayString (0..255)
Table 47
MIB Scalar Objects Table
Node / OID Description Settings
138
A
PPENDIX
D:
I
AN-02EX SNMP MIB R
EFERENCE
iAN-02EX
Part Number UTSI-NJTC-200323150117
Administrator Manual
June 2005
rgEmsSnmpTrapCommunity
1.3.6.1.4.1.4684.5.4.8.3.0
read-write current
The snmp trap community name of system. DisplayString (0..255)
rgEmsSnmpTrapIP1
1.3.6.1.4.1.4684.5.4.8.4.0
read-write current
The network IP address of SNMP server for receiving traps. IpAddress
rgEmsSnmpTrapIP2
1.3.6.1.4.1.4684.5.4.8.5.0
read-write current
The network IP address of SNMP server for receiving traps. IpAddress
rgEmsSnmpTrapIP3
1.3.6.1.4.1.4684.5.4.8.6.0
read-write current
The network IP address of SNMP server for receiving traps. IpAddress
rgEmsSnmpTrapIP4
1.3.6.1.4.1.4684.5.4.8.7.0
read-write current
The network IP address of SNMP server for receiving traps. IpAddress
rgEmsSnmpTrapPort1
1.3.6.1.4.1.4684.5.4.8.8.0
read-write current
The port number of SNMP server for receiving traps. INTEGER (1..65536)
rgEmsSnmpTrapPort2
1.3.6.1.4.1.4684.5.4.8.9.0
read-write current
The port number of SNMP server for receiving traps. INTEGER (1..65536)
rgEmsSnmpTrapPort3
1.3.6.1.4.1.4684.5.4.8.10.0
read-write current
The port number of SNMP server for receiving traps. INTEGER (1..65536)
rgEmsSnmpTrapPort4
1.3.6.1.4.1.4684.5.4.8.11.0
read-write current
The port number of SNMP server for receiving traps. INTEGER (1..65536)
rgEmsExpires
1.3.6.1.4.1.4684.5.4.8.12.0
read-write current
The period(in seconds) of sending IP inform message to
EMS server.
Integer32
rgCurrentAlarmReset
1.3.6.1.4.1.4684.5.4.9.2.0
read-write current
Reset current alarm table. INTEGER
■
trigger(1)
■
normal(2)
rgHistoryAlarmNum
1.3.6.1.4.1.4684.5.4.10.1.0
read-only current
The number of entries in history alarm table INTEGER
rgHistoryAlarmReset
1.3.6.1.4.1.4684.5.4.10.2.0
read-write current
Reset history alarm table. INTEGER
■
trigger(1)
■
normal(2)
Table 47
MIB Scalar Objects Table
Node / OID Description Settings
systemInformationTable
139
Part Number UTSI-NJTC-200323150117
iAN-02EX
June 2005
Administrator Manual
systemInformationTab
le
Indexed by:
■
systemInformationIndex
notificationSeq
1.3.6.1.4.1.4684.5.4.20.1.0
accessible-for-notify current
Notification sequence number Integer32
notificationClass
1.3.6.1.4.1.4684.5.4.20.2.0
accessible-for-notify current
Notification class type INTEGER
■
fault(4)
■
restore(5)
■
event(6)
notificationPortIdx
1.3.6.1.4.1.4684.5.4.20.3.0
accessible-for-notify current
Notification port index number Integer32
notificationSoftSwitchIdx
1.3.6.1.4.1.4684.5.4.20.4.0
accessible-for-notify current
Notification soft switch number Integer32
Table 47
MIB Scalar Objects Table
Node / OID Description Settings
Table 48
System Information Table
Node / OID Description Settings
systemInformationIndex
1.3.6.1.4.1.4684.5.1.1.1.1.1.1.1.1
read-only current
Table entry index value INTEGER
tFTPServerIP
1.3.6.1.4.1.4684.5.1.1.1.1.1.1.1.41
read-write current
The ip address of TFTP server for software download IpAddress
tFTPFileName
1.3.6.1.4.1.4684.5.1.1.1.1.1.1.1.42
read-write current
file name to be downloaded via TFTP DisplayString (0..255)
tFTPOperation
1.3.6.1.4.1.4684.5.1.1.1.1.1.1.1.43
read-write current
Doing download software with file name as tFTPFileName
for software upgrade.
INTEGER
■
off(0)
■
swDownload(1)
default = off
tFTPResult
1.3.6.1.4.1.4684.5.1.1.1.1.1.1.1.44
read-only current
Tftp download result. INTEGER
■
fail(0)
■
success(1)
default = fail
140
A
PPENDIX
D:
I
AN-02EX SNMP MIB R
EFERENCE
iAN-02EX
Part Number UTSI-NJTC-200323150117
Administrator Manual
June 2005
currentAlarmTable
Indexed by:
■
currentAlarmIndex
rgPortTable
This table contains information about specific ports.
loginUserName
1.3.6.1.4.1.4684.5.1.1.1.1.1.1.1.48
read-write current
password of supervisor DisplayString (0..40)
loginPasswd
1.3.6.1.4.1.4684.5.1.1.1.1.1.1.1.49
read-write current
password of supervisor DisplayString (0..40)
Table 48
System Information Table
Node / OID Description Settings
Table 49
Current Alarm Table
Node / OID Description Settings
currentAlarmIndex
1.3.6.1.4.1.4684.5.1.1.1.1.1.5.2.1.1
read-only current
table index of Current Alarm Table INTEGER (1..6)
currentAlarmObject
1.3.6.1.4.1.4684.5.1.1.1.1.1.5.2.1.2
read-only current
The if number of current alarm 0 - system 1 - 16 VoIP
endpoints
INTEGER (0..16)
currentAlarmCause
1.3.6.1.4.1.4684.5.1.1.1.1.1.5.2.1.3
read-only current
The current alarm cause ProbableCause
currentAlarmSeverity
1.3.6.1.4.1.4684.5.1.1.1.1.1.5.2.1.4
read-only current
alarm severity INTEGER
■
cleared(0)
■
major(1)
■
minor(2)
■
alert(3)
rgVoipSpeedDialTable
141
Part Number UTSI-NJTC-200323150117
iAN-02EX
June 2005
Administrator Manual
Indexed by:
■
rgPortIndex
rgVoipSpeedDialTable
This table contains information about specific entry of PSTN redialing digitmap.
Table 50
rg Port Table
Node / OID Description Settings
rgPortIndex
1.3.6.1.4.1.4684.5.4.3.6.1.1
not-accessible current
Index variable to access the RgPortEntry objects of the
rgPortTable.
INTEGER (1..256)
rgPortUsername
1.3.6.1.4.1.4684.5.4.3.6.1.2
read-write current
The user name (or phone number) of the port. DisplayString (0..255)
rgPortPassword
1.3.6.1.4.1.4684.5.4.3.6.1.3
read-write current
The user password of the port. DisplayString (0..255)
rgPortDisplayname
1.3.6.1.4.1.4684.5.4.3.6.1.4
read-write current
The display name of the port. DisplayString (0..255)
rgPortRtpPort
1.3.6.1.4.1.4684.5.4.3.6.1.5
read-only current
The RTP port number of the port to send/receive RTP
packet.
INTEGER (1..65536)
rgPortLed
1.3.6.1.4.1.4684.5.4.3.6.1.6
read-only current
LED displays status for the port. INTEGER
■
on(1)
■
off(2)
■
blink(3)
rgPortHookStatus
1.3.6.1.4.1.4684.5.4.3.6.1.7
read-only current
Phone hook status on the port. INTEGER
■
onhook(1)
■
offhook(2)
rgPortRingStatus
1.3.6.1.4.1.4684.5.4.3.6.1.8
read-only current
Phone ring status on the port. INTEGER
■
ringing(1)
■
normal(2)
rgPortInService
1.3.6.1.4.1.4684.5.4.3.6.1.9
read-only current
Config port service type. INTEGER
■
inService(1)
■
outOfService(2)
default = inService
142
A
PPENDIX
D:
I
AN-02EX SNMP MIB R
EFERENCE
iAN-02EX
Part Number UTSI-NJTC-200323150117
Administrator Manual
June 2005
Indexed by:
■
rgVoipSpeedDialIndex
rgVoipDigitmapTable
This table contains information about specific entry of PSTN redialing digitmap.
Indexed by:
■
rgVoipDigitmapIndex
rgCallHistoryTable
This table contains information about specific Call History.
Table 51
rg Voip Speed Dial Table
Node / OID Description Settings
rgVoipSpeedDialIndex
1.3.6.1.4.1.4684.5.4.4.15.2.1.1
not-accessible current
Index variable to access the RgVoipSpeedDialEntry objects
of the rgVoipSpeedDialTable.
INTEGER (1..300)
rgVoipSpeedDialString
1.3.6.1.4.1.4684.5.4.4.15.2.1.2
read-only current
Display digitmap string and length of the entry. DisplayString (0..255)
Table 52
rg Voip Digitmap Table
Node / OID Description Settings
rgVoipDigitmapIndex
1.3.6.1.4.1.4684.5.4.4.16.2.1.1
not-accessible current
Index variable to access the RgVoipDigitmapEntry objects of
the rgVoipDigitmapTable.
INTEGER (1..300)
rgVoipDigitmapString
1.3.6.1.4.1.4684.5.4.4.16.2.1.2
read-only current
Display digitmap string and length of the entry. DisplayString (0..255)
rgCallHistoryTable
143
Part Number UTSI-NJTC-200323150117
iAN-02EX
June 2005
Administrator Manual
Indexed by:
■
rgCallHistoryIndex
Table 53
rg Call History Table
Node / OID Description Settings
rgCallHistoryIndex
1.3.6.1.4.1.4684.5.4.5.1.1.1
not-accessible current
Index variable to access the RgCallHistoryEntry objects of
the rgCallHistoryTable.
INTEGER (1..500)
rgCallHistoryPort
1.3.6.1.4.1.4684.5.4.5.1.1.2
read-only current
The attributed port number of the Call History. INTEGER (1..65536)
rgCallHostoryDirection
1.3.6.1.4.1.4684.5.4.5.1.1.3
read-only current
The direction of the call in the Call history. The (1)send
indicates that this call is a outgoing call and the (2)recv
indicates that this call is a incoming call.
INTEGER
■
send(1)
■
recv(2)
rgCallHistoryCallingNumber
1.3.6.1.4.1.4684.5.4.5.1.1.4
read-only current
The phone number of Calling party in the Call History. DisplayString (0..255)
rgCallHistoryCalledNumber
1.3.6.1.4.1.4684.5.4.5.1.1.5
read-only current
The phone number of Called party in the Call History. DisplayString (0..255)
rgCallHistoryStart
1.3.6.1.4.1.4684.5.4.5.1.1.6
read-only current
The start time of a call in the Call History. DisplayString (0..255)
rgCallHistoryEnd
1.3.6.1.4.1.4684.5.4.5.1.1.7
read-only current
The end time of a call in the Call History. DisplayString (0..255)
rgCallHistoryDur
1.3.6.1.4.1.4684.5.4.5.1.1.8
read-only current
The duration time of a call in the Call History. DisplayString (0..255)
rgCallHistoryRemIp
1.3.6.1.4.1.4684.5.4.5.1.1.9
read-only current
The remote IP address of a call in the Call History. IpAddress
rgCallHistoryRemPort
1.3.6.1.4.1.4684.5.4.5.1.1.10
read-only current
The remote port number of a call in the Call History. INTEGER (1..65536)
rgCallHistoryTxPackets
1.3.6.1.4.1.4684.5.4.5.1.1.11
read-only current
The total number of RTP packets transmitted during a call
in the Call History.
Integer32
rgCallHistoryRxPackets
1.3.6.1.4.1.4684.5.4.5.1.1.12
read-only current
The total number of RTP packets received during a call in
the Call History.
Integer32
144
A
PPENDIX
D:
I
AN-02EX SNMP MIB R
EFERENCE
iAN-02EX
Part Number UTSI-NJTC-200323150117
Administrator Manual
June 2005
rgHistoryAlarmTable
This table contains information about specific history alarm.
Indexed by:
■
rgHistoryAlarmIndex
rgCallHistoryTxOctets
1.3.6.1.4.1.4684.5.4.5.1.1.13
read-only current
The total number of payload octets (not including header or
padding) transmitted in RTP data packets during a call in
the Call History.
Integer32
rgCallHistoryRxOctets
1.3.6.1.4.1.4684.5.4.5.1.1.14
read-only current
The total number of payload octets (not including header or
padding) received in RTP data packets during a call in the
Call History.
Integer32
rgCallHistoryCODEC
1.3.6.1.4.1.4684.5.4.5.1.1.15
read-only current
The CODEC(payload) type of a call in the Call History. DisplayString (0..255)
rgCallHistoryPacketPeriod
1.3.6.1.4.1.4684.5.4.5.1.1.16
read-only current
The packet period(CODEC rate) of a call in the CallHistory. INTEGER (1..65536)
rgCallHistoryPacketLoss
1.3.6.1.4.1.4684.5.4.5.1.1.17
read-only current
The total packets loss during a call in the Call History. Integer32
Table 53
rg Call History Table
Node / OID Description Settings
Table 54
rg History AlarmTable
Node / OID Description Settings
rgHistoryAlarmIndex
1.3.6.1.4.1.4684.5.4.10.3.1.1
not-accessible current
table index of Current Alarm Table INTEGER (1..10)
rgHistoryAlarmTime
1.3.6.1.4.1.4684.5.4.10.3.1.2
read-only current
Current system time in GMT, it is represented as seconds
since 1970(YY):1(MM):1(DD):0(HH):0(MM):0(SS). For
example, if the dateTime is 86400, it means the system
time is 1970:1:2:0:0:0:
INTEGER
rgHistoryAlarmObject
1.3.6.1.4.1.4684.5.4.10.3.1.3
read-only current
The interface object with current alarm 0 - system 1 - 16
VOIP endpoint
INTEGER (0..16)
rgHistoryAlarmCause
1.3.6.1.4.1.4684.5.4.10.3.1.4
read-only current
The history alarm cause ProbableCause
Trap
145
Part Number UTSI-NJTC-200323150117
iAN-02EX
June 2005
Administrator Manual
Trap
rgStart
rgRestarting
rgHistoryAlarmSeverity
1.3.6.1.4.1.4684.5.4.10.3.1.5
read-only current
alarm severity INTEGER
■
cleared(0)
■
major(1)
■
minor(2)
■
alert(3)
Table 54
rg History AlarmTable
Node / OID Description Settings
Table 55 rgStart Table
Display rgStart
Description RG start up (cold start)
Probable cause none specified
Severity none specified
State none specified
Trap Name rgStart
ID notification OID 1.3.6.1.4.1.4684.5.4.21.1
Table 56
Trap Variables
VarBind Description Settings
rgSysIpAddr
1.3.6.1.4.1.4684.5.4.2.4.0
The IP address of system. IpAddress
Table 57
rgRestarting Table
Display rgRestarting
Description RG restarting
Probable cause none specified
Severity none specified
State none specified
Trap Name rgRestarting
ID notification OID 1.3.6.1.4.1.4684.5.4.21.2
146
A
PPENDIX
D:
I
AN-02EX SNMP MIB R
EFERENCE
iAN-02EX
Part Number UTSI-NJTC-200323150117
Administrator Manual
June 2005
rgPortFault
rgSoftSwitchDown
Table 58
Trap Variables
VarBind Description Settings
rgSysIpAddr
1.3.6.1.4.1.4684.5.4.2.4.0
The IP address of system. IpAddress
Table 59
rgPortFault Table
Display rgPortFault
Description VoIP Port fault
Probable cause none specified
Severity none specified
State none specified
Trap Name rgPortFault
ID notification OID 1.3.6.1.4.1.4684.5.4.21.3
Table 60
Trap Variables
VarBind Description Settings
notificationSeq
1.3.6.1.4.1.4684.5.4.20.1.0
Notification sequence number Integer32
notificationClass
1.3.6.1.4.1.4684.5.4.20.2.0
Notification class type INTEGER
■
fault(4)
■
restore(5)
■
event(6)
notificationPortIdx
1.3.6.1.4.1.4684.5.4.20.3.0
Notification port index number Integer32
Table 61
rgSoftSwitchDown Table
Display rgSoftSwitchDown
Description Soft switch types include: 1. MGC down trap for MGCP 2.
Gatekeeper down trap for H323 3. Proxy server down trap for SIP
Probable cause none specified
Severity none specified
State none specified
Trap Name rgSoftSwitchDown
ID notification OID 1.3.6.1.4.1.4684.5.4.21.4
Trap
147
Part Number UTSI-NJTC-200323150117
iAN-02EX
June 2005
Administrator Manual
rgLoadSuccess
rgLoadFail
Table 62
Trap Variables
VarBind Description Settings
notificationSeq
1.3.6.1.4.1.4684.5.4.20.1.0
Notification sequence number Integer32
notificationClass
1.3.6.1.4.1.4684.5.4.20.2.0
Notification class type INTEGER
■
fault(4)
■
restore(5)
■
event(6)
notificationSoftSwitchIdx
1.3.6.1.4.1.4684.5.4.20.4.0
Notification soft switch number Integer32
Table 63
rgLoadSuccess Table
Display rgLoadSuccess
Description Download program/config success
Probable cause none specified
Severity none specified
State none specified
Trap Name rgLoadSuccess
ID notification OID 1.3.6.1.4.1.4684.5.4.21.5
Table 64
Trap Variables
VarBind Description Settings
notificationSeq
1.3.6.1.4.1.4684.5.4.20.1.0
Notification sequence number Integer32
notificationClass
1.3.6.1.4.1.4684.5.4.20.2.0
Notification class type INTEGER
■
fault(4)
■
restore(5)
■
event(6)
Table 65
rgLoadFail Table
Display rgLoadFail
Description Download program/config fail
Probable cause none specified
Severity none specified
148
A
PPENDIX
D:
I
AN-02EX SNMP MIB R
EFERENCE
iAN-02EX
Part Number UTSI-NJTC-200323150117
Administrator Manual
June 2005
rgShakeHandToEMS
rgAlarmStatusChange
State none specified
Trap Name rgLoadFail
ID notification OID 1.3.6.1.4.1.4684.5.4.21.6
Table 66
Trap Variables
VarBind Description Settings
notificationSeq
1.3.6.1.4.1.4684.5.4.20.1.0
Notification sequence number Integer32
notificationClass
1.3.6.1.4.1.4684.5.4.20.2.0
Notification class type INTEGER
■
fault(4)
■
restore(5)
■
event(6)
Table 65
rgLoadFail Table
Table 67
rgShakeHandToEMS Table
Display rgShakeHandToEMS
Description Periodically handshake with EMS by rgEmsExpires value
Probable cause none specified
Severity none specified
State none specified
Trap Name rgShakeHandToEMS
ID notification OID 1.3.6.1.4.1.4684.5.4.21.7
Table 68
Trap Variables
VarBind Description Settings
rgSysIpAddr
1.3.6.1.4.1.4684.5.4.2.4.0
The IP address of system. IpAddress
Table 69
rgAlarmStatusChange Table
Display rgAlarmStatusChange
Description Alarm status has changed
Probable cause none specified
Severity none specified
State none specified
Syntax Types
149
Part Number UTSI-NJTC-200323150117
iAN-02EX
June 2005
Administrator Manual
rgLedChange
Syntax Types
Trap Name rgAlarmStatusChange
ID notification OID 1.3.6.1.4.1.4684.5.4.21.8
Table 70
Trap Variables
VarBind Description Settings
notificationSeq
1.3.6.1.4.1.4684.5.4.20.1.0
Notification sequence number Integer32
Table 69
rgAlarmStatusChange Table
Table 71
rgLedChange Table
Display rgLedChange
Description LED status has changed
Probable cause none specified
Severity none specified
State none specified
Trap Name rgLedChange
ID notification OID 1.3.6.1.4.1.4684.5.4.21.9
Table 72
Trap Variables
VarBind Description Settings
notificationSeq
1.3.6.1.4.1.4684.5.4.20.1.0
Notification sequence number Integer32
Table 73
Syntax Types Table
Type Description Settings
Bool Disabled/Enabled value INTEGER
■
disabled(0)
■
enabled(1)
150
A
PPENDIX
D:
I
AN-02EX SNMP MIB R
EFERENCE
iAN-02EX
Part Number UTSI-NJTC-200323150117
Administrator Manual
June 2005
ProbableCause probable cause for current alarm INTEGER
■
proCau-wanLOL(1)
■
proCau-dhcp(2)
■
proCau-softSwitch(3)
■
proCau-acFail(4)
■
proCau-confExhaust(5)
■
proCau-portFail(6)
■
unknown(255)
Table 73
Syntax Types Table
Type Description Settings
Part Number UTSI-NJTC-200323150117
iAN-02EX
June 2005
Administrator Manual
E
U
PGRADE
P
ROCEDURE
Upgrade Procedure
Follow the procedures below to upgrade Generic units from V1.8.2.2a or interim
Generic release to V1.8.2.19a.
1
Step1
■
Connect PC to LAN side.
■
Connect ATA using ip-address 192.168.0.1
■
Please verify using ipconfig command on the PC connected to the LAN side.
■
The ATA on the LAN side should get ip-address 192.268.0.2
■
Login=supervisor password=utstar
■
System screen should be available on the PC connected to the LAN side.
■
Display should show V1.8.2.2a [Factory shipped generic version]
2
Step2
■
Go to firmware
Upgrade
tab and select firmware [V1.8.2.19a].
■
ATA will read the file and VoIP, Line1 and Line2 LED's will flicker after 2
minutes.
■
Once done ATA will reboot.
3
Step3
■
Wait for a while and check the LAN LED on the ATA.
■
Connect PC to LAN side.
■
Connect ATA using ip-address 192.168.0.1
■
Login=
supervisor
password=
utstar
4
Step4
■
Go to
Load Default Settings
tab.
■
Select radio button
Default
settings
■
ATA will load the default and the
Reboot screen
will appear.
■
Select reboot, ATA will now reboot with the new default values.
5
Step5
152
A
PPENDIX
E: U
PGRADE
P
ROCEDURE
iAN-02EX
Part Number UTSI-NJTC-200323150117
Administrator Manual
June 2005
■
Connect PC to LAN side
■
Please verify using ipconfig command on the PC connected to the LAN side
■
Connect ATA using ip-address 172.25.25.1
■
ATA on the LAN side should get ip-address 172.25.25.2
■
Login=
supervisor
password=
utstar
Upgrade Notes
LAN side ip-address
change
The upgrade from V1.8.2.2a (Generic) units to V1.8.2.19a will change the
default LAN side ip-address from 192.168.0.x to 172.25.25.1. Hence after
upgrade please make sure to connect to 172.25.25.1 to gain access to the ATA.
WAN side Static
ip-address
configuration.
On doing load default user will need to configure the IP-Address of the WAN
side if static ip-address was used previously. Configuration of Static WAN
ip-address can be done using the GUI us the WANIP tab.
If DHCP option is used for the acquiring WAN-Side ip-address behavior will be
the same as before upgrade.
