And Much Much More!
www.GregSmithEquipment.com
Delaware
Indiana
Florida
New Hampshire
Georgia
Arizona
Texas

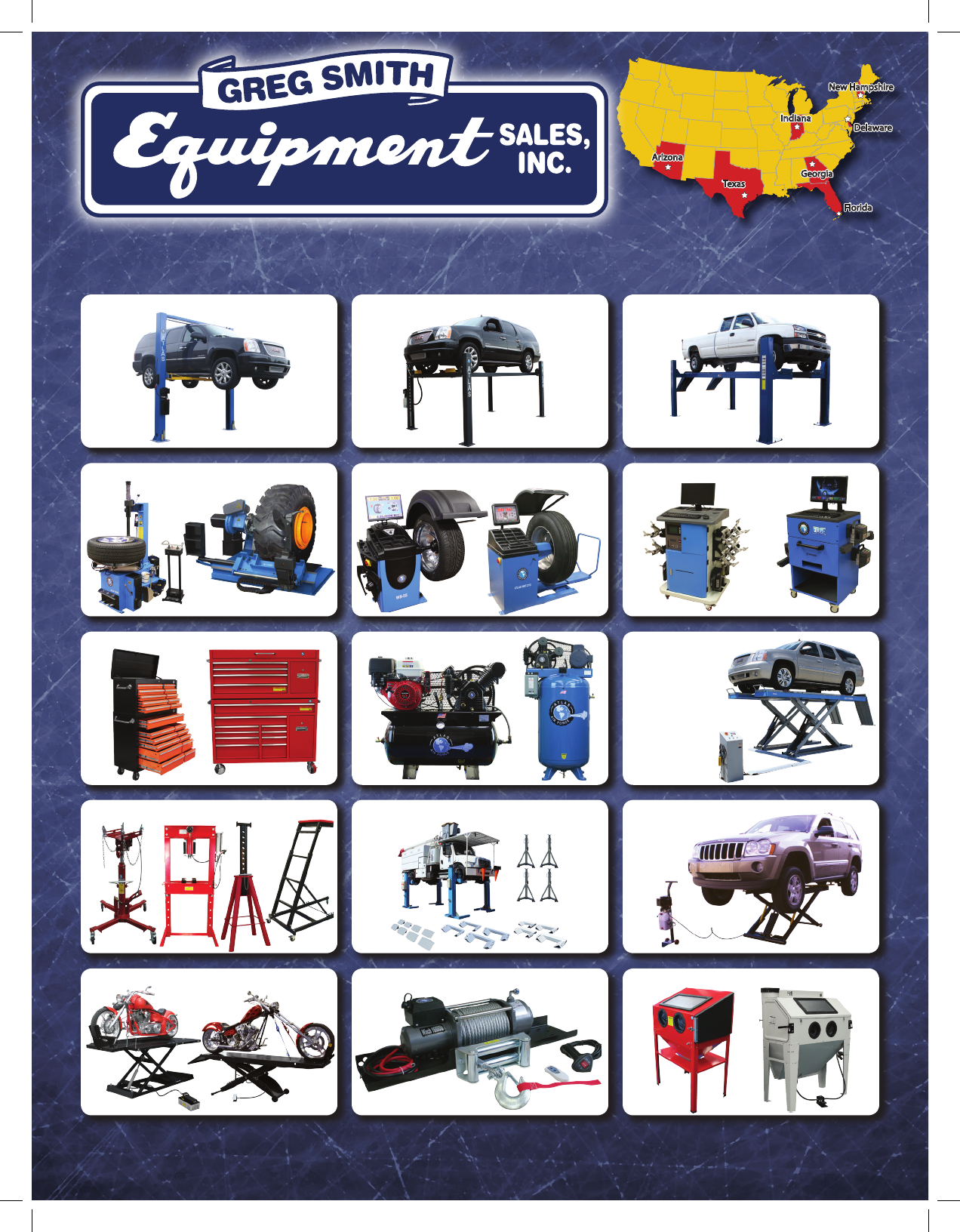

2 Post Lifts 4 Post Hobby Lifts 4 Post Commercial Lifts
Tire Changers Wheel Balancers Alignment Machines
Tool Boxes Air Compressors Alignment Lifts
Motorcycle Lifts Winches Sand Blast Cabinets
Shop Equipment Mobile Column Lift Systems Scissor Lifts
1.800.711.5031
WE ARE NOT RESPONSIBLE FOR MISPRINTS.
PRICES AND SPECIFICATIONS ARE SUBJECT TO CHANGE.
www.GregSmithEquipment.com
9KBP
The Atlas 9KBP is a base-plate two-post lift
designed for low ceiling garages. The total
column height of 111 1/2” (9’ 3 1/2”) allows this
lift to be installed in almost any professional or
home garage with a ceiling as low as 9’ 6”.
Features
• 9,000 lb. Capacity
• Light Commercial
Grade
• Dual Point Lock
Release
• Symmetric Arms
• Symmetric Columns
• Automatic Arm
Restraints
• Base-Plate Design
• Designed For Low
Ceiling Clearance
• FREE Truck Adapters
• Mounting Hardware
• Powder Coat Finish
• 2-Year Structural,
1-Year Hydraulic
Warranty
Visit Our Website
FOR MORE
Product Photos
The Atlas BP8000 is a base-plate two-post
lift designed for low ceiling garages. The
total column height is 108” (9 feet.) This
lift features a single-point lock release.
Features
• 8,000 lb. Capacity
• Dual Hydraulic
Chain-Over Cylinders
• Single-Point Lock Release
• 2-Stage Symmetric Arms
• Automatic Arm Restraints
• Base-Plate Design
• Powder Coat Finish
• FREE Truck Adapters
• Mounting Hardware
• 5-Year Structural, 1-Year
Hydraulic Warranty
Atlas 9KBP Specifications
Capacity 9,000 lb.
Overall Height 111 1/2” (9’ 3 1/2”)
Overall Floor Width 134 1/2” (11’ 2 1/2”)
Maximum Lift Height
(w/ adapters)
81” (6’ 9”)
Inside Column 110” (9’ 2”)
Shipping Weight 1,450 lbs.
Atlas BP-8000 Specifications
Capacity 8,000 lb.
Overall Height 108” (9’)
Overall Floor Width 132” (11’)
Maximum Lift Height
(w/ adapters)
81 3/8” (6’ 9 3/8”)
Inside Column 109 5/8” (9’ 1 5/8”)
Shipping Weight 1,350 lbs.
BP-8000
Atlas Frame Adapters
The optional rear frame adapter set (2 pieces) is available for most of our Atlas line of 2-post lifts.
BP-9F
The Atlas BP-9F is a commercial grade two post car lift. If you
have a low ceiling height in your work area, then the Atlas BP-9F
is the perfect choice for a base plate lift.
Features
• Symmetric arms
• Baseplate design
• Powder coat finish
• Dual point lock release
• 9,000 lb. capacity
• Designed for low ceiling
clearance - 9’3” columns
• FREE truck adapters
• Mounting hardware included
• 2 Year structural warranty,
1 Year Hydraulic warranty
Atlas BP-9F Specifications
Capacity 9,000 lb.
Overall Height 111” (9’ 3”)
Overall Floor Width 138 ½” (11’ 6 ½”)
Maximum Lift Height
(w/ adapters) 80 1/4” (6’ 8 1/4”)
Shipping Weight 1,650 lbs.
FINANCING
AVAILABLE
The Atlas BP-12K base-plate style lift is equipped with single-point
lock release – a very unique feature for a base-plate style lift. With
an overall column height of 9’ 3” the BP-12K is the ideal solution for
a garage with low ceilings.
Atlas BP-12000 Specifications
Capacity 12,000 lb.
Total Ceiling Height Required 122 ½” (10’ 2 ½”)
Overall Height 111 ¼” (9’ 3 ¼”)
Overall Floor Width 150 ¾” (12’ 6 ¾”)
Maximum Lift Height
(w/ adapters) 80 ¾” (6’ 8 ¾”)
Inside Column 123 ½” (10’ 3 ½”)
Shipping Weight 2,300 lbs.
BP-12000
Features
• 12,000 lb. Capacity
• Dual Hydraulic
Chain-Over Cylinders
• Single-Point Lock Release
• Automatic Arm Restraints
• 3-Stage Arms
• Base-Plate Design
• Powder Coat Finish
• FREE Truck Adapters
• Mounting Hardware
• 5-Year Structural,
2-Year Hydraulic Warranty
WE ARE NOT RESPONSIBLE FOR MISPRINTS.
PRICES AND SPECIFICATIONS ARE SUBJECT TO CHANGE.
1.800.711.5031
OH9000
The three models of OH-9000 series lifts offer a variety of height
and width configurations. These commercial grade two-post lifts are
the perfect choice for commercial garages or Mr. Homeowner who
demands the highest quality at the absolute best price.
Features
• 9,000 lb. Capacity
• Light Commercial Grade
• Dual Point Lock Release
• Symmetric Columns
• Asymmetric Arm Design
• Automatic Arm Restraints
• Clear Floor Design
• Powder Coat Finish
• FREE Truck Adapters
• Mounting Hardware
• 2-Year Structural, 1-Year
Hydraulic Warranty
9KOH
The Atlas 9KOH is the perfect choice for those customers who demand the
most lifting capacity at the lowest possible price. The overhead beam can
be adjusted to two different height settings: 11’ 6” or 11’ 10”.
Atlas 9KOH Specifications
Capacity 9,000 lb.
Overall Height 142” (11’ 10”) Or
138” (11’ 6”)
Overall Floor Width 134 1/4” (11’ 2 1/4”)
Maximum Lift Height (w/ adapters) 80 1/4” (6’ 8 1/4”)
Inside Column 109 3/4” (9’ 1 3/4”)
Shipping Weight 1,500 lb.
Atlas OH9000 Specifications
Capacity 9,000 lb.
Overall Height 142 1/2" - 150 1/2”
(11' 10 1/2" - 12' 6 1/2")
Overall Floor Width 135” (11’ 3”)
Maximum Lift Height (w/ adapters) 81 3/4” (6’ 9 3/4”)
Inside Column 112 1/8” (9’ 4 1/8”)
Shipping Weight 1,500 lb.
Features
• 9,000 lb. Capacity
• Commercial Grade
• Direct Drive Cylinders
• 3-Stage Super-Symmetric
Front Arms
• Adjustable Height
Symmetric Columns
• Powder Coat Finish
• Clear Floor Design
• FREE Truck Adapters
• Mounting Hardware
• 5-Year Structural, 2-Year
Hydraulic Warranty
Adds 2 feet to the height of the Atlas OH9000
OH9000 Width
Extension Kit
Adds 6 inches to the overall width of the Atlas OH9000
OH9000W
The Atlas OH9000W is the wider version of
the Atlas OH9000 two post above ground lift.
EXTRA WIDE
The Atlas OH9000H is the taller version of
the Atlas OH9000 two post above ground lift.
OH-9000H
OH9000 Height
Extension Kit
EXTRA TALL
The Atlas BP9000 is a base-plate style lift equipped with single-point lock
release – a very unique feature for a base-plate style lift. With an overall
column height of 9’ 3 1/2” the BP9000 is the ideal solution for a garage
with low ceilings.
• 9,000 lb. Capacity
• Dual Hydraulic
Chain-Over Cylinders
• Single-Point Lock Release
• Automatic Arm Restraints
• 3-Stage Super-Symmetric
Front Arms
• Base-Plate Design
• Powder Coat Finish
• FREE Truck Adapters
• Mounting Hardware
• 5-Year Structural, 2-Year
Hydraulic Warranty
Features
Atlas BP-9000 Specifications
Capacity 9,000 lb.
Overall Height 111 1/2” (9’ 3 1/2”)
Overall Floor Width 136 3/8” (11’ 4 3/8”)
Maximum Lift Height
(w/ adapters) 86” (7’ 2”)
Inside Column 112” (9’ 4”)
Shipping Weight 1,500 lbs.
BP-9000
FINANCING
AVAILABLE
½½
WE ARE NOT RESPONSIBLE FOR MISPRINTS.
PRICES AND SPECIFICATIONS ARE SUBJECT TO CHANGE.
www.GregSmithEquipment.com
PV-10P PV-10HP
Atlas PV-10P Specifications
Low High
Capacity 10,000 lb.
Overall Height 142” (11’ 10”) 146” (12’ 2”)
Overall Width 137 3/8” (11’ 5 3/8”)
Maximum Lift Height (w/ adapters) 82” (6’ 10”)
Between Columns 110 3/4” (9’ 2 3/4”)
Shipping Weight 1,900 lb.
• Commercial Grade
• Direct Drive Cylinders
• Single-Point Lock Release
• Front Arms May Be Configured
Symmetric Or Asymmetric
• “Padded” Shut-Off Bar
• Powder Coat Finish
• Adjustable Height
• Clear Floor Design
• FREE Truck Adapters
• Mounting Hardware
• 5-Year Structural, 2-Year
Hydraulic Warranty
Features
Atlas PV-10HP Specifications
Low High
Capacity 10,000 lb.
Overall Height 166” (13’ 10”) 170” (14’ 2”)
Overall Width 137 3/8” (11’ 5 3/8”)
Maximum Lift Height
(w/ adapters)
82” (6’ 10”)
Between Columns 110 3/4” (9’ 2 3/4”)
Shipping Weight 2,100 lb.
• Commercial Grade
• Direct Drive Cylinders
• Single-Point Lock Release
• Front Arms May Be Configured
Symmetric Or Asymmetric
• “Padded” Shut-Off Bar
• Powder Coat Finish
• Adjustable Height
• Clear Floor Design
• FREE Truck Adapters
• Mounting Hardware
• 5-Year Structural, 2-Year
Hydraulic Warranty
Features
EXTRA TALL
OH-10X
Atlas OH-10X Specifications
Capacity 10,000 lb.
Overall Height 151 1/2” (12’ 7 1/2”)
Overall Floor Width 143 3/8” (11’ 11 3/8”)
Maximum Lift Height (w/ adapters) 84” (7’)
Inside Column 117 1/2” (9’ 9 1/2”)
Shipping Weight 1,800 lb.
Features
• Commercial Grade
• Direct Drive Cylinders
• 2-Stage Heavy Duty
Symmetric Arms
• Single Piece Columns
• Symmetric Columns
• Extra Long Carriages
• Powder Coat Finish
• 10,000 lb. Capacity
• Clear Floor Design
• FREE Truck Adapters
• Mounting Hardware
• 5-Year Structural, 2-Year
Hydraulic Warranty
EXTRA WIDE
EXTRA TALL
The Atlas PV10P is a commercial grade two-post lift designed to
lift a wide variety of vehicles. The PV10P has a low pad height to
accommodate passenger vehicles but is built to handle full size pickups.
The PV10P has dual direct drive cylinders and single-point lock release.
This commercial grade two-post lift is the perfect choice for
garages that demand the highest quality at the absolute best
price. The Atlas OH10X is WIDER and TALLER than most above
ground two-post lifts. The OH10X has dual direct drive cylinders
and single-point lock release.
The PV10HP is identical to the PV10P, but with an extra two foot
(24”) column extension to accommodate high profile vehicles.
90HSC-SS
Atlas 90HSC-SS Specifications
Capacity 9,000 lb.
Overall Height 142” (11’ 10”)
Overall Floor Width 134” (11’ 2”)
Maximum Lift Height
(w/ adapters)
81 3/8” (6’ 9 3/8”)
Inside Column 109 1/2” (9’ 1 1/2”)
Shipping Weight 1,450 lb.
Features
• 9,000 lb. Capacity
• Light Commercial Grade
• Dual Hydraulic
Chain-Over Cylinders
• Single Piece Columns
• Single-Point Lock Release
• Symmetric Columns
• 3-Stage Super-Symmetric
Front Arms
• Powder Coat Finish
• Clear Floor Design
• FREE Truck Adapters
• Mounting Hardware
• 5-Year Structural
Warranty, 1-Year
Hydraulic Warranty
The Atlas 90HSC-SS features single piece columns and extra long
carriages. The Atlas 9OHSC-SS two-post above ground lift is the perfect
choice for smaller repair facilities or Mr. Homeowner who demands the
highest quality at the absolute best price.
FINANCING
AVAILABLE
WE ARE NOT RESPONSIBLE FOR MISPRINTS.
PRICES AND SPECIFICATIONS ARE SUBJECT TO CHANGE.
1.800.711.5031
PV-12P PV-15P EXTRA WIDE
EXTRA TALL
EXTRA WIDE
EXTRA TALL
The Atlas PV-12P and PV-15P are commercial grade lifts designed to accommodate heavy, long wheel base trucks. The low pad height on the PV-12P allows the
operator to lift both cars and trucks. The larger arms and taller pad height on the PV-15P are designed for customers who primarily work on trucks and SUVs. The extra
distance between the columns accommodates wider vehicles or vehicles with wide rear-view mirrors. The extra height is perfect for tall vans and box trucks.
Visit Our Website
FOR MORE
Product Photos
Atlas PV-12P Specifications
Low Middle High
Capacity 12,000 lb.
Overall Height 148 1/2”
(12’ 4 1/2”)‡163 1/2”
(13’ 7 1/2”)
175 1/2”
(14’ 7 1/2”)
Height To Shut Off
Bar
142” (11’ 10”)‡157” (13’ 1”) 169” (14’ 1”)
Overall Width 158” (13’ 2”)
Maximum Lift Height
(With Truck Adapters)
82” (6’ 10”)
Between Columns 122 5/8” (10’ 2 5/8”)
Drive Thru 108 5/8” (9’5/8”)
Motor/Electrical
Requirement
220 Volt Single (1) Phase;
A 30 amp Breaker Is Recommended
Shipping Weight 2,250 lb.
‡ Requires purchase of additional shorter cables
Atlas PV-15P Specifications
Low Middle High
Capacity 15,000 lb.
Overall Height 150 3/8”
(12’ 6 3/8”)‡162 3/8”
(13’ 6 3/8”)
177 3/8”
(14’ 9 3/8”)
Height To Shut Off
Bar
140 3/4”
(11’ 8 3/4”)‡152 3/4”
(12’ 8 3/4”)
167 3/4”
(13’ 11 3/4”)
Overall Width 158” (13’ 2”)
Maximum Lift Height
(With Truck Adapters)
79 3/4” (6’ 7 3/4”)
Between Columns 122 5/8” (10’ 2 5/8”)
Drive Thru 109” (9’ 1”)
Motor/Electrical
Requirement
220 Volt, Single (1) Phase;
A 30 amp Breaker Is Recommended
Shipping Weight 2,600 lb.
‡ Requires purchase of additional shorter cables
Mobile Column Lift Systems
Don’t waste valuable floor space with a large four post lift. Atlas Mobile Column Lift Systems will save you shop space and money versus a
four post lift. No need to buy an extended length 4-post lift. With Atlas mobile column lifts, longer wheel bases are not a problem.
36,000 - 48,000 Lb. Capacities
STARTING AT
WATCH OUR
VIDEO ONLINE!
FINANCING
AVAILABLE
Features
• Commercial grade
• Single point lock release
• Symmetric design
• Powder coat finish
• Adjustable to three (3) heights
• Free 12 piece truck adapter set
• Anchor bolts included
• 5 Year Structural Warranty, 2
Year Hydraulic Warranty
WE ARE NOT RESPONSIBLE FOR MISPRINTS.
PRICES AND SPECIFICATIONS ARE SUBJECT TO CHANGE.
www.GregSmithEquipment.com
Specifications
Capacity 8,000 LB
Overall Width without Motor 104 ½” (8’ 8 ½”)
Overall Length without Approach Ramps 175 ½” (14’ 7 ½”)
Maximum Wheel Base 153 ½” (12’ 9 ½”)
• Commercial grade
• Ladder lock system
• Steel approach ramps
included
• Powder coat finish
• 9,000 lb. capacity
• Single point lock release
• Extra height AND width
• Polyurethane wheels on
caster kit
• Four wheel stops
included
• Perfect for storing or
working on vehicles
• 2 year structural, 1
year hydraulic warranty
Features
Atlas Garage Pro 8000
The Atlas Garage Pro 8000 is one of our most popular 4-post lifts. These 8,000 lb. capacity
lifts feature a lock ladder column design with a single point lock release.
• 8,000 lb. capacity
• Powder coat finish
• Diamond plated runways
• Single point lock release
• Caster kit with polyurethane wheels
• Steel approach ramps included
• Steel jack tray included
• Four plastic drip trays included
• Four steel wheel stops included
• Two rubber wheel chocks included
• Perfect for storing or working on vehicles
• 2 year structural, 1 year hydraulic warranty
Features
A portable lift that can accommodate a dual-wheel truck.
Long runways support a long wheel base, crew cab dually.
Atlas Garage Pro 9000
Garage Pro 8000 EXT
Extra Drip Trays for
Four-Post Lifts Available
Specifications
Capacity 9,000 LB.
Clearance under Runways 80 1/2” (6’ 8 1/2”)
Between Columns 109 1/2” (9’ 1 1/2”)
Maximum Wheel Base 187” (15’ 7”)
Shipping Weight 2,300 lb.
Garage Pro 8000
Atlas Garage Pro 8000 EXT
The Atlas Garage Pro 8000 EXT is a true 8,000 LB. four post lift. The Atlas Garage Pro 8000 EXT
incorporates many of the great features of both the Atlas Garage Pro 8000 and the Atlas Garage Pro 9000.
WE ARE NOT RESPONSIBLE FOR MISPRINTS.
PRICES AND SPECIFICATIONS ARE SUBJECT TO CHANGE.
1.800.711.5031
Atlas Garage Pro 8K XLT
The Atlas Garage Pro 8K XLT is an extra long, extra tall four post storage / service lift.
• 8,000 lb. capacity
• Powder coat finish
• Diamond plated runways
• Four wheel stops included
• Single point lock release
• Steel approach ramps included
• Perfect for storing or working on vehicles
• 1 year structural, 1 year hydraulic warranty
Features
Specifications
Capacity 8,000 LB
Clearance Under Runways 78” (6’ 6”)
Overall Width (Without Motor) 109 1/2” (9’ 1 ½”)
Overall Length without Approach Ramps 190” (15’ 10”)
Runway Length 180 1/2” (15’ ½”)
Maximum Wheel Base 178” (14’ 10”)
Shipping Weight 1,914 LB.
Specifications
Capacity 8,000 LB
Overall Width w/o Motor 106 5/8” (8’ 10 5/8”)
Overall Length w/o Approach Ramps 174 ½” (14’ 6 ½”)
Maximum Wheel Base 159” (13’ 3”)
Atlas 408-SL
Super Deluxe
Storage Lift
WATCH OUR
VIDEO ONLINE!
The Atlas 408-SL super deluxe portable vehicle storage lift is designed for those car enthusiasts that demand the absolute best
look in above ground storage lifts. The Atlas 408-SL has all the great features of our Atlas Garage Pro Series lifts, but incorporates
many features found in our Atlas commercial grade 4-post lifts. If you are looking for a lift that stands out from all the other storage
lifts sold in the USA, then take a good look at the Atlas 408-SL.
• 8,000 lb. capacity
• Larger column size
• Higher quality powder coat finish
(steel gray color)
• Diamond plated runways
• Professional grade single point lock system
• Steel approach ramps included
• Steel jack tray included
• Two steel wheel stops included
• Four drip trays included
• Perfect for storing or working on vehicles
• Hidden cables in cross tubes
• Commercial grade wear blocks
• 5 year structural,
1 year hydraulic warranty
• PORTABLE
Features
Or Call
www.GregSmithEquipment.com
WE ARE NOT RESPONSIBLE FOR MISPRINTS.
PRICES AND SPECIFICATIONS ARE SUBJECT TO CHANGE.
www.GregSmithEquipment.com
Atlas 412
Atlas lifts are designed and built to commercial grade standards, providing you with many years of service.
Our Atlas lifts offer many exclusive features not found on many other competitors’ lifts.
Specifications
Capacity 12,000 LB.
Lifting Height 75 ½” (6’ 3 1/2”)
Shipping Weight 2,650LB.
Specifications
Capacity 14,000 LB.
Lifting Height 74” (6’ 2”)
Shipping Weight 3,200LB.
Atlas 414
Optional 2-foot Front
Extension Kits
• Air operated single point lock release
• Mounting Hardware Included
• Powder coat finish
• Non-skid runway surface
• 5 Year Structural, 2 Year
Hydraulic Warranty
Features
Atlas alignment lifts are designed and built to commercial grade standards
and will provide many years of service. Our Atlas alignment lifts offer many
exclusive features not found on many other competitors’ lifts.
Atlas 412A
• Flush-mounted alignment slip
plates and recessed areas in
the runways for turntables
• Air operated single point
lock release
• Diamond Plate Runway Surface
• Mounting Hardware Included
• 5 Year Structural, 2 Year
Hydraulic Warranty
Features
Atlas 414A
Capacity 12,000 LB.
Lifting Height 76¼” (6’ 4¼”)
4-Wheel Alignment Wheelbase Maximum 154”
2-Wheel Alignment Wheelbase Maximum 157”
Shipping Weight 2,950 LB.
Specifications
Capacity 14,000 LB.
Lifting Height 76 ¼” (6’ 4 ¼”)
4-Wheel Alignment Wheelbase Maximum 172½”
2-Wheel Alignment Wheelbase Maximum 175 ½”
Shipping Weight 3,500LB.
Specifications
Atlas alignment lifts are designed and built to commercial grade standards and
will provide many years of service. Our Atlas alignment lifts offer many exclusive
features not found on many other competitors’ lifts.
4-Post Alignment Lifts
4-Post Service Lifts
WE ARE NOT RESPONSIBLE FOR MISPRINTS.
PRICES AND SPECIFICATIONS ARE SUBJECT TO CHANGE.
1.800.711.5031
Atlas OF14K
The Atlas Pro OF14K four post commercial grade open front alignment lift is built for years of dependable service for the busiest of
automotive shops. This heavy duty alignment four post lift utilizes top quality aircraft cable actuated by an oversized hydraulic cylinder
(located underneath the runway) providing the smoothest and safest method of lifting both small cars and large trucks.
• Four Post Open Front Alignment Lift
• 14,000 LB. lifting capacity
• Recessed areas in the runways for turntables
• Built in rear slip-plates
• Air operated double lock system
Features
Atlas 14KOF
The Atlas 14KOF Garage Pro four post commercial grade open front alignment lift is built for years of dependable
service for the busiest of automotive shops. The Atlas 14KOF Garage Pro open front alignment lift has 2 wheel
alignment wheel base capabilities of 178 inches. The Atlas 14KOF Garage Pro has built in slip plates and recessed
areas in the runways to allow for turntables. This lift comes with protective steel plates covers that protect the turntables
when they are not in use. The single point lock release (air actuated) is conveniently located near the power unit.
Specifications
Capacity 14,000 LB.
4-Wheel Alignment Wheelbase Maximum 162”
2-Wheel Alignment Wheelbase Maximum 178”
Runway Length 199” (16’ 7”)
Shipping Weight: 2,990 lb.
• Four Post Open Front Alignment Lift
• 14,000 LB. lifting capacity
• Recessed areas in the runways for turntables
• Built In rear slip-plates
• Air operated double lock system
Features
Specifications
Capacity 14,000 LB.
Lifting Height 71 1/8” (5’ 11 1/8”)
4-Wheel Alignment Wheelbase Maximum 155”
2-Wheel Alignment Wheelbase Maximum 218”
Runway Length 243” (20’ 3”)
Shipping Weight: 3,300 lb.
FINANCING
AVAILABLE
FINANCING
AVAILABLE
WE ARE NOT RESPONSIBLE FOR MISPRINTS.
PRICES AND SPECIFICATIONS ARE SUBJECT TO CHANGE.
www.GregSmithEquipment.com
Make Wheel Service Easy When You Add A Pair Of
Jacks To Your 4-Post Or Scissor Alignment Lift!
Atlas RJ-35
Extra Jack Trays
Atlas RJ-6000
Atlas RJ-6
Atlas RJ-7000
Atlas
RJ-45
Atlas RJ-6000
Atlas RJ-5000
Or Call
www.GregSmithEquipment.com
4 Ton Porta
Power Kit
HT0102
10 Ton Porta
Power Kit
20 Ton Porta
Power Kit
HT0204
HT0202
WE ARE NOT RESPONSIBLE FOR MISPRINTS.
PRICES AND SPECIFICATIONS ARE SUBJECT TO CHANGE.
1.800.711.5031
Make Wheel Service Easy When You Add A Pair Of
Jacks To Your 4-Post Or Scissor Alignment Lift!
Atlas Air/Hydraulic
Power Unit
• 42 cubic inch oil capacity
• 10,000 PSI
• Shipping Weight: 17 lbs
HT3401
• 200 cubic inch oil capacity
• 10,000 PSI
• Shipping Weight: 22 lbs
HTTLA5100
Electric Hydraulic 220V And 110V
Above Ground Lift Power Units
These power units are engineered and designed to replace most
electric/hydraulic power units found on many 2-post or 4-post lifts.
• Built in ball check valve
• Momentary push
button switch
• Lever style manual
lowering valve
• Vertical Mount
12ASL
Specifications
Lifting Capacity 12,000 LB
Lifting Height 84 1/4” (7’ 1/4”)
4-Wheel Alignment Wheelbase Max. 168” - Min. 90”
2-Wheel Alignment Wheelbase Max. 172”- Min. 86”
Motor 220 Volt, 1 Phase
Shipping Weight 5000 lb.
• Can be surfaced mounted or flush mounted
• Very precise platform leveling accuracy
• Mechanical safety lock with air
operated engagement and release
• Emergency manual pump for lowering
• Overload valve included
• Lowering speed control valve included
• Extra Long Slip Plates allow for
aligning of wheelbases from 86” to 172”
• Recessed areas in the runways for turntables
Features
WATCH OUR
VIDEO ONLINE!
12AWFSL
Atlas alignment scissor lifts are the perfect choice for customers who have
limited bay space. This lift is comparable to other lifts costing $15,000 or more.
Specifications
Lifting Capacity 12,000 LB
Lifting Height 84 1/4” (7’ 1/4”)
“Wheels Free” Platform Height 17” (1’ 5”)
4-Wheel Alignment Wheelbase Max. 168” - Min. 90”
2-Wheel Alignment Wheelbase Max. 172”- Min. 86”
Motor 220 Volt, 1 Phase
Shipping Weight 5,400 lb.
Convert almost any hydraulic cylinder from hand
or foot pump to air powered simply by adding this
Atlas Air/Hydraulic Pump.
RM-RAA-1098
This Air-Over-Hydraulic Pump features an lightweight
plastic 200cc reservoir and a strong design making
it great for commercial or home use.
RM-RAA-10200
Atlas Air/Hydraulic
Power Unit
Atlas Air/Hydraulic
Pump
Atlas Air/Hydraulic
Pump
• 200 cubic inch oil capacity
• 10,000 PSI
• Shipping Weight: 21 lbs
• 98 cubic inch oil capacity
• 10,000 PSI
• Shipping Weight: 14 lbs
WE ARE NOT RESPONSIBLE FOR MISPRINTS.
PRICES AND SPECIFICATIONS ARE SUBJECT TO CHANGE.
www.GregSmithEquipment.com
TD-6MR
The Atlas TD6MR is a free standing 6,000 lb. capacity portable scissor lift. The
Atlas TD6MR is the perfect lift for body shops and wheel service specialists that
need extra lifting height. This portable lift easily raises a 6,000 LB. car or truck
to a comfortable working height.
• Portable, Easy To Move
• Powder Coated
• Separate Power Unit Stand Included
• Several Locking Positions
• Dual Hydraulic Cylinders
• Truck Adapters Included
• Commercial Grade
• Single Point Lock Release
Features
LR-06P
The Atlas LR-06P portable 6,000 lb. low rise lift is the perfect addition to any garage that
needs a quick method to raise a car to perform wheel service. The Atlas LR-06P low rise
lift comes with a rubber top lifting surface and a set of four high density rubber blocks that
help to protect the lifting points of most vehicles.
Features
• Low Profile Design
• Portable
• Rubber Blocks Included
• Commercial Grade
• Powder Coat Finish
Kwik Bay
The Atlas Kwik Bay is a free standing 7,000 lb. capacity portable scissor lift. The Atlas Kwik
Bay is the perfect lift for body shops and wheel service specialists that need extra lifting
height. This portable lift easily raises a 7,000 LB. car or truck to a comfortable working
height and does not require the customer to position arms under the lifting points of the car.
• 7,000 LB. Capacity
• Four positioning blocks
• Portable
• Zerk grease fittings
at hinge points
• Open middle for easy access.
• 110V motor
• Air operated locks
• Open center
Features
EM-06
The Atlas EM06 full platform portable mid
rise lift is a great choice for the tire shop or
service center that wants to get a passenger car or light SUV into the air as quickly as possible. Most full
platform portable lifts only lift the vehicle about 24 inches. The Atlas EM06 raises the vehicle a full 40
inches (with lift blocks); a very comfortable working height for the technician
• 6,000 lb. lifting capacity
• Portable
• Minimum Height: 4 ½”
• Maximum Height
(With Blocks): 40”
• Three locking positions at
heights of:
(w/o rubber blocks)
13 ¾”, 27 ¾”, and 36”
• 110V Power Unit
• Positioning Blocks Included
Features
Optional Support Bar Set
SLP-7K
The Atlas SLP7K full rise scissor lift combines an extremely low lift platform height and a 74 inch full rise
scissor jack system. The Atlas SLP7K full-rise scissor lift can be flush mounted. It is the perfect above
ground lift for those customers with ceiling height restrictions, or those service shops that want to avoid
the cluttered look of dozens of vertical lift columns.
• 7,000 lb. capacity
• Open center for
easy access
• 220 volt, full rise
• Powder coat finish
• Zerk grease fittings at
each hinge point
• Commercial grade
• Air operated locks
• Positioning blocks
included
Features
MR-06
The Atlas MR-06 is a free standing 6,000 lb. capacity portable scissor lift. The Atlas
MR-06 is the perfect lift for body shops and wheel service specialists that need extra
lifting height. This portable lift easily raises a 6,000 LB. car or light truck to a comfortable
working height. The unique platform design of the Atlas MR-06 allows access to some
areas on the underside of the car not easily accessible with other portable mid-rise lifts.
• 6,000 LB. capacity
• Powder coated finish
• Commercial grade
• Portable design
• 110V power unit
• 3 locking heights
• Extension pad included
Features
WATCH OUR
VIDEO ONLINE!
Call Us
For Current
Pricing And
SPECIALS!
WATCH OUR
VIDEO ONLINE!
WE ARE NOT RESPONSIBLE FOR MISPRINTS.
PRICES AND SPECIFICATIONS ARE SUBJECT TO CHANGE.
1.800.711.5031
SPL-6 Single Post Lift
Specifications
Capacity 6,000 LB.
Lifting Height 77 1/2” (6’ 5 1/2”)
Minimum Height 4 ½”
Shipping Weight 1430 lb.
Motor 110 Volt
The SPL-6 is the perfect portable high rise lift for those customers with minimum floor space. This lift
can be used either inside or outside. The 103 inch column fits easily under a 9 (108 inch) foot ceiling
and allows the operator access to many parts of the vehicle that are not accessible with a mid-rise lift.
Atlas Lawn Mower Adapter
The ATLAS LMA (lawn mower adapter) will transform most two post above ground lifts with symmetric arms into an easy to use lawn
mower lift, golf car lift, snowmobile lift, ATV lift, or a small sports car lift. The LMA is adjustable in width to accommodate the many
different arm configurations found on two post lifts. The ATLAS LMA can be used in an infinite amount of wheel base configurations to
allow the operator great flexibility in lifting different pieces of lawn service equipment with varying wheelbases.
Capacity 5,000 LB.‡
Adjusts In Width 8” - 11”
Wheel Well Width 12”
Steel Thickness ¼” (12 gauge)
Shipping Weight 600 LBS.
Specifications
‡ Depending on capacity of lift
SP6000 Single Post
• 6,000 lb. capacity can handle
most vehicles and light trucks
• Low profile approach ramps for
vehicles with low ground clearance
• Lift can be installed to lift from left
or right side
• Minimal footprint allows for
multiple installations
• Low post height allows for low
ceiling residential installations
• Commercial grade hydraulic
cylinder and heavy-duty leaf chain
• 19 locking positions
• Shipping Weight: 2,500 lbs.
Features
Capacity 6,000 LB.
Max. Lifting Height 76”
Overall Height 110 1/4”
Overall Width 105”
Power Supply 110V
Shipping Weight 2,415 LBS.
Specifications
The SP6000 is the perfect full rise lift for those customers (with minimum floor space) who want to store
two vehicles in the same floor space as one vehicle would occupy. The SP6000 single post lift can be used
to raise and store your car or light truck to over 6 feet in the air, freeing up extra garage floor space.
HT93201
20 Ton Portable
Truck Ramps
• Long, 32” T-Handle
• Heavy Duty Steel Caster
• Non-Skid Diamond Plate
Surface
• Overall Length: 48”
• Tread Width: 16”
• Shipping Weight: 310 LBS.
Features
2 Drawer Workbench
HTWS5911
• L x W x H: 59” x 25” x 34”
• Heavy Duty Steel Construction
• Shipping Weight: 180 lb.
Features
3 Drawer Workbench
HTWS79111
• L x W x H: 79” x 25” x 34”
• Heavy Duty Steel Construction
• Shipping Weight: 210 lb.
Features
WE ARE NOT RESPONSIBLE FOR MISPRINTS.
PRICES AND SPECIFICATIONS ARE SUBJECT TO CHANGE.
www.GregSmithEquipment.com
Atlas Cycle Lift
Specifications
Weight Capacity 1,000 LB.
Length (w/ dropout section
and ramp)
113” (9’ 5”)
Width 24” (2’)
Full Rise 33” (2’ 9”)
Fully Lowered 7 - 1/4”
Removable approach ramp 20”
Shipping Weight 520 LB.
Motorcycle Jack
Motorcycle Vise
Professional motorcycle vise with rubber protective pads.
Fits most motorcycle lifts.
Chopper Extension
The Atlas Chopper Extension will add 13” to many
lift tables. The extension itself measures 24”.
Two Wheeled Dolly
Use this dolly to help “roll around” your
Atlas motorcycle lift.
Atlas Hi-Rise 1500
Motorcycle / ATV Lift
• Weight capacity: 1,500 LB.
• Powder coat finish
• Includes removable drop out section
• Includes chopper extension
• Table length with chopper extension: 99”
• Removable approach ramp included
• 6 Locking Positions
• Diamond Plate
• Vise included
Features
Motocross Lift
The Motocross Lift HT1007 is a lightweight, portable lift. This lift is ideal for anyone
looking for an inexpensive way to get their bike off the floor. The lightweight and
compact design also allows you to take this lift with you on the road.
HT1007
The Atlas Cycle Lift is one of the industry’s longest motorcycle lifts. The motorcycle lift
has platform length of 93 inches. In addition to the heavy gauge diamond plated 93
inch platform, the Atlas Cycle Lift has an additional 20 inch removable approach ramp.
The Atlas HI-RISE 1500 is one of our most popular motorcycle and ATV lifts.
Atlas XLT Kit
The Atlas XLT kit will fit many of our motorcycle lifts. The Atlas XLT kit includes two 12”
side extensions, a two wheeled dolly, approach ramp extensions, three connector rods and
clips. In less than two minutes, you can convert a standard motorcycle lift into an ATV lift.
• (2) 12” Side Extensions
• (2) Approach ramp extensions
• One two wheeled dolly (used for moving the lift)
• Three rods (used to connect/support the side extensions)
• Set of pins (used to secure the rods in place)
Features
Specifications
Overall length (w/ ramps)‡ 125” (10’ 5 “)
Center Table length (w/o ramps)‡ 99 ¾” (8’ 3 ¾”)
Side Extension length (w/o ramps) 88 1/2” (7’ 4 1/2”)
Center Table width (w/ side extensions) 51” (4’ 3”)
Center Table width
(w/o side extensions)
29 ½”
Height fully raised 43” (3’ 7”)
Height lowered 7 ½”
Shipping Weight 800 Lb.
‡ These measurements are taken with the FREE
chopper extension attached (20 ¾” long)
The Atlas Motorcycle Jack is a lightweight
scissor jack that fits nicely under most
motorcycle and ATV frames.
WE ARE NOT RESPONSIBLE FOR MISPRINTS.
PRICES AND SPECIFICATIONS ARE SUBJECT TO CHANGE.
1.800.711.5031

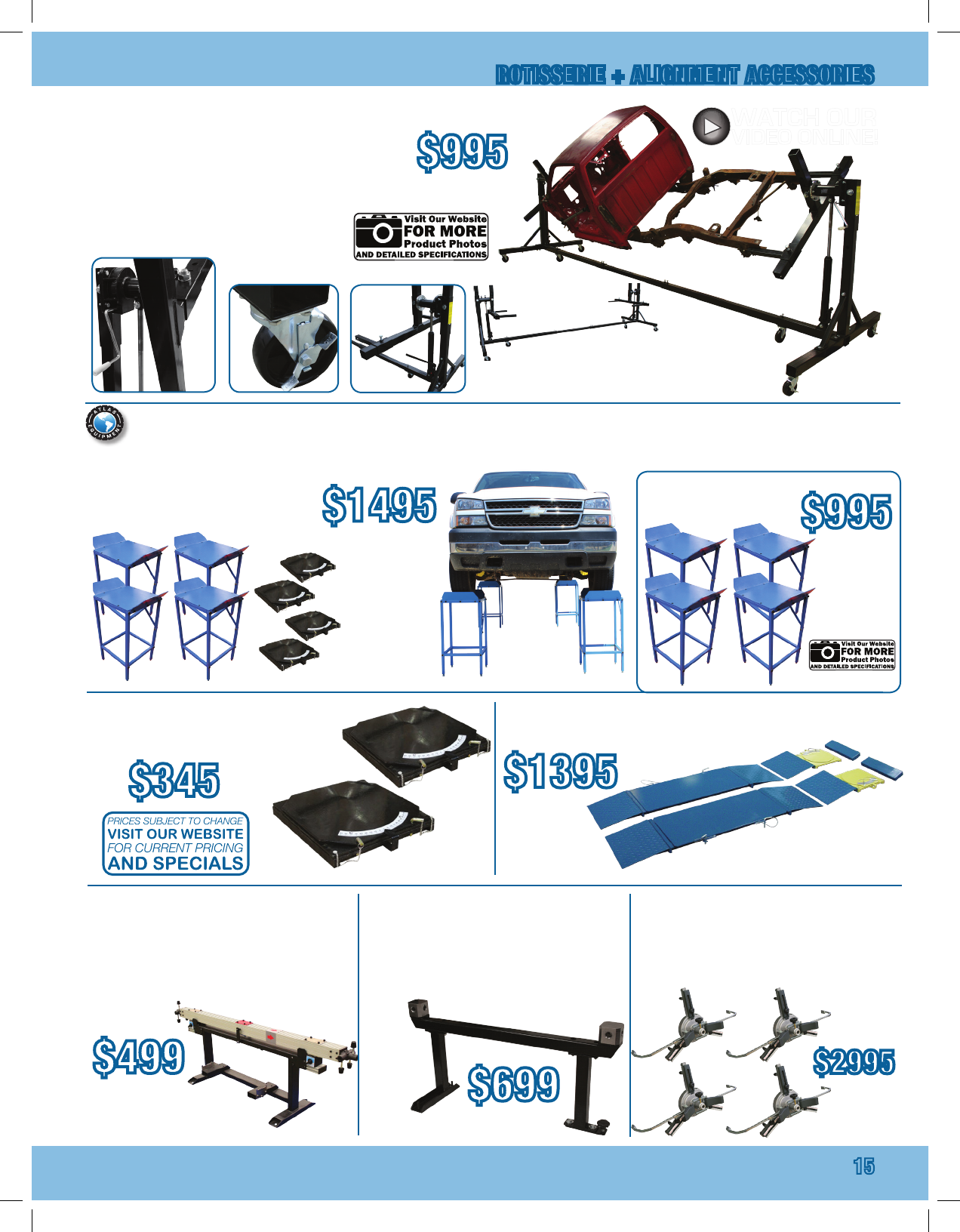

Rotisserie
WATCH OUR
VIDEO ONLINE!
Atlas Wheel Stands And Turntable Package
The Atlas Wheel Stands are the perfect choice for those smaller shops who want the advantages of a four post lift but have only limited floor space.
The set of Atlas Wheels Stands can support up to 6,000 lbs. and, because they are taller than most other stands, are the perfect height for hanging wheel alignment sensors.
• Includes 4 Steel Wheel Stands
• 4 Alignment Turntables
• 6,000 LB Capacity (1,500 LB Per Stand)
• 19.5” x 19.5” Solid Steel Surface
• .38” Thick Top Steel Plating
• 39 1/2” High
Converts a 4 post lift into an alignment lift.
AK-1Alignment Kit
Turntables
(Pair)
Atlas Alignment
Calibration Bar
(For Edge 101 and 201)
The Atlas calibration fixture system allows the owner of
an Atlas Edge 101 or Atlas Edge 201 computer alignment
machine to perform sensor calibration procedures in his shop.
Atlas Alignment
Calibration Bar
(For Edge 401 and 601)
The Atlas calibration fixture system allows the owner of
an Atlas Edge 401 or Atlas Edge 601 computer alignment
machine to perform sensor calibration procedures in his shop.
Atlas Fast Clamps
Three Point 13”-24” Non-Runout
Wheel Clamps (Set Of 4)
This auto body rotisserie is great for anyone wanting to restore a car or truck
body or frame. The rotisserie allows a full 360º of vehicle movement by just
turning the crank. When the vehicle is properly mounted and positioned, the
rotisserie SPINS and allows the operator to have easy access to all parts of
the body for welding, sandblasting, or any other work that needs to be done.
The 3 point “Fast Clamp System” offers the finest wheel reference
points in the industry. The operator does NOT need to perform any
lateral runout compensation procedures or “roll-back” maneuvers
when the sensors are mounted to the patented “Fast Clamp System”.
Motorcycle Jack
*Turntables Sold Separately
WE ARE NOT RESPONSIBLE FOR MISPRINTS.
PRICES AND SPECIFICATIONS ARE SUBJECT TO CHANGE.
www.GregSmithEquipment.com
Atlas Edge 601
The Atlas Edge 601 alignment system may be the most user
friendly wheel alignment system available. The Atlas Edge 601
combines low price, simple to use technology, and repeatable
accuracy in a machine that is “ready to use” out of the box.
• Only four color coded (arrow) buttons are required
to operate the entire alignment program.
• The system can be operated from any sensor
head. Software is simple to understand.
• Lightweight (8 lb.) sensor heads
Huge Vehicle data base with
yearly (2) updates available.
Over 28 languages installed
High resolution adjustment graphics
Large, easy to read graphics and illustrations
• The system can be operated from any
sensor head. Software is simple.
• The machine is "ready to go"
out of the box.
• Bluetooth technology eliminates the
need for any connecting cables
• Deluxe cabinetry
• Fast set up and unparalleled accuracy
in an alignment system costing
thousands of dollars less than the
Big Name competition ensures a fast
return on your investment.
• Non-proprietary computer hardware
makes replacement or
upgrades affordable. 20” color
monitor, color printer.
Features
The 3 point “Fast Clamp System” offers the finest wheel reference points in the
industry. The operator does NOT need to perform any lateral runout compensation
procedures or “roll-back” maneuvers when the sensors are mounted to the patented
“Fast Clamp System”. The technician does not need to disturb the vehicle’s natural
running position by rolling or raising it. A vehicle is most accurately aligned when it
is in the “full rest” position.
With Fast Clamp System
WATCH OUR
VIDEO ONLINE!
Atlas Edge 201 Wireless Alignment System
The Atlas Edge 201 is a highly accurate, easy to use, state of the art wireless alignment system.
The four sensors (8 cameras) communicate with each other and the console using the wireless
communication technology of ZigBee ®. The Atlas Edge 201 includes monitor, keypad, alignment
data base, 29 inch four point clamps. The Atlas Edge 201 combines speed and accuracy with an
unbelievable low price for a complete wireless alignment system.
Atlas Edge 101 Wireless Alignment System
The Atlas Edge 101 is a highly accurate, easy to use, state of the
art wireless alignment system. The Atlas Edge 101 is the perfect
choice for those smaller automotive shops that perform only a few
alignments per week. The accuracy of the Atlas Edge 101 is on par
with alignment systems costing 5 times as much.
We can access your alignment computer to provide
upgraded software, install new vehicle data and diagnose
software or hardware issues. There is no need to wait for
the “alignment service tech in the little white van”. We
stock parts and can ship quickly. If you can replace parts
on a car, then you can replace any broken part on your
Atlas Edge alignment machine.
WE ARE NOT RESPONSIBLE FOR MISPRINTS.
PRICES AND SPECIFICATIONS ARE SUBJECT TO CHANGE.
1.800.711.5031
Atlas Edge 101 Wireless Alignment System
Atlas Edge 801
• Spoiler program for low air dams
• Turning angle gauges
• TOTAL WHEEL ALIGNMENT-Performs a total
alignment of the vehicle and looks at all axles
as a whole and not just a single axle at a time.
• Alignments can be performed in a service bay
or outside parking area
• Non Runout Fast Clamps- Accurately
references the center of the wheel
• Eliminates need for time consuming
runout compensation of all 6 wheel
positions of a 3 axle tractor
• Only four color coded buttons
operate the entire system.
• Program walks the operator
thru the alignment process in
a simple step by step manner.
Features
• Bluetooth wireless data transfer
• Software lets you choose between trucks, trailers,
buses, coaches, light trucks and more.
• Allows you to choose between 2, 3, 4, or 5 axle vehicles
• Specifications for thousands of trucks, C, coaches,
and light trucks are included in software.
• Measures collision angles such as axle set back and
offset to help diagnose uncommon problems.
• Optional calibration package
• Kingpin fixture assembly and electronic focal points
allow operator to quickly align trailer axles using the
trailer kingpin as reference
We have the most innovative large truck alignment system on the world market. It features
Bluetooth wireless data transmission and is customized for all truck axle configurations
– 2, 3, 4 and 5 axle configurations. This system combines blazing speed, precision accuracy,
and reliable Bluetooth ® wireless communication all at a very affordable cost. It is PC Driven
using high quality PC components and managed by Windows XP Pro ®. The system prints
detailed alignment reports and stores these reports on its hard drive for future retrieval.
Atlas Edge 401
The Atlas Edge 401 Hybrid features the speed and accuracy of the more expensive Atlas Bluetooth ® alignment machine
in a system that uses cabled front heads and wireless rear heads. These 401 Hybrid sensors are compatible with either the
included standard four point wheel clamp that requires runout compensation or the optional non-runout FastClamp system.
• Only four color coded (arrow) buttons are required
to operate the entire alignment program.
• The system can be operated from any sensor
head and the software is simple.
• Lightweight (8 lb.) sensor heads
Traditional 4-Point
Clamp System
Fast Clamp System
Features
• Same Precision CCD Measuring
• 6 Camera Optical System
• 10”-24” Standard Self-Centering 4 Point Clamps
• Deluxe Cart Style Cabinet
• Lightweight Sensor Heads
• Printer, 19” LCD Display, Keyboard
• Lipless Wheel Adapters
• 1 brake pedal depressor
• 1 steering wheel lock
• Deluxe Software Including Help Images
• Huge Vehicle Database With 2 Yearly Updates Available
• Simple 4 Key Operation From Console Or From Any Sensor Head
• Special Software Feature For Low Air Dams And Spoilers
• Shipping Weight: 288 LBS.
• Shipping Dimensions: 38” x 42” x 60 1/2”
We can access your alignment computer to provide upgraded
software, install new vehicle data and diagnose software or
hardware issues. There is no need to wait for the “alignment
service tech in the little white van”. We stock parts and can
ship quickly. If you can replace parts on a car, then you can
replace any broken part on your Atlas Edge alignment machine.
FINANCING
AVAILABLE
WE ARE NOT RESPONSIBLE FOR MISPRINTS.
PRICES AND SPECIFICATIONS ARE SUBJECT TO CHANGE.
www.GregSmithEquipment.com
WB11
The Atlas WB 11 is the most popular Atlas wheel balancer that we sell. Low price,
dependability and repeatable accuracy make the Atlas WB-11 the backbone of the
entire Atlas line of computer wheel balancers.
WB41
The Atlas WB 41 is the larger version of our extremely popular Atlas WB-11. The Atlas WB 49 computer wheel balancer
incorporates all the great features (AND
MORE) of the Atlas WB41 computer wheel
balancer.
Specifications
Max Tire Diameter 39”
Rim Diameter 10”-26”
Rim Width 1 ½”-20”
Max. Wheel Weight 140 lb.
Shipping Weight 320 lb.
WB21
The Atlas WB 21 computer wheel balancer incorporates all the great
features (AND MORE) of the Atlas WB11 computer wheel balancer.
Features
• Automatic and pedal operated brake.
• Automatic start/stop when hood is
lowered/raised.
• Static and dynamic balancing modes.
• Self-diagnosis / Self-calibration
• 1-year limited warranty
Specifications
Max Tire Diameter 39”
Rim Diameter 10”-26”
Rim Width 1 ½”-20”
Max. Wheel Weight 140 lb.
Shipping Weight 320 lb.
Features
• Automatic data entry
• Weight Splitting feature
• Automatic and pedal operated brake
• Rapid optimization (OPT)
• Automatic start/stop when hood is
lowered/raised.
• Static and dynamic balancing modes
• Self-diagnosis / Self-calibration
• 1-year limited warranty
Specifications
Max Tire Diameter 39”
Rim Diameter 10”-32”
Rim Width 1 ½”-20”
Max Wheel Weight 140 lb.
Shipping Weight 355 lb.
Specifications
Max Tire Diameter 39”
Rim Diameter 10”-32”
Rim Width 1 ½”-20”
Max Wheel Weight 140 lb.
Shipping Weight 355 lb.
Features
• Automatic and pedal operated brake.
• Automatic start/stop when hood is
lowered/raised.
• Static and dynamic balancing modes.
• Self-diagnosis / Self-calibration
• 1-year limited warranty Features
• Automatic data entry
• Weight Splitting feature
• Automatic and pedal operated brake
• Automatic start/stop when hood is
lowered/raised
• Static and dynamic balancing modes
• Rapid optimization (OPT)
• Self-diagnosis / Self-calibration
• 1-year limited warranty
AUTOMATIC
DATA ENTRY
AUTOMATIC
DATA ENTRY
WATCH OUR
VIDEO ONLINE!
Holds wheel in place when
mounting wheel weights
Static Bubble
Balancer
• Rugged die-cast
aluminum head cone
• Easy to use self-leveling
stand. No need for
leveling legs
• Shipping Weight:
21 LBS.
HTBB
WB49
WE ARE NOT RESPONSIBLE FOR MISPRINTS.
PRICES AND SPECIFICATIONS ARE SUBJECT TO CHANGE.
1.800.711.5031
Specifications
Max Tire Diameter 39”
Rim Diameter 10”-32”
Rim Width 1 ½”-20”
Max Wheel Weight 165 lb.
Shipping Weight 370 lb.
WB55
The Atlas 3-D WB-55 has a 19 inch LED LCD digital flat screen
that displays high resolution tire and wheel images, providing a
clear “picture” of tire/wheel assembly and out of balance condition.
The Atlas WB-55 incorporates the measuring
system that automatically enters all three parameters (rim size,
rim width, and distance of rim from machine) when the operator
touches the inside and outside of the mounted rim with the built-in
measuring rods. The Atlas allows the
operator to turn one knob and select the desired balancing mode.
Features
• 19” Color LED LCD Monitor
• Large weight tray
• Automatic positioning where
to apply weights
• Automatic and pedal
operated brake
• Automatic start/stop when
hood is lowered/raised
• Static and dynamic
balancing modes
• Rapid optimization (OPT)
• Self-diagnosis
• Self-calibration
• Exceptional stability in reading
the unbalance between planes
• Display in grams or ounces,
in mm or inches
• Very fast 7 second cycle time
• Multi user function for up to
4 different users
• Seven (7) ALU settings for
both adhesive and
clip on weight
• 1-year limited warranty
WBT-210
The Atlas WBT-210 truck tire wheel balancer is one of the best values in large truck
tire computer balancers sold. This truck tire balancer is priced thousands of dollars
less than the Big Name brand truck tire balancers and offers the same accuracy and
reliability as the rest of the Atlas wheel balancer products.
Features
• Cone sets for car and light truck tires
• Cone and spacer set for truck, bus
or implement wheels
• Quick release nut
• Heavy duty steel wing nut
• Pneumatic wheel lift capacity: 300 lbs.
• Protective hood
• Self-diagnosis / Self-calibration
• Display in grams or ounces;
• 1-year limited warranty
Specifications
Max Tire Diameter 47”
Rim Diameter 10”-32”
Rim Width 1 ½”-20”
Lift Capacity 300 lb.
Balance Capacity 350 lb.
Shipping Weight 370 lb.
Standard Accessories
WATCH OUR
VIDEO ONLINE!
Atlas Universal
Truck Adapter
The Atlas Universal Adapter (TRUCK)/PF-40000 is designed for
truck wheels that have either a closed center or wheels that are
made “without a true center” and classified as lug-centric.
From Car Wheels
To Semi Wheels
WE ARE NOT RESPONSIBLE FOR MISPRINTS.
PRICES AND SPECIFICATIONS ARE SUBJECT TO CHANGE.
www.GregSmithEquipment.com
Atlas TTC-306 Specifications
Rims From 3 3/8” - 27” (2’ 3”)
Min. Clamping Size W/
Aluminum Adapters
6 3/8”
Max. Wheel Weight 3,300 lb.
Max. Tire Diameter 63” (5’ 3”)
Max. Tire Width 30 1/2” (2’ 6 1/2”)
Shipping Weight 1,400 lb.
The Atlas TTC301 is a heavy duty truck tire changer designed to accommodate tire diameters in excess of 63”.
This Heavy Duty Atlas truck tire changer is designed and engineered to handle rim sizes from 3 3/8” to 27” and
can easily accommodate tires with a maximum width of 30 1/2”. The Atlas TTC301 truck tire changer is the perfect
choice for the large truck tire center that specializes in mounting and demounting over the road semi tires
The Atlas TTC303 is a heavy duty truck tire changer designed and engineered to handle
rim sizes from 4 1/4” to 56” and tire diameters in excess of over 90”. The Atlas Truck Tire
Changer can easily accommodate tires with a maximum width of up to 42”. The TTC303
handles off-road tires, agricultural tires, super single tires, and skidder tires with ease.
The Atlas TTC 306 features a remote controlled rotating bead breaker disc and mount/demount head that are
controlled from either the portable remote console or (optional) ZigBee® remote control. This Super Duty Atlas truck
tire changer is designed and engineered to handle rim sizes from 14” to 56” and tire diameters in excess of over
97”. The Atlas Truck Tire Changer can easily accommodate tires with a maximum width of up to 53”.
• Two Speed Hydraulic Chuck
• 5 Different Rim Locking
Positions.
• Portable Control Unit.
• Remote controlled
Tilting/Shifting Tool Arm.
• Working Tool With Automatic
Rotation System.
• Wireless Control (Optional)
Features
Auto-Swivel
Hook / Disc Tool
Foldable
Hook Tool
Bead Breaking / Mount / Demount Arm
Can be Automatically Placed
in Two Different Positions
Bead Breaking / Mount /
Demount Disc
Features
• Available With Either 1-Phase
Or 3-Phase Power Unit
• Handles Rims From
4 1/4” To 56” And Tire
Diameters In Excess Of
Over 90”
• Changes Tires With A
Maximum Width Of Up
To 42 Inches
• 2 Speed (3 Phase Power Unit)
Hydraulic Chuck
• 5 Rim Locking Positions
• 1 Speed Hydraulic Chuck
When Equipped With 220 V,
Single (1) Phase Power
• Portable Control Unit
Atlas TTC303 Specifications
Rims From 4 1/4” - 46” (3’ 10”)
[47”(3’ 11”) – 56” (4’ 8”) [With Extensions]
Max. Wheel Weight 3,307 lb.
Max. Tire Diameter 90 1/2” (7’ 6 1/2”)
Max. Tire Width 42” (3’ 6”)
Shipping Weight 1,800 lb.
• Handles Rims From
3 3/8” To 27” And
Tire Diameters In Excess
Of Over 63”
• Changes Tires With A Maximum
Width Of Up To 30 1/2”
• 5 Different Rim Locking Positions
• Portable Control Unit
Features
Heavy Duty Truck
Tire Changer
TTC-301
TTC-303Super Duty Truck
Tire Changer
TTC-306Automatic Super Duty
Truck Tire Changer
WATCH OUR
VIDEO ONLINE!
Atlas TTC301 Specifications
Rims From 3-3/8” - 27”
Max. Wheel Weight 3,300 lb.
Max. Tire Diameter 63”
Max. Tire Width 30 ½”
Shipping Weight 1,390 lb.
Automatic
Atlas Passenger Wheel Balancers Can Be
Converted Into Motorcycle Wheel Balancers
WE ARE NOT RESPONSIBLE FOR MISPRINTS.
PRICES AND SPECIFICATIONS ARE SUBJECT TO CHANGE.
1.800.711.5031
Atlas “UA” Universal Adapter
(40 mm Shafts)
Atlas Universal Adapter (UA) is designed for wheels that have either a closed center or wheels that are
made “without a true center” and classified as lug-centric. The Atlas UA was specifically designed for
those custom alloy wheels that require a special mounting procedure.
ATWB-UA
WATCH OUR
VIDEO ONLINE!
Truck Adapter Set
(40 mm Shafts
)
This two piece truck adapter set consists of a double sided center cone for wheel
centers up to 6 inches in diameter. A spacer is also included to help prevent
offset wheels from contacting the side of the balancer. Fits 40mm shafts.
ATWB-TA
For Use with Heavy Truck Wheels
Atlas Metal Wing Nut
ATWB-MWN
Atlas Quick Release Nut
The Atlas Quick Release Nut fits all Atlas brand wheel balancers.
Available in both 40mm and 36mm sizes. Please specify your shaft size.
ATWB-NUT
The Atlas MC adapter kit will allow your Atlas (passenger and light
truck) computer wheel balancer to balance a variety of motorcycle
wheels with hub assemblies up to 9.25 inches wide. The Atlas MC kit
has a 14mm shaft size.
MC Kit
WATCH OUR
VIDEO ONLINE!
MC-XLT Kit
The Atlas MC-XLT adapter kit will allow your Atlas (passenger
and light truck) computer wheel balancer to balance a variety of
motorcycle wheels with
hub assemblies up to
13.75 inches wide.
The Atlas MC XLT
kit has a 19mm
shaft size.
The Atlas SSA offers the needed support for those extra heavy tires and
rear wheel assemblies found on many custom motorcycles. For use
with all Atlas motorcycle wheel balancers.
Spoke Support Adapter
ATWB-SSA
Motorcycle/ATV
Flip Adapters
The Atlas Motorcycle/ATV Flip Adapters are installed over the turntable clamping
jaws to INCREASE the EXTERNAL clamping range. They can also be flipped around to
DECREASE the EXTERNAL clamping range of the turntable for ATV wheels. Fits 200
and 700 series tire changers.
ATTC-MC/ATV
Deluxe
ATV Adapters
This complete Atlas Deluxe ATV adapter kit is
designed to decrease the external jaw clamping
range of the 200 and 700 series Atlas wheel
clamp tire changers.
ATTC-DX-ATV
This complete Atlas Deluxe Motorcycle adapter kit is
designed to enlarge the external jaw clamping range of the
200 and 700 series Atlas wheel clamp tire changers.
Deluxe Motorcycle
Adapters
ATTC-DX-MC
Atlas Passenger Wheel Balancers Can Be
Converted Into Motorcycle Wheel Balancers
Atlas 200 And 700 Series Tire Changers Can Be
Converted Into Motorcycle/ATV Tire Changers
6 3/8”
8 5/8”
WE ARE NOT RESPONSIBLE FOR MISPRINTS.
PRICES AND SPECIFICATIONS ARE SUBJECT TO CHANGE.
www.GregSmithEquipment.com
TC221
The Atlas TC221 is the perfect tire changer for a small commercial garage
or an ATV/motorcycle dealer. It is designed to change tires on both high
priced alloy wheels and steel wheels.. Turntable jaws can be moved to three
different positions to either increase or decrease the clamping range of the
Atlas 221. The Atlas TC 221 comes standard with an inflater hose and gauge.
Features
• 1-year limited warranty
• 4 plastic rim protectors
• Soap reservoir
• Oiler, filter, regulator
• Commercial grade
• Air operated jaw slides
• Steel, aluminum, alloy rims
Specifications
Clamping range
9 3/4” - 25 1/4”
Maximum tire diameter 39”
Operating voltage 110V 1Ph
Maximum wheel width
(Bead Breaker)
13”
Shipping weight 500 lb.
39” (3’ 3”)
39 1/2” (3’ 3 1/2”)
77” (6’ 5”)
39 1/2” (3’ 3 1/2”)
49 (4’ 1”)
77” (6’ 5”)
TC229
The Atlas TC229 wheel clamp tire changer is the perfect tire changer for the
small automotive garage or ATV/MC dealer. The Atlas TC229 has the same
clamping and tire changing capabilities as the Atlas TC221 wheel clamp tire
changer, but has the added, built-in bead blaster system to help inflate stiff
sidewall tires or other “hard to inflate” tires.
Specifications
Clamping range
9 3/4” - 25 1/4”
Maximum tire
diameter
39”
Operating
voltage
110V 1Ph
Maximum wheel
width
(Bead Breaker)
13”
Shipping weight 580 lb.
Features
• 1-year limited warranty
• 4 plastic rim protectors
• Soap reservoir
• Oiler, filter, regulator
• Commercial grade
• Air operated jaw slides
• Steel, aluminum, alloy rims
• Bead Blaster System
TC289
The Atlas TC289 wheel clamp tire changer is the perfect wheel clamp tire changer
for most general automotive service departments and medium sized tire stores.
The powerful, adjustable bead breaker located on the side of the tire changer is
designed to break even the most stubborn and rusted beads without damage to
the rim. The Atlas TC289 is equipped with our powerful bead blast feature.
Specifications
Clamping range
11 7/8” - 29 7/8”
Maximum tire diameter 47 1/2”
Operating voltage 110V 1Ph
Maximum wheel width
(Bead Breaker)
18 1/2”
Shipping weight 650 lb.
Features
• 1-year limited warranty
• 4 plastic rim protectors
• Soap reservoir
• Oiler, filter, regulator
• Commercial grade
• Air operated jaw slides
• Steel, aluminum, alloy rims
• Bead Blaster System
80 1/2” (6’ 8 1/2”)
44 1/2” (3’ 8 1/2”)
40” (3’ 4”)
TC755
The Atlas TC755 wheel clamp tire changer is the perfect wheel clamp
tire changer for most general automotive service departments and tire
stores. The powerful bead breaker located on the side of the tire changer
is designed to break even the most stubborn and rusted beads without
damage to the rim. The Atlas TC755 is equipped with our powerful bead
blast feature and has a tilt back column.
Specifications
Clamping Range 11 7/8” -
29 7/8”
Maximum tire diameter 47 ½”
Operating voltage 110V
Maximum wheel width
(Bead Breaker)
13 ½
Shipping Weight 650 lb.
Features
• 1-year limited warranty
• 4 plastic rim protectors
• Soap reservoir
• Oiler, filter, regulator
• Tilt-back column
• Air operated jaw slides
• Bead Blaster System
Designed For
Low Profile Tires
76 1/2” (6’ 4 1/2”)
63” (5’ 3”)
w/ column tilted back
58” (4’ 10”)
WE ARE NOT RESPONSIBLE FOR MISPRINTS.
PRICES AND SPECIFICATIONS ARE SUBJECT TO CHANGE.
1.800.711.5031
Designed For
Low Profile Tires
TC205No Touch Tire Changer
Features
• No tool bars, bead locks, or tire
levers required.
• Reversible tool head mounts and
demounts tires without
touching the rim.
• Built in camera with LCD monitor.
• Wheel width: 22”
• Rim size: 10”-30”
• Shipping Weight: 1,473 Lbs.
TC755EZ TC229LH
TC289DAA
Features
• Tire Inflater
• 3 Positions For Clamping Jaws
• 90-110 Psi
• Beadblaster
• Left Hand Assist Arm Assembly
• One Year “Parts Only”
Limited Warranty
Features
• Tire Inflater
• Adjustable Bead Breaker
• 3 Positions For Clamping Jaws
• 90-110 Psi
• Beadblaster
• Left & Right Side Assist Arms
• One Year “Parts Only”
Limited Warranty
Features
• Tire Inflater
• 3 Positions For
Clamping Jaws
• 90-110 Psi
• Tilting Column
• Beadblaster
• One Year “Parts Only”
Limited Warranty
The Atlas TC229LH wheel clamp tire changer is the
Atlas TC229 wheel clamp tire changer that has been
equipped with the pneumatic Atlas LH assist arm.
WATCH OUR
VIDEO ONLINE!
The Atlas TC-205 is the perfect choice for those service centers that demand a tire machine with the
flexibility to handle steel and decorative wheels with both incredible speed and no-touch technology.
These revolutionary tire changing features are not found on any tire changer in this price range.
The Atlas TC289 DAA wheel clamp tire changer is the
Atlas 289 wheel clamp tire changer that has been
equipped with the pneumatic Atlas LH assist arm plus
the Atlas RF assist arm that includes a bead roller and
second bead lifting/pressing disc.
The Atlas E-Z arm is the perfect addition to the
Atlas 755 tilt back tire changers. The Atlas E-Z arm
(mounted on the right side) performs almost all the
same functions as the dual arms
WE ARE NOT RESPONSIBLE FOR MISPRINTS.
PRICES AND SPECIFICATIONS ARE SUBJECT TO CHANGE.
www.GregSmithEquipment.com
Atlas ABS Bead Blaster Atlas Aluminum
Bead Seater
The ABS works well on
ATV tires all the way up
to semi truck tires.
The (ABS) Atlas Bead Seater delivers a large
volume of air in a very short amount of time
to help seat the beads on the most stubborn
of tires. The ABS is portable so that it can be
used in the shop or in the field.
ATTC-ABS
The ATLAS wheel lift can be mounted on the Atlas
200 and 700 series wheel clamp tire changer. This
wheel lift is a great back saver. The Atlas wheel lift
can raise a 150 pound wheel assembly into the
correct position for placement onto the turntable.
Atlas Wheel Lift
Atlas Motorcycle
Mount/Demount Head
The Atlas Motorcycle Mount/Demount head is specifically
designed for mounting and demounting motorcycle tires.
ATTC-MCHEAD
Small Plastic Jaw
Protectors
• Set of four
• Helps to prevent rim
damage on custom rims
• Designed for the
Deluxe ATV and
Deluxe Motorcycle
adapters
ATTC-SPJP
Large Plastic Jaw
Protectors
Large Plastic Jaw Protectors
are used on the tire changer
turntable jaws to help prevent
rim damage on custom
aluminum and alloy rims.
Set of four
ATTC-LPJP
Dual Assist Arm
The Atlas DAA is the combination of the
Atlas LH assist arm and the Atlas RH assist arm.
Economy BPRHA
Right Assist Arm
The Atlas RH assist arm is the perfect complement
to the Atlas LH assist arm when you need to
change extremely stiff sidewall and run flat tires.
Left Assist Arm
The ATLAS LH assist arm is designed to be mounted
on wheel clamp tire changers.
Economy RH
The Atlas center post adapter was designed to eliminate the possibility
of jaw damage to decorative automotive rim. Makes any wheel clamp
tire changer as versatile as a center post tire changer.
Atlas Center Post
Adapter
Atlas Quick Change
Head Assembly
ATTC-QCHA
WATCH OUR
VIDEO ONLINE!
Hands Free Clamp
WATCH OUR
VIDEO ONLINE!
ATTC-HFC
Plastic Inserts For
Mount / Demount Heads
Replacement plastic inserts for Atlas 200 and 700
series tire changers.
ATXP212-216
Pneumatic Portable Wheel Lift
The Atlas pneumatic portable wheel lift (AEZWL) is the perfect solution to
prevent back injuries when lifting large wheel assemblies onto the shaft of
a wheel balancer or on onto tire changer turntable. Today’s wheels and tires
are getting bigger and heavier. Many wheels are expensive and can be easily
scratched or damaged. The Atlas wheel pneumatic wheel lift will lift a 200
pound wheel easily and allow the operator to maneuver the wheel into the
correct position without fear of wheel damage or back strain.
The AEZWL operates on 120 PSI air pressure.
ATTC-AEZWL
• Capacity: 200 LBS.
• Max. Lifting Height: 39 1/8”
• Min. Lifting Height: 4”
• Arm Length: 17 1/2” - 33 1/4”
• Distance Between Arms: 9” - 22”
• Overall Height: 66 7/8”
• Required Air Pressure: 120 psi
• Shipping Weight: 175 LBS.
E-Z Arm
For TC
221/229
And 289
For TC
221/229
WATCH OUR
VIDEO ONLINE!
Portable Bead Breaker
• Great for farm and truck tires.
• Dimensions: 19” L x 5 ½” W x 13” T
• Max. Opening of Jaws: 5”
• Size of inlet for coupler or fitting:
5/8” pipe thread
• Fits All Types Of Rims
• Works With Plastic
Air/Hydraulic Pump
(HTTLA5100)
• Shipping Weight: 34 lbs.
HTTLA5200
FINANCING
AVAILABLE
RM-DSR7
The Atlas Aluminum Bead Seater delivers a
large volume of air in a very short amount
of time to help seat the beads on the most
stubborn of tires, from small passenger tires
up to large over the road semi tires.
WE ARE NOT RESPONSIBLE FOR MISPRINTS.
PRICES AND SPECIFICATIONS ARE SUBJECT TO CHANGE.
1.800.711.5031
Plastic Inserts For
Mount / Demount Heads
Steel Wheel Weight Kits
• 1 Wall Mountable Wheel Weight Rack
• 48 Wheel Weight Storage Bins
• 48 Boxes of Steel Clip-on Weights
• 1 Box of 1/4 OZ Stick On Steel Weights
• 112 Storage Bin Labels
• 1 Weight Hammer
SteadyWeight™
Steel Wheel
Weight Kits
P/REG Package
375 steel clip on wheel weights for passenger car steel wheels.
T Package
300 clip on truck/SUV steel wheel weights for use with Cadillac from 1999 to
2009, Chevrolet and GMC from 1999 To 2009, Ford from 1999 to 2009 and
Lincoln from 1999 to 2003.
MC Package
300 clip on steel wheel weights for use with Chrysler from 1990 to 1997,
Ford from 1985, and GM increasingly used starting In 1988.
FN Package
300 clip on steel wheel weights for use with Acura since 1990, Daewoo
since 1999, Honda since 1989, Infiniti since 1990, Isuzu since 1997, Lexus
since 1989, Mazda since 1990, Nissan since 1990 and Toyota since 1990.
AW Package
300 clip on steel wheel weights for use with Chrysler up to 1989, Ford up to
1984, and GM up to 1987, decreasingly used from 1988 to 2000.
EN Package
300 clip on steel wheel weights for use with Audi from 1997, Honda and
Acura from 1980 to 1989, Mercedes up to 1976 and VW from 1997.
IAW Package
300 clip on steel wheel weights for use with Audi from 1997, Honda and
Acura from 1980 to 1989, Mercedes up to 1976 and VW from 1997.
LH Package
300 clip on steel wheel weights for use with Chrysler LH platforms and all
Mini Van models since 1998. These are also used on the 2000 Neon, 2001
PT Cruiser and 2001 Sebring and Stratus sedans and convertible.
SteadyWeight™
Lead Wheel
Weight Kits
w
h
e
e
l
w
e
i
g
h
t
s
P/REG Package
450 uncoated lead clip on wheel weights for passenger car steel wheels.
T Package
300 clip on truck/SUV coated lead wheel weights for use with Cadillac from 1999
to 2009, Chevrolet and GMC from 1999 To 2009, Ford from 1999 to 2009 and
Lincoln from 1999 to 2003.
MC Package
300 clip on coated lead wheel weights for use with Chrysler from 1990 to
1997, Ford from 1985, and GM increasingly used starting In 1988.
FN Package
300 clip on coated lead wheel weights for use with Acura since 1990, Daewoo
since 1999, Honda since 1989, Infiniti since 1990, Isuzu since 1997, Lexus
since 1989, Mazda since 1990, Nissan since 1990 and Toyota since 1990.
w
h
e
e
l
w
e
i
g
h
t
s
SteadyWeight™ Lead Truck
Wheel Weight Kits
LT1 Package
230 lead clip on wheel weights for light duty trucks and 1 ton vehicles
(vans, cube or box trucks, pickups).
I-7 Package
185 lead clip on wheel weights used for medium duty and heavy duty
trucks, mostly used for tube-type steel wheels.
TAL Package
115 lead clip on wheel weights specifically for alcoa and accuride
aluminum tubeless heavy duty truck wheels
w
h
e
e
l
w
e
i
g
h
t
s
SteadyWeight™ Stick On Weights
Zinc Plated Adhesive Wheel Weights
• (52) 3oz. strips per box
• (12) Low profile 1/4 oz. segments per strip
• (624) 1/4 oz. segments per box
• Superior Adhesive
Steel Adhesive Wheel Weights
• (28) 4oz. strips per box
• (8) Low profile 1/2 oz. segments per strip
• (224) 1/2 oz. segments per box
• Superior Adhesive
w
h
e
e
l
w
e
i
g
h
t
s
• 1 Large Floor Standing Wheel Weight Rack
• 96 Wheel Weight Storage Bins
• 96 Boxes of Steel Clip-on Weights
• 112 Storage Bin Labels
• 1 Box of 1/2 OZ Stick On Steel Weights
• 1 Box of 1/4 OZ Stick On Steel Weights
• 1 Weight Hammer
WE ARE NOT RESPONSIBLE FOR MISPRINTS.
PRICES AND SPECIFICATIONS ARE SUBJECT TO CHANGE.
www.GregSmithEquipment.com
75 TON
ELECTRIC/HYDRAULIC
50 TON
AIR/HYDRAULIC
75 TON
AIR/HYDRAULIC
45 TON
AIR/HYDRAULIC
40 TON
AIR/HYDRAULIC
Features
• Measurement between uprights: 31 1/2”
• Base measurement: 47 1/4” W x 39 1/4” L
• Overall height: 6’ 10” (82”)
• Includes Pressing Blocks
• Shipping weight: 1,550 lb.
• Sliding ram assembly
HTO813 HT0882 HTO812
HTO807
HTO811
HTO806
30 TON HYDRAULIC
30 TON
AIR/HYDRAULIC
20 TON
AIR/HYDRAULIC
20 TON
AIR/HYDRAULIC
20 TON
HYDRAULIC
W/ Gauge
Features
• Measurement between uprights is 23 5/16”
• Measurement between table channels is 7 1/2”
• Base measurement: 25 15/16” x 29 1/2”
• Overall height: 66 1/2”
• Includes Pressing Blocks
• Shipping Weight: 302 Lb.
Features
• Measurement between uprights: 21 1/2”
• Working Height: 38 1/2”
• Base measurement: 29” W x 27” L
• Overall height: 6’ (72”)
• Ram assembly position
adjustable side to side
• Includes Pressing Blocks
• Shipping Weight: 217 Lb.
Features
• Measurement between uprights: 21 1/8”
• Working Height: 29 1/2”
• Base measurement:25” W x 28” L
• Overall height: 5’ (60”)
• Includes Pressing Blocks
• Shipping weight: 174 lb.
Features
• Measurement between
uprights: 21 1/2”
• Working Height: 30 1/2”
• Base measurement:
25” W x 28” L
• Overall height: 5’ (60”)
• Includes Pressing Blocks
• Shipping weight: 164 lb.
HTO805
HT0704
HT0702
HT070808A
IIT36950
12 TON HYDRAULIC
Features
• Measurement between
uprights: 20”
• Working Height: 36 1/4”
• Base measurement:
27 1/2” W x 20” L
• Overall height: 5’ 6” (66”)
• Includes Pressing Blocks
• Shipping weight: 163 lb.
100 TON
AIR/HYDRAULIC
• Measurement between uprights: 32 1/2”
• Base measurement: 46” W x 31 1/2” L
• Overall height: 6’ 1” (73”)
• Includes Pressing Blocks
• Sliding ram assembly
• 110V Motor
• Shipping Weight: 1225 lb.
Features
• Measurement between uprights - 31 1/2”
• Base measurement: 45” W x 31 1/2” L
• Overall height: 5’ 10 5/8” (70 5/8”)
• Includes Pressing Blocks
• Shipping weight: 1,091 lb.
• Sliding ram assembly
Features
• Measurement between uprights: 28 1/2”
• Base measurement: 40 3/4” W x 31 1/2” L
• Overall height: 6’ 10” (76 1/2”)
• Ram assembly position adjustable side to side
• Includes Pressing Blocks
• Shipping weight: 800 lbs.
Features
• Measurement between uprights: 32 1/4”
• Working Height: 31 1/2”
• Base measurement: 44” W x 31 1/2” L
• Overall height: 5’ 7 1/4” (67 1/4”)
• Includes Pressing Blocks
• Shipping weight: 730 lbs.
Features
• Measurement between uprights: 25 1/2”
• Working Height: 41”
• Base measurement: 38” W x 34” L
• Overall height: 6’ 3” (75”)
• Includes Pressing Blocks
• Shipping Weight: 540 Lb.
Features • Pressure gauge
• Air or manual operation
• Pressing blocks
• 6 positions for pressing bed
• Distance between uprights: 21 1/4”
• Working Height: 34 1/4”
• Dimensions of base: 32” L x 27 1/2” W
• Overall Height: 75 1/2” (6’ 3 1/2”)
• Shipping weight: 335 lb.
Features
HT0803
ADFN
BEARING
SPLITTER
AP30 20 TON
PRESS PLATES
AP34 20 TON
PRESS PLATES
• Adjustable size
• Stable base for bearing work
• For use with 20, 40 & 50 ton
hydraulic presses
• Shipping Weight: 6 LBS.
• Made in the USA
• Fits 20 to 50 ton Arcan presses
• Creates a stable base for
bearing/ punch work
• Shipping Weight - 16 LBS.
• Adjustable size
• Stable base for bearing work
• For use with 20, 40 & 50 ton
hydraulic presses
• Shipping Weight: 31 LBS.
WE ARE NOT RESPONSIBLE FOR MISPRINTS.
PRICES AND SPECIFICATIONS ARE SUBJECT TO CHANGE.
1.800.711.5031
20 TON
AIR/HYDRAULIC
• Measurement between uprights: 21 1/2”
• Working Height: 38 1/2”
• Base measurement: 29” W x 27” L
• Overall height: 6’ (72”)
• Ram assembly position
adjustable side to side
• Includes Pressing Blocks
• Shipping Weight: 217 Lb.
Features
• Measurement between
uprights: 20”
• Working Height: 36 1/4”
• Base measurement:
27 1/2” W x 20” L
• Overall height: 5’ 6” (66”)
• Includes Pressing Blocks
• Shipping weight: 163 lb.
Features
• Thick frame side plates
reinforced lift arm
• Low lift height and
profile frame
• Dual pump pistons
• Bypass and overload valves
• Ball bearing mounted rear
swivel caster wheels
• 2 piece handle for easy
storage
• Quick lock feature
• Saddle pad
• Low lift height: 3 1/2”
• High lift height: 21 1/4”
• Shipping Weight: 106 Lb.
Professional 3.5 Ton
Low Profile Service Jack
AXL35
3 Ton Aluminum
(Single Piston)
1.5 Ton Aluminum
(Single Piston)
1.5 Ton Aluminum
(Dual Piston)
HTAJ3000-1
Shipping Weight:45 LBS.
HTAJ3000-2
Shipping Weight:40 LBS.
HTAJ6000
Shipping Weight: 75 LBS.
2 Ton Hydraulic or Air/Hydraulic
Low Profile Floor Jack
This 2 ton capacity low profile floor jack will fit under almost any vehicle and is great for shop or
home use. The long, low design of this floor jack along with the rear swivel casters make it easy to
move and place. Foot pump operated.
• 2 Ton Capacity
• Fully Lowered (Pad Height): 5 1/4”
• Fully Raised: 31”
• Rear Swivel Casters Make
Positioning Under Vehicles Easy
• Foot Pump Operated
• Commercial Grade
• Overall Length: 54”
• Overall Width: 17 1/2”
• Saddle Diameter: 4 7/8”
• Shipping Weight:143 Lb.
Features
The full hydraulic model is operated by either the handle or the foot pedal.
The air/hydraulic model can be operated by air pressure or can be manually operated.
Hydraulic
Air/Hydraulic
HTLFJ2
HTALFJ2
The full hydraulic model is operated by either the
handle or the foot pedal. The air/hydraulic model can be
operated by air pressure or can be manually operated.
Hydraulic
HTLFJ10
Features
• 5 Ton Capacity
• Fully Lowered: 6 1/2”
• Fully Raised: 26”
• Rear swivel casters
makes positioning under
vehicles easy
• Commercial Grade
• Overall Length: 57”
• Overall Width: 15”
• Saddle Diameter: 5 1/8”
• Shipping Weight 245 lb.
5 Ton Hydraulic or
Air/Hydraulic Low Profile Jack
HTALFJ5
Air/Hydraulic
10 Ton Hydraulic or Air/Hydraulic
Low Profile Floor Jack
Features
• 10 Ton capacity
• Fully Lowered: 8 1/2”
• Fully Raised: 23”
• Rear swivel casters
makes positioning under
vehicles easy
• Commercial grade
• Overall Length: 62”
• Overall Width: 20”
• Saddle Diameter: 5 7/8”
• Shipping Weight 366 lb.
The full hydraulic model is operated by either the handle or the foot pedal. The
air/hydraulic model can be operated by air pressure or can be manually operated.
HTLFJ10
Hydraulic
HTALFJ10
Air/Hydraulic
Air Bumper Jack
Features
• Weight capacity: 2,500 LB.
• Height range: 10”–30”
• Air Pressure: 120-180 psi
• Air operated
• Shipping weight: 250 LB.
HTEL1.5
22 And 35 Ton
Air/Hydraulic Jack
• 3 adapters included
• Minimum height: 10”
• Maximum lifting height
(w/ included adapter)
18” (22 ton) / 25” (35 ton)
HT1902
Shipping Weight: 90 lb.
HT1903
Shipping Weight: 108 lb.
• Air operated
• 4,000 LB. capacity
• Minimum height: 5 3/4”
• Maximum height: 12 1/4”
• Dimensions: 17” L x 11” W
• Air requirements: (90-100 PSI)
• Perfect for frame racks
• Fast Setup
• Quick Release
• Shipping Weight: 50 lb.
HT3101
3 Bag Air Jack2 Bag Air Jack
• Air operated
• 3,000 LB. capacity
• Minimum height: 6 1/2”
• Maximum height: 17 1/2”
• Dimensions: 17” L x 9 1/2” W
• Air requirements: (90-100 PSI)
• Perfect for frame racks
• Fast Setup
• Quick Release
• Shipping Weight: 50 lb.
HT 3102
The 2,500 lb capacity bumper jack has an air control valve for easy raising and
lowering of a load. This vehicle end lift also features an adjustable bumper
extension with rubber mounting pads. This bumper jack has solid rubber tires
in the rear, making it easy to move this jack in and out of position.
WE ARE NOT RESPONSIBLE FOR MISPRINTS.
PRICES AND SPECIFICATIONS ARE SUBJECT TO CHANGE.
www.GregSmithEquipment.com
ATV 3,000 LB. Wireless Winch
Features
• Wireless Remote
• Power In and Out
• 35 feet of cable
• Free mounting plate
• Free roller fairlead
• Shipping Weight: 21 LB.
The 16,800 lb. Atlas recovery winch is designed for those
operators who demand a winch with “more than enough”
pulling power. The winch motor and solenoid are factory
pre-wired to ensure easy installation on your vehicle.
• 5.5 HP, Bi-Directional, Series
Wound Motor (water resistant)
• 218.4:1 Gear Reduction Ratio
• 12 ft. Long Corded Remote
(removable) and separate
wireless remote
• 92 feet of 3/8” wire cable
diameter and clamping hook
• Free mounting plate
• Free roller fairlead
• Sealed power transfer drum
• Shipping Weight: 111 LB.
Features
The 13,000 lb. Atlas recovery winch is designed for
those operators who demand a winch with “more than
enough” pulling power. The winch motor and solenoid
are factory pre-wired to ensure easy installation. Atlas
winches are extremely easy for the DIY to install.
• 5.5 HP, Bi-Directional, Series Wound
Motor (water resistant)
• 148.2:1 Gear Reduction Ratio
• 12 ft. Long Corded Remote
(removable) and separate wireless
remote
• 92 feet of 5/16” wire cable and
clamping hook
• Free mounting plate
• Free roller fairlead
• Sealed power transfer drum
• Shipping Weight: 110 LB.
Features
The Atlas 4K winch is the perfect choice for the off-road enthusiast who demands
BIG THINGS from a winch.
With Metal Control Box
ATDF3000
The Atlas winch is the perfect choice for smaller ATVs. The 3,000 LB. wireless winch
offers peace of mind to those riders that actually ride their ATVs off the beaten path.
4,000 LB. Wireless ATV/UTV Winch
Features
• Permanent Magnet Motor
1.1 HP 12V
• Wireless Remote
• Handle Bar Mounted Control
• 47 1/2 feet of cable
• Free mounting plate
• Free roller fairlead
• Power In/Power Out
• Shipping Weight 30 LB.
ATDF4000
13,000 LB. Wireless/Wired
Recovery Winch
ATDF13000
16,800 LB. Wireless/Wired
Recovery Winch
ATDF10000N
With Metal Control Box
With Metal Control Box
• 5.6 HP, Bi-Directional, Series
Wound Motor (water resistant)
• 312.4:1 Gear Reduction Ratio
• 12 ft. Long Corded Remote
(removable) with hand
control and separate
wireless remote control
• 92 feet of .450 inch wire cable
• Free mounting plate
• Free roller fairlead
• Sealed power transfer drum
• Shipping Weight: 147 LB.
Features
ATDF16800
10,000 LB. Wireless/Wired
Recovery Winch
Atlas is proud to offer a new upgrade to our
extremely popular 10,000 lb. recovery winch.
This 10,000 Atlas winch is now equipped with
a factory pre-wired METAL control box and
water resistant motor.
ATDFHR
Receiver Hitch Mount
Large Mounting Plate
Nylon Winch Covers Tree Saver Strap
ATXW270
ATXW120
3,000 lb. $4
4,000 lb. $6
10,000 lb./13,000 lb. $10
16,800 lb. $13
ATXW-150
ATXW-140
ATXW-130
ATXW-130-EX
Quick Connector
Provides 12 volt power to either end of your
vehicle from the battery. Quickly connect and
disconnect your winch.
Recovery Tow Strap
(4” X 9 ft.) $29
(4” X 19 ft. 6 in.) $49
(4” X 29 ft. 6 in.) $69
ATXW-101
ATXW-102
ATXW-103
Heavy Duty
Pulley Block
Pulley Block
ATXW210-EX ATXW210
Snatch Pulley Block
Small Winches $10
Large Winches $13
ATXW240
ATXW230
Universal
Winch Hook
(3/8 inch)
Roller Fairlead Work Gloves
ATXW265
ATXW265
ATXW250
ATXW360
ATXW361
13,000 lb. Capacity
ATV Bow Shackle
Heavy Duty $13
Extra Large $15
ATXW202
ATXW201
Wired Control
ATXW191
WE ARE NOT RESPONSIBLE FOR MISPRINTS.
PRICES AND SPECIFICATIONS ARE SUBJECT TO CHANGE.
1.800.711.5031
The Atlas C9370C comes complete with the bench, standard deluxe tool package. Everything necessary to do a
wide range of car and truck drums and rotors. The infinitely variable feed rate allows precision one-pass cutting.
C9370C Specifications
Spindle Feed Speed: Infinitely Variable 0-0.023”
Cross Travel: 5.9 inch
Cross Feed Speed: Infinitely Variable 0-0.015”
Maximum Brake Rotor Diameter: 7-18” *
Maximum Brake Rotor Thickness: 4”
Brake Drum Diameter: 6-28”
Maximum Drum Depth: 9 7/8”
Maximum Load (1” Arbor): 100 LBS.
Shipping Weight - With Bench & Tools 410 LBS.
Car & Light Truck (up to 1 ton)
Variable Speed Feed Rate
Specifications
Maximum Brake Rotor Thickness: 4”
Brake Drum Diameter - Min: 6”
Brake Drum Diameter - Max: 28”
Maximum Drum Depth: 6-7/8”
Maximum Load: 1” Arbor 100 Lbs. 1.875” Arbor 200 Lbs.
Shipping Weight - With Bench & Tools 410 Lbs .
Light to Medium Duty Trucks & Specialty Trucks
Large Truck Adapter Set
Specifications
Rotor Diameter Capacity 4"-24"
Face Width (Max) 5"
Thickness (Max) 2.85"
Drum Capacity 6"-28"
Depth of Cut 9"
Spindle Speed Variable: 70-320 RPM
Disc Feed Per Spindle Variable: 0"-0.026"
Drum Feed Per Spindle Variable: 0"-0.026"
Shipping Weight 400 LBS.
9370C Car & Light Truck (up to 1 ton)
Deluxe Truck Medium Duty
The Atlas 9370C comes complete with the bench, standard tool package, and deluxe tool
package. Everything necessary to do a wide range of car and truck drums and rotors.
The Atlas C9372 comes complete with a FREE Quick Chuck Tool Package. Both the “feed” speed and
the spindle speed can be adjusted to produce a micro-fine, “chatter-free” finish.
C9372 Car & Light Truck (up to 1 ton)
Variable Speed Feed Rate
Brake Drum Dolly
Handles most 15" and 16 1/2" brake drums
found on CLASS 7 and CLASS 8 trucks.
HTTL-5300
Features
• Removable Handle
• Four Position swing-down
adjustable locking arm
secures a brake drum being
moved with the dolly.
• Easy rotation handle adjusts
the dolly from a vertical to
horizontal position.
• 8” heavy duty rubber wheels
• Shipping Weight: 62 LBS.
FINANCING
AVAILABLE
WE ARE NOT RESPONSIBLE FOR MISPRINTS.
PRICES AND SPECIFICATIONS ARE SUBJECT TO CHANGE.
www.GregSmithEquipment.com
Features
Features
Features
Features
Features
HT0304
A standard single stage transmission jack featuring a wide,
stable base mounted on 4 swivel casters and a saddle with
front to back as well as side to side adjustment.
This single stage transmission jack features a
foot pump, keeping the operator’s hands free.
HTTMJ1
HTTMJ2
HTTMJ4 HTTMJ6
This heavy duty two stage transmission jack features
4 swivel casters for maneuverability and both a ring
handle and a pull bar for easier movement.
This heavy duty two stage transmission jack features
4 swivel casters for maneuverability and both a ring
handle and a pull bar for easier movement.
This heavy duty two stage transmission jack features
4 swivel casters for maneuverability and both a ring
handle and a pull bar for easier movement.
HTTMJ3 1,000 LB
CAPACITY
This jack has an air/hydraulic first stage, and a
foot pedal hydraulic pump for the second stage.
This heavy duty two stage transmission jack features 4
swivel casters for maneuverability and two pull bars for
easier movement. The foot operated pump and release
valve keep the mechanic’s hands free during use.
HTL6100
This jack has an air/hydraulic first stage, and
a manual foot pedal hydraulic pump for the
second stage.
2 STAGE AIR/HYD.
HTL6200
• Minimum height: 4’ 1” (49”)
• Maximum height: 5’ 9” (69”)
• Swivel casters allow for easy
maneuverability
• Universal adjustable saddle
• Saddle: 4 way tilt
(front-to-back and side-to-side)
• Safety chain and brackets
included
• Shipping Weight: 78 Lb.
1,000 LB
CAPACITY
1,000 LB
CAPACITY
W/ FOOT PEDAL
1,000 LB
CAPACITY
2 STAGE HYDRAULIC
1,000 LB
CAPACITY
1,000 LB
CAPACITY
1,000 LB
CAPACITY
2,000 LB
CAPACITY
2 STAGE HYDRAULIC 2 STAGE AIR/HYD.
• Air/Hydraulic operated
• Fully lowered: 2’ 8 1/2” (32 1/2”)
• Fully raised: 6’ 1 1/2” (73 1/2”)
• Stage one fully extended: 4’ 6” (54”)
• Swivel casters allows for easy maneuverability
• Universal adjustable saddle
• Saddle: 2 way tilt (front-to-back)
with side shift
• Safety chain and brackets included
• Foot operated pedals for raising and lowering
• Shipping Weight: 217 lb.
• Hydraulic foot pump for easy lifting
• Minimum height: 51”
• Maximum lifting height: 83”
• Swivel casters allow for easy maneuverability
• Universal adjustable saddle
• Saddle: 2 way tilt (front-to-back) with side shift
• Safety chain and brackets included
• Shipping Weight: 102 Lb.
Features
• Fully Lowered: 2’ 8 1/2” (32 1/2”)
• Fully raised: 6’ 1 1/2” (73 1/2”)
• Stage one fully extended: 4’ 6” (54”)
• Swivel casters allows for easy maneuverability
• Universal adjustable saddle
• Saddle: 4 way tilt (front-to-back & side-to-side)
• Safety chain and brackets included
• Foot operated pedals for raising and lowering
• Shipping Weight: 165 lb.
• Fully Lowered: 2’ 8 1/2” (32 1/2”)
• Fully raised: 6’ 1 1/2” (73 1/2”)
• Stage one fully extended: 4’ 6” (54”)
• Swivel casters allows for easy maneuverability
• Universal adjustable saddle
• Saddle: 2 way tilt (front-to-back) with side shift
• Safety chain and brackets included
• Foot operated pedals for raising and lowering
• Shipping Weight: 168 lb.
Features
• Air/Hydraulic operated
• Fully lowered: 2’ 8 1/2” (32 1/2”)
• Fully raised: 6’ 1 1/2” (73 1/2”)
• Stage one fully extended: 4’ 6” (54”)
• Swivel casters allows for easy maneuverability
• Universal adjustable saddle
• Saddle: 4 way tilt (front-to-back & side-to-side)
• Safety chain and brackets included
• Foot operated pedals for raising and lowering
• Shipping Weight: 174 lb.
• Fully lowered: 2’ 9 3/4” (33 3/4”)
• Fully raised: 5’ 10 1/2” (70 1/2”)
• Stage one fully extended : 4’ 9” (57”)
• Swivel casters
• Universal adjustable saddle
• Saddle: 2 way tilt (front-to-back) with side shift
• Safety chain and brackets included
• Foot operated pedal for raising
• Easily Accessible Jack Lowering Handle
• Shipping Weight: 145 lbs.
Features
• Fully lowered: 2’ 9 3/4” (33 3/4”)
• Fully raised: 6’ (72”)
• Stage one fully extended: 4’ 9” (57”)
• Swivel casters allows for easy maneuverability
• Universal adjustable saddle
• Saddle: 2 way tilt (front-to-back) with side shift
• Safety chain and brackets included
• Foot operated pedals for raising and lowering
• Shipping Weight: 198 lbs.
2 STAGE HYDRAULIC 2 STAGE HYDRAULIC
SINGLE STAGE
WE ARE NOT RESPONSIBLE FOR MISPRINTS.
PRICES AND SPECIFICATIONS ARE SUBJECT TO CHANGE.
1.800.711.5031
• 1 ton capacity
• Safety chain included
• Hydraulic operation
• Four adjustable load support arms
to fit almost all transmission designs
• Swivel casters for easy placement
under transmission
• Lift height - 8 ¼” to 30 ½”
• Shipping Weight - 154 lbs
Features
Features
Features
Features
• Fully adjustable universal saddle with adjustable
• Corner brackets and safety chain
• Foot operated hydraulic stages allow for precise
load control as well as rapid lifting abilities
• The pedal can be folded up to prevent the operator
from being injured during movement.
• Foot operated release pedal equipped with “auto
spring lock” design to lower the load with ease.
• Telescopic ram provides the lowest height to
transport the work piece by operator.
• Lowered height: 34” (2’ 10”)
• Max Height: 73 ½” (6’ 1 ½”)
• For use with transmissions and trans axles of
passenger cars and light trucks.
• Foot-operated pump for maximum lift with
minimum effort and fast contact with load
• Fully adjustable universal saddle with adjustable
corner brackets and safety chain for optimum
alignment of transmission bolt patterns
• Safety overload system protects jack from being
used beyond it’s rated capacity.
• Lowered height: 36 ½” (3’ ½”)
• Max Height: 72 ¾” (6’ 1 ¾”)
2,000 LB CAPACITY TRUCK
TRANSMISSION JACK
• Fully adjustable universal saddle with adjustable
corner brackets and safety chain
• Bracket and chain slings are adjustable to
accommodate transmissions, clutches and
differentials of varying sizes
• Wide base with four 3-1/2” diameter swivel
casters provide stability and easy maneuvering
• Safety bypass system prevents the jack from being
over extended beyond its rated capacity
• Lowered Height: 43” (3’ 7”)
• Max Height: 71 ½” (5’ 11 ½”)
• Shipping Weight: 250 lb.
A professional truck transmission jack for removal, installation, and
transportation of heavy duty truck transmissions that are raised by a lift.
• For use with transmissions and trans axles of
passenger cars and light trucks.
• Foot-operated pump for maximum lift with
minimum effort and fast contact with load
• Fully adjustable universal saddle with adjustable
corner brackets and safety chain for optimum
alignment of transmission bolt patterns
• Air/hydraulic operated
• Minimum Height: 41 ½” (3’ 5 ½”)
• Maximum Height: 69” (5’ 9”)
• Shipping Weight: 300 lb..
LOW PROFILE
TRANSMISSION JACK
1.5 TON CAPACITY
LOW PROFILE
TRANSMISSION JACK
1 TON CAPACITY
MULTIPURPOSE
ENGINE JACK
750 LB. CAPACITY
• 1 ½ ton capacity
• Safety chain included
• Hydraulic operation
• Four adjustable load support arms
to fit almost all transmission designs
• Swivel casters for easy placement
under transmission
• Lift height - 8 ½” to 31”
• Shipping Weight 154 lbs
Features
• 750 lb. capacity
• Lift range: 19 ¼” - 35 ¼”
• Heavy-duty rubber wheels
for any terrain
• Fully adjustable cradle
• Cradle opening range: 7” - 13 ½”
• Heavy-duty steel construction
• For use on both engine
components and boat engines
JW-AE080001
JW-AE080004
JW-AE080005
JW-AE080027
HTXA0034 HT0404
HT0405
Power Train Lift
2,500 LB. CAPACITY
Features
• Scissor lift design provides easy
360˚ access to any component
• Table top height from 33” to 80”
• Four 8” diameter rubber coated
swivel caster wheels for easy
maneuverability with even the
heaviest loads
• Wheels can be locked in position for
steering, rear wheels can be locked
to prevent the lift from rolling
• Removable air/hydraulic power
unit provides hands free operation
anywhere around the lift’s perimeter
• Adjusting screws tilt the table +
or - 15 degrees side to side, or fore
and aft, ensures maximum stability
of the table in any position
This lift table handles power train components like engines and their transmissions, engines
with trans-axle assemblies, rear ends and large electric vehicle batteries. It will also serve
as a work table where components can be lowered to a convenient work height for repairs.
1,000 LB CAPACITY TRANSMISSION
JACK WITH FOOT PEDAL
1,750 LB CAPACITY TELESCOPIC
TRANSMISSION JACK
2,000 LB CAPACITY AIR/HYDRAULIC
TRANSMISSION JACK
HT6400
WE ARE NOT RESPONSIBLE FOR MISPRINTS.
PRICES AND SPECIFICATIONS ARE SUBJECT TO CHANGE.
www.GregSmithEquipment.com
Bigfoot Perforated Tile sPeCIFICatIONs
• New Perforated Garage Floor Tile
• BigFoot Tile can customize any floor!
• Easy to assemble, no tools required!
• Durable, Slip-Resistant, Stain-Resistant
• Professional look and feel of tile that cost much more!
• High Quality and Professional Performance
• Edging (Trim) available in White (off-white) and Black
• 7/16” Thick
• Weight: 10oz
Big Foot Tile is the perfect choice for an extraordinary floor in a minimum amount of time
and effort. Big Foot Tile is priced much lower than other modular flooring, yet offers the same
great features as the “high priced” tile.
sq.ft.
Bigfoot Rubber Tile sPeCIFICatIONs
• Rubber Coin Pattern Garage Floor Tile
• BigFoot Tile can customize any floor!
• Easy to assemble, no tools required!
• Durable, Slip-Resistant, Stain-Resistant
• Professional look and feel of tile that cost much more!
• High Quality and Professional Performance
• 1/4” Thick
• Weight: 24 oz
sq.ft.
Bigfoot Plastic Tile sPeCIFICatIONs
• Diamond Plate Style Solid Tile
• BigFoot Tile can customize any floor!
• Easy to assemble, no tools required!
• Durable, Slip-Resistant, Stain-Resistant
• Professional look and feel of tile that cost much more!
• High Quality and Professional Performance
• Edging (Trim) available in White (off white) and Black
• 7/16” Thick
• Weight: 12oz
sq.ft.
Big Foot Rubber Tile is the perfect choice for an extraordinary
floor in a minimum amount of time and effort.
Big Foot Plastic Tile is the perfect choice for an extraordinary
floor in a minimum amount of time and effort.
• Fits tailpipes with a maximum outside
diameter of 2 ½” x 5 ½” oval.
2 ½” x 5 ½”
Oval Tailpipe Adapter
Hook and chain holds them in place. Protects
the hose and tailpipe. Fits tailpipes with a
maximum outside diameter of 2 ½” x 5 ½” oval.
CRF475
3” x 8” Oval Tailpipe
Adapter
• Fits tailpipes with a maximum outside
diameter of 3” x 8” oval.
Hook and chain holds them in place. Protects the
hose and tailpipe. Fits tailpipes with a maximum
outside diameter of 3” x 8” oval.
CRF575
2 ½” Straight
Tailpipe Adapter
3” Straight
Tailpipe Adapter
Hook and chain holds them in place. Protects
the hose and tailpipe. Fits tailpipes with a
maximum outside diameter of 2”.
• Fits tailpipes with a maximum outside
diameter of 2”.
Hook and chain holds them in place. Protects
the hose and tailpipe. Fits tailpipes with a
maximum outside diameter of 3”.
• Fits tailpipes with a maximum outside
diameter of 3”.
3” x 11’ / 2½” x 11’
Crush Proof Exhaust Hose
Our most popular hose line. The flared end allows multiple lengths to
be connected without additional parts.
• 11’ long
• Flared end allows multiple lengths to
be connected without additional parts.
CRFLT300
CRFLT250
½
3” x 4’ / 2½” x 4’
Y-Assembly
3” x 4’ and 2” x 4’ exhaust hose Y-assembly designed for
converting a single hose into two hoses for dual exhaust vehicles.
CRYA300
CRYA250
½
3” Aluminum Door Port
CRADF30
Crushproof® 3” aluminum door port for use on 1” thick doors.
CRF250
CRF300
Exhaust Hose
WE ARE NOT RESPONSIBLE FOR MISPRINTS.
PRICES AND SPECIFICATIONS ARE SUBJECT TO CHANGE.
1.800.711.5031
SWC-500 Heated
Spray Wash Cabinet
Features
• 50 Gallon Tank
• Automatic cleaning
• Uses eco-friendly soap
and hot water
• Casters provide mobility
• Parts basket and hang tree
• Heavy duty pump
• Timer with auto shut-off
• Front loading design
• Automatic Oil skimmer
• Turntable rotates at3 rpm
• 3/16” vents spray solution
at 30-60 GPM
• Solution is filtered and
recycled
• Shipping Weight: 750 Lbs.
STD-500
• Solvent Capacity:
3 1/2 gallons
• Pump: 4 GPM
• Motor: 110V
• Flexible stainless
steel nozzle
• Removable tray
• Heavy duty steel
construction
• Lightweight, portable
• Shipping weight: 16 Lb.
Features
Features
• Extra powerful, heavy
duty electric
pump is fully enclosed
• Re-circulates fluid at
up to 50 GPH
• 40 gallon steel tank
• On/off switch with
indicator light
• Built in drain
• Gooseneck spout: 24” L
• Washer dimensions:
43 1/8” L x
20½” D x 10½” H
• 34 ¾” overall height
on stand
• 110 volt
• Shipping Weight:
109 Lb.
Features
• Extra powerful, heavy
duty electric
pump is fully enclosed
• Re-circulates fluid at
up to 50 GPH
• 20 gallon steel tank
has operating level of
12 gallons
• On/off switch with
indicator light
• Built in drain
• Gooseneck spout:
20 1/4” L
• Washer dimensions:
30” L x 20” D x 11” H
• 36” overall height
on stand
• 110 volt
• Shipping Weight:
60 Lb.
HTPW40G
3.5 Gallon Parts Washer 40 Gallon Parts Washer
20 Gallon Parts Washer
HTPW3.5G
HTPW20G
The SWC-500 Spray Wash Cabinet is the ideal parts
washer for any automotive repair or transmission shop.
Over Engine
Creeper/Topsider
HTCREEPER-TS
• Foam padded seat for maximum comfort
• Five swivel caster wheels for easy moving
• Round storage tray under seat for quick
and easy access to tools
• Height adjustable from 15” to 19 1/4”
• Handle for seat adjustment
• Seat swivels 360 degrees
• Shipping Weight: 15 Lb.
Adjustable
Air Seat
HTSEAT-1
Rolling Chair
With Drawer
HT321052
• Heavy duty 1/2” steel tube
construction
• 1 1/2” foam-padded seat
• Drawer
• Divided, lower tool tray
• Four 2” polyurethane swivel
casters for easy movement
• Shipping Weight: 14 LB.
• Adjustable height: 47 1/2” - 58 1/2”
• Great for getting to the engine from
the top of the vehicle
• Heavy duty casters
• Convenient tool drawer
• Deck is padded and covered with
heavy duty vinyl for comfort
Features
Transmission Teardown Workbench
HTTTB
• 47” Wide x 32” Deep x 41” High
• Heavy Duty Steel Construction
• Lockable Casters
• Lockable Drawer
• Shipping Weight: 200 lb.
Features
5 Drawer With Wood Top Rolling Work Table
HTTC304C
• Non-Slip Rubber Liner
on table top, on top of
attached cabinet, and
in the two drawers
• Table top is divided into
four sections, great for
separating and sorting
• Features four, 2 1/2”
poly-coated swivel
casters
Features
Rolling Cabinet
• Ball bearing slides on drawers
• Four 4” Poly Coated Swivel Casters, 2 Locking
• Non-Slip Rubber Liners In Top
Section, Drawers, and Shelf
• Bottom Shelf
FEATURES
HTTSA5405-X
• “Butcher block” style wooden table top
• 2 adjustable shelves with 8 positions
• 5 drawers
• Ball bearing slides on all drawers
• Heavy Duty Steel Construction
Features
HTTC321A
WE ARE NOT RESPONSIBLE FOR MISPRINTS.
PRICES AND SPECIFICATIONS ARE SUBJECT TO CHANGE.
www.GregSmithEquipment.com
AF3
Single Stage
60 Gallon
A
I
R
F
O
R
C
E
Features
• Quiet Operation
• Heavy Duty Metal Belt Guard
• Shipping Weight: 360 lb.
• Vibro-isolator Pads
sPeCIFICatIONs
Motor Peak 6.0 Horsepower
Motor Running 3.2 Horsepower
Delivered-CFM 40PSI 12.0
Delivered-CFM 90PSI 10.5
Pressure Setting 90 lb. - 135 lb.
This compressor utilizes a
three cylinder single stage
pump as compared to the
two cylinder pump on the
Atlas AF3. The Atlas AF4
also employs a slightly more
efficient motor than the Atlas
AF3. The Atlas AF4 produces
“faster” air for the shop
operator who cannot wait. The
no-load recovery time
(95 LB. to 135 LB.) for the
Atlas AF4 is twice as fast as
the Atlas AF3.
(1 minute and 40 seconds.)
AF4
Single Stage 60 Gallon
A
I
R
F
O
R
C
E
sPeCIFICatIONs
Motor Peak 7.0 Horsepower
Motor Running 3.4 Horsepower
Delivered-CFM 40PSI 15.0
Delivered-CFM 90PSI 13.7
Pressure Setting 90 lb. - 135 lb.
This compressor is equipped
with an oversized three (3)
cylinder cast iron single stage
reciprocating pump that
produces a large volume of
air at a very competitive price.
The Atlas AF5 is our lowest
priced air compressor that is
capable of delivering enough
air to effectively run our SBC
420 sandblast cabinet (when
used with #8 or #10 glass
beads). The Atlas AF5 does
not produce enough air to
“run” the sandblast cabinet for
an extended period of time,
but does produce a sufficient
volume and pressure to
operate the machine for ten
minute intervals.
AF5
Single Stage 60 Gallon
A
I
R
F
O
R
C
E
sPeCIFICatIONs
Motor Peak 6.5 Horsepower
Motor Running 4.5 Horsepower
Delivered-CFM 40PSI 20.0
Delivered-CFM 90PSI 18.0
Pressure Setting 90 lb. - 135 lb.
This is our entry level, two-stage
air compressor. This unit
operates between 140 LB.
and 175 LB. PSI. The Atlas
AF6 will run the SBC 420
sandblast cabinet (when used
with #8 or #10 glass beads). The
combination of the commercial
grade low RPM motor and heavy
duty 3 cylinder (2 cylinders are low
pressure and one cylinder is high
pressure) cast iron reciprocating
air compressor pump delivers an
incredible amount of air volume and
air pressure for a very low price.
AF6
Two Stage 80 Gallon
A
I
R
F
O
R
C
E
sPeCIFICatIONs
Motor Running 5.0 Horsepower
Delivered-CFM
100PSI
15.0
Delivered-CFM
175PSI
14.0
Pressure Setting 145 lb. - 175 lb.
Power 220V Single
Phase
This is the perfect
compressor for the 3-4 man
auto shop, or for the one
man shop that wants to be
prepared for future growth.
sPeCIFICatIONs
Motor Running 5.0 Horsepower
Delivered-CFM 10PSI 15.0
Delivered-CFM 175PSI 14
Pressure Setting 145 lb. - 175 lb.
Motor Voltage 230VAC 1PH
AF7
Two Stage 80 Gallon
A
I
R
F
O
R
C
E
sPeCIFICatIONs
Motor Peak 5.0 Horsepower
Motor Running 2.0 Horsepower
Delivered-CFM 40PSI 7.1
Delivered-CFM 90PSI 5.5
Pressure Setting 90 lb.-135 lb.
Power 110V
Shipping Weight 252 Lb.
AF1
Portable
20 Gallon
A
I
R
F
O
R
C
E
AF2
Portable
20 Gallon
A
I
R
F
O
R
C
E
sPeCIFICatIONs
Motor Peak 5.0 Horsepower
Motor Running 2.0 Horsepower
Delivered-CFM 40PSI 7.1
Delivered-CFM 90PSI 5.5
Pressure Setting 90 lb.-135 lb.
Power 110V
Shipping Weight 250 Lb.
Features
• Quiet Operation
• Heavy Duty Metal Belt Guard
• Quick Coupler
WATCH OUR
VIDEO
ONLINE
These dynamite portable 110 volt electric
air compressors deliver enough air for the
average two man motorcycle shop.
These are belt driven reciprocating air
compressors with a rebuildable cast
iron twin cylinder single stage pumps.
This 220 volt single stage air compressor is
the perfect compressor for the one or two
man automotive service center.
The “PLUS” features for our commercial grade two
stage air compressors include a low oil monitor,
automatic tank drain, and air cooled aftercooler.
These three feature help to extend the life of your
Atlas air compressor while also delivering “better air”.
sPeCIFICatIONs
Motor Running 5.0 Horsepower
Delivered-CFM 100PSI 19.6
Delivered-CFM 175PSI 18.4
Pressure Setting 145 lb. - 175 lb.
Motor Voltage 230VAC 1PH
AF8
Two Stage 80 Gallon
A
I
R
F
O
R
C
E
AF8 PLUS Two Stage 80 Gallon
A
I
R
F
O
R
C
E
Features
• Quiet Operation
• Heavy Duty Metal Belt Guard
• Shipping Weight: 390 lb.
• Vibro-isolator Pads
Features
• Quiet Operation
• Heavy Duty Metal Belt Guard
• Shipping Weight: 380 lb.
• Vibro-isolator Pads
Features
• Quiet Operation
• Heavy Duty Metal Belt Guard
• Shipping Weight: 485 lb.
• Vibro-isolator Pads
Features
• Quiet Operation
• Heavy Duty Metal Belt Guard
• Shipping Weight: 589 lb.
• Vibro-isolator Pads
Features
• Mounted Magnetic Starter
• Heavy Duty Metal Belt Guard
• Shipping Weight: 485 lb.
• Vibro-isolator Pads
WE ARE NOT RESPONSIBLE FOR MISPRINTS.
PRICES AND SPECIFICATIONS ARE SUBJECT TO CHANGE.
1.800.711.5031
AF3
Single Stage
60 Gallon
The Atlas AF9/17 is capable of
providing adequate air for the
medium to large shop owner.
sPeCIFICatIONs
Motor Running 7.5 Horsepower
Delivered-CFM 100PSI 24.8
Delivered-CFM 175PSI 22.8
Pressure Setting 145 - 175
Tank Capacity 80 Gal.
Motor Voltage 230VAC 1PH 60Hz
AF9/17
Two Stage 80 Gallon
A
I
R
F
O
R
C
E
Features
• 1725 RPM Motor
• Quiet Operation
• Magnetic Starter
• Heavy Duty Metal Belt Guard
• Vibro-isolator Pads
• Shipping Weight: 627 lb.
AF9/17 PLUS Two Stage 80 Gallon
A
I
R
F
O
R
C
E
The “PLUS” features for our commercial grade two stage air compressors
include a low oil monitor, automatic tank drain, and air cooled aftercooler.
These three feature help to extend the life of your Atlas air compressor while
also delivering “better air”.
The Atlas Air Force AF-10 is available in either 1 phase or 3 phase, 10 HP motor configuration. This air
compressor is designed for the service center that demands a lot of air! The AF-10 has a 120 gallon ASME
certified storage tank. The heavy duty extra large three cylinder two stage pump delivers over 36 CFM @ 175 PSI.
AF10 PLUS 1 Phase And 3 Phase
Two Stage 120 Gallon
Features
• Magnetic Starter
• Auto Drain
• Air Aftercooler
• Heavy Duty Metal Belt Guard
• Automatic Low Oil Shut Off
• Vibro-isolator Pads
• Shipping Weight: 969 lb
sPeCIFICatIONs
Motor Running 10 Horsepower
Delivered-CFM 100PSI 38
Delivered-CFM 175PSI 36.3
Pressure Setting 145 lb. - 175 lb.
Tank Capacity 120 Gal.
Motor Voltage
230VAC 1PH or 3PH 60Hz
sPeCIFICatIONs
Motor Running 11.0 Horsepower
Delivered-CFM
100PSI
19.6
Delivered-CFM
175PSI
18.4
Pressure Setting 145 lb. - 175 lb.
Tank Capacity 30 Gal.
Gasoline Engine 4 Cycle Air Cooled OHV
Single cylinder
Starting System 12VDC Electrical or Recoil
Compressor Pump CT51 2 Cylinder 2 Stage
This air compressor is equipped with the
super reliable Honda GX390 11 HP electric
start gas engine. The ATLAS AF13 gas
powered air compressor features a pneumatic
throttle control, electric start, vibro-isolator
pads, charging system, and head unloaders.
This is the perfect air compressor for the
highway service truck.
AF13 Gas Powered 30 Gallon
A
I
R
F
O
R
C
E
Features
• Honda GX390 11
HP Electric Start
Gas Engine
• Heavy Duty Metal Belt Guard
• Vibro-isolator Pads
• Shipping Weight: 627 lbs
Rotary Screw Air Compressor
Single Phase 80 Gallon
sPeCIFICatIONs
Motor Running 7.5 Horsepower
Delivered-CFM 150PSI 28
Air Outlet Size 2” NPT
Magnetic Start NEMA 1 Full Voltage
Tank Capacity 80 Gal.
Motor Voltage
220V/ Single Phase
A
I
R
F
O
R
C
E
A
I
R
F
O
R
C
E
Features
• Magnetic Starter
• Auto Drain
• Air Aftercooler
• Sound Enclosure
• Oil Temperature Gauge
• Motor Overload Protection
• MADE IN THE U.S.A.
• 2 Year Motor and Air End Warranty
Atlas rotary screw air compressors are built in the USA and incorporate one
of the most reliable, high performance air ends in the Industry. Atlas rotary
screw air compressor may be ordered in a variety of configurations to best
accommodate your air supply requirements.
ATAF-RS-2
Available In
1 Phase Or 3 Phase
Designed For
Service Trucks
FINANCING
AVAILABLE
WE ARE NOT RESPONSIBLE FOR MISPRINTS.
PRICES AND SPECIFICATIONS ARE SUBJECT TO CHANGE.
www.GregSmithEquipment.com
SG Iron Mechanics Vise
Made from indestructible SG (spheroidal graphite) iron, Black Steel
mechanics vises are great for home shops or commercial applications.
TGM-10204
Shipping Weight: 27 lbs.
TGM-10205
Shipping Weight: 37 lbs.
TGM-10206
Shipping Weight: 48 lbs.
TGM-10208
Shipping Weight: 58 lbs.
SG Iron Multipurpose Vise
With A Swivel Base
SG iron vises are manufactured from Spheroidal Graphite Iron. They have
higher mechanical strength ductility and increased shock resistance and are
GUARANTEED UNBREAKABLE!
TGM-10404
Shipping Weight: 31 lbs.
TGM-10406
Shipping Weight: 48 lbs.
TGM-10405
Shipping Weight: 39 lbs.
SG Iron Workshop Vise
Made from indestructible SG (spheroidal graphite) iron, Black Steel
workshop vises are great for home shops or commercial applications.
TGM-10704
Shipping Weight: 13 lbs.
TGM-10705
Shipping Weight: 20 lbs.
TGM-10708
Shipping Weight: 42 lbs.
TGM-10706
Shipping Weight: 27 lbs.
• Anvil
• Heavy duty fixed base
• Replaceable hardened
steel serrated top jaws
• Made from indestructible SG iron
Fabricated Steel Offset Vise
Made from indestructible SG (spheroidal graphite) iron, Black Steel fabricated steel
offset vises are great for home shops or commercial applications.
TGM-12004
Shipping Weight: 29 lbs.
TGM-12005
Shipping Weight: 48 lbs.
TGM-12008
Shipping Weight: 128 lbs.
TGM-12006
Shipping Weight: 56 lbs.
• Heavy duty fixed base
• Fabricated SG steel
• Replaceable hardened
steel serrated top jaws
• Heavy duty fixed base
• Replaceable hardened
steel serrated top jaws
• Made from indestructible SG iron
TGM-102045
Shipping Weight: 27 lbs.
• Anvil
• Heavy duty swivel base
• Replaceable hardened
steel serrated top jaws
• Made from indestructible
SG iron
SG Iron Mechanics Vise
With Anvil And Pipe Jaws
Made from indestructible SG (spheroidal graphite) iron, Black Steel
mechanics vises are great for home shops or commercial applications.
TGM-10205WA
Shipping Weight: 36 lbs.
• Anvil
• Heavy duty fixed base
• Replaceable hardened
steel serrated top jaws
• Made from indestructible
SG iron
TGM-10206WA
Shipping Weight: 47 lbs.
SG Iron Industrial Vise With
Swivel Base, Pipe Jaws & Anvil
• Anvil
• Pipe jaws
• Heavy duty swivel base
• Replaceable hardened
steel serrated top jaws
• Made from indestructible SG iron
TGM-10826
Shipping Weight: 39 lbs.
10” Bench Vise
HTVISE-10
6” Bench Vise
HTVISE-6
5” Bench Vise
HTVISE-5
• 5” jaw width
• Opens up to 6”
• Dimensions:
14” L x 8” W
• Shipping weight: 44 lb.
• Rotating base for
exact positioning
• Replaceable steel jaws
• Anvil surface
Features
Features
• 6” jaw width
• Opens up to 7”
• Dimensions:
18 1/2” L x 9” W
• Shipping weight:
71 LB.
• Rotating base for
exact positioning
• Replaceable steel
jaws
• Anvil surface
Features
• 10” jaw width
• Opens up to 11”
• Dimensions:
23” L x 11 1/2” W
• Shipping weight: 145 Lb.
• Rotating base for exact positioning
• Replaceable steel jaws
• Anvil surface
SG Iron Offset Vise With Anvil
TGM-10604
Shipping Weight: 73 lbs.
• Anvil
• Heavy duty fixed base
• Replaceable hardened
steel serrated top jaws
• Made from indestructible SG iron
TGM-10606
Shipping Weight: 136 lbs.
SG Iron Vise With Quick
Release Mechanism
• Anvil
• Heavy duty fixed base
• Replaceable hardened
steel serrated top jaws
• Made from
indestructible SG iron
• Quick release mechanism
• Pipe jaws
TGM-10106
Shipping Weight: 90 lbs.
L
I
F
E
T
I
M
E
W
A
R
R
A
N
T
Y
L
I
F
E
T
I
M
E
W
A
R
R
A
N
T
Y
L
I
F
E
T
I
M
E
W
A
R
R
A
N
T
Y
L
I
F
E
T
I
M
E
W
A
R
R
A
N
T
Y
L
I
F
E
T
I
M
E
W
A
R
R
A
N
T
Y
L
I
F
E
T
I
M
E
W
A
R
R
A
N
T
Y
L
I
F
E
T
I
M
E
W
A
R
R
A
N
T
Y
L
I
F
E
T
I
M
E
W
A
R
R
A
N
T
Y
WE ARE NOT RESPONSIBLE FOR MISPRINTS.
PRICES AND SPECIFICATIONS ARE SUBJECT TO CHANGE.
1.800.711.5031
• Air or manual
operated
• 8 Heavy duty cast
iron dies from
1/2” to 3”
• Adjustable top
rollers for a degree
of bends up to 90°
• Horizontal and
vertical positions
• 9 1/2” jack stroke
• Spring return rams
for fast
ram retraction
• 100 - 120
working PSI
16 Ton Hydraulic
Pipe Bender
• 8 Heavy duty cast
iron dies from
1/2" to 3"
• Adjustable top
rollers for a degree
of bends up to 90°
• Horizontal and
vertical positions
• 9 1/2" jack stroke
• Spring return
rams for fast ram
retraction
12 Ton Hydraulic
Pipe Bender
• Heavy duty cast
iron dies, from
1/2” to 2”
• Horizontal and
vertical positions
• Adjustable
top rollers for
degree of bends
up to 90°
• Spring return
ram for fast ram
retraction
16 Ton Air/Hydraulic
Pipe Bender
• Air or manual
operated
• Heavy duty cast
iron dies,
from 1/2” to 2”
• Horizontal and
vertical positions
• Adjustable top
rollers for
degree of bends
up to 90°
• Spring return
ram for fast ram
retraction
HTPB12 HTPB16
HTPB12-AIR
HTPB16-AIR
12 Ton Hydraulic/Air
Pipe Bender
Ben Pearson Pipe Bender
With Super Die Package
• Uses a double-ended cylinder for both
solid and segmented end finishing.
• Easy toggle clamp design for
clamping collets
• Features Ben Pearson
quick-disconnect end-finishing tooling
• Powered by a hefty motor
• Complete with tooling package -
Super 110 or Super 150
Our Ben Pearson line of benders is truly the ultimate in bender technology. Incorporating
state-of-the-art technology, these pipe benders lead the industry in operator convenience.
Designed to accommodate Ben Pearson bending dies and end-finishing tooling.
• 750 lb. capacity
• Table Top Dimensions:
19.5” wide x 36” long
• Maximum Height 54”
• Minimum Height 14.5”
• Shipping Weight:
220 Lbs.
• Hydraulic Foot
Pedal Operated
• Hand Release
Lowering Lever
• 1,100 lb. capacity
• Table Dimensions:
20” wide x 32” long
• Maximum Height 35”
• Minimum Height 11.5”
• Weight 260 lbs.
• Hydraulic Foot Pedal
Operated
• Hand Release
Lowering Lever
• 325 lb. capacity
• Table Dimensions:
18" wide x 28" long
• Maximum Height 29"
• Minimum Height 9"
• Weight 102 lbs.
• Hydraulic Foot
Pedal Operated
• Hand Release
Lowering Lever
750 lb. Capacity Scissor
Lift Table
1100 lb. Capacity
Table Truck
325 lb. Capacity
Table Truck
4,400 lb. Capacity
Pallet Jack
HTPJ20
Shipping Weight: 175 lbs.
HTPJ25
Shipping Weight: 270 lbs.
HTPJ30
Shipping Weight: 300 lbs.
5,500 lb. Capacity
Pallet Jack
6,600 lb. Capacity
Pallet Jack
HTTF15
HTTFD35 HTTF50
WE ARE NOT RESPONSIBLE FOR MISPRINTS.
PRICES AND SPECIFICATIONS ARE SUBJECT TO CHANGE.
www.GregSmithEquipment.com
7pc. Insulated
Screwdriver Set
8pc.
Screwdriver Set
10pc.
Screwdriver Set
Brake
Bleeder Kit
Tiger’s Paw
Adjustable
Wrench
Hawk Pipe Wrench
4-in-1 Reversible
Ratcheting
Wrench Set
Digital Torque
Adapter
26pc. SuperTech
Socket Set
14pc. SuperTech
Combination
Wrench Set
12pc. SuperTech
Ratcheting
Wrench Set
27pc. SuperTech
Socket Set
68pc. SuperTech
Socket And
Wrench Set
111pc. SuperTech
Socket And
Wrench Set
Drive Micrometer
Torque Wrench
• Capacity: 50-250 Ft-LB.
• Accuracy: ± 4%
• Length: 645 MM
• Weight: 6 lbs.
• Capacity: 100-600 Ft-LB.
• Accuracy: ± 4%
• Length: 1088 MM
• Weight: 13 lbs.
• Capacity: 100-700 Ft-LB.
• Accuracy: ± 4%
• Length: 1230 MM
• Weight: 15 lbs.
JW-DV14PP07S JW-D71PP08S JW-D70PP10S JW-AE300145
JW-W27AT8 JW-W27AT10 JW-W27AT12
JW-W28HD10 JW-W28HD12 JW-W28HD14
JW-S68H3126S JW-W84114S JW-W86112S
JW-S68H2468S
JW-S68H5234111S
6” Random Orbital
Sander
JW-JAS10206HE
JW-S68H4127S
3/4” Composite
Impact Wrench
JW-JAI0926
• Anti-Impact / Super Power / Light-Weight
• Recommended Air Pressure - 90 PSI
• Twin Hammer Mechanism
• Ergonomic Design Handle
1/2” Super Duty
Impact Wrench
JW-JAI1054L
1/2” Air Operated
Reversible Drill
JW-JAD6244A
3/8” Air Operated
Reversible Drill
JW-JAD6234A
8pc. Air Hammer
Kit (Round/Hex)
JW-JAH6832K
7 Drawer Tool Trolley
JW-C7DW9
• “One-drawer open system” creates a
safety operating condition to users.
• Ball Bearing design for smooth sliding
• Ergonomic end of drawer.
• Internal locking system for extra security.
• One piece steel cabinet body
• 5” x 2” casters
• 200 Lb. loading capacity for each caster
www.GregSmithEquipment.com
WE ARE NOT RESPONSIBLE FOR MISPRINTS.
PRICES AND SPECIFICATIONS ARE SUBJECT TO CHANGE.
1.800.711.5031
Grease Dispensing
Trolley Kit
Grease dispensing trolley for use
with 400 LB. grease drums.
• 50:1 air operated
pump with 36”
suction tube
• 23 1/2” drum cover
• 23” follower plate
• Grease gun
• Portable
Grease Dispensing
Trolley Kit
Grease dispensing trolley for use
with 35 LB. grease drums.
• 50:1 air operated pump
with 28” suction tube
• 12” drum cover
• 12” follower plate
• Grease gun
HT-A7701
HT-A7801
Grease dispensing trolley for use
with 400 LB. grease drums.
• 50:1 air operated pump
with 36” suction tube
• 23 1/2” drum cover
• 23” follower plate
• Grease gun
• Portable
• 50 Ft., 1/2” hose reel HT-A7901
Grease Dispensing
Trolley Kit
Oil Dispensing
Trolley Kit
Oil dispensing trolley includes: 5:1
air operated pump with 36” suction
tube, 50 ft., ½ in. retractable hose
reel, and digital oil gun.
• 5:1 air operated pump
with 36” suction tube
• 50 Ft., 1/2” in.
retractable
hose reel
• Digital oil gun HT-K9903
Stainless Steel,
Air Operated
Grease Pump
• Stainless steel
• Comes with hose and pump.
• 5 cu. in./min delivery
• 50:1 pressure ratio
• Portable
Practical, functional and compact,
the Atlas Stainless Steel Air
Operated Grease Pump can be
used in all workplaces. Enables
quick, high pressure greasing on
any motor vehicle or mechanism.
Equipped with a grease follower
plate that protects the lubricant
and ensures positive priming.
HT-K5002
Air Operated
Grease Pump
• Portable
• 50:1 pressure ratio
• 5 cu. in./ min delivery
• Comes with hose and pump
Practical, functional and compact, the Atlas
Air Operated Grease Pump can be used in all
workplaces. Enables quick, high
pressure greasing on any motor
vehicle or mechanism. Equipped
with a grease follower plate
that protects the lubricant and
ensures positive priming.
HT-K5001
Air Operated Oil
Pumps
Available in
compression ratios
of: 1:1, 3:1, and 5:1.
10.5” Suction Tube
HT-P142
28” Suction Tube
HT-P143
37” Suction Tube
HT-P144
Oil Guns Grease Guns
Our heavy duty
oil guns handle
motor oil, gear
oil, ATF and
more.
4 Gallon Oil Drain Pan
HTOP15
• Plastic
• 4 Gallon (15L)
Oil Drain Pan
• Shipping Weight: 5 Lb.
Transmission Funnel
HT-TDF
• Compatible with other oil drains
• Extends catch area of oil drain
• Made of heavy duty, flexible plastic
• Dimensions - 22” X 23”
50 Ft. Retractable
Enclosed Grease or Oil Reel
• Rated For 5,000 PSI
• Rubber Hose
• Heavy Duty Enclosed
Metal Frame
• Retractable
• Available in both
1/4” and 3/8” ID
• 50 Foot Hose Length
Features
HT-D9306402.015-3/8ID
HT-D9306402.015-1/4ID
50 Ft. Retractable
Grease or Oil Reel
• Rated For 5,000 PSI
• Heavy Duty Metal
Frame
• Rubber Hose
• Retractable
• Available in both
1/4” and 3/8” ID
• 50 Foot Hose length
Features
HTOHR-50-3/8
HT-D5106402.015-1/4ID
• Capacity: 20 Gallons
• Reservoir: 2’ 8 1/2” Long X
2’ 1” Wide X 6” Deep
• 25 1/2” Long T Bar Handle
• Internal Baffles Prevent Spills
• Shipping Weight: 98 Lb.
Features
20 Gallon Low Profile
This Atlas Low Profile metal oil drain is perfect for rolling under trucks and
buses to change oil and other fluids. This Low Profile roll around oil drain has
less than 8 inch ground clearance. With the long “T” handle and swivel casters
the oil drain is easily maneuvered into position.
HTOD-RU
33 Ft./50 Ft. Retractable
Air Hose Reel
50 Ft. Retractable
Welding Dual-Hose Reel
75 Ft. Retractable
Welding Dual-Hose Reel
100 Ft. Retractable Air
Hose Reel
65 Ft. Retractable Air
Hose Reel
Pivot Hose Reel Wall
Mount
360° Swivel Hose Reel
Wall Mount
33 Ft.
HTHR-33FT
Shipping Weight: 27 lbs.
50 Ft.
HTHR-50FT
Shipping Weight: 40 lbs.
65 Ft.
HTHR-65FT
Shipping Weight: 57 lbs.
100 Ft.
HTHR-100FT
Shipping Weight: 63 lbs.
50 Ft. 75 Ft.
HT-D3205202.015 HT-D3305202.023
HT-A11310
HT-A11330
8pc. Air Hammer
Kit (Round/Hex)
WE ARE NOT RESPONSIBLE FOR MISPRINTS.
PRICES AND SPECIFICATIONS ARE SUBJECT TO CHANGE.
www.GregSmithEquipment.com
• Set of two
• 10 ton capacity
• Maximum height: 30 1/4”
• Minimum height: 19”
• Adjustable heights
• Shipping Weight: 84 Lb.
Features
HT57501/HT512001
These deluxe trailer or truck jack stands work
great with a variety of vehicles because it features
adjustable height and three different contact
adapters. These jack stands also features three
spring loaded swivel casters, making it easy to move
but stable when weight is applied on top.
Deluxe 6 Ton/12 Ton
HT58001 HIGH
2 Ton Heavy Duty
Tripod Stand
The 2 ton heavy duty tripod stand is the
perfect choice for the mechanic who is
working on a vehicle that is lifted by a two
post lift or a four post lift. The adjustable 2
ton heavy duty tripod stand is used to offer
additional support to either the front or the
rear of the vehicle.
Features
• Minimum height: 48 ½”
• Maximum height: 84”
• Shipping Weight: 39 Lb. HT58001
Features
• Minimum height - 30”
• Maximum height - 53”
• Shipping Weight:
26 Lb.
HT52008 LOW
2 Ton Low Tripod Stand
The 2 ton low tripod stand is the perfect choice for the mechanic
who is working on a vehicle that is lifted by a two post lift or a
four post lift. The adjustable 2 ton low tripod stand is used to offer
additional support to either the front or the rear of the vehicle.
HT52008
HT510001
10 Ton (Set of 2)
HT510003
10 Ton TALL (Set of 2)
• Set of two
• 10 ton capacity
• Maximum height 48”
• Minimum height 29”
• Adjustable heights
• Shipping Weight 110 Lb.
Features
HT510003
The 1,500 LB. Tall Jack Stand with foot
pedal is used with four post lifts, and two
post lifts. This Atlas jack stand supports up
to 1,500 pounds. The jack stand can easily
be placed into position under the lifting
points of cars or trucks.
HT58005 & HT58003
Foot pedal “jounces” the saddle
to help line up bolt holes.
Features
• Minimum height - 54”
• Maximum height - 80”
HT58003
Shipping Weight: 39 lb.
HT58005
Shipping Weight: 41 lb.
With & Without Foot Pedal
HT512003
12 Ton With Rolling Wheels
(Set of 2)
Features
• 2 included
• Each holds up to 12 tons
• Adjustable from
28 5/8” to 48”
• Heavy duty
• Dimensions –
16 3/8” x 16 3/8”
• Shipping Weight:
150 lb.
HT512003
HT510001
• Adjustable from
20” to 31”
• Shipping Weight:
80 LBS.
Strut Spring Compressor
This manually operated Strut Spring
Compressor is designed to aid in
replacing strut springs and strut assembly
components. The Strut Spring Compressor
is adjustable to handle a wide variety of
strut spring sizes.
• Heavy duty capacity - handles
the heaviest coil over shocks
• Handles extra long springs -
room to disassemble long struts
• Gives easy strut access
• Independently adjustable upper
and lower hooks
Features
HTT01-SC
Air Operated Strut
Spring Compressor
8 Gallon
Oil Drain
This Air Operated Strut Spring Compressor is
designed to aid in replacing strut springs and
strut assembly components. The Strut Spring
Compressor is adjustable to handle a wide
variety of strut spring sizes.
• Fully Adjustable To Fit A Wide
Variety Of Strut Springs.
• Air Operated
• Heavy Duty
• Shipping Weight: 150 LBS.
• Shipping Dimensions:
55” x 23” x 12”
Features
HT1206
• Four swivel casters
make it portable and
easy to maneuver
• Oil drain valve makes
disposal easy
• 17” funnel diameter
• Plastic
Features
HTA30L
Shipping Weight: 15 lbs.
TPOD18
Shipping Weight: 20 lbs.
18 Gallon
Oil Drain
HT57501
6 Ton
Shipping Weight: 160 lbs.
HT512002
HT56002/HT512002
6 Ton/12 Ton Jack Stands
(Set of 2)
HT56002
• Adjustable from
16” to 24”
• Shipping Weight:
38 lbs.
HT512001
12 Ton
Shipping Weight: 190 lbs.
• Pressurized oil drain allows
oil to be removed in seconds
• 15” funnel diameter
• Adjustable from 46” to 76”
• Shipping Weight: 56 lb.
Features
18 Gallon Steel Oil Drain
HTOD18-EX
To evacuate the oil from the container,
simply hook an air line to the unit,
turn the valve, and the oil is forced out
through the evacuation tube.
To evacuate the oil from the container,
simply hook an air line to the unit,
turn the valve, and the oil is forced out
through the evacuation tube.
28 Gallon Steel Oil Drain
HT0D28
• 28 gallon capacity
• Adjustable Height from
47 1/4” - 65”
• Pressurized oil drain allows
oil to be removed in seconds
• Two front swivel casters
make it portable and easy
to maneuver
• 18 3/4” funnel diameter
• Shipping Weight: 70 lb.
Features
18 Gallon Oil Extractor
This Atlas 18 gallon capacity Oil Extractor and Oil
Drain is perfect for any commercial or home shop.
This oil drain/extractor features both a standard
funnel to catch drained oil from overhead as well
as a vacuum system to suck oil out of an engine.
• Steel
• Measuring tank
• 3” Solid rubber rear
swivel casters
• 5” Solid rubber front
wheels
• Dolly handle
• 3 probe adapters –
2 plastic, 1/4” and
5/16” diameter,
1 copper,
1/4” diameter
Features
HTOD18-EX
25 Gallon Capacity
Steel Gas Caddy
Perfect for homes, shops, marinas, farms, or
anywhere you need to easily transport and
dispense fuel. The Atlas gas caddy features
heavy duty steel construction, rugged solid
rubber wheels and a dolly handle for easy
portability. Works with gasoline, kerosene,
diesel, or mixed fuels.
HTGC
• Heavy duty steel construction
• Two way rotary pump
(for siphoning and dispensing)
• Fluid level gauge
• 8” solid rubber tires
• 8’ flexible hose
• Shipping weight 75 lb.
Features
WE ARE NOT RESPONSIBLE FOR MISPRINTS.
PRICES AND SPECIFICATIONS ARE SUBJECT TO CHANGE.
1.800.711.5031
Features
• Non-slip rubber liners
in every drawer
• Rugged 5” Poly-coated
steel, 2 stationary
and 2 lockable swivel
casters
• Heavy duty handles
on both sides for easy
movement
• Large, spacious
drawers equipped with
ball bearing
slides for easy access
• Keyed locking system
for better security
Specifications
Overall Dimensions 46 ½” Wide (42” w/o handles)
X 18 ½” Deep X 5’ 1” High
Shipping Weight: 540 LBS
The 21 Drawer Tool Cabinet is a great value for anyone looking
to organize and store their tools. The 21 drawer tool cabinet is
constructed of high quality steel. The cabinet includes ball bearing
slides on the drawers making them easy to open and close and also
has non-slip rubber liners in every drawer. This cabinet is easily
movable as well, featuring heavy duty 5” poly-coated swivel casters.
21 Drawer Tool Cabinet
HTTB4411BBS
The 10 Drawer Tool Cabinet (Top Section of 21 Drawer Tool Cabinet) is a great value for
anyone looking to organize and store their tools. The 10 drawer tool cabinet is constructed of
high quality steel. The cabinet includes ball bearing slides on the drawers making them easy
to open and close and also has non-slip rubber liners in every drawer. Why spend $1000 or
more on a tool box when you can get the same quality and features in the 10 drawer tool
cabinet for less.
HTTB4411BBS-TOP
10 Drawer Tool Cabinet
Specifications
Overall Dimensions 93 ½” Wide (Including Side Cabinet) 73 3/8”
(w/out Side Cabinet) X 29 3/8” W X 72 3/16”H
Shipping Weight: 220 LBS
Features
• Non-slip rubber liners
in every drawer
• Heavy duty handles on both
sides for easy movement
• Large, spacious drawers equipped
with ball bearing slides for easy
access
• Keyed locking system for
better security
The 11 Drawer Tool Cabinet (Bottom Section of 21 Drawer Tool Cabinet) is a great value for anyone
looking to organize and store their tools. The 11 drawer tool cabinet is constructed of high quality steel.
11 Drawer Tool Cabinet
Features
• Non-slip rubber liners in every drawer
• Rugged 5” Poly-coated steel, 2
stationary and 2 lockable swivel casters
• Heavy duty handles on both sides for
easy movement
• Large, spacious drawers equipped with
ball bearing slides for easy access
• Keyed locking system for better security
Specifications
Overall Dimensions 46 ½” Wide (42” w/o handles) X 18 ½”
Deep X 3’ 4” High
Shipping Weight: 320 LBS
HTTB4411BBS-BKBTM
The 16 Drawer Deluxe Tool Cabinet is a great value for any individual or commercial shop looking to
organize and store tools in safety and style. The Deluxe 16 drawer tool cabinet features heavy duty steel
construction throughout the top and bottom and has dual slides on most drawers to easily support a large
quantity of tools. The cabinet includes ball bearing slides on all the drawers making them easy to open and
close and also has non-slip rubber liners for every drawer.
Specifications
Overall Dimensions 60 ½” Wide (56 ½” w/o Handles)
X 22” Deep X 5’ 7 ½” High
Shipping Weight: 1070 LBS
HTTB8011
• Non-slip rubber liners
• Rugged, large 6” Poly-coated
steel, 2 stationary casters and
2 lockable swivel casters
• Heavy duty padded handles on
both sides for easy movement
• Large, spacious drawers with ball
bearing slides for easy access
• Dual slides on most drawers for
extra stability and strength
• Exclusive drawer lock system,
keeps drawers closed when
the keyed lock is not engaged
• Keyed locking system for better security
• Two spacious upright tool
storage areas for hanging tools
or storing tool cases
Features
Features
• Non-slip rubber liners
• Heavy duty padded handles on
both sides for easy movement
• Large, spacious drawers with ball
bearing slides for easy access
• Dual slides on most drawers for extra
stability and strength
• Exclusive drawer lock system,
keeps drawers closed when the
keyed lock is not engaged
• Keyed locking system for better security
• Spacious upright tool storage area for
hanging tools or storing tool cases
Specifications
Overall Dimensions 60 ½” (5’ ½”) Wide (56 ½”
w/o Handles) X 22” Deep
X 25” (2’ 1”) High
Shipping Weight: 400 LBS
Deluxe 5 Drawer Tool Cabinet
The Deluxe 5 Drawer Tool Cabinet (Top Section of Deluxe 16 Drawer Tool Cabinet) is a great value for
any individual or commercial shop looking to organize and store tools in safety and style. The 5 Drawer
Deluxe Tool Cabinet features heavy duty construction throughout and has dual slides on most drawers to
easily support a large quantity of tools. The cabinet includes ball bearing slides on all the drawers making
them easy to open and close and also has non-slip rubber liners for every drawer.
HTTB8011-TOP
The 11 Drawer Deluxe Tool Cabinet (Bottom
Section of the 16 Drawer Deluxe Tool
Cabinet) is a great value for any individual
or commercial shop looking to organize
and store tools in safety and style. The 11
Drawer Deluxe Tool Cabinet features heavy
duty construction throughout and has dual
slides on most drawers to easily support a
large quantity of tools.
Deluxe 11 Drawer Tool Cabinet
Specifications
Overall Dimensions 60 ½” Wide (56 ½” w/o Handles)
X 22” Deep X 3’ 6 ½” High
Shipping Weight: 670 LBS
HTTB8011-BOTTOM
Features
• Non-slip rubber liners
• Rugged, large 6” Poly-coated
steel, 2 stationary casters and 2
lockable swivel casters
• Heavy duty padded handles on
both sides for easy movement
• Large, spacious drawers with ball
bearing slides for easy access
• Dual slides on most drawers for
extra stability and strength
• Exclusive drawer lock system,
keeps drawers closed when the
keyed lock is not engaged
• Keyed locking system for
better security
• Spacious upright tool storage
area for hanging tools or storing
tool cases
16 Drawer Tool Cabinet
WE ARE NOT RESPONSIBLE FOR MISPRINTS.
PRICES AND SPECIFICATIONS ARE SUBJECT TO CHANGE.
www.GregSmithEquipment.com
The HTMB275 tire spreader can be used with most wheel
clamp tire changers. The metal mounting plate is held securely
between the clamping jaws of the tire changer, allowing the
operator to position the tire at the correct working height to
make tire repair easy. The HTMB275 has adjustable spreader
arms that fit on the inside beads of the tire and are spread
open by use of the heavy metal arm. The 275 tire spreader is
the perfect choice for those customers who need to perform
inside tire repairs on most passenger and light truck tires. This
tire spreader can be bolted to a workbench.
HTMB275
Features
• Adjustable clamping arms
• Easy to use
• Portable
Specifications
Tire Width Capacity: 5 ¾” TO 10 ¾”
Overall Dimensions: 35” L x 12” W x 10 1/2” H
Shipping Weight: 25 Lb.
Passenger and Light Truck
Passenger and Light Truck
The HTM275 tire spreader is a heavy duty tire
spreader designed for use in shops that repair
passenger and light truck tires. The HTM275 has an
adjustable four (4) position table that can be rotated
for easy access to the inside of the tire. The foot pedal
controls the position of the table top. Depressing the
spring actuated foot pedal allows operator to move
the table top to the most desired position. The tire
is rotated easily on the heavy rollers mounted on
the table top. The spreader arms are adjustable to
accommodate passenger and light truck tires.
Features
• Portable
• Adjustable clamping arms
• 4 position table tilt
• Rotatable table design
• Makes tire inspections and repair
quick & easy
• Adapts to varying sidewall heights
and tire widths
Specifications
Tire Width Capacity: 5 ¾” TO 10 ¾”
Tire Diameter Capacity: 11” TO 24”
Overall Dimensions: 30” L x 12” W x 39 3/4” H
Shipping Weight: 67 Lb.
HTM275
The HTM275 tire spreader is a heavy duty tire spreader
designed for use in shops that repair passenger and light
truck tires. The HTM275 has an adjustable four (4) position
table that can be rotated for easy access to the inside of
the tire. The foot pedal controls the position of the table top.
Depressing the spring actuated foot pedal allows operator
to move the table top to the most desired position. The tire
is rotated easily on the heavy rollers mounted on the table
top. The spreader arms are adjustable to accommodate
passenger and light truck tires.
Features
• Portable
• Adjustable clamping arms
• 4 position table tilt
• Rotatable table design
• Makes tire inspections and
repair quick & easy
• Adapts to varying sidewall
heights and tire widths
Specifications
Tire Width Capacity: 5 ¾” TO 10 ¾”
Tire Diameter Capacity: 11” TO 24”
Overall Dimensions: 30” L x 12” W x 39 3/4” H
Shipping Weight: 67 Lb.
HTS275
Passenger and Light Truck
Features
• Easy to use hand operated
controls
• Adjustable clamping arms
• Pressure gauge & regulator
assembly
• Tool Tray
• Adjustable light
• Air outlet for air tool connection
The HTS825 truck tire spreader makes it easy to lift
and repair large truck tires. The powerful pneumatic
lifting table can accommodate tires of up to 250 lbs.
and raises them to the perfect inspection and working
height. The adjustable clamping arms and rollers as
well as the pneumatic lift table allow the operator
to repair large and small truck tires (and passenger
tires) easily. If you are a professional tire repair shop
that handles all sizes of tires, then the HTS825 is
the perfect choice for all your tire repair needs. The
HTS825 tire spreader has an adjustable work light and
a tool tray.
Specifications
Tire Size Capability: 8.25-20; 14.00-20(9R-16.5R); R22.5
Air Requirements: 110-145 PSI
Work Light: 110V
Overall Dimensions: 64” L x 28” W x 42” H
Shipping Weight: 450 Lb.
HTS825
Large Truck
We Have Tire Chains!
We Stock Thousands Of Sets!
WE ARE NOT RESPONSIBLE FOR MISPRINTS.
PRICES AND SPECIFICATIONS ARE SUBJECT TO CHANGE.
1.800.711.5031
SBC350 Sandblast Cabinet
The SBC350 sandblast cabinet features switches for power, light and dust collector, a
regulator and pressure gauge, and indicator lights. The unit comes with 2 blasting nozzles:
a heavy-duty gun with valve, and a stationary nozzle that is controlled with the foot switch.
Two large side doors make loading and unloading simple.
• 37 1/8” W x 23 5/8” D
22 1/2” H work volume
• Clear reinforced media tube
connects to
bottom of hopper.
• Large side load doors.
• Powerful, self-contained dust
collection
system with cartridge filter
and convenient bottom gate
clean-out
• 110 volt
• Powder coat paint
• Interior fluorescent light
• Shipping weight: 240 lb.
Features
SBC420 Sandblast Cabinet
The SBC 420 Sandblast Cabinet has an attached vacuum system. The
SBC420 allows you to load parts from both the side and top of the cabinet.
• Easy operation
• Continually recycles
• Bottom feed system
• Abrasive flexibility
• NE490 Power gun with
foot pedal
• 4 Ceramic nozzles
• Heavy 14 gauge steel
construction
• 2 side doors as well as
top load door
• 110 Volt
• 24” Gauntlet gloves
• Built-in fluorescent lamp
• Shipping Weight: 375 lb.
Features
SBC990 Sandblast Cabinet
The SBC 990 Sandblast Cabinet has an attached vacuum system. The SBC990 allows you to
load large parts through it’s large folding front door.
• Large folding front door
• Easy operation
• Continually recycles
• Abrasive flexibility
• NE490 Power gun with
foot pedal
• 4 Ceramic nozzles
• 2 side doors as well as
top load door
• 110 Volt
• 24” Gauntlet gloves
• Built-in fluorescent
lamp
• Shipping Weight:
490 lb.
Features
The SBC220 allows you to remove scale or
heavy rust from automotive parts, clean up rusty
tools, etch glass, or any other special application.
SBC220 Sandblast Cabinet
• Easy operation
• Continually recycles
• Heavy 14 gauge steel
construction
• Interior fluorescent light
• Low air supply design
• Free exhaust fan
• Shipping Weight: 115 LBS.
SBC90 Sandblast Cabinet
• Convenient table top model
• Easy operation
• Continually recycles
• Abrasive flexibility
• Low air supply design
• Top load door
• Interior fluorescent light
• Interior dust filter
• 17” Gauntlet Gloves
• Shipping Weight: 40 lbs.
HTRA20
20 Gallon Roll About
Sandblast Unit
• Easy operation
• Abrasive flexibility
• Portable
• 110V Power
• Heavy duty 8’ 3/8” hose
• 6” solid tires
• Tilt-and-go handle for
increased mobility
• Concave head for ease of filling
• Carbon steel abrasive mixing
valve for durability and long life
• Shipping Weight: 60 lbs.
Complete Gun
Assembly
Abrasive Gun Glass Bead
Blasting Media
50 lbs.
Gloves
For Atlas
Sandblast Cabinets
Ceramic
Nozzles
Peel-Off Lens
For Atlas
Sandblast Cabinets
Fluorescent
Light Bulb
HTSB28
28 Gallon Roll About
Sandblast Unit
With Vacuum
• Easy operation
• Abrasive flexibility
• Portable
• 110V Power
• 110V Vacuum
• Heavy duty hose
• 6” solid tires
• Concave head for ease of filling
• Carbon steel abrasive mixing
valve for durability and long life
• Shipping Weight: 90 lbs.
HTSBC90
HTSBC220
HTSBC350-KIT HTSBC420-KIT
HTSBC990-KIT
HTRA20
HTSB28
WE ARE NOT RESPONSIBLE FOR MISPRINTS.
PRICES AND SPECIFICATIONS ARE SUBJECT TO CHANGE.
www.GregSmithEquipment.com
2 Ton Folding Engine
Crane
2,000 LB. Capacity
Folding Engine
Stand
1,250 LB. Engine
Stand
2 Ton Air/Hydraulic
Foldable Engine Crane
• Four position telescoping
boom adjusts from 1/2 ton
to 2 ton capacity
• 8 ton capacity long ram
hydraulic jack
• Two adjustable front
telescoping legs
• Six heavy duty ball bearing
swivel front and rear casters
• Shipping Weight: 193 LBS.
• Air/hydraulic operated
• Used for maneuvering
engines, transmissions,
or heavy loads
• Adjustable telescoping
boom - 4 different
positions
• Large diameter ram
makes lifting easy
• Rear swivel casters
• Rotating backing plate
• Shipping Weight: 88 LBS.
• Fully adjustable mounting head
• Shipping Weight: 67 LBS.
IIT37695 HT72501 HTES2000 HTES1250
• 1000 lb. capacity
• Fits most Small Block Chevy engines
• FOUR heavy duty casters for easy
maneuverability
• Used for storing, transporting, and
working on “in progress” engines
• Low design for maximum stability
when working on engines
• Shipping Weight: 21 LBS.
600 LB. Engine
Support Bar
• Minimum width: 44 1/2”
• Maximum width: 62”
• Shipping Weight: 33 LBS.
Engine Cradle
1000 LB. Engine
Support Bar
• Width: 59”
• Shipping Weight: 41 LBS.
Load Leveler
• 1,500 LB. capacity
• 20 1/4” steel frame
• Shipping Weight: 15 LBS.
IIT37721
HT1703
HT1701
HTEC
Clutch And
Flywheel Handler
• Handles 14” & 15 ½”
clutch assemblies
• 150 LB. capacity
• Lifting range of 9” to 37”
• Swivel casters provide easy
maneuverability
• 2” Spline With 1 ¼” Pilot
• Shipping Weight: 100 LBS.
The Atlas Clutch & Flywheel Handler makes clutch & flywheel removal
and installation a one man job. Easily remove, install, and transport (in
lowered position) 14” & 15 ½” heavy duty clutches and flywheels.
Truck Clutch And
Flywheel Handler
• Handles 14” & 15 ½” Clutch Assemblies
• 300 LB. Capacity
• Low Clearance
• Swivel casters provide easy
maneuverability
• 2” splined shaft with a 1 ¼” pilot
• 360º swivel head
• Shipping Weight: 125 LBS.
The Atlas Truck Clutch & Flywheel Handler makes heavy
duty truck clutch & flywheel removal and installation a one
man job. Easily remove, install, and transport (in lowered
position) 14” & 15 ½” heavy duty clutches and flywheels.
• Maximum Height: 44 1/2”
• Minimum Height: 24”
• One piece handle
• Replacement jack for engine hoists
• Shipping Weight: 27 lbs.
• Round Base
8 Ton Double Pump Long
Ram Jack with Hook
IIT36705
3 Ton Hydraulic Engine Crane
The 3 Ton Hydraulic Engine Crane is strong, durable, versatile, and
a real space saver! This Cherry Picker’s strong design allows for
maximum lifting power at a minimum of shop space
• 3 Ton Capacity
• Hydraulic operated
• Used for maneuvering engines,
transmissions, or heavy loads
• Adjustable length legs for stability
• Large diameter ram makes lifting easy
HT73001
HT5320
HT5330
WE ARE NOT RESPONSIBLE FOR MISPRINTS.
PRICES AND SPECIFICATIONS ARE SUBJECT TO CHANGE.
1.800.711.5031
“Move-It” Dollies (Set of 4) Hydraulic
Style
MOVING YOUR VEHICLE IS
MUCH EASIER WITH A SET OF
“MOVE-IT” DOLLIES!
• 1500 lb. capacity per dolly
• 22” maximum distance open
• 11” maximum distance closed
• 12”: width of wheel guard
• Shipping weight (4): 166 lbs.
• 1250 lb. capacity per dolly
• 23” maximum distance open
• 11” maximum distance closed
• 9”: width of wheel guard
• Shipping weight (4): 176 lbs.
Our “Move-It” dolly system is the easy answer
for moving cars in your garage. These dollies
allow operators to lift the car in seconds with the
built-in jacking mechanism – then just roll the
car to the desired location. This unique system
makes the need for a separate jack obsolete.
HTMD
HTMDRS
Ratchet Style
Wheel Dollies (Set of 4)
• Each dolly has four swivel
casters which hold up to 1000 lbs.
• Ball bearing swivels
• Dimensions: 15 1/4” W x 23 3/4” L
• Shipping Weight: 96 LBS. IIT17340
“Move-It” Dolly Storage Rack
• Store and move up to 4 dollies
• Shipping weight: 21 LBS.
HTMD-RACK
1,000 LB. Dual Wheel Dolly
The hydraulic system on this Dual Wheel Dolly makes it easy to remove and install dual wheel assemblies.
• 1,000 LB. Capacity
• Working range:
3 ½” – 10 ¾”
• 6 ft. support Chain
included
• Two mounting
positions for Lift
Arms.
• Steel wheel casters:
two 3 ½” stationary
in front & one
3 ½” swivel in rear
• Floor Dimensions:
40” L x 40” W
• Height:
29 ¼” – 35 ¼”
• Lift Arm Length:
23 ¾”
• Lift Arm Spread:
Outer Position 25”/
Inner Position 21”
• Lift: 6 ¼”
• Shipping Weight:
150 lbs
1,500 LB. Heavy Duty Wheel Dolly
The hydraulic system on this heavy duty Dual Wheel Dolly makes it easy to remove and install dual
wheel assemblies from even the largest truck.
• 1500 lb capacity
• For wheels up to 52”
diameter
• 6 ft. Support Chain
included
• Steel wheel roller
bearing casters: two
3 ½” in front & one
3” in rear
• Tilt Frame and
Rolling Lift Arms
for easy positioning
of dual wheel
assemblies.
• Overall Dimensions:
43” W x 51” L x
35” H
• Lift Arm Length: 26”
• Lift Arm Spread:
21” – 25”
• Lift: 9 ¼”
• Ram Travel 4 ¾”
• Shipping weight:
155 lbs.
Heavy Duty Wheel Dolly
This Heavy Duty Wheel Dolly is perfect for farm and shop use. This wheel dolly works with
large truck wheel assemblies, implement tires, farm tractors and machinery, and other
equipment requiring wheel changes. This dolly features hydraulic lifting action and heavy
duty rollers which make it easy to lift tires for moving and the heavy duty swivel casters
which make it a snap to transport wheels from one location to another.
HT712001
HT2301
HT90751
Tire Rack & Carrier
HTT250
Tire Caddy
• Adjustable Width makes it
easy to load without using
your hands.
• Will Handle Tires Stacked up
to 5 Ft. High.
• Maximum Width: 30 inches
• Minimum Width: 12 inches
• Caddy Height: 60 inches
Features
• 3,300 LB. capacity
• Accommodates wheel
diameters from 39” - 83”
• Maximum wheel width: 31 ½”
• Hydraulic
• Shipping Weight: 330 LBS
Tire Inflation Cage
Mandatory for any shop working with tubeless and multi-piece rims.
Made from heavy-gauge steel tubing welded to a steel base.
Guards against blown lock rings and rims.
• Heavy Duty
• 4 Bar Heavy-Gauge Steel Tubing
• Heavy Steel Base
• Guards against blown lock rings
and rims
HT400
HTT400
WE ARE NOT RESPONSIBLE FOR MISPRINTS.
PRICES AND SPECIFICATIONS ARE SUBJECT TO CHANGE.
www.GregSmithEquipment.com
Rubber Buffer Vulcanizing
Cement
Tire Mounting
Paste
Tire Mounting
Compound
Bead Liner Bead Bustr
Valve Caps/
Valve Cores
Bead Sealer
Radial Tire Repair
Roller
Stitcher
Patches
Passenger
Repair Kit
Emergency
Repair Kit
Truck Repair Kit Inner Liner
Scraper
Decorative
Valves
Rubber Valves Tire Dunk Tank
Fibre-Seal
Toolbox Kit
Euro-Paste Brush Pull-a-Stem Valve
Installation Tool
Cotton Tire Swab
Power Rasp Bore Core
Remover Tool
Tire Tool Low Speed
Tire Buffer
Digital Air
Inflation Gun
Markal
Paintstik
Brass Sidewall
Brush
Lube Bucket
Digital Air
Pressure Gauge
Air Inflation Gun
With LCD Display
WE ARE NOT RESPONSIBLE FOR MISPRINTS.
PRICES AND SPECIFICATIONS ARE SUBJECT TO CHANGE.
1.800.711.5031
is celebrating over 30 years in the automotive aftermarket equipment
business. We have seven brick and mortar showroom/warehouse
locations. We employ knowledgeable, service oriented equipment
professionals who can assist you before and after the sale. We stock
parts and accessories for all equipment that we sell.
We are proud of our website and encourage prospective buyers, who
cannot visit one of our showrooms, to “surf” our website. We have
hundreds of detailed pictures (with measurements) and dozens of
videos to help make your buying decision as easy as possible.
Delaware
Indiana
Florida
New Hampshire
Georgia
Arizona
Texas
5800 Massachusetts Avenue
Indianapolis, IN 46218
sales@gregsmithequipment.com
Showroom Hours
M-F: 8-5:30 (EST)
Saturday: 8-noon (EST)
Indianapolis, Indiana
250 Executive Drive, Suite 1
Newark, DE 19702
salesde@gregsmithequipment.com
Showroom Hours
M-F: 8-5:30 (EST)
Saturday: 8-noon (EST)
Newark, Delaware
5405 Buford Hwy N.E., Suite 160
Norcross, GA 30071
salesga@gregsmithequipment.com
Showroom Hours
M-F: 8-5:30 (EST)
Saturday: 8-noon (EST)
Norcross, Georgia
8399 West Van Buren Street, Suite 210
Tolleson, AZ 85353
salesaz@gregsmithequipment.com
Showroom Hours
M-F: 8-5:30 (MST)
Saturday: 8-noon (MST)
Tolleson, Arizona
8 Industrial Drive
Hudson, NH 03051
sales@gregsmithequipment.com
Showroom Hours
M-F: 8-4:30 (EST)
Saturday: 8-noon (EST)
Hudson, New Hampshire
11801 NW 100th Rd., Suite 8
Medley, FL 33178
sales@gregsmithequipment.com
Showroom Hours
M-F: 8-5:30 (EST)
Saturday: By Appointment Only
Miami, Florida
3206 Industrial Terrace Suite #102
Austin, TX 78758
sales@gregsmithequipment.com
Showroom Hours
M-F: 8-5:30 (CDT)
Saturday: 8-noon (CDT)
Austin, Texas
The majority of our products are shipped by common carrier, in which case a forklift (or something similar) might
be needed to unload the product. Below are some examples of what products look like when we ship to you.
Freight Truck Shipping Information
IF YOU HAVE ANY QUESTIONS ABOUT FREIGHT,
GET THEM ASKED AND ANSWERED BEFORE WE SHIP!
For the majority of states, we may be able to provide a lift gate at no extra charge. The lift gate will assist the
customer in unloading products such as motorcycle lifts, tire changers, wheel balancers, etc. Unloading two
post or four post lifts will require a forklift (or some type of material handling equipment), or a truck-height
loading dock. However, the customer is always responsible for providing the necessary equipment to offload
their product, unless their product is picked up at a trucking terminal. If a product is picked up at a terminal,
the terminal staff should be able to load the equipment on your trailer or truck. If you would like to locate a
terminal in your area, or if you would like a shipping quote, please contact our office toll free. The customer
must have adequate space for a 53’ semi-truck to access their offloading area.
FINANCING
AVAILABLE
5800 Massachusetts Ave.
Indianapolis, IN 46218
www.GregSmithEquipment.com
PRINTED IN THE USA
Proudly Serving You
With Seven Locations
Nationwide!
1.800.711.5031
