MANUAL V2.2
Manual Xtra.Remote Electric
Kart & Track Control System
1
Date : 11-06-2013
Version : V2.2
The information in this manual is subject to change without
notice. Any trademarks, trade names, service marks or
service names owned or registered by any other company
and used in this manual are property of the respective
companies.
All rights reserved.
De Haardt Electronic Engineering BV
Marithaime 6
6662 WD Elst (GLD)
The Netherlands
Tel: 0481 353202
Fax: 0481 353603
All products are designed as supplement to make karting
safer, but cannot replace safe track procedures. If
equipment fails, the normal operating procedure must still
be adequate to safely operate the track.
This guide has been written with great care. However, the
manufacturer cannot be held responsible, either for any
errors occurring in this publication or for their
consequences.
Manual Xtra.Remote Electric
Kart & Track Control System
2
1 Index
1 Index ................................................................ 2
2 Safety summary ................................................. 5
3 Introduction ....................................................... 6
4 Installation ........................................................ 7
4.1 Xtra.Remote Control Unit ..................................... 7
4.1.1 Placing the batteries ........................................... 7
4.1.2 Connecting the adapter ....................................... 9
4.1.3 Connecting the antenna ....................................... 9
4.1.4 Connecting to a Personal Computer ..................... 10
4.2 Xtra.CDI Shutdown Transponder ......................... 10
4.2.1 Assembly of the Xtra.CDI Shutdown Transponder
(also valid for Twin Transponders) ....................... 11

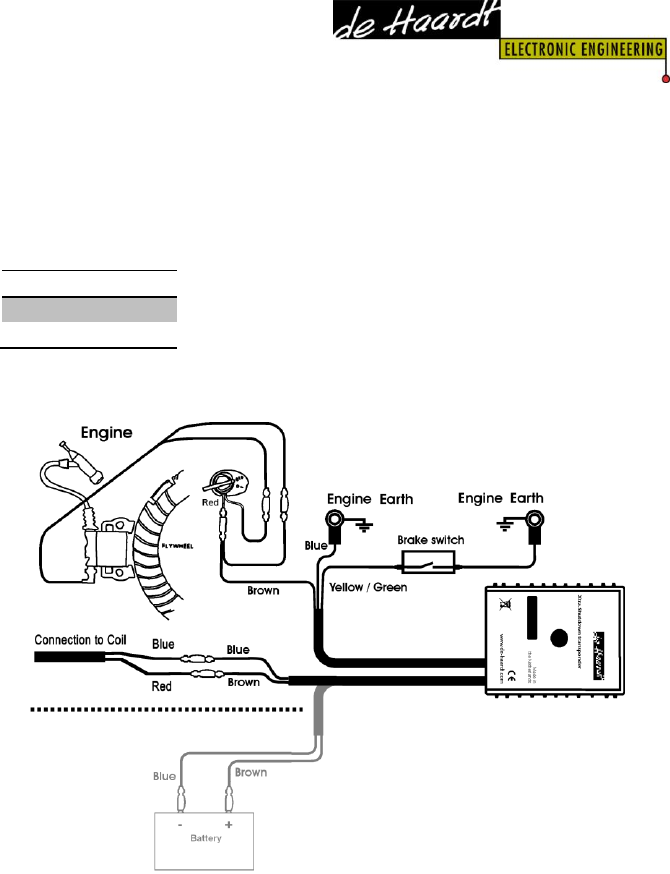

4.2.2 Electrical connection of the Xtra.CDI Shutdown
Transponder (for conventional engines) ................ 14
4.2.3 Electrical connection of the Xtra.CDI Shutdown
Transponder (for CDI engines) ............................ 15

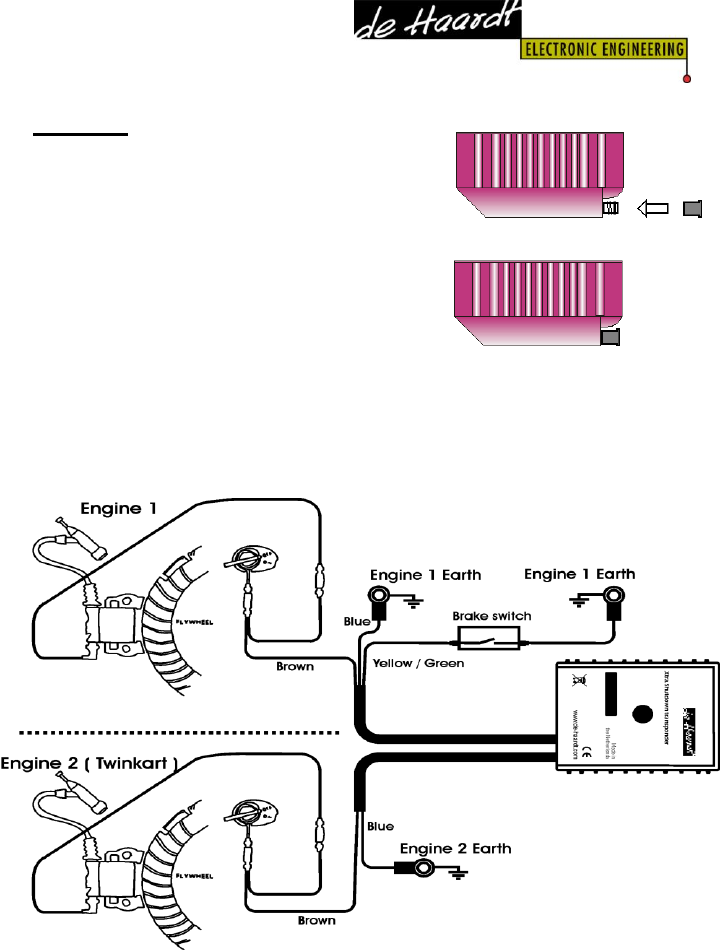

4.2.4 Electrical connection of the Xtra.Twin Shutdown
Transponder ..................................................... 17

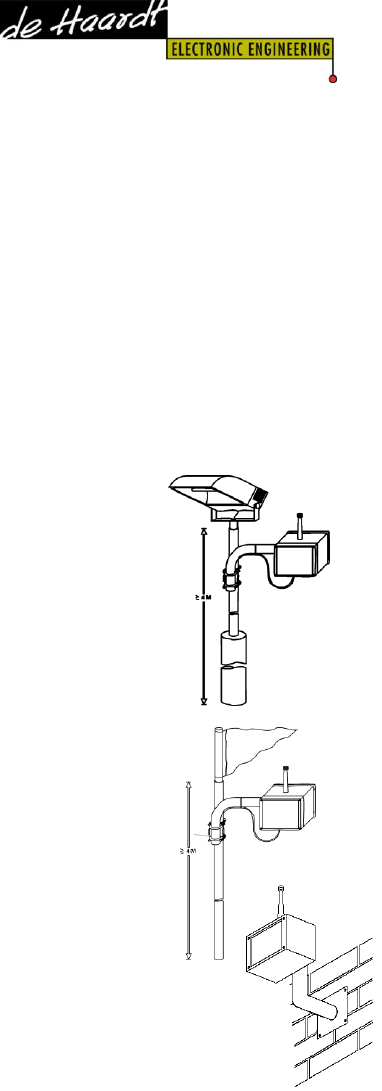

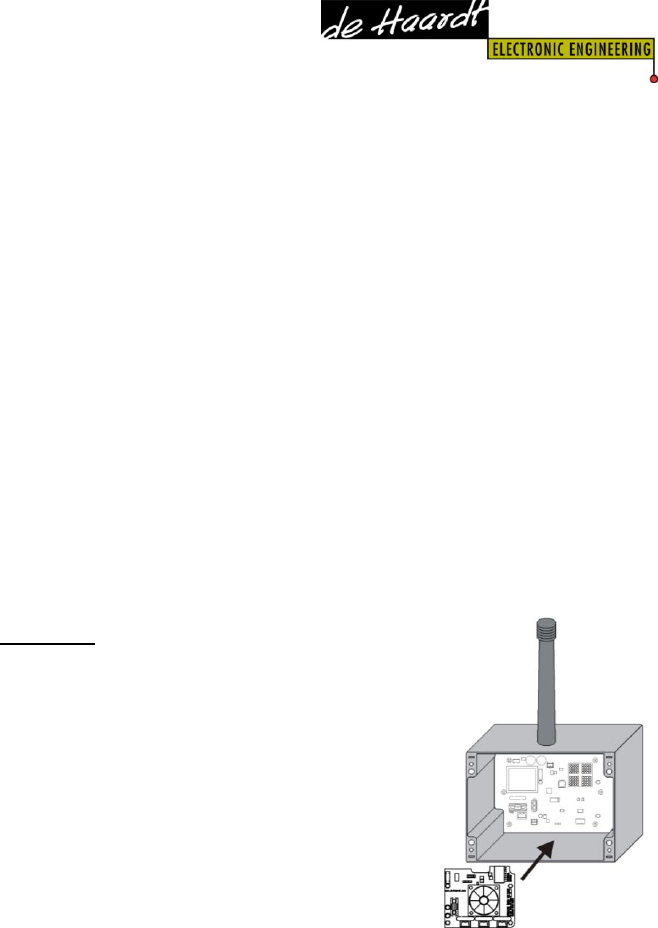

4.3 Xtra.Range Extender/Access point ....................... 19

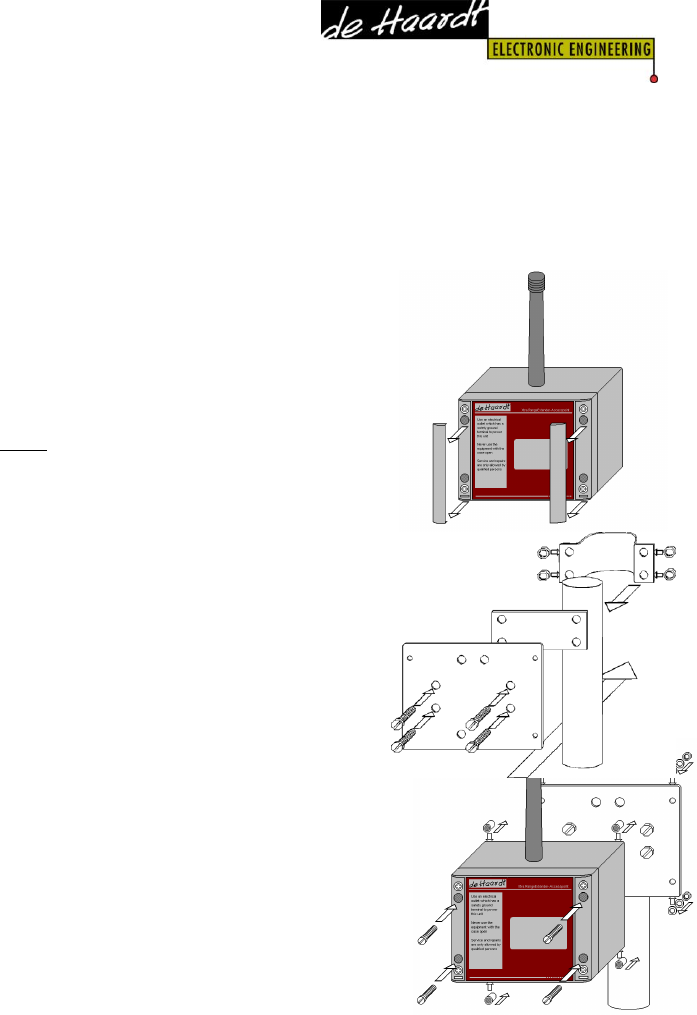

4.3.1 Mounting of the Xtra.Range Extender/Access point 19

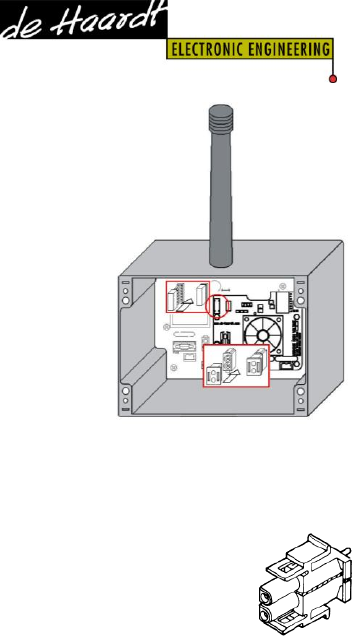

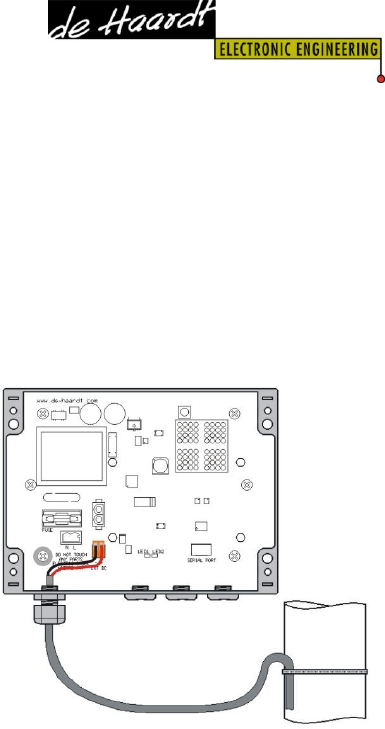

4.3.2 Electrical connections of the Xtra.Range
Extender/Access point ........................................ 21
4.4 Xtra.(warning) Light Control Board ...................... 24
4.4.1 Mounting the Light Control Board ........................ 24

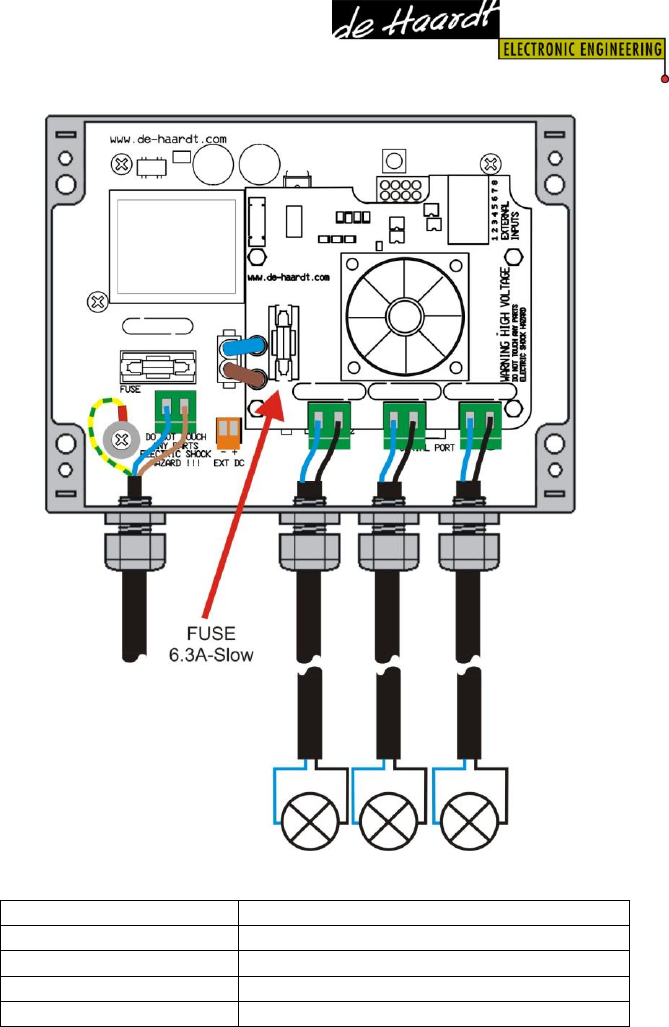

4.4.2 Wiring the Light Control Board ............................ 25

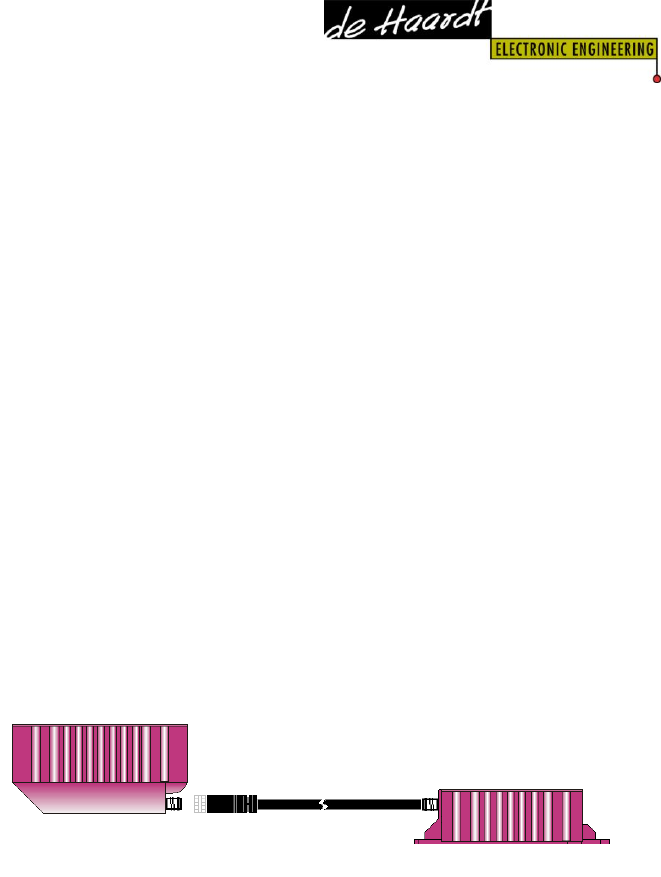

4.5 Xtra.Sector Control System ................................. 29
4.5.1 Electrical connection of the Xtra.Sector Beacon ..... 31
4.5.2 Mounting of the Xtra.Sector Sensor...................... 32
4.5.3 Electrical connection Xtra.Sector Sensor ............... 33
5 Operating the equipment .................................... 35

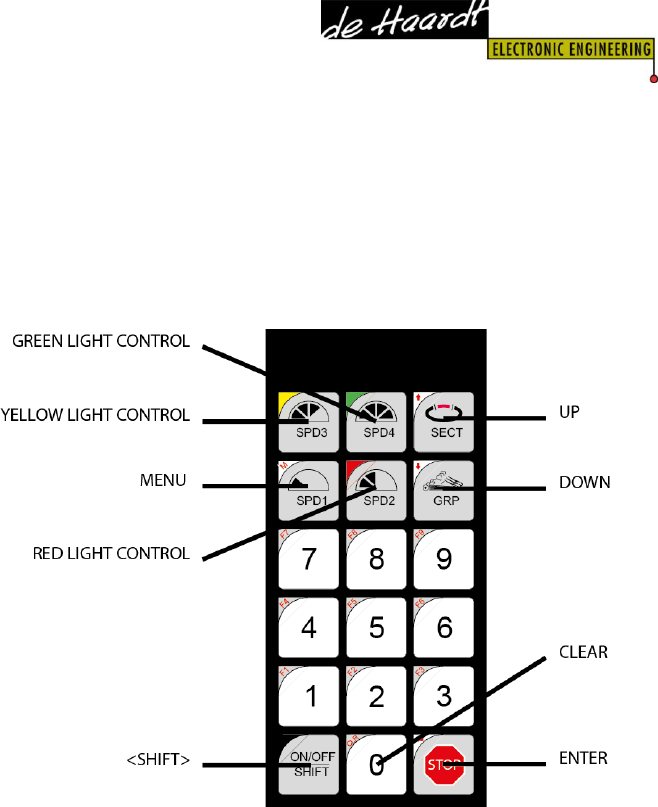

5.1 Button functions and basic operation of the
Xtra.Remote Control .......................................... 35
Manual Xtra.Remote Electric
Kart & Track Control System
3
5.1.1 Switching the Remote Control On/Off ................... 35
5.1.2 Indirect stop of all karts at once .......................... 35
5.1.3 Adjusting the speed of kart(s) ............................. 36
5.1.4 Adjusting the speed of an individual kart .............. 36
5.1.5 Adjusting the speed of a group of karts ................ 37
5.1.6 Adjusting the speed of all karts at once ................ 37
5.1.7 Adjusting the speed in multiple sectors ................ 37
5.1.8 Penalties .......................................................... 38
5.1.9 Adjusting the speed in steps ............................... 38
5.1.10 Repeating last command .................................... 38
5.1.11 Operating (race) lights ....................................... 38
5.2 Menu functions .................................................. 39
5.2.1 Menu->Remote->Track ...................................... 39
5.2.2 Menu->Remote->Brightness ............................... 40
5.2.3 Menu->Remote->Backlight ................................. 40
5.2.4 Menu->Remote->Power Save ............................. 40
5.2.5 Menu->Remote->Penalty Time ............................ 40
5.2.6 Menu->Remote->Power Info ............................... 40
5.2.7 Menu->Remote->Direct stop .............................. 40
5.2.8 Menu->Remote->RPM settings ............................ 41
5.2.9 Menu->Shutdown tp->Assign .............................. 41
5.2.10 Menu->Shutdown tp->Read timer ....................... 42
5.2.11 Menu-> Shutdown tp->Reset timer ..................... 42
5.2.12 Menu->Shutdown tp->Read RPM ......................... 42
5.2.13 Menu->Shutdown tp->RPM Limits ....................... 42
5.2.14 Menu->Range Extend->Track ............................. 43
5.2.15 Menu->Range Extend->Link Check ...................... 44

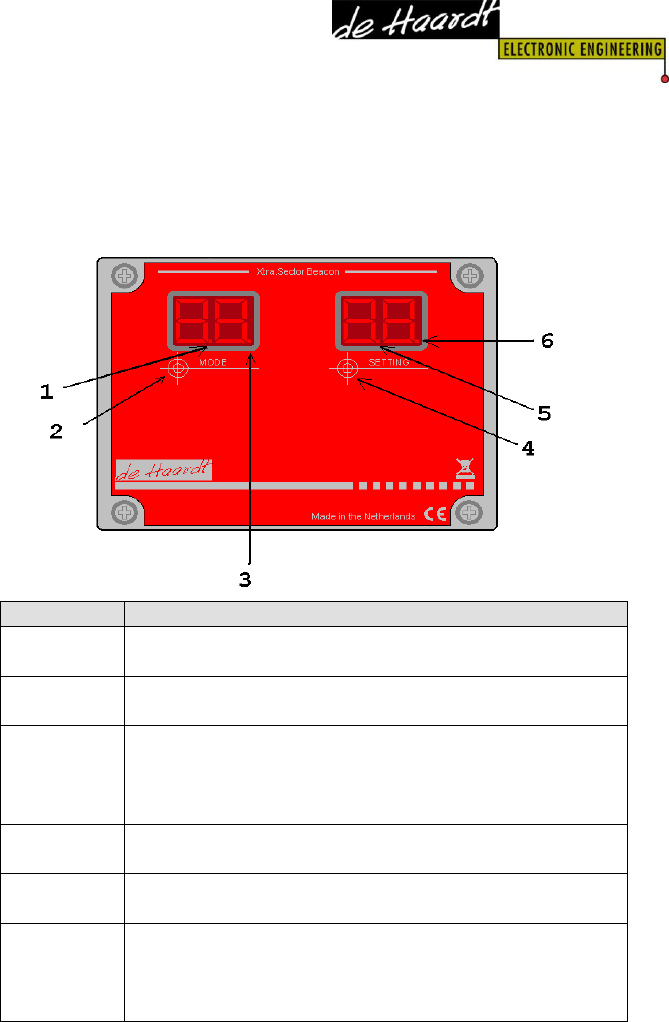

5.3 Configuration of the Sector beacon ...................... 45
5.3.1 Mode -> Sector number ..................................... 46
5.3.2 Mode -> Function number .................................. 47
5.3.3 Mode -> Address ............................................... 48
5.3.4 Mode -> Error ................................................... 48
5.4 Operating the Xtra.Sector Sensor ........................ 48
6 WEEE Legislation ............................................... 49
7 Declaration of Conformity ................................... 50
8 Technical specifications ...................................... 51
8.1 Xtra.Remote Control .......................................... 51
Manual Xtra.Remote Electric
Kart & Track Control System
4
8.2 Xtra.CDI Shutdown Transponder ......................... 53
8.3 Xtra.Range Extender / Access point ..................... 54
8.4 Light Control Board ............................................ 55

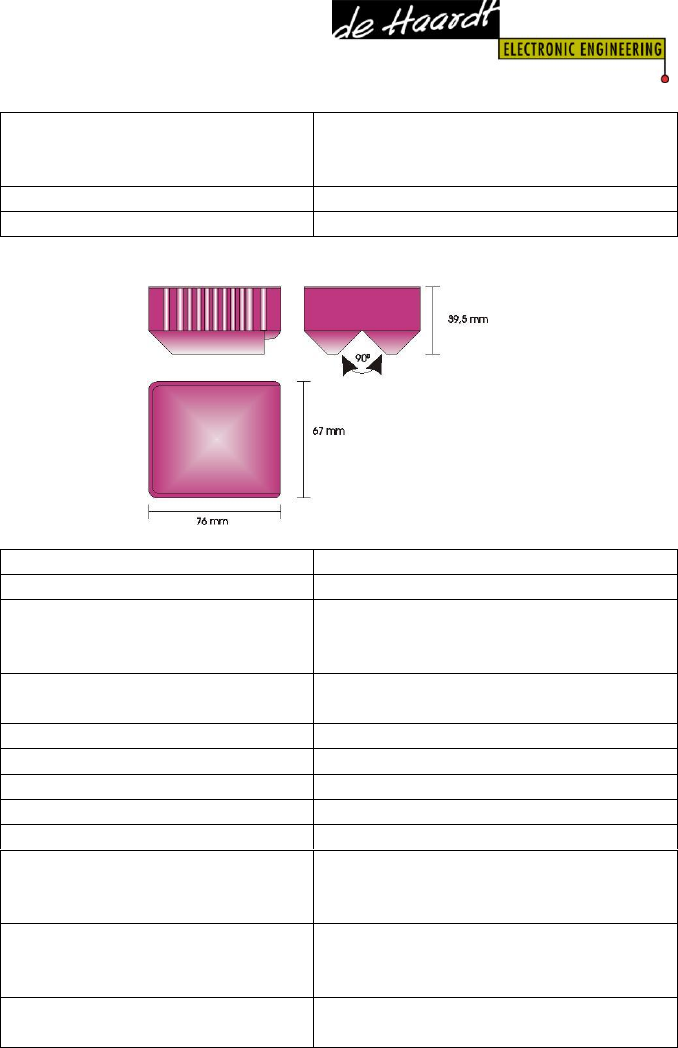

8.5 Xtra.Sector Beacon ............................................ 56
8.6 Xtra.Sector Sensor............................................. 57
9 Warranty .......................................................... 58
Manual Xtra.Remote Electric
Kart & Track Control System
5
2 Safety summary
To ensure thorough understanding of all functions and to
ensure efficient use of the system, please read this manual
carefully before using.
Please observe the following basics to prevent fire, burn,
electric shock, and personal injury:
Electrical and mechanical installation and servicing is
only allowed by qualified personnel.
Be sure to plug mains powered equipment in an
electrical outlet which has a safety ground terminal.
Never use the equipment with the case open.
Service and repairs are only allowed by qualified
technical engineers.
Be sure to use fuses rated to the voltage in question.
Manual Xtra.Remote Electric
Kart & Track Control System
6
3 Introduction
This document describes the standard operation and
installation of the Xtra.Remote Kart and track control
system.
The different parts of a standard Xtra.Remote Kart and
Track Control system are:
 Xtra.Remote Control Unit
 Xtra.CDI Shutdown Transponder and
Xtra.Twin Shutdown Transponder
 Xtra.Sector Beacon
 Xtra.Sector Sensor
 Xtra.Range Extender / Access point
 Xtra.Light Control Board
(Start/Stop warning & race)
If you are not using all parts of our Xtra.Remote kart and
track control system, then you can skip the chapters
concerning those parts.
Manual Xtra.Remote Electric
Kart & Track Control System
7
4 Installation
4.1 Xtra.Remote Control Unit
The following accessories are related to the Remote Control
Unit:
 Remote Control Unit
 Adapter (500 mA @ 12V DC)
 Serial cable
 Pair of rechargeable batteries (NiMH)
Leather carriage bag / Industrial silicon cover
4.1.1 Placing the batteries
The Xtra.Remote Control Unit can be equipped with 2
rechargeable NiMH batteries type AA. To place these
batteries, open the battery cover. Pull the 'lock' spring
towards the inside. Place the batteries according to the
symbols + and – labeled in the battery compartment. Close
the battery compartment by sliding the spring to the right
and close the cover.
Important:
 Use only rechargeable batteries of the type NiMH,
and no conventional batteries.
 Do not use old and new batteries together, or
batteries from different manufacturers.
 Batteries contain chemical substances. Treat old
batteries as chemical waste and don’t leave them in
the vicinity of children.
Manual Xtra.Remote Electric
Kart & Track Control System
8

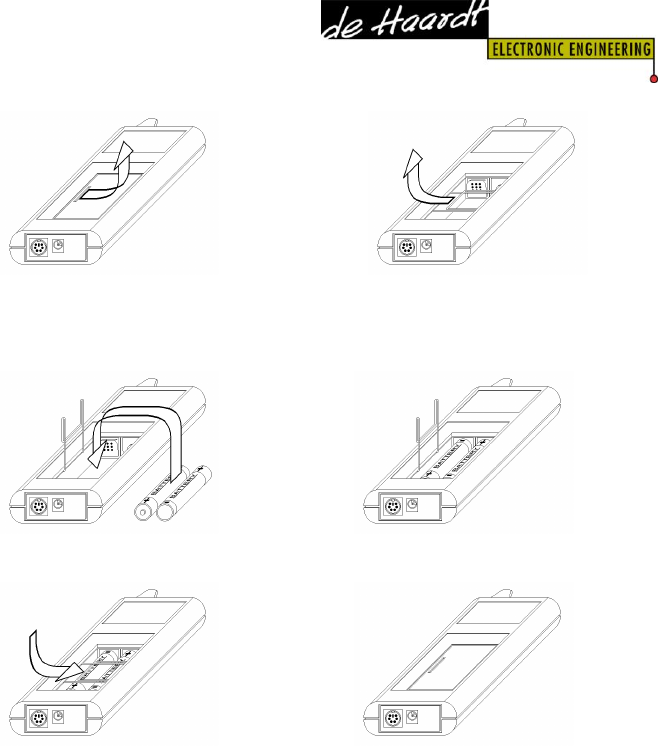

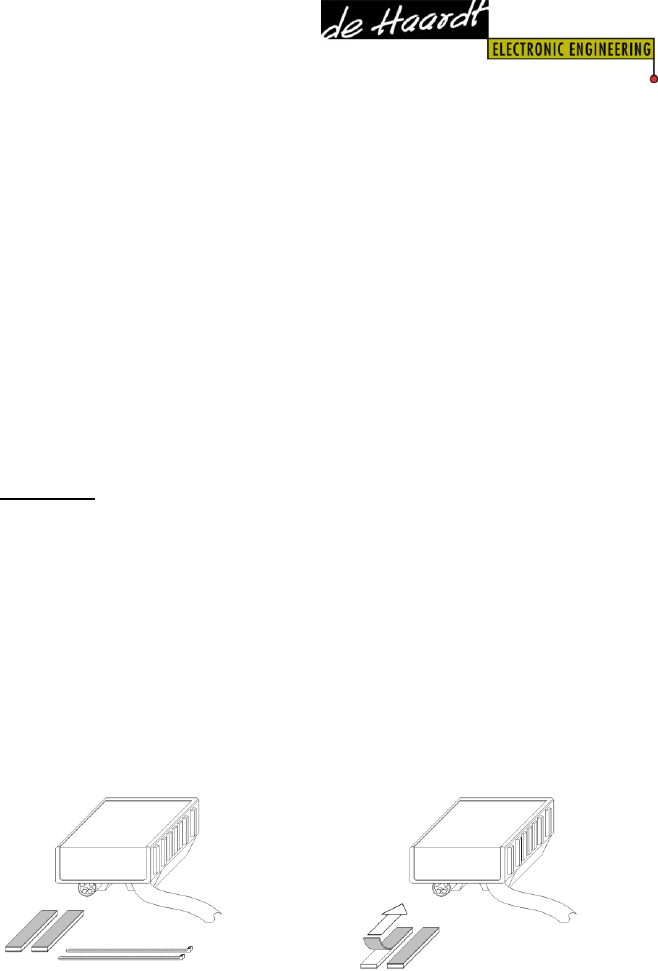

1. Open battery cover 2. ‘Unlock’ the spring
3. Place the batteries in the battery compartment
4. close the spring 5. Close the cover
Manual Xtra.Remote Electric
Kart & Track Control System
9

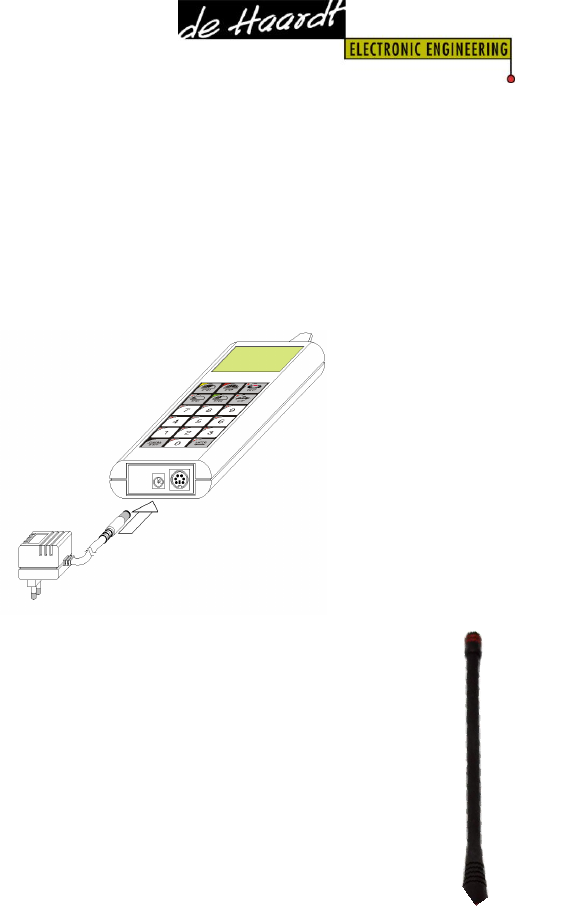

4.1.2 Connecting the adapter
Connect the provided adapter to the DC power connector of
the Xtra.Remote Control unit and plug the adapter into the
mains power supply socket.
Connecting the adapter to the Remote Control allows it to
be used without batteries. The adapter can also be used to
charge the NiMH batteries in the Xtra.Remote Control.
4.1.3 Connecting the antenna
The antenna of the Xtra.Remote Control can be fastened
on the top side connector by turning clockwise. Do not
apply excessive force as this could cause damage!
Caution: Do never use the antenna as a handle. Do
not lift the Xtra.Remote control out of the carriage
bag by its antenna.
Manual Xtra.Remote Electric
Kart & Track Control System
10

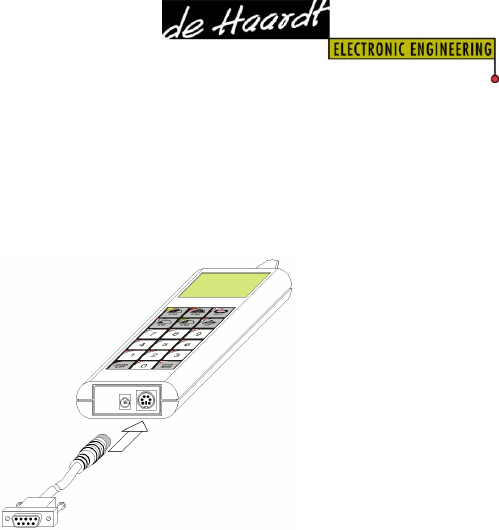

4.1.4 Connecting to a Personal Computer
The Xtra.Remote Control can be connected to a PC by
means of a serial cable.
This serial link gives third parties the ability to control and
monitor the karts and track by means of a PC.
4.2 Xtra.CDI Shutdown Transponder
To be able to limit the speed of the karts from a distance,
every kart must be equipped with an Xtra.CDI Shutdown
Transponder. Karts powered by 2 engines need an
Xtra.TwinShutdown transponder.
Each Xtra.CDI Shutdown Transponder has a unique serial
number, and by using the Xtra.Remote Control it is possible
for the user to give every Xtra.CDI Shutdown Transponder a
kart number, a group number and/or track number.
Assigning a track number to the Xtra.CDI Shutdown
Transponder gives the possibility, when other kart circuits
are close by, to control the karts independently of each
other. A maximum of 4 tracks can be assigned.
Manual Xtra.Remote Electric
Kart & Track Control System
11
This gives for example the possibility to assign a kart
number 1 on every circuit, and only a Remote Control which
is also assigned to the same track will have control over this
kart.
The Xtra.CDI Shutdown transponder is standard provided
with a connection for a brake switch. If a brake switch is
connected and activated by pressing the brake pedal of the
kart, the RPM of the kart is reduced.
On the Xtra.CDI Shutdown Transponder there is also a plug
for a network connection. By means of this network
connection (future) applications or devices can be linked,
and communicate with the Xtra.CDI Shutdown Transponder.
Warning: Continuous use of the Xtra.CDI Shutdown
transponder as a speed-limiting device may degrade the
lifespan of the engine.

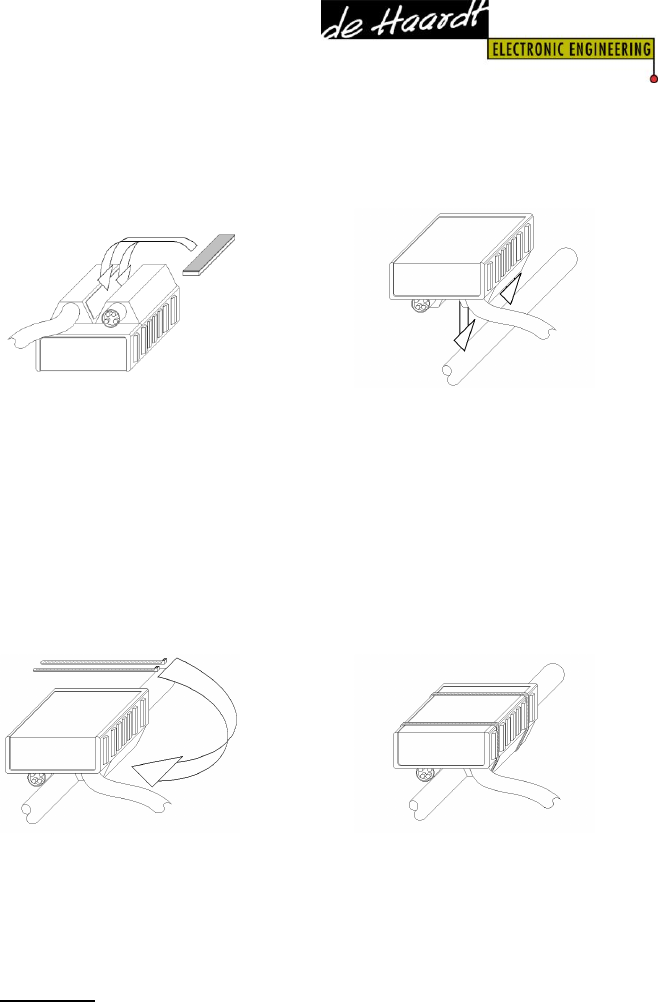

4.2.1 Assembly of the Xtra.CDI Shutdown
Transponder (also valid for Twin Transponders)
The Xtra.CDI Shutdown Transponder is easy to install on
the kart, by means of its V-shape based housing. It is
possible to mount the housing both on round and/or square
tubes.
Manual Xtra.Remote Electric
Kart & Track Control System
12
By means of 2 tie wraps and 2 double sided adhesive strips
it is possible to mount the Xtra.CDI Shutdown Transponder
in most cases.
Place each of the double sided adhesive strips on one of the
slanting V sides on the bottom part of the Xtra.CDI
Shutdown Transponder.
Next, place the Xtra.CDI Shutdown Transponder on a frame
tube of the kart, so that the adhesive strips keep the
Xtra.CDI Shutdown Transponder in place.
Fasten the Xtra.CDI Shutdown Transponder with 2 tie
wraps, and ensure that these cannot tremble off during the
use of the kart or by other causes.
Warning: The best way of mounting the transponder to
your kart depends heavily on your kart’s framework.
Therefore the mounting instructions mentioned above
Manual Xtra.Remote Electric
Kart & Track Control System
13
should be considered as guidelines only. Because the
transponder operates in a rough environment, every now
and then a routine check-up must be made to ensure that
the transponder is still properly fastened and shows no
visual damage.
Keep the upper part (flat part) of the Xtra.CDI Shutdown
Transponder away from any metal parts or wires and never
place it facedown towards the track concrete.
There is no kart number printed on the Xtra.CDI Shutdown
Transponder, only a serial number. Assigning a kart
number, a group number and a track number to the
Xtra.CDI Shutdown Transponder is explained in chapter
5.2.8 Menu->Shutdown tp->Assign on page 40.
Assigning the numbers is only possible when the Xtra.CDI
Shutdown Transponder is has been connected to the engine,
which is running.
When a new Xtra.CDI Shutdown Transponder is bought, the
default kart number is factory set to the last 2 digits of the
serial number.
Warning: To prevent personal injury during installation of
the Xtra.CDI Shutdown Transponder(s), the kart engine
must be turned off.
Warning: Make sure that the Xtra.CDI Shutdown
Transponder is not damaged before using the kart. In case
of an accident or when the driver steps out of the kart
please validate correct functioning of the Xtra.CDI
Shutdown Transponder.
Do not mount the shutdown transponder next to the
ignition.
Manual Xtra.Remote Electric
Kart & Track Control System
14

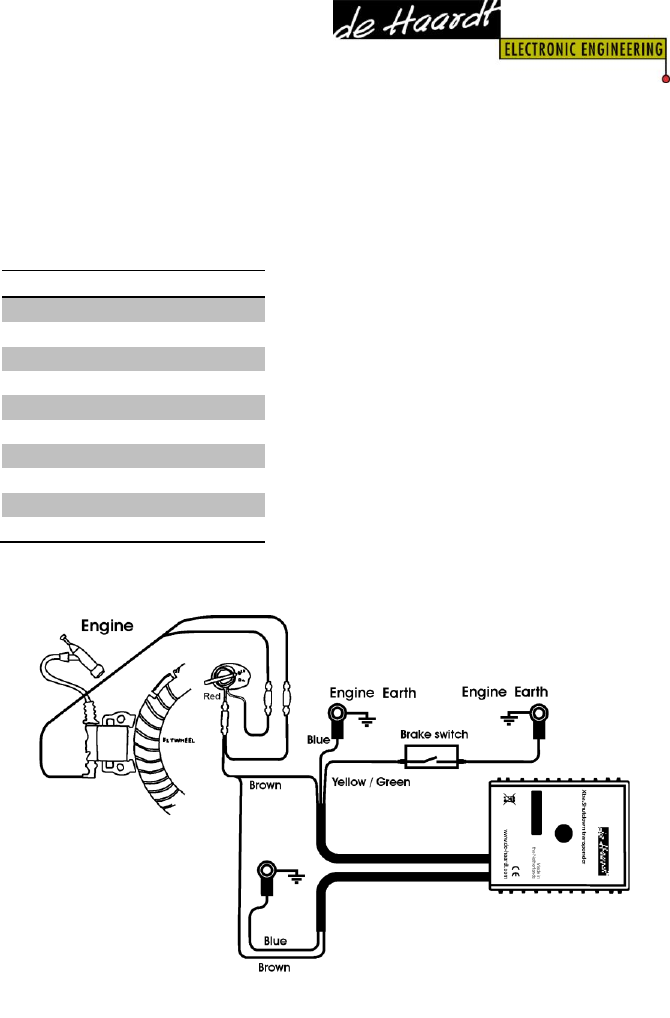

4.2.2 Electrical connection of the Xtra.CDI Shutdown
Transponder (for conventional engines)
If you have one of the below mentioned engines, please use
this wiring diagram to install the Xtra.CDI Shutdown
Transponder on your kart.
Manual Xtra.Remote Electric
Kart & Track Control System
15
4.2.3 Electrical connection of the Xtra.CDI Shutdown
Transponder (for CDI engines)
If you have one of the below mentioned engines, please use
this wiring diagram to install the Xtra.CDI Shutdown
Transponder on your kart
CDI Engines
GX 270 (U)T2
GX 390 (U)T2
The Xtra.CDI Shutdown Transponder has two cables on the
transponder. A CDI based engine does not supply enough
energy to power the transponder and has a different
electrical signal then conventional engines.
Manual Xtra.Remote Electric
Kart & Track Control System
16
The Xtra.CDI Shutdown Transponder has an additional wire
to connect to a power source. This can be the De Haardt
Xtra.Universal power coil, the battery of an electric
starter or any other 9V to 24V DC power source.
A charge coil or lamp coil without regulator and/or
battery is not a DC power source. Please contact De
Haardt to discuss the option when using a charge coil or
lamp coil directly without regulator and/or battery.
The cable eye at the end of the blue wire of the Xtra.CDI
Shutdown Transponder has to be fixed on the blank metal
(mass) of the engine with a screw.
Pull apart the 2 connectors coming from red wire on the
engine’s On/Off switch and connect these to the connectors
of the Xtra.CDI Shutdown transponder which are attached
to the brown wire.
If the brake switch is used, the connector has to be
connected to the yellow-green wire (possibly this wire has
to be extended). The maximum length of the original wire
together with the extension cable is 2 meters. The other
contact of the brake switch must be fixed on the blank
metal (mass) of the engine.
Important: Fix the mass wire of the brake switch and/or
Xtra.CDI Shutdown Transponder always on a mass point of
the engine block itself. Under no circumstances fix them on
another mass point that is on the kart (like for example a
frame tube).
Network Port:
The Xtra.CDI Shutdown Transponder is fitted with a network
port. Through this network port the Xtra.CDI Shutdown
Transponder can be connected to other on-kart electronics.
Manual Xtra.Remote Electric
Kart & Track Control System
17

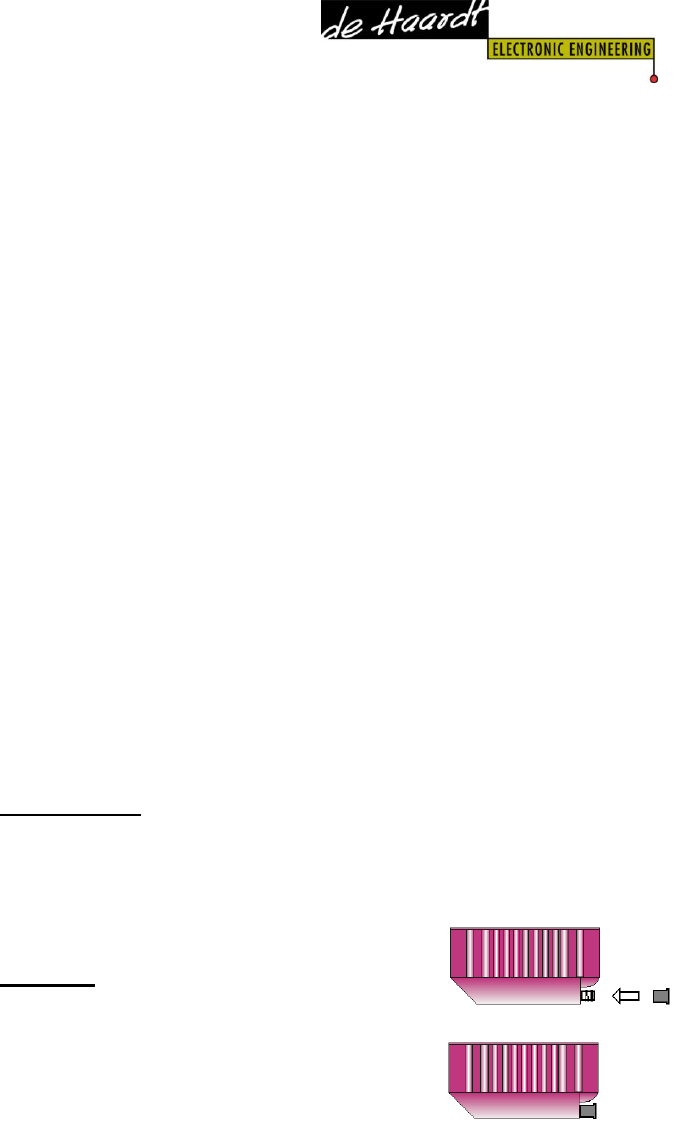

Warning: Always put the protection
cap on the Xtra.CDI Shutdown
Transponder’s network port when this
port is not used! Be sure that the
protection cap is fully covering all
outside metal parts of the network
port connector.
It is not allowed to connect devices to
this network port which are not
approved by De Haardt!
4.2.4 Electrical connection of the Xtra.Twin
Shutdown Transponder
Manual Xtra.Remote Electric
Kart & Track Control System
18
The Xtra.Twin Shutdown Transponder has two cables.
The second cable on an Xtra.Twin Shutdown transponder is
connected in a similar way as the cable for the first engine,
and therefore not specifically described in the text below.
The cable eye at the end of the blue wire of the Xtra.Twin
Shutdown Transponder has to be fixed on the blank metal
(mass) of the Honda GX… engine with a screw.
Pull apart the 2 connectors coming from the engine’s On/Off
switch and connect these to the connectors of the Xtra.Twin
Shutdown transponder which are attached to the brown
wire.
If the brake switch is used, the connector has to be
connected to the yellow-green wire (possibly this wire has
to be extended). The maximum length of the original wire
together with the extension cable is 2 meters. The other
contact of the brake switch must be fixed on the blank
metal (mass) of the Honda GX… engine.
Important: Fix the mass wire of the brake switch and/or
Xtra.Twin Shutdown Transponder always on a mass point of
the engine block itself. Under no circumstances fix them on
another mass point that is on the kart (like for example a
frame tube).
Network Port:
The Xtra.Twin Shutdown Transponder is fitted with a
network port. Through this network port the Xtra.Twin
Shutdown Transponder can be connected to other on-kart
electronics.
Warning: Always put the protection cap
on the Xtra.Twin Shutdown
Transponder’s network port when this
port is not used! Be sure that the
Manual Xtra.Remote Electric
Kart & Track Control System
19
protection cap is fully covering all outside metal parts of the
network port connector.
It is not allowed to connect devices to this network port
which are not approved by De Haardt!
4.3 Xtra.Range Extender/Access point
The Xtra.Range Extender/Access point has a “relay” or
“repeater” approach which helps to cover large and hard-to-
reach areas and reflective corners on the race circuit.
The unit can also be used as an access point in case it is
connected to the serial port of an external device. This gives
for example third parties the ability to control and monitor
the track and karts by means of a PC.
4.3.1 Mounting of the Xtra.Range
Extender/Access point
The operating range of the Xtra.Range
Extender/Access point depends on the height
of the antenna above the ground, line of
sight, and obstructions in the line of sight.
Therefore we suggest for range extension on
outdoor circuits to mount the Xtra.Range
Extender/Access point on a mast of at least 4
meters high or on one of the track light poles.
Locate the mast(s) on (a) strategic position(s),
in the centre of the operating areas where
obstacles (like trees and buildings) in the line
of sight are at a minimum.
If you are mounting the antenna on a roof, it
must be at least 1m above the roof line.
For indoor use the Xtra.Range Extender/Access
point can be mounted for example on a fixture which
is located on a building wall or on a pole. The fixture
must provide a distance of at least 35cm between
the Xtra.Range Extender/Access point and the wall.
Manual Xtra.Remote Electric
Kart & Track Control System
20
Always position the Xtra.Range Extender in such a way that
the antenna is in vertically position and pointed to the sky.
Guideline for mounting the Xtra.Range Extender/Access
point on a pole (for illustration only):
Lift the plastic design covers of the
Xtra.Range Extender/Access point
from the aluminium housing.
The 4 fastening holes are now visible.
Note: It is not necessary to open the
housing for mounting the unit!
Mount a baseplate to the support
tube. This can be done by a bridge
support. Use self locking nuts to
prevent from loosening by vibration.
A rubber sheet of around 5mm
thickness can be used to prevent the
baseplate from bending in case of
tight tolerances between the tube
diameter and bridge support.
Fasten the Xtra.Range
Extender/Access point on a baseplate
with 4 screws (6mm diameter) and
self locking nuts. Use spacers of
around 10mm length between the
Xtra.Range Extender and baseplate.
Manual Xtra.Remote Electric
Kart & Track Control System
21
After mounting the Xtra.Range Extender on the baseplate,
put the plastic design covers back in place.

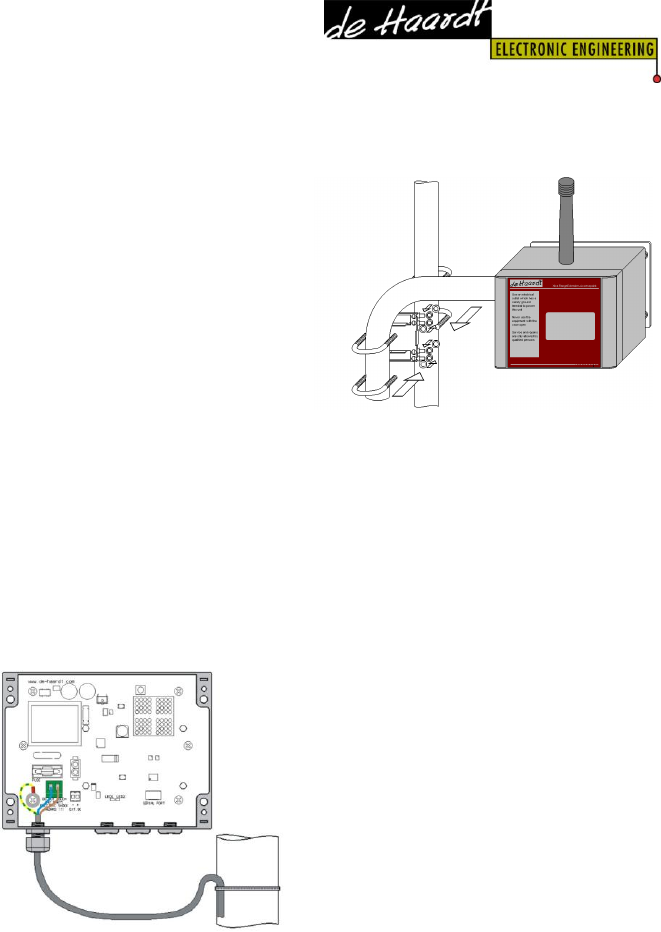

In case the support tube
must be fastened to a pole,
U-bolts in combination with
a bridge support and self
locking nuts can be used.
4.3.2 Electrical connections of the Xtra.Range
Extender/Access point
The Xtra.Range Extender can be powered by:
230 Vac mains power supply
12 Volt DC supply, like a battery, solar panel or
external dc supply.
Standard the Xtra.Range
Extender is supplied with a
230V mains power cord.
In case the unit must be
powered by a 12 Volt DC
supply, the main power cord
has to be removed.
1. First disconnect the main power cord from the
mains.
2. Open the Xtra.Range Extender/Access box, by
loosening the 4 screws on the top.
Manual Xtra.Remote Electric
Kart & Track Control System
22
3. Disconnect the green top connector of the power
cord from the circuit board connector.
4. Loosen the 2 screws on the green connector on the
cable.
5. Cut the Yellow-Green earth wire from the ring
connector. Remove the remaining ring terminal out
of the equipment housing. After removing the ring
terminal fasten the circuit board again.
6. Loosen the gland and the power cord cable can be
removed from the Xtra.Range Extender/Access point.
Once the power cord is
removed, the 12 Volt
supply cable can be
inserted through the
gland.

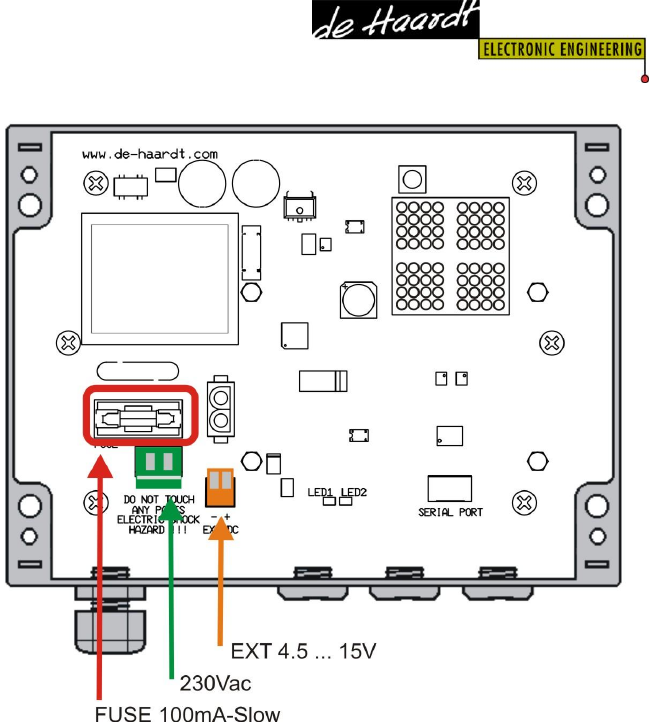

Connect the 12V cable
to the ‘EXT DC’
connector on the circuit
board. When the
antenna is facing
upwards, the left pin of
the ‘EXT DC’ connector
is the ‘-’ (minus), and
the right pin is the ‘+’.’
Important :
In case of powering the Xtra.Range Extender / Access point
by way of an external DC power source, the Xtra.Range
Extender DC supply cable must be fused externally
(500mA).
Manual Xtra.Remote Electric
Kart & Track Control System
23
Manual Xtra.Remote Electric
Kart & Track Control System
24
4.4 Xtra.(warning) Light Control Board
The Xtra.Range Extender/Access point can be extended with
a Light Control Board. By way of this board three 230V
switched outputs are created which for example can be used
to turn on and off start, stop and (sector) warning lights.
In addition the light control has 4 low voltage inputs (12
Volt), which can be used to externally control the lights.
Also by way of advanced system configuration (not
described in this manual) other functions can be assigned to
the 4 inputs.
The Light Control Board can only control the three 230V
switched outputs when the Xtra.Range Extender / Access
point is powered by 230 Volt. If the board is only used as
input device then it can also operate when the Xtra.Range
Extender is powered by the external DC input.
4.4.1 Mounting the Light Control Board
Warning: Disconnect all power sources from
the Xtra.Range Extender / Access point and
Light Control Board, when doing mounting
and installation works!
The Light Control Board can be mounted
on top of the Xtra.Range Extender /
Access point board. On the Xtra.Range
Extender / Access point are 4 spacers
mounted, on which the Light Control
Board has to be installed.
When positioning the Light Control Board on the Xtra.Range
extender board, be sure that the pin header on the Range
Extender board is on the same position as the connector on
the backside of the Light Control Board.
Manual Xtra.Remote Electric
Kart & Track Control System
25
Fixate the light controller board with the
4 plastic screws.
Do not apply excessive force since
plastic screws are easily damaged.
After the Light Control Board is mounted
on top of the Xtra.Range Extender /
Access point board, connect the input
power connector of the Light Control
Board into the socket on the Range
Extender / Access point board.
4.4.2 Wiring the Light Control Board
Once the Xtra.Light Control Board is installed, the white
power receptacle has to be connected to the white power
plug on the Xtra.Range Extender main board. This
connector is located next to the fuse. The power
connector has dual locking lances. Be sure these are
latched when the board is installed.
Manual Xtra.Remote Electric
Kart & Track Control System
26
Wire color
Explanation
Blue
Neutral
Brown
Live (Phase)
Black
Switched Live (Phase)
Yellow-Green
Earth
Manual Xtra.Remote Electric
Kart & Track Control System
27
The Light Control Board is separately fused (6,3A/Slow). As
illustrated above, there are individual connectors available
on the Light Control Board for the 3 switched output
channels.
Before starting the wiring, cable glands have to be screwed
into the housing and securely fastened. Three M16x1.5
threaded holes are available for this purpose, which become
visible after the blanking plugs are removed.
The M12x1.5mm threaded hole is available in case a cable
must be connected to the control input of the Xtra.Light
Control module.
The cable used to connect the switched output to the lights
must at least be insulated and have a minimum of 1,0mm2
conducted area. The cable also has to be at least rated for
300/500V, with a maximum length of 50 meters.
Manual Xtra.Remote Electric
Kart & Track Control System
28
In the picture above there is given an example wiring for
the 4 external control input signals. The table below
describes the functions of the 8 pins of the external input
connector.
External input pin
Description
1
(-) input 1 pin
2
(+) input 1 pin
3
(-) input 2 pin
4
(+) input 2 pin
5
(-) input 3 pin
6
(+) input 3 pin
7
(-) input 4 pin
8
(+) input 4 pin
Manual Xtra.Remote Electric
Kart & Track Control System
29
Both external 12Vdc and 12Vac (50/60 Hz) input signals can
be used for the input.
Use a multicore (Control) cable to connect the external
inputs to the controlling device. This cable must have a
voltage rating of at least 300 Volts, with a maximum length
of 50 meters.
The controlling device must be isolated galvanically from the
mains.
Important note:
All used cable glands must always provide fixation of the
cable feedtrough up to a force of 60 Newton. Double check
time after time during maintenance.
The clamp range of the 3 M16 glands is 5.5–9mm. For the
M12 gland this range is 4–6 mm. Never feed through
cables with different diameters.
Prevent damage to the feeded through cable caused by over
fastening the dome nut on the gland body.
4.5 Xtra.Sector Control System
Using the Xtra.Sector Control System the speed of karts can
be controlled in every section (zone) of the race track. In
the case of an accident, the speed of the karts driving inside
the dangerous zone is limited automatically. Once the karts
are outside the dangerous section, the speed limit will be
released.
The same system can be used for Pit-In and Pit-out speed
control. Once a kart drives into the pit area, the speed is
automatically reduced while the other karts on the track
retain their normal speed. When a kart exits the pits, the
speed is set to normal.
Manual Xtra.Remote Electric
Kart & Track Control System
30
For circuits having 2 (or more) tracks which can be
combined into one big track, the system can change the
Track/Group settings of the Xtra.CDI Shutdown Transponder
by simply driving a kart through the ‘configuration sector’.
The Xtra.Sector Control System consists of one or more
Xtra.Sector Beacon(s) placed along the track and
Xtra.Sector Sensors mounted on every kart.
A wire is placed in a rectangular loop across the tarmac and
attached to the Xtra.Sector Beacon. This loop marks the
start of the sector. The loop/section number and function
can be easily selected on the Xtra.Sector Beacon.
The Xtra.Sector Sensor is connected to the Xtra.CDI
Shutdown transponder by means of the kart network port.
Once the kart passes the loop, the intelligent Xtra.Sector
Sensor processes the function received.

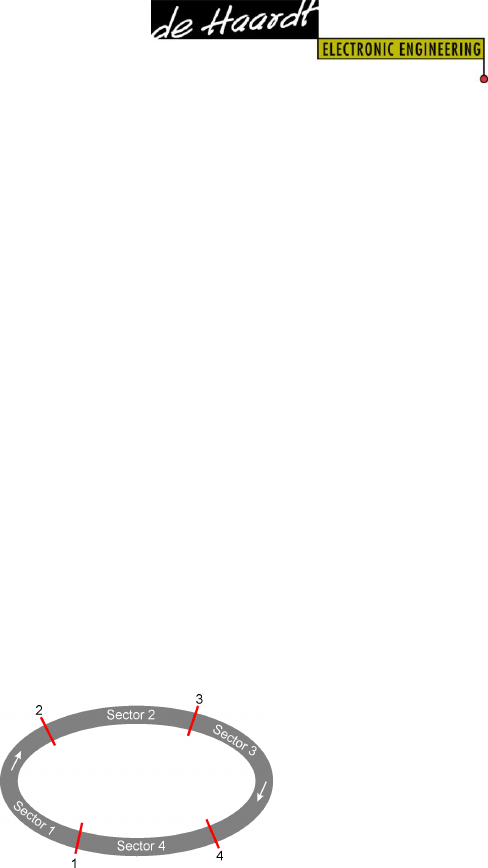

Track Sector numbering :
Every sector starts after passing the Xtra.Sector Beacon
loop as illustrated below:
Manual Xtra.Remote Electric
Kart & Track Control System
31

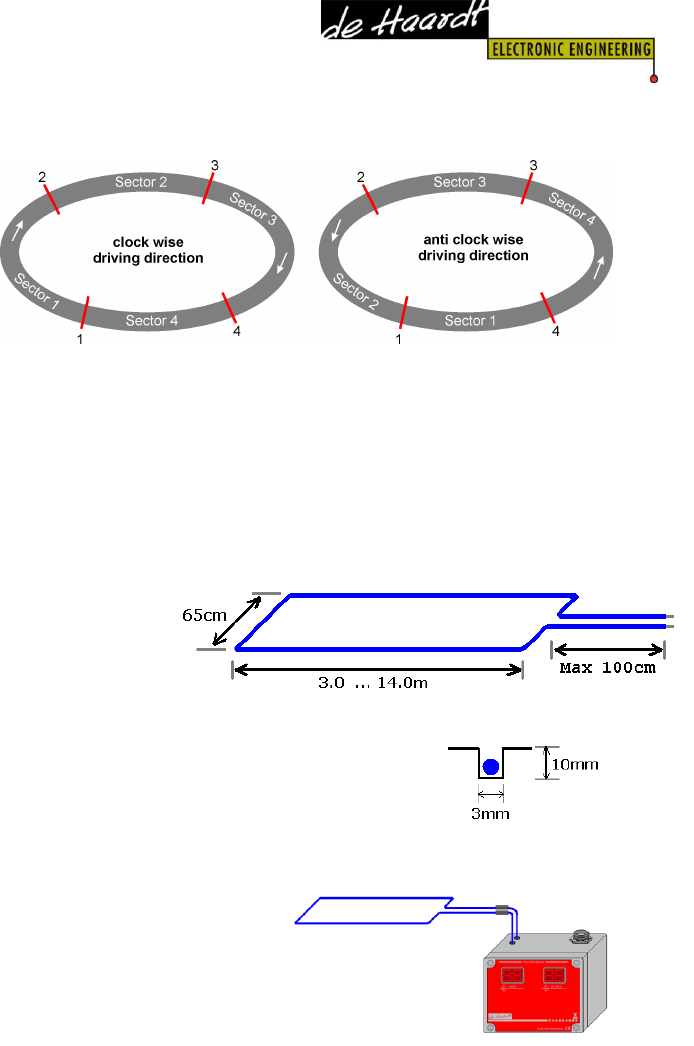

Sector numbering depends on driving direction as illustrated
below:
The Xtra.Sector Beacon can be configured for both driving
directions, in case a separate “Driving Direction Unit” is
used. As this unit normally is NOT supplied with the
Xtra.Sector Beacon, this function is not further explained.
4.5.1 Electrical connection of the Xtra.Sector Beacon
The LOOP wire
is placed in a
rectangular
groove which is
cut in the race
track surface.
The 10mm deep by 3mm wide groove
must ultimately be filled with silicon
or another resin.
The ends of the LOOP wire must be attached (by soldering)
to the 2 blue wires coming from the Xtra.Sector Beacon
unit. Before soldering
the loop wires, cut them
to the required length
and place the crimp
sleeves.
Manual Xtra.Remote Electric
Kart & Track Control System
32
Once the soldering is finished position the crimp sleeves
over the solder connections and crimp the sleeves with a
heat gun.
The power for the
Xtra.Sector Beacon is
provided by an
external adapter.
Push the adapter
power plug completely
into the socket on the
Xtra.Sector Beacon. Once the plug is put correctly into the
socket, fasten the plug with its locking screw. Once locked,
the connection is water resistant.
Warning: Keep unplugged connectors (both sockets and
plugs) completely dry and clean. Never expose them to
water, fuel, oil, chemicals or any kind of dirt!
Warning: The adapter itself is NOT waterproof and not
intended for outside use. In case the Xtra.Sector Beacon
system must be used outside, the adapter needs additional
protection.
The Xtra.Sector Beacon itself is 100% waterproof once the
power plug is connected conform instructions.
4.5.2 Mounting of the Xtra.Sector Sensor
Every kart requires its own Xtra.Sector Sensor.
It is essential that the Xtra.Sector Sensor is
installed according to the descriptions below,
otherwise performance problems or even
damage can be expected.
The most important rules of installation are:
Manual Xtra.Remote Electric
Kart & Track Control System
33
The maximum distance between the loop antenna
and the housing of the Xtra.Sector Sensor is 20 cm.
For best performance the Xtra.Sector Sensor must
be mounted flat on the karts plastic floor plate in line
with the driving direction (printed arrow points to the
driving direction). Aluminum floor plates may reduce
performance.
Keep the Xtra.Sector Sensor as far as possible away
from tubes, iron or other electric conducting
materials and the karts high current conducting
cables.
It is advisable to first connect the Xtra.Sector Sensor to one
kart only, then test if it performs properly, and continue to
mount the timing transponders to all other karts.
The fixation of the Xtra.Sector Sensor can be done with 3
screws.
4.5.3 Electrical connection Xtra.Sector Sensor
On the kart, the Xtra.Sector Sensor must be connected to
the Xtra.CDI Shutdown Transponder through the network
port.
The network port is protected with a rubber cap normally.
This rubber cap has to be removed before the network
connector can be attached. Check the polarisation before
fitting the connector!
Manual Xtra.Remote Electric
Kart & Track Control System
34
Once attached double check the coupled connectors and
make 100% sure that vibration cannot loosen the
connection.
Warning: Keep unplugged connectors (both sockets and
plugs) completely dry and clean. Never expose them to
water, fuel, oil, chemicals or any kind of dirt!
Warning: Make 100% sure that vibration can NOT loosen
the network connection as this can cause several problems
like bad functioning of the system, corrosion of the network
plug and socket, etc..
Manual Xtra.Remote Electric
Kart & Track Control System
35
5 Operating the equipment

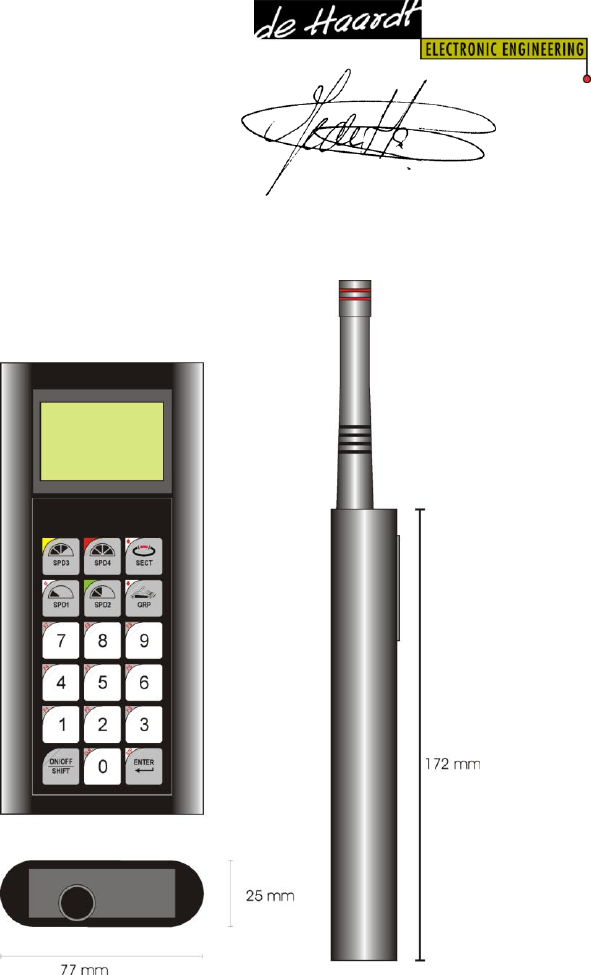

5.1 Button functions and basic operation of the
Xtra.Remote Control
5.1.1 Switching the Remote Control On/Off
Press the ON/OFF button on the keyboard of the
Xtra.Remote Control for at least one second to turn the
device on. Once on, you can do the same to turn it off.
5.1.2 Indirect stop of all karts at once
By pressing the SHIFT button followed by the STOP
button, all karts can be stopped at once.
Manual Xtra.Remote Electric
Kart & Track Control System
36
If required, the remote can be programmed in such a way
that this function can be executed by pressing the STOP
button only.
Please follow the instructions at paragraph 5.2.7
5.1.3 Adjusting the speed of kart(s)
On the remote control there are 4 buttons for reducing the
speed of the kart(s). These buttons are: SPD1, SPD2,
SPD3, SPD4.
Button SPD1 (Speed 1) is meant for the lowest speed, and
SPD4 (Speed 4) for the highest speed.
These speed limits are default set to the following limits:
SPD1 – RPM 2100
SPD2 – RPM 3000
SPD2 – RPM 4000
SPD4 – RPM no limit
If required the RPM settings can be changed according to
your own requirements.
Please follow the instructions at paragraph 5.2.8
5.1.4 Adjusting the speed of an individual kart
The speed of individual karts can be adjusted in 2 ways:
1. By entering the serial number of the Xtra.CDI
Shutdown Transponder mounted on the kart
concerned, followed by pressing one of the SPD
buttons.
2. By entering the kart number (with the custom
assigned kart number by means of Menu-
>Shutdown tp->Assign), followed by pressing one
of the SPD buttons.
50
Serial numbers range from 65536 to 1048575.
Kart numbers range from 1 to 245.
Manual Xtra.Remote Electric
Kart & Track Control System
37
5.1.5 Adjusting the speed of a group of karts
Before this function can be used, the user must assign (one
time only) group number(s) to the Xtra.CDI Shutdown
Transponder first. This can be done with "Menu->Shutdown
tp->Assign”.
The speed of a group of karts can be adjusted by pressing
the group number followed by pressing GRP and SPD.
Group numbers range from 1 to 5.
5.1.6 Adjusting the speed of all karts at once
Press one of the SPD buttons without a preceding number.
5.1.7 Adjusting the speed in multiple sectors
To be able to use this possibility, the kart must be fitted
with a sector sensor which is connected to the Xtra.CDI
Shutdown Transponder through the network. Also the track
has to be subdivided into sectors using the Sector Beacon
System.
To adjust the kart speed in a sector, press the sector
number followed by the SECT button, and finally the SPD
button.
To adjust the speed in several succeeding sectors, press the
first sector number followed by the SECT button. Then
press the last sector number followed by the SECT button
and finally press the SPD button.
If a kart number is entered before pressing the SPD button,
then the speed of only that individual kart will be adjusted
when driving inside the entered sectors.
Manual Xtra.Remote Electric
Kart & Track Control System
38
It is also possible to adjust the speed of a certain group of
karts in one or more sectors. In this case enter the group
number followed by the GRP button before the SPD button
is pressed.
5.1.8 Penalties
Penalties (speed limitation for a short time) can be given to
an individual kart, a group of karts or all karts.
In case the 0 button is pressed first, followed by pressing
the regular speed reduction buttons, the penalty function is
selected. As soon as the last button is pressed, the display
indicates (P) to indicate the penalty.
Refer to ‘Menu->Remote->Penalty Time’ to setup the
penalty time.
5.1.9 Adjusting the speed in steps
The speed of the karts can be increased/decreased step
wise. To increase the speed with a step, press the SHIFT
button, followed by the UP button.
To reduce the speed with a step, press the SHIFT button
followed by the DOWN button.
The karts to which the command applies are taken over
from the last entered speed command.
5.1.10 Repeating last command
To repeat the last speed command, press de upper right
button SECT.
5.1.11 Operating (race) lights
Default the Xtra.Remote control can operate the Red, Yellow
and Green (race) lights.
Manual Xtra.Remote Electric
Kart & Track Control System
39
To operate the Red lights press: SHIFT SPD2
To operate the Yellow lights press: SHIFT SPD3
To operate the Green lights press: SHIFT SPD4
The selected light menu appears, and by pressing 1, 2 or 3
you can turn On, Off or toggle the light
5.2 Menu functions
By pressing the SHIFT button followed by the MENU
button, the MAIN MENU of the Xtra.Remote Control
appears.
With the UP and DOWN button it is possible to scroll through
the menu. With the ENTER button an item can be selected.
By pressing the SHIFT and CLR button you can leave the
menu at all time.
In the MAIN MENU, all the components of the Xtra.Remote
kart and track Control system which can be configured by
means of the Xtra.Remote Control, are displayed.
5.2.1 Menu->Remote->Track
By means of this menu the circuits (TRACKS) can be turned
On or Off to which this remote control is part of.
The circuits are indicated with the characters A, B, C and D.
With the UP and DOWN button you can scroll through the
menu and with the ENTER button the circuit can be turned
On or Off.
It is possible to use the remote control on several circuits
simultaneously.
Manual Xtra.Remote Electric
Kart & Track Control System
40
5.2.2 Menu->Remote->Brightness
The brightness of the display can be adjusted by selecting
this item from the menu.
5.2.3 Menu->Remote->Backlight
The backlight of the remote is normally disabled. By means
of this menu this can be turned on.
Since the backlight of the LCD consumes relatively much
energy, for mobile use (battery operated) it is advised to
turn off the backlight.
5.2.4 Menu->Remote->Power Save
The Xtra.Remote Control is able to shut itself down when in
idle state for a certain time. In this menu you can configure
the time before the Xtra.Remote Control turns itself off.
5.2.5 Menu->Remote->Penalty Time
One of the 4 displayed penalty times can be chosen in this
menu.
With the UP and DOWN button you can scroll through the
menu and with the ENTER button one of the penalty times
can be selected.
5.2.6 Menu->Remote->Power Info
In this menu the total battery voltage and the internal
adapter voltage can be examined.
5.2.7 Menu->Remote->Direct stop
In this menu you can choose to operate the Direct Stop
function by just pressing the STOP button only.
Manual Xtra.Remote Electric
Kart & Track Control System
41
With the UP and DOWN button you can scroll through the
menu and with the ENTER button the direct stop function
can be turned On or Off.
If turned On, the Direct stop function is activated.
If turned Off, the Indirect stop function as described in
paragraph 5.1.2 is activated.
5.2.8 Menu->Remote->RPM settings
In this menu you can choose to adjust the preset speed
limits according to your own requirements.
Choose the speed number you want to change by using the
UP and DOWN button.
1. The maximum RPM is configured by pressing the
numerical buttons. If you want to delete a number
press SPD3.
RPM limit ranges from 1600 to 6500 RPM
RPM no limit can be chosen by pressing SPD4
button
Scroll to the [NEXT] item and press the ENTER button, to
store the settings in the Remote Control.
5.2.9 Menu->Shutdown tp->Assign
In this menu you can assign a kart number, a group
number(s) and different tracks to the Xtra.CDI Shutdown
Transponder.
After entering the serial number of the Xtra.CDI Shutdown
Transponder, all the current settings are loaded from the
Xtra.CDI Shutdown Transponder into the Remote Control
and shown on the display.
Manual Xtra.Remote Electric
Kart & Track Control System
42
The loaded settings can now be modified by scrolling
through the listed items (UP and DOWN buttons).
1. Kart numbers are entered by pressing the numerical
buttons, if you want to delete a number press SPD3
2. Group numbers are toggled by pressing the buttons
1 to 5 and the display shows the currently selected
group numbers.
3. Circuits/Tracks are toggled by pressing the buttons
1 to 4 (1 is Track A, 2 is Track B…..). The display
shows the currently selected tracks. At least 1
track/circuit has to be selected.
Scroll to the [NEXT] item and press the ENTER button, to
upload the settings to the Xtra.CDI Shutdown Transponder.
5.2.10 Menu->Shutdown tp->Read timer
By entering the kart or serial number of the Xtra.CDI
Shutdown Transponder you can read out the running time
of that kart.
5.2.11 Menu-> Shutdown tp->Reset timer
By entering the kart number or the serial number of the
Xtra.CDI Shutdown Transponder the running time counter
can be reset to zero.
5.2.12 Menu->Shutdown tp->Read RPM
By entering the kart number or the serial number of the
Xtra.CDI Shutdown Transponder you can read out the RPM
of the kart engine addressed.
5.2.13 Menu->Shutdown tp->RPM Limits
By entering the serial number of the Xtra.CDI Shutdown
Transponder you can configure the RPM limit of the kart.
Manual Xtra.Remote Electric
Kart & Track Control System
43
1. The maximum RPM is configured by pressing the
numerical buttons. If you want to delete a number
press SPD3.
RPM limit ranges from 1600 to 6500 RPM
2. The brake switch RPM limit is configured by pressing
the numerical buttons. If you want to delete a
number press SPD3.
The brake switch RPM limit ranges from 1600 to
6500 RPM
Important :
Due to the nature of limiting the speed by way of spark
suppression, fluctuations in speed can occur once the speed
is limited. Therefore we do not suggest to use this function
to equalise (maximum) speeds between karts, or activate
this function during (official) timed races or important
events.
5.2.14 Menu->Range Extend->Track
After entering the serial number of one of your Range
Extender / Access points, a track list is shown. A marked
track means that the Range Extender is listening to
commands of that track. By selecting the desired track and
pressing the ENTER button, the selection can be toggled.
In the ‘Range Extension’ field of the menu, the Range
Extender function of the unit can be enabled/disabled.
To store the setting to the Range Extender, you have to set
the marker to the Store field and press ENTER.
Manual Xtra.Remote Electric
Kart & Track Control System
44
5.2.15 Menu->Range Extend->Link Check
To check if a Range Extender can ‘see’ another Range
Extender, enter the serial number in the To and From fields
and press ENTER.
The results are shown on the display.
Manual Xtra.Remote Electric
Kart & Track Control System
45
5.3 Configuration of the Sector beacon
The Xtra.Sector Beacon can be configured by using the
‘magnetic tip pen’ on the front panel of the unit.
Number
Explanation
1
The DOT indicates that the internal MODE
switch is activated by the ‘magnetic tip pen’.
2
The CROSS indicates the position to put the
‘magnetic tip pen’ for changing MODE.
3
This DOT indicates the driving direction. When
turned off, the default driving direction is
selected. When turned on, the reverse driving
direction is selected.
4
The CROSS indicates the position to put the
‘magnetic tip pen’ for changing SETTING.
5
The DOT indicates that the internal SETTING
switch is activated by the ‘magnetic tip pen’.
6
This DOT indicates the driving direction. When
turned off, the default driving direction is
selected. When turned on, the reverse driving
direction is selected.
Manual Xtra.Remote Electric
Kart & Track Control System
46
Every time the ‘magnetic tip pen’ is held near the MODE
cross (2), the next mode is shown on the left part of the
display.
Meaning of the 2 displayed Mode characters is described in
the table below.
Mode
Description
Sn
Sector number
Fn
Function number
Ad
Address
Er
Error number
After selecting a mode, keep the ‘magnetic tip pen’ near the
SETTING cross (4) until the digits start blinking.
Once the SETTING digits are blinking, the value can be
changed by holding the ‘magnetic tip pen’ near the SETTING
cross (4).
The new value can be stored by keeping the ‘magnetic tip
pen’ for more than 1 second at the MODE cross (2).
5.3.1 Mode -> Sector number
Every Xtra.Sector Beacon loop can be used to mark the
start of a new sector on the track. Sector numbers range
from 0 - 31.
In case sector number 0 is selected, the Xtra.Sector Beacon
is put in standby mode. The result is that the Xtra.Sector
Sensor will ignore all Xtra.Sector Beacon commands. Only
the Led indicator on top of the Xtra.Sector Sensor flashes
for diagnostic purposes.
Manual Xtra.Remote Electric
Kart & Track Control System
47
5.3.2 Mode -> Function number
A function can be assigned to every Xtra.Sector Beacon
loop. Functions are numbered and range from 0 - 63. The
table below describes valid functions.
Function
number
Details
0
No function, default value for Sector Speed
Control
Limit the speed of the kart when passing the beacon LOOP:
10
STOP the kart when passing the Xtra.Sector
Beacon LOOP.
11
LIMIT kart speed to SPEED1 level (Advised for
PIT-IN )
12
LIMIT kart speed to SPEED2 level when passing
the beacon LOOP.
13
LIMIT kart speed to SPEED3 level when passing
the beacon LOOP.
14
LIMIT kart speed to SPEED4 level when passing
the beacon LOOP. (Advised for PIT-OUT)
Configuration functions for the Xtra.CDI Shutdown Transponder:
20
Configure Xtra.CDI Shutdown Transponder for
Group number 1.
21
Configure Xtra.CDI Shutdown Transponder for
Group number 2.
22
Configure Xtra.CDI Shutdown Transponder for
Group number 3.
23
Configure Xtra.CDI Shutdown Transponder for
Group number 4.
24
Configure Xtra.CDI Shutdown Transponder for
Group number 5.
25
Configure Xtra.CDI Shutdown Transponder for
Track A
26
Configure Xtra.CDI Shutdown Transponder for
Track B
27
Configure Xtra.CDI Shutdown Transponder for
Track C
Manual Xtra.Remote Electric
Kart & Track Control System
48
Function
number
Details
28
Configure Xtra.CDI Shutdown Transponder for
Track D
Function numbers not mentioned above are reserved for
future purposes.
5.3.3 Mode -> Address
The Xtra.Sector Beacon address ranges from 0 - 63 but is
required only for special applications. Therefore this item is
not further explained and the selected value is of no
importance.
5.3.4 Mode -> Error
The Xtra.Sector Beacon tunes the loop at power-up. If the
Xtra.Sector Beacon detects problems while tuning the loop,
an error number is shown on the display. To reset an error,
turn the unit off and on again.
Error
number
Diagnostic result
0
No error
1
Loop not connected
2
Loop too long
3
Loop too short
5.4 Operating the Xtra.Sector Sensor
The LED indicator on top of the Xtra.Sector Sensor gives
diagnostic information when passing an Xtra.Sector Beacon
loop as shown in the table below.
Number of
flashes
Diagnostic result
1
Bad reception or faulty data received
2
Reception acceptable
3
Reception good
Manual Xtra.Remote Electric
Kart & Track Control System
49
6 WEEE Legislation
European Directive 2002/96/EC requires that the equipment
bearing this symbol on the product and/or its packaging
must not be disposed of with unsorted municipal waste. The
symbol indicates that this product should be disposed of
separately from regular household waste streams. It is your
responsibility to dispose of this and
other electric and electronic
equipment via designated collection
facilities appointed by the government
or local authorities. Correct disposal
and recycling will help prevent
potential negative consequences to
the environment and human health.
For more detailed information about
the disposal of your old equipment,
please contact your local authorities,
waste disposal service, or the shop
where you purchased the product.
Manual Xtra.Remote Electric
Kart & Track Control System
50
7 Declaration of Conformity
We, the undersigned,
Company: De Haardt Electronic Engineering BV
Address: Marithaime 6
6662 WD, Elst (GLD)
Country: The Netherlands
declare that the following equipment :
Xtra.CDI Shutdown Transponder
Xtra.Twin Shutdown Transponder
Xtra.Remote Control
Xtra.Range Extender / Access point
Xtra.Light Control Board
is in conformity with the following standards :
EN 300 220-3 V1.1.1 (September 2000)
EN 301 489-1 V1.4.1 & EN 301 489-3 V1.4.1 (August 2002)
IEC 60950-1:First edition 2001-10
EN 60950-1:2001, including amendment A11:2004
And therefore complies with Directive 89/336/EEC &
73/23/EEC of the European parliament.
Date: 25-10-2005
Drawn up in: Elst (GLD), The Netherlands
Name: J. de Haardt
Signature:
Manual Xtra.Remote Electric
Kart & Track Control System
51
8 Technical specifications
8.1 Xtra.Remote Control
Manual Xtra.Remote Electric
Kart & Track Control System
52
Dimensions
LxWxH = 172x77x25 mm
(without antenna)
Maximum number of karts
Unlimited,
245 custom assignable (short)
kart numbers
Keyboard
Membrane with tactile feedback
Display
Graphic LCD, with backlight
Radio technology
2 way communication
Battery standby time
96 hours
Battery operation time
16 hours
Charge time
16 hours
Buzzer
Integrated
Power supply
Mains adapter
Batteries
Batteries
2 x High capacity Rechargeble Ni-
MH, size
AA, min 2100 mAh
Battery charger
Integrated
PC connection
RS-232 port
Humidity
Max 85% relative
Traffic , Race light Control
Yes
Speed select buttons
SPD1, SPD2, SPD3, SPD 4 and
STOP
Number of tracks to be
controlled
4
Brightness control
Yes, multiple levels
Backlight modes
10s, 30s, off
Power save
Automatic 30s, 1m, 5m, off
Diagnostics functions
Available
Stepwise speed control
Yes, by UP and DOWN buttons
Battery voltage meter
Available
Penalties
4 penalty times can be setup.
Penalty speed limit can be
selected out of the 4 speed limits.
Software upgradable
Yes
Carriage bag
Available
Weight
Approx. 290 grams
Temperature Range
-10 to +55 Degrees Celsius
Manual Xtra.Remote Electric
Kart & Track Control System
53
Enclosure
Mountable on round and square
tubes, supported with tie-wrap
feeds
Weight
Approx. 200 grams
Temperature range
-10 to +55 Degrees Celsius
8.2 Xtra.CDI Shutdown Transponder
Dimensions
LxWxH = 76x67x39.5 mm
Antenna
Integrated
Maximum number of karts
Unlimited,
245 custom assignable (short)
kart numbers
Maximum number of groups
5 custom assignable group
numbers
Maximum number of tracks
4 custom selectable
Engine Shutdown
Yes
Operating principle
Spark cancellation
Speed operating range
1600 – 6500 RPM
Radio technology
2 way communication
Brake switch
Limits the speed to customized
preset value when the brake
switch is activated
Network
By means of the network
connection, (future) units on karts
can mutually communicate
Tachometer
Real time readable with the
Xtra.Remote Control
Manual Xtra.Remote Electric
Kart & Track Control System
54
Motor type
Honda GX engines
(35,120,160,200, 270 and 390)
Power supply
Depending on the engine type:
- Directly from ignition (non-CDI)
- 12V battery
- Xtra.Universal Power Coil
Engine running time counter
Real time readable with the
Xtra.remote control
Kart type
Single engine available only
Enclosure
Mountable on round and square
tubes, supported with tie-wrap
feeds
Weight
Approx. 200 grams
Temperature range
-10 to +55 Degrees Celsius
8.3 Xtra.Range Extender / Access point
Dimensions
LxWxH = 180x148x91 mm
(without antenna)
Power supply
230 V AC (+10 … -15%) ,
50-60 Hz
4.5 - 15V DC (Outputs of
the Light Control Board can
NOT be used)
Radio technology
2 way
Enclosure
Die-cast IP65
Range extender
Enabled / disabled
4 tracks, can be individually
enabled/disabled
Warning messages
Low battery detect warning
Access point interface
RS-232
Rated temperature range
-10 to +50 Degrees Celsius
(without Light Control Board
installed)
-10 to +40 Degrees Celsius (with
Light Control Board installed)
Manual Xtra.Remote Electric
Kart & Track Control System
55
Maximum Current from
mains
6.3 Amps, with Light Control
Board is installed.
0.1 Amps, without Light Control
Board installed.
Maximum current external
DC port.
250 mA.
Software upgradable
Yes
Weight
Approx. 1650 grams
8.4 Light Control Board
Outputs
3 channels (Mains switches )
Output light patterns
Continuous on
Continuous off
Blinking on/off ( Blinking
time 20 to1000 mSec )
Configurable for each output
channel individually
Maximum total output
current
6.3 Amp
Maximum individual output
current
4 Amp
Inputs
4 galvanic isolated 12 volt inputs.
Both ac and dc voltages can be
used
Input trigger
Rising edge
Falling edge
Positive level
Negative level
Fuse
6.3 A / Slow ( 20mm)
Power source
Internally from Xtra.Range
Extender / Access point.
Temperature range
-10 to + 40 Degrees Celsius
Weight
Approx. 100 gr
Manual Xtra.Remote Electric
Kart & Track Control System
56
8.5 Xtra.Sector Beacon
Dimensions
LxWxT = 116x91x81 mm
Display type
LED
Functions
User selectable :
Sector Speed control
Limit SPEED to 2100 RPM
Limit SPEED to 3000 RPM
Limit SPEED to 4000 RPM
Limit SPEED to 0 RPM
(STOP)
No SPEED limit
SET Xtra.CDI Shutdown
transponder to Track A, B,
C or D
SET Xtra. Shutdown
transponder to Group 1,
2, 3, 4 or 5
Maximum number of Sectors
31
Functions
User selectable using ‘Magnetic
Tip Pen’
Sector numbering
Clock wise
Anti clock wise
(Switchable using ‘Driving
Direction Unit’)
Xtra.Sector Beacon Power
supply
12V DC through 8p- MINI
DIN waterproof connector.
Mains adapter is supplied
with system.
Interface port
RS-485 through 8p- MINI DIN
waterproof connector
Software upgradeable
Yes
Weight Xtra.Sector Beacon
Weight adapter
Approx. 420 grams
Approx. 875 grams
Temperature range
-10 to +55 Degrees Celsius
Manual Xtra.Remote Electric
Kart & Track Control System
57
8.6 Xtra.Sector Sensor
Dimensions
LxWxT = 67/88x49x23 mm
Mounting direction
Horizontal, in line with driving
direction
Max mounting height
20 cm *1
Cable length
Approx. 75 cm.
Indicator
LED
Enclosure
Screw mountable
Communication
By means of the kart network
port
Power supply
Via (kart) network port
Power backup
Internal Lithium battery
Software upgradeable
Yes
Weight
Approx. 115 grams
Temperature range
-10 to +55 Degrees Celsius
*1 : With no magnetic absorbing material between
Xtra.Sector Sensor and the track loop.
Manual Xtra.Remote Electric
Kart & Track Control System
58
9 Warranty
1. De Haardt Electronic Engineering BV guarantees for
12 months after delivery of the goods sold or
provided for use that:
the goods can perform the tasks stated in the
manuals, descriptions and documentation;
2. The liability under the guarantee contained in this
article is limited at De Haardt Electronic Engineering
BV’s choice to remedying material and
manufacturing faults free of charge in De Haardt
Electronic Engineering BV’s own workshop, supplying
new parts free of charge and taking back and
acquiring the ownership of the non-functioning parts,
or applying a price reduction by agreement with the
other party on the goods supplied or provided for
use. De Haardt Electronic Engineering BV cannot
under any circumstances be obliged to come to the
location of the delivered goods to establish defects
claimed by the other party. Equally, De Haardt
Electronic Engineering BV cannot be compelled to
carry out repair work outside its own workshop.
3. The guarantee referred to in the third paragraph
does not cover the costs of disassembly, labour
costs, transport costs and call-out charges, all in the
most general sense. These costs will be charged in
all cases.
4. No guarantee is provided if:
changes have been made to the goods supplied by or
provided for use by De Haardt Electronic Engineering
BV other than by De Haardt Electronic Engineering
BV itself or persons expressly authorized by De
Haardt Electronic Engineering BV, unless De Haardt
Manual Xtra.Remote Electric
Kart & Track Control System
59
Electronic Engineering BV has agreed in writing to
such changes in advance;
the defects in the goods supplied or provided for use
by De Haardt Electronic Engineering BV are the
result of:
neglect of the maintenance of the goods supplied or
provided for use by the other party or other users;
improper use or use not in accordance with the
instructions supplied by De Haardt Electronic
Engineering BV for the installation of the goods;
incompetent use and/or misuse of the goods
supplied or provided for use by the other party or
other users;
wear and tear;
repairs or replacements carried out by persons other
than those expressly authorized to do so by De
Haardt Electronic Engineering BV, unless De Haardt
Electronic Engineering BV has agreed in writing to
such repairs or replacements in advance
5. Work not covered by the guarantee as referred to in
this article shall be charged to the other party in
accordance with De Haardt Electronic Engineering
BV’s relevant current tariffs.
6. Notwithstanding the provisions in the preceding
paragraphs, the guarantee provided by De Haardt
Electronic Engineering BV does not go beyond any
guarantee provided to De Haardt Electronic
Engineering BV by the relevant manufacturer or
supplier of the hardware and/or software and fulfilled
in respect of De Haardt Electronic Engineering BV.
De Haardt Electronic Engineering BV shall on the
other party’s request inform the latter of the content
of the contracts entered into between De Haardt and
its suppliers.

Navigation menu
