1 Welcome to the Flash Bootloader User Manual

Vector Informatik GmbH, Ingerheimer Str. 24, 70499 Stuttgart

Tel. 0711/80670-0, Fax 0711/80670-399, Email can@vector-informatik.de

Internet http:\\www.vector-informatik.de

Flash Bootloader

User Manual

(Your First Steps)

Version 2.7

User Manual Flash Bootloader

1/ 56

CAN LIN

Authors: Klaus Emmert

Version: 2.7

Status: released (in preparation/completed/inspected/released)

based of template version 2.0

User Manual Flash Bootloader

2/ 56

History

Author Date Version Remarks

Klaus Emmert 2004-07-09 2.2 Switch to new Layout Version 2.0

New symbols

Klaus Emmert 2004-02-09 2.3 Changes from Review Ra 2004-

09-20, link labels

Klaus Emmert 2005-03-23 2.4 Chapter 3.8 and warning for

startup-codes added

Klaus Emmert 2006-02-06 2.5 Change of file structure

Klaus Emmert 2006-08-18 2.6 File Structure illustration

Klaus Emmert 2006-09-01 2.7 WDtimer and some minor issues

based of template version 2.0

User Manual Flash Bootloader

3/ 56

Motivation For This Work

After a seemingly almost endlessly long development process, the software is

finally finished and ready for the ECU, downloaded one last time, tested and the

ECUs packaged for express delivery the next day.

Now it‘s 10:00 P.M.

Shortly before quitting time the next business day the telephone rings, and what is

on the display makes your forehead break out in a sweat of alarm! Errors, nothing

is working, says the message from your customer. You hastily start up another

ECU in the lab and you have to also observe the same result just reported to you.

After searching for a little while you realize that the error is in version management.

You put the correct version together, recompile it, briefly test the result and send

the hex code to your customer, who can now flash the new functioning software via

CAN and diagnostics onto the ECU and as a result, can proceed with the planned

tests without substantial delays.

WARNING

All application code in any of the Vector User Manuals is for training

purposes only. They are slightly tested and designed to understand the basic

idea of using a certain component or a set of components.

A short story

about flashing

based of template version 2.0

User Manual Flash Bootloader

4/ 56

Contents

1 Welcome to the Flash Bootloader User Manual ............................................. 7

1.1 Beginners with Flash Bootloader start here ? ..................................... 7

1.2 For Advanced Users ........................................................................... 7

1.3 Special topics ...................................................................................... 7

1.4 Documents this one refers to…........................................................... 8

2 About This Document ....................................................................................... 9

2.1 How This Documentation Is Set-Up .................................................... 9

2.2 Legend and Explanation of Symbols................................................. 10

3 Flashing – An Overall View ............................................................................ 11

3.1 What Is Flashing? ............................................................................. 11

3.2 What Happens During Flashing? ...................................................... 12

3.3 What Is The Flash Bootloader?......................................................... 12

3.4 Bootloader......................................................................................... 12

3.5 Flash Driver....................................................................................... 13

3.6 Flash Tool ......................................................................................... 14

3.7 What The Flash Bootloader Does ..................................................... 15

3.8 What The Flash Bootloader NOT Does ............................................ 15

4 Flashing – A More Detailed View ................................................................... 16

4.1 The Bootloader Is Always Started First............................................. 16

4.2 Flashing After A Reset ...................................................................... 16

4.3 Your Application Initiates The Flashing Process............................... 17

4.3.1 What might happen? ......................................................................... 17

4.4 Handling of the Validation Concepts ................................................. 18

4.4.1 Validation Area.................................................................................. 18

4.4.2 Access to the Validation Area ........................................................... 18

4.4.3 ApplFblIsValidApp............................................................................. 18

4.4.4 ApplFblValidateApp........................................................................... 18

4.4.5 ApplFblInvalidateApp ........................................................................ 18

4.5 Proposals For Handling The Validation Area .................................... 19

4.5.1 Proposal A......................................................................................... 19

4.5.2 Proposal B......................................................................................... 20

4.5.3 Proposal C ........................................................................................ 22

4.6 The Interrupt Vector Tables .............................................................. 23

4.7 Label Reference File ......................................................................... 24

5 FLASHING IN 5 STEPS.................................................................................... 25

based of template version 2.0

User Manual Flash Bootloader

5/ 56

5.1 STEP 1 Design The Memory Layout................................................. 26

5.2 STEP 2 Write A Test Application ...................................................... 27

5.3 STEP 3 Integrate The Bootloader ..................................................... 28

5.4 STEP 4 Adapt Your Test Application For The Tester ....................... 29

5.5 STEP 5 Download Your Test Application With The Tester ............... 29

6 Details of Bootloader Integration Step (STEP 3) ......................................... 30

6.1 Bootloader STEP 1 – Extract the files to a folder on your pc ............ 31

6.2 Bootloader STEP 2 Adjust the marked files to fit your

application ......................................................................................... 34

6.2.1 Make… Makefile and make.exe........................................................ 34

6.2.2 fbl_cfg.h - The Configuration File For The Flash Bootloader ............ 34

6.2.3 FBL_apxx.C ...................................................................................... 36

6.2.4 Fbl_vect.c / Applvect.c(.h) - The Interrupt Vector Tables.................. 42

6.3 Bootloader STEP 3 Now compile the Flash Bootloader.................... 44

6.4 Bootloader STEP 4 Transfer the Bootloader to the target

hardware ........................................................................................... 44

6.5 Bootloader STEP 5 Use the Flash Tool to Test the Bootloader........ 44

6.6 Bootloader STEP 6 – Test the flashing after a reset......................... 44

6.7 Bootloader Step 7 – Make your application ready for the

transition to the Bootloader ............................................................... 45

6.8 Bootloader Step 8 – Start Bootloader from your application ............. 45

7 Background Information................................................................................. 46

7.1 The Watchdog................................................................................... 46

7.1.1 Initializing The Watchdog .................................................................. 49

7.2 Multiple ECU Support........................................................................ 49

7.3 Validation Ok – Application Faulty .................................................... 50

7.4 FlashSegmentSize ............................................................................ 51

7.4.1 Why Does The Tool Have To Know This Block Length? .................. 51

7.5 Frequently Asked Questions ............................................................. 52

7.5.1 Bootloader Crashes .......................................................................... 52

7.5.2 Application Is Not Started.................................................................. 53

7.5.3 Bootloader Is Not Started.................................................................. 54

7.5.4 The Flash Tool's Error Codes ........................................................... 54

8 Index ................................................................................................................... 2

based of template version 2.0

User Manual Flash Bootloader

6/ 56

Illustrations

Figure 1-1 Manuals and References for the Flash Bootloader...................................... 8

Figure 3-1 What Is Flashing ........................................................................................ 11

Figure 3-2 Bootloader, Flash Driver And Flash Tool Form The Flash Bootloader ...... 12

Figure 3-3 Bootloader And Your Application Never Run Simultaneously.................... 13

Figure 3-4 Order And Way Of The Download Of The Software Components............. 14

Figure 4-1 Transition Between The Bootloader And Your Application And Vice

Versa.......................................................................................................... 16

Figure 4-2 Using A Flag Only In The Validation Area.................................................. 19

Figure 4-3 Separate Your Application Into Several Modules....................................... 20

Figure 4-4 Using A Validation Function For Validation Your Application..................... 22

Figure 4-5 Principle Of The Two Interrupt Vector Tables ............................................ 23

Figure 5-1 Basic Memory Layout Of An Application with the Flash Bootloader .......... 26

Figure 5-2 The Test Application In The ECU Memory Using Two Interrupt Vector

Tables ........................................................................................................ 27

Figure 5-3 Flashing via Flash Tool and OEM-specific Tester...................................... 28

Figure 6-1 Details of Bootloader Integration Step (Step 3).......................................... 30

Figure 6-2 Function Calling Sequence During Flashing .............................................. 37

Figure 6-3 Situation Directly After The Programming Of The Bootloader Together

With The Dummy Application Vector Table ............................................... 42

Figure 7-1 Memory Layout Of The Watchdog Trigger Functions ................................ 46

Figure 7-2 Functions For Manipulating The Watchdog ............................................... 48

Figure 7-3 Modified Function Calling Sequence.......................................................... 50

Figure 7-4 Segmenting During Flashing...................................................................... 51

based of template version 2.0

User Manual Flash Bootloader

7/ 56

1 Welcome to the Flash Bootloader User Manual Cha

ter 3.1

Chapter 3.3

1.1 Beginners with Flash Bootloader start here ?

You need some information about this document? Cha

ter 2

What is Flashing?

What is the Flash Bootloader?

Chapter 4

1.2 For Advanced Users Chapter 5

Start reading here.

5 Steps for Flash Bootloader integration.

1.3 Special topics

Why do I need 2 Interrupt Vector Tables? Chapter 4.6

How to define my application valid? Chapter 4.4

Validation Ok but application not valid… Chapter 7.3

How to handle my watchdog? Chapter 7.1

based of template version 2.0

User Manual Flash Bootloader

8/ 56

1.4 Documents this one refers to…

 FlashTool Documentation

 OEM-specific Documentation

 Hardware-specific Documentation

User Manual

Technical

Reference

Hardware

Technical

Reference

OEM

Flash Tool

Documentation

You are here

#hw_<xxx>

headline headline

#oem_<yyy>

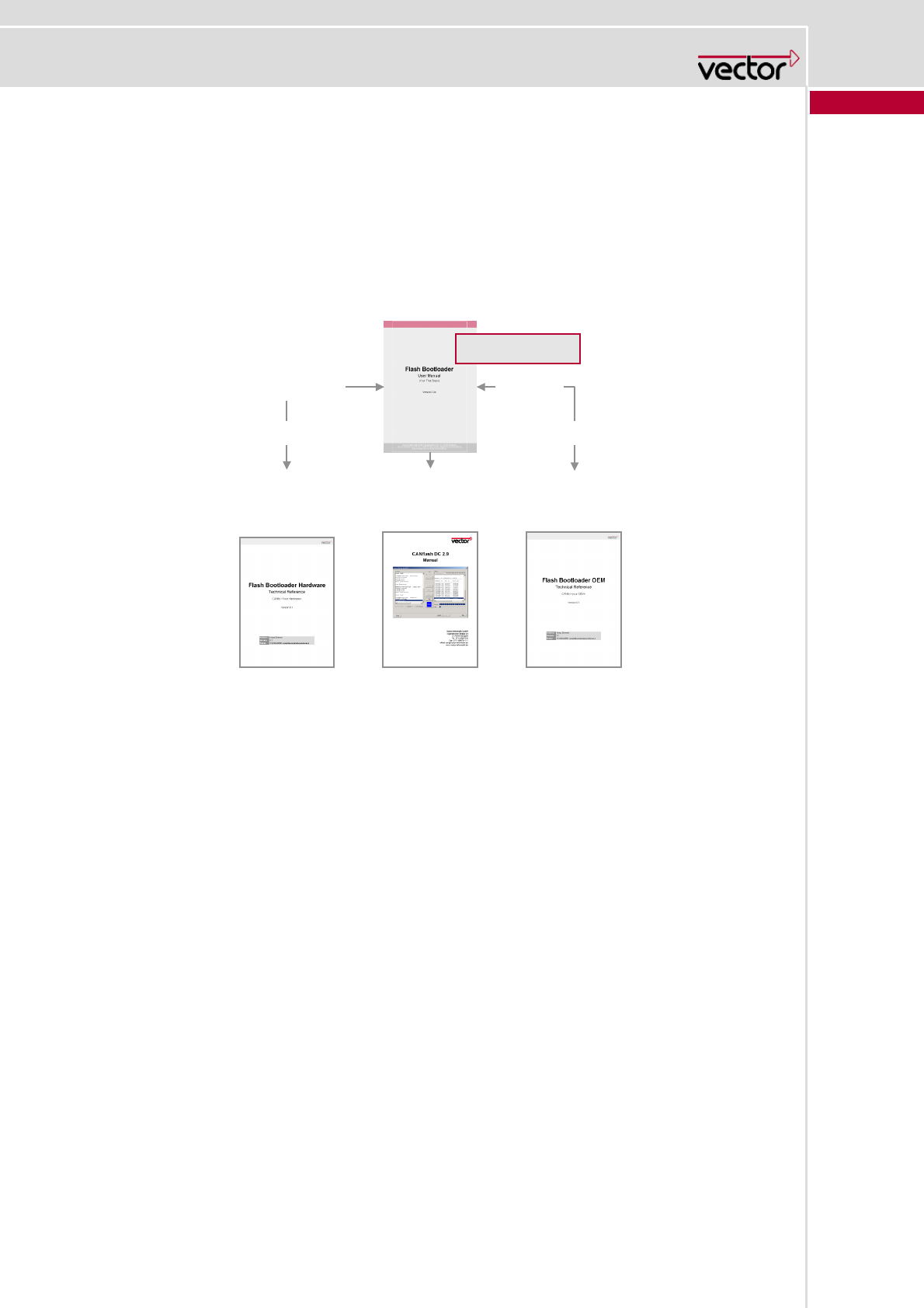

Figure 1-1 Manuals and References for the Flash Bootloader

The Flash Bootloader can be separated into a general part, that is equal to all

Flash Bootloaders and parts that are dependent on the requirements of the OEM

and the features of the hardware. All common topics are described within this user

manual. Use the references when indicated to figure out the specifics for your

Flash Bootloader.

For the OEM-specifics of your Flash Bootloader refer to the:

TechnicalReference_FBL_<OEM>.pdf. The ID for a reference to this document

looks like: [#oem_<xxx>]. This ID you will find in the corresponding headline there.

For the hardware-specifics of your Flash Bootloader refer to the :

TechnicalReference_FBL_<hardware>.pdf. The ID for a reference to this

document looks like: [#hw_<yyy>]. This ID you will find in the corresponding headline

there.

based of template version 2.0

User Manual Flash Bootloader

9/ 56

2 About This Document

This document gives you an understanding of the Flash Bootloader. You will

receive general information, a step-by-step tutorial to get the Flash Bootloader up

and running, details regarding diagnostic services, directions to implement the

watchdog, and instructions regarding the Flash Tool.

This is the general Flash Bootloader Document, independent of oem-specific settings

or hardware. For more information about OEM solutions or hardware dependencies

refer to those specific documents.

2.1 How This Documentation Is Set-Up

Chapter Content

Chapter 1 The welcome page allows easy navigation throughout the document.

Chapter 2 Contains some formal information about this document, and explanation of legends

and symbols.

Chapter 3 Provides a brief introduction to flashing and the different parts that make up the Flash

Bootloader.

Chapter 4 Provides details about the flash process, states the validation concept, and the

implementation of the two interrupt vector tables.

Chapter 5 Describes the five basic steps to integrate the Flash Bootloader, and download the

application using the Vector Flash Tool.

Chapter 6 Describes how to download the application using the OEM-Specific flash tool.

Chapter 7 Lists some common problems encountered while integrating the bootloader and their

proper solution.

based of template version 2.0

User Manual Flash Bootloader

10 / 56

2.2 Legend and Explanation of Symbols

You find these symbols at the right side of the document. They indicate special

areas in the text. Here is a list of their meaning.

These areas

to the right of

the text

contain brief

items of

information

that will

facilitate your

search for

specific

topics.

Symbol Meaning

The building bricks mark examples.

You will find key words and information in short sentences in the margin. This will

greatly simplify your search for topics.

Comments

and

explanation

The footprints will lead you through the steps until you can use the described Flash

Bootloader.

There is something you should take care about.

Useful and additional information is displayed in areas with this symbol.

This file you are allowed to edit on demand.

This file you must not edit at all.

This indicates an area dealing with frequently asked questions (FAQ).

based of template version 2.0

User Manual Flash Bootloader

11 / 56

3 Flashing – An Overall View

3.1 What Is Flashing?

During the flashing process an application (or a part of it), which must be available

in hex format (using the Flash Tool), is transferred into the ECU‘s memory. This

transfer is done via a bus protocol like CAN, LIN, FlexRay, etc.

The Flash

Bootloader

downloads

the

application as

a hex file to

the ECU via

CAN.



F l a s h M e m o r y

R A M

F l a s h M e m o r y

Memory Map

Application Application.hex

.bin

.mot

...

flashing

[CAN, LIN, FlexRay, ...]

PC or Laptop,

CAN Card

and the Flash

Tool – this is

all you need

for flashing.

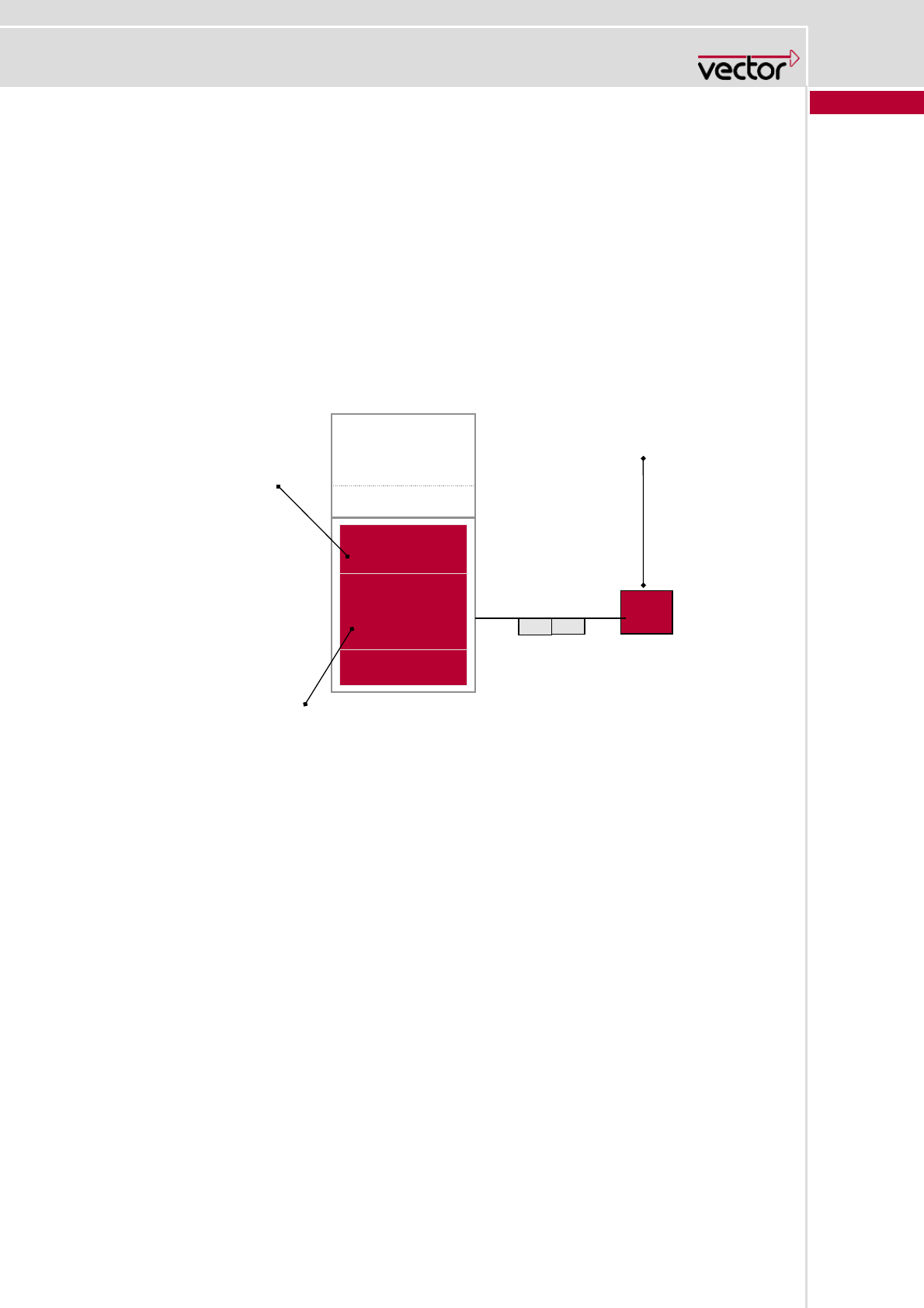

Figure 3-1 What Is Flashing

To transfer your application to the target platform you simply need the Flash

Bootloader, a PC or a laptop, a CAN card and the Flash Tool.

Using an emulator, a BDM tool, or the like to perform the flashing in an already

built-in ECU would be expensive. In addition, the ECU’s hardware interface for the

BDM or emulator is not always accessible.

The interface is based on a CAN bus as part of the Physical Layer, the Transport

Protocol, and on KWP2000 for the specification of diagnostic services.

For flash data exchange between your new node and the tool you need two CAN

messages, one for request and one for response.

based of template version 2.0

User Manual Flash Bootloader

12 / 56

3.2 What Happens During Flashing?

The Flash Driver (flash algorithms) is downloaded via the bus protocol. Afterwards

the application is downloaded and written (flashed) into the Flash Memory (using

the Flash Driver).

3.3 What Is The Flash Bootloader?

The Flash Bootloader is a combination of embedded software and PC tool,

designed to do the flashing of the ECU software via a bus protocol (e.g. CAN).

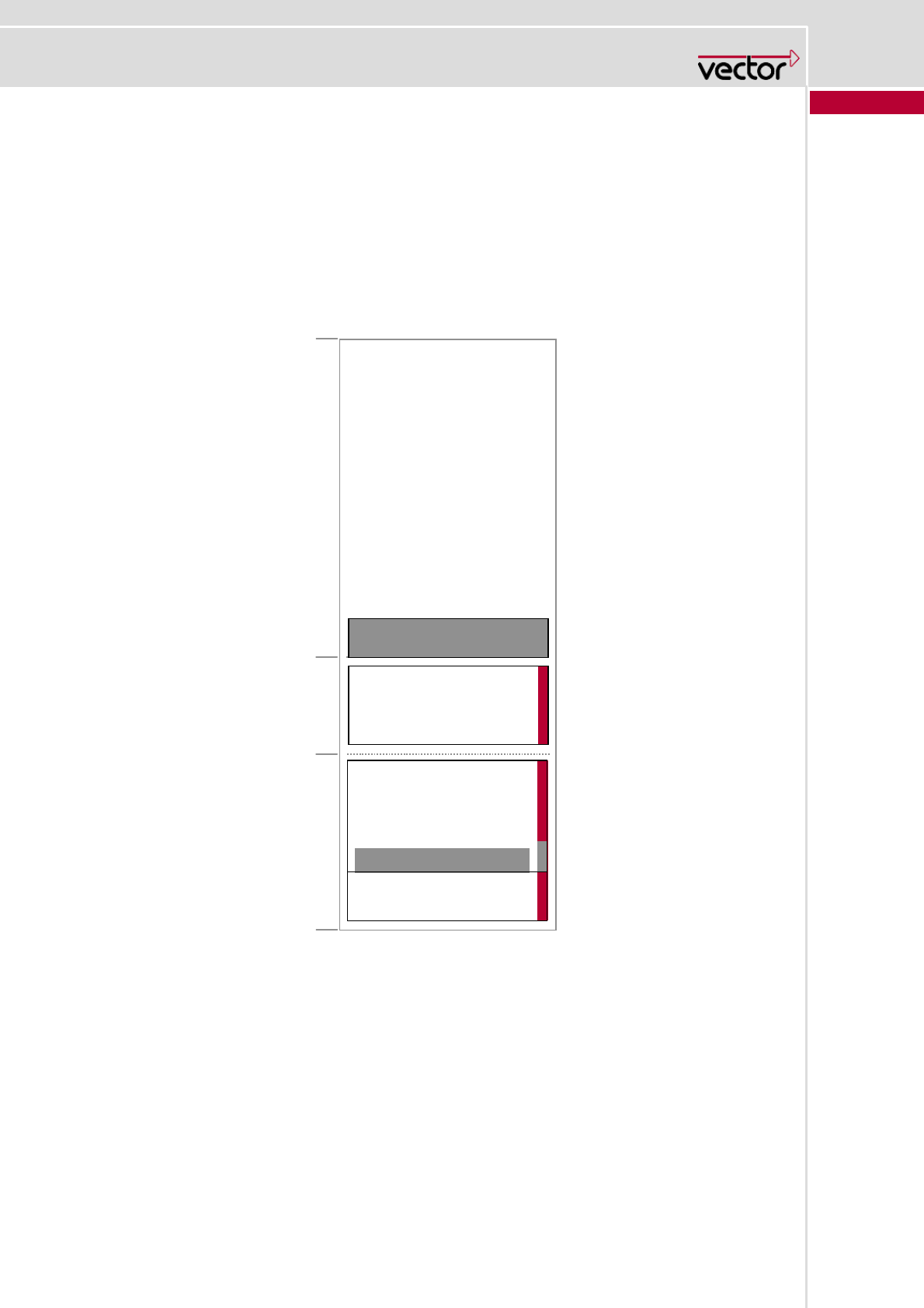

Therefore the Flash Bootloader is divided up into 3 parts, the Bootloader, the Flash

Driver and the Flash Tool.



Flash Programming

CANfbl

Application

Bootloader

Flash Driver

Interrupt Vector Table

[FBL]

Interrupt Vector Table

[Application]

Interrupt Vector Table

[Application]

The Flash Driver downloads the

executable via CAN/LIN in

connection with the Flashtool.

The Flashtool is an easy to use PC tool

and controls the download of your

application (as executable)

via a PC card, e.g. CANcardXL or CAN-

AC2-PCI.

Flash

Tool

The Bootloader contains basic CAN

communication, a Transport Protocol and

Diagnostics (KWP2000), both code optimized

to use minimum memory.

CAN LIN

F l a s h M e m o r y

R A M

F l a s h M e m o r y

Figure 3-2 Bootloader, Flash Driver And Flash Tool Form The Flash Bootloader

3.4 Bootloader

The Bootloader is a stand-alone program. It is compiled, linked, and downloaded to

the ECU separately from your application. The Bootloader and your application

never run simultaneously.

The Bootloader uses Flash memory, in the protected area of the ECU. If your ECU

does not support such a hardware protection, the Bootloader will protect itself from

being overwritten.

based of template version 2.0

User Manual Flash Bootloader

13 / 56

F l a s h M e m o r y

R A M

F l a s h M e m o r y

Memory Map

F l a s h M e m o r y

R A M

F l a s h M e m o r y

Memory Map

Application

IsValid⏐Invalidate⏐Validate

Bootloader

Transport Protocol,

KWP2000-Services,

CAN Driver

Application

Data

F l a s h M e m o r y

R A M

F l a s h M e m o r y

Memory Map

F l a s h M e m o r y

R A M

F l a s h M e m o r y

Memory Map

IsValid⏐Invalidate⏐Validate

Bootloader

Transport Protocol,

KWP2000-Services,

CAN Driver

Flash Driver

Application.hex

Application is running Flash Bootloader is running

flashing

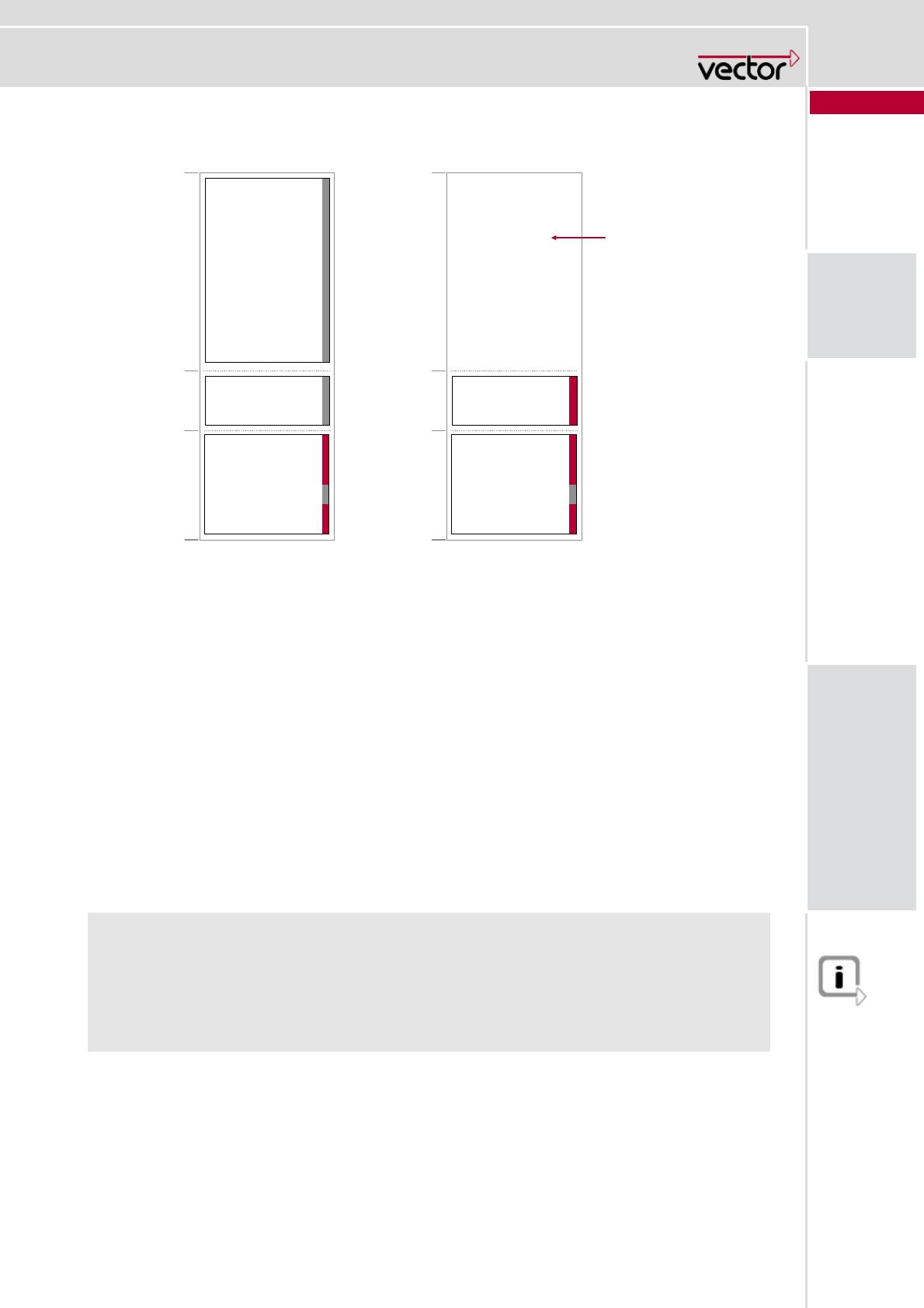

Figure 3-3 Bootloader And Your Application Never Run Simultaneously

The Bootloader is transferred to the target platform via a Flash programmer or

burner, which is hardware dependent (It is not downloaded over CAN).

3.5 Flash Driver

The Flash Driver (actual flash algorithm) is the hardware dependent code for

performing the flash functions.

In most cases, programming flash memory from flash is not possible. Therefore the

Flash Driver is downloaded and executed into RAM to allow programming of the

application.

The advantage of downloading the flash algorithm into RAM is that updates to the

flash algorithms are possible without the need to reprogram the primary bootloader.

The algorithm is cleared from RAM upon completion of the download to avoid

accidental calls to the flash functions while in the application.

In special cases the flash algorithms are kept in flash memory and copied to RAM

when needed. Of course the possibility of changing the flash algorithms is no longer

available when this configuration is used. Moreover, there is a risk that the flash

memory will be unintentionally erased from an accidental call to these functions. A

remedy to correct this would be to encrypt the corresponding program code, such as

e.g. an XOR or the like.

Reasons for

Flash Driver to

run in RAM:

Physical reasons

Protection

against a faulty

call deleting the

flash

Save ROM

memory

Easy to make

updates.

As the Bootloader

downloads data

via CAN, it

contains a CAN

Driver and a

Transport

Protocol.

based of template version 2.0

User Manual Flash Bootloader

14 / 56

3.6 Flash Tool

The Flash Tool is a Windows™ based PC tool that controls the download of the

application.

The Flash Tool reads the compiled and linked application data (Motorola-S or Intel-

Hex format), triggers and controls the flash process, transfers the data via the bus

protocol (e.g. CAN) and verifies this process via a checksum.

To do the download you additionally need a CAN card (CANcardXL, CAN AC2-

PCI) to connect your hardware to the PC.

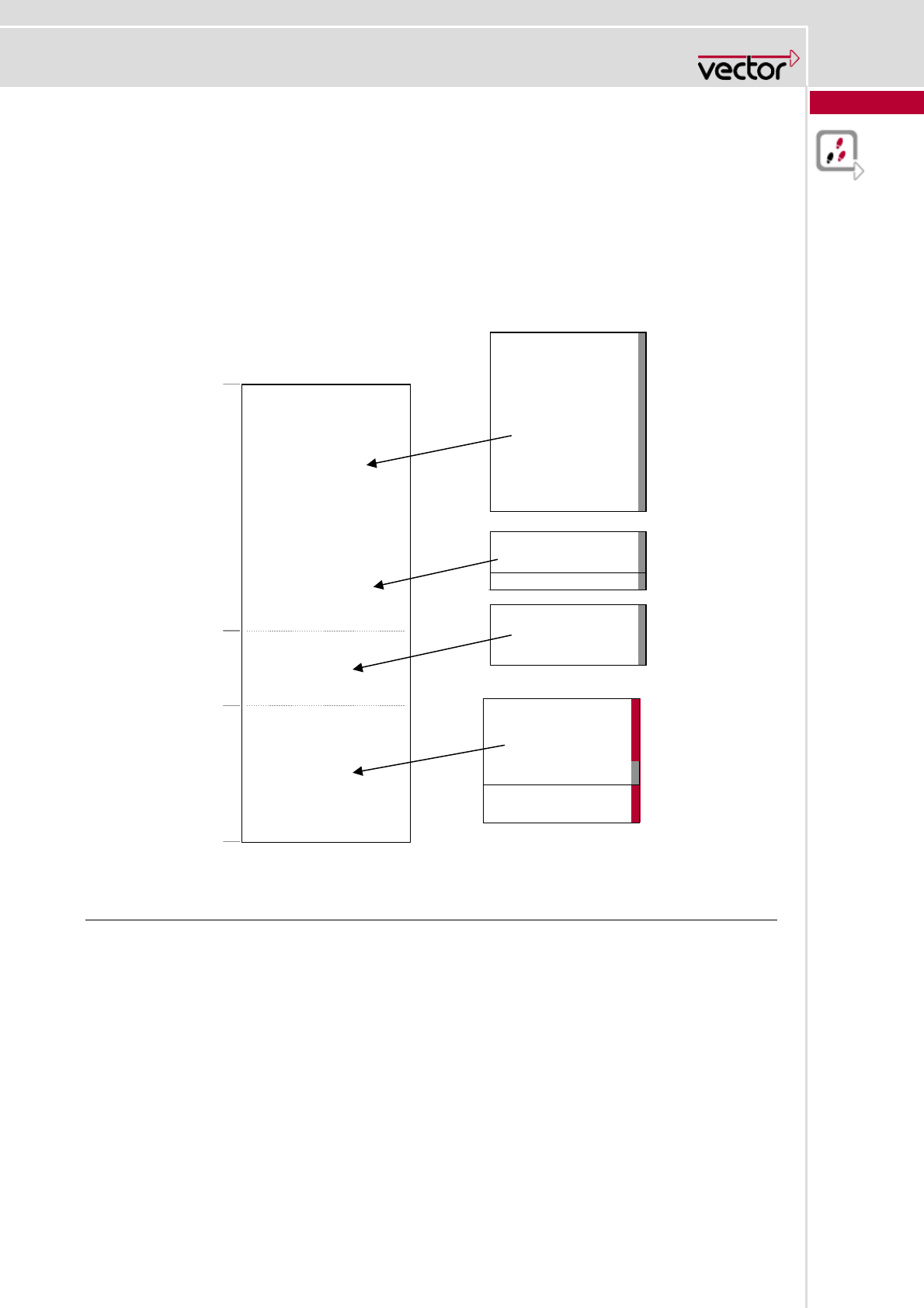

The following figure shows the Bootloader, the Flash Driver, the application, and

how they get in the memory of the controller. As the Bootloader is the component

to enable the download of the Flash Driver and the application, it cannot be

transferred by itself. This job must be done with a suitable programmer or burner

(development environment).

F l a s h M e m o r y

R A M

F l a s h M e m o r y

Memory Map

F l a s h M e m o r y

R A M

F l a s h M e m o r y

Memory Map

Application

Interrupt Vector Table

[FBL]

IsValid⏐Invalidate⏐Validate

Bootloader

Transport Protocol,

KWP2000-Services,

CAN Driver

Interrupt Vector Table

Application]

Validation Area

Flash Driver

Programmer

Burner

CAN, LIN

FlexRay, ...

CAN, LIN

FlexRay, ...

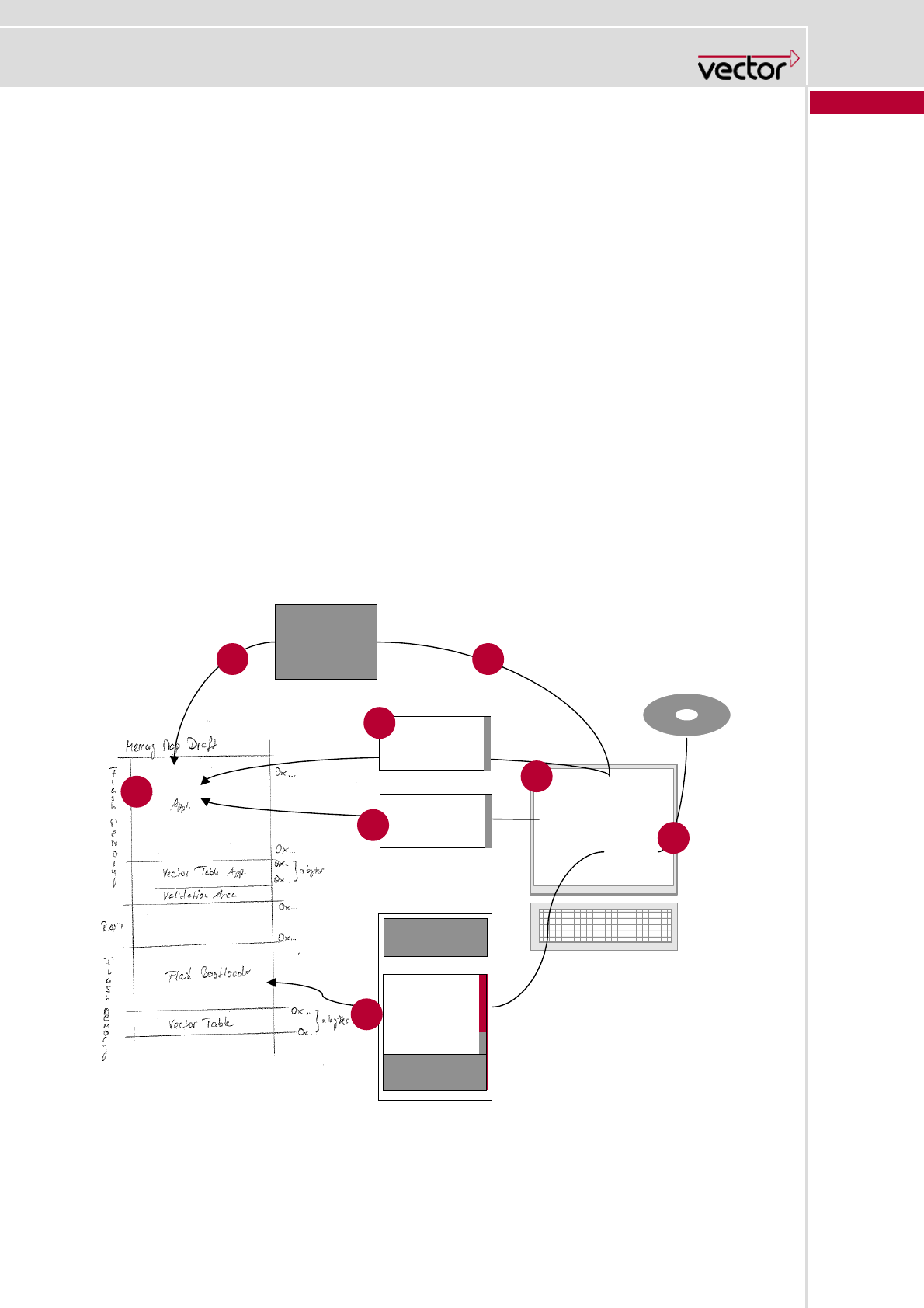

Figure 3-4 Order And Way Of The Download Of The Software Components

The numbers in the figure show the download order, Bootloader first, then the Flash

Driver to be able to flash the application.

based of template version 2.0

User Manual Flash Bootloader

15 / 56

3.7 What The Flash Bootloader Does

 Initializes the CAN controller

 Sends diagnostic messages via CAN

 Receives diagnostic messages via CAN

 Erases and programs the flash memory

3.8 What The Flash Bootloader NOT Does

It is no “Ready-to-use” program:

 Adaptations of callback functions, startup / initialization is necessary

 Adaptation to runtime environment and specific hardware requirements are

necessary

based of template version 2.0

User Manual Flash Bootloader

16 / 56

4 Flashing – A More Detailed View

The Flash

Bootloader is

called after a

reset or

directly from

your

application.

4.1 The Bootloader Is Always Started First

As you now know, on the one hand the Bootloader resides in the protected area

and is always resident on the ECU. On the other hand it is not guaranteed that a

valid, executable application is also present in the ECU. This is the reason why the

Bootloader is always executed first after a reset. The decision is then made to start

the application or to stay in the Bootloader.

Reset

Flash Process

Application

Bootloader

Application Valid?

Dependent on OEM

Wait for Diagnostic Service

to start Flash

yes

(ApplFblIsValidApp) OEM specific

wait time

Invalidate Application?

(ApplFblInvalidateApp)

Validate Application?

(ApplFblValidateApp)

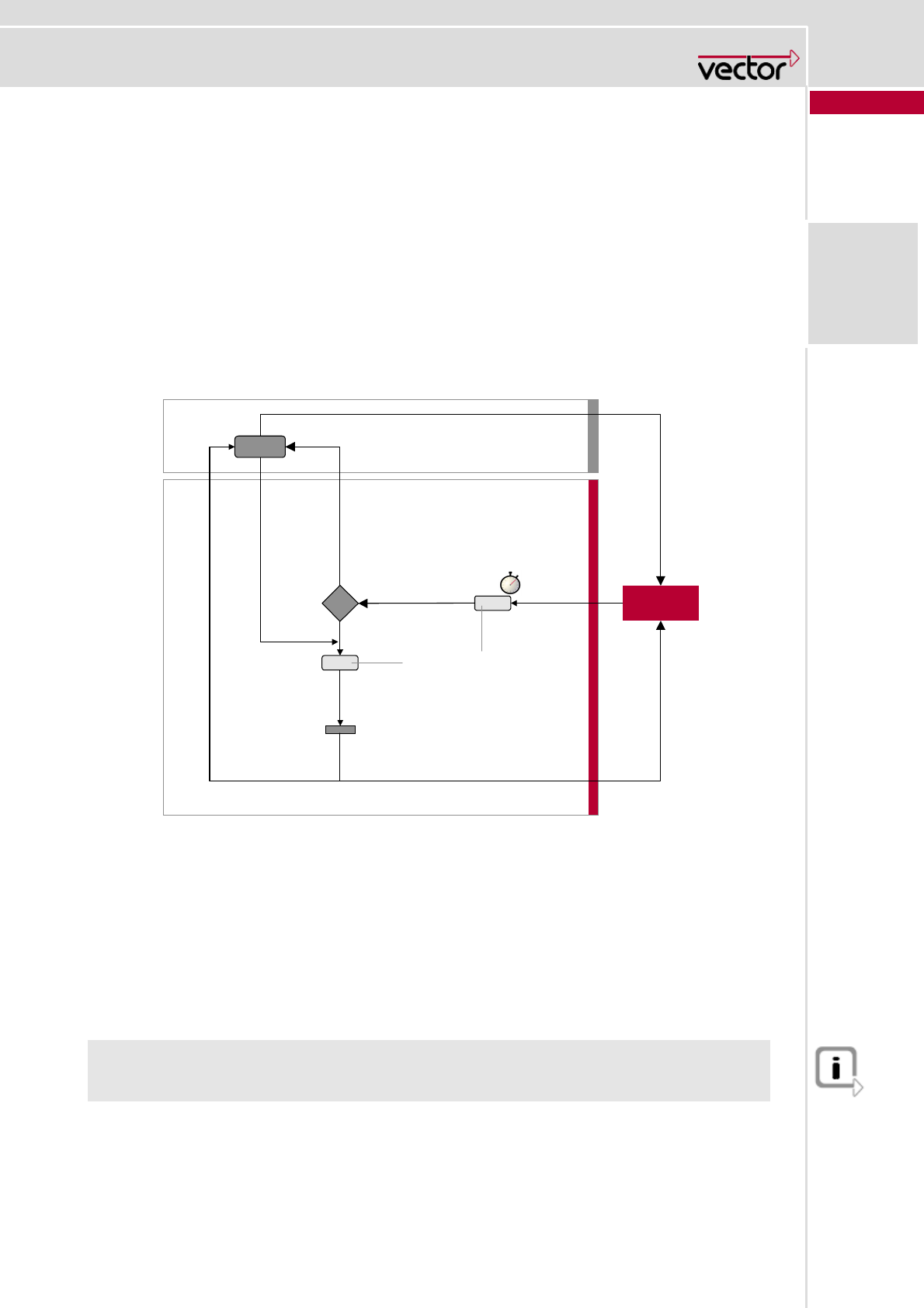

Figure 4-1 Transition Between The Bootloader And Your Application And Vice Versa

The Bootloader can be made to start in different ways, from your application and

after a reset.

4.2 Flashing After A Reset

The Flash Bootloader is executed always first after a reset. At this point in time the

bootloader has to determine if a valid application has been flashed. This test is

done through the use of the ApplFblIsValidApp function.

You will find some example strategies of how an application can be set to valid or

invalid in chapter 4.5.

The return value of the function ApplFblIsValidApp (see Figure 4-1) is used to

decide whether the process should branch into the application or if the ECU should

based of template version 2.0

User Manual Flash Bootloader

17 / 56

remain in the Flash Bootloader. The code in this function and the way you decide

whether the application is valid or not, is up to you.

After a reset

the

ApplFblIsVali

dApp function

decides

whether to

branch into

the

application.

If the application area is blank or the code is faulty, the Bootloader waits for a

Diagnostic CAN message to start the flash process, i.e. the Flash Driver is loaded

into the ECU‘s RAM memory and started. Now the application is being

downloaded, which is the actual flash process.

The application is connected to the Flash Bootloader via three functions

ApplFblIsValidApp, ApplFblValidateApp and ApplFblInvalidateApp. These

functions are to manipulate the Validation Area.

The names of the functions ApplFblValidateApp and ApplFblInvalidateApp can

vary slightly for some OEMs. Please refer to your OEM-specific Documentation for

more detailed information [#oem_valfunc].

In the following, these three functions are abbreviated sometimes only with IsValid,

Validate and Invalidate. These abbreviations are found in most of the following

figures.

4.3 Your Application Initiates The Flashing Process

The other way to start the flashing process is the one via your application and its

diagnostics.

Before the Flash Bootloader manipulates data in the application area the function

ApplFblInvalidateApp is called to set the Validation Area to invalid. Then the

Flash Bootloader downloads the new application (the corresponding hex file) and

executes a reset or starts the application directly (depending on the OEM

[#oem_start]). Before starting the application, the function ApplFblValidateApp

validates the application again.

Before the beginning of flashing, the application must be set to invalid. This prevents

starting a partially flashed application if the flash process failed or was interrupted.

4.3.1 What might happen?

Imagine your validity check results in a valid application but it is actually faulty.

Every reset leads in the application that is not working properly and the watchdog

will provoke a reset again. Now the software is in an endless loop.

In this case it is not possible to flash the application again. See an optional

selectable solution to this problem in the chapter 7.3 (Validation ok – Application

Faulty).

based of template version 2.0

User Manual Flash Bootloader

18 / 56

4.4 Handling of the Validation Concepts

The concept for the flash mechanism is designed to allow maximum flexibility as

well as a very easy implementation. The main thing you have to take care for is to

call the application only if there is a valid version flashed. The manner you

recognize a valid version is up to you and realized in the so-called Validation Area.

4.4.1 Validation Area

In this area you can store the indicators for a valid application. This can be a simple

flag that indicates valid or even code for checking validity of the application. In the

latter case the ApplFblIsValidApp should check this function before calling it.

4.4.2 Access to the Validation Area

The Bootloader provides 3 functions to access the validation area as mentioned

just before. The functions reside in the Bootloader and the coding has to be done

by you. The functions are:

4.4.3 ApplFblIsValidApp

This function checks the validity of the application. The return value decides about

the further actions (see Figure 4-1).

Since this function is called on every Reset, it is recommended to simply check a flag

previously set. This speeds up the restart time.

4.4.4 ApplFblValidateApp

Use the

following

proposals to

get a little

comfortable

with the

possibilities of

configuration

arising with

this concept.

This function signs the application as valid by accessing the Validation Area

directly. After the flash process the function ApplFblValidateApp is called to check

the validity of the flashed application and to set the indicators (e.g. a Flag, a certain

memory location etc.). The indicators are utilized on reset by the IsValid function.

4.4.5 ApplFblInvalidateApp

This function is called before erasing the flash memory. Herein you reset your

indicators and mark the application as invalid in order to avoid the case where a

possible reset or error while flashing occurs without invalidating the partially erased

or programmed application.

The implementation of the validation function is application-specific, however, once a

solution is implemented it cannot be changed unless the Bootloader is re-

programmed.

based of template version 2.0

User Manual Flash Bootloader

19 / 56

4.5 Proposals For Handling The Validation Area

The following three examples are examples of how you can deal with the validation

concept offered by the Flash Bootloader. Before starting to develop your own

strategy based on the concepts mentioned here, please refer to the OEM-specific

Documentation [#oem_valid] in case your OEM wants you to do this in a predefined

manner.

4.5.1 Proposal A

In this concept the validation area is just a flag. This is the simplest way to realize

the validation concept:

F l a s h M e m o r y

R A M

F l a s h M e m o r y

Memory Map

F l a s h M e m o r y

R A M

F l a s h M e m o r y

Memory Map

Application

Interrupt Vector Table

[FBL]

IsValid⏐Invalidate⏐Validate

Bootloader

Transport Protocol,

KWP2000-Services,

CAN Driver

Interrupt Vector Table

[Application]

FLAG 0 invalid, 1 vaild

Flash Driver

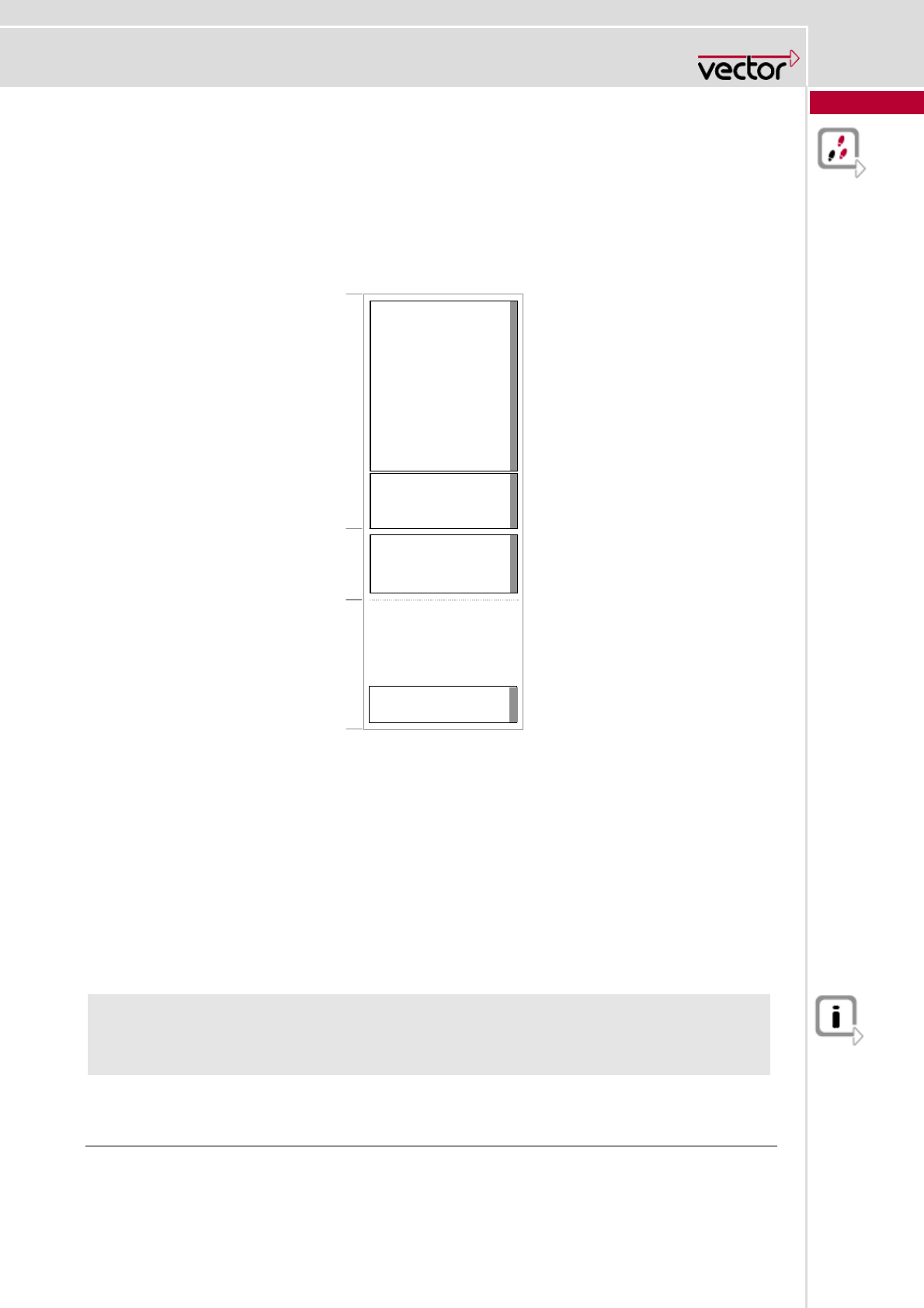

Figure 4-2 Using A Flag Only In The Validation Area

The code in the IsValid function has to know the location of the flag in the

Validation Area. After a reset, the content of this flag shows the validity of the

application. If you start flashing via CAN the function “Invalidate” clears the flag

before erasing. After flashing, the function “Validate” sets the flag. Then after a

reset, the “IsValid” function recognizes the flag to be set and returns a positive

value. The application is valid and can be executed.

If you can guarantee that the flag (or byte) is the first byte to be erased and the last

byte to be written while programming, you may leave the Invalidate and Validate

functions empty.

Make sure that the valid indicator differs from the blank, non-existing flash contents.

based of template version 2.0

User Manual Flash Bootloader

20 / 56

4.5.2 Proposal B

Based upon this concept you can separate the application into separate sections.

See the figure below for the memory mapping. The parts of the application are

named as Module n. Every module needs a Validation Area of its own.

F l a s h M e m o r y

Memory Map

F l a s h M e m o r y

R A M

F l a s h M e m o r y

Memory Map

Appl Module 1

Validation Area 1

R A M

F l a s h M e m o r y

Interrupt Vector Table

[FBL]

IsValid⏐Invalidate⏐Validate

Bootloader

Transport Protocol,

KWP2000-Services,

CAN Driver

Interrupt Vector Table

[Application]

Appl Module Table

Info about Validation Areas

Checkbyte

Flash Driver

...

Appl Module 2

Appl Module 3

Validation Area 2

Validation Area 3

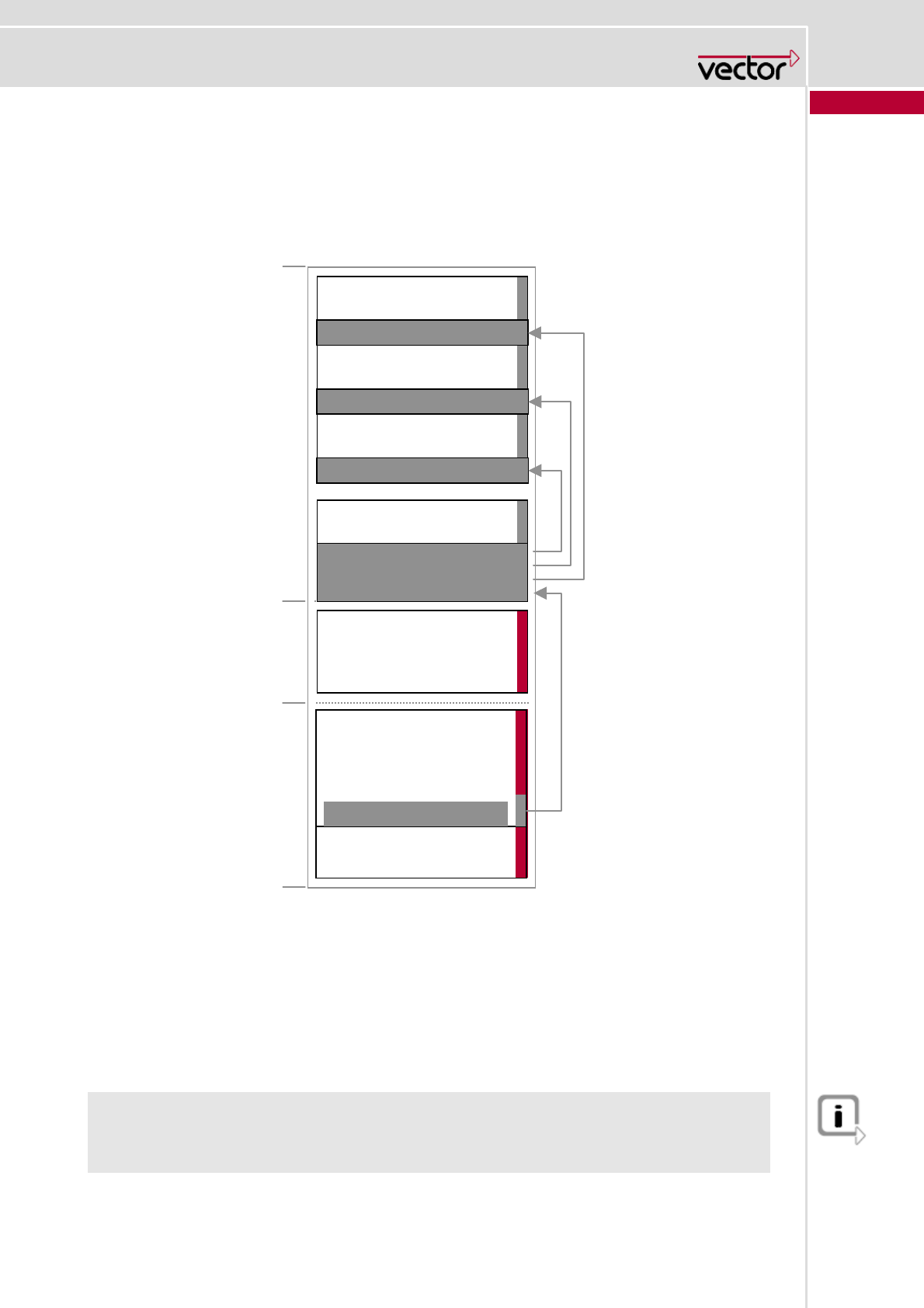

Figure 4-3 Separate Your Application Into Several Modules

To know the locations of the modules, their size and the location of their Validation

Area you should add a Module Table. This table contains the latter information and

enables the access to the single Validation Areas of the modules. The access is

done via the known functions IsValid, Validate, and Invalidate.

Before you use the Module Table, make sure this information is in the memory.

Use e.g. a check byte to ensure this.

The location of this check byte depends on the order of erasing and writing to the

flash memory. It should be erased as the first byte in this module table area and

written only if the complete module table area is valid.

based of template version 2.0

User Manual Flash Bootloader

21 / 56

4.5.2.1 The Module Table

The file FBL_MTAB contains the flash-erase sector table (more about the interrupt

vector tables in the following). Whenever the sector selectable erase service is

called, the Bootloader scans this table to get the address and length information of

the sector that has to be erased.

The flash erase sector table is not required if the Bootloader configuration has

been optimized for download of only one module.

The location of FBL_MTAB provides great flexibility. It is possible to change the

memory size of the modules, without modifications of the Bootloader. To extend

the number of modules you can add more entries to the table.

If it is not feasible or necessary to change the flash erase table, this table could

also be compiled and linked into the protected area of the Bootloader. This has the

advantage that this table cannot be erased.

based of template version 2.0

User Manual Flash Bootloader

22 / 56

4.5.3 Proposal C

The last example uses a validation function instead of just flags as shown in the

two examples above.

This validation function resides in the application and is compiled and linked

together with the application. Therefore you should take care before calling this

function, that the code has been flashed correctly. For this demand you can use a

check byte as shown in the Proposal B.

F l a s h M e m o r y

Memory Map

F l a s h M e m o r y

R A M

F l a s h M e m o r y

Memory Map

R A M

F l a s h M e m o r y

Validation Function

Flash Driver

...

Interrupt Vector Table

[FBL]

IsValid⏐Invalidate⏐Validate

Bootloader

Transport Protocol,

KWP2000-Services,

CAN Driver

Figure 4-4 Using A Validation Function For Validation Your Application

based of template version 2.0

User Manual Flash Bootloader

23 / 56

4.6 The Interrupt Vector Tables

The

application

and Flash

Bootloader

each have

their own

interrupt

vector table to

use.

Interrupts are handled in a special way for applications with Flash Bootloader.

When an application uses the Flash Bootloader it must be guaranteed that the

reset vector always points to the Flash Bootloader. After a reset the Flash

Bootloader is started first.

Usually the ECU vector table is part of the protected area of flash memory, but the

reset vectors for the application interrupt service function addresses have to be

changeable.

The solution to this problem lies in using 2 interrupt vector tables as shown in the

figure below.

F l a s h M e m o r y

R A M

F l a s h M e m o r y

Memory Map

Application

Interrupt Vector Table [FBL]

IsValid⏐Invalidate⏐Validate

Bootloader

Transport Protocol,

KWP2000-Services,

CAN Driver

Interrupt Vector Table

[Application]

Validation Area

Application

Data

Interrupt

Service

Functions

Reset

all

Others

Vectors

Jump to

Interrupt

Service

Functions

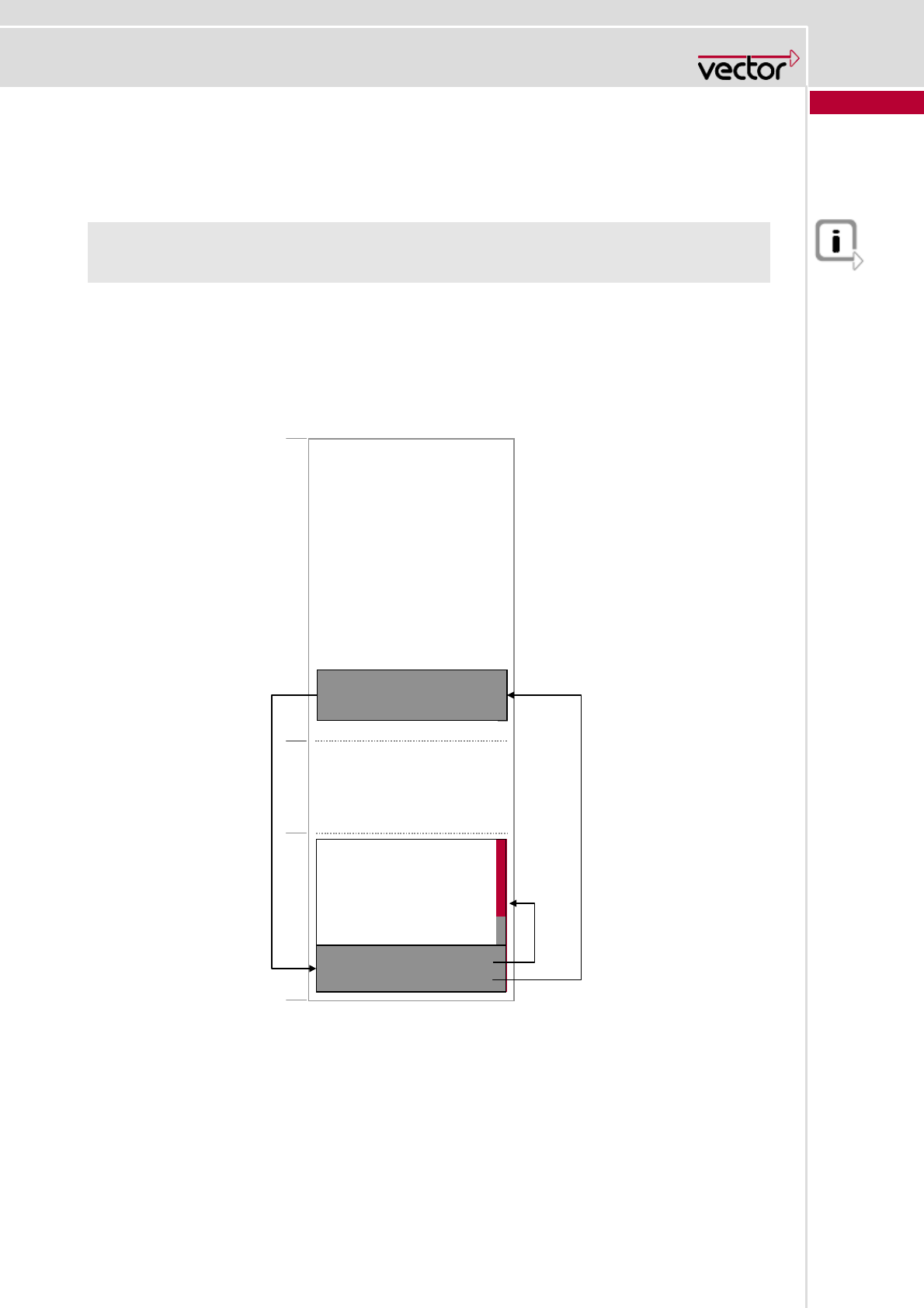

Figure 4-5 Principle Of The Two Interrupt Vector Tables

based of template version 2.0

User Manual Flash Bootloader

24 / 56

The interrupt vector table at the memory address provided by the hardware is used

by the Flash Bootloader (Interrupt Vector Table [FBL]). Your application must use

its own vector table (Interrupt Vector Table [application]).

Every

interrupt

through Reset

leads directly

into the Flash

Bootloader.

Now if an interrupt occurs which is not a reset, then on the hardware side control

branches to the memory location whose address is at the corresponding location in

the Flash Bootloader‘s interrupt vector table (see Figure 4-5). Any interrupt but the

reset points into the Interrupt Vector Table of your application. Within your

application Vector Table control is branched now to the appropriate interrupt

service function.

As a result, a slight overhead between detecting the interrupt and calling the

interrupt service function is added to every interrupt service function. The delay is

the duration of a jump instruction.

An exception to this is the reset interrupt. It always points to the Flash Bootloader.

There is no direct path from reset into the application.

The CAN Driver working in the Flash Bootloader needs no interrupts itself, since it is

running in polling mode. It checks cyclically to see if CAN messages have been

received. Reception is not indicated via an interrupt, as is usually the case. For this

reason no additional interrupt service functions are needed in the vector table for the

Flash Bootloader.

You will find further particulars about the modifications you have to deal with to

adjust your interrupt vector table in Section 6.2.4.

Refer to your Hardware-specific Documentation [#hw_intvect] to get more

detailed information.

4.7 Label Reference File

Some address information need to be shared between your application and the

Bootloader. Some files such as the application vector table and the module table

are referenced in both the application and the bootloader. These files are usually

located in the application area, since they potentially change (module table,

interrupt vector table).

The data contents of these files could be erased at any time because they reside in

the non-protected area.

In special circumstances the Bootloader will eventually use the files. Therefore the

application needs to compile and link these files to the same memory location. The

module with these files should be downloaded as the first module to provide the

data to the Bootloader whenever needed. This ensures a proper Bootloader

execution.

Refer to OEM-specific documentation [#oem_ref].

based of template version 2.0

User Manual Flash Bootloader

25 / 56

5 FLASHING IN 5 STEPS

STEP 1 : DESIGN THE MEMORY LAYOUT

Figure out which component has to be placed at which memory location. Estimate the

sizes.

STEP 2: WRITE A TEST APPLICATION

This can be any application or the application you later use for the ECU. It is very

important, that this application is running correctly and you can recognize its running.

This application is the evidence for the correct function of the Flash Bootloader.

STEP 3: INTEGRATE THE BOOTLOADER

In this step you have to integrate the Bootloader, download it via a programmer or

burner and test it with the Flash Tool. This is the major step to be done!

Read the Introduction of this step or go directly to the 8 Bootloader Integration step.

STEP 4: ADAPT YOUR TEST APPLICATION FOR THE TESTER

To prepare the application hex file for being downloaded via the Tester, it has to be

converted to an OEM-specific format. Do this in this step and refer to the description

provided by your OEM.

STEP 5: DOWNLOAD YOUR TEST APPLICATION WITH THE TESTER

Now do the download the test application as before but now using the OEM-specific

Tester.

OEM specific

Tester

/* Test Application */

#include ...

#define ..

main

{...

}

CANfbl

Extract

Adjust

Compile

Link

fbl_vect.c

[FBL]

IsValid⏐Invalidate⏐Validate

Bootloader

Transport Protocol,

KWP2000-Services,

CAN Driver

Test

Application

Applvect.c

[Application]

Programer

Burner

Programer

Burner

Test

Application

CAN

5 4

Figure 1: 5 Steps And You Are Flashing via Flash Tool and OEM-specific Tester

based of template version 2.0

User Manual Flash Bootloader

26 / 56

5.1 STEP 1 Design The Memory Layout

As flashing is a memory related activity you first need a basic estimation about the

memory consumption. Based on the controller you use and the memory model

start with a basic design for the memory layout.

Define where your application has its location, define the location of the application

vector table and the Bootloader. Figure out where your controller has its “original”

interrupt vector table.

Refer to the hardware-specific documentation for more information [#hw_mem].

F l a s h M e m o r y

R A M

F l a s h M e m o r y

Memory Map

Application

Interrupt Vector Table

[Application]

Validation Area

Interrupt Vector Table

[FBL]

IsValid⏐Invalidate⏐Validate

Bootloader

Transport Protocol,

KWP2000-Services,

CAN Driver

Application

Data

Figure 5-1 Basic Memory Layout Of An Application with the Flash Bootloader

Back to 5 Steps overview

based of template version 2.0

User Manual Flash Bootloader

27 / 56

5.2 STEP 2 Write A Test Application

The Flash Bootloader is designed to download your application via a bus protocol

like CAN, LIN, etc. To test the correct function of the Flash Bootloader you first

need a Test Application to verify the work of the Flash Bootloader.

In this step, write a Test Application.

F l a s h M e m o r y

R A M

F l a s h M e m o r y

Memory Map

F l a s h M e m o r y

R A M

F l a s h M e m o r y

Memory Map

Application

Interrupt Vector Table

[FBL]

Interrupt Vector Table

[Application]

Application

Data

Figure 5-2 The Test Application In The ECU Memory Using Two Interrupt Vector Tables

It’s recommended to write the Test Application with at least one interrupt service

function, perhaps a timer to do some cyclic action. Make sure that the application is

showing its correct behavior e.g. via LED blinking or even the transmission of a

CAN message. This will be later on the indicator for the correct working Flash

Bootloader.

Download and test this application via your development environment.

It’s recommended to work with two interrupt vector tables from the beginning. Just

map all interrupts from the “original” vector table to the interrupt vector table of your

application.

For more information refer to the hardware-specific documentation [#hw_tstappl].

Back to 5 Steps overview

based of template version 2.0

User Manual Flash Bootloader

28 / 56

5.3 STEP 3 Integrate The Bootloader

This is the major step for you to do. You have to unpack the delivered files, do

some application specific adaptations, compile the Bootloader, and download it.

In order to test the Bootloader, you need to flash your test application that you

created in the previous step. To do so you should configure the Flash Tool properly

prior to testing.

Use the Flash Tool of the Flash Bootloader package to download your test

application. Once you have managed to get your Bootloader to work with the Flash

Tool then you can go on and use the OEM-specific Test Tool. Now the embedded

side is working and you can concentrate on adapting the OEM-specific tester.

Application

Bootloader

Flash Driver

Interrupt Vector Table

[FBL]

Interrupt Vector Table

[Application]

Interrupt Vector Table

[Application] Flash

Tool

CAN

F l a s h M e m o r y

R A M

F l a s h M e m o r y

LIN 



OEM specif

TESTER

<application>.hex

Conversion

to OEM specific

format to fulfil

Tester needs

(flash container)

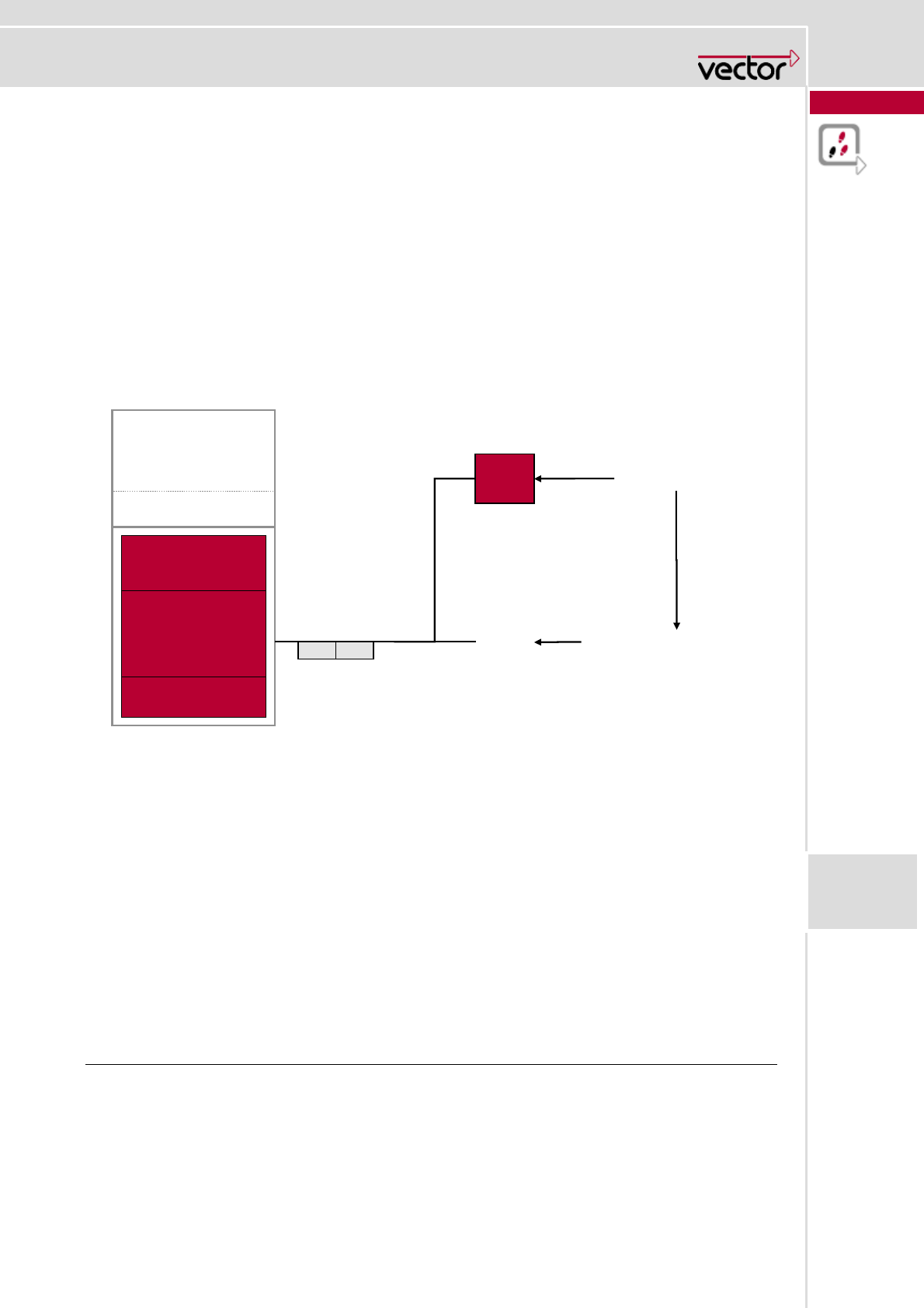

Figure 5-3 Flashing via Flash Tool and OEM-specific Tester

The application is compiled to a hex file to be used with the Flash Tool. The Flash

Tool controls the download via the bus system (here CAN) and communicates with

the Bootloader. To be able to flash with an OEM-specific tester, some adaptations

have to be done to the application hex file.

For more information refer to documentation about this workflow provided by your

OEM.

Follow the 8 Integration Steps for the Bootloader (see Chapter 6) before continuing

with the next step.

Back to 5 Steps overview

Integrate the

Bootloader in

8 Steps

more… (see

Chapter 6)

based of template version 2.0

User Manual Flash Bootloader

29 / 56

5.4 STEP 4 Adapt Your Test Application For The Tester

The next step after downloading the test application is to adapt your

<application.hex> file to be downloaded via the OEM-specific tester (see

explanation in the STEP 3).

To test these adaptations, no change of the Bootloader software is necessary.

Normally there are several steps necessary to convert the hex file into a file that

can be read and used by the tester. Get more information about this workflow using

the documentation provided by your OEM.

Back to 5 Steps overview

5.5 STEP 5 Download Your Test Application With The Tester

Now you can test the Bootloader using your OEM-specific Tester. You can test

things such as starting a Flash programming triggered via reset, or initiated from

the application, etc.

Is it still working?

Congratulations, you did it!

Back to 5 Steps overview.

Continue with the Background Information.

based of template version 2.0

User Manual Flash Bootloader

30 / 56

6 Details of Bootloader Integration Step (STEP 3)

Bootloader STEP 1: Extract the files to a folder on your PC

Bootloader STEP 2: Adjust the files to fit your application

Bootloader STEP 3: Now compile the Bootloader

Bootloader STEP 4: Transfer the Bootloader to the target hardware

Bootloader STEP 5: Use the Flash Tool to test the Bootloader

Bootloader STEP 6: Test the flashing after a reset

Bootloader STEP 7: Make your application ready for transition to Bootloader

Bootloader STEP 8: Start Bootloader from your application

/* Test Application */

#include ...

#define ..

main

{...

}

CANfbl

Extract

Adjust

Compile

Link

fbl_vect.c

[FBL]

IsValid⏐Invalidate⏐Validate

Bootloader

Transport Protocol,

KWP2000-Services,

CAN Driver

Details of Step 3

5Test

Application

CAN

Applvect.c

[Application]

Programer

Burner

Figure 6-1 Details of Bootloader Integration Step (Step 3)

based of template version 2.0

User Manual Flash Bootloader

31 / 56

6.1 Bootloader STEP 1 – Extract the files to a folder on your pc

Extract the Flash Bootloader files just by starting the install shield. Per default the

files are installed to the folder C:\Programme\Vector\.... You can also use the

Start\Programme\Vector… to find your installation.

The files are installed with the following directory structure.

Name Description

StandardECU Root directory of the delivery, root name may differ.

_Common Contains common files shared between the application and the

bootloader.

[e.g. v_def.h, etc.]

_Demo Contains an example implementation.

DemoAppl An application that is prepared to be downloaded to the micro via the

Flash Bootloader and CANflash.

DemoFbl The bootloader part of the demo. This directory contains an example

of a full functional bootloader (e.g. including in-/validation, transition

from application to bootloader and a comprehensive mapping of the

bootloader sections).

_Doc Contains documentation and test reports for the bootloader.

[e.g. UserManual_FlashBootloader.pdf,

TechnicalReference_FBL_*.pdf, TestReport*.pdf, etc.]

_FlashScript CANdito flash scripts provided with the bootloader. This directory

only exists if there are flashscripts available for the SLP.

_GenTool Generation tool for the flash bootloader configuration files. In case of

CANgen, the license file is located here.

[e.g. CanGen.exe, license.liz, GENyFramework_*.exe, etc.]

Components Directory for GENy component-DLLs. If GENy is used, the license

can be found here. Otherwise, this directory does not exist.

[e.g. license.liz, Version.Info, preconfig*.pco, etc.]

_MakeSupport Make environment used by demo bootloader and application. This

folder contains the global makefile.

[e.g. Global.Makefile.target.make.*, etc.]

_Misc Everything that doesn’t fit into the other directories can be placed

here (e. g. little tools, that don’t require an installation procedure)

HexView The best tool to generate, edit and process hex-files. Can build

plenty of flash containers, too.

_Setup Setup files for PC-installable software included in the delivery (e. g.

CANflash)

[e.g. CANflashFord25.EXE, etc.]

DrvEep EEPROM-driver to be used with the bootloader

[e.g. EepDrv.c, EepIO.c, EepCfg.h, etc.]

DrvFlash Flash-EEPROM-driver to be used with the bootloader (aka

secondary bootloader). This directory contains the source files of the

based of template version 2.0

User Manual Flash Bootloader

32 / 56

driver and a ready-to-use function file container for the used SLP.

[e.g. flashdrv.c, flashdrv.h, FlashDrv_V850_f.hex, etc.]

Fbl Contains all bootloader files, except flash-driver and security module

[e.g. fbl_main.c, fbl_hw.c, fbl_diag.c, etc.]

_Template Contains files that are part of the flash bootloader but need to be

adapted for integration purposes. The files contain a collection of

callback-functions grouped in different files for different purposes.

The functions mainly adapt to the specific needs of the bootloader to

a particular project resp. adapts the hardware requirements of the

Bootloader.

[e.g. _fbl_ap.c, _fbl_apdi.c, _fbl_apwd.c, _fbl_apfb.c, etc.]

SecMod Security module for the bootloader.

[e.g. secmod.c, _secmod.h, etc.]

The files listed in the table are installed to the folder Fbl. The files with the _

(underscore) are installed to the folder Fbl\_Template, v_def.h is in the _Common

path and the flashdrv.h in the DrvFlash folder.

File Name Description Status

Makfile of project file Makefile or project file for the build process of the

Bootloader.

fbl_cfg.h Global Bootloader configuration. This file is generated

by the configuration tool.

_fbl_apxx.c /

_fbl_apxx.h

Hardware and system specific callback functions.

_ftp_cfg.h Transport layer configuration file. Very soon, this file

is also generated by configuration tool.

_fbl_inc.h Include file for the Bootloader. Include additional

header files if necessary.

_applvect.c /

applvect.h

Application vector table

fbl_diag.c / fbl_diag.h General Diagnostic Module that contains the

diagnostic handling (KWP2000) and the basic

bootloader functionalities.

fbl_can.h Definitions for CAN interface.

fbl_def.h Basic Bootloader definitions.

fbl_hw.c / fbl_hw.h Hardware-specific module for CAN and timer.

fbl_main.c Main module for Bootloader initialization and idle

loop.

fbl_tp.c / fbl_tp.h Transport layer for the FBL.

Since the

Flash

Bootloader is

independent

application, it

must be

possible for

you in most

cases to take

the directory

structure, as

unpack it.

based of template version 2.0

User Manual Flash Bootloader

33 / 56

fbl_vect.c Bootloader vector table.

fbl_wd. / fbl_wd.h Watchdog support.

flashdrv.h Interface header file for Flash Driver.

v_def.h Type definitions from Vector Informatik

Caution

It is absolutely necessary that YOU adapt the startup-code for the Bootloader to your

specific hardware platform!

Remind that there will be two startup-codes executed subsequently, first the startup-code of the

Bootloader, then the startup-code of your application.

!!! be careful with registers that can be written only once after reset !!!

OEM specific

You can adapt these files according to your application (fbl_vect cannot be

adapted by user). A detailed description of how that is to be handled can be found

in Section 6.2. In your delivery all files that you have to adapt are marked with an

underscore (_<file>) before the name and stored in the _Template folder. Create

an own folder to store the adapted files without the underscore.

OEM specific – some more files, refer to your OEM specific reference

[#oem_files].

Back to 8 Steps Bootloader integration overview

based of template version 2.0

User Manual Flash Bootloader

34 / 56

6.2 Bootloader STEP 2 Adjust the marked files to fit your application

Now you go through the files pointed to by the hand in the above diagram in detail

and adapt them specifically to your application.

6.2.1 Make… Makefile and make.exe

To be able to compile the Flash Bootloader you just have to adapt the file

makeconf by setting the compiler path to your demands, see an example

e.g. COMPILER_PATH = c:\uti\hc12\cx32

Then you can execute the make.exe to compile and link for the first time. Now you

can start upon this basis and adapt the files for your demands.

6.2.2 fbl_cfg.h - The Configuration File For The Flash Bootloader

If you are using a Generation Tool with the bootloader then the Generation Tool

creates this file. To modify the bootloader you would simply have to trigger the

generation process again. If you are not using the generation tool with the

bootloader then you can manually configure the bootloader by modifying defines

such as clock frequency, CAN baudrate, etc…

See the list of the possible switches below to be changed followed by a brief

description. To get more information refer to the comments in the file fbl_cfg.h.

CAN_TP_RXID Receive ID for the transport protocol

CAN_TP_TXID Send ID for the transport protocol

FBL_ENABLE/DISABLE_DEBUG_STATUS Additional hints for debugging (if

possible)

FBL_ENABLE/DISABLE_SYSTEM_CHECK Checks if data buffer will be overwritten

FBL_ENABLE/DISABLE_FLASHBLOCK_CHECK The pre-defined flashblocks in FBL_AP

are checked and aligned during

download

FBL_ENABLE/DISABLE_APPL_TASK Enable a cyclic task for some timing

adjustments (call cycle TpCallCycle typ.

1ms).

FBL_MAX_NUMBER_OF_MODULES Set here the number of modules that

shall be downloaded and programmed.

FBL_ENABLE/DISABLE_SECTOR_ERASE_FCT Enable the usage of the callback

function ApplFblSectorErase()

FBL_ENABLE/DISABLE_FILECHECKSUM Enables an internal file checksum

calculation. This checksum is

generated during the download

sequences

based of template version 2.0

User Manual Flash Bootloader

35 / 56

FBL_ENABLE/DISABLE_ENCRYPTION_MODE If you enable this switch, further

functions are called to decrypt coded

data. (ApplFblEncryptInit,

ApplFblEncryptData).

FBL_WATCHDOG_ON/OFF Switch Watchdog on or off

FBL_WATCHDOG_TIME Setting of the watchdog trigger cycle

FBL_PROCESSOR_40MHZ Some clock settings may not be

available on all CPUs. Please refer to

fbl_hw.c, FblTimerInit

FBL_ENABLE/DISABLE_STAY_IN_BOOT Setting

FBL_DISABLE_STAY_IN_BOOT, it is

not possible to force the bootloader not

to start the application.

FBL_DIAG_BUFFER_LENGTH This is the size of the diagnostic data

buffer used for USDT

reception/transmission

(COMMON_BUFFER mode).

FBL_START Start address of the FBL.

FLASH_SIZE Specifies the number of bytes used for

the Flashcode (aka flash driver).

Note: Allocate as much memory as

possible to be able to download a

bigger flash driver in the future.

CAN_BTR01 Bus timing configuration for normal

mode

based of template version 2.0

User Manual Flash Bootloader

36 / 56

6.2.3 FBL_apxx.C

Set up and

initialize these

functions

according to your

needs. When

doing this, follow

the descriptions

for each and use

Figure 6-2 for a

complete

overview.

The next thing you have to do is adapt the Flash Bootloader to your application and

hardware. The following functions have to be adapted:

Function Name File Name

ApplFblInit fbl_ap

ApplFblStartup fbl_ap

ApplTrcvrNormalMode fbl_ap

ApplFblSetVfp fbl_ap

ApplFblResetVfp fbl_ap

ApplCanParamInit fbl_ap

ApplFblFlashBlockNotFound fbl_ap

ApplFblTask fbl_ap

ApplFblIsValidApp fbl_ap

ApplFblInvalidateApp *, ApplFblValidateApp * fbl_ap

ApplFblSecuritySeed fbl_ap

ApplFblSecurityKey fbl_ap

ApplFblSectorErase fbl_ap

ApplFblWDInit fpl_apwd

ApplFblWDShort fbl_apwd

AplFblWDTrigger fbl_apwd

ApplFblWDLong fbl_apwd

You will find these functions again in Figure 6-2.

based of template version 2.0

User Manual Flash Bootloader

37 / 56

Reset

ApplFblInit

ApplFblWDInit

Optional: initialize WD

and set trigger time *

[End of Initialization Phase]

ApplTrcvrNormalMode

Wait for Diagnostic Service to start Flash

ApplFblSecuritySeed

[Queried via KWP2000]

ApplFblSecurityKey

[Queried via KWP2000]

Download of Flash Algorithms

ApplFblSetVfp

ApplFblInvalidateApp

Erase Flash Memory

ApplFblSectorErase (opt.)

Download Application Data

ApplFblValidateApp

ApplFblResetVfp

ApplFblWDLong

ApplFblWDShort

FblStart

ApplFblIsValidApp

Optional: initialize WD

and set trigger time *

Application

Bootloader

Dependent on OEM

OEM specific

wait time

ApplFblStartup

yes

ApplFblStartup

ApplFblFlashBlockNotFound

ApplFblWDTrigger

ApplFblCanParamInit

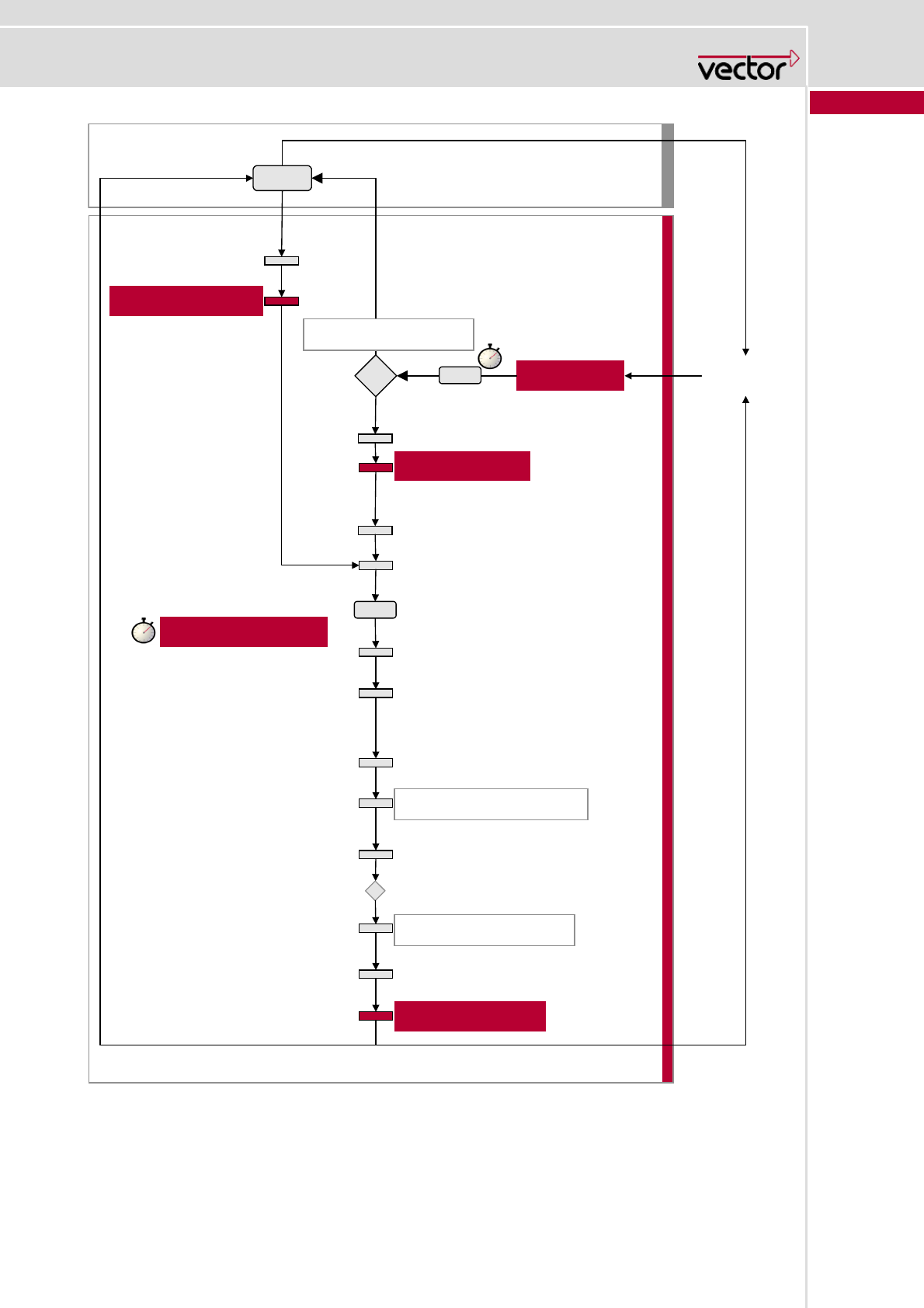

Figure 6-2 Function Calling Sequence During Flashing

based of template version 2.0

User Manual Flash Bootloader

38 / 56

The function

ApplFblCanP

aramInit

The function

ApplFblIs

ValidApp

The function

ApplFblStartup

The Watchdog may only be initialized in one of the two optional functions. In most

cases this is the function ApplFblInit. Further details on the background and

possibilities of Watchdog handling can be found in Section 7.1.

The

ApplFblInit

function

Be sure to

only initialize

the watchdog

timer in one

location

The description of the functions below is done in same order as they are called

beginning with the reset.

6.2.3.1 ApplFblInit

The function ApplFblInit is called after every reset. You can do your basic

initializations, such as memory mapping, PLL setup, etc. Usually initialization of the

Watchdog timer is dealt with here. (See 3.3 for more details).

6.2.3.2 ApplFblCanParamInit

Callback function for multi ECU support. See 7.2.

6.2.3.3 ApplFblIsValidApp

Callback function to check the validity of the application. See 4.4.2.

6.2.3.4 ApplFblStartup

This function is called after ApplFblInit if no valid application was found or the

Bootloader was started by the application (reprogramming request). Use this

function to do initializations, which are needed by the application and the

Bootloader. This is useful if you want to initialize hardware or software explicitly

used for the Bootloader.

6.2.3.5 ApplFblWDInit

The function ApplFblWDInit is only called if control remains in the Flash Bootloader

after a reset.

You can also initialize your Watchdog here if you have not done this already in the

function ApplFblInit (see 6.2.3.1) (for more details about the watchdog see 3.1).

Example:

void ApplFblWDInit(void)

{

Your code for initializing your Watchdog can go here, or nothing, if you either

won't be using it or you want to initialize it somewhere else.

}

based of template version 2.0

User Manual Flash Bootloader

39 / 56

6.2.3.6 ApplTrcvrNormalMode

The function

ApplTrcvNor

malMode

The name of this function is self-explanatory. To send CAN messages it is first

necessary to setup the transceiver. This can be done here.

Example:

void ApplTrcvrNormalMode(void)

{

DDRCAN = 0xff; /* set the port direction */

PORTCAN = 0x30; /* set the port */

}

6.2.3.7 ApplFblSecuritySeed / Key

Refer to your OEM-specific Documentation [#oem_sec] to get the necessary

information.

The function

ApplFblSetVfp

6.2.3.8 ApplFblSetVfp

Whether you need to configure this function or not depends on your hardware

setup (some flash memories require external programming voltage to erase and

program). If you have to turn on the voltage for flash programming, you can do that

in this function.

Normally you would set an I/O port to enable an external flash supply.

Example:

void ApplFblSetVfp(void)

{

for example:

PORTA &= ~0x01;

}

The function

ApplFblInvalid

ateApp

6.2.3.9 ApplFblInvalidateApp

Callback function to invalidate an application. See 4.4.2.

6.2.3.10 ApplFblFlashBlockNotFound

The function

ApplFblFlash

BlockNotFoun

This function is called if a TransferData has been received but no address region

was found in the defined FlashBlocks. It also allows you to support out of main

memory downloads (for example: Additional Flash or EEPROM).

based of template version 2.0

User Manual Flash Bootloader

40 / 56

6.2.3.11 ApplFblValidateApp The function

ApplFblValida

teApp

Callback function to validate an application. See 4.4.2.

6.2.3.12 ApplFblResetVfp The function

ApplFblReset

Vfp

The function ApplFblResetVfp is the counterpart of the function ApplFblSetVfp.

This function allows you to turn off the programming voltage.

Example:

void ApplFblResetVfp(void)

{

For example:

PORTA |= 0x01;

}

The function

ApplFblWDLong

6.2.3.13 ApplFblWDLong

Adjusts watchdog timing for application if necessary.

This function is called immediately after flashing, before branching from the Flash

Bootloader into your application. For watchdogs with changeable timer intervals,

switching to the other interval can be done here.

If you want to use a hardware reset for the transition, implement an infinite loop in this

function. The Watchdog timer will expire and create the desired reset.

Example:

void ApplFblWDLong(void)

{

Here is the place for your infinite loop or your changeover. If you do not need

this function, simply leave this blank.

}

Starting the flash process from the application, the following call back functions

have to be adapted.

The function

ApplFblWDShort

6.2.3.14 ApplFblWDShort

The function ApplFblWDShort is called during the transition from the application

into the Flash Bootloader. With it you can again re-adjust the watchdog timer

interval.

If you have a window watchdog, you can synchronize the watchdog here.

Example:

void ApplFblWDShort(void)

{

Here is the place for your changeover. If you do not need this function, simply

leave this blank.

}

based of template version 2.0

User Manual Flash Bootloader

41 / 56

6.2.3.15 ApplFblWDTrigger The function

ApplFblWDTrigge

If you enable the watchdog timer, then you must refresh it in the function

ApplFblWDTrigger. An example of how this is done follows.

Example:

void ApplFblWDTrigger(void)

{

/* You must operate your Watchdog here. The code could look like this: */

PORTB |= cWatchdogPin;

PORTB &= ~cWatchdogPin;

}

based of template version 2.0

User Manual Flash Bootloader

42 / 56

6.2.4 Fbl_vect.c / Applvect.c(.h) - The Interrupt Vector Tables

There are several files provided for the interrupt vector tables. Fbl_vect.c (.h) is the

vector table for the Bootloader, Applvect.c (.h) for the application.

On some hardware platforms the vector table may also be implemented in assembly

language. The files names will have corresponding extensions in this case.

For the integration of the Bootloader you have to compile and link the provided files

fbl_vect and applvect.c / applvect.h to your Bootloader files. To adjust the location

of the application vector table, just link the APPLVECT segment to the desired

memory location. The location of the application vector table must be fixed and the

same for the bootloader as well as the application.

F l a s h M e m o r y

Memory Map

Applvect.c

[Application]

R A M

F l a s h M e m o r y

fbl_vect.c

[FBL]

IsValid⏐Invalidate⏐Validate

Bootloader

Transport Protocol,

KWP2000-Services,

CAN Driver

Reset

Figure 6-3 Situation Directly After The Programming Of The Bootloader Together With The Dummy Application

Vector Table

The provided application vector table is just a dummy table to provide the

Bootloader with the memory address of the application vector table. All vectors

within the applvect.c point to the startup code of the Bootloader.

based of template version 2.0

User Manual Flash Bootloader

43 / 56

If you now flash your application for the first time, this dummy application interrupt

vector table will be overwritten with your application vector table. Make sure that

the memory location is exactly the same.

It is recommended to use the applvect.c file from the delivered example application

as basis for your application vector table and insert the name of your interrupt service

functions at the appropriate locations in the file.

Refer To hardware-specific Documentation [#hw_intvect].

Back to 8 Steps Bootloader integration overview

based of template version 2.0

User Manual Flash Bootloader

44 / 56

6.3 Bootloader STEP 3 Now compile the Flash Bootloader

Now all the files and functions have been adapted. Call the file make.exe again to

compile them. The result is a file XYZ.hex, that is, the Flash Bootloader in hex

format.

6.4 Bootloader STEP 4 Transfer the Bootloader to the target hardware

In order to test your result, you now have to load the Bootloader hex file onto your

target platform.

6.5 Bootloader STEP 5 Use the Flash Tool to Test the Bootloader

Open the Flash Tool (for installation and how to use it see the FlashTool

Documentation). Go to Options\Paths and set the paths.

Before you start the download, be sure that you have a CAN connection to your ECU.

Press the Start-Button to start the Flasher. The Flash Tool will now cyclically send

the CAN Flash messages.

6.6 Bootloader STEP 6 – Test the flashing after a reset

If you do a reset now, the ECU, triggered by the Flash Tool's cyclically sent CAN

messages, should start the flash process. You can see the flash process in the

window of the Flash Tool.

Did it work properly? If so, the main work is already behind you.

If not: check the baud rate, the CAN connection and the hardware initializations.

Back to 8 Steps Bootloader integration overview

based of template version 2.0

User Manual Flash Bootloader

45 / 56

6.7 Bootloader Step 7 – Make your application ready for the transition to

the Bootloader

Another possible way to start the Flash Bootloader is from the application. A

common way of starting the bootloader from the application is by receiving a

certain diagnostic service or because by a special-purpose CAN message.

As you see in the Figure 6-2 the transition from the application to the Bootloader is

done via the function FblStart. The parameter of this function is a hardware

dependent structure that contains e.g. the baud rate, the bit timing, CAN-ID, etc.

Some OEMs realize the transition from the application to the Bootloader via a reset.

Refer to your OEM-specific Documentation [#oem_trans] to get the necessary

information on the correct sequence of events to switch from your

application to the Bootloader.

6.8 Bootloader Step 8 – Start Bootloader from your application

Compile your application with the jump to bootloader supported as described in the

previous step. Then load it on your target hardware using the flash tool. Now

flashing works in cooperation with the flash tool. The final two steps deal with the

preparation of the application hex file for download via an OEM tester.

Ok? It is working?

If not, go back to the STEP 3, or continue with the STEP 4 if it works.

based of template version 2.0

User Manual Flash Bootloader

46 / 56

7 Background Information

7.1 The Watchdog

The Bootloader needs to trigger an on-chip or external watchdog while

downloading the application.

Refreshing the watchdog is hardware/application specific and therefore must be

implemented by the user. There are two watchdog functions:

 FblLookForWatchdog: Internal function to generate the time base for

triggering the watchdog (must not be changed by the user)

 ApplFblWDTrigger: Hardware/application specific call-back function for

refreshing the watchdog

F l a s h M e m o r y

Memory Map

F l a s h M e m o r y

R A M

F l a s h M e m o r y

Memory Map

Application

Interrupt Vector Table

[Application]

Validation Area

R A M

F l a s h M e m o r y

Interrupt Vector Table

[FBL]

IsValid⏐Invalidate⏐Validate

Bootloader

Transport Protocol,

KWP2000-Services,

CAN Driver

Flash DriverFlash Driver

ApplFblWDTriggerApplFblWDTrigger

FblLookForWatchdogFblLookForWatchdog

ApplFblWDTriggerApplFblWDTrigger

FblLookForWatchdogFblLookForWatchdog

copy before

flashing

Figure 7-1 Memory Layout Of The Watchdog Trigger Functions

based of template version 2.0

User Manual Flash Bootloader

47 / 56

Both functions are copied into RAM while programming the Flash, as it’s not

possible on most MCUs to execute an application from Flash while reprogramming

parts of the Flash. Copying the functions into RAM is either accomplished by a

copy function of the Bootloader (FblCopyWatchdog) or by the startup function. In

the first case, the watchdog trigger functions must be re-locatable (not really)!

The watchdog

trigger functions

have to be

relocatable!

You are already familiar with Figure 7-2. The main attention is now on those

functions in which handling or manipulating the watchdog timer can take place.

based of template version 2.0

User Manual Flash Bootloader

48 / 56

Reset

ApplFblInit

ApplFblWDInit

Optional: initialize WD

and set trigger time *

[End of Initialization Phase]

ApplTrcvrNormalMode

Wait for Diagnostic Service to start Flash

ApplFblSecuritySeed

[Queried via KWP2000]

ApplFblSecurityKey

[Queried via KWP2000]

Download of flash algorithms

ApplFblSetVfp

ApplFblInvalidateApp

Erase Flash Memory

ApplFblSectorErase (opt.)

Download Application Data

ApplFblValidateApp

ApplFblResetVfp

ApplFblWDLong

ApplFblWDShort

FblStart

ApplFblIsValidApp

Optional: initialize WD

and set trigger time *

Application

Bootloader

Dependent on OEM

yes

OEM specific

wait time

ApplFblStartup

ApplFblCanParamInit

ApplFblWDTrigger

ApplFblFlashBlockNotFound

Figure 7-2 Functions For Manipulating The Watchdog

based of template version 2.0

User Manual Flash Bootloader

49 / 56

7.1.1 Initializing The Watchdog With some

watchdogs

double

initialization can

lead to a reset.

You can initialize the watchdog in one of two different places: either in the function

ApplFblInit or in the function ApplFblWDInit. If you want to enable the watchdog

within the Stay-In-Boot time where the bootloader waits 50ms (default) to receive

the CAN message, then you have to do the initialization in the function ApplFblInit.

In that case the function ApplFblWDInit MUST remain empty.

On the other hand it is also true, of course, that if you initialize in the function

ApplFblWDInit you must not initialize in the function ApplFblInit.

Use WDTimer [in

ms] to easily set

your Watchdog

operating times.

The user should initialize the watchdog since this is hardware dependent. To find

your register settings to initialize the watchdog, please refer to the controller

manual.

You can however use WDTimer for triggering. If you set WDTimer to 0, then the

Watchdog will timeout immediately. The unit for WDTimer is ms. The Watchdog is

operated via the function ApplFblWDTrigger, which you have already adapted to

your needs (see 6.2.3.5 and 6.2.3.15).

Example:

/* Initializing the WD, hardware-specific */

WDTimer = 250/*ms*/; /* in this way the Watchdog is triggered after 250ms.

Changing the value of WDTimer will only influence the time of refreshing the

watchdog for that particular cycle. The watchdog refresh rate will then be reinitialized

to the value set in fbl_cfg.h as soon as the watchdog is serviced. (see 2.4.2).

If your watchdog is a window watchdog, or at least supports different monitoring

windows and you want to use these as well, then you can use both of the functions

ApplFblWDLong and ApplFblWDShort for toggling the monitoring times.

Refer to the hardware-specific documentation [#oem_wd] for more information about

the watchdog.

7.2 Multiple ECU Support

The Flash Bootloader supports multiple ECUs (When similar ECUs are used

multiple times in a vehicle, and their CAN identifiers are configurable).

This feature can be activated by setting the

#define ‘FBL_ENABLE_MULTIPLE_NODES’ in the file fbl_cfg.h or via the

Generation Tool depending on your OEM.

Refer to your OEM-specific Documentation [#oem_multi] to get the necessary

information.

based of template version 2.0

User Manual Flash Bootloader

50 / 56

If multiple ECUs are supported, the FBL will call the function

ApplFblCanParamInit(), where the user has to decide which set of CAN identifiers

are used. Some OEMs set additional information, e.g. like identification of the ECU.

7.3 Validation Ok – Application Faulty

As mentioned in the earlier chapter 4.3.1 the validity check may result in a positive

response and sign the application valid, even if the application itself is faulty. In that

case every reset will lead to an application that does not work properly (for

example: The CAN communication of the application does not work anymore).

The validation process does not recognize the problems in the application (e.g. a

damaged byte in flash, etc.).

How can you flash an error free application in that case?

To do this it must be possible to react on a CAN message during the transition from

a reset to the application. Using the switch FBL_ENABLE_STAY_IN_BOOT in the

fbl_cfg.h file (see 6.2.1) you get the following modified function calling sequence.

Reset

ApplFblInit

ApplFblWDShort

ApplFblIsValidApp

Optional: initialize

WD and set trigger

time *

Application

Bootloader

FblStart

Stay in Boot Mode

ApplFblStartup

OEM specific

wait time

Timer expired

ForceBootMode

Message received

yes

Figure 7-3 Modified Function Calling Sequence

After the application is checked to be valid a timer is started. The FBL waits a

default time (refer to OEM-Specific Documentation [#oem_time] ) to receive a CAN

message (ForceBootMode Message) as a trigger to stay in the boot mode. Now a

new flash process can be triggered.

based of template version 2.0

User Manual Flash Bootloader

51 / 56

If the timer expires with no receive message the application will be executed.

With this mechanism it is now possible to flash an application, which had been set

valid erroneously.

The disadvantage is that the startup time will be longer (watchdog).

7.4 FlashSegmentSize

The Flash Segment Size is a configurable parameter in the Flash Tool.

FlashSegment-

Size gives the

minimal size of

the data in bytes

which the

CANflasher can

write to at once.

Thus at least this

much data must

be written

simultaneously.

The size of

FlashSegment-

Size depends on

our ha

dware.

When you are modifying the FlashSegmentSize, enter the smallest segment of

flash memory that can be programmed by the Flash Bootloader (hardware

dependent information [#hw_size]).

In other words, a block must start at the beginning of a flash segment, for Flash

Bootloader to write to it. This specification depends on your hardware. The Flash

Tool needs this information in order to optimize the write process. The tool must

optimize exactly if area boundaries do not fall on flash block boundaries.

Enter the value for your Segment Size in the flash tool in the Flash File window.

(See FlashTool Documentation)

7.4.1 Why Does The Tool Have To Know This Block Length?

In the following example let us take a Flash Bootloader that can write a minimum of

64 bytes; this corresponds to 40 in hexadecimal representation.

04080C010004080C0100

Area of Application Data Dummy Values

Figure 7-4 Segmenting During Flashing

In the first example the data area to be written to (red) is distributed over 3

consecutive segments and does not start precisely at the beginning of a segment.

The Flash Bootloader then fills this gap with dummy values (gray) and in this way a

segment consisting of 3x64 bytes can be written to memory at once. The gap at the

end will be filled with the values that are already in the flash memory.

In the second example two data segments lay one after the other, but there is a

gap between them. To prevent the Flash Bootloader from having to write to the

segment from 0x80 to 0xC0 twice, it also fills up the gap here and the region up to

the next segment boundary with dummy values, and now a segment with the

length of 4X64 bytes can be written to at once. The gap at the end will be filled with

the values that are already in the flash memory.

based of template version 2.0

User Manual Flash Bootloader

52 / 56

In the third example two data segments have to be written to here, too, but the gap

between them is greater than one segment. In this case, in order to not have to

write to a completely unused segment, the Flash Bootloader now divides up the

task differently. For this reason the segment between 0x40 and 0x80 remains

empty here.

7.5 Frequently Asked Questions

A list of frequently encountered problems is provided here to facilitate

troubleshooting.

7.5.1 Bootloader Crashes

Q: The Bootloader simply crashes after reset

A: Check if the Bootloader accidentally started the application – check

validity information by setting a breakpoint at ApplFblIsValidApp.

Also verify that the Bootloader and application locate the Application

Vector Table to the same address.

Q: I can start the download but the software crashes when the Flash is

erased

A: The Bootloader may crash for several reasons:

1. The Flash Driver was not correctly copied from ROM to RAM. Check if

the byte-array (flashCode) for the Flash Driver is large enough to hold

it.

1. Check your watchdog routine. Check if the byte-array for the watchdog

function (WDTriggerBuffer) is large enough to hold the watchdog

function.

2. Check that the watchdog trigger function is relocatable.

3. Check the FlashBlock structure in the “fbl_apfb.c” file. Make sure that

the memory area occupied by the Bootloader is excluded from the

FlashBlock structure.

Q: The Flash is erased, but the Bootloader crashes before the application is

downloaded.

A: Check the FlashBlock structure in the “fbl_apfb.c” file. Make sure that the

memory area occupied by the Bootloader is excluded from the

FlashBlock structure.

Q: I can start the Bootloader software but after some time, the Bootloader

crashes

based of template version 2.0

User Manual Flash Bootloader

53 / 56

A: 4. Check your watchdog routine. Check if the byte-array for the watchdog

function (WDTriggerBuffer) is large enough to hold the watchdog

function.

5. Check that the watchdog trigger function is relocatable.

Disable watchdog for testing purpose.

Q: The Bootloader crashes when programming a specific Logical Block

A: Check the FlashBlock structure in the “fbl_apfb.c” file. Make sure that the

memory area occupied by the Bootloader is excluded from the

FlashBlock structure. Also make sure to exclude non-Flash (RAM,

Registers, EEPROM) areas from the FlashBlock structure.

Q: The Bootloader is cyclically restarted

A: 1. Check your watchdog routine. Check if the hardware watchdog is

serviced correctly. Disable watchdog for testing purpose.

2. Maybe the application was started and didn’t trigger the watchdog.

Check validity information.

Q: I can start the download but sometimes, the transfer is aborted with a

timeout.

A: 1. Check the watchdog timeout and watchdog trigger

2. Check the setting of the FBL_DIAG_TIME_P3MAX and the diagnostic

response timeout of your Tester/the Flash programming tool. The

Bootloader must transmit cyclic “Response Pending” messages on the

bus. You may check this with a CANoe/CANalyzer tool.

7.5.2 Application Is Not Started

Q: I can download the application, but after a reset the Bootloader is still

active

A: There could be different reasons for this:

 Check the validity information. Set a breakpoint in ApplFblIsValidApp

and verify it. Did you download all necessary parts of the application?

Q: When I download the application for the first time and restart the ECU, the

application is running. If I reprogram the application, the Bootloader is

active after reset.

based of template version 2.0

User Manual Flash Bootloader

54 / 56

A: Check if the reprogramming flag for the Bootloader is correctly reset after

starting the Bootloader.

7.5.3 Bootloader Is Not Started

Q: I can download the application and the application is running, but I cannot

reprogram the application

A: Check if the reprogramming flag for the Bootloader is set.

7.5.4 The Flash Tool's Error Codes

Q: How can I interpret the error codes of the Flash Tool?

A: Find the error code that occurred during flashing from the table in

fbl_diag.h to be help narrow down your search for the cause.

based of template version 2.0

User Manual Flash Bootloader

2/ 56

8 Index

ApplFblInit................................................... 51

ApplFblInvalidateApp...................... 19, 20, 41

ApplFblIsValidApp .................... 18, 19, 20, 40

ApplFblValidateApp ........................ 19, 20, 42

ApplFblWDInit............................................. 51

Bootloader . 11, 12, 13, 14, 17, 18, 19, 20, 21,

25, 26, 33, 36, 38, 40, 42, 46, 47, 51, 53,

Call-Back Functions

ApplFblStartup........................................ 40

Call-Back Functions

AplFblWDTrigger.................................... 38

ApplCanParamInit .................................. 38

ApplFblFlashBlockNotFound.................. 38

ApplFblInit............................................... 38

ApplFblInvalidateBlock ........................... 38

ApplFblIsValidApp .................................. 38

ApplFblResetVfp .................................... 38

ApplFblSetVfp ........................................ 38

ApplFblStartup........................................ 38

ApplFblTask ........................................... 38

ApplFblWDInit ........................................ 38

ApplFblWDLong ..................................... 38

ApplFblWDShort..................................... 38

ApplTrcvrNormalMode ........................... 38

FBL_MTAB ................................................. 23

Flash Tool ................................................... 11

Flashcode ................................................... 19

Flashing....................................................... 13

FlashSegmentSize...................................... 53

Initializing .................................................... 51

interrupt vector tables.................................. 25

Interrupt Vector Tables ............................... 25

Invalidate......................................... 19, 21, 22

IsValid ............................................. 19, 21, 22

KWP2000 .................................................... 13

Label Reference File................................... 26

Module Table .............................................. 23

Motivation...................................................... 3

Proposal .......................................... 21, 22, 24

RAM ...................................................... 15, 19

Reset............................................... 18, 26, 46

Segment Boundary ..................................... 53

Step....................................................... 46, 47

The Interrupt Vector Table .......................... 44

valid........................................... 19, 20, 21, 22

Validate ...........................................19, 21, 22

Validation Area.......................... 19, 20, 21, 22

validity ................................................... 20, 21

vectortable.c................................................ 44

Watchdog .................................. 40, 42, 43, 51

ApplFblWDTrigger .................................. 48

FblCopyWatchdog .................................. 49

FblLookForWatchdog ............................. 48

Watchdogs ............................................ 40, 49

WDTimer ..................................................... 51
