About this book
Chapter 1. Introduction to Storage Administration Workbench
- Performing administrative tasks with SAW
Chapter 2. Overview of SAW
Chapter 3. Installing Storage Administration Workbench
- Installation summary
- Steps for installing SAW
Chapter 4. Collecting Data
Chapter 5. Performing Common Tasks
Chapter 6. Customizing, Creating, and Viewing Reports
Chapter 7. Using Utilities
Appendix A. Error Messages in SAW
Appendix B. Dataplex Configurations

IBM

Storage Administration Workbench

for z/OS and OS/390

User’s Guide

Version 1 Release 1

SC27-1608-00

IBM

Storage Administration Workbench

for z/OS and OS/390

User’s Guide

Version 1 Release 1

SC27-1608-00

First Edition (April 2002)

This edition applies to Version 1, Release 1 of IBM Storage Administration Workbench for z/OS and OS/390 (product

number 5697-H61) and to all subsequent releases and modifications until otherwise indicated in new editions.

US Government Users Restricted Rights – Use, duplication or disclosure restricted by GSA ADP Schedule Contract with

IBM Corp.

Contents

About this book . . . . . . . . . . . . . . . . . . . . . v

Who should read this book . . . . . . . . . . . . . . . . . . . . . . . . v

How this book is organized . . . . . . . . . . . . . . . . . . . . . . . . v

Related Publications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . v

Trademarks. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . vi

Chapter 1. Introduction to Storage

Administration Workbench . . . . . . . . . . . . 1

Performing administrative tasks with SAW . . . . . . . . . . 1

Chapter 2. Overview of SAW. . . . . . . . . . . . 3

Option 0 - Common Tasks . . . . . . . . . . . . . . . . . . . . . . . . . 4

Option 1 - DASD . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

Option 2 - Catalog . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

Option 3 - Cache . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

Option 4 - DFHSM . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

Option 5 - Reporting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

Option 6 - RACF . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

Option 7 - ADSM . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

Option A - ATL . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

Option U - Utilities . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17

Option S - Setup and Configuration. . . . . . . . . . . . . . . . 17

Chapter 3. Installing Storage Administration

Workbench . . . . . . . . . . . . . . . . . . . . . . . . 19

Installation summary . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19

Steps for installing SAW. . . . . . . . . . . . . . . . . . . . . . . . . . 20

Step 1: Modify security sample . . . . . . . . . . . . . . . . . 20

Step 2: Modify allocation sample. . . . . . . . . . . . . . . . 20

Step 3: Modify the high level qualifiers . . . . . . . . . . 20

Step 4: Modify the AWB start up CLIST . . . . . . . . . . 20

Step 5: Start SAW . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21

Step 6: Set up batch jobs . . . . . . . . . . . . . . . . . . . . . . . 23

Step 7: Set up job cards . . . . . . . . . . . . . . . . . . . . . . . . 24

Step 8: Set up additional defaults . . . . . . . . . . . . . . . 24

Step 9: Defining a system for a dataplex . . . . . . . . . 38

Step 10: Defining a dataplex. . . . . . . . . . . . . . . . . . . . 42

Chapter 4. Collecting Data . . . . . . . . . . . . 55

Preparing for batch jobs . . . . . . . . . . . . . . . . . . . . . . . . . . 55

Creating Test Jobs. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 55

Before creating JCL . . . . . . . . . . . . . . . . . . . . . . . . . . . 55

Generating JCL for system jobs . . . . . . . . . . . . . . . . . . . . 56

Generating JCL for dataplex jobs . . . . . . . . . . . . . . . . . . 61

Creating JCL for pool space trace processing . . . . . . . . 65

Creating JCL for alert jobs . . . . . . . . . . . . . . . . . . . . . . . . 66

Recommendations for scheduling . . . . . . . . . . . . . . . . . 67

Chapter 5. Performing Common Tasks . . 69

Accessing the Common Tasks option. . . . . . . . . . . . . . . 69

Checking for errors in jobs . . . . . . . . . . . . . . . . . . . . . . . . 70

Checking DASD jobs . . . . . . . . . . . . . . . . . . . . . . . . . . 70

Checking catalog jobs . . . . . . . . . . . . . . . . . . . . . . . . . 72

Checking pools . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 74

Checking DFHSM control data sets . . . . . . . . . . . . . . . . 78

Using catalog thresholds . . . . . . . . . . . . . . . . . . . . . . . . . 78

Setting thresholds for catalogs . . . . . . . . . . . . . . . . . . 79

Checking catalog thresholds . . . . . . . . . . . . . . . . . . . 79

Checking for cache errors. . . . . . . . . . . . . . . . . . . . . . . . . 80

Using LOGSCANs. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 80

Display missing CHPIDs . . . . . . . . . . . . . . . . . . . . . . . . . 80

Chapter 6. Customizing, Creating, and

Viewing Reports. . . . . . . . . . . . . . . . . . . . 83

Customizing reports . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 84

Option 1 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 84

Option 2 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 94

Option 3 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 95

Option 4 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 97

Option 5 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 98

Option 6 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 99

Option 7 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 102

Option 8 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 102

Option 9 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 103

Option 10 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 105

Option 11 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 105

Option 12 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 107

Option 13 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 108

Option 14 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 113

Option 15 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 114

Option 16 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 115

Option 17 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 115

Generating Reports . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 116

Generating System JCL . . . . . . . . . . . . . . . . . . . . . . . 116

Generating Dataplex-related JCL. . . . . . . . . . . . . . . 117

Viewing reports . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 119

Viewing Application and Storage Reports . . . . . . . . . 119

Legend for Application and Storage Reports. . . . . 120

Hierarchy View. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 121

Application View with SG/Pool . . . . . . . . . . . . . . . 122

SG/Pool View . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 123

User Report . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 124

Exceptions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 125

Viewing Pool and Volume Reports . . . . . . . . . . . . . . . . 125

Data Set Reports . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 125

Volume/Pool Reports . . . . . . . . . . . . . . . . . . . . . . . . 130

Exception Reports . . . . . . . . . . . . . . . . . . . . . . . . . . . 133

Packmap . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 135

ListVol . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 136

Viewing DFHSM Reports . . . . . . . . . . . . . . . . . . . . . . . . 137

Using LOGSCAN . . . . . . . . . . . . . . . . . . . . . . . . . . . . 137

Chapter 7. Using Utilities . . . . . . . . . . . . 147

Using IDCAMS Utilities . . . . . . . . . . . . . . . . . . . . . . . . . 150

Option 1 - Connect . . . . . . . . . . . . . . . . . . . . . . . . . . . 151

Option 2 - Disconnect . . . . . . . . . . . . . . . . . . . . . . . . 152

Option 3 - DEF MCAT . . . . . . . . . . . . . . . . . . . . . . . . 153

Option 4 - DEF UCAT . . . . . . . . . . . . . . . . . . . . . . . . 155

Option 5 - DEF ALIAS . . . . . . . . . . . . . . . . . . . . . . . . 157

Option 6 - DEL ALIAS. . . . . . . . . . . . . . . . . . . . . . . . 158

Option 7 - LIST ALIAS . . . . . . . . . . . . . . . . . . . . . . . 159

Option 8 - DEF GDG . . . . . . . . . . . . . . . . . . . . . . . . . 160

Option 9 - DEL GDG . . . . . . . . . . . . . . . . . . . . . . . . . 161

Option 10 - ALTER GDG . . . . . . . . . . . . . . . . . . . . . . 162

Option 11 - LIST GDG . . . . . . . . . . . . . . . . . . . . . . . . 163

Option 12 - CACHE . . . . . . . . . . . . . . . . . . . . . . . . . . 164

Option 13 - Diagnose . . . . . . . . . . . . . . . . . . . . . . . . . 174

Option 14 - DEF VVDS . . . . . . . . . . . . . . . . . . . . . . . 176

Option 15 - DEL VVDS . . . . . . . . . . . . . . . . . . . . . . . 177

Option 16 - LOCK UNLOCK . . . . . . . . . . . . . . . . . . 178

iv Storage Administration Workbench for z/OS and OS/390:User’s Guide

Using ADRDSSU utilities. . . . . . . . . . . . . . . . . . . . . . . . 179

PARM option . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 179

Option 1 - DEFRAG . . . . . . . . . . . . . . . . . . . . . . . . . . 181

Option 2 - Move/Copy DSN . . . . . . . . . . . . . . . . . . 184

Option 3 - Move/Copy VOL . . . . . . . . . . . . . . . . . . 187

Option 4 - Copy Volume . . . . . . . . . . . . . . . . . . . . . . 190

Option 5 - CONVERTV . . . . . . . . . . . . . . . . . . . . . . . 191

Option 6 - Special Backup. . . . . . . . . . . . . . . . . . . . . 192

Using Device Support Facilities (DSF) . . . . . . . . . . . . . 194

Options 1 - 9, INIT . . . . . . . . . . . . . . . . . . . . . . . . . . . 194

Option 10 - Control . . . . . . . . . . . . . . . . . . . . . . . . . . 198

Option 11 - Inspect . . . . . . . . . . . . . . . . . . . . . . . . . . . 199

Option 12 - Reformat . . . . . . . . . . . . . . . . . . . . . . . . . 202

Option 13 - Analyze . . . . . . . . . . . . . . . . . . . . . . . . . . 203

Option 14 - BUILDIX . . . . . . . . . . . . . . . . . . . . . . . . . 205

Appendix A. Error Messages in SAW . . 207

Appendix B. Dataplex Configurations . . 217

Glossary . . . . . . . . . . . . . . . . . . . . . . . . . . 221

Index . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 227

About this book

This book provides instructions on how to perform typical storage administration

tasks using Storage Administration Workbench for z/OS and OS/390. It contains

information on managing resources, viewing reports, and responding to alerts.

This product must be installed on each dataplex (or system) where storage resources

have to be monitored. For installation instructions, refer to the Program Directory that

accompanied the installation tapes and to Chapter 3, “Installing Storage

Administration Workbench” on page 19 of this book.

Who should read this book

This book is intended for use by storage administrators and systems programmers.

The many features of this product will be helpful to someone who is familiar with

managing systems resources, such as a cache, DASD, and catalogs, and with using

reports to determine how to optimize those resources.

How this book is organized

This book is divided into the following chapters:

• Chapter 1, Storage Administration Workbench, provides a general description of

SAW’s primary features and explains how to access the SAW Main Menu.

• Chapter2, Configuring Storage Administration Workbench, walks through all of the

steps that must be performed to customize SAW for your environment.

• Chapter 3, Common Tasks, lists tasks that are performed by an administrator on a

frequent basis, and provides instructions on how to use SAW to complete those

tasks.

• Chapter 4, Collecting Data, describes the methods you can use to collect data

online or in batch. After the data is collected, it can be used in reports.

• Chapter 5, Creating and viewing reports, explains how to customize reports using

parameters, thresholds, and alerts. It also provides an example of each report that

is available through the Reporting option on the SAW main menu.

• Chapter 6, Utilities, describes the many IBM utilities that are accessible through

SAW.

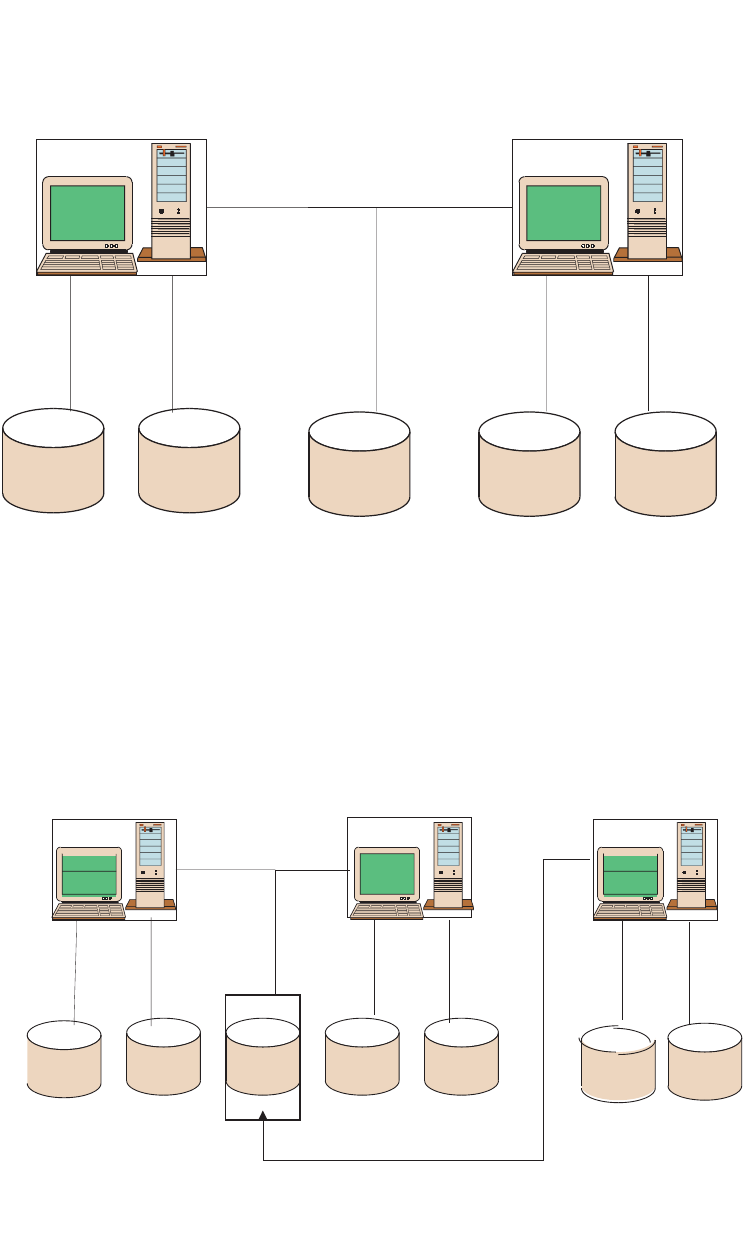

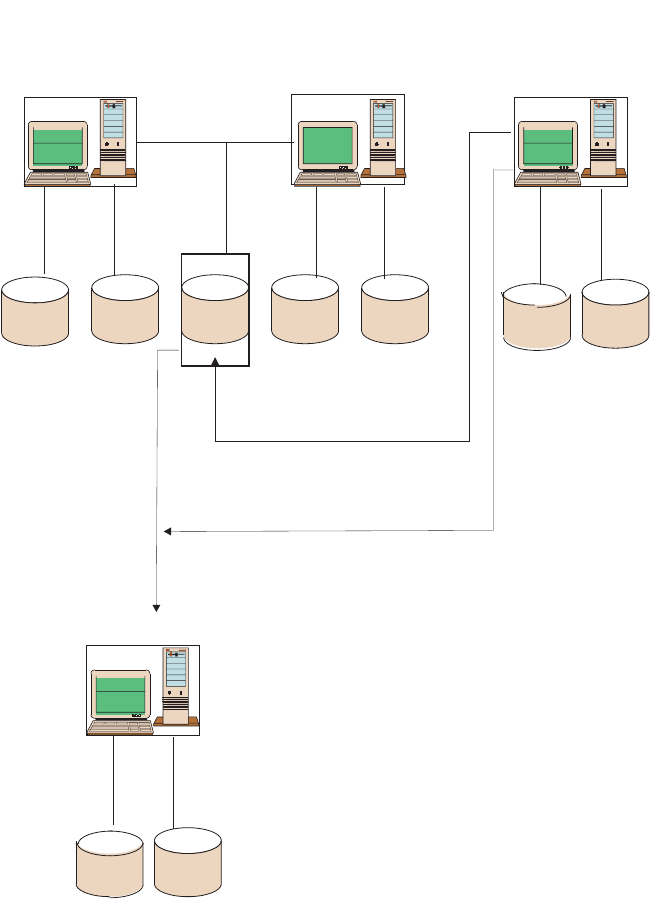

• Appendices: Error messages and diagrams of dataplex configurations are listed in

appendices at the back of the book.

Related Publications

The following IBM publications provide information about storage administration or

other processes that are related to SAW.

Table 1. List of related publications

Publication

Number Title

SC35-0387 DFSMShsm Managing Your Own Data

SC35-0422 DFSMShsm Storage Administration Reference

GX26-3813 Device Support Facilities Reference Summary

vi Storage Administration Workbench for z/OS and OS/390:User’s Guide

Trademarks

The following terms, used in this publication, are trademarks of the IBM Corporation

in the United States and/or other countries:

•IBM

•DFSMS

•DFSMS/RMM

•ESA

•MVS

•MVS/DFP

•MVS/ESA

•OPC/ESA

The following terms, used in this publications, are trademarks of Computer

Associates International, Inc.

• Computer Associates

•CA

•TLMS

•CA-1

•TOPSECRET

SG24-5272 DFSMShsm Primer (a Redbook)

SC35-0424 DFSMSdss Storage Administration Reference

SC35-0423 DFSMSdss Storage Administration Guide

SC26-7410 DFSMS: Using Data Sets

SC26-7409 DFSMS: Managing Catalogs

SC26-7394 DFSMS Access Method Services for Catalogs

GA32-0253 IBM 3990/9390 Operations and Recovery Guide

Table 1. List of related publications (continued)

Publication

Number Title

Chapter 1. Introduction to Storage Administration Workbench

IBM Storage Administration Workbench for z/OS and OS/390 is a centralized storage

solution that greatly improves administrator productivity, streamlines the monitoring

of storage devices, and increases the efficiency of existing storage to yield a higher

return on your storage investment.

IBM Storage Administration Workbench extends DFSMS management across

multiple sites and images to give you a single ISPF-based focal point for monitoring

and controlling storage resources across the enterprise. It provides an effective way of

checking a status, analyzing trends, setting thresholds, performing housekeeping, and

issuing commands, giving you advanced support for storage management.

Designed for storage administrators and system programmers of all skill levels, IBM

Storage Administration Workbench enables you to do the following:

• Improve utilization, analysis, and planning for z/OS storage resources.

• Simplify tasks, such as measuring, predicting, and controlling storage resources.

• Give storage administrators more control in managing multiple systems and

locations from a single interface.

• Provide exceptions and alters to conditions that require an administrator's

attention.

• Allow you to view current status and historical trends to help you define and

analyze storage metrics.

• Provide extensive reporting capabilities with summary and detail information on

applications, storage groups, and pools on all z/OS systems across the enterprise.

Performing administrative tasks with SAW

Storage administrators must perform a number of tasks to monitor and manage

storage resources across an enterprise. However, a storage administrator’s time is

divided between tasks that must be performed daily or routinely, and tasks that are

performed on an "as needed" basis requiring more time to resolve. The Storage

Administration Workbench, referred to as "SAW" for easier reading, addresses the

complete range of administration tasks. With SAW, a storage administrator can

perform all of the following "real life" tasks:

• View volume pool reports and trends for any system from one logon.

• View usage history reports that are categorized by volume, storage group, or

application group.

• Respond to alerts for conditions that have exceeded thresholds, such as out of

space and media errors.

• Check the status of jobs, such as back up jobs or data collection jobs.

• Perform backup and recovery tasks, such as scheduling backups and restoring

damaged data sets.

• Manage storage resources, such as archiving or deleting old data, setting tuning

limits, and adjusting RACF.

• Make changes to the system environment, such as adding devices, formatting

volumes, and cataloging volumes and data sets.

2 Storage Administration Workbench for z/OS and OS/390:User’s Guide

• Trend any pool or storage group. Select a view for that particular day and receive

a trend of a specific volume over time. You can also trend the total system,

meaning all volumes.

• Perform dataplex maintenance. You can see information collected by the Storage

Administration Inventory (SAI), then dynamically sort, scroll, or enter commands

to manage storage groups or individual volumes. For example, if you select a

storage group and it contains 100 volumes, values are displayed for each of those

volumes, and you can perform actions against a specific volume.

• Set thresholds for every pool or storage group, and receive alerts when those

thresholds are crossed.

• Use the ISPF-based interface to perform DASD and storage management

functions. There is no need to remember command sequences. For example, if

you want to analyze a disk, you indicate what you want to do, and SAW will

create the JCL for you.

• Schedule onsite or offsite volume dumps or housekeeping options, like volume

space defragmentation and deletion of old data.

• Perform a number of catalog management functions, such as updates,

build/refresh, display catalogs/aliases, list values over thresholds, and run

utilities. For example, you can select a catalog for an immediate backup.

Otherwise, SAW detects and backs-up catalogs automatically. There is no need to

code new catalog names in backup jobs.

• Send the query ACTIVE command to HSM dynamically and receive an

immediate reply.

• View one of several reports, such as:

— detailed and summarized DASD volume and pool reports

— reports of old and large data sets

— space usage by system, application, and high level qualifier

— age distribution of data sets

— an HSM LOGSCAN summary report.

The majority of these reports are kept in GDGs on the local MVS system, so you

can select which night’s work to review. For example, if you looked at an HSM

report that shows a CDS backup and the volumes processed, the report highlights

what did not run and summarizes what did run. Every failed data set is listed,

along with the error description, and SAW prepares commands for you to re-try

the failures.

Chapter 2. Overview of SAW

This chapter provides an overview of the SAW main menu and each of the main

menu options. This will give you an idea of the many storage administration actions

you can perform with SAW. However, you may find that you only use some of the

SAW features on a regular basis. The tasks considered to be typical of storage

administration are described in more detail in this user guide.

For a brief description of these main menu options, refer to the table below.

Menu Option Description

0 - Common Tasks Option 0 provides a convenient list of actions that may be

taken on a daily or frequent basis.

1 - DASD Option 1 is the main interface into the administrative and

maintenance functions that you may want to perform for

DASD.

2 - Catalog Option 2 lists the options available for performing

administrative and maintenance functions on the master and

user catalogs.

3 - Cache Option 3 lists the options available for performing

administrative and maintenance functions on cache.

4 - DFHSM Option 4 lists the options available for performing

administrative and maintenance functions for the DFHSM.

5 - Reporting Option 5 displays reports and exceptions.

----------------------- SAW V1.1.0 Main Menu ----------------------------------

OPTION ===>

System: SYSNAME1 Dataplex: MYDPLEX Mode: Local

0 Common Tasks - Routine actions

1 DASD - DASD Related Functions

2 CATALOG - Catalog Related Functions

3 CACHE - Cache Related Functions

4 DFHSM - DFHSM Related Functions

5 REPORTING - Display Reports and Exceptions

6 RACF - Maintain RACF criteria used in Storage Management

7 ADSM - Interactive mode for id: MYUSERID

A ATL - Automated Tape Library Functions

R RVA - Ramac Virtual Array Functions

U UTILITIES - Common Utilities Used in Storage Management

S Setup - SAW Setup and Configuration

4 Storage Administration Workbench for z/OS and OS/390:User’s Guide

Option 0 - Common Tasks

To see a list of tasks that are performed on a daily or frequent basis, select option 0,

Common Tasks, on the SAW main menu. The following screen displays:

The table below describes each option on the Common Tasks menu. A storage

administrator may want to run through these options frequently because all of the

error conditions are collected here.

6 - RACF Option 6 provides options for performing RACF management

regarding storage administration.

7 - ADSM Option 7 refers to the use of the ADSTAR Distributed Storage

Manager, which is now named "Tivoli Storage Manager." The

ADSM option enables interactive mode for the user ID listed

in this field.

A - ATL Option A provides information about the IBM tape robot

referred to as the "automated tape library" (ATL). This option

applies only to those sites that use an ATL.

R - RVA Option R provides an interface to perform functions against

RAMAC Virtual Array (RVA) drives.

U -Utilities Option U displays the facility to generate online jobs or

submit batch jobs on IDCAMS and ICKDSF.

S - Setup and Configuration Option S lists options for performing maintenance on dialogs

and batch jobs for a dataplex. Also describes customization

steps to be taken after SAW is installed and for maintenance.

Menu Option Description

----------------------------- Common Tasks ------------------------------------

OPTION ===>

System: SYSNAME1 Dataplex: MYDPLEX Mode: Local

0 BACKUP-DASD Look for DASD backup jobs in error status

1 BACKUP-Catalog Look for Catalog backup jobs in error status

2 SAI SCAN Look for POOLs with free space under threshold,

for UNASSIGNED, and for volumes with HOME-LOC.=?

3 DFHSM Check DFHSM Control Data Sets

4 CATALOG List catalog values over threshold

5 CACHE Cache error reporting

6 LOGSCAN Sysout control of DFHSM

7 LOGSCAN SMS ADDVOL suggestions

8 CHPID Display all missing CHP-ids

Chapter 2. Overview of SAW 5

More information on the use of these options is provided in Chapter 5, “Performing

Common Tasks” on page 69.

Option Name Description

Backup - DASD Option 0 provides a list of DASD backup jobs with an error

status.

Backup - Catalog Option 1 provides a list of catalog backup jobs with an error

status.

SAI SCAN Option 2 gives access to the Storage Administration Inventory

(SAI) for controlling pools and volumes.

DFHSM Option 3 checks the DFHSM MCDS, BCDS, and SDSP data

sets. CHECK CDS runs a command that summarizes the

results from LISTCAT on each HSM control data set in the

system. This includes the MCDS (Migration Control Data

Set), BDCS (Backup Control Data Set), OCDS (Offline Control

Data Set), and any SDSP (Small Data Set Packing) clusters

that are found on the system. The command lists each cluster,

indicating whether the data set needs to be reorganized to

improve performance and storage utilization.

Catalog Option 4 indicates if the thresholds for a catalog have been

exceeded.

Cache Option 5 processes an IDCAMS LISTDATA job on cache

resources.

Logscan Option 6 displays the results of HSM LOGSCAN jobs.

Logscan SMS Option 7 is for the DFSMS environment only. This option

indicates which volumes should be processed with an

ADDVOL in a dummy ARCCMD00 needed by LOGSCAN.

CHPID Option 8 gathers all of the missing CHannel Path IDs, which

contain a minus sign (-) when in a problem state.

6 Storage Administration Workbench for z/OS and OS/390:User’s Guide

Option 1 - DASD

To perform administrative and maintenance functions relating to DASD, select option

1, DASD, on the SAW main menu. The DASD Management screen displays:

The table below describes each option on the DASD Management menu.

Option Name Description

Update/Display Option 1 allows you to see the state of your DASD resources

in terms of pools, storage groups, or volumes. You can also

delete table entries, update the handwriting associated with a

pool or storage group, display space trends, and modify

values for thresholds.

Hand Option 2 displays the list of volumes that contain

handwriting, which is text that you enter on the Handwriting

screen (option 1.1 on the SAW main menu, then S, then H).

This text provides a description of the volser and indicates

who is responsible for performing backup processing and

resolving error conditions.

String Option 3 allows a mass update for string and machine room

assignments. You can either update (U) or delete (D) a table

entry. When you are done making the string assignments,

you can use these commands:

•Type PACKMAP to see a configuration map of different

units per machine room.

•Type LISTVOL to see a list of volumes.

----------------------------- DASD Management ---------------------------------

OPTION ===>

System: SYSNAME1 Dataplex: MYDPLEX Mode: Local

1 UPDATE/DISPLAY Display and/or update Storage Administration Inventory

2 HAND Display and/or update existing volume hand writing

3 STRING Display and/or update string assignment

4 POOL/SG-USAGE Display POOL/SG-Space history

5 POOL/SG-TRACE Display POOL/SG-Space trace table

6 DCOLLECT Execute DCOLLECT volume record selection

7 DISPLAY UCB Display actual DASD-UCB information of system XXXX

8 MISSING CHPIDs Display missing DASD-CHPID information of system XXXX

9 SAI COLLECT On-line collect of new information for system XXXX

10 VOL to POOL Display and/or update Volume(s) to Pool Configuration

U UTILITIES for DASD maintenance

Chapter 2. Overview of SAW 7

Pool/SG Usage Option 4 displays the results of a routine IDCAMS

DCOLLECT by pool name, providing a history of the pool

and storage group usage. You can view a volume list or a

trend list for a specific pool.

Pool/SG Trace Option 5 displays the trace table of a pool or storage group.

The screens are similar to those in option 4, Pool/SG Usage.

DCOLLECT Option 6 is where you specify which pool, storage groups,

and volumes you want to include in DCOLLECT processing.

Display UCB Option 7 shows the state of the Channel Path IDs for each

volume.

Missing CHPIDs Option 8 lists the Channel Path IDs that are not resolved.

SAI Collect Option 9 builds the Storage Administration Inventory (SAI)

in interactive mode. You can also perform this process in

batch mode. To build the SAI, Storage Administration

Workbench performs these steps:

1. Executes IDCAMS DCOLLECT to process volume

information of all online DASD volumes.

2. Gathers UCB information of all online DASD volumes.

3. Executes IDCAMS to list all cache-controlled DASD

volumes.

4. Updates the SAI.

VOL to POOL Option 10 allows you to assign volumes to pools or

applications automatically, based on a generic volser

specification, such as VOL* to POOL1. You can also indicate

that a matching volume will be selected only if the last digits

of the volume label equal the UCB that is related to the

volume.

Utilities This option (U) contains a number of utilities that process jobs

that are frequently used in storage administration. The JCL

tailoring allows you to process and submit those jobs. The

utilities are:

1. DFDSS - functions using ADRDSSU

2. DSF - functions using ICKDSF

3. Diagnose - BCS or VVDS structure

4. Restore - from DFDSS full or logical dump

5. Determine - all data sets on a selected volser from

DCOLLECT output

6. Determine - data set information from DCOLLECT

output.

Option Name Description

8 Storage Administration Workbench for z/OS and OS/390:User’s Guide

Option 2 - Catalog

Option 2 on the SAW main menu is Catalog. Use this option to perform catalog

management functions. When you choose the Catalog option, the following menu

displays:

The table below describes each option on the Catalog Management menu.

Option Name Description

Update/Display Option 1 lists all of the catalogs found on the dataplex. You

can then do any of the following:

• Make updates to the catalog, such as the catalog type or

the home location.

• Delete obsolete catalog entries.

• Process an IDCAMS DIAGNOSE command.

•Create backup JCL.

Display Backup Option 2 displays a list of catalog jobs that are either in "error"

or "not completed" status. This option makes an extract of a

catalog backup where the "Submit date/time" is still on,

meaning that there was a failure in the job.

Build/Refresh Option 3 allows you to specify a data set to be used for

building or refreshing RACF user and group tables.

Build/Refresh Option 4 performs a build or refresh of a the catalog and alias

maintenance tables. Use this option to submit an online

execution to refresh these tables.

----------------------------- Catalog Management ------------------------------

OPTION ===>

System: SYSNAME1 Local Dataplex: MYDPLEX

1 UPDATE/DISPLAY - the CATALOG-NAMES-TABLE with table refresh: NO

2 DISPLAY BACKUP - Display backup in ERROR or NOT COMPLETED status

3 BUILD/REFRESH - RACF-User/Group tables

4 BUILD/REFRESH - The overall CATALOG and ALIAS maintenance tables

5 DISPLAY CATALOG- Display the CATALOG maintenance table

6 DISPLAY ALIAS - Display the ALIAS maintenance table

7 GENERATE - The MISSING ALIAS CONNECTOR jobstream

8 LIST - Values over threshold

9 ICFRU - ICF forward recovery utility

U UTILITIES - For catalog maintenance

Chapter 2. Overview of SAW 9

Display catalog Option 5 displays the catalog maintenance table, including

the catalog name and the names of the systems on which the

catalog is known.You can then perform any of the following

functions:

• Display, connect, delete, or merge an alias.

• Connect or disconnect a user catalog.

• List the status of the GDG-BASE entries.

• Diagnose the user catalog.

• List the contents of the catalog.

• Merge the user catalog with another user catalog.

Display alias Option 6 displays the alias maintenance table, including the

alias name, RACF owner, ID, group or user, and a flag that

indicates if there is a mismatch for the alias. Your options are:

• Connect an alias.

• Delete an alias.

• View all of the detail information about an alias, such as

the system or JES-ID, catalog name, and volume where

the alias is located.

Generate Option 7 generates an alias connector list for aliases that are

missing. If there are missing connections, use this option to

generate the JCL to add them.

List Option 8 lists any thresholds that have been exceeded. If no

values are over the defined thresholds, a message displays

informing you that there are no errors.

Note: To set up the thresholds, follow these steps:

1. Type S.2 in the Option line on the SAW main

menu.

2. Select option 7, Exception Rep., on the Dataplex

and System Maintenance menu.

3. Select option 14, Catalog parameters, on the

Control File Maintenance menu. The JCL for this

job displays.

4. Update the JCL with any changes you want to

make to the parameters. These are the values that

will be used to determine whether a catalog

threshold has been exceeded.

ICFRU Option 9 enables you to specify the name of a damaged

catalog, then use the IC forward recovery utility to recover

the catalog. This option provides JCL generation or tailoring

assistance.

Utilities Option U lists 16 different IDCAMS utilities that you can use

to maintain a catalog. The Utilities option gives you the

facility to execute the jobs. Some of the jobs can be submitted

in either batch mode (B) or foreground (F). Refer to IBM’s

documentation on IDCAMS, DFSMS Access Method Services

for Catalogs (SC26-7394-00), for details on these utilities. Use

the following internet address to display this IBM book:

http://publibz.boulder.ibm.com/cgi-

bin/bookmgr_OS390/FRAMESET/DGT2I200

Option Name Description

10 Storage Administration Workbench for z/OS and OS/390:User’s Guide

Option 3 - Cache

To perform cache management functions, choose option 3, Cache, on the SAW main

menu. The Cache Management screen will appear:

The table below describes each option on the Cache Management menu.

Option Name Description

Cache Subsystem Option 1 displays a table that contains all available and

collected values about cache control units and cache

subsystems in the dataplex. You can then do any of the

following:

• Display all volumes assigned to a specific subsystem.

• Display all flagged volumes. A "flagged" volume is a

volume that is assigned to a subsystem, but the

caching/DFW "target" for that volume is not the same as

the "status."

• Update the target values (DFW/NVS definitions) for the

listed cache subsystem.

• Delete all of the table entries for obsolete cache

subsystems.

Cache Analysis When you choose option 2, a cache error report is

immediately executed online and the results are displayed. If

there are no cache errors, a "no errors" message displays.

Utilities Option 3 provides two IDCAMS utilities that you can use for

cache management, SETCACHE and LISTDATA.

----------------------------- Cache Management --------------------------------

OPTION ===>

System: SYSNAME1 Local Dataplex: MYDPLEX

1 CACHE SUBSYSTEM - Display CACHE Subsystem/Storage Director

2 CACHE ANALYSIS - Execute cache error reporting (online)

U UTILITIES - For cache maintenance

Chapter 2. Overview of SAW 11

Option 4 - DFHSM

When you select option 4, DFHSM, a list of standard IBM DFHSM functions is

displayed for your use. The DFHSM Functions screen is shown below.

The table below describes each option on the DFHMS menu. For more information on

how and when to use each of these functions, refer to IBM documentation on DFHSM,

such as the DFHSM V2R6 Command Reference, SH35-0083-97. To locate this book on

the internet, go to http://publibz.boulder.ibm.com/cgi-

bin/bookmgr_OS390/BOOKS/ARC6SR01.

----------------------------- DFHSM Functions ---------------------------------

OPTION ===>

System: SYSNAME1 Dataplex: MYDPLEX Mode: Local

1 HSEND QUERY Process HSEND QUERY commands

2 HSEND HOLD Process HSEND HOLD commands

3 HSEND RELEASE Process HSEND RELEASE commands

4 HSEND CANCEL Process HSEND CANCEL commands

5 AUTH List DFHSM USER-Authorization

6 FIXCDS Change/Display HSM-CDS via FIXCDS Command

7 AUDIT Activate AUDIT for MCDS/BCDS

8 LIST List Information from DFHSM Control data sets

9 ADDVOL Execute ADDVOL command

10 DELVOL Execute DELVOL command

11 CDS RECOVERY Enhanced DFHSM CDS Recovery

12 CHECK CDS Look if CDS reorganization is required

13 REORG SDSP Reorganize Small Data Set Packing on volume ______

14 REORG MCDS Reorganize Migration Control Data Set

15 REORG BCDS Reorganize Backup Control Data Set

16 REORG OCDS Reorganize Offline Control Data Set

12 Storage Administration Workbench for z/OS and OS/390:User’s Guide

Option Name Description

HSEND QUERY Option 1 processes all of the HSEND QUERY commands. The

query commands are:

•Active. Query all activities.

•ML2. Query all migrations to level 2 volumes and keys.

•Backup. Query all active backup volumes and parameter.

•CDS. Query the status of control data sets.

•User. Query user requests.

•Pool. Query defined pools.

•Retain. Query data sets or qualifiers prevented from space

management.

•SETSYS. Query HSM control parameters.

•Startup. Query startup parameters.

•Statistics. Query daily statistics.

•Waiting. Query all waiting requests.

•ABARS. Query ABARS status.

•CSALIMITS. Query CSALIMITS.

HSEND HOLD Option 2 processes all of the HSEND HOLD commands.

HOLD is used to suspend various HSM functions, which are

listed below.

•ABACKUP

•ALL

• ARECOVER

• AUDIT

• AUTOMIGRATION

•BACKUP

•DUMP

• EXPIREBV

•LIST

•LOG

•MIGRATION

•RECALL

• RECOVER

• RECYCLE

•REPORT

•TAPECOPY

• TAPEREPL

HSEND RELEASE Option 3 processes HSEND RELEASE commands. RELEASE

commands are used to resume various HSM function that

were suspended by a HOLD command. These functions are

the same functions as listed in the HSEND HOLD description

above.

HSEND CANCEL Option 4 processes HSEND CANCEL commands.

Chapter 2. Overview of SAW 13

AUTH Option 5 lists DFHSM USER authorizations.

FIXCDS Option 6 uses the FIXCDS command to display or delete

various control records in the HSM Control Data Set.

Note: This command should only be used by highly

qualified personnel.

AUDIT Option 7 activates AUDIT for MCDS/BCDS.

LIST Option 8 lists information from DFHSM control data sets.

ADDVOL Option 9 executes the ADDVOL command.

DELVOL Option 10 executes the DELVOL command.

CDS RECOVERY Option 11 enhances DFHSM CDS recovery.

CHECK CDS Option 12 allows you to determine whether a CDS

reorganization is required.

REORG SDSP Option 13 reorganizes a Small Data Set Packing cluster on the

volume you specify.

REORG MCDS Option 14 reorganizes a migration control data set.

REORG BCDS Option 15 reorganizes a backup control data set.

REORG OCDS Option 16 reorganizes an offline control data set.

Option Name Description

14 Storage Administration Workbench for z/OS and OS/390:User’s Guide

Option 5 - Reporting

To view the reports and outputs generated by SAW, choose option 5, Reporting, on

the SAW main menu. The Reports screen displays:

To select a report, enter the code that is listed in front of the report name in the Option

line and press Enter. The report will display. If the output is a GDS/GDG, then a list

of available reports will be displayed.

----------------------------- Reports -----------------------------------------

OPTION ==>

System: SYSNAME1 Local Dataplex: MYDPLEX

Specify Y or N to select print capability : N

Y or N to select all dataplex reports: Y

C1 - Catalog Exceptions

Application and Storage Reports DFHSM Reports

S1 - Hierarchy View L1 - LOGSCAN Summary Report

S2 - Application View with SG/Pool L2 - Migrate Actions File

S3 - SG/Pool View L3 - Backup Actions File

S4 - User Report (Hierarchy View) L4 - DFHSM Activity Log

S5 - Exceptions

Pool and Volume Reports

D1 - Data Set Reports D6 - Packmap

D2 - Volume/Pool Reports D7 - Volume List

D3 - Exceptions

D14 - ATL tape errors

Chapter 2. Overview of SAW 15

Option 6 - RACF

To manage different fields from RACF, choose option 6, RACF, on the SAW main

menu. The RACF Maintenance screen is shown below:

The table below describes each option on the RACF Maintenance menu. To process

these functions, you are required to have RACF System SPECIAL or UPDATE

authority to specific profiles in CLASS(FIELD).

Note: All occurrences of "DFP" in the table below are referring to the "Data Facility

Product", which is a facility that controls access to expanded storage.

Option Name Description

ADD/CHANGE Option 1 allows you to add or change the DFP-Segment for

the listed user. You can change the name of the application,

data class, management class, and storage class.

DELETE Option 2 allows you to delete the DFP-Segment for the listed

user.

ADD/CHANGE Option 3 allows you to add or change the DFP-Segment for

the listed group. You can change the name of the application,

data class, management class, and storage class.

DELETE Option 4 allows you to delete the DFP-Segment for the listed

group. You can alter the name of the application, data class,

management class, and storage class.

RESOWNER Option 5 maintains the DFP-RESOWNER entry in the RACF

data set profile. You can display or change an active DFP

segment for a RACF data set profile.

----------------------------- RACF Maintenance --------------------------------

OPTION ===>

System: SYSNAME1 Local Dataplex: MYDPLEX

1 ADD/CHANGE Add/change DFP-Segment for USER : ________

2 DELETE Delete DFP-Segment for USER : ________

3 ADD/CHANGE Add/change DFP-Segment for GROUP: ________

4 DELETE Delete DFP-Segment for GROUP: ________

5 RESOWNER Maintain DFP-RESOWNER entry in RACF data set profiles

6 LOAD DFP Load ALL User/Group with DFP-Segment data

from previous created data sets

7 LOAD RESOWNER Load ALL data set profile with DFP-Segment data

from previous created data sets

To process these functions RACF System SPECIAL or UPDATE authority to

specific profiles in CLASS(FIELD) is required.

16 Storage Administration Workbench for z/OS and OS/390:User’s Guide

Option 7 - ADSM

Option 7, ADSM, on the SAW main menu allows you to work in interactive mode by

invoking the ADSM ISPF dialog.

Option A - ATL

To perform management tasks for an automated tape library (ATL), choose option A,

ATL , on the SAW main menu. The ATL General Information screen displays.

Note: A DCOLLECT job must have been executed prior to using the ATL option. To

create the JCL used for a DCOLLECT job, refer to option S.2.8 from the SAW

main menu. This is the System JCL option on the Dataplex and System

Maintenance menu. When you choose this option, you can make entries in a

number of fields to customize the JCL and generate it. Once you have done

this, the appropriate data will be collected and can be displayed. Use the ATL

option on the SAW main menu to view the data related to the automated tape

library.

Information provided about each tape machine includes:

• Machine ID and type

• The total number of physical slots on that machine, as well as the number of slots

being used and the number of slots that are empty.

• The total number of logical volumes, as well as the number of scratch volumes

and shelf volumes. This is a summary of data collected in any system sharing this

robot.

• The total number of delta volumes and the number of scratch delta volumes.

Delta columns are useful in detecting abnormal situations, such as differences

between reports that are obtained using the "LIBENTRY" IDCAMS command and

a summary report.

• A "VTS" flag to indicate when the number of logical volumes is much greater than

the number of physical used slots.

• A "SYS" column to indicate the number of images that are using this robot.

The only line command available for use on the ATL General Information screen is

the S (select) line command. Type it next to the ID of the tape machine that you want

to review, and press Enter. The ATL Detailed Information screen displays.

The details listed on this screen include the:

• name of the dataplex, system, and library

• percentage of space used

• number of volumes used on each media.

Load DFP Option 6 reads the User/Group DFP data from previously

created data sets, then displays the data in an ISPF table

format. If you specify "all", then all User/Group entries are

displayed. If the field is blank, only User/Group entries with

existing DFP- segment information are displayed.

Load RESOWNER Option 7 reads the data set profile data from previously

created lists, then displays the data in an ISPF table format. If

you specify "all", then all of the profile entries are displayed.

Option Name Description

Chapter 2. Overview of SAW 17

• number of shelf volumes

• total number of volumes for each media type (Media1, Media2, etc.)

• number of private and scratch volumes

• maximum number of scratch tapes allowed for a job, referred to as the scratch

threshold

• number of volumes that contain errors

• number of volumes that are write protected.

Some of these columns are displayed when you page right. All of this information can

be used to monitor the usage of the ATL, and to see what changes need to be made to

use the ATL more efficiently.

Note: ATL data that is related to a local dataplex is written to the Storage

Administration Inventory (SAI). ATL data that is related to a remote dataplex

will be available only if the remote SAI has been received.

Option U - Utilities

To run one or more utilities related to storage management, choose option U,

Utilities, on the SAW main menu. The Utilities menu displays:

The three types of utilities available are IDCAMS, DFDSS, and ICKDSF. When you

choose one of these options, another menu appears that lists all of the available

utilities for that option. Each of these options is based on file tailoring from a skeleton

library. A description of each option and its corresponding JCL skeleton are described

in the Chapter 7, “Using Utilities” on page 147.

Option S - Setup and Configuration

The first time you use SAW, you will need to perform customization steps for your

environment. You may also need to make additional changes for maintenance when

there are significant changes in your system or in how you use Storage

Administration Workbench. Select option S, Setup and Configuration, on the SAW

main menu to perform customization.

----------------------------- Utilities ---------------------------------------

OPTION ===>

System: SYSNAME1 Dataplex: MYDPLEX Mode: Local

1 CAMS Catalog Access Method Services using IDCAMS

2 DFDSS Data Storage Services using ADRDSSU

3 DSF Device Support Facilities using ICKDSF

18 Storage Administration Workbench for z/OS and OS/390:User’s Guide

These options are described in detail in Chapter 3, “Installing Storage Administration

Workbench” on page 19. Refer to that chapter for more information on installation,

and dataplex and system customization.

----------------------- Setup and Configuration Options ----------------------

Option ===>

System: SYSNAME1 Dataplex: MYDPLEX Mode: Local

1 Installation - Installation and Maintenance Parameters

2 Configuration - Dataplex and System Configuration Parameters

Chapter 3. Installing Storage Administration Workbench

Follow the installation instructions in the Program Directory to copy the product

libraries onto your system. Once you have copied the SAW libraries from the tape,

you must perform additional installation steps to set up Storage Administration

Workbench for use with your environment. This chapter provides information on

what to do to install Storage Administration Workbench (SAW) and make it work in

your environment.

Installation summary

You must perform the installation steps in the order listed below. This chapter walks

you through each step.

Step Description Reference

1 Modify security requirements. “Step 1: Modify security sample” on page

2 Allocate data sets and populate them. “Step 2: Modify allocation sample” on

page 20

3 Force a high level qualifier. “Step 3: Modify the high level qualifiers”

on page 20

4 Copy and update the startup clist and

REXX exec.

“Step 4: Modify the AWB start up CLIST”

on page 20

5 Start SAW. “Step 5: Start SAW” on page 21

6 Customize batch jobs and data collection

jobs.

“Step 6: Set up batch jobs” on page 23

7 Customize job cards. “Step 7: Set up job cards” on page 24

8 Set up any other defaults you need for

your environment.

“Step 8: Set up additional defaults” on

page 24

9 Define the systems you need for your

environment.

“Step 9: Defining a system for a dataplex”

on page 38

10 Define and customize a dataplex. “Step 10: Defining a dataplex” on page 42

20 Storage Administration Workbench for z/OS and OS/390:User’s Guide

Steps for installing SAW

After the SAW SMP/E steps have been successfully completed, as instructed in the

Program Directory, you are ready to install SAW. To do this, you will modify several

of the sample JCL members in the *.*.SAMPLIB library, where *.* refers to the high

level qualifiers selected for your site. The instructions for modifying the sample

members are listed at the top of each member. In addition, you will set up defaults for

your environment.

Note: Be sure to check that the load library containing the SAW data sets is an APF-

authorized library. Contact your systems administrator if you have any

questions concerning APF authorization.

Step 1: Modify security sample

There are two SAMPLIB members that you can use for setting up the necessary

security for using SAW in your environment, AWBRACF for RACF security and

AWBTSS for Top Secret security. Choose the member that is appropriate for your site,

modify it as instructed in the member, then execute it.

If you use RMM for tape management, you also need to modify the AWBCRMM

sample member to set up security for RMM.

Step 2: Modify allocation sample

To allocate the required data sets and populate them, modify and run the

AWBALLOC sample member. Additional jobs you need to run after AWBALLOC

are listed below:

1. If you use TLMS or CA1 products, modify and run sample member AWBTLM.

2. If you have RMM installed, modify and run sample member AWBRMM.

3. If you run AWBRMM, you must also modify and run AWBIRMM to establish

internal data sets that are required for SAW to support RMM.

Step 3: Modify the high level qualifiers

Modify the AWBFORCE sample member, which forces a high level qualifier and a

second level qualifier for the SAW data sets. Execute this member when you are done

modifying it.

Step 4: Modify the AWB start up CLIST

To access Storage Administration Workbench (SAW), you must copy the following

members to the appropriate libraries in your environment, and update them.

•AWB. This CLIST is found in the *.*.SAMPLIB library. Copy AWB to your system

CLIST library and modify it for your site.

•AWBEXEC. This is a REXX EXEC that is in the *.*.SAMPLIB library. Copy

AWBEXEC to your system EXEC library, such as SYS1.EXEC, and modify it for

your site.

When you run the AWB CLIST to start SAW, it automatically executes AWBEXEC.

Both of these items are used to start up the SAW panels.

Chapter 3. Installing Storage Administration Workbench 21

Step 5: Start SAW

To start the SAW product, type TSO %AWB. The steps below outline what happens

when you type this command.

1. When you start SAW with the TSO %AWB command, the first screen you will see

depends on the number of dataplexes you can access:

•If you have defined only one dataplex, the SAW main menu displays. Skip step 2

below and continue onto step 3 to see the SAW main menu. When you first

install SAW, there will not be any dataplexes defined, so the SAW main menu

appears. You will define and customize a dataplex later in this chapter.

•If you have defined two or more dataplexes, you must choose which dataplex you

want to use with SAW. Refer to step 2 below for instructions.

2. If you have more than one dataplex, the screen lists all of the dataplexes so you

can choose which dataplex you want to use with SAW. An example of this screen

is shown below:

In the example above, there are seven dataplexes listed on the screen. The fields

are described below:

Column Name Description

Dataplex The one- to eight-character name of the dataplex. Follow the

conventions for naming a dataset.

Mode The mode is the type of dataplex. Valid types are:

• L A - Local administrative dataplex

• P A - Remote dataplex processed in local

• R T - Remote target dataplex

• R - Remote dataplex

----------------------------- SAW/MVS V1.1.0 --------------------- Row 1 of 6

COMMAND ==> _

Enter S in front of one dataplex or use PF15 to end.

Unload

Dataplex Mode Acc Typ Location description date time

-------- ----- --- --- ---------------------------------------- ------- -----

_ MEFSB L A U M MVS/ESA Test

_ MEFSL R T U M MVS/ESA TEST AO 2002013 09:47

_ VEFS7 P A U V VM/ESA TEST 2002313 14:30

_ MEFSM R T U M MVS/ESA INTEGRATION TEST 2002036 04:22

_ VEFMA R U U V MONTPELLIER 2002032 06:19

_ VEFS7 R U V VM/ESA TEST 2002031 03:00

_ VEUF1 R U V SINGLE OFFICE VISION 2002031 03:04

******************************* Bottom of data ********************************

22 Storage Administration Workbench for z/OS and OS/390:User’s Guide

Enter S next to the dataplex you want, and press Enter.

3. Once you have chosen a dataplex, or if you have only one dataplex, the SAW

main menu displays.

Acc The account column indicates the type of access you have for

the dataplex. The access types are:

•N - None

•R - Read

•U - Update

Type This column refers to the type of system where the dataplex

resides. The valid types are:

•M - MVS

•V - VM

Location description This contains a brief description indicating where the

dataplex is located.

Unload date This column indicates when the storage administration

inventory (SAI) for the remote dataplex was unloaded from

its home system. The format of the date is YYYYDDD, which

is a Julian date. For example, April 1, 2002 is the 91st day of

the year, so it would be written as 2002091.

Unload time This column indicates the time that the storage

administration inventory (SAI) for the remote dataplex was

unloaded from its home system. The format of the time is

HH:MM.

Column Name Description

----------------------- SAW V1.1.0 Main Menu ----------------------------------

OPTION ===>

System: SYSNAME1 Dataplex: MYDPLEX Mode: Local

0 Common Tasks - Routine actions

1 DASD - DASD Related Functions

2 CATALOG - Catalog Related Functions

3 CACHE - Cache Related Functions

4 DFHSM - DFHSM Related Functions

5 REPORTING - Display Reports and Exceptions

6 RACF - Maintain RACF criteria used in Storage Management

7 ADSM - Interactive mode for id: MYUSERID

A ATL - Automated Tape Library Functions

R RVA - Ramac Virtual Array Functions

U UTILITIES - Common Utilities Used in Storage Management

S Setup - SAW Setup and Configuration

Chapter 3. Installing Storage Administration Workbench 23

Step 6: Set up batch jobs

WARNING: You must complete this step to use SAW.

You need to set up SAW batch jobs and data collection jobs before you can run them.

The ISPF Environment option displays the allocation statements that are used in each

ISPF batch process that is scheduled or generated by Storage Administration

Workbench tasks. Modify the ISPF environment allocations and data set names to

your standards. To access the ISPF Environment option, follow these steps:

1. On the SAW main menu, choose option S, SAW Setup and Configuration.

2. On the Setup and Configuration Options menu, choose option 1, Installation.

3. On the Installation and Maintenance menu, choose option 7, ISPF Environm.

The next screen is an ISPF edit panel with a JCL skeleton for your review. This sample

JCL displays when you choose the ISPF Environment option (S.1.7 from the SAW

main menu). Modify the variables in this sample, identified with an ampersand (&),

to fit your environment. Save your changes and exit the editor. The allocation

statements will be included in other JCL generated by SAW.

//* --AWBS125 S -

//SYSTSPRT DD SYSOUT=*

//SYSPRINT DD SYSOUT=*

//ISPPROF DD DISP=OLD,DSN=&SMPHLQ..AWB045F

//SYSPROC DD DISP=SHR,DSN=&SMPHLQ..&SMPSLQ..EXEC

//SYSEXEC DD DISP=SHR,DSN=&SMPHLQ..&SMPSLQ..EXEC

//ISPPLIB DD DISP=SHR,DSN=&SMPHLQ..&SMPSLQ..PANELS

//ISPMLIB DD DISP=SHR,DSN=&SMPHLQ..&SMPSLQ..MSGS

// DD DISP=SHR,DSN=SYS1.SISPMENU

//ISPSLIB DD DISP=SHR,DSN=&DASSKEL..&$DPLEX

// DD DISP=SHR,DSN=&SMPHLQ..&SMPSLQ..SKELS

//ISPLLIB DD DISP=SHR,DSN=&SMPHLQ..&SMPSLQ..LOAD

//ISPTABL DD DISP=SHR,DSN=&DASTABL..&$DPLEX

//ISPTLIB DD DSN=&&&&ISPTLIB,UNIT=VIO,DSORG=PO,RECFM=FB,

// LRECL=80,BLKSIZE=6160,SPACE=(80,(200,200,45))

// DD DISP=SHR,DSN=&SMPHLQ..AWB045F

// DD DISP=SHR,DSN=&SMPHLQ..&SMPSLQ..TABLES

// DD DISP=SHR,DSN=&DASTABL..&$DPLEX

//ISPLOG DD DUMMY

//ISPLIST DD SYSOUT=*,DCB=(RECFM=FBA,LRECL=121,BLKSIZE=1210)

//* --AWBS125 E -

24 Storage Administration Workbench for z/OS and OS/390:User’s Guide

Step 7: Set up job cards

The next step in the installation process is to define the job cards that will be used for

any batch jobs that SAW initiates. To modify a jobcard to your installation standards,

select option 1, Jobcard 1, on the Installation and Maintenance screen (option S.1.1

from the SAW main menu). A JCL skeleton displays for you to edit. This JCL skeleton

will be included in every JCL job generated by SAW.

For an additional jobcard, select option 2, Jobcard 2, on the Installation and

Maintenance screen (option S.1.2 from the SAW main menu), and edit the JCL

skeleton that displays. Normally this should not be necessary, because the default

definitions are designed in a way that you should be able to run this on JES2 and JES3.

The defaults are set to:

•MSGLEVEL=(1,1)

• TIME=1439

• LINES=9999

ROUTE XEQ statements are generated if the JOB should be executed on a different

JES cluster, otherwise this statement is suppressed. If there is a different JES cluster,

the submitting user ID will be prompted for PASSWORD specification.

Step 8: Set up additional defaults

There are other defaults you may want to modify for your environment. You do this

by entering or editing values through the Installation and Maintenance option. To

access this option, follow these steps:

1. Select option S, SAW Setup and Configuration, on the SAW main menu.

2. Select option 1, Installation and Maintenance Parameters, on the Setup and

Configuration Options menu.

The following screen displays:

Chapter 3. Installing Storage Administration Workbench 25

Options 1 and 2: Jobcards

The jobcard options are described in “Step 7: Set up job cards” on page 24. Refer to

that section for more information.

Option 3: JCLLIB

When JES3 Version 4.2 and JES2 Version 4.1 JCLLIB support is available, you do not

need to copy your procedures to an active (JES known) PROCLIB data set. Instead,

your private PROCLIB data set can be used by coding the JCLLIB statement.

If the required JES version is not available on your dataplex, select option 3, JCLLIB,

on the Installation and Maintenance screen (option S.1.3 from the SAW main menu) to

inactivate the JCLLIB usage. This can be done either by changing the displayed data

to a comment (//* in front of the line) or by deleting the whole statement.

Note: If procedures should be used and JCLLIB is not active, the contents of the

provided PROCLIB data set must be copied to an active JCL procedure data

set (PROCLIB).

----------------------------- Installation and Maintenance --------------------

OPTION ===>

System: SYSNAME1 Dataplex: MYDPLEX Mode: Local

1 JOBCARD 1 Modify the jobcard to your local standard

2 JOBCARD 2 Modify the jobcard to your local standard

3 JCLLIB Modify default JCLLIB specification

4 STEPLIB Modify default STEPLIB specification

5 SORTCNTL Modify default SORTCNTL specification

6 SORTWORK Modify default SORTWORK specification

7 ISPF ENVIRONM. Modify the BATCH ISPF allocation to your local standard

8 RECEIVE STC Modify the STC ISPF allocation to your local standard

9 SDC VARIABLES Modify SDC variables

10 NICKNAMES Modify PDJOHN.NAMES.TEXT for transmission

11 UNCAT-DELETE Modify the default which is used in housekeeping

12 RELEASE Modify the default which is used in housekeeping

13 COMPRESS Modify the default which is used in housekeeping

14 DEFRAG Modify the default which is used in housekeeping

15 SPECIAL DELETE Modify the default which is used in housekeeping

16 On/offsite Modify the default which is used for backup processing

17 EXPIREBV Modify EXPIREBV values

18 TAPE device Tape device assignment modifications

19 Phy.Dev.Job1 Mass update of string assigment Job 1 prepare

20 Phy.Dev.Job2 Mass update of string assigment Job 2 update

26 Storage Administration Workbench for z/OS and OS/390:User’s Guide

Option 4: STEPLIB

Select option 4, STEPLIB, on the Installation and Maintenance menu (option S.1.4

from the SAW main menu) to modify the default values for STEPLIB processing. The

sample is shown below:

//STEPLIB DD DSN=&SMPHLQ..&SMPSLQ..LOAD,DISP=SHR 00010000

Option 5: SORTCNTL

Select option 5, SORTCNTL, on the Installation and Maintenance menu (option S.1.5

from the SAW main menu) to modify the default values for SORTCNTL processing.

The sample is shown below:

OPTION HIPRMAX=0,SIZE=E5000,MAINSIZE=2000K 00010000

Option 6: SORTWORK

Select option 6, SORTWORK, on the Installation and Maintenance menu (option S.1.6

from the SAW main menu) to modify the default values for SORTWORK processing.

The sample is shown below:

//SORTWK01 DD SPACE=(CYL,(50,10),,CONTIG),UNIT=&SORTDEV

//SORTWK02 DD SPACE=(CYL,(50,10),,CONTIG),UNIT=&SORTDEV

//SORTWK03 DD SPACE=(CYL,(50,10),,CONTIG),UNIT=&SORTDEV

//* SUPPRESS //* IN THE THREE FOLLOWING CARDS FOR SYNCSORT

//*//$ORTPARM DD *

//* INCORE=OFF

//*/*

//* END OF SYNCSORT MODIFICATIONS

You can change the number of SORTWORKs or the space size. You can also add

special DDNAMEs for a non-IBM sort product.

Option 7: ISPF Environment

This option is described in a previous section, “Step 6: Set up batch jobs” on page 23.

Refer to that section for more information.

Option 8: AWBSTC

Note: You can ignore this step if you have only one system defined in your dataplex.

Perform this step only if you are integrating data from multiple systems.

Select option 8, Receive STC, on the Installation and Maintenance menu (option S.1.8

from the SAW main menu) to display the allocation statements that are used in the

AWBSTC process. Modify the ISPF Environment allocations and data set names to

your standards.

Chapter 3. Installing Storage Administration Workbench 27

//**----------------------------------------------------------------

//* STC TO RECEIVE DATA FOR STORAGE MANAGEMENT

//**----------------------------------------------------------------

//* COPY ISPF PROFILE ON TEMPORARY TO AVOID ENQUEUES ON BATCH JOBS

//COPYPRF EXEC PGM=IEBCOPY

//SYSIN DD DUMMY

//SYSPRINT DD SYSOUT=*

//SYSUT1 DD DISP=SHR,DSN=&SMPHLQ..AWB045F

//SYSUT2 DD DISP=(,PASS),DSN=&&ISPPROF,

// SPACE=(TRK,(45,45,90)),UNIT=SYSDA,

// DCB=(RECFM=FB,LRECL=80,BLKSIZE=6160,DSORG=PO)

//*=========================================================

//AWBSTC EXEC PGM=IKJEFT01,DYNAMNBR=99,REGION=0M,

// PARM=('ISPSTART CMD(%AWBE001)',

// 'NEWAPPL(AWB) BDISPMAX(100000)')

//STEPLIB DD DISP=SHR,DSN=&SMPHLQ..&SMPSLQ..LOAD

//DASDDB DD DISP=SHR,DSN=&VI

//DASDLOCK DD DISP=SHR,DSN=&VILOCK

//ISPPROF DD DISP=(OLD,PASS),DSN=&&ISPPROF

//DPLEXOUT DD DISP=(,PASS),DSN=&&WORK1,UNIT=VIO,

// SPACE=(TRK,(45,45),RLSE),

// DCB=(RECFM=FB,LRECL=1000,BLKSIZE=0,DSORG=PS)

//SYSPROC DD DISP=SHR,DSN=&SMPHLQ..&SMPSLQ..EXEC

//SYSEXEC DD DISP=SHR,DSN=&SMPHLQ..&SMPSLQ..EXEC

//ISPPLIB DD DISP=SHR,DSN=&SMPHLQ..&SMPSLQ..PANELS

//ISPMLIB DD DISP=SHR,DSN=&SMPHLQ..&SMPSLQ..MSGS

// DD DISP=SHR,DSN=SYS1.SISPMENU

//ISPSLIB DD DISP=SHR,DSN=&SMPHLQ..&SMPSLQ..SKELS

//ISPLLIB DD DISP=SHR,DSN=&SMPHLQ..&SMPSLQ..LOAD

//ISPTABL DD DISP=SHR,DSN=&SMPHLQ..&SMPSLQ..TABLES

//ISPTLIB DD DSN=&ISPTLIB,UNIT=VIO,DSORG=PO,RECFM=FB,

// LRECL=80,BLKSIZE=6160,SPACE=(80,(200,200,45))

// DD DISP=SHR,DSN=&SMPHLQ..&SMPSLQ..TABLES

// DD DISP=SHR,DSN=SYS1.SISPTENU ###

//ISPLOG DD DUMMY

//ISPLIST DD SYSOUT=&SCLASS,DCB=(RECFM=FBA,LRECL=121,BLKSIZE=1210)

//SYSPRINT DD SYSOUT=&SCLASS

//SYSTSPRT DD SYSOUT=&SCLASS

//SYSTSIN DD DUMMY

//**----------------------------------------------------------------

All variables are indicated by the ampersand character (&), and will be filled with

customized values during the JCL generation process.

Note: If changes have been made to this ISPF environment, re-generate the AWBSTC

procedure with option 5, Receive STC, on the Dataplex and System

Maintenance screen (option S.2.5 from the SAW main menu).

Option 9: SDC variables

Use option 9, SDC variables, on the Installation and Maintenance menu (option S.1.9

from the SAW main menu) to check or change SDC variables. Here is the default

provided at installation:

/* REXX ***************************************************************/

/**********************************************************************/

/* (C) COPYRIGHT INTERNATIONAL BUSINESS MACHINES CORPORATION 2002, */

/**********************************************************************/

/* SKELS NAME : AWBS322 */

/* */

28 Storage Administration Workbench for z/OS and OS/390:User’s Guide

/* DESCRIPTION : SDC Variables */

/* */

/* STATUS : Storage Administration Workbench 1.1.0 */

/* */

/* NOTES : This is REXX language. */

/* */

/* CHANGE ACTIVITY : */

/* */

/* Creation 01/95 TE SMP */

/**********************************************************************/

MCGMOD = "NOEMPTY"

/* MCGMOD: GDG MODE (EMPTY/NOEMPTY) */

MCGSCR = "SCRATCH"

/* MCGSCG: GDG SCRATCH OPTION */

HSMACT = "HSMACT"

/* HSMACT: DFHSM activity log prefix */

DVC = "15"

/* DVC: Onsite backup tape volume count */

VVC = "15"

/* DVC: Offsite backup tape volume count */

DUC = "4"

/* DUC: Onsite backup DASD unit count */

All variables are in REXX language. For example, you can change the default HLQ

(HSMACT) to fit your DFHSM installation.

Option 10: Nicknames

Select option 10, Nicknames, on the Installation and Maintenance menu (option S.1.10

from the SAW main menu) to modify the given NICK name sample for transmission

processing. The recommended values SAWR, SARA and SA should be kept according

to the customization done previously. “Step 10: Defining a dataplex” on page 42.

Options 11-15

Options 11 - 15 on the Installation and Maintenance menu (options S.1.11 - S.1.15 on

the SAW main menu) can be used to display or modify the default values for

housekeeping functions.

The default will be used if no specific selection was made, or as a skeleton for the

specific definitions during the DASD Storage Administration Inventory (SAI) dialog.

Note: In all of the JCL examples that follow, the variables, which are indicated by the

ampersand character (&), will be substituted during the JCL generation

process.

Uncatalog Delete: Select option 11, UNCAT-DEL, to review or modify the default

specification for the housekeeping process, UNCATALOG DELETE.

/*-------------------------------------------------------------------*/

/* DELETE UNCATALOGED DATA SETS &#VOLSER */

/* CREATED BEFORE YESTERDAY AND WITH A USED SPACE HIGHER THAN 0 */

/*-------------------------------------------------------------------*/

DUMP OUTDDNAME(DUMMY) COM ALLDATA(*) ALLEXCP INDY(&#VOLSER) -

DATASET(EXCLUDE(SYS1.VTOCIX.**,SYS1.VVDS.**) -

Chapter 3. Installing Storage Administration Workbench 29

BY((CATLG,EQ,NO) (CREDT,LT *,-1) (FSIZE,GT,0))) -

DELETE PURGE

Release Unused Space: Select option 12, Release, to review or modify the default

specification for the housekeeping process, RELEASE UNUSED space.

/*----------------------------------------------------------------*/

/* RELEASE UNUSED SPACE &#VOLSER */

/*-------------------------------------------------------------------*/

RELEASE INCLUDE(**) EXCLUDE(SYS1.**) -

BY((CREDT LT *,-1)) MINSEC(0) DYNAM(&#VOLSER)

Compress: Select option 13, Compress, to review or modify the default specification

for the housekeeping process, COMPRESS.

/*----------------------------------------------------------------*/

COMPRESS INCLUDE(**) EXCLUDE(**.LINKLIB) -

DYNAM(&#VOLSER) WAIT(1,1)

Defrag: Select option 14, Defrag, to review or modify the default specification for the

housekeeping process, DEFRAG.

/*------------------------------------------------------------------*/

DEFRAG FRAGI(3) DYNAM(&#VOLSER) BY(LIST(REFDT LT *,-1)) -

EXCLUDE(LIST(SYS1.RACF*,SYS1.RACF*.**, -

SYS1.HASP*,SYS1.HASP*.**)) -

MAXMOVE(9999)

Special Delete: Select option 15, Special Delete, to review or modify the default

specification for the housekeeping process, Special DELETE.

Note: Option 15 should be skipped during the first customization process.

/*---------------------------------------------------------------*/

DUMP OUTDDNAME(DUMMY) COM ALLDATA(*) ALLEXCP INDY(&#VOLSER) -

DATASET(EXCLUDE(SYS1.VTOCIX.**, -

SYS1.VVDS.**) -

INCLUDE(TO_BE_COMPLETED -

) -

BY(CREDT,LE *,-10) -

) DELETE PURGE

Option 16: On/Offsite

Option 16, On/Offsite, on the Installation and Maintenance screen (option S.1.16 from

the SAW main menu) enables you to adjust the default algorithm used for backups

made onsite and offsite. The following screen displays when you choose option 16,

On/Offsite:

30 Storage Administration Workbench for z/OS and OS/390:User’s Guide

The table below briefly describes what each algorithm does and which data set

members are being used to create this algorithm. When you choose an algorithm, the

skeleton for the algorithm is automatically displayed in an edit session.

Notes:

1. It is recommended that you do not modify these algorithms. The names used for

the backup files conform to a standard that is used by the SAW RESTORE

function. If you change the DSN of the output, the RESTORE function will not

find it. Also, if you change the algorithm skeleton, the type of backup will not

correspond to what is on the screen For example, if you change algorithm A

(AWBS436) to backup VSAM instead of PDS’s, you might expect it to backup a

PDS as described on the screen. If you change a skeleton, be sure to note the new

functionality so you do not forget how it was altered.

2. For any of the options that do not produce FULL dumps, if a data set is

unavailable, SAW waits 30 seconds before retrying, with a limit of 10 retries

(WAIT (30,10)). Data sets are processed even though shared or exclusive access

fails (TOL(ENQF)).

Options 0 - 19, which are listed in the following table, are for onsite backups.

Table 2.

Option Name Member

Name

Skeleton

Name Description of Algorithm

0 - Algorithm A AWBS0$A AWBS436 Onsite backup. Using data compression,

SAW performs a dump of all partitioned

data sets (PDS or PDSE). The backup data

is stored on DASD.

----------------------------- On/offsite Backup Default Maintenance -----------

OPTION ===>

System: SYSNAME1 Dataplex: MYDPLEX Mode: Local

----------------------------------Onsite Backup --------------------------------

0 Algorithm A 7 Algorithm O 14 Algorithm W

1 Algorithm C 8 Algorithm P 15 Algorithm X

2 Algorithm D 9 Algorithm Q 16 Algorithm 1

3 Algorithm F 10 Algorithm R 17 Algorithm 4

4 Algorithm G 11 Algorithm T 18 Algorithm 7

5 Algorithm I 12 Algorithm U 19 Algorithm 9

6 Algorithm N 13 Algorithm V

--------------------------------Offsite Backup --------------------------------

30 Algorithm O 34 Algorithm X 43 Algorithm 7

31 Algorithm R 40 Algorithm 0 44 Algorithm 9

32 Algorithm U 41 Algorithm 1

33 Algorithm W 42 Algorithm 4

Chapter 3. Installing Storage Administration Workbench 31

1 - Algorithm C AWBS0$C AWBS437 Onsite backup. Using data compression,

SAW performs a dump to DASD of any

partitioned data sets that have been

modified since the last dump.

2 - Algorithm D AWBS0$D AWBS438 Onsite backup. Using data compression,

SAW performs a dump to DASD of all

sequential and partitioned data sets.

3 - Algorithm F AWBS0$F AWBS439 Using data compression, SAW performs a

dump to DASD of any sequential or

partitioned data sets that have been

modified since the last dump.

4 - Algorithm G AWBS0$G AWBS440 Using data compression, SAW performs a

dump of all VSAM data sets to DASD.

5 - Algorithm I AWBS0$I AWBS441 Using data compression, SAW dumps all

allocated tracks on the volume to a DASD

output data set.

6 - Algorithm N AWBS0$N AWBS442 Using data compression, SAW performs a

dump of all partitioned data sets (PDS and

PDSE) to DASD.

7 - Algorithm O AWBS0$O AWBS443 Using data compression, SAW performs a

dump of all partitioned data sets to a tape.

8 - Algorithm P AWBS0$P AWBS444 Using data compression, SAW performs a

dump to DASD of any partitioned data

sets that have been modified since the last

dump.

9 - Algorithm Q AWBS0$Q AWBS469 Using data compression, SAW performs a

dump of all sequential and partitioned

data sets to DASD.

10 - Algorithm R AWBS0$R AWBS445 Using data compression, SAW performs a

dump of all sequential and partitioned

data sets to a tape.

11 - Algorithm T AWBS0$T AWBS446 Using data compression, SAW performs a

dump of all VSAM data sets to DASD.

12 - Algorithm U AWBS0SU AWBS447 Using data compression, SAW performs a

dump of all VSAM data sets to a tape.

13 - Algorithm V AWBS0$V AWBS448 Using data compression, SAW dumps all

of the allocated tracks on the volume to a

DASD output data set.

14 - Algorithm W AWBS0$W AWBS449 Using data compression, SAW performs a

dump of all allocated data to a tape.

15 - Algorithm X AWBS0$X AWBS450 SAW performs a dump of all allocated

data to a tape without data compression.

Note: The tape device may already be

set to perform data compression

through hardware capabilities.

16 - Algorithm 1 AWBS0$1 AWBS451 Using data compression, SAW performs a

dump of all partitioned data sets (PDS and

PDSE) to a tape.

Table 2. (continued)

Option Name Member

Name

Skeleton

Name Description of Algorithm

32 Storage Administration Workbench for z/OS and OS/390:User’s Guide

Options 30-44, which are listed in the next table, are for offsite backups.

17 - Algorithm 4 AWBS0$4 AWBS452 Using data compression, SAW performs a

dump of all sequential and partitioned

data sets to a tape.

18 - Algorithm 7 AWBS0$7 AWBS453 Using data compression, SAW performs a

dump of all VSAM data sets to a tape.

19 - Algorithm 9 AWBS0$9 AWBS454 Onsite backup. Using data compression,

SAW performs a dump of all allocated

data to a tape.

Table 3.

Option Name Member

Name

Skeleton

Name Description of Algorithm

30 - Algorithm O AWBS0@O AWBS455 Using data compression, SAW performs a

dump of all partitioned data sets (PDS and

PDSE) to a tape.

31 - Algorithm R AWBS0@R AWBS456 Using data compression, SAW performs a

dump of all sequential and partitioned

data sets to a tape.

32 - Algorithm U AWBS0@U AWBS457 Using data compression, SAW performs a

dump of all allocated data to a tape.

33 - Algorithm W AWBS0@W AWBS458 Using data compression, SAW performs a

dump of all allocated data to a tape.

34 - Algorithm X AWBS0@X AWBS459 SAW performs a dump of all allocated

data to a tape, without data compression.

Note: The tape device may already be

set to perform data compression

through hardware capabilities.

40 - Algorithm 0 AWBS0@0 AWBS460 SAW performs a dump of all allocated

data to tape, without data compression.

Note: The tape device may already be

set to perform data compression

through hardware capabilities.

41 - Algorithm 1 AWBS0@1 AWBS461 Using data compression, SAW performs a

dump of all partitioned data sets (PDS and

PDSE) to a tape.

42 - Algorithm 4 AWBS0$4 AWBS462 Offsite backup. Using data compression,

SAW performs a dump of all sequential

and partitioned data sets to a tape.

43 - Algorithm 7 AWBS0$7 AWBS463 Offsite backup. Using data compression,

SAW performs a dump of all VSAM data

sets to a tape.

44 - Algorithm 9 AWBS0@9 AWBS464 Offsite backup. Using data compression,

SAW performs a dump of all allocated

data to a tape.

Table 2. (continued)

Option Name Member

Name

Skeleton

Name Description of Algorithm

Chapter 3. Installing Storage Administration Workbench 33

Option 17: EXPIREBV

Select option 17, EXPIREBV, from the Installation and Maintenance menu (option

S.1.17 from the SAW main menu) to modify the default values for EXPIREBV

processing. The provided sample is shown below:

HSEND EXPIREBV EXECUTE NONSMSVERSIONS(CATALOGEDDATA(31))

HSEND EXPIREBV EXECUTE NONSMSVERSIONS(UNCATALOGEDDATA(7))

Option 18: Tape Device

Select option 18, Tape D evice, from the Installation and Maintenance menu (option

S.1.18 from the SAW main menu) to modify the default values for the tape device

assignment. The figures on the next several pages show a sample of skeletons to help

you with defaults and how they are used.

The first box shows the keyword and syntax for the tape device assignment.

The following items are guidelines for syntax:

• One "IF" statement can hold more than one compare (in "and" relation) between

parentheses.

• More than one "IF" (in "and" relation) can be used for one "THEN", and more than

one assignment for one "THEN".

• The check ends at the first "IF" found true.

• Default assignments are unused only if no "IF" has been found true.

The next box lists usable fields in compares, and assignments for tape devices.

STATEMENTS IDENTIFIER:

DEFAULT

IF ROBOT(

IF RMM(

IF TLMS(

IF CA1(

IF VOLSER(

THEN

END-IF

END-DEFAULT

FORMAT: DEFAULT

.......

END-DEFAULT

FORMAT: IF ...(

.... )

THEN ...

.......

END-IF

MORE THAN ONE "IF"(AND RELATED) CAN BE USED FOR ONE "THEN".

EG. IF ROBOT(

.... )

RMM(

.... )

THEN ...

.......

END-IF

34 Storage Administration Workbench for z/OS and OS/390:User’s Guide

The next box contains more information on usable fields in compares, and

assignments for tape devices.

The rest of the boxes contain a sample of the skeletons, found in member AWBS337,

so you can understand how to use them. The skeletons are located in the

DASDSKEL.$dplex library, where DASDSKEL is your SAW highlevel qualifier and

$dplex is your dataplex name proceeded by an "L".

IF STATEMENTS

IF ROBOT(

SUBPARM: LIBRARY ( ) --> LIB NAME

SUBPARM: RECORDING( ) --> EG. 36TRACK

SUBPARM: MEDIA-TYPE( ) --> EG. MEDIA2

SUBPARM: STORAGE-GROUP() --> EG. MEDIA2

SUBPARM: COMPACTION ( ) --> EG. YES

SUBPARM: LOCATION ( ) --> EG. LIBRARY/SHELF

IF RMM(

SUBPARM: MEDIANAME ( ) --> USER FIELD

SUBPARM: MEDIATYPE ( ) --> EG. ECCST

SUBPARM: DENSITY ( ) --> EG. IDRC

SUBPARM: RECORDING ( ) --> EG. 36TRACK

SUBPARM: COMPACTION( ) --> EG. IDRC

SUBPARM: ATTRIBUTES( ) --> EG. RDCOMPAT

IF TLMS(

SUBPARM: LENGTH ( ) --> USER FIELD

SUBPARM: DEN ( ) --> EG. 36TK

SUBPARM: TRTCH ( ) --> EG. P

SUBPARM: TAPETYP ( ) --> USER FIELD

IF CA1(

SUBPARM: LENGTH ( ) -->

SUBPARM: DEN ( ) -->

SUBPARM: TRTCH ( ) -->

SUBPARM: LOCID ( ) -->

IF VOLSER( FROMVOL-TOVOL ) -->VOLSER RANGE

SUBPARM: FROM VOLSER --> EG. AAAAAA

SUBPARM: TO VOLSER --> EG. 999999

THEN STATEMENTS

MANDATORY:

DEVICE = LOGIC DEVICE

PH_DEVICE = PHISICAL DEVICE

PDF = PDF ABBREVIATION

SCRATCH_POOL = NAME OF SCRATCH POOL

NOSCRATCH_POOL = NAME OF NO-SCRATCH POOL

DEFAULT_BLKSIZE = DEFAULT BLKSIZE WHEN BLKSIZE=0

DEFAULT_BLKSIZE_RECFM_U =

DEFAULT BLKSIZE WHEN BLKSIZE=0

AND RECFM = U

CAPACITY = CAPACITY IN MB NOT COMPRESSED

OPTIONAL :

GAP = DEFAULT = 0

GAP BEETWEEN BLOCKS

RECFM_U_REDUCTION = DEFAULT = 100

RECFM_V_REDUCTION = DEFAULT = 100

RECFM_F_REDUCTION = DEFAULT = 100

THE ABOVE VALUE ARE PERCENTAGE VALUE TO USE

IN CALCULATING THE ALLOCATION:

ALLOCATION =(BLKSIZE * BLKCOUNT * REDUCTION) / 1024

Chapter 3. Installing Storage Administration Workbench 35

The next box contains more of the AWBS337 sample.

*====================================================================

*--- LOCAL INSTALLATIONS CAN BUILD THEIR STATEMENTS IN LSKELS

*--- PAYING ATTENTION TO SPECIFY

*--- ALL MANDATORY ASSIGMENTS(THEN) FOR EACH 'IF'

*====================================================================

IF VOLSER(NEVER9-NEVER0)

THEN

DEVICE=3590 PH_DEVICE=3590 PDF=3590

SCRATCH_POOL= S_3590

NOSCRATCH_POOL=M_3590

DEFAULT_BLKSIZE_RECFM_U = 64000

DEFAULT_BLKSIZE=32760

CAPACITY = 10000

END-IF

*====================================================================

IF ROBOT( MEDIA-TYPE (MEDIA3) )

THEN

DEVICE=MEDIA3 PH_DEVICE=MEDIA3 PDF=MEDIA3

SCRATCH_POOL= S_MEDIA3

NOSCRATCH_POOL=M_MEDIA3

DEFAULT_BLKSIZE_RECFM_U = 64000

DEFAULT_BLKSIZE=32760

CAPACITY = 10000

END-IF

*--------------------------------------------------------------------

IF ROBOT( MEDIA-TYPE (MEDIA2) )

THEN

DEVICE=MEDIA2 PH_DEVICE=MEDIA2 PDF=MEDIA2

SCRATCH_POOL= S_MEDIA2

NOSCRATCH_POOL=M_MEDIA2

DEFAULT_BLKSIZE_RECFM_U = 64000

DEFAULT_BLKSIZE=32760

CAPACITY = 800

END-IF

36 Storage Administration Workbench for z/OS and OS/390:User’s Guide

The next box contains more of the AWBS337 sample.

IF ROBOT( MEDIA-TYPE (MEDIA1) )

THEN

DEVICE=MEDIA1 PH_DEVICE=MEDIA1 PDF=MEDIA1

SCRATCH_POOL= S_MEDIA1

NOSCRATCH_POOL=M_MEDIA1

DEFAULT_BLKSIZE_RECFM_U = 64000

DEFAULT_BLKSIZE=32760

CAPACITY = 400

END-IF

*--------------------------------------------------------------------

IF RMM( MEDIATYPE ( ECCST )

RECORDING ( 36TRACK )

)

THEN

DEVICE=ECCST PH_DEVICE=ECCST PDF=ECCST

SCRATCH_POOL= S_ECCST

NOSCRATCH_POOL=M_ECCST

DEFAULT_BLKSIZE_RECFM_U = 64000

DEFAULT_BLKSIZE=32760

CAPACITY = 800

END-IF

*--------------------------------------------------------------------

IF RMM( MEDIATYPE ( CST )

RECORDING ( 36TRACK )

)

THEN

DEVICE=3490E PH_DEVICE=3490E PDF=3490E

SCRATCH_POOL= S_3490E

NOSCRATCH_POOL=M_3490E

DEFAULT_BLKSIZE_RECFM_U = 64000

DEFAULT_BLKSIZE=32760

CAPACITY = 400

END-IF

Chapter 3. Installing Storage Administration Workbench 37

The next box contains more of the AWBS337 sample.

IF TLMS(

DEN (36TK)

)

THEN

DEVICE=ECCST PH_DEVICE=ECCST PDF=ECCST

SCRATCH_POOL= S_ECCST

NOSCRATCH_POOL=M_ECCST

DEFAULT_BLKSIZE_RECFM_U = 64000

DEFAULT_BLKSIZE=32760

CAPACITY = 800

END-IF

*--------------------------------------------------------------------

IF TLMS(

DEN (18TK)

)

THEN

DEVICE=3480 PH_DEVICE=3480 PDF=3480

SCRATCH_POOL= S_3480

NOSCRATCH_POOL=M_3480

DEFAULT_BLKSIZE_RECFM_U = 32760

DEFAULT_BLKSIZE=32760

CAPACITY = 200

END-IF

*--------------------------------------------------------------------

IF TLMS(

DEN (CART)

)

THEN

DEVICE=3480 PH_DEVICE=3480 PDF=3480

SCRATCH_POOL= S_3480

NOSCRATCH_POOL=M_3480

DEFAULT_BLKSIZE_RECFM_U = 32760

DEFAULT_BLKSIZE=32760

CAPACITY = 200

END-IF

38 Storage Administration Workbench for z/OS and OS/390:User’s Guide

Options 19 and 20: Phy. Dev. Job 1 and 2

Select option 19, Phy. Dev. Job 1, or option 20, Phy. Dev. Job 2, on the Installation

and Maintenance menu (options S.1.19 and S.1.20 from the SAW main menu) to

produce an automatic definition of PDFABBR and a physical device type for every

string of DASDs. This performs a mass update of string assignments. You must run

the produced JCL at the end.

The results are available through option 3, String, on the DASD Management menu

(option 1.3 from the SAW main menu), where you can display string assignments.

Step 9: Defining a system for a dataplex

You must define at least one system for the dataplex and customize the variables before you are

able to use SAW.

Type S in the Option line on the SAW main menu to choose the SAW Setup and

Configuration option, and press Enter. The Setup and Configuration Options menu

will display.

IF TLMS(

DEN (6250)

)

THEN

DEVICE=6250 PH_DEVICE=6250 PDF=6250

SCRATCH_POOL= S_6250

NOSCRATCH_POOL=M_6250

DEFAULT_BLKSIZE_RECFM_U = 16000

DEFAULT_BLKSIZE=16000

CAPACITY = 169

END-IF

*--------------------------------------------------------------------

IF TLMS(

)

THEN

DEVICE=3400 PH_DEVICE=3400 PDF=3400

SCRATCH_POOL= S_3400

NOSCRATCH_POOL=M_3400

DEFAULT_BLKSIZE_RECFM_U = 32760

DEFAULT_BLKSIZE=32760

CAPACITY = 200

END-IF

*--------------------------------------------------------------------

DEFAULT

DEVICE=ECCST PH_DEVICE=ECCST PDF=ECCST

SCRATCH_POOL= SCRTCH

NOSCRATCH_POOL=MASTER

DEFAULT_BLKSIZE_RECFM_U = 64000

DEFAULT_BLKSIZE=32760

CAPACITY = 800

END-DEFAULT

*----------------------------------------------------------------

Chapter 3. Installing Storage Administration Workbench 39

The options on this screen are described in the table below:

Type 2 in the Option line to select the Configuration option, and press Enter. The

Dataplex and System Maintenance screen displays, listing all of the configuration

options:

Menu Option Description

1 - Installation Use this option to edit default values originally established

during installation, such as a job card and data set

specifications. These values are also used for maintenance

tasks.

2 - Configuration Use this option to setup or edit dataplex and system

parameters, such as those used to generate JCL for various

jobs.

----------------------- Setup and Configuration Options ----------------------

Option ===>

System: SYSNAME1 Dataplex: MYDPLEX Mode: Local

1 Installation - Installation and Maintenance Parameters

2 Configuration - Dataplex and System Configuration Parameters

---------------------- Dataplex and System Maintenance ------------------------

OPTION ===>

System: SYSNAME1 Dataplex: MYDPLEX Mode: Local

1 DATAPLEX Maintain the Dataplex/System definition(s)

2 SYSTEM Display and/or update system records

3 INVENTORY REORG Storage Administration Inventory reorganization

4 POOL-TRACE (dddhhmm) Create JCL (Mode : OLD Max.Num.Items: 31 )

5 RECEIVE STC Create JCL to receive data from remote site ( AWBSTC )

6 ALERT Generate the JCL needed for ALERT process

7 EXCEPTION REP. Control file handling

8 SYSTEM JCL Generate System related JCL

9 DATAPLEX JCL Generate Dataplex related JCL

10 MISCELLANEOUS Generate miscellaneous Dataplex related JCL

11 AWBJ001 JCL Generate NFTP OPC submitter

12 AWBJ002 JCL Generate SAI loader

U UNLOCK Perform UNLOCK of the inventory

40 Storage Administration Workbench for z/OS and OS/390:User’s Guide

The options on the Dataplex and System Maintenance screen are briefly described

below:

Menu Option Description

1 - Dataplex This option allows you to modify and add dataplexes. When

adding a dataplex, this option displays four screens where

you can enter parameter values to modify dataplex and

systems definitions, such as adding volumes to a pool.

Note: When you select this option and use the "C" action to

customize, you must work through all four screens

before you return to the menu.

2 - System Systems must be defined prior to defining or attempting to

use a dataplex. Use the System option to display or update

system records, such as deleting all entries from a system,

listing all volumes mounted at a select system, adding or

updating system-record parameters, listing CHPIDs that are

missing from a system, and adding or updating tape

management parameters.

3 - Inventory Reorg Use this option to make changes to the Storage

Administration Inventory (SAI), such as changing the name

of the volume serial, the amount of data space allowed (in

cylinders), the amount of index space in tracks, and the free

space allowed.

4 - Pool Trace With this option, you select a system on which to perform a

trace, and the JCL is automatically created for this process.

5 - Receive STC This option creates JCL to receive data from remote sites,

using the standard ID, AWBSTC.

6 - Alert This option creates the JCL to perform alert processing for

one dataplex, and the JCL to collect volume space data for

each system in your dataplex.

7 - Exception Rep. Use this option to add or modify parameters to the control file

JCL for exception reporting.

8 - System JCL This option generates system-related JCL, such as onsite and

offsite backups, catalog and housekeeping backup jobs, and

jobs to collect system data, volume information, and system-

related catalog information.

9 -Dataplex JCL Use this option to generate dataplex jobs, such as creating

pool space tables, generating daily and periodic DVP reports,

and collecting DFHSM migration data.

10 - Miscellaneous This option generates dataplex-related JCL to execute the

EXPIREBV command and to compress all of the permanent

application libraries.

11 - AWBJ001 JCL Use the option to select a system to use when generating an

NFTP OPC submitter.

12 - AWBJ002 JCL Use this option to generate a job named AWBJ002 that loads

the Storage Administration Inventory (SAI).

Chapter 3. Installing Storage Administration Workbench 41

To define a system for a dataplex, choose option 2, System, on the Dataplex and

System Maintenance menu (S.2.2 from the SAW main menu.) The following screen

displays.

To add a system, follow these steps:

1. Type U for update next to an existing entry.

2. Type over any fields you wish to change, then press Enter when you are done.

Note: The record that you overtyped is not affected and remains unchanged.

The new record will now be displayed on the screen.

The next step is to define any tape parameters required for the system you just

defined. To do this, type a T next to the system for which you want to provide tape

parameters, and press Enter. The next screen displays.

U - Unlock Under some abend conditions, the Storage Administration

Inventory (SAI) may remain in a locked status, which is an

exclusive usage indicator. Normally you receive a message

indicating this abend situation. To remove this lock indicator,

use option S.1.U, Unlock, to delete the exclusive use

indication record.

Note: To use Unlock, you need ALTER authority for the

security environment profile that protects the Storage

Administration Inventory (SAI).

Menu Option Description

----------------------------- Dataplex Management ------------ Row 1 to 2 of 2

COMMAND ==> SCROLL => CSR

System: SYSJES21 Local Dataplex: MYDPLEX

Enter D to DELETE all Entries for selected System

S to LIST all Volumes mounted at selected System

U to UPDATE/ADD System-Record Parameter

X to LIST all missing CHPID's at selected System

T TAPE Management Parameter (UPDATE/ADD) F11=shift right

Dataplex System Node-id last Update Exec Msg- Execut. Notify Seq

Name SMF/JES Date Time Class Cl. User-Id User-Id

- -------- -------- -------- ----- ----- -------- ---- -------- -------- ---

_ MYDPLEX SYSJES21 JES2 20:34 A_______ A MYID MYID__ 00

_ NYDPLEX SYSJES20 SYS2____ 18:31 A_______ A MYID MYID__ 01

******************************* Bottom of data ********************************

42 Storage Administration Workbench for z/OS and OS/390:User’s Guide

Make entries in the fields that relate to the tape management product you use. See

your systems programmer if you need assistance completing this screen. When you

are done, press Enter.

Step 10: Defining a dataplex

You must define at least one dataplex and customize the variables before you are able to use

SAW.

To access the Dataplex Management screen, follow these steps:

1. Type S in the Option line on the SAW main menu to choose the SAW Setup and

Configuration option, and press Enter.

2. Type 2 on the Setup and Configuration Options screen to select the Configuration

option, and press Enter.

3. To setup dialog variables for a local dataplex, choose option 1, Dataplex, on the

Dataplex and System Maintenance menu, and press Enter.

The following screen displays:

----------------------------- Tape Management System Information --------------

COMMAND ==> SCROLL ===> CSR

System: SYSNAME1 Local Dataplex: MYDPLEX

RMM (Y/N): _

SAWR JOB MUST BUILD NEW EXTRACT/BATCH FILES (Y/N). _

(if 'Y', DFRMM userid must be authorized to write extract/batch files)

RMM Control file dsn. ____________________________________________

Message file dsn. ____________________________________________

Extract file dsn. ____________________________________________

RMM CDS backup dsn. ____________________________________________

TLMS (Y/N): _

Report procedure name. ________

Proclib dsn. ____________________________________________

CA1 (Y/N): _

Report procedure name. ________

Proclib dsn. ____________________________________________

SMSTAPE Information:

Use SMS VOLCAT information: _ (Y/N)

----------------------------- Dataplex Management ------------ Row 1 to 1 of 1

COMMAND ==>

System: SYSNAME1 Local Dataplex: MYDPLEX

Enter one of A C D S U X N F P (see help) F11 = Summary

Dataplex Mode Acc Type Location description

- -------- ----- --- ---- ------------------------------------------

_ MYDPLEX_ L _ U M _ Company ABC Local DataPlex__________

******************************* Bottom of data ********************************

Chapter 3. Installing Storage Administration Workbench 43

Field Descriptions

The table below describes the fields on this screen.

Line commands

There are a number of line commands that you can use on this screen:

Field or Column Name Description

System The one- to eight-character name of the system.

Local Administrative

Dataplex

The one- to eight-character name of the local dataplex.

Dataplex The one- to eight-character name of the dataplex. In the

example, the dataplex name is MYDPLEX.

Mode Indicates the mode for this dataplex. Possible modes are:

•L - Local

•L A - Local administrative dataplex

•R - Remote dataplex

•R T - Remote target dataplex

•P A - Remote dataplex processed in local.

Acc Indicates the type of access allowed for this dataplex. Valid

access types are:

•N - No access allowed to this dataplex.

•R - Read only access allowed for this dataplex.

•U - Update access allowed for this dataplex.

Type Possible types are:

•M - MVS

•V - VM

Location description Use up to 38 characters to describe the name and use of the

dataplex in more detail.

Command Description

AType A to alter the local dataplex name.

CType C to customize the dataplex variables.

DType D to delete all entries for remote dataplexes.

SType S to display all the systems in a dataplex.

UType U to update dataplex variables.

XType X to transmit changes to a remote dataplex.

NType N to add a remote dataplex that is processed locally.

FType F to enter free-form text for the dataplex description.

PType P to change the mode from R (remote dataplex) or RT (remote target

dataplex) to P (remote dataplex processed locally).

44 Storage Administration Workbench for z/OS and OS/390:User’s Guide

Type U in front of the dataplex name of your local dataplex to update the information.

When all of the fields are filled, press the Enter key to store the data in your Storage

Administration Inventory (SAI).

Note: The dataplex name was specified during the installation process when the JCL

in AWBALLOC was run. Refer to “Step 2: Modify allocation sample” on page

20 for information on AWBALLOC.

In the example shown on the screen, the dataplex name is MYDPLEX, the Mode is L

(local), the Type is M (MVS), and the Location description is "Company ABC Local

Dataplex."

Customizing dataplex variables

If this is the very first definition of a local dataplex, you must customize these variables.

After the successful creation of the dataplex base record, type C in front of the

dataplex name and press Enter. The first of four customization panels displays as

shown below:

Use the PF-keys as shown on the panels to move to the next customizing part until

you reach the last panel (4). Only on this panel can you leave the customizing dialog

and save the specified data in your Storage Administration Inventory (SAI).

Most of the variables are initialized with default values as they are commonly used. If

the default values do not fit your installation standards, change them by overwriting

the specific fields.

----------------------------- Dataplex Management -----------------------------

COMMAND ==> Page 1 of 4

F11 = NEXT

System: RS02RS02 Local Dataplex: RSDPLEX

Number of catalog backup GDS entries ............. 05

Default unit type used for SORTWKxx DDNAMEs ...... SYSDA___

Default unit type used for application allocation SYSDA___

Batch processing default ........ Execution class ____ Message class _

Onsite backup ............................... HLQ SMPSHR

Unit type for output on DASD ________ Tape ________

Algorithm for output on DASD ANCPDQFGTIV______________

Algorithm for output on tape 1479ORUWX________________

Tape output retention period for cycle week 035 month 125

Offsite backup .............................. HLQ ________

Unit type for output on DASD ________ Tape ________

Algorithm for output on DASD _________________________

Algorithm for output on TAPE 14790ORUWX_______________

Tape output retention period for cycle week 035 month 125

Chapter 3. Installing Storage Administration Workbench 45

Note: The colors of the fields indicate importance.

• Red input fields must be filled in before moving onto the next screen.

Some red fields contain default values.

• Green fields are optional. When some green fields are filled in, they may

turn red and other fields may become red.

Help information can be selected by pressing the HELP key (PF1).

The table below describes the fields on the first customization screen.

Field or Column Name Description ISPF

Var iable

Number of catalog

backup GDS entries

Enter the number of GDS entries that should be

kept for each catalog backup.

MCNGDG

Default unit type used for

SORTWKxx DD-names

Enter your installation standard unit name for all

SORTWKxx temporary data sets. The default is

set to SYSDA.

SORTDEV

Default unit type used for

application allocation

Enter your installation standard unit name for

non-specific requests. The default is set to SYSDA.

DEFDEV

Batch processing - default

execution class

Enter the execution class that should be used in

batch JCL that is generated during the storage

administration process.

Note: If JES3 is used as the job entry subsystem

and the class is longer than one character,

the default job card has to be modified.

SVWCLASS

Batch processing - default

message class

Enter the message class that should be used in

batch JCL generated during the storage

administration process.

MSGCL

Onsite backup . . . HLQ This field displays the high-level qualifier used

for onsite backup process. The default value is

SMPSHR.

SERVHLQ

Onsite backup . . . unit

type for output on DASD

Enter the generic unit name that should be used

for DASD backup processing with output on

DASD volumes.

ONDASD

Onsite backup . . . unit

type for output on TAPE

Enter the generic unit name that should be used

for DASD backup processing with output on

TAPE volumes.

ONTAPE

Onsite backup . . .

Algorithm for output on

DASD

Enter the algorithm identification for backup

processing with output on DASD volumes.

Note: This should only be changed if a new

selection was added.

DDASD

Onsite backup . . .

Algorithm for output on

TAPE

Enter the algorithm identification for backup

processing with output on TAPE volumes.

Note: This should only be changed if a new

selection was added.

DTAPE

Onsite backup. . . tape

output retention period

for cycle week

Specify the retention period that should be used

for onsite backup output on tape during the

weekly cycle.

DRW

Onsite backup. . . tape

output retention period

for cycle month

Specify the retention period that should be used

for onsite backup output on tape during the

monthly cycle.

DRM

46 Storage Administration Workbench for z/OS and OS/390:User’s Guide

Offsite backup . . . HLQ Type the high level qualifier that should be used

for the offsite backup process. This value must be

different from on-site backup. The recommended

value is SMPSHR.V. If you specify a value for the

offsite backup HLQ, the corresponding fields

must also be specified.

VITALHLQ

Offsite backup . . . unit

type for output on DASD

Type the generic unit name that should be used

for DASD backup processing with output on

DASD volumes.

OFFDASD

Offsite backup . . . unit

type for output on TAPE

Type a generic unit name that should be used for

DASD backup processing with output on tape

volumes.

OFFTAPE

Offsite backup . . .

Algorithm for output on

DASD

Specify the algorithm identification for backup

processing with output on DASD volumes.

Note: This should only be changed if a new

selection was added.

VDASD

Offsite backup . . .

Algorithm for output on

TAPE

Specify the algorithm identification for backup

processing with output on tape volumes.

Note: This should only be changed if a new

selection was added.

VTAPE

Offsite backup . . . tape

output retention period

for cycle week

Specify the retention period that should be used

for offsite backup output on tape during the

weekly cycle.

VRW

Offsite backup . . . tape

output retention period

for cycle month

Specify the retention period that should be used

for offsite backup output on tape during the

monthly cycle.

VRM

Field or Column Name Description ISPF

Var iable

Chapter 3. Installing Storage Administration Workbench 47

Customization fields for second screen

The second customization screen is shown below.

The table below describes the fields on the second customization screen.

Field or Column

Name Description ISPF Variable

Authorized shared

userid

In MVS/ESA, if a shared user ID is used for

batch processing when performing storage

management tasks, enter the name of that

user ID. The recommended value is

AWBSERV. In all dialog steps where JCL is

generated, the requesting user ID is checked

for access to the RACF SURROGAT profile of

the specified shared user ID. If access is

permitted, the shared user ID will be used. If

not, the user’s own ID will be put in the

generated job card.

AUTHUSER

Default account field

for batch

Enter the complete account field as it is used

in your installation, such as 2353,13,DG590.

ACCOUNT

Name of DFHSM

MCDS

Enter the name of your DFHSM migration

control data set (MCDS).

Note: If this field is blank, no DFHSM-

related information can be provided

during the Storage Administration

Inventory (SAI) collect process.

TSMMCDS

Name of DFHSM

BCDS

Enter the name of your DFHSM backup

control data set (BCDS).

Note: If this field is blank, no DFHSM

related information can be provided

during the Storage Administration

Inventory (SAI) collect process.

TSMBCDS

----------------------------- Dataplex Maintenance ----------------------------

COMMAND ==> Page 2 of 4

F10 = PREV / F11 = NEXT

System: SYSNAME1 Local Dataplex: MYDPLEX

Authorized shared user-id ........ USERID__

Default ACCOUNT field for BATCH .. ACCOUNT_____________________________________

DFHSM MCDS data set .............. HSMPROD.MCDS________________________________

DFHSM BCDS data set .............. HSMPROD.BCDS________________________________

DFHSM OCDS data set .............. HSMPROD.OCDS________________________________

DFHSM JRNL data set .............. HSMPROD.JRNL________________________________

ADRDSSU steplib .................. ____________________________________________

ICKDSF steplib ................... ____________________________________________

CACHE steplib .................... ____________________________________________

IXFP steplib...................... ____________________________________________

IXFP parmlib...................... ____________________________________________

RACF unload utility output ....... SMP.PERM.JDN001F____________________________

RACF list USER data set .......... ____________________________________________

RACF list GROUP data set ......... ____________________________________________

ADSM DSCOPT data set ... ______________________________________________________

ADSM DSCLANG data set .. ______________________________________________________

48 Storage Administration Workbench for z/OS and OS/390:User’s Guide

Name of DFHSM

OCDS

Enter the name of your DFHSM offline

control data set (OCDS).

Note: If this field is blank, no DFHSM-

related information can be provided

during the Storage Administration

Inventory (SAI) collect process.

TSMOCDS

Name of DFHSM

JOURNAL

Enter the name of your DFHSM journal data

set.

JOURNAL

Name of steplib for

ADRDSSU

If a STEPLIB is needed to execute the

authorized version of DFDSS

(PGM=ADRDSSU), the data set name must be

specified.

ADRDSSU

Name of steplib for

ICKDSF

If a STEPLIB is needed to execute the

authorized version of DSF (PGM=ICKDSF),

the data set name must be specified.

ICKDSF

Name of steplib for

CACHE

If a STEPLIB is needed to execute the

authorized version for CACHE

LISTDATA/SETCACHE processing

(PGM=IDCAMS), the data set name must be

specified.

CACHE

Name of steplib for

IXFP

If a STEPLIB is needed to use the IXFP

functions, type the name of the data set in this

field.

IXFPLOAD

Name of parmlib for

IXFP

Type the name of the parmlib to be used for

IXFP functions.

Note: By setting this variable, it will be

available in the RVA maintenance

dialog (option R on the SAW main

menu).

IXFPPARM

Name of RACF Unload

Util. output

Type the name of the data set which contains

the unloaded RACF data, if the RACF Unload

Utility is used. If this field is specified, no

other RACF-related customizing is needed.

Note: RACF USER/GROUP data are

needed for the verification process

during catalog management. The data

can be provided either by RACF list

commands or by the RACF unload

utility.

FLAT

Name of RACF list

USER data set

Enter the name of the data set which contains

the output produced by the RACF LU *

command. The data set must be allocated

with a RECFM=VBA and a LRECL=137. This

dataset is used for validation processing.

Note: If the RACF Unload Util. output field

is specified, this field can be blank.

Field or Column

Name Description ISPF Variable

Chapter 3. Installing Storage Administration Workbench 49

Customization fields for third screen

The third dataplex customization screen is shown below.

The table below describes the fields on the third customization screen.

Name of RACF list

GROUP data set

Enter the name of the data set which contains

the output produced by the RACF LG *

command. The data set must be allocated

with a RECFM=VBA and a LRECL=137. This

dataset is used for validation processing in

catalog administration.

Note: If the RACF Unload Util. output field

is specified, this field can be blank.

DSCOPT If ADSM is installed on the system, you can

access the ADSM dialog under SAW. In this

case, just specify the content of the DSCOPT

DDNAME of the ADSM procedure.

DSCOPT

DSCLANG If ADSM is installed on the system, you can

access the ADSM dialog under SAW. In this

case, list the content of the DSCLAND

DDNAME of the ADSM procedure.

DSCLANG (green)

Field or Column Name Description ISPF

Var ia ble

TRANSMIT nickname of

SARA administrative

focal point

Not required. DBNODE

NFTP REMNODE of

SARA administrative

focal point

Not required.

Field or Column

Name Description ISPF Variable

----------------------------- Dataplex Management -----------------------------

COMMAND ==> Page 3 of 4

F10 = PREV / F11 = NEXT

System: RS02RS02 Local Dataplex: RKSPLEX

TRANSMIT nickname of SARA administrative focal point ................. ________

NFTP REMNODE of SARA administrative focal point ...................... ________

NFTP CLASS of SARA administrative focal point ........................ _

IFX RNOTIFY of SARA administrative focal point ....................... ________

TRANSMIT nickname of SAWR administrative focal point ................. ________

NFTP REMNODE of SAWR administrative focal point ...................... ________

NFTP CLASS of SAWR administrative focal point ........................ _

IFX RNOTIFY of SAWR administrative focal point ....................... ________

NFTP REMNODE of the current dataplex ................................. ________

NFTP CLASS of the current dataplex .................................. _

IFX RNOTIFY of the current dataplex .................................. ________

TRANSMIT nickname of the central Error-MSG processing ................ ________

OPC/ESA Sub-system name .............................................. ________

OPC/ESA EQQMLIB data set name .... ____________________________________________

50 Storage Administration Workbench for z/OS and OS/390:User’s Guide

NFTP CLASS of SARA

administrative focal point

Not required.

IFX RNOTIFY of SARA

administrative focal point

Not required.

TRANSMIT nickname of

SAW administrative focal

point

Enter the nickname of the AWBSTC start

command if you plan to send the data of your

dataplex to a central Storage Administration

Inventory (SAI). The recommended value is SAW.

Note: Refer to“SAI receipt:” on page 54 for a

complete description of how to install and

customize the AWBSTC start command.

REMNOD

NFTP REMNODE of

SAW administrative focal

point

Enter the REMNODE to send the local dataplex

data to the administrative Storage Administration

Workbench.

NFTP CLASS of SAW

administrative focal point

Enter the class to send the local dataplex data for

central processing.

IFX RNOTIFY of SAW

administrative focal point

Enter the RNOTIFY to send the local dataplex data

to the administrative Storage Administration

Workbench.

NFTP REMNODE of the

current dataplex

Enter the REMNODE to receive data on the

current dataplex.

NFTP CLASS of the

current dataplex

Enter the class to receive data on the current

dataplex.

IFX RNOTIFY of the

current dataplex

Enter the RNOTIFY to receive data on the current

dataplex.

Note: Ask your NFTP support to obtain all

NFTP/IFX information. This will be used

for NFTP transmission.

TRANSMIT nickname of

the central Error-MSG

processing

Enter the nickname that should be informed about

uncompleted execution of storage management

jobs. The recommended value is SA.

Note: Update this field only when you are

familiar with all JCL generation

processing.

ERRNODE

OPC/ESA Subsystem

name

Ask your OPC support to obtain this information.

This will be used for NFTP transmission.

OPC/ESA EQQMLIB

data set name

Ask your OPC support to obtain this information.

This will be used for NFTP transmission.

Field or Column Name Description ISPF

Var ia ble

Chapter 3. Installing Storage Administration Workbench 51

Customization fields for fourth screen

The fourth dataplex customization screen is shown below.

The table below describes the fields on the fourth customization screen.

Field or Column

Name Description ISPF Variable

Default SAI contents of

field STRING

Enter the default STRING name that should be

assigned if a new DASD volume is added to

the Storage Administration Inventory (SAI).

DEFSTR

Default SAI contents of

field Machine room

Enter the default machine room name that

should be assigned if a new DASD volume is

added to the Storage Administration

Inventory (SAI).

DEFROOM

Default SAI contents of

field Building

Enter the default building name that should be

assigned if a new DASD volume is added to

the Storage Administration Inventory (SAI).

DEFBUILD

Default SAI contents of

field Site

Enter the default site name that should be

assigned if a new DASD volume is added to

the Storage Administration Inventory (SAI).

DEFSITE

Default SAI contents of

field Geographic Area

Enter the default geographic area name that

should be assigned if a new DASD volume is

added to the Storage Administration

Inventory (SAI).

DCOUNTRY

Default SAI contents of

field PDF Abbreviation

Enter the default PDF Abbreviation that

should be assigned if a new DASD volume is

added to the Storage Administration

Inventory (SAI).

DEFPDFAB

Default SAI contents of

field Physical device

type and model

Enter the default physical device type and

model that should be assigned if a new DASD

volume is added to the Storage

Administration Inventory (SAI).

DEFPDEVT

----------------------------- Dataplex Management -----------------------------

COMMAND ==> Page 4 of 4

F10 = PREV / F3 = END

System: SYSNAME1 Local Dataplex: MYDPLEX

Default SAI contents of field STRING ................ STR1

Default SAI contents of field Room Number ........... Dallas MR______

Default SAI contents of field Building .............. Dallas_________

Default SAI contents of field Site .................. Dallas_________

Default SAI contents of field Geographic Area........ US_____________

Default SAI contents of field PDF Abbreviation....... PDF001__

Default SAI contents of field Physical DevType & Mod. 3390 003

Default SAI contents of field Max. volume utilization 100

Default SAI contents of field Target POOL utilization 085

Default SAI contents of field POOL buffer percentage 15 unused perc. .. 15

Default SAI contents of field POOL free VIRS perc. .. 15 free DSCB perc. 15

Default POOL name for DFHSM Migration level 1/2 vol . HSM-MIG1 HSM-MIG2

Default POOL name for DFHSM Backup/Spill volumes .... HSMBACK_ HSMSPILL

Default POOL name for new .. NON-SMS managed volumes #UNKNOWN

Default POOL name for new ...... SMS managed volumes #UNKNSMS

Default POOL name for only ... DFHSM defined volumes #UNKNHSM

52 Storage Administration Workbench for z/OS and OS/390:User’s Guide

Note: These last six fields are planned for a

future version.

Default SAI contents of

field Max. volume

utilization

Enter the default value for the maximum

volume utilization threshold that should be

used if a new POOL/Storage Group is added

to the Storage Administration Inventory (SAI).

DEFMVOL

Default SAI contents of

field Target POOL

utilization

Enter the default value for the target POOL

utilization threshold that should be used if a

new POOL/Storage Group is added to the

Storage Administration Inventory (SAI).

DEFPUTIL

Default SAI contents of

field POOL buffer

percentage

Enter the default value for the POOL buffer

percentage threshold that should be used if a

new POOL/Storage Group is added to the

Storage Administration Inventory (SAI).

DEFBP

Default SAI contents of

field POOL unused

percentage

Enter the default POOL unused percentage

that should be used if a new POOL/Storage

Group is added to the Storage Administration

Inventory (SAI). A value of 15 is

recommended.

DEFWP

Default SAI contents of

field POOL free VIRS

percentage

Enter the default value for the percentage of

free VIRS that should be used if a new

POOL/Storage Group is added to the Storage

Administration Inventory (SAI).

DEFVP

Default SAI contents of

field POOL free DSCB

percentage

Enter the default value for the percentage of

free DSCB that should be used if a new

POOL/Storage Group is added to the Storage

Administration Inventory (SAI). A value of 15

is recommended.

DEFDP

Default POOL name for

DFHSM Migration

level 1 vol.

Enter the default assigned POOL name that

should be used if a new DFHSM Migration

Level 1 (ML1) volume is added to the Storage

Administration Inventory (SAI).

ML1

Default POOL name for

DFHSM Migration

level 2 vol.

Enter the default assigned POOL name that

should be used if a new DFHSM Migration

Level 2 (ML2) volume is added to the Storage

Administration Inventory (SAI).

ML2

Default POOL name for

DFHSM Backup

volumes

Enter the default assigned POOL name that

should be used if a new DFHSM Backup

volume is added to the Storage

Administration Inventory (SAI).

BACK

Default POOL name for

DFHSM Backup SPILL

volumes

Enter the default assigned POOL name that

should be used if a new DFHSM backup SPILL

volume is added to the Storage

Administration Inventory (SAI).

SPILL

Default POOL name for

new . . . NON-SMS

managed volumes

Enter the default assigned POOL name that

should be used if a new non-SMS-managed

volume is added to the Storage

Administration Inventory (SAI).

UNKNOWN

Field or Column

Name Description ISPF Variable

Chapter 3. Installing Storage Administration Workbench 53

Using a remote dataplex

It is worth defining a remote dataplex when any dataplex is not subject to regular

care. In other words, you have to first evaluate the different systems you are

managing. This allows you to detect the most important ones, in terms of storage

administration activities. Then you will be able to isolate the low activity systems or

dataplex, and send its corresponding Storage Administration Inventory (SAI) to the

dataplex of your choice that is regularly accessed.

The way to set up the transmission and receipt of the SAI is detailed in the following

sections.

Data Transmission: TRANSMIT/RECEIVE or NFTP/IFX can be used to transmit

data sets from one dataplex to another. The steps for using each of these methods are

listed below:

TRANSMIT/RECEIVE: Follow these steps to transmit data sets.

1. Use option S.2.1, Dataplex, to display a list of dataplexes on a system.

2. Type U next to a dataplex you want to update.

3. Type C to customize the dataplex.

4. Type the nickname of the systems that will receive data in the "Transmit

nickname of SAW administrative focal point" field. The default nickname is SAW.

5. Use option S.1.10, Nicknames, to set the user ID (normally AWBSTC) and the

node ID of the receiving dataplex.

All of the following items can be sent two different ways:

• Storage Administration Inventory (SAI)

• *.*.SKELS.dataplex

• *.*.TABLES.dataplex

• AWBSERV.NAMES.TEXT

The two methods are described below.

Method 1: Follow these steps.

1. Use option S.2.8, System JCL.

2. Type J in the "Select the item below as" field.

3. Type N in the DEF-GDG field, if it is not already displayed.

4. Type S next to the first task, "Collect data from the system and store them in the

SAI".

Default POOL name for

new . . . SMS managed

volumes

Enter the default assigned POOL name that

should be used if a new SMS-managed volume

(without a proper Storage Group assignment)

is added to the Storage Administration

Inventory (SAI).

UNKNSMS

Default POOL name for

only . . . DFHSM

defined volumes

Enter the default assigned POOL name that

should be used if a volume only defined as a

DFHSM primary volume is added to the

Storage Administration Inventory (SAI).

#UNKNHSM

Field or Column

Name Description ISPF Variable

54 Storage Administration Workbench for z/OS and OS/390:User’s Guide

5. Type a member name in the "Member" field, and press Enter.

6. Respond with "yes" when you are asked whether you want to send the SAI.

Method 2: Follow these steps.

1. Use option 2.8.9, Dataplex JCL.

2. Type J in the "Select the item below as" field.

3. Type S next to the "Transmit Storage Administration Inventory for remote

loading" option.

4. Type a member name in the "Member" field, and press Enter.

NFTP/IFX:

1. Use option S.2.1, Dataplex, to display a list of dataplexes on a system.

2. Type U next to a dataplex you want to update.

3. Type C to customize the dataplex.

4. Type NFTP/IFX parameters for the sending and receiving systems.

All of the following items can be sent using the Dataplex JCL option:

• Storage Administration Inventory (SAI)

• *.*.SKELS.dataplex

• *.*.TABLES.dataplex

• AWBSERV.NAMES.TEXT

Use option S.2.9, Dataplex JCL, and make an entry in the "NFTP transmissions for

SAW and/or SARA" option.

SAI receipt: The AWBSTC start command is used to receive data from a remote

dataplex on the central Storage Administration Inventory (SAI). The customization of

this procedure is done through option S.2.5, Receive STC, and the result is placed in

member AWBSTC in the *.*.PROCLIB.dataplex.

Note: If this PROCLIB data set is not known by JES, the AWBSTC procedure must be

copied to a known one.

Using a remote target dataplex

A "remote target dataplex" is a dataplex which is administered by a local

administrative dataplex. Follow these steps to set up this administrative relationship:

1. Generate the JCL for the AWBSTC started task. See “SAI receipt:” on page 54 for

details.

Note: This task is mandatory to receive data from the local administrative

dataplex.

2. Transmit data to the local administrative dataplex. See“Data Transmission:” on

page 53 for details.

Note: When a remote dataplex is administrated from a local administrative

dataplex, it is highly recommended to protect this dataplex from being

modified from the dataplex itself.

You can now administer the remote target dataplex from the local administrative

dataplex.

Chapter 4. Collecting Data

Storage Administration Workbench (SAW) collects data from a variety of places.

Batch jobs and dialogs are used to collect information from UCB, VTOC, catalogs,

cache, DFHSM, CDS, a RACF database, and tape management products. All of this

information is merged and consolidated in the Storage Administration Inventory

(SAI). Stored reports are built from this data.

This chapter describes the dialogs (screens) and options that you can use to collect

different types of data.

Preparing for batch jobs

Normally, storage management jobs are initiated by predefined cycles that are

scheduled to run routinely. The advantages of using Storage Administration

Workbench (SAW) are that some of the tasks can also be executed online on request,

and all JCL generation can be done with dialog assistance. This chapter provides

detailed instructions on how the required jobs can be created and which sequence

must be followed to collect data for the Storage Administration Inventory (SAI).

Creating Test Jobs

The instructions in this chapter assume that you are creating procedures that will be

used in the housekeeping (or production) jobs. However, initially you should create

test jobs by doing the following:

1. Choose S, Setup, on the SAW main menu.

2. Choose 2, Configuration, on the Setup and Configuration Options menu.

3. Choose 8, System JCL, on the Dataplex and System Maintenance menu.

4. Type J for JCL in the "Select the items below as" field.

5. Type Y in one or more of the TEST fields to indicate which jobs need test JCL.

It is recommended that you run all of your jobs for a short period (perhaps for two

weeks) before you decide how you will combine the various steps into jobs and the

various jobs into housekeeping suites. This will give you an opportunity to select the

functions you require, and enable you to establish meaningful thresholds and control

file values.

Before creating JCL

Before you generate any JCL with the System JCL, Dataplex JCL, or Pool-Trace

options on the Dataplex and System Maintenance menu (options S.2.8, S.2.9, and S.2.4

from the SAW main menu) , do the following:

•Perform the space customization, which uses option S.2.8 from the SAW main menu.

•Update the ISPF profile, which uses option S.2.8 from the SAW main menu.

Perform space customization

You can configure the quantity of DASD space for the DCOLLECT output dataset.

The SPACE parameter will be used in the subsequently generated JCL.

1. On the SAW main menu, choose option S, SAW Setup and Configuration.

56 Storage Administration Workbench for z/OS and OS/390:User’s Guide

2. On the Setup and Configuration Options menu, choose option 2, Configuration.

3. On the Dataplex and System Maintenance menu, choose option 8, System JCL.

4. On the Generate System Related JCL screen, type Y in the Configure DCOLLECT

Spaces field, and press Enter. A sample screen is shown below:

If you have used this screen before, the items in the "Number Volumes" columns

show the values that you previously defined.

Update the ISPF Profile

When you select this field, an online update is performed of the ISPF profile with

SAW parameters. Select this option the first time a JCL construction for batch

processing is being executed.

1. On the SAW main menu, choose option S, SAW Setup and Configuration.

2. On the Setup and Configuration Options menu, choose option 2, Configuration.

3. On the Dataplex and System Maintenance menu, choose option 8, System JCL.

4. On the Generate System Related JCL screen, type Y in the Update ispf profile for

batch processing field, and press Enter.

Generating JCL for system jobs

Before you generate any JCL, you must first do the following:

•Customize the space. Refer to “Perform space customization” on page 55 for

instructions.

•Update the ISPF profile. Refer to “Update the ISPF Profile” for instructions.

This section describes the dialogs you use to generate the JCL for system-related batch

jobs. You can then submit this JCL. Select option 8, System JCL, on the Dataplex and

System Maintenance screen (S.2.8 from the SAW main menu). The Generate System

Related JCL screen will display, as shown on the next page.

Chapter 4. Collecting Data 57

Figure 1. Local Dataplex - Setup of System Related JCL

Using this panel, you should be able to generate all the JCL needed to setup the

system-related (collect and independent) jobs. The setup should be done in sequence.

1. Define all system-related GDG base entries. You only need to do this one time.

Follow these steps to define the systems that are part of the GDG:

a. Type Y on the DEF-GDG input field.

b. Type S in front of all the tasks on this panel, as shown in the above sample

screen, and press the Enter key.

c. Select all the systems that are displayed on the following selection panel and

press the Enter key. An example of this screen is shown below.

Notes:

1) If you only have one dataplex defined, you will not see this screen.

2) If all systems are not displayed, use R on the command line to refresh the

temporary system table.

AWBB004 --------------------- Generate System Related JCL ---------------------

COMMAND ==>

These JCLs have to be created for each system in your Dataplex, but you

must first update the ISPF environment (S.1.7) and Configure Space.

System: SYSNAME1 Local Dataplex: MYDPLEX

===> N Configure DCOLLECT spaces (Y/N)

===> N Update ispf profile for batch processing (Y/N)

Select the items below as J (J/I/P/G) DEF-GDG: Y (Y/N)

s Collect data from the system and store them in the SAI Y RVA (Y/N )

s Collect system related CATALOG information

s Collect VOLUME information via DCOLLECT Y DASD N TAPE ROD

s Generate missing ALIAS connector definition TEST( _ )

s Delete obsolete ALIAS ent. TEST( _ )

s Generate CATALOG backup jobs TEST( _ )

s Generate housekeeping jobs TEST( _ ) DAY( ? ) SG( *_______ )

s Generate onsite backup jobs TEST( _ ) DAY( ? ) SG( *_______ ) SEL ( ALL_ )

s Generate offsite backup jobs TEST( _ ) DAY( ? ) SG( *_______ ) SEL( ALL_ )

s Merge DFHSM log data sets LOG( ALL______________ ) HLQ( HSMACT__ )

The generated output will be stored in the following data set (? = default):

DSN: AWB.LWRK0110.RUN____________________________ MEMBER: ________

58 Storage Administration Workbench for z/OS and OS/390:User’s Guide

d. Submit the generated JCL. Every GDS will have "dataplexname" as the last

qualifier. When finished, return to the Generate System Related JCL screen,

which is option S.2.8 from the SAW main menu.

Note: The generated JCL will be executed on the selected system itself. If the

systems are not part of the JES cluster you are logged onto, you have

to enter your Password for all systems that do not belong to that JES

cluster.

2. Create the JCL for each system. To do this follow these steps.

a. Type a value in "Select the items below as" input field. There are four different

types of JCL, which are described in the table below.

Value Description

J Produces normal JCL. If you do not know which value to enter, type J.

I Uses a pre-defined procedure as an instream procedure, and calls that procedure

with valid and customized values.

Note: If you select two or more of the tasks that are listed on the Generate System

Related JCL screen, the JCL will contain one procedure call for each selected

item.

P Produces a JCL procedure.

Note: If you select two or more of the tasks that are listed on the Generate System

Related JCL screen, the JCL will contain one procedure call for each selected

item.

G Generates the procedure in the *.*.PROCLIB.dataplex library, where "*.*"

represents the HLQ and SLQ specified at installation and "dataplex" is the name of

your dataplex. The procedure library must be known by JES or the specified

procedure data set must be part of your JCLLIB definition. For more information,

refer to “Option 3: JCLLIB” on page 25.

----------------------------- Generate System Related JCL ---------------------

. . . . . . . . . . . . . . . . . . . . . . . . . . .

----------------------------- Generate System Related JCL ---------------------

+-------------------------------------------------------------+

| ----------------------------- Submit/Contro Row 1 to 2 of 2 |

| COMMAND ==> |

| |

| System: SYSNAME1 Local Dataplex: MYDPLEX |

| |

| Enter S to select system(s) |

| or press ENTER to select the current system |

| |

| System System Jes System Dataplex Mode |

| smf-id jes-id Type node-id |

| --------------------------------------------------- |

| _ S001 S001 JES2 S001JES2 MYDPLEX L |

| _ S002 ____ ???? S002 MYDPLEX L |

| ********************* Bottom of data ********************** |

| |

+-------------------------------------------------------------+

Chapter 4. Collecting Data 59

b. Select one or more of the tasks listed on the Generate System Related JCL

screen. Some tasks require additional execution parameters. The following

table describes them.

Requested

Input Field Valid Entry Description

RVA Y for Yes

N for No

Type Y or N to indicate whether to perform an "RVA

dcollect".

DASD Y for Yes

N for No

Type Y or N to indicate whether to perform a DASD

dcollect.

TAPE Y for Yes

N for No

Type Y or N to indicate whether to perform a tape

dcollect.

Note: If you type Y, you must also make an entry on

the Tape Management screen to indicate which

type of tape management system you are

using, RMM, TLMS, or CA1. You only need to

do this once. “Option 18: Tape Device” on page

33 for details.

TEST Y for Yes

N for No

Type Y or N to indicate whether to generate JCL. The

resulting JCL includes the Y or N as an argument to a

program in an EXEC statement in the JCL. That

program will then run in test mode (Y) or "live" mode

(N).

DAY 1, 2, 3, 4, 5, 6, 7 or ? Specify the requested day of the week, where 1 is

Monday, 2 is Tuesday, etc.

If you type a question mark (?), the programs will

evaluate the current day according to the following

rules:

• If at execution time, the current hour is between 0

and 11 AM, the day is set to the day before.

• Otherwise, the day is set to the current day of the

week.

SG Name of a pool or

storage group, or an

asterisk (*) for all

Type a specific name or a generic Pool/Storage Group

name, such as PRIMARY, that is defined in the Storage

Administration Inventory (SAI). If you type an asterisk

( *), all of the Pool/Storage Groups will be selected.

SEL ALL, DASD or TAPE Indicate which type of backup process should be used:

•DASD. Process only backups with output on

DASD.

•TAPE. Process only backups with output on tape.

•ALL. Process all backups, no matter which output

format they use.

60 Storage Administration Workbench for z/OS and OS/390:User’s Guide

c. Now, press the Enter key. A screen will be displayed where you can select the

system on which the task(s) should be performed. After making your

selection, press Enter.

Note: If more than one system is selected, the requested tasks will be

generated for each selected system as a separate JOB, but stored on the

same specified output data set. If "DSN:" is blank, the JCL will be

stored in a temporary data set.

LOG ALL, ... Enter one of the following parameters in the LOG field

to indicate which DFHSM logs you want to include in

the LOGSCAN job.

•ALL. (default) All logs will be copied, with the

exception of ABARS.

•MIG. Only migration logs will be copied.

•BAK. Only backup logs will be copied.

•DMP. Only dump logs will be copied.

•CMD. Only command logs will be copied.

•TEST. Used in combination with one of the above

parameters. Separate TEST and the other

parameter with a blank character, such as ALL

TEST. The TEST parameter prevents deletion of

the source activity log data sets during installation

and testing.

For more information on LOGSCAN jobs, refer to

“Generating the LOGSCAN job” on page 138.

HLQ hlq Type the high level qualifier used by DFHSM for

activity logs. The default is HSMACT.

DSN: Data set name or ? Type the name of a partitioned data set that contains

the member where you want the JCL to be stored. If the

specified data set does not exist, the dialog will allocate

the specified data set name.

If you type a question mark (?) in the DSN field, a

default library name will be returned, based on the

following:

•If you typed G in the "Select the items below as"

input field, the default library name is

*.*.PROCLIB, where "*.*" represents the HLQ and

SLQ defined at installation.

•If you typed J, I,or P in the "Select the items below

as" input field, the default library name is

*.L*.RUN, where "*.L*" represents the HLQ and

SLQ defined at installation.

Note: If your dataplex is local, it is

recommended that you use the *.L*.RUN

library for the RUN JCL data set.

Member: member name Type the name of the member in the partitioned data

set where you want the generated JCL to be stored.

Requested

Input Field Valid Entry Description

Chapter 4. Collecting Data 61

d. Submit the generated JCL.

Generating JCL for dataplex jobs

Before you generate any JCL, you must first do the following:

•Customize the space. Refer to “Perform space customization” on page 55 for

instructions.

•Update the ISPF profile. Refer to “Update the ISPF Profile” on page 56 for

instructions.

This section describes the screens you use to generate the JCL for dataplex-related

batch jobs. You can then submit this JCL. Select option 9, Dataplex JCL, on the

Dataplex and System Maintenance screen (S.2.9 from the SAW main menu). The

Generate Dataplex Related JCL screen will display, as shown on the next page.

----------------------------- Generate System Related JCL ---------------------

. . . . . . . . . . . . . . . . . . . . . . . . . . .

----------------------------- Generate System Related JCL ---------------------

+-------------------------------------------------------------+

| ----------------------------- Submit/Contro Row 1 to 2 of 2 |

| COMMAND ==> |

| |

| System: SYSNAME1 Local Dataplex: MYDPLEX |

| |

| Enter S to select system(s) |

| or press ENTER to select the current system |

| |

| System System Jes System Dataplex Mode |

| smf-id jes-id Type node-id |

| --------------------------------------------------- |

| _ S001 S001 JES2 S001JES2 MYDPLEX L |

| _ S002 ____ ???? S002 MYDPLEX L |

| ********************* Bottom of data ********************** |

| |

+-------------------------------------------------------------+

62 Storage Administration Workbench for z/OS and OS/390:User’s Guide

Using this screen, you should be able to generate all of the JCL needed to setup

dataplex-related jobs (merge and independent). The jobs can be scheduled on any

system of the dataplex, where all of the output that was created by the system-related

jobs (generated by option S.2.8) is available.

The setup should be done in sequence.

1. Define all system-related GDG base entries. You only need to do this one time.

a. Specify Y in the DEF-GDG input field.

b. Enter S in front of all tasks on this screen, and press the Enter key. The

following screen displays:

----------------------------- Generate Dataplex Related JCL -------------------

COMMAND ==>

This JCL has to be executed, when all system-related jobs are finished,

but first update ISPF environment (S.1.7) and Configure Space (S.2.8)

System: SYSNAME1 Local Dataplex: MYDPLEX

Select the items below as _ (J/I/P/G) DEF-GDG: N (Y/N)

_ Collect DFHSM migration, backup and capacity information

_ Merge All information collected via DCOLLECT

_ Create POOL space tables ( yyyyddd ) Max.Number of items: 31_

_ DVP,SPA Daily Pool/Volume report and SPA reporting process

_ DVP,SPA Periodic Pool/Volume report and SPA reporting process

_ LOGSCAN Archive and Analyze DFHSM logs with LOGSCAN process

_ LIST RACF DFP information for all user, group and data set entries

_ SAVE Storage Administration Inventory and COMPRESS local SKELS/TABLES

_ MESSAGE Generate information for incorrect or abended batch jobs

_ Merge all system related CATALOG information

_ Analyze CACHE status

_ TRANSMIT Storage Administration Inventory for remote loading

_ Except. Send Exception Reports

_ NFTP NFTP transmissions for SAWR and/or SARA

The generated output will be stored in the following data set (? = default):

DSN: AWB.LBIG0110.RUN____________________________ MEMBER: ________

Chapter 4. Collecting Data 63

c. Select the system where the generated JCL should be executed, and press the

Enter key.

Note: If not all systems are displayed, use R on the command line to refresh

the temporary system table.

d. Submit the generated JCL. Every GDS will have "dataplexname" as the last

qualifier. When finished, return to the Generate Dataplex Related JCL screen,

which is option S.2.9 from the SAW main menu.

Note: The generated JCL will be executed on the selected system itself. If the

systems are not part of the JES cluster you are logged onto, you have

to enter your Password for all systems that do not belong to that JES

cluster.

2. Create the JCL. To do this follow these steps.

a. Type a value in "Select the items below as" input field. There are four different

types of JCL, which are described in the table below.

Value Description

J Produces normal JCL. If you do not know which value to enter, type J.

I Uses a pre-defined procedure as an instream procedure, and calls that procedure

with valid and customized values.

Note: If you select two or more of the tasks that are listed on the Generate

Dataplex Related JCL screen, the JCL will contain one procedure call for

each selected item.

P Produces only a JCL calling procedure.

Note: If you select two or more of the tasks that are listed on the Generate

Dataplex Related JCL screen, the JCL will contain one procedure call for

each selected item.

----------------------------- Generate System Related JCL ---------------------

. . . . . . . . . . . . . . . . . . . . . . . . . . .

----------------------------- Generate System Related JCL ---------------------

+-------------------------------------------------------------+

| ----------------------------- Submit/Contro Row 1 to 2 of 2 |

| COMMAND ==> |

| |

| System: SYSNAME1 Local Dataplex: MYDPLEX |

| |

| Enter S to select system(s) |

| or press ENTER to select the current system |

| |

| System System Jes System Dataplex Mode |

| smf-id jes-id Type node-id |

| --------------------------------------------------- |

| _ S001 S001 JES2 S001JES2 MYDPLEX L |

| _ S002 ____ ???? S002 MYDPLEX L |

| ********************* Bottom of data ********************** |

| |

+-------------------------------------------------------------+

64 Storage Administration Workbench for z/OS and OS/390:User’s Guide

b. Select one or more of the tasks listed on the Generate Dataplex Related JCL

screen. Some tasks require additional execution parameters. The following

table describes them.

c. Select the system on which tasks should be performed, and press Enter.

Note: If more than one system is selected, the requested tasks will be

generated for each selected system as a separate JOB, but stored on the

same specified output data set. If "DSN:" is blank, the JCL will be

stored in a temporary data set.

d. Submit the generated JCL.

G Generates the procedure in the **.PROCLIB.dataplex library, where "dataplex" is

the name of your dataplex. The procedure library must be known by JES or the

specified procedure data set must be part of your JCLLIB definition. For more

information, refer to “Option 3: JCLLIB” on page 25.

Input Field Valid Entry Description

Max.

Number of

Items

Number Specify the number of produced output tables to be

held. The default is 31.

DSN: Data set name or ? Type the name of a partitioned data set that contains the

member where you want the JCL to be stored. If the

specified data set does not exist, the dialog will allocate

the specified data set name.

If you type a question mark (?) in the DSN field, a

default library name will be returned, based on the

following:

•If you typed G in the "Select the items below as"

input field, the default library name is *.*.PROCLIB,

where "*.*" refers to the HLQ and SLQ defined at

installation.

•If you typed J, I,or P in the "Select the items below

as" input field, the default library name is *.L*.RUN,

where "*.L*" refers to the HLQ and SLQ defined at

installation.

Note: If your dataplex is local, it is recommended

that you use the *.L*.RUN library for the

RUN JCL data set.

Member: member name Type the name of the member in the partitioned data set

where you want the generated JCL to be stored.

Value Description

Chapter 4. Collecting Data 65

Creating JCL for pool space trace processing

The Pool-Trace option on the Dataplex and System Maintenance screen traces the

space situation for DASD volumes. Before you choose this option, you must specify a

few parameters. To display the Dataplex and System Maintenance screen, choose

option S.2 from the SAW main menu. The screen is shown below.

Option 4, POOL-TRACE, generates the space trace JCL. Use the Tab key to move the

cursor to the "Mode:" and "Max. Num. Items" fields to specify parameters for this

option. The fields are described in the next table.

Field Name Description

Mode This field indicates where to place the trace data. Valid values

are

•OLD. Select this to add the new trace data to the existing

trace values. This is the default.

•NEW. Select this to delete all previously generated trace

data before adding the new values. The generated JCL

uses NEW in the exec statement, but you when you

return to the screen, the field is refreshed to the default

value (OLD).

Max.Num.Items Specify the number of previously obtained tables to keep

available. Enter a value between 00001 and 99999. The default

is 31.

---------------------- Dataplex and System Maintenance ------------------------

OPTION ===>

System: SYSNAME1 Dataplex: MYDPLEX Mode: Local

1 DATAPLEX Maintain the Dataplex/System definition(s)

2 SYSTEM Display and/or update system records

3 INVENTORY REORG Storage Administration Inventory reorganization

4 POOL-TRACE (dddhhmm) Create JCL (Mode : OLD Max.Num.Items: 31 )

5 RECEIVE STC Create JCL to receive data from remote site ( AWBSTC )

6 ALERT Generate the JCL needed for ALERT process

7 EXCEPTION REP. Control file handling

8 SYSTEM JCL Generate System related JCL

9 DATAPLEX JCL Generate Dataplex related JCL

10 MISCELLANEOUS Generate miscellaneous Dataplex related JCL

11 AWBJ001 JCL Generate NFTP OPC submitter

12 AWBJ002 JCL Generate SAI loader

U UNLOCK Perform UNLOCK of the inventory

66 Storage Administration Workbench for z/OS and OS/390:User’s Guide

After entering the parameters, select option 4, POOL-TRACE, and press Enter. A

pop-up window displays where you select the system(s) on which the process should

be activated. An example is shown below.

When you have made your selection, press Enter to generate the space trace JCL. The

generated JCL consists of two steps:

1. Collect the space data via IDCAMS DCOLLECT.

2. Analyze the data and store the results as permanent ISPF tables.

The result can be viewed by choosing option 5, Pool/SG Trace, on the DASD

Management menu, which is option 1.5 from the SAW main menu.

Creating JCL for alert jobs

Before you generate any JCL, you must first do the following:

•Customize the space. Refer to “Perform space customization” on page 55 for

instructions.

•Update the ISPF profile. Refer to “Update the ISPF Profile” on page 56 for

instructions.

You can create the JCL required to generate only the alerts. You would use the "alerts

only" job if you need to run the alerts more frequently than allowed with SPA or DVP

periodic jobs.

The problem may arise because the DCOLLECT step in the PERIODIC job creates

both volume and data set records. However, for the alerts alone, it is only necessary to

have the DCOLLECT volume records. This job will run in a significantly shorter time,

but you will not have any data for the database, and you will not have any pool or

volume reports. The only function of this job is to generate alerts if any alert

thresholds are exceeded.

----------------------------- Generate System Related JCL ---------------------

. . . . . . . . . . . . . . . . . . . . . . . . . . .

----------------------------- Generate System Related JCL ---------------------

+-------------------------------------------------------------+

| ----------------------------- Submit/Contro Row 1 to 2 of 2 |

| COMMAND ==> |

| |

| System: SYSNAME1 Local Dataplex: MYDPLEX |

| |

| Enter S to select system(s) |

| or press ENTER to select the current system |

| |

| System System Jes System Dataplex Mode |

| smf-id jes-id Type node-id |

| --------------------------------------------------- |

| _ S001 S001 JES2 S001JES2 MYDPLEX L |

| _ S002 ____ ???? S002 MYDPLEX L |

| ********************* Bottom of data ********************** |

| |

+-------------------------------------------------------------+

Chapter 4. Collecting Data 67

To generate an "alerts only" job, select option 6, Alert, on the Dataplex and System

Maintenance menu (option S.2.6 from the SAW main menu). The following screen

displays:

Figure 2. Dataplex alert processing

Before you generate any JCL for alerts, you must first collect volume space

information on each system of the dataplex. The system-related space data is stored in

a system-specific GDG data set. For that reason, you must do the following before you

can generate any "alerts only" JCL:

• Type J for JCL in the "Select items below as:" field.

• Type Y in the DEF-GDG field the first time you collect volume space data.

• Type S in the Collect volume space data field.

•Run the job.

When you are done with the volume collect process, select the Execute ALERT

Process option and run it.

Recommendations for scheduling

Once the required JCL is created, you can schedule these jobs for routine submission

using whatever scheduler that is available at your site.

----------------------------- Generate System Related JCL ---------------------

Before generating these JCLs

update ISPF environment (S.1.7) and Configure Space (S.2.8)

COMMAND ==>

System: SYSNAME1 Local Dataplex: MYDPLEX

Select the items below as _ (J/I/P/G) DEF-GDG: N (Y/N)

This JCL has to be created for each system in your Dataplex:

_ Collect volume space data

This JCL has to be created only once in your Dataplex:

_ Execute ALERT process

The generated output will be stored in the following data set (? = default):

DSN: AWB.LWRK0110.RUN____________________________ MEMBER: ________

68 Storage Administration Workbench for z/OS and OS/390:User’s Guide

Chapter 5. Performing Common Tasks

To manage storage resources, there are some tasks that must be performed each day

so that problems can be identified and resolved quickly. For example, if you receive

an alert that a drive is out of space, you want to address that problem immediately,

not a few days from now.

The Common Tasks option, which is option 0 on the SAW main menu, lists a number

of actions that can be performed on a daily basis to monitor storage resources.

• Check for DASD and Catalog backup jobs that resulted in an "error" status.

• Check for pools with free space under the threshold amount, as well as for

unassigned volumes and volumes with no Home-Loc value.

• Check DFHSM control data sets.

• View a list of catalogs that have exceeded thresholds.

• Run a LISTDATA job on cache resources to check for errors.

• Execute a LOGSCAN job, and edit ADDVOL statements for a LOGSCAN SMS

job.

• Review information about the current system.

• View a list of missing channel path IDs.

By running through all of the "common tasks" each day, a storage administrator can

see at a glance where problems occurred, and respond immediately.

Accessing the Common Tasks option

To see a list of tasks normally performed on a daily or regular basis, type 0 to select

the Common Tasks option on the SAW main menu, and press Enter.

----------------------------- Common Tasks ------------------------------------

OPTION ===>

System: SYSNAME1 Dataplex: MYDPLEX Mode: Local

0 BACKUP-DASD Look for DASD backup jobs in error status

1 BACKUP-Catalog Look for Catalog backup jobs in error status

2 SAI SCAN Look for POOLs with free space under threshold,

for UNASSIGNED, and for volumes with HOME-LOC.=?

3 DFHSM Check DFHSM Control Data Sets

4 CATALOG List catalog values over threshold

5 CACHE Cache error reporting

6 LOGSCAN Sysout control of DFHSM

7 LOGSCAN SMS ADDVOL suggestions

8 CHPID Display all missing CHP-ids

70 Storage Administration Workbench for z/OS and OS/390:User’s Guide

A storage administrator may want to run through these options frequently because

most of the error conditions are collected here. Each of these options is described in

this chapter.

Checking for errors in jobs

There are two options that check for "out of space" errors or media errors for backup

jobs:

•Option 0, Backup-DASD, checks for errors that occurred during DASD backup

jobs.

•Option 1, Backup-Catalog, checks for errors that occurred during Catalog backup

jobs.

Both of these options are described below.

Checking DASD jobs

To check for "out of space" errors or media errors that occurred during DASD backup

jobs, follow these steps:

1. On the Common Tasks menu, select option 0, Backup-Dasd, and press Enter. The

Backup Jobs in Error screen displays:

The Backup Jobs in Error screen is where you see the list of onsite and offsite

backups that either resulted in an error or did not complete. In the example, the

screen is blank, meaning that there are no backup jobs containing errors or jobs

that did not complete. The columns are briefly described in the following table.

Column Name Description

Active Sort Type a column abbreviation, listed below each column, to sort

the records according to the data in that column. For example,

to sort by Volser, you would type V in the Active Sort

column. The records would be sorted by the Volser name.

St The status of the backup job. Possible statuses are:

•A - abend

•O - obsolete

•X - submitted

Volser The volume serial number of the backup tape.

-------------------------- DASD Backup Jobs in Error --------------------------

COMMAND ==> SCROLL ===> CSR

Active Sort ===> V

System: SYSNAME1 Dataplex: MYDPLEX Mode: Local

Onsite Offsite

S Volser Backup Last Backup Submit Backup Last Backup Submit

t M 1234567 Date Time Date Time M 1234567 Date Time Date Time

- S --V--- 1---ON--- -----3----- -----4----- 2---OF--- -----5----- -----6-----

******************************* Bottom of data ********************************

Chapter 5. Performing Common Tasks 71

2. If there is a backup job with errors, the first command you may want to use to

determine the cause of the error is the I line command. This displays space

information for the disk on which the catalog resides. This and other line

commands are described in the next table.

Onsite Backup M The number below the "M" indicates the type of monthly

algorithm that will be used for the monthly backup cycle.

This value is taken from the algorithm list, which is in

“Option 16: On/Offsite” on page 29.

Onsite Backup 1234567 On The definition under these numbers describes the algorithm

cycle for a week, where the specific day is represented by a

number from one (Monday) to seven (Sunday).

Last Backup Date The date that the last backup of this volser was finished. The

date format is YYYYDDD, where YYYY is the year and DDD

is the day-count (Julian date). For example, April 1 is the 91st

day of the year, so April 1, 2002 is shown as 2002091.

Last Backup Time The time that the last backup was finished The format for the

time is HH:MM.

Submit Date The date that the last backup job was submitted to be run. The

date format is YYYYDDD, where YYYY is the year and DDD

is the day count (Julian date). For example, April 1 is the 91st

day of the year, so April 1, 2002 is shown as 2002091.

Submit Time The time that the last backup job was submitted to be run.

The time format is HH:MM.

Offsite Backup M The number below the "M" indicates the type of monthly

algorithm that will be used for the monthly offsite backup

cycle. This value is from the algorithm list, which is in“Option

16: On/Offsite” on page 29.

Offsite Backup 1234567 The definition under these numbers describes the algorithm

cycle for a week, where the specific day is represented by a

number from one (Monday) to seven (Sunday).

Offsite Backup Date The date that the last backup of this volser was finished for an

offsite location. The date format is YYYYDDD, where YYYY is

the year and DDD is the day-count (Julian date). For example,

April 1 is the 91st day of the year, so April 1, 2002 is shown as

2002091.

Offsite Backup Time The time that the last backup was finished for an offsite

location. The format for the time is HH:MM.

Submit Date The date that the last backup job was submitted to be run for

an offsite tape. The date format is YYYYDDD, where YYYY is

the year and DDD is the day-count (Julian date). For example,

April 1 is the 91st day of the year, so April 1, 2002 is shown as

2002091.

Submit Time The time that the last backup job was submitted to be run for

an offsite tape. The time format is HH:MM.

Column Name Description

72 Storage Administration Workbench for z/OS and OS/390:User’s Guide

Checking catalog jobs

To check for "out of space" errors and media errors for backup jobs of catalogs, follow

these steps:

1. On the Common Tasks menu, select option 1, Backup-Catalog, and press Enter.

The following screen displays:

The example screen above shows several backup jobs for catalogs. The following

information applies:

•If a backup job completed successfully, the Submit columns to the right of

the screen will be blank.

•If a backup job resulted in errors, the Submit columns will display the date

and time that the failed job was submitted. The only time that the Submit

Date and Submit Time columns contain data is when a backup job has failed.

Line Command Description

C Enter C to branch to ISPF option 3.4, the Data Set List Utility. This can be

used if the sysout is stored on DASD.

I Enter I to see information about the backup job. SAW will show the actual

space situation for that disk.

R Enter R to re-activate the backup job.

----------------------------- Catalog Maintenance ---------- Row 1 to 12 of 17

COMMAND ==> Sort => S SCROLL => CURS

F10 = LEFT / F11 = RIGHT

System: YZ02YZ02 Dataplex: YZDPLEX Mode: Local

Enter U for updates,

D for deletes,

I for DIAGNOSE process,

B for BACKUP JCL creation.

Home-Loc Submit

S # Catalog Name SMF JES volser devt. date time

- T ------------N---------------------- ---H---- --V--- --D--- ---S--- -----

U ICF.HSM.CAT1 YZ02YZ02 SG1000 3390 2002045 12:09

U ICF.DEV.CAT1 YZ02YZ02 DEV002 3390 2002045 12:09

U ICF.DB2.CAT1 YZ02YZ02 SYS001 3390 2002045 12:09

U CATALOG.YZ99.MASTER YZ02YZ02 RESCUE 3390 2002045 12:09

U CATALOG.YZ11.MASTER YZ02YZ02 MCAT11 3390 2002045 12:09

U CATALOG.YZ02.USERCAT YZ02YZ02 SG1000 3390 2002045 12:09

M CATALOG.OS390.MASTER YZ02YZ02 OS39M1 3390 2002045 12:09

U USERCAT.VOS39R8 YZ02YZ02 OS39R8 3390 2002045 12:09

U USERCAT.VOS39P8 YZ02YZ02 OS39P8 3390 2002045 12:09

U USERCAT.VOS39D8 YZ02YZ02 OS39D8 3390 2002045 12:09

U USERCAT.VOS3P8B YZ02YZ02 OS3P8B 3390 2002045 12:09

U USERCAT.VOS3PAD YZ02YZ02 OS3PAD 3390 2002045 12:09

Chapter 5. Performing Common Tasks 73

The columns on the Catalog Maintenance screen are described in the table below.

There are additional columns that can only be displayed when you page right

(F11) on the screen. These columns are also described in the following table:

2. If there is a backup job with errors, the first line command you may want to enter

is the I line command, which uses the IDCAMS DIAGNOSE command to

determine the cause of the error. This and other line commands are described in

the table below:

Column Name Description

# The letter in this column indicates what type of catalog this is.

Possible values are:

•M - master catalog

•U - user catalog

• X - excluded from all processing

• O - obsolete catalog

Catalog name Indicates the name of the catalog.

Home-Loc Contains the SMF- and JES-ID of that system where the

catalog backup should be processed.

Volser This is the volume serial where the catalog is allocated.

devt Indicates the device type of the volume. Possible values are:

•3380

•3390

Submit Date The date that the last backup job was submitted to be run. The

date format is YYYYDDD, where YYYY is the year and DDD

is the day count (Julian date). For example, April 1 is the 91st

day of the year, so April 1, 2002 is shown as 2002091.

If the backup was successful, this column will be blank.

Submit Time The time that the last backup job was submitted to be run.

The time format is HH:MM. If the backup was successful, this

column will be blank.

Last Backup Date Indicates the date that the last backup was successfully

completed. The date format is YYYYDDD, where YYYY is the

year and DDD is the day count (Julian date). For example,

April 1 is the 91st day of the year, so April 1, 2002 is shown as

2002091.

Last Backup Time Indicates the time that the last backup was successfully

completed. The format for the time is HH:MM.

Line Command Description

U Perform updates to the catalog.

D Delete a catalog table entry.

I Use the IDCAMS DIAGNOSE command for this catalog.

B Create the JCL that generates a backup of the catalog.

74 Storage Administration Workbench for z/OS and OS/390:User’s Guide

Checking pools

The Storage Administration Inventory (SAI) is a database that SAW uses to store data.

A storage administrator can use option 2, SAI, on the Common Tasks menu (option

0.2 on the SAW main menu) to look for pools that have any of these conditions:

• An amount of free space that is less than the threshold amount, which indicates

that you are running low on free space. Page right to see this information.

• Pools that are unassigned, which are indicated with either "#UNKNOWN" or

"#UNKNSMS" as the assigned pool name.

To assign the pools to a volume, do the following:

1. Type S next to the "#UNKNOWN" or "#UNKNSMS" name and press Enter.

The Dataplex Maintenance screen appears, listing all of the pools currently

assigned to #UNKNOWN or #UNKNSMS.

2. Type A next to the volser you want to change, and type a valid pool name in

the "Assigned Pool" column.

• Volumes that do not have a HOME-LOC value.

To assign HOME-LOC values, do the following:

1. Go to the Dataplex Maintenance screen (option 0.2, S from the SAW main

menu).

2. Type A next to the volser you want to change.

3. Type a new value in the "Home-Loc" column.

When you choose option 2, SAI, on the Common Tasks menu (option 0.2 from the

SAW main menu), the following screen displays:

The fields on the Pools and Storage Groups screen are described in the next table.

-------------------- SAI Scan Pools and Storage Groups |-| Row 1 to 14 of 19

COMMAND ==> Sort => P SCROLL => CSR

F10 = LEFT / F11 = RIGHT

System: SYSNAME1 Dataplex: MYDPLEX Mode: Local

Valid Line Commands are: D, H, S, T, U

Assigned SG Volume|Application| Backup on/offsite | Housekeep | Col. Dsn

- ----P---- -- --V-- | ---AP---- | 1 --ON--- | 2 --OFF-- | U-R-C-D-X |--8----9-

_ #UNKNOWN P 0036 | ________ | | | | Y Y

_ #UNKNSMS SG 0000 | ________ | | | | Y Y

_ DEFAULT SG 0001 | ________ | | | 1 7 7 1 | Y Y

_ HSM-MIG P 0002 | ________ | | | 7 6 6 7 X | Y Y

_ SGDB21 SG 0005 | ________ | | | X X | Y Y

_ SGDB2TMP SG 0002 | ________ | | | | Y Y

_ SGDEV1 SG 0005 | ________ | 9 I F V | 0 X | 6 | Y Y

_ SGDEVBK1 SG 0003 | ________ | | | | Y Y

_ SGDUMP1 SG 0003 | ________ | | | | Y Y

_ SGHFS1 SG 0002 | ________ | | | | Y Y

_ SGOMVS1 SG 0001 | ________ | | | | Y Y

_ SGPMR1 SG 0003 | ________ | | | | Y Y

_ SGSG1A SG 0002 | ________ | | | | Y Y

_ SGSG2A SG 0002 | ________ | | | | Y Y

Chapter 5. Performing Common Tasks 75

Column Name Description

Assigned Pool-Name This is the one- to eight-character name of the pool or storage

group.

SG PO This column displays a "P" for a pool or "SG" for a storage

group.

Volume Count This field lists the number of volume serials assigned to a

pool or storage group.

Application Pool Name This name must be defined for each entry and is used in SPA

reporting. It is used to gather different physical pools or

storage groups that are under the same activity, and then to

report one identifier for the group. For example, pool ML1 +

pool ML2 + pool backup = application pool name DFHSM.

Backup Onsite M 1234567 The character below the "M" indicates the type of monthly

algorithm used for monthly backup cycles. The definition

under the characters one through seven describes the cycle

for a week, where the specific day is represented by a

number. Refer to “Option 16: On/Offsite” on page 29 for a

complete list of algorithms and their corresponding codes.

Backup Offsite M 1234567 The character below the "M" indicates the type of monthly

algorithm used for monthly backup cycles. The definition

under the characters one through seven describes the cycle

for a week, where the specific day is represented by a

number. Refer to “Option 16: On/Offsite” on page 29 for a

complete list of algorithms and their corresponding codes.

Housekeeping The value in this column describes the Housekeeping criteria:

• U - Defines the UNCATALOG DELETE process.

• R - Defines the RELEASE UNUSED process.

• C - Defines the COMPRESS process.

• D - Defines the DEFRAG process.

• X - Defines the SPECIAL DELETE process.

Under each of the above columns, you may see a number

from one to seven (1 - 7) to indicate which day of the week the

process is performed, or you may see an "X", which indicates

that this process is performed daily.

To add housekeeping criteria, follow these steps:

1. Type the "U" line command next to the pool or storage

group name that you want to update.

2. When the Pool Management screen displays, make

entries in one or more of the housekeeping fields, which

are fields 20 - 24.

3. Press Enter, then press F3 (End) to leave this screen. Your

updates will be reflected on the Pools and Storage

Groups screen.

76 Storage Administration Workbench for z/OS and OS/390:User’s Guide

Col. det. This value indicates if DCOLLECT will collect data set

information (details) or only volume data.

•If you enter N, DCOLLECT will not run on the pool or

storage group to collect data set details. The data set

reporting flag must also be set to N.

•If you enter Y, DCOLLECT will run on the pool or

storage group to collect data set details. The collect

volume flag must also be set to Y.

To change the options used for data collection, follow these

steps:

1. Type the "U" line command next to the pool or storage

group name that you want to update.

2. When the Pool Management screen displays, type the

number of the option you want to change and press

Enter. You can then type a value for that option.For

example, type 3 to select option 3, Collect Volume, and

press Enter, then type Y or N.

Make entries for the Collect Volume and the Collect

Details fields to indicate whether you want only volume

information collected (Y in Collect Volume), or both

volume and details (Y in Collect Volume and in Collect

Details). To collect details, you must also collect volume

information, which is why you need a "Y" in both fields.

3. If you enter Y for Collect Volume and the Collect Details,

you can then enterY in the Data Set Reporting Flag field.

This field is only useful if you are collecting both volume

and detail information.

4. Press Enter, then press F3 (End) to leave this screen.

Dsn Rep. The value in this column indicates if data set reporting is

requested. If a "Y" is listed in this field, then a "Y" must also be

specified for the Collect Detail and Collect Volume fields on

the Pool Management screen. See the instructions in the Col.

Det. section of this table for details.

Space-Health % Num Size The values in these columns are the thresholds for pool space

health checking. The percentage (%) column indicates the

percentage of volumes on which at least this number (Num)

of extents (allocations per volume) of this size (Size in MB)

must be available. Valid numeric values are:

• %: 000 to 100

• Num: 00000 to 99999

• Size: 00000 to 99999

To change the space health values, follow these steps:

1. Type the "U" line command next to the pool or storage

group name that you want to update.

2. When the Pool Management screen displays, make

entries in one or more of the "pool space health checking"

fields, which are fields 12 -14.

3. Press Enter, then F3 (End) to leave this screen.

Column Name Description

Chapter 5. Performing Common Tasks 77

You can use the following line commands on the "SAI Scan Pools and Storage

Groups" screen.

Free DSCB This column lists the threshold for free DSCB percentage.

Valid numeric values are from 00 to 99. A "greater than" sign

(>) signifies that the threshold is exceeded.

Free VIRS This column lists the threshold for free VIRS percentage.

Valid numeric values are from 00 to 99. A "greater than" sign

(>) signifies that the threshold is exceeded.

Util % This column lists the threshold for the pool or storage group

target utilization percentage. Valid numeric values are from

000 to 100. A "greater than" sign (>) signifies that the

threshold is exceeded.

Vol % This column lists the threshold for the maximum utilization

percentage of any volume in the pool or storage group. Valid

numeric values are from 000 to 100. A "greater than" sign (>)

signifies that the threshold is exceeded.

Unused % This column lists the threshold percentage for unused space

on that pool or storage group. Unused space is the difference

between allocated space and available space. Valid numeric

values are from 00 to 99. A "greater than" sign (>) signifies

that the threshold is exceeded.

Buff % This column lists the threshold target percentage of space that

should be available as "eligible for migration". Valid numeric

values are from 00 to 99. A "greater than" sign (>) signifies

that the threshold is exceeded.

Line Command Description

D Delete a pool or storage group table entry.

H Display or update the pool or storage group handwriting.

S Select all volumes assigned to a pool or storage group.

T Display pool or storage group trends.

V Update management and threshold values.

Column Name Description

78 Storage Administration Workbench for z/OS and OS/390:User’s Guide

Checking DFHSM control data sets

To check the status of control data sets, such as percentage free, select option 3,

DFHSM, on the Common Tasks menu (option 0.3 on the SAW main menu). A screen

similar to the following will display:

The example shows the type of information that is reported when you use the

DFHSM option on the Common Tasks menu. The information includes:

• the name of the migration control data set (MCDS)

• the name of the backup control data set (BCDS)

• the name of the offline control data set (OCDS)

• the number of records in the data set

• the amount of free space in this control data set (CDS)

• the number of CI splits

• the number of CA splits.

A CI split occurs when a CI (Control Interval) has no room to expand an updated

record or insert a new record. Half of the records are copied to an empty CI in the data

set. A CA split occurs when a CA (Control Area) no longer has room to build a CI.

More CIs are created in additional tracks.

Using catalog thresholds

There are two thresholds related to catalogs that you can set and check:

• Number of extents for catalogs

• Number of records per catalog

The steps for setting and checking the thresholds are described below.

Migration Control Data Set (MCDS): HSMPROD.MCDS

DATA ------- HSMPROD.MCDS.DATA, Number of records: 1357

This CDS is 96 percent free , with 25 CI splits, 2 CA splits

Backup Control Data Set (BCDS): HSMPROD.BCDS

DATA ------- HSMPROD.BCDS.DATA, Number of records: 36634

This CDS is 66 percent free , with 1049 CI splits, 29 CA splits

==> (May need reorganization soon.)

Offline Control Data Set (OCDS): HSMPROD.OCDS

DATA ------- HSMPROD.OCDS.DATA, Number of records: 611

This CDS is 97 percent free , with 13 CI splits, 2 CA splits

***

Chapter 5. Performing Common Tasks 79

Setting thresholds for catalogs

To set the thresholds, use the Catalog Parameters option on the Control File

Maintenance screen, which is option S.2.7.14 from the SAW main menu, and make

your edits to the JCL that displays. An example of the JCL is shown below:

The parameters you can modify are:

Type the values you want for these parameters. When you run the JCL, an exceptions

report is produced.

Checking catalog thresholds

Use option 4, Catalog, on the Common Tasks menu (option 0.4 from the SAW main

menu) to see if any thresholds were exceeded for catalogs. If not, a message displays

indicating that there are no errors. If a threshold was exceeded, the information is

listed on the screen.

Parameter Description

CATALOG Specify the threshold number of extents for catalogs.

RECORDS Specify the threshold number of records per catalog.

CAT Specify a fully qualified data set name if you want a special RECS (records)

threshold on the catalog.

File Edit Confirm Menu Utilities Compilers Test Help

sssssssssssssssssssssssssssssssssssssssssssssssssssssssssssssssssssssssssssssss

EDIT AWB.LWRK0110.SKELS.RKSPLEX(AWBS240) - 21.00 Columns 00001 00072

Command ===> Scroll ===> CSR

****** ***************************** Top of Data ******************************

000001 * CATALOG THRESHOLDS

000002 *

000003 * SAMPLE FILE CREATED ON 27/09/93 BY TE SMP. PLEASE LOG ALL CHANGES

000004 *

000005 * UPDATED ON DD/MM/YY BY ...

000006 *

000007 *CATALOG=7,RECORDS=25000

000008 *

000009 *CAT='UCAT.MEDA01',RECS=45000

000010 *CAT='MCAT.MSBCA0',RECS=1000

****** **************************** Bottom of Data ****************************

80 Storage Administration Workbench for z/OS and OS/390:User’s Guide

Checking for cache errors

To check for errors in cache resources, select option 5, Cache, on the Common Tasks

menu (option 0.5 from the SAW main menu). SAW will execute a LISTDATA job on

cache resources online, and display the results in a browse session. The data is stored

in a temporary file. An example is shown below:

If there are no cache errors to report, you will see the following message:

Using LOGSCANs

Use option 6, LOGSCAN, on the Common Tasks menu (option 0.6 from the SAW

main menu) to display the results of LOGSCAN jobs. Option 7, LOGSCAN SMS,

(option 0.7 from the SAW main menu) indicates which volumes should be processed

with an ADDVOL in a dummy ARCCMD00 needed by LOGSCAN.

Display missing CHPIDs

To view a list of all of the missing channel path IDs, select option 8, CHPID, on the

Common Tasks menu (option 0.8 from the SAW main menu). The Missing CHPID

screen will appear. An example of this screen is shown below:

The columns on this screen are described below:

Program name: AWBC069, Application Short Name: SAW, Compiled on: 24 April 02 13:4

AWBWB74I Processing - Local Dataplex TSOB

-----------------------------------------------------------------------------------------

AWBWB35E NVS status other than target SSID=0011

AWBWB31E DFW status other than target SSID=0011 VOL=HBKB01 (St.=I Targ.=A)

AWBWB31E DFW status other than target SSID=0011 VOL=HBKB02 (St.=I Targ.=A)

AWBWB31E DFW status other than target SSID=0011 VOL=HBKB03 (St.=I Targ.=A)

AWBWB31E DFW status other than target SSID=0011 VOL=HL1B01 (St.=I Targ.=A)

AWBWB31E DFW status other than target SSID=0011 VOL=MDLP02 (St.=I Targ.=A)

AWBWB31E DFW status other than target SSID=0011 VOL=MSBCA0 (St.=I Targ.=A)

AWBWB31E DFW status other than target SSID=0011 VOL=MSBPG0 (St.=I Targ.=A)

AWBWB31E DFW status other than target SSID=0011 VOL=MSBPP1 (St.=I Targ.=A)

NO CACHE ERRORS FOUND

***

----------------------------- Missing CHPID -----------------------------------

COMMAND ==> SCROLL ===> CSR

Active Sort ===> U

System: YZ02YZ02 Dataplex: YZSPLEX Mode: Local

Log. Mnt. Pag Physical PDF

VOLSER UCB Devt. Cache Stat Channel-Path-Id Mask Dev Dev-Type Abbrev.

V----- U--- T----M C---- S--- X----------------------- P-- Y----W-- A-------

ST0004 0220 3380 E PRV 24-2C+** ** ** ** ** ** 9393 001 RVA1

HL1B02 0221 3380 E PRV 24-2C+** ** ** ** ** ** 9393 001 RVA1

ST0003 022D 3380 E PRV 24-2C+** ** ** ** ** ** 9393 001 RVA1

******************************* Bottom of data ********************************

Chapter 5. Performing Common Tasks 81

Column Description

VOLSER This is the volume serial number of the volume that contains the problem

channel path ID.

UCB This refers to the name of the unit address (unit control block) where the

volume is mounted.

Log. Devt. This is the unit type of the volume with the model version listed under the

"M".

Cache This field displays the status of the cache.

Mnt. Stat. This column describes the maintenance status per volume on each system

where the volume is known. The status displayed is one of the following:

•PRV: Private

•STO: Storage

•PUB: Public

A code is concatenated to the status. Valid codes are:

•P: paging device

•S: SMS-managed device

•*: system-resident volume

Channel-Path-

ID Mask

This column lists the channel path ID and mask that are missing or having

a problem.

Pag. Dev. This column indicates whether the volume is "Page" (P) or system

residence (*).

Physical Dev.

Type

The values in this data column represent the physical device type and

model assigned to a volume. These values come from the default values set

during the customization or in the string assignment dialog.

PDF Abbrev. The abbreviation ID of HCM’s physical description templates. This value is

a generic name, called "physical description template" in Hardware

Configuration Manager, for a volume. This value comes from the default

value set during the customization or in the string assignment.

82 Storage Administration Workbench for z/OS and OS/390:User’s Guide

Chapter 6. Customizing, Creating, and Viewing Reports

This chapter describes the reports that are available with Storage Administration

Workbench (SAW), and the many ways you can customize the reports. Instructions

are provided for customizing and generating the reports, and sample reports show

the end results.

There are three main topics covered in this chapter:

•Customizing reports, which describes the many parameters you can use in JCL to

set thresholds for data in the reports.

•Generating reports, which describes the screens you use to generate the reports

once you have entered all the customization parameters.

•Viewing reports, which describes how to view the reports you have generated,

and presents an example of each report.

The primary reports available with SAW include:

•Hierarchy view

• Application view with storage group/pool

• Storage group/Pool view

• User report (hierarchy view)

• Exceptions (application and storage)

• Data set reports

• Volume/Pool reports

• Exceptions (volume and pool)

• Packmap (diagram)

•Volume list

• LOGSCAN summary report

• Migration actions

• Backup actions

•DFHSM activity log

The primary reports may contain several sections in them, based on the customization

parameters you specify. For example, a Data Set report could contain one or more of

the following sections:

• Data sets created within last xxx days which are greater than xxx Mb

• Data sets on disk that should be on tape (over xxx Mb and older than xxx days)

• Data sets on tape that should be on disk (tape space allocation less than xxx Mb)

• Distribution of unreferenced data sets

• Data sets that are over threshold extents (VSAM and non-VSAM)

• Multi-volume data sets

The parameters for customizing threshold values for the reports are described in the

next section, followed by generation instructions and sample reports.

84 Storage Administration Workbench for z/OS and OS/390:User’s Guide

Customizing reports

Report customization is accessed through option 7, Exception Rep., on the Dataplex

and System Maintenance menu (option S.2.7 from the SAW main menu). When you

select this option, the following screen appears:

When you choose any of these options, the sample JCL for that option is displayed in

Edit mode. The JCL is in a member of a partitioned data set (PDS),

*.L*.SKELS.dataplexname, where the asterisks represent the HLQ and the SLQ that

were allocated at installation time. You can then edit the JCL so the parameters reflect

the thresholds you want. In the sections that follow, the JCL and parameters

associated with each option are described.

Option 1

When you choose option 1, Main parameters for reporting, on the Control File

Maintenance menu (option S.2.7.1 on the SAW main menu), the following JCL

displays:

----------------------------- Control File Maintenance ------------------------

OPTION ==>

System: RS02RS02 Dataplex: RKSPLEX Mode: Local

1 Main parameters for reporting

2 Tape data set eligibility report parameters and exclusions

3 Multivolume data set report exclusions

4 Extent threshold data set report exclusions

5 New data set report exclusions

6 DVP daily parameters

7 DVP periodic parameters

8 SPA plan file

9 SPA match process modifications

10 SPA exclude data set prefix

11 SPA Hierarchy file (EDIT)

12 SPA HLQ List (EDIT)

13 SPA hierarchy and HLQ list maintenance dialog

14 Catalog parameters (defaults and catalogs which differ)

15 ALERT processing parameters

16 DFHSM LOGSCAN SMS ADDVOL

17 DFHSM LOGSCAN SMS ADDVOL suggestions (when above is empty)

Chapter 6. Customizing, Creating, and Viewing Reports 85

EDIT AWB.LWRK0110.SKELS.RKSPLEX(AWBS317) - 01.09 Columns 00001 00072

Command ===> Scroll ===> CSR

****** ***************************** Top of Data ******************************

000001 * THRESHOLDS

000002 *

000003 * SAMPLE FILE CREATED ON DD/MM/YY. PLEASE LOG ALL CHANGES

000004 *

000005 EXTS_VSAM=60,EXTS_NONVSAM=07

000006 *

000007 NEWDS_SIZE=450

000008 WITHIN_DAYS=4

000009 *

000010 UNREF_AGE=10

000011 UNREF_AGE=30

000012 UNREF_AGE=100

000013 UNREF_AGE=400

000014 UNREF_AGE=740

000015 *

000016 PLANWARNING_PCT=90

000017 LOWACTUAL_PCT=5

000018 JUMPMB=100

000019 JUMPPERC=50

000020 *

000021 POOL_HEALTH_ALERT_PCT=50

000022 POOL_UNUSED_ALERT_PCT=50

000023 POOL_UTIL_ALERT_PCT=50

000024 VTOC_DSCB_ALERT_PCT=50

000025 VTOC_VIRS_ALERT_PCT=50

000026 *

000027 DASD_BACKUP_APPL_REPORT = 'YES'

000028 *

000029 RVA_NCL_ALERT_PCT = 75.0

000030 RVA_NCL_WARNING_PCT = 70.0

000031 *

000032 RVA_SHR= DE10EH1(MEFXX 30, MEFSB 40)

000033 RVA_SHR= DE10EH1(MEFZZ 10, MEFSB 30, MEFSZ 20)

000034 *

86 Storage Administration Workbench for z/OS and OS/390:User’s Guide

All of the parameters that are listed in the JCL for option 1, Main parameters for

reporting, are described below:

Table 4. Main parameters for reporting

Parameter Description

EXTS_VSAM=xxx

(for data set extent reporting)

Enter a number between 000 and 999 to specify

the maximum number of data set extents on

VSAM files. An exception is sent to the storage

administrator if the actual number of extents

exceeds the threshold number.

EXTS_NONVSAM=yyy

(for data set extent reporting)

Enter a number between 000 and 999 to specify

the maximum number of data set extents on non-

VSAM files). An exception is sent to the storage

administrator if the actual number of extents

exceeds the threshold number.

NEWDS_SIZE=xxx

(for new data set allocations)

Enter a number between 000 and 998 to specify

the threshold in MB of any new data sets that

were created within the last "x" days, referenced

by the following parameter (below).

An entry of 999 means "no threshold". Data sets

must be larger than the threshold number to be

included in the report.

WITHIN_DAYS=yyyy

(for new data set allocations)

Enter a number between 0 and 9999, where 0 is

today, 1 is yesterday, and so on, to specify the

highest age that is acceptable for data set

creation. Data sets must have been created in the

last yyyy days to be included in the report. This

parameter is used in conjunction with the

NEWDS_SIZE parameter.

UNREF_AGE=nnnn Enter a number between 0001 and 9998 for

number of days. This threshold represents the

highest value in an age range for non-usage of

data sets, referred to as "unreferenced" data sets.

You can use the UNREF_AGE=nnnn parameter

up to eight times. The parameters can be

specified in any order, so there is no need to sort

them.

You do not need to specify 9999 for the highest

value. It is automatically assigned as the highest

value for the last age range. There will also be a

section in the report for those data sets without a

last referenced date.

When you have finished editing the JCL, you

submit the JCL to run the report. To view the

Distribution of Unreferenced Data Sets report,

choose option 5, Reporting, on the SAW main

menu, then select report D1.

Chapter 6. Customizing, Creating, and Viewing Reports 87

PLANWARNING_PCT=’xxx’

(for SPA application plan exceptions)

Specify a percentage for the plan warning

threshold. When applications reach this

percentage of their planned usage space, an

exception is raised. This gives you time to take

action before the plan is exceeded.

For example, if the PLANWARNING_PCT is

90%, then a warning message will be produced

when any application uses more than 90% of its

planned space.

LOWACTUAL_PCT= ’xxx’

(for SPA application plan exceptions)

Specify a percentage for the low warning

threshold. When applications use less than this

percentage of their planned space usage, an

exception is raised.

For example, if the LOWACTUAL_PCT is 5%, a

warning message will be produced when any

application uses less than 5% of its planned

space.

JUMPMB=xxxxxx

(for SPA application plan exceptions)

Type a number between 000000 and 999999 to

specify the megabytes limit for applications to

change their space usage on a dataplex, usually

in a single day. If an HLQ or application "jumps"

by more than xxxxxx Mb, an exception is raised.

For example, if JUMPMB = 100, a warning will be

issued if an application’s space usage increases

by 100 Mb in one day.

JUMPPERC=xxx

(for SPA application plan exceptions)

Type a number between 000 and 100 to specify

the percentage limit for applications to change

their space usage on a dataplex, usually in a

single day. If an application makes a sudden

"jump" by more than xxx%, an exception is

raised. For example, if JUMPPERC=50, a

warning message will be issued if an application

grows by 50% in one day.

The jumps are usually checked by comparing

consecutive days, but it depends on how often

you run the Daily SPA job steps.

The thresholds are used to produce the SPA

Exception Report. To view this report, select

option 5, Reporting, on the SAW main menu,

then choose report S5.

Table 4. Main parameters for reporting (continued)

Parameter Description

88 Storage Administration Workbench for z/OS and OS/390:User’s Guide

POOL_HEALTH_ALERT_PCT=’xxx’

(The percentage listed here, and in the

next seven parameters, is relative to the

exception percentage that is stored in the

SAI.)

Enter a percentage between 000 and 100 to

specify when to trigger a pool health alert. This

alert indicates when pools have a health

percentage above an exception threshold. If you

set the threshold to zero (0), no check will be

performed, so no alert will be generated on this

threshold.

Note: Refer to“Determining alert percentages”

on page 90 for more information on how

to determine an appropriate value for

this parameter.

POOL_UNUSED_ALERT_PCT=’xxx’ Enter a percentage between 000 and 100 to

specify when to trigger a pool unused space alert.

This alert indicates when pools have an "unused

space" percentage above the exception threshold.

Note: Refer to “Determining alert percentages”

on page 90 for more information on how

to determine an appropriate value for

this parameter.

POOL_UTIL_ALERT_PCT=’xxx’ Enter a percentage between 000 and 100 to

specify when to trigger a pool utilization alert.

This alert indicates when pools have a utilization

percentage above an exception threshold.

Note: Refer to “Determining alert percentages”

on page 90 for more information on how

to determine an appropriate value for

this parameter.

VTOC_DSCB_ALERT_PCT=’xxx’ Enter a percentage between 000 and 100 to

specify when to trigger a volume VTOC alert.

This alert indicates VTOCs that have a free DSCB

percentage below an exception threshold.

Note: Refer to “Determining alert percentages”

on page 90 for more information on how

to determine an appropriate value for

this parameter.

VTOC_VIRS_ALERT_PCT-’xxx’ Enter a percentage between 000 and 100 to

specify when to trigger a volume VIRS alert. This

alert indicates when VTOCs have a free VIRS

percentage below an exception threshold.

Note: Refer to “Determining alert percentages”

on page 90 for more information on how

to determine an appropriate value for

this parameter.

RVA_NCL_ALERT_PCT=’xxx’ Enter a percentage between 000 and 100 to

specify when to trigger an RVA NCL volume

alert. This alert indicates when RVA subsystems

have a utilization percentage above an exception

threshold.

Note: Refer to the “Determining alert

percentages” on page 90 for more

information on how to determine an

appropriate value for this parameter.

Table 4. Main parameters for reporting (continued)

Parameter Description

Chapter 6. Customizing, Creating, and Viewing Reports 89

RVA_NCL_WARNING_PCT=’xxx’ Enter a percentage between 000 and 100 to

specify when to trigger an RVA NCL (Net

Capacity Load) volume warning. This alert

indicates when RVA subsystems have a

utilization percentage above an exception

threshold.

As a "warning," you may want to list a different

number here than for the alert. For example, you

could specify 70% for the

RVA_NCL_WARNING_PCT parameter, while

specifying 75% or 80% for the

RVA_NCL_ALERT_PCT parameter.

Note: Refer to “Determining alert percentages”

on page 90 for more information on how

to determine an appropriate value for

this parameter.

RVA_SHR_WARNING_PCT=’xxx’ Enter a percentage between 000 and 100 to

specify when to trigger an RVA volume warning.

RVA_SHR refers to the percentage that each

dataplex sharing the array is expected to use. If

the actual amount is more than the threshold you

specify here, an RVA volume warning message is

sent.

Note: Refer to “Determining alert percentages”

on page 90 for more information on how

to determine an appropriate value for

this parameter.

RVA_SHR= rrrrrrrr (dddddddd ppp)

(for RVA subsystems utilization)

Type a string to indicate that the same RVA

machine utilization percentage should be used

between two or more systems. An alert is raised

when the RVA usage of a subsystem by the

dataplex is greater than the limit.

•rrrrrrrr - the rva subsystem ID.

•dddddddd - the dataplex name.

•ppp - the percentage to apply to the

RVA_NCL_ALERT_PCT.

Alert limit = Disk array capacity *

rvs_ncl_alert_pct * ppp / 100*100

Note: Refer to “Determining alert percentages”

on page 90 for more information on how

to determine an appropriate value for

this parameter.

Table 4. Main parameters for reporting (continued)

Parameter Description

90 Storage Administration Workbench for z/OS and OS/390:User’s Guide

Determining alert percentages

To access the Pool Management screen, choose option 1, DASD, on the SAW main

menu, then type U (update) next to a pool. The screen on the next page displays.

RVA_EXCLUDE= ssssssss REASON(rr)

EXPIRE(yyyymmdd)

(for RVA subsystems utilization)

Type a string to indicate a period when the RVA

machine data should be suspended. After the

indicated period, the RVA machine data will be

reported automatically.

•ssssssss - the RVA subsystem ID.

•rr - the reason code to explain why the RVA

subsystem must not be considered during

report production.

•yyyymmdd - the date after which the

exclusion will be ignored. For example,

20020930 indicates September 30, 2002.

Note: Refer to “Determining alert percentages”

for more information on how to

determine an appropriate value for this

parameter.

DASD_BACKUP_APPL_REPORT=’yyy’

(for SPA application reports)

Type "YES" or "NO" to indicate whether the

backup space must be included in the reports per

application. A value of "YES" is recommended.

Table 4. Main parameters for reporting (continued)

Parameter Description

Chapter 6. Customizing, Creating, and Viewing Reports 91

The percentage thresholds that you specify on the Pool Management screen apply to

all volumes of the related pool or storage group. The "alert" percentages that you

specify through option S.2.7.1, Main Parameters for Reporting, relate to the exception

thresholds that you specify on the Pool Management screen. Whenever you change

one of the exception thresholds on the Pool Management screen, the alert percentages

are adjusted automatically.

If an alert value indicates when a threshold is being exceeded, the alert percentage

applies to the difference between 100% and the exception threshold. For example, if

you specify a pool utilization percentage of 85% on the Pool Management screen, the

difference is 15% (100 - 85 = 15). If you then specify 50% for the pool utilization alert

parameter (POOL_UTIL_ALERT_PCT=50), the alert will be triggered when 50% of

the 15% is reached (7.5%), which is added to the 85% for the exception threshold

(100%-85% = 15%, and 50% of 15% is 7.5%, so 85% + 7.5% = 92.5%). In this example,

the alert will be triggered when the application reaches 92.5% of pool utilization.

If an alert value indicates when an application is lower than the threshold value, the

alert percentage applies to the value listed for the exception threshold. For example, if

you specify a Free DSCB threshold of 15% on the Pool Management screen, and an

alert parameter of 50% (VTOC_DSCB_ALERT_PCT=50), the alert will be triggered

when 7.5% (50% of the 15%) is reached. In this example, the alert will be triggered

when the application has only 7.5% free space.

----------------------------- Pool Management ---------------------------------

OPTION ==>

System: RS02RS02 Local Dataplex: RKSPLEX Pool: HSM-MIG1

0 Application POOL : ________ 5 Pool utilization Perc.: 085

1 Free DSCB : 15 6 Volume utilization Perc.: 100

2 Free VIRS : 15 7 Unused space Percentage : 15

3 Collect volume : Y 8 Buffer Percentage : 15

4 Collect detail : Y 9 Data set reporting flag : Y

------------------ M 1234567 Active backup functions using DFDSS --------

10 On-site Algorithm:

11 Offsite Algorithm:

------------------ POOL space health checking ---------------------------

12 Percentage : 000 Percentage

13 Number : 00000 Number of allocations per VOL.

14 Size : 00000 Size of allocations, in MB

------------------ Active housekeep functions using DFDSS ---------------

20 Uncatalog Delete : _ ________

21 Release Unused : _ ________

22 Compress PO-Libs : _ ________

23 Defrag : _ ________

24 Spec.-Delete Opt.: _ ________

92 Storage Administration Workbench for z/OS and OS/390:User’s Guide

Generating alert jobs

To generate alert jobs, select option 6, Alert, on the Dataplex and System Maintenance

screen (option S.2.6 from the SAW main menu), and press Enter. The following screen

displays:

The following table describes the fields on this screen.

Table 5. Fields used to generate alert JCL

Field Description

Select the items below as (J/I/P/G) Enter one of the following values to indicate the

type of generation you want to perform:

• J - Generates normal JCL.

• I - Uses a pre-defined procedure as an in-

stream procedure, and calls that procedure

with valid and customized values.

• P - Produces only a JCL-calling procedure. It

generates the EXEC that calls the PROC.

• G - Generates the procedure in the

SMPSHR.SAWR.PROCLIB.dataplex library.

If you do not know which value to choose, use J.

DEF-GDG Type Y or N to indicate whether you want to

define a generation data group. This process

should only be done once (Y). If you have created

a GDG before, type an N in this field.

Collect volume space data Type S to generate the JCL to run DCOLLECT on

"V" records only. DCOLLECT must run on each

system of the dataplex. DCOLLECT output is

written into a GDS file with a limit of one

generation.

Execute ALERT process Type S to run the alert processing for the whole

dataplex. All of the GDS’s that result from

performing a DCOLLECT on the various systems

of the dataplex are concatenated. Actual figures

are compared to the different thresholds to

generate alerts based on the results of the

comparison.

----------------------------- Generate System Related JCL ---------------------

COMMAND ==>

System: RS02RS02 Local Dataplex: RKSPLEX

Select the items below as _ (J/I/P/G) DEF-GDG: N (Y/N)

This JCL has to be created for each system in your Dataplex:

S Collect volume space data

This JCL has to be created only once in your Dataplex:

S Execute ALERT process

The generated output will be stored in the following data set (? = default):

DSN: AWB.LWRK0110.RUN____________________________ MEMBER: ________

Chapter 6. Customizing, Creating, and Viewing Reports 93

You can create the JCL required to generate only the alerts. While this information is

generated during the DVP periodic job, you may need to run alert jobs more

frequently.

Note: "DVP" refers to Datasets, Volumes, and Pools.The DCOLLECT step in the DVP

periodic job creates both volume and data set records. However, for alerts

alone, it is only necessary to have the DCOLLECT volume records, which runs

in a significantly shorter time. This generates alerts if any alert thresholds have

been exceeded, but does not provide any data for the database and does not

generate any pool or volume reports.

Prior to the alert process itself, volume space information must be collected on each

system of the dataplex. The system-related space data is stored in a system-specific

GDG data set. The first time you process a GDG data set, do the following:

1. Type Y in the DEF-GDG field.

2. Type S in the "Collect volume space data" field.

3. Execute the job.

4. After the completion of the volume collect process, type N in the DEF-GDG field

and S in the "Execute ALERT process" field.

5. Execute the job.

Be sure you only type a "Y" in the DEF-GDG field the first time you create a GDG data

set. Once you have done this, enter an "N" in the DEF-GDG field every time you

generate the alert job.

Viewing alert messages

All alert messages are transmitted to the Automated Operations Network. The alert

job writes the messages to the operator console. The percentage listed after "A=" refers

to the actual percentage used. The percentage listed after "T=" refers to the target

percentage for this threshold. A list of the messages is presented below.

Table 6. Alert messages sent to operator console

If this alert threshold is

reached: This alert message is displayed:

POOL_HEALTH_ALERT_PCT AWB0017A DATAPLEX xxxxxxxx POOL/SG xxxxxxxx

HEALTH CHECK EXCEEDED nnnnn ALLOCATIONS OF

nnnnn MB IN nnn% OF POOL

POOL_UNUSED_ALERT_PCT AWB0018A DATAPLEX xxxxxxxx POOL/SG xxxxxxxx

UNUSED THRESHOLD EXCEEDED (A=nnn% T=nnn%)

POOL_UTIL_ALERT_PCT AWB0019A DATAPLEX xxxxxxxx POOL/SG xxxxxxxx

UTILIZATION THRESHOLD EXCEEDED (A=nnn%

T=nnn%)

VTOC_DSCB_ALERT_PCT AWB0020A DATAPLEX xxxxxxxx SMF/JES ID xxxxxxxx

VOLUME xxxxxx FREE DSCBs EXCEEDED (A=nnn%

T=nnn%)

VTOC_VIRS_ALERT_PCT AWB0021A DATAPLEX xxxxxxxx SMF/JES ID xxxxxxxx

VOLUME xxxxxx FREE VIRS EXCEEDED (A=nnn%

T=nnn%)

RVA_NCL_WARNING_PCT AWB0027A DATAPLEX xxxxxxxx RVA/SSID xxxxxxx

NCL WARNING THRESHOLD EXCEEDED (A=nnn% T=

nnn%)

94 Storage Administration Workbench for z/OS and OS/390:User’s Guide

Option 2

When you choose option 2, Tape data set eligibility report parameters and

exclusions, on the Control File Maintenance menu (option S.2.7.2 from the SAW main

menu), you are placed in an Edit session:

All of the parameters that are listed in the JCL for option 2, Tape data set eligibility

report parameters and exclusions, are described in the table below:

RVA_NCL_ALERT_PCT AWB0027A DATAPLEX xxxxxxxx RVA/SSID xxxxxxx

NCL ALERT THRESHOLD EXCEEDED (A=nnn% T=

nnn%)

RVA_SHR AWB0028A DATAPLEX xxxxxxxx RVA/SSID xxxxxxx

DCL ALERT THRESHOLD EXCEEDED (A=nnn%

T=nnn%)

Table 6. Alert messages sent to operator console (continued)

If this alert threshold is

reached: This alert message is displayed:

EDIT AWB.LWRK0110.SKELS.RKSPLEX(AWBS315) - 01.11 Columns 00001 00072

Command ===> Scroll ===> CSR

000001 * TAPE DATA SET EXCLUSION LIST

000002 * SAMPLE FILE CREATED ON DD/MM/YY. PLEASE LOG ALL CHANGES

000003 *

000004 * UPDATED ON DD/MM/YY BY ...

000005 *

000006 *----------------------------------------------------------------

000007 * DISK_TO_TAPE_SIZE = SIZE OF DATATASETS THAT SHOULD BE ON TAPES

000008 * DISK_TO_TAPE_AGE = AGE OF DATATASETS THAT SHOULD BE ON TAPES

000009 * DISK DATASETS BIGGER OR OLDER SHOULD BE ON TAPES

000010 * (OLD IDENTIFIER 'SIZE' AND 'AGE' ARE ALSO ACCEPTED)

000011 *----------------------------------------------------------------

000012 * TAPE_TO_DISK_SIZE = SIZE OF DATATASETS THAT SHOULD BE ON DISKS

000013 * TAPE DATASETS SMALLER THAT THIS LIMIT SHOULD BE ON DISK

000014 *----------------------------------------------------------------

000015 DISK_TO_TAPE_SIZE=450, DISK_TO_TAPE_AGE=400

000016 TAPE_TO_DISK_SIZE=50

000017 DSNAME='DFHSM.'

000018 *

****** **************************** Bottom of Data ****************************

Chapter 6. Customizing, Creating, and Viewing Reports 95

The thresholds are used to produce the following information:

• A section titled "Data sets that should be on tape (over xxx MB and older than xxx

days)" that is included in report D1, Data Set Reports, on the Reports menu

(option 5.D1 from the SAW main menu).

• A section titled "Data sets on tape that should be on disk (tape space allocation

less than xx MB)" that is included in report D1, Data Set Reports, on the Reports

menu (option 5.D1 from the SAW main menu).

• A column in the tape section on report D2, Volume/Pool Reports, on the Reports

menu (option 5.D2 from the SAW main menu) that gives the total number of

tapes that are too small. To access the "1st Volumes," column, you must page

right (F11) in the "Pool and Volume Utilization Report (Tape)" section.

Option 3

Option 3, Multivolume data set report exclusions, on the Control File Maintenance

menu (option S.2.7.3 from the SAW main menu), is used to exclude certain data sets

from the DVP Multi-Volume Data Sets report.

The Multi-volume Data Sets report informs a storage administrator about multi-

volume data sets in a dataplex that are either causing problems or were created in

error. However, there may be some multi-volume data sets that the storage

administrator is aware of that are not required in the report. These data sets can be

listed here, in option 3, for exclusion.

When you choose option 3, you are placed in an Edit session.

Table 7. Parameters and exclusions for the tape data set report

Parameter Description

DISK_TO_TAPE_SIZE=xxx Type a number between 000 and 999 to indicate

the size threshold in megabytes (Mb). Any data

set that is above this threshold is considered to be

too large to be on DASD. In this case, the dataset

is included in the tape data set exception report,

unless there is a DSNAME entry for the data set

in this file.

DISK_TO_TAPE_AGE=yyy Type a number between 000 and 999 to indicate

the last reference age in days.

TAPE_TO_DISK_SIZE=xxx Type a number between 000 and 999 to indicate

the threshold size in megabytes (Mb). This

parameter is used to identify any data set that is

considered too small to be on tape. This test is

done only on volumes that are not part of a

multi-volume group.

DSNAME= ’dsname’ Type the name or prefix of a data set which the

storage administrator is aware of, but does not

want in the tape data set exception list. You can

specify up to 200 exclusions by repeating the

DSNAME=’dsname’ records. Any number of

characters can be specified, either with or

without the tick marks (’’).

Note: A prefix is any number of leading

characters in a data set name.

96 Storage Administration Workbench for z/OS and OS/390:User’s Guide

Notice that comments and data set prefixes start in column 1, with only one prefix per

line.

Note: A prefix is any number of leading characters in a data set name.

All of the parameters that are listed in the JCL for option 3, Multivolume data set

report exclusions, are described in the table below.

To check whether your data sets were excluded, select D1, Data Set Reports, on the

Reports menu (option 5.D1 on the SAW main menu), and page down until you locate

the "Multi-volume Data Sets" section of the report. The data sets that you specified in

the exclusion parameters should not be listed in the "Multi-volume Data Sets" section.

Table 8. Parameters and exclusions for the multivolume data set report

Parameter Description

Data.Set.Name Type the name of the data set that you want to

exclude from the report.

HLQ.SLQ Type the highlevel qualifier and the SLQ for the

data set that you want to exclude from the report.

HLQ Type the highlevel qualifier for any data sets that

you want to exclude from the report. For

example, if you wanted to exclude all of the data

sets that have a high level qualifier of "SYS", you

would type "SYS.*".

EDIT AWB.LWRK0110.SKELS.RKSPLEX(AWBS262) - 21.00 Columns 00001 00072

Command ===> Scroll ===> CSR

****** ***************************** Top of Data ******************************

000001 * MULTI-VOLUME DATA SET EXCLUSION LIST

000002 *

000003 * SAMPLE FILE CREATED ON DD/MM/YY. PLEASE LOG ALL CHANGES

000004 *

000005 * UPDATED ON DD/MM/YY BY ...

000006 *

000007 * DATA.SET.NAME

000008 * HLQ.SLQ.

000009 * HLQ.

000010 *

000011 * EXAMPLE:

000012 *

000013 * DFHSM.

****** **************************** Bottom of Data ****************************

Chapter 6. Customizing, Creating, and Viewing Reports 97

Option 4

This report is used to exclude certain data sets from the DVP Extents report, which

lists the data sets that exceed the extents thresholds (VSAM and non-VSAM) in a

dataplex. There may be some data sets that the storage administrator does not want to

list in the report. These data sets can be listed here, in option 4, for exclusion.

When you choose option 4, Extent threshold data set report exclusions, on the

Control File Maintenance menu (option S.2.7.4 from the SAW main menu), you are

placed in an Edit session:

Notice that comments and data set prefixes start in column 1, with only one prefix per

line.

Note: A prefix is any number of leading characters in a data set name.

All of the parameters that are listed in the JCL for option 4, Extent threshold data set

report exclusions, are described in the table below.

Table 9. Parameters for the extent threshold data set exclusions report

Parameter Description

Data.Set.Name Type the name of the data set that you want to

exclude from the report.

HLQ.SLQ Type the highlevel qualifier and the SLQ for the

data set that you want to exclude from the report.

EDIT AWB.LWRK0110.SKELS.RKSPLEX(AWBS261) - 21.00 Columns 00001 00072

Command ===> Scroll ===> CSR

****** ***************************** Top of Data ******************************

000001 * MULTIPLE EXTENT DATA SET EXCLUSION LIST

000002 *

000003 * SAMPLE FILE CREATED ON DD/MM/YY. PLEASE LOG ALL CHANGES

000004 *

000005 * UPDATED ON DD/MM/YY BY ...

000006 *

000007 * DATA.SET.NAME

000008 * HLQ.SLQ.

000009 * HLQ.

000010 *

000011 * EXAMPLE:

000012 *

000013 * DFHSM.

****** **************************** Bottom of Data ****************************

98 Storage Administration Workbench for z/OS and OS/390:User’s Guide

To check whether your data sets were excluded, select D1, Data Set Reports, on the

Reports menu (option 5.D1 on the SAW main menu), and page through the report.

The data sets that you listed in the exclusion parameters should not be included in the

report.

Option 5

This option is used to exclude certain data sets from the DVP New Data set report.

This report informs you when any data set allocations exceed the size threshold, even

though the data set was created within the age threshold. However, there may be

some data sets that you do not want to be listed in the report. You can use option 5 to

list the data sets you want to exclude, so they do not appear in the report.

When you choose option 5, New data set report exclusions, on the Control File

Maintenance menu (option S.2.7.5 from the SAW main menu), you are placed in an

Edit session:

Notice that comments and data set prefixes start in column 1, with only one prefix per

line.

HLQ Type the highlevel qualifier for any data sets that

you want to exclude from the report. For

example, if you wanted to exclude all of the data

sets that have a high level qualifier of "SYS", you

would type "SYS.*"

Table 9. Parameters for the extent threshold data set exclusions report (continued)

Parameter Description

EDIT AWB.LWRK0110.SKELS.RKSPLEX(AWBS263) - 21.00 Columns 00001 00072

Command ===> Scroll ===> CSR

****** ***************************** Top of Data ******************************

000001 * NEW DATA SET EXCLUSION LIST

000002 *

000003 * SAMPLE FILE CREATED ON 27/09/93 BY TE SMP. PLEASE LOG ALL CHANGES

000004 *

000005 * UPDATED ON DD/MM/YY BY ...

000006 *

000007 * DATA.SET.NAME

000008 * HLQ.SLQ.

000009 * HLQ.

000010 *

000011 * EXAMPLE:

000012 *

000013 * DFHSM.

****** **************************** Bottom of Data ****************************

Chapter 6. Customizing, Creating, and Viewing Reports 99

Note: A prefix is any number of leading characters in a data set name.

All of the parameters that are listed in the JCL for option 5, New data set report

exclusions, are described in the table below.

To check whether your data sets were excluded, select D1, Data Set Reports, on the

Reports menu (option 5.D1 on the SAW main menu), and locate the "Data Sets

Created within Last xxx Days which are Greater than xxx Mb" section of the report.

The data sets that you listed in the exclusion parameters should not be included in

this section.

Option 6

The parameters that you specify through option 6 determine the type of report you

want SAW to process during the daily run. When you choose option 6, DVP daily

parameters, on the Control File Maintenance menu (option S.2.7.6 from the SAW

main menu), you are placed in an Edit session:

You can use the three parameters that are listed in the JCL, or you can use additional

parameters. All of the parameters are described in the table that follows.

Table 10. Parameters for the new data set exclusions report

Parameter Description

Data.Set.Name Type the name of the data set that you want to

exclude from the report.

HLQ.SLQ Type the highlevel qualifier and the SLQ for the

data set that you want to exclude from the report.

HLQ Type the highlevel qualifier for any data sets that

you want to exclude from the report. For

example, if you wanted to exclude all of the data

sets that have a high level qualifier of "SYS", you

would type "SYS.*" .

EDIT AWB.LWRK0110.SKELS.RKSPLEX(AWBS259) - 21.00 Columns 00001 00072

Command ===> Scroll ===> CSR

****** ***************************** Top of Data ******************************

000001 * DVP1 CONTROL FILE

000002 *

000003 * SAMPLE FILE CREATED ON 27/09/93 BY TE SMP. PLEASE LOG ALL CHANGES

000004 *

000005 * UPDATED ON DD/MM/YY BY ...

000006 *

000007 ALLVOLREPS='Y'

000008 ALLDSREPS='Y'

000009 POOLFILE='Y'

****** **************************** Bottom of Data ****************************

100 Storage Administration Workbench for z/OS and OS/390:User’s Guide

Table 11. Parameters for the DVP daily report

Parameter Lower Level

Parameter Description

ALLSDREPS Enter Y or N to indicate whether you want to produce

all of the following Data Set Reports:

•TAPEDS

•MULTEXT

•NEWDS

•UNREF

•MULTVOL

To view the Data Set Reports, select option 5,

Reporting, on the SAW main menu, then select option

D1.

TAPEDS Enter Y or N to indicate whether you want to produce

a report on data sets that should be on tape. This report

is included as a section in the Data Set Reports.

MULTEXT Enter Y or N to indicate whether you want to produce

a report on data sets that are in multiple extents. This

report is included as a section in the Data Set Reports.

NEWDS Enter Y or N to indicate whether you want to produce

a report on new data sets that are over the allocation

threshold. This report is included as a section in the

Data Set Reports.

UNREF Enter Y or N to indicate whether you want to produce

a report on the distribution of unreferenced data sets.

This report is included as a section in the Data Set

Reports.

MULTVOL Enter Y or N to indicate whether you want to produce

a report on multi-volume data sets. This report is

included as a section in the Data Set Reports.

ALLVOLREPS Enter Y or N to indicate whether you want to produce

all of the following reports:

• the Pool and Volume Utilization report, which is a

section in the Volume/Pool report

• the VTOC Status report, which is a section in the

Volu me Poo l re port

• the Exceptions report.

To view the Volume/Pool Reports, select option 5,

Reporting, on the SAW main menu, then select option

D2.

To view the Exceptions report, select option D3.

Chapter 6. Customizing, Creating, and Viewing Reports 101

The default for each of these parameters is "N", so if you only specify TAPEDS=Y,

then only one report on tape data sets will be generated. If conglomerates are used, a

lower level flag can be used to override the higher level flag. For example, if you

specify ALLDSREPS=Y and UNREF=N, the result is that all of the data set reports

will be produced, except for the unreferenced data set report.

POOLREP Enter Y or N to indicate whether you want to produce:

• the Pool and Volume Utilization report, which is a

section in the Volume/Pool report

• the Exceptions report.

To view the Volume/Pool report, select option 5,

Reporting, on the SAW main menu, then select option

D2.

To view the Exceptions report, select option D3.

VTOCSTAT Enter Y or N to indicate whether you want to produce

• the VTOC Status report, which is part of the

Volume/Pool report

• the Exceptions report.

To view the Volume/Pool reports, select option 5,

Reporting, on the SAW main menu, then select option

D2.

To view the Exceptions report, select option D3.

ALLREPS This is the highest level report that includes all of the

parameters listed above:

• ALLSDREPS

•TAPEDS

•MULTEXT

•NEWDS

•UNREF

•MULTVOL

• ALLVOLREPS

•POOLREP

•VTOCSTAT

POOLFILE Enter Y or N to indicate whether you want to produce

a file that contains pool utilizations suitable for

processing by the database.

Table 11. Parameters for the DVP daily report (continued)

Parameter Lower Level

Parameter Description

102 Storage Administration Workbench for z/OS and OS/390:User’s Guide

Option 7

The parameters you specify with option 7, DVP periodic parameters, do not produce

any reports that are visible from the Reporting option on the SAW main menu (option

5). The purpose of the DVP periodic job is to provide pool utilization data to the

database, which then processes the data to determine average values. When you

choose option 7, DVP periodic parameters, on the Control File Maintenance menu,

you are placed in an Edit session.

Option 8

With option 8, SPA plan file, (option S.2.7.8 from the SAW main menu), you can

enter values in a control file to indicate when changes in space allocation for each

application are planned to occur. This file is used by a SAW program that builds a

VSAM KSDS, which in turn is used to create SPA reports.

Note: "SPA" refers to Storage Planning Aid.

When you choose option 8, the file is displayed in Edit mode. A screen similar to the

one on the next page will appear.

Table 12. Parameters for the DVP periodic JCL

Parameter Description

POOLFILE Type Y or N to indicate whether you want to

produce a file that contains pool utilizations

suitable for processing by the database. An entry

of Y is recommended.

EDIT AWB.LWRK0110.SKELS.RKSPLEX(AWBS260) - 21.00 Columns 00001 00072

Command ===> Scroll ===> CSR

****** ***************************** Top of Data ******************************

000001 * DVP1P CONTROL FILE

000002 *

000003 * SAMPLE FILE CREATED ON DD/MM/YY. PLEASE LOG ALL CHANGES

000004 *

000005 * UPDATED ON DD/MM/YY BY ...

000006 *

000007 POOLFILE='Y'

****** **************************** Bottom of Data ****************************

Chapter 6. Customizing, Creating, and Viewing Reports 103

The information on this example screen is described in the next table.

For example, the first line in the sample screen indicates that for application MVSSPT,

starting February of 2002, 2000 Mb of space usage is planned. This plan will increase

to 3000 Mb as of April, 2002, but even before this, the plan is foreseen to be 4000 Mb in

March, 2002.

The lines do not need to be sorted by dates, and you do not need to enter a value for

each month of the year. The program will take into account the closest date, prior to

the run date for that application, and will carry forward the last Mb amount. This

allows you to hold future plans in this file and revise them as necessary.

Option 9

With option 9, SPA match process modifications, (option S.2.7.9 from the SAW main

menu), you can enter values in a file to amend the way the hierarchy file is used. This

is valuable where an application is considered to be something other than a collection

of high level qualifiers (HLQs). If any match process modifications are specified in

this file, they are processed first, before the normal HLQ matching is attempted.

This file is used by SAW to create SPA reports that you can access through option 5,

Reporting, on the SAW main menu.

When you choose option 9, you are placed in an Edit session. An example of the

match filter is shown below.

Table 13. Values for SPA planning file

Column Description

First The first column is the name of the application.

Second The second column is the date in the format YYYYMM (year/month).

Third The third column is the amount of space that is planned, in megabytes (Mb).

MVSSPT 200202 002000 FIRST RECORD

MVSSPT 200204 003000 THIRD RECORD

MVSSPT 200203 4000 SECOND RECORD

MVSSPT 200210 5000 INSTALLATION PLANNED

SDCSA 200201 000100

SDCSA 200203 000110

SDCSA 200206 000120

SDCSA 200209 000130

SDCSA 200201 000140

104 Storage Administration Workbench for z/OS and OS/390:User’s Guide

In the example above there are three different possibilities:

1. Match by HLQ. This is shown in line one. For all data sets with the HLQ of "SYS9",

use the TEMP application. SPA normally uses the HLQ of a data set to associate

the application (and subgroup and group) with it.

2. Match a specific DSN prefix and application. This is shown in line four. For all data

sets beginning with SMPSHR.SMSTO, use the application name SMSTO in SPA. This

approach bypasses the search for an HLQ in the SPA HLQ list, and uses the

application name you specify in the second column.

Note: To produce the expected results, the hierarchy table/file must contain the

related application name.

For another example, assume that there are data sets on a system called

SSC.AWB.*.** and SSC.BAR*.**. For the prefix SSC.AWB, you could specify an

application name of AWB, and for the prefix SSC.BAR, an application name of

BAR. In this case, you would enter:

SSC.AWB AWB

SSC.BAR BAR

For all other SSC.** data sets, where no application name is specified in the

second column, an HLQ of SSC will be used.

3. Match a specific DSN prefix, using a qualifier in the DSN as the HLQ. This is shown in

the last line of the example. For all data sets beginning with DATASET.NAME, use a

third-level qualifier (3) to make the connection with an application.

Note: To produce the expected results, the hierarchy table/file must contain the

related application and HLQ.

As another example, if there were data sets on a system called SSC.AWB.** and

SSC.BAR.**, you could specify that the second qualifier should be used. In this

case, you enter:SSC. 2

Now SPA will look for AWB and BAR (or any other second qualifier) in the HLQ

list, and not for SSC.

Note: You must have at least one blank character between the string that you are

assigning and the application or qualifier to be used.

*THIS TABLE MUST BE IN DESCENDING ORDER.

*DSN________________________________________ APPL/NUM__ ACCOUNT_

SYS9 TEMP XXDSKTMP

SYS1. U_SYS1 XXDSKSYS

SYS0 TEMP XXDSKTMP

SMPSHR.SMSTO SMSTO XXDSKSMP

SMPSHR. U_SMPSHR XXDSKSMP

SMP. U_SMP XXDSKSMP

SCRIPT. U_SCRIPT XXDSKSYS

ISPF. U_ISPF XXDSKSYS

DATASETZ.NAME 3 XXDSKZZ

Chapter 6. Customizing, Creating, and Viewing Reports 105

Option 10

Use option 10, SPA exclude data set prefix, to list prefixes or data set names (DSNs)

that you want to exclude from the DCOLLECT process. You can specify a prefix,

which is the start of a DSN, and any other characters starting in column 1 and ending

in column 44.

Notes:

1. The characters can be typed with or without single quotes (’).

2. Type an asterisk (*) in column one to indicate that the text on that line is a

comment.

When you choose option 10, SPA exclude data set prefix, on the Control File

Maintenance menu (option S.2.7.10 from the SAW main menu), you are placed in an

Edit session that displays the Data Set Exclusion List. An example of this screen is

shown below.

In the second column, which starts in column position 50, type the word "TAPE" if the

dataset is on tape, or "DASD" if the data set is on DASD. If you leave this column

blank, the default is DASD.

This member is used by a SAW program to produce files for the SPA reports that you

can access through option 5, Reporting, on the SAW main menu.

Option 11

This option allows you to modify the hierarchy file. However, there are very specific

rules about placement of text in this file and the margin for error is high, which could

lead to truncations when displaying the information on the SPA Hierarchy Processing

screen (option S.2.7.13), as well as errors in the reports. Therefore, it is strongly

recommended that you use option 13, SPA Hierarchy Processing, to make any

changes to your hierarchy file, rather than attempting to edit this file.

* DATA SET EXCLUSION LIST

* DSNAME POS. 1-44

* DASD/TAPE POS. 50-53 ( BLANK = DASD )

* EXAMPLE: (IF BACKUP AND MIGRATION VOLUMES ARE NOT DEDICATED TO DFHSM,

* YOU CAN FORCE THE COLLECT OF ALL INFORMATION ON HSM-MIG1 AND

* HSM-BACK POOLS AND EXCLUDE THE FOLLOWING DATA SETS)

DFHSM.HMIG. DASD

DFHSM.BACK. DASD

DFHSM.SMALLDS. DASD

DSN.ON.TAPE.TO.EXCLUDE. TAPE

OTHER.DSN. TAPE

106 Storage Administration Workbench for z/OS and OS/390:User’s Guide

When you choose option 11, SPA Hierarchy File, (option S.2.7.11 from the SAW main

menu) you are placed in an Edit session. An example of an hierarchy file is shown

below.

If you edit this file, you must follow these rules for placement of text:

The table below describes the placement rules diagramed in the example.

Table 14. Rules for changing the hierarchy file

Type o f Text Desc rip ti on

Group (GR) The group name must start in column 1 and the maximum

length is 10 characters . The group name uses Columns 1 -

10. In the example, SMP was the first group listed.

Subgroup (SG) The subgroup name must start in column 2 and the

maximum length is 10 characters. The subgroup name uses

columns 2-11. In the example, UNKN_SMP was the

subgroup for the SMP group.

* HIERARCHY

*IDENTIFIER OWNERS_NAME_FIELD___ COMMENTS...

SMP

UNKN_SMP

U_SMP

U_SMPSHR

SPARE_G

SPARE_SG

SPARE

SYSTEM

UNKN_SYST

U_ISPF

U_SCRIPT

U_SYS1

TEMP_G

TEMP_SG

TEMP

<---GR--->

1 1

<--SG---->

2 1

<--AP--> <-------APPO-------> <-------MSGC------->

3 1 1 3 3 5

0 4 3 5 4

Chapter 6. Customizing, Creating, and Viewing Reports 107

This member is used by a SAW program to produce a VSAM hierarchy file, which in

turn is used by another program to collect all input for reports. It is also used to

generate hierarchy ISPF tables.

Option 12

The file that displays with option 12 and the one in option 11 are used to generate the

ISPF tables and display the SPA Hierarchy Processing panels. However, there are

very specific rules about placement of text in this file and the margin for error is high,

which could lead to truncations when displaying the information on the SPA

Hierarchy Processing screen (option S.2.7.13), as well as errors in the reports.

Therefore, it is strongly recommended that you use option 13, SPA Hierarchy

Processing, to make any changes to your hierarchy file, rather than attempting to edit

this file or the one in option 11.

When you choose option 12, SPA HLQ List, (option S.2.7.12 from the SAW main

menu) you are placed in an Edit session. An example of a SPA HLQ list is shown

below.

If you edit this file, you must follow these rules for placement of text:

The table below describes the placement rules diagramed in the example.

Application name (AP) The application name must start in column 3 and the

maximum length is 8 characters. The application name uses

columns 3-10. In the example, U_SMP and U_SMPSHR are

the applications associated with the UNKN_SMP subgroup

and the SMP group.

The following columns must be blank in an application line:

•Columns 1 and 2

• Columns 11, 12, and 13

•Column 34

•After column 54

Application owner (APPO) The application owner must start in column 14 and the

maximum length is 20 characters. The application owner

uses columns 14 - 33.

Messages/Comments

(MSGC)

The messages or comments must start in column 35 and the

maximum length is 20 characters. A message/comment uses

columns 35-54.

Table 14. Rules for changing the hierarchy file (continued)

Type o f Text Desc rip ti on

* HLQ LIST

*HLQ____ APPL______ DESCRIPTION_________ COMMENTS____________ ACCOUNT_

<-HLQ--> <--APP---> <------HLQO--------> <-----MSGC---------> <-ACC-->

1 8 1 1 2 4 4 6 6 7

0 9 1 0 2 1 3 0

108 Storage Administration Workbench for z/OS and OS/390:User’s Guide

The following columns must be blank:

•Column 9

• Columns 18, 19, 20

•Column 41

•Column 62

This member and the file in option 11 are used by a SAW program to produce a

VSAM hierarchy file, which in turn is used by another program to collect all input for

reports. The files for options 11 and 12 are also used to generate hierarchy ISPF tables.

Option 13

This option displays the SPA Hierarchy Processing screen, which you can use to read

and update the different components of the hierarchy. It is the recommended method

for making changes to the hierarchy. There is online help for this option to guide you.

A brief overview of the hierarchy is presented next.

Hierarchy Basics

An hierarchy is a logical organizational grouping. It is the corner stone which allows

the storage of meaningful data and ensures the generation of useful SPA reports.

The components of the hierarchy, from the lowest to the highest, are the following:

1. HLQ (lowest component). This is the highlevel qualifier of a dataset.

2. Application (first intermediate component). An application is a collection of

HLQs. An HLQ may only belong to one application.

3. Subgroup (second intermediate component). A subgroup is a collection of

applications. An application may only belong to one subgroup.

4. Group (highest component). A group is a collection of subgroups. A subgroup

may only belong to one group.

It is most logical to start from the HLQs and gather them per application. This is easily

done if the HLQ is the same as the Application code. When this is done, gather the

Table 15. Rules for changing the SPA HLQ list

Type o f Text Desc rip ti on

HLQ The highlevel qualifier (HLQ) must start in column 1 and

the maximum length is 8 characters . The group name uses

Columns 1 - 8.

Application (APP) The application name must start in column 10 and the

maximum length is 8 characters. The application name uses

columns 10-19.

HLQ Owner (HLQO) The HLQ owner must start in column 21 and the maximum

length is 20 characters. The HLQ owner uses columns 21-40.

Messages/Comments

(MSGC)

The messages or comments must start in column 42 and the

maximum length is 20 characters. A message/comment uses

columns 42-61.

Account ID (ACC) The account ID must start in column 63 and the maximum

length is 8 characters. An account ID uses columns 63-70.

Chapter 6. Customizing, Creating, and Viewing Reports 109

applications under subgroups, such as Function or Owner. Finally, gather the

subgroups under groups, such as Manufacturing or Engineering.

Note: Try to do this first on a small amount of significant applications. Do not

attempt to start from scratch to cover your whole environment.

Using Option 13

When you choose option 13, SPA hierarchy and HLQ list maintenance dialog, on the

Control File Maintenance menu (option S.2.7.13 from the SAW main menu), the

following screen is displayed:

The table below describes the columns on this screen.

Table 16. SPA Hierarchy Processing screen

Column Description

Application Name Type one to eight characters for the application name.

Subgroup Name Type one to 10 characters for the subgroup name.

Group Name Type one to 10 characters for the group name.

Application Owner Type one to 20 characters for the name of the application’s owner. If

you prefer, you can use this column for any text, instead of the

owner’s name.

Message/Comments Type one to 20 characters for messages or comments. This is another

text column where you can type whatever you like.

----------------------------- SPA Hierarchy Processing ---- ROW 1 TO 11 OF 29

COMMAND ==> _ Sort => A SCROLL => CSR

System: MVSBMVSB Local Administrative Dataplex: MEFSB

select U to update, modify,insert or add the overtyped values

S to select all HLQ assigned to that application name

D to delete an obsolete application name table entry

Application Subgroup Group Application Owner Message/Comments

Name Name Name (or any text) (First 20 chars.)

- --A------- - --S------- --G------- --O----------------- --M-----------------

_ BASEMVS___ BASE______ SYSTEM____ ____________________ ____________________

_ BUS_______ DISCIPLINE SMP/SSC___ BUSINESS MANAGEMENT_ ____________________

_ CATALOG___ STORAGE___ CPAS______ ____________________ ____________________

_ CHG/PRB___ DISCIPLINE SMP/SSC___ CHANGE & PROBLEM MAN GEMENT______________

_ CNF_______ DISCIPLINE SMP/SSC___ CONFIGURATION MANAGE ENT_________________

_ CPAS______ CPAS______ CPAS______ ____________________ ____________________

_ DFHSM_____ STORAGE___ CPAS______ ____________________ ____________________

_ GEN_______ DISCIPLINE SMP/SSC___ GENERAL APPLICATIONS ____________________

_ IN________ DISCIPLINE SMP/SSC___ INTERNATIONAL NETWOR ____________________

_ LOGCPAS___ TSOCPAS___ CPAS______ ____________________ ____________________

_ MVSAPP____ MVS_______ CPAS______ ____________________ ____________________

110 Storage Administration Workbench for z/OS and OS/390:User’s Guide

There are three line commands available on the SPA Hierarchy Processing screen.

They are described in the next table.

Table 17. Line commands for the SPA Hierarchy Processing screen

Line

Command Description

UType U to update an application or to create a new application. Both

procedures are described below.

To update an application, follow these steps:

1. Type U next to the application you want to modify.

2. Tab to the column(s) containing the information you want to change.

Type over the text you want to modify, then press Enter when you are

done.

To create a new application, follow these steps:

1. Type U next to an application.

2. Type a new name in the "Application Name" column.

3. Tab to the other columns and type over the text to enter your new

information, then press Enter. If you do not change the text in the

columns, the columns will keep the existing values.

Note: When you press Enter, SAW will create a new application code

without damaging the one you overtyped.

4. A new line displays with the new application name. However, there is an

asterisk (*) between the Application Name and Subgroup Name

columns. This asterisk indicates that there is no HLQ connected to your

new application. To connect HLQs, type S next to the application name

and press Enter.

5. A screen appears displaying a line that has eight question marks

(????????) in the HLQ Name column. Type U on that line and type an

HLQ over the question marks . This HLQ is the one that will connect to

your new application. Press Enter when you are done.

Note: If you want to assign several HLQs to the same application,

indicate the application on the first line, then type an equal sign

(=) on the other lines.

SType S to select all of the HLQs assigned to an application. A screen appears

that is titled "SPA HLQs Assigned to Applications", where you can use either

the U (update) or D (delete) line command.

Chapter 6. Customizing, Creating, and Viewing Reports 111

SPA HLQs Assigned to Application: When you type S next to an application name

on the SPA Hierarchy Processing screen, which is option S.2.7.13 from the SAW main

menu, the following screen displays:

DType D to delete an application line, and press Enter.

If HLQs are connected to the application you are trying to delete, a message

displays indicating that you must delete each HLQ that is assigned to the

application. To do this, follow these steps:

1. On the SPA Hierarchy Processing screen, type S next to the application

you want to delete, and press Enter. Another screen displays with the

title "SPA HLQs Assigned to Application name".

2. Type D next to an HLQ entry and press Enter. Repeat this to remove all

HLQs associated with this application.

Note: You can use the Locate command in the Option field to find a

specific HLQ in the list. Type L xxxxx, where xxxxx is the name

of highlevel qualifier you want to locate. For example, L SYS10

will look for an HLQ of SYS10.

3. Press PF3 to return to the SPA Hierarchy Processing screen (option

S.2.7.13). You can now use the D line command to delete the application.

UNKNOWN If you type UNKNOWN in the command line at the top of the screen, SAW will

gather in application name "UNKNOWN" all of the HLQs that are using

space, but are not connected to an application name in the hierarchy file. This

command is useful for enriching the hierarchy table.

RACF If you type RACF in the command line at the top of the screen, SAW will gather

in application name "??RACF??" all of the HLQs that are known in RACF, but

are not connected to any application name in the hierarchy file.

Table 17. Line commands for the SPA Hierarchy Processing screen (continued)

Line

Command Description

----------------------------- SPA HLQs Assigned to Application SP Row 1 from 2

COMMAND ==> Sort => H SCROLL => CSR

System: RS02RS02 Local Dataplex: RKSPLEX

select U to update, modify, insert or add the overtyped value

D to delete the entry

HLQ/mach Applic. Description Message/Comments RACF Account

Name Name (20 chars.) (first 20 chars.) def.

- --H----- --A------- --O----------------- --M----------------- --R- --C-----

_ ???????? SPARE_____ ____________________ ____________________

******************************* Bottom of data ********************************

112 Storage Administration Workbench for z/OS and OS/390:User’s Guide

The following fields are listed on this screen:

You have two options for line commands, U for update and D for Delete. They are

described in the next table.

Table 18. SPA HLQs Assigned to Application screen

Column Description

HLQ/mach Type the high level qualifier of a data set (MVS).

Application Name An application is a collection of HLQs or machines. A one- to eight-

character name for the application is already displayed on this screen.

You can type over it with a different name, if you need to change it.

Description A description up to 20 characters in length may already be displayed

on this screen. Type over the description if you need to change it.

Message/Comments A message or comments up to 20 characters in length may already be

displayed on this screen. Type over the message or comment if you

want to change it.

RACF Defined (Display only) This field may display any of these values:

•blank. This HLQ is not part of a RACF table.

•U. This HLQ is listed as a User in a RACF table.

•G. This HLQ is listed as a Group in a RACF table.

•?. A question mark (?) indicates that an update operation was

done to this HLQ, but the RACF status is not verified.

Account (Display only) This is the account ID from the TE SMP Data

Repository.

Chapter 6. Customizing, Creating, and Viewing Reports 113

You can use the Locate command in the Option field to find a specific HLQ in the list.

Type L xxxxx, where xxxxx is the name of the highlevel qualifier you want to locate.

For example, L SYS10 will look for an HLQ of SYS10.

Connecting an HLQ to a new application: If you need to connect an HLQ to another

application, follow these steps:

1. Type U next to an HLQ, and type the new application name in the Application

Name field. Press Enter.

2. The SPA Hierarchy Processing screen displays, listing all of the existing

applications. Either choose one from the list or use the U line command to create a

new application line on this screen.

Option 14

This option is used by a SAW program to produce an exception file on catalogs. This

catalog exception file is available for your review through option C1, Catalog

Exceptions, on the Reports menu (option 5.C1 from the SAW main menu).

When you choose option 14, Catalog parameters, on the Control File Maintenance

menu (option S.2.7.14 from the SAW main menu), you are placed in an Edit session

where you can modify the parameters on the JCL that is displayed. An example of this

JCL is shown below.

Table 19. Line commands for the SPA HLQs Assigned to Applications screen

Line

Command Description

UType U to update an HLQ or to connect a new HLQ to an application.

If an application does not have an HLQ assigned to it, follow these steps:

1. Go to the line that has eight question marks (????????) in the

HLQ/Machine Name column.

2. Type U on that line and type an HLQ over the question marks. This HLQ

will then be associated with the application listed in the Application

Name field. Press Enter when you are done.

To assign additional HLQs to an application, follow these steps:

1. Type U next to an HLQ.

2. Type a new HLQ name in the "HLQ/Mach" column. You will type this

new name over the HLQ that is currently displayed in that column.

3. Tab to the other columns and type over the text to enter any new

information. If you do not change the text in the columns, the columns

will keep the existing values.

4. Press Enter when you are done making entries. A new line displays with

the new HLQ, without damaging the line that you overtyped.

Note: To assign several HLQs to the same application, type U next to

each HLQ name. Include the application name on the first line,

then type an equal sign (=) in the Application Name column in

the second and subsequent lines. SAW will add these HLQs to

the application.

D (elete) TypeD next to an HLQ entry that you want to delete, and press Enter.

114 Storage Administration Workbench for z/OS and OS/390:User’s Guide

The parameters in this JCL are described below.

Option 15

When you choose option 15, ALERT processing parameters, on the Control File

Maintenance menu (option S.2.7.15 from the SAW main menu), you are placed in an

Edit session. An example of the file is shown below.

There are two parameters that you can specify to indicate which reports you want to

generate. These parameters are described in the table below.

Table 20. Parameters for catalog exceptions

Parameter Description

CATALOG Type the threshold number of extents for catalogs.

RECORDS Type the threshold number of records per catalog.

CAT Type a fully qualified data set name if you want a special RECS

(records) threshold on the catalog.

Table 21. Parameters for catalog exceptions

Parameter Description

ALLVOLREPS Enter Y or N to indicate whether you want to produce all of the

following reports:

• the Pool and Volume Utilization report, which is a section in the

Volume/Pool report

• the VTOC Status report, which is a section in the Volume Pool

report

• the Exceptions report.

To view the Volume/Pool Reports, select option 5, Reporting, on the

SAW main menu, then select option D2.

To view the Exceptions report, select option D3.

* CATALOG THRESHOLDS

* UPDATED ON DD/MM/YY BY ...

*CATALOG=7,RECORDS=25000

*CAT='UCAT.MEDA01',RECS=45000

*CAT='MCAT.MSBCA0',RECS=1000

* DVPALERT CONTROL FILE

* UPDATED ON DD/MM/YY BY ...

ALLVOLREPS='Y',POOLFILE='N'

Chapter 6. Customizing, Creating, and Viewing Reports 115

Option 16

LOGSCAN is used on MVS installations that employ DFHSM to carry out daily space

management, automatic backups, or automatic dumps. When you choose option 16,

DFHSM LOGSCAN SMS ADDVOL, you are taken to an Edit session where you can

specify ADDVOL statements if you use LOGSCAN in an SMS environment. An

example of the JCL is shown below.

You can edit this skeleton by typing ADDVOL statements in the format:

ADDVOL volser unit PRIMARY(args) THRESHOLD(n1,n2)

For example, ADDVOL WRK001 PRIMARY(AM AB) THRESHOLD(90,70), tells LOGSCAN to

locate volume WRK001, look for AUTOMIG (AM) log files and AUTOBACKUP (AB)

log files, and check to see if the thresholds have been met. The threshold parameters,

n1 and n2, refer to a percentage. For more details on how to write ADDVOL

statements, refer to IBM’s documentation, DFSMShsm Storage Administration Reference,

SC35-0422-00. To access this book online, go to http://publibz.boulder.ibm.com/cgi-

bin/bookmgr_OS390/FRAMESET/DGT2S400.

Option 17

When you choose option 17, DFHSM LOGSCAN SMS ADDVOL suggestions, you

are taken to an Edit session where you can specify ADDVOL statements if you use

LOGSCAN in an SMS environment. LOGSCAN generates suggested dummy

ADDVOL statements, which can be displayed when you choose option 17.

Care should be taken to ensure that the ADDVOL statements are valid, although they

are not validated by DFHSM. The parameters and thresholds should match those that

are specified for the storage group in which they are defined. These are available via

ISMF.

POOLFILE Enter Y or N to indicate whether you want to produce a file that

contains pool utilizations suitable for processing by the database.

Table 21. Parameters for catalog exceptions (continued)

Parameter Description

/* PSEUDO ARCCMDXX FOR SMS VOLUMES */

/* */

/* PLEASE LOG ALL CHANGES */

/* */

/* UPDATED ON DD/MM/YY BY ... */

/* */

/*ADDVOL SMS001 PRIMARY(AM AB NOAD)

**************************** Bottom of Data ****************************

116 Storage Administration Workbench for z/OS and OS/390:User’s Guide

Generating Reports

Data generation is performed through two options, System JCL and Dataplex JCL.

Both of these options are found on the Dataplex and System Maintenance menu

(option S.2 from the SAW main menu), and are described in this section.

Generating System JCL

Use the System JCL option to collect system-related catalog information and volume

information, and also to generate catalog backup jobs. The catalog backup job is

necessary to determine the number of records per catalog.

To access the System JCL option, choose option 8, System JCL, on the Dataplex and

System Maintenance menu (option S.2.8 from the SAW main menu), and press Enter.

The Generate System Related JCL screen will display, as shown below.

The message at the top of the screen indicates that you must perform some actions

before you can generate system JCL. This is true for the first time you create system

JCL. You must customize the space, update the ISPF profile, and customize the ISPF

environment before you generate system JCL for the first time, but not for subsequent

generations. All of these steps are described in “Before creating JCL” on page 55.

Review this section before you continue on with generating system JCL.

Note: The "INST 7" in the message refers to option 7, ISPF Environm., on the

Installation and Maintenance menu, which is option S.1.7 from the SAW main

menu. This option is described in “Before creating JCL” on page 55.

To generate system JCL to create reports, make the following entries on the Generate

System-Related JCL screen:

1. Type J for "JCL" in the "Select the items below as" field.

----------------------------- Generate System Related JCL ---------------------

COMMAND ==>

These JCLs have to be created for each system in your Dataplex, but you

must first update the ISPF environment (INST 7) and Configure Space .

System: RS02RS02 Local Dataplex: RKSPLEX

===> N Configure DCOLLECT spaces (Y/N)

===> N Update ispf profile for batch processing (Y/N)

Select the items below as J (J/I/P/G) DEF-GDG: N (Y/N)

_ Collect data from the system and store them in the SAI Y RVA (Y/N )

S Collect system related CATALOG information

S Collect VOLUME information via DCOLLECT Y DASD N TAPE ROD

_ Generate missing ALIAS connector definition TEST( _ )

_ Delete obsolete ALIAS ent. TEST( _ )

S Generate CATALOG backup jobs TEST( _ )

_ Generate housekeeping jobs TEST( _ ) DAY( ? ) SG( *_______ )

_ Generate onsite backup jobs TEST( _ ) DAY( ? ) SG( *_______ ) SEL ( ALL_ )

_ Generate offsite backup jobs TEST( _ ) DAY( ? ) SG( *_______ ) SEL( ALL_ )

_ Merge DFHSM log data sets LOG( ALL______________ ) HLQ( HSMACT__ )

The generated output will be stored in the following data set (? = default):

DSN: AWB.LWRK0110.RUN____________________________ MEMBER: ________

Chapter 6. Customizing, Creating, and Viewing Reports 117

2. Type N in the "DEF-GDG" field. You only need to define a generation data group

(GDG) one time, which should have been done previously.

3. Type S to select the "Collect system related CATALOG information" option.

4. Type S to select the "Collect VOLUME information via DCOLLECT" option.

5. Type S to select the "Generate CATALOG backup jobs TEST (_)" option.

6. Type a one- to eight-character name in the "Member" field at the bottom of the

screen to indicate where you want the generated JCL to be saved.

Note: If you leave the DSN and Member fields blank, the JCL will be created in a

partitioned sequential dataset named HLQ.spftemp1.cntl, where the HLQ

is replaced with your user ID. This data set name is generated by ISPF

using the ZTEMPF system variable, such as

ZTEMPF=USERID.SPFTEMP1.CNTL.

7. Press Enter to generate the JCL. The JCL will appear in an Edit session for you to

review and change as needed.

8. When you are satisfied with the JCL, submit it.

When the job is completed, you will have catalog information and DCOLLECT

records related to one system.

Generating Dataplex-related JCL

Use the Generate JCL dataplex option to collect information about DFHSM migration,

backup, and capacity, and to merge all of the information collected by DCOLLECT. In

addition, you can create Data set, Volume, and Pool (DVP) reports and Storage

Planning Aid (SPA) reports by making the appropriate selections on this screen.

To generate dataplex JCL, select option 9, Dataplex JCL, on the Dataplex and System

Maintenance menu (option S.2.9 from the SAW main menu), and press Enter. The

Generate Dataplex Related JCL screen will display.

----------------------------- Generate Dataplex Related JCL -------------------

COMMAND ==>

This JCL has to be executed, when all system-related jobs are finished,

but first update ISPF environment (INST 7) and Configure Space (8.8)

System: RS02RS02 Local Dataplex: RKSPLEX

Select the items below as J (J/I/P/G) DEF-GDG: N (Y/N)

S Collect DFHSM migration, backup and capacity information

S Merge All information collected via DCOLLECT

_ Create POOL space tables ( yyyyddd ) Max.Number of items: 31_

S DVP,SPA Daily Pool/Volume report and SPA reporting process

_ DVP,SPA Periodic Pool/Volume report and SPA reporting process

_ LOGSCAN Archive and Analyze DFHSM logs with LOGSCAN process

_ LIST RACF DFP information for all user, group and data set entries

_ SAVE Storage Administration Inventory and COMPRESS local SKELS/TABLES

_ MESSAGE Generate information for incorrect or abended batch jobs

_ Merge all system related CATALOG information

_ Analyze CACHE status

_ TRANSMIT Storage Administration Inventory for remote loading

_ Except. Send Exception Reports

_ NFTP NFTP transmissions for SAWR and/or SARA

The generated output will be stored in the following data set (? = default):

DSN: AWB.LWRK0110.RUN____________________________ MEMBER: ________

118 Storage Administration Workbench for z/OS and OS/390:User’s Guide

The message at the top of the screen indicates you must perform some actions before

you can generate dataplex JCL. This is true for the first time you create dataplex JCL.

You must customize the space, update the ISPF profile, and customize the ISPF

environment before you generate system JCL for the first time, but not for subsequent

generations. All of these steps are described in “Before creating JCL” on page 55.

Review this section before you continue on with generating dataplex JCL.

Note: The "INST 7" in the message refers to option 7, ISPF Environm., on the

Installation and Maintenance menu, which is option S.1.7 from the SAW main

menu. This option is described in “Before creating JCL” on page 55.

To generate dataplex JCL to create reports, make the following entries on the

Generate Dataplex Related JCL screen:

1. Type J for "JCL" in the "Select the items below as" field.

2. Type N in the "DEF-GDG" field. You only need to define generation data groups

(GDG) one time, which should have been done previously.

3. Type S to select the "Collect DFHSM migration, backup, and capacity

information" option.

4. Type S to select the "Merge all information collected via DCOLLECT" option.

5. Type S to select the first "DVP, SPA Daily Pool/Volume report and SPA reporting

process" option.

6. Type a one- to eight-character name in the "Member" field at the bottom of the

screen to indicate where you want the generated JCL to be saved.

Note: If you leave the DSN and Member fields blank, the JCL will be created in a

partitioned sequential dataset named HLQ.spftemp1.cntl, where the HLQ

is replaced with your user ID and account name. This data set name is

generated by ISPF using the ZTEMPF system variable, such as

ZTEMPF=USERID.SPFTEMP1.CNTL.

7. Press Enter to generate the JCL. The JCL will appear in an Edit session for you to

review and change as needed.

8. When you are satisfied with the JCL, submit it.

When the job is done, the SPA and DVP reports will be ready for you to review. You

will also be able to display SPA, Catalog, and DVP exception reports.

Note: There is another option for generating periodic DVP and SPA reports, rather

than daily reports, which is "DVP, SPA Periodic Pool/Volume report and SPA

reporting process". This option does not produce any reports that you can

display through option 5, Reporting, on the SAW main menu.

Chapter 6. Customizing, Creating, and Viewing Reports 119

Viewing reports

To view reports, choose option 5, Reporting, on the SAW main menu. The following

screen displays:

An example of each report is described in this section so you can see the type of

information contained in the report.

Note: Reports are formatted for 133-column printing. To view in a browse session,

scroll right to see all of the columns.

Viewing Application and Storage Reports

SAW contains five different Application and Storage Reports, which are:

•Hierarchy View

• Application View with SG/Pool

•SG/Pool View

• User Report (HierarchyView)

• Exceptions

Each of these reports is shown below, and the sections contained in each report are

listed for your information.

----------------------------- Reports -----------------------------------------

OPTION ==>

System: SYSNAME1 Local Administrative Dataplex: MYDPLEX

Specify Y or N to select print capability : N

Y or N to select all dataplex reports: Y

C1 - Catalog Exceptions

Application and Storage Reports DFHSM Reports

S1 - Hierarchy View L1 - LOGSCAN Summary Report

S2 - Application View with SG/Pool L2 - Migrate Actions File

S3 - SG/Pool View L3 - Backup Actions File

S4 - User Report (Hierarchy View) L4 - DFHSM Activity Log

S5 - Exceptions

Pool and Volume Reports

D1 - Data Set Reports D6 - Packmap

D2 - Volume/Pool Reports D7 - Volume List

D3 - Exceptions

D14 - ATL tape errors

120 Storage Administration Workbench for z/OS and OS/390:User’s Guide

Legend for Application and Storage Reports

The legend that explains the columns in the Application and Storage reports is located

at the end of each report. It is reproduced here for better understanding of the

examples, which are truncated report samples, and to provide more details than are

provided in the generated reports.

Table 22. Legend for all of the Application and Storage reports

Column Description

Title This is the report title that is supplied in the SYSIN stream.

Report Type This is the report type that is supplied in the SYSIN stream. Possible report

types are:

• Type 1 is a logical data ownership view.

• Type 2 is a logical application-to-pool view.

• Type 3 is a physical pool-to-application view for DASD only.

Report Detail The report detail is supplied in the SYSIN stream.. A number from one (1) to

five (5) indicates the level of detail produced, where one (1) is the least

amount of detail and five (5) is the most detailed.

Note: The possible detail levels vary by report type.

ID This is the name of the entity on this line.

Owner-

Name

From one (1) to twenty (20) characters are used for the owner’s name. On

DSN lines, this is the data set name.

# DSN This number indicates how many data sets are at this level.

• For report types 1 and 2, this number represents Level 0 + Level 1 + Level

2 data sets.

• For report type 3, this number represents all of the DASD data sets,

including backup copies.

Plan This is the planned space at this level. The lowest level for the PLAN is

APPLICATION.

Actual This number represents that actual space, in Mb, that is reported for this level.

It is the space required if no migration has occurred, which is the sum of Level

0 + ML1 + ML2, where ML1 and ML2 are reconfigured as occupancy on Level

0. This provides a stable planning figure that is almost independent of

migration activity.

Used This number is the used space, in Mb, that is reported for this level. It

represents the amount of data, which is the sum of Level 0 + ML1 + ML2,

where ML1 and ML2 are reconfigured as occupancy on Level 0. This provides

a stable planning figure that is almost independent of migration activity.

ML1 This number represents the space used on ML1 DASD for this level. It is

reported as real DASD occupancy, and not in 2K block multiples.

ML2 This number represents the space used on ML2 DASD and tape for this level.

TOTMIG This number is the sum of ML1 and ML2.

Lev 0 This number represents the amount of space, including dedicated space, that

is occupied on Level 0 DASD.

Total This number is the sum of Level 0, ML1, and ML2. However, the number is

different than the sum displayed in the "Actual" column, as the "Total" is

reported in 2K block multiples.

Chapter 6. Customizing, Creating, and Viewing Reports 121

Hierarchy View

To browse the Hierarchy View report, choose option S1, Hierarchy View, on the

Reports menu (option 5.S1 from the SAW main menu), then type S next to the data set

that you want to browse. An example of this report is provided below.

.BACK. This number indicates the amount of space that is used on the backup DASD

and tape for this level. This number is not included in the calculations used

for the "Actual" and "Total" columns.

DASD This number is the total DASD usage at this level, and includes the backup

DASD (BCDS).

Tape This is the total tape usage at this level.

Table 22. Legend for all of the Application and Storage reports (continued)

Column Description

********************************* Top of Data **********************************

AWBD29P SPACE USAGE REPORT IN MEGABYTES FOR DATAPLEX : RKSPLEX RU

TITLE: DASD STORAGE REPORT DOWN TO HLQS

--------------------------------------------------------------------------------

ID OWNER - NAME # DSN PLAN ACTUAL ML1

--------------------------------------------------------------------------------

DATAPLEX TOTAL 31549 300 128194 4434

AWBD29P SPACE USAGE REPORT IN MEGABYTES FOR DATAPLEX : RKSPLEX RU

TITLE: DASD STORAGE REPORT DOWN TO HLQS

--------------------------------------------------------------------------------

ID OWNER - NAME # DSN PLAN ACTUAL ML1

--------------------------------------------------------------------------------

GROUP SMP 30 0 31 0

SUBGROUP UNKN_SMP 30 0 31 0

APPL U_SMPSHR 30 0 31 0

HLQ SMPSHR 30 30.86 0.00

GROUP SYSTEM 1029 0 21850 0

SUBGROUP UNKN_SYST 1029 0 21850 0

APPL U_SCRIPT 14 0 26 0

HLQ SCRIPT 14 25.60 0.00

APPL U_SYS1 1015 0 21824 0

HLQ SYS1 1015 21824.08 0.00

GROUP TEMP_G 81 300 143 0

SUBGROUP TEMP_SG 81 300 143 0

APPL TEMP 81 300 143 0

HLQ SYS00006 4 3.40 0.00

HLQ SYS00007 4 3.40 0.00

HLQ SYS02050 10 8.49 0.00

HLQ SYS02065 59 124.78 0.00

HLQ SYS99347 4 3.40 0.00

GROUP UNKNOWN UNKNOWN 30409 0 106170 4434

SUBGROUP UNKNOWN UNKNOWN 30409 0 106170 4434

APPL UNKNOWN UNKNOWN 30409 0 106170 4434

HLQ ADB210 UNKNOWN 14 31.44 0.00

HLQ ADB610 UNKNOWN 0 0.00 0.00

HLQ AJV UNKNOWN 9 1002.61 0.00

HLQ AJV118 UNKNOWN 5 65.84 0.00

HLQ ALA UNKNOWN 1556 1732.19 0.00

122 Storage Administration Workbench for z/OS and OS/390:User’s Guide

Application View with SG/Pool

The Application View with SG/Pool report contains information about DASD

storage, with a pool breakdown for applications. To view this report, choose option

S2, Application View with SG/Pool, on the Reports menu (option 5.S2 from the SAW

main menu), then enter S next to the data set you want to browse. An example of this

report is shown below:

One additional column, Device, appears on this report. This column refers to the

logical device. In the case of a duplex-pair DASD volume, the logical device is

followed by a "D".

********************************* Top of Data **********************************

AWBD29P SPACE USAGE REPORT IN MEGABYTES FOR DATAPLEX : RKSPLEX RU

TITLE: DASD STORAGE REPORT WITH POOL BREAKDOWN FOR APPLICATIONS

--------------------------------------------------------------------------------

---------------- DASD and HSM TAPE -----------

ID DEVICE # DSN PLAN ACTUAL DASD HSM TAPE

--------------------------------------------------------------------------------

DATAPLEX TOTAL 31549 300 128194 127310 0

AWBD29P SPACE USAGE REPORT IN MEGABYTES FOR DATAPLEX : RKSPLEX RU

TITLE: DASD STORAGE REPORT WITH POOL BREAKDOWN FOR APPLICATIONS

--------------------------------------------------------------------------------

---------------- DASD and HSM TAPE -----------

ID DEVICE # DSN PLAN ACTUAL DASD HSM TAPE

--------------------------------------------------------------------------------

APPL TEMP 81 300 143 143 0

APPLPOOL UNKNOWN 81 143.46 143.46 0.

POOL #UNKNOWN 3390-3 12 10.19 10.19 0.

POOL SGTEMP 3390-3 69 133.27 133.27 0.

APPL U_SCRIPT 14 0 26 26 0

APPLPOOL UNKNOWN 14 25.60 25.60 0.

POOL #UNKNOWN 3390-3 14 25.60 25.60 0.

APPL U_SMPSHR 30 0 31 31 0

APPLPOOL UNKNOWN 30 30.86 30.86 0.

POOL SGDEV 3390-3 27 23.22 23.22 0.

POOL SGSG1 3390-3 3 7.65 7.65 0.

APPL U_SYS1 1015 0 21824 21824 0

APPLPOOL UNKNOWN 1015 21824.08 21824.08 0.

POOL #UNKNOWN 3390-3 936 21758.76 21758.76 0.

POOL CART-BKP UNKNOWN 0 0.00 0.00 0.

POOL DEFAULT 3390-3 2 2.55 2.55 0.

POOL HSM-MIG1 3390-3 2 1.70 1.70 0.

POOL SGDB2 3390-3 10 11.04 11.04 0.

POOL SGDB2TMP 3390-3 4 2.83 2.83 0.

POOL SGDEV 3390-3 10 7.08 7.08 0.

POOL SGDEVBKP 3390-3 6 4.81 4.81 0.

POOL SGDUMP 3390-3 6 4.25 4.25 0.

POOL SGHFS 3390-3 4 2.83 2.83 0.

Chapter 6. Customizing, Creating, and Viewing Reports 123

SG/Pool View

To view information about DASD storage by application pool and pool, select option

S3, SG/Pool View, on the Reports menu (option 5.S3 from the SAW main menu), then

type S next to the data set you want to browse. An example of a SG/Pool View report

is shown below.

********************************* Top of Data **********************************

AWBD29P SPACE USAGE REPORT IN MEGABYTES FOR DATAPLEX : RKSPLEX RU

TITLE: DASD STORAGE REPORT BY APPLICATION POOL AND POOL

--------------------------------------------------------------------------------

---- DASD ---- -------

ID OWNER - NAME # DSN DASD # DSN

--------------------------------------------------------------------------------

DATAPLEX TOTAL 31549 127310 0

AWBD29P SPACE USAGE REPORT IN MEGABYTES FOR DATAPLEX : RKSPLEX RU

TITLE: DASD STORAGE REPORT BY APPLICATION POOL AND POOL

--------------------------------------------------------------------------------

---- DASD ---- -------

ID OWNER - NAME # DSN DASD # DSN

--------------------------------------------------------------------------------

APPLPOOL UNKNOWN 31549 127310 0

POOL #UNKNOWN 6089 44601 0

APPL TEMP 12 10.00 0

HLQ SYS00006 4 3.00 0

HLQ SYS00007 4 3.00 0

HLQ SYS99347 4 3.00 0

APPL U_SCRIPT 14 26.00 0

HLQ SCRIPT 14 26.00 0

APPL U_SYS1 936 21759.00 0

HLQ SYS1 936 21759.00 0

APPL UNKNOWN UNKNOWN 5127 22807.00 0

HLQ ADB210 UNKNOWN 13 18.00 0

HLQ AJV UNKNOWN 3 93.00 0

HLQ AJV118 UNKNOWN 5 66.00 0

HLQ ANL UNKNOWN 18 12.00 0

HLQ AOP UNKNOWN 14 59.00 0

HLQ ASM UNKNOWN 22 63.00 0

HLQ ASU UNKNOWN 30 5.00 0

HLQ ASUITE UNKNOWN 1 2.00 0

HLQ AWBSERV UNKNOWN 1 0.00 0

HLQ AWBSTC UNKNOWN 1 0.00 0

HLQ BBO302 UNKNOWN 21 56.00 0

HLQ BFS UNKNOWN 54 46.00 0

HLQ BFT610 UNKNOWN 20 3.00 0

124 Storage Administration Workbench for z/OS and OS/390:User’s Guide

User Report

To view information about the use of DASD storage by users and highlevel qualifiers

(HLQs), select option S4, User Report (Hierarchy View), on the Reports menu (option

5.S4 from the SAW main menu). Type S next to the data set that you want to browse.

An example of a User Report is shown in the next screen.

********************************* Top of Data **********************************

AWBD29P SPACE USAGE REPORT IN MEGABYTES FOR DATAPLEX : RKSPLEX RU

TITLE: USER DASD STORAGE REPORT DOWN TO HLQS

--------------------------------------------------------------------------------

------------ DASD -----------------

ID OWNER - NAME # DSN PLAN ACTU USED

--------------------------------------------------------------------------------

DATAPLEX TOTAL 31549 300 128194 92190.38

AWBD29P SPACE USAGE REPORT IN MEGABYTES FOR DATAPLEX : RKSPLEX RU

TITLE: USER DASD STORAGE REPORT DOWN TO HLQS

--------------------------------------------------------------------------------

------------ DASD -----------------

ID OWNER - NAME # DSN PLAN ACTU USED

--------------------------------------------------------------------------------

GROUP SMP 30 0 31 20.50

SUBGROUP UNKN_SMP 30 0 31 20.50

APPL U_SMPSHR 30 0 31 20.50

HLQ SMPSHR 30 30.86 20.50

GROUP SYSTEM 1029 0 21850 11603.84

SUBGROUP UNKN_SYST 1029 0 21850 11603.84

APPL U_SCRIPT 14 0 26 23.67

HLQ SCRIPT 14 25.60 23.67

APPL U_SYS1 1015 0 21824 11580.17

HLQ SYS1 1015 21824.08 11580.17

GROUP TEMP_G 81 300 143 13.93

SUBGROUP TEMP_SG 81 300 143 13.93

APPL TEMP 81 300 143 13.93

HLQ SYS00006 4 3.40 0.00

HLQ SYS00007 4 3.40 0.00

HLQ SYS02050 10 8.49 0.05

HLQ SYS02065 59 124.78 13.87

HLQ SYS99347 4 3.40 0.00

Chapter 6. Customizing, Creating, and Viewing Reports 125

Exceptions

The last of the Application and Storage reports is the Exceptions report. To view this

report, select option S5, Exceptions, on the Reports menu (option 5.S5 from the SAW

main menu), and type S next to the data set you want to browse. An example of this

report is shown below.

Viewing Pool and Volume Reports

SAW contains five different Pool and Volume reports, which are:

• Data set

• Volume/Pool

• Exceptions

• Packmap

•Volume list

Each of these reports is described in this section.

Data Set Reports

Use Option D1, Data Set Reports, on the Reports menu (option 5.D1 from the SAW

main menu) to view up to six different sections describing the status of data sets.

These sections are described in the next table.

********************************* Top of Data **********************************

AWBD27P DATAPLEX: RKSPLEX RUN Date 06/03/02 RUN Time 20/38/02/601

SPA EXCEPTION REPORT

No Prefixes made a sudden jump

Where a sudden jump > 100 Mb and jump > 50% OF PREVIOUS

The following applications are out of Line:

Where a PLANWARNING_PCT = 90 and LOWACTUAL_PCT = 5.

Application Plan Actual Above Approaching Low

(Mbytes) (Mbytes) Plan Plan Actual

-----------------------------------------------------------------

UNKNOWN 0 106170 X

U_SYS1 0 21824 X

U_SMPSHR 0 30 X

U_SCRIPT 0 25 X

******************************** Bottom of Data ********************************

126 Storage Administration Workbench for z/OS and OS/390:User’s Guide

Table 23. Sub-reports in the Data Set report

Section Title Description

Data sets created within last xxx

days which are greater than 450

This section shows:

•Data set name. List of DSNs above the indicated

thresholds.

•Alloc MB. Megabytes per DSN.

•Create date. Date when the DSN was created.

Data sets that should be on tape

(over xxx Mb and older than xxx

days)

This section shows:

•Data set name. List of DSNs that match the criteria.

•Alloc MB. Megabytes per DSN.

•Ref Date. Last time the file was referenced.

Data sets that should be on disk

(tape space allocation less than

xxx MB)

This section shows:

•Data set name. List of DSNs that match the criteria.

•Dataset Alloc MB. Megabytes per dataset.

•Volume Alloc MB. Megabytes per volume.

Note: For fields that list Mb data, a value of zero (0)

means that the data set uses less than a

megabyte. It does not mean that the data set is

empty.

•Volume. Name of the volume.

•Unit type and model. ID of the unit type and name of

model.

•Location ID. Reported by a tape management system.

•ATL Library. ATL name that is assigned by SMSTAPE

•ATL Location. Location of ATL that is assigned by the

SMSTAPE

Distribution of unreferenced

data sets

This section shows:

•Age range. List of different age ranges.

•Data sets. Number of data sets per range.

•Alloc MB. Total number of megabytes per range.

Data sets that are over threshold

extents (VSAM=xxx and Non-

VSAM=xxx)

This section show:

•Data set name. List of DSNs that are above the criteria.

•VOLSER. The volume serial where the DSN resides.

•Ext. Number of extents.

•DSORG. Organization of data sets.

Multi-Volume Data Sets This section shows:

•Data set name. List of DSNs that match the criteria.

•VOLSER. A list of volume serial names.

•Seq. No. Sequence number. Seq. No. Volumes are listed

by sequence number.

•Alloc MB. Number of megabytes per volume.

Chapter 6. Customizing, Creating, and Viewing Reports 127

An example of a Data Set report is shown below.

********************************* Top of Data **********************************

AWBD22P DATAPLEX:RKSPLEX DATE:06/03/2002 TIME:20:37:18

AWBD22P DSREPS REPORT

DATA SETS CREATED WITHIN LAST 4 DAYS WHICH ARE GREATER THAN 450 MB

======================================================================

DATA SET NAME ALLOC MB CREATE DATE

============================================ ======== ===========

NO DATA SETS MATCH THIS CRITERIA

AWBD22P DATAPLEX:RKSPLEX DATE:06/03/2002 TIME:20:37:19

AWBD22P DSREPS REPORT

DATA SETS ON DISK THAT SHOULD BE ON TAPE (OVER 450 MB AND OLDER THAN 400 D

============================================================================

DATA SET NAME ALLOC MB REF DATE

============================================ ======== ========

SYS1.LOCAL1.PAGE.DATA 1699 2001011

HFS.OS390R.SMPE.MVST100.SMPLTS 932 2001016

SYS1.RS11.LOCAL.PAGE.DATA 849 2000258

SYS1.LOCAL2.PAGE.DATA 849 2000117

128 Storage Administration Workbench for z/OS and OS/390:User’s Guide

More of the Data Set report is shown below:

AWBD22P DATAPLEX:RKSPLEX DATE:06/03/2002 TIME:20:37:20

AWBD22P DSREPS REPORT

DATA SETS ON TAPE THAT SHOULD BE ON DISK (TAPE SPACE ALLOCATION LESS THAN

============================================================================

DATA SET VOLUME

DATA SET NAME ALLOC MB ALLOC MB VO

============================================ ======== ======== ==

NO DATA SETS MATCH THIS CRITERIA

AWBD22P DATAPLEX:RKSPLEX DATE:06/03/2002 TIME:20:37:20

AWBD22P DSREPS REPORT

DISTRIBUTION OF UNREFERENCED DATA SETS

======================================

AGE RANGE DATA SETS ALLOC MB

=================== ========= ========

0 TO 10 DAYS: 9269 52899

11 TO 30 DAYS: 5932 14123

31 TO 100 DAYS: 5047 13688

101 TO 400 DAYS: 5786 18704

401 TO 740 DAYS: 2251 12459

741 TO 9999 DAYS: 2053 7116

NO LAST REF DATE: 1091 3869

Chapter 6. Customizing, Creating, and Viewing Reports 129

More of the Data Set report is shown below:

AWBD22P DATAPLEX:RKSPLEX DATE:06/03/2002 TIME:20:37:21

AWBD22P DSREPS REPORT

DATA SETS THAT ARE OVER THRESHOLD EXTENTS (VSAM= 60 AND NON-VSAM= 7)

=====================================================================

DATA SET NAME VOLSER EXT DSORG

============================================ ====== === =====

DS1G.DSNDBD.CSPERKD2.CSPERKS8.I0001.A001 DB2111 123 VS

DS1G.DSNDBD.GCSFENN.TSGGC4.I0001.A001 DB2111 123 VS

HFS.USERS OS39HA 123 PO-E

PDMIKE.DDIROLD.D TSO001 123 VS

R61A.DSNDBD.DBEDB1.DBETS1.I0001.A001 DB2002 123 VS

R61A.DSNDBD.DSNDB04.MEN.I0001.A001 DB2001 123 VS

R61A.DSNDBD.DSNDB04.MEN.I0001.A001 DB2004 123 VS

R61A.DSNDBD.DSNDB04.PIZZA.I0001.A001 DB2001 123 VS

PDMIKE.DDIR.D TSO003 92 VS

R61A.DSNDBD.DSNDB06.DSNKSX01.I0001.A001 DB2001 86 VS

PDJOHN.DDIR.D TSO002 81 VS

R61A.DSNDBD.RDBIDB2.RDBITSDF.I0001.A001 DB2001 75 VS

HFS.RS11.TMP OS39HA 73 PO-E

R71A.DSNDBD.JKDB1.JKTS1.I0001.A001 DB2005 65 VS

130 Storage Administration Workbench for z/OS and OS/390:User’s Guide

The last section of the Data Set report is shown next.

Volume/Pool Reports

Use Option D2, Volume/Pool Reports, on the Reports menu (option 5.D2 from the

SAW main menu) to view two different sections describing the utilization of DASD

and tape by pools and volumes, and the status of VTOCs. These sections are described

in the table below the screen.

Note: An asterisk (*) on the left of the report indicates there is an exception issued

against the volume.

An example of a Volume/Pool report is shown on the next page.

AWBD22P DATAPLEX:RKSPLEX DATE:06/03/2002 TIME:20:37:21

AWBD22P DSREPS REPORT

MULTI-VOLUME DATA SETS

======================

DATA SET NAME VOLSER SEQ. NO. ALLOC MB

============================================ ====== ======== ========

RSPMR.CUNA.D01353.UNTRS PMR022 1 234

PMR020 2 260

RSPMR.D020056.P76630.SYSLOGU PMR021 1 23

PMR022 2 5

RSPMR.D2058.P09767.UABENDU PMR022 1 262

PMR021 2 37

RSPMR.PM09767.SVCDMP03.UNTRS PMR021 1 390

PMR020 2 233

RSPMR.QMP0C4.BPDUMP.UNTRS PMR020 1 1392

PMR021 2 215

R61A.DSNDBD.DBEDB1.DBETS1.I0001.A001 DB2002 1 6

DB2005 2 3

R61A.DSNDBD.DSNDB04.MEN.I0001.A001 DB2001 1 6

DB2004 2 6

Chapter 6. Customizing, Creating, and Viewing Reports 131

Table 24. Sub-reports in the Volume/Pool report

Section Title Description

Pool and Volume Utilization

Report (DASD)

This report shows:

•Pool/Vol. Pool identifier or volume serial.

•Capacity. Pool/volume capacity in megabytes (Mb).

•Targ et. Pool/volume target utilization in Mb.

•Alloc. Pool/volume actual utilization in Mb.

•Unused. Pool/volume unused (over allocated) space in

Mb, difference between "allocated" and "used" space.

•Free. The percent of pool/volume free space.

•Physical Devtypes. Refers to a real disk used by the

Ramac Virtual Array (RVA). The user is unaware of it.

•PDF Abbr. This is identical to the PDF abbreviation

defined in the Hardware Configuration Manager

(HCM). It contains the abbreviation ID of one of

HCM’s physical description templates, such as RVA1.

•Phys. Used. The amount of physical used space.

•Comp Ratio. This is the result of dividing the used

space, as seen by the user, by the physical space

needed to contain it.

•Additional Information. The status of the pool free space

health or volume fragmentation index and the 20

largest free extents in Mb.

--------------------------------------------------------------------------------

BROWSE AWB.AWB014F.MYDPLEX.G0022V00 Line 00000000 Col 001 080

Command ===> Scroll ===> CSR

********************************* Top of Data **********************************

AWBD22P DATAPLEX:MYDPLEX DATE:18/04/2002 TIME:17:55:00

AWBD22P VOLREPS REPORT

POOL AND VOLUME UTILIZATION REPORT (DASD)

=========================================

PHYSICAL PDF PHYS. COMP. F

POOL/VOL CAPACITY TARGET ALLOC UNUSED FREE DEVTYPE ABBR. USED RATIO

======== ======== ======= ======= ======= ==== ======== ======== ====== ======

*SGDB2 11352 9649 10271 3471 9% THRESHOLD EXCEEDED: UNUSED SPACE

DB2001 2838 2838 2716 1015 4% 3390 003 PDF001

DB2002 2838 2838 2425 838 14% 3390 003 PDF001

DB2003 2838 2838 2510 1027 11% 3390 003 PDF001

DB2004 2838 2838 2619 590 7% 3390 003 PDF001

*SGDEVBKP 8514 7236 7858 370 7% THRESHOLD EXCEEDED: USED SPACE.

DBK020 2838 2838 2731 117 3% 3390 003 PDF001

DBK021 2838 2838 2641 113 6% 3390 003 PDF001

DBK022 2838 2838 2486 139 12% 3390 003 PDF001

132 Storage Administration Workbench for z/OS and OS/390:User’s Guide

Pool and Volume Utilization

Report (Tape)

This report shows:

•S. An "S" indicates that this is a "scratch" pool.

•Pool. Name of the pool.

•Capacity. Pool capacity in Mb.

•Allocated. Pool utilization in Mb.

•%. Allocation percentage (alloc/capacity).

•Tape Cap.ty. Capacity of a volume in the pool.

•Tape s Nu m. Number of volumes in the pool.

•Physical Devtypes. Refers to a real disk used by the

Ramac Virtual Array (RVA). The user is unaware of it.

•PDF Abbr. This is identical to the PDF abbreviation

defined in the Hardware Configuration Manager

(HCM). It contains the abbreviation ID of one of

HCM’s physical description templates, such as RVA1.

•1st Volumes. The first volume of a multi-volume group.

—Avg Alloc. Average allocation of first volumes.

—<...MB. Number of volumes that use less than xxx

megabytes. The threshold is specified through

option S.2.7.2, Tape Data Set report Parameters

and Exclusions.

•Full Volumes. Volumes in which the last file continues

onto another volume.

—Avg Alloc. Average allocation.

—Num. Number of full volumes.

—%TOT. Percentage of full volumes over all

volumes. The higher this value, the more it is

convenient to migrate to a larger device.

Table 24. Sub-reports in the Volume/Pool report (continued)

Section Title Description

Chapter 6. Customizing, Creating, and Viewing Reports 133

Exception Reports

To view the Exceptions report, select option D3, Exceptions, on the Reports menu

(option 5.D3 on the SAW main menu), and type S next to the data set you want to

browse. The Exceptions report contains two sections:

• Exception Report at the top, which lists DVP exceptions

• Summary Report at the end.

An example of an Exceptions report is shown on the next page.

VTOC Status Report This section shows:

•Volume. Vo l um e s e ri a l.

•SystemID. System ID where the volume is identified.

•Free DSCBs. Target number and actual number.

•Free VIRS. Target number and actual number.

•VTOCIX Status.

—Expected. Allocation flag (Y/N) from

DCOLLECT.

—Actual. Actual status (Y/N).

•SMS Status

—Expected. SMS flag (S/N) from DCOLLECT. S =

SMS, N = non-SMS.

—Actual. Flag (S/N/C) from DCOLLECT. S = SMS,

N = non-SMS, C = in conversion.

•Allocated Space.

—’V’ MB. The amount of allocated space in

megabytes (MB) in the ’V’ volume record from

DCOLLECT.

—Sum ’D’ MB. DCOLLECT produces each ’D’ data

set record for the volume. The SUM ’D’ MB

represents the sum of all allocated space, in

megabytes, of each ’D’ data set record.

Table 24. Sub-reports in the Volume/Pool report (continued)

Section Title Description

134 Storage Administration Workbench for z/OS and OS/390:User’s Guide

Some of the features of this report are described in the next table.

Table 25. Features of the Exceptions report

Feature Description

A= xxx% At the top of the Exception Report, the percentage listed after "A="

refers to the actual percentage used. This amount is what triggered the

exception message, such as "Unused Threshold Exceeded."

T=xxx% At the top of the Exception Report, the percentage listed after "T=" refers

to the target percentage for this threshold.

Capacity and

Alloc

In the Summary Report, the number listed under "Capacity" and "Alloc"

headings refers to gigabytes (GBs), not megabytes (MBs).

Description In the Summary Report, the "Description" column contains a short

description in the first line related to a dataplex. However, you can

create additional lines by using the "F" line command on the Dataplex

Management screen, which is option S.2.1 from the SAW main menu. A

screen displays several lines for you to type free text for the dataplex

description.

Note: The "Description column" shown in the example is much shorter

than what is actually displayed on the screen.

AWBD22P DATAPLEX: MEFSB DATE: 05/11/2002 TIME: 12:42:02

AWBD22P EXCEPTION REPORT

POOL/SG CACAO UNUSED THRESHOLD EXCEEDED (A= 20% T= 15%)

POOL/SG OMVS UTILIZATION THRESHOLD EXCEEDED (A= 96% T= 85%)

POOL/SG OTHER UNUSED THRESHOLD EXCEEDED (A= 27% T= 15%)

VOLUME MSBPPA FREE VIRS EXCEEDED (A=0% T= 15%)

END OF EXCEPT REPORT

1AWBE400 SUMMARY REPORT

-----------------------------------------------------------------------------------------

MEFSB | 83 | 59 | 71 | 40835| 451 | 0 | 1 | 0 | 0 | TE SMP MVS

MEFSL | 37 | 21 | 57 | 8738| 193 | 0 | 1 | 3 | 1 | TE SMP MVS

| | | | | | | | | | on S.2.1

AWBE400 END OF SUMMARY REPORT

Chapter 6. Customizing, Creating, and Viewing Reports 135

Packmap

If you select option 3, String, on the DASD Management menu (option 1.3 on the

SAW main menu), you can generate a "packmap" diagram. To do this, type

PACKMAP at the Command prompt on the String Assignment screen, and press

Enter. The packmap program will start. When it has completed successfully, you will

be placed in a "Browse" session that displays the report.

You can view this same diagram by selecting option D6, Packmap, on the Reports

menu (option 5.D6 from the SAW main menu). An example of a Packmap report is

shown in the next few screens. The first screen shows the legend that explains how to

read the Packmap diagram.

The Packmap diagram starts below the Legend information. The Legend is shown in

the previous screen example. The first page of the diagram is shown in the next

example.

The next example shows more of this Packmap report.

SAWR Version 2.5.0. PACKMAP produced at 10:44:30 on 12 May 2002

Legend

*===================*

Geographic Area | GE |

Site | Ehningen |

Building | B2 |

Room | 123456 |

Cache Sub-System Id CACHE Type | 0032 03 |

STRINGID Unit Type | 0100 3390 |

|===================|

Address Unit Model | 0100 3 | 0101 3 |

Volume Serial Sms | STB101 S| STB101 S|

Collect System id SMF-JES | A2U3A2U3| |

Pool Name | A#WORK | A#WORK |

CAche on - DFw on - Dual Copy / SECondary | CA DF DC| SEC |

CaTalog - PAGE data set / SYSTem | CT PAGE | |

Associated Address | 0101 | 0100 |

Short Description from Hand Writing | | |

+---------+---------+

*===================* *===================*

| GE | | GE |

| Ehningen | | Ehningen |

| Building ? | | Building ? |

| Room ? | | Room ? |

| 0096 03 | | 0096 03 |

| 05A (1) 3390 | | 05A (2) 3390 |

|===================| |===================|

| 05A0 3 | 05A1 3 | | 05B0 3 | 05B1 3 |

| | CT | | | PAGE |

+---------+---------+ +---------+---------+

| 05A2 3 | 05A3 3 | | 05B2 3 | 05B3 3 |

+---------+---------+ +---------+---------+

136 Storage Administration Workbench for z/OS and OS/390:User’s Guide

A string is drawn to include up to 16 volumes. However, since a 3390 can

accommodate up to 32 volumes, two strings are used. A "string ID" covers a

maximum of 32 separate 3390 volumes.

ListVol

If you select option 3, String, on the DASD Management menu (option 1.3 on the

SAW main menu), you can generate a "ListVol" report. To do this, type LISTVOL at

the Command prompt on the String Assignment screen, and press Enter. The Listvol

program will run. When it has completed successfully, you will be placed in a

"Browse" session that displays the report.

You can view this ListVol report by selecting option D7, ListVol, on the Reports menu

(option 5.D7 from the SAW main menu). An example of a ListVol report is shown in

the next screen.

+---------+---------+ +---------+---------+

| 05A4 3 | 05A5 3 | | 05B4 3 | 05B5 3 |

| SP35A4 | SP35A5 | | MSBCA1 | MDLP00 |

+---------+---------+ +---------+---------+

| 05A6 3 | 05A7 3 | | 05B6 3 | 05B7 3 |

| ST | ST | | SYSTEM | SYSTEM |

+---------+---------+ +---------+---------+

| 05A8 3 | 05A9 3 | | 05B8 3 | 05B9 3 |

| SWDR00 | MSBEHN | | HL1B04 | HL1B05 |

+---------+---------+ +---------+---------+

| | | | 05BA 3 | 05BB 3 |

| | | | HSMBACK | ST1 |

+---------+---------+ +---------+---------+

| | | | 05BC 3 | 05BD 3 |

| | | | ST | SYSTEM |

| | | | |CT |

+---------+---------+ +---------+---------+

| | | | 05BE 3 | 05BF 3 |

| | | | SR130X | SC130X |

*===================* *===================*

26 * 3390 MODEL 3 = 73788 MB

Chapter 6. Customizing, Creating, and Viewing Reports 137

Viewing DFHSM Reports

SAW contains four different Data Facility Hierarchical Storage Manager (DFHSM)

reports regarding DASD, which are:

• LOGSCAN Summary Report

• Migrate Actions File

• Backup Actions File

• DFHSM Activity Log.

Each of these reports is described in this section. However, because the first three

reports relate to the LOGSCAN utility, the next section provides an overview of

LOGSCAN.

Using LOGSCAN

DFHSM assists in space management of direct access storage devices (DASD). It

maintains data sets by ensuring that all data is efficiently stored. In addition, DFHSM

is used to facilitate backups, either incremental or full volume dumps, to ensure the

integrity and availability of the data.

When carrying out daily space management, automatic backups, and automatic

dumps, DFHSM writes to activity logs (a SYSLOG), recording information about its

actions. The activity logs can be extensive, especially in a large installation, making it

difficult for a storage administrator to identify any failures. It is common for errors to

be missed, and small errors can eventually contribute to major problems some days or

weeks later.

For example, let us assume that a backup fails, but goes unnoticed. If a recovery is

needed at a later date, and the backup failure is discovered at that point, data may

have to be rolled back to the last successful backup, perhaps several weeks old.

LOGSCAN summarizes the activity logs that have been produced by DFHSM during

daily space management, automatic backup, and automatic dump functions. It

provides a quick guide to any problems, which can then be further investigated, and

also provides a positive acknowledgement that certain functions were performed. By

executing LOGSCAN periodically, you can clearly see that certain functions were

performed, and also when errors occurred.

SAW Version 1.1.0. LISTVOL produced at 04:24:11 on 15 May 2002

-----------------------------------------------------------------------

VOLSER POOLNAME UCB UNIT-TYPE MODEL

-----------------------------------------------------------------------

MSBSY0 SYSTEM 05A0 3390 3

MSBSH1 SYSTEM 05A1 3390 3

MSBSP1 SYSTEM 05A2 3390 3

STB001 ST 05A3 3390 3

STPF01 STPF 05A4 3390 3

MSBPPA SYSTEM 05A5 3390 3

STB004 ST 05A6 3390 3

STB005 ST 05A7 3390 3

MSBSY1 SYSTEM 05A8 3390 3

OMVS00 OMVS 05A9 3390 3

HBKB05 HSMBACK 05B0 3390 3

MSBPG1 HSM-MIG1 05B1 3390 3

138 Storage Administration Workbench for z/OS and OS/390:User’s Guide

LOGSCAN processes these types of DFHSM activity logs:

• migration activity

• backup activity

•dump activity.

Note: Command and ABARS activity logs are ignored.

When the LOGSCAN program is run, it does the following:

• Produces a summary report in a simplified form, instead of messages and codes.

This report includes problems detected at the data set level, functions performed

at the volume level, various statistics, and space/fragmentation information. It

also indicates when functions were performed successfully, and contains statistics

about the activities, such as time taken.

Note: In some cases, messages and codes are considered clear enough to be

copied to the report.

• Creates an action file that lists the names of the data sets that failed to be

migrated.

• Creates an action file that lists the names of the data sets that failed to be backed

up.

• Creates an additional statistics file, ACTLOG, to indicate the amount of time and

space involved during the automatic space management and backup functions.

However, this file is not part of the Report functions.

Generating the LOGSCAN job

There are two steps to generating the LOGSCAN job that you must perform before

there will be any reports for you to view.

• a pre-processor job that consolidates the DFHSM reports

• the LOGSCAN job that creates output reports, based on the parameters you

specify in the JCL.

Both of these steps are described in this section.

Pre-processor job: To consolidate the DFHSM activity logs, go to the Generate

System-Related JCL screen, which is option S.2.8 from the SAW main menu. On this

screen, type S to select the "Merge DFHSM log data sets" option, then make entries in

the LOG and HLQ fields for that option. Parameters you can enter in those fields are

described in the next table, followed by a screen showing the JCL that is generated by

a "Merge" option.

Chapter 6. Customizing, Creating, and Viewing Reports 139

Table 26. Parameters for consolidating DFHSM logs

Parameter Description

LOG Enter one of the following parameters in the LOG field to indicate which DFHSM

logs you want to include in the LOGSCAN job.

•ALL. (default) All logs will be copied, with the exception of ABARS.

•MIG. Only migration logs will be copied.

•BAK. Only backup logs will be copied.

•DMP. Only dump logs will be copied.

•CMD. Only command logs will be copied.

•TEST. Used in combination with one of the above parameters. Separate

TEST and the other parameter with a blank character, such as ALL TEST.

The TEST parameter prevents deletion of the source activity log data sets

during installation and testing.

HLQ This is the high level qualifier for the DFHSM activity logs. The default HLQ is

HSMACT. If it needs to be modified, you can do that here or through option 9,

SDC Variables, on the Installation menu, which is option S.1.9 from the SAW

main menu.

//* THIS JOB WILL CONSOLIDATE DFHSM ACTIVITY LOGS TO

//* HSMHCPY FROM THE DASD ACTIVITY LOGS, LOGSCAN PROCESSES THEM

//* TO CREATE THE LOGSCAN REPORT ETC AND THEN THEY ARE ARCHIVED.

//* THE ACTLOG FILE IS THEN SENT TO THE DATABASE.

//***************************************************************

//DELETE EXEC PGM=IEFBR14

//DEL1 DD DSN=SMPSHR.HSMHCPY.SYSMVSB,UNIT=SYSDA,

// SPACE=(TRK,(0)),DISP=(MOD,DELETE)

//***************************************************************

//* CONSOLIDATE ACTIVITY LOGS VIA LOGSCAN PRE-PROCESSOR

//***************************************************************

//UTSLGP EXEC PGM=IKJEFT01,DYNAMNBR=420,REGION=4096K,

// PARM='BAEE106 1 DFHSM ALL TEST'

//SYSTSPRT DD SYSOUT=*

//SYSPROC DD DSN=SMPSHR.SAWR.EXEC,DISP=SHR

//SYSEXEC DD DSN=SMPSHR.SAWR.EXEC,DISP=SHR

//SYSUT2 DD DISP=(MOD,CATLG),SPACE=(TRK,(5,90),RLSE),

// DCB=(RECFM=FBA,LRECL=121,BLKSIZE=0,DSORG=PS),

// DSN=SMPSHR.HSMHCPY.SYSMVSB,UNIT=SYSDA

//SYSIN DD DUMMY

//SYSTSIN DD DUMMY

140 Storage Administration Workbench for z/OS and OS/390:User’s Guide

Generate LOGSCAN job: To generate the JCL that executes the LOGSCAN process,

perform the following steps:

1. On the SAW main menu, type S to select the Setup option.

2. On the Setup and Configuration Options menu, type 2 to select the Configuration

option.

3. On the Dataplex and System Maintenance menu, type 9 to select the Dataplex

JCL option.

4. On the Generate Dataplex-Related JCL screen, make the following entries:

a. Type J for "JCL" in the "Select the items below as:" field.

b. Type N for "No" in the DEF-GDG field, assuming that a GDG has already

been created (only done once).

c. Type a one- to eight-character name in the "Member:" field at the bottom of

the screen. This is where the output will be stored.

d. Type S next to the "LOGSCAN" option.

e. Press Enter.

An example of the LOGSCAN JCL is shown in the next figure.

Chapter 6. Customizing, Creating, and Viewing Reports 141

In the generated JCL, there are steps preceding SCAN1 of the LOGSCAN JCL, which

are DELETE, DPLEX, PLG, and ARCHIVE. These steps delete the old ACTLOG file

and copy all activity log files from the different systems of the dataplex into one file.

The steps that follow after the LOGSCAN JCL are XMIT, PLG1, PLG3, and STEP13.

These steps transmit information about the LOGSCAN run to the dataplex in charge

of the center storage administration inventory. (CSAI).

The steps before and after the LOGSCAN JCL are not shown in the example above.

The table below describes the LOGSCAN JCL that is in the example.

//SCAN1 EXEC PGM=LOGSCAN,PARM='/ACTION'

//HSMHCPY DD DSN=SMPSHR.HSMLOG.COPY(+1),DISP=SHR

//REPORT DD DISP=(NEW,CATLG),

// DSN=SMPSHR.LOGSC.TSOB.REPORT(+1),

// UNIT=SYSDA,SPACE=(TRK,(1,15),RLSE),

// DCB=(SMPSHR.GDG.REF,

// LRECL=133,BLKSIZE=0,RECFM=FBA,DSORG=PS)

//MIGRATE DD DISP=(,CATLG,DELETE),

// DSN=SMPSHR.LOGSC.TSOB.MIGRATE(+1),

// UNIT=SYSDA,SPACE=(TRK,(1,15),RLSE),

// DCB=(SMPSHR.GDG.REF,

// RECFM=FBA,LRECL=80,BLKSIZE=0,DSORG=PS)

//BACKUP DD DISP=(,CATLG,DELETE),

// DSN=SMPSHR.LOGSC.TSOB.BACKUP(+1),

// UNIT=SYSDA,SPACE=(TRK,(1,15),RLSE),

// DCB=(SMPSHR.GDG.REF,

// RECFM=FBA,LRECL=80,BLKSIZE=0,DSORG=PS)

//SYSPRINT DD SYSOUT=*

//MCDS DD DSN=DFHSM.MCDS,DISP=SHR,

// AMP=('BUFND=14,BUFNI=8')

//HSMPARM DD DISP=SHR,DSN=SMPSHR.LSAWR.SKELS(BAES236)

//ARCSMSO DD DISP=SHR,DSN=SMPSHR.LSAWR.SKELS(BAES237)

//ACTLOG DD DSN=SMPSHR.LOGSCAN.ACTLOG,DISP=(,CATLG,DELETE),

// UNIT=SYSDA,SPACE=(TRK,(1,15),RLSE),

// DCB=(RECFM=FB,LRECL=34,BLKSIZE=0,DSORG=PS)

//CONTROL DD DSN=&&PLEX,DISP=(OLD,PASS)

//LOGWORK DD UNIT=SYSDA,SPACE=(TRK,(1,10),RLSE),

// DCB=(RECFM=VB,LRECL=184,BLKSIZE=0,DSORG=PS)

//STEPLIB DD DSN=SMPSHR.SAWR.LOAD,DISP=SHR

142 Storage Administration Workbench for z/OS and OS/390:User’s Guide

Table 27. DD statements required to execute LOGSCAN

DD name Usage Description

SCAN1 Program There are three parameters that can be specified in the EXEC

statement in the JCL, which are ACTION, NOACTION, and RC2.

These parameters are described below:

•/ACTION. This parameter indicates that you want "backup and

migration actions" files to be created.

Ex: EXEC PGM=LOGSCAN,PARM=’/ACTION’

However, if ACTION is specified, and either the backup or

migrate actions files are not allocated, neither file will be

written to. It will in effect be a "no action".

•/NOACTION. This is the default. This parameter indicates that

you do not want "backup and migration actions" files to be

created. Ex: EXEC PGM=LOGSCAN,PARM=’/NOACTION’

However, if NOACTION is specified, but the action files for

backup and migrate are allocated, they will not be written to.

They will be empty files.

•/RC2. This parameter can be used to suppress ARC07341 R

C=2 messages from being listed in the "Failures and Problems"

section of the report. This is useful if you know of catalog

discrepancies that exist in a dataplex and do not want these

error messages every day.

Ex: EXEC PGM=LOGSCAN,PARM=’/RC2’

HSMCOPY Input DFHSM activity logs

HSMPARM Input DFHSM ADDVOL commands. Library and Member names must

be included. Usually used for dummy ADDVOLS for SMS primary

volumes.

REPORT Output Report file

SYSPRINT Output Messages

LOGWORK Out/In Temporary work file

BACKUP Output File of backup actions

MIGRATE Output File of migration actions

ACTLOG Output Activity statistics

CONTROL Input Dataplex identifier

DEBUG Output DEBUG information

ARCSMSO Output Suggested SMS primary volume ’ADDVOLS’ (HSMPARM

updates).

Chapter 6. Customizing, Creating, and Viewing Reports 143

LOGSCAN Summary Report

The LOGSCAN Summary Report lists the problems detected at dataset level,

functions performed at volume level, various statistics, and the space/fragmentation

information. To view the LOGSCAN Summary Report, select option L1 on the

Reports menu (option 5.L1 from the SAW main menu). An example of a LOGSCAN

Summary Report is shown below.

******************************************************************

* DFHSM Activity Log Scan Report. 02:25:51 05/09/02 *

******************************************************************

* Functional Checking and Volumes Processed *

******************************************************************

CDS BACKUP did NOT run

Volumes MIGRATED = ST0001 ST0002 ST0003 ST0004 ST0006 ST1001 ST1002

Volumes BACKED UP = ST0001 ST0002 ST0003 ST0004 ST0006 ST1001 ST1002

Automatic DUMP did not run

Volumes NOT MIGRATED successfully : None

Volumes NOT BACKED UP successfully : None

Volumes NOT DUMPED : MSBRES

******************************************************************

* Statistics *

******************************************************************

Report compiled From:

1 SPACE MANAGEMENT runs FROM SYSTEM MVSB

1 Automatic BACKUP runs FROM SYSTEM MVSB

0 Automatic DUMP runs.

Daily SPACE MANAGEMENT elapsed time is 00:01:55

Automatic BACKUP elapsed time is 00:08:09

Automatic DUMP elapsed time is 00:00:00

5 Data sets MIGRATED by Space Management

132 Data sets BACKED UP by Automatic Backup

5.55 MB MIGRATED BY SPACE MANAGEMENT

176.84 MB BACKED UP BY Automatic BACKUP

60 Data sets denied MIGRATION as Data set type unsupported by DFHSM function

3 Data sets denied BACKUP as Data set type unsupported by DFHSM function

1 Data sets denied MIGRATE as in use elsewhere

50 Data sets denied BACKUP as in use elsewhere

******************************************************************

* Volumes Whose Space or Fragmentation Indices Exceed Thresholds *

******************************************************************

No Thresholds exceeded.

******************************************************************

* Failures and Problems *

******************************************************************

0734, 19, 12 Unable to BACK UP data set, as in use: SMPB.BAB310.UPANELA

////////////////////////////////////////////////////////////////////////

0734, 16, 12 I/O error in BACKING UP data set: US00392.RES.PROFILE

//////////////////////////////////////////////////////////////////////////////

0734, 87, 8 Discrepancy found with VTOC Entry for BACKUP: F004424.MASTER.PLI

//////////////////////////////////////////////////////////////////////////////

0734, 19, 12 Unable to BACK UP data set, as in use: SMCFG.BAQ120.SDDS

////////////////////////////////////////////////////////////////////////

END OF LOGSCAN REPORT (SAWR 2.2.0).

144 Storage Administration Workbench for z/OS and OS/390:User’s Guide

The following table describes the information in the LOGSCAN Summary Report.

Table 28. Parameters for consolidating DFHSM logs

Section Title Description

Functional Checking and Volumes

Processed

The first section of the report includes:

• Notification on whether the DFHSM Control Data

Sets (CDS) have been backed up successfully

• List of volumes successfully migrated

• List of volumes successfully backed up

• List of volumes successfully dumped

• List of volumes unsuccessfully migrated

• List of volumes unsuccessfully backed up

• List of volumes unsuccessfully dumped.

Statistics The second section contains a set of statistics that cover

DFHSM activities. These include:

• Elapsed time for backup, migration, and dump

functions

• Number of data sets that were migrated and

backed up

• Amount of space in megabytes migrated and

backed up

• Number of data sets denied migration or backup

for any of the following reasons:

— unsupported data set organization

— in use elsewhere

—empty

— uncataloged.

• Number of data sets that have been processed by

extent reduction

• Number of data sets expired by the EXPIREBV

command.

Note: Any zero values are not written to the report.

Volumes whose Space or

Fragmentation Indices Exceed

Thresholds

The third section of the report contains information

about the space threshold and fragmentation indices of

the volumes. Any volume that exceeds the thresholds

will be listed in the report.

Chapter 6. Customizing, Creating, and Viewing Reports 145

Migrate Actions File

If you used the ACTION parameter in your EXEC statement in the LOGSCAN job, as

described in “Generate LOGSCAN job:” on page 140, a "migrate actions" file is

created. When you choose option L2, Migrate Actions File, on the Reports menu

(option 5.L2 from the SAW main menu), you can view a list of MIGRATE actions that

were not successful. This may be due to insufficient space on migration volumes or

because the data set is currently in use.

An example of a Migrate Actions File report is shown below.

When you have addressed the migration problems, the report file can be executed

under TSO to send the commands to DFHSM. By executing this file, the migration

actions that were unsuccessful will be run again.

Note: If you select option L2, but the report file is empty, it can mean one of two

things:

• The /ACTION parameter was not specified in the EXEC line of the

LOGSCAN job so a migration action file was not created.

Failures and Problems The last section of the report contains messages that are

produced under the following conditions:

• Data set in use

• PDS errors

• Duplicate MCDS entry

•I/O error

• Insufficient DFHSM space

• Volume in use

•Empty data set

• Uncataloged data set

• Multi-volume data set

• Unsupported data set organization

• Space management failed to restart

•SDSP full

• Movement of backup version failed

• RACF denied access

• VSAM export failed

• Insufficient level of DFDSS

Table 28. Parameters for consolidating DFHSM logs (continued)

Section Title Description

********************************* TOP OF DATA ********************

HSEND MIGRATE DSNAME(SMCFG.BAQ110.EXEC )

******************************** BOTTOM OF DATA *******************

146 Storage Administration Workbench for z/OS and OS/390:User’s Guide

• The /ACTION parameter was specified in the EXEC line of the

LOGSCAN job, but the MIGRATE actions file was not allocated because

the actions did not fail.

Backup Actions File

If you used the ACTION parameter in your EXEC statement in the LOGSCAN job, as

described in “Generate LOGSCAN job:” on page 140, a "backup actions" file is

created. When you choose option L3, Backup Actions File, on the Reports menu

(option 5.L3 from the SAW main menu), you can view a list of BACKUP actions that

were not successful. This may be due to insufficient space on backup volumes or

because the data set is currently in use.

An example of a Backup Actions File report is shown below.

When you have addressed the backup problems, the report file can be executed under

TSO to send the commands to DFHSM. By executing this file, the backup actions that

were unsuccessful will be run again.

Note: If you select option L3, but the report file is empty, it can mean one of two

things:

• The /ACTION parameter was not specified in the EXEC line of the

LOGSCAN job so a BACKUP actions file was not created.

• The /ACTION parameter was specified in the EXEC line of the

LOGSCAN job, but the BACKUP actions file was not allocated, meaning

there were no problems.

DFHSM Activity Log

To view all of the DFHSM activity logs that were used as input for the LOGSCAN

utility, select option L4, DFHSM Activity Log, on the Reports menu (option S.L4 on

the SAW main menu). The DFHSM activity logs were copied to this report file when

the JCL was generated for the LOGSCAN job, which was done through the

LOGSCAN option on the Generate Dataplex-Related JCL screen (option S.2.9 on the

SAW main menu). If you need to track an action back to the DFHSM activity log, you

would use this option (L4).

********************************* TOP OF DATA ********************

HSEND BACKDS SMCFG.BAQ110.EXEC

******************************** BOTTOM OF DATA *******************

Chapter 7. Using Utilities

SAW provides an interface to a number of IBM utilities that you may find useful

when performing storage management activities. While each of these utilities is

described in detail in IBM documentation, they are briefly explained in this chapter so

that you will understand what to enter in the input fields to get the results you want.

References to the appropriate IBM documentation are provided so you can do more

research on a specific utility.

To access utilities, select option U, Utilities, on the SAW main menu. The following

screen displays:

There are three options on the Utilities menu. Each of these options, and the utilities

listed under them, are described in this chapter.

----------------------------- Utilities ---------------------------------------

OPTION ===>

System: SYSNAME1 Dataplex: MYDPLEX Mode: Local

1 CAMS Catalog Access Method Services using IDCAMS

2 DFDSS Data Storage Services using ADRDSSU

3 DSF Device Support Facilities using ICKDSF

148 Storage Administration Workbench for z/OS and OS/390:User’s Guide

If you choose option 1, CAMS, the following screen displays. All of the IDCAMS

utilities that are available from SAW are listed on the IDCAMS Functions menu.

Each of these utilities is briefly described in “Using IDCAMS Utilities” on page 150.

If you choose option 2, DFDSS, on the Utilities menu, a list of ADRDSSU functions

will display. The ADRDSSU Functions menu is shown below.

For information on the ADRDSSU functions, refer to “Using ADRDSSU utilities” on

page 179.

----------------------------- IDCAMS Functions --------------------------------

OPTION ===>

System: SYSNAME1 Local Dataplex: MYDPLEX

1 CONNECT CONNECT USER Catalog to MASTER Catalog

2 DISCONNECT DISCONNECT USER Catalog from MASTER Catalog

3 DEF MCAT DEFINE MASTER Catalog

4 DEF UCAT DEFINE USER Catalog

5 DEF ALIAS DEFINE ALIAS

6 DEL ALIAS DELETE ALIAS

7 LIST ALIAS LIST ALIAS

8 DEF GDG DEFINE Generation Data Group (GDG)

9 DEL GDG DELETE Generation Data Group (GDG)

10 ALTER GDG ALTER GDG Options

11 LIST GDG LIST Generation Data Group (GDG)

12 CACHE CACHE related IDCAMS Functions

13 DIAGNOSE DIAGNOSE BCS or VVDS structure

14 DEF VVDS DEFINE VVDS

15 DEL VVDS DELETE VVDS

16 LOCK UNLOCK LOCK UNLOCK Catalog

----------------------------- ADRDSSU Functions -------------------------------

OPTION ===>

System: SYSNAME1 Local Dataplex: MYDPLEX

1 DEFRAG Execute DEFRAG function

2 MOVE/COPY DSN MOVE or COPY data set(s) to other volume(s)

3 MOVE/COPY VOL MOVE or COPY the contents of volser(s)

4 COPY VOLUME COPY one volume to another volume (incl. VTOC)

5 CONVERTV Execute CONVERTV function

6 SPECIAL BACKUP Create JCL for special backup processing

Chapter 7. Using Utilities 149

If you choose option 3, DSF, on the Utilities menu, you will see a list of ICKDSF

functions. The next screen shows the ICKDSF Functions menu.

Refer to “Using Device Support Facilities (DSF)” on page 194 for more information on

these functions.

To help you understand each of these utilities, the rest of the chapter contains:

• The ISPF screen displaying the parameters for each utility

• Sample JCL that corresponds to the ISPF screen

The library, *.*.ISPSLIB(member), is mentioned throughout this chapter. In this

library *.*. refers to the HLQ and SLQ that was selected when the product was

installed.

----------------------------- ICKDSF Functions --------------------------------

OPTION ===>

System: SYSNAME1 Dataplex: MYDPLEX Mode: Local

1 INIT-3380 INIT MVS-DISK unit type 3380 model-D/-J or standard

2 INIT-3380E INIT MVS-DISK unit type 3380 model-E

3 INIT-3380K INIT MVS-DISK unit type 3380 model-K

4 INIT-3390-01 INIT MVS-DISK unit type 3390 model-01

5 INIT-3390-02 INIT MVS-DISK unit type 3390 model-02

6 INIT-3390-03 INIT MVS-DISK unit type 3390 model-03

7 INIT-3390-09 INIT MVS-DISK unit type 3390 model-09

8 INIT-3390-Opt INIT MVS-DISK unit type 3390 Optical

9 INIT DISK INIT MVS-DISK (no special unit type)

10 CONTROL Clear WRITE INHIBITED STOR-CONTROL or PATH FENCE STATUS

11 INSPECT INSPECT A VOLUME OR REASSIGN DEFECTIVE TRACKS

12 REFORMAT RENAME A VOLUME

13 ANALYZE ANALYZE A VOLUME FOR ERRORS

14 BUILDIX BUILD or REBUILD VTOC-INDEX

150 Storage Administration Workbench for z/OS and OS/390:User’s Guide

Using IDCAMS Utilities

To access the IDCAMS utilities, select option 1, CAMS, on the Utilities menu (option

U.1 from the SAW main menu). The following screen displays.

Each of these options is described in this section.

----------------------------- IDCAMS Functions --------------------------------

OPTION ===>

System: SYSNAME1 Local Dataplex: MYDPLEX

1 CONNECT CONNECT USER Catalog to MASTER Catalog

2 DISCONNECT DISCONNECT USER Catalog from MASTER Catalog

3 DEF MCAT DEFINE MASTER Catalog

4 DEF UCAT DEFINE USER Catalog

5 DEF ALIAS DEFINE ALIAS

6 DEL ALIAS DELETE ALIAS

7 LIST ALIAS LIST ALIAS

8 DEF GDG DEFINE Generation Data Group (GDG)

9 DEL GDG DELETE Generation Data Group (GDG)

10 ALTER GDG ALTER GDG Options

11 LIST GDG LIST Generation Data Group (GDG)

12 CACHE CACHE related IDCAMS Functions

13 DIAGNOSE DIAGNOSE BCS or VVDS structure

14 DEF VVDS DEFINE VVDS

15 DEL VVDS DELETE VVDS

16 LOCK UNLOCK LOCK UNLOCK Catalog

Chapter 7. Using Utilities 151

Option 1 - Connect

The IMPORT CONNECT command is used to connect a user catalog to the master

catalog. To use this command, you must describe the user catalog by specifying its

name, the volser on which it resides, and the device type.

When you choose option 1, Connect, on the IDCAMS Functions menu (option U.1.1

from the SAW main menu), the following screen displays:

The fields on this screen relate to the parameters in the JCL for this utility. The JCL

skeleton is shown below, with some example data. The skeleton shown below is a

combination of *.*.ISPSLIB(AWBS283), which is the start of the EXEC statement, and

*.*.ISPSLIB(AWBS287), which contains the IMPORT CONNECT statement.

//IDCAMS EXEC PGM=IDCAMS,REGION=0M <--AWBS283 E

//SYSPRINT DD SYSOUT=*

//*--------------------------------------------------------

//SYSIN DD *

IMPORT OBJECTS( - <--AWBS287

(MYCAT1 -

VOLUMES(SYS002) -

DEVICETYPE(3380))) -

CONNECT -

CATALOG(SYSCAT)

For complete details, read about IMPORT CONNECT in the IBM documentation,

DFSMS Access Method Services for Catalogs (SC26-7394). To read this book, go to

http://publibz.boulder.ibm.com/cgi-bin/bookmgr_OS390/FRAMESET/DGT2I210.

----------------------------- IDCAMS CONNECT ----------------------------------

COMMAND ===>

System: SYSNAME1 Local Dataplex: MYDPLEX

ENTER SELECTION: B ( F = FOREGROUND / B = BACKGROUND)

CONNECT USER-CATALOG to MASTER-CATALOG

IMPORT OBJECTS(( ________________________________ ) - <== enter Catalog Name

VOLUMES( ______ ) - <== enter Volser

DEVICETYPE( ______ ))) - <== enter Device-Type

CONNECT -

CATALOG( __________________________ ) <== enter Master Catalog

152 Storage Administration Workbench for z/OS and OS/390:User’s Guide

Option 2 - Disconnect

The EXPORT DISCONNECT command is used to disconnect a user catalog. The only

required argument for this command is the name of the catalog that you want to

remove. Do not make an entry in the Catalog field if the entry is being removed from

the master catalog.

When you choose option 2, Disconnect, on the IDCAMS Functions menu (option

U.1.2 from the SAW main menu), the following screen displays:

The fields on this screen relate to the parameters in the JCL for this utility. The JCL

skeleton is shown below, with some example data. The skeleton shown below is a

combination of *.*.ISPSLIB(AWBS283), which is the start of the EXEC statement, and

*.*.ISPSLIB(AWBS288), which contains the EXPORT DISCONNECT statement.

//*-------------------------------------------------------------------

//IDCAMS EXEC PGM=IDCAMS,REGION=0M

//SYSPRINT DD SYSOUT=*

//*------------------------------------------------- <--AWBS283

//SYSIN DD *

EXPORT MYCAT1 DISCONNECT - <-- AWBS288

CATALOG(SYSCAT1)

For complete details, read about EXPORT DISCONNECT in the IBM documentation,

DFSMS Access Method Services for Catalogs (SC26-7394). To read this book, go to

http://publibz.boulder.ibm.com/cgi-bin/bookmgr_OS390/FRAMESET/DGT2I210.

----------------------------- IDCAMS DISCONNECT -------------------------------

COMMAND ===>

System: SYSNAME1 Local Administrative Dataplex: MYDPLEX

DISCONNECT USER-CATALOG from MASTER-CATALOG

ENTER SELECTION: B ( F = FOREGROUND / B = BACKGROUND)

EXPORT ' _________________________________ ' DISCONNECT <== enter catalog name

CATALOG( _________________________________ ) <== enter master catalog if needed

Chapter 7. Using Utilities 153

Option 3 - DEF MCAT

The DEFINE MASTERCATALOG command is used to define the parameters for an

integrated catalog facility catalog (ICFCATALOG). When you choose option 3, DEF

MCAT, on the IDCAMS Functions menu (option U.1.3 from the SAW main menu),

the following screen displays:

The fields on this screen relate to the parameters in the JCL for this utility. The JCL

skeleton is shown below, with some example data. The skeleton shown below is a

combination of *.*.ISPSLIB(AWBS283), which is the start of the EXEC statement, and

*.*.ISPSLIB(AWBS238), which contains the DEFINE MASTERCATALOG statement.

//IDCAMS EXEC PGM=IDCAMS,REGION=0M

//SYSPRINT DD SYSOUT=*

//*----------------------------------------------- <--AWBS283

//SYSIN DD *

DEFINE MASTERCATALOG( - <-- AWBS238

NAME(SYSCAT) -

VOL(SYS002) -

CYL(010 005) -

IMBED ICFCATALOG STRNO(2)) -

DATA(CISZ(2048) FSPC(30 30) BUFND(3)) -

INDEX(CISZ(4096) BUFNI(3))

----------------------------- Catalog Utilities -------------------------------

COMMAND ==>

System: SYSNAME1 Local Dataplex: MYDPLEX

ENTER SELECTION: B ( B = BACKGROUND)

DEFINE MASTERCATALOG ( -

NAME ( _________________________________ ) - <== enter Name of MCAT

VOL ( ______ ) - <== enter Volser

CYL ( 010 005 ) IMBED ICFCATALOG STRNO(2)) - <== enter Space

DATA (CISZ( 2048 ) FSPC( 30 30 ) BUFND(3)) -

INDEX(CISZ( 4096 ) BUFNI(3))

154 Storage Administration Workbench for z/OS and OS/390:User’s Guide

The table below briefly describes the parameters for the JCL.

For complete details, read about DEFINE MASTERCATALOG in the IBM

documentation, DFSMS Access Method Services for Catalogs (SC26-7394). To read this

book, go to http://publibz.boulder.ibm.com/cgi-

bin/bookmgr_OS390/FRAMESET/DGT2I210.

Parameter Description

MASTERCATALOG Identifies this catalog as a master catalog.

NAME Specify the name of the master catalog.

VOL Indicate where the volume will reside.

CYL Specify the amount of space in cylinders that is required for primary

and secondary allocations.

IMBED This parameter is no longer supported, but is provided for

downward compatibility.

STRNO(2) This is a VSAM tuning argument. It indicates the number of

concurrent data set positioning calls that are supported.

DATA You can override the details of the data transfer parameters by

specifying the size of the control intervals (CISZ).

FSPC Free space (FSPC) is the percentage of the control interval (CI) and

control area (CA) that is left free for later inserts of data. FSPC is a

tuning variable.

BUFND The number of I/O buffers used to access the data.

INDEX You can override the details of the data transfer parameters by

specifying the size of the control intervals (CISZ).

BUFNI The number of I/O buffers used to access the index.

Chapter 7. Using Utilities 155

Option 4 - DEF UCAT

The DEFINE USERCATALOG command is used to define the parameters for an

integrated catalog facility catalog (ICFCATALOG). When you choose option 4, DEF

UCAT, on the IDCAMS Functions menu (option U.1.4 from the SAW main menu), the

following screen displays:

The fields on this screen relate to the parameters in the JCL for this utility. The JCL

skeleton is shown below, with some example data. The skeleton shown below is a

combination of *.*.ISPSLIB(AWBS283), which is the start of the EXEC statement, and

*.*.ISPSLIB(AWBS239), which contains the DEFINE USERCATALOG statement.

//IDCAMS EXEC PGM=IDCAMS,REGION=0M

//SYSPRINT DD SYSOUT=*

//*------------------------------------------------ <--AWBS283 E

//SYSIN DD *

DEFINE USERCATALOG( - <--AWBS239

NAME(MYCAT1) -

VOL(SYS002) -

CYL(050 010) -

IMBED ICFCATALOG STRNO(2) LOCK) -

DATA(CISZ(2048) FSPC(30 30) BUFND(3)) -

INDEX(CISZ(4096) BUFNI(3))

----------------------------- Catalog Utilities -------------------------------

COMMAND ==>

System: SYSNAME1 Local Dataplex: MYDPLEX

ENTER SELECTION: B ( B = BACKGROUND)

DEFINE USERCATALOG ( -

NAME ( _________________________________ ) - <== enter Name of MCAT

VOL ( ______ ) - <== enter Volser

CYL ( 050 010 ) IMBED ICFCATALOG STRNO(2) - <== enter Space

______ ) - <== enter LOCK or Blank

DATA (CISZ( 2048 ) FSPC( 30 30 ) BUFND(3)) -

INDEX(CISZ( 4096 ) BUFNI(3))

156 Storage Administration Workbench for z/OS and OS/390:User’s Guide

The table below briefly describes the parameters in the JCL.

For complete details, read about DEFINE USERCATALOG in the IBM

documentation, DFSMS Access Method Services for Catalogs (SC26-7394). To read this

book, go to http://publibz.boulder.ibm.com/cgi-

bin/bookmgr_OS390/FRAMESET/DGT2I210.

Parameter Description

USERCATALOG Identifies this catalog as a user catalog.

NAME Specify the name of the user catalog.

VOL Indicate where the volume will reside.

CYL Specify the amount of space in cylinders that is required for primary

and secondary allocations.

IMBED This parameter is no longer supported, but is provided for

downward compatibility.

STRNO(2) This is a VSAM tuning argument. It indicates the number of

concurrent data set positioning calls that are supported.

LOCK Specify this parameter to create the catalog with restricted access. The

default is UNLOCK.

DATA You can override the details of the data transfer parameters by

specifying the size of the control intervals (CISZ).

FSPC Free space (FSPC) is the percentage of the control interval (CI) and

control area (CA) that is left free for later inserts of data. FSPC is a

tuning variable.

BUFND The number of I/O buffers used to access the data.

INDEX You can override the details of the data transfer parameters by

specifying the size of the control intervals (CISZ).

BUFNI The number of I/O buffers used to access the index.

Chapter 7. Using Utilities 157

Option 5 - DEF ALIAS

The DEFINE ALIAS command is used to specify an alternate name for a catalog. The

NAME parameter is the new name, the alias, that you are defining. The REL

parameter is the related name, which is the name of the original catalog. In other

words, the name you provide with the NAME parameter is the alias for the catalog

listed in the REL parameter. Leave the CATALOG name field blank if the alias is to be

created in the master catalog.

When you choose 5, DEF ALIAS, on the IDCAMS Functions menu (U.1.5 from the

SAW main menu), the screen below displays.

The fields on this screen relate to the parameters in the JCL for this utility. The JCL

skeleton is shown below, with some example data. The skeleton shown below is a

combination of *.*.ISPSLIB(AWBS283), which is the start of the EXEC statement, and

*.*.ISPSLIB(AWBS289), which contains the DEFINE ALIAS statement.

//IDCAMS EXEC PGM=IDCAMS,REGION=0M

//SYSPRINT DD SYSOUT=*

//*---------------------------------------------- <--AWBS283

//SYSIN DD *

DEFINE ALIAS(NAME(JULIEG) REL(MYCAT1)) - <--AWBS289

CATALOG(MASTER1)

For complete details, read about DEFINE ALIAS in the IBM documentation, DFSMS

Access Method Services for Catalogs (SC26-7394). To read this book, go to

http://publibz.boulder.ibm.com/cgi-bin/bookmgr_OS390/FRAMESET/DGT2I210.

----------------------------- IDCAMS DEFINE ALIAS -----------------------------

COMMAND ===>

System: SYSNAME1 Local Administrative Dataplex: MYDPLEX

ENTER SELECTION: F ( F = FOREGROUND / B = BACKGROUND)

DEFINE ALIAS(NAME( ____________________________________ )- <== enter ALIAS Name

REL( ___________________________________ )) <== enter Usercat Name

CATALOG( ______________________________________ ) <== enter Mastercat if needed

158 Storage Administration Workbench for z/OS and OS/390:User’s Guide

Option 6 - DEL ALIAS

The DELETE ALIAS command is used to delete an alternate name for a catalog. The

NAME parameter is the alias that you are deleting. Leave the CATALOG name field

blank if the alias is defined in the master catalog.

When you choose 6, DEL ALIAS, on the IDCAMS Functions menu (U.1.6 from the

SAW main menu), the following screen displays:

The fields on this screen relate to the parameters in the JCL for this utility. The JCL

skeleton is shown below, with some example data. The skeleton shown below is a

combination of *.*.ISPSLIB(AWBS283), which is the start of the EXEC statement, and

*.*.ISPSLIB(AWBS290), which contains the DELETE ALIAS statement.

//IDCAMS EXEC PGM=IDCAMS,REGION=0M

//SYSPRINT DD SYSOUT=*

//*---------------------------------------------- <--AWBS283

//SYSIN DD *

DELETE MYCATG CATALOG(SYSCAT1) ALIAS <--AWBS290

For complete details, read about DELETE ALIAS in the IBM documentation, DFSMS

Access Method Services for Catalogs (SC26-7394). To read this book, go to

http://publibz.boulder.ibm.com/cgi-bin/bookmgr_OS390/FRAMESET/DGT2I210.

----------------------------- IDCAMS DELETE ALIAS -----------------------------

COMMAND ===>

System: SYSNAME1 Local Administrative Dataplex: MYDPLEX

ENTER SELECTION: F ( F = FOREGROUND / B = BACKGROUND)

DELETE ____________________________________ ALIAS <== enter ALIAS Name

CATALOG( ___________________________________ ) <== enter Mastercat if needed

Chapter 7. Using Utilities 159

Option 7 - LIST ALIAS

The LIST ALIAS command displays alias entries from a catalog. Specify the alias

name in the ENT (entry) field. Omit the catalog name if the alias is defined in the

master catalog.

When you choose option 7, LIST ALIAS, on the IDCAMS Functions screen (U.1.7

from the SAW main menu), the following screen displays:

The fields on this screen relate to the parameters in the JCL for this utility. The JCL

skeleton is shown below, with some example data. The skeleton shown below is a

combination of *.*.ISPSLIB(AWBS299), which is part of the EXEC statement, and

*.*.ISPSLIB(AWBS283), which contains the LIST ALIAS statement.

//*---------------------------------------- <-- AWBS299 S

// MSGCLASS=AWBSCL,MSGLEVEL=(1,1),

// CLASS=AWBECL,

// TIME=1439,REGION=0M

/*JOBPARM SYSAFF=RS02,LINES=9999,CARDS=99999

//IDCAMS EXEC PGM=IDCAMS,REGION=0M

//SYSPRINT DD SYSOUT=*

//*---------------------------------------------- <--AWBS283

//SYSIN DD *

LISTCAT ENT(MYCATG) CATALOG(SYSCAT1) ALIAS ALL <--AWBS003

For complete details, read about LIST ALIAS in the IBM documentation, DFSMS

Access Method Services for Catalogs (SC26-7394). To read this book, go to

http://publibz.boulder.ibm.com/cgi-bin/bookmgr_OS390/FRAMESET/DGT2I210.

----------------------------- IDCAMS LIST ALIAS -------------------------------

COMMAND ===>

System: SYSNAME1 Local Administrative Dataplex: MYDPLEX

ENTER SELECTION: F ( F = FOREGROUND / B = BACKGROUND)

LISTC ENT( ____________________________________ ) ALIAS <== enter ALIAS Name

CATALOG( ______________________________________ ) <== enter Mastercat if needed

160 Storage Administration Workbench for z/OS and OS/390:User’s Guide

Option 8 - DEF GDG

The DEFINE GDG command creates a catalog entry for a generation data group

(GDG). When you choose option 8, DEF GDG, on the IDCAMS Functions screen

(U.1.8 from the SAW main menu), the following screen displays:

The fields on this screen relate to the parameters in the JCL for this utility. The JCL

skeleton is shown below, with some example data. The skeleton shown below is a

combination of *.*.ISPSLIB(AWBS283), which is the start of the EXEC statement, and

*.*.ISPSLIB(AWBS291), which contains the DEFINE GDG statement.

//IDCAMS EXEC PGM=IDCAMS,REGION=0M

//SYSPRINT DD SYSOUT=*

//*------------------------------------------------<--AWBS283 E

//SYSIN DD *

DEF GDG(NAME(DEV01.WORK) EMPTY SCRATCH - <--AWBS291

LIMIT(3)) CATALOG(SYSCAT1)

The table below briefly describes the parameters in the JCL.

Parameter Description

NAME Specify the name of the data set

EMPTY

NOEMPTY

Use EMPTY to indicate that every generation should be deleted when

the limit is exceeded.

Use NOEMPTY to only delete the oldest generation.

----------------------------- IDCAMS DEFINE GDG -------------------------------

COMMAND ===>

System: SYSNAME1 Local Administrative Dataplex: MYDPLEX

ENTER SELECTION: F ( F = FOREGROUND / B = BACKGROUND)

DEFINE GENERATIONDATAGROUP( -

NAME( _____________________________________ ) - <== enter Dataset Name

( _______ ) - <== NOEMPTY/EMPTY

( _________ ) - <== NOSCRATCH/SCRATCH

LIMIT( ___ )) <== enter LIMIT Count

CATALOG( _______________________________________ ) <== enter catalog if needed

Chapter 7. Using Utilities 161

For complete details, read about DEFINE GENERATIONDATAGROUP in the IBM

documentation, DFSMS Access Method Services for Catalogs (SC26-7394). To read this

book, go to http://publibz.boulder.ibm.com/cgi-

bin/bookmgr_OS390/FRAMESET/DGT2I210.

Option 9 - DEL GDG

The DELETE GDG command deletes the generation data group (GDG) specified in

the data set name field. The PURGE parameter specifies that the entry will be deleted,

even if its retention period has not expired. You can only delete a GDG that is empty.

When you choose option 9, DEL GDG, on the IDCAMS Functions (U.1.9 from the

SAW main menu), the following screen displays:

The fields on this screen relate to the parameters in the JCL for this utility. The JCL

skeleton is shown below, with some example data. The skeleton shown below is a

combination of *.*.ISPSLIB(AWBS283), which is the start of the EXEC statement, and

*.*.ISPSLIB(AWBS292), which contains the DELETE GDG statement.

//IDCAMS EXEC PGM=IDCAMS,REGION=0M

//SYSPRINT DD SYSOUT=*

//*---------------------------------------------- <--AWBS283

//SYSIN DD *

DEL DEV01.WORK - <--AWBS292

CATALOG(SYSCAT1) -

GDG PURGE

SCRATCH

NOSCRATCH

Use SCRATCH if you want all of the control information (DSCB) to

be deleted when a generation is deleted from the catalog.

Use NOSCRATCH to keep the control information intact so the data

set generation can still be located after the generation version is

uncataloged.

LIMIT Specify how many versions will be kept in the generation data group.

Parameter Description

----------------------------- IDCAMS DELETE GDG -------------------------------

COMMAND ===>

System: SYSNAME1 Local Administrative Dataplex: MYDPLEX

ENTER SELECTION: F ( F = FOREGROUND / B = BACKGROUND)

DELETE _____________________________________ - <== enter Dataset Name

GENERATIONDATAGROUP PURGE

CATALOG _____________________________________ <== enter catalog if needed

162 Storage Administration Workbench for z/OS and OS/390:User’s Guide

For complete details, read about DELETE GENERATIONDATAGROUP in the IBM

documentation, DFSMS Access Method Services for Catalogs (SC26-7394). To read this

book, go to http://publibz.boulder.ibm.com/cgi-

bin/bookmgr_OS390/FRAMESET/DGT2I210.

Option 10 - ALTER GDG

The ALTER GDG command lets you change the attributes of a generation data group

(GDG). When you choose option 10, ALTER GDG, on the IDCAMS Functions (U.1.10

from the SAW main menu), the following screen displays:

The fields on this screen relate to the parameters in the JCL for this utility. The JCL

skeleton is shown below, with some example data. The skeleton shown below is a

combination of *.*.ISPSLIB(AWBS283), which is the start of the EXEC statement, and

*.*.ISPSLIB(AWBS293), which contains the ALTER GDG statement.

//IDCAMS EXEC PGM=IDCAMS,REGION=0M

//SYSPRINT DD SYSOUT=*

//*---------------------------------------------- <--AWBS283

//SYSIN DD *

ALTER DEV01.WORK EMPTY SCRATCH LIMIT(3) - <--AWBS293

CATALOG(SYSCAT3)

The table below briefly describes the parameters in the JCL.

Parameter Description

NAME Specify the name of the data set

EMPTY

NOEMPTY

Use EMPTY to indicate that every generation should be deleted when

the limit is exceeded.

Use NOEMPTY to only delete the oldest generation.

----------------------------- IDCAMS ALTER GDG --------------------------------

COMMAND ===>

System: SYSNAME1 Local Administrative Dataplex: MYDPLEX

ENTER SELECTION: F ( F = FOREGROUND / B = BACKGROUND)

ALTER _____________________________________ ' - <== enter Dataset Name

( _______ ) - <== NOEMPTY/EMPTY

( _________ ) <== NOSCRATCH/SCRATCH

( ___ ) <== enter LIMIT count

CATALOG( ____________________________________ ) <== enter catalog if needed

Chapter 7. Using Utilities 163

For complete details, read about ALTER in the IBM documentation, DFSMS Access

Method Services for Catalogs (SC26-7394). To read this book, go to

http://publibz.boulder.ibm.com/cgi-bin/bookmgr_OS390/FRAMESET/DGT2I210.

Option 11 - LIST GDG

The LIST GDG command lets you display a list of generation data groups (GDGs) that

match the generic name you specify in the ENT (entry) field. The ALL parameter will

identify generation data sets that are active at the time the LIST GDG is run.

When you choose option 11, LIST GDG, on the IDCAMS Functions (U.1.11 from the

SAW main menu), the following screen displays:

The fields on this screen relate to the parameters in the JCL for this utility. The JCL

skeleton is shown below, with some example data. The skeleton shown below is a

combination of *.*.ISPSLIB(AWBS283), which is the start of the EXEC statement, and

*.*.ISPSLIB(AWBS294), which contains the LIST GDG statement.

//IDCAMS EXEC PGM=IDCAMS,REGION=0M

//SYSPRINT DD SYSOUT=*

//*--------------------------------------------- <--AWBS283

//SYSIN DD *

LISTC ENT(DEV01.*) - <--AWBS294

CATALOG(SYSCAT2) -

GDG ALL

SCRATCH

NOSCRATCH

Use SCRATCH if you want all of the control information (DSCB) to

be deleted when a generation is deleted from the catalog.

Use NOSCRATCH to keep the control information intact so the data

set generation can still be located after the generation version is

deleted (uncataloged).

LIMIT Specify how many versions will be kept in the generation data group.

Parameter Description

----------------------------- IDCAMS LIST GDG ---------------------------------

COMMAND ===>

System: SYSNAEM1 Local Administrative Dataplex: MYDPLEX

ENTER SELECTION: F ( F = FOREGROUND / B = BACKGROUND)

LISTC

ENT( _____________________________________ ) GDG - <== enter Dataset Name

ALL

CATALOG( ____________________________________ ) <== enter catalog if needed

164 Storage Administration Workbench for z/OS and OS/390:User’s Guide

For complete details, read about LISTCAT in the IBM documentation, DFSMS Access

Method Services for Catalogs (SC26-7394). To read this book, go to

http://publibz.boulder.ibm.com/cgi-bin/bookmgr_OS390/FRAMESET/DGT2I210.

Option 12 - CACHE

When you choose option 12, Cache, on the IDCAMS Functions menu (U.1.12 from the

SAW main menu), you are presented with a menu containing two options. You must

first enter a value for the cache model that is installed on the dataplex. The forms vary

for each model type:

• If your drives are 3390 units, enter 03. Cache models 06 and SK call the same form

as 03.

• If your drives are 3380, enter 13.

The screen on which you specify a cache model is shown below.

You have two options on the Cache Management screen:

1. SETCACHE. Choose option 1 to process SETCACHE functions.

2. LISTDATA. Choose option 2 to process LISTDATA functions.

The results of choosing these options are described in this section.

SETCACHE

You must understand the consequences of setting the cache subsystem and device

options. Data can be lost if cache control is used inappropriately. Refer to your system

documentation for details on using the cache subsystem. The Cache processing

commands are described in the IBM documentation, 3990/9390 Operations and

Recovery Guide (GA32-0253-03).

When you choose option 1, SETCACHE, on the Cache Management screen, and have

entered either 03, 06, or SK as the type of cache, the next screen displays.

----------------------------- Cache Management --------------------------------

OPTION ===>

System: SYSNAME1 Local Administrative Dataplex: MYDPLEX

Select one of the following cache models: 03 (03/06/13/23/SK)

1 SETCACHE Modify CACHE settings

2 LISTDATA List CACHE information

Chapter 7. Using Utilities 165

The tables below describes the fields on the Cache Management screen.

Notice that there are "Basic functions" and "Extended functions." You can either

choose one basic function or one extended function. You cannot choose more than one

function. These options are described in the next two tables.

For the "Basic Functions", you can activate a feature using ON or prohibit a feature

using OFF. A pending off (POFF) is a special error recovery state that is used with

SUBSYS or DFW after either of these failed with OFF. Use POFF carefully as data

could be lost.

Parameter Description

SETCACHE VOLUME Type the volser of the volume.

UNIT Specify the unit type of the volume.

Parameter Description

DEV Type ON to activate or OFF to prohibit caching on a device.

SUBSYS Type ON to activate or OFF to prohibit caching on all devices in a

subsystem. You can also use pending off (POFF) for a special error

recovery state if SUBSYS fails with OFF.

NVS Indicate with ON or OFF whether to control access to nonvolatile

storage.

----------------------------- Cache Management --------------------------------

COMMAND ==>

System: SYSNAME1 Local Administrative Dataplex: MYDPLEX

Enter selection: F ( B = BACKGROUND / F = FOREGROUND )

SETCACHE VOLUME( SYS010 ) - <== enter any Volser on Subsystem

UNIT( 3390 ) - <== enter Device-Type

Choose either one Basic Function or one Extended Function only

Basic functions:

DEV ___ SUBSYS ___ NVS ___ DFW ____ CFW ____ <== enter ON, OFF or POFF

Extended functions:

DISCARDPINNED Y DESTAGE _ REINITIALIZE _ <= enter Y

SUSPENDPRIMARY _ SUSPENDSECONDARY _ <= enter Y

RESETTODUPLEX _ RESETTOSIMPLEX _ <= enter Y

SETSECONDARY( ____ ) REESTABLISHDUPLEX( ____ ) <= enter UCB

Dual-write options COPY Y <= enter Y or N

PACE( 15_ ) <= 0 - 255; the number of tracks

166 Storage Administration Workbench for z/OS and OS/390:User’s Guide

The extended cache options on some models allow you to specify a pair of volumes,

referred to as the primary and secondary volumes, that are used for dual writes. The

secondary volume is a cache-maintained copy of the primary volume. This enables

you to have continuous data backup of the primary volume.

The three extended cache options that you may find the most useful are:

• SETSECONDARY. This is used to identify a pair of volumes.

• RESETTOSIMPLEX. This ends the pairing.

• COPY. The COPY argument instructs the cache subsystem to copy the primary

volume to the secondary when one of the duplex commands is issued.

All of the arguments available for dual-write processing are described in the table

below, along with other "extended" functions.

DFW Carefully choose whether to use DASD Fast Writes (DFW) or Cache

Fast Writes (CFW). The DASD Fast Write process writes data both

to cache and nonvolatile storage. It also schedules the data for

permanent recording on DASD, a process called de-staging.

Type ON to activate or OFF to prohibit DASD fast writes. You can

also use pending off (POFF) for a special error recovery state if DFW

fails with OFF.

CFW Carefully choose whether to use Cache Fast Writes (CFW) or DASD

Fast Writes (DFW). The Cache Fast Write process writes data to

cache, but not to nonvolatile storage. This is acceptable for

temporary work files.

Type ON to activate or OFF to prohibit Cache Fast Writes.

Parameter Description

DISCARDPINNED Type Y to delete pinned data from the cache subsystem.

"Pinned data" is data held in the cache subsystem after an error,

and is a consequence of using DASD Fast Write or dual-write

volumes. Pinned data may eventually be destaged (written) to

DASD. It can also be discarded with the DISCARDPINNED

option.

DESTAGE Type Y to move data from the cache to DASD.

REINITIALIZE Type Y to reset the cache subsystem to its initial state, including

disabling all dual-write volumes.

SUSPENDPRIMARY This is a a dual-write argument that stops writing to the

primary volume in a pair. The secondary volume becomes the

primary.

SUSPENDSECONDARY This is a dual-write argument that stops writing to the

secondary volume in a pair.

RESETTODUPLEX This is a dual-write argument that resumes dual writes after a

suspend was issued.

RESETTOSIMPLEX This is a dual-write argument that ends a dual-write connection

between two volumes. DASD Fast Write is disabled on what

was the secondary volume.

Parameter Description

Chapter 7. Using Utilities 167

The fields on this screen relate to the parameters in the JCL for this utility. The JCL

skeleton is shown below, with some example data. The skeleton shown below is a

combination of *.*.ISPSLIB(AWBS283), which is the start of the EXEC statement, and

*.*.ISPSLIB(AWBSS03), which contains the SETCACHE statement.

//IDCAMS EXEC PGM=IDCAMS,REGION=0M

//SYSPRINT DD SYSOUT=*

//*------------------------------------------- <--AWBS283

//SYSIN DD *

SETCACHE VOLUME(SYS010) - <--AWBSS03

UNIT(3390) -

DPIN

If you select option 1, SETCACHE, and enter a value of 13 as the cache model, the

next screen displays.

SETSECONDARY This is a dual-write argument that sets a volume as the

secondary in a duplex write pairing. This starts dual-write

processing for a pair of volumes. To use this option, you must

specify a unit number in the SETSECONDARY field.

REESTABLISHDUPLEX This is a dual-write argument that assigns a volume to a

suspended duplex pairing and restarts dual writes. To use this

option, you must specify a unit number in the

REESTABLISHDUPLEX field.

COPY Type Y to indicate that the cache subsystem should start

copying the primary volume to the secondary volume when a

dual-write pairing is activated.

Type N if you know that the primary and secondary volumes

are already identical.

PACE Type a number from 0 - 255 to indicate how many tracks are to

be written without interruption during a copy. A large number

locks out other access to the volume.

Parameter Description

168 Storage Administration Workbench for z/OS and OS/390:User’s Guide

Specify the volser and unit type to identify the volume, then choose one option from

the list. The cache only processes one option at a time. The table below describes the

fields available for model 13.

The fields on this screen relate to the parameters in the JCL for this utility. The JCL

skeleton is shown below, with some example data. The skeleton shown below is a

combination of *.*.ISPSLIB(AWBS283), which is the start of the EXEC statement, and

*.*.ISPSLIB(AWBSS13), which contains the SETCACHE statement.

//IDCAMS EXEC PGM=IDCAMS,REGION=0M

//SYSPRINT DD SYSOUT=*

//*-------------------------------------------- <--AWBS283

//SYSIN DD *

SETCACHE VOLUME(SYS023) - <--AWBSS13

UNIT(3380) -

DEVICE ON

Parameter Description

SETCACHE VOLUME Type the volser of the volume.

UNIT Specify the unit type of the volume.

DEV Type ON to activate or OFF to prohibit caching on a device.

Note: You can choose DEV or SUBSYS, but not both.

SUBSYS Type ON to activate or OFF to prohibit caching on all devices in a

subsystem.

Note: You can choose SUBSYS or DEV, but not both.

----------------------------- Cache Management --------------------------------

COMMAND ==>

System: SYSNAME1 Local Administrative Dataplex: MYDPLEX

Enter selection: B ( B = BACKGROUND / F = FOREGROUND )

SETCACHE VOLUME( SYS023 ) - <== enter any Volser on Subsystem

UNIT( 3380__ ) - <== enter Device-Type

Choose one of the following:

DEVICE ON_ SUBSYSTEM ___ <== ON or OFF

Chapter 7. Using Utilities 169

If you select option 1, SETCACHE, and enter a value of 23 as the cache model, the

following screen displays:

Specify the volser and unit type to identify the volume, then choose one option from

the list. The cache only processes one option at a time. The table below describes the

fields available for model 23.

The fields on this screen relate to the parameters in the JCL for this utility. The JCL

skeleton is shown below, with some example data. The skeleton shown below is a

combination of *.*.ISPSLIB(AWBS283), which is the start of the EXEC statement, and

*.*.ISPSLIB(AWBSS23), which contains the SETCACHE statement.

//IDCAMS EXEC PGM=IDCAMS,REGION=0M

//SYSPRINT DD SYSOUT=*

//*---------------------------------------------- <--AWBS283

//SYSIN DD *

SETCACHE VOLUME(SYS023) - <--AWBSS23

UNIT(3380) -

SUBSYSTEM ON

Parameter Description

SETCACHE VOLUME Type the volser of the volume.

UNIT Specify the unit type of the volume.

DEV Type ON to activate or OFF to prohibit caching on a device.

Note: You can choose DEV or SUBSYS, but not both.

SUBSYS Type ON to activate or OFF to prohibit caching on all devices in a

subsystem.

Note: You can choose SUBSYS or DEV, but not both.

----------------------------- Cache Management --------------------------------

COMMAND ==>

System: RS02RS02 Local Administrative Dataplex: RKSPLEX

Enter selection: B ( B = BACKGROUND / F = FOREGROUND )

SETCACHE VOLUME( SYS023 ) - <== enter any Volser on Subsystem

UNIT( 3380__ ) - <== enter Device-Type

Choose one of the following:

DEVICE ___ SUBSYSTEM ON_ <== ON or OFF

170 Storage Administration Workbench for z/OS and OS/390:User’s Guide

LISTDATA

When you choose option 2, LISTDATA, on the Cache Management menu (U.1.12.2

from the SAW main menu), and enter 03, 06, or SK as the cache model, the following

screen displays:

Specify the volser and unit type to identify the volume. Next, select one type of report

from the list. The command only produces one type of report at a time. The table

below describes the fields on the screen.

Parameter Description

LISTDATA STATUS

VOLUME

Type the volser of the volume.

UNIT Specify the device type of the volume.

STATUS Type Y or N to indicate whether you want to see the subsystem

status report.

COUNTS Indicate if you want the see the subsystem counters report. Valid

entries are:

• D - Prints the report for a specific device.

• S - Prints a report that includes all devices within the

subsystem.

• A - Prints a report that includes all devices on similar Storage

Control models.

PINNED Indicate if you want the see the report on pinned data that has a

cross reference to data sets. Valid entries are:

• D - Prints the report for a specific device.

• S - Prints a report that includes all devices within the

subsystem.

• A - Prints a report that includes all devices on similar Storage

Control models.

----------------------------- Cache Management --------------------------------

COMMAND ==>

System: SYSNAME1 Local Administrative Dataplex: MYDPLEX

Enter selection: F ( B = BACKGROUND / F = FOREGROUND )

LISTDATA STATUS VOLUME( SYS010 ) - <== enter any Volser on Subsystem

UNIT( 3390_ ) <== enter Device-Type

Choose one of the following report types:

STATUS Y <== enter Y or N

COUNTS _ <== enter D for DEVICE

PINNED _ or S for SUBSYSTEM

DSTATUS _ or A for ALL

Chapter 7. Using Utilities 171

All of the fields on this screen relate to the parameters in the JCL for this utility. The

JCL skeleton is shown below, with some example data. The skeleton shown below is

a combination of *.*.ISPSLIB(AWBS283), which is the start of the EXEC statement, and

*.*.ISPSLIB(AWBSL03), which contains the LISTDATA statement.

//IDCAMS EXEC PGM=IDCAMS,REGION=0M

//SYSPRINT DD SYSOUT=*

//*----------------------------------------------- <--AWBS283

//SYSIN DD *

LISTDATA STATUS VOLUME(SYS010) UNIT(3390) <--AWBSL03

When you choose option 2, LISTDATA, on the Cache Management menu (U.1.12.2

from the SAW main menu), and enter 13 as the cache model, the following screen

displays:

Specify the volser and unit type to identify the volume. Next, select one type of report

from the list. The command only produces one type of report at a time. The next table

describes the fields on the screen.

DSTATUS Indicate if you want the see the device status report. Valid entries

are:

• D - Prints the report for a specific device.

• S - Prints a report that includes all devices within the

subsystem.

• A - Prints a report that includes all devices on similar Storage

Control models.

Parameter Description

----------------------------- Cache Management --------------------------------

COMMAND ==>

System: SYSNAME1 Local Administrative Dataplex: MYDPLEX

Enter selection: F ( B = BACKGROUND / F = FOREGROUND )

LISTDATA STATUS VOLUME( SYS010 ) - <== enter any Volser on Subsystem

UNIT( 3380_ ) <== enter Device-Type

Choose one of the following report types:

STATUS Y <== enter Y or N

COUNTS _ <== enter D for DEVICE

or S for SUBSYSTEM

or A for ALL

172 Storage Administration Workbench for z/OS and OS/390:User’s Guide

The fields on this screen relate to the parameters in the JCL for this utility. The JCL

skeleton is shown below, with some example data. The skeleton shown below is a

combination of *.*.ISPSLIB(AWBS283), which is the start of the EXEC statement, and

*.*.ISPSLI(AWBSL13), which contains the LISTDATA statement.

//IDCAMS EXEC PGM=IDCAMS,REGION=0M

//SYSPRINT DD SYSOUT=*

//*---------------------------------------------- <--AWBS283

//SYSIN DD *

LISTDATA STATUS VOLUME(SYS010) UNIT(3380) <--AWBSL13

Parameter Description

LISTDATA STATUS

VOLUME

Type the volser of the volume.

UNIT Specify the device type of the volume.

STATUS Type Y or N to indicate whether you want to see the subsystem

status report.

COUNTS Indicate if you want the see the subsystem counters report. Valid

entries are:

• D - Prints the report for a specific device.

• S - Prints a report that includes all devices within the

subsystem.

• A - Prints a report that includes all devices on similar Storage

Control models.

Chapter 7. Using Utilities 173

When you choose option 2, LISTDATA, on the Cache Management menu (U.1.12.2

from the SAW main menu), and enter 23 as the cache model, the following screen

displays:

The fields on this screen relate to the parameters in the JCL for this utility. The JCL

skeleton is shown below, with some example data. The skeleton shown below is a

combination of *.*.ISPSLIB(AWBS283), which is the start of the EXEC statement, and

*.*.ISPSLIB(AWBSL23), which contains the LISTDATA statement.

//IDCAMS EXEC PGM=IDCAMS,REGION=0M

//SYSPRINT DD SYSOUT=*

//*-------------------------------------------- <--AWBS283

//SYSIN DD *

LISTDATA STATUS VOLUME(SYS023) UNIT(3380) <--AWBSL23

Parameter Description

LISTDATA STATUS

VOLUME

Type the volser of the volume.

UNIT Specify the device type of the volume.

STATUS Type Y or N to indicate whether you want to see the subsystem

status report.

COUNTS Indicate if you want the see the subsystem counters report. Valid

entries are:

• D - Prints the report for a specific device.

• S - Prints a report that includes all devices within the

subsystem.

• A - Prints a report that includes all devices on similar Storage

Control models.

----------------------------- Cache Management --------------------------------

COMMAND ==>

System: SYSNAME1 Local Administrative Dataplex: MYDPLEX

Enter selection: F ( B = BACKGROUND / F = FOREGROUND )

LISTDATA STATUS VOLUME( SYS010 ) - <== enter any Volser on Subsystem

UNIT( 3380_ ) <== enter Device-Type

Choose one of the following report types:

STATUS Y <== enter Y or N

COUNTS _ <== enter D for DEVICE

or S for SUBSYSTEM

or A for ALL

174 Storage Administration Workbench for z/OS and OS/390:User’s Guide

Option 13 - Diagnose

The DIAGNOSE command scans a basic catalog structure (BCS) or a VSAM volume

data set (VVDS) to validate the data structures and detect structure errors. When you

choose option 13, DIAGNOSE, on the IDCAMS Functions menu (U.1.13 from the

SAW main menu), the following screen appears:

The fields on this screen are briefly described in the table below:

Parameter Description

ICFCAT/VVDS Select either ICFCAT to check the catalog entries or VVDS to check

the VSAM volume data set.

INDATASET Supply a data set name.

COMPAREDS Supply a data set name if you want to run a comparison between the

basic catalog structure (BCS) and the VSAM volume data set (VVDS).

You can specify more than one name.

LIST Enter Y if you want a list of all scanned entries and any errors.

Enter N if you want a list of entries that are in error.

DUMP Indicate whether you want a hexadecimal dump of comparison

errors. Enter Y for yes, N for no.

INCLUDE

EXCLUDE

The INCLUDE/EXCLUDE parameter provides three different types

of filtering. Pick only one of the following types of filters:

• ENTRIES. A list of entry names.

• CATALOG. A list of catalogs.

• LEVEL. A list of high level qualifiers.

----------------------------- DASD Utilites -----------------------------------

COMMAND ==>

System: SYSNAME1 Local Administrative Dataplex: MYDPLEX

Execute DIAGNOSE Function

ENTER SELECTION: B ( B = BACKGROUND)

DIAGNOSE ICFCAT ICFCAT/VVDS INDATASET: ____________________________________

COMPAREDS: ____________________________________

LIST : Y

DUMP : N

ELIMIT : 16____

EXCLUDE (EXCLUDE/INCLUDE)

Entries: _________________________________________________________________ or

Catalog: _________________________________________________________________ or

Level : _________________________________________________________________

Chapter 7. Using Utilities 175

The fields on the screen relate to the parameters in the JCL for this DIAGNOSE utility.

The JCL skeleton is shown below, with some example data. The skeleton shown

below is a combination of *.*.ISPSLIB(AWBS283), which is the start of the EXEC

statement, and *.*.ISPSLIB(AWBSDI1), which contains the DIAGNOSE statement.

//IDCAMS EXEC PGM=IDCAMS,REGION=0M

//SYSPRINT DD SYSOUT=*

//*--------------------------------------------- <--AWBS283

//SYSIN DD *

DIAGNOSE ICFCAT - <--AWBSDI1

LIST -

NODUMP -

ELIMIT(16) -

EXCLUDE(ENT(DEV01.WORK1)) -

INDATASET(USERCAT.V039R8)

For complete details, read about DIAGNOSE in the IBM documentation, DFSMS

Access Method Services for Catalogs (SC26-7394). To read this book, go to

http://publibz.boulder.ibm.com/cgi-bin/bookmgr_OS390/FRAMESET/DGT2I210.

176 Storage Administration Workbench for z/OS and OS/390:User’s Guide

Option 14 - DEF VVDS

This option uses the DEFINE CLUSTER command to define attributes for a VVDS

(VSAM volume data set). The data set name listed in the NAME field is built

automatically. You must specify a volser in the VOLUME field that will be appended

to the data set name. The default space allocation in the NONINDEXED TRACKS

field is 60 initial tracks, 30 secondary tracks. You can change the number of tracks to

fit your needs.

When you choose option 14, DEF VVDS, the IDCAMS Functions menu (U.1.13 from

the SAW main menu), the following screen appears:

The fields on the screen relate to the parameters in the JCL for this DEFINE CLUSTER

utility. The JCL skeleton is shown below, with some example data. The skeleton

shown below is a combination of *.*.ISPSLIB(AWBS283), which is the start of the

EXEC statement, and *.*.ISPSLIB(AWBS296), which contains the DEFINE CLUSTER

statement.

//IDCAMS EXEC PGM=IDCAMS,REGION=0M

//SYSPRINT DD SYSOUT=*

//*----------------------------------------------- <--AWBS283

//SYSIN DD *

DEFINE CLUSTER(NAME(SYS1.VVDS.V) - <--AWBS296

VOLUMES(SYS002) NONINDEXED TRACKS(60 30))

For complete details, read about DEFINE CLUSTER in the IBM documentation,

DFSMS Access Method Services for Catalogs (SC26-7394). To read this book, go to

http://publibz.boulder.ibm.com/cgi-bin/bookmgr_OS390/FRAMESET/DGT2I210.

----------------------------- IDCAMS DEFINE VVDS ------------------------------

COMMAND ===>

System: RS02RS02 Local Administrative Dataplex: RKSPLEX

DEFINE VVDS on volume

ENTER SELECTION: F ( F = FOREGROUND / B = BACKGROUND)

Attention: The volume serial must be online to perform this action

DEFINE CLUSTER(

NAME( SYS1.VVDS.V________________________________ ) -

VOLUME( ______ ) -

NONINDEXED -

TRACKS( 60_ 30_ ))

Chapter 7. Using Utilities 177

Option 15 - DEL VVDS

This option uses the DELETE CLUSTER command to delete a VSAM volume data set

(VVDS). You must complete the VVDS name by adding the volser to the string.

Specify the same volser in the FILE field. This is used to name a DD statement in the

JCL. The DD is specified in a FILE argument to the IDCAMS DELETE function.

When you choose option 15, DEL VVDS, the IDCAMS Functions menu (U.1.13 from

the SAW main menu), the following screen appears:

The fields on the screen relate to the parameters in the JCL for the DELETE utility. The

JCL skeleton is shown below, with some example data. The skeleton shown below is

a combination of *.*.ISPSLIB(AWBS283), which is the start of the EXEC statement, and

*.*.ISPSLIB(AWBS024), which contains the DELETE statement.

//IDCAMS EXEC PGM=IDCAMS,REGION=0M

//SYSPRINT DD SYSOUT=*

//*----------------------------------------------- <--AWBS283

//SYSIN DD *

//SYSIN DD * <--AWBS024

DELETE SYS1.VVDS.V -

FILE(MYFILE) RECOVERY

//MYFILE DD DSN=SYS1.VVDS.V,

// VOL=SER=MYFILE,

// UNIT=SYSALLDA,

// DISP=SHR

For complete details, read about DELETE in the IBM documentation, DFSMS Access

Method Services for Catalogs (SC26-7394). To read this book, go to

http://publibz.boulder.ibm.com/cgi-bin/bookmgr_OS390/FRAMESET/DGT2I210.

----------------------------- IDCAMS DEFINE VVDS ------------------------------

COMMAND ===>

System: RS02RS02 Local Administrative Dataplex: RKSPLEX

DEFINE VVDS on volume

ENTER SELECTION: F ( F = FOREGROUND / B = BACKGROUND)

Attention: The volume serial must be online to perform this action

DEFINE CLUSTER(

NAME( SYS1.VVDS.V________________________________ ) -

VOLUME( ______ ) -

NONINDEXED -

TRACKS( 60_ 30_ ))

178 Storage Administration Workbench for z/OS and OS/390:User’s Guide

Option 16 - LOCK UNLOCK

This option uses the ALTER command to set the named catalog to the LOCK or

UNLOCK state to control access to the catalog. If you choose LOCK, only RACF-

authorized users can access the catalog.

When you choose option 16, LOCK UNLOCK, on the IDCAMS Functions menu

(U.1.16 from the SAW main menu), the screen below appears. Specify the catalog

name, and indicate either LOCK or UNLOCK.

The fields on the screen relate to the parameters in the JCL for the ALTER utility. The

JCL skeleton is shown below, with some example data. The skeleton shown below is

a combination of *.*.ISPSLIB(AWBS283), which is the start of the EXEC statement, and

*.*.ISPSLIB(AWBS111), which contains the ALTER statement.

//IDCAMS EXEC PGM=IDCAMS,REGION=0M

//SYSPRINT DD SYSOUT=*

//*---------------------------------------------- <--AWBS283

//SYSIN DD *

ALTER 'MYCAT1' - <--AWBS111

LOCK

For complete details, read about ALTER in the IBM documentation, z/OS DFSMS:

Managing Catalogs (SC26-7409). To read this book, go to

http://publibz.boulder.ibm.com/cgi-bin/bookmgr_OS390/FRAMESET/DGT2I210.

----------------------------- IDCAMS LOCK-UNLOCK ------------------------------

COMMAND ===>

System: SYSNAME1 Local Administrative Dataplex: MYDPLEX

LOCK-UNLOCK USER-CATALOG

ENTER SELECTION: B ( F = FOREGROUND / B = BACKGROUND)

ALTER _________________________________ - <== enter catalog name

______ <== enter LOCK or UNLOCK

Chapter 7. Using Utilities 179

Using ADRDSSU utilities

To use the ADRDSSU functions, choose option 2, DFDSS, on the Utilities menu (U.2

from the SAW main menu), and press Enter. The following screen displays:

Each option is part of a command that then builds a job using four skeletons.

1. Member AWBS299 in the ISPSLIB builds the job step.

2. Member AWBS010 in the ISPSLIB builds the EXEC statement.

3. The specific directives are built from a unique skeleton that is described in the JCL

excerpts in this section.

4. Member AWBS241 in the ISPSLIB builds the closing statement.

Each of the ADRDSSU Functions is described in the rest of this section. However,

there is one field that is common to all of the ADRDSSU screens, the "Parm" option in

the upper right section of each screen. This option is described first.

PARM option

When you choose any of the menu options on the ADRDSSU Functions screen, the

resulting screen will contain the "Specify PARM option:" field in the upper right hand

section of the screen. Type Y in this field if you want to provide arguments on the

EXEC statement. A menu will be presented, as shown on the next page.

----------------------------- ADRDSSU Functions -------------------------------

OPTION ===>

System: SYSNAME1 Local Administrative Dataplex: MYDPLEX

1 DEFRAG Execute DEFRAG function

2 MOVE/COPY DSN MOVE or COPY data set(s) to other volume(s)

3 MOVE/COPY VOL MOVE or COPY the contents of volser(s)

4 COPY VOLUME COPY one volume to another volume (incl. VTOC)

5 CONVERTV Execute CONVERTV function

6 SPECIAL BACKUP Create JCL for special backup processing

180 Storage Administration Workbench for z/OS and OS/390:User’s Guide

The table below briefly describes each of these options.

The fields on the screen relate to the PARM parameters in the JCL for the EXEC

statement. The JCL skeleton, *.*.ISPSLIB(AWBS010), is shown below with some

example data.

//IDCAMS EXEC PGM=IDCAMS,REGION=0M <--AWBS010

// PARM=’TYPRUN=NORUN’

//SYSPRINT DD SYSOUT=*

For complete details on the available parameters for the EXEC statement, refer to the

IBM documentation, DFSMSdss Storage Administration Reference (SC35-0424), Chapter

1, Specifying DFSMSdss Commands. To read this book, go to

http://publibz.boulder.ibm.com/cgi-bin/bookmgr_OS390/FRAMESET/DGT2R210.

Parameter Description

TYPERUN Type SCAN to check the syntax only. No commands are processed.

Type NORUN to report the current status of the volume, but do not

actually run DEFRAG, COPY, etc.

RACFLOG The only valid value is YES to indicate that logging is always on.

TRACE The only valid value is YES and this argument only applies to the

DEFRAG command. This argument tells the DEFRAG command to

print a list of extents that were moved.

UTILMSG The only valid value is Yes to indicate that information, warning, and

error messages will be copied to SYSPRINT.

WORKUNIT Specify an esoteric name, such as SYSDA, for allocating temporary

data sets.

----------------------------- DASD Utilities ----------------------------------

COMMAND ==>

System: SYSNAME1 Local Administrative Dataplex: MYDPLEX

Enter valid PARM options

TYPRUN : NORUN (SCAN / NORUN)

RACFLOG : ___ (YES )

TRACE : ___ (YES )

UTILMSG : ___ (YES )

WORKUNIT : ________ (an esoteric DASD unit name or a generic DASD unit name)

Chapter 7. Using Utilities 181

Option 1 - DEFRAG

The DEFRAG command reallocates data set extents to reduce or eliminate free-space

fragmentation. This allows large data sets to be allocated contiguously and prevents

out-of-space errors.

When you choose option 1, DEFRAG, on the ADRDSSU Functions menu (U.2.1 from

the SAW main menu), the following screen displays:

The table below briefly describes each of the DEFRAG fields on the screen.

Parameter Description

VOLSER Type the volume serial of the volume you want to defragment. This

volser is passed to DEFRAG through the DYNAM (volser) argument.

FRAGM-IX The fragmentation index is a measure of how much of the volume is

fragmented. The DEFRAG process ends when the fragmentation

index reaches the specified value.

For simplicity, the FRAGM-IX field accepts a value of 1, 2, or 3 to

indicate the most consolidation (1) or less consolidation (3).

----------------------------- DASD Utilities ----------------------------------

COMMAND ==>

System: RS02RS02 Local Administrative Dataplex: RKSPLEX

Enter selection: B ( B = BACKGROUND) specify PARM option: N

This function will eliminate free space fragmentation on the selected volume.

You can specify fragmentation index by selecting numbers from 1 to 3.

VOLSER : ______ <== enter Volser for DEFRAG command

FRAGM-IX: 3 <== enter Fragmentation-Index

MAXMOVE : ____ <==

EXCLUDE : ______________________________________________ <= Filter for ADRDSSU

FILTER-OPTION(S): leave >BLANK< to prevent filtering

CREATION -DATE __ (LT/GT ______________ e.g.: *,-1 means older 1 day

LAST-REF -DATE __ GE/LE) ______________

DATASET-ORGANIS. EQ ____ SAM/PAM/BDAM/ISAM/VSAM/EXCP

182 Storage Administration Workbench for z/OS and OS/390:User’s Guide

The following arguments identify which data sets to include in the DEFRAG process.

MAXMOVE MAXMOVE is a one- to six-digit number that specifies the number of

tracks. This parameter controls how extensively you want DEFRAG

to process the volume. More passes and assembling larger amounts of

contiguous tracks will make the volume unavailable to other

processing for a longer period of time, but will achieve the best

results. Fewer passes will limit the down time, but will achieve only

some space reorganization. The default is to assemble the largest

possible free space areas. MAXMOVE can limit the amount of data

movement, but may also reduce the size of the free space areas.

EXCLUDE Type one or more fully or partially qualified data set names that are

excluded from the DEFRAG processing.

Parameter Description

CREATION DATE You can filter to data sets that are based on the creation date of the

data set. The date is a Julian date, which is YYYYDDD, where YYYY

is the four-digit year and DDD is the three-digit day-of-the-year

count. For example, April 1, 2002 is the 91st day of the year, so it

would be written as 2002091.

You can also specify a date relative to the run date of the job,

expressed as an asterisk (*) plus or minus a number of days. For

example, *,-5 means data sets five days older than today.

Choose one of the following operators:

• LT means "less than".

• GT means "greater than".

LAST REF DATE. You can filter based on the last referenced date of the data set. The

date is a Julian date, which is YYYYDDD, where YYYY is the four-

digit year and DDD is the three-digit day-of-the-year count. For

example, April 1, 2002 is the 91st day of the year, so it would be

written as 2002091.

You can also specify a date relative to the run date of the job,

expressed as an asterisk (*) plus or minus a number of days. For

example, *,-5 means datasets five days older than today.

Choose one of the following operators:

• GE means "greater than or equal to".

• LE means "less than or equal to".

DATASET

ORGANIZATION

You can filter based on the type of data set organization you want.

Valid values are:

•SAM. All sequential data sets.

•PA M . All partitioned data sets (PDS, PDSE).

•BDAM. All direct access data sets

•ISAM. All indexed sequential data sets.

•VSAM. All VSAM types.

•EXCP. Any data sets not allocated or accessed using other

methods.

Parameter Description

Chapter 7. Using Utilities 183

The fields on the screen relate to the parameters in the JCL for the DEFRAG utility.

The JCL skeleton is shown below, with some example data. The skeleton shown

below is a combination of *.*.ISPSLIB(AWBS010), which contains the PARM

statement, and *.*.ISPSLIB(AWBS011), which contains the DEFRAG statement.

//ADRDSSU EXEC PGM=ADRDSSU,REGION=0M, <--AWBS010

// PARM='TYPRUN=NORUN'

//SYSPRINT DD SYSOUT=*

//SYSIN DD *

DEFRAG FRAGI(3) - <--AWBS011

EXCLUDE(LIST(DEV01.*)) -

BY(LIST( (CREDT LT *,-10) (REFDT GE 2002031) (DSORG EQ VSAM))) -

DYNAM(MYDISK)

For more information on the DEFRAG command, refer to the IBM documentation,

DFSMSdss Storage Administration Reference (SC35-0424). To read this book, go to

http://publibz.boulder.ibm.com/cgi-bin/bookmgr_OS390/FRAMESET/DGT2R210.

For more information on the filtering options, refer to same IBM documentation as for

DEFRAG, but in particular, Chapter 2, Filtering-Choosing the Data Sets You Want

Processed.

184 Storage Administration Workbench for z/OS and OS/390:User’s Guide

Option 2 - Move/Copy DSN

The COPY command is used to copy data among volumes. If you specify MOVE, the

input data sets are deleted after a successful copy. You do not need to specify any

input volsers for this option. The data sets are selected by name, not by the volsers

used to contain the data.

When you choose option 2, Move/Copy DSN, on the ADRDSSU Functions menu

(U.2.2 from the SAW main menu), the following screen displays:

The table below briefly describes the fields on this screen.

Parameter Description

Specify PARM option If you type Y in this field to specify parameter options, you may want

to choose TYPRUN=NORUN. This causes COPY or MOVE to report the list

of items that were selected, without moving any data. For more

information on the "Specify PARM option" field, refer to “PARM

option” on page 179.

INCL-DSN Specify partially or fully qualified names of data sets to include in the

copy.

EXCL-DSN Specify partially or fully qualified names of data sets to exclude from

the copy.

VOLn Specify one or more output volumes for the copy. The additional

volumes in the list provide space for data sets that might not fit on the

first volume.

----------------------------- DASD Utilities ----------------------------------

COMMAND ==>

System: SYSNAME1 Local Administrative Dataplex: MYDPLEX

Enter selection: B ( B = BACKGROUND) specify PARM option: N

This function will copy or move all specified DASD data sets found in catalog

(except MIGRAT) to selected output volumes.

FUNCTION: MOVE <== COPY/MOVE (MOVE will recatalog datasets to output volumes)

INCL-DSN: MYDSNS_____________________________________ <= DSN in ADRDSSU syntax

EXCL-DSN: ___________________________________________ <= DSN in ADRDSSU syntax

VOL1: sys002 VOL2: sys003 VOL3: ______ VOL4: ______ VOL5: ______ VOL6: ______

ALLDATA(*): Y ALLEXCP: Y PROCESS(UNDEFINEDSORG): Y SPHERE: Y

BYPASSACS: myuserid.playpen.*________________________ <= DSN in ADRDSSU syntax

STORCLAS : abc_____ MGMTCLAS : ________

FILTER-OPTION(S): leave >BLANK< to prevent filtering

CREATION -DATE LT (LT/GT *,-10___________ e.g.: *,-1 means older 1 day

LAST-REF -DATE LE GE/LE) *,-10___________

DATASET-ORGANIS. EQ vsam SAM/PAM/BDAM/ISAM/VSAM/EXCP

Chapter 7. Using Utilities 185

ALLDATA(*) Type Y to indicate that all allocated space is to be copied for

sequential data sets. Otherwise, type N.

ALLEXCP(*) Type Y to indicate that all allocated space is copied, but there may be

exceptions based on entries you make in other options. Otherwise,

type N.

The IBM documentation, DFSMSdss Storage Administration Reference

(SC35-0424), contains much more information about exceptions. Refer

to that document for additional details.

PROCESS

(UNDEFINEDSORG)

Type Y to allow data sets with an undefined organization to be

copied to unlike devices. Otherwise, type N.

SPHERE Type Y to copy all associated AIX clusters for a VSAM cluster.

Otherwise, type N.

BYPASSACS (dsn) Type a data set name to skip automatic class selection for this input

dsn.

STORCLASS Specify the storage class that will be used to replace the source class.

MGMTCLASS Specify the management class that will be used to replace the source

class.

CREATION DATE You can filter based on the creation date of the data set. The format is

YYYYDDD, where YYYY is the four-digit year and DDD is the three-

digit day-of-the-year count. For example, April 1, 2002 is the 91st day

of the year, so it would be written as 2002091.

You can also specify a date relative to the run date of the job,

expressed as an asterisk (*) plus or minus a number of days. For

example, *,-5 means data sets five days older than today.

Choose one of the following operators:

• LT means "less than".

• GT means "greater than".

LAST REF DATE. You can filter based on the last referenced date of the data set. The

format is YYYYDDD, where YYYY is the four-digit year and DDD is

the three-digit day-of-the-year count. For example, April 1, 2002 is

the 91st day of the year, so it would be written as 2002091.

You can also specify a date relative to the run date of the job,

expressed as an asterisk (*) plus or minus a number of days. For

example, *,-5 means data sets five days older than today.

Choose one of the following operators:

• GE means "greater than or equal to".

• LE means "less than or equal to".

Parameter Description

186 Storage Administration Workbench for z/OS and OS/390:User’s Guide

The fields on the screen relate to the parameters in the JCL for the COPY utility. The

JCL skeleton is shown below, with some example data. The skeleton shown below is

a combination of *.*.ISPSLIB(AWBS283), which contains the EXEC statement, and

*.*.ISPSLIB(AWBS012), which contains the COPY statement.

//ADRDSSU EXEC PGM=ADRDSSU,REGION=0M, <--AWBS010

//SYSPRINT DD SYSOUT=*

//SYSIN DD * <--AWBS012

COPY DATASET(INCLUDE(MYDSNS) -

BY( (CREDT LT *,-10) (REFDT LE *,-10) (DSORG EQ VSAM)))-

OUTDY((SYS002),(SYS003)) -

STORCLAS(ABC) -

BYPASSACS(DEV01.WORK.*) -

ALLDATA(*) ALLEXCP PROCESS(UNDEFINEDSORG) -

WRC SPHERE RECATALOG(*) DELETE

For more information on the COPY command, refer to the IBM documentation,

DFSMSdss Storage Administration Reference (SC35-0424). To read this book, go to

http://publibz.boulder.ibm.com/cgi-bin/bookmgr_OS390/FRAMESET/DGT2R210.

For more information on the filtering options, refer to same IBM documentation

mentioned above, but in particular, Chapter 2, Filtering-Choosing the Data Sets You

Want Processed.

DATASET

ORGANIZATION

You can filter based on the type of data set organization you want.

Valid values are:

•SAM. All sequential data sets.

•PA M . All partitioned data sets (PDS, PDSE).

•BDAM. All direct access data sets

•ISAM. All indexed sequential data sets.

•VSAM. All VSAM types.

•EXCP. Any data sets not allocated or accessed using other

methods.

The "EQ" listed in this field means "equal to".

Parameter Description

Chapter 7. Using Utilities 187

Option 3 - Move/Copy VOL

The COPY command is used to copy data among volumes. If you specify MOVE, the

input data sets are deleted after a successful copy. With option 3, Move/Copy VOL,

you identify specific volumes (volsers) and copy/move some or all of the datasets

stored on the volume. You must specify the volsers of the input and output volumes.

When you choose option 3, Move/Copy VOL, on the ADRDSSU Functions menu

(U.2.3 from the SAW main menu), the following screen displays:

The table below briefly describes the fields on this screen.

Parameter Description

Specify PARM option If you type Y in this field to specify parameter options, you may want

to choose TYPRUN=NORUN. This causes COPY or MOVE to report the list

of items that were selected, without moving any data. For more

information on the "Specify PARM option" field, refer to “PARM

option” on page 179.

INCL-DSN Specify partially or fully qualified names of data sets to include in the

copy.

EXCL-DSN Specify partially or fully qualified names of data sets to exclude from

the copy.

VOLn Specify one or more output volumes for the copy. The additional

volumes in the list provide space for data sets that might not fit on the

first volume.

----------------------------- DASD Utilities ----------------------------------

COMMAND ==>

System: RS02RS02 Local Administrative Dataplex: RSDPLEX

Enter selection: B ( B = BACKGROUND) specify PARM option: N

This function will copy/move data sets from INPUT-VOLUMES to OUTPUT-VOLUMES.

FUNCTION: MOVE <== COPY/MOVE (MOVE=RECATALOG on target and DELETE on source)

INPUT -VOLUME(S): sys002 sys003 ______ ______ ______ ______ ______

OUTPUT-VOLUME(S): sys012 sys013 ______ ______ ______ ______ ______

ALLDATA(*): Y ALLEXCP: Y PROCESS(UNDEFINEDSORG): Y ALLMULTI: N

FILTER-OPTION(S): leave >BLANK< to prevent filtering

INCL-DSN : MYDSNS___________________________________ <== DSN in ADRDSSU syntax

EXCL-DSN : pdgolds.playpen.*________________________ <== DSN in ADRDSSU syntax

BYPASSACS: systemp.*________________________________ <== DSN in ADRDSSU syntax

STORCLAS : abc_____ MGMTCLAS: ________

CREATION -DATE GT (LT/GT *,-5__________ e.g.: *,-1 means older 1 day

LAST-REF -DATE LE GE/LE) *,-10_________

CATALOG EQ yes YES/NO

DATASET-ORGANIS. EQ pam_ SAM/PAM/BDAM/ISAM/VSAM/EXCP

188 Storage Administration Workbench for z/OS and OS/390:User’s Guide

ALLDATA(*) Type Y to indicate that all allocated space is to be copied for

sequential data sets. Otherwise, type N.

ALLEXCP(*) Type Y to indicate that all allocated space is copied, but there may be

exceptions based on entries you make in other options. Otherwise,

type N.

The IBM documentation, DFSMSdss Storage Administration Reference

(SC35-0424), contains much more information about exceptions. Refer

to that document for additional details.

PROCESS

(UNDEFINEDSORG)

Type Y to allow data sets with an undefined organization to be

copied to unlike devices. Otherwise, type N.

ALLMULTI Type Y to copy data sets with multi-volume space allocation if part of

the data set resides on one of the input volumes. Type N to copy data

sets that are fully contained by the specified volumes.

BYPASSACS (dsn) Type a data set name to skip automatic class selection for this input

dsn.

STORCLASS Specify the storage class that will be used to replace the source class.

MGMTCLASS Specify the management class that will be used to replace the source

class.

CREATION DATE You can filter based on the creation date of the data set. The format is

YYYYDDD, where YYYY is the four-digit year and DDD is the three-

digit day-of-the-year count.) For example, April 1, 2002 is the 91st

day of the year, so it would be written as 2002091.

You can also specify a date relative to the run date of the job,

expressed as an asterisk (*) plus or minus a number of days. For

example, *,-5 means data sets five days older than today.

Choose one of the following operators:

• LT means "less than".

• GT means "greater than".

LAST REF DATE You can filter based on the last referenced date of the data set. The

format is YYYYDDD, where YYYY is the four-digit year and DDD is

the three-digit day-of-the-year count.) For example, April 1, 2002 is

the 91st day of the year, so it would be written as 2002091.

You can also specify a date relative to the run date of the job,

expressed as an asterisk (*) plus or minus a number of days. For

example, *,-5 means data sets five days older than today.

Choose one of the following operators:

• GE means "greater than or equal to".

• LE means "less than or equal to".

CATALOG Type Y to catalog any data set allocated by the copy process.

Parameter Description

Chapter 7. Using Utilities 189

The fields on the screen relate to the parameters in the JCL for the COPY utility. The

JCL skeleton is shown below, with some example data. The skeleton shown below is

a combination of *.*.ISPSLIB(AWBS283), which contains the EXEC statement, and

*.*.ISPSLIB(AWBS013), which contains the COPY statement.

//ADRDSSU EXEC PGM=ADRDSSU,REGION=0M, <--AWBS010

//SYSPRINT DD SYSOUT=*

//SYSIN DD * <--AWBS013

COPY DATASET(INCLUDE(MYDSNS)-

EXCLUDE(DEV01.WORK.*)-

BY( (CREDT GT *,-5) (REFDT LE *,-10) (CATLG EQ YES) (DSORG EQ PAM)))-

LIDY((SYS002),(SYS003))-

OUTDY((SYS012),(SYS013))-

STORCLAS(ABC) -

BYPASSACS(SYSTEMP.*) -

ALLDATA(*) ALLEXCP PROCESS(UNDEFINEDSORG) WRC RECATALOG(*) DELETE

PURGE

For more information on the COPY command, refer to the IBM documentation,

DFSMSdss Storage Administration Reference (SC35-0424). To read this book, go to

http://publibz.boulder.ibm.com/cgi-bin/bookmgr_OS390/FRAMESET/DGT2R210.

For more information on the filtering options, refer to same IBM documentation

mentioned above, but in particular, Chapter 2, Filtering-Choosing the Data Sets You

Want Processed.

DATASET

ORGANIZATION

You can filter based on the type of data set organization you want.

Valid values are:

•SAM. All sequential data sets.

•PA M . All partitioned data sets (PDS, PDSE).

•BDAM. All direct access data sets

•ISAM. All indexed sequential data sets.

•VSAM. All VSAM types.

•EXCP. Any data sets not allocated or accessed using other

methods.

The "EQ" listed in this field means "equal to".

Parameter Description

190 Storage Administration Workbench for z/OS and OS/390:User’s Guide

Option 4 - Copy Volume

This COPY command is used to copy the contents of an entire volume to another

volume. You must specify the input and output volsers.

When you choose option 4, COPY VOLUME, on the ADRDSSU Functions menu

(U.2.4 from the SAW main menu), the following screen displays:

The table below briefly describes the fields on this screen.

The fields on the screen relate to the parameters in the JCL for the COPY utility. The

JCL skeleton is shown below, with some example data. The skeleton shown below is

a combination of *.*.ISPSLIB(AWBS283), which contains the EXEC statement, and

*.*.ISPSLIB(AWBS015), which contains the COPY statement.

//ADRDSSU EXEC PGM=ADRDSSU,REGION=0M, <----AWBS010

//SYSPRINT DD SYSOUT=*

//SYSIN DD * <----AWBS015

Parameter Description

INPUT-VOLUME Specify the volser for the input volume.

OUTPUT-VOLUME Specify the volser for the output volume.

COPY VOLID Indicate with Y or N as to whether you want the volser of the input

volume to be written over the volser of the output volume. Carefully

consider your use of COPY VOLID.

PURGE Indicate with Y or N whether the unexpired data sets on the output

volume can be overlaid, meaning that they will be deleted and

replaced by data from the input volume.

If PURGE is set to N, but the output volume has unexpired data sets,

the COPY will fail.

----------------------------- DASD Utilities ----------------------------------

COMMAND ==>

System: RS02RS02 Local Administrative Dataplex: RSDPLEX

Enter selection: B ( B = BACKGROUND) specify PARM option: N

This function will copy all data from the INPUT-VOLUME to the OUTPUT-VOLUME

FUNCTION : COPY FULL

INPUT -VOLUME: sys03_

OUTPUT-VOLUME: sys013

COPY VOLID : N (Copy volume serial of INPUT volume to OUTPUT volume Y / N )

PURGE : Y (Overlay unexpired data sets on the OUTPUT volume Y / N )

Chapter 7. Using Utilities 191

COPY FULL -

INDY(SYS03) OUTDY(SYS013) PURGE

For more information on the COPY command, refer to the IBM documentation,

DFSMSdss Storage Administration Reference (SC35-0424). To read this book, go to

http://publibz.boulder.ibm.com/cgi-bin/bookmgr_OS390/FRAMESET/DGT2R210.

Option 5 - CONVERTV

The CONVERTV command converts volumes to or from an SMS-managed state,

which refers to Storage Management Subsystem (SMS). Specify the volser of one or

more volumes, then indicate whether you want to convert them from non-SMS to

SMS management, or from SMS to non-SMS management.

When you choose option 5, CONVERTV, on the ADRDSSU Functions menu (U.2.5

from the SAW main menu), the following screen displays:

The table below briefly describes the fields on this screen.

Parameter Description

CONVERT to Enter one of these values:

• SMS. Converts volumes from a non-SMS state to SMS

management.

• NONSME. Converts volumes that are SMS-managed to a non-

SMS state.

VOLUME(S) Type the volsers of the volumes you want to convert.

ALLMULTI Type Y to process data sets with multi-volume space allocation if part

of the data set resides on one of the input volumes. Type N to process

data sets that are fully contained by the specified volumes.

PREPARE Type Y or N to indicate whether you want to set up conditions for

converting a non-SMS volume to SMS, without actually converting

the data. Once in this state, new data sets cannot be created until

CONVERT SMS has been run. CONVERT NONSMS resets the

PREPARE state. PREPARE is only valid when converting to SMS.

----------------------------- DASD Utilities ----------------------------------

COMMAND ==>

System: SYSNAME1 Local Administrative Dataplex: MYDPLEX

Enter selection: B ( B = BACKGROUND) specify PARM option: Y

CONVERTV to SMS___ <= SMS/NONSMS

VOLUME(S): myvol1 myvol2 ______ ______ ______ ______ ______

ALLMULTI: Y PREPARE: Y REDETERMINE: Y <= enter Y or N

TEST: Y <= enter Y or N

192 Storage Administration Workbench for z/OS and OS/390:User’s Guide

The fields on the screen relate to the parameters in the JCL for the CONVERTV utility.

The JCL skeleton is shown below, with some example data. The skeleton shown

below is a combination of *.*.ISPSLIB(AWBS283), which contains the EXEC

statement, and *.*.ISPSLIB(AWBS017), which contains the CONVERTV statement.

//ADRDSSU EXEC PGM=ADRDSSU,REGION=0M, <--AWBS010

//SYSPRINT DD SYSOUT=*

//SYSIN DD * <--AWBS017

CONVERTV SMS ALLMULTI PREPARE REDET TEST -

DYNAM((MYVOL1),(MYVOL2))

For more information on the CONVERTV command, refer to the IBM documentation,

DFSMSdss Storage Administration Reference (SC35-0424). To read this book, go to

http://publibz.boulder.ibm.com/cgi-bin/bookmgr_OS390/FRAMESET/DGT2R210.

Option 6 - Special Backup

The DUMP command is used to make a copy of an entire volume, which you specify

in the VOLSER field. When you choose option 6, Special Backup, on the ADRDSSU

Functions menu (U.2.6 from the SAW main menu), the following screen displays:

REDETERMINE Type Y or N to indicate whether to reset class information that

specifies classnames that are no longer valid. This can occur if a

volume was previously SMS managed, then converted to non-SMS,

and changes were made to the ACS classes.

REDETERMINE is only valid when converting to SMS.

TEST Type Y to specify the equivalent of "TYPRUN=NORUN".

CONVERTV will determine if the volume can be converted.

Parameter Description

----------------------------- Backup ------------------------------------------

COMMAND ==> SCROLL ===> CSR

System: SYSNAME1 Local Administrative Dataplex: MYDPLEX

Execute special backup for volser

VOLSER : ?????? <== Enter volume-serial for backup

UNIT : ______ <== Enter unit-type

RETPD : 030 <== Enter backup retention period

Backup-Dsn will be generated to => AWB.AWB043F.??????.R030.D02112

Chapter 7. Using Utilities 193

The table below briefly describes the fields on this screen.

The DSN that is built includes the volser, the RETPD value in the format .Rnnn, and

today’s Julian date as .Dyyddd. The unit type and HLQ are obtained from SAW

installation values.

The fields on the screen relate to the parameters in the JCL for the DUMP utility. The

JCL skeleton is shown below, with some example data. The skeleton shown below is

*.*.ISPSLIB(AWBS252), which contains the DUMP statement.

//*********************************************************************

//* SPECIAL BACKUP FOR VOLSER = MYDISK

//*********************************************************************

//ADRDSSU EXEC PGM=ADRDSSU,REGION=0M <--start of AWBS252

//SYSPRINT DD SYSOUT=*

//DISK DD DISP=SHR,VOL=SER=SYS003,UNIT=SYSALLDA

//TAPE DD DSN=AWB.AWB043F.SYS003.R030.D02064,

// DISP=(,CATLG,DELETE),SPACE=(CYL,(500,500),RLSE),

// DCB=AWB.AWB000F,

// UNIT=(SYSDA,4)

//SYSIN DD DSN=AWB.WRK0110.ISPSLIB(AWBS466),DISP=SHR

DUMP FULL IDD(DISK) ODD(TAPE) COM

00240000

//*********************************************************************

//* CHECK IF BACKUP HAS ENDED CORRECT (RC=0)

//*********************************************************************

//BUMM1 EXEC PGM=AWB013P,COND=(0,EQ,ADRDSSU)

//STEPLIB DD DSN=AWB.WRK0110.LOAD,DISP=SHR

//DD1 DD DSN=*.ADRDSSU.TAPE,DISP=(OLD,DELETE,DELETE)

//SYSPRINT DD SYSOUT=*

//*********************************************************************

//* RESET BACKUP-TIMESTAMP IN DASD-DB

//*********************************************************************

//RESET EXEC PGM=AWBD03P,PARM='/D,MYDISK,RSDPLEX'

//STEPLIB DD DSN=AWB.WRK0110.LOAD,DISP=SHR

//SYSPRINT DD SYSOUT=*

//DASDDB DD DSN=SMPSHR.AWB001F,DISP=SHR

//DASDLOCK DD DSN=SMPSHR.AWB002F,DISP=SHR <--end of AWBS252

For more information on the DUMP command, refer to the IBM documentation,

DFSMSdss Storage Administration Reference (SC35-0424). To read this book, go to

http://publibz.boulder.ibm.com/cgi-bin/bookmgr_OS390/FRAMESET/DGT2R210.

Parameter Description

VOLSER Type the volser of the volume you want to copy.

UNIT Currently, an entry in this field does not affect the JCL.

RETPD Type a number for the retention period, which specifies how many

days until the data set is considered expired. The default is 30.

The RETPD is also used to select between DASD backup, for values of

30 days or less, and TAPE backup, for values greater than 30 days.

194 Storage Administration Workbench for z/OS and OS/390:User’s Guide

Using Device Support Facilities (DSF)

To use the Device Support Facilities, choose option 3, DSF, on the Utilities menu (U.3

from the SAW main menu), and press Enter. The following screen displays:

Each option is part of a command that then builds a job using four skeletons.

1. Member AWBS299 in the ISPSLIB builds the job step.

2. Member AWBS277 in the ISPSLIB builds the EXEC statement.

3. The specific directives are built from a unique skeleton that is described in the JCL

excerpts in this section.

4. Member AWBS241 in the ISPSLIB builds the closing statement.

Each of the ADRDSSU Functions is described in the rest of this section.

Options 1 - 9, INIT

The first nine options on the ICKDSF Functions menu, which are all INIT commands,

use the same screen. The JCL that is generated for each of these options is slightly

different based on the device type. The INIT command is used to initialize volumes.

The initialization process sets up internal structures.

When you choose options 1 through 9 on the ICKDSF Functions menu (U.3.1 through

U.3.9 from the SAW main menu), the next screen displays.

----------------------------- ICKDSF Functions --------------------------------

OPTION ===>

System: SYSNAME1 Dataplex: MYDPLEX Mode: Local Administrative

1 INIT-3380 INIT MVS-DISK unit type 3380 model-D/-J or standard

2 INIT-3380E INIT MVS-DISK unit type 3380 model-E

3 INIT-3380K INIT MVS-DISK unit type 3380 model-K

4 INIT-3390-01 INIT MVS-DISK unit type 3390 model-01

5 INIT-3390-02 INIT MVS-DISK unit type 3390 model-02

6 INIT-3390-03 INIT MVS-DISK unit type 3390 model-03

7 INIT-3390-09 INIT MVS-DISK unit type 3390 model-09

8 INIT-3390-Opt INIT MVS-DISK unit type 3390 Optical

9 INIT DISK INIT MVS-DISK (no special unit type)

10 CONTROL Clear WRITE INHIBITED STOR-CONTROL or PATH FENCE STATUS

11 INSPECT INSPECT A VOLUME OR REASSIGN DEFECTIVE TRACKS

12 REFORMAT RENAME A VOLUME

13 ANALYZE ANALYZE A VOLUME FOR ERRORS

14 BUILDIX BUILD or REBUILD VTOC-INDEX

Chapter 7. Using Utilities 195

The example screen shows default settings for option 1, INIT-3380. The fields on this

screen are the same for options 1 - 9. The table below briefly describes the fields on

this screen.

Parameter Description

IODELAY Type Y or N to indicate whether to specify some pacing arguments

that control how long the device is active. The high level of I/O

required to run some ICKDSF functions can degrade the performance

observed by other users of the system. The default is Y.

PERIO Specify the number of I/Os issued before waiting to allow other

processing. The default is 20.

Note: This option is not valid if there is an N in the IODELAY field.

MILLI Specify the length of the wait interval in milliseconds. For example,

issue 20 I/Os, based on the PERIO field, and then wait 100

milliseconds before resuming. The default is 100.

Note: This option is not valid if there is an N in the IODELAY field.

INSTALL Type Y if you need to run INSTALL on the volume. INSTALL

prepares the tracks for writing. You must run INSTALL if the volume

was just installed or replaced on the system.

INIT VOLSER Type the new name for the volume.

----------------------------- ICKDSF Functions --------------------------------

COMMAND ===>

System: SYSNAME1 Local Administrative Dataplex: MYDPLEX

ENTER SELECTION: B ( B = BACKGROUND)

IODELAY : Y <== Activate IODELAY option Y or N

PERIO : 20__ <== number of I/Os for one time interval

MILLI : 100_ <== milliseconds delay time

INSTALL : N <== Execute INSTALL-Parameter Y or N SETMODE: ____

INIT VOLSER: ______ <== Enter new volume-serial

VERIFY VOLSER: ______ <== Enter old volume-serial or leave blank

UNIT-ADR : ____ <== Enter UCB number

DEVICETYPE : 3380__ <== Enter device-type of volume-serial

INDEX : 000,1,014_ <== Enter vtoc-index location

VTOC : 001,0,090_ <== Enter vtoc location

VALIDATE : N <== Enter Y or N

STORAGEGROUP : Y <== Enter Y or N to indicate DFSMS managed or not

BOOTSTRAP : N <== Enter Y or N to write a BOOTSTRAP record or not

ANALYZE : N <== Enter Y or N to activate additional ANALYZE cmd

196 Storage Administration Workbench for z/OS and OS/390:User’s Guide

If you type Y in the ANALYZE field on the ICKDSF Functions menu, you need to

specify additional arguments for the ANALYZE command. The ICKDSF Analyze

screen appears.

VERIFY VOLSER Type the name of an existing volume if the volume is already

initialized and you are reformatting. This ensures that you do not

overwrite the wrong volume.

UNIT-ADR You must specify a unit address in the format of CCuu, where CC is the

channel and uu is the unit number. The value is expressed in

hexadecimal digits.

DEVICETYPE Specify the device type, either 3380 or 3390, if it is not already listed.

INDEX The index field automatically displays the starting values for

cylinder, head, and extent. This specifies the starting location and the

size of the index.

VTOC The Volume Table of Contents (VTOC) field automatically displays

the starting values for cylinder, head, and extent. This specifies the

starting location and the size of the VTOC.

VALIDATE Type Y or N to indicate whether you want to check the home address

and record number 0 of each track. This validation process checks for

device errors that would prevent processing data sets later.

STORAGEGROUP Type Y or N to indicate whether you want the volume to be managed

by DFSMS.

BOOTSTRAP Type Y or N to indicate whether a new bootstrap record (IPL) should

be written.

ANALYZE Type Y or N to indicate that you want to inspect the volume for errors

if the INIT completes successfully. When you type Y in the

ANALYZE field, an additional screen displays with more fields for

you to consider in setting up the ANALYZE command. This screen is

described in the next section.

Parameter Description

Chapter 7. Using Utilities 197

If you like these settings, press Enter. Otherwise, change the information in the fields.

For more information on these fields, refer to “Option 13 - Analyze” on page 203.

The fields on the screen relate to the parameters in the JCL for the INIT command. The

JCL skeleton is shown below, with some example data. The skeleton shown below is

*.*.ISPSLIB(AWBS277), which contains the EXEC statement, HLQ.ISPFLIB.AWBS278,

which contains the INIT command, including the ANALYZE arguments, and the

closing statement found in *.*.ISPSLIB(AWBS241).

//ICKDSF EXEC PGM=ICKDSF,REGION=0M <---- AWBS277

//SYSPRINT DD SYSOUT=*

//SYSIN DD *

IODELAY SET PERIO(20) MILLI(100) <--AWBS278

INIT UNIT(ABCD) DEVTYPE(3380) VOLID(MYDISK) SG -

NOVERIFY -

NOVALIDATE -

VTOC(001,2,200) INDEX(000,1,20) -

PURGE MAP

IF LASTCC LT 8 -

THEN ANALYZE UNITADDRESS(1234) SCAN ALL SPEED -

ALLCHP DRIVE

IODELAY RESET

/* <--AWBS241

For more detailed information on the INIT command, refer to the IBM

documentation, Device Support Facilities: User’s Guide and Reference (GC35-0033-23). To

read this book online, go to http://publibz.boulder.ibm.com/cgi-

bin/bookmgr_OS390/FRAMESET/ICK40206.

----------------------------- ICKDSF ANALYZE ----------------------------------

COMMAND ===>

System: SYSNAME1 Local Administrative Dataplex: MYDPLEX

ENTER SELECTION: B ( B = BACKGROUND)

Execution mode :OFFLINE

IODELAY : Y <== Activate IODELAY option Y or N

PERIO : 20__ <== number of I/Os for one time interval

MILLI : 100_ <== milliseconds delay time

ANALYZE VOLSER: MYDISK <== Enter volume-serial

DEVICETYPE : 3380__ <== Enter device-type of volume-serial

UNIT-ADR : 1234 <== Enter UCB number (for OFF-LINE operation only)

SCAN ---------: Y <== Enter Y or N to activate data verification test

--- ALL : Y <== Enter Y or N to scan all cylinder

--- SPEED: Y <== Enter Y or N to scan one cylinder at a time

ALLCHPID : Y <== Enter Y or N to process all CHPIDs

DRIVETEST : Y <== Enter Y or N to process drive test function

198 Storage Administration Workbench for z/OS and OS/390:User’s Guide

Option 10 - Control

The CONTROL command is used to reset various subsystem conditions. When you

choose option 10, CONTROL, on the ICKDSF Functions menu (U.3.10 from the SAW

main menu), the following screen displays:

The table below briefly describes the fields on this screen.

The fields on the screen relate to the parameters in the JCL for the INIT command. The

JCL skeleton is shown below, with some example data. The skeleton shown below is

*.*.ISPSLIB(AWBS279), which contains the CONTROL statement.

//ICKDSF EXEC PGM=ICKDSF,REGION=0M

//SYSPRINT DD SYSOUT=*

//SYSIN DD *

CONTROL ALLOWWR DDNAME(DD1) <--AWBS279

//DD1 DD UNIT=SYSALLDA,DISP=SHR,VOL=SER=SYS045

For more detailed information on the CONTROL command, refer to the IBM

documentation, Device Support Facilities: User’s Guide and Reference (GC35-0033-23). To

read this book online, go to http://publibz.boulder.ibm.com/cgi-

bin/bookmgr_OS390/FRAMESET/ICK40206.

Parameter Description

VOLSER Specify the volser of the volume you are resetting.

DEVICETYPE Type a device type associated with the volume.

WRITE INHIBITED Type Y or N to indicate whether to reset the write inhibited state on

the device. If you type Y in this field, you must type N in the Path

Fence Stat field. You cannot have Y in both fields.

PATH FENCE STAT Type Y or N to indicate whether to reset the fence path that was

preventing access to the device. Do this only after the error that

caused the fence status (hardware failure) has been corrected.

----------------------------- ICKDSF CONTROL ----------------------------------

COMMAND ===>

System: SYSNAME1 Local Administrative Dataplex: MYDPLEX

ENTER SELECTION: B ( B = BACKGROUND)

VOLSER : sys045 <== Enter volume-serial

DEVICETYPE : 3380__ <== Enter device-type of volume-serial

select one of the following:

WRITE INHIBITED: Y <== Y or N

PATH FENCE STAT: _ <== Y or N

Chapter 7. Using Utilities 199

Option 11 - Inspect

The INSPECT command is used to test a device for errors and, if necessary, reassign

the data to an alternate track. In the IBM documentation, Device Support Facilities:

User’s Guide and Reference (GC3-0033-23), it states "Before using the INSPECT

command, you should first make sure there are no hardware problems. It is

recommended that you issue ANALYZE DRIVETEST NOSCAN before any INSPECT

operation." You may want follow this advice before you use the INSPECT command.

When you choose option 11, INSPECT, on the ICKDSF Functions menu (U.3.11 from

the SAW main menu), the following screen displays:

The table below briefly describes the fields on this screen.

Parameter Description

IODELAY Type Y or N to indicate whether to specify some pacing arguments

that control how long the device is active. The high level of I/O

required to run some ICKDSF functions can degrade the performance

observed by other users of the system. The default is Y.

PERIO Specify the number of I/Os issued before waiting to allow other

processing. The default is 20.

Note: This option is not valid if there is an N in the IODELAY field.

MILLI Specify the length of the wait interval in milliseconds. For example,

issue 20 I/Os, based on the PERIO field, and then wait 100

milliseconds before resuming. The default is 100.

Note: This option is not valid if there is an N in the IODELAY field.

VOLSER Type the name of the volume you want to inspect.

DEVICETYPE Specify the device type, either 3380 or 3390, if it is not already listed.

----------------------------- ICKDSF INSPECT ----------------------------------

COMMAND ===>

System: SYSNAME1 Local Administrative Dataplex: MYDPLEX

ENTER SELECTION: B ( B = BACKGROUND)

IODELAY : Y <== Activate IODELAY option Y or N

PERIO : 20__ <== number of I/Os for one time interval

MILLI : 100_ <== milliseconds delay time

VOLSER : sys055 <== Enter volume-serial

DEVICETYPE: 3380__ <== Enter device-type of volume-serial

UNIT-ADR : 503 <== Enter UCB number of volume-serial

select one of the following:

_ Conditional assignment of alternate tracks (ON-LINE mode)

s List defective tracks on volume (no alternate TRK assignment)

200 Storage Administration Workbench for z/OS and OS/390:User’s Guide

The fields on the screen relate to the parameters in the JCL for the INSPECT

command. The JCL skeleton is shown below, with some example data. The skeleton

shown below is *.*.ISPSLIB(AWBS257), which contains the INSPECT statement.

//ICKDSF EXEC PGM=ICKDSF,REGION=0M

//SYSPRINT DD SYSOUT=*

//SYSIN DD * <--AWBS257

IODELAY SET PERIO(20) MILLI(100)

INSPECT DDNAME(DD1) NOVERIFY NOCHECK NOASSIGN ALLTRACKS MAP

IODELAY RESET

//DD1 DD VOL=SER=SYS055,UNIT=SYSALLDA,DISP=OLD

If you type S in the "Conditional assignment of alternate tracks" field, another screen

appears where you can specify additional parameters for this option.

UNIT-ADR You must specify a unit address in the format of CCuu, where CC is the

channel and uu is the unit number. The value is expressed in

hexadecimal digits.

Conditional

assignment of

alternate tracks

Type S to select this option to reassign tracks of known defective

areas.

Note: If you choose this option, you must leave the "List defective

tracks on volume" field blank.

List defective tracks

on volume

Type S to inspect the volume for errors.

Note: If you choose this option, you must leave the "Conditional

assignment of alternate tracks" field blank.

Parameter Description

Chapter 7. Using Utilities 201

On this screen, you are asked to enter a set of track addresses (Cylinder, Head) to be

re-assigned to an alternate track. The CHECK parameter tells INSPECT to read the

track "n" times, based on the number you enter for the CHECK field, to determine if it

is defective, and only reassign defective tracks. An example of this JCL is shown

below.

//ICKDSF EXEC PGM=ICKDSF,REGION=0M

//SYSPRINT DD SYSOUT=*

//SYSIN DD *

IODELAY SET PERIO(20) MILLI(100) <--AWBS256

INSPECT DDNAME(DD1) NOVERIFY CHECK(3) -

TRACKS( -

(1,1) -

(1,2) -

(1,3) -

(1,4) -

) ASSIGN MAP

IODELAY RESET

//DD1 DD VOL=SER=MYDISK,UNIT=SYSALLDA,DISP=OLD

For more detailed information on the INSPECT command, refer to the IBM

documentation, Device Support Facilities: User’s Guide and Reference (GC35-0033-23). To

read this book online, go to http://publibz.boulder.ibm.com/cgi-

bin/bookmgr_OS390/FRAMESET/ICK40206.

----------------------------- INSPECT Function --------------------------------

COMMAND ==>

System: SYSNAME1 Dataplex: MYDPLEX Mode: Local Administrative

ENTER SELECTION: B ( B = BACKGROUND)

The assignment of alternate tracks depends on the result of surface checking.

Data on each specified track is copied to an alternate track if the track is

defective, or written back to the primary track if the track is not defective.

VOLSER : SYS055 <== Enter volume-serial

DEVICETYPE : 3380 <== Enter device-type of volume-serial

UNIT-ADR : 503 <== Enter UCB number of volume-serial

cyl head cyl head cyl head cyl head

TRACKS :(( 1_____ 1___ ) ( 1_____ 2___ ) ( 1_____ 3___ ) ( 1_____ 4___ )

( ______ ____ ) ( ______ ____ ) ( ______ ____ ) ( ______ ____ )

( ______ ____ ) ( ______ ____ ) ( ______ ____ ))

(cyl or head could be specified either in decimal or in hex)

CHECK : 3 <== Number of retries performed per track

202 Storage Administration Workbench for z/OS and OS/390:User’s Guide

Option 12 - Reformat

The REFORMAT command is used to change volume structure information, such as

the volser or VTOC. You can rename a volume on the ICKDSF Reformat screen.

However, this does not change the name in the VTOC or in catalogs that have the

current volser.

Note: The REFORMAT command is more of a "rename" command. To completely

rebuild a volume, use the INIT command. Refer to “Options 1 - 9, INIT” on

page 194 for more information.

When you choose option 12, Reformat, on the ICKDSF Functions menu (U.3.12 from

the SAW main menu), the following screen appears.

The table below briefly describes the fields on this screen.

The fields on the screen relate to the parameters in the JCL for the INIT command. The

JCL skeleton is shown below, with some example data. The skeleton shown below is

*.*.ISPSLIB(AWBS280), which contains the REFORMAT statement.

//ICKDSF EXEC PGM=ICKDSF,REGION=0M

//SYSPRINT DD SYSOUT=*

//SYSIN DD * <--AWBS280

REFORMAT UNITADDRESS(305) VOLID(VOLM01) VERIFY(OLDV97)

For more detailed information on the REFORMAT command, refer to the IBM

documentation, Device Support Facilities: User’s Guide and Reference (GC35-0033-23). To

read this book online, go to http://publibz.boulder.ibm.com/cgi-

bin/bookmgr_OS390/FRAMESET/ICK40206.

Parameter Description

VOLID VOLSER Type the new name you are assigning to the volume.

VERIFY VOLSER Type the volser of the current volume that you are going to rename.

UNIT-ADR Type the unit address of the current volume that you are going to

rename.

----------------------------- ICKDSF REFORMAT ---------------------------------

COMMAND ===>

System: SYSNAME1 Local Administrative Dataplex: MYDPLEX

ENTER SELECTION: B ( B = BACKGROUND)

Attention: Existing VTOC-Index and VVDS data set will not be renamed.

VOLID VOLSER: volm01 <== Enter new volume-serial

VERIFY VOLSER: oldv97 <== Enter old volume-serial

UNIT-ADR : 305_ <== Enter UCB number

Chapter 7. Using Utilities 203

Option 13 - Analyze

The ANALYZE command is used to test the device basic functions and read tracks to

ensure that data sets are still readable. This is the same screen that is described in

“Options 1 - 9, INIT” on page 194. It is listed as a separate item on the ICKDSF

Functions menu, which is described below.

When you choose option 13, ANALYZE, on the ICKDSF Functions menu (U.3.13 from

the SAW main menu), the following screen displays.

The table below describes the fields on this screen.

Parameter Description

IODELAY Type Y or N to indicate whether to specify some pacing arguments

that control how long the device is active. The high level of I/O

required to run some ICKDSF functions can degrade the performance

observed by other users of the system. The default is Y. If you type an

"N" in this field, you cannot enter values in the PERIO and MILLI

fields.

PERIO Specify the number of I/Os issued before waiting to allow other

processing. The default is 20.

Note: This option is not valid if there is an N in the IODELAY field.

----------------------------- ICKDSF ANALYZE ----------------------------------

COMMAND ===>

System: SYSNAME1 Local Administrative Dataplex: MYDPLEX

ENTER SELECTION: B ( B = BACKGROUND)

Execution mode :OFFLINE

IODELAY : Y <== Activate IODELAY option Y or N

PERIO : 20__ <== number of I/Os for one time interval

MILLI : 100_ <== milliseconds delay time

ANALYZE VOLSER: MYDISK <== Enter volume-serial

DEVICETYPE : 3380__ <== Enter device-type of volume-serial

UNIT-ADR : 1234 <== Enter UCB number (for OFF-LINE operation only)

SCAN ---------: Y <== Enter Y or N to activate data verification test

--- ALL : Y <== Enter Y or N to scan all cylinder

--- SPEED: Y <== Enter Y or N to scan one cylinder at a time

ALLCHPID : Y <== Enter Y or N to process all CHPIDs

DRIVETEST : Y <== Enter Y or N to process drive test function

204 Storage Administration Workbench for z/OS and OS/390:User’s Guide

The fields on the screen relate to the parameters in the JCL for the ANALYZE

command. The JCL skeleton is shown below, with some example data. The skeleton

shown below is *.*.ISPSLIB(AWBS281), which is the ANALYZE statement.

//ICKDSF EXEC PGM=ICKDSF,REGION=0M

//SYSPRINT DD SYSOUT=*

//SYSIN DD * <--AWBS281

IODELAY SET PERIO(20) MILLI(100)

ANALYZE DDNAME(DD1) SCAN ALL SPEED -

ALLCHP DRIVE

IODELAY RESET

//DD1 DD DISP=SHR,VOL=SER=SYS035,UNIT=SYSALLDA

For more detailed information on the ANALYZE command, refer to the IBM

documentation, Device Support Facilities: User’s Guide and Reference (GC35-0033-23). To

read this book online, go to http://publibz.boulder.ibm.com/cgi-

bin/bookmgr_OS390/FRAMESET/ICK40206.

MILLI Specify the length of the wait interval in milliseconds. For example,

issue 20 I/Os, based on the PERIO field, and then wait 100

milliseconds before resuming. The default is 100.

Note: This option is not valid if there is an N in the IODELAY field.

ANALYZE VOLSER Type the volser of the volume you want to test.

DEVICETYPE Specify the device type, either 3380 or 3390, if it is not already listed.

UNIT-ADR You must specify a unit address in the format of CCuu, where CC is the

channel and uu is the unit number. The value is expressed in

hexadecimal digits.

SCAN Type Y or N to indicate whether you want to verify that data is

readable. If you type Y, you can then enter variables in the ALL and

SPEED fields.

ALL Type Y to scan all cylinders on the volume.

SPEED Type Y to read a cylinder at a time, which is faster but may impact

performance for other users. Type N to read a track at a time.

ALLCHPID Type Y to use all channel paths to the device.

DRIVETEST Type Y to perform the basic functions of the drive.

Note: For some drives, specifying SCAN=N and DRIVETEST=N,

which means do not scan and do not run the drive test, will

print a path status report.

Parameter Description

Chapter 7. Using Utilities 205

Option 14 - BUILDIX

The BUILDIX command is used to convert the volume table of contents (VTOC)

between the indexed format or OS format.

When you choose option 14, BUILDIX, on the ICKDSF Functions menu (U.3.14 from

the SAW main menu), the following screen displays.

The table below describes the fields on this screen.

Parameter Description

BUILDIX Specify the result of the conversion. Valid values are:

• IX. Change to the INDEXED format.

• OS. Change to the MVS format.

VOLSER Type the volser of the volume whose VTOC you want to convert.

DEVICETYPE Specify the device type, either 3380 or 3390, if it is not already listed.

----------------------------- ICKDSF BUILDIX ----------------------------------

COMMAND ===>

System: SYSNAME1 Local Administrative Dataplex: MYDPLEX

ENTER SELECTION: B ( B = BACKGROUND)

Attention: When using BUILDIX to convert a VTOC on a volume shared between

systems, follow these guidelines:

1. Vary the device OFFLINE to all the other systems

2. Run BUILDIX

3. Vary the device back ONLINE to the other systems

This function is based on the assumption that the VTOCIX data set

exist on the selected volume.

BUILDIX : __ <== Enter IX to change to the INDEXED format

or OS to change to the MVS format

VOLSER : ______ <== Enter volume-serial

DEVICETYPE : ______ <== Enter device-type of volume serial

206 Storage Administration Workbench for z/OS and OS/390:User’s Guide

The fields on the screen relate to the parameters in the JCL for the BUILDIX

command. The JCL skeleton is shown below, with some example data. The skeleton

shown below is *.*.ISPSLIB(AWBS282), which is the BUILDIX statement.

//ICKDSF EXEC PGM=ICKDSF,REGION=0M

//SYSPRINT DD SYSOUT=*

//SYSIN DD *

BUILDIX DDNAME(DD1) IX <--AWBS282

//DD1 DD VOL=SER=SYS035,UNIT=SYSALLDA,

// DSN=SYS1.VTOCIX.VSYS035,

// DISP=OLD

For more detailed information on the BUILDIX command, refer to the IBM

documentation, Device Support Facilities: User’s Guide and Reference (GC35-0033-23). To

read this book online, go to http://publibz.boulder.ibm.com/cgi-

bin/bookmgr_OS390/FRAMESET/ICK40206.

Appendix A. Error Messages in SAW

The error messages in this appendix are based on issues with ISPF or with entries

made on SAW’s screens. For easier reading, "Storage Administration Workbench" is

referred to as "SAW" in this appendix. All messages generated by SAW have a

severity code printed as the last character of the message ID. The severity codes are

described in the following table:

AWBM000I COPYRIGHT SCREEN

Explanation: This screen lists the copyright information

for this product.

User Response: No action required.

AWBM001E ENTER CORRECT DATE FORM

Explanation: The date must be in the format

DD/MM/YYYY, where DD is the two-digit date, MM is

the two-digit month, and YYYY is the four-digit year. For

example, June 1, 2003 is 01062003.

User Response: Type a valid date in the DD/MM/YY

format.

AWBM002E ENTER D, W OR M

Explanation: This field will only accept a value of D, W,

or M.

User Response: Type D, W, or M in this field.

AWBM003E ENTER UP TO 8 CHARS

Explanation: Enter one to eight characters in this field.

User Response: Re-enter with not more than eight

characters.

AWBM004E ENTER UP TO 10 CHARS

Explanation: Enter one to ten characters in this field.

User Response: Re-enter with not more than ten

characters.

AWBM005E ELAPSED & SPACE? ERROR

Explanation: You cannot choose "elapsed" and "space"

at the same time.

User Response: Choose either "elapsed" or "space", but

not both.

AWBM006E ENTER Y OR N ONLY

Explanation: Only Y (Yes) and N (No) are valid entries

for this field.

User Response: Type Y or N in this field.

AWBM007E ENTER 1, 2, 3 OR 4

Explanation: The only choices possible for this field are

1, 2, 3, or 4.

User Response: Type 1, 2, 3, or 4 in this field.

AWBM008E NO OUTPUT SELECTED

Explanation: You must select either "export" or "chart" as

your output.

User Response: Choose either "export" or "chart" to

select an output mode.

AWBM009E ENTER ONLY D OR W

Explanation: The only valid entries for this field are D

and W.

User Response: Type D or W in this field.

Severity Code Description

I Information only. No user action required.

W Warning message. Results may not be as expected.

E Error message. Some may be user-correctable. Read the User

Response to determine the course of action.

208 Storage Administration Workbench for z/OS and OS/390:User’s Guide

AWBM010E FOR LOCAL DATAPLEX

OPERATION VALID SELECTIONS

ARE S, L

Explanation: For a local dataplex operation, the only

valid selections are S and L.

User Response: Type S or L in this field.

AWBM011E EITHER DEVICE OR SUBSYSTEM

MUST BE SPECIFIED

Explanation: Specify a device or a subsystem name.

User Response: Specify a device or subsystem name.

AWBM012E BASIC FUNCTIONS CANNOT BE

MIXED WITH EXTENDED

FUNCTIONS

Explanation: You cannot mix BASIC and EXTENDED

functions.

User Response: Perform either BASIC or EXTENDED

functions, but not both at the same time.

AWBM014E NO VALID FUNCTION SELECTED

Explanation: None

User Response: Select a valid function.

AWBM015E NO TARGET VALUE ALLOWED

FOR THIS TYPE OF CACHE

Explanation:

User Response: Do not specify a target value.

AWBM016E VALID INPUT IS A FOR ACTIVE

OR I FOR INACTIVE

Explanation: The only valid entries are "A" for active or

"I" for inactive.

User Response: Enter A or I in this field.

AWBM017E FOR REMOTE DATAPLEX

OPERATION THE ONLY VALID

SELECTION IS S

Explanation: Enter an "S" to select a remote dataplex

operation.

User Response: Typ e S in th e fi eld .

AWBM018E OBSOLETE STATUS CANNOT BE

CHANGED

Explanation: You cannot change this status.

User Response: None

AWBM019E VALID VOLUME-STATUS = A / O /

Explanation:

User Response:

AWBM020E TARGETS CAN ONLY BE SET IF

THE VOLUME IS INDICATED AS

CACHED

Explanation:

User Response:

AWBM021E THIS OPTION IS NOT ALLOWED

ON VOLUME LEVEL FOR SMS

MANAGED VOLUMES

Explanation:

User Response:

AWBM022E FOR LOCAL DATAPLEX

OPERATION VALID SELECTIONS

ARE U, D

Explanation: The valid entries for this local dataplex

operation are U and D.

User Response: Typ e U o r D .

AWBM023E DEVICE NOT INDICATED AS A

CACHED DEVICE

Explanation:

User Response: None required.

AWBM024E FUNCTION ONLY ALLOWED IF

SMS-MANAGED VOLUMES IN

POOL poolname

Explanation:

User Response:

AWBM025E FUNCTION ONLY ALLOWED IF

SMS IS ACTIVE ON YOUR SYSTEM

Explanation:

User Response: None required.

AWBM026E NO RACF LIST DATA SET

CUSTOMIZED FOR USERID DFP

DATA

Explanation:

User Response: None required.

Appendix A. Error Messages in SAW 209

AWBM027E NO RACF LIST DATA SET

CUSTOMIZED FOR GROUP DFP

DATA

Explanation:

User Response: None required.

AWBM028E NO RACF LIST DATA SET

CUSTOMIZED FOR DS-PROFILE

DFP DATA

Explanation:

User Response: None required.

AWBM029E FOR REMOTE DATAPLEX

OPERATION THE ONLY VALID

SELECTIONS ARE H, S, ?

Explanation: The only entries you can make for this

remote dataplex operation are H, S, and ? (question

mark).

User Response: Enter H, S, or ? for this operation.

AWBM030E FOR LOCAL DATAPLEX

OPERATION VALID SELECTIONS

ARE H, S, D, U, A, T, V, ?

Explanation:

User Response:

AWBM031E ONLY SELECTION FROM 1 TO 3 IS

ALLOWED

Explanation:

User Response:

AWBM032E ENTER TEST OPTION Y (YES) OR N

(NO)

Explanation: Enter Y or N for the test option.

User Response: Enter Y or N.

AWBM033E VALID SELECTIONS ARE 1, 2, 3, 4, 5,

6, 7, ?, m

Explanation: You made an entry that was not valid.

User Response: Enter one of the values listed in the

message.

AWBM034E VALID SELECTIONS ARE ALL,

DASD, TAPE

Explanation: You must select ALL, DASD, or TAPE.

User Response: Choose ALL, DASD, or TAPE.

AWBM035E ENTER SG/POOL NAME. GENERIC

SELECTION IS POSSIBLE. USE * TO

SELECT ALL.

Explanation: You must specify the name of a storage

group (SG) or pool, or choose all names.

User Response: Type a storage group or pool name, or

type an asterisk (*) to select all storage groups or pools.

AWBM037E ENTER A VALID RACF USER-ID

Explanation: Either you did not specify a user ID or you

mistyped the user ID.

User Response: Typ e a RAC F use r I D.

AWBM038E ENTER A VALID RACF GROUP

NAME

Explanation: You either did not enter a name or

mistyped the name.

User Response: Typ e a RAC F g rou p name.

AWBM039E VALID SELECTIONS ARE U OR D

Explanation: You did n ot spe cif y U or D.

User Response: Select U or D.

AWBM040E THE ONLY VALID SELECTION IS U

Explanation: You typed a value other than U for this

field.

User Response: Type U in this field.

AWBM041E FUNCTION NOT ALLOWED <==>

NO DATA SET NAME

CUSTOMIZED.

Explanation:

User Response: Choose a different function.

AWBM042E A SYSTEM MUST BE SELECTED

FOR DFHSM LOG PROCESS

Explanation: You did not select a system on which to

perform the DFHSM LOG process.

User Response: Select a system.

AWBM043E SELECTION NOT VALID. NO

NODE INFORMATION

CUSTOMIZED FOR DB PROCESS.

Explanation:

User Response:

210 Storage Administration Workbench for z/OS and OS/390:User’s Guide

AWBM044E UPDATED HLQ NOT DISPLAYED

BECAUSE OF SELECTED

APPLICATION application name

Explanation:

User Response: None required.

AWBM045E OFFSITE BACKUP HLQ CANNOT

BE THE SAME NAME AS ONSITE

BACKUP HLQ

Explanation: You used the same highlevel qualifier for

the offsite and onsite backups.

User Response: Ensure that the highlevel qualifier that

you specify for the offsite backup is different from the

highlevel qualifier you specify for the onsite backup.

AWBM046E SPA/DVP SELECTION NOT

ALLOWED FOR DAILY IN

COMBINATION WITH PERIODIC

Explanation:

User Response:

AWBM047E ENTER THE TYPE OF DIAGNOSE

(ICFCAT OR VVDS)

Explanation:

User Response: Specify either ICFCAT or VVDS.

AWBM048E ENTER THE DATA SET NAME FOR

WHICH DIAGNOSE SHOULD BE

PROCESSED

Explanation:

User Response: Type the name of the data set that

should be processed with DIAGNOSE.

AWBM049E ONLY ONE ITEM CAN BE

SELECTED

Explanation: You have selected two or more items.

User Response: Select only one item.

AWBM050E VALID VALUE IS A FOR LOCAL

ADMINISTRATIVE

Explanation:

User Response: Type A if you are using a local

administrative dataplex.

AWBM051E VALID SELECTIONS ARE A, C, D, S,

U, X OR F

Explanation: You typed a value that is not A, C, D, S, U,

X, or F.

User Response: Type one of the values in the list.

AWBM052E VALID VALUE IS L FOR LOCAL

Explanation: You typed a wrong value for a local

dataplex.

User Response: If you want to use a local dataplex, type

L for the value.

AWBM053E ENTER THE NUMBER OF

CATALOG BACKUP GDG ENTRIES

Explanation: You did not indicate how many catalog

backup GDG entries there will be.

User Response: Type a number to indicate how many

catalog backup GDG entries will be used.

AWBM054E ENTER UNIT NAME THAT

SHOULD BE USED FOR SORTWKxx

DD-NAMES

Explanation:

User Response:

AWBM055E VALUE T CANNOT BE UPDATED

FOR A REMOTE TARGET

DATAPLEX

Explanation:

User Response: None required.

AWBM056E ENTER UNIT NAME USED FOR

ONSITE BACKUP DATA SET

ALLOCATIONS ON DASD

Explanation: You did not specify a unit name to be used

for allocating data sets on DASD for onsite backups.

User Response: Type a unit name.

AWBM057E ENTER UNIT NAME USED FOR

ONSITE BACKUP DATA SET

ALLOCATIONS ON TAPE

Explanation: You did not specify a unit name to be used

for allocating data sets on tape for onsite backups.

User Response: Typ e a unit nam e.

Appendix A. Error Messages in SAW 211

AWBM058E ENTER ALGORITHM IDS USED

FOR ONSITE BACKUP DATA SET

ON DASD

Explanation: You did not specify an algorithm ID.

User Response: Typ e an algo ri thm ID.

AWBM059E ENTER ALGORITHM IDS USED

FOR ONSITE BACKUP DATA SET

ON TAPE

Explanation: You did not specify an algorithm ID.

User Response: Typ e an algo ri thm ID.

AWBM060E ONLY ONE OF THE FOLLOWING

DEVICE TYPES ARE SUPPORTED:

(LIST OF DEVICES)

Explanation: You selected more than one device type.

User Response: Select a device type from the list.

AWBM061E ENTER DEVICE NAME THAT IS

USED FOR ALLOCATIONS

WITHIN THIS APPLICATION

Explanation:

User Response: Typ e a device na me.

AWBM062E FUNCTION NOT ALLOWED <==>

NO REMOTE NODE AND USER-ID

CUSTOMIZED

Explanation:

User Response:

AWBM063E FUNCTION NOT ALLOWED FOR

REMOTE DATAPLEX.

Explanation:

User Response: Choose a different function.

AWBM064E UPDATE NOT PROCESSED <==>

ONLY ONE LOCAL DATAPLEX

ALLOWED.

Explanation:

User Response: None required.

AWBM065E FUNCTION NOT ALLOWED <==>

NO NODE.USER-ID OR

NICKNAME CUSTOMIZED.

Explanation:

User Response: None required.

AWBM066E FUNCTION NOT ALLOWED. THE

CURRENT DATAPLEX IS NOT THE

SELECTED DATAPLEX.

Explanation:

User Response: None required.

AWBM067E FUNCTION NOT ALLOWED ON

SELECTED DATAPLEX.

Explanation:

User Response: None required.

AWBM068E THE DATA SET

’SYS1.LINKLIB.ADSM’ IS NOT

ALLOCATED UNDER ISPLLIB.

Explanation:

User Response: None required.

AWBM070E SPECIFIED SMF/JES-ID DOES NOT

EXIST. PLEASE SELECT A VALID

SYSTEM.

Explanation: The SMF/JES-ID you specified is not valid.

User Response: Specify a valid SMF/JES-ID

AWBM071E VALID SELECTIONS ARE M, U, O,

Explanation: The letter you typed was not valid for this

field.

User Response: Type an M, U, O, or X.

AWBM072E USE S TO SELECT A DATAPLEX

Explanation: This is for your information only.

User Response: Type an S next to the name of the

dataplex you want to choose.

AWBM073E ENTER UNIT NAME USED FOR

OFFSITE BACKUP DATA SET

ALLOCATIONS ON DASD

Explanation:

User Response: Typ e a unit nam e.

AWBM074E ENTER UNIT NAME USED FOR

OFFSITE BACKUP DATA SET

ALLOCATIONS ON TAPE

Explanation:

User Response: Typ e a unit nam e.

212 Storage Administration Workbench for z/OS and OS/390:User’s Guide

AWBM075E ENTER THE DEFAULT JOB CLASS

FOR BATCH PROCESSING

Explanation:

User Response: Type a default job class.

AWBM076E ENTER THE DEFAULT MESSAGE

CLASS FOR BATCH PROCESSING

Explanation:

User Response: Type a default message class.

AWBM077E ENTER A VALID HLQ USED FOR

OFFSITE BACKUP DATA SETS.

Explanation:

User Response: Type a highlevel qualifier for the

datasets used for offsite backups.

AWBM078E ENTER THE DEFAULT INITIAL

VALUE THAT SHOULD BE USED

FOR NEW VI ENTRIES

Explanation:

User Response: Type a default initial value.

AWBM079E ENTER A NUMERIC VALUE IN THE

RANGE BETWEEN 000 AND 100

Explanation: This is for your information.

User Response: Type a number between 000 and 100.

AWBM080E ENTER A NUMBERIC VALUE IN

THE RANGE BETWEEN 00 AND 99

Explanation: This is for your information.

User Response: Type a number between 00 and 99.

AWBM082E ENTER VALID EXECUTION MODE.

VALID MODES ARE OLD OR NEW

Explanation: The only valid execution modes are "OLD"

or "NEW."

User Response: Type either OLD or NEW for the

execution mode.

AWBM083E SELECTIONS CANNOT BE MIXED

Explanation:

User Response:

AWBM084E NO VALID FUNCTION SELECTED

Explanation:

User Response: Select a valid function for this process.

AWBM085E PRIMARY COMMAND CLIST . . . . .

CAN BE SELECTED FOR TABLE

PROCESSING

Explanation: This is for your information.

User Response: None required.

AWBM086E NO DEFAULT SYSTEM AVAILABLE

Explanation: This is for your information.

User Response: None required.

AWBM087E ENTER THE CACHE MODEL YOU

LIKE TO PROCESS. VALID VALUES

ARE 03/06/13/23/SK

Explanation:

User Response: Type the value of the cache model you

want to process: 03, 06, 13, 23, SK.

AWBM088E IF PROCEDURE GENERATION IS

REQUESTED, ONLY ONE ITEM

CAN BE SELECTED

Explanation: This is for your information.

User Response: Select only one item when generating a

procedure.

AWBM089E NO VALID SELECTION WAS

MADE. VALID SELECTIONS ARE J,

I, P OR G

Explanation: You must choose J, I, P, or G for this

process.

User Response: Type J, I, P, or G for this field.

AWBM090E ENTER PROCLIB DATA SET NAME

Explanation: The name of the PROCLIB data set needs

to be entered.

User Response: Type the name of the PROCLIB data set.

AWBM091E ENTER A NUMERIC VALUE IN THE

RANGE BETWEEN 000 AND 999

Explanation: This field requires a number between 000

and 999.

User Response: Type a number between 000 and 999 for

this field.

Appendix A. Error Messages in SAW 213

AWBM092E SELECTION NOT VALID. NO

ONSITE BACKUP HLQ

CUSTOMIZED.

Explanation: The selection you made does not work

because the highlevel qualifier for the onsite backup is

not customized.

User Response: Either make a different selection or

customize a highlevel qualifier for an onsite backup.

AWBM093E SELECTION NOT VALID. NO

OFFSITE BACKUP HLQ

CUSTOMIZED.

Explanation: The selection you made does not work

because the highlevel qualifier for the offsite backup is

not customized.

User Response: Either make a different selection or

customize a highlevel qualifier for an offsite backup.

AWBM094E DFHSM ADDVOL COMMAND

NOT ALLOWED IN JES3

ENVIRONMENT

Explanation: This is for your information.

User Response: None required.

AWBM095E MODE "R" OR "R T" COULD NOT

BE MODIFIED

Explanation:

User Response:

AWBM096E ENTER A NUMERIC VALUE IN THE

RANGE BETWEEN 001 AND 999.

Explanation: This is for your information.

User Response: Type a number between 001 and 999 for

this field.

AWBM097E FUNCTION ONLY ALLOWED ON A

REMOTE TARGET DATAPLEX

Explanation: This is for your information.

User Response: Either choose a different function to

perform on a remote target dataplex or choose a different

type of dataplex for which this function will work.

AWBM098E YOU ARE NOT AUTHORIZED TO

USE THIS DATAPLEX

Explanation: This is for your information.

User Response: No action required.

AWBM099E FUNCTION NOT ALLOWED ON

THE LOCAL DATAPLEX

Explanation: This is for your information.

User Response: Either choose a different function to

perform on a remote target dataplex or choose a different

type of dataplex for which this function will work.

AWBM100E EMPTY DATA SET

Explanation: This is for your information.

User Response: No action required.

AWBM101E EITHER TRANSMIT OR NFTP IS

ACCEPTED

Explanation: Choose either TRANSMIT or NFTP.

User Response: Choose either TRANSMIT or NFTP.

AWBM102E CURRENT AND

ADMINISTRATIVE SAW NFTP

REMNODE/RNOTIFY CANNOT BE

IDENTICAL

Explanation:

User Response:

AWBM103E BOTH REMNODE AND RNOTIFY

MUST BE SPECIFIED FOR IFX

TRANSMISSIONS

Explanation: This is for your information.

User Response:

AWBM104E BOTH CURRENT NFTP REMNODE

AND OPC INFORMATION MUST

BE SPECIFIED

Explanation: This is for your information.

User Response:

AWBM105W typesel typename NOT FOUND

Explanation: This is for your information.

User Response: No action required.

AWBM106I LMSG TEXT

Explanation: This is for your information.

User Response: No action required.

214 Storage Administration Workbench for z/OS and OS/390:User’s Guide

AWBM107W LMSG TEXT

Explanation: This is for your information.

User Response: No action required.

AWBM108E SELECTION Y NOT ALLOWED,

WHEN NO TAPE MGMT. IS

SPECIFIED IN OPT 8.2.T

Explanation: Option 8.2.T is now option S.2.2.T, where S

is the Setup and Configuration option on the SAW main

menu, 2 is the Dataplex and System Configuration

Parameters, 2 is System, and then T.

User Response: Review whether tape management is

needed.

AWBM110E ERROR errorRC OCCURRED WHILE

ALLOCATING THE WORKFILE file

name

Explanation: This is for your information.

User Response: No action required.

AWBM111E ERROR errorRC OCCURRED WHILE

ALLOCATING THE SAI DATASET

name

Explanation: This is for your information.

User Response: No action required.

AWBM112E ERROR errorRC OCCURRED WHILE

EXECUTING REPRO (input

SAIfilename output outfilename

Explanation: This is for your information.

User Response: No action required.

AWBM113W WARNING| DATAPLEX name

HAVE NO VOLUMES OR ALL

VOLUMES ARE SMS-MANAGED.

Explanation: This is for your information.

User Response: No action required.

AWBM114E ERROR error LOOKING

(LMMFIND) FOR THE

VOLUMES/POOL

CONFIGURATION MEMBER name

Explanation: This is for your information.

User Response: No action required.

AWBM115E ERROR errorRC OCCURRED WHILE

CREATING TEMPORARY ISPF

TABLE name

Explanation: This is for your information.

User Response: No action required.

AWBM116I VOLUME TO POOLS

CONFIGURATION FILE

SUCCESSFULLY UPDATED.

Explanation: This is for your information.

User Response: No action required.

AWBM117I CANCEL ACCEPTED. VOLUMES

TO POOLS CONFIGURATION FILE

HAS NOT BEEN UPDATED.

Explanation: This is for your information.

User Response: No action required.

AWBM118E SPECIFY ONE OF THE "POOL

NAME" OR "ASSIGNED TO APPL."

FIELD (OR BOTH)

Explanation: An entry needs to be made in either the

"Pool Name" field or the "Assigned to Appl." field, or

both.

User Response: Make an entry in one or both of those

fields.

AWBM119E DATAPLEX name HAS NO POOLS

AND/OR SMS-STORAGEPOOLS.

Explanation: This is for your information.

User Response: No action required.

AWBM120E SPECIFIED POOL name DOES NOT

EXIST. ADDED NOW.

Explanation: This is for your information.

User Response: No action required.

AWBM121E POOL name IS AN SMS SG AND

CANNOT BE USED AS POOL.

Explanation: This is for your information.

User Response: No action required.

AWBM122E ERROR skeleton status CHECKING

THE SKELS DATASET FOR

CURRENT DATAPLEX name

Explanation: This is for your information.

Appendix A. Error Messages in SAW 215

User Response: No action required.

AWBM123E ERROR error OPENING (LMOPEN)

DATASET parmlib FOR OUTPUT

Explanation: This is for your information.

User Response: No action required.

AWBM124E ERROR error UPDATING (LMREP)

DATASET name

Explanation: This is for your information.

User Response: No action required.

AWBM125E ERROR error WRITING (LMPUT)

DATASET name

Explanation: This is for your information.

User Response: No action required.

AWBM126E FUNCTION LISTDSI ERROR

RETURN CODE = listcode.

Explanation: This is for your information.

User Response: No action required.

AWBM127E blocku DIRECTORY BLOCKS NOT

ENOUGH FOR poolnum ITEMS, AT

LEAST blocknum NEEDED

Explanation: This is for your information.

User Response: No action required.

AWBM128E THE DATE MUST BE NUMERIC

Explanation: This is for your information.

User Response: No action required.

AWBM129W THERE IS NO SAW-DEFINED ATL

ON THIS SYSTEM.

Explanation: This is for your information.

User Response: No action required.

AWBM130E VALID VALUES FOR UPDATE

FIELD ARE N OR Y

Explanation: This is for your information.

User Response: Enter Y or N in this field.

AWBM131W TEXT CHANGED BUT THE

UPDATE FLAG IS SET TO N; IF YOU

WANT TO SAVE THE CHANGE

PLEASE SET THE UPDATE FLAG

TO Y

Explanation:

User Response: To save the change, set the update flag

to Y.

AWBM132E LOCK OR UNLOCK VALUE IS

REQUESTED

Explanation:

User Response: Specify either LOCK or UNLOCK.

AWBM133E IS NOT POSSIBLE EXECUTE THE

COMMAND LOCK-UNLOCK ON

MASTER CATALOG.

Explanation: This is for your information.

User Response: No action required.

AWBM134E YOU HAVE TO MODIFY ALSO

DATAPLEX NAME.

Explanation:

User Response: Change or edit the dataplex name.

AWBM135E Reserved for future use.

Explanation:

User Response:

AWBM136E Reserved for future use.

Explanation:

User Response:

AWBM137E Reserved for future use.

Explanation:

User Response:

AWBM139E Reserved for future use.

Explanation:

User Response:

AWBM140E COMMAND P ALLOWED ONLY

ON REMOTE DATAPLEX

Explanation: This is for your information.

User Response: Either change the command to

something other than P or use the P command on a local

dataplex.

216 Storage Administration Workbench for z/OS and OS/390:User’s Guide

AWBM141E DO NOT SPECIFY SAI

TRANSMISSION TOGETHER

WITH NFTP REQUEST

Explanation: This is for your information.

User Response:

Appendix B. Dataplex Configurations

This appendix shows the different forms of a dataplex. They are described here to

support the definition or the help in understanding the various aspects a dataplex can

take.

No Shared DASD

Dataplex A

SYSTEM 1 SYSTEM 2

B E A B

Dataplex B

218 Storage Administration Workbench for z/OS and OS/390:User’s Guide

Shared DASD

Dataplex A

SYSTEM 1

SYSTEM 2

Fully effective if same RACF DB; if not, make two dataplexes.

ABECD

Dataplex B

Dataplex A

SYSTEM 1 SYSTEM 2

ABECD

SYSTEM 3

Dataplex A will store:

.SAI A as Local

.SAI B as Remote Transmit SAI B to Dataplex A

Local and Remote Dataplex

Appendix B. Dataplex Configurations 219

Dataplex B

Dataplex A

SYSTEM 1 SYSTEM 2

ABECD

SYSTEM 3

Dataplex A will

store:

.SAI A as Local

.SAI B as Remote

Transmit SAI B to Dataplex A

Local and Remote Dataplex and Db2 Database

Dataplex or System N

Reporting Data

Db2 System.N

220 Storage Administration Workbench for z/OS and OS/390:User’s Guide

Glossary

This glossary includes terms and definitions from:

• The SystemView Glossary

• The TE SMP Glossary

The following cross-reference terms are used in this

glossary:

Contrast with. This refers to a term that has an

opposed or substantively different meaning.

See. This refers the reader to multiple-word terms in

which this term appears.

See also. This refers the reader to terms that have a

related, but not synonymous, meaning.

Synonym for. This indicates that the term has the

same meaning as a preferred term, which is defined

in the glossary.

ACS. DFSMS Automatic Class Selection

alert. (1) In SNA, a record sent to a focal point to identify

a problem or an impending problem. (2) A notification of

an event needing an immediate human intervention, the

intervention being either an acknowledgement or the

complete correction of the event. The alerts will be

created by comparing current figures against an alert

threshold.

AO. (1) Automation Option (2) Automated Operations

APAR. Authorized Program Analysis Report

APF. Authorized Program Facility

ATL . Automated Tape Library (IBM Tape Library robot)

Authorized Program Analysis Report (APAR). An

Authorized Program Analysis Report or APAR, entered

into RETAIN/SSF, is the vehicle by which IBM software

product defects are documented. The APAR documents

the failing component, the symptoms of the failure, and

the product function environment associated with the

failing component.

Application. A collection of highlevel qualifiers (HLQs).

An HLQ must belong to only one application.

Application Pool. A collection of pools. A pool may only

belong to one application pool. Grouping pools together

for reporting purposes can be helpful. For example, there

may be several pools that contain "system" data, such as

paging, JES spool, and Sysres pools, that could be

grouped together. These can all be associated with one

"System" application pool and consolidated figures will

then be produced in various reports.

backup. (1) An action that creates a partial or full copy of

an object that can be used to recover the original object.

(2) A provision to rebuild a failed resource or a spare

resource that can take over for a failed resource.

batch. Pertaining to a group of jobs to be run on a

computer sequentially with the same program with little

or no operator action. Contrast with interactive.

BCDS. Backup Control Data Set for DFHSM.

BLKSIZE. Block size

BTLS. An IBM product that manages a robot.

business management. The discipline that encompasses

inventory management, security management, financial

administration, business planning and management

services for all enterprise-wide information system

facilities.

CA. Control Area.

CA-1. Tape management product of Computer

Associates (CA).

CDS. Control Data Set.

charging. See Cross Charging

CI. Control Interval.

Compression Ratio. The result of dividing the used

space, as seen by the user, by the physical space needed

to contain it.

configuration. The physical and logical arrangement of

devices and programs that make up a data processing

system. See also communications configuration, line

configuration, controller configuration and device

configuration.

configuration management. The discipline that manages

the physical and logical properties of resources and their

relationships (such as connections and dependencies).

convention. See service delivery convention.

Cross Charging. Cross Charging is the TE SMP

application, based on dpAM. It is designed to account the

use of data processing resources, MVS and VM, CPU and

222 Storage Administration Workbench for z/OS and OS/390:User’s Guide

DASD, based on measurements collected by SLR for CPU

and SADC/SARA/SAW for disk measurement.

customization. Jobs and/or procedures required after

'installation' before a product's function can be used or

before a product's service is effective.

Dataplex. One or more MVS systems which share DASD

volumes. Refer to Appendix B, “Dataplex

Configurations” on page 217 for various possibilities for

configuring a dataplex. The scope of a RACF database or

of one DFHSM system may help, but essentially the

Storage Administrators must decide what they want to

manage and plan as a single entity. Each dataplex is

given a name up to eight characters in length which must

be unique. Check with your DBA to ensure that a

dataplex name you want to use is unique.

DASD. Direct Access Storage Device.

DB2. Data Base 2.

DCOLLECT. Data Collection (IDCAMS function).

DD. Data Definition.

DEFRAG. Defragmentation (DFDSS function).

DFDSS. Data Facility Data Set Services.

DFHSM. Data Facility Hierarchical Storage Manager.

DFP. Data Facility Product.

DFRMM. The IBM tape management product in a non-

SMS environment. See RMM.

DFSMS. Data Facility Storage Management Subsystem.

DMA. Data Management Application (TE SMP

application). DMA provides application administrators

with exceptions and reports on data management.

DR. Data Repository (TE SMP package). DR is a shared

DB2 data base intended to contain all data required by

several SMP applications. The core data required by

virtually any systems management application consists

of configuration and enterprises (IBM and third parties)

organization information. DR package creates the DB2

data base and provides an API to feed organization data

from existing files and a user interface for manual input.

DR is a key enabler of the SMP layer.

DS. Data Set.

DSCB. Data Set Control Block.

DSF. Device Support Facility.

DSORG. Data Set organization.

EMEA. Europe, Middle East and Africa.

ESA. Enterprise System Architecture

exceptions. Exceptional or out-of-line situations that

need further examination. They are created by comparing

current figures with a plan or threshold. Jobs can be

established that regularly generate messages that will be

automatically sent to the appropriate people involved in

storage administration activities.

focal point. (1) An entry point that provides centralized

management and control for other entry points for one or

more management categories. (2) In NetView, the focal

point domain is the central host domain. It is the central

control point for any management services element

containing control of the network management data. See

also primary focal point, default focal point, and sphere

of control.

GDDM. Graphical Data Display Manager.

GDS. Generation Data Set.

Group. A collection of subgroups. A subgroup must only

belong to one group.

HLQ. High Level Qualifier of a data set. In RACF terms,

his includes USERIDs and GROUPs.

IAS. Information Asset Security.

IBM. International Business Machines.

ICKDSF. Utility program for DSF.

IDCAMS. DFP utility.

Initial Program Load (IPL). The process that loads the

system programs from the system auxiliary storage,

checks the system hardware and prepares the system for

user operations.

interactive. Pertaining to the exchange of information

between people and a computer. Contrast with batch.

International Standards Organization (ISO). An

international group for defining standards.

Glossary 223

inventory. (1) a collection that represents the assets that

an IS organization uses. Inventory is considered anything

that requires 'who', 'what' and 'where' types of

information. (2) inventory contains the representation of

all Information Assets including hardware, software,

data and the authorization of people and applications

that access the resources.

IPL. See initial program load (IPL).

ISO. International Standards Organization.

ISPF. Interactive System Productivity Facility.

JCL. Job Control Language.

JES. The MVS Job Entry Subsystem. There are two

flavors, JES2 and JES3.

job. (1) A unit of work to be done by a computer. (2) A

unit of work to be processed by a system.

journal. A record of changes since a previous backup.

KSDS. Key Sequenced Data Set.

local. Pertaining to a device or system that is connected

directly to or a file that is read directly from a system,

without the use of a communications line. Contrast with

remote.

local administrative dataplex. A dataplex that can

administer other dataplexes, called "remote target

dataplexes."

local dataplex. A dataplex that can receive and view

information of other dataplexes, called "remote

dataplexes."

logical device. DASD that is seen by the user, such as

3390-3. Contrast with "physical" device.

machine room. The physical location of DASD. Usually a

room name or number.

master. The RMM name for a no-scratch volume.

MB. Megabytes.

MCDS. Migration Control Data Set for DFHSM.

ML1. DFHSM Migration Level 1.

ML2. DFHSM Migration Level 2.

MVS. Multiple Virtual Storage.

MVS/ESA. Multiple Virtual Storage/Enterprise Systems

Architecture.

NFTP. NetView File Transfer Program.

No-Scratch. A tape volume that the tape management

product considers to contain valid contents, according to

the rules provided by the user.

OCDS. Offline Control Data Set for DFHSM.

OPC/ESA. Operation Planning and Control/Enterprise

Systems Architecture.

PDF. Program Development Facility.

PDF abbreviation. Identical to the one defined in

Hardware Configuration Manager (HCM). It contains the

abbreviation ID of one of HCM’s physical description

templates, such as RVA1, RAMAC, etc.

PF Keys. Program Function keys.

physical device. A real disk used by the RVA. The user is

unaware of it.

pool. Set of volumes that is addressable from the

dataplex. This is equivalent to a storage group in the

DFSMS environment. Each volume may only belong to

one pool.

QMF. Query Management Facility.

RACF. Resource Access Control Facility.

recommendation. See service delivery recommendation.

recovery. (1) The process of rebuilding databases after a

system failure. (2) The restoring of a system or data to an

agreed level (integrity, accessibility and function) after a

failure - usually by rebuilding or replacing failed

resources.

224 Storage Administration Workbench for z/OS and OS/390:User’s Guide

remote. Pertaining to a device, system, or file that is

connected to another device, system, or file through a

communications line. Contrast with local.

remote dataplex. A dataplex which sends information

that can be viewed on a "local" dataplex.

remote dataplex processed in local. A dataplex defined

in a "local administrative dataplex". All of the

DCOLLECT data that is sent by a remote system is

elaborated locally in a "local administrative dataplex."

remote target dataplex. A dataplex that is administered

by a "local administrative dataplex."

Removable Media Management. See RMM.

REXX. REstructured eXtended eXecutor.

RMM. Common name for DFSMSrmm and DFRMM.

Robot. Tape devices that can automatically mount

cartridges on its units.

RVA. Ramac Virtual Array

SAW. Storage Administration Workbench. SAW

manages DASD storage space in a dataplex. An MVS

dataplex is a complex of one or more MVS systems

sharing storage resources. SAW is the workbench of the

storage administrator. It gives access to an inventory of

resources, reports, trends, exceptions, and alerts.

scratch. A tape volume that the tape management

product considers to be without valid contents, making it

re-usable. This assessment is based on the rules provided

by the user.

SDC. Service Delivery Center.

service delivery convention. A set of common

definitions that must be followed by the service delivery

community.

service delivery recommendation. A set of common

definitions that should be followed by the service

delivery community.

SETROPTS. SET Racf OPTionS.

SG. Storage Group.

SMF. Systems Management Facilities.

SMP. (1) Systems Management Process (2) Systems

Management Processes

SMS. System Managed Storage.

SMStape. An IBM product that manages a robot.

SSC. Supply and Support Center.

Storage Administration Inventory (SAI). One or several

dataplex descriptions in a VSAM KSDS. The SAI is

accessed through the workbench, which is the SAW

interface.

storage group. A named set of DASD volumes.

stored reports. Standard reports that can be created

regularly and stored for viewing to understand the alerts

or exceptions. Any of these reports can be distributed on

a regular basis.

string. A number of physically connected DASD units.

subgroup. A collection of applications. An application

can only belong to one subgroup.

tape. A cassette or reel-to-reel storage medium on which

data can be stored by magnetic recording.

tape management product. Software which manages

tape volumes, keeping an inventory and controlling

mounting to prevent the destruction of valid data. IBM’s

RMM software and Computer Associates’ TLMS and CA-

1 software are examples of tape management products.

TE. Technical Environment.

TLMS(c). A tape management product produced by

Computer Associates (CA).

TMM. Tape Mount Management. A technique aimed to

transform tape files into DASD files without JCL changes,

using SMS ACS routines and classes.

TSO. Time Sharing Option.

UACC. Universal ACces Control (TE SMP application).

The IAS rule for universal access on resources (UACC) is

"none". UACC controls that resources which have

universal access greater than none are registered and

controlled. This is done by comparing RACF real UACC

status to the central DB2 reference.

UCB. Unit Control Block.

VM. Virtual Machine

VOLCAT. The user catalog that holds the inventory of

volumes on a robot managed by SMStape.

VSAM. Virtual Storage Access Method.

VTOC. Volume Table Of Contents.

VVDS. Virtual VSAM Data Set.

Glossary 225

warning. A potential problem which may lead to an alert

if no action (human or automated) is taken.

226 Storage Administration Workbench for z/OS and OS/390:User’s Guide

Index

ACTION parameter 145

ADDVOL 115

ADRDSSU utilities 179

CONVERTV 191

COPY 184, 187, 190

DEFRAG 181

DUMP 192

MOVE 184, 187

ADSM, main menu option 16

alert

jobs 66

jobs, generating 92

messages 93

percentages 90

processing parameters 114

algorithms 29

descriptions 30

offsite backups 32

onsite backups 30

allocations

AWBALLOC 20

installation 20

ALTER command 178

ALTER GDG command 162

ANALYZE command 203

application and storage reports 119

Application View with SG/Pool re-

port 122

ATL General Information screen 16

ATL, main menu option 16

AWB clist 20

AWBALLOC 20

AWBEXEC 20

AWBFORCE 20

AWBIRMM 20

AWBRACF 20

AWBRMM 20

AWBTLM 20

AWBTSS 20

backup

actions 146

algorithms 29

errors for catalogs 72

errors for DASD 70

on/offsite 29

Backup Jobs in Error screen 70

batch jobs, installation 23

before creating JCL 55

BUILDIX command 205

CA1, AWBTLM 20

cache errors 80

Cache Management screen 10

cache utilities 164

LISTDATA 170

SETCACHE 164

Cache, main menu option 10

catalog

backup errors 72

main menu option 8

parameters 113

thresholds 79

thresholds, setting 79

Catalog Exceptions report 113

Catalog Maintenance screen 72

Catalog Management screen 8

channel path IDs 80

checking pools 74

CHPIDs 80

CLIST, AWB 20

collecting volume space data 67

Common Tasks

cache errors 80

catalog backup errors 72

catalog thresholds 79

checking pools 74

DASD backup errors 70

DFHSM 78

LOGSCAN 80

LOGSCAN SMS 80

main menu option 4

menu 70

missing CHPIDs 80

option 69

SAI 74

screen 4

configuring dataplexes 217

CONTROL command 198

Control File Maintenance screen 84

CONVERTV command 191

COPY command 184, 187, 190

customizing

dataplexes 44, 47, 49, 51

reports 83, 84

space 55

DASD

backup errors 70

main menu option 6

screen 6

space 55

DASD Management screen 6

Data Set Exclusion List 105

data set report exclusions 95, 98

Data Set reports 125

data transmission 53

dataplex

configurations 217

customizing variables 44, 47,

49, 51

defining 42

JCL 116, 117

jobs 61

managing 41

remote target 54

selection 21

transmitting data between 53

Dataplex and System Maintenance

menu 40

Dataplex Management screen 41

DCOLLECT 93

DEF VVDS option 176

DEF-GDG field 57, 62

defaults, installation 24

DEFINE ALIAS command 157

DEFINE CLUSTER command 176

DEFINE GDGcommand 160

DEFINE MASTERCATALOG com-

mand 153

DEFINE USERCATALOG com-

mand 155

defining

dataplex 42

GDGs 57, 62

DEFRAG command 181

Defragmentation 29

DEL VVDS option 177

DELETE ALIAS command 158

DELETE CLUSTER command 177

DELETE GDG command 161

device 122

Device Support Facilities (DSF) 194

DFHSM

activity log 146

control data sets 78

main menu option 11

report 137

DFHSM Functions screen 11

DFHSM LOGSCAN

SMS ADDVOL 115

DIAGNOSE command 174

DSF utilities

See ICKDSF utilities 194

DUMP command 192

DVPdaily parameters 99

periodic job 93

periodic parameters 102

error mesages 207

Exception Reports 84, 125, 133

EXPIREBV 33

EXPORT DISCONNECT command

152

extent threshold data set report ex-

clusions 97

General Information screen 16

Generate Dataplex Related JCL

screen 62, 117

Generate System Related JCL screen

57, 92, 116

generating JCL 56, 61

generating reports 83

generation data group 57, 62

hierarchy 108

hierarchy view report 121

HLQs, installation 20

housekeeping 28

creating test job 55

Defrag 29

Release 29

Special Delete 29

Uncatalog Delete 28

228 Storage Administration Workbench for z/OS and OS/390:User’s Guide

IBM utilities 147

ADRDSSU 148, 179

ICKDSF 149

IDCAMS 148, 150

ICKDSF utilities 194

ANALYZE 203

BUILDIX 205

CONTROL 198

INIT 194

INSPECT 199

REFORMAT 202

IDCAMS utilities

ALTER (LOCK/UNLOCK)

178

ALTER GDG 162

DEFINE ALIAS 157

DEFINE CLUSTER (VVDS)

176

DEFINE GDG 160

DEFINE MASTERCATALOG

153

DEFINE USERCATALOG 155

DELETE ALIAS 158

DELETE CLUSTER (VVDS)

177

DELETE GDG 161

DIAGNOSE 174

EXPORT DISCONNECT 152

IMPORT CONNECT 151

LIST ALIAS 159

LIST GDG 163

LISTDATA 170

SETCACHE 164

IFX 53

IMPORT CONNECT command 151

INIT command 194

INSPECT command 199

Installation and Maintenance screen

installing

algorithms 29

allocation 20

AWB clist 20

batch jobs 23

customizing dataplex variables

44, 47, 49, 51

EXPIREBV option 33

HLQs 20

housekeeping options 28

Installation options 40

ISPF Environment 26

JCLLIB 25

job cards 24

nicknames 28

On/Offsite 29

physical device type 38

Receive STC 26

SAW 19

SDC variables 27

security 20

set up and configuration 38

setting up defaults 24

SORTCNTL 26

SORTWORK 26

starting SAW 21

STEPLIB 26

string assignments 38

Tape Device option 33

ISPF Environment 26

option 23

ISPF profile, updating 56

JCL 67

alert jobs 66

before creating 55

creating for system 58

dataplex 116, 117

dataplex jobs 61

generating for system jobs 56

system 57, 116

JCLLIB 25

job cards

installation 24

Jobcard 1 24

Jobcard 2 24

LIST ALIAS command 159

LIST GDG command 163

List Vol report 136

LISTDATA 80

LISTDATA command 170

LOCK UNLOCK option 178

logical device 122

LOGSCAN 80, 115, 137

generating job 138, 140

summary report 143

LOGSCAN SMS 80

LOGSCAN SMS ADDVOL sugges-

tions 115

main menu 3

ADSM 16

ATL 16

Cache 10

Catalog 8

Common Tasks 4

DASD 6

DFHSM 11

RACF 15

Reporting 14

Setup and Configuration 17

String 38

Utilities 17

main parameters for reporting 84

managing dataplexes 41

messages

alerts 93

error 207

migration actions 145

Missing CHPID screen 80

MOVE command 184, 187

multivolume data set report exclu-

sions 95

NFTP 53

Nicknames 28

offsite backups, list of algorithms 32

On/offsite Backup Default Mainte-

nance screen 29

onsite backups, list of algorithms 30

Overview of SAW 3

Packmap reports 135

parameters

alerts 114

catalog 113

for reports 84

percentages for alerts 90

Phy. Dev. Job 1 38

Phy. Dev. Job 2 38

physical device type 38

Pool Management screen 91

pool space trace 65

Pool-Trace option 65

pools, checking 74

Program Directory 19

RACF

AWBRACF 20

main menu option 15

RACF Maintenance screen 15

Receive STC 26

REFORMAT command 202

Release 29

remote target dataplex 54

Reporting, main menu option 14

Reports

application and storage 119

Application View with

SG/Pool 122

BACKUP actions 146

catalog exceptions 113

customizing 84

Data Set 125

data set exclusions 98

DFHSM 137

DFHSM activity logs 146

Exceptions 125, 133

extent threshold data set exclu-

sions 97

Hierarchy View report 121

ListVol 136

LOGSCAN Summary 143

menu 14, 119

Migrate Actions File 145

multivolume data set exclu-

sions 95

Packmap 135

parameters for 84

SG/Pool View 123

tape data set 94

User 124

Volume and Pool 130

RMM

AWBIRMM 20

AWBRMM 20

security 20

SAI Scan Pools and Storage Groups

screen 74

SAI, checking pools 74

SAW

installing 19

main menu 3

Overview 3

starting 21

scheduling jobs 67

Screens

ATL General Information 16

Index 229

Cache Management 10

Catalog Maintenance 72

Catalog Management 8

Common Tasks 4

Control File Maintenance 84

DASD Backup Jobs in Error 70

DASD Management 6

Data Set Exclusion List 105

Dataplex and System Mainte-

nance 40

Dataplex Management 41

DFHSM Functions 11

Generate Dataplex Related JCL

62, 117

Generate System Related JCL

57, 92, 116

Installation and Maintenance

main menu 3

Missing CHPID 80

On/offsite Backup Default

Maintenance 29

Pool Management 91

RACF 15

Reports 14

Reports menu 119

SAI Scan Pools and Storage

Groups 74

Setup and Configuration Op-

tions 17, 38

SPA Hierarchy Processing

screen 109

SPA HLQs Assigned to Appli-

cation 109, 111

Tape Management System In-

formation 41

Utilities 17

SDC variables 27

security

installation 20

RMM 20

selecting a dataplex 21

SETCACHE command 164

Setup and Configuration Options

menu 17, 38

Setup and Configuration, main

menu option 17

SG/Pool View 123

SORTCNTL 26

SORTWORK 26

SPA exclude data set prefix 105

SPA hierarchy and HLQ list mainte-

nance dialog 109

SPA hierarchy file 106

SPA hierarchy processing 105

SPA Hierarchy Processing screen

109

SPA HLQ List 107

SPA HLQs Assigned to Application

screen 109, 111

SPA match process modifications

103

SPA plan file 102

space customization 55

SPACE parameter 55

space trace, pool 65

Special Delete 29

starting SAW 21

AWB clist 20

STEPLIB 26

String

assignments 38

option 38

system JCL 116

creating 58

generating 116

system jobs 56

tape data set report 94

Tape Device 33

JCL 33, 34, 36, 37

Tape Management System Informa-

tion screen 41

tape parameters 41

test jobs 55

There 20

thresholds for catalogs 79

TLMS

AWBTLM 20

Top Secret

AWBTSS 20

TRANSMIT/RECEIVE 53

UNCAT-DEL 28

updating the ISPF profile 56

User report 124

utilities 147, 176, 177, 178

accessing 147

ADRDSSU 148, 179

ALTER 178

ALTER GDG 162

ANALYZE 203

BUILDIX 205

Cache option 164

CAMS option 148, 150

Connect option 151

CONTROL 198

CONVERTV 191

COPY 190

COPY VOLUME option 190

DEF ALIAS option 157

DEF GDG option 160

DEF MCAT option 153

DEF UCAT option 155

DEFINE ALIAS 157

DEFINE CLUSTER 176

DEFINE GDG 160

DEFINE MASTERCATALOG

153

DEFINE USERCATALOG 155

DEFRAG 181

DEL ALIAS option 158

DEL GDG option 161

DELETE ALIAS 158

DELETE CLUSTER 177

DELETE GDG 161

DFDSS option 148

DIAGNOSE 174

Disconnect option 152

DSF option 149

DUMP 192

EXPORT DISCONNECT 152

ICKDSF 149, 194

IDCAMS 148, 150

IMPORT CONNECT 151

INIT 194

INSPECT 199

LIST ALIAS 159

LIST GDG 163

LISTDATA 170

main menu option 17

menu 17

Move/Copy 184, 187

Move/Copy DSN option 184

Move/Copy Vol option 187

REFORMAT 202

SETCACHE 164

Special Backup option 192

viewing reports 83

Volume and Pool reports 130

volume space data 67

230 Storage Administration Workbench for z/OS and OS/390:User’s Guide
