V20 Service Manual V 20 V20Spare Parts

Hydraulics

GRESEN

R

Model V20

Sectional Body

Directional Control Valve

Service and Parts Manual

Maximum Operating Pressure: 3500 PSI (242 bar)

Minimum Filtration Required: 10 Micron

The information in this Service Manual was current at the time of publication. This information is

subject to change at any time without notice.

Model V20 Service and Parts Manual No. Revision: 08-01-2002 (Replaces: SC-1102 ~ Revision 2/92)

Model V20 Service and Parts Manual (Catalog No. SC-1102) Rev: 08-26-2002 2

Table of Contents

Section Seal Replacement and Section Seal Kits ................................................................................ Page 3

Spool Seal Replacement and Spool Seal Kits ..................................................................................... Page 4

Model V20 Manual Work Section ......................................................................................................... Page 5

Model V20 [SOL] and [EPC] Solenoid Work Sections .......................................................................... Page 6

Model V20 [SOL] and [EPC] Solenoid Work Section with Handle ........................................................ Page 7

K-6125 Spring-Return Spool Positioner Kit .......................................................................................... Page 8

CK-6012 ‘D’ Detented Spool Positioner Kit .......................................................................................... Page 9

‘R’ Detent - Spring Return Spool Positioner Kits ................................................................................ Page 10

CK-6173 ‘PA’ Pneumatic Spool Actuator Kit ...................................................................................... Page 11

Installation Instructions for CK-6173 Pneumatic Actuators ................................................................ Page 12

K-6128 Hydraulic Remote ‘HR’ Spool Actuator Kit ............................................................................. Page 13

K-6129 Hydraulic Remote ‘HR’ Spool Actuator Kit ............................................................................. Page 14

K-6130 Hydraulic Remote ‘HRO’ Spool Actuator Kit .......................................................................... Page 15

K-6131 Hydraulic Remote ‘HRO’ Spool Actuator Kit .......................................................................... Page 16

On/Off [SOL] Solenoid Actuator Assembly ......................................................................................... Page 17

Proportional [EPC] Solenoid Actuator Assembly ................................................................................ Page 18

On/Off [SOL-IH] Solenoid Actuator Assembly .................................................................................... Page 19

Proportional [EPC-IH] Solenoid Actuator Assembly ........................................................................... Page 20

Solenoid Actuator (with Handle) Removal & Installation .................................................................... Page 21

On/Off Solenoid Cartridge Kits (K-CRT-SXXX) .................................................................................. Page 22

Proportional Solenoid Cartridge Kits (K-CRT-EXXX) ......................................................................... Page 23

2-Way, 2-Position (Plugged) Solenoid Bonnet Conversion ................................................................ Page 24

Solenoid Bonnet Spool Travel Limiter/Override Kits .......................................................................... Page 25

Solenoid Bonnet (with Handle) Spool Travel Limiter Kit ..................................................................... Page 26

K-6215 Compensator Plug Kit ............................................................................................................ Page 27

Model ‘RCPC’ Work Port Relief Cartridge .......................................................................................... Page 28

Standard & Heavy Duty Seal Retainer Kits ........................................................................................ Page 29

Handle Bracket and Spool Boot Kits .................................................................................................. Page 30

Vertical and Horizontal Handle Kits .................................................................................................... Page 31

Service Product Warranty, April 1996 ................................................................................................ Page 32

The information in this Service Manual was current at the time of publication. This information is

subject to change at any time without notice.

Model V20 Service and Parts Manual (Catalog No. SC-1102) Rev: 08-26-2002 3

V20 Work Section Housing Identification

Warning

There is a visual similarity between Gresen’s Model V20

Directional Control Valve closed center and open center

work sections. Work sections for these two valve

assemblies should NEVER be intermixed or interchanged

without prior consultation with the factory.

Intermixing a V20C, V20LS or V20PC closed center section

with a V20P, V20T or V20S work section will convert the

complete valve bank to closed center operation and in some

cases, could render the valve assembly inoperable and

cause damage to components in the hydraulic circuit.

Work Section Casting No. Location

8072 (V20P 'Parallel')

8112 (V20T 'Tandem')

10954 (V20RP 'Parallel')

10762 (V20RT 'Tandem)

11483 (V20S 'Series')

11571 (V20LO 'Lockout'

8364 (V20C 'Closed Center')

8364 (V20LS 'Load Sense)

8364 (V20PC 'Pressure Comp')

PB OUT

Inlet Cover Casting No. Location

7736 (Flow Control Inlet)

8398 (Standard Inlet)

Outlet Cover Casting No. Location

8644 (Top Outlet)

6770 (End Outlet)

Mid-Inlet Casting No. Location

6825 (Split or Combined Flow)

Utility Section Casting No. Location

7820 (Internal or External Pilot)

Unloader Section Casting No. Location

22952 (With or Without Pilot)

Figure 1. Casting Identification Numbers

Model V20 Service and Parts Manual (Catalog No. SC-1102) Rev: 08-26-2002 4

K-61XX Assembly Stud Kits

K-6121 or K-6156 Section Seal Kits

(See Figure 3)

Assembly Stud

(3 Studs per Kit)

09310006 Nut

(3 Nuts per Kit)

Torque to 25 - 28 Ft Lbs [34 - 38 Nm]

(This is a dry torque spec - Reduce torque by 8 Ft Lbs

[11 Nm] for oiled tie bolts)

Figure 2. K-61XX Stud Kit Components

Kit No. and Description Number of Mid Sections Using: Tie Bolts and Nut Part Numbers

Part Number Kit No. No. 6770 Outlet No. 8644 Outlet Bolt No. (3) per Kit Nut No. (3) per Kit

12807001

12808001

12809001

12810001

12811001

12812001

12813001

12814001

12815001

12697001

12816001

K-6104

K-6105

K-6106

K-6107

K-6108

K-6109

K-6110

K-6111

K-6112

K-6113

K-6114

One Section

Two Sections

Three Sections

Four Sections

Five Sections

Six Sections

Seven Sections

Eight Sections

Nine Sections

Ten Sections

Eleven Sections

-----

One Section

Two Sections

Three Sections

Four Sections

Five Sections

Six Sections

Seven Sections

Eight Sections

Nine Sections

Ten Sections

09120124

09120129

09120301

08100004

08100005

08100006

08100007

08100008

08100009

08100010

08100011

09310106

Notes: When using the 8644 Right End Cover, add one section to assure proper stud length.

Torque Specifications

Replace the stud nuts and torque evenly to 25 - 28 Ft

Lbs [34 - 38 Nm]. This is a dry stud torque spec.

Reduce torque spec to 18 - 20 Ft Lbs [25 - 27 Nm] for

oily studs.

CAUTION

If the stud nuts are not tightened to the proper

torque, valve spools may bind or stick, or cause O-

Ring seals to extrude.

Model V20 Service and Parts Manual (Catalog No. SC-1102) Rev: 08-26-2002 5

Section Seal Identificaton and Section Seal Kits

Section Seal Changes

As of April 1, 1991, the section seals for the V20

changed. The new versions have larger cross section

(the old was .070, the new is .103) and different

configurations for open center and closed center

sections. It is important to note that the seal kits

include all O-Rings (new and old), therefore there will

be some left unused.

WARNING

Do not pre-lube the O-Ring section seals prior to

installation. Make sure that the O-Rings and valve

counterbores are dry. Compression of lubricants

can distort the valve body causing spool bind.

(Prior To April 1, 1991)

All Work Sections, Mid-Inlets,

Utility Sections and Outlet Covers

(After April 1, 1991)

Open Center Work Sections

4

55 5

66

(After April 1, 1991)

Closed Center Work Sections, Mid-Inlets,

Utility Sections and Outlet Covers

4

55

66

6

1

12 2

33

3

Refer To The Warning Prior To Installing Section Seals

Figure 3. Section Seal Identification

Section Seal Kits

Ref No. Part No. Description Quantity

1

2

3

4

5

6

08340001

10749001

06814002

06815002

08316001

21857001

21733001

21866001

K-6121 Open Center Section Seal Kit (Includes all Seals Listed Below) 

K-6156 Load Sense Section Seal Kit (Includes all Seals Listed Below) 

O-Ring Section Seal (Serviced in K-6121 & K-6156 Seal Kits)

2

3

 K-6121 and K-6156 Section Seal Kits include the same seal part numbers. The quantities of seals in each kit are different.

Model V20 Service and Parts Manual (Catalog No. SC-1102) Rev: 08-26-2002 6

Spool Seal Replacement and Spool Seal Kits

1

Positioner End Handle End

Spool Chamfer

10954

5432

Figure 4. Spool Seal Removal

Warning: DO NOT hold the spool with a pliers or wrench. This will destroy the finish.

Spool Seal Removal

These instructions apply to valves which have been

removed from machines. If room permits rebuilding on the

machine, first disconnect any lines which could hold

pressure or supply oil into the valve assembly. It is

recommended to drain the valve prior to rebuilding.

For clarification, the control handle side of the valve is

considered the front side. The seal retainer plate (Item 3) is

the larger round plate with a hole in the center and two half

round notches opposite each other on the outer edge.

1. Remove the bonnet and spool positioner hardware

(Item 1) from the back of the work section. Keep parts

in order of disassembly. If the work section does not

include a handle assembly, prevent the spool from

turning or moving by inserting a screw driver through

clevis slot, or running a rod through the pin hole and

using it as a handle.

2. Remove the complete handle, handle bracket or seal

retainer hardware (Item 2) from the front of the work

section.

3. Push the spool into the housing from the front of the

valve until the front seal is exposed. Since the spool

seals can be replaced externally, it is not necessary to

remove the spool from the housing. Remove the

retainer plate washers (Item 3), back-up washers (Item

4), and spool seals (Item 5).

4. Remove the back seal in the same manner.

Note: The back spool seal is located inside the detent

sleeve in V20 Float sections. Refer to Figures 60 &

61 for parts illustration for float positioner.

5. Remove the bonnet and spool positioner assembly

parts (Item 1) from the back of the work section. Keep

in order of disassembly.

Model V20 Service and Parts Manual (Catalog No. SC-1102) Rev: 08-26-2002 7

Spool Seal Replacement and Spool Seal Kits

1

Positioner End Handle End

Spool Chamfer

10954

5432

Figure 5. Spool Seal Installation

Spool Seal Kits

Ref No. Part No. Description Quantity

1

2

3

4

5

07385001

12741001

12786001

06752001

03265001

07700001

K-6035 Standard Buna-N Spool Seal Kit (Includes Items 4 and 5 Only)

K-6125 Spool Positioner Assembly (See Figures 52 thru 62 for Positioner Options)

K-6033 Seal Retainer Assembly (See Figures 96 thru 99 for Handle End Options)

Seal Retainer Plate

Back-Up Washer

Buna-N Spool Seal (Serviced in K-6035 Spool Seal Kit)

1

2

Spool Seal Installation

Front Spool Seal Installation (O-Ring Spool Seal)

1. Push the spool into the housing from the front side of

the valve until the chamfer on the spool is flush with the

bottom of the seal gland. Install O-Ring spool seal into

the seal gland.

2. Place the new back-up washer (Item 4) over the spool

and up against the spool seal .

3. Place the seal retainer plate (Item 3) over the spool

and up against the back-up washer. Push firmly into

place.

4. Hold the seal retainer plate against the valve body and

push the spool from the back side thru the seal

approximately ¼ inch.

Back Seal Installation (Standard 3- and 4-Way Sections)

5. Push the spool into the housing from the back side

until the end of the spool is flush with the valve back

face, not the bottom of the seal gland. If the spool is

pushed in too far, the metering notches and/or spool

land may be moved into the seal area on the front end

of the valve. If this happens, DO NOT push the spool

back into the valve. Disassemble the seal assembly

and carefully remove the seal from the spool.

Reassemble per Steps 1 thru 4.

6. Install O-Ring spool seal and backup washer into the

seal gland in the same manner as in the front side.

7. Reassemble (in reverse order) all hardware

disassembled in Steps 1 & 2, Spool Seal Removal.

Back Seal Installation (Float Work Sections Only)

(Refer to Figures 60 & 61 for Float Positioner illustration)

5. With the float positioner disassembled from the spool,

slip the retainer sleeve over the spool into the

counterbore in the valve housing. Slide the spool seal

onto the spool and against the retainer sleeve.

6. Install the face seal O-Ring into the spotface in the end

of the detent sleeve. Slip the detent sleeve onto the

spool, over the spool seal, and up against the valve

housing.

7. Reassemble (in reverse order) all hardware

disassembled in Steps 1 & 2, Spool Seal Removal.

Model V20 Service and Parts Manual (Catalog No. SC-1102) Rev: 08-26-2002 8

Model V20 Directional Control Valve – Typical Main Assembly

1

25

6

1

3

8

11

9

4

7

10

Figure 6. Model V20 Directional Control Valve – Typical Main Assembly

Ref No. Description Refer To Page(s):

1

2

3

4

5

6

7

8

9

10

11

Assembly Bolts and Nuts

Inlet Cover Housing

Main Relief Cartridge

Port Plugs

Section Seals

Mid Sections/Mid-Inlets/Utility Sections

Spool Positioners

Handles

Work Port Relief Cartridge

Outlet Cover Housing

Outlet Cover Conversion Options

Model V20 Service and Parts Manual (Catalog No. SC-1102) Rev: 08-26-2002 9

Special Note Regarding Back-Up Rings

Back-Up Rings in Used Seal Kits

Many of the plugs and cartridges used in the Gresen

product line utilize back-up rings. Therefore, many of

the seal kits in this Service Manual include back-up

rings, some of which are continuous back-up rings.

Since the continuous back-up rings are installed at the

factory using a special sizing tool, only replace this

back-up ring if it has been damaged.

(Continuous) Back-Up Rings

Preparing the Back-Up Ring for Installation

If the continuous back-up ring should need

replacing, follow these simple procedures.

1. Using a single edge razor blade, carefully

cut through the back-up ring in an angle

as shown in the drawing.

Caution: Make only one diagonal cut thru the

back-up ring. Do not separate the

ring into two pieces.

2. Slip the back-up ring over the cartridge

and into place.

Carefully make one cut thru Back-Up

Ring at approximately 30 degree angle

as shown here.

Model V20 Service and Parts Manual (Catalog No. SC-1102) Rev: 08-26-2002 10

No. 8398 Inlet Cover

No. 8398 Inlet Covers offers top and end inlet and outlet

ports. All unused ports must be plugged.

If a gauge port is required, a port plug may be drilled and

tapped for a 1/4" NPTF or SAE 4 and installed in the unused

inlet port.

Port Plugs and the main relief cartridge are the serviceable

components located in the inlet cover.

Main Relief Cartridge Options

No. 8398 Inlet Covers are machined to accept the inlet

(main) relief valve cartridge. Main relief cartridges are

available in the following options:

Model WH – Differential Area Relief – Available in internal

shim adjustable, externally adjustable, and dual pressure

versions.

Model RP51 – Pilot Operated Relief - Available in externally

adjustable, tamper resistant and dual pressure versions.

No Relief Plug – Must be used when no main relief is

required.

1

3

2

3

Figure 7. No. 08120xxx Inlet Cover Assembly – Using 08398xxx Inlet Cover Housing

Ref No. Part No. Description Quantity

1

2

3

08398xxx

06532xxx

08853xxx

11387xxx

08950xxx

27005xxx

12797001

06089001

Inlet Cover Housing 

WH Relief Cartridge (See Figure 9)

WHA Relief Cartridge (See Figure 10)

WH Dual Pressure Relief Cartridge (See Figure 11)

RP51A Relief Cartridge (See Figure 12)

RP51N Relief Cartridge (See Figure 12)

RP51 Dual Pressure Relief Cartridge (See Figure 13)

CK-6132 No Relief Cavity Plug (See Figure 14)

SAE 12 Port Plug (Plug Selection Determined by Inlet Porting – Refer to Page 105 for

a listing of available port plugs.

1

A/R

 No. 08398 Inlet Cover Housing are available in many porting configurations. Contact the Gresen factory for help in identifying

No. 08398 housing part numbers.

Model V20 Service and Parts Manual (Catalog No. SC-1102) Rev: 08-26-2002 11

No. 7736 Inlet Cover with Flow Control

No. 7736 Inlet Cover

This inlet cover offers top and end inlet and end outlet ports.

All unused ports must be plugged. Port plugs, inlet relief

cartridge, and the flow control are the serviceable

components located in the inlet cover.

Inlet Flow Control Option

This cover is equipped with an adjustable flow control

assembly. Installation of the conversion plug in the excess

flow port will permit use of the excess flow for power beyond

applications.

Oil will only be directed out this port when a work section is

actuated. With all sections in neutral, oil is directed thru

open center and back to tank.

Main Relief Cartridge Options

No. 7736 inlet covers are machined to accept the inlet

(main) relief valve cartridge. Main relief cartridges are

available in the following options:

Model WH – Differential Area Relief – Available in internal

shim adjustable, externally adjustable, and dual pressure

versions.

Model RP51 – Pilot Operated Relief - Available in externally

adjustable, tamper resistant and dual pressure versions.

No Relief Plug – Must be used when no main relief is

required.

2

3

1

Internal Conversion Plug -

Must be installed to use the

Excess Flow (Power Beyond)

option

5

4

Figure 8. No. 07737xxx Inlet Cover Assembly – Using 07736xxx Inlet Cover Housing

Ref No. Part No. Description Quantity

1

2

3

4

5

07736xxx

07400xxx

06532xxx

08853xxx

11387xxx

08950xxx

27005xxx

12797001

06089001

00947001

Inlet Cover Housing 

Flow Control Assembly (See Figure 15)

WH Relief Cartridge (See Figure 9)

WHA Relief Cartridge (See Figure 10)

WH-Dual Pressure Relief Cartridge (See Figure 11)

RP51A Relief Cartridge (See Figure 12)

RP51N Relief Cartridge (See Figure 12)

RP51 Dual Pressure Relief Cartridge (See Figure 13)

CK-6132 No Relief Cavity Plug (See Figure 14)

SAE 12 Port Plug (Plug Selection Determined by Inlet Porting – Refer to Page 105 for

a listing of available port plugs.

Excess Flow Conversion Plug (1/2” NPTF)

1

A/R

1

 No. 07736 Inlet Cover Housing are available in many porting configurations. Contact the Gresen factory for help in identifying

No. 07736 housing part numbers.

Model V20 Service and Parts Manual (Catalog No. SC-1102) Rev: 08-26-2002 12

Model ‘WH’ and ‘WHA’ (Differential Poppet) Main Relief Cartridges

3

7

6

5

Torque to: 14 Ft Lbs

(19 Nm)

8

9

1

2

4

Torque to: 20 Ft Lbs

(27 Nm)

Figure 9. Model ‘WH’ and ‘WHA’ (Differential Poppet) Main Relief Cartridges (Model WH Shown)

Ref No. Part No. Description Quantity

1

2

3

4

5

6

7

8

9

06532xxx

08853xxx

07523001

12727001

01718001

09020022

01615001

06533001

03936001

00458001

00459001

00462001

01869001

07638001

07078001

01870001

07497001

11912001

02707001

01880001

Model WH Relief Cartridge, Complete (Specify Pressure Setting When Ordering) 

Model WHA Relief Cartridge, Complete (Specify Pressure Setting When Ordering) 

K-19003 WH Relief Seal Kit (Includes Items 1, 2, 3 & 8 ) 

K-19002 Relief Poppet Service Kit (Contains Item 5 - Poppet and Seal Assembly)

O-Ring Seal (Serviced in K-19003 Relief Seal Kit) 

Back-Up Ring (Serviced in K-19003 Relief Seal Kit) 

O-Ring Seal (Serviced in K-19003 Relief Seal Kit) 

WH Relief Body

Poppet

Shim (.040 inch [1,0 mm] thick) 

Shim (.020 inch [0,5 mm] thick) 

Shim (.010 inch [0,25 mm] thick) 

Spring (500 - 1249 PSI [35 - 87 bar] Pressure Range) 

Spring (1250 - 1749 PSI [88 - 122 bar] Pressure Range) 

Spring (1750 - 1999 PSI [123 - 140 bar] Pressure Range) 

Spring (2000 - 2599 PSI [141 - 183 bar] Pressure Range) 

Spring (2600 - 2999 PSI [184 - 209 bar] Pressure Range) 

Spring (3000 - 3500 PSI [210 - 245 bar] Pressure Range) 

O-Ring Seal (Serviced in K-19003 Relief Seal Kit) 

Relief Cap 

1

A/R

1

 Buna-N seals are standard for all Gresen valve assemblies. For Viton seals, contact the Gresen factory in Minneapolis.

 Model WHA Relief Cartridge replaces Items 8 & 9 with the CK-19001 External Adjustment Kit shown in Figure 10.

 Do not attempt to change shims or springs in these reliefs unless you have the capability to test for proper pressure setting.

Without the capability to test you may exceed the maximum pressure rating of the product or draw the relief spring solid, which in

turn means there is no relief (NR).

 Continuous Back-Up Rings are installed at the factory using special sizing tools. It is Not necessary to replace the original

Back-Up Rings unless they have been damaged. See Page 9 for Back-Up Ring Preparation and Installation procedures.

Model V20 Service and Parts Manual (Catalog No. SC-1102) Rev: 08-26-2002 13

CK-19001 (K-WH-A) External Adjustment Kit

Torque Relief Cartridge To:

20 Ft Lbs [27 Nm]

Torque to: 20 Ft Lbs

(27 Nm)

1

Relief Valve Cartridge With

Relief Cap Removed - Refer

To Individual Relief Cartridges

For Servicing Information.

2

3

4

5

6

7

Torque to: 15 Ft Lbs

(20 Nm)

Model 'WHA' Shown Here

Figure 10. CK-19001 (K-WH-A) External Adjustment Kit

Note: This Kit May Be Used On Model WH (Figure 9), RC (Figure 85), RCS (Figure 86), RCPC

(Figure 90) and CRA (Figure 88) Relief Cartridges

Ref No. Part No. Description Quantity

1

2

3

4

5

6

7

06489001

06489002

11481001

01818001

02707001

03498001

03496001

03500001

03497001

CK-19001 External Adjustment Kit (Contains All Items listed here) 

K-19015 Adjustment Kit Seal Kit (Contains Items 2 and 3 Only) 

Piston

O-Ring Seal 

Adjustment Adapter

Adjustment Stem 

Jam Nut

Acorn Nut

1

 Buna-N seals are standard for all Gresen valve assemblies.

 Do not attempt to adjust these reliefs unless you have the capability to test the reliefs for proper pressure setting. Without the

capability to test you may exceed the maximum pressure rating of the product or draw the relief spring solid, which in turn means

there is no relief (NR).

Model V20 Service and Parts Manual (Catalog No. SC-1102) Rev: 08-26-2002 14

K-19006 Dual Pressure Relief Head Kit

Torque Relief Cartridge To:

20 Ft Lbs [27 Nm]

Torque to: 20 Ft Lbs

(27 Nm) 1

5

Torque to:

15 Ft Lbs

(20 Nm)

2

3

4

76

8

9

Adjustment Screw

1. Turn full in to shim-set high pressure.

2. Back off to set low pressure.

Model WH-2S Dual Pressure

Relief Cartridge Shown Here

Relief Valve Cartridge With

Relief Cap Removed - Refer

To Individual Relief Cartridges

For Servicing Information.

Remote Pilot Port is SAE 4

Figure 11. K-19006 Dual Pressure Relief Head Kit

Note: This Kit May Be Used On Model WH (Figure 9), RC (Figure 85), RCS (Figure 86), RCPC

(Figure 90) and CRA (Figure 88 ) Relief Cartridges

Ref No. Part No. Description Quantity

1

2

3

4

5

6

7

8

9

12731001

12194002

02707001

08931001

09021113

09000113

08932001

06839001

09021016

08933001

09302014

K-19006 Dual Pressure Relief Head Kit (Contains All Items listed here)

K-19016 Relief Head Seal Kit (Contains Items 1, 3, 4, 6 & 7) 

O-Ring Seal 

Body

Back Up Ring 

O-Ring Seal 

Piston

O-Ring Seal 

Back Up Ring 

Adjustment Screw 

Hex Jam Nut

1

 Buna-N seals are standard for all Gresen valve assemblies.

 Do not attempt to adjust these reliefs unless you have the capability to test the reliefs for proper pressure setting. Without the

capability to read pressure, you may exceed the maximum pressure rating of the product or compress the relief spring solid,

which in turn means there is no relief (NR).

 Continuous Back-Up Rings are installed at the factory using special sizing tools. It is Not necessary to replace the original

Back-Up Rings unless they have been damaged. See Page 9 for Back-Up Ring Preparation and Installation procedures.

Model V20 Service and Parts Manual (Catalog No. SC-1102) Rev: 08-26-2002 15

Model ‘RP51’ Main Relief Cartridges

Torque Relief Cartridge To:

20 Ft Lbs [27 Nm]

13

2

RP51-A RP51-N

4

Figure 12. Model ‘RP51’ (Pilot-Operated) Main Relief Cartridges

NOTE

Due to close tolerances on working parts, the RP51

Pilot-Operated Relief Valve is not field serviceable. If

service other than external seal replacement is

required, replace the complete cartridge.

Ref No. Part No. Description Quantity

1

2

3

4

08950005

08950014

08950006

08950011

08427001

01718001

09020022

01615001

10034001

RP51-A Cartridge, Adjustable from 1000 - 3500 PSI [69 – 240 bar] 

RP51-A-LP Cartridge, Adjustable from 500 - 999 PSI [35 – 239 bar] 

RP51-N Cartridge, Tamper Resistant, Preset 1000 – 3500 PSI [69 – 240 bar] 

RP51-N-LP Cartridge, Tamper Resistant, Preset 500 – 999 PSI [35 – 239 bar] 

K-28062 Plug Seal Kit (Contains Items 1 thru 3 Only) See Note Below 

O-Ring Seal 

Back Up Ring 

O-Ring Seal 

Tamper Resistant Cap (Installed at the factory on RP51-N Versions Only)

1

 Buna-N seals are standard for all Gresen valve assemblies.

 Specify relief valve pressure setting when ordering. Do NOT attempt to adjust these relief valves unless you have the

capability to test the reliefs for proper pressure setting. Without the capability to test you may exceed the maximum pressure

rating of the product or draw the relief spring solid, which in turn means there is no relief (NR).

 RP51-N and RP51-N-LP Cartridges are preset at the factory and then the Tamper Resistant Cap is installed.

 Continuous Back-Up Rings are installed at the factory using special sizing tools. It is Not necessary to replace the original

Back-Up Rings unless they have been damaged. See Page 9 for Back-Up Ring Preparation and Installation procedures.

Model V20 Service and Parts Manual (Catalog No. SC-1102) Rev: 08-26-2002 16

Model ‘RP51 - Dual Pressure’ Main Relief Cartridges

Torque Relief Cartridge To:

20 Ft Lbs [27 Nm]

13

2

RP51-A Dual

Pressure Relief

Remote Pilot Source

P

T

Low Pressure

Adjustment Locknut

High Pressure

Adjustment Locknut

SAE 4 Pilot Port For

Remote Pilot Source

(Minimum of 700 PSI

[48 bar] Required)

Figure 13. Model ‘RP51 – Dual Pressure’ Main Relief Cartridges

NOTE

Due to close tolerances on working parts, the RP51

Dual Pressure Pilot-Operated Relief Valve is not field

serviceable. If service other than external seal

replacement is required, replace the complete cartridge.

Ref No. Part No. Description Quantity

1

2

3

4

27005001

08427001

01718001

09020022

01615001

10034001

RP51-A-DP Cartridge, Dual Pressures, Adjustable from 1000 - 3500 PSI [69 –

240 bar] 

K-28062 Plug Seal Kit (Contains Items 1 thru 3 Only) See Note Below 

O-Ring Seal 

Back Up Ring 

O-Ring Seal 

Tamper Resistant Cap (Installed at the factory on RP51-N Versions Only)

1

 Buna-N seals are standard for all Gresen valve assemblies.

 Specify relief valve pressure setting when ordering. Do NOT attempt to adjust these relief valves unless you have the

capability to test the reliefs for proper pressure setting. Without the capability to test you may exceed the maximum pressure

rating of the product or draw the relief spring solid, which in turn means there is no relief (NR).

 Continuous Back-Up Rings are installed at the factory using special sizing tools. It is Not necessary to replace the original

Back-Up Rings unless they have been damaged. See Page 9 for Back-Up Ring Preparation and Installation procedures.

Model V20 Service and Parts Manual (Catalog No. SC-1102) Rev: 08-26-2002 17

CK-6132 Main Relief ‘NR’ Cavity Plug

Torque Relief Cavity Plug To:

20 Ft Lbs [27 Nm]

13

24

Tank

Inlet

Figure 14. CK-6132 Main Relief ‘NR’ Cavity Plug

Ref No. Part No. Description Quantity

1

2

3

4

12797001

08427001

01718001

09020022

01615001

06760001

CK-6132 No Relief ‘NR’ Plug Kit (Contains All Items Listed Below)

K-28062 Plug Seal Kit (Contains Items 1 thru 3 Only) 

O-Ring Seal (Serviced in K-28062 Plug Seal Kit) 

Back-Up Ring (Serviced in K-28062 Plug Seal Kit) 

O-Ring Seal (Serviced in K-28062 Plug Seal Kit) 

Relief Cavity Plug

1

 Buna-N seals are standard for all Gresen valve assemblies. For Viton seals, contact the Gresen factory in Minneapolis.

 Continuous Back-Up Rings are installed at the factory using special sizing tools. It is Not necessary to replace the original

Back-Up Rings unless they have been damaged. See Page 9 for Back-Up Ring Preparation and Installation procedures.

Model V20 Service and Parts Manual (Catalog No. SC-1102) Rev: 08-26-2002 18

Inlet Cover Flow Control – Used In 07737xxx Inlet Assemblies

12345

678910

11 12

Torque to: 12 Ft Lbs

(16 Nm)

Figure 15. Inlet Cover Flow Control

Ref No. Part No. Description Quantity

1

2

3

4

5

6

7

8

9

10

11

12

12833001

12832001

13110001

07990001

12834001

03236001

03731101

00563001

03906001

03911001

06309001

03902001

03908001

09001012

03882001

07400006

07400007

07400005

01819001

01821001

K-6067 (3 to 16 GPM - 11 to 60 lpm) Flow Control Kit (Contains Item 10 thru 12 Only)

K-6068 (8 to 25 GPM - 30 to 95 lpm) Flow Control Kit (Contains Item 10 thru 12 Only)

K-6193 (4 to 25 GPM - 15 to 95 lpm) Flow Control Kit (Contains Item 10 thru 12 Only)

K-6065 Flow Control Seal Kit (Contains Items 5, 7, 8, 11 & 12 Only) 

K-6066 Flow Control Adjustment Kit (Contains Items 1 thru 8 Only)

Knob

Hex Head Screw

Lock Washer

Cap

O-Ring Seal (Serviced in K-6065 Seal Kit) 

Flow Adjuster (Standard)

Flow Adjuster (Optional - 3 inch [76 mm] stem)

Back-Up Ring (Serviced in K-6065 Seal Kit) 

O-Ring Seal (Serviced in K-6065 Seal Kit) 

Spring

Flow Control Assembly (3 to 16 GPM [11 to 60 lpm]) (Serviced in K-6067 F/C Kit)

Flow Control Assembly (4 - 25 GPM [15 - 95 lpm]) (Serviced in K-6193 F/C Kit)

Flow Control Assembly (8 to 25 GPM [30 to 95 lpm]) (Serviced in K-6068 F/C Kit)

O-Ring Seal (Serviced in K-6065 Seal Kit) 

Back-Up Ring (Serviced in K-6065 Seal Kit) 

1

4

1

 Buna-N seals are standard for all Gresen valve assemblies. For Viton seals, contact the Gresen factory in Minneapolis.

 Continuous Back-Up Rings are installed at the factory using special sizing tools. It is Not necessary to replace the original

Back-Up Rings unless they have been damaged. See Page 9 for Back-Up Ring Preparation and Installation procedures.

Model V20 Service and Parts Manual (Catalog No. SC-1102) Rev: 08-26-2002 19

No. 8644 Outlet Cover

This cover offers top, end or bottom outlet ports in addition

to a top power beyond port. All unused outlet ports must be

plugged.

An internal plug (09435108) is available for conversion to

closed center or power beyond.

Caution:

No. 8644 Outlet Cover may only be used in open center and

closed center (high pressure standby) systems. They may

not be used with V20LS Work Sections.

Internal Conversion Plug

(Must be installed for conversion to

Power Beyond or Closed Center)

2

PB OUT

Port Plug Installed in PB port will convert

the valve to Closed Center when the

Internal Conversion Plug is installed.

3

1

5

4

Figure 16. No. 8644 Outlet Cover

Ref No. Part No. Description Quantity

1

2

3

4

5

08340001

08644xxx

09435108

06089001

21857001

21733001

K-6121 Section Seal Kit (Includes Ref No’s. 3 & 4) 

Outlet Cover Housing 

Internal Conversion Plug (SAE 8 Socket Head)

SAE 12 Port Plug (Plug Selection Determined by Inlet Porting – Refer to Page for a

listing of available port plugs.

O-Ring Seal (Serviced in K-6121 Section Seal Kit) 

1

A/R

2

 Buna-N seals are standard for all Gresen valve assemblies. For Viton seals, contact the Gresen factory.

 No. 08644 Outlet Cover Housing are available in many porting configurations. Contact the Gresen factory for help in identifying

No. 08644 housing part numbers.

Model V20 Service and Parts Manual (Catalog No. SC-1102) Rev: 08-26-2002 20

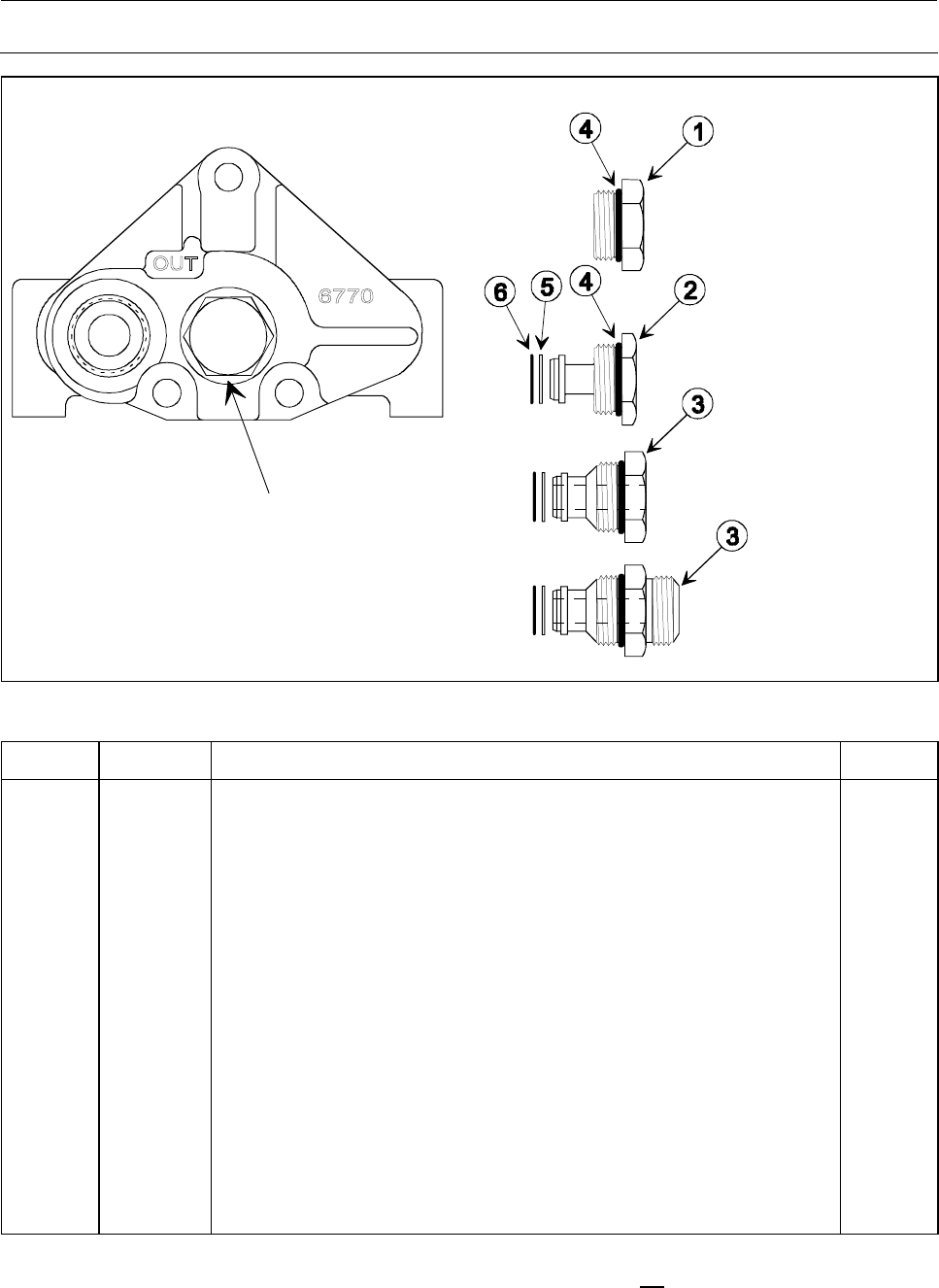

No. 6770 Outlet Cover With Conversion Port – Non Load Sense

No. 6770 Outlet Cover

This outlet cover offers an end outlet port (port on left). A

second (conversion) port is located in the center of the outlet

cover. This port accepts the closed center or power beyond

conversion plugs.

Closed Center Conversion

Provides a “Closed Center” system by plugging the open

center flow passage. This is normally used with a variable

displacement pump.

A closed center plug is installed in the option port in the

outlet cover.

Power Beyond Conversion

Provides for proper hook-up of an additional valve

“downstream”. The Power Beyond Sleeve prevents

subjecting the exhaust core to back pressure.

A power beyond sleeve is installed in the option port in the

outlet cover to convert to power beyond.

Caution: Never attempt to plug the power beyond

sleeve, as this will convert the valve to “Closed Center”.

Conversion Port

(Accepts Power Beyond Sleeves

and Closed Center Conversion Plugs)

1

2

3

44

Figure 17. No. 6770 (Open Center) Outlet Cover Assembly

Ref No. Part No. Description Quantity

1

2

3

4

08340001

06770xxx

06395001

12735001

12745001

12746001

12747001

12748001

12749001

21857001

21733001

K-6121 Section Seal Kit (Includes Ref No’s. 3 & 4 Only) 

Outlet Cover Housing 

K-6016 Conversion Plug (See Figure 15)

CK-6015 (Optional) Closed Center Plug (See Figure 15)

CK-6017 (Optional) 1/2” NPT Power Beyond Sleeve (See Figure 15)

CK-6018 (Optional) SAE 8 Power Beyond Sleeve (See Figure 15)

CK-6019 (Optional) SAE 10 Power Beyond Sleeve (See Figure 15)

K-6168 (Optional) SAE 12 Power Beyond Sleeve (See Figure 15)

K-6060 (Optional) SAE 16 Male Power Beyond Sleeve (See Figure 15)

O-Ring Seal (Order K-6121 Section Seal Kit) 

1

2

 Buna-N seals are standard for all Gresen valve assemblies. For Viton seals, contact the Gresen factory.

 No. 06770 Outlet Cover Housing are available in many porting configurations. Contact the Gresen factory for help in identifying

No. 06770 housing part numbers.

Model V20 Service and Parts Manual (Catalog No. SC-1102) Rev: 08-26-2002 21

No. 6770 Outlet Cover With Solenoid Cartridge – Non Load Sense

No. 6770 Outlet Cover

This outlet cover offers an end outlet port (port on left). A

second (conversion) port is located in the center of the outlet

cover. This port accepts the closed center or power beyond

conversion plugs.

Power Beyond Conversion

A power beyond sleeve is installed in the option port in the

outlet cover to convert to power beyond.

1

3

44

12 V.D.C.

2

Figure 18. No. 6770 Outlet Cover With Solenoid Cartridge

Ref No. Part No. Description Quantity

1

2

3

4

08340001

06770xxx

12968001

12969001

12970001

21857001

21733001

K-6121 Section Seal Kit (Includes Ref No’s. 3 & 4 Only) 

Outlet Cover Housing 

CK-6177 12VDC Build Up Cartridge - See Figure xx

CK-6178 24VDC Build Up Cartridge - See Figure xx

CK-6179 Mechanical Build Up Cartridge Kit – See Figure xx

O-Ring Seal (Order K-6121 Section Seal Kit) 

1

2

 Buna-N seals are standard for all Gresen valve assemblies. For Viton seals, contact the Gresen factory.

 No. 06770 Outlet Cover Housing are available in many porting configurations. Contact the Gresen factory for help in identifying

No. 06770 housing part numbers.

Model V20 Service and Parts Manual (Catalog No. SC-1102) Rev: 08-26-2002 22

No. 6770 V20LS Outlet Cover (No Load Sense Bleed-Down Plug)

No. 6770 Outlet Cover

The outlet cover offers top and end outlet ports. The

unused outlet port must be plugged.

12

Solenoid Pilot Seal Counterbores

3

4

5

534

5

Figure 19. No. 6770 V20LS Outlet Cover Assembly

Ref No. Part No. Description Quantity

1

2

3

4

5

10749001

06770xxx

00073001

21857001

21733001

21866001

K-6156 Section Seal Kit (Includes Ref No’s. 3 thru 5) 

Outlet Cover Housing 

3/8” - 18 NPTF Port Plug

O-Ring Seal (Serviced in K-6156 Section Seal Kit) 

1

2

A/R

 Buna-N seals are standard for all Gresen valve assemblies. For Viton seals, contact the Gresen factory.

 No. 06770 Outlet Cover Housing are available in many porting configurations. Contact the Gresen factory for help in identifying

No. 06770 housing part numbers.

Model V20 Service and Parts Manual (Catalog No. SC-1102) Rev: 08-26-2002 23

No. 6770LS Outlet Cover (With Load Sense Bleed-Down Plug)

No. 6770LS Outlet Cover

The outlet cover offers top and end outlet ports. The

unused outlet port must be plugged.

Port plugs and bleed-down cartridges are field serviceable

components located in the outlet cover.

Optional Outlet Plugs

Bleed-Down Plug

Solenoid Pilot Seal Counterbores

1

2

3

4

355

5

4

Figure 20. No. 6770LS Outlet Cover Assembly

Ref No. Part No. Description Quantity

1

2

3

4

5

10749001

06770xxx

16012001

21857001

21733001

21866001

K-6156 Section Seal Kit (Includes Ref No’s. 3 thru 5) 

Outlet Cover Housing 

K-6255 Bleed-Down Cartridge Kit (See Figure 16)

O-Ring Seal (Serviced in K-6156 Section Seal Kit) 

1

2

1

 Buna-N seals are standard for all Gresen valve assemblies. For Viton seals, contact the Gresen factory.

 No. 06770 Outlet Cover Housing are available in many porting configurations. Contact the Gresen factory for help in identifying

No. 06770 housing part numbers.

Model V20 Service and Parts Manual (Catalog No. SC-1102) Rev: 08-26-2002 24

Conversion Port Option Plugs for 6770 Outlet Cover

K-6016

Conversion Plug Kit

Conversion Port Location

Note: Not All 06770 Housings Have

The Conversion Port Machined

CK-6015

Closed Center Plug Kit

CK-6017

CK-6018

CK-6019

K-6168

Power Beyond Sleeve Kits

K-6060

Power Beyond Sleeve Kit

Figure 21. Conversion Plugs for 6770 Outlet Cover (Open Center)

Ref No. Part No. Description Quantity

1

2

3

4

5

6

06395001

12735001

12745001

12746001

12747001

12748001

12749001

06418001

01727001

01830001

01833001

01835001

01836001

01913001

07716001

02709001

09020017

01721001

K-6016 Conversion Plug Kit - Supplied as Standard (Includes Ref No’s. 1 & 2)

CK-6015 Closed Center Plug Kit (Includes Ref No’s. 2, 4, 5 & 6)

CK-6017 1/2” NPT Power Beyond Sleeve Kit (Includes Ref No’s. 3 thru 6)

CK-6018 SAE 8 Power Beyond Sleeve Kit (Includes Ref No’s. 3 thru 6)

CK-6019 SAE 10 Power Beyond Sleeve Kit (Includes Ref No’s. 3 thru 6)

K-6168 SAE 12 Power Beyond Sleeve Kit (Includes Ref No’s. 3 thru 6)

K-6060 SAE 16 Power Beyond Sleeve Kit (Includes Ref No’s. 3 thru 6)

K-6025 Plug Seal Kit (Includes Ref No’s. 4 thru 6 Only) 

Conversion Plug

Closed Center Plug

Power Beyond Sleeve with 1/2” NPT Port

Power Beyond Sleeve with SAE 8 Port

Power Beyond Sleeve with SAE 10 Port

Power Beyond Sleeve with SAE 12 Port

Power Beyond Sleeve with SAE 16 Male Connection

O-Ring Seal (Serviced in K-6025 Plug Seal Kit) 

Back-Up Ring (Serviced in K-6025 Plug Seal Kit) 

O-Ring Seal (Serviced in K-6025 Plug Seal Kit) 

1

 Buna-N seals are standard for all Gresen valve assemblies. For Viton seals, contact the Gresen factory.

 Continuous Back-Up Rings are installed at the factory using special sizing tools. It is Not necessary to replace the original

Back-Up Rings unless they have been damaged. See Page 9 for Back-Up Ring Preparation and Installation procedures.

Model V20 Service and Parts Manual (Catalog No. SC-1102) Rev: 08-26-2002 25

Load Sense Bleed-Down Plug for 6770LS Outlet Cover

K-6255 Bleed Down Cartridge Kit

Cleaning Instructions?????

1 Required per LS System

1

Load Sense Bleed-Down Plug

3

2

4

5

6

7

Clean Threads and Apply Loctite

Ref. No. 242 Thread Locking

Compound to Ref No. 7 prior to installation

Figure 22. Load Sense Bleed-Down Plug for 6770LS Outlet Cover

Ref No. Part No. Description Quantity

1

2

3

4

5

6

7

16012002

16088001

22249001

02708001

22489001

09001115

11839001

12293001

11056001

K-6240 Bleed-Down Cartridge Kit (Includes All Ref No’s Listed Below)

K-6269 Cartridge Seal Kit (Includes Ref No’s. 2 and 4 Only) 

Bleed-Down Plug

O-Ring Seal (Serviced in K-6269 Cartridge Seal Kit) 

.018 Orifice Screw (Standard) 

O-Ring Seal (Serviced in K-6269 Cartridge Seal Kit) 

Filter Screen

Back-Up Washer

Locking Screw

1

2

1

 Buna-N seals are standard for all Gresen valve assemblies. For Viton seals, contact the Gresen factory.

 Optional Orifice Screws are available from the Gresen factory. Available bleed hole diameters sizes are: .020, .030 & .040.

 The Load Sense Bleed-Down Plug can be converted to a no-bleed assembly in the field by replacing the Orifice Screw with a

solid screw – Gresen Part Number 09275304. Install plug flush or slightly below surface.

Model V20 Service and Parts Manual (Catalog No. SC-1102) Rev: 08-26-2002 26

3-Way, 3-Position Parallel & Tandem Work Sections

8

5

3

4

5

2

6

7

1

Parallel

B

OC PT

Tandem B

OC

T P

Figure 23. 3-Way, 3-Position Parallel & Tandem Work Sections (Parallel Housing Shown Here)

Ref No. Part No. Description Quantity

1

2

3

4

5

6

7

8

07018001

08072xxx

10954xxx

08112xxx

10762xxx

08083001

12741001

12933001

06754001

12742001

12786001

07385001

07054001

00947001

K-6027 Work Section Service Kit - Standard Buna-N O-Rings 

V20P Parallel Work Section Housing (Not Serviceable) 

V20RP Parallel Work Section Housing (Not Serviceable) 

V20T Tandem Work Section Housing (Not Serviceable) 

V20RT Tandem Work Section Housing (Not Serviceable) 

3-Way Spool (Not Serviceable) 

K-6125 (V20P and V20T) Spring-Return Spool Positioner Kit (See Figure 6) 

K-6207 (V20RP and V20RT) Spring-Return Spool Positioner Kit (See Figure 6) 

3-Way Conversion Plug

K-6030 Load Check Plug Assembly (See Figures 24 thru 25 for Options) 

K-6033 Seal Retainer Kit (See Figures 26 thru 29 for Handle End Options)

K-6035 Spool Seal Assembly (Serviced in Spool Seal Kits - See Figure 2)

SAE 10 Port Plug (Plug Selection Determined By Port Size)

½” - 14 NPT Port Plug

1

2

1

2

1

 Work Section Service Kits include all the seals and back-up rings required to service one V20 work section.

 Contact the Gresen factory in Minneapolis for porting options.

 The work section housing and spool are matched and are not sold separately.

 Warning: If you are using the free flow (F4) spool configuration in a cylinder lift application, it must be used in conjunction with a

load holding device. A load holding device will prevent the load from free falling when the spool is in the neutral position. A free

falling load could cause serious bodily injury or property damage if the holding device is not installed.

 Manual Positioners and Actuators will NOT work on Solenoid Work Section housings.

 Do not install the load check poppet and spring on the same side that the conversion plug (Item 4) is installed.

Model V20 Service and Parts Manual (Catalog No. SC-1102) Rev: 08-26-2002 27

4-Way, 3-Position Parallel & Tandem Work Sections

4

3

4

2

5

6

1

Parallel

BA

OC P

T

Tandem

BA

OC

P

T

Figure 24. 4-Way, 3-Position Parallel & Tandem Work Sections (Tandem Housing Shown Here)

Ref No. Part No. Description Quantity

1

2

3

4

5

6

07018001

08072xxx

10954xxx

08112xxx

10762xxx

08084001

08108001

12741001

12933001

12742001

12786001

07385001

K-6027 Work Section Service Kit - Standard Buna-N O-Rings 

V20P Parallel Work Section Housing (Not Serviceable) 

V20RP Parallel Work Section Housing (Not Serviceable) 

V20T Tandem Work Section Housing (Not Serviceable) 

V20RT Tandem Work Section Housing (Not Serviceable) 

4-Way Spool (Not Serviceable) 

4-Way Free Flow Spool (Not Serviceable) 

K-6125 (V20P and V20T) Spring-Return Spool Positioner Kit (See Figure 6) 

K-6207 (V20RP and V20RT) Spring-Return Spool Positioner Kit (See Figure 6) 

K-6030 Load Check Plug Assembly (See Figures 24 thru 25 for Options)

K-6033 Seal Retainer Kit (See Figures 26 thru 29 for Handle End Options)

K-6035 Spool Seal Assembly (Serviced in Spool Seal Kits - See Figure 2)

1

2

1

2

 Work Section Service Kits include all the seals and back-up rings required to service one V20 work section.

 Contact the Gresen factory in Minneapolis for porting options.

 The work section housing and spool are matched and are not sold separately.

 Warning: If you are using the free flow (F4) spool configuration in a cylinder lift application, it must be used in conjunction with a

load holding device. A load holding device will prevent the load from free falling when the spool is in the neutral position. A free

falling load could cause serious bodily injury or property damage if the holding device is not installed.

 Manual Positioners and Actuators will NOT work on Solenoid Work Section housings.

Model V20 Service and Parts Manual (Catalog No. SC-1102) Rev: 08-26-2002 28

4-Way, 4-Position Float Parallel & Tandem Work Sections

4

3

4

2

5

6

1

Parallel

P

OC

T

B A

Tandem

P

OC

T

B A

Figure 25. 4-Way, 4-Position Float Parallel & Tandem Work Sections (Parallel Housing Shown Here)

Ref No. Part No. Description Quantity

1

2

3

4

5

6

07019001

08072xxx

10954xxx

08112xxx

10762xxx

08085001

12888001

12742001

12786001

07385001

K-6028 Float Work Section Service Kit - Standard Buna-N O-Rings 

V20P Parallel Work Section Housing (Not Serviceable) 

V20RP Parallel Work Section Housing (Not Serviceable) 

V20T Tandem Work Section Housing (Not Serviceable) 

V20RT Tandem Work Section Housing (Not Serviceable) 

4-Way Float Spool (Not Serviceable) 

K-6127 4-Position Float Spool Positioner Kit (See Figure 6) 

K-6030 Load Check Plug Assembly (See Figures 24 thru 25 for Options)

K-6033 Seal Retainer Kit (See Figures 26 thru 29 for Handle End Options)

K-6035 Spool Seal Assembly (Serviced in Spool Seal Kits - See Figure 2)

1

2

1

 Work Section Service Kits include all the seals and back-up rings required to service one V20 work section.

 Contact the Gresen factory in Minneapolis for porting options.

 The work section housing and spool are matched and are not sold separately.

 3-Position Spool Positioners and Actuators will NOT work on Float Work Sections.

Model V20 Service and Parts Manual (Catalog No. SC-1102) Rev: 08-26-2002 29

4-Way, 3-Position ‘V20LO’ Lockout Work Section

4

3

4

2

6

7

1

5

B A

P

T

OC

Figure 26. 4-Way, 3-Position ‘V20LO’ Lockout Work Section

Ref No. Part No. Description Quantity

1

2

3

4

5

6

7

07018001

11571xxx

08397001

12741001

12933001

06638001

11572001

12786001

07385001

K-6027 Work Section Service Kit - Standard Buna-N O-Rings 

V20LO Lockout Work Section Housing (Not Serviceable) 

4-Way Lockout Spool (Not Serviceable) 

K-6125 (V20P and V20T) Spring-Return Spool Positioner Kit (See Figure 6)

K-6207 (V20RP and V20RT) Spring-Return Spool Positioner Kit (See Figure 6)

K-6024 Lockout Check Plug Assembly (See Figure 24)

Unlocking Piston

K-6033 Seal Retainer Kit (See Figures 26 thru 29 for Handle End Options)

K-6035 Spool Seal Assembly (Serviced in Spool Seal Kits - See Figure 2)

1

2

1

 Work Section Service Kits include all the seals and back-up rings required to service one V20 work section.

 Contact the Gresen factory in Minneapolis for porting options.

 The work section housing and spool are matched and are not sold separately.

Model V20 Service and Parts Manual (Catalog No. SC-1102) Rev: 08-26-2002 30

4-Way, 3-Position Parallel & Tandem Work Sections with ‘KO’

3

4

2

4

1

5

6

OC

T

Parallel

BA

P

Tandem

BA

P

OC

T

Figure 27. 4-Way, 3-Position Parallel & Tandem Work Sections with ‘KO’ (Tandem Housing Shown Here)

Ref No. Part No. Description Quantity

1

2

3

4

5

6

07018001

08072xxx

10954xxx

08112xxx

10762xxx

08534001

08542002

12742001

12786001

07385001

K-6027 Work Section Service Kit - Standard Buna-N O-Rings 

V20P Parallel Work Section Housing (Not Serviceable) 

V20RP Parallel Work Section Housing (Not Serviceable) 

V20T Tandem Work Section Housing (Not Serviceable) 

V20RT Tandem Work Section Housing (Not Serviceable) 

4-Way ‘KO’ (Knockout) Spool (Not Serviceable) 

3-Position ‘KO’ Spool Positioner Kit (See Figure 6) 

K-6030 Load Check Plug Assembly (See Figures 24 thru 25 for Options)

K-6033 Seal Retainer Kit (See Figures 26 thru 29 for Handle End Options)

K-6035 Spool Seal Assembly (Serviced in Spool Seal Kits - See Figure 2)

1

2

1

 Work Section Service Kits include all the seals and back-up rings required to service one V20 work section.

 Contact the Gresen factory in Minneapolis for porting options.

 The work section housing and spool are matched and are not sold separately.

 ‘KO’ Knockout Spool Positioners will NOT work with standard spools.

Model V20 Service and Parts Manual (Catalog No. SC-1102) Rev: 08-26-2002 31

Model V20 Externally Piloted Solenoid Work Sections

1

2

4

8

4

3

675

T

BA

OC P

Figure 28. Model V20 Externally Piloted Solenoid Work Sections (Parallel 4-Way Section Shown)

Ref No. Part No. Description Quantity

1

2

3

4

5

6

7

8

07018001

08072xxx

10954xxx

08112xxx

10762xxx

08084001

08108001

10490001

12742001

07385001

07700001

03265001

12786001

K-6027 Work Section Service Kit - Standard Buna-N O-Rings 

V20P Parallel Work Section Housing (Not Serviceable) 

V20RP Parallel Work Section Housing (Not Serviceable) 

V20T Tandem Work Section Housing (Not Serviceable) 

V20RT Tandem Work Section Housing (Not Serviceable) 

4-Way Spool (Not Serviceable) 

4-Way Free Flow Spool (Not Serviceable) 

K-6167 12VDC Solenoid Actuator Kit (See Figure 6) 

K-6030 Load Check Plug Assembly (See Figures 24 thru 25 for Options)

K-6035 Spool Seal Assembly (Serviced in Spool Seal Kits - See Figure 2)

O-Ring Seal (Serviced in Spool Seal Kits – Figure 2) 

Back-Up Ring (Serviced in Spool Seal Kits – Figure 2) 

K-6033 Seal Retainer Kit (See Figures 26 thru 29 for Handle End Options)

1

2

1

 Buna-N seals are standard for all Gresen valve assemblies.

 Work Section Service Kits include all the seals and back-up rings required to service one V26PC work section, including spool

seals. Do NOT install spool seals into V26PC Solenoid Work Sections.

 SAE porting standard. Contact the Gresen factory in Minneapolis for optional porting.

 The work section housing and spool are matched and are not sold separately.

 Warning: If you are using the free flow (F4) spool configuration in a cylinder lift application, it must be used in conjunction with a

load holding device. A load holding device will prevent the load from free falling when the spool is in the neutral position. A free

falling load could cause serious bodily injury or property damage if the holding device is not installed. Be sure to clear the work

area prior to testing the cylinder lift application to avoid a potential dangerous situation.

 Continuous Back-Up Rings are installed at the factory using special sizing tools. It is Not necessary to replace the original

Back-Up Rings unless they have been damaged. See Page 9 for Back-Up Ring Preparation and Installation procedures.

Model V20 Service and Parts Manual (Catalog No. SC-1102) Rev: 08-26-2002 32

‘V20P’ Parallel & ‘V20T’ Tandem 4-Way Solenoid Work Sections

4

5

3

2

1

[EPC] Schematic

(4-Way Shown) BA

OC PT

5

Bonnet Seals

(Located in Work Section Body)

7

8

6

[SOL] Schematic

(4-Way Shown)

BA

OC PT

Figure 29. ‘V20P’ Parallel & ‘V20T’ Tandem 4-Way Solenoid Work Sections (Parallel Housing Shown)

Ref No. Part No. Description Quantity

1

2

3

4

5

6

7

8

10954xxx

10762xxx

21500001

21504001

21477xxx

21475xxx

21478xxx

21476xxx

12742001

21866001

21801001

07773001

K-6 V20 Solenoid Work Section Service Kit - Buna-N O-Rings 

V20RP ‘Parallel’ Solenoid Work Section Housing (Not Serviceable) 

V20RT ‘Tandem’ Solenoid Work Section Housing (Not Serviceable) 

4-Way Solenoid Spool (Not Serviceable) 

4-Way Free Flow Solenoid Spool (Not Serviceable) 

On/Off [SOL] Solenoid Actuator Assembly - ‘A’ End (See Figure 14) 

Proportional [EPC] Solenoid Actuator Assembly - ‘A’ End (See Figure 14) 

On/Off [SOL] Solenoid Actuator Assembly - ‘B’ End (See Figure 14) 

Proportional [EPC] Solenoid Actuator Assembly - ‘B’ End (See Figure 14) 

K-6030 Load Check Plug Kit (See Figure 24)

O-Ring Seal
