SERVICE MANUAL
FILE NO. 120-200229
VIDEO CASSETTE RECORDER
V-E59
V-E39
V-E29
APR, 2002
V-E59,39,29 1/7/04 12:46 AM Page 1
1. Precautions
2. Reference Information
3. Product Specifications
4. Disassembly and Reassembly
5. Alignment and Adjustment
6. Exploded View
7. Replacement Parts List
8. Block Diagram
9. PCB Diagrams
10. Schematic Diagrams
CONTENTS
Toshiba 1-1
1. Precautions
1. Be sure that all of the built-in protective devices are
replaced. Restore any missing protective shields.
2. When reinstalling the chassis and its assemblies, be
sure to restore all pretective devices, including :
control knobs and compartment covers.
3. Make sure that there are no cabinet openings
through which people--particularly children
--might insert fingers and contact dangerous
voltages. Such openings include the spacing
between the picture tube and the cabinet mask,
excessively wide cabinet ventilation slots, and
improperly fitted back covers.
If the measured resistance is less than 1.0 megohm
or greater than 5.2 megohms, an abnormality exists
that must be corrected before the unit is returned
to the customer.
4. Leakage Current Hot Check (See Fig. 1-1) :
Warning : Do not use an isolation transformer
during this test. Use a leakage current tester or a
metering system that complies with American
National Standards Institute (ANSI C101.1,
Leakage Current for Appliances), and Underwriters
Laboratories (UL Publication UL1410, 59.7).
5. With the unit completely reassembled, plug the AC
line cord directly the power outlet. With the unit’s
AC switch first in the ON position and then OFF,
measure the current between a known erath
ground (metal water pipe, conduit, etc.) and all
exposed metal parts, including : antennas, handle
brackets, metal cabinets, screwheads and control
shafts. The current measured should not exceed
0.5 milliamp. Reverse the power-plug prongs in the
AC outlet and repeat the test.
6. X-ray Limits :
The picture tube is designed to prohibit X-ray
emissions. To ensure continued X-ray protection,
replace the picture tube only with one that is the
same type as the original.
Fig. 1-1 AC Leakage Test
7. Antenna Cold Check :
With the unit’s AC plug disconnected from the
AC source, connect an electrical jumper across the
two AC prongs. Connect one lead of the ohmmeter
to an AC prong.
Connect the other lead to the coaxial connector.
8. High Voltage Limit :
High voltage must be measured each time
servicing is done on the B+, horizontal deflection
or high voltage circuits.
Heed the high voltage limits. These include the
X-ray protection Specifications Label, and the
Product Safety and X-ray Warning Note on the
service data schematic.
9. Some semiconductor (“solid state”) devices are
easily damaged by static electricity.
Such components are called Electrostatically
Sensitive Devices (ESDs); examples include
integrated circuits and some field-effect transistors.
The following techniques will reduce the
occurrence of component damage caused by static
electricity.
10. Immediately before handling any semiconductor
components or assemblies, drain the electrostatic
charge from your body by touching a known
earth ground. Alternatively, wear a discharging
Wrist-strap device. (Be sure to remove it prior to
applying power--this is an electric shock
precaution.)
DEVICE
UNDER
TEST
(READING SHOULD
NOT BE ABOVE
0.5mA)
LEAKAGE
CURRENT
TESTER
EARTH
GROUND
TEST ALL
EXPOSED METER
SURFACES
ALSO TEST WITH
PLUG REVERSED
(USING AC ADAPTER
PLUG AS REQUIRED)
2-WIRE CORD
Precautions
1-2 Toshiba
11. High voltage is maintained within specified limits
by close-tolerance, safety-related components and
adjustments. If the high voltage exceeds the
specified limits, check each of the special
components.
12. Design Alteration Warning :
Never alter or add to the mechanical or electrical
design of this unit. Example : Do not add
auxiliary audio or video connectors.
Such alterations might create a safety hazard.
Also, any design changes or additions will void
the manufacturer’s warranty.
13. Hot Chassis Warning :
Some TV receiver chassis are electrically
connected directly to one conductor of the AC
power cord. If an isolation transformer is not
used, these units may be safely serviced only if
the AC power plug is inserted so that the chassis
is connected to the ground side of the AC source.
To confirm that the AC power plug is inserted
correctly, do the following : Using an AC
voltmeter, measure the voltage between the
chassis and a known earth ground. If the reading
is greater than 1.0V, remove the AC power plug,
reverse its polarity and reinsert. Re-measure the
voltage between the chassis and ground.
14. Some TV chassis are designed to operate with 85
volts AC between chassis and ground, regardless
of the AC plug polarity. These units can be safely
serviced only if an isolation transformer inserted
between the receiver and the power source.
15. Never defeat any of the B+ voltage interlocks.
Do not apply AC power to the unit (or any of its
assemblies) unless all solid-state heat sinks are
correctly installed.
16. Always connect a test instrument’s ground lead to
the instrument chassis ground before connecting
the positive lead; always remove the instrument’s
ground lead last.
17. Observe the original lead dress, especially near
the following areas : Antenna wiring, sharp
edges, and especially the AC and high voltage
power supplies. Always inspect for pinched, out-
of-place, or frayed wiring. Do not change the
spacing between components and the printed
circuit board. Check the AC power cord for
damage. Make sure that leads and components
do not touch thermally hot parts.
18. Picture Tube Implosion Warning :
The picture tube in this receiver employs
“integral implosion” protection. To ensure
continued implosion protection, make sure that
the replacement picture tube is the same as the
original.
19. Do not remove, install or handle the picture tube
without first putting on shatterproof goggles
equipped with side shields. Never handle the
picture tube by its neck. Some “in-line” picture
tubes are equipped with a permanently attached
deflection yoke; do not try to remove such
“permanently attached” yokes from the picture
tube.
20. Product Safety Notice :
Some electrical and mechanical parts have special
safety-related characteristics which might not be
obvious from visual inspection. These safety
features and the protection they give might be
lost if the replacement component differs from the
original--even if the replacement is rated for
higher voltage, wattage, etc.
Components that are critical for safety are
indicated in the circuit diagram by shading,
( or ).
Use replacement components that have the same
ratings, especially for flame resistance and
dielectric strength specifications. A replacement
part that does not have the same safety
characteristics as the original might create shock,
fire or other hazards.
Toshiba 2-1
GB
6

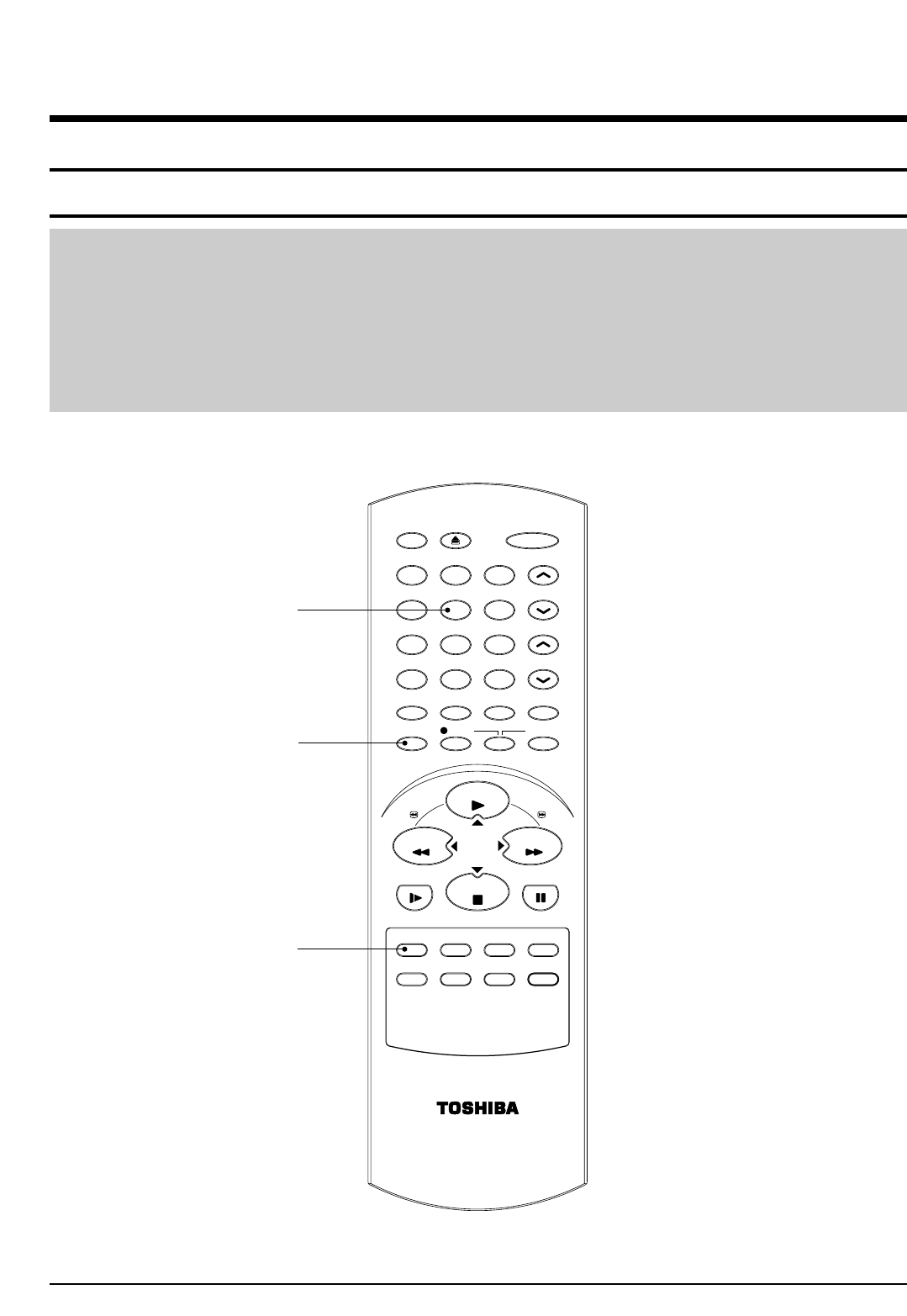

Infrared Remote Control
EJECT
EJECT
.
VIDEO INSERT
VIDEO INSERT
SP/LP
SAT.MONI.A.DUB
123
456
789
0
AUDIO
MENU
TV/VIDEO
SLOW
PLAY
REW
STOP
TIMER
REC
CH
FF
PAUSE/STILL
COUNT/TR
INDEX
TRK
S
HOW
HOW
V
IEW
IEW
F.ADV
CURSOR
OK
DISPLAY EJECT
PROG.
ON/
STANDBY
COUNT.RST
I.SELECT
CLR/RST
SAT.CONT.
ON/STANDBY
CH
TRK
AUDIO
PAUSE/STILL, OK
FF
PLAY
TIMER
COUNT/TR
CLR/RST
COUNT.RST
STOP
SLOW
PROG.
SP/LP
A. DUB
(V-E59 only)
SAT.MONI.
(Feature unavailable
in these models
SAT.CONT.
(Feature unavailabl
e
in these models
TV/VIDEO
EJECT
DISPLAY
NUMBER BUTTON
I.SELECT
F.ADV
INDEX
MENU
REC
REW
GB
5
Front View of the VCR
Rear View of the VCR
TV
LINE IN 1
VIDEO AUDIO
LINE OUT
R L
AERIAL IN
CONNECTOR
AUDIO L, R OUTPUT
SOCKETS
AUDIO L, R INPUT
SOCKETS
VIDEO INPUT
SOCKET
VIDEO OUTPUT
SOCKET
OUT TO TV
CONNECTOR
VIDEO CASSETTE
COMPARTMENT
STOP
BUTTON
REW
BUTTON FF
BUTTON
RECORD
BUTTON
EJECT
BUTTON
CHANNEL
SELECTION
BUTTONS
PLAY
BUTTON
ON/STANDBY
BUTTON
LINE IN 2 VIDEO
INPUT SOCKET LINE IN 2 AUDIO L, R
INPUT SOCKETS
VIDEO CASSETTE
COMPARTMENT
STOP
BUTTON
REW
BUTTON FF
BUTTON
RECORD
BUTTON
EJECT
BUTTON
CHANNEL
SELECTION
BUTTONS
PLAY
BUTTON
ON/STANDBY
BUTTON
V-E39/V-E29
V-E59
TV
LINE IN 1
VIDEO AUDIO
LINE OUT
AUDIO OUTPUT
SOCKETS
AUDIO INPUT
SOCKETS
V-E39/V-E29
V-E59
2. Reference Information
2-1 Operation of Controls
Reference Information
2-2 Toshiba
GB
8
Deciding How to Connect Your VCR
You must take into account various factors when connecting audio or video systems:
◆Types of connectors available on your systems
◆Systems connected permanently to the VCR or temporarily (camcorder for example)
Your VCR is equipped with the following connectors.
Connector Location Type Direction Recommended Use
LINE IN 1 Rear Audio/Video RCA In ◆Camcorder
V-E59 ◆Other VCR
V-E39/V-E29
Line out Rear Audio/Video RCA Out ◆Television
◆Other VCR
V-E59 ◆Audio Hi-Fi system (V-E59 only)
V-E39/V-E29
LINE IN 2 Front Audio/Video RCA In ◆Audio Hi-Fi system
V-E59 ◆Camcorder
◆Other VCR
OUT TO TV Rear 75 ΩOut ◆Television
coaxial
IN FROM ANT. Rear 75 ΩIn ◆Aerial
coaxial ◆Cable television network
☛Whenever you connect an audio or video system to your VCR, ensure that all elements are
switched off.
Refer to the documentation supplied with your equipment for detailed connection instructions
and associated safety precautions.
TV
LINE IN 1
VIDEO AUDIO
R L
LINE OUT
LINE IN 1
VIDEO AUDIO
LINE OUT
GB
7
Display Indicator
Accessories
You have just purchased a Toshiba Video Cassette Recorder (VCR).
Together with your VCR, you will find the following accessories in the box.
EJECT
EJECT.
VIDEO INSERT
VIDEO INSERT
SP/LP
SAT.MONI.
A.DUB
123
456
789
0
AUDIO
MENU
TV/VIDEO
SLOW
PLAY
REW
STOP
TIMER
REC
CH
FF
PAUSE/STILL
COUNT/TR
INDEX
TRK
S
HOW
HOW
V
IEW
IEW
F.ADV
CURSOR
OK
DISPLAYEJECT
PROG.
ON/
STANDBY
COUNT.RST
I.SELECT
CLR/RST
SAT.CONT.
REMOTE CONTROL &
BATTERIES “AAA”
OWNER’S INSTRUCTIONS
COAXIAL CABLE
1Cassette loaded indicator
2 Multi-function display
3 Timer indicator (HH):MM
4Hi-Fi Stereo indicator (V-E59 only)
5Rec indicator
VCR
4 5
STEREO
12 3
Reference Information
Toshiba 2-3
GB
10
Connecting Other Equipment to Your VCR
You can connect other audio and/or video equipment to your VCR in different ways. The following
illustrations give a few examples of the connection possibilities.
➢The RCA input/output connectors on the rear of the VCR are used
for equipment, such as camcorders, VCRs or sound systems.
LINE IN 1
VIDEO AUDIO
LINE OUT
R L
Camcorder
VCR
Sound system
LINE IN 1
VIDEO AUDIO
LINE OUT
REAR OF THE VCR V-E59
REAR OF THE VCR V-E39/V-E29
FRONT OF THE VCR
(V-E59 only)
GB
9
Connecting Your VCR to the TV using the Coaxial Cable
To receive television programmes a signal must be received from
one of the following sources:
◆An outdoor aerial
◆An indoor aerial
◆A cable television network
☛Make sure that both the television and the VCR are
switched off before connecting the cables.
1Remove the aerial or network input cable from the television.
2Connect this cable to the 75Ωcoaxial socket marked on the
rear of your VCR.
3Plug the coaxial cable supplied into the socket on your VCR.
4Plug the other end of the coaxial cable into the connector
previously used for the aerial on the television.
5To obtain better quality pictures and sound on your television, you
can also connect your VCR to the television via the RCA cable
(see section below) if your television is equipped with this type of
connection.
➢This owner’s manual uses the illustration of V-E59.
V-E39/V-E29 models may have some differences in
appearance from the iillustration.
TV
Connecting Your VCR to the TV using the RCA Cable
You can connect your VCR to the television using the RCA cable if the appropriate input is available on the
television. You thus:
◆Obtain better quality sound and pictures
◆Simplify the setting up procedure of your VCR
☛◆Regardless of the type of connection chosen, you must always connect the coaxial cable
supplied. Otherwise, no picture will be visible on the screen when the VCR is switched off.
◆Make sure that both the television and the VCR are switched off before connecting the cables.
1Connect the coaxial cable as indicated in the above section.
2Connect one end of the RCA Audio/Video cable to the Video output and Audio L, R output socket on the rear
of the VCR.
3Plug the other end into the appropriate connector on the television.
Aerial
TV
LINE IN 1
VIDEO AUDIO
LINE OUT
R L
RF
coaxial
cable
TV
2
TV
LINE IN 1
VIDEO AUDIO
LINE OUT
R L
4
2
TV
TV
LINE IN 1
VIDEO AUDIO
LINE OUT
R L
3
Reference Information
2-4 Toshiba
GB
EJECT.
VIDEO INSERT
123
456
CH
S
HOW
V
IEW
DISPLAY EJECT ON/
STANDBY
EJECT.
VIDEO INSERT
MENU
SLOW
PLAY
REW
STOP
TIMER
REC
FF
PAUSE/STILL
S
HOW
V
IEW
CURSOR
12
Tuning Your Television for the VCR
You must tune your television for the VCR only if you are not using
a RCA cable
➢To view pictures from your VCR when a RCA cable is
used, the television must be set to the audio/video mode
(AV).
1Switch on the television.
2Switch on the VCR by pressing ON/STANDBY on the front of the
VCR or VCR ON/STANDBY on the remote control.
3Select a programme position on the television to be reserved for
use with your VCR.
4Insert the video cassette in the VCR. Check that the VCR starts
reading the cassette; if not, press
button.
5Start a scan on your television or set the television to UHF
channel 60.
6Fine tune the television until the pictures and sound are obtained
clearly.
7If you cannot find the pictures and sound, or there is interference
from nearby channels, it may be necessary to change the setting
of the VCR output channel (see Solving Problems section of this
manual).
8When the picture and sound are perfectly clear, store this channel
at the desired programme position on the television.
Result:
That programme is now reserved for use with your VCR.
4
2
You must insert or replace the batteries in the remote control when
you:
◆Purchase the video cassette recorder
◆Find that the remote control is no longer working
correctly
1Push the tab in the direction of the arrow to release the battery
compartment cover on the rear of the remote control.
2Insert two AAA, R03 or equivalent batteries, taking care to respect
the polarities:
◆
+ on the battery with + on the remote control
◆
– on the battery with – on the remote control
3Replace the cover by aligning it with the base of the remote
control and pushing it back into place.
➢Do not mix different battery types (manganese and
alkaline for example).
Inserting Batteries in the Remote Control
1
GB
11
Plug & Auto Set Up
2
AUTO SET UP
PLEASE WAIT
60%
I
■■■■■■■■■■■■
-------I
END:MENU
CLOCK
TUE
12:00 1/JAN/2002
¥
END:MENU
Your VCR will automatically set itself up when it is plugged into the
mains for the first time. TV stations will be stored in memory. The
process takes a few minutes. Your VCR will then be ready for use.
1Connect the coaxial cable as indicated on page 9.
(Connecting Your VCR to the TV Using the Coaxial Cable)
2Plug the VCR into the mains.
A message appears “AUTO SET-UP WILL BE STARTED. CHECK
ANTENNA AND TV CABLE CONNECTION” and then press OK
button to proceed.
3Press the
button, until the RF Receiving System option is
selected and press OK to continue..
4The process will finish after a few minutes.
◆
The number of stations automatically stored by the VCR
depends on the number of stations that it has found.
5On completion, press MENU twice to exit the menu.
AUTO SET-UP WILL BE
STARTED.
CHECK ANTENNA AND
TV CABLE CONNECTION.
PROCEED:OK
END:MENU
** SYSTEM SELECT **
EXECUTE:OK
SYSTEM-B/G
SYSTEM-D/K
SYSTEM-I
Reference Information
Toshiba 2-5
GB
14
Displaying/Hiding On-Screen Information
USER SET
PROG OPTIONS INSTALL
CLOCK BONUS
OPTIONS
¥
OK END:MENU
Your VCR displays most information both on the VCR and the
television.
You can choose to display or hide this information on the television
screen (except for the Index, Programming MENU which cannot be
hidden).
1Press MENU on the remote control.
Result: The programming menu is displayed.
2Press the corresponding
,
or
¥
,
buttons to select the
USER SET option.
3Press the OK button to select this option.
Result: The USER SET menu is displayed.
4Press the corresponding
or
buttons, until the OSD option is
selected.
5To... Press
¥
or
, until...
Display on-screen information ON is displayed.
Hide on-screen information OFF is displayed.
6On completion, press MENU twice to exit the menu.
PTIONS
OSD :ON
TAPE SELECT :E180
COLOUR SYSTEM :AUTO
NICAM :ON
PICTURE :09
END:MENU
V-E59
V-E39/V-E29
PTIONS
OSD :ON
TAPE SELECT :E180
COLOUR SYSTEM :AUTO
PICTURE :09
END:MENU
GB
13
Setting the Date and Time
EJECT.
VIDEO INSERT
MENU
SLOW
PLAY
REW
STOP
TIMER
REC
FF
PAUSE/STILL
S
HOW
V
IEW
CURSOR
2
2
1
3
2
CLOCK SET
PROG OPTIONS INSTALL
CLOCK BONUS
CLOCK
CLOCK
TUE
12:00 1/JAN/2002
¥
END:MENU
¥
OK END:MENU
Your VCR contains a 24-hour clock and calendar used to:
◆Automatically stop programme recording
◆Preset your VCR to record a programme automatically
You must set the date and time when:
◆You purchase the video cassette recorder
◆The power supply remains off for more than 1 hour
☛◆Do not forget to reset the time when you change
clocks from winter to summer time and vice versa.
1Press MENU on the remote control.
Result: The programming menu is displayed.
2Press the corresponding
,
or
¥
,
buttons to select the
CLOCK SET option.
3Press the OK button to select this option.
Result: The CLOCK SET menu is displayed.
4Press
¥
or
to select the hour, minutes, day, month and year.
Result: The option selected flashes.
5Press the
or
buttons to increase or decrease the value.
Result: The day of the week is displayed automatically.
➢You can hold the
or
buttons down to scroll more
quickly through the values.
6On completion, press MENU twice to exit the menu.
2
◆ The life of the batteries is about 1 year depending on the
conditions of use.
◆ If the remote control does not operate correctly, replace all
batteries with new ones.
◆ Do not dispose of the batteries by fire.
◆ If the remote controller is not to be used for a long period of
time, remove the batteries to avoid possible damage from battery
corrosion.
◆ When using the remote controller, press the buttons at intervals
of about 1 second to ensure the correct mode of operation.
◆ Keep the remote controller away from extremely hot or humid
places and avoid sharp impacts.
◆ Do not expose the remote sensor of the VCR to a strong light
source such as direct sunlight or illumination (especially high-
frequency lighting) when using the remote controller.
◆ Be careful do not to spill water on the remote controller or to
place it on anything wet.
Notes on Batteries
Caring for the Remote Controller
ON/
STANDBY
123
456
789
0
COUNT.RST
CH
I.SELECT
VTR
TRK
DISPLAY EJECT
30˚30˚
7 m
Notes:
Point the remote controller at the
VCR and press the buttons within
the operating range as illustrated.
Distance: within about 7 m from the
front of the remote sensor.
Angles : within about 30˚ in every
direction.
Reference Information
2-6 Toshiba
GB
16
Presetting the Stations Automatically
☛You do not need to preset the stations if you have already
set them automatically (see Plug & Auto Set Up on
page 11).
Your VCR contains a built-in tuner used to receive television
broadcasts.
You must preset the stations received through the tuner. This can
be done:
◆Plug & Auto Set up (see page 11)
◆Automatically
◆Manually (see page 17)
You can store up to 80 stations.
1Press the MENU button on the remote control.
Result: The programming menu is displayed.
2Press the corresponding
,
or
¥
,
buttons to select the
INSTALLATION option.
3Press the OK button to select this option.
Result: The INSTALLATION menu is displayed.
4Press the corresponding
or
buttons, until the AUTO SET
UP option is selected.
Press the
button to select this option.
5Press the
button, until the RF Receiving System option is
selected.
6Press OK to start the auto scanning.
Result:
◆
The PLEASE WAIT indication flashes on the
television screen.
◆
The first frequency band is scanned and the first
station found is displayed and stored.
◆
The VCR then searches for the second station and
so on.
◆
When the automatic scanning procedure has
finished, the VCR switches automatically to
programme 1.
➢The number of stations automatically stored by the VCR
depends on the number of stations that it has found.
7If you wish to cancel the auto scanning before the end, press the
MENU button three times to exit the menu.
➢◆Once the auto scanning procedure has finished, some
stations may have been stored more than once; select
the stations with the best reception and delete the
ones no longer required (see page 18).
INSTALLATION
PROG OPTIONS INSTALL
CLOCK BONUS
INSTALL
¥
OK END:MENU
AUTO SET UP
PLEASE WAIT
2%
I--------------------I
END:MENU
YOUR DATA WILL BE LOST
PRESS OK TO CONTINUE
MENU TO EXIT
INSTALL
AUTO SET UP
MANUAL SET UP
TV SYSTEM :G
VCR OUTPUT CH :CH60
END:MENU
** SYSTEM SELECT **
EXECUTE:OK
SYSTEM-B/G
SYSTEM-D/K
SYSTEM-I
GB
15
Your VCR output channel may need to be changed if the pictures
suffer from interference or if your TV cannot find the pictures.
Also, you can change the VCR output channel to adjust the
frequency in which information is displayed on the screen.
1Press MENU on the remote control.
Result: The programming menu is displayed.
2Press the corresponding
,
or
¥
,
buttons to select the
INSTALLATION option.
3Press the OK button to select this option.
Result: The INSTALLATION menu is displayed.
4Press the corresponding
or
buttons, until the VCR OUTPUT
CH option is selected.
5Select the required output channel by pressing the
¥
or
buttons.
6On completion, press MENU twice to exit the menu.
Then tune your television again (see page 12).
Setting the VCR Output Channel
INSTALLATION
PROG OPTIONS INSTALL
CLOCK BONUS
INSTALL
¥
OK END:MENU
INSTALL
AUTO SET UP
MANUAL SET UP
TV SYSTEM :G
VCR OUTPUT CH :CH60
END:MENU
INSTALLATION
PROG OPTIONS INSTALL
CLOCK BONUS
INSTALL
¥
OK END:MENU
INSTALL
AUTO SET UP
MANUAL SET UP
TV SYSTEM :G
VCR OUTPUT CH :CH60
END:MENU
You must choose the sound mode (G, I ,K) according to the TV set
connected to your VCR.
1Press MENU on the remote control.
Result: The programming menu is displayed.
2Press the corresponding
,
or
¥
,
buttons to select the
INSTALLATION option.
3Press the OK button to select this option.
Result: The INSTALLATION menu is displayed.
4Press the corresponding
or
buttons, until the TV SYSTEM
option is selected.
5
Press the
button to select G, I ,K.
6On completion, press MENU twice to exit the menu.
Selecting the RF OUT Sound Mode (G, I, K)
Reference Information
Toshiba 2-7
GB
18
If you have stored a TV station:
◆That you do not require
◆At the wrong programme position
you can cancel it.
1Press the MENU button on the remote control.
Result: The programming menu is displayed.
2Press the corresponding
,
or
¥
,
buttons to select the
INSTALLATION option.
3Press the OK button to select this option.
Result: The INSTALLATION menu is displayed.
4Press the corresponding
or
buttons, until the MANUAL SET
UP option is selected.
5Press the
button to select this option.
Result: The TV STATION TABLE menu is displayed.
6Press the corresponding
or
buttons, until the required preset
TV station (PR) is selected.
7Press the CLR/RST button.
8Repeat the same procedure from Step 6onwards until all the
required stations have been cleared.
9On completion, press the MENU button three times to exit the
menu.
Clearing a Preset Station
INSTALLATION
PROG OPTIONS INSTALL
CLOCK BONUS
INSTALL
¥
OK END:MENU
INSTALL
AUTO SET UP
MANUAL SET UP
TV SYSTEM :G
VCR OUTPUT CH :CH60
END:MENU
EJECT.
VIDEO INSERT
789
0
MENU
PLAY
TIMER
REC
COUNT/TR
INDEX
TRK
S
HOW
V
IEW
F.ADV
COUNT.RST
I.SELECT
CLR/RST
7
** TV STATION TABLE **
PR CH SYTEM
1 004 B/G/D/K
2
3
4
5
SWAPPING:OK
DELETE:CLR/RST MENU
GB
17
Presetting the Stations Manually
INSTALLATION
PROG OPTIONS INSTALL
CLOCK BONUS
INSTALL
¥
OK END:MENU
Your VCR contains a built-in tuner used to receive television
broadcasts.
You must preset the stations received through the tuner. This can
be done:
◆Plug & Auto Set up (see page 11)
◆Automatically (see page 16)
◆Manually
You can store up to 50 stations.
☛You do not need to preset the stations manually if you
have already set them automatically.
1Press the MENU button on the remote control.
Result: The programming menu is displayed.
2Press the corresponding
,
or
¥
,
buttons to select the
INSTALLATION option.
3Press the OK button to select this option.
Result: The INSTALLATION menu is displayed.
4Press the corresponding
or
buttons, until the MANUAL SET
UP option is selected.
5Press the
button to select MANUAL SET UP option.
Result: The TV STATION TABLE menu is displayed.
6Press the
or
buttons to select a programme number as
required.
7Press the
button to preset the station.
Result: The MANUAL TUNING menu is displayed.
8Press the
¥
or
buttons to start scanning.
Result: The frequency band is scanned and the first station
found is displayed.
If you know the number of the channel you want, press the
numeric buttons on the remote control for example, for channel
04, first press “0” and then press “0”, “4” (see page 41).
9If you... Then...
Wish to store the
◆
Press the corresponding
or
buttons,
station displayed until the MFT is selected.
◆
Press the
¥
or
buttons to adjust the
picture, if necessary.
◆
Press OK to store the station .
Do not wish to
◆
Press the corresponding
or
buttons,
store the station until the CH is selected.
displayed
◆
Press the
¥
or
buttons to go on
scanning the frequency band and display
the next station
◆
Go back to the beginning of Step 9
10 Repeat this procedure from Step 6onwards, until all the required
stations have been stored.
11
On completion, press the MENU button three times to exit the menu.
INSTALL
AUTO SET UP
MANUAL SET UP
TV SYSTEM :G
VCR OUTPUT CH :CH60
END:MENU
** MANUAL TUNING **
SYSTEM :B/G/D/K
PR : 1
CH : 004
MFT : -
¥
MEMORY: OK
END:MENU
** TV STATION TABLE **
PR CH SYTEM
1 004 B/G/D/K
2
3
4
5
SWAPPING:OK
DELETE:CLR/RST MENU
Reference Information
2-8 Toshiba
GB
20
Selecting the Cassette Type
If you wish to use the tape counter to display the time remaining on
a cassette, you must indicate the type of cassette inserted.
1Press MENU on the remote control.
Result: The programming menu is displayed.
2Press the corresponding
,
or
¥
,
buttons to select the
USER SET option.
3Press the OK button to select this option.
4Press the corresponding
or
buttons, until the TAPE
SELECT option is selected.
5Press the
¥
or
buttons as many times as required, until the
correct cassette length is displayed.
E180 E240
E 300 E260
6Press MENU twice to exit the menu.
Selecting the Recording Speed
T
ype Recording Time (in SP)
E-180 180 mins. or 3 hours
E-240 240 mins. or 4 hours
E-260 260 mins. or
4 hours and 20 mins.
E-300 300 mins. or 5 hours
You can record a cassette at two different speeds:
◆SP (Standard Play)
◆LP (Long Play)
In Long Play modes:
◆Each cassette lasts twice as long
To record a cassette... Press the SPEED button on the
remote control, until...
In standard play mode SP is displayed.
In long play mode LP is displayed.
EJECT
EJECT
.
VIDEO INSERT
VIDEO INSERT
SP/LP
SAT.MONI.A.DUB
AUDIO
TV/VIDEO
S
HOW
HOW
V
IEW
IEW
OK
PROG.
SAT.CONT.
USER SET
PROG OPTIONS INSTALL
CLOCK BONUS
OPTIONS
¥
OK END:MENU
PTIONS
OSD :ON
TAPE SELECT :E180
COLOUR SYSTEM :AUTO
NICAM :ON
PICTURE :09
END:MENU
V-E59
V-E39/V-E29
PTIONS
OSD :ON
TAPE SELECT :E180
COLOUR SYSTEM :AUTO
PICTURE :09
END:MENU
GB
19
Changing the Preset Station Table
You can rearrange the preset TV stations according to your own
preferences programme number assigned to the station.
1Press the MENU button on the remote control.
Result: The programming menu is displayed.
2Press the corresponding
,
or
¥
,
buttons to select the
INSTALLATION option.
3Press the OK button to select this option.
Result: The INSTALLATION menu is displayed.
4Press the corresponding
or
buttons, until the MANUAL SET
UP option is selected.
And then press the
button to select this option.
Result: The TV STATION TABLE menu is displayed.
5Press the corresponding
or
buttons, until the required preset
TV programme is selected.
Result: The selected station is displayed at the same time on
the television screen.
6To change the programme number assigned to a station press the
OK button on the remote control. (For example, To move a TV
station in programme 1 to programme 3)
7Press the
or
buttons to select required position. And then
press OK again to swap the position.
8You can modify this station by repeating the same procedure from
Step 5onwards.
9On completion, press the MENU button three times to exit the
menu.
INSTALLATION
PROG OPTIONS INSTALL
CLOCK BONUS
INSTALL
¥
OK END:MENU
INSTALL
AUTO SET UP
MANUAL SET UP
TV SYSTEM :G
VCR OUTPUT CH :CH60
END:MENU
** TV STATION TABLE **
PR CH SYTEM
1 004 B/G/D/K
2
3
4
5
SWAPPING:OK
DELETE:CLR/RST MENU
** TV STATION TABLE **
PR CH SYTEM
1
2
3 004 B/G/D/K
4
5
SWAPPING:OK
DELETE:CLR/RST MENU
Reference Information
Toshiba 2-9
GB
22
Recording a Programme Immediately
Protecting a Recorded Cassette
Video cassettes have a safety tab to prevent accidental erasure.
When this tab has been removed, you cannot record on the tape.
1If you wish to protect a cassette, break off the tab using a small
screwdriver.
2To re-record over a protected cassette (safety tab broken), cover
the hole with adhesive tape.
1
EJECT.
VIDEO INSERT
SP/LP
SAT.MONI.A.DUB
AUDIO
TV/VIDEO
SLOW
REW
STOP
FF
PAUSE/STILL
S
HOW
HOW
V
IEW
IEW
CURSOR
OK
PROG.
SAT.CONT.
7
EJECT.
VIDEO INSERT
SP/LP
AUDIO
TV/VIDEO
SLOW
PLAY
REW
STOP
FF
PAUSE/STILL
S
HOW
V
IEW
CURSOR
OK
PROG.
5
EJECT.
VIDEO INSERT
123
456
789
0
CH
TRK
S
HOW
V
IEW
DISPLAY EJECT
ON/
STANDBY
COUNT.RST
I.SELECT
4
4
Before recording a programme, you must have preset the corres-
ponding station (unless you are recording via an external video
source). If you have not done so, refer to pages 16 and 17.
1Switch on the television.
2To monitor the programme being recorded, select the television
channel reserved for use with your VCR (or the AV input if used).
3Insert the cassette on which the programme is to be recorded,
with the window visible and the safety tab intact or the opening
covered with adhesive tape.
Result: The VCR is switched on automatically.
4Select:
◆
The station to be recorded using the CH
( or )
buttons
or
◆
The LINE IN 1 or LINE IN 2 source using the I.SELECT
button for a satellite tuner or external video source
Result: The station number is displayed and the programme
can be seen on the television.
5Select the recording speed (SP/LP) by pressing the SP/LP button
as many times as required (see page 20).
6Press both REC button simultaneously to start recording.
Result:
The record indicator appears on the television and VCR
display. An index is recorded on the tape (see page 32).
7To stop recording, press
■
once.
➢◆If the cassette is ejected when you start recording,
check that the safety tab is intact or the opening is
covered with adhesive tape.
◆If you reach the end of the tape while recording, the
cassette rewinds automatically.
EJECT.
VIDEO INSERT
MENU
PLAY
REW
TIMER
REC
FF
S
HOW
V
IEW
CURSOR
6
6
GB
21
NICAM (V-E59 only)
NICAM programmes are divided into 3 types. NICAM Stereo,
NICAM Mono and Bilingual (transmission in another language).
NICAM programmes are always accompanied by a standard mono
sound broadcast and you can select the desired sound.
Please refer to page 29.
1Press MENU on the remote control.
Result: The programming menu is displayed.
2Press the corresponding
,
or
¥
,
buttons to select the
USER SET option.
3Press the OK button to select this option.
Result: The USER SET menu is displayed.
4Press the corresponding
or
buttons, until the NICAM option
is selected.
5To... Press
¥
or
, until...
Mono mode OFF is displayed.
OFF: Only set at this position to record the
standard mono sound during a
NICAM broadcast if the stereo
sound is distorted due to inferior
reception conditions.
NICAM mode ON is displayed.
ON: Normally set at this position.
6On completion, press MENU twice to exit the menu.
PTIONS
USER SET
PROG OPTIONS INSTALL
CLOCK BONUS
¥
OK END:MENU
OPTIONS
OSD :ON
TAPE SELECT :E180
COLOUR SYSTEM :AUTO
NICAM :ON
PICTURE :09
END:MENU
Reference Information
2-10 Toshiba
GB
24
Using the Timer Programming Feature
EJECT.
VIDEO INSERT
MENU
PLAY
REW
TIMER
REC
FF
COUNT/TR
INDEX
S
HOW
V
IEW
F.ADV
CURSOR
CLR/RST
1
PROG 1/JAN TUE 21:28
PR DAY START
→
STOP
1 TU 1 12:00
→
12:50SP
-- ---- --:--
→
--:----
-- ---- --:--
→
--:----
-- ---- --:--
→
--:----
-- ---- --:--
→
--:----
-- ---- --:--
→
--:----
¥
DELETE:CLR/RST MENU
EJECT.
VIDEO INSERT
MENU
PLAY
REW
TIMER
REC
FF
COUNT/TR
INDEX
S
HOW
V
IEW
F.ADV
CURSOR
CLR/RST
TIMER PROGRAMMING
PROG OPTIONS INSTALL
CLOCK BONUS
PROG
¥
OK END:MENU
16
The Timer Programming feature allows you to preset the VCR to
record a programme up to one month before that programme is to
be broadcast. Up to six programmes can be preset.
☛Before presetting a recording, check that the date and
time are correct.
1Press MENU on the remote control.
Result: The programming menu is displayed.
2Press the OK button to select TIMER PROGRAMMING option.
Result: The TIMER PROGRAMMING menu is displayed.
3Press
to select the input source.
4Select the required station by pressing the
,
buttons or
I.SELECT to select the LINE IN 1 or LINE IN 2 input sources.
5Press
to select the recording day.
6Select the required day by pressing the
or
buttons.
7Press
to select the recording start time.
8Select the required hour value by pressing the
or
buttons.
9Press
to select the minutes.
10 Select the required minute value by pressing the
or
buttons.
11 Press
to select the recording end time.
12 Select the required recording end time by pressing the
or
buttons, following the same procedure as when selecting the
recording start time.
13 Press
to select the recording speed (AUTO/SP/LP).
14 Press the
or
buttons to switch between the AUTO, SP
(Standard Play) or LP (Long Play).
15 When you have finished, press the MENU button.
16 Press both TIMER simultaneously to activate the timer.
If you wish to turn the timer off, simply press the two TIMER button
again.
Result: Before starting recording, the VCR compares the timer
duration with the remaining time on the cassette.
☛Auto Tape Speed Select
The VCR’s “Auto Tape Speed Select” function compares
the duration of the timer recording to the actual recording
time remaining on the tape loaded. If there is insufficient
tape to complete a timer recording in AUTO mode, the
VCR automatically switches to LP mode to record the
whole programme.
E.g. If there is a one hour AUTO mode timer recording
to be started, but only 40 minutes of tape
remaining, the VCR will record in SP for 20
minutes and switch to LP mode for the remaining
40 minutes.
16
GB
23
This function enables you to record up to nine hours of
programmes. (LP)
Your VCR stops automatically after the requested length of time.
1Switch on the television.
2To monitor the programme being recorded, select the television
channel reserved for use with your VCR (or the AV input if used)
3Insert the cassette on which the programme is to be recorded,
with the window visible and the safety tab intact or the opening
covered with adhesive tape.
Result: The VCR is switched on automatically.
4Select:
◆
The station to be recorded using the
CH ( or )
buttons
or
◆
The LINE IN 1 or LINE IN 2 source using the I.SELECT
button for a satellite tuner or external video source
Result: The channel number is displayed and the programme
can be seen on the television.
5Select the recording speed (SP/LP) by pressing the SP/LP button
as many times as required (see page 20).
6Press both REC button simultaneously to start recording.
Result: The record indicator appears on the television screen
and VCR display. An index is recorded on the tape
(see page 32).
7Press the REC button several times to increase the recording time
in:
◆
30-minute intervals up to four hours
◆
1-hour intervals up to nine hours (LP)
Result: The length is displayed on the television displays. The
selected programme is recorded for the length of time
requested. At the end of that time, the VCR stops
recording automatically.
8If you wish to cancel the recording before the end, press
ON/STANDBY.
☛If the end of the tape is reached while recording:
◆The recording stops
◆The VCR automatically turns off
Recording a Programme with Automatic Stop
LENGTH 2:30
SET LENGTH :
PRESS REC
EJECT.
VIDEO INSERT
789
0
MENU
PLAY
TIMER
REC
COUNT/TR
INDEX
TRK
S
HOW
V
IEW
F.ADV
COUNT.RST
I.SELECT
CLR/RST
6
3
EJECT.
VIDEO INSERT
123
456
789
0
CH
TRK
S
HOW
V
IEW
DISPLAY EJECT ON/
STANDBY
COUNT.RST
I.SELECT
4
4
6
Reference Information
Toshiba 2-11
GB
EJECT.
VIDEO INSERT
123
456
789
0
MENU TIMER
REC
CH
COUNT/TR
INDEX
TRK
S
HOW
V
IEW
F.ADV
COUNT.RST
I.SELECT
CLR/RST
26
This function allows you to play back any pre-recorded cassette.
1Switch on both the television and your VCR.
2Insert the video cassette to be played. If the safety tab on the
cassette is intact, press
.
Otherwise, the cassette is played automatically.
➢When a cassette is loaded, the tape position is optimized
automatically to reduce disturbance (Digital Auto Tracking).
When playing a cassette, if the end of the tape is reached,
the cassette is rewound automatically.
3To... Then press...
Stop the playback
■
(STOP).
Eject the cassette (EJECT).
Playing a Cassette
Adjusting Picture Alignment Manually
The Picture Alignment feature allows you to adjust the alignment
manually to obtain the best possible picture.
When noise bars or streaks appear during playback, adjust alignment
manually by pressing the TRK ( or ) buttons until the picture is clear
and stable.
Result:
◆
The tracking bar appears.
◆
The image is adjusted.
◆
The tracking bar disappears when you release the button.
EJECT.
VIDEO INSERT
SLOW
PLAY
REW
STOP
FF
PAUSE/STILL
S
HOW
V
IEW
CURSOR
OK
3
2
3
GB
25
Checking a Preset Recording
Cancelling a Preset Recording
PROG
1/JAN TUE 21:28
PR DAY START
→
STOP
1 TU 1 12:00
→
12:50SP
-- ---- --:--
→
--:----
-- ---- --:--
→
--:----
-- ---- --:--
→
--:----
-- ---- --:--
→
--:----
-- ---- --:--
→
--:----
SET:
DELETE:CLR/RST MENU
EJECT.
VIDEO INSERT
789
0
MENU TIMER
REC
COUNT/TR
INDEX
TRK
S
HOW
V
IEW
F.ADV
COUNT.RST
I.SELECT
CLR/RST
PROG
1/JAN TUE 21:28
PR DAY START
→
STOP
1 TU 1 12:00
→
12:50SP
-- ---- --:--
→
--:----
-- ---- --:--
→
--:----
-- ---- --:--
→
--:----
-- ---- --:--
→
--:----
-- ---- --:--
→
--:----
SET:
DELETE:CLR/RST MENU
4
You can check your preset recordings:
◆When you have finished presetting the VCR
◆If you have forgotten which programmes will be
recorded
1Press MENU on the remote control.
Result: The programming menu is displayed.
2Press the OK button to select TIMER PROGRAMMING option.
Result: The TIMER PROGRAMMING menu is displayed.
2Press the
or
buttons to select the required programme.
3Press the
¥
or
buttons to select and change any values as
required. For more details, refer to the previous page.
4On completion, press MENU twice.
You can cancel any programmes that are:
◆Incorrect
◆No longer required
1Press MENU on the remote control.
Result: The programming menu is displayed.
2Press the OK button to select TIMER PROGRAMMING option.
Result: The TIMER PROGRAMMING menu is displayed.
3Select the programme to be cancelled by pressing the
or
buttons.
4Press the CLR/RST button to cancel the selected programme.
Result: All the recording information is deleted and the
broadcast will not be recorded.
5On completion, press MENU twice.
Reference Information
2-12 Toshiba
GB
28
Before recording or playing back a cassette, you can select the
required system standard.
➢
◆When you playback an NTSC-recorded tape on this VCR
make a setting on the colour system according to your TV.
If your TV is a PAL system only TV, set NTPB.
If your TV is Multi System TV (NTSC 4.43/3.58 compatible),
set NT4.43/3.58 and you can record NT4.43/3.58.
1Press MENU on the remote control.
Result: The programming menu is displayed.
2Press the corresponding
,
or
¥
,
buttons to select the
USER SET option.
3Press the OK button to select this option.
Result: The USER SET menu is displayed.
4Press the corresponding
or
buttons, until the
COLOUR SYSTEM option is selected.
5Press the
button to select AUTO
➝
PAL
➝
MESECAM
➝
B/W or
NT4.43
➝
NTPB during playback.
AUTO When playing back a cassette, the system standard is
automatically selected by the VCR.
B/W Black and White
6On completion, press MENU twice to exit the menu.
USER SET
PROG OPTIONS INSTALL
CLOCK BONUS
OPTIONS
¥
OK END:MENU
PTIONS
OSD :ON
TAPE SELECT :E180
COLOUR SYSTEM :AUTO
NICAM :ON
PICTURE :09
END:MENU
V-E59
V-E39/V-E29
PTIONS
OSD :ON
TAPE SELECT :E180
COLOUR SYSTEM :AUTO
PICTURE :09
END:MENU
Selecting the Colour Mode
GB
27
Picture Control
The picture control feature allows you to adjust the sharpness of
the image manually, according to your own preferences.
1During playback, press the MENU button on the remote control
Result: The MAIN menu is displayed.
2Press the corresponding
,
or
¥
,
buttons to select the
USER SET option.
3Press the OK buttons to select this option
Result This USER SET menu is displayed.
4Press the corresponding
or
buttons, until the PICTURE
option
is selected.
5Press the
¥
or
buttons,until the picture is displayed according to
your preferences .
➢The Picture control feature allows you to adjust the
sharpness of the image manually by pressing PICTURE
button on the Remote Control.
EJECT
EJECT
.
VIDEO INSERT
VIDEO INSERT
SP/LP
SAT.MONI.A.DUB
AUDIO
TV/VIDEO
S
HOW
HOW
V
IEW
IEW
OK
PROG.
SAT.CONT.
** PICTURE **
SOFTEN SHARPEN
-------*------
¥
END:MENU
PTIONS
OSD :ON
TAPE SELECT :E180
COLOUR SYSTEM :AUTO
PICTURE :09
END:MENU
PTIONS
OSD :ON
TAPE SELECT :E180
COLOUR SYSTEM :AUTO
NICAM :ON
PICTURE :09
END:MENU
V-E59
V-E39/E29
USER SET
PROG OPTIONS INSTALL
CLOCK BONUS
OPTIONS
¥
OK END:MENU
Reference Information
Toshiba 2-13
GB
30
EJECT.
VIDEO INSERT
456
789
0
MENU TIMER
REC
CH
COUNT/TR
INDEX
TRK
S
HOW
V
IEW
F.ADV
COUNT.RST
I.SELECT
CLR/RST
Playing a Cassette in Slow Motion
You can play a cassette in slow motion.
➢No sound is heard when playing back a cassette in slow
motion.
1Press:
◆
PLAY (
)to start playing the cassette
◆
Press SLOW ( ) and release SLOW button on the
remote control. If you press the SLOW (
I
) button twice, the
playback will slow down to 1/12 th of normal speed.
◆
To return to the normal speed, press the PLAY (
)button.
2When playing back in slow motion, picture interference may occur.
Press the TRK ( or ) buttons to minimize this effect.
☛When you have been using the Slow Motion function for
more than about five minutes, the VCR will automatically
play to protect the:
◆Cassette
◆Video heads
EJECT.
VIDEO INSERT
SP/LP
AUDIO
TV/VIDEO
SLOW
PLAY
REW
STOP
FF
PAUSE/STILL
S
HOW
V
IEW
CURSOR
OK
PROG.
1
2
2
1
GB
29
When monitoring a TV programme or playing back a Hi-Fi
recorded video tape, press the AUDIO button to select a desired
sound output. As the AUDIO button is pressed, the sound output
and the indicator change as below:
Selecting the Audio Output Mode (V-E59 only)
EJECT
EJECT
.
VIDEO INSERT
VIDEO INSERT
SP/LP
SAT.MONI.A.DUB
AUDIO
TV/VIDEO
SLOW
REW
STOP
FF
PAUSE/STILL
S
HOW
HOW
V
IEW
IEW
CURSOR
OK
PROG.
SAT.CONT.
L R
MIX
MONO
L
R
Heard in stereo.
(left channel and
right channel)
Left channel heard
from both the left
and right
speakers.
Right channel
heard from both
the left and right
speakers.
Heard in
monaural.
Channel I(MAIN)
heard from the left
speaker, channel
II (SUB) heard
from the right
speaker.
Channel I (MAIN)
heard from both
the left and the
right speakers.
Channel II-(SUB)
heard from both
the left and the
right speakers.
Channel I (MAIN)
heard from both
the left and the
right speakers.
Heard in
monaural.
Heard in
monaural.
Heard in
monaural.
Heard in
monaural.
Sound mixed the left and right channels, and the
normal audio track.
OSD display
Sound type Stereo sound Bilingual sound Standard
sound
broadcast
Selecting the Audio Mute Mode (V-E39/V-E29 only)
You can select the mode in which the sound is mute.
To select the audio mute on and off, simply press the AUDIO button
on the remote control.
X
EJECT
EJECT
.
VIDEO INSERT
VIDEO INSERT
SP/LP
SAT.MONI.A.DUB
AUDIO
TV/VIDEO
SLOW
STOP
PAUSE/STILL
S
HOW
HOW
V
IEW
IEW
OK
PROG.
SAT.CONT.
Reference Information
2-14 Toshiba
GB
32
Picture Search, Fast Forward/Rewind
Picture Search enables you to Fast Forward or Rewind and look for
a particular part of a tape.
1Press PLAY, the VCR will enter normal play mode. While in play,
press and release the
(or
¥¥
) button. The VCR will search at 5
times the normal playback speed.
2To return to normal playback mode, press the
button.
3If you press and HOLD down the
(or
¥¥
) button the VCR will
search at 9 times the normal speed. Releasing the
button will
return the VCR to search at 5 times the normal speed. To return to
normal playback mode, press the
button.
4Whilst in Picture Search mode, if you press the
button again,
the VCR will enter normal Fast Forward mode.
5Likewise, whilst in Picture Search
¥¥
mode, if you press the
¥¥
button again, the VCR will enter normal Rewind mode.
6If, when Rewinding (
¥¥
) or Fast Forwarding (
), you press the
¥¥
or (
) button, the VCR will enter the Picture Search mode.
Searching for a Specific Sequence
Each time you record a cassette on this VCR, an “index” is
automatically marked on the tape when recording starts.
The Search function allows you to fast-forward or rewind to a
specific index and start playback from that point. Depending on the
direction selected, the indexes are numbered as follows:
etc. Prev
Seq. Seq. being
played Next
Seq. etc.
21 12
➞
➢This VCR uses a standard indexing system (VISS). As a
result, it will recognize any indexes marked by other
VCRs using the same system and vice versa.
INTRO SCAN
1To search for a specific index, press INDEX.
2Press the
¥¥
or
buttons depending on the direction
where your desired programme is located.
3
When an Index mark is found the VCR will playback the tape for 5
seconds, after which it will continue searching for the next Index mark.
4
If you want to watch the tape from a particular Index, simply press
.
Index Skip Search:
This feature will enable you to fast forward/rewind to a specific
point on a tape: E.g. if you have recorded 3 different programmes
on a tape and you have rewound the tape to the beginning, by
using this feature you can go directly to the start of programme 2
simply by pressing the INDEX button.
1Press the INDEX to start the Index search.
2Press the
¥¥
or
buttons twice more. This will take
you directly to the start of the desired programme is located.
3These Index searches can be made forwards: (press
) or
backwards: (press
¥¥
).
4
To cancel an Index search simply press the
or
■
button.
EJECT.
VIDEO INSERT
123
456
789
0
MENU TIMER
REC
CH
COUNT/TR
INDEX
TRK
S
HOW
V
IEW
F.ADV
COUNT.RST
I.SELECT
CLR/RST
INDEX:
¥¥
INDEX SEARCH:
+01
1
GB
31
You can:
◆Stop the cassette at a given frame (image)
◆Advance one frame at a time
➢No sound is heard when playing back frame by frame.
1Press:
◆
PLAY (
) to start playing the cassette
◆
PAUSE/STILL (
II
) to stop the tape at a given frame
◆
F.ADV to advance frame by frame
2To return to normal playback, press PAUSE/STILL (
II
) button
again.
☛When you have been using the Frame-by-Frame function
for more than about five minutes, the VCR will auto-
matically play to protect the cassette and video heads.
➢Vertical stability: When playing back frame by frame,
interference may be seen on the screen. Press the
TRK
( or )
buttons to minimize this effect.
Playing a Sequence Frame by Frame
EJECT.
VIDEO INSERT
0
MENU
PLAY
TIMER
REC
COUNT/TR
INDEX
TRK
S
HOW
V
IEW
F.ADV
COUNT.RST
I.SELECT
CLR/RST
1
Reference Information
Toshiba 2-15
GB
34
Using the Tape Counter
EJECT.
VIDEO INSERT
789
0
MENU
PLAY
TIMER
REC
COUNT/TR
INDEX
TRK
S
HOW
V
IEW
F.ADV
COUNT.RST
I.SELECT
CLR/RST
EJECT.
VIDEO INSERT
123
456
CH
S
HOW
V
IEW
DISPLAY EJECT ON/
STANDBY
0:00:00
2
2
The tape counter:
◆Indicates the elapsed time in the play and record modes
(hours, minutes and seconds)
◆Is reset when a cassette is inserted in the VCR
◆Allows you to find the beginning of a sequence easily
☛If the remaining time is to be calculated correctly, you
must indicate the type of cassette being used.
1Insert a cassette in your VCR.
2To set the tape counter to zero at the beginning of a sequence:
◆
Press DISPLAY twice to display the counter
◆
Press CLR/RST when you want to set the tape counter to
zero
3When you are ready,
◆
Start playback or Recording.
◆
Press the
■
button.
◆
To fast-froward or rewind to the sequence at which the
counter was set to zero, press
¥¥
or
.
➢Some VCR information, such as the counter, can be
displayed on the television screen (unless you have
deactivated the OSD mode; refer to page 14).
Press DISP:
◆Once to display the current function, programme
number, recording speed, date, time and counter
◆Twice to display the counter only
◆Three times to display the time remaining on the
cassette
◆Four times to clear the display
GB
33
You can set repeat play to repeat the tape continuously from
beginning to end.
1Press MENU on the remote control.
Result: The programming menu is displayed.
2Press the corresponding
,
or
¥
,
buttons to select the
EASY OPERATION option.
3Press the OK button to select this option.
Result: The EASY OPERATION menu is displayed.
4Press the corresponding
or
buttons, until the
REPEAT PLAY option is selected.
5To... Press
¥
or
, until...
Repeat play ON is displayed.
Do not wish to repeat play OFF is displayed.
6On completion, press MENU twice to exit the menu.
Auto Repeat Play
AUTO POWER OFF :OFF
REPEAT PLAY :OFF
END:MENU
BONUS
EASY OPERATION
PROG OPTIONS INSTALL
CLOCK BONUS
BONUS
¥
OK END:MENU
Reference Information
2-16 Toshiba
This function allows you to start a new recording at a specific
position on the cassette while maintaining a very smooth scene
change.
1Insert the cassette to be edited in your VCR.
2Press the
button to start playback.
3When you reach the position from which you wish to start the new
recording, press the PAUSE/STILL button.
4Press the F.ADV button as often as necessary to advance frame
by frame, until the exact recording position is located.
5While the VCR is in still mode, hold the REC button down for
a while to activate the Assemble Edit function.
Result: Record symbol flashes in the display.
6Select the source from which you wish to record by pressing:
◆
The CH ( or ) buttons for television channels
◆
The I.SELECT button for the LINE IN 1 or LINE IN 2 input
sources
7Press the
button to start recording.
8When you have finished recording, press
■
.
GB
36
You can copy a cassette to your VCR from another video source,
such as another VCR or a camcorder.
☛It is an infringement of copyright laws to copy
prerecorded cassettes or to re-record them in any form
without the permission of the owners of the
corresponding copyright.
1Connect the VCR, from which the cassette is to be copied, to the
appropriate RCA audio and video input connectors on the rear of
your VCR, as indicated on page 10.
You can also use an RCA audio and video cable to connect the
LINE IN 2 input on the front of your VCR.
2Insert a blank cassette in your VCR.
3Insert the pre-recorded cassette in the other video source (VCR or
camcorder).
4Press the I.SELECT button to select the appropriate input on your
VCR:
◆
LINE IN 1 for the rear input
◆
LINE IN 2 for the front input
5Start playing back the cassette to be copied.
6Hold REC down for a while to start recording on your VCR.
7When you have finished recording, press
■
on both VCRs.
➢If you wish to view the cassette being copied:
◆Your VCR must be connected as usual to the
television (see page 9 for further details)
Using the Assemble Edit Function
Recording from Another VCR or Camcorder
EJECT.
VIDEO INSERT
MENU
PLAY
REW
TIMER
REC
FF
COUNT/TR
INDEX
S
HOW
V
IEW
F.ADV
CURSOR
CLR/RST
EJECT.
VIDEO INSERT
SLOW
PLAY
REW
STOP
FF
PAUSE/STILL
S
HOW
V
IEW
CURSOR
2
6
6
GB
35
Connecting an RCA Audio/Video Input Cable (V-E59 only)
You can connect other audio/video equipment to your VCR using
audio/video cables if the appropriate outputs are available on the
equipment chosen.
Examples:◆You wish to copy a video cassette with the help of a
second VCR (see page 36).
◆You wish to play back and/or copy pictures taken
with a camcorder (see page 36).
◆You wish to dub a prerecorded video cassette with
sound from a stereo system (see page 37).
☛◆Regardless of the type of connection chosen, you
must always connect the coaxial cable supplied.
Otherwise, no picture will be visible on the screen
when the VCR is switched off.
◆Make sure that both the television and the VCR are
switched off before connecting the cables.
1Connect one end of the RCA audio/video cable into the VIDEO
INPUT socket on the front of the VCR.
2Plug the other end of the audio/video cable into the appropriate
output connector on the other system (VCR or camcorder).
3Connect one end of the RCA audio cable supplied into the AUDIO
INPUT sockets on the front of the VCR.
➢Take care to respect the colour coding of the left and right
channels.
4Plug the other end of the audio cable into the appropriate output
connectors on the other system (VCR, camcorder or Hi-Fi sound
system).
1
33
Reference Information
Toshiba 2-17
GB
38
The Auto Power Off feature automatically turns off your VCR if no
signal is received and you do not press any button for the selected
time.
1Press MENU on the remote control.
Result: The programming menu is displayed.
2Press the corresponding
,
or
¥
,
buttons to select the
EASY OPERATION option.
3Press the OK button to select this option.
Result: The EASY OPERATION menu is displayed.
4Press the corresponding
or
buttons, until the
AUTO POWER OFF option is selected.
5Press the
button, until you select the time of Auto Power off
interval.
OFF 2HOUR 3HOUR
6On completion, press MENU twice to exit the menu.
Auto Power Off
EASY OPERATION
PROG OPTIONS INSTALL
CLOCK BONUS
BONUS
¥
OK END:MENU
AUTO POWER OFF :OFF
REPEAT PLAY :OFF
END:MENU
BONUS
GB
4 5
6
10
A.DUB
A.DUB
VIDEO EDIT
Audio Dubbing a Pre-recorded Cassette (V-E59 only)
37
With the Audio Dubbing function, you erase the previously
recorded sound and replace it with a new soundtrack from:
◆A CD player
◆A microphone connected to a sound system
◆A cassette player
Restriction:
Audio dubbing is applicable only to the longitudinal audio track
(normal audio).
1Connect an RCA audio cable to the appropriate output on your
sound system (CD/cassette player for example).
2Connect the other end of the RCA audio cable to the audio input
connectors (L, R) on the front of your VCR.
3Insert the pre-recorded cassette on which the audio track is to be
replaced, and press the PLAY (
) to start playback.
4Find the scene that you want to over-dub and press PAUSE/STILL
(
ll
) on the remote control.
5Press A.DUB.
Result: Your VCR is now in the Audio dubbing Pause mode.
6On the sound system, locate the point on the CD or cassette at
which you wish to start playback.
Example: The track that you wish to record on the cassette.
7When you are ready:
◆
Start playback on the sound system
◆
Press PAUSE/STILL (
ll
) on the remote control.
Result:
The soundtrack is replaced on the pre-recorded cassette.
The new sound will be recorded on the normal sound
track of the tape, and the original sound will remain on
the Hi-Fi sound track.
To hear the new sound and original sound mixed
together, press the Audio button on the remote control
until the MIX option is displayed (see page 29).
EJECT
EJECT
.
VIDEO INSERT
VIDEO INSERT
SP/LP
SAT.MONI.A.DUB
AUDIO
TV/VIDEO
S
HOW
HOW
V
IEW
IEW
OK
PROG.
SAT.CONT.
EJECT.
VIDEO INSERT
SP/LP
AUDIO
TV/VIDEO
SLOW
REW
STOP
FF
PAUSE/STILL
S
HOW
V
IEW
CURSOR
OK
PROG.
22
4
5
A.DUB
0:05:23
Reference Information
2-18 Toshiba

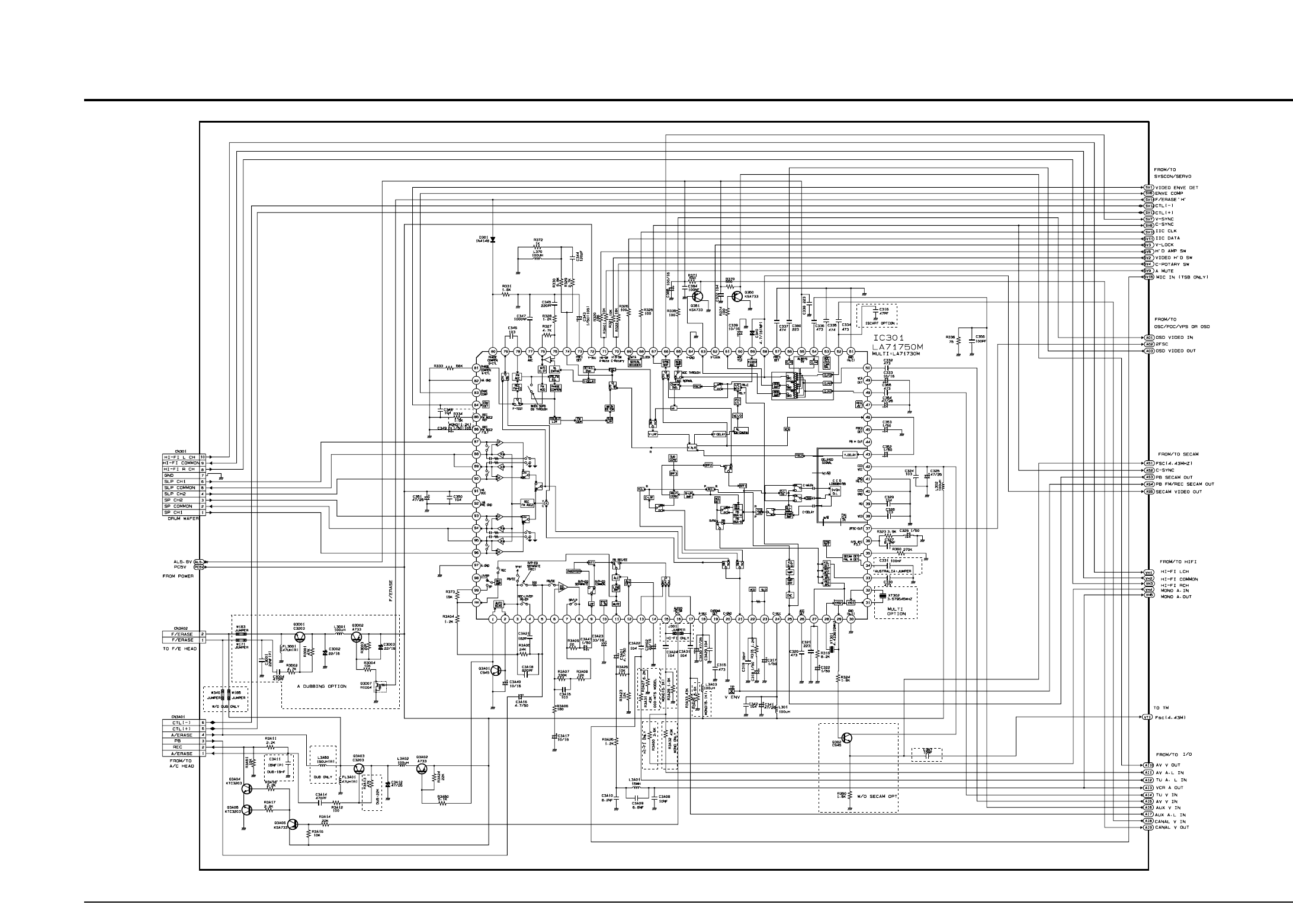

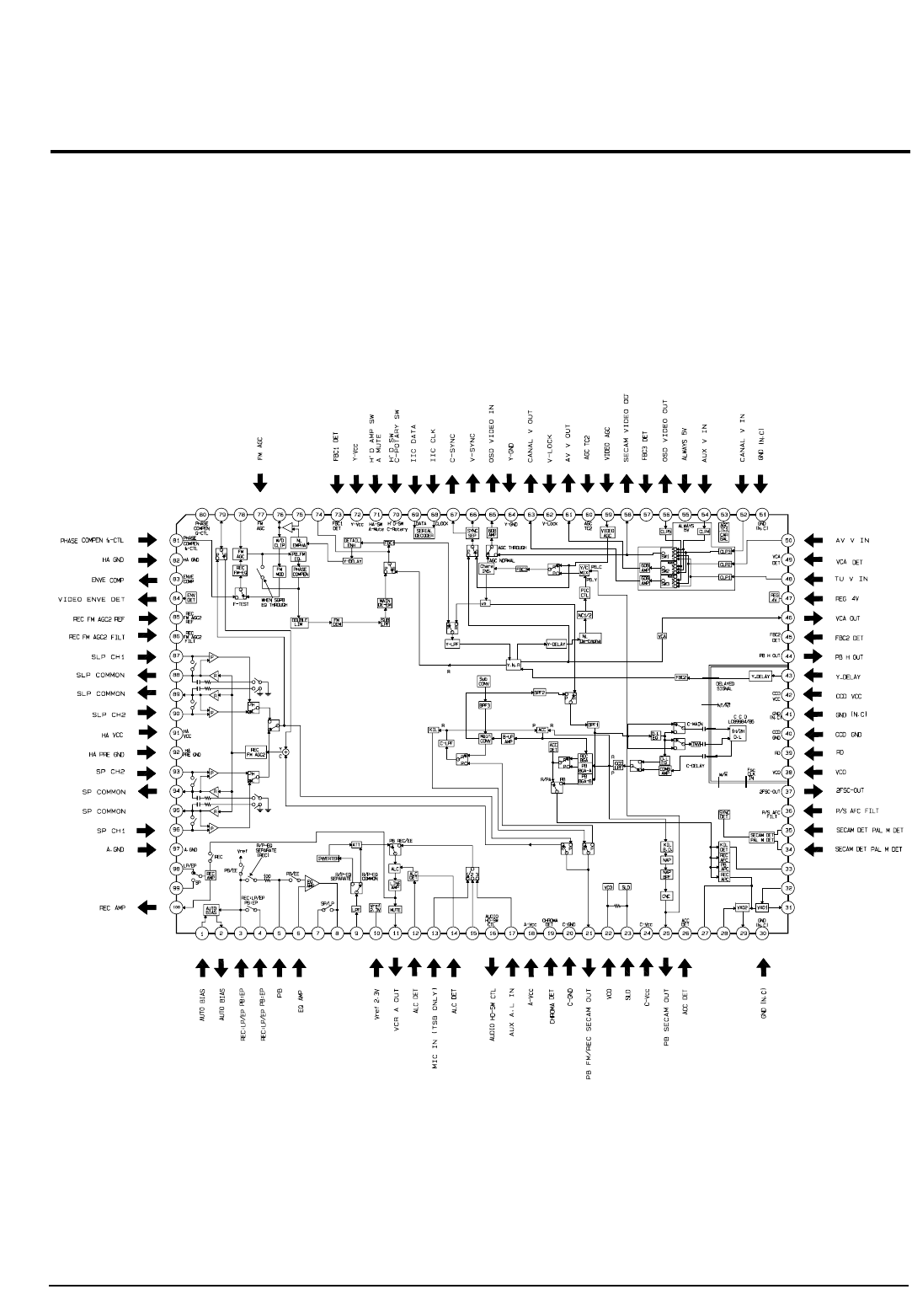

2-2-1 IC301 (LA71750M)
2-2 IC Blocks
Reference Information
Toshiba 2-19

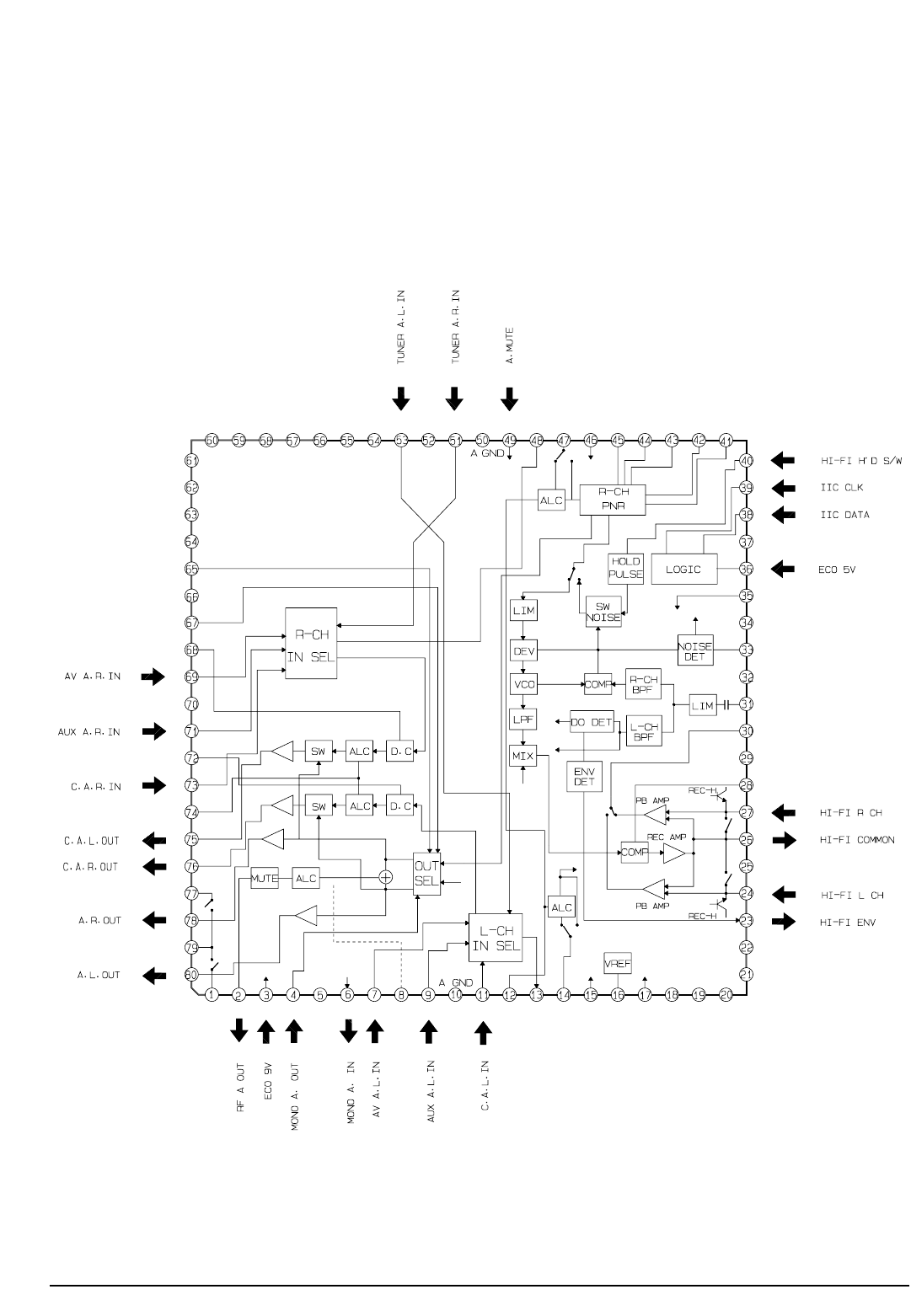

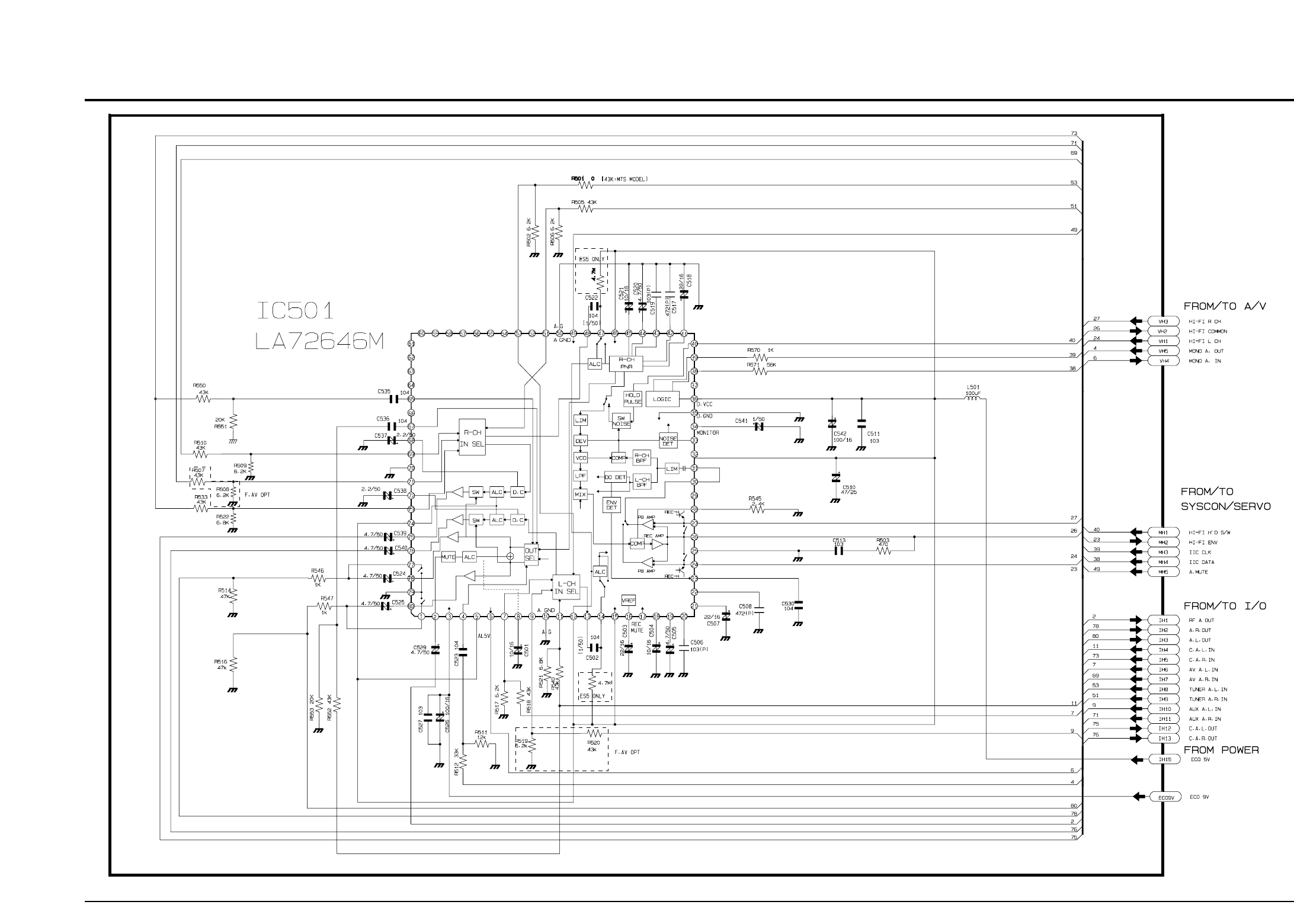

2-2-2 IC501 (LA72646M) V-E59 ONLY
Reference Information
2-20 Toshiba

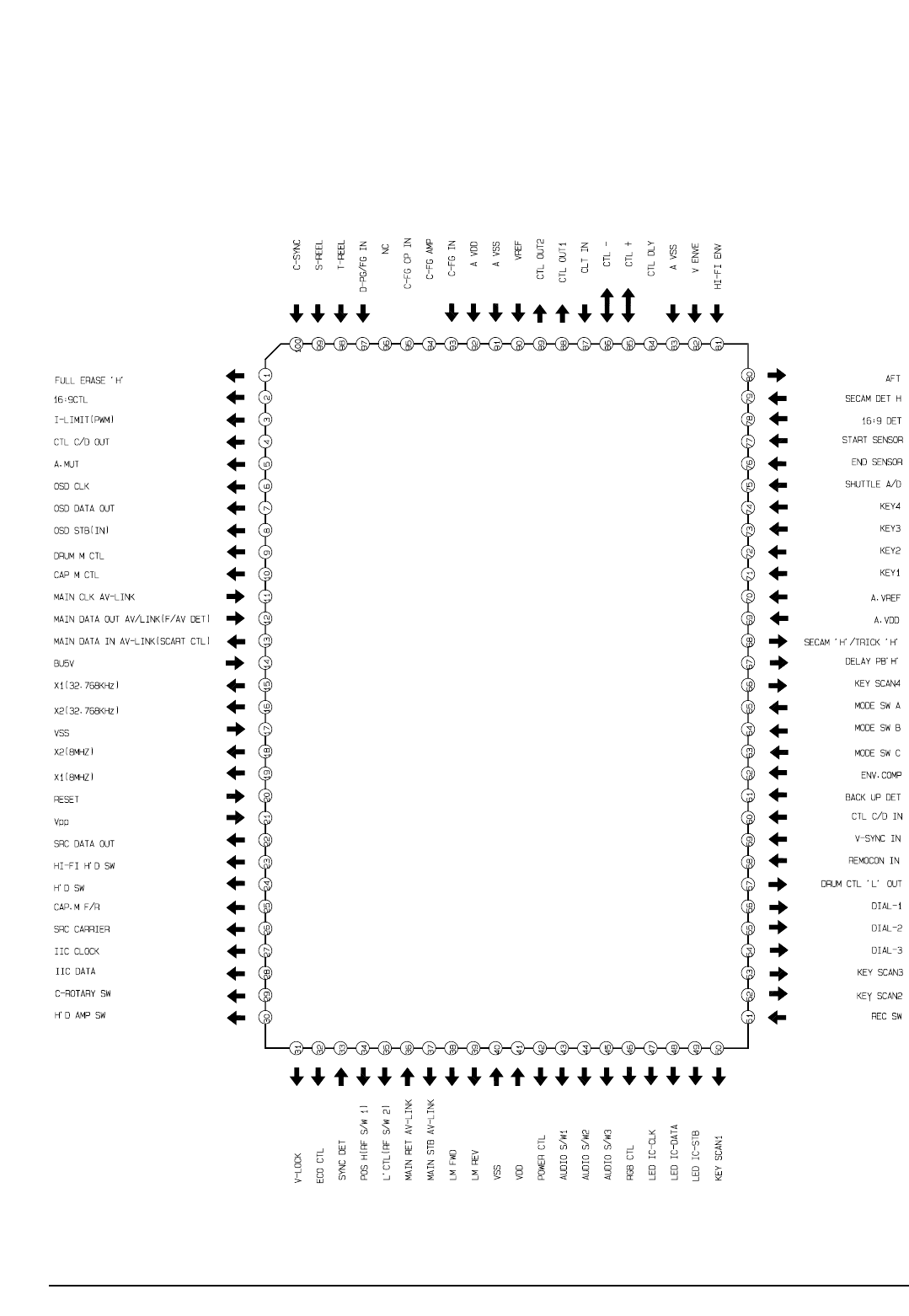

2-2-3 IC601 (uPD784927GF)
Toshiba 3-1
3. Product Specifications
Design and specifications are subject to change without notice.
Format VHS PAL standard
Heads V-E59/V-E39 : 4 heads V-E29 : 2 heads
Hi-Fi audio: 2 rotary heads
Audio/Control: 1 stationary head
Erase: 1 full track erase head
Receiving channel VHF-I, VHF-III, UHF, Interband/Hyperband
Television system STANDARD B/G-D/K-I
Luminance FM azimuth recording
Colour system PAL/MESECAM/NTSC: Down converted subcarrier phase shifted
direct recording
NTSC PB on PAL TV
<PAL/MESECAM> <NTSC>
Tape speed SP 23.39 mm/sec SP 33.35 mm/sec
LP 11.69 mm/sec SLP 11.12 mm/sec
<PAL/MESECAM>
Recording/playback time SP 3 hours (E-180 Tape)
LP 6 hours (E-180 Tape)
REW time About 60 sec in REW with E-180
VIDEO
Input 0.5 to 2.0 Vp-p; 75 ohm unbalanced
Output 1.0 ± 0.2 Vp-p; 75 ohm unbalanced
Signal-to-noise ratio Better than 43 dB (SP)
Horizontal resolution More than 240 lines (SP)
AUDIO
Input -8 dBm, 47 Kohm unbalanced
Output -8 ± 3 dBm, 1 Kohm unbalanced
Wow and flutter (WTD) 0.4% max (SP)
Signal-to-noise ratio 68 dB min (IHF A filter)
Frequency response 20Hz - 20kHz (Hi-Fi)
100 Hz - 10 kHz (Mono)
Power requirement AC 100-240V 50/60 Hz
Power consumption V-E59 : Approx. 17 watts V-E39/V-E29 : Approx. 15 watts
Operation temperature 41°F-104°F (5°C-40°C)
Operation humidity 10%-75%
Weight 2.8 Kg (net)
Dimensions (WxHxD) 360 x 94 x 240 mm
Product Specifications
3-2 Toshiba
MEMO
Toshiba 4-1
4. Disassembly and Reassembly

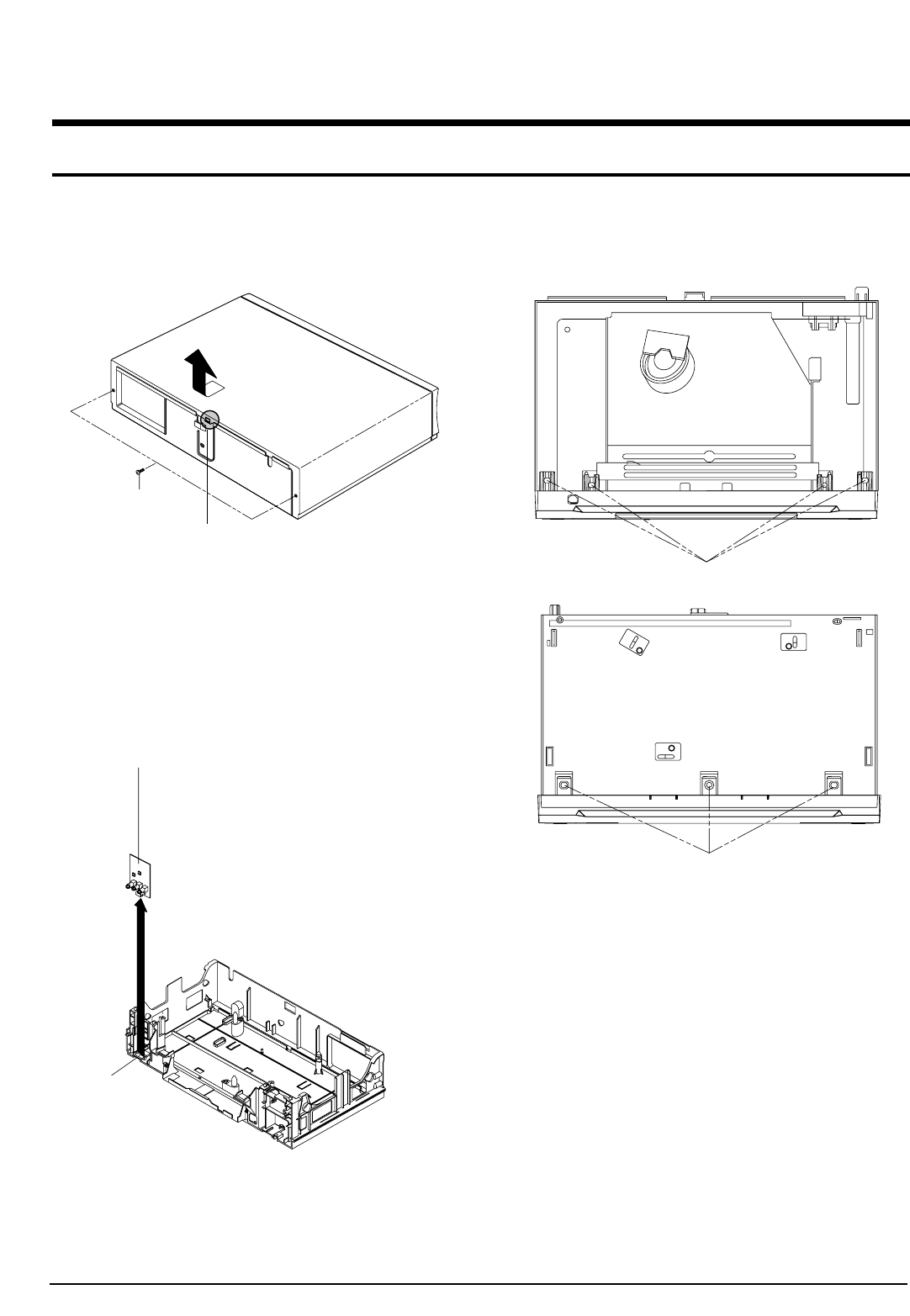

4-1 Cabinet Assembly
4-1-1 Cabinet Top Removal
ΠREMOVE 2 SCREWS
´ Lift up the Cabinet Top in the direction of
arrow by releasing the Hook.
Fig. 4-1 Cabinet Top Removal
4-1-2 Ass’y Front Panel Removal
Fig. 4-2 Ass’y Front Panel Removal
ΠRELEASE 4 HOOKS
´ RELEASE 3 HOOKS
(Top View)
(Bottom View)
4-1-3 Ass’y Front A/V PCB Removal
V-E59 Only
Disconnect the CN701 from the Ass'y PCB-Main
and then lift the Ass'y Front A/V PCB up.
CN701
Fig. 4-3 Ass’y Front A/V PCB Removal
4-2 Toshiba
Disassembly and Reassembly

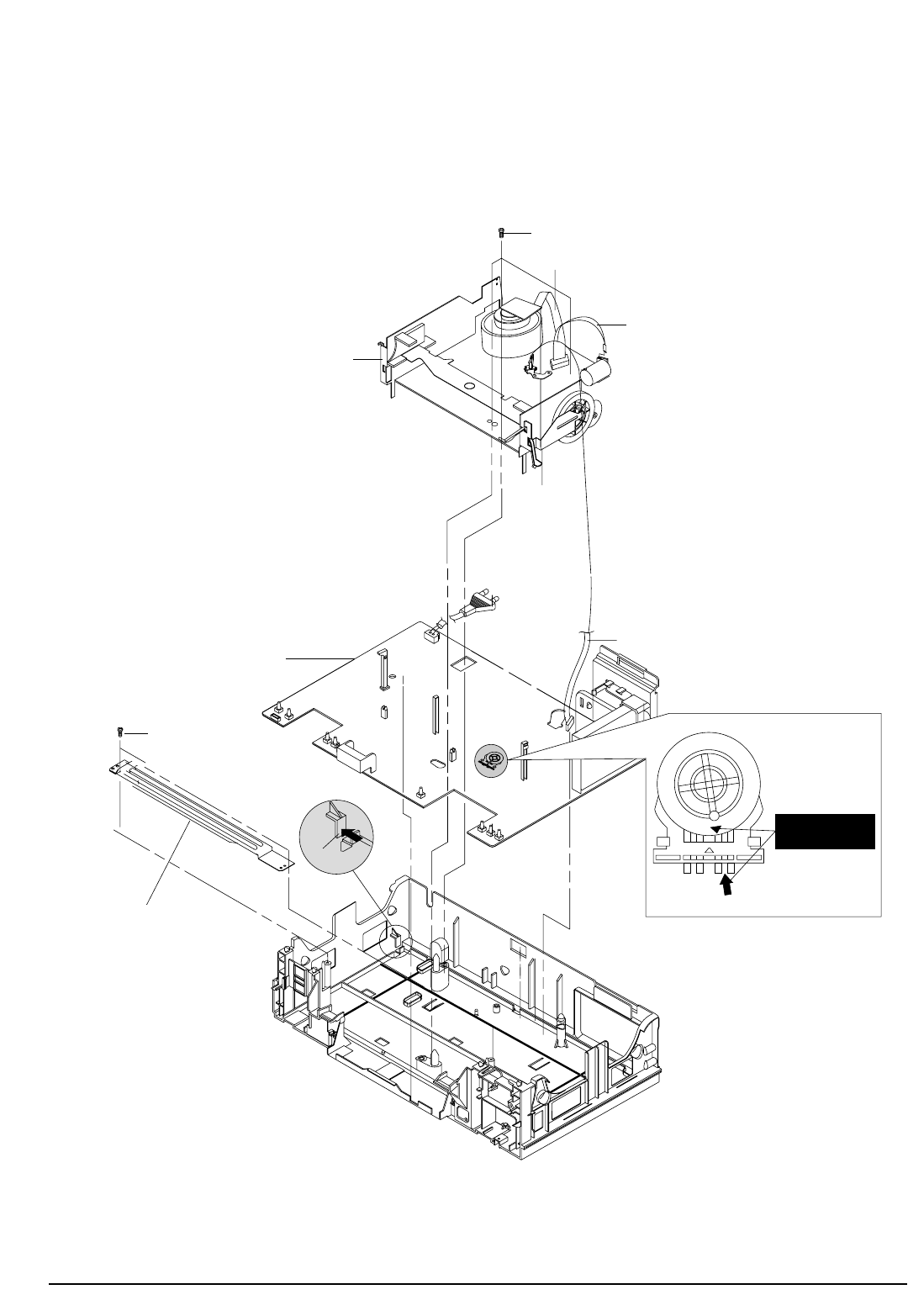

4-1-4 Chassis Removal
Fig. 4-4 Chassis Removal
Π2 SCREWS
2 SCREWS
´ BRACKET-FRAME
’ ASS'Y-DECK
˝ ASS'Y MAIN-PCB
ˇ 4 SCREWS
ˆ FLAT CABLE
¨ FLAT CABLE
Ø FLAT CABLE
ASSEMBLY POINT
ASSEMBLY POINT
(ALIGN TWO ARROWS)
(ALIGN TWO ARROWS)
PUSH
ˆ RELEASE 1 TAB
Disassembly and Reassembly
Toshiba 4-3
4-2 Deck Parts Locations
4-2-1 Top View
Ϋ
ˇ¨ˆØ

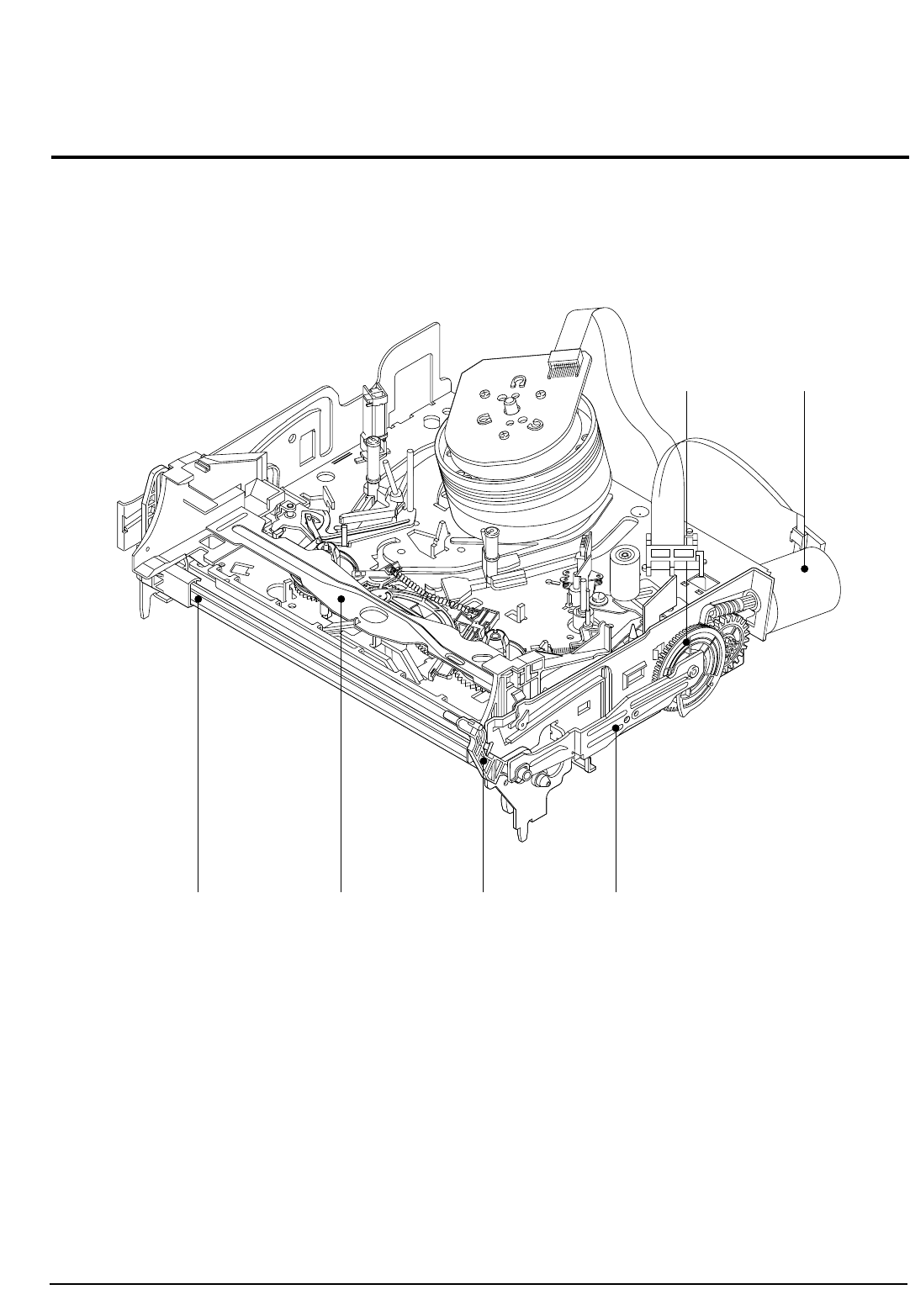

Fig. 4-5 Top parts Location-1
ŒGEAR FL CAM
´MOTOR LOADING ASS’Y
ˇLEVER FL ARM ASS’Y
¨HOLDER FL CASSETTE ASS’Y
ˆLEVER FL DOOR
ØSLIDER FL DRIVE
4-4 Toshiba
Disassembly and Reassembly
Ϋ
Ø∏”’ Ô ˝ Ò
”
ˇ ¨ ˆ

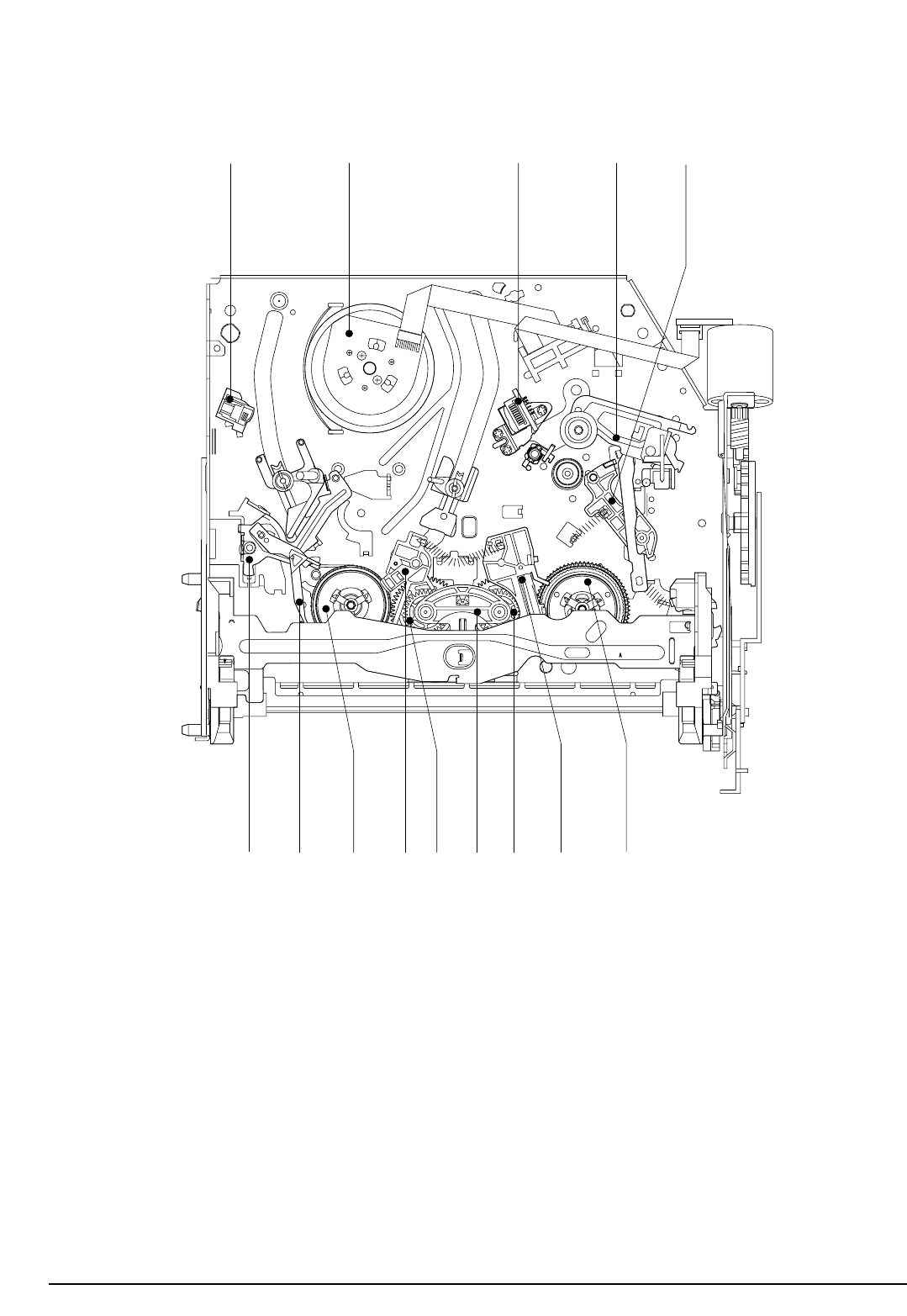

Fig. 4-6 Top Parts Location-2
ŒFE HEAD
´CYLINDER ASS’Y
ˇACE HEAD ASS’Y
¨LEVER UNIT PINCH ASS’Y
ˆLEVER #9 GUIDE ASS’Y
ØLEVER TENSION ASS’Y
∏BAND BRAKE ASS’Y
”DISK S REEL
’LEVER S BRAKE ASS’Y
˝GEAR IDLE
ÔLEVER IDLE
LEVER T BRAKE ASS’Y
ÒDISK T REEL
Disassembly and Reassembly
Toshiba 4-5
1-1-2 Bottom View
Œ´ˇ ¨ˆØ∏
”’˝

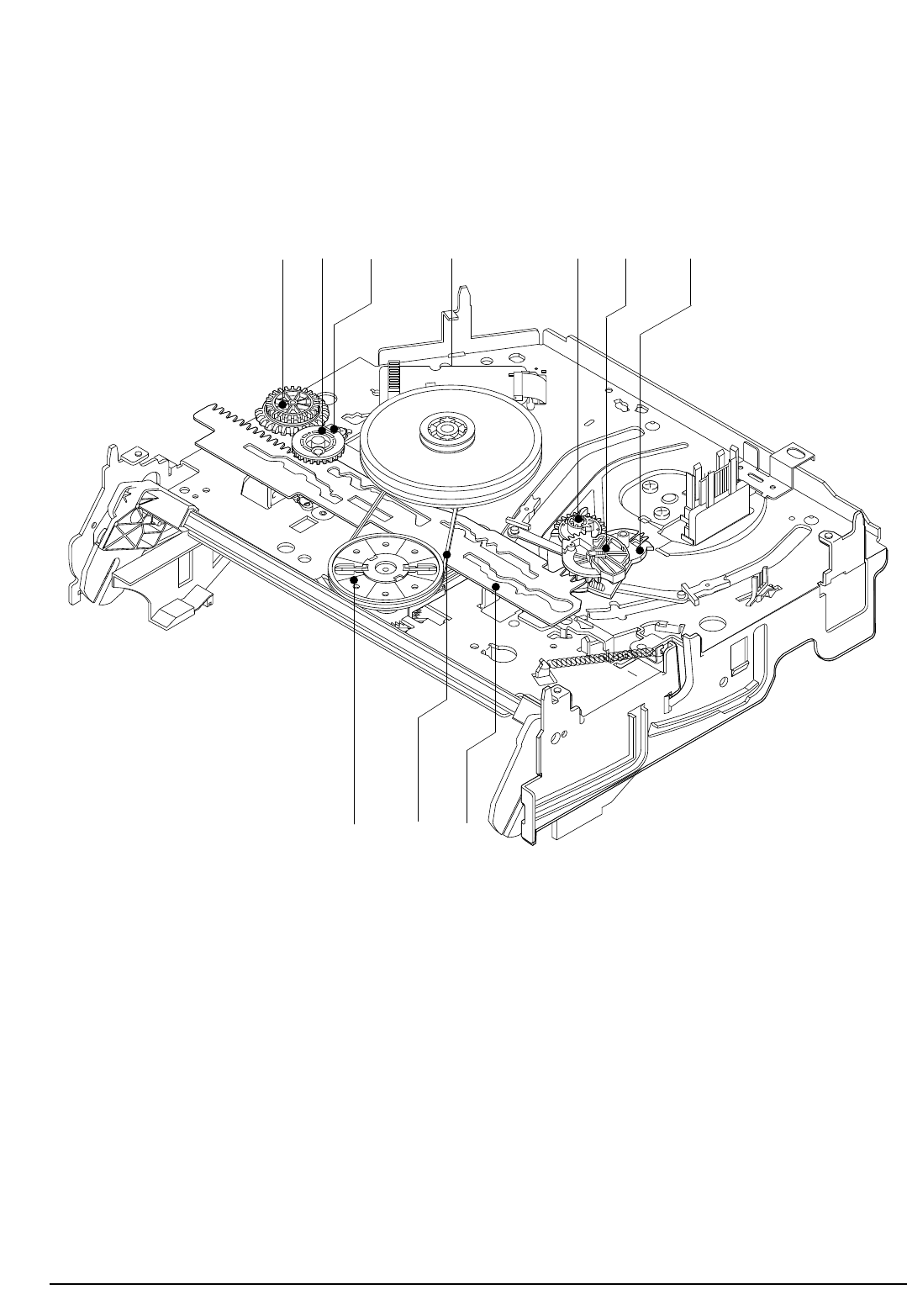

Fig. 4-7 Bottom Parts Location
ŒGEAR JOINT 1
´GEAR JOINT 2
ˇBRACKET GEAR
¨MOTOR CAPSTAN ASS’Y
ˆLEVER T LOAD ASS’Y
ØGEAR LOADING DRIVE
∏LEVER S LOAD ASS’Y
”HOLDER CLUTCH ASS’Y
’BELT PULLEY
˝SLIDER CAM
4-6 Toshiba
Disassembly and Reassembly
1-2-2 Lever FL Door Removal
1) Release the Hook ´and Remove the Lever FL
Door Œin the direction of arrow “B”.
"B"
"A"
ΠLEVER FL DOOR
´ HOOK
1-2-1 Holder FL Cassette Ass’y Removal
1) Pull the Holder FL Cassette Ass'y Œto the eject
position.
2) Pull the Holder FL Cassette Ass'y Œas grasping
the Holder FL Cassette Ass'y Œand Lever FL
Cassette-R ´in the same time to release hooking
from Main Base until the Boss [A] of Holder FL
Cassette Ass'y Œis taken out from the Rail [B].
3) Lift the Holder FL Cassette Ass'y Œ, in this time,
you have to grasp the Lever FL Cassette-R ´
Continuously until the Holder FL Cassette Ass'y
Œis taken out completely.
Note : Be sure to insert Lever FL Cassette-R ´in the
direction of “A” to prevent separation and breakage
of the Lever FL Cassette-R ´at disassembling and
reassembling.
ΠHOLDER FL
CASSETTEE ASS`YBOSS [A]
RAIL [B]
´ LEVER FL CASSETTEE -R
"A"
1-2 Main Deck

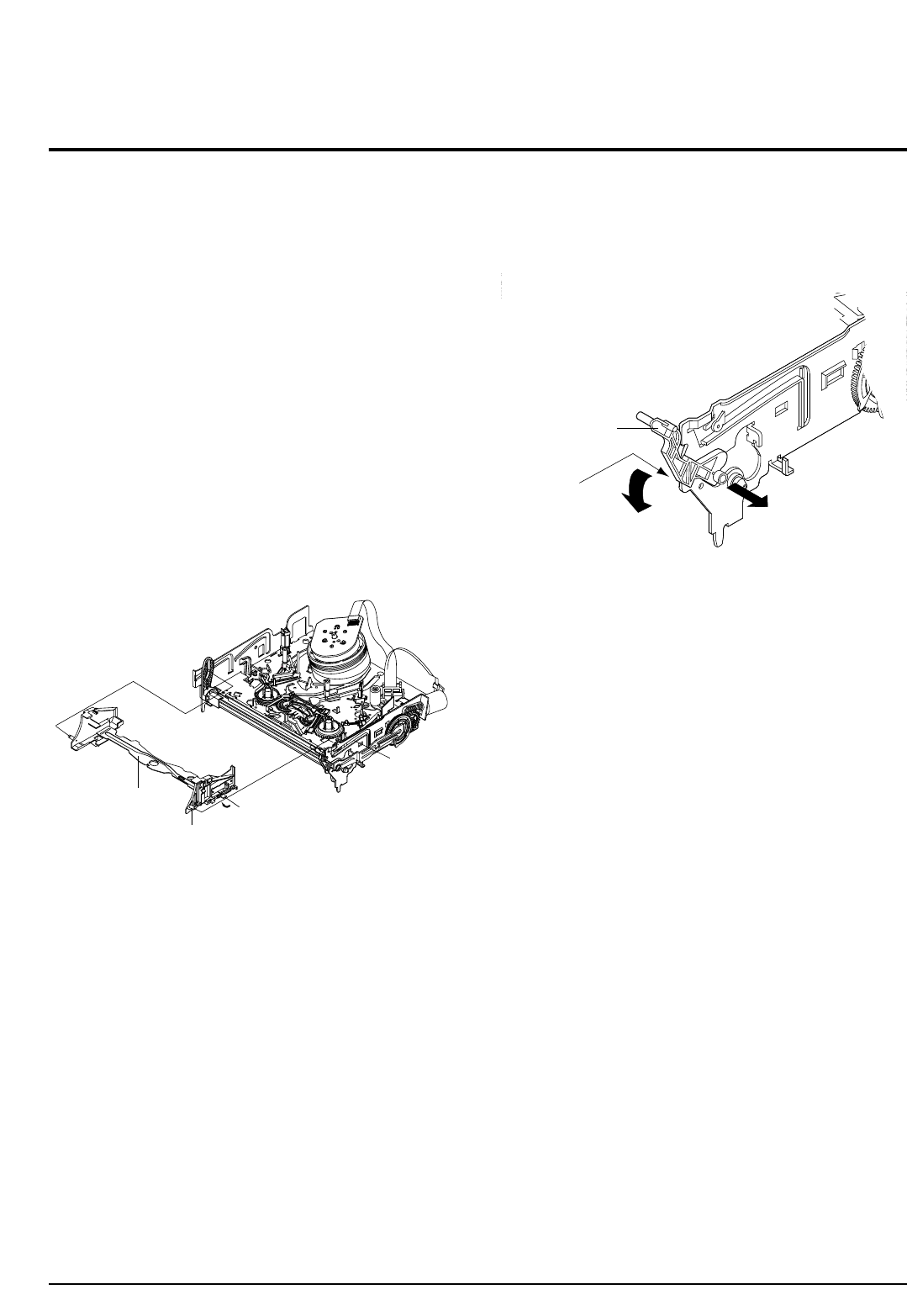

Fig. 4-9 Lever FL Door Removal
Fig. 4-8 Holder FL Cassette Ass’y Removal
Disassembly and Reassembly
Toshiba 4-7

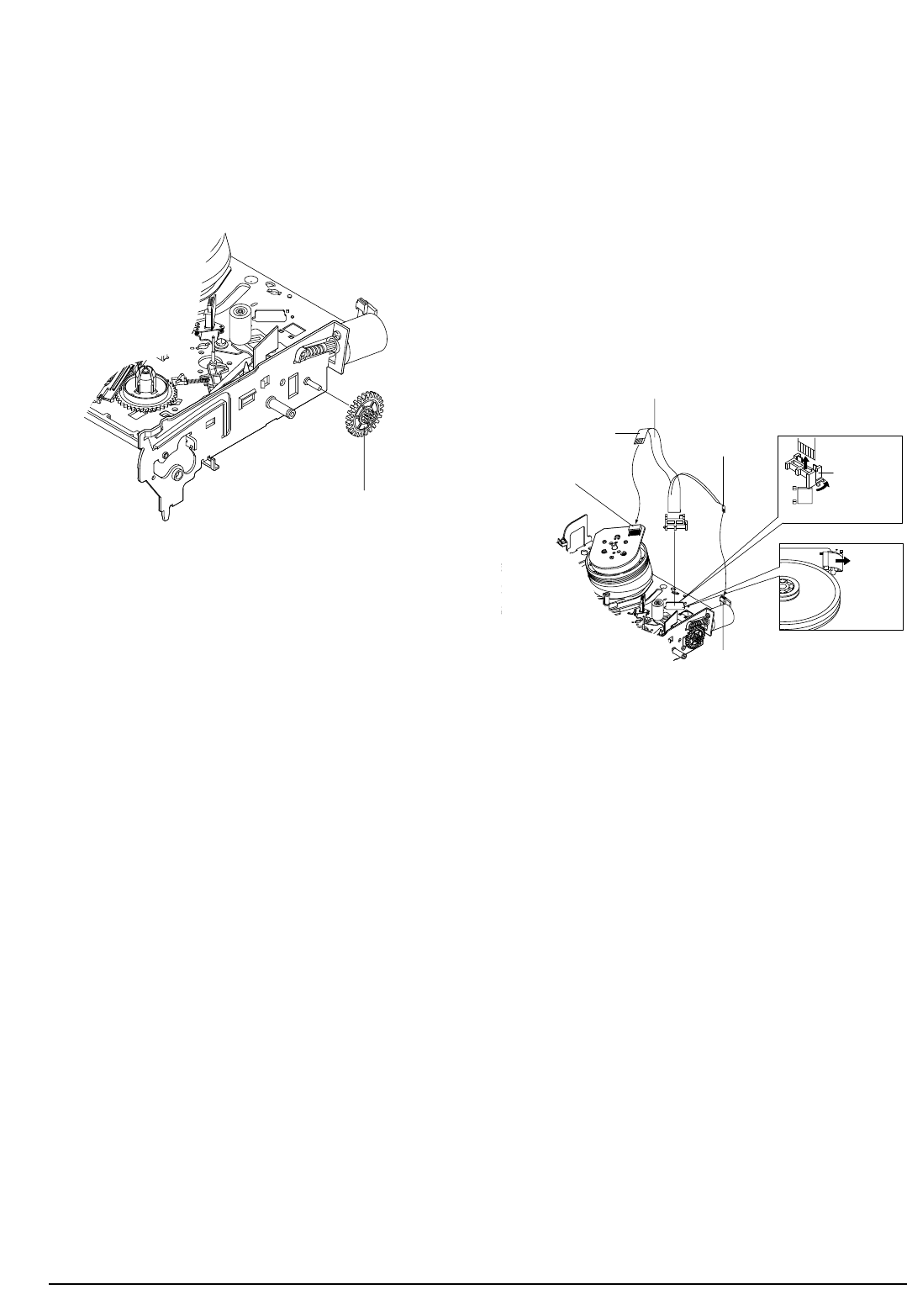

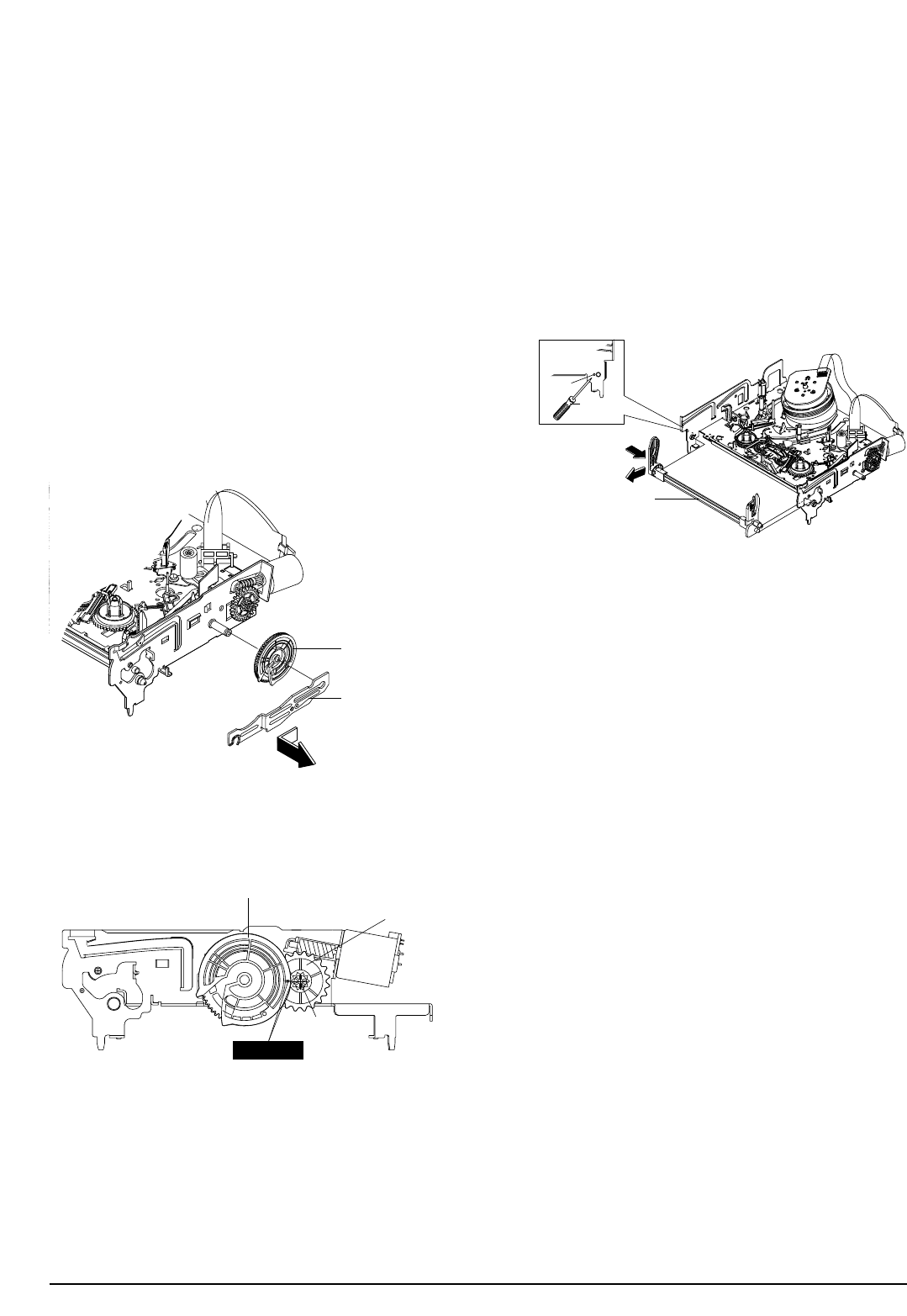

1-2-4 Lever FL Arm Ass’y Removal
1) Push the hole “A” in the direction of arrow “B”
use the pin.(about Dia. 2.5)
2) Pull out the Lever FL Arm Ass'y Œfrom the Boss
of Main Base.
3) Remove the Lever FL Arm Ass'y Œin the direction
of arrow “C”.

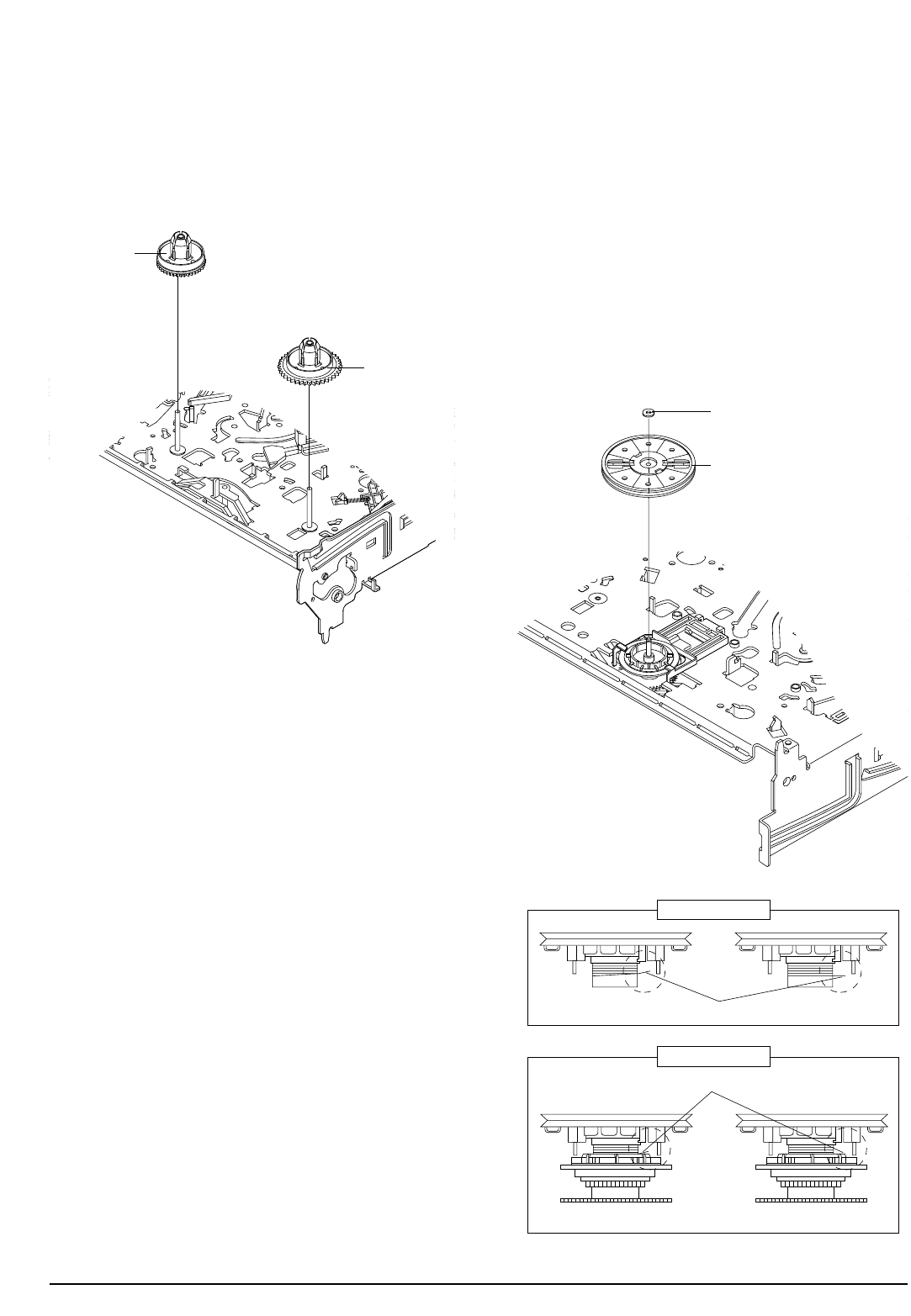

ΠGEAR FL CAM GEAR WORM WHEEL
POST
TIMING POINT

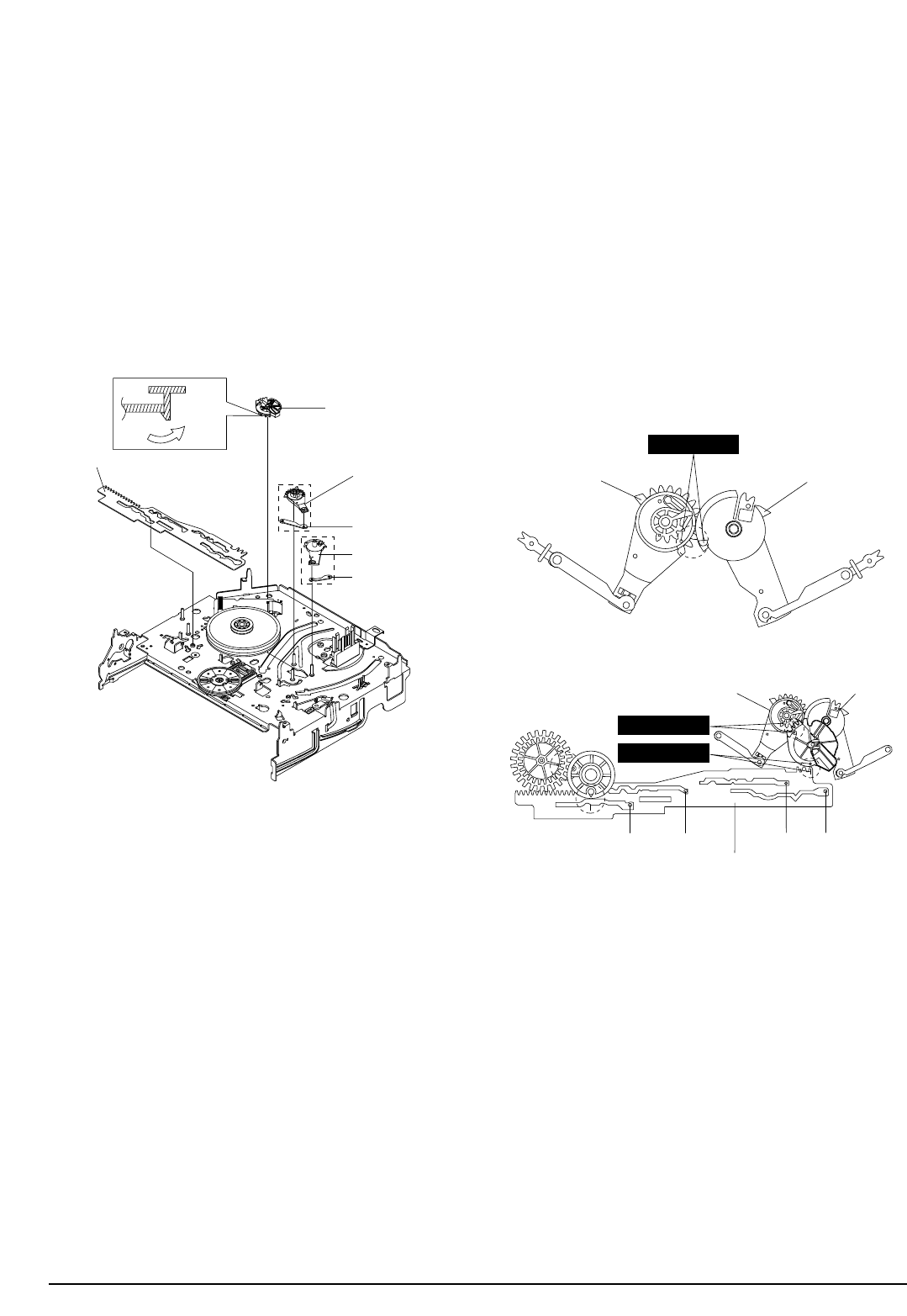

Fig. 4-11 Gear FL Cam, Gear Worm
1-2-3 Slider FL Drive, Gear FL Cam Removal
1) Pull the Slider FL Drive Œto the front direction.
2) Remove the Slider FL Drive Œin the direction of
arrow. (Refer to Fig. 4-10)
3) Remove the Gear FL cam ´.
Note : When reinstalling be sure to reassemble Slider
FL drive Œafter you insert the Boss of Lever FL
ARM-R in Groove of Slider Fl drive Œ.
Assembly : Align the Gear FL Cam Œwith the Gear
worm wheel Post as shown drawing.
(Refer to Timing point)
ΠSLIDER FL DRIVE
´ GEAR FL CAM
Fig. 4-10 Slider FL Drive Removal
ΠLEVER FL ARM ASS`Y
"C"
"B"
PIN
HOLE "A"
Fig. 4-12 Lever FL Arm Ass’y Removal
4-8 Toshiba
Disassembly and Reassembly
1-2-5 Gear Worm Wheel Removal
1) Remove the Gear Worm wheel Œ.
ΠGEAR WORM WHEEL
Fig. 4-13 Gear Worm Wheel Removal
1-2-6 Cable Flat Removal
1) Remove the Drum connecting part of Cable Flat Œ
from Connector Waffer ´.
2) Remove the Loading Motor connecting part of
Cable Flat Œfrom Connector Waffer ˇ.
3) Rotate the Damper Capstan ¨in the direction of
arrow “A” and remove it toward “B”.
4) Pull the Cable Flat Œin the direction of arrow “C”
to remove.
ˇ CONNECTOR WAFER
¨ DAMPER
CAPSTAN
´ CONNECTOR WAFER
CYLINDER
CONNECTING PART LOADING MOTOR
CONNECTING PART
ΠCABLE FLAT
"C"
"A"
"B"
Fig. 4-14 Cable Flat Removal
Disassembly and Reassembly
Toshiba 4-9

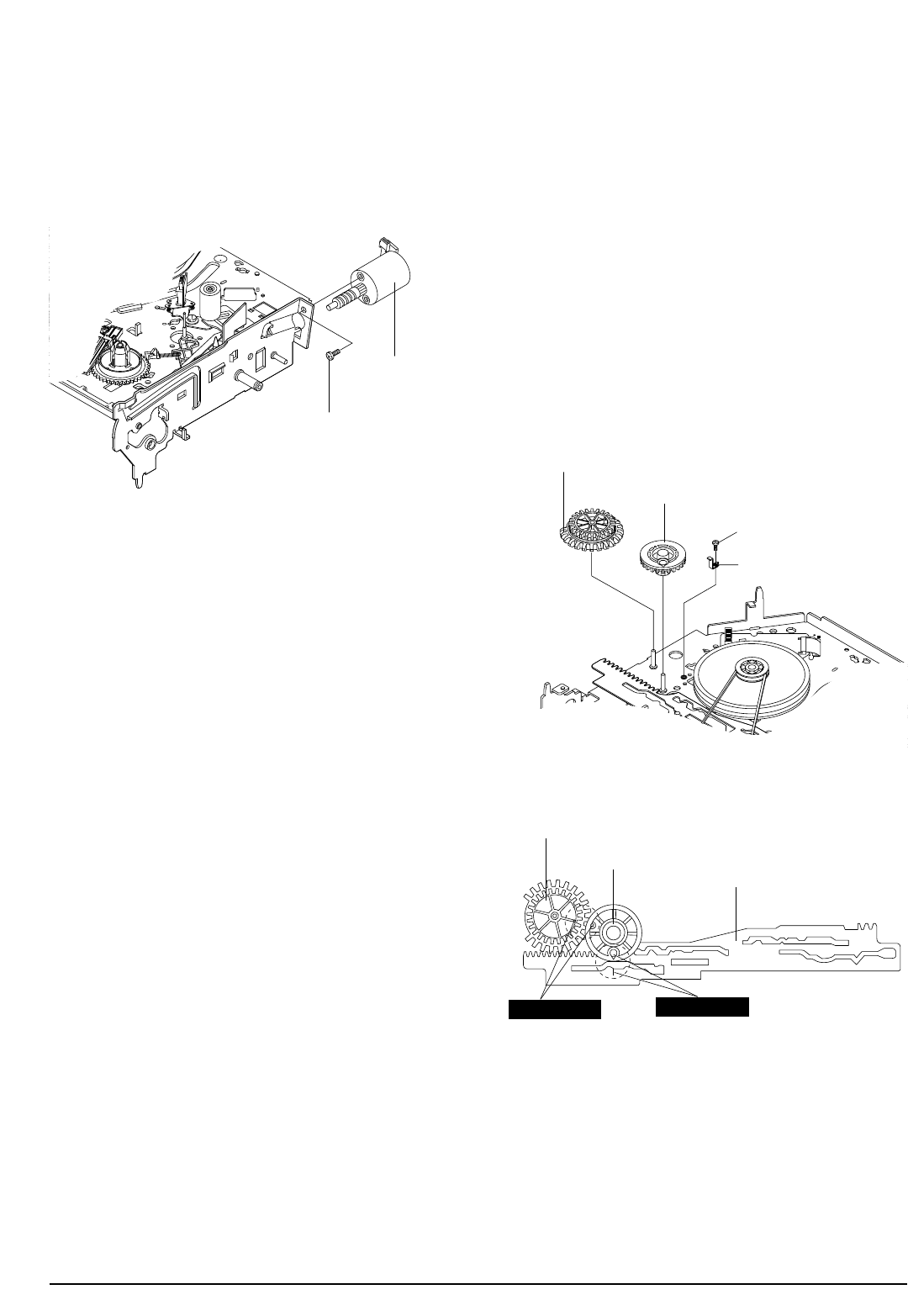

1-2-8 Bracket Gear, Gear Joint 2, 1 Removal
1) Remove the SCREW
Œ
.
2) Remove the Bracket Gear ´.
3) Remove the Gear Joint 2 ˇ.
4) Remove the Gear Joint 1 ¨.
Assembly :
1) Be sure to align dot mark of Gear Joint 1
Œ
with
dot mark of Gear Joint 2 ´as shown Fig 4-17.
(Refer to Timing point1)
2) Confirm the Timing Point 2 of the Gear Joint 2 ´
and Slider Cam ˇ.
ΠSCREW
´ BRAKET GEAR
¨ GEAR JOINT 1
ˇ GEAR JOINT 2
Fig. 4-16 Bracket Gear, Gear Joint 1,2 Removal
ΠGEAR JOINT1
´ GEAR JOINT2 ˇ SLIDER CAM
TIMING POINT 1 TIMING POINT 2
Fig. 4-17 Gear Joint 1,2 Assembly
1-2-7 Motor Loading Ass’y Removal
1) Remove the screw Œ.
2) Remove the Motor Loading Ass’y ´.
´ MOTOR LOADING ASS`Y
ΠSCREW
Fig. 4-15 Motor Loading Ass’y Removal
4-10 Toshiba
Disassembly and Reassembly
1-2-10 Gear Loading Drive, Slider Cam,
Lever Load S, T Ass’y Assembly
1) When reinstalling, be sure to align dot of Lever
Load T Ass'y
Œ
with dot of Lever Load S Ass'y ´
as shown in drawing, (Refer to Timing Point 1).
2) Insert the Pin A,B,C,D into the Slider Cam
ˇ
hole,
3) Be sure to align dot of Lever Load T
Œ
and dot of
Gear Loading Drive ¨, (Refer to Timing Point 2).
4) Aline dot of Gear Loading drive ¨with mark of
Slider Cam ˇas shown in drawing(Refer to
Timing Point 3).
´ LEVER LOAD S
Œ
LEVER LOAD T
LEVER LOAD S
LEVER LOAD T
PIN A PIN C PIN B
PIN D
ˇ SLIDER CAM
TIMING POINT 2
TIMING POINT 1
TIMING POINT 3
Fig. 4-19 Gear Loading Drive, Slider Cam,
Lever Load S, T Ass’y Assembly
1-2-9 Gear Loading Drive, Slider Cam,
Lever Load S, T Ass’y Removal
1) Remove the Belt Pulley. (Refer to Fig. 4-35)
2) Remove the Gear Loading Drive Œafter releasing
Hook [A] in the direction arrow as shown in detail
drawing.
3) Remove the Slider Cam ´.
4) Remove the Lever Load ˇ, Link Load ˆ& Lever
Load ¨, Link Load Ø.
ΠGEAR LOADING DRIVE
ˆ LINK LOAD S
ˇ LEVER LOAD S
¨ LEVER LOAD T
Ø LINK LOAD T
´ SLIDE CAM
HOOK(A)
Fig. 4-18 Gear Loading Drive, Slider Cam,
Lever T, S Load Ass’y Removal
Disassembly and Reassembly
Toshiba 4-11
1-2-12 Lever Tension Ass’y,
Band Brake Ass’y Removal
1) Remove the Lever Brake S Ass'y (Refer to Fig 4-22)
2) Remove the Spring Tension Lever Œ.
3) Rotate stopper of Main Base in the direction of
arrow “A”.
4) Lift the Lever Tension Ass'y ´& Band brake
Ass'y ˇ.
Note :
1) When replacing the Lever Tension Ass'y ´, be sure
to apply Grease on the post,
2) Take care not to touch stain on the felt side, and not
to be folder and broken Band brake Ass'y
3) After Lever Tension Ass'y seated, Rotate stopper of
Main Base to the Mark[B].
ΠSPRING TENTION LEVER
STOPPER
MARK[B]
"A"
´ LEVER TENTION ASS`Y
ˇ BAND BRAKE ASS`Y
Fig. 4-21 Lever Tension Ass’y,
Band Brake Ass’y Removal
1-2-11 Lever Pinch Drive,
Lever Tension Drive Removal
1) Remove the Lever Pinch Drive
Œ
, Lever Tension
Drive ´.
ΠLEVER PINCH DRIVE
´ LEVER TENSION DRIVE
Fig. 4-20 Lever Pinch Drive,
Lever Tension Drive Removal
4-12 Toshiba
Disassembly and Reassembly
1-2-14 Gear Idle Ass’y Removal
1) Push the Lever Idle Œin the direction of arrow
“A”, “B”.
2) Lift the Lever Idle Œ.
Assembly :
1) Apply oil in two Bosses of Lever Idle Œ.
2) Assemble the Gear Idle ´ with the Lever Idle Œ.
Note : When replacing the Gear Idle ´, be sure to
add oil in the boss of Lever Idle Œ.
´ GEAR IDLE
´ GEAR IDLE
ΠLEVER IDLE
"A"
HOOK "C"
"B"
Fig. 4-23 Gear Idle Ass’y Removal
1-2
-13 Lever Brake S, T Ass’y
Removal
1) Release the Hook [A] and the Hook [B], [C] in the
direction of arrow as shown in Fig 4-22.
2) Lift the Lever S, T Brake Ass'y Œ, ´with spring
brake ˇ.
Assembly :
1)Assembly the Lever S Brake Ass'y Œon the Main
Base.
2)Assembly the Lever T Brake Ass'y ´with spring
brake ˇ.
Note : Take extreme care not to be folded and
transformed Spring Brake at removing or reinstalling.
ΠLEVER S BRAKE ASS`Y
´ LEVER T BRAKE ASS`Y
ˇ SPRING BRAKE
HOOK(B)
HOOK(C)
HOOK(A)
Fig. 4-22 Lever Brake S, T Ass’y Removal
Disassembly and Reassembly
Toshiba 4-13

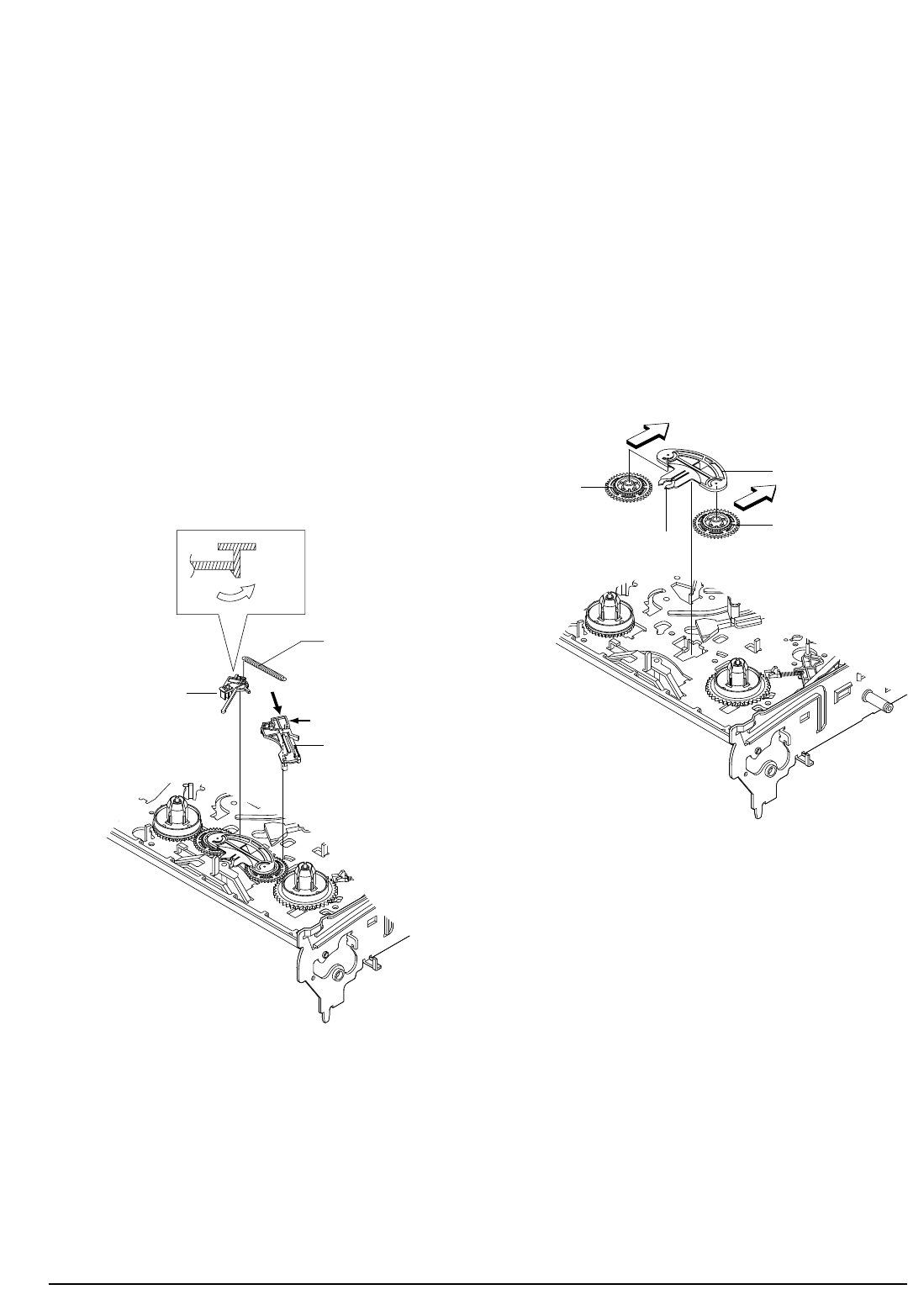

1-2-16 Holder Clutch Ass’y Removal
1) Remove the Washer Slit Œ.
2) Lift the Holder Clutch Ass’y ´.
Note : When you reinstall Holder Clutch Ass'y
1) Check the condition of spring as shown in detail A.
2) Don't push Holder Clutch Ass'y down with exces-
sive force Just insert Holder Clutch Ass'y into post
center with dead force and Rotate it smoothly.
Be sure to confirm that spring is in the slit of Gear
Center Ass'y as shown in detail B.
ΠDISK S REEL
´ DISK T REEL
ΠWASHER SLIT
´ HOLDER CLUTCH ASS`Y
DETAIL A
<BAD> SPRING <GOOD>
<BAD>
SPRING
<GOOD>
DETAIL B
Fig. 4-24 Disk S, T Reel Removal
Fig. 4-25 Holder Clutch Ass’y Removal
1-2-15 Disk S, T Reel Removal
1) Lift the Disk S, T Reel Œ, ´.
4-14 Toshiba
Disassembly and Reassembly

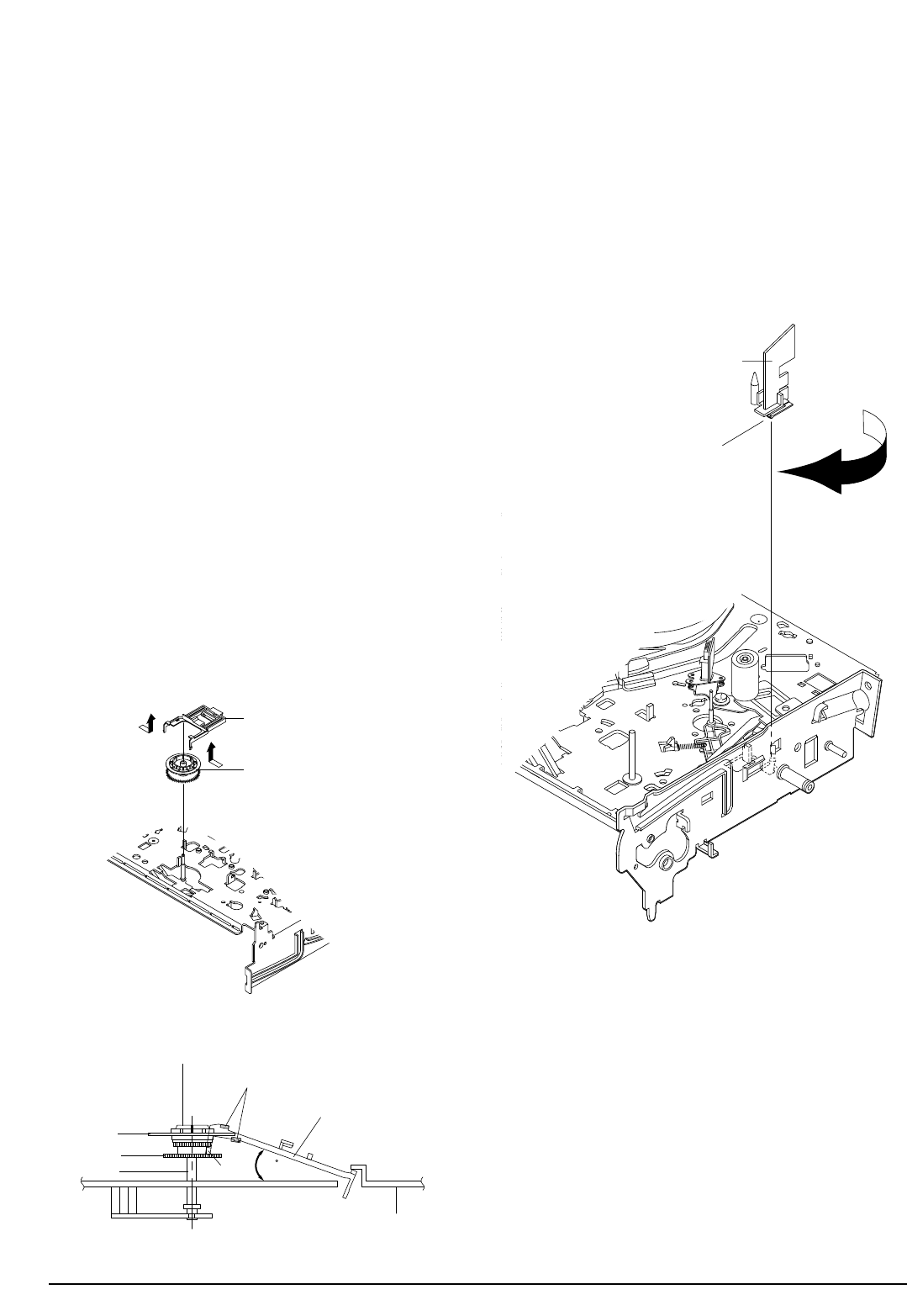

ΠGUIDE CASSETTE DOOR
HOOK [A]
Fig. 4-28 Guide Cassette Door Removal
1-2-18 Guide Cassette Door Removal
1) Lift the Hook [A].
2) Rotate the Guide Cassette Door Œin the direction
of arrow.
Note : After reinstalling the Guide Cassette Door Œ
sure the Hook [A].
1-2-17 Lever Up Down Ass’y, Gear Center
Ass’y Removal
1)
Remove the 2 hooks in the direction of arrow as
shown Fig. 4-26 and lift the Lever Up Down Ass’y
Œ.
2) Lift the Gear Center Ass’y ´.
Assembly :
1) Insert the Lever Up Down Ass'y Œin the rectan-
gular holes on Main Base as shown in Fig 4-27.
2) Lift the Lever Up Down Ass'y Œabout 35°.
(Refer to Fig 4-27)
3) Insert Ring of the Gear Center Ass'y ´in the
Guide of the Lever Up Down Ass'y Œ.
4) Insert the Gear Center Ass'y ´in the post on
Main Base.
5) Push down the Lever Up Down Ass'y Œfor
locking of the Hook.
Note :
1) Take care not to separate and sentence does not
mark sense.
2) Be sure to confirm that Ring of the Gear Center
Ass'y ´is in the Guide of the Lever Up Down
Ass'y Œafter finishing assembly of Lever Up
Down Ass'y Œand Gear Center Ass'y ´.
ΠLEVER UP DOWN ASS`Y
´ GEAR CENTER ASS`Y
MAIN BASE
LEVER UP DOWN ASS'Y
GUIDE
GEAR CENTER ASS'Y
RING
GEAR
POST
HOOK
35
Fig. 4-26 Lever Up Down Ass’y Removal
Fig. 4-27 Lever Up Down Ass’y Removal
Disassembly and Reassembly
Toshiba 4-15

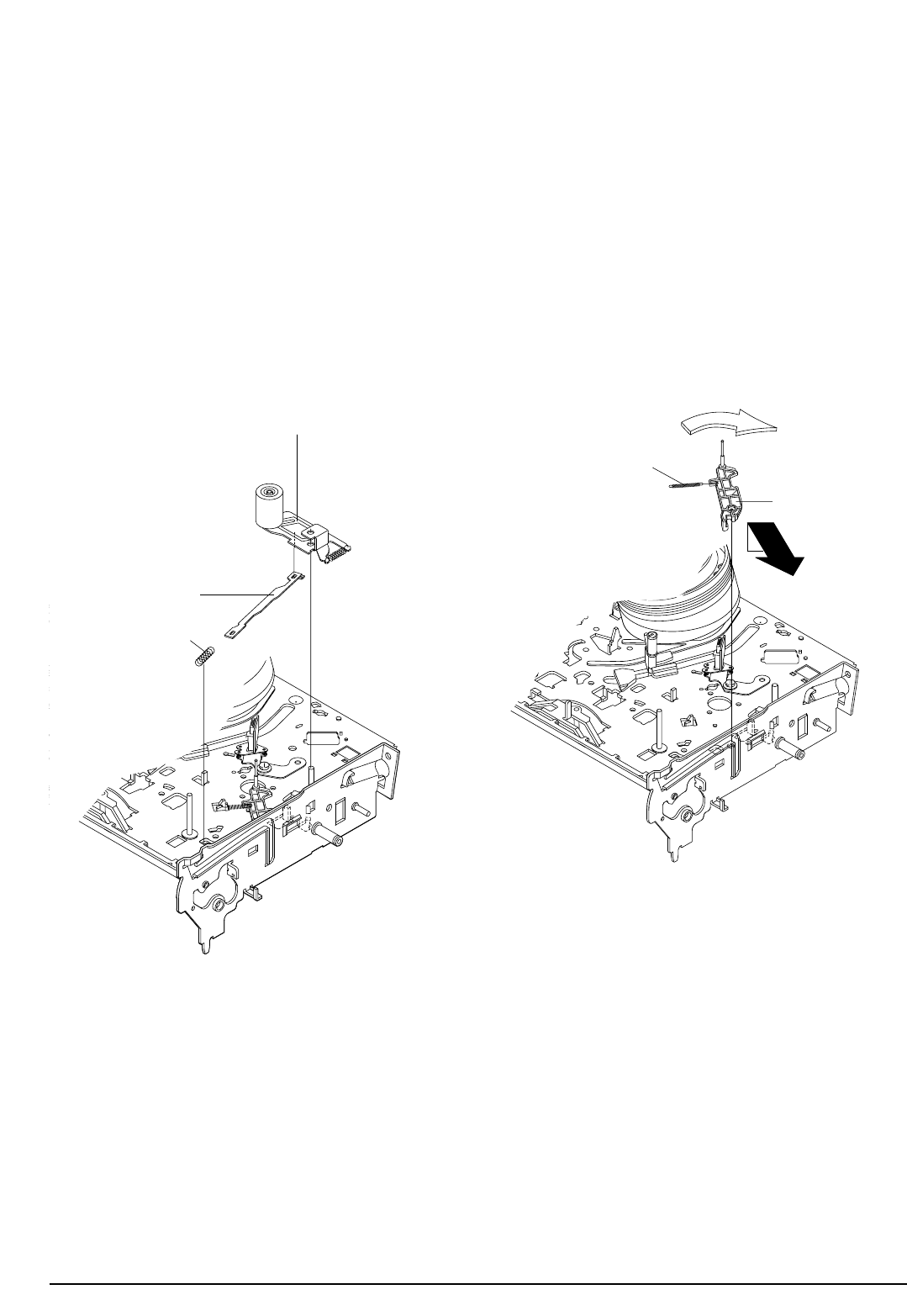

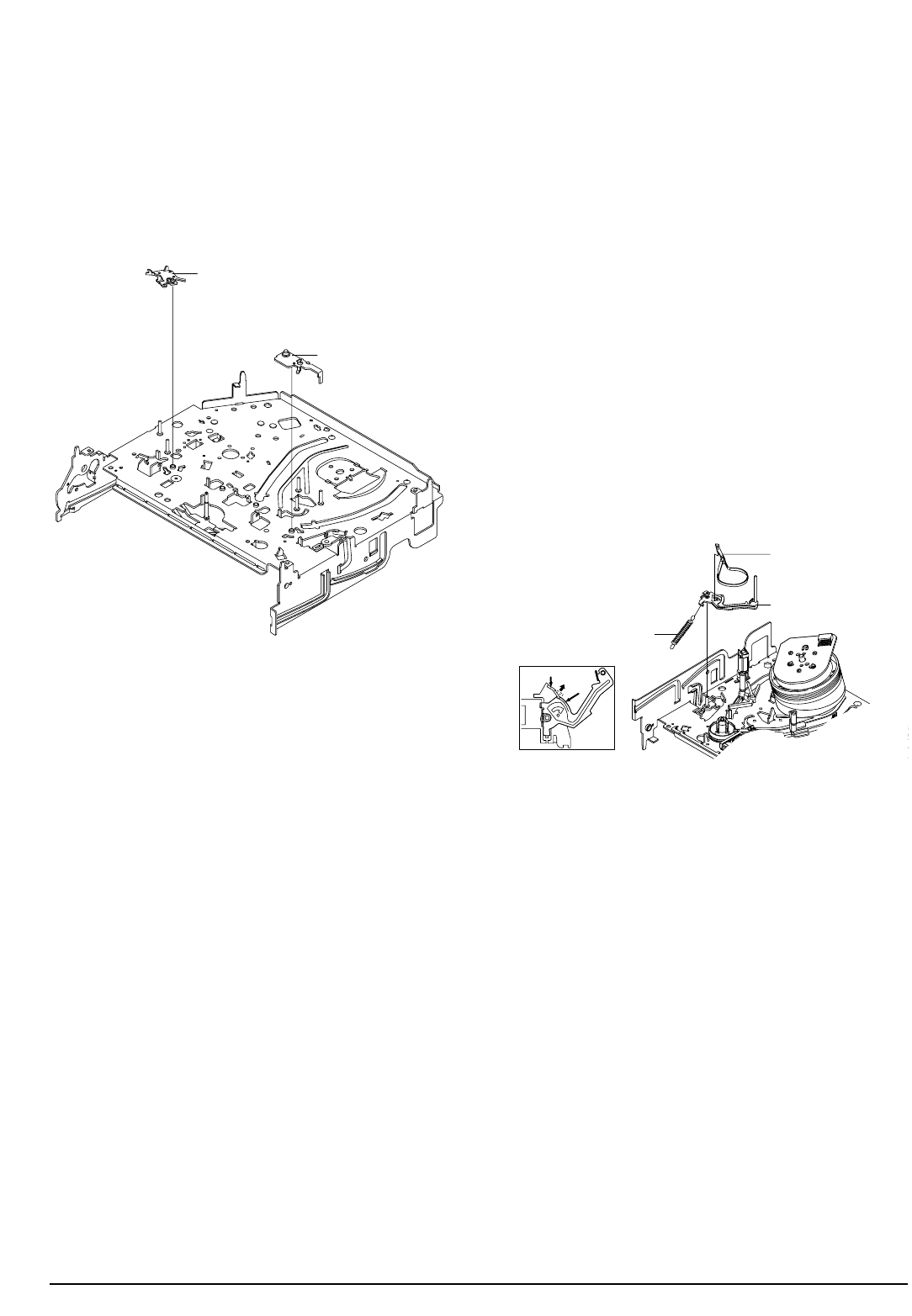

1-2-19 Lever Unit Pinch Ass’y, Plate Joint,
Spring Pinch Drive Removal
1) Lift the Unit Pinch Ass’y Œ.
2) Remove the Plate Joint ´from Lever Pinch Drive.
3) Remove the Spring Pinch Drive ˇ.
Note :
1) Take extreme care not to touch the grease on the
Roller Pinch.
2) When reinstalling, be sure to apply grease on the
post pinch roller.
ˇ SPRING PINCH DRIVE
ΠLEVER UNIT PINCH ASS`Y
´ PLATE JOINT
Fig. 4-29 Lever Unit Pinch Ass’y, Plate Joint,
Spring Pinch Drive Removal
1-2-20 Lever #9 Guide Ass’y Removal
1) Remove the Spring #9 Guide Œ.
2) Lift the Spring #9 Guide Ass’y ´in the direction
of arrow “A”.
Note :
1) Take extreme care not to get grease on the tape
Guide Post.
2) After reinstalling, check the bottom side of the Post
#9 Guide to the top side of Main Base.
ΠSPRING #9 GUIDE
´ LEVER #9 GUIDE ASS`Y
"A"
"B"
Fig. 4-30 Lever #9 Guide Ass’y Removal
4-16 Toshiba
Disassembly and Reassembly
1-2-22 ACE Head Removal
1) Pull out the FPC from connector of ACE Head
Ass’y ´.
2) Remove the screw Œ.
3) Lift the ACE Head Ass’y ´.
ΠSCREW
´ HEAD ACE ASS`Y
Fig. 4-32 ACE Head Removal
1-2-21 FE Head Removal
1) Remove the screw Œ.
2) Lift the FE Head ´.
ΠFE HEAD
Fig. 4-31 FE Head Removal
Disassembly and Reassembly
Toshiba 4-17
1-2-23 Slider S, T Ass’y Removal
1) Move the Slider S, T Ass’y Œ, ´to slot, and then
lift it to remove. (Refer to arrow)
ΠSLIDER S ASS`Y
´ SLIDER T ASS`Y
Fig. 4-33 Slider S, T Ass’y Removal
1-2-24
Plate Ground Deck, Cylinder Ass’y Removal
1) Remove the 3 Screws Œ.
2) Lift the Plate Ground Deck ´.
3) Lift the Cylinder Ass’y ˇ.
Assembly :
1) Match the 3 holes in the bottom of Cylinder ass'y
ˇto the 3 holes of Main Base as attending not to
drop or knock the Cylinder ass'y ˇ.
2) Tighten the 1 Screw Œ.
3) Match the Plate Ground Deck ´ to the Hole of
Base Main.
4) Tighten the other 2 Screws Œ.
Note :
1) Take care not to touch the Cylinder Ass'y ˇand
the tape guide post at reinstalling.
2) When reinstalling, Don't push down too much on
Screw Driver.
Π3 SCREWS
´ PLATE GROUND DECK
ˇ CYLINDER ASS'Y
Fig. 4-34 Plate Ground Deck, Cylinder Ass’y Removal
4-18 Toshiba

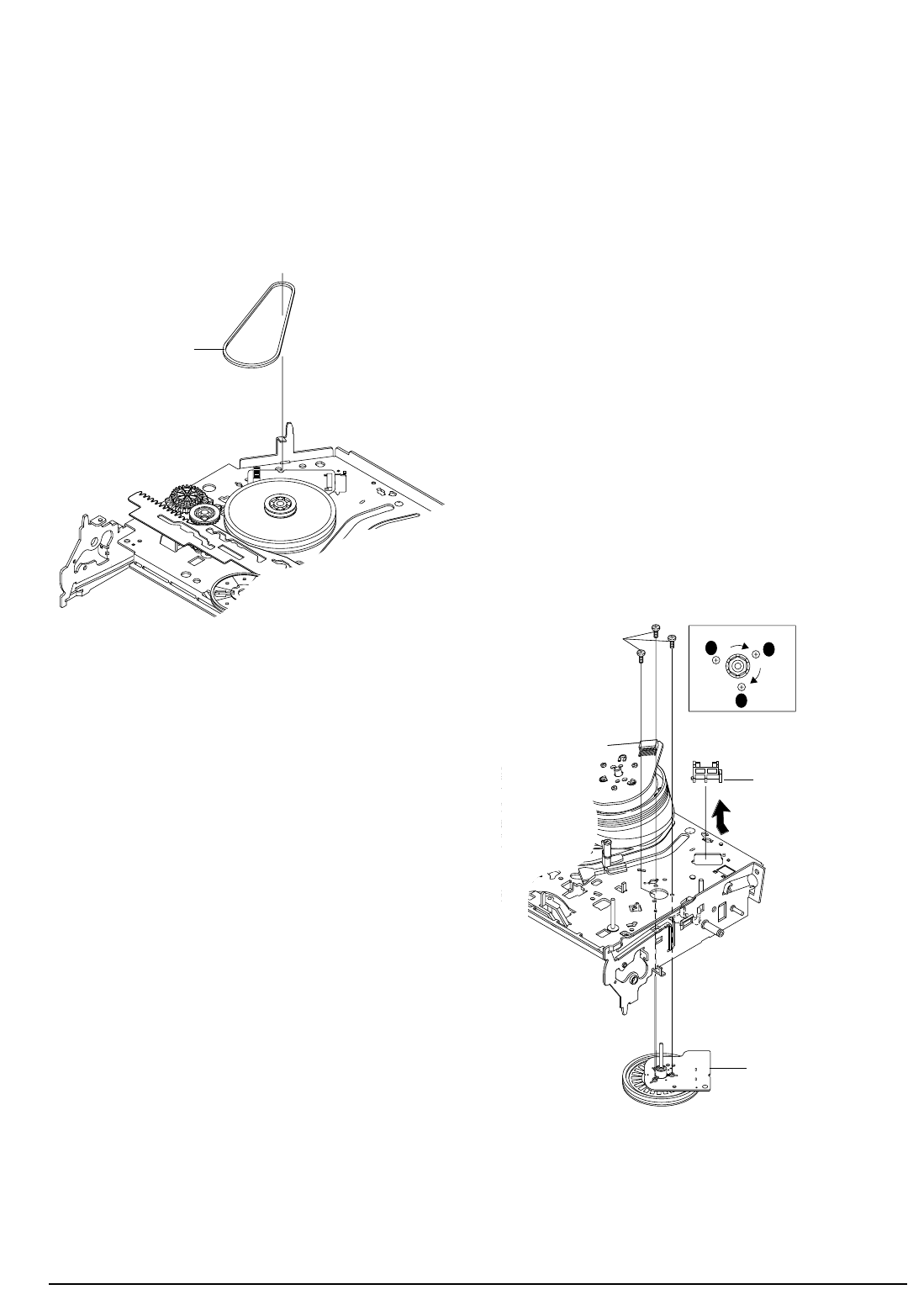

Disassembly and Reassembly
1-2-26 Damper Capstan, Motor Capstan Ass’y
Removal
1) Remove the Damper Capstan Œin the direction
of arrow.
2) Remove the 3 Screws ´.
3) Remove the Motor Capstan Ass’y ˇ.
Assembly :
1) Match the 3 holes of Motor Capstan Ass’y ˇto the
3 holes of Main Base. Be careful not to drop or
knock the Motor Capstan Ass'y ˇ.
2) Tighten the 3 Screws ´in the direction of arrow
as shown detail drawing.
3) Assemble the Damper Capstan Œ.
Note : After tightening screws, check if there is gap
between the head of screws and the top side of Main
Base. There should have no gap between the head of
screws and the top side of Main Base.
After reinstalling, adjusting the tape transport
system again.
B
C
A
´ 3 SCREWS
ˇ MOTOR CAPSTAN ASS'Y
ΠDAMPER CAPSTAN
Fig. 4-36 Damper Capstan,Motor Capstan Ass’y Removal
1-2-25 Belt Pulley Removal
1) Remove the Belt Pulley Œ.
Note : Take extreme care not to get grease on Belt
Pulley Πat assembling or reassembling.
ΠBELT PULLEY
Fig. 4-35 Belt Pulley Removal
Disassembly and Reassembly
Toshiba 4-19

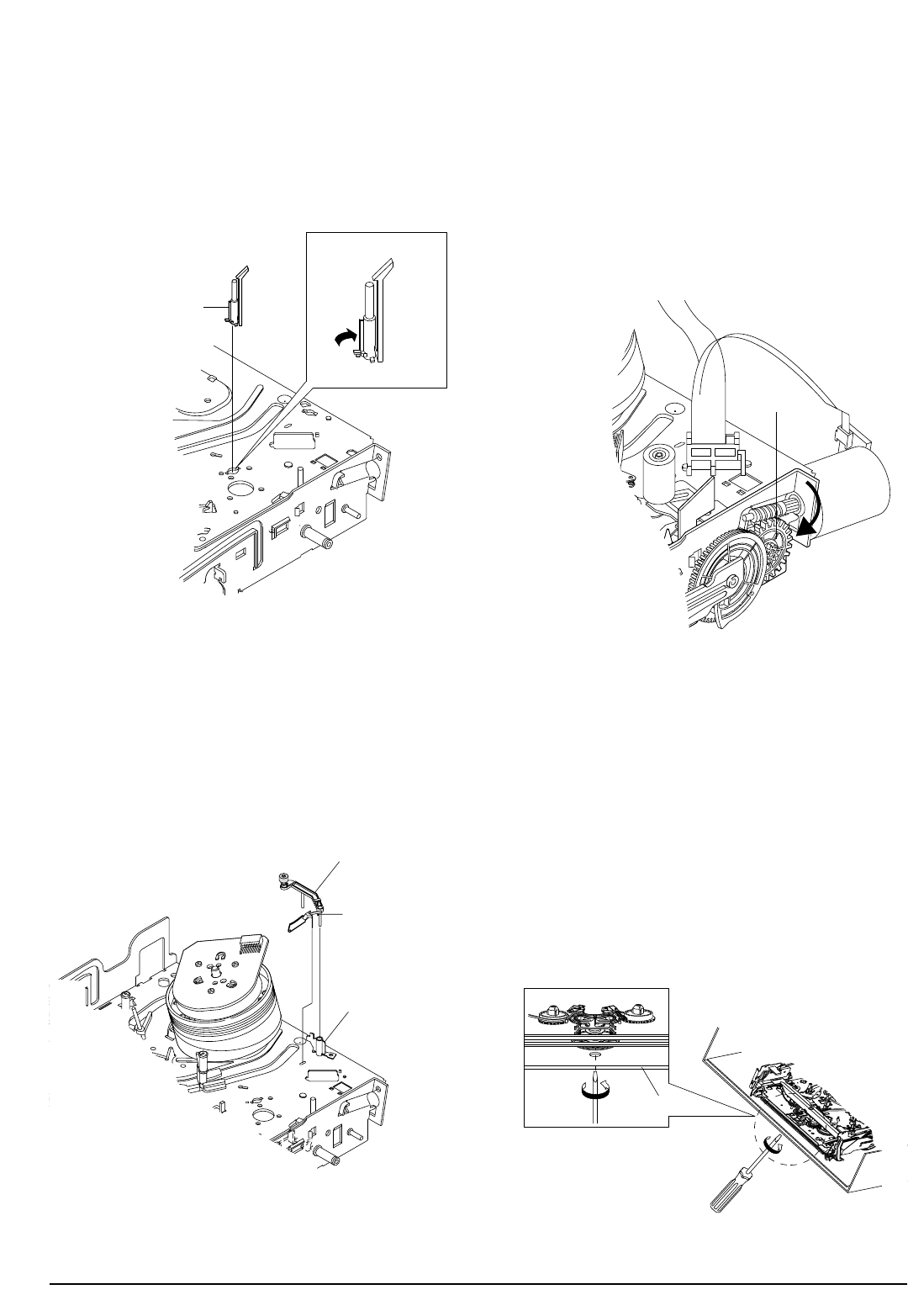

1-2-29 How to Eject the Cassette Tape
(If the unit does not operate on condition that is
inserted into housing ass’y)
1) Turn the Gear worm Œclockwise with screw
driver.(Refer to arrow)
(Other method : Remove the Screw of Motor Load
Ass'y, Separate the Motor Load Ass'y)
ΠGEAR WORM
Fig. 4-39
Fig. 4-40
2) When Slider S,T are approched in the position of
unloading, rotate holder Clutch counterclockwise
after inserting screw driver in the hole of frame's
bottom in order to wind the unwinded tape.
(Refer to Fig.4-40)
(If you rotate Gear Worm Πcontinuously when
tape is in state of unwinding, you may cause a
tape contamination by grease and tape damage.
Be sure to wind the unwinded tape in the state of
set horizently.)
3) Rotate Gear Worm Œclockwise using screw driver
again up to the state of eject mode and then pick
out the tape.(Refer to Fig.4-39)
FRAME

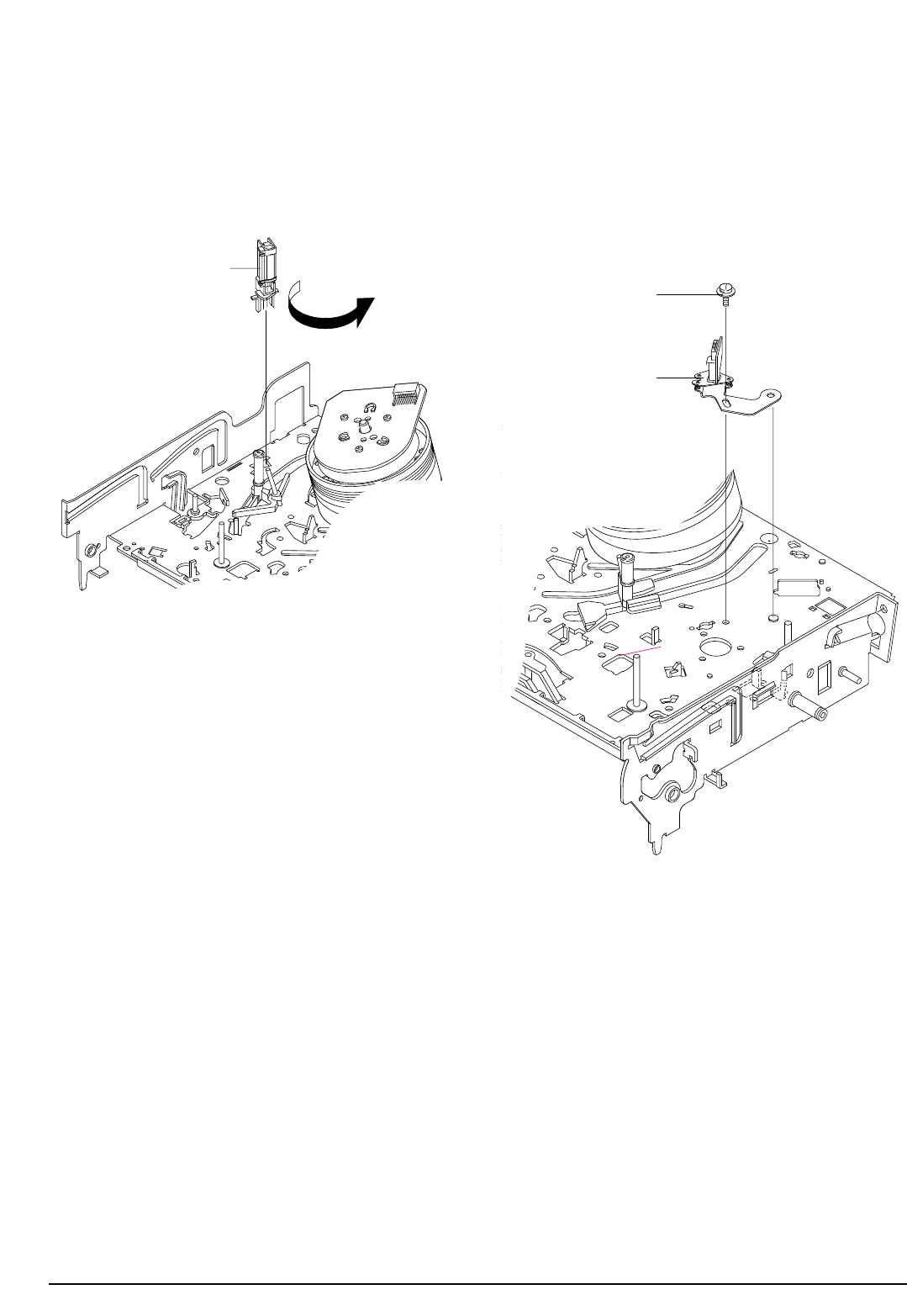

1-2-27 Post #8 Guide Ass’y Removal
1) Rotate the Post #8 Guide Ass’y Œin the direction
of arrow to lift up.
ΠPOST #8 GUIDE ASS'Y
Fig. 4-37 Post #8 Guide Ass’y Removal
1-2-28 Level Head Cleaner Ass’y Removal
(Optional)
1) Release the Hook Œ.
2) Lift the Lever Head Cleaner Ass’y
´.
ΠHOOK
´ LEVER HEAD CLEANER ASS'Y
SLEEVE-HEAD CLEANER
Fig. 4-38 Post #8 Guide Ass’y Removal
4-20 Toshiba
Disassembly and Reassembly
1-3 The table of clearing, Lubrication and replacement time about principal parts
1) The replacement time of parts is not life of parts.
2) The table 1-1 is that the VCR Set is in normal condition (normal temperature, normal humidity).
The checking period may be changed owing to the condition of use, runtime and environmental conditions.
3) Life of the Cylinder Ass’y is depend on the condition of use.
4) See exploded view for location of each parts.
<Table 1-1>
∆: Cleaning O : Check and replacement in necessary : Add Oil
T
A
PE
P
A
T
H
S
Y
S
T
E
M
D
R
I
V
I
N
G
* Parts Name Checking Period Remark
500 1000 1500 2000 2500 3000 3500 4000 4500 5000
POST TENSION ∆∆∆∆∆∆∆∆∆∆
SLANT POST S, T ∆∆∆∆∆∆∆∆∆∆
#8 GUIDE SHAFT ∆∆∆∆∆∆∆∆∆∆
CAPSTAN SHAFT ∆∆∆∆∆∆∆∆∆∆
#9 GUIDE POST ∆∆∆∆∆∆∆∆∆∆
#3 GUIDE POST ∆∆∆∆∆∆∆∆∆∆
GUIDE ROLLER S, T ∆∆∆OOOOOOO
CYLINDER ASS’Y∆OOOOOOOOO
FE HEAD ∆∆∆OOOOOOO
ACE HEAD ∆OOOOOOOOO
PINCH ROLLER ∆OOOOOOOOO
POST REEL S, T
SLEEVE TENSION
POST CENTER
LEVER IDLE BOSS (2Point)
CAPSTAN MOTOR PULLEY
∆∆∆∆∆OOOOO
BELT PULLEY O O O O O O O
HOLDER CLUTCH ASS’Y
∆OOOOOOOOO
GEAR CENTER ASS’Y OOOOOOOOO
GEAR IDLE (2Point) O O O O O O O O O
LOADING MOTOR O O O O O O O O O
BAND BRAKE ASS’Y OOOOOOOOO
BRAKE T ASS’Y OOOOOOOOO
S
Y
S
T
E
M
- Periodic time of applying oil (Apply
oil after cleaning)
- The excessive applying oil may be
the cause of
malfunction.
- To clean the parts, use patch and
alcohol (solvent).
- After cleaning, use the video tape
after alcohol is gone away com-
pletely.
- We recommend to use oil [EP-50]
or solvent.
- One or two drops of oil should be
applied after
cleaning with alcohol.
B
R
A
K
E
S
Y
S
T
E
M
Toshiba 5-1
5. Alignment and Adjustment
5-1 Reference
1) X-Point (Tracking center) adjustment, “Head switching adjustment” and “NVRAM option setting” can be adjusted with remote control.
2) When replacing the Micom (IC601) and NVRAM (IC605 ; EEPROM) be sure to adjust the “Head switching adjustment” and
“NVRAM option setting”.
3) When replacing the cylinder ass’y, be sure to adjust the “X-Point” and “Head switching adjustment”.
4) Remote control used for same chassis as a accessory is available for all adjustments.
5) How to adjustment.
- Press the “SW701” button on Main PCB to set the adjustment mode.
- If the corresponding adjustment button is pressed, the adjustment is performed automatically.
- If the adjustment is completed, be sure to turn the power off.
5-1-1 Location of adjustment button of remote control
Fig. 5-1
X-Point (Tracking Center)
Adjustment
Head Switching Adjustment
NVRAM Option Setting
SP/LP
SAT.MONI.A.DUB
123
456
789
0
AUDIO
MENU
TV/VIDEO
VT-752EW
SLOW
PLAY
REW
STOP
TIMER
REC
CH
FF
PAUSE/STILL
COUNT/TR
INDEX
TRK
F.ADV
CURSOR
OK
DISPLAY EJECT
PROG.
ON/
STANDBY
COUNT.RST
I.SELECT
CLR/RST
SAT.CONT.
5-2 Toshiba
Alignment and Adjustment
5-1-2 SW701 location for adjustment mode setting
Fig. 5-2 Main PCB (Top View)
SW701 SW703
PRESS
Alignment and Adjustment
Toshiba 5-3
5-2 Mechanical Adjustment
5-2-1 Tape Transport System and Adjustment Locations
The tape transport system has been adjusted precisely in the factory. Alignment is not necessary except for the
following :
1) Noise observed on the screen.
2) Tape damage.
3) Parts replacement in the tape transport system.
Lower flange height of tape guide is used as the reference for the transport adjustment.
To maintain the height of the tape guide and prevent damage, do not apply excessive force onto the main base.

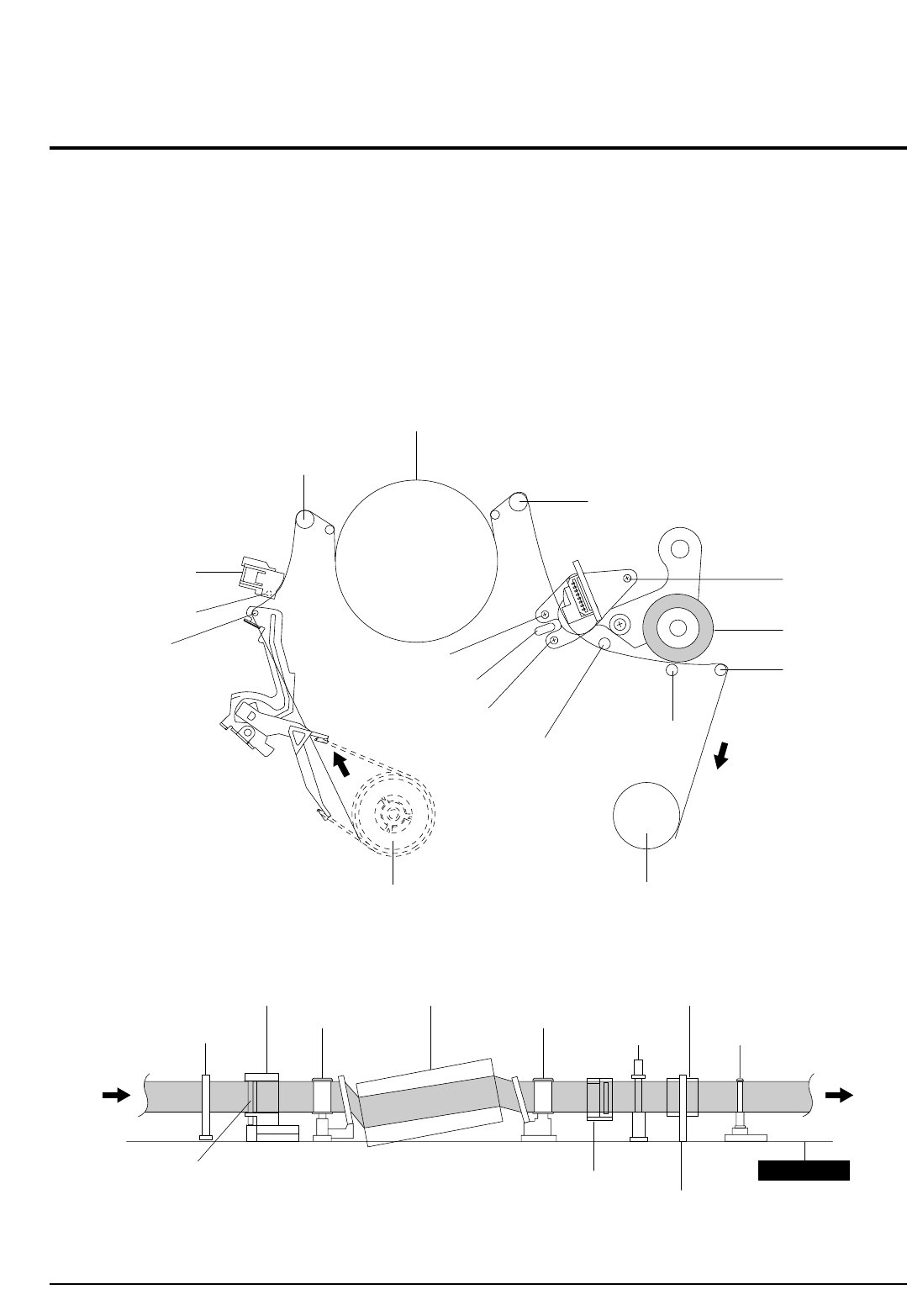

Fig. 5-3 Location of Tape Transport Adjustment
Fig. 5-4 Tape Travel Diagram
CYLINDER ASS'Y
TAKE UP REEL DISK
#8 GUIDE POST
#9 GUIDE POST
SUPPLY REEL DISK
CAPSTAN
PINCH ROLLER
GUIDE ROLLER "T"
GUIDE ROLLER "S"
FULL ERASE HEAD
#3 GUIDE POST
TENSION POST
HEIGHT SCREW
TILT SCREW
X - POSITION
ADJUST SILT
AZIMUTH SCREW
POST TENSION
MAIN BASE
FE HEAD CYLINDER ASS'Y PINCH ROLLER
GUIDE ROLLER "S" GUIDE ROLLER "T"
#8 GUIDE POST #9 GUIDE POST
CAPSTAN SHAFT
ACE HEAD
#3 GUIDE POST
5-4 Toshiba
Alignment and Adjustment
5-2-2 Tape Transport System Adjustment
When parts are replaced, perform the required adjustments by referring to precedures for the tape transport
system. If there are any changes to the tape path, first run a T-120 tape and make sure excessive tape wrinkle does
not occur at the tape guides.
1) If tape wrinkle is observed at the guide roller S, T, turn the guide roller S, T until wrinkle disappears.
2) If the tape wrinkle is still observed at the tape guide, perform the tilt adjustment of the ACE head.
(1) ACE Head Assembly Adjustment
Test point : TP601 (Control Pulse)
TP602 (H’D S/W -Trigger)
TP301 (Envelope)
TP302 (Audio output)
TP303 (Video output)
Test tape : ST-N1
BLANK TAPE : T-160

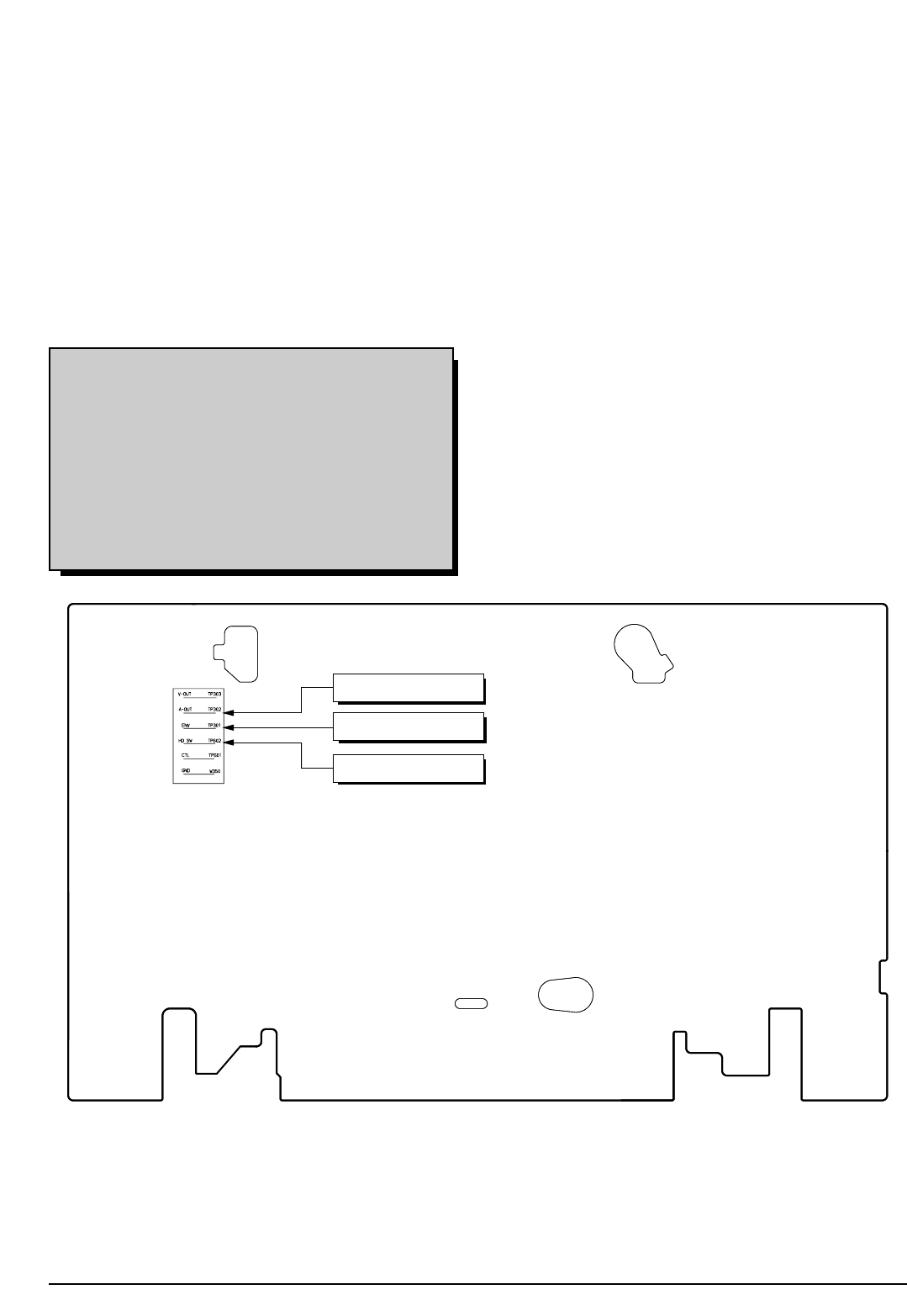

Fig. 5-5 Location of Test point (Main PCB-Top View)
AUDIO OUTPUT
HEAD SWITCHING
ENVELOPE
Alignment and Adjustment
Toshiba 5-5
a. ACE HEAD HEIGHT ADJUSTMENT
1) Run the alignment tape (Color bar) in the playback
mode.
2) Observe surface of the audio head using a dental
mirror.
3) Turn screw (C) clockwise or counterclockwise until
the gap of lower tape edge and the lower edge of
the control head is about 0.25mm.
(Refer to Fig. 5-6 and 5-7)
Fig. 5-6 Location of ACE Head Adjustment Screw
Fig. 5-7 ACE Head Height Adjustment
SCREW (A)
TLIT ADJUST
X-POSITION
ADJUSTING SLIT
SCREW (C)
HEIGHT ADJUST
SCREW (D)
X-POSITION LOCKING
SCREW (B)
AZIMUTH ADJUST
0 ~ 0 .25 mm
AUDIO HEAD
VIDEO HEAD
CONTROL HEAD
b. ACE HEAD TILT ADJUSTMENT
1) Playback a blank tape and observe the position of
the tape at the lower flange of tape guide.
2) Confirm that there is no curl or wrinkle at the
lower flange of tape guide as shown in Fig. 5-8 (B).
3) If a curl or wrinkle of the tape occurrs, slightly
turn the screw (A) tilt adjust on the ACE head ass’y.
4) Reconfirm the ACE head height.
Fig. 5-8 Tape Guide Check
c. AUDIO AZIMUTH ADJUSTMENT
1) Load alignment tape (Mono scope) and playback
the 6KHz signal.
2) Connect channel-1 scope probe to audio output
test point (TP302).
3) Adjust screw (B) to achieve maximum audio level.
(See Fig. 5-6)
d. ACE HEAD POSITION (X-POINT) ADJUSTMENT
1) Playback the alignment tape (Color bar).
2) Press the “SW701” button on Main PCB to set the
adjustment mode. (See Fig. 5-2)
3) Press the “5” button of remote control then adjust-
ment is operated automatically. (See Fig. 5-1)
4) Connect the CH-1 probe to TP303 (Envelope) the
CH-2 probe to TP601 (H’D switching pulse) and
then trigger to CH-1.
5) Insert the (-) driver into the X-Point adjustment
hole and adjust it so that envelope waveform is
maximum.
6) Turn the Power off.
(A) (B)
(BAD)
WRINKLE
(GOOD)
5-6 Toshiba
Alignment and Adjustment

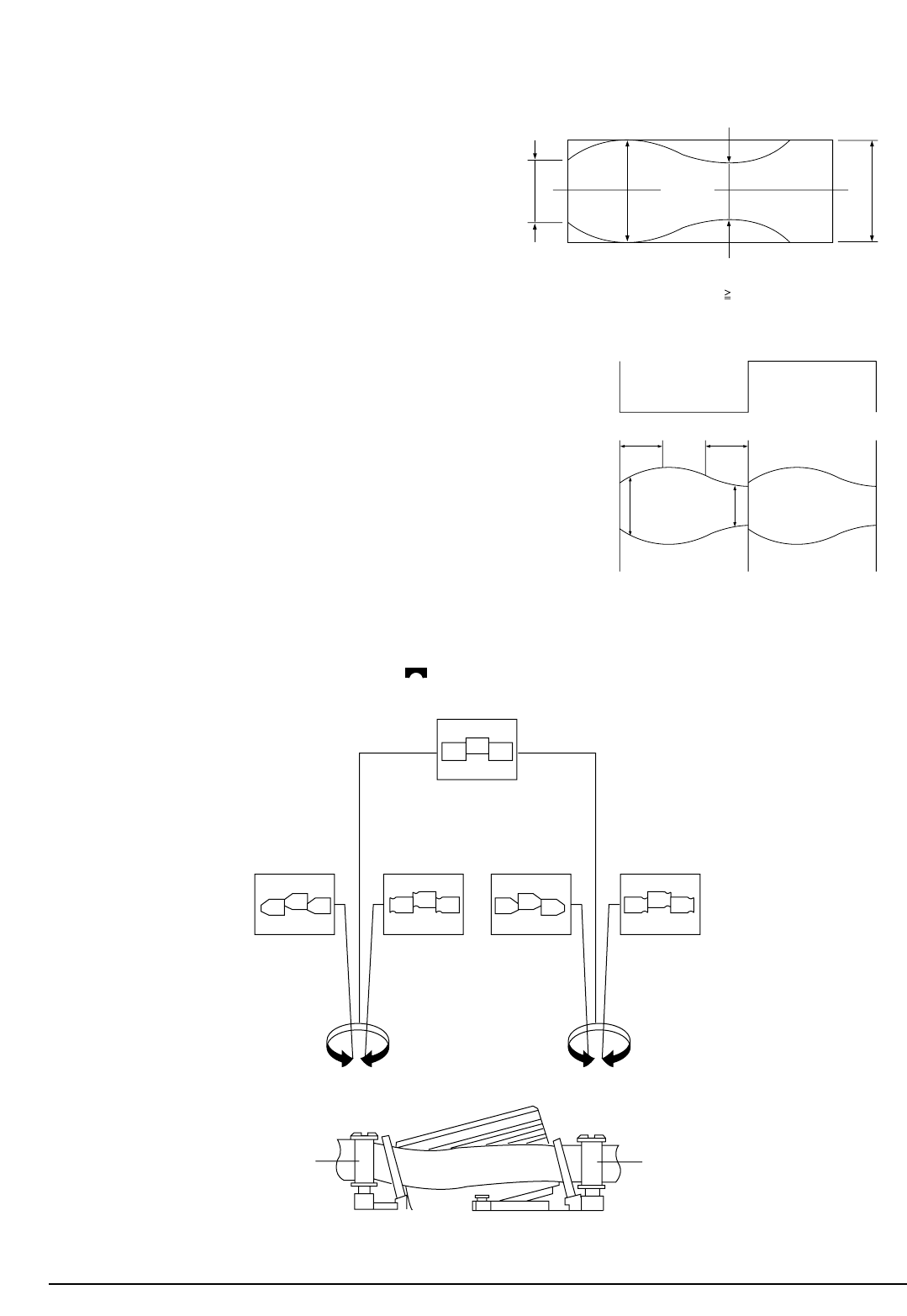

(2) Linearity adjustment (Guide roller S, T adjustment)
1)
Playback the Mono Scope alignment tape (SP mode).
2) Observe the video envelope signal on an oscillo-
scope (triggered by the video switching pulse).
3) Make sure the video envelope waveform (at its
minimum) meets the specification shown in
Fig. 5-9.
If it does not, adjust as follows :
Note :
a=Maximum output of the video RF envelope.
b=Minimum output of the video RF envelope at the
entrance side.
c=Minimum output of the video RF envelope at the
center point.
d=Maximum output of the video RF envelope at the
exit side.
4) If the section Ain Fig. 5-10 does not meet the spec-
ification, adjust the guide roller S up or down.
5) If the section B in Fig. 5-10 does not meet the speci-
fication, adjust the guide roller T up or down.
Fig. 5-9 Envelope Waveform Adjustment
a
a b c d
c,b,d/a 63%
bcd
Fig. 5-10 Adjustment Points
AB
AB
H'D SWITCHING
PULSE
ENVELOPE
6) Play back the Mono Scope alignment tape (SP mode).
7) Connect an oscilloscope CH-1 to the Envelope and CH-2 to the H’D SW Pulse for triggering.
8)
Turn the guide roller heads with a flat head ( ) driver to obtain a flat video RF envelope as shown in Fig. 5-11.
Fig. 5-11 Guide Roller S, T Height Adjustment
IDEAL ENVELOPE
S HEIGHT TOO HIGH S HEIGHT TOO LOW T HEIGHT TOO HIGH T HEIGHT TOO LOW
GUIDE ROLLER S GUIDE ROLLER T
Alignment and Adjustment
Toshiba 5-7

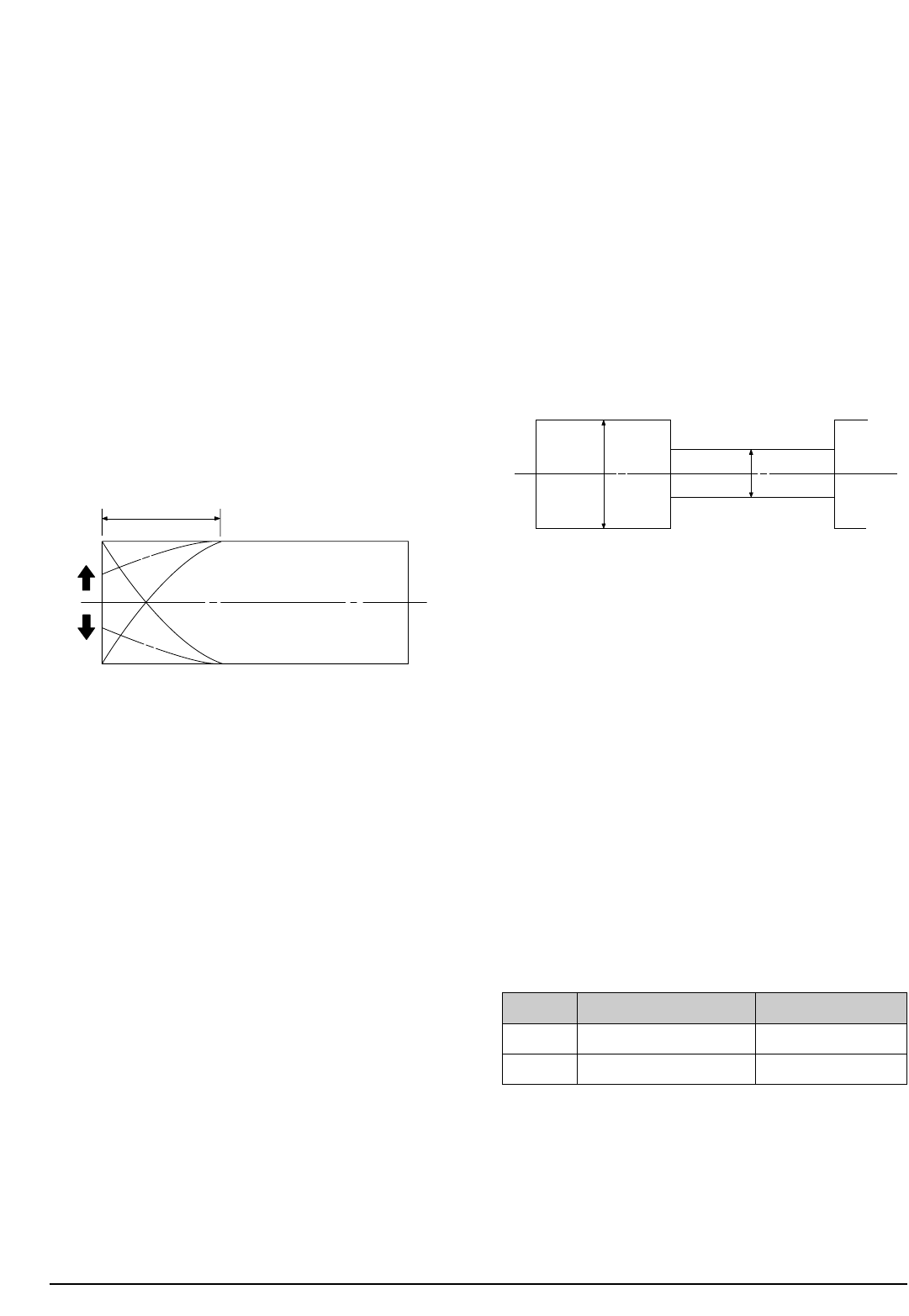

(3) Check Transitional Operation from RPS to Play
Check transition from RPS mode to play mode :
Using a pre-recorded SP tape, make sure the entry
side of envelope comes to an appropriate steady state
within 3 seconds (as shown in Fig. 5-12).
If the envelope waveform does not reach specified
peak-to peak amplitude within 3 seconds, adjust as
follows :
1) Make sure there is no gap between the supply
roller lower flange and the tape.
If there is a gap, adjust the supply guide roller
again.
2) Change operation mode from the RPS to the play
mode (again) and make sure the entry side of
envelope rises within 3 second.
ENTRANCE SIDE ENVELOPE
Fig. 5-12 Video Envelope Rising when Operation mode Changes
from RPS to Play Mode
(4) Envelope Check
1) Make recordings on T-120 (E-120) and T-160
(E-180) tape.
Make sure the playback output envelope meets the
specification as shown in Fig. 5-13.
2) Play back a self recorded tape (recording made on
the unit using with T-120 (E-120).
The video envelope should meet the specification
as shown in Fig. 5-13.
In SP mode, (A) should equal (B).
If the head gap is wide, upper cylinder should be
checked.
A B
Fig. 5-13 Envelope Output and Output Level
(5) Tape Wrinkle Check
1) Run the T-160 (E-180) tape in the playback, FPS,
RPS and Pause modes and observe tape wrinkle at
each guide.
2) If excessive tape wrinkle is observed, perform the
following adjustments in Playback mode :
◆Tape wrinkle at the guide roller S, T section :
Linearity adjustment.
◆Tape wrinkle at tape guide flange :
ACE head assembly coarse adjustment.
5-2-3 Reel Torque
1) The rotation of the capstan motor causes the
Holder Clutch Ass’y to rotate through the Belt
Pulley.
2) The spring wrap PLAY/REV of holder clutch ass’y
drives the disk reel S, T through gear idle by rota-
tion of gear center ass’y.
3) Brake is operated by slider cam at FF/REW mode.
4) Transportation of accurate driving force is done by
gears. (Gear Center Ass’y)
Note : If the spec. does not meet the followings speci-
fications, replace the holder clutch ass’y and then
recheck.
MODE TORQUE g/cm GAUGE
PB 42 ± 11
Cassette Torquemeter
RPS 145 ± 30
Cassette Torquemeter
<Table 5-1>
5-8 Toshiba
Alignment and Adjustment
5-3 Head Switching Point Adjustment
1) Playback the alignment tape.
2) Press the “SW701” button on Main PCB with pincers to set the adjustment mode. (See Fig. 5-2 )
3) Press the “SP/LP” button of remote control then adjustment is operated automatically. (See Fig. 5-1)
4) Turn the Power off.
5-4 NVRAM Option Setting
1) NVRAM Option is adjusted at production line basically.
2) In case Micom (IC601) and NVRAM (IC605 ; EEPROM) is replaced, be sure to set the corresponding ooption number of the repaired
model. (If the option is not set, the unit is not operated.)
01 02 03 04 05 06 07 08
09 10 11 12 13 14 15 16
17 18 19 20 21 22 23 24
25 26 27 28 29 30 31 32
33 34 35 36 37 38 39 40
41 42 43 44 45 46 47 48
49 50 51 52 53 54 55 56
57 58 59 60 61 62 63 64
65 66 67 68 69 70 71 72
CNG : OK SAVE : MENU
Fig. 5-14
01 02 03 04 05 06 07 08
09 10 11 12 13 14 15 16
17 18 19 20 21 22 23 24
25 26 27 28 29 30 31 32
33 34 35 36 37 38 39 40
41 42 43 44 45 46 47 48
49 50 51 52 53 54 55 56
57 58 59 60 61 62 63 64
65 66 67 68 69 70 71 72
PLEASE WAIT
Fig. 5-15
MODEL OPTION NUMBER
V-E59 6, 7, 8, 9, 10, 12, 15, 20, 22, 25, 27, 29, 33, 35, 38, 42, 44, 49, 51, 52, 53, 57, 60, 61, 62, 63
V-E39 9, 10, 12, 20, 22, 25, 27, 33, 35, 38, 42, 44, 49, 51, 52, 53, 57, 60, 61, 62, 63
V-E29 10, 12, 20, 22, 25, 27, 33, 35, 38, 42, 44, 49, 51, 52, 53, 57, 60, 61, 62, 63
<Table 5-2>
1) Press the “SW701” button on Main PCB to set the adjustment mode. (See Fig. 5-2)
2) Press the “MENU” button on the remote control about 5 seconds then option setting display is appeared.
(See Fig. 5-14)
3) Select the option number (See Table 5-2) of corresponding model with “CURSOR” button on the
remote control.
4) If selecting the option number is completed, press the “OK” button of remote control.
(If “OK” button is pressed, the selected number is changes reversed color. ; See Fig. 5-14)
5) Press the “MENU” button of remote control again to store the option number.
(“PLEASE WAIT” is displayed for a second as shown Fig. 5-15 and this setting is completed.)
6) Turn the Power off.
Toshiba 6-1
6. Exploded View
6-1 Packing Assembly - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -
6-2 Instrument Assembly - - - - - - - - - - - - - - - - - - - - - - - - - - - -
6-3 Mechanical Parts (Top Side) - - - - - - - - - - - - - - - - - - - - - - -
6-4 Mechanical Parts (Bottom Side) - - - - - - - - - - - - - - - - - - - -
6-2
6-3
6-4
6-5
Exploded View
6-2 Toshiba
6-1 Packing Assembly
Y101
A702
A701
Y102
UT01
A702
Exploded View
Toshiba 6-3

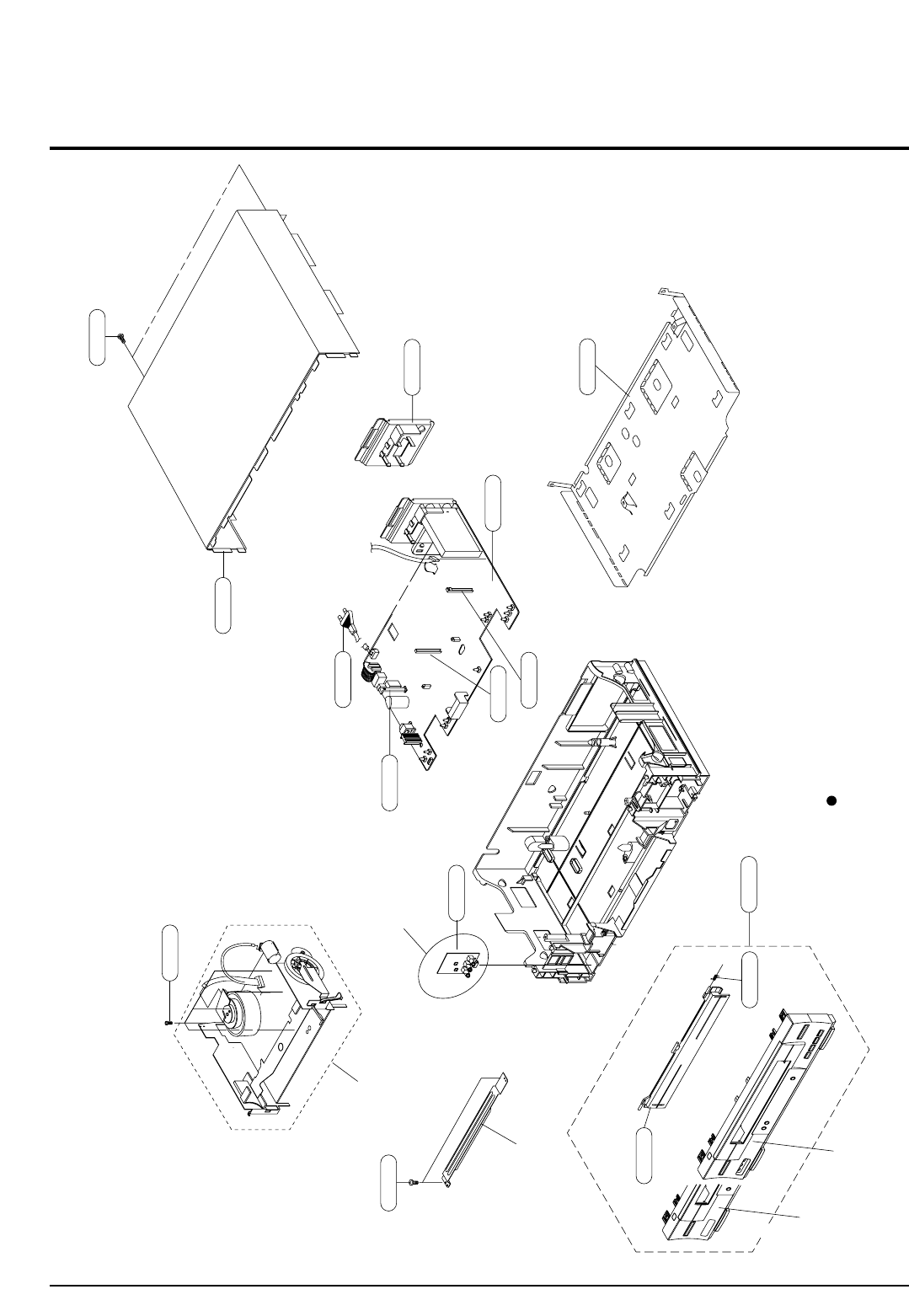

6-2 Instrument Assembly
TM401B
102
S.N.A : Service Not Available
602
FULL DECK (S.N.A)
153
BRACKET-FRAME
(S.N.A)
157
155
101
601
S602A
S601A
LD601A
21
22 1
200
V-E59
V-E29, V-E39
V-E59 ONLY
Exploded View
6-4 Toshiba

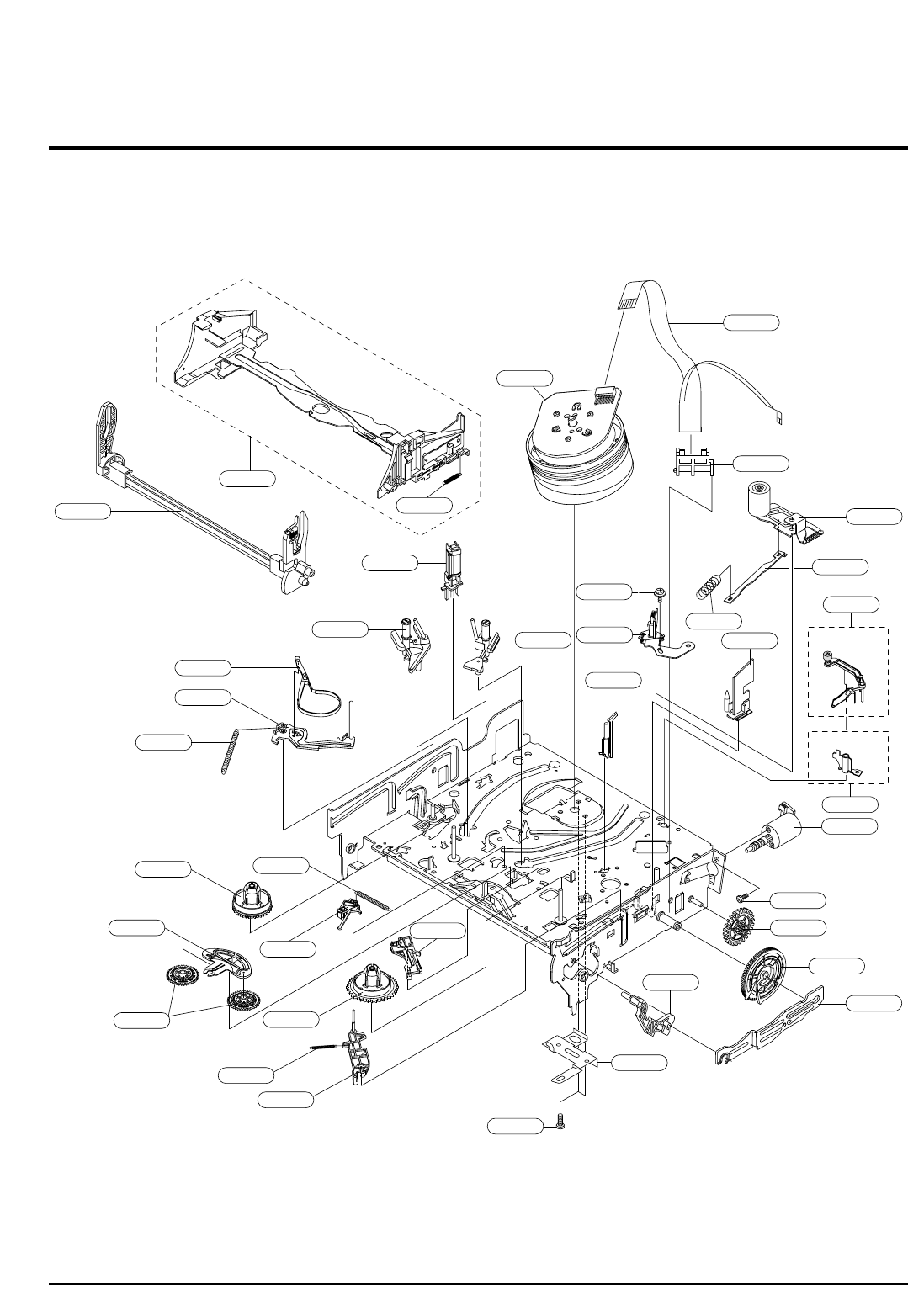

6-3 Mechanical Parts (Top Side)
G001
G555
B475
B561
G510
G480 K546
G680
G681
B410
B440
B448
B452
G546
G560
G060
G520
G527
K188
K182
K110
K240
K248
K350
K330
K140
K340
G070
K470
B474
B473
K250
K530
K490
G530
G420 G450
K502
(OPTIONAL)
(OPTIONAL)
Exploded View
Toshiba 6-5

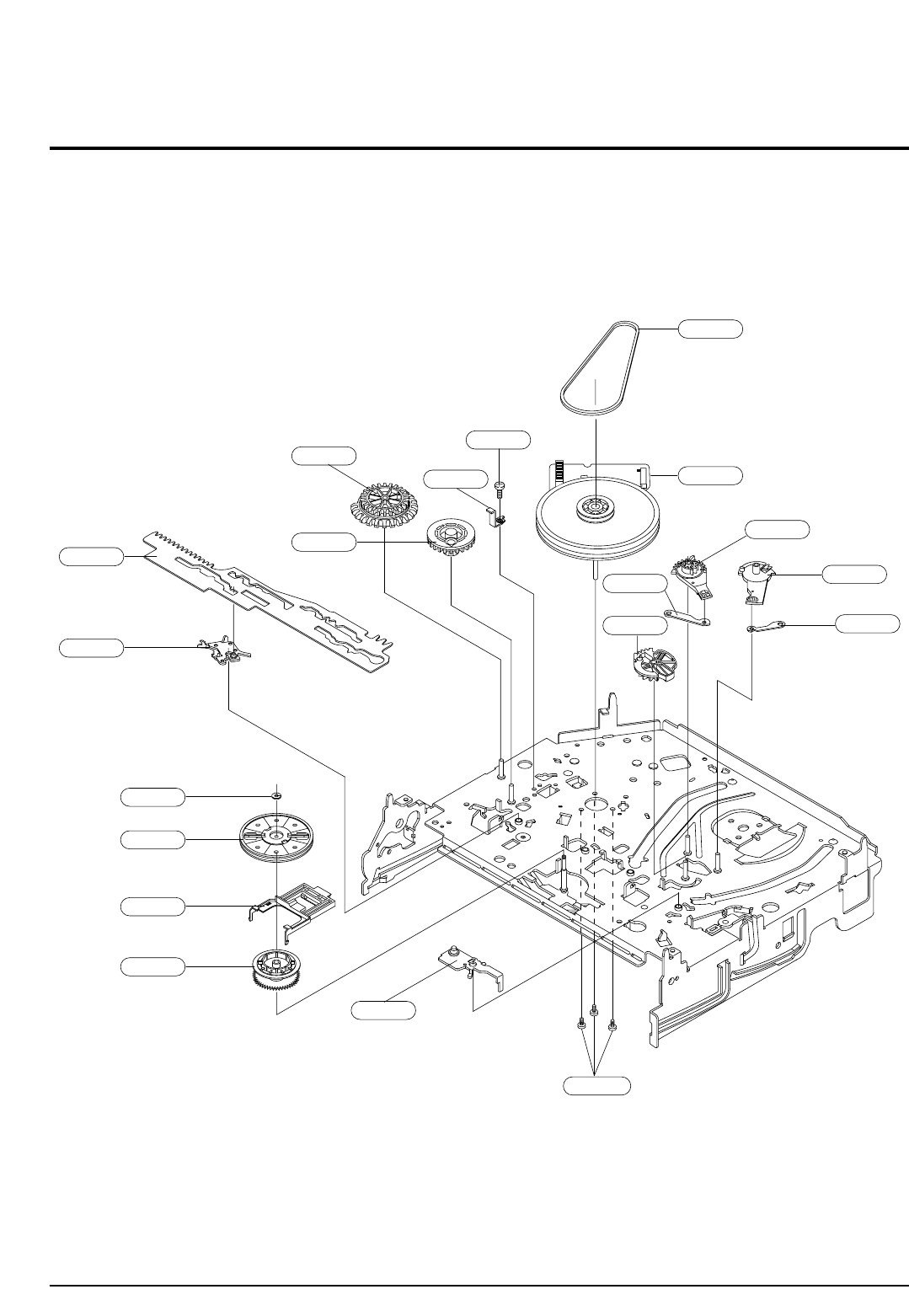

6-4 Mechanical Parts (Bottom Side)
G542
B462
B560
B501
B484
B488
B500
B456
B458
B464
B468
K222
K200
K225
K221
B478
B570
B460
B489
Exploded View
6-6 Toshiba
MEMO
- PACKING PARTS -
A701 BY731259 AC69-00266H PACKING CASE;V-E59/TSB,-,-,-,W326,L428,H V-E59
BY731257 AC69-00266K PACKING CASE;V-E39/TSB,-,-,-,W326,L428,H V-E39
BY731253 AC69-00266L PACKING CASE;V-E29/TSB,-,-,-,W326,L428,H V-E29
A702 BY730464 AC69-00041A CUSHION-F/B;M-656/TSB,EPS,-,-,-,-,-
UT01 BY731070 AC59-00063D REMOCON-ASSY;V-752EW/TSB,TOSHIBA,-,-,-,-
Y101 BY634733 AC68-01772A MANUAL USERS;V - E79 ,TSB,ENGLISH + RUSS
BY634734 AC68-01773A MANUAL USERS;V - E79 ,TSB,ARABIC,-,-,-,-
Y102 BY634253 AC39-00017A CABLE-ETC-RF(PAL);-,MALE/FEMALE,1200MM,R
- INSTRUMENT PARTS -
1 BY731260 AC97-01787E ASSY-FRONT PANEL;HIPS 94HB,V-E59/TSB,- V-E59
BY731258 AC97-01787G ASSY-FRONT PANEL;HIPS 94HB,V-E39/TSB,- V-E39
BY731254 AC97-01787H ASSY-FRONT PANEL;HIPS 94HB,V-E29/TSB,- V-E29
21 AC64-01100B DOOR-CASSETTE;V-E59/TSB,ABS94HB ,-,-,-,-,-,- V-E59
AC64-01100D DOOR-CASSETTE;V-E39/TSB,ABS94HB ,-,-,-,-,-,- V-E39
AC64-01100E DOOR-CASSETTE;V-E29/TSB,ABS94HB ,-,-,-,-,-,- V-E29
22 AC61-62032A SPRING ETC-MASK;SV-C130,SUS,4.4,-,-,-,-
101 BY731243 AC64-01054D CABINET-TOP;V-632EF,PCM(SECC),T0.525,-,-
102 BY731112 AC63-00074A COVER-BOTTOM;SV-653F,SECC,T0.5,-,-,-,-,-
153 70790218 AC60-12126A SCREW-BH;-,-,FE,FZY,BH,-,-,4*12,-,-
155 70790082 AC60-12134A SCREW-TAP BH;-,FZB,2-4X16,FE,BH,-,-,2-4X
157 70790002 AC60-10063A SCREW-TAPTITE;-,-,L12,ZPC3,+,-,M3,-,SWRC
200 BY634124 AC39-10019A POWER CORD;KKP-419C,H03VVH2-F,VDE/KEMA-K
CN3A1S BY634415 3809-001206 CABLE-FLAT;30V,-20to+80C,140mm,6P,1.25mm
LD601A BY730082 AC61-21009A HOLDER-LED;X-9,POM(M90-44),-,-,-,BLK,-
S601A BY731054 AC61-00229A HOLDER-SENSOR;SCORPIO2,POM,-,-,-,BLACK,-
S602A BY731054 AC61-00229A HOLDER-SENSOR;SCORPIO2,POM,-,-,-,BLACK,-
TM401B BY634540 AC61-00150A CHASSIS-ASSY;SV-640G,HIPS94HB,T2,-,-,-,- V-E59
BY634557 AC61-00151A CHASSIS-ASSY;SV-445G,HIPS94HB,T2,-,-,-,- V-E29/E39
- MECHANICAL PARTS -
B410 BY631184 AC31-00018A MOTOR-LOADING ASSY;-,SCORPIO2(TS-10A),-,
B440 BY730072 AC60-10515A SCREW-MACHINE;-,-,M3,L3,PH,+,-,-,ZPC,-
B448 BY730743 AC66-00008A GEAR-WORM WHEEL;TS-10,POM,0.8,40,-,NAT,3
B452 BY730745 AC66-00011A GEAR-FL CAM;TS-10,POM,0.8,59,-,BLK,48.48
B456 BY730744 AC66-00009A GEAR-JOINT 1;TS-10,POM,1.5,17.5(22),-,NA
B458 BY730746 AC66-00012A GEAR-JOINT 2;TS-10,POM,1.0,23,-,BLK,24.6
B460 BY730851 AC61-00090A BRACKET-GEAR;TS-10,SECC E20/20,0.8,-,-,-
B462 BY730073 AC60-10517A SCREW-TAP TITE;-,-,M2.6,L5,PH,+,-,-,ZPC,
B464 BY730749 AC66-00019A SLIDER-CAM;TS-10,SECC E20/20,1.2,-,-,-,-
B468 BY730748 AC66-00017A LEVER-PINCH DRIVE;TS-10,SECC E20/20,1.0
B473 BY730723 AC61-00105A SPRING ETC-PINCH DRIVE;TS-10,SUS304-WPB,
B474 BY730244 AC61-30180A PLATE-JOINT;X-9,SECC20/20,T0.8,-,-,-,-
B475 BY731053 AC47-00003A DAMPER-CAPSTAN;SCORPIO2,POM, NATUAL,-,-,
B478 BY730747 AC66-00016A LEVER-TENSION DRIVE;TS-10,SECC E20/20,1
B484 BY730755 AC66-00030A GEAR-LOADING DR. ASS’Y;TS-10,POM+SWPB,-,
B488 BY730753 AC66-00023A LEVER-S LOADING;TS-10,POM,-,-,-,-,NAT,-
B489 BY730751 AC66-00021A LINK-LOADING S;TS-10,SECC E20/20,0.8,-,-
B500 BY730754 AC66-00024A LEVER-T LOADING;TS-10,POM,-,-,-,-,NAT,-
B501 BY730752 AC66-00022A LINK-LOADING T;TS-10,SECC E20/20,0.8,-,-
B560 BY631187 AC31-00016A MOTOR-CAPSTAN;F2QVB05,SCORPIO2(TS-10A),-
B561 BY634670 3809-001270 CABLE-FLAT;30V,80C,140MM,10P,1.25MM,UL28
B570 BY730071 AC60-10514A SCREW-CAPSTAN;-,-,M2.6,L6,PH,+,-,-,-,-
G001 BY630267 AC97-01754A ASSY-CYLINDER;6P-SEM’S HEAD,CTS10A-SEM,P V-E59
BY630266 AC97-01752A ASSY-CYLINDER;4P-SEM’S HEAD,CTS10A-SEM,P V-E39
BY630265 AC97-01750A ASSY-CYLINDER;2PL(LP)-SEM’S HEAD,CTS10A- V-E29
G060 BY634416 6006-001092 SCREW-ASS’Y MACH;WS,PH,+,M3.0,L6.0,ZPC(Y
G070 BY730728 AC61-00161A PLATE-GROUND DECK;TS-10,SPTE,T0.3,-,-,-,
G420 BY730124 AC66-80142A SLIDER-SUPPLY ASSY;X-9,X-9(TS),-,-,-,-,-
G450 BY730123 AC66-80141A SLIDER-TAKE UP ASSY;X-9,X-9(TS),-,-,-,-,
G480 BY630248 AC97-01660A ASSY-HEAD ACE;-,SCORPIO2(TS-10A),VTR-1*2
G510 BY730479 6006-001075 SCREW-ASS’Y TAPT;WSP,PH,+,M2.6,L5.0,ZPC(
G520 BY730757 AC66-00033A LEVER-#9 GUIDE ASS’Y;TS-10,-,-,-,-,-,-,-
G527 BY730088 AC61-60553A SPRING ETC-GUIDE 9;X-9,SUS304-WPB,0.25,-
G530 BY730775 AC33-00007A HEAD-FE;-,-,HVFHPOO43A,-,-
G542 BY730122 AC66-60051A BELT-PULLEY;-,5CM-70,2 * 2,-,71.3,-,X-9
G546 BY730741 AC66-00005A LEVER-FL DOOR;TS-10,POM,-,-,-,-,NAT,-
G555 BY730756 AC66-00032A LEVER-UNIT PINCH ASS’Y;TS-10,-,-,-,-,-,-
Toshiba 7-1
7. Replacement Parts List
Loc.No. TSB Parts No. Reference No. Description ; Specification Remark
GP301 BY730731 AC63-00043A SHIELD CASE-GROUND PCB;SV-643F,STPE,T0.3
HS01 BY731110 AC62-00003A HEAT SINK-MAIN;SV-653F,A1050R,T6,W15,L25
HS02 BY731110 AC62-00003A HEAT SINK-MAIN;SV-653F,A1050R,T6,W15,L25
K110 BY730102 AC66-10267A REEL-DISK S;X-9,POM,-,-,-,-,-,-
K140 BY730103 AC66-10268A REEL-DISK T;X-9,POM,-,-,-,-,-,-
K182 BY730112 AC66-30524A LEVER-IDLER;-,POM,-,-,-,-,-,-
K188 BY730760 AC66-00039A GEAR-IDLE;TS-10,PET K3372,0.5,-,-,NTR,28
K200 BY730084 AC61-21012A HOLDER-CLUTCH ASSY;X-9,-,-,-,-,-,-
K221 BY730111 AC66-20581A GEAR-CENTER ASSY;-,POM,M=O.5,-,HIGHT T.,
K222 BY730076 AC60-30306A WASHER-SLIT;-,-,ID2.1,OD5.0,T0.5,-,POLYS
K225 BY730742 AC66-00006A LEVER-UP DOWN;TS-10,POM,-,-,-,-,NAT,-
K240 BY730759 AC66-00035A LEVER-TENSION ASS’Y;TS-10,SECC E20/20+SU
K248 BY730725 AC61-00107A SPRING ETC-TENSION LEVER;TS-10,SUS304-WP
K250 BY730762 AC69-00104A BAND-BRAKE ASS’Y;TS-10,-,-,-,-,-,-
K330 BY730121 AC66-30550A LEVER-S.BRAKE ASSY;-,POM+SUS,-,-,-,X-9
K340 BY730120 AC66-30549A LEVER-T.BRAKE ASSY;-,POM+SUS,-,-,-,X-9
K350 BY730724 AC61-00106A SPRING ETC-BRAKE;TS-10,SUS304-WPB,-,-,-,
K470 BY730750 AC66-00020A SLIDER-FL DRIVE;TS-10,SECC E20/20,1.0,-,
K490 BY730726 AC61-00120A HOLDER-FL CASS. ASS’Y;TS-10,-,-,-,-,-,-
K502 BY730091 AC61-60561A SPRING ETC-FL.LEVER-LR;X-9,SUS304 WPB,OD
K530 BY730758 AC66-00034A LEVER-FL ARM ASS’Y;TS-10,-,-,-,-,-,-,-
K546 BY730086 AC61-50658A GUIDE-CASS. DOOR;X-9,POM,-,-,-,NTR
SC01 22797145 6003-000283 SCREW-TAPTITE;BH,+,B,M3,L8,ZPC(YEL),SM20
SC02 22797145 6003-000283 SCREW-TAPTITE;BH,+,B,M3,L8,ZPC(YEL),SM20
- ELECTRICAL PARTS -
601 BY630297 AC92-01099B ASSY PCB-MAIN;V-E59/TSB,4D,G/I/K HI-FI V-E59
BY630296 AC92-01099D ASSY PCB-MAIN;V-E29/TSB,4D,G/I/K MONO V-E29/E39
602 BY630288 AC94-00091J ASSY-F/AV,HI-FI;V-632EW,TS-10A,HI-FI,TSB V-E59 Only
< INTEGRATED CIRCUITS >
IC1SF1 BY631087 1203-001802 IC-PWM CONTROLLER;STR-G6551,TO-220F,5P,-
IC1SS1 BY530021 0604-000186 PHOTO-COUPLER;TR,-,200mW,DIP-4,ST
IC1SS2 70795271 AC14-12006D IC;KA431Z,TO-92,TAPING
IC301 BY631196 1204-001923 IC-VIDEO PROCESS;LA71730M,QFP,100P,-,PLA
IC4N01 BY631149 1204-001765 IC-AUDIO PROCESSOR;MSP3417D(PQFP),PQFP,4 V-E59 Only
IC501 BY631189 1204-001920 IC-AUDIO PROCESSOR;LA72646M,QFP,80P,14X1 V-E59 Only
IC601 BY631197 AC09-00337A IC MICOM;N128-A50-3BA,V-652F,100PINS,5V
IC604 70795269 AC14-12006C IC;KA7533,DIP,-
IC605 BY631069 1103-001150 IC-EEPROM;524C80D81,8KBit,DIP,8P,300MIL, V-E59
BY631045 1103-001148 IC-EEPROM;24C021,2KBIT,DIP,8P,300MIL,10M V-E29/E39
IC608 BY631059 1203-000515 IC-VOL. DETECTOR;7042,TO-92,3P,177MIL,PL
IC6P01 BY631150 AC09-00077A IC-OSD;LC74758JM-9779,LC74758JM-9779,
IC701 BY631188 1003-001443 IC-LED DRIVER;PT6959,SOIC,28P,300MIL,-,-
< TRANSISTORS >
PT601 BY530048 0604-001206 PHOTO-INTERRUPTER;TR,-,150mW,CY5894102,B
PT602 BY530048 0604-001206 PHOTO-INTERRUPTER;TR,-,150mW,CY5894102,B
Q1P101 70693265 0501-000616 TR-SMALL SIGNAL;KSC2328A-Y,NPN,1W,TO-92L
Q1P102 70693265 0501-000616 TR-SMALL SIGNAL;KSC2328A-Y,NPN,1W,TO-92L
Q1P103 70693265 0501-000616 TR-SMALL SIGNAL;KSC2328A-Y,NPN,1W,TO-92L V-E59 Only
Q1P104 70693410 0501-000610 TR-SMALL SIGNAL;KSA928A-Y,PNP,1W,TO-92L,
Q1P105 70795137 0504-000116 TR-DIGITAL;KSR1001,NPN,300MW,4.7K/4.7K,T
Q350 70795134 0501-000303 TR-SMALL SIGNAL;KSA733,PNP,250mW,TO-92,T
Q3A01 70795136 0501-000398 TR-SMALL SIGNAL;KSC945,NPN,250mW,TO-92,T
Q3A02 70795134 0501-000303 TR-SMALL SIGNAL;KSA733,PNP,250mW,TO-92,T
Q3A03 70795142 0501-000442 TR-SMALL SIGNAL;KTC3203-Y,NPN,400mW,T0-9
Q3A04 70795142 0501-000442 TR-SMALL SIGNAL;KTC3203-Y,NPN,400mW,T0-9
Q3A05 70795142 0501-000442 TR-SMALL SIGNAL;KTC3203-Y,NPN,400mW,T0-9
Q3A06 70795134 0501-000303 TR-SMALL SIGNAL;KSA733,PNP,250mW,TO-92,T
Q3D01 70795142 0501-000442 TR-SMALL SIGNAL;KTC3203-Y,NPN,400mW,T0-9 V-E59 Only
Q3D02 70795134 0501-000303 TR-SMALL SIGNAL;KSA733,PNP,250mW,TO-92,T V-E59 Only
Q3D07 BY530014 0504-000119 TR-DIGITAL;KSR1004,NPN,300MW,47K/47K,TO- V-E59 Only
Q601 BY530014 0504-000119 TR-DIGITAL;KSR1004,NPN,300MW,47K/47K,TO-
Q603 70795136 0501-000398 TR-SMALL SIGNAL;KSC945,NPN,250mW,TO-92,T V-E59 Only
Q6P01 70795134 0501-000303 TR-SMALL SIGNAL;KSA733,PNP,250mW,TO-92,T
Q6P02 70795134 0501-000303 TR-SMALL SIGNAL;KSA733,PNP,250mW,TO-92,T
Q806 70693084 0504-000142 TR-DIGITAL;KSR2001,PNP,300MW,4.7K/4.7K,T V-E29/E39 Only
Q809 70795136 0501-000398 TR-SMALL SIGNAL;KSC945,NPN,250mW,TO-92,T
S601 BY530003 0603-001011 PHOTO TR;NPN,35V,6V,50mA,75mW,BK
S602 BY530003 0603-001011 PHOTO TR;NPN,35V,6V,50mA,75mW,BK
< DIODES >
D1P101 70795150 0401-000101 DIODE-SWITCHING;1N4148,100V,200mA,DO-35,
D1P103 70795150 0401-000101 DIODE-SWITCHING;1N4148,100V,200mA,DO-35, V-E59 Only
Replacement Parts List
7-2 Toshiba
Loc.No. TSB Parts No. Reference No. Description ; Specification Remark
D1SD11 BY430011 0402-001195 DIODE-RECTIFIER;F1T4,400V,1.0A,TS-1,TP
D1SD31 BY430011 0402-001195 DIODE-RECTIFIER;F1T4,400V,1.0A,TS-1,TP
D1SF05 BY430012 0402-001196 DIODE-RECTIFIER;1T5,600V,1A,TS-1,TP
D1SF12 BY430011 0402-001195 DIODE-RECTIFIER;F1T4,400V,1.0A,TS-1,TP
D1SS01 BY430012 0402-001196 DIODE-RECTIFIER;1T5,600V,1A,TS-1,TP
D1SS02 BY430012 0402-001196 DIODE-RECTIFIER;1T5,600V,1A,TS-1,TP
D1SS03 BY430012 0402-001196 DIODE-RECTIFIER;1T5,600V,1A,TS-1,TP
D1SS04 BY430012 0402-001196 DIODE-RECTIFIER;1T5,600V,1A,TS-1,TP
D1SS11 BY430047 0402-000012 DIODE-RECTIFIER;UF4007,1KV,1A,DO-41,TP
D1SS31 BY430011 0402-001195 DIODE-RECTIFIER;F1T4,400V,1.0A,TS-1,TP
D1SS32 BY430010 0402-001194 DIODE-RECTIFIER;UG2D,200V,2A,DO-204AC,TP
D1SS33 BY430051 0404-001097 DIODE-SCHOTTKY;SG45,45V,7500mA,TO-220A,B
D301 70795150 0401-000101 DIODE-SWITCHING;1N4148,100V,200mA,DO-35,
D302 70796385 0402-000127 DIODE-RECTIFIER;1N4002,100V,1A,DO-41,TP
D410 70796385 0402-000127 DIODE-RECTIFIER;1N4002,100V,1A,DO-41,TP
D4N01 70795150 0401-000101 DIODE-SWITCHING;1N4148,100V,200mA,DO-35, V-E59 Only
D4N02 70795150 0401-000101 DIODE-SWITCHING;1N4148,100V,200mA,DO-35, V-E59 Only
D603 70795150 0401-000101 DIODE-SWITCHING;1N4148,100V,200mA,DO-35,
D605 70796385 0402-000127 DIODE-RECTIFIER;1N4002,100V,1A,DO-41,TP
D612 70796385 0402-000127 DIODE-RECTIFIER;1N4002,100V,1A,DO-41,TP
D701 70795150 0401-000101 DIODE-SWITCHING;1N4148,100V,200mA,DO-35,
D702 70795150 0401-000101 DIODE-SWITCHING;1N4148,100V,200mA,DO-35,
D703 70795150 0401-000101 DIODE-SWITCHING;1N4148,100V,200mA,DO-35,
D704 70795150 0401-000101 DIODE-SWITCHING;1N4148,100V,200mA,DO-35,
D805 70795150 0401-000101 DIODE-SWITCHING;1N4148,100V,200mA,DO-35,
LD601 BY430016 0601-000517 LED-IR;RECTANGULA,4x6.0mm,75mW,6V,950
ZD1P02 BY430005 0403-000717 DIODE-ZENER;MTZJ5.1B,5.1V,4.94-5.2V,500m
ZD1P03 BY430013 0403-000720 DIODE-ZENER;MTZJ9.1B,9.1V,8.57-9.01V,500 V-E59 Only
ZD1P04 BY430013 0403-000720 DIODE-ZENER;MTZJ9.1B,9.1V,8.57-9.01V,500
ZD401 70795272 0403-000390 DIODE-ZENER;UZP33B,33V,31.4-34.6V,1W,DO-
ZD810 BY430015 0403-001211 DIODE-ZENER;MTZJ12B,11.44-12.03V,500MW,D V-E59 Only
ZD811 BY430015 0403-001211 DIODE-ZENER;MTZJ12B,11.44-12.03V,500MW,D V-E59 Only
ZD812 BY430015 0403-001211 DIODE-ZENER;MTZJ12B,11.44-12.03V,500MW,D
ZD813 BY430015 0403-001211 DIODE-ZENER;MTZJ12B,11.44-12.03V,500MW,D
< INDUCTORS >
BD1SD1 70795644 AC27-92001M COIL-INDUCTOR;RH3.5X6.5RS,BEAD(RADIAL),-
BD1SF1 BY330019 3301-000297 CORE-FERRITE BEAD;AA,3.6x1.2x5.7mm,1400,
BD1SF2 70795644 AC27-92001M COIL-INDUCTOR;RH3.5X6.5RS,BEAD(RADIAL),-
BD1SF3 70795644 AC27-92001M COIL-INDUCTOR;RH3.5X6.5RS,BEAD(RADIAL),-
BD1SS1 70795644 AC27-92001M COIL-INDUCTOR;RH3.5X6.5RS,BEAD(RADIAL),-
BD1SS2 70795644 AC27-92001M COIL-INDUCTOR;RH3.5X6.5RS,BEAD(RADIAL),-
L1SS02 BY330065 AC29-00003A FILTER LINE NOISE;-,20mH MIN,-,-,-
L1SS31 70796213 AC27-12001N COIL-CHOKE;10UH-15%,RA,K-30,Q80,150KHZ,-
L1SS32 70796213 AC27-12001N COIL-CHOKE;10UH-15%,RA,K-30,Q80,150KHZ,-
FL3A01 70795862 2702-000166 INDUCTOR-RADIAL;47uH,5%,6x6.4mm
FL3D01 70795862 2702-000166 INDUCTOR-RADIAL;47uH,5%,6x6.4mm V-E59 Only
L301 BY330009 2701-000002 INDUCTOR-AXIAL;100uH,10%,4.2x9.8mm
L302 70796003 2702-000106 INDUCTOR-RADIAL;100uH,10%,6.2x7.4mm
L370 70796003 2702-000106 INDUCTOR-RADIAL;100uH,10%,6.2x7.4mm
L3A01 70795171 2702-000120 INDUCTOR-RADIAL;15mH,5%,6.2x7.4mm
L3A02 70796003 2702-000106 INDUCTOR-RADIAL;100uH,10%,6.2x7.4mm
L3A03 BY330009 2701-000002 INDUCTOR-AXIAL;100uH,10%,4.2x9.8mm
L3A50 70693395 2702-000119 INDUCTOR-RADIAL;150uH,5%,6x6.4mm V-E59 Only
L3D01 BY330009 2701-000002 INDUCTOR-AXIAL;100uH,10%,4.2x9.8mm V-E59 Only
L402 70796003 2702-000106 INDUCTOR-RADIAL;100uH,10%,6.2x7.4mm
L4N01 BY330066 2702-000160 INDUCTOR-RADIAL;4.7uH,10%,6x6.4mm V-E59 Only
L4N02 70796003 2702-000106 INDUCTOR-RADIAL;100uH,10%,6.2x7.4mm V-E59 Only
L4N03 BY330066 2702-000160 INDUCTOR-RADIAL;4.7uH,10%,6x6.4mm V-E59 Only
L501 BY330009 2701-000002 INDUCTOR-AXIAL;100uH,10%,4.2x9.8mm V-E59 Only
L602 BY330009 2701-000002 INDUCTOR-AXIAL;100uH,10%,4.2x9.8mm
L603 BY330009 2701-000002 INDUCTOR-AXIAL;100uH,10%,4.2x9.8mm
L6P03 70795162 2701-000160 INDUCTOR-AXIAL;22uH,5%,2.4x3.4mm
L6P05 BY330052 2701-000165 INDUCTOR-AXIAL;27uH,5%,2.4x3.4mm
L701 BY330009 2701-000002 INDUCTOR-AXIAL;100uH,10%,4.2x9.8mm
L807 BY330053 2701-000181 INDUCTOR-AXIAL;33uH,5%,2.4x3.4mm
L808 BY330053 2701-000181 INDUCTOR-AXIAL;33uH,5%,2.4x3.4mm V-E59 Only
L809 BY330053 2701-000181 INDUCTOR-AXIAL;33uH,5%,2.4x3.4mm V-E59 Only
L810 BY330053 2701-000181 INDUCTOR-AXIAL;33uH,5%,2.4x3.4mm
L814 70795644 AC27-92001M COIL-INDUCTOR;RH3.5X6.5RS,BEAD(RADIAL),- V-E59 Only
< CAPACITORS >
C1P102 BY130048 2401-002095 C-AL;47uF,20%,25V,GP,TP,6.3x5,5
C1P103 BY130042 2401-000598 C-AL;1uF,20%,50V,GP,TP,4x7,5
C1P104 BY130136 2401-002299 C-AL;4.7uF,20%,50V,GP,TP,5x7,5
C1P105 BY130048 2401-002095 C-AL;47uF,20%,25V,GP,TP,6.3x5,5
C1P106 BY130048 2401-002095 C-AL;47uF,20%,25V,GP,TP,6.3x5,5
Replacement Parts List
Toshiba 7-3
Loc.No. TSB Parts No. Reference No. Description ; Specification Remark
C1P108 BY130136 2401-002299 C-AL;4.7uF,20%,50V,GP,TP,5x7,5 V-E59 Only
C1P120 BY130048 2401-002095 C-AL;47uF,20%,25V,GP,TP,6.3x5,5
C1SD03 BY130216 2201-000812 C-CERAMIC,DISC;2.2nF,20%,400V,Y5U,BK,12.
C1SD04 BY130216 2201-000812 C-CERAMIC,DISC;2.2nF,20%,400V,Y5U,BK,12.
C1SD11 BY130289 2401-003303 C-AL;82uF,20%,400V,GP,BK,22X30,10
C1SD12 BY130226 2305-001029 C-FILM,MPEF;10nF,10%,630V,TP,12x9x12.5,5
C1SD13 70795070 2201-000376 C-CERAMIC,DISC;0.22nF,5%,50V,SL,TP,6.3x3
C1SF12 BY130290 2401-001200 C-AL;33UF,20%,50V,WT,TP,6.3X11,2.5
C1SS01 BY130272 2305-001021 C-FILM,MPEF;100nF,20%,275V,TP,17.5x7x13.
C1SS02 BY130272 2305-001021 C-FILM,MPEF;100nF,20%,275V,TP,17.5x7x13.
C1SS03 BY130216 2201-000812 C-CERAMIC,DISC;2.2nF,20%,400V,Y5U,BK,12.
C1SS12 BY130258 2201-000129 C-CERAMIC,DISC;0.1nF,10%,1kV,Y5P,TP,7x4,
C1SS31 70795431 2401-000385 C-AL;10uF,20%,100V,GP,TP,6.3x11,5
C1SS32 BY130187 2401-003137 C-AL;330UF,20%,50V,WT,TP,10X16MM,5
C1SS33 BY130248 2401-003477 C-AL;330UF,20%,25V,LZ,TP,10X12.5MM,
C1SS34 BY130248 2401-003477 C-AL;330UF,20%,25V,LZ,TP,10X12.5MM,
C1SS35 BY130339 2401-003480 C-AL;1000UF,20%,10V,LZ,TP,10X16MM,5
C1SS36 70796210 2401-000118 C-AL;1000uF,20%,10V,GP,TP,10x12.5,5
C1SS39 70796098 2301-000129 C-FILM,PEF;100nF,5%,50V,TP,10X9X4.3X5,5m
C315 BY130293 2203-000989 C-CERAMIC,CHIP;47nF,10%,50V,X7R,TP,2012
C316 BY130390 2203-001728 C-CERAMIC,CHIP;0.047nF,10%,50V,X7R,TP,20
C317 BY130042 2401-000598 C-AL;1uF,20%,50V,GP,TP,4x7,5
C318 BY130042 2401-000598 C-AL;1uF,20%,50V,GP,TP,4x7,5
C319 BY130207 2203-000844 C-CERAMIC,CHIP;39nF,10%,50V,X7R,TP,2012,
C320 BY130021 2202-000854 C-CERAMIC,MLC-AXIAL;47nF,30%,50V,Y5R,TP,
C321 70693249 2202-000807 C-CERAMIC,MLC-AXIAL;22nF,+80-20%,25V,Y5V
C322 BY130042 2401-000598 C-AL;1uF,20%,50V,GP,TP,4x7,5
C324 70796281 2203-000260 C-CERAMIC,CHIP;10nF,10%,50V,X7R,TP,2012
C325 BY130048 2401-002095 C-AL;47uF,20%,25V,GP,TP,6.3x5,5
C326 BY130042 2401-000598 C-AL;1uF,20%,50V,GP,TP,4x7,5
C327 BY130432 2202-000720 C-CERAMIC,MLC-AXIAL;8.2nF,20%,16V,Y5R,TP
C328 70796281 2203-000260 C-CERAMIC,CHIP;10nF,10%,50V,X7R,TP,2012
C329 BY130352 2203-000206 C-CERAMIC,CHIP;100nF,10%,50V,X7R,TP,2012
C330 BY130293 2203-000989 C-CERAMIC,CHIP;47nF,10%,50V,X7R,TP,2012
C331 BY130352 2203-000206 C-CERAMIC,CHIP;100nF,10%,50V,X7R,TP,2012
C332 BY130021 2202-000854 C-CERAMIC,MLC-AXIAL;47nF,30%,50V,Y5R,TP,
C333 BY130273 2401-000414 C-AL;10uF,20%,16V,GP,TP,4x7,5
C335 BY130030 2203-000925 C-CERAMIC,CHIP;470NF,+80-20%,50V,Y5V,TP,
C336 BY130021 2202-000854 C-CERAMIC,MLC-AXIAL;47nF,30%,50V,Y5R,TP, V-E59 Only
C337 BY130030 2203-000925 C-CERAMIC,CHIP;470NF,+80-20%,50V,Y5V,TP,
C338 70693249 2202-000807 C-CERAMIC,MLC-AXIAL;22nF,+80-20%,25V,Y5V
C339 BY130273 2401-000414 C-AL;10uF,20%,16V,GP,TP,4x7,5
C340 BY130016 2401-001226 C-AL;4.7uF,20%,16V,BP,TP,4x7,5mm
C341 BY130048 2401-002095 C-AL;47uF,20%,25V,GP,TP,6.3x5,5
C342 BY130027 2202-002037 C-CERAMIC,MLC-AXIAL;100nF,80-20%,50V,Y5V
C343 BY130191 2203-000476 C-CERAMIC,CHIP;1000nF,+80-20%,16V,Y5V,TP
C344 BY130433 2203-000321 C-CERAMIC,CHIP;0.12nF,5%,50V,SL,TP,2012
C345 72531473 2203-000595 C-CERAMIC,CHIP;0.22nF,5%,50V,NP0,TP,2012
C346 70796281 2203-000260 C-CERAMIC,CHIP;10nF,10%,50V,X7R,TP,2012
C347 BY130191 2203-000476 C-CERAMIC,CHIP;1000nF,+80-20%,16V,Y5V,TP
C348 BY130352 2203-000206 C-CERAMIC,CHIP;100nF,10%,50V,X7R,TP,2012
C349 BY130191 2203-000476 C-CERAMIC,CHIP;1000nF,+80-20%,16V,Y5V,TP
C350 BY130352 2203-000206 C-CERAMIC,CHIP;100nF,10%,50V,X7R,TP,2012
C351 BY130048 2401-002095 C-AL;47uF,20%,25V,GP,TP,6.3x5,5
C352 BY130042 2401-000598 C-AL;1uF,20%,50V,GP,TP,4x7,5
C353 BY130042 2401-000598 C-AL;1uF,20%,50V,GP,TP,4x7,5
C354 BY130048 2401-002095 C-AL;47uF,20%,25V,GP,TP,6.3x5,5
C355 BY130021 2202-000854 C-CERAMIC,MLC-AXIAL;47nF,30%,50V,Y5R,TP,
C356 70795969 2203-000239 C-CERAMIC,CHIP;0.1nF,5%,50V,NP0,TP,2012 V-E59 Only
C371 70796281 2203-000260 C-CERAMIC,CHIP;10nF,10%,50V,X7R,TP,2012
C372 BY130352 2203-000206 C-CERAMIC,CHIP;100nF,10%,50V,X7R,TP,2012
C380 70693249 2202-000807 C-CERAMIC,MLC-AXIAL;22nF,+80-20%,25V,Y5V
C384 BY130352 2203-000206 C-CERAMIC,CHIP;100nF,10%,50V,X7R,TP,2012
C385 BY130280 2401-002165 C-AL;100uF,20%,16V,GP,TP,6.3x7,5
C3A01 70795626 2401-003122 C-AL;4.7uF,20%,50V,LL,TP,4X7,1.5
C3A02 BY130044 2401-000922 C-AL;22uF,20%,16V,GP,TP,5x5,5
C3A08 70796281 2203-000260 C-CERAMIC,CHIP;10nF,10%,50V,X7R,TP,2012
C3A09 70796337 2203-001105 C-CERAMIC,CHIP;6.8nF,10%,50V,X7R,TP,2012
C3A10 70796409 2203-001214 C-CERAMIC,CHIP;8.2nF,10%,50V,X7R,TP,2012
C3A11 BY130204 2301-000180 C-FILM,PEF;18nF,0.05,100V,TP,7.2x4.5x8.0 V-E59
BY130375 2301-000174 C-FILM,PEF;15nF,5%,100V,TP,7.2x4.0x7.5mm V-E29/E39
C3A12 BY130048 2401-002095 C-AL;47uF,20%,25V,GP,TP,6.3x5,5
C3A14 70795976 2203-000938 C-CERAMIC,CHIP;0.47nF,5%,50V,NP0,TP,2012
C3A15 70796281 2203-000260 C-CERAMIC,CHIP;10nF,10%,50V,X7R,TP,2012
C3A16 70795626 2401-003122 C-AL;4.7uF,20%,50V,LL,TP,4X7,1.5
C3A17 BY130273 2401-000414 C-AL;10uF,20%,16V,GP,TP,4x7,5
C3A18 BY130434 2203-001223 C-CERAMIC,CHIP;0.82nF,10%,50V,X7R,TP,201
C3A21 BY130147 2203-000170 C-CERAMIC,CHIP;1.8nF,10%,50V,X7R,TP,2012
C3A22 BY130352 2203-000206 C-CERAMIC,CHIP;100nF,10%,50V,X7R,TP,2012 V-E29/E39 Only
Replacement Parts List
7-4 Toshiba
Loc.No. TSB Parts No. Reference No. Description ; Specification Remark
C3A23 BY130245 2401-002069 C-AL;33uF,20%,16V,GP,TP,6.3x5,5
C3A24 BY130352 2203-000206 C-CERAMIC,CHIP;100nF,10%,50V,X7R,TP,2012
C3A29 BY130352 2203-000206 C-CERAMIC,CHIP;100nF,10%,50V,X7R,TP,2012
C3A30 BY130048 2401-002095 C-AL;47uF,20%,25V,GP,TP,6.3x5,5
C3A40 BY130273 2401-000414 C-AL;10uF,20%,16V,GP,TP,4x7,5
C3A41 BY130042 2401-000598 C-AL;1uF,20%,50V,GP,TP,4x7,5
C3D01 BY130082 2301-000224 C-FILM,PEF;22nF,5%,50V,TP,7.4x3.9x13mm,5 V-E59 Only
C3D02 BY130282 2401-003107 C-AL;47uF,20%,16V,GP,TP,5x7,5 V-E59 Only
C3D03 BY130282 2401-003107 C-AL;47uF,20%,16V,GP,TP,5x7,5 V-E59 Only
C3D04 70795976 2203-000938 C-CERAMIC,CHIP;0.47nF,5%,50V,NP0,TP,2012 V-E59 Only
C401 BY130015 2401-001479 C-AL;470uF,20%,10V,GP,TP,-,-
C402 70795974 2203-000609 C-CERAMIC,CHIP;22nF,10%,50V,X7R,TP,2012
C403 BY130282 2401-003107 C-AL;47uF,20%,16V,GP,TP,5x7,5
C404 BY130431 2401-001077 C-AL;330nF,20%,50V,GP,TP,4x7mm,5mm
C405 BY130281 2401-003046 C-AL;47uF,20%,50V,WT,TP,6.3x11,2.5
C406 70795075 2202-000797 C-CERAMIC,MLC-AXIAL;10NF,30%,16V,Y5S,TP,
C407 BY130282 2401-003107 C-AL;47uF,20%,16V,GP,TP,5x7,5
C408 70796281 2203-000260 C-CERAMIC,CHIP;10nF,10%,50V,X7R,TP,2012
C410 70796281 2203-000260 C-CERAMIC,CHIP;10nF,10%,50V,X7R,TP,2012
C4N01 BY130351 2203-000142 C-CERAMIC,CHIP;1.5nF,10%,50V,X7R,TP,2012 V-E59 Only
C4N02 BY130273 2401-000414 C-AL;10uF,20%,16V,GP,TP,4x7,5 V-E59 Only
C4N03 72531473 2203-000595 C-CERAMIC,CHIP;0.22nF,5%,50V,NP0,TP,2012 V-E59 Only
C4N04 BY130424 2401-000665 C-AL;2.2uF,20%,50V,GP,TP,3.5x5,5 V-E59 Only
C4N05 70796281 2203-000260 C-CERAMIC,CHIP;10nF,10%,50V,X7R,TP,2012 V-E59 Only
C4N06 70796281 2203-000260 C-CERAMIC,CHIP;10nF,10%,50V,X7R,TP,2012 V-E59 Only
C4N07 70795976 2203-000938 C-CERAMIC,CHIP;0.47nF,5%,50V,NP0,TP,2012 V-E59 Only
C4N08 BY130351 2203-000142 C-CERAMIC,CHIP;1.5nF,10%,50V,X7R,TP,2012 V-E59 Only
C4N09 BY130273 2401-000414 C-AL;10uF,20%,16V,GP,TP,4x7,5 V-E59 Only
C4N10 BY130273 2401-000414 C-AL;10uF,20%,16V,GP,TP,4x7,5 V-E59 Only
C4N11 BY130159 2401-001020 C-AL;3.3UF,20%,50V,GP,TP,4X7,5 V-E59 Only
C4N12 BY130352 2203-000206 C-CERAMIC,CHIP;100nF,10%,50V,X7R,TP,2012 V-E59 Only
C4N13 BY130352 2203-000206 C-CERAMIC,CHIP;100nF,10%,50V,X7R,TP,2012 V-E59 Only
C4N14 BY130273 2401-000414 C-AL;10uF,20%,16V,GP,TP,4x7,5 V-E59 Only
C4N15 BY130352 2203-000206 C-CERAMIC,CHIP;100nF,10%,50V,X7R,TP,2012 V-E59 Only
C4N16 BY130282 2401-003107 C-AL;47uF,20%,16V,GP,TP,5x7,5 V-E59 Only
C4N17 70795976 2203-000938 C-CERAMIC,CHIP;0.47nF,5%,50V,NP0,TP,2012 V-E59 Only
C4N18 70795976 2203-000938 C-CERAMIC,CHIP;0.47nF,5%,50V,NP0,TP,2012 V-E59 Only
C4N19 70693047 2202-000279 C-CERAMIC,MLC-AXIAL;47pF,5%,50V,SL,TP,3. V-E59 Only
C4N21 BY130261 2201-002069 C-CERAMIC,DISC;1.5pF,0.25pF,50V,NPO,TP,4 V-E59 Only
C4N22 BY130261 2201-002069 C-CERAMIC,DISC;1.5pF,0.25pF,50V,NPO,TP,4 V-E59 Only
C4N23 BY130042 2401-000598 C-AL;1uF,20%,50V,GP,TP,4x7,5 V-E59 Only
C4N24 BY130042 2401-000598 C-AL;1uF,20%,50V,GP,TP,4x7,5 V-E59 Only
C4N25 BY130027 2202-002037 C-CERAMIC,MLC-AXIAL;100nF,80-20%,50V,Y5V V-E59 Only
C4N30 70795075 2202-000797 C-CERAMIC,MLC-AXIAL;10NF,30%,16V,Y5S,TP, V-E59 Only
C501 BY130273 2401-000414 C-AL;10uF,20%,16V,GP,TP,4x7,5 V-E59 Only
C502 BY130352 2203-000206 C-CERAMIC,CHIP;100nF,10%,50V,X7R,TP,2012 V-E59 Only
C503 BY130044 2401-000922 C-AL;22uF,20%,16V,GP,TP,5x5,5 V-E59 Only
C504 BY130273 2401-000414 C-AL;10uF,20%,16V,GP,TP,4x7,5 V-E59 Only
C505 BY130136 2401-002299 C-AL;4.7uF,20%,50V,GP,TP,5x7,5 V-E59 Only
C506 70796281 2203-000260 C-CERAMIC,CHIP;10nF,10%,50V,X7R,TP,2012 V-E59 Only
C507 BY130044 2401-000922 C-AL;22uF,20%,16V,GP,TP,5x5,5 V-E59 Only
C508 BY130174 2203-000891 C-CERAMIC,CHIP;4.7nF,10%,50V,X7R,TP,2012 V-E59 Only
C510 BY130048 2401-002095 C-AL;47uF,20%,25V,GP,TP,6.3x5,5 V-E59 Only
C511 70796281 2203-000260 C-CERAMIC,CHIP;10nF,10%,50V,X7R,TP,2012 V-E59 Only
C513 70796281 2203-000260 C-CERAMIC,CHIP;10nF,10%,50V,X7R,TP,2012 V-E59 Only
C517 BY130174 2203-000891 C-CERAMIC,CHIP;4.7nF,10%,50V,X7R,TP,2012 V-E59 Only
C518 BY130044 2401-000922 C-AL;22uF,20%,16V,GP,TP,5x5,5 V-E59 Only
C519 70796281 2203-000260 C-CERAMIC,CHIP;10nF,10%,50V,X7R,TP,2012 V-E59 Only
C520 BY130136 2401-002299 C-AL;4.7uF,20%,50V,GP,TP,5x7,5 V-E59 Only
C521 BY130273 2401-000414 C-AL;10uF,20%,16V,GP,TP,4x7,5 V-E59 Only
C522 BY130352 2203-000206 C-CERAMIC,CHIP;100nF,10%,50V,X7R,TP,2012 V-E59 Only
C523 BY130352 2203-000206 C-CERAMIC,CHIP;100nF,10%,50V,X7R,TP,2012 V-E59 Only
C524 BY130136 2401-002299 C-AL;4.7uF,20%,50V,GP,TP,5x7,5 V-E59 Only
C525 BY130136 2401-002299 C-AL;4.7uF,20%,50V,GP,TP,5x7,5 V-E59 Only
C526 BY130280 2401-002165 C-AL;100uF,20%,16V,GP,TP,6.3x7,5 V-E59 Only
C527 70795075 2202-000797 C-CERAMIC,MLC-AXIAL;10NF,30%,16V,Y5S,TP, V-E59 Only
C529 BY130136 2401-002299 C-AL;4.7uF,20%,50V,GP,TP,5x7,5 V-E59 Only
C530 BY130352 2203-000206 C-CERAMIC,CHIP;100nF,10%,50V,X7R,TP,2012 V-E59 Only
C537 BY130424 2401-000665 C-AL;2.2uF,20%,50V,GP,TP,3.5x5,5 V-E59 Only
C538 BY130424 2401-000665 C-AL;2.2uF,20%,50V,GP,TP,3.5x5,5 V-E59 Only
C541 BY130042 2401-000598 C-AL;1uF,20%,50V,GP,TP,4x7,5 V-E59 Only
C542 BY130280 2401-002165 C-AL;100uF,20%,16V,GP,TP,6.3x7,5 V-E59 Only
C601 BY130048 2401-002095 C-AL;47uF,20%,25V,GP,TP,6.3x5,5
C602 70795974 2203-000609 C-CERAMIC,CHIP;22nF,10%,50V,X7R,TP,2012
C605 70796281 2203-000260 C-CERAMIC,CHIP;10nF,10%,50V,X7R,TP,2012
C607 BY130131 2401-002259 C-AL;0.1F,+80-20%,5.5V,-,TP,12.5x11
C609 70795974 2203-000609 C-CERAMIC,CHIP;22nF,10%,50V,X7R,TP,2012
C618 BY130317 2401-000360 C-AL;100uF,20%,50V,GP,TP,8x11.5,5
C620 70796281 2203-000260 C-CERAMIC,CHIP;10nF,10%,50V,X7R,TP,2012
Replacement Parts List
Toshiba 7-5
Loc.No. TSB Parts No. Reference No. Description ; Specification Remark
C622 BY130373 2203-001137 C-CERAMIC,CHIP;68nF,+80-20%,50V,Y5V,TP,2
C623 70796281 2203-000260 C-CERAMIC,CHIP;10nF,10%,50V,X7R,TP,2012
C624 BY130152 2203-000634 C-CERAMIC,CHIP;0.022nF,5%,50V,NP0,TP,201
C625 BY130152 2203-000634 C-CERAMIC,CHIP;0.022nF,5%,50V,NP0,TP,201
C626 BY130152 2203-000634 C-CERAMIC,CHIP;0.022nF,5%,50V,NP0,TP,201
C627 BY130152 2203-000634 C-CERAMIC,CHIP;0.022nF,5%,50V,NP0,TP,201
C633 70796281 2203-000260 C-CERAMIC,CHIP;10nF,10%,50V,X7R,TP,2012
C634 70796281 2203-000260 C-CERAMIC,CHIP;10nF,10%,50V,X7R,TP,2012
C635 BY130166 2203-000495 C-CERAMIC,CHIP;2.2nF,10%,50V,X7R,TP,2012
C636 BY130166 2203-000495 C-CERAMIC,CHIP;2.2nF,10%,50V,X7R,TP,2012
C637 70795976 2203-000938 C-CERAMIC,CHIP;0.47nF,5%,50V,NP0,TP,2012
C638 70796152 2401-002196 C-AL;4.7UF,20,25V,GP,TP,4X5,5MM,-
C639 70795969 2203-000239 C-CERAMIC,CHIP;0.1nF,5%,50V,NP0,TP,2012
C640 BY130048 2401-002095 C-AL;47uF,20%,25V,GP,TP,6.3x5,5
C641 BY130280 2401-002165 C-AL;100uF,20%,16V,GP,TP,6.3x7,5
C642 BY130352 2203-000206 C-CERAMIC,CHIP;100nF,10%,50V,X7R,TP,2012
C644 70693317 2202-000806 C-CERAMIC,MLC-AXIAL;220pF,10%,50V,Y5P,TP
C646 BY130027 2202-002037 C-CERAMIC,MLC-AXIAL;100nF,80-20%,50V,Y5V
C650 BY130166 2203-000495 C-CERAMIC,CHIP;2.2nF,10%,50V,X7R,TP,2012
C651 70795974 2203-000609 C-CERAMIC,CHIP;22nF,10%,50V,X7R,TP,2012
C652 BY130280 2401-002165 C-AL;100uF,20%,16V,GP,TP,6.3x7,5
C655 70795363 2202-000791 C-CERAMIC,MLC-AXIAL;150pF,10%,50V,Y5P,TP
C679 70795974 2203-000609 C-CERAMIC,CHIP;22nF,10%,50V,X7R,TP,2012
C680 70796210 2401-000118 C-AL;1000uF,20%,10V,GP,TP,10x12.5,5
C681 BY130280 2401-002165 C-AL;100uF,20%,16V,GP,TP,6.3x7,5
C690 BY130293 2203-000989 C-CERAMIC,CHIP;47nF,10%,50V,X7R,TP,2012
C691 70796281 2203-000260 C-CERAMIC,CHIP;10nF,10%,50V,X7R,TP,2012
C692 BY130048 2401-002095 C-AL;47uF,20%,25V,GP,TP,6.3x5,5
C693 70796291 2401-001992 C-AL;2200UF,20%,10V,WT,TP,10X20MM,5
C695 BY130151 2203-000361 C-CERAMIC,CHIP;0.15nF,5%,50V,NP0,TP,2012
C697 70795974 2203-000609 C-CERAMIC,CHIP;22nF,10%,50V,X7R,TP,2012
C698 BY130144 2203-000802 C-CERAMIC,CHIP;33nF,10%,50V,X7R,TP,2012 V-E59 Only
C6B07 BY130262 2202-000173 C-CERAMIC,MLC-AXIAL;1nF,10%,50V,Y5P,TP,1 V-E59 Only
C6B08 BY130262 2202-000173 C-CERAMIC,MLC-AXIAL;1nF,10%,50V,Y5P,TP,1 V-E59 Only
C6P01 70796281 2203-000260 C-CERAMIC,CHIP;10nF,10%,50V,X7R,TP,2012
C6P02 70795250 2203-000316 C-CERAMIC,CHIP;0.12nF,5%,50V,NP0,TP,2012
C6P04 BY130154 2203-000683 C-CERAMIC,CHIP;0.027nF,5%,50V,NP0,TP,201
C6P05 BY130154 2203-000683 C-CERAMIC,CHIP;0.027nF,5%,50V,NP0,TP,201
C6P08 BY130173 2202-000286 C-CERAMIC,MLC-AXIAL;56pF,5%,50V,SL,TP,1.
C6P10 BY130042 2401-000598 C-AL;1uF,20%,50V,GP,TP,4x7,5
C6P11 BY130042 2401-000598 C-AL;1uF,20%,50V,GP,TP,4x7,5
C6P12 BY130282 2401-003107 C-AL;47uF,20%,16V,GP,TP,5x7,5
C6P13 BY130352 2203-000206 C-CERAMIC,CHIP;100nF,10%,50V,X7R,TP,2012
C701 BY130015 2401-001479 C-AL;470uF,20%,10V,GP,TP,-,-
C702 70796281 2203-000260 C-CERAMIC,CHIP;10nF,10%,50V,X7R,TP,2012
C703 BY130167 2203-000444 C-CERAMIC,CHIP;1nF,10%,50V,X7R,TP,2012,-
C806 70795969 2203-000239 C-CERAMIC,CHIP;0.1nF,5%,50V,NP0,TP,2012
C822 70795969 2203-000239 C-CERAMIC,CHIP;0.1nF,5%,50V,NP0,TP,2012
C837 BY130344 2203-000784 C-CERAMIC,CHIP;0.33nF,5%,50V,NP0,TP,2012
C838 BY130344 2203-000784 C-CERAMIC,CHIP;0.33nF,5%,50V,NP0,TP,2012 V-E59 Only
C844 BY130344 2203-000784 C-CERAMIC,CHIP;0.33nF,5%,50V,NP0,TP,2012 V-E59 Only
C845 BY130344 2203-000784 C-CERAMIC,CHIP;0.33nF,5%,50V,NP0,TP,2012
< RESISTORS >
J301 70795513 2007-000029 R-CHIP;0OHM,5%,1/10W,DA,TP,2012
J302 70795513 2007-000029 R-CHIP;0OHM,5%,1/10W,DA,TP,2012 V-E59 Only
J303 70795513 2007-000029 R-CHIP;0OHM,5%,1/10W,DA,TP,2012
J813 70795513 2007-000029 R-CHIP;0OHM,5%,1/10W,DA,TP,2012 V-E29/E39 Only
J814 70795513 2007-000029 R-CHIP;0OHM,5%,1/10W,DA,TP,2012 V-E29/E39 Only
R1P101 BY230022 2001-000034 R-CARBON;220OHM,5%,1/4W,AA,TP,2.4X6.4MM
R1P102 70795589 2007-000872 R-CHIP;4.7KOHM,5%,1/10W,DA,TP,2012 V-E59 Only
R1P104 70795683 2007-000290 R-CHIP;100OHM,5%,1/10W,DA,TP,2012 V-E59 Only
R1P105 70795516 2007-000300 R-CHIP;10KOHM,5%,1/10W,DA,TP,2012 V-E59 Only
R1P106 70795020 2001-000449 R-CARBON;2.2KOHM,5%,1/8W,AA,TP,1.8X3.2M
R1P107 70795684 2007-000282 R-CHIP;100KOHM,5%,1/10W,DA,TP,2012
R1P108 BY230024 2001-000611 R-CARBON;3.9KOHM,5%,1/4W,AA,TP,2.4X6.4M
R1P110 70795683 2007-000290 R-CHIP;100OHM,5%,1/10W,DA,TP,2012
R1P115 70795025 2001-000554 R-CARBON;270OHM,5%,1/8W,AA,TP,1.8X3.2MM
R1SD12 BY230106 2001-000938 R-CARBON;68OHM,5%,1/8W,AA,TP,1.8X3.2MM
R1SD13 BY230171 2001-000076 R-CARBON;47KOHM,5%,1/4W,AA,TP,2.4X6.4MM
R1SD14 BY230171 2001-000076 R-CARBON;47KOHM,5%,1/4W,AA,TP,2.4X6.4MM
R1SD15 BY230171 2001-000076 R-CARBON;47KOHM,5%,1/4W,AA,TP,2.4X6.4MM
R1SD16 BY230027 2003-000994 R-METAL OXIDE(S);33Kohm,5%,2W,AF,TP,3.9x
R1SD31 70795039 2001-000780 R-CARBON;470OHM,5%,1/8W,AA,TP,1.8X3.2MM
R1SD32 70795005 2001-000429 R-CARBON;1KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R1SF11 BY230171 2001-000076 R-CARBON;47KOHM,5%,1/4W,AA,TP,2.4X6.4MM
R1SF15 70795031 2001-000591 R-CARBON;3.3KOHM,5%,1/8W,AA,TP,1.8X3.2M
R1SF19 70795005 2001-000429 R-CARBON;1KOHM,5%,1/8W,AA,TP,1.8X3.2MM
Replacement Parts List
7-6 Toshiba
Loc.No. TSB Parts No. Reference No. Description ; Specification Remark
R1SF20 BY230146 2003-000105 R-METAL OXIDE;0.33ohm,5%,2W,AD,TP,6x16mm
R1SF21 BY230036 2001-000096 R-CARBON(S);1MOHM,5%,1/2W,AA,TP,2.4X6.4M
R1SS03 BY230265 2008-001033 R-FUSIBLE(S);10ohm,5%,2W,AF,TP,3.9x10mm
R1SS10 BY230170 2006-000262 R-CEMENT;2.7ohm,10%,2W,CB,TP,7.5x11x20.
R1SS11 BY230027 2003-000994 R-METAL OXIDE(S);33Kohm,5%,2W,AF,TP,3.9x
R1SS32 70795515 2007-000468 R-CHIP;1KOHM,5%,1/10W,DA,TP,2012
R1SS33 70795640 2004-000869 R-METAL;3Kohm,1%,1/8W,AA,TP,1.8x3.2mm
R1SS34 70795638 2004-000459 R-METAL;2.2Kohm,1%,1/8W,AA,TP,1.8x3.2m
R315 70795519 2007-000221 R-CHIP;1.2KOHM,5%,1/10W,DA,TP,2012
R316 70795546 2007-001177 R-CHIP;8.2KOHM,5%,1/10W,DA,TP,2012
R320 70795016 2001-000411 R-CARBON;18KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R321 70795006 2001-000290 R-CARBON;10KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R322 70795016 2001-000411 R-CARBON;18KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R323 70795535 2007-000710 R-CHIP;3.9KOHM,5%,1/10W,DA,TP,2012
R325 70795004 2001-000281 R-CARBON;100OHM,5%,1/8W,AA,TP,1.8X3.2MM
R326 70795004 2001-000281 R-CARBON;100OHM,5%,1/8W,AA,TP,1.8X3.2MM
R327 70795589 2007-000872 R-CHIP;4.7KOHM,5%,1/10W,DA,TP,2012
R328 70795519 2007-000221 R-CHIP;1.2KOHM,5%,1/10W,DA,TP,2012
R329 70795529 2007-000518 R-CHIP;2.7KOHM,5%,1/10W,DA,TP,2012
R330 70795542 2007-001071 R-CHIP;6.8KOHM,5%,1/10W,DA,TP,2012
R331 70795523 2007-000267 R-CHIP;1.8KOHM,5%,1/10W,DA,TP,2012
R333 70795708 2007-001039 R-CHIP;56KOHM,5%,1/10W,DA,TP,2012
R334 70795520 2007-000241 R-CHIP;1.5KOHM,5%,1/10W,DA,TP,2012 V-E59
70795519 2007-000221 R-CHIP;1.2KOHM,5%,1/10W,DA,TP,2012 V-E29/E39
R335 70795004 2001-000281 R-CARBON;100OHM,5%,1/8W,AA,TP,1.8X3.2MM
R336 BY230097 2007-001166 R-CHIP;75OHM,5%,1/10W,DA,TP,2012 V-E59 Only
R360 BY230092 2007-000068 R-CHIP;470KOHM,5%,1/10W,DA,TP,2012
R370 70795358 2001-000857 R-CARBON;560OHM,5%,1/8W,AA,TP,1.8X3.2MM
R372 70795515 2007-000468 R-CHIP;1KOHM,5%,1/10W,DA,TP,2012
R373 70795521 2007-000409 R-CHIP;15KOHM,5%,1/10W,DA,TP,2012
R374 70795683 2007-000290 R-CHIP;100OHM,5%,1/10W,DA,TP,2012
R3A01 70795006 2001-000290 R-CARBON;10KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R3A04 70795519 2007-000221 R-CHIP;1.2KOHM,5%,1/10W,DA,TP,2012
R3A05 BY230093 2007-000615 R-CHIP;24KOHM,5%,1/10W,DA,TP,2012
R3A06 70795522 2007-000449 R-CHIP;180OHM,5%,1/10W,DA,TP,2012
R3A07 BY230094 2007-000757 R-CHIP;330KOHM,5%,1/10W,DA,TP,2012
R3A08 70795686 2007-000355 R-CHIP;12KOHM,5%,1/10W,DA,TP,2012
R3A09 70795513 2007-000029 R-CHIP;0OHM,5%,1/10W,DA,TP,2012
R3A11 70795526 2007-000493 R-CHIP;2.2KOHM,5%,1/10W,DA,TP,2012
R3A12 70795683 2007-000290 R-CHIP;100OHM,5%,1/10W,DA,TP,2012
R3A13 70795527 2007-000586 R-CHIP;22KOHM,5%,1/10W,DA,TP,2012 V-E59
70795705 2007-000941 R-CHIP;47KOHM,5%,1/10W,DA,TP,2012 V-E29/E39
R3A14 70795021 2001-000522 R-CARBON;22KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R3A16 70795516 2007-000300 R-CHIP;10KOHM,5%,1/10W,DA,TP,2012
R3A17 70795526 2007-000493 R-CHIP;2.2KOHM,5%,1/10W,DA,TP,2012
R3A18 70795526 2007-000493 R-CHIP;2.2KOHM,5%,1/10W,DA,TP,2012
R3A23 70795011 2001-000331 R-CARBON;12KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R3A24 70795527 2007-000586 R-CHIP;22KOHM,5%,1/10W,DA,TP,2012
R3A25 70795519 2007-000221 R-CHIP;1.2KOHM,5%,1/10W,DA,TP,2012
R3A26 70795006 2001-000290 R-CARBON;10KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R3A27 70795541 2007-001055 R-CHIP;6.2KOHM,5%,1/10W,DA,TP,2012 V-E29/E39 Only
R3A28 70795523 2007-000267 R-CHIP;1.8KOHM,5%,1/10W,DA,TP,2012 V-E59
BY230007 2007-000964 R-CHIP;5.1KOHM,5%,1/10W,DA,TP,2012 V-E29/E39
R3A31 70795513 2007-000029 R-CHIP;0OHM,5%,1/10W,DA,TP,2012 V-E59
BY230220 2007-000003 R-CHIP;43KOHM,5%,1/10W,DA,TP,2012 V-E29/E39
R3A32 70795038 2001-000766 R-CARBON;43KOHM,5%,1/8W,AA,TP,1.8X3.2MM V-E29/E39 Only
R3A50 BY230007 2007-000964 R-CHIP;5.1KOHM,5%,1/10W,DA,TP,2012
R3A51 70795516 2007-000300 R-CHIP;10KOHM,5%,1/10W,DA,TP,2012
R3A60 70795609 2001-000605 R-CARBON;3.6KOHM,5%,1/8W,AA,TP,1.8X3.2M V-E59 Only
R3D01 70795705 2007-000941 R-CHIP;47KOHM,5%,1/10W,DA,TP,2012 V-E59 Only
R3D02 70795589 2007-000872 R-CHIP;4.7KOHM,5%,1/10W,DA,TP,2012 V-E59 Only
R3D03 70795527 2007-000586 R-CHIP;22KOHM,5%,1/10W,DA,TP,2012 V-E59 Only
R3D04 70795006 2001-000290 R-CARBON;10KOHM,5%,1/8W,AA,TP,1.8X3.2MM V-E59 Only
R401 70795705 2007-000941 R-CHIP;47KOHM,5%,1/10W,DA,TP,2012
R402 70795683 2007-000290 R-CHIP;100OHM,5%,1/10W,DA,TP,2012
R403 70795683 2007-000290 R-CHIP;100OHM,5%,1/10W,DA,TP,2012
R404 70795683 2007-000290 R-CHIP;100OHM,5%,1/10W,DA,TP,2012
R406 70795006 2001-000290 R-CARBON;10KOHM,5%,1/8W,AA,TP,1.8X3.2MM V-E59
70795021 2001-000522 R-CARBON;22KOHM,5%,1/8W,AA,TP,1.8X3.2MM V-E29/E39
R407 70795526 2007-000493 R-CHIP;2.2KOHM,5%,1/10W,DA,TP,2012 V-E59
70795546 2007-001177 R-CHIP;8.2KOHM,5%,1/10W,DA,TP,2012 V-E29/E39
R408 BY230019 2001-000221 R-CARBON;1.2KOHM,5%,1/8W,AA,TP,1.8X3.2M
R4N01 70795515 2007-000468 R-CHIP;1KOHM,5%,1/10W,DA,TP,2012 V-E59 Only
R4N02 70795683 2007-000290 R-CHIP;100OHM,5%,1/10W,DA,TP,2012 V-E59 Only
R4N03 70795683 2007-000290 R-CHIP;100OHM,5%,1/10W,DA,TP,2012 V-E59 Only
R4N04 70795696 2007-000653 R-CHIP;27KOHM,5%,1/10W,DA,TP,2012 V-E59 Only
R4N05 70795004 2001-000281 R-CARBON;100OHM,5%,1/8W,AA,TP,1.8X3.2MM V-E59 Only
R4N06 70795004 2001-000281 R-CARBON;100OHM,5%,1/8W,AA,TP,1.8X3.2MM V-E59 Only
R501 BY230220 2007-000003 R-CHIP;43KOHM,5%,1/10W,DA,TP,2012 V-E59 Only
Replacement Parts List
Toshiba 7-7
Loc.No. TSB Parts No. Reference No. Description ; Specification Remark
R502 70795541 2007-001055 R-CHIP;6.2KOHM,5%,1/10W,DA,TP,2012 V-E59 Only
R503 70795704 2007-000931 R-CHIP;470OHM,5%,1/10W,DA,TP,2012 V-E59 Only
R505 BY230220 2007-000003 R-CHIP;43KOHM,5%,1/10W,DA,TP,2012 V-E59 Only
R506 70795541 2007-001055 R-CHIP;6.2KOHM,5%,1/10W,DA,TP,2012 V-E59 Only
R507 70795038 2001-000766 R-CARBON;43KOHM,5%,1/8W,AA,TP,1.8X3.2MM V-E59 Only
R508 70795541 2007-001055 R-CHIP;6.2KOHM,5%,1/10W,DA,TP,2012 V-E59 Only
R509 70795541 2007-001055 R-CHIP;6.2KOHM,5%,1/10W,DA,TP,2012 V-E59 Only
R510 70795038 2001-000766 R-CARBON;43KOHM,5%,1/8W,AA,TP,1.8X3.2MM V-E59 Only
R511 70795686 2007-000355 R-CHIP;12KOHM,5%,1/10W,DA,TP,2012 V-E59 Only
R512 70795533 2007-000774 R-CHIP;33KOHM,5%,1/10W,DA,TP,2012 V-E59 Only
R514 70795705 2007-000941 R-CHIP;47KOHM,5%,1/10W,DA,TP,2012 V-E59 Only
R516 70795041 2001-000786 R-CARBON;47KOHM,5%,1/8W,AA,TP,1.8X3.2MM V-E59 Only
R517 70795541 2007-001055 R-CHIP;6.2KOHM,5%,1/10W,DA,TP,2012 V-E59 Only
R518 BY230220 2007-000003 R-CHIP;43KOHM,5%,1/10W,DA,TP,2012 V-E59 Only
R519 70795541 2007-001055 R-CHIP;6.2KOHM,5%,1/10W,DA,TP,2012 V-E59 Only
R520 BY230220 2007-000003 R-CHIP;43KOHM,5%,1/10W,DA,TP,2012 V-E59 Only
R545 BY230239 2007-000511 R-CHIP;2.4KOHM,5%,1/10W,DA,TP,2012 V-E59 Only
R546 70795515 2007-000468 R-CHIP;1KOHM,5%,1/10W,DA,TP,2012 V-E59 Only
R547 70795515 2007-000468 R-CHIP;1KOHM,5%,1/10W,DA,TP,2012 V-E59 Only
R570 70795515 2007-000468 R-CHIP;1KOHM,5%,1/10W,DA,TP,2012 V-E59 Only
R571 70795708 2007-001039 R-CHIP;56KOHM,5%,1/10W,DA,TP,2012 V-E59 Only
R601 70795005 2001-000429 R-CARBON;1KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R602 70795005 2001-000429 R-CARBON;1KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R603 70795005 2001-000429 R-CARBON;1KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R604 70795005 2001-000429 R-CARBON;1KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R605 70795005 2001-000429 R-CARBON;1KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R607 70795005 2001-000429 R-CARBON;1KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R608 70795047 2001-000864 R-CARBON;56KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R609 70795047 2001-000864 R-CARBON;56KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R610 70795005 2001-000429 R-CARBON;1KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R611 70795005 2001-000429 R-CARBON;1KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R613 70795515 2007-000468 R-CHIP;1KOHM,5%,1/10W,DA,TP,2012
R614 70795005 2001-000429 R-CARBON;1KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R630 70795006 2001-000290 R-CARBON;10KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R631 70795515 2007-000468 R-CHIP;1KOHM,5%,1/10W,DA,TP,2012
R632 70795045 2001-000837 R-CARBON;51KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R637 BY230225 2007-000947 R-CHIP;47OHM,5%,1/10W,DA,TP,2012
R638 70795005 2001-000429 R-CARBON;1KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R639 70795005 2001-000429 R-CARBON;1KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R640 70795516 2007-000300 R-CHIP;10KOHM,5%,1/10W,DA,TP,2012
R641 70795704 2007-000931 R-CHIP;470OHM,5%,1/10W,DA,TP,2012
R642 70795704 2007-000931 R-CHIP;470OHM,5%,1/10W,DA,TP,2012
R644 70795005 2001-000429 R-CARBON;1KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R651 BY230091 2007-000001 R-CHIP;68KOHM,5%,1/10W,DA,TP,2012
R656 70795516 2007-000300 R-CHIP;10KOHM,5%,1/10W,DA,TP,2012
R657 70795052 2001-000010 R-CARBON;68KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R660 70795041 2001-000786 R-CARBON;47KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R661 70795533 2007-000774 R-CHIP;33KOHM,5%,1/10W,DA,TP,2012
R666 70795704 2007-000931 R-CHIP;470OHM,5%,1/10W,DA,TP,2012
R667 70795704 2007-000931 R-CHIP;470OHM,5%,1/10W,DA,TP,2012
R668 70795516 2007-000300 R-CHIP;10KOHM,5%,1/10W,DA,TP,2012
R669 70795516 2007-000300 R-CHIP;10KOHM,5%,1/10W,DA,TP,2012
R670 70795589 2007-000872 R-CHIP;4.7KOHM,5%,1/10W,DA,TP,2012
R671 70795589 2007-000872 R-CHIP;4.7KOHM,5%,1/10W,DA,TP,2012
R672 70795589 2007-000872 R-CHIP;4.7KOHM,5%,1/10W,DA,TP,2012
R674 70795006 2001-000290 R-CARBON;10KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R675 BY230164 2001-000032 R-CARBON;180OHM,5%,1/4W,AA,TP,2.4X6.4MM
R676 72532205 2007-000738 R-CHIP;30KOHM,5%,1/10W,DA,TP,2012
R678 70795527 2007-000586 R-CHIP;22KOHM,5%,1/10W,DA,TP,2012
R679 70795019 2001-000515 R-CARBON;220OHM,5%,1/8W,AA,TP,1.8X3.2MM
R680 70795021 2001-000522 R-CARBON;22KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R682 70795527 2007-000586 R-CHIP;22KOHM,5%,1/10W,DA,TP,2012
R685 70795539 2007-000981 R-CHIP;5.6KOHM,5%,1/10W,DA,TP,2012
R690 70795708 2007-001039 R-CHIP;56KOHM,5%,1/10W,DA,TP,2012
R691 70795019 2001-000515 R-CARBON;220OHM,5%,1/8W,AA,TP,1.8X3.2MM
R692 70795024 2001-000568 R-CARBON;27OHM,5%,1/8W,AA,TP,1.8X3.2MM
R693 70795705 2007-000941 R-CHIP;47KOHM,5%,1/10W,DA,TP,2012
R694 70795705 2007-000941 R-CHIP;47KOHM,5%,1/10W,DA,TP,2012
R696 70795005 2001-000429 R-CARBON;1KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R697 70795683 2007-000290 R-CHIP;100OHM,5%,1/10W,DA,TP,2012 V-E29/E39 Only
R698 70795516 2007-000300 R-CHIP;10KOHM,5%,1/10W,DA,TP,2012
R6P05 70795006 2001-000290 R-CARBON;10KOHM,5%,1/8W,AA,TP,1.8X3.2MM
R6P07 70795525 2007-000572 R-CHIP;220OHM,5%,1/10W,DA,TP,2012
R6P08 70795534 2007-000822 R-CHIP;390OHM,5%,1/10W,DA,TP,2012
R6P09 70795526 2007-000493 R-CHIP;2.2KOHM,5%,1/10W,DA,TP,2012
R6P10 70795019 2001-000515 R-CARBON;220OHM,5%,1/8W,AA,TP,1.8X3.2MM
R727 70795521 2007-000409 R-CHIP;15KOHM,5%,1/10W,DA,TP,2012
R728 70795521 2007-000409 R-CHIP;15KOHM,5%,1/10W,DA,TP,2012
R729 70795521 2007-000409 R-CHIP;15KOHM,5%,1/10W,DA,TP,2012
Replacement Parts List
7-8 Toshiba
Loc.No. TSB Parts No. Reference No. Description ; Specification Remark
R730 70795521 2007-000409 R-CHIP;15KOHM,5%,1/10W,DA,TP,2012
R731 70795516 2007-000300 R-CHIP;10KOHM,5%,1/10W,DA,TP,2012
R732 BY230222 2007-000658 R-CHIP;27OHM,5%,1/10W,DA,TP,2012
R733 BY230222 2007-000658 R-CHIP;27OHM,5%,1/10W,DA,TP,2012
R734 BY230222 2007-000658 R-CHIP;27OHM,5%,1/10W,DA,TP,2012
R735 BY230222 2007-000658 R-CHIP;27OHM,5%,1/10W,DA,TP,2012
R736 BY230222 2007-000658 R-CHIP;27OHM,5%,1/10W,DA,TP,2012
R737 BY230222 2007-000658 R-CHIP;27OHM,5%,1/10W,DA,TP,2012
R738 BY230222 2007-000658 R-CHIP;27OHM,5%,1/10W,DA,TP,2012
R741 BY230222 2007-000658 R-CHIP;27OHM,5%,1/10W,DA,TP,2012
R753 70795684 2007-000282 R-CHIP;100KOHM,5%,1/10W,DA,TP,2012 V-E59 Only
R807 BY230097 2007-001166 R-CHIP;75OHM,5%,1/10W,DA,TP,2012
R810 70795515 2007-000468 R-CHIP;1KOHM,5%,1/10W,DA,TP,2012 V-E29/E39 Only
R812 BY230097 2007-001166 R-CHIP;75OHM,5%,1/10W,DA,TP,2012
R813 70795515 2007-000468 R-CHIP;1KOHM,5%,1/10W,DA,TP,2012
R814 70795515 2007-000468 R-CHIP;1KOHM,5%,1/10W,DA,TP,2012
R815 70795515 2007-000468 R-CHIP;1KOHM,5%,1/10W,DA,TP,2012
R816 70795515 2007-000468 R-CHIP;1KOHM,5%,1/10W,DA,TP,2012
R828 70795004 2001-000281 R-CARBON;100OHM,5%,1/8W,AA,TP,1.8X3.2MM
R842 70795358 2001-000857 R-CARBON;560OHM,5%,1/8W,AA,TP,1.8X3.2MM
W000 70795513 2007-000029 R-CHIP;0OHM,5%,1/10W,DA,TP,2012 V-E59 Only
W050 70795513 2007-000029 R-CHIP;0OHM,5%,1/10W,DA,TP,2012 V-E29/E39 Only
W062 70795005 2001-000429 R-CARBON;1KOHM,5%,1/8W,AA,TP,1.8X3.2MM
W064 70795005 2001-000429 R-CARBON;1KOHM,5%,1/8W,AA,TP,1.8X3.2MM
W066 70795005 2001-000429 R-CARBON;1KOHM,5%,1/8W,AA,TP,1.8X3.2MM
W140 70795004 2001-000281 R-CARBON;100OHM,5%,1/8W,AA,TP,1.8X3.2MM V-E59 Only
W172 70795513 2007-000029 R-CHIP;0OHM,5%,1/10W,DA,TP,2012
W199 70795513 2007-000029 R-CHIP;0OHM,5%,1/10W,DA,TP,2012 V-E29/E39 Only
W376 70795513 2007-000029 R-CHIP;0OHM,5%,1/10W,DA,TP,2012
W383 70795513 2007-000029 R-CHIP;0OHM,5%,1/10W,DA,TP,2012
W384 70795513 2007-000029 R-CHIP;0OHM,5%,1/10W,DA,TP,2012
W386 70795513 2007-000029 R-CHIP;0OHM,5%,1/10W,DA,TP,2012
W506 70795513 2007-000029 R-CHIP;0OHM,5%,1/10W,DA,TP,2012
W515 70795513 2007-000029 R-CHIP;0OHM,5%,1/10W,DA,TP,2012
W701 70795513 2007-000029 R-CHIP;0OHM,5%,1/10W,DA,TP,2012
W702 70795513 2007-000029 R-CHIP;0OHM,5%,1/10W,DA,TP,2012
W750 70795513 2007-000029 R-CHIP;0OHM,5%,1/10W,DA,TP,2012
W751 70795513 2007-000029 R-CHIP;0OHM,5%,1/10W,DA,TP,2012
W752 70795513 2007-000029 R-CHIP;0OHM,5%,1/10W,DA,TP,2012
< MISCELLANEOUS >
CN1SS1 70796223 3711-000178 CONNECTOR-HEADER;1WALL,2P,1R,3.96mm,STRA
CN301 70796387 3708-000391 CONNECTOR-FPC/FFC/PIC;10P,1.25mm,STRAIGH V-E59
BY634421 3708-000394 CONNECTOR-FPC/FFC/PIC;6P,1.25mm,STRAIGHT V-E29/E39
CN3A01 BY634023 3708-001165 CONNECTOR-FPC/FFC/PIC;6P,1.25mm,STRAIGHT
CN3A02 BY634412 3710-001648 CONNECTOR-SOCKET;2P,1R,2.5mm,STRAIGHT,SN
CN604 BY634669 3711-004833 CONNECTOR-HEADER;BOX,12P,2R,2MM,STRAIGHT
CN705 BY634269 3710-001564 CONNECTOR-SOCKET;11P,1R,2mm,ANGLE,SN V-E59 Only
CN708 BY634284 3711-004415 CONNECTOR-HEADER;3WALL,11P,1R,2mm,STRAIG V-E59 Only
DT701 BY634694 AC07-00032A LED DISPLAY;LTG-0130M,-,38,8,5,55.2*18.5
F1SS01 BY634112 3601-001123 FUSE-CARTRIDGE;250V,1.6A,TIME-LAG,CERAMI
FC1SS1 BY634083 3602-000103 FUSE-CLIP;-,-,10mohm
FC1SS2 BY634083 3602-000103 FUSE-CLIP;-,-,10mohm
GP401 BY634725 AC63-00076A GROUND-RF;SV-653F,SUS304,T0.3,-,-,-,-
JC801 BY634436 3722-001577 JACK-PIN;6P,3.5mm,NI,BLK,- V-E59
BY634558 3722-001575 JACK-PIN;4P/6P,3.5mm,NI,BLK,- V-E29/E39
JK701 BY634408 AC37-00006A JACK-PIN;3.2MM,DPSE-9872,3P,ARREY,10MM V-E59 Only
RM701 BY630162 AC32-00006A MODULE REMOCON;TSOP2238WE1,38KHZ,-,5.08m
PT1SS1 BY330068 AC26-00002C TRANS SWITCHING;-,-,EE2621,-,UL/CSA/DEMK
RS601 BY632005 AC34-20100B SWITCH-REC;-,-,X-9,-
SW601 BY632004 AC34-20100A SWITCH-MODE;-,-,X-9,-
TM401 BY634728 AC40-00014A TM BLOCK;TCMK0601PD13A,G/I/K(MONO,HIFI)
VA1SS1 BY634022 1405-001026 VARISTOR;470V,600A,9x7mm,TP
XT301 BY633009 2801-001397 CRYSTAL-UNIT;4.433619MHz,20ppm,28-AAA,S,
XT302 BY633012 2801-003399 CRYSTAL-UNIT;3.579545MHz,15ppm,28-AAA,S,
XT4N01 BY633011 2801-003171 CRYSTAL-UNIT;18.432MHz,20PPM,28-AAM,4PF, V-E59 Only
XT601 BY633003 2801-003318 CRYSTAL-UNIT;32.768KHz,20ppm,28-AAP,12.5
XT602 BY633010 2801-003139 CRYSTAL-UNIT;8MHz,50ppm,28-AAA,22pF,80oh
Replacement Parts List
Toshiba 7-9
Loc.No. TSB Parts No. Reference No. Description ; Specification Remark
Replacement Parts List
7-10 Toshiba
MEMO
438B ALEXANDRA ROAD BLOCK B #06-01
ALEXANDRA TECHNOPARK
SINGAPORE 119968
TOSHIBA VIDEO PRODUCTS PTE LTD
V-E59,39,29 1/7/04 12:46 AM Page 2
SERVICE MANUAL
FILE NO. 120-200229
VIDEO CASSETTE RECORDER
V-E59
V-E39
V-E29
APR, 2002
V-E59,39,29 1/7/04 12:46 AM Page 1
Toshiba 8-1

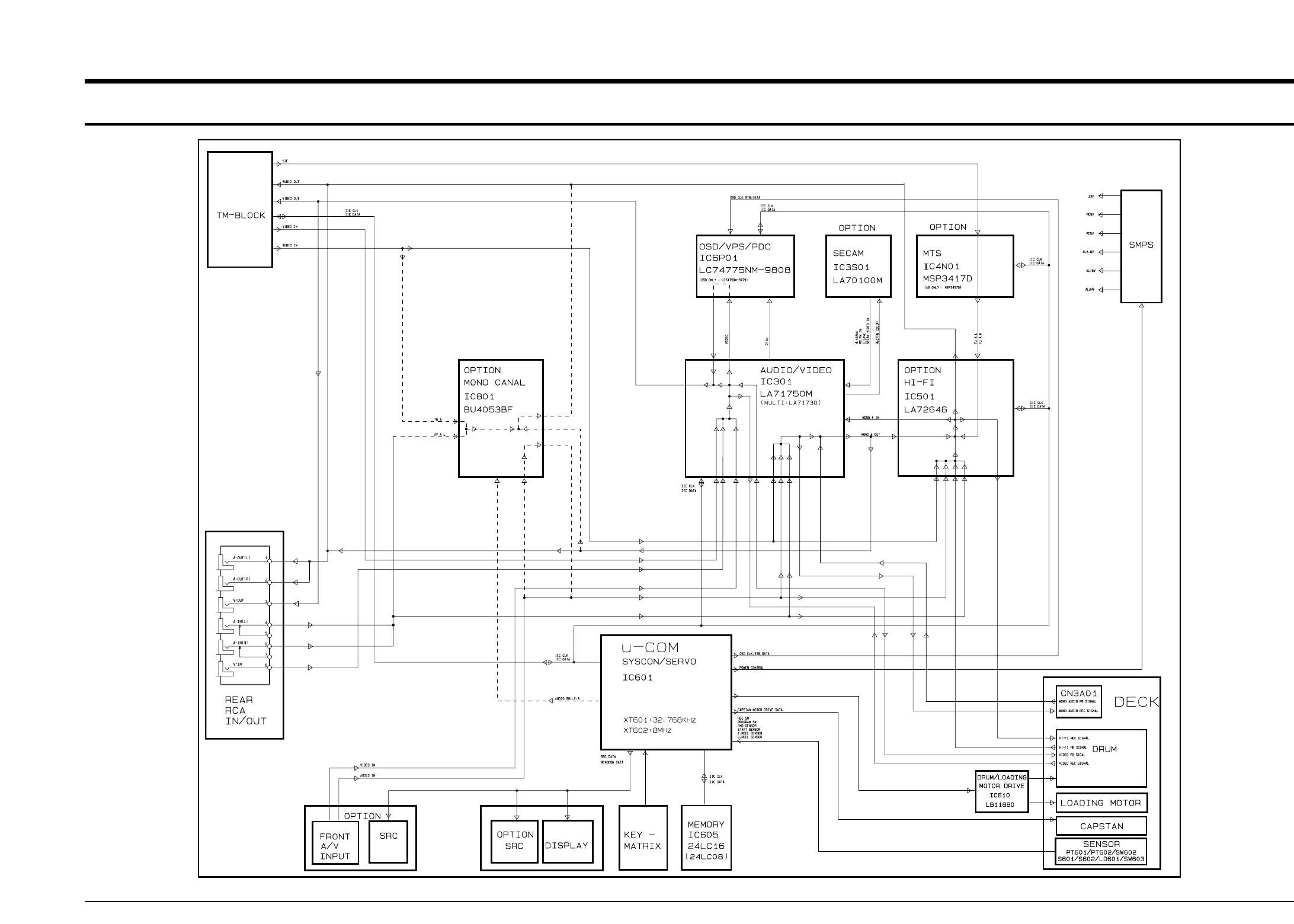

8. Block Diagram
Block Diagram
8-2 Toshiba
MEMO
Toshiba 9-1
9. PCB Diagrams
9-2
9-4
9-1 Main - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -
9-2 F-A/V (V-E59 Only)- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -
PCB Diagrams
9-2 Toshiba

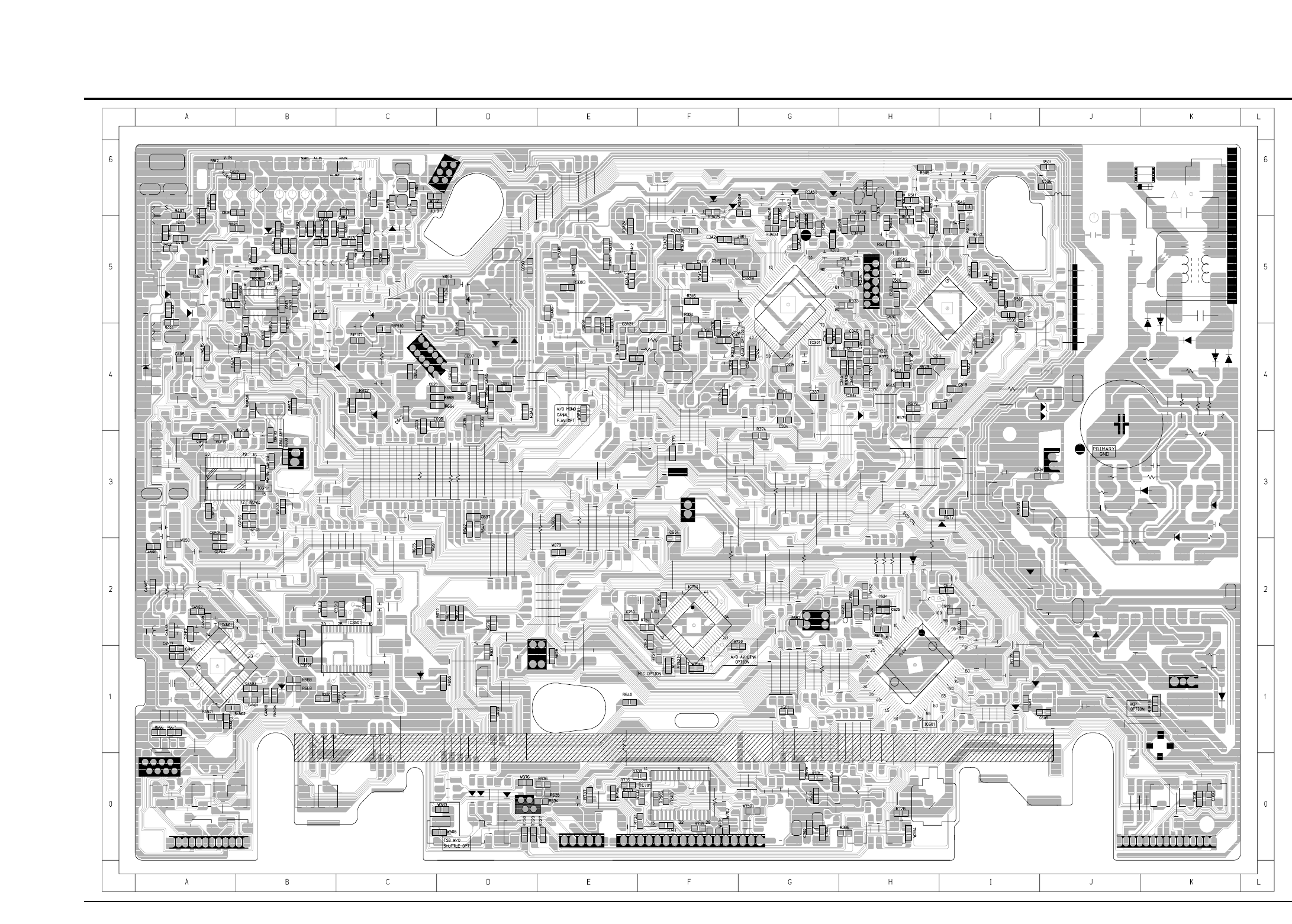

9-1 Main
PCB Diagrams

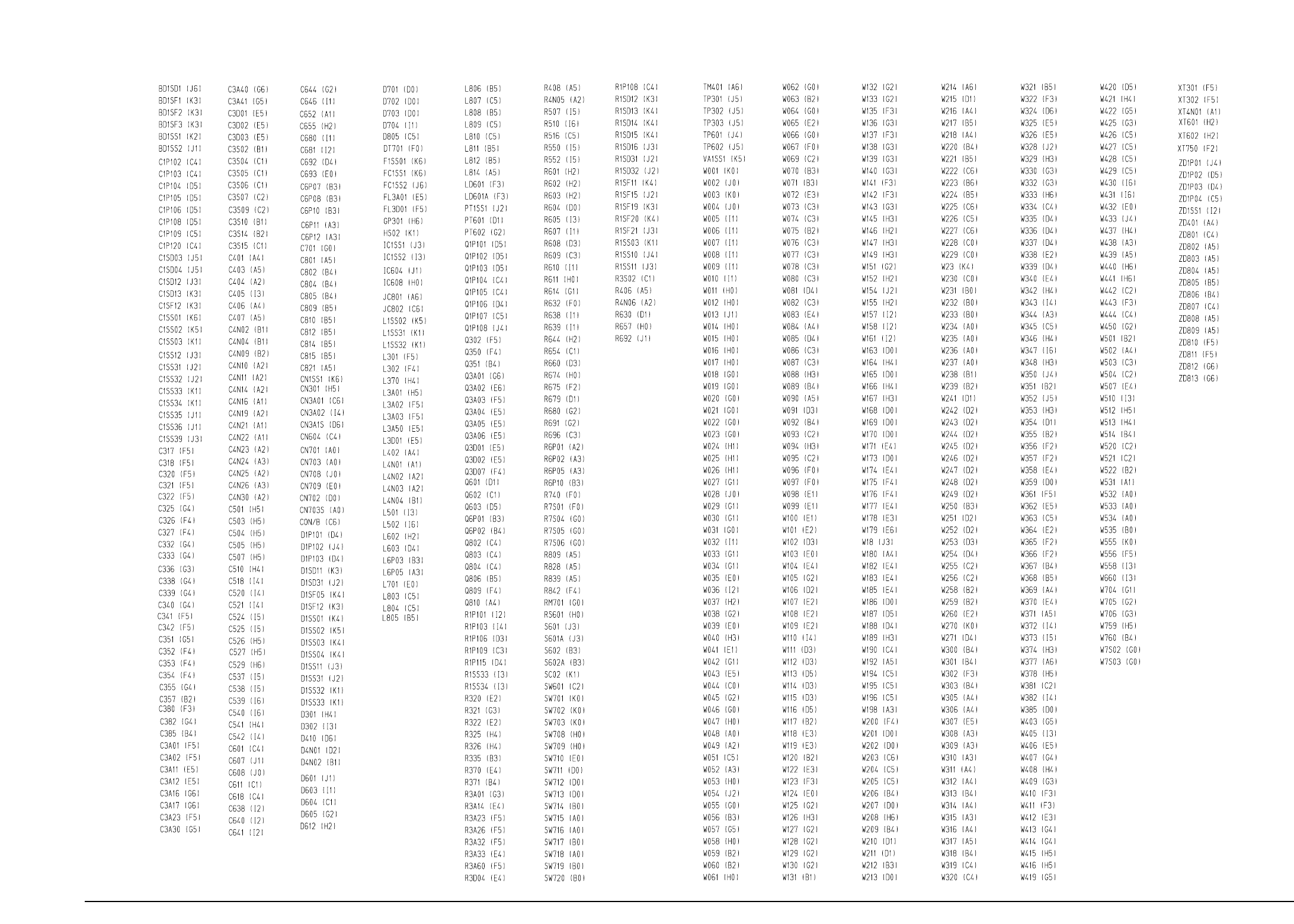

Toshiba 9-3
PCB Diagrams
9-4 Toshiba

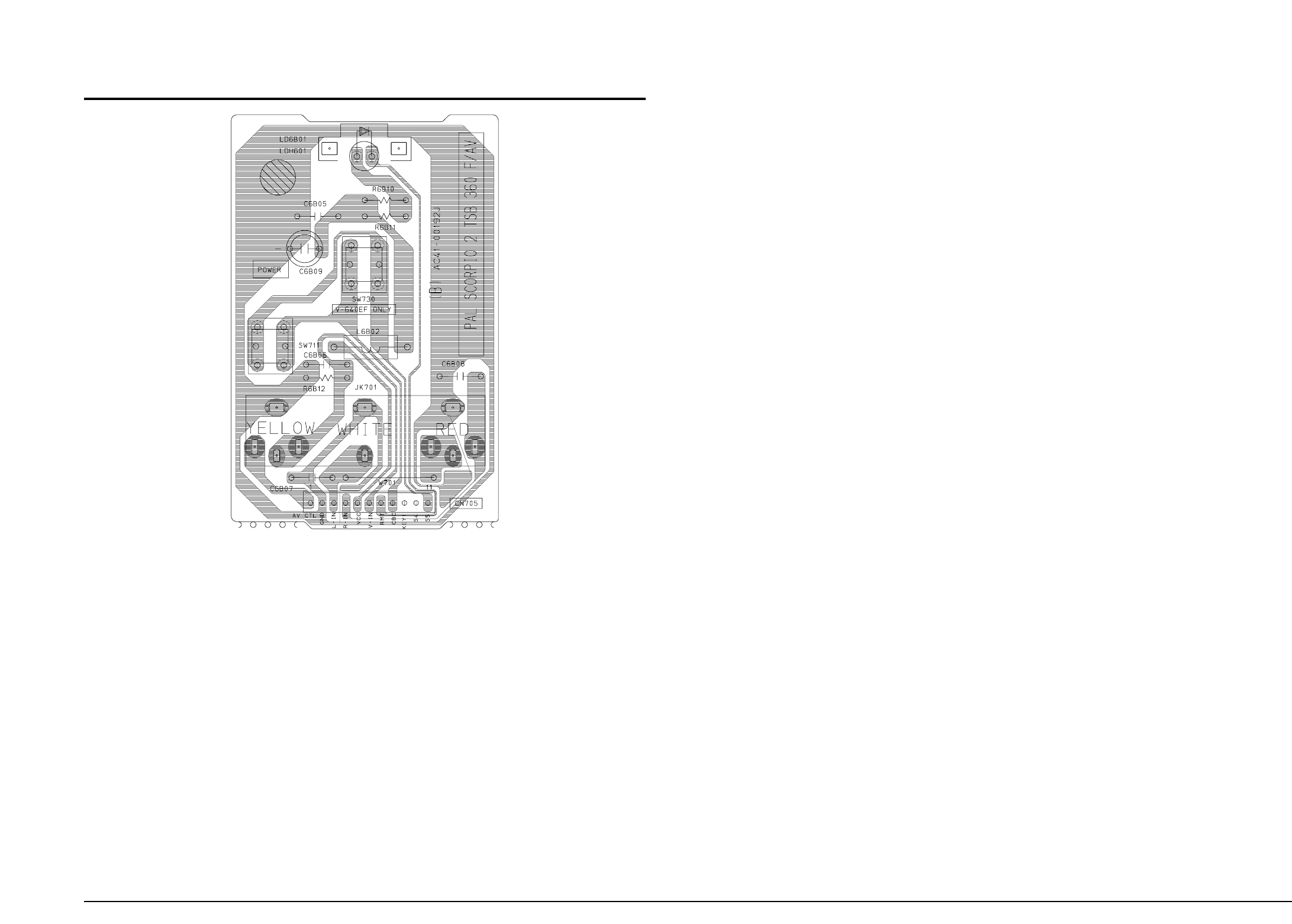

9-2 F-A/V (V-E59 Only)
Toshiba 10-1
10. Schematic Diagrams
10-2
10-3
10-4
10-5
10-6
10-7
10-8
10-9
10-10
10-11
10-12
◆Block Identification of Main PCB - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -
10-1 S.M.P.S. (Free Voltage) - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -
10-2 Power - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -
10-3 System Control/Servo/Display - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -
10-4 Audio/Video - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -
10-5 Hi-Fi (For V-E59 Only) - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -
10-6 TM-Block - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -
10-7 NICAM (For V-E59 Only) - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -
10-8 OSD/VPS/PDC - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -
10-9 Input-Output - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -
10-10 Sub F A/V (For V-E59 Only)- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -
Schematic Diagrams
10-2 Toshiba
For schematic Diagram
- Resistors are in ohms, 1/8W unless otherwise noted.
Note
Special note :
Most semiconductor devices are electrostatically sensitive and therefore require the special handling techniques described under the
“electrostatically sensitive (ES) devices” section of this service manual.
Note :
Do not use the part number shown on this drawing for ordering. The correct part number is shown in the parts list (may be slightly different
or amended since this drawing was prepared).
Important safety notices :
Components identified with the mark have the special characteristics for safety. When replacing any of these components.
Use only the same type.

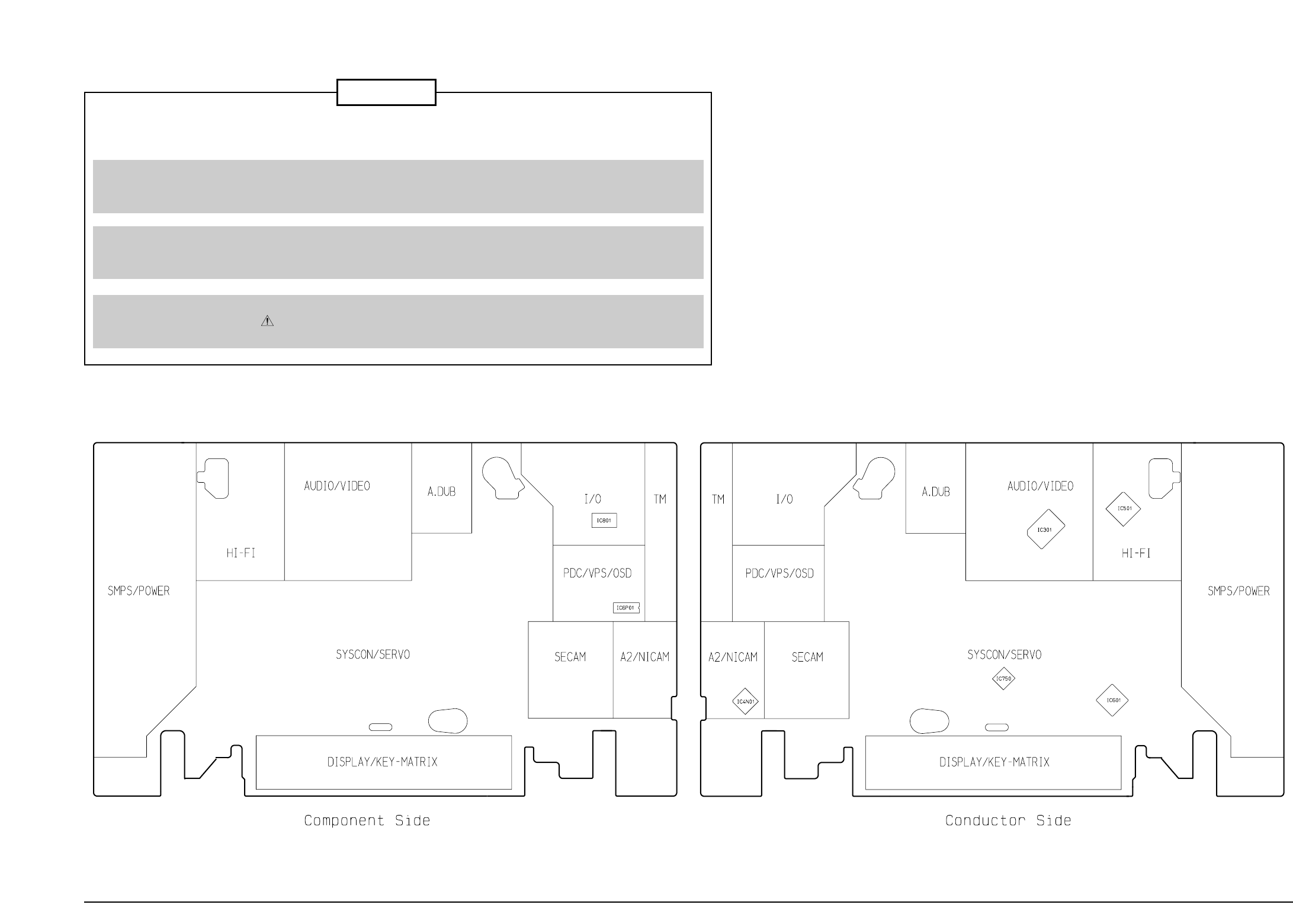

◆Block Identification of Main PCB
Schematic Diagrams
Toshiba 10-3

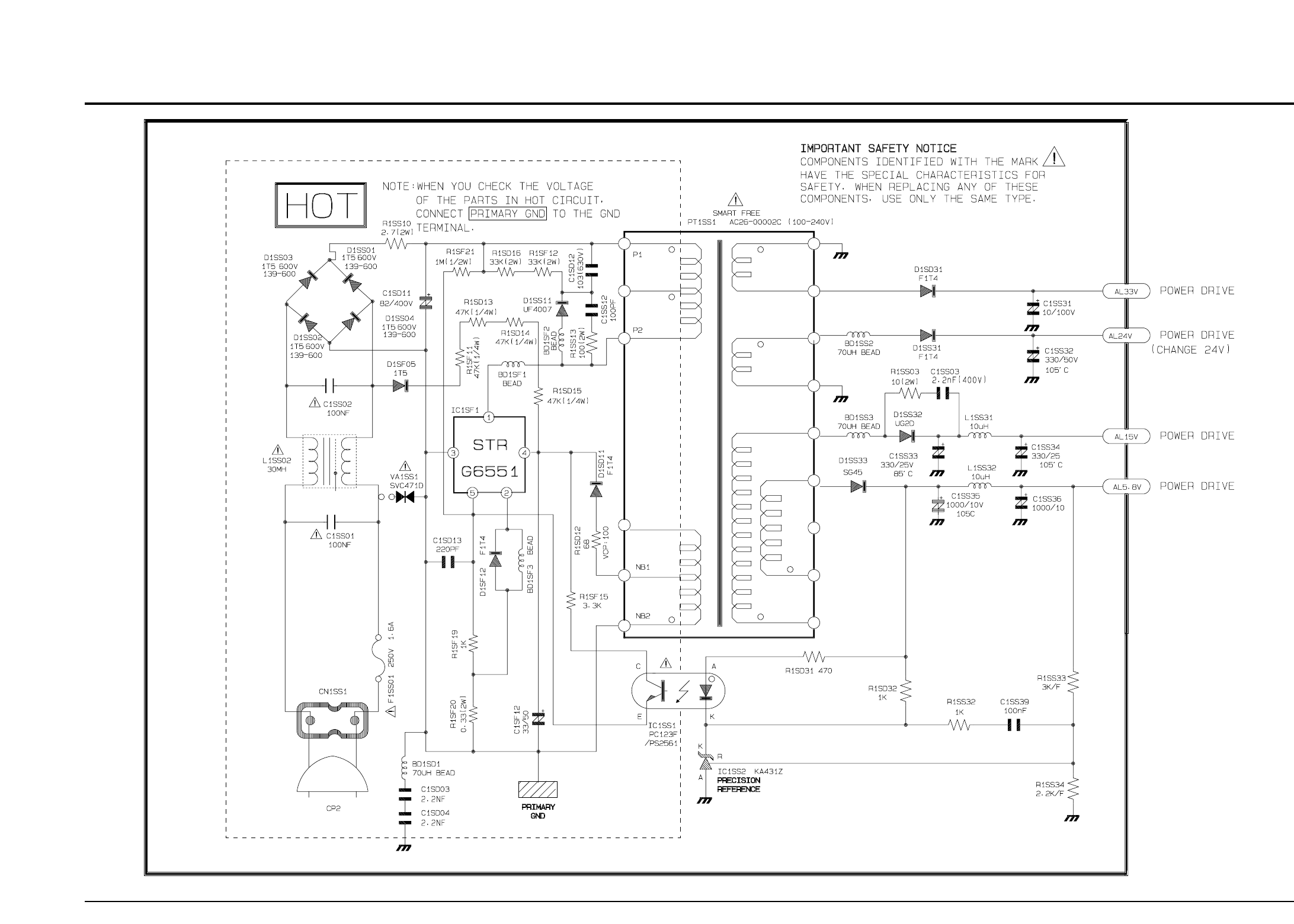

10-1 S.M.P.S. (Free Voltage)
Schematic Diagrams
10-4 Toshiba

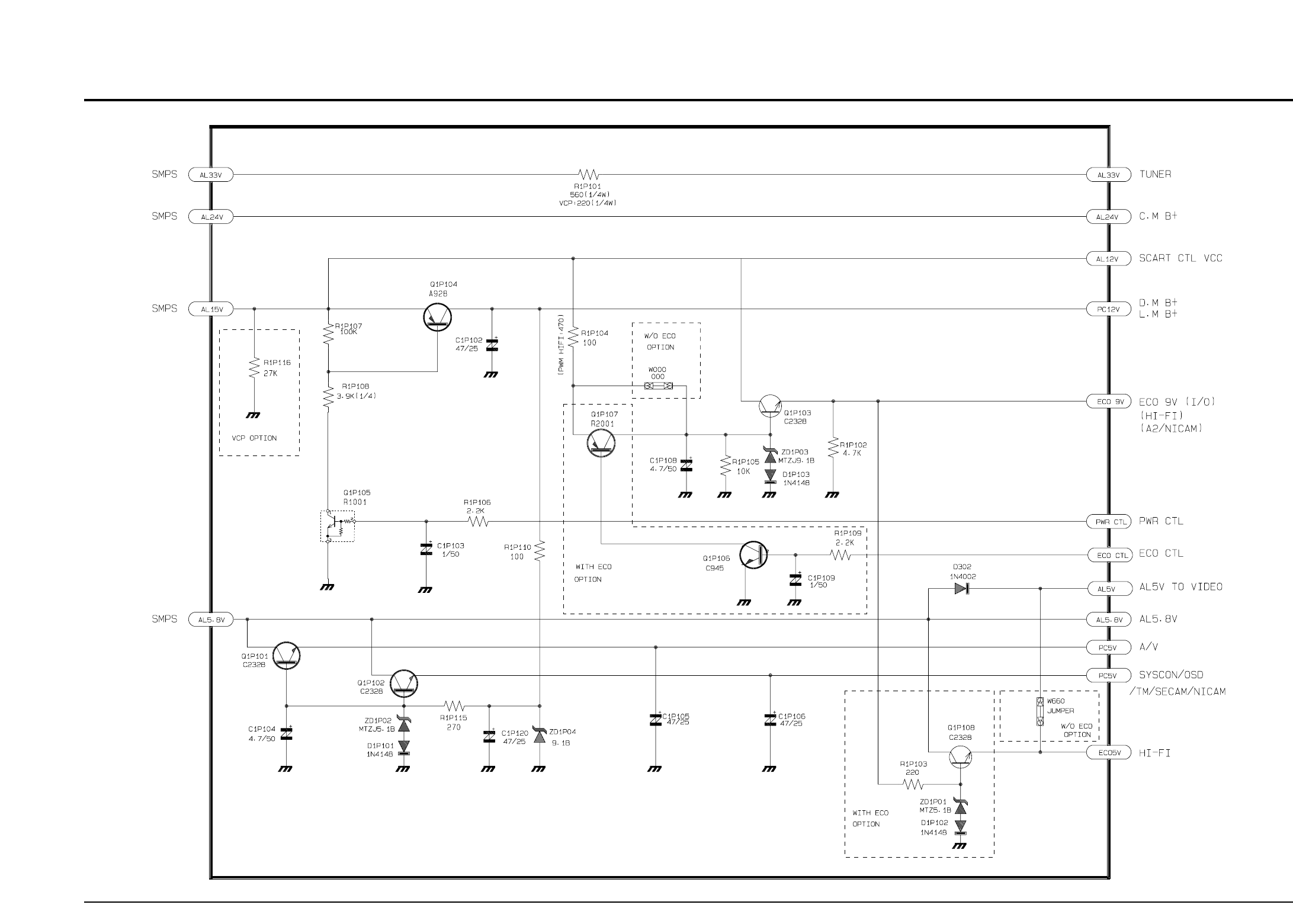

10-2 Power
Schematic Diagrams
Toshiba 10-5

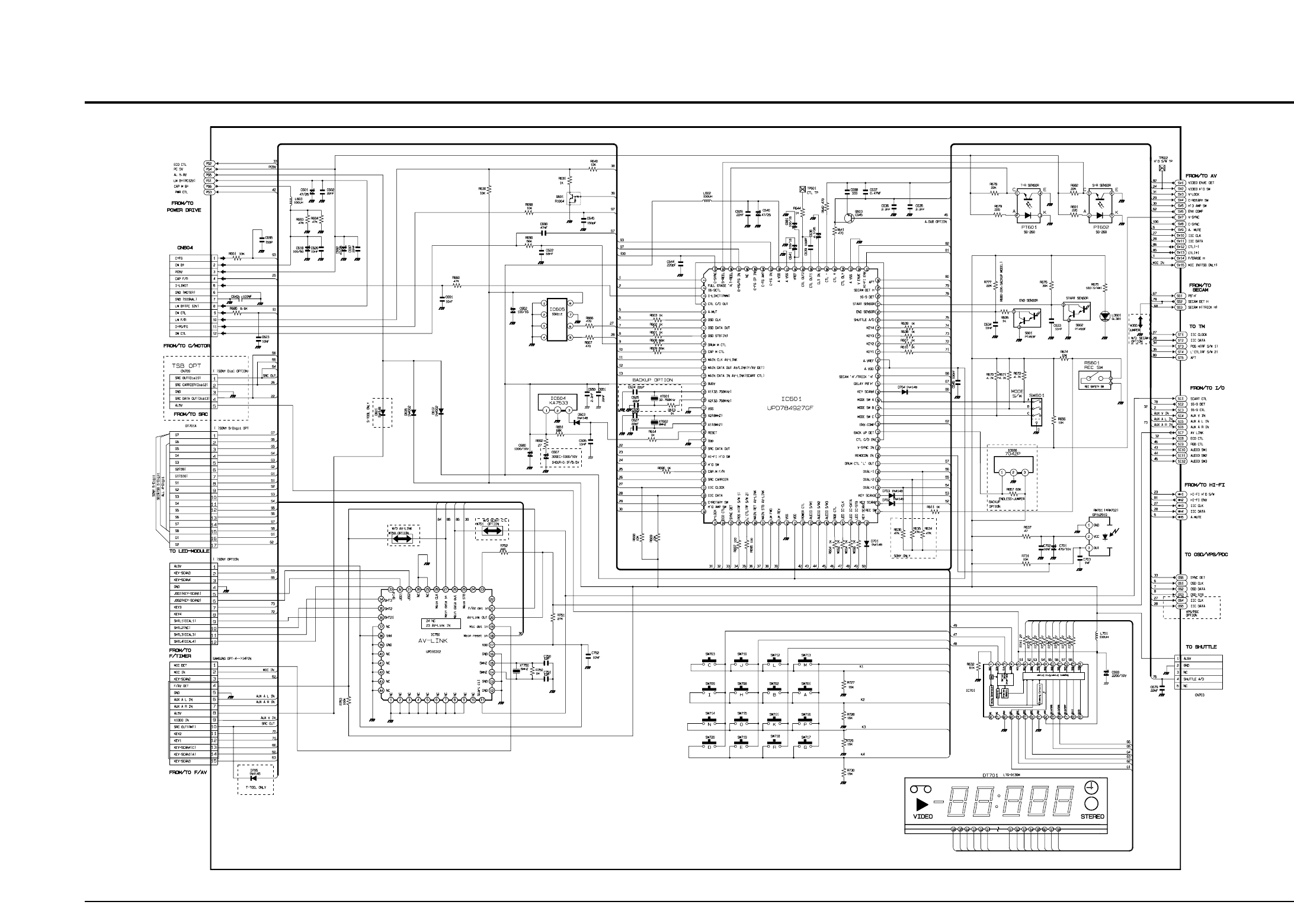

10-3 System Control/Servo/Display
Schematic Diagrams
10-6 Toshiba
10-4 Audio/Video
Schematic Diagrams
Toshiba 10-7
10-5 Hi-Fi (For V-E59 Only)
Schematic Diagrams
10-8 Toshiba

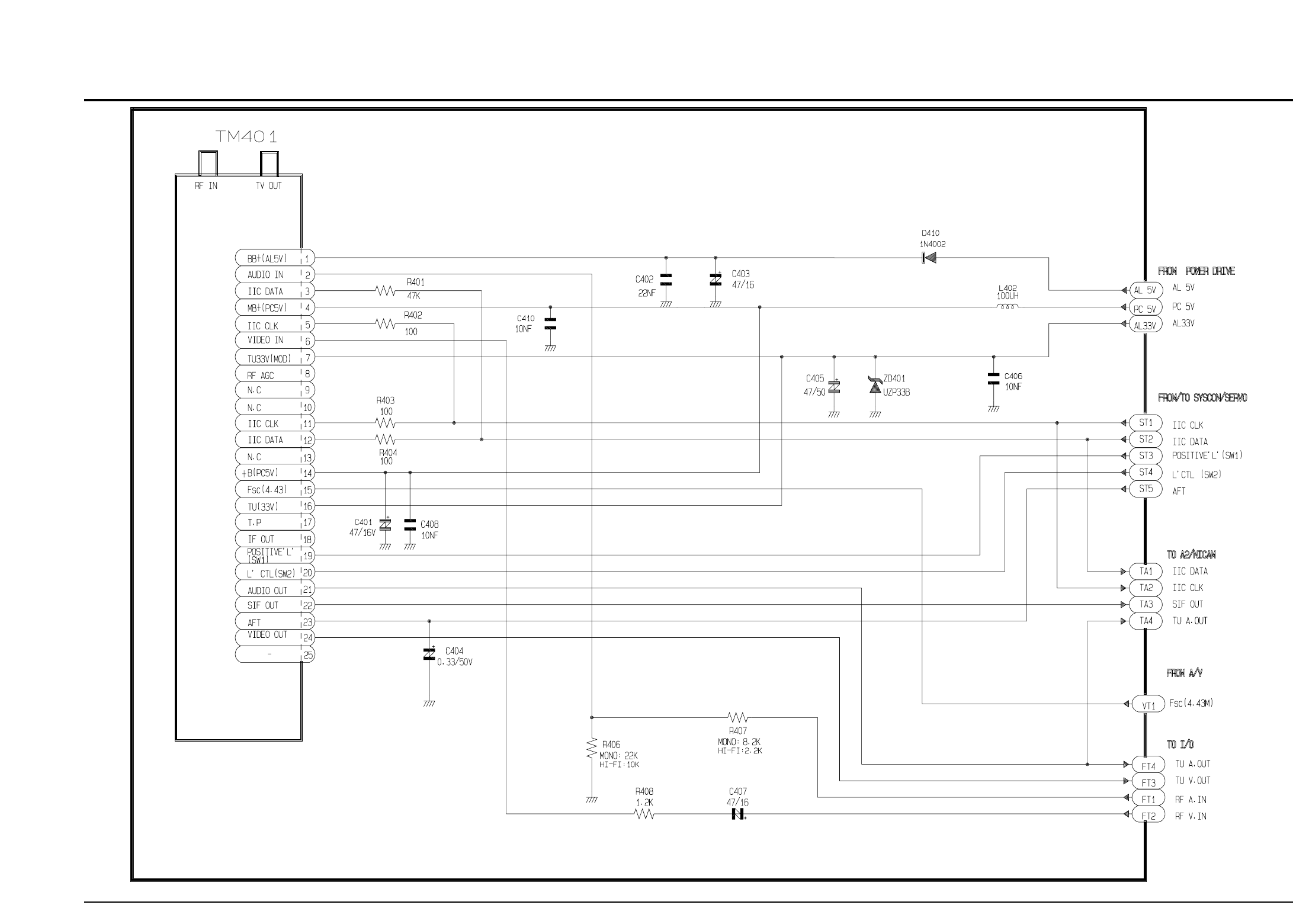

10-6 TM-Block
Schematic Diagrams
Toshiba 10-9

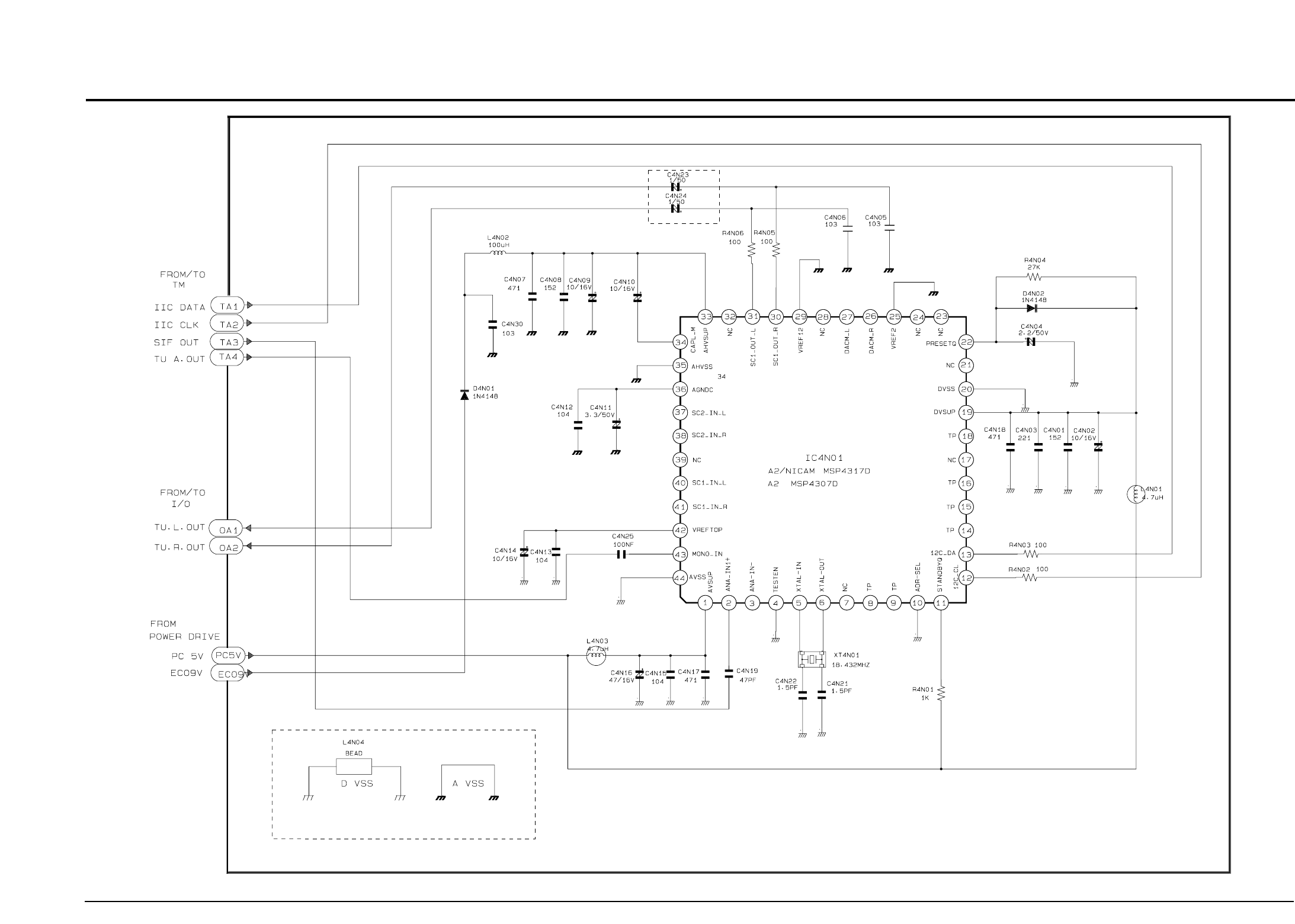

10-7 NICAM (For V-E59 Only)
Schematic Diagrams
10-10 Toshiba
10-8 OSD/VPS/PDC
Schematic Diagrams
Toshiba 10-11

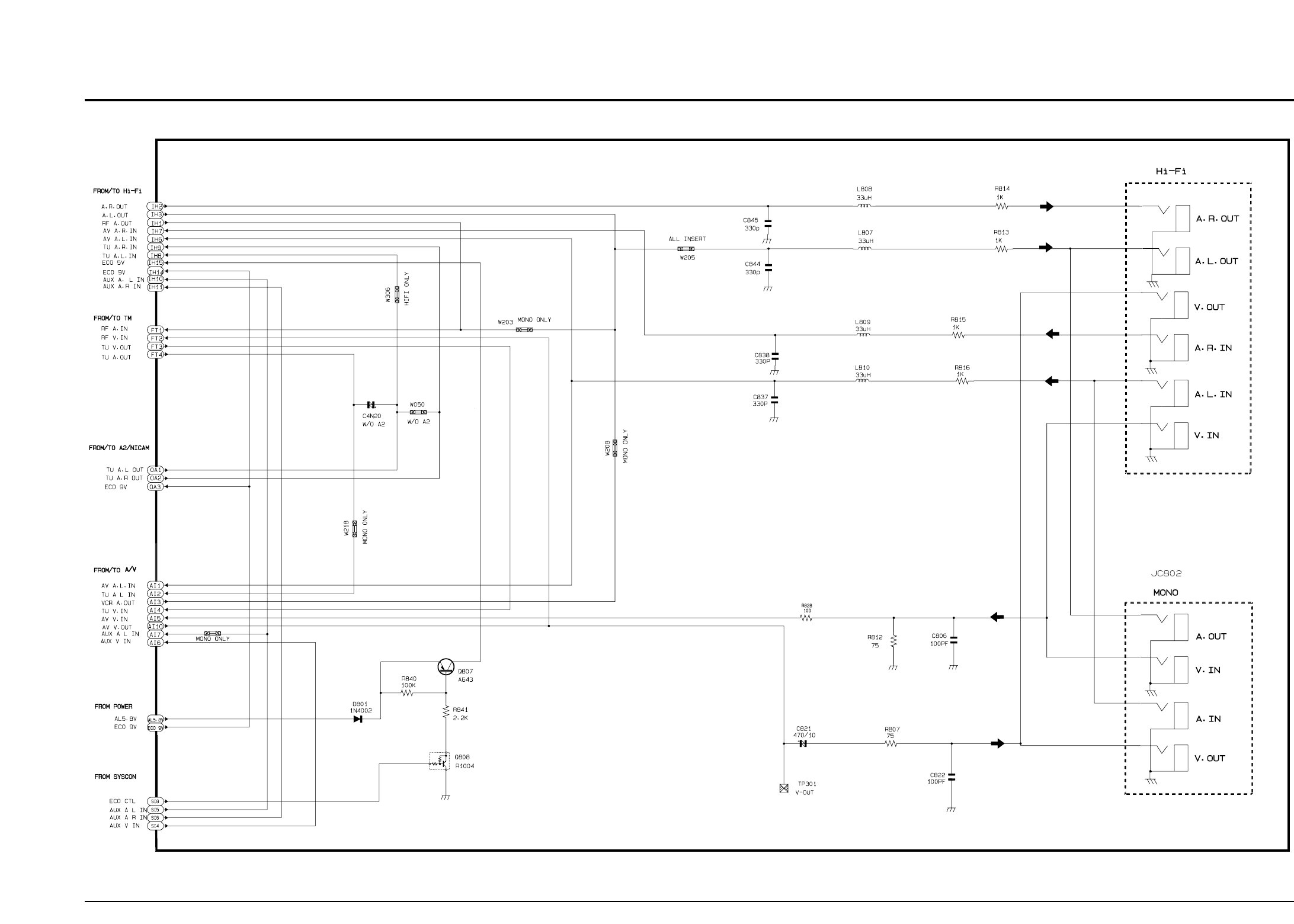

10-9 Input-Output
Schematic Diagrams
10-12 Toshiba

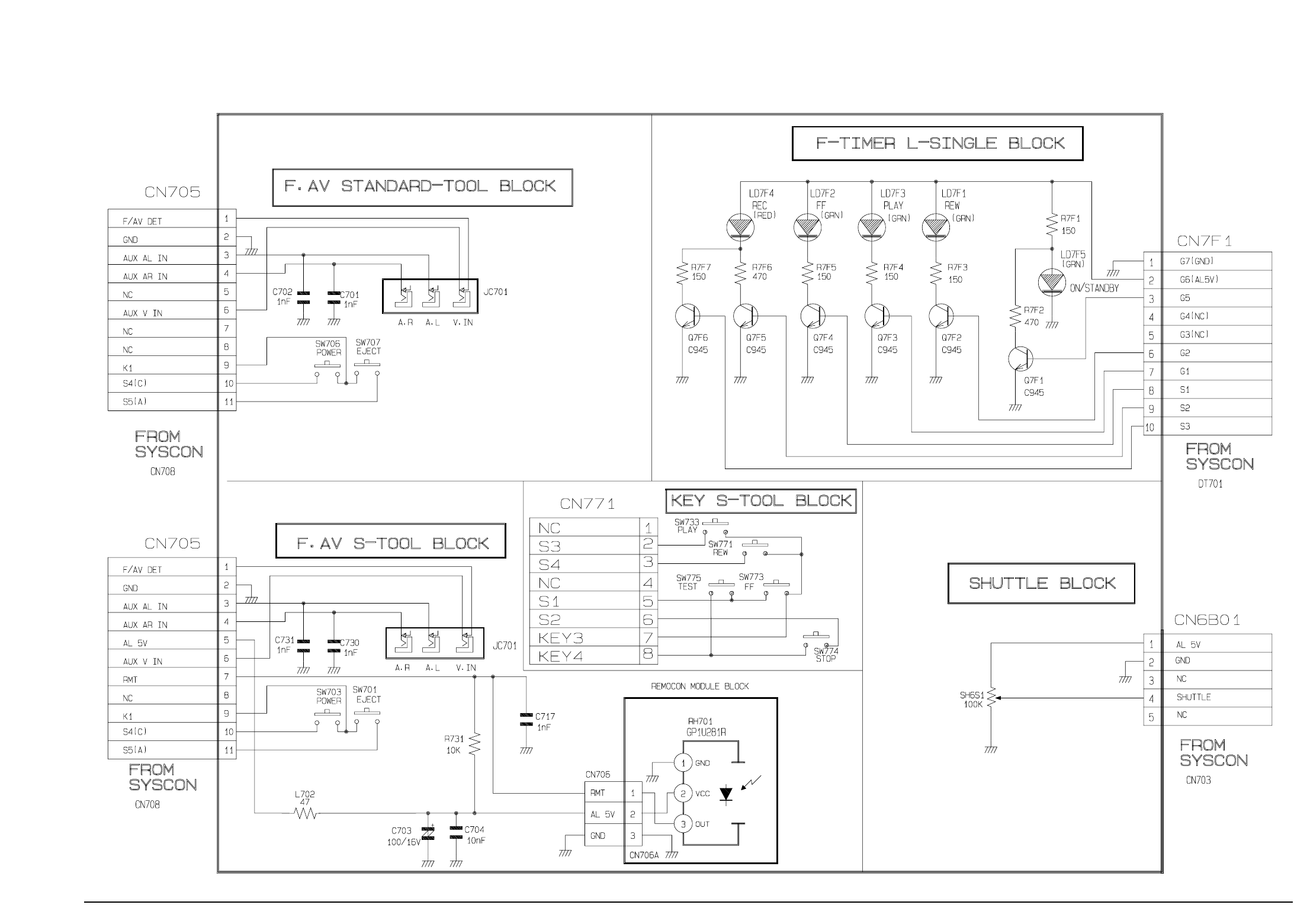

10-10 Sub F A/V (For V-E59 Only)
438B ALEXANDRA ROAD BLOCK B #06-01
ALEXANDRA TECHNOPARK
SINGAPORE 119968
TOSHIBA VIDEO PRODUCTS PTE LTD
V-E59,39,29 1/7/04 12:46 AM Page 2
