VL-E990E

VL-FD1U

S50A2VL-FD1U/

SERVICE MANUAL

This document has been published to be used for

after sales service only.

The contents are subject to change without notice.

SHARP CORPORATION

In the interests of user-safety (Required by safety regula-

tions in some countries) the set should be restored to its

original condition and only parts identical to those specified

be used.

MODEL

MODEL VL-FD1U

VL-FD1U

LIQUID CRYSTAL DIGITAL CAMCORDER NTSC

Page

1. IMPORTANT SERVICE NOTES ......................................................................................................... 2

2. SPECIFICATIONS .............................................................................................................................. 5

3. PART NAMES AND FUNCTION......................................................................................................... 6

4. DISASSEMBLY OF THE SET ............................................................................................................ 7

5. MECHANISM ADJUSTMENT JIGS AND PARTS ............................................................................ 10

6. INSPECTION AND MAINTENANCE

ITEMS AND INTERVALS ................................................................................................................. 11

7. MECHANICAL ADJUSTMENTS AND CHECKS .............................................................................. 12

8. TAPE RUNNING ADJUSTMENT...................................................................................................... 15

9. MECHANICAL SECTION ASSEMBLY AND PARTS REPLACEMENT

(DISASSEMBLY AND REASSEMBLE) ........................................................................................... 17

10.ADJUSTING THE ELECTRICAL CIRCUITS .................................................................................... 24

11.USEFUL TIPS ................................................................................................................................... 40

12.SIGNAL FLOW DIAGRAMS ............................................................................................................. 41

13.BLOCK DIAGRAMS .......................................................................................................................... 44

14.SCHEMATIC DIAGRAMS ................................................................................................................. 50

15.SEMICONDUCTOR LEAD IDENTIFICATION ................................................................................ 106

16.PRINTED WIRING BOARD ASSEMBLIES .................................................................................... 108

17.REPLACEMENT PARTS LIST........................................................................................................ 119

18.PACKING OF THE SET .................................................................................................................. 139

CONTENTS

VL-E990E

VL-FD1U

1. IMPORTANT SERVICE NOTES

1. NOTES DE SERVICE IMPORTANTES

BEFORE RETURNING THE VIDEO CAMERA

RECORDER

Before returning the video camera recorder to the user,

perform the following safety checks.

1. Inspect all lead dress to make certain that leads are

not pinched or that hardware is not lodged between

the chassis and other metal parts in the video camera

recorder.

2. Inspect all protective devices such as non-metallic

control knobs, insulating materials, cabinet backs,

adjustment and compartment covers or shields, isola-

tion resistor/capacitor networks, mechanical insula-

tors etc.

3. To be sure that no shock hazard exists, check for

leakage current in the following manner.

· Plug the AC line cord directly into a 120 volt AC outlet

(Do not use an isolation transformer for this test).

· Using two clip leads, connect a l.5k ohm, 10 watt resistor

paralleled by a 0.15µF capacitor in series with all

exposed metal cabinet parts and a known ground,

such as a water pipe or conduit.

· Use a VTVM or VOM with 1000 ohm per volt, or higher

sensitivity or measure the AC voltage drop across the

resistor (See Diagram).

· Move the resistor connection to all exposed metal

parts having a return path to the chassis (antenna

connections, metal cabinet, screw heads, knobs and

control shafts, etc.) and measure the AC voltage drop

across the resistor. Reverse the AC plug (a non

polarized adaptor plug must be used but only for the

purpose of completing these checks) on the set and

repeat the AC voltage measurements for each ex-

posed metallic part. Any reading of 0.45V rms (this

corresponds to 0.3mA rms AC.) or more is excessive

and indicates a potential shock hazard which must be

corrected before returning the video camera recorder

to the user.

VTVM

AC SCALE

1.5k ohms

10W

CONNECT TO

KNOWN EARTH

GROUND

TO EXPOSED

METAL PARTS

0.15 µF

TEST PROBE

AVANT DE RENDRE LE MAGNETOSCOPE

Avant de rendre le magnétoscope à l’utilisateur, effectuer

les vérifications de sécurité suivantes.

1. Vérifier toutes les gaines de fil pour être sûr que les fils

ne sont pas pincés ou que le matériel n’est pas coincé

entre le châssis et les autres pièces métalliques dans le

magnétoscope.

2. Vérifier tous les dispositifs de protection tels que les

boutons de commande non métalliques, les matériaux

d’isolement, le dos du coffret, les couvercles de

compartiment et ajustement ou les boucliers, les

réseaux de résistance / condensateur d’isolement,

Ies isolateurs mécaniques, etc.

3. Pour être sûr qu’il n’y a aucun risque de choc électrique,

vérifier le courant de fuite de la maniére suivante.

· Brancher le cordon d’alimentation secteur directement

dans une prise de courant de 120 volts. (Ne pas

utiliser de transformateur d’isolement pour cet essai).

· Utiliser deux fils à pinces et connecter une résistance

de 10 watts 1,5 kohm en parallèle avec un

condensateur de 0,15 µF en série avec des pièces du

coffret métallique exposées et une masse de terre

connue telle qu’un tuyau ou un conduit d’eau.

· Utiliser un VTVM ou VOM avec une sensibilité de

1000 ohms par volt ou plus ou mesurer la chute de

tension CA entre la résistance (voir diagramme).

· Déposer la connexion de la résistance à toutes les

pièces métalliques exposées ayant un parcours de

retour au châssis (connexions d’antenne, coffret

métallique, tétes de vis, boutons et arbres de commande,

etc.) et mesurer la chute de tension CA entre la résistance.

Inverser la fiche CA (une fiche intermédiaire non polarisée

doit être utilisée à seule fin de faire ces vérifications.) sur

l’appareil et répéter les mesures de tension CA pour

chaque piéce métallique exposée. Toute lecture de

0,45 V rms (ceci correspond à 0,3 mA rms CA) ou plus

est excessive et signale un danger de choc qui doit être

corrigé avant de rendre le magnétoscope à son

utilisateur.

0.15 µF

SONDE D'ESSAI

VERS PIECES

METALLIQUES

EXPOSEES

VTVM

ECHELLE CA

1.5KOHMS

10W

CONNECTER A

UNE MASSE DE

TERRE CONNUE

VL-E990E

VL-FD1U

WARNING :TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE

THIS APPLIANCE TO WET LOCATIONS.

CAUTION: TO REDUCE THE RISK OF ELECTRIC

SHOCK. DO NOT REMOVE COVER. NO

USER·SERVICEABLE PARTS INSIDE.

REFER SERVICING TO QUALIFIED SERVICE

PERSONNEL.

CAUTION

This symbol mark means following.

For continued protection against fire haz-

ard, replace only with same type fuse.

(CP901; 1.25A 24V, CP902; 1.25A 24V,

CP903; 1.25A 24V)

Camcorder

only

RISK OF ELECTRIC SHOCK

DO NOT OPEN

ATTENTION: POUR REDUIRE LES RESQUES D'INCENDIE OU DE CHOC ELECTRIQUE,

NE PAS EXPOSER CET APPAREIL A LA PLUIE OU A L'HUMIDITE.

ATTENTION: AFIN DE REDUIRE LES RISQUES DE

CHOC ELECTRIQUE, NE PAS RETIRER LE

COUVERCLE, AUCUN ORGANE INTERNE

NE PEUT ETRE REPARE PAR

L'UTIUSATEUR, CONFIER L'APPAREIL A

UN DEPANNEUR QUALIFIE.

ATTENTION

Ce symbole signifie que l'on devra uti-

liser un fusible de même type (CP901;

1,25A 24V, CP902; 1,25A 24V, CP903;

1,25A 24V) pour assurer la sécurité.

This symbol alerts the user that there are

important operating and maintenance instruc-

tions in the literature accompanying this unit.

This symbol warns the user of uninsulated

voltage within the unit that can cause danger-

ous electric shocks.

Ce symbole signale à l'utilisateur la présence

d'une tension non isolée à l'intérieur de l'appareil

qui peut être la cause de secousses électriques

dangereuses.

Ce symbole avertit l'utilisateur que des in-

structions importantes relatives à l'utilisation

et àl'entretien se trouvent dans le manuel

accompagnant l'appareil.

Camcorder

seulement

RISQUE DE CHOC ELECTRIQUE

NE PAS OUVRIR

VL-E990E

VL-FD1U

The RBRCTM Seal

SHARP participates in the RBRCTM* Nickel-Cadmium Battery Recycling Program in the United

States. The RBRCTM Seal on our battery pack contained in our product indicates that SHARP is

voluntarily participating in an industry program to collect and recycle these batteries. The RBRCTM

program provides you with a convenient alternative to placing spent Nickel-Cadmium battery packs into

the trash or municipal waste stream, which is illegal in some areas. At the end of their useful life, the

Nickel-Cadmium battery can be dropped off at the nearest collection center for recycling. For information

on the nearest collection center, call 1-800-8-BATTERY or your local recycling center. If you are located

outside the United States, contact your local authorities for information concerning proper disposal and/

or recycling of this battery. SHARP’s involvement in this program is part of our commitment to protecting

our environment and conserving natural resources.

[Footnote] *RBRCTM is trademark of the Rechargeable Battery Recycling Corporation.

The following program is available in the United States. Please consult local environmental

authorities concerning the availability of this or other programs in your area.

CAUTION

BEFORE BATTERY DESTROY

NICKEL-CADMIUM BATTERY

NICKEL-METAL HYDRIDE BATTERY

Battery disposal

Contains the above (Rechargeable) Battery. must be recycled or disposed of properly.

Remove the Battery from the products and contact Federal or State Environmental Agencies for

information on recycling and disposal options.

SEALED LEAD BATTERY

LITHIUM or LITHIUM-ION BATTERY

VL-E990E

VL-FD1U

Signal System: NTSC standard

Recording System: 2 rotary heads, helical scanning system

Cassette: Digital VCR Mini DV video cassette

Recording/Playback Time: 90 minutes (DVM60, LP mode)

Tape Speed: SP mode; 18.812 mm/second

LP mode; 12.555 mm/second

Pickup Device: 1/4" (6.4mm, effective size: 4.5 mm) CCD image sensor (with approx.

380,000 pixels including optical black)

Lens: 10 × optical/200 × digital power zoom lens (F1.4-3.0, f=4.7-47 mm),

full-range auto focus

Lens Filter Diameter: 30 mm

Monitor: 3.5" (8.9 cm) full-color LCD screen (TFT active matrix)

Microphone: Electret stereo microphone

Color Temperature Compensation: Auto white balance with white balance lock

Minimum Illumination: 7 lux (20 lux measured by EIA standard ) (with gain-up, F1.4)

Video Output Level: 1.0 Vp-p 75-ohm unbalanced

Audio Output Level: –8 dBs, impedance less than 2.2 kohms

Speaker Output: 300 mW

Power Requirement: DC 7.4V

Power Consumption:

4.8 W (during camera recording in Full Auto mode with zoom motor off

and backlight in normal mode)

Operating Temperature: 32°F to 104°F (0°C to +40°C)

Operating Humidity: 30% to 80%

Storage Temperature: –4°F to 140°F (–20°C to +60°C)

Dimensions (approx.): 6" (W) × 2 7/32" (H) × 3 19/32" (D)

[152 mm (W) × 56 mm (H) × 91 mm (D)]

Weight (approx.): 1.23 lbs (560 g)

(without battery pack, lithium battery and video cassette)

SERVICE INFORMATION (For the U.S.)

For the location of the nearest Sharp Authorized Service, or to obtain product literature, accessories,

supplies or customer assistance, please call 1-800-BE SHARP (1-800-237-4277) or visit SHARP's

website (http://www.sharp-usa.com)

Specifications are subject to change without notice.

2. SPECIFICATIONS

AC Adapter/Battery Charger

UADP-0294TAZZ(FD1U)

UADP-0295TAZZ(FD1UT)

UADP-0296TA01(FD1UK)

UADP-0296TAZZ(FD1UW)

Power Requirement: AC 110-240 V, 50/60 Hz

DC Output: 7.3 V

Power Consumption: 10 W

Dimensions (approx.): 35/32" (W) × 125/32" (H) × 37/8" (D)

[80 mm (W) × 45 mm (H) × 98 mm (D)]

Weight (approx.): 0.54 lbs (245 g)

VL-E990E

VL-FD1U

3. PART NAMES AND FUNCTION

For details on the use of each control.

VL-E990E

VL-FD1U

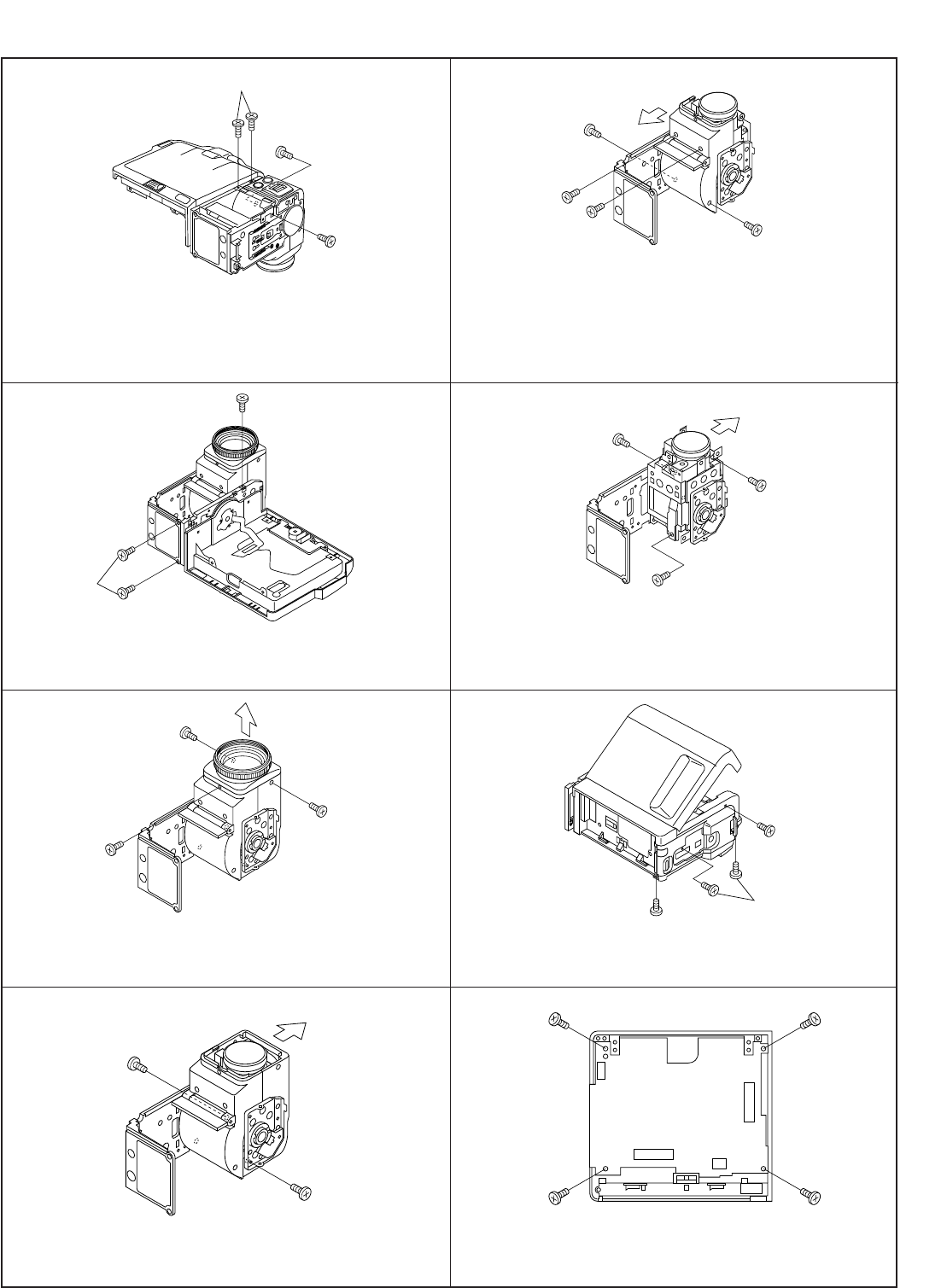

4. DISASSEMBLY OF THE SET

Note:

Before removing the cabinet, turn off the power supply, and ascertain that the battery has been removed.

(f)

(c)

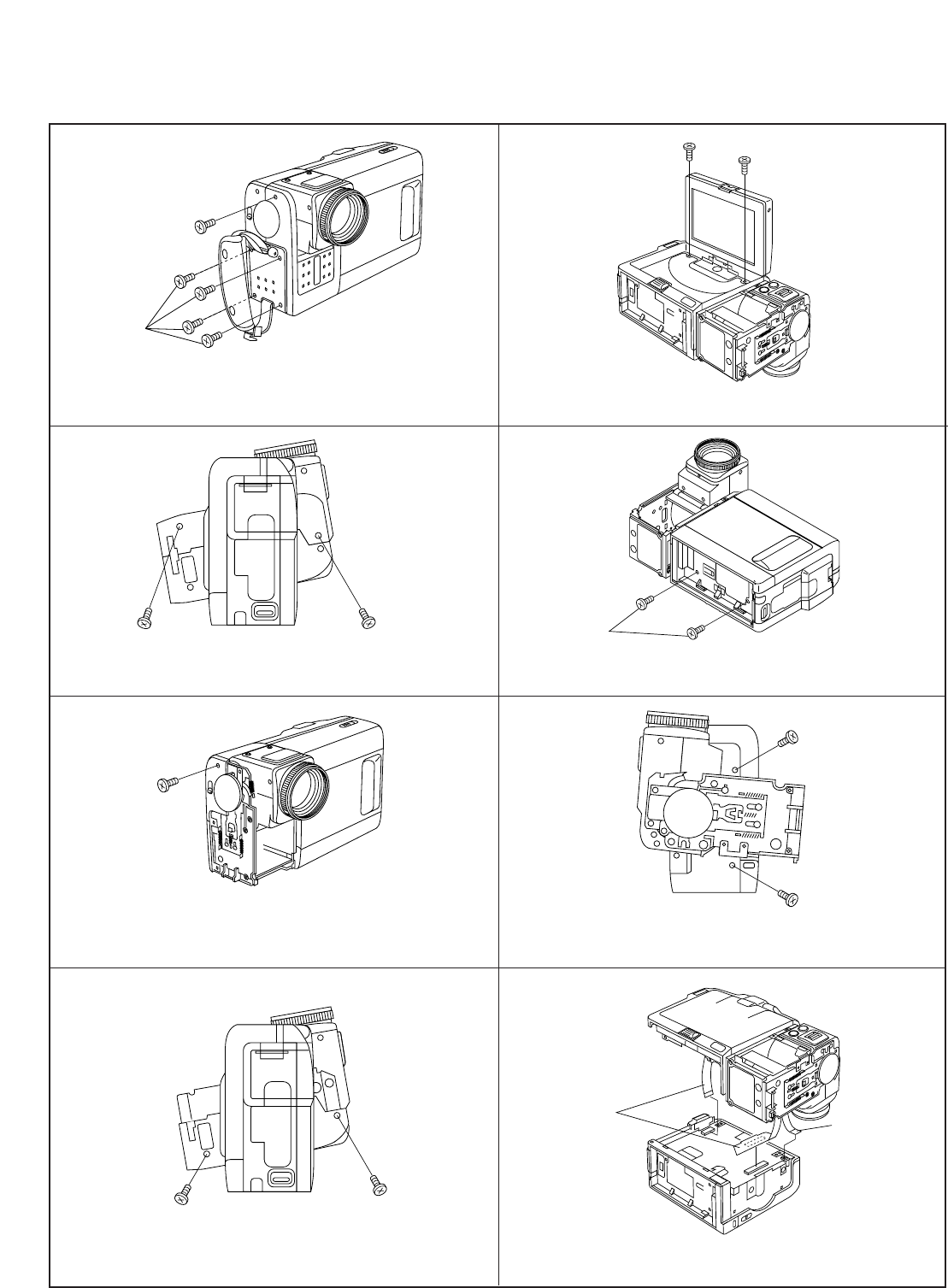

• Remove the screws ((f)LX-BZ0224TAFC)(1 pc.) and

((c)XiPSC17P04000)(4 pcs.) fixing the camera front cabinet

and camera side cover. • Open the LCD section and remove the screws ((f)LX-

BZ0224TAFC)(2 pcs.).

(f) (f)

(f)

(f) (g)

• Remove the screws ((f)LX-BZ0224TAFC)(2 pcs.) fixing the

camera front cabinet. • Remove the screws ((g)LX-BZ0222TAFF) fixing the battery

holder.

(f)

(d)

• Remove the screw ((f)LX-BZ0224TAFC)(1 pc.) fixing the cam-

era rear cabinet. • Turn the camera and remove the screws ((d) XiPSC17P05000)

(2 pcs.).

Shielded wire

FPC

(f) (f)

1. 5.

2. 6.

4. 8.

3. 7.

• Remove the screws ((f)LX-BZ0224TAFC)(2 pcs.) fixing the

camera rear cabinet. • Remove the FPCs (2 pcs.) and shielded wire (1 pc.).

VL-E990E

VL-FD1U

9. 13.

• Remove the screws ((c)XiPSC17P04000)(2 pcs.) fixing the

camera upper cabinet.

• Remove the screws ((p)LX-HZ0050TAFF)(1 pc.) and

((b)XiPSC17P03000)(3 pcs.) fixing the PWB.

12. 16.

10. 14.

• Remove the screws ((e)XiPSF17P02000)(1 pc.), ((p)LX-

HZ0050TAFF)(1 pc.) and ((f)LX-BZ0224TAFC)(2 pcs.) fixing

the VCR side cover.

• Remove the screws ((e)XiPSF17P02000)(2 pcs.) fixing the

camera frame coupling metal and the screws

((e)XiPSF17P02000)(2 pcs.) fixing the camera frame C to

detach the camera section.

• Remove the screws ((c)XiPSC17P04000)(4 pcs.) fixing the

camera lower cabinet.

• Remove the screws ((c)XiPSC17P04000)(2 pcs.) and

((26)XASSN17P04000)(1 pc.) fixing the lens front cover.

(e)

(c)

• Remove the screws ((f)LX-BZ0224TAFC)(2 pcs.) fixing the

camera frame and the screw ((e)XiPSF17P02000)(1 pc.) fixing

the camera frame C.

• Remove the screws ((p)LX-HZ0050TAFF)(2 pcs.) and the

screw ((f)LX-BZ0224TAFC)(1 pc.) fixing the lens to detach the

lens.

(e)

(f)

11. 15.

(c)

(26)

(f)

(p)

(e)

(f)

(p)

(b)

(b) (p)

(b)

(c)

VL-E990E

VL-FD1U

17.

• Remove the screws ((h)LX-BZ0221TAFC)(2 pcs.) and

((s)XAPSH17P02000)(2 pcs.) fixing the LCD cover.

18.

19.

20.

• Remove the screws ((c)XiPSC17P04000)(2 pcs.) fixing the

pop-up cover and the screws ((n)XiPSF20P04000)(2 pcs.)

fixing the LCD hinge.

• Remove the floating screw ((k)LX-BZ0231TAFE)(1 pc.) and

the screws ((r)LX-BZ0232TAFD)(3 pcs.) fixing the mechanism.

• Detach the FPC holder and remove the screws ((A11)LX-

BZ0238TAFD)(3 pcs.) fixing the tilt.

(h)

(s)

(r)

(k)

(r)

(c)

(n)

(A11)

(b)XiPSC17P03000 M1.7×3 Silver Small Screw

(c)XiPSC17P04000 M1.7×4 Silver Small Screw

(d)XiPSC17P05000 M1.7×5 Silver Small Screw

(e)XiPSF17P02000 M1.7×2 Black Small Screw

(f)LX-BZ0224TAFC M1.7×2.5 Chrome

(g)LX-BZ0222TAFF M1.7×3 Black

(h)LX-BZ0221TAFC M1.7×3 Chrome

(k)LX-BZ0231TAFE Floating Screw

(n)XiPSF20P04000 M2×4 Black Small Screw

(p)LX-HZ0050TAFF M1.7×4 Black P Tight

(r)LX-BZ0232TAFD Floating Screw

(s)XAPSH17P02000 M1.7×2 Chrome

(A11)LX-BZ0238TAFD M1.7×5 Small Screw

(26)XASSN17P04000 M1.7×4 Flat Head Nickel Screw

VL-FD1U

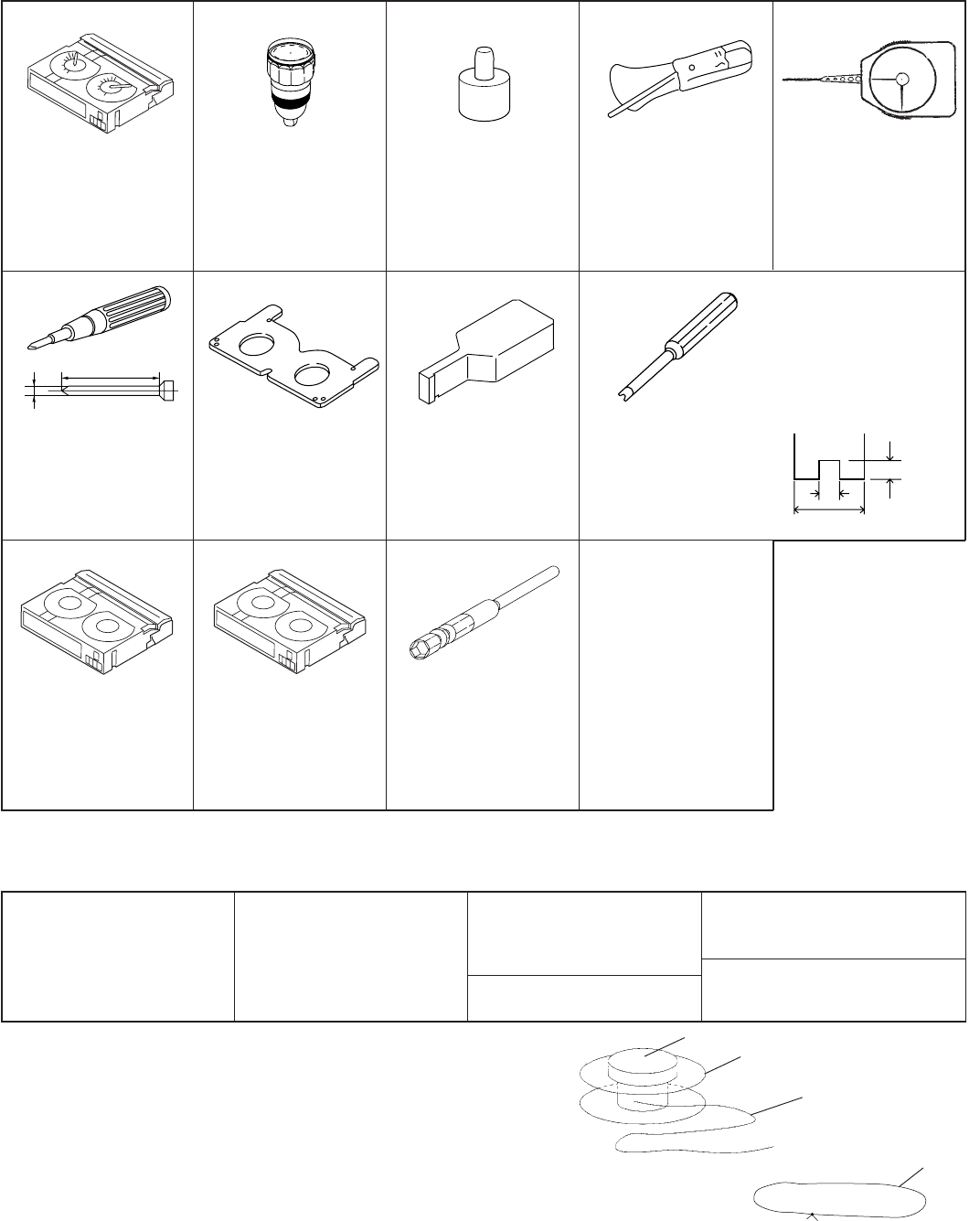

5. MECHANISM ADJUSTMENT JIGS AND PARTS

5-1. Mechanism check adjustment jigs

50 or more

ø2

No. 0 cross-bit

Tolerance ± 0.1

Tip thickness 0.5

1.4

For Tu guide adjustment.

For T roller adjustment.

Bit shape (see figure below).

1. Torque screwdriver

150mN·m

2. JiGTD1500RTDH

3. CB

1. Master plane

2. 9EQMP-VLPD1

3. CL

* For checking reel base

height.

1. Height adjustment

screwdriver

2. 9EQDRiVER-DH5

3. BC

For guide roller adjustment.

1. Height adjustment jig

2. 9DAHG-PD1

3. BZ

* For height adjusting.

<Note: The entries of list>

Configuration

1. Name

2. Part No.

3. Code

* Model, Uses Remarks

1. Alignment tape – ( I )

2. VR3-GAZXS

3. CF

For tape running adjust-

ment.

1. Alignment tape – ( II )

2. VR3-GTZQS

3. CG

For SW point adjustment.

* 90ADVC-TAPE can use,

too. (Code CU)

(1) Slide caliper

(2) Precision screwdrivers

(Phillips head and slotted)

(3) Radio needle-nose pliers

(4) Tweezers

1. For hexagon nut oppo-

site side 3mm bit.

2. 95CM22001

3. BL

* For S guide hexagon

nut installation.

1. PB-use cassette

Torque meter

2. 9DASD-1015

3. DB

* SD-1015

1. Torque gauge

2. JiGTG0045

3. CN

For use in VS-REW wind-

ing torque measurement.

1. Torque gauge head

2. 9EQTGH-DH5000

3. BW

* For use with the above

torque gauge.

1. Tension gauge 4N

2. JiGSG0400

3. BK

* For measurement of

pinch roller pressure.

1. Dial tension gauge

2. 9DAPTG-10-10W

3. CA

* PTG-10

(1) Reel hub for back tension measurement (Fig. 1)

1) Obtain a commercially available cassette tape reel hub.

(Disassemble the cassette tape and remove the tape from

the reel hub.)

2) Paste one end of a string (about 20cm long) to the reel hub

with (for example) cellophane tape.

3) Paste the weight of about 0.21N on the upper side reel hub.

(2) String for use in pinch roller snap-fit force measurement (Fig. 2)

1) Obtain an approximately 20cm length of commercially available string.

2) Tie the 2 ends together to form a loop.

Fig. 1

Weight

Reel hub

String

Fig. 2

String

<Note:

The entries of list>

5-2. Parts for regular periodic inspection and maintenance

1. Oil

Cosmo Hydro HV22

2. HV22 : 9EQ-Oil-HV22

3. HV22 : AE

* Cosmo Petroleum K.K.

1. Cleaning paper

2. JiGDUSPER

3. AP

* DUSPER ∑ (SIGMA)

(ozu Co., LTD.)

1. Grease: Moly Coat

YM-103

2. 99FGREASE-YM103

* Dow coaning

1. Screw lock (1401B)

* Three Bond

1. Cleaning liquid:

industrial-use ethyl alcohol

* Commercially avaitable item

1. Extremely thin cotton swab

* Commercially available item

Configuration

1. Name

2. Part No.

3. Code

* Model, Uses Remarks

VL-FD1U

6. INSPECTION AND MAINTENANCE ITEMS AND INTERVALS

In order to keep the mechanical section always in good condition, perform the following inspection and maintenance at regular intervals.

In addition, after repair, perform the following maintenance items regardless of how long the user has been using the unit.

6-1. List of inspection and maintenance items

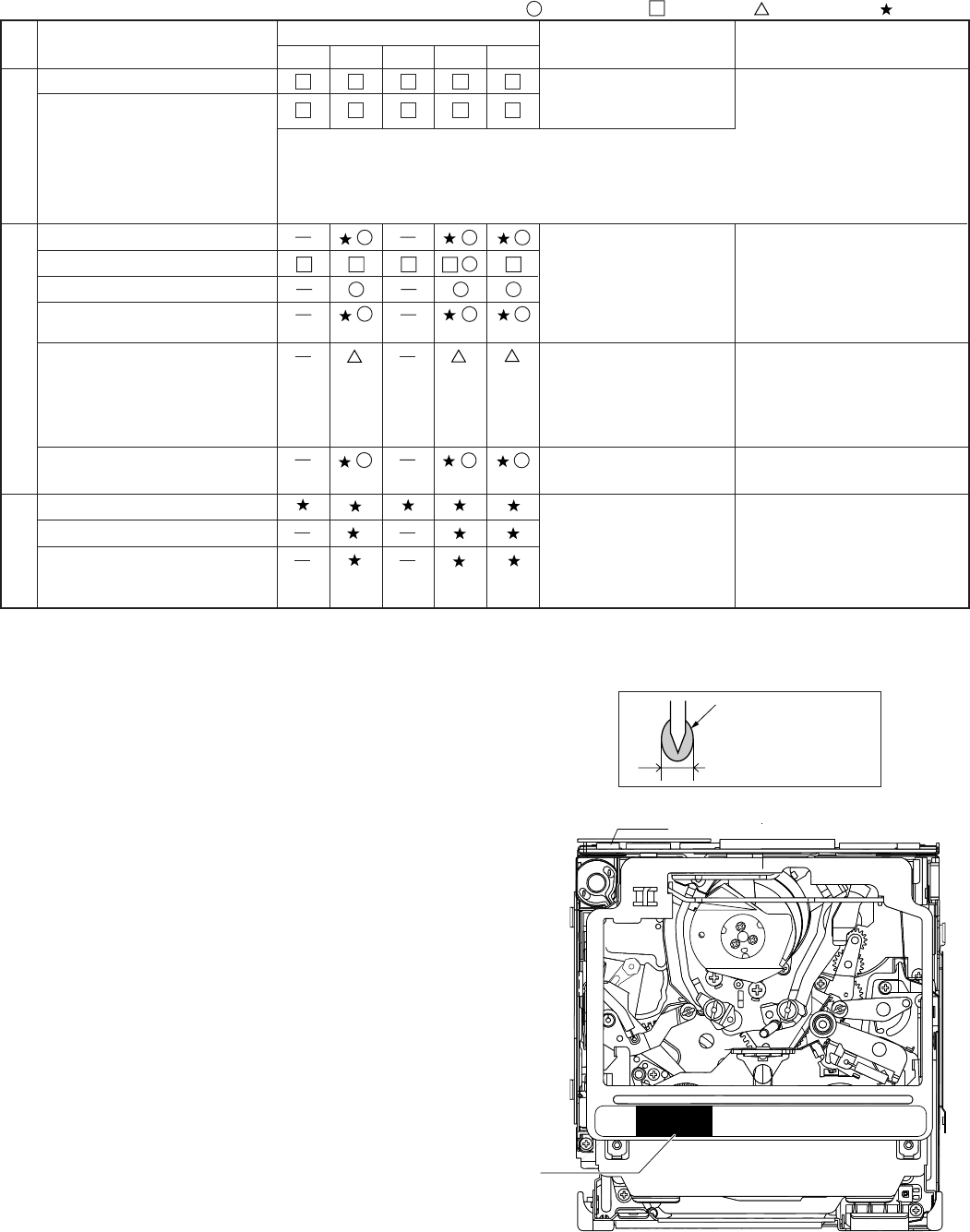

Inspection and Time of use (h) Symptoms that indicate Remarks

maintenance location 500 1,000 1,500 2,000 3,000 need for maintenance

Tape running section (see section 8-3)

Drum section, Video head

(see section 8-3)

• Block-type noise

• Head hole clogging

• Tape damage

• Replace if there is anything abnormal in the rotation, or if there is run-out

(that becomes large).

• Clean the section that contacts the tape (especially the lower drum helical

section). Use the specified cleaning liquid.

• The tape fails to run.

• The tape becomes slack.

• Block-type noise

• Abnormal noise

Timing belt

Pinch roller

Capstan motor

• Replace if there is anything

abnormal.

Swing arm

S reel base, Tu reel base

Center pulley shaft

Intermediate pulley shaft

Swing arm boss

Intermediate gear A shaft,

Intermediate gear B shaft

Tape running system

• • • Replace. • • • Clean. • • • Lubricate. • • • Check.

Note:

Replace the drum ass'y if the

video head is cleaned but the

envelope still does not appear.

(When the envelope is normal,

refer to "11. USEFUL TIPS".)

• Lubricate with oil.

[Oil]

Cosmo Hydro HV22

Note:

Apply oil to the shaft, then

wipe lightly with a cloth.

•Abnormal noise

Loading motor

Mode switch • Cannot eject.

• Fails to enter a mode.

• The tape fails to run.

• The tape becomes slack.

• Tape damage

• The play-back image is

abnormal.

Abnormal noise

PB · VS/REW winding torque

PB · VS/R · loading back tension

Tu reel base ratchet torque

S reel base no-load torque

• Replace any part that fails to

perform within the standard.

• Replace if anything is abnormal

(including the noise).

Performance checks

Drive system

[Oil] Cosmo Hydro HV22

[Grease] Moly Coat YM-103

[Screw lock] Three Bond 1401B

[Cleaning liquid] Industrial-use ethyl alcohol

Oil

1.5mm diameter or less

Fig. 1

6-2. Precautions

(1) When replacing any part, always replace the cut washer that was

removed with a new one.

(2) This mechanism does not have control adjustment. If the control

cannot be set as required, clean and or replace parts.

(3) On the oil

a) Always use the specified oil. (Using another kind of oil can cause

various kinds of trouble.)

b) Always use clean oil, without any mixed-in dirt, to lubricate bearings.

(Using oil with dirt mixed in can cause the bearings to wear or to

stick.)

One drop of oil is the amount shown in the Fig. 1, on the point of a pin.

(4) Perform circuit repair, tape running adjustment, etc. with the cassette

controller assembly attached to the mechanism.

(5) When operating the mechanism separately, apply voltage to the

loading motor. However, the terminal voltage must be DC3V or less.

(When the mechanism is connected to the main PWB, do not apply

external voltage to the loading motor. It may cause a trouble.)

(Forcing the gears to turn by hand entails danger of breakage.)

If the mechanism is separated from the unit, the capstan motor may rub

and be damaged if spacing under the mechanism is inadequate.

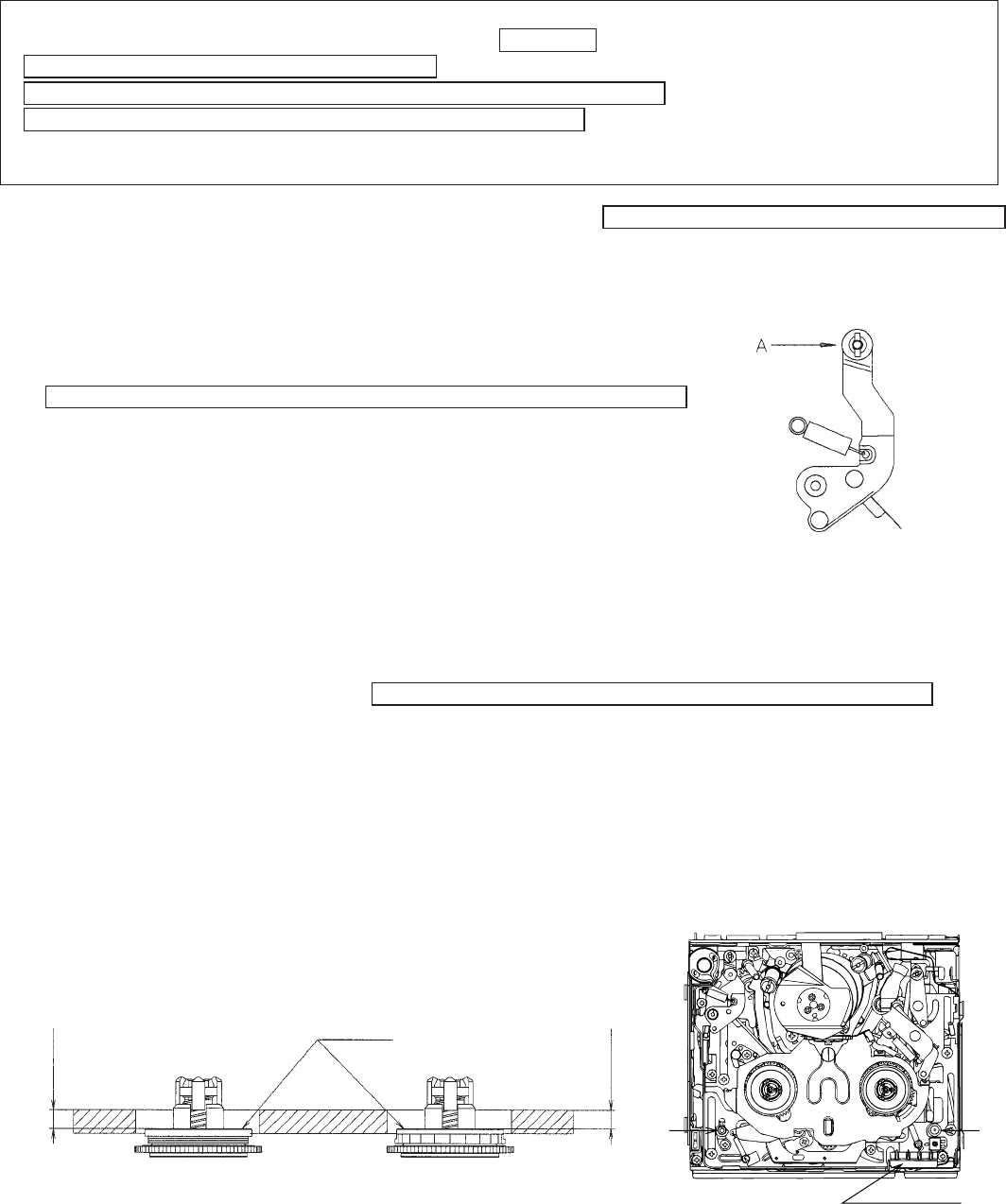

(6) To install the cassette controller, push section A in the Fig. 2. Do not

push anything else.

(7) Do not deform any of the mechanical parts.

Fig. 2

•

PUSH

VL-FD1U

7. MECHANICAL ADJUSTMENTS AND CHECKS

The items discussed here relate to general on-site servicing (field servicing). Adjustments and replacements that require

sophisticated facilities, jigs and technology are omitted.

In addition, in order to maintain the characteristics that the unit has when it is new, not only are inspection and maintenance necessary,

but it is absolutely necessary that, for example, the tape not be damaged, and always use jigs for adjustments that require them.

(1) Always set the power supply and state of the unit as follows Notes for mechanism adjustments and checks.

AC adapter used, with cassette controller assembly

AC adapter used, without cassette controller assembly (Independent Mechanism)

DC3V, without cassette controller assembly (Independent Mechanism)

(2) When the mechanism is connected to the main PWB, do not apply external voltage to the loading motor. It may cause a trouble.

(3) Always run the tape with the cassette controller assembly attached.

7-1. Checking the playback (recording) winding torque AC adapter used, with cassette controller assembly

(1) Set the torque cassette with the cassette controller assembly attached, then, in SP recording mode (playback mode if a signal has

already been recorded in SP mode on the tape), confirm that the torque on the winding side is within the standard.

(If there is torque ripple, read the center value.)

0.70 +0.4/-0.3mN·m, ripple 0.4mN·m or less

7-2. Checking the rewinding playback (VS-REW) winding torque

AC adapter used, without cassette controller assembly (Independent Mechanism)

(1) Remove the cassette controller assembly, press the DOWN switch, using the

adhesive tape and referring to 9-3, operate in the TEST mode (T01) to rewind,

and set the rewinding playback (VS-REW) mode.

(2) Set the torque gauge on the S reel base, press the front end of tension post with

your finger in the arrow A direction so as to ascertain that the winding torque is

as specified. (Check without rotating the torque gauge.)

(If torque ripple exists, read its center value.)

1.6 ± 0.6mN·m, ripple 0.5mN·m or less

(3) After checking the winding torque remove the torque gauge, and remove the

adhesive tape used in item (1) above (refer to 9-3). The STANDBY mode is set

automatically.

7-3. Checking of reel base height DC3V, without cassette controller assembly (Independent Mechanism)

(1) Remove the cassette controller assembly (refer to 9-2).

(2) Referring to 9-1, apply DC3V to the loading motor and put the system into playback mode.

(3) Taking adequate care so that the master plane does not contact drum, running parts (guide roller, etc.), or the MIC contacts. Fit

the master plane holes to the 2 guides (A and B) in Fig. 2.

(4) Confirm that the heights of the S reel base reel receiving surface and the Tu reel base reel receiving surface below the master plane

top surface are within the set values, using, for example, a slide calliper (Fig. 3).

When checking the S reel base height, press the front end of tension post in the arrow A direction with your finger to release the

tension band, and then check the height in this state (Fig. 1).

(5) If the height is not within set values, replace the washer under the reel base, and adjust as specified.

Note: After the adjustment, make sure that the reel bases rotate smoothly.

Fig. 2

2.4 ± 0.1

Reel base height

setting values

Fig. 1. Removal of tension band when

measuring the rewinding play-

back (VS-REW) winding torque

Reel base height

setting values

2.4 ± 0.1

Reel receiving

surfaces

Fig. 3

MIC contacts

VL-FD1U

7-4. Back tension torque check and adjustment in record (playback) mode

AC adapter used, with cassette controller assembly

(1) Checking

Set the torque cassette (SD-1015), and make sure in the SP record mode that

the supply side torque is within the standard shown below (or in the playback

mode for the tape on which the signal has been SP-recorded).

(If torque ripple exists, read its center value.)

0.7 ± 0.1mN·m

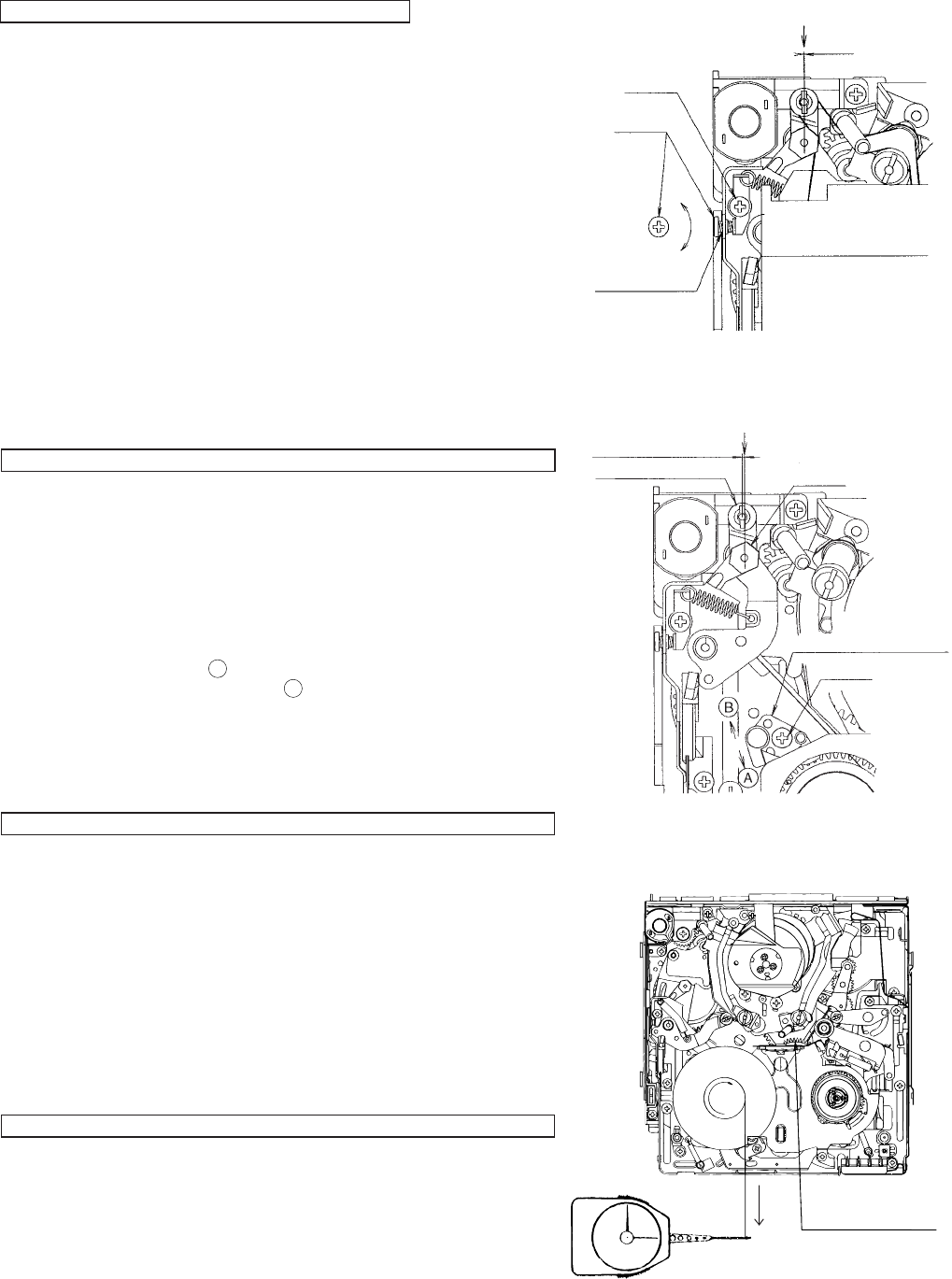

(2) Adjustment (Fig. 4)

If the value is out of standard range, adjust, using the screw 1 shown in Fig. 4.

1. Loosen the screw 2 slightly.

2. Adjust to turning the screw 1. When back tension is too high, turn the screw

1 counterclockwise (CCW).

When back tension is too low, turn the screw 1 clockwise (CW).

3. After adjustment fix the angle with the screw 2. (At this time take care so as

to prevent excessive tightening.) Apply Screw Lock to the screw 1.

Screw tightening torque: 0.04N·m

7-5. Checking and adjustment of tension roller position in

record (playback) mode

DC3V, without cassette controller assembly (Independent Mechanism)

(1) Checking

Before winding the 60-min tape make sure that the tension roller is in the same

position as S guide as shown in Fig. 4.

If not, take out the tape and adjust in the following procedure.

(2) Adjustment (Fig. 5)

1. Set the playback mode without loading the tape.

2. Loosen the screw 3 slightly (to such an extent that the tension band holder

4 can be moved).

3. If the tension roller is inside from the specified position, shift the tension

band holder 4 in the arrow

direction. If the tension roller is outside, shift

the tension band holder in the arrow B direction, and fix with the screw 3.

(Proper shift must be 0.2 to 0.6mm outside from the specified position.)

4. Check the position by the procedure described in item (1) Checking above.

5. If the position is not specified position, adjust again.

7-6. Checking of supply S reel base no-load torque

DC3V, without cassette controller assembly (Independent Mechanism)

(1) Remove the cassette controller assembly, then apply DC3V to the loading

motor and put the system into L. start mode (refer to 9-1).

(2) Move the swing arm toward the Tu reel base side.

Be careful not to cause damage to the gears and other parts in the process.

(Fig. 6)

(3) Set a back tension measurement reel hub on the S reel base.

(4) Using a dial tension gauge, pull the string in the A direction, then confirm that the

tension is within the standard.

(If the tension fluctuates, read its center value.)

30mN or less

7-7. Checking of loading back tension

DC3V, without cassette controller assembly (Independent Mechanism)

(1) Remove the cassette controller assembly, then apply DC3V to the loading

motor and put the system into L. start mode.

(refer to 9-1)

(2) Move the swing arm toward the S reel base side. Be careful not to cause

damage to the gears and other parts in the process. (Fig. 7)

(3) Set a back tension measurement reel hub on the Tu reel base.

(4) Using a dial tension gauge, pull the string in the A direction, then confirm that

the tension is within the standard.

0 ± 0.3

Screw2

Screw1

Apply screwlock

CCW

Tension roller position (S guide standard)

Tension band holder 4

Tension roller

0.2~0.6mm (Standard)

S guide

Screw 3

Tension roller position (S guide standard)

Fig. 5. Position adjustment

(tape does not exist)

Fig. 4. Check (tape exists)

Move the swing arm

toward the Tu reel

base side.

Fig. 6. S reel base no-load torque

measurement method

VL-FD1U

(If the tension fluctuates, read its center value.)

15 ± 12mN

7-8. Checking of winding Tu reel base ratchet torque

DC3V, without cassette controller assembly (Independent Mechanism)

(1) Remove the cassette controller assembly, then apply DC3V to the loading

motor and put the system into standby mode. (refer to 9-1)

(2) Move the swing arm toward the S reel base side.

Be careful not to cause damage to the gears and other parts in the process.

(Fig. 8)

(3) Set a back tension measurement reel hub on the Tu reel base.

(4) Using a dial tension gauge, pull the string in the A direction, then confirm that

the tension is within the standard.

(If the tension fluctuates, read its center value.)

100mN or less

7-9. Checking of rewinding playback (VS-REW) back

tension

DC3V, without cassette controller assembly (Independent Mechanism)

(1) Remove the cassette controller assembly, then apply DC3V to the loading

motor and put the system into rewinding playback (VS-REW) mode. (refer to

9-1)

(2) Move the swing arm toward the S reel base side.

Be careful not to cause damage to the gears and other parts in the process.

(3) Set a torque gauge on the Tu reel base.

(4) Turning the torque gauge to counterclockwise (1 turn for 3 seconds), then

confirm that the torque is within the standard.

(If the tension fluctuates, read its center value.)

0.70 +0.6/-0.3mN·m

7-10.Checking of pinch pressing force

DC3V, without cassette controller assembly (Independent Mechanism)

(1) Set the pinch roller pressing force measuring thread on the pinch lever

(position A , Fig. 9).

(2) Set the mechanism to the playback mode, press the pinch roller against the

capstan axis.

(3) Fit the tension gauge to the pinch roller pressing force measuring thread, pull

in the arrow B direction shown in Fig. 11 to separate a little the pinch roller from

the capstan axis.

(4) Gradually return the pinch roller, and when the pinch roller contacts parallel

the capstan axis, read the value (see Fig. 10) to make sure that the value

conforms to the standard shown below.

1.8 +0.3/-0.5N

After making this measurement, quickly release the system from playback

mode and remove the pinch roller from the capstan shaft. (If the pinch roller

is left fitted onto the capstan shaft for a long time, the pinch roller will be

deformed.)

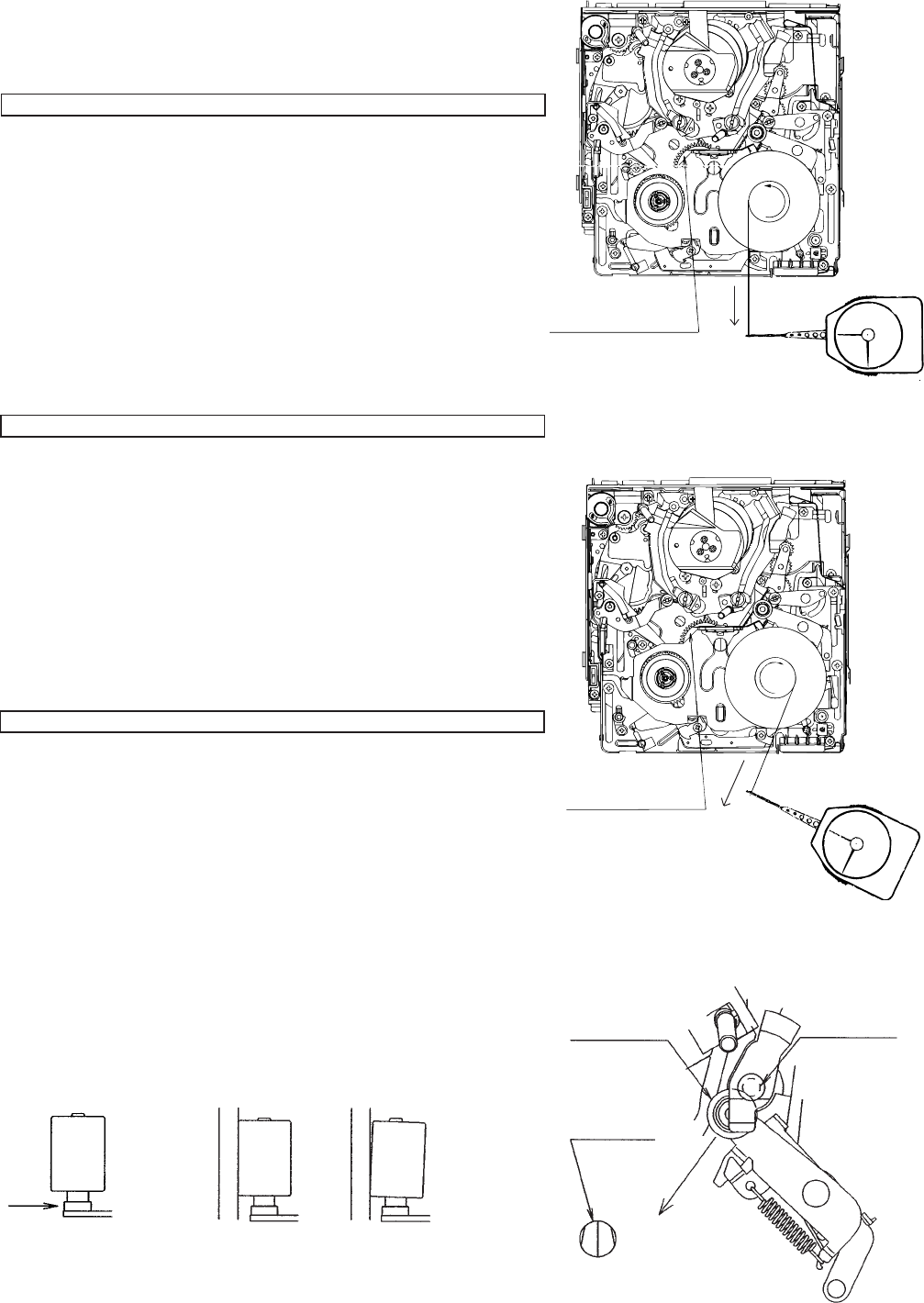

Fig. 7. Loading back tension measurement

method

Move the swing arm

toward the S reel base

side.

Fig. 8. Winding Tu reel base ratchet torque

measurement method

Fig. 11

OK NG

Fig. 10

Fig. 9

Pinch roller

Right guide

Capstan shaft

Move the swing arm

toward the S reel base

side.

VL-FD1U

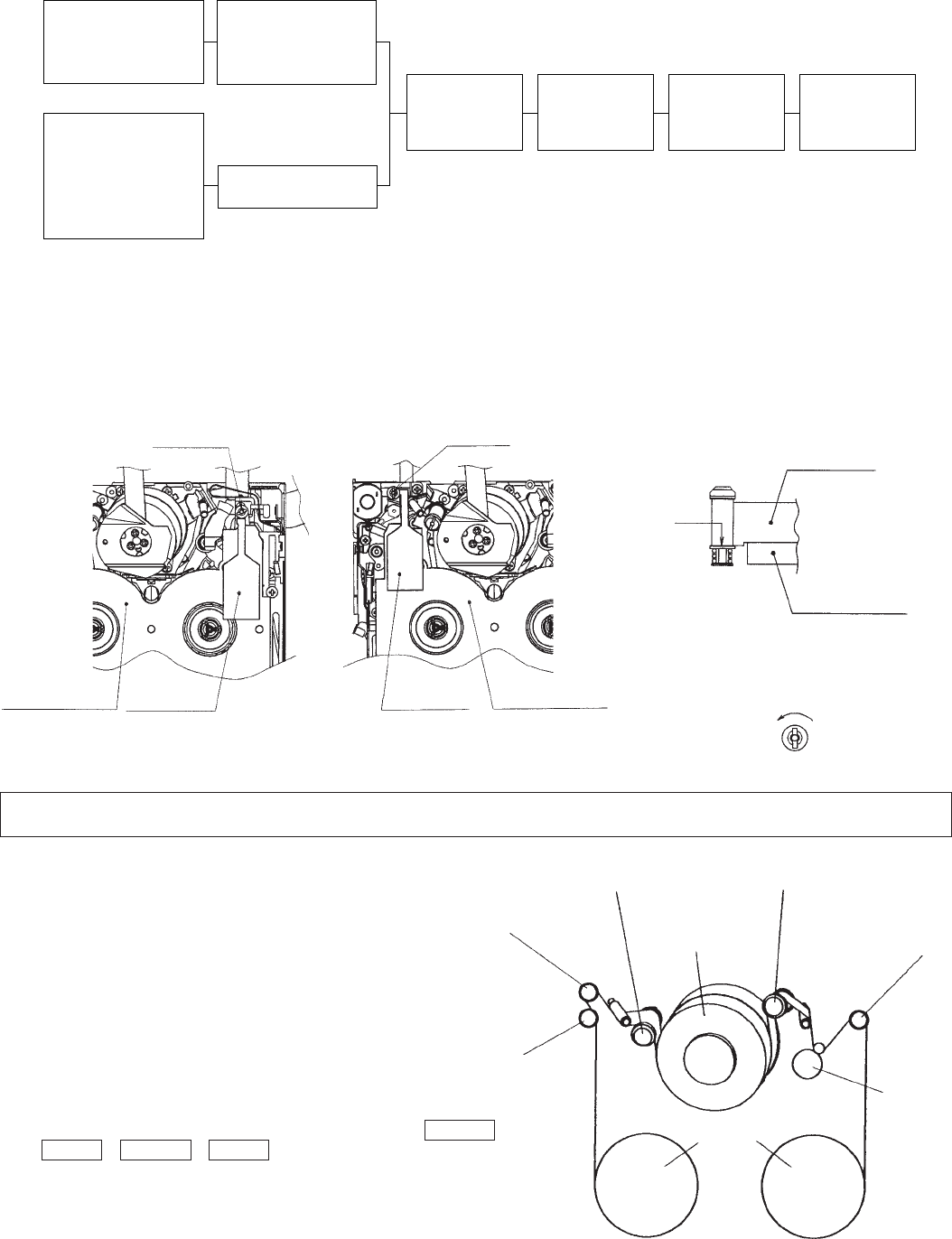

8. TAPE RUNNING ADJUSTMENT

8-1. Adjustment locations

8-3. Preparation for tape running adjustment

Meters, jig… Oscilloscope, Adjustment remote control, Height adjustment screw driver, Alignment tape (for tape running

adjustment, for switch point adjustment), Master plane, Height adjustment jig.

(1) Remove the cassette controller assembly.

(2) Clean the tape running surface (especially, adequately clean

the drum surface and the lower drum helicam surface).

(3) Connect an oscilloscope to each TP on the relay circuit board.

(4) Turn the AC adapter power ON.

(5) Using the adjustment remote control unit, put the system TEST

mode T-05.

(6) Replay the alignment tape for running adjustment, and make

sure that the tape is running in the SP mode.

(7) Check the oscilloscope playback envelope, then, at +1/4 shift

and -1/4 shift, check whether all of it is flat. If it is not, perform

the following adjustment so that it becomes flat.

(Each time you push the PLAY key, the shift will change; +1/4 shift

→ Normal → -1/4 shift → Normal , in order.)

8-2. Running height adjustment

· After replacement of T roller or Tu guide adjust the height . (Adjust only the replaced parts.)

· After height adjustment do not turn the T roller. If crease is found on the tape of Tu guide, remove the crease by rotating.

(As for details refer to the “running rough adjustment”.)

· After height adjustment of T roller or Tu guide, apply Screw lock to an end of shaft.

(After replacement of S guide apply Screw lock to same point, too.)

Tu guide

Height setting

jig

Master plane

S guide

Reels

Tension roller Drum

Tu guide roller

Sup guide roller

Pinch roller

Tu guide

Fit height the par on low edge fitting.

After setting adjustment jigs, turn T roller

and S guide counterclockwise to 225°.

Lower edge

fitting

Height setting

jig

Master plane

T roller

Running adjustm-

ent preparation

Adjustment

procedure 8-3

· T roller, arm

· Tu guide, arm

· Slide chassis

Adjust the height of only

replaced parts with the

adjusting jig.

Adjustment procedure 8-2

<Replacement parts other

than those shown above>

· S guide

· Pole base

· Guide roller

· Drum assembly

· Capstan motor, etc.

Height presetting is not

necessary.

Cassette controller

installation

Running rough

adjustment

Adjustment

procedure 8-4

Running final

adjustment

Adjustment

procedure 8-5

Height setting

jig

T roller

VL-FD1U

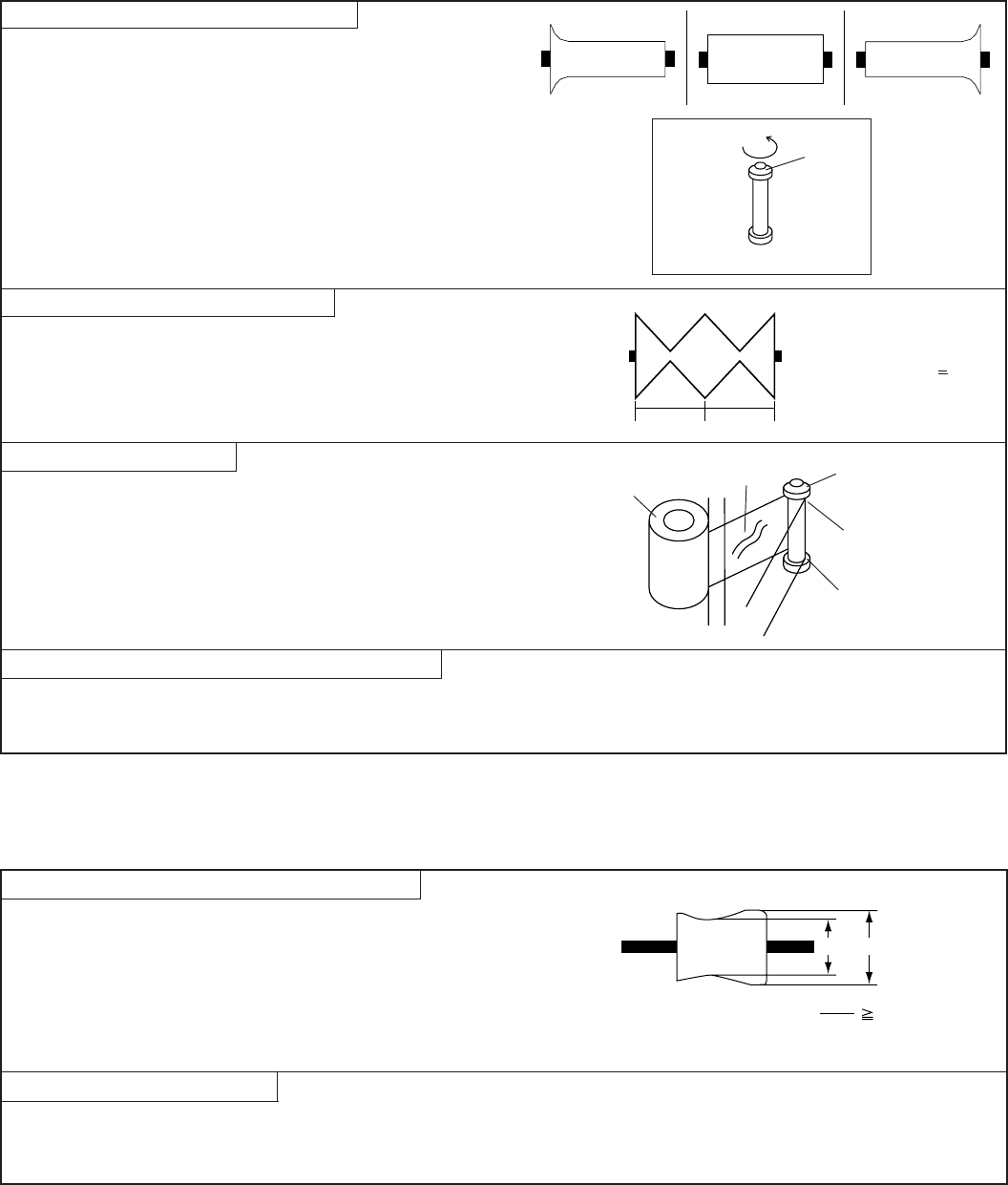

8-4. Running rough adjustment

(Since this adjustment is performed without cassette controller, put a proper weight so that the cassette does not rise , and make an

adjustment.)

1) Su, Tu guide roller height adjustment Entrance side Exit side

Normal

NG NG

Turn to 180°

T roller

Fig. 1

2) Check of V/SR envelope wave form

•

Adjust so that A B.

3) Check of tape wrinkles Tu guide

Deformation

Wrinkles

Pinch roller

4) Check the rising time of the envelope wave form

(1) Check that the tape is not distorted between the Tu guide and

pinch in the PB mode and the V/SR mode.

-If crease is found, make an adjustment in the range of ±180°.

-After adjustment apply Screw Lock.

(1) Confirm that the envelope waveform peaks in V/SR mode are

uniform.

(2) If they are not uniform, fine-adjust the guide roller and the Tu

guide.

(1) Check the rising time of the envelope when switching from V/SR mode to PB mode. (Within 5 sec)

(2) Check the rising time of the envelope when switching from STOP mode to PB mode. (Within 5 sec)

(1) Perform ± 1/4 shift, then if the envelope wave's ratio of MAX.

to MIN. are 60% or less, adjust again the height of guide roller.

(Refer to Fig. 2)

(2) Finally adjust the lock screw of Sup and Tu guide roller.

(3) Once perform unloading and then loading to set the PB mode,

and make sure that the envelope waveform does not change.

1) Adjustment of Sup and Tu guide roller height

8-5. Final running adjustment

(Perform adjustment without removing the cassette controller.)

MIN

MAX

60 (%)

(1) Loosen the guide roller lock screw, then tighten loosely so that

the roller turns easily.

(2) Replay an alignment tape, and adjust the Sup, Tu guide roller

so that the envelope sides of entrance and exit are flat.

(3) Perform ± 1/4 shift, then, as in the above case, adjust until the

envelope becomes flat.

* If running is difficult for the entrance changed, turn the T roller

to counter clockwise 180°. (refer to Fig. 1)

2) Adjustment of playback SWP

(1) Playback the alignment tape for switch point adjustment.

(2) Perform SWP automatic adjustment with adjustment remote control.

Fig. 2

±1/4 shift ±1/4 shift

* When replacing the mechanism and drum, adjust the phase and equalizer using the adjustment remote control.

(Refer to "10. ADJUSTMENT THE ELECTRICAL CIRCUIT".)

VL-FD1U

9. MECHANICAL SECTION ASSEMBLY AND PARTS REPLACEMENT

(DISASSEMBLY AND REASSEMBLY)

Mechanical section disassembly and reassembly are explained in this section.

For removal of the cabinet, etc., refer to 4. DISASSEMBLY OF THE SET.

1. Always replace cut washers that have been removed, for example in parts replacement, with new ones.

When reassembling, be careful not to allow screws, washers or foreign matter to enter. They can cause mechanical misoperation.

3. Use the cleaning liquid, oil, grease and screw lock that are specified below. Use of any other kind can cause mechanical

misoperation.

Oil: Cosmo Petroleum : Cosmo Hydro HV22 Screw lock: Three Bond :1401B

Grease: Dow Corning : Moly Coat YM-103 Cleaning liquid: Industrial-use ethyl alcohol

4. Turn the mechanical section over, do not place it on, for example, a desk. Deformation and scratching of mechanical parts can

cause trouble.

9-1. On the mechanical modes

When operating the mechanism separately, apply DC3~4V to the loading motor.

(When the mechanism is connected to the main PWB, do not apply external voltage to the loading motor. It may cause operational problems.)

(1) EJECT mode

The mechanism position to take out the cassette where the

EJECT lever is extremely shifted in the A direction. (It is impos-

sible to lock the cassette controller assembly in this mode.)

(2) STANDBY mode

The mechanism position to set the cassette where the slide

chassis is at the farthest position from the drum and the

EJECT lever is in clockwise rotated position (position where

the cassette controller assembly can be locked).

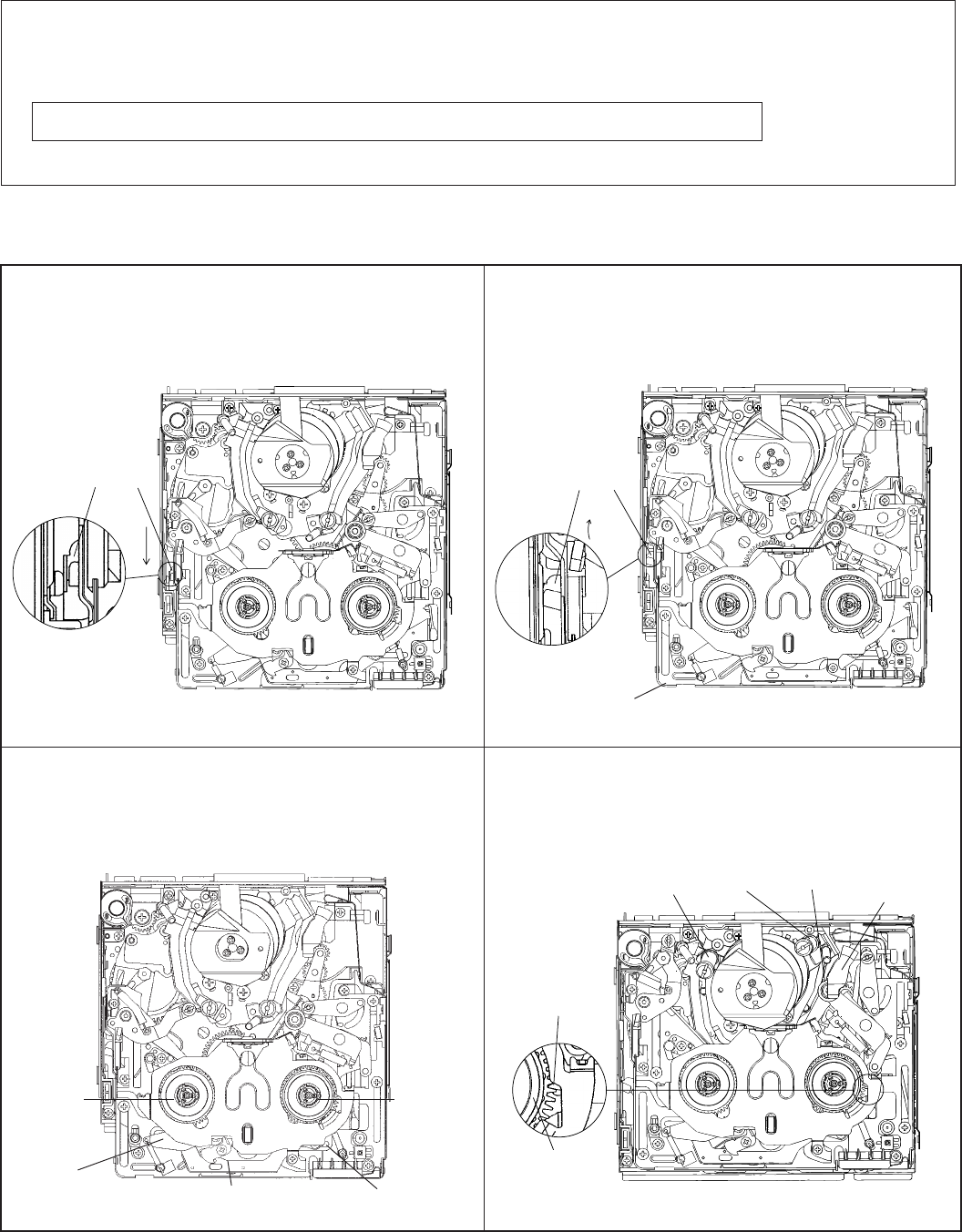

LOADING START mode diagram

EJECT mode diagram

(4) REWINDING (VSR) mode

The mechanism position to rewind the tape (fast rewinding

playback). The S and T pole base is pressed, the pinch roller

is pressed to the capstan axis, the brake shifter VSR brake

section engages with the Tu reel base gear.

REWINDING (VSR) mode diagram

STANDBY mode diagram

EJECT lever

Tu reel base

VSR brake section

Capstan shaft

Tu main brake

S main brake Brake shifter

S reel base Tu reel base

Slide chassis

Rotation

(3) LOADING START mode

This is the mode where the tape is wound around the winding

reel when a cassette with visible wind start leader tape is

loaded. (The brake shifter moves to the left, the S main brake

is separated from the S reel base and the Tu main brake is

separated from the Tu reel base.)

S pole base T pole base Pinch roller

VL-FD1U

PLAYBACK mode diagram

(RECORD, FF, VSF)

(5) PLAYBACK (RECORD, FF, VSF) mode

The mechanism position for playback, record, FF and fast

feed playback.

The pinch roller is pressed to the capstan axis, and the S/Tu

main brake is separated from the S/Tu reel base.

(6) STOP mode

The system is in the STOP (Rec Lock in CAMERA mode)

position; the S and the T pole bases are snap-fitted to the drum

base, the S brake is in contact with the S reel base, and the Tu

brake is in contact with the Tu reel base.

9-2. Cassette controller assembly

(1) Remove the CAP FPC cover. (Remove the Head amplifier PWB unit and

tighten screw together.)

(2) Apply DC3V to the loading motor to set the standby mode. Press the lock

lever in the arrow direction to move up the cassette controller. (See Fig. 1,

direction

or B)

(When the lever is pressed in the direction

, gently raise the cassette

controller to release.)

(3) Remove the screws C and E shown in Fig. 2 and Fig. 3, and remove the

Down guide I.

(4) Remove the screws

, F,

, and H shown in Fig. 2, 3 and 4, raise the

side plate J in the direction K to remove it.

Note) When removing the cassette controller, take care so that the drum motor

FPC provided between the side plate J and the top cover R is not

damaged and so that the drum is not damaged.

(1) Apply DC3V to the loading motor to set the standby mode.

(2) Install the side plate J.

1) Lower the cassette controller assembly in the direction contrary to K in Fig. 4,

and fit the screws

and H as shown in Fig. 4.

Tightening torque 40 ± 4mN·m

Before fitting the screws

and H make sure that the side plate positioning

section L engages with the down switch angle in Fig. 2.

Note) When lowering the cassette controller assembly in the direction contrary

to K, place the drum motor FPC between the side plate

and the top

cover R. At this time be careful so that FPC is not damaged. Take care

so that the drum is not damaged.

2) In Fig. 2 fit the screws

Tightening torque 40 ± 4mN·m

3) In Fig. 3 fit the screw F.

Tightening torque 40 ± 4mN·m

(3) Install the down guide I.

1) In Fig. 2 and Fig. 3 engage the slide chassis down guide positioning sections

N and O with the down guide, install with the screws C and E.

Tightening torque 40 ± 4mN·m

(4) Attach the CAP FPC cover.

1) Attach the Head amplifier PWB unit and tighten screw together.

Tightening torque 40 ± 4mN·m

Fig. 1. Lock lever

Fig. 2

Tu main brake

(Not visible)

Tu reel base

Fig. 4. (Fig. from direction A)

Fig. 3

T pole base

S pole base

STOP mode diagram

S reel base

S main brake

Lock lever

Fig. 4

Down guide positioning

IDown guide

Slide chassis

RTop cover

GSide plate

Capstan shaft

Pinch roller

Fig. 4

Down guide

positioning

Down guide

Slide chassis

Side plate positioning

Down switch angle

S reel base

S main brake

Tu reel base

Tu main brake

VL-FD1U

9-3. How to operate with the circuit board without the cassette controller assembly.

In this method, if the procedure is followed incorrectly there is danger of damaging the mechanism and the tape, so except in special

cases, such as when measuring the VSR torque, do not perform this procedure. Normally operate this unit with the cassette controller

assembly attached.

Be sure to follow each caution mentioned.

(1) Apply DC3V to the loading motor to set the EJECT mode.

(2) Remove the down switch angle.

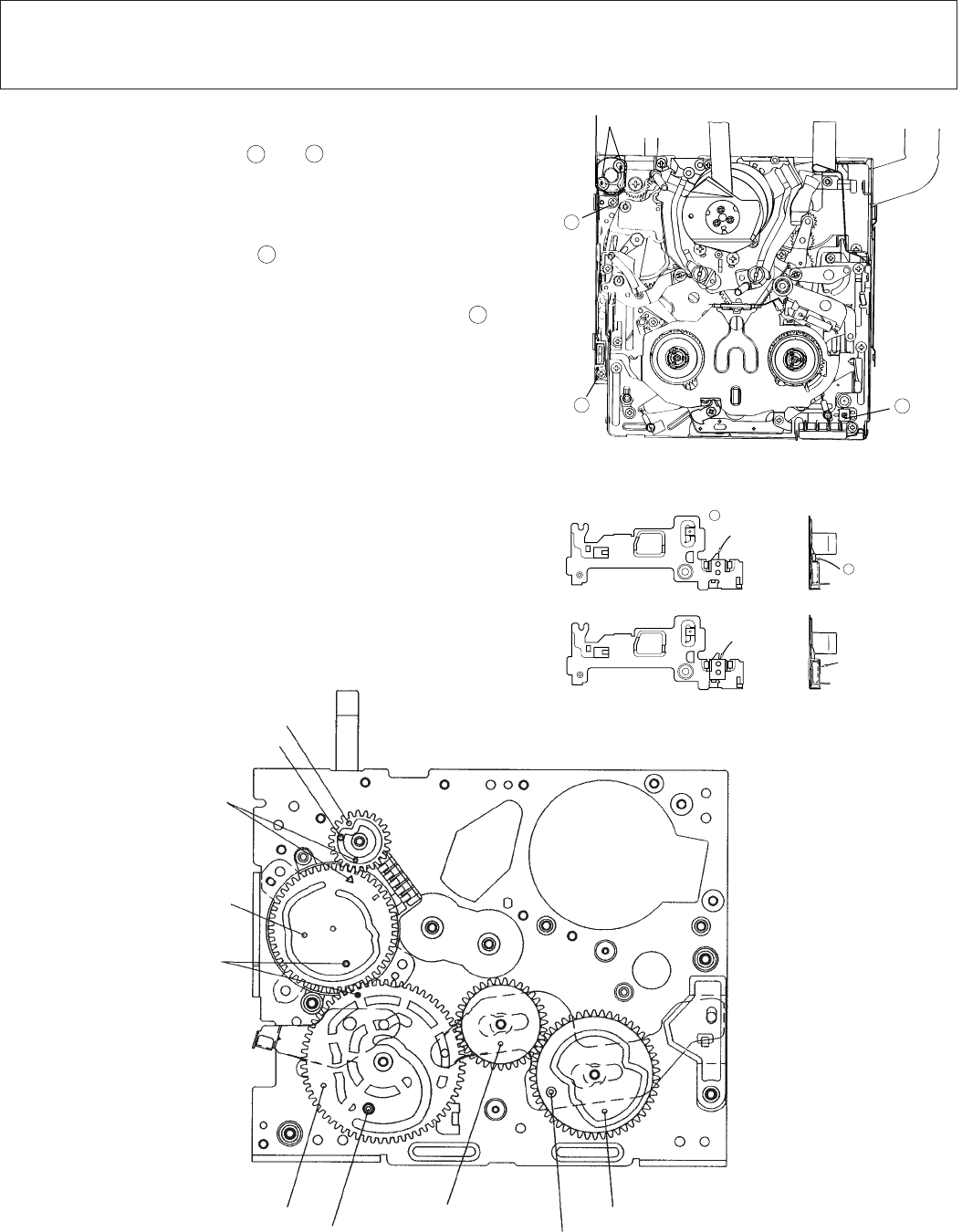

1) In Fig. 5 remove the screws P and Q.

Note) The loading motor solder joint (part T, Fig. 5) of DEW sensor

FPC applied to the down switch angle is not removed. After the

down switch angle is removed, take care so that the DEW

sensor FPC is not broken.

(3) Surely secure the moving piece R of down switch as shown in Fig.

6 with the aid of adhesive tape so that the switch is turned on.

(4) Install the down switch angle.

Note) To set the REC mode, press the pin of recognition switch S (not

required in other modes).

(5) Set the test mode (T-01) with the adjustment remote controller

without loading the tape. Thereby the mechanism operation is

enabled with the mode key.

(6) To eject, remove the tape (3).

9-4. Phase matching

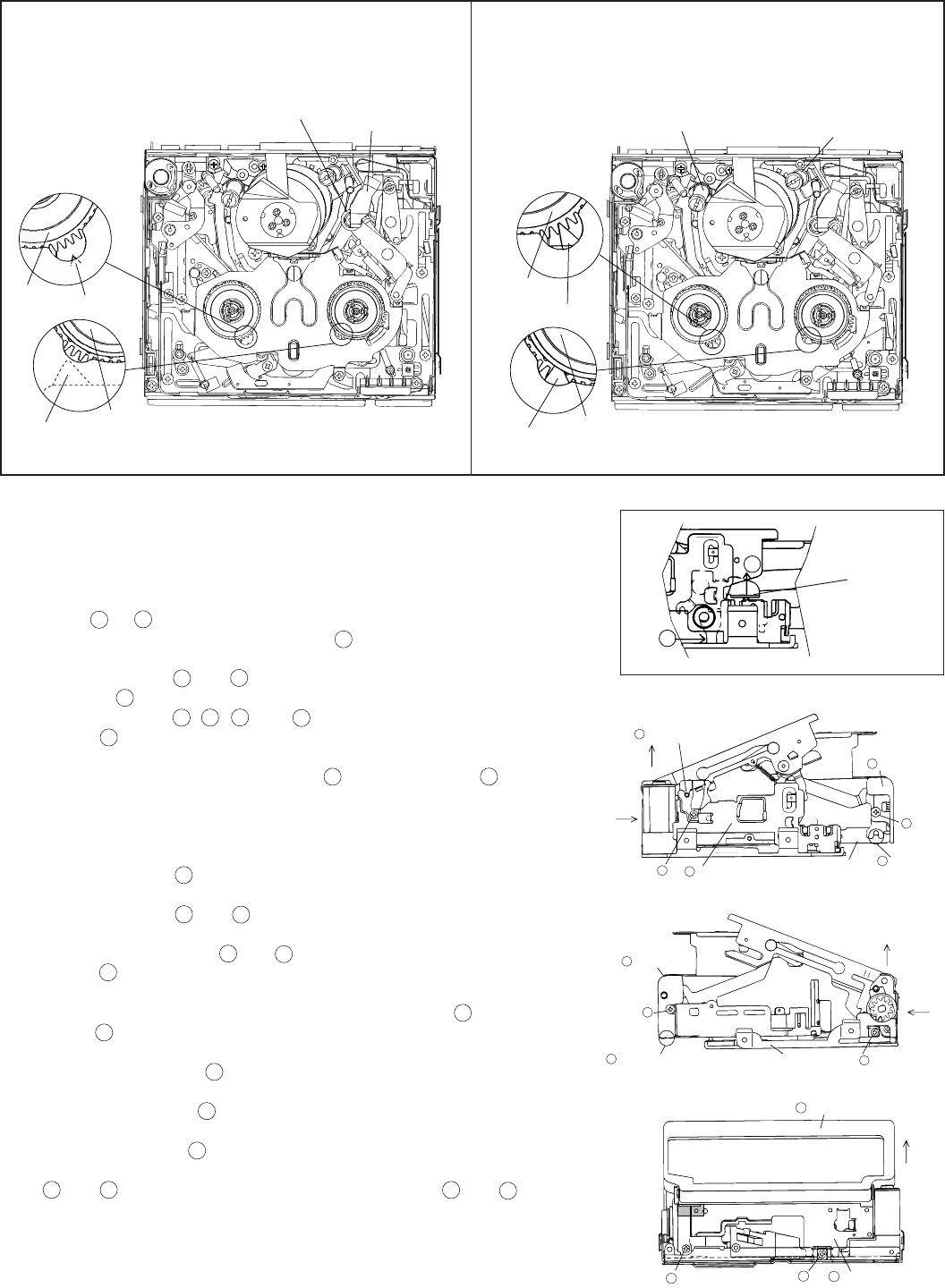

For the parts listed below, match the phases as shown in Fig. 7.

(1) AHC cam (2) MODE switch (3) Main cam (4) Sub cam

Note) Before disassembling, check the marker positions carefully.

Note)

When installing the engagement gear, make sure that the main cam

and sub cam phase matching hole aligns with the chassis hole.

Note) After phase matching, turn the MODE switch by hand and confirm

that it turns almost one complete turn. (After checking, return it to

its original position.)

Fig. 7

Phase matching

mark

Phase matching

mark

Phase matching hole

(for chassis)

AHC cam

MODE switch

Main cam

Phase matching hole

(for chassis)

Coupling gear

Fig. 5. STANDBY mode

Fig. 6

Sub cam

Phase matching hole

(for chassis)

Down switch angle

Adhesive tape

Down switch

moving piece

RDown switch moving

piece

VL-FD1U

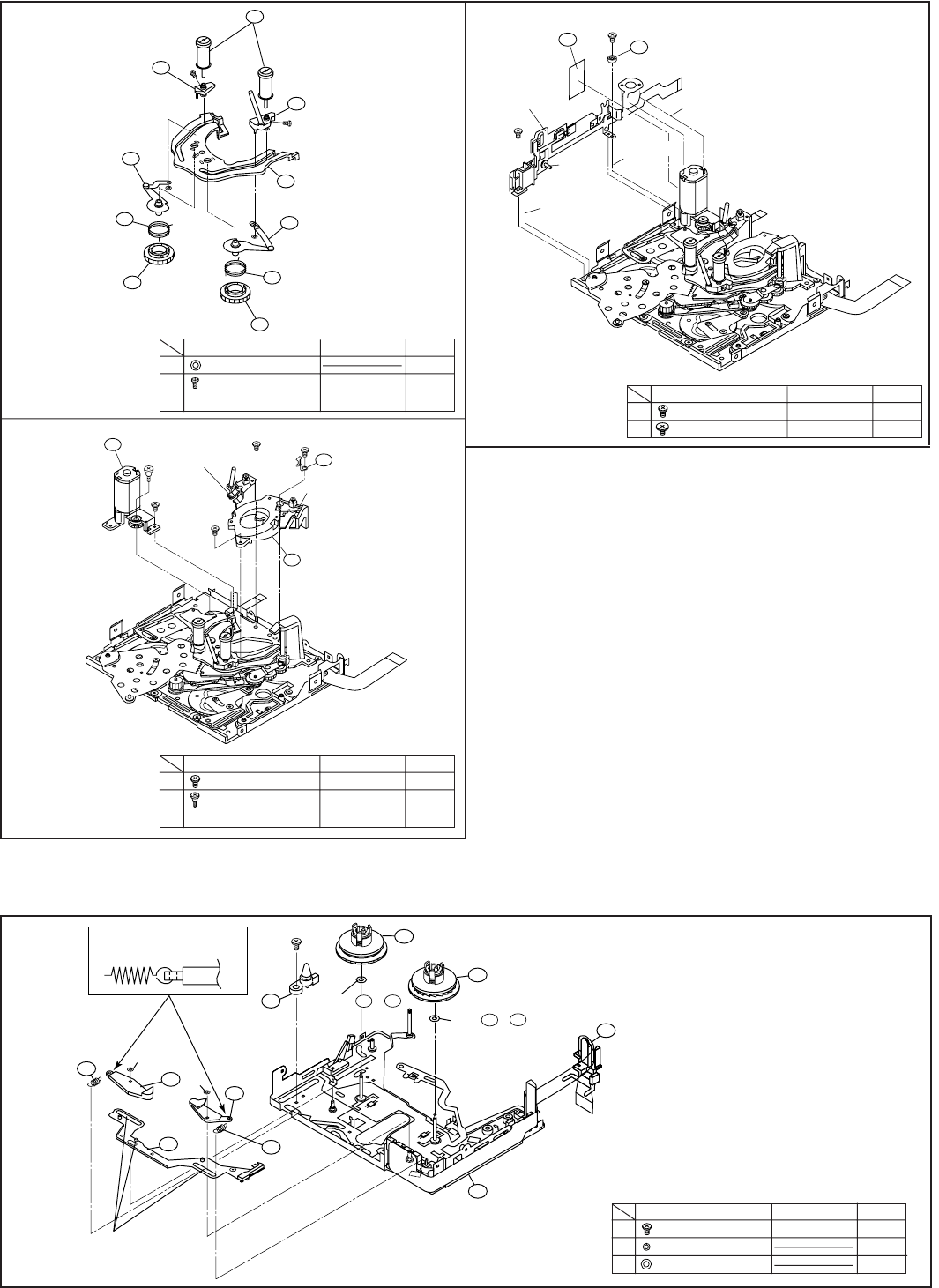

9-5. Reassembly

9-5-1. Reassembly in side of the main chassis.

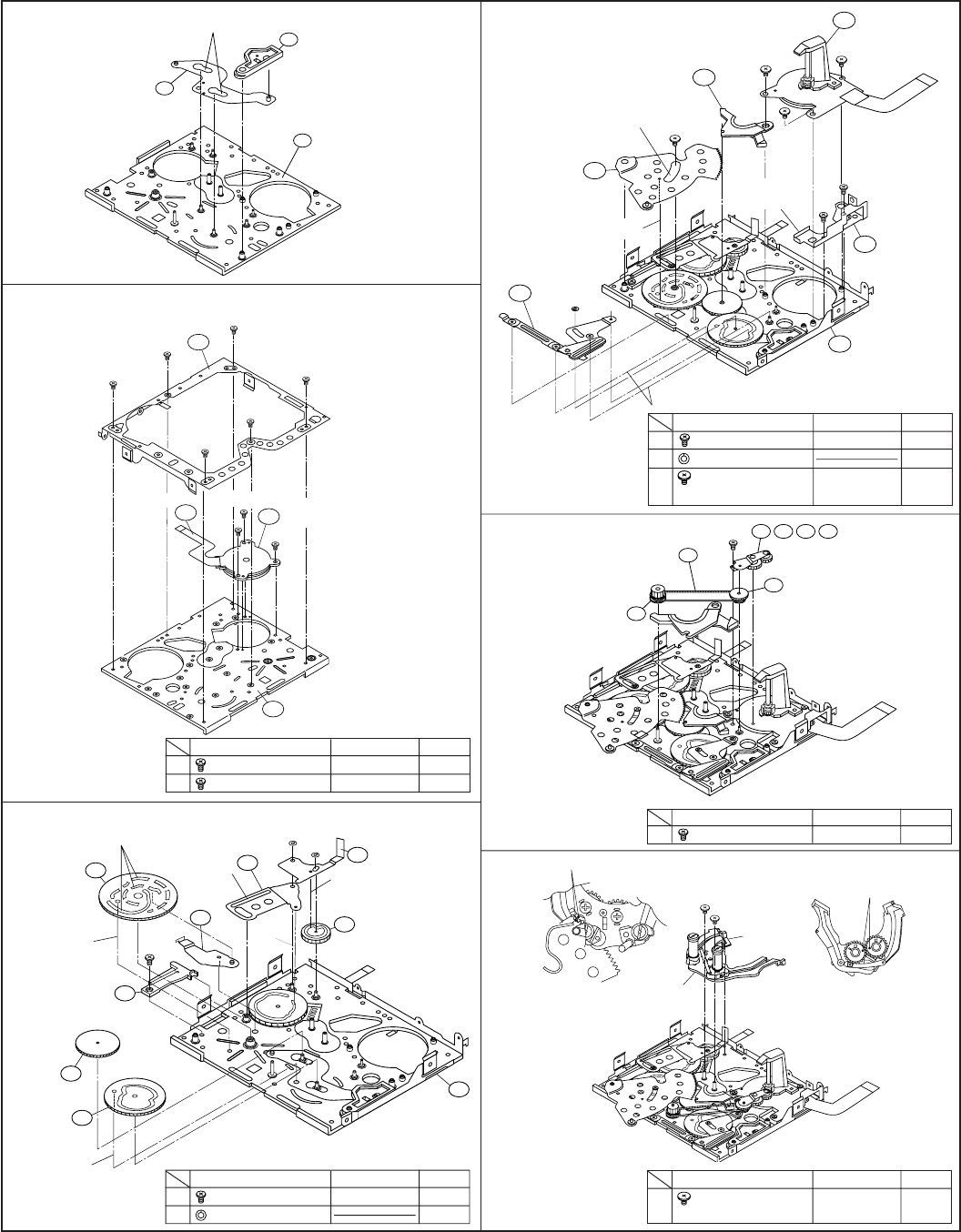

Note) Numbers before part names are given as a guide to the order of assembly.

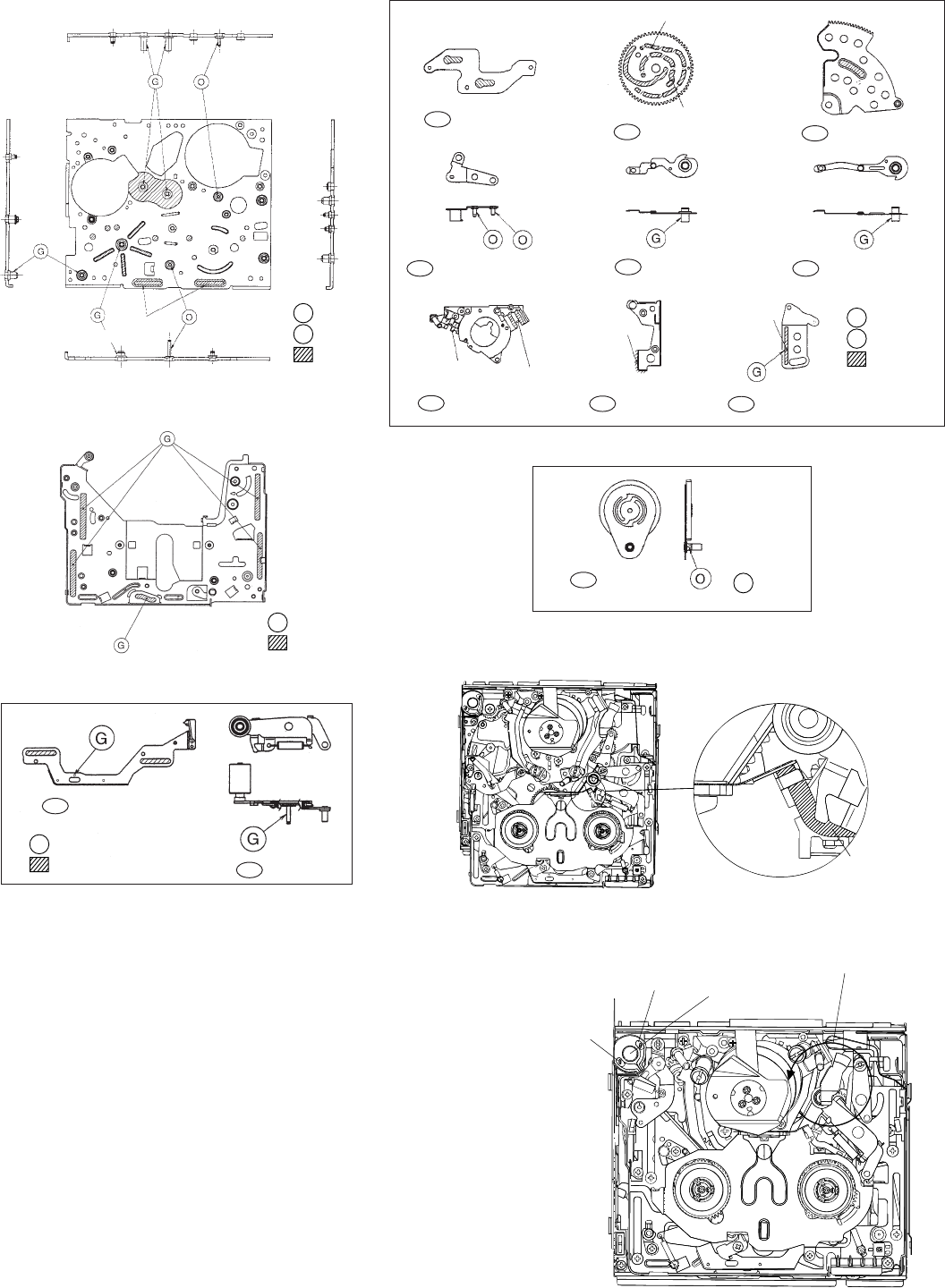

As for greasing/oiling/cleaning places refer to the attached drawings (Grease/Oil application Fig. 1, 2).

1. Groove grease

2. (2) Mechanism fixing angle

assembly (Rear surface)

Note) The numbers following

A and B indicate the

screw tightening order.

Item

Tightening torque

Quantity

A S Tight · M1.4 x L3 70mN·m 3

B S Tight · M1.4 x L2 70mN·m 6

Item

Tightening torque

Quantity

B S Tight · M1.4 x L2 70mN·m 1

C CWø1.2-ø3.0-t0.25 2

(6) AHC cam

Cam groove grease

Groove

grease

(7) T arm

control lever

(3) Main cam

To cam

groove

To cam groove

(8) AHC control lever

To cam groove

(4) Tu guide cam

(5) Capstan motor

(2) Shifter drive

lever assembly

(3) Loading lever

Groove grease

To cam groove

Item

Tightening torque

Quantity

B S Tight · M1.4 x L2 70mN·m 2

C CWø1.2-ø3.0-t0.25 1

D Special screw · 40mN·m 4

M1.4 x L1.6

(3) Timing belt (4) Intermediate gear angle

sub assembly

(1) Intermediate pulley

assembly

(2) Center pulley assembly

Item

Tightening torque

Quantity

B S Tight · M1.4 x L2 70mN·m 1

Item

Tightening torque

Quantity

E Special screw · 40mN·m 2

M1.4 x L1.5

Main chassis assembly

(Rear surface)

(1)Slide chassis guide

B-3

A-3

303

361

301

(1) Pinch control lever

Main chassis assembly

(Front surface)

(2) Pinch drive lever

314

463

441

301

(1) Mode switch

A-1

309

302

379

370

371

304

310

369

314

(1) EJECT

lever

Positioning

hole

(2) Lock lever guide

305

311

314

462

306

386

Drawing part

grease

Mechanism fixing angle

366

312 364 365 421

459

367

Phase match check

(5) Coupling

gear

(4) Sub cam

Positioning hole

(1) Guide rail sub

assembly

Guide rail sub assembly

(Rear surface)

Phase match check

Enter part of

convexity

rear surface

B-1

B-6

B-2

B-5

B-4

A-2

Mode FPC

VL-FD1U

Tu pole base assembly

Item

Tightening torque

Quantity

F CWø0.7-ø2.2-t0.25 2

G Special screw · 5mN·m 2

M1.2 x L1.8

(Tentative tightening)

(3) Loading motor

assembly H

(2) PB guide spring

Grease

(Front surface, rear surface,

groove side surface)

Item

Tightening torque

Quantity

A S Tight · M1.4 x L3 70mN·m 4

Special screw with step

· 70mN·m 1

M1.4 x L6.25

SL chassis holder S

Positioning

(2) Down switch

attachment

angle sub

assembly

9-5-2. Reassembly in side of the Slide chassis.

Note) Numbers before part names are given as a guide to the order of assembly.

As for greasing/oiling/cleaning places refer to the attached drawings (Grease/Oil application Fig. 3, 4).

Item

Tightening torque

Quantity

B S Tight · M1.4 x L2 40mN·m 1

I CWø0.7-ø1.8-t0.1 2

J Wø1.2-ø2.5-t0.3 2

(3) Dew FPC cover P

Grease

(1) Drum base sub assembly

Solder-joint

Item

Tightening torque

Quantity

A S Tight · M1.4 x L3 70mN·m 1

P S Tight · M1.4 x L4 70mN·m 1

Grease

(Rear surface,

groove side

surface)

375

330

337

376

456

457

391

353

374

Grease

(9) J ( 411 ~ 415 )

Fit the main brake SPR from

above, and close with the hook.

(1) Slide chassis assembly

with sensor FPC

Sensor FPC guide

(2) Brake shifter

Ass'y

(3) S main

brake

(3) I

(4) Main brake

SPR.

(5) Tu main

brake

(5) I

(6) Main brake

SPR.

(7) S cassette

stay

(7) B (8) S reel base Ass'y

(8) J ( 411 ~ 415 )

(9) Tu reel base Ass'y

454

451

307

395

372 396

308

362

452

373

Tu pressure spring

Tu loading arm assembly

399

453

461

Guide roller assembly

S pole base assembly

S loading arm assembly

S pressure spring

S loading gear

Tu loading gear

Guide rail

378

325

Positioning

VL-FD1U

Item

Tightening torque

Quantity

B S Tight · M1.4 x L2 40mN·m 1

D Special screw · 40mN·m 4

M1.4 x L1.6

9-5-3. Main chassis assembly and slide chassis assembly assembling method

(1) Set the L/S mode (see the figure below).

(2) Insert the slide chassis side operation pins ( 1 tension arm, 2 Tu guide arm, 3 pinch lever) in the position shown below at the

main chassis side, move the slide chassis in the arrow direction, using

to E as guides, insert the loading lever operation pin

into the groove of slide chassis, and install with the 4 screws.

500

326

325

(2) Cap FPC cover

(1) D

(1) Head amplifier PWB unit

Through the groove in the cassette control.

(3) Dew FPC Stopper

Note1) Be careful not to scratch or dent in

the parts ( 381, 382, 383, 384, and

455 ), be careful not to deform the

tension band in handling it.

Note2) Be careful not to deform to tightening

the 428 coat the Screw lock to the

point of shaft.

Item

Tightening torque

Quantity

B S Tight · M1.4 x L2 1

C CWø1.2-ø3-t0.25 1

F CWø0.7-ø2.2-t0.25 3

L Type 2 minuteness

40mN·m 1

M1.4 x L1

Special head screw ·

40mN·m 2

M1.4 x L2

Special screw with step

· 40mN·m 1

M1.4 x L1

• Numbers before part names

are given as a guide to the

order of assembly.

• When treating the sensor

FPC wire, pay attention to

the part A shown in Fig. 6.

• Oil application place is

shown in Fig. 5.

* 438 Tightening torque

70 ± 7mN·m

393

431

420

357

390

356 394

458

381

382

397

352

383

455

397

351

392

354

383

384

385

428

(10) Swing arm release

lever fixing screw M

(10) Swing arm

release lever

(10) Swing arm

release SPR.

(2) T roller upper

flange

(2) Tu pole

(3) Pinch lever

return SPR.

(4) Pinch lever Ass'y

(5) L

(5) T spring

hanging

ANG

(9) S guide hexagon

nut

(9) S guide

sleeve

(5) B

(8) K

(7) K

(6) F

(6) T roller upper flange

(6) T roller Ass'y

(6) T roller inner

(6) T roller bottom flange

(6) Guide adjustment SPR.

(6) Tension arm Ass'y

T arm SPR.

(7) C

(7) Tension band

Ass'y

(1) Tu guide

arm SPR.

(2) Tu guide

arm Ass'y

(2) Guide adjustment

SPR.

(2) T roller bottom

flange

Grease

438

355

398

377

313

(3) FPC cover

(2) N

(2) Reel cover

Ass'y

(1) I

(1) Swing arm Ass'y

(4) Drum fixing SPR

(4) Drum installation screw

Oil

470

(4) Drum Ass'y

Assembly Mode

Item

Tightening torque

Quantity

I CWø0.7-ø1.8-t0.1 1

Type 1 minuteness ·

40mN·m 1

M1.4 x L1

Item

Tightening torque

Quantity

D Special screw · 40mN·m 3

M1.4 x L1.6

VL-FD1U

GREASE/OIL APPLICATION

Fig. 1. Side of the main chassis

Fig. 3. Side of the slide chassis

G : Greasing

: Greasing

: Oiling

: Greasing

Fig. 4. Side of the slide chassis

458 Pinch lever

353 Brake shifter

G : Greasing

: Greasing

9-6. Removing the cassette

(1) Apply DC3V to the loading motor unload slightly.

(2) After the tape is slackened, turn the rotor (lower side of mechanism)

of capstan motor to tighten the tape. (Arrow direction, Fig. 1)

(3) Repeat the operations (1) and (2). After the pole base has been

completely unloaded, ascertain that the tape is not loose.

(4) Finally apply again DC3V to the loading motor, so that the cassette

controller ejects.

(5) Take out the cassette.

Note) DC3V is applied to the loading motor as shown Fig. 1. Then,

the mechanism moves in the unloading direction.

303 Pinch control lever

From rear

surface side

306 Loading lever

312 Intermediate gear angle 307 S loading arm 308 Tu loading arm

From rear

surface side

(Rear surface · groove

side surface)

453 Drum base assembly 311 Tu guide cam 309 T arm control lever

: Oiling

: Greasing

304 Main cam

Enabled after

assembling

Enabled after

assembling

(Front surface · rear

surface · groove

side surface)

Fig. 2. Side of the main chassis

313 Swing arm

Oiling

Fig. 5. After joining the main chassis and slide chassis

Including groove

side surface

Part A

Fig. 1

Fig. 6. Sensor FPC wiring

Loading motor

Minus pole

Plus pole

Sensor FPC

Capstan motor rotor rotation direction

(from rear side of mechanism)

VL-FD1U VL-SD20U

10. ADJUSTING THE ELECTRICAL CIRCUITS

Before starting the electric circuit adjustment

•The adjustment methods described herein are used, in most cases, when the expendable mechanical parts, including

the video head, have been replaced, at which time the electrical circuits need to be readjusted. Before adjusting the

electrical circuits, make sure that the mechanism works properly (i.e., the mechanism is properly adjusted). Incase of

the occurrence of any problem to the electrical circuits, be sure to use the specified measuring instruments to locate

the area to which the problem is occurring, and then take the necessary action, including repair, replacement or

adjustment, exactly as instructed in the electrical adjustment methods that will follow.

Do not attempt to make adjustments without using the proper measuring instruments.

•This machine is configured so that the electrical circuits inside its PWB unit are composed, for the most part, of high-

density, small surface-mounted component parts for downsized machine body.

To perform repair service or parts replacement, do so using a soldering iron, but in as short a time as possible; this is

because surface-mounted component parts are generally so small in size and susceptible to heat, as compared with

the large discrete parts used in TV sets, desk-top video decks, etc., that attempting to heat their electrodes for a longer

time than is necessary with a soldering iron may result in their becoming defective.

This applies particularly when replacing the laminated chip capacitors.

For this purpose, ceramic soldering irons with a temperature regulator are recommended (iron tip temperature 250°C

and soldering time 5 seconds or shorter).

Chip ID as per Digital Interface IEEE1394 Standard

The VL-FD1U and other models that follow are newly equipped with the digital interface function. The Digital Interface

IEEE1394 Standard stipulates that each set with the digital interface function be given its specific ID number. The ID

number is written on the E2PROM of the set while it is manufactured. If the E2PROM alone or the PWB having this E2PROM

on it has been replaced for repair purpose, it is necessary to write a new ID number again. (Note that any replacement

part does not have an ID number yet.)

Accordingly, the repair engineer must obtain the new ID number.

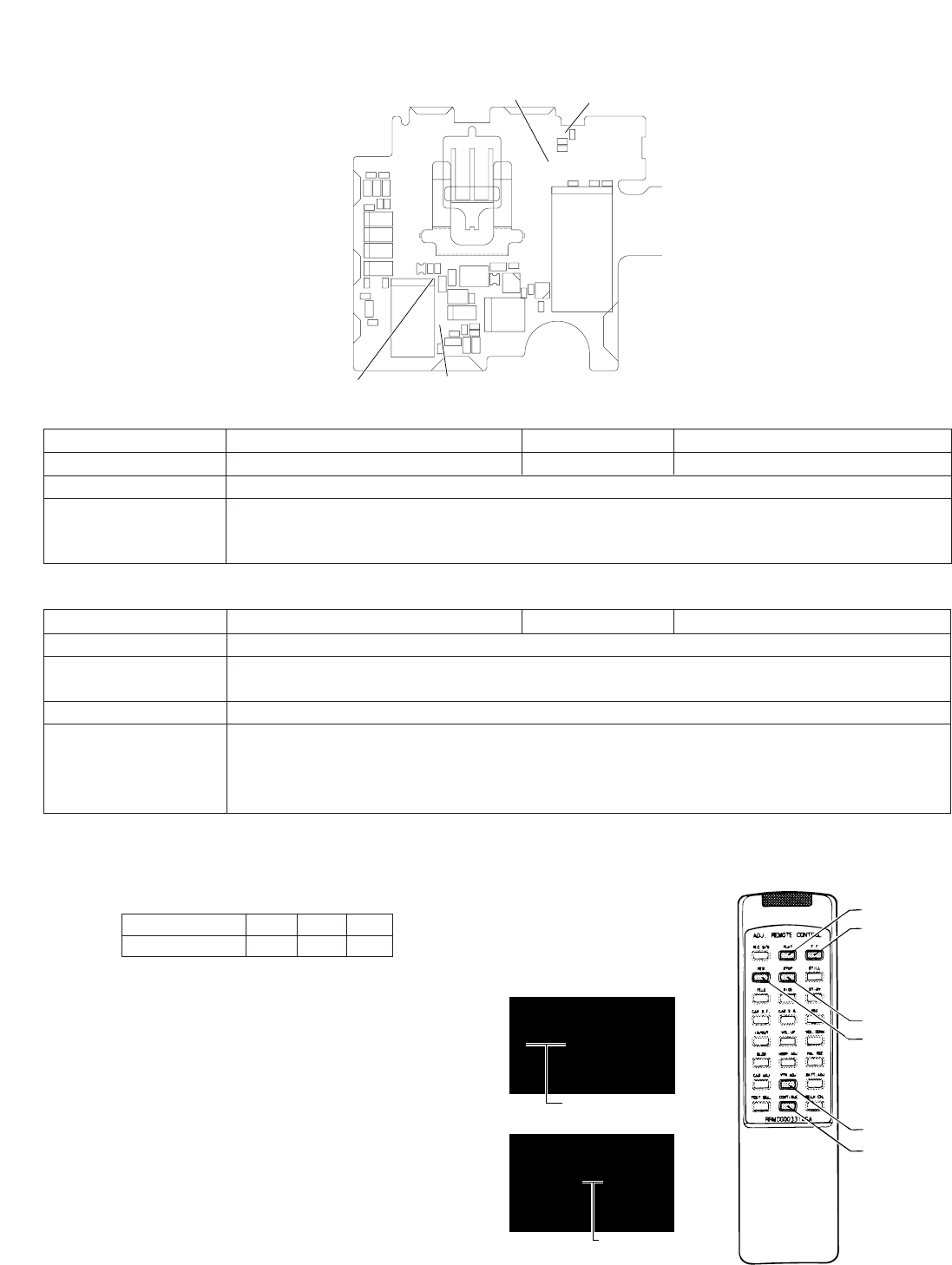

Writing a Chip ID number as per Digital Interface IEEE1394 Standard

IC301

IC302

Head amplifier PWB

If the IC302 (E2PROM) or the head amplifier PWB has been replaced, it is necessary to write a new ID number. (Note that

any replacement part does not have an ID number yet.)

Obtain a new ID number from the service department of sales company. Take the following steps to write the ID number

on the E2PROM.

■ Manual for obtaining and handlig IEEE1394 ID number

1. Access the intranet URL for the number below.

URL: http://www.rog.kami.sharp.co.jp/quics/e_index.html

2. Now enter User ID and Password, then click Login .

*ID and Password should be same as for "PARTS PEICE LIST".

VL-SD20U VL-FD1U

Click

■ ID code is acquired

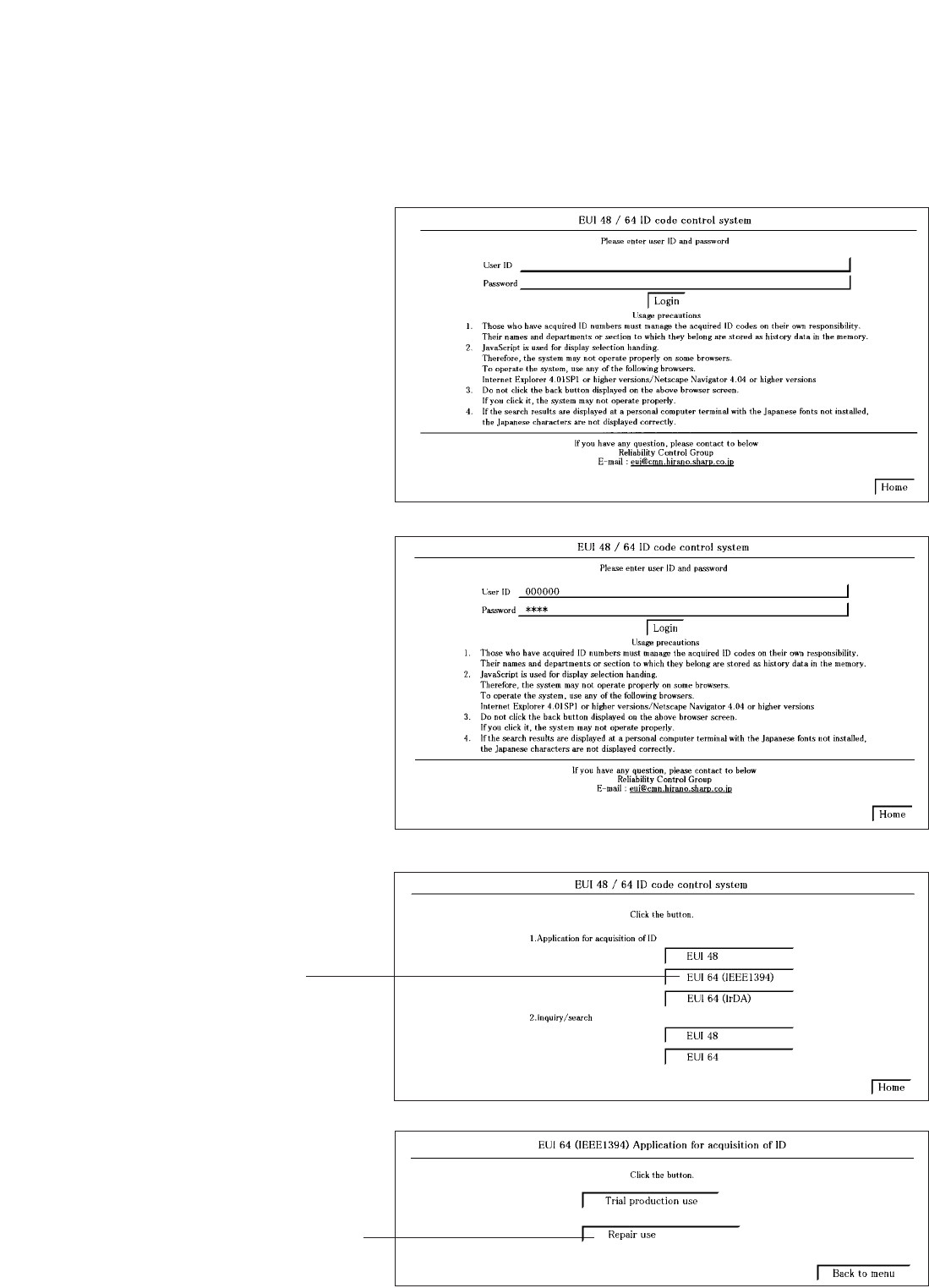

1. Connect with the EUI48/64 ID code control system.

(1) Start the Internet Explorer or Netscape Navigator.

(2) Access the following address.

(URL:http://www.rcg.kami.sharp.co.jp/quics/e_index.html)

Select the "EUI48/64 ID code control system" from the "Service" item.

Note: If you want to establish a connection by directly inputting the URL, please input the following.

URL:http://www1.rcg.kami.sharp.co.jp:7000/adrs_agt/adrs_dba/ide00010.main

The login screen will appear.

Click

(4) Click on [EUI 64 (IEEE 1394)] from the [1. Application for acquisition of ID].

(3) For the [User ID], input the [Password].

Click on [Login].

(5) Click on [Repair use].

VL-FD1U VL-SD20U

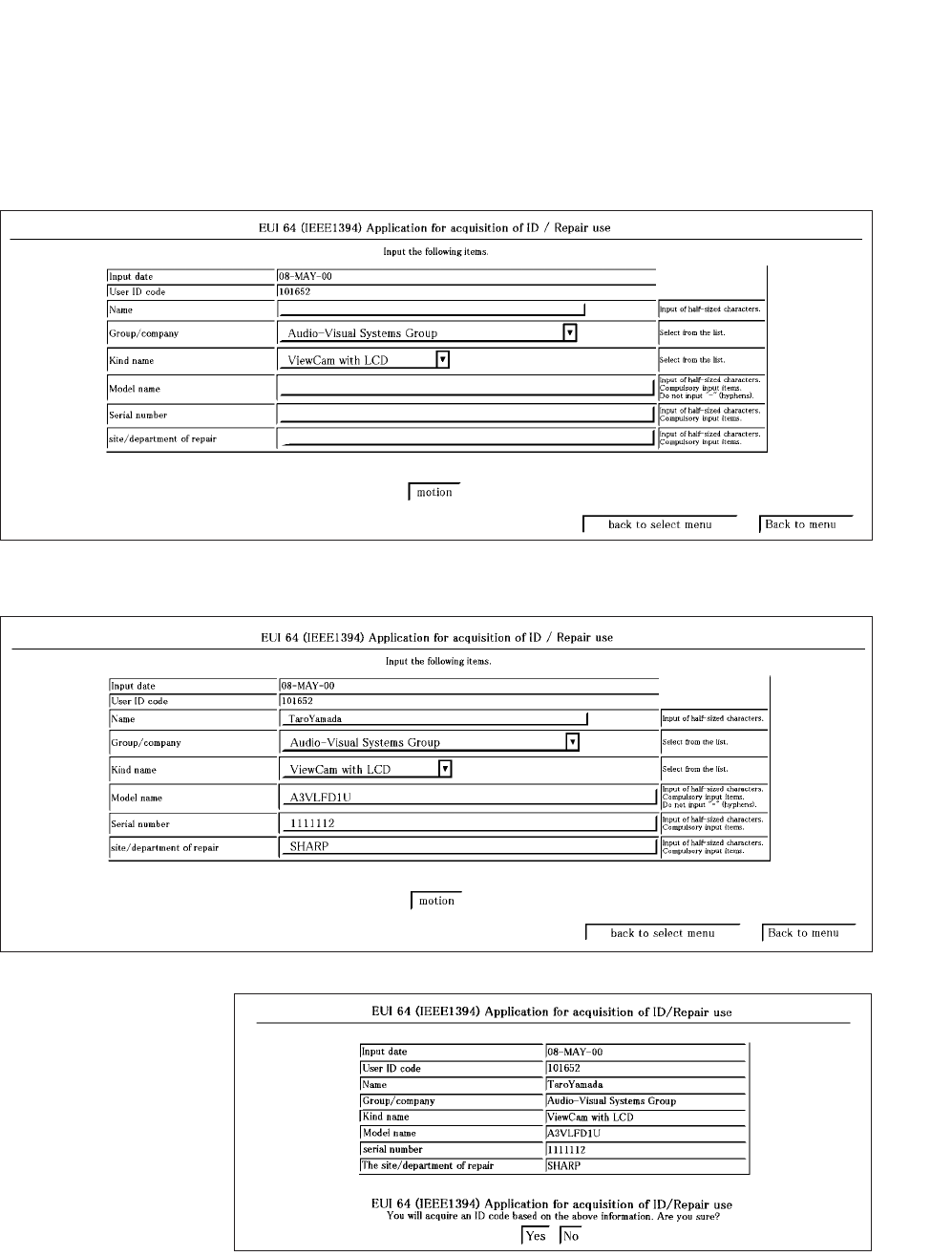

(6) Input the necessary information for the application.

For the indispensable input items, be sure to input them.

Select the [Group/company] and [Kind name] from the list.

Input the [Model name].

Input the [Serial number].

Input the [Site/department of repair].

For the input items when making each application, refer to the "Input item list for the ID acquisition application".

(7) Click on [motion].

The confirmation screen will appear.

(8) Click on [Yes].

5. Print the application result.

(1) Print out the application result screen.

Control the application result as evidence.

To print it, select "Print (P)" from the "File (F)" in the menu bar or click on the print button in the tool bar.

(2) Click on [Menu] to complete the application.

If you create applications in succession, repeat steps (1)~(8).

To complete it, click on [End] in the menu screen.

VL-SD20U VL-FD1U

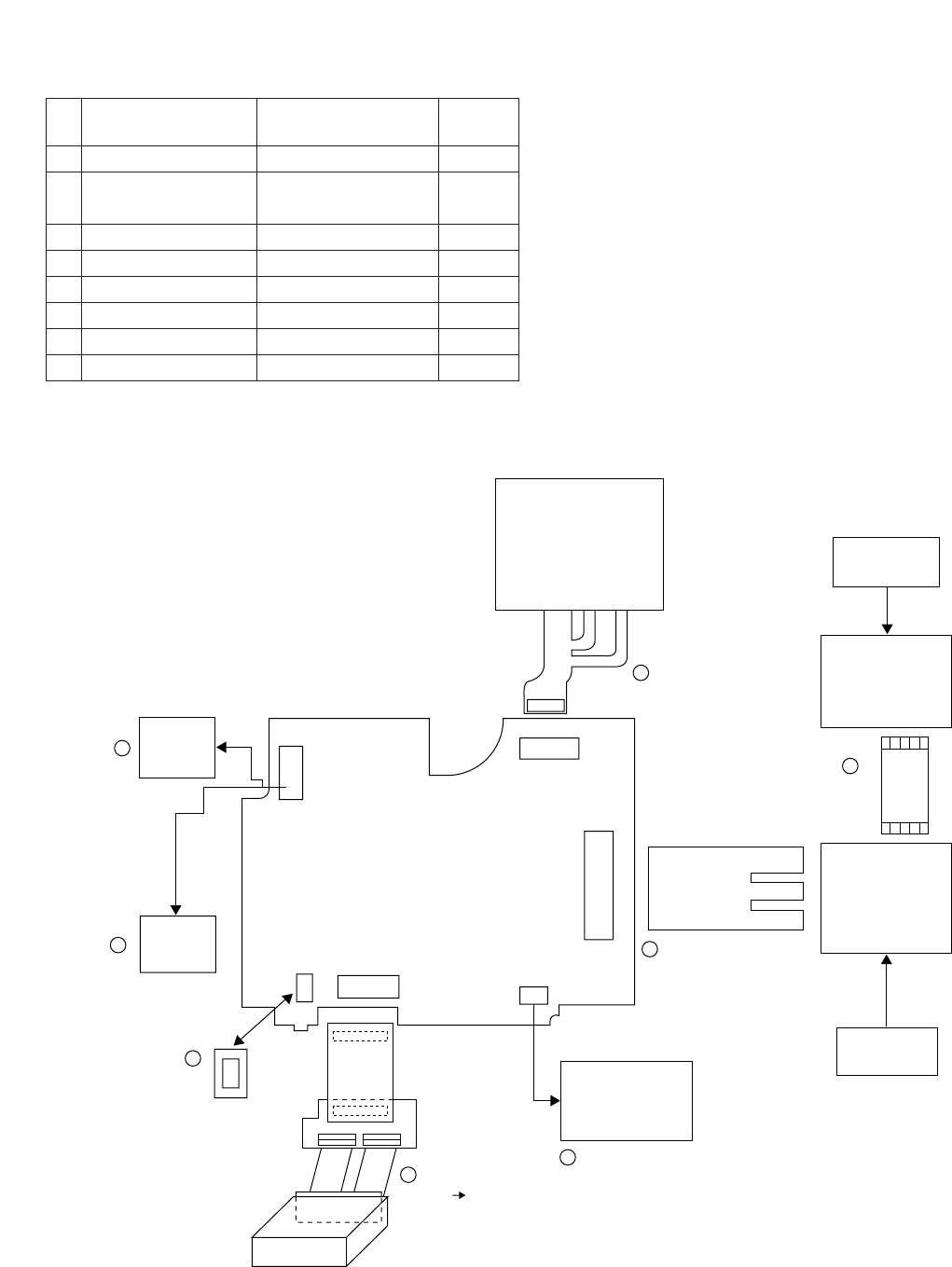

VL-FD1U Specifications of service jigs

No. Connection section Part cord Price

code

1 Main–LCD Panel CPWBH2923TA01 AS

2 Camera Head– QPWBH2924TAZZ AL

Audio I/O PWB

3 Main–Audio I/O PWB CPWBH2922TA01 AX

4 Main–Battery Terminal QTANZ0143TAZZ AU

5Main–Envelope Check RUNTK0348TAZZ BE

6 Main–Eject SW Unit QSW-Z0333TAZZ AK

7 Main–Jog SW Unit QSW-Z0332TAZZ AM

8 Main–Mechanism QCNW-1832TAZZ BV

Zoom SW

CAMERA HEAD

PWB

Battery Terminal

Unit

AUDIO I/O

PWB

Lens

Turn detection

LCD Panel

MAIN

Eject SW

Unit

Jog SW

Unit

Mechanism

SC800

SC6704

SC1001

SC900

SC3301

SC2401

for the Envelope

check jig.

QTANZ0143TAZZ

CPWBH2922TA01

Camera Tilt Unit

RUNTK0348TAZZ

QSW-Z0333TAZZ

QSW-Z0332TAZZ CPWBH2923TA01

LCD Tilt FPC

QPWBH2924TAZZ

Lens Tilt FPC

Mecha VCR

VL-FD1U Service jig configuration

VL-FD1U VL-SD20U

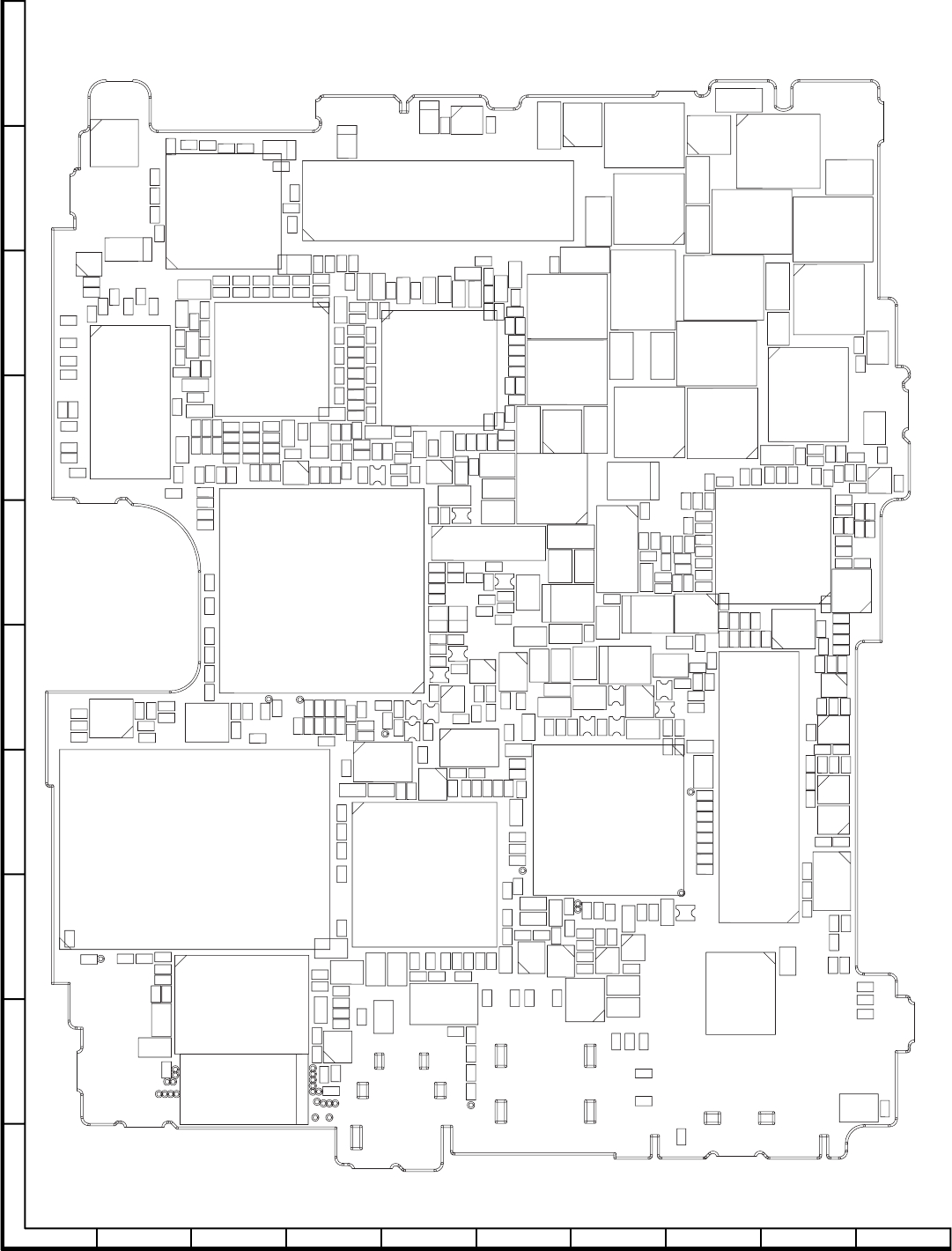

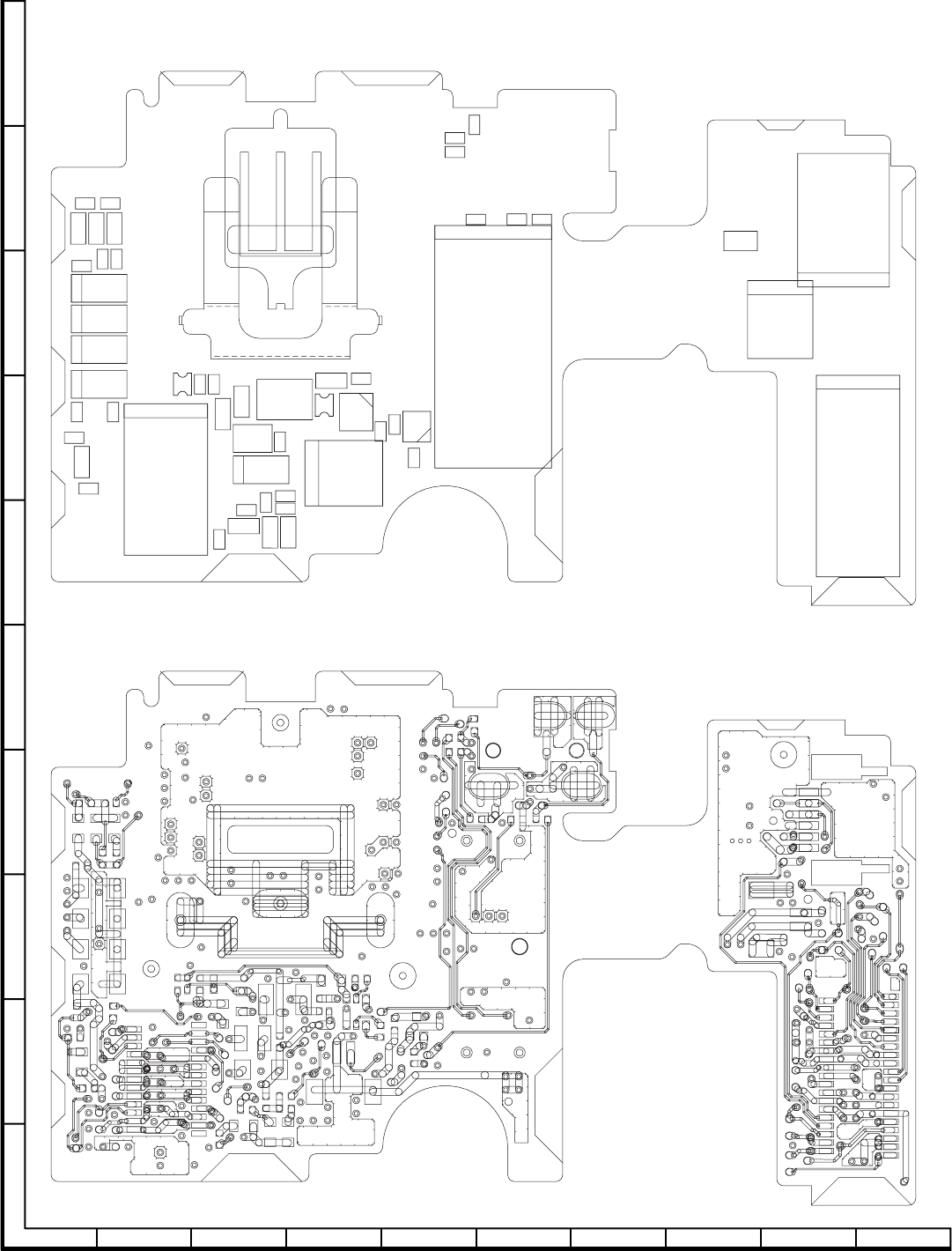

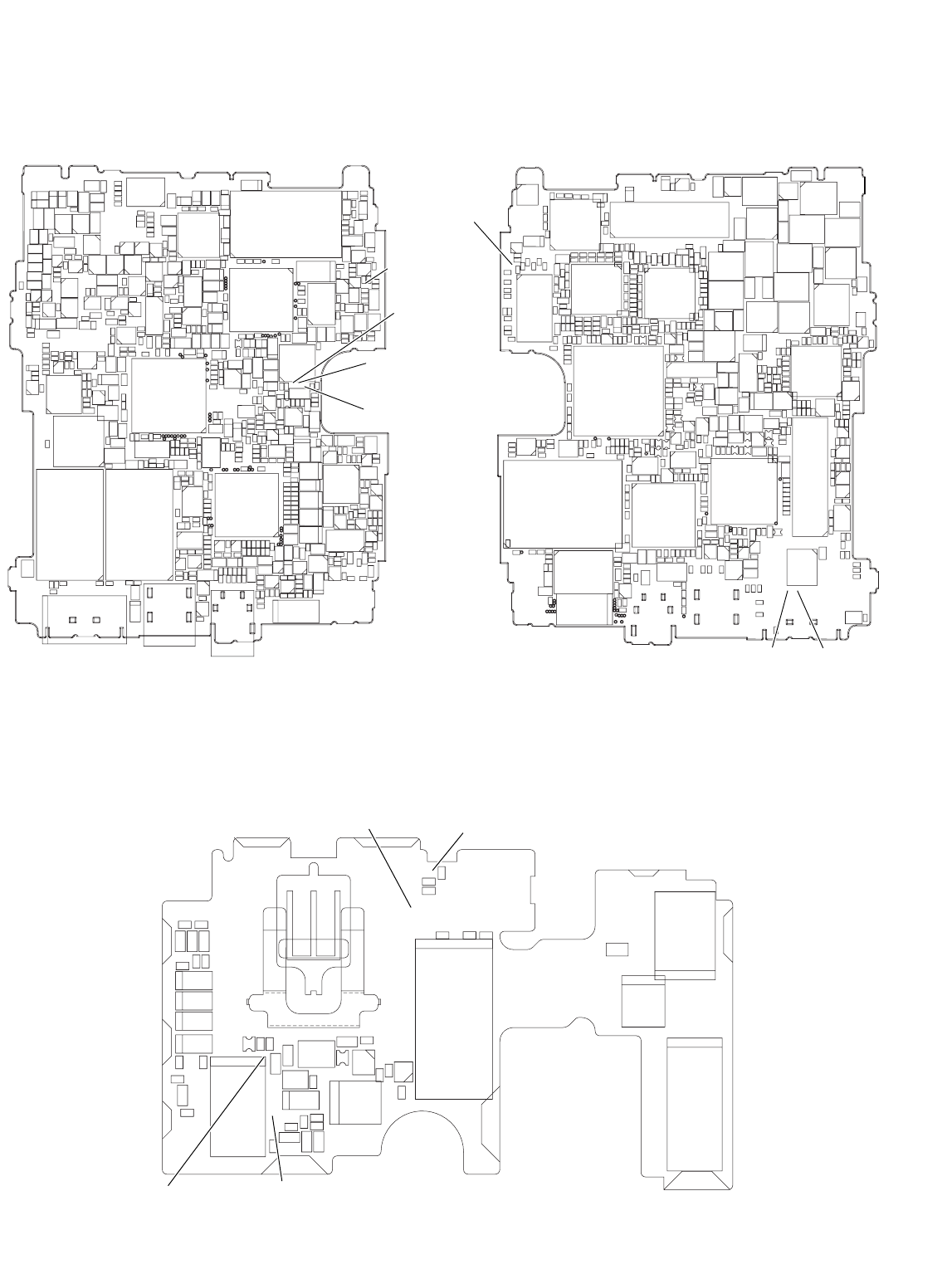

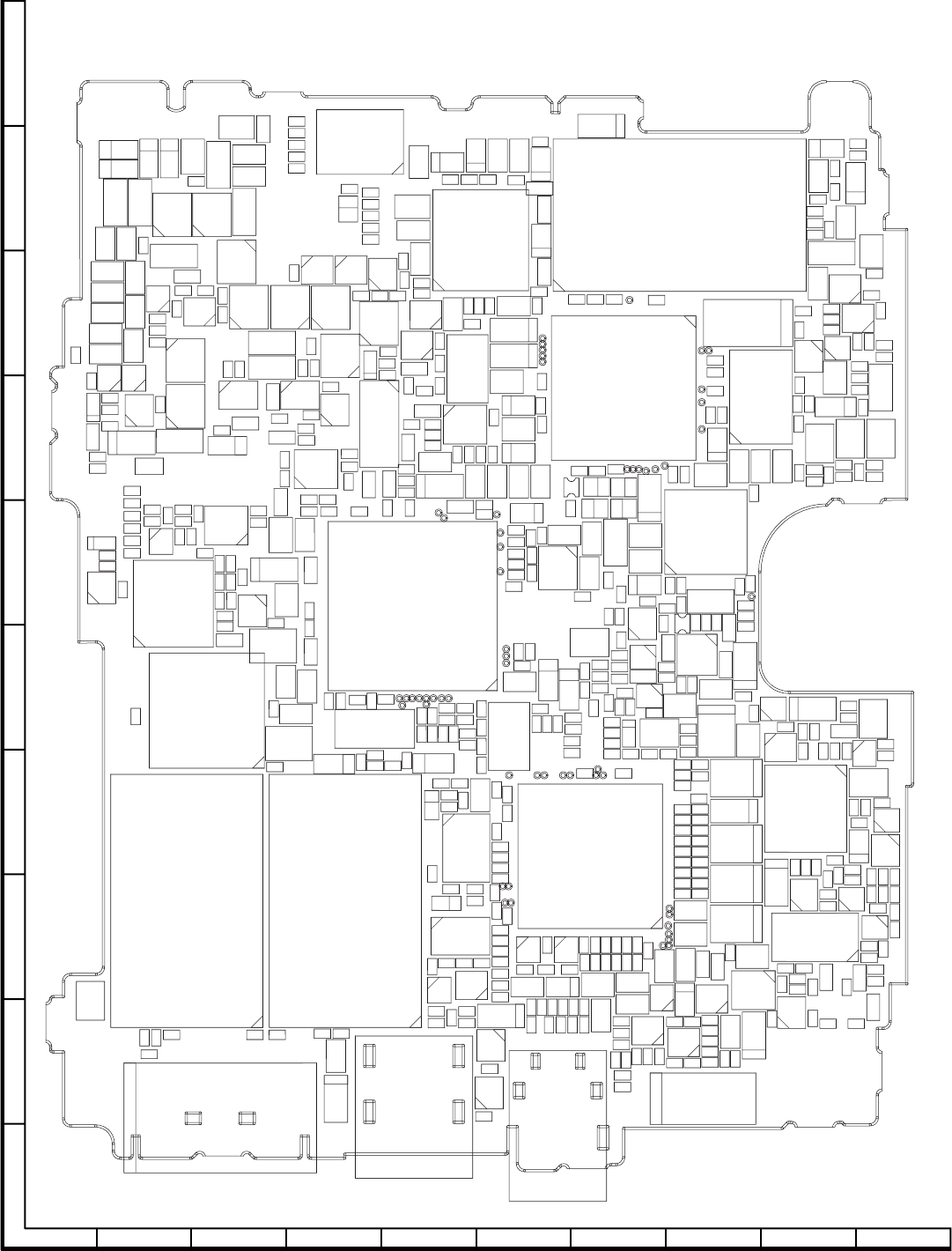

[TEST POINT]

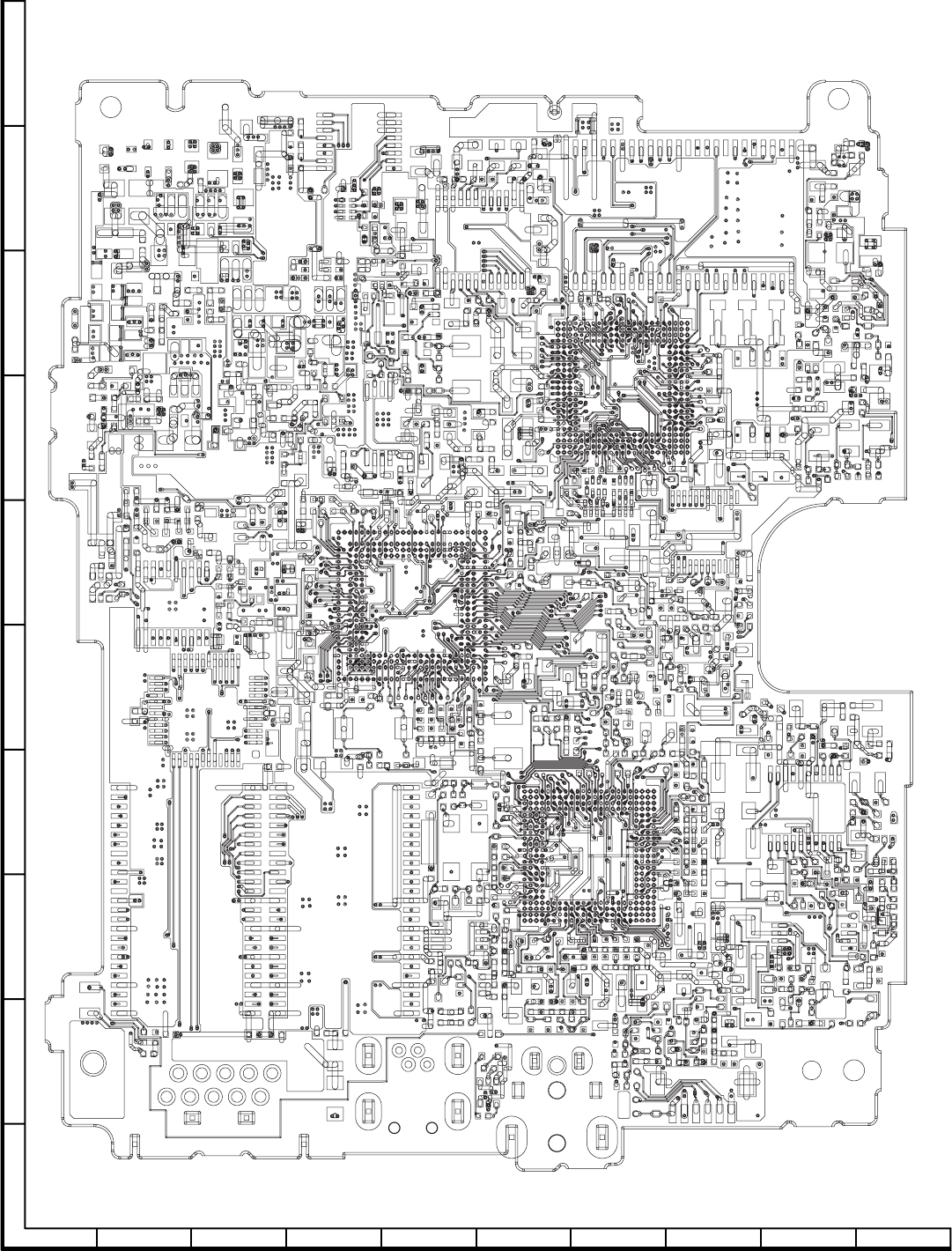

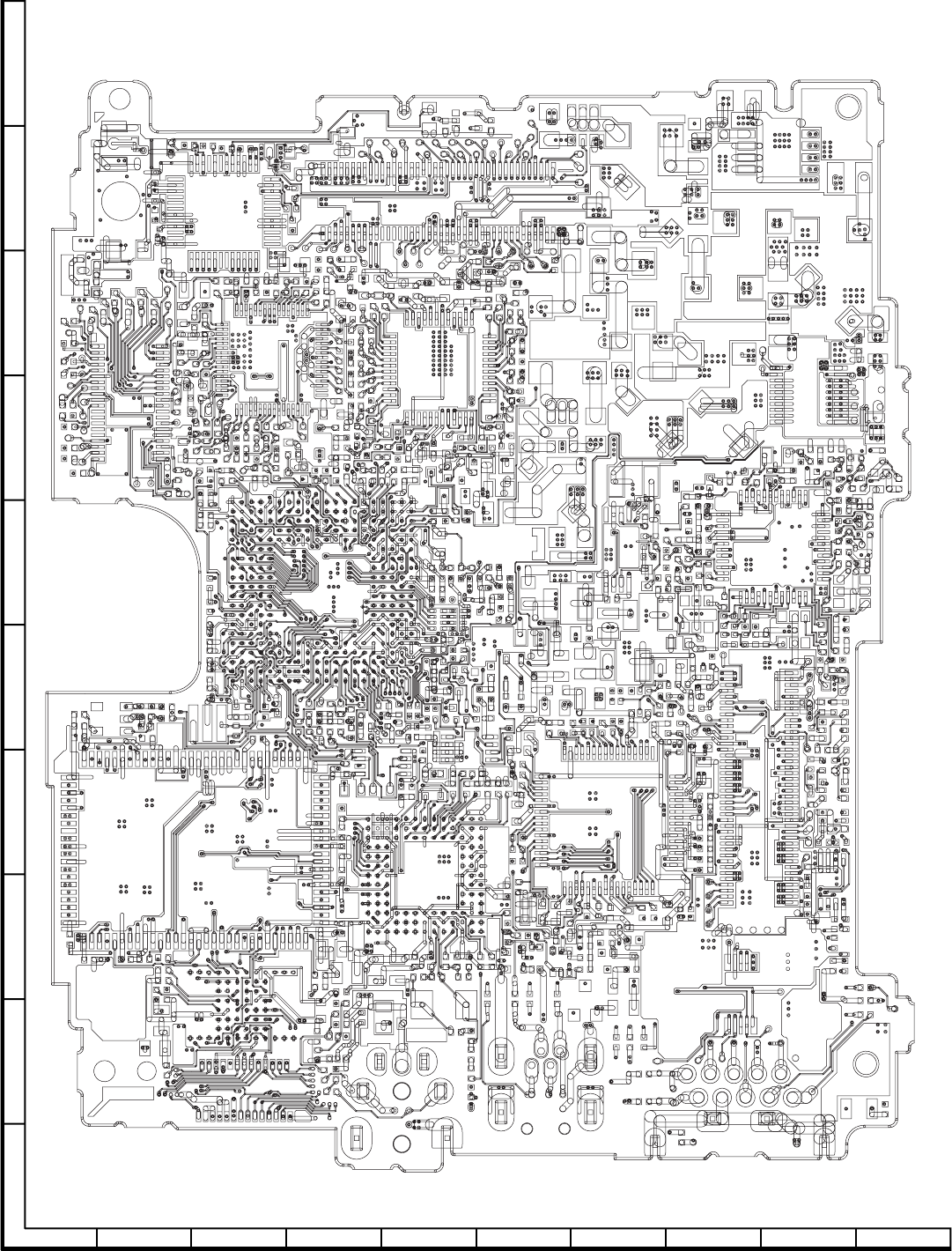

(Wiring board diagram: Main Side B)(Wiring board diagram: Main Side A)

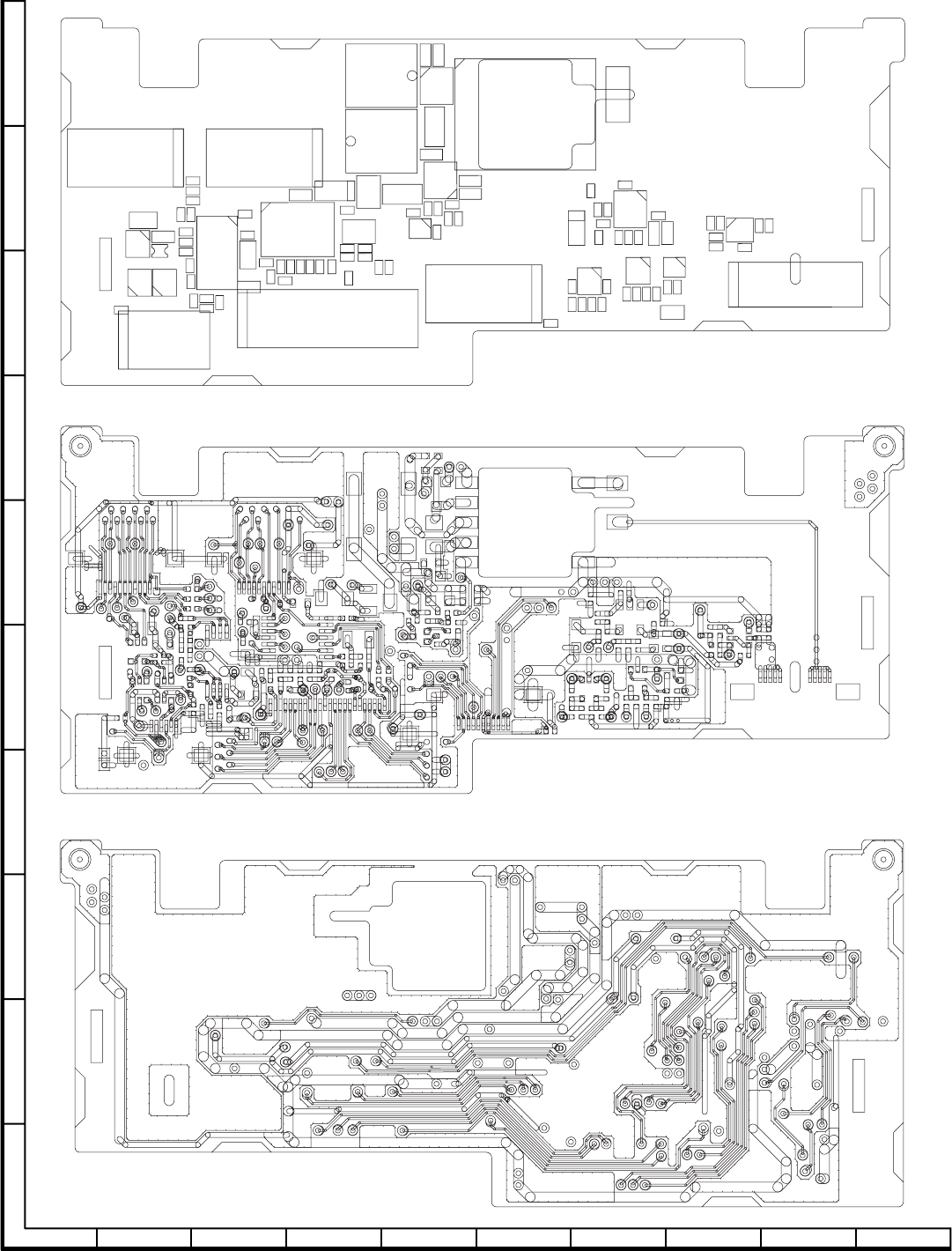

(Wiring board diagram: Audio I/O Side B)

TL2650

R636

R635

C645

TL2647

TL2652

TL2637

TL2640

TL2638

TL2648

TL2644

TL2645

SC2601

TL2641

TL604

TL2639

TL2651

TL2636

TL2630

R640

TL2656

C637

R656

L602

C638

C651 C646

R650

R651

R647 C650

TL2628

TL2654

P2604

TL2653

R629

TL2627

R662

TL2629

C605

Q605

TL2659

TL2660

TL2601

TL2602

TL2603

TL2604

TL2609

TL2613

TL2614

TL2605

TL2615

SC2607

TL2608

TL2611

TL2626

TL2612

TL2620

TL2624

TL2618

TL2622

TL2616

TL2610

TL2625

TL2607

TL606

TL607

TL2617

TL2623

TL2619

TL2621

P602

TL2606

S1501

TL2631

Q603

R666

R655

C609

TL2649

L601

BAT2601

C607

TL602

C608

C610

C611

TL603

R617

R624 R613

R626

C634

C633

C632

C631

R654

R638

R628

C619

C621

R669

C620

BAT2602

TL2646

TL2655

TL2658

TL601

R687

R688

TL605

FB601

FB602

TL614

TL2661

C1501

TL616

FB603

TL617

TL615

TL2632

TL2657

TL2635

TL2634

TL2633

SC2606

TL605

EE level

Frequency character

TL601

EE level

Frequency character

TL604

EE level

Frequency character

TL603

EE level

Frequency character

J2401

C456

J7401

R4432

Q4432

J701

R4471

TL6723

TL6719

P6701

R1404

C1441

R1414

R1413

C1439

R1403

R1436

R1419

R1402

TL1411

C1438

R1438

R1442 C1436

TL1431

R1439

Q1434

R1440

C1437

R1441

C1432

R1453

C4483

TL6722

Q1431

L1431

C4472 L4481 C1440

C4484 R4401

R4402

Q4482

R4483

C4482

R4485

C4485

R4487

C4402

C4481

R4482

R4484

Q4481

R4486

R4488

C4401

Q4472

R4475

TL4403

TL4404

TL4402

R1982

C4473

Q4471

C4419C4417

R4474 R4416R4411

TL6720

TL6721

R4478

C4410

L4402

R4413R4410

R4489

R4473

R4476

R4470

R4477

R4412R4409

C4404 R4415C4406

L4401

C4449

R4423R4408 R4406

R4407

R4425 Q4433

C4412

R4424

R4436

C4448

R4405

R4420 R4404

C4405

R4435

R4421R4422 Q4434

L4461

R4437

C4461

Q4431

R4463

R4468

R4467

C4464

C4465

C4467

R4431

R4469

Q4461

R4461

R4457

R4465

R4462

Q4462

R4464

C460

C4462

C4463

FB456

R451R452

C462C463C465

C2402

R2403

FB2402

L2402

IC408

IC407

TL4451

D4452

C467

D4451

R4453

R4454

R4451

IC4461

R4455

C4452

C4451

X4451

L4451

C4466

TL4417

C4423

C4422

C4424

C4437

TL4413

C4420

R4460

TL4416

R4452 R4456

TL4410

C4411 C4433C4443

IC4401

TL4409

TL4405

TL4401

TL4407

R7806

R7807

C4421

C4430

R7800

R7802

R7804

C7801

C7805

TL4440

L7800

C7800

R4414

R7808

C7802

R7801

R7803

C7804

R7811

R7809

R7810

R7805 C1407

C1431

C1411

C1406

C1412

R1421

IC1431

D1401 C1417

IC1401

C1418

R1461

R1462

R1451

C1416

C1414

D1402

TL1412

R1416

C1410

R1406

R1417

C1413

Q1433

R1405

R1435

R1431C1433

C1401

Q1402

R1434R1433 Q1432

C1435R1437C1434R1432

R1418

R1407

L1403

Q1404

L1401

R1411

R1410

C1403

C1404

C1408

C1409R1415

R1409

C1405

R1408

R1452

Q1405

Q1401

R1401

L1404 C7843

R7852

TL1410

C1415

R4403

C1402

C4403

IC7800

C7844

C7806

R7814

C7838

R7813

C7821

C7831

R7812

C7807

C7822

L1402

C7839

C7816

R7845

R7846

TL4436

L7801

R424

Q402

TL4438

R7827

C416

Q401

C7842

D7800

TL4437

C7815

R420

R7851

R7854

C7813

R422

R425

R427

R7855

C7837

R7843

R7842

R7841

C473

C472

R476

C474

TL4424

TL4422

R477 R478

TL4423

C4444

D471

C7810

C7808

C7836

C7811

TL4418

C7830

TL4425

D472

C7829

C7828

TL4428

C7825

R480

TL4426

R483

C411

C403

X401

TL4421

TL423

TL422

TL420

C419 R418 R417 C418

R426

R421

R423

C420

C427

C4454

R428

R429

R469

TL419

R470 R402

TL421

C4453

D403

TL418

C470 C428

TL405

TL404TL406

C435

TL449TL448

TL450

TL447

R436

R435

R438

R437

C447

FL403

C445

R472

C429

C436

D404

R403

C401

TL1912

C1920

C962

L1907

C4702

C468

L912

IC4701

C4701

D3401

R3484

R3405

Q3408

R3485

C3457

R3450

C3455

R3455

C3460

C3458

R3454

Q3404 R3479

IC3404

C3467

C3470

TL3408

R3478

R3470

R3453

C769

R3468

R3451

IC707

C3475R3452C3453

R3499

R3457C3459

R3469

TL1915

R3471

R3463

R3462

IC3403

C3456

C3452

L1904

FB1901

L3405

R462

R471

C1911

C433 C444 R405

TL416

R463

R413

TL417

R464

TL4439

C424

IC452

C422

TL403

TL410

TL411

R404 R419

C417

TL4411

TL4412

TL4414

TL412

R401

R430

C413

C412

R410

R409

C404

R407

R411 R412 R416

C405

IC401

R212

R414

L471

R210

C402 L401

R406

R474

C2800

R207

R473 R768

L2800

L2801

C408

C409

IC402 C2801

R7850

R7847 R2803

R7849R2804

R7853

TL2800

R7848

TL2801

C7841

IC2800

R7844

TL2802

C7840

FB7800

R745

R746

R748

TL4408

R7856

R7857

R215

L2804 C1804

C1810

C2810

C2807

R2802

R2801 L2803

R1818

R1801

R1803

TL1801

L1801

C2809

C2806

R2800

D1800

L2802

C766 Q704

C2808

C2805

C767

C1800

R770 C765

C2804

IC706

C2803

C2802

R408

C226 R201

C207

C201

C202

L201

TL203

TL4435

TL4441

C204

R211

TL204

TL214

TL211

TL212TL215TL213

R203

IC201

C216

R202

R204

R206

R205

TL206

C211 C223

C222

L402

TL208

TL207

TL4434

TL906

C449

C228

L203

C227

C1613

L202

C450 C448

R440

R441

C407 R453

X4452

R442

IC405

R4459 R4458

C453

C451

R445

R444

R443

C452

C4456

C4458

C751

R4450

R446

C757

R757

R771

C750

C754

R751

IC702

D702

C758

C763

R759

R758

Q1907

Q1908

R1918

TL1905

R1919 C1914

Q1913

R1939

R1923

C1915

R1924

IC1904

R1927R1928

TL1909

C1909

C1907

C1913

C983

TL1908

R1938

C1910

R1941

IC1901

D1901

R1937

Q910

Q9901

TL3406

C960

R1900

Q1900

Q951 C975

R3456

C3454

Q950

R903

R905

R904

C972

D950

C901 R906

R902

C900

R9913

TL910

TL909

TL908

L963

L962

L961

L960

C970 C971

C969

C974 C973

C9924

TL1902

R999

R1912

R1913

R1910

TL1903

Q1904

C991

Q930

R1911

R1909

C1901

Q1903

R1914

Q990

R1916R1917

Q940 C990

Q980

C9925

Q9902 C1928

Q1921

Q970

Q1920

R1965

C229

R1955

R1959

R1958

TL1911

R214

IC203

TL1910

R213

IC204

C230

L1902

R1957

C1908

R1956

IC4451

C1610

R1954

IC4452

C1903

C4455

C1611

C1609

R1604

C1612

IC1602

C1615

C1616

C1617

C1614

TL4433

TL209

TL210

R1603

C208

FB202 FB201

C209 C215 C217

TL205

C214

IC202

TL201TL202

FL703

C213

R769

TL1800

R1805

R1817

C1803

C1801

R1800

R1808

R1812

C1808

Q1800

R1810

Q1801

C1805

Q1802

R1804

R1807

R156

R1802

L151

R1819

R1811

D1802

R1814

R1809

R1816 C1806

C1809

D1801

R1815

C155

C1601

C210

R1662

C1603

C1602

C1604

R1602

C1607

C1605C1606

C1608

L1601

TL1904

R1962

R1961

IC1903

R1979

TL823TL912

C1919

R1966

R1964

R1963

R1960

TL1916

FB1902

C1902

C1912

L1905

C968

TL1907

L1901

R1932

D963

TL1906

D962

D960

D961

TL6712TL6710TL6727TL6718 SC6704 TL6715

TL6701

TL6711

TL6713

TL6709

TL6703

TL6707

FB702

TL6705

TL752

TL750

TL751

TL6717

R7402

TL7405TL7403

TL7401

TL7402

R2409

TL2408

TL2405

FB2405

TL2410 TL2406

TL2401

L2401

FB2401

TL2403

R2401

R2405

R2404

R2402

R3474

C2401

TL6728

TL2402

TL6733

TL6732

TL2404

SC2401

TL2409

TL3411

TL6730

TL2407

TL6729

TL6731

FB2406

Q7402

FB2410

R2407

R7403

FB2408

C7402

R7401

FB7401

Q7403 C7413

Q7401

R7415

R7416

R7413

D7401

R7433 C1730

D7402

R7431

R7436

TL7404

R7417

C7417

R7421

R7434 R7424

R7450R7427C7424 C7426

C7425

R7426

C7423

R7423

X7401

C7427

R7422

C7421

R7425

FB7402

TL753

C768

C7403

R765

Q750

L7701

R763

R764

R762

R760

C7419

FB701

C7701

C7718

R761

C7719

R7713

R7714

TL6708

TL6706

TL6704

TL6702

IC7702

R7711 R7712

TL6725

TL6726

TL6716

C7717 R7707

TL6714

R7709

R7708

C7711

L7702

R7701C7708

TL6724

C7706

C7704

IC7701

C7714 C7716 C7715C7407R7406

C752

R7441

IC7401

IC7402

R7444

R7447

R7446

C7405

R7445

R7418 C7416

C1718

C1715

C1717

R7448

TL1705

R7419

C1713

R1710 C1711

C1723

C1721

R7420

C1724

TL1704

TL1703

C1725

C1729

C7414

C1727

IC1702

R1713

R1714

C1728

R1712

R1711

C1726

TL1702

R1701

C1722

C1720

C1719

C1716

R1709

R1708

C1714

C1712

TL3334

TL3335

TL3336

TL3337

TL3343TL3310TL3345

SC3301

TL3314

TL3324

TL3303

TL3307

TL3308

TL3309

R3495R3466R3467 R3496

R3460

Q3405

IC3405

R3494

R3475

C3462 C3443 R3497 R3442

C3442 R3458

C3441

R3441

C3414

Q3401

Q3406

Q3407

C3409

R3489 R3465 C3405

C3440

R3498

R3459R3464

TL3367

TL3323

TL3320

TL3366

TL3319

TL3315

C3465

R3406

C3410

R3407

C3408

C3413

TL3365

R3404

C1710 R3402

TL3321

C3403

TL3356

TL3360

C1706

C3412

R3401

C3402

TL3357

TL3358

R1706R1702

TL1701

C3401

TL3346

TL3344

R1707R1705 R1720

L3401

R1722

Q1701

C1704

R1715 R1721

C3436

R1703

R1716 L3404

L1702

R1704

C1702

C701

C1703

C1732

L1701

C703

R1740

C761

IC704

C1707

R701

C1709

C1708

C762

C702 R712

R709

R717

D701

R7442

IC705

R743

Q701

TL715

R747

R718

R7443

TL3348

R705

R714

R713

R716

C718

C705

R7472

R715

R704

R711 C704

C712

C708

TL716

C755

IC703

R710

R702

R703

R750 R753

C7713

C753

C756 R754

C760 C764

R756

C759 C710

R755 R752

R708

TL701

R721

R706

TL711

C7712

C706

R707 C714

C722 C709 C725

FL701

R7702

C7720

C7707

C7710

C7709

R7705

IC7703

C7702

C7705

C7722

C731

C739

C732

C717 R744 R734

IC701

C724

C728

C726

C729

C721

C730

R719

TL714

C734

C715

R729

R722

R723

R720

TL703

TL911

C733

R725

C737

X702

C736

C735

L971

R727

R724

R749

R726

L702

TL3322

L1906

L701

C1916

L902

C963

C966

R1922

C3474

L3402

IC3402

TL3404

C3425

C3432

R3488 R3480

TH3401

C3479

R3446

R3445

R3472R3473

C3407

C3416

R3417

R3416 C3476

FL3403

R3426

C3418 R3421

R3419

C3478

C3415

R3418

C3477

C3424

C3426

C3433

C3438

R3428

R3409

R3415

R3413

R3414

R3434

IC3401

FL3401

TL3403

C3411 C3420

R3410

C3466

R3411

C3417

C3419

C3422

R3420

R3423

C3421

C3423

TL3401

FL3402

R3412

R3437C3431

C3480C3481

R3477

R3443

Q3403

CP3

CP1

TL903

TL904

TL905

R3491

R900 R901

C3429

R3449

R3490

TL902

TL901

TL900

TL916

R3436

R3435C3430

R3481

TL3410

C3471 SC900

R3425

C3439

R3427

R3482

C3444

C3434

C3428

R3424

TL914

R3429

R3432

L910

R3486

L911

C961

L920

C3473

C986

C965

Q900

L901

L900

C964 R982

C945

R981

R984

C946

R983

R978

R977

C944

R979

C985

L922

R980

C943

R216 R976

D703 R975

C988

C942

C941

Q703

IC901

C940

C742

R971

R972

C939

R739

C741

R970

R728 R969

C932

R959 R960 R962 R966

R738 R958

R954

R9993

C931

R957

C933

R961

C934

R963

R964

R955

R733 C930

R9991C9919C9920

C740 R956 R953

R730

C9921

D971

R737

C9916

Q702

C9914

C745

R732

R742

IC902

R9983

C9913

R9982

R9986

R740

R9980

C9912

R9994

R9978

TL710

R741

R9969

C9909

R9966

R9967

R731

R9924R9992

TL1917

R735

TL913

C9908R9963 C9902 R9961

R5801

C738

R9965R9956 R9962 C9907

TL830

C9901

C9903

C9905

C9923 R9995

TL812

R5810

TL811

R5822

R9957

TL815

TL829

R5809

TL813

TL814

TL810

SC800

TL809

TL819

TL802

TL800

TL832

TL817

TL801

R5802

TL818

TL804

TL805

R5813

R5803

TL831

R5812

R5811

R5800

R5804

R5805

TL816

TL803

R5806

TL806

R5807

TL807

TL808

Q151

C168

R157

R5808

TL828

R5821

TL827

R5820

TL826

C167

R5819

TL825

R5818

TL824

R5817

R154

TL822

TL821

TL820

TL152

C163

R9953 C9904

C9906

C9900

R9952R9951

R9964

R9960

IC151

R9959

R9954

R9968

R9970

R9975

R9973

TL1018

R152

C164

C9915

R9981

R153

TL1019

TL1020

C9917

R9988

R9987

R155

TL1021

R9977

TL1022

R9990 C9922 R9979

R967

R965

R9985

TL1024

C936

R968

TL1023

R9984

R990

C935 C937 R991

C938

TL1007

C951

TL1006

TL1005

C952

TL1004

C953

TL1003

R994

TL1001

TL1002

R993

R995

TL1009

R998

TL1008

R996

C747

TL1010

TL1011

C950 C954 C955

C949 C948

TL1012

R988

R985

R986

C947 R997

TL1015

R989

TL1013

R987

TL1014

TL1016

C746

TL1030

L970

TL1027

TL1017

C987

C984

L980

L921

C993

L940

L991

TL915

C989

CP2

L990

L930

C992

T900

C967

Q960

C982

L981

Q920

TL1039

TL1040

TL1041

C981

TL1045

TL1043

TL1042

TL1044

TL1046

TL1047

C151

TL1048

TL1049

TL1038

TL1036

IC152

TL1037

TL1034

C152

TL1035

TL1032

C166

SC1001

TL1033

TL1029

TL1031TL1054

TL907

TL1053

TL1052

TL1051

TL1050

C165

TL1026

R151

TL1028

TL1025

C154

C153

C156C157

C158

C159

C160

C162 C161

TL151

P151

TL2409

PCO D/A-Y

TL2407

PCO D/A-C

TL2800

DAC full-scale

TL1801

COM-amplitude

TL2801

DAC full-scale

TL2802

DAC full-scale

TL807

VCO free-run

VL-SD20U VL-FD1U

Code 1. Model code 2. Destination 3. Specifications 4. Menu selection 5. Software switching 6. Calendar switching

code code code code code

Address 01 09 02 0A 03 0B 04 0C 05 0D 07 0F

Data 00 FF 01 FE 04 FB 00 FF 00 FF 00 FF

[Making adjustments]

Adjusting the servo system controller and related parts

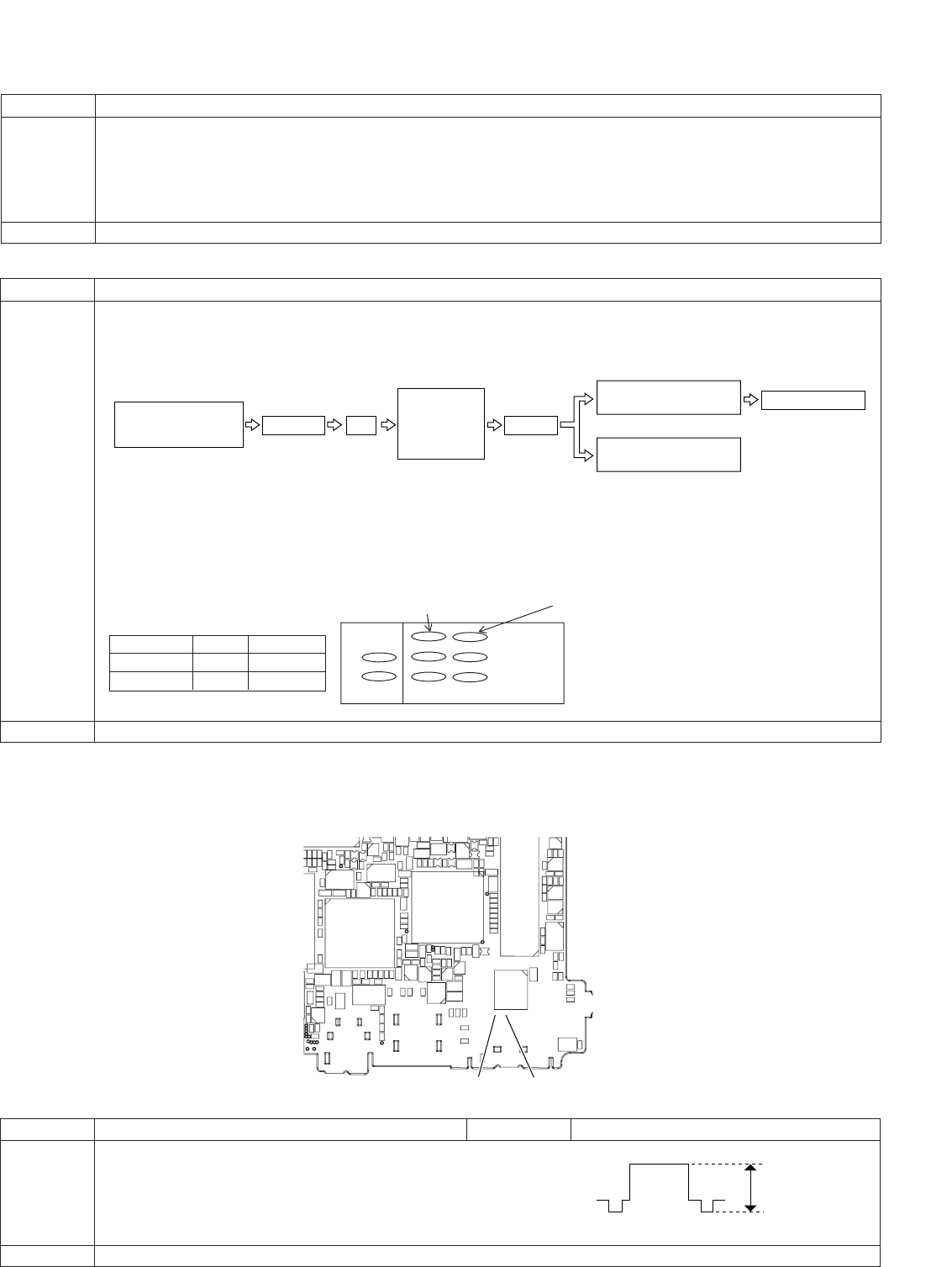

1. Setting the system codes

Replacement of IC7702 (FLASH MEMORY) requires the following data to be set in this order.

[Procedure]

Set the unit to the VCR mode and set the data for each address.

2. HSWP adjustment

Mode VCR ADJ mode

Procedure 1) Play back the alignment tape in the video mode.

2) Press the "CONTINUE" and "HSWP ADJ" keys on the adjustment remote control in this order.

→ This executes the HSWP adjustment.

When the adjustment is successful, the blue LCD lights up and the cassette is automatically ejected. If not

properly adjusted, the red LCD lights up.

Examples • During mechanism replacement.

• During E2PROM replacement (IC302 inside the head amplifier circuit board).

When replacing the IC7702 (FLASH MEMORY), first make the following settings and then start the adjustments.

• Manual adjustment

Mode VCR ADJ mode

Procedure 1) Set the CAM/OFF/VCR selection switch to VCR.

2) Press “CONTINUE” → ”VCR adjustment” on the remote controller to set the VCR adjustment mode.

(At this time an indication “VCR ADJ” appears at the left upper side.)

Enter a setting corresponding to the address.

3) Adjust the address by moving up and down the blinking numeral with the FF and REW key, and fix the address

by pressing the PB key.

4) Adjust to the setting by moving up and down the blinking numeral with the FF or REW key, and set data by

pressing the PB key.

5) Press the STOP key to set the address set state.

6) Repeat the operations 3), 4) and 5) as much as input addresses. After completion of input of all items hold

down the “CONTINUE” key to cancel the VCR adjustment mode.

7) Set the CAM/OFF/VCR selection switch to OFF.

Examples • During FLASH MEMORY (IC7702) replacement.

• Adjustment with automatic machine

Mode VCR ADJ mode

Procedure 1) Using the 12 command, set the VCR adjustment mode.

2) Using the 20 command, give the E2PROM Write permission.

3) Set the system code with the 22 command for each type.

4) Using the command, set write inhibition.

5) Using the command, cancel the adjustment mode.

Examples • During FLASH MEMORY (IC7702) replacement.

* The address uses only when replacing the IC302.

(1) Electromagnetic conversion

Address 27 28 2B *105 25 26

Data 40 90 90 80 40 90

(2) LCD Circuit

Address 8B B6 B7 B8 B9

Data 64 7B 7B 10 10

VL-FD1U VL-SD20U

Tape is EJECT.

The built-in VI/O

colour bar is recorded.

VS REW PB

Phase and

equalizer are

adjusted

automatically.

Judgment

OK:

Blue LCD comes on.

NG:

Red LCD comes on.

1. PLL VCO adjustment

Mode VCR ADJ mode

Procedure 1) Playback the alignment tape (or a self-recorded tape).

2) Call the adjustment mode (V-ADJ).

3) Set the address "2A" and call the data.

4) Set the called data with the FF/REW key to the point where the playback screen appears.

(At this time, the screen full of block noise is OK.)

Examples • During E2PROM replacement. • During circuit board (Main) replacement.

ADJUSTING THE ELECTROMAGNETIC CONVERSION CIRCUIT SYSTEM

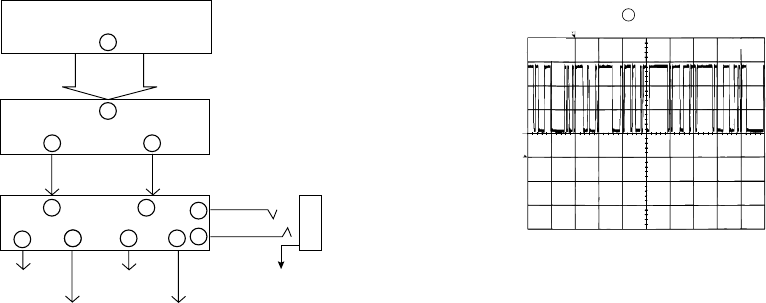

2. Phase and equalizer adjustment → (Performed in the VCR mode)

Mode VCR ADJ mode

Procedure 1) Load a self-recorded tape into the deck.

2) After playback for 3 minutes, select the test mode 0F using the remote control for adjustment to start the

automatic adjustment. (The following sequence is automatically performed.)

3) Error rate check

Select and fix the TEST MODE 0B on the adjustment remote control.

4) Manual adjustment method (video adjustment mode)

* Perform this adjustment with the self-recording/playback in the LP mode.

For phase, vary the data for the address 26 and 2B, and for equalizer, vary the data for the address 25 and 27,

to set the error rate is made as small as possible.

Examples • During mechanism replacement. • During circuit board (Main) replacement. • During E2PROM replacement.

Synchronization error Error rate

Phase Equalizer

H ch side 2B 27

L ch side 26 25

Synchronization error 20 or less

Error rate 200 or less (SP Mode)

330 or less (LP Mode)

1. PCO D/A-Y adjustment

Test point TL2409 (connected to oscilloscope) Mode EE mode

Procedure 1) Connect the AVS cable and then connect it to the monitor (TO).

2) Call the adjustment mode (V-ADJ).

3) Set the address to "22", and call the date.

(100% white signal is output.)

4) Vary the date with the FF and REW keys to set the signal appearing at TL2409 to 1.0Vp-p ± 0.05.

Examples • During E2PROM replacement. • During IC4401 replacement. • During IC1401 replacement.

1.0±0.05

ADJUSTING THE VIDEO I/O CIRCUIT SYSTEM

(Wiring board diagram: Main Side B)

6715

6701

L6711

L6713

TL6709

TL6703

TL6707

FB702

TL6705

TL752

TL750

TL751

TL6717

R7402

TL7405TL7403

TL7401

TL7402

R2409

TL2408

TL2405

FB2405

TL2410 TL2406

TL2401

L2401

FB2401

TL2403

R2401

R2405

R2404

R2402

R3474

C2401

TL6728

TL2402

TL6733

TL6732

TL2404

SC2401

TL2409

TL3411

TL6730

TL2407

TL6729

TL6731

FB2406

Q7402

FB2410

R2407

R7403

FB2408

C7402

R7401

FB7401

Q7403 C7413

Q7401

R7415

R7416

R7413

D7401

R7433 C1730

D7402

R7431

R7436

TL7404

R7417

C7417

R7421

R7434 R7424

R7450R7427C7424 C7426

C7425

R7426

C7423

R7423

X7401

C7427

R7422

C7421

R7425

FB7402

TL753

C768

C7403

R765

Q750

L7701

R763

R764

R762

R760

C7419

FB701

C7701

C7718

R761

C7719

R7713

R7714

6708

6706

6704

6702

C7714 C7716 C7715C7407R7406

C752

R7441

IC7401

IC7402

R7444

R7447

R7446

C7405

R7445

R7418 C7416

C1718

C1715

C1717

R7448

TL1705

R7419

C1713

R1710 C1711

C1723

C1721

R7420

C1724

TL1704

TL1703

C1725

C1729

C7414

C1727

IC1702

R1713

R1714

C1728

R1712

R1711

C1726

TL1702

R1701

C1722

C1720

C1719

C1716

R1709

R1708

C1714

C1712

TL3334

TL3335

TL3336

TL3337

TL3343TL3310TL3345

SC3301

TL3314

TL3324

TL3303

TL3307

TL3308

TL3309

R3495R3466R3467 R3496

R3460

Q3405

IC3405

R3494

R3475

C3462 C3443 R3497

C3442 R3458

C3441

Q3401

Q3406

Q3407

R3489 R3465

C3440

R3498

R3459R3464

TL3367

TL3323

TL3320

TL3366

TL3315

R3404

C1710

TL3321

C3403

TL3356

TL3360

C1706

R3401

C3402

TL3357

TL3358

R1706R1702

TL1701

C3401

TL3346

TL3344

R1707R1705 R1720

R1722

Q1701

C1704

R1715 R1721

R1703

R1716

L1702

R1704

C1702

C1703

C1732

L1701

R1740

C761

IC7

C1707

R701

C1709

C1708

C762

C702 R712

R709

R717

D701

R7442

IC705

R743

Q701

TL715

R7443

TL3348

R705

R714

R713

C705

R7472

R715

R704

R711 C704

C712

C708

TL716

C755

IC703

R710

R702

R703

R750 R753

C7713

C753

C756 R754

C760 C764

R756

C759 C710

R755 R752

TL2409

PCO D/A-Y

TL2407

PCO D/A-C

VL-SD20U VL-FD1U

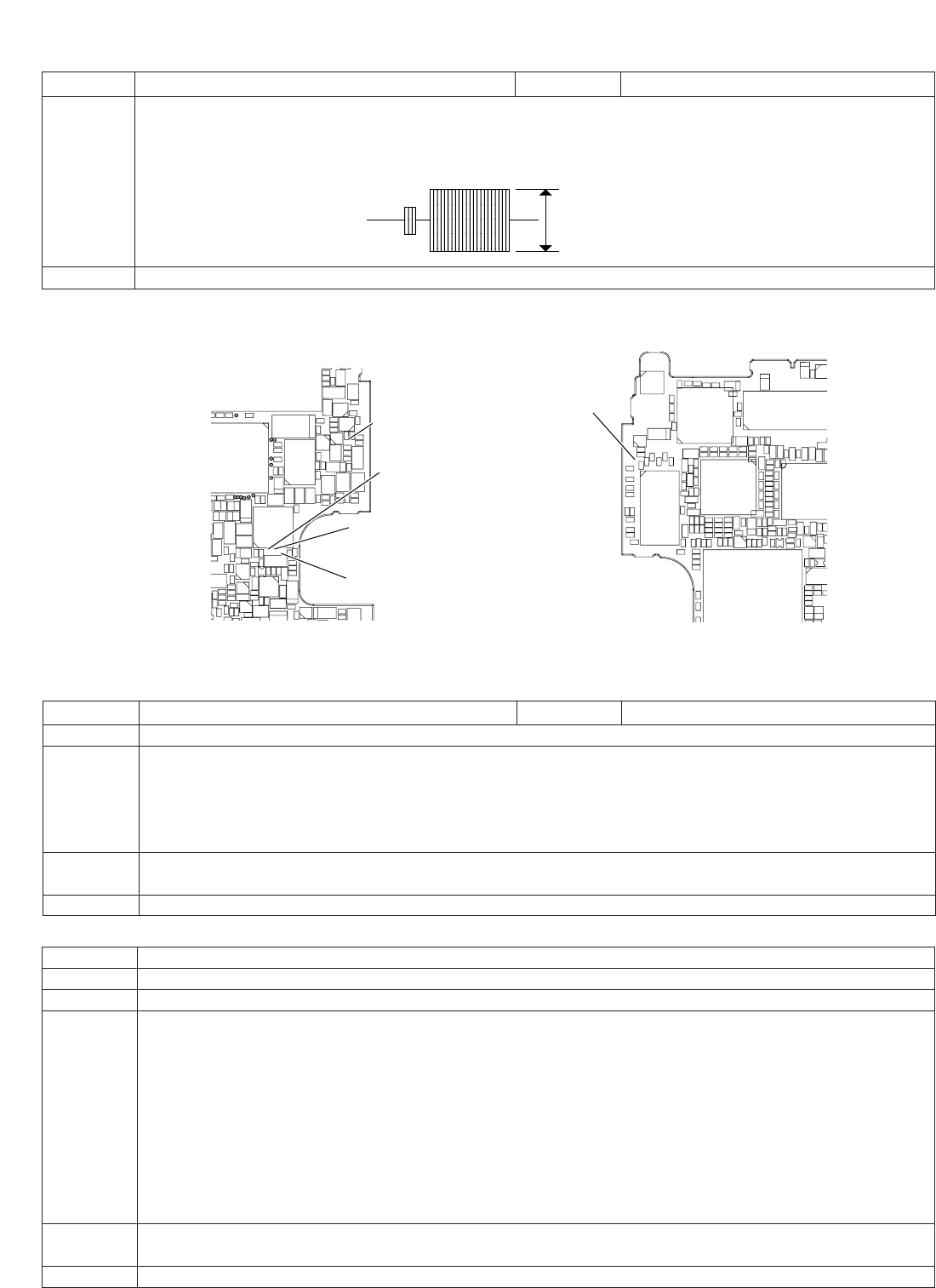

2. PCO D/A-C adjustment

Test point TL2407 Mode EE mode

Procedure 1) Connect the AVS cable and then connect it to the monitor (TO).

2) Call the adjustment mode (V-ADJ).

3) Set the address to "23", and call the data.

4) Vary the data with the FF and REW keys to set the signal appearing at TL2407 to 0.64Vp-p ± 0.05.

Examples • During E2PROM replacement. • During IC4401 replacement. • During IC1401 replacement.

0.64±0.05

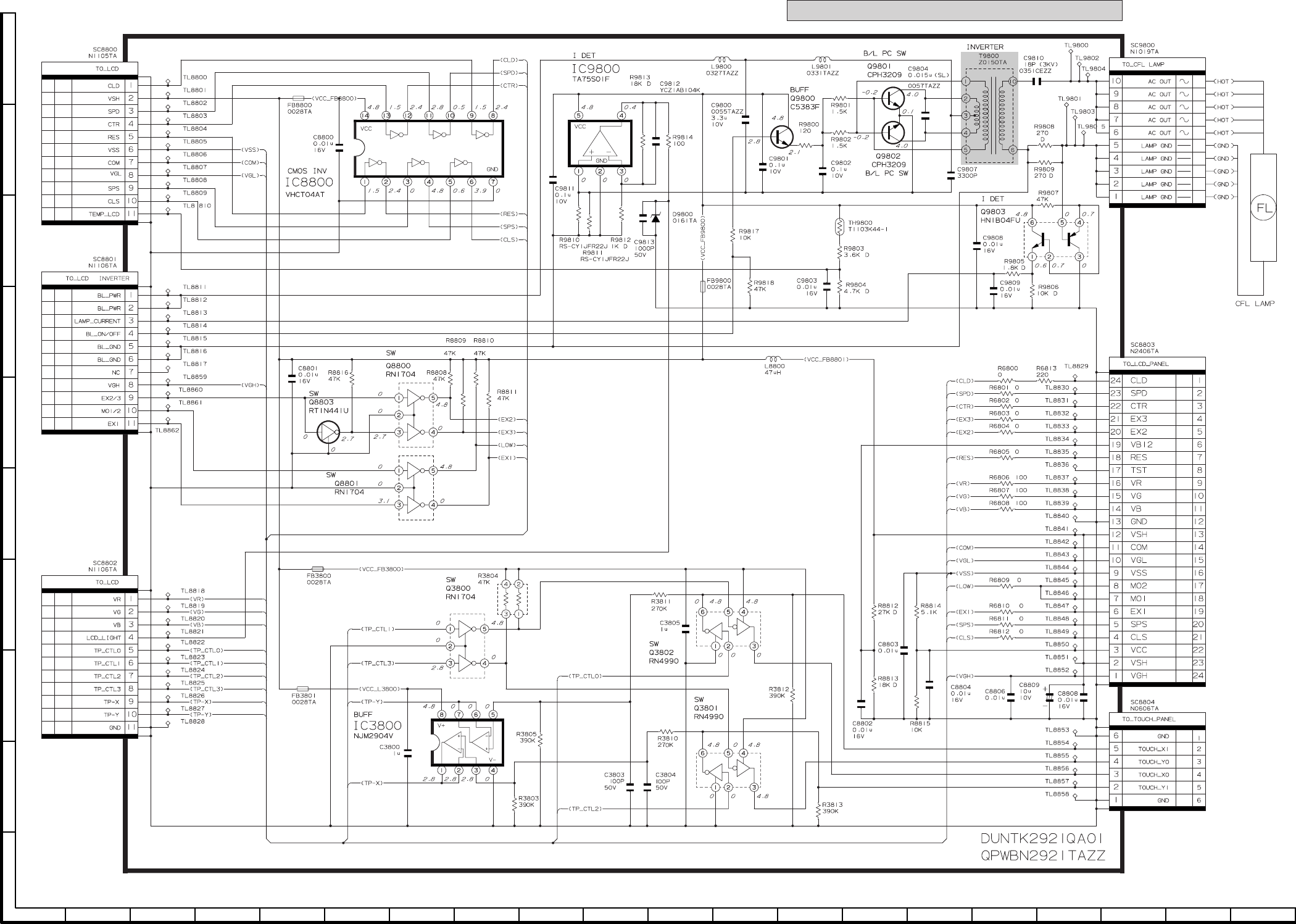

ADJUSTING THE LCD CIRCUIT

* To make this adjustment, set the backlight switch to the "NORMAL" position.

C731

C739

C732

17 R744 R734

IC701

C724

C728

C726

C729

C721

C730

R719

TL714

C734

C715

R729

R722

R723

R720

TL70

R216

R976

D703 R975

C988

C942

C941

Q703

IC901

C940

C742

R971

R972

C939

R739

C741

R970

R728 R969

C932

R959 R960 R962 R966

R738 R958

R954

R9993

C931

R957

C933

R961

C934

R963

R964

R955

R733 C930

R9991C9919C9920

C740 R956 R953

R730

C9921

D971

R737

C9916

Q702

C9914

C745

R732

R742

IC902

R9983

C9913

R9982

R9986

R740

R9980

C9912

R9994

R9978

TL710

R741

R9969

C9909

R9966

R9967

R731

R9924R9992

TL1917

R735

TL913

C9908R9963 C9902 R9961

R5801

C738

R9965R9956 R9962 C9907

TL830

C9901

C9903

C9905

C9923 R9995

TL812

R5810

TL811

R5822

R9957

TL815

TL829

R5809

TL813

TL814

TL810

SC800

TL809

TL819

TL802

TL800

TL832

TL817

TL801

R5802

TL818

TL804

TL805

R5813

R5803

TL831

R5812

R5811

R5800

R5804

R5805

TL816

TL803

R5806

TL806

R5807

TL807

TL808

Q151

C168

R157

R5808

TL828

R5821

TL827

R5820

TL826

C167

R5819

TL825

R5818

TL824

R5817

R154

TL822

TL821

TL820

TL152

C163

R9953 C9904

C9906

C9900

R9952R9951

R9964

R9960

IC151

R9959

R9954

R9968

R9970

R9975

R9973

TL1018

R152

C164

C9915

R9981

R153

TL1019

TL1020

C9917

R9988

R9987

R155

TL1021

R9977

TL1022

R9990 C9922 R9979

R967

R965

R9985

TL1024

C936

R968

TL1023

R9984

R990

C935 C937 R991

C938

TL1007

C951

TL1006

TL1005

C952

TL1004

C953

TL1003

R994

TL1001

TL1002

R993

R995

TL100

R998

R996

TL1

IC152

TL103

TL1034

C152

TL1035

TL1032

C166

SC1001

TL1033

TL1029

TL1031TL1054

TL907

TL1053

TL1052

TL1051

TL1050

C165

TL1026

R151

TL1028

TL1025

C154

C153

C156C157

C158

C159

C160

C162 C161

TL151

P151

TL807

VCO free-run

403

R1410

C1403

C1405

R1452

Q1401

1401 C7843

R7852

TL1410

R4403

C4403

IC7800

C7844

C7838

L1402

C7839

R7845

R7846

R424

Q402

C416

Q401

C7842

R420

R7851

R7854

R422

R425

R427

R7855

R7841

C473

C472

R476

C474

R477 R478

414

L471

R210

C402 L401

R406

R474

C2800

R207

R473 R768

L2800

L2801

C408

C409

IC402 C2801

R7850

R7847 R2803

R7849R2804

R7853

TL2800

R7848

TL2801

C7841

IC2800

R7844

TL2802

C7840

FB7800

R745

R746

R748

TL4408

R7856

R7857

R215

L2804 C1804

C1810

C2810

C2807

R2802

R2801 L2803

R1818

R1801

R1803

TL1801

L1801

C2809

C2806

R2800

D1800

L2802

C766 Q704

C2808

C2805

C767

C1800

R770 C765

C2804

IC706

C2803

C2802

R408

C226 R201

C207

C201

C202

L201

TL203

TL4435

TL4441

C204

R211

TL204

TL214

TL211

TL212TL215TL213

R203

IC201

C216

R202

R204

9 C215 C217

TL205

C214

IC202

TL201TL202

FL703

C213

R769

TL1800

R1805

R1817

C1803

C1801

R1800

R1808

R1812

C1808

Q1800

R1810

Q1801

C1805

Q1802

R1804

R1807

R156

R1802

L151

R1819

R1811

R1815

TL2800

DAC full-scale

TL1801

COM-amplitude

TL2801

DAC full-scale

TL2802

DAC full-scale

Adjustment procedure and connecting same as the VCR section.

(Wiring board diagram: Main Side B)

(Wiring board diagram: Main Side A)

1. VCO free-run adjustment

Test point TL807 Address VCR ADJ 32

Mode CAM

Procedure 1) Change the VCR ADJ address 93 to DF.

2) Connect the Frequency counter to TL807 and adjust it to the specified with the VCR ADJ address 32.

3) Set the VCR ADJ address 93 to FF.

Note: When the LCD screen disappears during the data setting at the address 93, keep changing the data.

In this case, you can check the address and data by the OSD display of monitor output.

Adjustment 15.734kHz ± 100Hz

rating

Examples • During IC7702 (FLASH MEMORY) replacement. • During IC4401 replacement.

2. DAC full-scale adjustment

Test point TL2800 (R OUT), TL2801 (G OUT), TL2802 (B OUT)

Address VCR ADJ 3D (R), VCR ADJ 3E (G), VCR ADJ 3F (B)

Mode CAM

Procedure 1) Output the picture to the monitor in the CAM mode.

(While adjusting, no picture appears on the LCD screen. Check the address and data by the OSD display of

monitor output.)

2) Change the VCR ADJ addresses 83, C0 and 93 to 00, 00 and 77, respectively.

3) Adjust the output voltage of TL2800 with the VCR ADJ address 3D and the DC voltage with a digital voltmeter

to the adjustment standard value. At this time, adjust them so that the average of both TP voltage values

corresponds to the standard center value.

4) Adjust the output voltage of TL2801/TL2802 with the VCR ADJ address 3E/3F and the DC voltage with a

digital voltmeter to the adjustment standard value. (The same as (2))

5) Set all the data of changed addresses to FF.

Adjustment 0.780Vp-p ± 10mVDC

rating

Examples • During IC7702 (FLASH MEMORY) replacement. • During IC4401 replacement.

VL-FD1U VL-SD20U

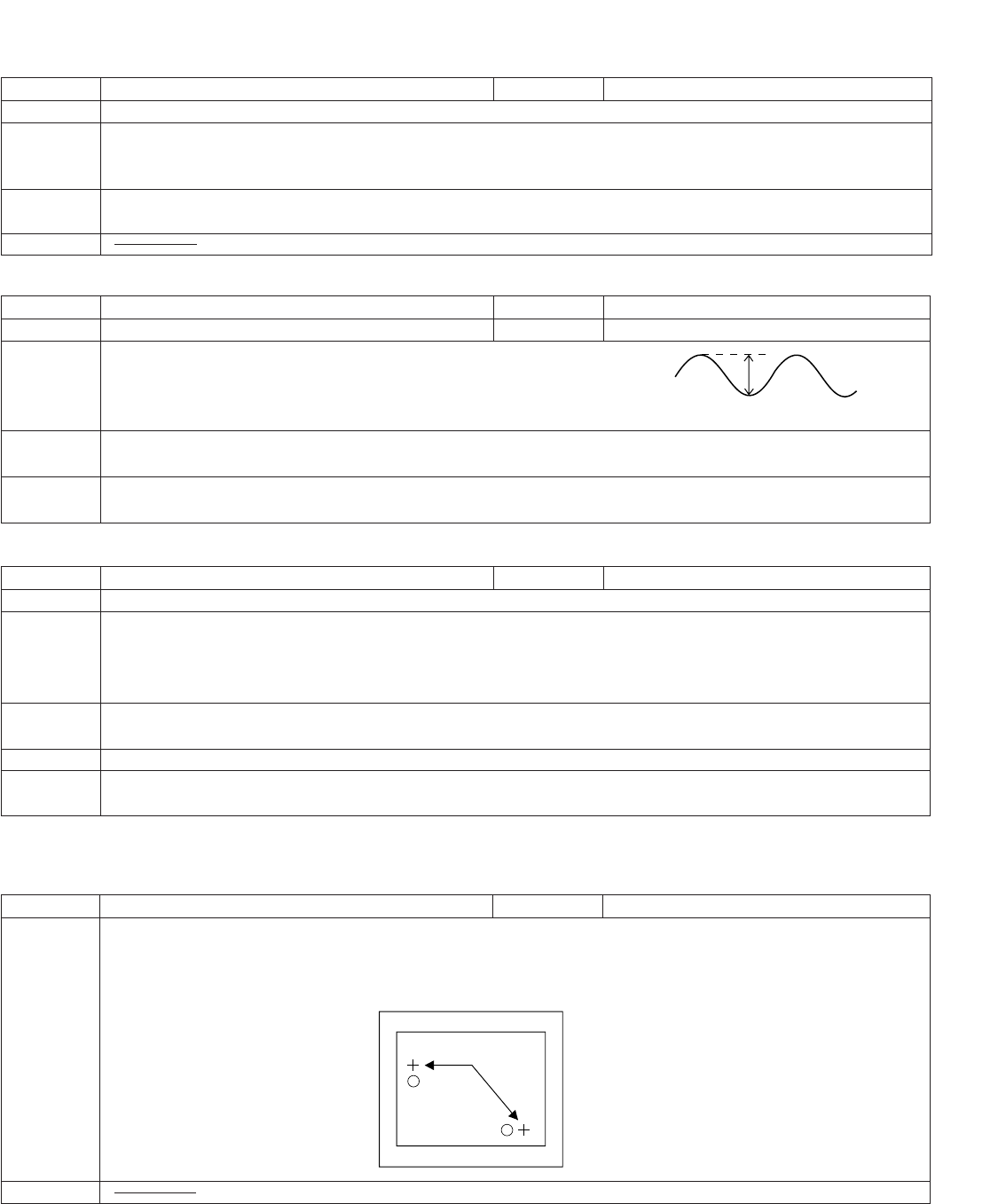

3. COM-Amplitude adjustment

Test point TL1801 Address VCR ADJ 29

Mode CAM

Procedure 1) Set TL1801 to GND.

2) Adjust the output voltage of TL1801 with the address 29 and the DC voltage with a digital voltmeter to the

adjustment standard value.

Adjustment 6.55V ± 50mV

rating

Examples

Response time : 0.6 sec.

4. COM-Bias adjustment

Test point LCD panel daisplay area Address VCR ADJ 33

Mode VCR AV input Input Signal 40% White (or gray scale) signal

Procedure 1) Input white 40% signal as AV input.

2) Set the illuminometer (TOPCON IM-3) on the LCD panel surface.

(Shut off the external light.)

3) Minimize the ripple of output waveform of illuminometer.

Adjustment Minimum

rating Set the point to make the black portion blackest.

Examples • During IC7702 (FLASH MEMORY) replacement. • During circuit board (MAIN) replacement.

• During LCD panel replacement.

5. White Balance adjustment

Test point LCD panel daisplay area Address VCR ADJ 30 (R), VCR ADJ 31 (B)

Mode VCR AV input

Procedure 1) Feed 40% white signal to the AV input jacks and the standard monitor.

2) Set the Color luminance meter (TOPCON BM-5) on the LCD panel surface.

(Shut off the external light.)

3) Adjust the VCR ADJ addresses 30 and 31 until it became the same as that of the standard monitor.

Adjustment Set of the atandard W=VF-HL3-136

rating Set of the limit R=VF-HL1-048 G=VF-HL1-050 B=VF-HL1-052

Remark Make this adjustment after 5-minute or longer aging.

Examples • During IC7702 (FLASH MEMORY) replacement. • During circuit board (MAIN) replacement.

• During LCD panel replacement.

ADJUSTING THE TOUCH PANEL CIRCUIT

1. Touch panel position detection adjustment

Test point LCD panel display area Mode VCR AV input

Procedure 1) Enter the adjustment of touch panel adjustment mode.

2) Press successively the two-point OSD indication which appears on the LCD indication surface.

Note: To set the touch panel adjustment mode, press “CONTINUE” → “TEST” on the remote control for

adjustment, adjust the address to “0E” with FF/REW, and press the PB key.

Examples

Successively press these

two points.

VL-SD20U VL-FD1U

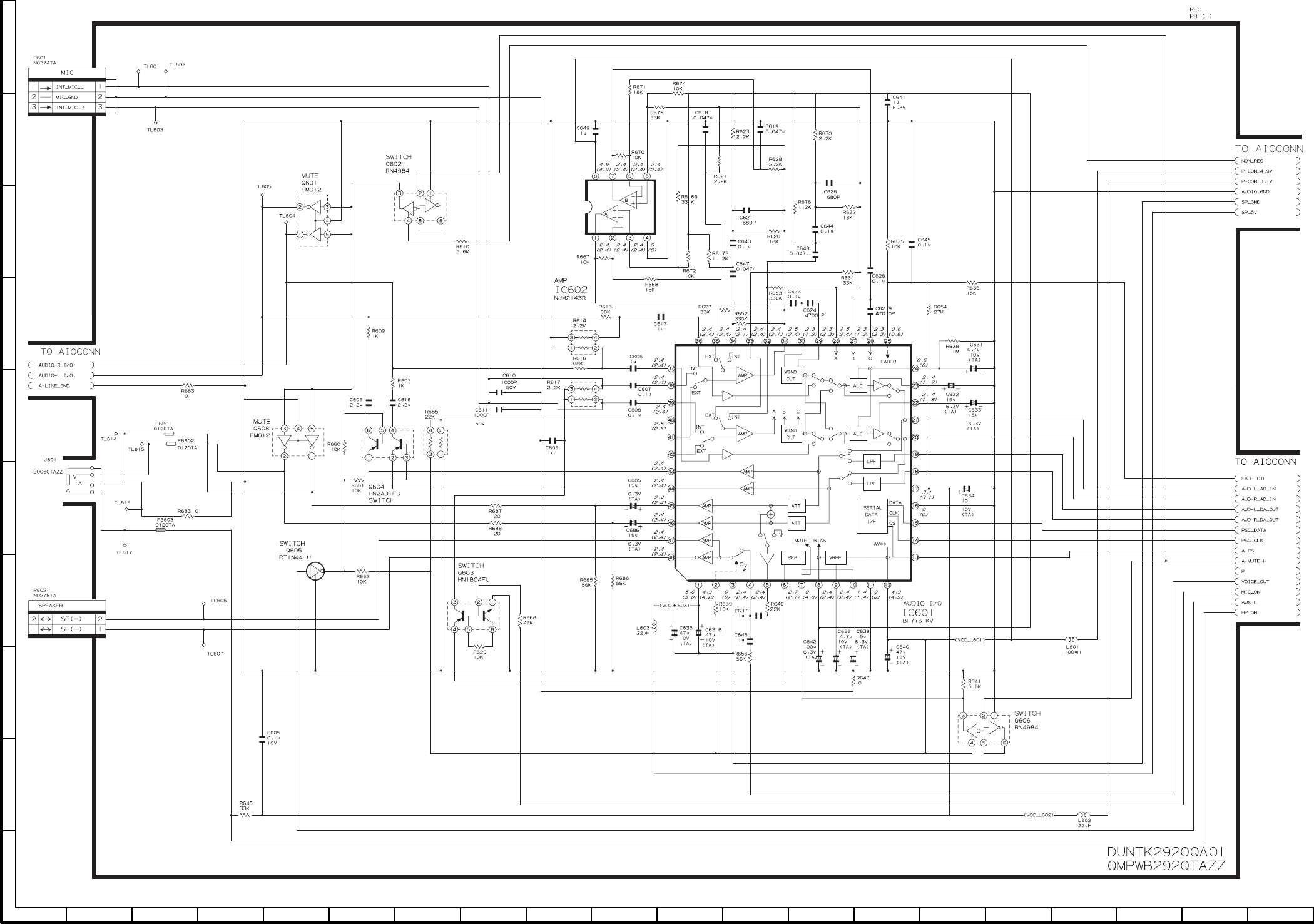

ADJUSTING THE MIC AMP CIRCUIT

(Wiring board diagram: Audio I/O Side B)

1. EE level check

Measuring instrument Valve voltmeter Test point TL605, TL604

Mode P-ON (CAM) Adjustment rating -13.5dBs ± 3dB

Test signal 1kHz -54dBs sine wave

Procedure 1) Input 1kHz, -54dBs sine wave into TL603(INT MIC L), TL601(INT MIC R).

2) Make sure that the signal level of TL605 Audio-L out and TL604 Audio-R out is within the standard

limits.

2. Frequency character check

Measuring instrument Valve voltmeter Test point TL605, TL604

Mode P-ON (CAM)

Adjustment rating (1kHz standard) 100Hz : -6dB ± 3dB

10kHz : +2B ± 3dB

Test signal 100Hz, 10kHz -54dBs sine wave

Procedure 1) Input 100Hz, -54dBs sine wave and then 10kHz, -54dBs sine wave into TL603 (INT MIC L) and TL601

(INT MIC R).

2) At this time make sure that the signal level of TL605 Audio-L out and TL604 Audio-R out is within the

standard limit (1kHz standard).

TL2650

R636

R635

C645

TL2647

TL2652

TL2637

TL2640

TL2638

TL2648

TL2644

TL2645

SC2601

TL2641

TL604

TL2639

TL2651

TL2636

TL2630

R640

TL2656

C637

R656

L602

C638

C651 C646

R650

R651

R647 C650

TL2628

TL2654

P2604

TL2653

R629

TL2627

R662

TL2629

C605

Q605

TL2659

TL2660

S1501

TL2631

Q603

R666

R655

C609

TL2649

L601

BAT2601

C607

TL602

C608

C610

C611

TL603

R617

R624 R613

R626

C634

C633

C632

C631

R654

R638

R628

C619

C621

R669

C620

BAT2602

TL2646

TL2655

TL2658

TL601

R687

R688

TL605

FB601

FB602

TL614

TL2661

C1501

TL616

FB603

TL617

TL615

TL605

EE level

Frequency character

TL601

EE level

Frequency character

TL604

EE level

Frequency character

TL603

EE level

Frequency character

DV INTERFACE (IEEE1394) ID SETTING

If ID code is acquired, it is written by the following point.

Example) Acquisition code : 08001F0100123456

Address 180 17F 17E

Data(ID code) 12 34 56

· Procedures for Entering IEEE1394 Numbers

1. Set the power switch to the "VCR" position.

2. Press "CONTINUE" on the adjustment remote control, then

press "VCR ADJ" and the address you chose will appear on the

LCD monitor.

[PLAY] key

[FF] key

[STOP] key

[REW] key

[VCR ADJ] key

[CONTINUE] key

ADJ. REMOTE CONTROL

RRMCG 0033 TASA

3. With "FF" or "REW" the desired address will appear.

Set with "PLAY" and data entry will show.

4. With "FF" or "REW" the ID number (obtained through the

Intranet) for any address wil appear. Set with "PLAY".

5. Press "STOP" and the address selection will appear. Then you

can enter your ID number in order under the given address

digits (180, 17F, 17E).

6. Set the power switch to the "OFF" position. Now the writing is

complete.

VCR ADJ

017E

FFFF6A00

Data(ID number)

VCR ADJ

0000

FFFF6A00

Address: flashing

VL-FD1U VL-SD20U

10-2. Camera Section Adjustments

10-2-1. Camera section service

(1) Camera adjustment is performed after the set has been completed.

(2) Subjects, measuring instruments and jigs needed for camera section service and adjustments

• Gray scale chart • Frequency counter • Color video monitor

• Color bar chart • Illumination meter • Video output cable

• Oscilloscope • Color temperature meter • AC adapter

• Digital voltmeter • Color temperature conversion filter • Extension cables

• Vector scope HOYA "LB-165" • Remote control unit for servicing

• Halogen lamp: 2 pcs.

10-2-2. List of camera jigs and tools

10-2-3. Adjusting the camera unit

(1) Preparations for adjustments and items to be checked

1) Set up the light box so that the entire pattern is evenly lit. Set the color temperature to 3200°K.

2) Use test patterns that are not dirty nor discoloured.

3) If the electrical circuitry gets in trouble, be sure to pinpoint the trouble spot with a measuring instrument and repair or replace

the defective part.

(2) Remote control for servicing RRMCG0033TASA

To adjust the camera section of this machine, the remote control for servicing (RRMCG0033TASA) is used. The adjustment is made

in such a manner that the remote control writes necessary data by way of the microprocessor to the specific addresses on the

FLASH MEMORY (IC7702), E2PROM (IC1001).

1) To adjust the camera:

Press the "CONTINUE" key first and then the "CAM ADJ" key.

This will show

CAM ADJ

on the LCD screen, thereby having the camera unit ready for the adjustments.

2) Descriptions of the displays

CAM ADJ (Indicates the camera adjustment mode.)

(Address value) (Data value)

* The address values for this machine range from 0000 to 05FF.

* The data include byte data (the last two digits are effective) and 2-byte data (the last three digits are effective).

3) Descriptions of the remote control keys

"FF" key: Increases the address and data values.

"REW" key: Decreases the address and data values.

"PLAY" key: Specifies addresses and calls the data.

This key also fixes the data values.

"STOP" key: Clears the data to enable the selection of address.

1. Color bar chart

(240 x 320 mm)

2. JiGCHART-4

3. DA

1. Illumination meter

(0 to 3000 lux)

2. JiGMETER-1

3. CT

1. Color temperature meter

(1600 to 400000 degrees K)

2. JiGMETER-2

3. EL

1. PC plate connector drawer

2. JiGTH-SS10

3. AW

1. Gray scale chart

(390 x 520 mm)

2. JiGCHART-1

3. CP

1. Remote control until for

servicing

2. RRMCG0033TASA

3. BT

1. Color temperature

conversion filter

(3200 degrees K ⇒ 6800

degrees K)

2. JiGHOYA-LB165

3. BN

Configuration

<Note: The entries of list> 1. Name 2. Part No. 3. Code

1. Put/pullet out jig

2. 95CM22001

3. BL

* For the QCNW-1931TAZZ

removal.

VL-SD20U VL-FD1U

4) Operation flow

5) When the adjustment is complete:

Press the "CONTINUE" key to let the "CAM ADJ" display disappear from the screen.

Note: Before terminating the adjustments, make sure that the adjustment mode is neither the auto-focus function adjustment

mode nor the camera signal system adjustment mode (these modes are mentioned later).

• Camera unit adjustment modes

The camera unit is adjusted in two types of modes: the auto-focus function adjustment mode and the camera signal system

adjustment mode.

Note: Each E2PROM contains the adjustment item data as shown below. If it is changed, data rewriting and confirmation of latest

data must be performed.

1) E2PROM (IC1001) of camera head section

Lens data, LCD drive timing data

2) FLASH MEMORY (IC7702) on main unit

Signal system adjustment data

(3) Auto-focus function adjustment mode

• The camera unit uses a microprocessor-controlled auto-focus zoom lens.

The auto-focus circuit incorporated in this unit is designed to execute the image processing where the focusing action is done by

taking advantage of the fact that the high-frequency components in the image signals increase as the focus intensifies. Moreover,

to achieve high magnifying power with a small lens, the camera unit incorporates the inner focus system in which the focus is shifted

by moving the master lens (rear lens) back and forth. This inner focus system is a full-range focus type by which the focus can be

shifted from approximately 10 mm to the infinity. It should be noted, however, that since the closest subject distance at the telephoto

end is fixed at 1.5 m, subjects in a closer range than 1.5 m at the telephoto end will be out of focus. For this reason, the unit is

designed so the zoom control is automatically shifted to the wide angle side until the position is found where the subject can be

focused on.

In the auto-focusing system of this until, the following constitute the important factors:

• Master lens position detection data

• Iris position detection data

• Zoom lens position detection data

These detection data are handled and stored by the microprocessor, lens by lens, into the E2PROM.

Therefore, in the following cases, the auto-focus function adjustment is required:

• When the lens has been replaced

• When the CCD has been replaced

• When the E2PROM (IC1001) has been replaced

1) Shifting to the auto-focus function adjustment mode

Set the data for the address "09FE" to " 01".

]

This makes the screen fade temporarily in white and shifts to the auto-focus function adjustment mode.

* When this adjustment mode has been shifted to, make the adjustment according to (5) Camera unit adjustment procedure.

* In this adjustment mode, the lens can not be operated.

2) Shifting to the normal operation mode

Set the data for the address "09FE" to " FF".

]

This makes the screen fade temporarily in white and shifts to the normal operation mode.

]

Press the "CONTINUE" key, and the "CAM ADJ" display goes out of the screen, enabling the normal operation.

(4) Camera signal system adjustment mode

In the camera signal system adjustment mode, the automatic white balance is disabled to allow for the adjustment of the camera

unit. At this time, the white balance mode is fixed at the INDOORS mode and the focus mode is switched to the manual focus mode.

1) Shifting to the camera signal system adjustment mode

Set the data for the address "0000" to " 00".

]

This shifts the mode to the auto-focus function adjustment mode.

* When this adjustment mode has been shifted to, make the adjustment according to (5) Camera unit adjustment procedure.

FF or REW PLAY PLAY STOPFF or REW

Address is selected and specified, with the data called. Then the called data are selected and

fixed. The operation flows in this sequence.

VL-FD1U VL-SD20U

2) Shifting to the normal operation mode

Set the data for the address "0000" to " FF".

]

This shifts the mode to the normal operation mode.

]

Press the "CONTINUE" key, and the "CAM ADJ" display goes out of the screen, enabling the normal operation.

(5) Camera unit adjustment procedure

2. Iris basic adjustment

1. Auto focus adjustment

6. Color gain coarse adjustment

7. White balance adjustment

8. Color gain adjustment

9. Auto white balance adjustment

10. White gain adjustment

3. Black balance adjustment/A/F noise adjustment

4. Iris AE adjustment

5. White balance coarse adjustment

* The above 1. Auto-focus function adjustment and 2. Iris basic adjustment are performed in the auto-focus function adjustment

mode, whereas the other adjustments are made in the camera signal system adjustment mode.

* After completing the auto-focus adjustment mode, set the camera signal system adjustment mode. (Take care that the adjustment

mode transfer address is different.)

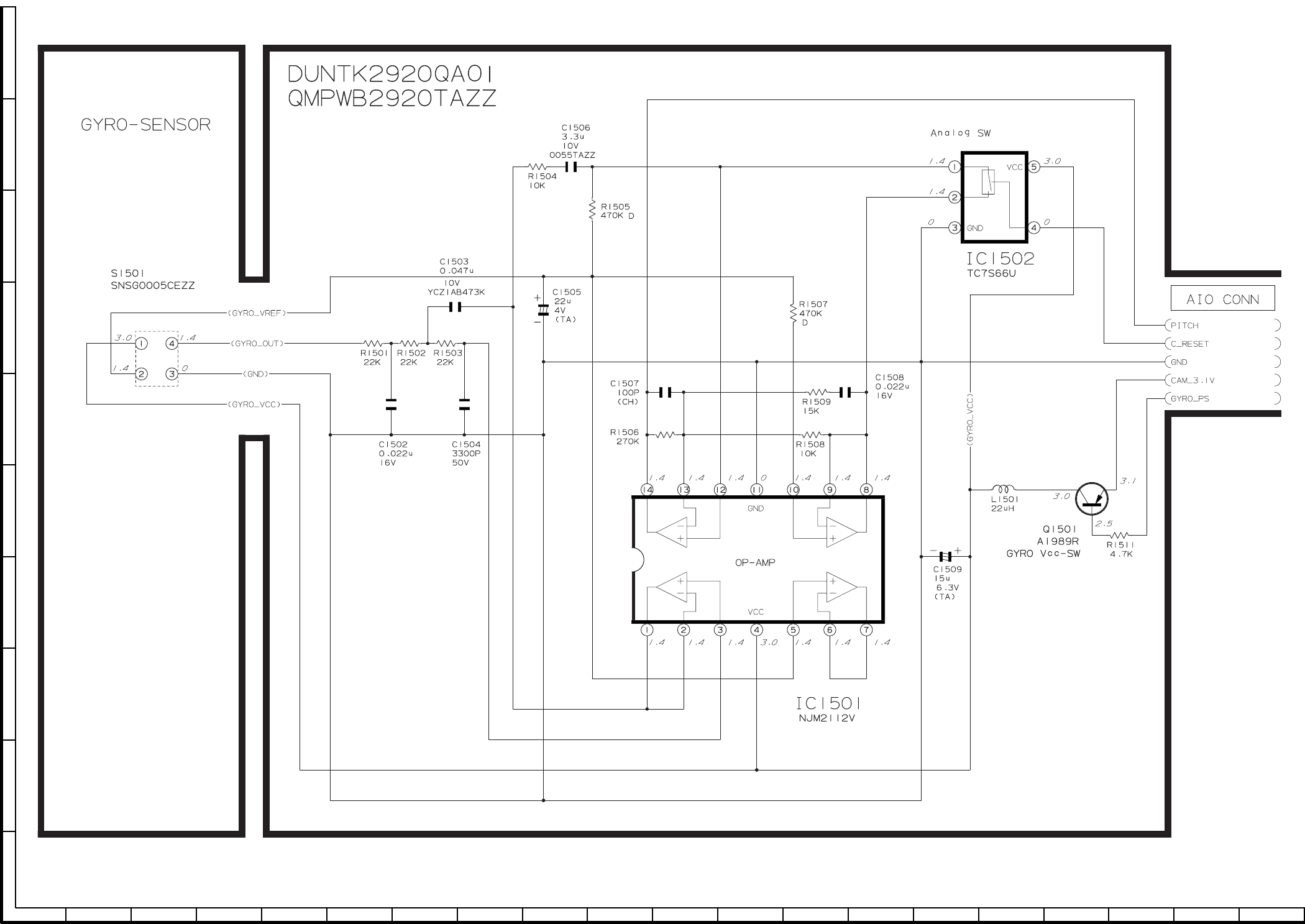

(6) Replacement procedure of gyro unit

1) When replacing E2PROM: IC1001 of camera head with the gyro unit not replaced

Since the adjustment data of gyro is written in IC1001, copy the data of addresses "864, 865" and rewrite them after

replacement.

2) When replacing the gyro sensor: S1501

After replacing with the specified gyro sensor, write the following data in the addresses "864, 865".

S1501 Address Data

Replacement with RSNG0005CE01 0864 06

0865 FF

VL-SD20U VL-FD1U

10-2-4. Adjustment procedures

Item Adjustment method

(1) Auto-focus adjustment

Set the unit to the auto-focus function adjustment mode and write data to the address "09FD" one after another. This executed

the adjustments automatically. The items to be adjusted are as listed below. Every time an adjustment is made properly, the data

"FF" is written to the address. After each adjustment, make sure that the adjustment has been made properly, and then go on to

the next adjustment item.

Address Data Adjustment item

09FD 000C MR censor adjustment

0012 WIDE end adjustment

0008 TELE end focus ∞ position adjustment

0006 WIDE end focus ∞ position adjustment

Note 1: To adjustment of ∞ position is executed by actually picking up the image of subject. For this adjustment use the subject with

clear profile.

Especially, if the adjustment of TELE end focus ∞ position is made without picking up the image of remote subject,

adjustment failure may occur.

Adjustment of WIDE end focus ∞ position: 3 m or more

Adjustment of TELE end focus ∞ position: 50 m or more

Note 2: In case of ∞ position adjustment the field depth is important to ensure the adjustment accuracy. If the field depth is high,

the focus becomes too stable , which may cause incorrect adjustment of ∞ position. Therefore the adjustment must be made

with low field depth (with iris opened).

The iris can be opened with the high-speed shutter.

1. It returns to the normal operation mode.

2. In the normal operation mode, set the high-speed shutter mode until the iris is opened. (Refer to the operation manual.)

3. Display “CAM ADJ” with the remote control for service.

4. It shifts to the auto-focus adjustment mode.

5. Perform the ∞ position adjustment.

6. After completing the ∞ position adjustment, return the high-speed shutter mode to the normal mode.

(2) Iris basic adjustment

This is for adjusting the operating point of the hole element installed in the iris meter of the lens.

In the camera signal system adjustment mode (write the address "0000" to, " 00") . Set the unit to the adjustment mode and

write data to the address "09FD" one after another. This executes the adjustments automatically. The items to be adjusted are

as listed below. Every time an adjustment is made properly, the data "00FF" is written to the address.

Address Data Adjustment item

09FD 0009 Hall offset adjustment

000A Iris offset adjustment

000B Iris close adjustment

* After completion of 1. Auto-focus adjustment, 2. Iris basic adjustment once restore the regular operation mode. Data "090F" is

written in the address "0003".

(3)Black balance adjustment/A/F noise adjustment

1) Prior to the adjustment, initialize the data for the addresses "0224", "0226", "0228", "022A", "022C", "022E".

Write " FF" (the last two digits are effective) to all of these address.

2) Write the data " 01" to the address "0001" This starts the adjustment automatically.

When the adjustment is completed properly, the data "00FF" is written automatically.

VL-FD1U VL-SD20U

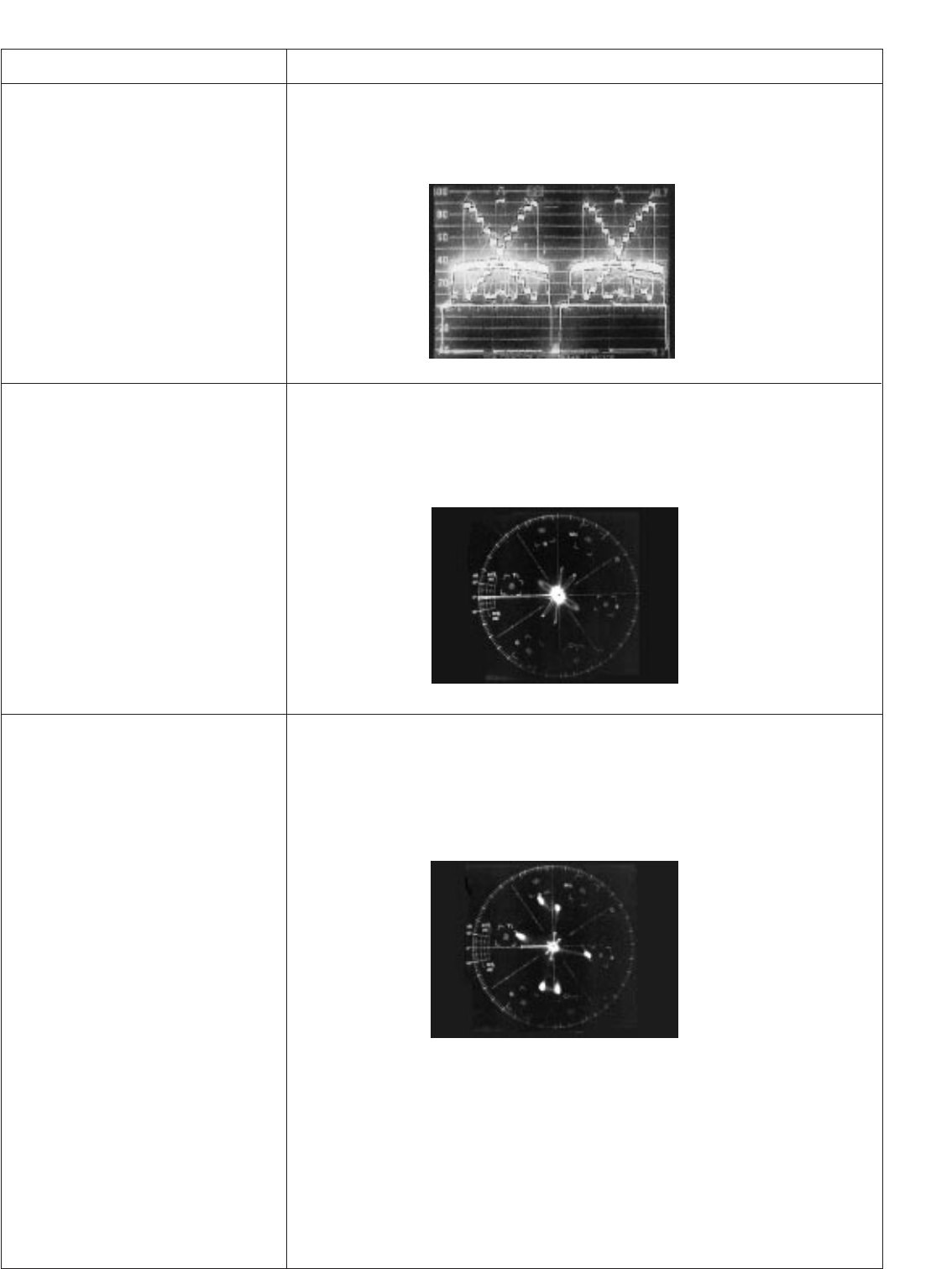

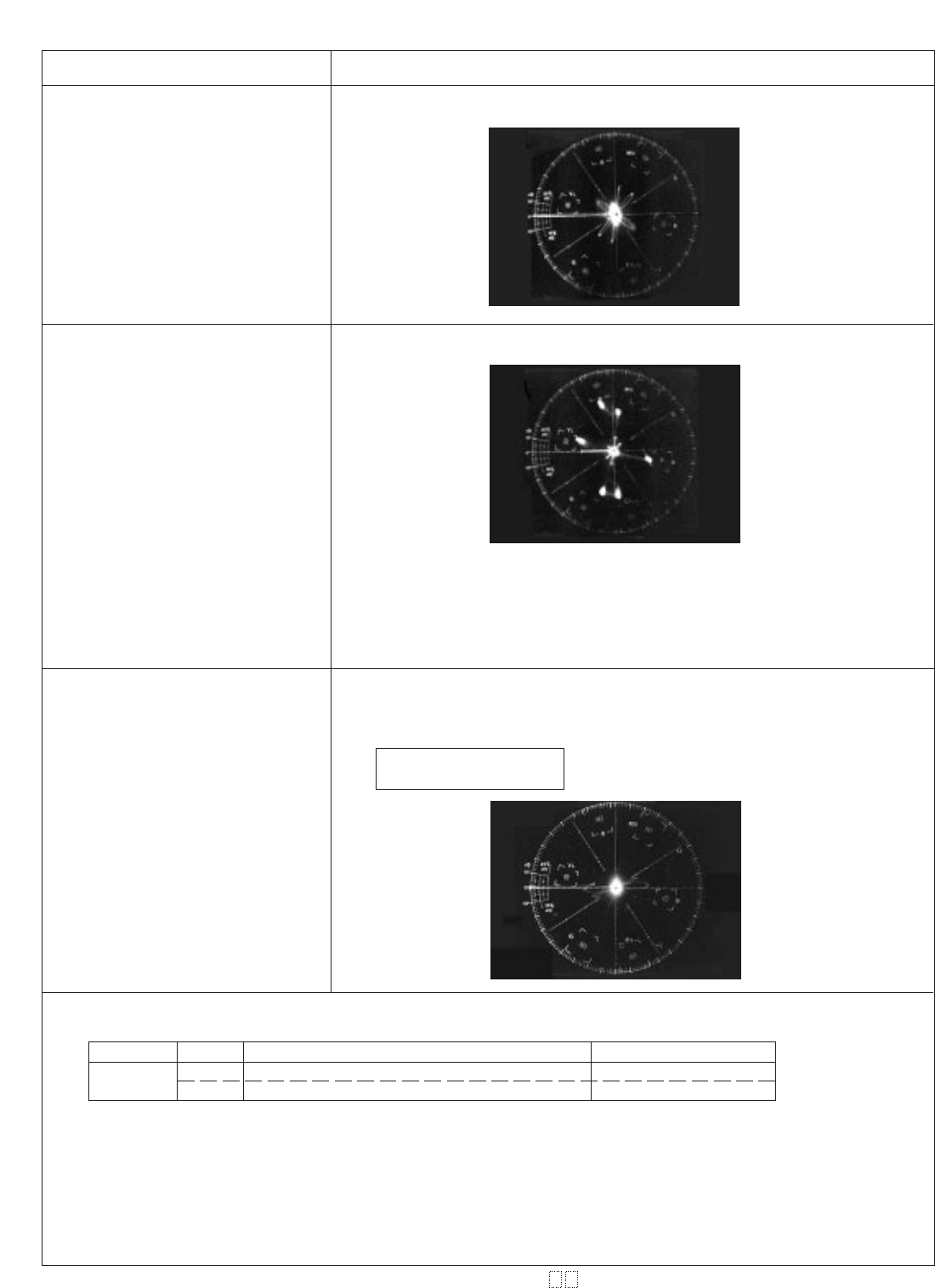

Item Adjustment method

(1) Video output is observed with the oscilloscope in the grey scale standard record state,

the data of address "0002" is rewritten, and the luminance signal level (not including

sync signal) is adjusted to 700 ± 10mVp-p.

(4) Iris AE adjustment

• Measurement terminal:

S terminal luminance signal output

(75 Ω termination)

• Address: "0002" AE_CVT

• Measuring instrument:

Oscilloscope (horizontal sync)

• Object:

Grey scale

• Data variation width:

"0000" to "00FE"

(1) The color bar chart is imaged, and the picture angle is adjusted so as to get white level

650 mV. Indication on the vector scope is observed, the data of address "03DE",

"03E0", "03DB" and "03D9" are rewritten, and setting is made so that the red and blue

luminous dots are located in the following positions. (The gain of vector scope must

be set on 75% amplitude point on the B-Y axis.)

(6) Color gain coarse adjustment

• Measurement terminal:

EE output

• Address:

"03DE" CGIN RYG

"03E0" CGIN BYG

"03DB" CMAT RYG

"03D9" CMAT BYG

• Measuring instrument:

Vector scope

• Object:

Color bar chart

• Data variation width:

"0000" to "00FF"

(1) Indication on the vector scope is observed in the grey scale standard record state,

data of address "0050" and "0052" are rewritten, and an adjustment is made so that

the luminous dot is located in the position of burst ratio:

R-Y 0 ± 5%

B-Y 0 ± 5%

(5) White balance coarse adjustment

• Measurement terminal:

EE output

• Address:

"0050" CGAIN_KR_W

"0052" CGAIN_KB_W

• Measuring instrument:

Vector scope

• Object:

Grey scale

• Data variation width:

"0000" to "03FF"

100mV/div

Adjustment address

Red amplitude 1.45 ± 0.1 time (burst ratio) : "03DE"

Blue amplitude 1.15 ± 0.1 time (burst ratio) : "03E0"

Red phase 100° ± 2°: "03DB"

Blue phase 347° ± 2°: "03D9"

VL-SD20U VL-FD1U

Item Adjustment method

(1) White balance adjustment is performed repeatedly.

(7) White balance adjustment

• Measurement terminal:

EE output

• Address:

"0050" INDOOR W/BR

"0052" INDOOR W/BR

• Measuring instrument:

Vector scope

• Object:

Grey scale

• Data variation width:

"0000" to "03FF"

Adjustment address

Red amplitude 1.45 ± 0.05 time (burst ratio) : "03DE"

Blue amplitude 1.15 ± 0.05 time (burst ratio) : "03E0"

Red phase 100° ± 1°: "03DB"

Blue phase 347° ± 2°: "03D9"

(8) Color gain adjustment

• Measurement terminal:

EE output

• Address:

"03DE" CGIN RYG

"03E0" CGIN BYG

"03DB" CMAT RYG

"03D9" CMAT BYG

• Measuring instrument:

Vector scope

• Object:

Waveform monitor color bar chart

• Data variation width:

"0000" to "00FF"

(1) Color gain adjustment is performed repeatedly.

(1) The color temperature conversion filter (LB165) is mounted in front of lens.

(2) Indication of vector scope is observed in the grey scale standard record state, and

an adjustment is made so that the luminous dots are located in the following

positions:

R-Y 0 ± 5% (burst ratio)

B-Y 0 ± 5% (burst ratio)

(9) Auto white balance adjustment

• Measurement terminal:

EE output

• Address:

"000C" OUTDOOR R

"000E" OUTDOOR B

• Measuring instrument:

Vector scope

• Object:

Grey scale

• Data variation width:

"0000" to "03FF"

(10) White gain adjustment

In the signal system adjustment mode, adjustment is performed automatically when the data is written in the address "0001".

1) In the signal system adjustment mode, adjustment is performed automatically when the data "_05" is written in the address

"0001".

When the adjustment is completed normally, the data "FFFF" is return to the address "0001".

If a data other than "FFFF" is returned, the adjustment is judged improper.

2) Mount the color temperature conversion filter(LB165) on the front of lens.

3) In the signal system adjustment mode, adjustment is performed automatically when the data "06" is written in the address "0001".

When the adjustment is completed normally, the data "FFFF" is return to the address "0001".

If a data other than "FFFF" is returned, the adjustment is judged improper.

Address Data Adjustment item Object

0001 0005 Low color temperature white gain adjustment White pattern

0006 High color temperature white gain adjustment White pattern + LB165

After completion of adjustment set the regular operation mode (the data " FF" is written in the address "0000".)

VL-FD1U VL-SD20U

11. USEFUL TIPS (PROBLEMS DIFFER FROM THOSE FOUND ON VHS OR

8MM DECKS BECAUSE THE SIGNALS ARE DIGITALLY PROCESSED.)

Picture fails

to appear Blueback fails

to appear.

Picture fails to

appear when tape

recorded on this

unit or another unit

is played back.

(EE OK)

Blueback when

tape recorded on

this unit or another

unit is played back.

(EE OK)

Random block

noise when tape

recorded on this

unit or another

unit is played back.

Lines appear on

the color bar.

The outline looks

like a Moire pattern.

There is considerable

randam block noise.

Camera (EE mode) VCR (EE mode) Camera (REC mode)

VCR (PB mode)

Camera (REC mode)

VCR (PB mode) Camera (REC mode)

VCR (PB mode)

VCR (PB mode) + color bar VCR (PB mode) + color bar Camera (EE mode)

Major circuits to be checked

• CAM ENGINE (IC201)

Major circuits to be checked

• Adjustment of the electromagnetic

conversion circuit system.

Major circuits to be checked

• Y data between CAM ENGINE

(IC201) and LCD_DSP (IC801) is

missing.

Major circuits to be checked

• EQ/PLL (IC3401)

• ATF (IC3402)

• Head amplifier (IC301)

* Dirty or defective video head

Major circuits to be checked

• EQ/PLL (IC3401)

• ATF (IC3402)

• Head amplifier (IC301)

* Dirty or defective video head

Major circuits to be checked

• CCD

• Camera circuits (CDS, ADC,

CAM ENGINE)

• System controller (IC701)

• VIDEO I/O (IC1401)

• VIO ENGINE (IC4401)

Major circuits to be checked

• Mechanical controller (IC7701)

• System controller (IC701)

• CAM ENGINE (IC201)

• REC/PB ENGINE (IC452)

Major circuits to be checked

• CAM ENGINE (IC201)

• REC/PB ENGINE (IC452)

Noise bar (Green)

+ random block

noise when tape

recorded on this

unit or another

unit is played back.

VL-FD1U

12. SIGNAL FLOW DIAGRAMS

12-1. EE MODE FLOW (VIDEO) WAVEFORM DIAGRAM

(DURING COLOR BAR RECORDING)

WAVEFORM DIAGRAM

(DURING COLOR BAR RECORDING)

12-2. FLOW IN REC MODE (VIDEO)

IC452 117pin Rec GATE Output

IC452 116pin Rec DATA Output

CH1=1V

DC P*10 5ms/d

CH1=1V

DC P*10 5ms/d

IC452

REC/PB ENGINE

CDY

CDC

HEAD AMP

REC DATA REC GATE

SC3301

B TO B

34 38

4239 48

117

116

29 31

IC4401

VIO ENGINE

ZYP

ZCP

140

131 137 127 130 121 124

174

164 168

182175 184 192

187 189

IC4401 170pin ZYP3 InPut

IC4401 254pin C Output

IC4401 184pin ZCP3 InPut

IC4401 249pin Y/YC Output

IC4401 134pin CDC3 Output

IC4401 124pin CDY3 Output

CH1=500mV

DC P*10

5ms/d

CH1=1V

DC P*10

5ms/d

CH1=1V

DC P*10

CH1=500mV

DC P*10

5ms/d

CH1=1V

DC P*10

CH1=1V

DC P*10

20µs/d

5ms/d

VIO ENGINE

IC1401 IC2800

VIDEO I/O

VR VG VB

LCD Panel

SEP-Y IN/OUT

SEP-C IN/OUT

VIDEO IN/OUT

912

168

249 254

175 182 184 187 189 192

164

ZYP ZCP

174

IC4401

IC201

CAM ENGINE

83 88 93 94 97

104

128 137

ADIN

VL-FD1U

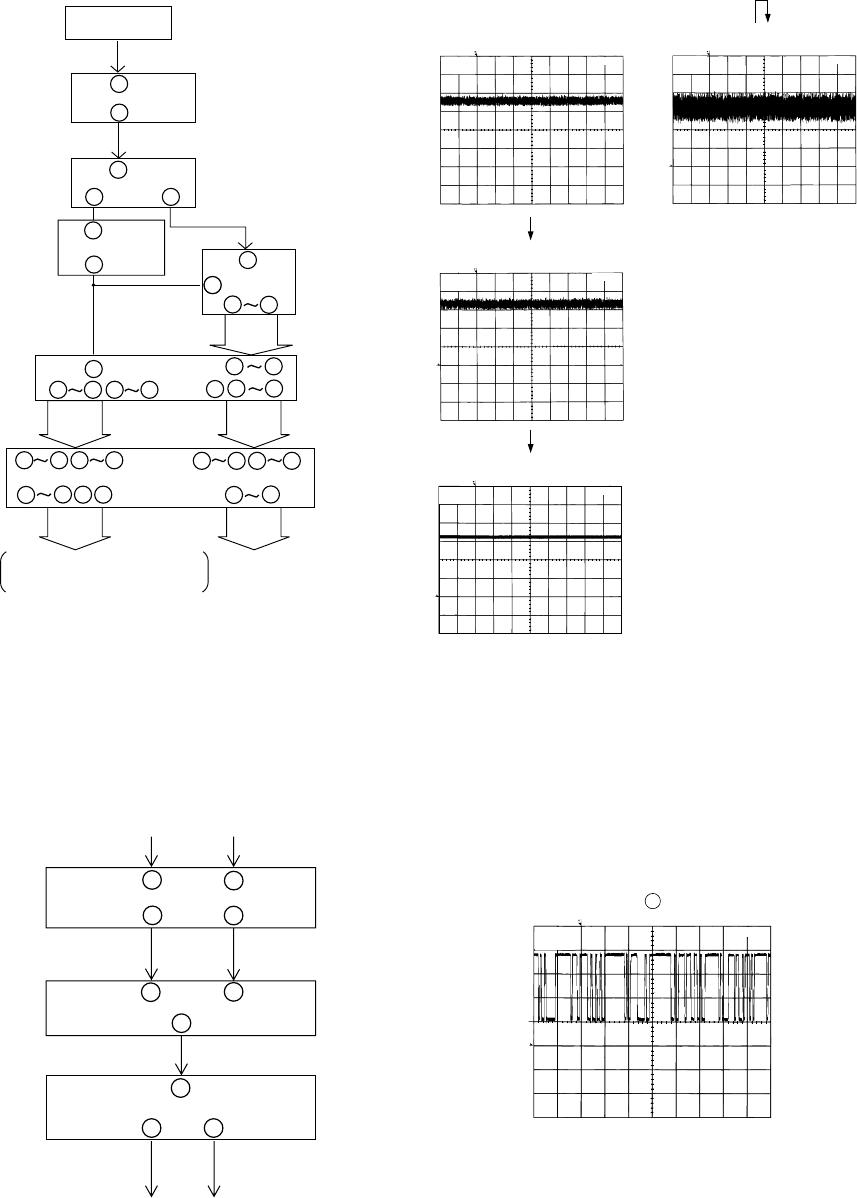

12-3. FLOW IN PB MODE (VIDEO) WAVEFORM DIAGRAM

(DURING COLOR BAR PLAYBACK)

12-4. FLOW IN REC MODE (AUDIO) WAVEFORM DIAGRAM (1.6 kHz SINE WAVE)

IC1602 Output

CH1=1V

DC P*10

10µs/d

IC3401 39pin PBDATA Input

IC3401 54pin Input

IC3404 3pin Input

IC3404 5pin Input

CH1=500mV

DC P*10

5ms/d

CH1=500mV

DC P*10

5ms/d

CH1=500mV

DC P*10

5ms/d

CH1=1V

DC P*10

5ms/d

MIC L

MIC R

IC601

IC1602

AUDIO I/O

IC452

REC/PB ENGINE

ADC/DAC

AUD-L ADIN

AIDAT

AUD-R ADIN

REC GATE

REC DATA

same as in

REC s

stem

212

116 117

CDY CDC

ADIN

A/D

ZYP

IC452

REC/PB ENGINE

IC3401

EQ/PLL

B TO B

IC3404

IC4401 to

VIO ENGINE

same as in EE system

IC201

CAM ENGINE

ZCP

154

93 94

31 34 38 39 42 48

235 240 248 249 250 252 260 264

83 88 97

104

13 32

SC3301

HEAD AMP

155 162

PB_DATA

IC3403

PB-CK

VL-FD1U

12-5. FLOW IN PB MODE (AUDIO) WAVEFORM DIAGRAM (1.6 kHz SINE WAVE)

IC1601 DODAT Input

CH1=1V

DC P*10

10µs/d

From IC3404

same as in Video

PB system

IC601

AUDIO-L_IN/OUT

AUD-L_DA_OUT

AUD-R_DA_OUT

AUDIO-R_IN/OUT

SP(+)

SP(-)

AUDIO I/O

ADC/DAC IC1602

REC/PB ENGINE IC452

DODAT

1920

Headphone

Jack

VL-FD1U

13. BLOCK DIAGRAMS

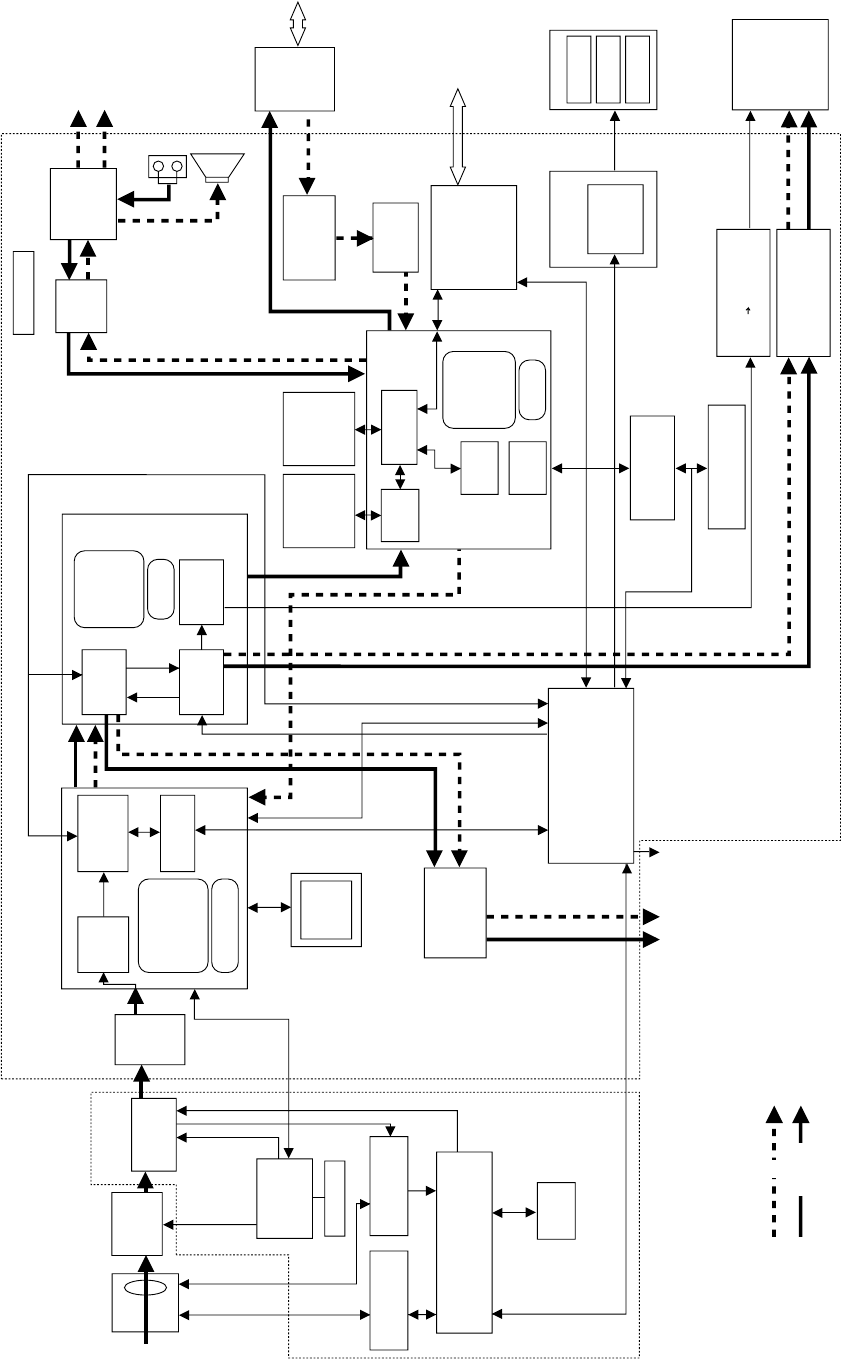

13-1. SYSTEM BLOCK DIAGRAM

Lens IC1

380K

CCD-Sensor

IC101

CDS/AGC

D/A Con.

IC11

V-Driver

54.000MHz

IC551

LENS DRIVER

IC1001

PROM

IC552, 553

IRIS DRIVE

IC501

16Bit

LENS MICON

IC151

10Bit

A/D

IC202

16Mbit

SDRAM

CAM

DSP ZOOM

IC201

CAMERA

ENGINE

(Total ASIC)

M-CTL

CameraZoom

IC1401

ANALOG

VIDEO I/O

IC701

SUPER I/O

PPW

IC4401

VIO

ENGINE

(Total ASIC)

PPW LCD

OSD

Synthesis LCD

CTL

IC407

Codec

External

Memory

IC408

ECC

External

Memory

CODEC TRANSPORT

PCM

CLK

Gen.

IC7401

IEEE1394

IC7701

Micon(CPU)

IC7702

2MB FLASH MEMORY

IC3404

A/D

IC3401

EQ/PLL

IC301

2CH

ATF/H/A

(4.9V)

Lithium

IC1602

16Bit

AD/DA

IC601

AUDIO

I/O

IC1702

D-Driver

C-Driver

L-Driver

Mecha

Dram Motor

CAP Motor

LOA Motor

LCD

IC8800

INV(3V 5VConversion)

IC2800

LCD INTERFACE

IC452

REC/PB

ENGINE

(Total ASIC)

CTP

in/out

Head

Microphone

Speaker

HP out.

Audio

out

Camera section

VCR/LCD Section

Video

out

REC (EE)

VL-FD1U

13-2. CAMERA SECTION BLOCK DIAGRAM

IC1

CCD-Sensor

VHiiCX216AY

IC101

CDS/AGC

VHiAN2108NF-1

48P

IC11

TG / V-Driver

VHiCXD2478R-1

48P

X11

54.000MHz

RCRSZ0075TAZZ

IC151

10bit A/D-Con

VHiADS933Y/-1

48P

IC201

CAM ENGINE

RH-iX0706TAZZ

304P

IC202

16M SDRAM

RH-iX0793TAZZ

50P

OFD

V1, V2, V3

CCD OUT

FSX, FCDX,

BCPX, PBLK

ADCK

XSDADR0

XSDCLK

XSDCKE

XSDCS

XSDRAS

XSDCAS

XSDWE

XSDDOMU

XSDDOML

XSDDAT0

ZYP0

ZCP0

ZCLKP

ZHDP

ZVDP

ZUVSELP

VRT, VRB

AGC OUT

HDX, VDX

MCK

VDX VDX

HDX HDX

AGC OUT

H1, H2, RS

MCK MCK

ADCK ADCK

SC2607

SC2602

P101-P151

1:AGC-OUT

CAMADIN0~9

SC501

SC1001

VRT, VRB VRT

VRB

VDX

HDX

MCK

ADCK

VRT

VRB

CDY0

CDC0

CLK13P

CDHDP

CDVDP

CDUVSELP

CAM-HEAD

AIO

MAIN

VL-FD1U

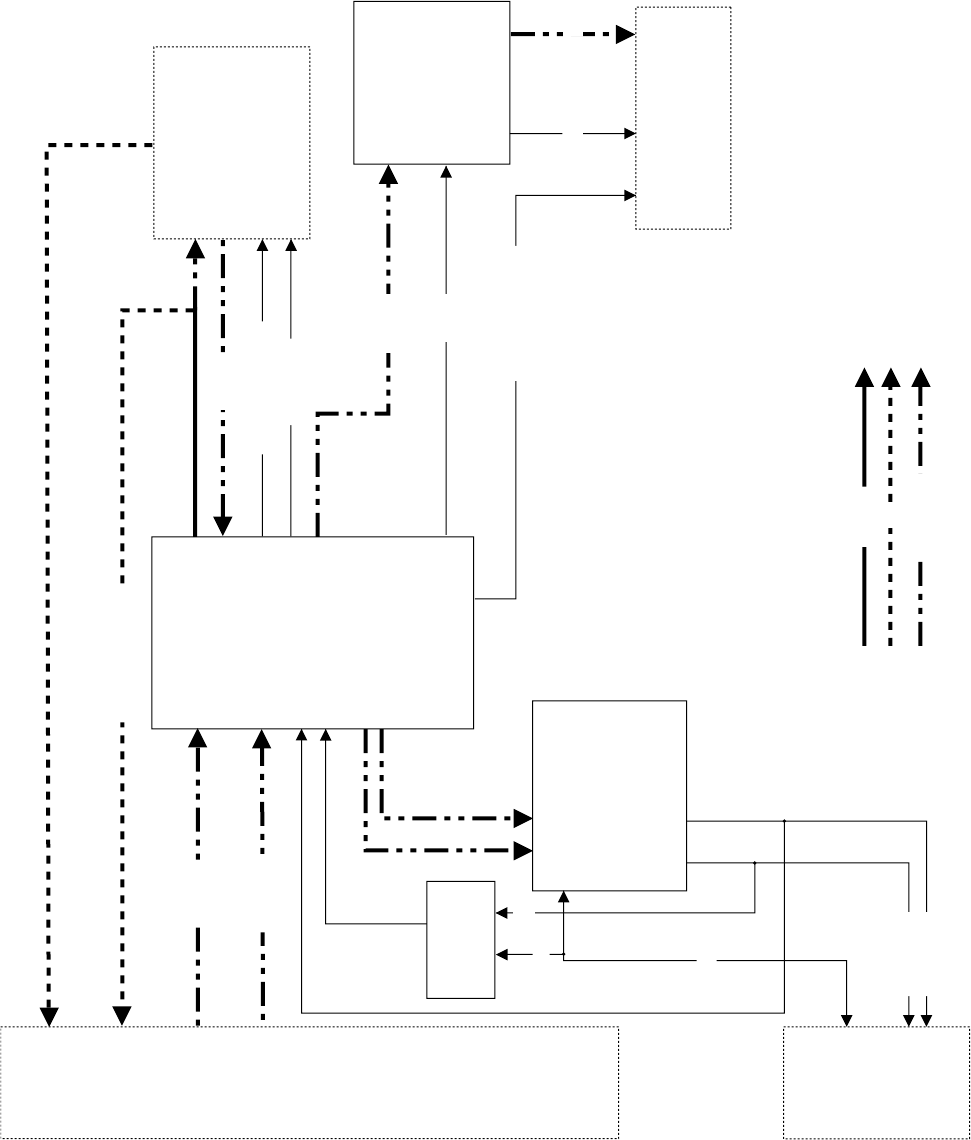

13-3. VIO ENGINE SECTION BLOCK DIAGRAM

REC (EE)

REC (EE), PB

IC4401

VIO ENGINE

RH-iX0707TAZZ

304P

IC1401

VIDEO I/O

VHiNJM2538B-1

20P

SC800

IC452

REC/PB ENGINE

RH-iX0710TAN1

328P

IC2800

LCD INTERFACE

VHiMM1323XV-1

24P

J2401

CDY0

7, CDC0

CLK13

CDVDP

CDHDP

CDUVSELP

ZUVSELP

ZCLKP

ZHDP

ZVDP

CAMERA SECTION

BLOCK DIAGRAM

CAM ENGINE

ZYP0

ZCP0

VIDEO IN/OUT

SEP Y IN/OUT

SEP C IN/OUT

I/O SEL

C OUT

FRPV

CLD, SPD, CTR

EX1, EX2, EX3

SPS, RES, CLS, LOW

COM VR, VG, VB

CVDR, CHDR

CLK135VCX0

SINID, INTID, FLDID

A-Y-OUT

A-C-OUT

A-C-IN

A-Y/COMP-V-IN

IC1431

VHiNJM2235V-1

VIDEO-IN

SEP-Y-IN

R OUT

G OUT

B OUT

VL-FD1U

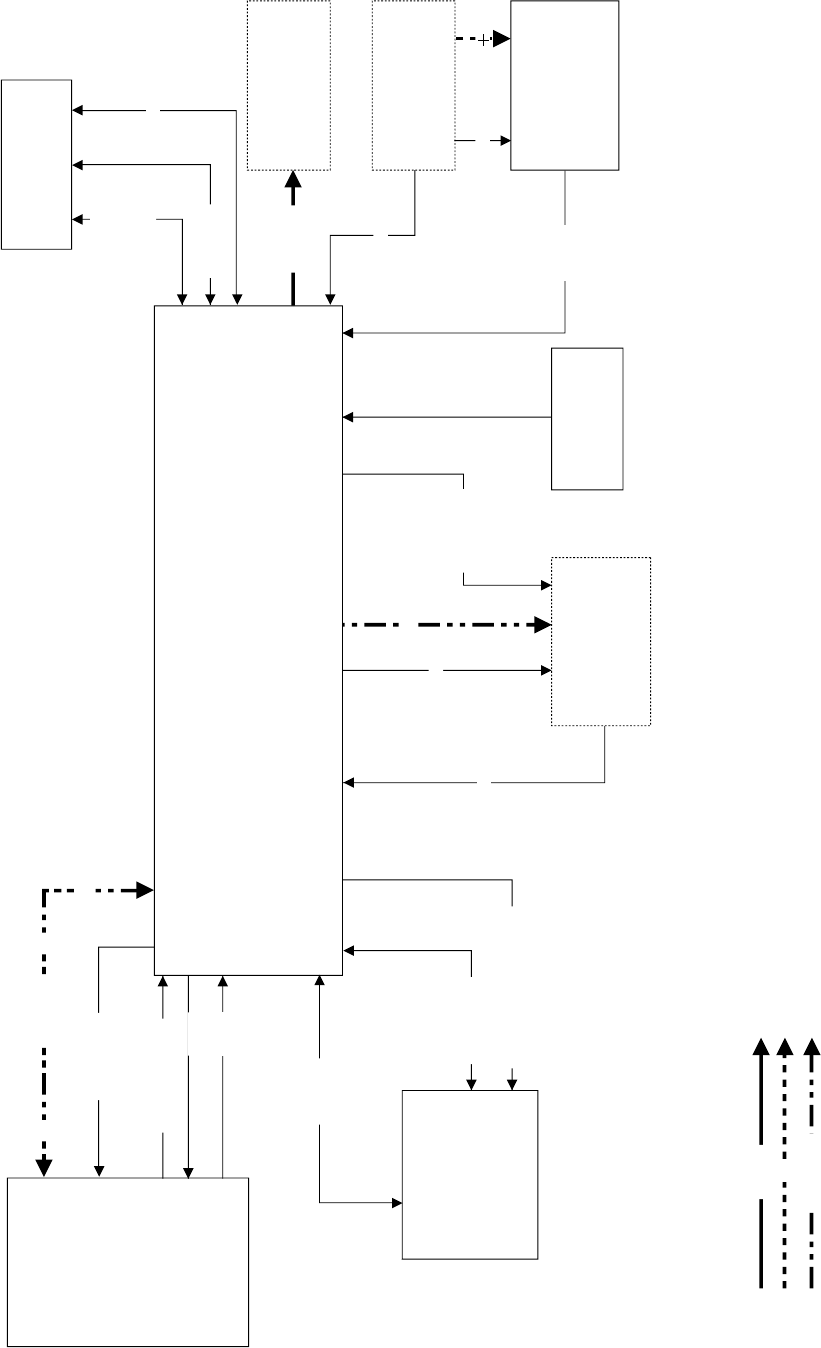

13-4. REC/PB SECTION SECTION BLOCK DIAGRAM

REC (EE)

REC (EE), PB

IC452

REC/PB ENGINE

RH-iX0710TAN1

328P

IC4401

VIO ENGINE

RH-iX0707TAZZ

304P

IC407

Codec External Memory

RH-iX0793TAZZ

50P

IC3404

A/D CONV

VHiADC08351-1

20P

IC301

HEAD AMP, ATF

48P

IC3401

EQ/PLL BLOCK

48P

IC7401

RH-iX0749TAZZ

IEEE1394

120P

X401

24.576MHz

RCRSC0160TAZZ

IC408

ECC External Memory

RH-iX0793TAZZ

50P

MADDR0

XCS, XWE, XRAS, XCAS,

XUDQM, XLDQM, XCKE,

CK18MIV

SM-ADR0

I/OSEL

CVDR

CHDR

DI00~15

LINK FP

MDT0

CS, WE

UDQM, RAS

LDQM, CAS

CKE, CK18MIV

PB-CK

ADIN0

PB-CK I D

REC DATA

REC GATE

ICRCE, ILWRE

IDIR, ICLK, IV

ID0~7

CDY0~7

CDC0~7

CDUVSELP

CDHDP, CDVDP

CLK8.192

SINID, INTID, FLDID

VL-FD1U

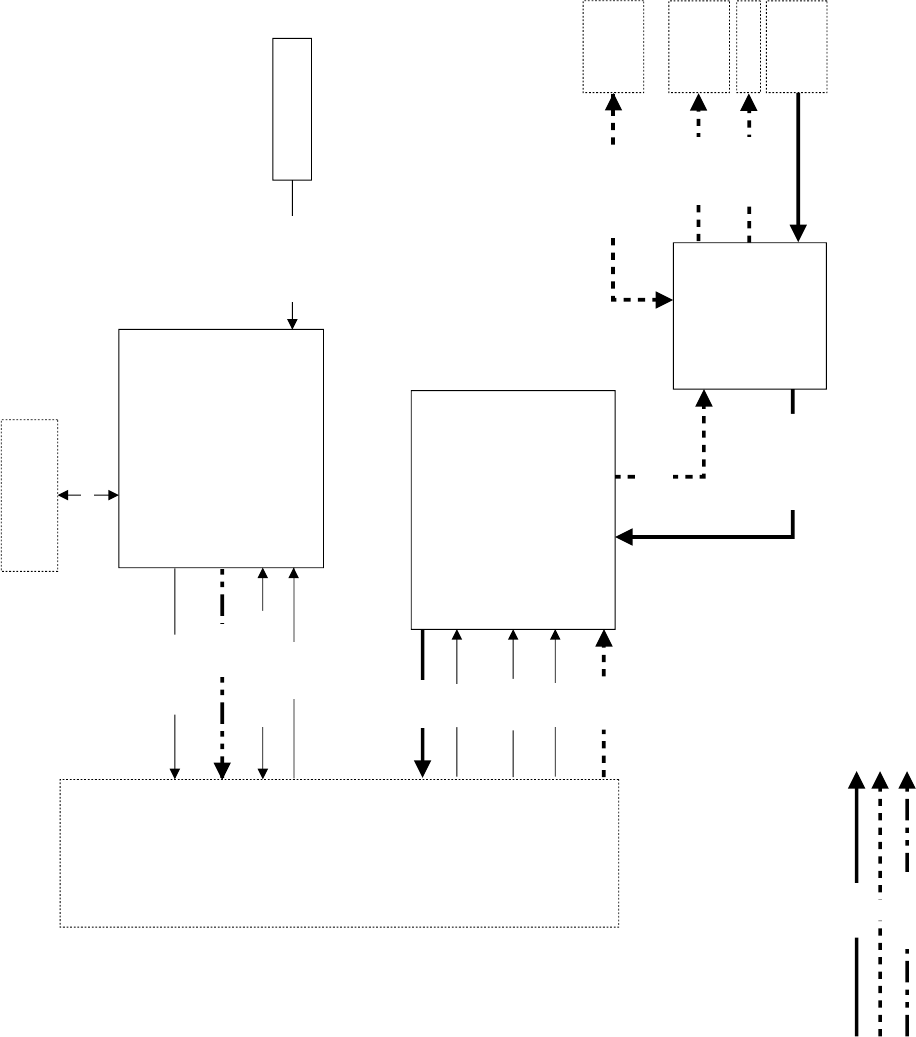

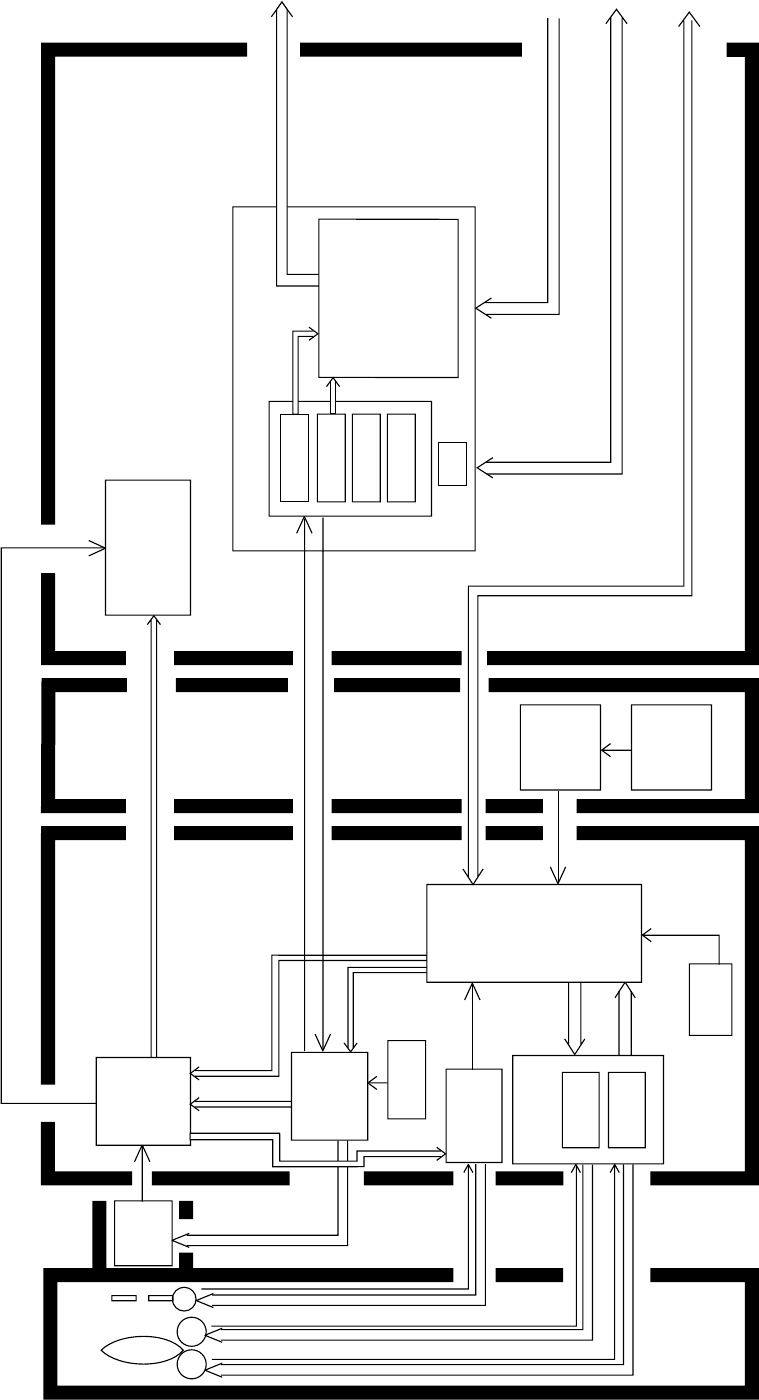

13-5. AUDIO/DIGITAL OUTPUT SECTION BLOCK DIAGRAM

REC (EE)

REC (EE), PB

IC7401

IEEE1394

RH-iX0749TAZZ

120P

SUPER I/O

IC1602

16bit ADC/DAC

VHiPCM3006T

24P

IC601

AUDIO I/O

VHiBH7761KV

48P

IntMIC

HP JACK

JACK

SPEAKER

J7401

DV CONNECT

REC/PB ENGINE

BLOCK

ID0~7

SP OUT

CLK 8.192

DFSO

DFSI

AIDAT

AUD-R DA OUT

AUD-L DA OUT

AUDIO-R I/O

AUDIO-L I/O

ADMCK

CMODE

PDAD

PDDA

DODAT

CS, RD, WR

ICRCE, ILWRE

IDIR, ICLK

AUD-R AD IN

AUD-L AD IN

LINK FP

TPA, TPA-, TPB, TPB-

HP OUT

VL-FD1U

13-6. CAMERA CIRCUIT BLOCK DIAGRAM

MMM

MAIN

AIO

CAMERA HEADLENS UNIT

IC11

Timing

Generator

V-Driver

I/O

IC1501

GYRO-AMP.

S1501

GYRO-Sensor

Electric Zoom

Image Stabilizer

Digital Noise Reduction

IC101

CDS

AGC

A/D-Drive

D/A-CON.

IC151

10bit

A/D-Converter

IC1

CCD

Sensor

IC551

IC201

X11

54.000MHz

Focus-Motor

Drive-Sense

IC552,553

Iris Drive

Sensor

Zoom-Motor

Drive-Sense

Lens

µ-COM

REC & PB Y/C Data

PB Y/C Data

Control Data Bus

Sirial Data

CF501

20M

IC501

Y-Process

SSG

Digital Auto

C-Process

1234567891011 12 13 14 15 16 17 18 19 20

VL-FD1U

50~51

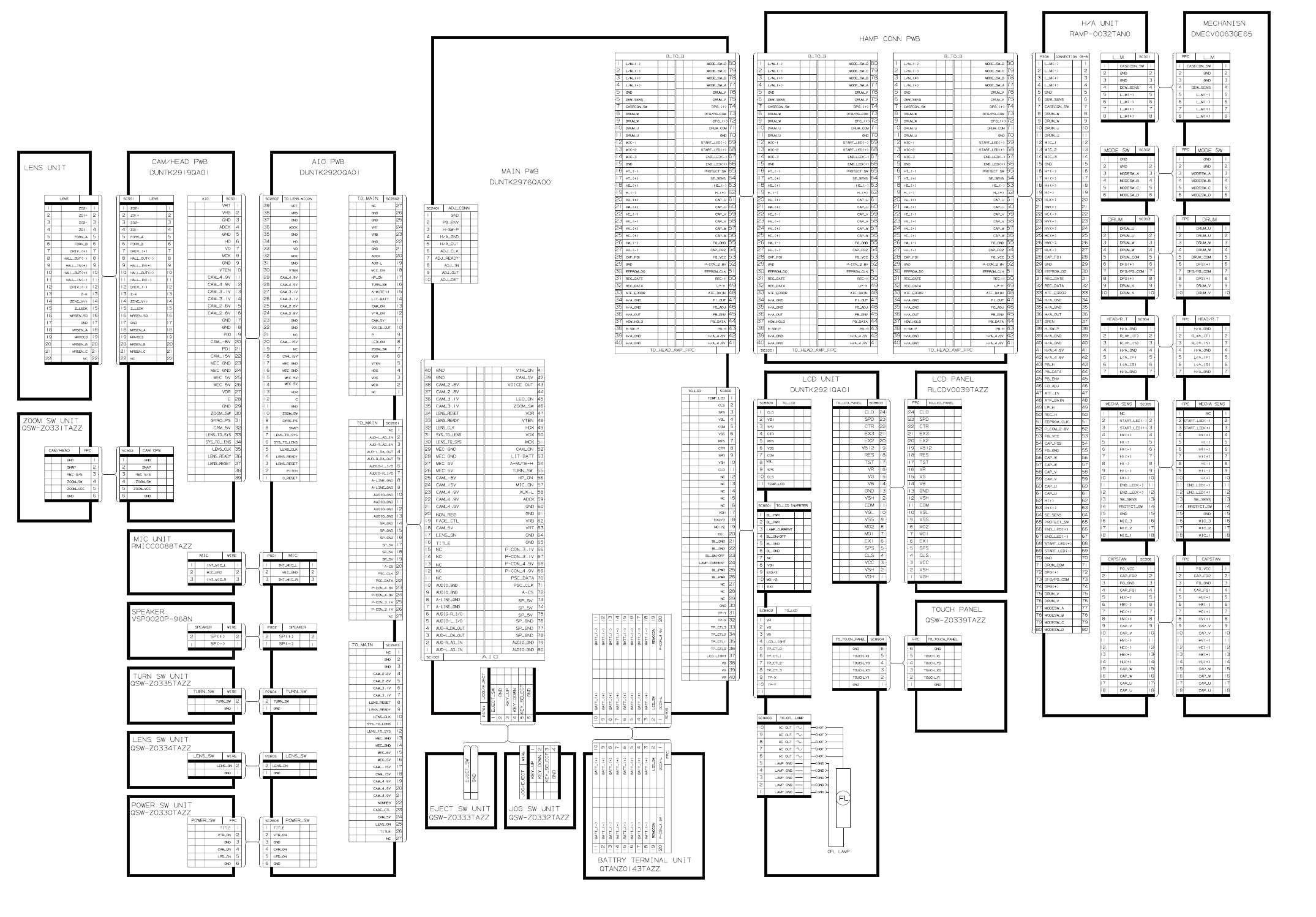

14. SCHEMATIC DIAGRAMS 14-1. OVERALL SCHEMATIC DIAGRAM

1234567891011 12 13 14 15 16 17 18 19 20

VL-FD1U

52~53

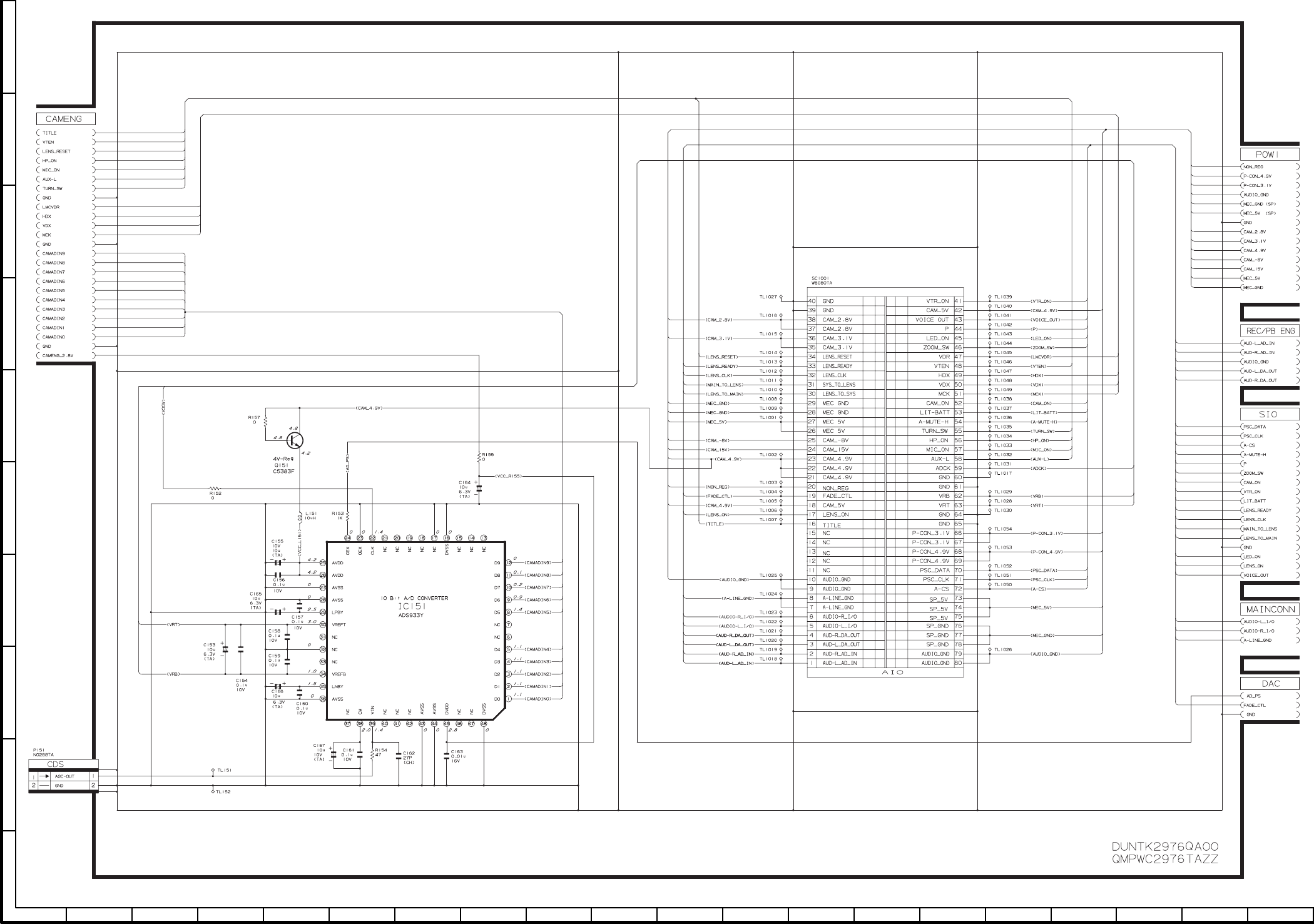

14-2. ADC SCHEMATIC DIAGRAM

1234567891011 12 13 14 15 16 17 18 19 20

VL-FD1U

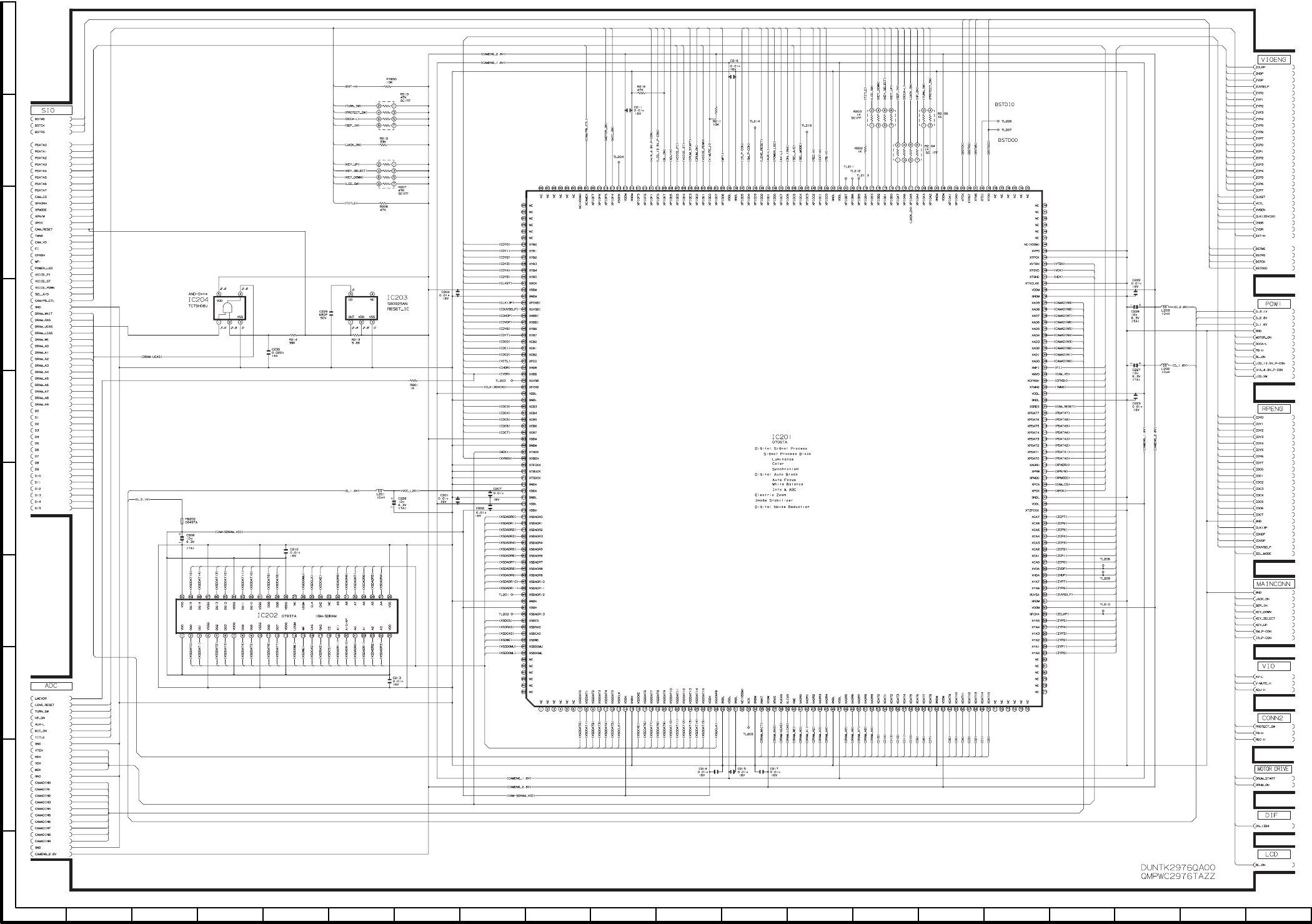

14-3. CAMERA ENGINE SCHEMATIC DIAGRAM

54~55

1234567891011 12 13 14 15 16 17 18 19 20

VL-FD1U

56~57

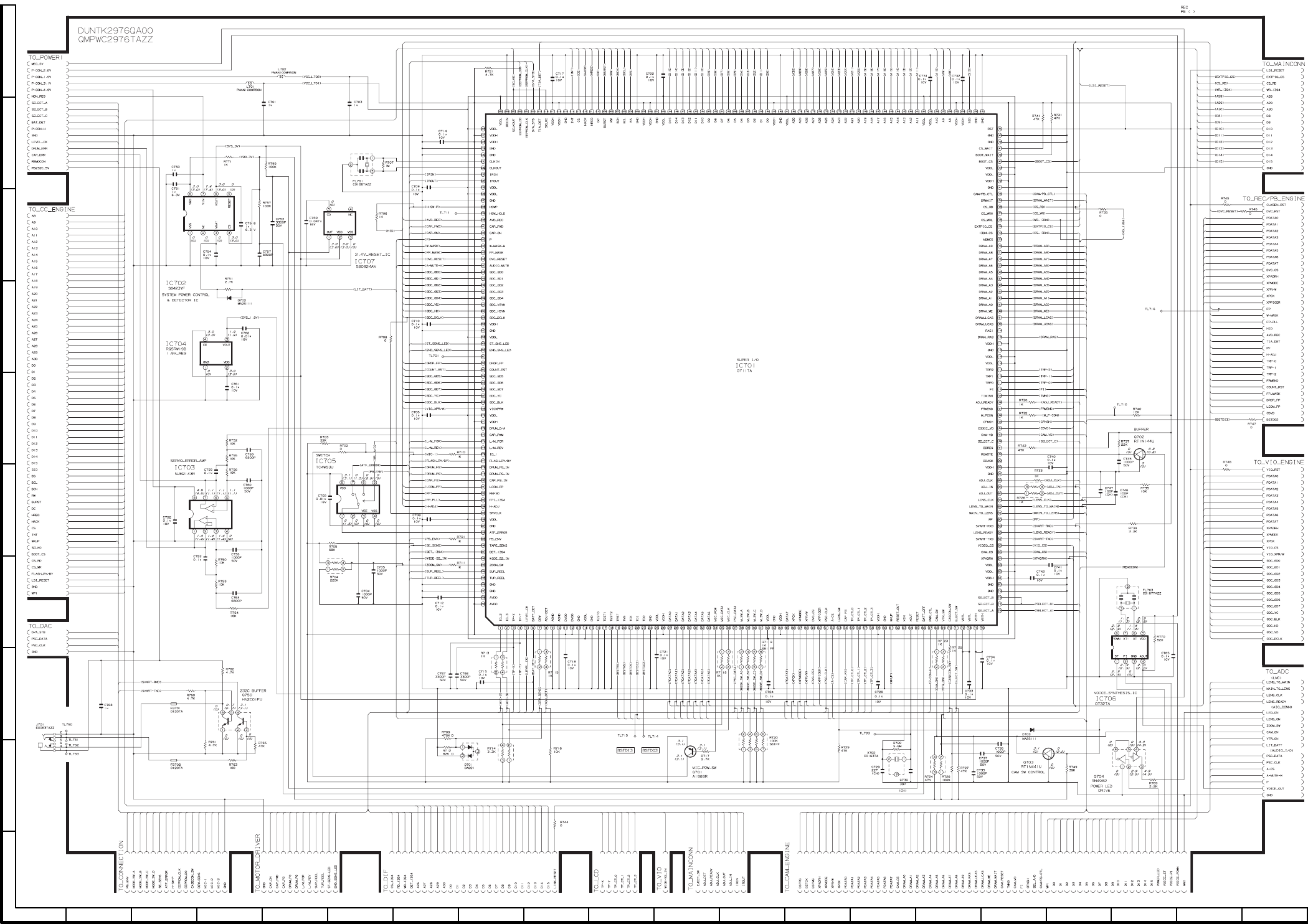

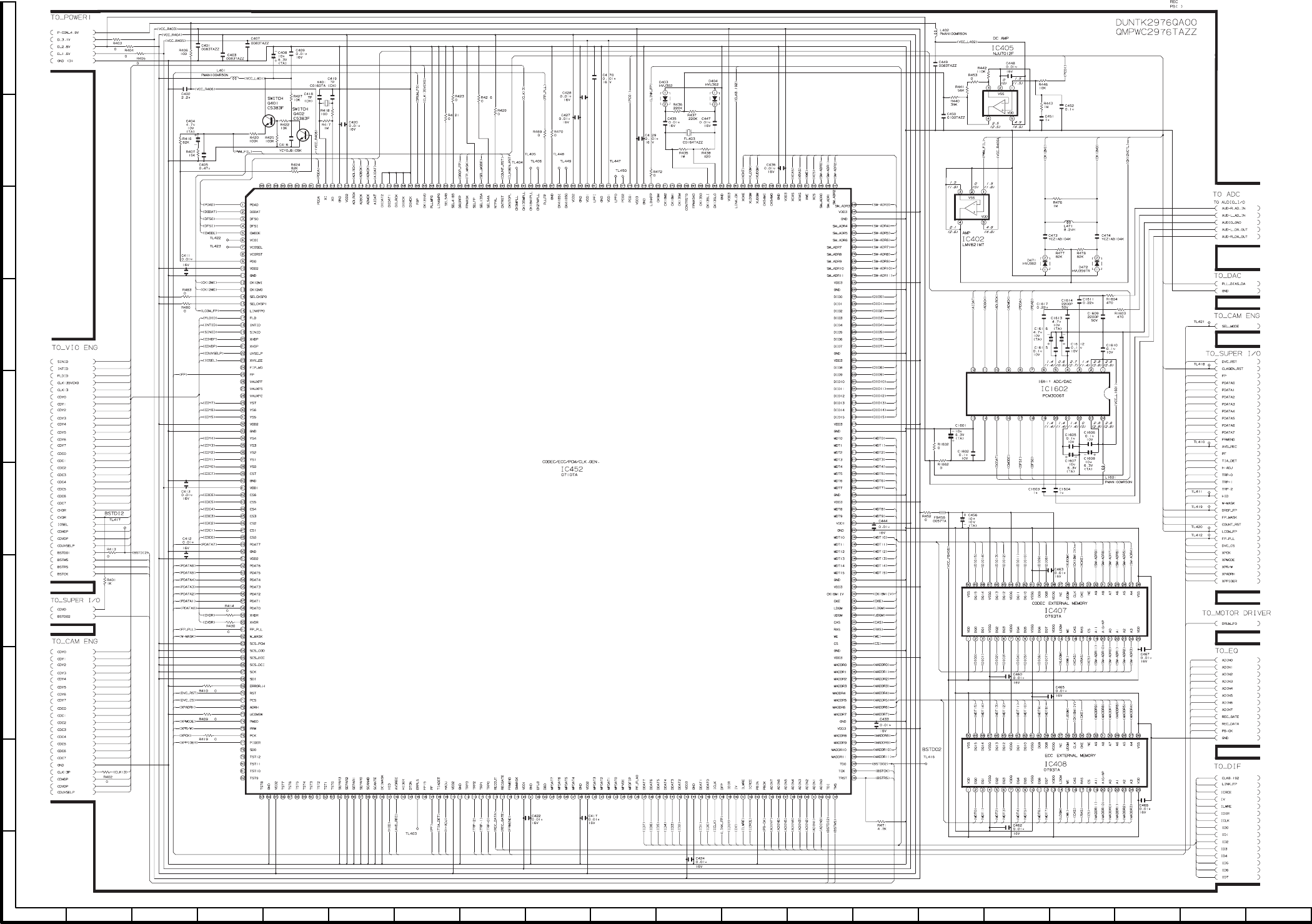

14-4. REC/PB ENGINE SCHEMATIC DIAGRAM

1234567891011 12 13 14 15 16 17 18 19 20

VL-FD1U

58~59

14-5. SUPER I/O SCHEMATIC DIAGRAM

1234567891011 12 13 14 15 16 17 18 19 20

VL-FD1U

60~61

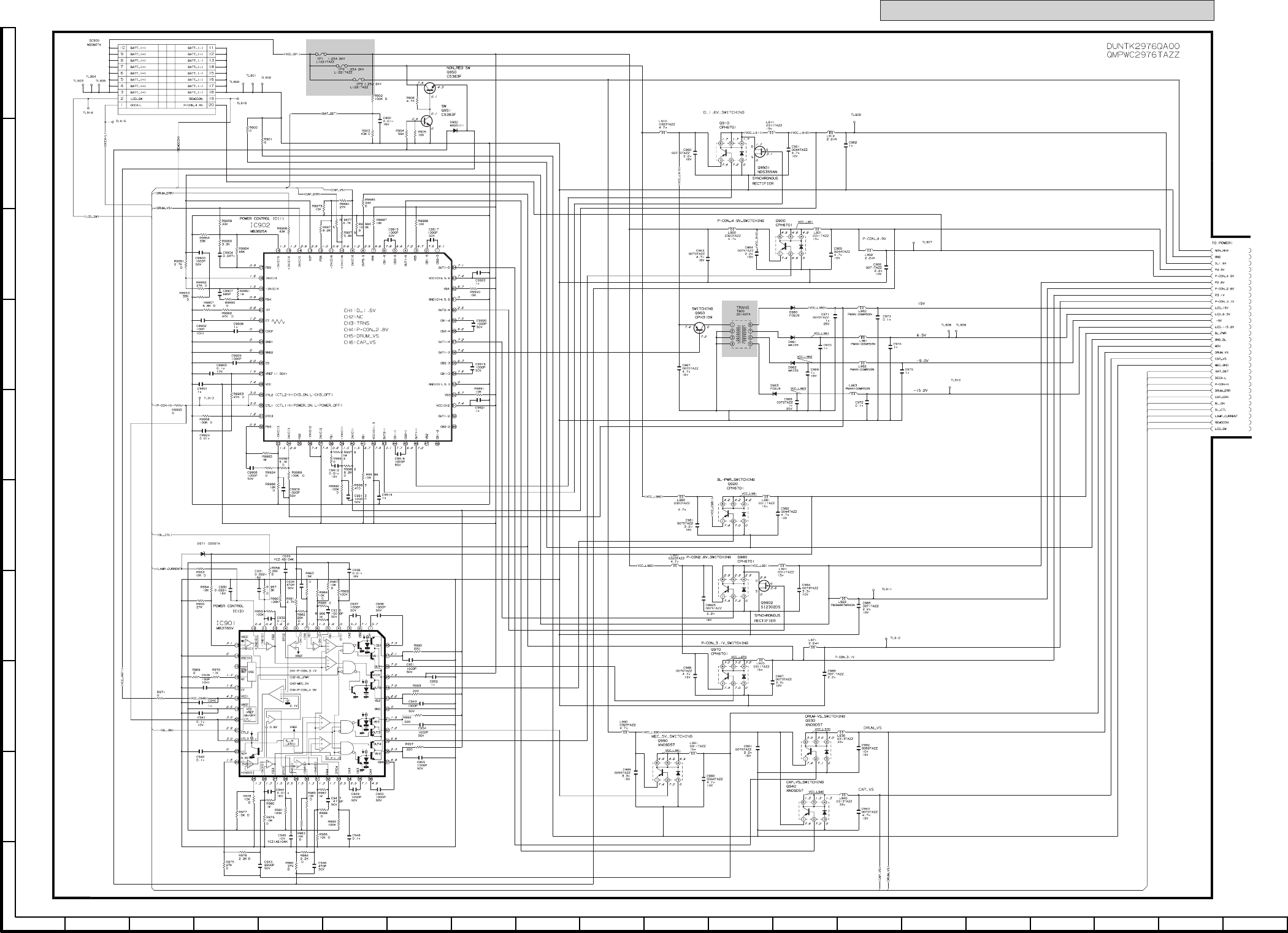

14-6. POWER2 SCHEMATIC DIAGRAM

å

å AND SHADED COMPONENTS=SAFETY RELATED PARTS

1234567891011 12 13 14 15 16 17 18 19 20

VL-FD1U

62~63

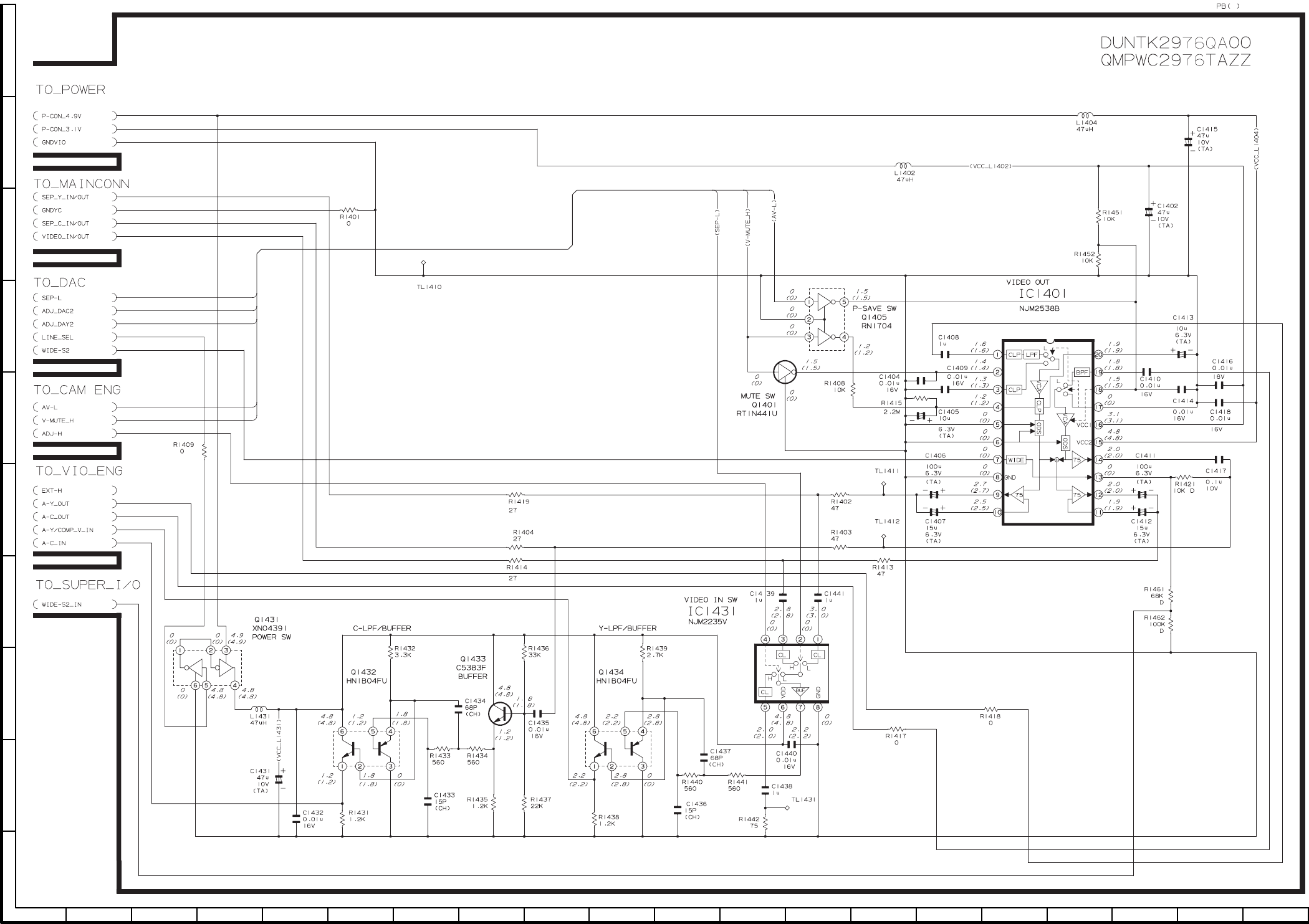

14-7. VIDEO I/O SCHEMATIC DIAGRAM

1234567891011 12 13 14 15 16 17 18 19 20

VL-FD1U

64~65

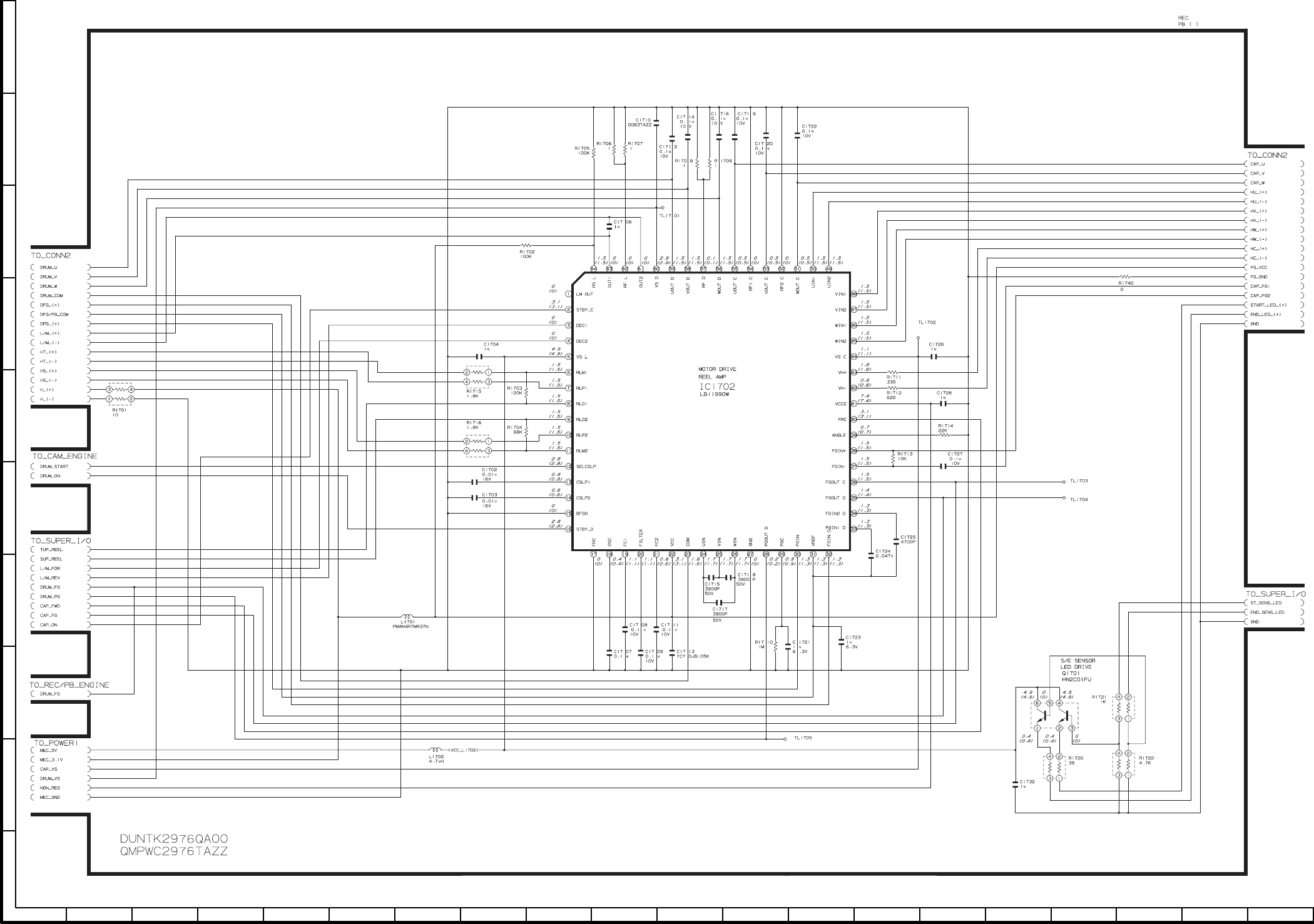

14-8. MOTOR DRIVER SCHEMATIC DIAGRAM

1234567891011 12 13 14 15 16 17 18 19 20

VL-FD1U

14-9. POWER1 SCHEMATIC DIAGRAM

66~67

1234567891011 12 13 14 15 16 17 18 19 20

VL-FD1U

68~69

14-10. LCD DISPLAY SCHEMATIC DIAGRAM

1234567891011 12 13 14 15 16 17 18 19 20

VL-FD1U

14-11. EQ/PLL SCHEMATIC DIAGRAM

70~71

1234567891011 12 13 14 15 16 17 18 19 20

VL-FD1U

72~73

14-12. VIDEO I/O ENGINE SCHEMATIC DIAGRAM

1234567891011 12 13 14 15 16 17 18 19 20

VL-FD1U

74~75

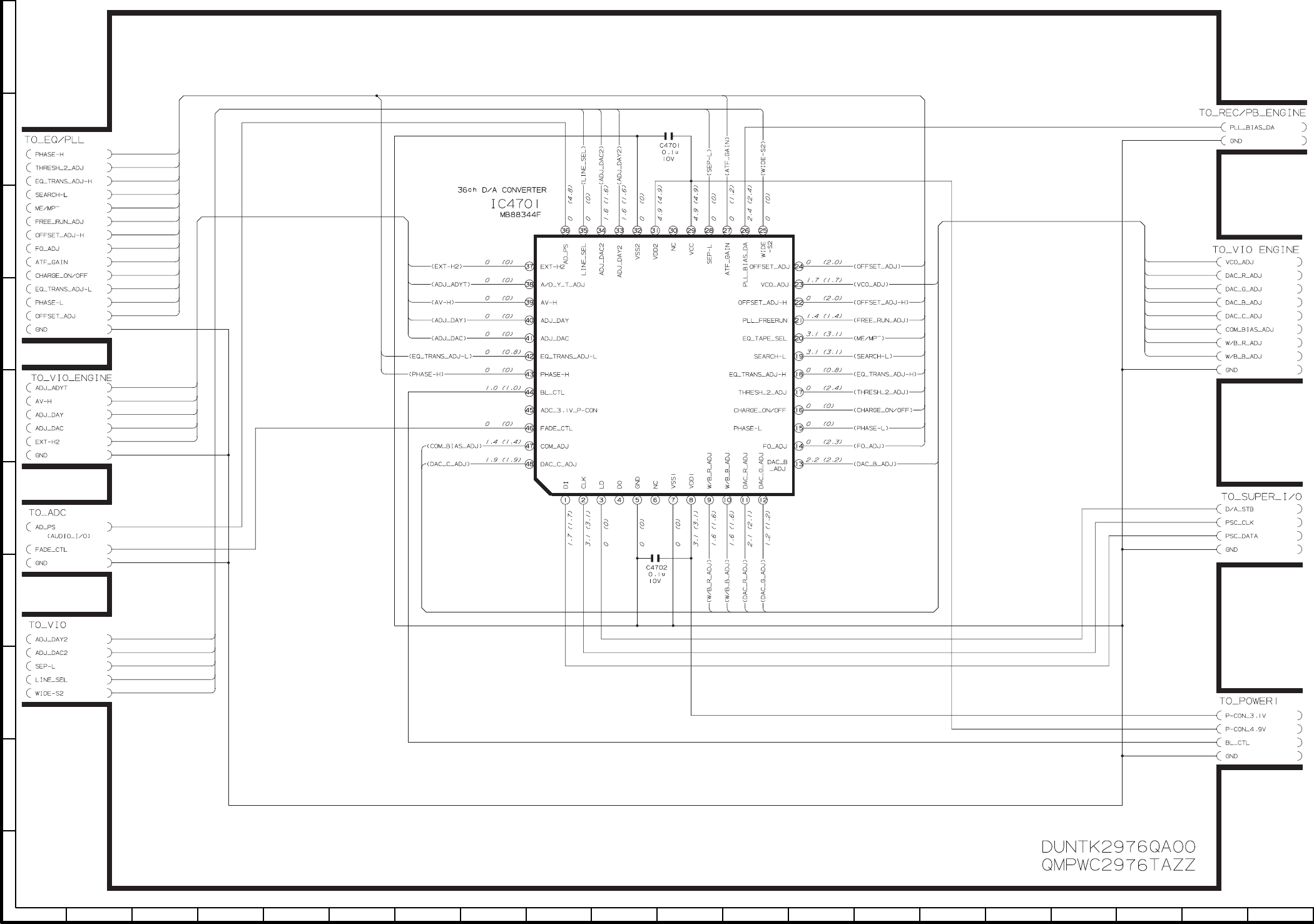

14-13. DAC SCHEMATIC DIAGRAM

1234567891011 12 13 14 15 16 17 18 19 20

VL-FD1U

76~77

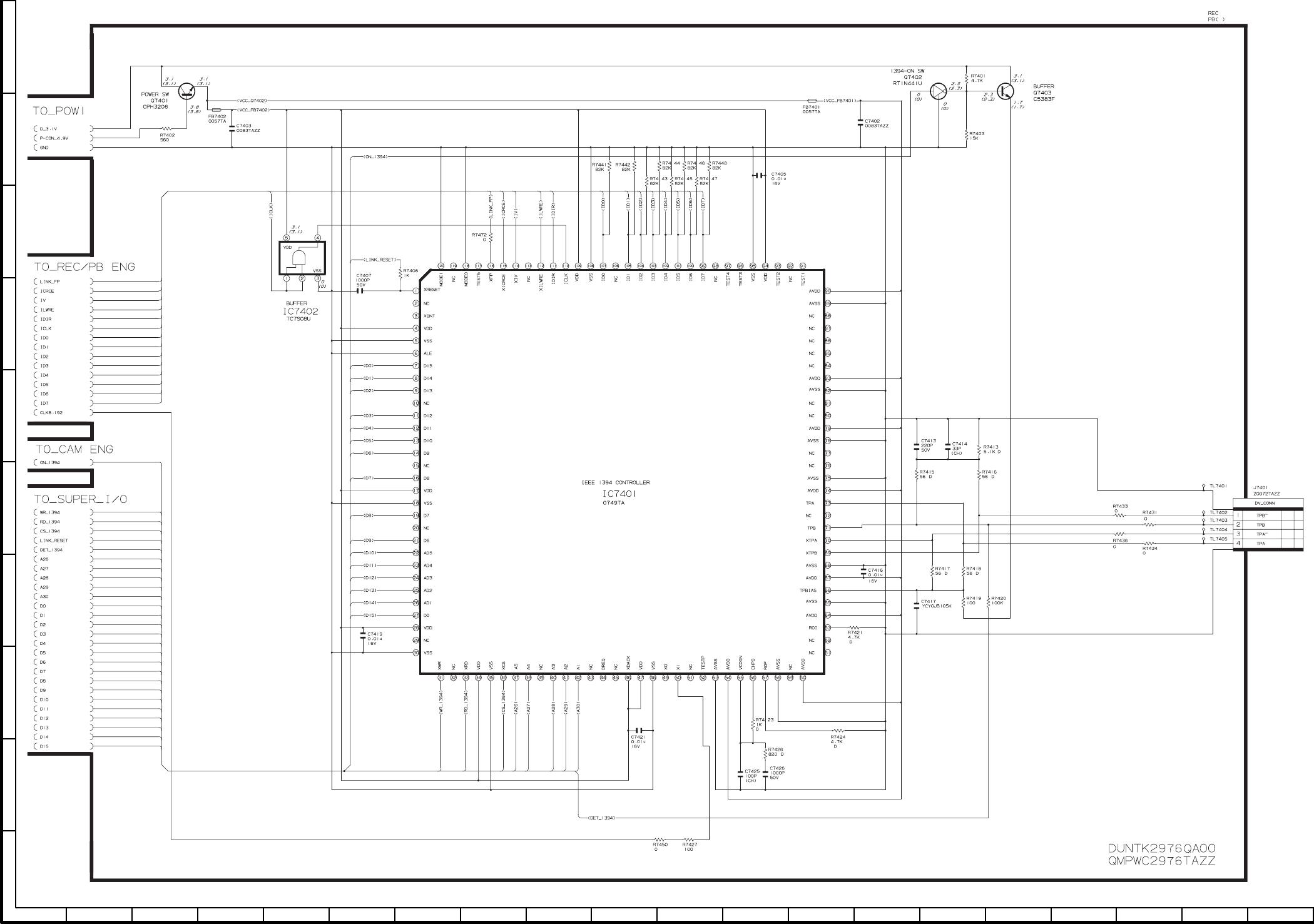

14-14. DIGITAL I/F SCHEMATIC DIAGRAM

1234567891011 12 13 14 15 16 17 18 19 20

VL-FD1U

78~79

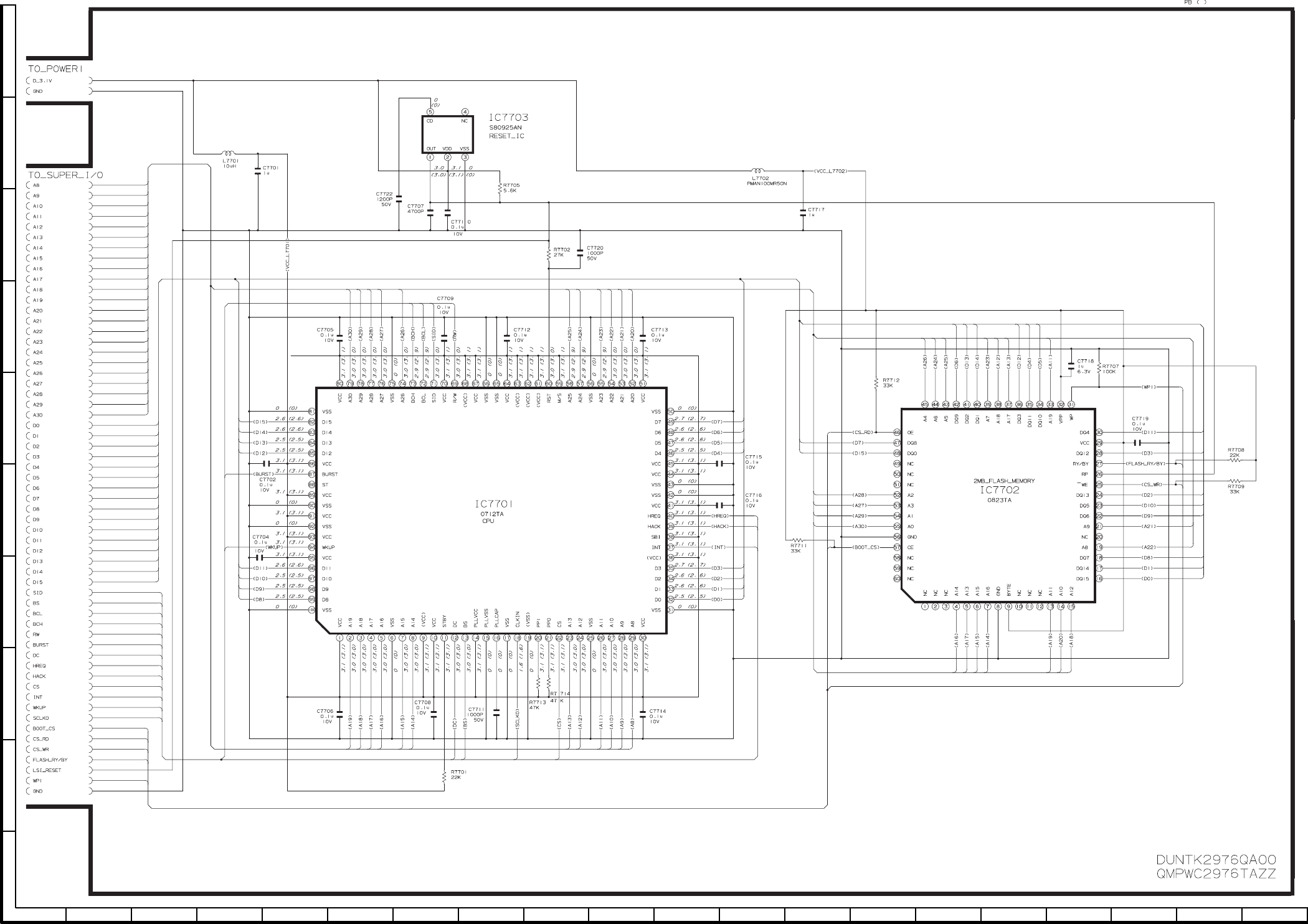

14-15. CC ENGINE SCHEMATIC DIAGRAM

1234567891011 12 13 14 15 16 17 18 19 20

VL-FD1U

80~81

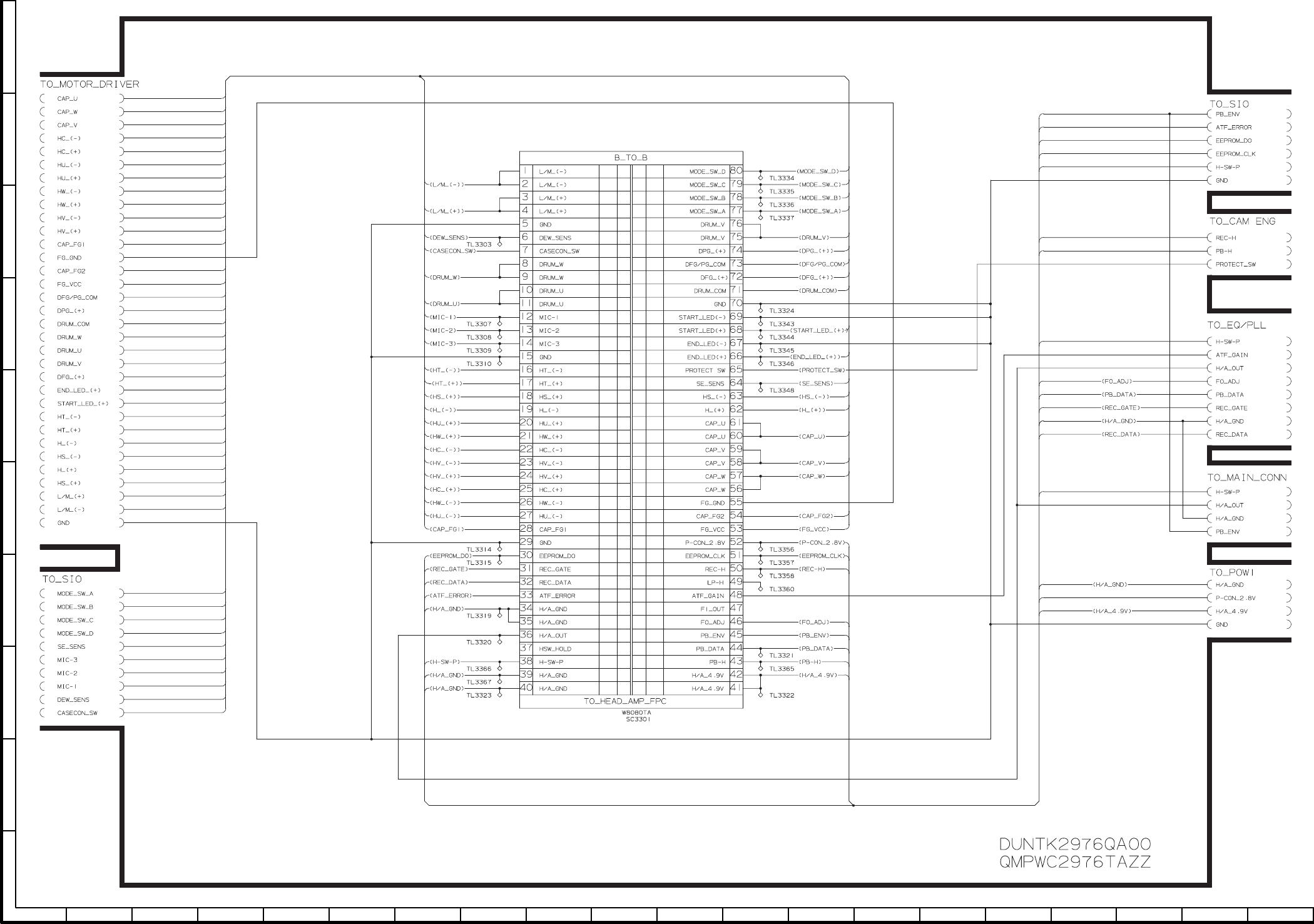

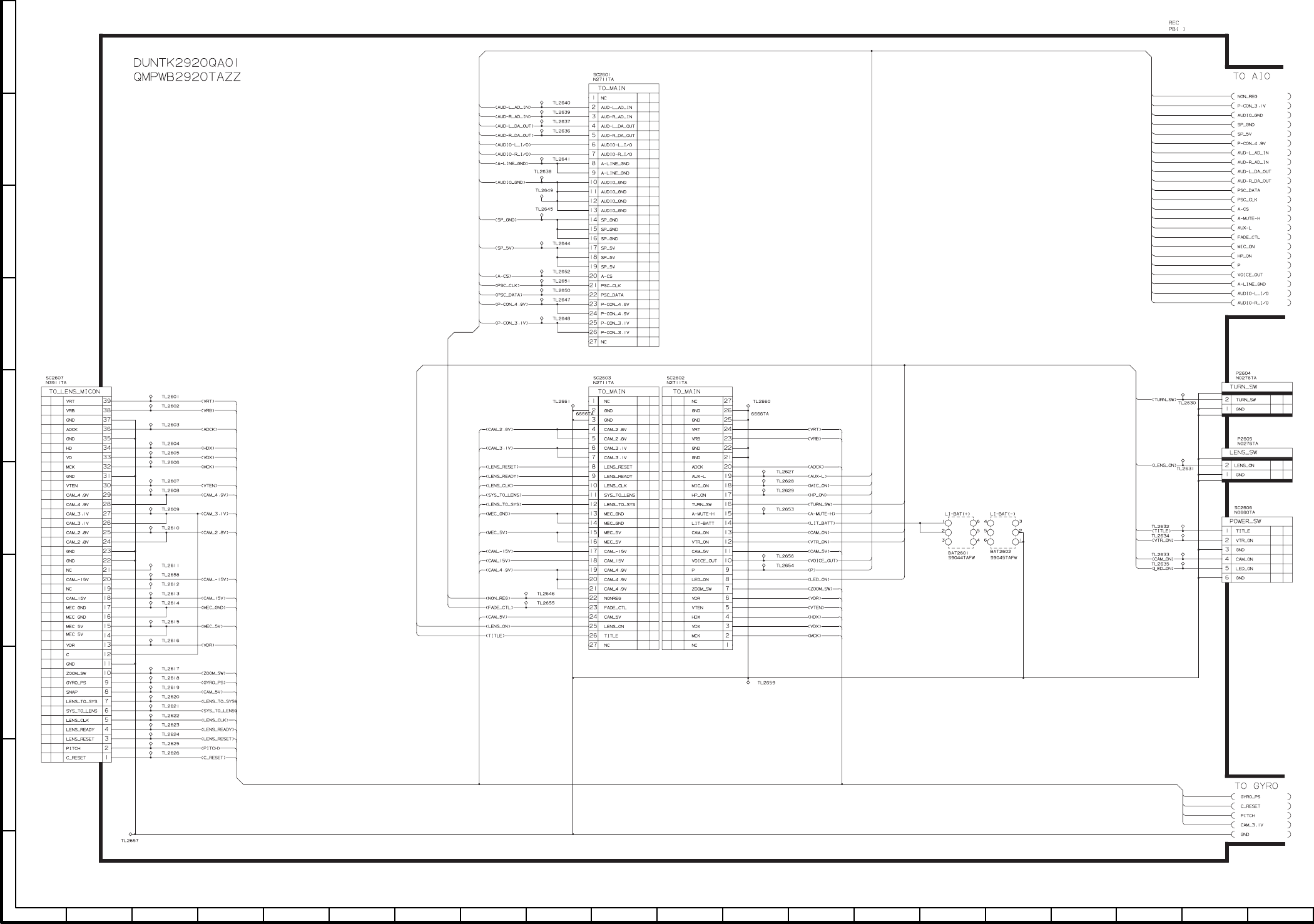

14-16. CONNECTION(B-B) SCHEMATIC DIAGRAM

1234567891011 12 13 14 15 16 17 18 19 20

VL-FD1U

82~83

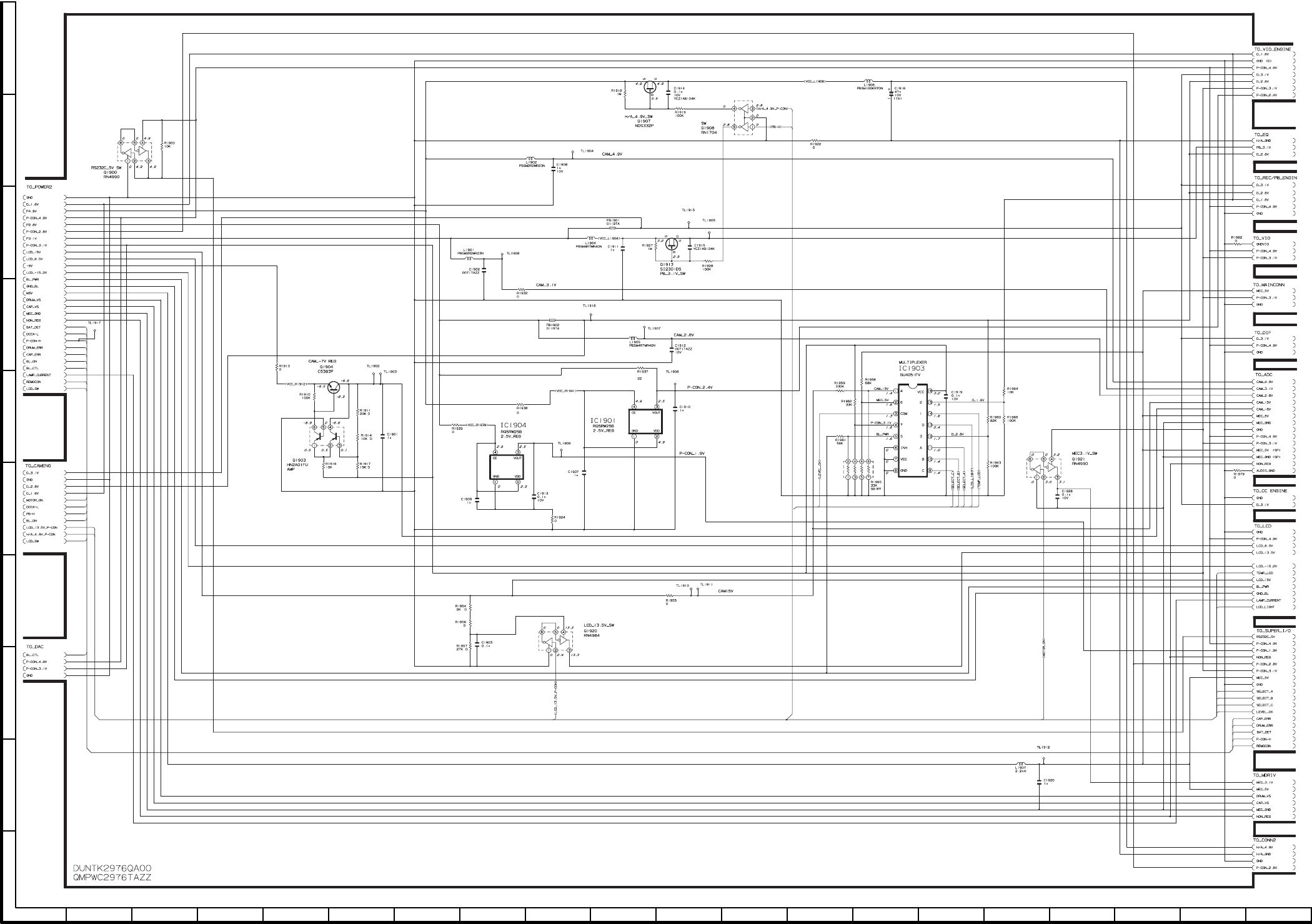

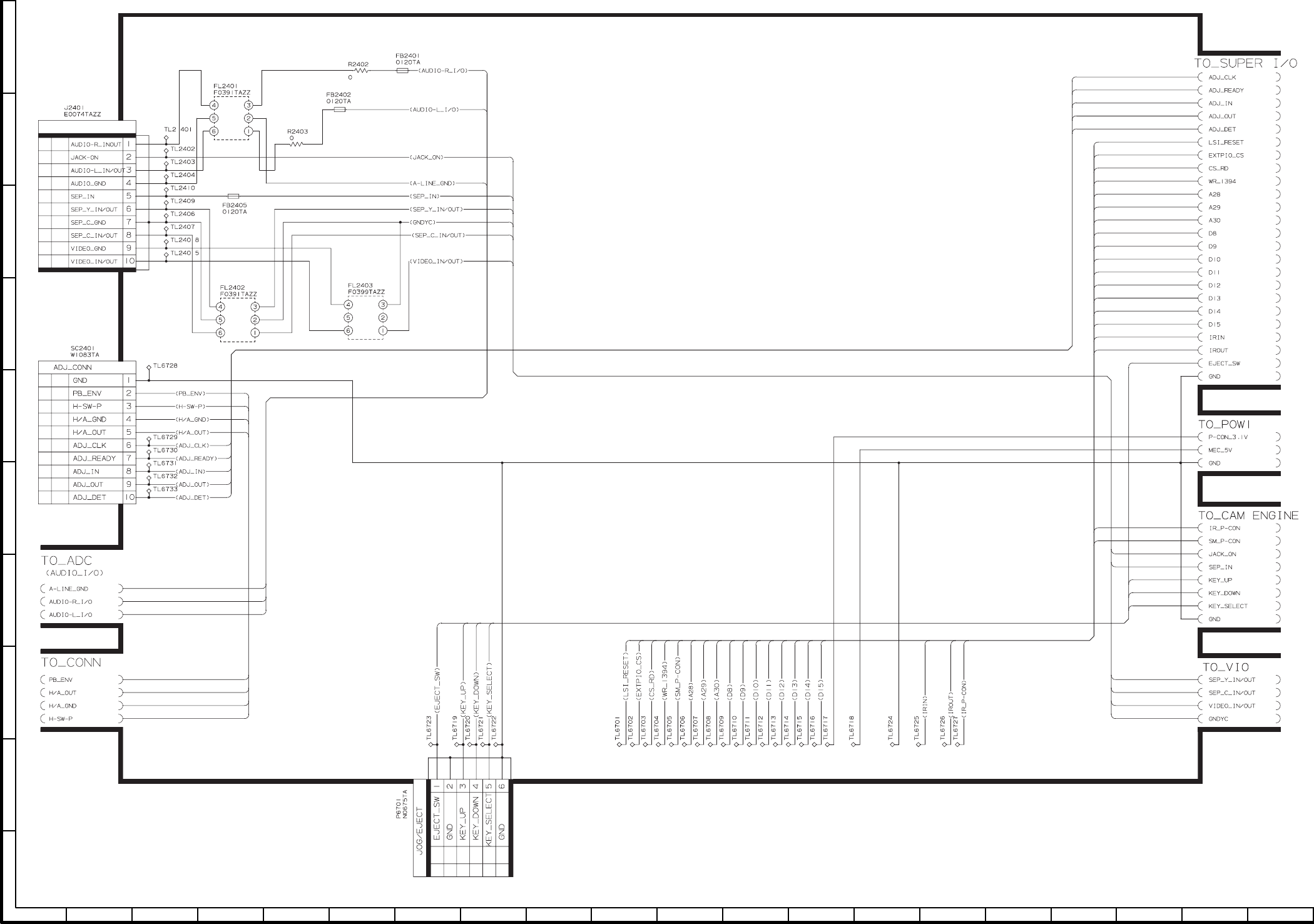

14-17. MAIN CONNECTION SCHEMATIC DIAGRAM

1234567891011 12 13 14 15 16 17 18 19 20

VL-FD1U

84~85

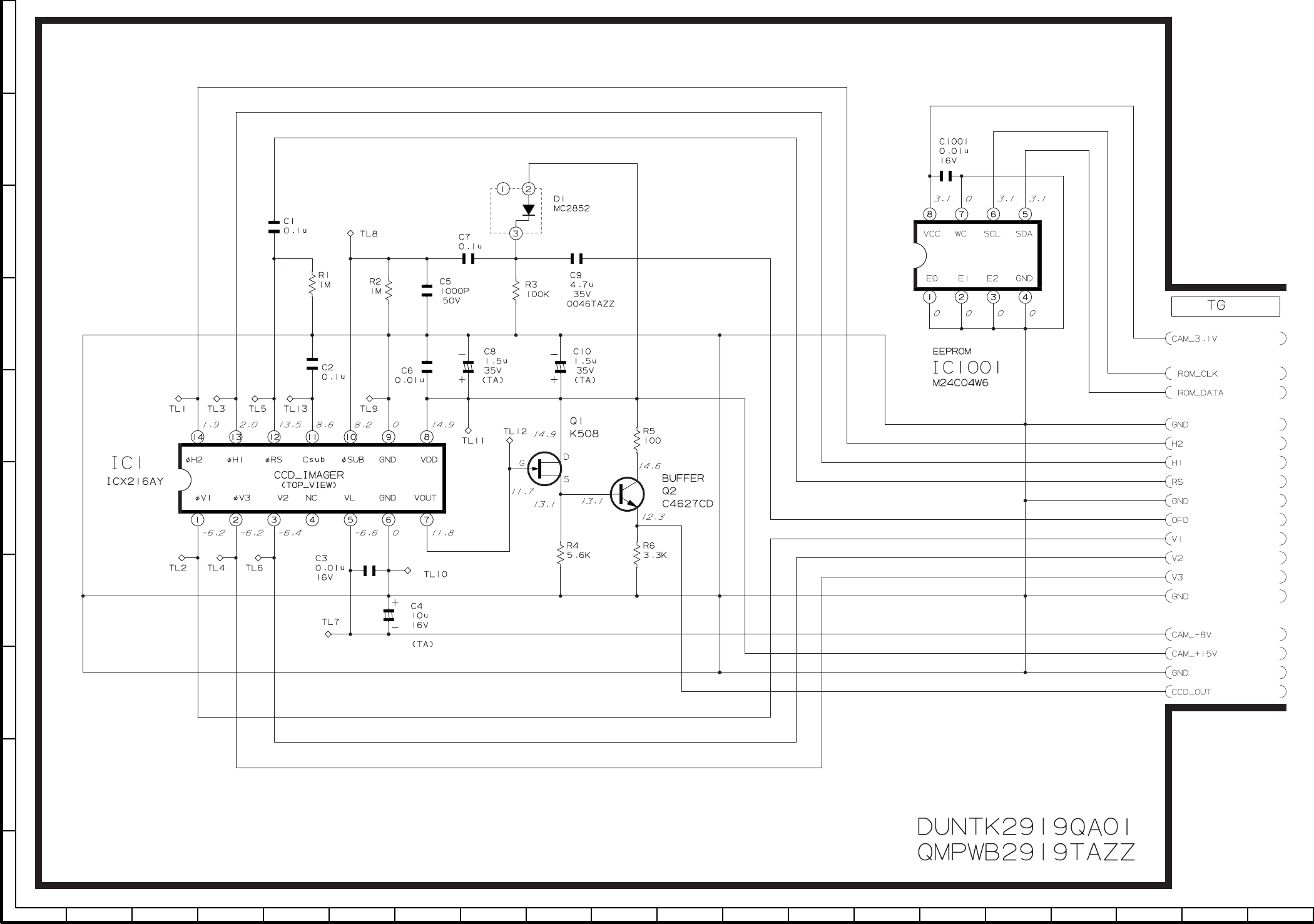

14-18. CCD SCHEMATIC DIAGRAM

1234567891011 12 13 14 15 16 17 18 19 20

VL-FD1U

86~87

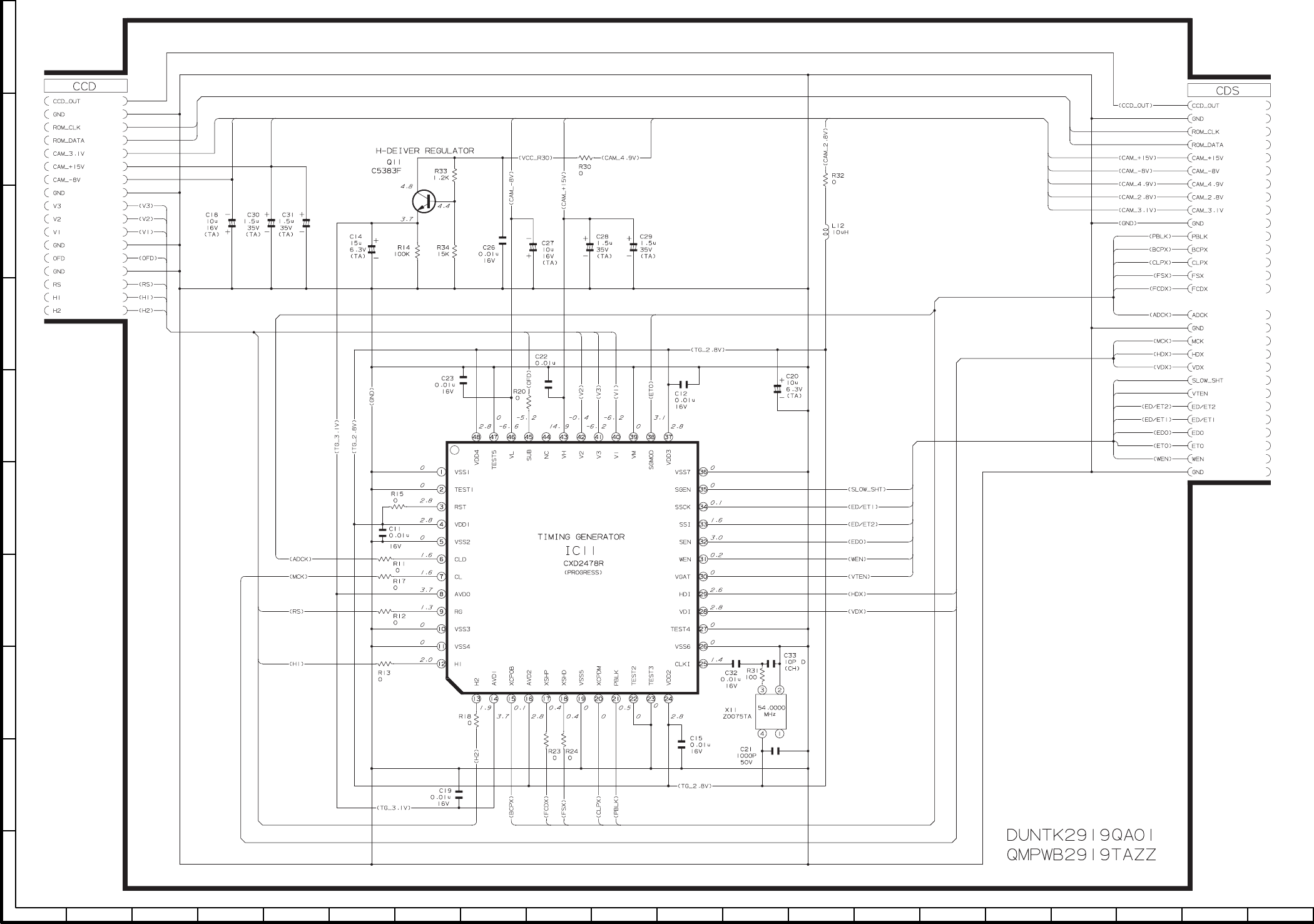

14-19. TG SCHEMATIC DIAGRAM

1234567891011 12 13 14 15 16 17 18 19 20

VL-FD1U

88~89

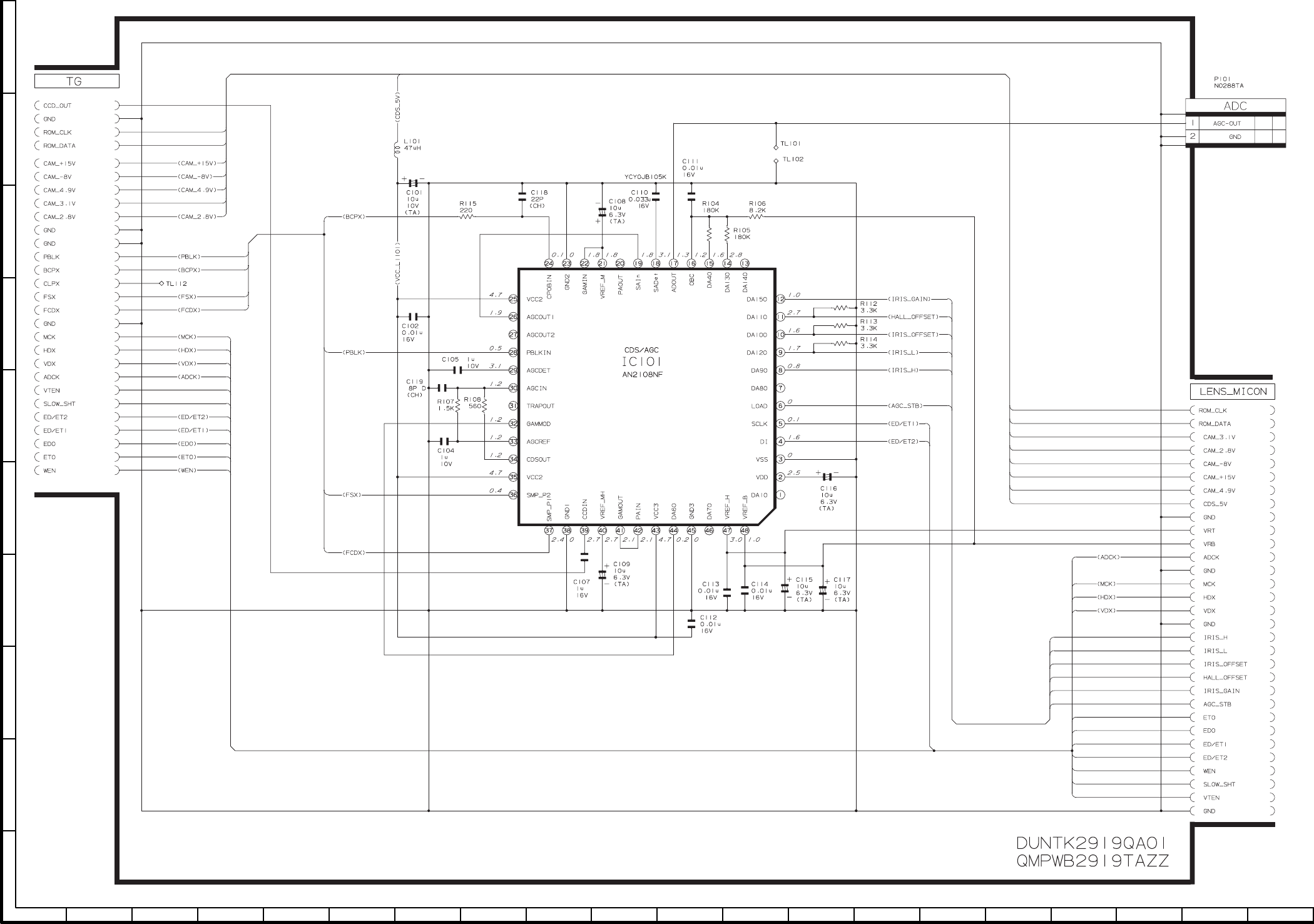

14-20. CDS SCHEMATIC DIAGRAM

1234567891011 12 13 14 15 16 17 18 19 20

VL-FD1U

90~91

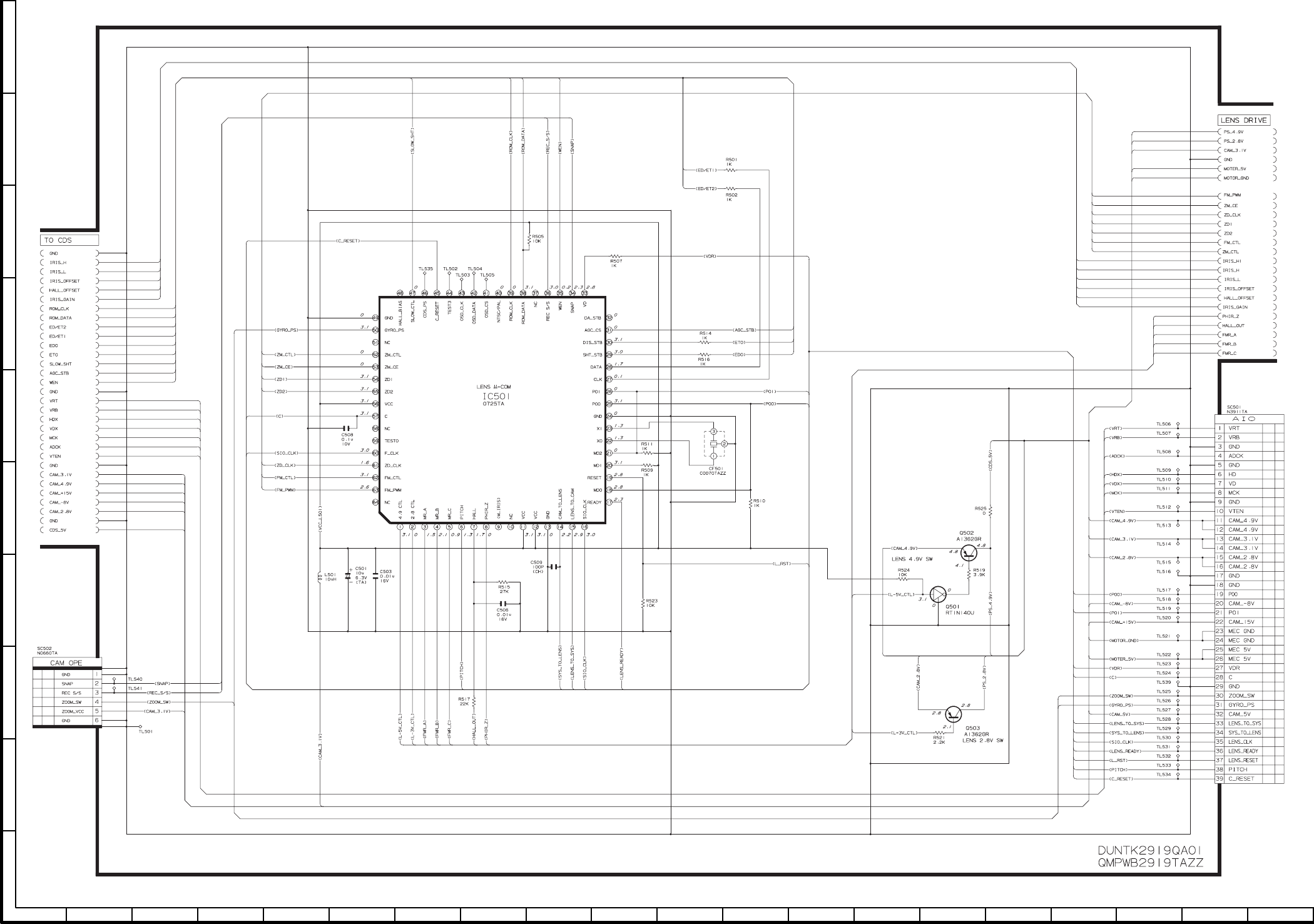

14-21. LENS MICON SCHEMATIC DIAGRAM

1234567891011 12 13 14 15 16 17 18 19 20

VL-FD1U

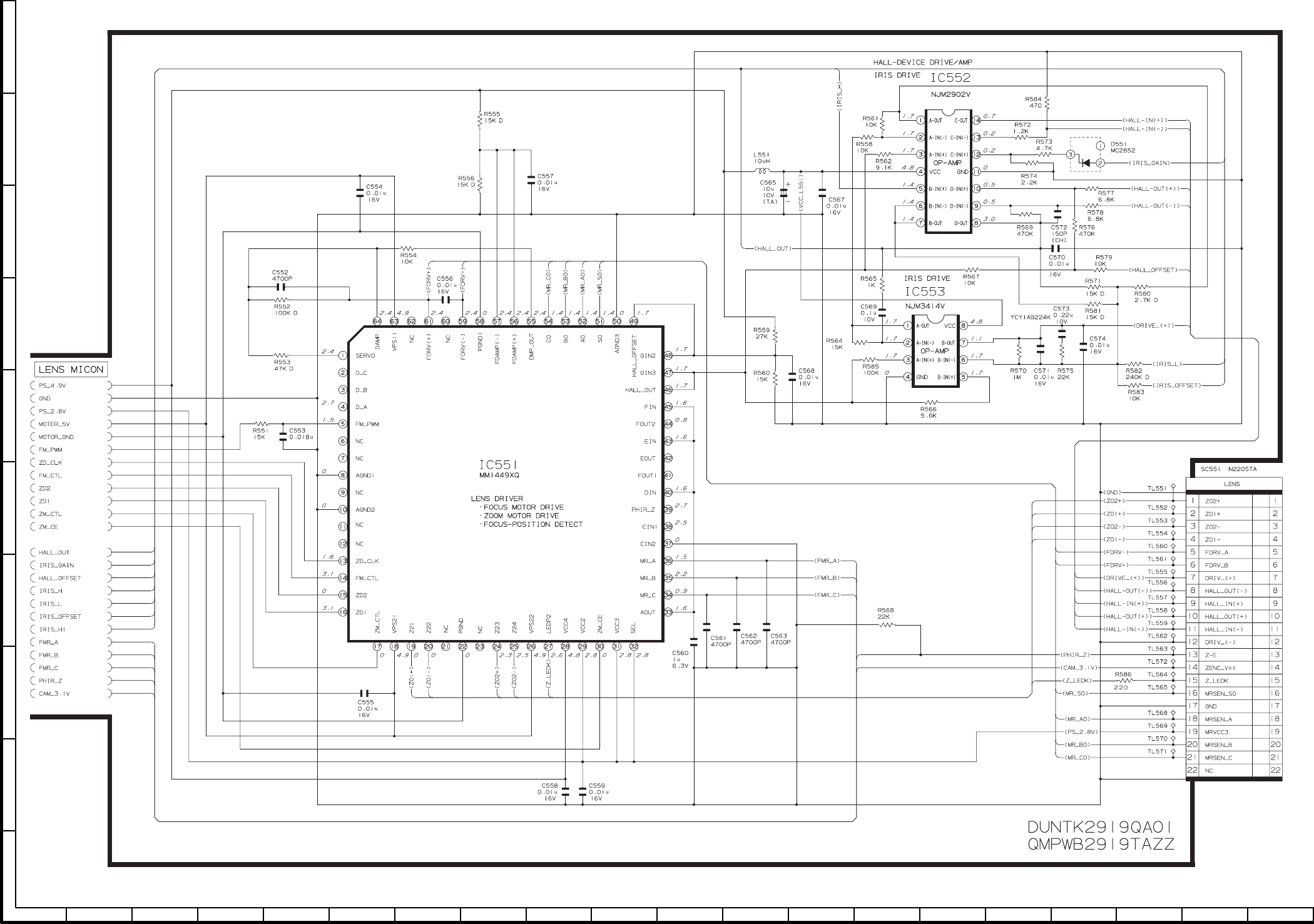

14-22. LENS DRIVER SCHEMATIC DIAGRAM

92~93

1234567891011 12 13 14 15 16 17 18 19 20

VL-FD1U

14-23. AUDIO I/O SCHEMATIC DIAGRAM

94~95

1234567891011 12 13 14 15 16 17 18 19 20

VL-FD1U

14-24. GYRO SCHEMATIC DIAGRAM

96~97

1234567891011 12 13 14 15 16 17 18 19 20

VL-FD1U

14-25. AUDIO I/O CONNECTION SCHEMATIC DIAGRAM

98~99

1234567891011 12 13 14 15 16 17 18 19 20

VL-FD1U

14-26. LCD DISPLAY2 SCHEMATIC DIAGRAM

å

å AND SHADED COMPONENTS=SAFETY RELATED PARTS

100~101

1234567891011 12 13 14 15 16 17 18 19 20

VL-FD1U

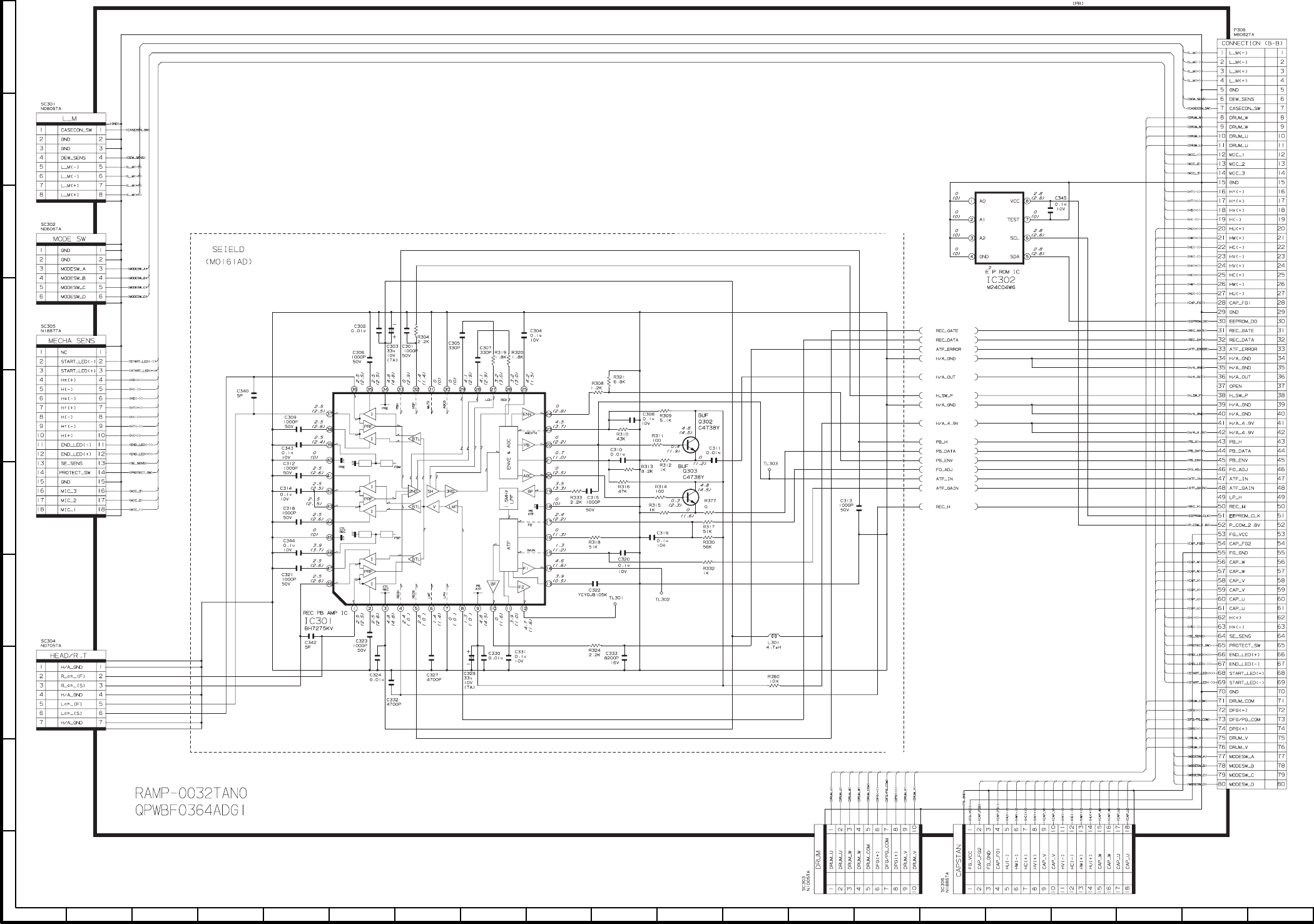

14-27. HEAD AMP SCHEMATIC DIAGRAM

102~103

1234567891011 12 13 14 15 16 17 18 19 20

VL-FD1U

14-28. HAMP CONNECTION SCHEMATIC DIAGRAM

104~105

106

VL-FD1U

456

(A)

(A) (A)

PST597KN

RN5RL43

TC7SL04U

NJM2107F

TA75S01F

TC7S08U

TA7SL02U

FMG12

UMG2

UMG5N

XP1B301

XP1213

S81230SG

XPIC301

ANC

BCE

456

2(A)

(C)

(A)

DA227

C.A

123

2SA1577R

2SA1774F

2SB12956

2SC4617B

2SC4738Y

2SD2216

FMMT717

ZH431F01

2SC3931C

SI2301DS

CPH3106

RT1P141U

RT1N441U

DTD123TK

2SC4627CD

2SB1197KQ

2SD1819A

DTC144EE

UN9111

UN9214

DTA144EE

UMB2

UMD12N

UMT2

UMX2

UPUMZ1

XP6501

XP4311

HN1B01FU

XP4501

UMZ1

XP4601

UMD6

UMD3

2SD1805

UMR11N

MA6S121

MA704WADA121

NDS355AN

NDS356AP DAN222

DA221

MA147

MA133

IMX9

XN4604

IMD16A

2SB1121T

2SB1302S

RH5RE58A

NJM79L09 PST592KM

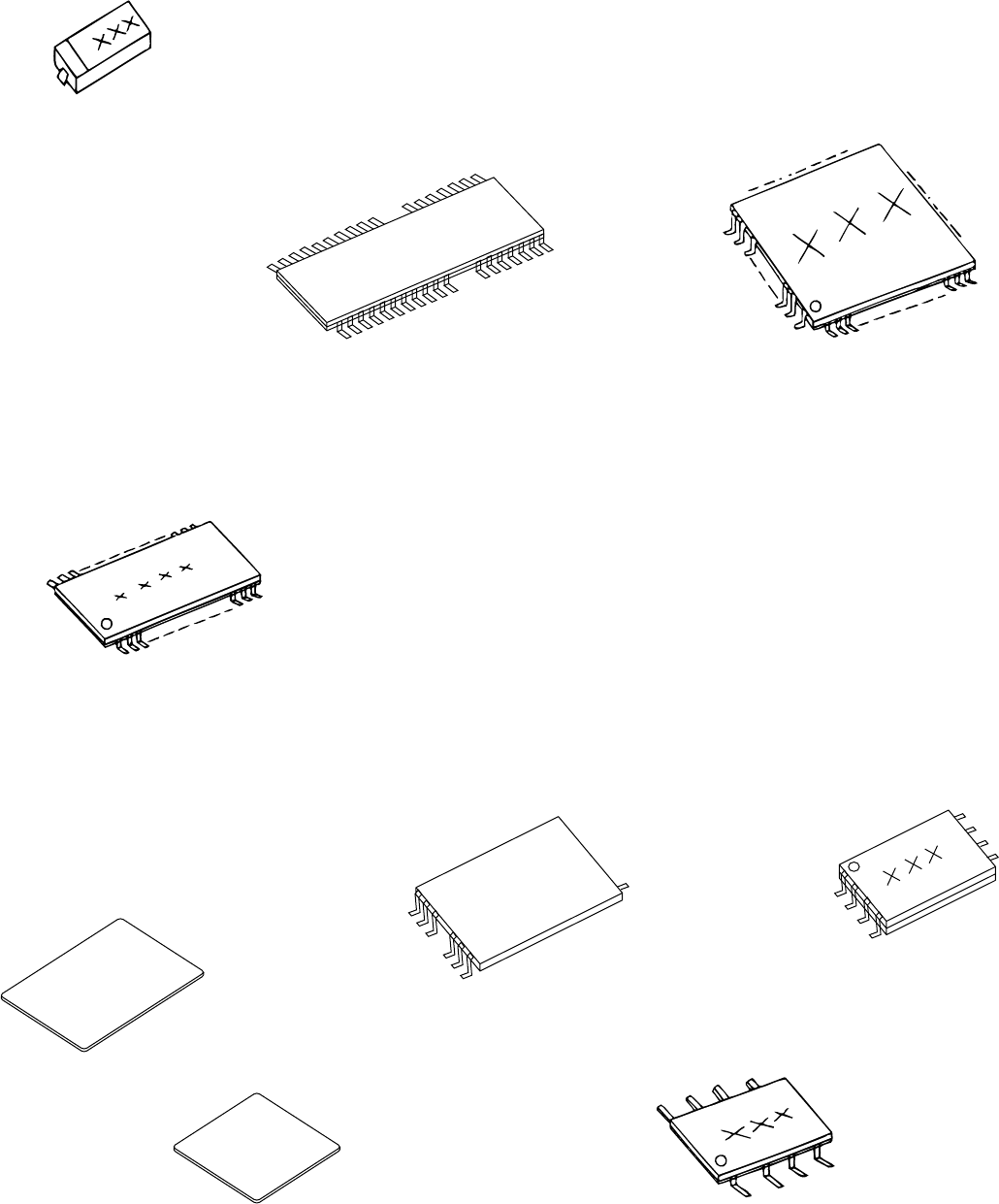

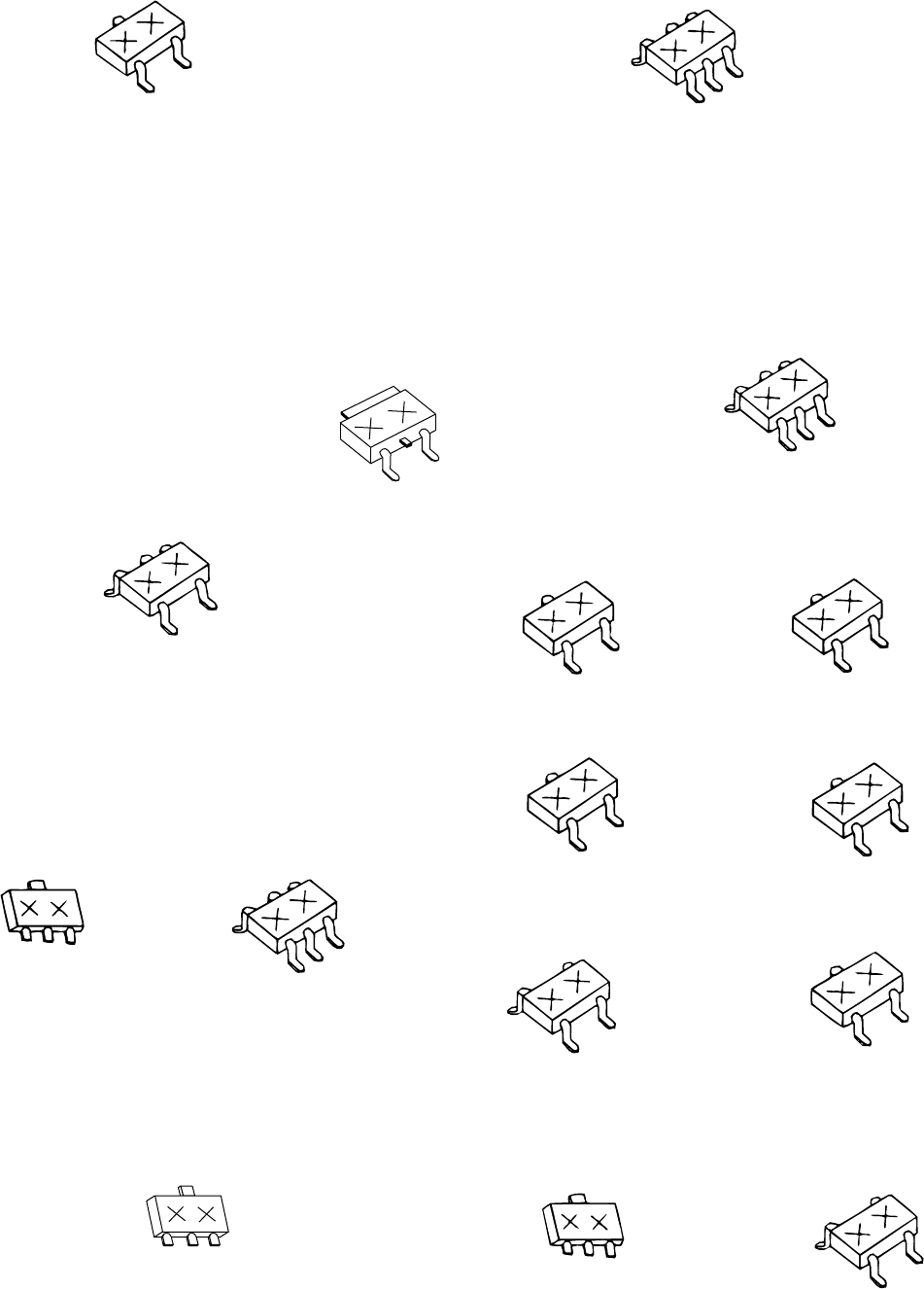

15. SEMICONDUCTOR LEAD IDENTIFICATION

107

VL-FD1U

138

120

108

100

120

144

160

184

109

121

139

IX0616TA

ADS933Y

IX0474TA

IX0422TA

MB3825A

IX0469TA

BH7268KV

IX0605TA

IX0606TA

IX0607TA

MB3825A

MB3785V

BA7761KV

BH7273KV

LR38573

BH7272KV

MB88344F

UPC2391G

LB1990W

MM1299XQ

MB86611

C111306F

EX0161TA

EX0210TA

EX0870CE

HVU362

KV1812K

MA729

MA2S111

F1J2H

HVU350B

HVU359TR

F02J9

CXA2096N

MS548331

MM1323XV

BU4051FV

LA7473V

PCMB3006T

M40C558V

T7A164S

UPD16510

NJM2904V

IX0468TA

Z4C2973G

TC74VUC244FS

IX0613TA

S84235F

S24C02A

TA75W558

TC4W66U

TC7W14U

TC7W74U

TC7W08U

TC4W53U

24LC8BIN

TC7WH74U

TC7W66U

S84235F

MM1116FS

IX0560TA

IX0494TA

IX0553TA

IX0550TA

IX0604TA

IX0629TA

IX0630TA

IX0625TA

108

VL-FD1U

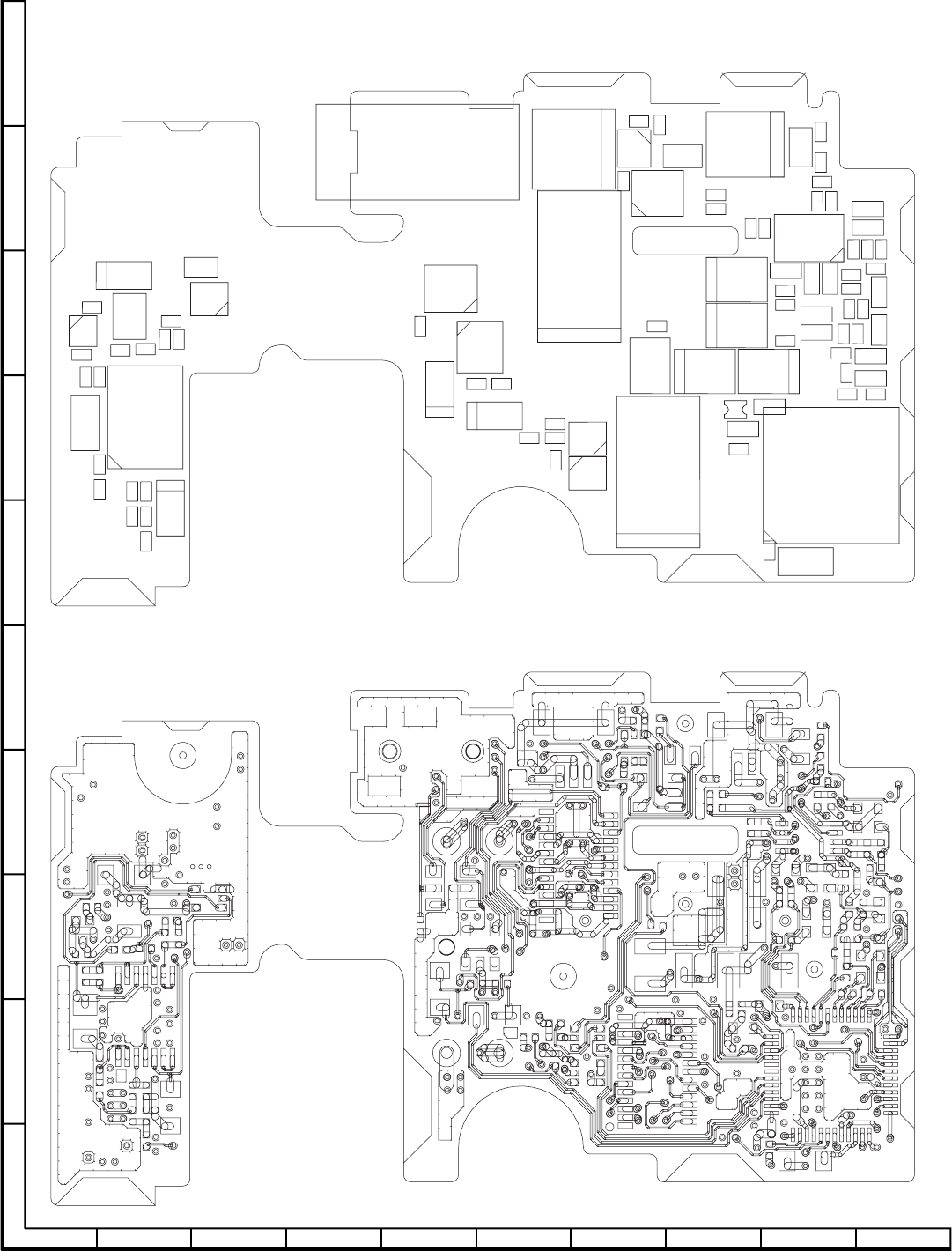

16. PRINTED WIRING BOARD ASSEMBLIES MAIN PWB Component Side SIDE A

12345678910

J2401

C456

J7401

R4432

Q4432

J701

R4471

TL6723

TL6719

P6701

R1404

C1441

R1414

R1413

C1439

R1403

R1436

R1419

R1402

TL1411

C1438

R1438

R1442 C1436

TL1431

R1439

Q1434

R1440

C1437

R1441

C1432

R1453

C4483

TL6722

Q1431

L1431

C4472 L4481 C1440

C4484 R4401

R4402

Q4482

R4483

C4482

R4485

C4485

R4487

C4402

C4481

R4482

R4484

Q4481

R4486

R4488

C4401

Q4472

R4475

TL4403

TL4404

TL4402

R1982

C4473

Q4471

C4419C4417

R4474 R4416R4411

TL6720

TL6721

R4478

C4410

L4402

R4413R4410

R4489

R4473

R4476

R4470

R4477

R4412R4409

C4404 R4415C4406

L4401

C4449

R4423R4408 R4406

R4407

R4425 Q4433

C4412

R4424

R4436

C4448

R4405

R4420 R4404

C4405

R4435

R4421R4422 Q4434

L4461

R4437

C4461

Q4431

R4463

R4468

R4467

C4464

C4465

C4467

R4431

R4469

Q4461

R4461

R4457

R4465

R4462

Q4462

R4464

C460

C4462

C4463

FB456

R451R452

C462C463C465

C2402

R2403

FB2402

L2402

IC408

IC407

TL4451

D4452

C467

D4451

R4453

R4454

R4451

IC4461

R4455

C4452

C4451

X4451

L4451

C4466

TL4417

C4423

C4422

C4424

C4437

TL4413

C4420

R4460

TL4416

R4452 R4456

TL4410

C4411 C4433C4443

IC4401

TL4409

TL4405

TL4401

TL4407

R7806

R7807

C4421

C4430

R7800

R7802

R7804

C7801

C7805

TL4440

L7800

C7800

R4414

R7808

C7802

R7801

R7803

C7804

R7811

R7809

R7810

R7805 C1407

C1431

C1411

C1406

C1412

R1421

IC1431

D1401 C1417

IC1401

C1418

R1461

R1462

R1451

C1416

C1414

D1402

TL1412

R1416

C1410

R1406

R1417

C1413

Q1433

R1405

R1435

R1431C1433

C1401

Q1402

R1434R1433 Q1432

C1435R1437C1434R1432

R1418

R1407

L1403

Q1404

L1401

R1411

R1410

C1403

C1404

C1408

C1409R1415

R1409

C1405

R1408

R1452

Q1405

Q1401

R1401

L1404 C7843

R7852

TL1410

C1415

R4403

C1402

C4403

IC7800

C7844

C7806

R7814

C7838

R7813

C7821

C7831

R7812

C7807

C7822

L1402

C7839

C7816

R7845

R7846

TL4436

L7801

R424

Q402

TL4438

R7827

C416

Q401

C7842

D7800

TL4437

C7815

R420

R7851

R7854

C7813

R422

R425

R427

R7855

C7837

R7843

R7842

R7841

C473

C472

R476

C474

TL4424

TL4422

R477 R478

TL4423

C4444

D471

C7810

C7808

C7836

C7811

TL4418

C7830

TL4425

D472

C7829

C7828

TL4428

C7825

R480

TL4426

R483

C411

C403

X401

TL4421

TL423

TL422

TL420

C419 R418 R417 C418

R426

R421

R423

C420

C427

C4454

R428

R429

R469

TL419

R470 R402

TL421

C4453

D403

TL418

C470 C428

TL405

TL404TL406

C435

TL449TL448

TL450

TL447

R436

R435

R438

R437

C447

FL403

C445

R472

C429

C436

D404

R403

C401

TL1912

C1920

C962

L1907

C4702

C468

L912

IC4701

C4701

D3401

R3484

R3405

Q3408

R3485

C3457

R3450

C3455

R3455

C3460

C3458

R3454

Q3404 R3479

IC3404

C3467

C3470

TL3408

R3478

R3470

R3453

C769

R3468

R3451

IC707

C3475R3452C3453

R3499

R3457C3459

R3469

TL1915

R3471

R3463

R3462

IC3403

C3456

C3452

L1904

FB1901

L3405

R462

R471

C1911

C433 C444 R405

TL416

R463

R413

TL417

R464

TL4439

C424

IC452

C422

TL403

TL410

TL411

R404 R419

C417

TL4411

TL4412

TL4414

TL412

R401

R430

C413

C412

R410

R409

C404

R407

R411 R412 R416

C405

IC401

R212

R414

L471

R210

C402 L401

R406

R474

C2800

R207

R473 R768

L2800

L2801

C408

C409

IC402 C2801

R7850

R7847 R2803

R7849R2804

R7853

TL2800

R7848

TL2801

C7841

IC2800

R7844

TL2802

C7840

FB7800

R745

R746

R748

TL4408

R7856

R7857

R215

L2804 C1804

C1810

C2810

C2807

R2802

R2801 L2803

R1818

R1801

R1803

TL1801

L1801

C2809

C2806

R2800

D1800

L2802

C766 Q704

C2808

C2805

C767

C1800

R770 C765

C2804

IC706

C2803

C2802

R408

C226 R201

C207

C201

C202

L201

TL203

TL4435

TL4441

C204

R211

TL204

TL214

TL211

TL212TL215TL213

R203

IC201

C216

R202

R204

R206

R205

TL206

C211 C223

C222

L402

TL208

TL207

TL4434

TL906

C449

C228

L203

C227

C1613

L202

C450 C448

R440

R441

C407 R453

X4452

R442

IC405

R4459 R4458

C453

C451

R445

R444

R443

C452

C4456

C4458

C751

R4450

R446

C757

R757

R771

C750

C754

R751

IC702

D702

C758

C763

R759

R758

Q1907

Q1908

R1918

TL1905

R1919 C1914

Q1913

R1939

R1923

C1915

R1924

IC1904

R1927R1928

TL1909

C1909

C1907

C1913

C983

TL1908

R1938

C1910

R1941

IC1901

D1901

R1937

Q910

Q9901

TL3406

C960

R1900

Q1900

Q951 C975

R3456

C3454

Q950

R903

R905

R904

C972

D950

C901 R906

R902

C900

R9913

TL910

TL909

TL908

L963

L962

L961

L960

C970 C971

C969

C974 C973

C9924

TL1902

R999

R1912

R1913

R1910

TL1903

Q1904

C991

Q930

R1911

R1909

C1901

Q1903

R1914

Q990

R1916R1917

Q940 C990

Q980

C9925

Q9902 C1928

Q1921

Q970

Q1920

R1965

C229

R1955

R1959

R1958

TL1911

R214

IC203

TL1910

R213

IC204

C230

L1902

R1957

C1908

R1956

IC4451

C1610

R1954

IC4452

C1903

C4455

C1611

C1609

R1604

C1612

IC1602

C1615

C1616

C1617

C1614

TL4433

TL209

TL210

R1603

C208

FB202 FB201

C209 C215 C217

TL205

C214

IC202

TL201TL202

FL703

C213

R769

TL1800

R1805

R1817

C1803

C1801

R1800

R1808

R1812

C1808

Q1800

R1810

Q1801

C1805

Q1802

R1804

R1807

R156

R1802

L151

R1819

R1811

D1802

R1814

R1809

R1816 C1806

C1809

D1801

R1815

C155

C1601

C210

R1662

C1603

C1602

C1604

R1602

C1607

C1605C1606

C1608

L1601

TL1904

R1962

R1961

IC1903

R1979

TL823TL912

C1919

R1966

R1964

R1963

R1960

TL1916

FB1902

C1902

C1912

L1905

C968

TL1907

L1901

R1932

D963

TL1906

D962

D960

D961

109

VL-FD1U

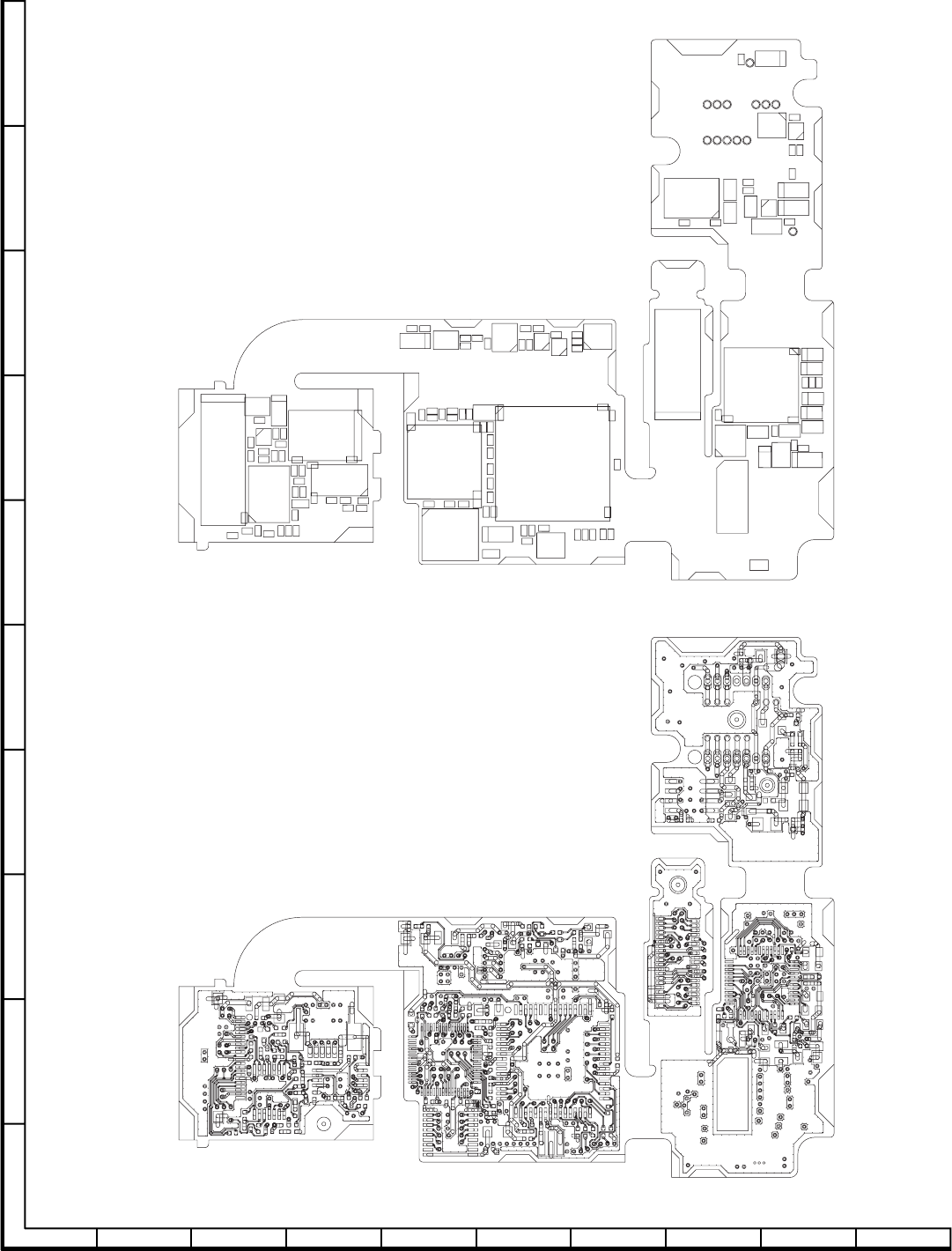

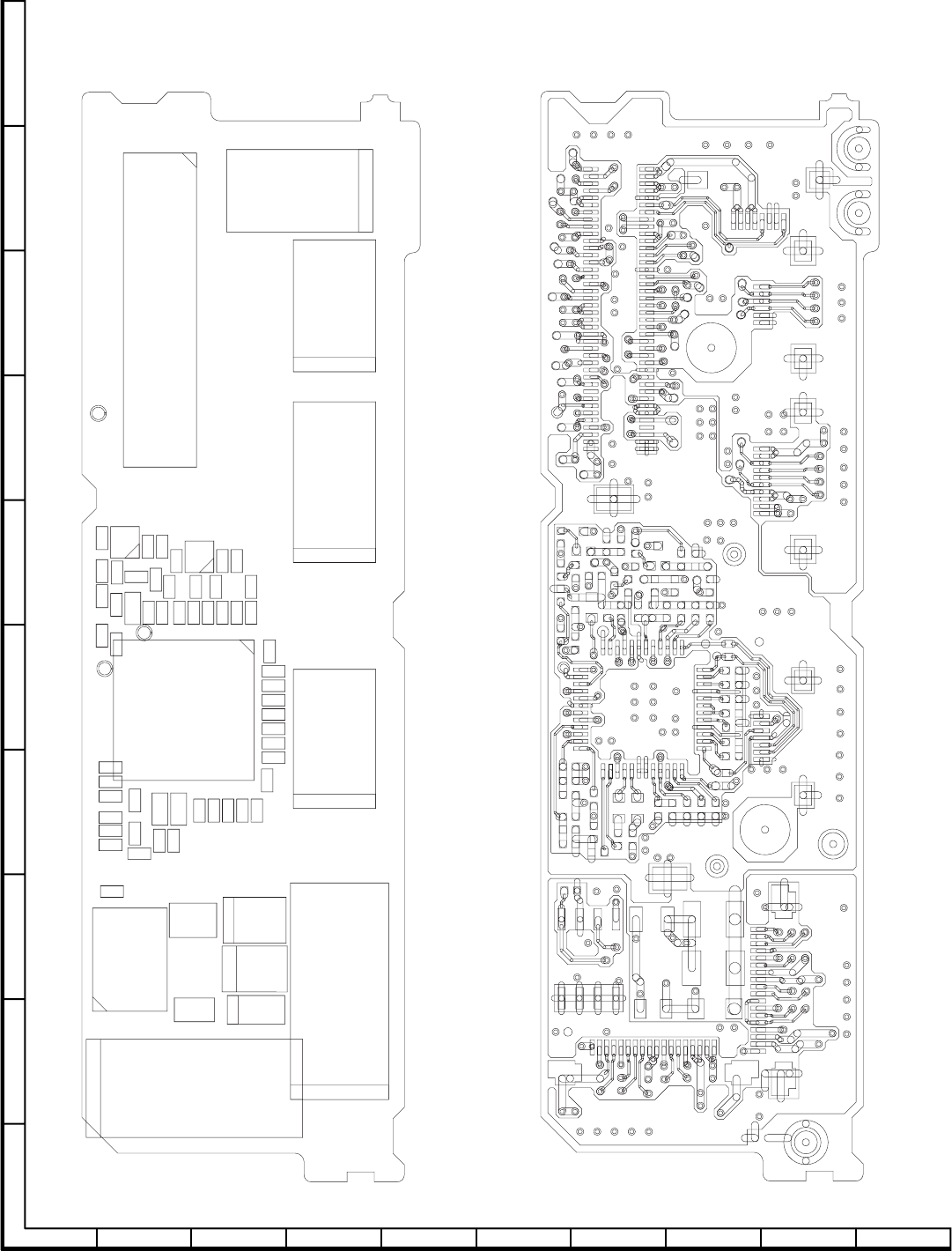

MAIN PWB Wiring Side SIDE A

12345678910

110

VL-FD1U

MAIN PWB Component Side SIDE B

12345678910

TL6712TL6710TL6727TL6718 SC6704 TL6715

TL6701

TL6711

TL6713

TL6709

TL6703

TL6707

FB702

TL6705

TL752

TL750

TL751

TL6717

R7402

TL7405TL7403

TL7401

TL7402

R2409

TL2408

TL2405

FB2405

TL2410 TL2406

TL2401

L2401

FB2401

TL2403

R2401

R2405

R2404

R2402

R3474

C2401

TL6728

TL2402

TL6733

TL6732

TL2404

SC2401

TL2409

TL3411

TL6730

TL2407

TL6729

TL6731

FB2406

Q7402

FB2410

R2407

R7403

FB2408

C7402

R7401

FB7401

Q7403 C7413

Q7401

R7415

R7416

R7413

D7401

R7433 C1730

D7402

R7431

R7436

TL7404

R7417

C7417

R7421

R7434 R7424

R7450R7427C7424 C7426

C7425

R7426

C7423

R7423

X7401

C7427

R7422

C7421

R7425

FB7402

TL753

C768

C7403

R765

Q750

L7701

R763

R764

R762

R760

C7419

FB701

C7701

C7718

R761

C7719

R7713

R7714

TL6708

TL6706

TL6704

TL6702

IC7702

R7711 R7712

TL6725

TL6726

TL6716

C7717 R7707

TL6714

R7709

R7708

C7711

L7702

R7701C7708

TL6724

C7706

C7704

IC7701

C7714 C7716 C7715C7407R7406

C752

R7441

IC7401

IC7402

R7444

R7447

R7446

C7405

R7445

R7418 C7416

C1718

C1715

C1717

R7448

TL1705

R7419

C1713

R1710 C1711

C1723

C1721

R7420

C1724

TL1704

TL1703

C1725

C1729

C7414

C1727

IC1702

R1713

R1714

C1728

R1712

R1711

C1726

TL1702

R1701

C1722

C1720

C1719

C1716

R1709

R1708

C1714

C1712

TL3334

TL3335

TL3336

TL3337

TL3343TL3310TL3345

SC3301

TL3314

TL3324

TL3303

TL3307

TL3308

TL3309

R3495R3466R3467 R3496

R3460

Q3405

IC3405

R3494

R3475

C3462 C3443 R3497 R3442

C3442 R3458

C3441

R3441

C3414

Q3401

Q3406

Q3407

C3409

R3489 R3465 C3405

C3440

R3498

R3459R3464

TL3367

TL3323

TL3320

TL3366

TL3319

TL3315

C3465

R3406

C3410

R3407

C3408

C3413

TL3365

R3404

C1710 R3402

TL3321

C3403

TL3356

TL3360

C1706

C3412

R3401

C3402

TL3357

TL3358

R1706R1702

TL1701

C3401

TL3346

TL3344

R1707R1705 R1720

L3401

R1722

Q1701

C1704

R1715 R1721

C3436

R1703

R1716 L3404

L1702

R1704

C1702

C701

C1703

C1732

L1701

C703

R1740

C761

IC704

C1707

R701

C1709

C1708

C762

C702 R712

R709

R717

D701

R7442

IC705

R743

Q701

TL715

R747

R718

R7443

TL3348

R705

R714

R713

R716

C718

C705

R7472

R715

R704

R711 C704

C712

C708

TL716

C755

IC703

R710

R702

R703

R750 R753

C7713

C753

C756 R754

C760 C764

R756

C759 C710

R755 R752

R708

TL701

R721

R706

TL711

C7712

C706

R707 C714

C722 C709 C725

FL701

R7702

C7720

C7707

C7710

C7709

R7705

IC7703

C7702

C7705

C7722

C731

C739

C732

C717 R744 R734

IC701

C724

C728

C726

C729

C721

C730

R719

TL714

C734

C715

R729

R722

R723

R720

TL703

TL911

C733

R725

C737

X702

C736

C735

L971

R727

R724

R749

R726

L702

TL3322

L1906

L701

C1916

L902

C963

C966

R1922

C3474

L3402

IC3402

TL3404

C3425

C3432

R3488 R3480

TH3401

C3479

R3446

R3445

R3472R3473

C3407

C3416

R3417

R3416 C3476

FL3403

R3426

C3418 R3421

R3419

C3478

C3415

R3418

C3477

C3424

C3426

C3433

C3438

R3428

R3409

R3415

R3413

R3414

R3434

IC3401

FL3401

TL3403

C3411 C3420

R3410

C3466

R3411

C3417

C3419

C3422

R3420

R3423

C3421

C3423

TL3401

FL3402

R3412

R3437C3431

C3480C3481

R3477

R3443

Q3403

CP3

CP1

TL903

TL904

TL905

R3491

R900 R901

C3429

R3449

R3490

TL902

TL901

TL900

TL916

R3436

R3435C3430

R3481

TL3410

C3471 SC900

R3425

C3439

R3427

R3482

C3444

C3434

C3428

R3424

TL914

R3429

R3432

L910

R3486

L911

C961

L920

C3473

C986

C965

Q900

L901

L900

C964 R982

C945

R981

R984

C946

R983

R978

R977

C944

R979

C985

L922

R980

C943

R216 R976

D703 R975

C988

C942

C941

Q703

IC901

C940

C742

R971

R972

C939

R739

C741

R970

R728 R969

C932

R959 R960 R962 R966

R738 R958

R954

R9993

C931

R957

C933

R961

C934

R963

R964

R955

R733 C930

R9991C9919C9920

C740 R956 R953

R730

C9921

D971

R737

C9916

Q702

C9914

C745

R732

R742

IC902

R9983

C9913

R9982

R9986

R740

R9980

C9912

R9994

R9978

TL710

R741

R9969

C9909

R9966

R9967

R731

R9924R9992

TL1917

R735

TL913

C9908R9963 C9902 R9961

R5801

C738

R9965R9956 R9962 C9907

TL830

C9901

C9903

C9905

C9923 R9995

TL812

R5810

TL811

R5822

R9957

TL815

TL829

R5809

TL813

TL814

TL810

SC800

TL809

TL819

TL802

TL800

TL832

TL817

TL801

R5802

TL818

TL804

TL805

R5813

R5803

TL831

R5812

R5811

R5800

R5804

R5805

TL816

TL803

R5806

TL806

R5807

TL807

TL808

Q151

C168

R157

R5808

TL828

R5821

TL827

R5820

TL826

C167

R5819

TL825

R5818

TL824

R5817

R154

TL822

TL821

TL820

TL152

C163

R9953 C9904

C9906

C9900

R9952R9951

R9964

R9960

IC151

R9959

R9954

R9968

R9970

R9975

R9973

TL1018

R152

C164

C9915

R9981

R153

TL1019

TL1020

C9917

R9988

R9987

R155

TL1021

R9977

TL1022

R9990 C9922 R9979

R967

R965

R9985

TL1024

C936

R968

TL1023

R9984

R990

C935 C937 R991

C938

TL1007

C951

TL1006

TL1005

C952

TL1004

C953

TL1003

R994

TL1001

TL1002

R993

R995

TL1009

R998

TL1008

R996

C747

TL1010

TL1011

C950 C954 C955

C949 C948

TL1012

R988

R985

R986

C947 R997

TL1015

R989

TL1013

R987

TL1014

TL1016

C746

TL1030

L970

TL1027

TL1017

C987

C984

L980

L921

C993

L940

L991

TL915

C989

CP2

L990

L930

C992

T900

C967

Q960

C982

L981

Q920

TL1039

TL1040

TL1041

C981

TL1045

TL1043

TL1042

TL1044

TL1046

TL1047

C151

TL1048

TL1049

TL1038

TL1036

IC152

TL1037

TL1034

C152

TL1035

TL1032

C166

SC1001

TL1033

TL1029

TL1031TL1054

TL907

TL1053

TL1052

TL1051

TL1050

C165

TL1026

R151

TL1028

TL1025

C154

C153

C156C157

C158

C159

C160

C162 C161

TL151

P151

111

VL-FD1U

MAIN PWB Wiring Side SIDE B

12345678910

112

VL-FD1U

CAMERA HEAD PWB

12345678910

Wiring Side SIDE A

R586 R558

R561

R562

R564

IC552

C569

R565 R575 C571

C573

C574

R570

C566

R582 R583

R581 R563

R585 C555

IC504

C558 C559

C560

C561

R522

C563 C503

C507

C562

R523

R510

R509

R513

CF501

R511

R516

R514

R502 R507

R501

C115

C107

C109

C101

C119

C102

R107

C104

L101 R108

C108

C105

P101

R115

C118

R505 R504

C509

IC501

R568 R560 R559 R555

C551

C557

R556

C568

R554

R552

C552

C556

IC551

R553

R551

C554

C553

R566

IC553

SC502

C570

R571

R580

R578

R569

R567

R577 C565

C572

R579

R576

D551

R574

R573

C567

L551

R584 R572

SC551

C504

C501

R512

L501 C506

R515 R517

R521

Q503

R520

C508

R524

R527

Q501

R519

Q504

R518

R525

R526 Q502

SC501

IC101

C114

C112

C117

C116

C103

C113

TL10

IC1001

C1001

TL1

TL2

TL3

TL4

TL5

TL6

TL13

TL8

TL9

TL12

TL11

C10

C6 R4

TL7

Component Side SIDE A

113

VL-FD1U

CAMERA HEAD PWB

12345678910

Wiring Side SIDE B

Component Side SIDE B

TL509

R113

R106

TL511

TL508

TL510

R114

R112

TL514

TL520

R14

C30

TL507

TL512

Q11

FB11

C31

TL513

C14

C26

R30 C25

R33R34

TL559

TL555

TL564

TL556

TL561

TL563

TL558TL565

TL572

TL552

TL551

TL568

TL553

TL557

TL560

TL569

TL554

TL562

TL525

TL540

TL541

TL538TL536TL537TL571TL570

TL521TL522TL533TL531

TL530TL524

TL526

TL535

TL529

TL534

TL504

C27

TL518

TL506

C110

C20

C18

R105

R104

TL101

C28

C29

R31

C32

C33

TL102

R32

C21

X11

L12

R23

TL112

C15

C19

R24

R18 R13

R12 R17

IC11

R11 C11 R15

R20

C23

C12C22

C111

TL503

TL505

TL502

TL528

TL517

TL519

TL527

TL523

TL515

TL532

TL516

TL501

TL539

IC1

114

VL-FD1U

AUDIO I/O PWB

12345678910

Component Side SIDE A

C1506

C1503 R1504

R1502 R1503

IC1501

R1501 C1502 C1504

C1505

R645 R660

R641

Q606

Q604

SC2602

R616

R639

C639

IC601

R668

C626 C625

C629

R621

C660

R631

C623

C628

R632 R667

R633

R653 C627

R630

R676

C624

R634

C644

C648

C647

C643

C649

R652

R627

C622

C617

C640

C606

C635

C636

R614

C642

L603

R603

SC2603

R661

R686

C686

Q608

R685

C685

FL601

R683

IC1502

C1508

R1508

R1509

R1507

L1501

C1509

R1505

R1506

C1507 Q1501

R1511

R1510

J601 P601

R610

R663

Q602

Q601

R609

C603

R674

R675

P2605

C661

R670

IC602

C616

R672

R623 R673 R671

R625

C618

C641

Wiring Side SIDE A

115

VL-FD1U

AUDIO I/O PWB

12345678910

TL2650

R636

R635

C645

TL2647

TL2652

TL2637

TL2640

TL2638

TL2648

TL2644

TL2645

SC2601

TL2641

TL604

TL2639

TL2651

TL2636

TL2630

R640

TL2656

C637

R656

L602

C638

C651 C646

R650

R651

R647 C650

TL2628

TL2654

P2604

TL2653

R629

TL2627

R662

TL2629

C605

Q605

TL2659

TL2660

TL2601

TL2602

TL2603

TL2604

TL2609

TL2613

TL2614

TL2605

TL2615

SC2607

TL2608

TL2611

TL2626

TL2612

TL2620

TL2624

TL2618

TL2622

TL2616

TL2610

TL2625

TL2607

TL606

TL607

TL2617

TL2623

TL2619

TL2621

P602

TL2606

S1501

TL2631

Q603

R666

R655

C609

TL2649

L601

BAT2601

C607

TL602

C608

C610

C611

TL603

R617

R624 R613

R626

C634

C633

C632

C631

R654

R638

R628

C619

C621

R669

C620

BAT2602

TL2646

TL2655

TL2658

TL601

R687

R688

TL605

FB601

FB602

TL614

TL2661

C1501

TL616

FB603

TL617

TL615

TL2632

TL2657

TL2635

TL2634

TL2633

SC2606

Component Side SIDE B

Wiring Side SIDE B

116

VL-FD1U

LCD PWB

12345678910

Component Side SIDE A

Wiring Side SIDE B

Wiring Side SIDE A

TL8853

TL8858

TL8855

R3813

TL8857

Q3801

TL8854

SC8804

TL8856

Q3802

R3806

R3811

R3812

C3803

R3805

TL8842

TL8844

TL8849

IC3800

TL8843

TL8848

TL8850

TL8841

R3814

TL8851

FB3801

C3800

C8806

C8808

R8814

C8804

R8815

C8803

C8802

SC8803

R8813

R8812

R6805

TL8835

TL8834

TL8829TL8830

R6801

TL8831

R6802

TL8862

TL8859

TL8836

TL8833

TL8832

TL8840TL8861

SC8801

R9816

TL8847

R6810 R8807

R8811 Q8801

R8810

R6809

TL8846

R8806

TL8845

R6803

R8809 Q8800

R6804

TL8860

R8808

Q8803

R8816

C8801

SC9800

TL9800

TL9802

TL9804

R9808

TL9803

TL9805

R9809

TL9801

R9807

Q9803

R9806

R9805

C9808

C9809

TL8813

FB9800

TH9800

C9811

R9803

IC9800

R9804

C9803

R9812

C9812

C9813 R9813

R9814

R9815

D9800

TL8815TL8816

TL8812

TL8811

R9811

R9810

R9818

R9800

R9801

Q9802

R9802

R9817

TL8814

C9802

C9805

Q9800

C9801

TL8852

C9800

TL8817

L9800

L8800

C6801

R6813

L6800

C6800

R6800

C8800

C8809

FB8800

IC8800

TL8803

SC8800

TL8805TL8807

R6812

R6811

TL8839

TL8838

R3808

TL8837

R6808

R6807

R6806

R3815

R3810

C3804

R3803

FB3800

R3804

Q3800

C3805

SC8802

TL8825

TL8828

TL8827

TL8826

TL8824

TL8823

TL8822

TL8821

TL8820

TL8819

TL8818

TL8810

TL8809

TL8808

TL8806

TL8804TL8802TL8801

TL8800

L9801

C9807

C9804 Q9801 C9806

T9800

C9810

117

VL-FD1U

HEAD AMP PWB

12345678910

Wiring Side

SC306

R380 C329

SC305

C325

C303

L301

R319

R320

R321

C304

IC302

C345

C310

R313

TL302

R316

R309

C308

R310

R332

R330

R308

C307

IC301

C305

R304

C301

C313

C302

C306

C309

C343

C312

C314

C318

C344

C321

C340 C342

SC304 SC303

C323 C326

C324 R315

C332 R377

R324

C327 Q303

C333

R325

R323 R314

C319

C330 C311

R317

C331 R312

TL301

C322

R318

Q302

R333

R331

C320 C315 R311

TL303

P306

SC302

SC301

Component Side

118

VL-FD1U

- M E M O -

119

VL-SD20U

Ref. No. Part No. ★Description Code

VL-FD1U

IC702 VHiS8423YF/-1 S8423YF, System Power AG

Control & Detecter IC

IC703 VHiNJM2143R-1 NJM2143R, Servo Error AE

Amp

IC704 VHiRQ5RW19B-1 RQ5RW19B, 1.9V Reg AE

IC705 VHiTC4W53U/-1 TC4W53U, Switch AF

IC706 RH-iX0732TAZZ IX0732TA, AM

Voice Synthesis IC

IC707 VHiS80924AN-1 S80924AN, 2.4V Reset IC AE

IC901 VHiMB3785V/-1 MB3785V, AQ

Power Control IC (2)

IC902 VHiMB3825A/-1 MB3825A, AR

Power Control IC (1)

IC1401 VHiNJM2538B-1 NJM2538B, Video Out AM

IC1431 VHiNJM2235V-1 NJM2235V, Video In SW AE

IC1602 VHiPCM3006T-1 PCM3006T, 16bit AS

ADC/DAC

IC1702 VHiLB11990W-1 LB11990W, Motor Drive AR

Reel Amp

IC1901 VHiRQ5RW25B-1 RQ5RW25B, 2.5V Reg AE

IC1903 VHiBU4051FV-1 BU4051FV, Multiplexer AF

IC1904 VHiRQ5RW25B-1 RQ5RW25B, 2.5V Reg AE

IC2800 VHiMM1323XV-1 MM1323XV, LCD Interface AN

IC3401 VHiBH7277KV-1 BH7277KV, EQ/PLL IC AX

IC3402 VHiTLC2940/-1 TLC2940, VCO IC AM

IC3403 VHiTCSZ04U/-1 TCSZ04U, Inv. IC AE

IC3404 VHiADC08351-1 ADC08351, A/D Conv IC AN

IC3405 VHiTC4W53U/-1 TC4W53U, SW IC AF

IC4401 RH-iX0707TAZZ IX0707TA, Digital ADC/ BC

DAC Decoder/Encoder

IC4461 VHiTC4W53U/-1 TC4W53U, VC TL SW AF

IC4701 VHiMB88344F-1 MB88344F, 36ch D/A AV

Converter

IC7401 RH-iX0749TAZZ IX0749TA, IEEE 1394 BA

Controller

IC7402 VHiTC7S08U/-1 TC7S08U, Buffer AE

IC7701 RH-iX0712TAZZ IX0712TA, CPU BF

IC7702 RH-iX0823TAZZ IX0823TA, 2MB Flash BB

Memory

IC7703 VHiS80925AN-1 S80925AN, Reset IC AD

TRANSISTORS

Q151 VS2SC5383F/-1 2SC5383F AB

Q401 VS2SC5383F/-1 2SC5383F AB

Q402 VS2SC5383F/-1 2SC5383F AB

Q701 VS2SA1989R/-1 2SA1989R AB

Q702 VSRT1N144U/-1 RT1N144U AB

Q703 VSRT1N441U/-1 RT1N441U AB

Q704 VSRN4982///-1 RN4982 AC

Q750 VSHN2C01FU/-1 HN2C01FU AC

Q900 VSCPH6701//-1 CPH6701 AE

Q910 VSCPH6701//-1 CPH6701 AE

Q920 VSCPH6701//-1 CPH6701 AE

Q930 VSXN09D57//-1 XN09D57 AE

Q940 VSXN09D57//-1 XN09D57 AE

Q950 VS2SC5383F/-1 2SC5383F AB

Q951 VS2SC5383F/-1 2SC5383F AB

Q960 VSCPH3109//-1 CPH3109 AD

Q970 VSCPH6701//-1 CPH6701 AE

Q980 VSCPH6701//-1 CPH6701 AE

Q990 VSXN09D57//-1 XN09D57 AE

Q1401 VSRT1N441U/-1 RT1N441U AB

Q1405 VSRN1704///-1 RN1704 AC

Q1431 VSXN04391//-1 XN04391 AC

Q1432 VSHN1B04FU/-1 HN1B04FU AC

Q1433 VS2SC5383F/-1 2SC5383F AB

Q1434 VSHN1B04FU/-1 HN1B04FU AC

Q1701 VSHN2C01FU/-1 HN2C01FU AC

Q1800 VS3LN01S///-1 3LN01S AC

Q1801 VSHN1B04FU/-1 HN1B04FU AC

Q1802 VSHN1B04FU/-1 HN1B04FU AC

Q1900 VSRN4990///-1 RN4990 AC

Q1903 VSHN2A01FU/-1 HN2A01FU AC

Q1904 VS2SC5383F/-1 2SC5383F AB

Q1907 VSNDS332P//-1 NDS332P AD

Ref. No. Part No. ★Description Code

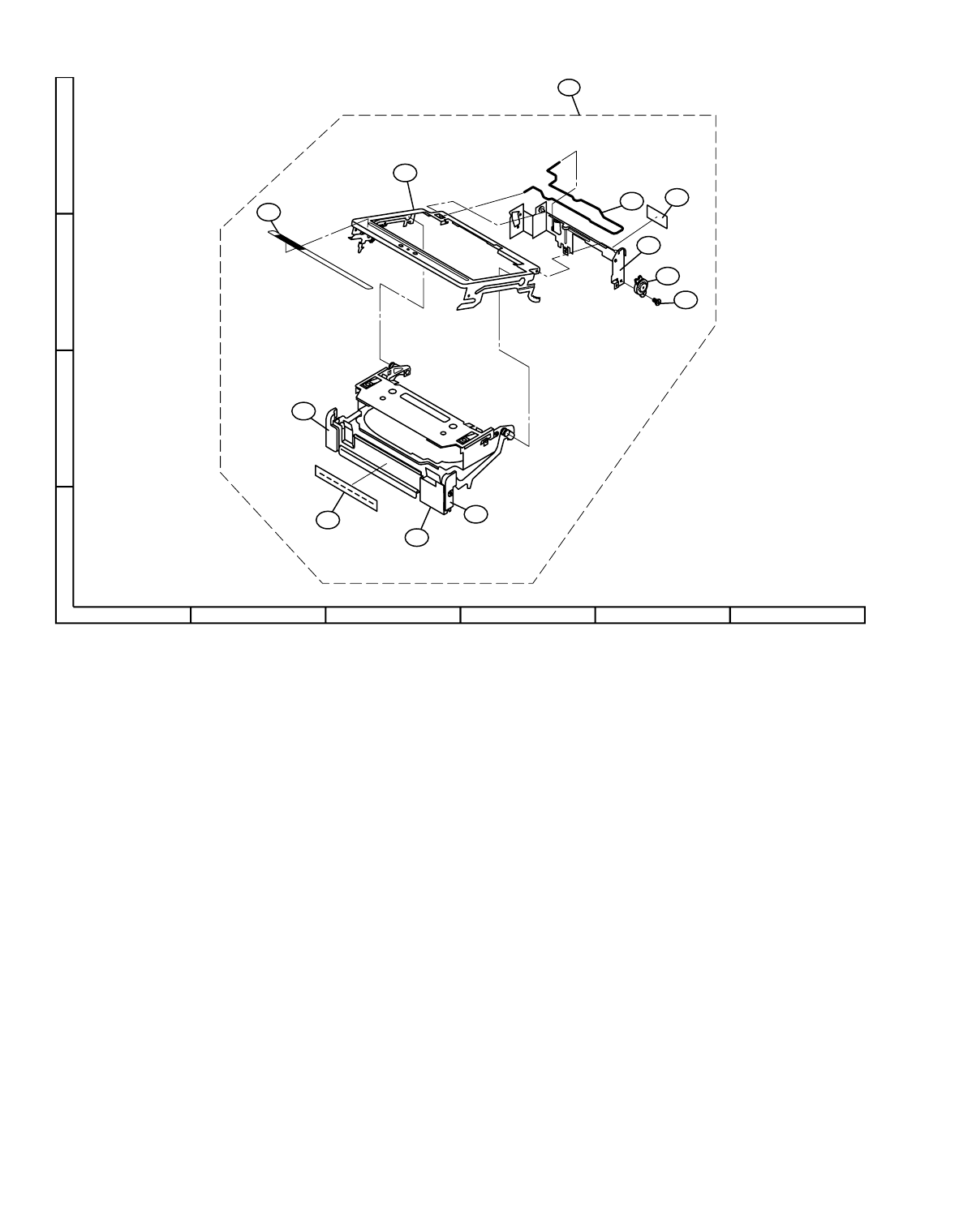

17. REPLACEMENT PARTS LIST/

EXPLODED VIEWS

ELECTRICAL PARTS LIST

Parts marked with

are important for maintaining the safety of the

set. Be sure to replace these parts with specified ones for maintaining

the safety and performance of the set.

Les pièces marquéss

sont importantes pour maintenir la sècurité de

l'appareil. Ne remplacer ces pieces que par des pièces dont le numéro

est spécifié pour maintenir la sécurité et protéger le bon fonctinnement

de l'appareil.

HOW TO ORDER REPLACEMENT PARTS

in USA: Contact your nearest SHARP Parts Distributor. For loca-

tion of SHARP Parts Distributor,

Call Toll-free 1-IBE800-SHARP

in CANADA: Contact SHARP Electronics of Canada Limited

Phone (416) 890-2100.

★MARK : SPARE PARTS-DELIVERY SECTION:ALL JAPAN

To have your order filled promptly and correctly, please furnish

the following informations.

1. MODEL NUMBER 2. REF. NO.

3. PART NO. 4. DESCRIPTION

5. PRICE CODE

å MARK: SAFETY RELATED PARTS

å PIECES: RELATIVES A LA SECURITE

PWB ASSEMBLY IS NOT REPLACEMENT ITEM

L'ASSEMBLANGE P.C.I. EST UN ARTICLE NON REMPLACABLE

PRINTED WIRING BOARD ASSEMBLIES

(NOT REPLACEMENT ITEM)

DUNTK2976QA00 MAIN PWB Unit —

DUNTK2919QA01 CAMERA HEAD PWB Unit —

DUNTK2920QA01 AUDIO I/O PWB Unit —

DUNTK2921QA01 LCD PWB Unit —

RAMP-0032TAN0 HEAD AMP PWB Unit —

DUNTK2976QA00

MAIN PWB UNIT

INTEGRATED CIRCUITS

IC151 VHiADS933Y/-1 ADS933Y, 10 Bit A/D AR

Converter

IC201 RH-iX0706TAZZ IX0706TA, Digital Signal BC

Process

IC202 RH-iX0793TAZZ IX0793TA, 16M-SDRAM AX

IC203 VHiS80925AN-1 S80925AN, Reset IC AD

IC204 VHiTC7SH08U-1 TC7SH08U, AND-Gate AF

IC401 VHiNJU7012F-1 NJU7012F AE

IC405 VHiNJU7012F-1 NJU7012F, DC Amp AE

IC407 RH-iX0793TAZZ IX0793TA, Codec External AX

Memory

IC408 RH-iX0793TAZZ IX0793TA, ECC External AX

Memory

IC452 RH-iX0710TAN1 IX0710TA, Codec/ECC/ BE

PCM/CLK. Gen.

IC701 RH-iX0711TAZZ IX0711TA, Super I/O BC

120

VL-SD20U

Ref. No. Part No. ★Description Code Ref. No. Part No. ★Description Code

VL-FD1U

Q1908 VSRN1704///-1 RN1704 AC

Q1913 VSSi2301DS/-1 Si2301DS AE

Q1920 VSRN4984///-1 RN4984 AC

Q1921 VSRN4990///-1 RN4990 AC

Q3401 VS2SC4627CD-1 2SC4627CD AB

Q3403 VS2SA1989R/-1 2SA1989R AB

Q3404 VS2SC4738Y/-1 2SC4738Y AA

Q3405 VSRN1907///-1 RN1907 AC

Q3406 VSXP05534//-1 XP05534 AD

Q3407 VSXP05534//-1 XP05534 AD

Q4431 VSRN1704///-1 RN1704 AC

Q4432 VSHN2A01FU/-1 HN2A01FU AC

Q4433 VS2SA1989R/-1 2SA1989R AB

Q4434 VS2SA1989R/-1 2SA1989R AB

Q4461 VSHN2A01FU/-1 HN2A01FU AC

Q4462 VS2SC5383F/-1 2SC5383F AB

Q4471 VSHN1B04FU/-1 HN1B04FU AC

Q4472 VS2SA1989R/-1 2SA1989R AB

Q4481 VSHN1B04FU/-1 HN1B04FU AC

Q4482 VSHN1B04FU/-1 HN1B04FU AC

Q7401 VSCPH3206//-1 CPH3206 AD

Q7402 VSRT1N441U/-1 RT1N441U AB

Q7403 VS2SC5383F/-1 2SC5383F AB

Q9901 VSNDS355AN/-1 NDS355AN AE

Q9902 VSSi2302DS/-1 Si2302DS AF

DIODES

D403 VHDHVU362//-1 HVU362 AE

D404 VHDHVU362//-1 HVU362 AE

D471 VHDHVU362//-1 HVU362 AE

D472 VHDHVU359TR-1 HVU359TR AE

D701 VHDDA221///-1 DA221 AB

D702 VHDMA2S111/-1 MA2S111 AC

D703 VHDMA2S111/-1 MA2S111 AC

D950 VHDMA2S111/-1 MA2S111 AC

D960 VHDF02J9///-1 F02J9 AD

D961 VHDMA729///-1 MA729 AD

D962 VHDMA729///-1 MA729 AD

D963 VHDF02J9///-1 F02J9 AD

D971 RH-EX0259TAZZ Zener, EX0259TA AB

D1802 RH-EX0870CEZZ Zener, EX0870CE AD

D4451 VHDKV1812K/-1 KV1812K AD

D4452 VHDKV1812K/-1 KV1812K AD

D7800 VHDHVC359TR-1 HVC359TR AD

PACKAGED CIRCUITS

TH3401 VHHT1682J44-1 Thermistor AC

X401 RCRSC0160TAZZ Crystal, CRSC0160TA AH

X702 RCRSC0163TAZZ Crystal, CRSC0163TA AG

X4451 RCRSC0167TAZZ Crystal, CRSC0167TA AM

COILS AND TRANSFORMER

FL403 RFiLC0164TAZZ Filter, FiLC0164TA AH

FL701 RFiLC0166TAZZ Filter, FiLC0166TA AD

FL703 RFiLC0167TAZZ Filter, FiLC0167TA AD

FL2401 RCiLF0391TAZZ Coil, CiLF0391TA AG

FL2402 RCiLF0391TAZZ Coil, CiLF0391TA AG

FL2403 RCiLF0399TAZZ Coil, CiLF0399TA AG

FL3401 RCiLF0375TAZZ Coil, CiLF0375TA AG

FL3402 RCiLF0375TAZZ Coil, CiLF0375TA AG

FL3403 RCiLF0397TAZZ Coil, CiLF0397TA AG

FL7401 RCiLF0391TAZZ Coil, CiLF0391TA AG

FL7402 RCiLF0391TAZZ Coil, CiLF0391TA AG

L151 VPCBM100KR50N Peaking, 10µHAC

L201 VPCBM100KR50N Peaking, 10µHAC

L202 VPCBM100KR50N Peaking, 10µHAC

L203 VPCBM100KR50N Peaking, 10µHAC

L401 VPMAN100MR50N Peaking, 10µHAC

L402 VPMAN100MR50N Peaking, 10µHAC

L471 VPD9M8R2J2R0N Peaking, 8.2µHAC

L701 VPMAN100MR50N Peaking, 10µHAC

L702 VPMAN100MR50N Peaking, 10µHAC

L900 RCiLP0323TAZZ Coil, 4.7µHAD

L901 RCiLP0311TAZZ Coil, 15µHAE

L902 VPCBM2R2MR13N Peaking, 2.2µHAC

L910 RCiLP0323TAZZ Coil, 4.7µHAD

L911 RCiLP0311TAZZ Coil, 15µHAE

L912 VPCCM2R2MR09N Peaking, 2.2µHAC

L920 RCiLP0323TAZZ Coil, 4.7µHAD

L921 RCiLP0311TAZZ Coil, 15µHAE

L922 VPBSM4R7MR40N Peaking, 4.7µHAD

L930 RCiLP0313TAZZ Coil, 33µHAE

L940 RCiLP0313TAZZ Coil, 33µHAE

L960 VPMAN100MR50N Peaking, 10µHAC

L961 VPMAN100MR50N Peaking, 10µHAC

L962 VPMAN100MR50N Peaking, 10µHAC

L963 VPMAN100MR50N Peaking, 10µHAC

L970 RCiLP0311TAZZ Coil, 15µHAE

L971 VPCBM2R2MR13N Peaking, 2.2µHAC

L980 RCiLP0323TAZZ Coil, 4.7µHAD

L981 RCiLP0311TAZZ Coil, 15µHAE

L990 RCiLP0323TAZZ Coil, 4.7µHAD

L991 RCiLP0311TAZZ Coil, 15µHAE

L1402 VPCBM470K2R4N Peaking, 47µHAC

L1404 VPCBM470K2R4N Peaking, 47µHAC

L1431 VPCBM470K2R4N Peaking, 47µHAC

L1601 VPMAN100MR50N Peaking, 10µHAC

L1701 VPMAN4R7MR37N Peaking, 4.7µHAC

L1702 VPCBM4R7MR25N Peaking, 4.7µHAC

L1901 VPBSM2R2MR23N Peaking, 2.2µHAC

L1902 VPBSM2R2MR23N Peaking, 2.2µHAC

L1904 VPBSM4R7MR40N Peaking, 4.7µHAD

L1905 VPBSM4R7MR40N Peaking, 4.7µHAD

L1906 VPBSM100KR70N Peaking, 10µHAC

L1907 VPCCM2R2MR09N Peaking, 2.2µHAC

L2800 VPCBM470K2R4N Peaking, 47µHAC

L2801 VPCBM470K2R4N Peaking, 47µHAC

L3401 RCiLP0276TAZZ Coil, CiLP0276TA AC

L3402 VPCBM4R7MR25N Peaking, 4.7µHAC

L3404 VPCBM4R7MR25N Peaking, 4.7µHAC

L3405 VPCBM4R7MR25N Peaking, 4.7µHAC

L4401 VPCBM220K1R3N Peaking, 22µHAC

L4402 VPMAN100MR50N Peaking, 10µHAC

L4451 RCiLP0275TAZZ Coil, CiLP0275TA AD

L4461 VPCEM470M3R7N Peaking, 47µHAC

L4481 VPCEM470M3R7N Peaking, 47µHAC

L7701 VPCBM100KR50N Peaking, 10µHAC

L7702 VPMAN100MR50N Peaking, 10µHAC

L7800 VPCBM470K2R4N Peaking, 47µHAC

L7801 VPAWM5R6J1R8N Peaking, 5.6µHAD

åT900 RTRNZ0140TAZZ Power Transformer AF

CAPACITORS

C153 VCSAPR0JJ106M 10 6.3V Tantalum AD

C154 VCKYCZ1AF104Z 0.1 10V Ceramic AB

C155 VCSATA1AJ106M 10 10V Tantalum AC

C156 VCKYCZ1AF104Z 0.1 10V Ceramic AB

C157 VCKYCZ1AF104Z 0.1 10V Ceramic AB

C158 VCKYCZ1AF104Z 0.1 10V Ceramic AB

C159 VCKYCZ1AF104Z 0.1 10V Ceramic AB

C160 VCKYCZ1AF104Z 0.1 10V Ceramic AB

C161 VCKYCZ1AF104Z 0.1 10V Ceramic AB

C162 VCCCCZ1HH270J 27p 50V Ceramic AB

C163 VCKYCZ1CB103K 0.01 16V Ceramic AB

C164 VCSAPR0JJ106M 10 6.3V Tantalum AD

C165 VCSAPR0JJ106M 10 6.3V Tantalum AD

C166 VCSAPR0JJ106M 10 6.3V Tantalum AD

C167 VCSATA1AJ106M 10 10V Tantalum AC

C201 VCKYCZ1CB103K 0.01 16V Ceramic AB

C202 VCKYCZ1CB103K 0.01 16V Ceramic AB

C204 VCKYCZ1CB103K 0.01 16V Ceramic AB

C207 VCKYCZ1CB103K 0.01 16V Ceramic AB

C208 VCSAPR0JJ106M 10 6.3V Tantalum AD

C210 VCKYCZ1CB103K 0.01 16V Ceramic AB

C211 VCKYCZ1CB103K 0.01 16V Ceramic AB

C213 VCKYCZ1CB103K 0.01 16V Ceramic AB

C214 VCKYCZ1CB103K 0.01 16V Ceramic AB

C215 VCKYCZ1CB103K 0.01 16V Ceramic AB

C216 VCKYCZ1CB103K 0.01 16V Ceramic AB

C217 VCKYCZ1CB103K 0.01 16V Ceramic AB

121

VL-SD20U

Ref. No. Part No. ★Description Code

VL-FD1U

C222 VCKYCZ1CB103K 0.01 16V Ceramic AB

C223 VCKYCZ1CB103K 0.01 16V Ceramic AB

C226 VCSAPR0JJ106M 10 6.3V Tantalum AD

C227 VCSAPR0JJ106M 10 6.3V Tantalum AD

C228 VCSAPR0JJ106M 10 6.3V Tantalum AD

C229 VCKYCZ1HB681K 680p 50V Ceramic AB

C230 VCKYCZ1CB223K 0.022 16V Ceramic AC

C401 RC-KZ0083TAZZ 2.2 10V Ceramic AD

C402 VCKYTV1CF225Z 2.2 16V Ceramic AC

C403 RC-KZ0083TAZZ 2.2 10V Ceramic AD

C404 VCSAPR1AJ475M 4.7 10V Tantalum AD

C405 VCKYTV1CB474K 0.47 16V Ceramic AC

C407 RC-KZ0083TAZZ 2.2 10V Ceramic AD

C408 VCSAPR0JJ106M 10 6.3V Tantalum AD

C409 VCKYCZ1CB103K 0.01 16V Ceramic AB

C411 VCKYCZ1CB103K 0.01 16V Ceramic AB

C412 VCKYCZ1CB103K 0.01 16V Ceramic AB

C413 VCKYCZ1CB103K 0.01 16V Ceramic AB

C416 VCKYCY0JB105K 1 6.3V Ceramic AC

C417 VCKYCZ1CB103K 0.01 16V Ceramic AB

C418 VCCCCZ1HH7R0D 7p 50V Ceramic AB

C419 VCCCCZ1HH7R0D 7p 50V Ceramic AB

C420 VCKYCZ1CB103K 0.01 16V Ceramic AB

C422 VCKYCZ1CB103K 0.01 16V Ceramic AB

C424 VCKYCZ1CB103K 0.01 16V Ceramic AB

C427 VCKYCZ1CB103K 0.01 16V Ceramic AB

C428 VCKYCZ1CB103K 0.01 16V Ceramic AB

C429 VCKYCZ1CB103K 0.01 16V Ceramic AB

C433 VCKYCZ1CB103K 0.01 16V Ceramic AB

C435 VCKYCZ1CB103K 0.01 16V Ceramic AB

C436 VCKYCZ1CB103K 0.01 16V Ceramic AB

C444 VCKYCZ1CB103K 0.01 16V Ceramic AB

C447 VCKYCZ1CB103K 0.01 16V Ceramic AB

C448 VCKYCZ1CB103K 0.01 16V Ceramic AB

C449 RC-KZ0083TAZZ 2.2 10V Ceramic AD

C450 RC-KZ0100TAZZ Capacitor AD

C451 VCKYTV1AB105K 1 10V Ceramic AD

C452 VCKYCY1CB104K 0.1 16V Ceramic AB

C456 VCSATA1AJ106M 10 10V Tantalum AC

C460 VCKYCZ1CB103K 0.01 16V Ceramic AB

C462 VCKYCZ1CB103K 0.01 16V Ceramic AB

C463 VCKYCZ1CB103K 0.01 16V Ceramic AB

C465 VCKYCZ1CB103K 0.01 16V Ceramic AB

C467 VCKYCZ1CB103K 0.01 16V Ceramic AB

C468 VCKYCZ1CB103K 0.01 16V Ceramic AB

C470 VCKYCZ1CB103K 0.01 16V Ceramic AB

C473 VCKYCZ1AB104K 0.1 10V Ceramic AB

C474 VCKYCZ1AB104K 0.1 10V Ceramic AB

C701 VCKYTV1AB105K 1 10V Ceramic AD

C702 VCKYCZ1CB103K 0.01 16V Ceramic AB

C703 VCKYTV1AB105K 1 10V Ceramic AD

C704 VCKYCZ1HB102K 1000p 50V Ceramic AB

C705 VCKYCZ1HB102K 1000p 50V Ceramic AB

C706 VCKYCZ1AF104Z 0.1 10V Ceramic AB

C708 VCKYCZ1AF104Z 0.1 10V Ceramic AB

C709 VCKYCZ1AF104Z 0.1 10V Ceramic AB

C710 VCKYCZ1AF104Z 0.1 10V Ceramic AB

C712 VCKYCZ1AF104Z 0.1 10V Ceramic AB

C714 VCKYCZ1AF104Z 0.1 10V Ceramic AB

C715 VCKYCZ1AF104Z 0.1 10V Ceramic AB

C717 VCKYCZ1AF104Z 0.1 10V Ceramic AB

C718 VCKYCZ1AF104Z 0.1 10V Ceramic AB

C721 VCKYCZ1AF104Z 0.1 10V Ceramic AB

C722 VCKYCZ1AF104Z 0.1 10V Ceramic AB

C724 VCKYCZ1AF104Z 0.1 10V Ceramic AB

C728 VCKYCZ1AF104Z 0.1 10V Ceramic AB

C729 VCCCCZ1HH220J 22p 50V Ceramic AB

C730 VCCCCZ1HH390J 39p 50V Ceramic AB

C731 VCKYCZ1AF104Z 0.1 10V Ceramic AB

C732 VCKYCZ1AF104Z 0.1 10V Ceramic AB

C733 VCKYCZ1AF104Z 0.1 10V Ceramic AB

C734 VCKYCZ1AF104Z 0.1 10V Ceramic AB

C735 VCKYCZ1HB102K 1000p 50V Ceramic AB

C736 VCKYCZ1HB102K 1000p 50V Ceramic AB

C737 VCKYCZ1HB102K 1000p 50V Ceramic AB

C740 VCKYCZ1AF104Z 0.1 10V Ceramic AB

C741 VCKYCZ1AF104Z 0.1 10V Ceramic AB

C742 VCKYCZ1AF104Z 0.1 10V Ceramic AB

C745 VCKYCZ1HB102K 1000p 50V Ceramic AB

C746 VCCCCZ1HH101J 100p 50V Ceramic AB

C747 VCCCCZ1HH101J 100p 50V Ceramic AB

C750 VCKYCY1AF105Z 1 10V Ceramic AC

C751 VCKYCY0JF105Z 1 6.3V Ceramic AB

C752 VCKYCZ1AF104Z 0.1 10V Ceramic AB

C753 VCKYCY1CB104K 0.1 16V Ceramic AB

C754 VCKYCZ1AF104Z 0.1 10V Ceramic AB

C755 VCKYCY1CB104K 0.1 16V Ceramic AB

C756 VCKYCZ1HB102K 1000p 50V Ceramic AB

C757 VCKYCZ1EB682K 6800p 25V Ceramic AB

C758 VCKYCY0JF105Z 1 6.3V Ceramic AB

C759 VCKYCZ1EB682K 6800p 25V Ceramic AB

C760 VCKYCZ1HB102K 1000p 50V Ceramic AB

C761 VCKYCZ1AF104Z 0.1 10V Ceramic AB

C762 VCKYCZ1CB103K 0.01 16V Ceramic AB

C763 VCKYCZ1HB332K 3300p 50V Ceramic AA

C764 VCKYCZ1EB682K 6800p 25V Ceramic AB

C765 VCKYCZ1AF104Z 0.1 10V Ceramic AB

C766 VCKYCZ1HB332K 3300p 50V Ceramic AA

C767 VCKYCZ1HB332K 3300p 50V Ceramic AA

C768 VCKYTV1AB105K 1 10V Ceramic AD

C769 VCKYCZ1CF473Z 0.047 16V Ceramic AB

C900 VCKYCZ1CB103K 0.01 16V Ceramic AB

C930 VCKYCZ1CB223K 0.022 16V Ceramic AC

C931 VCKYCZ1CB223K 0.022 16V Ceramic AC

C932 VCKYCY1CB104K 0.1 16V Ceramic AB

C933 VCKYCZ1AB104K 0.1 10V Ceramic AB

C934 VCKYCZ1HB471K 470p 50V Ceramic AB

C935 VCKYCZ1HB102K 1000p 50V Ceramic AB

C936 VCKYCZ1CB103K 0.01 16V Ceramic AB

C937 VCKYCZ1HB102K 1000p 50V Ceramic AB

C938 VCKYCZ1HB102K 1000p 50V Ceramic AB

C939 VCCCCZ1HH151J 150p 50V Ceramic AB

C940 VCKYCY1AF105Z 1 10V Ceramic AC

C941 VCKYCZ1AF104Z 0.1 10V Ceramic AB

C942 VCKYCY1CB104K 0.1 16V Ceramic AB

C943 VCKYCZ1HB222K 2200p 50V Ceramic AB

C944 VCKYCZ1CB103K 0.01 16V Ceramic AB

C945 VCKYCZ1AB104K 0.1 10V Ceramic AB

C946 VCKYCZ1HB471K 470p 50V Ceramic AB

C947 VCKYCZ1HB471K 470p 50V Ceramic AB

C948 VCKYCY1CB104K 0.1 16V Ceramic AB

C949 VCKYCZ1HB102K 1000p 50V Ceramic AB

C950 VCKYCZ1HB102K 1000p 50V Ceramic AB

C951 VCKYCZ1HB102K 1000p 50V Ceramic AB

C952 VCKYCY1AF105Z 1 10V Ceramic AC

C953 VCKYCZ1HB102K 1000p 50V Ceramic AB

C954 VCKYCZ1HB102K 1000p 50V Ceramic AB

C955 VCKYCZ1HB102K 1000p 50V Ceramic AB

C960 RC-KZ0075TAZZ 2.2 16V Ceramic AC

C961 RC-KZ0044TAZZ 4.7 10V Ceramic AD

C962 VCKYTV1AB105K 1 10V Ceramic AD

C963 RC-KZ0070TAZZ 4.7 16V Ceramic AD

C964 RC-KZ0075TAZZ 2.2 16V Ceramic AC

C965 RC-KZ0044TAZZ 4.7 10V Ceramic AD

C966 RC-KZ0071TAZZ 2.2 10V Ceramic AD

C967 RC-KZ0070TAZZ 4.7 16V Ceramic AD

C968 RC-KZ0072TAZZ 1 25V Ceramic AC

C969 VCKYTV1CB105K 1 16V Ceramic AC

C970 VCKYTV1AB105K 1 10V Ceramic AD

C971 RC-KZ0072TAZZ 1 25V Ceramic AC

C972 VCKYTV1EB104K 0.1 25V Ceramic AB

C973 VCKYTV1EB104K 0.1 25V Ceramic AB

C974 VCKYTV1CF105Z 1 16V Ceramic AB

C975 VCKYTV1CF105Z 1 16V Ceramic AB

C981 RC-KZ0075TAZZ 2.2 16V Ceramic AC

C982 RC-KZ0044TAZZ 4.7 10V Ceramic AD

C984 RC-KZ0073TAZZ 3.3 10V Ceramic AE

C985 RC-KZ0071TAZZ 2.2 10V Ceramic AD

C986 RC-KZ0070TAZZ 4.7 16V Ceramic AD

C987 RC-KZ0073TAZZ 3.3 10V Ceramic AE

122

VL-SD20U

Ref. No. Part No. ★Description Code Ref. No. Part No. ★Description Code

VL-FD1U

C1728 VCKYCY1AF105Z 1 10V Ceramic AC

C1732 VCKYCY1AF105Z 1 10V Ceramic AC

C1800 VCKYCZ1HF103Z 0.01 50V Ceramic AB

C1801 VCKYTV1EB104K 0.1 25V Ceramic AB

C1803 VCKYCZ1CB103K 0.01 16V Ceramic AB

C1804 VCSATA1VJ155M 1.5 35V Tantalum AC

C1805 VCKYTV1EB104K 0.1 25V Ceramic AB

C1806 VCKYCZ1HF103Z 0.01 50V Ceramic AB

C1808 VCSATA1VJ155M 1.5 35V Tantalum AC

C1809 VCKYTV1AB105K 1 10V Ceramic AD

C1810 VCKYCZ1AF104Z 0.1 10V Ceramic AB

C1901 VCKYCY1AF105Z 1 10V Ceramic AC

C1902 RC-KZ0071TAZZ 2.2 10V Ceramic AD

C1903 VCKYTV1EB104K 0.1 25V Ceramic AB

C1907 VCKYCY1AF105Z 1 10V Ceramic AC

C1908 VCKYTV1AB105K 1 10V Ceramic AD

C1909 VCKYCY1AF105Z 1 10V Ceramic AC

C1910 VCKYCY1AF105Z 1 10V Ceramic AC

C1911 VCKYTV1AB105K 1 10V Ceramic AD

C1912 RC-KZ0071TAZZ 2.2 10V Ceramic AD

C1913 VCKYCZ1AF104Z 0.1 10V Ceramic AB

C1914 VCKYCZ1AB104K 0.1 10V Ceramic AB

C1915 VCKYCZ1AB104K 0.1 10V Ceramic AB

C1916 VCSATE1AJ476M 47 10V Tantalum AD

C1919 VCKYCZ1AF104Z 0.1 10V Ceramic AB

C1920 VCKYTV1AB105K 1 10V Ceramic AD

C1928 VCKYCZ1AF104Z 0.1 10V Ceramic AB

C2800 VCKYTQ1CB105K 1 16V Ceramic AC

C2801 VCSATA1AJ106M 10 10V Tantalum AC

C2802 VCKYTV1AB105K 1 10V Ceramic AD

C2803 VCKYTV1AB105K 1 10V Ceramic AD

C2804 VCKYTV1AB105K 1 10V Ceramic AD

C3401 VCCCCZ1HH220J 22p 50V Ceramic AB

C3402 VCCCCZ1HH100D 10p 50V Ceramic AB

C3403 VCCCCZ1HH560J 56p 50V Ceramic AB

C3405 VCCCCZ1HH560J 56p 50V Ceramic AB

C3407 VCKYCY0JB105K 1 6.3V Ceramic AC

C3408 VCKYCZ1AF104Z 0.1 10V Ceramic AB

C3409 VCKYCZ1HB471K 470p 50V Ceramic AB

C3410 VCKYCZ1AF104Z 0.1 10V Ceramic AB

C3411 VCKYCZ1HB471K 470p 50V Ceramic AB

C3412 VCKYCZ1AF104Z 0.1 10V Ceramic AB

C3413 VCKYCZ1AF104Z 0.1 10V Ceramic AB

C3414 VCKYCZ1AF104Z 0.1 10V Ceramic AB

C3415 VCKYCZ1AF104Z 0.1 10V Ceramic AB

C3416 VCKYCZ1AF104Z 0.1 10V Ceramic AB

C3417 VCKYCZ1AF104Z 0.1 10V Ceramic AB

C3418 VCKYCZ1AF104Z 0.1 10V Ceramic AB

C3419 VCKYCZ1AF104Z 0.1 10V Ceramic AB

C3420 VCCCCZ1HH100D 10p 50V Ceramic AB

C3421 VCCCCZ1HH121J 120p 50V Ceramic AB

C3423 VCCCCZ1HH121J 120p 50V Ceramic AB

C3424 VCKYCZ1CB103K 0.01 16V Ceramic AB

C3425 VCSATE0JJ336M 33 6.3V Tantalum AD

C3426 VCKYCZ1CB103K 0.01 16V Ceramic AB

C3428 VCKYTV1CB224K 0.22 16V Ceramic AB

C3429 VCKYCZ1HB102K 1000p 50V Ceramic AB

C3430 VCKYCZ1AF104Z 0.1 10V Ceramic AB

C3431 VCKYCZ1CB103K 0.01 16V Ceramic AB

C3432 VCKYCZ1AF104Z 0.1 10V Ceramic AB

C3433 VCKYCZ1CB103K 0.01 16V Ceramic AB

C3434 VCKYCZ1CB103K 0.01 16V Ceramic AB

C3436 VCSATE0JJ336M 33 6.3V Tantalum AD

C3440 VCCCCZ1HH150J 15p 50V Ceramic AB

C3441 VCCCCZ1HH820J 82p 50V Ceramic AB

C3442 VCCCCZ1HH820J 82p 50V Ceramic AB

C3443 VCCCCZ1HH150J 15p 50V Ceramic AB

C3444 VCKYCZ1AF104Z 0.1 10V Ceramic AB

C3452 VCKYCZ1CB103K 0.01 16V Ceramic AB

C3454 VCSATA1AJ106M 10 10V Tantalum AC

C3455 VCKYCZ1CB103K 0.01 16V Ceramic AB

C3456 VCSATA1AJ106M 10 10V Tantalum AC

C3457 VCKYCZ1CB103K 0.01 16V Ceramic AB

C3458 VCKYCZ1AF104Z 0.1 10V Ceramic AB

C3460 VCKYCZ1AF104Z 0.1 10V Ceramic AB

C988 RC-KZ0071TAZZ 2.2 10V Ceramic AD

C989 RC-KZ0055TAZZ 3.3 16V Ceramic AD

C990 RC-KZ0044TAZZ 4.7 10V Ceramic AD

C991 RC-KZ0075TAZZ 2.2 16V Ceramic AC

C992 RC-KZ0069TAZZ 10 16V Ceramic AE

C993 RC-KZ0070TAZZ 4.7 16V Ceramic AD

C1402 VCSATE1AJ476M 47 10V Tantalum AD

C1404 VCKYCZ1CB103K 0.01 16V Ceramic AB

C1405 VCSATA0JJ106M 10 6.3V Tantalum AD

C1406 VCSATE0JJ107M 100 6.3V Tantalum AE

C1407 VCSATA0JJ156M 15 6.3V Tantalum AC

C1408 VCKYCY1AF105Z 1 10V Ceramic AC

C1409 VCKYCZ1CB103K 0.01 16V Ceramic AB

C1410 VCKYCZ1CB103K 0.01 16V Ceramic AB

C1411 VCSATE0JJ107M 100 6.3V Tantalum AE

C1412 VCSATA0JJ156M 15 6.3V Tantalum AC

C1413 VCSAPR0JJ106M 10 6.3V Tantalum AD

C1414 VCKYCZ1CB103K 0.01 16V Ceramic AB

C1415 VCSATE1AJ476M 47 10V Tantalum AD

C1416 VCKYCZ1CB103K 0.01 16V Ceramic AB

C1417 VCKYCZ1AF104Z 0.1 10V Ceramic AB

C1418 VCKYCZ1CB103K 0.01 16V Ceramic AB

C1431 VCSATE1AJ476M 47 10V Tantalum AD

C1432 VCKYCZ1CB103K 0.01 16V Ceramic AB

C1433 VCCCCZ1HH150J 15p 50V Ceramic AB

C1434 VCCCCZ1HH680J 68p 50V Ceramic AB

C1435 VCKYCZ1CB103K 0.01 16V Ceramic AB

C1436 VCCCCZ1HH150J 15p 50V Ceramic AB

C1437 VCCCCZ1HH680J 68p 50V Ceramic AB

C1438 VCKYCY1AF105Z 1 10V Ceramic AC

C1439 VCKYCY1AF105Z 1 10V Ceramic AC

C1440 VCKYCZ1CB103K 0.01 16V Ceramic AB

C1441 VCKYCY1AF105Z 1 10V Ceramic AC

C1601 VCSAPR0JJ106M 10 6.3V Tantalum AD

C1602 VCKYCZ1AF104Z 0.1 10V Ceramic AB

C1603 VCKYTV1AB105K 1 10V Ceramic AD

C1604 VCKYTV1AB105K 1 10V Ceramic AD

C1605 VCKYCZ1AF104Z 0.1 10V Ceramic AB

C1606 VCKYCZ1AF104Z 0.1 10V Ceramic AB

C1607 VCSAPR0JJ106M 10 6.3V Tantalum AD

C1608 VCSAPR0JJ106M 10 6.3V Tantalum AD

C1609 VCKYCZ1HB222K 2200p 50V Ceramic AB

C1610 VCKYCZ1AF104Z 0.1 10V Ceramic AB

C1611 VCKYTV1CB224K 0.22 16V Ceramic AB

C1612 VCKYCZ1AF104Z 0.1 10V Ceramic AB

C1613 VCSATA1AJ475M 4.7 10V Tantalum AC

C1614 VCKYCZ1HB222K 2200p 50V Ceramic AB

C1615 VCKYCZ1AF104Z 0.1 10V Ceramic AB

C1616 VCSATA1AJ475M 4.7 10V Tantalum AC

C1617 VCKYTV1CB224K 0.22 16V Ceramic AB

C1702 VCKYCZ1CB103K 0.01 16V Ceramic AB

C1703 VCKYCZ1CB103K 0.01 16V Ceramic AB

C1704 VCKYTV1AB105K 1 10V Ceramic AD

C1706 VCKYCY1AF105Z 1 10V Ceramic AC

C1707 VCKYCY1CB104K 0.1 16V Ceramic AB

C1708 VCKYCZ1AF104Z 0.1 10V Ceramic AB

C1709 VCKYCZ1AF104Z 0.1 10V Ceramic AB

C1710 RC-KZ0083TAZZ 2.2 10V Ceramic AD

C1711 VCKYCZ1AF104Z 0.1 10V Ceramic AB

C1712 VCKYCZ1AF104Z 0.1 10V Ceramic AB

C1713 VCKYCY0JB105K 1 6.3V Ceramic AC

C1714 VCKYCZ1AF104Z 0.1 10V Ceramic AB

C1715 VCKYCZ1HB392K 3900p 50V Ceramic AA

C1716 VCKYCZ1AF104Z 0.1 10V Ceramic AB

C1717 VCKYCZ1HB392K 3900p 50V Ceramic AA

C1718 VCKYCZ1HB392K 3900p 50V Ceramic AA

C1719 VCKYCZ1AF104Z 0.1 10V Ceramic AB

C1720 VCKYCZ1AF104Z 0.1 10V Ceramic AB

C1721 VCKYCY0JF105Z 1 6.3V Ceramic AB

C1722 VCKYCZ1AF104Z 0.1 10V Ceramic AB

C1723 VCKYCY0JF105Z 1 6.3V Ceramic AB

C1724 VCKYCY1CB473K 0.047 16V Ceramic AA

C1725 VCKYCZ1EB472K 4700p 25V Ceramic AB

C1726 VCKYCY1AF105Z 1 10V Ceramic AC

C1727 VCKYCZ1AF104Z 0.1 10V Ceramic AB

123

VL-SD20U

Ref. No. Part No. ★Description Code

VL-FD1U

C3462 VCKYCZ1CB103K 0.01 16V Ceramic AB

C3465 VCCCCZ1HH100D 10p 50V Ceramic AB

C3466 VCCCCZ1HH150J 15p 50V Ceramic AB

C3467 VCKYCZ1CB103K 0.01 16V Ceramic AB

C3470 VCCCCZ1HH5R0C 5p 50V Ceramic AC

C3471 VCKYCZ1AF104Z 0.1 10V Ceramic AB

C3473 VCSATE0JJ336M 33 6.3V Tantalum AD

C3474 VCKYCZ1CB103K 0.01 16V Ceramic AB

C3475 VCKYCZ1AF104Z 0.1 10V Ceramic AB

C3476 VCKYCZ1AF104Z 0.1 10V Ceramic AB

C3477 VCKYCZ1AF104Z 0.1 10V Ceramic AB

C3478 VCCCCZ1HH820J 82p 50V Ceramic AB

C3479 VCKYCZ1AF104Z 0.1 10V Ceramic AB

C3481 VCCCCZ1HH100D 10p 50V Ceramic AB

C4401 RC-KZ0083TAZZ 2.2 10V Ceramic AD

C4402 RC-KZ0083TAZZ 2.2 10V Ceramic AD

C4403 RC-KZ0083TAZZ 2.2 10V Ceramic AD

C4404 RC-KZ0083TAZZ 2.2 10V Ceramic AD

C4405 VCKYCZ1CB103K 0.01 16V Ceramic AB

C4406 VCKYCZ1CB103K 0.01 16V Ceramic AB

C4407 VCKYCZ1CB103K 0.01 16V Ceramic AB

C4410 RC-KZ0083TAZZ 2.2 10V Ceramic AD

C4411 VCKYCZ1CB103K 0.01 16V Ceramic AB

C4412 VCKYCZ1CB103K 0.01 16V Ceramic AB

C4417 VCKYCZ1CB103K 0.01 16V Ceramic AB

C4419 VCKYCZ1CB103K 0.01 16V Ceramic AB

C4420 VCKYCZ1CB103K 0.01 16V Ceramic AB

C4421 VCKYCZ1CB103K 0.01 16V Ceramic AB

C4422 VCKYCZ1CB103K 0.01 16V Ceramic AB

C4423 VCKYCZ1CB103K 0.01 16V Ceramic AB

C4424 VCKYCZ1CB103K 0.01 16V Ceramic AB

C4430 VCKYCZ1CB103K 0.01 16V Ceramic AB

C4433 VCKYCZ1CB103K 0.01 16V Ceramic AB

C4437 VCKYCZ1CB103K 0.01 16V Ceramic AB

C4443 VCKYCZ1CB103K 0.01 16V Ceramic AB

C4444 VCKYCZ1CB103K 0.01 16V Ceramic AB

C4448 VCSAPR0JJ106M 10 6.3V Tantalum AD

C4449 VCKYCZ1CB103K 0.01 16V Ceramic AB

C4451 VCCCCZ1HH220J 22p 50V Ceramic AB

C4454 VCCCCZ1HH220J 22p 50V Ceramic AB

C4461 VCSATA1AJ106M 10 10V Tantalum AC

C4462 VCKYCZ1EB682K 6800p 25V Ceramic AB

C4463 VCKYCZ1EB682K 6800p 25V Ceramic AB

C4464 VCKYCZ1CB103K 0.01 16V Ceramic AB

C4465 VCKYCZ1CB103K 0.01 16V Ceramic AB

C4466 VCKYCZ1CB103K 0.01 16V Ceramic AB

C4472 VCKYCZ1CB103K 0.01 16V Ceramic AB

C4473 VCKYCZ1AF104Z 0.1 10V Ceramic AB

C4481 VCSAPR0JJ106M 10 6.3V Tantalum AD

C4482 VCKYCZ1CB103K 0.01 16V Ceramic AB

C4483 VCSATA1AJ106M 10 10V Tantalum AC

C4485 VCKYCZ1AF104Z 0.1 10V Ceramic AB

C4701 VCKYCZ1AF104Z 0.1 10V Ceramic AB

C4702 VCKYCZ1AF104Z 0.1 10V Ceramic AB

C7402 RC-KZ0083TAZZ 2.2 10V Ceramic AD

C7403 RC-KZ0083TAZZ 2.2 10V Ceramic AD

C7405 VCKYCZ1CB103K 0.01 16V Ceramic AB

C7407 VCKYCZ1HB102K 1000p 50V Ceramic AB

C7413 VCKYCZ1HB221K 220p 50V Ceramic AA

C7414 VCCCCZ1HH330J 33p 50V Ceramic AB

C7416 VCKYCZ1CB103K 0.01 16V Ceramic AB

C7417 VCKYCY0JB105K 1 6.3V Ceramic AC

C7419 VCKYCZ1CB103K 0.01 16V Ceramic AB

C7421 VCKYCZ1CB103K 0.01 16V Ceramic AB

C7425 VCCCCZ1HH101J 100p 50V Ceramic AB

C7426 VCKYCZ1HB102K 1000p 50V Ceramic AB

C7701 VCKYTV1AB105K 1 10V Ceramic AD

C7702 VCKYCZ1AF104Z 0.1 10V Ceramic AB

C7704 VCKYCZ1AF104Z 0.1 10V Ceramic AB

C7705 VCKYCZ1AF104Z 0.1 10V Ceramic AB

C7706 VCKYCZ1AF104Z 0.1 10V Ceramic AB

C7707 VCKYCZ1EB472K 4700p 25V Ceramic AB

C7708 VCKYCZ1AF104Z 0.1 10V Ceramic AB

C7709 VCKYCZ1AF104Z 0.1 10V Ceramic AB

C7710 VCKYCZ1AF104Z 0.1 10V Ceramic AB

C7711 VCKYCZ1HB102K 1000p 50V Ceramic AB

C7712 VCKYCZ1AF104Z 0.1 10V Ceramic AB

C7713 VCKYCZ1AF104Z 0.1 10V Ceramic AB

C7714 VCKYCZ1AF104Z 0.1 10V Ceramic AB

C7715 VCKYCZ1AF104Z 0.1 10V Ceramic AB

C7716 VCKYCZ1AF104Z 0.1 10V Ceramic AB

C7717 VCKYTV1AB105K 1 10V Ceramic AD

C7718 VCKYCY0JF105Z 1 6.3V Ceramic AB

C7719 VCKYCZ1AF104Z 0.1 10V Ceramic AB

C7720 VCKYCZ1HB102K 1000p 50V Ceramic AB

C7722 VCKYCZ1HB122K 1200p 50V Ceramic AB

C7800 RC-KZ0083TAZZ 2.2 10V Ceramic AD

C7801 VCKYCZ1CB103K 0.01 16V Ceramic AB

C7802 VCKYCZ1CB103K 0.01 16V Ceramic AB

C7804 VCKYCZ1CB103K 0.01 16V Ceramic AB

C7805 VCKYCZ1CB103K 0.01 16V Ceramic AB

C7806 VCKYCZ1CB103K 0.01 16V Ceramic AB

C7807 VCKYCZ1CB103K 0.01 16V Ceramic AB

C7813 VCKYCZ1CB103K 0.01 16V Ceramic AB

C7815 VCKYCZ1HB102K 1000p 50V Ceramic AB

C7816 VCCCCZ1HH680J 68p 50V Ceramic AB

C7837 VCKYCZ1CB103K 0.01 16V Ceramic AB

C7842 VCKYCZ1HB102K 1000p 50V Ceramic AB

C7843 VCSATA1AJ335M 3.3 10V Tantalum AC

C7844 VCKYCZ1EB682K 6800p 25V Ceramic AB

C9900 VCKYCZ1HB102K 1000p 50V Ceramic AB

C9901 VCKYCY1AF105Z 1 10V Ceramic AC

C9902 VCCCCZ1HH101J 100p 50V Ceramic AB

C9903 VCKYCZ1AF104Z 0.1 10V Ceramic AB

C9904 VCKYCY1CB473K 0.047 16V Ceramic AA

C9905 VCKYCY1HB102K 1000p 50V Ceramic AA

C9906 VCKYTV1AB105K 1 10V Ceramic AD

C9907 VCKYCY1HB681K 680p 50V Ceramic AA

C9908 VCKYCZ1HB102K 1000p 50V Ceramic AB

C9909 VCKYCZ1HB102K 1000p 50V Ceramic AB

C9912 VCKYCZ1CB103K 0.01 16V Ceramic AB

C9913 VCKYCZ1HB102K 1000p 50V Ceramic AB

C9914 VCKYCY1AF105Z 1 10V Ceramic AC

C9915 VCKYCZ1HB102K 1000p 50V Ceramic AB

C9916 VCKYCZ1HB102K 1000p 50V Ceramic AB

C9917 VCKYCZ1HB102K 1000p 50V Ceramic AB

C9919 VCKYCZ1HB102K 1000p 50V Ceramic AB

C9920 VCKYCZ1HB102K 1000p 50V Ceramic AB

C9921 VCKYCY1AF105Z 1 10V Ceramic AC

C9922 VCKYCY1AF105Z 1 10V Ceramic AC

C9923 VCKYCY1HB103K 0.01 50V Ceramic AA

C9925 RC-KZ0075TAZZ 2.2 16V Ceramic AC

RESISTORS

R152 VRS-CZ1JF000J 0 1/16W Metal Oxide AA

R153 VRS-CZ1JF102J 1k 1/16W Metal Oxide AA

R154 VRS-CZ1JF470J 47 1/16W Metal Oxide AA

R155 VRS-CZ1JF000J 0 1/16W Metal Oxide AA

R157 VRS-CZ1JF000J 0 1/16W Metal Oxide AA

R201 VRS-CZ1JF102J 1k 1/16W Metal Oxide AA

R202 VRS-CZ1JF102J 1k 1/16W Metal Oxide AA

R203 VRK-SC1FF102J 1k 0.0315W AC

Metal Composition

R204 VRK-SC1FF102J 1k 0.0315W AC

Metal Composition

R205 VRK-SA1JF102J 1k 1/16W AB

Metal Composition

R206 VRS-CZ1JF473J 47k 1/16W Metal Oxide AA

R207 VRK-SC1FF473J 47k 0.0315W AB

Metal Composition

R210 VRK-SC1FF473J 47k 0.0315W AB

Metal Composition

R211 VRS-CZ1JF103J 10k 1/16W Metal Oxide AA

R212 VRS-CZ1JF333J 33k 1/16W Metal Oxide AA

R213 VRS-CZ1JF562J 5.6k 1/16W Metal Oxide AA

R214 VRS-CZ1JF393J 39k 1/16W Metal Oxide AA

R216 VRS-CZ1JF473J 47k 1/16W Metal Oxide AA

R401 VRS-CZ1JF102J 1k 1/16W Metal Oxide AA

R402 VRS-CZ1JF000J 0 1/16W Metal Oxide AA

R403 VRS-CY1JF000J 0 1/16W Metal Oxide AA

124

VL-SD20U

Ref. No. Part No. ★Description Code Ref. No. Part No. ★Description Code

VL-FD1U

R404 VRS-CY1JF000J 0 1/16W Metal Oxide AA

R405 VRS-CY1JF000J 0 1/16W Metal Oxide AA

R406 VRS-CZ1JF101J 100 1/16W Metal Oxide AA

R407 VRS-CZ1JF153J 15k 1/16W Metal Oxide AA

R409 VRS-CZ1JF000J 0 1/16W Metal Oxide AA

R410 VRS-CZ1JF000J 0 1/16W Metal Oxide AA

R411 VRS-CZ1JF154J 150k 1/16W Metal Oxide AA

R412 VRS-CZ1JF334J 330k 1/16W Metal Oxide AA

R413 VRS-CZ1JF000J 0 1/16W Metal Oxide AA

R414 VRS-CZ1JF000J 0 1/16W Metal Oxide AA

R416 VRS-CZ1JF823J 82k 1/16W Metal Oxide AA

R417 VRS-CZ1JF105J 1M 1/16W Metal Oxide AA

R418 VRS-CZ1JF101J 100 1/16W Metal Oxide AA

R419 VRS-CZ1JF000J 0 1/16W Metal Oxide AA

R420 VRS-CZ1JF104J 100k 1/16W Metal Oxide AA

R421 VRS-CZ1JF000J 0 1/16W Metal Oxide AA

R422 VRS-CZ1JF103J 10k 1/16W Metal Oxide AA

R423 VRS-CZ1JF000J 0 1/16W Metal Oxide AA

R424 VRS-CZ1JF823J 82k 1/16W Metal Oxide AA

R425 VRS-CZ1JF104J 100k 1/16W Metal Oxide AA

R426 VRS-CZ1JF000J 0 1/16W Metal Oxide AA

R427 VRS-CZ1JF103J 10k 1/16W Metal Oxide AA

R429 VRS-CZ1JF000J 0 1/16W Metal Oxide AA

R430 VRS-CZ1JF000J 0 1/16W Metal Oxide AA

R435 VRS-CZ1JF105J 1M 1/16W Metal Oxide AA

R436 VRS-CZ1JF224J 220k 1/16W Metal Oxide AA

R437 VRS-CZ1JF224J 220k 1/16W Metal Oxide AA

R438 VRS-CZ1JF121J 120 1/16W Metal Oxide AA

R440 VRS-CZ1JF393J 39k 1/16W Metal Oxide AA

R441 VRS-CZ1JF563J 56k 1/16W Metal Oxide AA

R442 VRS-CZ1JF114J 110k 1/16W Metal Oxide AB

R443 VRS-CZ1JF105J 1M 1/16W Metal Oxide AA

R446 VRS-CZ1JF103J 10k 1/16W Metal Oxide AA

R452 VRS-CZ1JF000J 0 1/16W Metal Oxide AA

R453 VRS-CZ1JF000J 0 1/16W Metal Oxide AA

R469 VRS-CZ1JF000J 0 1/16W Metal Oxide AA

R470 VRS-CZ1JF000J 0 1/16W Metal Oxide AA

R471 VRS-CZ1JF472J 4.7k 1/16W Metal Oxide AA

R472 VRS-CZ1JF000J 0 1/16W Metal Oxide AA

R476 VRS-CZ1JF105J 1M 1/16W Metal Oxide AA

R477 VRS-CZ1JF823J 82k 1/16W Metal Oxide AA

R478 VRS-CZ1JF823J 82k 1/16W Metal Oxide AA

R480 VRS-CZ1JF000J 0 1/16W Metal Oxide AA

R483 VRS-CZ1JF000J 0 1/16W Metal Oxide AA

R701 VRS-CZ1JF102J 1k 1/16W Metal Oxide AA

R702 VRS-CZ1JF000J 0 1/16W Metal Oxide AA

R703 VRS-CZ1JF223J 22k 1/16W Metal Oxide AA

R704 VRK-SA1JF224J 220k 1/16W AC

Metal Composition

R705 VRS-CZ1JF683J 68k 1/16W Metal Oxide AA

R706 VRS-CZ1JF102J 1k 1/16W Metal Oxide AA

R707 VRS-CZ1JF105J 1M 1/16W Metal Oxide AA

R708 VRS-CZ1JF000J 0 1/16W Metal Oxide AA

R709 VRS-CZ1JF474D 470k 1/16W Metal Oxide AA

R710 VRS-CZ1JF102J 1k 1/16W Metal Oxide AA

R711 VRS-CZ1JF102J 1k 1/16W Metal Oxide AA

R712 VRS-CZ1JF823D 82k 1/16W Metal Oxide AB

R713 VRK-SA1JF102J 1k 1/16W AB

Metal Composition

R714 VRK-SA1JF332J 3.3k 1/16W AB

Metal Composition

R715 VRK-SA1JF102J 1k 1/16W AB

Metal Composition

R716 VRS-CZ1JF103J 10k 1/16W Metal Oxide AA

R717 VRS-CZ1JF272J 2.7k 1/16W Metal Oxide AA

R718 VRK-SA1JF102J 1k 1/16W AB

Metal Composition

R719 VRK-SB1FF102J 1k 0.0315W AC

Metal Composition

R720 VRK-SB1FF104J 100k 0.0315W AD

Metal Composition

R721 VRS-CZ1JF472J 4.7k 1/16W Metal Oxide AA

R722 VRS-CZ1JF565J 5.6M 1/16W Metal Oxide AA

R723 VRK-SA1JF102J 1k 1/16W AB

Metal Composition

R724 VRK-SA1JF473J 47k 1/16W AC

Metal Composition

R725 VRS-CZ1JF102J 1k 1/16W Metal Oxide AA

R726 VRS-CZ1JF104J 100k 1/16W Metal Oxide AA

R727 VRS-CZ1JF473J 47k 1/16W Metal Oxide AA

R728 VRK-SA1JF102J 1k 1/16W AB

Metal Composition

R729 VRS-CZ1JF473J 47k 1/16W Metal Oxide AA

R730 VRS-CZ1JF102J 1k 1/16W Metal Oxide AA

R731 VRS-CZ1JF473J 47k 1/16W Metal Oxide AA

R732 VRS-CZ1JF102J 1k 1/16W Metal Oxide AA

R733 VRS-CZ1JF102J 1k 1/16W Metal Oxide AA

R735 VRS-CZ1JF000J 0 1/16W Metal Oxide AA

R737 VRS-CZ1JF223J 22k 1/16W Metal Oxide AA

R738 VRS-CZ1JF103J 10k 1/16W Metal Oxide AA

R739 VRS-CZ1JF332J 3.3k 1/16W Metal Oxide AA

R740 VRS-CZ1JF103J 10k 1/16W Metal Oxide AA

R741 VRS-CZ1JF473J 47k 1/16W Metal Oxide AA

R742 VRS-CZ1JF473J 47k 1/16W Metal Oxide AA

R744 VRS-CZ1JF000J 0 1/16W Metal Oxide AA

R745 VRS-CZ1JF000J 0 1/16W Metal Oxide AA

R746 VRS-CZ1JF000J 0 1/16W Metal Oxide AA

R747 VRS-CZ1JF000J 0 1/16W Metal Oxide AA

R748 VRS-CZ1JF000J 0 1/16W Metal Oxide AA

R749 VRS-CZ1JF393J 39k 1/16W Metal Oxide AA

R750 VRS-CZ1JF103J 10k 1/16W Metal Oxide AA

R751 VRS-CZ1JF272J 2.7k 1/16W Metal Oxide AA

R752 VRS-CZ1JF103J 10k 1/16W Metal Oxide AA

R753 VRS-CZ1JF103J 10k 1/16W Metal Oxide AA

R754 VRS-CZ1JF103J 10k 1/16W Metal Oxide AA

R755 VRS-CZ1JF103J 10k 1/16W Metal Oxide AA

R756 VRS-CZ1JF103J 10k 1/16W Metal Oxide AA

R757 VRS-CZ1JF104J 100k 1/16W Metal Oxide AA

R759 VRS-CZ1JF104J 100k 1/16W Metal Oxide AA

R760 VRS-CZ1JF472J 4.7k 1/16W Metal Oxide AA

R761 VRS-CZ1JF472J 4.7k 1/16W Metal Oxide AA

R762 VRS-CZ1JF472J 4.7k 1/16W Metal Oxide AA

R763 VRS-CZ1JF101J 100 1/16W Metal Oxide AA

R765 VRS-CZ1JF473J 47k 1/16W Metal Oxide AA

R769 VRS-CZ1JF222J 2.2k 1/16W Metal Oxide AA

R770 VRS-CZ1JF821J 820 1/16W Metal Oxide AA

R771 VRS-CZ1JF102J 1k 1/16W Metal Oxide AA

R900 VRS-CZ1JF000J 0 1/16W Metal Oxide AA

R901 VRS-CZ1JF000J 0 1/16W Metal Oxide AA

R902 VRS-CZ1JF104D 100k 1/16W Metal Oxide AB

R903 VRS-CZ1JF433D 43k 1/16W Metal Oxide AA

R904 VRS-CZ1JF563J 56k 1/16W Metal Oxide AA

R905 VRS-CZ1JF103J 10k 1/16W Metal Oxide AA

R906 VRS-CZ1JF472J 4.7k 1/16W Metal Oxide AA

R953 VRS-CZ1JF103D 10k 1/16W Metal Oxide AB

R954 VRS-CZ1JF103J 10k 1/16W Metal Oxide AA

R955 VRS-CZ1JF273J 27k 1/16W Metal Oxide AA

R957 VRS-CZ1JF133D 13k 1/16W Metal Oxide AA

R958 VRS-CZ1JF393D 39k 1/16W Metal Oxide AB

R959 VRS-CZ1JF104J 100k 1/16W Metal Oxide AA

R960 VRS-CZ1JF104J 100k 1/16W Metal Oxide AA

R961 VRS-CZ1JF272D 2.7k 1/16W Metal Oxide AB

R962 VRS-CZ1JF203D 20k 1/16W Metal Oxide AA

R963 VRS-CZ1JF153D 15k 1/16W Metal Oxide AB

R964 VRS-CZ1JF103D 10k 1/16W Metal Oxide AB

R965 VRS-CZ1JF000J 0 1/16W Metal Oxide AA

R966 VRS-CZ1JF105J 1M 1/16W Metal Oxide AA

R967 VRS-CZ1JF103D 10k 1/16W Metal Oxide AB

R968 VRS-CZ1JF104J 100k 1/16W Metal Oxide AA

R969 VRS-CZ1JF000J 0 1/16W Metal Oxide AA

R970 VRS-CZ1JF113D 11k 1/16W Metal Oxide AA

R971 VRS-CZ1JF000J 0 1/16W Metal Oxide AA

R975 VRS-CZ1JF273D 27k 1/16W Metal Oxide AA

R976 VRS-CZ1JF222D 2.2k 1/16W Metal Oxide AA

R977 VRS-CZ1JF103D 10k 1/16W Metal Oxide AB

R978 VRS-CZ1JF103D 10k 1/16W Metal Oxide AB

R979 VRS-CZ1JF103D 10k 1/16W Metal Oxide AB

R980 VRS-CZ1JF105J 1M 1/16W Metal Oxide AA

R981 VRS-CZ1JF104J 100k 1/16W Metal Oxide AA

R982 VRS-CZ1JF273D 27k 1/16W Metal Oxide AA

125

VL-SD20U

Ref. No. Part No. ★Description Code

VL-FD1U

R983 VRS-CZ1JF103D 10k 1/16W Metal Oxide AB

R984 VRS-CZ1JF222D 2.2k 1/16W Metal Oxide AA

R985 VRS-CZ1JF103D 10k 1/16W Metal Oxide AB

R986 VRS-CZ1JF103D 10k 1/16W Metal Oxide AB

R987 VRS-CZ1JF105J 1M 1/16W Metal Oxide AA

R988 VRS-CZ1JF000J 0 1/16W Metal Oxide AA

R989 VRS-CZ1JF104J 100k 1/16W Metal Oxide AA

R990 VRS-CY1JF221J 220 1/16W Metal Oxide AA

R993 VRS-CY1JF221J 220 1/16W Metal Oxide AA

R995 VRS-CY1JF221J 220 1/16W Metal Oxide AA

R997 VRS-CY1JF221J 220 1/16W Metal Oxide AA

R1401 VRS-CZ1JF000J 0 1/16W Metal Oxide AA

R1402 VRS-CZ1JF470J 47 1/16W Metal Oxide AA

R1403 VRS-CZ1JF470J 47 1/16W Metal Oxide AA

R1404 VRS-CZ1JF270J 27 1/16W Metal Oxide AA

R1408 VRS-CZ1JF103J 10k 1/16W Metal Oxide AA

R1409 VRS-CZ1JF000J 0 1/16W Metal Oxide AA

R1413 VRS-CZ1JF470J 47 1/16W Metal Oxide AA

R1414 VRS-CZ1JF270J 27 1/16W Metal Oxide AA

R1415 VRS-CZ1JF225J 2.2M 1/16W Metal Oxide AA

R1417 VRS-CZ1JF000J 0 1/16W Metal Oxide AA

R1418 VRS-CZ1JF000J 0 1/16W Metal Oxide AA

R1419 VRS-CZ1JF270J 27 1/16W Metal Oxide AA

R1421 VRS-CZ1JF103D 10k 1/16W Metal Oxide AB

R1431 VRS-CZ1JF122J 1.2k 1/16W Metal Oxide AA

R1432 VRS-CZ1JF332J 3.3k 1/16W Metal Oxide AA

R1433 VRS-CZ1JF561J 560 1/16W Metal Oxide AA

R1434 VRS-CZ1JF561J 560 1/16W Metal Oxide AA

R1435 VRS-CZ1JF122J 1.2k 1/16W Metal Oxide AA

R1436 VRS-CZ1JF333J 33k 1/16W Metal Oxide AA

R1437 VRS-CZ1JF223J 22k 1/16W Metal Oxide AA

R1438 VRS-CZ1JF122J 1.2k 1/16W Metal Oxide AA

R1439 VRS-CZ1JF272J 2.7k 1/16W Metal Oxide AA

R1440 VRS-CZ1JF561J 560 1/16W Metal Oxide AA

R1441 VRS-CZ1JF561J 560 1/16W Metal Oxide AA

R1442 VRS-CZ1JF750J 75 1/16W Metal Oxide AA

R1451 VRS-CZ1JF103J 10k 1/16W Metal Oxide AA

R1452 VRS-CZ1JF103J 10k 1/16W Metal Oxide AA

R1461 VRS-CZ1JF683D 68k 1/16W Metal Oxide AB

R1462 VRS-CZ1JF104D 100k 1/16W Metal Oxide AB

R1602 VRS-CZ1JF000J 0 1/16W Metal Oxide AA

R1603 VRS-CZ1JF471J 470 1/16W Metal Oxide AA

R1604 VRS-CZ1JF471J 470 1/16W Metal Oxide AA

R1662 VRS-CY1JF000J 0 1/16W Metal Oxide AA

R1701 VRK-SA1JF100J 10 1/16W AB

Metal Composition

R1702 VRS-CZ1JF104J 100k 1/16W Metal Oxide AA

R1703 VRS-CZ1JF124J 120k 1/16W Metal Oxide AA

R1704 VRS-CZ1JF683J 68k 1/16W Metal Oxide AA

R1705 VRS-CZ1JF104J 100k 1/16W Metal Oxide AA

R1706 VRS-CZ1JF1R0J 1 1/16W Metal Oxide AA

R1707 VRS-CZ1JF1R0J 1 1/16W Metal Oxide AA

R1708 VRS-CZ1JF1R0J 1 1/16W Metal Oxide AA

R1709 VRS-CZ1JF1R0J 1 1/16W Metal Oxide AA

R1710 VRS-CZ1JF105J 1M 1/16W Metal Oxide AA

R1711 VRS-CZ1JF331J 330 1/16W Metal Oxide AA

R1712 VRS-CZ1JF621J 620 1/16W Metal Oxide AA

R1713 VRS-CZ1JF103J 10k 1/16W Metal Oxide AA

R1714 VRS-CZ1JF223J 22k 1/16W Metal Oxide AA

R1715 VRK-SA1JF182J 1.8k 1/16W AC

Metal Composition

R1716 VRK-SA1JF182J 1.8k 1/16W AC

Metal Composition

R1720 VRK-SA1JF390J 39 1/16W AD

Metal Composition

R1721 VRK-SA1JF102J 1k 1/16W AB

Metal Composition

R1722 VRK-SA1JF472J 4.7k 1/16W AD

Metal Composition

R1740 VRS-CY1JF000J 0 1/16W Metal Oxide AA

R1800 VRS-CZ1JF223J 22k 1/16W Metal Oxide AA

R1801 VRS-CZ1JF000J 0 1/16W Metal Oxide AA

R1802 VRS-CZ1JF223J 22k 1/16W Metal Oxide AA

R1803 VRS-CZ1JF243J 24k 1/16W Metal Oxide AA

R1804 VRS-CZ1JF473J 47k 1/16W Metal Oxide AA

R1805 VRS-CZ1JF105J 1M 1/16W Metal Oxide AA

R1807 VRS-CZ1JF223J 22k 1/16W Metal Oxide AA

R1808 VRS-CZ1JF100J 10 1/16W Metal Oxide AA

R1809 VRS-CZ1JF000J 0 1/16W Metal Oxide AA

R1810 VRS-CZ1JF102J 1k 1/16W Metal Oxide AA

R1811 VRS-CZ1JF100J 10 1/16W Metal Oxide AA

R1812 VRS-CZ1JF473J 47k 1/16W Metal Oxide AA

R1814 VRS-CZ1JF104J 100k 1/16W Metal Oxide AA

R1815 VRS-CZ1JF472J 4.7k 1/16W Metal Oxide AA

R1816 VRS-CZ1JF683J 68k 1/16W Metal Oxide AA

R1818 VRS-CZ1JF101J 100 1/16W Metal Oxide AA

R1819 VRS-CZ1JF222J 2.2k 1/16W Metal Oxide AA

R1900 VRS-CZ1JF103J 10k 1/16W Metal Oxide AA

R1910 VRS-CZ1JF104J 100k 1/16W Metal Oxide AA

R1911 VRS-CZ1JF203D 20k 1/16W Metal Oxide AA

R1913 VRS-CZ1JF000J 0 1/16W Metal Oxide AA

R1914 VRS-CZ1JF103D 10k 1/16W Metal Oxide AB

R1916 VRS-CZ1JF103J 10k 1/16W Metal Oxide AA

R1917 VRS-CZ1JF153D 15k 1/16W Metal Oxide AB

R1918 VRS-CZ1JF105J 1M 1/16W Metal Oxide AA

R1919 VRS-CZ1JF104J 100k 1/16W Metal Oxide AA

R1922 VRS-CZ1JF000J 0 1/16W Metal Oxide AA

R1924 VRS-CZ1JF000J 0 1/16W Metal Oxide AA

R1927 VRS-CZ1JF105J 1M 1/16W Metal Oxide AA

R1928 VRS-CZ1JF104J 100k 1/16W Metal Oxide AA

R1932 VRS-CZ1JF000J 0 1/16W Metal Oxide AA

R1937 VRS-CZ1JF220J 22 1/16W Metal Oxide AA

R1938 VRS-CZ1JF000J 0 1/16W Metal Oxide AA

R1939 VRS-CZ1JF000J 0 1/16W Metal Oxide AA

R1954 VRS-CZ1JF202D 2k 1/16W Metal Oxide AA

R1955 VRS-CZ1JF000J 0 1/16W Metal Oxide AA

R1956 VRS-CZ1JF000J 0 1/16W Metal Oxide AA

R1957 VRS-CZ1JF273D 27k 1/16W Metal Oxide AA

R1958 VRS-CZ1JF683J 68k 1/16W Metal Oxide AA

R1959 VRS-CZ1JF334J 330k 1/16W Metal Oxide AA

R1960 VRS-CZ1JF823J 82k 1/16W Metal Oxide AA

R1961 VRS-CZ1JF563J 56k 1/16W Metal Oxide AA

R1962 VRS-CZ1JF333J 33k 1/16W Metal Oxide AA

R1963 VRS-CZ1JF104J 100k 1/16W Metal Oxide AA

R1964 VRS-CZ1JF103J 10k 1/16W Metal Oxide AA

R1965 VRK-SB1FF333J 33k 0.0315W AB

Metal Composition

R1966 VRS-CZ1JF104J 100k 1/16W Metal Oxide AA

R1979 VRS-CZ1JF000J 0 1/16W Metal Oxide AA

R1982 VRS-CZ1JF000J 0 1/16W Metal Oxide AA

R2402 VRS-CZ1JF000J 0 1/16W Metal Oxide AA

R2403 VRS-CZ1JF000J 0 1/16W Metal Oxide AA

R2800 VRS-CZ1JF000J 0 1/16W Metal Oxide AA

R2801 VRS-CZ1JF000J 0 1/16W Metal Oxide AA

R2802 VRS-CZ1JF000J 0 1/16W Metal Oxide AA

R2803 VRS-CZ1JF102J 1k 1/16W Metal Oxide AA

R2804 VRS-CZ1JF102J 1k 1/16W Metal Oxide AA

R3401 VRS-CZ1JF121J 120 1/16W Metal Oxide AA

R3402 VRS-CZ1JF123J 12k 1/16W Metal Oxide AA

R3404 VRS-CZ1JF471J 470 1/16W Metal Oxide AA

R3405 VRS-CZ1JF000J 0 1/16W Metal Oxide AA

R3406 VRS-CZ1JF271J 270 1/16W Metal Oxide AA

R3407 VRS-CZ1JF181J 180 1/16W Metal Oxide AA

R3409 VRS-CZ1JF121J 120 1/16W Metal Oxide AA

R3410 VRS-CZ1JF151J 150 1/16W Metal Oxide AA

R3411 VRS-CZ1JF391J 390 1/16W Metal Oxide AA

R3412 VRS-CZ1JF221J 220 1/16W Metal Oxide AA

R3413 VRS-CZ1JF391J 390 1/16W Metal Oxide AA

R3414 VRS-CZ1JF112J 1.1k 1/16W Metal Oxide AA

R3415 VRS-CZ1JF151J 150 1/16W Metal Oxide AA

R3416 VRS-CZ1JF221J 220 1/16W Metal Oxide AA

R3417 VRS-CZ1JF221J 220 1/16W Metal Oxide AA

R3418 VRS-CZ1JF181J 180 1/16W Metal Oxide AA

R3419 VRS-CZ1JF103J 10k 1/16W Metal Oxide AA

R3420 VRS-CZ1JF103J 10k 1/16W Metal Oxide AA

R3421 VRS-CZ1JF183J 18k 1/16W Metal Oxide AA

R3423 VRS-CZ1JF182J 1.8k 1/16W Metal Oxide AA

R3424 VRS-CZ1JF151J 150 1/16W Metal Oxide AA

R3425 VRS-CZ1JF222J 2.2k 1/16W Metal Oxide AA

R3426 VRS-CZ1JF000J 0 1/16W Metal Oxide AA

126

VL-SD20U

Ref. No. Part No. ★Description Code Ref. No. Part No. ★Description Code

VL-FD1U

R3427 VRS-CZ1JF122J 1.2k 1/16W Metal Oxide AA

R3428 VRS-CZ1JF273D 27k 1/16W Metal Oxide AA

R3429 VRS-CZ1JF101J 100 1/16W Metal Oxide AA

R3432 VRS-CZ1JF333D 33k 1/16W Metal Oxide AB

R3434 VRS-CZ1JF000J 0 1/16W Metal Oxide AA

R3435 VRS-CZ1JF122J 1.2k 1/16W Metal Oxide AA

R3436 VRS-CZ1JF182J 1.8k 1/16W Metal Oxide AA

R3437 VRS-CZ1JF472J 4.7k 1/16W Metal Oxide AA

R3442 VRS-CZ1JF332J 3.3k 1/16W Metal Oxide AA

R3443 VRS-CZ1JF472J 4.7k 1/16W Metal Oxide AA

R3445 VRS-CZ1JF182D 1.8k 1/16W Metal Oxide AB

R3446 VRS-CZ1JF103D 10k 1/16W Metal Oxide AB

R3449 VRS-CZ1JF103J 10k 1/16W Metal Oxide AA

R3450 VRS-CZ1JF000J 0 1/16W Metal Oxide AA

R3451 VRS-CZ1JF334J 330k 1/16W Metal Oxide AA

R3452 VRS-CZ1JF121J 120 1/16W Metal Oxide AA

R3453 VRS-CZ1JF000J 0 1/16W Metal Oxide AA

R3454 VRS-CZ1JF102J 1k 1/16W Metal Oxide AA

R3455 VRS-CZ1JF000J 0 1/16W Metal Oxide AA

R3457 VRS-CZ1JF101J 100 1/16W Metal Oxide AA

R3458 VRS-CZ1JF102J 1k 1/16W Metal Oxide AA

R3459 VRS-CZ1JF102J 1k 1/16W Metal Oxide AA

R3460 VRS-CZ1JF103J 10k 1/16W Metal Oxide AA

R3462 VRS-CZ1JF271J 270 1/16W Metal Oxide AA

R3463 VRS-CZ1JF122J 1.2k 1/16W Metal Oxide AA

R3464 VRS-CZ1JF102J 1k 1/16W Metal Oxide AA

R3465 VRS-CZ1JF102J 1k 1/16W Metal Oxide AA

R3466 VRS-CZ1JF272J 2.7k 1/16W Metal Oxide AA

R3467 VRS-CZ1JF332J 3.3k 1/16W Metal Oxide AA

R3468 VRS-CZ1JF100J 10 1/16W Metal Oxide AA

R3469 VRS-CZ1JF390J 39 1/16W Metal Oxide AA

R3470 VRS-CZ1JF331J 330 1/16W Metal Oxide AA

R3471 VRS-CZ1JF222J 2.2k 1/16W Metal Oxide AA

R3472 VRS-CZ1JF472J 4.7k 1/16W Metal Oxide AA

R3473 VRS-CZ1JF472J 4.7k 1/16W Metal Oxide AA

R3474 VRS-CZ1JF000J 0 1/16W Metal Oxide AA

R3475 VRS-CZ1JF000J 0 1/16W Metal Oxide AA

R3478 VRS-CZ1JF123J 12k 1/16W Metal Oxide AA

R3479 VRS-CZ1JF183J 18k 1/16W Metal Oxide AA

R3480 VRS-CZ1JF152J 1.5k 1/16W Metal Oxide AA

R3481 VRS-CZ1JF181J 180 1/16W Metal Oxide AA

R3482 VRS-CZ1JF562J 5.6k 1/16W Metal Oxide AA

R3486 VRS-CZ1JF222D 2.2k 1/16W Metal Oxide AA

R3488 VRS-CZ1JF681J 680 1/16W Metal Oxide AA

R3489 VRS-CZ1JF332J 3.3k 1/16W Metal Oxide AA

R3490 VRS-CZ1JF123J 12k 1/16W Metal Oxide AA

R3494 VRS-CZ1JF182J 1.8k 1/16W Metal Oxide AA

R3495 VRS-CZ1JF103J 10k 1/16W Metal Oxide AA

R3496 VRS-CZ1JF332J 3.3k 1/16W Metal Oxide AA

R3497 VRS-CZ1JF332J 3.3k 1/16W Metal Oxide AA

R3498 VRS-CZ1JF332J 3.3k 1/16W Metal Oxide AA

R3499 VRS-CY1JF000J 0 1/16W Metal Oxide AA

R4401 VRS-CY1JF000J 0 1/16W Metal Oxide AA

R4402 VRS-CY1JF000J 0 1/16W Metal Oxide AA

R4403 VRS-CY1JF000J 0 1/16W Metal Oxide AA

R4404 VRS-CZ1JF151J 150 1/16W Metal Oxide AA

R4405 VRS-CZ1JF272J 2.7k 1/16W Metal Oxide AA

R4406 VRS-CZ1JF151J 150 1/16W Metal Oxide AA

R4407 VRS-CZ1JF272J 2.7k 1/16W Metal Oxide AA

R4408 VRS-CZ1JF151J 150 1/16W Metal Oxide AA

R4409 VRS-CZ1JF272J 2.7k 1/16W Metal Oxide AA

R4410 VRS-CZ1JF151J 150 1/16W Metal Oxide AA

R4411 VRS-CZ1JF272J 2.7k 1/16W Metal Oxide AA

R4412 VRS-CZ1JF151J 150 1/16W Metal Oxide AA

R4413 VRS-CZ1JF272J 2.7k 1/16W Metal Oxide AA

R4414 VRS-CZ1JF000J 0 1/16W Metal Oxide AA

R4415 VRS-CZ1JF153J 15k 1/16W Metal Oxide AA

R4416 VRS-CZ1JF103J 10k 1/16W Metal Oxide AA

R4420 VRS-CZ1JF153J 15k 1/16W Metal Oxide AA

R4421 VRS-CZ1JF153J 15k 1/16W Metal Oxide AA

R4422 VRS-CZ1JF123J 12k 1/16W Metal Oxide AA

R4423 VRS-CZ1JF153J 15k 1/16W Metal Oxide AA

R4424 VRS-CZ1JF153J 15k 1/16W Metal Oxide AA

R4425 VRS-CZ1JF123J 12k 1/16W Metal Oxide AA

R4431 VRS-CZ1JF472J 4.7k 1/16W Metal Oxide AA

R4432 VRS-CZ1JF472J 4.7k 1/16W Metal Oxide AA

R4435 VRS-CZ1JF330J 33 1/16W Metal Oxide AA

R4436 VRS-CZ1JF152J 1.5k 1/16W Metal Oxide AA

R4437 VRS-CZ1JF152J 1.5k 1/16W Metal Oxide AA

R4450 VRS-CY1JF103J 10k 1/16W Metal Oxide AA

R4451 VRS-CZ1JF104J 100k 1/16W Metal Oxide AA

R4452 VRS-CZ1JF105J 1M 1/16W Metal Oxide AA

R4453 VRS-CZ1JF181J 180 1/16W Metal Oxide AA

R4454 VRS-CZ1JF104J 100k 1/16W Metal Oxide AA

R4456 VRS-CZ1JF151J 150 1/16W Metal Oxide AA

R4457 VRS-CZ1JF000J 0 1/16W Metal Oxide AA

R4460 VRS-CZ1JF000J 0 1/16W Metal Oxide AA

R4461 VRS-CZ1JF123D 12k 1/16W Metal Oxide AA

R4462 VRS-CZ1JF123D 12k 1/16W Metal Oxide AA

R4463 VRS-CZ1JF332J 3.3k 1/16W Metal Oxide AA

R4464 VRS-CZ1JF472J 4.7k 1/16W Metal Oxide AA

R4465 VRS-CZ1JF273D 27k 1/16W Metal Oxide AA

R4467 VRS-CZ1JF302D 3k 1/16W Metal Oxide AA

R4468 VRS-CZ1JF562D 5.6k 1/16W Metal Oxide AB

R4469 VRS-CZ1JF332J 3.3k 1/16W Metal Oxide AA

R4473 VRS-CZ1JF123J 12k 1/16W Metal Oxide AA

R4474 VRS-CZ1JF103J 10k 1/16W Metal Oxide AA

R4475 VRS-CZ1JF272J 2.7k 1/16W Metal Oxide AA

R4476 VRS-CZ1JF000J 0 1/16W Metal Oxide AA

R4477 VRS-CZ1JF102J 1k 1/16W Metal Oxide AA

R4478 VRS-CZ1JF472J 4.7k 1/16W Metal Oxide AA

R4485 VRS-CZ1JF474J 470k 1/16W Metal Oxide AA

R4486 VRS-CZ1JF224J 220k 1/16W Metal Oxide AA

R4487 VRS-CZ1JF332J 3.3k 1/16W Metal Oxide AA

R4488 VRS-CZ1JF103J 10k 1/16W Metal Oxide AA

R4489 VRS-CZ1JF272J 2.7k 1/16W Metal Oxide AA

R5800 VRS-CZ1JF000J 0 1/16W Metal Oxide AA

R5801 VRS-CZ1JF000J 0 1/16W Metal Oxide AA

R5802 VRS-CZ1JF000J 0 1/16W Metal Oxide AA

R5803 VRS-CZ1JF000J 0 1/16W Metal Oxide AA

R5804 VRS-CZ1JF000J 0 1/16W Metal Oxide AA

R5805 VRS-CZ1JF000J 0 1/16W Metal Oxide AA

R5806 VRS-CZ1JF000J 0 1/16W Metal Oxide AA

R5807 VRS-CZ1JF000J 0 1/16W Metal Oxide AA

R5808 VRS-CZ1JF000J 0 1/16W Metal Oxide AA

R5809 VRS-CZ1JF000J 0 1/16W Metal Oxide AA

R5810 VRS-CZ1JF000J 0 1/16W Metal Oxide AA

R5811 VRS-CZ1JF000J 0 1/16W Metal Oxide AA

R5812 VRS-CZ1JF000J 0 1/16W Metal Oxide AA

R5813 VRS-CZ1JF000J 0 1/16W Metal Oxide AA

R5817 VRS-CZ1JF000J 0 1/16W Metal Oxide AA

R5818 VRS-CZ1JF000J 0 1/16W Metal Oxide AA

R5819 VRS-CZ1JF000J 0 1/16W Metal Oxide AA

R5820 VRS-CZ1JF000J 0 1/16W Metal Oxide AA

R5821 VRS-CZ1JF103J 10k 1/16W Metal Oxide AA

R5822 VRS-CZ1JF103J 10k 1/16W Metal Oxide AA

R7401 VRS-CZ1JF472J 4.7k 1/16W Metal Oxide AA

R7402 VRS-CZ1JF561J 560 1/16W Metal Oxide AA

R7403 VRS-CZ1JF153J 15k 1/16W Metal Oxide AA

R7406 VRS-CZ1JF102J 1k 1/16W Metal Oxide AA

R7413 VRS-CZ1JF512D 5.1k 1/16W Metal Oxide AA

R7415 VRS-CZ1JF560D 56 1/16W Metal Oxide AB

R7416 VRS-CZ1JF560D 56 1/16W Metal Oxide AB

R7417 VRS-CZ1JF560D 56 1/16W Metal Oxide AB

R7418 VRS-CZ1JF560D 56 1/16W Metal Oxide AB

R7419 VRS-CZ1JF101J 100 1/16W Metal Oxide AA

R7420 VRS-CZ1JF104J 100k 1/16W Metal Oxide AA

R7421 VRS-CZ1JF472D 4.7k 1/16W Metal Oxide AB

R7423 VRS-CZ1JF102D 1k 1/16W Metal Oxide AA

R7424 VRS-CZ1JF472D 4.7k 1/16W Metal Oxide AB

R7426 VRS-CZ1JF821D 820 1/16W Metal Oxide AA

R7427 VRS-CZ1JF101J 100 1/16W Metal Oxide AA

R7441 VRS-CZ1JF823J 82k 1/16W Metal Oxide AA

R7442 VRS-CZ1JF823J 82k 1/16W Metal Oxide AA

R7443 VRS-CZ1JF823J 82k 1/16W Metal Oxide AA

R7444 VRS-CZ1JF823J 82k 1/16W Metal Oxide AA

R7445 VRS-CZ1JF823J 82k 1/16W Metal Oxide AA

R7446 VRS-CZ1JF823J 82k 1/16W Metal Oxide AA

R7447 VRS-CZ1JF823J 82k 1/16W Metal Oxide AA

R7448 VRS-CZ1JF823J 82k 1/16W Metal Oxide AA

127

VL-SD20U

Ref. No. Part No. ★Description Code

VL-FD1U

R7450 VRS-CZ1JF000J 0 1/16W Metal Oxide AA

R7472 VRS-CZ1JF000J 0 1/16W Metal Oxide AA

R7701 VRS-CZ1JF223J 22k 1/16W Metal Oxide AA

R7702 VRS-CZ1JF273J 27k 1/16W Metal Oxide AA

R7705 VRS-CZ1JF562J 5.6k 1/16W Metal Oxide AA

R7707 VRS-CZ1JF104J 100k 1/16W Metal Oxide AA

R7708 VRS-CZ1JF223J 22k 1/16W Metal Oxide AA

R7709 VRS-CZ1JF333J 33k 1/16W Metal Oxide AA

R7711 VRS-CZ1JF333J 33k 1/16W Metal Oxide AA

R7712 VRS-CZ1JF333J 33k 1/16W Metal Oxide AA

R7713 VRS-CZ1JF473J 47k 1/16W Metal Oxide AA

R7714 VRS-CZ1JF473J 47k 1/16W Metal Oxide AA

R7800 VRS-CZ1JF151J 150 1/16W Metal Oxide AA

R7801 VRS-CZ1JF272D 2.7k 1/16W Metal Oxide AB

R7802 VRS-CZ1JF151J 150 1/16W Metal Oxide AA

R7803 VRS-CZ1JF272D 2.7k 1/16W Metal Oxide AB

R7804 VRS-CZ1JF151J 150 1/16W Metal Oxide AA

R7805 VRS-CZ1JF272D 2.7k 1/16W Metal Oxide AB

R7806 VRS-CZ1JF393D 39k 1/16W Metal Oxide AB

R7807 VRS-CZ1JF303D 30k 1/16W Metal Oxide AA

R7808 VRS-CZ1JF823J 82k 1/16W Metal Oxide AA

R7809 VRS-CZ1JF393D 39k 1/16W Metal Oxide AB

R7810 VRS-CZ1JF303D 30k 1/16W Metal Oxide AA

R7811 VRS-CZ1JF823J 82k 1/16W Metal Oxide AA

R7812 VRS-CZ1JF393D 39k 1/16W Metal Oxide AB

R7813 VRS-CZ1JF303D 30k 1/16W Metal Oxide AA

R7814 VRS-CZ1JF823J 82k 1/16W Metal Oxide AA

R7827 VRS-CZ1JF105J 1M 1/16W Metal Oxide AA

R7841 VRS-CZ1JF333J 33k 1/16W Metal Oxide AA

R7843 VRS-CZ1JF393J 39k 1/16W Metal Oxide AA

R7846 VRS-CZ1JF000J 0 1/16W Metal Oxide AA

R7847 VRS-CZ1JF102J 1k 1/16W Metal Oxide AA

R7850 VRS-CZ1JF103J 10k 1/16W Metal Oxide AA

R7851 VRS-CZ1JF103J 10k 1/16W Metal Oxide AA

R7852 VRS-CZ1JF103J 10k 1/16W Metal Oxide AA

R7853 VRK-SA1JF564J 560k 1/16W AC

Metal Composition

R7854 VRS-CZ1JF683J 68k 1/16W Metal Oxide AA

R7855 VRS-CZ1JF823J 82k 1/16W Metal Oxide AA

R7856 VRS-CZ1JF000J 0 1/16W Metal Oxide AA

R9924 VRS-CZ1JF000J 0 1/16W Metal Oxide AA

R9951 VRS-CZ1JF272D 2.7k 1/16W Metal Oxide AB

R9952 VRS-CZ1JF273D 27k 1/16W Metal Oxide AA

R9953 VRS-CZ1JF333D 33k 1/16W Metal Oxide AB

R9954 VRS-CZ1JF333J 33k 1/16W Metal Oxide AA

R9956 VRS-CZ1JF104D 100k 1/16W Metal Oxide AB

R9957 VRS-CZ1JF682D 6.8k 1/16W Metal Oxide AB

R9959 VRS-CZ1JF333J 33k 1/16W Metal Oxide AA

R9960 VRS-CZ1JF332J 3.3k 1/16W Metal Oxide AA

R9961 VRS-CZ1JF105J 1M 1/16W Metal Oxide AA

R9962 VRS-CZ1JF473D 47k 1/16W Metal Oxide AB

R9963 VRS-CZ1JF273D 27k 1/16W Metal Oxide AA

R9964 VRS-CZ1JF683J 68k 1/16W Metal Oxide AA

R9965 VRS-CZ1JF105J 1M 1/16W Metal Oxide AA

R9966 VRS-CZ1JF123D 12k 1/16W Metal Oxide AA

R9967 VRS-CZ1JF912D 9.1k 1/16W Metal Oxide AA

R9968 VRS-CZ1JF433J 43k 1/16W Metal Oxide AA

R9969 VRS-CZ1JF104D 100k 1/16W Metal Oxide AB

R9973 VRS-CZ1JF153J 15k 1/16W Metal Oxide AA

R9975 VRS-CZ1JF822J 8.2k 1/16W Metal Oxide AA

R9977 VRS-CZ1JF472J 4.7k 1/16W Metal Oxide AA

R9978 VRS-CZ1JF105J 1M 1/16W Metal Oxide AA

R9979 VRS-CZ1JF562J 5.6k 1/16W Metal Oxide AA

R9980 VRS-CZ1JF104D 100k 1/16W Metal Oxide AB

R9981 VRS-CZ1JF273J 27k 1/16W Metal Oxide AA

R9982 VRS-CZ1JF822D 8.2k 1/16W Metal Oxide AA

R9983 VRS-CZ1JF471J 470 1/16W Metal Oxide AA

R9984 VRS-CZ1JF104D 100k 1/16W Metal Oxide AB

R9985 VRS-CZ1JF243D 24k 1/16W Metal Oxide AA

R9986 VRS-CZ1JF103J 10k 1/16W Metal Oxide AA

R9987 VRS-CZ1JF103J 10k 1/16W Metal Oxide AA

R9988 VRS-CZ1JF103J 10k 1/16W Metal Oxide AA

R9990 VRS-CZ1JF103J 10k 1/16W Metal Oxide AA

R9991 VRS-CZ1JF103J 10k 1/16W Metal Oxide AA

R9992 VRS-CZ1JF000J 0 1/16W Metal Oxide AA

R9994 VRS-CZ1JF000J 0 1/16W Metal Oxide AA

R9995 VRS-CZ1JF000J 0 1/16W Metal Oxide AA

MISCELLANEOUS PARTS

åCP1 QFS-L1221TAZZ Fuse, 1.25A 24V AD

åCP2 QFS-L1221TAZZ Fuse, 1.25A 24V AD

åCP3 QFS-L1221TAZZ Fuse, 1.25A 24V AD

FB202 RBLN-0049TAZZ Balun, BLN-0049TA AD

FB456 RBLN-0057TAZZ Balun, BLN-0057TA AC

FB701 RBLN-0120TAZZ Balun, BLN-0120TA AC

FB702 RBLN-0120TAZZ Balun, BLN-0120TA AC

FB1901 RBLN-0119TAZZ Balun, BLN-0119TA AC

FB1902 RBLN-0119TAZZ Balun, BLN-0119TA AC

FB2401 RBLN-0120TAZZ Balun, BLN-0120TA AC

FB2402 RBLN-0120TAZZ Balun, BLN-0120TA AC

FB2405 RBLN-0120TAZZ Balun, BLN-0120TA AC

FB7401 RBLN-0057TAZZ Balun, BLN-0057TA AC

FB7402 RBLN-0057TAZZ Balun, BLN-0057TA AC

J701 QJAKE0063TAZZ Jack AF

J2401 QJAKE0074TAZZ Jack, 10Pin AH

J7401 QJAKZ0072TAZZ Jack, 4Pin AG

P151 QPLGN0288TAZZ Plug, 2Pin AE

P6701 QPLGN0675TAZZ Plug, 6Pin AD

SC800 QCNCW4080TAZZ Connector, 40Pin AF

SC900 QCNCW2080TAZZ Connector, 20Pin AF

SC1001 QCNCW8080TAZZ Connector, 80Pin AH

SC2401 QCNCW1083TAZZ Connector, 10Pin AE

SC3301 QCNCW8080TAZZ Connector, 40Pin AH

DUNTK2919QA01

CAMERA HEAD PWB UNIT

INTEGRATED CIRCUITS

IC11 VHiCXD2478R-1 CXD2478R, Timing AV

Generator

IC101 VHiAN2108NF-1 AN2108NF, CDS/AGC AS

IC501 RH-iX0725TAZZ IX0725TA, Lens µ-Com AS

IC551 VHiMM1449XQ-1 MM1449XQ, Lens Driver AT

IC552 VHiNJM2902V-1 NJM2902V, Hall-Device AD

Driver/Amp Iris Drive

IC553 VHiNJM3414V-1 NJM3414V, Iris Drive AF

IC1001 VHiM24C04W6-1 M24C04W6, E2PROM AE

TRANSISTORS

Q1 VS2SK508///-1 2SK508 AE

Q2 VS2SC4627CD-1 2SC4627CD AB

Q11 VS2SC5383F/-1 2SC5383F AB

Q501 VSRT1N140U/-1 RT1N140U AB

Q502 VS2SA1362GR-1 2SA1362GR AC

Q503 VS2SA1362GR-1 2SA1362GR AC

DIODES

D1 VHDMC2852//-1 MC2852 AB

D551 VHDMC2852//-1 MC2852 AB

PACKAGED CIRCUIT

X11 RCRSZ0075TAZZ Crystal, CRSZ0075TA AQ

COILS

CF501 RFiLC0070TAZZ Filter, FiLC0070TA AE

L12 VPD9M100KR86N Peaking, 10µHAC

L101 VPD9M470K4R1N Peaking, 47µHAC

L501 VPD9M100KR86N Peaking, 10µHAC

L551 VPD9M100KR86N Peaking, 10µHAC

CAPACITORS

C1 VCKYTV1EB104K 0.1 25V Ceramic AB

C2 VCKYTV1EB104K 0.1 25V Ceramic AB

C3 VCKYCZ1CB103K 0.01 16V Ceramic AB

C4 VCSATA1CJ106M 10 16V Tantalum AD

C5 VCKYCZ1HB102K 1000p 50V Ceramic AB

128

VL-SD20U

Ref. No. Part No. ★Description Code Ref. No. Part No. ★Description Code

VL-FD1U

R11 VRS-CZ1JF000J 0 1/16W Metal Oxide AA

R12 VRS-CZ1JF000J 0 1/16W Metal Oxide AA

R13 VRS-CZ1JF000J 0 1/16W Metal Oxide AA

R14 VRS-CZ1JF104J 100k 1/16W Metal Oxide AA

R15 VRS-CZ1JF000J 0 1/16W Metal Oxide AA

R17 VRS-CZ1JF000J 0 1/16W Metal Oxide AA

R18 VRS-CZ1JF000J 0 1/16W Metal Oxide AA

R20 VRS-CZ1JF000J 0 1/16W Metal Oxide AA

R23 VRS-CZ1JF000J 0 1/16W Metal Oxide AA

R24 VRS-CZ1JF000J 0 1/16W Metal Oxide AA

R30 VRS-CZ1JF000J 0 1/16W Metal Oxide AA

R31 VRS-CZ1JF101J 100 1/16W Metal Oxide AA

R32 VRS-CZ1JF000J 0 1/16W Metal Oxide AA

R33 VRS-CZ1JF122J 1.2k 1/16W Metal Oxide AA

R34 VRS-CZ1JF153J 15k 1/16W Metal Oxide AA

R104 VRS-CZ1JF184J 180k 1/16W Metal Oxide AA

R105 VRS-CZ1JF184J 180k 1/16W Metal Oxide AA

R106 VRS-CZ1JF822J 8.2k 1/16W Metal Oxide AA

R107 VRS-CZ1JF152J 1.5k 1/16W Metal Oxide AA

R108 VRS-CZ1JF561J 560 1/16W Metal Oxide AA

R112 VRS-CZ1JF332J 3.3k 1/16W Metal Oxide AA

R113 VRS-CZ1JF332J 3.3k 1/16W Metal Oxide AA

R114 VRS-CZ1JF332J 3.3k 1/16W Metal Oxide AA

R115 VRS-CZ1JF221J 220 1/16W Metal Oxide AA

R501 VRS-CZ1JF102J 1k 1/16W Metal Oxide AA

R502 VRS-CZ1JF102J 1k 1/16W Metal Oxide AA

R505 VRS-CZ1JF103J 10k 1/16W Metal Oxide AA

R507 VRS-CZ1JF102J 1k 1/16W Metal Oxide AA

R509 VRS-CZ1JF102J 1k 1/16W Metal Oxide AA

R510 VRS-CZ1JF102J 1k 1/16W Metal Oxide AA

R511 VRS-CZ1JF102J 1k 1/16W Metal Oxide AA

R514 VRS-CZ1JF102J 1k 1/16W Metal Oxide AA

R515 VRS-CZ1JF273J 27k 1/16W Metal Oxide AA

R516 VRS-CZ1JF102J 1k 1/16W Metal Oxide AA

R517 VRS-CZ1JF223J 22k 1/16W Metal Oxide AA

R519 VRS-CZ1JF392J 3.9k 1/16W Metal Oxide AA

R521 VRS-CZ1JF222J 2.2k 1/16W Metal Oxide AA

R523 VRS-CZ1JF103J 10k 1/16W Metal Oxide AA

R524 VRS-CZ1JF103J 10k 1/16W Metal Oxide AA

R525 VRS-CZ1JF000J 0 1/16W Metal Oxide AA

R551 VRS-CZ1JF153J 15k 1/16W Metal Oxide AA

R552 VRS-CZ1JF104D 100k 1/16W Metal Oxide AB

R553 VRS-CZ1JF473D 47k 1/16W Metal Oxide AB

R554 VRS-CZ1JF103J 10k 1/16W Metal Oxide AA

R555 VRS-CZ1JF153D 15k 1/16W Metal Oxide AB

R556 VRS-CZ1JF153D 15k 1/16W Metal Oxide AB

R558 VRS-CZ1JF103J 10k 1/16W Metal Oxide AA

R559 VRS-CZ1JF273J 27k 1/16W Metal Oxide AA

R560 VRS-CZ1JF153J 15k 1/16W Metal Oxide AA

R561 VRS-CZ1JF103J 10k 1/16W Metal Oxide AA

R562 VRS-CZ1JF912J 9.1k 1/16W Metal Oxide AB

R564 VRS-CZ1JF153J 15k 1/16W Metal Oxide AA

R565 VRS-CZ1JF102J 1k 1/16W Metal Oxide AA

R566 VRS-CZ1JF562J 5.6k 1/16W Metal Oxide AA

R567 VRS-CZ1JF103J 10k 1/16W Metal Oxide AA

R568 VRS-CZ1JF223J 22k 1/16W Metal Oxide AA

R569 VRS-CZ1JF474J 470k 1/16W Metal Oxide AA

R570 VRS-CZ1JF105J 1M 1/16W Metal Oxide AA

R571 VRS-CZ1JF153D 15k 1/16W Metal Oxide AB

R572 VRS-CZ1JF122J 1.2k 1/16W Metal Oxide AA

R573 VRS-CZ1JF472J 4.7k 1/16W Metal Oxide AA

R574 VRS-CZ1JF222J 2.2k 1/16W Metal Oxide AA

R575 VRS-CZ1JF223J 22k 1/16W Metal Oxide AA

R576 VRS-CZ1JF474J 470k 1/16W Metal Oxide AA

R577 VRS-CZ1JF682J 6.8k 1/16W Metal Oxide AA

R578 VRS-CZ1JF682J 6.8k 1/16W Metal Oxide AA

R579 VRS-CZ1JF103J 10k 1/16W Metal Oxide AA

R580 VRS-CZ1JF272D 2.7k 1/16W Metal Oxide AB

R581 VRS-CZ1JF153D 15k 1/16W Metal Oxide AB

R582 VRS-CZ1JF244D 240k 1/16W Metal Oxide AA

R583 VRS-CZ1JF103J 10k 1/16W Metal Oxide AA

R584 VRS-CZ1JF471J 470 1/16W Metal Oxide AA

R585 VRS-CZ1JF104J 100k 1/16W Metal Oxide AA

R586 VRS-CZ1JF221J 220 1/16W Metal Oxide AA

C6 VCKYCZ1HF103Z 0.01 50V Ceramic AB

C7 VCKYTV1EB104K 0.1 25V Ceramic AB

C8 VCSATA1VJ155M 1.5 35V Tantalum AC

C9 RC-KZ0046TAZZ 4.7 35V Ceramic AD

C10 VCSATA1VJ155M 1.5 35V Tantalum AC

C11 VCKYCZ1CB103K 0.01 16V Ceramic AB

C12 VCKYCZ1CB103K 0.01 16V Ceramic AB

C14 VCSATA0JJ156M 15 6.3V Tantalum AC

C15 VCKYCZ1CB103K 0.01 16V Ceramic AB

C18 VCSATA1CJ106M 10 16V Tantalum AD

C19 VCKYCZ1CB103K 0.01 16V Ceramic AB

C20 VCSAPR0JJ106M 10 6.3V Tantalum AD

C21 VCKYCZ1HB102K 1000p 50V Ceramic AB

C22 VCKYCZ1HF103Z 0.01 50V Ceramic AB

C23 VCKYCZ1CB103K 0.01 16V Ceramic AB

C26 VCKYCZ1CB103K 0.01 16V Ceramic AB

C27 VCSATA1CJ106M 10 16V Tantalum AD

C28 VCSATA1VJ155M 1.5 35V Tantalum AC

C29 VCSATA1VJ155M 1.5 35V Tantalum AC

C30 VCSATA1VJ155M 1.5 35V Tantalum AC

C31 VCSATA1VJ155M 1.5 35V Tantalum AC

C32 VCKYCZ1CB103K 0.01 16V Ceramic AB

C33 VCCCCZ1HH100D 10p 50V Ceramic AB

C101 VCSATA1AJ106M 10 10V Tantalum AC

C102 VCKYCZ1CB103K 0.01 16V Ceramic AB

C104 VCKYTV1AB105K 1 10V Ceramic AD

C105 VCKYTV1AB105K 1 10V Ceramic AD

C107 VCKYTV1CB105K 1 16V Ceramic AC

C108 VCSAPR0JJ106M 10 6.3V Tantalum AD

C109 VCSAPR0JJ106M 10 6.3V Tantalum AD

C110 VCKYCY1CB333K 0.033 16V Ceramic AA

C111 VCKYCZ1CB103K 0.01 16V Ceramic AB

C112 VCKYCZ1CB103K 0.01 16V Ceramic AB

C113 VCKYCZ1CB103K 0.01 16V Ceramic AB

C114 VCKYCZ1CB103K 0.01 16V Ceramic AB

C115 VCSAPR0JJ106M 10 6.3V Tantalum AD

C116 VCSAPR0JJ106M 10 6.3V Tantalum AD

C117 VCSAPR0JJ106M 10 6.3V Tantalum AD

C118 VCCCCZ1HH220J 22p 50V Ceramic AB

C119 VCCCCZ1HH8R0D 8p 50V Ceramic AB

C501 VCSATA0JJ106M 10 6.3V Tantalum AD

C503 VCKYCZ1CB103K 0.01 16V Ceramic AB

C506 VCKYCZ1CB103K 0.01 16V Ceramic AB

C508 VCKYCZ1AF104Z 0.1 10V Ceramic AB

C509 VCCCCZ1HH101J 100p 50V Ceramic AB

C552 VCKYCZ1EB472K 4700p 25V Ceramic AB

C553 VCKYCY1EB183K 0.018 25V Ceramic AA

C554 VCKYCZ1CB103K 0.01 16V Ceramic AB

C555 VCKYCZ1CB103K 0.01 16V Ceramic AB

C556 VCKYCZ1CB103K 0.01 16V Ceramic AB

C557 VCKYCZ1CB103K 0.01 16V Ceramic AB

C558 VCKYCZ1CB103K 0.01 16V Ceramic AB

C559 VCKYCZ1CB103K 0.01 16V Ceramic AB

C560 VCKYCY0JF105Z 1 6.3V Ceramic AB

C561 VCKYCZ1EB472K 4700p 25V Ceramic AB

C562 VCKYCZ1EB472K 4700p 25V Ceramic AB

C563 VCKYCZ1EB472K 4700p 25V Ceramic AB

C565 VCSATA1AJ106M 10 10V Tantalum AC

C567 VCKYCZ1CB103K 0.01 16V Ceramic AB

C568 VCKYCZ1CB103K 0.01 16V Ceramic AB

C569 VCKYCZ1AF104Z 0.1 10V Ceramic AB

C570 VCKYCZ1CB103K 0.01 16V Ceramic AB

C571 VCKYCZ1CB103K 0.01 16V Ceramic AB

C572 VCCCCZ1HH151J 150p 50V Ceramic AB

C573 VCKYCY1AB224K 0.22 10V Ceramic AB

C574 VCKYCZ1CB103K 0.01 16V Ceramic AB

C1001 VCKYCZ1CB103K 0.01 16V Ceramic AB

RESISTORS

R1 VRS-CZ1JF105J 1M 1/16W Metal Oxide AA

R2 VRS-CZ1JF105J 1M 1/16W Metal Oxide AA

R3 VRS-CZ1JF104J 100k 1/16W Metal Oxide AA

R4 VRS-CZ1JF562J 5.6k 1/16W Metal Oxide AA

R5 VRS-CZ1JF101J 100 1/16W Metal Oxide AA

R6 VRS-CZ1JF332J 3.3k 1/16W Metal Oxide AA

129

VL-SD20U

Ref. No. Part No. ★Description Code

VL-FD1U

MISCELLANEOUS PARTS

PZETE0022TAZZ Insulator AA

PZETE0024TAZZ Insulator AC

PZETE0034TAZZ Insulator AA

P101 QPLGN0288TAZZ Plug, 2Pin AE

SC501 QSOCN3911TAN1 Socket, 39Pin AG

SC502 QSOCN0660TAZZ Socket, 6Pin AC

SC551 QSOCN2205TAN1 Socket, 22Pin AF

DUNTK2920QA01

AUDIO I/O PWB UNIT

INTEGRATED CIRCUITS

IC601 VHiBH7761KV-1 BH7761KV, Audio I/O AS

IC602 VHiNJM2143R-1 NJM2143R, Amp AE

IC1501 VHiNJM2112V-1 NJM2112V, Op-Amp AF

IC1502 VHiTC7S66U/-1 TC7S66U, Analog SW AE

TRANSISTORS

Q601 VSFMG12////-1 FMG12 AD

Q602 VSRN4984///-1 RN4984 AC

Q603 VSHN1B04FU/-1 HN1B04FU AC

Q604 VSHN2A01FU/-1 HN2A01FU AC

Q605 VSRT1N441U/-1 RT1N441U AB

Q606 VSRN4984///-1 RN4984 AC

Q608 VSFMG12////-1 FMG12 AD

Q1501 VS2SA1989R/-1 2SA1989R AB

COILS

L601 VPCCM101K2R1N Peaking, 100µHAC

L602 VPCBM220K1R3N Peaking, 22µHAC

L603 VPCQM220K1R0N Peaking, 22µHAB

L1501 VPD9M220K2R0N Peaking, 22µHAC

CAPACITORS

C603 VCKYTV1CF225Z 2.2 16V Ceramic AC

C605 VCKYCZ1AF104Z 0.1 10V Ceramic AB

C606 VCKYCY1AF105Z 1 10V Ceramic AC

C607 VCKYCY1CB104K 0.1 16V Ceramic AB

C608 VCKYCY1CB104K 0.1 16V Ceramic AB

C609 VCKYCY1AF105Z 1 10V Ceramic AC

C610 VCKYCZ1HB102K 1000p 50V Ceramic AB

C611 VCKYCZ1HB102K 1000p 50V Ceramic AB

C616 VCKYTV1CF225Z 2.2 16V Ceramic AC

C617 VCKYCY1AF105Z 1 10V Ceramic AC

C618 VCKYCY1CB473K 0.047 16V Ceramic AA

C619 VCKYCY1CB473K 0.047 16V Ceramic AA

C621 VCKYCY1HB681K 680p 50V Ceramic AA

C623 VCKYCY1CB104K 0.1 16V Ceramic AB

C624 VCKYCZ1EB472K 4700p 25V Ceramic AB

C626 VCKYCY1HB681K 680p 50V Ceramic AA

C628 VCKYCY1CB104K 0.1 16V Ceramic AB

C629 VCKYCZ1EB472K 4700p 25V Ceramic AB

C631 VCSATA1AJ475M 4.7 10V Tantalum AC

C632 VCSATA0JJ156M 15 6.3V Tantalum AC

C633 VCSATA0JJ156M 15 6.3V Tantalum AC

C634 VCSATA1AJ106M 10 10V Tantalum AC

C635 VCSATE1AJ476M 47 10V Tantalum AD

C636 VCSATE1AJ476M 47 10V Tantalum AD

C637 VCKYCY1AF105Z 1 10V Ceramic AC

C638 VCSATA1AJ475M 4.7 10V Tantalum AC

C639 VCSATA0JJ156M 15 6.3V Tantalum AC

C640 VCSATE1AJ476M 47 10V Tantalum AD

C641 VCKYCY0JF105Z 1 6.3V Ceramic AB

C642 VCSATE0JJ107M 100 6.3V Tantalum AE

C643 VCKYCY1CB104K 0.1 16V Ceramic AB

C644 VCKYCY1CB104K 0.1 16V Ceramic AB

C645 VCKYCY1CB104K 0.1 16V Ceramic AB

C646 VCKYCY1AF105Z 1 10V Ceramic AC

C647 VCKYCY1CB473K 0.047 16V Ceramic AA

C648 VCKYCY1CB473K 0.047 16V Ceramic AA

C649 VCKYCY1AF105Z 1 10V Ceramic AC

C685 VCSATA0JJ156M 15 6.3V Tantalum AC

C686 VCSATA0JJ156M 15 6.3V Tantalum AC

C1502 VCKYCZ1CB223K 0.022 16V Ceramic AC

C1503 VCKYCZ1AB473K 0.047 10V Ceramic AB

C1504 VCKYCZ1HB332K 3300p 50V Ceramic AA

C1505 VCSATA0GJ226M 22 4V Tantalum AD

C1506 RC-KZ0055TAZZ 3.3 10V Ceramic AD

C1507 VCCCCZ1HH101J 100p 50V Ceramic AB

C1508 VCKYCZ1CB223K 0.022 16V Ceramic AC

C1509 VCSATA0JJ156M 15 6.3V Tantalum AC

RESISTORS

R603 VRS-CZ1JF102J 1k 1/16W Metal Oxide AA

R609 VRS-CZ1JF102J 1k 1/16W Metal Oxide AA

R610 VRS-CZ1JF562J 5.6k 1/16W Metal Oxide AA

R613 VRS-CZ1JF683J 68k 1/16W Metal Oxide AA

R614 VRK-SA1JF222J 2.2k 1/16W AB

Metal Composition

R616 VRS-CZ1JF683J 68k 1/16W Metal Oxide AA

R617 VRK-SA1JF222J 2.2k 1/16W AB

Metal Composition

R621 VRS-CZ1JF222J 2.2k 1/16W Metal Oxide AA

R623 VRS-CZ1JF222J 2.2k 1/16W Metal Oxide AA

R626 VRS-CZ1JF183J 18k 1/16W Metal Oxide AA

R627 VRS-CZ1JF333J 33k 1/16W Metal Oxide AA

R628 VRS-CZ1JF222J 2.2k 1/16W Metal Oxide AA

R629 VRS-CZ1JF103J 10k 1/16W Metal Oxide AA

R630 VRS-CZ1JF222J 2.2k 1/16W Metal Oxide AA

R632 VRS-CZ1JF183J 18k 1/16W Metal Oxide AA

R634 VRS-CZ1JF333J 33k 1/16W Metal Oxide AA

R635 VRS-CZ1JF103J 10k 1/16W Metal Oxide AA

R636 VRS-CZ1JF153J 15k 1/16W Metal Oxide AA

R638 VRS-CZ1JF105J 1M 1/16W Metal Oxide AA

R639 VRS-CZ1JF103J 10k 1/16W Metal Oxide AA

R640 VRS-CZ1JF223J 22k 1/16W Metal Oxide AA

R641 VRS-CZ1JF562J 5.6k 1/16W Metal Oxide AA

R645 VRS-CZ1JF333J 33k 1/16W Metal Oxide AA

R647 VRS-CZ1JF000J 0 1/16W Metal Oxide AA

R652 VRS-CZ1JF334J 330k 1/16W Metal Oxide AA

R653 VRS-CZ1JF334J 330k 1/16W Metal Oxide AA

R654 VRS-CZ1JF273J 27k 1/16W Metal Oxide AA

R655 VRK-SA1JF223J 22k 1/16W AB

Metal Composition

R656 VRS-CZ1JF563J 56k 1/16W Metal Oxide AA

R660 VRS-CZ1JF103J 10k 1/16W Metal Oxide AA

R661 VRS-CZ1JF103J 10k 1/16W Metal Oxide AA

R662 VRS-CZ1JF103J 10k 1/16W Metal Oxide AA

R663 VRS-CZ1JF000J 0 1/16W Metal Oxide AA

R666 VRS-CZ1JF473J 47k 1/16W Metal Oxide AA

R667 VRS-CZ1JF103J 10k 1/16W Metal Oxide AA

R668 VRS-CZ1JF183J 18k 1/16W Metal Oxide AA

R669 VRS-CZ1JF333J 33k 1/16W Metal Oxide AA

R670 VRS-CZ1JF103J 10k 1/16W Metal Oxide AA

R671 VRS-CZ1JF183J 18k 1/16W Metal Oxide AA

R672 VRS-CZ1JF103J 10k 1/16W Metal Oxide AA

R673 VRS-CZ1JF122J 1.2k 1/16W Metal Oxide AA

R674 VRS-CZ1JF103J 10k 1/16W Metal Oxide AA

R675 VRS-CZ1JF333J 33k 1/16W Metal Oxide AA

R676 VRS-CZ1JF122J 1.2k 1/16W Metal Oxide AA

R683 VRS-CZ1JF000J 0 1/16W Metal Oxide AA

R685 VRS-CZ1JF563J 56k 1/16W Metal Oxide AA

R686 VRS-CZ1JF563J 56k 1/16W Metal Oxide AA

R687 VRS-CZ1JF121J 120 1/16W Metal Oxide AA

R688 VRS-CZ1JF121J 120 1/16W Metal Oxide AA

R1501 VRS-CZ1JF223J 22k 1/16W Metal Oxide AA

R1502 VRS-CZ1JF223J 22k 1/16W Metal Oxide AA

R1503 VRS-CZ1JF223J 22k 1/16W Metal Oxide AA

R1504 VRS-CZ1JF103J 10k 1/16W Metal Oxide AA

R1505 VRS-CZ1JF474D 470k 1/16W Metal Oxide AA

R1506 VRS-CZ1JF274J 270k 1/16W Metal Oxide AA

R1507 VRS-CZ1JF474D 470k 1/16W Metal Oxide AA

R1508 VRS-CZ1JF103J 10k 1/16W Metal Oxide AA

R1509 VRS-CZ1JF153J 15k 1/16W Metal Oxide AA

R1511 VRS-CZ1JF472J 4.7k 1/16W Metal Oxide AA

130

VL-SD20U

Ref. No. Part No. ★Description Code Ref. No. Part No. ★Description Code

VL-FD1U

MISCELLANEOUS PARTS

BAT2601QTANS9044TAFW Terminal AC

BAT2602QTANS9045TAFW Terminal AC

FB601 RBLN-0120TAZZ Balun, BLN-0120TA AC

FB602 RBLN-0120TAZZ Balun, BLN-0120TA AC

FB603 RBLN-0120TAZZ Balun, BLN-0120TA AC

J601 QJAKE0060TAZZ Jack, 4Pin AE

P601 QPLGN0374TAZZ Plug, 3Pin AC

P602 QPLGN0276TAZZ Plug, 2Pin AD

P2604 QPLGN0276TAZZ Plug, 2Pin AD

P2605 QPLGN0276TAZZ Plug, 2Pin AD

SC2601 QSOCN2711TAN1 Socket, 27Pin AG

SC2602 QSOCN2711TAN1 Socket, 27Pin AG

SC2603 QSOCN2711TAN1 Socket, 27Pin AG

SC2606 QSOCN0660TAZZ Socket, 6Pin AC

SC2607 QSOCN3911TAN1 Socket, 39Pin AG

S1501 RSNSG0005CEZZ Gyro-Sensor AX

DUNTK2921QA01

LCD PWB UNIT

INTEGRATED CIRCUITS

IC3800 VHiNJM2904V-1 NJM2904V, Buff AF

IC8800 VHiVHCT04AT-1 VHCT04AT, Cmos Inv AE

IC9800 VHiTA75S01F-1 TA75S01F, I Det AD

TRANSISTORS

Q3800 VSRN1704///-1 RN1704 AC

Q3801 VSRN4990///-1 RN4990 AC

Q3802 VSRN4990///-1 RN4990 AC

Q8800 VSRN1704///-1 RN1704 AC

Q8801 VSRN1704///-1 RN1704 AC

Q8803 VSRT1N441U/-1 RT1N441U AB

Q9800 VS2SC5383F/-1 2SC5383F AB

Q9801 VSCPH3209//-1 CPH3209 AD

Q9802 VSCPH3209//-1 CPH3209 AD

Q9803 VSHN1B04FU/-1 HN1B04FU AC

DIODE

D9800 RH-EX0161TAZZ Zener, EX0161TA AD

PACKAGED CIRCUIT

TH9800 VHHT1103K44-1 Thermistor AD

COILS AND TRANSFORMER

L8800 VPD9M470J6R6N Peaking, 47µHAC

L9800 RCiLP0327TAZZ Coil, CiLP0327TA AD

L9801 RCiLP0331TAZZ Coil, CiLP0331TA AD

åT9800 RTRNZ0150TAZZ Power Transformer AL

CAPACITORS

C3800 VCKYTV1AB105K 1 10V Ceramic AD

C3803 VCCCCZ1HH101J 100p 50V Ceramic AB

C3804 VCCCCZ1HH101J 100p 50V Ceramic AB

C3805 VCKYTV1AB105K 1 10V Ceramic AD

C3806 VCKYCZ1CB223K 0.022 16V Ceramic AC

C3807 VCKYCZ1CB223K 0.022 16V Ceramic AC

C8800 VCKYCZ1CB103K 0.01 16V Ceramic AB

C8801 VCKYCZ1CB103K 0.01 16V Ceramic AB

C8802 VCKYCZ1CB103K 0.01 16V Ceramic AB

C8803 VCKYCZ1HF103Z 0.01 50V Ceramic AB

C8804 VCKYCZ1CB103K 0.01 16V Ceramic AB

C8806 VCKYCZ1HF103Z 0.01 50V Ceramic AB

C8808 VCKYCZ1CB103K 0.01 16V Ceramic AB

C8809 VCSATA1AJ106M 10 10V Tantalum AC

C9800 RC-KZ0055TAZZ 3.3 10V Ceramic AD

C9801 VCKYCZ1AF104Z 0.1 10V Ceramic AB

C9802 VCKYCZ1AF104Z 0.1 10V Ceramic AB

C9803 VCKYCZ1CB103K 0.01 16V Ceramic AB

C9804 RC-CZ0057TAZZ 0.015 25V Ceramic AD

C9807 VCKYCY1HB332K 3300p 50V Ceramic AA

C9808 VCKYCZ1CB103K 0.01 16V Ceramic AB

C9809 VCKYCZ1CB103K 0.01 16V Ceramic AB

C9810 RC-KZ0351CEZZ Capacitor AD

C9811 VCKYCZ1AF104Z 0.1 10V Ceramic AB

C9812 VCKYCZ1AB104K 0.1 10V Ceramic AB

C9813 VCKYCZ1HB102K 1000p 50V Ceramic AB

RESISTORS

R3803 VRS-CZ1JF394J 390k 1/16W Metal Oxide AA

R3804 VRK-SA1JF473J 47k 1/16W AC

Metal Composition

R3805 VRS-CZ1JF394J 390k 1/16W Metal Oxide AA

R3810 VRS-CZ1JF274J 270k 1/16W Metal Oxide AA

R3811 VRS-CZ1JF274J 270k 1/16W Metal Oxide AA

R6800 VRS-CZ1JF000J 0 1/16W Metal Oxide AA

R6801 VRS-CZ1JF000J 0 1/16W Metal Oxide AA

R6802 VRS-CZ1JF000J 0 1/16W Metal Oxide AA

R6803 VRS-CZ1JF000J 0 1/16W Metal Oxide AA

R6804 VRS-CZ1JF000J 0 1/16W Metal Oxide AA

R6805 VRS-CZ1JF000J 0 1/16W Metal Oxide AA

R6806 VRS-CZ1JF101J 100 1/16W Metal Oxide AA

R6807 VRS-CZ1JF101J 100 1/16W Metal Oxide AA

R6808 VRS-CZ1JF101J 100 1/16W Metal Oxide AA

R6809 VRS-CZ1JF000J 0 1/16W Metal Oxide AA

R6810 VRS-CZ1JF000J 0 1/16W Metal Oxide AA

R6811 VRS-CZ1JF000J 0 1/16W Metal Oxide AA

R6812 VRS-CZ1JF000J 0 1/16W Metal Oxide AA

R6813 VRS-CZ1JF221J 220 1/16W Metal Oxide AA

R8808 VRS-CZ1JF473J 47k 1/16W Metal Oxide AA

R8809 VRS-CZ1JF473J 47k 1/16W Metal Oxide AA

R8810 VRS-CZ1JF473J 47k 1/16W Metal Oxide AA

R8811 VRS-CZ1JF473J 47k 1/16W Metal Oxide AA

R8812 VRS-CZ1JF273D 27k 1/16W Metal Oxide AA

R8813 VRS-CZ1JF183D 18k 1/16W Metal Oxide AB

R8814 VRS-CZ1JF512J 5.1k 1/16W Metal Oxide AB

R8815 VRS-CZ1JF103J 10k 1/16W Metal Oxide AA

R8816 VRS-CZ1JF473J 47k 1/16W Metal Oxide AA

R9800 VRS-CZ1JF121J 120 1/16W Metal Oxide AA

R9801 VRS-CZ1JF152J 1.5k 1/16W Metal Oxide AA

R9802 VRS-CZ1JF152J 1.5k 1/16W Metal Oxide AA

R9803 VRS-CZ1JF362D 3.6k 1/16W Metal Oxide AB

R9804 VRS-CZ1JF472D 4.7k 1/16W Metal Oxide AB

R9805 VRS-CZ1JF182D 1.8k 1/16W Metal Oxide AB

R9806 VRS-CZ1JF103D 10k 1/16W Metal Oxide AB

R9807 VRS-CZ1JF473J 47k 1/16W Metal Oxide AA

R9808 VRS-CZ1JF271D 270 1/16W Metal Oxide AB

R9809 VRS-CZ1JF271D 270 1/16W Metal Oxide AB

R9810 VRS-CY1JFR22J 0.22 1/16W Metal Oxide AA

R9811 VRS-CY1JFR22J 0.22 1/16W Metal Oxide AA

R9812 VRS-CZ1JF102D 1k 1/16W Metal Oxide AA

R9813 VRS-CZ1JF183D 18k 1/16W Metal Oxide AB

R9814 VRS-CZ1JF101J 100 1/16W Metal Oxide AA

R9817 VRS-CZ1JF103J 10k 1/16W Metal Oxide AA

R9818 VRS-CZ1JF473J 47k 1/16W Metal Oxide AA

MISCELLANEOUS PARTS

FB3800 RBLN-0028TAZZ Balun, BLN-0028TA AB

FB3801 RBLN-0028TAZZ Balun, BLN-0028TA AB

FB8800 RBLN-0028TAZZ Balun, BLN-0028TA AB

FB9800 RBLN-0028TAZZ Balun, BLN-0028TA AB

SC8800 QSOCN1105TAN1 Socket, 11Pin AE

SC8801 QSOCN1106TAN1 Socket, 11Pin AE

SC8802 QSOCN1106TAN1 Socket, 11Pin AE

SC8803 QSOCN2406TAN1 Socket, 24Pin AF

SC8804 QSOCN0606TAN1 Socket, 6Pin AK

SC9800 QSOCN1019TAN1 Socket, 10Pin AG

131

VL-SD20U

Ref. No. Part No. ★Description Code

VL-FD1U

R321 VRS-CZ1JF682J 6.8k 1/16W Metal Oxide AA

R324 VRS-CZ1JF222J 2.2k 1/16W Metal Oxide AA

R330 VRS-CZ1JF563J 56k 1/16W Metal Oxide AA

R332 VRS-CZ1JF102J 1k 1/16W Metal Oxide AA

R333 VRS-CZ1JF222J 2.2k 1/16W Metal Oxide AA

R377 VRS-CZ1JF000J 0 AA

R380 VRS-TV1JD100J 10k 1/16W Metal Oxide AA

MISCELLANEOUS PARTS

P306 QCNCM8082TAZZ Plug, 80Pin AK

P1008 QCNCM8082TAZZ Connector, 80Pin AK

SC301 QSOCN0806TAN1 Connector, 8Pin AL

SC302 QSOCN0606TAN1 Connector, 6Pin AK

SC303 QSOCN1005TAN1 Connector, 10Pin AF

SC304 QSOCN0705TAN1 Connector, 7Pin AK

SC305 QSOCN1887TAZZ Connector, 18Pin AD

SC306 QSOCN1886TAZZ Connector, 18Pin AD

SC1007 QCNCW8080TAZZ Connector, 80Pin AH

RAMP-0032TAN0

HEAD AMP PWB UNIT

INTEGRATED CIRCUITS

IC301 VHiBH7275KV-1 BH7275KV, AU

REC/PB Amp IC

IC302 VHiM24C04W6-1 M24C04W6, E2PROM IC AE

TRANSISTORS

Q302 VS2SC4738Y/-1 2SC4738Y AA

VS2SC4617B/-1 2SC4617B AA

VS2SC5383F/-1 2SC5383F AB

Q303 VS2SC4738Y/-1 2SC4738Y AA

VS2SC4617B/-1 2SC4617B AA

VS2SC5383F/-1 2SC5383F AB

COIL

L301 VPAWM4R7MR70N Coil, 4.7µHAC

CAPACITORS

C301 VCKYCZ1HB102K 1000p 50V Ceramic AB

C302 VCKYCZ1HF103Z 0.01 50V Ceramic AB

C303 VCSATE1AJ336M 33 10V Tantalum AG

C304 VCKYCZ1AF104Z 0.1 10V Ceramic AB

C305 VCCCCY1HH331J 330p 50V Ceramic AA

C306 VCKYCZ1HB102K 1000p 50V Ceramic AB

C307 VCCCCY1HH331J 330p 50V Ceramic AA

C308 VCKYCZ1AF104Z 0.1 10V Ceramic AB

C309 VCKYCZ1HB102K 1000p 50V Ceramic AB

C310 VCKYCY1HF103Z 0.01 50V Ceramic AB

C311 VCKYCZ1HF103Z 0.01 50V Ceramic AB

C312 VCKYCZ1HB102K 1000p 50V Ceramic AB

C313 VCKYCZ1HB102K 1000p 50V Ceramic AB

C314 VCKYCZ1AF104Z 0.1 10V Ceramic AB

C315 VCKYCZ1HB102K 1000p 50V Ceramic AB

C318 VCKYCZ1HB102K 1000p 50V Ceramic AB

C319 VCKYCZ1AF104Z 0.1 10V Ceramic AB

C320 VCKYCZ1AF104Z 0.1 10V Ceramic AB

C321 VCKYCZ1HB102K 1000p 50V Ceramic AB

C322 VCKYCY0JB105K 1 22V Ceramic AC

C323 VCKYCZ1HB102K 1000p 50V Ceramic AB

C324 VCKYCZ1HF103Z 0.01 50V Ceramic AB

C327 VCKYCZ1EB472K 4700P 25V Ceramic AB

C329 VCSATE1AJ336M 33 10 Tantalum AG

C330 VCKYCZ1HF103Z 0.01 50V Ceramic AB

C331 VCKYCZ1AF104Z 0.1 10V Ceramic AB

C332 VCKYCZ1EB472K 4700p 25V Ceramic AB

C333 VCKYCZ1CB822K 8200p 16V Ceramic AB

C340 VCCCCZ1HH5R0C 5p 50V Ceramic AC

C342 VCCCCZ1HH5R0C 5p 50V Ceramic AC

C343 VCKYCZ1AF104Z 0.1 10V Ceramic AB

C344 VCKYCZ1AF104Z 0.1 10V Ceramic AB

C345 VCKYCZ1AF104Z 0.1 10V Ceramic AB

RESISTORS

R304 VRS-CZ1JF222J 2.2k 1/16W Metal Oxide AA

R308 VRS-CZ1JF122J 1.2k 1/16W Metal Oxide AA

R309 VRS-CZ1JF512J 5.1k AB

R310 VRS-CZ1JF433J 43k 1/16W Metal Oxide AA

R311 VRS-CZ1JF101J 100 1/16W Metal Oxide AA

R312 VRS-CZ1JF102J 1k 1/16W Metal Oxide AA

R313 VRS-CZ1JF822J 8.2k AA

R314 VRS-CZ1JF101J 100 1/16W Metal Oxide AA

R315 VRS-CZ1JF102J 1k 1/16W Metal Oxide AA

R316 VRS-CZ1JF473J 47k AA

R317 VRS-CZ1JF563J 51k 1/16W Metal Oxide AA

R318 VRS-CZ1JF513J 51k AA

R319 VRS-CZ1JF182J 1.8k 1/16W Metal Oxide AA

R320 VRS-CZ1JF182J 1.8k 1/16W Metal Oxide AA

132

VL-SD20U

Ref. No. Part No. ★Description Code Ref. No. Part No. ★Description Code

VL-FD1U

MECHANISM PARTS

DMECV0063GE65 Mechanism Ass'y —

301 LCHSM0167GEZZ Main Chassis Ass’y AQ

302 MLEVF0501GEFW Eject Lever AD

303 MLEVF0502GEFW Pinch Control Lever AD

304 NGERH3050GEFW Main Cam AD

305 MLEVF0503GEZZ Shifter Drive Lever Ass’y AE

306 MLEVF0505GEFW Loading Lever AD

307 MARMM0130GEZZ S Loading Arm Ass’y AF

308 MARMM0131GEZZ Tu Loading Arm Ass’y AF

309 MLEVF0508GEFW T Arm Control Lever AD

310 MLEVF0509GEFW AHC Control Lever AC

311 LANGG9106GEFW Tu Guide Cam AD

312 LANGF9016GEZZ Intermediate Gear AG

ANG Ass’y

313 MARMM0132GEZZ Swing Arm Ass’y AG

314 LANGJ0052GEFW Mechanism Fixing Angle AH

Ass’y

321 LANGQ1044GEZZ Down SW-ANG Ass’y AE

322 QPWBH5781GEZZ Dew Sensor FPC AH

323 QSW-M0016TAZZ Down SW AD

324 RDTCH0039GEZZ Dew Sensor AD

325 ZTAPEZ212010M Dew FPC Stopper AB

326 LANGG9109GEFW Cap FPC Stopper AC

330 CCHSS0047GE02 Slide Chassis Ass’y with AZ

FPC Sensor

331 LCHSS0047GEZZ Slide Chassis Ass’y AQ

332 CPWBH5782GE01 Sensor FPC Ass’y AX

333 QPWBH5782GEZZ Sensor FPC AN

334 LHLDP1174GEZZ S-LED Holder AC

335 LHLDP1175GEZZ Tu-LED Holder AC

336 PGiDM0157GEZZ Lid Opener AB

337 LHLDZ2023GEZZ Sensor FPC Guide AB

338 QSW-M0047GEZZ Recognition SW AE

339 QTANZ0003GEZZ Mic Contact AE

340 RH-PX0180TAZZ Cassette LED AE

341 RH-PX0181TAZZ S/E Sensor AF

342 RDTCM0002TAZZ Reel Sensor AE

343 PSHEP0015GEZZ Sensor FPC Reinforcing AB

Plate

351 MLEVF0510GEZZ Tension Arm Ass’y AG

352 MLEVF0511GEZZ Tu Guide Arm Ass’y AG

353 MLEVF0512GEZZ Brake Shifter Ass’y AE

354 LBNDK3022GEZZ Tension Band Ass’y AF

355 LANGA0073GEZZ Reel Cover Ass’y AG

356 LANGJ0038GEFW T Spring Hanging ANG AC

357 MLEVP0302GEZZ Swing Arm Release Lever AC

361 MLEVP0296GEZZ Pinch Drive Lever AB

362 PGiDM0156GEZZ Guide Rail AC

364 NGERH1300GEZZ Intermediate Gear A Ass’y AE

365 NGERH1301GEZZ Intermediate Gear B Ass’y AB

366 NPLYV0164GEZZ Intermediate Pulley Ass’y AC

367 NPLYV0165GEZZ Center Pulley Ass’y AC

368 PCOVP1024GEZZ Down SW Cover AB

369 NGERH1302GEZZ AHC Cam AB

370 NGERH1303GEZZ Coupling Gear AB

371 NGERH1304GEZZ Sub Cam AC

372 NGERH1305GEZZ S Loading Gear AC

373 NGERH1306GEZZ Tu Loading Gear AC

374 MLEVP0308GEZZ S Main Brake AB

375 MLEVP0309GEZZ Tu Main Brake AB

376 LHLDX1033GEZZ S Cassette Stay AB

377 LHLDZ2024GEZZ FPC Cover AB

378 PGiDM0166GEZZ SL Chassis Holder-S AC

379 PGiDM0167GEZZ Lock Lever Guide AC

381 PGiDP0031GEFW Tu Pole AD

382 PGiDS0046GEFW T Roller Upper Flange AE

383 PGiDS0047GEFW T Roller Bottom Flange AE

384 NSFTL0761GEFW T Roller Inner AE

385 PGiDP0042GEFW S Guide Sleeve AD

386 PGiDM0170GEZZ Slide Chassis Guide AC

390 MSPRD0184GEFJ Swing Arm Release SPR. AC

391 MSPRT0417GEFJ Main Brake SPR. AB

392 MSPRT0418GEFJ T Arm SPR. AB

393 MSPRD0178GEFJ Tu Guide Arm SPR. AB

394 MSPRD0179GEFJ Pinch Lever Return SPR. AB

395 MSPRD0180GEFJ S Pressure SPR. AB

396 MSPRD0181GEFJ Tu Pressure SPR. AB

397 MSPRC0220GEFJ Guide Adjustment SPR. AA

398 MSPRC0221GEFJ Drum Fixing SPR. AA

399 MSPRP0185GEZZ PB Guide SPR. AC

401 LX-WZ1071GE02 CW ø 0.7 ø 1.8t0.1 AC

402 LX-WZ1104GE06 CW ø 0.7 ø 2.2t0.25 AB

403 LX-WZ1029GE00 CW ø 1.2 ø 3t0.25 AA

411 LZ-WZ1105GE00 W ø 1.2 ø 2.5t0.13 AA

412 LZ-WZ1106GE00 W ø 1.2 ø 2.5t0.2 AA

413 XWHJZ12-03025 W ø 1.2 ø 2.5t0.3 AA

414 XWHJZ12-04025 W ø 1.2 ø 2.5t0.4 AA

415 XWHJZ12-05025 W ø 1.2 ø 2.5t0.5 AA

420 LX-BZ3202GEFF Swing Arm Release AC

Lever Fixing Screw

421 LHLDZ2025GEZZ Intermediate Gear Stopper AB

428 LX-NZ0102GEFW S Guide Hexagon Nut AC

429 LX-BZ3203GEFF Type 1 Minuteness AB

Screw M1.4 x L1

431 LX-BZ3135GEFF Screw M1.4 x L1 AA

432 LX-BZ3201GEFF Special Head AB

Screw M1.4 x L2

433 LX-BZ3132GEFF Special Head AA

Screw M1.4 x L1.5

434 LX-BZ3131GEFN Screw M1.4 x L1.6 AA

435 LX-HZ3089GEFF S Tight Screw M1.4 x L2 AA

436 LX-HZ3076GEFF S Tight Screw M1.4 x L3 AA

437 LX-HZ3088GEFF L Motor Installation AB

Screw

438 LX-BZ3225GEFF Drum Installation Screw AC

439 LX-BZ3181GEFN GR Lock Screw AD

440 LX-HZ3084GEFF S Tight Screw M1.4 x L4 AC

441 QPWBH5780GEZZ Mode FPC AE

451 LPOLM0065GEZZ Sup Pole Base Ass’y AK

452 LPOLM0066GEZZ Tu Pole Base Ass’y AK

453 CGiDM0158GE01 Drum Base Ass’y AN

454 NROLM0046GEZZ Guide Roller Ass’y AM

455 NROLM0045GEZZ T Roller Ass’y AK

456 NDAiV1076GEZZ S Reel Base Ass’y AM

457 NDAiV1077GEZZ Tu Reel Base Ass’y AK

458 MLEVF0526GEZZ Pinch Lever Ass’y AP

459 NBLTT0016GEZZ Timing Belt AD

461 RMOTM1080GEZZ L Motor Ass’y AQ

462 RMOTV1023GEZZ Capstan Motor AY

463 QSW-R0039GEZZ Mode SW AE

470 DDRMV0061GE04 Drum Ass’y BZ

500 RAMP-0032TAN0 Head Amp PWB Unit —

CASSETTE CONTROL PARTS

600 CHLDX3080GE08 Cassette Control Ass’y AY

601 LHLDX3080GEZZ Housing Ass’y AW

604 CLEVF0524GE01 Top Cover Ass’y AT

606 LANGF9647GEZZ Side Board Ass’y AG

607 MSPRB0001GEFJ UP-Spring AD

608 LX-HZ3089GEFF S Tight Screw M1.4 x L2 AA

609 PDMP-0016GEZZ Damper AE

610 TLABH0556GEZZ Cassette Control Caution AD

Label

611 TLABH0557GEZZ Cassette Control Lock AD

Label

614 ZTAPEZ211004M FPC Shield Tape AB

617 PGiDM0160GEZZ Cassette Lid Guide L AC

618 PGiDM0161GEZZ Cassette Lid Guide R AC

133

VL-SD20U

Ref. No. Part No. ★Description Code

VL-FD1U

CABINET PARTS LIST

1 CANGK0482TA01 KS, LCD Shield Rear AL

1-2 PSHEP0132TAZZ Light Shield Sheet AE

1-3 PTPEH0021TAZZ LCD Fixing Double-sided AD

Adhesive Tape

2 CANGK0483TA01 KS, LCD Shield Front AG

2-2 PZETE0025TAZZ Insulation Sheet E AA

5-1-1-2 LANGK0487TAFW Stay A AD

5-1-1-3 LANGK0488TAFW Stay B AC

5-1-1-4 LANGK0489TAFW Stay C AC

5-1-1-5 NSFTZ0115TAFW Caulking A AC

5-1-1-6 NSFTZ0117TAFW Caulking C AC

5-1-2-2 LANGK0490TAFW Stay D AE

5-1-3 CANGK0493TA01 Lock Fixing ANG Complete AP

5-1-3-1 LANGK0491TAFW Lock ANG AD

5-1-3-2 LANGK0492TAFW Temporary Lock Angle AC

5-1-3-4 MSPRD0067TAFJ V Lid Temporary Lock AB

Spring

5-1-3-5 MSPRT0055TAFJ V Lid Lock Spring AC

5-1-3-6 NSFTZ0118TAFW Caulking D AC

5-1-4 CFTAC3008TA01 V Lid Complete AX

5-1-4-2 LHLDZ3044TAZZ V Lid Caulking R AE

5-1-4-3 LHLDZ3045TAZZ V Lid Caulking L AE

5-1-5 DCABA6215TAK2 V Frame(FD1U/UT/UW)

5-1-5 DCABA6215TAK3 V Frame(FD1UK)

5-1-6 GCOVA1631TASA Grip Cover AH

5-1-7 JBTN-0308TASA Lock Button AF

5-1-8 LHLDZ1522TAZZ Lock Button Holder AC

5-1-9 LHLDZ1523TAZZ Mechanism Pad Holder AC

5-1-10 PSPAG0124TA00 Mechanism Floating AC

Rubber

5-1-11 PSPAZ0295TAZZ V Lid Cushion AA

5-1-12 QSW-Z0333TAZZ Eject Detection SW PWB AK

5-2 JBTN-0309TASA LCD Detection Button AD

5-3 JKNBP0184TASA Battery Lock Knob AD

5-4 LHLDZ1521TAKA Battery Holder AF

5-5 MSPRC0125TAFJ LCD Detection Button AB

Spring

5-6 MSPRD0066TAFJ Battery Lock Spring AC

5-7 NSFTZ0119TAFW Shaft for Knob AB

5-8 PSHEP0129TAZZ Lock Knob Cover Sheet AB

5-9 PSHEP0130TAZZ Temporary Lock Cover AB

Sheet

5-10 QTANZ0143TAZZ Battery Terminal Unit AU

5-11 TLABH0414TAZZ Battery Caution Label AD

5-13 TLABZ0501TAZZ Real Product Label(FD1UK) AC

6-1 DCABB6232TA01 L Cabinet Ass’y BD

(FD1U)

6-1 DCABB6232TA02 L Cabinet Ass’y BD

(FD1UT/UK/UW)

6-1-2 GCOVA1634TASA R/C Cover AD

6-1-4 JKNBP0185TASA LCD Lock Knob AG

6-1-5 MSPRC0124TAFJ LCD Lock Spring AB

6-1-6 PSHEP0163TAZZ Protection Sheet AF

6-1-7 PSPAZ0262TAZZ LCD Holding Rubber AA

6-1-8 TLABH0416TAZZ Pen Input Caution Label AD

6-1-9 PZETE0028TAZZ Main PWB Insulation AB

Sheet A

6-1-10 PZETE0029TAZZ Main PWB Insulation AB

Sheet B

6-1-11 TLABH0418TAZZ UL/FCC Label(FD1U) AD

6-1-12 TLABH0423TAZZ DOC Label(FD1U) AD

A3 CPWBH2923TA01 LCD Tilt FPC AS

A4 GCOVA1641TASA LCD Hinge Cover A AE

A5 GCOVA1642TASA LCD Hinge Cover B AE

A6 LANGK0517TAZZ LCD Hinge Unit AW

A7 CPWBH2922TA01 Camera Tilt FPC AX

A8 LANGK0484TAFV Camera Frame C AR

A9 LANGK0495TAFW Stopper Angle AC

A10 LHLDZ1526TAZZ FPC Holder C AD

A11 LX-BZ0238TAFD M1.7 x 5 Small Screw AB

A12 PGiDH0011TAZZ FPC Guide AF

A13 PSPAZ0293TAZZ Camera Tilt Spacer AE

A14 PSPAZ0294TAZZ Spacer AF

A15 QSW-Z0335TAZZ Camera Turn SW AG

A16 XiPSF17P03000 M1.7 x 3 Black Small AA

Screw

A17 PSHEP0145TAZZ FPC Tape AB

7 CCABC6215TAK1 Camera Front Cabinet AQ

Complete

7-2 GCOVA1638TAKA Camera Front Grip AF

7-3 MSPRD0069TAFJ Grip Spring AC

7-4 NSFTZ0125TAFW Grip Shaft AD

7-5 PSHEP0134TAZZ Grip Slide Sheet AC

8 DCABD6113TAK1 Camera Rear Cabinet AS

Complete

8-2 GCOVA1639TASA Camera Rear Grip AG

8-3 JBTN-0310TASA Lock Release Button AE

8-4 LANGK0513TAFW Speaker ANG AC

8-5 LHLDZ1527TAZZ Button Holder AD

8-6 TLABH0417TAZZ Lithium Replacement AB

Label

8-7 LX-HZ0050TAFF M1.7 x 4 Black Tap AA

8-8 GCOVA1677TAKA Power Switch Cover AF

8-9 GCOVA1645TAZZ LED Cover AC

8-10 JKNBP0186TASA Power Knob AE

8-11 JBTN-0311TASA Pen Input Button AG

8-12 QSW-Z0330TAZZ Power SW Unit AP

8-13 VSP0020P-968N Speaker AL

8-14 PCOVP9080TAZZ Sheet AA

9 CCOVA1628TAK1 Camera Side Cover AR

Complete

9-2 LANGK0440TAFW Shoulder Belt Fitting C AC

9-3 NSFTZ0126TAFW Strap Shaft B AB

9-4 UBNDT0125TAZZ Hand Strap AL

9-5 LHLDE1003TASA Holder AD

10 CCOVA3070TA01 LCD Cover Ass’y AV

(FD1UT/UK/UW)

10 CCOVA3070TA02 LCD Cover Ass’y(FD1U) AV

10-2 PZETE0026TAZZ Insulation Sheet F AC

10-3 TLABS0102TAZZ Lightning Label(FD1U) AD

11-1 DCOVA1675TAK1 VCR Side Cover Ass’y AS

11-1-2 GCOVA1635TASA Terminal Cover AE

11-1-3 GCOVH1248TASA Hole Cover AD

11-1-4 LANGK0494TAFW Shoulder Fitting V AE

11-1-5 MSPRC0127TAFJ Spring for Hole Cover AB

11-1-6 QEARP0258TAFW Shoulder Fitting Earth AC

Plate

11-2 QSW-Z0332TAZZ JOG Switch AM

11-3 JKNBP0161TASB Jog Knob AE

13 DCABE6045TAK1 Camera Upper Cabinet AX

Service

13-1-2 GCOVA3073TASA Microphone Decoration AK

Cover

13-1-3 GLEGP0021TASA Lens Decoration Leg AD

13-1-4 JBTN-0312TASA Start/Stop Button AG

13-1-5 JKNBP0188TASA Zoom Lever AE

13-1-6 LANGK0515TAFW Zoom SW Holding ANG AK

13-1-7 PCOVP9076TAZZ Microphone Sheet AB

13-1-8 PCOVP9078TAZZ Microphone Sound AB

Insulation Sheet B

13-1-9 XiPSC17P02000 M1.7 x 2 Silver Small AA

Screw

13-1-11 PSHEZ0012TAZZ Zoom Slide Sheet A AB

13-1-12 PSHEZ0013TAZZ Zoom Slide Sheet B AB

13-1-13 PSHEZ0014TAZZ Zoom Slide Sheet C AB

13-2 LHLDZ1525TAZZ Microphone Holder AD

13-3 LX-HZ0050TAFF M1.7 x 4 Black Tap AA

13-4 PCOVP9077TAZZ Microphone Sound AC

Insulation Sheet A

13-5 QEARP0259TAFW Microphone Earth Plate AC

13-6 QSW-Z0331TAZZ Zoom Unit AP

13-7 RMiCC0088TAZZ Microphone Unit AR

13-8 XiPSF17P02000 M1.7 x 2 Black Small AA

Screw

14 CCABF6200TAK1 Camera Lower Cabinet AS

Ass’y

14-2 GCOVA3074TASA Grip Holding Cover AM

134

VL-SD20U

Ref. No. Part No. ★Description Code Ref. No. Part No. ★Description Code

VL-FD1U

14-3 MSPRD0068TAFJ Grip Holding Spring AB

14-4 NSFTZ0127TAFW Holding Shaft AB

15 CCOVA1632TA01 Lens Front Cover Ass’y AT

15-2 GCOVA1633TASA Lens Front Decoration AE

Cover

15-3 GCOVA3072TASA Lens Hood AM

17 DCOVA3071TA01 Camera Frame Ass’y BC

18 CCOVA1636TA01 Pop-up Cover Ass’y AK

18-2 MLEVP0043TASA Pop-up Lever AC

18-3 MSPRC0126TAFJ Pop-up Spring AB

18-4 LX-HZ0075TAFD Special Screw AA

19 CCOVA1676TAK1 LCD Front Cover AP

Complete

19-2 QEARP0257TAZZ LCD Earth Plate AE

19-3 TLABH0415TAZZ Inversion Caution Label AD

20 CLNSA0135TA03 Lens BS

21 DUNTK2919QA01 Camera Head PWB Unit —

26 XASSN17P04000 M1.7 x 4 Flat Head Nickel AA

Screw

27 GCOVA1640TASA Decoration Cover AH

28 LANGK0511TAFW Camera Frame Coupling AD

Metal

29 LANGK0512TAFW Camera Head PWB AD

Fixture

30 LHLDZ1528TAZZ Camera PWB Holder AD

31 LHLDZ1529TAZZ Lithium Holder AD

32 LHLDZ1530TAZZ PWB Holder AD

33 PTPEH0036TAZZ PWB Double-sided AB

Adhesive Tape

35 LANGK0519TAFW Lock Holding ANG AF

36 PSHEP0092TAZZ Reflection Deflection AN

Plate

37 PSHEP0104TAZZ Wide-angle Sheet AD

38 PSHEP0093TAZZ Prism Sheet AH

39 PSHEP0090TAZZ Diffusion Sheet AD

40 PGiDM0030TAZZ Light Guide Plate AH

41 PMiR-0026TAZZ Reflection Sheet AD

42 DUNTK2921QA01 LCD PWB Unit —

43 PSLDM9150TAZZ Shield Sheet AC

å44 CLMPV0049RM04 Lamp Ass’y AZ

45 QSW-Z0339TAZZ Touch Panel BK

46 RLCDV0039TAZZ LCD Panel

47 CPWBH2925TA01 Main H/A Relay Flexible AR

48 DUNTK2976QA00 Main PWB Unit —

49 DUNTK2920QA01 Audio I/O PWB Unit —

50 TLABM2122TAZZ Model Label(FD1U) AD

50 TLABM2125TAZZ Model Label(FD1UT)

50 TLABM2126TAZZ Model Label(FD1UW)

50 TLABM2127TAZZ Model Label(FD1UK)

51 PSPAZ0313TAZZ Microphone Sound AB

Insulation Spacer

a XiPSC17P02000 M1.7 x 2 Silver Small AA

Screw

b XiPSC17P03000 M1.7 x 3 Silver Small AA

Screw

c XiPSC17P04000 M1.7 x 4 Silver Small AA

Screw

d XiPSC17P05000 M1.7 x 5 Silver Small AA

Screw

e XiPSF17P02000 M1.7 x 2 Black Small AA

Screw

f LX-BZ0224TAFC M1.7 x 2.5 Chrome AA

g LX-BZ0222TAFF M1.7 x 3 Black with AB

A-Lock

h LX-BZ0221TAFC M1.7 x 3 Chrome with AB

A-Lock

k LX-BZ0231TAFE Mechanism Floating AB

Screw

n XiPSF20P04000 M2.0 x 4 Black Small AA

Screw

p LX-HZ0050TAFF M1.7 x 4 Black P Tight AA

r LX-BZ0232TAFD Mechanism Floating AB

Screw

s XAPSH17P02000 M1.7 x 2 Chrome Matting AB

SUPPLIED ACCESSORIES

ACCESSORIES

GCOVH1250TASA Lens Cap AE

åQACCB0016TAZZ AC Cable(FD1UW) AV

åQACCZ0052TAZZ AC Cable(FD1UK) AM

QCNW-1927TAZZ AV/S Cable AT

QCNW-1926TAZZ DC Cable AT

RRMCG0095TASA Remote Control AR

TiNS-6038TAZZ Operation Manual

(FD1UT)

TiNS-6039TAZZ Operation Manual

(FD1UK)

TiNSE0369TAZZ Operation Manual

(FD1U/UW)

åUADP-0294TAZZ AC Adaptor(FD1U) BM

åUADP-0295TAZZ AC Adaptor(FD1UT) BN

åUADP-0296TA01 AC Adaptor(FD1UK) BP

åUADP-0296TAZZ AC Adaptor(FD1UW) BN

UBNDS0023TAZZ Shoulder Strap AH

UBATL0011TAZZ Lithium Battery(CR2025) AE

UBATL0015TAZZ Lithium Battery(CR1616) AE

UBATi0062TAZZ Battery BE

GDAi-1058TAZZ Tripod Stand AL

UPENP0001TAZZ Hand-held Pen AF

RCORF0050TAZZ Ferrite Core for

S_video/video/audio Cable

RCORF0037TAZZ Ferrite Core for DC Cable AM

Ferrite Core for Connecting Cable

of Earphones

RCORF0061CEZZ Ferrite Core for DV Cable AG

QCNW-2014TAZZ Earphones Cable

ACCESSORIES

(NOT REPLACEMENT ITEM)

TGANE0044TAZZ Guarantee Card AC

(FD1U)

TGANZ0013TAZZ Guarantee Card AN

(FD1UT)

TGANZ0022TAZZ Guarantee Card AL

(FD1UW)

TLABK0001TAZZ No Card AA

PACKING PARTS

(NOT REPLACEMENT ITEM)

SPAKC7547TAZZ Packing Case —

(FD1U/UT)

SPAKC7556TAZZ Packing Case —

(FD1UK)

SPAKC7557TAZZ Packing Case —

(FD1UW)

SPAKA6359TAZZ Packing Top ADD. —

SPAKA6356TAZZ Packing Bottom ADD. —

SPAKA6362TAZZ Packing —

SPAKP6068TAZZ Wrapping Paper —

SSAKA0087TAZZ Polyethylene Bag —

SPAKP6108TAZZ Side Pad —

135

VL-SD20U

Ref. No. Part No. ★Description Code

VL-FD1U

MECHANISM CHASSIS EXPLODED VIEW

123456

401

374

391 375

353

391

420

357

390

PUSH

382

455

384

383

402

354

432

340

334 341

340

335

336

342

338

333

337

403

434

435

376

435 356

456

313

401

435

429

377

355

431

428

457

458

394

434

385

331

402

454

439

451

307

395

372

402

373

308

436

453

398

438

365

312

364

421

435

437

436

403

433

310

461

367 459

366 434

434

311

301

435

361

314

370

369

302

304

434

306

309

403

305

386

371

303

441

463

436

462

434

454

452

439 436

402

396

397

432

392

351

382

381

383

397

352

393

436

435

436 339

399

411~

415

1pc.

411~

415

332

362

435

379

330

343

500 325

435

326

435

434

322

378

436

440

324

323

368

435

321

436

435

325

470

136

VL-SD20U

Ref. No. Part No. ★Description Code Ref. No. Part No. ★Description Code

VL-FD1U

CABINET EXPLODED VIEW

123456

9-4

9-5

14-2 14-3

19-3

10-3

19-2

1-3

10-2

1-2

2-2

14-4

13-5 13-7

13-6

9-2

9-3

15-3

15-2

8-7

8-14

8-4

8-3 8-5

8-6

8-9

8-12

8-11

8-2

8-10

5-5

5-4

5-11

5-8

5-2

5-9

5-10 5-13

5-7

5-6

5-3

18-3

18-2

18-4

6-1

11-2

11-1

A6 A5

A17

A15

A13

A14

A12 A10

11-3

8-8

8-13

13-4

7-5

7-2

7-4

7-3

13-2

13-3

13-1-2

13-1-8

13-1-7 5-1-7

5-1-6

5-1-4

5-1-8

5-1-3

5-1-5

6-1-2

6-1-10

6-1-11

6-1-12

6-1-7

6-1-5

6-1-8

6-1-4 6-1-7 6-1-6

6-1-9

5-1-10

11-1-6 11-1-4

11-1-5

11-1-3

11-1-2

5-1-10

5-1-10 5-1-12

5-1-11

5-1-9

13-1-5

13-1-9

13-1-11 13-1-9

13-1-6

13-1-13

13-1-4

5-1-3-55-1-1-5 5-1-3-4 5-1-3-6

5-1-3-2

5-1-1-5

5-1-3-1

5-1-2-2

5-1-1-2

5-1-1-3

5-1-1-5

5-1-1-4

5-1-4-2

5-1-4-3

13-1-12

13-1-3

13-8

5-1-1-6

5-1-1-5

A16

A11

15 7

50 17

137

VL-SD20U

Ref. No. Part No. ★Description Code

VL-FD1U

CASSETTE CONTROL EXPLOOD VIEW

123456

600

610

PUSH

607 614

604

611

601

618

609

608

606

617

138

VL-SD20U

Ref. No. Part No. ★Description Code Ref. No. Part No. ★Description Code

VL-FD1U

VL-FD1U SERVICE JIG SPECIFICATIONS

1-1. Adjusting jigs for checking the mechanism

No. Name

New part

Type number, Application Part code Code

1 PB-use cassette torque meter 1mN·m/15mN·m 9DASD-1015 DB

2 Torque gauge

For use in VS-REW take up torque adjustment

JiGTG0045 CN

3 Torque gauge head For use with the above torque gauge 9EQTGH-DH5000 BW

4 Tension gauge 4N For measuring of pinch roller pressure JiGSG0400 BK

5 Dial tension gauge PTG-10 9DAPTG-10-10W CA

6 Torque screwdriver 150mN·m No. 0 cross bit JiGTD1500RTDH CB5

7 Master plane For checking the reel base height 9EQMP-VLPD1 CL

8 Height adjustment jig For height adjusting 9DAHG-PD1 BZ

9 Height adjustment screwdriver For guide roller adjustment. 9EQDRiVER-DH5 BC

For Tu guide adjustment.

For T roller adjustment.

Bit shape.

10 Alignment tape - IFor tape running adjustment VR3-GAZXS CF

11 Alignment tape - II For Switching Point adjustment VR3-GTZQS CG

12 For hexagon nut opposite side 3mm bit For S guide hexagon nut installation. 95CM22001 BL

13 Reel hub for back tension measurement Refer to Service Manual. Prepared in the service station. –

14 String for measuring the pinch roller pressure Refer to Service Manual. Prepared in the service station. –

1-2. Parts for periodical inspection and maintenance

No. Name

New part

Type number, Application Part code Code

1 OiL Cosumo Hydro HV22 9EQ-OiL-HV22 AE

2 Cleaning paper Dusper ∑ (SIGMA) ozu Co., LTD JiGDUSPER AP

3 Grease: Moly Coat YM-103 Dow coaning 99FGREASE-YM103 AH

139

VL-SD20U

Ref. No. Part No. ★Description Code

VL-FD1U

18. PACKING OF THE SET

ACCESSORIES

PACKING PARTS

(NOT REPLACEMENT ITEM)

No. Model Parts Code Description Remarks

1 – Common parts – GCOVH1250TASA Lens Cap

2 FD1UW QACCB0016TAZZ AC Cable å

FD1UK QACCZ0052TAZZ AC Cable å

3 – Common parts – QCNW-1927TAZZ AV/S Cable

4 – Common parts – QCNW-1926TAZZ DC Cable

5 – Common parts – RRMCG0095TASA Remote Control

6 FD1UT TiNS-6038TAZZ Operation Manual

FD1UK TiNS-6039TAZZ Operation Manual

FD1U/UW TiNSE0369TAZZ Operation Manual

7 FD1U UADP-0294TAZZ AC Adaptor å

FD1UT UADP-0295TAZZ AC Adaptor å

FD1UK UADP-0296TA01 AC Adaptor å

FD1UW UADP-0296TAZZ AC Adaptor å

8 – Common parts – UBNDS0023TAZZ Shoulder Strap

9 – Common parts – UBATL0011TAZZ Lithium Battery(CR2025)

10 – Common parts – UBATL0015TAZZ Lithium Battery(CR1616)

11 – Common parts – UBATi0062TAZZ Battery

12 – Common parts – GDAi-1058TAZZ Tripod Stand

13 – Common parts – UPENP0001TAZZ Hand-held Pen

MARK ★ Not Replacement Item

No.7

No.5

No.2

No.3

No.4

No.8

No.9

No.10

No.1

No.13

No.11

No.12

No.19

No.16

No.17

No.22

No.20

No.21

No.18

No.14

No.15

No.6

ACCESSORIES

(NOT REPLACEMENT ITEM)

No. Model Parts Code Description Remarks

16 FD1U/UT SPAKC7547TAZZ Packing Case ★

FD1UK SPAKC7556TAZZ Packing Case ★

FD1UW SPAKC7557TAZZ Packing Case ★

17 – Common parts – SPAKA6359TAZZ Packing Top ADD. ★

18 – Common parts – SPAKA6356TAZZ Packing Bottom ADD. ★

19 – Common parts – SPAKA6362TAZZ Packing ★

20 – Common parts – SPAKP6068TAZZ Wrapping Paper ★

21 – Common parts – SSAKA0087TAZZ Polyethylene Bag ★

22 – Common parts – SPAKP6108TAZZ Side Pad ★

No. Model Parts Code Description Remarks

14 FD1U TGANE0044TAZZ Guarantee Card ★

FD1UT TGANZ0013TAZZ Guarantee Card ★

FD1UW TGANZ0022TAZZ Guarantee Card ★

15 – Common parts – TLABK0001TAZZ No Card ★

140

VL-SD20U

Ref. No. Part No. ★Description Code Ref. No. Part No. ★Description Code

VL-FD1U

SHARP CORPORATION

AV Systems Group

Quality & Reliability Control Center

Yaita, Tochigi 329-2193, Japan

No part of this publication may be reproduced,

stored in a retrieval system, or transmitted in

any form or by any means, electronic, mechanical,

photocopying, recording, or otherwise, without

prior written permission of the publisher.

TQ0890-S

Jun. 2000 Printed in JAPAN

SA. DS

VL-FD1U

VLFD1U

Navigation menu

Versions of this User Manual:

Views

Navigation
