VL-Z7S/E/Z7E-A/Z7E-W

VL-Z8H

In the interests of user-safety (Required by safety regula-

tions in some countries) the set should be restored to its

original condition and only parts identical to those specified

be used.

S53B3VL-Z7S//

LIQUID CRYSTAL DISPLAY CAMCORDER PAL

SERVICE MANUAL

CONTENTS

SHARP CORPORATION

VL-Z7S/E

VL-Z7E-A

VL-Z7E-W

VL-Z8H

MODELS

Page

1. SPECIFICATIONS .............................................................................................................................. 2

2. PART NAMES .................................................................................................................................... 3

3. DISASSEMBLY OF THE SET ............................................................................................................ 4

4. MECHANISM ADJUSTMENT JIGS AND PARTS .............................................................................. 8

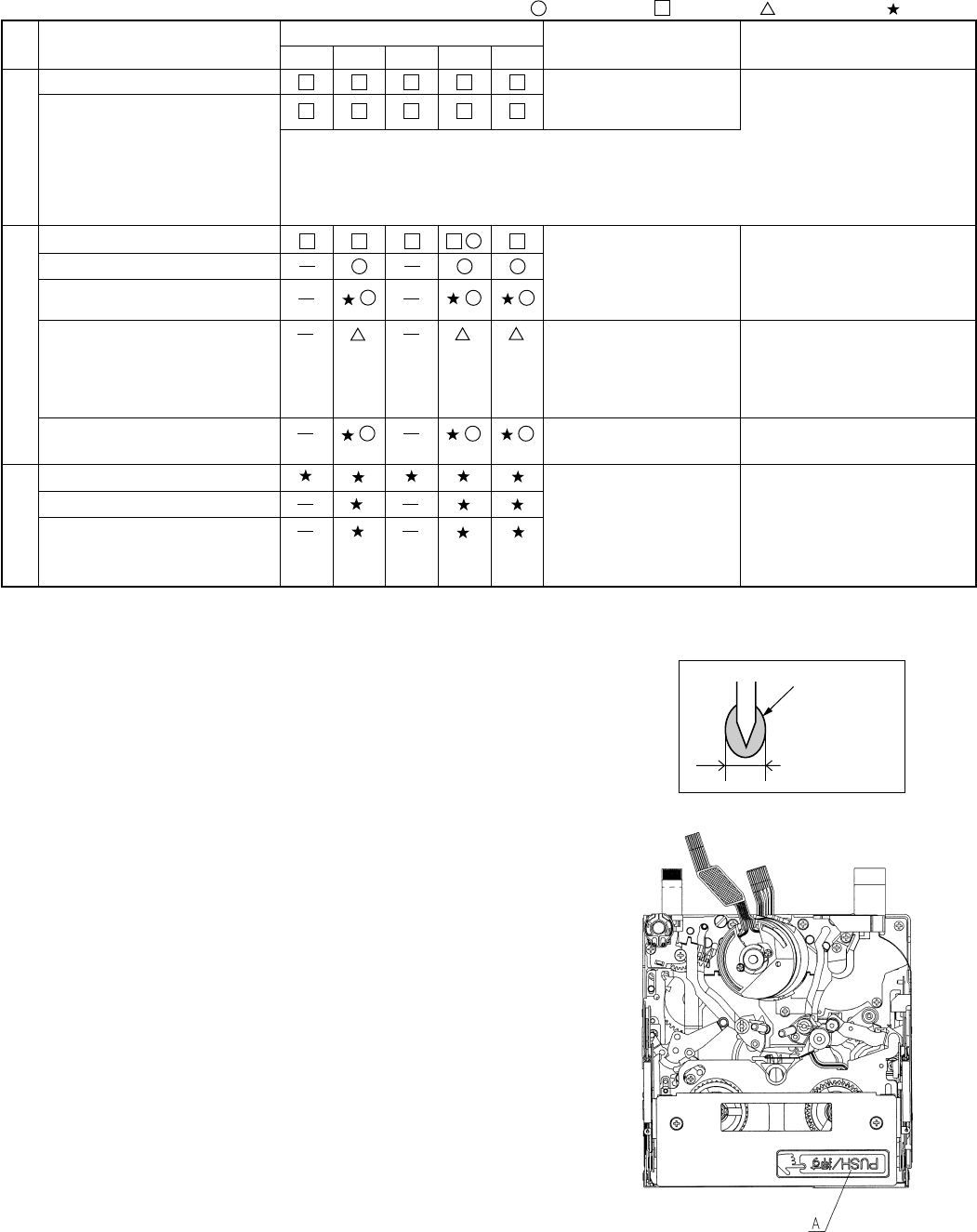

5. INSPECTION AND MAINTENANCE

ITEMS AND INTERVALS ................................................................................................................... 9

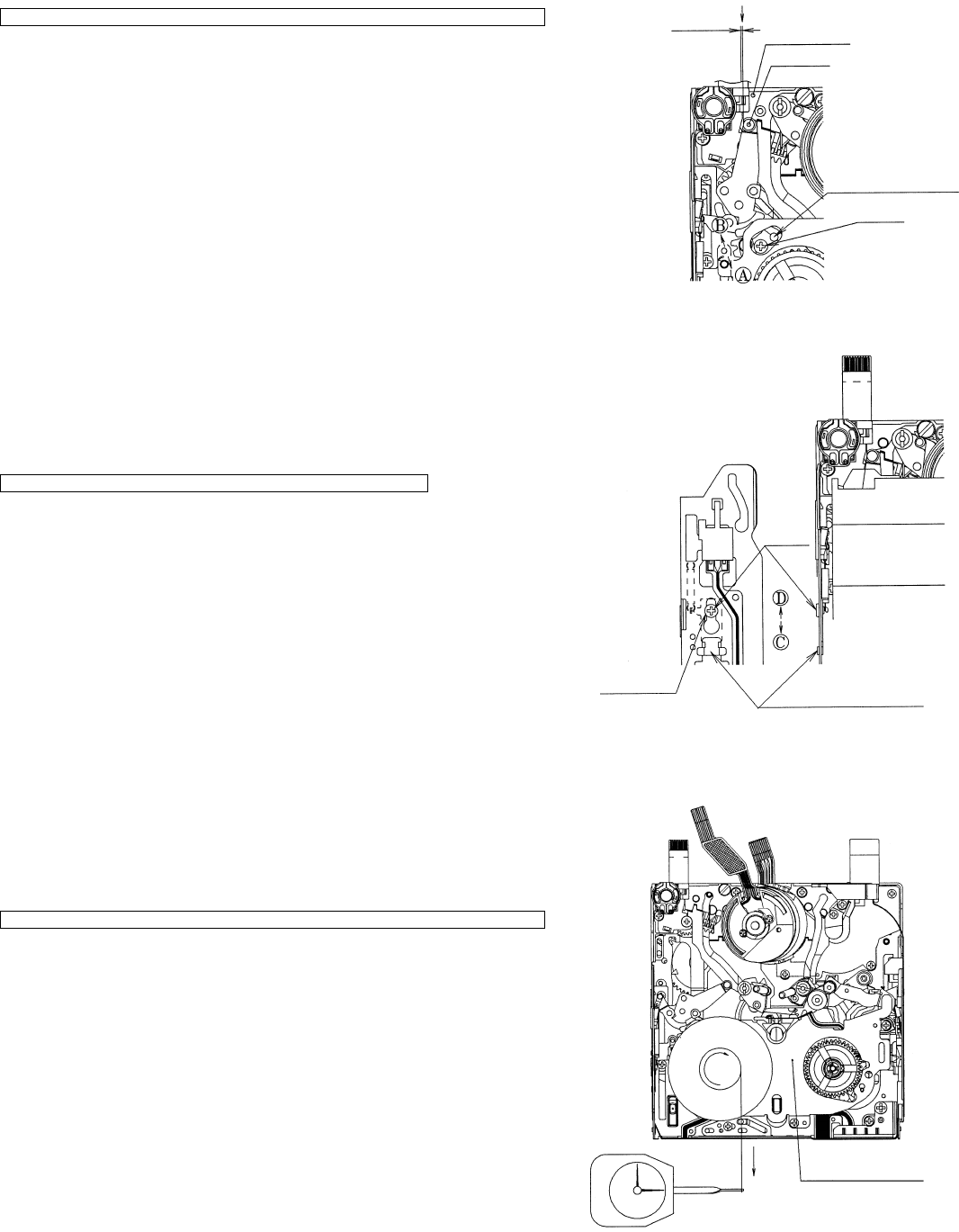

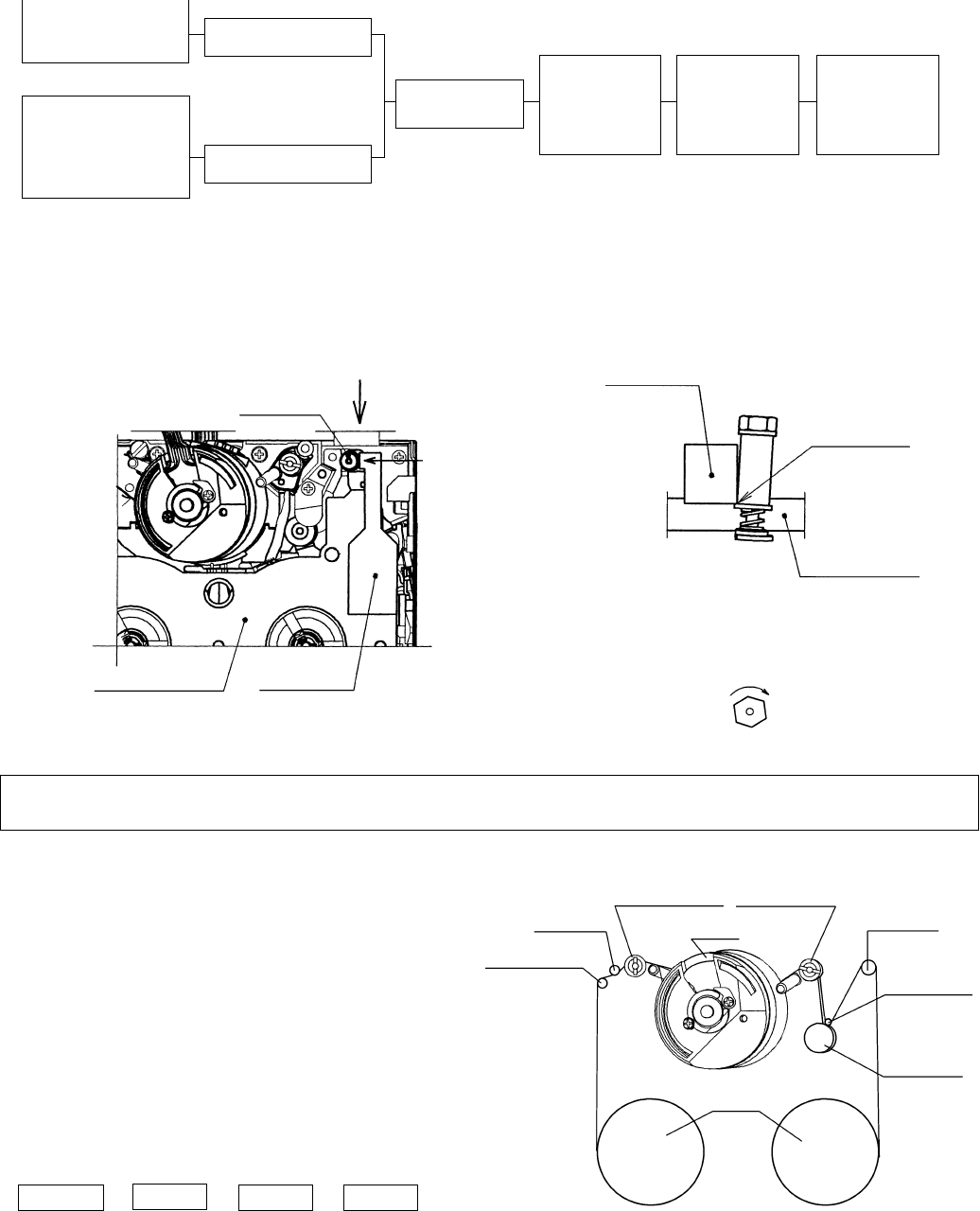

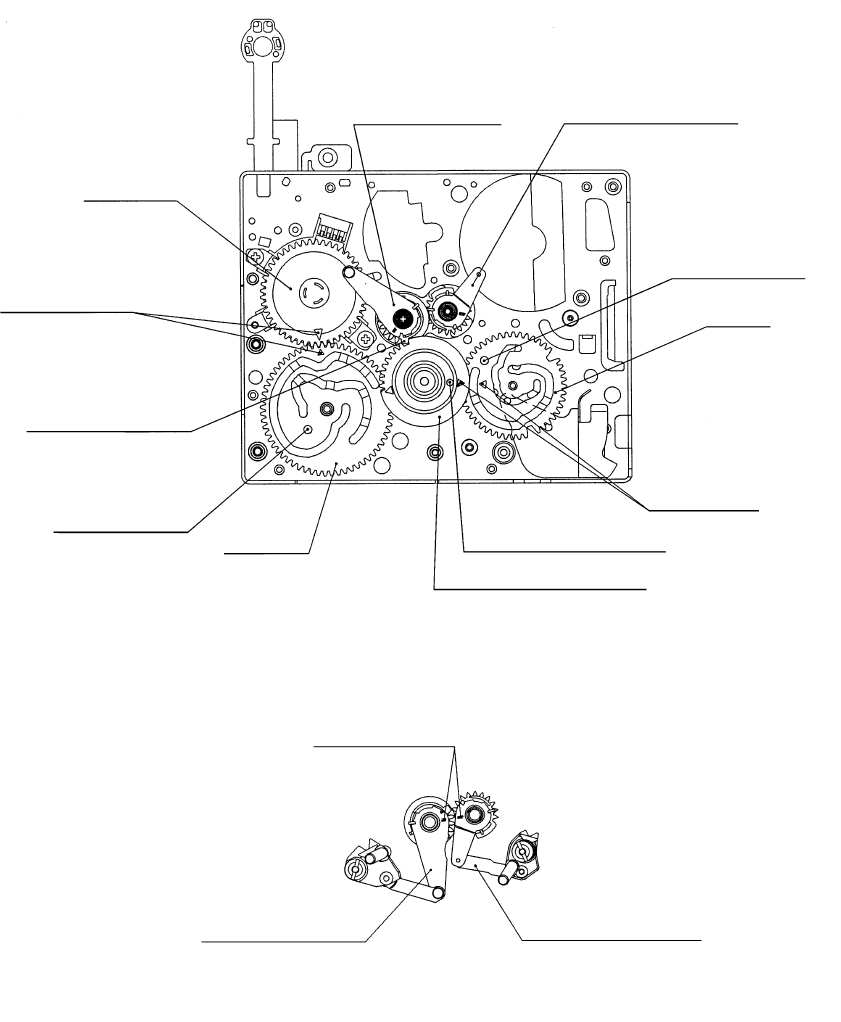

6. ADJUSTING AND CHECKING OF MECHANISM ........................................................................... 10

7. ADJUSTMENT OF RUNNING SYSTEM .......................................................................................... 13

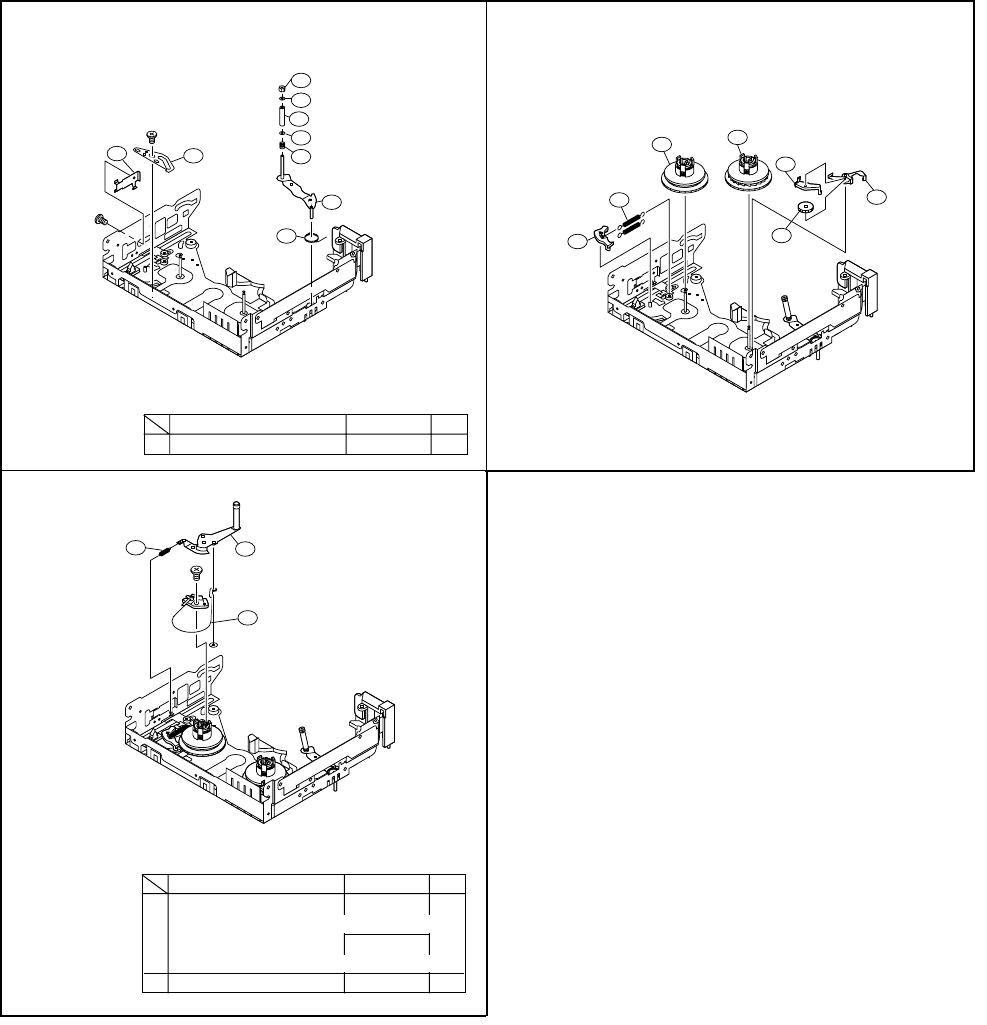

8. ASSEMBLING OF MECHANISM SECTION AND PART REPLACEMENT

(DISASSEMBLING AND ASSEMBLING) ........................................................................................... 15

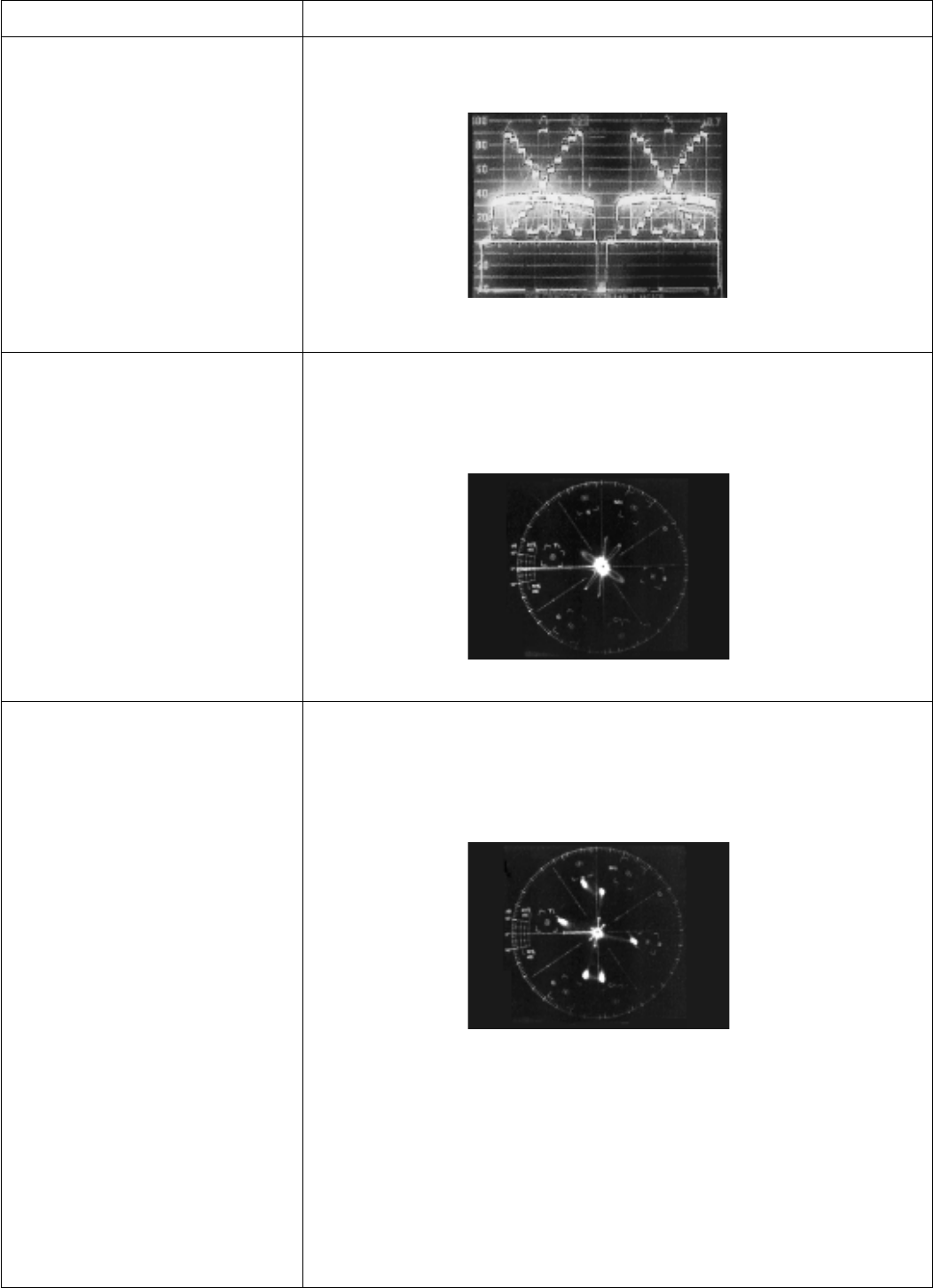

9. METHOD OF ADJUSTING THE ELECTRIC CIRCUIT .................................................................... 25

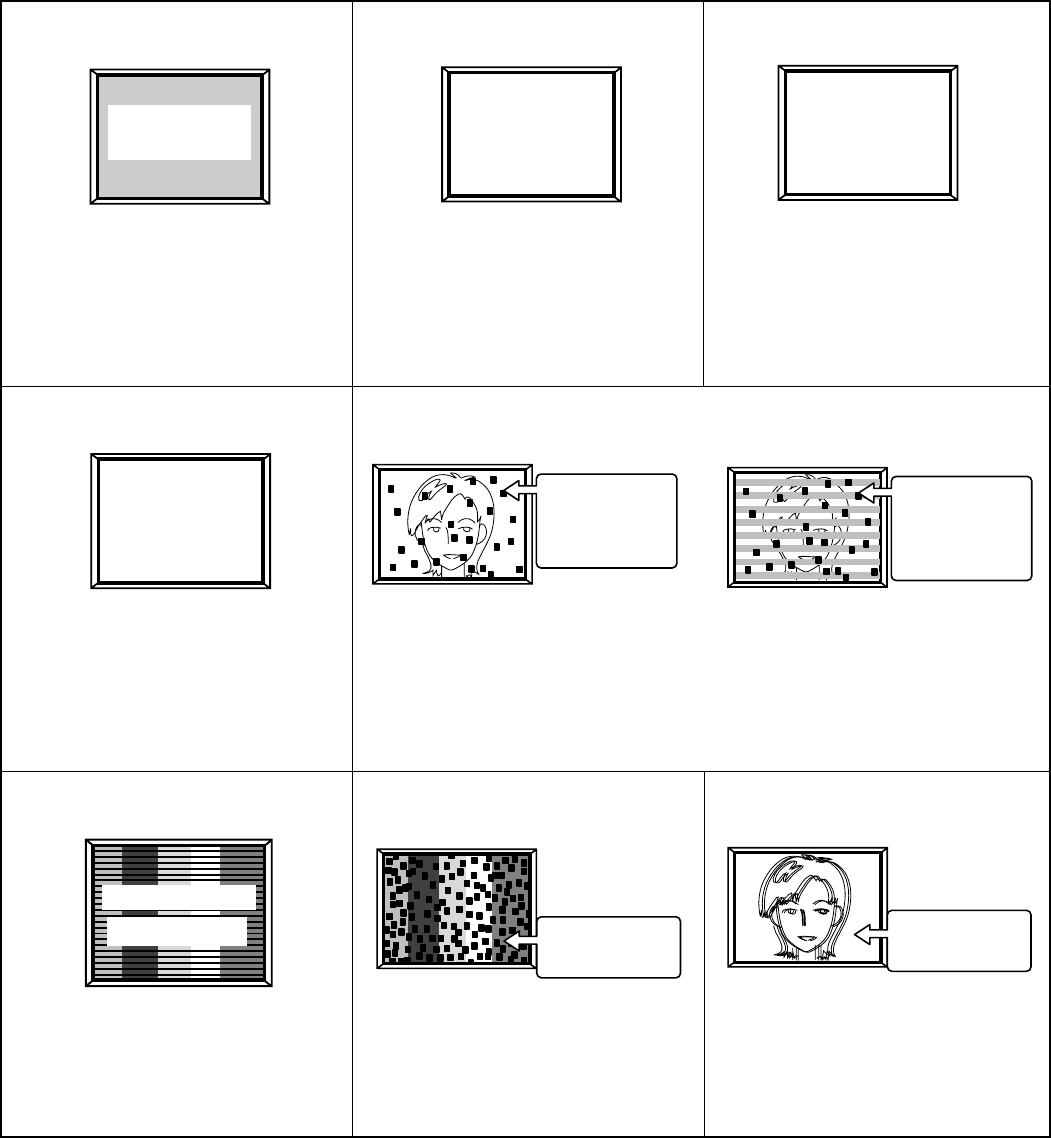

10.USEFUL TIPS ................................................................................................................................... 44

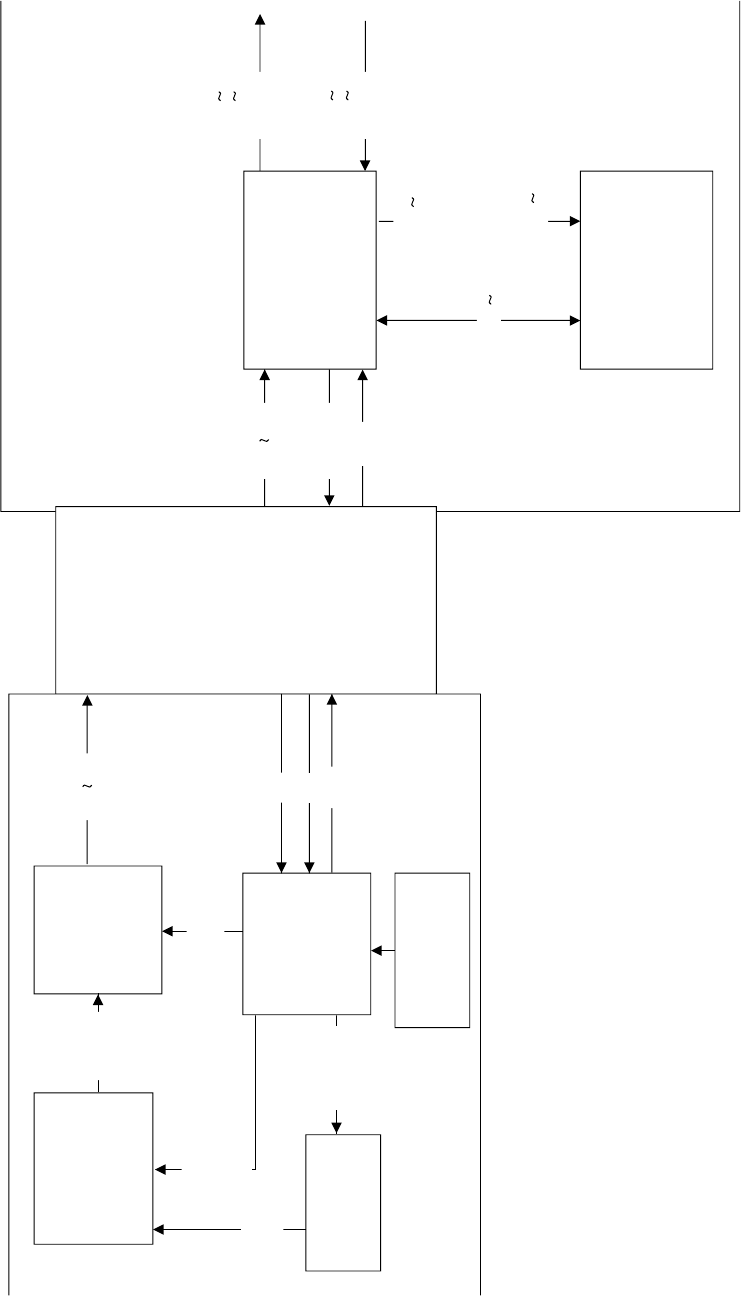

11.SIGNAL FLOW DIAGRAMS ............................................................................................................. 45

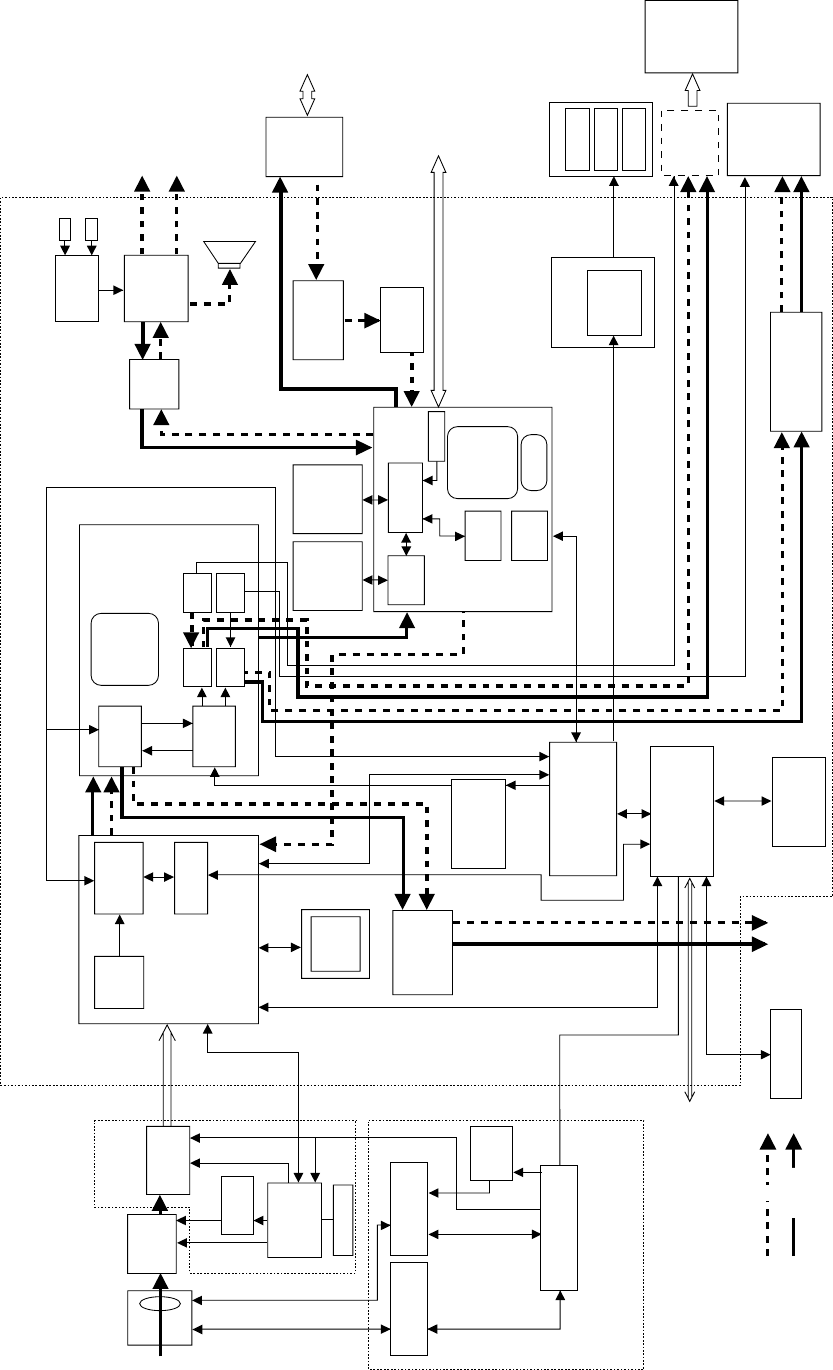

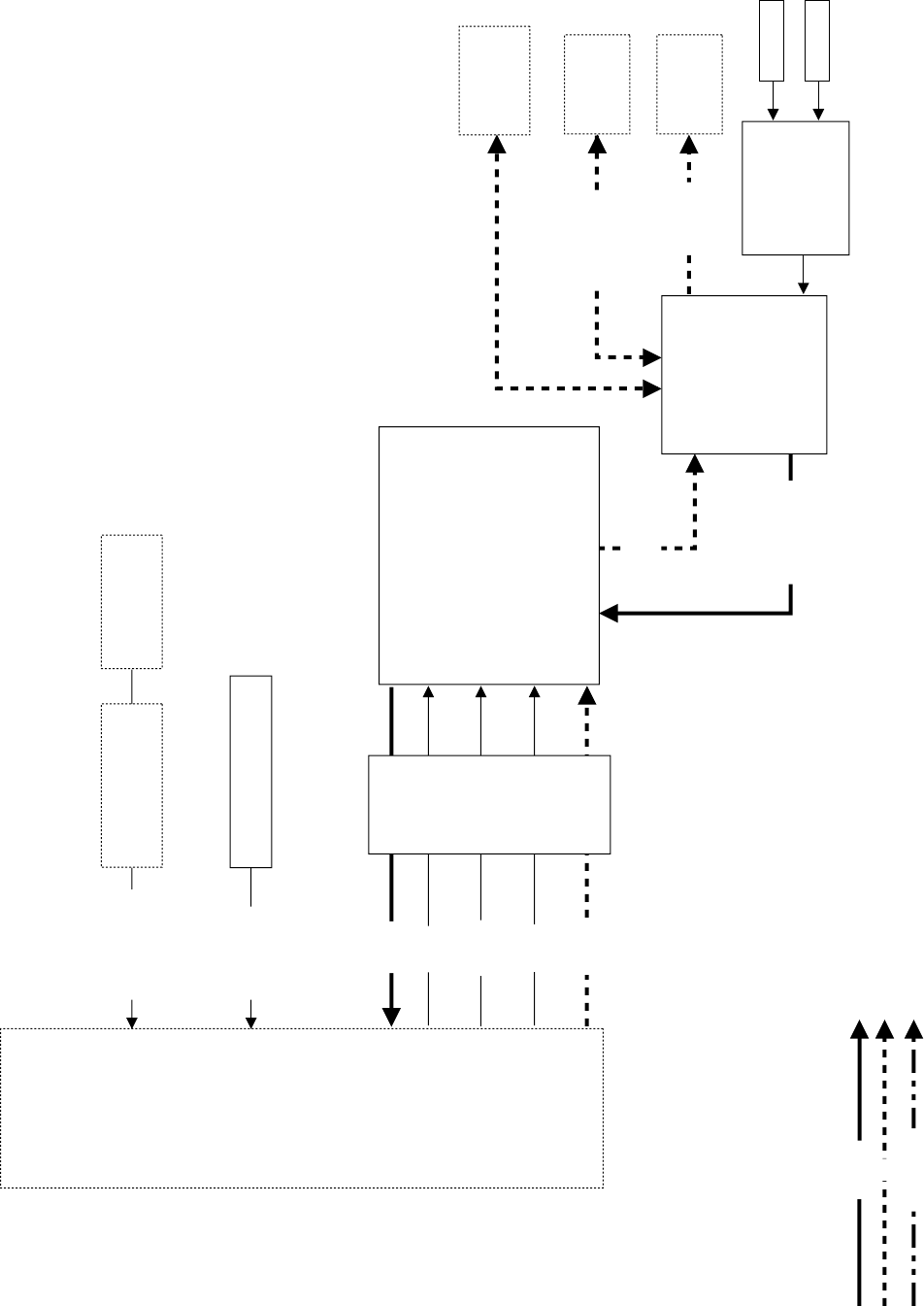

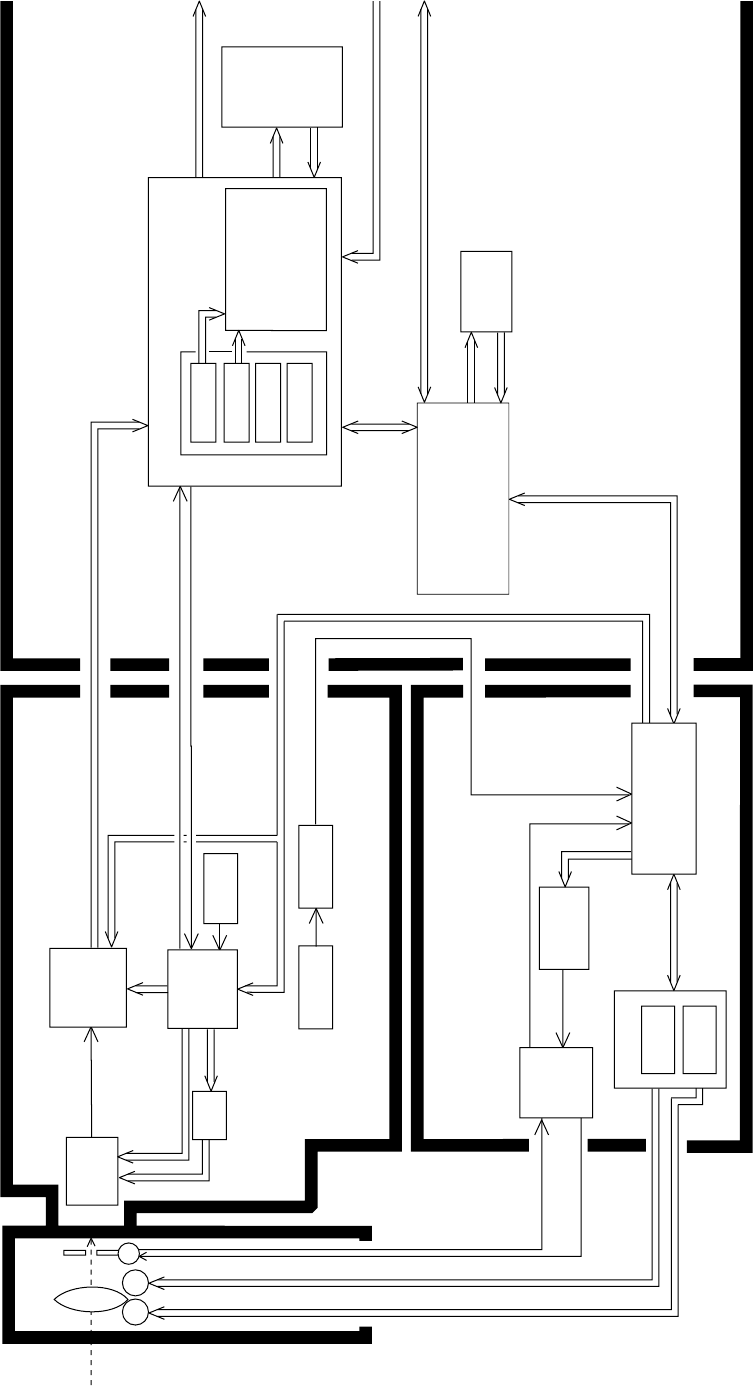

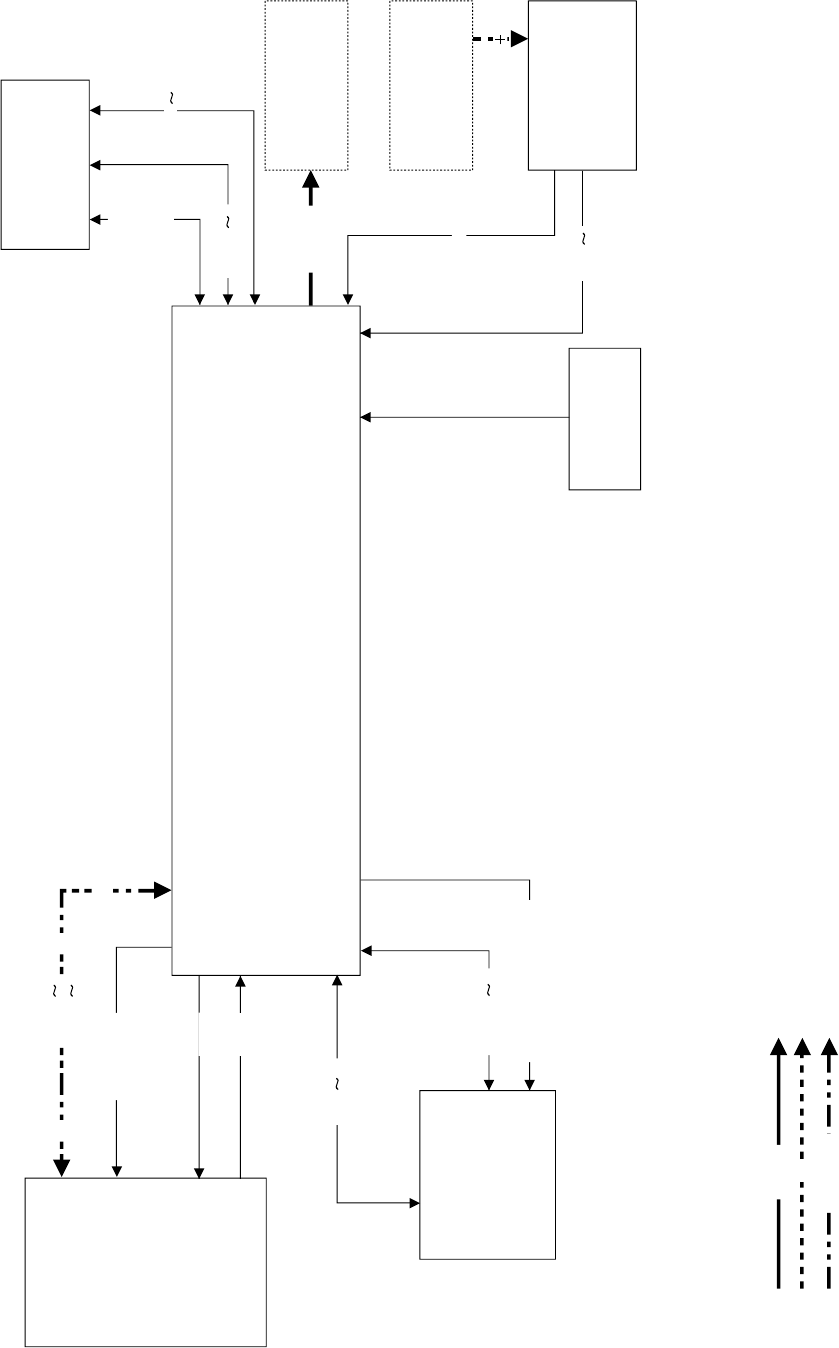

12.BLOCK DIAGRAMS ......................................................................................................................... 48

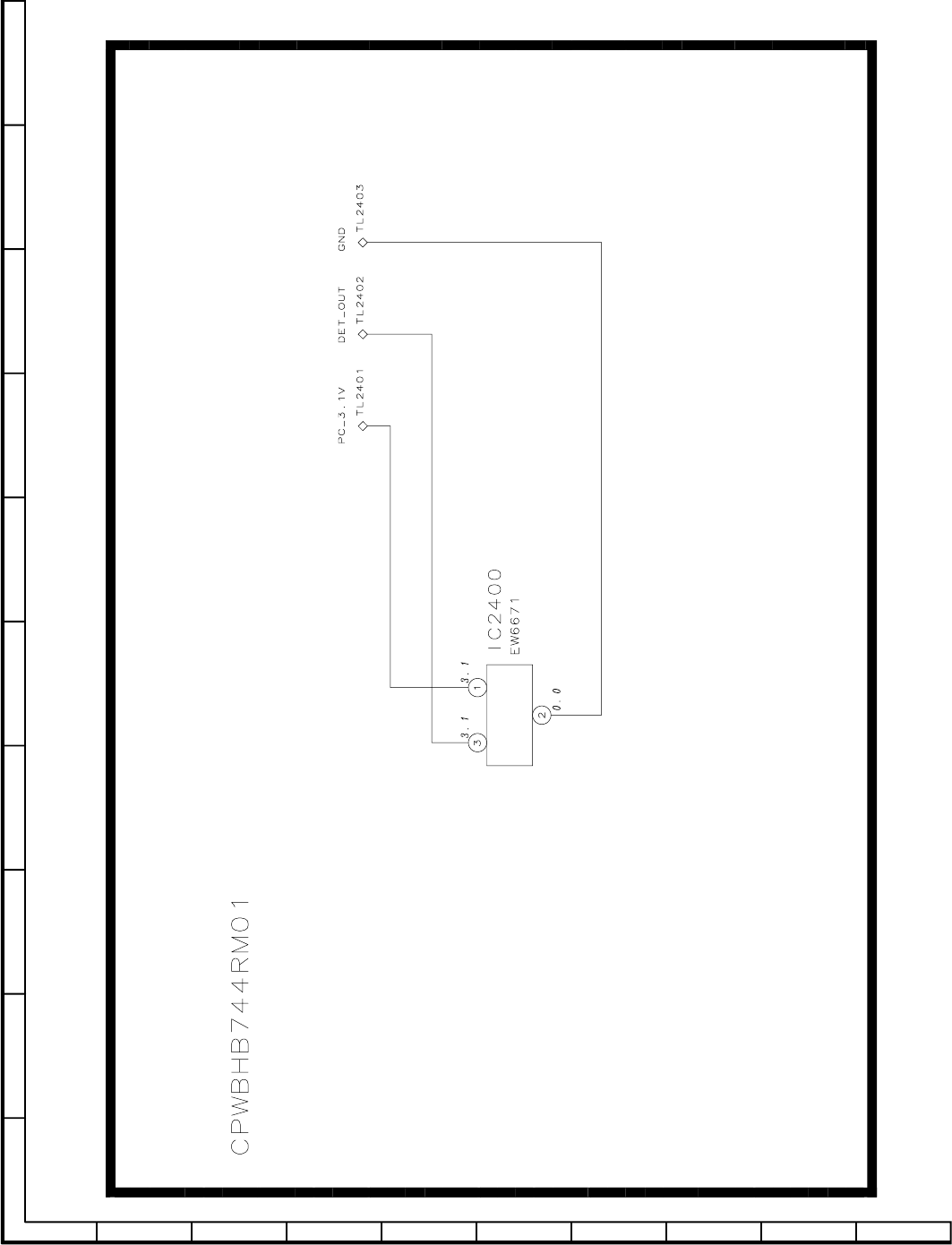

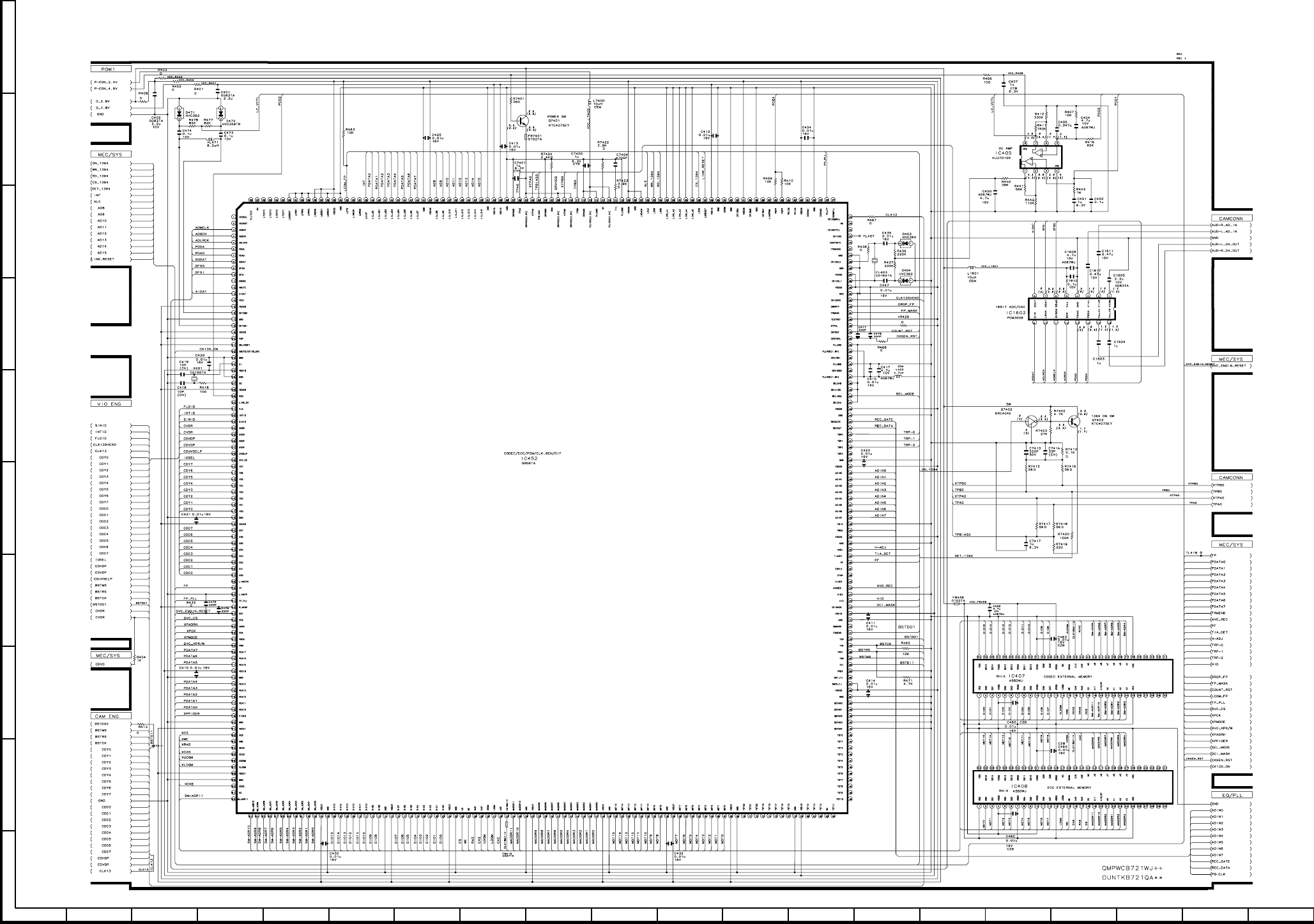

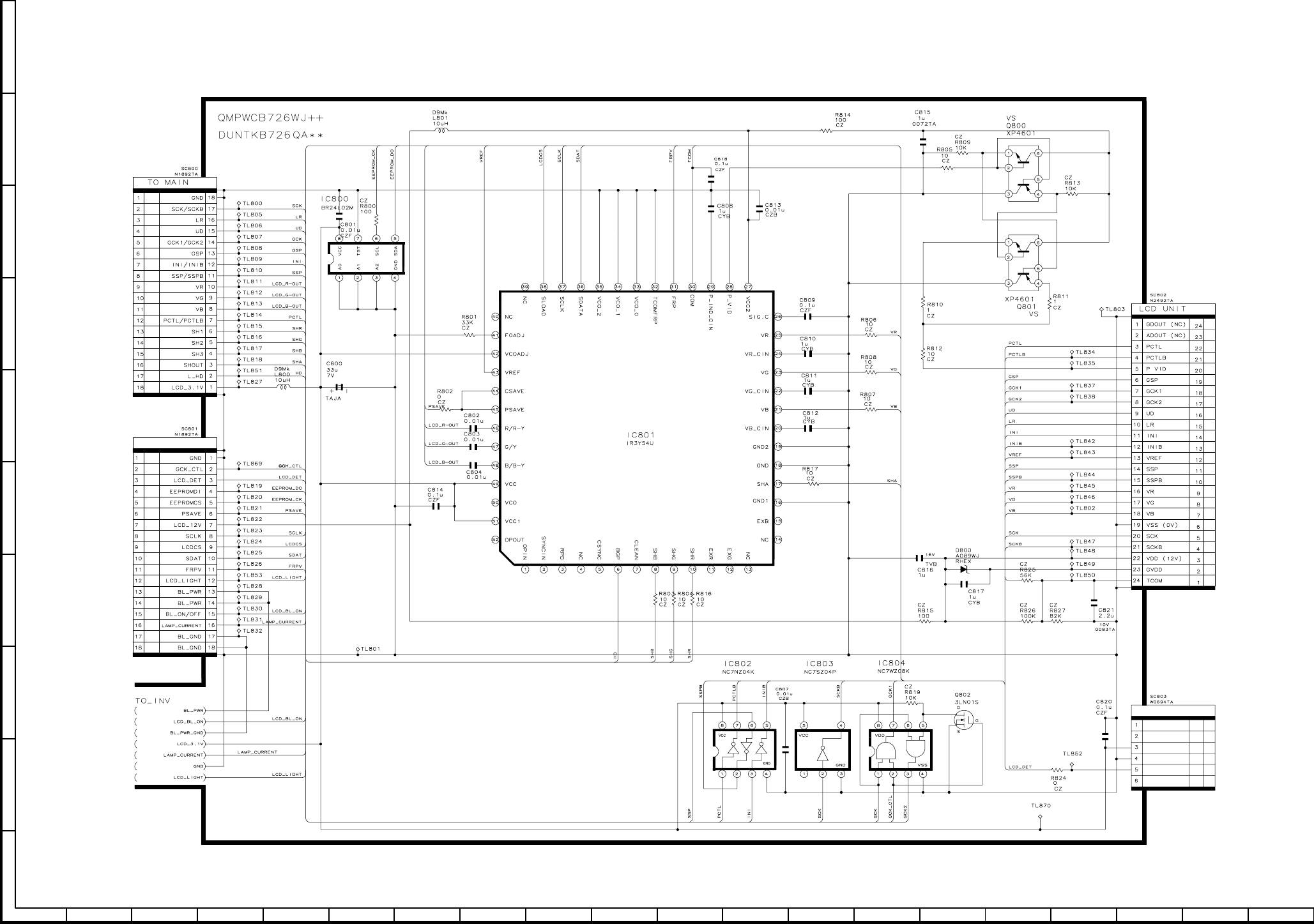

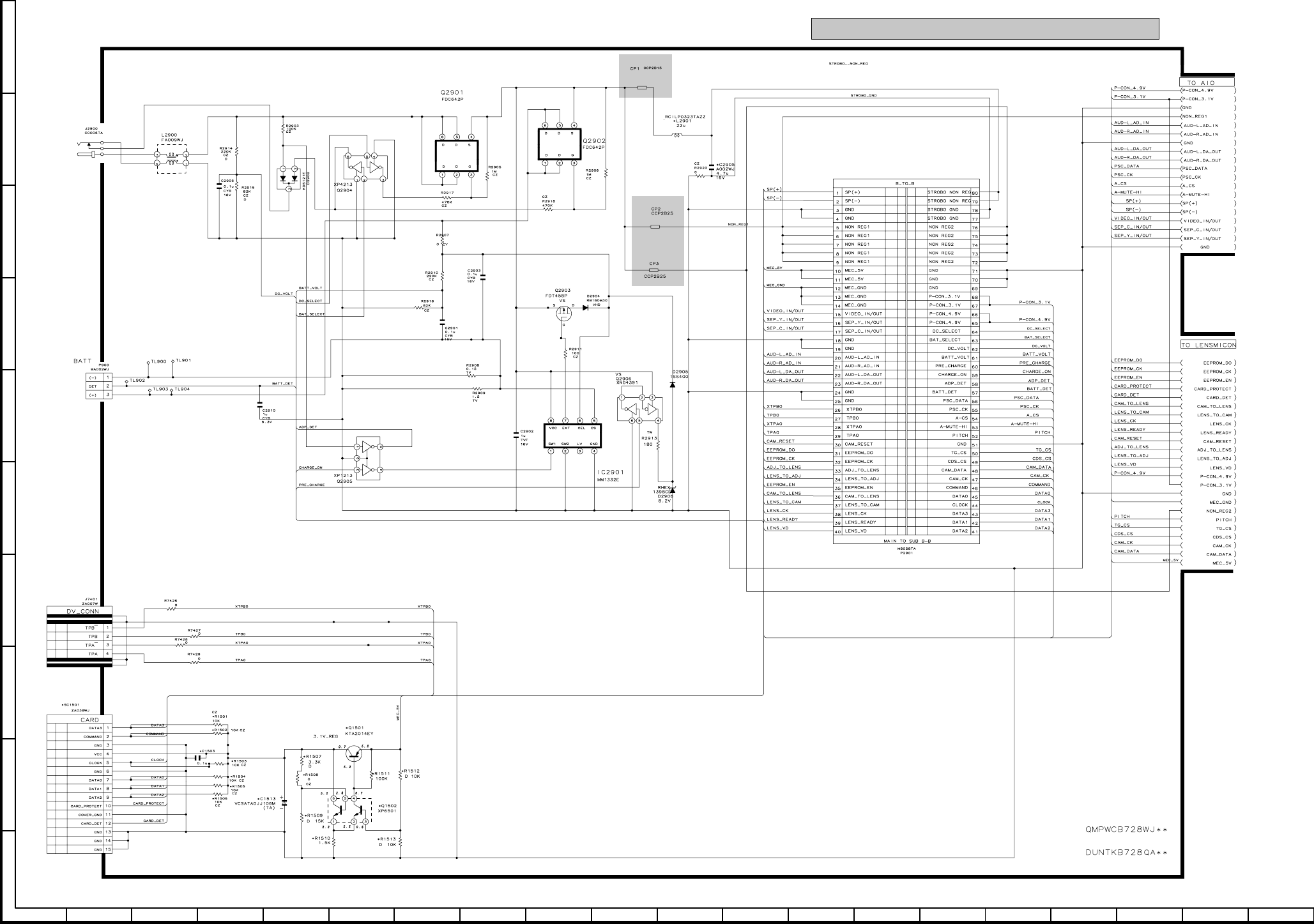

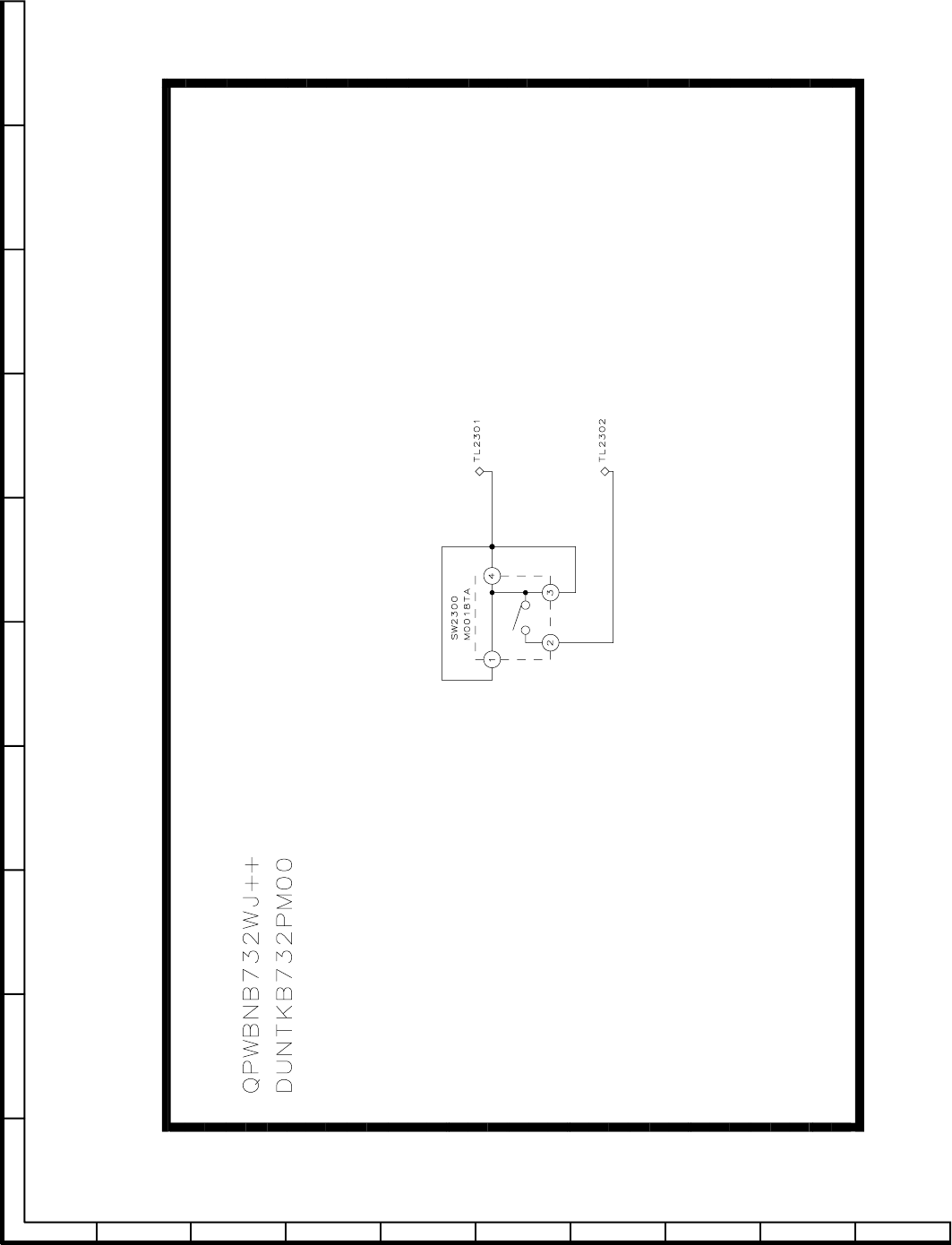

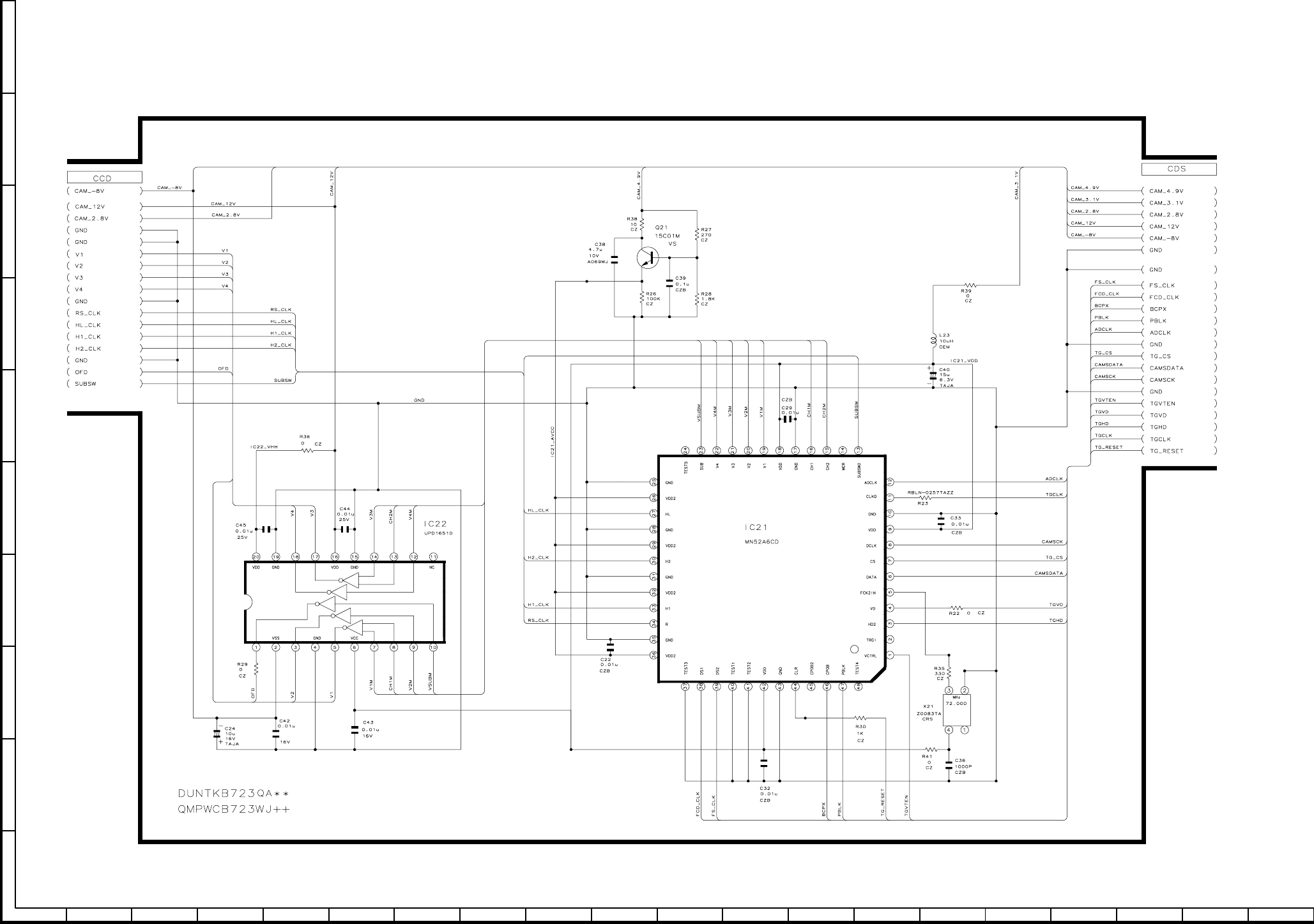

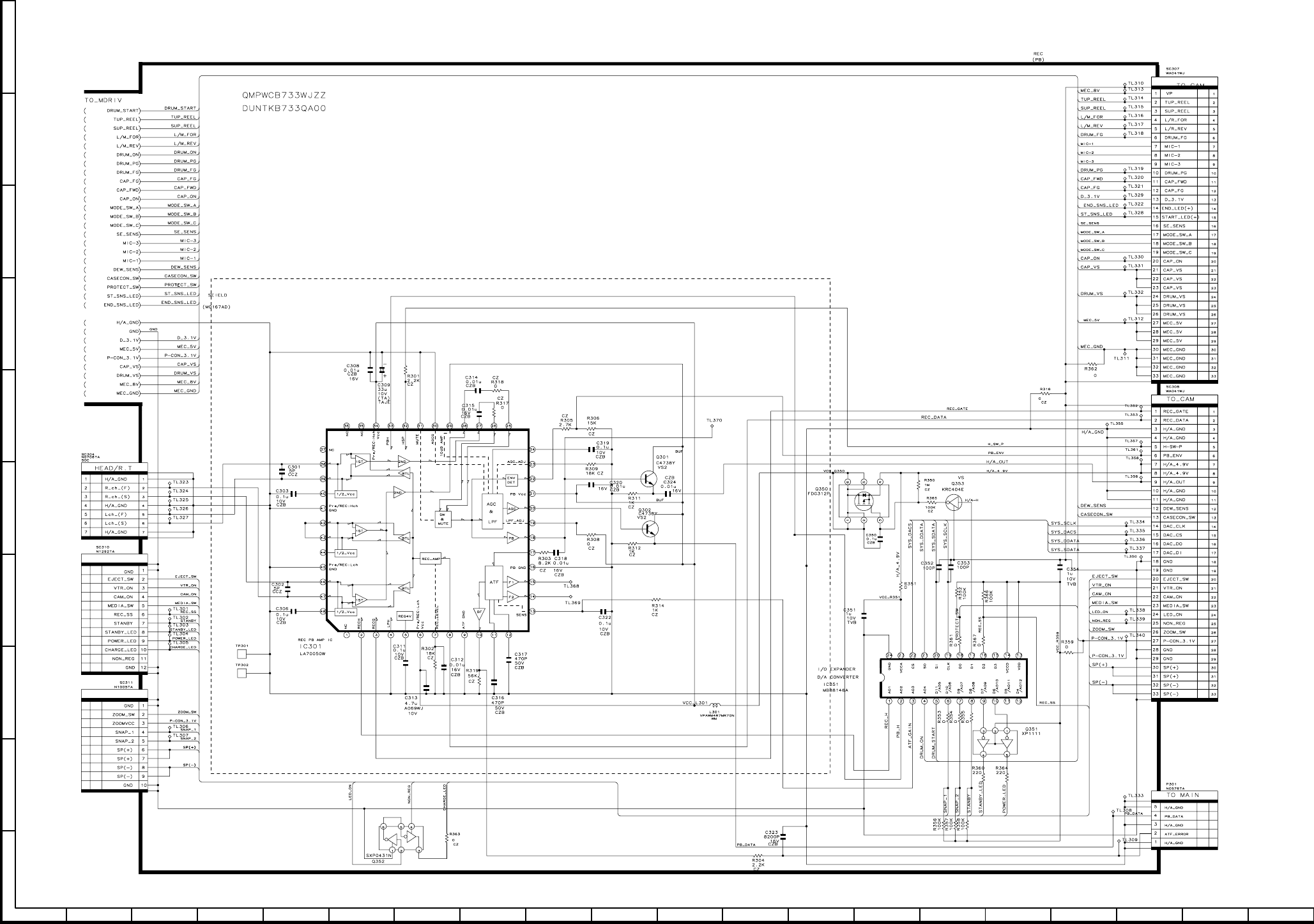

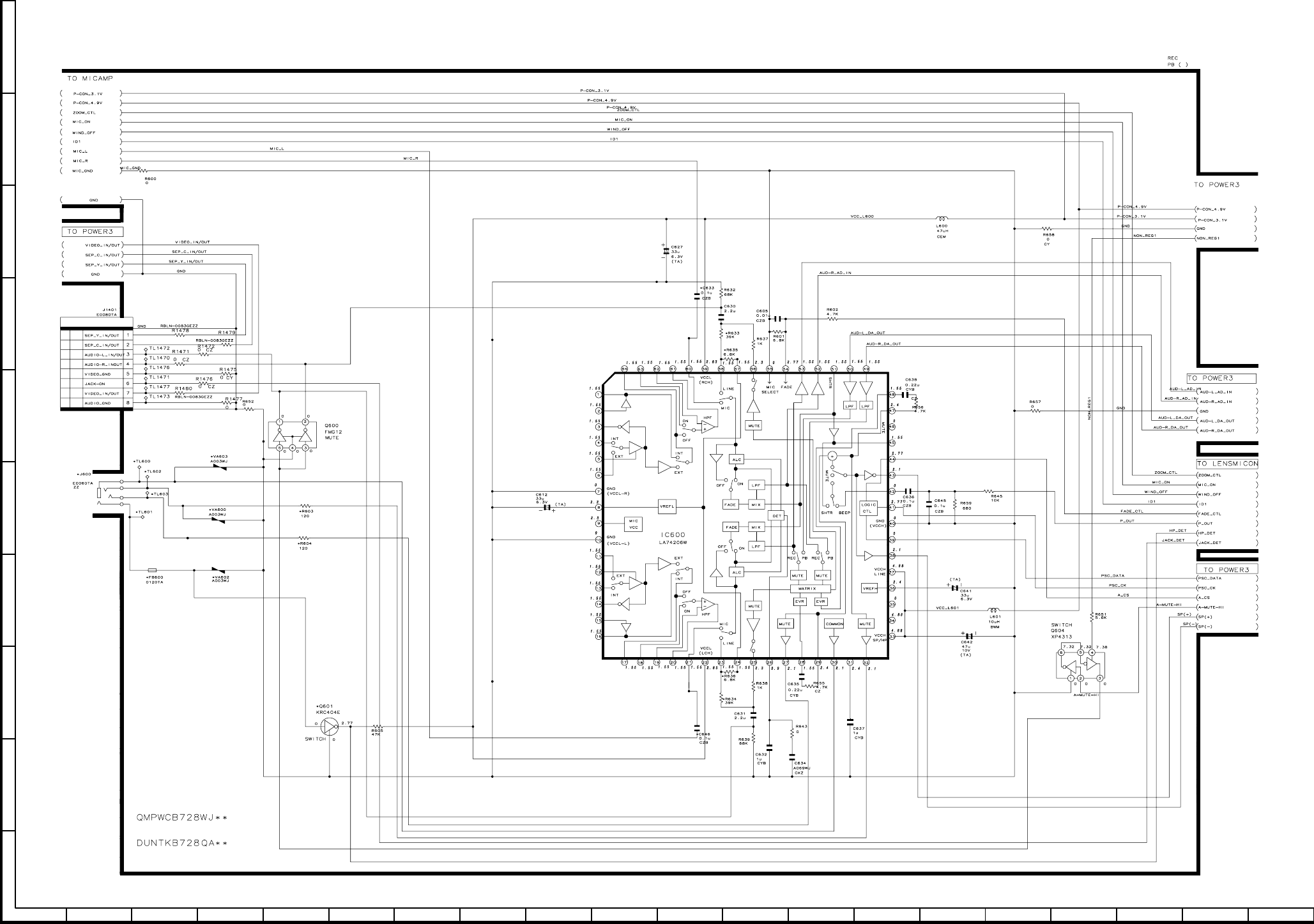

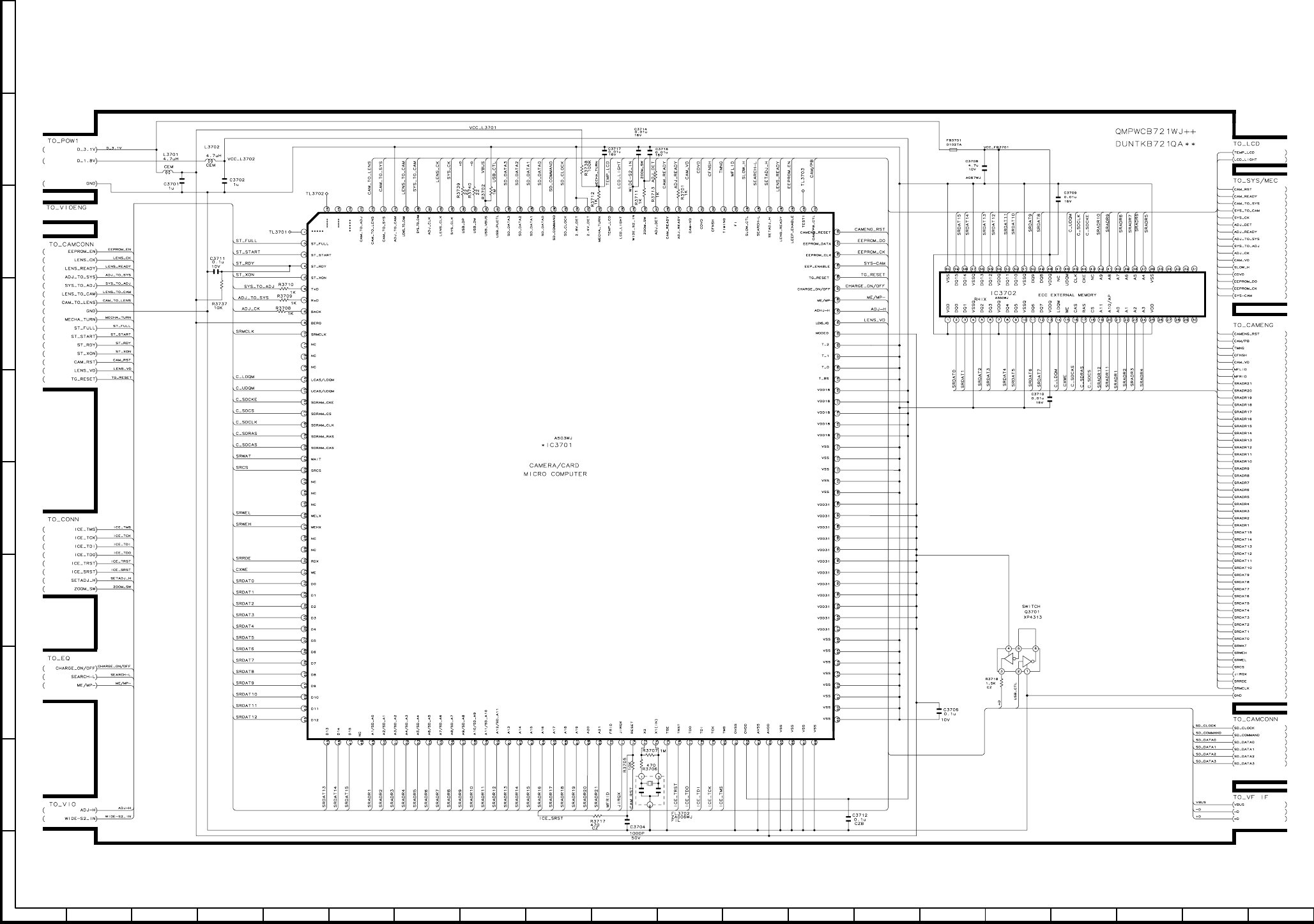

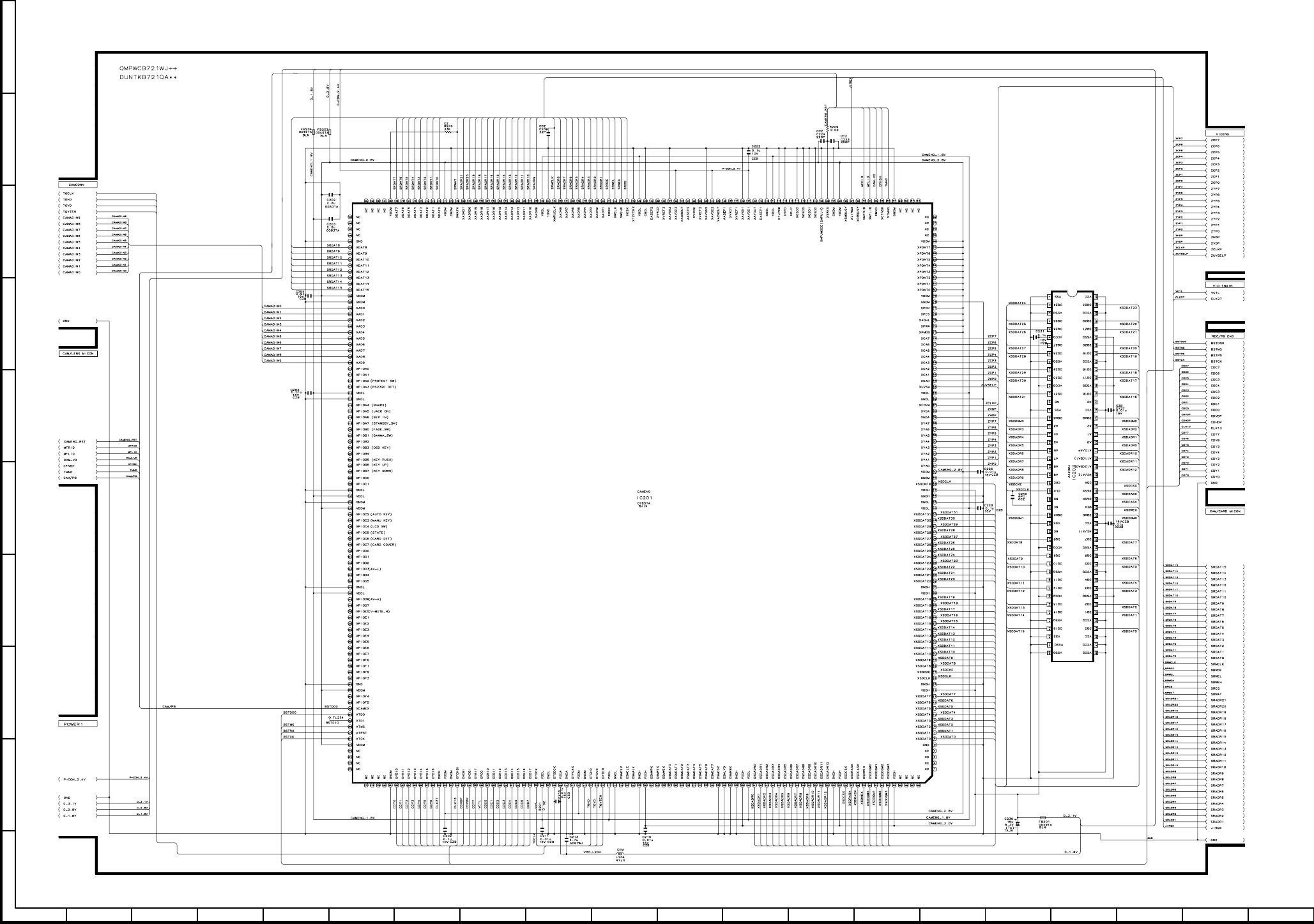

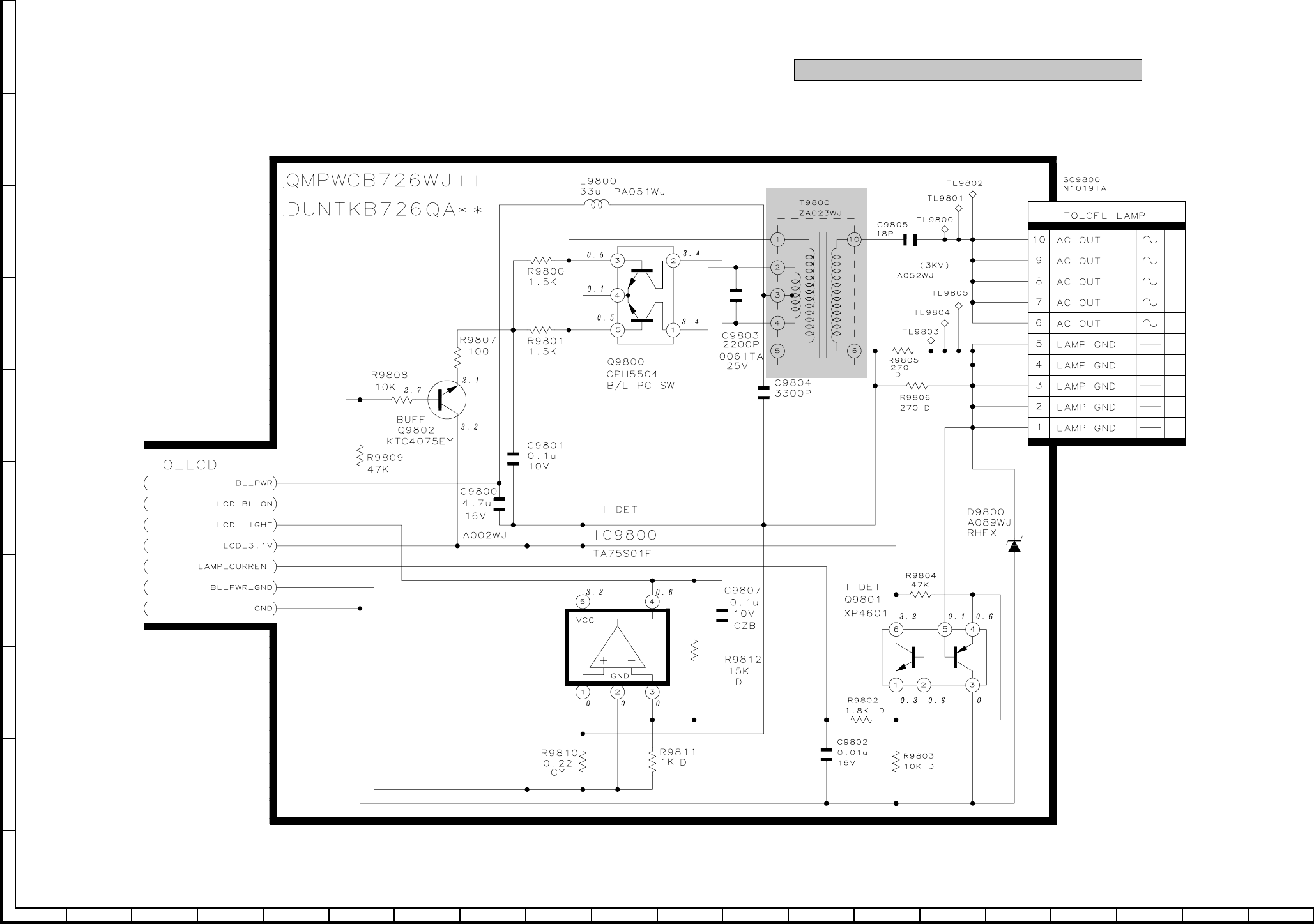

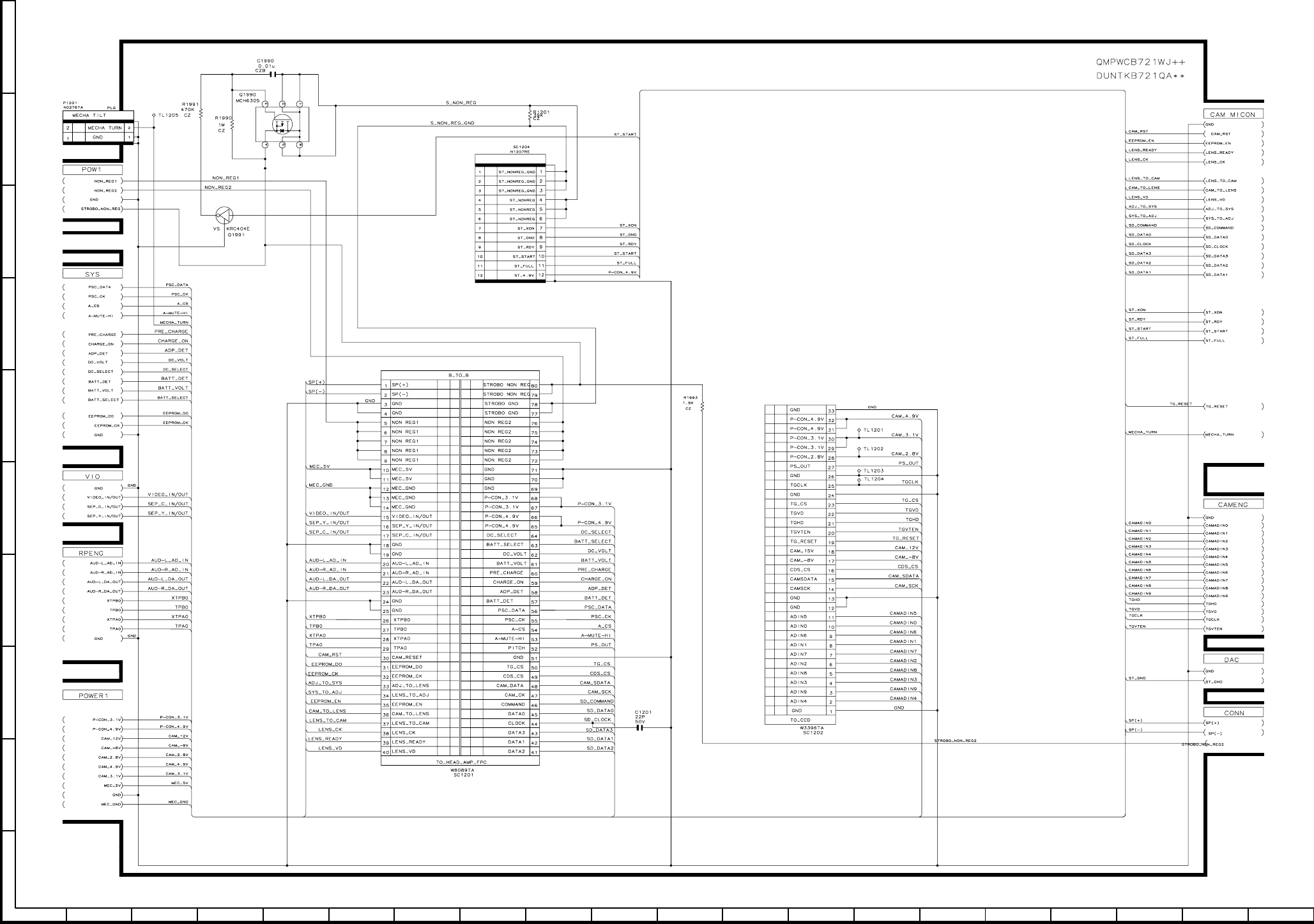

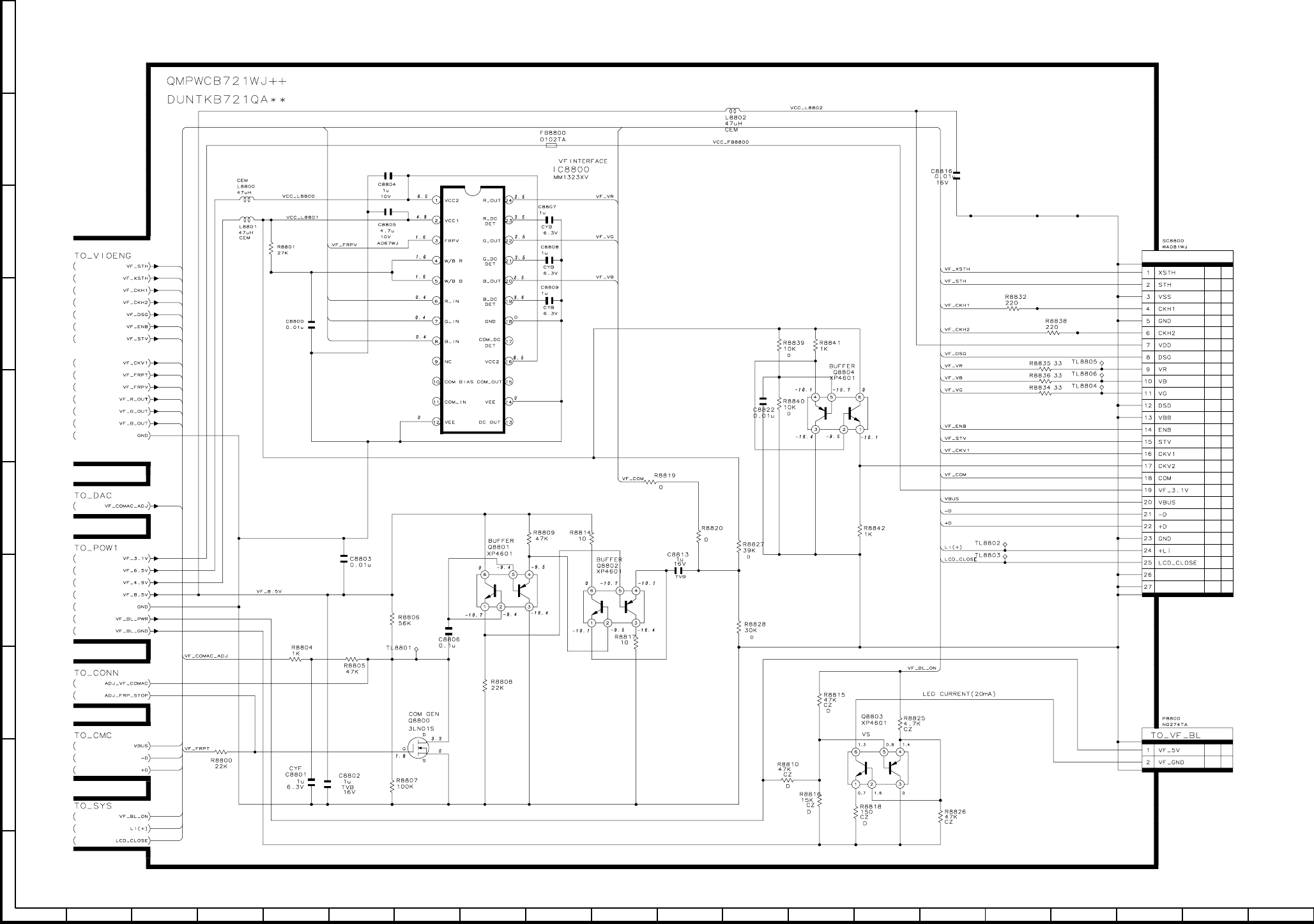

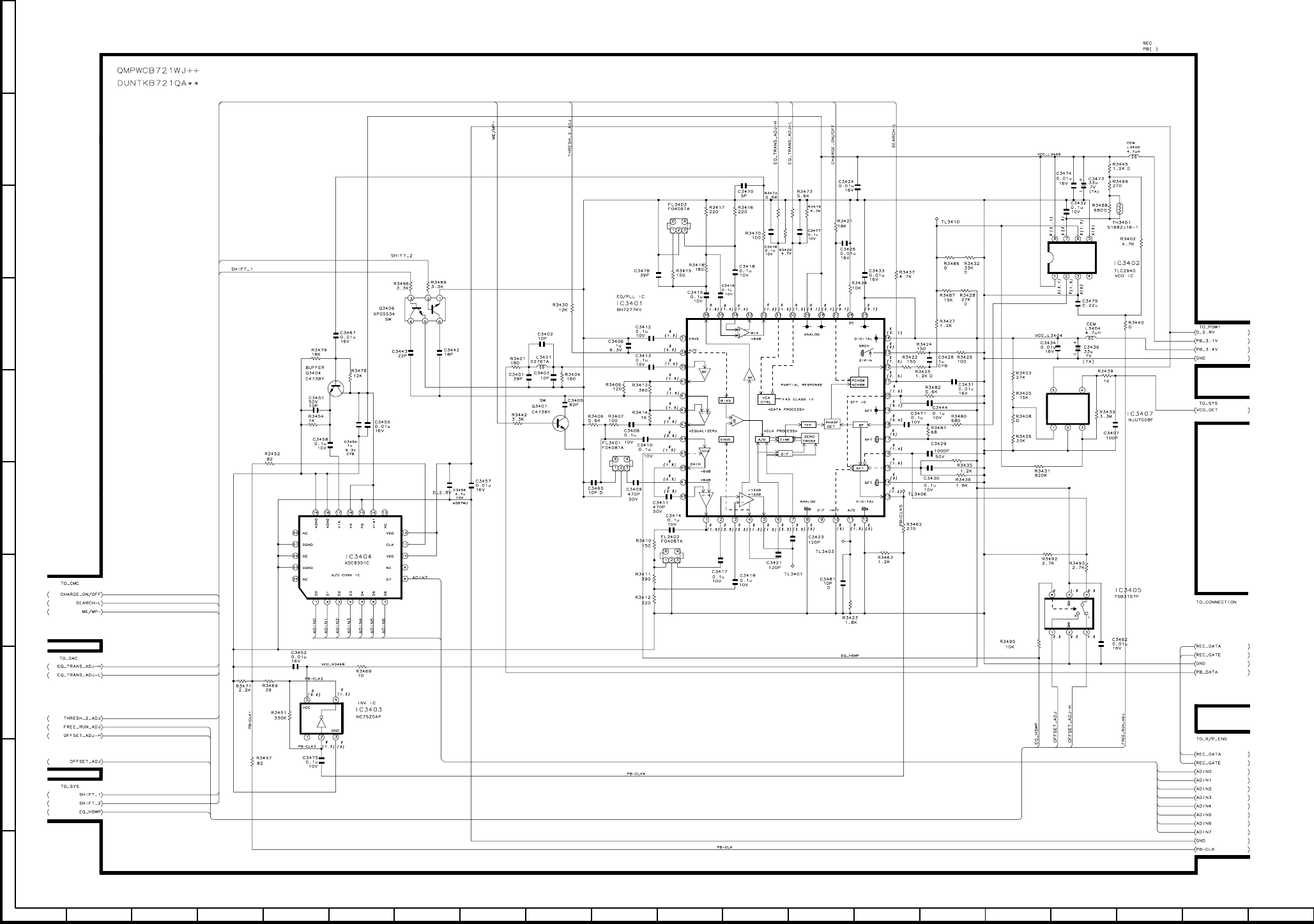

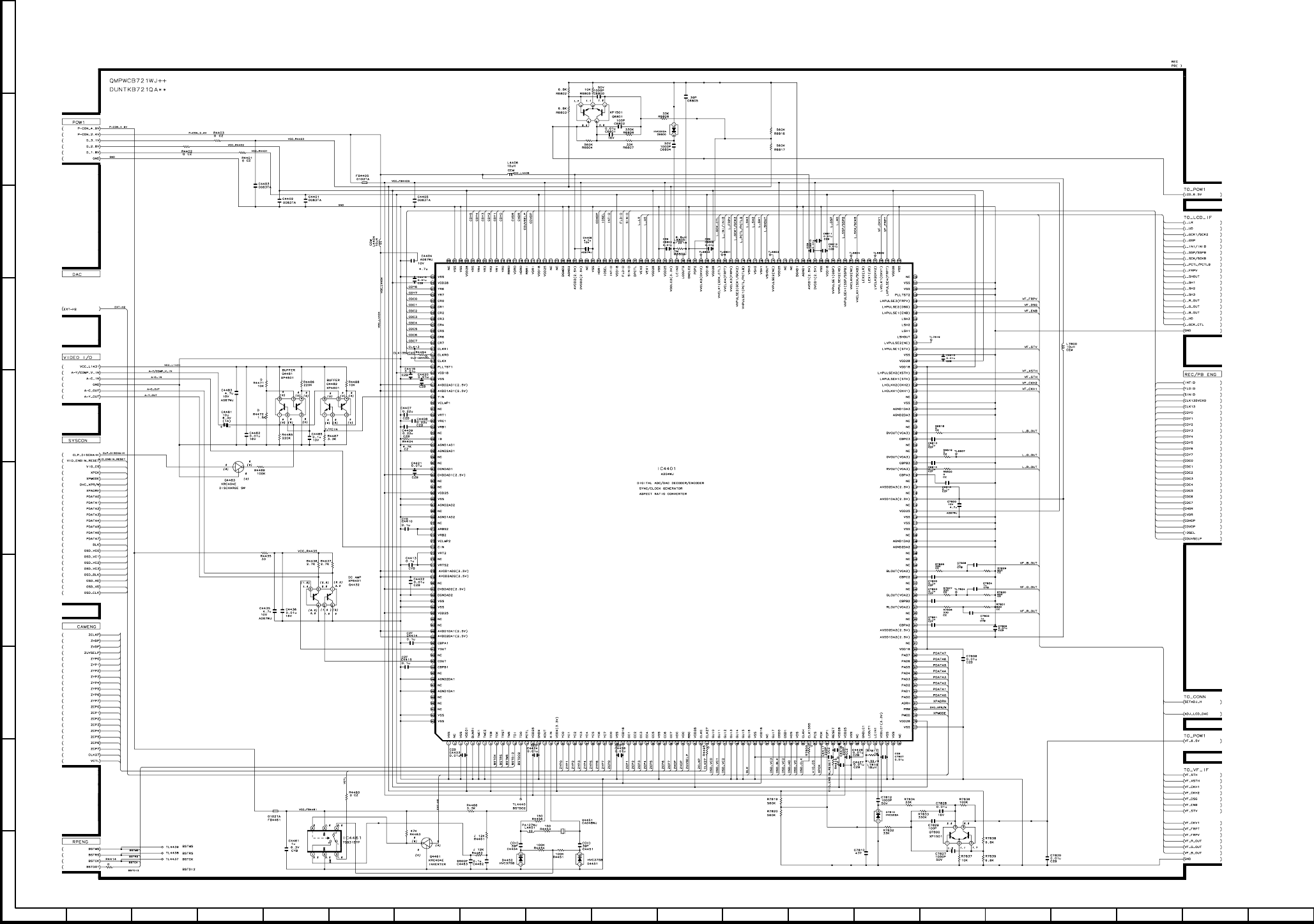

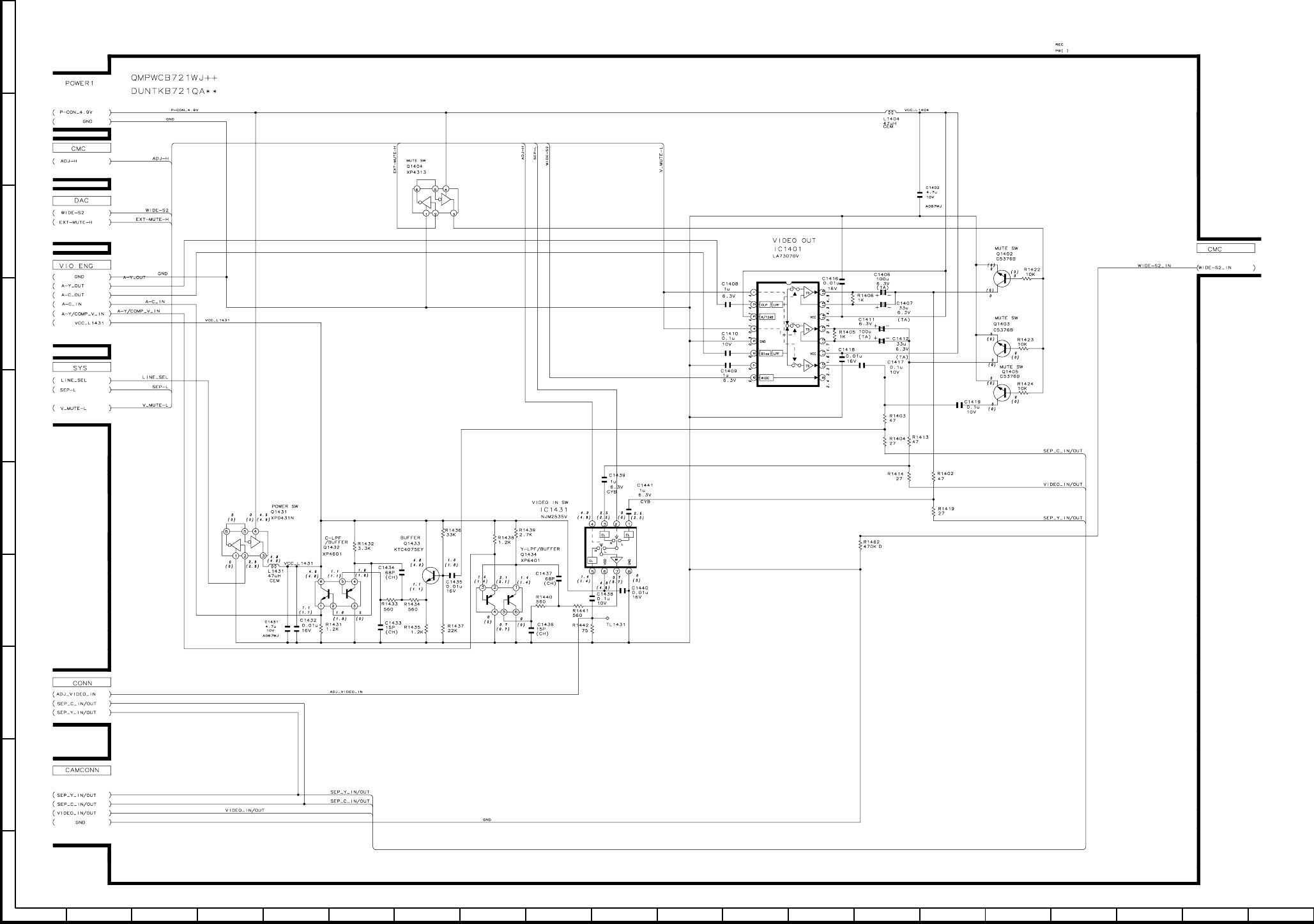

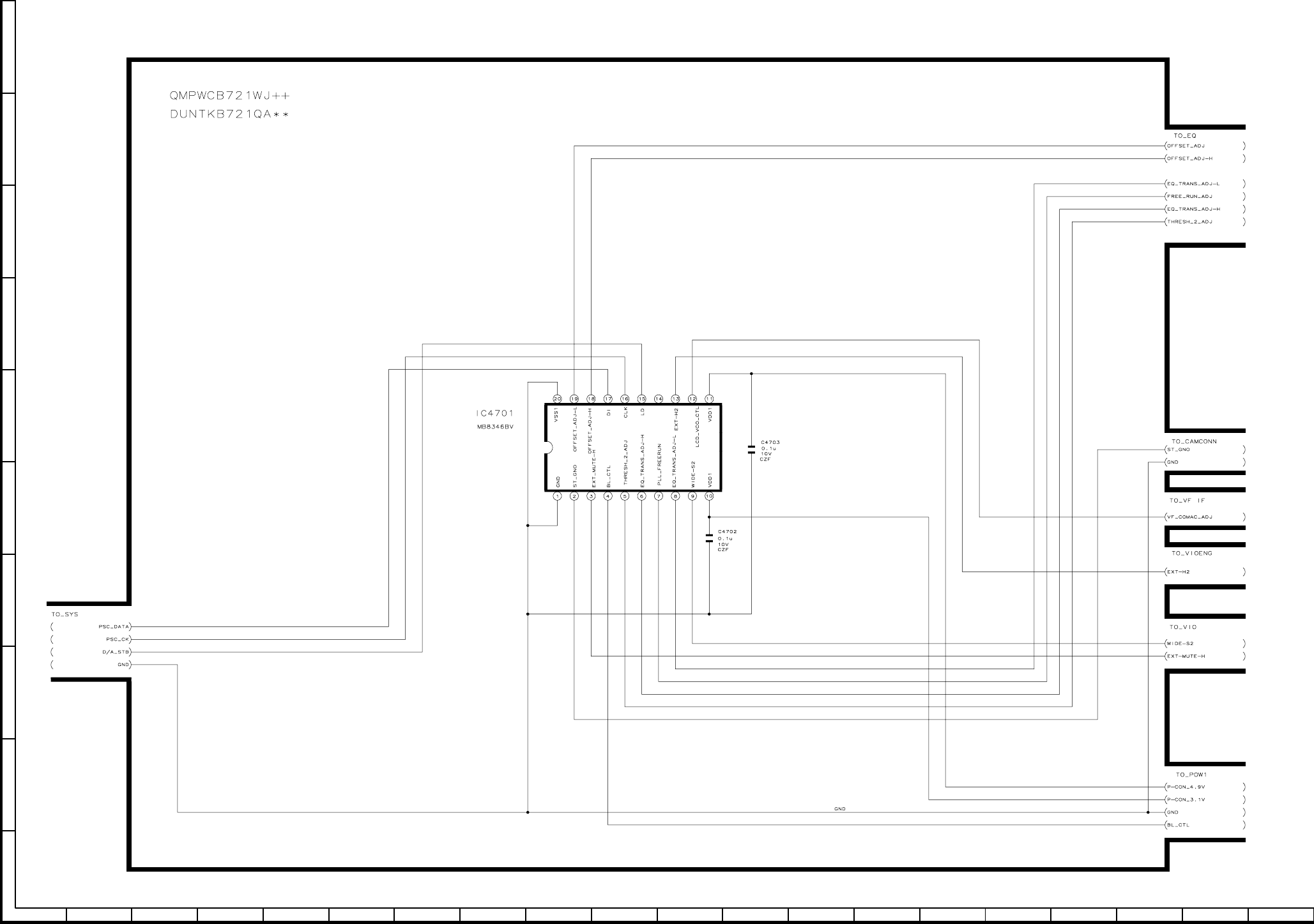

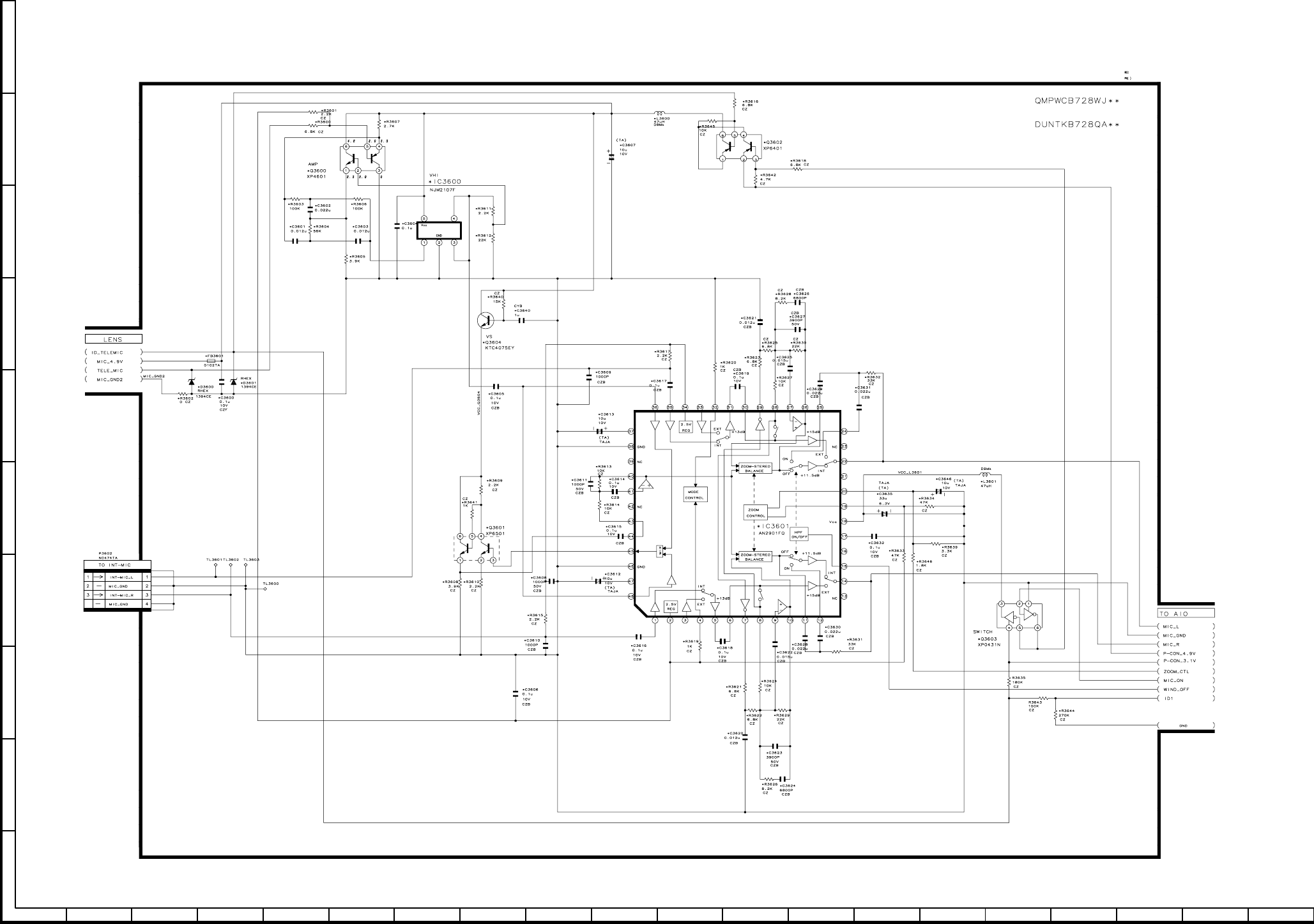

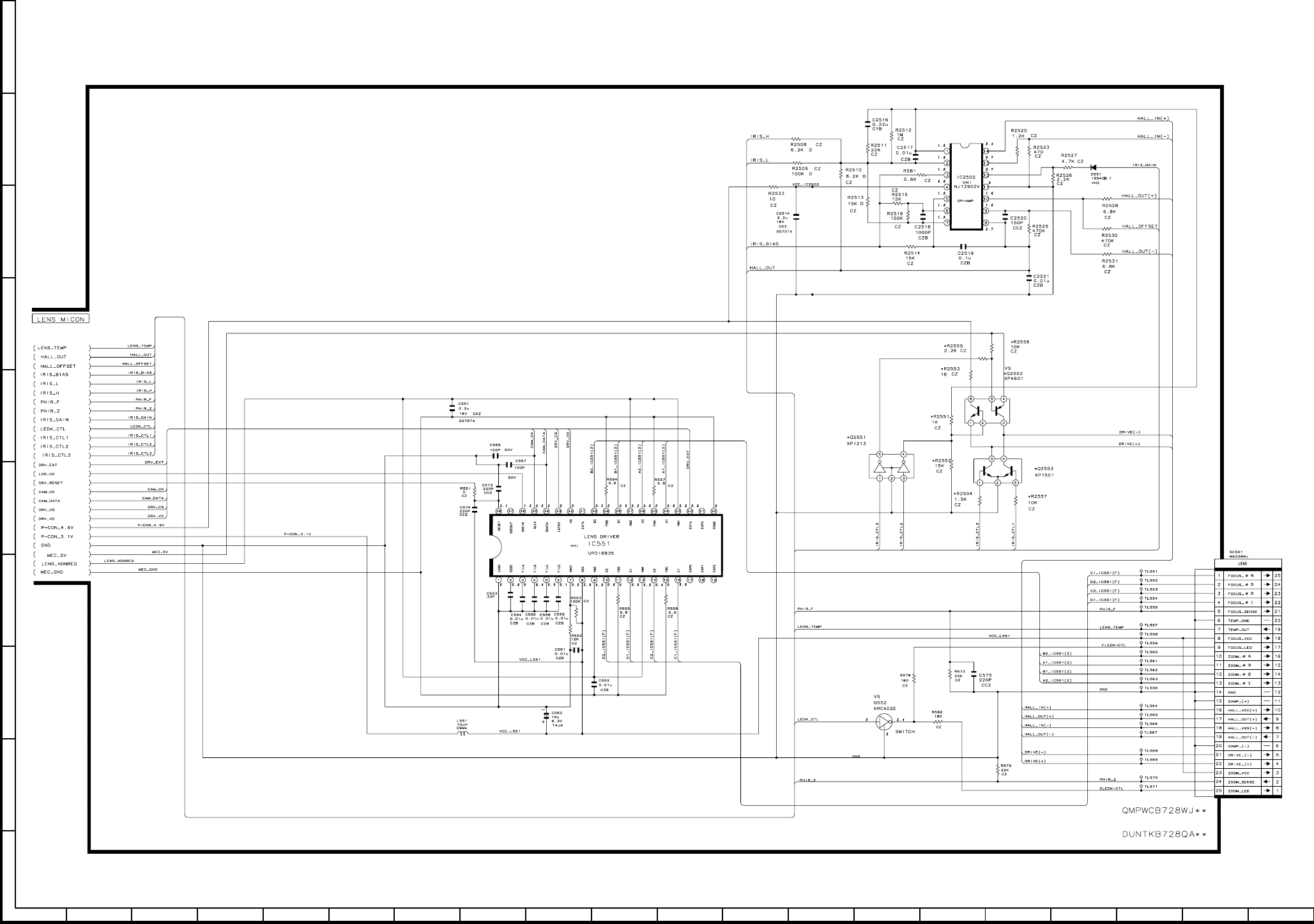

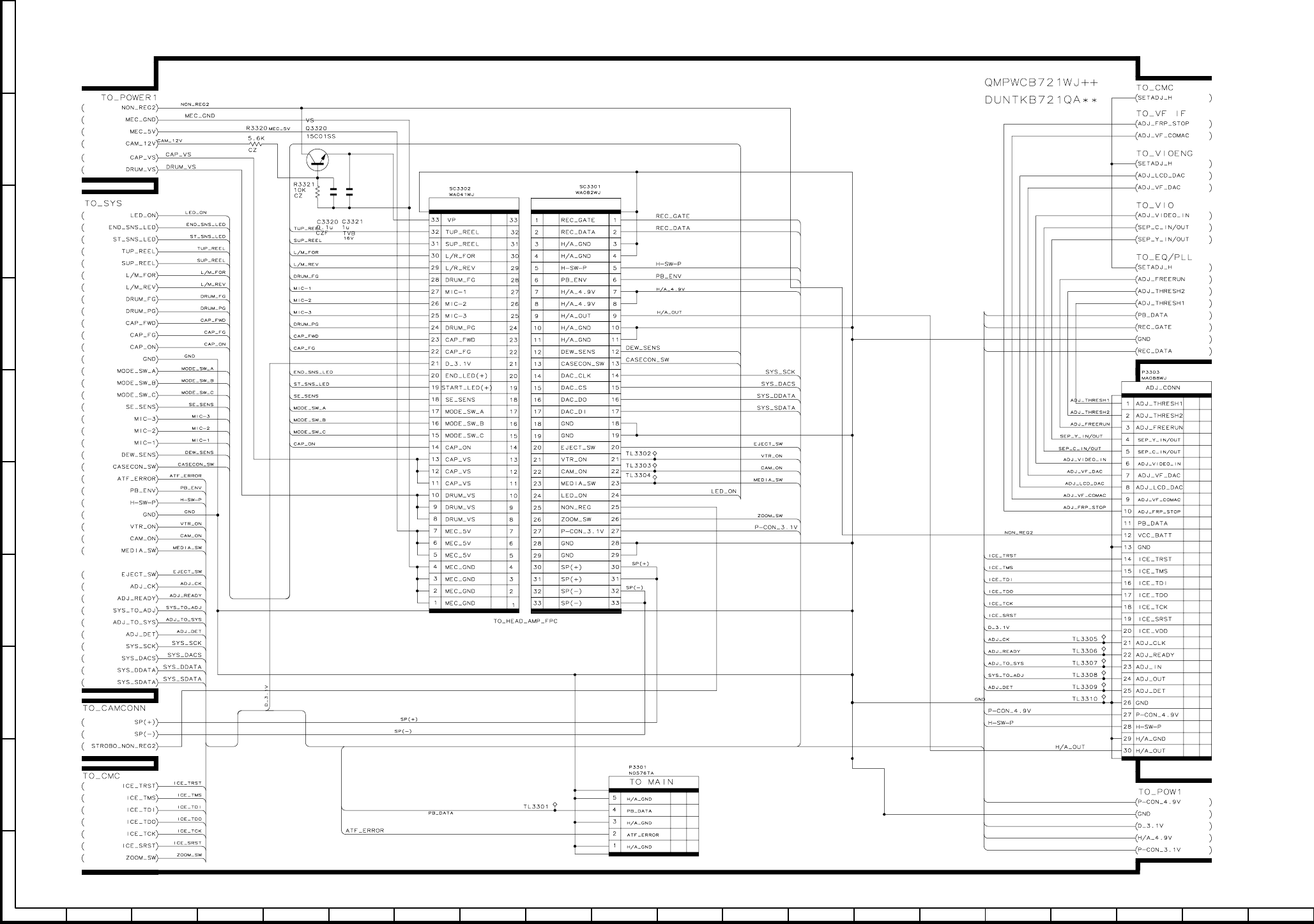

13.SCHEMATIC DIAGRAMS ................................................................................................................ 54

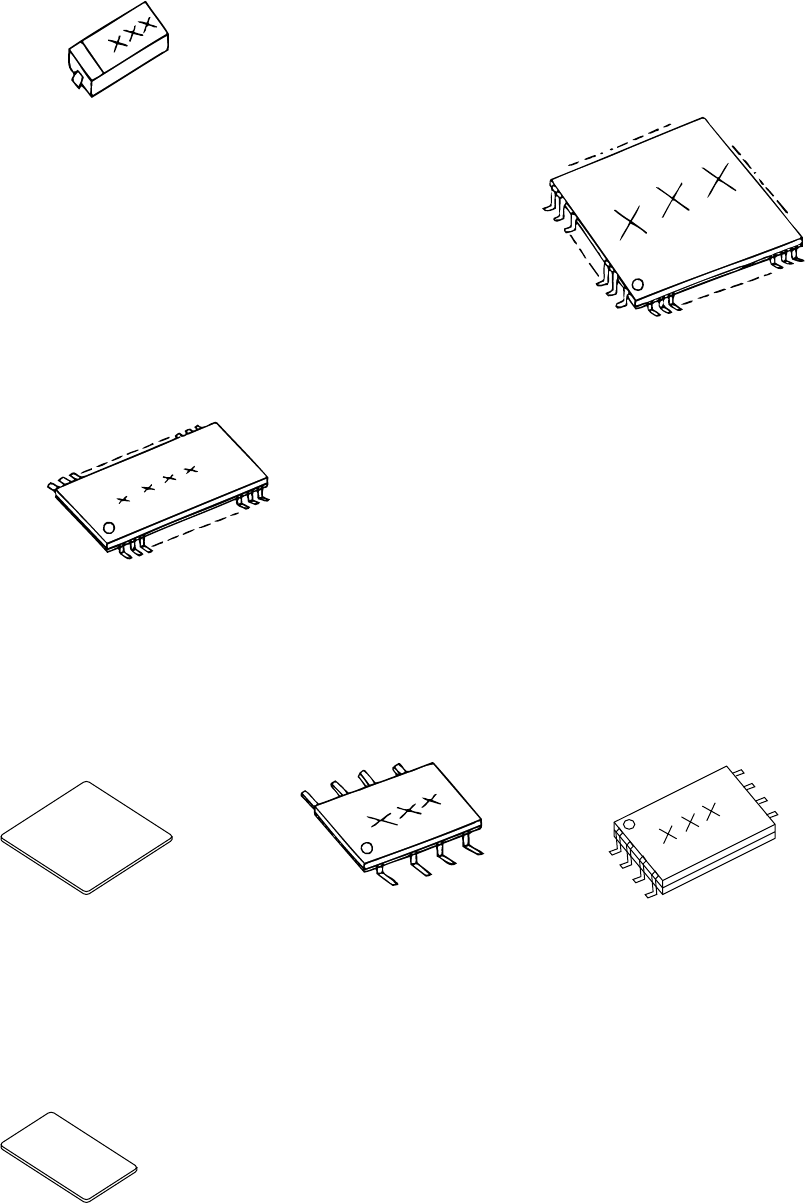

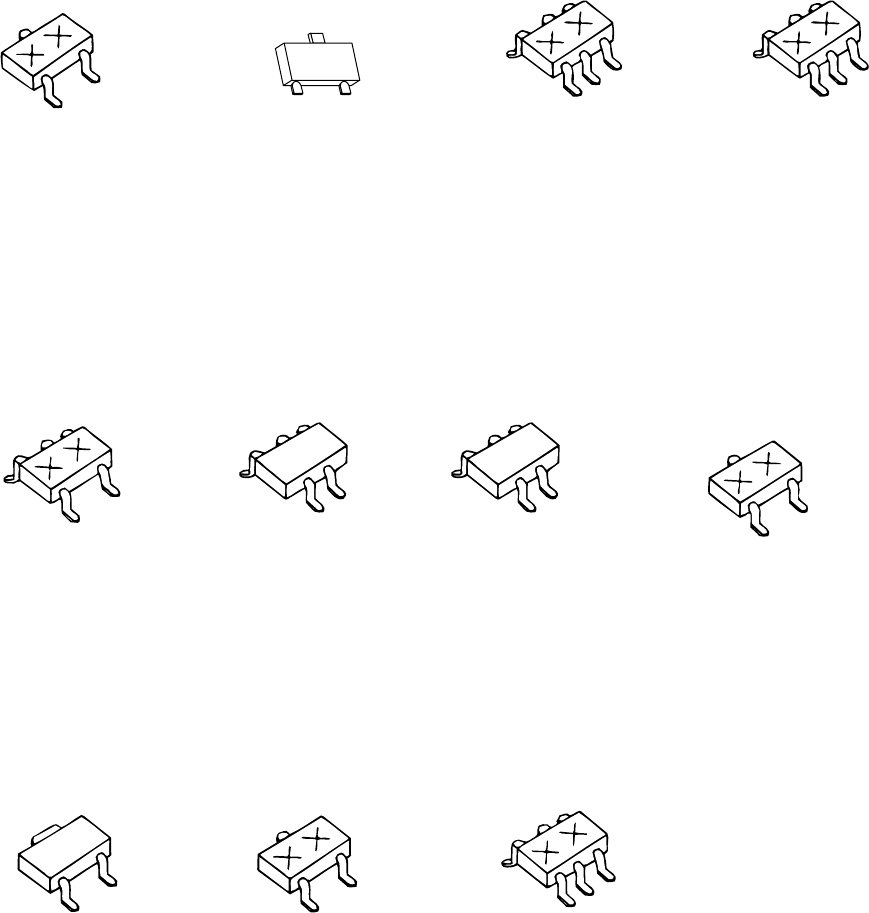

14.SEMICONDUCTOR LEAD IDENTIFICATION ............................................................................... 118

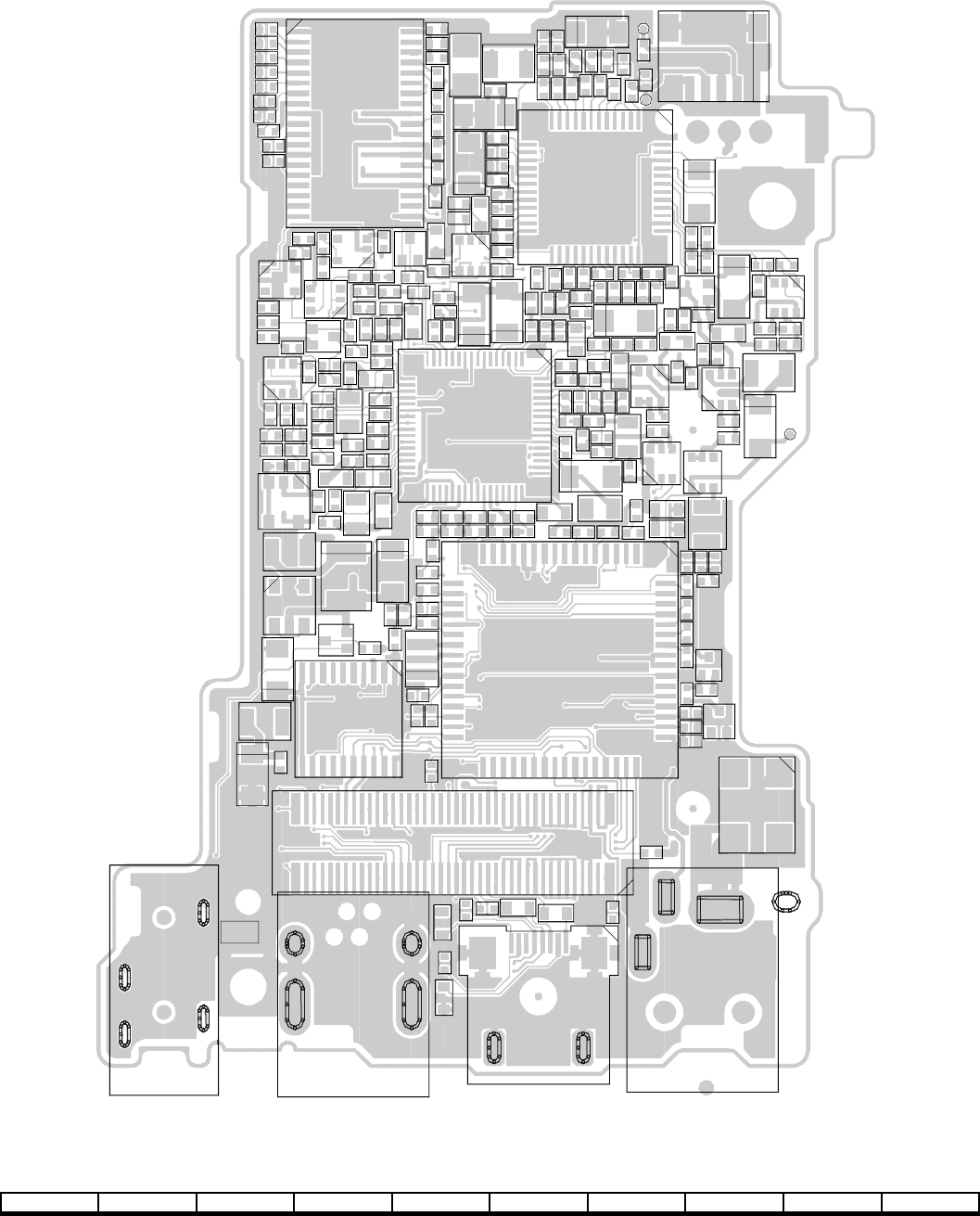

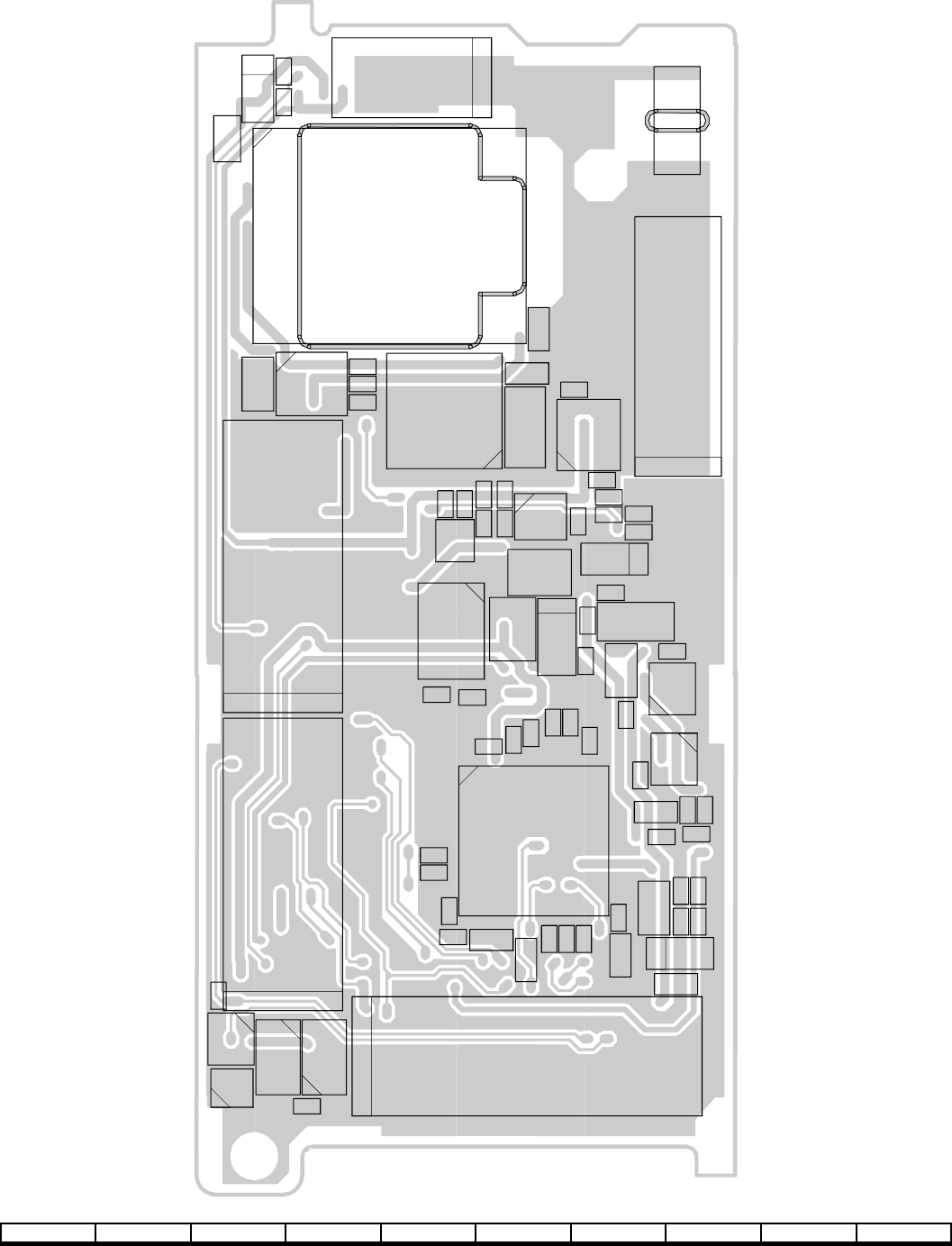

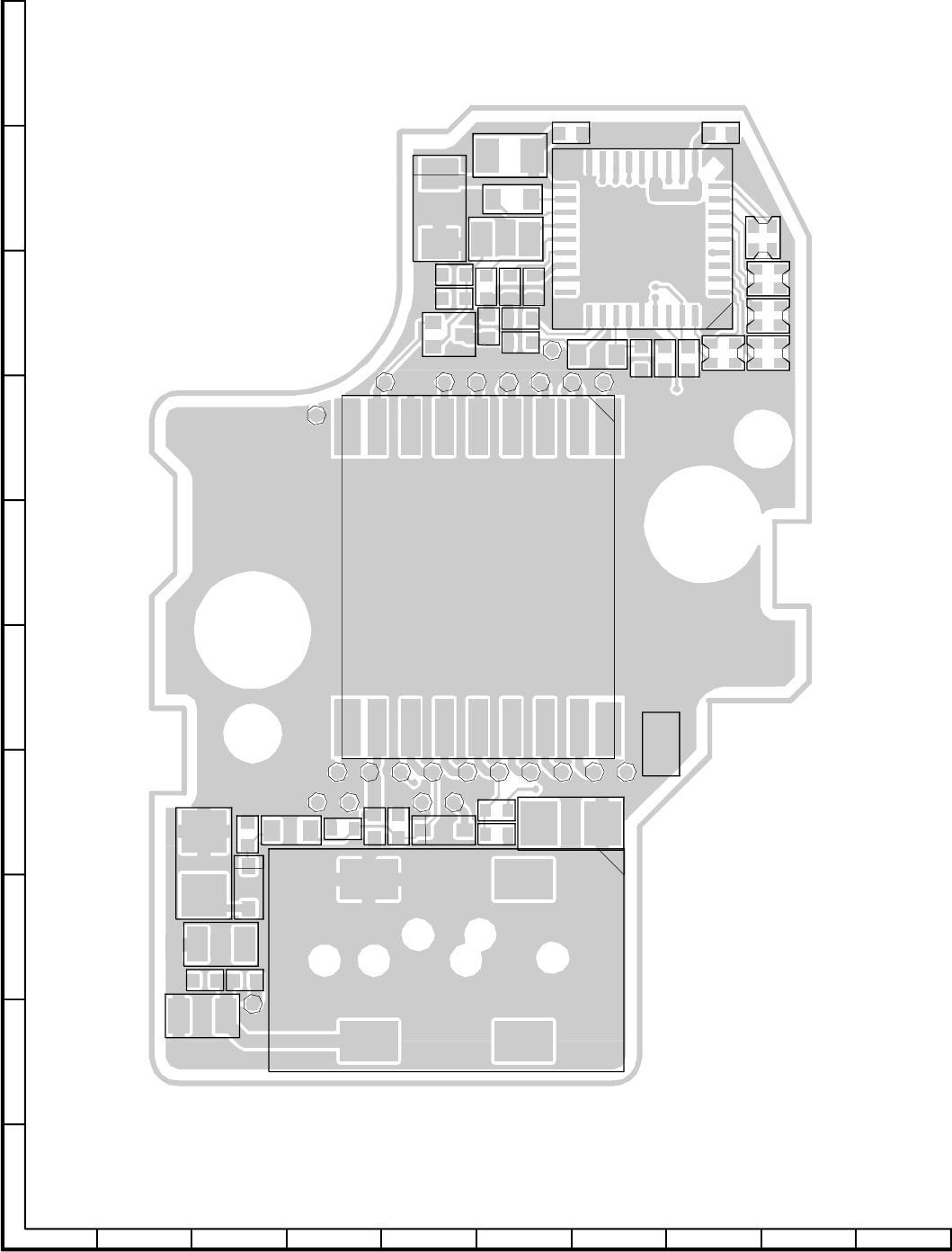

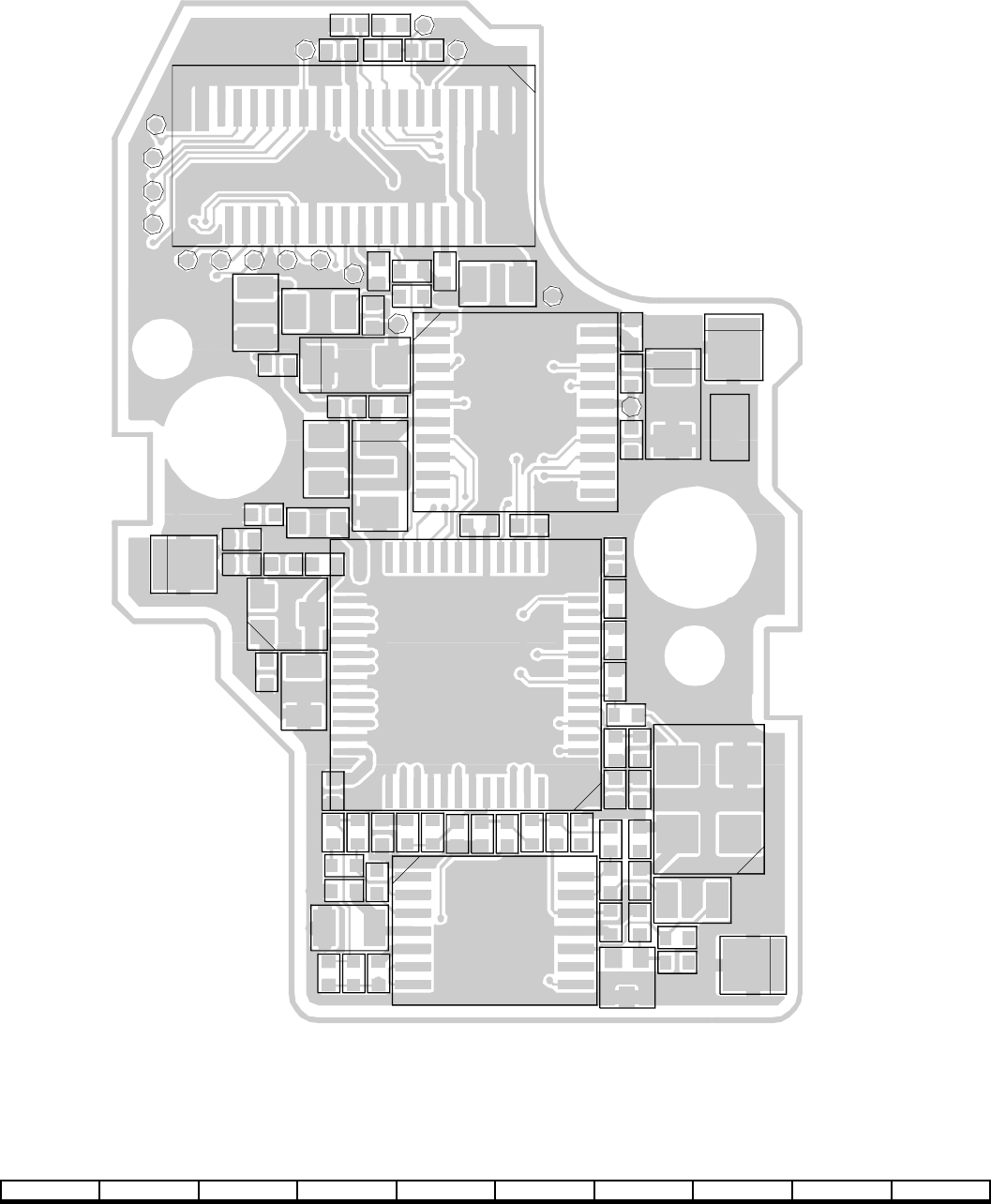

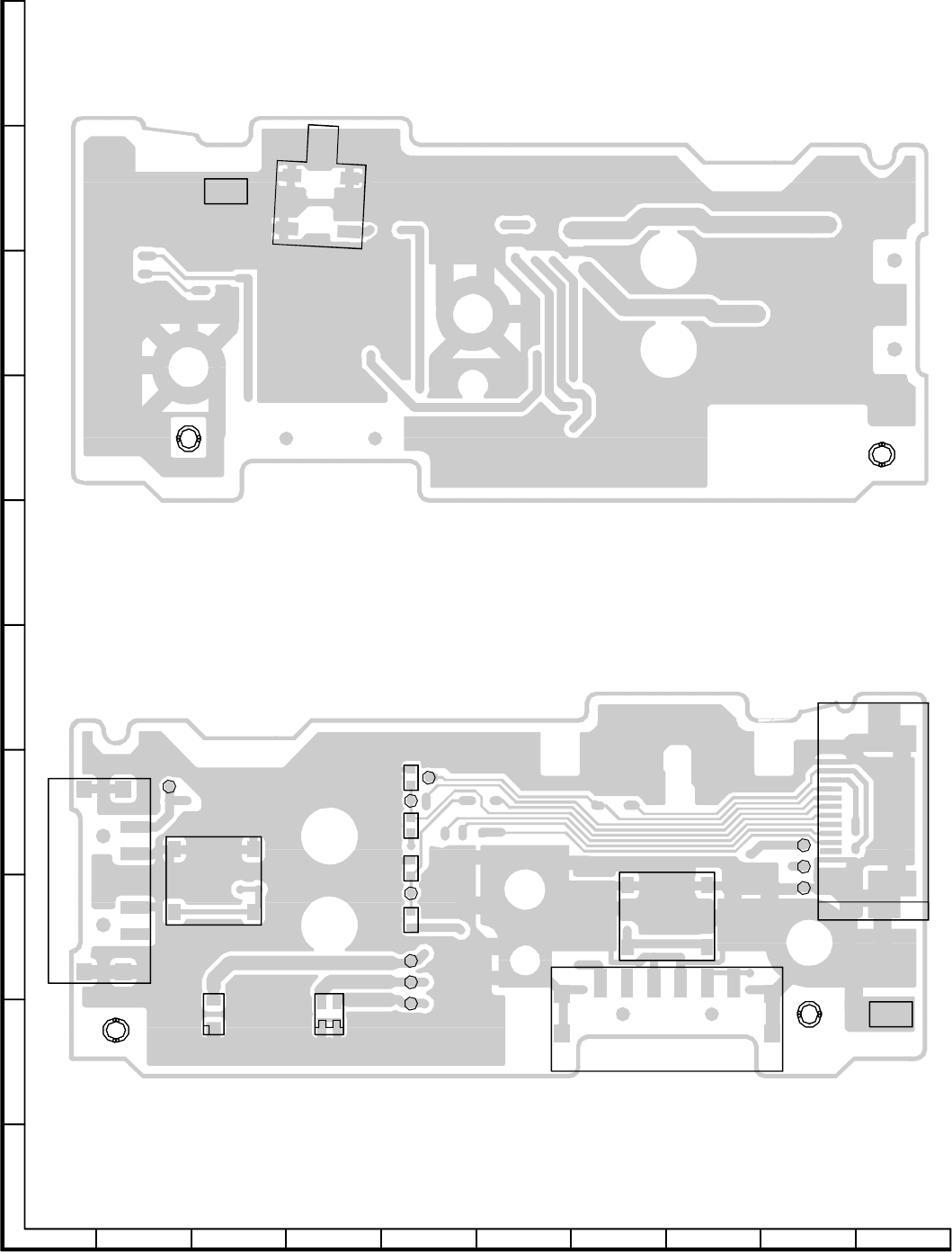

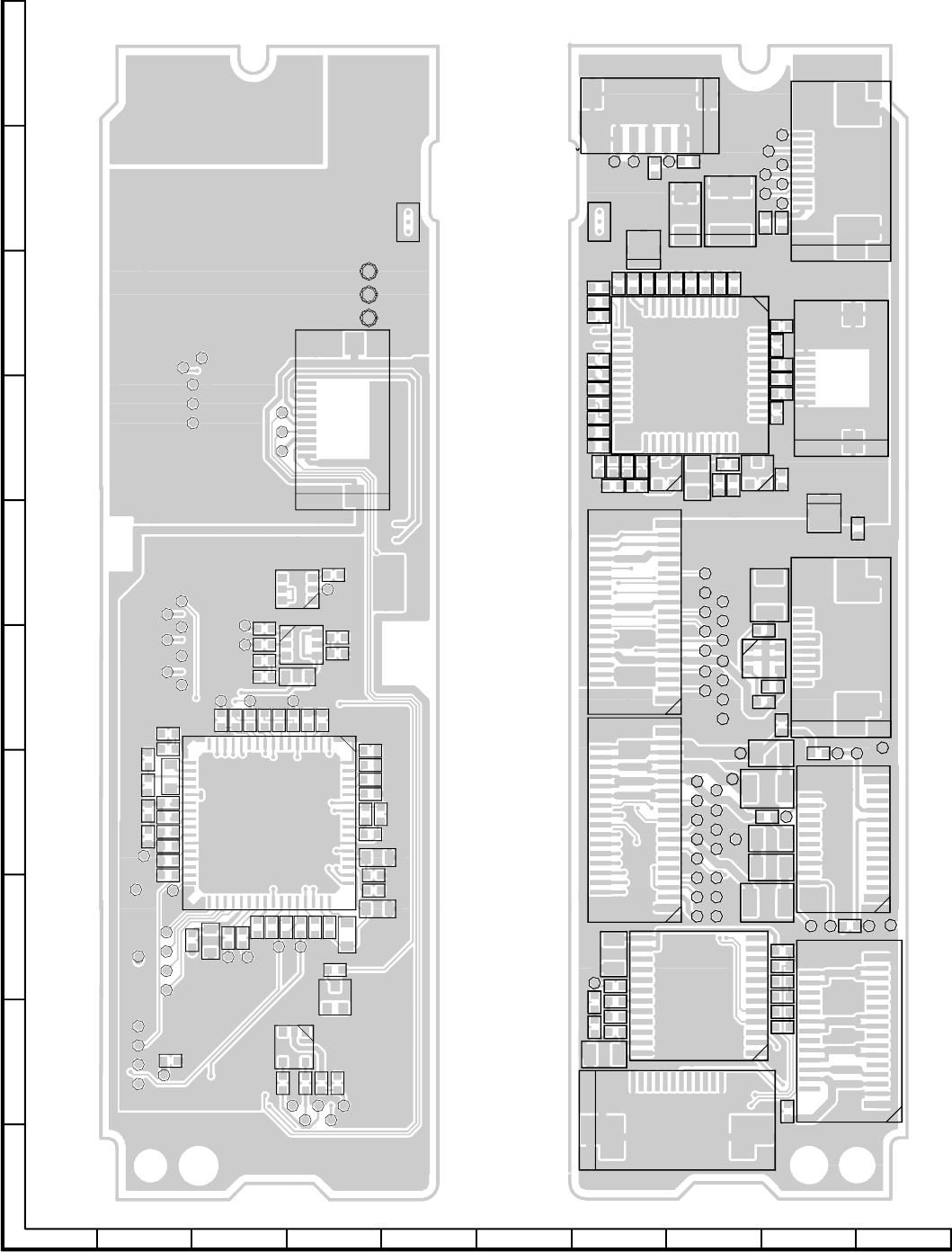

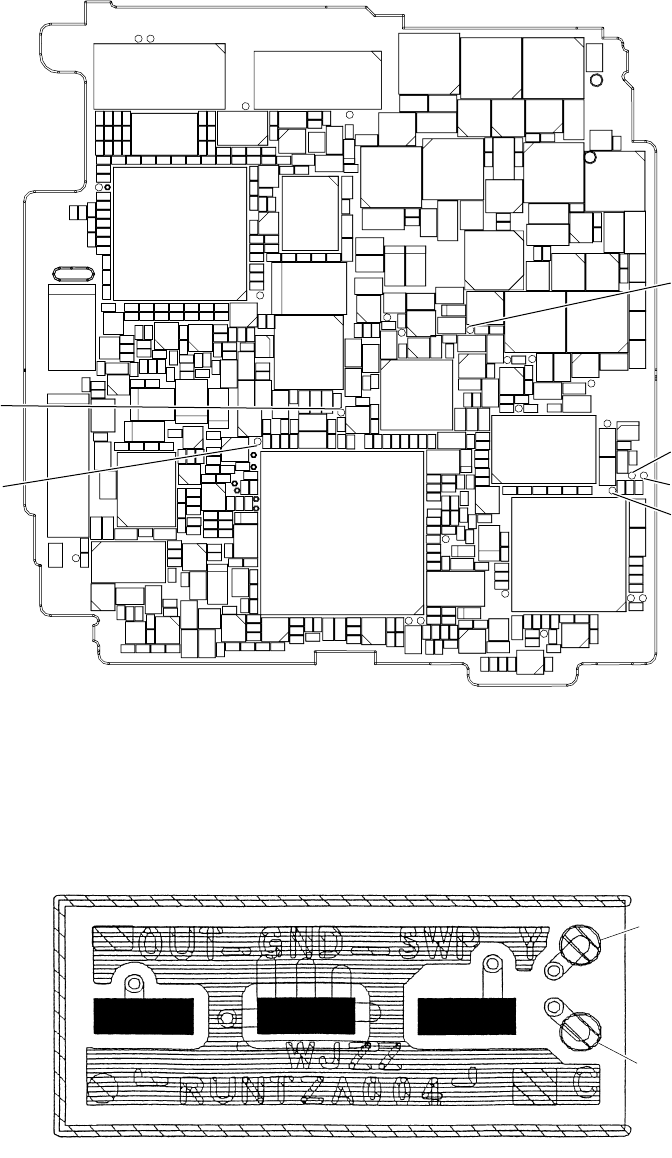

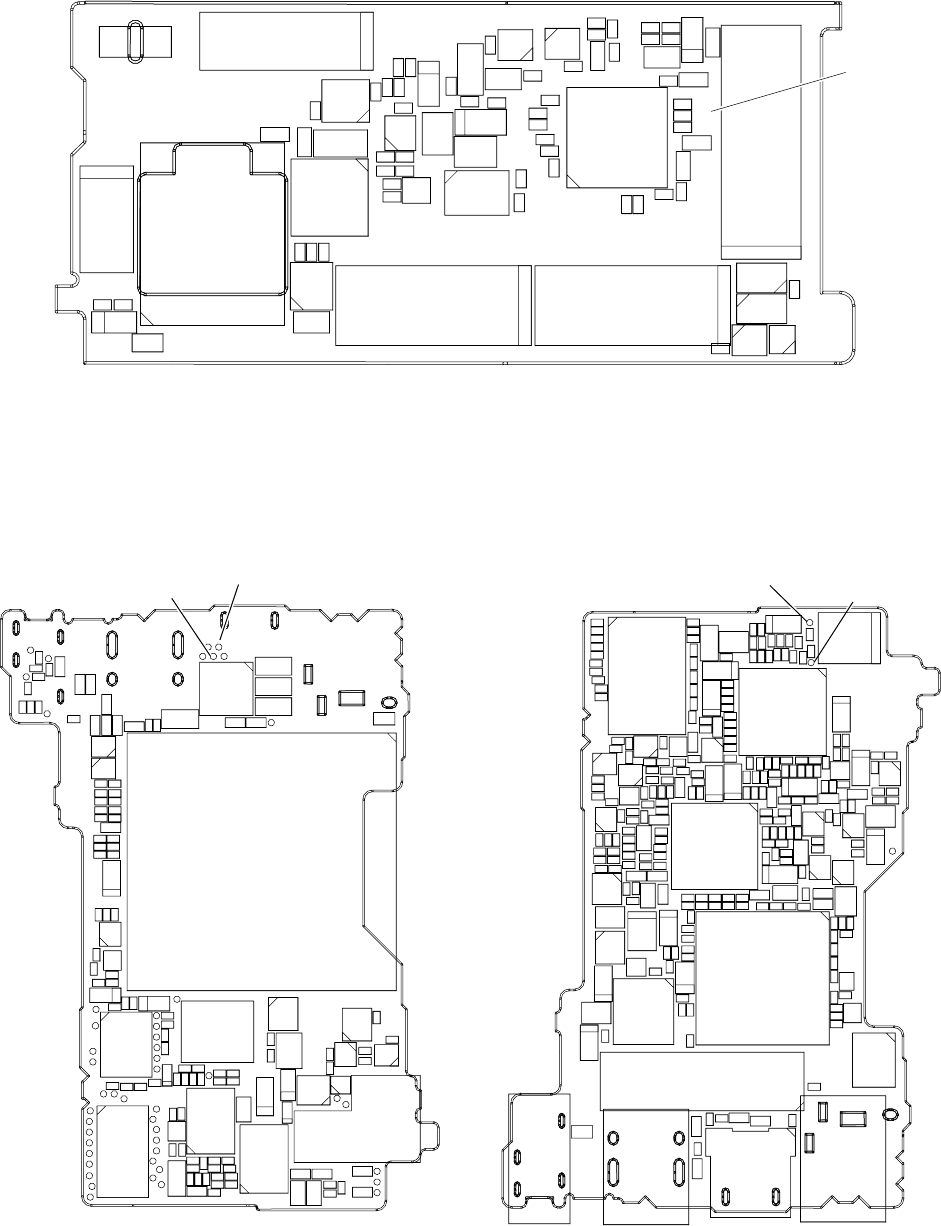

15.PRINTED WIRING BOARD ASSEMBLIES .................................................................................... 120

16.REPLACEMENT PARTS LIST ....................................................................................................... 137

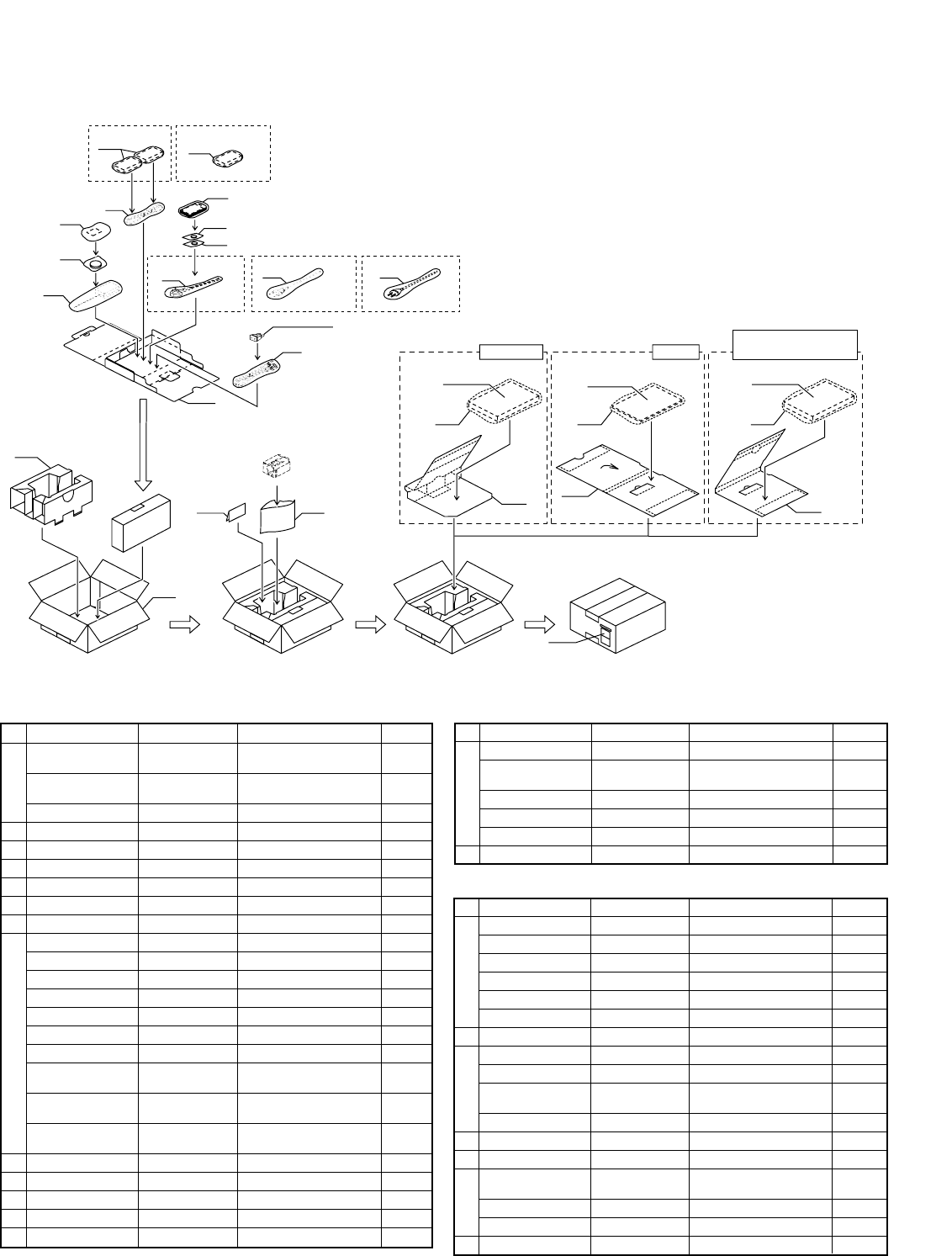

17.PACKING OF THE SET ................................................................................................................. 160

VL-Z7S/E/Z7E-A/Z7E-W

VL-Z8H

1. SPECIFICATIONS

Signal System: PAL standard

Recording System: 2 rotary heads, helical scanning system

Cassette: Digital VCR Mini DV video cassette

Recording/Playback Time: 90 minutes (DVM60, LP mode)

Tape Speed: SP mode: 18.831mm/second

LP mode: 12.568 mm/second

Pickup Device: 1/4" (6.4 mm, effective size: 4.5 mm) CCD image sensor

(with approx. 1,330,000 pixels including optical black,

effective pixels: 690,000 pixels in Tape Camera mode,

1,250,000 pixels in Card Camera mode)

Lens: 10 × optical zoom lens (F1.8, f=3.8-38.0 mm)

Lens Filter Diameter: 30 mm

Monitor: 2.5" (6.4 cm) CGSilicon

Built-in Microphone: Electret stereo microphone

Color Temperature Compensation: Auto white balance with white balance lock

Minimum Illumination: 3 lux* (with gain-up, F1.8)

Still Image Compression System: JPEG base line conformance

Still Image Recording Format: JPEG (Exif2.2)

Still Image Recording Medium: SD Memory Card, MultiMediaCard

Power Requirement: DC 7.4 V

Power Consumption: 4.0 W (during camera recording in Tape Camera mode using the viewfinder in Full

Auto mode with the DIS function on)

4.6 W (during camera recording in Tape Camera mode using the LCD monitor

in Full Auto mode with the DIS function and backlight in normal mode)

Operating Temperature: 0°C to +40°C

Operating Humidity: 30% to 80%

Storage Temperature: –20°C to +60°C

Dimensions (approx.): 82.8 mm (W) × 86.2mm (H) × 103.5 mm (D)

Weight (approx.): 510 g(without battery pack, lithium battery, video cassette, lens cap and card)

AC Adapter (UADP-A016TAZZ)

Power Requirement: AC 110-240 V, 50/60 Hz

DC Output: 10 V

Dimensions (approx.): 49.0 mm (W) × 27.5 mm (H) × 79.0 mm (D)

Weight (approx.): 125 g

Specifications are subject to change without notice.

*Minimum illumination: Since there is no widely accepted testing procedure for determining minimum illumination

capability, lux ratings are comparable only between models from the same manufacturer.

VL-Z7S/E/Z7E-A/Z7E-W

VL-Z8H

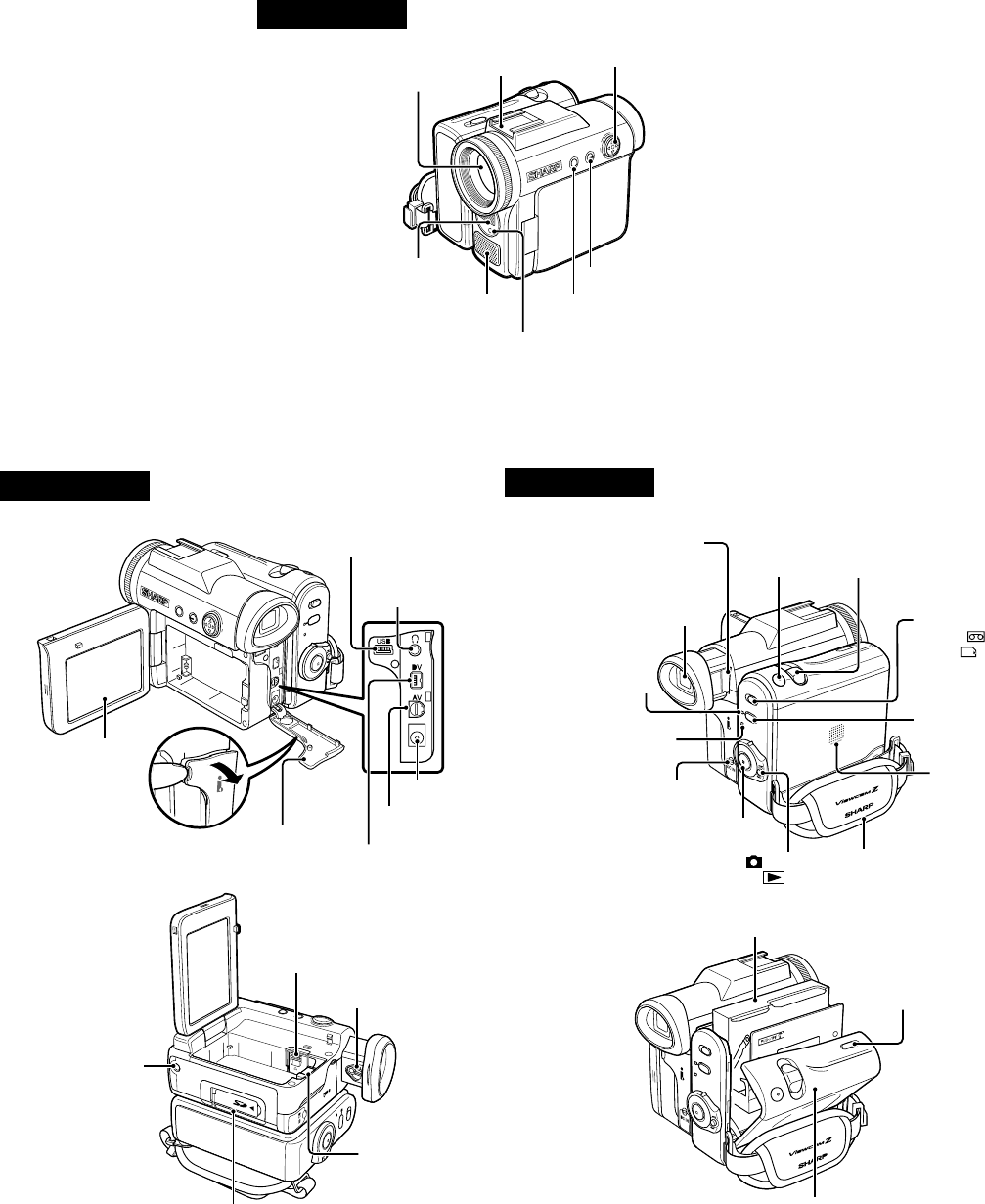

2. PART NAMES

Operation button

DISPLAY button

Front view

Zoom lens

Flash

Zoom microphone

shoe

Stereo microphone LCD LAMP button

Flash sensor

Terminal cover

Lithium battery cover

Tripod socket*

Card slot cover

Left view

Diopter adjustment dial

Battery release

* When attaching a tripod

with a guide pin, do not

attach the pin to the bottom

of the camcorder.

LCD monitor

Earphones jack

DV terminal

USB terminal

DC IN jack

AV terminal

Viewfinder

Power Zoom Wide angle/

Telephoto control/

VOLume control

Media Selection

switch ( Tape

mode/ Card

mode selection

switch)

Start/Stop button

Power switch ( Camera

Recording mode/ Playback

mode select switch)

PHOTO button

STANDBY button

STANDBY indicator

POWER/CHARGE

(RED) indicator

DC IN jack cover

Cassette holder

Cassette compartment

door release

Cassette compartment door

Right view

Hand strap

Speaker

Window cleaning cover

VL-Z7S/E/Z7E-A/Z7E-W

VL-Z8H

3. DISASSEMBLY OF THE SET

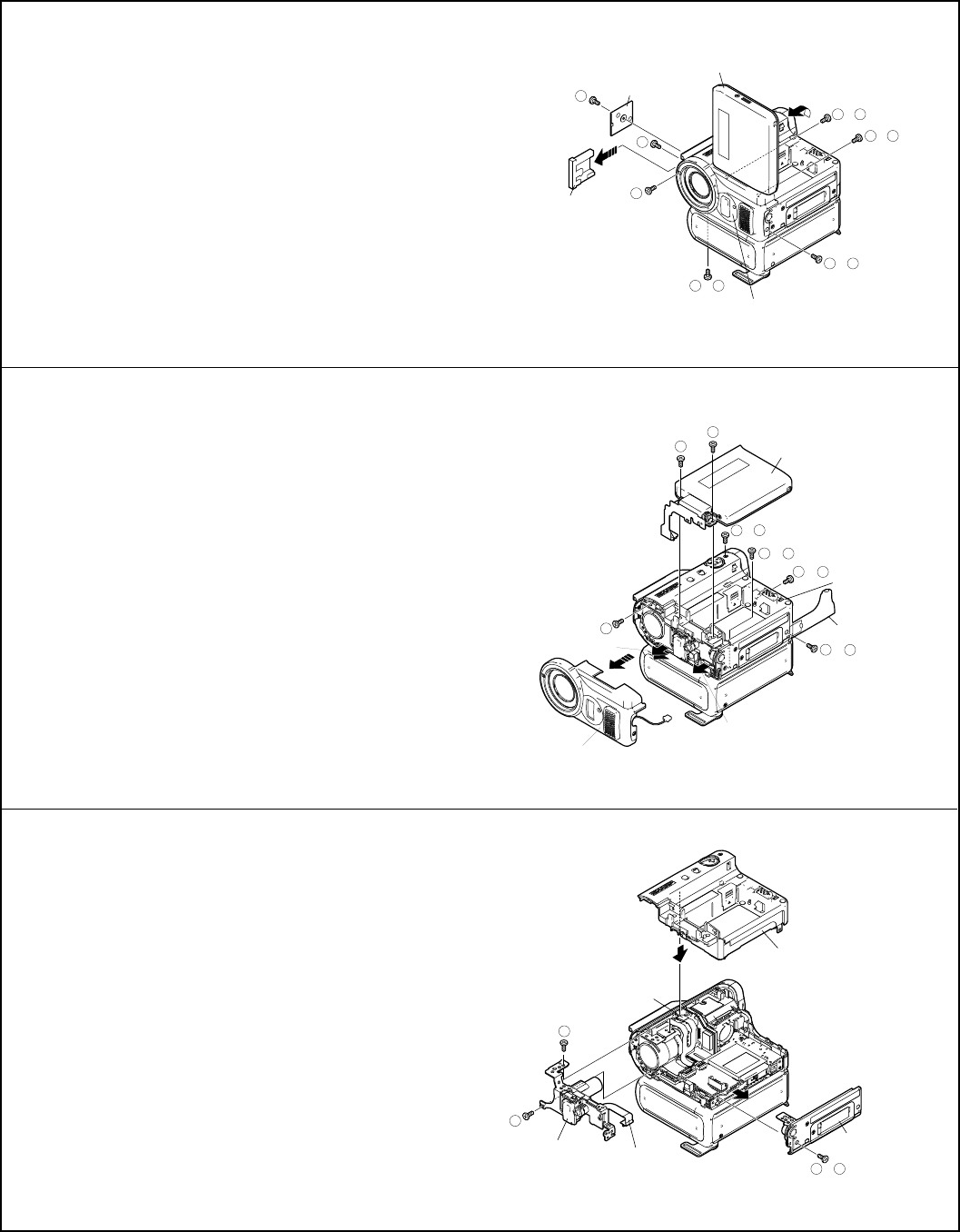

3-1. Procedure for disassembling the cabinet

Note:

Before removing the cabinet, turn OFF the power and make sure that the battery is not connected.

· Remove the screw ((s) XiPSF14P06000).

· Remove the shoe cover by sliding it frontward, remove the screw

((f) XiPSF17P04000) and remove the shoe terminal cover.

· Remove the screw ((b) XiPSN17P03000).

· Open the LCD panel 90 degrees and remove the two screws Z7S/

SA/R/E/EW/X/EEW/EWW/Z8H: ((x) LX-HZ0050TAFN) or Z7EEA/

EWA: ((n) LX-HZ0050TAFF).

· Remove the two screws Z7S/SA/R/E/EW/X/EEW/EWW/Z8H: ((c)

XiPSN17P04000) or Z7EEA/EWA: ((f) XiPSF17P04000) and

remove the KS camera front cover by pulling it frontward.

x n

LCD panel

Shoe terminal cover

Shoe cover

KS camera front cover

x n

· Disconnect the connector of the KS camera front cover.

· Disconnect the two LCD tilt FPCs of the liquid crystal panel.

· Remove the two screws ((r) XiPSN20P08000) and remove the LCD

panel.

· Remove the screw Z7S/SA/R/E/EW/X/EEW/EWW/Z8H: ((p) LX-

HZ0063TAFN) or Z7EEA/EWA: ((z) LX-HZ0063TAFF) and screw

Z7S/SA/R/E/EW/X/EEW/EWW/Z8H: ((q) XiPSN17P06000) or

Z7EEA/EWA: ((m) XiPSF17P06000) that hold the camera L cabinet,

open the terminal cover and Z7S/SA/R/E/EW/X/EEW/EWW/Z8H:

remove the three screws ((b) XiPSN17P03000) or Z7EEA/EWA:

remove the one screw ((b) XiPSN17P03000) and the two screws

((e) XiPSF17P03000).

· Disconnect the hot shoe FPC of the hot shoe and remove the

camera L cabinet.

· Remove the screw Z7S/SA/R/E/EW/X/EEW/EWW/Z8H: ((c)

XiPSN17P04000) or Z7EEA/EWA: ((f) XiPSF17P04000) and

remove the KS camera bottom cover.

· Disconnect the strobe FPC, remove the two screws ((a)

XiPSN17P02000) and remove the strobe unit.

å Precautions in servicing the strobe unit

Once put in the card mode, the main condenser of the strobe

unit stays still electrically charged. If touching the strobe unit or

its nearby parts, you may get an electric shock.

To avoid this, connect a 7 kΩ resistor (300-V withstand voltage)

across the main condenser for about 10 seconds. The condenser

will be discharged.

Camera L cabinet

Connector

LCD tilt FPC

KS camera front cover

Terminal cover

LCD panel

KS camera bottom cover

Camera L cabinet

Strobe FPC

Strobe unit

Hot shoe FPC

VL-Z7S/E/Z7E-A/Z7E-W

VL-Z8H

Camera unit

Camera top cover

Connector

FPC(3)

FPC(2)

FPC(1)

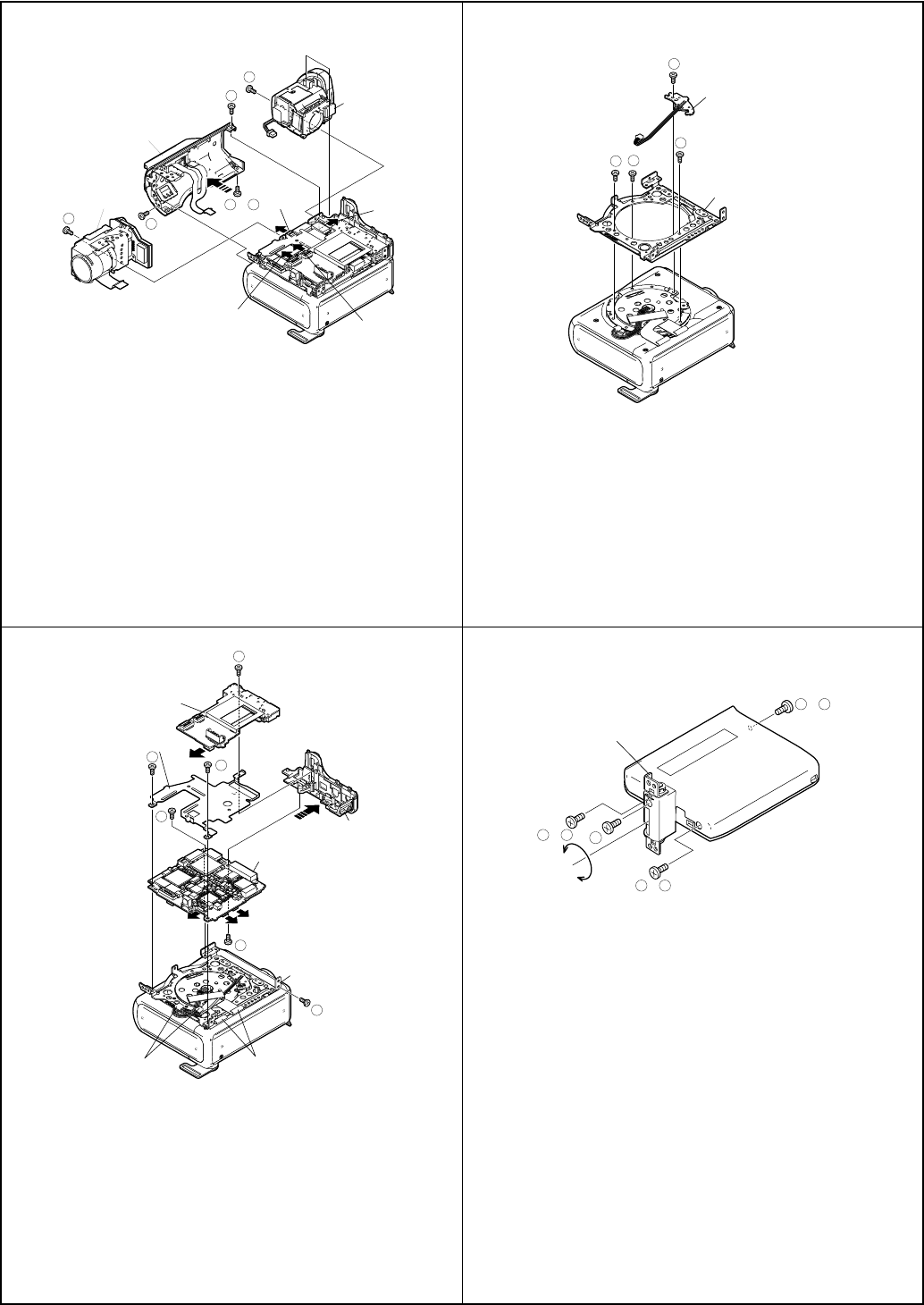

· Remove the screw ((x) LX-HZ0050TAFN), screw Z7S/SA/R/

E/EW/X/EEW/EWW/Z8H: ((p) LX-HZ0063TAFN) or Z7EEA/

EWA: ((z) LX-HZ0063TAFF) and screw ((a) XiPSN17P02000),

disconnect the FPC (1) and remove the camera top cover.

· Remove the screw ((b) XiPSN17P03000) from the camera

unit, disconnect the FPC (2) and remove the camera unit.

· Remove the screw ((b) XiPSN17P03000), disconnect the

connector and FPC (3) and remove the VF.

· Disconnect the two connectors of the sub PWB unit and main

PWB unit.

· Remove the two screws ((b) XiPSN17P03000) from the

radiating angle, remove the screw ((b) XiPSN17P03000)

from the PWB unit and remove each unit.

· Disconnect the two FFCs of the main PWB unit.

· Remove the two screws ((x) LX-HZ0050TAFN), remove the

screw ((x) LX-HZ0050TAFN) form the PWB mounting angle

and remove the terminal cabinet.

· Remove the screw ((b) XiPSN17P03000) and remove the

Mechanism reversion detection PWB unit.

· Remove the three screws ((u) LX-BZ0221TAFC) and remove

the PWB mounting angle.

· Turn the LCD tilt unit assembly 90 degrees.

· Remove the three screws Z7S/SA/R/E/EW/X/EEW/EWW/

Z8H: ((b) XiPSN17P03000) or Z7EEA/EWA: ((e)

XiPSF17P03000).

· Remove the screw ((a) XiPSN17P02000).

Main PWB unit

Terminal cabinet

Radiating angle

Sub PWB unit

Tilt FPC

Connector

PWB mounting angle

LCD tilt unit assembly

Mechanism reversion detection PWB unit

PWB mounting angle

VL-Z7S/E/Z7E-A/Z7E-W

VL-Z8H

3-2. Procedure for disassembling the cabinet

VCR bottom cover

Tilt cover

VCR front cover

Connector

Tilt FPC

KS camera unit

KS VCR operating cover

Operating PWB FFC

The internal lug

may be damaged

If the VCR front cover is removed

only by turning it in the direction

indicated

1. Remove the two couplings and turn the VCR front cover about 20 degrees in

the direction indicated by (1).

2. Turn the VCR front while sliding it in the direction indicated by (2) to disengage

the internal lug.

* If the VCR front cover is removed by turning it forcedly in the direction indicated

by (1), the internal lug may be damaged.

How to remove the VCR front cover

· Remove the three screws Z7S/SA/R/E/EW/X/EEW/EWW/Z8H: ((b)

XiPSN17P03000) or Z7EEA/EWA: ((e) XiPSF17P03000) remove the

screw Z7S/SA/R/E/EW/X/EEW/EWW/Z8H: ((a) XiPSN17P02000) or

Z7EEA/EWA: ((d) XiPSF17P02000) and remove the VCR bottom

cover.

· Remove the two screws Z7S/SA/R/E/EW/X/EEW/EWW/Z8H: ((b)

XiPSN17P03000) or Z7EEA/EWA: ((e) XiPSF17P03000) and remove

the tilt cover.

· Remove the VCR front cover with the cassette cover opened.

· Disconnect the connector and two tilt FPCs, remove the three screws

((h) LX-BZ0220TAFC) and remove the KS camera tilt.

· Remove the screw ((f) XiPSF17P04000) with the cassette lid opened,

disconnect the operation PWB FFC and remove the KS VCR operating

cover.

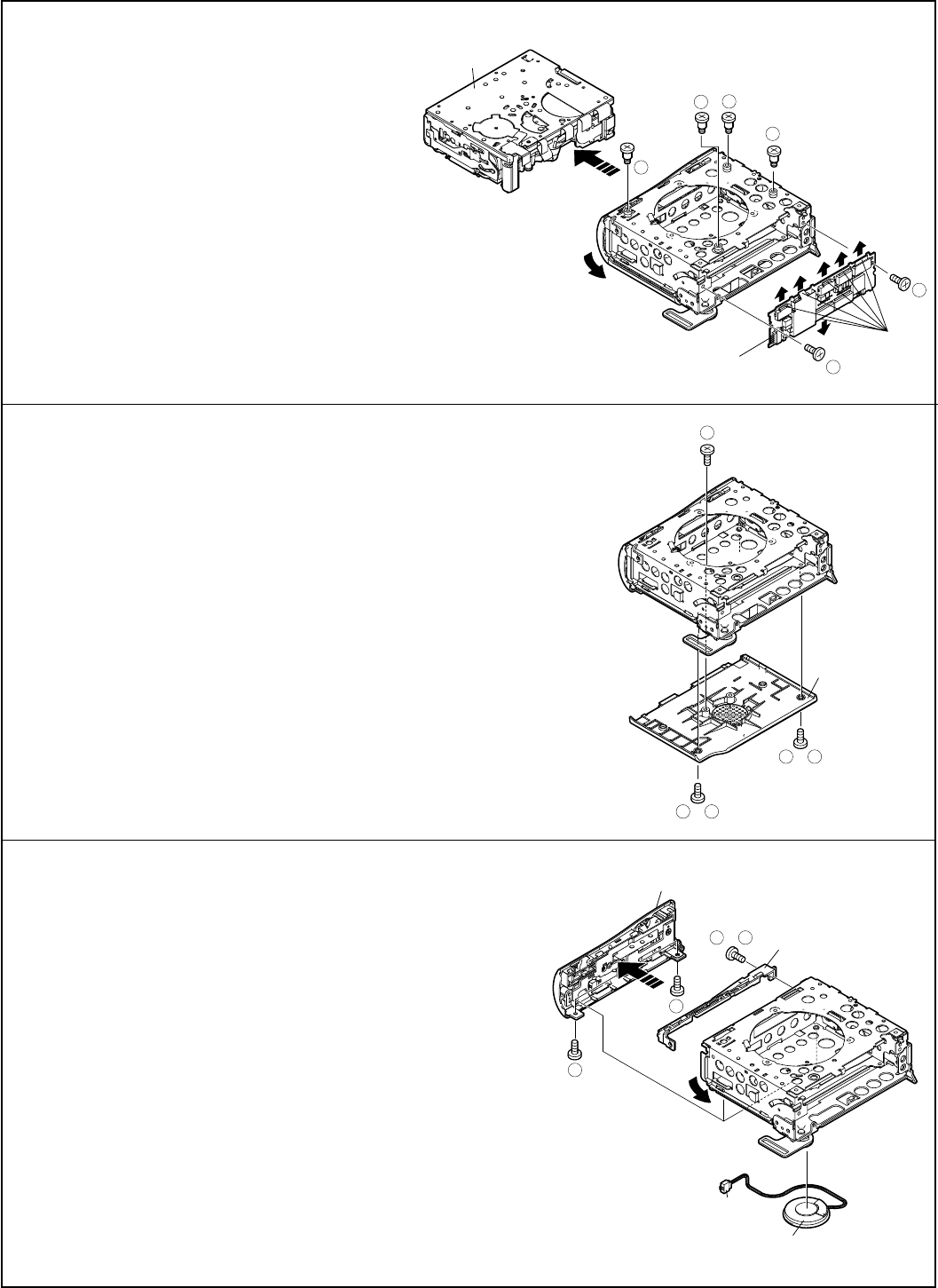

VL-Z7S/E/Z7E-A/Z7E-W

VL-Z8H

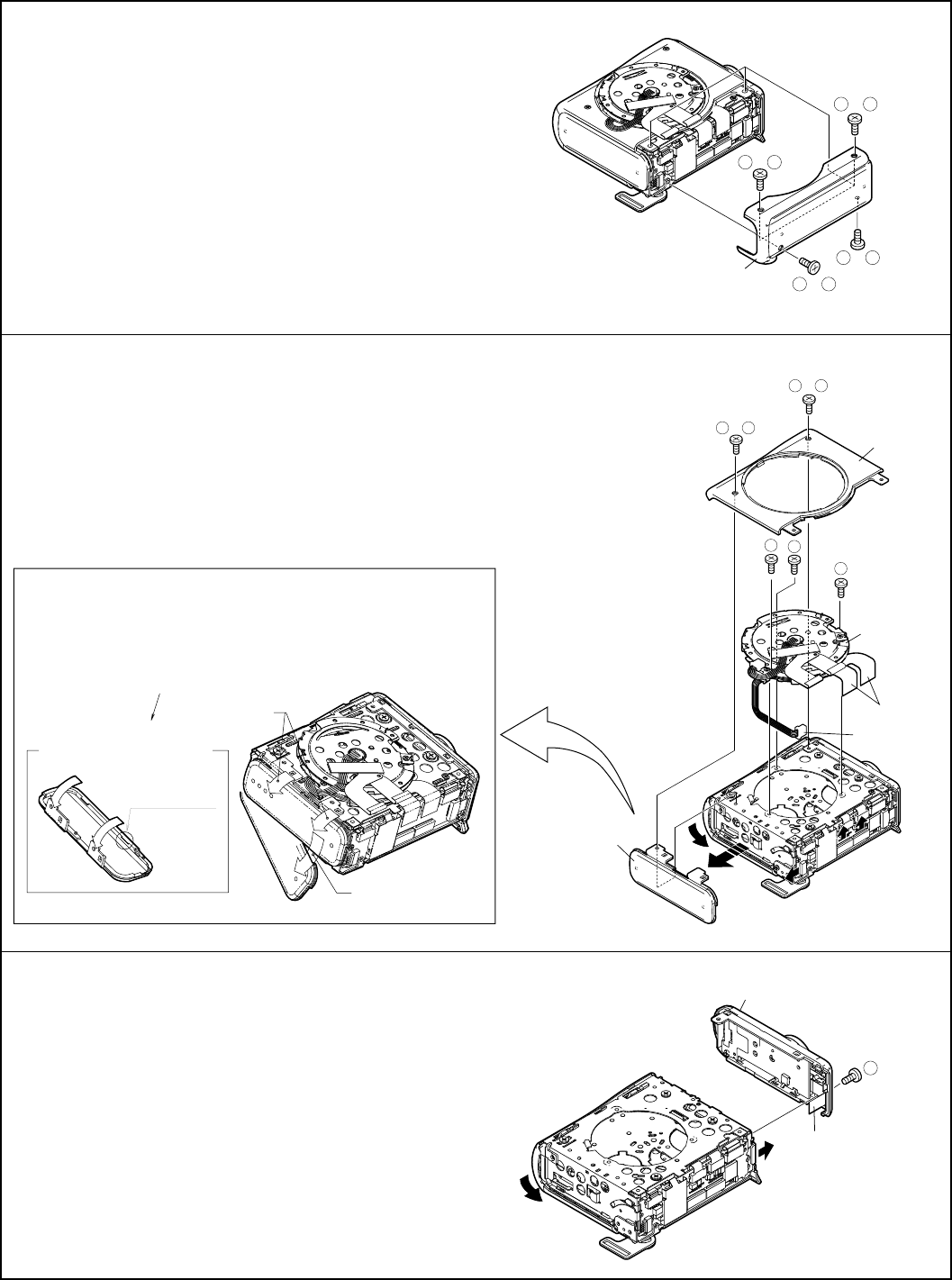

· Disconnect the six FPCs of the head amp circuit board

unit.

· Remove the two screws ((a) XiPSN17P02000) and

remove the head amp PWB unit.

· Remove the three screws ((w) LX-BZA022WJFN) and

remove the screw ((k) LX-BZA023WJFD).

· Remove the mechanism with the cassette lid opened.

· Remove the screw ((x) LX-HZ0050TAFN).

· Remove the two screws Z7S/SA/R/E/EW/X/EEW/EWW/Z8H: ((a)

XiPSN17P02000) or Z7EEA/EWA: ((d) XiPSF17P02000) and remove

the cassette lid.

· Remove the two screws ((d) XiPSF17P02000).

· Disconnect the connector of the speaker while removing the KS upper

lid cover with the cassette control lid opened.

· Remove the screw Z7S/SA/R/E/EW/X/EEW/EWW/Z8H: ((a)

XiPSN17P02000) or Z7EEA/EWA: ((d) XiPSF17P02000) and remove

the lock support cover.

· Remove the speaker.

Cassette lid

Connector

Speaker

Lock support cover

KS upper lid cover

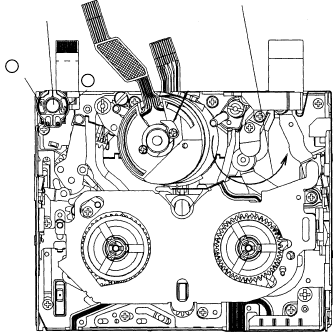

Mechanism

Head amp PWB unit

FPC

VL-Z7S/E/Z7E-A/Z7E-W

VL-Z8H

4. MECHANISM ADJUSTING JIGS AND PARTS

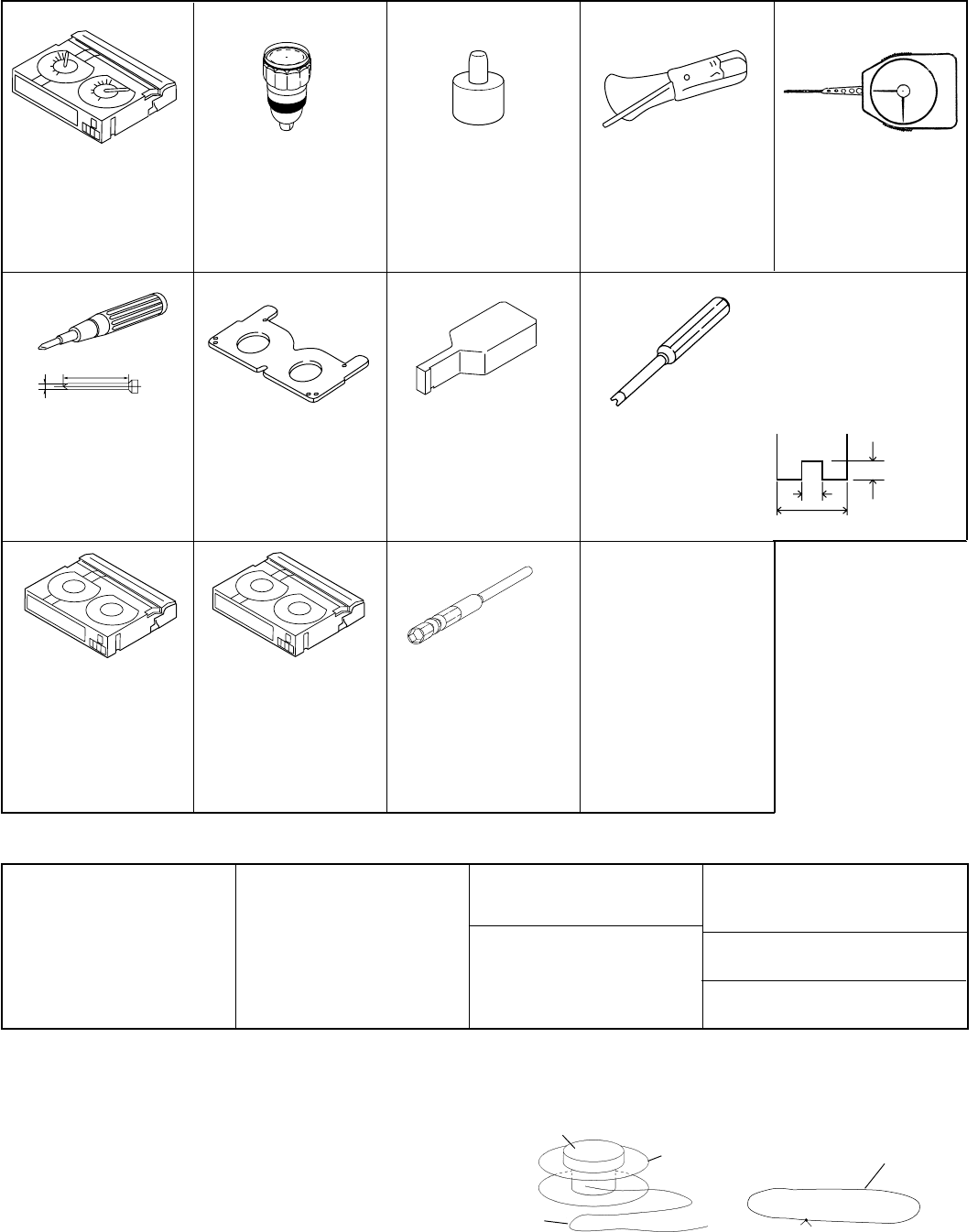

4-1. Mechanism checking and adjusting jigs

1. Cassette torque

meter for PB

2. 9DASD-1015

3. DB

* 1mN·m/1.5mN·m

1. Torque gauge

2. JiGTG0045

3. CN

* For measurement of VS-

REW winding torque

1. Torque gauge head

2. 9EQTGH-DH5000

3. BW

For torque gauge shown

left

1. Dial tension gauge

2. 9DAPTG-10-10W

3. CA

* PTG-10

1. Tension gauge 4N

2. JiGSG0400

3. BK

* For measurement of

pinch roller press force

1. Master plane

2. 9EQMP-VLPD1

3. CL

* For checking of

height of reel table

1. Height adjustment jig

2. 9DAHG-PD1

3. BZ

* For height adjustment

1. Alignment tape – (II)

2. VR3-JPZQS

3. CG

* For adjustment of SW

point(Color bar signal)

* 90ADVC-TAPEPAL

available

1. Torque driver

150mN·m

2. JiGTD1500RTDH

3. CB

4-2. Parts for periodic inspection and maintenance

1. Oil

Cosmo Hydro HV22

2. 9EQ-OiL-HV22

3. AE

* Cosmo Oil Co., Ltd.

(1) Reel hub for back tension measurement (Fig.1)

1) Have the reel hub of a commercially available cassette

tape ready.(Disassemble the cassette tape and remove

the tape from the reel hub.)

2) Attach one end of a thread (having a length of about

20cm) to the reel hub using Scotch tape etc.

Attach a weight of about 0.21N to the top face of the reel hub.

(2) Thread for pinch roller press force measurement

1) Have a commercially available thread having a length of

about 20cm ready.

1. Driver for height

adjustment

2. 9EQDRiVER-DH5

3. BC

(1) Vernier calipers

(2) Precision screwdriver

(Phillips head and slot-

ted)

(3) Long-nose pliers

(with thin tips)

(4) Tweezers

1. Bit for hexagon nut

with opposite side

distance of 3 mm

2. 95CM22001

3. BL

* For installation of Tu

guide nut

1. Cleaning paper

2. JiGDUSPER

3. AP

* DUSPER ∑ (SIGMA)

(Ozu Co., LTD.)

1. Ultrathin cotton swab

* Commercial item

1. Cleaning liquid

Industrial ethyl alcohol

* Commercial item

1. Loctite adhesive (1401B)

* Three Bond

1. Grease

Molykote YM-103

2. 99FGREASEYM103

* Dow Corning

1. Alignment tape – (I)

2. VR3-GAZXS

3. CF

* Adjustment of running

system

(Linear signal)

ø2

50 or more

No.0 Phillips bit

No.00 Phillips bit

1. Dry grease CFD-409Z

* Sankei Chemical Co., LTD.

<Note: Order of descriptions>

Sketch

1. Name

2. Part code

3. Code

* Model number and usage

* For adjustment of guide

roller

* Bit shape

(see figure below)

Tolerance ± 0.1

Tip thickness 0.5

1.4

<Note: Order of descriptions>

1. Name

2. Part code

3. Code

* Model number and usage

2) Tie both ends together to loop the thread.

Fig. 2

Fig. 1

Weight

Reel hub

Thread

VL-Z7S/E/Z7E-A/Z7E-W

VL-Z8H

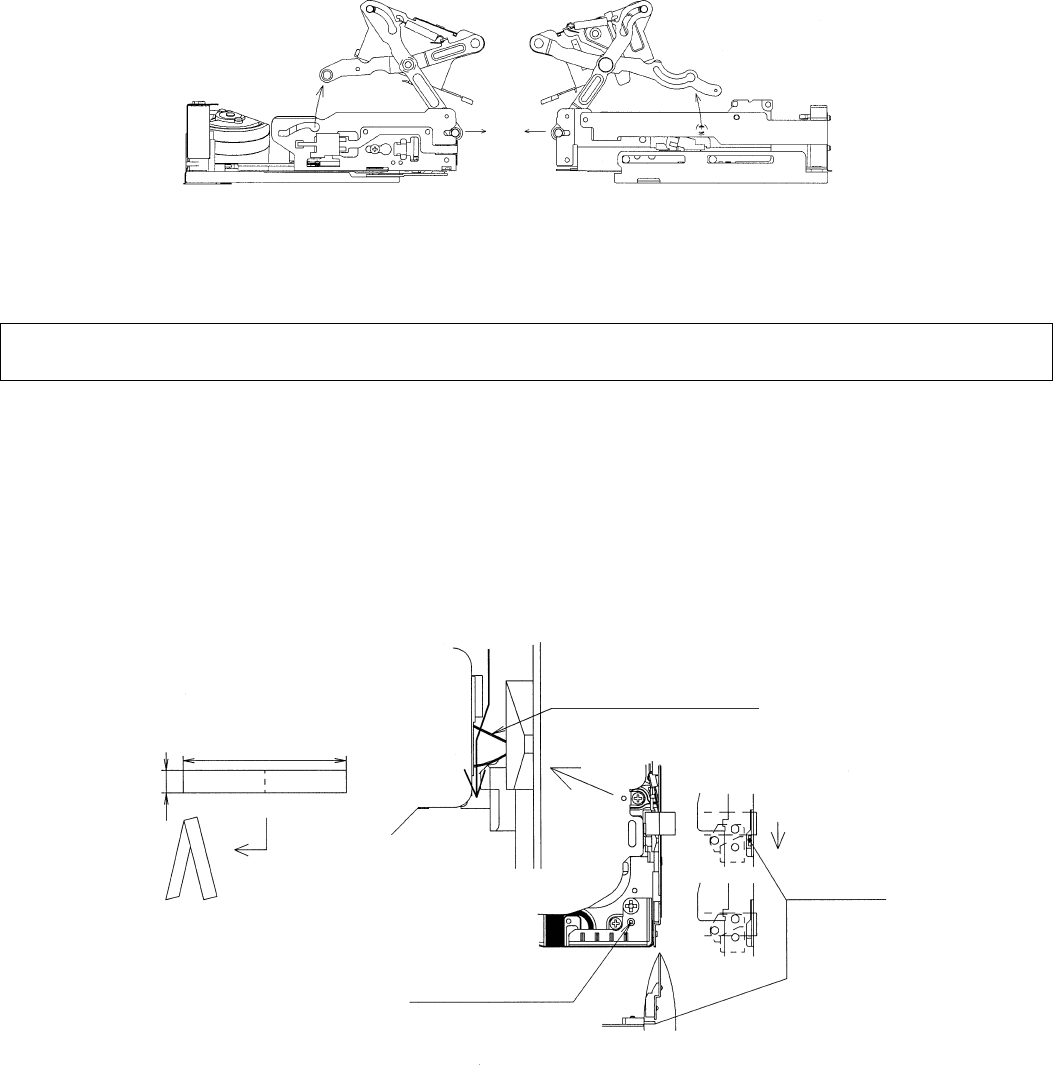

5-2. Cautions in handling the mechanism

(1) Cut washers removed at the time of part replacement etc. should be

replaced with new ones without fail.

(2) Because no volume adjustment is available in this mechanism, cleaning or

part replacement should be performed if the setting is not satisfied.

(3) About oil

a) Be sure to use the specified oil. (If any oil other than the specified oil is

used, various troubles will occur.)

b) When lubricating the bearing, be sure to oil free from foreign particles

such as dust. (If oil in which foreign particles such as dust are mixed is

used, it will cause wear and seizure to the bearing.)

c) The term "One drop of oil" here means the amount of oil on the point of

a needle etc. shown in Fig.1.

(4) Repairing of circuits, final adjustment of running system, etc. should be

performed with the cassette controller assembly installed in the mechanism.

(5) When operating the mechanism singly, apply voltage to the loading motor

to drive it. The voltage between the terminals should be 3 to 4V DC. (Do

not apply external voltage to the loading motor with the mechanism

connected with the main circuit board. Doing so could cause a failure.)

(Turning the gears forcedly by hand may cause them to get damaged.)

When placing the mechanism singly, use an appropriate spacer so that the

capstan motor is not rubbed.

(6) When installing the cassette controller, push the portion indicated by "A" in

Fig.2. Do not push other portions.

(7) Take care not to deform the components of the mechanism.

Fig. 2

Ø1.5 or less

Oil

Fig. 1

5. INSPECTION AND MAINTENANCE ITEMS AND INTERVALS

In order to maintain the quality of the mechanism section, perform the following maintenance and inspection. After repairing the

mechanism section, perform the following maintenance regardless of the number of hours of use by the user.

5-1. Maintenance and inspection list

Tape running section (See7-3.)

Swing arm

S reel table, Tu reel table

Running system

• • • Replace. • • • Clean. • • • Lubricate. • • • Check.

Note:

If no envelope output is obtained

in spite of the video head being

cleaned, replace the drum

component.

(If the envelope output is normal,

refer to "10. USEFUL TIPS".)

Performance check

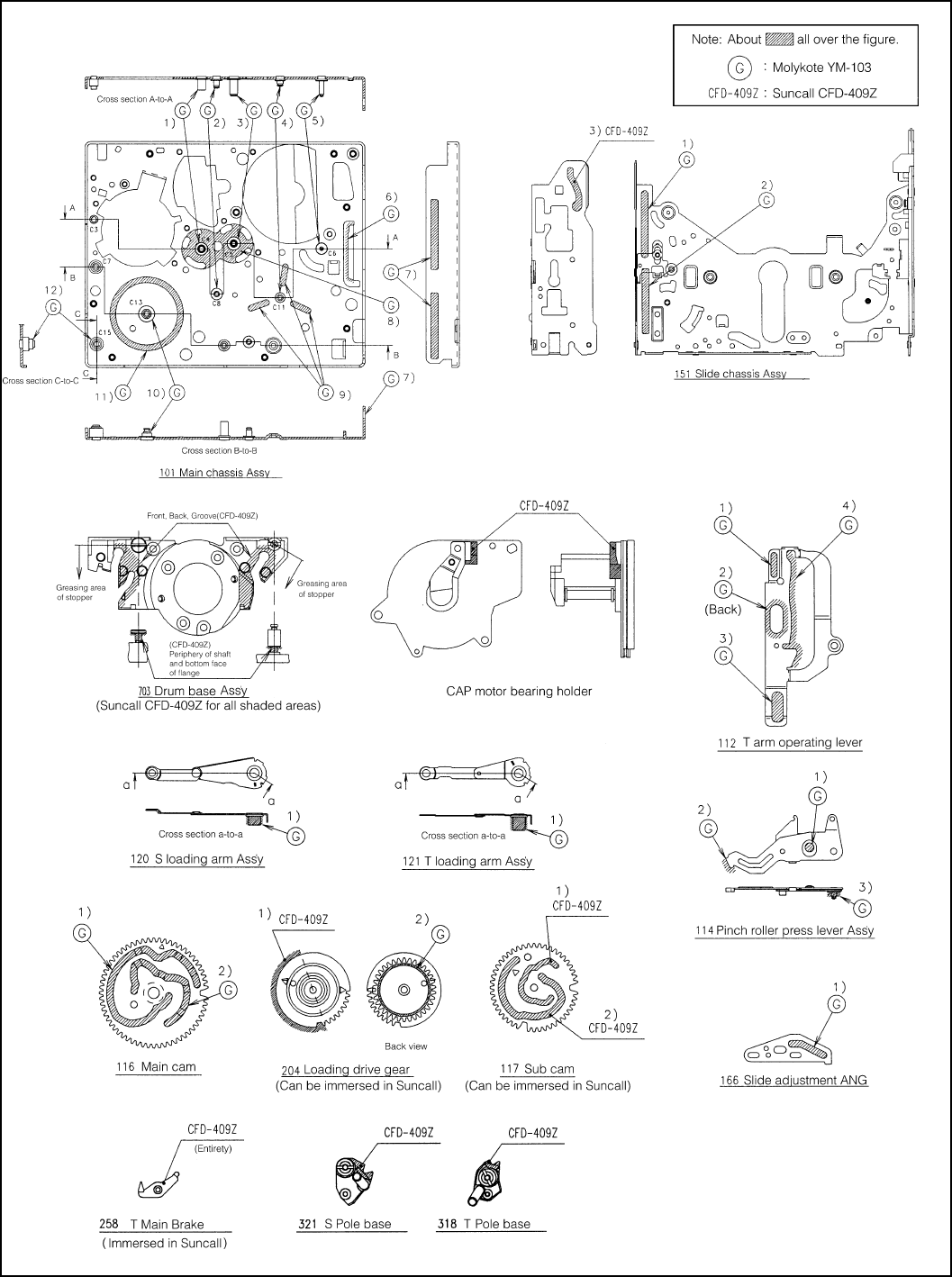

[Oil] Cosmo Hydro HV22

[Grease] Molykote YM-103

Sankei Chemical CFD-409Z

Driving system

Number of hours of use (h)

500 1,000 1,500 2,000 3,000

Symptoms observed at the

time of maintenance Notes and remarks

Inspection and

maintenance location

[Loctite adhesive] Three Bond 1401B

[Cleaning liquid] Industrial ethyl alcohol

• Tape not running

• Tape sagged

• Block noise

• Abnormal noise

•Replace if any abnormal

condition is found.

•Apply oil.

[Oil]

Cosmo Hydro HV22

Note:

Apply oil to the shaft and

lightly wipe it off with a cloth.

•Abnormal noise

• Ejecting cannot be made.

• Mode cannot be set.

• Replace if any abnormal

condition (noise etc.) is found.

• Tape not running

• Tape sagged

• Damage to tape

• Abnomaly in reproduced


• If a part is out of spec, replace

it.

PB, VS/R and loading back tension

S reel table unloaded torque

PB and VS/R winding torque

Abnormal noise

Loading motor

Mode SW

Center gear boss

Relay pulley shaft

Capstan motor (Timing belt)

Pinch roller

Drum section, Video head

(See 7-3.)

• Replace if abnormal rotation or swing (large) is found.

• Cleans the portions that come in contact with the tape (the lower

drum helical portion in particular). Use the specified cleaning liquid.

• Block noise

• Clogging of head

• Damage to tape

VL-Z7S/E/Z7E-A/Z7E-W

VL-Z8H

6-1. Checking of PB (REC) winding torque

AC adapter used, Cassette controller assembly installed

(1) Set the torque cassette with the cassette controller installed in the mechanism. In the SP record mode (or in the PB mode

if signals have been SP-recorded on the tape), check that the winding torque is within spec.

<Spec for PB (REC) winding torque>(If there is a torque ripple, read the center value.)

0.7+0.2/-0.05N·m, Ripple: 0.1mN·m or less

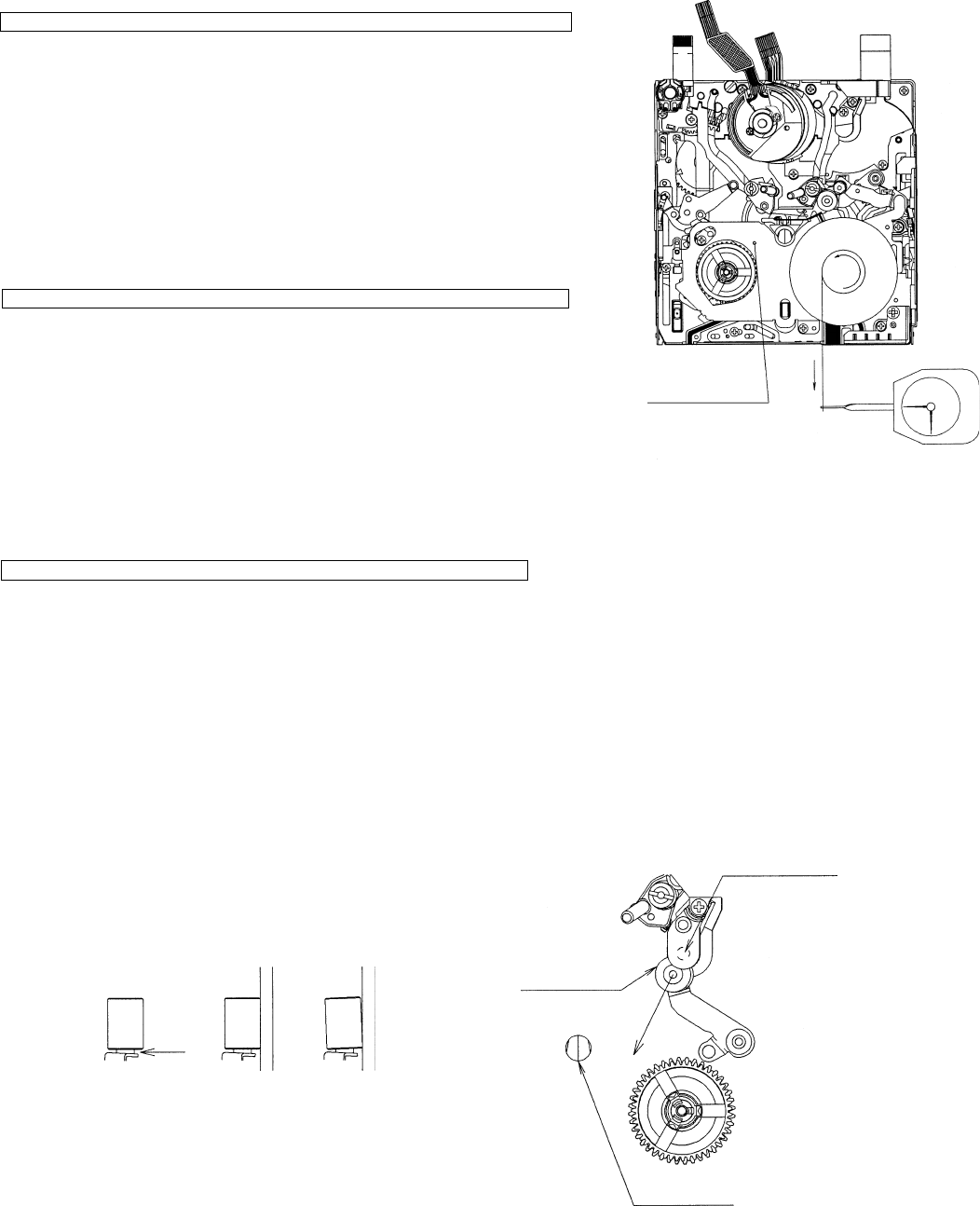

6-3. Checking of height of reel table

3 to 4V DC, Cassette controller assembly not installed (Mechanism only)

(1) Remove the cassette controller. (Refer to 8-2.)

(2) Apply 3 to 4V DC to the loading motor while referring to 8-1 and select the

PB mode.

(3) Fit the holes of the master plane to the two guides (portions A and B) shown

in the Fig.2, taking great care not to allow master plane to strike the running

parts such as the drum and guide roller or the MIC contact.

(4) Using a pair of vernier calipers etc., measure the heights of the reel-supporting

faces of the S reel table and Tu reel table from the top face of the master plane

and check that the measured heights satisfy the set values. (Fig.3)

When measuring the height of the S reel table, push the tip of the tension

pole with your finger in the direction shown by Arrow A to release the tension

band. (Fig.1)

(5) If the measured height does not satisfy the set value, replace the reel table

and make checking again.

<Note> After replacement, select the L start mode (see 8-1) and check that the

reel table rotates smoothly.

6-2. Checking of VS-REW winding torque

AC adapter used, Cassette controller assembly not installed (Mechanism only)

(1) Remove the cassette controller, turn ON the down SW while referring to 8-3, operate

in the test mode (T01) and select the VS-REW mode.

(2) Set the torque gauge in the S reel table, push the tip of the tension pole with your finger

in the direction shown by Arrow A to release the tension band, and check that the

winding torque is within spec. (Fig.1) (Do not apply the own weight of the torque

gauge or rotate it during measurement.)

(If there is a torque ripple, read the center value.)

1.5 ± 0.15N·m, Ripple: 0.15mN·m or less

(3) After checking the winding torque, remove the torque gauge and turn OFF the down

SW. The mechanism will automatically go into the standby mode.

6. ADJUSTING AND CHECKING OF MECHANISM

The items described here are relevant to the general on-site servicing (field service). This section does not cover adjustment and

replacement for which sophisticated equipment, jigs and techniques are required.

In order to maintain the initial characteristics of the mechanism, it is necessary to perform maintenance and inspection and also it is

essential not to damage the tape etc. In the case of an adjustment that requires a jig, be sure to use the specified jig.

(1) When adjusting and checking the mechanism, be sure to see that the power supply and the status are as indicated in

Caution on the title.

(2) Do not apply external voltage to the loading motor with the mechanism connected with the main circuit board. (Doing

so could cause a failure.)

(3) When running the tape, be sure to do so with the cassette controller assembly installed.

MIC contact

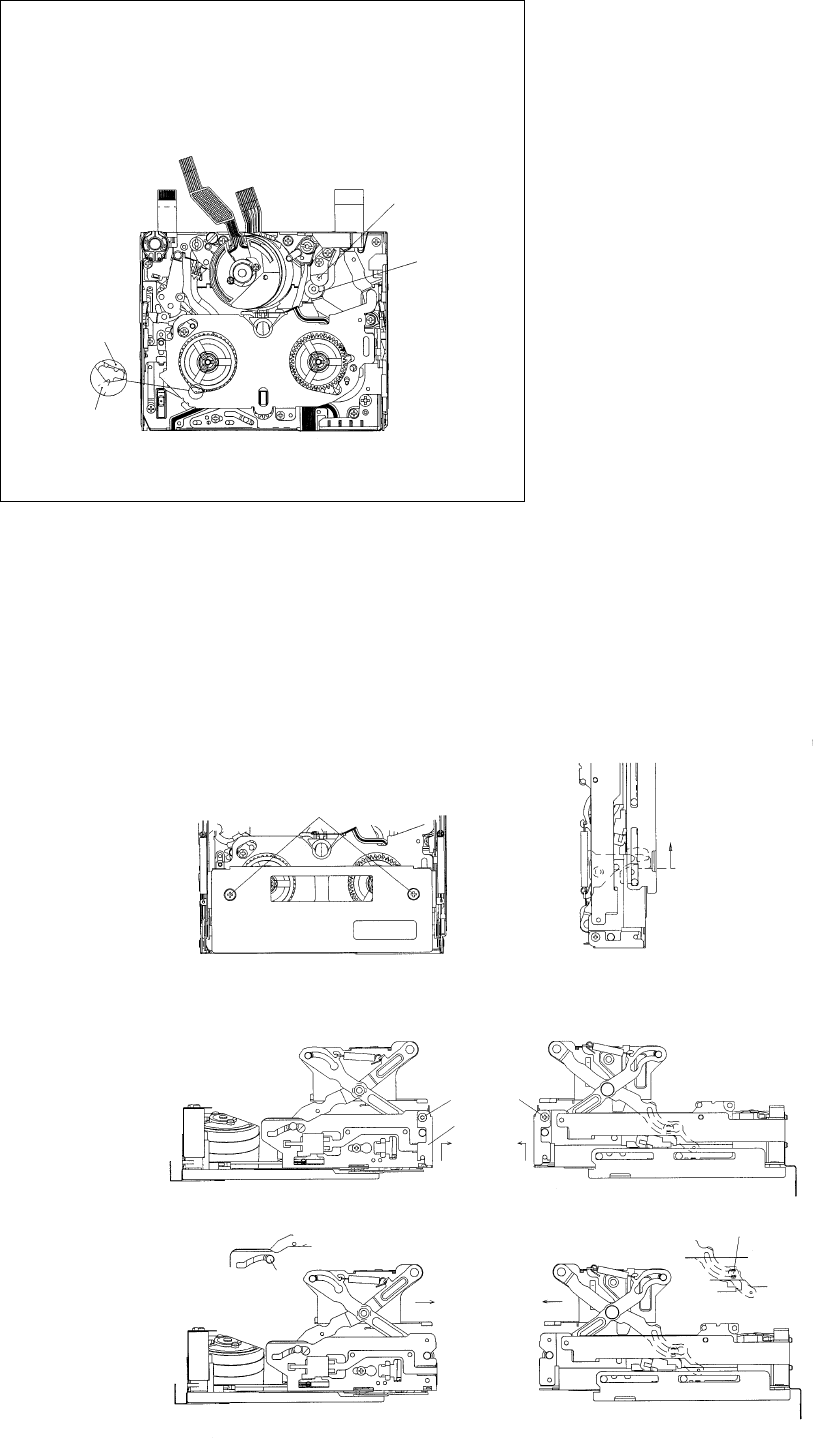

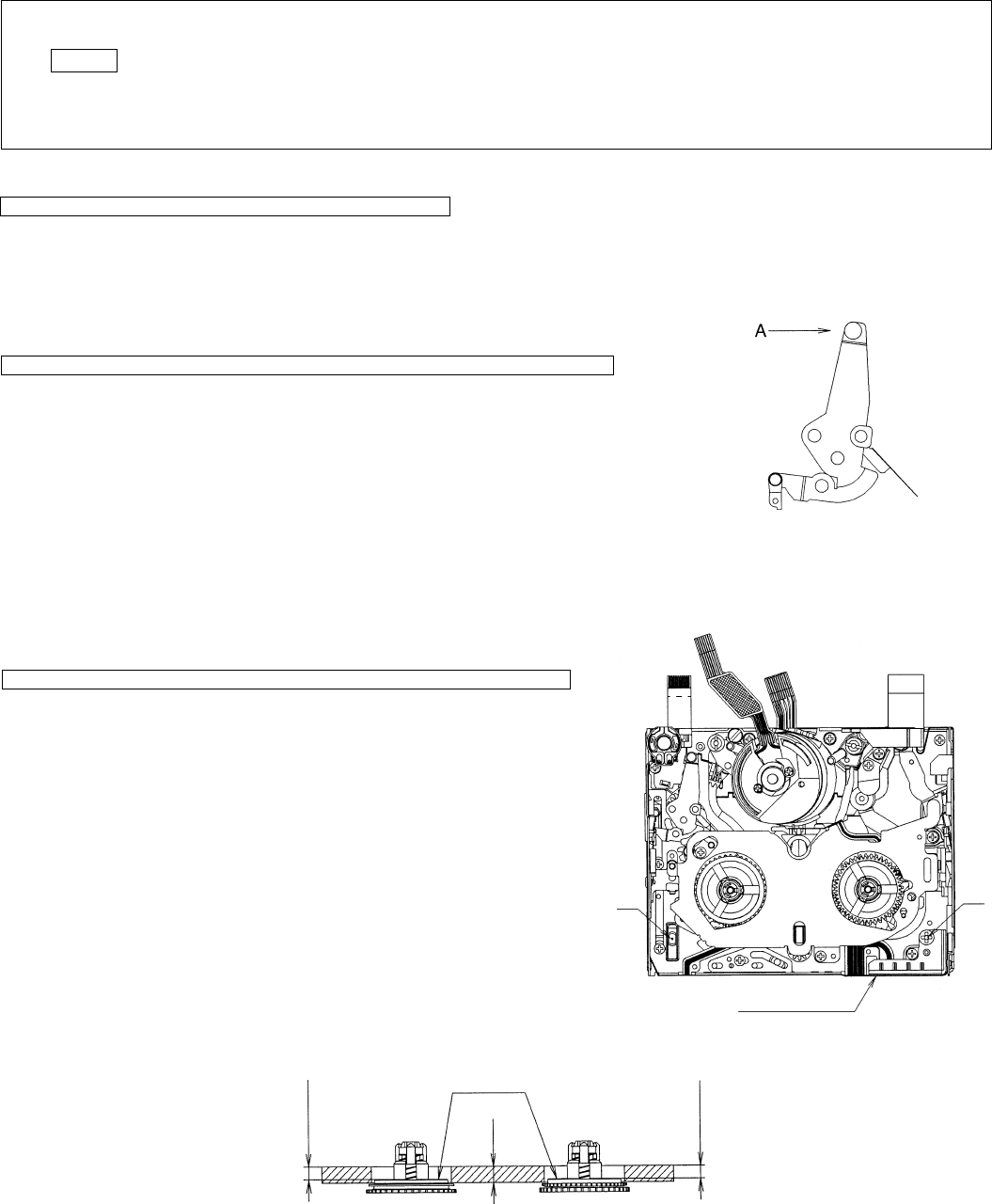

Fig.2 Checking of reel table

Fig.1 How to release the tension

band when measuring the

VS-REW winding torque

Fig.3

Set value of height

of reel table

Set value of height

of reel table

2.4±0.1

(3)

Reel-supporting face

VL-Z7S/E/Z7E-A/Z7E-W

VL-Z8H

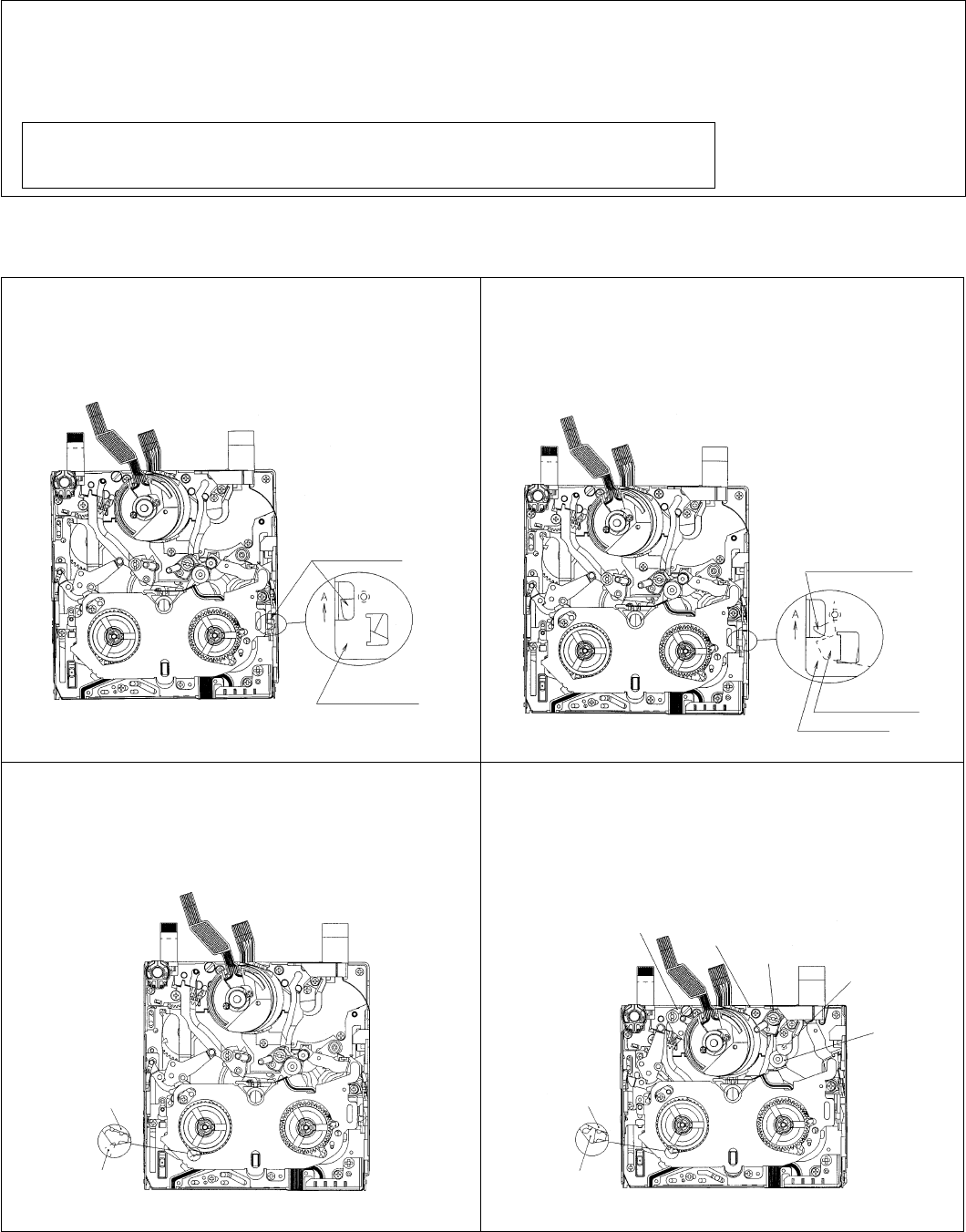

6-4. Checking and adjusting of tension pole position during

REC (PB)

3 to 4V DC, Cassette controller assembly not installed (Mechanism only)

(1) Checking

Check that the tension pole is located in the prescribed position as shown in Fig.4

at the start of a 60-minute tape.

If the tension pole is not located in the prescribed position, take out the tape and

make adjustment according to the procedure shown below.

(2) Adjusting (See Fig.4.)

1. Select the PB mode without setting a tape.

2. Slightly loosen the screw 1 (to such an extent that the T band adjustment base

2 can be moved.)

3. If the tension pole is dislocated inward from the prescribed position, shift the

T band adjustment base 2 in the direction shown by Arrow (A). If it is dislocated

outward from the prescribed position, shift the T band adjustment base 2 in the

direction shown by Arrow (B). Then fix the T band adjustment base 2 with the

screw 1.

(For how much the T band adjustment base is to be shifted, refer to Fig.4.)

4. Check the tension pole position as described in "(1) Checking" above.

5. If out of position, make readjustment.

6-5. Checking and adjusting of REC (PB) back tension

torque

AC adapter used, Cassette controller assembly installed

(1) Checking

Set the torque cassette (SD-1015). In the SP record mode (or in the PB mode if

signals have been SP-recorded on the tape), check that the feed-side torque is

within the following spec.

<Spec>(If there is a torque ripple, read the center value.)

0.55 ± 0.05N·m

(2) Adjusting (See Fig.5.)

If the measured back tension torque is out of spec, make adjustment according

to the following procedure.

1. Slightly loosen the screw 3.

2. If the back tension is higher, shift the T-SPR adjustment ANG in the direction

shown by Arrow (D). If it is lower, shift the T-SPR adjustment ANG in the

direction shown by Arrow (C).

3. After adjusting the back tension torque, fix the T-SPR adjustment ANG with the

screw 3. Apply loctite adhesive to screw 3.

Screw tightening torque: 0.04 N·m

6-6. Checking of S reel table unloaded torque

3 to 4V DC, Cassette controller assembly not installed (Mechanism only)

(1) Remove the cassette controller assembly, apply 3 to 4V DC to the loading motor

and select the L start mode. (See 8-1.)

(2) Move the swing arm to the Tu reel table side. At this time, take care not to damage

the gears etc. (See Fig.6.)

(3) Set the reel hub for back tension measurement on the S reel table.

(4) Using the dial tension gauge, pull the thread of the reel hub in the direction shown

by Arrow A and check that the tension is within spec.

<Spec>

(If the tension fluctuates, read the center value.)

10mN or less

Screw 3

Tension pole position

(Based on drum base outside shape)

0±0.3 Drum base

T band adjustment

base 2

Screw 1

Fig.4 Adjusting of position (tape exists)

Fig.5 Checking (tape exists)

T pole

Fig.6 How to measure the S reel table unloaded torque

Move the swing arm to

the Tu reel table side.

Apply loctite

adhesive.

T-SPR adjustment ANG4

VL-Z7S/E/Z7E-A/Z7E-W

VL-Z8H

6-7. Checking of loading back tension

3 to 4V DC, Cassette controller assembly not installed (Mechanism only)

(1) Apply 3 to 4V DC to the loading motor and select the L start mode. (See 8-1.)

(2) Move the swing arm to the S reel table side. At this time, take care not to damage

the gears etc. (See Fig.7.)

(3) Set the reel hub for back tension measurement on the Tu reel table.

(4) Using the dial tension gauge, pull the thread of the reel hub in the direction shown

by Arrow A and check that the tension is within spec.

<Spec>

(If the tension fluctuates, read the center value.)

27.5 ± 7.5mN

6-8. Checking of VS-REW back tension

3 to 4V DC, Cassette controller assembly not installed (Mechanism only)

(1) Apply 3 to 4V DC to the loading motor and select the VS-REW mode. (See 8-1.)

(2) Move the swing arm to the S reel table side. At this time, take care not to damage

the gears etc.

(3) Set the torque gauge in the Tu reel table.

(4) While turning the torque gauge counterclockwise (one turn in three seconds),

check that the torque is within spec.

<Spec>

(If the tension fluctuates, read the center value.)

0.8+0.2/-0.05mN·m

Move the swing arm

to the S reel table

side.

Fig.7 How to measure the loading back tension

Fig.9

Fig.10

Fig.8

Right guide

Pinch roller

Capstan shaft

6-9. Checking of pinch roller press force

3V DC, Cassette controller assembly not installed (Mechanism only)

(1) Hook the thread for pinch roller press force measurement over the pinch lever (position A in Fig.8).

(2) Put the mechanism into the PB mode to press the pinch roller against the capstan shaft.

(3) Hook the thread for pinch roller press force measurement over the tension gauge and pull the tension gauge in the direction shown

by Arrow B in Fig.10 so that the pinch roller is slightly separated from the capstan shaft.

(4) Return the pinch roller gradually and read the value indicated when the pinch roller comes in parallel contact with the capstan shaft

(see Fig.9). Check that the read value is within the following spec.

<Spec>

1.8+0.4/-0.4N

<Note> After measuring the press force of the pinch roller, promptly exit from the PB mode to separate the pinch roller from the capstan

shaft. (If the pinch roller is left pressed against the capstan shaft for a long time, the pinch roller will be deformed.)

VL-Z7S/E/Z7E-A/Z7E-W

VL-Z8H

7. ADJUSTMENT OF RUNNING SYSTEM

7-1. Outline of adjustment of running system

7-2. Adjustment of height of running system

· After replacement of the Tu guide and slide chassis, adjust the height of the Tu guide using the height adjustment jig.

· If wrinkles are found in the tape, turn the Tu guide to remove them.

(For further details, refer to "Coarse adjustment of running system".)

· After adjusting the Tu guide height, apply screw loctite at the tip of the shaft.

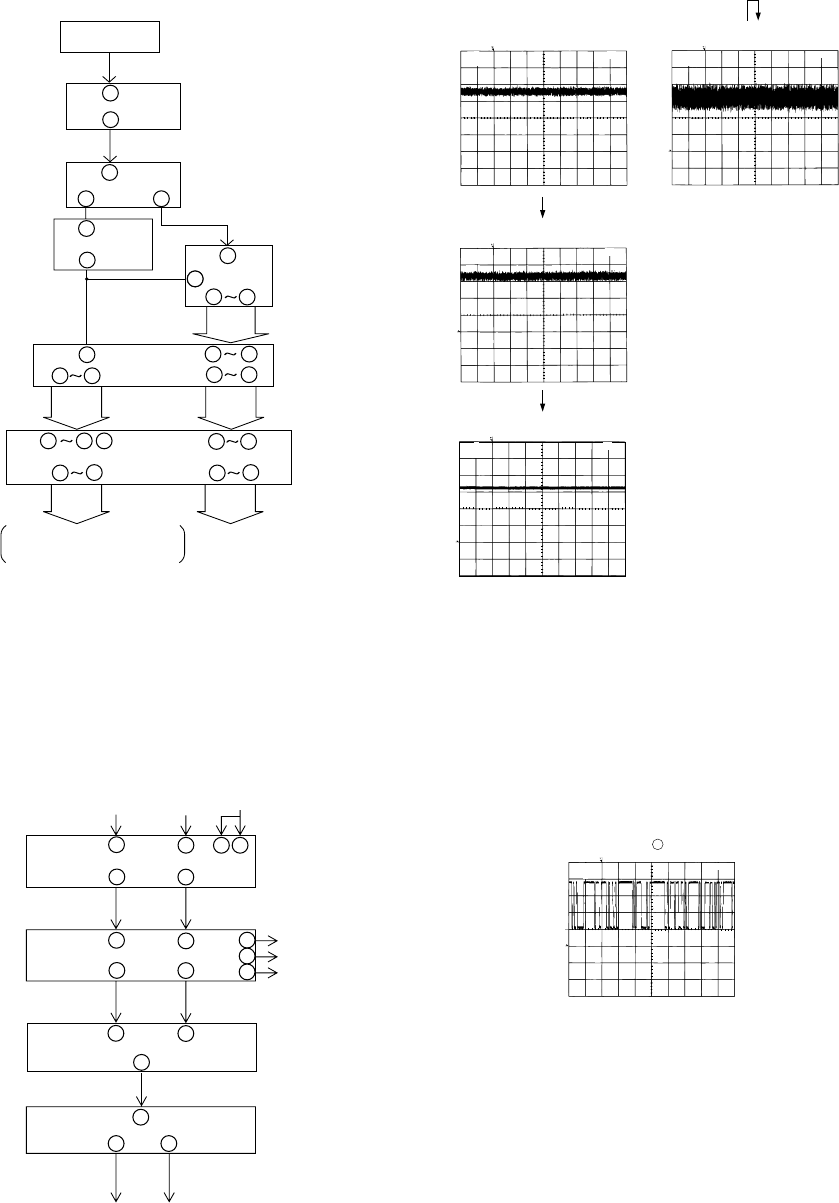

7-3. Preparations for adjustment of running system

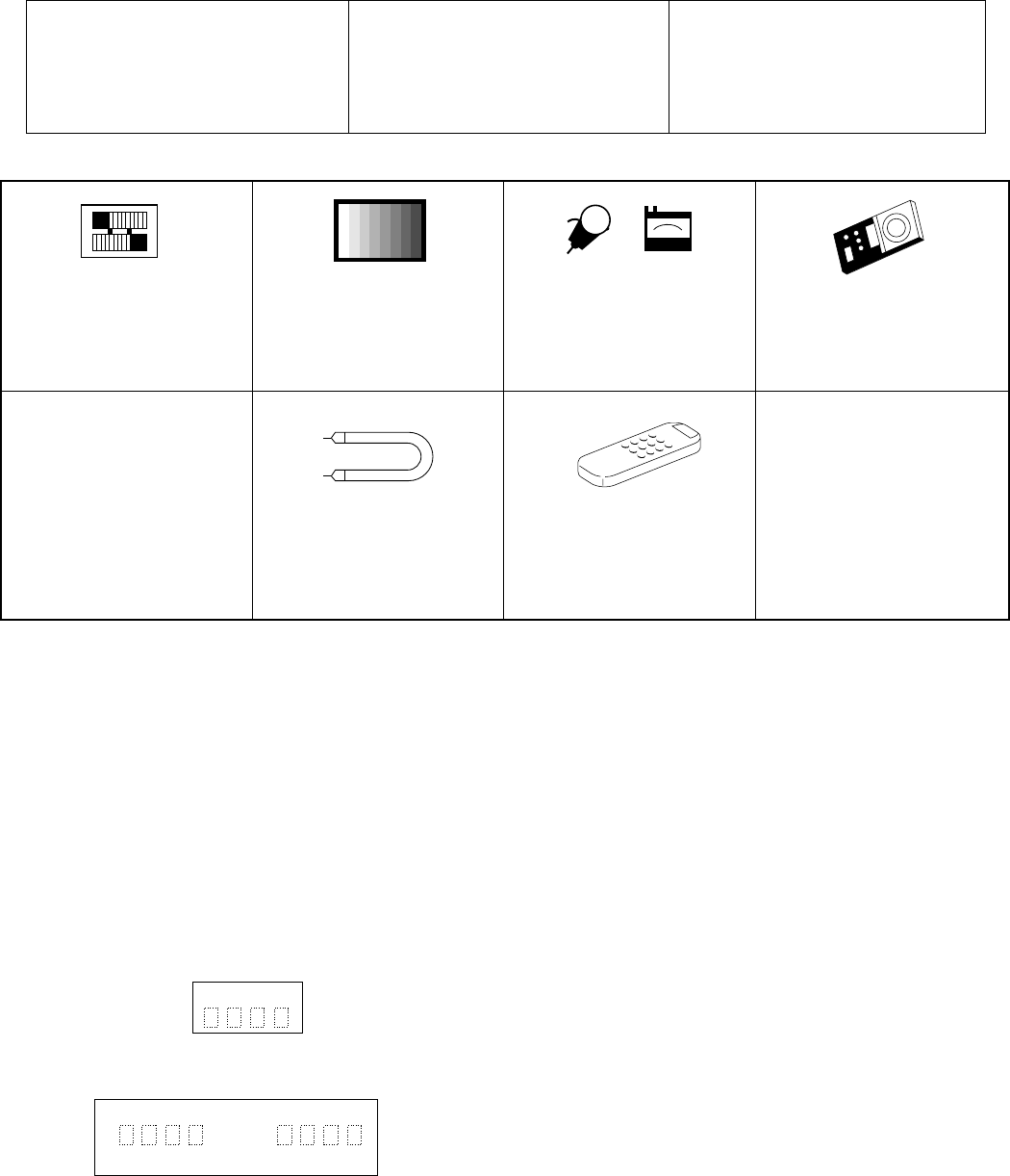

Measuring instrument and Jig : Oscilloscope, Adjustment remote control, Height adjustment screwdriver, Alignment tapes (for

adjustment of running system and adjustment of SW point), Master plane, Height adjustment jig

Preparations for

adjustment of

Running system

Adjusting

procedure(7-3)

(Replacement parts)

· Tu guide and arm

· Slide chassis

(Replacement parts other

than above)

· Pole base

· Guide roller

· Drum assembly

· Cap motor, etc.

Presetting of height not

necessary

Coarse adjustment

of Running system

Adjusting

procedure(7-4)

Final adjustment

of Running system

Adjusting

procedure(7-5)

Installation of

cassette controller

Readjustment of height

Height

adjustment jig

Master plane

Bottom edge

Align the top face of the lower flange of the Tu

guide with the bottom edge of the height

adjustment jig.

After adjusting the height, turn the head

clockwise 180 degrees.

Tu guide

Master plane

View A

Height

adjustment jig

Apply it in this direction.

View A

(1) Clean the surfaces that come in contact with the tape. (Clean

well the drum surface and the lower drum helical surface in

particular.)

(2) Install the cassette controller.

(3) Connect the oscilloscope to each TP of the joint circuit board.

(4) Turn ON the power of the AC adapter.

(5) Select TEST mode T-05 with the adjustment remote control.

(6) Play back the alignment tape for running system adjustment

and check that the tape is moving in the SP mode.

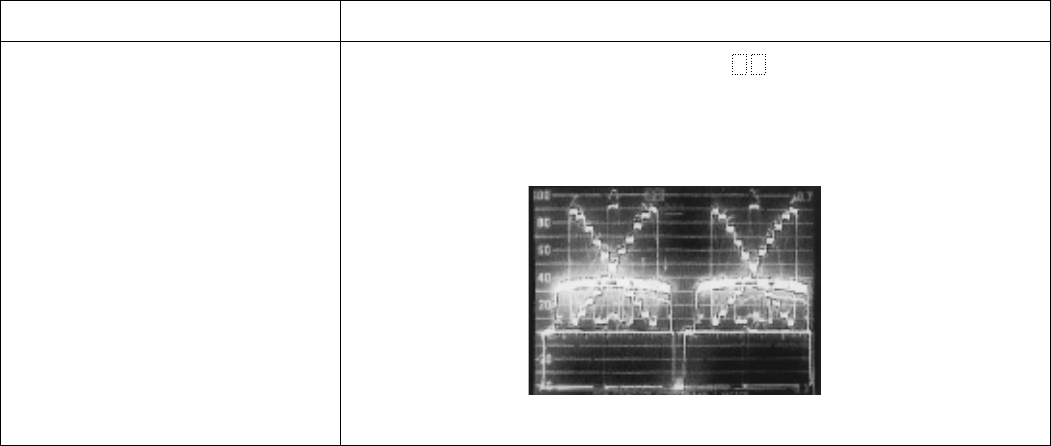

(7) While observing the PB envelope on the oscilloscope, adjust

the running system so that the envelope becomes flat in

states of [+1/4 shift] and [-1/4 shift].

(Each time the PB key is pressed, the shift amount changes

as shown below.)

Reel

Tu guide

Tu guide roller

Drum

Sup guide roller

S guide

Pinch roller

Tension pole

Capstan shaft

+1/4 shift - Normal - -1/4 shift - Normal

VL-Z7S/E/Z7E-A/Z7E-W

VL-Z8H

7-4. Coarse adjustment of running system

(Cassette controller installed)

(1) Play back the alignment tape for running system

adjustment and make adjustment so that the inlet

and outlet sides of the envelope become flat.

(2) In states of [+1/4 shift] and [-1/4 shift], make

adjustment in the same manner as described in (1)

above.

Wrinkle

Pinch roller

Tu guide

Distortion

(1) In the PB mode and V/SR mode, check the tape for

distortion between the Tu guide and the pinch roller.

-If wrinkles are found, make adjustment within a

range of ±180 degrees.

- After making adjustment, apply loctite adhesive to

the tip of the shaft.

(1) In the V/SR mode, check that the envelope waveform

is shaped uniformly.

(2) If the envelope waveform is not shaped uniformly,

fine-adjust the guide roller and Tu guide.

(1) Check the envelope waveform rise time in switching from the V/SR mode to the PB mode. - 5 seconds or less

(2) Check the envelope waveform rise time in switching from the STOP mode to the PB mode. - 5 seconds or less

2. Checking of V/SR envelope waveform

1. Adjustment of height of Su and Tu guide rollers

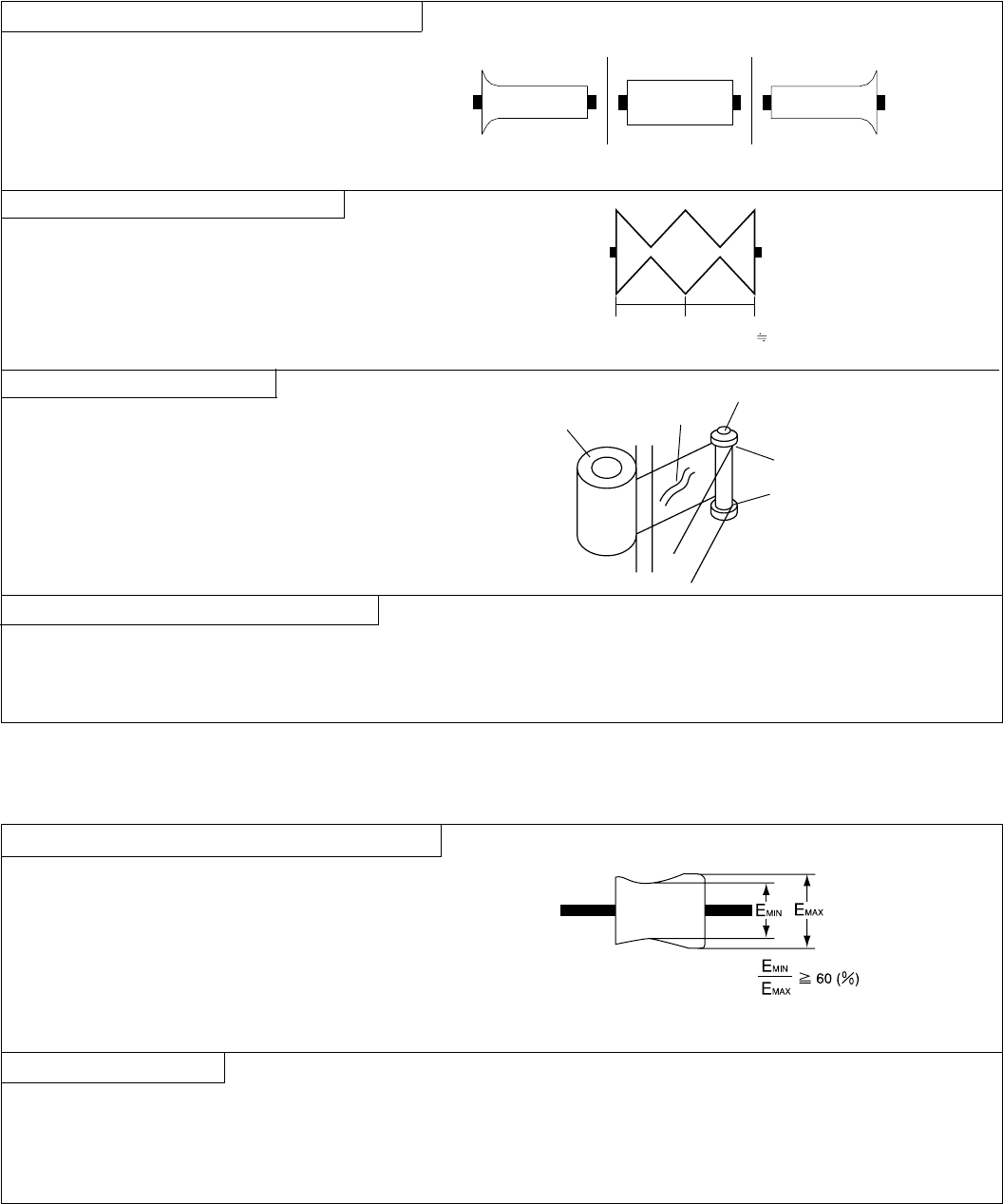

7-5. Final adjustment of running system

(Cassette controller installed)

Fig.1

1. Adjustment of height of Sup and Tu guide rollers

(1) If the ratio of MIN to MAN of the envelope waveform is less

than 60%, adjust the height of the guide roller again. (See

Fig.1.)

(2) Perform unloading and then loading again, select the PB

mode and check that there are no significant changes in

the envelope waveform.

* After replacement of the mechanism and drum, adjust the phase and equalizer using the adjustment remote control.

(Refer to "9. METHOD OF ADJUSTING THE ELECTRICAL CIRCUITS".)

3. Checking for wrinkles in tape

4. Checking of envelope waveform rise time

2. Adjustment of PB SWP

(1) Play back the alignment tape for SW point adjustment.

(2) Using the adjustment remote control, make SWP automatic adjustment.

(3) Check that an OK is given as a result of self-judgment. In the case of a NG, adjust the GR height again.

±1/4 shift ±1/4 shift

NG Inlet side Outlet side

Normal

Make adjustment so that A B.

VL-Z7S/E/Z7E-A/Z7E-W

VL-Z8H

S reel table

S main brake

Pinch roller

Capstan shaft

Drum base

S pole base

S reel table

S main brake

T pole base

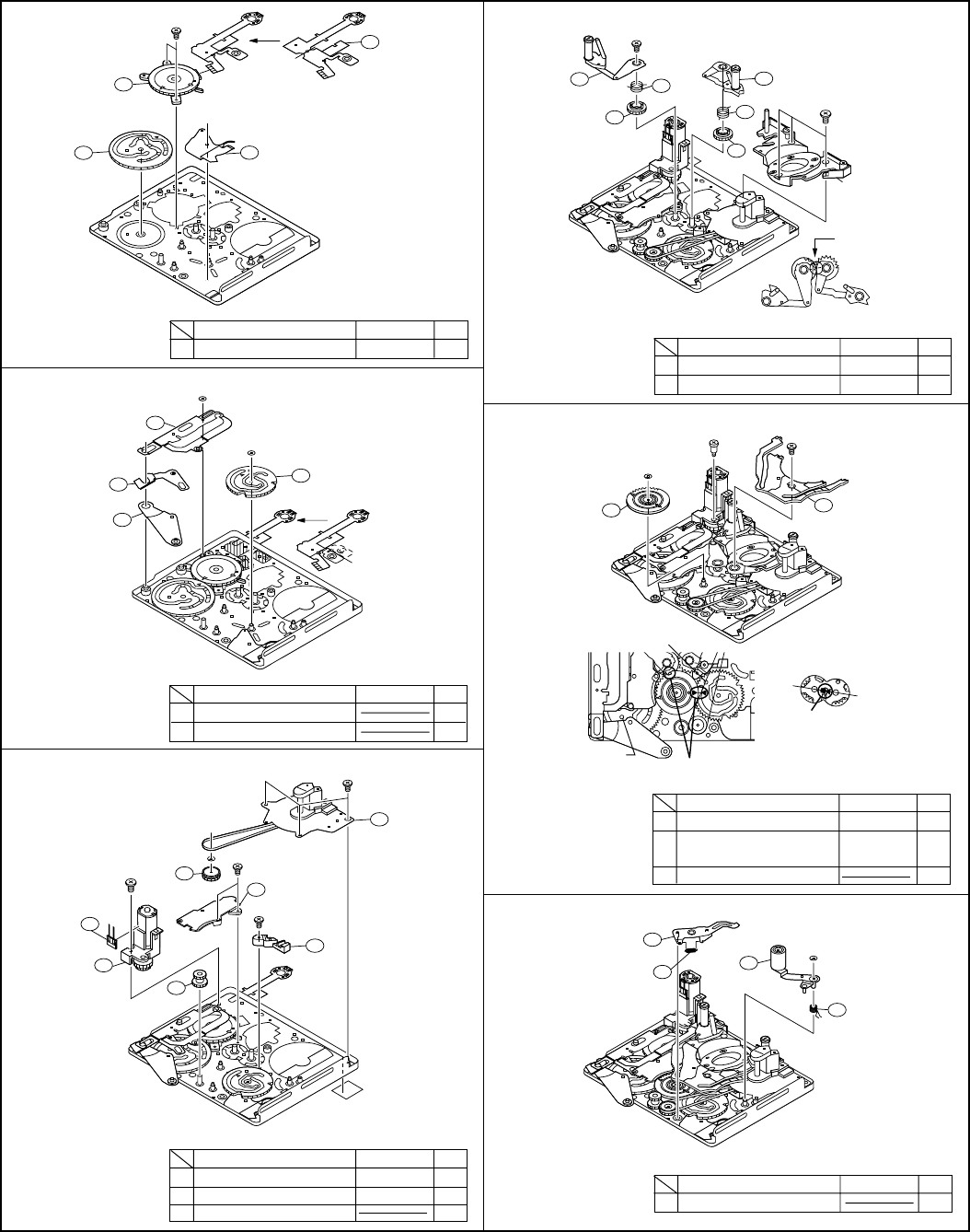

8. ASSEMBLING OF MECHANISM SECTION AND PART REPLACEMENT

(DISASSEMBLING AND ASSEMBLING)

This section describes the method of assembling the mechanism section and the method of part replacement.

For how to remove the cabinet etc., refer to "3. DISASSEMBLY OF THE SET".

(1) Ejection mode

This mode is used to take out a cassette. In this mode, the

ejection lever is shifted farthest in the direction shown by

Arrow A. (In this mode, the cassette controller assembly

cannot be locked.)

(3) L start mode

This mode is used for the Tu reel hub to take up the tape

of a cassette whose leader tape is visible. (In this

mode, the S main brake is located away from the S reel

table.)

(2) Standby mode

This mode is used to set a cassette. In this mode, the slide

chassis is farthest away from the drum and the ejection lever

is turned (the cassette controller assembly can be locked).

(The tip of the ejection lever is hidden behind the main chassis

and the moving part of the down SW is visible.)

Ejection lever

EJECTION MODE STANDBY MODE

L START MODE STOP MODE

(4) Stop mode

This mode is used for stopping (camera mode:

RecLock). In this mode, the S and T pole bases are

pressed against the drum base and the S main brake

is engaged with the S reel table. However the pinch

roller and capstan shaft are separated.

Main chassis

Down SW

(moving part)

Ejection lever

1. Cut washers removed at the time of part replacement etc. should be replaced with new ones without fail.

2. When assembling the mechanism, take care to prevent screws, washers and foreign matter from getting into it. If such things

get into the mechanism, it will cause the mechanism to malfunction.

3. Be sure to use the specified cleaning liquid, oil, grease and loctite adhesive shown below. Failure to do so will cause the

mechanism to malfunction.

Oil: Cosmo Hydro HV22 (Cosmo Oil) Loctite adhesive: 1401B (Three Bond)

Grease: Molykote YM-103 (Dow Corning), Suncall CFD-409Z (Sankei Chemical Co., LTD.)

Cleaning liquid: Industrial ethyl alcohol

8-1. Mechanism mode

To operate the mechanism singly, apply 3 to 4V DC to the loading motor.

(Do not apply external voltage to the loading motor with the mechanism connected with the main circuit board. Doing so could cause a failure.)

Back view

Main chassis

Back view

VL-Z7S/E/Z7E-A/Z7E-W

VL-Z8H

(5) PB (Record, Fast forward, Fast rewind, VSF and VSR)

mode

This mode is used for playback, recording, fast-forwarding,

fast -rewinding, VSF and VSR. In this mode, the pinch roller

is pressed against the capstan shaft and the S main brake

is located away from the S reel table.

PB (RECORD, FAST FORWARD,

FAST REWIND, VSF AND VSR) MODE

8-2. Cassette controller assembly

<Procedure for removing the cassette controller> (The cassette controller can be installed and removed without removing the cover.)

(1) Apply 3 to 4V DC to the loading motor to establish the standby mode. When removing the cover from the cassette controller, remove

the tow screws (A). (See Fig.1.)

(2) Push the lock lever in the direction shown by the arrow and move up the cassette controller. (See Fig.2.)

(3) Remove the two screws (C) and remove the down guide (D) in the direction shown by the arrow (E). (See Fig.3 and Fig.4.)

(4) Shift the cassette controller in the direction shown by the arrow (F), remove the inner arm guide shaft L and the groove of the inner

arm R toward the inside of the mechanism, and turn the cassette controller. (See Fig.5 and Fig.6.)

(5) Turn the cassette controller in the direction shown by the arrow (H) and shift it in the direction shown by the arrow (I) to remove it

from the slide chassis. (See Fig.7.)

Fig.3

Fig.5 Fig.6

Fig.1 Fig.2

Fig.4

At this position, remove the inner arm guide

shaft L toward the inside of the mechanism.

At this position, remove the groove of the inner arm

R toward the inside of the mechanism.

Pinch roller

Capstan shaft

S reel table

S main brake

(D)Down guide

(E) (E)

(F) (F)

(B)

(A)

VL-Z7S/E/Z7E-A/Z7E-W

VL-Z8H

8-3. Method of operating on the circuit board with the cassette controller assembly removed

(1) Apply 3 to 4V DC to the loading motor to establish the standby mode.

(2 Insert a sheet of thick paper folded in two as shown in Fig.9 into the position shown in Fig.10 to turn OFF the down SW.

(Pass the paper along the heavy line in the figure.)

Note) To go into the REC mode, press the pin of the recognition SW.

(3 Selecting the test mode (T-01) with the adjustment remote control without setting a tape will make it possible to operate

the mechanism with the mode keys.

(4) For ejecting, remove the paper inserted in step (2) above.

If this method is performed improperly, the tape may be damaged. Therefore do not use this method except in special cases

such as measuring the VSR torque. Be sure to follow the cautions shown in this manual.

Fig.7 Fig.8

Fig.9

Fig.10

34~36

Fold a sheet of paper

in two.

Pass the folded paper between

the slide chassis and the lock cam

to press the moving part of the

down SW.

Press

Moving part of

down SW

Recognition SW pin

(H) (H)

(I) (I)

VL-Z7S/E/Z7E-A/Z7E-W

VL-Z8H

8-4. Phase-adjust

Phase-adjust the following parts.

(1) Mode SW

(2) Main cam

(3) Sub cam (The main cam and sub cam should be also phase-adjusted for the chassis.)

(4) S loading arm

(5) Tu loading arm

(6) Loading drive gear (main cam, sub cam, S loading gear)

Note) Check the marker position carefully before disassembling.

Note) When installing the loading drive gear, check that the main cam, sub cam, S loading gear are all phase-adjusted.

Fig.1

Fig.2

(5)Tu loading arm ass'y(4)S Loading arm ass'y

(1)Mode SW

Phase adjustment

mark

Phase adjustment

(gear section)

Phase adjustment

hole (for chassis)

(2)Main cam

(6)Loading gear drive gear

Phase adjustment hole

(for chassis)

Phase adjustment

mark

(3)Sub cam

Phase adjustment

hole (for chassis)

Phase adjustment

mark

(4)S loading arm ass'y (5)Tu loading arm ass'y

VL-Z7S/E/Z7E-A/Z7E-W

VL-Z8H

1. 4.

303

302

304

(2)LM/Mode FPC

(1)Mode SW

(3)Main cam

305

(4)Ejection lever

306

(1)Sub cam

307

308

309

(2)SL drive lever

(3)S brake operating

lever

(4)T arm operating lever

315

(7)Capstan motor

ass'y

316

(7)Relay pulley

313

311

310

314

(4)TLA support

(6)CAP FPC protection tape

(2)L Motor ass'y

(1)SLA support

312

(3)DEW sensor

(5)Center gear

318

320

323

319

(1)T pole base loading arm

ass'y

(7)S loading arm

sub ass'y

Phase adjustment

(2)Tu press SPR

(5)S press SPR

(4)S pole base loading

arm ass'y

(3)Tu loading

gear

322

321

(6)S Loading gear

In alignment with

chassis hole

In alignment with

chassis hole

325

(1)Guide rail

324

(2)Loading drive

gear

Phase adjustment (back)

Phase adjustment (front)

328

329

326

327

(4)Pinch lever return SPR

(3)Pinch lever

ass'y

(1)Pinch press

lever ass'y

(2)Pinch press SPR

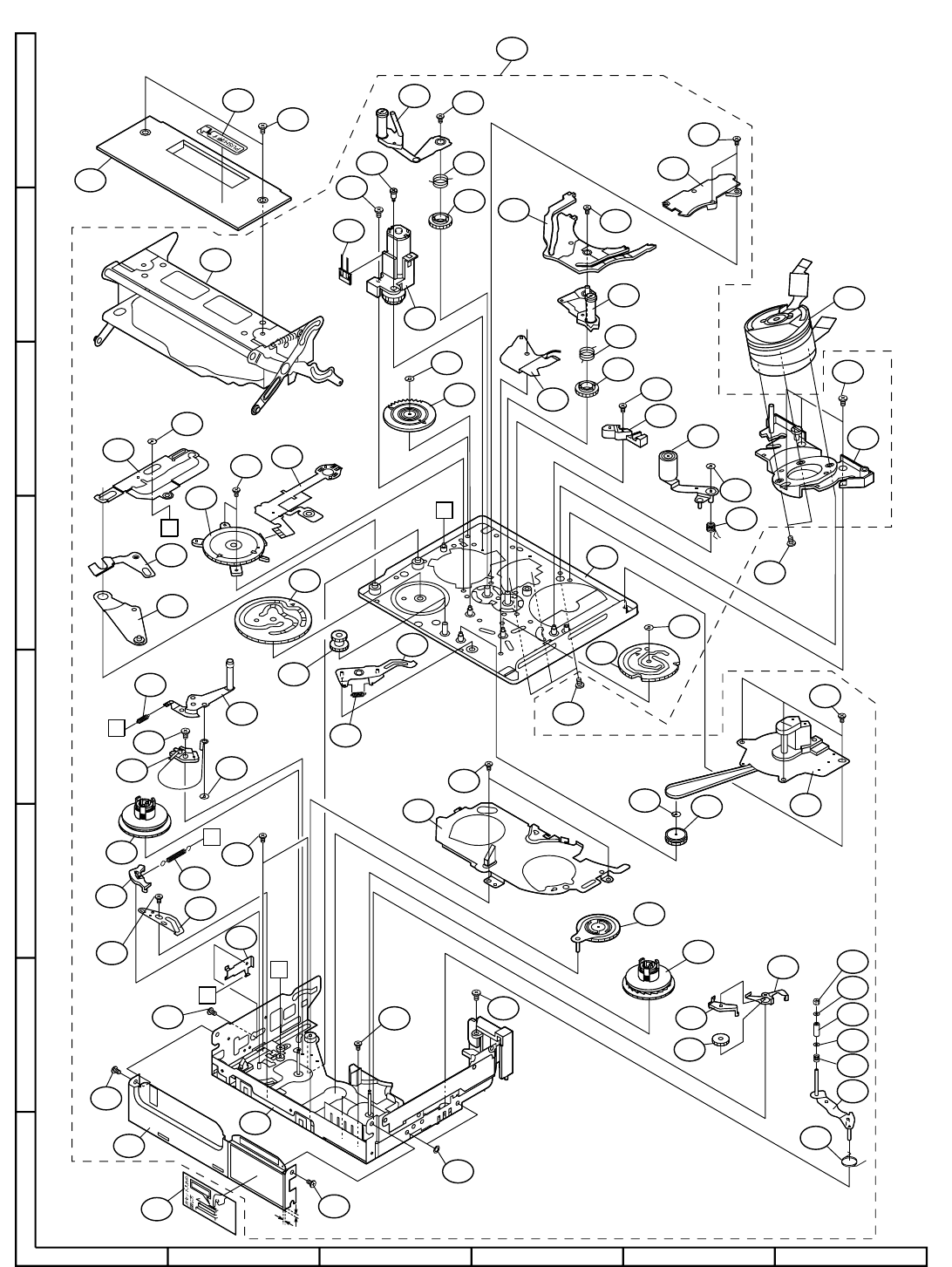

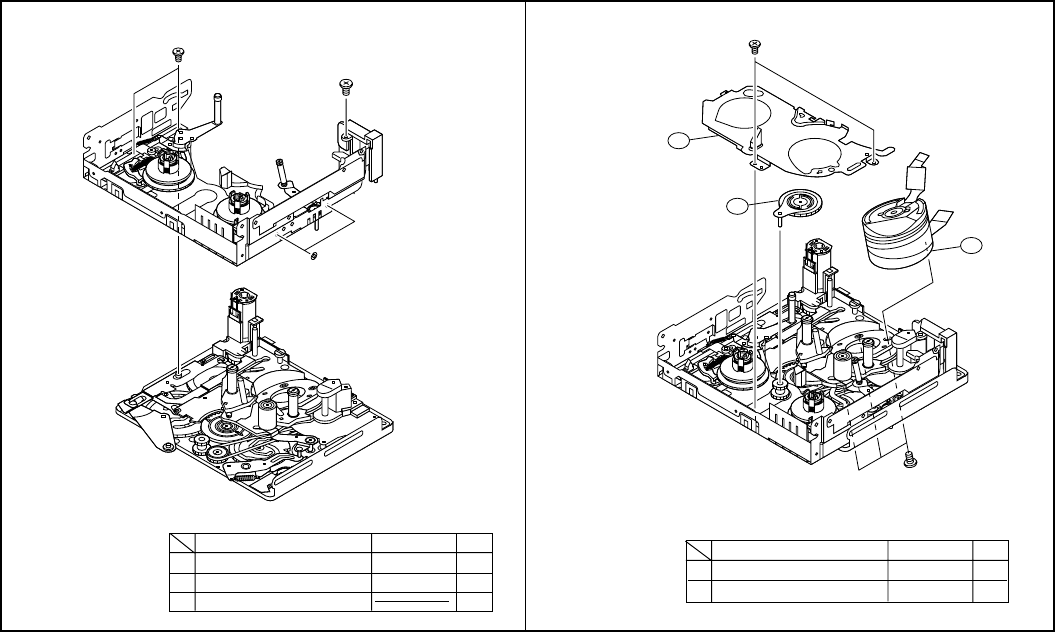

8-5. Assembling method

8-5-1. Method of assembling the main chassis assembly

Note) For reference, numbers are prefixed to parts names to show the sequence of assembly.

(For the greasing/oiling and cleaning locations, refer to the diagram of greasing/oiling locations.)

Type

Tightening torque

Q'ty

B CWø1.2-ø3.0t-0.25 1

H CWø0.7-ø1.8-t0.2 1

Type

Tightening torque

Q'ty

A M1.4xL1.6(Special screw) 0.4mN·m2

Type

Tightening torque

Q'ty

C S Tight M1.4xL2.0 0.4mN·m5

D S Tight M1.4xL3.0 0.4mN·m1

B CWø1.2-ø3.0t-0.25 1

Type

Tightening torque

Q'ty

D S Tight M1.4xL3.0 0.4mN·m3

E M1.4xL2.0

(t0.2 special screw)

0.4mN·m1

Type

Tightening torque

Q'ty

F M1.4xL1.5

(t0.2 special screw)

0.4mN·m1

G M1.2xL4.6 0.4mN·m1

(t0.2 particularly special screw)

B CWø1.2-ø3.0t-0.25 1

Type

Tightening torque

Q'ty

HCWø0.7-ø1.8-t0.2 1

VL-Z7S/E/Z7E-A/Z7E-W

VL-Z8H

8-5-2. Method of assembling the slide chassis assembly

342

343

344

345

346

(1)Slide adjustment

ANG

(2)T-SPR adjustment

ANG

(3)Tu guide arm SPR

(4)Tu guide arm

ass'y

(5)Guide adjustment SPR

347

(6)Tu guide flange

347

(6)Tu guide flange

349

(8)Guide nut

348

(7)Tu guide

354

351

352

353

(14)Tu reel table ass'y

(10)T brake gear

350

(9)VSR brake lever

(11)T main brake

(13)S reel table ass'y

356

(16)S brake SPR

(15)S main brake

355

357

(17)Tension arm ass'y

358

(18)Tension band ass'y

359

(19)T arm SPR

1. 2.

Type

Tightening torque

Q'ty

I Precision type 2·M1.4xL1.0 0.4mN·m2

Type

Tightening torque

Q'ty

C S Tight M1.4xL2.0 0.4mN·m1

(Tightening fully)

0.05mN·m

(Tightening temporarily)

HCWø0.7-ø1.8-t0.2 1

VL-Z7S/E/Z7E-A/Z7E-W

VL-Z8H

8-5-3. Method of combining the main chassis assembly and the slide chassis assembly

(1) Position the assemblies as shown in the figure below (the pole base is slightly protruded).

(2) Insert the operation pins (tension arm, Tu guide arm) of the slide chassis assembly into the locations of the main chassis assembly

shown in the figure below, fit the SL drive lever pin of the main chassis assembly into the groove of the slide chassis (the groove

of the slide adjustment ANG), and then fix with the two screws.

377

(22)Drum ass'y

371

(20)Swing arm ass'y

372

(21)Reel cover ass'y

1. 2.

Type

Tightening torque

Q'ty

C S Tight M1.4xL2.0 0.4mN·m2

D S Tight M1.4xL3.0 0.4mN·m1

JWø2.1-ø4-t0.25 2

Type

Tightening torque

Q'ty

D S Tight M1.4xL3.0 0.4mN·m1

I Precision type 2·M1.4xL1.0 0.4mN·m2

VL-Z7S/E/Z7E-A/Z7E-W

VL-Z8H

8-5-4. Diagram of greasing/oiling locations

VL-Z7S/E/Z7E-A/Z7E-W

VL-Z8H

8-6. Method of installing the cassette controller

(2)Completed cassette

controller

(1)Main slide

ass'y

Left side view Right side view

(3)Down guide

A-1 A-2

Left side view Right side view

Right side view

(4)Cassette cover

B-1 B-2

C: Move down the cassette controller by pushing this

portion. When the cassette controller is locked,

attach the cassette cover.

Mechanism viewed from above

B-1,2

Type

Tightening torque

Q'ty

A Ml1.4xL2.0(Precision type 2) 0.4mN·m2

B M1.7x2.5(Precision type 2) 2

VL-Z7S/E/Z7E-A/Z7E-W

VL-Z8H

8-7. Method of taking out the cassette with the mechanism operating singly

(1) Apply 3 to 4V DC to the loading motor for slight unloading.

(2) If the tape is slack, turn the rotor (mechanism backside) of the capstan motor by hand to take up the slack in the tape.

(3) Repeat steps (1) and (2) above. When the pole base is completely unloaded, check that the tape is not slack.

(4) Then apply 3 to 4V DC to the loading motor again. The cassette controller will move up.

(5) Take out the cassette.

Note) When applying 3 to 4V DC to the loading motor for unloading, do so as shown in Fig.1.

Loading motor

Direction of rotation of the rotor

of the capstan motor (from

mechanism backside)

Fig.1

—pole

+pole

VL-Z7S/E/Z7E-A/Z7E-W

VL-Z8H

9. METHOD OF ADJUSTING THE ELECTRIC CIRCUIT

-Before making adjustment-

· It seems that, in most cases, this adjusting method is used when it becomes necessary to adjust the electric circuit as a result of

replacement of worn mechanism parts or the video head. When adjusting the electric circuit, check that the mechanism operates

properly (the mechanism is adjusted completely). If a failure occurs in the electric circuit, be sure to locate the fault using a

measuring instrument and then perform repairing, replacement and adjustment, as described in this adjusting method.

Avoid performing undue adjustments etc. without using proper measuring instruments.

· The electric circuit components in the circuit board unit of this product are densely-packed into packages. Most of them are surface-

mounted for downsizing.

When replacing components in servicing the product, perform replacement work swiftly with a soldering iron.

In general, surface-mounted components are inferior in heat resistance to large-sized discrete components used in TV sets,

stationary decks, etc. Heating the electrode of a surface-mounted component with a soldering iron for a long time needlessly will

therefore lead to a failure. Take great care not to do so.

Take special care in this respect when replacing chip multilayer capacitors in particular.

We recommend you to use a ceramic soldering iron (Tip temperature: 250°C, Contact time: 5 seconds or less).

9-1. Adjustment of liquid crystal video section

List of measuring jigs

VL-Z7S/E/Z7E-A/Z7E-W/Z8H Specifications of service jigs

· Color monitor TV

· Digital voltmeter

· DC power source

· Audio generator

(CR oscillator)

· Frequency counter

· AC adapter

· Stereo AV output cable (supplied)

· Adjustment remote control

(RRMCG0033TASA)

· Signal generator

(NTSC pattern generator LCG-401/

401YC: Manufactured by Leader)

· Oscilloscope

· Vector scope

· Tape for recording

· DC cable (supplied with AC adapter)

· Extension wire of video section

· Alignment tape

90ADDVC-TAPE (color bar)

Error rate adjustment tape (reference tape)

RTPEVA001WJZZ

No. Connection section Connector REF. No.

No. of pins

New/ Parts cord Price

Cont. code

1 H/A PWB — MAIN PWB1SC307—SC3302 33P N QCNW-B315WJZZ AN

2 H/A PWB — MAIN PWB2SC308—SC3301 33P N QCNW-B315WJZZ AN

4 MAIN — LITHIUM PWB SC8800—SC5800 27P-25P QPWBHB742WJZZ Product FPC used AE

5 MAIN — RUNTA005WJZZ SC1201 80P C QCNW-1373TAZZ BQ

6 RUNTA005WJZZ — SUB P2901 80P N RUNTZA005WJZZ AX

7 Hot shoe — SUB —SC501 15P QPWBHB739WJZZ Product FPC used AH

8 Menu key — SUB SC2002—SC501 9P-15P QPWBHB739WJZZ Product FPC used AH

9 H/A PWB — MAIN PWB P301—P3301 5P QCNW-B171WJZZ Product wire used AF

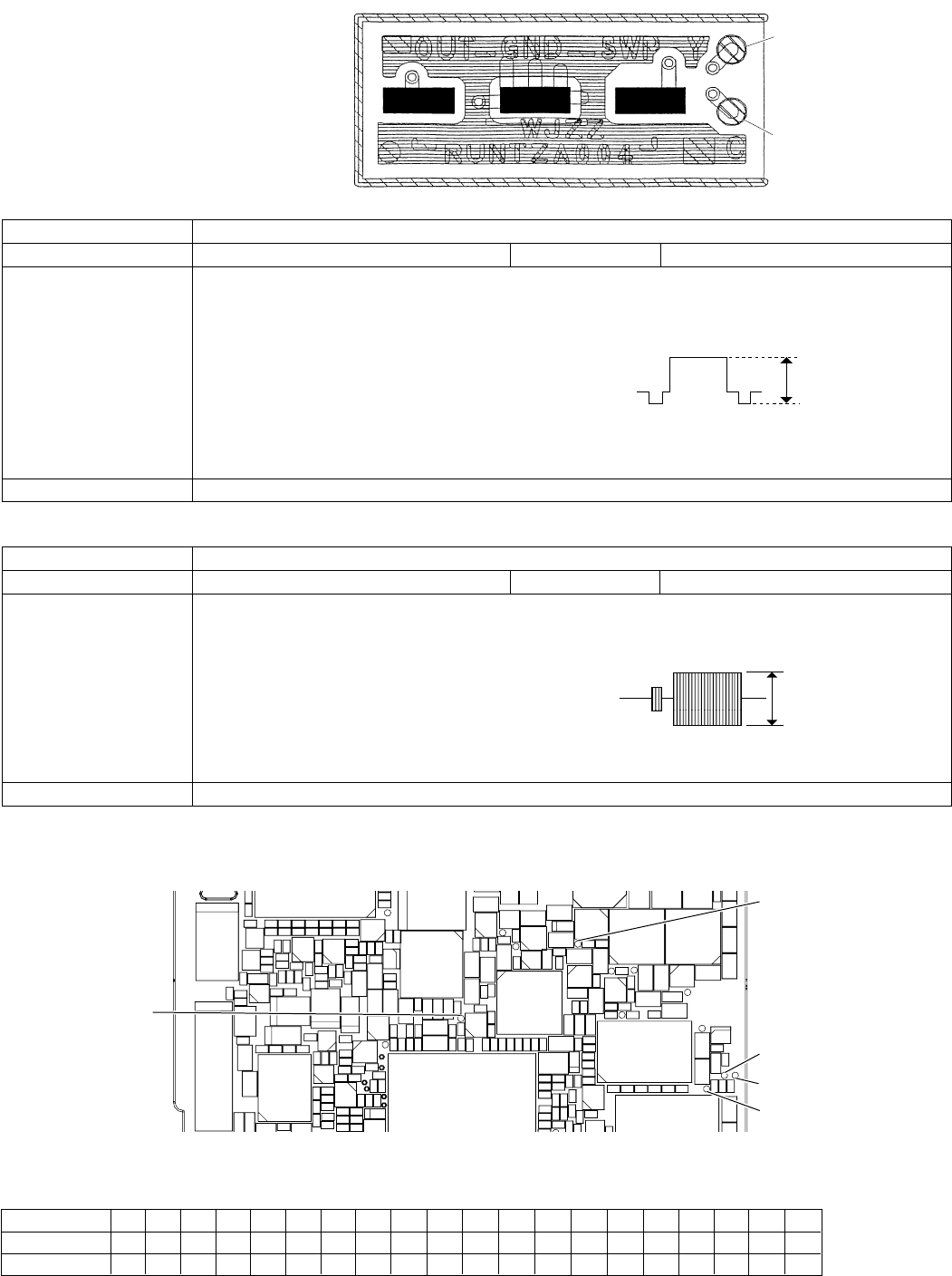

TP jig for envelope checking

P3303 30B-B N RUNTZA004WJZZ AW

11 Power supply SC310—SC2101 12P QCNW-B167WJZZ Product FFC used AC

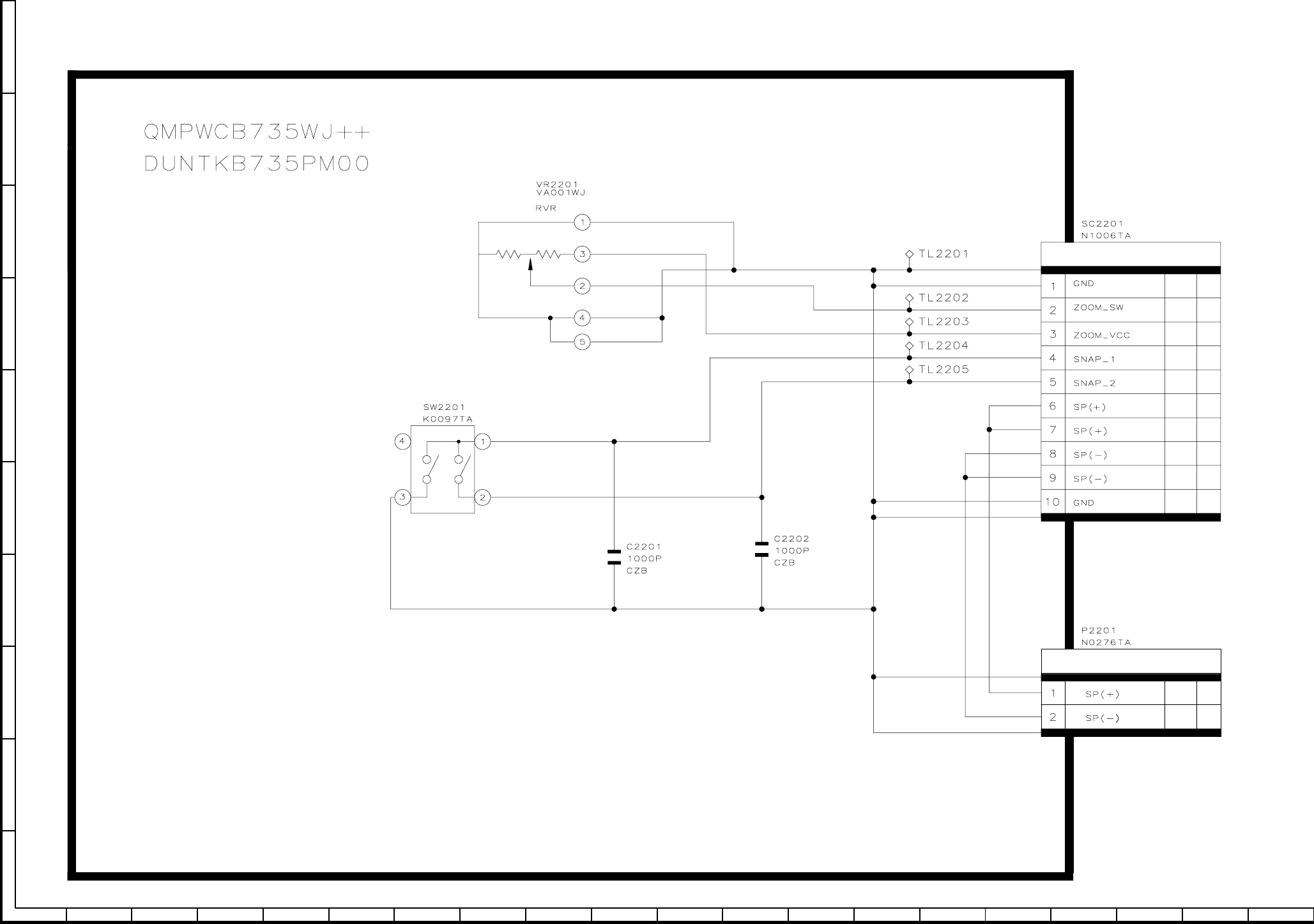

12 ZOOM SC311—SC2201 10P C QCNW-1769TAZZ BF

13 CCD PWB — MAIN SC1001—SC1202 33P QPWBHB738WJZZ Product FPC used AD

14 Lens unit — SUB SC551 25P CLNS-A005RMA5 Product unit used BQ

15 MIC — SUB P3602 4P RMiCC0108TAZZ Product unit used AP

16 FLASH — MAIN —SC1204 12P QPWBHB740WJZZ Product FFC used AD

17 MECHA TURN — MAIN P1201 2P DUNTKB732PM00 Product unit used AG

19 SPEAKER — ZOOM P2201 2P VSP0020P-B2WN Product unit used AK

20 LCD UNIT — MAIN SC1800/SC1801 18Px2 QPWBHB736WJZZ Product FPC used AR

VL-Z7S/E/Z7E-A/Z7E-W

VL-Z8H

VL-Z7S/E/Z7E-A/Z7E-W/Z8H Service jig configuration

Lens

CCD PWB

QPWBHB738WJZZ

HEAD AMP PWB

SC303 SC307

SC301 SC308

SC304 SC310

SC306

SC311

SC305

P301

QCNW-B171WJZZ

LCD

LAMP

FLASH

ZOOM PWB

P2201

SC2201

SPEAKER

HOT Shoe

SC2002

SC5800

SC5801

USB

BAT

P900

SC1501

SC501

J600

J7401

J1401

J2900

P3602

SUB PWB

P2901

SC1201

W8089

P3303

SC3302

SC3301

P1201

P3301 SC1801 SC1800 SC1204

MAIN PWB

SC8800

VF_IF

P8800

RMiCC0108WJZZ

POWER SW

QMPWCB734WJZZ

SC802

LCD PWB SC801 SC800

SC803 SC9800

18 18 15

SC551

1818

SC1202

MECHA TURN

24 610

SC2101 12

QPWBHB740WJZZ

QCNW-1373TAZZ

RUNTXA005WJZZ

RUNTZA004WJZZ

SC1001

QPWBHB742WJZZ

QPWBHB739WJZZ

QCNW-B315WJZZ

QCNW-B167WJZZ

QCNW-1769TAZZ

QPWBHB736WJZZ

Mechanism

*1: Under surface contact

*2: Top surface contact

Caution: Don't make a mistake in putting in SC3301 and SC3302.

HOLE SENSOR

VL-Z7S/E/Z7E-A/Z7E-W

VL-Z8H

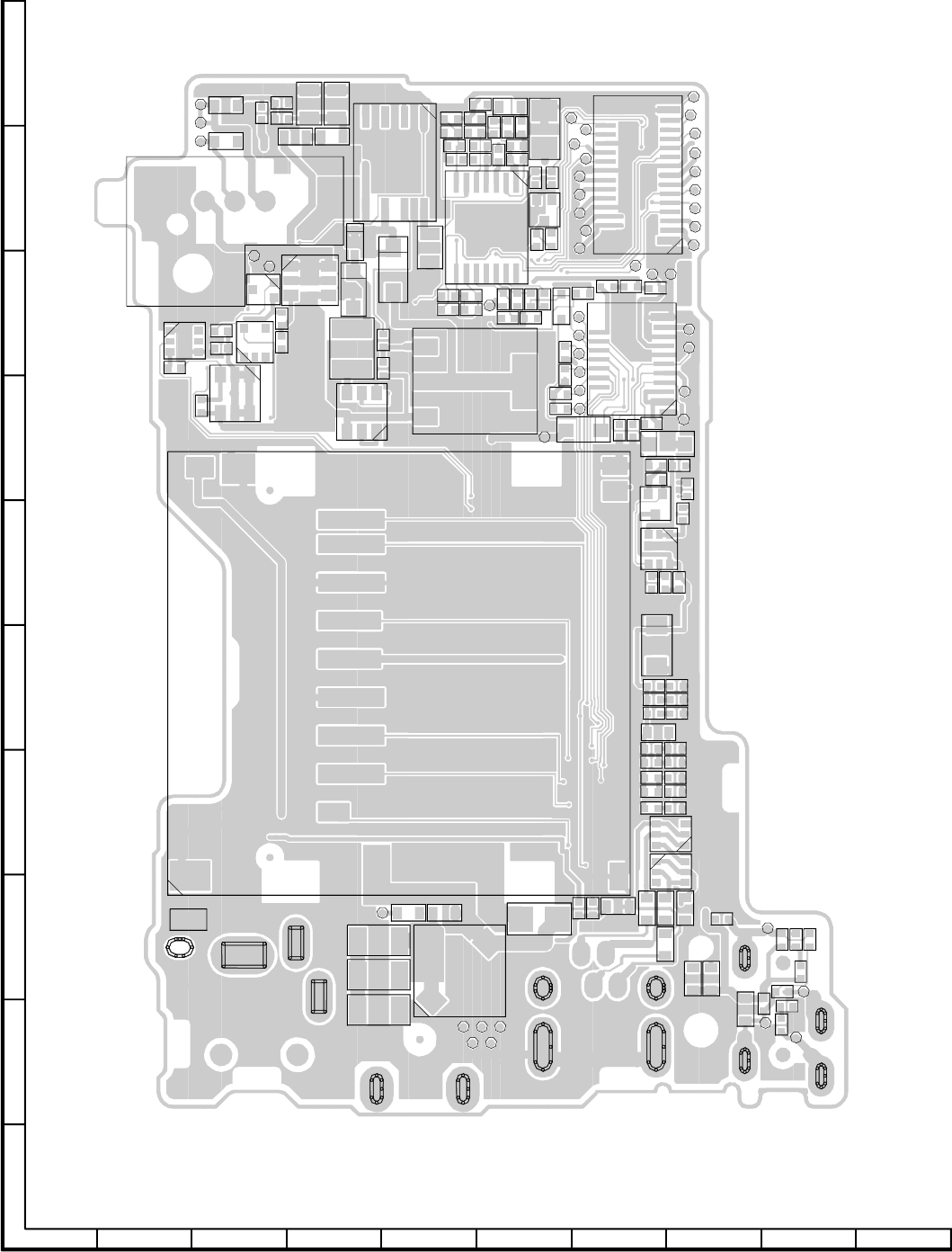

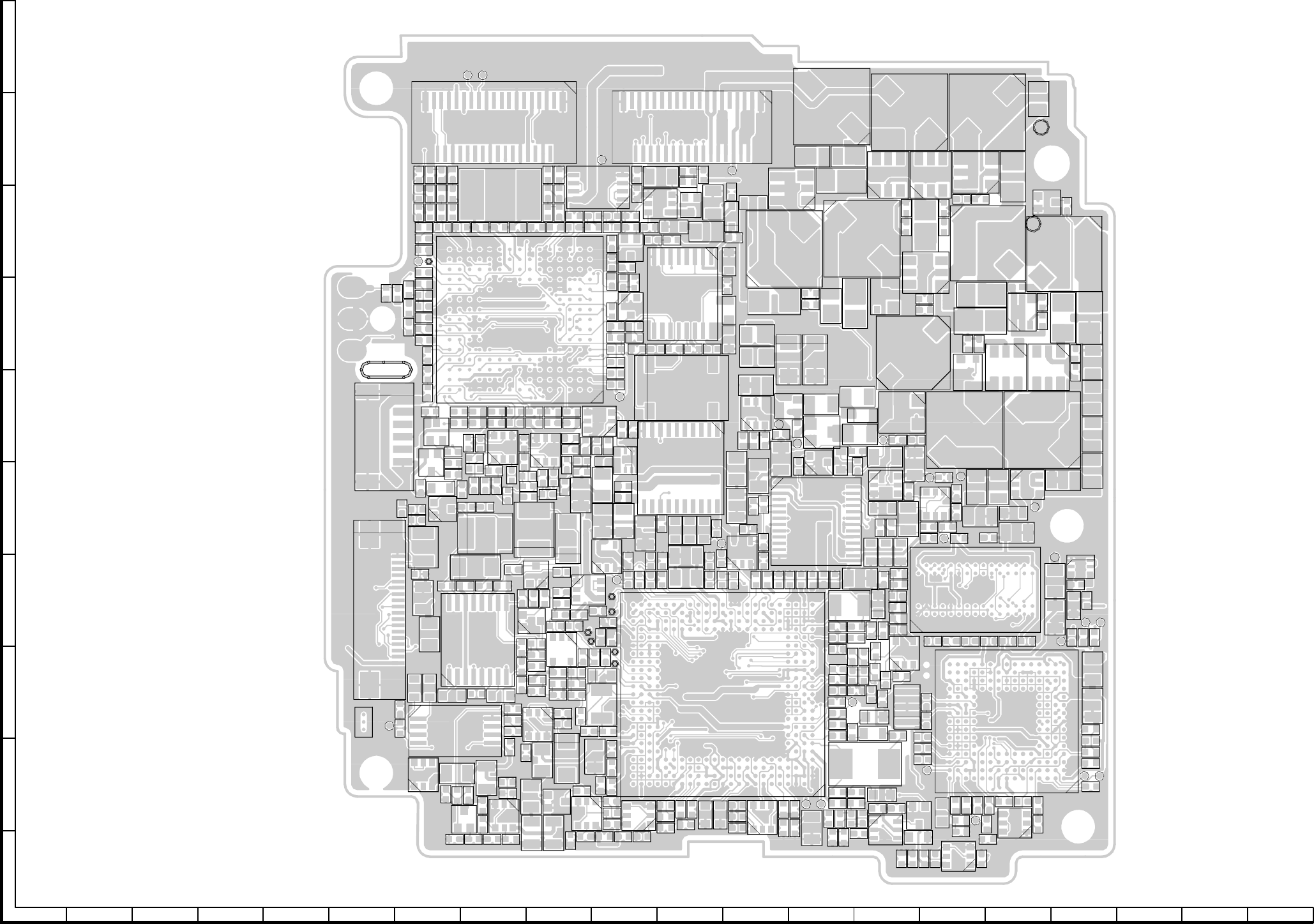

SC1800

TL1431

P3301

C1438R1442 R1824

R724

R1823

C1809

C1810

C1439

R732

R705

R747

C1402

Q1431 L1802

C708

R707 R715 C735

C1441 L1404 Q705

Q1402

C704

Q704

R1406

C1408

R1437

IC1431

R1435

R772

R771

R718

L1431

R738

R736

C1435

C1416

R1402

R1422

Q1433

R1434

C1802

R1801

C1407

R1436 C1801

C1410

R737

R729

R1800

R1405

IC1401

C1406

R1419

R1802

C1434R1432

R1433

R1818

C1431

R1805

R763

R759

C1409

C1418

R1804

C1432

R1431

Q1800

C1433

Q1432

R1441

R1440

C1437

R1413

R1806

C1440

R758

C710

R1803

C1804

R1819

R1807

R6800R1403C1417 R1461

Q1405

R1808C1803

C1436

R735

R741

R6810

R1404

R1421

C1419

R6813

L4404

C4404 R1462 C1411

Q1403

Q1434

R1810

L4406 R1811

R1424 Q1801

R725

C733

C6800

Q4483

R6812

C6807

R6804

R6803

C4483 R1809

R6802

R1423

R1414

R1438

R1439

Q6801

R1814

C1805

R1816

R720

R755

C4481

R6805

R1820

C1412

R6807

C6801

C6802

R4472

R6817

R4489

C1806

R1817

R4471

TL6804

C6804 C1800

Q1404

R6809

TL6803

R6806 R1813

Q4481

R6816

Q1802

R6808

C4406

D6800

R1827

C4482

R1812

C4416

C6805

C6812

C6811

L6800

TL7819

TL6809

C4401 L1800

R4486

C4485

R4485

R6811

TL6802

TL6801

IC6801

TL6807

C1815

R706

R710

R708

R730

R782

R711

TL8803

C4419R4494C6806 C6810

R4488

R4401

R4402

R1815

C4402 Q1803

R6819C6815

C727

C732

Q4482

C715

C705

R4487

C6813 C4405

R726

R6820R6818

C4407

C4409

C4420

C6816 FB4405

C6814

R727

C7802

X701

R4404

L7800

C7800

C4408 IC703

C714

C7806

C4421

C7804

C4410

R701

R7828R7831

TL7824

IC4401

R7830

C4413 R7827

R7826

C701

R4435

R4437

R4436

R7829 C8805 L8801

C7825

IC7802 R1925

C1911

L3404

L3405

C8800 R1928

C7803 Q1913

L8800

Q4432 C7805R8802 R8801 R1927

C7808

TL903

R1926

C7809 C8804

Q1912

C4422C4414 C3473

C7801

TL904

C4436C4415

TL4439

R1924

R8800

C4427

IC8800

Q8800

C4435

TL4438

C7807 C3436

C978

D960

R4403

C4423

C4426

C4424

C4451

R4456

R4454

R4414

R4495

C4418

C4428

R7800

C7810

R4415

C4465 C6803

R4462 C8801

L7810

TL4440

C4463

C4462

R4451

C4417

R7812

R7811

R8804

R4460

R4461

C962

C4454 R7820R7832

C4403

C929

D916

X4451

R8805

R4466 R7819R7833

L4451

D4452

FB4461

C8809

R7838 C7812

TL8801

D4451

C7829

C8807

C7828

IC4461

C8806

D7810

Q8801

R8819

R7839 R7834 R7810

R7837 C8808

R4463

R4453

R7840

R7824

R8807

R7836

C7830

R7825

C7822

R8820

C7827

Q905

C8814

C8822 Q7800

FL3702

L931

C8813 R8809

R8806

C4461

R8840 C8802

R3711

R3713

R3701

TL1801

Q4461

R8827

R8814

TL907

R8839

C3704

R3706R3707

TL8802

R8841 Q8802

C8803

R8828

TH1800

R3705

Q8804

C3710

R1826

C1811

TL911

C3714 R8808R8817

L907

R3717

IC3702

TL3703

C3713 Q909 C953

C939

L908

R3712

FB3701

R982

C3707

R8842

C3705

R3738

R3708

R3709

IC3701

C938

C3712

C1901

Q903

Q3701

C3708

R3710

C3709

Q1901

TL910

L901

R3718R3739 C1990

TL908

Q900

TL8806

C3702 L3702

C934

C931

R1941

R8836

Q1905

C1904

TL3701

C932 R970

TL8804

R3740

C3706

C3711

R3737

C3703

R8834 FB8800 C930

TL3702

TL8805

C3701 L3701 L903 C933 L902 C936

R8835

R1991

L900

R1990

Q1991

C982

TL902

TL901

Q1990

C981

R1992

L915

L918

C955

C960

C980

Q908

R990

R987 C970

Q906

C972

Q904

R983

C954

R988 C971

L916

Q907

Q910

L911

C990

C973

C975

C956

L917

C974

R951

C992

Q911

L923

C991

R932

D701 C3716

R780 C702

R739

C734

TL913

C706

R3320

L701

Q3320

IC704

SC3302

C3320

R3321

C712

R703

Q703

C3321

R704

R779

C724R1932

C707

Q701 Q702

R716

R768

R721

R713

R734 R731 C729 R719

C722

R749

TL3310

IC706

C737

R754

R750

C728

R751 R753 C726

R757

C725 R752 C723

C730

IC701

C719

X702

R746

SC3301

R748

TL3302

TL3304

C720

R756 R760 R764

R761 R765 R766

C709

R745 R722 R762

TL701

R717 R728 C713

R723

R742

R709

C731

R744

R714

R743

C711

R712 C716

TL3303

R702

C703

TL7824(VF_G_OUT)

VF_DAC full scale

TL6807(G_OUT)

DAC full scale

TL8804(VF_VG)

VF_WB

TL8801(VF_COM)

VF_COM

TL8805(VF_VR)

VF_WB

TL8806(VF_VB)

VF_WB

[TEST POINT]

(Wiring board diagram: Main Side A)

(Envelope checkup TP jig)

PCO D/A-C

PCO D/A-Y

VL-Z7S/E/Z7E-A/Z7E-W

VL-Z8H

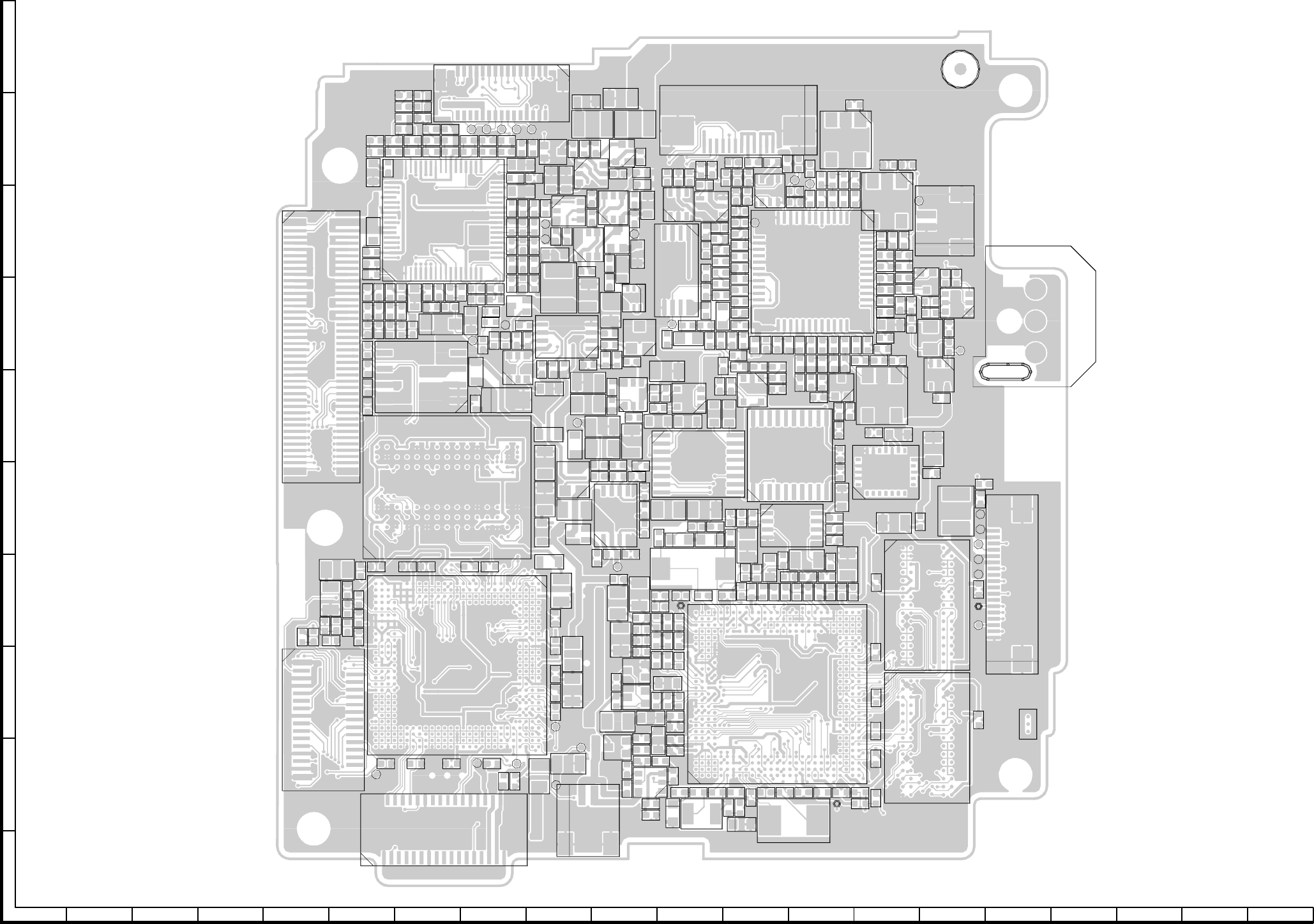

TL601

FB600

TL600

C602

VA603

VA602

TL602

C601

R652

R600

VA600

R7427

VA601

C600

R603

TL603

R604

R7429

R7428

R7426

D7402

D7401

C1501R1501

C1503R1502

C1502C1508

C1504R1503

C2904C1509

C1510

C1505R1504

C1506R1505

C1507R1506

C1513

R1507

R1508

R1509 Q1502

R1510

Q1501

R524

R1511

R1513R1512

D3601

TL510

C521

TL508 TL506TL501

FB3601

C3600

TL556

TL503

TL551

TL553TL557TL559TL561TL563TL567

TL568

TL571

C553

C554

C556

C558

C559

C561

R552

R553

R555

R559

R2556

R2555

Q2551

R2552

R2560

R2559

C3605

R3607

Q3600

R3605

R3603

C3601

C3602R3604

R3606C3603

R3611R3612

IC3600

L601

Q600

C507

L501

C503

C502

J600

J1401

R1475

J7401

J2900

R1471

R1477

R1478

R1476 R1479

R2920

R1472

R523

P2901

L2900

R525

C575

R573

Q502

R572

IC503

R3644

R3643

R504 R528

R529

Q501

IC501

FL501

R513

R605

Q601

R508

R514

R512

R505

C506

R507

R502

R506

R530

R510

R602

C642

C641

C509

C529

R531

R601

R526

R509 R501 C501

R648 C645 R645 R647 C649 R657

C604 C640 R659 C636 C639 R656

L3601

C638 R658

L600

C634

C637

C527

R655

C3604

C632 C635 C627

R632

Q3603

R641 R643

R636

Q604

R637

R638 C646

R634

C605

R3618

R631

R635

R651

C630

C629

R629

TL3600

C633 R633 R3642

C3607

IC600

R622

C626

R625

C631

R627

R630

C628

C651

R628

R624

C625

R3600 C621 R626

Q3602

C624

Q602

L3600

R611

R639

C619 R619

R3601

R653

C623

C622

C2551 C620

R3616

R3645

C608 R616 R614 R3610C3641

C643

Q2554 C3640

C617

R3609R3641

C614

C607

C613

R618

C615

C609

C616

R621

R2561

C610 R3640

C618

R3628

C650

R612

R606

R617

C606

C611

C612

Q2552 C648 R3625

C647

R3630

C3627

R620

R615 Q3604

R613

Q3601

C3621

R3620

C3610

C3608

C3609

R661

C3613

R2551R2554

R3608

C3619 R3615R3617

R623 R607

C3625

C3626

R3627

R3623

C3617

R3636C3615

R2553

C3611

R3613

C3629

Q2553

Q603

Q605

C3631

R2558

C603

R2557

C3614

R3614

R3632

R610

R3646

C644

R654

R3633

C560

C3612

R3634

IC3601

R557

C3634

C3635

C3632

C552

R3631

R554

IC551

C3646

C557

R3639

TL3602

C3616

C3618

C3630

C3628

C3622

R3624

R3621

C555

R3637

L551

R551

C551

P3602

R3629

C3623

R3619

R3622

C3620

C3606

C574

R3638

C3624

R3626

C562

C573

TL3601

R2916

R2508 C2901

C2516

R2909

R2908

TL900

R2509R2513 R2912

R2910

TL570

R2514C2518

TL901

R2511

R2510

C2519

C2903 R2907

C2514

TL569

C2910

R2512 R2533 R2516

TL902

TL566

C2517 C2515R2515

R581

TL564

IC2901

SC551

C528

R527

TL562TL560

Q552

TL558

P900

IC2502

TL554

R582

R578

D2905

C2902

TL552

TL904

TL555

TL903

D2904

Q2902

R3602 D2902

R3635 C2520C2521

D2906

R2520

R2527

R2526

R2528

R2525R2531

D551

TL565

R2523R2530

TL504

R2918

R2903

Q2904

TL502

R2904

R2911

R2906

Q2905

R2913

C526

TL505

R2917

SC501

R2919

TL507

Q2903

C524

C522

TL509

Q2901

VA501

R2905

TL511

Q2906

D3600

C523

C525

TL3603

SC1501

C2906 R2901 R1480

R2915

R2914

C2905 1

TL1477

CP1

CP2

L2901

CP3

TL1473

TL1472

TL1471

TL1476

TL1470

TL3601(INT MIC L)

Checking of EE level

Checking of f characteristics

TL3602(INT MIC R)

Checking of EE level

Checking of f characteristics

TL1470

Checking of EE level

Checking of f characteristics

TL1472

Checking of EE level

Checking of f characteristics

(Wiring board diagram: Sub Side A) (Wiring board diagram: Sub Side B)

(Wiring board diagram: LCD Side A)

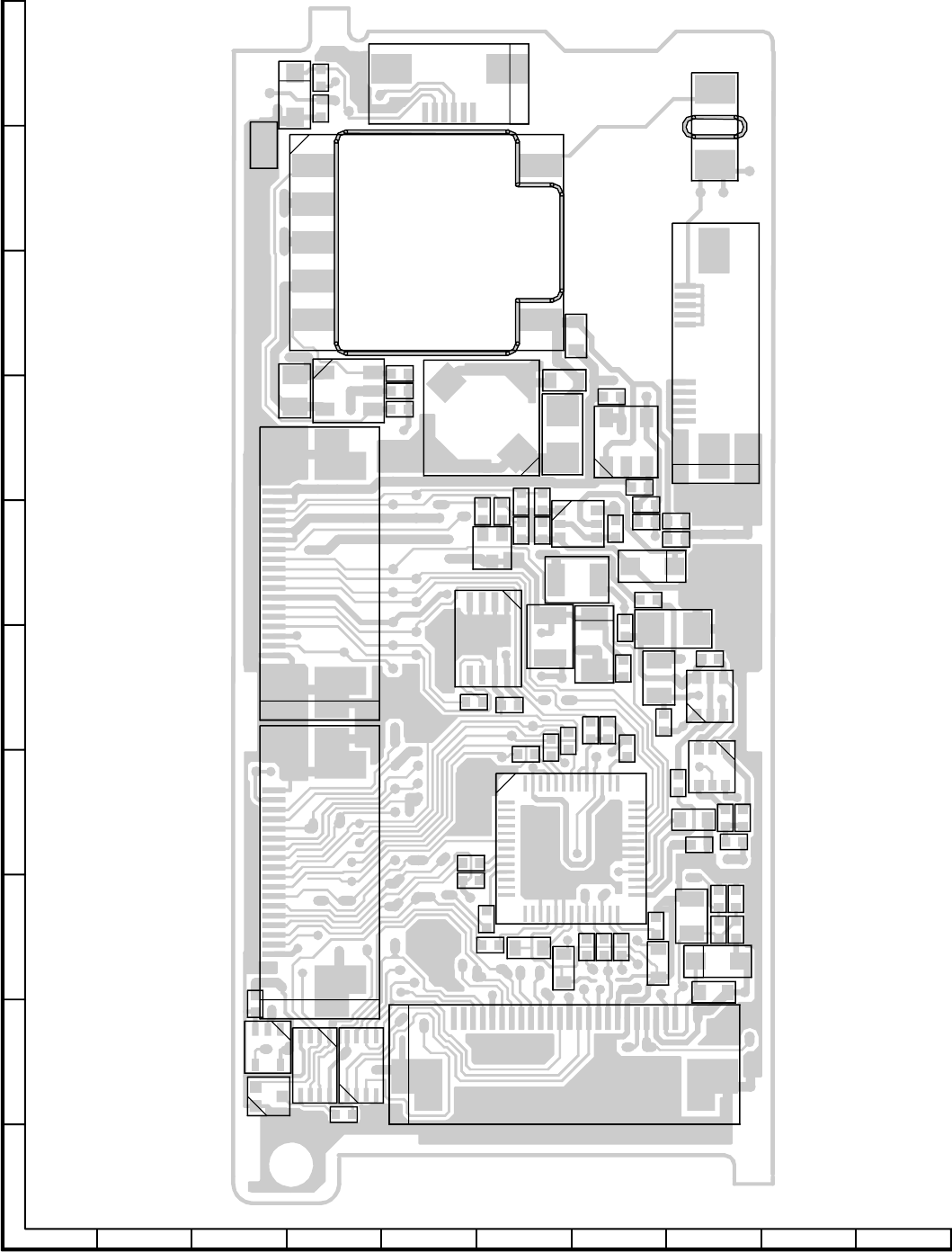

R824

SC803

TL870

D801

C820

TL852

C9805

TL9801

TL9800

TL9802

T9800

R9810

SC9800

R9801 C9804

C9803

TL853

Q9800 C9801 C9806

R9800

L9800

C9800

IC9800

TL832

R9811

TL831

C9802

R9802

TL830

R9807

R9808

C9807

TL829

TL828

R9805

R9804

R9812

R9809

R9803

Q9801

TL9803

TL9804

TL9805

R9806

Q9802

TL826

D9800

SC801

TL825

L801

TL824

TL823

R815

TL822

R814

TL821

C815

L800

IC800

TL820

C800

TL819

R813

TL869

C814

TL827

C816

Q800

TL801

R800 C801

R809

TL811

R802

C805

TL812

C802

TL805

C803

R801

TL813

TL843

C804

TL806

TL807

Q801

TL800

R805

TL808

TL809

TL810

R811

R810

C808

IC801

R812

C813

TL835

TL814

TL851

R803

SC800

TL815

R804

TL818

TL816

C818

R827

TL817

C821

R816

C809

R825

R826

TL834

R807

R808

R806

R817 C812

TL845

C810

D800

TL838

C811

TL846

TL837

TL842

TL850

TL802

TL844

TL848

TL849

C817

C807

TL847

IC803

IC804

IC802

SC802

TL803

Q802

R819

TL846(LCD_VG)

LCD_contrast

VL-Z7S/E/Z7E-A/Z7E-W

VL-Z8H

[Execution of adjustment]

Adjustment of servo and system controller

1. System code setting

It is necessary to set the following data items after replacing IC705 (E2PROM).

Select the VCR adjustment mode and set the data value at each address.

• Automatic adjustment

Mode VCR adjustment mode

Adjusting 1) Using command 12, select the VCR adjustment mode.

method 2) Using command 20, enable writing to the E2PROM.

3) Using command 22, set the above-shown system codes according to the model.

4) Using the command, inhibit writing to the E2PROM.

5) Using the command, exit the VCR adjustment mode.

Examples • Replacement of E2PROM (IC705)

• Manual adjustment

Mode VCR ADJ mode

Adjusting 1) Set the CAM/OFF/VCR selector switch to VCR.

method 2) Press "CONTINUE" → "VCR adjustment" on the remote control to enter the VCR mode.

(At this time, "VCR ADJ" is displayed in the lower left part.)

Enter the specified value at each address.

· Shown below is the procedure for setting.

3) Select an address by increasing or decreasing the flashing numeric value with the FF or REW key

and press the PB key to confirm it.

4) Set the flashing numeric value to the specified value by increasing or decreasing it with the FF or

REW key and press the PB key to confirm it.

5) Press the STOP key to make it possible to select an address.

6) Repeat steps (3), (4) and (5) above until all the data items are set. Then press "CONTINUE" to exit

the VCR mode.

7) Set the CAM/OFF/VCR selector switch to OFF.

Examples ·Replacement of E2PROM (IC705)

2. Adjustment of HSWP

Mode VCR ADJ mode

Adjusting 1) Select the video mode and play back the alignment tape.

method 2) Press "CONTINUE" → "HSWP ADJ" keys on the remote control.

→ HSWP adjustment execution (When the adjustment is completed, "GOOD" is displayed on the LCD and

ejecting is performed automatically.)

If adjustment cannot be made, "NG" is displayed on the LCD.

Examples · Replacement of mechanism · Replacement of E2PROM

* After replacing IC705 (E2PROM), make the following settings and then make adjustments.

(E2PROM) data table

(1) Magnetic parametric system

Address 27 28 2B 25 26

Data 70 90 A0 70 A0

Code

Specifications

Destination

Specifications

Menu setting

Software switching

Calendar

Address 01 09 02 0A 03 0B 04 0C 05 0D 07 0F

Z7S 00 FF 0A F5 04 FB 00 FF 00 FF 03 FC

Z7E 00 FF 0B F4 0C F3 00 FF 00 FF 03 FC

Z8H 02 FD 0D F2 0C F3 00 FF 00 FF 03 FC

Code 1394/exif model name

Address 1A1 1A2 1A3 1A4 1A5 1A6 1A7 1A8 1A9 1BD 1BE . 1BF

Z7S 56 4C 2D 5A 37 53 00 00 00 00 00 00

Z7E 56 4C 2D 5A 37 45 00 00 00 00 00 00

Z8H 56 4C 2D 5A 38 48 00 00 00 00 00 00

VL-Z7S/E/Z7E-A/Z7E-W

VL-Z8H

Mode VCR ADJ mode

Adjusting 1) Play back the alignment tape. (A tape recorded on this unit may be used instead of the alignment tape.)

method 2) Select the adjustment mode (V-ADJ).

3) Select address "2A" to call up the data.

4) Using the FF and REW keys, adjust the data value so that reproduced pictures are shown. (Even if block

noise occurs at this time, it is allowable.)

Note: After the address "2A" data has been adjusted, be sure to make the error rate adjustment.

Examples · Replacement of circuit board (main) · Replacement of E2PROM

ADJUSTMENT OF MAGNETIC PARAMETRIC CIRCUIT SYSTEM

1. Adjustment of PLL VCO

2. Adjustment of phase and equalizer → (To be performed in the VCR mode)

Mode VCR ADJ mode

Adjusting 1) Set a error rate adjustment tape (RTPEVA001WJZZ).

method 2) Select test mode 0F using the adjustment remote control. Automatic adjustment will be started (the following

sequence will be performed automatically).

3) Turn ON and OFF the power.

4) Checking of error rate

Select test mode 0B using the adjustment remote control.

5) Manual adjusting method (video adjustment mode)

* In this adjustment, play back a tape recorded on this unit in the LP mode.

Change the data values at addresses 26 and 2B for the phase and the data values at addresses 25 and 27 for

the equalizer so that the error rate is minimized.

Examples · Replacement of mechanism · Replacement of circuit board (main) · Replacement of E2PROM

Tape EJECT

Recording of built-in

VI/O color bar VS REW PB

Automatic

adjustment of

phase and

equalizer

Judgment

OK:

Blue indication on LCD

NG:

Red indication on LCD

Sync error Error rate

Phase Equalizer

H ch side 2B 27

L ch side 26 25

Sync error 20 or less

Error rate 200 or less (SP Mode)

330 or less (LP Mode)

3. Adjustment of shutdown

Mode VCR adjustment mode

Adjusting 1) Set a recordable tape and select the camera mode.

method 2) Press "CONTINUE" → "TEST SEL" on the adjustment remote control to enter the TEST mode (T-01 flashing).

3) Select T-03 with the FF and REW keys and press "PB" key.

4) Adjust the power supply voltage so that TL904(+) becomes 6.00V ± 50mV as viewed from TL900(-).

5) Press the "Display change" button on the main unit. Turn OFF the power.

Examples · Replacement of microcomputer (IC701), Regulator (IC704) and E2PROM (IC705)

VL-Z7S/E/Z7E-A/Z7E-W

VL-Z8H

ADJUSTMENT OF VIDEO I/O CIRCUIT SYSTEM

1. Adjustment of PCO D/A-Y

Measurement point (On envelope checkup TP jig)

Address VCR ADJ 566 Mode EE mode

Adjusting method 1Disconnect the DC cable or battery from the unit.

2Connect the envelope checkup TP jig to P3303.

3Reconnect the DC cable or battery to the unit, and turn on the power. (on the shooting side)

1) Connect the AVS cable to the monitor (TO).

2) Select the adjustment mode (V-ADJ).

3) Select address "566" to call up the data.

(A 100% white signal appears.)

4) Set the "Y" signal of the envelope checkup TP jig to 1.0 ± 0.05Vp-p by changing the data value

with the FF/REW keys.

Examples · Replacement of IC705, IC4401, IC1401

2. Adjustment of PCO D/A-C

Measurement point (On envelope checkup TP jig)

Address VCR ADJ 567 Mode EE mode

Adjusting method 1Disconnect the DC cable or battery from the unit.

2Connect the envelope checkup TP jig to P3303.

3Reconnect the DC cable or battery to the unit, and turn on the power. (on the shooting side)

1) Connect the AVS cable to the monitor (TO).

2) Select the adjustment mode (V-ADJ).

3) Select address "567" to call up the data.

4) Set the "C" signal of the envelope checkup TP jig to 0.64 ± 0.05Vp-p by changing the data value

with the FF/REW keys.

Examples · Replacement of IC705, IC4401, IC1401

(Envelope checkup TP jig)

1.0 ± 0.05

0.64 ± 0.05

ADJUSTMENT OF VF CIRCUIT

SC1800 P3301

R1824

R1823

C1809

C1810

C1439 R747

C1402 L1802

C708

R707 R71

C1441 L1404 Q705

Q1402

C704

Q704

R1406

C1408

R772

R771

R718

R738

R736

C1416

R1402

R1422

C1802

R1801

C1407

C1801

C1410

R737

R729

R1800

R1405

IC1401

C1406

R1419

R1802

R1818

R1805

R763

R759

C1409

C1418

R1804 Q1800

R1413

R1806

R758

C710

R1803

C1804

R1819

R1807

R6800R1403C1417 R1461

Q1405

R1808C1803

R735

R741

R6810

R1404

R1421

C1419

R6813

R1462 C1411

Q1403

R1810

R1811

R1424 Q1801

R725

C733

C6800

R6812

C6807

R6804

R6803

R1809

R6802

R1423

R1414

Q6801

R1814

C1805

R1816

R720

R755

R6805

R1820

C1412

R6807

C6801

C6802

R6817

C1806

R1817

TL6804

C1800

Q1404

TL6803

R6806 R1813

R6816

Q1802

R6808

D6800

R1827

R1812

C6812

C6811

TL7819

TL6809

C4401 L1800

R6811

TL6802

TL6801

IC6801

TL6807

C1815

R706

R710

TL8803

C6810

R4401

R4402

R1815

C4402 Q1803

R6819C6815 C705

C6813 C4405

R6820R6818

C6816 FB4405

C6814

C7802

X701

L7800

C7800

IC703

C7806

C7804

R7828R7831

TL7824

IC4401

R7830

R7827

R7826

R7829 C8805 L8801

C7825

IC7802 R1925

C1911

C8800 R1928

C7803 Q1913

L8800

C7805R8802 R8801 R1927

C7808

TL903

R1926

C7809 C8804

Q1912

C7801

TL904

R1924

R8800

C4427

IC8800

Q8800

C7807

C978

D960

R4403

C4426

R4495

C4418

C4428

R7800

C7810

R4415

C6803 C8801

L7810

TL4440

C4417

R7812

R7811

R8804

C962

R7820R7832

C4403

C929

D916

R8805

R7819R7833

C8809

7838 C7812

TL8801

C7829

C8807

C7828

C8806

D7810

Q8801

R8819

39 R7834 R7810

R7837 C8808

R7840

R7824

R8807

R7836

C7830

R7825

C7822

R8820

C7827

Q905

C8814

Q7800

2C8813 R8809

R8806

C8802

R8827

R8814

TL907

C3704

TL8802

Q8802

C8803

R8828

R3705

C3710

TL911

R8808R8817

L907

R3717

IC3702

Q90

C939

L908

FB3701

C3705

C938

C3712

C1901

C3708

C3709

Q1901

TL910

L901

TL908

TL8806

C3702 L3702

C934

R1941

R8836

Q1905

C1904 C93

TL8804

R8834 FB8800

TL8805

1 L3701 L903 C933 L902

R8835

TL7824(VF_G_OUT)

VF_DAC full scale

TL8804(VF_VG)

VF_WB

TL8801(VF_COM)

VF_COM

TL8805(VF_VR)

VF_WB

TL8806(VF_VB)

VF_WB

1. Setteing of parameters (Main PWB)

* Preset the following data.

(Wiring board diagram: Main Side A)

PCO D/A-C

PCO D/A-Y

Address 582 585 597 5B9 5E4 5E5 580 588 589 58D 5A2 5A4 5A7 5A8 5A9 5B5 5B7 5B8 5C9 5D3

NTSC 3D 40 00 ———00 00 00 28 00 —F1 —40 8B 8B 7D E0 —

PAL —— 00 00 18 18 00 00 00 —00 D0 F1 E7 E7 8B 8B 7D E0 04

VL-Z7S/E/Z7E-A/Z7E-W

VL-Z8H

The same adjusting procedure and connections as

described for the VCR section are used.

ADJUSTMENT OF LCD CIRCUIT

When making this adjustment, set the backlight switch to "Normal".

(Wiring board diagram: Main Side A) (Wiring board diagram: LCD Side A)

1. Setteing of parameters (Main PWB)

* Preset the following data.

C818

R827

C821

C809

R825

R826

R807

R808

R806

TL845

C810

D800

C811

TL846

TL850

TL802

TL844

TL848

TL849

C817

TL847

SC802

TL803

TL846(LCD_VG)

LCD_contrast

SC1800

TL1431

438R1442

C1810

C1439

C1402 L

C1441 L1404

R1406

C1408

IC1431

C1416

C1407

C1410

R1405

IC1401

C1409

C1418

R1441

R1440

C1437

R1413

R6800R1403C1417 R1461

Q1405

R6810

R1404

R1421

C1419

R6813

R1462 Q1403

1434

R1424

C6800

R6812

C6807

R6804

R6803

R6802

R1423

R1414

R1438

R1439

Q6801

R6805

R6807

C6801

C6802

R6817

TL6804

C6804

Q1404

R6809

TL6803

R6806

R6816

R6808

D6800

C6805

C6812

C6811

L6800

TL7819

TL6809

R6811

TL6802

TL6801

IC68

TL6807

C6810

R6819C681

C6813

R6820R681

C6816

C681

L7800

C7800

R7828R7831

IC4401

R782

R7826

R7829

IC7

C7803

C780

C7808

TL6807(G_OUT)

DAC full scale

2. Adjustment of VF_COM amplitude (Main PWB)

Measurement point TL8801(VF_COM) Address VCR ADJ 32

Procedure 1) Set the data value at address 5EB (TESTSW2) to 77.

2) Connect the digital voltmeter to TL8801 (VF_COM). At address 32 (VF_DAC_C), adjust the DC

voltage to the adjustment rating.

Adjustment rating 3.75V ± 50mV

Examples · Replacement of IC705

3. Adjustment of VF_DAC full scale (Main PWB)

Measurement point TL7824(VF_G_OUT) Address VCR ADJ 59E

Procedure 1) Set the data values at addresses 587 (GRYLEV)/58C (γ PEAK)/5EB (TESTSW2) and 5E6 (OSDSW)

to FF/80/77 and 00, respectively. (The LED shows nothing.)

2) Set the data values at addresses 5A0 (CLAMP)/58D (PEDESTAL) and 5B9 (VCLK3 INV) to 00/80 and

48, respectively.

3) Connect the digital voltmeter to TL7824 (VF_G_OUT) and measure the DC voltage.

* The measured voltage is (DA_VF-G).

4) Set the data values at addresses 5A0 (CLAMP) and 58D (PEDESTAL) to 80 and 00, respectively.

5) At address 59E (VF_DAC_G), adjust the DC voltage to the adjustment rating.

6) Preset the data values at addresses 59D (VF_DAC_B) and 59F (VF_DAC_R) so that they are the

same as the data value at address 59E (VF_DAC_G).

7) Reset the data at addresses 587 (GRYLEV)/58C (γ PEAK)/58D (PEDESTAL)/5A0 (CLAMP)/5B9

(VCLK3 INV)/5E6 (OSDSW) and 5EB (TESTSW2) to their original values.

(Initial values: 40/C5/38/28/42/71 and 7F)

Adjustment rating DA_VF-G +0.23V ± 10mV

Examples · Replacement of IC705, IC4401

4. Adjustment of VF_WB (Main PWB)

Measurement point TL8804(VF_VG), TL8805(VF_VR), TL8806(VF_VB)

Address VCR ADJ 58E, 590

Procedure 1) Set the data values at addresses 587 (GRYLEV) and 5E6 (OSDSW) to 80 and 70, respectively.

2) Connect the oscilloscope to TL8804 (VF_VG) and TL8805 (VF_VR), and at address 58E (VF_WB-

R), adjust the amplitude to the adjustment rating.

3) Connect the oscilloscope to TL8804 (VF_VG) and TL8806 (VF_VB), and at address 590

(VF_WB_B), adjust the amplitude to the adjustment rating.

Adjustment rating 0mV ± 40mV, 0.1mV ± 40mV

Examples · Replacement of IC705, IC4401, IC8801

Address 046 047 048 049 099 0A5 0A6 0A7 0B5 406 407 408 409 427 435 40A 40B 41E

NTSC 1E 54 6B 76 01 40 7E 15 64 7F 7F 20 20 E7 24 70 70 00

PAL ————————69 ————E5 ————

Address 090 098 09A 0A3 0A4 097 40E 40F 42B 42D 42F

NTSC 7F —40 91 96 C2 —————

PAL —00 21 A2 A8 C9 14 14 03 09 06

VL-Z7S/E/Z7E-A/Z7E-W

VL-Z8H

2. Adjustment of DAC full scale (Main PWB)

Measurement point TL6807(G_OUT) Address VCR ADJ 094(G)

Mode VCR AV input

Adjusting method 1) Set the data values at addresses 41E/086/41C and 410 to FF/80/77 and 00, respectively.

(The LED shows nothing.)

2) Set the data values at addresses 096/411 and 0A8 to 00/80 and 48, respectively.

3) Connect the digital voltmeter to TL6807 (G_OUT) and measure the DC voltage.

* The measured voltage is (DA_VG).

4) Set the data values at addresses 096 and 411 to 80 and 00, respectively.

5) At address 094, adjust the DC voltage to the adjustment rating.

Preset the data values at addresses 093 and 095 so that they are the same as the data value at address 094.

7) Reset the data at addresses 41E/086/096/41C/411/0A8 and 410. (Initial value: 00/C5/28/7F/28/

42 and 7D)

Adjustment rating DA_VG + 0.35V ± 10mV

Examples · Replacement of IC705, IC4401

4. Adjustment of LCD_ contrast (LCD PWB)

Measurement point TL846(LCD_VG) Address VCR ADJ 7C3

Test signel 0.900V

Procedure 1) Set the data value at address 41E (GRYLEV) to BE. (100% white display)

2) Set the data value at address 41C (TESTSW2) to 77. (1H inverted STOP)

3) Connect the digital voltmeter to TL846 (LCD_VG), and at address 7C3 (CONTRAST), adjust the

DC voltage to the adjustment rating.

Adjustment rating ± 50mV

Examples · Replacement of IC801, IC800

5. Adjustment of COM-Bias (with the unit settings complete)

Measurement point LCD panel display surface Address VCR ADJ 7C9

Mode VCR AV input

Adjusting method 1) Apply a 40% white signal to the AV input.

2) Set the illuminometer (TOPCON IM-3) on the LCD panel surface. (Cut off outside light.)

3) Minimize the ripple of the output waveform of the illuminometer.

Adjustment rating Minimum value

Remarks Make adjustment after five minutes or more of aging.

Examples · Replacement of LCD panel · Replacement of IC800

6. Adjustment of W/B (with the unit settings complete)

Measurement point LCD panel display surface Address VCR ADJ 41F, VCR ADJ 421

Mode VCR AV input

Adjusting method 1) Apply a 40% white signal to the AV input.

2) Apply a 40% white signal to the standard monitor. Make adjustment so that the image on the LCD

becomes equivalent to the image on the standard monitor.

Remark Standard monitor

Examples · Replacement of LCD panel · Replacement of IC4401, IC705

Response time: 0.6 sec

3. Setteing of parameters (LCD PWB)

* Preset the following data.

Address 7C0 7C6 7C7 7CB

NTSC 49 00 40 40

PAL 49 00 40 40

VL-Z7S/E/Z7E-A/Z7E-W

VL-Z8H

TL601

FB600

TL600

C602

VA603

VA602

TL602

C601

R652

R600

VA600

R7427

VA601

C600

R603

TL603

R604

R7429

R7428

R7426

D7402

D7401

C1501R1501

C1503R1502

C1502C1508

C553

C554

C556

C558

C559

C561

R552

R553

R555

R559

R2556

R2555

Q2551

R2552

R2560

R2559

C3605 C2551 C620

C608 R616 R614 R3610C3641

C643

Q2554 C3640

C617

R3609R3641

C614

C607

C613

R618

C615

C609

C616

R621

R2561

C610 R3640

C618

R3628

C650

R612

R606

R617

C606

C611

C612

Q2552 C648 R3625

C647

R3630

C3627

R620

R615 Q3604

R613

Q3601

C3621

R3620

C3610

C3608

C3609

R661

C3613

R2551R2554

R3608

C3619 R3615R3617

R623 R607

C3625

C3626

R3627

R3623

C3617

R3636C3615

R2553

C3611

R3613

C3629

Q2553

Q603

Q605

C3631

R2558

C603

R2557

C3614

R3614

R3632

R610

R3646

C644

R654

R3633

C560

C3612

R3634

IC3601

R557

C3634

C3635

C3632

C552

R3631

R554

IC551

C3646

C557

R3639

TL3602

C3616

C3618

C3630

C3628

C3622

R3624

R3621

C555

R3637

L551

R551

C551

P3602

R3629

C3623

R3619

R3622

C3620

C3606

C574

R3638

C3624

R3626

C562

C573

TL3601

C2906 R2901 R1480

R2915

R2914

C2905 1

TL1477

CP1

CP2

L2901

CP3

TL1473

TL1472

TL1471

TL1476

TL1470

TL3601(INT MIC L)

Checking of EE level

Checking of f characteristics

TL3602(INT MIC R)

Checking of EE level

Checking of f characteristics

TL1470

Checking of EE level

Checking of f characteristics

TL1472

Checking of EE level

Checking of f characteristics

ADJUSTMENT OF MIC AMP CIRCUIT

1. Checking of EE level (Sub PWB)

Measuring instrument Valve voltmeter Measurement point TL1472, TL1470

Mode P-ON (CAM) Adjustment rating -8dBs ± 3dB

Test signal 1kHz, -54dBs sine wave

Adjusting method 1) Apply a 1kHz, -54dBs sine wave to TL3601 (INT MIC L) and TL3602 (INT MIC R).

2) Check that the signal levels of TL1472 Audio-L out and TL1470 Audio-R out satisfy the adjustment

rating.

Examples

2. Checking of f characteristics (Sub PWB)

Measuring instrument Valve voltmeter Test point TL1472, TL1470

Mode P-ON (CAM) Adjustment rating

(On a base of 1kHZ)

100Hz : -6dBs ± 3dB

10kHz : -3dBs ± 3dB

Test signal 100Hz and 10kHz , -54dBs sine wave

Adjusting method 1) Apply a -54dBs, 100Hz sine wave and then a 10kHz , -54dBs sine wave to TL3601 (INT MIC L) and

TL3602 (INT MIC R).

2) Check that the signal levels of TL1472 Audio-L out and TL1470 Audio-R out satisfy the adjustment

rating on a base of 1kHZ in each case.

Examples

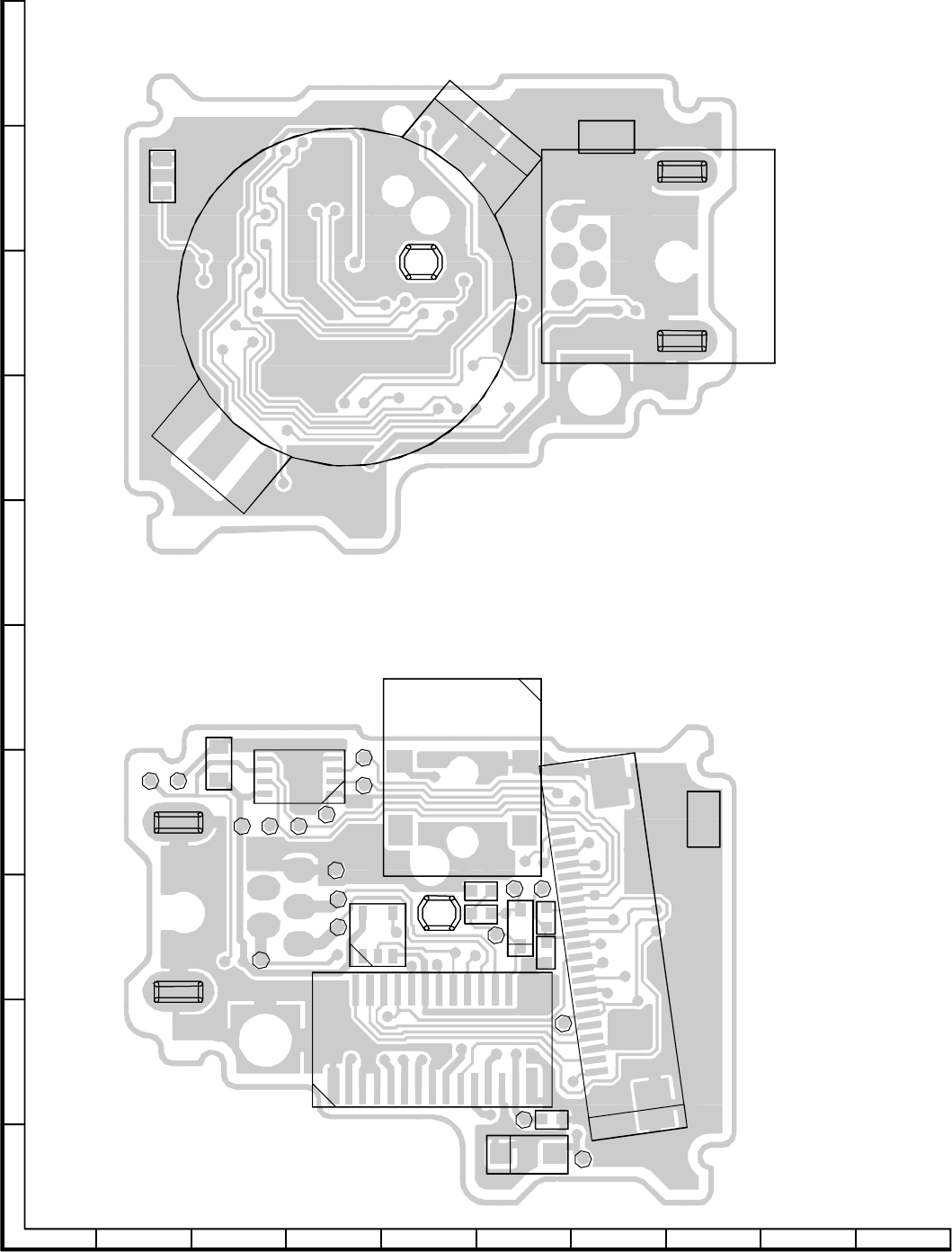

(Wiring board diagram: Sub Side A) (Wiring board diagram: Sub Side B)

Setting of MODEL ID

Address VCR ADJ FD, FE, FF

Mode VCR mode Setting rating 10, 20

Setting method 1) Using command 12, select the VCR adjustment mode.

2) Using command 20, enable writing to the E2PROM.

3) Set MODEL ID at each address.

Examples Replacement of E2PROM (IC705)

Address FDh FEh FFh

Date 10h 20h Z7S 44

Z7E 46

Z8H 5F

VL-Z7S/E/Z7E-A/Z7E-W

VL-Z8H

Address 180, 17F, 17E Mode VCR

Setting rating ID number obtained from the URL below

Setting method 1) Refer to the ID code application below.

2) Place the data acquired in step (1) at the corresponding address in the VCR mode.

* Download an ID number and write it on the main unit according to the notice from the AV System Group "Issue

No.S8-001".

Examples • Replacement of E2PROM (IC705 in main PWB)

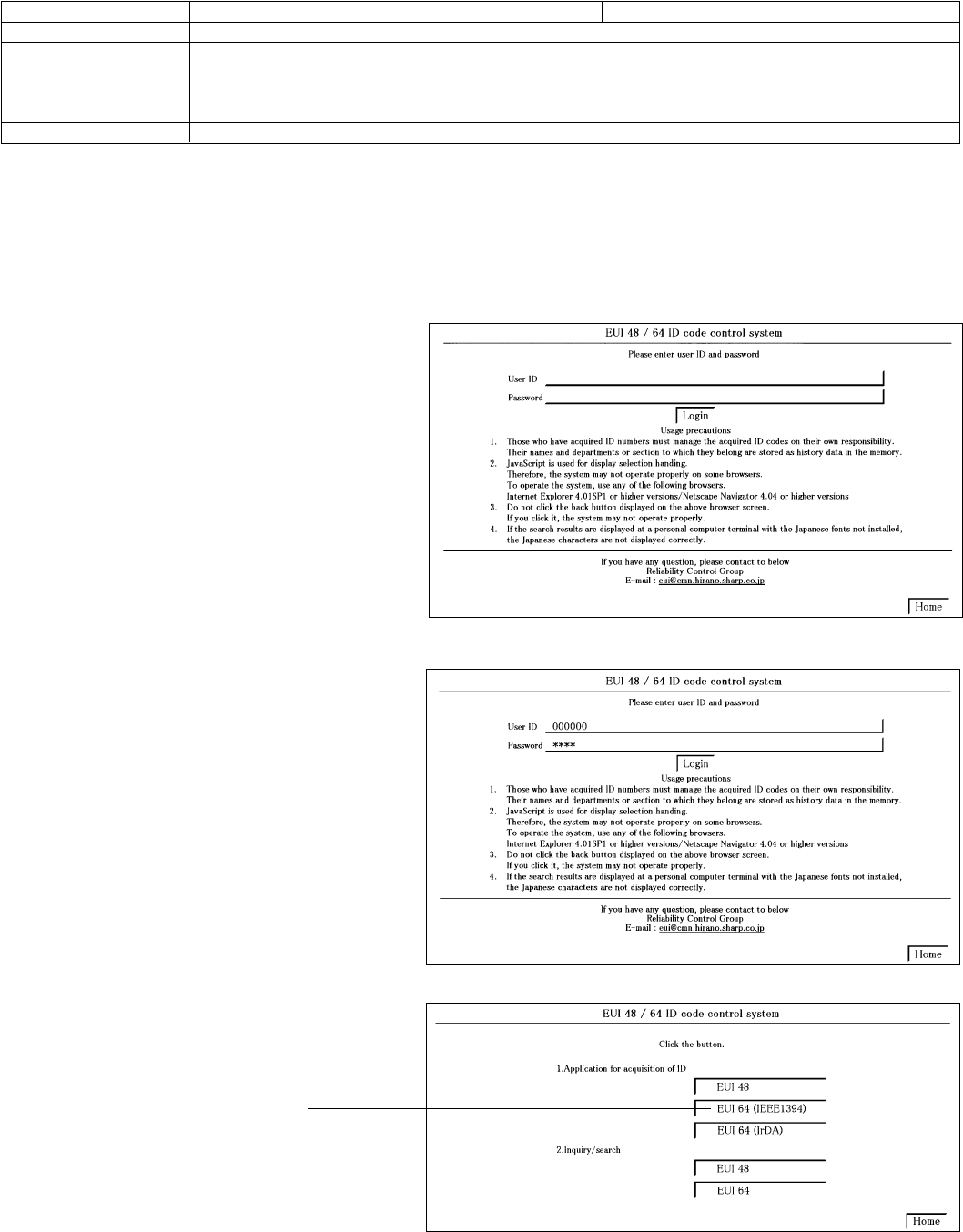

DV INTERFACE (IEEE1394) ID SETTING

This unit has a DV interface function conforming to IEEE1394. Each unit therefore must have its own ID number. Because this ID is

written into the E2PROM (IC705) in the main PWB, it is necessary to newly write the ID newly when this IC is replaced.

Click

■ ID code application

1. Connect with the EUI48/64 ID code control system.

(1) Start the Internet Explorer or Netscape Navigator.

(2) Access the following address.(URL: http://www.rcg.kami.sharp.co.jp/quics/index.html)

Select "EUI48/64 ID code control system" among the "Service" items.

Note: If you want to establish a connection by directly inputting the URL, please input the following.

URL:http://www1.rcg.kami.sharp.co.jp:7000/adrs_agt/adrs_dba/ide00010.main

The login screen will appear.

(3) Input the [User ID] and [Password]. Click on [Login].

(4) Click on [EUI 64 (IEEE1394)] from

[1. Application of acquisition of application for ID].

VL-Z7S/E/Z7E-A/Z7E-W

VL-Z8H

(6) Input the necessary information for the application.

Be sure to input the necessary input items.

Select the [Group/company] and [Kind name] from the list.

Input the [Model name] in half-size characters.

Input the [Serial number] in half-size characters.

Input the [Site/department] of repair in full-size characters.

2. Print the application result.

(1) Print out the application result screen.

Control the application result as evidence.

To print it out, select "Print (P) "under "File (F)" on the menu bar or click on the print button on the tool bar.

(2) Click on [Menu] to complete the application.

If you make application in succession, repeat steps (1) to (8).

To end it, click on [End] on the menu screen.

(7) Click on [Motion].

The confirmation screen will appear.

(8) Click on [Yes].

Click

(5) Click on [Repair use].

VL-Z7S/E/Z7E-A/Z7E-W

VL-Z8H

1. Color bar chart

(240 x 320 mm)

2. JiGCHART-4

3. DA

1. Illuminometer

(0 to 3000 lx)

2. JiGMETER-1

3. CT

1. Color temperature meter

(1600 to 40000 degrees K)

2. JiGMETER-2

3. EL

1. PC plate connector drawer

2. JiGTH-SS10

3. AW

1. Gray scale chart

(390 x 520 mm)

2. JiGCHART-1

3. CP

1. Adjustment remote control

2. RRMCG0033TASA

3. BT

1. Color temperature

conversion filter

(3200 degrees K ⇒ 6800

degrees K)

2. JiGHOYA-LB165

3. BN

9.2. Adjustment of camera section

9-2-1. Servicing of camera section

(1) Camera adjustment should be performed with the set completed.

(2) Subjects, measuring instruments and jigs necessary for servicing and adjustment of the camera section

•Gray scale chart •Frequency counter •Video output cable

•Color bar chart •Illumination meter •AC adapter

•Oscilloscope •Color temperature meter •Extension cables

•Digital voltmeter •Color temperature conversion filter •Adjustment remote control

•Halogen lamp: 2 pcs. HOYA "LB-165"

•Vector scope •Color video monitor

9-2-2. List of camera jigs Sketch

<Note: Order of descriptions> 1. Jig name 2. Part code 3. Code

9-2-3. Adjustment of camera section

(1) Preparations and checking before adjustment

1) Adjust the lighting so that the illumination intensity is about 3000 lx and that uniform illumination is provided on the whole pattern.

(It is desirable that two or more lamps be used as light sources.)

Set the color temperature at 3200K.

2) The test pattern used should be free from stains and color deterioration.

3) If a failure occurs in the electric circuit, be sure to locate the fault using a measuring instrument and perform repairing or

replacement before making adjustment of camera section.

(2) Adjustment remote control RRMCG0033TASA

The adjustment remote control (RRMCG0033TASA) is used to adjust the camera section of this unit. Adjustment is made by writing

data into the E2PROM(IC705) at particular addresses using the remote control via the microcomputer.

1) To adjust the camera

Press the "CONTINUE" key and then press the "CAM ADJ" key.

The following display will appear on the LCD screen, allowing you to make adjustment.

CAM ADJ

2) Description of display

CAM ADJ (It means camera adjustment.)

(Address value) (Data value)

* This unit has addresses 0000 to 07FF.

* Byte data (last two digits valid) and 2-byte data (last three digits valid) are available.

VL-Z7S/E/Z7E-A/Z7E-W

VL-Z8H

4) Operation flow

5) After completion of adjustment

Press the "CONTINUE" key to make the display "CAM ADJ" disappear.

Note: Before pressing the "CONTINUE" key, check that the unit is not in the auto focus adjustment mode or the camera signal

system adjustment mode (described later).

Æ Camera section adjustment mode

The auto focus adjustment mode and the camera signal system adjustment mode are used for adjustment of the camera section.

Note: The adjustment data are stored in the E2PROM as shown below. When making changes, it is therefore necessary to perform

rewriting of data and checking of the latest data.

1) E2PROM (IC705) on main unit

Lens-related data and signal system adjustment data

(3) Auto focus adjustment mode

·The camera of this unit features automatic focussing by means of a microcomputer.

The auto focus circuit of this unit performs focusing operation based on the principle that the high frequency component in the video

signal increases as focus is achieved. In addition, in order to achieve a large magnification with a small-size lens, the inner focus

system is employed in which a master lens (rear lens) is moved forward and backward for focusing. This inner focus system enables

full range focussing with a focal length range of 10 mm to infinite distance. However, because the maximum allowable distance

from the closest subject to the tele end is 1.5 m, a subject less than 1.5 m away from the tele end cannot be focused on if it is shot

at the tele end. In such cases, zooming-out is performed automatically for focusing.

The major factors of the auto focus system are as follows:

• Detection of master lens position

• Detection of iris position

• Detection of zoom lens reference position

These detection data are stored in the E2PROM.

Therefore (3) auto focus adjustment should be performed in the following cases.

• When the lens is replaced

• When the CCD is replaced

• When the E2PROM is replaced

• When the CCD circuit board and CAMHEAD circuit board are replaced

1) How to enter the auto focus adjustment mode

Set the data value at address "13FE" to " 01".

]

The screen will be white-faded temporarily and the auto focus adjustment mode will be established.

* When the auto focus adjustment mode is established, make adjustment according to "(5) Camera adjusting procedure".

* In the auto focus adjustment mode, lens operation cannot be performed.

2) How to enter the normal mode

Set the data value at address "13FE" to " FF".

]

The screen will be white-faded temporarily and the normal mode will be established.

]

Pressing the "CONTINUE" key will make the display "CAM ADJ" disappear and make it possible to perform normal operation.

FF or REW PLAY PLAY STOPFF or REW

Select an address, confirm the selected address to call up the data,

adjust the data value, confirm the adjusted data value and return to address selecting.

3) Description of remote control keys

"FF" key: It is used to increase the address value and data value.

"REW" key: It is used to decrease the address value and data value.

"PLAY" key: It is used to confirm the selected address to call up the data. It is also used to confirm the data value.

"STOP" key: It is used to clear the data and make it possible to select an address.

VL-Z7S/E/Z7E-A/Z7E-W

VL-Z8H

(4) Camera signal system adjustment mode

In the camera signal system adjustment mode, the auto white balance function is stopped in order to adjust the camera. In this

mode, the white balance is set to the indoor mode and focussing is performed manually.

1) How to enter the camera signal system adjustment mode

Set the data value at address "0000" to " 00".

]

The camera signal system adjustment mode will be established.

*When the camera signal system adjustment mode is established, make adjustment according to "(5) Camera adjusting

procedure".

2) How to enter the normal mode

Set the data value at address "0000" to " FF".

]

The normal mode will be established.

]

Pressing "CONTINUE" key will make the display "CAM ADJ" disappear and make it possible to perform normal operation.

(5) Camera adjusting procedure

2. Basic adjustment of iris and ND meter

1. Adjustment of auto focus

7. Adjustment of white balance

8. Adjustment of indoor white gain

9. Adjustment of color gain

3. Adjustment of black balance/Adjustment of A/F noise

4. Rough adjustment of iris AE

11. Adjustment of outdoor white gain

12. Adjustment of iris AE

5. Rough adjustment of white balance

6. Rough adjustment of color gain

10. Adjustment of auto white balance adjustment

* "1. Adjustment of auto focus" is performed in the auto focus adjustment mode. The other adjustments are performed in the camera

signal system adjustment mode.

(6) How to replace the gyro unit

1) When replacing the E2PROM on the main unit with the gyro unit kept unchanged

Because the gyro adjustment data is stored in the E2PROM, read the data at address "1064" and write it into the new E2PROM

after replacement.

2) When replacing the gyro sensor (RMC1001)

After replacing the gyro sensor with the specified one, write the following data at address "1064".

Ref No. Part code Address Data

RMC1001 Changed to RSNSGA005WJPZY 1064 01D0

VL-Z7S/E/Z7E-A/Z7E-W

VL-Z8H

9-2-4. Adjusting procedure

Item Adjustment method

(1) Adjustment of auto focus

The following adjustments are performed automatically by establishing the auto focus adjustment mode and writing the following

data at address "13FD" sequentially. The adjustment items are as shown in the table below. When an adjustment is completed

normally, data "FF" is written, which should be confirmed before proceeding to the next adjustment.

Address Data Adjustment item

13FD 0012 Adjustment of wide end

0008 Adjustment of tele end focus ∞ position

0006 Adjustment of wide end focus ∞ position

000D Adjustment of zoom tracking

Note 1: During the adjustment of ∞ position, a subject should be shot actually. Make this adjustment while shooting a subject with

a clear-cut outline. In the case of the adjustment of tele end focus ∞ position in particular, if it is performed without shooting

a distant subject actually, the ∞ position will not be adjusted properly.

Adjustment of wide end focus ∞ position: 3 m or more

Adjustment of tele end focus ∞ position: 50 m or more

Note 2: In the case of the adjustment of ∞ position, the depth of field is important in insuring accuracy. If the depth of field is deep,

the ∞ position may be adjusted improperly the subject hardly falls out of focus. Make this adjustment with the depth of

field being shallow (the iris opened).

It is possible to open the iris using the high-speed shutter.

1. Establish the normal mode.

2. Call the V-V adjust sports mode in normal operation. (Refer to the instruction manual.)

3. Display "CAM ADJ" by using the remote control for servicing.

4. Establish the auto focus adjustment mode.

5. Perform the adjustment of ∞ position.

6. After the completion of the adjustment of ∞ position, set the V-V adjust back to the off position.

(2) Basic adjustment of iris

It is performed to adjust the operating point of the hall element installed in the iris meter.

The following adjustments are performed automatically by writing the following data at address "13FD" sequentially in the camera

signal system adjustment mode. The adjustment items are as shown in the table below. When an adjustment is completed

normally, data "00FF" is written automatically.

Address Data Adjustment item

13FD 0009 Adjustment of hall offset

000A Adjustment of iris offset

000B Adjustment of iris close

After exiting the auto focus adjustment mode (writing data " FF" at address "13FE"), establish the camera signal system

adjustment mode (writing data " 00" at address "0000").

(3) Adjustment of black balance/Adjustment of A/F noise

This adjustment is performed automatically by writing data " 01" at address "0001". When the adjustment is completed normally,

data "00FF" is written automatically.

VL-Z7S/E/Z7E-A/Z7E-W

VL-Z8H

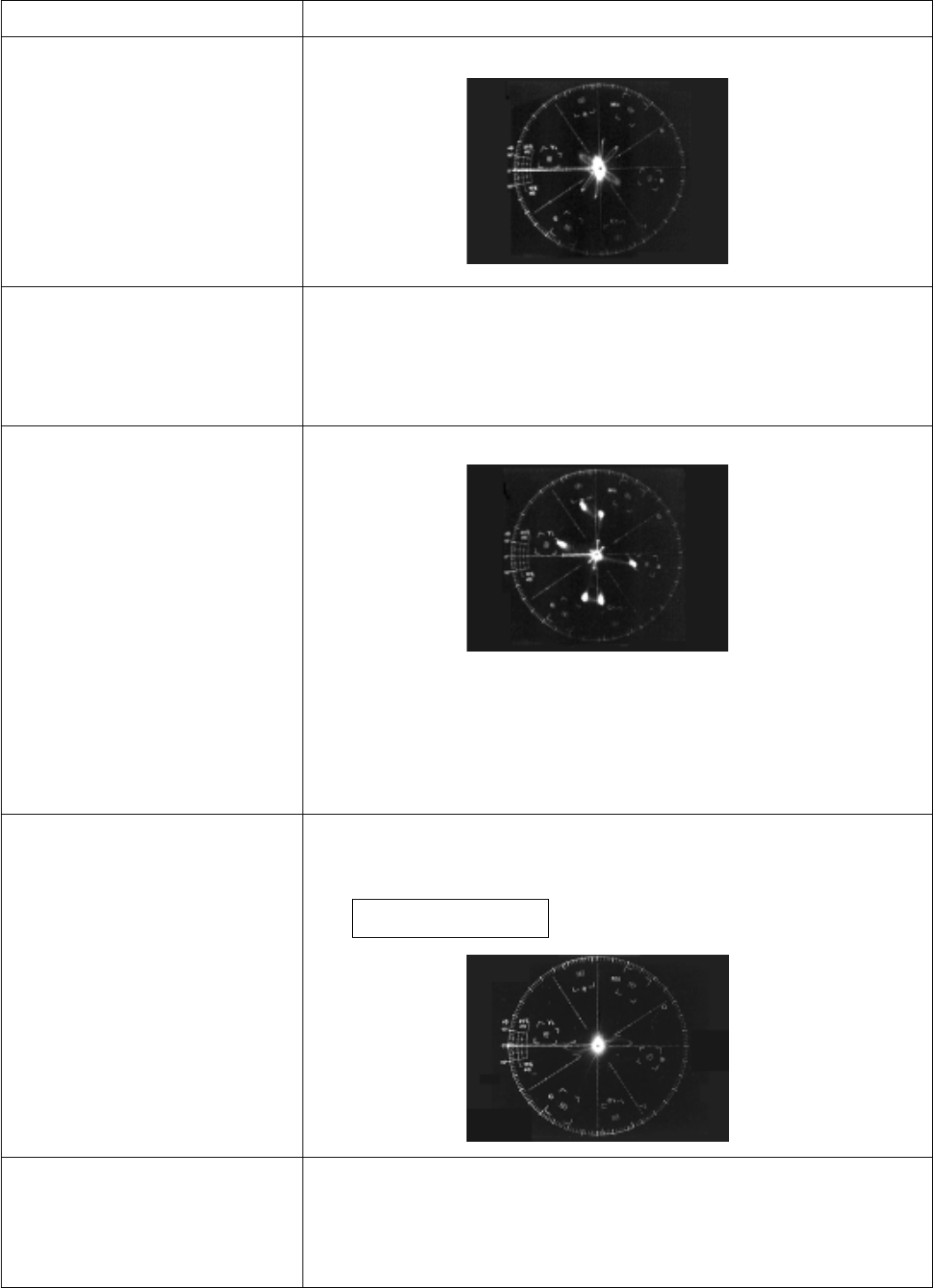

Item Adjustment method

1) While shooting the gray scale normally, observe the video output using the oscilloscope.

By rewriting the data at address "0002", adjust the white luminance signal level to

680±10mVp-p and the gray luminance signal level (on the gray scale background) to

330±10mVp-p.

(4) Rough adjustment of iris AE

•Measurement terminal:

S terminal luminance signal output

(75 Ω termination)

•Address: "0002" AE_CVT

•Measuring instrument:

Oscilloscope (horizontal cycle)

•Object:

Grey scale

•Data changing range:

"0000" to "00FE"

1) Shoot the color bar chart and adjust the field angle so that the white level becomes

600mV. While observing the monitoring screen of the vector scope, rewrite the data

at addresses "013A", "013C", "0138", "0136", "07DE" and "07DD" so that the red, blue

and yellow luminescent spots are positioned as shown below. (As for the burst gain,

gain setting of the vector scope should be made at the 75% Amplitude point on the B-

Y axis.)

(6) Rough adjustment of color gain

•Measurement terminal:

EE output

•Address:

"013A" CGIN RYG

"013C" CGIN BYG

"0138" CMAT RYG

"0136" CMAT BYG

"07DE" Yellow amplitude

"07DD" Yellow phase

•Measuring instrument:

Vector scope

•Object:

Color bar chart

•Data changing range:

"0000" to "00FF"

1) While shooting the gray scale normally, observe the monitoring screen of the vector

scope. By rewriting the data at addresses "0128" and "012A", position the luminescent

spot so that the following burst ratio is obtained.

R-Y 0 ± 5%

B-Y 0 ± 5%

(5) Rough adjustment of white balance

•Measurement terminal:

EE output

•Address:

"0128" CGAIN_KR_W

"012A" CGAIN_KB_W

•Measuring instrument:

Vector scope

•Object:

Grey scale

•Data changing range:

"0000" to "03FF"

100mV/div

Adjustment address

Red amplitude 1.75 ± 0.1 time (burst ratio) : "013A"

Blue amplitude 1.35 ± 0.1 time (burst ratio) : "013C"

Yellow amplitude 1.25 ± 0.1 time (burst ratio) : "07DE"

Red phase 106° ± 2°: "0138"

Blue phase 358° ± 2°: "0136"

Yellow phase 168° ± 2°: "07DD"

VL-Z7S/E/Z7E-A/Z7E-W

VL-Z8H

Item Adjustment method

1) Perform the adjustment of white balance repeatedly.

(7) Adjustment of white balance

•Measurement terminal:

EE output

•Address:

"0128" INDOOR_W/B R

"012A" INDOOR_W/B R

•Measuring instrument:

Vector scope

•Object:

Grey scale

•Data changing range:

"0000" to "03FF"

(8) Adjustment of indoor white gain

•Measurement terminal:–

•Address: 0001

•Measuring instrument:–

•Object: White pattern

•Data changing range:–

1) Perform the color gain adjustment repeatedly.

Adjustment address

Red amplitude 1.75 ± 0.05 time (burst ratio) : "013A"

Blue amplitude 1.35 ± 0.05 time (burst ratio) : "013C"

Yellow amplitude 1.25 ± 0.05 time (burst ratio) : "07DE"

Red phase 106° ± 1°: "0138"

Blue phase 358° ± 2°: "0136"

Yellow phase 168° ± 2°: "07DD"

(10) Adjustment of auto white balance

adjustment

•Measurement terminal:

EE output

•Address:

"000C" OUTDOOR R

"000E" OURDOOR B

•Measuring instrument:

Vector scope

•Object:

Grey scale

•Data changing range:

"0000" to "03FF"

1) Set the color temperature conversion filter (LB165) on the lens.

2) While shooting the gray scale normally, observe the monitoring screen of the vector

scope. By rewriting the data, position the luminescent spot so that the following burst

ratio is obtained.

R-Y 0 ± 5% (burst ratio)

B-Y 0 ± 5% (burst ratio)

(11) Adjustment of outdoor white gain

•Measurement terminal:–

•Address: 0001

•Measuring instrument:–

•Object: White pattern

•Data changing range:–

(9) Adjustment of color gain

•Measurement terminal:

EE output

•Address:

"013A" CGIN RYG

"013C" CGIN BYG

"0138" CMAT RYG

"0136" CMAT BYG

"07DE" Yellow amplitude

"07DD" Yellow phase

•Measuring instrument:

Vector scope

•Object:

Waveform monitor color bar chart

•Data changing range:

"0000" to "00FF"

1) This adjustment is performed automatically by writing data "05" at address "001" in the

signal system adjustment mode.

When the adjustment is completed normally, data "FF" is returned to address "001".

If data other than "FF" is returned, the adjustment has not been performed properly.

1) Set the color temperature conversion filter (LB165) on the lens.

2) This adjustment is performed automatically by writing data "06" at address "001" in

the signal system adjustment mode.

When the adjustment is completed normally, data "FF" is returned to address "001".

If data other than "FF" is returned, the adjustment has not been performed properly.

VL-Z7S/E/Z7E-A/Z7E-W

VL-Z8H

Item Adjustment method

1) Establish the normal mode (by writing data " FF" at address "0000".

2) While shooting the gray scale normally, observe the video output using the

oscilloscope. Check that the white luminance signal level is 640±10mVp-p and that

the gray luminance signal level (on the gray scale background) to 290±10mVp-p.

(12) Adjustment of iris AE

•Measurement terminal:

S terminal luminance signal output

(75 Ω termination)

•Address: "0002" AE_CVT

•Measuring instrument:

Oscilloscope (horizontal cycle)

•Object:

Grey scale

•Data changing range:

"0000" to "00FE"

100mV/div

VL-Z7S/E/Z7E-A/Z7E-W

VL-Z8H

10. USEFUL TIPS (PROBLEMS DIFFER FROM THOSE FOUND ON VHS OR

8MM DECKS BECAUSE THE SIGNALS ARE DIGITALLY PROCESSED.)

Picture fails

to appear Blueback fails

to appear.

Picture fails to

appear when tape

recorded on this

unit or another unit

is played back.

(EE OK)

Blueback when

tape recorded on

this unit or another

unit is played back.

(EE OK)

Random block

noise when tape

recorded on this

unit or another

unit is played back.

Lines appear on

the color bar.

The outline looks

like a Moire pattern.

There is considerable

randam block noise.

Camera (EE mode) VCR (EE mode) Camera (REC mode)

VCR (PB mode)

Camera (REC mode)

VCR (PB mode)

VCR (PB mode) + color bar VCR (PB mode) + color bar Camera (EE mode)

Major circuits to be checked

•CAM ENGINE (IC201)

Major circuits to be checked

•Adjustment of the electromagnetic

conversion circuit system.

Major circuits to be checked

•Y data between CAM ENGINE

(IC201) and VIO ENGINE (IC4401)

is missing.

Major circuits to be checked

•EQ/PLL (IC3401)

•Head amplifier (IC301)

* Dirty or defective video head

Major circuits to be checked

•EQ/PLL (IC3401)

•Head amplifier (IC301)

* Dirty or defective video head

Major circuits to be checked

•CCD

•Camera circuits (CDS/ADC,

CAM ENGINE)

•MECHA/SYSTEM MiCON (IC701)

•VIDEO I/O (IC1401)

•VIO ENGINE (IC4401)

Major circuits to be checked

•MECHA/SYSTEM MiCON (IC701)

•CAM ENGINE (IC201)

•REC/PB ENGINE (IC452)

Major circuits to be checked

•CAM ENGINE (IC201)

•REC/PB ENGINE (IC452)

Noise bar (Green)

+ random block

noise when tape

recorded on this

unit or another

unit is played back.

Camera (REC mode)

VCR (PB mode)

VL-Z7S/E/Z7E-A/Z7E-W

VL-Z8H

VIO ENGINE

IC1401 IC801

VIDEO I/O

RGB

LCD Panel

VIDEO IN/OUT

SEP-Y IN/OUT SEP-C IN/OUT

2 6

291

293

28 31 35 37 38

16 13 10 21

103

46 48

IC4401

ZYP ZCP

IC201

CAM ENGINE

CAM ADIN

200 209

51 58 65 72

IC452

REC/PB ENGINE

CDY

CDC

HEAD AMP

REC DATA REC GATE

SC3301

FPC

40 47

50 57

244

243

IC4401

VIO ENGINE

ZYP

ZCP

233 240 219 224 231 232

28 31 35 37 38 27

IC452 244pin Rec GATE Output

IC452 243pin Rec DATA Output

CH1=1V

DC P*10

5ms/d

CH1=1V

DC P*10

5ms/d

IC4401 23pin ZYP3 Input

IC4401 33pin ZCP3 Input

IC4401 291pin Y Output

IC4401 236pin CDC3 Output

IC4401 222pin CDY3 Output

CH1=1V

DC P*10

CH1=500mV

DC P*10

20µs/d

5ms/d

CH1=1V

DC P*10

5ms/d

CH1=1V

DC P*10

5ms/d

CH1=1V

DC P*10

IC4401 293pin C Output

20µs/d

CH1=500mV

DC P*10

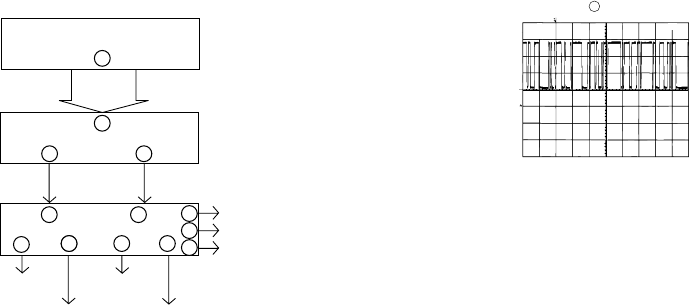

11. SIGNAL FLOW DIAGRAMS

WAVEFORM DIAGRAM

(DURING COLOR BAR RECORDING)

WAVEFORM DIAGRAM

(DURING COLOR BAR RECORDING)

11-2. FLOW IN REC MODE (VIDEO)

11-1. EE MODE FLOW (VIDEO)

VL-Z7S/E/Z7E-A/Z7E-W

VL-Z8H

same as in

REC system

MIC-L

TELE-MiC

MIC-R

INT-MIC-R INT-MIC-L

IC600

IC1602

AIO

IC3601

MIC AMP

IC452

REC/PB ENGINE

16Bit ADC/DAC

AUD-L ADIN

AIDAT

AUD-R ADIN

REC GATE

REC DATA

35 36 48

52 53

14 22

243 244

HP-L

HP-COMMON

HP-R

IC3401 39pin PBDATA Input

IC3401 44pin Input

IC3401 1pin Output

IC3401 32pin Input

CH1=500mV

DC P*10

5ms/d

CH1=500mV

DC P*10

5ms/d

CH1=500mV

DC P*10

5ms/d

CH1=1V

DC P*10

5ms/d

IC1602 Output

CH1=1V

DC P*10

10µs/d

CDY CDC

IC452

REC/PB ENGINE

IC3401

EQ/PLL

227

40 47 50 57

P3301

HEAD AMP

229 236

PB_DATA

ADIN

IC3403

IC3404

PB-CLK

13 32

A/D

ZYP

IC201

CAM ENGINE

ZCP

282 288 295 297 304

51 58 65 72

IC4401 to VIO ENGINE

same as in EE system

11-3. FLOW IN PB MODE (VIDEO) WAVEFORM DIAGRAM

(DURING COLOR BAR PLAYBACK)

11-4. FLOW IN REC MODE (AUDIO) WAVEFORM DIAGRAM (1.6 kHz SINE WAVE)

VL-Z7S/E/Z7E-A/Z7E-W

VL-Z8H

IC1602

DODAT Input

CH1=1V

DC P*10

10µs/d

From IC3404

same as in Video

PB system

IC600

AUDIO-L_IN/OUT

AUD-L_DA_OUT

AUD-R_DA_OUT

AUDIO-R_IN/OUT

SP(-)

SP(+)

AIO

16Bit ADC/DAC IC1602

REC/PB ENGINE IC452

DODAT

1516

49 50

3843

HP-L

HP-R

HP-COMMON

11-5. FLOW IN PB MODE (AUDIO) WAVEFORM DIAGRAM (1.6 kHz SINE WAVE)

VL-Z7S/E/Z7E-A/Z7E-W

VL-Z8H

Mecha

Dram Motor

CAP Motor

LOA Motor

LENS IC1

1330K

CCD-Sensor

IC101

CDS/AGC

ADC

IC21

X21 72M

IC551

LENS DRIVER

IC2502

IRIS

DRIVER

IC501

LENS MiCON

IC3701

CAMERA/CARD MiCON

SD/MMC CARD IC3702

16Mbit SDRAM

USB

IC503

D/A-CON

IC203

64Mbit

SDRAM

CAM

DSP ZOOM

IC201

CAMERA

ENGINE

(Total ASIC)

M-CTL

CameraZoom

IC1401

ANALOG

VIDEO I/O

IC701

MECHA/SYSTEM

MiCON

I/O

IC4401

VIO

ENGINE

(Total ASIC)

I/O

LCD

OSD

curcit

IC407

Codec External

Memory

16M SDRAM

IC408

ECC External

Memory

16M SDRAM

CODEC TRANSPORT

PCM

CLK.

Gen

IEEE1394

IC3404

A/D

IC3401

EQ/PLL

IC301

2CH

ATF/H/A

(4.9V)

IC1602

16Bit

ADC/DAC

IC600

AIO

IC3601

MIC AMP

INT. MIC

IC1701

MOTOR DRIVER

D-Driver

C-Driver

L-Driver

LCD

INTERFACE

IC801

IC8800

VF INTERFACE

IC452

REC/PB

ENGINE

(Total ASIC)

in/out

HEAD

INT.

Speaker

Audio

out

Head Phone

out

CCD Section

VCR/LCD Section

IC703

CHARACTER

GENERATOR

Video

out

REC (EE)

TELE MIC

I/O

LCD

CTL

IC22

V-Driver

SUB Section

LCD

12. BLOCK DIAGRAMS

12-1. SYSTEM BLOCK DIAGRAM

VL-Z7S/E/Z7E-A/Z7E-W

VL-Z8H

IC1

CCD-Sensor

VHLMN39192N-1

IC101

CDS-AGC/ADC

VHiH49334HN-1

36P

IC21

VHiMN52A6CD-1

48P

IC22

V-Driver

VHiUPD16510-1

20P

X21

72.000MHz

RCRSZ0083TAZZ

IC201

CAM ENGINE

RH-iX0785TAZZ

368P

IC203

64M SDRAM

RH-iXA320WJZZ

90P

CCD OUT

FS_CLK, FCD_CLK,

BCPX, PBLK, ADCLK

XSDADR0 12

XSDCLK

XSDCKE

XSDCSX

XSDRASX

XSDCASX

XSDWEX

XSDDQM0 3

XSDDAT0 31

ZYP0 7

ZCP0 7

ZCLKP

ZHDP

ZVDP

ZUVSELP

TGHD, TGVD

CAMAD0

CAMAD9

TGCLK

TGVD

TGHD

H1-CLK,

H2-CLK,

RS-CLK,

HL-CLK

TGCLK

SC1001-SC1202

24 : ADIN0 : 10

26 : ADIN1 : 8

28 : ADIN2 : 6

30 : ADIN3 : 4

32 : ADIN4 : 2

23 : ADIN5 : 11

25 : ADIN6 : 9

27 : ADIN7 : 7

29 : ADIN8 : 5

31 : ADIN9 : 3

12 : TGVD : 20

13 : TGHD : 21

9 : TGCLK : 25

CDY0 7

CDC0 7

CLK13P

CDHDP

CDVDP

CCD

MAIN

OFD

V1, V2, V3, V4

V1M, V2M,

V3M, V4M,

CH1M, CH2M,

VSUBM

CAMAD0

CAMAD9

12-2. CAMERA SECTION BLOCK DIAGRAM

VL-Z7S/E/Z7E-A/Z7E-W

VL-Z8H

REC (EE)

REC (EE), PB

IC4401

VIO ENGINE

RH-iXA204WJZZ

303P

IC1401

VIDEO I/O

VHiLA73070V-1

16P

SC8800

SC1801 SC1800

IC452

REC/PB ENGINE

RH-iX0809TAZZ

368P

IC8800

VF INTERFACE

VHiMM1323XV-1

24P

SC1201

P2901

J1401

CDY0 7, CDC0 7

CDVDP

CDHDP

CDUVSELP

ZUVSELP

ZCLKP

ZHDP

ZVDP

CAMERA SECTION

BLOCK DIAGRAM

CAM ENGINE

ZYP0 7

ZCP0 7

VIDEO IN/OUT

SEP Y IN/OUT

SEP C IN/OUT

I/O SEL

STH, XSTH, CKH1,

CKH2, DSG, ENB,

STV, CKV1, CKV2

VR, VG, VB

CVDR, CHDR

A-Y-OUT

A-C-OUT

A-C_IN

A-Y/COMP_V_IN

IC1431

VHiNJM2535V-1

VIDEO-IN

SEP-Y-IN

Main PWBSub PWB

80P

Bord to Boed

VIDEO IN/OUT

SEP Y IN/OUT

SEP C IN/OUT

SCK, GCK, GSP, INI,

SSP, SH1, SH2, SH3,

SHOUT, HD, GCK_CTL,

FRPV

12-3. VIO ENGINE SECTION BLOCK DIAGRAM

VL-Z7S/E/Z7E-A/Z7E-W

VL-Z8H

REC (EE)

REC (EE), PB

IC452

REC/PB ENGINE

RH-iX0809TAZZ

368P

IC4401

VIO ENGINE

RH-iXA204WJZZ

303P

IC407

Codec External Memory

16M SDRAM

RH-iXA550WJZZ

60P

IC3404

A/D CONV IC

VHiADC8351C-1

24P

IC301

HEAD AMP, ATF

48P

IC3401

EQ/PLL IC

48P

X401

24.576MHz

RCRSC0160TAZZ

IC408

ECC External Memory

16M SDRAM

RH-iXA550WJZZ

60P

MADDR0 11

XCS, XWE, XRAS, XCAS,

XUDQM, XLDQM, XCKE,

CLK18M1IV

SM-ADR0 11

I/OSEL

CVDR

CHDR

DI00 15

MDT0 15

CS, WE

UDQM, RAS

LDQM, CAS

CKE, CK18M1IV

PB-CLK

ADIN0 7

I D

REC DATA

REC GATE

CDY0 7

CDC0 7

CDUVSELP

CDHDP, CDVDP

12-4. REC/PB SECTION BLOCK DIAGRAM

VL-Z7S/E/Z7E-A/Z7E-W

VL-Z8H

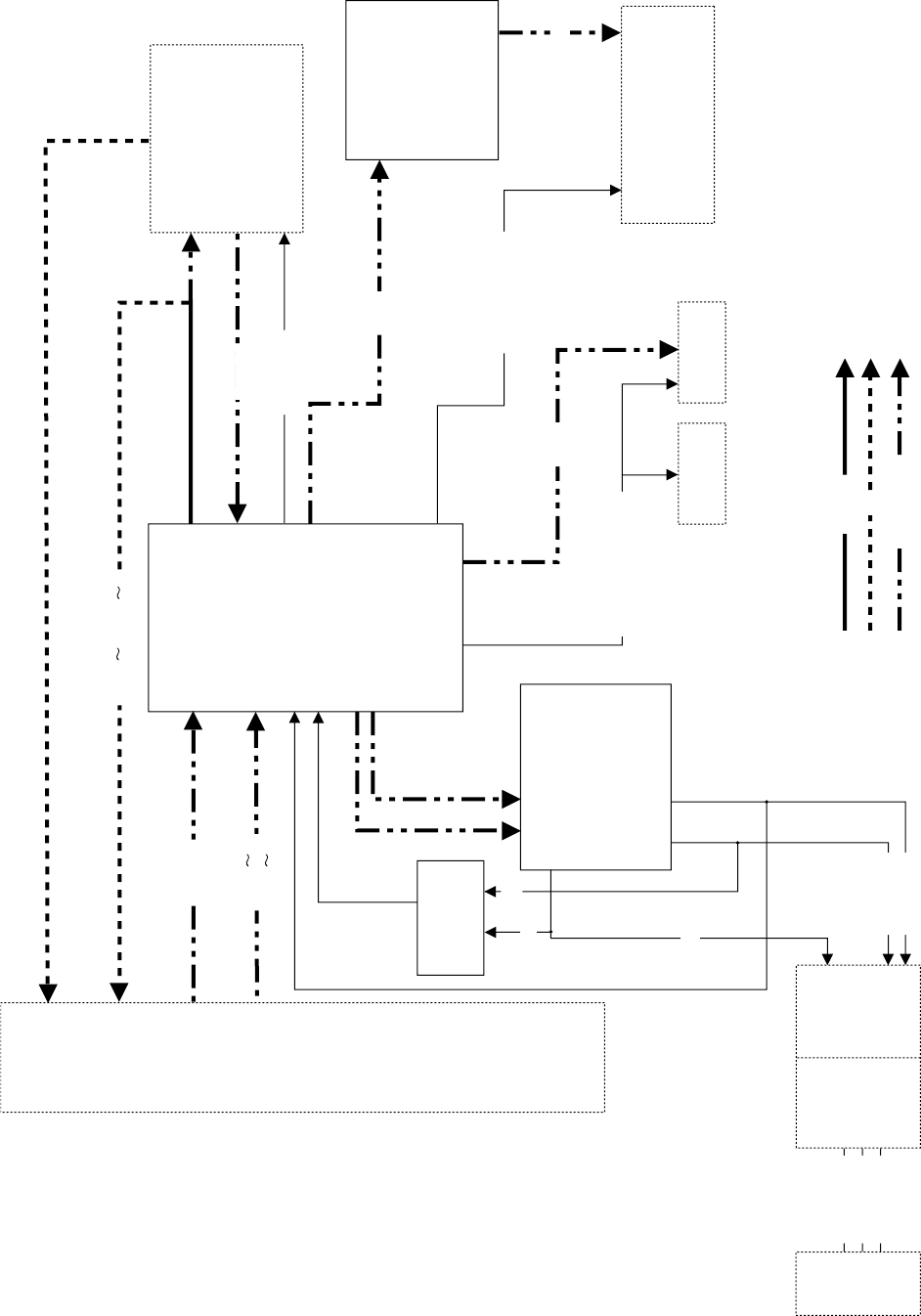

REC (EE)

REC (EE), PB

MECHA/SYSTEM MICON

IC1602

16Bit ADC/DAC

VHiPCM3008+-1

16P

IC600

AIO

VHiLA74206W-1

64P IC3601

MIC AMP

VHiAN2901FQ-1

48P

JACK

HEAD PHONE

JACK

SPEAKER

80P

Bord to Bord

DV CONNECT

J7401

REC/PB ENGINE

BLOCK

SP OUT

DFSO

DFSI

AIDAT

AUD R DA OUT

AUD L DA OUT

AUDIO R I/O

AUDIO L I/O

ADMCLK

ADBCK

ADLRCK

PDAD

PDDA

DODAT

CS-1394,

RD-1394,

WR-1394

AUD R AD IN

AUD L AD IN

XTPA0, TPA0,

XTPB0, TPB0

80P

Bord to Bord

INT MIC

TELE MIC

12-5. AUDIO/DIGITAL OUTPUT SECTION BLOCK DIAGRAM

VL-Z7S/E/Z7E-A/Z7E-W

VL-Z8H

MAIN

SUB

CCD

IC21

Timing

Generator

Electric Zoom

Image Stabilizer

Digital Noise Reduction

IC101

CDS

AGC

ADC

IC1

CCD

Sensor

IC551

IC201

IC203

X21

72MHz

RMC1001

Gyro Sensor

IC1002

Gyro Amp

Focus-Motor

Driver

IC2502

Iris Amp

Iris Drive

Zoom-Motor

Driver

REC /PB

Y/C Data

PB Y/C Data

Sirial Data

IC503

D/A

Converter

IC3702

16M SDRAM

Y-Process

SSG

Digital Auto

C-Process

64M

SDRAM

IC3701

CAM/CARD µ-com

CAM ENG

IC22

V-Driver

IC501

Lens µ-com

12-6. CAMERA CIRCUIT BLOCK DIAGRAM

5554

VL-Z7S/E/Z7E-A/Z7E-W

VL-Z8H

VL-Z7S/E/Z7E-A/Z7E-W

VL-Z8H

13. SCHEMATIC DIAGRAMS 13-1. OVERALL SCHEMATIC DIAGRAM

5756

1234567891011 12 13 14 15 16 17 18 19 20

VL-Z7S/E/Z7E-A/Z7E-W

VL-Z8H

VL-Z7S/E/Z7E-A/Z7E-W

VL-Z8H

13-2. CAMERA ENGINE SCHEMATIC DIAGRAM

5958

1234567891011 12 13 14 15 16 17 18 19 20

VL-Z7S/E/Z7E-A/Z7E-W

VL-Z8H

VL-Z7S/E/Z7E-A/Z7E-W

VL-Z8H

13-3. REC/PB ENGINE SCHEMATIC DIAGRAM

6160

1234567891011 12 13 14 15 16 17 18 19 20

VL-Z7S/E/Z7E-A/Z7E-W

VL-Z8H

VL-Z7S/E/Z7E-A/Z7E-W

VL-Z8H

13-4. MEC/SYS MiCON SCHEMATIC DIAGRAM

6362

1234567891011 12 13 14 15 16 17 18 19 20

VL-Z7S/E/Z7E-A/Z7E-W

VL-Z8H

VL-Z7S/E/Z7E-A/Z7E-W

VL-Z8H

13-5. POWER1 SCHEMATIC DIAGRAM

6564

1234567891011 12 13 14 15 16 17 18 19 20

VL-Z7S/E/Z7E-A/Z7E-W

VL-Z8H

VL-Z7S/E/Z7E-A/Z7E-W

VL-Z8H

13-6. CAMERA CONN SCHEMATIC DIAGRAM

6766

1234567891011 12 13 14 15 16 17 18 19 20

VL-Z7S/E/Z7E-A/Z7E-W

VL-Z8H

VL-Z7S/E/Z7E-A/Z7E-W

VL-Z8H

13-7. VIDEO I/O SCHEMATIC DIAGRAM

6968

1234567891011 12 13 14 15 16 17 18 19 20

VL-Z7S/E/Z7E-A/Z7E-W

VL-Z8H

VL-Z7S/E/Z7E-A/Z7E-W

VL-Z8H

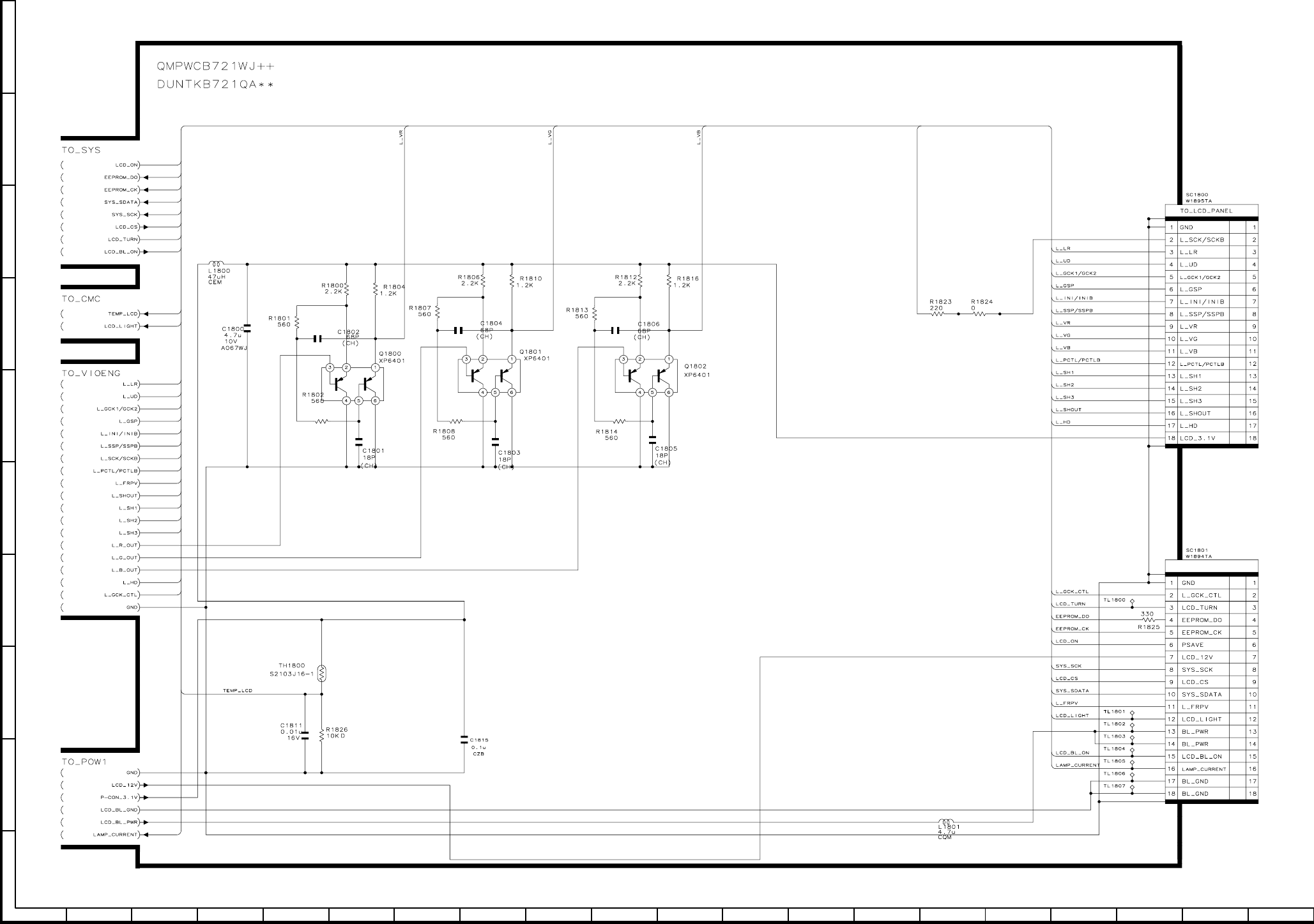

13-8. LCDIF SCHEMATIC DIAGRAM

7170

1234567891011 12 13 14 15 16 17 18 19 20

VL-Z7S/E/Z7E-A/Z7E-W

VL-Z8H

VL-Z7S/E/Z7E-A/Z7E-W

VL-Z8H

13-9. CONNECTION(B-B) SCHEMATIC DIAGRAM

7372

1234567891011 12 13 14 15 16 17 18 19 20

VL-Z7S/E/Z7E-A/Z7E-W

VL-Z8H

VL-Z7S/E/Z7E-A/Z7E-W

VL-Z8H

13-10. EQ/PLL SCHEMATIC DIAGRAM

7574

1234567891011 12 13 14 15 16 17 18 19 20

VL-Z7S/E/Z7E-A/Z7E-W

VL-Z8H

VL-Z7S/E/Z7E-A/Z7E-W

VL-Z8H

13-11. CAM/CARD MiCON SCHEMATIC DIAGRAM

7776

1234567891011 12 13 14 15 16 17 18 19 20

VL-Z7S/E/Z7E-A/Z7E-W

VL-Z8H

VL-Z7S/E/Z7E-A/Z7E-W

VL-Z8H

13-12. VIDEO I/O ENGINE SCHEMATIC DIAGRAM

7978

1234567891011 12 13 14 15 16 17 18 19 20

VL-Z7S/E/Z7E-A/Z7E-W

VL-Z8H

VL-Z7S/E/Z7E-A/Z7E-W

VL-Z8H

13-13. DAC SCHEMATIC DIAGRAM

8180

1234567891011 12 13 14 15 16 17 18 19 20

VL-Z7S/E/Z7E-A/Z7E-W

VL-Z8H

VL-Z7S/E/Z7E-A/Z7E-W

VL-Z8H

13-14. VFIF SCHEMATIC DIAGRAM

8382

1234567891011 12 13 14 15 16 17 18 19 20

VL-Z7S/E/Z7E-A/Z7E-W

VL-Z8H

VL-Z7S/E/Z7E-A/Z7E-W

VL-Z8H

13-15. CCD SCHEMATIC DIAGRAM

8584

1234567891011 12 13 14 15 16 17 18 19 20

VL-Z7S/E/Z7E-A/Z7E-W

VL-Z8H

VL-Z7S/E/Z7E-A/Z7E-W

VL-Z8H

13-16. TG SCHEMATIC DIAGRAM

8786

1234567891011 12 13 14 15 16 17 18 19 20

VL-Z7S/E/Z7E-A/Z7E-W

VL-Z8H

VL-Z7S/E/Z7E-A/Z7E-W

VL-Z8H

13-17. CDS SCHEMATIC DIAGRAM

8988

1234567891011 12 13 14 15 16 17 18 19 20

VL-Z7S/E/Z7E-A/Z7E-W

VL-Z8H

VL-Z7S/E/Z7E-A/Z7E-W

VL-Z8H

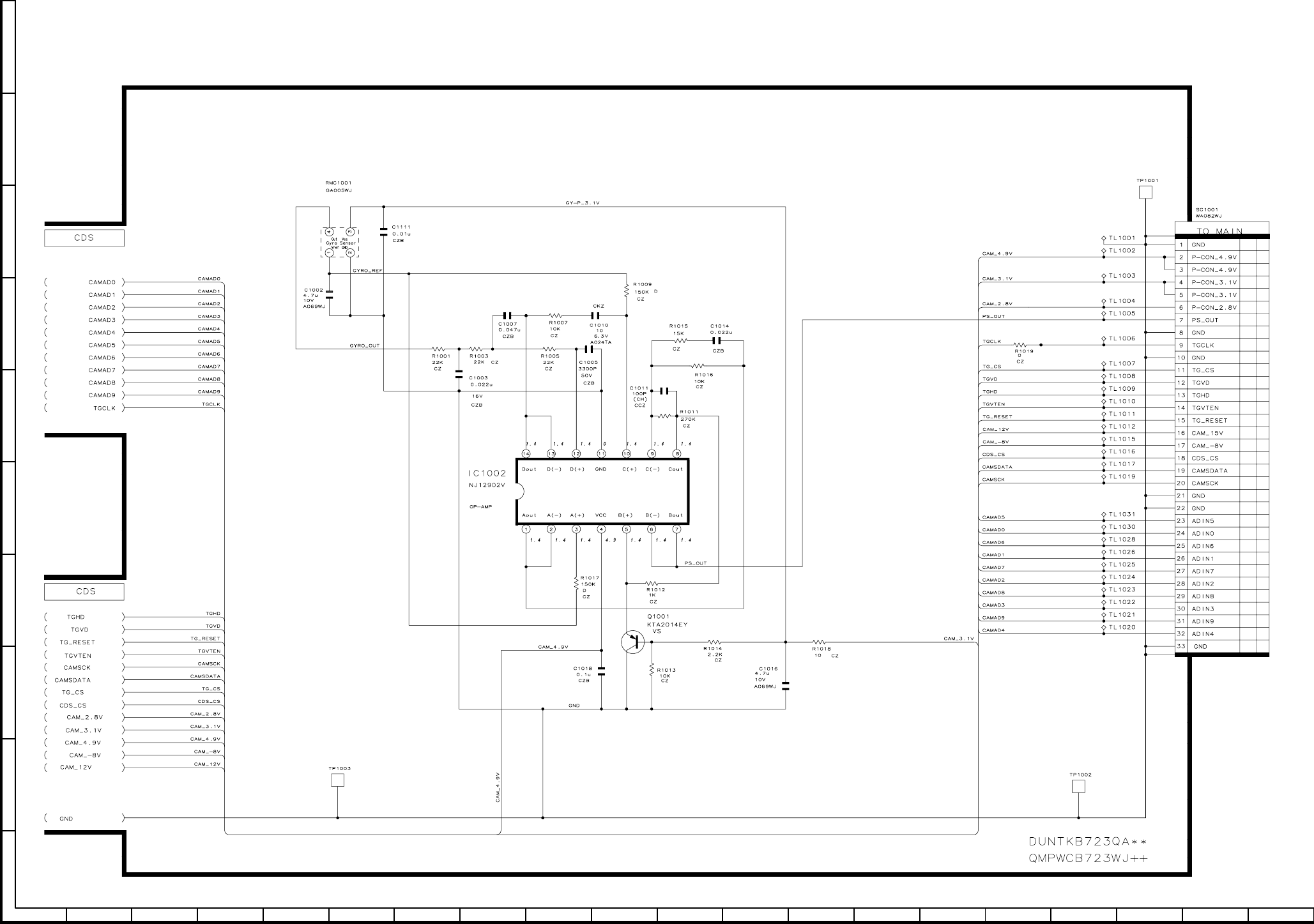

13-18. LCONN SCHEMATIC DIAGRAM

9190

1234567891011 12 13 14 15 16 17 18 19 20

VL-Z7S/E/Z7E-A/Z7E-W

VL-Z8H

VL-Z7S/E/Z7E-A/Z7E-W

VL-Z8H

13-19. LENS MiCON SCHEMATIC DIAGRAM

9392

1234567891011 12 13 14 15 16 17 18 19 20

VL-Z7S/E/Z7E-A/Z7E-W

VL-Z8H

VL-Z7S/E/Z7E-A/Z7E-W

VL-Z8H

13-20. LENS SCHEMATIC DIAGRAM

9594

1234567891011 12 13 14 15 16 17 18 19 20

VL-Z7S/E/Z7E-A/Z7E-W

VL-Z8H

VL-Z7S/E/Z7E-A/Z7E-W

VL-Z8H

13-21. AUDIO I/O SCHEMATIC DIAGRAM

9796

1234567891011 12 13 14 15 16 17 18 19 20

VL-Z7S/E/Z7E-A/Z7E-W

VL-Z8H

VL-Z7S/E/Z7E-A/Z7E-W

VL-Z8H

13-22. POWER2 SCHEMATIC DIAGRAM

å AND SHADED COMPONENTS=SAFETY RELATED PARTS

9998

1234567891011 12 13 14 15 16 17 18 19 20

VL-Z7S/E/Z7E-A/Z7E-W

VL-Z8H

VL-Z7S/E/Z7E-A/Z7E-W

VL-Z8H

13-23. MiC AMP SCHEMATIC DIAGRAM

101100

1234567891011 12 13 14 15 16 17 18 19 20

VL-Z7S/E/Z7E-A/Z7E-W

VL-Z8H

VL-Z7S/E/Z7E-A/Z7E-W

VL-Z8H

13-24. LCD SCHEMATIC DIAGRAM

103102

1234567891011 12 13 14 15 16 17 18 19 20

VL-Z7S/E/Z7E-A/Z7E-W

VL-Z8H

VL-Z7S/E/Z7E-A/Z7E-W

VL-Z8H

13-25. INVERTER SCHEMATIC DIAGRAM

å AND SHADED COMPONENTS=SAFETY RELATED PARTS

105104

1234567891011 12 13 14 15 16 17 18 19 20

VL-Z7S/E/Z7E-A/Z7E-W

VL-Z8H

VL-Z7S/E/Z7E-A/Z7E-W

VL-Z8H

13-26. HEAD AMP SCHEMATIC DIAGRAM

107106

1234567891011 12 13 14 15 16 17 18 19 20

VL-Z7S/E/Z7E-A/Z7E-W

VL-Z8H

VL-Z7S/E/Z7E-A/Z7E-W

VL-Z8H

13-27. MOTOR DRIVE SCHEMATIC DIAGRAM

109108

1234567891011 12 13 14 15 16 17 18 19 20

VL-Z7S/E/Z7E-A/Z7E-W

VL-Z8H

VL-Z7S/E/Z7E-A/Z7E-W

VL-Z8H

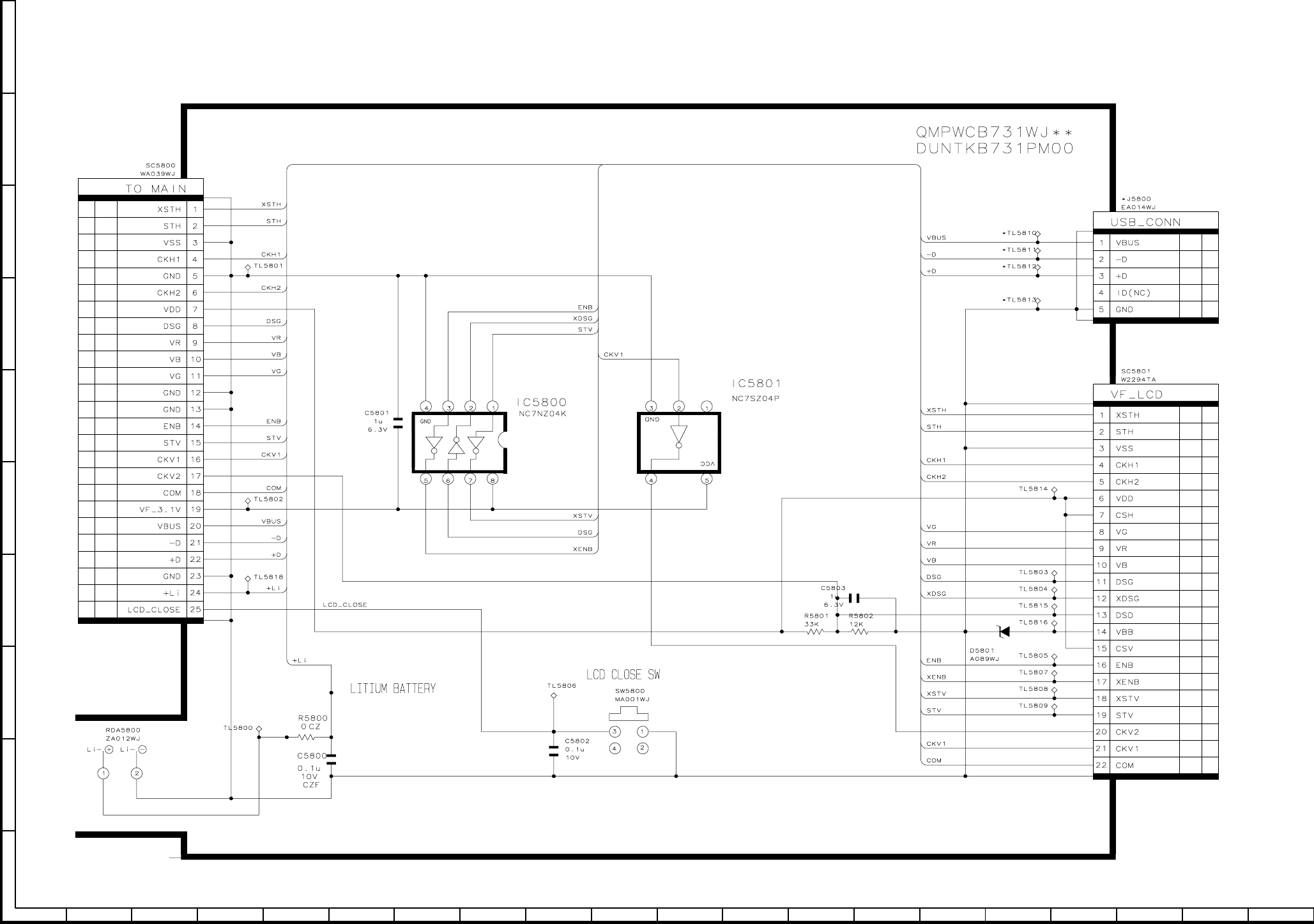

13-28. LITHIUM SCHEMATIC DIAGRAM

111110

1234567891011 12 13 14 15 16 17 18 19 20

VL-Z7S/E/Z7E-A/Z7E-W

VL-Z8H

VL-Z7S/E/Z7E-A/Z7E-W

VL-Z8H

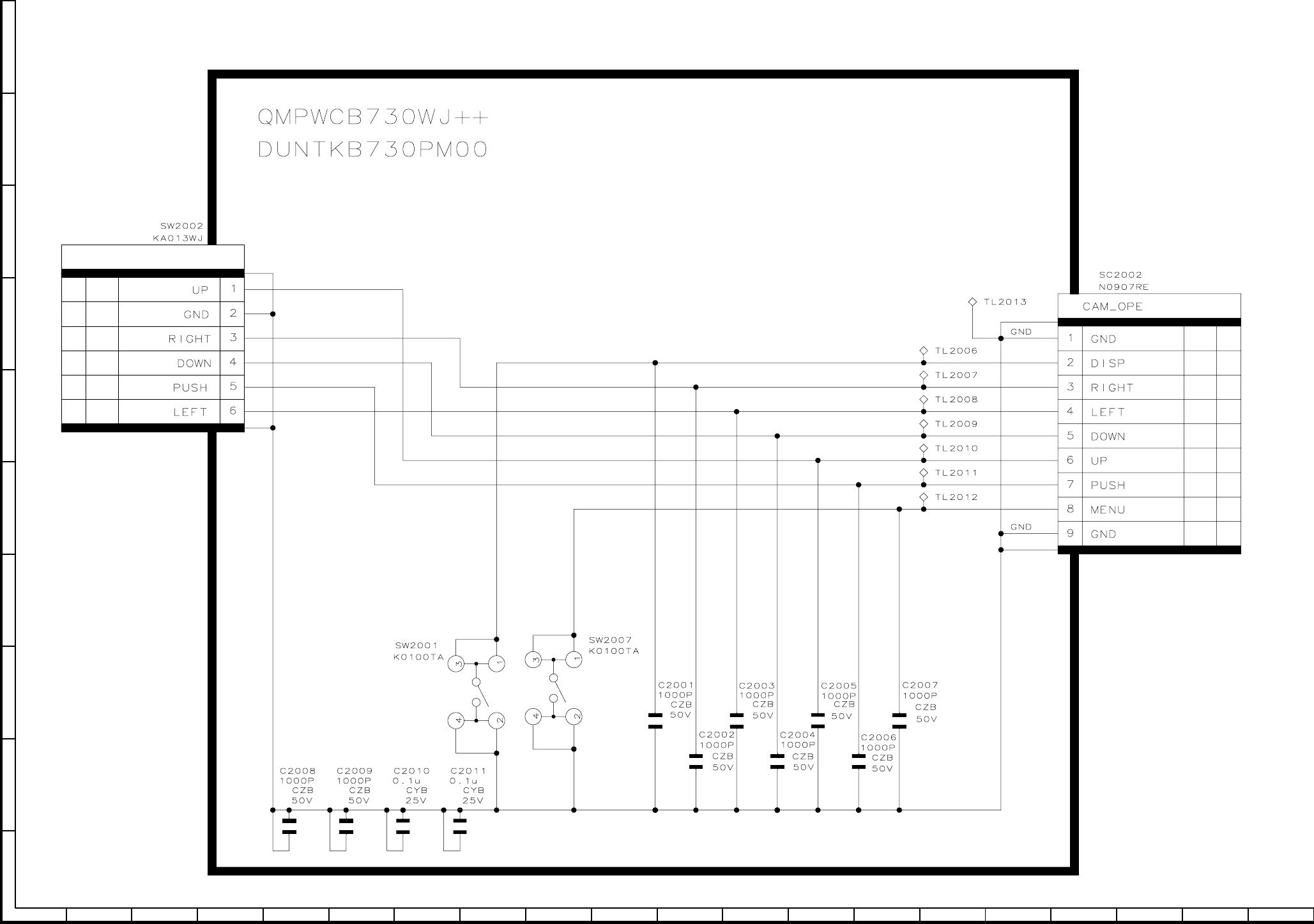

13-29. OPERATION SCHEMATIC DIAGRAM

113112

1234567891011 12 13 14 15 16 17 18 19 20

VL-Z7S/E/Z7E-A/Z7E-W

VL-Z8H

VL-Z7S/E/Z7E-A/Z7E-W

VL-Z8H

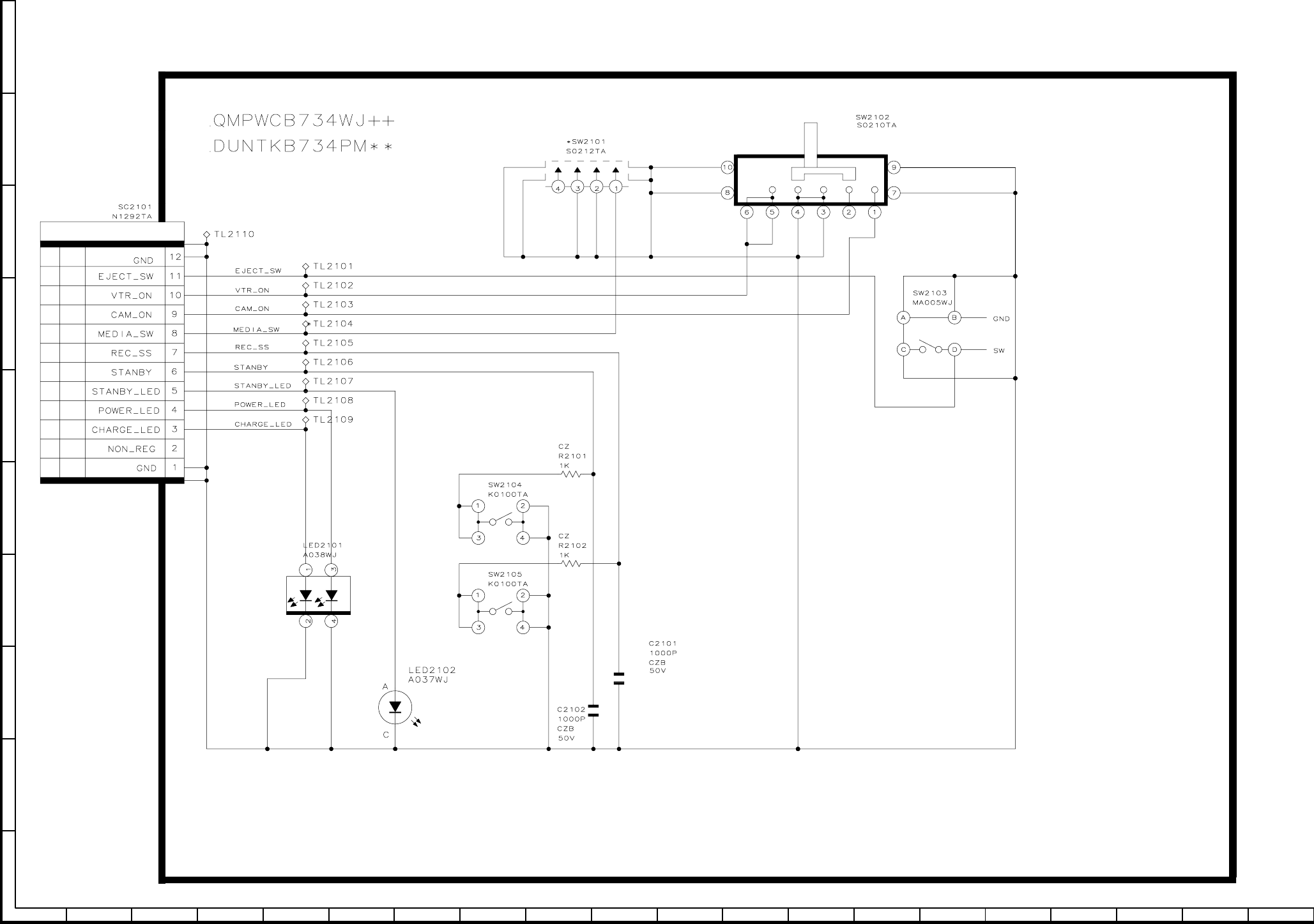

13-30. VCR OPERATION SCHEMATIC DIAGRAM

115114

1234567891011 12 13 14 15 16 17 18 19 20

VL-Z7S/E/Z7E-A/Z7E-W

VL-Z8H

VL-Z7S/E/Z7E-A/Z7E-W

VL-Z8H

13-31. ZOOM SW SCHEMATIC DIAGRAM

116

12345678910

VL-Z7S/E/Z7E-A/Z7E-W

VL-Z8H

13-32. MECHA REVERSION DETECTION SCHEMATIC DIAGRAM

117

VL-Z7S/E/Z7E-A/Z7E-W

VL-Z8H

12345678910

13-33. HOLE SENSOR UNIT SCHEMATIC DIAGRAM

118

VL-Z7S/E/Z7E-A/Z7E-W

VL-Z8H

14. SEMICONDUCTOR LEAD IDENTIFICATION

2SC4738Y

FMMT619

2SC5376B

12A01M

KRC401E

KRC402E

KRC404E

KTA2014EY

KTC4075EY

RT1N144U

15C01M

15C01SS

2SC5536

12A01SS

3LN01S

XP05534

7SB3157P

MCH6617

MCH6305

XP0431N

FDG312P

FDC642P

XP4316

EMD12

XP4501

XP6401

XP4313

XP4601

XP6501

TA75S01F

NJM2107F

XP1111

NC7SZ04P

XP1213

NJU7008F

XP1501

XP4213

DAN217U

543

CPH5504

345

FMG12

FDT458P

KDS121E

(A)

(C)

(B) (E)

XN09D61

XN04391

119

VL-Z7S/E/Z7E-A/Z7E-W

VL-Z8H

EX1394CE

HVC359TR

RB160M30

A089WJ

HVC362

HVC375B

HVC202A

1SS400

138

120

108

100

120

144

160

184

109

121

139

BH7277KV

MB3881++

MN52A6CD

H49334HN

IXA526WJ

LB11990F

LA74206W

AN2901FQ

LA70050W

UPD16835

MB8346BV

MB88146A

UPD16510

MM1323XV

PCM3008

IXA532WJ

LA73070V

R2101S01

NJ12902V

IX0785TA

IX0809TA

IXA543WJ

IXA503WJ

IXA550WJ

IXA320WJ

ADC8351C

NJU7015R

NJM2535V

NC7NZ04K

NC7WZ08K

BR24L02M

NJM2143R

TLC2940

BR24L64F

IXA204WJ

LB11990F

IR3Y54U

121120

VL-Z7S/H/E/Z7E-A/Z7E-W

VL-Z8H

VL-Z7S/H/E/Z7E-A/Z7E-W

VL-Z8H

1234567891011 12 13 14 15 16 17 18 19 20

15. PRINTED WIRING BOARD ASSEMBLIES MAIN PWB

SIDE A

SC1800

TL1431

P3301

C1438R1442 R1824

R724

R1823

C1809

C1810

C1439

R732

R705

R747

C1402

Q1431 L1802

C708

R707 R715 C735

C1441 L1404 Q705

Q1402

C704

Q704

R1406

C1408

R1437

IC1431

R1435

R772

R771

R718

L1431

R738

R736

C1435

C1416

R1402

R1422

Q1433

R1434

C1802

R1801

C1407

R1436 C1801

C1410

R737

R729

R1800

R1405

IC1401

C1406

R1419

R1802

C1434R1432

R1433

R1818

C1431

R1805

R763

R759

C1409

C1418

R1804

C1432

R1431

Q1800

C1433

Q1432

R1441

R1440

C1437

R1413

R1806

C1440

R758

C710

R1803

C1804

R1819

R1807

R6800R1403C1417 R1461

Q1405

R1808C1803

C1436

R735

R741

R6810

R1404

R1421

C1419

R6813

L4404

C4404 R1462 C1411

Q1403

Q1434

R1810

L4406 R1811

R1424 Q1801

R725

C733

C6800

Q4483

R6812

C6807

R6804

R6803

C4483 R1809

R6802

R1423

R1414

R1438

R1439

Q6801

R1814

C1805

R1816

R720

R755

C4481

R6805

R1820

C1412

R6807

C6801

C6802

R4472

R6817

R4489

C1806

R1817

R4471

TL6804

C6804 C1800

Q1404

R6809

TL6803

R6806 R1813

Q4481

R6816

Q1802

R6808

C4406

D6800

R1827

C4482

R1812

C4416

C6805

C6812

C6811

L6800

TL7819

TL6809

C4401 L1800

R4486

C4485

R4485

R6811

TL6802

TL6801

IC6801

TL6807

C1815

R706

R710

R708

R730

R782

R711

TL8803

C4419R4494C6806 C6810

R4488

R4401

R4402

R1815

C4402 Q1803

R6819C6815

C727

C732

Q4482

C715

C705

R4487

C6813

C4405

R726

R6820R6818

C4407

C4409

C4420

C6816 FB4405

C6814

R727

C7802

X701

R4404

L7800

C7800

C4408 IC703

C714

C7806

C4421

C7804

C4410

R701

R7828R7831

TL7824

IC4401

R7830

C4413 R7827

R7826

C701

R4435

R4437

R4436

R7829 C8805 L8801

C7825

IC7802 R1925

C1911

L3404

L3405

C8800 R1928

C7803 Q1913

L8800

Q4432 C7805R8802 R8801 R1927

C7808

TL903

R1926

C7809 C8804

Q1912

C4422C4414 C3473

C7801

TL904

C4436C4415

TL4439

R1924

R8800

C4427

IC8800

Q8800

C4435

TL4438

C7807 C3436

C978

D960

R4403

C4423

C4426

C4424

C4451

R4456

R4454

R4414

R4495

C4418

C4428

R7800

C7810

R4415

C4465 C6803

R4462 C8801

L7810

TL4440

C4463

C4462

R4451

C4417

R7812

R7811

R8804

R4460

R4461

C962

C4454 R7820R7832

C4403

C929

D916

X4451

R8805

R4466 R7819R7833

L4451

D4452

FB4461

C8809

R7838 C7812

TL8801

D4451

C7829

C8807

C7828

IC4461

C8806

D7810

Q8801

R8819

R7839 R7834 R7810

R7837 C8808

R4463

R4453

R7840

R7824

R8807

R7836

C7830

R7825

C7822

R8820

C7827

Q905

C8814

C8822 Q7800

FL3702

L931

C8813 R8809

R8806

C4461

R8840 C8802

R3711

R3713

R3701

TL1801

Q4461

R8827

R8814

TL907

R8839

C3704

R3706R3707

TL8802

R8841 Q8802

C8803

R8828

TH1800

R3705

Q8804

C3710

R1826

C1811

TL911

C3714 R8808R8817

L907

R3717

IC3702

TL3703

C3713 Q909 C953

C939

L908

R3712

FB3701

R982

C3707

R8842

C3705

R3738R3708

R3709

IC3701

C938

C3712

C1901

Q903

Q3701

C3708

R3710

C3709

Q1901

TL910

L901

R3718R3739 C1990

TL908

Q900

TL8806

C3702 L3702

C934

C931

R1941

R8836

Q1905

C1904

TL3701

C932 R970

TL8804

R3740

C3706

C3711

R3737

C3703

R8834 FB8800 C930

TL3702

TL8805

C3701 L3701 L903 C933 L902 C936

R8835

R1991

L900

R1990

Q1991

C982

TL902

TL901

Q1990

C981

R1992

L915

L918

C955

C960

C980

Q908

R990

R987 C970

Q906

C972

Q904

R983

C954

R988 C971

L916

Q907

Q910

L911

C990

C973

C975

C956

L917

C974

R951

C992

Q911

L923

C991

R932

D701 C3716

R780 C702

R739

C734

TL913

C706

R3320

L701

Q3320

IC704

SC3302

C3320

R3321

C712

R703

Q703

C3321

R704

R779

C724 R1932

C707

Q701 Q702

R716

R768

R721

R713

R734 R731 C729 R719

C722

R749

TL3310

IC706

C737

R754

R750

C728

R751 R753 C726

R757

C725 R752 C723

C730

IC701

C719

X702

R746

SC3301

R748

TL3302TL3304

C720

R756 R760 R764

R761 R765 R766

C709

R745 R722 R762

TL701

R717 R728 C713

R723

R742

R709

C731

R744

R714

R743

C711

R712 C716

TL3303

R702

C703

123122

VL-Z7S/H/E/Z7E-A/Z7E-W

VL-Z8H

VL-Z7S/H/E/Z7E-A/Z7E-W

VL-Z8H

1234567891011 12 13 14 15 16 17 18 19 20

SIDE B

C8819

R8832

SC1201

SC8800

C8816

C8821

L8802

C8817

R8838

R235 R209 C223

C222 C239 C224 C3715

TL1203

C1201 C721 R767 R733 R926

C231

R3702

C928

R924

R929

C226

C204

R917

IC705

C228

SC1202

IC203

C205

IC201

TL1805

C237

TL1202

C993

C238 FB201 R903

C240

R1935

C1918

TL909

C230

R1934 R1939

TL234

C209 R1938

R1940

Q1918

C1917

L909

FB901

FB203

FB204

C1915

R1937

C203 C1605

TL1204

TL1201

R1936

R201 C201 C212 C211 C215

IC902

C202

C951

R1903

C948

TL914

TL4437

C213 L204

Q901

Q902 FB900

R1908

L910

C952

P8800

R973

R972

R975

L905

C946

R1905

R1904

C1905

C941

Q7401

L7400

TL912

R1901C1902

C943

R974

R401

IC901

R7402R7403 R1907

L403

C417

R1906

C942

R1909

R8810R8825

Q7403

Q7402

R979

FB7401

C949

C1610

Q1902

R7401

C7413

R7413

C7414

R8815

C415

C401 Q1906

Q8803

R1931

R8818

C7400

R980 R977 C945

C1611

R1910

R8816

R409

R410

C1907

R7419 R7416 C7405C7404

C7401 C435

C1906

C7417

L1601

R1902 C3432

R7424

R7417 R7415 R7422R7423

C425

R463

C413

D472 R8826

TL407

R477

D403

R467

R7418 R7420 C412 C424

TH3401

R3488

C1617

Q1903

FL403

IC1602

R436

C473

L471

C1608

R438

R3499

D404

R437

R3402

C472

C1603 R3433 R3440

R428

R3431

C474 C1604

C420

C447 R440

C3479

R3439

C3407

R3437

C3434

D471

R478 R429 R442 C3431

R468 C450

C419

R3403

C478 IC3407

R441 C3433

C477

R418

C423 R3434

IC452

C451

R3426

R3408

R3405

R462 R3421

C418

R443

C452

IC405

R413

X401

C3426

IC4701

C411

R404

R3419C3477C3424

C404

R407

R471

R3479

R3478R3420R3473

C421

C414

C405

C3467C3476R3472

R412

R411

R406

TL418

R402 R416 C3470R3470

C410

C3451R3454

C4702C4703 Q3404

R403 C407 R3416C3418

C402 C3458

R3417

R408

C476

C475

C3416

C3455

C3415

R3418

C3478

R432 C430 C463 C432

FB415 C465

IC3404

C3412

FL3403

C3406

C456

R3415

C3454

C3402

FB456

C3457

IC407 IC408 L3401

C3456

C3301

IC3301

R3401C3401

TL3301

L1801

TL1800

TL1803

TL1802

TL1804

TL702

TL1807

TL1806

R1825

C460 C462 R1933

SC1801

1RMC701

R3496

FDC03

Q3406

R3489 P1201

Q3401

C3442

C3443

C3403

TL1205

C3410

R3404

C3717

C3405

R3442

C3408

R3407

C3409 FL3401

C3411

C3465

R3430

C3413

R3413

R3409

R3414

R3406

C3420C3414

C3466

FL3402

C3417R3410

C3419R3411

C3421R3412

C3423 R3464

IC3401

TL3401

R3465

C3481

R3423

R3468

TL3403

IC3403

C3452

R3469

R3451

R1201

TL3406

R3452

R3463

R3429

R3424

R3422

C3444

R3482

C3471

C3430

R3436

R3462

C3475

SC1204

R3457

R3471

C3428

R3425

R3486

R3432

R3428

R3481

C3474

R3435

R3492

R3445R3427R3487 R3480C3404

IC3406

C3429

R3466

R3493

IC3405 C3462

IC3402

R3495

TL3410

C1909 R1919

C1913 R1930R1917

R1918

Q1904

R1916

L919

TL915

C1903 Q1910

Q1916

C983

Q1909

C1914

R1923

R1942R1929

R1921

R1911R1914

C957 Q1908

L904

R1922

Q1911

R1912

C1916

R1920

R1915 C1910

Q1914

L912 R1943 C1912

C1908

R1913

Q1915

TL905

TL906

R906 C908 R936 R939 R935 C914

C911

R904 R931 R937 R938 R934

TL3309

R940

C912

C915

Q1920

R905 R930 R933 C909 C910

C913

TL3308

R968

C924

P3303

TL3307

C903

R907

R902

C902

R943

R941

TL3306

R910

R909

C916

R942

TL3305

C904

R914

R912

R925

C918

R949

R911

IC900

D900

C925

R915

C917

R947

R948

R946

R965

C923

C926

C919

R953

R962 C927

R960

C966

R954

R952

C906 C905 R1993

R957

R959

R920 R918 C921 C922

C920

R958

R927 R919

C907

R928

R966

124

VL-Z7S/E/Z7E-A/Z7E-W

VL-Z8H

12345678910

CCD PWB

SIDE A

C1016 TL1003

R106

R109

R108

R107

R110

C114

C112

C113

C106

IC101

TL1002

C111

TL1019

TL14

TL1

C110

TL13

C103

TL2

TL1008

TL12

R103

C105

C104

TL3

C108

L101

C107

TL11

C101

IC1

TL4

TL10

C102

C109

TL5

TL1004

TL9

RMC1001

TL1011

TL1017

TL7

TL8

TL1009

TL1007

TL6

TL1010

D1 R6

R1018

C1002

C1111

125

VL-Z7S/E/Z7E-A/Z7E-W

VL-Z8H

10 11 12 13 14 15 16 17 18 19

SIDE B

C1011

R1011

R1012

C1005

Q1001 R1013

R1014

R1009

TP1003

TP1002

X21

C1010

C21

FB22 C36 C41 R22 C44 R36 C45

R35

C48 C46 C35 C47 C33 R23

R1007 C1007

TL1012

R41

R1005

R1003

TL1001

R1001

IC22

L102

C1003

IC1002

C29

C27

IC21

C1019

TL1005

R30

C30

R1019

R29

TL1006

C1023

C32 C40

C43

C1021

R1017

TL1015

C1024

C42

C1025

R1016

C24

R42

C1001

R1015 C22

TL1016

SC1001

C1022

C1018

C1014

L23

C1020

R38

C37

C38

TL1030

TL1031

Q21

R27

R39

R26

TL1026

C115

C116

C39

R28

TL1024TL1022TL1020

TP1001

TL1021

TL1028

TL1025

TL1023

126

VL-Z7S/E/Z7E-A/Z7E-W

VL-Z8H

12345678910

SUB PWB

SIDE A

TL571

R2908

R2909

TL900

R2916

R2910

R2508

C2901

TL568

C2516

TL570

TL901

R2912 R2513 R2509

C2519

R2510

R2511

C2514

TL569

TL567

TL902

C2518 R2514

TL566

R2907 C2903

C2910

TL563

R2516 R2533 R2512

R581

TL564

IC2901

R2515 C2515 C2517

TL561

SC551

TL562

R527

C528

TL559

TL560

TL557

Q552

TL558

IC2502

TL553

TL554

P900

R582

D2905

R578

TL551

C2902

TL552

TL904

TL555

TL903

D2904

TL503

TL556

Q2902

D2906

R3602 C3600FB3601

D2902

R2528

R2526

R2527

R2520

R3635

C2521 C2520

TL565

D551

TL504

R2918

R2531 R2525

R2530 R2523

TL501

TL502

R2903

R2911

Q2905

R2906

TL506

R2913

Q2904

TL505

C526

R2904

SC501

R2919

TL507

R2917

C524

Q2903

TL509

TL508

Q2901

C522

R2905

TL511

Q2906

VA501

TL510

C525

C523

C521

TL3603

D3600

D3601

R1512 R1513

R1511

R524

Q1501

R1510

Q1502 R1509

R1508

R1507

C1513

SC1501

R1506 C1507

R1505 C1506

R1504 C1505

C1510

C1509 C2904

R1503 C1504

C1508 C1502

R1502 C1503

R1501 C1501

D7401

D7402

R2914

R2915

R7426

R7428

R7429

TL1477

C2906

R1480 R2901 C2905 R604

TL603

VA601

R603

C600

R7427

CP1

L2901

VA600

R600

R652

CP2

TL602

C601

VA603

C602

VA602

CP3

TL600

TL1471

TL1472

TL1473

FB600

TL601

TL1470

TL1476

127

VL-Z7S/E/Z7E-A/Z7E-W

VL-Z8H

10 11 12 13 14 15 16 17 18 19

SIDE B

C553

C554

C556

C558

C559

C561

R552

R553

R555

R559

R2556

R2555

Q2551

R2552

R2560

R2559

C3605

R3607

Q3600

R3605

R3603

C3601

C3602 R3604

R3606 C3603

R3611 R3612

IC3600

L601

Q600

C507

L501

C503

C502

J600

J1401

R1475

J7401

J2900

R1471

R1477

R1478

R1476 R1479

R2920

R1472

R523

P2901

L2900

R525

C575

R573

Q502

R572

IC503

R3644

R3643

R504 R528

R529

Q501

IC501

FL501

R513

R605

Q601

R508

R514

R512

R505

C506

R507

R502

R506

R530

R510

R602

C642

C641

C509

C529

R531

R601

R526

R509 R501 C501

R648 C645 R645 R647 C649 R657

C604 C640 R659 C636 C639 R656

L3601

C638 R658

L600

C634

C637

C527

R655

C3604

C632 C635 C627

R632

Q3603

R641 R643

R636

Q604

R637

R638 C646

R634

C605

R3618

R631

R635

R651

C630

C629

R629

TL3600

C633 R633 R3642

C3607

IC600

R622

C626

R625

C631

R627

R630

C628

C651

R628

R624

C625

R3600 C621 R626

Q3602

C624

Q602

L3600

R611

R639

C619 R619

R3601

R653

C623

C622

C2551 C620

R3616

R3645

C608 R616 R614 R3610 C3641

C643

Q2554 C3640

C617

R3609 R3641

C614

C607

C613

R618

C615

C609

C616

R621

R2561

C610 R3640

C618

R3628

C650

R612

R606

R617

C606

C611

C612

Q2552 C648 R3625

C647

R3630

C3627

R620

R615 Q3604

R613

Q3601

C3621

R3620

C3610

C3608

C3609

R661

C3613

R2551 R2554

R3608

C3619 R3615 R3617

R623 R607

C3625

C3626

R3627

R3623

C3617

R3636 C3615

R2553

C3611

R3613

C3629

Q2553

Q603

Q605

C3631

R2558

C603

R2557

C3614

R3614

R3632

R610

R3646

C644

R654

R3633

C560

C3612

R3634

IC3601

R557

C3634

C3635

C3632

C552

R3631

R554

IC551

C3646

C557

R3639

TL3602

C3616

C3618

C3630

C3628

C3622

R3624

R3621

C555

R3637

L551

R551

C551

P3602

R3629

C3623

R3619

R3622

C3620

C3606

C574

R3638

C3624

R3626

C562

C573

TL3601

128

VL-Z7S/E/Z7E-A/Z7E-W

VL-Z8H

12345678910

LCD PWB

SIDE A

R824

SC803

TL870

D801

C820

TL852

C9805

TL9801

TL9800

TL9802

T9800

R9810

SC9800

R9801 C9804

C9803

TL853

Q9800 C9801 C9806

R9800

L9800

C9800

IC9800

TL832

R9811

TL831

C9802

R9802

TL830

R9807

R9808

C9807

TL829

TL828

R9805

R9804

R9812

R9809

R9803

Q9801

TL9803

TL9804

TL9805

R9806

Q9802

TL826

D9800

SC801

TL825

L801

TL824

TL823

R815

TL822

R814

TL821

C815

L800

IC800

TL820

C800

TL819

R813

TL869

C814

TL827

C816

Q800

TL801

R800 C801

R809

TL811

R802

C805

TL812

C802

TL805

C803

R801

TL813

TL843

C804

TL806

TL807

Q801

TL800

R805

TL808

TL809

TL810

R811

R810

C808

IC801

R812

C813

TL835

TL814

TL851

R803

SC800

TL815

R804

TL818

TL816

C818

R827

TL817

C821

R816

C809

R825

R826

TL834

R807

R808

R806

R817 C812

TL845

C810

D800

TL838

C811

TL846

TL837

TL842

TL850

TL802

TL844

TL848

TL849

C817

C807

TL847

IC803

IC804

IC802

SC802

TL803

Q802

R819

129

VL-Z7S/E/Z7E-A/Z7E-W

VL-Z8H

10 11 12 13 14 15 16 17 18 19

SIDE B

R824

SC803

TL870

D801

C820

TL852

C9805

TL9801

TL9800

TL9802

T9800

R9810

SC9800

R9801 C9804

C9803

TL853

Q9800 C9801 C9806

R9800

L9800

C9800

IC9800

TL832

R9811

TL831

C9802

R9802

TL830

R9807

R9808

C9807

TL829

TL828

R9805

R9804

R9812

R9809

R9803

Q9801

TL9803

TL9804

TL9805

R9806

Q9802

TL826

D9800

SC801

TL825

L801

TL824

TL823

R815

TL822

R814

TL821

C815

L800

IC800

TL820

C800

TL819

R813

TL869

C814

TL827

C816

Q800

TL801

R800 C801

R809

TL811

R802

C805

TL812

C802

TL805

C803

R801

TL813

TL843

C804

TL806

TL807

Q801

TL800

R805

TL808

TL809

TL810

R811

R810

C808

IC801

R812

C813

TL835

TL814

TL851

R803

SC800

TL815

R804

TL818

TL816

C818

R827

TL817

C821

R816

C809

R825

R826

TL834

R807

R808

R806

R817 C812

TL845

C810

D800

TL838

C811

TL846

TL837

TL842

TL850

TL802

TL844

TL848

TL849

C817

C807

TL847

IC803

IC804

IC802

SC802

TL803

Q802

R819

130

VL-Z7S/E/Z7E-A/Z7E-W

VL-Z8H

12345678910

HEAD AMP PWB

SIDE A SIDE B

TL1716

TL1732

TL1742

TL1734

TL1743

TL1744

TL1719

R1711 R1710 R1709 R1708

TL1733

TL1737

TL1735

TL1739

TL1741

TL1702

TL1704

TL1706

C1720

C1718

C1717

C1714

C1712

C1710

R1707

R1704

R1721

TL1738

C1704

TL1701

TL1703

TL1705

TL1707

R1729

C1724

TL1723

TL1736

R1702

R1713

R1705

TL1720

TL1730

TL1740

R1714

TL1725

R1723

C1725

R1719

R1718

R1726

R1717

IC1701

R1706

TL1746

R1716

TL340

R1703

R360 R1715

TL1727

TL305

C1728

Q352

TL1745

R1724

Q351

Q1701

TL304

C1726

R364 C1701

TL303

C1727

R366

TL338

C1702

TL302

R363

C1723

R365

R1727

R1728

Q353

R367

TL301

C1722

C1716

C1709

C1707

C1706

C1705

C1713

R1722

R1712

C1721

C1719

C1715

TL368

TL369

TL370

SC311

TL306

TL307

TL327

TL325

TL323

TL324

TL326

TL1718

C319

R359 R352 R318

C351

R311

R351

C352

C353

R361

R317

C354

C315

C324

SC307 SC308

C314

Q301

SC310

TL313

TL315

TL317

TL320

TL329

TL328

TL331

TL332

IC351

C313

TL352

TL357

TL356

TL335

TL337

TL350

TL339

TL314

TL316

TL318

TL319

TL321

TL322

TL330

TL310

TL353

TL361

TL358

TL355

TL334

TL336

C310

R301

TL312

TL1722

C325

TL311

Q302

R350

Q350

C350

L1701

R1725

L1702

C1711

C1708

C1703

R368

L301

R356

R353

R354

R357

R355

R358

TL1729

R362 R312

R1720

TL1717

R1700

TL1715

TP301

TL1724

SC303

SC305

R1701

SC306

TL1728

R316

TL1726

TL1731

TL1721

SC304 SC301

R1731

C303

C304

C305

C306

C301 C302

TL1708

TL1710

TL1712

TL1714

R1730

TL1713

TL1709

TL1711

C307 C309

C311

C308

R302

C321

IC301

C323

C312

TL309

R319

R304

C316

P301

TP302

C317

TL308

C322

TL333

R309

R306

R305

C320

R308

R307

C318

R303

R314

131

VL-Z7S/E/Z7E-A/Z7E-W

VL-Z8H

12345678910

LITHIUM PWB

J5800

RDA5800

C5803

SIDE A

SIDE B

SC5800

TL5806

D5801

C5802

TL5814

TL5816

SC5801

R5802R5801

TL5815

D5800

TL5800

TL5818

R5800

C5800

SW5800

IC5801

TL5804

TL5805

TL5810

TL5812

TL5813

TL5809

IC5800

TL5807TL5808

TL5811

TL5802

C5801

TL5801TL5803

132

VL-Z7S/E/Z7E-A/Z7E-W

VL-Z8H

12345678910

OPERATION PWB

SIDE A SIDE B

SC2002

SW2002

C2005

TL2009

C2002

TL2007

TL2010

C2006

C2004

TL2008

C2003

C2009

SW2001

C2008

TL2006

TL2011

TL2013

C2001

C2007

TL2012

C2011

SW2007

C2010

133

VL-Z7S/E/Z7E-A/Z7E-W

VL-Z8H

12345678910

SIDE A

SW2103

SIDE B

SW2101

TL2104

SW2104

LED2102

LED2101

TL2108

TL2109

TL2107

TL2105

TL2106

R2102 C2101 R2101 C2102

TL2103

SW2102

SW2105

TL2110

TL2101

TL2102

SC2101

VCR OPERATION PWB

134

VL-Z7S/E/Z7E-A/Z7E-W

VL-Z8H

12345678910

ZOOM SW PWB

SIDE A SIDE B

P2201

TL2205

TL2203

C2202

C2201

TL2204

TL2202

SC2201

TL2201

VR2201

SW2201

135

VL-Z7S/E/Z7E-A/Z7E-W

VL-Z8H

12345678910

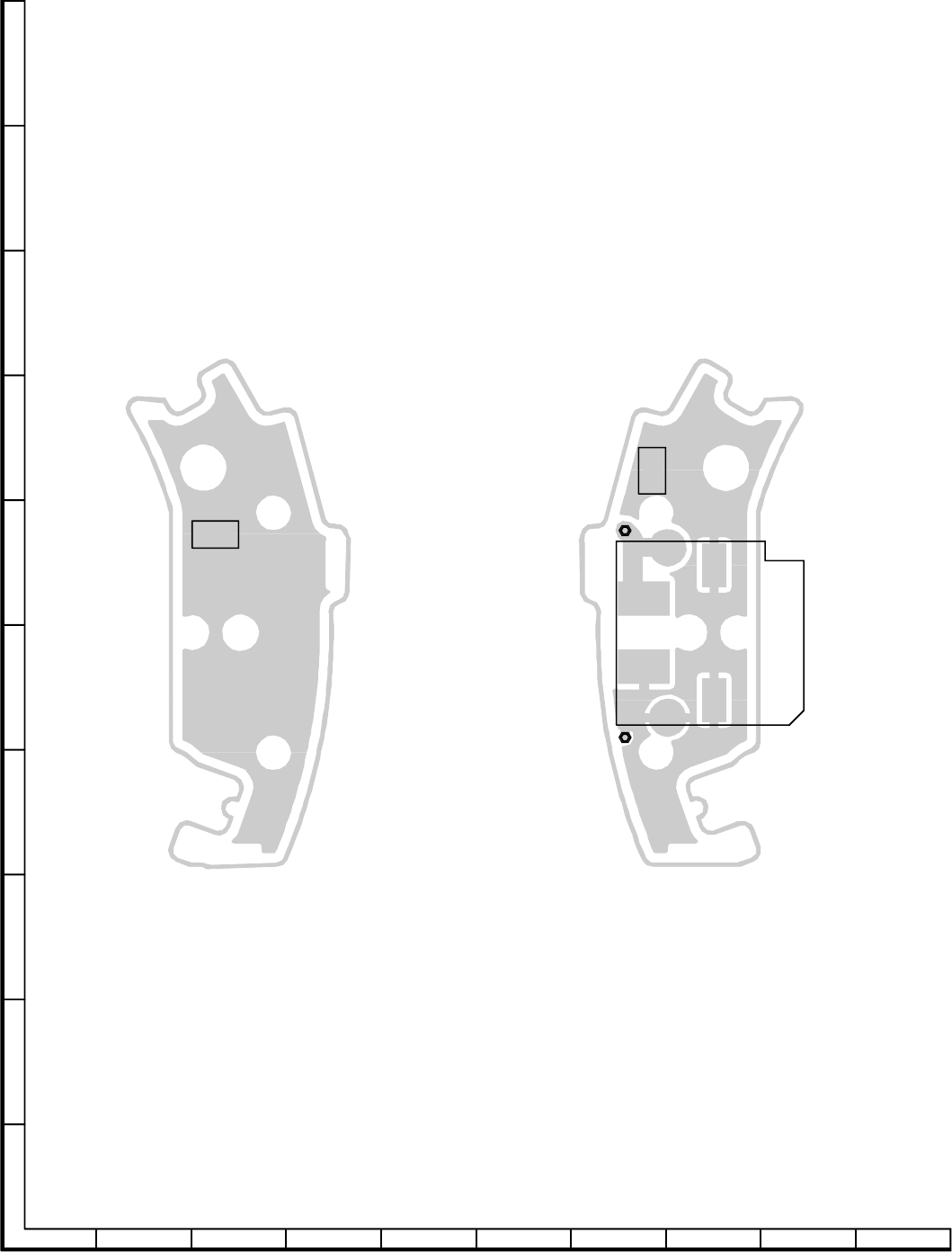

MECHA REVERSION DETECTION PWB

TL2301

SW2300

TL2302

SIDE A SIDE B

136

VL-Z7S/E/Z7E-A/Z7E-W

VL-Z8H

- M E M O -

Ref. No. Part No. ★Description Code Ref. No. Part No. ★Description Code

137

VL-Z7S/E/Z7E-A/Z7E-W

VL-Z8H

DUNTKB721QA05(VL-Z7S/SA/R)

DUNTKB721QA08

(VL-Z7E/EW/X/Z7EEA/EWA/Z7EEW/EWW)

DUNTKB721QA09(VL-Z8H)

MAIN PWB UNIT

INTEGRATED CIRCUITS

IC201 RH-iX0785TAZZQ IX0785TA, CAM ENG BL

IC203 RH-iXA320WJZZQ IXA320WJ BC

IC405 VHiNJU7015R-1Y NJU7015R AF

IC407 RH-iXA550WJZZY IXA550WJ, Codec External AU

Memory

IC408 RH-iXA550WJZZY IXA550WJ, ECC External AU

Memory

IC452 RH-iX0809TAZZQ IX0809TA, Codec/ECC/ BM

PCM/CLK,Gen/DIF

IC701 RH-iXA543WJZZQ IXA543WJ Mec/System AX

Micon

IC703 RH-iXA532WJZZY IXA532WJ, AL

Character Generator

IC704 VHiR2101S01-1Y R2101S01 AH

IC705 VHiBR24L64F-1Y BR24L64F, E2PROM AK

IC706 VHiNJM2143R-1Y NJM2143R AE

IC900 VHiMB3881++-1Y MB3881++, Power_CLT AT

IC901 VHiNJM2143R-1Y NJM2143R, 2.8V/2.5V Reg AE

IC902 VHiNJM2143R-1Y NJM2143R AE

IC1401 VHiLA73070V-1Y LA73070V, Video Out AK

IC1431 VHiNJM2535V-1Y NJM2535V, Video In SW AE

IC1602 VHiPCM3008+-1Y PCM3008+, AN

18Bit ADC/DAC

IC3401 VHiBH7277KV-1Y BH7277KV, EQ/PLL IC AX

IC3402 VHiTLC2940/-1Y TLC2940, VCO IC AM

IC3403 VHiNC7SZ04P-1Y NC7SZ04P, Inv IC AD

IC3404 VHiADC8351C-1Y ADC8351C, A/D Conv IC AM

IC3405 VHi7SB3157P-1Y 7SB3157P AE

IC3407 VHiNJU7008F-1Y NJU7008F AE

IC3701 RH-iXA503WJZZQ IXA503WJ, Camera/ Card BA

Micro Computer

IC3702 RH-iXA550WJZZY IXA550WJ, ECC External AU

Memory

IC4401 RH-iXA204WJZZQ IXA204WJ, Digital BB

ADC/DAC Decoder

IC4461 VHi7SB3157P-1Y 7SB3157P AE

IC4701 VHiMB8346BV-1Y MB8346BV AN

IC8800 VHiMM1323XV-1Y MM1323XV, LCD Interface AN

TRANSISTORS

Q701 VSRT1N144U/-1Y RT1N144U AB

Q702 VSKTA2014EY-1Y KTA2014EY AB

Q704 VSKTA2014EY-1Y KTA2014EY AB

Q705 VSKTA2014EY-1Y KTA2014EY AB

Q900 VSXN09D61++-1Y XN09D61++ AD

Q901 VS15C01SS++-1Y 15C01SS++ AC

Q902 VS12A01M+++-1Y 12A01M+++ AC

Q903 VSXN09D61++-1Y XN09D61++ AD

Q904 VSXN09D61++-1Y XN09D61++ AD

Q905 VSFMMT619//-1Y FMMT619 AE

Q906 VSXN09D61++-1Y XN09D61++ AD

Q907 VSXN09D61++-1Y XN09D61++ AD

Q908 VSXN09D61++-1Y XN09D61++ AD

Q909 VSMCH3405++-1Y MCH3405++ AD

Q910 VSMCH3405++-1Y MCH3405++ AD

Q911 VSXN09D61++-1Y XN09D61++ AD

Q1402 VS2SC5376B+-1Y 2SC5376B+ AC

Q1403 VS2SC5376B+-1Y 2SC5376B+ AC

Q1404 VSXP4313///-1Y XP4313 AC

Q1405 VS2SC5376B+-1Y 2SC5376B+ AC

Q1431 VSXP0431N++-1Y XP0431N++ AB

Q1432 VSXP4601///-1Y XP4601 AC

Q1433 VSKTC4075EY-1Y KTC4075EY AB

Q1434 VSXP6401///-1Y XP6401 AC

Q1800 VSXP6401///-1Y XP6401 AC

Q1801 VSXP6401///-1Y XP6401 AC

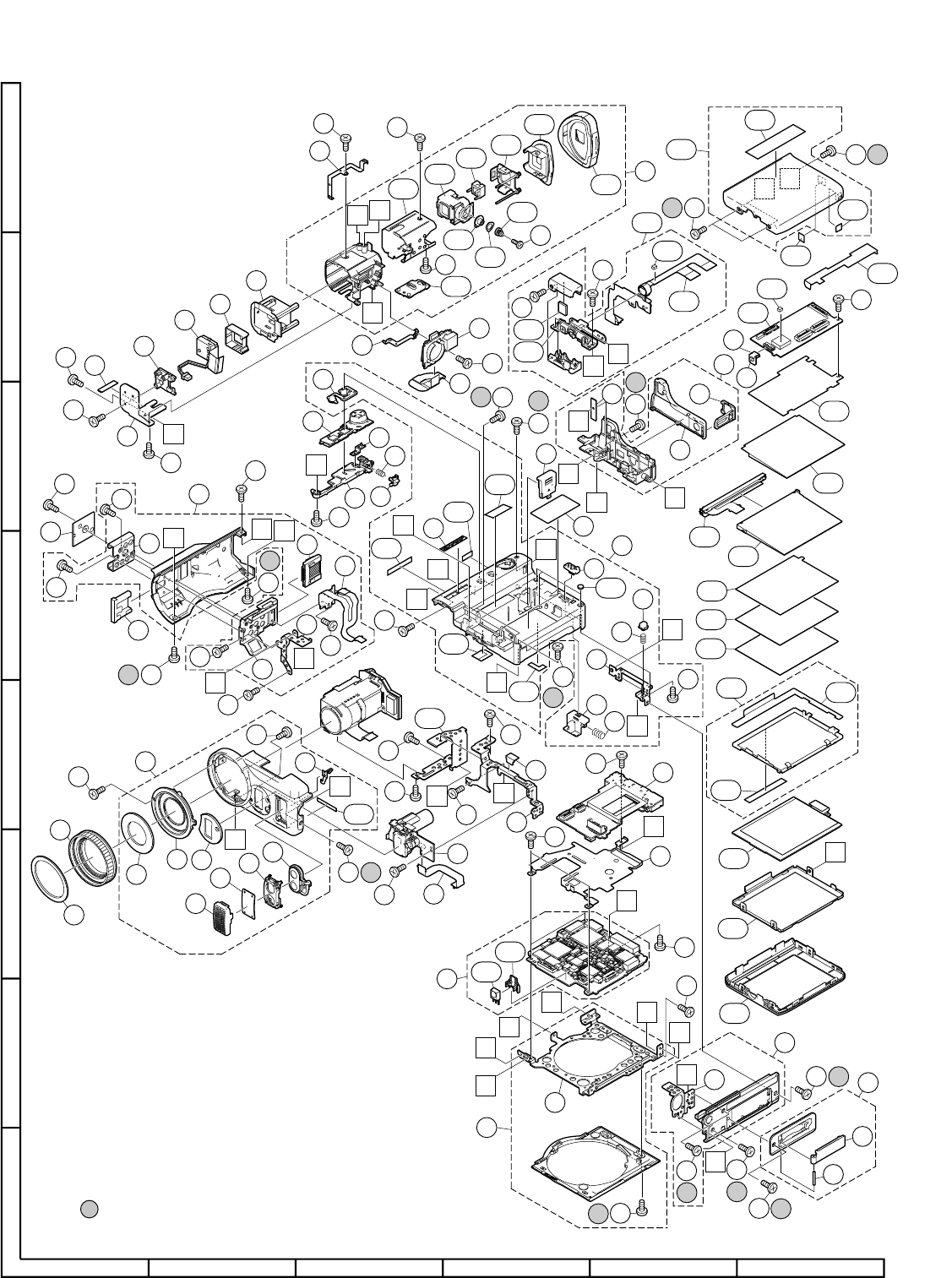

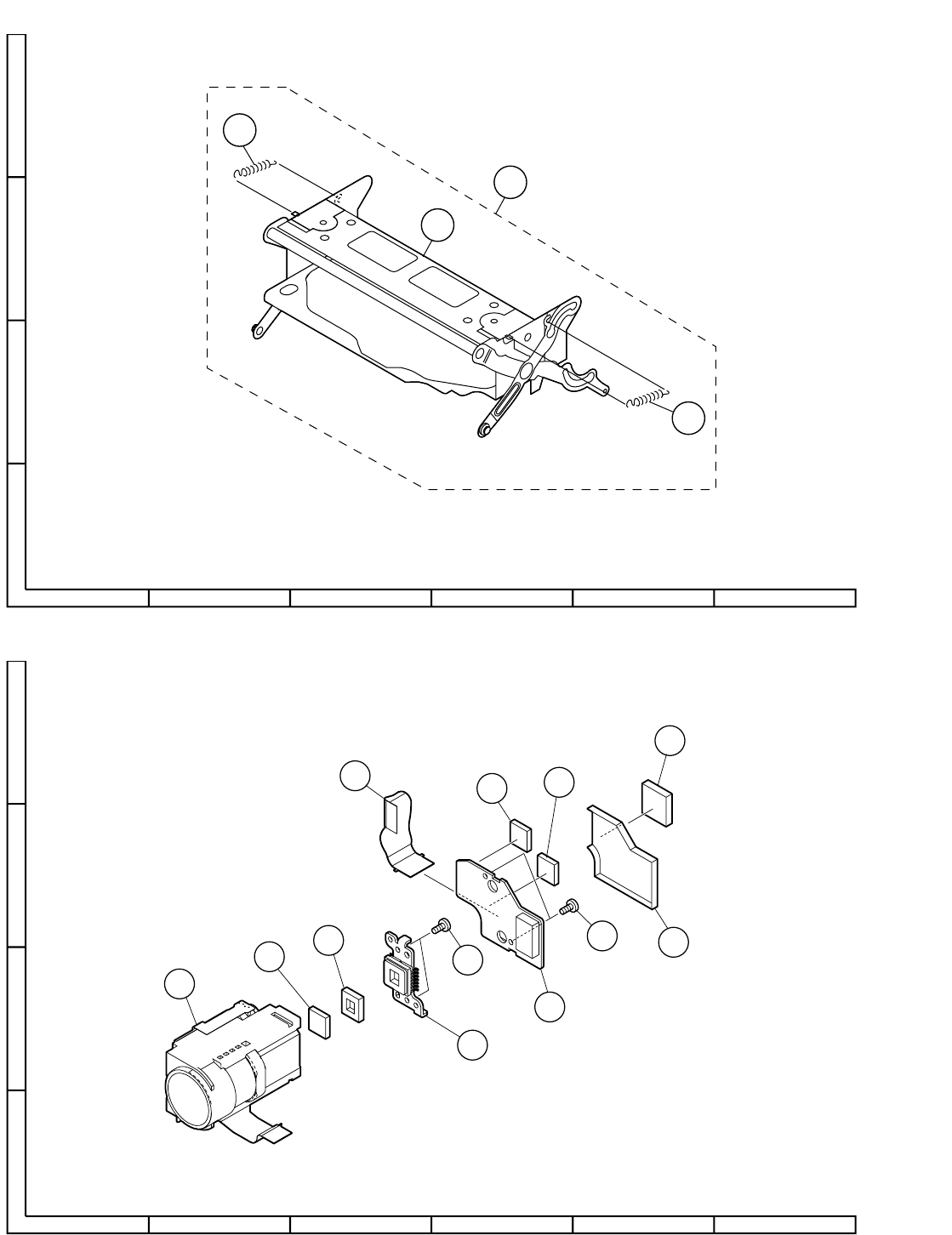

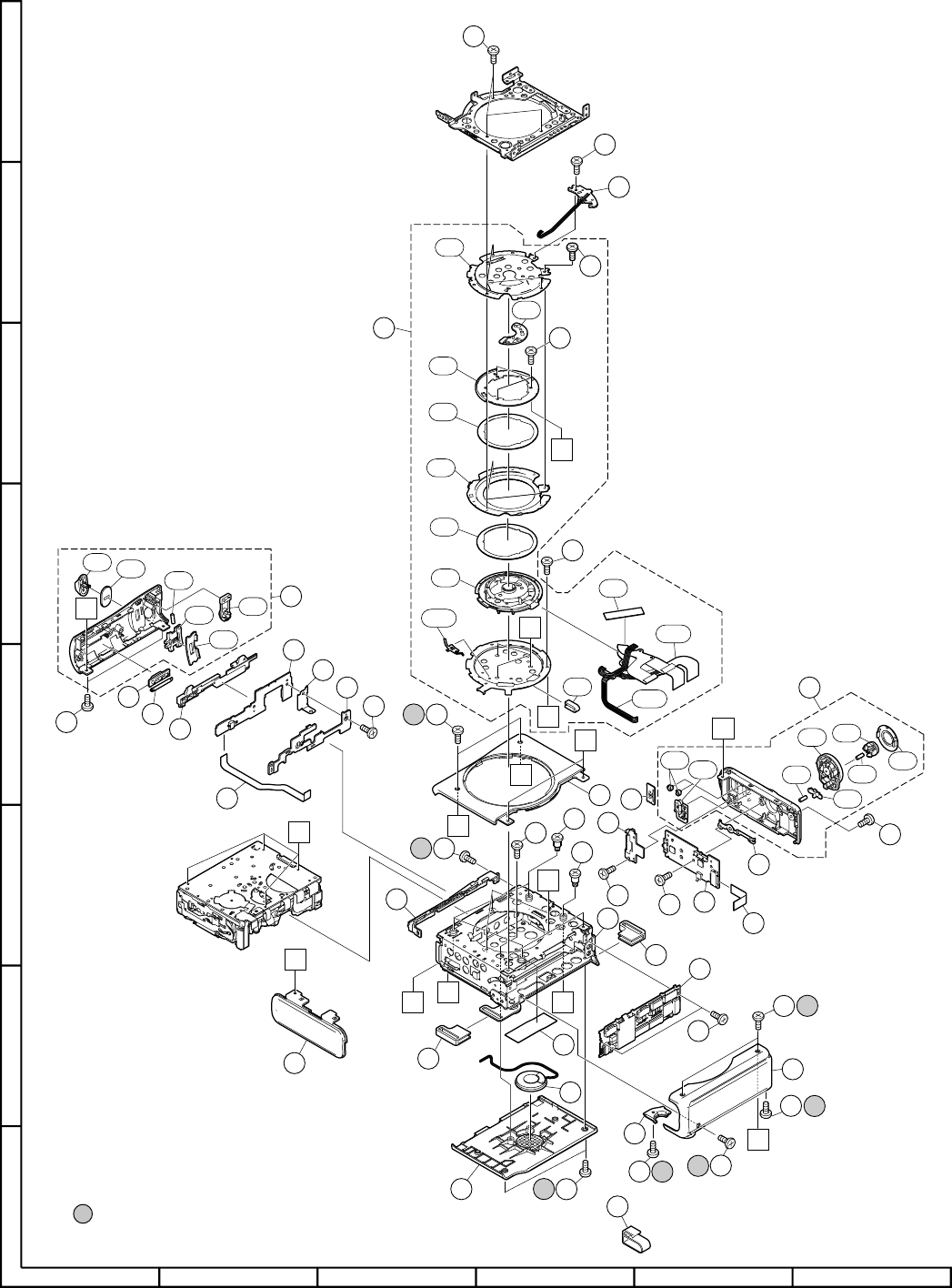

16. REPLACEMENT PARTS LIST/

EXPLODED VIEWS

ELECTRICAL PARTS LIST

Parts marked with

are important for maintaining the safety of the

set. Be sure to replace these parts with specified ones for maintaining

the safety and performance of the set.

HOW TO ORDER REPLACEMENT PARTS

★MARK : SPARE PARTS-DELIVERY SECTION:ALL JAPAN

To have your order filled promptly and correctly, please furnish

the following informations.

1. MODEL NUMBER 2. REF. NO.

3. PART NO. 4. DESCRIPTION

5. PRICE CODE

å MARK: SAFETY RELATED PARTS

PWB ASSEMBLY IS NOT REPLACEMENT ITEM

PRINTED WIRING BOARD ASSEMBLIES

(NOT REPLACEMENT ITEM)

DUNTKB721QA05 MAIN PWB Unit —

(VL-Z7S/SA/R)

DUNTKB721QA08 MAIN PWB Unit —

(VL-Z7E/EW/X/Z7EEA/EWA/

Z7EEW/EWW)

DUNTKB721QA09 MAIN PWB Unit(VL-Z8H) —

DUNTKB723QA01 CCD PWB Unit —

DUNTKB728QA05 SUB PWB Unit —

DUNTKB726QA00 LCD PWB Unit —

DUNTKB733QA00 HEAD AMP PWB Unit —

DUNTKB731PM00 LITHIUM PWB Unit —

DUNTKB730PM00 OPERATION PWB Unit —

DUNTKB734PM00 VCR OPERATION —

PWB Unit

DUNTKB735PM00 ZOOM SW PWB Unit —

DUNTKB732PM00 MECHA REVERSION —

DETECTION PWB Unit

Ref. No. Part No. ★Description Code

Ref. No. Part No. ★Description Code Ref. No. Part No. ★Description Code

138

VL-Z7S/E/Z7E-A/Z7E-W

VL-Z8H

Q1802 VSXP6401///-1Y XP6401 AC

Q1901 VSXP4316///-1Y XP4316 AC

Q1902 VSMCH6617++-1Y MCH6617++ AE

Q1903 VSXP1213///-1Y XP1213 AC

Q1904 VSEMD12++++-1Y EMD12++++ AC

Q1905 VSEMD12++++-1Y EMD12++++ AC

Q1906 VS15C01M+++-1Y 15C01M+++ AC

Q1908 VSXP4401+++-1Y XP4401+++ AB

Q1909 VSXP4501///-1Y XP4501 AB

Q1910 VS2SA1989R/-1Y 2SA1989R AB

Q1911 VSXP4501///-1Y XP4501 AB

Q1912 VSKTC4075EY-1Y KTC4075EY AB

Q1913 VSXP6401///-1Y XP6401 AC

Q1914 VSXP4501///-1Y XP4501 AB

Q1915 VSKRC404E++-1Y KRC404E++ AB

Q1916 VSKTC4075EY-1Y KTC4075EY AB

Q1918 VSXP4313///-1Y XP4313 AC

Q1990 VSMCH6305++-1Y MCH6305++ AE

Q1991 VSKRC404E++-1Y KRC404E++ AB

Q3320 VS15C01SS++-1Y 15C01SS++ AC

Q3401 VS2SC4738Y/-1Y 2SC4738Y AA

Q3404 VS2SC4738Y/-1Y 2SC4738Y AA

Q3406 VSXP05534//-1Y XP05534 AD

Q3701 VSXP4313///-1Y XP4313 AC

Q4432 VSXP6401///-1Y XP6401 AC

Q4461 VSKRC404E++-1Y KRC404E++ AB

Q4481 VSXP4601///-1Y XP4601 AC

Q4482 VSXP4601///-1Y XP4601 AC

Q4483 VSKRC404E++-1Y KRC404E++ AB

Q6801 VSXP1501///-1Y XP1501 AC

Q7401 VSKTC4075EY-1Y KTC4075EY AB

Q7402 VSKRC404E++-1Y KRC404E++ AB

Q7403 VSKTC4075EY-1Y KTC4075EY AB

Q7800 VSXP1501///-1Y XP1501 AC

Q8800 VS3LN01S///-1Y 3LN01S AC

Q8801 VSXP4601///-1Y XP4601 AC

Q8802 VSXP4601///-1Y XP4601 AC

Q8803 VSXP4601///-1Y XP4601 AC

Q8804 VSXP4601///-1Y XP4601 AC

DIODES

D403 VHDHVC362//-1Y HVC362 AD

D404 VHDHVC362//-1Y HVC362 AD

D471 VHDHVC362//-1Y HVC362 AD

D472 VHDHVC359TR-1Y HVC359TR AD

D701 VHD1SS400++-1Y 1SS400++ AB

D900 RH-EX1394CEZZY Zener Diode, EX1394CE AB

D916 VHD1SS400++-1Y 1SS400++ AB

D960 VHDDAN217U+-1Y DAN217U+ AB

D4451 VHDHVC375B+-1Y HVC375B+ AD

D4452 VHDHVC375B+-1Y HVC375B+ AD

D6800 VHDHVC202A+-1Y HVC202A+ AC

D7810 VHDHVC202A+-1Y HVC202A+ AC

PACKAGED CIRCUITS

TH1800 VHHS2103J16-1Y Thermistor AB

TH3401 VHHS1682J16-1Y Thermistor AB

X401 RCRSC0160TAZZY Crystal, CRSC0160TA AH

X701 RCRSCA054WJZZY Crystal, CRSCA054WJ AE

X702 RCRSC0183TAZZY Crystal, CRSC0183TA AH

X4451 RCRSCA048WJZZY Crystal, CRSCA048WJ AH

COILS

FL403 RFiLC0164TAZZY Filter, FiLC0164TA AG

FL3401 RCiLF0408TAZZY Coil, CiLF0408TA AG

FL3402 RCiLF0408TAZZY Coil, CiLF0408TA AG

FL3403 RCiLF0409TAZZY Coil, CiLF0409TA AG

FL3702 RFiLZA006WJZZY Filter, FiLZA006WJ AE

L204 VPCEM470M3R7NY Peaking, 47µHAC

L403 VPCEM4R7MR40NY Peaking, 4.7µHAC

L471 VPD9M8R2J2R0NY Peaking, 8.2µHAC

L701 VPCEM100MR70NY Peaking, 10µHAC

L900 RCiLP0323TAZZY Coil, 4.7µHAD

L901 RCiLPA010WJZZY Coil, 15µHAD

L902 VPCEM2R2MR23NY Peaking, 2.2µHAC

L903 VPCEM2R2MR23NY Peaking, 2.2µHAC

L904 VPCLN2R2MR13NY Peaking, 2.2µHAB

L905 VPCEM2R2MR23NY Peaking, 2.2µHAC

L907 RCiLPA010WJZZY Coil, 15µHAD

L908 VPCEM2R2MR23NY Peaking, 2.2µHAC

L909 VPCEM2R2MR23NY Peaking, 2.2µHAC

L910 VPCEM2R2MR23NY Peaking, 2.2µHAC

L911 RCiLPA010WJZZY Coil, 15µHAD

L912 VPCCM2R2MR09NY Peaking, 2.2µHAC

L915 RCiLP0323TAZZY Coil, 4.7µHAD

L916 RCiLPA012WJZZY Coil, 33µHAD

L917 RCiLPA012WJZZY Coil, 33µHAD

L918 RCiLPA010WJZZY Coil, 15µHAD

L919 VPCLN2R2MR13NY Peaking, 2.2µHAB

L923 RCiLPA010WJZZY Coil, 15µHAD

L931 RCiLPA125WJZZY Coil, CiLPA125WJ AD

L1404 VPCEM470M3R7NY Peaking, 47µHAC

L1431 VPCEM470M3R7NY Peaking, 47µHAC

L1601 VPCEM100MR70NY Peaking, 10µHAC

L1800 VPCEM470M3R7NY Peaking, 47µHAC

L1801 VPCQM4R7MR22NY Peaking, 4.7µHAB

L3401 RCiLP0276TAZZY Coil, CiLP0276TA AC

L3404 VPCEM4R7MR40NY Peaking, 4.7µHAC

L3405 VPCEM4R7MR40NY Peaking, 4.7µHAC

L3701 VPCEM4R7MR40NY Peaking, 4.7µHAC

L3702 VPCEM4R7MR40NY Peaking, 4.7µHAC

L4404 VPCEM100MR70NY Peaking, 10µHAC

L4406 VPCEM100MR70NY Peaking, 10µHAC

L4451 RCiLPA127WJZZY Coil, CiLPA127WJ AC

L6800 VPD9M6R8J1R8NY Peaking, 6.8µHAC

L7400 VPCEM100MR70NY Peaking, 10µHAC

L7800 VPCEM100MR70NY Peaking, 10µHAC

L7810 VPD9M180J2R4NY Peaking, 18µHAC

L8800 VPCEM470M3R7NY Peaking, 47µHAC

L8801 VPCEM470M3R7NY Peaking, 47µHAC

L8802 VPCEM470M3R7NY Peaking, 47µHAC

CAPACITORS

C202 RC-KZ0083TAZZY 2.2 10V Ceramic AC

C203 RC-KZ0083TAZZY 2.2 10V Ceramic AC

C204 VCKYCZ1CB103KY 0.01 16V Ceramic AB

C205 VCKYCZ1CB103KY 0.01 16V Ceramic AB

C209 VCKYCZ1AB104KY 0.1 10V Ceramic AB

C211 VCKYCZ1CB103KY 0.01 16V Ceramic AB

C212 VCKYCZ1CB103KY 0.01 16V Ceramic AB

C213 RC-KZA067WJZZY 4.7 10V Ceramic AB

C215 VCKYCZ1CB103KY 0.01 16V Ceramic AB

C222 VCKYCZ1AB104KY 0.1 10V Ceramic AB

C223 VCCCCZ1HH221JY 220p 50V Ceramic AB

C224 VCCCCZ1HH221JY 220p 50V Ceramic AB

C226 VCKYCZ1CB103KY 0.01 16V Ceramic AB

C228 VCKYCZ1AB104KY 0.1 10V Ceramic AB

C230 VCSATA0JJ156MY 15 6.3V Tantalum AC

C231 VCKYCZ1AB104KY 0.1 10V Ceramic AB

C237 VCKYCZ1CB103KY 0.01 16V Ceramic AB

C238 VCKYCZ1CB103KY 0.01 16V Ceramic AB

C239 VCCCCZ1HH220JY 22p 50V Ceramic AB

C240 VCCCCZ1HH6R0DY 6p 50V Ceramic AA

C401 RC-KZ0083TAZZY 2.2 10V Ceramic AC

C402 RC-KZ0083TAZZY 2.2 10V Ceramic AC

C404 RC-KZA067WJZZY 4.7 10V Ceramic AB

C405 VCKYCZ1AB473KY 0.047 10V Ceramic AB

C407 VCKYCY0JB105KY 1 6.3V Ceramic AC

C410 VCKYCZ1CB103KY 0.01 16V Ceramic AB

C411 VCKYCZ1CB103KY 0.01 16V Ceramic AB

C412 VCKYCZ1CB103KY 0.01 16V Ceramic AB

C413 VCKYCZ1CB103KY 0.01 16V Ceramic AB

C414 VCKYCZ1CB103KY 0.01 16V Ceramic AB

C415 VCKYCZ1CB103KY 0.01 16V Ceramic AB

C417 RC-KZA067WJZZY 4.7 10V Ceramic AB

C418 VCCCCZ1HH100DY 10p 50V Ceramic AB

C419 VCCCCZ1HH100DY 10p 50V Ceramic AB

C420 VCKYCZ1CB103KY 0.01 16V Ceramic AB

C421 VCKYCZ1CB103KY 0.01 16V Ceramic AB

C423 VCKYCZ1CB103KY 0.01 16V Ceramic AB

Ref. No. Part No. ★Description Code Ref. No. Part No. ★Description Code

139

VL-Z7S/E/Z7E-A/Z7E-W

VL-Z8H

C424 VCKYCZ1CB103KY 0.01 16V Ceramic AB

C425 VCKYCZ1CB103KY 0.01 16V Ceramic AB

C430 VCKYCZ1CB103KY 0.01 16V Ceramic AB

C432 VCKYCZ1CB103KY 0.01 16V Ceramic AB

C435 VCKYCZ1CB103KY 0.01 16V Ceramic AB

C447 VCKYCZ1CB103KY 0.01 16V Ceramic AB

C450 RC-KZA067WJZZY 4.7 10V Ceramic AB

C451 VCKYCY0JB105KY 1 6.3V Ceramic AC

C452 VCKYCZ1AB104KY 0.1 10V Ceramic AB

C456 RC-KZA067WJZZY 4.7 10V Ceramic AB

C460 VCKYCZ1CB103KY 0.01 16V Ceramic AB

C462 VCKYCZ1CB103KY 0.01 16V Ceramic AB

C463 VCKYCZ1CB103KY 0.01 16V Ceramic AB

C465 VCKYCZ1CB103KY 0.01 16V Ceramic AB

C473 VCKYCZ1AB104KY 0.1 10V Ceramic AB

C474 VCKYCZ1AB104KY 0.1 10V Ceramic AB

C475 VCKYCZ1HB221KY 220p 50V Ceramic AA

C476 VCKYCZ1HB221KY 220p 50V Ceramic AA

C477 VCKYCZ1HB221KY 220p 50V Ceramic AA

C478 VCKYCZ1HB221KY 220p 50V Ceramic AA

C701 VCKYCY1CB104KY 0.1 16V Ceramic AB

C702 VCKYCY0JF105ZY 1 6.3V Ceramic AB

C703 VCKYCZ1CB103KY 0.01 16V Ceramic AB

C704 VCKYCY0JB105KY 1 6.3V Ceramic AC

C705 VCKYCZ1CB103KY 0.01 16V Ceramic AB

C706 RC-KZA067WJZZY 4.7 10V Ceramic AB

C708 VCKYCZ1CB103KY 0.01 16V Ceramic AB

C709 VCKYCZ1HB102KY 1000p 50V Ceramic AB

C710 VCKYCZ1CB103KY 0.01 16V Ceramic AB

C711 VCKYCZ1HB102KY 1000p 50V Ceramic AB

C712 VCKYCY0JB105KY 1 6.3V Ceramic AC

C713 VCKYCZ1HB102KY 1000p 50V Ceramic AB

C716 VCKYCZ1HB102KY 1000p 50V Ceramic AB

C719 VCCCCZ1HH270JY 27p 50V Ceramic AB

C720 VCCCCZ1HH270JY 27p 50V Ceramic AB

C721 VCKYCZ1CB103KY 0.01 16V Ceramic AB

C722 VCKYCZ1AB104KY 0.1 10V Ceramic AB

C723 VCKYCZ1AB104KY 0.1 10V Ceramic AB

C724 VCKYCZ1HB102KY 1000p 50V Ceramic AB

C725 VCKYCZ1EB682KY 6800p 25V Ceramic AB

C726 VCKYCZ1HB102KY 1000p 50V Ceramic AB

C727 VCKYCZ1AF104ZY 0.1 10V Ceramic AB

C728 VCKYCZ1AF104ZY 0.1 10V Ceramic AB

C729 VCKYCZ1AF104ZY 0.1 10V Ceramic AB

C730 VCKYCZ1AF104ZY 0.1 10V Ceramic AB

C731 VCKYCZ1AF104ZY 0.1 10V Ceramic AB

C732 VCKYCZ1AF104ZY 0.1 10V Ceramic AB

C733 VCKYCZ1AF104ZY 0.1 10V Ceramic AB

C734 VCKYCZ1AF104ZY 0.1 10V Ceramic AB

C735 VCKYCZ1CB103KY 0.01 16V Ceramic AB

C737 VCKYCZ1EB682KY 6800p 25V Ceramic AB

C904 VCKYCZ1CB103KY 0.01 16V Ceramic AB

C905 VCKYCZ0JB224KY 0.22 6.3V Ceramic AB

C906 VCKYCZ1CB103KY 0.01 16V Ceramic AB

C907 VCKYCZ1HB102KY 1000p 50V Ceramic AB

C908 VCKYCZ1AB473KY 0.047 10V Ceramic AB

C910 VCKYCZ1AB104KY 0.1 10V Ceramic AB

C911 VCKYCZ1AB104KY 0.1 10V Ceramic AB

C912 VCKYCY1CB104KY 0.1 16V Ceramic AB

C913 VCKYCZ1HB222KY 2200p 50V Ceramic AB

C914 VCCCCZ1HH101JY 100p 50V Ceramic AB

C915 VCKYCY1AB224KY 0.22 10V Ceramic AB

C916 VCKYCZ1HB102KY 1000p 50V Ceramic AB

C917 VCKYCZ1HB221KY 220p 50V Ceramic AA

C918 VCKYCZ1HB221KY 220p 50V Ceramic AA

C919 VCKYCZ1HB102KY 1000p 50V Ceramic AB

C920 VCKYCZ1CB103KY 0.01 16V Ceramic AB

C921 VCKYCY1CB104KY 0.1 16V Ceramic AB

C922 VCKYCY1CB104KY 0.1 16V Ceramic AB

C923 VCKYCZ1HB102KY 1000p 50V Ceramic AB

C924 VCKYCZ1HB471KY 470p 50V Ceramic AB

C926 VCKYCY1EB223KY 0.022 25V Ceramic AA

C927 VCKYCZ1HB471KY 470p 50V Ceramic AB

C928 VCKYCZ1AB104KY 0.1 10V Ceramic AB

C929 RC-KZA066WJZZY 1 25V Ceramic AB

C930 RC-KZA002WJZZY 4.7 16V Ceramic AC

C931 RC-KZ0075TAZZY 2.2 16V Ceramic AC

C932 VCKYCZ1HB102KY 1000p 50V Ceramic AB

C933 RC-KZA067WJZZY 4.7 10V Ceramic AB

C934 RC-KZ0083TAZZY 2.2 10V Ceramic AC

C936 RC-KZA069WJZZY 4.7 10V Ceramic AB

C938 RC-KZA067WJZZY 4.7 10V Ceramic AB

C939 VCKYTV1AB105KY 1 10V Ceramic AC

C943 VCKYCZ1HB102KY 1000p 50V Ceramic AB

C946 VCKYTV1AB105KY 1 10V Ceramic AC

C948 RC-KZA069WJZZY 4.7 10V Ceramic AB

C949 VCKYTV1AB105KY 1 10V Ceramic AC

C951 VCKYTV1AB105KY 1 10V Ceramic AC

C952 RC-KZ0083TAZZY 2.2 10V Ceramic AC

C953 VCKYCZ1HB102KY 1000p 50V Ceramic AB

C954 VCKYCZ1HB102KY 1000p 50V Ceramic AB

C955 RC-KZ0075TAZZY 2.2 16V Ceramic AC

C956 RC-KZA067WJZZY 4.7 10V Ceramic AB

C957 VCKYTV1AB105KY 1 10V Ceramic AC

C960 RC-KZA002WJZZY 4.7 16V Ceramic AC

C962 RC-KZA066WJZZY 1 25V Ceramic AB

C966 VCKYCZ1HB102KY 1000p 50V Ceramic AB

C970 VCKYCZ1HB102KY 1000p 50V Ceramic AB

C971 VCKYCZ1HB102KY 1000p 50V Ceramic AB

C972 RC-KZA002WJZZY 4.7 16V Ceramic AC

C973 RC-KZA067WJZZY 4.7 10V Ceramic AB

C974 RC-KZA067WJZZY 4.7 10V Ceramic AB

C978 RC-KZA066WJZZY 1 25V Ceramic AB

C980 VCKYCZ1HB102KY 1000p 50V Ceramic AB

C981 RC-KZ0075TAZZY 2.2 16V Ceramic AC

C982 RC-KZA067WJZZY 4.7 10V Ceramic AB

C983 VCKYTV1AB105KY 1 10V Ceramic AC

C990 RC-KZ0075TAZZY 2.2 16V Ceramic AC

C991 RC-KZA002WJZZY 4.7 16V Ceramic AC

C992 VCKYCZ1HB102KY 1000p 50V Ceramic AB

C993 VCKYCY1AB224KY 0.22 10V Ceramic AB

C1201 VCCCCZ1HH6R0DY 6p 50V Ceramic AA

C1402 RC-KZA067WJZZY 4.7 10V Ceramic AB

C1406 VCSATE0JJ107MY 100 6.3V Tantalum AE

C1407 VCSATA0JJ336MY 33 6.3V Tantalum AD

C1408 VCKYCY0JF105ZY 1 6.3V Ceramic AB

C1409 VCKYCY0JB105KY 1 6.3V Ceramic AC

C1410 VCKYCZ1AF104ZY 0.1 10V Ceramic AB

C1411 VCSATE0JJ107MY 100 6.3V Tantalum AE

C1412 VCSATA0JJ336MY 33 6.3V Tantalum AD

C1416 VCKYCZ1CB103KY 0.01 16V Ceramic AB

C1417 VCKYCZ1AF104ZY 0.1 10V Ceramic AB

C1418 VCKYCZ1CB103KY 0.01 16V Ceramic AB

C1419 VCKYCZ1AF104ZY 0.1 10V Ceramic AB

C1431 RC-KZA067WJZZY 4.7 10V Ceramic AB

C1432 VCKYCZ1CB103KY 0.01 16V Ceramic AB

C1433 VCCCCZ1HH150JY 15p 50V Ceramic AB

C1434 VCCCCZ1HH680JY 68p 50V Ceramic AB

C1435 VCKYCZ1CB103KY 0.01 16V Ceramic AB

C1436 VCCCCZ1HH150JY 15p 50V Ceramic AB

C1437 VCCCCZ1HH680JY 68p 50V Ceramic AB

C1438 VCKYCZ1AF104ZY 0.1 10V Ceramic AB

C1439 VCKYCY0JB105KY 1 6.3V Ceramic AC

C1440 VCKYCZ1CB103KY 0.01 16V Ceramic AB

C1441 VCKYCY0JB105KY 1 6.3V Ceramic AC

C1603 VCKYCY0JB105KY 1 6.3V Ceramic AC

C1604 VCKYCY0JB105KY 1 6.3V Ceramic AC

C1605 RC-KZ0083TAZZY 2.2 10V Ceramic AC

C1608 RC-KZA067WJZZY 4.7 10V Ceramic AB

C1610 VCKYCZ1AF104ZY 0.1 10V Ceramic AB

C1611 VCKYCY1AB474KY 0.47 10V Ceramic AC

C1617 VCKYCY1AB474KY 0.47 10V Ceramic AC

C1800 RC-KZA067WJZZY 4.7 10V Ceramic AB

C1801 VCCCCZ1HH180JY 18p 50V Ceramic AB

C1802 VCCCCZ1HH680JY 68p 50V Ceramic AB

C1803 VCCCCZ1HH180JY 18p 50V Ceramic AB

C1804 VCCCCZ1HH680JY 68p 50V Ceramic AB

C1805 VCCCCZ1HH180JY 18p 50V Ceramic AB

C1806 VCCCCZ1HH680JY 68p 50V Ceramic AB

C1811 VCKYCZ1CB103KY 0.01 16V Ceramic AB

Ref. No. Part No. ★Description Code Ref. No. Part No. ★Description Code

140

VL-Z7S/E/Z7E-A/Z7E-W

VL-Z8H

C1815 VCKYCZ1AB104KY 0.1 10V Ceramic AB

C1901 VCKYCY1EB104KY 0.1 25V Ceramic AB

C1902 VCKYCZ1AB104KY 0.1 10V Ceramic AB

C1903 VCKYCY1EB104KY 0.1 25V Ceramic AB

C1904 VCKYCY1EB104KY 0.1 25V Ceramic AB

C1905 VCKYCZ1CB103KY 0.01 16V Ceramic AB

C1906 RC-KZA069WJZZY 4.7 10V Ceramic AB

C1907 VCKYCZ1AB104KY 0.1 10V Ceramic AB

C1908 VCKYCY1EB104KY 0.1 25V Ceramic AB

C1909 RC-KZ1025CEZZY 1 10V Ceramic AB

C1910 VCKYCY1EB104KY 0.1 25V Ceramic AB

C1911 RC-KZA069WJZZY 4.7 10V Ceramic AB

C1912 VCKYCY1EB104KY 0.1 25V Ceramic AB

C1913 VCKYCY1EB104KY 0.1 25V Ceramic AB

C1914 VCKYTV1CB105KY 1 16V Ceramic AC

C1915 VCKYCY1EB104KY 0.1 25V Ceramic AB

C1916 VCKYCY1EB104KY 0.1 25V Ceramic AB

C1990 VCKYCZ1CB103KY 0.01 16V Ceramic AB

C3320 VCKYCZ1AF104ZY 0.1 10V Ceramic AB

C3321 VCKYTV1CB105KY 1 16V Ceramic AC

C3401 VCCCCZ1HH390JY 39p 50V Ceramic AB

C3402 VCCCCZ1HH100DY 10p 50V Ceramic AB

C3403 VCCCCZ1HH100DY 10p 50V Ceramic AB

C3405 VCCCCZ1HH820JY 82p 50V Ceramic AB

C3406 VCKYCY0JB105KY 1 6.3V Ceramic AC

C3407 VCCCCZ1HH101JY 100p 50V Ceramic AB

C3408 VCKYCZ1AF104ZY 0.1 10V Ceramic AB

C3409 VCKYCZ1HB471KY 470p 50V Ceramic AB

C3410 VCKYCZ1AF104ZY 0.1 10V Ceramic AB

C3411 VCKYCZ1HB471KY 470p 50V Ceramic AB

C3412 VCKYCZ1AF104ZY 0.1 10V Ceramic AB

C3413 VCKYCZ1AF104ZY 0.1 10V Ceramic AB

C3414 VCKYCZ1AF104ZY 0.1 10V Ceramic AB

C3415 VCKYCZ1AF104ZY 0.1 10V Ceramic AB

C3416 VCKYCZ1AF104ZY 0.1 10V Ceramic AB

C3417 VCKYCZ1AF104ZY 0.1 10V Ceramic AB

C3418 VCKYCZ1AF104ZY 0.1 10V Ceramic AB

C3419 VCKYCZ1AF104ZY 0.1 10V Ceramic AB

C3421 VCCCCZ1HH121JY 120p 50V Ceramic AB

C3423 VCCCCZ1HH121JY 120p 50V Ceramic AB

C3424 VCKYCZ1CB103KY 0.01 16V Ceramic AB

C3426 VCKYCZ1CB103KY 0.01 16V Ceramic AB

C3428 VCKYCY0JB105KY 1 6.3V Ceramic AC

C3429 VCKYCZ1HB102KY 1000p 50V Ceramic AB

C3430 VCKYCZ1AF104ZY 0.1 10V Ceramic AB

C3431 VCKYCZ1CB103KY 0.01 16V Ceramic AB

C3432 VCKYCZ1AF104ZY 0.1 10V Ceramic AB

C3433 VCKYCZ1CB103KY 0.01 16V Ceramic AB

C3434 VCKYCZ1CB103KY 0.01 16V Ceramic AB

C3436 VCSATA0YJ336MY 33 Tantalum AD

C3442 VCCCCZ1HH180JY 18p 50V Ceramic AB

C3443 VCCCCZ1HH220JY 22p 50V Ceramic AB

C3444 VCKYCZ1AF104ZY 0.1 10V Ceramic AB

C3451 VCCCCZ1HH100DY 10p 50V Ceramic AB

C3452 VCKYCZ1CB103KY 0.01 16V Ceramic AB

C3454 VCKYCY0JB105KY 1 6.3V Ceramic AC

C3455 VCKYCZ1CB103KY 0.01 16V Ceramic AB

C3456 RC-KZA067WJZZY 4.7 10V Ceramic AB

C3457 VCKYCZ1CB103KY 0.01 16V Ceramic AB

C3458 VCKYCZ1AF104ZY 0.1 10V Ceramic AB

C3462 VCKYCZ1CB103KY 0.01 16V Ceramic AB

C3465 VCCCCZ1HH100DY 10p 50V Ceramic AB

C3467 VCKYCZ1CB103KY 0.01 16V Ceramic AB

C3470 VCCCCZ1HH5R0CY 5p 50V Ceramic AA

C3471 VCKYCZ1AF104ZY 0.1 10V Ceramic AB

C3473 VCSATA0YJ336MY 33 Tantalum AD

C3474 VCKYCZ1CB103KY 0.01 16V Ceramic AB

C3475 VCKYCZ1AF104ZY 0.1 10V Ceramic AB

C3476 VCKYCZ1AF104ZY 0.1 10V Ceramic AB

C3477 VCKYCZ1AF104ZY 0.1 10V Ceramic AB

C3478 VCCCCZ1HH390JY 39p 50V Ceramic AB

C3479 VCKYCZ0JB224KY 0.22 6.3V Ceramic AB

C3481 VCCCCZ1HH100DY 10p 50V Ceramic AB

C3701 VCKYTV1AB105KY 1 10V Ceramic AC

C3702 VCKYTV1AB105KY 1 10V Ceramic AC

C3704 VCKYCZ1HB102KY 1000p 50V Ceramic AB

C3706 VCKYCZ1AB104KY 0.1 10V Ceramic AB

C3708 RC-KZA067WJZZY 4.7 10V Ceramic AB

C3709 VCKYCZ1CB103KY 0.01 16V Ceramic AB

C3710 VCKYCZ1CB103KY 0.01 16V Ceramic AB

C3711 VCKYCZ1AB104KY 0.1 10V Ceramic AB

C3712 VCKYCZ1AB104KY 0.1 10V Ceramic AB

C3714 VCKYCZ1CB103KY 0.01 16V Ceramic AB

C3716 VCKYCZ1CB103KY 0.01 16V Ceramic AB

C3717 VCKYCZ1CB103KY 0.01 16V Ceramic AB

C4401 RC-KZ0083TAZZY 2.2 10V Ceramic AC

C4402 RC-KZ0083TAZZY 2.2 10V Ceramic AC

C4403 RC-KZ0083TAZZY 2.2 10V Ceramic AC

C4404 RC-KZA067WJZZY 4.7 10V Ceramic AB

C4405 RC-KZ0083TAZZY 2.2 10V Ceramic AC

C4406 RC-KZA067WJZZY 4.7 10V Ceramic AB

C4407 VCKYCZ0JB224KY 0.22 6.3V Ceramic AB

C4408 VCKYCZ0JB224KY 0.22 6.3V Ceramic AB

C4409 VCKYCZ0JB224KY 0.22 6.3V Ceramic AB

C4410 VCKYCY1CB104KY 0.1 16V Ceramic AB

C4413 VCKYCY1CB104KY 0.1 16V Ceramic AB

C4414 VCKYCZ1AF104ZY 0.1 10V Ceramic AB

C4415 VCKYCZ1AF104ZY 0.1 10V Ceramic AB

C4416 VCKYCZ1CB103KY 0.01 16V Ceramic AB

C4417 VCCCCZ1HH221JY 220p 50V Ceramic AB

C4418 VCCCCZ1HH221JY 220p 50V Ceramic AB

C4419 VCKYCZ1CB103KY 0.01 16V Ceramic AB

C4420 VCKYCZ1CB103KY 0.01 16V Ceramic AB

C4421 VCKYCZ1CB103KY 0.01 16V Ceramic AB

C4422 VCKYCZ1CB103KY 0.01 16V Ceramic AB

C4423 VCKYCZ1CB103KY 0.01 16V Ceramic AB

C4424 VCKYCZ1CB103KY 0.01 16V Ceramic AB

C4426 VCKYCZ1CB103KY 0.01 16V Ceramic AB

C4427 VCKYCZ1CB103KY 0.01 16V Ceramic AB

C4428 VCKYCZ1CB103KY 0.01 16V Ceramic AB

C4435 RC-KZA067WJZZY 4.7 10V Ceramic AB

C4436 VCKYCZ1CB103KY 0.01 16V Ceramic AB

C4451 VCCCCZ1HH390JY 39p 50V Ceramic AB

C4454 VCCCCZ1HH390JY 39p 50V Ceramic AB

C4461 VCKYCY0JB105KY 1 6.3V Ceramic AC

C4462 VCKYCZ1AB104KY 0.1 10V Ceramic AB

C4463 VCKYCZ1EB682KY 6800p 25V Ceramic AB

C4481 VCSATA0JJ106MY 10 6.3V Tantalum AD

C4482 VCKYCZ1CB103KY 0.01 16V Ceramic AB

C4483 RC-KZA067WJZZY 4.7 10V Ceramic AB

C4485 VCKYCZ1AF104ZY 0.1 10V Ceramic AB

C4702 VCKYCZ1AF104ZY 0.1 10V Ceramic AB

C4703 VCKYCZ1AF104ZY 0.1 10V Ceramic AB

C6800 VCKYCZ1HB102KY 1000p 50V Ceramic AB

C6801 VCKYCZ1CB103KY 0.01 16V Ceramic AB

C6802 VCCCCZ1HH101JY 100p 50V Ceramic AB

C6803 VCKYCZ1CB103KY 0.01 16V Ceramic AB

C6804 VCKYCZ1HB102KY 1000p 50V Ceramic AB

C6805 VCCCCZ1HH390JY 39p 50V Ceramic AB

C6806 VCKYCZ1CB103KY 0.01 16V Ceramic AB

C6810 VCKYCZ1CB103KY 0.01 16V Ceramic AB

C6811 VCKYCZ1CB103KY 0.01 16V Ceramic AB

C6812 VCKYCZ1CB103KY 0.01 16V Ceramic AB

C6813 VCKYCZ1AF104ZY 0.1 10V Ceramic AB

C6814 VCKYCZ1AF104ZY 0.1 10V Ceramic AB

C6815 VCKYCZ1CB103KY 0.01 16V Ceramic AB

C6816 VCKYCZ1AF104ZY 0.1 10V Ceramic AB

C7400 VCKYCY0JB105KY 1 6.3V Ceramic AC

C7401 VCKYCY0JB105KY 1 6.3V Ceramic AC

C7404 VCKYCZ1EB472KY 4700p 25V Ceramic AB

C7413 VCKYCZ1HB221KY 220p 50V Ceramic AA

C7414 VCCCCZ1HH330JY 33p 50V Ceramic AB

C7417 VCKYCY0JB105KY 1 6.3V Ceramic AC

C7800 RC-KZA067WJZZY 4.7 10V Ceramic AB

C7801 VCKYCZ1AF104ZY 0.1 10V Ceramic AB

C7802 VCKYCY0JB105KY 1 6.3V Ceramic AC

C7803 VCKYCZ1AF104ZY 0.1 10V Ceramic AB

C7804 VCKYCY0JB105KY 1 6.3V Ceramic AC

C7805 VCKYCZ1AF104ZY 0.1 10V Ceramic AB

C7806 VCKYCY0JB105KY 1 6.3V Ceramic AC

Ref. No. Part No. ★Description Code Ref. No. Part No. ★Description Code

141

VL-Z7S/E/Z7E-A/Z7E-W

VL-Z8H

C7807 VCKYCZ1CB103KY 0.01 16V Ceramic AB

C7808 VCKYCZ1CB103KY 0.01 16V Ceramic AB

C7809 VCKYCZ1CB103KY 0.01 16V Ceramic AB

C7810 VCCCCZ1HH470JY 47p 50V Ceramic AB

C7812 VCKYCZ1HB102KY 1000p 50V Ceramic AB

C7827 VCKYCZ1HB102KY 1000p 50V Ceramic AB

C7828 VCKYCZ1CB103KY 0.01 16V Ceramic AB

C7829 VCCCCZ1HH101JY 100p 50V Ceramic AB

C7830 VCKYCZ1CB103KY 0.01 16V Ceramic AB

C8800 VCKYCZ1HF103ZY 0.01 50V Ceramic AB

C8801 VCKYCY0JF105ZY 1 6.3V Ceramic AB

C8802 VCKYTV1CB105KY 1 16V Ceramic AC

C8803 VCKYCZ1HF103ZY 0.01 50V Ceramic AB

C8804 VCKYTV1AB105KY 1 10V Ceramic AC

C8805 RC-KZA067WJZZY 4.7 10V Ceramic AB

C8806 VCKYTV1EB104KY 0.1 25V Ceramic AB

C8807 VCKYCY0JB105KY 1 6.3V Ceramic AC

C8808 VCKYCY0JB105KY 1 6.3V Ceramic AC

C8809 VCKYCY0JB105KY 1 6.3V Ceramic AC

C8813 VCKYTV1CB105KY 1 16V Ceramic AC

C8816 VCKYCZ1CB103KY 0.01 16V Ceramic AB

C8822 VCKYCZ1CB103KY 0.01 16V Ceramic AB

RESISTORS

R201 VRS-CZ1JF000JY 0 1/16W Metal Oxide AA

R209 VRS-CZ1JF000JY 0 1/16W Metal Oxide AA

R235 VRS-CZ1JF333JY 33k 1/16W Metal Oxide AA

R401 VRS-CZ1JF000JY 0 1/16W Metal Oxide AA

R402 VRS-CZ1JF000JY 0 1/16W Metal Oxide AA

R403 VRS-CZ1JF000JY 0 1/16W Metal Oxide AA

R404 VRS-CZ1JF102JY 1k 1/16W Metal Oxide AA

R406 VRS-CZ1JF101JY 100 1/16W Metal Oxide AA

R407 VRS-CZ1JF153JY 15k 1/16W Metal Oxide AA

R408 VRS-CZ1JF000JY 0 1/16W Metal Oxide AA

R409 VRS-CZ1JF103JY 10k 1/16W Metal Oxide AA

R410 VRS-CZ1JF103JY 10k 1/16W Metal Oxide AA

R411 VRS-CZ1JF154JY 150k 1/16W Metal Oxide AA

R412 VRS-CZ1JF334JY 330k 1/16W Metal Oxide AA

R413 VRS-CZ1JF000JY 0 1/16W Metal Oxide AA

R416 VRS-CZ1JF823JY 82k 1/16W Metal Oxide AA

R418 VRS-CZ1JF101JY 100 1/16W Metal Oxide AA

R429 VRS-CZ1JF000JY 0 1/16W Metal Oxide AA

R432 VRS-CZ1JF000JY 0 1/16W Metal Oxide AA

R436 VRS-CZ1JF224JY 220k 1/16W Metal Oxide AA

R437 VRS-CZ1JF224JY 220k 1/16W Metal Oxide AA

R438 VRS-CZ1JF000JY 0 1/16W Metal Oxide AA

R440 VRS-CZ1JF393JY 39k 1/16W Metal Oxide AA

R441 VRS-CZ1JF563JY 56k 1/16W Metal Oxide AA

R442 VRS-CZ1JF114JY 110k 1/16W Metal Oxide AA

R443 VRS-CZ1JF105JY 1M 1/16W Metal Oxide AA

R462 VRS-CZ1JF103JY 10k 1/16W Metal Oxide AA

R463 VRS-CZ1JF103JY 10k 1/16W Metal Oxide AA

R467 VRS-CZ1JF000JY 0 1/16W Metal Oxide AA

R468 VRS-CZ1JF000JY 0 1/16W Metal Oxide AA

R471 VRS-CZ1JF472JY 4.7k 1/16W Metal Oxide AA

R477 VRS-CZ1JF823JY 82k 1/16W Metal Oxide AA

R478 VRS-CZ1JF823JY 82k 1/16W Metal Oxide AA

R701 VRS-CZ1JF472JY 4.7k 1/16W Metal Oxide AA

R702 VRS-CZ1JF750JY 75 1/16W Metal Oxide AA

R703 VRS-CZ1JF562JY 5.6k 1/16W Metal Oxide AA

R704 VRS-CZ1JF273JY 27k 1/16W Metal Oxide AA

R705 VRS-CZ1JF224JY 220k 1/16W Metal Oxide AA

R706 VRS-CZ1JF102JY 1k 1/16W Metal Oxide AA

R707 VRS-CZ1JF184JY 180k 1/16W Metal Oxide AA

R708 VRS-CZ1JF102JY 1k 1/16W Metal Oxide AA

R709 VRS-CZ1JF104JY 100k 1/16W Metal Oxide AA

R710 VRS-CZ1JF102JY 1k 1/16W Metal Oxide AA

R711 VRS-CZ1JF103JY 10k 1/16W Metal Oxide AA

R712 VRS-CZ1JF333JY 33k 1/16W Metal Oxide AA

R713 VRS-CZ1JF101JY 100 1/16W Metal Oxide AA

R714 VRS-CZ1JF104JY 100k 1/16W Metal Oxide AA

R715 VRS-CZ1JF104JY 100k 1/16W Metal Oxide AA

R716 VRS-CZ1JF272JY 2.7k 1/16W Metal Oxide AA

R717 VRS-CZ1JF102JY 1k 1/16W Metal Oxide AA

R718 VRS-CZ1JF272JY 2.7k 1/16W Metal Oxide AA

R719 VRS-CZ1JF101JY 100 1/16W Metal Oxide AA

R720 VRS-CZ1JF103JY 10k 1/16W Metal Oxide AA

R721 VRS-CZ1JF104JY 100k 1/16W Metal Oxide AA

R722 VRS-CZ1JF104JY 100k 1/16W Metal Oxide AA

R723 VRS-CZ1JF103JY 10k 1/16W Metal Oxide AA

R724 VRS-CZ1JF823DY 82k 1/16W Metal Oxide AA

R725 VRS-CZ1JF102JY 1k 1/16W Metal Oxide AA

R726 VRS-CZ1JF000JY 0 1/16W Metal Oxide AA

R728 VRS-CZ1JF104JY 100k 1/16W Metal Oxide AA

R729 VRS-CZ1JF332JY 3.3k 1/16W Metal Oxide AA

R730 VRS-CZ1JF102JY 1k 1/16W Metal Oxide AA

R731 VRS-CZ1JF104JY 100k 1/16W Metal Oxide AA

R732 VRS-CZ1JF474DY 470k 1/16W Metal Oxide AA

R733 VRS-CZ1JF331JY 330 1/16W Metal Oxide AA

R734 VRS-CZ1JF102JY 1k 1/16W Metal Oxide AA

R735 VRS-CZ1JF332JY 3.3k 1/16W Metal Oxide AA

R736 VRS-CZ1JF102JY 1k 1/16W Metal Oxide AA

R737 VRS-CZ1JF332JY 3.3k 1/16W Metal Oxide AA

R738 VRS-CZ1JF102JY 1k 1/16W Metal Oxide AA

R739 VRS-CZ1JF105JY 1M 1/16W Metal Oxide AA

R741 VRS-CZ1JF102JY 1k 1/16W Metal Oxide AA

R742 VRS-CZ1JF102JY 1k 1/16W Metal Oxide AA

R743 VRS-CZ1JF102JY 1k 1/16W Metal Oxide AA

R744 VRS-CZ1JF102JY 1k 1/16W Metal Oxide AA

R745 VRS-CZ1JF102JY 1k 1/16W Metal Oxide AA

R746 VRS-CZ1JF000JY 0 1/16W Metal Oxide AA

R747 VRS-CZ1JF184JY 180k 1/16W Metal Oxide AA

R748 VRS-CZ1JF105JY 1M 1/16W Metal Oxide AA

R749 VRS-CZ1JF103JY 10k 1/16W Metal Oxide AA

R750 VRS-CZ1JF103JY 10k 1/16W Metal Oxide AA

R751 VRS-CZ1JF103JY 10k 1/16W Metal Oxide AA

R752 VRS-CZ1JF103JY 10k 1/16W Metal Oxide AA

R753 VRS-CZ1JF103JY 10k 1/16W Metal Oxide AA

R754 VRS-CZ1JF103JY 10k 1/16W Metal Oxide AA

R755 VRS-CZ1JF222JY 2.2k 1/16W Metal Oxide AA

R756 VRS-CZ1JF102JY 1k 1/16W Metal Oxide AA

R757 VRS-CZ1JF104JY 100k 1/16W Metal Oxide AA

R758 VRS-CZ1JF000JY 0 1/16W Metal Oxide AA

R759 VRS-CZ1JF102JY 1k 1/16W Metal Oxide AA

R760 VRS-CZ1JF102JY 1k 1/16W Metal Oxide AA

R761 VRS-CZ1JF102JY 1k 1/16W Metal Oxide AA

R762 VRS-CZ1JF102JY 1k 1/16W Metal Oxide AA

R764 VRS-CZ1JF104JY 100k 1/16W Metal Oxide AA

R765 VRS-CZ1JF104JY 100k 1/16W Metal Oxide AA

R766 VRS-CZ1JF104JY 100k 1/16W Metal Oxide AA

R767 VRS-CZ1JF222JY 2.2k 1/16W Metal Oxide AA

R771 VRS-CZ1JF103JY 10k 1/16W Metal Oxide AA

R772 VRS-CZ1JF474JY 470k 1/16W Metal Oxide AA

R779 VRS-CZ1JF000JY 0 1/16W Metal Oxide AA

R780 VRS-CY1JF000JY 0 1/16W Metal Oxide AA

R782 VRS-CZ1JF104JY 100k 1/16W Metal Oxide AA

R902 VRS-CZ1JF472JY 4.7k 1/16W Metal Oxide AA

R903 VRS-CZ1JF103JY 10k 1/16W Metal Oxide AA

R904 VRS-CZ1JF123JY 12k 1/16W Metal Oxide AA

R905 VRS-CZ1JF153JY 15k 1/16W Metal Oxide AA

R906 VRS-CZ1JF153JY 15k 1/16W Metal Oxide AA

R907 VRS-CZ1JF822JY 8.2k 1/16W Metal Oxide AA

R909 VRS-CZ1JF562DY 5.6k 1/16W Metal Oxide AA

R910 VRS-CZ1JF272DY 2.7k 1/16W Metal Oxide AB

R912 VRS-CZ1JF473JY 47k 1/16W Metal Oxide AA

R914 VRS-CZ1JF105JY 1M 1/16W Metal Oxide AA

R917 VRS-CZ1JF682DY 6.8k 1/16W Metal Oxide AB

R918 VRS-CZ1JF472DY 4.7k 1/16W Metal Oxide AB

R919 VRS-CZ1JF103DY 10k 1/16W Metal Oxide AA

R920 VRS-CZ1JF103JY 10k 1/16W Metal Oxide AA

R924 VRS-CZ1JF103DY 10k 1/16W Metal Oxide AA

R926 VRS-CZ1JF333DY 33k 1/16W Metal Oxide AA

R927 VRS-CZ1JF683DY 68k 1/16W Metal Oxide AA

R928 VRS-CZ1JF103JY 10k 1/16W Metal Oxide AA

R929 VRS-CZ1JF473DY 47k 1/16W Metal Oxide AA

R930 VRS-CZ1JF333JY 33k 1/16W Metal Oxide AA

R931 VRS-CZ1JF104JY 100k 1/16W Metal Oxide AA

R932 VRS-CY1JF000JY 0 1/16W Metal Oxide AA

R933 VRS-CZ1JF683JY 68k 1/16W Metal Oxide AA

R934 VRS-CZ1JF153JY 15k 1/16W Metal Oxide AA

Ref. No. Part No. ★Description Code Ref. No. Part No. ★Description Code

142

VL-Z7S/E/Z7E-A/Z7E-W

VL-Z8H

R935 VRS-CZ1JF183JY 18k 1/16W Metal Oxide AA

R936 VRS-CZ1JF333JY 33k 1/16W Metal Oxide AA

R937 VRS-CZ1JF333JY 33k 1/16W Metal Oxide AA

R938 VRS-CZ1JF105JY 1M 1/16W Metal Oxide AA

R939 VRS-CZ1JF103JY 10k 1/16W Metal Oxide AA

R940 VRS-CZ1JF153DY 15k 1/16W Metal Oxide AA

R941 VRS-CZ1JF103DY 10k 1/16W Metal Oxide AA

R942 VRS-CZ1JF105JY 1M 1/16W Metal Oxide AA

R943 VRS-CZ1JF303DY 30k 1/16W Metal Oxide AA

R946 VRS-CZ1JF163DY 16k 1/16W Metal Oxide AA

R948 VRS-CZ1JF473DY 47k 1/16W Metal Oxide AA

R949 VRS-CZ1JF681DY 680 1/16W Metal Oxide AB

R951 VRS-CZ1JF681JY 680 1/16W Metal Oxide AA

R952 VRS-CZ1JF223DY 22k 1/16W Metal Oxide AB

R954 VRS-CZ1JF333DY 33k 1/16W Metal Oxide AA

R957 VRS-CZ1JF333DY 33k 1/16W Metal Oxide AA

R959 VRS-CZ1JF123DY 12k 1/16W Metal Oxide AA

R960 VRS-CZ1JF182DY 1.8k 1/16W Metal Oxide AA

R962 VRS-CZ1JF105JY 1M 1/16W Metal Oxide AA

R965 VRS-CZ1JF122DY 1.2k 1/16W Metal Oxide AA

R966 VRS-CZ1JF000JY 0 1/16W Metal Oxide AA

R968 VRS-CZ1JF000JY 0 1/16W Metal Oxide AA

R970 VRS-CZ1JF681JY 680 1/16W Metal Oxide AA

R972 VRS-CZ1JF133DY 13k 1/16W Metal Oxide AA

R973 VRS-CZ1JF561JY 560 1/16W Metal Oxide AA

R974 VRS-CZ1JF102DY 1k 1/16W Metal Oxide AA

R975 VRS-CZ1JF331JY 330 1/16W Metal Oxide AA

R977 VRS-CZ1JF103JY 10k 1/16W Metal Oxide AA

R979 VRS-CZ1JF104DY 100k 1/16W Metal Oxide AA

R980 VRS-CZ1JF103JY 10k 1/16W Metal Oxide AA

R982 VRS-CZ1JF471JY 470 1/16W Metal Oxide AA

R983 VRS-CZ1JF471JY 470 1/16W Metal Oxide AA

R987 VRS-CZ1JF821JY 820 1/16W Metal Oxide AA

R988 VRS-CZ1JF821JY 820 1/16W Metal Oxide AA

R990 VRS-CZ1JF681JY 680 1/16W Metal Oxide AA

R1201 VRS-CZ1JF393JY 39k 1/16W Metal Oxide AA

R1402 VRS-CZ1JF470JY 47 1/16W Metal Oxide AA

R1403 VRS-CZ1JF470JY 47 1/16W Metal Oxide AA

R1404 VRS-CZ1JF270JY 27 1/16W Metal Oxide AA

R1405 VRS-CZ1JF102JY 1k 1/16W Metal Oxide AA

R1406 VRS-CZ1JF102JY 1k 1/16W Metal Oxide AA

R1413 VRS-CZ1JF470JY 47 1/16W Metal Oxide AA

R1414 VRS-CZ1JF270JY 27 1/16W Metal Oxide AA

R1419 VRS-CZ1JF270JY 27 1/16W Metal Oxide AA

R1422 VRS-CZ1JF103JY 10k 1/16W Metal Oxide AA

R1423 VRS-CZ1JF103JY 10k 1/16W Metal Oxide AA

R1424 VRS-CZ1JF103JY 10k 1/16W Metal Oxide AA

R1431 VRS-CZ1JF122JY 1.2k 1/16W Metal Oxide AA

R1432 VRS-CZ1JF332JY 3.3k 1/16W Metal Oxide AA

R1433 VRS-CZ1JF561JY 560 1/16W Metal Oxide AA

R1434 VRS-CZ1JF561JY 560 1/16W Metal Oxide AA

R1435 VRS-CZ1JF122JY 1.2k 1/16W Metal Oxide AA

R1436 VRS-CZ1JF333JY 33k 1/16W Metal Oxide AA

R1437 VRS-CZ1JF223JY 22k 1/16W Metal Oxide AA

R1438 VRS-CZ1JF122JY 1.2k 1/16W Metal Oxide AA

R1439 VRS-CZ1JF272JY 2.7k 1/16W Metal Oxide AA

R1440 VRS-CZ1JF561JY 560 1/16W Metal Oxide AA

R1441 VRS-CZ1JF561JY 560 1/16W Metal Oxide AA

R1442 VRS-CZ1JF750JY 75 1/16W Metal Oxide AA

R1462 VRS-CZ1JF474DY 470k 1/16W Metal Oxide AA

R1800 VRS-CZ1JF222JY 2.2k 1/16W Metal Oxide AA

R1801 VRS-CZ1JF561JY 560 1/16W Metal Oxide AA

R1802 VRS-CZ1JF561JY 560 1/16W Metal Oxide AA

R1804 VRS-CZ1JF122JY 1.2k 1/16W Metal Oxide AA

R1806 VRS-CZ1JF222JY 2.2k 1/16W Metal Oxide AA

R1807 VRS-CZ1JF561JY 560 1/16W Metal Oxide AA

R1808 VRS-CZ1JF561JY 560 1/16W Metal Oxide AA

R1810 VRS-CZ1JF122JY 1.2k 1/16W Metal Oxide AA

R1812 VRS-CZ1JF222JY 2.2k 1/16W Metal Oxide AA

R1813 VRS-CZ1JF561JY 560 1/16W Metal Oxide AA

R1814 VRS-CZ1JF561JY 560 1/16W Metal Oxide AA

R1816 VRS-CZ1JF122JY 1.2k 1/16W Metal Oxide AA

R1823 VRS-CZ1JF221JY 220 1/16W Metal Oxide AA

R1824 VRS-CZ1JF000JY 0 1/16W Metal Oxide AA

R1825 VRS-CZ1JF331JY 330 1/16W Metal Oxide AA

R1826 VRS-CZ1JF103DY 10k 1/16W Metal Oxide AA

R1901 VRS-CZ1JF105JY 1M 1/16W Metal Oxide AA

R1902 VRS-CZ1JF104JY 100k 1/16W Metal Oxide AA

R1903 VRS-CZ1JF103DY 10k 1/16W Metal Oxide AA

R1904 VRS-CZ1JF103DY 10k 1/16W Metal Oxide AA

R1905 VRS-CZ1JF331JY 330 1/16W Metal Oxide AA

R1906 VRS-CZ1JF153DY 15k 1/16W Metal Oxide AA

R1907 VRS-CZ1JF222DY 2.2k 1/16W Metal Oxide AA

R1908 VRS-CZ1JF103DY 10k 1/16W Metal Oxide AA

R1909 VRS-CZ1JF105JY 1M 1/16W Metal Oxide AA

R1910 VRS-CZ1JF104JY 100k 1/16W Metal Oxide AA

R1911 VRS-CZ1JF153JY 15k 1/16W Metal Oxide AA

R1912 VRS-CZ1JF153JY 15k 1/16W Metal Oxide AA

R1913 VRS-CZ1JF152JY 1.5k 1/16W Metal Oxide AA

R1914 VRS-CZ1JF103DY 10k 1/16W Metal Oxide AA

R1915 VRS-CZ1JF363DY 36k 1/16W Metal Oxide AA

R1916 VRS-CZ1JF821JY 820 1/16W Metal Oxide AA

R1917 VRS-CZ1JF163JY 16k 1/16W Metal Oxide AA

R1918 VRS-CZ1JF103JY 10k 1/16W Metal Oxide AA

R1919 VRS-CZ1JF153JY 15k 1/16W Metal Oxide AA

R1920 VRS-CZ1JF682JY 6.8k 1/16W Metal Oxide AA

R1921 VRS-CZ1JF243DY 24k 1/16W Metal Oxide AA

R1922 VRS-CZ1JF000JY 0 1/16W Metal Oxide AA

R1923 VRS-CZ1JF103DY 10k 1/16W Metal Oxide AA

R1924 VRS-CZ1JF104JY 100k 1/16W Metal Oxide AA

R1925 VRS-CZ1JF103JY 10k 1/16W Metal Oxide AA

R1926 VRS-CZ1JF392DY 3.9k 1/16W Metal Oxide AA

R1927 VRS-CZ1JF241DY 240 1/16W Metal Oxide AA

R1928 VRS-CZ1JF182DY 1.8k 1/16W Metal Oxide AA

R1929 VRS-CZ1JF222JY 2.2k 1/16W Metal Oxide AA

R1931 VRS-CZ1JF000JY 0 1/16W Metal Oxide AA

R1932 VRS-CZ1JF000JY 0 1/16W Metal Oxide AA

R1933 VRS-CZ1JF000JY 0 1/16W Metal Oxide AA

R1934 VRS-CZ1JF000JY 0 1/16W Metal Oxide AA

R1935 VRS-CZ1JF000JY 0 1/16W Metal Oxide AA

R1940 VRS-CZ1JF103JY 10k 1/16W Metal Oxide AA

R1943 VRS-CZ1JF681JY 680 1/16W Metal Oxide AA

R1990 VRS-CZ1JF105JY 1M 1/16W Metal Oxide AA

R1991 VRS-CZ1JF474JY 470k 1/16W Metal Oxide AA

R1993 VRS-CZ1JF152JY 1.5k 1/16W Metal Oxide AA

R3320 VRS-CZ1JF562JY 5.6k 1/16W Metal Oxide AA

R3321 VRS-CZ1JF103JY 10k 1/16W Metal Oxide AA

R3401 VRS-CZ1JF181JY 180 1/16W Metal Oxide AA

R3402 VRS-CZ1JF472JY 4.7k 1/16W Metal Oxide AA

R3403 VRS-CZ1JF273JY 27k 1/16W Metal Oxide AA

R3404 VRS-CZ1JF181JY 180 1/16W Metal Oxide AA

R3405 VRS-CZ1JF152JY 1.5k 1/16W Metal Oxide AA

R3406 VRS-CZ1JF562JY 5.6k 1/16W Metal Oxide AA

R3407 VRS-CZ1JF101JY 100 1/16W Metal Oxide AA

R3408 VRS-CZ1JF000JY 0 1/16W Metal Oxide AA

R3409 VRS-CZ1JF121JY 120 1/16W Metal Oxide AA

R3410 VRS-CZ1JF151JY 150 1/16W Metal Oxide AA

R3411 VRS-CZ1JF391JY 390 1/16W Metal Oxide AA

R3412 VRS-CZ1JF221JY 220 1/16W Metal Oxide AA

R3413 VRS-CZ1JF391JY 390 1/16W Metal Oxide AA

R3414 VRS-CZ1JF102JY 1k 1/16W Metal Oxide AA

R3415 VRS-CZ1JF151JY 150 1/16W Metal Oxide AA

R3416 VRS-CZ1JF221JY 220 1/16W Metal Oxide AA

R3417 VRS-CZ1JF221JY 220 1/16W Metal Oxide AA

R3418 VRS-CZ1JF181JY 180 1/16W Metal Oxide AA

R3419 VRS-CZ1JF472JY 4.7k 1/16W Metal Oxide AA

R3420 VRS-CZ1JF472JY 4.7k 1/16W Metal Oxide AA

R3421 VRS-CZ1JF183JY 18k 1/16W Metal Oxide AA

R3422 VRS-CZ1JF151JY 150 1/16W Metal Oxide AA

R3423 VRS-CZ1JF182JY 1.8k 1/16W Metal Oxide AA

R3424 VRS-CZ1JF151JY 150 1/16W Metal Oxide AA

R3425 VRS-CZ1JF122DY 1.2k 1/16W Metal Oxide AA

R3426 VRS-CZ1JF333JY 33k 1/16W Metal Oxide AA

R3427 VRS-CZ1JF122JY 1.2k 1/16W Metal Oxide AA

R3428 VRS-CZ1JF273DY 27k 1/16W Metal Oxide AA

R3429 VRS-CZ1JF101JY 100 1/16W Metal Oxide AA

R3430 VRS-CZ1JF123JY 12k 1/16W Metal Oxide AA

R3431 VRS-CZ1JF824JY 820k 1/16W Metal Oxide AA

R3432 VRS-CZ1JF333DY 33k 1/16W Metal Oxide AA

R3433 VRS-CZ1JF335JY 3.3M 1/16W Metal Oxide AA

Ref. No. Part No. ★Description Code Ref. No. Part No. ★Description Code

143

VL-Z7S/E/Z7E-A/Z7E-W

VL-Z8H

R3434 VRS-CZ1JF103JY 10k 1/16W Metal Oxide AA

R3435 VRS-CZ1JF122JY 1.2k 1/16W Metal Oxide AA

R3436 VRS-CZ1JF182JY 1.8k 1/16W Metal Oxide AA

R3437 VRS-CZ1JF472JY 4.7k 1/16W Metal Oxide AA

R3439 VRS-CZ1JF102JY 1k 1/16W Metal Oxide AA

R3440 VRS-CZ1JF000JY 0 1/16W Metal Oxide AA

R3442 VRS-CZ1JF332JY 3.3k 1/16W Metal Oxide AA

R3445 VRS-CZ1JF122DY 1.2k 1/16W Metal Oxide AA

R3451 VRS-CZ1JF334JY 330k 1/16W Metal Oxide AA

R3452 VRS-CZ1JF820JY 82 1/16W Metal Oxide AA

R3454 VRS-CZ1JF102JY 1k 1/16W Metal Oxide AA

R3457 VRS-CZ1JF820JY 82 1/16W Metal Oxide AA

R3462 VRS-CZ1JF271JY 270 1/16W Metal Oxide AA

R3463 VRS-CZ1JF122JY 1.2k 1/16W Metal Oxide AA

R3468 VRS-CZ1JF100JY 10 1/16W Metal Oxide AA

R3469 VRS-CZ1JF390JY 39 1/16W Metal Oxide AA

R3470 VRS-CZ1JF101JY 100 1/16W Metal Oxide AA

R3471 VRS-CZ1JF222JY 2.2k 1/16W Metal Oxide AA

R3472 VRS-CZ1JF562JY 5.6k 1/16W Metal Oxide AA

R3473 VRS-CZ1JF562JY 5.6k 1/16W Metal Oxide AA

R3478 VRS-CZ1JF123JY 12k 1/16W Metal Oxide AA

R3479 VRS-CZ1JF183JY 18k 1/16W Metal Oxide AA

R3480 VRS-CZ1JF681JY 680 1/16W Metal Oxide AA

R3481 VRS-CZ1JF680JY 68 1/16W Metal Oxide AB

R3482 VRS-CZ1JF562JY 5.6k 1/16W Metal Oxide AA

R3486 VRS-CZ1JF000JY 0 1/16W Metal Oxide AA

R3487 VRS-CZ1JF152JY 1.5k 1/16W Metal Oxide AA

R3488 VRS-CZ1JF681DY 680 1/16W Metal Oxide AB

R3489 VRS-CZ1JF332JY 3.3k 1/16W Metal Oxide AA

R3492 VRS-CZ1JF272JY 2.7k 1/16W Metal Oxide AA

R3493 VRS-CZ1JF272JY 2.7k 1/16W Metal Oxide AA

R3495 VRS-CZ1JF103JY 10k 1/16W Metal Oxide AA

R3496 VRS-CZ1JF332JY 3.3k 1/16W Metal Oxide AA

R3499 VRS-CZ1JF271JY 270 1/16W Metal Oxide AA

R3701 VRS-CZ1JF102JY 1k 1/16W Metal Oxide AA

R3702 VRS-CZ1JF105JY 1M 1/16W Metal Oxide AA

R3705 VRS-CZ1JF103JY 10k 1/16W Metal Oxide AA

R3706 VRS-CZ1JF471JY 470 1/16W Metal Oxide AA

R3707 VRS-CZ1JF105JY 1M 1/16W Metal Oxide AA

R3708 VRS-CZ1JF102JY 1k 1/16W Metal Oxide AA

R3709 VRS-CZ1JF102JY 1k 1/16W Metal Oxide AA

R3710 VRS-CZ1JF102JY 1k 1/16W Metal Oxide AA

R3711 VRS-CZ1JF102JY 1k 1/16W Metal Oxide AA

R3712 VRS-CZ1JF102JY 1k 1/16W Metal Oxide AA

R3713 VRS-CZ1JF102JY 1k 1/16W Metal Oxide AA

R3717 VRS-CZ1JF471JY 470 1/16W Metal Oxide AA

R3718 VRS-CZ1JF152JY 1.5k 1/16W Metal Oxide AA

R3737 VRS-CZ1JF103JY 10k 1/16W Metal Oxide AA

R3738 VRS-CZ1JF104JY 100k 1/16W Metal Oxide AA

R3739 VRS-CZ1JF220JY 22 1/16W Metal Oxide AA

R3740 VRS-CZ1JF220JY 22 1/16W Metal Oxide AA

R4401 VRS-CZ1JF000JY 0 1/16W Metal Oxide AA

R4402 VRS-CZ1JF000JY 0 1/16W Metal Oxide AA

R4403 VRS-CZ1JF000JY 0 1/16W Metal Oxide AA

R4404 VRS-CZ1JF472DY 4.7k 1/16W Metal Oxide AB

R4414 VRS-CZ1JF000JY 0 1/16W Metal Oxide AA

R4415 VRS-CZ1JF000JY 0 1/16W Metal Oxide AA

R4435 VRS-CZ1JF330JY 33 1/16W Metal Oxide AA

R4436 VRS-CZ1JF272JY 2.7k 1/16W Metal Oxide AA

R4437 VRS-CZ1JF272JY 2.7k 1/16W Metal Oxide AA

R4451 VRS-CZ1JF104JY 100k 1/16W Metal Oxide AA

R4453 VRS-CZ1JF151JY 150 1/16W Metal Oxide AA

R4454 VRS-CZ1JF104JY 100k 1/16W Metal Oxide AA

R4456 VRS-CZ1JF151JY 150 1/16W Metal Oxide AA

R4460 VRS-CZ1JF000JY 0 1/16W Metal Oxide AA

R4461 VRS-CZ1JF123JY 12k 1/16W Metal Oxide AA

R4462 VRS-CZ1JF123JY 12k 1/16W Metal Oxide AA

R4463 VRS-CZ1JF473JY 47k 1/16W Metal Oxide AA

R4466 VRS-CZ1JF332JY 3.3k 1/16W Metal Oxide AA

R4471 VRS-CZ1JF103DY 10k 1/16W Metal Oxide AA

R4472 VRS-CZ1JF152DY 1.5k 1/16W Metal Oxide AA

R4485 VRS-CZ1JF224JY 220k 1/16W Metal Oxide AA

R4486 VRS-CZ1JF224JY 220k 1/16W Metal Oxide AA

R4487 VRS-CZ1JF332JY 3.3k 1/16W Metal Oxide AA

R4488 VRS-CZ1JF103JY 10k 1/16W Metal Oxide AA

R4489 VRS-CZ1JF104JY 100k 1/16W Metal Oxide AA

R4494 VRS-CZ1JF000JY 0 1/16W Metal Oxide AA

R4495 VRS-CZ1JF000JY 0 1/16W Metal Oxide AA

R6802 VRS-CZ1JF682DY 6.8k 1/16W Metal Oxide AB

R6803 VRS-CZ1JF682DY 6.8k 1/16W Metal Oxide AB

R6804 VRS-CZ1JF564JY 560k 1/16W Metal Oxide AB

R6805 VRS-CZ1JF103JY 10k 1/16W Metal Oxide AA

R6806 VRS-CZ1JF334JY 330k 1/16W Metal Oxide AA

R6807 VRS-CZ1JF333JY 33k 1/16W Metal Oxide AA

R6808 VRS-CZ1JF333JY 33k 1/16W Metal Oxide AA

R6809 VRS-CZ1JF105JY 1M 1/16W Metal Oxide AA

R6816 VRS-CZ1JF564JY 560k 1/16W Metal Oxide AB

R6817 VRS-CZ1JF564JY 560k 1/16W Metal Oxide AB

R6818 VRS-CZ1JF000JY 0 1/16W Metal Oxide AA

R6819 VRS-CZ1JF000JY 0 1/16W Metal Oxide AA

R6820 VRS-CZ1JF000JY 0 1/16W Metal Oxide AA

R7401 VRS-CZ1JF561JY 560 1/16W Metal Oxide AA

R7402 VRS-CZ1JF472JY 4.7k 1/16W Metal Oxide AA

R7403 VRS-CZ1JF273JY 27k 1/16W Metal Oxide AA

R7413 VRS-CZ1JF512DY 5.1k 1/16W Metal Oxide AA

R7415 VRS-CZ1JF560DY 56 1/16W Metal Oxide AA

R7416 VRS-CZ1JF560DY 56 1/16W Metal Oxide AA

R7417 VRS-CZ1JF560DY 56 1/16W Metal Oxide AA

R7418 VRS-CZ1JF560DY 56 1/16W Metal Oxide AA

R7419 VRS-CZ1JF221JY 220 1/16W Metal Oxide AA

R7420 VRS-CZ1JF104JY 100k 1/16W Metal Oxide AA

R7422 VRS-CZ1JF392DY 3.9k 1/16W Metal Oxide AA

R7423 VRS-CZ1JF392DY 3.9k 1/16W Metal Oxide AA

R7424 VRS-CZ1JF242DY 2.4k 1/16W Metal Oxide AA

R7800 VRS-CZ1JF000JY 0 1/16W Metal Oxide AA

R7811 VRS-CZ1JF105JY 1M 1/16W Metal Oxide AA

R7819 VRS-CZ1JF564JY 560k 1/16W Metal Oxide AB

R7820 VRS-CZ1JF564JY 560k 1/16W Metal Oxide AB

R7826 VRS-CZ1JF331JY 330 1/16W Metal Oxide AA

R7827 VRS-CZ1JF331JY 330 1/16W Metal Oxide AA

R7828 VRS-CZ1JF331JY 330 1/16W Metal Oxide AA

R7829 VRS-CZ1JF821JY 820 1/16W Metal Oxide AA

R7830 VRS-CZ1JF821JY 820 1/16W Metal Oxide AA

R7831 VRS-CZ1JF821JY 820 1/16W Metal Oxide AA

R7832 VRS-CZ1JF333JY 33k 1/16W Metal Oxide AA

R7833 VRS-CZ1JF334JY 330k 1/16W Metal Oxide AA

R7834 VRS-CZ1JF333JY 33k 1/16W Metal Oxide AA

R7836 VRS-CZ1JF104JY 100k 1/16W Metal Oxide AA

R7837 VRS-CZ1JF103JY 10k 1/16W Metal Oxide AA

R7838 VRS-CZ1JF682DY 6.8k 1/16W Metal Oxide AB

R7839 VRS-CZ1JF682DY 6.8k 1/16W Metal Oxide AB

R8800 VRS-CZ1JF223JY 22k 1/16W Metal Oxide AA

R8801 VRS-CZ1JF273JY 27k 1/16W Metal Oxide AA

R8804 VRS-CZ1JF102JY 1k 1/16W Metal Oxide AA

R8805 VRS-CZ1JF473JY 47k 1/16W Metal Oxide AA

R8806 VRS-CZ1JF563JY 56k 1/16W Metal Oxide AA

R8807 VRS-CZ1JF104JY 100k 1/16W Metal Oxide AA

R8808 VRS-CZ1JF223JY 22k 1/16W Metal Oxide AA

R8809 VRS-CZ1JF473JY 47k 1/16W Metal Oxide AA

R8810 VRS-CZ1JF473DY 47k 1/16W Metal Oxide AA

R8814 VRS-CZ1JF100JY 10 1/16W Metal Oxide AA

R8815 VRS-CZ1JF473DY 47k 1/16W Metal Oxide AA

R8816 VRS-CZ1JF153DY 15k 1/16W Metal Oxide AA

R8817 VRS-CZ1JF100JY 10 1/16W Metal Oxide AA

R8818 VRS-CZ1JF151DY 150 1/16W Metal Oxide AA

R8819 VRS-CZ1JF000JY 0 1/16W Metal Oxide AA

R8820 VRS-CZ1JF000JY 0 1/16W Metal Oxide AA

R8825 VRS-CZ1JF472JY 4.7k 1/16W Metal Oxide AA

R8826 VRS-CZ1JF473JY 47k 1/16W Metal Oxide AA

R8827 VRS-CZ1JF393DY 39k 1/16W Metal Oxide AA

R8828 VRS-CZ1JF303DY 30k 1/16W Metal Oxide AA

R8832 VRS-CZ1JF221JY 220 1/16W Metal Oxide AA

R8834 VRS-CZ1JF330JY 33 1/16W Metal Oxide AA

R8835 VRS-CZ1JF330JY 33 1/16W Metal Oxide AA

R8836 VRS-CZ1JF330JY 33 1/16W Metal Oxide AA

R8838 VRS-CZ1JF221JY 220 1/16W Metal Oxide AA

R8839 VRS-CZ1JF103DY 10k 1/16W Metal Oxide AA

R8840 VRS-CZ1JF103DY 10k 1/16W Metal Oxide AA

R8841 VRS-CZ1JF102JY 1k 1/16W Metal Oxide AA

R8842 VRS-CZ1JF102JY 1k 1/16W Metal Oxide AA

Ref. No. Part No. ★Description Code Ref. No. Part No. ★Description Code

144

VL-Z7S/E/Z7E-A/Z7E-W

VL-Z8H

BALUNES

FB201 RBLN-0049TAZZY Balun, BLN-0049TA AA

FB203 RBLN-0049TAZZY Balun, BLN-0049TA AA

FB204 RBLN-0049TAZZY Balun, BLN-0049TA AA

FB415 RBLN-0257TAZZY Balun, BLN-0257TA AB

FB456 RBLN-0102TAZZY Balun, BLN-0102TA AB

FB900 RBLN-0119TAZZY Balun, BLN-0119TA AC

FB901 RBLN-0119TAZZY Balun, BLN-0119TA AC

FB3701 RBLN-0102TAZZY Balun, BLN-0102TA AB

FB4405 RBLN-0102TAZZY Balun, BLN-0102TA AB

FB4461 RBLN-0102TAZZY Balun, BLN-0102TA AB

FB7401 RBLN-0102TAZZY Balun, BLN-0102TA AB

FB8800 RBLN-0102TAZZY Balun, BLN-0102TA AB

MISCELLANEOUS PARTS

P1201 QPLGN0276TAZZY Plug, 2Pin AD

P3301 QPLGN0576TAZZY Plug, 5Pin AC

P8800 QPLGN0274TAZZY Plug, 2Pin AC

P3303 QCNCMA088WJZZY Connector, 30Pin AF

SC1201 QCNCW8089TAZZY Connector, 80Pin AK

SC1202 QCNCW3396TAZZY Connector, 33Pin AG

SC1204 QSOCN1207REN1Y Socket, 12Pin AD

SC1800 QCNCW1895TAZZY Connector, 18Pin AE

SC1801 QCNCW1894TAZZY Connector, 18Pin AE

SC3301 QCNCWA082WJZZY Connector, 33Pin AG

SC3302 QCNCWA041WJZZY Connector, 33Pin AE

SC8800 QCNCWA081WJZZY Connector, 27Pin AG

RMC701 RRMCUA012WJZZ Remote Receiver AF

DUNTKB723QA01

CCD PWB UNIT

INTEGRATED CIRCUITS

IC21 VHiMN52A6CD-1Q MN52A6CD AU

IC22 VHiUPD16510-1Y UPD16510 AR

IC101 VHiH49334HN-1Y H49334HN AU

IC1002 VHiNJ12902V-1Y NJM12902V AE

TRANSISTORS

Q1 VS2SC5536++-1Y 2SC5536++ AC

Q21 VS15C01M+++-1Y 15C01M+++ AC

Q1001 VSKTA2014EY-1Y KTA2014EY AB

DIODES

D1 VHD1SS400++-1Y 1SS400++ AB

D2 VHD1SS400++-1Y 1SS400++ AB

PACKAGED CIRCUIT

X21 RCRSZ0083TAZZY Crystal, CRSZ0083TA AS

COILS

L23 VPCEM100MR70NY Peaking, 10µHAC

L101 VPCEM100MR70NY Peaking, 10µHAC

L102 VPCEM101M7R0NY Peaking, 100µHAB

CAPACITORS

C1 RC-KZ0044TAZZY 4.7 10V Ceramic AD

C3 VCKYCZ1CB103KY 0.01 16V Ceramic AB

C4 VCKYCZ1EB103KY 0.01 25V Ceramic AA

C5 VCKYCZ1HB102KY 1000p 50V Ceramic AB

C6 VCKYCY1EB104KY 0.1 25V Ceramic AB

C7 RC-KZA002WJZZY 4.7 16V Ceramic AC

C8 RC-KZA066WJZZY 1 25V Ceramic AB

C9 VCKYCZ1EB103KY 0.01 25V Ceramic AA

C22 VCKYCZ1CB103KY 0.01 16V Ceramic AB

C24 VCSATA1CJ106MY 10 16V Tantalum AD

C29 VCKYCZ1CB103KY 0.01 16V Ceramic AB

C32 VCKYCZ1CB103KY 0.01 16V Ceramic AB

C33 VCKYCZ1CB103KY 0.01 16V Ceramic AB

C36 VCKYCZ1HB102KY 1000p 50V Ceramic AB

C38 RC-KZA069WJZZY 4.7 10V Ceramic AB

C39 VCKYCZ1AB104KY 0.1 10V Ceramic AB

C40 VCSATA0JJ156MY 15 6.3V Tantalum AC

C42 VCKYCZ1CB103KY 0.01 16V Ceramic AB

C43 VCKYCZ1CB103KY 0.01 16V Ceramic AB

C44 VCKYCZ1EB103KY 0.01 25V Ceramic AA

C45 VCKYCZ1EB103KY 0.01 25V Ceramic AA

C101 VCKYCZ1CB153KY 0.015 16V Ceramic AB

C103 VCKYCZ1CB103KY 0.01 16V Ceramic AB

C104 VCKYCZ1AB104KY 0.1 10V Ceramic AB

C105 VCKYCZ1AB104KY 0.1 10V Ceramic AB

C106 VCKYCZ1AB104KY 0.1 10V Ceramic AB

C107 VCKYTV1CB105KY 1 16V Ceramic AC

C108 VCKYCY0JB105KY 1 6.3V Ceramic AC

C109 VCSATA0JJ156MY 15 6.3V Tantalum AC

C110 VCKYCZ1CB103KY 0.01 16V Ceramic AB

C111 VCKYCY0JB105KY 1 6.3V Ceramic AC

C113 VCKYCZ1CB103KY 0.01 16V Ceramic AB

C114 VCKYCZ1CB103KY 0.01 16V Ceramic AB

C115 RC-KZA069WJZZY 4.7 10V Ceramic AB

C1002 RC-KZA069WJZZY 4.7 10V Ceramic AB

C1003 VCKYCZ1CB223KY 0.022 16V Ceramic AC

C1005 VCKYCZ1HB332KY 3300p 50V Ceramic AA

C1007 VCKYCZ1AB473KY 0.047 10V Ceramic AB

C1010 RC-KZ0124TAZZY Capacitor AC

C1011 VCCCCZ1HH101JY 100p 50V Ceramic AB

C1014 VCKYCZ1CB223KY 0.022 16V Ceramic AC

C1016 RC-KZA069WJZZY 4.7 10V Ceramic AB

C1018 VCKYCZ1AB104KY 0.1 10V Ceramic AB

C1111 VCKYCZ1CB103KY 0.01 16V Ceramic AB

RESISTORS

R3 VRS-CZ1JF102JY 1k 1/16W Metal Oxide AA

R4 VRS-CZ1JF272JY 2.7k 1/16W Metal Oxide AA

R5 VRS-CZ1JF105JY 1M 1/16W Metal Oxide AA

R6 VRS-CZ1JF104JY 100k 1/16W Metal Oxide AA

R7 VRS-CZ1JF105JY 1M 1/16W Metal Oxide AA

R22 VRS-CZ1JF000JY 0 1/16W Metal Oxide AA

R26 VRS-CZ1JF104JY 100k 1/16W Metal Oxide AA

R27 VRS-CZ1JF271JY 270 1/16W Metal Oxide AA

R28 VRS-CZ1JF182JY 1.8k 1/16W Metal Oxide AA

R29 VRS-CZ1JF000JY 0 1/16W Metal Oxide AA

R30 VRS-CZ1JF102JY 1k 1/16W Metal Oxide AA

R35 VRS-CZ1JF331JY 330 1/16W Metal Oxide AA

R36 VRS-CZ1JF000JY 0 1/16W Metal Oxide AA

R38 VRS-CZ1JF100JY 10 1/16W Metal Oxide AA

R39 VRS-CZ1JF000JY 0 1/16W Metal Oxide AA

R41 VRS-CZ1JF000JY 0 1/16W Metal Oxide AA

R103 VRS-CZ1JF333JY 33k 1/16W Metal Oxide AA

R106 VRK-SA1JF101JY 100 1/16W AC

Metal Composition

R107 VRK-SA1JF101JY 100 1/16W AC

Metal Composition

R108 VRK-SA1JF101JY 100 1/16W AC

Metal Composition

R109 VRK-SA1JF101JY 100 1/16W AC

Metal Composition

R110 VRK-SA1JF101JY 100 1/16W AC

Metal Composition

R1001 VRS-CZ1JF223JY 22k 1/16W Metal Oxide AA

R1003 VRS-CZ1JF223JY 22k 1/16W Metal Oxide AA

R1005 VRS-CZ1JF223JY 22k 1/16W Metal Oxide AA

R1007 VRS-CZ1JF103JY 10k 1/16W Metal Oxide AA

R1009 VRS-CZ1JF154DY 150k 1/16W Metal Oxide AB

R1011 VRS-CZ1JF274JY 270k 1/16W Metal Oxide AA

R1012 VRS-CZ1JF102JY 1k 1/16W Metal Oxide AA

R1013 VRS-CZ1JF103JY 10k 1/16W Metal Oxide AA

R1014 VRS-CZ1JF222JY 2.2k 1/16W Metal Oxide AA

R1015 VRS-CZ1JF153JY 15k 1/16W Metal Oxide AA

R1016 VRS-CZ1JF103JY 10k 1/16W Metal Oxide AA

R1017 VRS-CZ1JF154DY 150k 1/16W Metal Oxide AB

R1018 VRS-CZ1JF100JY 10 1/16W Metal Oxide AA

R1019 VRS-CZ1JF000JY 0 1/16W Metal Oxide AA

BALUNE

R23 RBLN-0257TAZZY Balun, BLN-0257TA AB

Ref. No. Part No. ★Description Code Ref. No. Part No. ★Description Code

145

VL-Z7S/E/Z7E-A/Z7E-W

VL-Z8H

MISCELLANEOUS PARTS

SC1001 QCNCWA082WJZZY Connector, 33Pin AG

TP1001 QLUGZA001WJZZY Lug AB

TP1002 QLUGZA001WJZZY Lug AB

TP1003 QLUGZA001WJZZY Lug AB

RMC1001

RSNSGA005WJPZY Gyro sensor AW

DUNTKB7281QA05

SUB PWB UNIT

INTEGRATED CIRCUITS

åCP1 QPRTRA002WJZZY PRTRA002WJ AD

åCP2 VHiCCP2B25/-1Y CCP2B25 AD

åCP3 VHiCCP2B25/-1Y CCP2B25 AD

IC501 RH-iXA526WJZZQ IXA526WJ AR

IC503 VHiMB8346BV-1Y MB88346BV AN

IC551 VHiUPD16835-1Y UPD16835, Lens Drive AM

IC600 VHiLA74206W-1Q LA74206W AP

IC2502 VHiNJ12902V-1Y NJM12902V AE

IC2901 VHiMM1332E/-1Y MM1332E AH

IC3600 VHiNJM2107F-1Y NJM2107F AE

IC3601 VHiAN2901FQ-1Y AN2901FQ AM

TRANSISTORS

Q501 VS12A01SS++-1Y 12A01SS++ AC

Q502 VSKRC401E++-1Y KRC401E++ AB

Q552 VSKRC402E++-1Y KRC402E++ AB

Q600 VSFMG12////-1Y FMG12 AD

Q601 VSKRC404E++-1Y KRC404E++ AB

Q604 VSXP4313///-1Y XP4313 AC

Q1501 VSKTA2014EY-1Y KTA2014EY AB

Q1502 VSXP6501///-1Y XP6501 AC

Q2551 VSXP1213///-1Y XP1213 AC

Q2552 VSXP4601///-1Y XP4601 AC

Q2553 VSXP1501///-1Y XP1501 AC

Q2901 VSFDC642P++-1Y FDC642P++ AE

Q2902 VSFDC642P++-1Y FDC642P++ AE

Q2903 VSFDT458P++-1Y FDT458P++ AE

Q2904 VSXP4213///-1Y XP4213 AC

Q2905 VSXP1213///-1Y XP1213 AC

Q2906 VSXN04391//-1Y XN04391 AC

Q3600 VSXP4601///-1Y XP4601 AC

Q3601 VSXP6501///-1Y XP6501 AC

Q3602 VSXP6401///-1Y XP6401 AC

Q3603 VSXP0431N++-1Y XP0431N++ AB

Q3604 VSKTC4075EY-1Y KTC4075EY AB

DIODES

C526 RH-VXA003WJZZY Varistor AC

D551 VHD1SS400++-1Y D1SS400++ AB

D2902 VHDKDS121E+-1Y DKDS121E+ AB

D2904 VHDRB160M30-1Y DRB160M30 AC

D2905 VHD1SS400++-1Y D1SS400++ AB

D2906 RH-EX1398CEZZY Zener Diode, EX1398CE AB

D3600 RH-EX1394CEZZY Zener Diode, EX1394CE AB

D3601 RH-EX1394CEZZY Zener Diode, EX1394CE AB

VA501 RH-VXA003WJZZY Varistor AC

VA600 RH-VXA003WJZZY Varistor AC

VA602 RH-VXA003WJZZY Varistor AC

VA603 RH-VXA003WJZZY Varistor AC

COILS

FL501 RFiLZA003WJPZY Filter, FiLZA003WJ AD

L501 VPD9M100KR86NY Peaking, 10µHAC

L551 VPD9M100KR86NY Peaking, 10µHAC

L600 VPCEM470M3R7NY Peaking, 47µHAC

L601 VPBWM100KR50NY Peaking, 10µHAC

L2900 RCiLFA009WJZZY Coil, CiLFA009WJ AG

L2901 RCiLP0323TAZZY Coil, 22µHAD

L3600 VPD9M470K4R1NY Peaking, 47µHAC

L3601 VPD9M470K4R1NY Peaking, 47µHAC

CAPACITORS

C501 VCKYCZ1CB103KY 0.01 16V Ceramic AB

C502 VCSATA1AJ106MY 10 10V Tantalum AC

C503 VCKYCZ1CB103KY 0.01 16V Ceramic AB

C506 VCCCCZ1HH101JY 100p 50V Ceramic AB

C507 VCSATA1AJ106MY 10 10V Tantalum AC

C509 VCCCCZ1HH101JY 100p 50V Ceramic AB

C521 VCKYCZ1HB102KY 1000p 50V Ceramic AB

C522 VCKYCZ1HB102KY 1000p 50V Ceramic AB

C523 VCKYCZ1HB102KY 1000p 50V Ceramic AB

C524 VCKYCZ1HB102KY 1000p 50V Ceramic AB

C525 VCKYCZ1HB102KY 1000p 50V Ceramic AB

C527 VCKYCZ1CB103KY 0.01 16V Ceramic AB

C528 VCKYCZ1CB103KY 0.01 16V Ceramic AB

C529 VCKYCZ1CB103KY 0.01 16V Ceramic AB

C551 RC-KZ0075TAZZY 2.2 16V Ceramic AC

C552 VCKYCZ1CB103KY 0.01 16V Ceramic AB

C553 VCCCCZ1HH330JY 33p 50V Ceramic AB

C554 VCKYCZ1CB103KY 0.01 16V Ceramic AB

C555 VCCCCZ1HH101JY 100p 50V Ceramic AB

C556 VCKYCZ1CB103KY 0.01 16V Ceramic AB

C557 VCCCCZ1HH101JY 100p 50V Ceramic AB

C558 VCKYCZ1CB103KY 0.01 16V Ceramic AB

C559 VCKYCZ1CB103KY 0.01 16V Ceramic AB

C561 VCKYCZ1CB103KY 0.01 16V Ceramic AB

C562 VCSATA0JJ106MY 10 6.3V Tantalum AD

C573 VCCCCZ1HH221JY 220p 50V Ceramic AB

C574 VCCCCZ1HH221JY 220p 50V Ceramic AB

C575 VCCCCZ1HH221JY 220p 50V Ceramic AB

C600 VCKYCZ1CB103KY 0.01 16V Ceramic AB

C601 VCKYCZ1CB103KY 0.01 16V Ceramic AB

C602 VCKYCY0JB105KY 1 6.3V Ceramic AC

C605 VCKYCZ1CB103KY 0.01 16V Ceramic AB

C612 VCSATA0JJ336MY 33 6.3V Tantalum AD

C627 VCSATA0JJ336MY 33 6.3V Tantalum AD

C630 RC-KZ0083TAZZY 2.2 10V Ceramic AC

C631 RC-KZ0083TAZZY 2.2 10V Ceramic AC

C632 VCKYCY0JB105KY 1 6.3V Ceramic AC

C633 VCKYCZ1AB104KY 0.1 10V Ceramic AB

C634 RC-KZA069WJZZY 4.7 10V Ceramic AB

C635 VCKYCY1AB224KY 0.22 10V Ceramic AB

C636 VCKYCZ1AB104KY 0.1 10V Ceramic AB

C637 VCKYCY0JB105KY 1 6.3V Ceramic AC

C638 VCKYCY1AB224KY 0.22 10V Ceramic AB

C641 VCSATA0JJ336MY 33 6.3V Tantalum AD

C642 VCSATE1AJ476MY 47 10V Tantalum AD

C645 VCKYCZ1AB104KY 0.1 10V Ceramic AB

C646 VCKYCZ1AB104KY 0.1 10V Ceramic AB

C1503 VCKYCZ1AF104ZY 0.1 10V Ceramic AB

C1513 VCSATA0JJ106MY 10 6.3V Tantalum AD

C2514 RC-KZ0075TAZZY 2.2 16V Ceramic AC

C2516 VCKYCY1AB224KY 0.22 10V Ceramic AB

C2517 VCKYCZ1CB103KY 0.01 16V Ceramic AB

C2518 VCKYCZ1HB102KY 1000p 50V Ceramic AB

C2519 VCKYCZ1AB104KY 0.1 10V Ceramic AB

C2520 VCCCCZ1HH151JY 150p 50V Ceramic AB

C2521 VCKYCZ1CB103KY 0.01 16V Ceramic AB

C2901 VCKYCY1CB104KY 0.1 16V Ceramic AB

C2902 VCKYTV1CF105ZY 1 16V Ceramic AB

C2903 VCKYCY1CB104KY 0.1 16V Ceramic AB

C2905 RC-KZA002WJZZY 4.7 16V Ceramic AC

C2906 VCKYCY1CB104KY 0.1 16V Ceramic AB

C2910 VCKYCY0JB105KY 1 6.3V Ceramic AC

C3600 VCKYCZ1AF104ZY 0.1 10V Ceramic AB

C3601 VCKYCZ1CB123KY 0.012 16V Ceramic AA

C3602 VCKYCZ1CB223KY 0.022 16V Ceramic AC

C3603 VCKYCZ1CB123KY 0.012 16V Ceramic AA

C3604 VCKYCZ1AF104ZY 0.1 10V Ceramic AB

C3605 VCKYCZ1AB104KY 0.1 10V Ceramic AB

C3606 VCKYCZ1AB104KY 0.1 10V Ceramic AB

C3607 VCSATA1AJ106MY 10 10V Tantalum AC

C3608 VCKYCZ1HB102KY 1000p 50V Ceramic AB

C3609 VCKYCZ1HB102KY 1000p 50V Ceramic AB

C3610 VCKYCZ1HB102KY 1000p 50V Ceramic AB

C3611 VCKYCZ1HB102KY 1000p 50V Ceramic AB

Ref. No. Part No. ★Description Code Ref. No. Part No. ★Description Code

146

VL-Z7S/E/Z7E-A/Z7E-W

VL-Z8H

R651 VRS-CZ1JF562JY 5.6k 1/16W Metal Oxide AA

R652 VRS-CY1JF000JY 0 1/16W Metal Oxide AA

R655 VRS-CZ1JF472JY 4.7k 1/16W Metal Oxide AA

R656 VRS-CZ1JF472JY 4.7k 1/16W Metal Oxide AA

R657 VRS-CY1JF000JY 0 1/16W Metal Oxide AA

R658 VRS-CY1JF000JY 0 1/16W Metal Oxide AA

R659 VRS-CZ1JF681JY 680 1/16W Metal Oxide AA

R1471 VRS-CZ1JF000JY 0 1/16W Metal Oxide AA

R1472 VRS-CZ1JF000JY 0 1/16W Metal Oxide AA

R1475 VRS-CY1JF000JY 0 1/16W Metal Oxide AA

R1476 VRS-CZ1JF000JY 0 1/16W Metal Oxide AA

R1477 VRS-CY1JF000JY 0 1/16W Metal Oxide AA

R1501 VRS-CZ1JF103DY 10k 1/16W Metal Oxide AA

R1502 VRS-CZ1JF103DY 10k 1/16W Metal Oxide AA

R1503 VRS-CZ1JF103DY 10k 1/16W Metal Oxide AA

R1504 VRS-CZ1JF103DY 10k 1/16W Metal Oxide AA

R1505 VRS-CZ1JF103DY 10k 1/16W Metal Oxide AA

R1506 VRS-CZ1JF103DY 10k 1/16W Metal Oxide AA

R1507 VRS-CZ1JF332DY 3.3k 1/16W Metal Oxide AA

R1508 VRS-CZ1JF000JY 0 1/16W Metal Oxide AA

R1509 VRS-CZ1JF153DY 15k 1/16W Metal Oxide AA

R1510 VRS-CZ1JF152JY 1.5k 1/16W Metal Oxide AA

R1511 VRS-CZ1JF104JY 100k 1/16W Metal Oxide AA

R1512 VRS-CZ1JF103DY 10k 1/16W Metal Oxide AA

R1513 VRS-CZ1JF103DY 10k 1/16W Metal Oxide AA

R2508 VRS-CZ1JF622DY 6.2k 1/16W Metal Oxide AA

R2509 VRS-CZ1JF104DY 100k 1/16W Metal Oxide AA

R2510 VRS-CZ1JF822DY 8.2k 1/16W Metal Oxide AA

R2511 VRS-CZ1JF223JY 22k 1/16W Metal Oxide AA

R2512 VRS-CZ1JF105JY 1M 1/16W Metal Oxide AA

R2513 VRS-CZ1JF153DY 15k 1/16W Metal Oxide AA

R2514 VRS-CZ1JF153JY 15k 1/16W Metal Oxide AA

R2515 VRS-CZ1JF153JY 15k 1/16W Metal Oxide AA

R2516 VRS-CZ1JF154JY 150k 1/16W Metal Oxide AA

R2520 VRS-CZ1JF122JY 1.2k 1/16W Metal Oxide AA

R2523 VRS-CZ1JF471JY 470 1/16W Metal Oxide AA

R2525 VRS-CZ1JF474JY 470k 1/16W Metal Oxide AA

R2526 VRS-CZ1JF222JY 2.2k 1/16W Metal Oxide AA

R2527 VRS-CZ1JF472JY 4.7k 1/16W Metal Oxide AA

R2528 VRS-CZ1JF682JY 6.8k 1/16W Metal Oxide AA

R2530 VRS-CZ1JF474JY 470k 1/16W Metal Oxide AA

R2531 VRS-CZ1JF682JY 6.8k 1/16W Metal Oxide AA

R2533 VRS-CZ1JF100JY 10 1/16W Metal Oxide AA

R2551 VRS-CZ1JF102JY 1k 1/16W Metal Oxide AA

R2552 VRS-CZ1JF153JY 15k 1/16W Metal Oxide AA

R2553 VRS-CZ1JF180JY 18 1/16W Metal Oxide AA

R2554 VRS-CZ1JF152JY 1.5k 1/16W Metal Oxide AA

R2555 VRS-CZ1JF222JY 2.2k 1/16W Metal Oxide AA

R2556 VRS-CZ1JF103JY 10k 1/16W Metal Oxide AA

R2557 VRS-CZ1JF103JY 10k 1/16W Metal Oxide AA

R2903 VRS-CZ1JF104JY 100k 1/16W Metal Oxide AA

R2905 VRS-CZ1JF105JY 1M 1/16W Metal Oxide AA

R2906 VRS-CZ1JF105JY 1M 1/16W Metal Oxide AA

R2907 VRS-CY1JF000JY 0 1/16W Metal Oxide AA

R2908 VRS-TV2BDR15JY 0.15 1/8W Metal Oxide AA

R2909 VRS-TV1JD1R5JY 1.5 1/16W Metal Oxide AA

R2910 VRS-CZ1JF224DY 220k 1/16W Metal Oxide AA

R2911 VRS-CZ1JF101JY 100 1/16W Metal Oxide AA

R2913 VRS-TW2HF181JY 180 1/2W Metal Oxide AA

R2914 VRS-CZ1JF224DY 220k 1/16W Metal Oxide AA

R2915 VRS-CZ1JF823DY 82k 1/16W Metal Oxide AA

R2916 VRS-CZ1JF823DY 82k 1/16W Metal Oxide AA

R2917 VRS-CZ1JF474JY 470k 1/16W Metal Oxide AA

R2918 VRS-CZ1JF474JY 470k 1/16W Metal Oxide AA

R2920 VRS-CZ1JF000JY 0 1/16W Metal Oxide AA

R3600 VRS-CZ1JF682JY 6.8k 1/16W Metal Oxide AA

R3601 VRS-CZ1JF222JY 2.2k 1/16W Metal Oxide AA

R3602 VRS-CZ1JF000JY 0 1/16W Metal Oxide AA

R3603 VRS-CZ1JF104JY 100k 1/16W Metal Oxide AA

R3604 VRS-CZ1JF563JY 56k 1/16W Metal Oxide AA

R3605 VRS-CZ1JF392JY 3.9k 1/16W Metal Oxide AA

R3606 VRS-CZ1JF104JY 100k 1/16W Metal Oxide AA

R3607 VRS-CZ1JF272JY 2.7k 1/16W Metal Oxide AA

R3608 VRS-CZ1JF392JY 3.9k 1/16W Metal Oxide AA

R3609 VRS-CZ1JF222JY 2.2k 1/16W Metal Oxide AA

C3612 VCSATA1AJ106MY 10 10V Tantalum AC

C3613 VCSATA1AJ106MY 10 10V Tantalum AC

C3614 VCKYCZ1AB104KY 0.1 10V Ceramic AB

C3615 VCKYCZ1AB104KY 0.1 10V Ceramic AB

C3616 VCKYCZ1AB104KY 0.1 10V Ceramic AB

C3617 VCKYCZ1AB104KY 0.1 10V Ceramic AB

C3618 VCKYCZ1AB104KY 0.1 10V Ceramic AB

C3619 VCKYCZ1AB104KY 0.1 10V Ceramic AB

C3620 VCKYCZ1CB123KY 0.012 16V Ceramic AA

C3621 VCKYCZ1CB123KY 0.012 16V Ceramic AA

C3622 VCKYCZ1CB153KY 0.015 16V Ceramic AB

C3623 VCKYCZ1HB392KY 3900p 50V Ceramic AA

C3624 VCKYCZ1EB682KY 6800p 25V Ceramic AB

C3625 VCKYCZ1CB153KY 0.015 16V Ceramic AB

C3626 VCKYCZ1EB682KY 6800p 25V Ceramic AB

C3627 VCKYCZ1HB392KY 3900p 50V Ceramic AA

C3628 VCKYCZ1CB223KY 0.022 16V Ceramic AC

C3629 VCKYCZ1CB223KY 0.022 16V Ceramic AC

C3630 VCKYCZ1CB223KY 0.022 16V Ceramic AC

C3631 VCKYCZ1CB223KY 0.022 16V Ceramic AC

C3632 VCKYCZ1AB104KY 0.1 10V Ceramic AB

C3635 VCSATA0JJ336MY 33 6.3V Tantalum AD

C3640 VCKYCY0JB105KY 1 6.3V Ceramic AC

C3646 VCSATA1AJ106MY 10 10V Tantalum AC

RESISTORS

R501 VRS-CZ1JF223JY 22k 1/16W Metal Oxide AA

R502 VRS-CZ1JF000JY 0 1/16W Metal Oxide AA

R504 VRS-CZ1JF102JY 1k 1/16W Metal Oxide AA

R505 VRS-CZ1JF102JY 1k 1/16W Metal Oxide AA

R506 VRS-CZ1JF102JY 1k 1/16W Metal Oxide AA

R507 VRS-CZ1JF153JY 15k 1/16W Metal Oxide AA

R508 VRS-CZ1JF102JY 1k 1/16W Metal Oxide AA

R509 VRS-CZ1JF273JY 27k 1/16W Metal Oxide AA

R510 VRS-CZ1JF102JY 1k 1/16W Metal Oxide AA

R512 VRS-CZ1JF000JY 0 1/16W Metal Oxide AA

R513 VRS-CZ1JF102JY 1k 1/16W Metal Oxide AA

R514 VRS-CZ1JF102JY 1k 1/16W Metal Oxide AA

R523 VRS-CZ1JF102JY 1k 1/16W Metal Oxide AA

R524 VRS-CZ1JF102JY 1k 1/16W Metal Oxide AA

R525 VRS-CZ1JF102JY 1k 1/16W Metal Oxide AA

R526 VRS-CZ1JF102JY 1k 1/16W Metal Oxide AA

R527 VRS-CZ1JF473DY 47k 1/16W Metal Oxide AA

R528 VRS-CZ1JF103JY 10k 1/16W Metal Oxide AA

R529 VRS-CZ1JF102JY 1k 1/16W Metal Oxide AA

R530 VRS-CZ1JF682JY 6.8k 1/16W Metal Oxide AA

R531 VRS-CZ1JF272JY 2.7k 1/16W Metal Oxide AA

R551 VRS-CZ1JF000JY 0 1/16W Metal Oxide AA

R552 VRS-CZ1JF123JY 12k 1/16W Metal Oxide AA

R553 VRS-CZ1JF104JY 100k 1/16W Metal Oxide AA

R554 VRS-CZ1JF5R6JY 5.6 1/16W Metal Oxide AA

R555 VRS-CZ1JF5R6JY 5.6 1/16W Metal Oxide AA

R557 VRS-CZ1JF5R6JY 5.6 1/16W Metal Oxide AA

R559 VRS-CZ1JF5R6JY 5.6 1/16W Metal Oxide AA

R572 VRS-CZ1JF223JY 22k 1/16W Metal Oxide AA

R573 VRS-CZ1JF223JY 22k 1/16W Metal Oxide AA

R578 VRS-CZ1JF181JY 180 1/16W Metal Oxide AA

R581 VRS-CZ1JF562JY 5.6k 1/16W Metal Oxide AA

R582 VRS-CZ1JF181JY 180 1/16W Metal Oxide AA

R600 VRS-CY1JF000JY 0 1/16W Metal Oxide AA

R601 VRS-CZ1JF682JY 6.8k 1/16W Metal Oxide AA

R602 VRS-CZ1JF472JY 4.7k 1/16W Metal Oxide AA

R603 VRS-CZ1JF121JY 120 1/16W Metal Oxide AA

R604 VRS-CZ1JF121JY 120 1/16W Metal Oxide AA

R605 VRS-CZ1JF473JY 47k 1/16W Metal Oxide AA

R632 VRS-CZ1JF683JY 68k 1/16W Metal Oxide AA

R633 VRS-CZ1JF393JY 39k 1/16W Metal Oxide AA

R634 VRS-CZ1JF393JY 39k 1/16W Metal Oxide AA

R635 VRS-CZ1JF682JY 6.8k 1/16W Metal Oxide AA

R636 VRS-CZ1JF682JY 6.8k 1/16W Metal Oxide AA

R637 VRS-CZ1JF102JY 1k 1/16W Metal Oxide AA

R638 VRS-CZ1JF102JY 1k 1/16W Metal Oxide AA

R639 VRS-CZ1JF683JY 68k 1/16W Metal Oxide AA

R643 VRS-CZ1JF000JY 0 1/16W Metal Oxide AA

R645 VRS-CZ1JF103JY 10k 1/16W Metal Oxide AA

Ref. No. Part No. ★Description Code Ref. No. Part No. ★Description Code

147

VL-Z7S/E/Z7E-A/Z7E-W

VL-Z8H

Q802 VS3LN01S///-1Y 3LN01S AC

Q9800 VSCPH5504++-1Y CPH5504++ AE

Q9801 VSXP4601///-1Y XP4601 AC

Q9802 VSKTC4075EY-1Y KTC4075EY AB

DIODES

D800 RH-EXA089WJZZY Zener Diode, EXA089WJ AB

D9800 RH-EXA089WJZZY Zener Diode, EXA089WJ AB

COILS AND TRANSFORMER

L800 VPD9M100KR86NY Peaking, 10µHAC

L9800 RCiLPA051WJZZY Coil, 33µHAD

åT9800 RTRNZA023WJZZY Transformer AH

CAPACITORS

C800 VCSATA0YJ336MY 33 7V Tantalum AD

C801 VCKYCZ1HF103ZY 0.01 50V Ceramic AB

C802 VCKYCZ1CB103KY 0.01 16V Ceramic AB

C803 VCKYCZ1CB103KY 0.01 16V Ceramic AB

C804 VCKYCZ1CB103KY 0.01 16V Ceramic AB

C807 VCKYCZ1CB103KY 0.01 16V Ceramic AB

C808 VCKYCY0JB105KY 1 6.3V Ceramic AC

C809 VCKYCZ1AF104ZY 0.1 10V Ceramic AB

C810 VCKYCY0JB105KY 1 6.3V Ceramic AC

C811 VCKYCY0JB105KY 1 6.3V Ceramic AC

C812 VCKYCY0JB105KY 1 6.3V Ceramic AC

C813 VCKYCZ1CB103KY 0.01 16V Ceramic AB

C814 VCKYCZ1AF104ZY 0.1 10V Ceramic AB

C815 RC-KZ0075TAZZY 2.2 16V Ceramic AC

C816 VCKYTV1CB105KY 1 16V Ceramic AC

C817 VCKYCY0JB105KY 1 6.3V Ceramic AC

C818 VCKYCZ1AF104ZY 0.1 10V Ceramic AB

C820 VCKYCZ1AF104ZY 0.1 10V Ceramic AB

C821 RC-KZ0083TAZZY 2.2 10V Ceramic AC

C9800 RC-KZA002WJZZY 4.7 16V Ceramic AC

C9801 VCKYCZ1AF104ZY 0.1 10V Ceramic AB

C9802 VCKYCZ1CB103KY 0.01 16V Ceramic AB

C9803 RC-CZ0061TAZZY 2200p 25V Ceramic AD

C9804 VCKYCY1HB332KY 3300p 50V Ceramic AA

C9805 RC-KZA052WJZZY 18p 7V Ceramic AD

C9807 VCKYCZ1AB104KY 0.1 10V Ceramic AB

RESISTORS

L801 VRS-TV1JD000JY 0 1/16W Metal Oxide AA

R800 VRS-CZ1JF101JY 100 1/16W Metal Oxide AA

R801 VRS-CZ1JF333DY 33k 1/16W Metal Oxide AA

R802 VRS-CZ1JF000JY 0 1/16W Metal Oxide AA

R803 VRS-CZ1JF100JY 10 1/16W Metal Oxide AA

R804 VRS-CZ1JF100JY 10 1/16W Metal Oxide AA

R805 VRS-CZ1JF100JY 10 1/16W Metal Oxide AA

R806 VRS-CZ1JF100JY 10 1/16W Metal Oxide AA

R807 VRS-CZ1JF100JY 10 1/16W Metal Oxide AA

R808 VRS-CZ1JF100JY 10 1/16W Metal Oxide AA

R809 VRS-CZ1JF103JY 10k 1/16W Metal Oxide AA

R810 VRS-CZ1JF1R0JY 1 1/16W Metal Oxide AA

R811 VRS-CZ1JF1R0JY 1 1/16W Metal Oxide AA

R812 VRS-CZ1JF100JY 10 1/16W Metal Oxide AA

R813 VRS-CZ1JF103JY 10k 1/16W Metal Oxide AA

R814 VRS-CZ1JF000JY 0 1/16W Metal Oxide AA

R815 VRS-CZ1JF000JY 0 1/16W Metal Oxide AA

R816 VRS-CZ1JF100JY 10 1/16W Metal Oxide AA

R817 VRS-CZ1JF100JY 10 1/16W Metal Oxide AA

R819 VRS-CZ1JF103JY 10k 1/16W Metal Oxide AA

R824 VRS-CZ1JF000JY 0 1/16W Metal Oxide AA

R825 VRS-CZ1JF563JY 56k 1/16W Metal Oxide AA

R826 VRS-CZ1JF104JY 100k 1/16W Metal Oxide AA

R827 VRS-CZ1JF823JY 82k 1/16W Metal Oxide AA

R9800 VRS-CZ1JF152JY 1.5k 1/16W Metal Oxide AA

R9801 VRS-CZ1JF152JY 1.5k 1/16W Metal Oxide AA

R9802 VRS-CZ1JF182DY 1.8k 1/16W Metal Oxide AA

R9803 VRS-CZ1JF103DY 10k 1/16W Metal Oxide AA

R9804 VRS-CZ1JF473JY 47k 1/16W Metal Oxide AA

R9805 VRS-CZ1JF271DY 270 1/16W Metal Oxide AA

R9806 VRS-CZ1JF271DY 270 1/16W Metal Oxide AA

R9807 VRS-CZ1JF101JY 100 1/16W Metal Oxide AA

R3610 VRS-CZ1JF222JY 2.2k 1/16W Metal Oxide AA

R3611 VRS-CZ1JF222JY 2.2k 1/16W Metal Oxide AA

R3612 VRS-CZ1JF223JY 22k 1/16W Metal Oxide AA

R3613 VRS-CZ1JF103JY 10k 1/16W Metal Oxide AA

R3614 VRS-CZ1JF103JY 10k 1/16W Metal Oxide AA

R3615 VRS-CZ1JF222JY 2.2k 1/16W Metal Oxide AA

R3616 VRS-CZ1JF682JY 6.8k 1/16W Metal Oxide AA

R3617 VRS-CZ1JF222JY 2.2k 1/16W Metal Oxide AA

R3618 VRS-CZ1JF682JY 6.8k 1/16W Metal Oxide AA

R3619 VRS-CZ1JF102JY 1k 1/16W Metal Oxide AA

R3620 VRS-CZ1JF102JY 1k 1/16W Metal Oxide AA

R3621 VRS-CZ1JF682JY 6.8k 1/16W Metal Oxide AA

R3622 VRS-CZ1JF682JY 6.8k 1/16W Metal Oxide AA

R3623 VRS-CZ1JF682JY 6.8k 1/16W Metal Oxide AA

R3624 VRS-CZ1JF103JY 10k 1/16W Metal Oxide AA

R3625 VRS-CZ1JF682JY 6.8k 1/16W Metal Oxide AA

R3626 VRS-CZ1JF822JY 8.2k 1/16W Metal Oxide AA

R3627 VRS-CZ1JF103JY 10k 1/16W Metal Oxide AA

R3628 VRS-CZ1JF822JY 8.2k 1/16W Metal Oxide AA

R3629 VRS-CZ1JF223JY 22k 1/16W Metal Oxide AA

R3630 VRS-CZ1JF223JY 22k 1/16W Metal Oxide AA

R3631 VRS-CZ1JF333JY 33k 1/16W Metal Oxide AA

R3632 VRS-CZ1JF333JY 33k 1/16W Metal Oxide AA

R3633 VRS-CZ1JF473JY 47k 1/16W Metal Oxide AA

R3634 VRS-CZ1JF473JY 47k 1/16W Metal Oxide AA

R3635 VRS-CZ1JF184JY 180k 1/16W Metal Oxide AA

R3639 VRS-CZ1JF332JY 3.3k 1/16W Metal Oxide AA

R3640 VRS-CZ1JF153JY 15k 1/16W Metal Oxide AA

R3641 VRS-CZ1JF102JY 1k 1/16W Metal Oxide AA

R3642 VRS-CZ1JF472JY 4.7k 1/16W Metal Oxide AA

R3643 VRS-CZ1JF154JY 150k 1/16W Metal Oxide AA

R3644 VRS-CZ1JF274JY 270k 1/16W Metal Oxide AA

R3645 VRS-CZ1JF103JY 10k 1/16W Metal Oxide AA

R3646 VRS-CZ1JF182JY 1.8k 1/16W Metal Oxide AA

R7426 VRS-CY1JF000JY 0 1/16W Metal Oxide AA

R7427 VRS-CY1JF000JY 0 1/16W Metal Oxide AA

R7428 VRS-CY1JF000JY 0 1/16W Metal Oxide AA

R7429 VRS-CY1JF000JY 0 1/16W Metal Oxide AA

BALUNES

FB600 RBLN-0120TAZZY Balun, BLN-0120TA AC

FB3601 RBLN-0102TAZZY Balun, BLN-0102TA AB

R1478 RBLN-0083GEZZY Balun, BLN-0083GE AB

R1479 RBLN-0083GEZZY Balun, BLN-0083GE AB

R1480 RBLN-0083GEZZY Balun, BLN-0083GE AB

MISCELLANEOUS PARTS

SC501 QCNCWA036WJZZY Connector, 15Pin AD

SC551 QCNCWA039WJZZY Connector, 5Pin AE

SC1501 QSOCZA039WJZZY Socket, 15Pin AK

J600 QJAKE0060TAZZ Jack AE

J1401 QJAKE0080TAZZY Jack, 8Pin AG

J2900 QJAKC0006TAZZ Jack, 3Pin AE

J7401 QJAKZA007WJZZ Jack, 4Pin AE

P900 QTANBA002WJZZ Terminal, 3Pin AF

P2901 QCNCM8058TAZZY Connector, 80Pin AG

P3602 QPLGN0474TAZZY Plug, 4Pin AD

DUNTKB726QA00

LCD PWB UNIT

INTEGRATED CIRCUITS

IC800 VHiBR24L02M-1Y BR24L02M AE

IC801 VHiiR3Y54U+-1Q IR3Y54U+ AS

IC802 VHiNC7NZ04K-1Y NC7NZ04K AD

IC803 VHiNC7SZ04P-1Y NC7SZ04P AD

IC804 VHiNC7WZ08K-1Y NC7WZ08K AD

IC9800 VHiTA75S01F-1Y TA75S01F AD

TRANSISTORS

Q800 VSXP4601///-1Y XP4601 AC

Q801 VSXP4601///-1Y XP4601 AC

Ref. No. Part No. ★Description Code Ref. No. Part No. ★Description Code

148

VL-Z7S/E/Z7E-A/Z7E-W

VL-Z8H

R9808 VRS-CZ1JF103JY 10k 1/16W Metal Oxide AA

R9809 VRS-CZ1JF473JY 47k 1/16W Metal Oxide AA

R9810 VRS-CY1JFR22JY 0.22 1/16W Metal Oxide AA

R9811 VRS-CZ1JF102DY 1k 1/16W Metal Oxide AA

R9812 VRS-CZ1JF153DY 15k 1/16W Metal Oxide AA

MISCELLANEOUS PARTS

SC800 QSOCN1892TAZZY Socket, 18Pin AD

SC801 QSOCN1892TAZZY Socket, 18Pin AD

SC802 QSOCN2492TAZZY Socket, 24Pin AE

SC803 QCNCW0694TAZZY Connector, 6Pin AD

SC9800 QSOCN1019TAN1Y Socket, 10Pin AG

DUNTKB733QA00

HEAD AMP PWB UNIT

INTEGRATED CIRCUITS

IC301 VHiLA70050W-1Y LA70050W AQ

IC351 VHiMB88146A-1Y MB88146A AH

IC1701 VHiLB11990F-1Y LB11990F AQ

TRANSISTORS

Q301 VS2SC4738Y/-1Y 2SC4738Y AA

Q302 VS2SC4738Y/-1Y 2SC4738Y AA

Q350 VSFDG312P++-1Y FDG312P++ AD

Q351 VSXP1111+++-1Y XP1111+++ AB

Q352 VSXP0431N++-1Y XP0431N++ AB

Q353 VSKRC404E++-1Y KRC404E++ AB

Q1701 VSXP6501///-1Y XP6501/// AC

COILS

L301 VPAWM4R7MR70NY Peaking, 4.7µHAB

L1701 VPD9M100KR86NY Peaking, 10µHAC

L1702 VPD9M4R7MR53NY Peaking, 4.7µHAB

CAPACITORS

C301 VCCCCZ1HH5R0CY 5p 50V Ceramic AA

C302 VCCCCZ1HH5R0CY 5p 50V Ceramic AA

C303 VCKYCZ1AB104KY 0.1 10V Ceramic AB

C306 VCKYCZ1AB104KY 0.1 10V Ceramic AB

C308 VCKYCZ1CB103KY 0.01 16V Ceramic AB

C309 VCSATE1AJ336MY 33 10V Tantalum AD

C311 VCKYCZ1AB104KY 0.1 10V Ceramic AB

C312 VCKYCZ1CB103KY 0.01 16V Ceramic AB

C313 RC-KZA069WJZZY 4.7 10V Ceramic AB

C314 VCKYCZ1CB103KY 0.01 16V Ceramic AB

C315 VCKYCZ1CB103KY 0.01 16V Ceramic AB

C316 VCKYCZ1HB471KY 470p 50V Ceramic AB

C317 VCKYCZ1HB471KY 470p 50V Ceramic AB

C318 VCKYCZ1CB103KY 0.01 16V Ceramic AB

C319 VCKYCZ1AB104KY 0.1 10V Ceramic AB

C320 VCKYCZ1CB103KY 0.01 16V Ceramic AB

C322 VCKYCZ1AB104KY 0.1 10V Ceramic AB

C323 VCKYCZ1CB822KY 8200p 16V Ceramic AB

C324 VCKYCZ1CB103KY 0.01 16V Ceramic AB

C350 VCKYCZ1AB104KY 0.1 10V Ceramic AB

C351 VCKYTV1AB105KY 1 10V Ceramic AC

C352 VCCCCZ1HH101JY 100p 50V Ceramic AB

C353 VCCCCZ1HH101JY 100p 50V Ceramic AB

C354 VCKYTV1AB105KY 1 10V Ceramic AC

C1701 VCKYCZ1CB223KY 0.022 16V Ceramic AC

C1702 VCKYCZ1CB223KY 0.022 16V Ceramic AC

C1703 VCKYTV1AB105KY 1 10V Ceramic AC

C1704 VCKYCY1AF105ZY 1 10V Ceramic AC

C1705 VCKYCZ1AB104KY 0.1 10V Ceramic AB

C1706 VCKYCZ1AF104ZY 0.1 10V Ceramic AB

C1707 VCKYCZ1AF104ZY 0.1 10V Ceramic AB

C1708 RC-KZ0083TAZZY 2.2 10V Ceramic AC

C1709 VCKYCZ1AF104ZY 0.1 10V Ceramic AB

C1710 VCKYCZ1AF104ZY 0.1 10V Ceramic AB

C1711 VCKYTV1AB105KY 1 10V Ceramic AC

C1712 VCKYCZ1AF104ZY 0.1 10V Ceramic AB

C1713 VCKYCZ1HB102KY 1000p 50V Ceramic AB

C1714 VCKYCZ1AF104ZY 0.1 10V Ceramic AB

C1715 VCKYCZ1HB102KY 1000p 50V Ceramic AB

C1716 VCKYCZ1HB102KY 1000p 50V Ceramic AB

C1717 VCKYCZ1AF104ZY 0.1 10V Ceramic AB

C1718 VCKYCZ1AF104ZY 0.1 10V Ceramic AB

C1719 VCKYCY0JF105ZY 1 6.3V Ceramic AB

C1720 VCKYCZ1AF104ZY 0.1 10V Ceramic AB

C1721 VCKYCY0JF105ZY 1 6.3V Ceramic AB

C1722 VCKYCY1CB473KY 0.047 16V Ceramic AA

C1723 VCKYCZ1EB472KY 4700p 25V Ceramic AB

C1724 VCKYCY1AF105ZY 1 10V Ceramic AC

C1725 VCKYCZ1AF104ZY 0.1 10V Ceramic AB

C1726 VCKYCZ1AF104ZY 0.1 10V Ceramic AB

C1727 VCCCCZ1HH101JY 100p 50V Ceramic AB

C1728 VCKYCY1AF105ZY 1 10V Ceramic AC

RESISTORS

R301 VRS-CZ1JF222JY 2.2k 1/16W Metal Oxide AA

R302 VRS-CZ1JF183JY 18k 1/16W Metal Oxide AA

R303 VRS-CZ1JF822JY 8.2k 1/16W Metal Oxide AA

R304 VRS-CZ1JF222JY 2.2k 1/16W Metal Oxide AA

R305 VRS-CZ1JF272JY 2.7k 1/16W Metal Oxide AA

R306 VRS-CZ1JF153JY 15k 1/16W Metal Oxide AA

R308 VRS-CZ1JF000JY 0 1/16W Metal Oxide AA

R309 VRS-CZ1JF183JY 18k 1/16W Metal Oxide AA

R311 VRS-CZ1JF102JY 1k 1/16W Metal Oxide AA

R312 VRS-CZ1JF102JY 1k 1/16W Metal Oxide AA

R314 VRS-CZ1JF102JY 1k 1/16W Metal Oxide AA

R316 VRS-CZ1JF000JY 0 1/16W Metal Oxide AA

R317 VRS-CZ1JF000JY 0 1/16W Metal Oxide AA

R318 VRS-CZ1JF000JY 0 1/16W Metal Oxide AA

R319 VRS-CZ1JF563JY 56k 1/16W Metal Oxide AA

R350 VRS-CZ1JF105JY 1M 1/16W Metal Oxide AA

R351 VRS-CZ1JF000JY 0 1/16W Metal Oxide AA

R352 VRS-CZ1JF104JY 100k 1/16W Metal Oxide AA

R353 VRS-CZ1JF000JY 0 1/16W Metal Oxide AA

R354 VRS-CZ1JF000JY 0 1/16W Metal Oxide AA

R355 VRS-CZ1JF000JY 0 1/16W Metal Oxide AA

R356 VRS-CZ1JF104JY 100k 1/16W Metal Oxide AA

R357 VRS-CZ1JF104JY 100k 1/16W Metal Oxide AA

R358 VRS-CZ1JF104JY 100k 1/16W Metal Oxide AA

R359 VRS-CZ1JF000JY 0 1/16W Metal Oxide AA

R360 VRS-CZ1JF221JY 220 1/16W Metal Oxide AA

R361 VRS-CZ1JF000JY 0 1/16W Metal Oxide AA

R362 VRS-CZ1JF000JY 0 1/16W Metal Oxide AA

R363 VRS-CZ1JF000JY 0 1/16W Metal Oxide AA

R364 VRS-CZ1JF221JY 220 1/16W Metal Oxide AA

R365 VRS-CZ1JF104JY 100k 1/16W Metal Oxide AA

R366 VRS-CZ1JF104JY 100k 1/16W Metal Oxide AA

R367 VRS-CZ1JF000JY 0 1/16W Metal Oxide AA

R1700 VRS-CZ1JF151JY 150 1/16W Metal Oxide AA

R1701 VRS-CZ1JF151JY 150 1/16W Metal Oxide AA

R1702 VRS-CZ1JF182JY 1.8k 1/16W Metal Oxide AA

R1703 VRS-CZ1JF182JY 1.8k 1/16W Metal Oxide AA

R1704 VRS-CZ1JF103JY 10k 1/16W Metal Oxide AA

R1705 VRS-CZ1JF393JY 39k 1/16W Metal Oxide AA

R1706 VRS-CZ1JF223JY 22k 1/16W Metal Oxide AA

R1707 VRS-CZ1JF103JY 10k 1/16W Metal Oxide AA

R1708 VRS-CZ1JF1R0JY 1 1/16W Metal Oxide AA

R1709 VRS-CZ1JF1R0JY 1 1/16W Metal Oxide AA

R1710 VRS-CZ1JF1R0JY 1 1/16W Metal Oxide AA

R1711 VRS-CZ1JF1R0JY 1 1/16W Metal Oxide AA

R1712 VRS-CZ1JF105JY 1M 1/16W Metal Oxide AA

R1713 VRS-CZ1JF331JY 330 1/16W Metal Oxide AA

R1714 VRS-CZ1JF621JY 620 1/16W Metal Oxide AA

R1715 VRS-CZ1JF103JY 10k 1/16W Metal Oxide AA

R1716 VRS-CZ1JF223JY 22k 1/16W Metal Oxide AA

R1717 VRS-CZ1JF330JY 33 1/16W Metal Oxide AA

R1718 VRS-CZ1JF102JY 1k 1/16W Metal Oxide AA

R1719 VRS-CZ1JF103JY 10k 1/16W Metal Oxide AA

R1720 VRS-CZ1JF000JY 0 1/16W Metal Oxide AA

R1721 VRS-CZ1JF000JY 0 1/16W Metal Oxide AA

R1722 VRS-CZ1JF102JY 1k 1/16W Metal Oxide AA

R1723 VRS-CZ1JF182JY 1.8k 1/16W Metal Oxide AA

Ref. No. Part No. ★Description Code Ref. No. Part No. ★Description Code

149

VL-Z7S/E/Z7E-A/Z7E-W

VL-Z8H

R1724 VRS-CZ1JF182JY 1.8k 1/16W Metal Oxide AA

R1725 VRS-CZ1JF000JY 0 1/16W Metal Oxide AA

R1726 VRS-CZ1JF330JY 33 1/16W Metal Oxide AA

R1727 VRS-CZ1JF103JY 10k 1/16W Metal Oxide AA

R1728 VRS-CZ1JF102JY 1k 1/16W Metal Oxide AA

R1729 VRS-CZ1JF000JY 0 1/16W Metal Oxide AA

R1731 VRS-CZ1JF000JY 0 1/16W Metal Oxide AA

MISCELLANEOUS PARTS

P301 QPLGN0576TAZZY Plug, 5Pin AC

SC301 QSOCN1092TAZZY Socket, 10Pin AD

SC303 QSOCN1092TAZZY Socket, 10Pin AD

SC304 QSOCN0706TAN1Y Socket, 7Pin AE

SC305 QCNCWA037WJZZY Connector, 21Pin AD

SC306 QCNCWA081WJZZY Connector, 27Pin AG

SC307 QCNCWA041WJZZY Connector, 33Pin AE

SC308 QCNCWA041WJZZY Connector, 33Pin AE

SC310 QSOCN1292TAZZY Socket, 12Pin AD

SC311 QSOCN1005TAN1Y Socket, 10Pin AE

TP301 QLUGZA001WJZZY Lug AB

TP302 QLUGZA001WJZZY Lug AB

DUNTKB731PM00

LITHIUM PWB UNIT

INTEGRATED CIRCUITS

IC5800 VHiNC7NZ04K-1Y NC7NZ04K AD

IC5801 VHiNC7SZ04P-1Y NC7SZ04P AD

DIODE

D5801 RH-EXA089WJZZY Zener Diode, EXA089WJ AB

CAPACITORS

C5800 VCKYCZ1AF104ZY 0.1 10V Ceramic AB

C5801 VCKYCY0JB105KY 1 6.3V Ceramic AC

C5802 VCKYCZ1AF104ZY 0.1 10V Ceramic AB

C5803 VCKYCY0JB105KY 1 6.3V Ceramic AC

RESISTORS

R5800 VRS-CZ1JF000JY 0 1/16W Metal Oxide AA

R5801 VRS-CZ1JF333JY 33k 1/16W Metal Oxide AA

R5802 VRS-CZ1JF123JY 12k 1/16W Metal Oxide AA

MISCELLANEOUS PARTS

SW5800 QSW-MA001WJZZY Switch AD

J5800 QJAKEA014WJZZ Jack, 5Pin AE

RDA5800

QTANZA012WJZZY Terminal AE

SC5800 QCNCWA039WJZZY Connector, 25Pin AE

SC5801 QCNCW2294TAZZY Connector, 22Pin AE

DUNTKB730PM00

OPERATION SW PWB UNIT

CAPACITORS

C2001 VCKYCZ1HB102KY 1000p 50V Ceramic AB

C2002 VCKYCZ1HB102KY 1000p 50V Ceramic AB

C2003 VCKYCZ1HB102KY 1000p 50V Ceramic AB

C2004 VCKYCZ1HB102KY 1000p 50V Ceramic AB

C2005 VCKYCZ1HB102KY 1000p 50V Ceramic AB

C2006 VCKYCZ1HB102KY 1000p 50V Ceramic AB

C2007 VCKYCZ1HB102KY 1000p 50V Ceramic AB

C2008 VCKYCZ1HB102KY 1000p 50V Ceramic AB

C2009 VCKYCZ1HB102KY 1000p 50V Ceramic AB

C2010 VCKYCY1EB104KY 0.1 25V Ceramic AB

C2011 VCKYCY1EB104KY 0.1 25V Ceramic AB

MISCELLANEOUS PARTS

SC2002 QSOCN0907REN1Y Socket, 9Pin AD

SW2001 QSW-K0100TAZZY Switch AC

SW2002 QSW-KA013WJZZ Switch AL

SW2007 QSW-K0100TAZZY Switch AC

DUNTKB734PM00

VCR OPERATION PWB UNIT

LED’S

LED2101RH-PXA038WJZZY PhotoDIODE AC

LED2102RH-PXA037WJZZY PhotoDIODE AB

CAPACITORS

C2101 VCKYCZ1HB102KY 1000p 50V Ceramic AB

C2102 VCKYCZ1HB102KY 1000p 50V Ceramic AB

RESISTORS

R2101 VRS-CZ1JF102JY 1k 1/16W Metal Oxide AA

R2102 VRS-CZ1JF102JY 1k 1/16W Metal Oxide AA

MISCELLANEOUS PARTS

SW2101 QSW-S0212TAZZY Switch, MEDIA AD

SW2102 QSW-S0210TAZZY Switch AD

SW2103 QSW-MA005WJZZY Switch, EJECT AD

SW2104 QSW-K0100TAZZY Switch, STANBY AC

SW2105 QSW-K0100TAZZY Switch, REC AC

SC2101 QSOCN1292TAZZY Socket, 12Pin AD

DUNTKB735PM00

ZOOM SW PWB UNIT

CONTROL

VR2201 RVR-VA001WJZZY Variable Resistor AG

CAPACITORS

C2201 VCKYCZ1HB102KY 1000p 50V Ceramic AB

C2202 VCKYCZ1HB102KY 1000p 50V Ceramic AB

MISCELLANEOUS PARTS

SW2201 QSW-K0097TAZZY Switch AD

P2201 QPLGN0276TAZZY Plug, 2Pin AD

SC2201 QSOCN1006TAN1Y Socket, 10Pin AE

PSLDMA195WJZZ Shield AD

DUNTKB732PM00

MECHA REVERSION DETECTION PWB UNIT

MISCELLANEOUS PART

SW2300 QSW-M0018TAZZY Switch AC

Ref. No. Part No. ★Description Code Ref. No. Part No. ★Description Code

150

VL-Z7S/E/Z7E-A/Z7E-W

VL-Z8H

MECHANISM PARTS

300 CCHSMA013WJ01 Mecha Chassis Service BQ

301 LCHSMA013WJZZ Main Chassis Ass'y AQ

302 QSW-RA002WJZZ Mode SW AF

303 QPWBHB546WJZZ LM/Mode FPC AG

304 NGERHA001WJFW Main Cam AD

305 MLEVFA007WJFW Ejection Lever AD

306 NGERHA002WJFW Sub Cam AD

307 MLEVFA002WJFW SL Drive Lever AD

308 MLEVFA004WJFW S brake Operating Lever AC

309 MLEVFA003WJFW T arm Operating Lever AE

310 PGiDMA003WJZZ SLA Support AC

311 RMOTMA002WJZZ L Motor Ass'y AN

312 RDTCH0039GEZZ Dew Sensor AD

313 PGiDMA002WJZZ TLA Support AC

314 NGERHA007WJZZ Center Gear AE

315 RMOTVA001WJZZ Capstan Motor Ass'y AY

316 NPLYVA001WJZZ Relay Pulley AD

317 CGiDMA005WJ01 Drum Base Ass'y AN

318 CARMMA003WJ01 Tu Pole Base Loading AP

Arm Ass'y

319 NGERHA005WJZZ Tu Loading Gear AC

320 MSPRDA009WJFJ Tu Press SPR AC

321 CARMMA001WJ01 S Pole Base Loading AQ

Arm Ass'y

322 NGERHA004WJZZ S Loading Gear AC

323 MSPRDA008WJFJ S Press SPR AC

324 NGERHA006WJZZ Loading Drive Gear AD

325 PGiDMA001WJZZ Guide Rail AC

326 MLEVFA005WJZZ Pinch Press Lever Ass'y AG

327 MSPRTA002WJFJ Pinch Press SPR AC

328 MSPRDA007WJFJ Pinch Lever Return SPR AC

329 MLEVFA015WJZZ Pinch Lever Ass'y AQ

341 CCHSSA001WJ01 Sensor FPC Affixing BC

Slide Chassis Ass'y

342 LANGGA012WJFW Slide Adjustment ANG AC

343 LANGJA001WJFW T-SPR Adjustment ANG AC

344 MSPRDA010WJFJ Tu guide Arm SPR AC

345 MLEVFA012WJZZ Tu guide Arm Ass'y AG

346 MSPRCA022WJFJ Guide Adjustment SPR AC

347 PGiDSA003WJFW Tu Guide Flange AC

348 PGiDPA001WJFW Tu Guide AD

349 LX-NZ0102GEFW Guide Nut AC

350 MLEVFA011WJFW VSR Brake Lever AE

351 NGERHA008WJZZ T Brake Gear AE

352 MLEVPA003WJZZ T Main Brake AC

353 NDAiVA001WJZZ S Reel Table Ass'y AL

354 NDAiVA002WJZZ Tu Reel Table Ass'y AL

355 MLEVPA002WJZZ S Main Brake AE

356 MSPRTA004WJFJ S Brake SPR AC

357 CLEVFA009WJ01 Tension Arm Ass'y AK

358 LBNDKA001WJZZ Tension Band Ass'y AE

359 MSPRTA003WJFJ T Arm SPR AC

371 MARMMA005WJZZ Swing Arm Ass'y AG

372 LANGFA011WJZZ Reel Cover Ass'y AG

373 LANGGA013WJFW Down Guide AF

374 PCOVPA009WJZZ Cassette Lid AC

375 TLABHA012WJZZ Cassette Control AC

Caution Label

376 TLABHA015WJZZ Cassette Control Lock AC

Label

377 DDRMVA001WJ01 Drum Ass'y BN

400 LX-BZ3131GEFN Special Screw M1.4 x L1.6 AA

401 LX-HZ3089GEFF S Tight M1.4 x 2 AA

402 LX-HZ3076GEFF S Tight M1.4 x 3 AA

403 LX-BZA016WJFF Special Screw M1.4 x L2.0 AC

404 LX-BZA015WJFF Special Screw M1.4 x L1.5 AC

405 LX-BZ3135GEFF Precision Type2 M1.4 x L1 AA

406 LX-BZA017WJFF L Motor Installation Screw AC

407 LX-BZ3159GEFF Precision Type2 AA

M1.7 x L2.5

408 LX-WZ1029GE00 CW ø 1.2 ø 3t0.25 AA

409 LX-WZ1052GE00 CW ø 0.7 ø 1.8t0.2 AA

410 XWHJZ21-02040 W ø 2.1 ø 4.0t0.25 AA

CASSETTE CONTROL PARTS

200 CHLDXA002WJ01 Cassette Control Ass’y AQ

201 LHLDXA002WJZZ Housing Ass'y AN

202 MSPRTA005WJFJ UP-SPR-R AC

203 MSPRTA008WJFJ UP-SPR-L AC

Ref. No. Part No. ★Description Code Ref. No. Part No. ★Description Code

151

VL-Z7S/E/Z7E-A/Z7E-W

VL-Z8H

CABINET PARTS LIST

1 CCOVHA030WJK1 KS Adjusting Cover AH

(Z7S/SA/R/E/EW/X/Z8H)

1 CCOVHA030WJK2 KS Adjusting Cover AK

(Z7EEW/EWW)

1 CCOVHA030WJK3 KS Adjusting Cover AH

(Z7EEA/EWA)

1-2 GFTAUA001WJSA Card Lid AD

1-3 NSFTZA023WJFW Card Lid Shaft AA

2 CCABAA246WJK1 KS Camera R Cabinet AP

(Z7S/SA/R/E/EW/X/Z8H)

2 CCABAA246WJK2 KS Camera R Cabinet AQ

(Z7EEW/EWW)

2 CCABAA246WJK3 KS Camera R Cabinet AQ

(Z7EEA/EWA)

2-2 LANGKA120WJFW PWB mounting Angle AG

3 CCABBA165WJK2 KS Camera L Cabinet AX

(Z7S/SA/R/E/EW/X)

3 CCABBA165WJK3 KS Camera L Cabinet AY

(Z7EEW/EWW)

3 CCABBA165WJK4 KS Camera L Cabinet AW

(Z7EEA/EWA)

3 CCABBA182WJK1 KS Camera L Cabinet AX

(Z8H)

3-2 GCOVAA319WJSA Pop-up Cover AC

3-3 HBDGB3137CESD SHARP Badge AG

(Z7S/SA/R/E/EW/X/Z7EEW/EWW/

Z8H)

3-3 HBDGB3137CESF SHARP Badge AG

(Z7EEA/EWA)

3-4 JBTN-A129WJSA Display Button AE

3-5 JKNBPA010WJSA Battery Lock Knob AE

(Z7S/SA/R/E/EW/X/Z8H)

3-5 JKNBPA010WJSB Battery Lock Knob AC

(Z7EEW/EWW)

3-5 JKNBPA010WJSD Battery Lock Knob AE

(Z7EEA/EWA)

3-6 LANGKA156WJFW Pop-up Cover Fitting AD

3-7 LHLDZA147WJSA Battery Lock Holder AD

3-8 MSPRCA019WJFJ Battery Lock Spring AA

3-9 MSPRCA025WJFJ Pop-up Cover Spring AA

3-10 PSHEPA095WJZZ Battery Blind Sheet AC

3-11 PSPAZA185WJZZ LCD Spacer AB

3-12 TLABHA020WJZZ Lithium Label AC

3-14 PSLDMA196WJZZ Electrostatic Spacer AD

3-15 PSPAHA138WJZZ Top Face Sliding Spacer AB

3-16 PSPAZA259WJZZ Top Face Sliding Spacer B AB

4 CCABCA007WJK1 KS Terminal Cabinet AR

(Z7S/SA/R/E/EW/X/Z8H)

4 CCABCA007WJK2 KS Terminal Cabinet AU

(Z7EEW/EWW)

4 CCABCA007WJK3 KS Terminal Cabinet AR

(Z7EEA/EWA)

4-2 GCOVAA315WJSA Terminal Cover AL

(Z7S/SA/R/E/EW/X/Z8H)

4-2 GCOVAA315WJSB Terminal Cover AN

(Z7EEW/EWW)

4-2 GCOVAA315WJSD Terminal Cover AM

(Z7EEA/EWA)

4-3 GCOVAA317WJSA DC Terminal Cover AD

(Z7S/SA/R/E/EW/X/

Z7EEW/EWW/Z8H)

4-3 GCOVAA317WJSD DC Terminal Cover AD

(Z7EEA/EWA)

4-4 PSLDMA195WJZZ Electrostatic Sheet AD

5 CCOVAA321WJK1 KS Camera Front Cover AY

(Z7S/SA/R/E/EW/X/Z8H)

5 CCOVAA321WJK2 KS Camera Front Cover AY

(Z7EEW/EWW)

5 CCOVAA321WJK9 KS Camera Front Cover AW

(Z7EEA/EWA)

5-2 GCOVAA322WJKA Lens Cover AF

5-3 GCOVAA324WJSA Remote Control Cover AM

5-4 HDECAA012WJSA Microphone Grill AH

(Z7S/SA/R/E/EW/X/Z7EEW/EWW/

Z8H)

5-4 HDECAA012WJSC Microphone Grill AH

(Z7EEA/EWA)

5-5 HiNDPA432WJSA Lens Cover Nameplate AD

5-6 LHLDZA148WJZZ Microphone Holder AD

5-7 PCOVPA016WJZZ Microphone Sheet AC

5-8 QEARPA062WJFJ Microphone Earth AC

5-9 RMiCC0108TAZZ Microphone Unit AP

5-10 ZTAPEZ800020E Microphone Lead Sheet AA

6 CCOVAA370WJK1 KS Camera Top Face Cover AX

(Z7S/SA/R/E/EW/X/Z8H)

6 CCOVAA370WJK2 KS Camera Top Face Cover AX

(Z7EEW/EWW)

6 CCOVAA370WJK3 KS Camera Top Face Cover AS

(Z7EEA/EWA)

6-2 LANGKA123WJFW Shoe Fixing Bracket AF

6-3 LANGKA151WJFW Top Face Cover Fitting AF

6-4 LANGTA048WJFW Shoe Fitting AE

6-5 QJAKE0083TAZZ Hot Shoe Unit AM

6-6 QPWBHB739WJZZ Hot Shoe FPC AH

7 CCOVAA326WJ01 KS Camera Bottom Cover AR

(Z7S/SA/R/E/EW/X/Z8H)

7 CCOVAA326WJ02 KS Camera Bottom Cover AS

(Z7EEW/EWW)

7 CCOVAA326WJ03 KS Camera Bottom Cover AS

(Z7EEA/EWA)

7-2 LANGKA152WJFW Bottom Cover Fitting A AE

8-1 DHLDZA154WJ01 Slide Support Holder Ass’y AZ

8-1-1 GCOVAA328WJSA VF Eye Cap AH

8-1-2 GCOVAA330WJSA VF Dust Removing AC

Window Cover

8-1-3 JKNBPA011WJSA VF Diopter Scale Control AC

8-1-4 LANGGA017WJ00 VF Slide Cover AM

8-1-5 LANGKA128WJZZ VF Diopter Scale Fixing AM

Bracket Ass’y

8-1-6 LHLDZA151WJZZ VF Eye Cap Fixing Holder AD

8-1-7 LHLDZA152WJKA VF Diopter Scale Holder AD

8-1-9 LHLDZA181WJSA VF Diopter Scale Control AC

Holder

8-1-10 MSPRPA021WJFJ Diopter Scale Control AC

Rotary Spring

8-1-11 PLNSVA001WJNA VF Lens Unit AG

8-2 LANGKA133WJFW VF Fixing Bracket AF

8-3 LHLDZA155WJZZ VF LCD Holder AC

8-4 LHLDZA156WJZZ VF LCD Support Holder AC

8-5 PSHEPA093WJZZ VF Side Blind Sheet AB

8-6 PSPAGA069WJZZ VF LCD Spacer AD

8-7 QEARPA068WJFW VF Relay PWB Earth Plate AD

8-8 QEARPA070WJFW VF Side Operation PWB AD

Earth Plate

8-9 RLCUCA003WJZZ Backlight Unit BH

9-1-2 LANGKA125WJFW Lens Fixing Bracket A AF

10-1 CANGKA117WJ01 KS LCD Shield Case AL

(Rear)

10-1-2 PSHEPA072WJZZ Lightproof Sheet AF

10-1-3 PTPEHA017WJZZ LCD Fixing Tape AC

10-2 CCABDA013WJ10 KS LCD Cabinet AN

(Z7EEA/EWA)

10-2 CCABDA013WJK8 KS LCD Cabinet AM

(Z7S/SA/R/E/EW/X/Z8H)

10-2 CCABDA013WJK9 KS LCD Cabinet AQ

(Z7EEW/EWW)

10-2-2 TLABZA213WJZZ Feature Label AE

10-2-3 PSHEPA099WJZZ LCD Cabinet AB

Attachment (KS Attachment)

10-3 CCOVAA314WJK1 LCD Tilt Unit Ass’y BA

(Z7S/SA/R/E/EW/X/Z8H)

10-3 CCOVAA314WJK2 LCD Tilt Unit Ass’y BB

(Z7EEW/EWW)

10-3 CCOVAA314WJK3 LCD Tilt Unit Ass’y BB

(Z7EEA/EWA)

10-3-3 LANGKA119WJZZ LCD Tilt Unit AX

10-3-4 QPWBHB736WJZZ LCD Tilt FPC AR

Ref. No. Part No. ★Description Code Ref. No. Part No. ★Description Code

152

VL-Z7S/E/Z7E-A/Z7E-W

VL-Z8H

10-3-5 TMAGTA001WJZZ Magnet AD

10-4 CLMPVA002WJ01 Lamp Unit AR

10-6 DUNTKB726QA00 LCD PWB Unit —

10-7 GCOVAA313WJKA LCD Front Cover AL

(Z7S/SA/R/E/EW/X/Z8H)

10-7 GCOVAA313WJKB LCD Front Cover AN

(Z7EEW/EWW)

10-7 GCOVAA313WJKD LCD Front Cover AD

(Z7EEA/EWA)

10-8 LANGKA118WJFW LCD Shield Case (Front) AF

10-9 PGiDM0036TAZZ Optical Waveguide AG

10-10 PMiR-A022WJZZ Reflection Sheet AC

10-11 PSHEPA076WJZZ DBEF Sheet AG

10-12 PSHEPA087WJZZ Prism Sheet AF

10-13 PSHEPA092WJZZ Diffusion Sheet AD

10-14 PSLDMA167WJZZ Shield Sheet AC

10-15 RLCDVA002WJZZ LCD Panel BN

10-16 PSHEPA098WJZZ Lightproof Sheet A AE

10-17 PSHEPA105WJZZ Creak-preventive Sheet AB

10-18 PSPAZA272WJZZ LCD PWB Spacer A AB

10-19 PSPAZA273WJZZ LCD PWB Spacer B AB

11 DUNTKB721QA05 MAIN PWB Unit —

(Z7S/SA/R)

11 DUNTKB721QA08 MAIN PWB Unit —

(Z7E/EW/X/Z7EEA/EWA/

Z7EEW/EWW)

11 DUNTKB721QA09 MAIN PWB Unit(Z8H) —

11-2 LHLDZA173WJZZ R/C Element Holder AC

11-3 RRMCUA012WJZZ R/C AF

12 DUNTKB728QA05 SUB PWB Unit —

13 DUNTKB730PM00 Operation PWB Unit —

14 DUNTKB731PM00 Lithium PWB Unit —

15 GCOVAA334WJSA Shoe Terminal Cover AD

16 GCOVAA335WJSA Lens Hood A AQ

17 KLMPWA005WJZZ Strobe Unit AZ

18 LANGKA130WJFW LCD Tilt Reinforcing Fitting AF

19 LANGKA131WJFW Radiating Angle AE

20 LHLDZA172WJSA Operation PWB Fixing AD

Holder

21 MLEVPA005WJSA LCD Lock Lever AC

22 MSPRCA026WJFJ LCD Lock Spring AA

23 PSPAZA189WJZZ Leakproof Sheet AD

24 QEARPA061WJFW Operation Unit Earth Plate AC

25 QPWBHB740WJZZ Strobe FPC AD

26 QPWBHB742WJZZ Lithium PWB FPC AE

27 GCOVA1815TASB Shoe Cover AD

(Z7S/SA/R/E/EW/X/

Z7EEW/EWW/Z8H)

27 GCOVA1815TASD Shoe Cover AD

(Z7EEA/EWA)

28 GFTABA004WJSA Lithium Lid AE

(Z7S/SA/R/E/EW/X/Z8H)

28 GFTABA004WJSB Lithium Lid AG

(Z7EEW/EWW)

28 GFTABA004WJSD Lithium Lid AE

(Z7EEA/EWA)

29 TLABMA401WJZZ Model Label(Z7S) AC

29 TLABMA419WJZZ Model Label(Z7R) AD

29 TLABMA421WJZZ Model Label(Z7E) AD

29 TLABMA422WJZZ Model Label(Z7EW) AD

29 TLABMA423WJZZ Model Label(Z7X) AD

29 TLABMA427WJZZ Model Label(Z8H) AD

29 TLABMA515WJZZ Model Label(Z7EWA) AD

29 TLABMA516WJZZ Model Label(Z7EWW) AD

29 TLABMA517WJZZ Model Label(Z7EEA) AD

29 TLABMA518WJZZ Model Label(Z7EEW) AD

29 TLABMA519WJZZ Model Label(Z7SA) AD

30 HiNDPA390WJSA Lens Nameplate AD

31 QPWBHB744WJZZ Hole Sensor PWB AB

32 VHiEW6671++-1Y Hole Sensor AE

a XiPSN17P02000 Screw M1.7 x 2 AA

b XiPSN17P03000 Screw M1.7 x 3 AA

c XiPSN17P04000 Screw M1.7 x 4 AA

d XiPSF17P02000 Screw M1.7 x 2 AA

e XiPSF17P03000 Screw M1.7 x 3 AA

f XiPSF17P04000 Screw M1.7 x 4 AA

n LX-HZ0050TAFF Screw M1.7-4 TAP AA

m XiPSF17P06000 Screw M1.7-6 AA

o LX-HZA009WJFD Screw AA

p LX-HZ0063TAFN Screw M1.7-6 TAP GIN AA

q XiPSN17P06000 Screw M1.7 x 6 AA

r XiPSN20P08000 Screw M2.0 x 8 AA

s XiPSF14P06000 Screw M1.4 x 6 AA

x LX-HZ0050TAFN Screw M1.7 x 4 TAP AA

z LX-HZ0063TAFF Screw M1.7-6 TAP AA

CABINET MECHANISM PARTS LIST

101 CANGKA141WJ01 KS Camera Tilt BA

101-2 LANGKA143WJFW Tilt Ring Fitting AH

101-3 LANGKA144WJFW Tilt FPC Fitting AF

101-4 LANGKA145WJFW Tilt Holding Ring AF

101-5 LHLDZA165WJZZ Tilt FPC Fixing Holder AD

101-6 PSHEPA079WJZZ Tilt FPC Sheet A AB

101-7 PSHEPA080WJZZ Tilt FPC Sheet B AB

101-8 PSPAZA170WJZZ Norglide Ring AG

101-9 PSPAZA172WJZZ Tilt Ring Epacer AE

101-10 QCNW-B171WJZZ Tilt Ring Wire AF

101-11 QEARPA063WJFN Tilt Earth Ring AE

101-12 QPWBHB737WJZZ Tilt FPC AN

103 CCOVAA353WJK3 KS Preparation Cover AS

(Z7S/SA/R/E/EW/X/Z8H)

103 CCOVAA353WJK8 KS Preparation Cover AU

(Z7EEW/EWW)

103 CCOVAA353WJK9 KS Preparation Cover AT

(Z7EEA/EWA)

103-2 JBTN-A130WJSA Snap Button AG

103-3 JKNBPA013WJSA Zoom Knob AE

103-4 LHLDZA160WJZZ Zoom Knob Holder AC

103-5 LHLDZA163WJZZ Zoom Base Holder AC

103-6 MSPRCA020WJFJ Zoom Knob Spring AA

103-7 PSPAZA217WJZZ Zoom Spacer AB

104 GCOVAA338WJKA Tilit Cover AK

(Z7S/SA/R/E/EW/X/Z8H)

104 GCOVAA338WJKB Tilit Cover(Z7EEW/EWW) AM

104 GCOVAA338WJKD Tilit Cover(Z7EEA/EWA) AL

105 CCOVAA354WJK1 KS VCR Operation AT

105-2 GCOVAA344WJZZ LED Cover AC

105-3 GCOVAA345WJSA Power Knob Cover AE

105-4 JBTN-A132WJSA Power Lock Button AC

105-5 JBTN-A133WJSA S/S Button AH

105-6 JBTN-A134WJSC Standby Button AD

105-7 JKNBPA015WJSC Power Knob AD

105-8 MSPRCA023WJFJ Lock Button Spring AA

106 GCOVAA340WJKA VCR Front Cover AK

(Z7S/SA/R/E/EW/X/Z8H)

106 GCOVAA340WJKB VCR Front Cover AM

(Z7EEW/EWW)

106 GCOVAA340WJKD VCR Front Cover AL

(Z7EEA/EWA)

108 DUNTKB732PM00 Mechanism Reversion —

Detection PWB Unit

109 DUNTKB733QA00 Head Amp PWB Unit —

110 DUNTKB734PM00 VCR Operation PWB Unit —

111 DUNTKB735PM00 Zoom SW PWB Unit —

112 GCOVAA337WJSA Lock Support Cover AD

(Z7EEA/EWA)

112 GCOVAA337WJSB Lock Support Cover AD

(Z7S/SA/R/E/EW/X/

Z7EEW/EWW/Z8H)

113 GCOVAA341WJKA VCR Bottom Cover AK

(Z7S/SA/R/E/EW/X/Z8H)

113 GCOVAA341WJKB VCR Bottom Cover AM

(Z7EEW/Z7EWW)

113 GCOVAA341WJKD VCR Bottom Cover AL

(Z7EEA/EWA)

Ref. No. Part No. ★Description Code Ref. No. Part No. ★Description Code

153

VL-Z7S/E/Z7E-A/Z7E-W

VL-Z8H

SUPPLIED ACCESSORIES

ACCESSORIES

QCNW-B173WJZZ A/V S Cable AR

QCNW-A703WJZZ USB Cable AH

åQACCBA004WJPZ AC Cable AR

(Z7EW/Z7EWA/Z7EWW/Z8H)

åQACCKA004WJPZ AC Cable AM

(Z7S/SA/R/E/Z7EEA/Z7EEW)

åQACCL0026TAZZ AC Cable(Z7X) AN

RRMCGA149WJSA Remote Control AM

åUADP-A016WJZZ AC Adapter AZ

CDSKA0080TA01 8MB SD Memory Card BE

GCOVHA002WJZZ Lens Cap AH

UBATiA008WJZZ Battery Pack(BT-L226) BE

UBATL0011TAZZ Lithium Battery(CR2025) AE

UBATLA001WJZZ Lithium Battery(CR1216) AE

TiNS-A029WJZZ Operation Manual(Z7R) AQ

TiNS-A735WJZZ Operation Manual(Z7SA) AP

TiNSE0154TAZZ Service Guide(Z8H) AA

TiNSEA049WJZZ Operation Manual(Z8H) AN

TiNSLA048WJZZ Operation Manual AT

(Z7E/X/Z7EEA/Z7EEW)

TiNSLA049WJZZ Operation Manual AT

(Z7EW/Z7EWA/Z7EWW)

TiNSLA050WJZZ Operation Manual AT

(German/French)(Z7S)

TiNSLA051WJZZ Operation Manual AT

(Dutch/Italian/Spanish)(Z7S)

TiNSLA052WJZZ Operation Manual AT

(Swedish/Portuguese/English)

(Z7S)

TiNSLA063WJZZ Operation Manual AT

(Z7S/SA)

TiNSLA067WJZZ Operation Manual AN

(Z7E/Z7EEA/Z7EEW)

QPLGA0010GEZZ Plug Converter AF

(Z7E/Z7EEA/Z7EEW)

ACCESSORIES

(NOT REPLACEMENT ITEM)

TGAN-A077WJZZ Guarantee Card(Z7R) —

TGANE0004TAZZ Guarantee Card —

(Z7EW/Z7EWA/Z7EWW/Z8H)

TGANEA004WJZZ Guarantee Card(Z8H) —

TGANEA005WJZZ Guarantee Card(Z7X) —

TGANLA003WJZZ Guarantee Card —

(Z7S/Z8H)

TLABK0001TAZZ No. Card(x2) —

114 GCOVAA386WJKA Strap Cover AF

(Z7S/SA/R/E/EW/X/Z8H)

114 GCOVAA386WJKB Strap Cover AH

(Z7EEW/EWW)

114 GCOVAA386WJKD Strap Cover AG

(Z7EEA/EWA)

115 GFTACA021WJKA Cassette Lid AH

(Z7S/SA/R/E/EW/X/Z8H)

115 GFTACA021WJKB Cassette Lid AM

(Z7EEW/EWW)

115 GFTACA021WJKD Cassette Lid AL

(Z7EEA/EWA)

116 JKNBPA012WJSA Lid Opening Knob AE

(Z7S/SA/R/E/EW/X/

Z7EEW/EWW/Z8H)

116 JKNBPA017WJSA Lid Opening Knob AE

(Z7EEA/EWA) AE

117 JKNBPA014WJSC Media Selector Knob AE

118 LANGKA138WJ01 Chassis Frame AY

119 LHLDZA162WJZZ Lid Lock AD

120 LHLDZA164WJZZ Selector Knob Holder AC

121 LHLDZA178WJZZ Lid lock Holder AD

122 MSPRTA007WJFJ VCR Lid Lock Spring AB

123 PSHEPA085WJZZ Cassette Lid Backside AB

Sheet

125 QCNW-B167WJZZ Operation PWB FFC AC

126 QEARPA065WJFW Zoom SW PWB Earth Plate AC

127 QEARPA066WJFW Power Knob Earth Plate AC

128 QPWBHB746WJZZ Zoom PWB FPC AE

129 VSP0020P-B2WN Speaker AK

132 LHLDE1004TASA Fixture AC

133 GCOVAA420WJSA Strap Front Angle Cover AD

134 GCOVAA421WJSA Strap Rear Angle Cover AD

a XiPSN17P02000 Screw M1.7 x 2 AA

b XiPSN17P03000 Screw M1.7 x 3 AA

d XiPSF17P02000 Screw M1.7 x 2 AA

e XiPSF17P03000 Screw M1.7 x 3 AA

f XiPSF17P04000 Screw M1.7 x 4 AA

g LX-BZA024WJFD Tilt Screw AA

h LX-BZ0220TAFC Screw M1.7 x 2 AB

k LX-BZA023WJFD Floating Screw B AA

u LX-BZ0221TAFC Screw M1.7 x 3 AB

w LX-BZA022WJFN Floating Screw A AA

x LX-HZ0050TAFN Screw M1.7 x 4 TAP AA

y LX-HZ0081TAFN Screw M1.7 x 5 AA

LENS UNIT PARTS LIST

2 DUNTKB723QA01 CCD PWB Unit —

3 CLNS-A005RMA5 CCD Service BQ

4 PCOVMA006WJ00 Dustproof Rubber AD

5 PFiLWA017WJZZ Crystal LFO AL

6 PLNSAA005WJN1 Lens BT

7 PSHEGA015WJZZ Radiating Sheet A AD

8 PSHEGA016WJZZ Radiating Sheet B AE

9 PSHEGA017WJZZ Radiating Sheet C AF

10 PSLDMA141WJFW CCD Shield Case AC

11 QPWBHB738WJZZ CCD—Main FPC AD

13 XiPSN17P02000 Screw M1.7 x 2 AA

14 LX-HZ0073TAFD Screw M1.7 x 5 AA

Ref. No. Part No. ★Description Code Ref. No. Part No. ★Description Code

154

VL-Z7S/E/Z7E-A/Z7E-W

VL-Z8H

PACKING PARTS

(NOT REPLACEMENT ITEM)

SPAKCA770WJZZ Packing Case(Z7SA) —

SPAKCA551WJZZ Packing Case(Z7R/S) —

SPAKCA579WJZZ Packing Case(Z8H) —

SPAKCA581WJZZ Packing Case(Z7E/EW/X) —

SPAKCA707WJZZ Packing Case —

(Z7EEA/EWA)

SPAKCA708WJZZ Packing Case —

(Z7EEW/EWW)

SPAKAA084WJZZ Packing Add. (Bottom) —

SPAKFA195WJZZ Operation Manual Pad —

(Z7R/S)

SPAKFA196WJZZ Operation Manual Pad —

(Z8H)

SPAKFA197WJZZ Operation Manual Pad —

(Z7E/EW/X/EEAZ7/EWA/

Z7EEW/EWW)

SPAKFA226WJZZ Operation Manual Pad —

(Z7SA)

SPAKCA530WJZZ Packing Case —

SPAKPA088WJZZ Wrapping Paper —

SSAKA0087TAZZ Polyethylene Bag —

(Z7SA/R/E/EW/X/

Z7EEA/EWA/Z7EEW/EWW)

SSAKA0109TAZZ Polyethylene Bag(Z7S) —

SSAKAA008WJZZ Polyethylene Bag(Z8H) —

SPAKP6108TAZZ Side Pad —

Ref. No. Part No. ★Description Code Ref. No. Part No. ★Description Code

155

VL-Z7S/E/Z7E-A/Z7E-W

VL-Z8H

MECHANISM CHASSIS EXPLODED VIEW

123456

CLOSING

CASSETTE

COMPARTMENT

1±0.3

375

374

200

309

409

303

400

302

308

307

407

321 403

300

310

325 404

318

320

319

401

315

377

402

317

402

405

372

371

354

350

352

351

344

345

346

347

348

347

349

326

314

357

409

410

359

401

358

355

405

402

401

404

341

376

373

404

356

401

342

343

405

327

328

409

408

329

408 316

313

305

306

304

301

401

323

322

406

402

312

311

408

324

353

156

VL-SD20U

VL-Z7S/E/Z7E-A/Z7E-W

VL-Z8H

123456

CABINET EXPLODED VIEW

10-18

10-19

8-6

8-9

8-5

8-4

8-3

8-2

8-8

8-1-2

8-1-9

8-1-10

8-1-3

8-1-5

8-1-11

8-1-6

8-1-1

8-1-4

8-1-7

10-2

10-2-2

10-2-3

10-6

10-17

10-16

10-3-4

10-3-5

10-3-3

4-3

4-2

4-4

3-4

3-16

3-12

3-3 29

3-5

3-11

3-2

3-9

3-6

3-7

3-14

3-8

3-10

3-15

6-4 6-5

6-6

6-3

6-2

11 11-3

11-2

2-2

7-2

10-7

1-2

1-3

10-8

10-15

10-1-3

10-1-2

10-1

10-11

10-12

10-13

10-9

10-4

10-10

10-14

8-1

10-3

KJI

8-7

9-1-2

5-5

5-2 5-3

5-4

5-7

5-6

5-9

5-10

5-8

* : VL-Z7EEA/EWA model only

157

VL-Z7S/E/Z7E-A/Z7E-W

VL-Z8H

CABINET MECHANISM EXPLODED VIEW

123456

105-4

105-8

105-5

105-7

105-6

105-2

101-7

101-10

101-12

101-11

105-8

105-3

117

127

105

125

110

120

118

109

103-2

103-4

103-6

103-7

103-3

103-5

101-9

101-8

101-4

101-3

101-6

101-5

101-2

101

108

103

111

126

121

116

122

119

128 104

112

106

129

123

133

134

114

115

132

113

* : VL-Z7EEA/EWA model only

Ref. No. Part No. ★Description Code Ref. No. Part No. ★Description Code

158

VL-Z7S/E/Z7E-A/Z7E-W

VL-Z8H

CASSETTE CONTROL EXPLOOD VIEW

123456

LENS UNIT EXPLOOD VIEW

123456

200

201

202

203

159

VL-Z7S/E/Z7E-A/Z7E-W

VL-Z8H

VL-Z7S/E/Z7E-A/Z7E-W/Z8H SERVICE JIG SPECIFICATIONS

1-1. Adjusting jigs for checking the mechanism

No. Name

New part

Type number, Application Part code Code

1 Cassette torque meter for PB 1mN·m/1.5mN·m 9DASD-1015 DB

2 Torque gauge

For measurement of VS-REW winding torque.

JiGTG0045 CN

3 Torque gauge head For torque gauge shown left. 9EQTGH-DH5000 BW

4 Tension gauge 4N

For measurement of pinch roller press force.

JiGSG0400 BK

5 Dial tension gauge PTG-10 9DAPTG-10-10W CA

6 Torque driver 150mN·m No. 0 cross bit, No. 00 cross bit JiGTD1500RTDH CB

7 Master plane For checking of height of reel table0. 9EQMP-VLPD1 CL

8 Height adjustment jig For height adjustment. 9DAHG-PD1 BZ

9 Driver for height adjustment For adjustment of guide roller. 9EQDRiVER-DH5 BC

Bit shape.

10 Alignment tape - (I)

Adjustment of running system(Linear signal)

VR3-GAZXS CF

11 Alignment tape - (II)

For adjustment of SW point(Color bar signal)

VR3-JPZQS CG

12 Bit for hexagon nut with opposite side For installation of Tu guide nut. 95CM22001 BL

distance of 3 mm

13 Reel hub for back tension measurement Refer to Service Manual. Prepared in the service station. –

14 String for measuring the pinch roller pressure Refer to Service Manual. Prepared in the service station. –

1-2. Parts for periodical inspection and maintenance

No. Name

New part

Type number, Application Part code Code

1 Oil Cosmo Hydro HV22 9EQ-OiL-HV22 AE

2 Cleaning paper Dusper ∑ (SIGMA) ozu Co., LTD JiGDUSPER AP

3 Grease: Moly Coat YM-103 Dow corning 99FGREASE-YM103 AH

4 Dry greace CFD-409Z Sankei Chemical –

5 Loctite adhesive (1401B) Three Bond –

160

VL-SD20U

VL-Z7S/E/Z7E-A/Z7E-W

VL-Z8H

17. PACKING OF THE SET

No. Model Parts Code Description Remarks

1 Z7EW/Z7EWA/ QACCBA004WJPZ AC Cable å

Z7EWW/Z8H

Z7S/SA/R/E/ QACCKA004WJPZ AC Cable å

Z7EEA/Z7EEW

Z7X QACCL0026TAZZ AC Cable å

2 – Common parts –QCNW-A703WJZZ USB Cable

3 – Common parts –QCNW-B173WJZZ A/V S Cable

4 – Common parts –GCOVHA002WJZZ Lens Cap

5 – Common parts –RRMCGA149WJSA Remote Control

6 – Common parts –UADP-A016WJZZ AC Adapter å

7 Z8H TiNSE0154TAZZ Service Guide

8 Z7R TiNS-A029WJZZ Operation Manual

Z7SA TiNS-A735WJZZ Operation Manual

Z8H TiNSEA049WJZZ Operation Manual

Z7S/SA TiNSLA063WJZZ Operation Manual

Z7E/Z7EEA/Z7EEW TiNSLA067WJZZ Operation Manual

Z7E/X/Z7EEA/Z7EEW

TiNSLA048WJZZ Operation Manual

Z7EW/Z7EWA/Z7EWW

TiNSLA049WJZZ Operation Manual

Z7S TiNSLA050WJZZ Operation Manual

(German/French)

Z7S TiNSLA051WJZZ Operation Manual

(Dutch/Italian/Spanish)

Z7S TiNSLA052WJZZ Operation Manual

(Swedish/Portuguese/English)

9 – Common parts –UBATiA008WJZZ Battery Pack (BT-L226)

10 – Common parts –UBATL0011TAZZ Lithium Battery (CR2025)

11 – Common parts –UBATLA001WJZZ Lithium Battery (CR1216)

12 Z7E/Z7EEA/Z7EEW QPLGA0010GEZZ Plug Converter

13 – Common parts –CDSKA0080TA01 8MB SD Memory Card

PACKING PARTS

(NOT REPLACEMENT ITEM)

No. Model Parts Code Description Remarks

16 Z7SA SPAKCA770WJZZ Packing Case ★

Z7R/S SPAKCA551WJZZ Packing Case ★

Z8H SPAKCA579WJZZ Packing Case ★

Z7E/EW/X SPAKCA581WJZZ Packing Case ★

Z7EEA/EWA SPAKCA707WJZZ Packing Case ★

Z7EEW/EWW SPAKCA708WJZZ Packing Case ★

17 – Common parts –SPAKAA084WJZZ Packing Add.(Bottom) ★

18 Z7S/R SPAKFA195WJZZ Operation Manual Pad ★

Z8H SPAKFA196WJZZ Operation Manual Pad ★

Z7E/EW/X/Z7EEA/EWA/

SPAKFA197WJZZ Operation Manual Pad ★

Z7EEW/EWW

Z7SA SPAKFA226WJZZ Operation Manual Pad ★

19 – Common parts –SPAKCA530WJZZ Packing Case ★

20 – Common parts –SPAKPA088WJZZ Wrapping Paper ★

Z7SA/R/E/EW/X/Z7EEA/

SSAKA0087TAZZ Polyethylene Bag ★

EWA/

Z7EEW/

EWW

Z7S SSAKA0109TAZZ Polyethylene Bag ★

Z8H SSAKAA008WJZZ Polyethylene Bag ★

22 – Common parts –SPAKP6108TAZZ Side Pad ★

ACCESSORIES

(NOT REPLACEMENT ITEM)

No. Model Parts Code Description Remarks

14 Z7R TGAN-A077WJZZ Guarantee Card ★

Z7EW/Z7EWA/ TGANE0004TAZZ Guarantee Card ★

Z7EWW/Z8H

Z8H TGANEA004WJZZ Guarantee Card ★

Z7X TGANEA005WJZZ Guarantee Card ★

Z7S/Z8H TGANLA003WJZZ Guarantee Card ★

15 – Common parts –TLABK0001TAZZ No. Card(x2) ★

ACCESSORIES

MARK ★ Not Replacement Item

No.17

No.16

No.20

No.22

No.15

No.8, No.14

No.21

VL-Z7S/SA/R

No.18

No.11

No.10

No.4

No.3

No.19

No.5

No.9

No.13

No.1

No.6

No.18

No.7, No.8,

No.14

No.2

VL-Z8H

Z8H

Z8H Z7S/E/E-A/E-W

No.21

No.9

No.1

No.12

(E/E-A/E-W only)

No.8, No.14

No.21

VL-Z7E/EW/X/Z7EEA/EWA/

Z7EWW/EEW

Z7S/E/

E-A/E-W Z7X

No.18

No.1

161

VL-Z7S/E/Z7E-A/Z7E-W

VL-Z8H

162

VL-SD20U

VL-Z7S/E/Z7E-A/Z7E-W

VL-Z8H

No part of this publication may be reproduced,

stored in a retrieval system, or transmitted in

any form or by any means, electronic, mechanical,

photocopying, recording, or otherwise, without

prior written permission of the publisher.

SHARP CORPORATION

AV Systems Group

Quality & Reliability Control Center

Yaita, Tochigi 329-2193, Japan

TQ1542-S

Jul. 2003 Printed in Japan

In Japan gedruckt

SA. DS

Design and Production Information

Design : Japan

Production : Japan

VLZ8H

Navigation menu

Versions of this User Manual:

Views

Navigation
