SERVICE MANUAL
Contents
1. OUTLINE OF CIRCUIT DESCRIPTION ............................... 3
2. DISASSEMBLY ................................................................... 12
3. ELECTRICAL ADJUSTMENT ............................................. 17
4. USB STORAGE INFORMATION REGISTRATION ............ 22
5. TROUBLESHOOTING GUIDE............................................ 23
6. PARTS LIST........................................................................ 24
CIRCUIT DIAGRAMS & PRINTED WIRING BOARDS........... C1
CAUTION : Danger of explosion if battery is incorrectly replaced.
Replace only with the same or equivalent type recommended by the
manufacturer.
Discard used batteries according to the manufacturer’s instructions.
NOTE : 1. Parts order must contain model number, part number, and description.
2. Substitute parts may be supplied as the service parts.
3. N. S. P. : Not available as service parts.
Design and specification are subject to change without notice.
SG111/U, EX, EX2, EX3, GX (R) REFERENCE No. SM5310684
FILE NO.
Digital Movie Camera VPC-CG6
(Product Code : 168 069 01)
(U.S.A.) (Canada) (Korea) (Taiwan)
VPC-CG6EX
(Product Code : 168 069 02)
(Europe) (U.K.) (South America)
(China) (Australia) (Hong Kong)
(Russia) (Middle East) (Africa)
(General) (Korea) (Taiwan)
RoHS
•This product does not contain any hazardous substances prohibited by the RoHS
Directive.
WARNING
•You are requested to use RoHS compliant parts for maintenance or repair.
•You are requested to use lead-free solder.
(This product has been manufactured using lead-free solder. Be sure to follow the
warning given on page 2 when carrying out repair work.)
VPC-CG6EXBL
(Product Code : 168 069 05)
(Europe) (U.K.) (South America)
(China) (Australia) (Hong Kong)
(Russia) (Middle East) (Africa)
(General) (Korea) (Taiwan)
VPC-CG6EXP
(Product Code : 168 069 06)
(Europe) (U.K.) (South America)
(China) (Australia) (Hong Kong)
(Russia) (Middle East) (Africa)
(General) (Korea) (Taiwan)
VPC-CG6GX
(Product Code : 168 069 07)
(South America) (China)
(Australia) (Hong Kong)
(General) (Korea) (Taiwan)
– 2 –
WARNING
Do not use solder containing lead.
This product has been manufactured using lead-free solder in
order to help preserve the environment.
Because of this, be sure to use lead-free solder when carrying
out repair work, and never use solder containing lead.
Lead-free solder has a melting point that is 30 - 40°C (86 -
104°F) higher than solder containing lead, and moreover it does
not contain lead which attaches easily to other metals. As a
result, it does not melt as easily as solder containing lead, and
soldering will be more difficult even if the temperature of the
soldering iron is increased.
The extra difficulty in soldering means that soldering time will
increase and damage to the components or the circuit board
may easily occur.
Because of this, you should use a soldering iron and solder
that satisfy the following conditions when carrying out repair
work.
Soldering iron
Use a soldering iron which is 70 W or equivalent, and which
lets you adjust the tip temperature up to 450°C (842°F). It
should also have as good temperature recovery characteris-
tics as possible.
Set the temperature to 350°C (662°F) or less for chip compo-
nents, to 380°C (716°F) for lead wires and similar, and to 420°C
(788°F) when installing and removing shield plates.
The tip of the soldering iron should have a C-cut shape or a
driver shape so that it can contact the circuit board as flat or in
a line as much as possible.
Solder
Use solder with the metal content and composition ratio by
weight given in the table below. Do not use solders which do
not meet these conditions.
Lead-free solder is available for purchase as a service tool.
Use the following part number when ordering:
Part name: Lead-free solder with resin (0.5 mm dia., 500 g)
Part number: VJ8-0270
Metal content Tin (Sn) Silver (Ag) Copper (Cu)
Composition
ratio by weight 96.5 % 3.0 % 0.5 %
Note:
If replacing existing solder containing lead with lead-free sol-
der in the soldered parts of products that have been manufac-
tured up until now, remove all of the existing solder at those
parts before applying the lead-free solder.
The components designated by a symbol ( ! ) in this schematic diagram designates components whose value are of
special significance to product safety. Should any component designated by a symbol need to be replaced, use only the part
designated in the Parts List. Do not deviate from the resistance, wattage, and voltage ratings shown.
PRODUCT SAFETY NOTICE
– 3 –

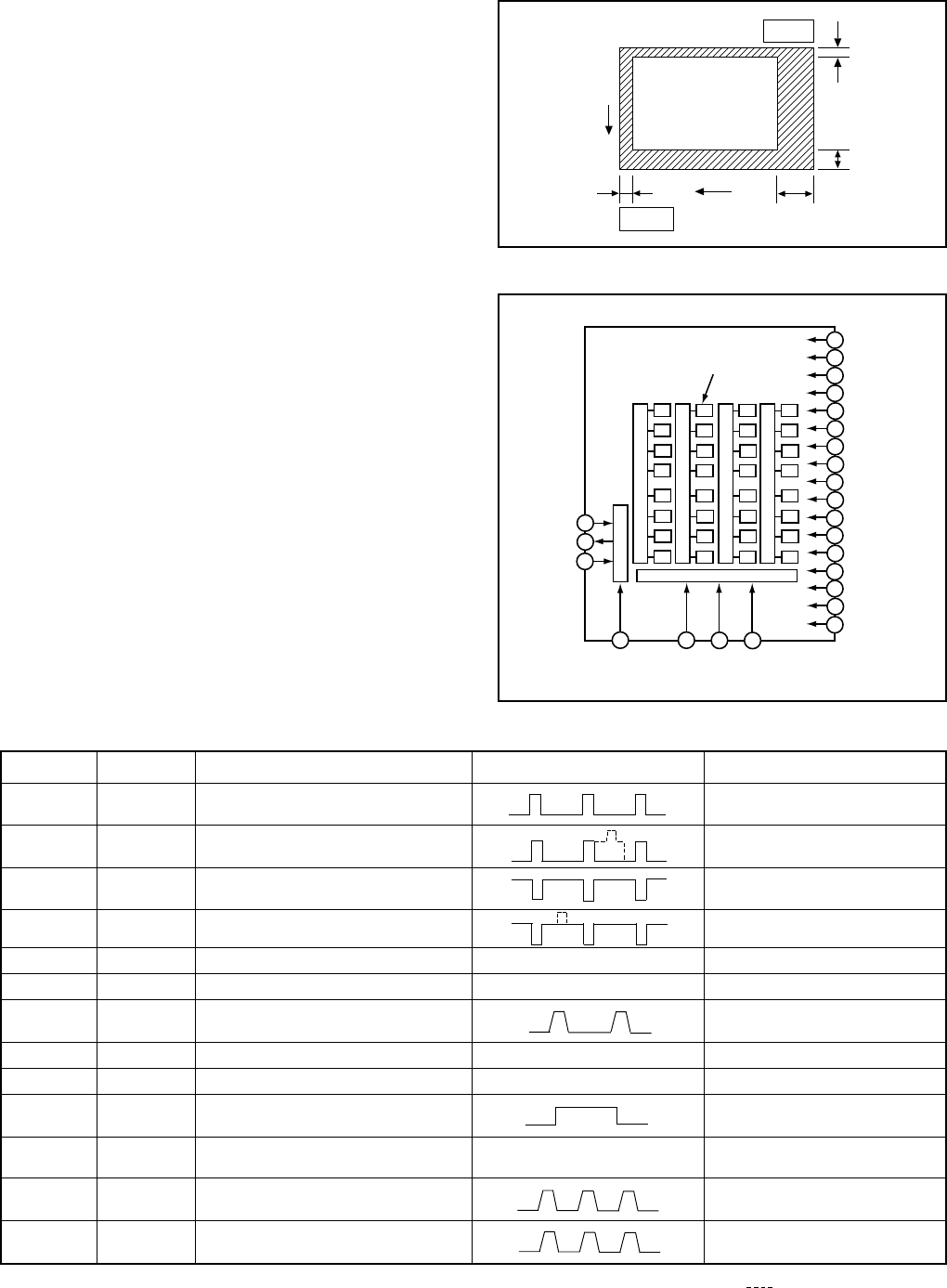

Fig. 1-1.Optical Black Location (Top View)
Pin No. Symbol Pin Description Waveform Voltage
Table 1-1. CCD Pin Description When sensor read-out
Fig. 1-2. CCD Block Diagram

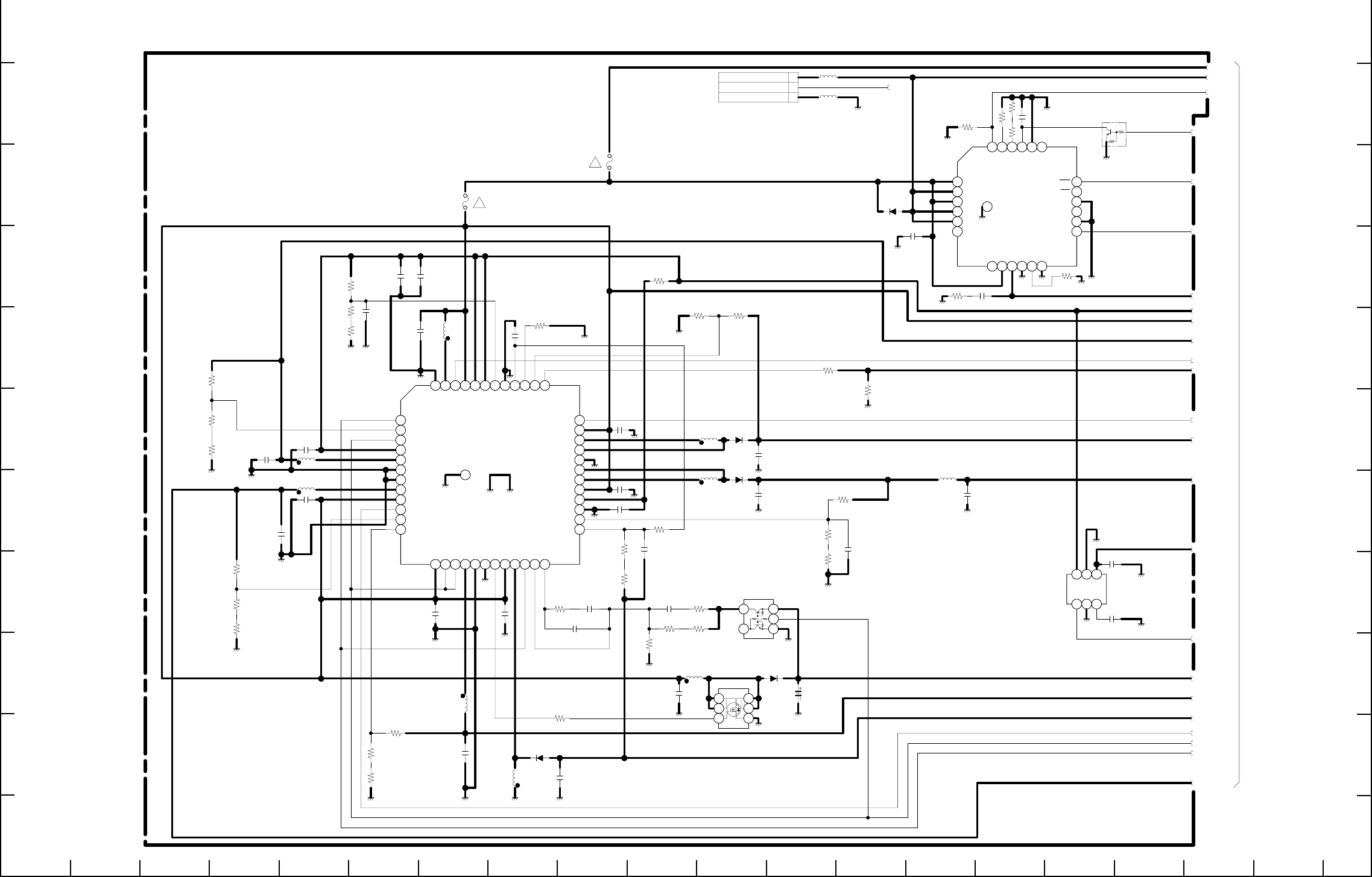

1. OUTLINE OF CIRCUIT DESCRIPTION
1-1. CCD CIRCUIT DESCRIPTION
1. IC Configuration
The CCD peripheral circuit block basically consists of the fol-
lowing ICs.
IC931 (MN39830PMJ-A) CCD imager
IC901 (AN20112A) V driver
IC905 (AD9971BCPZRL) CDS, AGC, A/D converter,
H driver vertical TG
2. IC931 (CCD)
[Structure]
1/2.5 inch positive pixel-type color frame-reading fixed pic-
ture elements
Optical size 1/2.5 type format
Effective pixels 2864 (H) X 2160 (V)
Pixels in total 2934 (H) X 2171 (V)
Optical black
Horizontal (H) direction: Front 12 pixels, Rear 58 pixels
Vertical (V) direction: Front 6 pixels, Rear 5 pixels
Dummy bit number Horizontal : 28 Vertical :7
1, 23, 24
4, 7, 8, 9, 11
5, 6, 10
14
V1, V3A, V3B
V1S, V2, V3R,
V3L, V4
Vertical shift register clock pulse
Vertical shift register clock pulse
CCD output
-6.0 V, 0 V, 12 V
Aprox. 10 V
Vertical shift register clock pulse
VO
V5R, V5L, V6
-6.0 V, 0 V
-6.0 V, 0 V
GND
Reset pulse
GND
Power DC 12 V
GND 0 V
12.5 V, 16 V
ØRG
13
16
12, 15
VDD
DC
Protection P well -6.0 V
PT DC
ØH1, ØH2Horizontal shift register clock pulse
Substrate clock DC
ØVSUB
0 V, 3.0 V
17
19
21, 22
ØHL Horizontal shift register clock pulse 0 V, 3.3 V
20
2, 3 V5A, V5B Vertical shift register clock pulse
Substrate controlSUB SW
18
0, 3.3 V (When importing all
picture element: 3.5 V)
-6.0 V, 0 V, 12 V
Aprox. 8 V
(Different from every CCD)
Pin 1
5
6
58
12
H
V
Pin 13
21 22
16 20
ø
RG
ø
HL
ø
H1
ø
H2
13
VDD
14
VO
15
GND
8
7
ø
V3L
1
2
3
4
5
6
ø
V3A
ø
V3B
ø
V4
ø
V5A
ø
V5B
ø
V6
9
ø
V2
10
ø
V1
11
ø
V1S
ø
V3R
12 GND
23
ø
V5R
24
ø
V5L
17 PT
18 SUBSW
19
ø
Vsub
Photo diode
Output part
Vertical shift register
Horizontal shift register
– 4 –

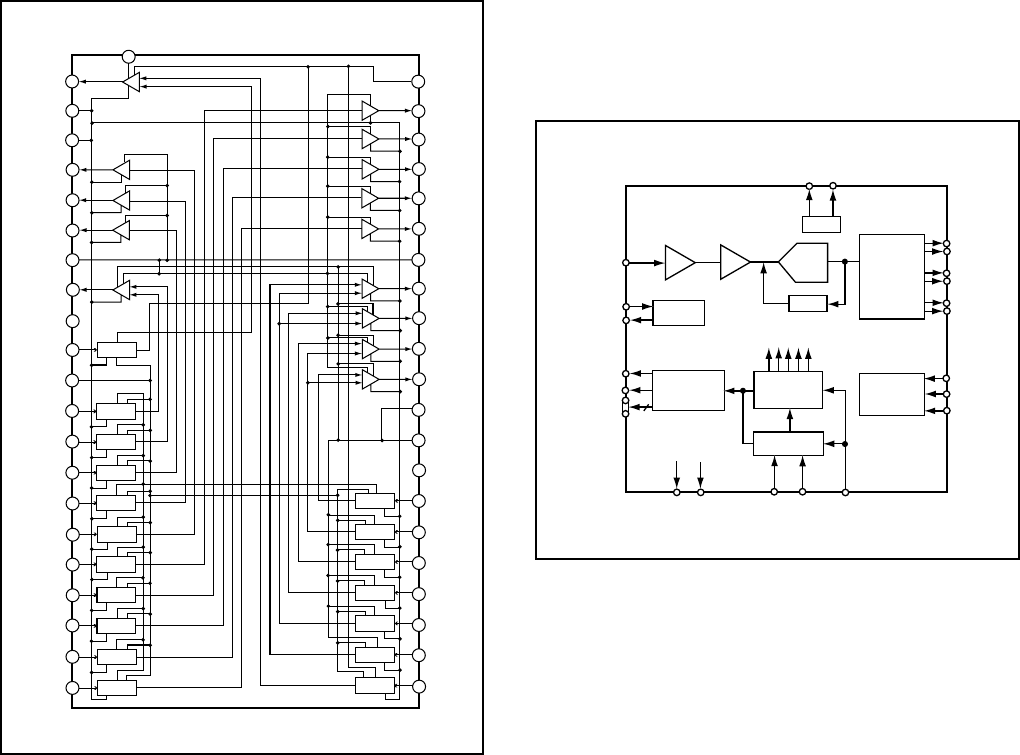

Fig. 1-3. IC901 Block Diagram
3. IC901 (V Driver)
A V driver (IC901) is necessary in order to generate the clocks
(vertical transfer clock and electronic shutter clock) which
driver the CCD.
In addition the XV1-XV13 signals which are output from IC101
are vertical transfer clocks, and the XSG signal is superim-
posed onto XV1, XV3 and XV5 at IC901 in order to generate
a ternary pulse. In addition, the XSUB signal which is output
from IC101 is used as the sweep pulse for the electronic shut-
ter.
Fig. 1-4. IC905 Block Diagram
4. IC905 (H Driver, CDS, AGC and A/D converter)
IC905 contains the functions of H driver, CDS, AGC and A/D
converter. As horizontal clock driver for CCD image sensor,
H1, H2, H3, H4, HL and RG are generated inside, and output
to CCD.
The video signal which is output from the CCD is input to pin
(25) of IC905. There are sampling hold blocks generated from
the SHP and SHD pulses, and it is here that CDS (correlated
double sampling) is carried out.
After passing through the CDS circuit, the signal passes
through the VGA (VGA: Variable Gain Amplifier). It is con-
verted internally into a small-amplitude actuating signal
(LVDS), and is then input to IC101. The gain of the VGA am-
plifier is controlled by pins (32), (33) and (34) using serial
signals which is output from IC101.
1
3
32
33
31
30
37
38
35
36
34
42
43
44
39
40
41
4
26
13
14
12
11
SUBCNT
VDC
CH1
V1
V6
V4
V5R
V5L
V3R
V3L
V1S
CH5
V5
CH3
CH4
V3
CH2
GND
VH
OV3B
OV3A
OV5B
OV5A
Level
conversion
29
V2
2SUB
Level
conversion
Level
conversion
Level
conversion
Level
conversion
Level
conversion
Level
conversion
Level
conversion
Level
conversion
Level
conversion
Level
conversion
Level
conversion
Level
conversion
Level
conversion
Level
conversion
Level
conversion
Level
conversion
Level
conversion
28
RESET
20
OV1
8
VM
21OV6
23OV4
24OV2
27
VL
10
OSUB
9
VMSUB
5
VL
2-level
2-level
2-level
3-level
25
19
17
15
18
VM
OV1S
OV3L
OV3R
OV5L
7
16 OV5R
VHH
6VH
2-level
2-level
2-level
2-level
2-level
3-level
3-level
3-level
3-level
3-level
CCDIN
HL
H1 TO H4
HD
SDATA
SCK
SL
REFB
REFT
PRECISION
TIMING
GENERATOR
SYNC
GENERATOR
VGA 12-BIT
ADC
6~42 dB
VREF
CLAMP
INTERNAL
REGISTERS
INTERNAL
CLOCKS
CDS
HORIZONTAL
DRIVERS
4
AD9971
-3, 0, +3, +6dB
VD CLI
RG
GP01
3V INPUT
1.8V OUTPUT
LDO
REG
GP02
TCLKP
REDUCED
RANGE
LVDS
OUTPUT
TCLKN
DOUT0P
DOUT0N
DOUT1P
DOUT1N
– 5 –
1-2. CP1 and VF1 CIRCUIT DESCRIPTION
1. Circuit Description
1-1. Digital clamp
The optical black section of the CCD extracts averaged val-
ues from the subsequent data to make the black level of the
CCD output data uniform for each line. The optical black sec-
tion of the CCD averaged value for each line is taken as the
sum of the value for the previous line multiplied by the coeffi-
cient k and the value for the current line multiplied by the
coefficient 1-k.
1-2. Signal processor
1. γ correction circuit
This circuit performs (gamma) correction in order to maintain
a linear relationship between the light input to the camera
and the light output from the picture screen.
2. Color generation circuit
This circuit converts the CCD data into RGB signals.
3. Matrix circuit
This circuit generates the Y signals, R-Y signals and B-Y sig-
nals from the RGB signals.
4. Horizontal and vertical aperture circuit
This circuit is used gemerate the aperture signal.
1-3. AE/AWB and AF computing circuit
The AE/AWB carries out computation based on a 64-segment
screen, and the AF carries out computations based on a 6-
segment screen.
1-4. SDRAM controller
This circuit outputs address, RAS, CAS and AS data for con-
trolling the SDRAM. It also refreshes the SDRAM.
1-5. Communication control
1. SIO
This is the interface for the 8-bit microprocessor.
2. PIO/PWM/SIO for LCD
8-bit parallel input and output makes it possible to switch be-
tween individual input/output and PWM input/output.
1-6. TG/SG
Timing generated for 6 million pixel horizontal addtion CCD
control.
1-7. Digital encorder
It generates chroma signal from color difference signal.
2. Outline of Operation
When the shutter opens, the reset signals (ASIC and CPU)
and the serial signals (“take a picture” commands) from the
8-bit microprocessor are input and operation starts.
When the TG/SG drives the CCD, picture data passes through
the A/D and CDS, and is then input to the ASIC as LVDS
data. The AF, AE, AWB, shutter, and AGC value are com-
puted from this data, and three exposures are made to obtain
the optimum picture. The data which has already been stored
in the SDRAM is read by the CPU and color generation is
carried out. Each pixel is interpolated from the surrounding
data as being either R, G, and B primary color data to pro-
duce R, G and B data. At this time, correction of the lens
distortion which is a characteristic of wide-angle lenses is
carried out. After AWB and γ processing are carried out, a
matrix is generated and aperture correction is carried out for
the Y signal, and the data is then compressed by JPEG and
is then written to card memory (SD card).
When the data is to be output to an external device, it is taken
data from the memory and output via the USB I/F. When played
back on the LCD and monitor, data is transferred from memery
to the SDRAM, and the image is then elongated so that it is
displayed over the SDRAM display area.
3. LCD Block
During EE, the YUV of 640 x 480 conversion is carried out for
the 12-bit RGB data which is input from the A/D conversion
block of the CCD to the ASIC in order to be displayed on the
video, and then transferred to the SDRAM.
The data which has accumulated in the SDRAM is converted
to digital YUV signal in conformity to ITUR-601 inside the ASIC
by SDRAM control circuit inside the ASIC, the data is sent to
the LCD driver IC and displayed the image to LCD panel after
gamma conversion is carried out.
If the shutter button is pressed in this condition, the 12-bit
data which is output from the A/D conversion block of the
CCD is sent to the SDRAM (DMA transfer), and is displayed
on the LCD as a freeze-frame image.
During playback, the JPEG image data which has accumu-
lated in the SD card is converted to YUV signals. In the same
way as for EE, the data is then sent to the SDRAM, con-
verted to digital YUV signal in conformity to ITUR-601 inside
the ASIC, the data is sent to the LCD driver IC built-in LCD
and displayed the image to LCD panel.
The LCD driver is converted digital YUV signals to RGB sig-
nals from ASIC, and these RGB signals and the control sig-
nal which is output by the LCD driver are used to drive the
LCD panel. The RGB signals are 1H transposed so that no
DC component is present in the LCD element, and the two
horizontal shift register clocks drive the horizontal shift regis-
ters inside the LCD panel so that the 1H/1V transposed RGB
signals are applied to the LCD panel.
Because the LCD closes more as the difference in potential
between the VCOM (common polar voltage: AC drive) and
the R, G and B signals becomes greater, the display becomes
darker; if the difference in potential is smaller, the element
opens and the LCD become brighter. In addition, the bright-
ness and contrast settings for the LCD can be varied by means
of the serial data from the ASIC.
– 6 –
5. Video clip recording and playback
5-1. Recording
The signals from the camera block are input to the ASIC where
they are processed, and the image data that is stored in the
IC102 SDRAM is input to the IC102 MPEG4 CODEC LSI. The
CODEC LSI converts this data to encoded MPEG4 data, after
which it is returned to the ASIC as streaming data, and the
data is then written in sequence onto the SD card. At this time,
the audio signals that are input to the built-in microphone are
converted into digital data by the audio CODEC IC of IC181,
and they are then input via the ASIC to IC102 (MPEG4
CODEC). The audio data is then encoded (AAC) by IC102,
and then it is returned to the ASIC as streaming data and is
then written in sequence onto the SD card together with the
image signals described above.
5-2. Playback
The data is read from the SD card and input to IC102 as stream-
ing data. The encoded data is decoded into image data by
IC102 and then returned to the ASIC where it is displayed by
the LCD or on a TV monitor. At this time, the audio data is also
decoded by IC102, and it passes through the ASIC and is in-
put to IC181 as digital data. D/A conversion is carried out at
IC181, and the sound is then output to the speaker or to the
LINE OUT terminal.
6. Audio CODEC circuit (IC181)
The audio signals from the microphone are converted into 16-
bit digital data. AD conversion is carried out at a maximum
sampling frequency of 48 kHz.
During audio playback, the 16-bit digital data is converted into
analog signals and these drive the speaker or line out system.
DA conversion is carried out at a maximum sampling frequency
of 48 kHz.
4. Lens drive block
4-1. Focus drive
The three control signals (LENS_SD, LENS_CK and
LENS_EN) which are output from the ASIC (IC101) are con-
verted into drive pulses (FOCUS A+, FOCUS A–, FOCUS B+
and FOCUS B–) by the motor driver (IC951), and are then
used to drive micro step the stepping motor for focusing op-
eration.
Detection of the standard focusing positions is carried out by
the ASIC detecting the signal (FPIOUT) from the
photointerruptor (F_SENSE) inside the lens block.
4-2. Zoom drive
The three control signals (LENS_SD, LENS_CK and
LENS_EN) which are output from ASIC (IC101) are converted
into drive pulses (ZOOM A+, ZOOM A–, ZOOM B+ and ZOOM
B–) by the motor driver (IC951), and are then used to drive
micro step the stepping motor for zoom operation.
Detection of the standard zooming positions is carried out by
the ASIC detecting the signal (ZPIOUT) from the
photointerruptor (Z_SENSE) inside the lens block.
4-3. ND filter drive
The ND filter drive signals (NDON and NDOFF) which are out-
put from the ASIC (IC101) are used to drive (ND + and ND –)
by the motor driver (IC951), and then the ND filter is inserted
into and removed from the beam path.
4-4. Aperture/shutter drive
The signal (SHUTTER+) that is output from the ASIC (IC101)
and the the signal (input to IC951 INB) that is output from pin
(8) of IC971 (PWM OUT) are converted into drive pulses
(DRIVE+ and DRIVE –) by the motor driver (IC951), and are
then used to drive galvano-type aperture motor to control the
aperture diameter to the desired setting, and opened and
closed. Detection of the aperture diameter is carried out by
amplifying at IC971 the output (HALL OUT+ and HALL OUT-)
from the hall element inside the lens block, and by the ASIC
detecting the output level (HALL_OUT).
– 7 –
1-3. PWA POWER CIRCUIT DESCRIPTION
1. Outline
This is the main power circuit, and is comprised of the follow-
ing blocks.
Switching controller (IC501)
Analog 12 V power output (L5009)
Analog -6 V power output (L5005)
Analog 3.4 V power output (IC503)
5 V power output (L5003)
Digital 3.25 V power output (L5001)
Digital 1.2 V power output (L5004)
Digital 1.8 V power output (L5002)
Backlight power output (L5008)
Motor system power output (Q5301, L5301)
USB charge circuit (IC521)
2. Switching Controller (IC501)
This is the basic circuit which is necessary for controlling the
power supply for a PWM-type switching regulator, and is pro-
vided with eight built-in channels, only SU (5 V), M (digital
3.25 V), SD (digital 1.2 V), BST (analog 12 V), INV (analog -6
V), AFE (analog 1.8 V), LED (backlight) and AUX (motor sys-
tem) are used.
Feedback for the each power supply output is received, and
the PWM duty is varied so that each one is maintained at the
correct voltage setting level. Feedback for the backlight power
output (LED) is provided to the both ends voltage of registance
so that regular current can be controlled to be current that
was setting.
2-1. Short-circuit protection circuit
If output is short-circuited for the length of time determined
by internal fixing of IC501 , all output is turned off. The control
signal (SEL, PON2 and P ON etc.) are recontrolled to restore
output.
3. Analog 12 V Power Output
+12 V (A) is output. Feedback for the +12 V (A) is provided to
the switching controller (Pin (26) of IC501) so that PWM con-
trol can be carried out.
4. Analog -6 V Power Output
-6 V (A) is output. Feedback for the -6 V (A) is provided to the
swiching controller (Pin (25) of IC501) so that PWM control
can be carried out.
5. Analog 3.4 V Power Output
+3.4 V (A) is output. +3.4 V (A) is output to drop 3.4 V by
regulator IC503 from 5 V power output.
6. 5 V Power Output
+5 V is output. Feedback for the +5 V is provided to the switch-
ing controller (Pin (42) of IC501) so that PWM control to be
carried out.
7. Digital 3.25 V Power Output
VDD3 is output. Feedback for the VDD3 is provided to the
switching controller (Pin (2) of IC501) so that PWM control to
be carried out.
8. Digital 1.2 V Power Output
VDD1.2 is output. Feedback for the VDD1.2 is provided to the
switching controller (Pin (12) of IC501) so that PWM control
to be carried out.
9. Digital 1.8 V Power Output
VDD1.8 is output. Feedback for the VDD1.8 is provided to the
switching controller (Pin (11) of IC501) so that PWM control
to be carried out.
10. Backlight Power Output
Regular current is being transmitted to LED for LCD back-
light. Feedback for the both ends voltage of registance that is
being positioned to in series LED are provided to the switch-
ing controller (Pin (37) of IC501) so that PWM control to be
carried out.
11. Motor System Power Output
5.3 V is output. Feedback for the 5.3 V output is provided to
the switching controller (Pin (23) of IC501) so that PWM con-
trol to be carried out.
12. USB charge circuit
If the camera’s power is turned off, USB cable connection
mode setting while it is connected to the USB cable, the bat-
tery will be charged from USB 5V.
– 8 –

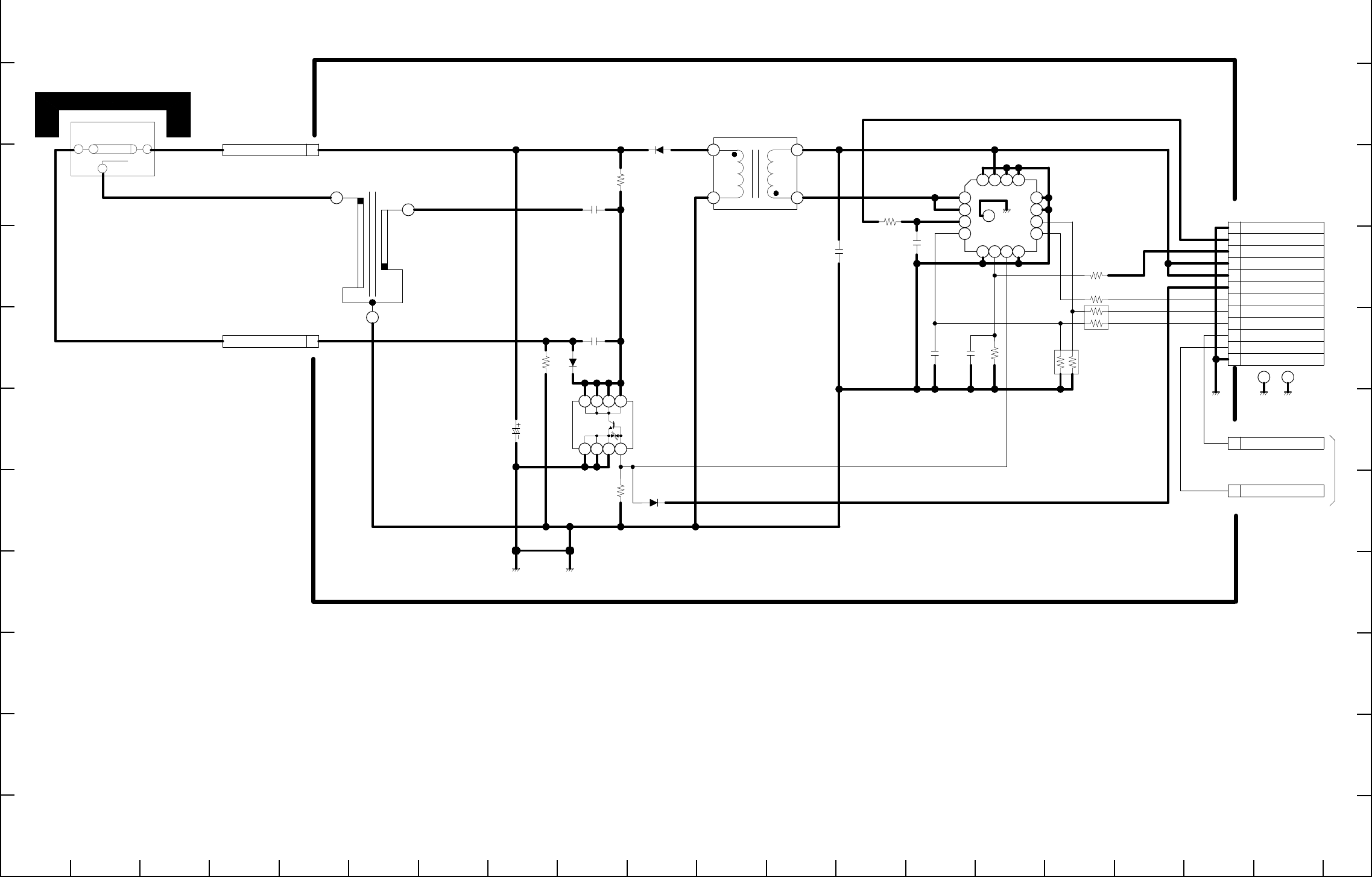

1-4. ST1 STROBE CIRCUIT DESCRIPTION
1. Charging Circuit
When UNREG power is supplied to the charge circuit and the
CHG signal from microprocessor becomes High (3.3 V), the
charging circuit starts operating and the main electorolytic
capacitor is charged with high-voltage direct current.
However, when the CHG signal is Low (0 V), the charging
circuit does not operate.
1-1. Charge switch
When the CHG signal switches to Hi, IC541 starts charging
operation.
1-2. Power supply filter
C5401 constitutes the power supply filter. They smooth out
ripples in the current which accompany the switching of the
oscillation transformer.
1-3. Oscillation circuit
This circuit generates an AC voltage (pulse) in order to in-
crease the UNREG power supply voltage when drops in cur-
rent occur. This circuit generates a drive pulse with a frequency
of approximately 200-300 kHz, and drive the oscillation trans-
former. When the SW 3.2 V signal is input, the peak current
during oscillation changes.
1-4. Oscillation transformer
The low-voltage alternating current which is generated by the
oscillation control circuit is converted to a high-voltage alter-
nating current by the oscillation transformer.
1-5. Rectifier circuit
The high-voltage alternating current which is generated at
the secondary side of T5401 is rectified to produce a high-
voltage direct current and is accumulated at electrolytic ca-
pacitor C5412.
1-6. Charge monitoring circuit
The functions programmed in the IC541 monitor oscillations
and estimate the charging voltage. If the voltage exceeds the
rated value, charging automatically stops. Then, the
ZCHG_DONE signal is changed to Lo output and a "charging
stopped" signal is sent to the microcomputer.
2. Light Emission Circuit
When FLCLT signal is input from the ASIC, the stroboscope
emits light.
2-1. Emission control circuit
When the FLCLT signal is input to the emission control cir-
cuit, Q5402 switches on and preparation is made to the light
emitting. Moreover, when a FLCLT signal becomes Lo, the
stroboscope stops emitting light.
2-2. Trigger circuit
The Q5402 is turned ON by the FLCLT signal and light emis-
sion preparation is preformed. Simultaneously, high voltage
pulses of several kV are emitted from the trigger coil and ap-
plied to the light emitter.
2-3. Light emitting element
When the high-voltage pulse form the trigger circuit is ap-
plied to the light emitting part, currnet flows to the light emit-
ting element and light is emitted.
Beware of electric shocks.
– 9 –
See next page →
1-5. SYA CIRCUIT DESCRIPTION
1. Configuration and Functions
For the overall configuration of the SYA block, refer to the block diagram. The SYA block centers around a 8-bit microprocessor
(IC301), and controls camera system condition (mode).
The 8-bit microprocessor handles the following functions.
1. Operation key input, 2. Clock control and backup, 3. Power ON/OFF, 4. Storobe charge control, 5. Battery charge control (USB
charge).
Pin Signal
1
2
3
4
5
6
7
8
9
11
12
13
14
15
16
17
18
19
20
24
26
27
28
29
35
36
37
38
39
40
41
42
SCK
CARD
KEY MENU
CHG_DONE
HOT LINE
BAT_CHGERR
LCD_PWM
BAT_CHGOFF
VDD2
VF_LED (R)
VF_LED (G)
USB_SUSPWR
USB_HPWR
PON2
LENS_4M
NAND RESET
MAIN RESET
ASWON
USB_DET1
TRST
MROUT
BOOT_COMREQ
PRG ENA/DATA1
SW3.2 ON
SCAN IN1
SCAN IN0
VSS3
VDD3
RDSEL
CLK (SFW)
DATA0 (SFW)
P ON
I/O
O
I
I
I
I
I
O
O
-
O
O
O
O
O
O
O
O
O
I
O
I
I
I
O
I
I
-
-
I/O
I/O
I/O
O
Outline
Serial data clock output
SD card detection (L= SD card)
Key input MENU
Strobo condensor charge done detection (H → L= charge done)
Hot line request from ASIC
Battery charge status (H= charge error or full charge/L= charging)
LCD backlight illuminance adjustment
VDD
Red LED (H= lighting)
Green LED (H= lighting)
Power supply ON/OFF from USB (H= USB bus power OFF/L= ON)
USB high power/low power switching (H= USB high power/H= low power)
VDD 1.8 V D/D converter start-up signal (H= ON)
Lens driver IC standard clock output
OneNAND flash reset (L= reset)
System reset (MRST)
Gyro sensor quick charge (rising) property control (H= quick/L= normal)
JTAG and LEDA3 start-up reset (L= reset)
LCD panel open/close detection (MR sensor detection) (H= panel open)
Command request input (combine with BOOT output)
Debugger terminal
SW3.2 power ON/OFF signal (L= ON)
Keyscan input 1 (L= input)
Keyscan input 0 (L= input)
GND
VDD
Debugger terminal
Debugger terminal
Debugger terminal
VDD3, VDD1.2 ON/OFF signal (H= ON)
USB connection detection (L= connection)
10 VSS2 -GND
21 BACKUP CTL OBackup battery charge control (H= charge)
22 AL3.2 ON OAL3.2 power ON/OFF (H= ON)
23 PLLEN OASIC PLL oscillation ON/OFF (H= ON)
Battery charge ON/OFF control (H= CHG OFF or BAT OFF (USB insertion))
25 KEY_1st IKey input 1st SHUTTER (L= input)
30 ST_CHG OStrobo charge control (H= charge)
31 SEL O8-bit microprocessor power voltage switch (H= 3.2 V/L= 2.4 V)
32 SCAN IN3 IKeyscan input 3 (L= input)
33 SCAN IN2 IKeyscan input 2 (L= input)
34 KEY_PLAY IKey input PLAY (L= input)
– 10 –

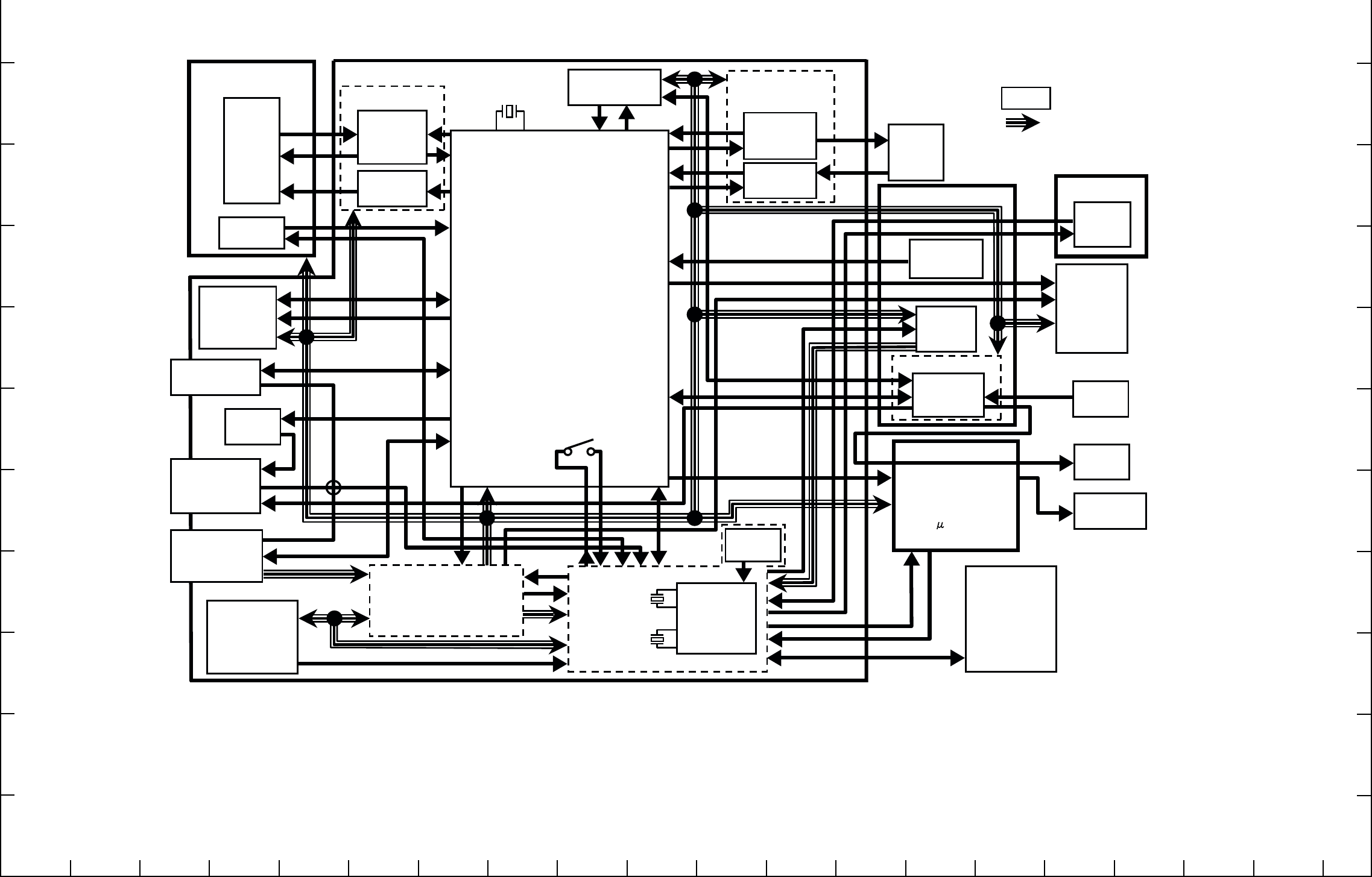

Fig. 5-1 Internal Bus Communication System
2. Internal Communication Bus
The SYA block carries out overall control of camera operation by detecting the input from the keyboard and the condition of the
camera circuits. The 8-bit microprocessor reads the signals from each sensor element as input data and outputs this data to the
camera circuits (ASIC) or to the LCD display device as operation mode setting data. Fig. 5-1 shows the internal communication
between the 8-bit microprocessor, ASIC and SPARC lite circuits.

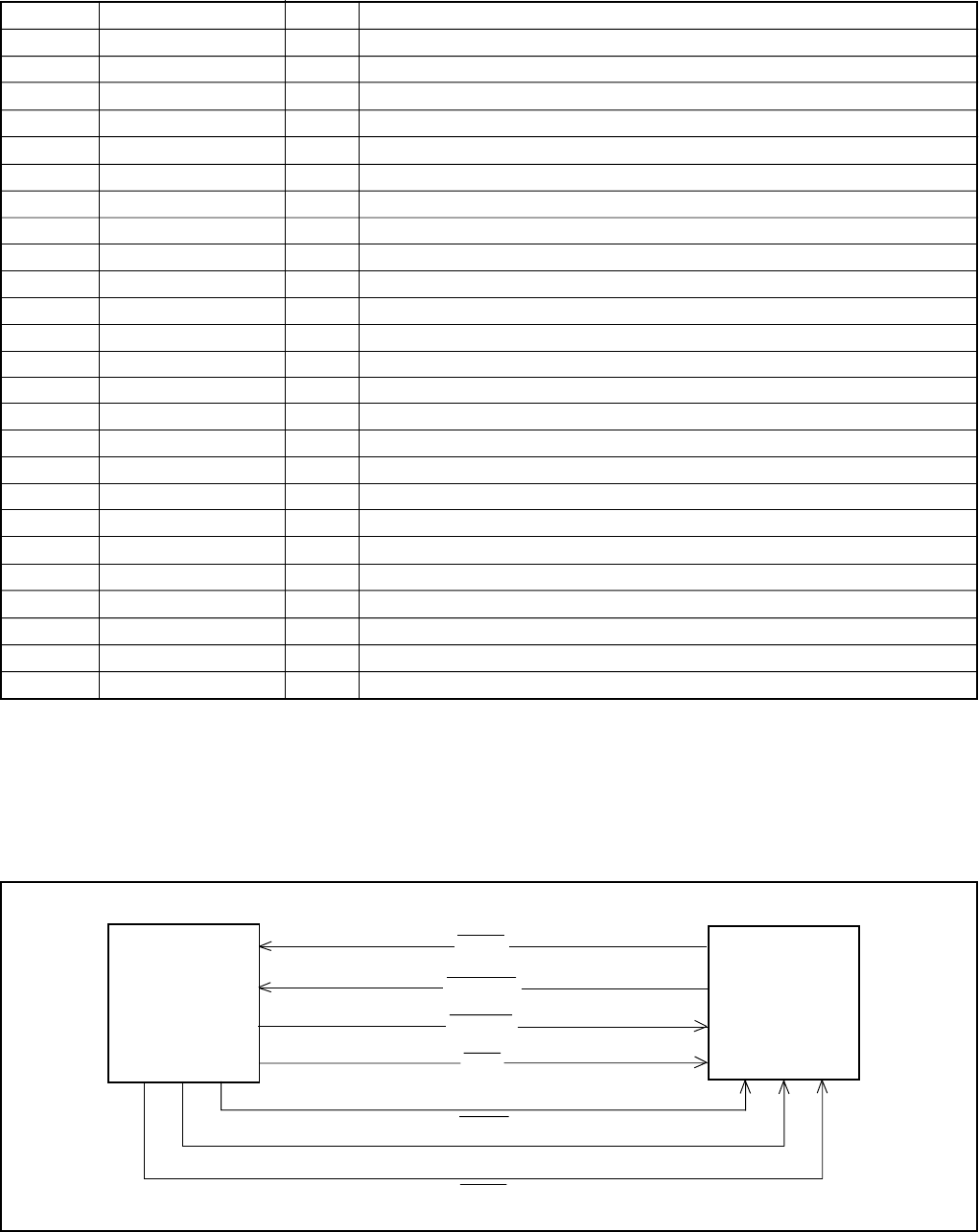

Table 5-1. 8-bit Microprocessor Port Specification
63
64
53
-
Keyscan input 4
54 SCAN IN4 I
GND
59
AV JACK I AV JACK connection terminal (L= connection)
VSS1
UNREG SY I Camera power voltage input
61
62
SREQ I/O Serial communication request signal
XOUT O Main clock (4 MHz)
VDD1 -VDD
51 BL ON O LCD backlight ON/OFF signal (H=ON)
52 BAT_OFF/INT0 I Battery OFF detection (L= battery OFF)
55 KEY_2nd IKey input 2nd SHUTTER (L= input)
56 RESET IMicroprocessor reset input (L= reset)
57 XCIN ISub clock (32.768 kHz)
58 XCOUT OSub clock (32.768 kHz)
60 XIN I Main clock (4 MHz)
8-bit
Microprocessor
ASIC
SREQ
ASIC SO
ASIC SI
SCK
MRST
43 SCAN OUT3 O Keyscan output 3
49 BAT + I
47
50
46
48
SCAN OUT0
ZHP_AD
BAT_I
O
I
I
Keyscan output 0
Headphone cable detection
Battery current value detection (analog input)
Battery voltage detection (analog input)
Battery temperature detection (analog input)
BAT_T I
44 SCAN OUT2 O Keyscan output 2
45 SCAN OUT1 O Keyscan output 1
PLLEN
TRST
65 TH_TEMP I Camera temperature detection
66 SO O Serial data output
67 SI I Serial data input
68 NOT USED - -
– 11 –
ASIC,
memory CCD 8 bit CPU
Power voltage
Power OFF
Play back
LCD finder
3.3 V 1.2 V +3.4 V (A)
+12 V (A), -6 V(A)
3.2 V (P ON)
2.4 V (P OFF)
OFF OFF 32KHz
OFF OFF 32KHz
ON ON 4 MHz
ON OFF 4 MHz
Table 5-3. Camera Mode
Note) 4 MHz = Main clock operation, 32 kHz = Sub clock operation
4. Power Supply Control
The 8-bit microprocessor controls the power supply for the overall system.
The following is a description of how the power supply is turned on and off. When the battery is attached, a regulated 3.2 V (power
off: 2.4 V) voltage is normally input to the 8-bit microprocessor (IC301) by IC302, so that clock counting and key scanning is
carried out even when the power switch is turned off, so that the camera can start up again. When the battery is removed, the 8-
bit microprocessor operates in sleep mode using the backup battery. At this time, the 8-bit microprocessor only carries out clock
counting, and waits in standby for the battery to be attached again. When a switch is operated, the 8-bit microprocessor supplies
power to the system as required.
The 8-bit microprocessor first sets the P ON2 signal at pin (15) and P ON signal at pin (42) to high, and then turns on the DC/DC
converter. After this, low signal is output from pin (18) so that the ASIC is set to the reset condition. After this these pins set to
high, and set to active condition. Once it is completed, the ASIC returns to the reset condition, all DC/DC converters are turned
off and the power supply to the whole system is halted.
Power switch ON - Auto power OFF
CAMERA
Table 5-2. Key Operation
3. Key Operaiton
For details of the key operation, refer to the instruction manual.
0
1
2
0123
SCAN
OUT
SCAN
IN
V. REC
DOWN
TEST
LEFT
-
3
4
RIGHT
UP
-
PW_ON
---
-
-
-
TELE
LCD TURN
SET
WIDE
PW_TEST
– 12 –
A
A
a
b
c
A
B
1
2
3
4, 13
5
6
7
8
910
11
12
14
15
16
17
18
19
20
21
22
17
2. DISASSEMBLY

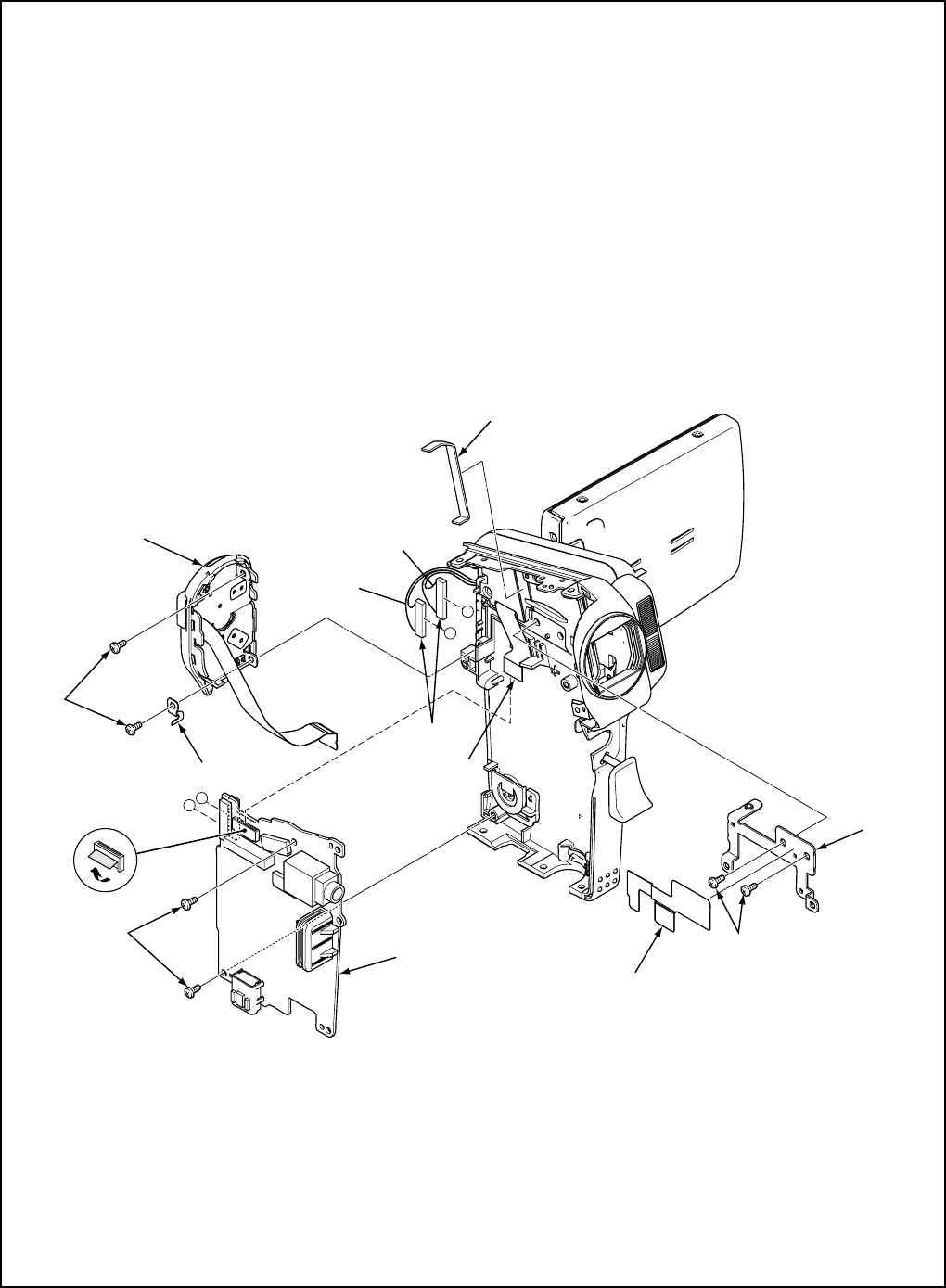

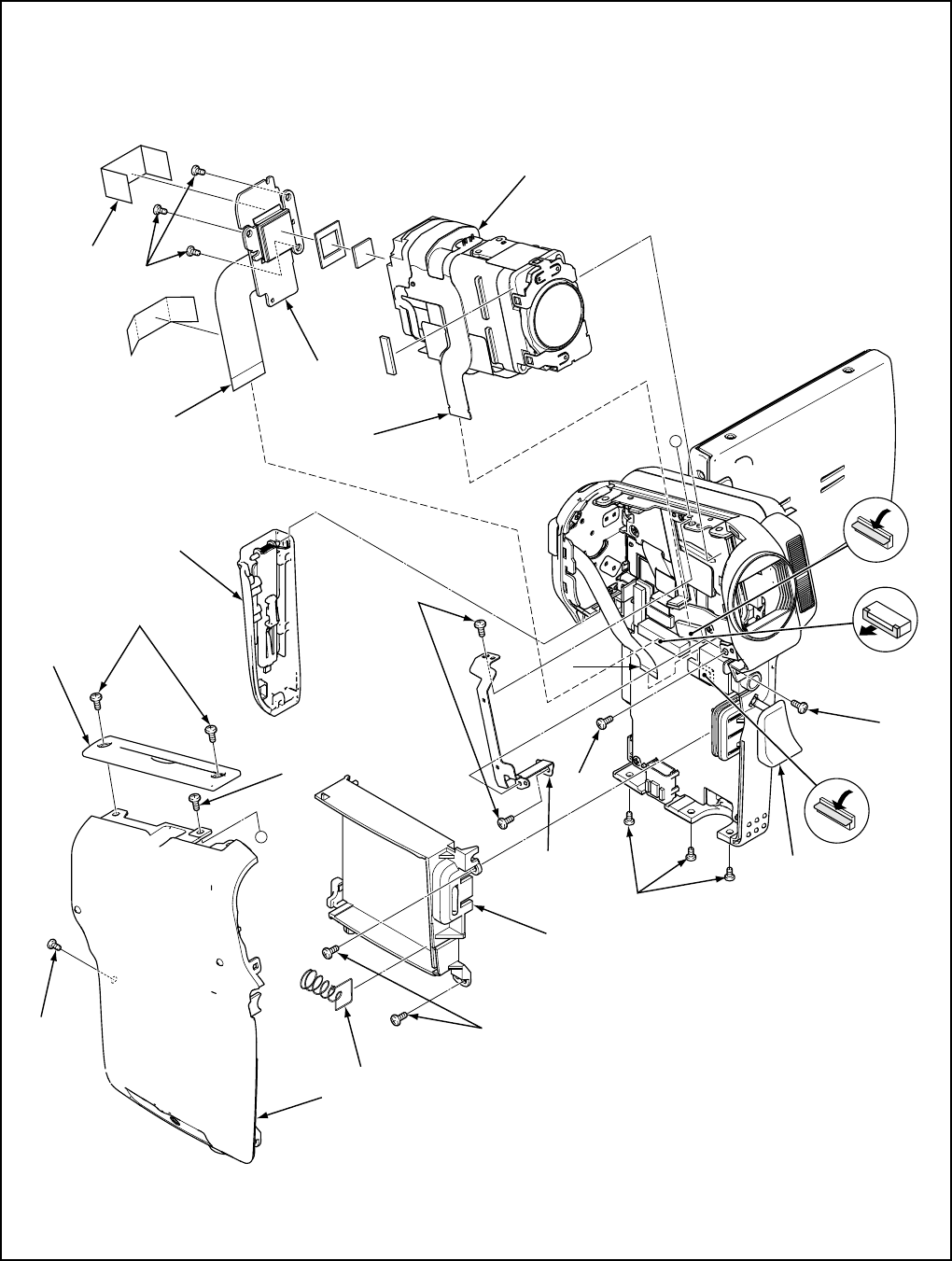

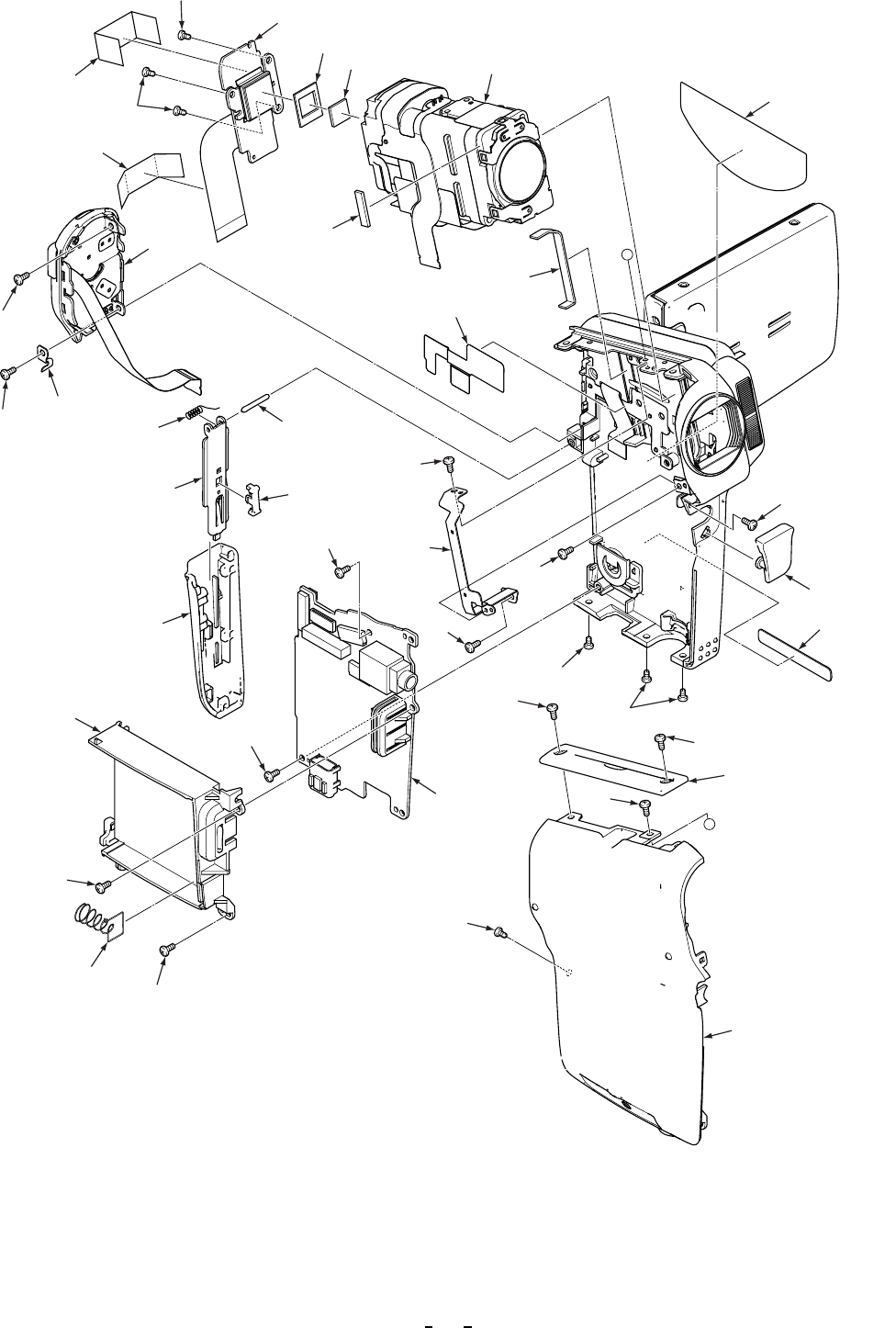

2-1. REMOVAL OF CABI LEFT, LENS ASSEMBLY AND CA1 BOARD
1. Two screws 1.7 x 4
2. Holder strap
3. Screw 1.7 x 2.5
4. Open the cover battery.
5. Screw 1.7 x 3.5
6. Open the cover jack.
7. Screw 1.7 x 3
8. Three screws 1.7 x 5
9. Cabi left
10. Spring batt eject
11. Two screws 1.7 x 4
12. Holder battery
13. Cover battery
14. Screw 1.4 x 2
15. Two screws 1.4 x 2.5
16. Earth strap
17. Two FPCs
18. FPC
19. Lens assembly
20. Spacer lens back
21. Three screws 1.4 x 3.5
22. CA1 board
NOTE: Discharge a strobe capacitor
with the discharge jig (VJ8-0188) for
electric shock prevention.
When assembling,
tighten the screws order.
A → B
When assembling,
tighten the screws order.
a → b → c
– 13 –
A
B
AB
Red
Black
7
8
9
10
11
1
2
3
4
5
6
2-2. REMOVAL OF CP1 BOARD
1. Two screws 1.7 x 4
2. Earth batt
3. Button back
4. FPC
5. Two screws 1.7 x 4
6. CP1 board
7. Two connectors
8. Spacer lens right
9. Spacer holder joint
10. Two screws 1.7 x 2.5
11. Holder joint
– 14 –
1
2
2
3
4
4
5
6
7
8
9
10
11 12
13
14
15
16
17
2-3. REMOVAL OF ST1 BOARD
1. Two screws 1.7 x 2
2. Two screws 1.7 x 5
3. Assy cover joint
4. Two screws 1.4 x 5
5. ST1 board
6. Cover flash
7. Flexible pwb SG111 ST1-CP1
8. Screw 1.4 x 3
9. Cover triger
10. Remove the solder.
11. Holder speaker
12. Speaker, 8
13. Remove the solder.
14. Assy, lamp
15. Screw 1.7 x 4
16. Hol strap inner
17. Cover joint top
– 15 –
1
2
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
3
A
A
B
C
D
D
C
B
Red
Black

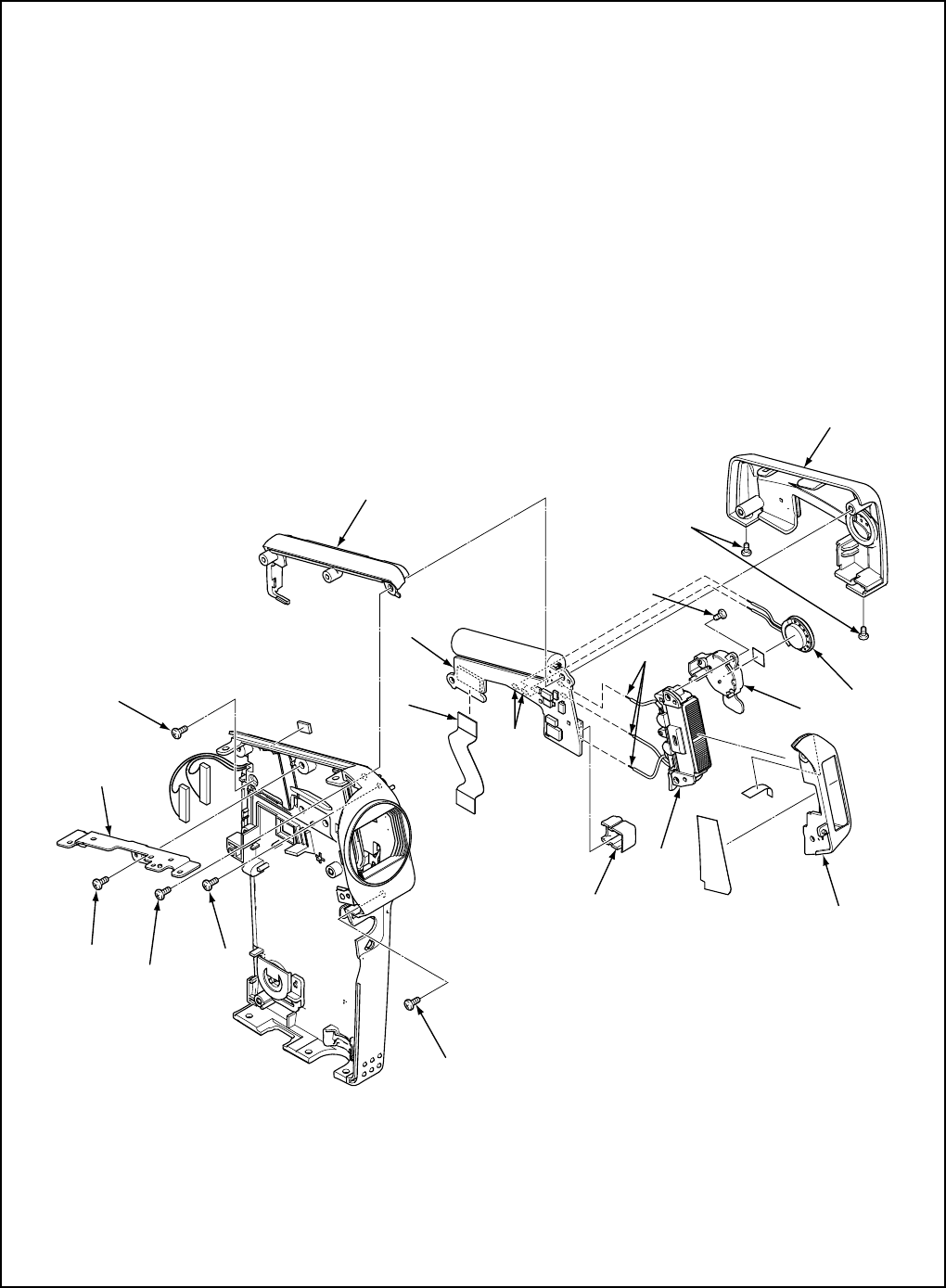

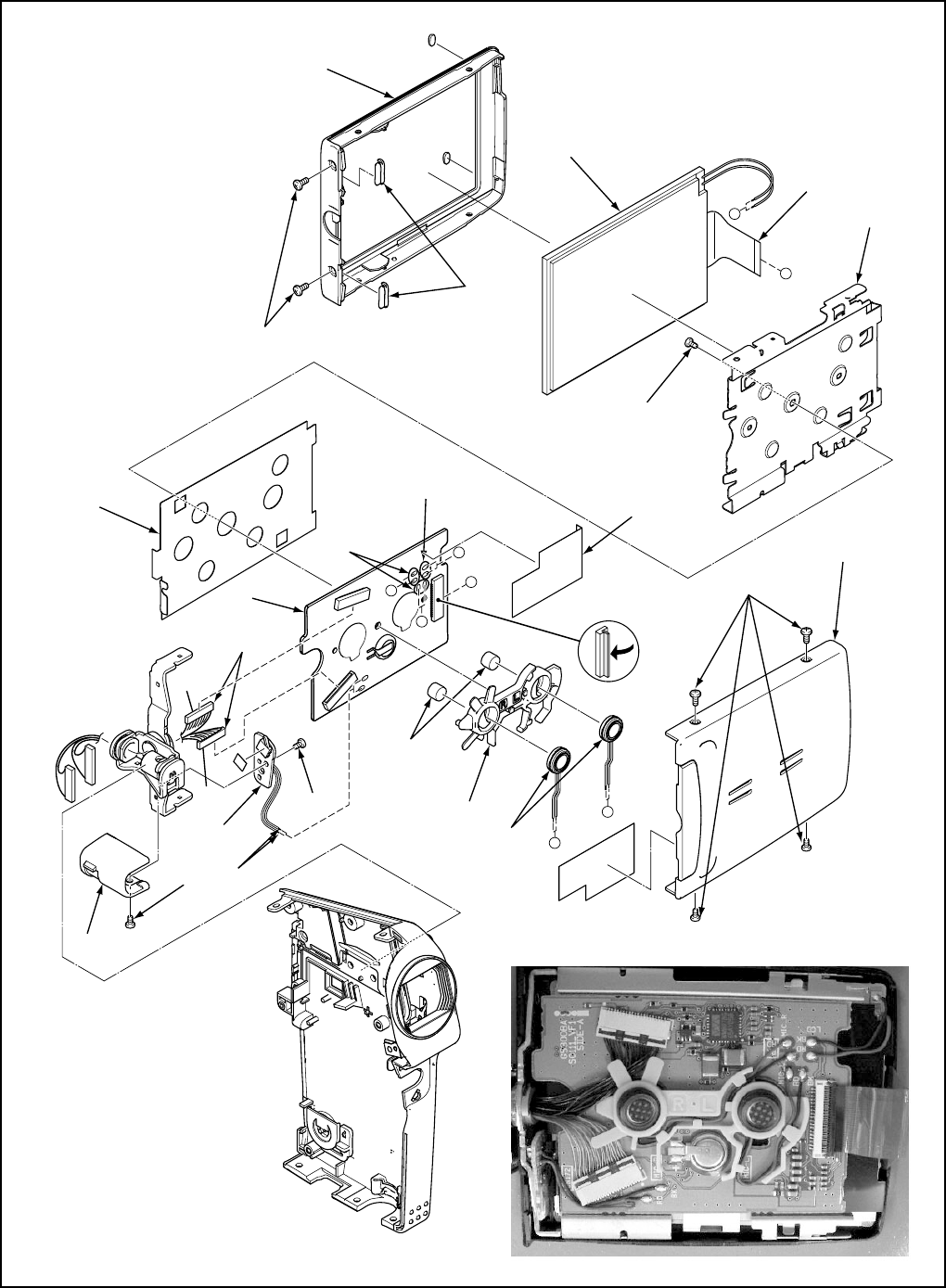

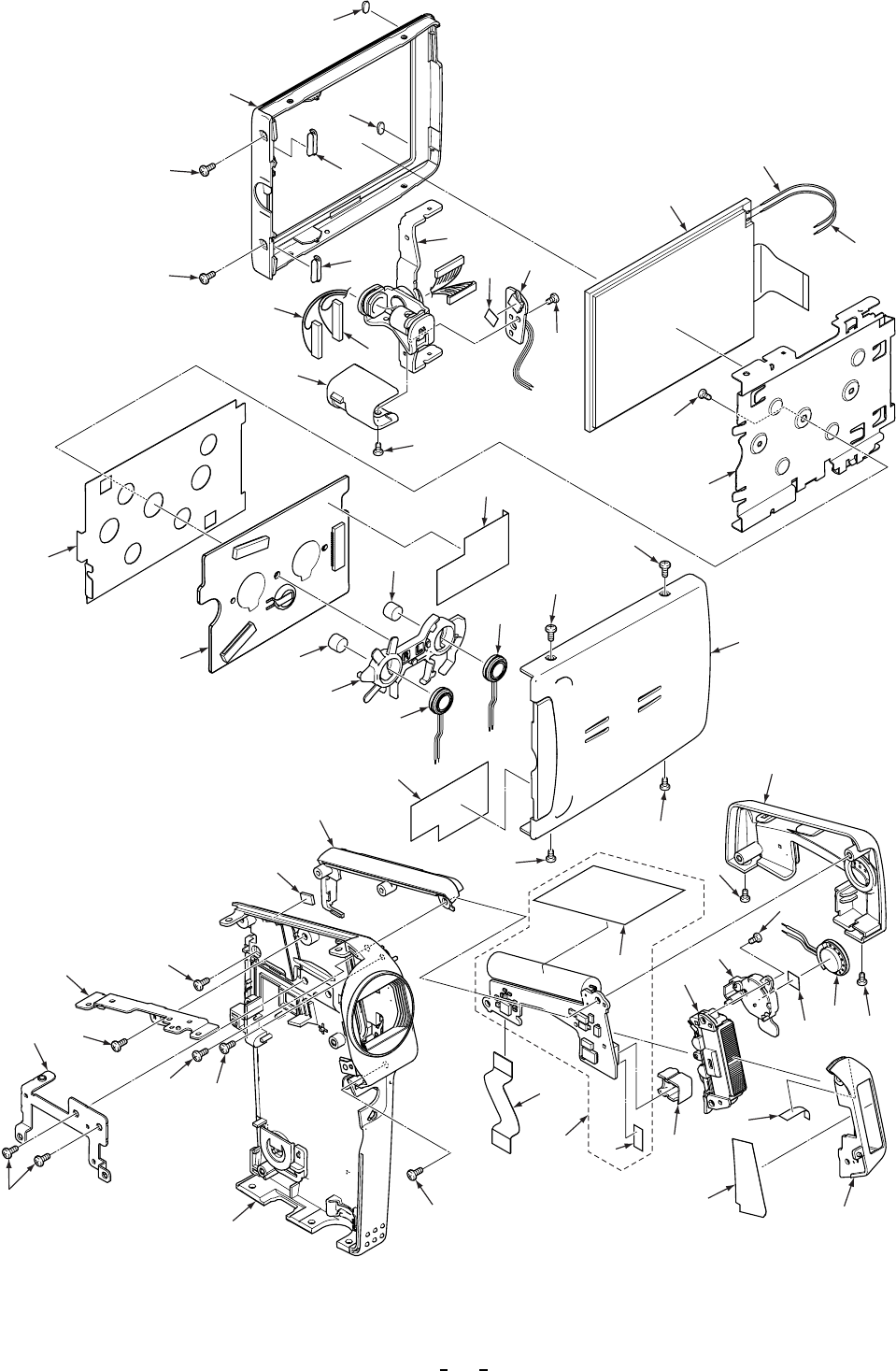

2-4. REMOVAL OF LCD, TB1 BOARD AND VF1 BOARD
1. Screw 1.7 x 2
2. Cover joint
3. Four screws 1.4 x 3
4. Cover LCD back
5. Dec LCD top B
6. Spacer LCD A
7. Two connector
8. Remove the solder.
9. Remove the solder.
10. FPC
11. LCD
12. Two screws 1.7 x 2
13. Cover LCD front
14. Screw 1.4 x 2
15. TB1 board
16. Remove the solder.
17. Screw 1.7 x 2.5
18. Holder mic
19. VF1 board
20. Spacer VF1
21. Holder monitor
22. Microphone
23. Spacer mic
VF1 board dressing method
– 16 –

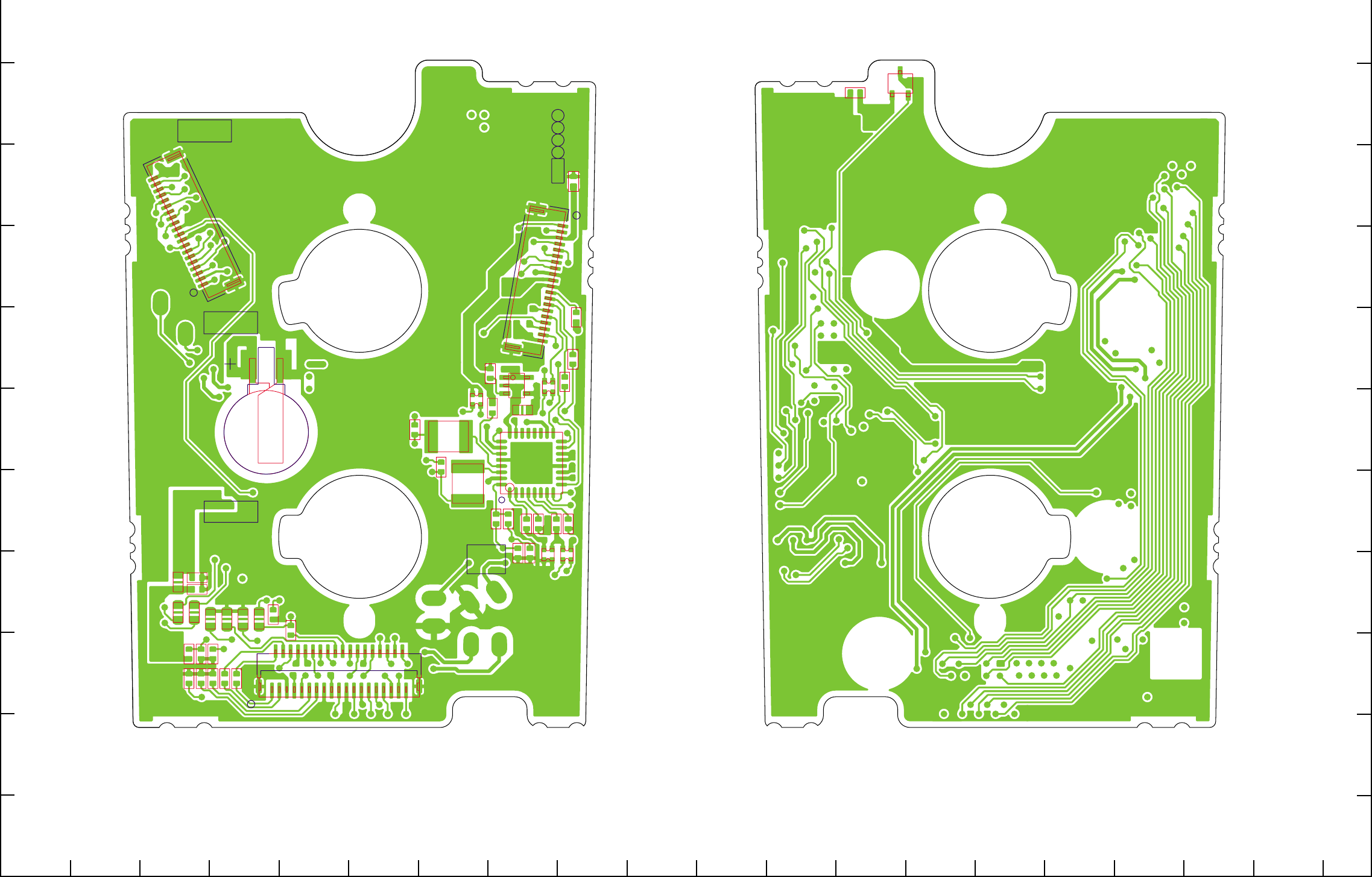

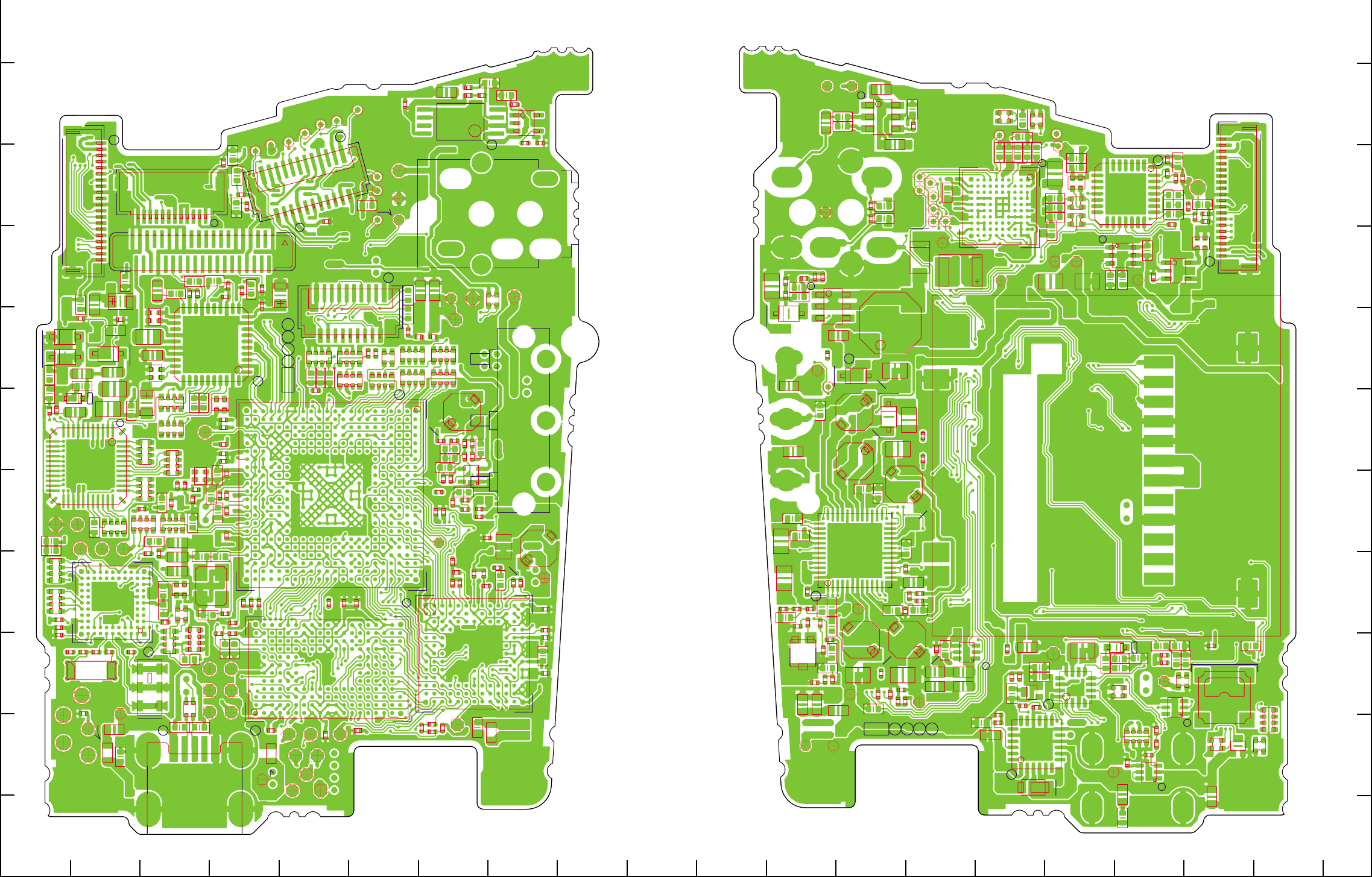

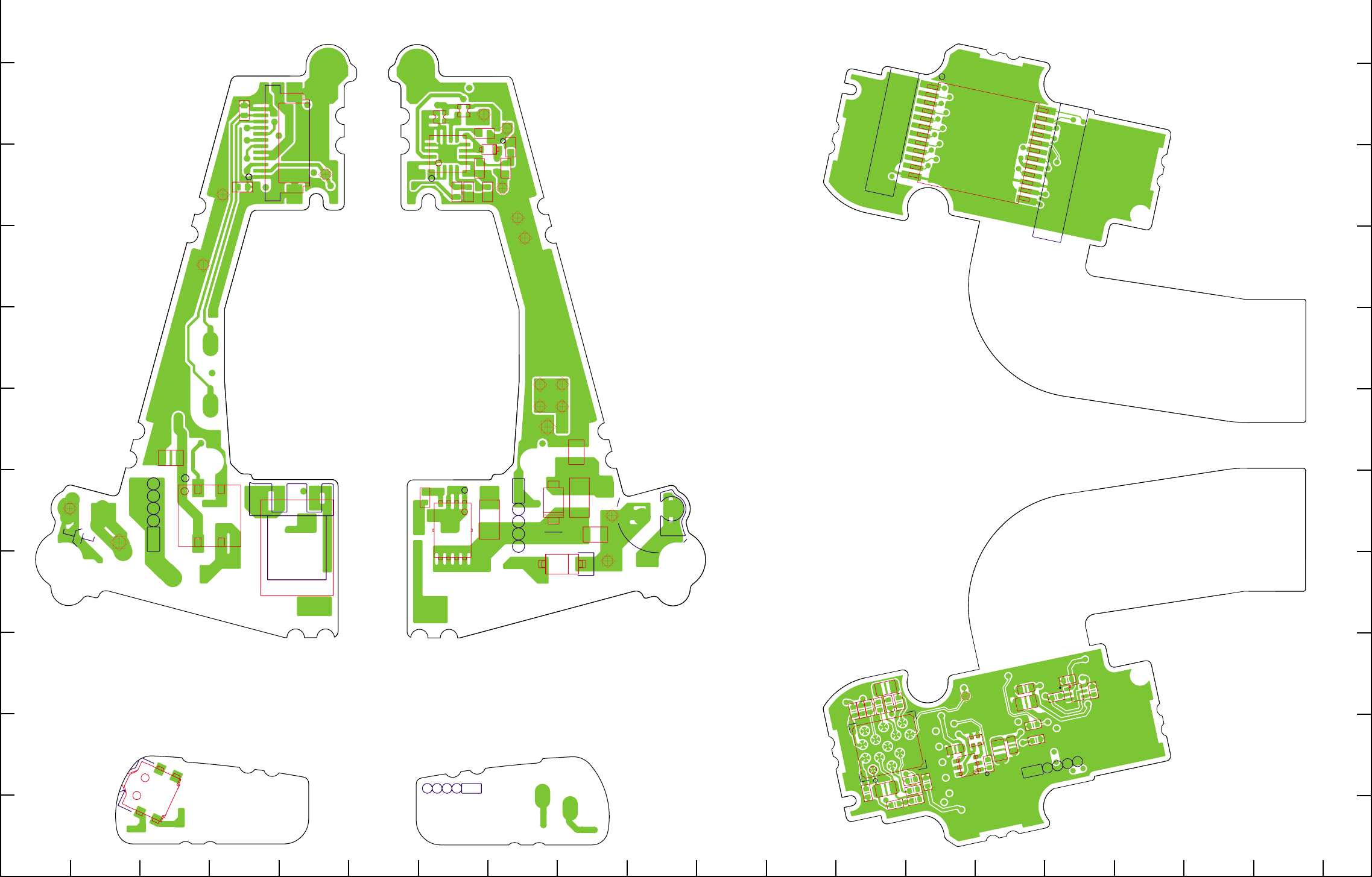

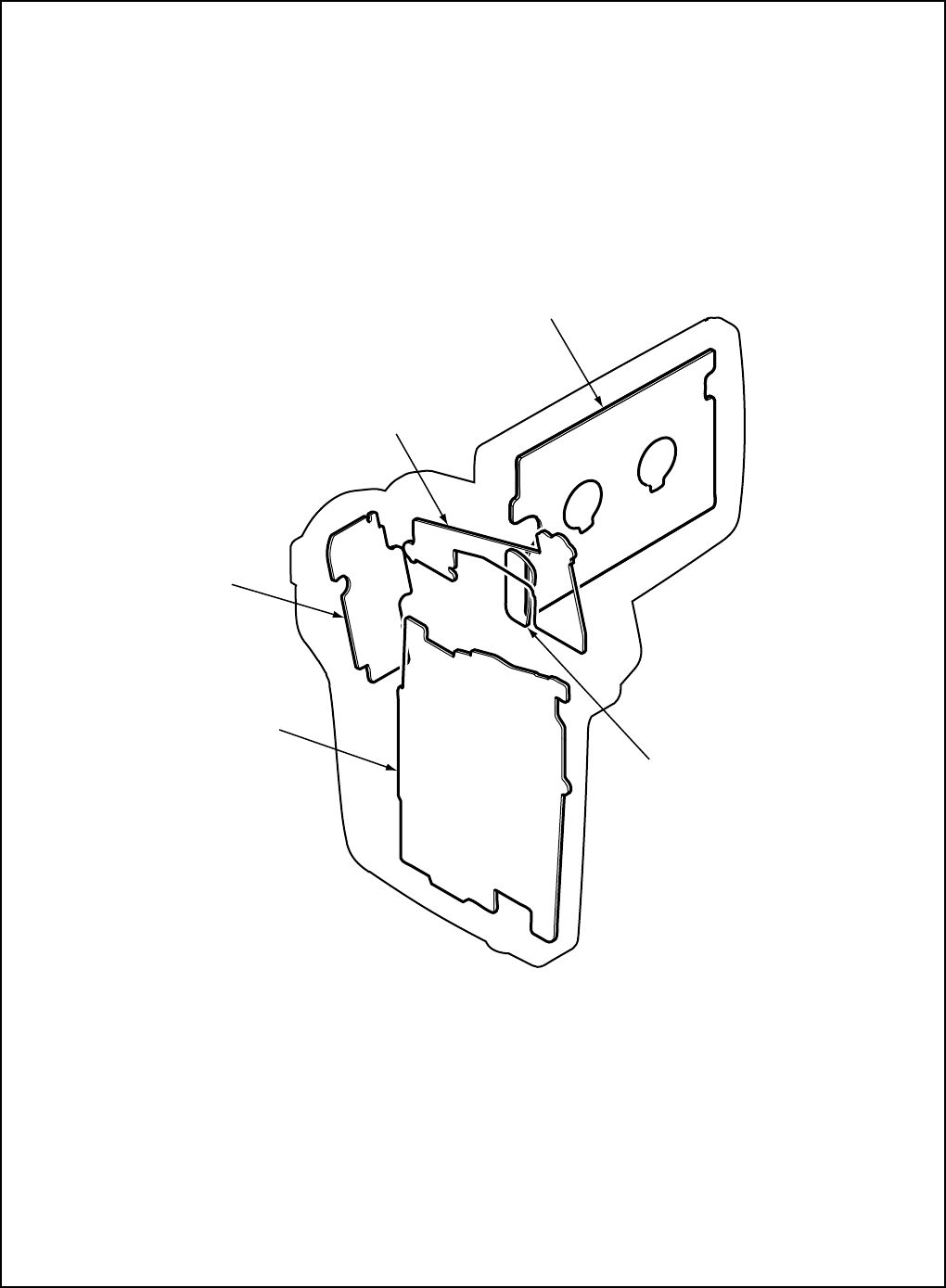

2-5. BOARD LOCATION
CA1 board
CP1 board
VF1 board
ST1 board
TB1 board
– 17 –
3. ELECTRICAL ADJUSTMENT

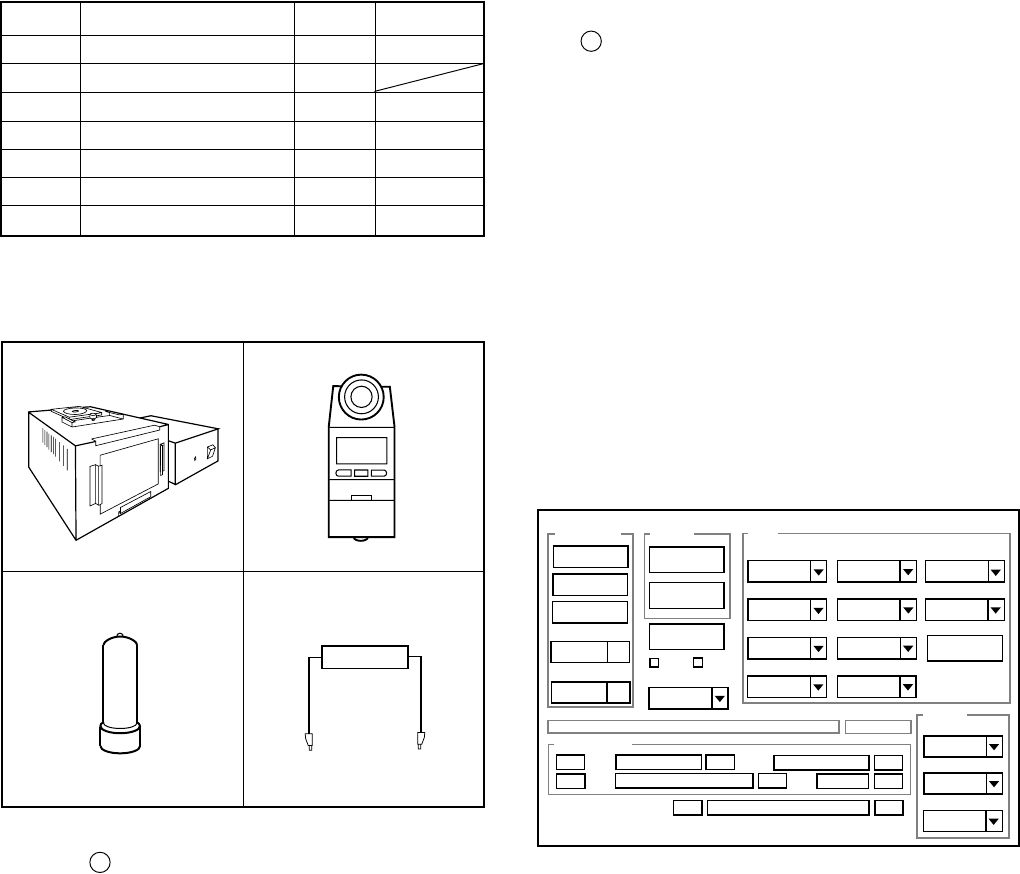

3-1. Table for Servicing Tools
Download the calibration software and the firmware
from the following URL.
http://www.digital-sanyo.com/overseas/service/
3-2. Equipment
1. PC (IBM R -compatible PC, Pentium processor, Window
98 or Me or 2000 or XP)

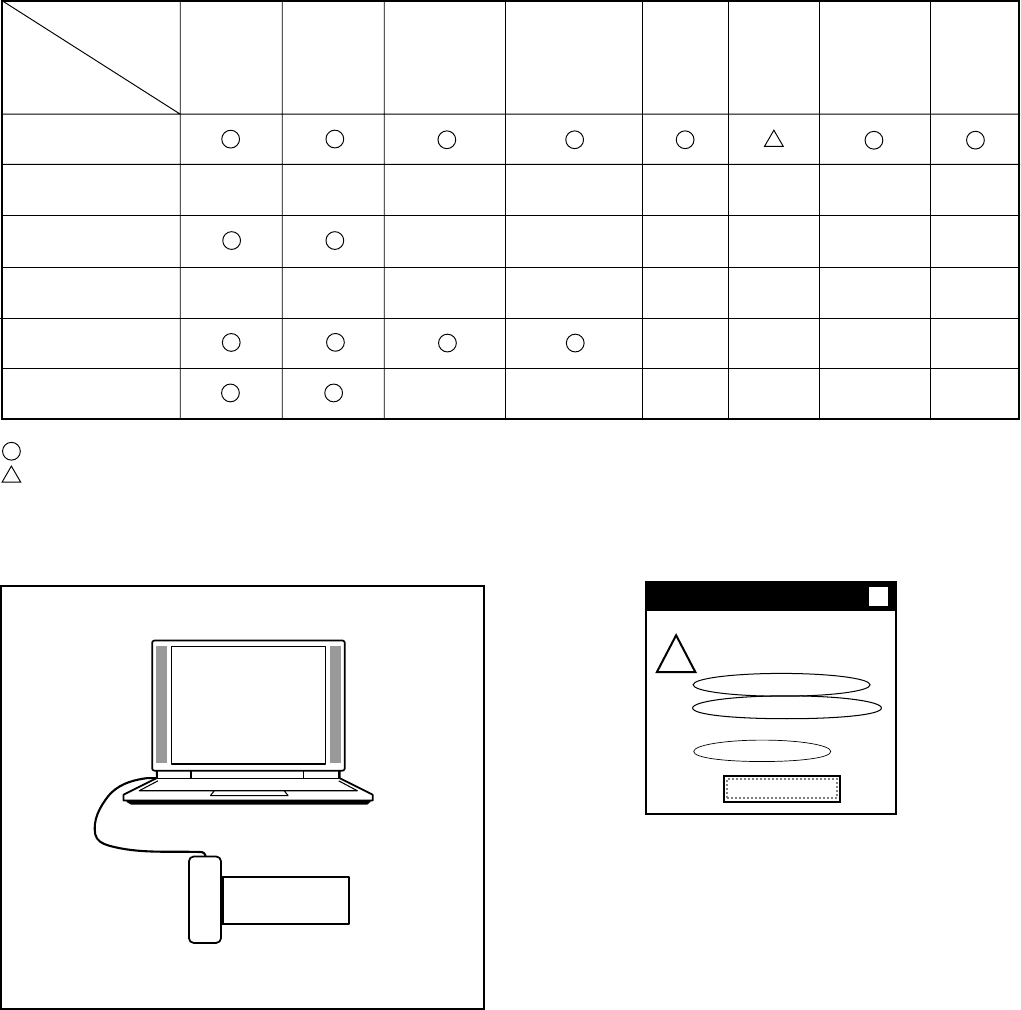

3-3. Adjustment Items and Order
1. Lens Adjustment
2. AWB Adjustment
3. CCD White Point Defect Detect Adjustment
4. CCD Black Point And White Point Defect Detect Adjust-
ment In Lighted
Note: Item 1-4 adjustments should be carried out in sequence.
3-4. Setup
1. System requirements
Windows 98 or Me or 2000 or XP
IBM R -compatible PC with pentium processor
CD-ROM drive
USB port
40 MB RAM
Hard disk drive with at least 15 MB available
VGA or SVGA monitor with at least 256-color display

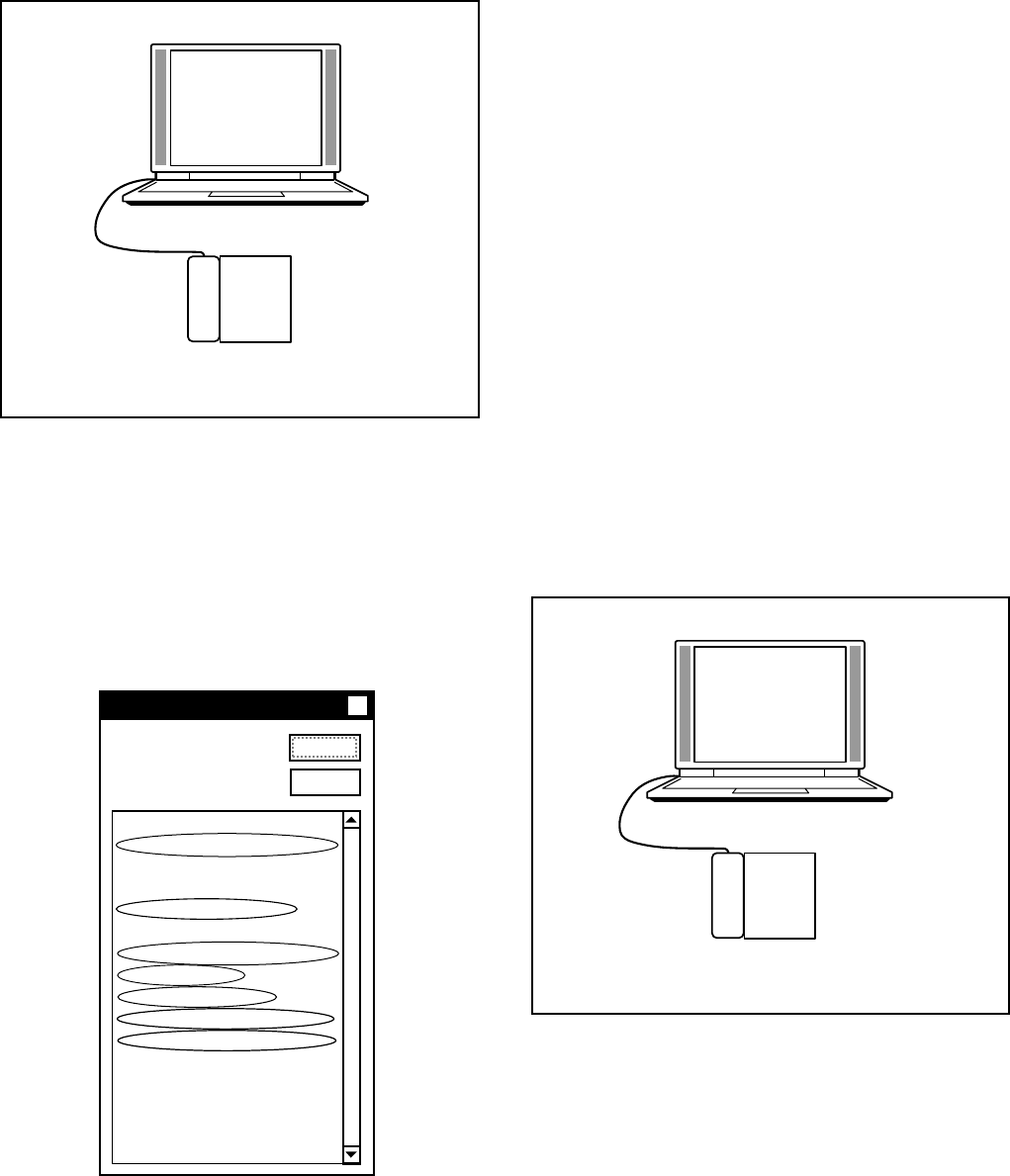

2. Installing USB driver
Install the USB driver with camera or connection kit for PC.
3. Pattern box (color viewer)
Turn on the switch and wait for 30 minutes for aging to take
place before using Color Pure. It is used after adjusting the
chroma meter (VJ8-0192) adjust color temperature to 3100 ±
20 K and luminosity to 900 ± 20 cd/m2. Be careful of handling
the lump and its circumference are high temperature during
use and after power off for a while.
4. Computer screen during adjustment
3-5. Connecting the camera to the computer
1. Insert the full charge batteries.
2. Line up the arrow on the cable connector with the notch on
the camera's USB port. Insert the connector.
3. Locate a USB port on your computer.
4. If “USB CONNECTION” is displayed, choose the “CARD
READER”, and press the SET button.
Ref. No. Name Part code
J-1
J-2
J-3
VJ8-0190
Pattern box (color viewer)
Calibration software
J-4
Number
1
1
1
Chroma meter VJ8-0192
1
Spare lump VJ8-0191
J-5
J-1 J-3
J-4 J-5
1
Discharge jig VJ8-0188
J-6 1
Collimator
VJ8-0260
Firmware
Data
AWB
Focus
UV Matrix
R Bright
RGB Offset
Tint
B Bright
Gain
Phase
LCD
Calibration Upload
PAF Cal.
LCD Type H AFC Test
VCOMDC
VCOMPP
Cal Data
Cal Mode
OK
OK
EVF
USB storage
Get
Set
VID Set
PID Set
Serial Set
Rev. Set
Setting
Language
Video Mode
VCO
Factory Code
Hall Cal.
Backrush pulse : Set
Get
J-7 1
Spare lump (collimator)
VJ8-0282
– 18 –
3-7. Adjust Specifications
1. Lens Adjustment
Preparation:
POWER switch: ON
If using a ready-made collimator, set to infinity.
Note:
Do not vibrate during the adjustment.
Adjustment method:
1. Set the camera 0 cm from the collimator. (Do not enter any
light.)
2. Set the camera so that it becomes center of the screen in
the collimator.
3. Double-click on the DscCalDi.exe.
4. Click the Focus, and click the Yes.
5. Lens adjustment value will appear on the screen.
6. Click the OK.
Adjustment value determination is effectuated using the "STD
AFPOS", "FOCUS" and “LENS_ERR” values.
If FOCUS=focus1, focus2, focus3, focus4 and the adjustment
values fulfill the conditions below, they are determined as within
specifications.
Adjustment value determination
1800<=STD_AFPOS<2000
-40<=focus1<=+40, -50<focus2<+50,
-60<=focus3<=+60, -200<=focus4<=+200
lens_error=0
Camera
Collimator
3-6. The adjustment item which in necessary in part exchange
DscCalDi
x
OK
Focus Result
STD_AFPOS=1905
FOCUS=-4,-6,-17,-77
ADJ_PZPOS=-11
LENS_ERR=0
!
COMPL PWB CP-1
Lens
Adjustment
AWB
Adjustment
CCD White Point
Defect Detect
Adjustment
CCD Black Point
And White Point
Defect Detect
Adjustment In
Lighted
Factory
Cord
Setting
USB storage
information
registration
Language
Setting
COMPL PWB ST-1
COMPL PWB VF-1
Reset
Setting
: Be sure to carry out the necessary adjustments after replacing the unit.
: Adjustment is possible from the menu setting screen of the camera and by using the calibration software.
LENS ASSY
ASSY FLEXIBLE
PWB CA1
COMPL PWB TB-1
– 19 –
2. AWB Adjustment
Preparation:
POWER switch: ON
Adjusting method:
1. When setting the camera in place, set it to an angle so that
nothing appears in any part of the color viewer except the
white section. (Do not enter any light.)
2. Double-click on the DscCalDi.exe.
3. Click the AWB, and click the Yes.
4. AWB adjustment value will appear on the screen.
5. Click the OK.
Adjustment value determination is effectuated using the "AGC",
“CHECK", “CHECK_ND”, "MS", “IRIS”, “IRIS_GAIN” and
“IRIS_OFFSET” values.
If AGC= a1, a2, a3, a4, a5, CHECK= wc0, wc1, wc2,
CHECK_ND= wnc0, wnc1, wnc2, MS= ms1, ms2, ms3, ms4,
IRIS= s1, s2, s3, s4, s5, IRIS_GAIN= g and IRIS_OFFSET=
o the adjustment values fulfill the conditions below, they are
determined as within specifications.
Adjustment value determination
50<a1<310, 100<a2<550, 200<a3<750,
300<a4<950, 400<a5<1024
wc0=128 ± 2, wc1=128 ± 2, wc2=130 ± 40
wnc0=128 ± 2, wnc1=128 ± 2, wnc2=130 ± 40
801<ms1<=2500, 1201<ms2<=2900, 1251<ms3<=3100,
1401<ms4<=3600
100<=s1<=220, 100<=s2<=220, 100<=s3<=220,
100<=s4<=220, 100<=s5<=220
ms4>ms3>ms2>ms1
s1>s2>s3>s4>s5
0<=g<=255
0<=o<=255
Adjustment values other than the above are irrelevant.
3. CCD White Point Defect Detect Adjustment
Preparation:
POWER switch: ON
Adjustment method:
1. Double-click on the DscCalDi.exe.
2. Select “CCD Defect” on the LCD “Test”, and click the “Ye s ”.
3. After the adjustment is completed, OK will display.
4. Click the OK.
4. CCD Black Point And White Point Defect Detect
Adjustment In Lighted
Preparation:
POWER switch: ON
Setting of pattern box:
Color temperature: 3100 ± 20 (K)
Luminance: 900 ± 20 (cd/m2)
Adjusting method:
1. Set the camera 0 cm from the pattern box. (Do not enter
any light.)
2. Double-click on the DscCalDi.exe.
3. Select “CCD Black” on the LCD “Test”, and click the “Yes”.
4. After the adjustment is completed, the number of defect
will appear.
Camera
Pattern box
(color viewer)
Camera
Pattern box
(color viewer)
Dsc Calibration x
OK
AWB Results:
1:
AGC=193,360,529,698,866
3F_AGC=0,0
WB=324,511,621
CHECK=128,128,132
WB_ND=320,511,628
CHECK_ND=128,128,134
IRIS_GAIN: 45
IRIS_OFFSET: 172
MS=1128,1526,1676,2125
IRIS=189,173,154,133,126
Fno_FOR_ISO=56
SS_FOR_ISO=1177
YLEVEL_FOR_ISO=9029
Copy
– 20 –
3-8. Factory Code Setting
1. Check the "Factory Code" display within the Setting group.
2. For U.S.A., Canada and NTSC general area
If "FC_SANYO_U" does not appear, click on the " " mark
located on the right of the "Factory Code" display BOX and
select "FC_SANYO_U".
3. For Europe and PAL general area
If "FC_SANYO_EX" does not appear, click on the " " mark
located on the right of the "Factory Code" display BOX and
select "FC_SANYO_EX".
3-9. Language Setting
1. Click on the " " mark located on the right of the
"Language" display BOX.
2. Select language. (Default is English.)
3. End "DscCal" and remove the camera before turning the
camera power OFF.
Firmware
Data
AWB
Focus
UV Matrix
R Bright
RGB Offset
Tint
B Bright
Gain
Phase
LCD
Calibration Upload
PAF Cal.
LCD Type H AFC Test
VCOMDC
VCOMPP
Cal Data
Cal Mode
OK
OK
EVF
USB storage
Get
Set
VID Set
PID Set
Serial Set
Rev. Set
Setting
Language
Video Mode
VCO
Factory Code
Hall Cal.
Backrush pulse : Set
Get
3-10. Program data writing to NAND-Memory
Carry out program data writing to NAND-memory
after replacing CP1 board.
Preparation:
SD card: SD card with data written into the root directory
Data: S111Nxxx.bin (xxx: version)
Overwriting method:
1. Insert the above SD card.
2. Turn on the camera.
3. Set the REC/PLAY button to the PLAY.
4. Press the MENU button. The PLAY MENU appears.
5. Toggle the SET button to the left two times to display the
OPTION MENU.
6. Choose the FORMAT.
7. Toggle the SET button to the left for 2 seconds. FIRMWARE
UPDATE will display.
8. Choose YES.
9. Press the SET button. Update is starting.
Note:
Do not turn off the camera’s power or remove the SD card
while the firmware is being updated.
3-11. Reset Setting
Carry out reset settings after replacing CP1 board.
1. Turn on the camera.
2. Press the MENU button.
3. Toggle the SET button to the left two times to display the
OPTION MENU.
4. Choose the RESET SETTINGS, and press the SET
button.
5. Select RESET, and press the SET button.
3-12. The Compulsive boot starting method
1. Keep MENU button, SET button, and SHUTTER button de-
pressed while switching on the power.
2. Connect the camera and the computer with USB cable.
– 21 –
3-13. Firmware uploading procedure
1. Uploading the firmware should be carried out if the version
number (COMPL PWB XX-X) on the replacement circuit
board is lower than the version of the distributed firmware.
For XX-X, enter the name of the circuit board containing the
firmware.
2. The firmware is distributed by e-mail in self-extracting archive
format. Change the extension of the distributed file to .EXE
and save it in your preferred folder.
3. When you double-click the saved file, the firmware (binary
file) will be saved in the same folder.
4. The firmware must not be distributed without permission.
1. Overwriting firmware from the SD card
Preparation:
SD card: SD card with firmware rewritten into the root direc-
tory
Data: S111Nxxx.BIN (xxx: version)
Overwriting method:
1. Insert the above SD card.
2. Turn on the camera.
3. Set the REC/PLAY button to the PLAY.
4. Press the MENU button. The PLAY MENU appears.
5. Toggle the SET button to the left two times to display the
OPTION MENU.
6. Choose the FORMAT.
7. Toggle the SET button to the left for 2 seconds. FIRMWARE
UPDATE will display.
8. Choose YES.
9. Press the SET button. Update is starting.
Note:
Do not turn off the camera’s power or remove the SD card
while the firmware is being updated.
The power will turn on automatically after the update is com-
plete.
2. Overwriting firmware from the calibration software
Preparation:
PC with overwriting firmware copied to the preferred folder in
the HD.
Data: S111Nxxx.BIN (xxx: version)
Overwriting method:
1. Connect the camera’s USB/AV terminal to the computer’
USB connector.
2. The USB Connection screen appears on the camera’s LCD
monitor. Choose the “CARD READER”, and press the SET
button.
3. Double-click on the DscCalDi.exe.
4. Click the Firmware.
5. Choose the fimware file to use for overwriting, and click
the Yes.
6. Update is starting. The message will appear, and choose
OK.
7. After the update is complete, disconnect the USB cable
and turn the camera’s power off.
Note:
Do not turn off the camera’s power while the firmware is be-
ing updated.
– 22 –
4. USB STORAGE INFORMATION
REGISTRATION
USB storage data is important for when the camera is con-
nected to a computer via a USB connection.
If there are any errors in the USB storage data, or if it has not
been saved, the USB specification conditions will not be sat-
isfied, so always check and save the USB storage data.
Preparation:
POWER switch: ON
Adjustment method:
1. Connect the camera to a computer. (Refer to 3-5. Con-
necting the camera to the computer on the page 17.)
2. Double-click on the DscCalDi.exe.
3. Click on the Get button in the USB storage window and
check the USB storage data.
VID: SANYO
PID: CG6
Serial:
Rev. : 1.00
4. Check the “Serial” in the above USB storage data. If the
displayed value is different from the serial number printed
on the base of the camera, enter the number on the base
of the camera. Then click the Set button.
5. Next, check VID, PID and Rev. entries in the USB storage
data. If any of them are different from the values in 3. above,
make the changes and then click the corresponding Set
button.
Firmware
Data
AWB
Focus
UV Matrix
R Bright
RGB Offset
Tint
B Bright
Gain
Phase
LCD
Calibration Upload
PAF Cal.
LCD Type H AFC Test
VCOMDC
VCOMPP
Cal Data
Cal Mode
OK
OK
EVF
USB storage
Get
Set
VID Set
PID Set
Serial Set
Rev. Set
Setting
Language
Video Mode
VCO
Factory Code
Hall Cal.
Backrush pulse :
Set
Get
– 23 –
5. TROUBLESHOOTING GUIDE
POWER LOSS INOPERTIVE
PUSH THE POWER
SW FOR A WHILE
IC301-54
SCAN IN 4 INPUT CHECK POWER SW
IC302-12 5.0 V (+5 V) CHECK IC531, F5002
IC301-9, 38, 62
(VDD)
IC301-56
(RESET)
CHECK IC302
CHECK IC302
IC301-52
(BAT OFF) CHECK IC302
IC301-61
OSCILLATION CHECK X3001
IC301-58
OSCILLATION CHECK X3002
CHECK IC301
PUSH SHUTTER
BUTTON
IC301-25, 55
KEY INPUT CHECK UNIT SW
IC501-3, 14, 15, 10, 1, 22
(P ON, P ON2, PA ON)
IC503-1 (PA ON4)
IC904-1 (PA ON3)
CHECK IC101, IC301,
PWA BLOCK,
CAA BLOCK
SERIAL
COMMUNICATION
CHECK IC301,
CP1 DMA BLOCK
CHECK CP1 DMA
BLOCK
TAKING INOPERATIVE
NO
HIGH
LOW
LOW
LOW
NO
NO
LOW
YES
HIGH
HIGH
HIGH
YES
YES
YES
HIGH
OK
NO
LOW
NG
NO PICTURE
MAIN CLOCK FOR SYSTEM OPERATION
NO OPERATION IF ABSENT
CHECK X1102 OSCILLATOR
IC101-AB19 (XOUT)
CHECK
OSCILLATION
IC301-67, 66
(ASIC_SO, ASIC_SI)
CHECK SOLDERING
OF MEMORY
EACH PIN
INCORRECT HANDSHAKING
BETWEEN 8-BIT CPU AND ASIC
CHECK EACH INTERFACE
OK
OK
NG
NG
24
6. PARTS LIST
ACCESSORIESPACKING MATERIALS
LOCATION PARTS NO. DESCRIPTION LOCATION PARTS NO. DESCRIPTION
Note: Refer to the table of accessories 7001 636 098 9962 CARTON INNER-SG111/EX, EXCEPT VPC-CG6
7001 636 098 9955 CARTON INNER-SG111/U, VPC-CG6 ONLY
7002 636 078 4659 CUSHION SHEET-SX792/KRNK
7003 636 096 9261 REINFORCE PAD,A-SX817/J (BOTTOM)
1 636 087 0017 STRAP -SX719/U
2 636 099 5475 CASE SOFT-SG111/J
3 636 099 3624 ASSY,CAP LENS-SG111/J
4 645 089 8297 CABLE,DSC USB
OR 645 089 8303 CABLE,DSC USB
5 645 090 2192 CABLE,DSC A/V
OR 645 090 2208 CABLE,DSC A/V
6 645 083 6787 CORD,POWER-1.2MK, EXCEPT VPC-CG6
6 645 083 6794 CORD,POWER-1.9MK, VPC-CG6 ONLY
7 645 089 5081 BATTERY CHARGER
8 645 089 8990 BATTERY,RECHARGE,LI-ION
9 636 099 5864 DISC,CD-ROM SSP G111 U1 (N.S.P.)
(Sanyo software pack)
(PDF of instruction manual: English, French, Spanish,
German, Dutch, Italian, Simplified Chinese, Traditional
Chinese, Korean, Russian)
9 636 099 5871 DISC,CD-ROM SSP G111 U2 (N.SP.)
(Sanyo software pack)
10 636 097 9031 INSTRUCTION MANUAL (English)
25

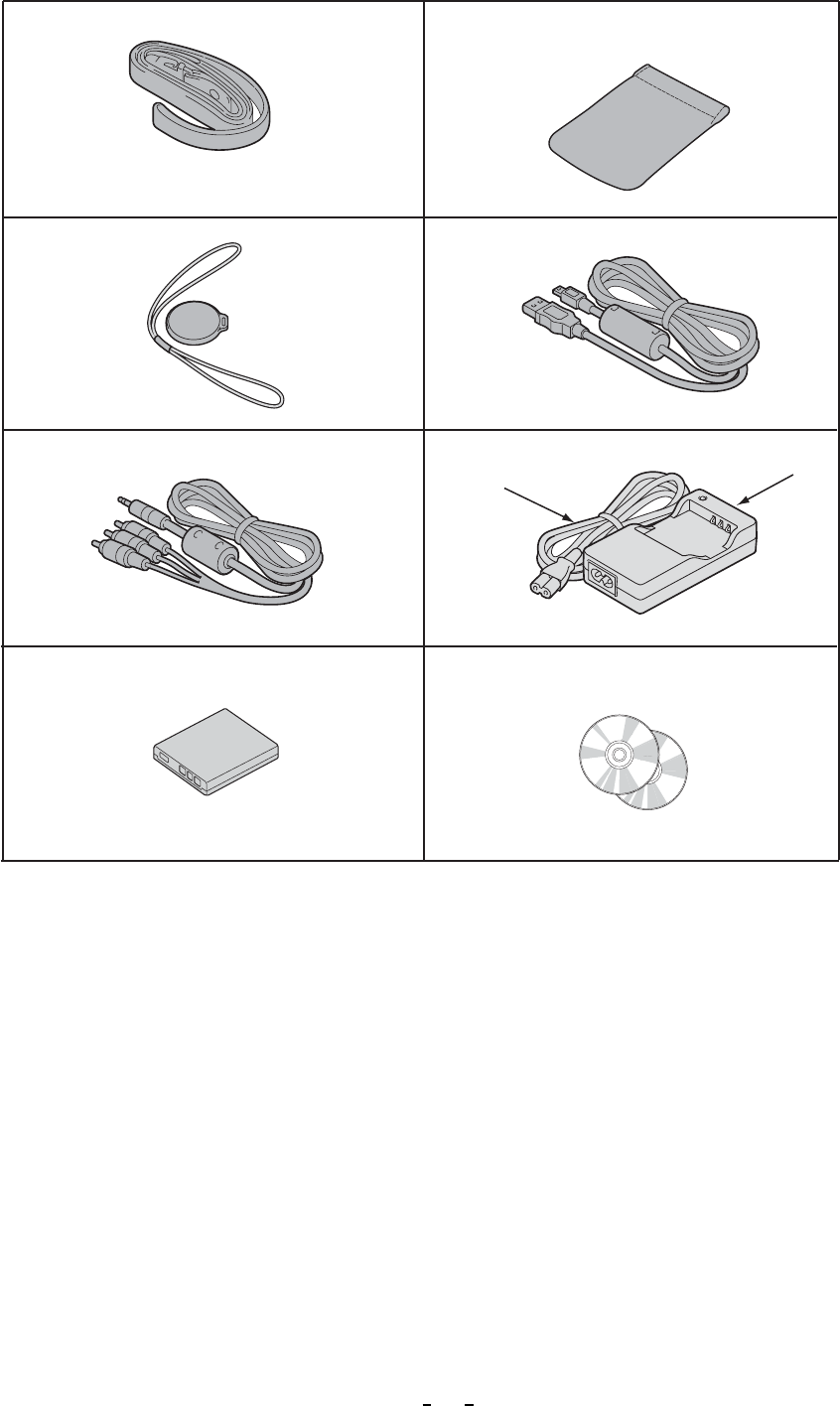

Table of accessories
1
1
2
3
3
4
5
5
6
6
7
7
8
8
9
Table 6-1. Accessories
26
CABINET AND CHASSIS PARTS 1
LOCATION PARTS NO. DESCRIPTION LOCATION PARTS NO. DESCRIPTION
1 636 099 4188 COMPL,CABI LEFT-SG111/J,
VPC-CG6, VPC-CG6EX, VPC-CG6GX
1 636 099 5192 COMPL,CABI LEFT-SG111/J2, VPC-CG6EXBL ONLY
1 636 099 5635 COMPL,CABI LEFT-SG111/J3, VPC-CG6EXP ONLY
2 636 098 8385 HOLDER STRAP-SG111/J
3 636 099 1590 SPRING BATT EJECT-SG111/J
4 636 098 8163 HOLDER BATTERY -SG111/J,
EXCEPT VPC-CG6EXBL
4 636 099 7585 HOLDER BATTERY -SG111/J2,
VPC-CG6EXBL ONLY
5 636 099 6038 COMPL PWB, CP-1 F/W
6 636 098 8095 COVER BATTERY-SG111/J,
EXCEPT VPC-CG6EXBL
6 636 099 5291 COVER BATTERY-SG111/J2, VPC-CG6EXBL ONLY
7 636 098 8347 HOLDER COVER BATT -SG111
8 636 099 1439 HOLDER PUSH BATT-SG111/J,
EXCEPT VPC-CG6EXBL
8 636 099 7592 HOLDER PUSH BATT-SG111/J2,
VPC-CG6EXBL ONLY
9 636 101 5523 SHAFT COVER BATT-SG111/J
10 636 099 1606 SPRING COVER BAT-SG111/J
11 636 098 8378 EARTH BATT-SG111/J
12 636 099 7561 COMPL,BUTT BACK-SG111/J2,
VPC-CG6EXBL ONLY
12 636 099 4225 COMPL,BUTTON BACK-SG111/J,
EXCEPT VPC-CG6EXBL
13 636 098 8354 EARTH STRAP-SG111/J
14 636 101 4564 SPACER HOLDER JOINT-SG111
15 636 098 8279 COVER JACK-SG111/J, EXCEPT VPC-CG6EXBL
15 636 099 5338 COVER JACK-SG111/J2, VPC-CG6EXBL ONLY
16 636 098 8392 DEC RIGHT-SG111/J, EXCEPT VPC-CG6EXBL
16 636 099 5352 DEC RIGHT-SG111/J2, VPC-CG6EXBL ONLY
17 636 098 8255 DEC LCD-SG111/J,
VPC-CG6, VPC-CG6EX, VPC-CG6GX
17 636 099 5178 DEC LCD-SG111/J2, VPC-CG6EXBL ONLY
17 636 099 5512 DEC LCD-SG111/J3, VPC-CG6EXP ONLY
18 636 099 1583 SPACER LENS RIGHT-SG111/J
19 636 100 2134 SPACER LENS LEFT-SG111/J
20 645 089 3117 LENS(ASSY)
21 636 101 6971 SPACER LENS BACK-SG111/J
22 645 089 7719 OPTICAL FILTER
23 636 082 8131 SPACER SX719
24 636 099 7424 COMPL FPC SV-SG111
25 636 101 1815 SHIELD TAPE CA FPC SG111
101 411 177 0906 SCR S-TPG PAN PCS 1.7X3.5,
EXCEPT VPC-CG6EXBL
101 411 193 2007 SCR S-TPG PAN PCS 1.7X3.5,
VPC-CG6EXBL ONLY
102 411 176 1003 SCR PAN PCS 1.7X2.5
103 411 178 6204 SCR PAN PCS 1.7X4
104 411 177 6502 SCR S-TPG PAN PCS 1.7X4
105 312 065 5006 SPECIAL SCREW-1.4X2.5
106 312 067 5400 SP SCR HMPN1.7X5A NEW-R,
EXCEPT VPC-CG6EXBL
106 312 070 1505 SP SCR HMPN1.7X5WP NEW-R,
VPC-CG6EXBL ONLY
107 411 175 5705 SCR PAN PCS 1.7X3, EXCEPT VPC-CG6EXBL
107 411 194 8206 SCR PAN PCS 1.7X3, VPC-CG6EXBL ONLY
108 411 181 8707 SCR S-TPG PAN PCS 1.4X3.5
118 411 181 2705 SCR PAN PCS-1.4 X 2
27
Cabinet 1
SG111/J PARTS LIST 1
N.S.P.: Not available as service parts.
a
a
17
12
25
21
108
108
24
23 22 20
19
104
1
04
11
5
15
16
118
105
104
104
104
6
7
10
14
18
2
9
13
3
107
8
4
106
102
103
106
103
104
1
101
105
CABINET AND CHASSIS PARTS 1
28
CABINET AND CHASSIS PARTS 2
LOCATION PARTS NO. DESCRIPTION LOCATION PARTS NO. DESCRIPTION
1 636 099 4157 COMPL,CABI RIGHT-SG111/J,
VPC-CG6, VPC-CG6EX,PC-CG6GX
1 636 099 5147 COMPL,CABI RIGHT-SG111/J2,
VPC-CG6EXBL ONLY
1 636 099 5604 COMPL,CABI RIGHT-SG111/J3,
VPC-CG6EXP ONLY
2 636 098 8316 HOLDER JOINT-SG111/J
3 636 098 8330 HOL STRAP INNER-SG111/J
4 636 099 8797 SPACER CON-SG111/J
5 636 098 8118 COVER JOINT TOP-SG111/J,
VPC-CG6, VPC-CG6EX,PC-CG6GX
5 636 099 5307 COVER JOINT TOP-SG111/J2,
VPC-CG6EXBL ONLY
5 636 099 5574 COVER JOINT TOP-SG111/J3, VPC-CG6EXP ONLY
6 636 099 4676 FLEXIBLE PWB SG111ST1-CP1
7 636 098 9092 COMPL PWB,ST-1
8 636 099 8858 SPACER ST-SG111
9 636 099 3587 SPACER CON B- SG111/J
10 636 068 0265 COVER TRIGER-SX612/J
11 645 089 8204 ASSY,LAMP-SG111, EXCEPT VPC-CG6EXBL
11 645 090 0198 ASSY,LAMP-SG111/J2, VPC-CG6EXBL ONLY
12 636 100 8860 SPACER FLASH -SG111/J
13 636 101 3802 SPACER FLASH A-SG111/J
14 636 098 8194 COVER FLASH-SG111/J, EXCEPT VPC-CG6EXBL
14 636 099 5321 COVER FLASH-SG111/J2, VPC-CG6EXBL ONLY
15 636 098 8170 HOLDER SPEAKER-SG111/J
16 636 099 1460 ADHESIVE SPEAKER-SG111/J
17 645 091 3778 SPEAKER,8
18 636 099 4300 ASSY,COVER JOINT-SG111/J,
VPC-CG6, VPC-CG6EX, VPC-CG6GX
18 636 099 5215 ASSY,COVER JOINT-SG111/J2,
VPC-CG6EXBL ONLY
18 636 099 5642 ASSY,COVER JOINT-SG111/J3,
VPC-CG6EXP ONLY
19 636 101 4588 SPACER LCD A-SG111/J
20 636 099 4997 ASSY,COV LCD BACK-SG111/J,
VPC-CG6, VPC-CG6EX, VPC-CG6GX
20 636 099 5239 ASSY COV LCD BACK-SG111/J2,
VPC-CG6EXBL ONLY
20 636 099 5659 ASSY COV LCD BACK-SG111/J3,
VPC-CG6EXP ONLY
21 645 089 9737 MICROPHONE
22 636 098 8156 HOLDER MIC-SG111/J
23 636 099 1675 SPACER MIC-SG111/J
24 636 098 9108 COMPL PWB,VF-1
25 636 101 4571 SPACER VF1 -SG111/J
26 636 098 8323 HOLDER MONITOR-SG111/J
27 636 099 7332 ASSY,WIRE LCD&VF1-SG111
28 636 099 7349 ASSY,WIRE LCD&VF1-SG111
29 645 089 8822 LCD(COM25T2962GLB)
30 636 098 9115 COMPL PWB,TB-1
31 636 081 4554 SPACER JOINT-SX718/J
32 636 099 4195 ASSY,JOINT-SG111/J
33 636 098 8187 COVER JOINT-SG111/J, EXCEPT VPC-CG6EXP
33 636 099 5581 COVER JOINT-SG111/J3, VPC-CG6EXP ONLY
34 636 100 3995 ASSY,WIRE VF1&CP1-SG111
35 636 099 4706 ASSY,WIRE VF1&CP1-SG111
36 636 098 8231 DEC LCD TOP B-SG111/J
37 636 099 6991 COVER STAND-SG111/J
38 636 102 3887 ASSY,COVER LCD FR SV-111
102 411 176 1003 SCR PAN PCS 1.7X2.5
104 411 177 6502 SCR S-TPG PAN PCS 1.7X4
109 411 213 4202 SCR S-TPG PAN PCS 1.4X5
110 312 067 5400 SP SCR HMPN1.7X5A NEW-R
111 411 199 0601 SCR TIN 1.7X2, VPC-CG6EXBL ONLY
111 411 199 0700 SCR TIN 1.7X2, EXCEPT VPC-CG6EXBL
112 411 190 2208 SCR S-TPG PAN PCS 1.4X3
113 411 186 8207 SCR PAN PCS-1.4X3, EXCEPT VPC-CG6EXBL
113 312 070 1208 SPSCR E2PN1.4X3WP, VPC-CG6EXBL ONLY
114 312 060 9504 SPECIAL SCREW-1.7X2.5
115 411 181 2705 SCR PAN PCS-1.4X2
116 411 184 0005 SCR PAN PCS 1.7X2.0, VPC-CG6EXP ONLY
116 411 194 8404 SCR PAN PCS 1.7X2.0, EXCEPT VPC-CG6EXP
117 411 194 8404 SCR PAN PCS 1.7X2.0
29
Cabinet 2
SG111/J PARTS LIST 2
102
2
3
104
110 109
110
109
4
5
6
7
9
10
11
12
13
15
112
111
17
16 111
18
20
19
21
22
23
24
25
21
23
27
28
29
30
31
19
113
113
113
113
114
115
116
117
26
117
32
33
34
36
35
36
38 37
37
14
8
1
CABINET AND CHASSIS PARTS 2
30
Note:
1. Materials of Capacitors and Resistors are abbreviated as follows ;
Resistors Capacitors
MT-FILM Metallized Film Resistor MT-POLYEST Metallized Polyester Capacitor
MT-GLAZE Metallized Glaze Resistor MT-COMPO Metallized Composite Capacitor
OXIDE-MT Oxide Metallized Film Resistor TA-SOLID Tantalum Solid Capacitor
AL-SOLID Aluminum Solid Capacitor
NP-ELECT Non-Polarized Electrolytic Capacitor
OS-SOLID Aluminum Solid Capacitors with Organic
Semiconductive Electrolytic Capacitor
DL-ELECT Double Layered Electrolytic Capacitor
POS-SOLID Polymerized Organic Semiconductor Capacitor
2. Tolerance of Capacitor (10pF over) and Resistor are noted with follow symboles.
F ............1% G ............2% J ............5% K ............10%
M ..........20% N ..........30% Z ..........+80% ~ -20%
3. Capacitors
U : µF P : pF
4. Inductors
UH : µH MH : mH
5. N.S.P. : Not available as service parts.
ELECTRICAL PARTS
LOCATION PARTS NO. DESCRIPTION LOCATION PARTS NO. DESCRIPTION
COMPL PWB, CP-1 F/W
636 099 6038
(VARISTORS)
VA134 308 050 1207 VARISTOR AVR-M1608C120MT
VA155 308 050 0606 VARISTOR AVR-M1005C120MT
VA301 308 050 0507 VARISTOR AVR-M1005C080MT
VA302 308 050 0507 VARISTOR AVR-M1005C080MT
(SEMICONDUCTORS)
Q1301 305 172 4703 TR UNR32A3
OR 305 168 3703 TR DTC144EM
OR 305 207 5002 TR RN1104FV
Q1303 405 218 3902 TR UP0431300
Q1401 405 218 3902 TR UP0431300
Q3001 305 183 7700 TR EMH10
Q5201 305 169 4501 TR DTC114EM
OR 305 207 4906 TR RN1102FV
OR 305 172 4604 TR UNR32A1
Q5301 305 208 8606 TR FDC633N-NF
Q5302 305 184 6009 TR UP03396
(INTEGRATED CIRCUITS)
IC101 410 619 3406 IC KS756U2642CBP BGA (N.S.P.)
IC102 410 625 9003 IC MBG124APBS-ME1 BGA (N.S.P.)
OR 310 577 7709 IC MBG124PBS-ME1 BGA (N.S.P.)
IC121 309 675 9203 IC K5R5658VCM-DR75 BGA (N.S.P.)
IC151 409 679 4003 IC NJM2561F1A
IC301 410 619 9804 IC LC87F2832AUFL68TBM-E BGA (N.S.P.)
IC302 409 676 9902 IC LV5622LP-TE-L-E
IC501 309 616 9804 IC MAX8611ETM+
IC503 309 637 4307 IC TK70634HC-G
IC521 310 615 3908 IC LTC4066EUF#PBF
IC901 309 645 9905 IC AN20112A
IC904 409 677 2803 IC NJM2877F3-03
IC905 309 669 6904 IC AD9971BCPZ
IC951 309 674 2700 IC BU2232GU
IC971 309 646 8709 IC AK7331
(DIODES)
D3001 307 205 2809 DIODE RB520S-30
OR 307 221 0100 DIODE MA2SD24
D5001 307 223 5509 DIODE MA2Z720
D5002 307 223 5509 DIODE MA2Z720
D5003 307 223 5509 DIODE MA2Z720
D5201 307 248 0701 DIODE MA21D3800
D5301 307 250 0706 DIODE DRB060M-30
D9001 307 223 5509 DIODE MA2Z720
D9002 307 210 1903 DIODE 1SS400
OR 307 226 4806 DIODE BAS516
D9003 307 223 5509 DIODE MA2Z720
D9005 307 223 5509 DIODE MA2Z720
(OSCILLATORS)
X1102 645 069 4967 OSC,CRYSTAL 48.00000MHZ
X3001 945 046 1416 OSC,CERAMIC 4.00MHZ
X3002 645 080 8708 OSC,CRYSTAL 32.768KHZ
(INDUCTORS)
L1007 945 059 8112 IMPEDANCE,1000 OHM P
L1008 945 053 5469 IMPEDANCE,120 OHM P
L1011 945 059 8112 IMPEDANCE,1000 OHM P
L1012 945 059 8112 IMPEDANCE,1000 OHM P
L1301 945 072 7413 IMPEDANCE,90 OHM -
L1302 945 066 4688 IMPEDANCE,30 OHM P
L1551 945 053 5414 IMPEDANCE,1000 OHM P
L1552 945 053 5414 IMPEDANCE,1000 OHM P
L1553 945 020 1869 INDUCTOR,750 OHM
L5001 645 072 3681 INDUCTOR,2.4U N
L5002 645 072 7573 INDUCTOR,4.7U N
L5003 645 079 6616 INDUCTOR,1.2U N
L5004 645 067 2361 INDUCTOR,3.3U N
L5005 645 079 7675 INDUCTOR,4.7U N
L5008 645 072 7573 INDUCTOR,4.7U N
L5009 645 081 7410 INDUCTOR,2.0U N
L5010 945 061 7417 INDUCTOR,47U M
L5011 945 066 4688 IMPEDANCE,30 OHM P
L5012 945 066 4688 IMPEDANCE,30 OHM P
L5301 645 079 1253 INDUCTOR,2.1U M
L9001 945 059 8211 IMPEDANCE,600 OHM P
(CAPACITORS)
CB101 303 391 4306 CERAMIC 0.1U K 16V
CB102 303 409 1402 CERAMIC 1000P K 50V
CB901 303 392 5500 CERAMIC 1U K 6.3V
CB904 303 391 4306 CERAMIC 0.1U K 16V
CB905 303 391 4306 CERAMIC 0.1U K 16V
CB906 303 391 4306 CERAMIC 0.1U K 16V
CB971 303 392 5500 CERAMIC 1U K 6.3V
C1007 303 419 4004 CERAMIC 0.1U K 10V
C1008 303 383 5205 CERAMIC 4.7U K 6.3V
C1009 303 419 4004 CERAMIC 0.1U K 10V
C1010 303 419 4004 CERAMIC 0.1U K 10V
C1011 303 419 4004 CERAMIC 0.1U K 10V
C1018 303 383 5205 CERAMIC 4.7U K 6.3V
C1019 303 419 4004 CERAMIC 0.1U K 10V
C1020 303 419 4004 CERAMIC 0.1U K 10V
C1021 303 419 4004 CERAMIC 0.1U K 10V
C1026 303 375 0300 CERAMIC 4.7U K 4V
C1031 303 384 9202 CERAMIC 1U M 4V
C1074 303 419 4004 CERAMIC 0.1U K 10V
C1078 303 419 4004 CERAMIC 0.1U K 10V
C1079 303 419 4004 CERAMIC 0.1U K 10V
C1081 303 343 3104 CERAMIC 1U K 6.3V
C1082 303 419 4004 CERAMIC 0.1U K 10V
C1083 303 383 5205 CERAMIC 4.7U K 6.3V
C1084 303 419 4004 CERAMIC 0.1U K 10V
C1086 303 343 3104 CERAMIC 1U K 6.3V
31
LOCATION PARTS NO. DESCRIPTION LOCATION PARTS NO. DESCRIPTION
C1087 303 419 4004 CERAMIC 0.1U K 10V
C1092 303 383 5205 CERAMIC 4.7U K 6.3V
C1099 303 338 0309 CERAMIC 0.1U K 10V
C1121 303 314 6400 CERAMIC 7P D 50V
C1122 303 314 6400 CERAMIC 7P D 50V
C1201 303 419 4004 CERAMIC 0.1U K 10V
C1202 303 276 1307 CERAMIC 1000P K 50V
C1203 303 381 8109 CERAMIC 1U K 6.3V
C1204 303 419 4004 CERAMIC 0.1U K 10V
C1205 303 419 4004 CERAMIC 0.1U K 10V
C1206 303 419 4004 CERAMIC 0.1U K 10V
C1207 303 383 5205 CERAMIC 4.7U K 6.3V
C1208 303 276 1307 CERAMIC 1000P K 50V
C1303 303 381 8109 CERAMIC 1U K 6.3V
C1401 303 419 4004 CERAMIC 0.1U K 10V
C1501 303 419 4004 CERAMIC 0.1U K 10V
C1503 303 383 5205 CERAMIC 4.7U K 6.3V
C1551 303 419 4004 CERAMIC 0.1U K 10V
C1554 303 373 5802 CERAMIC 100P J 25V
C1555 303 373 5802 CERAMIC 100P J 25V
C3001 303 391 0506 CERAMIC 10U K 6.3V
C3002 303 419 4004 CERAMIC 0.1U K 10V
C3003 303 338 0309 CERAMIC 0.1U K 10V
C3005 303 419 4004 CERAMIC 0.1U K 10V
C3006 303 381 8109 CERAMIC 1U K 6.3V
C3007 303 381 8109 CERAMIC 1U K 6.3V
C3008 303 380 2207 CERAMIC 22P J 25V
C3009 303 381 8109 CERAMIC 1U K 6.3V
C3010 303 276 1307 CERAMIC 1000P K 50V
C3011 303 419 4004 CERAMIC 0.1U K 10V
C3013 303 381 8109 CERAMIC 1U K 6.3V
C3014 303 424 9407 CERAMIC 20P J 25V
C3015 303 381 8109 CERAMIC 1U K 6.3V
C5005 303 393 2607 CERAMIC 22U M 6.3V
C5006 303 393 2607 CERAMIC 22U M 6.3V
C5007 303 381 8109 CERAMIC 1U K 6.3V
C5008 303 381 8109 CERAMIC 1U K 6.3V
C5010 303 276 1307 CERAMIC 1000P K 50V
C5014 303 393 2607 CERAMIC 22U M 6.3V
C5015 303 393 2607 CERAMIC 22U M 6.3V
C5016 303 408 5906 CERAMIC 10U M 6.3V
C5018 303 393 2607 CERAMIC 22U M 6.3V
C5019 303 393 2607 CERAMIC 22U M 6.3V
C5021 303 381 8109 CERAMIC 1U K 6.3V
C5022 303 380 6601 CERAMIC 0.22U K 6.3V
C5023 303 420 7506 CERAMIC 4.7U K 16V
C5027 303 381 8109 CERAMIC 1U K 6.3V
C5028 303 381 8109 CERAMIC 1U K 6.3V
C5029 303 320 0607 CERAMIC 220P J 25V
C5030 303 381 8109 CERAMIC 1U K 6.3V
C5036 303 420 7506 CERAMIC 4.7U K 16V
C5037 303 420 7506 CERAMIC 4.7U K 16V
C5042 303 320 0607 CERAMIC 220P J 25V
C5045 303 420 7506 CERAMIC 4.7U K 16V
C5046 303 381 8109 CERAMIC 1U K 6.3V
C5047 303 338 0309 CERAMIC 0.1U K 10V
C5201 303 384 6409 CERAMIC 4.7U K 6.3V
C5202 303 384 6409 CERAMIC 4.7U K 6.3V
C5203 303 338 0309 CERAMIC 0.1U K 10V
C5301 303 320 0607 CERAMIC 220P J 25V
C5302 303 276 1901 CERAMIC 22P J 50V
C5303 303 282 9403 CERAMIC 680P K 50V
C5304 303 408 5906 CERAMIC 10U M 6.3V
C5305 303 381 6204 POS-SOLID 33U M 8V
C9006 303 382 3806 CERAMIC 0.01U K 10V
C9012 303 382 3905 CERAMIC 0.1U K 6.3V
C9031 303 381 8109 CERAMIC 1U K 6.3V
C9032 303 391 0803 CERAMIC 1U K 25V
C9033 303 391 0803 CERAMIC 1U K 25V
C9034 303 397 7608 CERAMIC 1U K 25V
C9035 303 281 5000 CERAMIC 0.033U K 25V
C9036 303 323 6309 CERAMIC 0.1U K 16V
C9053 303 419 4004 CERAMIC 0.1U K 10V
C9057 303 441 5703 TA-SOLID 22U M 10V
C9061 303 323 6309 CERAMIC 0.1U K 16V
C9064 303 269 2809 CERAMIC 0.15U K 25V
C9065 303 155 1800 CERAMIC 0.01U K 25V
C9066 303 419 4103 CERAMIC 1000P K 25V
C9067 303 419 4103 CERAMIC 1000P K 25V
C9068 303 419 4004 CERAMIC 0.1U K 10V
C9069 303 409 9804 CERAMIC 5P C 25V
C9070 303 409 9804 CERAMIC 5P C 25V
C9513 303 382 3905 CERAMIC 0.1U K 6.3V
C9514 303 338 0309 CERAMIC 0.1U K 10V
C9526 303 338 0309 CERAMIC 0.1U K 10V
C9534 303 356 6208 CERAMIC 2.2U K 10V
C9545 303 338 0309 CERAMIC 0.1U K 10V
C9567 303 338 0309 CERAMIC 0.1U K 10V
C9711 303 382 3905 CERAMIC 0.1U K 6.3V
C9712 303 294 6100 CERAMIC 100P J 50V
C9714 303 381 8109 CERAMIC 1U K 6.3V
C9716 303 382 3905 CERAMIC 0.1U K 6.3V
C9717 303 279 5005 CERAMIC 4700P K 25V
C9718 303 282 5108 CERAMIC 470P K 50V
C9719 303 276 1307 CERAMIC 1000P K 50V
C9720 303 382 3905 CERAMIC 0.1U K 6.3V
C9721 303 382 3905 CERAMIC 0.1U K 6.3V
C9722 303 381 8109 CERAMIC 1U K 6.3V
(RESISTOR PACKS)
RB101 945 037 0817 R-NETWORK 0X4 1/16W
RB102 945 028 0697 R-NETWORK 100X4 1/16W
RB103 945 028 0697 R-NETWORK 100X4 1/16W
RB104 645 078 4224 R-NETWORK 0X2 0.063W
RB105 945 037 0817 R-NETWORK 0X4 1/16W
RB106 945 037 4372 R-NETWORK 220X4 1/16W
RB107 945 037 4372 R-NETWORK 220X4 1/16W
RB108 945 037 0817 R-NETWORK 0X4 1/16W
RB110 945 037 4372 R-NETWORK 220X4 1/16W
RB111 945 037 4372 R-NETWORK 220X4 1/16W
RB112 945 037 4372 R-NETWORK 220X4 1/16W
RB113 945 037 4372 R-NETWORK 220X4 1/16W
RB115 945 028 0710 R-NETWORK 10KX4 1/16W
RB117 945 037 0817 R-NETWORK 0X4 1/16W
RB141 945 028 0710 R-NETWORK 10KX4 1/16W
RB142 945 028 0710 R-NETWORK 10KX4 1/16W
RB145 945 028 0697 R-NETWORK 100X4 1/16W
RB301 945 028 0703 R-NETWORK 1KX4 1/16W
RB302 945 042 8204 R-NETWORK 33KX4 1/32W
RB304 945 037 4389 R-NETWORK 330X4 1/16W
RB305 945 028 0703 R-NETWORK 1KX4 1/16W
RB306 945 028 0727 R-NETWORK 100KX4 1/16W
RB311 645 068 6405 R-NETWORK 150KX2 1/16W
RB313 945 028 0703 R-NETWORK 1KX4 1/16W
RB315 645 078 4835 R-NETWORK 33KX2 0.063W
RB316 645 068 6405 R-NETWORK 150KX2 1/16W
RB971 645 078 4835 R-NETWORK 33KX2 0.063W
RB972 645 078 4958 R-NETWORK 47KX2 0.063W
RB975 645 078 5054 R-NETWORK 56KX2 0.063W
RB976 645 078 4606 R-NETWORK 220X2 0.063W
(RESISTORS)
R1001 301 302 1307 MT-GLAZE 100 JA 1/20W
R1004 301 308 3305 MT-GLAZE 68 JA 1/20W
R1005 301 328 4306 MT-GLAZE 39 DD 1/20W
R1006 301 328 4306 MT-GLAZE 39 DD 1/20W
R1010 301 302 2007 MT-GLAZE 10K JA 1/20W
R1011 301 330 9603 MT-GLAZE 1.5K DA 1/20W
R1012 301 312 9706 MT-GLAZE 11.8K DC 1/16W
R1016 301 302 1307 MT-GLAZE 100 JA 1/20W
R1022 301 333 3004 MT-GLAZE 22 DD 1/20W
R1023 301 302 1208 MT-GLAZE 0.000 ZA 1/20W
R1026 301 302 1208 MT-GLAZE 0.000 ZA 1/20W
R1029 301 302 2106 MT-GLAZE 1K JA 1/20W
R1030 301 317 1408 MT-GLAZE 2.2 JA 1/20W
R1037 301 326 6203 MT-GLAZE 1.3K DC 1/20W
R1040 301 317 8209 MT-GLAZE 3.6K DC 1/20W
R1041 301 317 9503 MT-GLAZE 1K DC 1/20W
R1051 301 302 1307 MT-GLAZE 100 JA 1/20W
R1052 301 302 1208 MT-GLAZE 0.000 ZA 1/20W
R1081 301 302 2007 MT-GLAZE 10K JA 1/20W
R1083 301 302 1307 MT-GLAZE 100 JA 1/20W
R1084 301 302 2007 MT-GLAZE 10K JA 1/20W
R1085 301 317 8407 MT-GLAZE 47K DC 1/20W
R1086 301 307 1104 MT-GLAZE 47K JA 1/20W
R1087 301 302 2007 MT-GLAZE 10K JA 1/20W
32
LOCATION PARTS NO. DESCRIPTION LOCATION PARTS NO. DESCRIPTION
R1088 301 308 3305 MT-GLAZE 68 JA 1/20W
R1089 301 302 2007 MT-GLAZE 10K JA 1/20W
R1091 301 307 1104 MT-GLAZE 47K JA 1/20W
R1092 301 302 1208 MT-GLAZE 0.000 ZA 1/20W
R1093 301 302 2007 MT-GLAZE 10K JA 1/20W
R1095 301 302 1307 MT-GLAZE 100 JA 1/20W
R1121 301 317 6700 MT-GLAZE 470 DD 1/20W
R1122 301 224 9405 MT-GLAZE 1.0M JA 1/16W
R1203 301 302 1208 MT-GLAZE 0.000 ZA 1/20W
R1206 301 306 7800 MT-GLAZE 10 JA 1/20W
R1207 301 302 2007 MT-GLAZE 10K JA 1/20W
R1301 301 302 1208 MT-GLAZE 0.000 ZA 1/20W
R1302 301 302 2007 MT-GLAZE 10K JA 1/20W
R1403 301 302 1307 MT-GLAZE 100 JA 1/20W
R1431 301 302 1208 MT-GLAZE 0.000 ZA 1/20W
R1434 301 302 1208 MT-GLAZE 0.000 ZA 1/20W
R1501 301 267 0902 MT-GLAZE 150 DC 1/16W
R1502 301 267 0902 MT-GLAZE 150 DC 1/16W
R1504 301 267 0902 MT-GLAZE 150 DC 1/16W
R1551 301 331 0906 MT-GLAZE 6.8K DA 1/20W
R1552 301 302 2106 MT-GLAZE 1K JA 1/20W
R1554 301 317 8407 MT-GLAZE 47K DC 1/20W
R1555 301 317 7004 MT-GLAZE 39K DC 1/20W
R1558 301 224 9306 MT-GLAZE 1K JA 1/16W
R3001 301 302 2106 MT-GLAZE 1K JA 1/20W
R3002 301 225 8001 MT-GLAZE 330 JA 1/16W
R3003 301 224 9306 MT-GLAZE 1K JA 1/16W
R3004 301 302 1703 MT-GLAZE 1.5K JA 1/20W
R3007 301 310 6400 MT-GLAZE 330K JA 1/20W
R3008 301 225 2009 MT-GLAZE 680 JA 1/16W
R3009 301 225 7905 MT-GLAZE 220 JA 1/16W
R3010 301 302 2106 MT-GLAZE 1K JA 1/20W
R3011 301 331 2207 MT-GLAZE 22K DA 1/20W
R3012 301 307 1104 MT-GLAZE 47K JA 1/20W
R3014 301 331 1408 MT-GLAZE 10K DA 1/20W
R5001 301 321 2002 MT-GLAZE 68K DC 1/20W
R5003 301 302 1208 MT-GLAZE 0.000 ZA 1/20W
R5005 301 321 2507 MT-GLAZE 5.1K DC 1/20W
R5006 301 326 6203 MT-GLAZE 1.3K DC 1/20W
R5007 301 321 2002 MT-GLAZE 68K DC 1/20W
R5008 301 326 3400 MT-GLAZE 30K DC 1/20W
R5009 301 326 6302 MT-GLAZE 16K DC 1/20W
R5010 301 317 7806 MT-GLAZE 100K DC 1/20W
R5011 301 321 2002 MT-GLAZE 68K DC 1/20W
R5014 301 317 7707 MT-GLAZE 27K DC 1/20W
R5015 301 328 1503 MT-GLAZE 300K DC 1/20W
R5016 301 307 1104 MT-GLAZE 47K JA 1/20W
R5017 301 327 0507 MT-GLAZE 680K JA 1/20W
R5018 301 302 1208 MT-GLAZE 0.000 ZA 1/20W
R5019 301 317 8704 MT-GLAZE 180 DD 1/20W
R5021 301 317 8902 MT-GLAZE 2K DC 1/20W
R5025 301 317 7004 MT-GLAZE 39K DC 1/20W
R5026 301 317 8407 MT-GLAZE 47K DC 1/20W
R5027 301 317 8605 MT-GLAZE 1.5K DC 1/20W
R5036 301 321 1807 MT-GLAZE 270K DC 1/20W
R5037 301 327 0705 MT-GLAZE 56K DC 1/20W
R5038 301 302 1208 MT-GLAZE 0.000 ZA 1/20W
R5041 301 302 1208 MT-GLAZE 0.000 ZA 1/20W
R5042 301 326 6708 MT-GLAZE 12 DD 1/20W
R5054 301 302 1208 MT-GLAZE 0.000 ZA 1/20W
R5201 301 312 3704 MT-FILM 1 FD 1/6W
R5202 301 317 8100 MT-GLAZE 100 DD 1/20W
R5203 301 317 8902 MT-GLAZE 2K DC 1/20W
R5204 301 317 7806 MT-GLAZE 100K DC 1/20W
R5205 301 326 6203 MT-GLAZE 1.3K DC 1/20W
R5207 301 302 1208 MT-GLAZE 0.000 ZA 1/20W
R5301 301 321 2002 MT-GLAZE 68K DC 1/20W
R5302 301 317 9305 MT-GLAZE 10K DC 1/20W
R5303 301 317 8407 MT-GLAZE 47K DC 1/20W
R5304 301 326 3400 MT-GLAZE 30K DC 1/20W
R5305 301 321 2408 MT-GLAZE 2.4K DC 1/20W
R9008 301 225 0906 MT-GLAZE 82K JA 1/16W
R9031 301 308 7808 MT-GLAZE 220K JA 1/20W
R9032 301 302 2007 MT-GLAZE 10K JA 1/20W
R9035 301 224 8903 MT-GLAZE 100K JA 1/16W
R9036 301 224 9405 MT-GLAZE 1.0M JA 1/16W
R9039 301 240 9502 MT-GLAZE 820 JA 1/16W
R9051 301 240 9007 MT-GLAZE 3.9 JA 1/16W
R9055 301 225 1101 MT-GLAZE 27 JA 1/16W
R9058 301 240 9007 MT-GLAZE 3.9 JA 1/16W
R9059 301 240 9007 MT-GLAZE 3.9 JA 1/16W
R9062 301 226 1506 MT-GLAZE 0.000 ZA 1/16W
R9063 301 226 1506 MT-GLAZE 0.000 ZA 1/16W
R9505 301 314 0503 MT-FILM 22 FD 1/6W
R9506 301 314 0503 MT-FILM 22 FD 1/6W
R9507 301 105 7902 MT-GLAZE 0.000 ZA 1/16W
R9718 301 317 7806 MT-GLAZE 100K DC 1/20W
R9719 301 317 7806 MT-GLAZE 100K DC 1/20W
R9720 301 225 8100 MT-GLAZE 10 JA 1/16W
R9721 301 262 1904 MT-GLAZE 6.8K DC 1/16W
R9722 301 317 9107 MT-GLAZE 2.2K DC 1/20W
R9723 301 317 9503 MT-GLAZE 1K DC 1/20W
R9724 301 317 9107 MT-GLAZE 2.2K DC 1/20W
R9726 301 331 2603 MT-GLAZE 33K DA 1/20W
R9728 301 317 7806 MT-GLAZE 100K DC 1/20W
(THERMISTOR)
TH301 308 054 7700 TH NCP15WF104F03-RC
(SWITCH)
S3001 645 045 2857 SWITCH,PUSH,
(FUSES)
F5001 323 031 5609 FUSE 32V 2A
F5002 323 031 8501 FUSE 24V 2.5A
F5003 323 031 5500 FUSE 32V 1A
(JACK)
JK151 645 088 6898 JACK,PHONE D3.6 (N.S.P)
(CONNECTORS)
CN103 645 068 9673 PLUG,PWB-WIRE 20P(N.S.P)
CN104 645 068 9673 PLUG,PWB-WIRE 20P(N.S.P)
CN105 645 083 6671 SOCKET,FPC 12P (N.S.P)
CN110 645 072 3674 SOCKET,USB 5P (N.S.P)
CN141 645 069 7548 SOCKET,CARD(SD) 1(N.S.P)
CN301 645 084 2580 SOCKET,FPC 19P (N.S.P)
CN501 645 089 3421 TERMINAL,3P-SG111 (N.S.P)
CN901 645 089 4534 SOCKET,FPC 39P (N.S.P)
CN951 645 082 0250 SOCKET,FPC 23P (N.S.P)
(MISCELLANEOUS)
636 101 9811 SPACER CP1-SG111
JW151 636 101 9804 ASSY,WIRE CP1-SG111 (N.S.P.)
COMPL FPC SV-SG111
636 099 7424
(SEMICONDUCTOR)
Q9301 305 212 7800 TR UP05C8G (N.S.P)
(INTEGRATED CIRCUITS)
IC701 645 088 3149 GYRO SENSOR (N.S.P)
IC702 309 650 3509 IC TK70630HC-G (N.S.P)
(CAPACITORS)
CB701 303 392 5500 CERAMIC 1U K 6.3V (N.S.P)
C7002 303 279 5104 CERAMIC 3300P K 50V (N.S.P)
C7003 303 279 5104 CERAMIC 3300P K 50V (N.S.P)
C7004 303 383 5205 CERAMIC 4.7U K 6.3V (N.S.P)
C7005 304 107 6300 CERAMIC 4.7U K 16V (N.S.P)
C7006 303 341 7005 CERAMIC 0.068U K 10V (N.S.P)
C7009 304 107 6300 CERAMIC 4.7U K 16V (N.S.P)
C9303 303 397 1606 CERAMIC 10U M 10V (N.S.P)
C9304 303 342 3303 CERAMIC 0.1U K 25V (N.S.P)
C9305 303 420 7902 CERAMIC 10U K 16V (N.S.P)
(RESISTORS)
R7001 301 262 0709 MT-GLAZE 39K DC 1/16W (N.S.P)
R7002 301 262 0709 MT-GLAZE 39K DC 1/16W (N.S.P)
R7003 301 309 2604 MT-GLAZE 470K DC 1/16W (N.S.P)
R7004 301 226 1506 MT-GLAZE 0.000 ZA 1/16W (N.S.P)
R7005 301 309 2604 MT-GLAZE 470K DC 1/16W (N.S.P)
R9301 301 225 1804 MT-GLAZE 47 JA 1/16W (N.S.P)
R9302 301 225 8001 MT-GLAZE 330 JA 1/16W (N.S.P)
R9303 301 235 1405 MT-GALZE 1.2K JA 1/16W (N.S.P)
(MISCELLANEOUS)
------------------ IC MN39830PMJ-A (N.S.P.)
------------------ MOUNTING,LENS SX817 (N.S.P.)
33
LOCATION PARTS NO. DESCRIPTION LOCATION PARTS NO. DESCRIPTION
COMPL PWB,TB-1
636 098 9115
(SWITCH)
S6601 645 078 7294 SWITCH,DETECTOR 1P-1T,
(MISCELLANEOUS)
636 101 0450 ASSY,WIRE TB1&VF1-SG111 (N.S.P.)
636 101 0467 ASSY,WIRE TB1&VF1-SG111 (N.S.P.)
COMPL PWB,VF-1
636 098 9108
(INTEGRATED CIRCUITS)
IC181 309 641 9404 IC WM8978GEFL
IC182 309 624 7809 IC NJM2860F3-03
IC651 309 599 3301 IC MRSS32W
(CAPACITORS)
C1701 303 433 1102 CERAMIC 1U K 10V
C1702 303 383 5205 CERAMIC 4.7U K 6.3V
C1703 303 383 5007 CERAMIC 1U K 16V
C1704 303 433 1102 CERAMIC 1U K 10V
C1705 303 433 1102 CERAMIC 1U K 10V
C1706 303 382 7804 CERAMIC 2.2U K 10V
C1707 303 383 5007 CERAMIC 1U K 16V
C1708 303 433 1102 CERAMIC 1U K 10V
C1709 303 433 1102 CERAMIC 1U K 10V
C1710 303 383 5007 CERAMIC 1U K 16V
C1711 303 433 1102 CERAMIC 1U K 10V
C1712 303 433 1102 CERAMIC 1U K 10V
C1713 303 383 5007 CERAMIC 1U K 16V
C1714 303 338 0309 CERAMIC 0.1U K 10V
C1715 303 338 0309 CERAMIC 0.1U K 10V
C1716 303 338 0309 CERAMIC 0.1U K 10V
C1801 303 433 1102 CERAMIC 1U K 10V
C1804 303 433 1102 CERAMIC 1U K 10V
C1805 303 433 1102 CERAMIC 1U K 10V
C1806 303 279 5104 CERAMIC 3300P K 50V
C1807 303 381 8109 CERAMIC 1U K 6.3V
C1808 403 454 3403 CERAMIC 100U M 6.3V
C1809 403 454 3403 CERAMIC 100U M 6.3V
C1810 303 279 5104 CERAMIC 3300P K 50V
C1811 303 381 8109 CERAMIC 1U K 6.3V
C1825 303 383 5205 CERAMIC 4.7U K 6.3V
C1827 303 381 8109 CERAMIC 1U K 6.3V
C6501 303 338 0309 CERAMIC 0.1U K 10V
(RESISTOR PACKS)
RB181 645 078 4958 R-NETWORK 47KX2 0.063W
RB182 645 078 4644 R-NETWORK 2KX2 0.063W
RB192 645 078 4606 R-NETWORK 220X2 0.063W
(RESISTORS)
R1701 301 228 4505 MT-GLAZE 2.2 JA 1/16W
R1702 301 224 9009 MT-GLAZE 10K JA 1/16W
R1703 301 105 7902 MT-GLAZE 0.000 ZA 1/16W
R1801 301 301 3500 MT-GLAZE 200 JA 1/16W
R1802 301 301 3500 MT-GLAZE 200 JA 1/16W
R1804 301 237 2509 MT-GLAZE 4.7 JA 1/16W
R1805 301 237 2509 MT-GLAZE 4.7 JA 1/16W
R1810 301 226 1506 MT-GLAZE 0.000 ZA 1/16W
R1811 301 226 1506 MT-GLAZE 0.000 ZA 1/16W
R1812 301 226 1506 MT-GLAZE 0.000 ZA 1/16W
(RECHAGEABLE BATTERY)
Z6001 945 051 6000 BATTERY,RECHARGE
(CONNECTORS)
CN171 645 086 5183 SOCKET,FPC 37P (N.S.P)
CN172 645 068 9673 PLUG,PWB-WIRE 20P(N.S.P)
CN173 645 068 9673 PLUG,PWB-WIRE 20P(N.S.P)
COMPL PWB,ST-1
636 098 9092
(SEMICONDUCTOR)
Q5402 306 020 3701 TR CY25CAH-8F-T13 F10V
(INTEGRATED CIRCUIT)
IC541 309 671 6602 IC TPS65560RGT
(DIODES)
D5401 307 245 6805 DIODE FPSN4
D5402 307 250 8009 DIODE MA2YF8000L
D5404 307 205 5206 DIODE RB521S-30
OR 307 221 4108 DIODE MA2SD19
(TRANSFORMERS)
T5401 645 086 4537 TRANS,STEP UP
T5402 645 069 2420 TRANS,STEP UP
(CAPACITORS)
C5401 303 393 2607 CERAMIC 22U M 6.3V
C5402 303 276 1307 CERAMIC 1000P K 50V
C5403 303 381 8109 CERAMIC 1U K 6.3V
C5404 303 276 1307 CERAMIC 1000P K 50V
C5410 303 428 3401 CERAMIC 0.018U K 350V
C5411 303 428 3609 CERAMIC 0.01U K 350V
C5412 404 110 8800 ELECT 40U A 300V
(RESISTOR PACKS)
RB541 645 078 5702 R-NETWORK 1KX2 0.063W
RB542 645 078 5719 R-NETWORK 10KX2 0.063W
(RESISTORS)
R5402 302 106 1609 MT-GLAZE 100K JD 1/8W
R5403 301 224 8804 MT-GLAZE 100 JA 1/16W
R5404 301 263 2108 MT-GLAZE 5.1K DC 1/16W
R5405 301 267 1008 MT-GLAZE 6.2K DC 1/16W
R5411 301 224 9306 MT-GLAZE 1K JA 1/16W
R5422 302 106 1708 MT-GLAZE 220K JD 1/8W
R5424 301 224 9009 MT-GLAZE 10K JA 1/16W
(CONNECTOR)
CN541 645 071 1060 SOCKET,FPC 12P (N.S.P)
(MISCELLANEOUS)
636 099 8858 SPACER ST-SG111
636 099 3587 SPACER CON B- SG111/J
C1
CIRCUIT DIAGRAMS & PRINTED WIRING BOARDS
TABLE OF CONTENTS
OVERALL WIRING & BLOCK DIAGRAMS Page
OVERALL WIRING ........................................................................................................................................... C3
OVERALL CIRCUIT .......................................................................................................................................... C4
CCD CIRCUIT ................................................................................................................................................... C5
LENS CIRCUIT ................................................................................................................................................. C5
MAIN CIRCUIT .................................................................................................................................................. C6
POWER CIRCUIT ............................................................................................................................................. C7
STROBE CIRCUIT ............................................................................................................................................ C7
SYSTEM CONTROL CIRCUIT ......................................................................................................................... C8
CIRCUIT DIAGRAMS
CIRCUIT WAVEFORMS ................................................................................................................................... C8
CP1 BOARD (DMA) MAIN .............................................................................................................................. C9
CP1 BOARD (TCA) LENS ............................................................................................................................ C14
CP1 BOARD (SYA) SYSTEM CONTROL .................................................................................................... C15
CP1 BOARD (PWA) POWER ....................................................................................................................... C16
CP1 BOARD (CAA) CCD AFE & DRIVER .................................................................................................... C17
CA1 BOARD CCD & GYRO SENSOR ......................................................................................................... C18
VF1 BOARD LCD CONNECTOR & AUDIO .................................................................................................. C19
TB1 BOARD SWITCH .................................................................................................................................... C19
ST1 BOARD STROBE .................................................................................................................................. C20
PRINTED WIRING BOARDS (P.W.B.)
CP1 P.W.B. (SIDE A & B) .............................................................................................................................. C21
ST1 P.W.B. (SIDE A & B) .............................................................................................................................. C22
CA1 P.W.B. (SIDE A & B) .............................................................................................................................. C22
TB1 P.W.B. (SIDE A & B) .............................................................................................................................. C22
VF1 P.W.B. (SIDE A & B) .............................................................................................................................. C23
C2
NOTES:
1. All resistance values in "OHMS" unless otherwise noted.
(K=1,000 ; M=1,000,000)
2. All capacitance values in "µF" unless otherwise noted.
p=pico farad ; µ ,u or U=micro farad
3. All inductance values in "µH" unless otherwise noted.
µ ,u or U=micro henry ; m=milli henry
PRODUCT SAFETY NOTICE
THE COMPONENTS DESIGNATED BY A SYMBOL ( ) IN THIS
SCHEMATIC DIAGRAM DESIGNATES COMPONENTS WHOSE
VALUE ARE OF SPECIAL SIGNIFICANCE TO PRODUCT SAFETY.
SHOULD ANY COMPONENT DESIGNATED BY A SYMBOL NEED TO
BE REPLACED, USE ONLY THE PART DESIGNATED IN THE PARTS
LIST.
DO NOT DEVIATE FROM THE RESISTANCE, WATTAGE AND VOLT-
AGE RATINGS SHOWN.
EXPLANATORY NOTES (EXAMPLES)
Resistor 10K:1/16J means 10kilo ohm ±5%, 1/16watt max.
1M:1/10K means 1mega ohm ±10%, 1/10watt max.
Capacitor 0.047:F means 0.047micro farad, Ftype.
Electrolytic capacitor
10:16 means 10micro farad, 16volt max.
Inductor 330:J means 330micro henry ±5%
470:K means 470micro henry ±10%
No description J or K means ±5%
Figure of printed wiring boards
Multilayer board:
"Side A" means the view from A side of the board.
"Side B" means the view from B side of the board.
Singlelayer board:
View from the copper-foil side of the board, otherwise noted.
PAL-F-EX
The number of "H=##" written in slant character, shows the voltage.
The number of "H=##" written in upright character, shows the height of the parts.
A
B
C
D
E
F
G
H
I
J
K
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19
A
B
C
D
E
F
G
H
I
J
K
C3

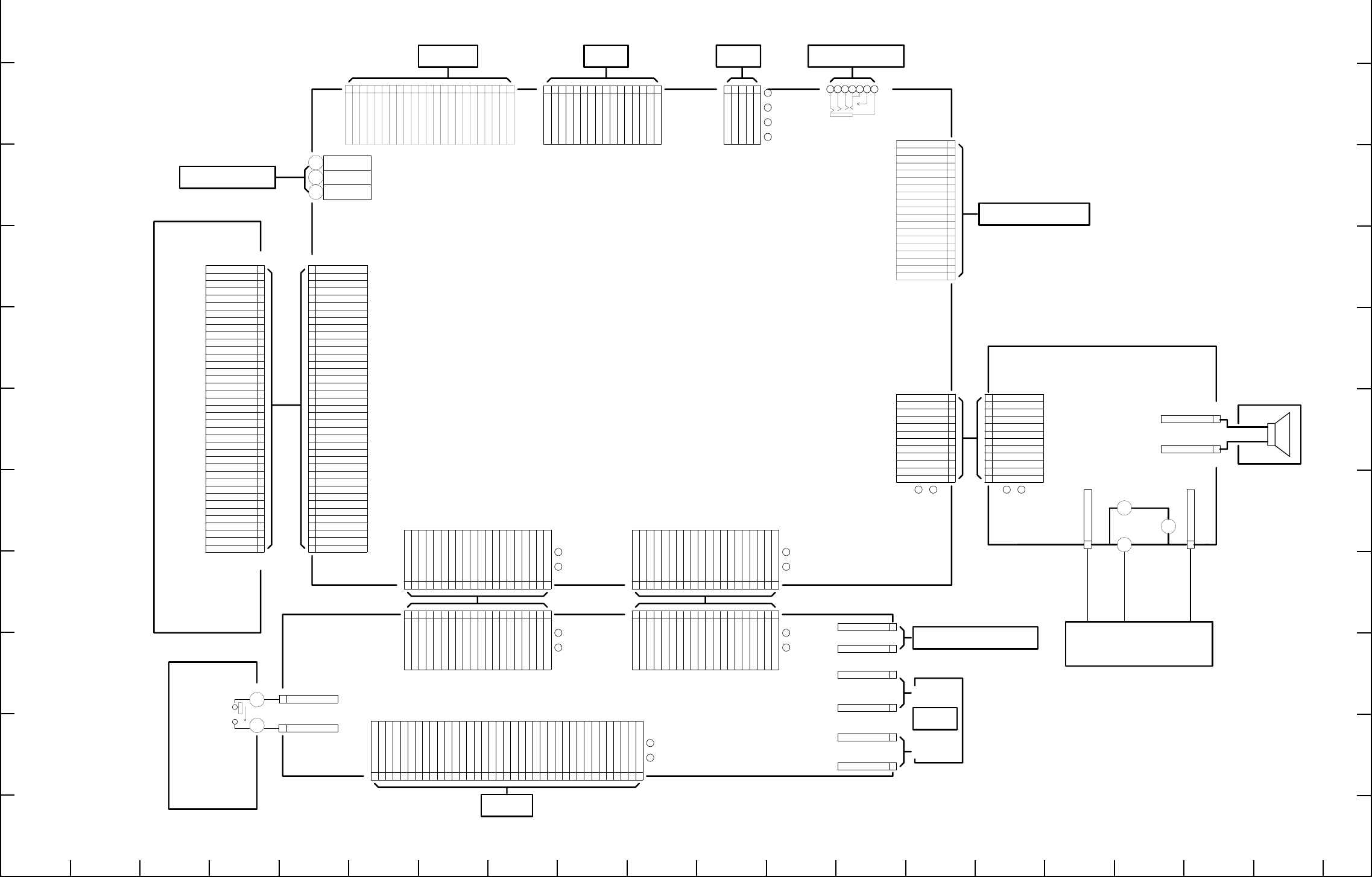

OVERALL WIRING & BLOCK DIAGRAMS
OVERALL WIRING
CN931
10
SUBGT
4
SWON
11
GND
5
TEMPGYRO
12
V1S
6
PON
13
V1
7
VDD3
14
V2
8
VDD3
15
V3R
9
GND
16
V3L
17
V3A
18
V3B
19
V4
20
V5A
1
GND
2
OUTX
3
OUTY
21
V5B
22
V6
23
V5L
24
V5R
25
GND
26
RG
27
GND
28
HL
29
GND
30
H1
31
H2
32
GND
33
VSUB
34
+12V(A)
35
+12V(A)
36
-6.0V(A)
37
GND
38
CCDOUT
39
GND
CN541
10
SP-
4
UNREGST
11
SP+
5
UNREGST
12
GND
6
+12V(A)
7
ZCHGDONE
8
CHG
9
FLCTL
1
GND
2
BACKUP3.2V
3
SW3.2V
Z1 Z2
CN171
10
VDD
4
C2M
11
RVDD
5
VSS
12
VDD2
6
C3M
13
VSREF
7
C3P
14
VDD3
8
C4P
15
VSS
9
C4M
16
VGL
17
VGH
18
VVCOM
19
COMOUT
20
COMDC
1
C1P
2
C1M
3
C2P
21
VSS
22
DO0
23
DO1
24
DO2
25
DO3
26
DO4
27
DO5
28
DO6
29
DO7
30
CLK
31
HSYNC
32
VSYNC
33
SCK
34
DI
35
CS
Z1 Z2
36
POCB
37
VCOM
CN173
10
BACKUP_BAT
4
AUDSD
11
GND
5
AUDCK
12
AUDMCLK
6
AUDEN
13
DACDAT
7
SCAN_IN2
14
ADCDAT
8
SCAN_OUT3
15
BITCLK
9
GND
16
LRCK1
17
MROUT
18
SP+
19
SP-
20
AL3.2V
1
LINE_L
2
LINE_R
3
GND
Z1Z2
CN172
10
LMCLK
4
LCDSD
11
GND
5
LCDCK
12
LCDD7
6
LCDEN
13
LCDD6
7
VD
14
LCDD5
8
HD
15
LCDD4
9
GND
16
LCDD3
17
LCDD2
18
LCDD1
19
LCDD0
20
VDD3
1
BL_AN
2
BL_CA
3
LCDP0CB
Z1Z2
JW651
1
SCAN_IN2/BK
JW652
1
SCAN_OUT3/RD
JW187
1
MIC_L+/RD
JW185
1
MIC_R+/RD
JW188
1
MIC_L-/BK
JW186
1
MIC_R-/BK
JW172
1
BL_CA/BK
JW171
1
BL_AN/RD
JW544
RED
1
SP+
JW543
BLACK
1
SP-
CN105
10
SP-
4
UNREGST
11
SP+
5
UNREGST
12
GND
6
+12V(A)
7
ZCHGDONE
8
CHG
9
FLCTL
1
GND
2
BACKUP3.2V
3
SW3.2V
Z1Z2
CN103
10
LMCLK
4
LCDSD
11
GND
5
LCDCK
12
LCDD7
6
LCDEN
13
LCDD6
7
VD
14
LCDD5
8
HD
15
LCDD4
9
GND
16
LCDD3
17
LCDD2
18
LCDD1
19
LCDD0
20
VDD3
1
BL_AN
2
BL_CA
3
LCDP0CB
Z1 Z2
CN104
10
BACKUP_BAT
4
AUDSD
11
GND
5
AUDCK
12
AUDMCLK
6
AUDEN
13
DACDAT
7
SCAN_IN2
14
ADCDAT
8
SCAN_OUT3
15
BITCLK
9
GND
16
LRCK1
17
MROUT
18
SP+
19
SP-
20
AL3.2V
1
LINE_L
2
LINE_R
3
GND
Z1 Z2
CN141
8
DATA1
3B
VSS
9
DATA2
4A
VDD
10
CARD
4B
VDD
11
COMMON
5
CLOCK
12
WP
6
VSS
13
GND
7
DATA0
14
GND
1
DATA3
2
COMMAND
3A
VSS
CN110
4
NOT_USE
5
GND
1
USB_VBUS
2
USB_D-
3
USB_D+
Z1Z2Z3Z4
JK151
1
2
4
5
6
3A
3B
CN951
10
DRIVE +
4
ZOOM B-
11
HALL OUT-
5
NC
12
HALL IN-
6
ZOOM LED
13
HALL OUT+
7
ZOOM VCC
14
HALL IN+
8
ZOOM SENSE
15
FOCUS LED
9
DRIVE -
16
FOCUS VCC
17
FOCUS SENSE
18
ND -
19
ND +
20
FOCUS A+
1
ZOOM A+
2
ZOOM B+
3
ZOOM A-
21
FOCUS B+
22
FOCUS A-
23
FOCUS B-
CN301
10
2nd
4
STBY_RED
11
SI0A_UP
5
SI1B_VREC
12
SI4A_SET
6
SI2B_TELE
13
SI3A_LEFT
7
SI3B_WIDE
14
SI1A_RIGHT
8
SCAN_OUT1
15
SCAN_OUT0
9
1st
16
SI2A_DOWN
17
KEY_PLAY
1
GND
2
+5V
3
STBY_GREEN
18
KEY_MENU
19
GND
CN901
10
SUBGT
4
SWON
11
GND
5
TEMPGYRO
12
V1S
6
PON
13
V1
7
VDD3
14
V2
8
VDD3
15
V3R
9
GND
16
V3L
17
V3A
18
V3B
19
V4
20
V5A
1
GND
2
OUTX
3
OUTY
21
V5B
22
V6
23
V5L
24
V5R
25
GND
26
RG
27
GND
28
HL
29
GND
30
H1
31
H2
32
GND
33
VSUB
34
+12V(A)
35
+12V(A)
36
-6.0V(A)
37
GND
38
CCDOUT
39
GND
USB
LCD
CP1
SD
LENS
XAN
BAT+
BAT_T
MIC
SPEAKER
BATTERY
3
TRANS
1
2
TRIGGER
BACK LIGHT
BACK UNIT
TRG
XKT
CA1
RIGHT
LEFT
VF1
ST1
BAT-
AV JACK
TB1
JW661
JW662
UNIT
STROBE
W1-06900/SG111-J
JW542
1 XKT
JW541
1 XAN
1
2
3
CN501
CAA
PWA
DMA
DMADMATCA
SYA
DMA DMA
(DMA)
(TCA)
(CAA)
(PWA)
(SYA)
DMA
A
B
C
D
E
F
G
H
I
J
K
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19
A
B
C
D
E
F
G
H
I
J
K
C4
OVERALL CIRCUIT
CA1 BOARD CP1 BOARD
VF1 BOARD
ST1 BOARD
TB1 BOARD
IC102
MPEG4 (LEDA3-SIP)
(64M SDRAM)
IC905
CDS,A/D,AGC
H. DRIVER
IC901
V. DRIVER
CCD
6M
IC121
PROGRAM FLASH
(256Mbit)
SDRAM (256Mbit)
CAA BLOCK
CN141
SD CARD
IC151
VIDEO AMP
IC501
SWITCHING CONTROL
&
BATTERY CHARGE/USB POWER CONTROL
IC521
JK151
AV JACK
CN110
USB
LITIUM
ION
BATTERY
720mAh
PWA BLOCK SYA BLOCK
TCA BLOCK
AUDIO BLOCK
X1102
48MHz
IC301
8bit MICRO
PROCESSOR
TH301
TEMP
SENSOR
IC101
SYSTEM ASIC
IC951
LENS DRIVER
IC971
HALL SENSOR
CN951
LENS
x 5
S6601
LCD TURN
DET
IC651
MR SENSOR
CN171
2.5inch
LCD
MIC
L/R
SPEAKER
STROBE
UNIT
IC181
AUDIO CODEC
CN301
SWITCH UNIT
&
LED(RED)
LED(GREEN)
STROBE
DRIVER
MAIN CAPACITOR
40 F/300V
MAIN CLOCK
4MHz
X3001
SUB CLOCK
32.768kHz
X3002
DETECT
IC903
IC701
GYRO SENSOR
VIDEO
KEY SCAN
& LED
BATTERY TEMP. OUT
USB
S3001
POWER SW
Z6001
BACK UP
BATTERY
3.2mAh
VBUS (DC5V) V.REC
PLAY
1st
2nd
MENU
UP
DOWN
LEFT
RIGHT
TELE
WIDE
SET
NOTE
: POWER LINE
SG111_ALL_BLOCK
BATTERY VOLTAGE
UNREG SY
A
B
C
D
E
F
G
H
I
J
K
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19
A
B
C
D
E
F
G
H
I
J
K
C5

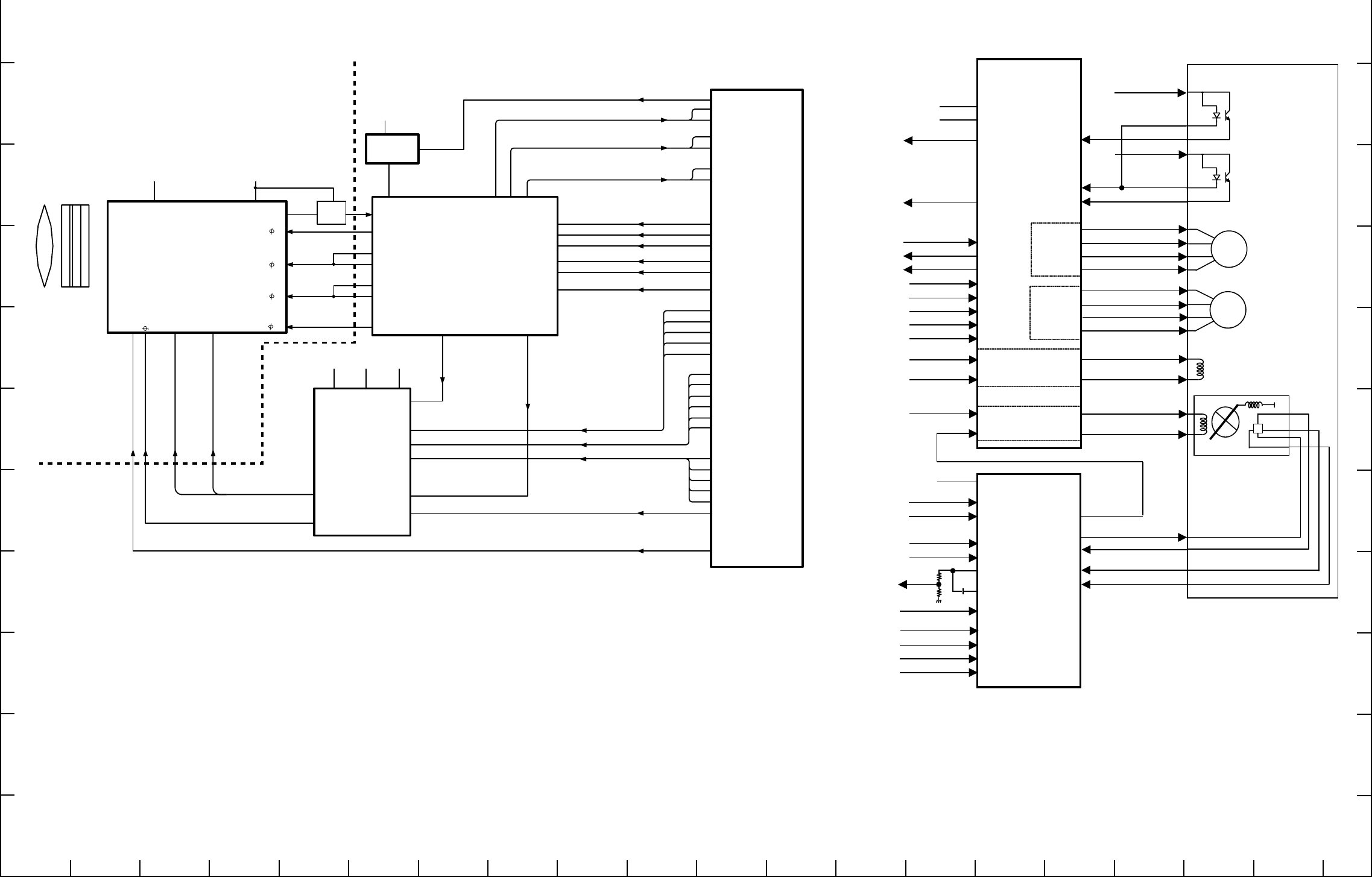

LENS
6M CCD
+12V(A)
-6V(A)
MN39830PMJ
VDD
PT
VO
O_LPF
IC931
Q9301
11:21,23,24
V5B, V5A, V3B, V3A, V5L, V5R,
V3L, V3R, V1S, V1, V6, V4, V2
10
OSUB
18
14
IC905
CDS, AGC, A/D C
CCDEN
SUBGT
XSUB
XV10
XV11
XV9
XV8
XV7
IC904
NJM2877F3
VDD3
+3.0V
CONT
AD9971BCPZRL
25 CCDINP
LDOIN, LDOEN
SL
21, 31
4
5
1
18
13
17
SUB SW
Vsub
23, 24
V5R,V5L
1:11
V6,V5B,V5A,V4,V3B,V3A,V3L,V3R,V2,V1,V1S
IC901
V. DRIVER
AN20112A
19
HL
20
21
22
16
11 H1
15 H3
12 H2
16 H4
20
RESET
VDC VL VH,VHH
GPO1
GPO2
RG
28
35
36
REG
H. DRIVER
KS756U2642CBP
SYSTEM ASIC
32
CCDSD
SDI
33
CCDCK
SCK
34
TGVD
VD
37
TGHD
HD
38
ADCK
CLI
23
HL
H1
H2
RG
+3.4V(A) -6V(A) +12V(A)
SUBCNT
1
SUB
2
SG111_CCD_BLOCK
R2
T3
M1
R6
R5
N3
R4
U6
K2
L1
P3
U3
T6
IC101
XV3
XV2
XV1
XV4
XV5
XV6
XSG1
XSG2
XSG3
XSG4
XSG5
M2
P5
P6
R3
N1
N2
TCLKP
TCLKP, TCLKN TCLKN
V2
V1
DOUT1P
DOUT1P, DOUT1N DOUT1N
Y2
Y1
DOUT0P
DOUT0P, DOUT0N DOUT0N
W2
W1
PAON3
D1
L3
L2
N4
M6
M5
V1S,V3L,V3R,V5L,V5R
34:38
33,29,40,30,43,31
V[1:6]
CH[1:5]
32,41,44,39,42
7, 8
5, 6
3, 4
DMA
CAACA1
GDATA
(IC101 G5pin)
G_CLK
(IC101 F5pin)
G_EN
(IC101 F6pin)
IRISPWM
(IC101 J3pin)
IAMPPWM
(IC101 A3pin)
HALL_OFFSET
(IC101 E3pin)
OC_EN
(IC101 C1pin)
OC_CONT
(IC101 B3pin)
HALL_OUT
(IC101 AB7pin)
G_RESETN
(IC101 T2pin)
NDON
(IC101 B9pin)
NDOFF
(IC101 F8pin)
LENS_EN
(IC101 B4pin)
LENS_CK
(IC101 B5pin)
LENS_SD
(IC101 A4pin)
LENS_RESETN
(IC101 C5pin)
STATE2
(IC101 A7pin)
STATE1
(IC101 B7pin)
LENS_4M
(IC301 K2pin)
LENS MODE
(IC101 C4pin)
SHUTTER+
(IC101 C9pin)
ZOOM
MOTOR
FOCUS
MOTOR
SPRING
IRIS SHUTTER
+
-
ND FILTER
ZOOM_A-
ND+
ZOOM_B-
20
22
23
19
21
ZOOOM_B+
ZOOM_A+
FOCUS A-
FOCUS B-
FOCUS B+
FOCUS A+
ND-
VDD3
VDD3
OUT3A
OUT1A
OUT3B
OUT4A
OUT4B
OUT2B
OUT2A
OUT1B
C10
A6
B6
A8
A9
J7
K6
K8
K5
K9
J5
K3
K2
E8
OUT6B
OUT5A
OUT5B
OUT6A
SI2
SI1
SO4
CLK
MODE
SDATA
SCLK
CS
RESETB
STATE2
STATE1
IN6B
IN5A
IN5B
IN6A
SO2
SO1
DATA
O/C_CONT
O/C_EN
HALL OFFSET
HIREG IN
HIN-
HIN+
RESETN
ENABLE
CLOCK
IAMPPWM
HALL OUT1
IRISPWM
HIREG OUT
PWM OUT
DRIVE-
DRIVE+
HALL OUT-
HALL OUT+
HALL IN-
HALL IN+ 14
12
1
1
3
6
ZOOM_PI
FOCUS_PI
IC971
AK7331
HALL SENSOR
IC951
BU2232GU
LENS DRIVER ZOOM_VCC
FOCUS_VCC
CN951
LENS_BLOCK
E9
H2
D2
E3
F1
F2
G2
G1
H1
H10
F9
F8
F10
16
17
13
15
22
14
9
12
11
10
4
5
8
2
3
PILED
FPIOUT
(IC101 E2pin)
ZPIOUT
(IC101 G6pin)
HALL OUT2
BOOST5.3V
+5V
MVCC12, MVCC34
MVCC56
VDD
6
J4, J8, B7
VDD3 DVDD, VDDAMP
E1, A2
D8
ND FILTER DRIVER
IRIS SHUTTER DRIVER
FOCUS
DRIVER
ZOOM
DRIVER
21
18
9
10
1
3
2
4
8
17
15
16
7
SG111_LENS_BLOCK
ZOOM_LED
ZOOM_SENSE
E10
FOCUS_SENSE
FOCUS LED
HALL_ELEMENT
CCD CIRCUIT LENS CIRCUIT
A
B
C
D
E
F
G
H
I
J
K
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19
A
B
C
D
E
F
G
H
I
J
K
C6

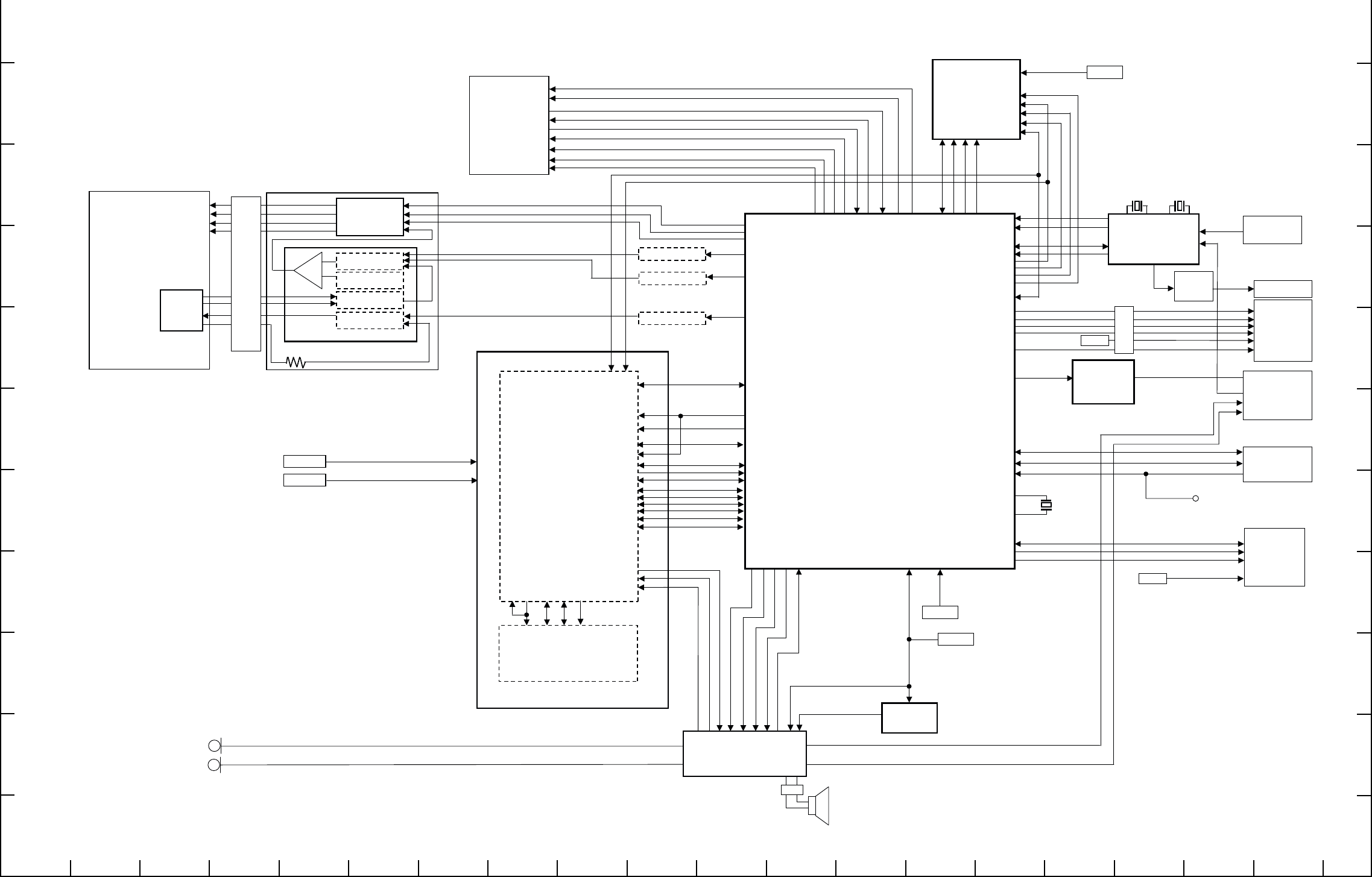

MAIN CIRCUIT
P6
N9
T4
LENS_RESETN,
P3,
U3,
T6
AA6
AB5
L3,
L2,
N4,
M6,
M5
Y1,
W2,
Y2,
W1
V1,
V2 U6 K2 L1
SD, CK, EN
A4, B4, B5, C5
C9
B9, F8
E3
J3
A3
K17, N20
SHUTTER +
ND ON, OFF
HALL_OFFSET
IRISPWM
IAMPPWM
ZRE,ZWE
VINCLK
VSYNC
VDATA[7:0]
VSTDATA[7:0]
VCTRLEN
VSTEN
VSTREQ
ASTDATA
ASTFLG
ASTEN
AOUTDATA
AINDATA B8 J5
ASTREQ
OUTX, OUTY
XV[1:11]
XSG1A, XSG2A, XSG1B, XSG2B, XSG3
XSG1, XSG2, XSG3
XSG4, XSG5
OUTX, OUTY
XV[1:11]
CCDEN, CCDSD, CCDCK
CCDEN, CCDSD, CCDCK
TCLKN,TCLKP
TCLKN,TCLKP
ADCK
ADCK
DOUT1P,DOUT1N
DOUT0P,DOUT0N
DOUT1P,DOUT1N
TGHD
TGVD
TGHD
TGVD
CONTROL SIG
SRCLK
SA[13:0]
SD[0:31]
DOUT0P,DOUT0N
AUDEN
AUDCK
ADCDAT
K1
DACDAT
AUDSD
EV1MS
SYSTEM ASIC
IC301
8bit MICRO
PROCESSOR
4MHz
SUB CLOCKMAIN CLOCK
X3002X3001
32.768KHz
SDRAM
256Mbit
PROGRAM FLASH
256Mbit
BACK
UNIT
LCD
2.5 inch
LCDPOCB J1
VDD3
BACK
LIGHT
DRIVE
VIDEO
1
22:29
30
31, 32
33:35
(VF1)
36
10
2
18
23
5
1, 66, 67
4
5
3
2
1
AV_JACK
LINE_L
LINE_R
USB_D+
USB_D-
USB_VBUS
TO PWA
JK151
AV JACK
CN110
USB
VIDEO AMP
NJM2561F1A
IC151
VIDEO AMP
CN141
SD CARD
SPEAKER
IC181
AUDIO CODEC
VDD3
VDD1.2
REG.
IC182
VINCLK
VSYNC
VDATA[7:0]
ASTREQ
ASTEN
ASTFLG
ASTDATA
VSTREQ
VSTEN
VCTRLEN
VSTDATA[7:0]
MCLKI
AUDMCLK
ALRCK1
ACLK
SDRAM
64Mbit
SDA[14:0]
SDD[31:0]
CTROLE
MCLK0
HADRS[15:1]
HDATA[15:0]
X1102
48MHz
CONSTANT
CURRENT CIRCUIT
SENSOR
AMP
SAWTOOTH
100kHz
SMOOTHING
SMOOTHING
SMOOTHING
SERVO
AMP
IC951
LENS
DRIVER
IC971
HALL
ELEMENT
FPC
TCA LENS
MIC L
MIC R
TO CAA
VDD1.8
VDD3
MRST
PLLEN
ASIC_SDO,ASIC_SDI,SCK
HOTLINE
A[21:1]
ZCS0
ZRE
ZWE
D[15:0]
YOUT
LCDD[7:0]
LCDHD, LCDVD
LM CLK
LCD EN,LCD CK,LCD SD
HSDP
HSDM
XIN
XOUT
SDDAT[3:0]
SDCMD
SDMCLK C6
E9
AB19
AB16
AA14
AB13
AB12
V9
AA18
U14
U18,
V17,
U17
H4
N21
N20
K17
J6
H1, H2
D8, A9, C8
64
51
60 61 57 58
F9, A10, E10, F10 DATA[0:3]
1, 7, 8, 9
2
5COMMAND
CLOCK
IC102
MPEG4
(LEDA3-SIP)
VBDET
DI IF
HOST IFL2, L3
VDD3
LENS UNIT
A7
A8
A10
F3
A8B8F7
8
1, 2
4, 5
71115 16 17 10 9
30
29
23 25
+
-
B12
A11
A12
C12
N11
M11
N12
G3
C3
C2
A15
F12
C13
A13
C11
D11
B10
A11
C10
IC121
(SYA)
CN171
BACKLIGHT
CN301
IC101
SG111_MAIN_BLOCK
HALL
SENSOR
KS756U2642CBP
BU2232GU
AK7331
MBG124APBS-ME1
NJM2860F3
NJM2561F1A
WM8978GEFL-RV
K5R5658VCM-DR75
LC87F5932AUTQ7
VDD3
(VF1)
(ST1)
(VF1)
(VF1)
A
B
C
D
E
F
G
H
I
J
K
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19
A
B
C
D
E
F
G
H
I
J
K
C7

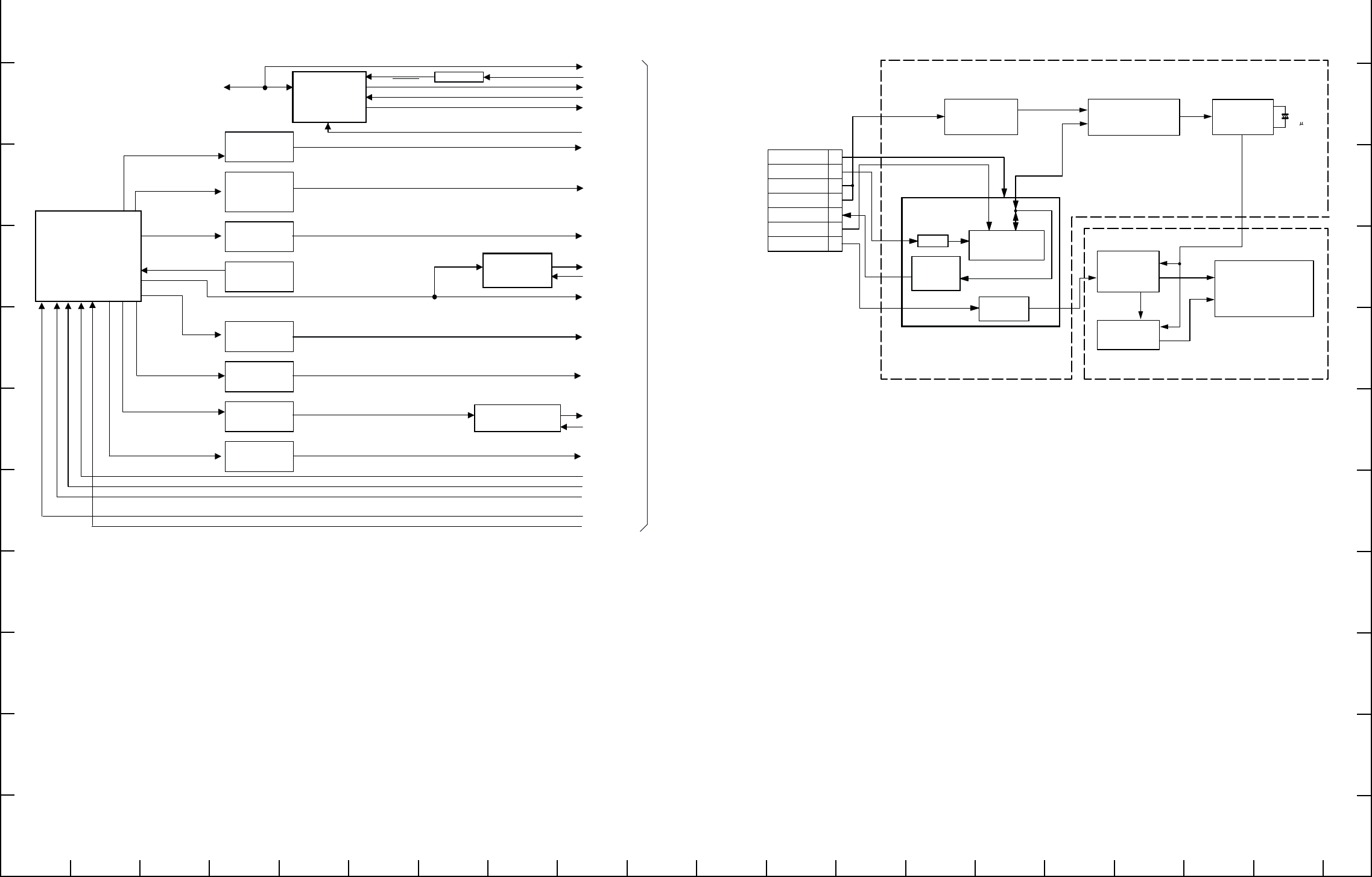

POWER CIRCUIT
BAT+
IC521 Q5201 BAT_CHGOFF
BAT + LTC4066EUF BATCHGERR
& BATTERY CHARGE
USB POWER CONTROL
USB_HPWR
USB_VBUS
BAT_I
L5009
LX2BST STEP UP +12V(A)
CIRCUIT
L5005
LXINV VOLTAGE -6V(A)
INVERTER
CIRCUIT
L5002
STEP DOWN VDD1.8
CIRCUIT
L5003 IC503 +3.4V(A)
STEP UP TK70634HCL
REG. PAON4
CIRCUIT
+5V
LXM L5001
STEP DOWN VDD3
CIRCUIT
LXSD L5004
STEP DOWN VDD1.2
CIRCUIT
LX2LED L5008
STEP UP OUT & CURRENT LCD_AN
CIRCUIT DETECTOR LCD_CA
DRVAUX L5301,Q5301
STEP UP BOOST5.3V
CIRCUIT
SEL
PON
PAON
PON2
BLON
IC501
SWITCHING
CONTROL
MAX8611ETM+T
ONM, ONAUX, ONSD
33 16
5
47
31
ONAE
1
22
10
21
8
LXSU
PVSU
44
LXAFE
SDOKB, ONCCD
36
ONLED
ONSU
46 19
BAT
IN
TIMER
CHRG
HPWR
ISTAT
2,4,5
9
21
18
13
24
3
14
15
TO BATTERY
TO DMA
SG111_PW_BLOCK
2
3
4
5
7
8
9
BACKUP3.2V
SW3.2V
UNREGST
UNREGST
ZCHGDONE
CHG
FLCTL
CN541
TO CP1 (DMA)
CN105
4
C5412
C5401 T5401
T5402
D5402
Q5402
POWER FILTER OSCILLATION
TRANSFORMER
BLOCK
RECTIFIER
CIRCUIT
EMISSION
CONTROL
CIRCUIT
TRIGGER
CIRCUIT
LIGHT EMITTING
ELEMENT
(XENON TUBE)
CHARGING CIRCUIT
LIGHT EMISSION CIRCUIT
OSCILLATION
CIRCUIT
IPEAK
IGBT
DRIVER
CHARGE
MONITOR
CIRCUIT
IC541
TPS65560RGTR 1, 2
3
10
9
6
7
STROBE
CHARGE
SG111_ST_BLOCK
40 F/300V
STROBE CIRCUIT
A
B
C
D
E
F
G
H
I
J
K
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19
A
B
C
D
E
F
G
H
I
J
K

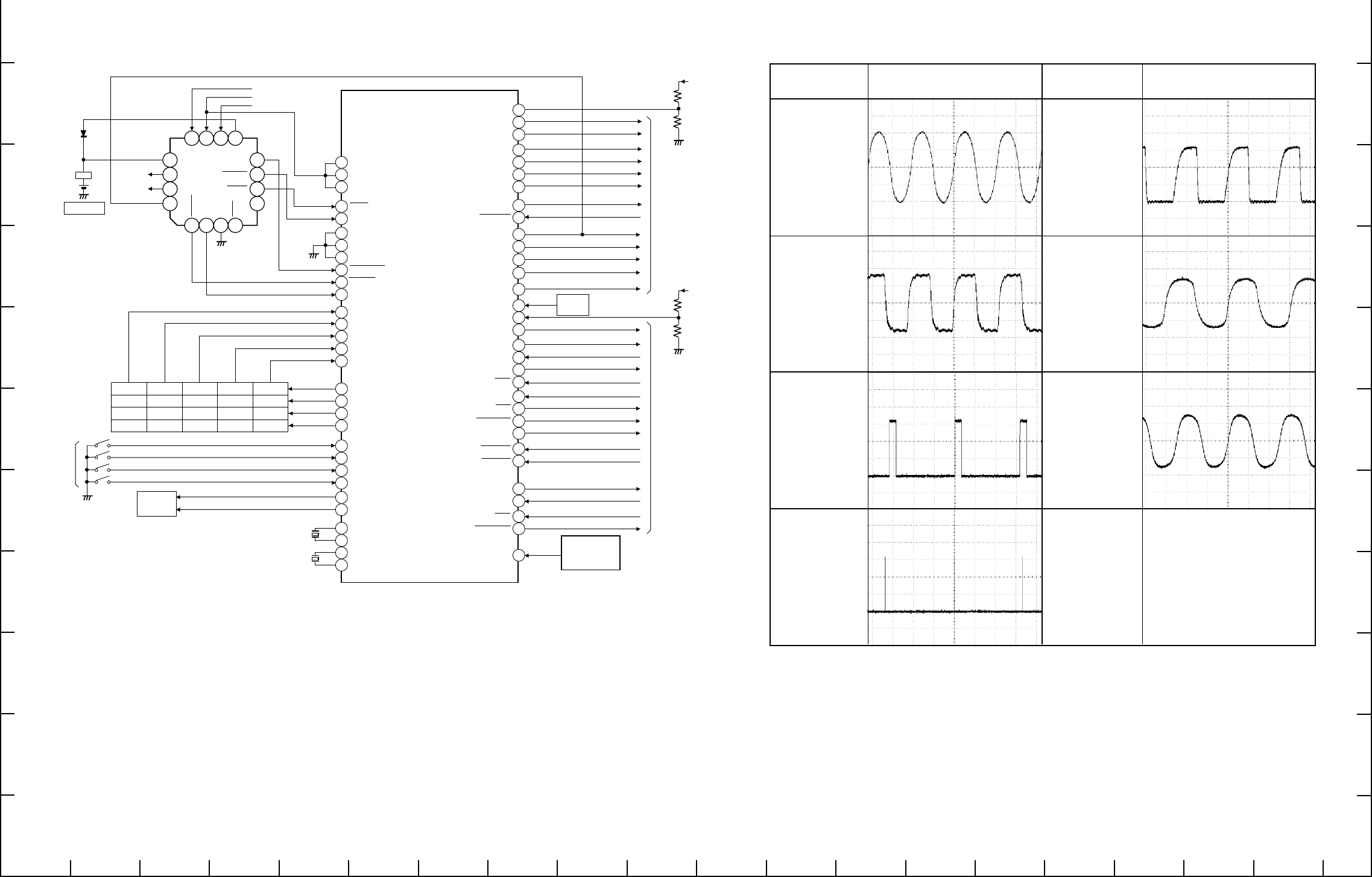

C8

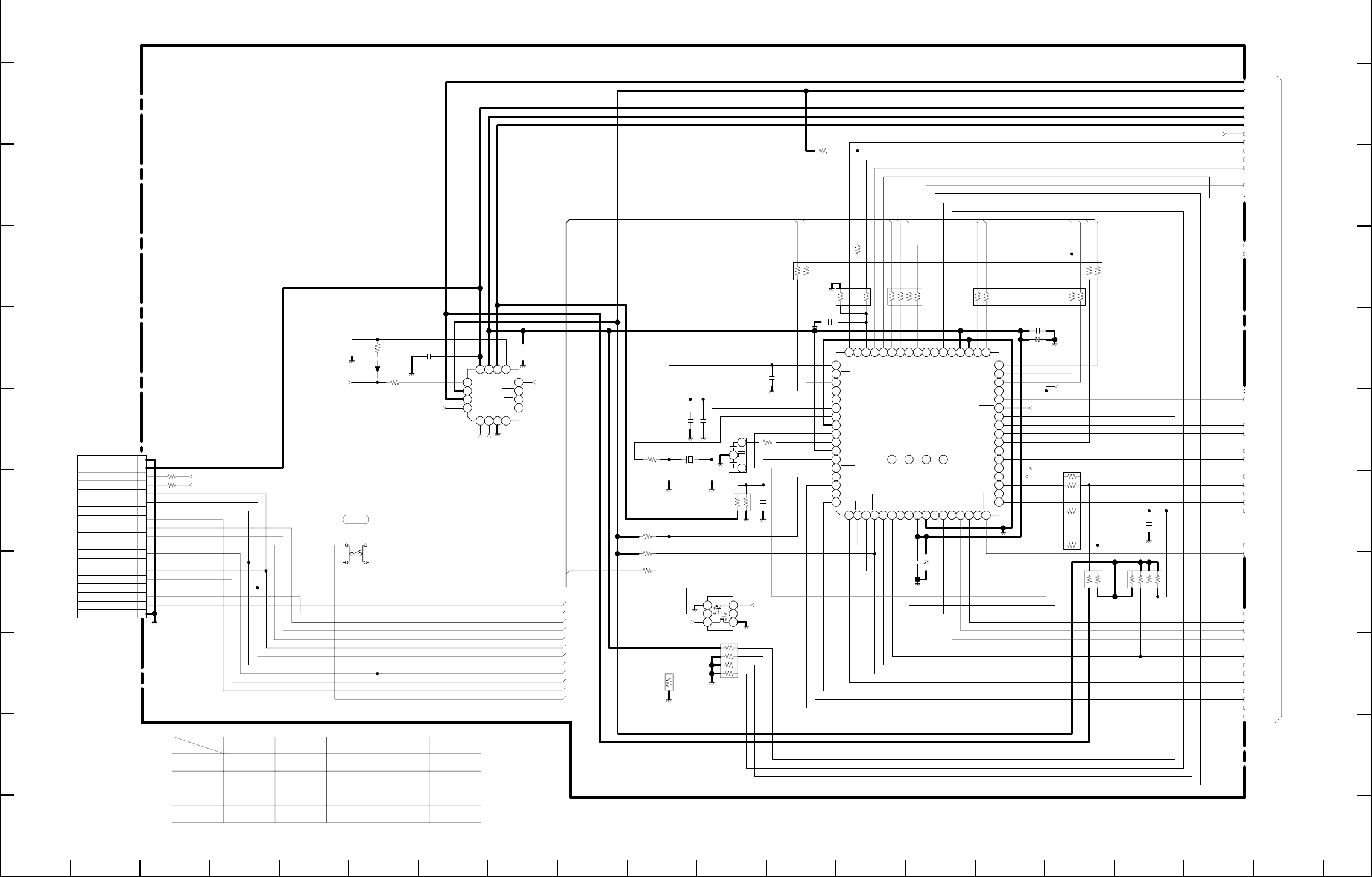

SET
TEST
UP
LCD
DOWN LEFT
TELE WIDE
PW_TEST
RIGHT
V.REC
PW_ON
TURN
---
---
---
---
---
------
---
AL3.2V
BAT +
26
VDD2
VDD3
VDD1
BAT_OFF/INT0
RESET
VSS2
VSS3
VSS1
AL3.2ON
22
SW3.2ON
29
BACKUP_CTL
SCAN IN1
SCAN IN2
SCAN IN3
SCAN IN4
SCAN OUT0
SCAN OUT1
SCAN OUT2
KEY_2nd
KEY_1st
KEY_PLAY
KEY_MENU
VF.LED (R)
VF.LED (G)
BAT+
49
BAT +
BAT_T
50
BAT_T
BAT_I
48
BAT_I
BAT_CHGERR
6
BAT_CHGERR
BAT_CHGOFF
8
BAT_CHGOFF
USB_SUSPWR
13
USB_SUSPWR
USB_HPWR
14
USB_HPWR
CHG_DONE
LENS_4M
SEL SEL
31
BLON
TH_TEMP
XCOUT
XCIN
X3002
32.768KHz
XOUT
XIN
X3001
4MHz
PON2 PON2
15
P ON
UNREGSY
SCK
SI
SO
BOOT_COMREQ
TRST
MAIN RESET
HOTLINE
PLLEN
ZAV_JACK
USB_DET1
SREQ
ZHP_AD ZHP_AD
47
ASWON ASWON
19
NAND RESET NAND_RESET
17
CARD
IC301
IC651
8bit MICRO
PROCESSOR
LC87F2832AUFL68TBM-E
MR SENSOR
MRSS32W
BACK UP
CHG
USB_DET1
ZAVJACK
HOTLINE
MRST
TRST
ZBOOT_COMREQ
SREQ
ASIC_SDI
ASIC_SDO
SCK
PLLEN
UNREG_SY
PON
BLON
ZCHG_DONE
LENS_4M
UNREG_SY
TO DMA
TO DMA
ZCARD
(VF1)
STANDBY LED
(BACK UNIT)
20
2
64
24
18
5
65
52
63
23
1
66
53
27
67
61
60
58
57
12
11
55
34
25
3
SCAN OUT3
43
44
45
46
54
32
33
35
SCAN IN0
MROUT 26
36
21
59
37
10
52
56
61
38
9
30
4
16
51
SG111_SY_BLOCK
STBY_GREEN
STBY_RED
ST_CHG
LV5622LP-TE-L
IC302
1
SW_ON
2
PULL_UPON
3
GND
4
DC_IN
5
DC_IN
6
RESET
7
BAT_OFF
8
BACK_CNT
+5V
BACKUP3.2V
UNREGSY
9
VCHG
10
VIN
11
VOUT
12
VBOOST
13
VBATT
14 SW_VOUT
15 PULL_UPV
16 SEL
Z6001
(VF1)
SW3.2V
2nd
PLAY
1st
MENU
TO BACK UNIT
TH301
TEMP
SENSOR
BATTERY
BACKUP
MAIN CLOCK
SUB CLOCK
TO DMA
TO DMA
WAVEFORM
TEST POINT
LOCATION
TEST POINT
LOCATION WAVEFORM
IC101
PIN AB19
XOUT
1V/div
10ns/div
IC301
PIN 61
XOUT
1V/div
100ns/div
WF-SG111
IC301
PIN 58
XCOUT
1V/div
10µs/div
IC301
PIN 16
LENS_4M
1V/div
100ns/div
CN171
PIN 30
CLK
1V/div
50ns/div
CN171
PIN 31
HSYNC
1V/div
20µs/div
CN171
PIN 32
VSYNC
1V/div
5ms/div
CIRCUIT WAVEFORMS
CIRCUIT DIAGRAMS
SYSTEM CONTROL CIRCUIT
A
B
C
D
E
F
G
H
I
J
K
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19
A
B
C
D
E
F
G
H
I
J
K
C9

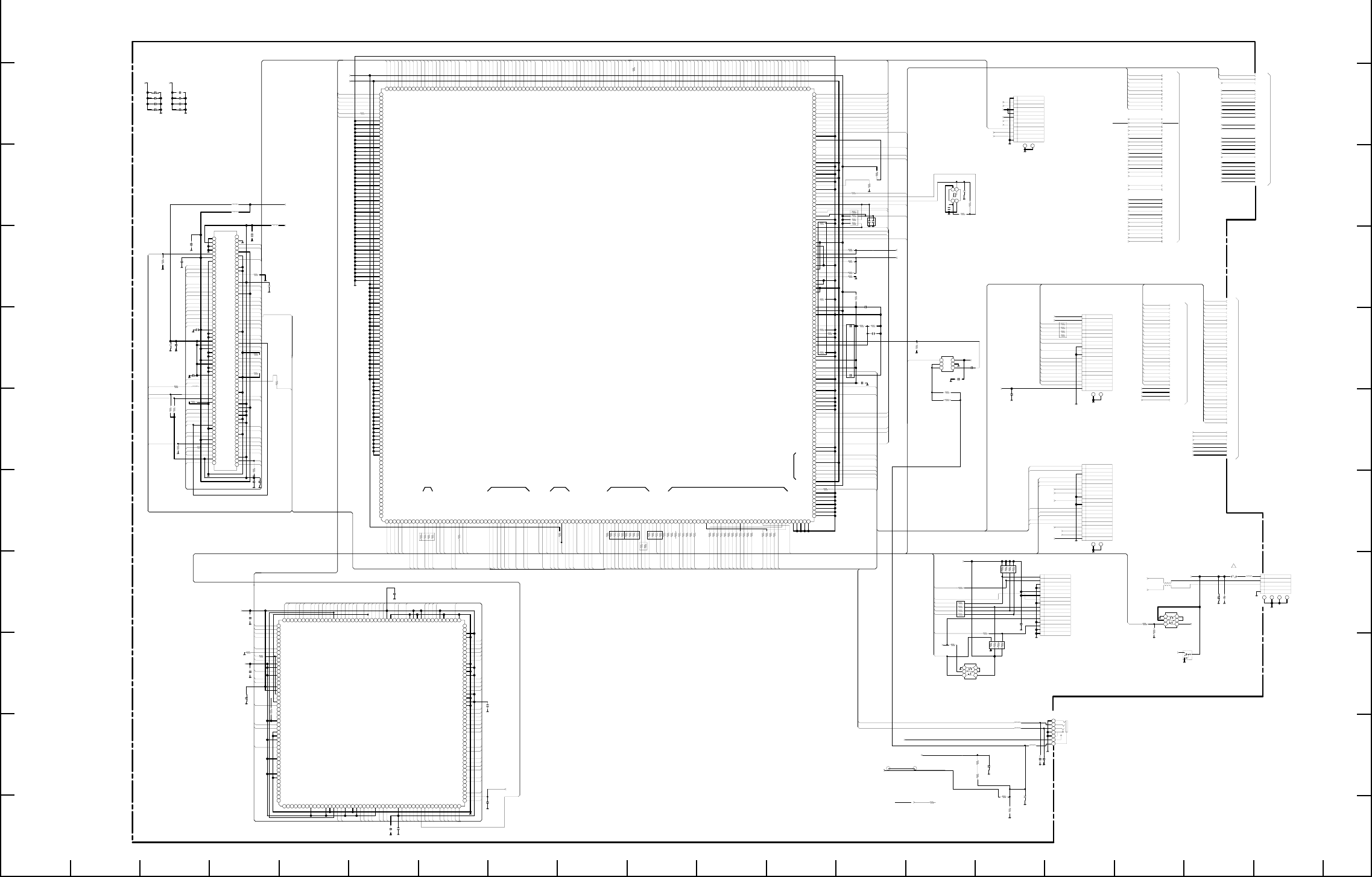

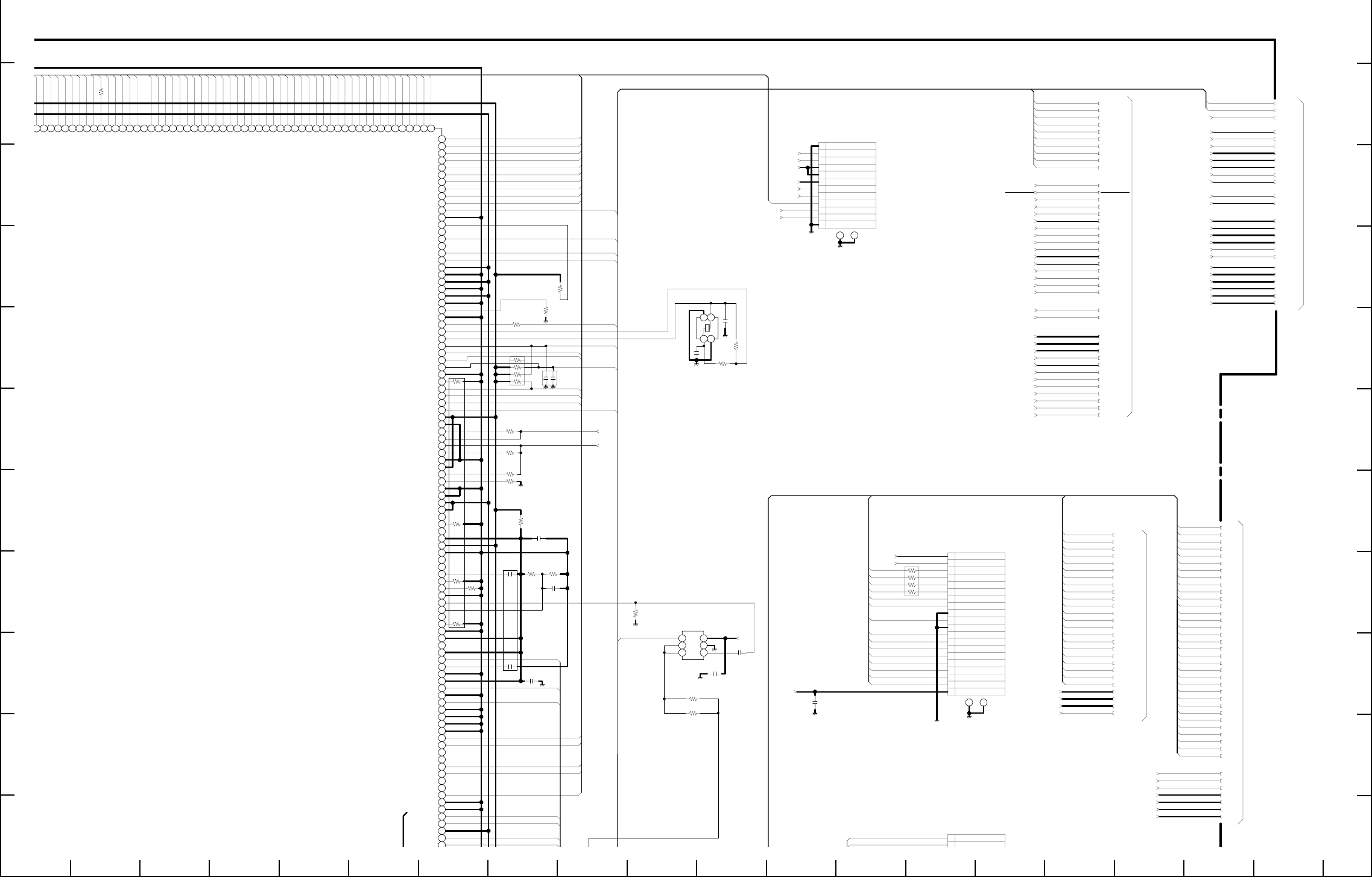

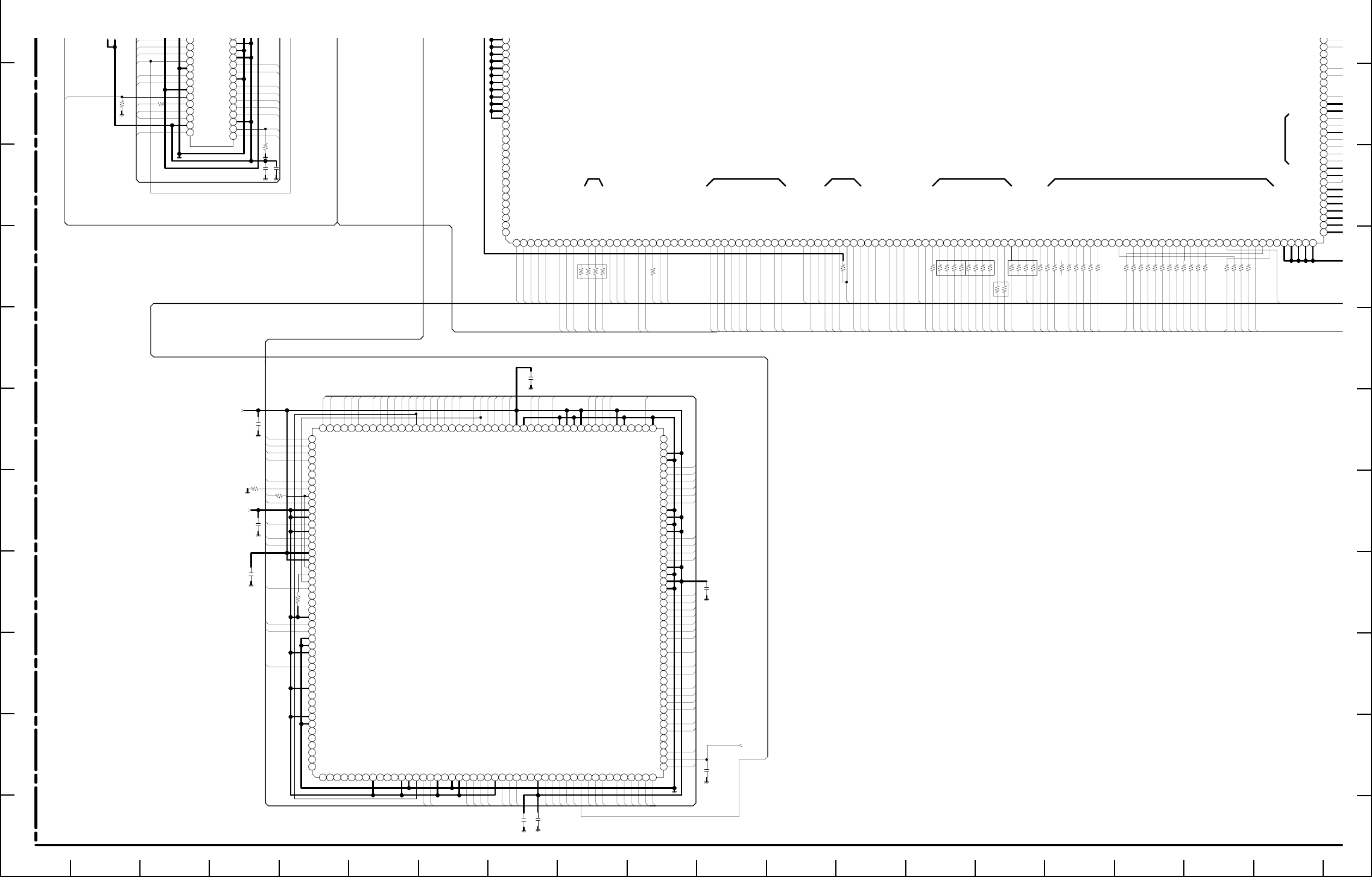

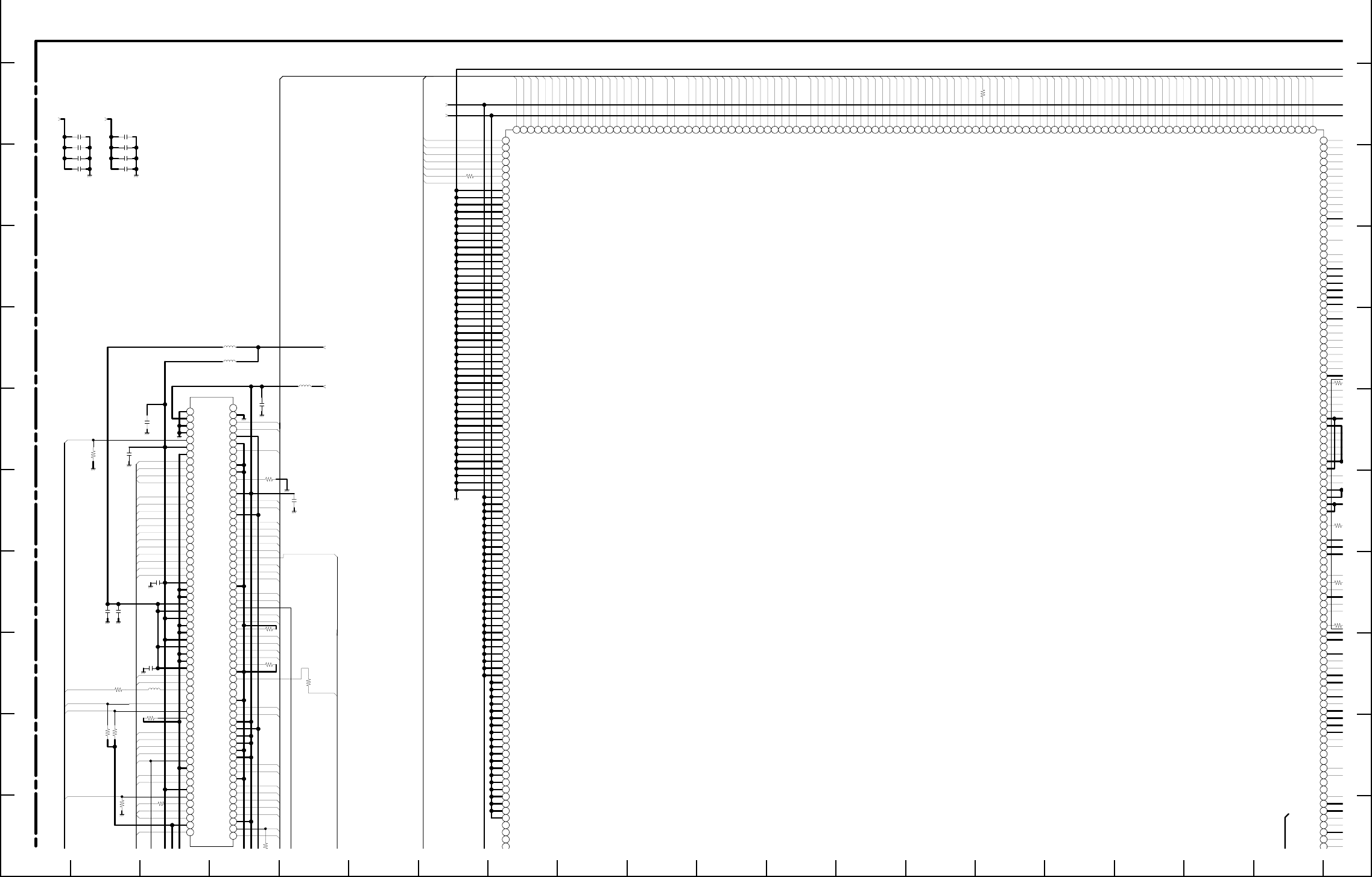

CP1 BOARD (DMA) MAIN
DMA
D1-06900/SG111-J
PROGRAM FLASH & SDRAM
MPEG4
SYSTEM ASIC
VIDEO AMP
TO AV JACK
TO SD
TO USB
!
TO VF1
CN172
TO VF1
CN173
TO CAA
TO TCA
TO SYA
TO PWA
TO ST1
CN541
NOT USED
1.83
1.81
3.2
1.2
3.4
12.0
-6.0
VOLTAGE: VIEW MODE, LCD ON
FBMH1608HM102
L1007
FBMH1608HM102
L1012
FBMH1608HM102
L1011
BK1005LL121
L1008
VDD3
VDD3
VDD3
VDD1.8
4.7;B
6.3
1608
C1083
0
RB108
12
34
56
78
4.7;B
1608
C1092
1;B
1608
C1086
1;B
1608
C1081
5
1AV4J11B5531G
CN110
4
NOT_USE
5
GND
1
USB_VBUS
2
USB_D-
3
USB_D+
Z1 Z2 Z3 Z4
AVR-M1608C120MT
VA134
1;B
C1303
UNR32A3
Q1301
USB_VBUS
XV3
XV4
XV2
XV5
XV6
XV1
CCDCK
CCDSD
CCDEN
TGHD
TGVD
XSUB
XSG3
XV8
XV9
XV7
XV10
ADCK
SUBGT
VDD3
VDD3
UNREGSY
USB_VBUS
BAT+
PON
BLON
BAT_T
BAT_I
USB_HPWR
VDD3
UNREGSY
USB_VBUS
BAT+
PAON
PON
BLON
BAT_T
BAT_I
USB_HPWR
UNREGSYUNREGSY
BAT+BAT+
BAT_T BAT_T
PON
LENS_4M
ZBOOT_COMREQ
TRST
PLLEN
MRST
SREQ
HOTLINE
SCK
ASIC_SDO
ASIC_SDI
ZAVJACK
ZCARD
USB_DET1
NAND_RESET
BLON
ZCHGDONE
BATCHGERR BATCHGERR
BAT_I
USB_SUSPWR
USB_HPWR
BAT_I
USB_HPWR
USB_SUSPWR
BATCHGERR BATCHGERR
+5V +5V
+5V +5V
10K
RB142
12
78
34
78
56
78
VDD3
56
34
10K
RB141
12
34
100
RB145
12
56
0
RB117
34
0
RB117
56
48.MHz
1AV4V10B6840G
X1102
1
23
4
11.8K;1/16D
R1012
1;B
1005
C1031
4.7;B
1608
H=0.9
C1008
4.7;B
1608
C1026
0
RB117
12
0
RB117
78
1M;1/16J
R1122
4.7;B
1608
H=0.9
C1018
0.1;B
CB101
34
0.1;B
CB101
12
VDD3
10K
RB115
12
34
56
78
0
RB104
12
34
0
RB101
12
34
56
78
4.7;B
1608
C1207
VDD3
K5R5658VCM-DR75
QK5R5658VCM-N
IC121
A1
DNU
A2
DNU
A3
DNU
A10
DNU
A11
DNU
A12
DNU
B1
NC
B2
NC
B3
NC
B4
NC
B5
NC
B6
NC
B7
VSSo
B8
NC
B9
A9
B10
A13
B11
NC
B12
NC
C1
VSSd
C2
NC
C3
A1
C4
A3
C5
A6
C6
NC
C7
VCCo
C8
NC
C9
A8
C10
A12
C11
NC
C12
NC
D1
VDD
D2
SA9
D3
SA5
D4
A2
D5
A5
D6
NC
D7
NC
D8
NC
D9
A10
D10
A14
D11
NC
D12
DQ15
E1
SA4
E2
SA8
E3
SA7
E4
SA11
E5
A4
E6A7
E7RPBo
E8A15
E9NC
E10NC
E11DQ14
E12DQ13
F1NC
F2CKE
F3SA6
F4DQ29
F5A0
F6NC
F7A11
F8NC
F9NC
F10DQ12
F11NC
F12DQM1
G1DQ30
G2DQ31
G3DQ28
G4DQ27
G9DQ11
G10DQ10
G11VSSQ
G12VDDQ
H1VSSQ
H2VDDQ
H3DQ26
H4DQ25
H9DQ9
H10DQ8
H11VDDQ
H12VSSQ
J1VDDQ
J2VSSQ
J3DQ24
J4DQM3
J9/WE
J10/CAS
J11/RAS
J12/CS
K1VSSd
K2VDD
K3NC
K4NC
K9
VSSd
K10
CLK
K11
NC
K12
NC
L1
VSSQ
L2
VDDQ
L3
BA0
L4
BA1
L9
DQ6
L10
DQ7
L11
VDDQ
L12
VSSQ
M1
VDDQ
M2
VSSQ
M3
DQM2
M4
NC
M9
DQ4
M10
DQ5
M11
VSSQ
M12
VDDQ
N1
DQ18
N2
DQ19
N3
DQ23
N4
DQ22
N9
OEBo
N10
DQ3
N11
NC
N12
DQM0
P1
DQ16
P2
DQ17
P3
DQ20
P4
DQ21
P5
SA10
P6
WEBo
P7
IO2
P8
IO3
P9
IO11
P10
INTo
P11
DQ1
P12
DQ2
R1
NC
R2
SA3
R3
SA1
R4
SA0
R5
RDYo
R6
IO9
R7
IO10
R8 IO4
R9 IO5
R10 IO13
R11 DQ0
R12 NC
T1 NC
T2 SA2
T3 CLKo
T4 AVDBo
T5 IO1
T6 VCCQo
T7 VCCQo
T8 IO12
T9 VCCQo
T10 IO6
T11 IO14
T12 VDD
U1 VDD
U2 CEBo
U3 NC
U4 NC
U5 IO8
U6 NC
U7 NC
U8 NC
U9 VCCQo
U10 IO7
U11 IO15
U12 VSSd
V1 VSSo
V2 VCCo
V3 NC
V4 IO0
V5 NC
V6 NC
V7 NC
V8 NC
V9 NC
V10 NC
V11 VCCo
V12 VSSo
W1 DNU
W2 DNU
W3 DNU
W10 DNU
W11 DNU
W12 DNU
1000P;B
C1208
NAND_RESET
1000P;B
C1202
VDD3
1;B
C1203
16
1AV4J11B6970G
CN141
8
DATA1
3B
VSS
9
DATA2
4A
VDD
10
CARD
4B
VDD
11
COMMON
5
CLOCK
12
WP
6
VSS
13
GND
7
DATA0
14
GND
1
DATA3
2
COMMAND
3A
VSS
USBD-
TCM12109002P
L1301
12
3
4
USBD+
VDD3
20
1AV4J10LZ200G
CN103
10
LMCLK
4
LCDSD
11
GND
5
LCDCK
12
LCDD7
6
LCDEN
13
LCDD6
7
VD
14
LCDD5
8
HD
15
LCDD4
9
GND
16
LCDD3
17
LCDD2
18
LCDD1
19
LCDD0
20
VDD3
1
BL_AN
2
BL_CA
3
LCDP0CB
Z1 Z2
BACKUP_BAT BACKUP_BAT
ASWON
PON
ASWON
TEMPGYRO
PON
ASWON
OUTX
OUTY
TEMPGYRO
+3.4V(A) +3.4V(A)
+12V(A)
-6V(A)
+12V(A)
-6V(A)
1000P;B
CB102
12
34
VDD3
4.7;B
1608
C1503
LCDAN
LCDCA
PAON
12
1AV4J11NX120G
CN105
10
SP-
4
UNREGST
11
SP+
5
UNREGST
12
GND
6
+12V(A)
7
ZCHGDONE
8
CHG
9
FLCTL
1
GND
2
BACKUP3.2V
3
SW3.2V
Z1 Z2
+12V(A)
-6V(A)
+12V(A)
-6V(A)
VDD1.8 VDD1.8
IAMPPWM
HALL_OUT
OC_EN
G_EN
G_RESETN
G_CLK
GDATA
HALL_OFFSET
IRISPWM
OC_CONT
SHUTTER+
ZPIOUT
LENS_4M
LENS_RESETN
STATE2
LENS_MODE
LENS_EN
NDON
STATE1
NDOFF
LENS_SD
LENS_CK
FPIOUT
BOOST5.3V
VDD3
+5V
VDD1.2VDD1.2
UNREGST
+3.4V(A)
BOOST5.3V
UNREGST
+3.4V(A)
BOOST5.3V
PAON4
+12V(A)
UNREGST
BOOST5.3V
VDD3
+5V
USBD-
USBD+
SEL SEL
ZCARD
BACKUP_BAT
SI2
SO3
USB_DET1
ZAVJACK
SW3.2V
Z_H_PHONEJACK
ZCHGDONE
BACKUP3.2V
CHG
SW3.2V
LCDAN
LCDCA
LENS_4M
ZAVJACK
ZCARD
USB_DET1
BLON
ZCHGDONE
ASWON
PON
LENS_4M
NAND_RESET
LCDAN
LCDCA
Z_H_PHONEJACKZ_H_PHONEJACK
PAON3
SELSEL
CHG CHG
SW3.2V SW3.2V
BACKUP3.2V BACKUP3.2V
PON2PON2
PON2 PON2
SO3
SI2
SO3
SI2
MROUT
AL3.2V
MROUT
AL3.2V
AL3.2V
MROUT
FBMH1608HL300
L1302
BK1005HM102
L1552
BK1608LM751
1608
L1553
BK1005HM102
L1551
100;1/20J
R1001
100;1/20J
R1016
100;1/20J
R1051
100;1/20J
R1083
100;1/20J
R1095
100;1/20J
R1403
0;1/20Z
R1023
0;1/20Z
R1026
0;1/20Z
R1052
0;1/20Z
R1092
0;1/20Z
R1203
0;1/20Z
R1431
0;1/20Z
R1434
68;1/20J
R1004
68;1/20J
R1088
10K;1/20J
R1010
10K;1/20J
R1081
10K;1/20J
R1084
10K;1/20J
R1087
10K;1/20J
R1089
10K;1/20J
R1093
10K;1/20J
R1207
10K;1/20J
R1302
1.5K;1/20D
R1011
1K;1/20J
R1029
1K;1/20J
R1552
2.2;1/20J
R1030
47K;1/20J
R1086
47K;1/20J
R1091
10;1/20J
R1206
6.8K;1/20D
R1551
0.1;B
0603
C1007
0.1;B
0603
C1009
0.1;B
0603
C1010
0.1;B
0603
C1011
0.1;B
0603
C1019
0.1;B
0603
C1020
0.1;B
0603
C1021
0.1;B
0603
C1074
0.1;B
0603
C1078
0.1;B
0603
C1079
0.1;B
0603
C1082 0.1;B
0603
C1084
0.1;B
0603
C1087
0.1;B
0603
C1204
0.1;B
0603
C1205
0.1;B
0603
C1206
0.1;B
0603
C1401
0.1;B
0603
C1501
0.1;B
0603
C1551
150;1/16D
1005
R1501
150;1/16D
1005
R1504
20
1AV4J10LZ200G
CN104
10
BACKUP_BAT
4
AUDSD
11
GND
5
AUDCK
12
AUDMCLK
6
AUDEN
13
DACDAT
7
SCAN_IN2
14
ADCDAT
8
SCAN_OUT3
15
BITCLK
9
GND
16
LRCK1
17
MROUT
18
SP+
19
SP-
20
AL3.2V
1
LINE_L
2
LINE_R
3
GND
Z1 Z2
SP+
SP-
1A32V
1608
H=0.45
F5003
12
YKB21-5361
1AV4J12B4520N
JK151
1
2
4
5
6
3A
3B
XSG5
XSG4
XV11
XSG2
XSG1
DOUT1N
DOUT1P
DOUT0N
DOUT0P
TCLKN
TCLKP
100
RB102
12
100
RB102
34
100
RB102
56
100
RB102
78
100
RB103
12
100
RB103
34
100
RB103
56
100
RB103
78
0
RB105
12
0
RB105
34
0
RB105
56
0
RB105
78
220
RB106
12
220
RB106
34
220
RB106
56
220
RB106
78
220
RB107
12
220
RB107
34
220
RB107
56
220
RB107
78
220
RB111
12
220
RB111
34
220
RB111
56
220
RB111
78
220
RB112
12
220
RB112
34
220
RB112
56
220
RB112
78
220
RB110
12
220
RB110
34
220
RB110
56
220
RB110
78
220
RB113
12
220
RB113
34
220
RB113
56
220
RB113
78
3.6K;1/20D
R1040
39K;1/20D
R1555
470;1/20D
R1121
1K;1/20D
R1041
1.3K;1/20D
R1037
22;1/20D
R1022
39;1/20D
R1005
39;1/20D
R1006
47K;1/20D
R1085
47K;1/20D
R1554
150;1/16D
R1502
0;1/20Z
R1301
7P;CH
C1121
7P;CH
C1122
KS756U2642CBP
EV1MS
QXXAG56U2642N
IC101
F10
GPIOC0
E10
GPIOC1
A10
GPIOC2
F9
GPIOC3
E9
GPIOC4
D9
GPIOC5
C9
GPIOC6
F8
GPIOC7
B9
GPIOC8
E8
GPIOC9
A9
GPIOC10
D8
GPIOC11
C8
GPIOC12
F7
GPIOC13
B8
GPIOC14
A8
GPIOC15
E7
GPIOC16
B7
GPIOC17
A7
GPIOC18
C6
GPIOC19
D7
GPIOC20
C7
GPIOC21
E6
GPIOC22
A6
GPIOC23
B6
GPIOC24
D5
GPIOC25
A5
GPIOC26
C5
GPOC27
B5
GPOC28
B4
GPOC29
A4
GPOC30
C4
GPOC31
A3
GPOC32
D3
GPOC33
E3
GPOC34
E4
GPOC35
B3
GPOC36
C1
GPOC37
C2
GPOC38
C3
GPOC39
E5
GPOC40
D1
GPOC41
D2
GPOC42
F5
GPOC43
F6
GPOC44
G5
GPOC45
E1
GPIOE0
E2
GPIOE1
G6
GPIOE2
H3
GPIOE3
H4
GPIOE4
H5
GPIOE5
F1
GPIOE6
H6
GPIOE7
J3
GPIOE8
F2
GPIOE9
F3
GPIOE10
J5
GPIOE11
J6
GPOD0
G1
GPOD1
K3
GPOD2
G2
GPOD3
K4
GPOD4
K5
GPOD5
K6
GPOD6
G3
GPOD7
L5
GPOD8
H1
GPOD9
H2
GPOD10
J1
GPOD11
J2
GPOD12
K1
GPIOD13
L6
GPIOD14
M3
GPIOD15
K2
TGHD
L1
TGVD
M4
GPOF0
M5
GPOF1
M6
GPOF2
N4
GPOF3
L2
GPOF4
L3
GPOF5
N5
GPOF6
N6
GPOF7
P3
GPOF8
P4
GPOF9
M1
GPOF10
M2
GPOF11
P5
GPOF12
P6
GPOF13
R3
GPOF14
N1
GPOF15
N2
GPOF16
R4
GPOF17
N3
GPOF18
R5
GPOF19
R6
GPOF20
P1
GPOF21
P2
GPOF22
R1
GPOF23
T5
GPOF24
T3
GPOF25
R2
GPOF26
T2
GPOF27
T6
GPOF28
U3
GPOF29
U4
CSYNC
T1
CCD0
U2
CCD1
U5
CCD2
V4
CCD3
U1
CCD4
AA4
CCD5
AA3CCD6
AB3CCD7
V5CCD8
W6CCD9
V6CCD10
V7CCD11
U6ADCK
V3LOVDD
W3LCVDD
V1AFECKP
V2AFECKN
W1AFESD1P
W2AFESD1N
Y3BIAS
Y1AFESD2P
Y2AFESD2N
W4LOVSS
Y4LCGND
AB15GPIOB0
V14GPIOB1
AA15GPIOB2
U16GPIOB3
Y5GPOB4
U7GPOB5
U8GPOB6
W17TSEL0
W14TSEL1
U15TEST0
Y19TEST1
V16TEST2
AB4ADAGND
AB5CH3
AA5ADAGND
AA6CH2
AB6VREFH
AA8CH1
Y6VREFM
AB7CH0
Y7ADDVDD
AB8VGV
Y8AVDD
AA7AGND3
W8VOUT
V8FSV
AB9VREF
V9YOUT
W9AGND3
U9FSY
W10UOUT
V10VGY
AA10VGU
U11FSU
AA9AGND1
U10DVDD
W11AVDD
V12FSA
V11AOUT
U12VGA
AA11A2VDD
Y9A2VDD
AA12A2GND
Y10A2GND
AA13REXT
AB10RPU_ENA
Y11UVDD
Y12UGND
AB11FSDP
AB12HSDP
AB13HSDM
AB14FSDM
Y13UGND
Y14UVDD
AA14VBDET
W13RTCK
AA17TDO
AA16TCK
AB16CKIN
AB17D4CKIN
Y17TRST
V13TMS
U13TDI
AA18zRST
AB18XIN
AB19XOUT
U14PLLEN
V18PLLTEST
W19PSEL
Y15VSS1
W15VDDP:1
V15VSS2
W16VDDP:2
V20VSS3
W20VDDP:3
V17SDI
U17SCK
Y20D4CKOUT
U18SDO
AA19MCLK
AA20CLKSEL
AB20ACKIN
Y21zSREQ
Y22SD0
W21SD1
W22SD2
V21SD3
V22SD4
U20SD5
U21SD6
U22SD7
T18SD8
T19SD9
T21
SD10
T22
SD11
R17
SD12
R18
SD13
R19
SD14
R20
SD15
K20
SD16
K21
SD17
K22
SD18
J17
SD19
J18
SD20
J19
SD21
J20
SD22
J21
SD23
H19
SD24
H20
SD25
H21
SD26
H22
SD27
G20
SD28
G21
SD29
G22
SD30
F22
SD31
T17
DQM0
R21
DQM1
K18
DQM2
J22
DQM3
N22
SA0
L20
SA1
P20
SA2
L18
SA3
P21
SA4
L17
SA5
P22
SA6
M22
SA7
N17
SA8
M21
SA9
N18
SA10
M17
SA11
N19
SA12
P18
SA13
P17
SA14
N20
zRE
N21
zCS0
M18
zRWE
R22
CKRE
P19
zRCE
M20
SRCLK
L21
zRAS
L22
zCAS
K17
zWE
F21
A1
F19
A2
E20
A3
H18
A4
H17
A5
F20
A6
G17
A7
G18
A8
F18
A9
E22
A10
E21
A11
F17
A12
D22
A13
D19
A14
D21
A15
E17
A16
D17
A17
C18
A18
D20
A19
E18
A20
C22
A21
C17
A22
C21
D0
C20
D1
F16
D2
B20
D3
A20
D4
E16
D5
D16
D6
C19
D7
B19
D8
B18
D9
A19
D10
A18
D11
B17
D12
A17
D13
C16
D14
F15
D15
B16
GPOA0
E15
GPOA1
D15
GPOA2
A16
GPIOA3
B15
GPIOA4
A15
ASTREQ
F13
VDATA0
C14
VDATA1
B13
VDATA2
B14
VDATA3
A14
VDATA4
E14
VDATA5
F14
VDATA6
C15
VDATA7
A13
ASTDATA
E13
VOUTCLK
C13
ASTFLG
F12
ASTEN
B11
VSTDATA0
E11
VSTDATA1
A12
VSTDATA2
B12
VSTDATA3
F11
VSTDATA4
C12
VSTDATA5
D12 VSTDATA6
E12 VSTDATA7
D11 VSTEN
A11 VSYNC
C11 VSTREQ
C10 VINCLK
B10 VCTRLEN
D13 OVSS
H14 OVSS
H15 OVSS
H8 OVSS
H9 OVSS
J10 OVSS
J13 OVSS
J14 OVSS
J15 OVSS
J8 OVSS
J9 OVSS
K10 OVSS
K11 OVSS
K12 OVSS
K13 OVSS
K14 OVSS
K9 OVSS
L10 OVSS
L11 OVSS
L12 OVSS
L13 OVSS
M10 OVSS
M11 OVSS
M12 OVSS
M13 OVSS
M19 OVSS
N10 OVSS
N11 OVSS
N12 OVSS
N13 OVSS
N14 OVSS
N9 OVSS
P10 OVSS
P13 OVSS
P14 OVSS
P15 OVSS
P8 OVSS
P9 OVSS
R14 OVSS
R15 OVSS
R8 OVSS
R9 OVSS
W7 OVSS
H10 OVDDW
H11 OVDDW
H12 OVDDW
H13 OVDDW
J11 OVDDW
J12 OVDDW
J4 OVDDW
K15 OVDDW
K8 OVDDW
L14 OVDDW
L15 OVDDW
L8 OVDDW
L9 OVDDW
M14 OVDDW
M15 OVDDW
M8 OVDDW
M9 OVDDW
N15 OVDDW
N8 OVDDW
P11 OVDDW
P12 OVDDW
R10 OVDDW
R11 OVDDW
R12 OVDDW
R13 OVDDW
V19 OVDDW
D4 CVDD
F4 CVDD
G4 CVDD
L4 CVDD
T4 CVDD
W5 CVDD
W12 CVDD
Y16 CVDD
Y18 CVDD
W18 CVDD
U19 CVDD
T20 CVDD
L19 CVDD
K19 CVDD
G19 CVDD
E19 CVDD
D18 CVDD
D14 CVDD
D10 CVDD
D6 CVDD
A1 NC
A2 NC
A21 NC
A22 NC
B1 NC
B2 NC
B21 NC
B22 NC
AA1 NC
AA2 NC
AA21 NC
AA22 NC
AB1 NC
AB2 NC
AB21 NC
AB22 NC
UP0431300
Q1401
1
2
34
5
6
UP0431300
Q1303
1
2
34
5
6
SP-
SP+
BAT_CHGOFFBAT_CHGOFF
BAT_CHGOFF BAT_CHGOFF
VDD3
0.1;B
0603
C1201
0.1;B
C1099
MBG124APBS-ME1
QXXAGMBG124AN
IC102
A1 Reserve
B1 Reserve
C1 Reserve
D1 Reserve
E1 XRESETI
F1 AVDD
G1 AVSS
H1 HADRS9
J1 HADRS11
K1 HADRS15
L1 XHCS
M1 Reserve
N1 HDATA0
N2 HDATA2
N3 HDATA3
N4 HDATA7
N5 HDATA8
N6 HDATA13
N7 HDATA15
N8 VSTDATA2
N9 VSTDATA5
N10 VSTDATA6
N11 VSTREQ
N12 VCTRLEN
N13 VDDI
M13 VSS
L13 VSS
K13 VDDQ
J13 VDDQ
H13 VDDI
G13 VSS
F13 VSS
E13 VDDI
D13 VDDQ
C13 VSS
B13 VSS
A13 VDDQ
A12 ASTEFLG
A11 ASTEN
A10 ASCLKO
A9 Reserve
A8 ALRCK1
A7 ACLK
A6 JTCK
A5 VOUTCLK
A4 VDATA1
A3 VDATA4
A2 VDATA5
B2 VDATA6
C2 VINCLK
D2 Reserve
E2 HADRS4
F2 HADRS5
G2 VDDI
H2 XPLLRST
J2 MCLKO
K2 HADRS10
L2 XHRD
M2 VDDE
M3 HDATA1
M4HADRS13
M5XRDY
M6VDDE
M7HDATA10
M8HDATA14
M9VSTDATA0
M10VSTDATA4
M11VSTEN
M12VSS
L12VSTDATA1
K12HDATA6
J12VDDE
H12VSS
G12VDDE
F12VDDE
E12VDDI
D12VDDE
C12ASTDATA
B12ASTREQ
B11VSS
B10AOUTDATA
B9ALRCK2
B8AINDATA
B7Reserve
B6JTDI
B5VDATA0
B4VDATA3
B3VDATA7
C3VSYNC
D3Reserve
E3HADRS3
F3HADRS6
G3MCLKI
H3HADRS7
J3HADRS8
K3VSS
L3XHWR
L4HADRS14
L5HADRS12
L6XIRQ
L7HDATA9
L8HDATA11
L9HDATA12
L10VSTDATA3
L11VSTDATA7
K11VDDI
J11HDATA5
H11HDATA4
G11VDDE
F11JTDO
E11JTMS
D11JXTRST
C11VSS
C10Reserve
C9VDADA2
C8VSS
C7VDDI
C6HADRS2
C5HADRS1
C4Reserve
D4NC
NJM2561F1A
QNJM2561F1A-P
IC151
1
PS
2
OUT
3
SAG
4
IN
5
GND
6
VCC
AVR-M1005C120MTAAB
1005
VA155
VDD1.2
VDD1.2
100P;CH
C1554
100P;CH
C1555
ZHP_AD
1K;1/16J
R1558
LCDCK
LCDD0
LCDD3
LCDD2
LCDD7
LCDD1
LCDD5
LCDP0CB
LCDEN
LCDSD
LCDD6
LCDD4
D12
D0
A13
VDATA1
VSTEN
VDATA4
VSTDATA1
A8
A6
VOUTCLK
D8
VDATA0
D1
A5
D6
VSTDATA7
VINCLK
VSTDATA5
D5
VSTDATA0
VDATA3
D11
A4
A10
VDATA2
A12
XPLLRST
BITCLK
XRESETI
ASTFLG
A7
D10
ASTDATA
D15
D9
A11
VSTREQ
A15
D7
D3
D14
ASTREQ
D2
VSTDATA2
VSTDATA3
VDATA7
A16
AUDMCLK
VSTDATA4
VDATA5
A9
A2
D4
A14
VDATA6
A3
VSTDATA6
VCTRLEN
ASTEN
D13
XV1
XV2
XV3
XV4
XV5
XV6
XV7
XV9
XV8
XV11
XV10
XSG1
XSG5
XSG4
XSG2
XSG3
XSUB
TGHD
TGVD
CCDCK
CCDSD
CCDEN
VD
LRCK1
XIRQ
PAON3
AOUTDATA
ADCK
SUBGT
LMCLK
SREQ
SCK
PAON
ZBOOT_COMREQ
ASIC_SDI
ASIC_SDO
PLLEN
TRST
HOTLINE
MRST
SDDAT2
SDDAT1
SDDAT0
SDDAT3
SDDET
SDWP
SDCMD
LCDVD
LCDHD
SD17
D13
ZRCE
SD14
D10
A5
RTCK
SD11
D11
LCDD2
SHUTTER+
A6
SD18
D12
LCDD1
NDOFF
SA1
A2
SDDET
SD10
LCDD0
SDCMD
A3
SA3
SA8
SD20
D14
LCDD5
SDDAT3
A1
SA12
SD19
D15
LCDD4
LCDHD
SDDAT2
A4
SD12
LCDD3
LCDVD
SDDAT1
ZFWR
SD13
SA11
LCDD6
ZCAS
XV10
XOUT
SA9
SD9
XV9
A9
TGHD
ZPIOUT
SA10
XV8
A8
TGVD
SD30
XV7
XIN
ADCDAT
SD2
SD25
SD8
A10
RXD0
SD3
DQM0
HALL_OUT
A11
TXD0
SD4
SD31
A12
SD5
SD28
XV6
A13
SA5
SD6
SD22
XV5
TDI
A14
SA4
XSUB
LMCLK
TDO
OC_CONT
SD7
SD24
DACDAT
HALL_OFFSET
XV4
SA2
A15
SA7
GDATA
DQM3
XV3
D0
A16
SA0
TCK
VBDET
DQM1
HOTLINE
IAMPPWM
XV2
D7
SA6
OUTY
DQM2
AUDEN
XV1
SDDAT0
CKRE
XSG5
SD27
AUDSD
G_EN
D4
SA13
XSG4
SD29
AUDCK
LCDD7
PLLEN
G_CLK
D1
ZFRD
ASIC_SDI
SD26
SD0
D2
ZCS0
CCDSD
SCK
SD23
PAON3
D5
SD1
ZRWE
CCDEN
MRST
ASIC_SDO
SD15
LENS_MODE
IRISPWM
D3
G_RESETN
SREQ
LENS_SD
SD21
D9
D6
ZRAS
SUBGT
LENS_EN
SD16
SRCLK
D8
A7
VSTDATA6
VSTDATA7
VSTEN
VD
VSTREQ
VCTRLEN
VINCLK
VSTDATA5
VSTDATA4
VSTDATA3
VSTDATA2
VSTDATA1
VSTDATA0
ASTEN
ASTFLG
VOUTCLK
ASTDATA
VDATA7
VDATA6
VDATA5
VDATA4
VDATA3
VDATA2
VDATA1
VDATA0
ASTREQ
XRDY
ZCS1
A21
A20
A19
A18
A17
TMS
OUTX
TMODE
TSEL
LCDP0CB
FPIOUT
ZBOOT_COMREQ
OC_EN
LENS_CK
LENS_RESETN
SDWP
STATE2
STATE1
NDON
LCDCK
LCDEN
LCDSD
D11
SA0
SA9
SA13
SD30
SD27
A11
SD13
SD22
ZRWE
ZRCE
A5
DQM0
SA8
D13
SA1
SD26
SD8
D15
D14
SA5
SA2
SD17
SD14
DQM3
SD11
SA12
SD10
ZRAS
D12
D7
SD6
A19
ZCAS
D8
DQM1
SD7
SD18
D3
A4
SD21
SA10
A18
D10
A3
D5
SD31
SD3
SD23
D2
MRST
A6
SD15
D4
D6
SD19
A12
SA3
SD20
SD12
A10
A16
A13
A7
SA7
SD2
SD4
INT_ONENAND
SD0
SD25
SD28
A1
A8
A21
SA11
SA4
SD5
SD29
SD1
SD9
A20
A15
A17
A9
SRCLK
SA6
A2
A14
DQM2
ZCS0
SD16
D9
SD24
CKRE
D0
ZFRD
ZFWR
SDMCLK
USBD-
USBD+
AUDSD
AUDEN
OUTY
OUTX
INT_ONENAND
CCDCK
G_EN
IRISPWM
G_RESETN
HALL_OFFSET
G_CLK
OC_CONT
OC_EN
IAMPPWM
GDATA
HALL_OUT
LENS_SD
ZPIOUT
SHUTTER+
FPIOUT
LENS_CK
LENS_MODE
LENS_EN
STATE1
LENS_RESETN
NDOFF
STATE2
NDON
ZFWR
XRDY
ZFRD
ZCS1
SP-
SP+
FLCTL
FLCTL
TRST
PAON4
LRCK1
XIRQ
XPLLRST
XRESETI
BITCLK
AOUTDATA
PAON
SDMCLK
ADCDAT
DACDAT
AUDCK
LINE_R
LINE_L
LRCK1
LINE_L
LINE_R
AUDMCLK
SP-
SP+
BITCLK
XSG1
XSG2
XSG3
XV11
DOUT1N
DOUT1P
DOUT0N
DOUT0P
TCLKN
TCLKP
DOUT0N
DOUT1N
DOUT1P
TCLKN
TCLKP
DOUT0P
ADCK
ZVMUTE
ZVMUTE
VBDET
D1
VOUT
VOUT
ZHP_AD
ORXR71Z
48MHZ
XRDY
(OPEN)
ZCS1
FLCTL
(OPEN)
GND
VDD3_U
(OPEN)
(OPEN)
GND_D
GND
GND
GND
USB3.3V
USB_GND
USB_GND
USB3.3V
USB_GND
USB_GND
USB1.2V
USB1.2V
GND
GND
GND
GND
HALL_OUT
OUT X
OUT Y
GND
GND
GND
(OPEN)
(OPEN)
TXD0
INT_ONENAND
(OPEN)
(OPEN)
RXD0
GND
GND
DOUTIN
DOUT1P
VDD1.2
DOUT0N
DOUT0P
TCLKN
TCLKP
VDD1.2
VDD3
CCDSD
CCDEN
G_RESETN
SUBGT
XSUB
CCDCK
ZVMUTE
(OPEN)
XV10
XV9
XV8
XV7
XV6
XV5
XV4
XV3
XV2
XV1
XV11
(OPEN)
(OPEN)
XSG5
XSG4
XSG3
XSG2
XSG1
AUDBITCLK
ALRCKI
AINDATA
LCDP0CB
LCDVD
LCDHD
LCDD7
LCDD6
LCDD5
LCDD4
LCDD3
LCDD2
LCDD1
LCDD0
LMCLK
AOUTDATA
DACDAT
(OPEN)
ADCDAT
IRISPWM
XPLLRST
XRESETI
(OPEN)
HOTLNE
XIRQ
ZPIOUT
FPIOUT
ZBOOT_COMREQ
G_DATA
G_EN
G_CLK
PAON
PAON3
PAON4
(OPEN)
(OPEN)
OC_EN
OC_CONT
(OPEN)
HALL_OFFSET
(OPEN)
IAMPPWM
LENS_MODE
LENS_SD
LENS_EN
LENS_CK
LENS_RESETN
(OPEN)
(OPEN)
(OPEN)
(OPEN)
(OPEN)
SDDET
SDWP
SDMCLK
STATE2
AUDSD
STATE1
(OPEN)
AUDCK
AUDEN
LCDSD
LCDEN
LCDCK
(OPEN)
NDON
NDOFF
SHUTTER+
(OPEN)
SDCMD
SDDATA3
SDDATA2
SDDATA1
SDDATA0
(OPEN)
(OPEN)
LENS LENS
LCD CCDLCD
(OPEN)
(OPEN)
CCD LVDS
(OPEN)
(OPEN)
ZHP_ADZHP_AD
SW3.2V
ZHP_AD ZHP_AD
JW151
A
B
C
D
E
F
G
H
I
J
K
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19
A
B
C
D
E
F
G
H
I
J
K
C10

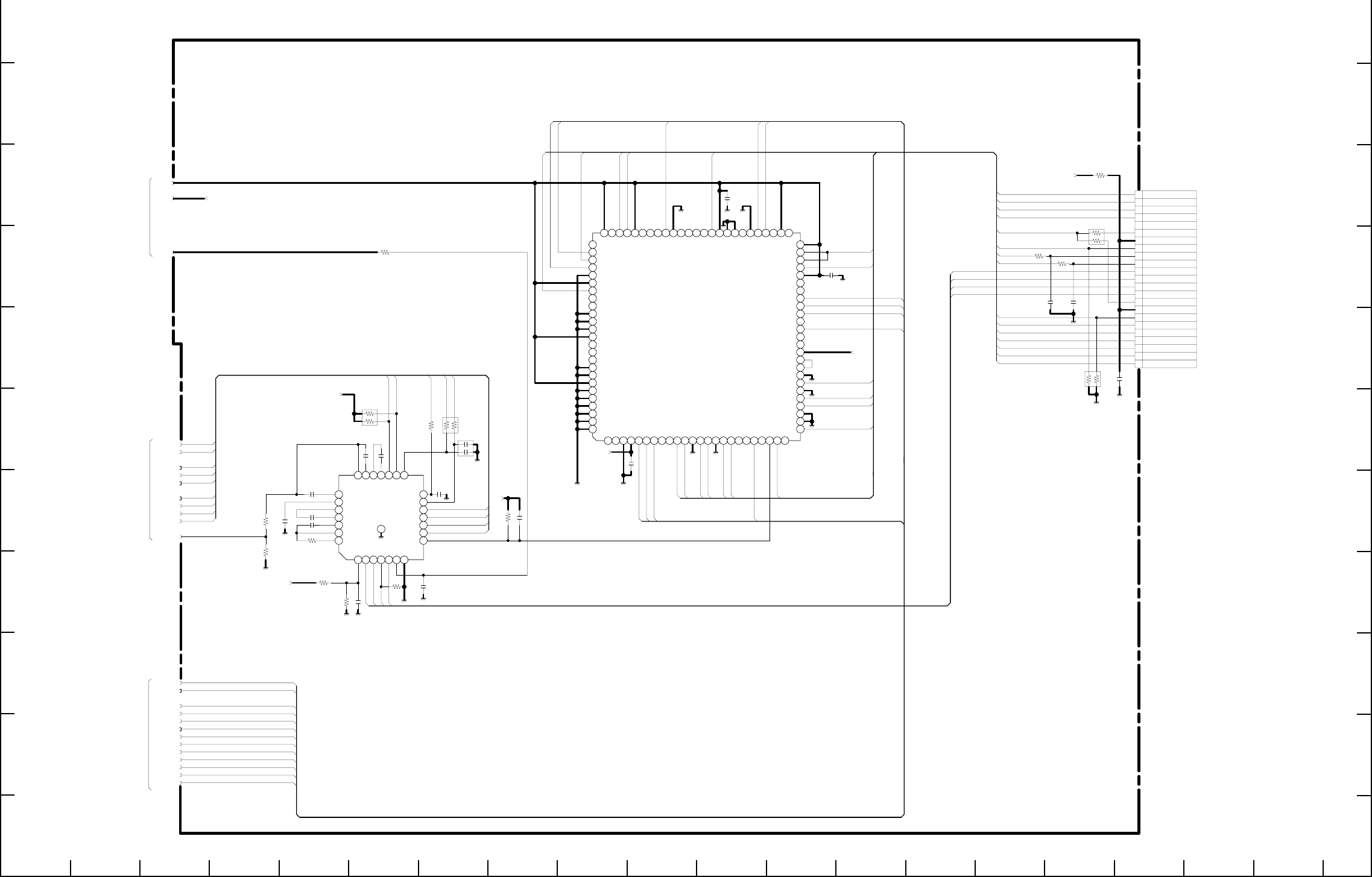

CP1 BOARD (DMA) MAIN [UPPER-LEFT]
MPEG4
SYSTEM ASIC
1.83
1.81
3.2
1.2
FBMH1608HM102
L1007
FBMH1608HM102
L1012
FBMH1608HM102
L1011
BK1005LL121
L1008
VDD3
VDD1.8
4.7;B
6.3
1608
C1083
4.7;B
1608
C1092
1;B
1608
C1081
0
RB11
7
3
0
RB11
7
5
4.7;B
1608
H=0.9
C1008
0
RB11
7
1
0
RB11
7
7
4.7;B
1608
H=0.9
C1018
VDD3
100;1/20J
R1083
100;1/20J
R1095
0;1/20Z
R1092
68;1/20J
R1004
68;1/20J
R1088
10K;1/20J
R1081
10K;1/20J
R1084
10K;1/20J
R1087
K
;1/20J
1089
10K;1/20J
R1093
47K;1/20J
R1086
47K;1/20J
R1091
0.1;B
0603
C1009
0.1;B
0603
C1010
0.1;B
0603
C1011
0.1;B
0603
C1019
0.1;B
0603
C1020
0.1;B
0603
C1021
0.1;B
0603
C1078
0.1;B
0603
C1079
0.1;B
0603
C1082 0.1;B
0603
C1084
22;1/20D
R1022
47K;1/20D
R1085
KS756U2642CBP
EV1MS
QXXAG56U2642N
IC101
W1AFESD1P
W2AFESD1N
Y3BIAS
Y1AFESD2P
Y2AFESD2N
W4LOVSS
Y4LCGND
AB15GPIOB0
V14GPIOB1
AA15GPIOB2
U16GPIOB3
Y5GPOB4
U7GPOB5
U8GPOB6
W17TSEL0
W14TSEL1
U15TEST0
Y19TEST1
V16TEST2
AB4ADAGND
AB5CH3
AA5ADAGND
AA6CH2
AB6VREFH
AA8CH1
Y6VREFM
AB7CH0
Y7ADDVDD
AB8VGV
Y8AVDD
AA7AGND3
W8VOUT
V8FSV
AB9VREF
V9YOUT
W9AGND3
U9FSY
W10UOUT
V10VGY
AA10VGU
U11FSU
AA9AGND1
U10DVDD
W11AVDD
V12FSA
V11AOUT
U12VGA
AA11A2VDD
Y9A2VDD
AA12A2GND
Y10A2GND
AA13REXT
AB10RPU_ENA
Y11UVDD
Y12UGND
AB11FSDP
AB12HSDP
AB13HSDM
AB14FSDM
Y13UGND
Y14UVDD
AA14VBDET
W13RTCK
AA17TDO
AA16TCK
AB16CKIN
AB17D4CKIN
Y17TRST
V13TMS
U13TDI
AA18zRST
AB18XIN
AB19XOUT
U14PLLEN
V18PLLTEST
W19PSEL
Y15VSS1
W15VDDP:1
V15VSS2
W16VDDP:2
V20VSS3
W20VDDP:3
V17SDI
U17SCK
Y20D4CKOUT
U18SDO
AA19MCLK
AA20CLKSEL
AB20ACKIN
Y21zSREQ
Y22SD0
W21SD1
W22SD2
V21SD3
V22SD4
U20SD5
U21SD6
U22SD7
T18SD8
T19SD9
T21
SD10
T22
SD11
R17
SD12
R18
SD13
R19
SD14
R20
SD15
K20
SD16
K21
SD17
K22
SD18
J17
SD19
J18
SD20
J19
SD21
J20
SD22
J21
SD23
H19
SD24
H20
SD25
H21
SD26
H22
SD27
G20
SD28
G21
SD29
G22
SD30
F22
SD31
T17
DQM0
R21
DQM1
K18
DQM2
J22
DQM3
N22
SA0
L20
SA1
P20
SA2
L18
SA3
P21
SA4
L17
SA5
P22
SA6
M22
SA7
N17
SA8
M21
SA9
N18
SA10
M17
SA11
N19
SA12
P18
SA13
P17
SA14
N20
zRE
N21
zCS0
M18
zRWE
R22
CKRE
P19
zRCE
M20
SRCLK
L21
zRAS
L22
zCAS
K17
zWE
F21
A1
F19
A2
E20
A3
H18
A4
H17
A5
F20
A6
G17
A7
G18
A8
F18
A9
E22
A10
E21
A11
F17
A12
D22
A13
D19
A14
D21
A15
E17
A16
D17
A17
C18
A18
D20
A19
E18
A20
C22
A21
C17
A22
C21
D0
C20
D1
F16
D2
B20
D3
A20
D4
E16
D5
D16
D6
C19
D7
B19
D8
B18
D9
A19
D10
A18
D11
B17
D12
A17
D13
C16
D14
F15
D15
B16
GPOA0
E15
GPOA1
D15
GPOA2
A16
GPIOA3
B15
GPIOA4
A15
ASTREQ
F13
VDATA0
C14
VDATA1
B13
VDATA2
B14
VDATA3
A14
VDATA4
E14
VDATA5
F14
VDATA6
C15
VDATA7
A13
ASTDATA
E13
VOUTCLK
C13
ASTFLG
F12
ASTEN
B11
VSTDATA0
E11
VSTDATA1
A12
VSTDATA2
B12
VSTDATA3
F11
VSTDATA4
C12
VSTDATA5
D12 VSTDATA6
E12 VSTDATA7
D11 VSTEN
A11 VSYNC
C11 VSTREQ
C10 VINCLK
B10 VCTRLEN
D13 OVSS
H14 OVSS
H15 OVSS
H8 OVSS
H9 OVSS
J10 OVSS
J13 OVSS
J14 OVSS
J15 OVSS
J8 OVSS
J9 OVSS
K10 OVSS
K11 OVSS
K12 OVSS
K13 OVSS
K14 OVSS
K9 OVSS
L10 OVSS
L11 OVSS
L12 OVSS
L13 OVSS
M10 OVSS
M11 OVSS
M12 OVSS
M13 OVSS
M19 OVSS
N10 OVSS
N11 OVSS
N12 OVSS
N13 OVSS
N14 OVSS
N9 OVSS
P10 OVSS
P13 OVSS
P14 OVSS
P15 OVSS
P8 OVSS
P9 OVSS
R14 OVSS
R15 OVSS
R8 OVSS
R9 OVSS
W7 OVSS
H10 OVDDW
H11 OVDDW
H12 OVDDW
H13 OVDDW
J11 OVDDW
J12 OVDDW
J4 OVDDW
K15 OVDDW
K8 OVDDW
L14 OVDDW
L15 OVDDW
L8 OVDDW
L9 OVDDW
M14 OVDDW
M15 OVDDW
M8 OVDDW
M9 OVDDW
N15 OVDDW
N8 OVDDW
P11 OVDDW
P12 OVDDW
R10 OVDDW
R11 OVDDW
R12 OVDDW
R13 OVDDW
V19 OVDDW
D4 CVDD
F4 CVDD
G4 CVDD
L4 CVDD
T4 CVDD
W5 CVDD
W12 CVDD
Y16 CVDD
Y18 CVDD
W18 CVDD
U19 CVDD
T20 CVDD
L19 CVDD
K19 CVDD
G19 CVDD
E19 CVDD
D18 CVDD
D14 CVDD
D10 CVDD
D6 CVDD
A1 NC
A2 NC
A21 NC
A22 NC
VDD3
0.1;B
C1099
MBG124APBS-ME1
QXXAGMBG124AN
IC102
A1 Reserve
B1 Reserve
C1 Reserve
D1 Reserve
E1 XRESETI
F1 AVDD
G1 AVSS
H1 HADRS9
J1 HADRS11
K1 HADRS15
L1 XHCS
M1 Reserve
N1 HDATA0
N2 HDATA2
N3 HDATA3
N4 HDATA7
N5 HDATA8
N6 HDATA13
N7 HDATA15
N8 VSTDATA2
N9 VSTDATA5
N10 VSTDATA6
N11 VSTREQ
N12 VCTRLEN
N13 VDDI
M13 VSS
L13 VSS
K13 VDDQ
J13 VDDQ
H13 VDDI
G13 VSS
F13 VSS
E13 VDDI
D13 VDDQ
C13 VSS
B13 VSS
A13 VDDQ
A12 ASTEFLG
A11 ASTEN
A10 ASCLKO
A9 Reserve
A8 ALRCK1
A7 ACLK
A6 JTCK
A5 VOUTCLK
A4 VDATA1
A3 VDATA4
A2 VDATA5
B2 VDATA6
C2 VINCLK
D2 Reserve
E2 HADRS4
F2 HADRS5
G2 VDDI
H2 XPLLRST
J2 MCLKO
K2 HADRS10
L2 XHRD
M2 VDDE
M3
HDATA1
M4
HADRS13
M5
XRDY
M6
VDDE
M7
HDATA10
M8
HDATA14
M9
VSTDATA0
M10
VSTDATA4
M11
VSTEN
M12
VSS
L12
VSTDATA1
K12
HDATA6
J12
VDDE
H12VSS
G12
VDDE
F12
VDDE
E12
VDDI
D12
VDDE
C12
ASTDATA
B12
ASTREQ
B11
VSS
B10
AOUTDATA
B9
ALRCK2
B8
AINDATA
B7
Reserve
B6
JTDI
B5
VDATA0
B4
VDATA3
B3
VDATA7
C3
VSYNC
D3
Reserve
E3
HADRS3
F3
HADRS6
G3
MCLKI
H3
HADRS7
J3
HADRS8
K3
VSS
L3
XHWR
L4
HADRS14
L5
HADRS12
L6
XIRQ
L7
HDATA9
L8
HDATA11
L9
HDATA12
L10
VSTDATA3
L11
VSTDATA7
K11
VDDI
J11
HDATA5
H11
HDATA4
G11
VDDE
F11
JTDO
E11
JTMS
D11
JXTRST
C11
VSS
C10
Reserve
C9
VDADA2
C8
VSS
C7
VDDI
C6
HADRS2
C5
HADRS1
C4
Reserve
D4
NC
VDD1.2
VDD1.2
D12
D0
A13
VDATA1
VSTEN
VDATA4
VSTDATA1
A8
A6
VOUTCLK
D8
VDATA0
D1
A5
D6
VSTDATA7
VINCLK
VSTDATA5
D5
VSTDATA0
VDATA3
D11
A4
A10
VDATA2
A12
XPLLRST
BITCLK
XRESETI
ASTFLG
A7
D10
ASTDATA
D15
D9
A11
VSTREQ
A15
D7
D3
D14
ASTREQ
D2
VSTDATA2
VSTDATA3
VDATA7
A16
AUDMCLK
VSTDATA4
VDATA5
A9
A2
D4
A14
VDATA6
A3
VSTDATA6
VCTRLEN
ASTEN
D13
VD
LRCK1
XIRQ
AOUTDATA
SD17
D13
ZRCE
SD14
D10
A5
SD11
D11
A6
SD18
D12
SA1
A2
SD10
A3
SA3
SA8
SD20
D14
A1
SA12
SD19
D15
A4
SD12
ZFWR
SD13
SA11
ZCAS
SA9
A9
SA10
A8
SD30
SD25
A10
DQM0
A11
SD31
A12
SD28
A13
SA5
SD22
A14
SA4
SD24
SA2
A15
SA7
DQM3
D0
A16
SA0
DQM1
D7
SA6
DQM2
CKRE
SD27
D4
SA13
SD29
D1
ZFRD
SD26
D2
ZCS0
SD23
D5
ZRWE
SD15
D3
SD21
D9
D6
ZRAS
SD16
SRCLK
D8
A7
VSTDATA6
VSTDATA7
VSTEN
VD
VSTREQ
VCTRLEN
VINCLK
VSTDATA5
VSTDATA4
VSTDATA3
VSTDATA2
VSTDATA1
VSTDATA0
ASTEN
ASTFLG
VOUTCLK
ASTDATA
VDATA7
VDATA6
VDATA5
VDATA4
VDATA3
VDATA2
VDATA1
VDATA0
ASTREQ
XRDY
ZCS1
A21
A20
A19
A18
A17
ZFWR
XRDY
ZFRD
ZCS1
FLCTL
XRDY
(OPEN)
ZCS1
FLCTL
(OPEN)
GND
VDD3_U
(OPEN)
(OPEN)
GND_D
GND
GND
GND
USB3.3V
USB_GND
USB_GND
USB3.3V
USB_GND
USB_GND
USB1.2V
USB1.2V
GND
GND
GND
GND
HALL_OUT
OUT X
OUT Y
GND
GND
GND
(OPEN)
(OPEN)
TXD0
INT_ONENAND
(OPEN)
(OPEN)
RXD0
GND
GND
DOUTIN
DOUT1P
VDD1.2
DOUT0N
DOUT0P
(OPEN)
(OPEN)
C
D LVDS
A
B
C
D
E
F
G
H
I
J
K
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19
A
B
C
D
E
F
G
H
I
J
K
C11
CP1 BOARD (DMA) MAIN [UPPER-RIGHT]
E
M ASIC
VIDEO AMP
TO VF1
CN172
TO VF1
CN173
TO CAA
TO TCA
TO SYA
TO PWA
TO ST1
CN541
3.4
12.0
-6.0
VDD3
VDD3
0
RB108
12
34
56
78
XV3
XV4
XV2
XV5
XV6
XV1
CCDCK
CCDSD
CCDEN
TGHD
TGVD
XSUB
XSG3
XV8
XV9
XV7
XV10
ADCK
SUBGT
VDD3
VDD3
UNREGSY
USB_VBUS
BAT+
PON
BLON
BAT_T
BAT_I
USB_HPWR
VDD3
UNREGSY
USB_VBUS
BAT+
PAON
PON
BLON
BAT_T
BAT_I
USB_HPWR
UNREGSYUNREGSY
BAT+BAT+
BAT_T BAT_T
PON
LENS_4M
ZBOOT_COMREQ
TRST
PLLEN
MRST
SREQ
HOTLINE
SCK
ASIC_SDO
ASIC_SDI
ZAVJACK
ZCARD
USB_DET1
NAND_RESET
BLON
ZCHGDONE
BATCHGERR
BATCHGERR
BAT_I
USB_SUSPWR
USB_HPWR
BAT_I
USB_HPWR
USB_SUSPWR
BATCHGERR BATCHGERR
+5V +5V
+5V +5V
0
RB117
34
0
RB117
56
48.MHz
1AV4V10B6840G
X1102
1
23
4
11.8K;1/16D
R1012
1;B
1005
C1031
4.7;B
1608
C1026
0
RB117
12
0
RB117
78
1M;1/16J
R1122
0.1;B
CB101
34
0.1;B
CB101
12
10K
RB115
12
34
56
78
20
1AV4J10LZ200G
CN103
10
LMCLK
4
LCDSD
11
GND
5
LCDCK
12
LCDD7
6
LCDEN
13
LCDD6
7
VD
14
LCDD5
8
HD
15
LCDD4
9
GND
16
LCDD3
17
LCDD2
18
LCDD1
19
LCDD0
20
VDD3
1
BL_AN
2
BL_CA
3
LCDP0CB
Z1 Z2
BACKUP_BAT BACKUP_BAT
ASWON
PON
ASWON
TEMPGYRO
PON
ASWON
OUTX
OUTY
TEMPGYRO
+3.4V(A) +3.4V(A)
+12V(A)
-6V(A)
+12V(A)
-6V(A)
1000P;B
CB102
12
34
VDD3
4.7;B
1608
C1503
LCDAN
LCDCA
PAON
12
1AV4J11NX120G
CN105
10
SP-
4
UNREGST
11
SP+
5
UNREGST
12
GND
6
+12V(A)
7
ZCHGDONE
8
CHG
9
FLCTL
1
GND
2
BACKUP3.2V
3
SW3.2V
Z1 Z2
+12V(A)
-6V(A)
+12V(A)
-6V(A)
VDD1.8 VDD1.8
IAMPPWM
HALL_OUT
OC_EN
G_EN
G_RESETN
G_CLK
GDATA
HALL_OFFSET
IRISPWM
OC_CONT
SHUTTER+
ZPIOUT
LENS_4M
LENS_RESETN
STATE2
LENS_MODE
LENS_EN
NDON
STATE1
NDOFF
LENS_SD
LENS_CK
FPIOUT
BOOST5.3V
VDD3
+5V
VDD1.2VDD1.2
UNREGST
+3.4V(A)
BOOST5.3V
UNREGST
+3.4V(A)
BOOST5.3V
PAON4
+12V(A)
UNREGST
BOOST5.3V
VDD3
+5V
USBD-
USBD+
SEL SEL
ZCHGDONE
BACKUP3.2V
CHG
SW3.2V
LCDAN
LCDCA
LENS_4M
ZAVJACK
ZCARD
USB_DET1
BLON
ZCHGDONE
ASWON
PON
LENS_4M
NAND_RESET
LCDAN
LCDCA
Z_H_PHONEJACKZ_H_PHONEJACK
PAON3
SELSEL
CHG CHG
SW3.2V SW3.2V
BACKUP3.2V BACKUP3.2V
PON2PON2
PON2 PON2
SO3
SI2
SO3
SI2
MROUT
AL3.2V
MROUT
AL3.2V
0;1/20Z
R1023
0;1/20Z
R1026
1.5K;1/20D
R1011
1K;1/20J
R1029
2.2;1/20J
R1030
0.1;B
0603
C1007
0.1;B
0603
C1074
0.1;B
0603
C1501
150;1/16D
1005
R1501
150;1/16D
1005
R1504
20
1AV4J10LZ200G
CN104
1
LINE_L
2
LINE R
XSG5
XSG4
XV11
XSG2
XSG1
DOUT1N
DOUT1P
DOUT0N
DOUT0P
TCLKN
TCLKP
3.6K;1/20D
R1040
470;1/20D
R1121
1K;1/20D
R1041
1.3K;1/20D
R1037
22;1/20D
R1022
39;1/20D
R1005
39;1/20D
R1006
150;1/16D
R1502
7P;CH
C1121
7P;CH
C1122
2
642CBP
1
MS
5
6U2642N
01
W1AFESD1P
W2AFESD1N
Y3BIAS
Y1AFESD2P
Y2AFESD2N
W4LOVSS
Y4LCGND
AB15GPIOB0
V14GPIOB1
AA15GPIOB2
U16GPIOB3
Y5GPOB4
U7GPOB5
U8GPOB6
W17TSEL0
W14TSEL1
U15TEST0
Y19TEST1
V16TEST2
AB4ADAGND
AB5CH3
AA5ADAGND
AA6CH2
AB6VREFH
AA8CH1
Y6VREFM
AB7CH0
Y7ADDVDD
AB8VGV
Y8AVDD
AA7AGND3
W8VOUT
V8FSV
AB9VREF
V9YOUT
W9AGND3
U9FSY
W10UOUT
V10VGY
AA10VGU
U11FSU
AA9AGND1
U10DVDD
W11AVDD
V12FSA
V11AOUT
U12VGA
AA11A2VDD
Y9A2VDD
AA12A2GND
Y10A2GND
AA13REXT
AB10RPU_ENA
Y11UVDD
Y12UGND
AB11FSDP
AB12HSDP
AB13HSDM
AB14FSDM
Y13UGND
Y14UVDD
AA14VBDET
W13RTCK
AA17TDO
AA16TCK
AB16CKIN
AB17D4CKIN
Y17TRST
V13TMS
U13TDI
AA18zRST
AB18XIN
AB19XOUT
U14PLLEN
V18PLLTEST
W19PSEL
Y15VSS1
W15VDDP:1
V15VSS2
W16VDDP:2
V20VSS3
W20VDDP:3
V17SDI
U17SCK
Y20D4CKOUT
U18SDO
AA19MCLK
AA20CLKSEL
AB20ACKIN
Y21zSREQ
Y22SD0
W21SD1
W22SD2
V21SD3
V22SD4
U20SD5
U21SD6
U22SD7
T18SD8
T19SD9
T21
SD10
T22
SD11
R17
SD12
R18
SD13
R19
SD14
R20
SD15
K20
SD16
K21
SD17
K22
SD18
J17
SD19
J18
SD20
J19
SD21
J20
SD22
J21
SD23
H19
SD24
H20
SD25
H21
SD26
H22
SD27
G20
SD28
G21
SD29
G22
SD30
F22
SD31
T17
DQM0
R21
DQM1
K18
DQM2
J22
DQM3
N22
SA0
L20
SA1
P20
SA2
L18
SA3
P21
SA4
L17
SA5
P22
SA6
M22
SA7
N17
SA8
M21
SA9
N18
SA10
M17
SA11
N19
SA12
P18
SA13
P17
SA14
N20
zRE
N21
zCS0
M18
zRWE
R22
CKRE
P19
zRCE
M20
SRCLK
L21
zRAS
L22
zCAS
K17
zWE
F21
A1
F19
A2
E20
A3
H18
A4
H17
A5
F20
A6
SP-
SP+
BAT_CHGOFFBAT_CHGOFF
BAT_CHGOFF BAT_CHGOFF
NJM2561F1A
QNJM2561F1A-P
IC151
1
PS
2
OUT
3
SAG
4
IN
5
GND
6
VCC
LCDCK
LCDD0
LCDD3
LCDD2
LCDD7
LCDD1
LCDD5
LCDP0CB
LCDEN
LCDSD
LCDD6
LCDD4
XV1
XV2
XV3
XV4
XV5
XV6
XV7
XV9
XV8
XV11
XV10
XSG1
XSG5
XSG4
XSG2
XSG3
XSUB
TGHD
TGVD
CCDCK
CCDSD
CCDEN
PAON3
ADCK
SUBGT
LMCLK
SREQ
SCK
PAON
ZBOOT_COMREQ
ASIC_SDI
ASIC_SDO
PLLEN
TRST
HOTLINE
MRST
LCDVD
LCDHD
SD17
ZRCE
SD14
A5
RTCK
SD11
A6
SD18
SA1
A2
SD10
A3
SA3
SA8
SD20
A1
SA12
SD19
A4
SD12
ZFWR
SD13
SA11
ZCAS
XOUT
SA9
SD9
SA10
SD30
XIN
SD2
SD25
SD8
RXD0
SD3
DQM0
HALL_OUT
TXD0
SD4
SD31
SD5
SD28
SA5
SD6
SD22
TDI
SA4
TDO
SD7
SD24
SA2
SA7
DQM3
SA0
TCK
VBDET
DQM1
SA6
OUTY
DQM2
CKRE
SD27
SA13
SD29
PLLEN
ZFRD
ASIC_SDI
SD26
SD0
ZCS0
SCK
SD23
SD1
ZRWE
MRST
ASIC_SDO
SD15
SREQ
SD21
ZRAS
SD16
SRCLK
TMS
OUTX
TMODE
TSEL
OUTY
OUTX
INT_ONENAND
G_EN
IRISPWM
G_RESETN
HALL_OFFSET
G_CLK
OC_CONT
OC_EN
IAMPPWM
GDATA
HALL_OUT
LENS_SD
ZPIOUT
SHUTTER+
FPIOUT
LENS_CK
LENS_MODE
LENS_EN
STATE1
LENS_RESETN
NDOFF
STATE2
NDON
SP-
SP+
FLCTL
TRST
LINE_L
LINE_R
DOUT1N
DOUT1P
DOUT0N
DOUT0P
DOUT0N
DOUT1N
DOUT1P
TCLKN
TCLKP
DOUT0P
ZVMUTE
VOUT
ORXR71Z
48MHZ
GND
VDD3_U
(OPEN)
(OPEN)
GND_D
GND
GND
GND
USB3.3V
USB_GND
USB_GND
USB3.3V
USB_GND
USB_GND
USB1.2V
USB1.2V
GND
GND
GND
GND
HALL_OUT
OUT X
OUT Y
GND
GND
GND
(OPEN)
(OPEN)
TXD0
INT_ONENAND
(OPEN)
(OPEN)
RXD0
GND
GND
DOUTIN
DOUT1P
VDD1.2
DOUT0N
DOUT0P
(OPEN)
C
D LVDS
ZHP_ADZHP_AD
A
B
C
D
E
F
G
H
I
J
K
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19
A
B
C
D
E
F
G
H
I
J
K
C12
CP1 BOARD (DMA) MAIN [LOWER-LEFT]
DMA
D1-06900/SG111-J
PROGRAM FLASH & SDRAM
VOLTAGE: VIEW MODE, LCD ON
1;B
1608
C1086
0
RB104
12
34
0
RB101
12
34
56
78
4.7;B
1608
C1207
VDD3
K5R5658VCM-DR75
QK5R5658VCM-N
IC121
A1
DNU
A2
DNU
A3
DNU
A10
DNU
A11
DNU
A12
DNU
B1
NC
B2
NC
B3
NC
B4
NC
B5
NC
B6
NC
B7
VSSo
B8
NC
B9
A9
B10
A13
B11
NC
B12
NC
C1
VSSd
C2
NC
C3
A1
C4
A3
C5
A6
C6
NC
C7
VCCo
C8
NC
C9
A8
C10
A12
C11
NC
C12
NC
D1
VDD
D2
SA9
D3
SA5
D4
A2
D5
A5
D6
NC
D7
NC
D8
NC
D9
A10
D10
A14
D11
NC
D12
DQ15
E1
SA4
E2
SA8
E3
SA7
E4
SA11
E5
A4
E6A7
E7RPBo
E8A15
E9NC
E10NC
E11DQ14
E12DQ13
F1NC
F2CKE
F3SA6
F4DQ29
F5A0
F6NC
F7A11
F8NC
F9NC
F10DQ12
F11NC
F12DQM1
G1DQ30
G2DQ31
G3DQ28
G4DQ27
G9DQ11
G10DQ10
G11VSSQ
G12VDDQ
H1VSSQ
H2VDDQ
H3DQ26
H4DQ25
H9DQ9
H10DQ8
H11VDDQ
H12VSSQ
J1VDDQ
J2VSSQ
J3DQ24
J4DQM3
J9/WE
J10/CAS
J11/RAS
J12/CS
K1VSSd
K2VDD
K3NC
K4NC
K9
VSSd
K10
CLK
K11
NC
K12
NC
L1
VSSQ
L2
VDDQ
L3
BA0
L4
BA1
L9
DQ6
L10
DQ7
L11
VDDQ
L12
VSSQ
M1
VDDQ
M2
VSSQ
M3
DQM2
M4
NC
M9
DQ4
M10
DQ5
M11
VSSQ
M12
VDDQ
N1
DQ18
N2
DQ19
N3
DQ23
N4
DQ22
N9
OEBo
N10
DQ3
N11
NC
N12
DQM0
P1
DQ16
P2
DQ17
P3
DQ20
P4
DQ21
P5
SA10
P6
WEBo
P7
IO2
P8
IO3
P9
IO11
P10
INTo
P11
DQ1
P12
DQ2
R1
NC
R2
SA3
R3
SA1
R4
SA0
R5
RDYo
R6
IO9
R7
IO10
R8 IO4
R9 IO5
R10 IO13
R11 DQ0
R12 NC
T1 NC
T2 SA2
T3 CLKo
T4 AVDBo
T5 IO1
T6 VCCQo
T7 VCCQo
T8 IO12
T9 VCCQo
T10 IO6
T11 IO14
T12 VDD
U1 VDD
U2 CEBo
U3 NC
U4 NC
U5 IO8
U6 NC
U7 NC
U8 NC
U9 VCCQo
U10 IO7
U11 IO15
U12 VSSd
V1 VSSo
V2 VCCo
V3 NC
V4 IO0
V5 NC
V6 NC
V7 NC
V8 NC
V9 NC
V10 NC
V11 VCCo
V12 VSSo
W1 DNU
W2 DNU
W3 DNU
W10 DNU
W11 DNU
W12 DNU
1000P;B
C1208
NAND_RESET
1000P;B
C1202
VDD3
1;B
C1203
100;1/20J
R1001
100;
R
1
100;1/20J
R1051
0;1/20Z
R1052
0;1/20Z
R1203
68;1/20J
R1088
10K;1/20J
R1010
10K;1/20J
R1087
10K;1/20J
R1089
10K;1/20J
R1207
4
7
10;1/20J
R1206
0.1;B
0603
C1087
0.1;B
0603
C1204
0.1;B
0603
C1205
0.1;B
0603
C1206
100
RB102
12
100
RB102
34
100
RB102
56
100
RB102
78
100
RB103
12
100
RB103
34
100
RB103
56
100
RB103
78
0
RB105
12
0
RB105
34
0
RB105
56
0
RB105
78
220
RB106
12
220
RB106
34
220
RB106
56
220
RB106
78
220
RB107
12
220
RB107
34
220
RB107
56
220
RB107
78
220
RB111
12
220
RB111
34
220
RB111
56
220
RB111
78
220
RB112
12
220
RB112
34
220
RB112
56
220
RB112
78
220
RB110
12
220
RB110
34
220
RB110
56
220
RB110
78
220
RB113
12
220
RB113
34
220
RB113
56
220
RB113
78
4
7
F10
GPIOC0
E10
GPIOC1
A10
GPIOC2
F9
GPIOC3
E9
GPIOC4
D9
GPIOC5
C9
GPIOC6
F8
GPIOC7
B9
GPIOC8
E8
GPIOC9
A9
GPIOC10
D8
GPIOC11
C8
GPIOC12
F7
GPIOC13
B8
GPIOC14
A8
GPIOC15
E7
GPIOC16
B7
GPIOC17
A7
GPIOC18
C6
GPIOC19
D7
GPIOC20
C7
GPIOC21
E6
GPIOC22
A6
GPIOC23
B6
GPIOC24
D5
GPIOC25
A5
GPIOC26
C5
GPOC27
B5
GPOC28
B4
GPOC29
A4
GPOC30
C4
GPOC31
A3
GPOC32
D3
GPOC33
E3
GPOC34
E4
GPOC35
B3
GPOC36
C1
GPOC37
C2
GPOC38
C3
GPOC39
E5
GPOC40
D1
GPOC41
D2
GPOC42
F5
GPOC43
F6
GPOC44
G5
GPOC45
E1
GPIOE0
E2
GPIOE1
G6
GPIOE2
H3
GPIOE3
H4
GPIOE4
H5
GPIOE5
F1
GPIOE6
H6
GPIOE7
J3
GPIOE8
F2
GPIOE9
F3
GPIOE10
J5
GPIOE11
J6
GPOD0
G1
GPOD1
K3
GPOD2
G2
GPOD3
K4
GPOD4
K5
GPOD5
K6
GPOD6
G3
GPOD7
L5
GPOD8
H1
GPOD9
H2
GPOD10
J1
GPOD11
J2
GPOD12
K1
GPIOD13
L6
GPIOD14
M3
GPIOD15
K2
TGHD
L1
TGVD
M4
GPOF0
M5
GPOF1
M6
GPOF2
N4
GPOF3
L2
GPOF4
L3
GPOF5
N5
GPOF6
N6
GPOF7
P3
GPOF8
P4
GPOF9
M1
GPOF10
M2
GPOF11
P5
GPOF12
P6
GPOF13
R3
GPOF14
N1
GPOF15
N2
GPOF16
R4
GPOF17
N3
GPOF18
R5
GPOF19
R6
GPOF20
P1
GPOF21
P2
GPOF22
R1
GPOF23
T5
GPOF24
T3
GPOF25
R2
GPOF26
T2
GPOF27
T6
GPOF28
U3
GPOF29
U4
CSYNC
T1
CCD0
U2
CCD1
U5
CCD2
V4
CCD3
U1
CCD4
AA4
CCD5
AA3CCD6
AB3CCD7
V5CCD8
W6CCD9
V6CCD10
V7CCD11
U6ADCK
V3LOVDD
W3LCVDD
V1AFECKP
V2AFECKN
W1AFESD1P
W2AFESD1N
Y3BIAS
Y1AFESD2P
Y2AFESD2N
W4LOVSS
Y4LCGND
AB15GPIOB0
V14GPIOB1
AA15GPIOB2
U16GPIOB3
Y5GPOB4
U7GPOB5
U8GPOB6
W17TSEL0
W14TSEL1Y18 CVDD
W18 CVDD
U19 CVDD
T20 CVDD
L19 CVDD
K19 CVDD
G19 CVDD
E19 CVDD
D18 CVDD
D14 CVDD
D10 CVDD
D6 CVDD
A1 NC
A2 NC
A21 NC
A22 NC
B1 NC
B2 NC
B21 NC
B22 NC
AA1 NC
AA2 NC
AA21 NC
AA22 NC
AB1 NC
AB2 NC
AB21 NC
AB22 NC
0.1;B
0603
C1201
A3 VDATA4
A2 VDATA5
B2 VDATA6
C2 VINCLK
D2 Reserve
E2 HADRS4
F2 HADRS5
G2 VDDI
H2 XPLLRST
J2 MCLKO
K2 HADRS10
L2 XHRD
M2 VDDE
M3
HDATA1
M4
HADRS13
M5
XRDY
M6
VDDE
M7
HDATA10
M8
HDATA14
M9
VSTDATA0
M10
VSTDATA4
M11
VSTEN
M12
VSS
L12
VSTDATA1
K12
HDATA6
J12
VDDE
H12VSS
G12
VDDE
VSTEN
VDATA4
VSTDATA1
A6
VOUTCLK
D1
A5
D6
VINCLK
VSTDATA0
XPLLRST
D10
A11
D14
VSTDATA4
VDATA5
A14
VDATA6
LCDD2
SHUTTER+
LCDD1
NDOFF
SDDET
LCDD0
SDCMD
LCDD5
SDDAT3
LCDD4
LCDHD
SDDAT2
LCDD3
LCDVD
SDDAT1
LCDD6
XV10
XV9
TGHD
ZPIOUT
XV8
TGVD
XV7
ADCDAT
XV6
XV5
XSUB
LMCLK
OC_CONT
DACDAT
HALL_OFFSET
XV4
GDATA
XV3
HOTLINE
IAMPPWM
XV2
AUDEN
XV1
SDDAT0
XSG5
AUDSD
G_EN
XSG4
AUDCK
LCDD7
G_CLK
CCDSD
PAON3
CCDEN
LENS_MODE
IRISPWM
G_RESETN
LENS_SD
SUBGT
LENS_EN
LCDP0CB
FPIOUT
ZBOOT_COMREQ
OC_EN
LENS_CK
LENS_RESETN
SDWP
STATE2
STATE1
NDON
LCDCK
LCDEN
LCDSD
D11
SA0
SA9
SA13
SD30
SD27
A11
SD13
SD22
ZRWE
ZRCE
A5
DQM0
SA8
D13
SA1
SD26
SD8
D15
D14
SA5
SA2
SD17
SD14
DQM3
SD11
SA12
SD10
ZRAS
D12
D7
SD6
A19
ZCAS
D8
DQM1
SD7
SD18
D3
A4
SD21
SA10
A18
D10
A3
D5
SD31
SD3
SD23
D2
MRST
A6
SD15
D4
D6
SD19
A12
SA3
SD20
SD12
A10
A16
A13
A7
SA7
SD2
SD4
INT_ONENAND
SD0
SD25
SD28
A1
A8
A21
SA11
SA4
SD5
SD29
SD1
SD9
A20
A15
A17
A9
SRCLK
SA6
A2
A14
DQM2
ZCS0
SD16
D9
SD24
CKRE
D0
ZFRD
ZFWR
CCDCK
XRDY
ZFRD
PAON4
LRCK1
XIRQ
XPLLRST
XRESETI
BITCLK
AOUTDATA
PAON
SDMCLK
XSG1
XSG2
XSG3
XV11
ZVMUTE
D1
(OPEN)
(OPEN)
TXD0
INT_ONENAND
(OPEN)
(OPEN)
RXD0
GND
GND
DOUTIN
DOUT1P
VDD1.2
DOUT0N
DOUT0P
TCLKN
TCLKP
VDD1.2
VDD3
CCDSD
CCDEN
G_RESETN
SUBGT
XSUB
CCDCK
ZVMUTE
(OPEN)
XV10
XV9
XV8
XV7
XV6
XV5
XV4
XV3
XV2
XV1
XV11
(OPEN)
(OPEN)
XSG5
XSG4
XSG3
XSG2
XSG1
AUDBITCLK
ALRCKI
AINDATA
LCDP0CB
LCDVD
LCDHD
LCDD7
LCDD6
LCDD5
LCDD4
LCDD3
LCDD2
LCDD1
LCDD0
LMCLK
AOUTDATA
DACDAT
(OPEN)
ADCDAT
IRISPWM
XPLLRST
XRESETI
(OPEN)
HOTLNE
XIRQ
ZPIOUT
FPIOUT
ZBOOT_COMREQ
G_DATA
G_EN
G_CLK
PAON
PAON3
PAON4
(OPEN)
(OPEN)
OC_EN
OC_CONT
(OPEN)
HALL_OFFSET
(OPEN)
IAMPPWM
LENS_MODE
LENS_SD
LENS_EN
LENS_CK
LENS_RESETN
(OPEN)
(OPEN)
(OPEN)
(OPEN)
(OPEN)
SDDET
SDWP
SDMCLK
STATE2
AUDSD
STATE1
(OPEN)
AUDCK
AUDEN
LCDSD
LCDEN
LCDCK
(OPEN)
NDON
NDOFF
SHUTTER+
(OPEN)
SDCMD
SDDATA3
SDDATA2
SDDATA1
SDDATA0
LENS LENS
LCD CCDLCD
(OPEN)
(OPEN)
CCD LVDS
(OPEN)
(OPEN)
A
B
C
D
E
F
G
H
I
J
K
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19
A
B
C
D
E
F
G
H
I
J
K
C13
CP1 BOARD (DMA) MAIN [LOWER-RIGHT]
TO AV JACK
TO SD
TO USB
!
TO VF1
CN173
TO CAA
NOT USED
VDD3
5
1AV4J11B5531G
CN110
4
NOT_USE
5
GND
1
USB_VBUS
2
USB_D-
3
USB_D+
Z1 Z2 Z3 Z4
AVR-M1608C120MT
VA134
1;B
C1303
UNR32A3
Q1301
USB_VBUS
VDD3
10K
RB142
12
78
34
78
56
78
VDD3
56
34
10K
RB141
12
34
100
RB145
12
56
0
RB104
12
34
16
1AV4J11B6970G
CN141
8
DATA1
3B
VSS
9
DATA2
4A
VDD
10
CARD
4B
VDD
11
COMMON
5
CLOCK
12
WP
6
VSS
13
GND
7
DATA0
14
GND
1
DATA3
2
COMMAND
3A
VSS
USBD-
TCM12109002P
L1301
12
3
4
USBD+
VDD3
PON
ASWON
TEMPGYRO
PON
ASWON
OUTX
OUTY
TEMPGYRO
+3.4V(A) +3.4V(A)
+12V(A)
-6V(A)
+12V(A)
-6V(A)
ZCARD
BACKUP_BAT
SI2
SO3
USB_DET1
ZAVJACK
SW3.2V
Z_H_PHONEJACK
PAON3
AL3.2V
MROUT
FBMH1608HL300
L1302
BK1005HM102
L1552
BK1608LM751
1608
L1553
BK1005HM102
L1551
100;1/20J
R1016
100;1/20J
R1051
100;1/20J
R1403
0;1/20Z
R1052
0;1/20Z
R1431
0;1/20Z
R1434
10K;1/20J
R1302
1K;1/20J
R1552
6.8K;1/20D
R1551
0.1;B
0603
C1401
0.1;B
0603
C1551
20
1AV4J10LZ200G
CN104
10
BACKUP_BAT
4
AUDSD
11
GND
5
AUDCK
12
AUDMCLK
6
AUDEN
13
DACDAT
7
SCAN_IN2
14
ADCDAT
8
SCAN_OUT3
15
BITCLK
9
GND
16
LRCK1
17
MROUT
18
SP+
19
SP-
20
AL3.2V
1
LINE_L
2
LINE_R
3
GND
Z1 Z2
SP+
SP-
1A32V
1608
H=0.45
F5003
12
YKB21-5361
1AV4J12B4520N
JK151
1
2
4
5
6
3A
3B
100
RB102
12
100
RB102
34
100
RB102
56
100
RB102
78
100
RB103
12
100
RB103
34
100
RB103
56
100
RB103
78
0
RB105
12
0
RB105
34
0
RB105
56
0
RB105
78
220
RB106
12
220
RB106
34
220
RB106
56
220
RB106
78
220
RB107
12
220
RB107
34
220
RB107
56
220
RB107
78
220
RB111
12
220
RB111
34
220
RB111
56
220
RB111
78
220
RB112
12
220
RB112
34
220
RB112
56
220
RB112
78
220
RB110
12
220
RB110
34
220
RB110
56
220
RB110
78
220
RB113
12
220
RB113
34
220
RB113
56
220
RB113
78
39K;1/20D
R1555
47K;1/20D
R1554
0;1/20Z
R1301
F3
GPIOE10
J5
GPIOE11
J6
GPOD0
G1
GPOD1
K3
GPOD2
G2
GPOD3
K4
GPOD4
K5
GPOD5
K6
GPOD6
G3
GPOD7
L5
GPOD8
H1
GPOD9
H2
GPOD10
J1
GPOD11
J2
GPOD12
K1
GPIOD13
L6
GPIOD14
M3
GPIOD15
K2
TGHD
L1
TGVD
M4
GPOF0
M5
GPOF1
M6
GPOF2
N4
GPOF3
L2
GPOF4
L3
GPOF5
N5
GPOF6
N6
GPOF7
P3
GPOF8
P4
GPOF9
M1
GPOF10
M2
GPOF11
P5
GPOF12
P6
GPOF13
R3
GPOF14
N1
GPOF15
N2
GPOF16
R4
GPOF17
N3
GPOF18
R5
GPOF19
R6
GPOF20
P1
GPOF21
P2
GPOF22
R1
GPOF23
T5
GPOF24
T3
GPOF25
R2
GPOF26
T2
GPOF27
T6
GPOF28
U3
GPOF29
U4
CSYNC
T1
CCD0
U2
CCD1
U5
CCD2
V4
CCD3
U1
CCD4
AA4
CCD5
AA3CCD6
AB3CCD7
V5CCD8
W6CCD9
V6CCD10
V7CCD11
U6ADCK
V3LOVDD
W3LCVDD
V1AFECKP
V2AFECKN
W1AFESD1P
W2AFESD1N
Y3BIAS
Y1AFESD2P
Y2AFESD2N
W4LOVSS
Y4LCGND
AB15GPIOB0
V14GPIOB1
AA15GPIOB2
U16GPIOB3
Y5GPOB4
U7GPOB5
U8GPOB6
W17TSEL0
W14TSEL1
UP0431300
Q1401
1
2
34
5
6
UP0431300
Q1303
1
2
34
5
6
AVR-M1005C120MTAAB
1005
VA155
100P;CH
C1554
100P;CH
C1555
ZHP_AD
1K;1/16J
R1558
PAON3
SDDAT2
SDDAT1
SDDAT0
SDDAT3
SDDET
SDWP
SDCMD
LCDD2
LCDD1
LCDD0
LCDD5
LCDD4
LCDHD
LCDD3
LCDVD
LCDD6
XV10
XV9
TGHD
XV8
TGVD
XV7
ADCDAT
RXD0
TXD0
XV6
XV5
XSUB
LMCLK
DACDAT
XV4
XV3
XV2
XV1
XSG5
XSG4
LCDD7
CCDSD
CCDEN
G_RESETN
SUBGT
TMODE
TSEL
LCDP0CB
SDMCLK
USBD-
USBD+
AUDSD
AUDEN
OUTY
OUTX
INT_ONENAND
CCDCK
LRCK1
BITCLK
AOUTDATA
ADCDAT
DACDAT
AUDCK
LINE_R
LINE_L
LRCK1
LINE_L
LINE_R
AUDMCLK
SP-
SP+
BITCLK
XSG1
XSG2
XSG3
XV11
DOUT1N
DOUT1P
DOUT0N
DOUT0P
TCLKN
TCLKP
ADCK
ZVMUTE
VBDET
VOUT
ZHP_AD
(OPEN)
(OPEN)
TXD0
INT_ONENAND
(OPEN)
(OPEN)
RXD0
GND
GND
DOUTIN
DOUT1P
VDD1.2
DOUT0N
DOUT0P
TCLKN
TCLKP
VDD1.2
VDD3
CCDSD
CCDEN
G_RESETN
SUBGT
XSUB
CCDCK
ZVMUTE
(OPEN)
XV10
XV9
XV8
XV7
XV6
XV5
XV4
XV3
XV2
XV1
XV11
(OPEN)
(OPEN)
XSG5
XSG4
XSG3
XSG2
XSG1
AUDBITCLK
ALRCKI
AINDATA
LCDP0CB
LCDVD
LCDHD
LCDD7
LCDD6
LCDD5
LCDD4
LCDD3
LCDD2
LCDD1
LCDD0
LMCLK
AOUTDATA
DACDAT
ADCDAT
LCD CCD
(OPEN)
(OPEN)
CCD LVDS
(OPEN)
(OPEN)
SW3.2V
ZHP_AD ZHP_AD
JW151
A
B
C
D
E
F
G
H
I
J
K
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19
A
B
C
D
E
F
G
H
I
J
K
C14

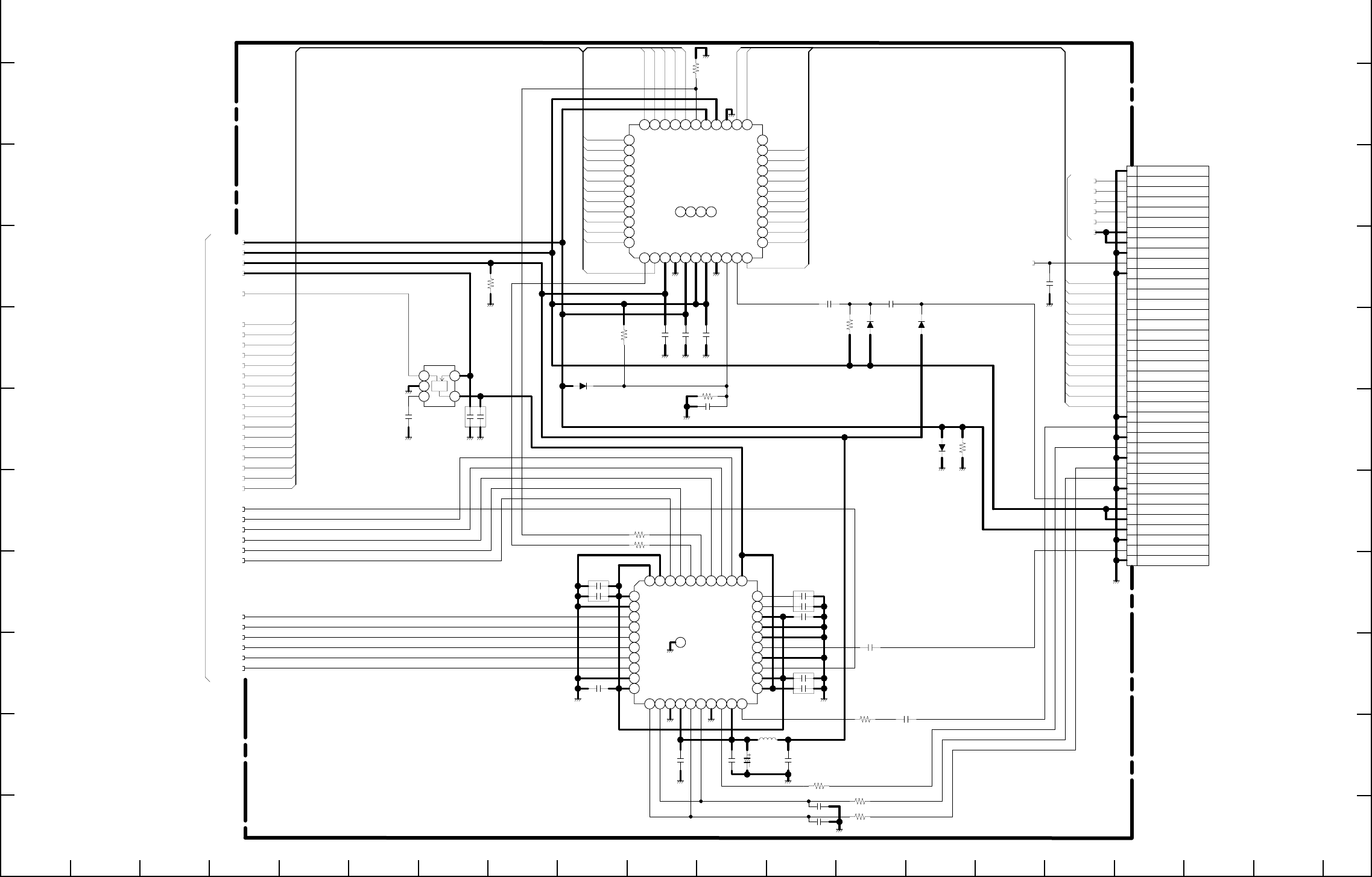

NDON
LENS_EN
LENS_4M
470P;B
C9718
HALL_OUT
G_EN
VDD3
1000P;B
C9719
33K
RB971
12
34
LENS_RESETN
G_CLK
IRISPWM
1;B
C9722
VDD3
STATE1
1;B
C9714
6.8K;1/16D
R9721
1;B
CB971
12
34
G_RESETN
HALL_OFFSET
STATE2
IAMPPWM
FPIOUT
BU2232GU
QBU2232GU---P
IC951
A1
NC
B1
NC
D1
DVSS
E1
DVDD
F1
RESETB
G1
SCLK
H1
CS
J1
NC
K1
NC
K2
OUT1A
K3
OUT1B
K4
MGND12
K5
OUT2B
K6
OUT4B
K7
MGND34
K8
OUT3B
K9
OUT3A
K10
NC
J10
NC
H10
IN5A
G10
IN7B
F10
IN6B
E10
SI2
D10
SI3
C10SO4
B10NC
A10NC
A9OUT5A
A8OUT5B
A7MGND56
A6OUT6B
A5MGND7
A4RNF
A3SENSE
A2VDDAMP
B2NC
C2NC
D2STATE1
E2STATE3
F2CLK
G2SDATA
H2MODE
J2NC
J3NC
J4MVCC12
J5OUT2A
J6NC
J7OUT4A
J8MVCC34
J9
NC
H9
NC
G9
IN7A
F9
IN5B
E9
SO1
D9
SI4
C9
SO3
B9
NC
B8
NC
B7
MVCC56
B6
OUT6A
B5
OUT7B
B4
OUT7A
B3
NC
C3
NC
D3
TEST
E3
STATE2
F3
SOUT
G3
NC
H3
NC
H4
NC
H5
NC
H6
NC
H7
NC
H8
NC
G8 NC
F8 IN6A
E8 SI1
D8 SO2
C8 NC
C7 NC
C6 NC
C5 NC
C4 NC
D4 NC
E4 NC
F4 NC
G4 NC
G5 NC
G6 NC
G7 NC
F7 NC
E7 NC
D7 NC
D6 NC
D5 NC
E5 NC
F5 NC
F6 NC
E6 NC
VDD3
4700P;B
C9717
LENS_SD
47K
RB972
12
34
SHUTTER+
LENS_MODE
GDATA
VDD3
LENS_CK
0.1;B
C9567
AK7331
QAK7331-----J
IC971
1
VREFIN
2
HIN+
3
HIN-
4
HIREG IN
5
HIREG OUT
6
VDD
7
GND
8
PWM OUT
9
RESETN
10
DATA
11
CLOCK
12
ENABLE
13
IAMPPWM
14
IRISPWM
15
HALL OFFSET
16
O/C CONT
17
O/C EN
18
CIR4OUT
19
CIR3RIN
20
CIR4IN
21
HALL OUT2
22
HALL OUT1
23
VREFM
24
CIR3OUT
25
CIR3IN
26
CIR2OUT
27
CIR2IN
28
CIR1OUT
Z1
NDOFF
OC_CONT
BOOST5.3V
VDD3
OC_EN
ZPIOUT
100P;CH
C9712
VDD3
VDD3
2.2;B
2125
C9534
0.1;B
C9545
23
1AV4J11NV231G
CN951
10
DRIVE +
4
ZOOM B-
11
HALL OUT-
5
NC
12
HALL IN-
6
ZOOM LED
13
HALL OUT+
7
ZOOM VCC
14
HALL IN+
8
ZOOM SENSE
15
FOCUS LED
9
DRIVE -
16
FOCUS VCC
17
FOCUS SENSE
18
ND -
19
ND +
20
FOCUS A+
1
ZOOM A+
2
ZOOM B+
3
ZOOM A-
21
FOCUS B+
22
FOCUS A-
23
FOCUS B-
VDD3
56K
RB975
12
34
0;1/16Z
1608
R9507
220
RB976
12
34
10;1/16J
R9720
+5V
22;1/6F
R9505
22;1/6F
R9506
33K;1/20D
R9726
0.1;B
0603
C9720
0.1;B
0603
C9721
0.1;B
0603
C9716
0.1;B
0603
C9513
0.1;B
0603
C9711
P_GND
P_GND
P_GND
P_GND
P_GND P_GND
P_GND
1K;1/20D
R9723
100K;1/20D
R9718
100K;1/20D
R9719
100K;1/20D
R9728
2.2K;1/20D
R9722
2.2K;1/20D
R9724
0.1;B
C9526
10
0.1;B
C9514
10
ZOOM_B+
G_EN
ZOOM_A-
SHUTTER+
LENS_MODE
G_RESETN
LENS_RESETN
ND+
GDATA
ZPIOUT
LENS_MODE
FOCUS_B-
ND+
FOCUS_B-
STATE1
DRIVE-
SHUTTER+
ND-
ZOOM_B-
FOCUS_A-
ZOOM_A-
OC_EN
FOCUS_B+
OC_CONT
PILED
FPIOUT
LENS_SD
HALL_IN+
F_SENSE
HALL_IN-
NDON
OC_CONT
LENS_EN
IRISPWM
G_CLK
LENS_CK
G_CLK
IRISPWM
LENS_EN
G_EN
FOCUS_A+
LENS_RESETN
HALL_OFFSET
HALL_OUT+
OC_EN
ZPIOUT
HALL_OUT-
HALL_IN-
LENS_4M
FOCUS_A+
HALL_OUT+
FOCUS_A-
Z_SENSE
STATE1
FPIOUT
G_RESETN
F_SENSE
STATE2
IAMPPWM
GDATA
HALL_OUT-
LENS_CK
HALL_OFFSET
Z_SENSE
IAMPPWM
NDON
STATE2
DRIVE+
ZOOM_B-
ZOOM_A+
ZOOM_B+
NDOFF
NDOFF
LENS_SD
LENS_4M
ZOOM_A+
PILED
DRIVE-
DRIVE+
+5V
HALL_IN+
ND-
FOCUS_B+
FOCUS_B+
ZOOM_B+
DRIVE-
BOOST5.3V
TO DMA
TO DMA
TO DMA
TCA
F1-06900/SG111-J
TO LENS
LENS DRIVER
HALL SENSOR
CP1 BOARD (TCA) LENS
A
B
C
D
E
F
G
H
I
J
K
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19
A
B
C
D
E
F
G
H
I
J
K
C15
CP1 BOARD (SYA) SYSTEM CONTROL
---
---
---
---
---
------
---
TO BACK UNIT
SYA
Y1-06900/SG111-U
BATTERY
BACKUP
8bit MICRO PROCESSOR
TO DMA
3.2
3.2
3.2
3.2
3.2
3.2
VOLTAGE: VIEW MODE, LCD ON
AVR-M1005C080MTAAB
VA302
AVR-M1005C080MTAAB
VA301
1;B
1005
C3013
EMH10
Q3001
1
2
34
5
6
STBY_RED
STBY_GREEN
SW3.2ON
4.000MHz
1AV4V11B1470G
X3001
1
2
3
1000P;B
1005
C3010
150K
RB311
12
34
1;B
1005
C3007
STBY_GREEN
STBY_RED
1;B
1005
C3009
220;1/16J
1005
R3009
100K
RB306
12
34
56
78
32.768KHz
1AV4V10B7880G
X3002
1;B
1005
C3006
12
34
56
1K
RB313
78
1K
RB305
34
1K
RB305
56
1K
RB305
78
1K
RB301
12
1K
RB301
34
1K
RB301
56
1K
RB301
78
1K;1/16J
1005
R3003
SEL
AL3.2ON
SW3.2ON
BACKUPCTL
0.1;B
1005
C3003
330;1/16J
1005
R3002
10;B
2125
C3001
SEL
AL3.2ON
ZCARD
ZAVJACK
MRST
ASWON
USB_DET1
PLLEN
TRST
ZBOOT_COMREQ
LENS_4M
USB_HPWR
USB_SUSPWR
BLON
HOTLINE
SCK
ASIC_SDO
ASIC_SDI
SREQ
ZCHGDONE
CHG
BAT_T
BAT+
BAT_I
+5V
PON
BACKUPCTL
33K
RB302
12
34
56
78
1K
RB305
12
BACKUP3.2V
UNREGSY
SO3
SI2
NAND_RESET
BACKUP_BAT
BACKUP_BATBACKUP_BAT
33K
RB315
12
34
19
1AV4J11NV191G
CN301
10
2nd
4
STBY_RED
11
SI0A_UP
5
SI1B_VREC
12
SI4A_SET
6
SI2B_TELE
13
SI3A_LEFT
7
SI3B_WIDE
14
SI1A_RIGHT
8
SCAN_OUT1
15
SCAN_OUT0
9
1st
16
SI2A_DOWN
17
KEY_PLAY
1
GND
2
+5V
3
STBY_GREEN
18
KEY_MENU
19
GND
SW3.2V
SEL
LS15D2
1AV4S10B5330G
S3001
NCP15WF104F03-RC
DHXAGF104F03G
TH301
Z_H_PHONEJACK
BATCHGERR
PON2
MROUT
AL3.2V
1.5K;1/20J
R3004
330K;1/20J
R3007
47K;1/20J
R3012
22K;1/20D
R3011
0.1;B
C3002
0.1;B
C3005
0.1;B
C3011
20P;CH
C3014
22P;CH
C3008
1K;1/20J
R3010
330
RB304
12
34
56
78
LV5622LP-TE-L
IC302
1
SW_ON
2
PULL_UPON
3
GND
4
DC_IN
5
DC_IN
6
RESET
7
BAT_OFF
8
BACK_CNT
9
VCHG
10
VIN
11
VOUT
12
VBOOST
13
VBATT
14
SW_VOUT
15
PULL_UPV
16
SEL
LC87F2832AUFL68TBM-E
QXXGA0500027P
IC301
B1
1
SCK
C2
2
CARD
C1
3
KEY_MENU
D2
4
CHG_DONE
D1
5
HOTLINE
E2
6
BAT_CHGERR
E1
7
LCD_PWM
F2
8
BAT_CHGOFF
F1
9
VDD2
G2
10
VSS2
G1
11
VF.LED(R)
H2
12
VF.LED(G)
H1
13
USB_SUSPWR
J2
14
USB_HPWR
J1
15
PON2
K2
16
LENS_4M
K1
17
NAND RESET
L2
18
MAIN RESET
K3
19
ASWON
L3
20
USB_DET1
K4
21
BACKUP_CTL
L4
22
AL3.2 ON
K5
23
PLLEN
L5
24
TRST
K6
25
KEY_1st
L6
26
MROUT
K7
27
BOOT_COMREQ
L7
28
PRG ENA/DATA1
K8
29
SW3.2 ON
L8
30
ST_CHG
K9
31
SEL
L9
32
SCAN IN3
K10
33
SCAN IN2
L10
34
KEY_PLAY
K11
35
SCAN IN1
J10
36
SCAN IN0
J11
37
VSS3
H10
38
VDD3
H11
39
RDSEL
G10
40
CLK(SFW)
G11
41
DATA0(SFW)
F10
42
P ON
F11
43
SCAN OUT3
E10
44
SCAN OUT2
E11
45
SCAN OUT1
D10
46
SCAN OUT0
D11
47
C10
48
BAT_I
C11
49
BAT+
B10
50
BAT_T
B11
51
BLON
A10
52
BAT_OFF/INT0
B9
53
SREQ
A9
54
SCAN_IN4
B8
55
KEY_2nd
A8
56
RESET
B7
57
XCIN
A7
58
XCOUT
B6
59
VSS1
A6
60
XIN
B5
61
XOUT
A5
62
VDD1
B4
63
UNREG SY
A4
64
ZAVJACK
B3
65
TH_TEMP
A3
66
SO
B2
67
SI
A2
68
Z1
Z2
Z3
Z4
150K
1AV4R1LB1542G
RB316
12
150K
RB316
34
RB520S-30
H=0.7
D3001
1;B
C3015
BAT_CHGOFF
10K;1/20D
R3014
1K;1/20J
R3001
680;1/16J
1005
R3008
SI1
SI0
SO0
KEY_2nd
KEY_1st
SI3
UNREGSY
SI2
SO1
SO2
SI4
KEY_1st
KEY_2nd
SO2
KEY_PLAY
AL3.2V
SW3.2V
BACKUP3.2V
KEY_MENU
SO1
KEY_MENU
SI0
SI4
KEY_PLAY
SO0
SI1
SI3
SI2
3
SET
TEST
SCAN OUT
2
2
0
UP
LCD
1
0
DOWN
3
LEFT
TELE
1
WIDE
PW_TEST
RIGHT
SCAN IN
4
V.REC
PW_ON
TURN
POWER
ZHP_AD
NC
ZHP_AD
A
B
C
D
E
F
G
H
I
J
K
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19
A
B
C
D
E
F
G
H
I
J
K
C16
PWA
P1-06900/SG111-J
!
!
SWITCHING CONTROL
BATTERY CHARGE
&
USB POWER CONTROL
TO BATTERY
TO DMA
TO DMA
REG.
+T
3.6
3.2
VOLTAGE: VIEW MODE, LCD ON
(USE BATTERY)
1.0
1.0
3.2
3.6
1.8
3.3
4.9
3.1
1.0
3.2
1.2
1.2
3.2
0.0
3.6
0.1
1.2
3.1
3.1
3.6
3.2
3.6
3.6
3.6
3.6
3.6
3.6
4.9
1.0
0.0
3.6
4.9
4.9
1.0
1.2
1.0
0.4
0.2
A_GND
22;B
2125
C5005
1;B
C5007
1;B
C5008
2.4;N
1AV4L2MJ2R4NG
3.0X3.0
7E03ND2R4N
L5001
22;B
2125
C5006
A_GND
1;B
C5021
22;B
2125
C5019
A_GND
1;B
C5027
A_GND
A_GND
1;B
C5030
1;B
C5028
A_GND
A_GND
0.22;B
C5022
22;B
2125
C5018
22;B
2125
C5014
22;B
2125
C5015
1000P;B
C5010
A_GND
A_GND
A_GND
1.2;N
1AV4L2MJ1R2NG
3.0X3.0
H=2.0
7E03ND1R2N
L5003
LTC4066EUF-TRPBF
QXXAG4066EUFP
IC521
1
OUT
2
BAT
3
OUT
4
BAT
5
BAT
6
NC
7
NC
8
OUT
9
IN
10
CLDIS
11
SUSP
12
SHDN
13
HPWR
14
NTC
15
VNTC
16
GND
17
ACPR
18
CHRG
19
POL
20
WALL
21
TIMER
22
CLPROG
23
PROG
24
ISTAT
Z1
RB060M-30
D5301
33;8-V
C5305
0.1;B
C5047
4.7;N
1AV4L2MH4R7NG
3.0X3.0
7E03LD4R7N
L5008
2;N
1AV4L2MH2R0NG
3.0X3.0
7E03LD2R0N
L5009
BAT_CHGOFF
USB_HPWR
USB_VBUS
BAT+
BAT_I
PAON4
LCDAN
BOOST5.3V
-6V(A)
+3.4V(A)
UNREGSY
VDD1.8
+5V
PON
BLON
VDD3
LCDCA
+12V(A)
VDD1.2
PAON
UNREGST
TK70634HCL-G
QTK70634HC-GG
IC503
1
VCOUNT
2
GND
3
NP
4
VOUT
5
GND
6
VIN
BAT_T
1AV4J30B2710N
CSA-3915-2720
CN501
1
BAT+
2
BAT_T
3
BAT-
SEL
4.7;B
2125
C5036
4.7;B
2125
C5045
4.7;B
2125
C5023
A_GND
BATCHGERR
2A32V
F88K2R0D3MFFD
F5001
12
PON2
10;B
1608
C5016
MA2Z720-00L
D5001
10;B
1608
C5304
MA2Z720-00L
D5003
MA2Z720-00L
D5002
1;B 6.3
1005
C5046
0;1/20Z
R5003
1.3K;1/20D
R5006
47K;1/20J
R5016
12;1/20D
R5042
FBMH1608HL300
L5011
FBMH1608HL300
L5012
4.7;B
1608
C5202
4.7;B
1608
C5201
P_GND
P_GND
P_GND
4.7;N
1AV4L2MS4R7NG
3.0X3.0
H=1.2
7E03TB4R7N
L5005
2K;1/20D
R5203
0;1/20Z
R5041
3.3;N
1AV4L2MH3R3NG
3.0X3.0
H=1.5
7E03LD3R3N
L5004
47K;1/20D
R5026
39K;1/20D
R5025
4.7;N
1AV4L2MH4R7NG
7E03LD4R7N
L5002
2.5A24V
F88K2R5DAMFFD
F5002
12
FDC633N-NF
Q5301
1
2
34
5
6
100;1/20D
R5202
100K;1/20D
R5204
220P;CH
C5301
22P;CH
C5302
10K;1/20D
R5302
47K;1/20D
R5303
2.1;M
1AV4L2JX2R1MG
5.0X5.0
H=2.0
J914AYW-2R1M=P3
L5301
680K;1/20J
R5017
68K;1/20D
R5301
16K;1/20D
R5009
100K;1/20D
R5010
5.1K;1/20D
R5005
0;1/20Z
R5038
68K;1/20D
R5007
30K;1/20D
R5008
220P;CH
C5029
220P;CH
C5042
680P;B
C5303
MA21D38
D5201
47;M
1AV4L2FM470MG
L5010
DTC114EM
Q5201
4.7;B
2125
C5037
0;1/20Z
R5207
0;1/20Z
R5054
MAX8611ETM
QMAX8611ETM+P
IC501
1
SDOKB
2
FBM
3
ONM
4
PVM
5
LXM
6
PGM
7
PGAFE
8
LXAFE
9
PVAFE
10
ONAFE
11
FBAFE
12
FBSD
13
PVSD
14
ONAUX
15
ONSD
16
LXSD
17
PGSD
18
PGI
19
DRVAUX
20
PVINV
21
LXINV
22
ONCCD
23
FBAUX
24
CCAUX
25
FBINV
26
FBBST
27
SEQCCD
28
VGD
29
PVBST
30
LX1BST
31
LX2BST
32
PG2
33
LX2LED
34
LX1LED
35
PVLED
36
ONLED
37
FBL_LED
38
FBH_LED
39
REXT
40
REF
41
GND
42
FBSU
43
VSU
44
PVSU
45
BATT
46
ONSU
47
LXSU
48
PGSU
Z1
0;1/20Z
R5018
1.5K;1/20D
R5027
27K;1/20D
R5014
300K;1/20D
R5015
180;1/20D
R5019
UP03396
Q5302
1
2
34
5
68K;1/20D
R5011
30K;1/20D
R5304
2.4K;1/20D
R5305
0.1;B
C5203
68K;1/20D
R5001
270K;1/20D
R5036
56K;1/20D
R5037
2K;1/20D
R5021
1;1/6F
R5201
1.3K;1/20D
R5205
CP1 BOARD (PWA) POWER
A
B
C
D
E
F
G
H
I
J
K
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19
A
B
C
D
E
F
G
H
I
J
K
C17
1;B
1608
C9034
25V
0.033;B
1608
C9035
25V
MA2Z720-00L
D9003
MA2Z720-00L
D9001
1SS400
D9002
100K;1/16J
R9035
82K;1/16J
R9008
MA2Z720-00L
D9005
1;B
6.3V
C9031
1;H
2125
25V
C9033
AN20112A
QAN20112A---P
IC901
1
SUBCNT
2
SUB
3
VDC
4
GND
5
VL
6
VH
7
VHH
8
VM
9
VMSUB
10
OSUB
11
OV5B
12
OV5A
13
OV3B
14
OV3A
15
OV5L
16
OV5R
17
OV3L
18
OV3R
19
OV1S
20
OV1
21
OV6
22
N.C.
23
OV4
24
OV2
25
VM
26
VH
27
VL
28
RESET
29
V2
30
V4
31
V6
32
CH1
33
V1
34
V1S
35
V3R
36
V3L
37
V5R
38
V5L
39
CH4
40
V3
41
CH2
42
CH5
43
V5
44
CH3
Z1 Z2 Z3 Z4
1;H
2125
25V
C9032
0.1;B
1608
C9036
1;B
CB901
12
34
1M;1/16J
R9036
820;1/16J
R9039
TEMPGYRO
ASWON
OUTY
OUTX
PON
VDD3
PAON3
XV3
XV4
XV2
XV5
XV6
XV1
XSUB
XSG3
XV8
XV9
XV7
XV10
-6V(A)
+12V(A)
+3.4V(A)
VDD3
SUBGT
0.1;B
6.3
0603
C9012
220K;1/20J
R9031
10K;1/20J
R9032
XV11
XSG1
XSG2
XSG4
XSG5
0.1;B
C9061
22;10-T
2125
C9057
0;1/16Z
R9062
0.15;B
2125
C9064
AD9971BCPZRL
QAD9971BCPZ-J
IC905
1
LVDD
2
LVSS
3
DOUT1P
4
DOUT1N
5
TCLKP
6
TCLKN
7
DOUT0P
8
DOUT0N
9
LVSS
10
LVDD
11
H1
12
H2
13
HVSS
14
HVDD
15
H3
16
H4
17
RGVSS
18
HL
19
RGVDD
20
RG
21
LDOIN
22
LDOOUT
23
CLI
24
AVSS
25
CCDINP
26
CCDINM
27
AVSS
28
AVDD
29
REFT
30
REFB
31
LDOEN
32
SL
33
SDI
34
SCK
35
GPO1
36
GPO2
37
VD
38
HD
39
DVSS
40
DVDD
Z1
0.1;B
CB904
12
34
FBMH1608HM601
1608
L9001
0.1;B
CB905
12
34
0;1/16Z
R9063
0.1;B
CB906
12
34
0.01;B
1608
C9065
0.1;B
0603
C9053
10
0.1;B
10
0603
C9068
1000P;B
25
0603
C9066
1000P;B
25
0603
C9067
DOUT1P
DOUT1N
TCLKP
TCLKN
DOUT0P
DOUT0N
ADCK
CCDEN
CCDSD
CCDCK
TGVD
TGHD
5P;CH
0603
C9069
5P;CH
0603
C9070
39
1AV4J11WF390G
CN901
10
SUBGT
4
SWON
11
GND
5
12
V1S
6
PON
13
V1
7
VDD3
14
V2
8
VDD3
15
V3R
9
GND
16
V3L
17
V3A
18
V3B
19
V4
20
V5A
1
GND
2
OUTX
3
OUTY
21
V5B
22
V6
23
V5L
24
V5R
25
GND
26
RG
27
GND
28
HL
29
GND
30
H1
31
H2
32
GND
33
VSUB
34
+12V(A)
35
+12V(A)
36
-6.0V(A)
37
GND
38
CCDOUT
39
GND
REG
3.0V
NJM2877F3-03
QNJM2877F303P
IC904
1
2
34
5
0.01;B
0603
C9006
3.9;1/16J
R9058
3.9;1/16J
R9059
27;1/16J
R9055
3.9;1/16J
R9051
V3B
V1
V3R
V1S
V5A
V5R
XSUB
V5L
XV5
XV6
XV4
XSG2
XSG5
XSG1
XV3
V6
XSG4
V3A
XV1
V3L
XSG3
V2
V4
V5B
XV2
XV10
XV11
XV8
XV9
XV7
+3.4V(A)
-6V(A)
XSG5
XV10
XV7
XV9
XV8
XSG4
XSG3
XSG2
XSUB
XSG1
XV1
XV6
XV5
XV11
XV2
XV4
XV3
V5L
V3L
V3A
V6
V3B
V1
V3R
V1S
V5A
V5R
V5B
V2
V4
DOUT1P
DOUT1N
TCLKP
TCLKN
DOUT0P
DOUT0N
+12V(A)
+12V(A)
TO DMA
CAA
C2-06900/SG111-J
V. DRIVER
CDS, AGC, A/D C
H. DRIVER
TO CA1
CN931
TO DMA
TO DMA
TEMPGYRO
1.9
1.3
1.1
1.2
1.2
1.3
1.1
0.0
1.9
0.8
3.4
2.4
1.1
2.4
3.4
1.1
2.4
0.2
1.4
1.8
1.2
1.6
1.9
3.0
1.9
0.0
3.3
3.3
0.0
3.0
0.0
0.0
3.2
3.0
3.3
2.9
3.3
3.3
1.7
3.3
3.0
3.0
0.6
0.9
0.9
-5.3
-5.9
11.9
11.9
-6.0
3.4
3.3
0.0
-0.2
-1.6
-1.6
-1.0
-5.6
-5.6
-0.2
-0.2
-5.3
-4.3
-6.0
11.9
-0.5
-0.5
0.1
3.3
2.3
0.3
0.3
3.0
VOLTAGE: VIEW MODE, LCD ON
CP1 BOARD (CAA) CCD AFE & DRIVER
A
B
C
D
E
F
G
H
I
J
K
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19
A
B
C
D
E
F
G
H
I
J
K
C18
TO CP1 (CAA)
CN901
CA1
C1-06900/SG111-J
CCD
GYRO
SENSOR
REG.
VOLTAGE: VIEW MODE, LCD ON
-5.6
-1.6
-0.2
-0.5
-1.6
-1.0
-0.2
-0.2
-0.5
-5.3
-5.3
-4.3
-5.6
1.1
2.3
2.3
6.4
0
-6.0
6.9
8.2
11.9
39K;1/16D
R7002
3300P;B
C7002
0.068;B
C7001
3300P;B
C7003
0;1/16Z
R7004
470K;1/16D
R7005
1;B
CB701
12
34
470K;1/16D
R7003
4.7;B
1608
C7004
TK70630HCL-G
QTK70630HC-GG
IC702
1
VCOUNT
2
GND
3
NP
4
VOUT
5
GND
6
VIN
0.068;B
C7006
39K;1/16D
R7001
EWTS97NB11
1AV4V14B0160G
IC701
1
HIb
2
LCb
3
NIb
4
GND
5
HSC
6
HIa
7
LCa
8
NIa
9
Vref
10
Vdd
11
HOb
12
OUTb
13
HOa
14
OUTa
15
SL
4.7;B
2125
C7005
4.7;B
C7009
47;1/16J
R9301
10;B
2125
C9305
R9303
1.2K;1/16J
UP05C8G
Q9301
1
E
2
B
3
G
4
S
5
D
6
C
0.1;B
1608
C9304
25V
10;B
2125
C9303
10V
MN39830PMJ-A
QMN39830PMJAN
IC931
1
V6
2
V5B
3
V5A
4
V4
5
V3B
6
V3A
7
V3L
8
V3R
9
V2
10
V1
13
VDD
14
VO
15
GND
16
RG
17
PT
18
SUB SW
19
Vsub
20
HL
Z1
Z2
12
GND
11
V1S
23
V5R
24
V5L
21
H1
22
H2
39
CN931
10
SUBGT
4
SWON
11
GND
5
TEMPGYRO
12
V1S
6
PON
13
V1
7
VDD3
14
V2
8
VDD3
15
V3R
9
GND
16
V3L
17
V3A
18
V3B
19
V4
20
V5A
1
GND
2
OUTX
3
OUTY
21
V5B
22
V6
23
V5L
24
V5R
25
GND
26
RG
27
GND
28
HL
29
GND
30
H1
31
H2
32
GND
33
VSUB
34
+12V(A)
35
+12V(A)
36
-6.0V(A)
37
GND
38
CCDOUT
39
GND
330;1/16J
R9302
V4
V1S
V5B
V1
V5L
V2
V6
V3R
V3L
V5A
V3A
V5R
V3B
V1S
V1
V2
V3R
V3L
V3A
V3B
V4
V5A
V5B
V6
V5L
V5R
CA1 BOARD CCD & GYRO SENSOR
A
B
C
D
E
F
G
H
I
J
K
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19
A
B
C
D
E
F
G
H
I
J
K
C19

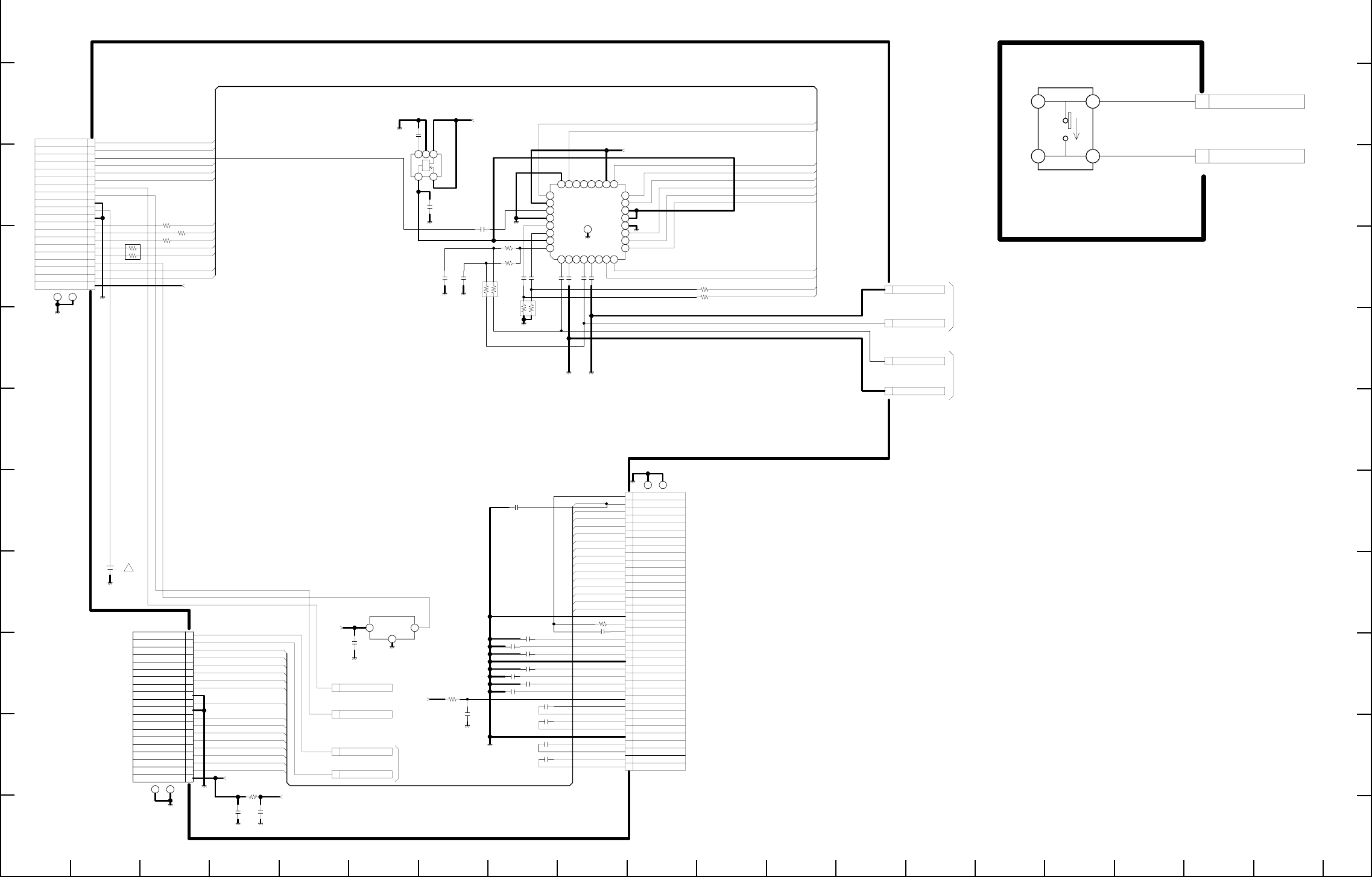

AWG32/AWG30
2.0X1.25
JW171
1
BL_AN/RD
AWG32/AWG30
2.0X1.25
JW172
1
BL_CA/BK
AWG32/AWG30
2.0X1.25
JW651
1
SCAN_IN2/BK
AWG32/AWG30
2.0X1.25
JW652
1
SCAN_OUT3/RD
LVDD3
0;1/16Z
1608
R1703
0.1;B
C1714
20
1AV4J10LZ200G
CN172
10
LMCLK
4
LCDSD
11
GND
5
LCDCK
12
LCDD7
6
LCDEN
13
LCDD6
7
VD
14
LCDD5
8
HD
15
LCDD4
9
GND
16
LCDD3
17
LCDD2
18
LCDD1
19
LCDD0
20
VDD3
1
BL_AN
2
BL_CA
3
LCDP0CB
Z1Z2
0.1;B
C1715
1;B
16
1608
C1703
1;B
16
1608
C1710
2.2;1/16J
R1701
LVDD3
1;B
16
1608
C1713
2.2;B
10
1608
C1706
1;B
16
1608
C1707
1;B
10
C1712
1;B
10
C1709
1;B
10
C1704
1;B
10
C1711
1;B
10
C1708
1;B
10
C1701
10K;1/16J
R1702
1;B
10
C1705
4.7;B
6.3
1608
C1702
37
1AV4J11VR370G
CN171
10
VDD
4
C2M
11
RVDD
5
VSS
12
VDD2
6
C3M
13
VSREF
7
C3P
14
VDD3
8
C4P
15
VSS
9
C4M
16
VGL
17
VGH
18
VVCOM
19
COMOUT
20
COMDC
1
C1P
2
C1M
3
C2P
21
VSS
22
DO0
23
DO1
24
DO2
25
DO3
26
DO4
27
DO5
28
DO6
29
DO7
30
CLK
31
HSYNC
32
VSYNC
33
SCK
34
DI
35
CS
Z1 Z2
36
POCB
37
VCOM
1AV4D20B09300
ML614-TZ14
Z6001
MRSS32W
QMRSS32W----P
IC651
1
OUT
2
VCC
3
GND
AL3.2V
VDD3
1;B
10
C1805
VDD3
4.7;B
1608
C1825
1;B
C1827
1;B
10
C1801
47K
RB181
12
34
2K
RB182
12
34
1;B
10
C1804
WM8978GEFL-RV
QWM8978GEFL-J
IC181
1
LIP
2
LIN
3
L2/GPIO2
4
RIP
5
RIN
6
R2/GPIO3
7
LRC
8
BCLK
9
ADCDAT
10
DACDAT
11
MCLK
12
DGND
13
DCVDD
14
DBVDD
15
CSB/GPIO1
16
SCLK
17
SDIN
18
MODE
19
AUXL
20
AUXR
21
OUT4
22
OUT3
23
ROUT2
24
SPKGND
25
LOUT2
26
SPKVDD
27
VMID
28
AGND
29
ROUT1
30
LOUT1
31
AVDD
32
MICBIAS
Z1
20
1AV4J10LZ200G
CN173
10
BACKUP_BAT
4
AUDSD
11
GND
5
AUDCK
12
AUDMCLK
6
AUDEN
13
DACDAT
7
SCAN_IN2
14
ADCDAT
8
SCAN_OUT3
15
BITCLK
9
GND
16
LRCK1
17
MROUT
18
SP+
19
SP-
20
AL3.2V
1
LINE_L
2
LINE_R
3
GND
Z1Z2
AL3.2V
0;1/16Z
R1810
100;B
3225
H=2.0
C1808
100;B
3225
H=2.0
C1809
VDD3
AWG32/AWG30
2.0X1.25
JW188
1
MIC_L-/BK
AWG32/AWG30
2.0X1.25
JW187
1
MIC_L+/RD
AWG32/AWG30
2.0X1.25
JW186
1
MIC_R-/BK
AWG32/AWG30
2.0X1.25
JW185
1
MIC_R+/RD
200;1/16J
R1801
200;1/16J
R1802
0;1/16Z
R1811
0;1/16Z
R1812
REG
3.0V
NJM2860F3-03
QNJM2860F303P
IC182
1
2
34
5
4.7;1/16J
R1804
4.7;1/16J
R1805
1;B
C1807
1;B
C1811
220
RB192
12
220
RB192
34
0.1;B
10
C6501
0.1;B
C1716
3300P;B
C1806
3300P;B
C1810
LCDHD
LMCLK
LCDVD
LCDCK
LCDSD
LCDEN
LCDD0
LCDP0CB
LCDD3
LCDD2
LCDD7
LCDD1
LCDD5
LCDD6
LCDD4
LCDEN
LCDSD
LCDCK
LCDD4
LCDD3
LCDD2
LCDD1
LCDD0
LCDHD
LCDVD
LMCLK
LCDD7
LCDD6
LCDD5
LINE_R
SP+
DACDAT
ADCDAT
SP-
LINE_L
AUDSD
AUDCK
AUDEN
AUDMCLK
DACDAT
ADCDAT
BITCLK
LRCK1
SP-
SP+
LINE_L
LINE_R
AUDSD
AUDCK
AUDEN
LRCK1
BITCLK
AUDMCLK
LCDP0CB
AGND
AGND
AGND
AGNDAGND
AGND
MIC_R-
MIC_R+
MIC_L+
MIC_L-
AGND AGND
VF1
Z1-06900/SG111-J
TO CP1 (DMA)
CN104
TO CP1 (DMA)
CN103
TO LCD
TO BACK LIGHT
TO TB1 JW662
TO TB1 JW661
MR SENSOR
AUDIO CODEC
TO MIC L
TO MIC R
!
VF1 BOARD LCD CONNECTOR & AUDIO
SPVN210101
1AV4S10B7420G
H=1.2
S6601
14
23
AWG32/AWG30
2.0X1.25
JW661
1
SCAN_IN2/BK
AWG32/AWG30
2.0X1.25
JW662
1
SCAN_OUT3/RD
TB1
T1-06900/SG111-J
TO VF1 JW652
TO VF1 JW651
TB1 BOARD SWITCH
A
B
C
D
E
F
G
H
I
J
K
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19
A
B
C
D
E
F
G
H
I
J
K
C20
STROBE
CHARGE
ST1
S1-06900/SG111-J
TO CP1 (DMA)
CN105
TO SPEAKER
GRAY
295
VOLTAGE: STROBE AFTER CHARGE
MA2YF8000L
D5402
IGBT_GND
RB521S-30
D5404
CY25CAH-8F
Q5402
1234
5678
22;B
6.3
2125
C5401
10K;1/16J
R5424
0.01;350B
3216
C5411
1000P;B
50
C5402
3
TS-F45B-1
1AV4L17B0370N
T5402
1
2
FPSN4
D5401
1K
RB541
12
34
10K
RB542
12
34
1;B 6.3
C5403
1000P;B
50
C5404
ST_GND
TTRN-0530-008-T
1AV4L17B0480G
T5401
2
41
3
5.1K;1/16D
R5404
6.2K;1/16D
R5405
100;1/16J
R5403
1K;1/16J
R5411
220K;1/8JB-X
2125
R5422
100K;1/8JB-X
2125
R5402
TPS65560RGTR
QTPS65560RGTJ
IC541
1
SW
2
SW
3
VCC
4
F_ON
5
NC
6
I_PEAK
7
G_IGBT
8
NC
9
XFULL
10
CHG
11
PGND
12
PGND
13
NC
14
NC
15
VBAT
16
NC
Z1
12
1AV4J11VA122G
12FH-SM1-GAN-TB(LF)
CN541
10
SP-
4
UNREGST
11
SP+
5
UNREGST
12
GND
6
+12V(A)
7
ZCHGDONE
8
CHG
9
FLCTL
1
GND
2
BACKUP3.2V
3
SW3.2V
Z1 Z2
AWG32
2.0X1.25
JW543
BLACK
1
SP-
AWG32
2.0X1.25
JW544
RED
1
SP+
AWG28
2.2X1.5
JW541
PINK
1
XAN
AWG28
2.2X1.5
JW542
BLACK
1
XKT
0.018;350B
3216
C5410
40;300-E
CEXAG630400AN
300FW40AF6.5X35.5_65DE
C5412
IGBT_GATE
ST_GND ST_GND
ST_GND
ST_GND
XAN
STROBE UNIT
XKT
TRG
ST1 BOARD STROBE
A
B
C
D
E
F
G
H
I
J
K
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19
A
B
C
D
E
F
G
H
I
J
K
C21
PRINTED WIRING BOARDS (P.W.B.)
CP1 P.W.B. (SIDE A) CP1 P.W.B. (SIDE B)
1A
2A
2.5A
SG111_CP1
G5200AA
SIDE-A
+
+
+
F1
F2
F3
CL150
GND
CN501
CN110
JK151
C1121
C1122
R1122
L1008
R9036
C5018
C5042
VA301
VA302
C1208
C1402
C1023
C1024
C1029
C1031
R1012
TH301
C1097
C5301
C5302
C5303
C3006
C3009
C3013
C1301
C1302
C1303
D9001
D9002
D9003
D9005
R9008
C9031
C9032
C9033
C9054
C9057
R9030
C9058
R9035
C1552
R9039
C9064
R9051
R9055
R9058
R9059
R9062
R9063
C1403
C1405
C1407
C9712
C9714
C9722
C1075
R3008 R3009
C9001
C5051
C9034 C9035
C9036
C9061
C9065
C1951
C1953
C1008
C1018
C1026
L9001
L1302
VA156
C5029
C9515
Q5302
VA155
IC101
L5005
RB113
R1121
CL103
CL301
CL302
CL303
CL304
CL111
CL505
CB101
CB102
CL339
R5003
RB106
RB107
RB301
R5012
RB302
RB110
R5014
RB304
R5015
RB112
R5019
RB115 RB117
RB313
RB315
CL172 CL173
CL174
CL175
CL176
CL177
CL178
CL179
CL182
CL183
CL184
CL185
CL186
CL187
CL188
F5001
F5002
F5003
R5053
C1007
C1009
X1102
C1204
C1205
C1013
C1014
C1019
C1401
C1021
R1004
R1005 R1006
R1007
R1008
R1009
R1201
R1202
R1203
R1204R1205
R1011
R1206
R1207
R1016
R1022
R1023
R1024
R1025
R1026
R1029
R1030
L1301
R1037
R1040
R1041
C1078
C1079
C1082
R1083
R1084
R1085
R1086
R1089
R1091
R1092
R1093
R1094
R1095
R1096
R5301
R5302
C3002
R5303
R5304
R5305
C3005
C3008
L5003
C3014
IC301
IC121
R3004R3007
R3010
R3014
X3001
IC152
C9012
C9053
R9031
R9032
C1551
C9066
C9067
C9068
C9071
CL515
R1551
R1552
R1553
R1554R1555
CL150
CL151
RB101
RB102
RB103
RB104
RB105
RB108
CB904
CB905 CB906
RB111
CL953
CL954
CL955
CL189
CL960
CL190
RB141
CL191
RB142
CL963
CL964
CL965
RB145
CL967
CL969 CL973
C1010
C1011
C1020
CN103
CN105
R1010
RB953
C9513
R1403
CN901
C1074
R1434
R1052
R9723
R9724
R9726
IC905
C9069
C9070
C1553
IC153
IC901
CL331
CL332
CL333
CL334
CL335
CL336
R5036
R5037
R5001
C1206
CN301
CN951
CL518
CL520
R3001
C1201
X3002
IC102
R5055
SIDE-B
CL501
VR501
+
D5003
C5003
C5004
C5005 C5006
C5007
C5008
C5009
C5010
C5012
C5014 C5015
C5019
C5021
C5022
C5027
C5028
C5030
C1202
C1203
C1404
Q1401
C1406
C1098
C1099
C3001
C3003
C3004
Q3001
C3007
C3010
R3002
R3003
R3015
Q1301
Q1303
R1501
R1504
C5023
D5001
D5002
C5036
C5045
C5046
C5047
C5048
C5050
C9701
C9717
C9718
C9719
R9505
R9506
R9509
C9534
C9538
C9545
R9720
R9721
R9725
R9727
R9729
R9731
R9732
C9567
L1551
L1552
R1502
C5203
R5201
C1503
C5201
C5202
C5016
C1207
C1081
C1083
C1086
C1092
C5304
L1007
L1011
L1012
L1553
L5011
L5012
R9507
VA134
L5010
C5037
Q5201
D3001
C3015
C3016
C9514
C9526
C5053
C5052
CN141
L5008
R1302
CL501
CL502CL503
CL310
CL506
CL507
CL516
CL519
R5005R5006
R5007
R5008
R5009
R5202
R5203
R5204
R5010
R5205
R5011
R5013
RB305
RB306
R5018
RB116
R5021
RB311
RB312
R5025
R5026
RB316
R5027
R5038
R5051
R5052
R1001
R1431
R1051
C1084
VR501
C1087
R1081
R1082
R1087
R1088
L5001
C3011
L5002
L5004
IC302
L5009
IC501
R3011
R3012
IC521
S3001
C1501
IC951
IC971
CL504
CL508
CL509
CL510
CL511
CL512
CL513
CL514
CB901
R5016R5017
L5301
CL951
CL952
CL956
CL959
R5041
R5042
R5043
CL961
CL962
CL966
CL968
CL970
CL971
CL972
CN104
CB971
C9711
C9716
RB971
RB972
C9720
C9721
RB975
RB976
C9723
R9718
R9719
R9722
R9728
C5305
Q5301
D5301
IC503
C9006
C1006
R1301
C1305
C1304
CL517
D5201
R5207
IC904
R5208
R5054
IC151
R5056
CL311
C1554C1555
A
B
C
D
E
F
G
H
I
J
K
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19
A
B
C
D
E
F
G
H
I
J
K
C22
ST1 P.W.B. (SIDE A) ST1 P.W.B. (SIDE B)
RD BK
BK
PK
SG111_ST1
SIDE-A
G5300AA
+
C5401
CL542
CL543
CL550
CL553
CL554
T5401
T5402
VA541
VA542
CN541
JW541
JW542
JW543
JW544
-
+
SIDE-B
SG111_ST1
G5300AA
C5412
IC541
C5402
C5403
C5404
Q5402
C5410
C5411
CL541
CL544 CL545
CL546 CL547
CL548
D5401
CL549
D5402
D5404
R5402
R5403
R5404
R5405
CL551
CL552
CL555
CL556
R5411
R5422
R5424
RB541
RB542
SIDE-A
SG111_TB1
G5300CA
S6601
RD
BK
SIDE-B
TB1 P.W.B. (SIDE A) TB1 P.W.B. (SIDE B)
SIDE-A
SG111_CA1
13B0100AA
IC931
13B0100AA
SG111_CA1
SIDE-B
C9301
C9302
C9303
C9304
C9305
Q9301
C9306
C7001
R9301
C7002
R9302
C7003
R9303
C7004
C7005
C7006
C7007
C7008
C7009
C7010
TH701
R7001
R7002
R7003
R7004
R7005
CL701
CB701
IC701
IC702
CA1 P.W.B. (SIDE B)
CA1 P.W.B. (SIDE A)
A
B
C
D
E
F
G
H
I
J
K
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19
A
B
C
D
E
F
G
H
I
J
K
C23
BK
RD
BK
RD
BK
RD
MIC_L MIC_R
MIC-R
MIC-L
SIDE-A
SG111_VF1
G5300BA
CN172
LCD
BK
RD
C1702
C1703
C1706
C1707
C1710
C1713
R1703
C1825
C1701
C1704
C1705
C1708
C1709
C1711
Z6001
C1712
C1714
C1715
C1716
IC181
IC182
R1701
R1702
C1801
C1804
C1805
C1806
C1807
C1808
RB181
C1809
RB182RB184
C1810
C1811
RB192
C1827
R1801
R1802
R1804
R1805
R1806
R1810
R1811
R1812
CN171
CN172
CN173
SIDE-B
IC651
C6501
VF1 P.W.B. (SIDE A) VF1 P.W.B. (SIDE B)
Oct./’06
SANYO Electric Co., Ltd.
Osaka, Japan
Printed in Japan
