VSAT INSTALLATION INSTRUCTIONS
Prepared by ICS Technologies
VSAT INSTALLATION INSTRUCTIONS
1 | 42
Contents
1 Tools & Materials Required .................................................................................................................. 3
2 General Installation Procedure Overview .............................................................................................. 4
3 Steps and Procedures ............................................................................................................................. 5
3.1 Getting the initial Antenna Position using Third Party Program ................................................... 5
3.1.1 Install Satellite Antenna Alignment Program ......................................................................... 5
3.1.2 Open Satellite Antenna Alignment ......................................................................................... 6
3.1.3 Selecting the Satellite .............................................................................................................. 7
3.1.4 Calculating the Offset Angle .................................................................................................. 8
3.1.5 Checking the Obstacles ........................................................................................................... 9
3.2 Satellite Antenna and Mount ........................................................................................................ 10
3.3 Modem Connection and Connection Testing ............................................................................... 11
3.3.1 RJ45 Wiring Conventions ..................................................................................................... 11
3.3.2 Testing the Modem Connection ............................................................................................ 12
3.4 Antenna Setup & Pointing Using iSite Web GUI (X7 Only) ...................................................... 13
3.4.1 Connect laptop to LAN port. A single DHCP address is issued to the laptop for
commissioning purposes. (Test the connection with the Modem as shown in step 3.3.2) .................. 13
3.4.2 Launch a Web browser of your choice and go to https://192.168.0.1 .................................. 13
3.4.3 Login using: .......................................................................................................................... 13
3.4.4 Dashboard ............................................................................................................................. 14
3.4.5 Loading Option File .............................................................................................................. 15
3.4.6 Setting Geo Location ............................................................................................................ 18
3.4.7 Calculating Look Angle ........................................................................................................ 19
3.4.8 Antenna Pointing .................................................................................................................. 20
3.5 Cross Polarization Test................................................................................................................. 22
3.6 1 dB Compression Point & Maximum Power .............................................................................. 24
3.7 Acquiring the Network ................................................................................................................. 24
3.8 Checking Remote Status .............................................................................................................. 25
3.9 Wireless Access Points................................................................................................................. 26
3.10 Café Commissioning .................................................................................................................... 26
VSAT INSTALLATION INSTRUCTIONS
2 | 42
3.11 Testing using iperf3 ...................................................................................................................... 26
3.12 Post-Commissioning Activities .................................................................................................... 29
3.13 Government Acceptance .............................................................................................................. 29
4 BOQ ..................................................................................................................................................... 30
4.1 EXT150300428 | TRACE UAE Al Minhad (Redleg Living 1) - LGW ...................................... 30
4.2 EXT150300427 | TRACE UAE Al Minhad (Redleg Living 3) – LGW ...................................... 33
4.3 EXT150300411 | TRACE UAE Al Minhad (Redleg Living 4) – LGW ...................................... 36
4.4 EXT150300412 | TRACE UAE Al Minhad (Redleg MWR) – LWW ........................................ 39
VSAT INSTALLATION INSTRUCTIONS
3 | 42
1 TOOLS & MATERIALS REQUIRED
You will need the following equipment and software to successfully commission the Satellite Router
in the field:
1. Windows Laptop
2. Standard & Metric Socket Sets & Wrenches (Alternatively adjustable wrenches can work)
3. Flat head and Philips Head screwdrivers
4. Hex head/Allen Wrenches; Standard & Metric
5. Wire Ties/Cable Ties
6. LMR-400 Cable prep tool and Crimpers
7. RJ-45 Crimp Tools and CAT5 cable prep tool/strippers
8. Ethernet Patch cable
9. Cisco Console Cable, USB to RJ45 Serial Adapter
10. RJ-45 cross-over cable (May not be necessary but good to have)
11. Ballast: Sandbags or concrete blocks to place on antenna mount. (local site POC may be able to
help with this)
12. Satellite Modem Image (if required; modem will arrive with software/firmware pre-installed;
evo_x7_rmt-14.0.3.5.pkg)
13. Modem Options File. The iDirect modem options file will be distributed by the NOC prior or at
the time of install.
14. Download iperf3 (Windows 32-bit or 64-bit depending on OS) on local laptop inside preferred
directory. https://iperf.fr/iperfdownload.php#windows

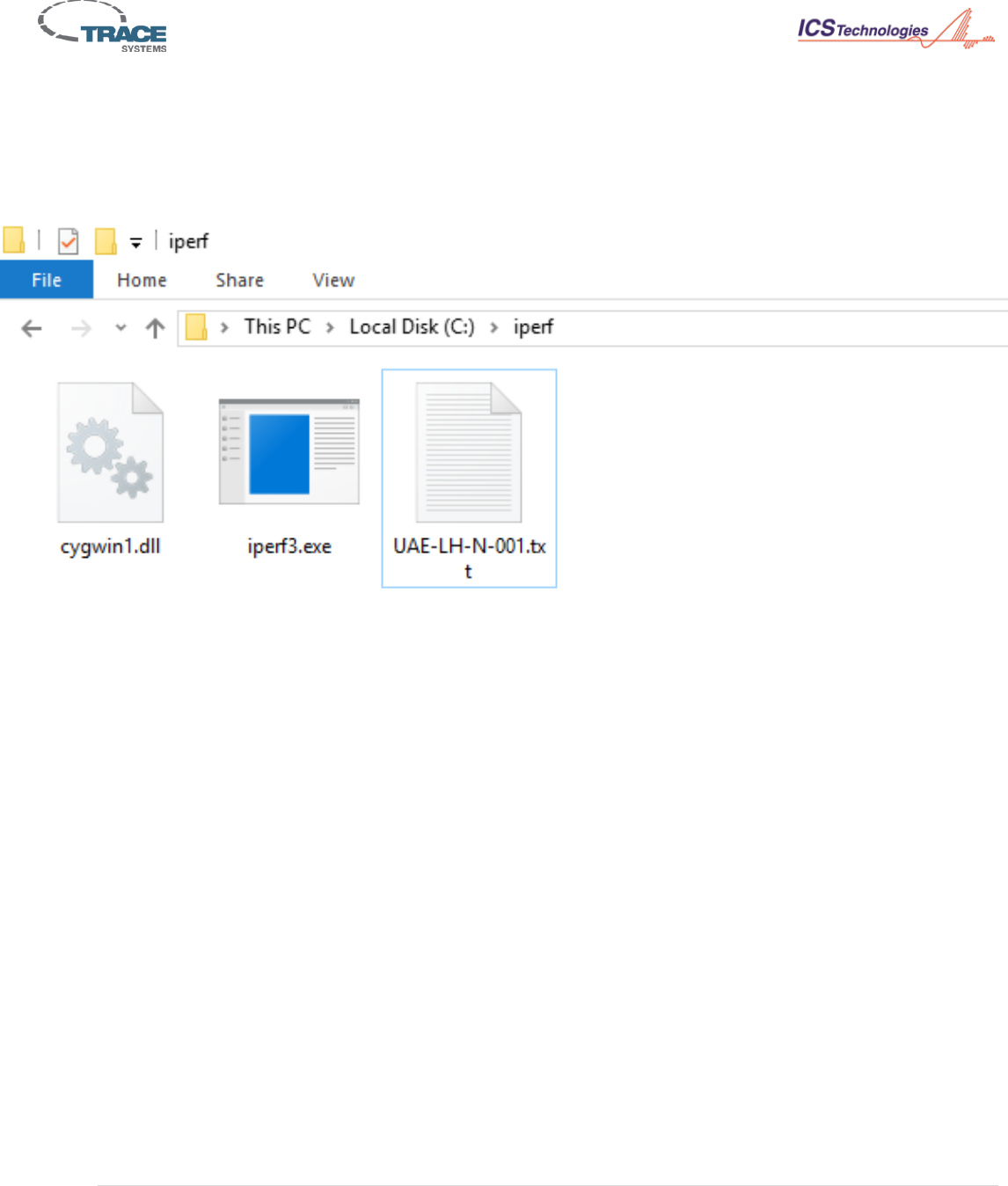

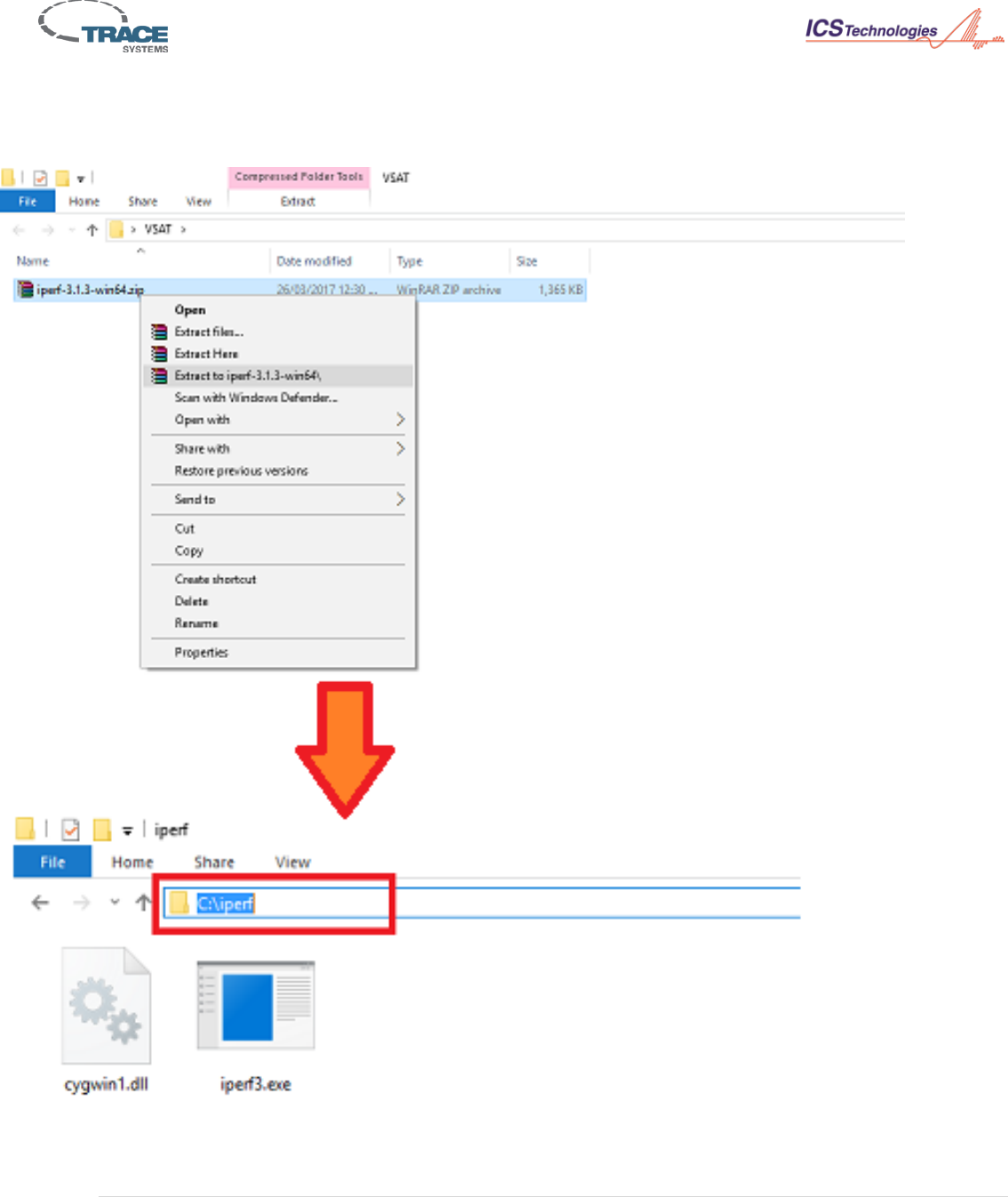

15. Create iperf3 folder in Root directory. Iperf3 must run from that directory via the command line.
No Windows installer required or will load when double clicking .exe file.
Note:
If installing a wireless only site, ignore instructions regarding thin clients and VoIP phones.
iDirect recommends disabling the firewall on your laptop to ensure complete functionality.
VSAT INSTALLATION INSTRUCTIONS
4 | 42
2 GENERAL INSTALLATION PROCEDURE OVERVIEW
1. Install VSAT antenna, mount, outdoor electronics, cabling and ballast.
2. Install Indoor equipment rack
3. With Trace NOC, Perform Cross-pol and P1dB test using iSite.
4. Verify Receive lock on the iDirect modem.
5. Disconnect Cat5 Ethernet cable from X7 LAN Port 1 to 2911 GE0/0 until after antenna and
modem are commissioned.
6. Reconnect internal UPS batteries (disconnected for shipment)
For 9130 see manual Page 19. For 9PX see manual Page 21.
7. Install Thin Clients and cable to 2960-X Switch according to Port Diagram.
8. Install VoIP Phones and cable to the embedded Ethernet switch in the 2911 router.
9. Install Wireless Access Points and cable to the 2960-X Switch.
10. Verify all equipment installed powers up and is ready for verification and validation testing.
11. Execute Commissioning and Test Plan.
VSAT INSTALLATION INSTRUCTIONS
5 | 42
3 STEPS AND PROCEDURES
3.1 GETTING THE INITIAL ANTENNA POSITION USING THIRD PARTY PROGRAM
Note: Step 3.1 (Getting the Initial Position) can be done also using multiple alternatives like:
iDirect iSite Web GUI Angle Calculator.
http://www.dishpointer.com/
http://www.satbeams.com/footprints

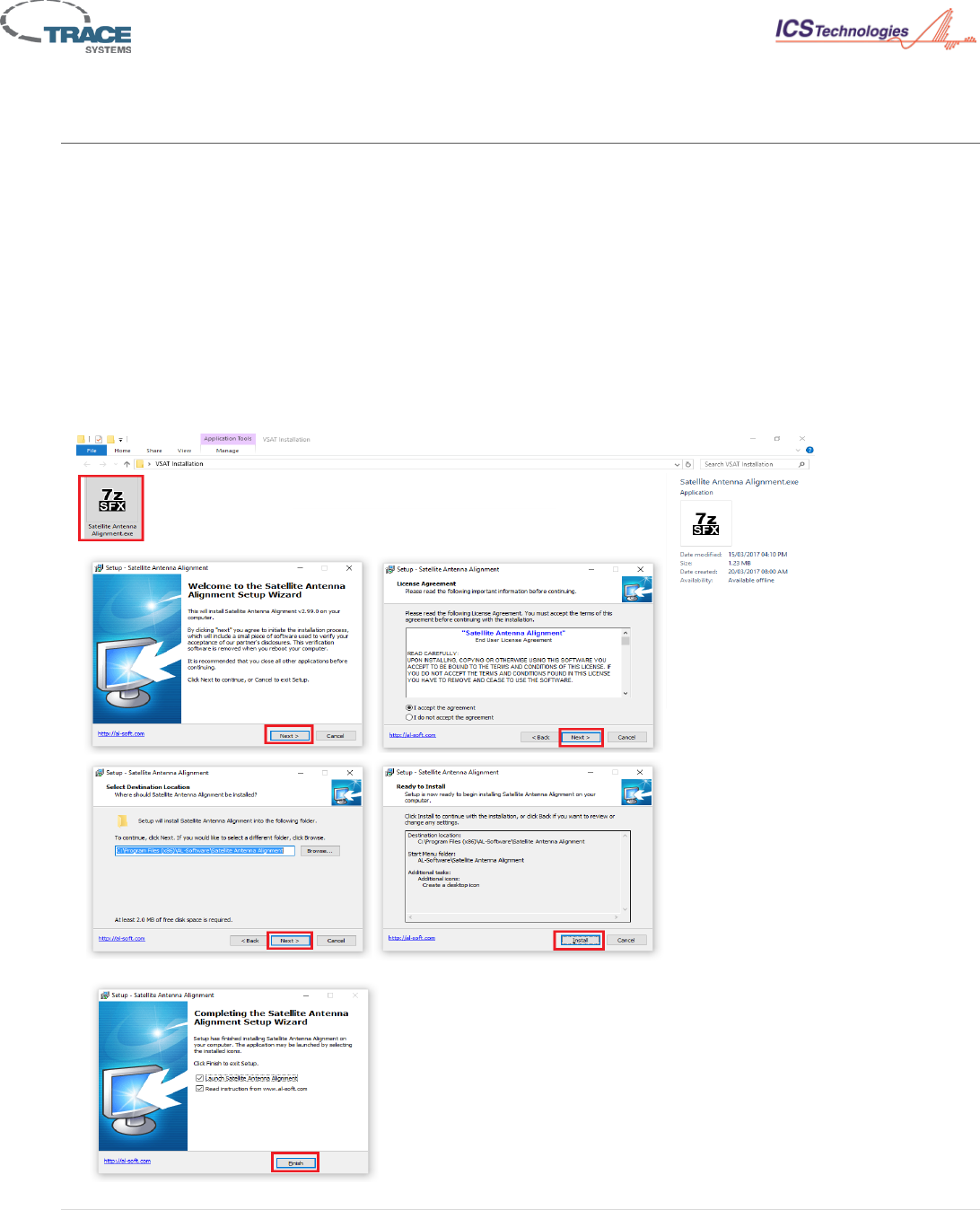

3.1.1 Install Satellite Antenna Alignment Program
Install Satellite Antenna Alignment program and follow the wizard until installation is completed.
VSAT INSTALLATION INSTRUCTIONS
6 | 42

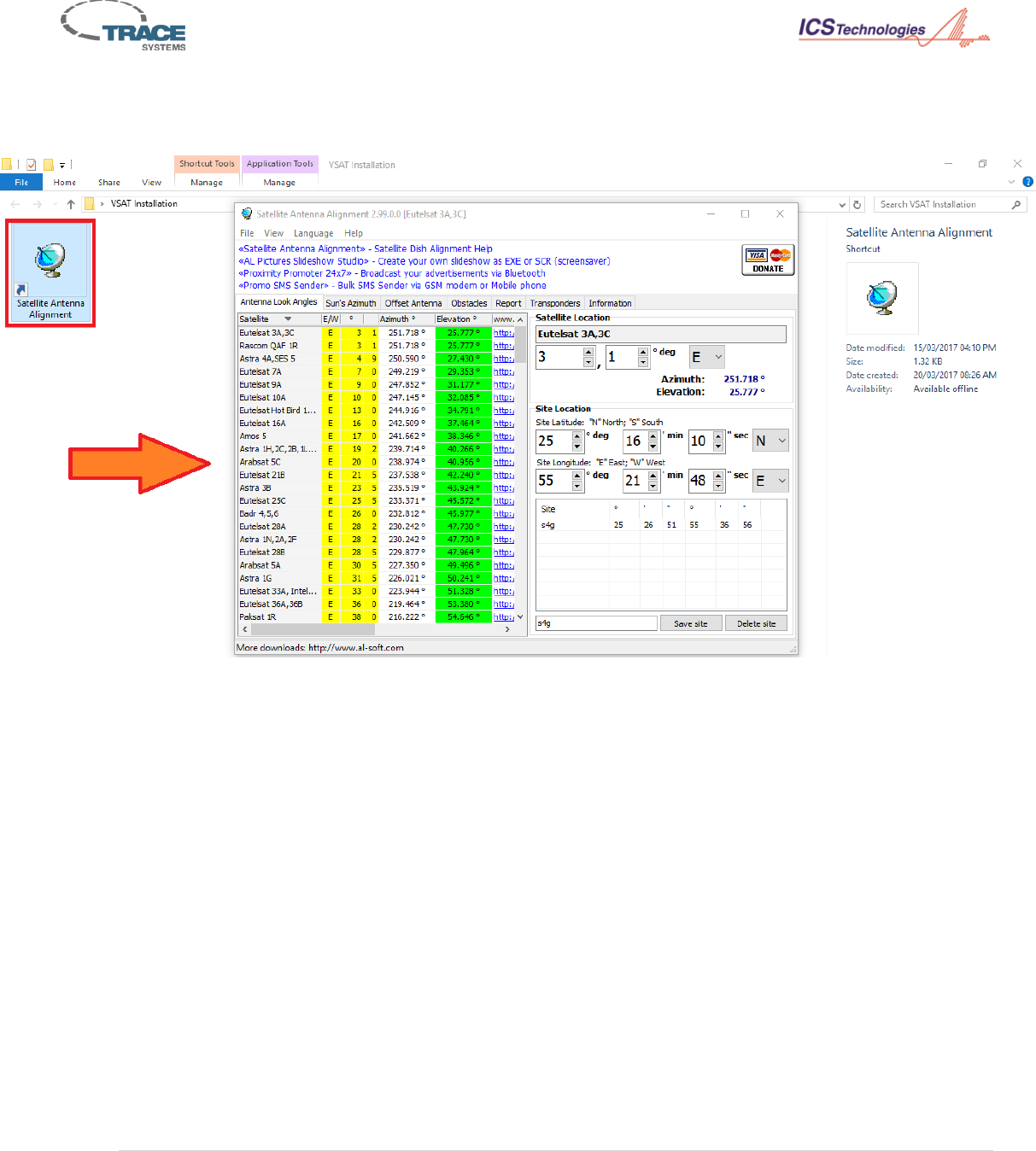

3.1.2 Open Satellite Antenna Alignment
Open the installed program by double clicking the icon shown below:
VSAT INSTALLATION INSTRUCTIONS
7 | 42
3.1.3 Selecting the Satellite

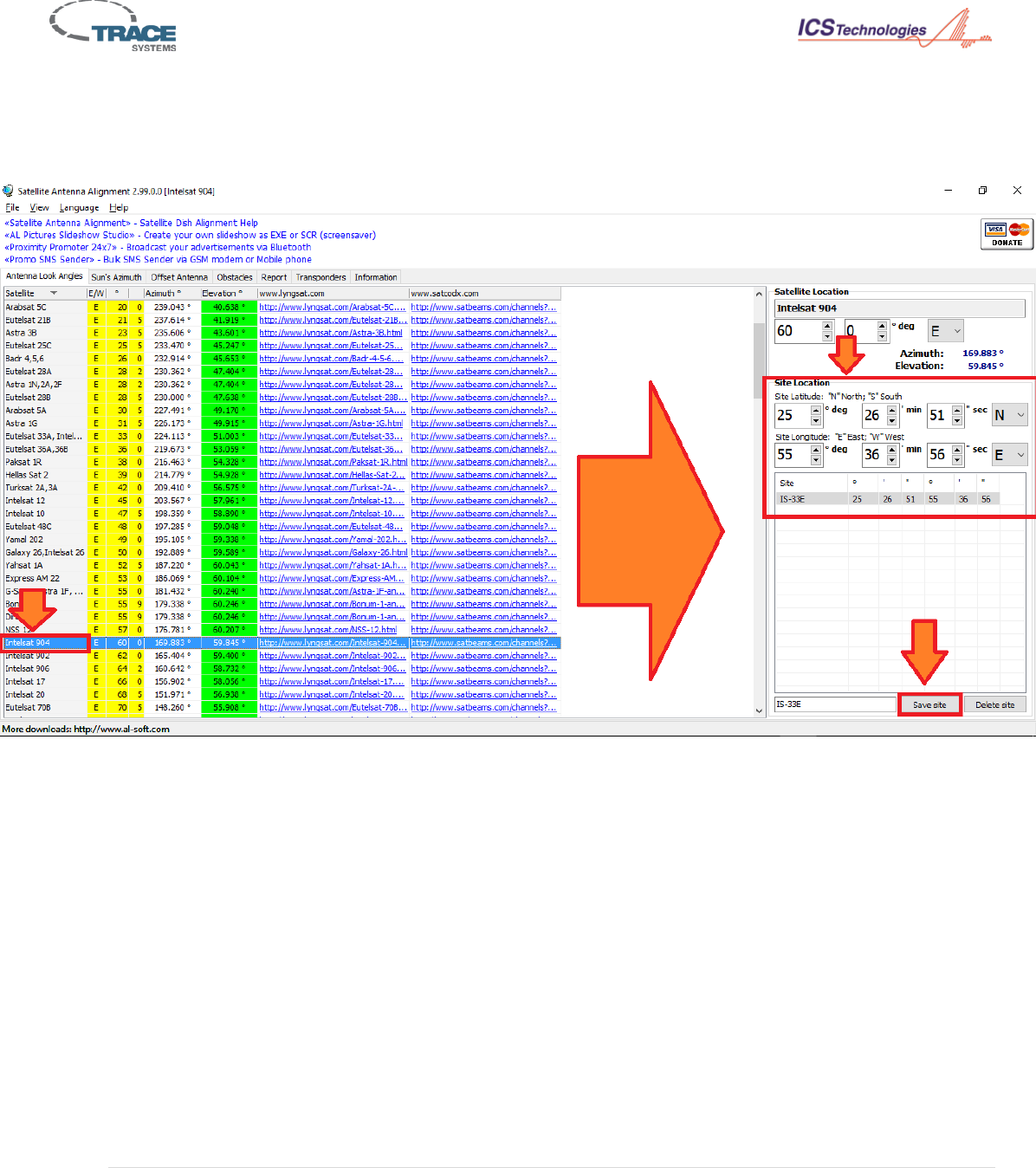

Select the Satellite named 60E INTELSAT 33E (IS-33E) | INTELSAT 904 (IS-904). 60 degrees East Longitude
from the list and enter the site location as shown below:
VSAT INSTALLATION INSTRUCTIONS
8 | 42
3.1.4 Calculating the Offset Angle

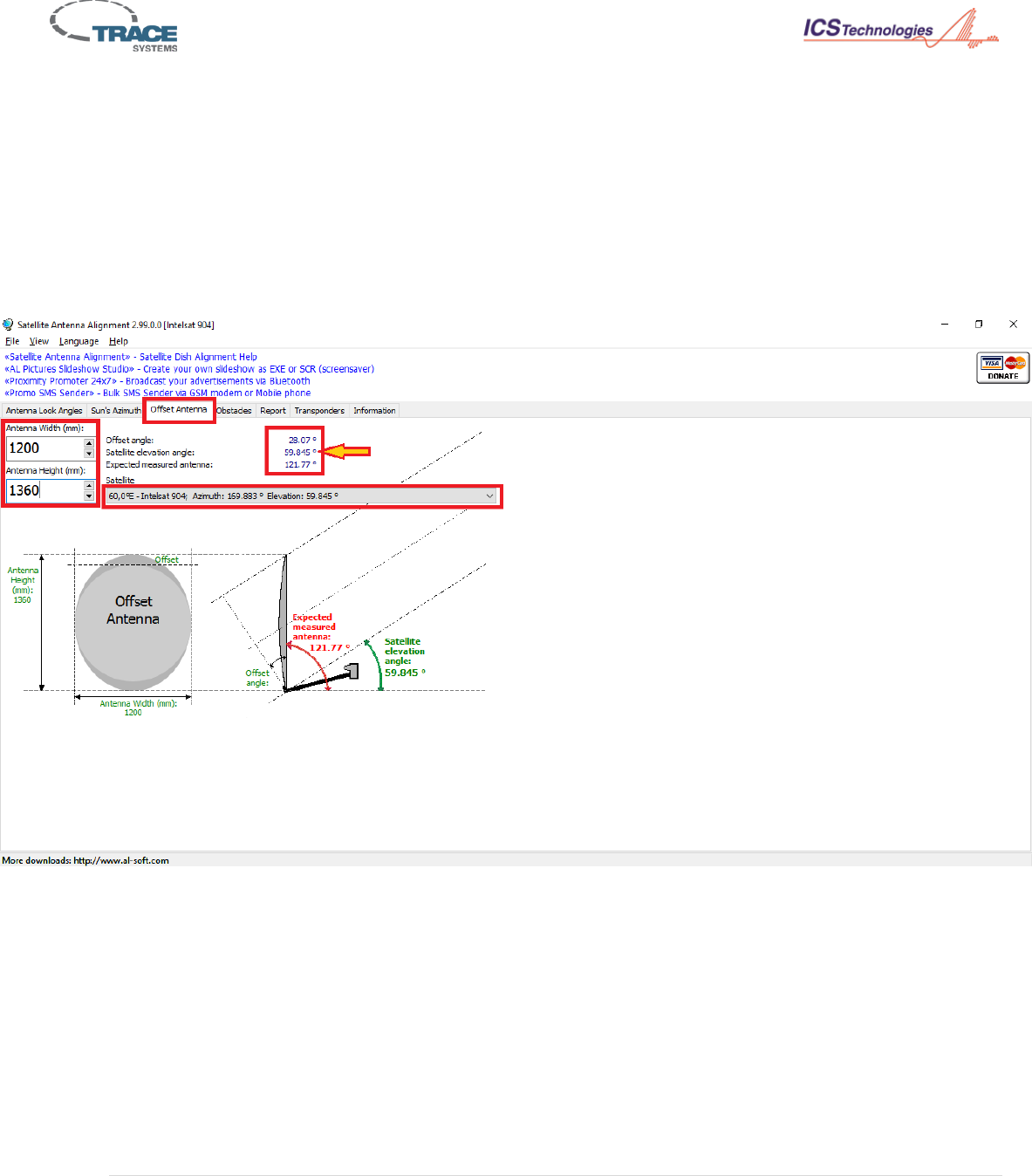

1. Click on Offset Antenna tab
2. Double check the Satellite name is INTELSAT 904 (IS-904) from the drop down menu
3. Enter the Antenna Width and Height in mm
4. The Program will calculate the Offset and Elevation angles as shown below.
Note: On the Skyware Antenna there is an elevation angle scale on the AZ/EL mount. This scale is for
the beam center of the offset antenna, so if set for actual elevation angle, you do not need to calculate
for the offset angle.
VSAT INSTALLATION INSTRUCTIONS
9 | 42

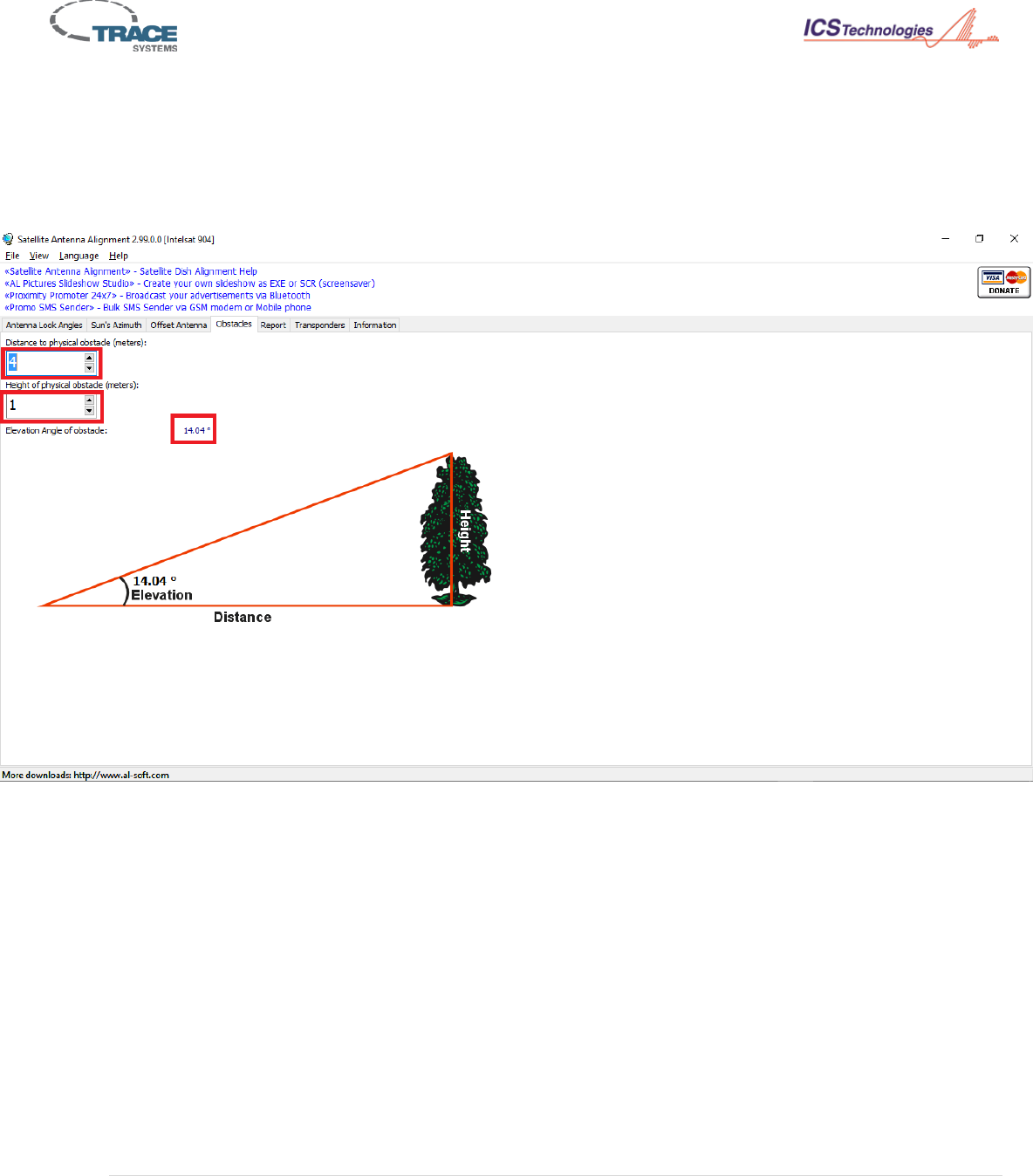

3.1.5 Checking the Obstacles
1. Click on Obstacles tab.
2. Enter the Distance and the Height of the Obstacle from the Elevation angle in meter
3. The Program will calculate the Elevation angle of Obstacle as shown below.
VSAT INSTALLATION INSTRUCTIONS
10 | 42
3.2 SATELLITE ANTENNA AND MOUNT
1. Assemble non-penetrating antenna mount.
2. Orient the mount roughly toward the satellite according to the provided azimuth heading in the
café IDP.
3. Apply ballast to the antenna mount (Sandbags or concrete blocks).
4. Place Az/EL mounting assembly on the mount pole. The elevation scale on the AZ/EL is for the
bore sight. The offset angle is included in this scale. Set elevation for actual value.
5. Attach reflector to Az/EL mount
6. Install feed support arms and lower feed boom arm
7. Attached BUC and LNB to the feed assembly
8. Install feed assembly with BUC and LNC to the feed mounting bracket on the antenna system.
9. Install coax cable from the BUC and LNB to the TX (BUC) and RX (LNB) ports on the iDirect
modem installed with the indoor equipment.
10. Connect laptop to the iDirect modem to begin the antenna pointing process.
Note: Full band LNB is provided. (L) 10.7-11.7GHz L.O. 9750MHz;
(H) 11.7-12.75GHz L.O. 10600MHz. NOC will provide site specific setting for
LNB.
VSAT INSTALLATION INSTRUCTIONS
11 | 42
3.3 MODEM CONNECTION AND CONNECTION TESTING
3.3.1 RJ45 Wiring Conventions
a) Patch Cable (Straight-through)
b) Crossover
VSAT INSTALLATION INSTRUCTIONS
12 | 42
3.3.2 Testing the Modem Connection
1. Open a command window by using Start.
2. Run and enter cmd.

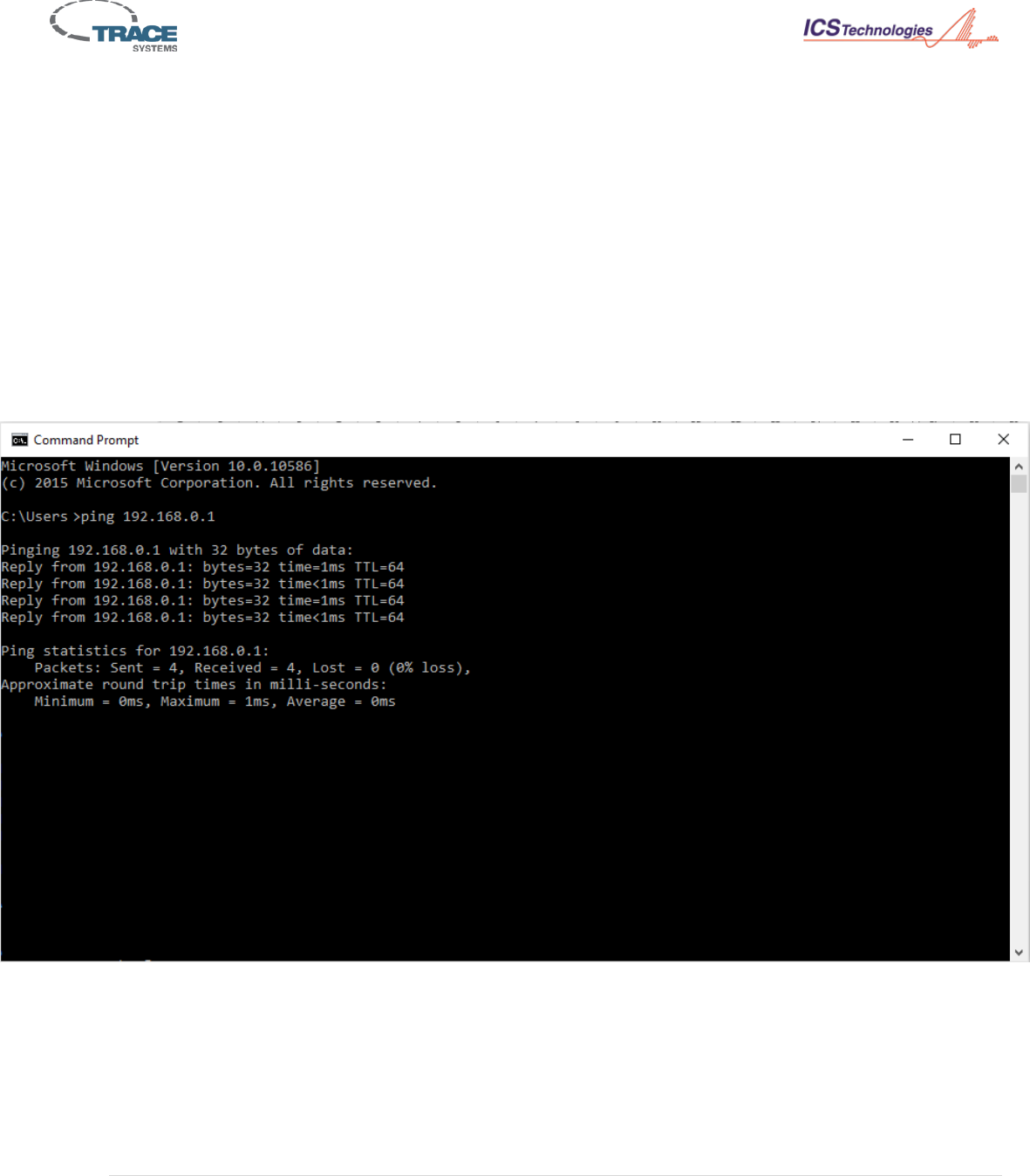

3. At the Command window prompt enter ping and the modem IP gateway 192.168.0.1
Note:
If you can reach the modem, you should get a reply similar to the following
Pinging 192.168.0.1 with 21 bytes of data:
Reply from 192.168.0.1: bytes=32 time<1ms TTL=128
If you cannot reach the switch, you should get a reply similar to the following:
Pinging 192.168.0.1 with 21 bytes of data:
Request timed out.
VSAT INSTALLATION INSTRUCTIONS
13 | 42
3.4 ANTENNA SETUP & POINTING USING ISITE WEB GUI (X7 ONLY)
3.4.1 Connect laptop to LAN port. A single DHCP address is issued to the laptop for commissioning
purposes. (Test the connection with the Modem as shown in step 3.3.2)
3.4.2 Launch a Web browser of your choice and go to https://192.168.0.1
Note: (Factory default address is: https://192.168.0.1)

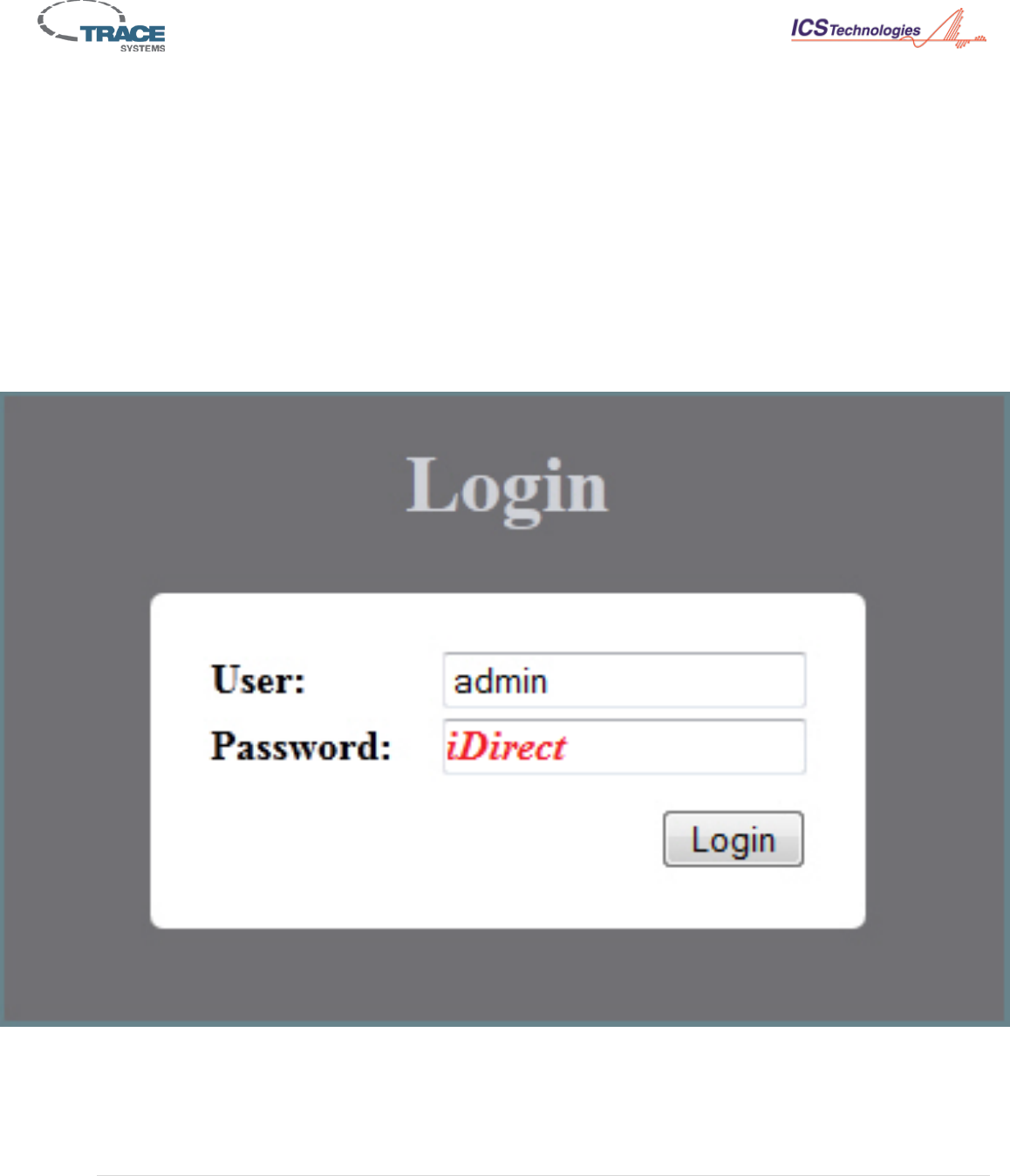

3.4.3 Login using:
User: admin
Password: iDirect
VSAT INSTALLATION INSTRUCTIONS
14 | 42
3.4.4 Dashboard

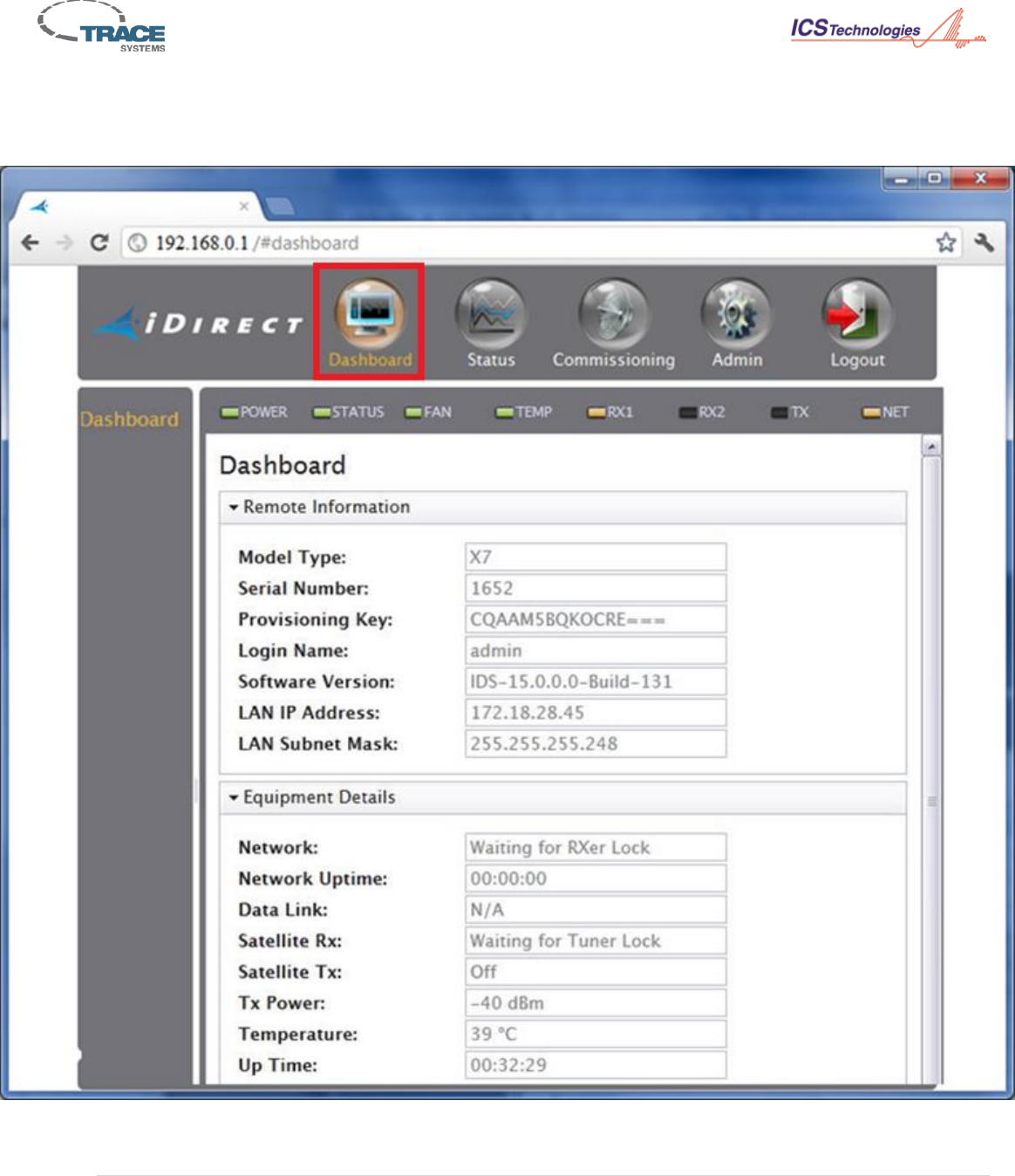

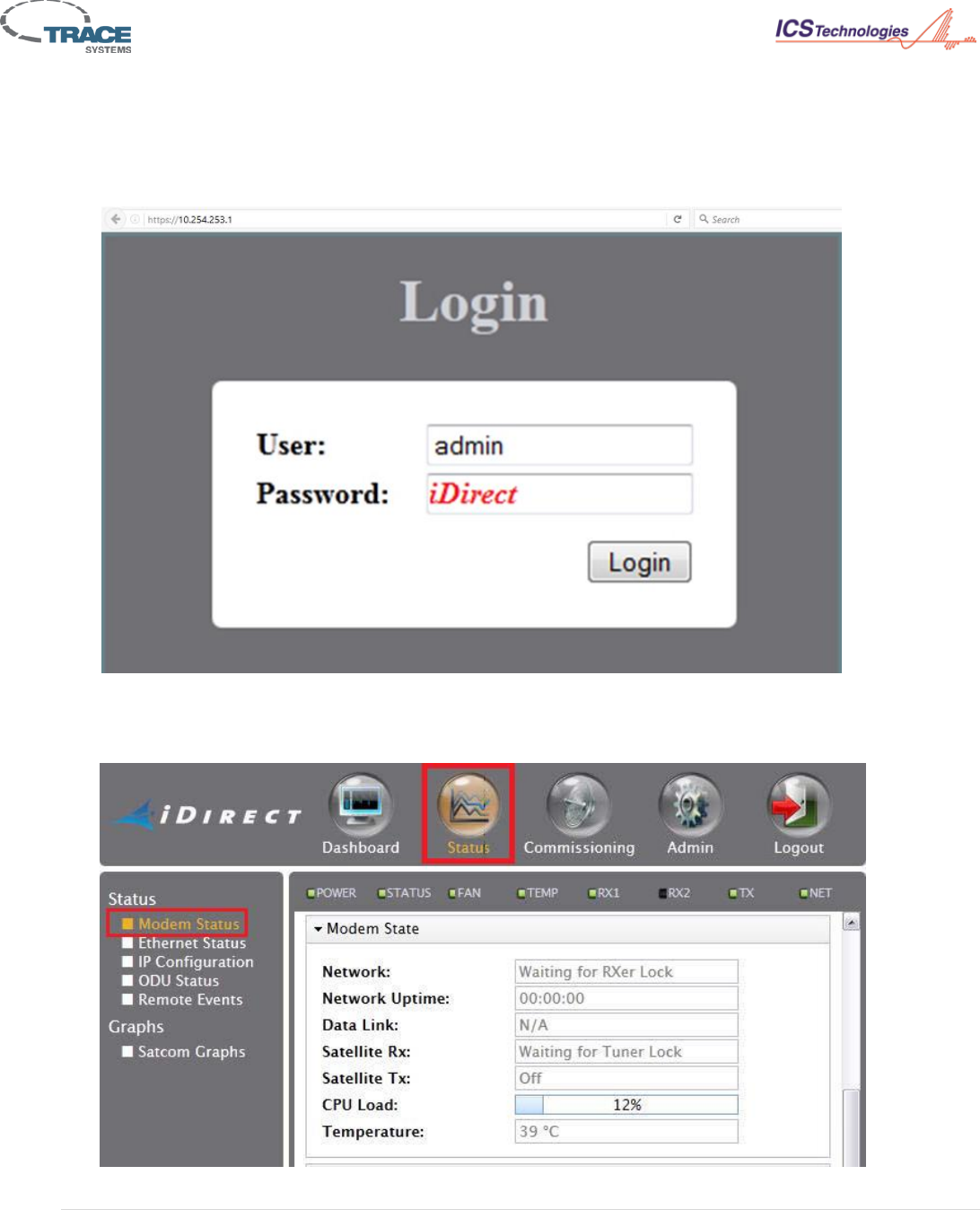

Navigate to Remote Information page to verify serial number and Software version with NOC.
VSAT INSTALLATION INSTRUCTIONS
15 | 42
3.4.5 Loading Option File

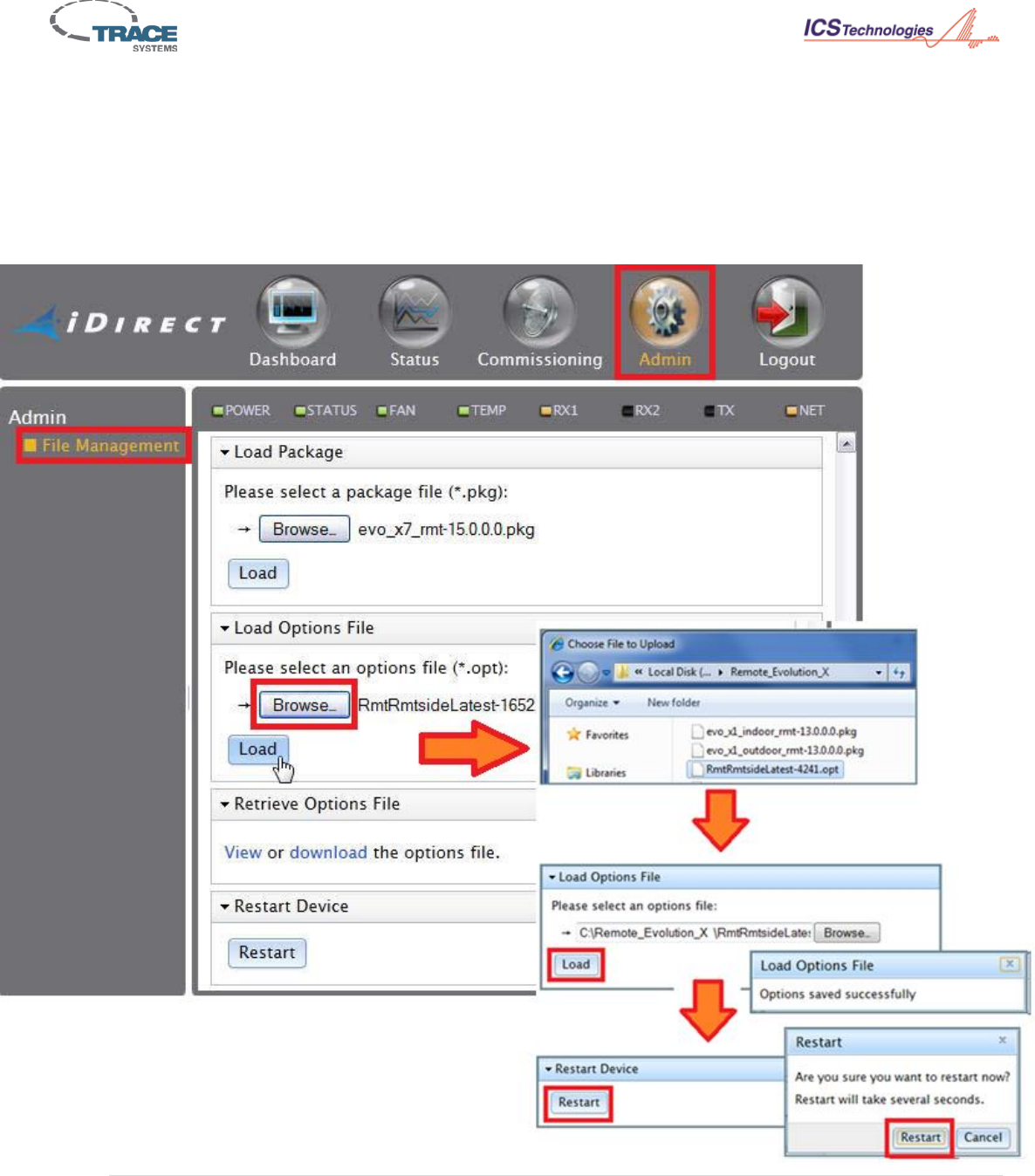

1. Click on File Management on the Admin Tab.
2. On Load Options File Tab click on Browse.
3. Locate the Option file in your PC.
4. Click Load to load the options file.
5. Wait for message saying the options file was saved successfully.
6. Navigate to Restart Device, then click Restart.
VSAT INSTALLATION INSTRUCTIONS
16 | 42

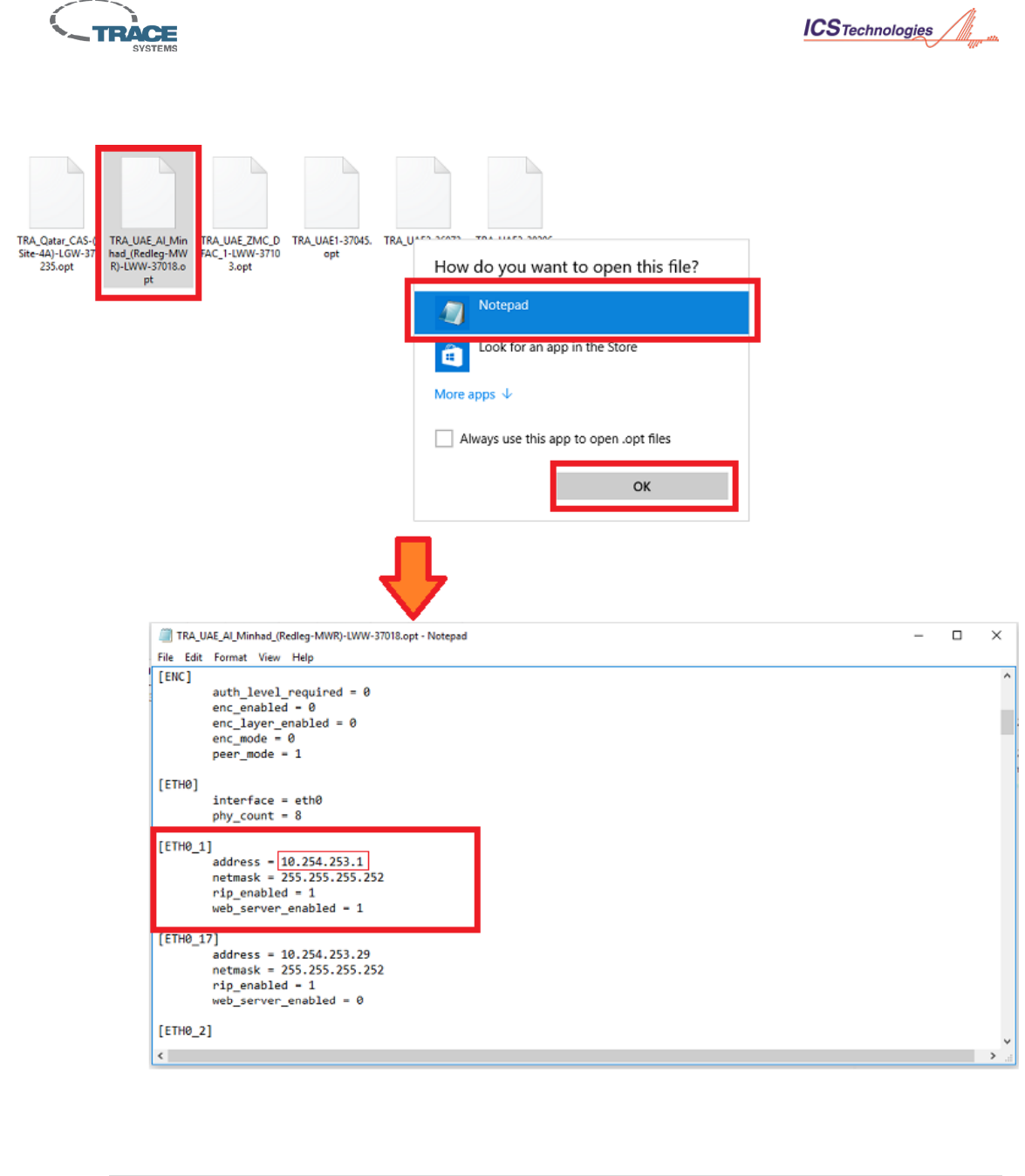

7. Open the Option file with Notepad for the Site you are working on and find the new IP in ETH0_1
(The Example below is for TRA_UAE_Al_Minhad_(Redleg-MWR)-LWW-37018.opt).
VSAT INSTALLATION INSTRUCTIONS
17 | 42

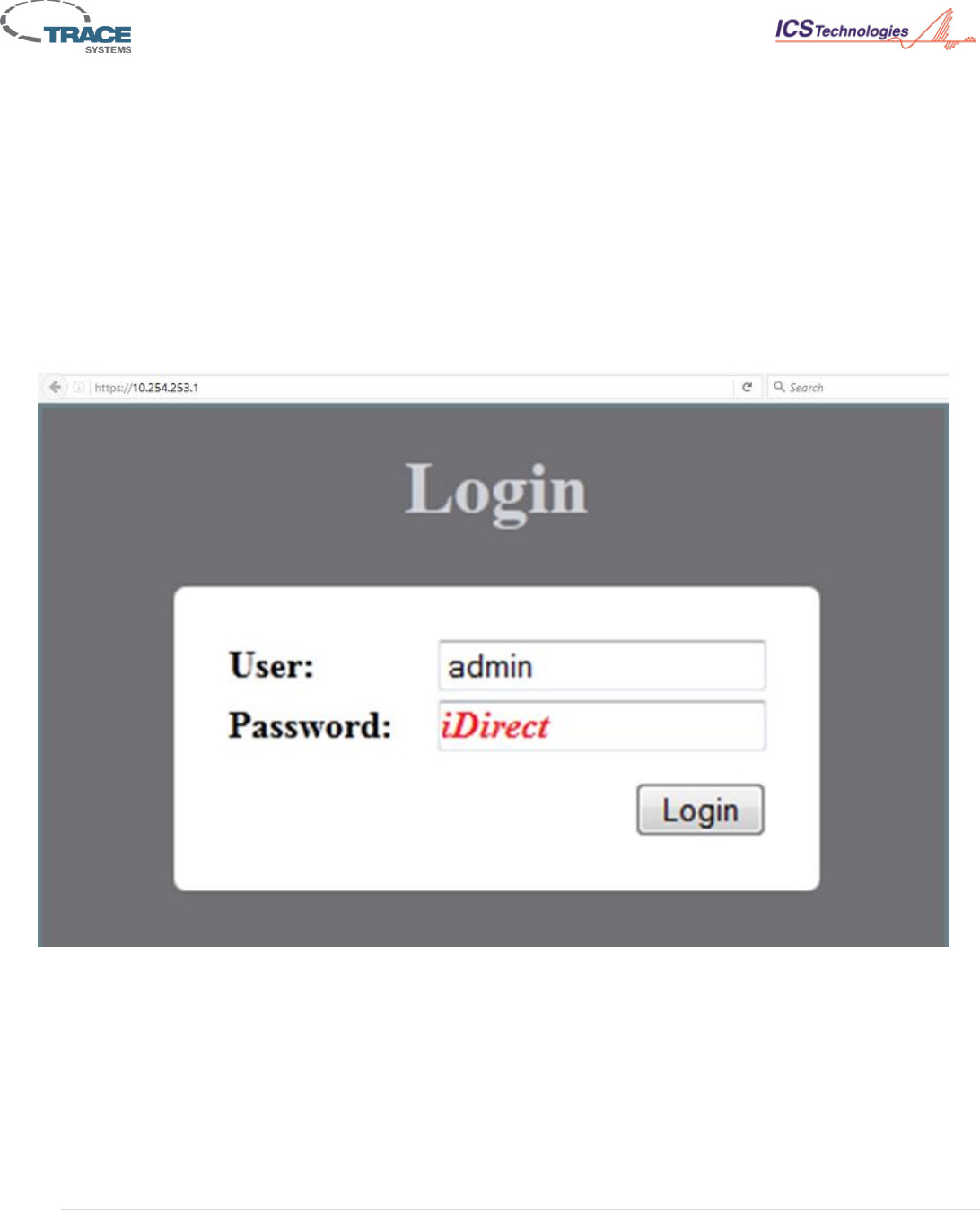

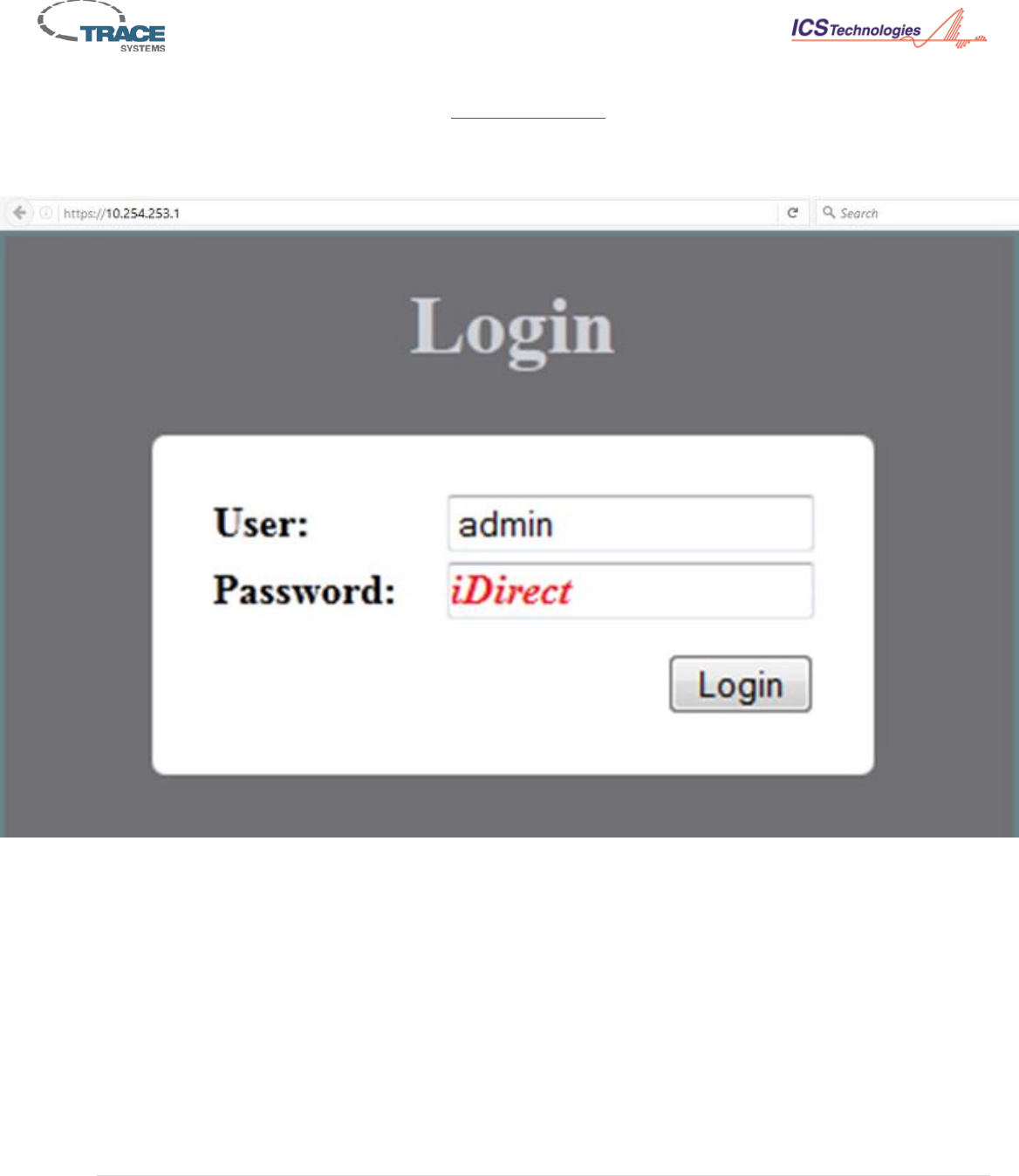

8. Open the Web browser and go to https://10.254.253.1 as highlighted in the Option File
9. Login using:
User: admin
Password: iDirect
VSAT INSTALLATION INSTRUCTIONS
18 | 42

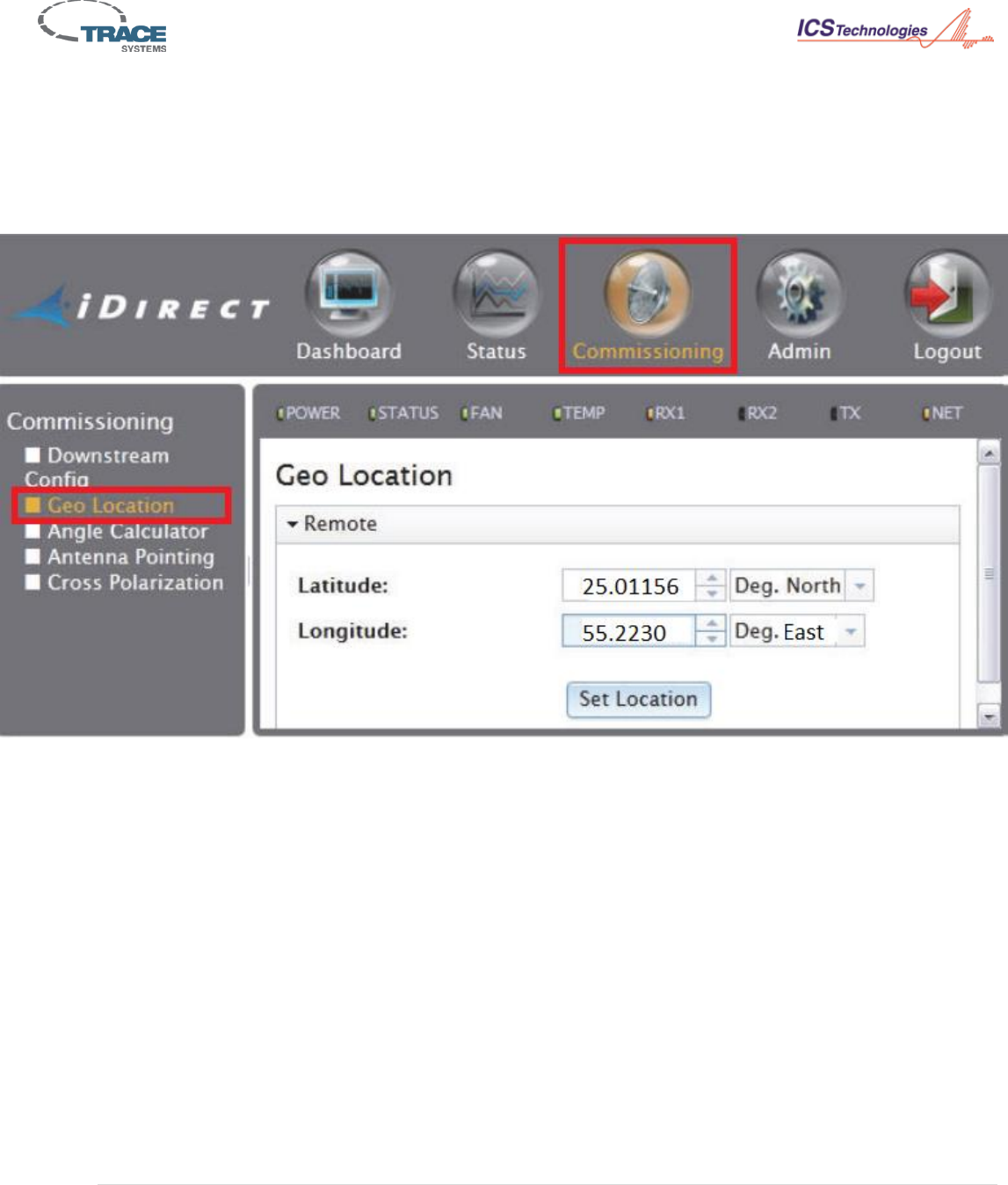

3.4.6 Setting Geo Location
1. After Log in.
2. Navigate to the Commissioning Page and click on Geo Location.
3. Enter in the site location Latitude and Longitude making sure to select appropriately Deg. North or South
and Deg. East or West.
(The below Location is not accurate please use the Site location)
VSAT INSTALLATION INSTRUCTIONS
19 | 42

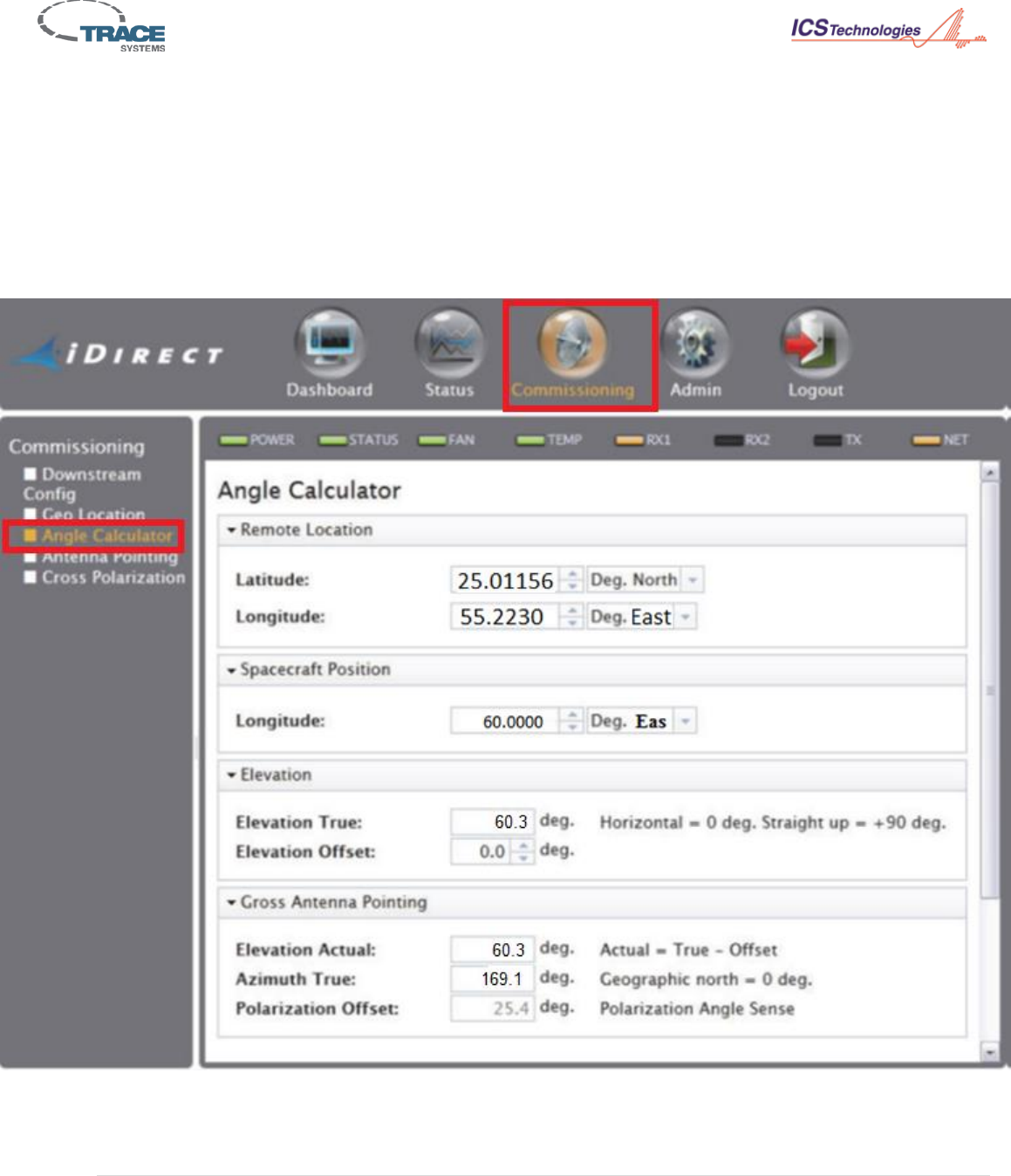

3.4.7 Calculating Look Angle
1. Click on Angle Calculator to calculate point angles in Commissioning Page.
2. Enter the site location Latitude and Longitude making sure to select appropriately Deg. North or South and
Deg. East or West.
3. Enter IS-33e Spacecraft Position. 60 degrees East Longitude.
4. Gross Antenna Pointing page displays the Elevation, Azimuth and Polarization Offsets for the antenna
setup. The Installation Design package Document contains the estimated azimuth, elevation and
polarization settings.
5. Roughly point the antenna based on these look angles.
VSAT INSTALLATION INSTRUCTIONS
20 | 42

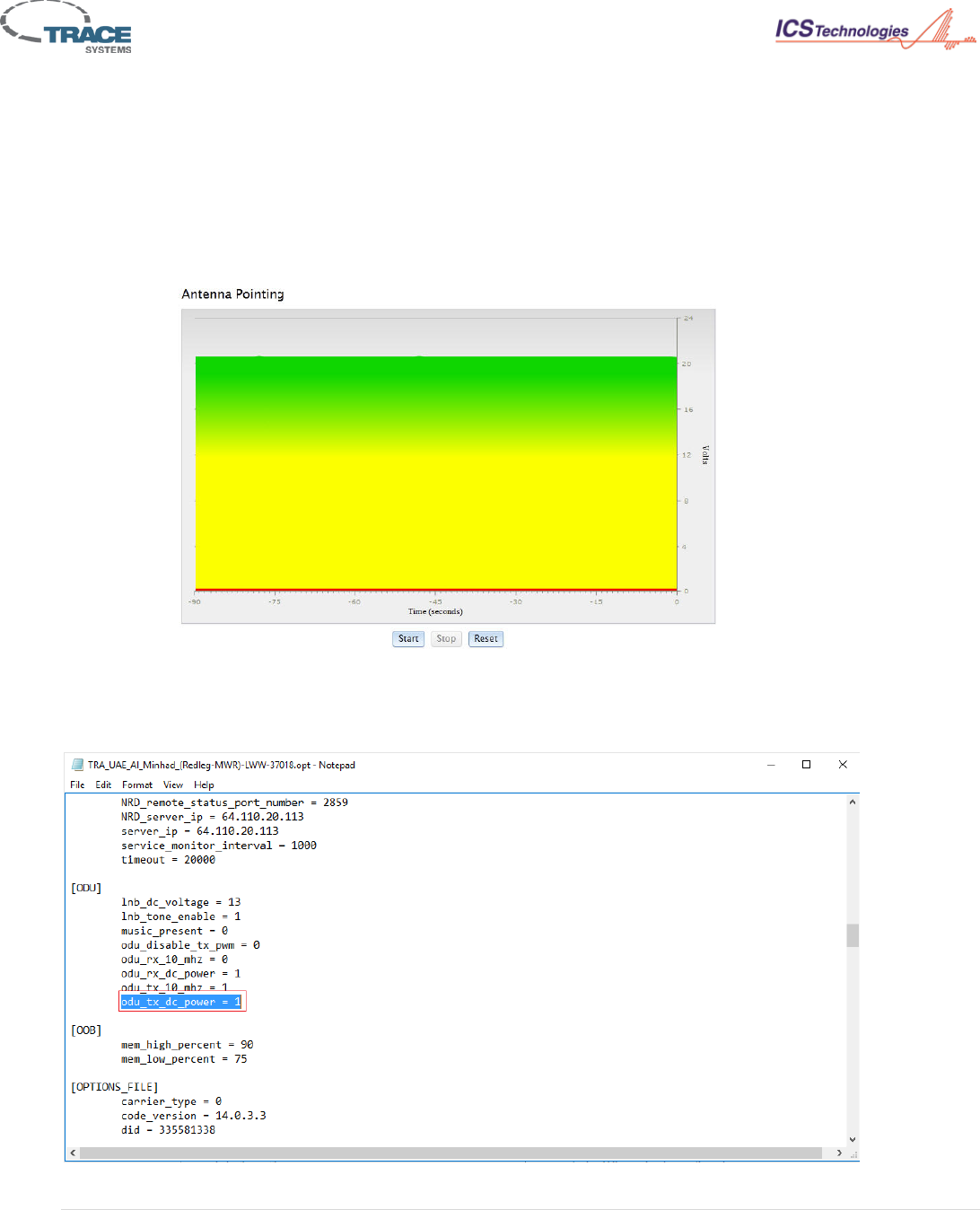

3.4.8 Antenna Pointing

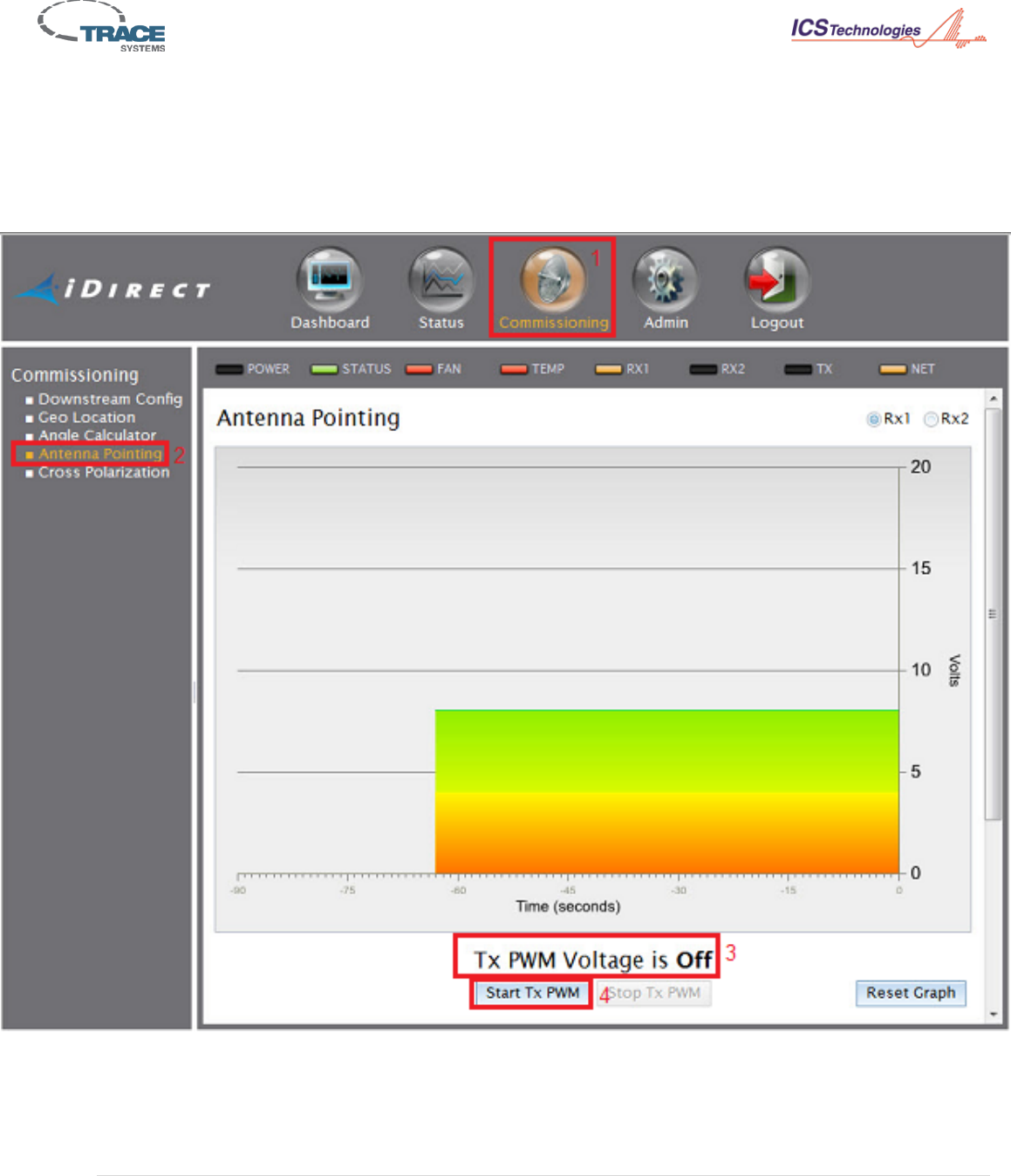

1. Click Commissioning, then click Antenna Pointing window in Dashboard
2. For X7 Modem click Rx1 in upper right corner.
3. Make sure that the TX coax cable is Disconnect from X7 modem. BUC voltage must be disabled.
Execute Tx iflDC off on the console/command line.
4. Click Start Tx PWM in Antenna Pointing window.
5. Slowly sweep the reflector a few degrees either side of the coarse azimuth pointing while observing the
voltage graph peak indicators. The bar graph progressively turns from red to yellow and then to green as
downstream carrier signal strength increase.
VSAT INSTALLATION INSTRUCTIONS
21 | 42
6. Move the antenna azimuth as to maximize the level of the green bar and the PWM output voltage.
7. If the downstream carrier signal is not found, increase or decrease the elevation setting in 2 degree
increments and repeat the azimuth sweep until the signal is found.
8. When locked on the carrier fine adjust the azimuth and elevation, then lock both the azimuth and elevation
axis in place. Fine adjust the polarization via the feed assembly to maximize voltage.
9. Record the final voltage reading.
10. On Antenna Pointing screen click Stop Tx PWM.
11. Power cycle the modem to exit antenna pointing mode.
Note: The modem provides DC Voltage to the BUC. Options File must be double checked to ensure TX
IFL DC is on (odu_tx_dc_power = 1) after antenna pointing is complete.
VSAT INSTALLATION INSTRUCTIONS
22 | 42
3.5 CROSS POLARIZATION TEST
(This Step requires the communication with NOC)
1. Call NOC. NOC will remotely activate CW on the X7. If NOC is unable to remotely access
the X7 then proceed with activating the CW locally using the following steps.
2. Power down the modem and remove the RX IFL coax cable from the modem.
3. Connect the TX IFL cable to the BUC and modem.
4. Power on the modem
5. Connect via Web iSite and login
User: admin
Password: iDirect
VSAT INSTALLATION INSTRUCTIONS
23 | 42

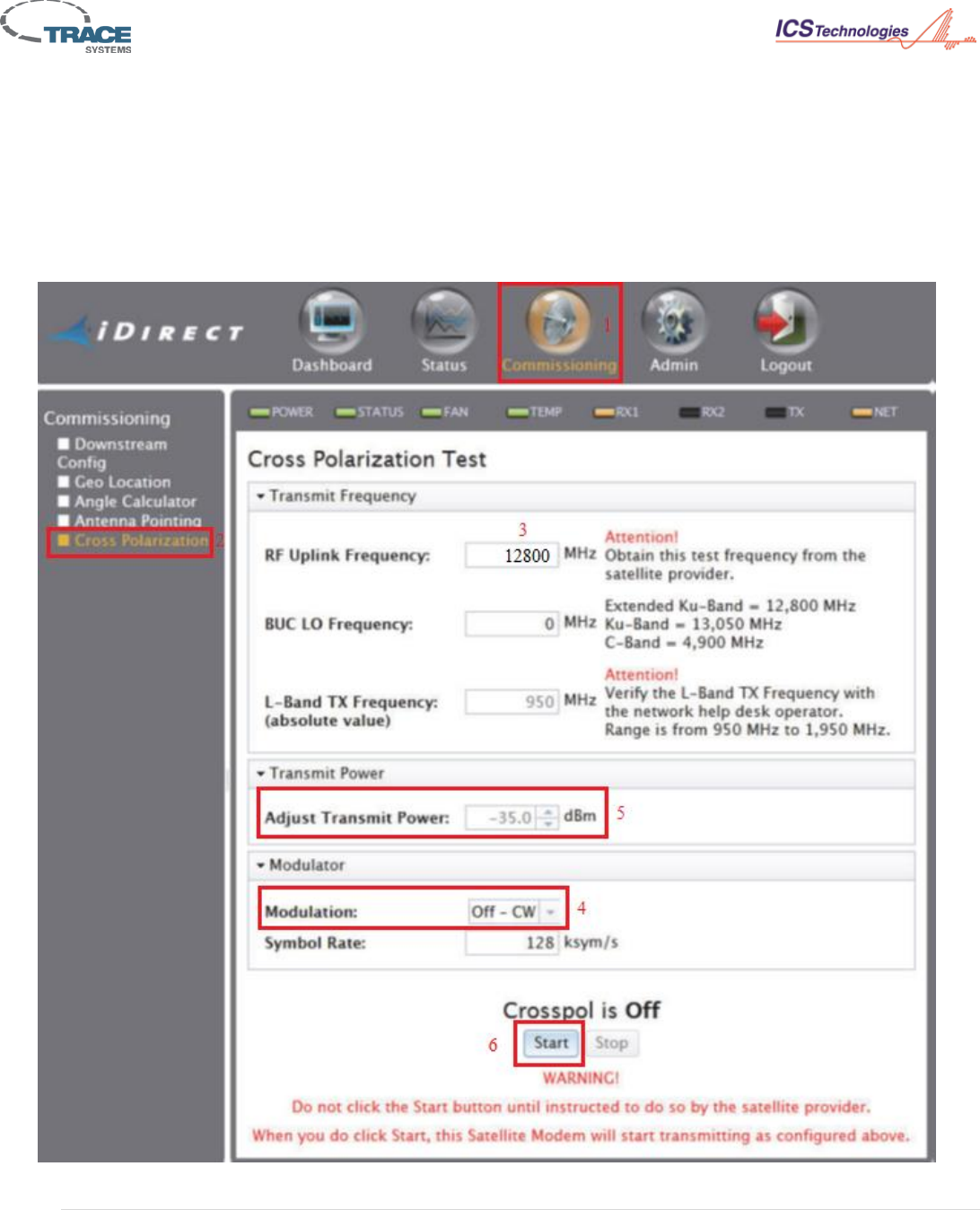

6. Click Commissioning from dashboard.
7. Click Cross Polarization.
8. Navigate to Transmit Frequency page.
9. Enter in RF uplink frequency (Test frequency provided by NOC) and BUC Local Oscillating Frequency
(12800MHz). The BUC LO may be present already if the Options File is loaded. The L-band TX
frequency will be calculated automatically.
10. Make sure Modulation is Off-CW.
11. Set Tx Power to -35dBm.
VSAT INSTALLATION INSTRUCTIONS
24 | 42
12. When instructed by the NOC, click Start.
13. This activates a Continuous Wave (CW) carrier.
14. Adjust transmit power up or down with NOC in the recommended power increments.
15. At the instruction of the NOC, rotate the feed assembly slowly in one direction. Wait for the NOC to take a
measurement and provide further instruction. Continue rotating the feed assembly in the direction specified
until the peak value is attained.
16. Further adjustments to azimuth and elevation may be required. The NOC will make recommendations if
further adjustments are necessary.
17. If the NOC determines that the antenna is peaked, then secure all fasteners.
3.6 1 DB COMPRESSION POINT & MAXIMUM POWER
(This Step requires the communication with NOC)
1. In Transmit Power field, increase power in 1dBm increments with the NOC.
2. Wait for measurement by NOC. If a 1dBm increase is observed, continue increasing in 1 dBm increments
with the NOC until a nonlinear response is measured.
3. Once the measured power does not reflect the 1dBm increase on the modem, the BUC is in the non-linear
range. Increase as instructed by the NOC until asked to stop.
4. Begin decreasing power until a 1:1 ratio is observed between TX modem power adjustment and measure
power reading on the satellite.
5. A 1 dBm increment down from this value is the 1 dB compression point. Record the Modem Transmit
Power Value.
6. Click Stop to turn off the CW carrier.
3.7 ACQUIRING THE NETWORK
1. Remove power from the satellite modem.
2. Reconnect the RX IFL coax cable to the modem RX In port.
3. Reconnect power to the modem.
4. Monitor the modem LEDs or Web iSite dashboard to observe boot up and network acquisition progress.
RX lock should be attained locking on receive outbound carrier.
5. NOC will verify if they see the remote active in the network via iMonitor.
6. TX and Net LEDs will turn green.
VSAT INSTALLATION INSTRUCTIONS
25 | 42
3.8 CHECKING REMOTE STATUS
1. Login to modem
User: admin
Password: iDirect
2. Click Status button in navigation bar then click Modem Status.
3. Good Status: Power, Status, Fan, Temp, RX1, TX and NET all green.
VSAT INSTALLATION INSTRUCTIONS
26 | 42
3.9 WIRELESS ACCESS POINTS
1. Install and Mount Wireless access points using either the indoor mount or outdoor mount.
2. Connect Ethernet cable with weather tight connectors on the WAP. Install antennas to the top side N-Type
Connectors (Two antennas per WAP) install weather tight Ethernet PoE connector, install antennas
3. Plug access points into designated ports on switch identified in the Installation Design Package (IDP).
4. WAP blinking green is online and ready. Solid green is not ready. (5-10 minutes to be ready)
5. SSID: MWRCAFE; PW: MWRU$3r! (all WAPs, all cafes)
3.10 CAFÉ COMMISSIONING
1. Once the satellite modem is active, notify the NOC start the software download and café commissioning
process.
2. The café must receive a software update for the captive portal. The NOC will initiate the captive portal
equipment update over the satellite link.
3. The NOC will verify the thin client image and VoIP firmware. Connectivity/ping tests will be performed
by the NOC to test connectivity to remote café managed devices. This will verify the Management VLAN
connectivity.
3.11 TESTING USING IPERF3
1. Check the laptop operating system type (32-bit (x86) or 64-bit)
VSAT INSTALLATION INSTRUCTIONS
27 | 42
2. Unzip the files of iperf-3.1.3-win32.zip (32bit) or iperf-3.1.3-win64 (64bit).
3. Create a folder named iperf on the root directory of your test laptop.
4. Copy the content of iperf into the folder iperf.
VSAT INSTALLATION INSTRUCTIONS
28 | 42
5. Local PC/Laptop must be plugged into switch emulating local thin client. A DHCP address will be issued
to local test PC. For wireless site, local laptop will receive DHCP address from wireless network.
6. Access iperf folder on laptop via the command line to start iperf3 tests.
7. Open a command window by using Start Run and enter cmd.
8. At the Command window prompt enter cd.. Until you are on C:\ directory
9. Enter cd iperf
10. After you are in the directory C:\iperf> Run 90 second iperf3 bandwidth test in either direction from
remote café accessing public iperf3 server. This confirms access to Internet and CIRs in both directions per
café. Public iperf3 Server: “47.206.2.150”:
a) Test from café to server: iperf3 -c 47.206.2.150 -p 55201 -t 90 -i 2 --logfile [sitename].txt
b) Test from server to café: iperf3 -c 47.206.2.150 -p 55201 -t 90 -i 2 -R >>[sitename].txt
Note: the Syntax will look like the following example:
C:\iperf>iperf3 -c 47.206.2.150 -p 55201 -t 90 -i 2 --logfile UAE-LH-N-001.txt
C:\iperf>iperf3 -c 47.206.2.150 -p 55201 -t 90 -i 2 -R >>UAE-LH-N-001.txt
VSAT INSTALLATION INSTRUCTIONS
29 | 42
11. Executing these commands starts iperf3 test and exports results to log file in the iperf3 directory on local
PC.
Note: Check the log file for data. It may take several attempts for the public server to respond.
12. Verify the test results.
13. Send test plan results and iperf3 log file to the NOC.
3.12 POST-COMMISSIONING ACTIVITIES
1. Document site configuration for updates to the IDP.
a) Photos of site including indoor and outdoor equipment if permissible
b) Update floor plan to show placement of equipment and general site layout (rack equipment
location, thin clients placement and phones)
c) Power Connections and Power Type
2. Compile site information and send to Trace NOC.
3. Instruct Site POC on the café setup and location of equipment
4. Provide basic training on creating an account and the wireless network
5. SSID
3.13 GOVERNMENT ACCEPTANCE
1. Perform Site Walk Through and Inspection
2. Display executed test plan to Site POC.
3. Show iperf3 bandwidth test results to Site POC
4. Gain concurrence site has been accepted through verbal or written acceptance (email, text)
5. Do not leave behind IDP or test plan.
VSAT INSTALLATION INSTRUCTIONS
30 | 42
4 BOQ
4.1 EXT150300428 | TRACE UAE AL MINHAD (REDLEG LIVING 1) - LGW
QTY
Unit
Part Number
HS
ECCN
Description
Unit
Price
Total Price
VSAT System Components with Accessories
1
Each
55072-229
7318.15.2000
EAR 99
Andrew WR229, HALF THICKNESS FLANGE
GASKET, CPR229G, CPR229G
$11.55
$11.55
1
Each
62-1236201
8544.20.0000
EAR 99
Skyware Global 1.2M Type 123, Class II, Cross-
Pol Feed, Ku-Band Receive/Transmit Antenna
System.
$251.21
$251.21
250
Each
BC-0121-2
7318.15.2000
EAR 99
LMR-400 50-Ohm Coax Bulk Cable
$0.78
$195.00
3
Each
EZ-400-NMC-2-D
8544.42.0000
EAR 99
TMS N-Male (plug) LMR-400 connector, hex/knurl
coupling nut, non-solder pin, 2-piece design
$12.12
$36.36
3
Each
EZ-600-FMH-75
8544.42.0000
EAR 99
F-Male (plug) crimp connector (non-solder pin) for
LMR-600-75
$22.09
$66.27
1
Each
IDIREC-K0000103-0009
8517.62.0010
5A991b
KIT,X7 SATELLITE ROUTER,1GB,W/ +24V
POWER SUPPLY, ROHS
$2,037.45
$2,037.45
250
Each
LMR-600-75
8544.20.0000
EAR 99
LMR-600 1/2" Flexible Low Loss Coax - Standard
cable, Black PE jacket, 75 Ohm
$1.29
$322.50
1
Each
NJR2841S
8517.62.0050
5A991
NJR2841S Switchable Ku-Band PLL LNB (10.7 to
12.75 GHz)
$218.26
$218.26
1
Each
NJT5218N
8517.62.0050
5A991
NJRC 8W Universal Ku-band BUC, N Conn., VDC
thrgh IFL Port
$1,850.00
$1,850.00
2
Each
PE9389
8536.69.4010
EAR 99
F MALE TO N FEMALE
$40.69
$81.38
Network Components with Accessories
1
Each
C2911-AX/K9
8517.62.0050
5A002.A.1
Cisco 2911 w/3 GE 4 EHWIC 1 SM 256MB CF
1GB DRAM IPB SEC AX
$1,655.00
$1,655.00
1
Each
NETWORK-MS
8544.20.0000
EAR 99
SNMP Card MGE UPS
$395.41
$395.41
1
Each
NOMADI-969-5900-050
8517.69.0000
EAR99
AG 5900 GATEWAY, 500 DEVICE USERS, NSE
SOFTWARE W/1ST YEAR LICENSE
$2,800.00
$2,800.00
1
Each
PW9130I1000R-XL2U
8517.62.0050
5A991.c
Eaton 9130 RM UPS, 230V, 50/60Hz,
1000VA/900W, C14 In, (6)C13 Out
$729.96
$729.96
1
Each
PWR-2911-POE
8517.62.0050
EAR99
Cisco 2911 AC Power Supply with Power Over
Ethernet
$157.50
$157.50
1
Each
QUESTT-FE4119-20-02T
8544.42.0000
EAR 99
RACK - 3' 20 RMS 19" X 32" BLACK 410 SERIES
TAPPED RAILS
$515.00
$515.00
1
Each
SM-ES2-24-P
8517.62.0050
5A991.c
Enhanced EtherSwitch L2 SM 23 FE 1 GE
POE
$942.75
$942.75
2
Each
STAYON-3679
7318.15.2000
EAR 99
POWER STRIP EURO,RM SCHUKO PLUG TO
8 CEE7/7 RECEPTACLE,250 VOLT.
$49.00
$98.00
1
Each
SUPERM-MARITIME-
CTO-2
8517.62.0050
5A002.A.1
SERVER - NR 1U SC514 - SINGLE PWS
CHASSIS MCP-290-00056-0N (INCLUDE 95-
SERVER-OS)
$3,727.60
$3,727.60
3
Each
CISCO-AIR-CAP1532E-
B-K9
8517620050
5A002.A.1
Cisco Aironet 1532E - wireless access point
$538.20
$1,614.60
1
Each
CISCO-AIR-CT2504-15-
K9
8517620050
5A002.A.1
CISCO 2504 WIRELESS CONTROLLER WITH
16 AP USER LICENSE
$1,947.50
$1,947.50
1
Each
CISCO-ASA5508-K9
8517620050
5A002.A.1
Cisco ASA 5508-X with FirePOWER Services -
$1,294.20
$1,294.20
1
Each
CISCO-WS-C2960X-
48FPS-L
8517620050
5A991.C
Cisco Catalyst 2960X-48FPS-L - switch - 48
$2,374.20
$2,374.20
Installation Materials and Tools
10
Each
10808
7318.15.2000
EAR 99
Die Cast Double expansion Anchor 3/8
$1.50
$15.00
2
Each
1348
7318.15.2000
EAR 99
Machine screws, Phillips pan head, Stainless
steel 18-8, #8-32 x 3/4 Each
$0.27
$0.54
3
Each
1365
7318.15.2000
EAR 99
Machine screws, Phillips pan head, Stainless
steel 18-8, #10-32 x 3/8
$0.14
$0.42
2
Each
1368
7318.15.2000
EAR 99
Machine screws, Phillips pan head, Stainless
steel 18-8, #10-32 x 3/4"
$0.14
$0.28
VSAT INSTALLATION INSTRUCTIONS
31 | 42
1
Each
2080
8544.42.0000
EAR 99
AC Plug IEC60320 C14 14awg Male Straight
Entry UL
$11.22
$11.22
1
Each
23-3/4X30FT
7318.15.2000
EAR 100
3M Type 23 3/4X30FT Self Fusing Tape
$14.46
$14.46
10
Each
2561
7318.15.2000
EAR 99
Hex machine screw nuts, Stainless steel 18-8,
#10-32 Each
$0.14
$1.40
1
Each
2667
8504.40.6001
EAR 99
AC Male Power Plug Cont. Europe CEE7/7 16
Amp 250 Volt Black Straight Entry w/ Strain Relief
$8.00
$8.00
29
Each
2946
7318.15.2000
EAR 99
2946 - #10 Stainless Steel Flat Washer
$0.24
$6.96
12
Each
2947
7318.15.2000
EAR 99
1/4 Stainless Steel Flat Washer
$0.14
$1.68
2
Each
2955
7318.15.2000
EAR 99
AC Connector IEC60320 C13 Female 14awg
Straight Entry
$14.35
$28.70
12
Each
2956
7318.15.2000
EAR 99
Lock washers, Stainless steel 18-8, 1/4"
$0.14
$1.68
10
Each
3062
7318.15.2000
EAR 99
USS Flat Washere Steel grade 8
$0.17
$1.70
1
Each
33SUPER-3/4X66FT
7318.15.2000
EAR 99
Scotch® Super 33+™ Vinyl Electrical Tape, 3/4 in
x 66 ft (19 mm x 20.1 m)
$5.02
$5.02
10
Each
4874
7318.15.2000
EAR 99
10-32 x 3/4 Stainless Steel Mach Screw
$0.55
$5.50
10
Each
4876
7318.15.2000
EAR 99
Socket cap, Stainless steel 18-8, #10-32 x 1-1/4"
$0.27
$2.70
12
Each
4883
7318.15.2000
EAR 99
Socket head screws, Stainless steel 18-8, 1/4-20
x 3/4 Each
$0.34
$4.08
4
Each
5413
8544.20.0000
EAR 99
3 ft. (10A) IEC C14 to IEC C13 Extension Cable
(x1) - 10A
$7.74
$30.96
40
Each
5566
7318.15.2000
EAR 99
Stainless steel 18-8 flat washers
$0.14
$5.60
3
Each
5612
8544.20.0000
EAR 99
6 ft. (10A) IEC C14 to IEC C13 Extension Cable
$10.24
$30.72
1
Each
6110063-04
8544.20.0000
EAR 99
1.2M NPM, 1.6M X 1.6M, 73mm MAST,W/ PADS
$133.62
$133.62
1
Each
73560
7318.15.2000
EAR 99
Grease, Silicone Compound DM(TM), 5.3 oz
$16.33
$16.33
1
Each
7630
7318.15.2000
EAR 99
Geist BRELN PDU 102-0020/16
$100.00
$100.00
5
Each
7680
7318.15.2000
EAR 99
Stay Online Cat6 Crossover Cable - Red 10 Foot
$10.22
$51.10
5
Each
8276Z
7318.15.2000
EAR 99
Stay Online Cat6 (Cat5e Compatible) Ethernet
Patch Cable - 6 Foot Green
$3.00
$15.00
10
Each
856
7318.15.2000
EAR 99
HEX Bolt 3/8 x 2-1/2"500
$0.24
$2.40
17
Each
9002
7318.15.2000
EAR 99
Cable Yung-Li Cord Bulk 14x3c SJT 105* 300
Volt Black UL. INDOORS --IN FEET--
$1.09
$18.53
40
Each
9668
7318.15.2000
EAR 99
Machine screw, Phillips pan head, Stainless steel
18-8, #12-24 x 5/8"
$0.17
$6.80
19
Each
BOLTDE-2955
7318.15.2000
EAR 99
#2955 Lock washers, Stainless steel 18-8, #10
$0.05
$0.95
50
Each
BT4LH-L0
7318.15.2000
EAR 99
Cable Tie with metal barb, 14.9", Light-Heavy
cross section
$0.58
$29.00
8
Each
CM-1221
7318.15.2000
EAR 99
3.0" x 3.5" cable ring - rack cable management
$8.35
$66.80
2
Each
INTERN-70120
7318.15.2000
EAR 99
RECEPTACLE EUROPEAN SHUCKO
WEATHERPROOF SINGLE RECEPTACLE
GRAY HINGED COVER
$7.09
$14.18
2
Each
INTERN-70125
7318.15.2000
EAR 99
MOUNT BOX WEATHERPROOF SURFACE
MOUNT BOX FOR RECEPTACLES NO.70124
AND 70120
$5.96
$11.92
4
Each
INTERN-70141
7318.15.2000
EAR 99
PLUG BLACK EUROPEAN SCHUCKO PLUG
STRAIGHT CORD GRIP MEETS CEE 7-7
REQRS MATES
$5.15
$20.60
3
Each
INTERN-81131X1M
7318.15.2000
EAR 99
EUROPEAN CEE7/7 SCHUKO 10 AMPERE 230-
250V POWER CORD, (EU1-16P) DIN 49441
PLUG, IEC 60320 C-13 CONN
$5.63
$16.89
1
Each
ITR040202040
7318.15.2000
EAR 99
Victron Energy Isolation Transformer 2000W
115/230V
$575.66
$575.66
1
Each
PET10-6000
7318.15.2000
EAR 99
4 ft. Grounding Rod
$8.30
$8.30
1
Each
PK9GTACP
7318.15.2000
EAR 99
9 Terminal Ground Bar Kit
$6.29
$6.29
50
Each
PLT2S-C20
7318.15.2000
EAR 99
PLT2S-C20
$0.25
$12.50
15
Each
PV14-8R-C
8544.42.0000
EAR 99
PV14-8R-L Ring Terminal Lug
$0.88
$13.20
10
Each
PV14-P47-E
8544.42.0000
EAR 99
Pin Terminal, 16 - 14 AWG, vinyl insulated, .49
pin length.
$0.99
$9.90
VSAT INSTALLATION INSTRUCTIONS
32 | 42
5
Each
PV6-8R-T
8544.42.0000
EAR 99
Ring Terminal, large wire, 6 AWG, #8 stud size,
vinyl insulated
$2.90
$14.50
1
Each
SLW
8544.20.0000
EAR 99
3M Scotchcode Wire Marker Write-On Dispenser
SLW, Wire O.D. 0.23 to 1.32 Inches (includes
SMP pen)
$67.68
$67.68
22
Each
TFFN-16-STR-GRN-
500S
7318.15.2000
EAR 99
TFFN-16-STR-GRN-500S Wire 600V AWG 16
Ground. Wire
$0.15
$3.30
310
Each
THHN-6-STR-GRN-500S
8544.20.0000
EAR 99
THHN-6-STR-GRN-500S WIRE 600V AWG 6
Grnd.Wire
$0.33
$102.30
1
Each
WL-8
1515.90.8002
EAR 99
American Grease Stick - White Lithium Grease,
8oz
$7.38
$7.38
1289
Total FOB (In USD)
$24,823.45
VSAT INSTALLATION INSTRUCTIONS
33 | 42
4.2 EXT150300427 | TRACE UAE AL MINHAD (REDLEG LIVING 3) – LGW
QTY
Unit
Part Number
HS
ECCN
Description
Unit
Price
Total Price
VSAT System Components with Accessories
1
Each
55072-229
7318.15.2000
EAR 99
Andrew WR229, HALF THICKNESS FLANGE
GASKET, CPR229G, CPR229G
$11.55
$11.55
1
Each
62-1236201
8544.20.0000
EAR 99
Skyware Global 1.2M Type 123, Class II, Cross-
Pol Feed, Ku-Band Receive/Transmit Antenna
System.
$251.21
$251.21
250
Each
BC-0121-2
7318.15.2000
EAR 99
LMR-400 50-Ohm Coax Bulk Cable
$0.78
$195.00
3
Each
EZ-400-NMC-2-D
8544.42.0000
EAR 99
TMS N-Male (plug) LMR-400 connector, hex/knurl
coupling nut, non-solder pin, 2-piece design
$12.12
$36.36
3
Each
EZ-600-FMH-75
8544.42.0000
EAR 99
F-Male (plug) crimp connector (non-solder pin) for
LMR-600-75
$22.09
$66.27
1
Each
IDIREC-K0000103-0009
8517.62.0010
5A991b
KIT,X7 SATELLITE ROUTER,1GB,W/ +24V
POWER SUPPLY, ROHS
$2,037.45
$2,037.45
250
Each
LMR-600-75
8544.20.0000
EAR 99
LMR-600 1/2" Flexible Low Loss Coax - Standard
cable, Black PE jacket, 75 Ohm
$1.29
$322.50
1
Each
NJR2841S
8517.62.0050
5A991
NJR2841S Switchable Ku-Band PLL LNB (10.7 to
12.75 GHz)
$218.26
$218.26
1
Each
NJT5218N
8517.62.0050
5A991
NJRC 8W Universal Ku-band BUC, N Conn., VDC
thrgh IFL Port
$1,850.00
$1,850.00
2
Each
PE9389
8536.69.4010
EAR 99
F MALE TO N FEMALE
$40.69
$81.38
Network Components with Accessories
1
Each
C2911-AX/K9
8517.62.0050
5A002.A.1
Cisco 2911 w/3 GE 4 EHWIC 1 SM 256MB CF
1GB DRAM IPB SEC AX
$1,655.00
$1,655.00
1
Each
NETWORK-MS
8544.20.0000
EAR 99
SNMP Card MGE UPS
$395.41
$395.41
1
Each
NOMADI-969-5900-050
8517.69.0000
EAR99
AG 5900 GATEWAY, 500 DEVICE USERS, NSE
SOFTWARE W/1ST YEAR LICENSE
$2,800.00
$2,800.00
1
Each
PW9130I1000R-XL2U
8517.62.0050
5A991.c
Eaton 9130 RM UPS, 230V, 50/60Hz,
1000VA/900W, C14 In, (6)C13 Out
$729.96
$729.96
1
Each
PWR-2911-POE
8517.62.0050
EAR99
Cisco 2911 AC Power Supply with Power Over
Ethernet
$157.50
$157.50
1
Each
QUESTT-FE4119-20-
02T
8544.42.0000
EAR 99
RACK - 3' 20 RMS 19" X 32" BLACK 410 SERIES
TAPPED RAILS
$515.00
$515.00
1
Each
SM-ES2-24-P
8517.62.0050
5A991.c
Enhanced EtherSwitch L2 SM 23 FE 1 GE
POE
$942.75
$942.75
2
Each
STAYON-3679
7318.15.2000
EAR 99
POWER STRIP EURO,RM SCHUKO PLUG TO
8 CEE7/7 RECEPTACLE,250 VOLT.
$49.00
$98.00
1
Each
SUPERM-MARITIME-
CTO-2
8517.62.0050
5A002.A.1
SERVER - NR 1U SC514 - SINGLE PWS
CHASSIS MCP-290-00056-0N (INCLUDE 95-
SERVER-OS)
$3,727.60
$3,727.60
3
Each
CISCO-AIR-CAP1532E-
B-K9
8517620050
5A002.A.1
Cisco Aironet 1532E - wireless access point
$538.20
$1,614.60
1
Each
CISCO-AIR-CT2504-15-
K9
8517620050
5A002.A.1
CISCO 2504 WIRELESS CONTROLLER WITH
16 AP USER LICENSE
$1,947.50
$1,947.50
1
Each
CISCO-ASA5508-K9
8517620050
5A002.A.1
Cisco ASA 5508-X with FirePOWER Services -
$1,294.20
$1,294.20
1
Each
CISCO-WS-C2960X-
48FPS-L
8517620050
5A991.C
Cisco Catalyst 2960X-48FPS-L - switch - 48
$2,374.20
$2,374.20
Installation Materials and Tools
10
Each
10808
7318.15.2000
EAR 99
Die Cast Double expansion Anchor 3/8
$1.50
$15.00
2
Each
1348
7318.15.2000
EAR 99
Machine screws, Phillips pan head, Stainless
steel 18-8, #8-32 x 3/4 Each
$0.27
$0.54
3
Each
1365
7318.15.2000
EAR 99
Machine screws, Phillips pan head, Stainless
steel 18-8, #10-32 x 3/8
$0.14
$0.42
2
Each
1368
7318.15.2000
EAR 99
Machine screws, Phillips pan head, Stainless
steel 18-8, #10-32 x 3/4"
$0.14
$0.28
1
Each
2080
8544.42.0000
EAR 99
AC Plug IEC60320 C14 14awg Male Straight
Entry UL
$11.22
$11.22
1
Each
23-3/4X30FT
7318.15.2000
EAR 100
3M Type 23 3/4X30FT Self Fusing Tape
$14.46
$14.46
VSAT INSTALLATION INSTRUCTIONS
34 | 42
10
Each
2561
7318.15.2000
EAR 99
Hex machine screw nuts, Stainless steel 18-8,
#10-32 Each
$0.14
$1.40
1
Each
2667
8504.40.6001
EAR 99
AC Male Power Plug Cont. Europe CEE7/7 16
Amp 250 Volt Black Straight Entry w/ Strain Relief
$8.00
$8.00
29
Each
2946
7318.15.2000
EAR 99
2946 - #10 Stainless Steel Flat Washer
$0.24
$6.96
12
Each
2947
7318.15.2000
EAR 99
1/4 Stainless Steel Flat Washer
$0.14
$1.68
2
Each
2955
7318.15.2000
EAR 99
AC Connector IEC60320 C13 Female 14awg
Straight Entry
$14.35
$28.70
12
Each
2956
7318.15.2000
EAR 99
Lock washers, Stainless steel 18-8, 1/4"
$0.14
$1.68
10
Each
3062
7318.15.2000
EAR 99
USS Flat Washere Steel grade 8
$0.17
$1.70
1
Each
33SUPER-3/4X66FT
7318.15.2000
EAR 99
Scotch® Super 33+™ Vinyl Electrical Tape, 3/4 in
x 66 ft (19 mm x 20.1 m)
$5.02
$5.02
10
Each
4874
7318.15.2000
EAR 99
10-32 x 3/4 Stainless Steel Mach Screw
$0.55
$5.50
10
Each
4876
7318.15.2000
EAR 99
Socket cap, Stainless steel 18-8, #10-32 x 1-1/4"
$0.27
$2.70
12
Each
4883
7318.15.2000
EAR 99
Socket head screws, Stainless steel 18-8, 1/4-20
x 3/4 Each
$0.34
$4.08
4
Each
5413
8544.20.0000
EAR 99
3 ft. (10A) IEC C14 to IEC C13 Extension Cable
(x1) - 10A
$7.74
$30.96
40
Each
5566
7318.15.2000
EAR 99
Stainless steel 18-8 flat washers
$0.14
$5.60
3
Each
5612
8544.20.0000
EAR 99
6 ft. (10A) IEC C14 to IEC C13 Extension Cable
$10.24
$30.72
1
Each
6110063-04
8544.20.0000
EAR 99
1.2M NPM, 1.6M X 1.6M, 73mm MAST,W/ PADS
$133.62
$133.62
1
Each
73560
7318.15.2000
EAR 99
Grease, Silicone Compound DM(TM), 5.3 oz
$16.33
$16.33
1
Each
7630
7318.15.2000
EAR 99
Geist BRELN PDU 102-0020/16
$100.00
$100.00
5
Each
7680
7318.15.2000
EAR 99
Stay Online Cat6 Crossover Cable - Red 10 Foot
$10.22
$51.10
5
Each
8276Z
7318.15.2000
EAR 99
Stay Online Cat6 (Cat5e Compatible) Ethernet
Patch Cable - 6 Foot Green
$3.00
$15.00
10
Each
856
7318.15.2000
EAR 99
HEX Bolt 3/8 x 2-1/2"500
$0.24
$2.40
17
Each
9002
7318.15.2000
EAR 99
Cable Yung-Li Cord Bulk 14x3c SJT 105* 300
Volt Black UL. INDOORS --IN FEET--
$1.09
$18.53
40
Each
9668
7318.15.2000
EAR 99
Machine screw, Phillips pan head, Stainless steel
18-8, #12-24 x 5/8"
$0.17
$6.80
19
Each
BOLTDE-2955
7318.15.2000
EAR 99
#2955 Lock washers, Stainless steel 18-8, #10
$0.05
$0.95
50
Each
BT4LH-L0
7318.15.2000
EAR 99
Cable Tie with metal barb, 14.9", Light-Heavy
cross section
$0.58
$29.00
8
Each
CM-1221
7318.15.2000
EAR 99
3.0" x 3.5" cable ring - rack cable management
$8.35
$66.80
2
Each
INTERN-70120
7318.15.2000
EAR 99
RECEPTACLE EUROPEAN SHUCKO
WEATHERPROOF SINGLE RECEPTACLE
GRAY HINGED COVER
$7.09
$14.18
2
Each
INTERN-70125
7318.15.2000
EAR 99
MOUNT BOX WEATHERPROOF SURFACE
MOUNT BOX FOR RECEPTACLES NO.70124
AND 70120
$5.96
$11.92
4
Each
INTERN-70141
7318.15.2000
EAR 99
PLUG BLACK EUROPEAN SCHUCKO PLUG
STRAIGHT CORD GRIP MEETS CEE 7-7
REQRS MATES
$5.15
$20.60
3
Each
INTERN-81131X1M
7318.15.2000
EAR 99
EUROPEAN CEE7/7 SCHUKO 10 AMPERE 230-
250V POWER CORD, (EU1-16P) DIN 49441
PLUG, IEC 60320 C-13 CONN
$5.63
$16.89
1
Each
ITR040202040
7318.15.2000
EAR 99
Victron Energy Isolation Transformer 2000W
115/230V
$575.66
$575.66
1
Each
PET10-6000
7318.15.2000
EAR 99
4 ft. Grounding Rod
$8.30
$8.30
1
Each
PK9GTACP
7318.15.2000
EAR 99
9 Terminal Ground Bar Kit
$6.29
$6.29
50
Each
PLT2S-C20
7318.15.2000
EAR 99
PLT2S-C20
$0.25
$12.50
15
Each
PV14-8R-C
8544.42.0000
EAR 99
PV14-8R-L Ring Terminal Lug
$0.88
$13.20
10
Each
PV14-P47-E
8544.42.0000
EAR 99
Pin Terminal, 16 - 14 AWG, vinyl insulated, .49
pin length.
$0.99
$9.90
5
Each
PV6-8R-T
8544.42.0000
EAR 99
Ring Terminal, large wire, 6 AWG, #8 stud size,
vinyl insulated
$2.90
$14.50
VSAT INSTALLATION INSTRUCTIONS
35 | 42
1
Each
SLW
8544.20.0000
EAR 99
3M Scotchcode Wire Marker Write-On Dispenser
SLW, Wire O.D. 0.23 to 1.32 Inches (includes
SMP pen)
$67.68
$67.68
22
Each
TFFN-16-STR-GRN-
500S
7318.15.2000
EAR 99
TFFN-16-STR-GRN-500S Wire 600V AWG 16
Ground. Wire
$0.15
$3.30
310
Each
THHN-6-STR-GRN-
500S
8544.20.0000
EAR 99
THHN-6-STR-GRN-500S WIRE 600V AWG 6
Grnd.Wire
$0.33
$102.30
1
Each
WL-8
1515.90.8002
EAR 99
American Grease Stick - White Lithium Grease,
8oz
$7.38
$7.38
1289
Total FOB (In USD)
$24,823.45
VSAT INSTALLATION INSTRUCTIONS
36 | 42
4.3 EXT150300411 | TRACE UAE AL MINHAD (REDLEG LIVING 4) – LGW
QTY
Unit
Part Number
HS
ECCN
Description
Unit
Price
Total Price
VSAT System Components with Accessories
1
Each
55072-229
7318.15.2000
EAR 99
Andrew WR229, HALF THICKNESS FLANGE
GASKET, CPR229G, CPR229G
$11.55
$11.55
1
Each
62-1236201
8544.20.0000
EAR 99
Skyware Global 1.2M Type 123, Class II, Cross-
Pol Feed, Ku-Band Receive/Transmit Antenna
System.
$251.21
$251.21
250
Each
BC-0121-2
7318.15.2000
EAR 99
LMR-400 50-Ohm Coax Bulk Cable
$0.78
$195.00
3
Each
EZ-400-NMC-2-D
8544.42.0000
EAR 99
TMS N-Male (plug) LMR-400 connector, hex/knurl
coupling nut, non-solder pin, 2-piece design
$12.12
$36.36
3
Each
EZ-600-FMH-75
8544.42.0000
EAR 99
F-Male (plug) crimp connector (non-solder pin) for
LMR-600-75
$22.09
$66.27
1
Each
IDIREC-K0000103-0009
8517.62.0010
5A991b
KIT,X7 SATELLITE ROUTER,1GB,W/ +24V
POWER SUPPLY, ROHS
$2,037.45
$2,037.45
250
Each
LMR-600-75
8544.20.0000
EAR 99
LMR-600 1/2" Flexible Low Loss Coax - Standard
cable, Black PE jacket, 75 Ohm
$1.29
$322.50
1
Each
NJR2841S
8517.62.0050
5A991
NJR2841S Switchable Ku-Band PLL LNB (10.7 to
12.75 GHz)
$218.26
$218.26
1
Each
NJT5218N
8517.62.0050
5A991
NJRC 8W Universal Ku-band BUC, N Conn., VDC
thrgh IFL Port
$1,850.00
$1,850.00
2
Each
PE9389
8536.69.4010
EAR 99
F MALE TO N FEMALE
$40.69
$81.38
Network Components with Accessories
1
Each
C2911-AX/K9
8517.62.0050
5A002.A.1
Cisco 2911 w/3 GE 4 EHWIC 1 SM 256MB CF
1GB DRAM IPB SEC AX
$1,655.00
$1,655.00
1
Each
NETWORK-MS
8544.20.0000
EAR 99
SNMP Card MGE UPS
$395.41
$395.41
1
Each
NOMADI-969-5900-050
8517.69.0000
EAR99
AG 5900 GATEWAY, 500 DEVICE USERS, NSE
SOFTWARE W/1ST YEAR LICENSE
$2,800.00
$2,800.00
1
Each
PW9130I1000R-XL2U
8517.62.0050
5A991.c
Eaton 9130 RM UPS, 230V, 50/60Hz,
1000VA/900W, C14 In, (6)C13 Out
$729.96
$729.96
1
Each
PWR-2911-POE
8517.62.0050
EAR99
Cisco 2911 AC Power Supply with Power Over
Ethernet
$157.50
$157.50
1
Each
QUESTT-FE4119-20-
02T
8544.42.0000
EAR 99
RACK - 3' 20 RMS 19" X 32" BLACK 410 SERIES
TAPPED RAILS
$515.00
$515.00
1
Each
SM-ES2-24-P
8517.62.0050
5A991.c
Enhanced EtherSwitch L2 SM 23 FE 1 GE
POE
$942.75
$942.75
2
Each
STAYON-3679
7318.15.2000
EAR 99
POWER STRIP EURO,RM SCHUKO PLUG TO
8 CEE7/7 RECEPTACLE,250 VOLT.
$49.00
$98.00
1
Each
SUPERM-MARITIME-
CTO-2
8517.62.0050
5A002.A.1
SERVER - NR 1U SC514 - SINGLE PWS
CHASSIS MCP-290-00056-0N (INCLUDE 95-
SERVER-OS)
$3,727.60
$3,727.60
3
Each
CISCO-AIR-CAP1532E-
B-K9
8517620050
5A002.A.1
Cisco Aironet 1532E - wireless access point
$538.20
$1,614.60
1
Each
CISCO-AIR-CT2504-15-
K9
8517620050
5A002.A.1
CISCO 2504 WIRELESS CONTROLLER WITH
16 AP USER LICENSE
$1,947.50
$1,947.50
1
Each
CISCO-ASA5508-K9
8517620050
5A002.A.1
Cisco ASA 5508-X with FirePOWER Services -
$1,294.20
$1,294.20
1
Each
CISCO-WS-C2960X-
48FPS-L
8517620050
5A991.C
Cisco Catalyst 2960X-48FPS-L - switch - 48
$2,374.20
$2,374.20
Installation Materials and Tools
10
Each
10808
7318.15.2000
EAR 99
Die Cast Double expansion Anchor 3/8
$1.50
$15.00
2
Each
1348
7318.15.2000
EAR 99
Machine screws, Phillips pan head, Stainless
steel 18-8, #8-32 x 3/4 Each
$0.27
$0.54
3
Each
1365
7318.15.2000
EAR 99
Machine screws, Phillips pan head, Stainless
steel 18-8, #10-32 x 3/8
$0.14
$0.42
2
Each
1368
7318.15.2000
EAR 99
Machine screws, Phillips pan head, Stainless
steel 18-8, #10-32 x 3/4"
$0.14
$0.28
1
Each
2080
8544.42.0000
EAR 99
AC Plug IEC60320 C14 14awg Male Straight
Entry UL
$11.22
$11.22
1
Each
23-3/4X30FT
7318.15.2000
EAR 100
3M Type 23 3/4X30FT Self Fusing Tape
$14.46
$14.46
VSAT INSTALLATION INSTRUCTIONS
37 | 42
10
Each
2561
7318.15.2000
EAR 99
Hex machine screw nuts, Stainless steel 18-8,
#10-32 Each
$0.14
$1.40
1
Each
2667
8504.40.6001
EAR 99
AC Male Power Plug Cont. Europe CEE7/7 16
Amp 250 Volt Black Straight Entry w/ Strain Relief
$8.00
$8.00
29
Each
2946
7318.15.2000
EAR 99
2946 - #10 Stainless Steel Flat Washer
$0.24
$6.96
12
Each
2947
7318.15.2000
EAR 99
1/4 Stainless Steel Flat Washer
$0.14
$1.68
2
Each
2955
7318.15.2000
EAR 99
AC Connector IEC60320 C13 Female 14awg
Straight Entry
$14.35
$28.70
12
Each
2956
7318.15.2000
EAR 99
Lock washers, Stainless steel 18-8, 1/4"
$0.14
$1.68
10
Each
3062
7318.15.2000
EAR 99
USS Flat Washere Steel grade 8
$0.17
$1.70
1
Each
33SUPER-3/4X66FT
7318.15.2000
EAR 99
Scotch® Super 33+™ Vinyl Electrical Tape, 3/4 in
x 66 ft (19 mm x 20.1 m)
$5.02
$5.02
10
Each
4874
7318.15.2000
EAR 99
10-32 x 3/4 Stainless Steel Mach Screw
$0.55
$5.50
10
Each
4876
7318.15.2000
EAR 99
Socket cap, Stainless steel 18-8, #10-32 x 1-1/4"
$0.27
$2.70
12
Each
4883
7318.15.2000
EAR 99
Socket head screws, Stainless steel 18-8, 1/4-20
x 3/4 Each
$0.34
$4.08
4
Each
5413
8544.20.0000
EAR 99
3 ft. (10A) IEC C14 to IEC C13 Extension Cable
(x1) - 10A
$7.74
$30.96
40
Each
5566
7318.15.2000
EAR 99
Stainless steel 18-8 flat washers
$0.14
$5.60
3
Each
5612
8544.20.0000
EAR 99
6 ft. (10A) IEC C14 to IEC C13 Extension Cable
$10.24
$30.72
1
Each
6110063-04
8544.20.0000
EAR 99
1.2M NPM, 1.6M X 1.6M, 73mm MAST,W/ PADS
$133.62
$133.62
1
Each
73560
7318.15.2000
EAR 99
Grease, Silicone Compound DM(TM), 5.3 oz
$16.33
$16.33
1
Each
7630
7318.15.2000
EAR 99
Geist BRELN PDU 102-0020/16
$100.00
$100.00
5
Each
7680
7318.15.2000
EAR 99
Stay Online Cat6 Crossover Cable - Red 10 Foot
$10.22
$51.10
5
Each
8276Z
7318.15.2000
EAR 99
Stay Online Cat6 (Cat5e Compatible) Ethernet
Patch Cable - 6 Foot Green
$3.00
$15.00
10
Each
856
7318.15.2000
EAR 99
HEX Bolt 3/8 x 2-1/2"500
$0.24
$2.40
17
Each
9002
7318.15.2000
EAR 99
Cable Yung-Li Cord Bulk 14x3c SJT 105* 300
Volt Black UL. INDOORS --IN FEET--
$1.09
$18.53
40
Each
9668
7318.15.2000
EAR 99
Machine screw, Phillips pan head, Stainless steel
18-8, #12-24 x 5/8"
$0.17
$6.80
19
Each
BOLTDE-2955
7318.15.2000
EAR 99
#2955 Lock washers, Stainless steel 18-8, #10
$0.05
$0.95
50
Each
BT4LH-L0
7318.15.2000
EAR 99
Cable Tie with metal barb, 14.9", Light-Heavy
cross section
$0.58
$29.00
8
Each
CM-1221
7318.15.2000
EAR 99
3.0" x 3.5" cable ring - rack cable management
$8.35
$66.80
2
Each
INTERN-70120
7318.15.2000
EAR 99
RECEPTACLE EUROPEAN SHUCKO
WEATHERPROOF SINGLE RECEPTACLE
GRAY HINGED COVER
$7.09
$14.18
2
Each
INTERN-70125
7318.15.2000
EAR 99
MOUNT BOX WEATHERPROOF SURFACE
MOUNT BOX FOR RECEPTACLES NO.70124
AND 70120
$5.96
$11.92
4
Each
INTERN-70141
7318.15.2000
EAR 99
PLUG BLACK EUROPEAN SCHUCKO PLUG
STRAIGHT CORD GRIP MEETS CEE 7-7
REQRS MATES
$5.15
$20.60
3
Each
INTERN-81131X1M
7318.15.2000
EAR 99
EUROPEAN CEE7/7 SCHUKO 10 AMPERE 230-
250V POWER CORD, (EU1-16P) DIN 49441
PLUG, IEC 60320 C-13 CONN
$5.63
$16.89
1
Each
ITR040202040
7318.15.2000
EAR 99
Victron Energy Isolation Transformer 2000W
115/230V
$575.66
$575.66
1
Each
PET10-6000
7318.15.2000
EAR 99
4 ft. Grounding Rod
$8.30
$8.30
1
Each
PK9GTACP
7318.15.2000
EAR 99
9 Terminal Ground Bar Kit
$6.29
$6.29
50
Each
PLT2S-C20
7318.15.2000
EAR 99
PLT2S-C20
$0.25
$12.50
15
Each
PV14-8R-C
8544.42.0000
EAR 99
PV14-8R-L Ring Terminal Lug
$0.88
$13.20
10
Each
PV14-P47-E
8544.42.0000
EAR 99
Pin Terminal, 16 - 14 AWG, vinyl insulated, .49
pin length.
$0.99
$9.90
5
Each
PV6-8R-T
8544.42.0000
EAR 99
Ring Terminal, large wire, 6 AWG, #8 stud size,
vinyl insulated
$2.90
$14.50
VSAT INSTALLATION INSTRUCTIONS
38 | 42
1
Each
SLW
8544.20.0000
EAR 99
3M Scotchcode Wire Marker Write-On Dispenser
SLW, Wire O.D. 0.23 to 1.32 Inches (includes
SMP pen)
$67.68
$67.68
22
Each
TFFN-16-STR-GRN-
500S
7318.15.2000
EAR 99
TFFN-16-STR-GRN-500S Wire 600V AWG 16
Ground. Wire
$0.15
$3.30
310
Each
THHN-6-STR-GRN-
500S
8544.20.0000
EAR 99
THHN-6-STR-GRN-500S WIRE 600V AWG 6
Grnd.Wire
$0.33
$102.30
1
Each
WL-8
1515.90.8002
EAR 99
American Grease Stick - White Lithium Grease,
8oz
$7.38
$7.38
1289
Total FOB (In USD)
$24,823.45
VSAT INSTALLATION INSTRUCTIONS
39 | 42
4.4 EXT150300412 | TRACE UAE AL MINHAD (REDLEG MWR) – LWW
QTY
Unit
Part Number
HS
ECCN
Description
Unit
Price
Total Price
VSAT System Components with Accessories
1
Each
55072-229
7318.15.2000
EAR 99
Andrew WR229, HALF THICKNESS FLANGE
GASKET, CPR229G, CPR229G
$11.55
$11.55
1
Each
62-1236201
8544.20.0000
EAR 99
Skyware Global 1.2M Type 123, Class II, Cross-
Pol Feed, Ku-Band Receive/Transmit Antenna
System.
$251.21
$251.21
250
Each
BC-0121-2
7318.15.2000
EAR 99
LMR-400 50-Ohm Coax Bulk Cable
$0.78
$195.00
3
Each
EZ-400-NMC-2-D
8544.42.0000
EAR 99
TMS N-Male (plug) LMR-400 connector, hex/knurl
coupling nut, non-solder pin, 2-piece design
$12.12
$36.36
3
Each
EZ-600-FMH-75
8544.42.0000
EAR 99
F-Male (plug) crimp connector (non-solder pin) for
LMR-600-75
$22.09
$66.27
1
Each
IDIREC-K0000103-0009
8517.62.0010
5A991b
KIT,X7 SATELLITE ROUTER,1GB,W/ +24V
POWER SUPPLY, ROHS
$2,037.45
$2,037.45
250
Each
LMR-600-75
8544.20.0000
EAR 99
LMR-600 1/2" Flexible Low Loss Coax - Standard
cable, Black PE jacket, 75 Ohm
$1.29
$322.50
1
Each
NJR2841S
8517.62.0050
5A991
NJR2841S Switchable Ku-Band PLL LNB (10.7 to
12.75 GHz)
$218.26
$218.26
1
Each
NJT5218N
8517.62.0050
5A991
NJRC 8W Universal Ku-band BUC, N Conn., VDC
thrgh IFL Port
$1,850.00
$1,850.00
2
Each
PE9389
8536.69.4010
EAR 99
F MALE TO N FEMALE
$40.69
$81.38
Network Components with Accessories
1
Each
C2911-AX/K9
8517.62.0050
5A002.A.1
Cisco 2911 w/3 GE 4 EHWIC 1 SM 256MB CF
1GB DRAM IPB SEC AX
$1,655.00
$1,655.00
1
Each
NETWORK-MS
8544.20.0000
EAR 99
SNMP Card MGE UPS
$395.41
$395.41
1
Each
NOMADI-969-5900-050
8517.69.0000
EAR99
AG 5900 GATEWAY, 500 DEVICE USERS, NSE
SOFTWARE W/1ST YEAR LICENSE
$2,800.00
$2,800.00
1
Each
PW9130I1000R-XL2U
8517.62.0050
5A991.c
Eaton 9130 RM UPS, 230V, 50/60Hz,
1000VA/900W, C14 In, (6)C13 Out
$729.96
$729.96
1
Each
PWR-2911-POE
8517.62.0050
EAR99
Cisco 2911 AC Power Supply with Power Over
Ethernet
$157.50
$157.50
1
Each
QUESTT-FE4119-20-02T
8544.42.0000
EAR 99
RACK - 3' 20 RMS 19" X 32" BLACK 410 SERIES
TAPPED RAILS
$515.00
$515.00
1
Each
SM-ES2-24-P
8517.62.0050
5A991.c
Enhanced EtherSwitch L2 SM 23 FE 1 GE
POE
$942.75
$942.75
2
Each
STAYON-3679
7318.15.2000
EAR 99
POWER STRIP EURO,RM SCHUKO PLUG TO 8
CEE7/7 RECEPTACLE,250 VOLT.
$49.00
$98.00
1
Each
SUPERM-MARITIME-
CTO-2
8517.62.0050
5A002.A.1
SERVER - NR 1U SC514 - SINGLE PWS
CHASSIS MCP-290-00056-0N (INCLUDE 95-
SERVER-OS)
$3,727.60
$3,727.60
1
Each
CISCO-AIR-CAP1532E-B-
K9
8517620050
5A002.A.1
Cisco Aironet 1532E - wireless access point
$538.20
$538.20
1
Each
CISCO-AIR-CT2504-15-
K9
8517620050
5A002.A.1
CISCO 2504 WIRELESS CONTROLLER WITH
16 AP USER LICENSE
$1,947.50
$1,947.50
1
Each
CISCO-ASA5508-K9
8517620050
5A002.A.1
Cisco ASA 5508-X with FirePOWER Services -
$1,294.20
$1,294.20
1
Each
CISCO-WS-C2960X-
48FPS-L
8517620050
5A991.C
Cisco Catalyst 2960X-48FPS-L - switch - 48
$2,374.20
$2,374.20
8
Each
2200-46135-019
8529.10.0212
EAR 99
Polycom VVX 300 - VoIP phone
$102.00
$816.00
1
Each
CISCO-AIR-CAP1532E-B-
K9
8517620050
5A002.A.1
Cisco Aironet 1532E - wireless access point
$538.20
$538.20
1
Each
CISCO-AIR-CT2504-15-
K9
8517620050
5A002.A.1
CISCO 2504 WIRELESS CONTROLLER WITH
16 AP USER LICENSE
$1,947.50
$1,947.50
1
Each
CISCO-ASA5508-K9
8517620050
5A002.A.1
Cisco ASA 5508-X with FirePOWER Services -
$1,294.20
$1,294.20
1
Each
CISCO-WS-C2960X-
48FPS-L
8517620050
5A991.C
Cisco Catalyst 2960X-48FPS-L - switch - 48
$2,374.20
$2,374.20
20
Each
210-AIWG
8528.51.0000
EAR 99
Dell 24 Monitor - E2417H
$113.99
$2,279.80
20
Each
329-BDBE
8471.30.0100
5A992.C
Wyse 7040 thin client
$550.00
$11,000.00
20
Each
Wyse Keyboards
8471.60.1050
EAR 99
Wyse Keyboards INCLUDED NSP
$0.00
$0.00
20
Each
Wyse Mouse
8471.60.1050
EAR 99
Wyse Mouse INCLUDED NSP
$0.00
$0.00
VSAT INSTALLATION INSTRUCTIONS
40 | 42
20
Each
85618-102
90717208040
EAR 99
Head sets Plantronics C310
$39.95
$799.00
5
Each
HU-N5086
8471.30.0000
EAR 99
HAVIA WEBCAM
$17.32
$86.60
Installation Materials and Tools
10
Each
10808
7318.15.2000
EAR 99
Die Cast Double expansion Anchor 3/8
$1.50
$15.00
2
Each
1348
7318.15.2000
EAR 99
Machine screws, Phillips pan head, Stainless steel
18-8, #8-32 x 3/4 Each
$0.27
$0.54
3
Each
1365
7318.15.2000
EAR 99
Machine screws, Phillips pan head, Stainless steel
18-8, #10-32 x 3/8
$0.14
$0.42
2
Each
1368
7318.15.2000
EAR 99
Machine screws, Phillips pan head, Stainless steel
18-8, #10-32 x 3/4"
$0.14
$0.28
1
Each
2080
8544.42.0000
EAR 99
AC Plug IEC60320 C14 14awg Male Straight
Entry UL
$11.22
$11.22
1
Each
23-3/4X30FT
7318.15.2000
EAR 100
3M Type 23 3/4X30FT Self Fusing Tape
$14.46
$14.46
10
Each
2561
7318.15.2000
EAR 99
Hex machine screw nuts, Stainless steel 18-8,
#10-32 Each
$0.14
$1.40
1
Each
2667
8504.40.6001
EAR 99
AC Male Power Plug Cont. Europe CEE7/7 16
Amp 250 Volt Black Straight Entry w/ Strain Relief
$8.00
$8.00
29
Each
2946
7318.15.2000
EAR 99
2946 - #10 Stainless Steel Flat Washer
$0.24
$6.96
12
Each
2947
7318.15.2000
EAR 99
1/4 Stainless Steel Flat Washer
$0.14
$1.68
2
Each
2955
7318.15.2000
EAR 99
AC Connector IEC60320 C13 Female 14awg
Straight Entry
$14.35
$28.70
12
Each
2956
7318.15.2000
EAR 99
Lock washers, Stainless steel 18-8, 1/4"
$0.14
$1.68
10
Each
3062
7318.15.2000
EAR 99
USS Flat Washere Steel grade 8
$0.17
$1.70
1
Each
33SUPER-3/4X66FT
7318.15.2000
EAR 99
Scotch® Super 33+™ Vinyl Electrical Tape, 3/4 in
x 66 ft (19 mm x 20.1 m)
$5.02
$5.02
10
Each
4874
7318.15.2000
EAR 99
10-32 x 3/4 Stainless Steel Mach Screw
$0.55
$5.50
10
Each
4876
7318.15.2000
EAR 99
Socket cap, Stainless steel 18-8, #10-32 x 1-1/4"
$0.27
$2.70
12
Each
4883
7318.15.2000
EAR 99
Socket head screws, Stainless steel 18-8, 1/4-20
x 3/4 Each
$0.34
$4.08
4
Each
5413
8544.20.0000
EAR 99
3 ft. (10A) IEC C14 to IEC C13 Extension Cable
(x1) - 10A
$7.74
$30.96
40
Each
5566
7318.15.2000
EAR 99
Stainless steel 18-8 flat washers
$0.14
$5.60
3
Each
5612
8544.20.0000
EAR 99
6 ft. (10A) IEC C14 to IEC C13 Extension Cable
$10.24
$30.72
1
Each
6110063-04
8544.20.0000
EAR 99
1.2M NPM, 1.6M X 1.6M, 73mm MAST,W/ PADS
$133.62
$133.62
1
Each
73560
7318.15.2000
EAR 99
Grease, Silicone Compound DM(TM), 5.3 oz
$16.33
$16.33
1
Each
7630
7318.15.2000
EAR 99
Geist BRELN PDU 102-0020/16
$100.00
$100.00
5
Each
7680
7318.15.2000
EAR 99
Stay Online Cat6 Crossover Cable - Red 10 Foot
$10.22
$51.10
5
Each
8276Z
7318.15.2000
EAR 99
Stay Online Cat6 (Cat5e Compatible) Ethernet
Patch Cable - 6 Foot Green
$3.00
$15.00
10
Each
856
7318.15.2000
EAR 99
HEX Bolt 3/8 x 2-1/2"500
$0.24
$2.40
17
Each
9002
7318.15.2000
EAR 99
Cable Yung-Li Cord Bulk 14x3c SJT 105* 300 Volt
Black UL. INDOORS --IN FEET--
$1.09
$18.53
40
Each
9668
7318.15.2000
EAR 99
Machine screw, Phillips pan head, Stainless steel
18-8, #12-24 x 5/8"
$0.17
$6.80
19
Each
BOLTDE-2955
7318.15.2000
EAR 99
#2955 Lock washers, Stainless steel 18-8, #10
$0.05
$0.95
50
Each
BT4LH-L0
7318.15.2000
EAR 99
Cable Tie with metal barb, 14.9", Light-Heavy
cross section
$0.58
$29.00
8
Each
CM-1221
7318.15.2000
EAR 99
3.0" x 3.5" cable ring - rack cable management
$8.35
$66.80
2
Each
INTERN-70120
7318.15.2000
EAR 99
RECEPTACLE EUROPEAN SHUCKO
WEATHERPROOF SINGLE RECEPTACLE
GRAY HINGED COVER
$7.09
$14.18
2
Each
INTERN-70125
7318.15.2000
EAR 99
MOUNT BOX WEATHERPROOF SURFACE
MOUNT BOX FOR RECEPTACLES NO.70124
AND 70120
$5.96
$11.92
4
Each
INTERN-70141
7318.15.2000
EAR 99
PLUG BLACK EUROPEAN SCHUCKO PLUG
STRAIGHT CORD GRIP MEETS CEE 7-7
REQRS MATES
$5.15
$20.60
3
Each
INTERN-81131X1M
7318.15.2000
EAR 99
EUROPEAN CEE7/7 SCHUKO 10 AMPERE 230-
250V POWER CORD, (EU1-16P) DIN 49441
PLUG, IEC 60320 C-13 CONN
$5.63
$16.89
VSAT INSTALLATION INSTRUCTIONS
41 | 42
1
Each
ITR040202040
7318.15.2000
EAR 99
Victron Energy Isolation Transformer 2000W
115/230V
$575.66
$575.66
1
Each
PET10-6000
7318.15.2000
EAR 99
4 ft. Grounding Rod
$8.30
$8.30
1
Each
PK9GTACP
7318.15.2000
EAR 99
9 Terminal Ground Bar Kit
$6.29
$6.29
50
Each
PLT2S-C20
7318.15.2000
EAR 99
PLT2S-C20
$0.25
$12.50
15
Each
PV14-8R-C
8544.42.0000
EAR 99
PV14-8R-L Ring Terminal Lug
$0.88
$13.20
10
Each
PV14-P47-E
8544.42.0000
EAR 99
Pin Terminal, 16 - 14 AWG, vinyl insulated, .49 pin
length.
$0.99
$9.90
5
Each
PV6-8R-T
8544.42.0000
EAR 99
Ring Terminal, large wire, 6 AWG, #8 stud size,
vinyl insulated
$2.90
$14.50
1
Each
SLW
8544.20.0000
EAR 99
3M Scotchcode Wire Marker Write-On Dispenser
SLW, Wire O.D. 0.23 to 1.32 Inches (includes
SMP pen)
$67.68
$67.68
22
Each
TFFN-16-STR-GRN-500S
7318.15.2000
EAR 99
TFFN-16-STR-GRN-500S Wire 600V AWG 16
Ground. Wire
$0.15
$3.30
310
Each
THHN-6-STR-GRN-500S
8544.20.0000
EAR 99
THHN-6-STR-GRN-500S WIRE 600V AWG 6
Grnd.Wire
$0.33
$102.30
1
Each
WL-8
1515.90.8002
EAR 99
American Grease Stick - White Lithium Grease,
8oz
$7.38
$7.38
1404
Total FOB
(In USD)
$44,882.55
VSAT INSTALLATION INSTRUCTIONS
42 | 42
5 CONTACT LIST
Contact Name
Phone Number
Email Address
NOC
+1-703-962-9795
MWRICPNOC@TRACESYSTEMS.COM
Trace Systems (Steve Albo)
+1-571-999-2436
salbo@tracesystems.com
MAJ Sonheim
david.m.sonheim.mil@mail.mil

Navigation menu
