RRV3261 VSXAX4AVI
User Manual: VSXAX4AVI
Open the PDF directly: View PDF
.
Page Count: 274 [warning: Documents this large are best viewed by clicking the View PDF Link!]
- VSX-AX4AVi-S
- <グラフィック>
- CONTENTS
- CONTENTS
- 1. SPECIFICATIONS
- 2. EXPLODED VIEWS AND PARTS LIST
- 2.1 PACKING
- 2.2 EXTERIOR
- 2.3 CHASSIS SECTION
- 2.4 REAR PANEL SECTION
- 2.5 POWER AMP BLOCK
- 2.6 FRONT PANEL SECTION
- 3. BLOCK DIAGRAM AND SCHEMATIC DIAGRAM
- 3.1 BLOCK DIAGRAM
- 3.1.1 OVERALL BLOCK DIAGRAM
- 3.1.2 COMPOSITE V BLOCK DIAGRAM
- 3.1.3 S-VIDEO BLOCK DIAGRAM
- 3.1.4 COMPONENT &VOL BLOCK DIAGRAM
- 3.1.5 DSP BLOCK DIAGRAM
- 3.1.6 HDMI & DVC BLOCK DIAGRAM
- 3.1.7 MICROCOMPUTER BLOCK DIAGRAM
- 3.2 OVERALL WIRING CONNECTION DIAGRAM
- 3.3 AUDIO & MULTI CH IN ASSY
- 3.4 V-AUDIO ASSY
- 3.5 FRONT-IN and HEADPHONE ASSYS
- 3.6 BRIDGE1, BRIDGE2, TRANS SIDE and BRIDGE3 ASSYS
- 3.7 COMPOSITE V ASSY
- 3.8 S-VIDEO ASSY
- 3.9 COMPONENT & VOL ASSY (1/4)
- 3.10 COMPONENT & VOL ASSY (2/4)
- 3.11 COMPONENT & VOL ASSY (3/4)
- 3.12 COMPONENT & VOL ASSY (4/4)
- 3.13 DIGITAL MOTHER ASSY (1/8)
- 3.14 DIGITAL MOTHER ASSY (2/8)
- 3.15 DIGITAL MOTHER ASSY (3/8)
- 3.16 DIGITAL MOTHER ASSY (4/8)
- 3.17 DIGITAL MOTHER ASSY (5/8)
- 3.18 DIGITAL MOTHER ASSY (6/8)
- 3.19 DIGITAL MOTHER ASSY (7/8)
- 3.20 DIGITAL MOTHER ASSY (8/8)
- 3.21 DSP ASSY (1/2)
- 3.22 DSP ASSY (2/2)
- 3.23 INTERFACE ASSY
- 3.24 POWER AMP IN and POWER PROTECT ASSYS
- 3.25 POWER AMP L ASSY
- 3.26 POWER AMP R ASSY
- 3.27 LOCAL SUPPLY and DC/DC ASSYS
- 3.28 TRANS2-1, VH-TR, DIODE and SP/PS ASSYS
- 3.29 TRANS2-2, TRANS1 and PRIMARY ASSYS
- 3.30 VOLUME, DISPLAY and INPUT SELECT ASSYS
- 3.31 PREOUT & CONTROL ASSY
- 3.32 1394 ASSY (1/2)
- 3.33 1394 ASSY (2/2)
- 3.34 HDMI&DVC ASSY (1/2)
- 3.35 HDMI&DVC ASSY (2/2)
- 4. PCB CONNECTION DIAGRAM
- 4.1 PRIOUT&CONTROL ASSY
- 4.2 AUDIO&MULTI CH IN ASSY
- 4.3 V-AUDIO ASSY
- 4.4 HEAD PHONE and FRONT-IN ASSYS
- 4.5 BRIDGE1 and BRIDGE2 ASSYS
- 4.6 TRANS SIDE and BRIDGE3 ASSYs
- 4.7 COMPOSITE V ASSYS
- 4.8 S-VIDEO ASSY
- 4.9 COMPONENT&VOL ASSY
- 4.10 DIGITAL MOTHER ASSY
- 4.11 DSP ASSY
- 4.12 INTERFACE ASSY
- 4.13 POWER AMP IN ASSY
- 4.14 POWER PROTECT ASSY
- 4.15 POWER AMP L and POWER AMP R ASSYS
- 4.16 LOCAL SUPPLY and DC/DC ASSYS
- 4.17 TRANS2-1, VH TR, DIODE and TRANS2-2 ASSYS
- 4.18 SP/PS ASSY
- 4.19 TRANS1 and PRIMARY ASSYS
- 4.20 VOLUME, DISPLAY and INPUT SELECT ASSYS
- 4.21 HDMI&DVC ASSY
- 4.22 1394 ASSY
- 5. PCB PARTS LIST
- 6. ADJUSTMENT
- 7. GENERAL INFORMATION
- 7.1 DIAGNOSIS
- 7.1.1 TEST MODE
- 7.1.2 PROTECTION CIRCUIT SPECIFICATION
- 7.1.3 TROUBLESHOOTING THE DSP BLOCK
- 7.1.4 DIAGNOSIS OF THE HDMI BLOCK AND RELATED SYSTEMS
- 7.1.5 DIAGNOSIS OF THE 1394 ASSY
- 7.1.6 iPod INFORMATION
- 7.1.7 HOW TO UPDATE THE DSP FLASH ROM BY PLAYING BACK A CD
- 7.1.8 HOW TO UPDATE THE FLASH ROMS FOR VARIOUS MICROCOMPUTERS
- 7.1.9 DISASSEMBLY
- 7.1.10 HOW TO DIAGNOSE THE PRODUCT WITH THE POWER AMP BLOCK REMOVED
- 7.1.11 FAILURE DIAGNOSIS OF THE POWER AMP BLOCK
- 7.2 PARTS
- 7.2.1 IC
- 8. PANEL FACILITIES
ORDER NO.
PIONEER CORPORATION 4-1, Meguro 1-chome, Meguro-ku, Tokyo 153-8654, Japan
PIONEER ELECTRONICS (USA) INC. P.O. Box 1760, Long Beach, CA 90801-1760, U.S.A.
PIONEER EUROPE NV Haven 1087, Keetberglaan 1, 9120 Melsele, Belgium
PIONEER ELECTRONICS ASIACENTRE PTE. LTD. 253 Alexandra Road, #04-01, Singapore 159936
PIONEER CORPORATION 2005
STANDBY/ON
AUDIO/VIDEO MULTI-CHANNEL RECEIVER VSX-AX4AVi
INPUT
SELECTOR MASTER
VOLUME
PHASE
CONTROL
MCACC
POSITION
AUTO SURR/
STREAM DIRECT
PHASE
CONTROL
DIGITAL PRECISION
PROCESSING
HOME
THX
STANDARD
SURROUND
ADVANCED
SURROUND
VSX-AX4AVi-S
RRV3261
AUDIO/VIDEO MULTI-CHANNEL RECEIVER
VSX-AX4AVi-S
VSX-AX2AV-S
THIS MANUAL IS APPLICABLE TO THE FOLLOWING MODEL(S) AND TYPE(S).
*:Alter the wiring of the power-supply block at the primary winding of Power transformer referring to the Line Voltage Selection
described in this Service Manual (“4.19 TRANS1 and PRIMARY ASSYS”).
Model Type Power Requirement The voltage can be converted by the
following method.
VSX-AX4AVi-S HYXJ AC220-230V AC240V, *
VSX-AX2AV-S HYXJ AC220-230V AC240V, *
For details, refer to "Important Check Points for Good Servicing".
T-ZZK OCT. 2005 printed in Japan
VSX-AX4AVi-S
2
1234
1234
C
D
F
A
B
E
SAFETY INFORMATION
This service manual is intended for qualified service technicians; it is not meant for the casual
do-it-yourselfer. Qualified technicians have the necessary test equipment and tools, and have been
trained to properly and safely repair complex products such as those covered by this manual.
Improperly performed repairs can adversely affect the safety and reliability of the product and may
void the warranty. If you are not qualified to perform the repair of this product properly and safely, you
should not risk trying to do so and refer the repair to a qualified service technician.
WARNING
This product contains lead in solder and certain electrical parts contain chemicals which are known to the state of California to
cause cancer, birth defects or other reproductive harm.
Health & Safety Code Section 25249.6 – Proposition 65
NOTICE
(FOR CANADIAN MODEL ONLY)
Fuse symbols (fast operating fuse) and/or (slow operating fuse) on PCB indicate that replacement
parts must be of identical designation.
REMARQUE
(POUR MODÈLE CANADIEN SEULEMENT)
Les symboles de fusible (fusible de type rapide) et/ou (fusible de type lent) sur CCI indiquent que
les pièces de remplacement doivent avoir la même désignation.
ANY MEASUREMENTS NOT WITHIN THE
LIMITS OUTLINED ABOVE ARE INDICATIVE
OF A POTENTIAL SHOCK HAZARD AND
MUST BE CORRECTED BEFORE RETURN-
ING THE APPLIANCE TO THE CUSTOMER.
2. PRODUCT SAFETY NOTICE
Many electrical and mechanical parts in the appliance
have special safety related characteristics. These are
often not evident from visual inspection nor the
protection afforded by them necessarily can be obtained
by using replacement components rated for voltage,
wattage, etc. Replacement parts which have these
special safety characteristics are identified in this
Service Manual.
Electrical components having such features are
identified by marking with a on the schematics and
on the parts list in this Service Manual.
The use of a substitute replacement component which
does not have the same safety characteristics as the
PIONEER recommended replacement one, shown in the
parts list in this Service Manual, may create shock, fire,
or other hazards.
Product Safety is continuously under review and new
instructions are issued from time to time. For the latest
information, always consult the current PIONEER
Service Manual. A subscription to, or additional copies
of, PIONEER Service Manual may be obtained at a
nominal charge from PIONEER.
(FOR USA MODEL ONLY)
1. SAFETY PRECAUTIONS
The following check should be performed for the
continued protection of the customer and service
technician.
LEAKAGE CURRENT CHECK
Measure leakage current to a known earth ground
(water pipe, conduit, etc.) by connecting a leakage
current tester such as Simpson Model 229-2 or
equivalent between the earth ground and all exposed
metal parts of the appliance (input/output terminals,
screwheads, metal overlays, control shaft, etc.). Plug
the AC line cord of the appliance directly into a 120V
AC 60 Hz outlet and turn the AC power switch on. Any
current measured must not exceed 0.5 mA.
Device
under
test
Leakage
current
tester
Earth
ground
Reading should
not be above
0.5 mA
Also test with
plug reversed
(Using AC adapter
plug as required)
Test all
exposed metal
surfaces
AC Leakage Test
VSX-AX4AVi-S 3
5678
5678
C
D
F
A
B
E
[Important Check Points for Good Servicing]
In this manual, procedures that must be performed during repairs are marked with the below symbol.
Please be sure to confirm and follow these procedures.
1. Product safety
Please conform to product regulations (such as safety and radiation regulations), and maintain a safe servicing environment by
following the safety instructions described in this manual.
1 Use specified parts for repair.
Use genuine parts. Be sure to use important parts for safety.
2 Do not perform modifications without proper instructions.
Please follow the specified safety methods when modification(addition/change of parts) is required due to interferences such as
radio/TV interference and foreign noise.
3 Make sure the soldering of repaired locations is properly performed.
When you solder while repairing, please be sure that there are no cold solder and other debris.
Soldering should be finished with the proper quantity. (Refer to the example)
4 Make sure the screws are tightly fastened.
Please be sure that all screws are fastened, and that there are no loose screws.
5 Make sure each connectors are correctly inserted.
Please be sure that all connectors are inserted, and that there are no imperfect insertion.
6 Make sure the wiring cables are set to their original state.
Please replace the wiring and cables to the original state after repairs.
In addition, be sure that there are no pinched wires, etc.
7 Make sure screws and soldering scraps do not remain inside the product.
Please check that neither solder debris nor screws remain inside the product.
8 There should be no semi-broken wires, scratches, melting, etc. on the coating of the power cord.
Damaged power cords may lead to fire accidents, so please be sure that there are no damages.
If you find a damaged power cord, please exchange it with a suitable one.
9 There should be no spark traces or similar marks on the power plug.
When spark traces or similar marks are found on the power supply plug, please check the connection and advise on secure
connections and suitable usage. Please exchange the power cord if necessary.
0 Safe environment should be secured during servicing.
When you perform repairs, please pay attention to static electricity, furniture, household articles, etc. in order to prevent injuries.
Please pay attention to your surroundings and repair safely.
2. Adjustments
To keep the original performance of the products, optimum adjustments and confirmation of characteristics within specification.
Adjustments should be performed in accordance with the procedures/instructions described in this manual.
4. Cleaning
For parts that require cleaning, such as optical pickups, tape deck heads, lenses and mirrors used in projection monitors, proper
cleaning should be performed to restore their performances.
3. Lubricants, Glues, and Replacement parts
Use grease and adhesives that are equal to the specified substance.
Make sure the proper amount is applied.
5. Shipping mode and Shipping screws
To protect products from damages or failures during transit, the shipping mode should be set or the shipping screws should be
installed before shipment. Please be sure to follow this method especially if it is specified in this manual.
VSX-AX4AVi-S
4
1234
1234
C
D
F
A
B
E
CONTENTS
SAFETY INFORMATION..................................................................................................................................... 2
1. SPECIFICATIONS ............................................................................................................................................ 6
2. EXPLODED VIEWS AND PARTS LIST ............................................................................................................ 8
2.1 PACKING ................................................................................................................................................... 8
2.2 EXTERIOR............................................................................................................................................... 10
2.3 CHASSIS SECTION ................................................................................................................................ 12
2.4 REAR PANEL SECTION.......................................................................................................................... 14
2.5 POWER AMP BLOCK.............................................................................................................................. 16
2.6 FRONT PANEL SECTION ....................................................................................................................... 18
3. BLOCK DIAGRAM AND SCHEMATIC DIAGRAM..........................................................................................20
3.1 BLOCK DIAGRAM ................................................................................................................................... 20
3.1.1 OVERALL BLOCK DIAGRAM ........................................................................................................... 20
3.1.2 COMPOSITE V BLOCK DIAGRAM................................................................................................... 22
3.1.3 S-VIDEO BLOCK DIAGRAM ............................................................................................................. 23
3.1.4 COMPONENT &VOL BLOCK DIAGRAM.......................................................................................... 24
3.1.5 DSP BLOCK DIAGRAM .................................................................................................................... 25
3.1.6 HDMI & DVC BLOCK DIAGRAM....................................................................................................... 26
3.1.7 MICROCOMPUTER BLOCK DIAGRAM ........................................................................................... 27
3.2 OVERALL WIRING CONNECTION DIAGRAM........................................................................................ 28
3.3 AUDIO & MULTI CH IN ASSY.................................................................................................................. 30
3.4 V-AUDIO ASSY ........................................................................................................................................ 32
3.5 FRONT-IN and HEADPHONE ASSYS..................................................................................................... 34
3.6 BRIDGE1, BRIDGE2, TRANS SIDE and BRIDGE3 ASSYS ................................................................... 36
3.7 COMPOSITE V ASSY.............................................................................................................................. 38
3.8 S-VIDEO ASSY........................................................................................................................................ 40
3.9 COMPONENT & VOL ASSY (1/4) ........................................................................................................... 42
3.10 COMPONENT & VOL ASSY (2/4) ......................................................................................................... 44
3.11 COMPONENT & VOL ASSY (3/4) ......................................................................................................... 46
3.12 COMPONENT & VOL ASSY (4/4) ......................................................................................................... 48
3.13 DIGITAL MOTHER ASSY (1/8) .............................................................................................................. 50
3.14 DIGITAL MOTHER ASSY (2/8) .............................................................................................................. 52
3.15 DIGITAL MOTHER ASSY (3/8) .............................................................................................................. 54
3.16 DIGITAL MOTHER ASSY (4/8) .............................................................................................................. 56
3.17 DIGITAL MOTHER ASSY (5/8) .............................................................................................................. 58
3.18 DIGITAL MOTHER ASSY (6/8) .............................................................................................................. 60
3.19 DIGITAL MOTHER ASSY (7/8) .............................................................................................................. 62
3.20 DIGITAL MOTHER ASSY (8/8) .............................................................................................................. 64
3.21 DSP ASSY (1/2)..................................................................................................................................... 66
3.22 DSP ASSY (2/2)..................................................................................................................................... 68
3.23 INTERFACE ASSY ................................................................................................................................ 70
3.24 POWER AMP IN and POWER PROTECT ASSYS................................................................................ 72
3.25 POWER AMP L ASSY ........................................................................................................................... 74
3.26 POWER AMP R ASSY........................................................................................................................... 76
3.27 LOCAL SUPPLY and DC/DC ASSYS .................................................................................................... 78
3.28 TRANS2-1, VH-TR, DIODE and SP/PS ASSYS .................................................................................... 80
3.29 TRANS2-2, TRANS1 and PRIMARY ASSYS.........................................................................................82
3.30 VOLUME, DISPLAY and INPUT SELECT ASSYS................................................................................. 84
3.31 PREOUT & CONTROL ASSY................................................................................................................ 86
3.32 1394 ASSY (1/2) .................................................................................................................................... 88
3.33 1394 ASSY (2/2) .................................................................................................................................... 90
3.34 HDMI&DVC ASSY (1/2) ......................................................................................................................... 92
3.35 HDMI&DVC ASSY (2/2) ......................................................................................................................... 94
4. PCB CONNECTION DIAGRAM ..................................................................................................................... 96
4.1 PRIOUT&CONTROL ASSY..................................................................................................................... 97
4.2 AUDIO&MULTI CH IN ASSY.................................................................................................................... 98
4.3 V-AUDIO ASSY ........................................................................................................................................ 99
4.4 HEAD PHONE and FRONT-IN ASSYS.................................................................................................. 100
4.5 BRIDGE1 and BRIDGE2 ASSYS .......................................................................................................... 101
4.6 TRANS SIDE and BRIDGE3 ASSYs ..................................................................................................... 102
4.7 COMPOSITE V ASSYS ......................................................................................................................... 104
4.8 S-VIDEO ASSY...................................................................................................................................... 105
4.9 COMPONENT&VOL ASSY.................................................................................................................... 106
4.10 DIGITAL MOTHER ASSY .................................................................................................................... 110
4.11 DSP ASSY ........................................................................................................................................... 114
4.12 INTERFACE ASSY .............................................................................................................................. 116
VSX-AX4AVi-S 5
5678
5678
C
D
F
A
B
E
4.13 POWER AMP IN ASSY ........................................................................................................................120
4.14 POWER PROTECT ASSY....................................................................................................................121

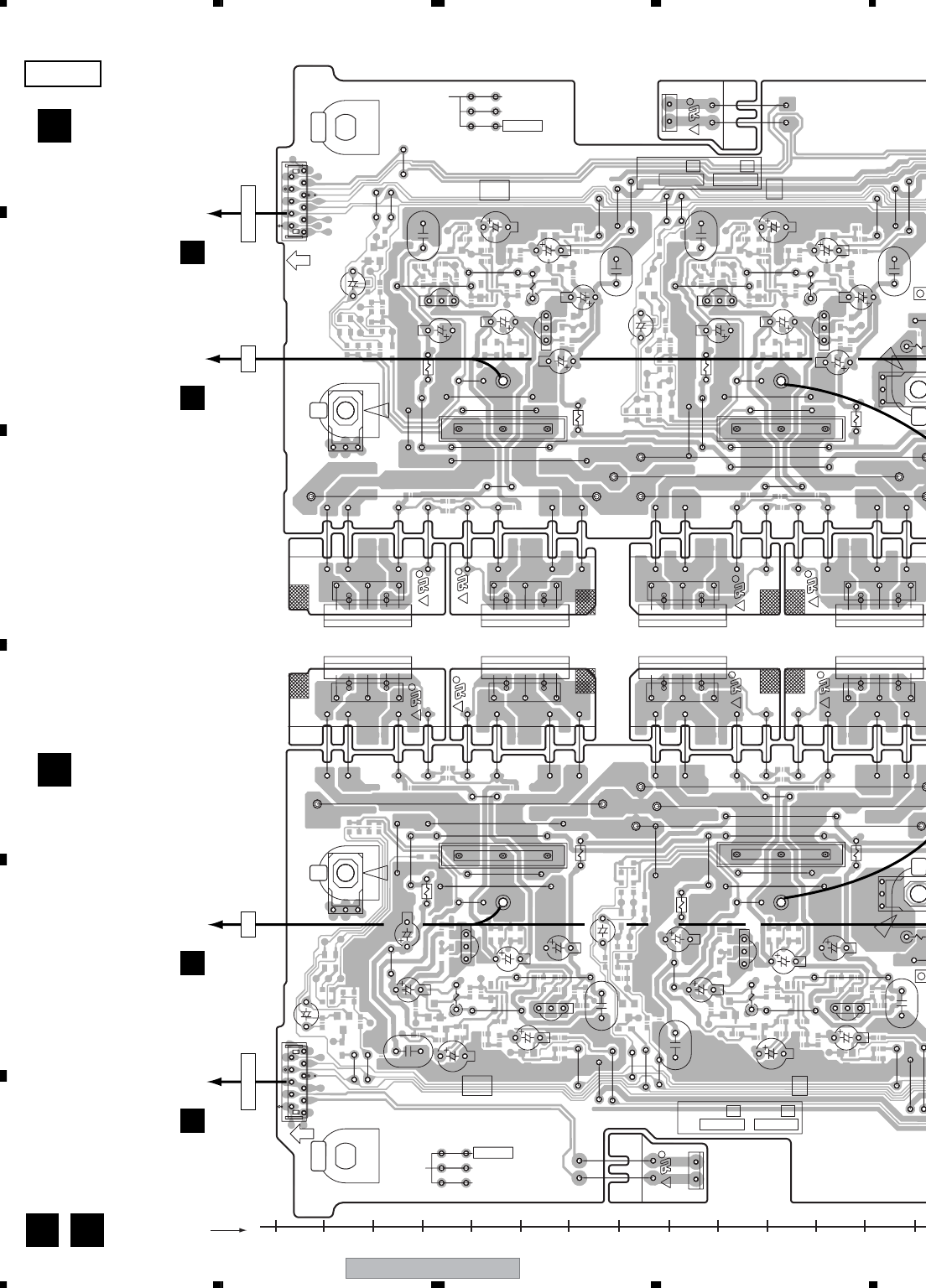

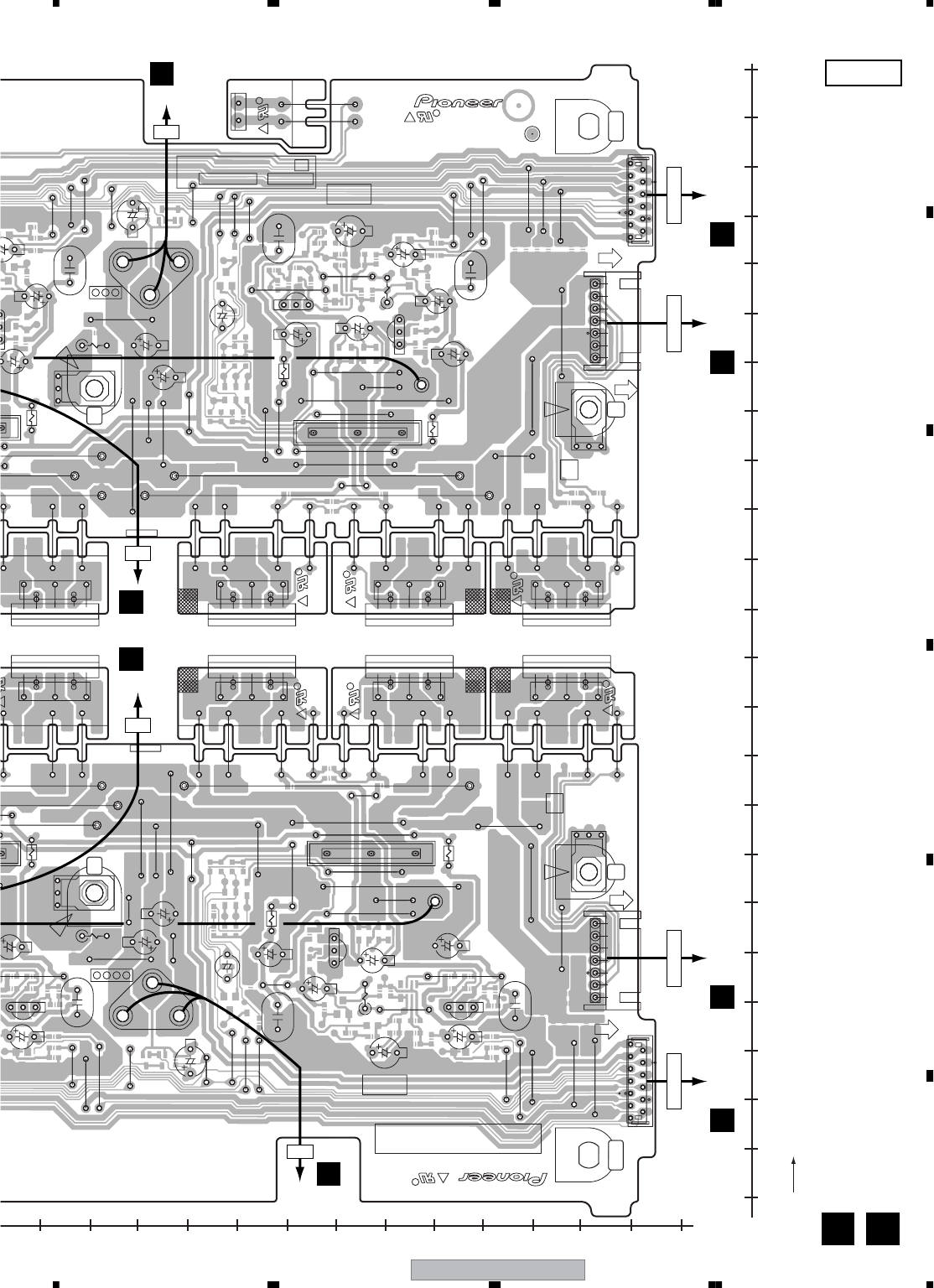

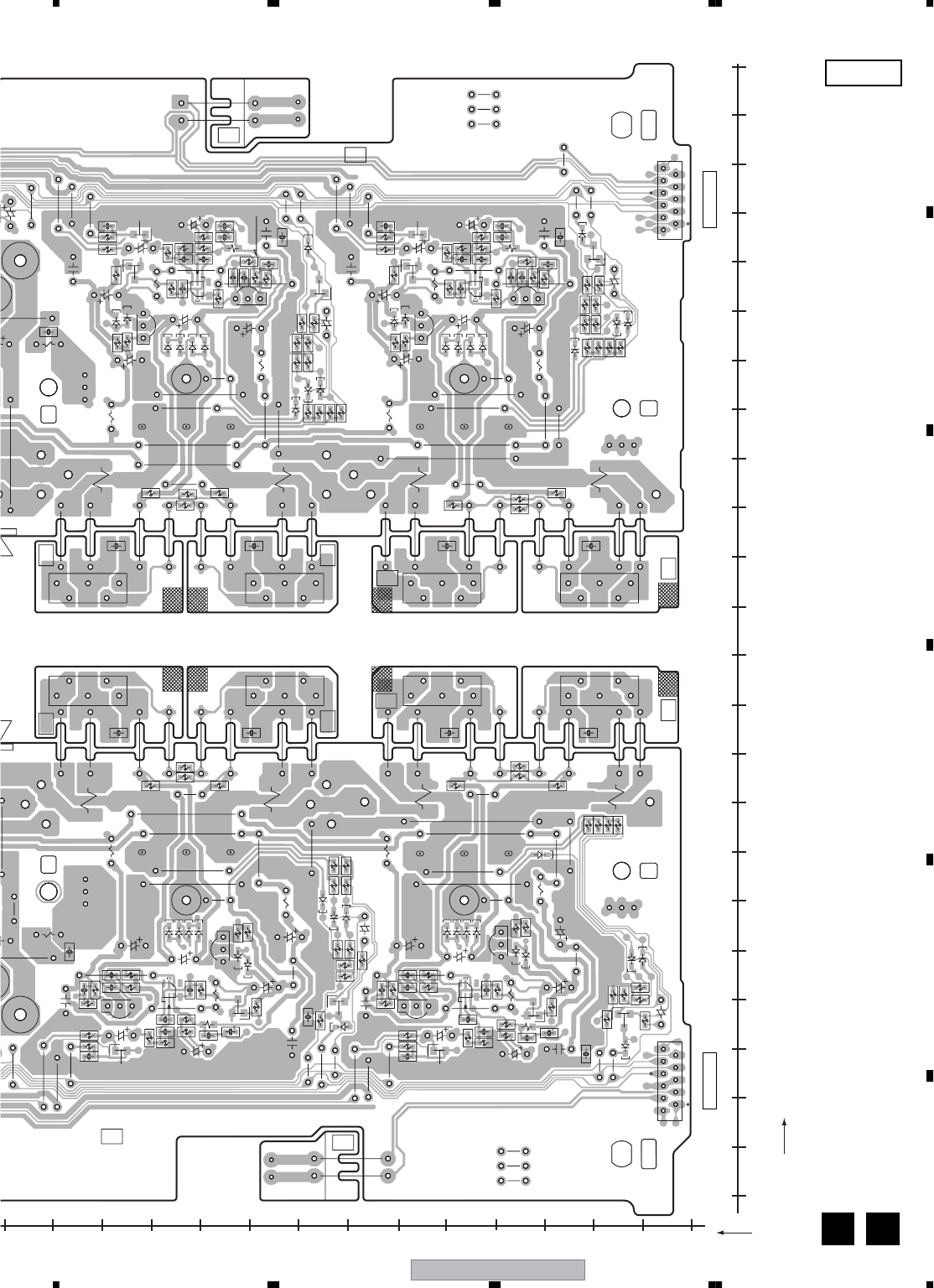

4.15 POWER AMP L and POWER AMP R ASSYS......................................................................................122
4.16 LOCAL SUPPLY and DC/DC ASSYS...................................................................................................126
4.17 TRANS2-1, VH TR, DIODE and TRANS2-2 ASSYS ............................................................................128
4.18 SP/PS ASSY.........................................................................................................................................130
4.19 TRANS1 and PRIMARY ASSYS ..........................................................................................................132
4.20 VOLUME, DISPLAY and INPUT SELECT ASSYS ...............................................................................134
4.21 HDMI&DVC ASSY ................................................................................................................................138
4.22 1394 ASSY ...........................................................................................................................................140
5. PCB PARTS LIST..........................................................................................................................................141
6. ADJUSTMENT ..............................................................................................................................................188
7. GENERAL INFORMATION ...........................................................................................................................189
7.1 DIAGNOSIS............................................................................................................................................189
7.1.1 TEST MODE.....................................................................................................................................189
7.1.2 PROTECTION CIRCUIT SPECIFICATION ......................................................................................192
7.1.3 TROUBLESHOOTING THE DSP BLOCK........................................................................................194
7.1.4 DIAGNOSIS OF THE HDMI BLOCK AND RELATED SYSTEMS ....................................................202
7.1.5 DIAGNOSIS OF THE 1394 ASSY....................................................................................................218
7.1.6 iPod INFORMATION.........................................................................................................................223
7.1.7 HOW TO UPDATE THE DSP FLASH ROM BY PLAYING BACK A CD ...........................................225
7.1.8 HOW TO UPDATE THE FLASH ROMS FOR VARIOUS MICROCOMPUTERS ..............................228
7.1.9 DISASSEMBLY ................................................................................................................................229
7.1.10 HOW TO DIAGNOSE THE PRODUCT WITH THE POWER AMP BLOCK REMOVED.................236
7.1.11 FAILURE DIAGNOSIS OF THE POWER AMP BLOCK .................................................................238
7.2 PARTS ....................................................................................................................................................239
7.2.1 IC......................................................................................................................................................239
8. PANEL FACILITIES .......................................................................................................................................268
VSX-AX4AVi-S
6
1234
1234
C
D
F
A
B
E
1. SPECIFICATIONS
improvements.
531 kHz to 1,602 kHz (9 kHz step)
Mono: 15.2 dBf, IHF (1.6 µV/75 Ω)
5 Hz to 100,000 Hz dB
0.09 %, 8 Ω) . . . . . . . . . . .140 W+140 W (AX4AVi)
140 W + 140 W (AX2AV)
170 W (AX2AV)
170 W + 170 W (AX2AV)
140 W + 140 W (AX2AV)
170 W + 170 W (AX2AV)
Specifications
Continuous Power Output - Stereo
Front . . . . . . . . . . . . . . . .180 W + 180 W (AX4AVi)
(DIN 1 kHz, THD 1 %, 6 Ω)
Front . . . . . . . . . . . . . . . .150 W + 150 W (AX4AVi)
(DIN 1 kHz, THD 1 %, 8 Ω)
Continuous Power Output - Multichannel
(DIN 1 kHz, THD 1 %, 6 Ω)
Front . . . . . . . . . . . . . . . .180 W + 180 W (AX4AVi)
Center . . . . . . . . . . . . . . . . . . . . . .180 W (AX4AVi)
Surround . . . . . . . . . . . . .180 W + 180 W (AX4AVi)
170 W + 170 W (AX2AV)
Surround back . . . . . . . . 180 W + 180 W (AX4AVi)
170 W + 170 W (AX2AV)
(DIN 1 kHz, THD 1 %, 8 Ω)
Front . . . . . . . . . . . . . . . .150 W + 150 W (AX4AVi)
Center . . . . . . . . 150 W (AX4AVi), 140 W (AX2AV)
Surround . . . . . . . . . . . . .150 W + 150 W (AX4AVi)
140 W + 140 W (AX2AV)
Surround back . . . . . . . . 150 W + 150 W (AX4AVi)
140 W + 140 W (AX2AV)
Rated Power Output - Stereo (20 Hz-20 kHz,
130 W+130 W (AX2AV)
The above specifications are applicable when
the power supply is 230 V.
Audio Section
Input (Sensitivity/Impedance)
LINE . . . . . . . . . . . . . . . . . . . . . 335 mV/47 kΩ
Frequency Response (LINE) . . . . . . . . . . . . . . . . .
Output (Level/Impedance)
REC. . . . . . . . . . . . . . . . . . . . . 335 mV/2.2 kΩ
Tone Control
BASS . . . . . . . . . . . . . . . . . . . 6 dB (100 Hz)
TREBLE . . . . . . . . . . . . . . . . . 6 dB (10 kHz)
LOUDNESS . . . . . . . +4/+2 dB (100Hz/10 kHz)
(at volume position -40 dB)
Signal-to-Noise Ratio (IHF, short circuited, A network)
LINE . . . . . . . . . . . . . . . . . . . . . . . . . . . 103 dB
Signal-to-Noise Ratio
[DIN (continuous rated power output/50mW)]
LINE. . . . . . . . . . . . . . . . . . . . . . . . . . 92/65 dB
Composite Video / S-Video Section
Input (Sensitivity/Impedance) . . . . . . . 1 Vp-p/75 Ω
Output (Level/Impedance) . . . . . . . . . 1 Vp-p/75 Ω
Signal-to-Noise Ratio . . . . . . . . . . . . . . . . . . 65 dB
Frequency Response . . . . . . . . . . 5 Hz to 10 MHz
Component Video Section
Input (Sensitivity/Impedance) . . . . . . . 1 Vp-p/75 Ω
Output (Level/Impedance). . . . . . . . . . 1 Vp-p/75 Ω
Signal-to-Noise Ratio . . . . . . . . . . . . . . . . . . 65 dB
Frequency Response. . . . . . . . . . 5 Hz to 100 MHz
FM Tuner Section
Frequency Range . . . . . . . . 87.5 MHz to 108 MHz
Usable Sensitivity . . . . . . . . . . . . . . . . . . . . . . . . .
50 dB Quieting Sensitivity . . . . . . . Mono: 20.2 dBf
Stereo: 41.2 dBf
Sensitivity (DIN) . . . . . . Mono: 1.1 µV (S/N 26 dB)
Stereo: 50 µV (S/N 46 dB)
Signal-to-Noise Ratio . . . . Mono: 76 dB (at 85 dBf)
Stereo: 72 dB (at 85 dBf)
Signal-to-Noise Ratio (DIN) . . . . . . . . Mono: 62 dB
Stereo: 58 dB
Distortion . . . . . . . . . . . . . . . . Stereo: 0.6% (1 kHz)
Alternate Channel Selectivity . . . . 70 dB (400 kHz)
Stereo Separation. . . . . . . . . . . . . . . 40 dB (1 kHz)
Frequency Response . . . . 30 Hz to 15 kHz ± 1dB
Antenna Input . . . . . . . . . . . . . . . 75 Ω unbalanced
AM Tuner Section
Frequency Range . . . . . . . . . . . . . . . . . . . . . . . . .
Sensitivity (IHF, Loop antenna) . . . . . . . 350 µV/m
Selectivity . . . . . . . . . . . . . . . . . . . . . . . . . . . 30 dB
Signal-to-Noise Ratio . . . . . . . . . . . . . . . . . . 50 dB
Antenna . . . . . . . . . . . . . . . . . . . . . . Loop antenna
Miscellaneous
Power Requirements . . . . AC 220-230 V, 50/60 Hz
Power Consumption . . . . . . . . . . . . . . . . . . 460 W
In standby . . . . . . . . . . . . . . . . . Less than 0.6 W
AC Outlet . . . . . . . . . . . . . (switched) 100 W MAX.
Dimensions . . . . . 420 (W) x 187 (H) x 462 (D) mm
Weight (without package) . . . . . . 16.1 kg (AX4AVi)
16.0 kg (AX2AV)
Furnished Parts
Setup microphone (for Auto MCACC setup) . . . . .1
AA/LR6 dry cell batteries . . . . . . . . . . . . . . . . . . . 2
Remote control unit . . . . . . . . . . . . . . . . . . . . . . . .1
AM loop antenna . . . . . . . . . . . . . . . . . . . . . . . . . .1
FM wire antenna . . . . . . . . . . . . . . . . . . . . . . . . . .1
Caution sheet . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
Warranty card . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
Operating instructions
Note
Specifications and the design are subject to
possible modifications without notice, due to
Manufactured under license from Dolby Laboratories. “Dolby”,
“Pro Logic”, “Surround EX”, and the double-D symbol are
trademarks of Dolby Laboratories.
“DTS”, “DTS-ES”, “Neo:6” and “DTS 96/24” are trademarks of
Digital Theater Systems, Inc.
The THX logo is a trademark of THX Ltd. which may be
registered in some jurisdictions. All rights reserved.
Audio control cable for iPod . . . . . . . . . . . . . . . . 1
Operating instructions (Audio control cable for iPod)
VSX-AX4AVi-S 7
5678
5678
C
D
F
A
B
E
Audio Control Cable for iPod
(ADE7119)
Accessories
AM Loop Antenna
(ATB7013)
Remote Control Unit
(AXD7412)
Setup Microphone
(for Auto MCACC setup)
(APM7006)
FM Wire Antenna
(ADH7030)
AA/LR6 Dry Cell Batteries
(VEM1021)
SLEEP
+10
SR+
ANALOG
ATT
DISC
VIDEO
SEL
DIMMER
CLASS
D.ACCESS
RECEIVER SOURCE
SYSTEM OFF
INPUT
SELECT
ENTER
TV CONTROL
SHIFT
VOL
DVD SAT
VIDEO 1
TV CONT
DVR1
TUNE
TUNE
ST ST
STATUS
MCACC S.DIRECT
MULTI OPE
SIGNAL SEL
SBch
STEREO
TV CH
INPUT
SELECT
MPX EON
A
BCD E
AUDIO
SUBTITLE
ADV. SURRSTANDARD
PHASE
THX
MUTE
REC
TV VOL
i Pod
TUNER
RECEIVER
ENTER
REC STOP
HDD
CH CH
DVD
AV PARAMETER
TOP MENU
CH LEVEL
MENU
T.EDIT
BAND
GUIDE
RETURN
SETUP
PTY SEARCH
CD
DVR2 CD-R
TV VIDEO 2
MULTI IN ROOM2/3
DISP
RECEIVER
AC Power Cord
(ADG7062)
VSX-AX4AVi-S
8
1234
1234
C
D
F
A
B
E
2. EXPLODED VIEWS AND PARTS LIST
2.1 PACKING
Parts marked by "NSP" are generally unavailable because they are not in our Master Spare Parts List.
The mark found on some component parts indicates the importance of the safety factor of the part.
Therefore, when replacing, be sure to use parts of identical designation.
Screws adjacent to mark on product are used for disassembly.
For the applying amount of lubricants or glue, follow the instructions in this manual.
(In the case of no amount instructions, apply as you think it appropriate.)
NOTES:
12
10
8
11
16
12
26
25
9
2
3
4
7
15
13
14
6
5
17
1
24
18 to 22
23
VSX-AX4AVi-S 9
5678
5678
C
D
F
A
B
E
(1) PACKING SECTION PARTS LIST
(2) CONTRAST TABLE
VSX-AX2AV-S/HYXJ and VSX-AX4AVi-S/HYXJ are constructed the same except for the following:
Mark No. Description Part No.
1Audio Control Cable for iPod ADE7119
2 FM Wire Antenna ADH7030
3 AM Loop Antenna ATB7013
4 Setup Microphone APM7006
(for Auto MCACC setup)
5 Remote Control Unit AXD7412
6 Battery Cover XZN3140
NSP 7 AA/LR6 Dry Cell Batteries VEM1021
8 Operating Instructions ARB7335
(English)
9 Operating Instructions ARE7600
(Audio Control Cable for iPod)
10 Caution Sheet SP, E ARM7056
NSP 11 Warranty Card ARY7065
NSP 12 Polyethylene Bag AHG7117
13 Packing Sheet RHC1023
14 Front Pad 74 AHA7446
15 Rear Pad 74 AHA7447
16 Packing Case See Contrast table (2)
17 iPod Label ARW7332
18 Operating Instructions ARC7622
(French)
19 Operating Instructions ARC7623
(German)
20 Operating Instructions ARC7624
(Italian)
21 Operating Instructions ARC7625
(Dutch)
22 Operating Instructions ARC7626
(Spanish)
>
23 Power Cord ADG7062
24 Label (WEEE) ARW7322
25 Disclaimer ARX7075
26 Errata ARX7078
Mark No. Symbol and Description VSX-AX4AVi-S
/HYXJ
VSX-AX2AV-S
/HYXJ
16 Packing Case AHD8422 AHD8423
VSX-AX4AVi-S
10
1234
1234
C
D
F
A
B
E
2.2 EXTERIOR
Refer to
"2.6 FRONT PANEL SECTION".
4
Refer to
"2.3 CHASSIS SECTION".
Refer to
"2.6 FRONT PANEL SECTION".
Refer to
"2.6 FRONT PANEL SECTION".
3
4
2
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10 10
1
8
8
8
9
9
6
9
9
9
11
8
8
VSX-AX4AVi-S 11
5678
5678
C
D
F
A
B
E
EXTERIOR SECTION PARTS LIST
Mark No. Description Part No.
1 Bonnet AX4S AZN8008
2 Left Beam 45 ANG7401
3 Center Beam V1 ANG7482
4 Insulator PNW2766
5• • • • • •
6 Label (DD/DTS/THX) ARW7320
7• • • • • •
8 Screw BCZ40P060FNI
9 Screw BBT30P060FCC
10 Screw BBZ30P080FCC
11 Screw IBP30P090FCC
VSX-AX4AVi-S
12
1234
1234
C
D
F
A
B
E
2.3 CHASSIS SECTION
CONTACT SIDE
NON-CONTACT
SIDE
B
C
C
G
G
H
H
I
J
J
K
K
O
P
P
O
L
L
M
M
N
N
I
D
D
E
P
P
E
F a
F a
F b
F b
B
A
A
T
N
L
M
E
S
G
YZU
W
X
V
AG
AF
AA
HEADPHONE
CN3551
DISPLAY
3202
Refer to
"2.5 POWER AMP BLOCK".
Refer to
"2.4 REAR PANEL SECTION".
52
52
48
48
48
48
48
48
48
50
48
48
48
54
54
55
54
48 49 49
49
49
49
48
48
48
48
48
48
48
48
49
49
49
49
48 56
48
48
52
52
52
21
4
7
9
13
27
10
8
16
3
20
19
28
30
44 43
31
32
41
22
23
45
40
39
*
*
12
45
34
39
39
34
46
35
36
29
14
39 6
42
51
51
52
17
18
5
38
25
24
37
VSX-AX4AVi-S
only
VSX-AX4AVi-S
only
33
21
15
47
47
52
26
32
11
48
48
48
48
48
*Refer to
"2.6 FRONT
PANEL SECTION".
53 53
48
50
48
58
60
57
59
VSX-AX4AVi-S 13
5678
5678
C
D
F
A
B
E
(1) CHASSIS SECTION PARTS LIST
(2) CONTRAST TABLE
VSX-AX2AV-S/HYXJ and VSX-AX4AVi-S/HYXJ are constructed the same except for the following:
Mark No. Description Part No.
NSP 1 BRIDGE 1 Assy AWX8667
2 1394 Assy See Contrast table (2)
3 TRANS 2-2 Assy AWX8626
4 PRIMARY Assy AWX8629
5 DIGITAL MOTHER Assy See Contrast table (2)
6 HDMI & DVC Assy AWQ7024
7 SP/PS Assy See Contrast table (2)
8 TRANS 2-1 Assy AWX8647
NSP 9 DIODE Assy AWX8648
10 VH TR Assy AWX8649
11 DC/DC Assy AWX8650
12 INTERFACE Assy AWX8651
NSP 13 TRANS SIDE Assy AWX8652
14 LOCAL SUPPLY Assy AWX8672
15 DSP Assy AWX8599
16 TRANS 1 Assy • • • • •
NSP 17 FFC Guard (Front) Assy AWX8634
NSP 18 FFC Guard (Side) Assy AWX8696
>
19 Power Transformer (T1501) ATS7403
>
20 Fuse (FU4 : T4AL/250V) REK1028
>
21 Fuse (FU1 : T5AL/250V) REK1029
>
22 Fuse (FU5, 6 : T800mAL/250V) REK1021
>
23 Fuse (FU7, 8 : T2.5AL/250V) REK1026
24 22P Flexible Cable (J52) See Contrast table (2)
25 10P Flexible Cable (J53) See Contrast table (2)
NSP 26 Under Base 72 ANA7182
27 Under Beam V1 ANG7478
NSP 28 Trans. Frame 74 ANG7539
NSP 29 DSP Shield 74 ANG7540
NSP 30 Panel Stay 74 ANG7541
NSP 31 Transistor Holder ANG7543
NSP 32 DC Assy Holder ANG7544
NSP 33 HDMI Shield ANK7124
34 PCB Mold AMR2534
35 Inter Holder A AMR7500
36 Inter Holder B AMR7501
37 Shield Cushion See Contrast table (2)
38 Nyron Rivet See Contrast table (2)
39 Nyron Rivet AEC7408
40 Card Spacer AEC7502
NSP 41 FR IN Barrier AEC7538
42 Locking Card Spacer See Contrast table (2)
43 Locking Wire Saddle AEC7550
44 Side Clamp DEC2007
45 Card Spacer DNK2769
46 Locking Card Spacer PNW2917
47 PC Support VEC1508
48 Screw BBZ30P080FCC
49 Screw BBZ30P060FCC
50 Screw BBZ26P080FCC
51 Screw 3 x 15 ABA7100
NSP 52 Binder (BK-1) ZCA-BK1
53 Screw PMZ30P060FCC
54 Screw ABA7125
55 Washer WH40FNI
NSP 56 Barrier Holder • • • • • •
NSP 57 Fuse Card AXX2367
NSP 58 Fuse Card AXX7098
NSP 59 Fuse Card AXX7099
NSP 60 Fuse Card AXX7277
Mark No. Description Part No.
Mark No. Symbol and Description VSX-AX4AVi-S
/HYXJ
VSX-AX2AV-S
/HYXJ
2 1394 Assy AWK7882 Not used
5 DIGITAL MOTHER Assy AWP7038 AWP7043
7 SP/PS Assy AWX8643 AWX8645
24 22P Flexible Cable (J52) ADD7517 Not used
25 10P Flexible Cable (J53) ADD7518 Not used
37 Shield Cushion AEB7372 Not used
38 Nyron Rivet AEC7406 Not used
42 Locking Card Spacer AEC7549 Not used
VSX-AX4AVi-S
14
1234
1234
C
D
F
A
B
E
2.4 REAR PANEL SECTION
A
B
B
A
CONTACT SIDE
NON-CONTACT
SIDE
K
J
I
B
F
H
A
AE
INTERFACE
CN4320
INTERFACE
CN4319
INTERFACE
CN4318
INTERFACE
CN4317
INTERFACE
CN4316
POWER AMP IN
CN5603
CN4315
CN4314
CN4324
INTERFACE
CN4313
CN4325
CN4312
23
21
17
26
14
18
12
9
19
5
27
24
25 28
24 29
24 24 24 24 29
3
2
6
10
13
22
20
11
7
1
8
4
24
VSX-AX4AVi-S 15
5678
5678
C
D
F
A
B
E
(1) REAR PANEL SECTION PARTS LIST
(2) CONTRAST TABLE
VSX-AX2AV-S/HYXJ and VSX-AX4AVi-S/HYXJ are constructed the same except for the following:
Mark No. Description Part No.
NSP 1 BRIDGE 2 Assy AWX8668
2 COMPOSITE V Assy AWX8620
3S VIDEO Assy AWX8622
4 PREOUT & CONTROL Assy AWX8689
5 COMPONENT & VOL Assy See Contrast table (2)
6V-AUDIO Assy AWX8690
NSP 7 BRIDGE 3 Assy AWX8669
8AUDIO & MULTI CH IN Assy AWX8687
9 FM/AM TUNER Unit AXX7170
10 19P Flexible Cable (J45) ADD7511
11 17P Flexible Cable (J46) ADD7512
12 17P Flexible Cable (J47) ADD7513
13 26P Flexible Cable (J48) ADD7514
14 11P Flexible Cable (J54) ADD7519
15 • • • • • •
16 • • • • • •
17 Rear Panel See Contrast table (2)
18 FFC Cushion AEB7373
NSP 19 PCB Spacer (3 x 6) AEC7156
20 Nyron Rivet AEC7408
21 SP Sheet AX4, 2HY AEC7559
NSP 22 Connect Barrier AEC7541
23 Cushion Circle 16B AED7052
24 Screw BBZ30P080FCC
25 Screw BBZ30P100FCC
26 Screw 2.85 x 7 ABA7078
27 Terminal Screw AKE-031
28 Screw BBZ26P080FCC
29 Screw BBT30P100FCC
Mark No. Symbol and Description VSX-AX4AVi-S
/HYXJ
VSX-AX2AV-S
/HYXJ
5 COMPONENT & VOL Assy AWQ7034 AWQ7035
17 Rear Panel AX4HY ANC8328 Not used
17 Rear Panel AX2HY Not used ANC8331
VSX-AX4AVi-S
16
1234
1234
C
D
F
A
B
E
2.5 POWER AMP BLOCK
B
B
C
C
D
D
A
A
CONTACT SIDE
NON-CONTACT
SIDE
Q
O
R
P
COMPONENT & VOL
CN2601
TRANS 2-1
CN4202
DIGITAL MOTHER
CN103
LOCAL SUPPLY
J6104
TRANS SIDE
CN4403
6
4
10
8
2
8
8
12
13
13
15
15
9
5
3
11
7
12
12
12
9
1
8
10
8
8
11
16
16
16
16
14
14
14
14
14
14
14
14
14
14
14
14
14
14
17
17 18
Cleaning paper : GED-008
VSX-AX4AVi-S 17
5678
5678
C
D
F
A
B
E
POWER AMP BLOCK PARTS LIST
Mark No. Description Part No.
1POWER AMP-L Assy AWX8655
2POWER AMP-R Assy AWX8657
3POWER PROTECT Assy AWX8659
4POWER AMP IN Assy AWX8662
5 19P Flexible Cable (J43) ADD7509
6 19P Flexible Cable (J44) ADD7510
7 17P Flexible Cable (J51) ADD7516
8 PCB Angle 45 ANG7406
NSP 9 HS Angle 74 ANG7542
NSP 10 Heatsink 74 ANH7181
11 Nyron Rivet AEC7408
12 Mica Sheet AEC7545
NSP 13 Binder (BK-1) ZCA-BK1
14 Screw BBZ30P080FCC
15 Screw 3 x 19 ABA7085
16 Screw BBT30P100FCC
17 Screw BBZ30P300FTC
18 DC Fan Motor AXM7029
VSX-AX4AVi-S
18
1234
1234
C
D
F
A
B
E
2.6 FRONT PANEL SECTION
A
A
CONTACT SIDE
NON-CONTACT
SIDE
C
D
TRANS SIDE
4401
DIGITAL MOTHER
CN101
LOCAL SUPPLY
CN6103
INTERFACE
CN4301
AB
AC
AD
15
11
11
13
18
28
41
3
9
7
5
2
6
8
31
33
31
24
26
17
23
10
12
14
29
29
29 29
29
29
29
29
29 29
29
29
29
29
23
32
20
17
25
32
22
22
16
30
DSP Holder B Screw Mold DSP Holder T
Cut Cut Cut Cut
16
27
19
10
24
VSX-AX4AVi-S 19
5678
5678
C
D
F
A
B
E
(1) FRONT PANEL SECTION PARTS LIST
(2) CONTRAST TABLE
VSX-AX2AV-S/HYXJ and VSX-AX4AVi-S/HYXJ are constructed the same except for the following:
Mark No. Description Part No.
1 DISPLAY Assy See Contrast table (2)
2FRONT-IN Assy AWX8638
3 HEADPHONE Assy AWX8639
4 INPUT SELECT Assy AWX8640
5VOLUME Assy AWX8641
6 15P Flexible Cable (J41) ADD7507
7 23P Flexible Cable (J42) ADD7508
NSP 8 Cord with Plug ADH7022
9 Door Spring ABK7061
10 Cushion Circle 6S AED7080
11 Cushion 11 x 7 AED7092
12 Door Shaft 35 AMR7295
13 Door Base S AMR7510
14 Door Panel AX4HY ANB7371
15 Damper Assy (200) AXA7088
16 Rotary Knob S AAA7034
17 Hinge Button AX4S AAD7746
18 ENTER Button AX4S AAD7749
19 Door Sheet AX4HY AAK8293
20 Window See Contrast table (2)
21 • • • • • •
22 Ring ABH7213
23 Knob Spacer 74 AEC7558
24 Panel Base AX4S AMB7902
25 Front Panel See Contrast table (2)
26 Earth Plate A ANG7484
27 Pioneer Badge S VAM1124
28 STBY BTN 915P Assy XAD3217
29 Screw BBZ30P080FNI
30 Screw BBZ30P080FNI
31 Screw ABA7110
32 Nut NK90FCU
NSP 33 Front In Folder • • • • • •
Mark No. Description Part No.
Mark No. Symbol and Description VSX-AX4AVi-S
/HYXJ
VSX-AX2AV-S
/HYXJ
1 DISPLAY Assy AWX8635 AWX8636
20 Window AX4 AAK8289 Not used
20 Window AX2 Not used AAK8290
25 Front Panel AX4HY ANB7379 Not used
25 Front Panel AX2HY Not used ANB7380
VSX-AX4AVi-S
20
1234
1234
C
D
F
A
B
E
3. BLOCK DIAGRAM AND SCHEMATIC DIAGRAM
3.1 BLOCK DIAGRAM
3.1.1 OVERALL BLOCK DIAGRAM
IC2632
IC2630 SW
IC101 HDMI
RECEIVER
IC301 HDMI
TRANSMITTER
IC201
BUFFER
HDMI OUT
HDMI IN 2
HDMI IN 1
DVD-A
S/PDIF
IC201
1394
PHY LINK
i.LINK(S400)
i.LINK(S400) IC301
Rate
Controller
DVD-A
SACD
IC401
DSD-LPCM
Controller
SELECTOR
SACD
IC101 DSP1
DECODER
POST
PROCESSING
Floating 32bit
IC201 DSP2
ADVANCED MCACC
POST
PROCESSING
24bit or 48bit
(Double Precision)
IC304,IC305
SELECTOR
IC261
USB-S/PDIF
USB
DIGITAL IN(COAX1)
DIGITAL IN(COAX2)
DIGITAL IN(OPT2)
DIGITAL IN(OPT3)
DIGITAL IN(OPT4)
DIGITAL IN(OPT1)
DIGITALOUT1(OPT)
DIGITALOUT2(OPT)
FRONT IN(OPT)
DIR & DIT
96k/24bit
IC301
SELECTOR
IC306-IC309
IC482
A/D
96k/24bit PCM DIRECT
IC481ATT
TUNER
PHONO
CD
CDR
MULITI CH IN FL/FR
CDR REC
IC6201
INPUT SELECTOR
DVR1,2 REC
DVD
TV
SAT
VIDEO1
DVR1
DVR2
ipod
VIDEO2
MIC
IC6301
INPUT SELECTOR
C/SW
SL/SR
SBL/SBR
IC2636 CENTER
<<ANALOG PHANTOM>>
IC2631 IC2634
DSP ASSY
M
HDMI&DVC ASSY
AG
6
19
CN351
21 CN401
21
2
5
CN303
CN992
CN991
8
CN2501
CN2603
15
CN2603
13
CN6203 9
CN6202
CN6204
CN6302
4
9
CN402
CN2502
1
CN304
CN306
6CN1001
11
-
-
8
CN1001
11
7
3
7
11
15
1394 ASSY
AF
S/PDIF
MR VASEL
MR to VOL
6
11 ,
CN304
CN301
8
6-3
,7
16 , -179, ,14 20
CN401
16 ,
,
-179, ,14 20
DIGITAL MOTHER ASSY
L
AUDIO&MULTI CH
IN ASSY
19
15 CN6302
CN6203
CN5454
5
20
V AUDIO ASSY
FRONT
IN ASSY
AUDIO&MULTI CH IN ASSY
A
A
B
C
1,17
COMPONENT&VOL
ASSY
K
CN101
CN102
CN301
JA201
JA202
JA261
JA301
JA305
JA304
JA303
JA302
JA307
JA306
CN6205
JA6301
CN6207 (1/2)
CN6307
CN6308(1/2)
CN6309(1/2)
CN2804
CN6207(2/2)
CN6208
CN6209
JA3451
CN6308(2/2),CN6309(2/2)
VSX-AX4AVi-S 21
5678
5678
C
D
F
A
B
E
IC2638
MR VR
IC2633
<<MASTER VR>>
<<TRIM>>
IC2635 IC2637
IC2639
IC2501
IC2525
IC2551
IC2575
FL/FR
CENTER
SL/SR
SBL/SBR
(Flexible)
Multi-Room & Source
FL/FR
C/SW
SL/SR
SBL/SBR
SELECTOR
IC315,IC316
DAC
DAC
DAC
IC551 DAC
192k/24bit
IC552
LPF
IC652 LPF
IC752 LPF
IC852 LPF
IC651 DAC
192k/24bit
IC751 DAC
192k/24bit
IC851 DAC
192k/24bit
SACD DIRECT
<<PRE AMP>>
AG
CN2603
9
3
CN2602
13
23
15
11
CN2801
CN2601
4
14
6
2
CN5603
CN302 CN305
CN352
CN5601
4
CN5005
1
CN5601
5
11
CN5601
4
CN5005
13
CN5601
9
16
6
14
18
14
4
12
16
72-
12 13 14 15
12 13 14 15
B
X
D
Q
OR
POWER AMP IN
ASSY
POWER
AMP R
ASSY
POWER
AMP L
ASSY
HEAD
PHONE
HEAD
PHONE ASSY
SP/PS ASSY
PRE OUT
& CONTROL
ASSY
V AUDIO
ASSY
9,
CN4001
CN3551
CN4002
CN2805
CN2806
JA6301
VSX-AX4AVi-S
22
1234
1234
C
D
F
A
B
E
3.1.2 COMPOSITE V BLOCK DIAGRAM
DVD
TV MONITOR
OUT
MRV
DVR2/VCR2 REC
SAT
VIDEO1
DVR1/VCR1IN
DVR2/VCR2IN
INH
IC2002
CD74HC4051PWR
FV
IC2005(2/2)
TK15420M
DVR1/VCR1 REC
NJM2279M
IC2006
CD4094BNS
IC2009 CD4094BNS
IC2008
IC2005(1/2)
TK15420M
PDC131A
IC2007
OSDRT
OSDCS
OSD
OSDCS
OSDRT
OSDDT
EXCK
OSDDT
EXPCK
CLK CLK
EXPST
EXPDT4
DT4DT5
DT5
STROBESTROBE
Q1
Q2
Q3
VSW1
VSW2
VSW3
MRA
MRB
Q6
V52B
V52A
MRC
Q4
Q5
Q8
Q7
OE
VSW1
VSW2
VSW3
MRA
MRB
MRC
SWB
SWC
OE
Q6
Q8
Q7
MUTE
EXPOE
IC2001
CD74HC4051PWR
INH VINH
V2M V1M MRINH
MRINH
CN2001
CN2002
HDMI(OSD)
OSD
TO
HDMI
V1M
V2M
VINH
Q1
Q2
Q3
Q4
Q5
SWA
SWC
SWB
CD74HC4052PWR
IC2004
RECSEL/
2NDZONE
SELECT
PORT
EXPANDER PORT
EXPANDER
MR
V52A
V52B
INH
OSD
IC2003
CD74HC4053PWR
MUTE
SWA
NC
MUTE
COMPOSITE V ASSY COMPOSITION IC DATA
<CD4094BNS(EXPANDER IC2008)>
·CONTROL U-COM PORT
EXPST:EXPCK:EXPOE
INPUT DATA NAME:DT4
OUTPUT DATA NAME:DT5
·EXPANDER PORT NAME
Q1:VSW1/Q2:VSW2/Q3:VSW3/Q4:MRA
Q5:MRB/Q6:MRC/Q7:V52A/Q8:V52B
<CD4094BNS(EXPANDER IC2009)>
Q1:V1M/Q2:V2M/Q3:VINH/Q4:MUTE
Q5:MRINH/Q6:SWA/Q7:SWB/Q8:SWC
<CD74HC4051PWR x1 (SW IC2001)>
·USING EXPANDER PORT
VSW1:VSW2:VSW3:VINH
<CD74HC4051PWR x1 (SW IC2002)>
MRA:MRB:MRC:MRINH
<CD74HC4053PWR x1 (SW IC2003)>
SWA:SWB:SWC:VINH
<CD74HC4052PWR x1 (SW IC2004)>
V52A:V52B:MRINH
<NJM2279M (RECOUT SEL IC)>
V1M:V2M
·CONTROL U-COM PORT
EXPST:EXPCK:EXPOE
INPUT DATA NAME:DT5
OUTPUT DATA NAME:---
·EXPANDER PORT NAME
·USING EXPANDER PORT
·USING EXPANDER PORT
·USING EXPANDER PORT
·USING EXPANDER PORT
MAIN ROOM
SUB ROOM
INPUT
OSD IC
SELECT
REC OUT
SEL.
VMUTE
I-Pod
VIN
VOUT
JA2003(2/2)
JA2004(1/2)
JA2003(1/2)
JA2002
JA2001
JA2004(2/2)
JA2005
THROUGH
THROUGH
I
14 6
3
11
10
9
13
12
1
2
3
5
6
14
15
4
11
10
9
15
13
12
1
4
5
2
14 6
3
11
10
9
15
13
12
1
4
5
2
14
15
11
12
5
2
4
1
6
13
13
2
13
11
12
15
2
13
11
12
15
10
3
1
4
5
6
7
14
3
11
2
3
4
6
8
5
7
5
1
4
5
6
7
14
9
23
11
10
3
10
9
13 15 10
3
4
5
12
11
10
CN4317
N
CN5443
F
INH
2
VSX-AX4AVi-S 23
5678
5678
C
D
F
A
B
E
3.1.3 S-VIDEO BLOCK DIAGRAM
Y
C
Y
C
Y
C
C
Y
MONITOR
OUT
DVR1/VCR1
REC OUT
DVR2/VCR2
REC OUT
IC2201
CD74HC4051PWR
IC2202 CD74HC4052PWR
IC2203
S-V/HDMI
SELECTT
INH
C HDMI
S52A
S52B
SSW2
SSW3
SSW1
SSW2
SSW3
SSW1
IC2204(2/2)
TK15420M
IC2204(1/2)
TK15420M
S-C
S-Y
FVY
DT2
EXPCK
EXPST
EXPOE
CN2202
FVC
1
CD4094BPW
IC2281
CLK
DT2
DT3
STROBE
Q1
Q2
Q3
SSW1
S52B
SINH
Q6
SSW3
S52A
SSW2
Q4
Q5
Q7
Q8
OE
DT4
SINH
SINH
SDET IC
IC2271
IC2205
CD74HC4051PWR
IC2206
CD74HC4051PWR
SMRB
SMRC
SMRA
MRINH
MRINH
Y
Y
Y
C
C
C
CD74HC4052PWR
IC2207
CD74HC4052PWR
IC2209
IC2208(2/2)
TK15420M
IC2208(1/2)
TK15420M
IC2210(2/2)
TK15420M
IC2210(1/2)
TK15420M
Y
C
Y
C
SMRB
SMRC
SMRA
SRC1
SRC2
SRC1
SRC2
C THROUGH
Y THROUGH
Y HDMI
OSD Y
OUT A,B
OUT A,B
OUT A,B
OUT A,B
OUT A
OUT B
OUT A
OUT B
MUTE
MUTE
MUTE
MUTE
Brank
Brank
Brank
Brank
REC IN1
REC IN2
REC
STBY1
REC
STBY2
REC FVY
REC
DVR1
REC
DVR2
REC IN1
REC IN2
REC
STBY1
REC
STBY2
REC FVC
REC
DVR1
REC
DVR2
IC2282
CLK
DT3
DT4
STROBE
Q1
Q2
Q3
SMRA
SRC2
Q6
SMRC
SRC1
SMRB
Q4
Q5
Q7
Q8
OE
CD4094BPW
CD74HC4051PWR
OSD C
MUTE
MUTE
INH
INH
S-VIDEO IN1
CN2203(1/3)
S-VIDEO IN2
CN2203(2/3)
STAND BY1
CN2204(1/2)
STAND BY2
CN2204(2/2)
DVR1/VCR1 IN
CN2205(1/2)
DVR2/VCR2 IN
CN2206(1/2)
CN2201
CN2203(3/3)
CN2205(2/2)
CN2206(2/2)
Y SELECT
C SELECT
Y REC
SELECT
C REC
SELECT
SYIN
SCIN
SYOUT
SCOUT
SDET
14 614
6
13
3
10
9 4
5
6
7
14
13
12
11
4
5
6
7
14
13
12
11
3
1
15
2
10
3 5
7
6
4
3
10
8
1
15
2
9
15
11
7
16
2
4
5
3
11
10
9
15
13
12
1
4
5
2
14 6
3
11
10
9
6
3
11
10
9
6
3
11
10
9
15
13
12
1
4
5
2
14
15
13
12
1
4
5
2
14 6
13
3
10
9
6
13
3
10
9
9 7 5 3 1
15
11
7
5
2
4
16
14
15
11
7
5
2
4
16
14
15
13
12
1
4
5
2
J
CN4316
N
CN5442
F
S-VIDEO ASSY COMPOSITION IC DATA
<CD4094BPW(EXPANDER IC2281)>
·CONTROL U-COM PORT
EXPST:EXPCK:EXPOE
INPUT DATA NAME:DT2
OUTPUT DATA NAME:DT3
·EXPANDER PORT NAME
Q1:SSW1/Q2:SSW2/Q3:SSW3/Q4:S52A
Q5:S52B/Q6:OPEN/Q7:OPEN/Q8:SINH
<CD4094BPW(EXPANDER IC2282)>
Q1:SMRA/Q2:SMRB/Q3:SMRC/Q4:SRC1
Q5:SRC2/Q6:OPEN/Q7:OPEN/Q8OPEN
<CD74HC4051PWR x2 (SW IC2201, IC2202)>
·USING EXPANDER PORT
SSW1:SSW2:SSW3:SINH
<CD74HC4052PWR x1 (SW IC2203)>
S52A:S52B:SINH
<CD74HC4051PWR x2 (SW IC2205, IC2206)>
SMRA:SMRB:SMRC:MRINH
<CD74HC4052PWR x2 (SW IC2207, IC2209)>
SRC1:SRC2:MRINH
MRINH connect the signal line from the Port expander of COMPOSITE V ASSY.
<LA2205 (SDET IC2205)>
SDET
·CONTROL U-COM PORT
EXPST:EXPCK:EXPOE
INPUT DATA NAME:DT3
OUTPUT DATA NAME:DT3
·EXPANDER PORT NAME
·USING EXPANDER PORT
·USING EXPANDER PORT
·USING EXPANDER PORT
·OUTPUT DATA NAME
VSX-AX4AVi-S
24
1234
1234
C
D
F
A
B
E
3.1.4 COMPONENT &VOL BLOCK DIAGRAM
JA2402(1/2)
JA2401(1/2)
Y
Cb
Cr
Y
Cb
Cr
COMPONENT IN1
COMPONENT IN2
Y
Cb
Cr
COMPONENT IN3
Y
Cb
Cr
COMPONENT
OUT
TC74LVX4053FT
JA2402(2/2)
TC74LVX4052FT
IC2401
CY1
CY2
CY3
NC
NC
NC
NC
NC
TC74LVX4052FT
IC2402
DINH
D53A
DSW1
CR
DB
VMUTE
DR
DY
CB
CY
DY
CB1
CB2
CB3
DB
CR1
CR2
CR3
DR
C'NENT/D-TERM
SELECT
C'NENT/D-TERM
SELECT
Y1
Through/Convert
SELECT
PORT
EXPANDER
POWER
AMP
IC2404
VMUTE
CYIN
CBIN
CRIN
CYOUT
CBOUT
CROUT
CB1
CR1
CINH
CINH
CSW1
CSW1
CSW2
CSW2
CSW2
CSW1
CINH
IC2407
BU4094BCF
NJM2581M
IC2405
+6dB
BIAS
+6dB
BIAS
+6dB
BIAS
OUTPUT
BUFFER
OUTPUT
BUFFER
OUTPUT
BUFFER
POWER SAVE
CINH
CSW1
CSW2 Q5
Q4
Q3
Q2
Q1
C53B
C53B
CSW2
CSW1
CINH
CINH CINH
MRV
OSDRT
EXPOE
EXPST
EXPDT
EXPCK
OSDCS
EXPOE
EXPST
EXDT
EXPCK
OSDCS
OSDRT
Q`S
QS
OECOE
COE
CST
CDT2
CCK
MULTI ROOM
OUT
CN2401 CN2403
CN2409
CN2504
HDMI(VC)
HDMI(VC)
HDMI(VC)
THROUGH
THROUGH
THROUGH
JA2401(2/2)
JA2403
COMPONENT & VOL ASSY COMPOSITION IC DATA
<BU4094BCF(EXPANDER IC2407)>
·CONTROL U-COM PORT
EXPST:EXPCK:EXPOE
INPUT DATA NAME:EXDT
OUTPUT DATA NAME:DT2
·EXPANDER PORT NAME
Q1:CSW1/Q2:CSW2/Q3:CINH/Q4:XMSB
Q5:C53B/Q6:DSW1/Q7:D53A/Q8:DINH
<TC74LVX4052FT x2 (SW IC2401, IC2402)>
·USING EXPANDER PORT
CSW1:CSW2:CINH
<TC74LVX4053FT x1 (SW IC2404)>
C53B:CINH
<NJM2581M x1 (V-AMP IC2405)>
VMUTE
·USING EXPANDER PORT
·CONTROL U-COM PORT
K
14
6
13
3
13 14 1
3
5
7
15
7
8
5
6
2
3
14131716191811975311316481217181910146
13
11
9
15
4
11
10
9
12
1
2
3
5
6
9
4
5
6
7
DINH
D53A
Q8
DSW1
Q6
CCK
Q7
CST
1
10
3
13
12
11
14
15
10
9
15
11
12
1
2
4
5
14 6
13
3
10
9
15
11
12
5
2
4
1
CN5441
E
CN5431
E
CN4314
N
CN1004
AH
CCK
2SERIALIN
VSX-AX4AVi-S 25
5678
5678
C
D
F
A
B
E
3.1.5 DSP BLOCK DIAGRAM
ANALOG IN
(2ch) RST
DAUX
DIGITAL
RX**
3LINE DATA
ANALOG
OUT
SPI+RST SPI+RST
SPI+RST
SPI+RST
SPDIF
RST SPI
4LINE DATA
& CLOCK
1.Description of Device ICs
IC No IC Name Description of function
IC 482 A/D Converter Converts signals from an analog source into digital signals.
IC 301 Digital Audio Interface Transceiver & Receiver Selecting digital data.
IC 101 DSP Decoder for compressed sound such as AC-3 and DTS.
IC 201 DSP P Company's original processor such as SFC.
IC 201 DSP Microcomputer set
IC 202 FLASH ROM DSP Microcomputer programs are stored in the flash rom.
IC 551,651,751,
851,951 D/A Converter Converts digital signals into analog signals.
2.Description of Abbreviated Names
Signal name Formal signal name Description of signals
SPI SONY/Philips Digital Interface Consumer format used for exchanging digital audio signals.
RST RESET Reset signal.
PPP Post Processing Phase Denotes DSP processing (P Company's original surround processing),
which are executed at the latter part of a decoder area.
DSP CONTROL
u-COM
(100pin)
PEG117A
IC201
FLASH ROM
4Mbit
(512kbyte)
IC202
16bit DATA BUS
19bit ADDRESS BUS
DIT&DIR
AK4114VQ
IC301
AD
PCM1803DB
(BB)
IC482
DSP(DECODER)
SHARC EX
ADSP-21266
IC101
DSP(PPP)
MOTOROLA
DSPC56371AF180-K
IC201
MAIN u-COM
PEG116A
IC101
HDMI
1394
DA
DSD1791DBR
(BB)
CN6203
CN301(1/2)
CN351(2/2)
CN301(2/2)
CN352(2/2)
CN302(2/2)
CN351(1/2)
CN352
(1/2)
CN302
(1/2)
A L
M
IC551(FL,FR) , IC651(C,SW)
IC751(SL,SR) , IC851(SBL,SBR)
IC951(STL,STR)...VSX-74TXVi ONLY
DSP Control / DIR Control / A/D,D/A Control
VSX-AX4AVi-S
26
1234
1234
C
D
F
A
B
E
3.1.6 HDMI & DVC BLOCK DIAGRAM
IC101
SIL9031CTU
HDMI RECEIVER
R0XC[+,-]
R0X0[+,-]
R0X1[+,-]
R0X2[+,-]
R1XC[+,-]
R1X0[+,-]
R1X1[+,-]
R1X2[+,-]
IC301
SIL9030CTU
HDMI TRANSMITTER
TXC[+,-]
TX0[+,-]
TX1[+,-]
TX2[+,-]
DCK
VSYNC
HSYNC
VDATA[15:8]
VDATA[23:16]
VDATA[7:0]
MCLK
SCK
WS
SPDIF
IC601
FMS6403MTC
VIDEO FILTER
IC401
ADV7400AKSTZ-80
VIDEO DECODER
IC701
ADV7172KSTZ
VIDEO ENCODER
IC201
SN74LVC541APW
IC501
PEG118A
HDMI CPU
IC502
AYW7045
4M Flash ROM
CVBS IN
SY IN
SC IN
Y IN
Cb IN
Cr IN
MCLK
PR
c/PB
CVBS/S Y/Y DCK
VDATA[15:8]
VDATA[23:16]
SDA[3:0]
SCK
WS
SDA[3:0]
SPDIF
HDMI
CONNECTOR
CN101
(19P)
CN102
(19P)
HDMI
CONNECTOR
CN301
(19P)
CN501
(7P)
RS232C
CVBS OUT
SY OUT
SC OUT
Y OUT
Cb OUT
Cr OUT
IC454
SN74LVC1G125DCK
IC602
MM1503XN IC453,452
SN74LVC541APW
88
86
85
78
121
3
2
6
9
4
3
2
18
17
16
11
12
11
5
66
2
1
24
3
5
4
16
15
14
76 48
35
33
29
28
25
24
74
72
6
8
20
18
12
10
8
22
16
14
6
4
2
10.12
7.9
4.6
1.3
10.12
7.9
4.6
1.3
58.59
62.63
66.67
70.71
39.40
43.44
47.48
51.52 10.12
7.9
4.6
1.3
26.27
29.30
32.33
35.36
CN4311
N
CN4310
N
AG
CN1002
81-84
36
7-10
5-8
12-15
CN1001
15
13
12
6
8-11
VSX-AX4AVi-S 27
5678
5678
C
D
F
A
B
E
3.1.7 MICROCOMPUTER BLOCK DIAGRAM
IC NAME IC NO MAIN FUNCTION
MAIN u-COM IC101 SYSTEM CONTROL(AMP,ICs,XM,iPod,RS232C,OSD,TUNER,RDS)
DISPLAY u-COM IC3201 FL,LED,KEY CONTROL
HDMI u-COM IC501 HDMI TX,RX CONTROL / DVC CONTROL
DSP u-COM IC201 DSP CONTROL / DIR CONTROL / A/D,D/A CONTROL
iLINK CONTROL u-COM IC101 iLINK(1394) CONTROL
IC 101
MAIN u-COM
RENESUS M16C
62P/128pin
FLASH ROM
4Mbit
(512kbyte)
IC 102
16bit DATA BUS
19bit ADDRESS BUS
OSD IC
IC 2007
HDMI u-COM
RENESUS M16C
62P/100pin
DSP u-COM
RENESUS M16C
62P/100pin
IC 201
HDMI/DVC
IC 501
VIDEO SW IC
IC 2001 - IC 2004
DSP
IC 101,201
iPod
i.LINK CONTROL
u-COM
PD5787A
IC 101
TUNER
MODULE
RDS IC
IC 181
AXX 7170
FUNCTION
IC
IC 6201
IC 6301
6CH E-VOL
IC 2637
IC 2638
FL
SW IC
IC 208
SW IC
IC 107,210
FLASH ROM
4M
IC 3201
DISPLAY u-COM
NEC
100pin
IC 2008,IC 2009
PORT EXPANDER
FLASH ROM
4M
IC 502
K
A
B
I
LL
L
I I
L
M
M
L
AC
AF
AE
IC 501
AG
AG
AG
AC
IC 105
RENESUS M16C
62P/100pin
VSX-AX4AVi-S
28
1234
1234
C
D
F
A
B
E
3.2 OVERALL WIRING CONNECTION DIAGRAM
CN4307
4
4
CN201
CN101
24
CN2401
7
7
CN2402
CN4315
26 26
CN301
CN351
CN1002
CN4311
CN1001
24
DSP ASSY
(AWX8599)
CN4310
CN2409
CN4314
CN2403
13
13
HDMI&DVC ASSY
(AWQ7024)
11/115
J54
ADD7519-
TUNER
MODULE
CN1
11
CN4316
CN2702
17
CN2201
17
S-VIDEO ASSY
(AWX8622)
15
CN4317
15
6
CN4318
COMPOSITE V ASSY
(AWX8620)
CN6301
CN2001
6
17/90
J47
CN5441
16
ADD7513-
CN2502
CN2202
11
CN5443
CN5442
11
13
BRIDGE2 ASSY
(AWX8668)
CN2002
13
23
CN6302
23
CN5451
AXX7170-
13
CN4319
13
CN6202
V-AUDIO ASSY
(AWX8690)
AUDIO &MULTI CH IN ASSY
(AWX8687)
CN5455
CN6204
23
23
CN352
CN4306
CN304
CN302
CN101
CN4324
7
CN2505
7
CN4323
8
8
CN306
DIGITAL MOTHER ASSY
(VSX-AX4AVi:AWP7038)
(VSX-AX2AV:AWP7043)
CN303
CN4305
CN104
16
**1.00mm *
22/55
J52
CN401
ADD7517-
1394 ASSY
(VSX-AX4AVi:AWK7882)
CN4313
20
CN2503
COMPONENT & VOL ASSY
(VSX-AX4AVi:AWQ7034)
(VSX-AX2AV:AWQ7035)
CN4312
CN2506
20
CN992
CN305
CN4304
**
CN402
*1.00mm
J53
10/65
ADD7518-
CN4325
CN2501
14
1411
11
CN4303
CN991
20
CN105 (FOR FLASH u-COM)
BRIDGE1 ASSY
(AWX8667)
CN5432
23
23
CN5431
CN2504
23
23
CN106
CN4302
CN102
CN202
11
11
ADX7494-
3
Y18
ADX7493-
ADX7492-
WHT
BLK
D20PDD0420E
J4308
11
PF11PG-R05
4302
J4
4/200
J4309
CN101
CN103
CN4301
Y16 Y17 4301
CN6106
11 CN6105
J41
15/285
ADD7507-
LOCAL SUPPLY ASSY
(AWX8672)
12
6102
D20PDY0415E
CN6103 CN6101
6
J2
4/150
D20PDY0620E
(B12B-PH-K-S)
FRONT-IN ASSY
(AWX8638)
CN3451
CN4272
3
CN4271
4
DC/DC ASSY
(AWX8650)
CN2603
17/55
J46
ADD7512-
19/55
J45
CN5453
19
CN5452
17
BRIDGE3 ASSY
(AWX8669)
CN2602
ADD7511-
ADD7514-
17
17
23
CN5454
23
CN6203
26/190
J48
YEL
Y1(C)
CN2601
ADD7510-
J44
19/130
CN5602
19
POWER AMP
CN5603
CN5606
7
IN ASSY
(AWX8662)
PF08PG-R05
INTERFACE ASSY
(AWX8651)
8
CN5301
13
ORG
Y4(SBR)
BRW
13
Y2(R)
7
CN5303
8
WHT
Y4(RS)
Y6
POWER AMP-R ASSY
(AWX8657) POWER AMP-L ASSY
(AWX8655)
CN5601
CN5605
7
5604
7
CN5003 CN5001
13
13
Y5
PF05PG-R20
J6104
5
CN5302
11
ADD7509-
5
CN5702
CN5704
POWER PROTECT ASSY
(AWX8659)
11
6/200
J3
CN5703
19
19/275
J43
11
CN5002
CN5701
11
17
CN5705
23/265
J42
ADD7508-
Therefore, when replacing,
of identical designation.
be sure to use parts
The
the importance of the
safety factor of the part.
component parts indicates
mark found on some
VOLUME ASSY
(AWX8641)
D15A06-150-2651
3571
*
23
3202
CN3201
*1.5mm *
3204
J9
6/150 DISPLAY ASSY
(VSX-AX4AVi:AWX8635)
(VSX-AX2AV:AWX8636)
CT
S
N
R
O
Q
P
K
H
A
B
I
J
F
E
L
M
AF
AC
AB
AG
M1/2, M2/2
AG 1/2, AG 2/2 AF 1/2, AF 2/2
K1/4- K4/4
L1/8- L8/8
VSX-AX4AVi-S 29
5678
5678
C
D
F
A
B
E
CN2802
23
23
CN4320
PREOUT & CONTROL ASSY
(AWX8689)
ADX7460-Y3
2
SP/PS ASSY
(VSX-AX4AVi:AWX8643)
(VSX-AX2AV:AWX8645)
'05.2.25 update :TP
ANOTHER TYPE BtoB SOCKET
ANOTHER TYPE BtoB CONNECTOR
KP250NA
2.5mm BOARD to BOARD
2.5mm BOARD to BOARD
CN2801
ADX7459-Y4
CN4005
2
ADX7498-
ADX7404-
Y6
Y5
CN4006
ADX7459-Y1 CN4003
2
4CN4101
3CN4102
CN4007
CN3063
5
5
CN4004
2
ADX7460-Y2
Y13
ADX7461
BLK
CN4008
9
9
CN3062
FU1
PF13PG-R12
J4009
12
ADX7452
Y11
ADX7453
Y12
PRIMARY ASSY
(AWX8629)
PPL
Y1(L)
Y3(SBL)
GRN
12
CN4402
Y3(LS)
GRY
TRANS SIDE ASSY
(AWX8652)
D20PDY0525E
VH TR ASSY
(AWX8649)
4261
ADX7451-
RED
DIODE ASSY
(AWX8648)
D20PDD0620E
BLK
ADX7488-
BLU ADX7489-
J13
5/250
J8
6/200
BWN
CN4202
4201
Y8 Y9 Y10
GRY
ADX7490-
ADX7491-
GRY
BWN
Y14 Y15
5
8910 1211
TRANS2-1 ASSY
(AWX8647)
31
TRANS1
ASSY
J51
17/130
CN4403
ADD7516-
4401
MAIN TRANS
*3 T1501
2019 232221 24 25 26 27 28
PF12PG-R40
*5
FU4
FU5
FU6
FU7
J3001
12
TRANS2-2 ASSY
(AWX8626)
FU8
1.25mm BOARD to BOARD
XKP%%-A
ANOTHER TYPE CODE CONNECTOR
1.25mm BOARD to BOARD
XKP%%-A
ANOTHER TYPE CODE SOCKET
B*B-PH-K-S
PH CONNECTOR
2.0mm WIRE TRAP
1.25mm FFC CONNECTOR(I)
2.0mm CABLE HOLDER
(*;1.5mm CABLE HOLDER)
(*;1.00mm FFC CONNECTOR)
(*;1.00mm FFC)
2.0mm FLAT CABLE
(*;1.5mm FLAT CABLE)
(*;1.00mm FFC CONNECTOR)
1.25mm FFC CONNECTOR(L)
PF**PG-***
CABLE WIRE
BOARD IN
1.25mm FFC
4/100
J5
D20PDY0410E 3203
D15A08-150-2651
*
HEAD PHONE ASSY
(AWX8639)
CN3551
4
FU1
-
FU2, 3
*1.5mm
J10
8/150
INPUT SELECT ASSY
(AWX8640)
*
*5
3561
AC CORD
MAIN*3 TRANS *6
FU4 FU5,6 FU7, 8
*5
REK1029
HY (T5AL/250V) REK1028
(T4AL/250V) REK1021
(T800mAL/250V) REK1026
(T2.5AL/250V)
HY 6327:ADG7062ATS7403-
AC CORD
*6
3066
G
D
Y
U
X
VW
Z
AD
AA
AE
NOTES: • When ordering service parts, be sure to refer to
“EXPLODED VIEWS and PARTS LIST” or
“PCB PARTS LIST”.
• The > mark found on some component parts
indicates the importance of the safety factor of
the part.
Therefore, when replacing, be sure to use parts
of identical designation.
• : The power supply is shown with the
marked box.
VSX-AX4AVi-S
30
1234
1234
C
D
F
A
B
E
3.3 AUDIO & MULTI CH IN ASSY
+
-
-
+
SR OUT
SBR
(2/2)
SBL
AKB7172
GNDCH
(CHASSIS)
GNDU
GNDU
V-7A
GNDA
SROUT
GNDU
GNDA
iP L
VLDT1
GNDA
V+7A
iP R
VLCK
7.1ch INPUT
LS
RS
(1/2)
(2/2)
SW
AKB7172
C
R
L
(1/2)
AKB7172
CDR IN
R
L
CDR
CDR OUT
(2/2)
R
L
(1/2)
(CHASSIS)
R
*3
CN6205
CD
L
(CHASSIS)
GNDA
DATA
VCC
VEE
(2/2)
INPUT SELECTOR
CLK
GND
AKB7172
R
PHONO
*3
*1
*1
*1
*1
*1 *1
*1
*1
*1
*1*1
*1
*1*1*1*1*1*1*1*1*1*1*1*1
*1*1*1*1*1*1*1*1*1*1*1 *1
L
(1/2) (1/2)
C6298 C6299
C6281
C6282
JA6201
CN6209
L6201
C6216
R6216
R6232
C6232
C6215
R6215
C6231
R6231
C6292
C6286
L6209
CN6202
R6248
R6288
R6247
CN6209
C6214
R6230
R6214
C6230
C6213
R6213
C6229
R6229
C6212
R6228
R6212
C6228
C6211
R6211
C6227
CN6208
R6250
C6280
C6285
R6227
C6210
R6210
R6226
C6226
CN6208
C6209
R6209
C6225
R6225
C6208
R6208
R6224
C6224
C6207
R6207
C6223
R6223
CN6207 C6284
C6206
R6222
R6206
C6238
C6222
R6205
C6205
C6221
CN6207
R6221
C6297
C6202
R6202
R6218
C6218
CN6205
C6201
R6201
C6217
R6217
C6252
R6246 R6245 R6244 R6243 R6242 R6241 R6240 R6239 R6238 R6237
C6237
R6282
R6236
R6283
R6235
R6234 R6233
C6258
IC6203
IC6201
C6291
C6283
R6249
C6279
C6250
R6254
L6206L6204
R6252
R6256
C6254
C6249
CN6205
R6251
R6255
C6253
L6205L6203
C6251
R6253
R6258
R6260 R6262
C6256
R6264 C6264
R6266
C6266
C6262
C6276
C6255
C6260
R6257
C6259
R6261
R6259
C6294
C6293
C6261
R6265
C6265
C6263
C6275
IC6203
C6257
R6263
2
1
3
5
4
6
7
9
10
7
8
13 11
12 6
1
4
2
5
3
3
2
1
5
4
6
7
2
1
3
6
4
5
7
2
1
3
5
7
4
6
16 17
15
14
12
13
10
11
19
18
21
20
23
22
9
8
6
7
5
4
3
25
24
26
28
27
30
29
1
231
32
2
3
1
5
4
8
6
7
2
8
1
34
CHASSIS
RKN1004
GNDUS
STBY
STBY
0.01
STBY
GNDA
QTL1013
330
47k 47k
470p
330
0.1 330
0
STBY XKP3077
STBY STBY
V-7A
GNDU
V+7A
47k 47k
330
AKB7172
330
47k 47k
330
STBY
GNDCH 0.01
STBY
47k
330
AKB7172
47k
330
330
AKB7172 0.01
GNDCH
47k 47k
330
2.2k
100k
2.2k
100k
AKB7172
GNDCH
STBY
47k
330
GNDCH
47k
330
10/50
STBY STBY STBY STBY STBY STBY STBY STBY
10/50
150K 150K
10/50
C6233
C6234
stby
stby
STBY STBY
STBY
1M1M
STBY
AT BA4560RF
V-7A
BD3841FS/S
470p
0.1
STBY
STBYSTBY
0.01
100k
100k 100k
100k
STBYSTBY
AT
10/50
560
560
560
390k
AT
47/16
8200p
YB
470 10/50 AT
30k
220k
47/16
1200p
1200p
YB
YB
AT
STBY
47/16
8200p
YB
AT 560
390k
1200p YB
47/16
1200p
30k
YB
220k
470
AT
STBY
BA4560RF
AT
10/50
V+7A
C6239
C6240 stby
stby
C6241
C6242 stby
stby
C6243
C6244 stby
stby
C6245
C6246 stby
stby
C6247
C6248 stby
stby
A
(PHONO)
(PHONO)
(PHONO)
(CD)
(CDR)
(F)
(C)
(SW)
(SB)
(SB)
(S)
(C)
(F)
(FVL)
(MIC)
(IP)
(IP)
(CDR)
(FVL)
(IP)
(TL)
(CD)
(F)
(CDR)
(CD)
(REC)
(SW)
(S)
(REC)
CN4319
N
C6257-C6258
C6253-C6254
C6249-C6250
C6221-C6222
C6223-C6232
R6253-R6254
C6205-C6218
C6201-C6202
CCSRCH561J50
CCSRCH331J50
CCSRCH221J50
CCSRCH101J50
CCSRCH220J50
*1 AWX8687
560
VSX-AX4AVi-S 31
5678
5678
C
D
F
A
B
E
VEF1040
6201
MIC
FVR
GNDA
FVL
GNDA
GNDA
GNDA
SBL
GNDA
SBR
GNDA
LS
SW
GNDA
C
RS
GNDA
GNDA
V+7A
V-7A
GNDA
GNDA
ASEL L
ASEL R
GNDA
MR VASEL L
GNDA
MR VASEL R
GNDA
MR ASEL L
MRtoVOL R
GNDA
GNDA
MR ASEL R
GNDA
GNDA
GNDA
MRtoVOL L
TUNER R
TUNER L
R6271
R6272
R6273
R6274
R6270
R6269
C6270
C6296
C6269
C6295
C6267
C6268
R6268
R6267
R6286
L6207
R6284
R6285
CN6204
R6287
L6208
CN6203
13
14
17
15
16
8
11
12
9
10
7
6
4
3
2
1
5
23
21
22
20
16
15
17
18
14
13
19
7
10
9
8
12
11
1
2
3
4
6
5
47k
47k
47k
0
47k
0
0.01
47/16
0.01
V-7A
47/16
V+7A
100p
GNDU
100p
100
100
STBY
VTL1083
XKP3079-
47K
47K
GNDA
V-7A
VTL1083
STBY
V+7A
XKP3082-
AUDIO&MULTI CH IN ASSY
(AWX8687)
A
A
: AUDIO SIGNAL ROUTE (TL)
: AUDIO SIGNAL ROUTE (CD)
(TL)
(CD)
: AUDIO SIGNAL ROUTE (PHONO)
(PHONO)
(MR)
(MR)
(MR)
(MR)
(SW)
(F)
(S)
(SB)
(SB)
(S)
(C)
(F)
(MR)
(MR)
(SW)
(MR)
(MR)
(MIC)
(FVL)
(MIC)
(MR)
(TL)
(FVL)
(TL)
(F)
: AUDIO SIGNAL ROUTE (MR)
: AUDIO SIGNAL ROUTE (CDR)
(MR)
(CDR)
: AUDIO SIGNAL ROUTE (REC)
: AUDIO SIGNAL ROUTE (FVL)
: AUDIO SIGNAL ROUTE (CDR)
(FVL)
(MIC)
(REC)
: AUDIO SIGNAL ROUTE(S)
: AUDIO SIGNAL ROUTE(C)
(S)
(C)
: AUDIO SIGNAL ROUTE(F)
(F)
: AUDIO SIGNAL ROUTE(SW)
(SW)
: AUDIO SIGNAL ROUTE(SB)
(SB)
CN5454
H
CN5455
H
: AUDIO SIGNAL ROUTE(IP)
(IP)
VSX-AX4AVi-S
32
1234
1234
C
D
F
A
B
E
3.4 V-AUDIO ASSY
47k 47k
AKB7172
AKB7172 GNDCH
0
0STBY 2.2k
100k
330
STBY STBY
330
10/50
150k
100k
STBY
47k
330
GNDCH 0.1
AKB7172
47k
330
470p
STBY 2.2k
AKB7172
100k 100k
STBY
47k 47k
AKB7172
AKB7172
GNDCH
470p
0.1
47k 47k 47k
GNDCH
47k
470p
0.1
47k 47k
0.01
GNDCH
AKB7174
0.01
GNDA
1K
2.2k
150k
10/50
STBY STBY
10/50
150K 150K
2.2k
10/50
330
STBY
330
STBY
330
STBY
330
STBY
330
STBY
BD3841FS/S
330
STBY
330
STBY STBY
330
IMX25 1K
STBY
10k
AKB7174
1K
STBY
10k
IMX25
1K
5
4
6
2
1
7
5
3
7
4
6
3
2
1
5
4
6
1
7
2
3
16 17
15
14
12
13
10
11
19
18
20
21
23
22
8
9
5
6
7
4
3
25
24
26
27
28
29
30
1
231
32
E
B
C
B
C
E
DVR2 IN
(at C6382)
(2/2) R
DVR2
AKB7172
DVR2 OUT
R
(CHASSIS)
L
(at C6352)
L
R
(1/2)
(2/2)
DVR1
AKB7172
DVR1 IN
L
(CHASSIS)
DVR1 OUT
R
L
(1/2)
L
VIDEO1
R
(2/2)
AKB7172
(CHASSIS)
R
SAT
L
R
(1/2)
(CHASSIS)
JA6301
(3/3) TV
L
JA6301
AKB7174
L
R
DVD
(2/3)
R
JA6301
GNDA
VCC
DATA
VEE
INPUT SELECTOR
CLK
GNDU
(1/3)
MR OUT
L
CN6309
R6392
C6344
R6346
R6344
C6343
R6343
R6345
R6391 L6304
C6338
R6338
R6348
C6346
R6347
C6345
C6342
R6340
R6342
C6340
CN6309
C6337
R6337
L6303 R6339
C6332
R6332
R6334
CN6308
C6381
C6331
R6331
L6302
R6333
CN6308
C6351
C6326
R6328
R6326
C6325
R6325
R6327
CN6307
L6301
C6320
R6320
C6319
R6319
C6380 R6321
C6350
C6314
R6314 R6313
CN6307
C6313 C6308
R6308
NoAssign1
C6307
R6307
C6379
C6369
C6302
C6349
R6302
C6301
R6301
C6368
NoAssign2
C6354
R6352
C6339
R6341
C6341
C6334
R6336
C6333
R6335
C6330
C6328
R6330 R6329
C6327
C6329
R6322
C6322
R6324
C6321
R6323
R6316
R6318
C6316
R6317
C6315
R6315
R6310
R6312
C6310
IC6301
C6309
R6311
R6309
R6304
C6304
R6306
C6303
R6305
R6303
Q6302
C6356
R6356
JA6301
C6353
R6351
R6354
C6355
R6353
Q6301 R6355
C6305
C6306 stby
stby
C6311
C6312 stby
stby
C6317
C6318 stby
stby
C6323
C6324 stby
stby
C6335
C6336 stby
stby
C6347
C6348 stby
stby
*1*1
*1*1*1*1*1*1*1*1
*1*1
*1*1
*1*1
*1*1
*1*1*1*1*1*1*1*1*1*1
*1*1
*1*1*1*1
V-AUDIO ASSY
(AWX8690)
B
B
(MR)
(DVD) (DVD)
(TV) (TV)
(SAT) (SAT)
(SAT)
(DVD)
(TV)
(V1) (V1)
(V1)
(DVR1)
(DVR2) (DVR2)
(DVR1)
(REC)
(REC) (REC)
(REC)
(MR)
(DVR2)
(DVR1)
C6327-C6328
C6337-C6338
C6325-C6326
C6313-C6316
C6301-C6304
C6339-C6340
C6343-C6346
C6331-C6334
C6319-C6322
C6307-C6310
C6353-C6354
*1 AWX8690
CCSRCH220J50
CCSRCH331J50
CCSRCH101J50
VSX-AX4AVi-S 33
5678
5678
C
D
F
A
B
E
+
-
+
-
GNDU
KP200TA6L
10/50
150K 150K
0
0
V-7A
100K
STBY
uPC4570G2
100K
STBY
uPC4570G2
47/25
0.01 0.01
47/25
10/50
47K
47K
0
0
V+7A
0.01
0
0.01
00
47/16 47/16
00
GNDU
100p
100p
100
100
0
STBY
V-7A
XKP3082
V+7A
2
31
4
5
6
54
6
7
8
3
2
1
8
4
23
22
17
15
16
18
21
19
20
13
12
14
11
9
10
8
7
3
4
6
5
1
2
VLDT2
GNDA
VLCK
GNDA
MRMUTE
GNDU
R
(2/2)
(1/2)
STBY
STBY
L
Block STBY
V-7A
GNDA
GNDA
GNDA
GNDA
V+7A
FL
FR
MR VASEL L
GNDA
GNDA
GNDA
MR VASEL R
ASEL R
ASEL L
GNDA
GNDA
GNDA
GNDA
MROUT L
MR ASEL R
MR ASEL L
MROUT R
Unit: p-pF or µF unless otherwise noted.
2.CAPACITORS
Ratings: Capacity(µF)/Voltage(V) unless otherwise noted.
Rated Voltage: 50V expect for electrolytic capacitors.
Unit: k-kΩ , M-MΩ or Ω unless otherwise noted.
Rated power: 1/16W unless otherwise noted.
NOTE
Tolerance: (J) 5% unless otherwise noted.
1.RESISTORS
-
+
CN6301
W6320
R6364
C6372
R6363
R6368
W6321
C6374
R6366
IC6302
C6373
R6365
IC6302
C6376
R6370
C6378
C6375
C6371
R6381
R6382
W6322
R6369
C6377
W6325
R6367
C6362
R6371
C6364
C6361
R6374 R6372
C6363
R6375 R6373
C6360
C6359
R6362
R6361
R6384
L6306
CN6302
R6383
L6305
stby
0
B
: AUDIO SIGNAL ROUTE (DVR2)
(DVR2)
: AUDIO SIGNAL ROUTE (V1)
: AUDIO SIGNAL ROUTE (REC)
: AUDIO SIGNAL ROUTE (MR)
(REC)
(MR)
(MR)
(MR)
(MR)
(MR)
(F)
(F)
(F)
(REC)
(REC)
(MR)
(F)
(MR)
(F)
: AUDIO SIGNAL ROUTE (F)
(F)
: AUDIO SIGNAL ROUTE (SAT)
: AUDIO SIGNAL ROUTE (DVR1)
(DVR1)
(V1)
: AUDIO SIGNAL ROUTE (TV)
(SAT)
(TV)
: AUDIO SIGNAL ROUTE (DVD)
(DVD)
CN5453
H
CN4318
N
VSX-AX4AVi-S
34
1234
1234
C
D
F
A
B
E
3.5 FRONT-IN and HEADPHONE ASSYS
-
+
-
+
JA3452 R3496
R3484
C3496
C3482
L3456
R3482
C3481
R3481
L3457
R3495
C3484 R3488
R3486
C3486
L3455
C3485
R3485
JA3452 R3497
R3483
R3475
C3474
C3483 R3487
C3490
R3491
R3492
Q3451
C3492
Q3451
C3479
C3477
C3489
C3491
R3490
R3494
R3493
JA3452
R3471
R3473
R3476
JA3452 C3471
R3474
R3472
C3467
L3453
R3462
JA3452
KN3451
C3463
R3464
C3456
C3465
C3464
C3466
C3451
R3451
R3452
JA3451
R3460
C3452
C3553
C3554
C3555
KN3551
R3489
R3498
R3499
D3453
C3457
R3465
R3466
R3468
R3463
R3454
C3453
R3456
C3454
R3457
C3455
D3454
R3453
IC3451
R3455 R3458
IC3451
R3480
L3551
R3552
C3551 C3552
3551 R3551 CN3551
2
3
1
5
4
6
B2
E2 B
E
C
C2
9
10
7
12
11
8
15 1314
8
2
34
64
1
5
7
8
1
2
1
3
2
4
34
AKX7019
STBY
0220 220
10/16 JQ
220p
VTL1083
100k
0.01
220p
STBY
100k
100k
100p
CH
100p
HN1C01FU(YGR)
STBY
10/16
JQ
100k
220
CH
AKX7019 0
75
220
STBY
STBY
STBY
0
0.01
15K
HN1C01FU(YGR)
15K
33/25
STBY
STBY
33/25
0.01
100
47
47
AKX7019
AKX7019
75
75
0.1 0
0
0.1
QTL1013
100
AKX7019
VNF1084
1
STBY
STBY
0.01
STBY
0.1
RKN1004
1k
470p
6.8k
100k
10/50
470p
0.01
0.1
VNF1084
100
0
0
V+12A
UDZS5R1(B)
V+5D
10/50
0
0
0
1k
4.3k
22p
4.3k
33k
22p
100k
100p
DAN217
100
BA4560RF
100
BA4560RF
33k
STBY
VTL1083
3900p 3900p
AKN7029
1k 52147-0410
VCC
GND
VOUT
R
(5/5)
L
(4/5)
AXK7019
(3/5)
VIDEO2 INPUT (FRONT)
VIDEO
S-VIDEO
Y
C
(2/5)
FRONT OPT
(CHASSIS)
GNDCH
(1/5)
MIC IN
2
3
1
GNDCH
(CHASSIS)
(FVR)
MIC AMP
(1/2) (2/2)
HEADPHONE
HPR
HPG
HPL
HPSW
C3474
C3472
HEADPHONE ASSY
(AWX8639)
D
C D
F(C'Site)
FS(Y)
FS(C)
(FVL)(FVL)
(F)
(MIC)
4401
G
(D)
(FVL)
VSX-AX4AVi-S 35
5678
5678
C
D
F
A
B
E
C3476
KN3452
C3478
C3475
C3494
C3495
C3493
R3470
L3452
CN3451
R3469
L3451 C3460
C3462
C3459
R3467
C3461
R3459 C3470
R3461
D3452 D3451
3
4
5
1
2
10
7
8
11
9
6
12
13
14
15
VNF1084
470p
STBY
0.1
0.1
470p
STBY
STBY
VTL1083
52045-1545
VTL1083
V-12A
STBY
0.01
10/50 0
0.01
10/50
100 10/50
100k
UDZS5R1(B)
UDZS5R1(B)
GNDCH
(CHASSIS)
JQ:CEJQ
Unit: p-pF or µF unless otherwise noted.
Ratings: Capacity(µF)/Voltage(V) unless otherwise noted.
Rated Voltage: 50V expect for electrolytic capacitors.
FV-R
GNDA
FV-L
FV
GAV
V+12A
FOPT
V+5D
FV-Y
FV-C
GNDD
V-12A
GNDA
MICOUT
MICDET
Unit: k-kΩ , M-MΩ or Ω unless otherwise noted.
Rated power: 1/16W unless otherwise noted.
NOTE
The
the importance of the safety factor of the part.
Therefore,when replacing,be sure to use parts
of identical designation.
mark found on some component parts indicates
Tolerance: (J) 5% unless otherwise noted.
1.RESISTORS
2.CAPACITORS
-
+
FRONT-IN ASSY
(AWX8638)
C
C
(FVL)
F(C'Site)
FS(Y)
FS(C)
(MIC)
CN4301
N
(D)
: VIDEO SIGNAL ROUTE F(C'Site)
F(C'Site)
: VIDEO SIGNAL ROUTE FS(Y)
FS(Y)
: VIDEO SIGNAL ROUTE FS(C)
FS(C)
: VIDEO SIGNAL ROUTE (VIDEO 2)
(FVL)
: AUDIO SIGNAL ROUTE (MIC)
(MIC)
: AUDIO SIGNAL ROUTE (F)
(F)
: AUDIO SIGNAL ROUTE (SPDIF)
(D)
VSX-AX4AVi-S
36
1234
1234
C
D
F
A
B
E
3.6 BRIDGE1, BRIDGE2, TRANS SIDE and BRIDGE3 ASSYS
XKP3071-
S13B-PH-K-S
52045-1745 51048-0400
52045-1745
XKP3065-
XKP3071-
13
11
12
10
9
8
23 1
2
22
21
19
18
20
17
15
16
6
5
3
4
9
8
7
10
9
14
13
11
12
15
10
14
13
12
11
5
3
8
7
6
4
2
17
18
21
22
16
19
20
17
15
16
14
11
12
9
10
8
13
2
6
5
4
3
1
7
7
6
4
5
3
2
1
4
2
1
3
2
1
8
7
4
3
9
6
5
15
10
13
14
11
12
16
17
4
1
2
3
7
8
5
6
9
10
11
123
R4413
R4412
L4412
L4413
R4410
L4409
R4409
L4408
R4408
L4410
R4411
L4411
CN5432
R4405
R4404
R4403
R4406
L4407
L4404
L4405
R4407
L4406
L4402
R4402
L4403
R4401
L4401 CN4402
CN4403 4401
CN5441 CN5442
CN5431
R:standby
L:VTL1083x13
WUP
V+5.6ST
RYAC
GNDST
RYCS
RYB
LOCK DET
V+5.6ST
V iP
GNDU
V+5.6U
T DI
T CE
GNDU
T DO
T CLK
FMDET
EXPDT
12VDET
MRIN2
MRIN1
OSDCS
OSDDT
OSDRST
EXPST
EXP/OSDCLK
MUTE MR/SB
AMUTE
EXPOE
GCONT2
-FAN
-FAN
+FAN
+FAN
RYHP
-12V
RYA
+12V
RYCS
WUP
GNDST
RYB
RYAC
GNDST
RYHP
RYA
V+12V
V-12V
HPR
HPL
HPG
HPSW
HPL
HPR
HPG
HPSW
V iP
GNDU
V+5.6U MRGND
MRGND
FMDET
T DI
T CE
GNDU
T DO
T CLK
GNDV
GNDV
FV
FVC
FVY
MRV
GNDV
EXPDT
12VDET
MRIN1
OSDRST
OSDDT
OSDCS
MRIN2 EXPST
EXPOE
EXP/OSD CLK
EXPDT
OSDDT
OSDRST
EXPST
EXP/OSDCLK
GCONT2
MUTE MR/SB
AMUTE
EXPOE
OSDCS
GNDU
GNDFV
GNDFV
FVC
FVY
EXPST
EXPOE
EXP/OSD CLK
EXP/OSD DT2
EXP/OSD DT4
GNDU
GNDU
GCONT1 GCONT1
BRIDGE 2 ASSY
(AWX8668)
F
TRANS SIDE ASSY
(AWX8652)
G
BRIDGE 1 ASSY
(AWX8667)
E
E F G
(F)
1/8
L
2/4
K
3/4
K
CN2202
J
CN5705
P
CN3551
D
J4009
X
F(C'Site)
MR(C'Site)
FS(Y)
FS(C)
: AUDIO SIGNAL ROUTE(S)
: AUDIO SIGNAL ROUTE(C)
(S)
(C)
: AUDIO SIGNAL ROUTE(F)
(F)
: AUDIO SIGNAL ROUTE(SW)
(SW)
: AUDIO SIGNAL ROUTE(SB)
(SB)
: AUDIO SIGNAL ROUTE(VIDEO2)
: AUDIO SIGNAL ROUTE(MIC)
(FVL)
: AUDIO SIGNAL ROUTE(MR)
(MR)
(MIC)
: AUDIO SIGNAL ROUTE(TUNER)
(TL)
: VIDEO SIGNAL ROUTE MR(C'Site)
: VIDEO SIGNAL ROUTE F(C'Site)
MR(C'Site)
F(C'Site)
: VIDEO SIGNAL ROUTE FS(Y)
FS(Y)
: VIDEO SIGNAL ROUTE FS(C)
FS(C)
CN105
CN2504
CN2409
VSX-AX4AVi-S 37
5678
5678
C
D
F
A
B
E
52044-1745
52045-1945
XKP3068-
XKP3071-A
XKP3066- XKP3071-A
17
16
11
9
13
14
12
15
10
17
16
14
13
11
12
15
9
10
3
7
6
4
8
5
19
2
1
18
15
13
14
17
16
11
12
9
6
10
8
7
5
4
3
2
1
3
2
1
5
6
9
7
8
4
6
4
3
8
7
5
2
1
23
20
19
17
18
21
22
14
10
11
13
12
15
16
4
9
8
7
6
5
23
2
3
1
18
21
22
19
20
17
15
16
10
14
13
12
11
4
9
8
7
6
5
10
13
12
11
1
2
3
CN5451
CN5452
CN5455
CN5453
CN5443 CN5454
FV R
GNDA
SBL
GNDA
MIC
GNDA
GNDA
FV L
SBR
GNDA
FV R
SBR
FV L
GNDA
GNDA
MIC
GNDA
SBL
GNDA
C
GNDA
GNDA
SR
SL
V-7V
GNDA
SW
GNDA
GNDA
V+7V
GNDA
FL IN
FR IN
MRtoVOL R
MROUT R
MROUT L
GNDA
GNDA
GNDA
GNDA
TUNER R
MRtoVOL L
TUNER L
GNDA
GNDA
STBY
5441
MRV
MRGND
MRGND
FV
GNDFV
EXPST
EXP/OSD CLK
EXPOE
EXP/OSD DT4
OSDDT
SL
SR
GNDA
GNDA
GNDA
C
SW
GNDA
V-7V
V+7V
GNDA
FR IN
FL IN
GNDA
GNDA
GNDA
GNDA
GNDA
ASEL R
GNDA
MR VASEL L
MR VASEL R
GNDA
GNDA
ASEL L
MR ASEL R
GNDA
MR ASEL L
MROUT R
V-7V
MROUT L
GNDA
V+7V
GNDA
GNDA
GNDA
MR VASEL L
MR VASEL R
GNDA
GNDA
GNDA
GNDA
ASEL R
ASEL L
MR ASEL R
MR ASEL L
MRtoVOL L
MRtoVOL R
GNDA
GNDA
GNDA
GNDU
OSDRT
OSDCS
TUNER R
GNDA
TUNER L
BRIDGE 3 ASSY
(AWX8669)
H
HF
(TL)
(MR)
(F)
(MR)
(MR)
(MR)
(F)
(MR)
(SW)
(C)
(S)
(SB)
(MIC)
(FVL)
(SW)
(C)
(S)
(SB)
(MIC)
(FVL)
(F)
(TL)
(MR)
(F)
(MR)
CN2002
I
CN6203
A
CN6302
B
CN6204
A
1/4
CN2502
K
2/4
CN2603
K
F(C'Site)
VSX-AX4AVi-S
38
1234
1234
C
D
F
A
B
E
3.7 COMPOSITE V ASSY
VD1
DVR2
DVR1
VD1
VD1
SAT
OSCS
EXCK
OSDDT
OSRT
OSD
DVR1
FV
DVR2
MRINH
IPOD
DVD
TV
SAT
DVR2
FV
DVR1
MRC
V52AMRB
VIN
V52BMRA
VIN
VINH
VOUT
VOUT
TV
DVD
VSW3 SWA
DVD
IPOD
TV
SAT
SWC
VSW2
VSW1
DVD
SWB
VMNT
VMNT
1
2
5
4
322
21
24
23
20
5
2
1
1
1
2
16
5
1
3
4
1
2
5
7
6
8
1
10
11
9
12
16
17
13
19
18
14
15
11 E
BC
2
4
3
5
6
7
8
2
1
3
4
5
14
13
15
12
11
10
9
16
15
14
13
12
8
6
7
11
9
10
8
4
5
2
3
6
7
2
4
5
3
1
6
8
7
3
4
16
1
2
14
13
15
12
11
10
9
16
15
14
13
12
9
11
10
GNDU
12p
ASS1056
12p
24p
CH
24p
CH
CH
100p
100p
CH
100p
330
CH
GVV
STBY
GOS2GOS1
STBY
GOS1
CH
CH
100/10
DAP202K
0.047/25
PDC131A
100/10
V+56V VOS2VOS1
100p
VOS1
CH
1k
STBY
GCV
0.01
0.01
STBY
75 75
STBY
STBY
GCV
0.01
STBY
75 75
STBY
GCV
STBY
0.01
33uH 330
330
0.047/25
VOS2
V-56V
1K
GOS2
100/10
STBY
1200p
1200p
5.1K
YB
YB
3.9K
0.01
STBY
2SC4081
V-56V
V+56V
0.01
CD74HC4051PWR
0.01
V-56V
CD74HC4052PWR
0.01 0.01
V+56V
V-56V
CD74HC4051PWR
0.01 0.01
V+56V
V-56V
CD74HC4053PWR
0.010.01
75
STBY
75
STBY
V+56V V+56V
C2090
R2090
C2043
C2041
C2042
C2044
C2046
C2045
C2047
R2019
X2001
C2039
C2038
C2037
IC2007
D2001
C2050
C2099
R2022
C2093
C2089
IC2002
R2006
C2006
R2005
C2098
C2092
C2005
R2004
C2004
R2003
C2097
C2003
IC2001
R2020
L2003 R2021
C2040
R2025
R2026
C2049
R2024
C2048
R2023
C2051
C2055
Q2001
C2052
C2018
IC2004
C2017
C2022 C2021
C2016 C2015
IC2003
C2020 C2019
C2091
R2001R2002
C2002
JA2001 C2001
14.31818MHZ
VSS1
Xin
Xout
C1
BLANK
VDD1
RST
SEPin
C3
C2
(OSD)
(CHASSIS)
IN
VIDEO1
DVR1/VCR1
DVR2/VCR2
IN
VDD
VIDEO1
SAT
(CHASSIS)
VIDEO1
OSCin
OSCout
CHARA
CK
DT
CS
VDD2
SEPout
SEPc
CVin
VSS2
VDD1
SYNin
CVout
FRONT V
DVR2
DVR1
INH
VEE
VSS
(SUB ROOM)
0
2
3
1
Y
DVD
TV
IPOD
B
A
SAT
C
VDD
2
X
1
0
INH
VEE
VSS
SEL
OUTPUT
B
3
A
FRONT V
DVR2
DVR1
INH
VEE
VSS
(MAIN ROOM) A-2
HDMI Direct Pass
CHECKER
SERVICE
B-2
0
1
THRU/HDMI
SELECT
0
1
VDD
1
0
VSS
VEE
INH
TV
VDD
(1/2) DVD
AKB7176
JA2001
(2/2)
AKB7176
JA2001
AKB7176
DVD
IPOD
TV
SAT
B
A
C
A-1 B-1
A
B
C
JA2002
(1/2)
AKB7176
JA2003
(1/2)
AKB7176
JA2003
AKB7176
JA2004
(1/2)
AKB7176
JA2002
(2/2)
AKB7176
JA2002
AKB7176
I
: VIDEO SIGNAL ROUTE MR(C'Site)
: VIDEO SIGNAL ROUTE F(C'Site)
MR(C'Site)
F(C'Site)
: VIDEO SIGNAL ROUTE (C'Site)
(C'Site)
(C'Site) VC(C'Site)
(C'Site)
VC
(C'Site)
(C'Site)
(C'Site)
(C'Site)
(C'Site)
(C'Site)
(C'Site)
MR(C'Site)
(C'Site)
(OSD)
(OSD)
(OSD)
(OSD)
(C'Site)
(C'Site)
: VIDEO SIGNAL ROUTE (OSD)
(OSD)
: VIDEO SIGNAL ROUTE VC(C'Site)
VC(C'Site)
VSX-AX4AVi-S 39
5678
5678
C
D
F
A
B
E
+
-
-
+
CCONT
CCONT
CSI
VDT5
EXST
IPOD EXCK
VOUT
VDT4
EXST
EXCK
VIN
MUTE
MRINH
V1M
V2M
VINH
MUTE
VSW2
VSW1
VSW3
MRA
EXOE
MRINH
EXOE
V52A
V52B
VDT5
SWB
SWA
SWC V1M
MRB
V2M
MRC
FV
EXST
EXOE
EXCK
VDT4
OSDDT
OSRT
OSCS
8624 1012 14
15371191315
1
2
4
5
3
8
6
7
1
2
4
3
5
6
7
8
16
15
14
13
12
9
11
10
1
16
14
15
1
13
10
12
11
9
3
5
2
6
4
7
1
10
12
11
14
9
1
13
8
54
7
8
6
13
12
11
10
9
8
6
7
2
4
5
3
1
5
4
3
3
4
E
BC
24
1
8
3
3
2
1
GCVGVV
STBY
XKP3078
V-56V
STBY
0
STBY
1000/6.3
47k
0
V+56V
75
47k
0
47k
CD4094BNS-TBB CD4094BNS-TBB
0.01
0.01
47k
V+56V
100/50
V-56V
0.01
100/10
NJM2279M
100/10
0.01
100/10
TK15420M
V+56V
2k
4.7K
STBY
1.8k
GVV GNDU
47k
47k
47k
47k
STBY
0.01
GVV
0.01
0
47k
47k
XKP3077
0
GVV
0.01
GCV
75
180p
CH
180p
CH
75
V-56V
0
100/10
0.01
GVV
GCV
STBY
V-56V
STBY
0
V+56V
STBY
1.8k
STBY
4.7K
2k
100/10
TK15420M
0.01
100/10
75
CH
180p
0.047/25
V+56V
C2096
CN2001
R2092
R2011
R2082
R2012
C2012
C2082
IC2009
R2035
R2036
R2034
R2033
R2030
R2028
R2029
R2027
IC2008
C2054
C2053
R2095
R2031
R2032
C2036
IC2006
C2035
C2014
C2034
C2013
IC2005
C2029
R2014
R2016
R2018
C2010
C2088
C2087
R2010
CN2002
R9095
(at C2095)
C2086
R2009
C2008C2009
R2008
R2091
C2025
C2027
R2071
C2070
R2070
Q2070
R2013
R2015
C2031
C2030
R2017
C2028
IC2005
C2024
C2026
C2007
C2094
R2007 JA2005
No marked Capacitors are CEAT or CKSRYB.
"Capacity(µF)/Voltage(V)",
or 50V unless otherwise noted.
Rated Voltage: shown as
Unit: p-pF or µF unless otherwise noted.
2.CAPACITORS
Parts or parts block marked by "STBY" are standby.
No marked Diodes are 1SS355.
3.DIODES
The
the importance of the safety factor of the part.
mark found on some component parts indicates
Therefore, when replacing, be sure to use parts
of identical designation.
Unit: k-kΩ , M-MΩ or Ω unless otherwise noted.
1.RESISTORS
Tolerance: 5%(J) unless otherwise noted.
NOTES
Rated power: 1/16W unless otherwise noted.
V-5.6V
V-5.6V
V+5.6V
V+5.6V
GNDV
GNDV
i-pod
GNDV
VMUTE
GNDV
GNDV
VIN
NC
MRINH
VOUT
(C2011)
Q'S
IN
VDD
CLK
Q3
VSS
Q4
Q2
STROBE
Q1
SERIAL
CLK
IN
VDDSTROBE
SERIAL
Q4
VSS
Q'S
Q1
Q2
Q3
OE
Q7
Q5
Q6
Q8
QS
OE
Q5
Q6
Q7
Q8
QS
REC2
SW1
IN2
IN3
SEL
MUTE2
OUT2
RECOUT
GND1
GND2
OUT1
VEE
IN1
SW2
VCC
MUTE1
NC
REC1
(2/2)
GNDM
GNDM
MRV
GNDV
FV
EXPST
EXPOE
EXPCK
GNDU
OSDDT
OSDRT
OSDCS
EXPDT4
(CHASSIS)
DVR2/VCR2 OUT
MR OUT
DVR1/VCR1 OUT
(CHASSIS)
(1/2) MONITOR OUT
MONI OUT
AKB7175
JA2003
(1/2)
AKB7176
JA2004
(1/2)
AKB7176
JA2004
AKB7176
PORT EXPANDER PORT EXPANDER
COMPOSITE V ASSY
(AWX8620)
I
I
VC(C'Site)
VC(C'Site)
(C'Site)
(C'Site)
(C'Site)
MR
(C'Site)
(C'Site)
MR(C'Site)
MR(C'Site)
(C'Site)
VC(C'Site)
F(C'Site)
CN5443
F
CN4317
N
VSX-AX4AVi-S
40
1234
1234
C
D
F
A
B
E
3.8 S-VIDEO ASSY
CD74HC4051PWR
GCS GSV
V-56S
0.1
STBY
STBY
75
75
XKP3079
0.1
1000/6.3
0
0
GCS
STBY
0.1
AKP7020 CD74HC4051PWR
GCS
STBY
75
STBY
STBY
0.1 STBY
STBY
75
0.1
AKP7020
STBY
STBY
75
75
GCS
STBY
0.1 STBY
STBY
STBY
STBY
STBY
STBY
STBY
STBY STBY
STBY
CD74HC4051PWR
STBY
STBY
STBY
STBY
STBY
STBY
STBY STBY
STBY
0.1
V+56S
V-56S
0.10.1
V+56S
0.1
V-56S
0.1
V+56S
V-56S
GSV
RT1N241M
AKP7043
GCS
75
STBY
STBY
0.1 STBY
75
STBY
0.1
AKP7043
STBY
75
STBY
STBY
CD74HC4051PWR
75
0.1 STBY
STBY
0.1
3.3/50
220k
100/10
330 4.7k
0.1
LA7213
SERVICE
SERVICE
V+56S
100/10
22k
V+56S
SERVICE
SERVICE
IC2206
C2295
C2296
C2221
R2221
C2248C2247
R2222
CN2201
C2222
R2229
R2250
NoAssign2
C2289
C2280
IC2205
CN2206
NoAssign3
R2208
C2267
C2268
R2207
C2208
R2230
C2279
C2288
CN2205
R2239
R2206
C2250
C2249
R2205
CN2204
R2248
C2206
R2249
C2287
C2291
CN2204
R2212
C2253
C2254
R2211
C2212
R2246
IC2202
CN2204
R2247
R2210
C2229
C2230
R2209
C2210
R2244
R2245
C2246C2245
C2228 C2227
CN2203
R2204
C2234
C2233
R2203
R2242
C2204
IC2201
NoAssign1
C2286
C2278
CN2203
R2243
R2202
C2200
C2201
R2201
C2202 R2240
R2241
C2226
C2283
R2272
C2282
R2271 R2273
C2225
IC2271
R2231
R2232
C2281
Q2271
R2274
D2272
D2271
R2295
R2294
4
1
2
3
5
4
3
2
1
8
6
5
7
8
13
12
614
1179
10
1715
16
14
16
13
15
5
3
1
2
4
2
4
1
3
16
13
14
15
5
2
4
1
3
11
7
10
6
98
1
4
3
2
5
4
1
3
2
16
13
15
14
11
10
12
9
5
6
7
8
11
10
12
9
5
6
7
8
12
11
10
9
15
12
1314
11
1
4
2
3
7
10
6
16
15
14
13
89
5
7
6
8
1
12
10
11
9
1423
E
B
C
5
STBY2_C
V2C
FVC
V1C
MRINH
SYIN
SYOT
SCIN
MRINH
SDET
SCOT
IN2_C
IN1_C
STBY2_Y
V2Y
FVY
V2Y
V2C
IN2_Y
IN1_Y
SIN
V2C
V1Y
V1C
STBY2_C
FVC
STBY2_C
STBY2_Y
IN2_C
IN1_C
V2Y
FVY
STBY1_C
STBY1_Y
STBY2_Y
STBY1_C
SMRC
V1Y
MRINH
SMRA
SMRB
SMRA
SMRC
SMRB
STBY1_Y
SINH
V1C STBY1_C
SINH
SSW1
V1Y
SSW3
SSW2
IN2_C
IN2_Y
IN1_Y
IN1_Y
IN2_Y
IN1_C SSW3
SSW1
SSW2
STBY1_Y
of identical designation.
Therefore, when replacing, be sure to use parts
The
the importance of the safety factor of the part.
mark found on some component parts indicates
"Capacity(µF)/Voltage(V)",
3.DIODES
No marked Diodes are 1SS355.
Parts or parts block marked by "STBY" are standby.
Unit: p-pF or µF unless otherwise noted.
Rated Voltage: shown as
or 50V unless otherwise noted.
No marked Capacitors are CEAT or CKSRYB.
Rated power: 1/16W unless otherwise noted.
NOTES
1.RESISTORS
Unit: k-kΩ , M-MΩ or Ω unless otherwise noted.
Tolerance: 5%(J) unless otherwise noted.
2.CAPACITORS
STBY2
F.VIDEO
VIDEO1 IN 2
MUTE
IN 1
(CHASSIS)
SYIN
SCIN
GND
SYOUT
GND
DVR1
VEE
INH
VSS
STBY1
C REC
SELECTOR
MRINH
VMUTE
SDET
V+5.6V
GAV
V+5.6V
SCOUT
GND
GND
V-5.6V
V-5.6V
GAV
(L2202)
(L2201)
VDD
(1/2)
STBY2
F.VIDEO
DVR2
IN
DVR2/VCR2
Y
C
IN 1
MUTE
IN 2
VDD
(1/2)
DVR1/VCR1
IN
(CHASSIS) C
Y
(2/2)
Y
C
STBY2
DVR2
F.VIDEO
(1/2)
VDD
IN 1
MUTE
IN 2
Y
C
STBY
A
B
C
INH
DVR1
VEE
VSS
STBY1
Y REC
SELECTOR
B
A
CVEE
DVR1
INH
VSS
SELECTOR
B
A
STBY1
C MAIN
C
C
(3/3)
INPUT 2
STBY2
DVR2
F.VIDEO
Y
(2/3)
VDD
IN 1
IN 2
MUTE
C
Y
INPUT 1
VEE
DVR1
INH
VSS
SELECTOR
STBY1
Y MAIN
B
A
C
VCCGND
SYNC
SEP V-SYNC
SEP
HDMI Direct Pass
J
S(Y)
S(C)
S(Y)
S(Y)
S(C)
S(C)
S(Y)
S(C)
S(Y)
S(Y)
S(Y)
S(C)
VCS(Y)
VCS(C)
S(C)
S(C)
CN4316
N
VSX-AX4AVi-S 41
5678
5678
C
D
F
A
B
E
+
-
-
+
+
-
+
-
-
+
-
+
V-56S
STBYSTBY
GSV
V+56S
47k
0
47k
47k
47k
GNDU
47k
47k
47k
STBY
GSV
CD4094BPW-TBB
0.01
0.01
CD4094BPW-TBB
47k
V+56S
V-56S
CD74HC4052PWR
0.1
0.01
TK15420M
1.8k
0.01
4.7k
1.5k
STBY
4.7k
1.8k
STBY
2k
V+56S
100/10
TK15420M
V-56S
0.01
0.1
TK15420M
1.8k
STBY
CD74HC4052PWR
0.01
4.7k
1.5k
STBY
4.7k
1.8k
STBY
2k
V+56S
100/10
TK15420M
0V-56S 0.1
V-56S
TK15420M
1.8k
0
STBY
0
47k
XKP3076
V+56S
100/10
V+56S
GCS
STBY
0.01
100/10
0.01
0.1
180p
180p
CH
CH
75
AKP7020
0.01
V-56S
75
V+56S
GSV STBY
GCS
100/10
0.01
100/10
0.01
0.1
180pCH
180pCH
0.01
AKP7020
V-56S
75
75
GSV
GCS
STBY
CD74HC4052PWR
0.01
4.7k
1.5k
STBY
STBY
4.7k
1.8k
2k
V+56S
0.01
100/10
TK15420M
V+56S
100/10
0.01
100/10
0.01
180p
180p
CH
CH
0.01
AKP7043
0.1
75
75
C2224C2223
R2290
R2287
R2286
R2289
R2285
R2282
R2283
R2281
IC2282
C2285
C2284
IC2281
R2291
C2274 IC2210
R2264
R2266
IC2209
C2266 C2265
R2261
R2262
C2276
R2263
C2275
R2265
C2273 IC2210
C2260 IC2208
IC2207
R2297
C2252 C2251
R2252 R2251
R2254
R2256
R2253
C2262
C2261
C2259
R2255
IC2208
R2298
C2240 IC2204
C2220
R2220
C2219
R2219
R2284
CN2202
C2270
CN2206
C2207
C2272
C2269
C2271
C2218
C2217
CN2206
C2294
R2218
R2217
C2277
CN2205
C2256
C2258C2257
C2255
C2216
C2215
C2205
C2293
CN2205
R2216
R2215
C2263
CN2203
C2203
IC2203
C2232 C2231
R2223
R2224
R2226
R2228
C2242
R2225
C2241
C2239
R2227
IC2204
C2236
C2238
C2235
C2237
C2214
C2213
C2292
CN2203
R2213
C2243 R2214
2
1
5
3
4
8
6
7
2
1
4
5
3
8
6
7
2
1
3
13
14
1
16
12
15
9
11
10
11
16
15
13
12
14
9
11
10
5
6
4
8
7
3
1
8
24
14
16
15
1
2
3
13
12
11
10
9
7
8
4
6
5
4
5
6
8
7
8
3
4
1
2
15
14
16
13
12
11
10
9
8
54
6
7
4
68
5
7
11
10
9
8
7
6
1
2
3
4
5
11
6
8
10
7
9
11
6
8
10
7
9
16
2
3
116
15
14
6
4
5
8
7
11
13
12
9
10
24
3
1
8
2
4
5
3
1
SD
SMRA
SDT3
SST
SMRB
SCK
SMRC
SRC1
SSW1
SSW3
SDT2
SSW2
SCK
S52A
SST
SV
SOE
SRC2
SDT4
SOE
S52B
SINH
SRC1
SRC2
SRC1
SCIN
SRC2
SCOT
FVY
SST
SOE
FVC
SCK
SDT2
SDT3 SDT4
SDET
SYIN
SYOT
S52B
S52A
STROBE
SERIAL
CLK
Q2
Q1
Q3
VSS
Q4
STROBE
SERIAL
Q2
Q1
CLK
VSS
Q3
Q4
2
Y
0
VDD
Q7
Q5
Q6
IN OE
QS
Q8
Q'S
Q7
QS
Q8
Q'S
Q6
OE IN
Q5
VDD
3
1
INH
VSS
VEE
(1/2)
2
1
VDD
Y
2
0
SEL
OUT 2
0
X
3
B
A
(2/2)
INH
1
3
VEE
VSS
(1/2)
VDD
2
1
OUT 1
SEL
3
0
X
A
B
(2/2)
(C2297)
(2/2)
FVY
EXPST
EXPOE
GNDV
GNDV
FVC
DT2
EXPCK
DT4
GNDU
GNDU
(2/2)
OUT
Y
CDVR2/VCR2
(CHASSIS)
(2/2)
Y
CDVR1/VCR1
OUT
(CHASSIS)
2
Y
0VDD
2
1
1
3
INH
VEE
VSS
OUTPUT
SEL
0
3
X
A
B
(1/2)
(1/3)
C
Y
MONITOR
OUT
: VIDEO SIGNAL ROUTE VCS(Y)
VCS(Y)
S-VIDEO ASSY
(AWX8622)
J
J
: VIDEO SIGNAL ROUTE FS(C)
: VIDEO SIGNAL ROUTE S(C)
FS(C)
S(C)
: VIDEO SIGNAL ROUTE S(Y)
S(Y)
S(C)
S(C)
S(Y)
S(Y)
S(C)
S(Y)
S(C)
S(Y)
S(C)
S(Y)
S(C)
FS(Y)
FS(C)
S(Y)
S(C)
S(Y)
S(C)
S(Y)
S(C)
S(Y)
VCS
(C)
VCS
(Y)
: VIDEO SIGNAL ROUTE VCS(C)
VCS(C)
: VIDEO SIGNAL ROUTE FS(Y)
FS(Y)
CN5442
F
PORT EXPANDER PORT EXPANDER
VSX-AX4AVi-S
42
1234
1234
C
D
F
A
B
E
3.9 COMPONENT & VOL ASSY (1/4)
-
+
+
-
VLDT1
VLCLK
CONT
EXTC
FLIN
FRIN
DSPC
DSPC EXTC
DSPFR
DSPFL
FLIN
FRIN
FRIN
DSPFR
CDMIX
XLSSN
DSPFL
INPUT
FLIN
DSPIN
D2508
C2661
C2660
R2677
C2663
C2662
C2665
D2510
D2509
C2664
R2678
C2666
C2667
CN2502
D2506
CN2506
C2694
CN2501
D2503
R2689
Q2645
Q2631
R2626
R2628 R2630
R2632
C2634
R2634
D2507
R2657
R2658
IC2637
C2676
C2675
C2674
C2673
C2672
C2671
C2670
R2663
R2664
C2669
C2668
R2668
R2667
R2666
R2665
D2501
D2502
R2680
R2679
R2659
R2660
IC2636
Q2632
C2654
R2636
IC2632 C2638
D2505
C2652
C2653
R2691
C2650C2649
R2627
IC2630
R2629
R2625 R2633R2631
C2633
C2635
R2638
C2636
R2637
IC2631
C2637
IC2632
R2635
D2504
C2651
Q2630
R2690
MIC
FVL
FVR
EXTSBR
EXTSBL
FLIN
FRIN
DSPSBR
DSPSBL
DSPSTL
DSPSTR
FRIN
D_FR
D_FL
FLIN
4
2
6
3
1
5
8
12
10
9
7
11
13
12 453
56
68712910 11 1314
15
14
16
17
15
1
6
2
4
5
3
7
8
10
11
9
10
8
14
12
13
11
9
4
2
6
7
5
3
1
3
2
1
6
5
54
55
53
52
51
50
49
48
47
46
45
44
43
41
42 40 39 38 3537 36 3234 33 293031
18
17
16
19
20
22
21
24
23
26
25
28
27
2
4
1
6
7
5
8
314
16
15
11
13
12
9
10
7
4
8
2
1
7
4
5
8
6
3
4
3
6
7
5
12
11
8
10
9
2
141
13
3
2
4
1
8
15
16
14
13
12
9
11
10
MIC
GNDA
GNDAV
GNDAV
FVR
FVL
SLIN
GNDA
GNDA
GNDA
SRIN
SBRIN
SBLIN
INCB
INSBB
VINSR
GOUTSR
VINSW
GOUTC
VINSL
GOUTSL
VINC
PORTA
GND
PORTB
VDD
CLK
DATA
SWIN
GNDA
CIN
GNDA
STRIN
GNDA
GNDA
GNDA
STLIN
SBRIN
SBLIN
GNDA
GNDA
SRIN
SLIN
GNDA
GNDA
GNDA
SWIN
CIN
FRIN
FLIN
GNDA
GNDDAC
ROUT
LOUT
GNDA
GNDA
GNDDAC
R
INSRB
INSLB
GOUTSW
GND
INFLB
INSWB
INFRB
INSBA 6 CH E-VOL GND
VEE
VCC
GND
OUTSB
GND
OUTC
INCA
INSLA
VINFL
GOUTFR
GOUTFL
INSRA
INSWA
INFLA
INFRA
TNFR
VINFR
TNFL
GND
GND8
OUTFL
OUTSL
OUTSR
GND
OUTSW
GND
OUTFR
GND
BNF2L
BNF1L
BNF2R
BNF1R
VSX-AX2AV
ONLY
XCOM
VSS
VEE
INH
1Y
YCOM
3Y
0Y
2Y 2X
1X
VDD
0X
3X
A
B
(2/2)
3INVSS
CONT1
2OUT CONT4
1OUT
2IN
CONT2
CONT3 3OUT
4IN
4OUT
1IN VCC
L
2Y
0Y VDD
1Y
3Y
YCOM
VEE
VSS
INH
XCOM
(1/2)
2X
0X
1X
3X
A
B
VSX-AX4AVi
ONLY
C DOWN MIX
SELECT
SW DOWN MIX
C DOWN MIX
GNDA GNDAV
V-7A
V-7A
stby
10/50
10/50
GNDU
10/50
10/50
100p
1K
1K
CH
V+7A
stby
stby
GNDA
100p CH
YB
0.01
V-7A
YB
0.01
V+5U
52045-1745
stby
XKP3076
GNDDAC
STBY
BTEM14P-1R
V-7A
V+7A
DAN217
V-7A
RT1N241M
47k
V+7A
100p
RT1P241M
56 2.4k
0
3.3kV-7A
stby
V+7A
0
BD3813KS
V-7A
0
10/50
10/50
stby
stby
100
stby
stby
stby
stby
YB
0.01
100 V+7A
100
100
100
100
stby
V+7A
stby
stby
stby
0
TC4052BFT
0
V-7A
RT1N241M
YB 0.01
CH
2.2k
100
0.01
10/50
DAN217
V-7A
0.01
47k
YB
V+7A
0.01
YB0.01
0.01
V+12A
YB
V-12A
56
TC4066BFN 3.3k V+7A
0 2.2k
2.4k
YB
GNDA
V-7A
470k
YB0.01
470k
DAN217
TC4052BFT
BA4560RF 10/50
100
V+7A
V+7A
CH
100p
YB
RT1N241M
47k
YB 0.01
VSX-AX4AVi
ONLY
(C)
(F)
(F)
(C)
(S)
(SW)
(SW)
(S)
(F)
(FVL)
(SB)
(S)
(F)
(S)
(SW)
(SB)
(C)
(F)
(C) (C)
(C)
(C)
(C)
(C)
(C)
(C)
(C)
(F)
(F)
(F)
(F)
(F)
(F)
(F)
(SW)
(SW)
(SW)
(MIC)
K1/4
CN5451
HCN4312
NCN4325
N
2/4K2/4K
2/4K
2/4K
2/4K
CONT
(SW)
VSX-AX4AVi-S 43
5678
5678
C
D
F
A
B
E
+
-
-
+
-
+
-
+
-
+
-
+
+
-
-
+
+
-
+
-
SROUT
SLOUT
SWOUT
COUT
FROUT
FLOUT
PREOUT
C2552
R2554
C2554
R2552
Q2552
R2558
R2556
R2560
C2556
R2562
C2555
R2564
IC2551
C2560
C2558
Q2554
R2566
R2568
C2557
C2561
C2562
R2565
R2572 C2566
R2570
R2574
C2564 C2563
C2551
R2551
R2557
Q2551
R2553
R2559
R2561
R2555
C2553
C2526
Q2526
R2528 C2528
R2530
R2526
R2532
C2530
R2534
R2536
C2529
R2533
C2525
R2525
Q2525
R2531
R2527
R2529
R2535
C2527
R2502
C2502 R2504
Q2502
R2508
C2504
R2506
R2510
C2506
R2512
R2501
R2507
Q2501
C2505
R2505
R2509
R2511
R2646
C2644
R2652
R2648 R2650
C2501 R2503
C2503
C2640
R2662
R2642
R2654
IC2634 R2644 C2646
C2632
IC2635
R2569
R2567
Q2553
C2559
IC2551
R2563
R2573
R2571 C2565
R2538
C2534
IC2525
R2546 C2540
Q2528
C2532
R2540
R2542
C2531
C2536
C2535
R2541
R2543
R2539
R2544
C2538
R2548 R2547
C2537
Q2527
C2533
R2537
IC2525
R2545 C2539
C2510
R2514
Q2504
R2518
C2508
R2516
IC2501
C2516
R2520
R2522
R2524
C2514
C2507
R2517
C2511
C2512
R2515
C2509
R2519
Q2503
R2513
C2513
R2523
IC2501 C2515
R2521
IC2634
R2649R2647
R2645 R2651
C2643
C2647
C2641
C2648
C2642
R2656 R2655
IC2633
R2653
IC2633
R2643 C2645
C2631
R2641
C2639
R2661
BIAMPR
BIAMPL
MVATT
PREG
FRIN
D_FR
D_FL
FLIN
SIGNAL DIGITALANALOG
IC2631[A,B]
SW DOWNMIX
IC2630[CONT]
IC2636[C]
XLSSN
DSP IN
L
L
LH
H
OFF
ON
HL
HL
H
DOWN MIX SELECT
IC2636[INH]
CDMIX
C DOWNMIX
HL
LH
ONOFF
54
68
7
4
6
8
5
76
5
7
4
8
1
2
2
3
4
1
8
6
54
7
8
2
3
4
1
8
5
6
4
8
7
2
3
4
1
8
5
3
4
8
6
7
34
8
2
3
12
4
8
1
15
16
14
13
12
9
11
10
(2/2)
SR
R
ONLY
VSX-AX2AV
(2/2) R
(2/2)
2Y
0Y
(1/2)
SL
(2/2)
SW
(1/2)
C
R
(1/2)
L
(2/2)
VSS
VEE
INH
1Y
3Y
YCOM
L
VDD
(1/2)
(1/2)
2X
XCOM
1X
0X
B
A
3X
VSX-AX2AV
ONLY
C DOWN MIX
SELECT
2-B2
GNDA
47/25 2.2k 4.7/50
56k
4.7k
2SD2704K
750
100k
4.7K
0.01 0.01YB
1k
uPC4570G2
0
V-12A
47/25
2SD2704K
100/16
18K
5.1k
0.022 0.022
15k
0.01
CH
YB
100p
CH
0.01
100k
47/25
56k
4.7k
2SD2704K
2.2k
100k
YB
4.7k
750
4.7/50
47/25
2SD2704K
2.2k 4.7/50
750
56k
4.7k
4.7k
100k
0.01
4.7k
YB 0.01
100k
4.7k
47/25
56k
2SD2704K
2.2k
750
YB
4.7/50
4.7/50
47/25
2.2k
56k
2SD2704K
4.7k
750
100k
4.7k
YB0.01
4.7k
56k
2SD2704K
2.2k
0.01
4.7k
750
100k
YB
11k 22p
0 15k 11k
47/25 4.7/50
CH
CH
22p
0
4.7k
4.7k V-7A
100
10/50
0.01
2SD2704K
100/16
18k
5.1k
uPC4570G2
1k
15k
100p
YB
0
V+12A
47/25
100k
18k
100/16
5.1k
1k
uPC4570G2
V-12A
0 47/25
2SD2704K
0.022 0.022
15k
0.01
100p
CH
YB
100p
15k
CH
0.01
100k100k
2SD2704K
100/16
5.1k
18k
uPC4570G2
1k
YB
047/25
uPC4570G2 V-12A
V+12A
100/16
1k
2SD2704K
5.1k
18k
0.022
047/25
15k
0.01
100p
CH
YB
100k
0.022
2SD2704K
100/16
18k
5.1k
1k
CH
100p
0.01
15k
YB
047/25
100k
uPC4570G2
V+12A
V-7A
V+7A
015k
11k
22p
0.01
0.01 0.01
YB 0.01
YB YB
YB
470k
TC4052BFT
YB
470k
BA4560RF
4.7k
11k
BA4560RF
100 10/50
4.7k
V+7A
YB0.01
CH
CH
22p
0
: AUDIO SIGNAL ROUTE(S)
: AUDIO SIGNAL ROUTE(C)
(S)
(S)
(C)
(C)
(C)
(SW)
(S)
(F)
(F)(F)
(F)
(SW)
(C)
: AUDIO SIGNAL ROUTE(F)
(F) : AUDIO SIGNAL ROUTE(SW)
(SW)
: AUDIO SIGNAL ROUTE(VIDEO2)
: AUDIO SIGNAL ROUTE(MIC)
(FVL)
(MIC)
(F)
(F)
(F)
(F)
(F)
COMPONENT & VOL ASSY
(VSX-AX4AVi:AWQ7034)
(VSX-AX2AV:AWQ7035)
K1/4
K1/4
2/4K
2/4
K
2/4K
2/4
K
2/4K
PREOUT
(C)
(C)
: AUDIO SIGNAL ROUTE(SB)
(SB)
VSX-AX4AVi-S
44
1234
1234
C
D
F
A
B
E
3.10 COMPONENT & VOL ASSY (2/4)
FLIN
FRIN
DSPSBR
DSPSTR
DSPSTL
EXTSBR
DSPSBL
TUNER_R
EXTSBL
TUNER_L
FVC
FVY
FV
BIAMPL
BIAMPR
MIC
FVL
FVR
MEXDT1
MEXCLK
OSDDT
MEXST
OSDRST
OSDCS
MEXOE
VLDT2
VLCLK
CONT
MR OUTPUT XM
IC2641[A/B]
H
SB OUTPUT
XMSB
L
MRSP
IC2639[B]
IC2639[A]
BIAMP
OTHERS
L
H
MRGND SBBIAMP
LH
LH
L
HH
LH
H
H
H
L
L
L
L
L2758
R9758
D2513
D2514
R2682
R2681
C2677
C2678
C2679
C2680
C2683
C2682
C2681
C2684
D2515
CN2603
Q2642
R2686
R2688
C2627
D2518
C2629
C2626
D2517
R2685
R2687
C2628
Q2641
D2516
IC2638
R2674
R2673
R2672
D2511
D2512
C2689
C2688
R2671
C2687
R2669
R2670
R2676
C2685
R2675
C2696
C2695
C2693
C2692
C2690
C2691
R2684 R2575
C2686
R2683
R2576
C2575
C2576
IC2639
C2656
Q2633
C2655
Q2634
R2692
R2693
C2591
CN2503
4
3
2
1
321456 108971211 13 14
6
57
10
9
8
15
16
13
14
17
12
11 19
18
E
BC
B
E
C
1
2
7
6
5
48
3
55
56
54
53
52
51
15
16
18
17
19
20
50
49
48
47
46
45
21
22
24
23
25
26
44
43
4041
42 3739 38 36 3435
28
27
3133 32 2930
2
1
4
5
3
8
6
7
15
16
12
14
13
9
11
10
15
12
1311
10
9
14 2018
19
16
17
V+7A
V-7A
GNDA
GNDA
FL
GNDA
GNDA
MROUTL
GNDA
FR
GNDA
GNDA
GNDA
MRINL
MRINR
MROUTR
TUNER R
GNDA
TUNER L
FVC
GNDV
GNDA
GNDV
FVY
GNDV
FV
GNDA
INSBB
VINSW
INCB
GOUTSL
VINSR
GOUTSR
GOUTC
VINC
VINSL
INSLB
INSRB
GOUTSW
GND
INFLB
INSWB
PORTA
PORTB
GND
VDD
VEE
DATA
CLK
GND
VCC
GND
OUTSB
INCA
INFRB
GOUTFR
VINFL
INSBA 6 CH E-VOL
INFLA
GOUTFL
INSRA
INSWA
INSLA
OUTC
GND
OUTFL
OUTSL
GND
GND
OUTSR
GND
OUTSW
INFRA
VINFR
TNFR
TNFL
BNF1R
BNF2R
BNF1L
BNF2L
GND
OUTFR
GND8
STBY
Y0
Y2
Y1
Y3
INH
VSS
VEE
Y
VDD
X2
X0
X
X1
X3
B
A
GNDA
GNDA
FVR
GNDA
FVL
GNDA
MIC
GNDA
V-12V
V-12V
V+12V
V+12V
GNDA GNDAT V-7A
V-7A
VTL1083
V+7A
STBY
stby
stby
GNDU
0.01
GNDA
10/50
10/50
10/50
10/50
CH100p
1K
1K
YB
CH
100p
V-7A
YB
0.01
stby
52045-1945 V-7A
2SB1238X(QR)
4.7k
V-12A V-7A
100
GNDA
2.2/50
UDZS7R5B
2.2/50
UDZS7R5B
10/50
4.7k
100
10/50
2SD1858X(QR)
V+12A V+7A
GNDAV
GNDV GNDA
stby
V+7A V+5U
100
BD3813KS 100
180
180
stby
stby
100
100
0.01
YB
V+7A
56k
56k
47/25
47/25
V+7A
10/50
10/50
stby
stby
stby
stby
stby
stby 56k
stby
stby
47/25
47/25
V-7A
RT1N241M
0.01
56k
TC4052BFN
YB 0.01 YB
V+7A
RT1N241M
47k
47k
SB SELECT
BTEM20P-1R
V-12A
470/25
V+12A
R2699
R2698 0
0
: AUDIO SIGNAL ROUTE(S)
: AUDIO SIGNAL ROUTE(C)
(S)
(C)
: AUDIO SIGNAL ROUTE(MR)
: AUDIO SIGNAL ROUTE(TUNER)
(MR)
(MR)
(MR)
(MR)
(MR)
(SB)
(SB)
(SB)
(F)
(F)
(MR)
(MR)
(MR)
(TL)
(TL)
: AUDIO SIGNAL ROUTE(F)
(F)
: AUDIO SIGNAL ROUTE(SW)
(SW)
: AUDIO SIGNAL ROUTE(VIDEO2)
: AUDIO SIGNAL ROUTE(MIC)
(FVL)
(FVL)
(MIC)
(MIC)
: AUDIO SIGNAL ROUTE(SB)
(SB)
K2/4
CN4313
N
CN5452
H
1/4K
1/4K
4/4
K
1/4
K
1/4
K
1/4K
3/4
K1/4K
3/4K
1/4, 4/4K
CONT
: VIDEO SIGNAL ROUTE F(C'Site)
F(C'Site)
: VIDEO SIGNAL ROUTE FS(Y)
FS(Y)
: VIDEO SIGNAL ROUTE FS(C)
FS(C)
F(C'Site)
FS(Y)
FS(C)
(SB)
VSX-AX4AVi-S 45
5678
5678
C
D
F
A
B
E
MVATT
PREG
+
-
-
+
+
-
-
+
BIAMP
GCONT1
BIAMP
MEXDT
MEXCLK
MEXST
GCONT2
STROUT
SBLOUT
STROUT
SWOUT
STLOUT
STLOUT
FLOUT
SLOUT
SROUT
SBROUT
FROUT
COUT
SBROUT
AMUTE
MUTE_MRSB
SBLOUT
FLOUT
SBLOUT
PREOUT
SBROUT
SLOUT
SROUT
FROUT
DSPIN
12TRG2
MEXDT1
CDMIX MUTE_MRSB
COUT
AMUTE
MEXOE
12TRG1
VLDT1
VLDT2
XLSSN
GCONT2
MEXDT
OSDDT
GCONT1
MUTE_MRSB
AMUTE
MEXCLK
MEXST
MEXOE
MRIN2
12VDET
MRIN1
T_CLK
T_DI
T_DO
OSDCS
OSDRST
T_CE
FMDET
VLCLK
C2602
R2549
R2599
R2604
R2606
C2604
R2614
C2610
IC2601
C2616
CN2602
R2608
R2602 R2601
R2607
C2601
R2720
R2582
Q2602
R2610
C2606 C2605
Q2604
R2612
C2608 C2607
R2622
R2618
R2616
C2612
R2620
R2615
R2617
C2611
R2609
Q2601
R2605
R2603 C2603
R2611 Q2603
C2609
R2613
IC2601
R2619
R2621
C2578
R2578
R2580
Q2576
C2580
R2723
R2584
C2584
R2588
R2586
C2582
Q2578
IC2575
R2596
R2592
R2590
R2594
R2581
C2715
C2714
D2520
Q2636
R2719
C2579
R2583
Q2575
R2579
C2577
C2581
R2585 Q2577
C2583
C2586
C2585
R2589
R2591
R2593
R2577 IC2575
C2716
C2717
R2587 R2595
R2722
Q2644
Q2638
R2721
D2521
Q2644
C2699
R2694
Q2635
C2700
IC2640
C2697 C2698
R2697
C2621
Q2637
Q2640
C2614
R2624
C2613
R2623
C2615
C2590
C2588
R2598
C2587
R2597
R9761
CN2601
L2761
C2589
CN2505
Q2639
C2659
CN2504
C2623
D2519
4
54
5
2
1
3
8
6
7
4
2
3
1
8
54
8
6
7
3
B
C
E
24
1
8
3
E
C
E
12
E2
B2
BC2
B
C
31
2
C
E
8
6
7
4
5
B
E
CB
1
2
3
B
ECE
7
11
8
10
6
9
12
16
13
17
14
18
15
19
22
23
20
21
24
25
26
3
5
2
1
6
4
7
8
11
12
10
9
10
13
12
11
9
18
16
13
14
17
15
16
15
14 19
1
B
C
3
4
2
5
19
20
17
18
23 21
22
15
16
9
814
13 11
6
7
12 10 2
53
4
1
7
6
STBY (2/2)
STR
VIPOD
STBYROUT
VIPOD
GNDU
GNDU
STL
(1/2)
(1/2)
SBR
SBL
(2/2)
(2/2) (1/2)
VSS
BIAMP
MRSP
NECK8
NECK6
CLOCK
STB
DATA
GNDA
SWOUT
SBLOUT
STBYLOUT
GNDA
GNDA
SLOUT
GNDA
GNDA
GNDA
GNDA
FLOUT
SROUT
COUT
SBROUT
GNDA
GNDA
GNDA
FROUT
MUTE MRSB
AMUTE
FLOUT
SBLOUT
GNDA
GNDA
GNDA
SLOUT
FROUT
SBROUT
GNDA
GNDA
SROUT
GNDA
DSPIN
CDMIX
QS
QS'
12TRG2 NECK6
GNDA
NECK8
V-12A
AMUTE
COUT
MUTE MR/SB
VDD
OE
12TRG1
GNDU
V+5.6U
VLDT1
VLDT2
XLSSN
GCONT2
EXPDT
EXPST
EXP/OSDCLK
OSDDT
MUTE MR/SB
AMUTE
GCONT1
EXPOE
ODSCS
OSDRST
12VDET
MRIN1
MRIN2
T CE
T CLK
T DO
T DI
GNDU
GNDU
V+5.6U
FMDET
VIPOD
VLCK
GNDU
V-12A
GNDA
47/25
47k
V-12A
4.7/50
2.2k
750
100/16
47k
1k
uPC4570G2 V-12A
47/25
0
52045-2645
VIPOD
GNDU
4.7k
2SD2704K
56k 56k
2SD2704K
4.7k
47/25
47k
2SD2704K
V-12A
4.7k
0.01
100k
YB 0.01
2SD2704K
4.7k
0.022 0.022
8.2k
8.2k
15k
CH
100p
CH
100p
YB
100k
2.2k
750
4.7/50
4.7k
2SD2704K
100/16
8.2k
8.2k
15k
1k
uPC4570G2
2k 4.7/50
750 0.01
100k
V-12A
100/16
47k
4.7k
0.022
2SD2704K
uPC4570G2
8.2k
8.2k
1k
15k
4.7k
2SD2704K
stby
DAP202U
1k
YB YB0.01
100k
750
0.022
4.7k
2SD2704K
100/16
CH
CH
100p
100p
15k
8.2k
8.2k
2k
GNDA
4.7/50
0.047
0.22
0.1/16
uPC4570G2
1k
DAN202U
4.7k
UMH1N UMH1N
47k
GNDU
0.047
RT1P241M
1k
RT1P241M
0.22
stby
RT1P241M CD4094BNS
PORT EXPANDWR
PRE AMP
0.1/16 YB
4.7k
YB0.01
V+5U RT1P241M
RT1P241M
0.01 YB
100k
0.01 YB
100k
47/25
0
V+12A
47/25
V-12A
0
0.01
100k
YB YB0.01
100k
0
GNDA
52045-1945
STBY
V+12A
047/25 V-12A
STBY
GNDU
KP200TA7L
GNDU
RT1P241M
V+5U
XKP3082
GNDU 0.1/16 YB
V+5_6U V+5U
1SS355
VIPOD
V+5_6U
PREOUT
(SB) (SB)
(SB)
(S)
(S)
(F)
(SB)
(SW)
(F)
(C)
(SB)
K2/4
1/4K
1/4
K
CN5431
E
CN4324
N
CN5603
O
CN2801
AE
1/4
K
KK 2/4
COMPONENT & VOL ASSY
(VSX-AX4AVi:AWQ7034)
(VSX-AX2AV:AWQ7035)
VSX-AX4AVi-S
46
1234
1234
C
D
F
A
B
E
3.11 COMPONENT & VOL ASSY (3/4)
MEXCLK
OSDDT
MEXDT1
MEXST
MEXOE
OSDRST
XMSB
OSDCS
VMUTE
CMRV
MEXOE
MEXST
MEXCLK
CDT2
OSDCS
OSDDT
OSDRST
CR3
CB3
CY3
CR2
CB2
CY2
CSW2
CINH
CSW1
MEXCLK
MEXDT1
XMSB
R1
B1
Y1
MEXST
DINH
CDT2
C53B
DSW1
D53A
MEXOE
CINH
DR
CR2
CR3
CR1
CINH
CR1
CB1
CY1
DB
CB1
CB2
CSW2
CB3
CSW1
CY1
CY2
CSW1
DY
CY3
CSW2
13 11
12
5
2410
73
6
9
8
1
17
16
14
15
12
13
11
10
9
8
7
6
5
3
4
2
1
10
8
9
6
5
11
3
2
7
9
6
4
3
1
2
1
3
4
5
8
7
6
15
16
14
11
9
10
13
12
1
2
4
5
3
8
7
6
1
1
2
4
3
5
6
7
16
14
13
12
15
9
11
10
16
13
15
14
12
11
10
89
11 9
7
6
4
1
3
GCC GCV
XKP3077
STBY
0.1
GHD
75
75
75
470/6.3
470/6.3
1000/6.3
GNDM
GNDV STBY
VTL1083
GCC
52045-1745
GNDU
0.01
75
STBY
STBY
75
STBY STBY
GCC
75 75
STBY
STBY
0.01
75
STBY
75
STBY
STBY
STBY
STBY
47k
GNDU
47k
GNDU
47k
CD4094BNS-TBB
0.01
STBY
GNDU GCV
STBY
V+5C
47k
GNDU
47k
47k
47k
V-3C
0.01
TC74LVX4052FT
PORT EXPANDER
0.01
TC74LVX4052FT
V-3C
0.01 0.01
0.01
GCC
75
STBY
STBY
75 75
STBY STBY
XKB3053
XKB3053
XKB3053
XKB3053
XKB3053
XKB3053
XKB3053
XKB3053
XKB3053
XKB3053
XKB3053
XKB3053
V+3C V+3C
C2461
C2460
CN2403
R2469
C2469
R2468
R2467
C2467
C2468
R9759
L2759
CN2409
JA2402
JA2402
R2409
C2409
C2475 JA2402
C2455
R2408 R2407
C2408 C2407
JA2402
JA2402
R2406
C2406
JA2402
C2454
R2405
C2405
C2476
JA2402
JA2402
R2404
C2404
R2435
R2436
R2437
R2443
R2444
IC2407
R2446
C2438
C2464
C2463
R2449
R2447
R2445
R2448
C2416
IC2402
C2415
IC2401
C2412 C2411
JA2401
JA2401
R2403
C2403
C2453
C2477 JA2401
R2402 R2401
C2402 C2401
JA2401
FV
FVC
FVY
MEXST
MEXCLK
MEXOE
OSDDT
OSDCS
MEXDT1
XMSB
OSDRST
(CHASSIS)
GNDV
VMUTE
CROUT
GNDV
GNDV
GNDV
GNDV
CBOUT
CYOUT
CRIN
CBIN
GNDV
CYIN
GNDM
GNDM
MRV
GNDV
FV
FVY
GNDV
GNDV
FVC
EXPST
EXPOE
EXPDT
EXPCK
(CHASSIS)
OSDCS
OSDRT
GNDU
OSDDT
(6/6)
Cr
COMPONENT IN3
(5/6)
Cb
(CHASSIS) Y
(4/6)
COMPONENT IN2
(2/6)
(3/6)
Cr
(1/6)
Cb
Y
STROBE
Q1
SERIAL IN
CLK
Q4
Q3
Q2
VSS
VDD
Q'S
Q7
Q8
OE
Q5
Q6
QS
INH
VEE
VSS
VEE
INH
0
2
1
3
2
0
1
Cr
3
Cb
A
B
0
3
2
1
VDD
1
2
0
3
Y
A
VSS B
(3/6)
(CHASSIS)
Cr
COMPONENT IN1
(2/6)
Cb
(1/6)
Y
3.DIODES
Parts or parts block marked by "STBY" are standby.
AT : CEAT
No marked Diodes are 1SS355.
:CKSRYB type unless
otherwise noted
1.RESISTORS
2.CAPACITORS
Rated power: 1/16W unless otherwise noted.
Unit: k-kΩ , M-MΩ or Ω unless otherwise noted.
Tolerance: 5%(J) unless otherwise noted.
Unit: p-pF or µF unless otherwise noted.
Rated Voltage: shown as "Capacity(µF)/Voltage(V)",
or 50V unless otherwise noted.
NOTES
C1(Y)
C1(Cb)
C1(Cr)
C2(Y)
C2(Cb)
C2(Cr)
C3(Y)
C3(Cb)
C3(Cr)
MR(C'Site)
VC(Cr)
VC(Cb)
VC(Y)
F(C'Site)
FS(C)
FS(Y)
C(Cr)
C(Cb)C(Cr)
C(Cb)
C(Y)
C(Y)
C(Cb)
C(Cr)
C(Y)
K3/4
CN5441
F
2/4K2/4K
CN4314
N
VSX-AX4AVi-S 47
5678
5678
C
D
F
A
B
E
The
CINH
CBO
CRO
VMUTE
CYO
C53B
1
4
3
2
5
6
7
16
13
15
14
12
11
10
89
3
2
1
10
8
9
7
6
9
8
4
5
11
10
2
3
13
12
114
5
6
3
2
V-5_6C
GCV
1SS355
V-5C
2SA1576A(RS)
STBY
15K
V-3C
0.22/10
V-3C
TC74LVX4053FT
100/10
STBY
STBY
STBY
STBY
0.01 0.01
STBY
100/10
STBY
33k 33k
STBY
15k
0.22/10
V+5_6C
2SC4081A(RS)
1SS355
V+5C V+3C
GCV
GNDM
STBY
STBY
GCC
180p
75
CH
0.01
STBY
AKB7175
STBY
GCV
GCV
GCC
0.01
NJM2581M
STBY
75
STBY
STBY
75
STBY
100/10
100/10
V-5C
V+3C
0.1 0.1
100/10
V+5C
75 XKB3053
XKB3053
XKB3053
XKB3053
D2402
Q2408
C2472
R2452
IC2404
C2426
C2423
R2432
R2431
R2430
C2420 C2419
C2422
C2425
C2421
R2454
C2440
C2471
R2453
C2439
R2451
Q2407
D2401
C2459
C2458
C2434
R2433
C2457
C2473
JA2403
C2462
JA2401
C2456
C2437
R2441
C2436
C2474
JA2401
IC2405
R2440
C2435
JA2401
C2424 C2428 C2427
C2432 C2431
R2439 JA2401
mark found on some component parts indicates
the importance of the safety factor of the part.
of identical designation.
Therefore, when replacing, be sure to use parts
VEE
INH
1
SELECT
Cb
0
1
INPUT/VC
Cr
0
VDD
1
Y
0
A
B
VSS C
(CHASSIS)
MR OUT
(input side) (CHASSIS)
BIAS VOUT3VEE3
GND
Powersave
+6dB
(6/6)
Cr
VEE2
VIN3
+6dB
BIAS
Cr
VOUT2
V+3
VIN2
VEE1 +6dB
Cb
BIAS
V+2
Y
VIN1 V+1
Cb
(5/6)
(4/6)
Y
COMPONENT OUT
: VIDEO SIGNAL ROUTE C1(Cr)
C1(Cr)
: VIDEO SIGNAL ROUTE C1(Y)
C1(Y)
: VIDEO SIGNAL ROUTE C1(Cb)
C1(Cb)
: VIDEO SIGNAL ROUTE C2(Cr)
C2(Cr)
: VIDEO SIGNAL ROUTE C2(Y)
C2(Y)
: VIDEO SIGNAL ROUTE C2(Cb)
C2(Cb)
: VIDEO SIGNAL ROUTE C3(Cr)
C3(Cr)
: VIDEO SIGNAL ROUTE C3(Y)
C3(Y)
: VIDEO SIGNAL ROUTE C3(Cb)
C3(Cb)
: VIDEO SIGNAL ROUTE MR(C'Site)
MR(C'Site)
: VIDEO SIGNAL ROUTE F(C'Site)
F(C'Site)
: VIDEO SIGNAL ROUTE C(Y)
C(Y)
: VIDEO SIGNAL ROUTE FS(C)
FS(C)
: VIDEO SIGNAL ROUTE FS(Y)
FS(Y)
: VIDEO SIGNAL ROUTE C(Cr)
C(Cr)
: VIDEO SIGNAL ROUTE C(Cb)
C(Cb)
: VIDEO SIGNAL ROUTE VC(Y)
VC(Y)
: VIDEO SIGNAL ROUTE VC(Cr)
VC(Cr)
: VIDEO SIGNAL ROUTE VC(Cb)
VC(Cb)
C(Cr)
C(Cb)
VC(Cb)
VC(Cr)
C(Y)VC(Y)
C(Y)
C(Cb)
C(Cr)
C(Y)
C(Cb)
C(Cr)
C(Y)
C(Cb)
C(Cr)
MR(C'Site)
K3/4
K3/4
COMPONENT & VOL ASSY
(VSX-AX4AVi:AWQ7034)
(VSX-AX2AV:AWQ7035)
VSX-AX4AVi-S
48
1234
1234
C
D
F
A
B
E
3.12 COMPONENT & VOL ASSY (4/4)
TUNER_R
TUNER_L
R2782
R2781
KN2701
C2788
C2787
C2789
C2790
C2771
C2772
D2772 R2772
CN2702
Q2771
D2771
R2771
34
1
2
1
2
3
4
5
6
7
8
11
10
9
GCC
STBY
GCC
STBY
VNE1948
YB
STBY
STBY
GNDTC
GNDU1
YB
YB
YB
STBY
STBY
GNDTC GTRG
UDZS10(B)
100/16
STBY
390
2SD1664(PQR)
52045-1145
STBY
0
V+12T
Unit: p-pF or µ F unless otherwise noted.
Parts or parts block marked by "*" or "STBY" are standby.
Unit: k-kΩ , M-MΩ or Ω unless otherwise noted.
Rated power: 1/16W unless otherwise noted.
NOTE
Tolerance: (J) 5% unless otherwise noted.
1.RESISTORS
2.CAPACITORS
-
+
Ratings: Capacity(µF)/Voltage(V) unless otherwise noted.
Rated Voltage: 50V expect for electrolytic capacitors.
VEF1040
2701
AM:60mA
MODULE
FM:80mA
TUNER
GNDT
T DO
TL
T CLK
T CE
T DI
FM DET
GNDT
TR
V+9T
VSM
R2773 Q2772
E
BC
220 2SC4081 (for RDS)
R2775
R2774
4.7k
STBY
V+12T
(TL)
(TL)
K4/4
TUNER MODULE CN1
2/4K
VSX-AX4AVi-S 49
5678
5678
C
D
F
A
B
E
MRIN1
MRIN2
12TRG2
12VDET
12TRG1
FMDET
T_CLK
T_CE
T_DI
CONT
T_DO
CN2402
R9757
C2781
C2782
C2752
R2752
Q2753
R2754
Q2753
R2757
C2751
Q2752
R2751
R2753
C2753
Q2754
R2756
CN2701
C2784
C2783
JA2702
Q2751 R2755
C2785
C2786 L2760
L2756
D2754
R2760
L2755
L2757
R2758
C2754
D2751
L2751
R9760
JA2702
JA2703
R2762
R2763
R2761
L2754
D2753
L2752
L2753
D2752 R2759
3
4
1
2
7
5
6
1
10
24
22
2
1
11
10
21
22
23
3
2
1
2
3
GCV
KP200TA7L
GTRG
STBY
V-5_6C
0.1
GCC
470p
YB
GTRG
YB
4.7k
UMH1N
0.01
4.7k
UMH1N
10k
STBY
2SA1576A(RS)
0.01
4.7k
4.7k
2SA1576A(RS)
18
GCC
AKN-209
470p
0.1
XKN3013
STBY
2SA1576A(RS)
GNDU1
18
STBY YB
YB
YB
YB
GNDU1
VTL1083
QTL1013
0
QTL1013
STBY
VTL1083
V+12T
V+5_6C
V+12TRG
UDZS5R1(B)
10k
0.1/50
AT
ATL7002
STBY
GNDU
stby
GNDU GTRG
stby
stby
QTL1013
stby
STBY
stby
stby
1SS355 1k
V+5_6U
GNDV
V-5.6V
GNDV
V+5.6V
V12VTRG
GNDA
V+12T
12VTREGGER 2
(CHASSIS)
(2/2)
(1/2)
(CHASSIS)
12VTRIGGER 1
(2/2)
IR OUT
IR IN 1
(1/2)
Single)
(or 12TRG
(IR IN 2)
CONT
: AUDIO SIGNAL ROUTE(TUNER)
(TL)
K4/4
K4/4
1/4, 2/4K
CN4315
N
COMPONENT & VOL ASSY
(VSX-AX4AVi:AWQ7034)
(VSX-AX2AV:AWQ7035)
VSX-AX4AVi-S
50
1234
1234
C
D
F
A
B
E
3.13 DIGITAL MOTHER ASSY (1/8)
XMLINK5
MRX
XMLSDT5
XMIRQ5
RDSXM5
MTX
M232RX
M232CT
M232TX
IEDO5
IEDI5
IECLK5
XIERST5
IEIT5
POFF5
XDRST5
DRDY5
XMSEL
DHCLK
DHDO
XHRST5
HDRDY5
DHREQ
UART2
UART1
DHDI
12VDET
DISPRDY
MAIN
RYAC
TEMP2
DISPDI
DISPCLK
DISPRST
DISPDO
DISPREQ
MRIN2
IPDET
HPDET
1WWP
MRIN1
CONT5V
M232RX
M232TX
DISPDI
DISPDO
DISPCLK
DISPRST
DISPRDY
POFF5
DISPREQ
OLDET
1WWP
IEIT5
ACWP
XRST XRST
XDRST5
XSBMU
XIERST5
DRDY5
IECLK5
IEDO5
XHRST5
IEDI5
HDRDY5
DHCLK
DHDO
DHDI
PGM
JGCLK
MRX
MTX
M232CT
SDET
XMIRQ5
LOPOW
MEXST
OSRST
OSCS
MEXOE
MEXCLK
UART2
UART1
MXOE
OSDT
GCONT1
MXWE
VLCLK
VLDT2
MA18
MA16
MA17
MA14
MA15
MA12
MA13
MA11
MA10
MA9
RYCS
RYBS
RYAF
RYHP
RYAC
MA8
MA7
MA5
MA6
MA4
MA3
MA2
MA1
MD15
MD14
MD13
MD10
MD9
MD12
MD11
DHREQ
IPOL
XMOL
MD1
MD2
MD0
MD4
MD3
MD5
MD6
MD8
MD7
FANSTP
XAMU
VLDT1
TCE
XMRMU
GCONT2
TDI
TDO
TCLK
CN101
C134
C133
CN102
C101
D108
D102
D103
C102
C982
C103
C981
C976
L101
D111
R120
C111
R151
R117
R118
R119
C110
R116
R174
R173
R115
IC104
C135 R113
C109
C108
X101
C107
R164
C126
R112
R179
R107
R103
R110
R111
R105
R106
R102
R108
C105
C106
R109
R140
R127
R123
R124
R130
R131
R128
R129
R132
R134
R133
R135
D109
IC101
C115
C114
R145
R104
R122
R138
R139
R141 R142
R144R143
*
*
**
*
R165
R137
R121
R188
R180
4286101412 1816
1357911131517
20 22 10 2486
19 112321 7 3951
1
3
2
4
39
40
41
42
43
44
45
38
37
47
46
48
49
50
51
54
53
52
55
56
57
59
58
60
61
62
63
66
64
65
34
33
32
31
35
36
27
26
25
24
29
28
30
19
21
23
22
20
18
67
68
69
70
71
72
74
73
75
76
77
78
79
81
80
83
82
85
84
15
16
17
11
13
14
12
5
6
8
7
10
9
4
3
1
2
128
125
126
127
124
123
122
120
119
121
118
117
116
115
113
114
112
110
111
107
109
108
105
106
104
87
86
89
88
90
92
91
94
93
95
96
97
98
99
102
103
101
100
GDISP
52045-2345
stby
YB
0.1/16
V+5_6ST
GNDA
XKP3076
YB
GNDU
0.01
RB520S-30
DAN202U
V+5_6ST V+5UMIN
VIPOD
V+5_6U
1SS355
V+5US
YB 470p
1000/10
0.1/16
0.01
stby
YB
AT
YB
stby
ATL7002
V+5UM
100
0.1/16
470p YB
YB
100k
100k
stby
2.2k
100
100
GNDU
100
100
BU4842F
4700p
0.1/16
470p
YB
YB
stby
100
47k
XSS3004
15.7M
V+5UM
1/10YB
100k
10k
100
100k
100
100
100
100
100
5.1k
0.1/16
stby
YB
YB 470p
470k
100k
stby
100
100
100k
47k
47k
100
47k
100
100
PEG116A
RB501V-40
YB
470p
YB
0.1/16
100
100k
V+5US
V+5UM
470k
470k
100k
100
100
100
10k
2.2k
RYAC
DISP RST
DISP CLK
DISP DI
DISP DO
DISP RDY
12VDET
TEMP2
IPDET
HPDET
MRIN1
MRIN2
V+5_6ST
DISP EN
GNDU
GNDU
1W WP
GNDU
MICDET
SR OUT
SR OUT
RMC
SR IN
232CDET
VIPOD
GNDU
GNDU
V+5_6U
MICDET
RMC
232CDET
SR IN
VIPOD
V+5_6U
VSX-AX4AVi ONLY
RESET IC
VOUT
VDD
VSS
NC
VSX-AX4AVi ONLY
VCC1
232C RXD
LOW POWER
RX(SR+/iPOD/XM)
S DET
EXP ST
XMSEL
WAKE UPB(XM)
XRDY
NC
EXP OE
NC
OSD RST
XHOLD
OSD CLK/EXP CLK
OSD DT/EXP DT
OSD CS
NC
XRD
CS2
EVOL DT2
XWR
DISP RDY
DISP REQ
DISP RST
DISP CLK
DISP DO
DISP DI
232C TXD
A16
A17
A18
EVOL CLK
A15
A19
XCE
POFFINFO
OL DET
1394 INT(RDY)
RDS DT/XMLINK
RDS CK/XMLS
1W WAKEUP
JIG CLK
VSS
TX(SR+/iPOD/XM)
232C CTS
A10
A12
UART SW2
A13
A11
A14
UART SW1
GCONT1
NMI
XIN
VCC1
WAKEUP
VSS
XOUT
SYSTEM u-COM
RY B
VCC2
RY A
RY AC1
RY HP
RY C/R
A9
BYTE(L:16bit)
SBMUTE
DSP RDY
1394 RST
RESET
DSP RST
CNVSS
HDMI/DSP REQ
VSS
1394 CLK
HDMI RST
1394 DI
1394 DO
HDMI/DSP CLK
HDMI RDY
XMOL(3.3V)/IPOL(5V)
DC PROTECT
AVSS
SIMUKE2
SIMUKE1
WATT IN
D15
D12
D7
D13
D8
D14
HDMI/DSP DI
HDMI/DSP DO
AVCC
TEMP1
VREF
FAN STOP
MRMUTE
TUNER CE
TUNER DO
AMUTE
E-VOL DT1
TUNER DI
TUNER CLK
GCONT2
D10
D11
D1
D0
D3
D4
D2
D6
D5
A8
A7
A5
A6
A3
A4
A1
A2
A0
D9
RDSDT
RDSCK
R187
R186
100
100
D115
1SS355
SIMUKE
L
1/8
3/8
L
2/8, 3/8L
3/8
L
3/8
L
CN4302
N
CN3201
AC
AWP7043 AX2AV/HY - 47k47k -
AWP7038 AX4AVi/HY
MODEL
47k 47k
R141 R142 R143 R144
- 47k
(*) MARKS SIMUKE1 SIMUKE2
VSX-AX4AVi-S 51
5678
5678
C
D
F
A
B
E
FANDRV
FANSTP
INPUTATT
232SW
XDMUTE
XMPOW
XMOL
12VON
MFWRITE
XLSSN
232TX
IPRX
232RX
IPTX
232CT
232SW
FANDRV
MRSP2
XMPOW
MEXDT
PGM
XRST
SBMUTE
M232RX
JGCLK
MEXST
MEXCLK
OSDT
MRSP2
MA2
MA5
MA7
MA6
MA4
MA3
MEXOE
XSBMU
IPPOW
RDSXM5
XAMU
MD8
MXOE
MA1
MD0
XMRMU
MA18
MA8
MXWE
MA9
MA10
MA11
MA15
MA14
MA12
MA13
MA16
MD9
MD1
MD2
MD10
LOPOW
MD3
MD11
MD4
MD13
MD12
MD5
MD14
MD6
MA17
MD15
MD7
RYHP
RYAF
MAINROM
OLDET
RYCS
RYBS
M232CT
M232TX
AMUTE
FMDET
TCLK
TDO
MRMUTE
TDI
TCE
MRIN1
MRIN2
12VDET
OSCS
MEXOE
MEXCLK
MEXST
OSDT
MEXDT
SBMUTE
OSRST
GCONT1
AMUTE
GCONT2
IPOL
IPPOW
VLDT2
VLDT1
VLCLK
SDET
MRMUTE
IPDET
TEMP2
HPDET
RYAC
ACWP
R149
R150
C118
IC105
D107
Q104
R126
C127
R136
IC103
IC106
Q104
R152
Q103
Q103
C117
C116
R148
C119
D116
R147
IC102
Q107
R101
C124
D104
Q105
Q105
Q107
D105
R159
R160
C120
R154
C998
C997
CN106
D101
R153
R156
C121
R155
Q102
R157 C122
Q101
CN105
CN104
R161
C123
D106
R163
C125
R162
CN103
R158
L102
8
7
8
10
7
914
9
10 B2
C2
1
2
3
7
6
5
4
3
1
6
5
2
4
12
13
11
14
7
20
21
19
22
23
24
12
11
13
15
14
16
B
C
E
E2
B
C
B2
C2
E2
27
29
28
25
30
26 B
E
17
18
15
16
13
14
12
11
10
8
9
6
7
4
5
2
3
1
32
36
31
35
34
33
41
40
39
37
38
42
43
45
44
47
48
46
B2
E
E2
C2
B
B
B2
C2
E2
E
C
C
23
10
8
9
21
22
17
18
19
20
C
E
15
16
10
13
11
12
14
9
8
7
6
4
5
1
3
2
12
13
11
16
14
15
5
9
7
8
6
10
2
4
3
1
53
4
971
82610 16
1513
18
12 14
1711 19
47k
47k
0.1/16
YB
DAN202U
UMB1N
UMB1N
V-12A
GNDU
VKN1414
47k
4700pYB
470
V+5UM
SN74AHCT08PW
CD4094BPW RN2901
V+5US
DAN202U
stby RN2901
470p
V+5US
stby
stby
RB501V-40
(MBM29F400TC-70PFTN)
YB
0.1/16
YB
V+5UM1
DTC143TK
47k
UMB1N
UMB1N
YB
0.047/25
UMB1N
UMB1N
DAP202U
DAN202U
stby
4700p
47k
stby
stby
470
YB
47k
V+5_6U
VIPOD
YB 0.01
1k
RT1P241M
47 470/6.3 AT
V+5UM
XKP3082
BTEM16P-1R
1M
YB
0.047/25
1M
UDZS5R1(B)
10/50
22k
stby
AT
52045-1945
V+5UMIN
stby
stby
V+5UM
GNDU
ATL7002
V+5_6U
V+5_6S
V+5_6ST
PORT EXPANDER
RDS SW /
VSS
FANDRIVE
INPUTATT
(4/4)
MUTE CONTROL
SN74AHCT32PW
XMRST
QS
QS'
(2/2)
T_PGM(9)
T_RST(12)
VSS
NC
T_VDD
T_SCLK
T_TXD
STB
DATA
MRSP2
232SW
CLOCK
(4/4)
A2
A5
A3
A6
A4
A1
XMPOW
iPODPOW
12VON
OE
VDD
(1/2)
(1/2)
(2/2)
DQ0
DQ8
XOE
VSS
A0
XCE
A7
A17
NC
RY/XBY
XRESET
NC
NC
XWE
NC
A8
NC
A10
A9
A14
A15
A12
A11
A13
DQ1
VCC
FLASH ROM
DQ11
DQ10
DQ2
DQ3
DQ9
DQ14
DQ6
DQ12
DQ5
DQ13
DQ4
XBYTE
A16
DQ15
DQ7
VSS
(1/2)
AYW7043
(1/2)
(2/2)
(2/2)
V+5_6U
VSS
T_RXD(31)
T_BUSY(34)
STBY
FM DET
VI-POD
GNDU
TUNER DO
GNDU
TUNER CLK
MRIN1
TUNER DI
OSD CS
OSD RST
TUNER CE
MRIN2
12V DET
OSD DT
MEXP DT
MEXP OE
MEXP CLK
SBMUTE
MEXP ST
GCONT1
GCONT2
AMUTE
iPOD POW
XLSSN
VLDT1
VLDT2
iPOD OL
GNDU
GNDU
MRMUTE
VLCK
232CTS
232RXD
S DET
i-POD RX
i-POD TX
i-POD DET
232TXD
(GNDST)
V+5UM
DCDET
V+5_6U
TEMP1
GNDU
RYA
TEMP2
OLDET
GNDU
RYAC
W UP
RYCS
RYB
GNDST
RYHP
GNDST
V+5_6ST
HPSW
WATT S
RDSCK
RDSXM5
FMDET
RDSDT
C185
C184
C186
C187
X181
IC181
Q181
C181
C183
C182
L181
R181
R182
R185
C188 C189
C190 R184
R183
Q182
9
11
10
14
13
12
16
15
8
7
6
4
5
3
2
1
1000p
CH27p
ASS7004
100/10JQ
BU1924FS
2SA1036K
V+5US3
2.2/50
JQ
560p
stby
V+5US2
QTL1013
YB
2.2K
47K
CH 27p
1K
stby stby
YB4700p 1K
1K
RT1N431M
4.332MHz
TEST
D.GND
MODE
OSC O
OSC I
D.VCC
RDS CK
T57
A.GND
SC OUT
CIN
VREF
A.VCC
COMP.IN
RDS DATA
QUALITY
RDS DECODER
AWP7043 ONLY
AWP7038
V+5US
L
1/8
L
1/8
DIGITAL MOTHER ASSY
(VSX-AX4AVi:AWP7038)
(VSX-AX2AV:AWP7043)
CN5703
P
3/8
L
CN4305
N
CN5432
E
2/8L
2/8L
2/8L
3/8L
3/8
L
3/8
L
7/8
L
8/8L
2/8L
VSX-AX4AVi-S
52
1234
1234
C
D
F
A
B
E
3.14 DIGITAL MOTHER ASSY (2/8)
XDRST
D232RX
CNVSS
DJGCLK
CONT3V
D232TX
D232CT
EXCK
RST2
EXOE
EXST
EXDT
RST1
POFF
DREQ
DRDY
CNVSS
REQ2
XDRST
DCLK
DDI
BUSY2
DDO
XPDN
D232RX
UNLK
XMFS
DJGCLK
DICS
D232TX
D232CT
DIDI
DACS1
DAD
DICK
DIDO
XSMUTE
XHDMI
XSPDIF
XOE
A18
XWE
XCE
A16
A17
A15
A13
A14
A12
A11
A10
A9
A8
A7
A6
A5
A3
A2
A4
A1
DQ15
DQ14
DQ12
DQ13
DQ11
DSPMUTE
MOTMODE
DQ1
DQ2
DQ0
DQ8
DQ6
DQ5
DQ4
DQ7
DQ10
DQ9
DQ3
SPICLK
SS2
MOSI
MISO
REQ3
SPDIS1
ROWE
REQ1
XDARST
13
2
1
2
C2
E2
B2
C
B
E
6
4
3
5
7
10
8
9
21
22
20
24
25
23
19
17
18
15
16
14
13
11
12
10
26 28 2927 3130 32 33 3534 36 37 38 4139 40 42 43 44 4745 46 504948
51
52
55
54
53
57
56
59
58
61
60
62
63
6
8
7
9
1
5
2
4
3
100 99 98 97 9496 95 93 9192 8990 88 858687 8284 83 80 7981 7678 77
65
64
68
67
66
70
69
71
72
74
73
75
Q202
R271
R259
C208
Q201
C221
C220
D201 IC221
Q106
R232
R146
C222
Q108
Q108
CN202
R212
R213
R211
R192
R195
R210
R209
C203
C202
R208
X201
R207
R206
R205
R258
R191
R203
R202
R216
R214
R215
R218
R222
R220
R221
R223
R224
R226
R225
R245
C204
C205
IC201
R201
R230
R227
R244
R204
L201
R228 R229
C206
C207
R256
R257
RT1N241M
GNDU
1000/10
0.1/16
47K
2.2K
2SA1036K(QR)
AT
stby
YB
V+5_6ST
DAN202U
V+5_6U
NJM2391DL1-33
330/10
RT1N124M
100k
100k
AT
UMB1N
UMB1N
V+3DD
V+12A
VKN1414
stby
stby
47k
47k
47k
100
100
YB 470p
0.1/16 YB
47k
XSS3004
15.7M
47k
100
100
100
47k
4.7k
100
GNDU
100
100
100
100
100
47k
47k
47k
100
100
100
PEG117A
stby
470p
0.1/16
YB
YB
100
100
100
47k
47k
V+3DD1
QTL1013
V+3DD
47k 47k
0.1/16
470p
YB
YB
100
stby
XPDN
MPCM
IMUTE
XIEEE
USB
HMUTE
UNLK
XHDMI
XMFS
DIDO
DICS
MFWRITE
12VON
DACS2
ADOSR
DACS3
DACS1
DICK
DIDI
XDARST
XADPDN
VSS
RST(12)
(2/2)
(1/2)
PGM(9)
TXD
SCLK
VDD
NC
BUSY(34)
RXD(31)
VSS
STBY
CSN
XPDN
232C TX
XMFS
UNLK
232C CT
JIGCLK
232C RX
CDTI
CDTO
CCLK
DACS1
ALE
XRDY
BCLK
XHLDA
XHOLD
XWRL
XWRH
XOE
XHDMI(RF UNLK)
XSPDIF
XSMUTE
XCE
A19
A18
A17
DSP1RST
S DATA
STB
S CLOCK
EXOE
DSP2RST A11
A12
A14
A15
A13
A16
(USB UNLK)
POFF
HREQ
NMI
VCC
XIN
DSP u-COM
A10
VCC
VSS
A9
A8
A7
DSP2SCK/DSP CCLK
DSP2MOSI/DSP CDOUT
DSP2MISO/DSP CDIN
RESET
IRQ2
BYTE
HRDY
CNVSS
XOUT
VSS
AVCC
VREF
DSPMUTE
AVSS
HCLK
HDI
HDO
DSP2BUSY
DSP2SSI
DSP1 CS
ROWE
MOTMODE
IRQ1
MODEL
XM CSEL(REQ3)
D0
D1
XDARST
D14
D6
D4
D7
D13
D8
D10
D9
D12
D11
D15
D2
D3
D5
A5
A4
A6
A2
A3
A1
A0
VSX-AX2AV ONLY
VSX-AX4AVi ONLY
OUTIN
POFF5
L
2/8
4/8, 7/8, 8/8L
1/8
L
1/8
L1/8L
3/8L
3/8, 4/8L
VSX-AX4AVi-S 53
5678
5678
C
D
F
A
B
E
DIBK
DILK
DIFD
DISD
DIBD
DICD
XSPDIF
XHDMI
IMUTE
HMUTE
DSPMUTE XSMUTE XIEEE
DSPOUT
UNLK
EXCK
USB
EXST
DACS3
DACS2
EXOE
XADPDN
ADOSR
EXCK
EXST
EXDT
MPCM
XM
EXOE
A2
A6
A4
A7
A5
A3
A8
A18
A10
A9
XWE
A12
A11
XOE
XCE
DQ1
DQ8
DQ0
A1
DQ2
DQ9
DQ11
DQ10
DQ3
DQ7
DQ12
DQ5
DQ13
DQ14
DQ6
DQ4
REQ3
DMCD
DMSD
DMBD
DMTD
DMBK
DMLK
MOTMODE
DMFD
BUSY2
RST2
SS2
REQ2
ROWE
MOSI
RST1
REQ1
SPICLK
SPDIS1
MISO
A16
A14
A15
A13
A17
DQ15
DROM
DIBD
DICD
DISD
DIFD
DSP
DIBK
DILK
DSPIN
7
1
514
7
713
214 3
46
6
7
4
11
12
3
7
7
13
7
98
10
14
14
12 14 11 5 14 1
14
2
8
9
14
7
89
6
7
4
5
3
2
1
11
10
14
13
12
16
15
8
6
7
4
5
9
11
10
13
12
3
1
215
14
16
22
23
24
19
18
20
21
26
29
27
25
28
31
30
17
16
14
15
13
12
35
37
33
34
32
36
11
10
8
9
7
6
5
40
43
42
44
41
38
39
10
26
25
19
21
22
23
20
24
13
12
16
14
17
15
18
6
7
11
10
9
8
2
1
3
4
5
25
26
19
23
21
24
18
22
20
13
12
17
16
15
14
4
3
2
1
47
46
48
45
6
7
11
10
9
8
2
5
1
3
4
IC204
IC204
C213
C212
R240
R239
IC204
R241
IC204
R272
R260
IC205 IC205
R273
IC205
R275
R274
IC211
C201
IC205
R194
R193
R200
R217
R235
R236
R237
C211
R238
IC203
R233
C214
D202
C210
C209
C300
D112
C354
C977
R990
R997
CN302
IC202
R234
R430
CN301
0.1/16
100k
100k
SN74AHC02PW
YB
0.1/16
100
YB
TC74VHCT125AFTS1
0
V+5UM
47k
stby
CD4094BPW
0.1/16
YB
*
*
stby
stby
stby
47k
stby
47k
YB 0.1/16
stby
47k
CD4094BPW
stby
stby
RB501V-40
470p
0.1/16
YB
YB
GNDD
stby
GNDU
stby
0.1/16
YB
stby
0
0
V+5D
AKM7054
(MBM29LV400TC-70PFTN)
47k
47k
AKM7054
DREQ
POFF
D232RX
D232CT
D232TX
XDRST
DDI
DRDY
DDO
DCLK
DMBK
DMLK
XDMUTE
DMBD
DMFD
DMTD
DMSD
DMCD
MRXM DSDDIRECT
XLSSN
DDIRECT
XDSDDIRECT
DAX
XTL0
DAXOUT
DMMK
(3/4)
(2/4)
MUTE CONTROL
(4/4)
(1/4) (2/4)
VSX-AX4AVi ONLY
(4/4)
(1/4)
PORT EXPANDER
VSS
USB(RST3) QS'
QS
(3/4)
MRXM
DACS3
DSDDIRECT
CLOCK
DS_2_32
DATA
STB
DAX(SP3)
XIEEE
XON
VDD
OE
PORT EXPANDER
VSS
DDIRECT
XLSSN
ADOSR
XADPDN
QS
XTL0
QS'
MPCM
DACS2
CLOCK
STB
DATA OE
XM
VDD
A1
A7
A2
A5
A3
A6
A4
DQ8
XOE
VSS
A0
XCE
DQ1
DQ0
A17
NC
RY/XBY
NC
XRESET
NC DQ11
DQ10
DQ2
DQ3
DQ9
FLASH ROM
VCC
NC
XWE
NC
A8
A9
A10
A11
DQ13
DQ4
DQ14
DQ7
DQ6
DQ12
DQ5
5V
5V
5V
GND
REQ_3
RST_3
GND
SPIDS_3
(DATA6_O)
(DATA5_O)
DATA4_O
DATA3_O
DATA2_O
DATA1_O
DATA0_O
GND
SCLK_O
GND
LRCK_O
GND
(MOT_MODE)
BUSY_2
REQ_2
RST_2
SS_2
GND
GND
GND
(DS_2_32)
(CLK_ON)
ROWE
REQ_1
RST_1
MOSI
MISO
SPIDS_1
SPICLK
DAX_OUT
GND
GND
MCK_I
A14
A15
A12
A13
AYW7044
XBYTE
A16
DQ15
VSS
GND
DATA4_I
DATA3_I
DATA2_I
DARA1_I
DATA0_I
GND
SCLK_I
GND
LRCL_I
GND
00
VSX-AX2AV
VSX-AX4AVi
(*)MARKS
stby
47k
R275
R274
L
2/8
L2/8
4/8, 5/8L
CN351CN352
4/8L
1/2M
1/2
M
5/8L
5/8L
1/8L
6/8
L
4/8
L
5/8
L
4/8, 5/8
L
1/8
L
5/8
L
5/8
L
3/8
L
DIGITAL MOTHER ASSY
(VSX-AX4AVi:AWP7038)
(VSX-AX2AV:AWP7043)
VSX-AX4AVi-S
54
1234
1234
C
D
F
A
B
E
3.15 DIGITAL MOTHER ASSY (3/8)
IEIT2
IEDO2
IEDI2
XIERST
IECLK2
IMUTE
POFF
D232TX
XDRST
IMUTE
D232CT
D232RX
DDO
DRDY
DCLK
DREQ
DDI
HCLK
HREQ
HDRDY
HDI
XHRST
HDO
IECLK1
IEIT1
IEDO1
IEDI1
XIERST
XMOL
XMPOW
XMLSDT5
XMLINK5
RDSXM5
MTX
MRX
UART2
232SW
XMIRQ5
M232TX
M232RX
DRDY5
POFF5
M232CT
DHDI
DHREQ
DHCLK
DHDO
XDRST5
UART1
HDRDY5
XIERST5
IEIT5
IEDO5
XHRST5
IECLK5
USBSPDIF
IEDI5
CN306
R471
R473
R472
R474
R475
R268
C268
R270
C272
R267
C269
C267
R269
C261
C262
R262
C266
C265
C271
R264
R265
X261
C270
C264
R263
C263
JA261
R266
R261
IC261
1
2
3
6
4
5
14
13
12
11
9
10
4
3
7
8
4
6
5
2
3
15
16
18
17
19
20
21
23
26
25
27
24
22
2
1
128
GNDU
BTEM6P-1R
stby
0
0
0
0
0
0stby
GNDD
0.1/16 YB
YB 0.01
0.1/16 YB
00
47/16
0.1/16
AT
YB
22
YB
0.1/16
GUSB
YB
0.1/16
2.2k
1M
22p CH
0.1/16
ASS7047 18p
YB
47
YB
0.1/16
CH
DKN1237
V+UBUS
22
1.5k
PCM2902EG
IERST
IECLK
IEDI
IEDO
IEIT
STBY
ERR
VSX-AX2AV ONLY
VinR
Vcom
VinL
AGND
SEL1
Vccci
GND
BODY
HID1
SEL0
HID2
HID0
DGNDUSB
Vbus
D-
USB CODEC
VoutL
VoutR
Vccp1i
AGNDP
Vccp2i
XTI
XTO
12.0MHz
AGNDX
Vddi
DGND
Vccxi
DOUT
DIN
USB
D+ XSSPEND
VSX-AX4AVi ONLY
L
3/8
(D)
4/8L4/8L2/8L
2/8, 4/8L
CN4323
N
1/8L
4/8L
VSX-AX4AVi-S 55
5678
5678
C
D
F
A
B
E
POFF
CONT3V
XDRST
POFF5
XDRST5
M232CT
M232RX
DRDY
HREQ
HDI
HCLK
DRDY5 M232TX
232SW
XMIRQ5
HDO
DDO
DREQ
DCLK
XMLSDT5
UART1
DHDO
XMLINK5
DHCLK
DHREQ
RDSXM5
XHRST
DDI
HDRDY
IEIT2
IEIT1
IEDO2
IEDO1
DHDI
XHRST5
HDRDY5
IEIT5 MTX
IEDO5
UART2
D232RX
D232TX
D232CT
IECLK2
IEDI2
IEDI1
XIERST
IECLK1
CONT5V
IECLK5
IEDI5
MRX
XIERST5
232RX
232CT
232TX
IPRX
SRRX
XMSEL
IPTX
SRTX
IC207
IC207
R166
IC108
R168
R167
R169
IC108
R252
R251
R250
C216 IC106
IC108
IC108
IC208
C130
IC210
C128
C219
IC208
IC208
R247
R246
R248
IC208
IC208
R249
IC105
IC210
IC106
C132
IC208
R419
R418
R416
R417
IC208
IC208
C217
IC206 IC206
IC106
IC105
IC105
IC107
R170
IC206
IC108
IC108
IC108
IC108
IC107
IC210
R172
R171 IC210
IC210
R253
R414
IC207
R413
R412
IC207
IC206
R411
C131
C215
IC107
IC107
R176
R197
D114
6
5
7
14
7
4
2
3
14 1
16
10
14
20
10
1461
20 10
4
5
6
14
7
20
10
317
19
7
56
14
5
10
19
15
10
713
20
19
20
10
911 19
20
10 11
14
7
10
812
1
20 10
8
7
914
10
2
10
1
20
18
16 4
1
20
20
14 110
6
1113 7
12
4
5
6
14
14
1
2
7
143
7
7
1
2
3
14
10
1281
15 20
20
7
214
5
19
3
1
719
20
19
920
13
10
10
11
317
19
20
10
7
1
18 2
20
13
11
14 12
7
4
6
7
5
14
12
14
7
65 4
14
7
32 1
14 7
7
13 12
14
9
14
8
10
7
12
11 13
7
14
8
7
98 14
10
9
14
13
11 14
7
12
7
10
89
14
SN74AHCT08PW
100k
GNDU
100k
100k
100k
100k
100k
100k
YB0.1/16
YB0.1/16 0.1/16
YB
V+5UM
0.1/16
YB
V+3DD1
100k
100k
100k
SN74LV244APW
100k
SN74AHCT32PW
0.1/16
stby
stby
0
0
YB 0.1/16
SN74LV125APW
V+5US
YB
TC74VHCT125AFTS1
SN74AHC04PW
V+5US
100k
100 SN74LV125APW
100k
stby
stby
0
0
V+3DD1
SN74AHC08PW
100k
0.1/16
YB0.1/16
1.8k
100
1SS355
YB
V+5US
(2/4)
(1/4)
(2/4)
(3/8)
(2/8)
(7/8)
(1/8)
(8/8)
(6/6)
(7/8)
(6/8)
(3/8)
(5/8)
(3/4)
(3/6)
(4/8)
(1/4)
(2/8)
(4/4)
(1/8)
(2/4)
(2/4)
(4/4)
(3/4)
(1/4)
(2/4)
(4/6)
(6/8)
(1/4)
(5/8)
SN74LV244ATPW
(8/8)
(4/8)
(4/4)
(1/6)
(5/6)
(4/4)
(3/4)
VSX-AX4AVi ONLY
(2/4)
(1/4)
R198 0
R177 0
R178
0
R254 0
R219 100k
10
L
3/8
L3/8
: AUDIO SIGNAL ROUTE(F)
: AUDIO SIGNAL ROUTE(SPDIF)
(D)
(F)
8/8L
1/8
L
1/8
L
8/8L
1/8L
1/8L
DIGITAL MOTHER ASSY
(VSX-AX4AVi:AWP7038)
(VSX-AX2AV:AWP7043)
VSX-AX4AVi-S
56
1234
1234
C
D
F
A
B
E
3.16 DIGITAL MOTHER ASSY (4/8)
HCLK
HDI
HDO
HDRDY
HREQ
XHRST
HMUTE
DADMK
DADLK
DADBK
DADFD
XPDN
DICK
DIDI
DIDO
DICS
UNLK
XIEEE
XHDMI
AD
DAD
CONT3V XM
STBY
R199
C307
R306
C372
CN304
C371
C379
C373
R431
R432
JA307
C306
R469
JA306
R305 R470
IC320
R468
C351
C337
C305
R304
R331
C304
JA305
R303
C303
JA304
R302
L301
C301
C302
JA303
R301
JA302
R310
R312
R308
C309
R307
R314
IC303
C311
R313
C310
C323
C322
C324
C326
C325
C327
L303 L304
R319
R320
R322
R323
R324
R325
R326
C328
C329
X301
IC301
R329
R327
R328
R321
C330
C320
C321
C319
C331
(C984)
R330
(C983)
C978
IC303
C317
R316
C313
IC303
C312
R318 C315
C316
C318
AKB7173
JA301 C308
IC302
R311
R309
IC302
R315
IC302
R317
L302
C314
R332
R962
GNDD
100k
stby
YB
0.1/16
GHD
XKP3083
0.1/16
YB
0.1/16
V+5D
YB
4700p
GNDD
stby
100k
100k
AKS7002
stby 100
YB
0.1/16
100
SN74LVC1G97DCK
AKS7002 YB
YB0.1/16
470p
100
100
YB
0.1/16
0
AKS7001
0.1/16
100
AKS7001 100
YB
QTL1013
YB
0.1/16
JQ 100/10
AKS7001
0.1/16
YB
100 V+5D
AKS7001
YB
V+5D1 47k
10
0.01
75 75
YB
47p
TC7WU04F
2.2k
CH
TC7WU04F
2.2k
47p
470p
0.1/16
100/10
YB
YB
JQ
470p
0.1/16
100/6.3
YB
YB
QTL1013
V+5D2 V+5D
QTL1013
JQ
V+3DE1 V+3DE
100
100
47
100 GNDD
100
12p
12p
100
CH
CH
100
XSS3003
AK4114VQ 220 24.576MHz
220
100
18k
0.47/10
YB 470p
YB
0.1/16
stby
GNDU
R9984
0
100/6.3
R9983
0
V+3DE
YB
0
JQ
stby
0.1/16
GNDD
470
22p CH 22p
YB
100 0.01
0.1/16
100/10
YB
0.01
CH
47k
10
CH
470
YB
100 0.01
QTL1013
YB
AL
V+5D3
V+5D
*
stby
23
213
14
19
20
17
18
21
22
15
16 10
9
8
713
12
11
6
5
2
3
4
1
1325
4
6
3
2
1
132
123
312
312
3
4
5
3
4
8
13 14 15 16 17 18 19 232120 22 24
12
11
10
8
9
25
26
27
28
29
6
7
4
5
3
2
1
31
30
34
33
32
35
36
4748 43 424446 45 383941 40 37
2
6
4
817
4
8
1
2
5
3
4
88
216
4
7
4
8
FOPT
OUT 1
MUTEOUT
GNDD
HDREQI
HDREQO
HDDI
HDDO
HDRST
HDSCK
GNDD
V+5D
GNDD
SD1
SD0
WS
SCK
GNDD
MCK
GNDD
GNDD
SD3
SD2
SPDIF
(TOTX177L)
VSX-AX4AVi ONLY
DIGITAL
STBY
OUT 2
(TOTX177L)
DIGITAL
VCC
Y
SEL L:TX0
H:DAX GND
B
A
IN 1
(TORX177L)
DIGITAL
DIGITAL
IN 2
(TORX177L)
IN 3
DIGITAL (TORX177L)
DIGITAL (TORX177L)
IN 4
COAX1
(1/3)
(1/3)
VIN
DVSS
TVDD
TX1
TX0
BOUT
VOUT
UOUT
COUT
XTL1
XTL0
RX7
IIC
P/SN
DIR&DIT
DVSS
MCKO1
DVDD
LRCK
SDTO
BICK
MCKO2
XTI
XTO
DAUX
AVSS
RX6
RX5
AVSS
AVSS
AVSS
RX4
RX3
RX2
AVSS
RX1
RX0
AVSS
AVSS
PDN
CDTO
CCLK
CDTI
VCOM
AVDD
INT0
INT1
CSN
R
F%
(3/3)
(COAX)
(2/3)
(2/3)
COAX2 (1/2)
AKB7173
JA301
(2/2)
(3/3)
HCLK
XHRST
HREQ
HDI
HDO
HDRDY
DAX
XTL0
DADBK
DADLK
DADMK
DADFD
IEDO1
IMUTE
IECLK1
IEIT1
XIERST
IEDI1
UNLK
DICS
HMUTE
DICK
DIDO
XIEEE
DIDI
MPCM
XPDN
XHDMI
USBSPDIF
DAXOUT
0AWP7043 0
AWP7038 0 stby
AKB7173
AKB7173
JA301
R366
R370
R378
R374
(*)MARKS
R332
R386R382
R390
R346 R350
R338 R342
L
4/8
(D)
(D)
(D)
(D)
(D)
(D)
(D)
(D)
(F)
(D)
(F) (F)
(F)
(D)
(D)
(SB) (S)
(C)
(D)
(D)
(D)
(D)
(D)
(D)
(D)
(D)
(D)
(D)
(D)
(D)
(D)
(F)
(F)
(D)
(D)
(D)
(F)
CN4306
N
3/8L
2/8
L
2/8, 5/8
L
5/8
L3/8L2/8L
3/8
L
2/8L
2/8L
3/8
L
2/8,
VSX-AX4AVi-S 57
5678
5678
C
D
F
A
B
E
DSPIN
DIBD
DISD
DICD
DIBK
DIFD
MPCM
DIMK
DILK
IEIT1
IEDI1
IECLK1
IEDO1
XIERST
IMUTE
R382
R478 IC319
R480
R479
R386
R390
C385
C384
C383
L310
R370
R366
R374
R378
IC307
R356
R354
R355
R353
R352
R351
R338
R342
R358
R359
R362
R357
R360
R361
C341
C340 L306
R346
R350
R340
R341
R339
R337
R336
R335
R422
IC306
R345
R349
R343
R344
R347
R348
C339
C338
L311
R385
R384
IC309
R389
R387
R388
R383
R381
R379
R380
C344
C345 L313
R488
C369
IC318
R489
C368
C367
L309
(C989)
(C990)
R243
R242
R231
R477
R476
R433
R434
C376
C375
C355
C374
R300
R965
R969
R966 IC305
C336
C335
R963
R964 IC304
C334
C333
R334 R967
R968
R421
C381
C382
IC317
C332
R333
L305
CN303
*
100
SN74LVC1G97DCK
0
47
*
*
470p YB
0.1/16
100/10 YB
AT V+3DE8
QTL1013
*
*
*
*
GNDD
SN74LV157APW
47
stby
stby
100
47
100
stby
47
47
stby
100
100
YB 470p
YB 0.1/16
QTL1013
SN74LV157APW
V+3DE2 V+3DE
*
*
100
47
100
47
100
100
0
47
100
100
47
100
100
*
*
YB 470p
YB 0.1/16
QTL1013
V+3DE9 V+3DE
47
100
SN74LV157APW
47
100
100
100
47
100
100
470p YB QTL1013
YB
0.1/16 V+3DE11
100
SN74LVC1G97DCK
YB470p
47
YB0.1/16
AT
100/10
GNDU
V+3DEV+3DE7
QTL1013
R9989 0
R9990 0
100k
100k
stby
stby
100k
GIE
100k
100k
stby
4700p
0.1/16
0.1/16
YB
YB
0
100
stby
SN74LVC1G97DCK
0
470p
0.1/16
100
SN74LVC1G97DCK
470p
0.1/16
100
stby SN74LVC1G97DCK
100
100
stby
YB
YB
100
0.1/16
470p
YB
YB
100/10
YB
YB V+3DE3
QTL1013
AT
V+3DE
V+5D
RKN1063
4
5
1
2
6
3
7
8
5
6
3
4
9
10
12
11
13
14
1
215
16
8
5
6
7
3
4
9
12
10
11
14
13
1
215
16
10
6
7
89
11
4
5
13
12
2
314
15
116
6
4
52
1
3
1
2
3
5
6
4
9
8
7
10
12
11
13
14
15
3
2
1
2
3
1
5
43
2
4
5
616
5
4
6
19
18
16
17
20
21
22
ASEL
VCC
Y
B
GND
STBY
SEL1
LSEL2
H
SEL Y
ONLY
VSX-AX4AVi
GND
2Y
FDT
3B
3Y
LRCK
2B
2A 4Y
3A
1B
1Y
BCK
ST
4B
MCK
4A
SEL
1A
VCC
H
SEL
L iLINK
Y
HDMI
2Y
GND
3B
3Y
LRCK
2A
2B FDT
4Y
3A
1B
1Y
BCK
4B
MCK 4A
SEL
1A SEL2 VCC
ST
SSB 3A
3B
3YGND
2B
2Y
1Y
2A 4Y
4B
C/SW
1A
1B 4A
ST
SEL VCC
L iLINK
HHDMI
SEL Y
A
GND
B
SEL
Y
VCC
IEIT
G
IERST
IECLK
IEDO
IEDI
GNDD
ERR
IEMCK
GNDD
POWER
D5V
D5V
IEBCK
G
H:SEL3
L:HDMI
B
GND
ASEL4
B
GND H:USB
L:IEEE
ASEL3
SEL
Y
VCC
STBY
H:DAX
L:SEL4
B
GND
ASEL
Y
VCC
Y
VCC
SEL VSX-AX4AVi ONLY
ICDT
ISDT
IELCK
IFDT
VSX-AX4AVi ONLY
VSX-AX2AV ONLY
SPDIF
G
IBDT
XMBK
XMFD
XMLK
DIMK
XMMK
DISD
DIFD
DILK
DICD
DIBD
DIBK
USB
ONLY
VSX-AX4AVi
L
4/8
L4/8
(D)
(D)
(F)
(D)
(SB)
(S)
(C)
(F)
(F)
(F)
(SB)
(S)(S)
(S)
(SB)
(C)
(C)
(SB)
(C)
(S)
(F)
(C)
(F)
(D)
(D)
(F)
(F)
(C)
(SB)
(SB)
(S)
(D)
(C)
(SB)
(S)
(F)
: AUDIO SIGNAL ROUTE(SB)
(SB)
: AUDIO SIGNAL ROUTE(S)
: AUDIO SIGNAL ROUTE(C)
: AUDIO SIGNAL ROUTE(F)
: AUDIO SIGNAL ROUTE(SPDIF)
(D)
(C)
(S)
(F)
CN401
AF
2/8L
3/8, 5/8
L2/8, 5/8L
DIGITAL MOTHER ASSY
(VSX-AX4AVi:AWP7038)
(VSX-AX2AV:AWP7043)
VSX-AX4AVi-S
58
1234
1234
C
D
F
A
B
E
3.17 DIGITAL MOTHER ASSY (5/8)
DADLK
DADBK
DADFD
DADMK
XTL0
MRXM
DDIRECT
DICD
DISD
DIBD
DIFD
DIMK
DILK
DIBK
DMMK
AD
DADLK
DADBK
DADMK
DADFD
DSPIN
DICD
DIBD
DISD
DIFD
DIBK
DILK
DDBD DDBD
DIRECT
DDCD DDCD
DDSD DDSD
DDFDDDFD
DDBK DDBK
DDLK DDLK
DIMK
DDMKDDMK
CN201
C380
R494
IC314
R493
R492
IC314
R491
IC314
C362 IC314
R498
R497
R496
R495
C357
C223
C358
IC321
IC210 C361 L316
R446 R450
R444
R445
IC313
IC313
R448
R449
R443
IC313
C360 IC313
R447
C359 L314
R439
R440
IC312
IC312
R441
R442
R426
R427
IC312
IC312
R429
R428
C352
C353
L308
GNDD
V+5D
V+5D
GNDD
(4/4)
(3/4)
(2/4)
(2/6)
SN74AHC04PW (1/4)
(4/4)
(3/4)
(2/4)
(1/4)
(4/4)
(3/4)
(2/4)
(1/4)
4132
11
14
7
12
13
10
9
4
5
8
14
6
14
7
7
3
7
14
1
2
4
3
14
7
13
2
13
11
7
12
9
10
4
5
14
8
7
14
7
6
14
2
114
7
3
1
2
5
46
14
7
3
7
7
14
12
13
9
10
11
14
7
8
14
GNDD
KP200TA4L
0.1/16
V+5D
YB
GNDD
330/10
47
GNDD
100
stby
100
470p YB
0.1/16 YB
SN74AHC08PW
QTL1013
stby
47
47
47
YB 0.1/16
stby
AT
NJM2391DL1-33
V+5D V+3DE
V+3DE14
0
0
0
47
47
47
0
470p YB
0.1/16 YB
SN74AHC08PW
QTL1013
V+3DE12
100
0
SN74AHC08PW
47
47
47
100
100
470p YB
0.1/16
V+3DE6
YB
V+3DE
QTL1013
47
22
OUTIN
L
5/8
(SB)
(C)
(S)
(F)
(SB)
(C)
(S)
(F)
(SB)
(C)
(S)
(F)
(F)
(F) (F)
2/8L
2/8
L
2/8L
2/8, 4/8L
2/8, 4/8
L
4/8L
CN4307
N
VSX-AX4AVi-S 59
5678
5678
C
D
F
A
B
E
STBY
STBY
DTLK
DTBK
DTMK
DMBD
DMCD
DMTD
DMBK
DMFD
DMSD
DMLK
DOTD
DOCD
DOBD
DOSD
DOFD
DOMK
DOBK
DOLK
DSDDIRECT
ADBK
ADMK
ADLK
ADFD
ADFD
ADBK
ADLK
ADMK
DTBK
DMBK
DMLK
DTLK
DSPOUT
DOSD
DOCD
DMCD
DMSD
DOLK
DMLK
DOBK
DMBK
DMTD
DTMK
DOBD
DMBD
DOTD
DMTD
DOFD
DMFD
DOMK
DAD
R932
R935
R934
IC954
R943
R941
R942
R933
R931
R930
R929
R936
C966
R939
R938
R937
C965
R994
IC316
R989
R987
R988
R985
R984
R992
R993
R996
R991
R995
R983
C366
C365
R944
IC315
R981
R976
R977
R973
R972
R975
R971
R980
R979
R998
R999
R940
C363
C364
R423
R424
IC311
C350
C349
AT:CEAT AL:CEAL
Rated Voltage: 50V expect for electrolytic capacitors.
Ratings: Capacity(µF)/Voltage(V) unless otherwise noted.
2.CAPACITORS
Unit: p-pF or µF unless otherwise noted.
1.RESISTORS
Tolerance: (J) 5% unless otherwise noted.
Rated power: 1/16W unless otherwise noted.
Unit: k-kΩ , M-MΩ or Ω unless otherwise noted.
NOTE
2A BCK
DT
2B
2Y
GND
3B
3Y
4Y
3A
1B
1Y
LRCK
MCLK
SEL
1A
4A
4B
ST
VCC L
H
DSP
XM
SEL Y
2Y
GND
BDT
2A
2B CDT
1B
1Y
SDT
TDT
3B
3Y
4Y
3A
4B
4A
SEL
1A
DIRECT
SEL
ST
Y
DSPL
H
VCC
2Y
GND
FDT 3B
3Y
2A
2B BCK
1Y
1B
MCLK
1A
SEL
LRCK
3A
4Y
4B
4A
ST
VCC
A
GND
B
SEL
Y
VCC
H
SEL
DIRECT
LDSP
Y
8
6
7
9
11
10
4
5
2
3
1
12
13
14
15
16
8
7
5
6
4
3
9
10
11
12
14
13
1
2
16
15
89
6
7
4
5
3
1
2
11
10
14
13
12
16
15
3
2
1
5
6
4
GNDD
47
100
SN74LV157APW
47
stby
stby
100
47
stby
stby
YB 470p
47
100
100
0
0
YB 0.1/16
0
SN74LV157APW
47
stby
0
47
0
0
47
stby
stby
stby
stby
YB
YB 470p
0.1/16
stby
SN74LV157APW
100
47
47
0
100
stby
0
47
0
stby
100
22
YB 0.1/16
YB 470p
100
SN74LVC1G97DCK 22
470p
0.1/16
YB
YB
V+3DE4
L
5/8
L5/8
: AUDIO SIGNAL ROUTE(SB)
(SB)
: AUDIO SIGNAL ROUTE(S)
: AUDIO SIGNAL ROUTE(C)
: AUDIO SIGNAL ROUTE(F)
(C)
(S)
(F)
(F)
(SB)
(F)
(S)
(C)
(SB)
(SB)(SB)
(F)(F)
(S)
(C)
(S)
(C)
(F)
(F)
(F)
(F)
(S)
(C)
(SB)
(SB)
(S)
(C)
(F)
7/8L
2/8L
2/8
L
8/8
L
7/8, 8/8
L
DIGITAL MOTHER ASSY
(VSX-AX4AVi:AWP7038)
(VSX-AX2AV:AWP7043)
VSX-AX4AVi-S
60
1234
1234
C
D
F
A
B
E
3.18 DIGITAL MOTHER ASSY (6/8)
DIRECT
DDCD
DDBK
DDLK
DDFD
DDMK
DDBD
DDSD
7
8
9
10
2
4
5
3
6
1
R435
R436
R437
R438
R392
R391
R393
R394
CN305 C378
C377
R499
R402
R401
R404
R403
R406
R407
R408
GNDD
GIE
100k
100k
100k
100k
100
100
100
100
AKN7041
stby
0.1/16 YB
0
100
100
100
100
100
100
100
DSDCLK
GND
GND
DSD1
DSD2
DSD4
DSD3
DSD5
DSD6
GND
VSX-AX2AV ONLY
VSX-AX4AVi ONLY
L
6/8
(DSD)
(DSD)
CN402
AF
VSX-AX4AVi-S 61
5678
5678
C
D
F
A
B
E
DSD1
DSCK
DSD2
DSD5
DSD6
DSD4
DSD3
XDSDDIRECT
DSD
DSCK
DSD4
DSD3
DSD2
DSD6
DSD5
DSD1
10
9
11
12
5
7
6
3
8
4
14
13
16
15
17
18
2
120
19
IC310
R396
R397
R399
R398
C347
C348
R420
R425
R410
R415
R405
R400
R395
L307
C346
SN74LV541APW
47
47
47
47
0.1/16
470p YB
YB
0
0
0
0
0
0
0
GNDD
QTL1013
AT 330/10
V+3DE4 V+3DE
STBY
GND
A8
Y8
Y7
A7
A6
A5
A4
A3
A2
A1
Y5
Y6
Y3
Y4
XG2
Y1
Y2
XG1 VCC
VSX-AX4AVi ONLY
L
6/8
L6/8
(DSD)
(DSD)
(DSD)
2/8L
7/8, 8/8L
: AUDIO SIGNAL ROUTE(DSD)
(DSD)
DIGITAL MOTHER ASSY
(VSX-AX4AVi:AWP7038)
(VSX-AX2AV:AWP7043)
VSX-AX4AVi-S
62
1234
1234
C
D
F
A
B
E
3.19 DIGITAL MOTHER ASSY (7/8)
+
-
-
+
C,SW
FL,FR
B
E
CC2
B2
E2
14
13
12
11
10
8
9
15
16
19
18
17
20
21
6
7
4
5
2
3
23
22
24
25
26
27
128
14
13
10
12
11
8
9
16
15
19
18
17
21
20
6
7
4
5
2
3
23
22
25
24
26
27
128
E2
B2 C2
5
6
4
7
8
BC
E2
3
4
1
8
DOMK
XDARST
DOBK
DOCD
DOLK
XDARST
DOMK
DOBK
DOFD
DOLK
DSD
DSD4
DSD3
DICK
DIDI
DSCK
DACS2
DAD
DSD1
DSD2
DIDI
DICK
DSCK
DACS1
DSCK
DSD2
DSD3
DSD4
DSD1
DOFD
XDARST
DOCD
DOBK
DOLK
DOMK
INPUTATT
FROUT
FLOUT
(2/2)
(1/2)
VOUTR+
VCOM
VCCR
AGNDR
VOUTR-
DGND
AGNDF
VCCC
AGNDC
VOUTL+
D/A CONVERTER
VOUTL-
AGNDL
VCCF
VCCL
VDD
XRST
SCK
DBCK
PBCK
PDATA
ZEROL
ZEROR
DSDR
DSDL
MDI
MC
PLRCK XMS
VOUTR+
VCOM
VCCR
VOUTR-
AGNDR
AGNDF
DGND
VCCC
AGNDC
VOUTL-
VOUTL+
D/A CONVERTER
AGNDL
VCCF
VCCL
XRST
VDD
DBCK
SCK
PBCK
PDATA
ZEROL
ZEROR
DSDL
DSDR
MDI
MC
PLRCK XMS
(2/2) (2/2)
(1/2) (1/2)
D113
C988
C987
L651
C653
L551
C553
R487
Q482
Q482
C979
C654
C660
C661
C662
C659
C658
L652
C656
C657
R663
R662
R664
R661
R654
R653
R651
C655
R652
IC651
C554
C560
R656
R657
R660
R659
R655
R658
L552
C556
C561
C562
C559
C558
R561
R554
R553
R551
C555
R552
IC551
C557
R562
R563
R564
R557
R556
R560
R559
R558
R555
R452 R454
R456
R451
R455
R457
R453
C452
R458 R460
R462 Q481
R464
IC481
C482
R461
Q481
R459
C451
R463
IC481
C481
C454
R466
C456C455
R465
C453
GNDDGNDA
stby
470pYB
0.1/16YB
ATAT
GNDU V-12A
V+3A
100K
RN4903
V+12A
RN4903
4700p
100/10
0.1/16
YB
100/10
V+3A5
QTL1013
0.1/16
AT
YB
AT
0.1/16
0.1/16
stby
0.01
YB
YB
QTL1013
100/10
YB
0.1/16
220
100
100
0
YB
V+5AD3
220
220
100 220
DSD1791DBR
100/10
0.1/16 YB
100/10
V+3A4
QTL1013
0.1/16
AT
YB 0.1/16
QTL1013
AT
*
*
*
*
*
*
YB
100/10
0.1/16
stby
YB
220
0.01 YB
100
100
0
YB
V+5AD2
220
220
100
V-12A
220
DSD1791DBR
0.1/16
*
*
*
*
*
*
stby 7.5k
8.2k
stby
8.2k
3.9k
7.5k
10/50
3.9k stby
22K IMX25
AT
100K
BA4560RF
YB
0.01
22K
IMX25
stby
10/50
100K
AT
YB
0.01
BA4560RF
V+12A
AT 10/50 100
0.01YB
0.01
AT
YB
10/50
100
R557,R657 0
R556,R656
R564,R664
stby
R563,R663
R555,R655 100
stby
(*)MARKS
R562,R662
VSX-AX4AVi
stby
0
VSX-AX2AV
L
7/8
(F) (F)
(F)
(F)
(F)
(F)
(C)
(SW)
(SW)
(F)
(C)
(DSD)
(SW)
(SW)
(DSD)
8/8L
8/8
L
1/8
L
2/8
L
5/8L6/8L
(C)
(C)
VSX-AX4AVi-S 63
5678
5678
C
D
F
A
B
E
+
-
+
-
+
-
+
-
A/D
5
64
7
8
34
28
1
5
64
7
8
34
28
1
10 11
9
813
12
7
615
14
5
4
16
17
1
2
3
19
18
20
XADPDN
ADLK
ADFD
ADMK
ADBK
ADOSR
CIN
SWIN
FRIN
FLIN
DACS2
DICK
DIDI
DACS1
ADLK
ADFD
ADMK
ADBK
XADPDN
ADOSR
(2/2)
(1/2)
(2/2)
(1/2)
LRCK BCK
BYPAS
TEST
A/D CONVERTER
DOUT
DGND
AGND
XPDWN
SCKI
VDD
VCC
VREF2
OSR
FMT0
VREF1
VINR
FMT1
MODE2
VINL MODE1
R608
R607
R612
R602
C602
R614
R610
C606
R604 R616
R606
C604
C652
IC652
C608 R620
R618
C610
C603
R605
R603
C601
R615
C651
IC652
R617
C609
C607 R619
R508
R601 R613
R611
C605
R609
R512
R502 R514
R510
C506
C502
R504
C504
R516
R506
C552
IC552
C508 R520
R518
C510
R507
C972
C973
C986
C985
C980
C503
R505
R503
C501
R515
C551
IC552
R517
C509
C507 R519
R501
R511
R513
C505
R509
C492
R481
R486
L482
C491
C490
C484
C483
C485
C486
D452 D451
C488
C487
R485
R484
R483
C489
L481
IC482
R482
GNDA
100
100
2.2K 1.0K
100
1000p
6.8K
220p CH
V-12A
2.2K
YB
1.0K
6.8K
220p
BA4560RF
CH
10/50 AT 220
0.01
470K
YB
3.0k
2.2k
1000p
1.5K
YB
330p
BA4560RF
CH
0.01
470K
YB
10/50 AT 220
V+5AD
100
2.2k 1.5K
100
330p CH
3.0k
V+12A
2.2K 1.2K
100
1000p
3.6K
330p CH
V-12A
2.2K
YB
1.2K
3.6K
330p
BA4560RF
CH
10/50 AT 220
0.01
470K
YB
100
GNDD
GNDU
stby 0.1/16
YB 470p
YB
stby 4700p
3.6k
2.2k 1.2K
1000p
330p
BA4560RF
CH
0.01
470K
YB
10/50 AT 220
2.2k
YB
1.2K
100
330p CH
3.6k
V+12A
GNDA
stby
V+3A6
QTL1013
100/10 AT
0.1/16
YB
YB4700p 4700p YB YB4700p YB4700p
V+3A
100/10
0.1/16
100/10
DAN217
AT
YB
AT
DAN217
100/10
0.1/16
0.1/16
stby
100
AT
YB
YB
100
CH
47
470p
100
QTL1013
PCM1803DB
100
V+5AD
V+5AD1
L
7/8
L7/8
: AUDIO SIGNAL ROUTE(C)
(C)
: AUDIO SIGNAL ROUTE(F)
(F)
(F)
(F)
(F)
(F)
(F)
(C)
(C)
(SW)
(SW)
(SW)
(C)
(F)
: AUDIO SIGNAL ROUTE(DSD)
: AUDIO SIGNAL ROUTE(SW)
(DSD)
(SW)
2/8L
5/8
L
2/8
L
8/8
L
8/8
L
8/8
L
8/8
L
DIGITAL MOTHER ASSY
(VSX-AX4AVi:AWP7038)
(VSX-AX2AV:AWP7043)
VSX-AX4AVi-S
64
1234
1234
C
D
F
A
B
E
3.20 DIGITAL MOTHER ASSY (8/8)
DTBK
DTMK
DTLK
DACS3
DACS2
XDARST
DIDI
DICK
DOBD
DOSD
DOBK
DOTD
DOLK
DOMK
DSD6
DSCK
DSD5
XDARST
DOLK
DOMK
DOBK
DOBD
DICK
DIDI
DACS2
DSCK
DOMK
XDARST
DOSD
DOBK
DOLK
DAD
DSD
DSD6
DSD5
DIDI
DSCK
DACS2
DICK
14 15
13
12
9
11
10
7
8
17
16
19
18
20
22
21
6
5
3
4
1
2
24
23
25
26
27
28
14
11
13
12
10
9
15
18
17
16
19
20
7
8
5
6
3
4
22
21
24
23
25
26
2
1
27
28
R756,R757 stby
0
(*)MARKS
stby
100
R764
R755
R762,R763
VSX-AX4AVi
0
stby
VSX-AX2AV
VCOM VCCC
VOUTR+
VOUTR- VOUTL+
AGNDC
AGNDR
VCCR
AGNDF VCCL
VOUTL-
AGNDL
D/A CONVERTER
DGND
VDD ZEROR
VCCF
XRST
SCK DSDR
ZEROL
PDATA
DBCK DSDL
PBCK
PLRCK
MDI
MC
XMS
VCOM VCCC
AGNDR
VOUTR-
VOUTR+ AGNDC
D/A CONVERTER
VOUTL+
VOUTL-
AGNDF
VCCR AGNDL
VCCL
VDD
DGND
ZEROR
VCCF
SCK
XRST ZEROL
DSDR
DBCK
PDATA
DSDL
MDI
PLRCK
PBCK
XMS
MC
C853
C854
L851
C862
R861
C753
C754
L751
R950
C860
C861
L852
C856
C857
C859
C855
C858
R851
R854
R853
R852
R860
R858
R859
R864
IC851
C760 C756
L752
C761
C759
C757
C758
R855
R761
C762
C755
R751
R754
R763
R762
R760
R752
R753
IC751
R759
R758
R764
R757
R756
R755
GNDA
100/10
0.1/16
AT
YB
QTL1013
V+3A2
220
100/10
0.1/16
AT
YB
QTL1013
V+3A
V+3A1
0
V+5AD6
100/10 AT
0.1/16 YB
QTL1013
AT 100/10
YB 0.1/16
0.1/16 YB
stby
0.01 YB
0.1/16
YB
100
0
100
100
V+5AD5
220
220
220
0
DSD1791DBR
AT100/10 AT
100/10
QTL1013
0.1/16 YB
0.1/16 YB
YB
0.1/16
stby
V+5AD
220
stby
0.01 YB
100
0
YB
0.1/16
V+5AD4
*
*
220
100
100
DSD1791DBR
220
220
*
*
*
*
SBL,SBR
SL,SR
L
8/8
(S)
(S)
(SB)
(SB)
(F)
(S)
(S)
(SB)
(SB)
5/8L2/8L5/8L6/8L
VSX-AX4AVi-S 65
5678
5678
C
D
F
A
B
E
SWIN
CIN
FRIN
FLIN
FANDRV
FANSTP
SRTX
SRRX
FLOUT
FROUT
MAIN
FANDRV
FANSTP
-
+
+
-
-
+
+
-
2
3
1
64
5
7
8
3
2
4
1
8
6
5
4
7
8
6
4
9
8
5
7
11
10
16
12
13
14
15
17
20
18
19
20
19
17
14
15
18
12
13
16
7
6
10
8
11
9
5
3
2
1
4
321
34
2
1
8
STRIN
GNDA(S)
(2/2)
(1/2)
(2/2)
SBLIN
SBRIN
STLIN
GNDA(S)
GNDA(S)
GNDA(S)
CIN
SWIN
SLIN
SRIN
GNDA(S)
GNDA(S)
GNDA(S)
FLIN
FRIN
GNDA(S)
GNDA(S)
FANDRIVE
FANSTOP
0.047
/25
SRRX
SRTX
GNDU
GNDU
V-12A
V-12A
V+12A
/25
0.047
GNDA
GNDA
V+5AD
V+5AD
GNDA
V+12A
GNDA
GNDA
FLOUT
FROUT
GNDA
(1/2)
C996
C975
C974
CN991
C802
R802
R804
R808 R806
R805R807
R803
C801
R812 R810
R814 C806
R816
C804
IC852
C808
C852
R820
R818
C810
C803
IC852
R815
C851
C807
R817
C809
R819
R801
R702
C702
R704
R813
C805
R811 R809
R710R712
R714 C706
R716
C704
IC752
C708
C752
R718
C710
R720
C994
C993
C995
C992
C991
CN992
R708 R706
R707
R703
R705
R701
C701
C703
IC752
R715
C751
R717
C709
R713
C705
R711 R709
C707 R719
IC991
GNDA
GNDAS
stby
GNDU
stby
stby
BTEM20P-1R
2.2K
2.2K
100 3.0K
3.0k
2.2k
100
100 3.0K
1.5K
1000p
330p CH
V-12A
YB
1.5K
330p
BA4560RF
CH
AT10/50
YB
0.01
220
4700p
470K
YB 4700p
330p
BA4560RF
1000p
1.5K
CH
YB
CH
YB
0.01
10/50 AT
470K
220
YB
2.2k
2.2K
2.2K
100 3.0K
1.5K 330p
100 3.0k
V+12A
1.5K
3.0K100 V-12A
1000p
330p
1.5K
YB
330p
BA4560RF
CH
AT10/50
YB
0.01
470K
4700p
220
V-12A
GNDU
V+12A
YB
YB
BTEM20P-1R
AT
100/10
stby
YB
0.1/16
100 3.0k
2.2k
2.2k
CH 330p
BA4560RF
1000p
1.5K
CH
YB
0.01
AT10/50
YB 4700p
470K
220
YB
YB
1.5K 330p
100 3.0k
CH
V+12A
V+3A
NJM2391DL1-33
V+5AD
OUT IN
L
8/8
L8/8
: AUDIO SIGNAL ROUTE(S)
: AUDIO SIGNAL ROUTE(C)
(S)
(S)
(S)
(S)
(C)
(S)
(SB)
(F)
(F)
(SB)
(SB)
(SB)
(C)
: AUDIO SIGNAL ROUTE(F)
(F)
: AUDIO SIGNAL ROUTE(SB)
(SB)
CN4304
N
CN4303
N
1/8L
7/8L
3/8L
7/8L
DIGITAL MOTHER ASSY
(VSX-AX4AVi:AWP7038)
(VSX-AX2AV:AWP7043)
VSX-AX4AVi-S
66
1234
1234
C
D
F
A
B
E
3.21 DSP ASSY (1/2)
SPICLK
CONT
SCKI
LCKI
DT0I
DT1I
DT2I
DT4I
DT3I
MCKI
SPDS1
MISO
MOSI
RST1
ROWE
REQ1
DAX
DS2T
CLKON
RST2
SS2
MODE2
REQ2
BUSY2
LCKO
DT0O
SCKO
RST3
SPDS3
DT2O
DT3O
DT1O
DT6O
DT4O
DT5O
REQ3
MCKI
CLK
A18
PAD14
PAD2
PAD15
PAD12
XWR
PAD13
PAD3
PAD13
PAD10
PAD15
A8
PAD12
PAD11
PAD14
XWR
A19
A18
PAD0
XRD
PAD1
PAD9
PAD3
PAD2
A10
A20
A9
A11
A12
A14
A13
A15
A16
PAD4
PAD5
PAD7
PAD6
PAD8
A17
PAD8
PAD9
PAD10
PAD12
PAD11
PAD13
PAD14
PAD15
A9
A8
A10
A12
A11
PAD5
PAD4
PAD0
A16
ALE
A17
A18
A19
A20
ALE
A8
PAD1
PAD0
PAD11
PAD8
A17
PAD9
PAD10
PAD7
PAD6
A13
XRD
PAD2
PAD1
PAD4
PAD3
PAD5
PAD6
A15
A14
A16
PAD7
A9
A10
A11
A12
A13
A14
A15
CN351
CK80
CK11
CK12
CK81
CK82
CK83
CK13CK14
CK15
CK16
CK84
CK23
CK21
CK22
CK18
CK17
CK20
CK19
CK85
CK86
CK24
CK87
CK25 CK33
CK26
CK27
CK32
CK31
CK88
CK89
CK90
CK34 CK35 CK36
CK37
CK38
CK91
CK39
CK40
CK41
CK29
CK28 CK30
CK78
CK42
CN352
CK93
CK92
CK46
CK43
CK94
CK44
CK45
C190
TP534
C180
R158
C189
IC109
R151
TP537
R139
IC105
TP536
C179
C178 CK59
TP538
R137
TP535
R136
IC104
L106
R140
C176
C175
CK58
TP509
TP510
TP511
IC103
L108
CK60
TP516
TP515
TP514
TP512
TP513
C183
C184
TP503
TP501
TP502
C173
C174
L105
R134
TP525
TP526
R135
TP528
TP529
TP531
TP532CK57
TP527
L104
TP530
TP518
TP517
TP519
TP520
C182
C181
IC106
IC102
TP507
TP506
TP508
TP505
TP504
C171
C172
C170
R133
R132
TP524
TP522
TP523
CK56
L103
TP521
AKP7198-
GNDD
AKP7198-
VDD5
0.1
GNDD
YB
100/16
GNDD
4.7k
CH
470p
TC7SH32FUS1
47
47k
YB 0.1
CH 470p
QTL1013
47
47
TC7W139FU
CH
V3A5
47k
470p
YB
0.1
V3A4
TC74VHC573FTS1
QTL1013
VD3A
V3A6
470p
0.1
CH
YB
CH
470p
YB
0.1
QTL1013
47
47
V3A3
QTL1013
47
YB0.1
470p CH
CY7C1049C3312VXC
TC74VHC573FTS1
470p
CH
YB
0.1
QTL1013
V3A2
100/16
47
VD3A
Y0
Y1
Y2
Y3
A
B
31
2
9
6
7
12
10
11
8
13
4
515
14
17
16
19
18
21
20 22 26
3125
224
23
10
11
8
5
4
9
6
7
12 18
21
20
13 15
14
17 19
16
23
24
25
2622
18
16
17
13
14
15
11
12
25
3
1
419
20
18
23
21
22
24
17
16
14
15
13
12
25
27
26
28
29
31
30
33
32
34
35
36
37
11
6
7
8
9
5
10
4
2
3
1
3
4
6
5
2
7
8
1
38
39
40
41
42
43
44
46
45
48
47
7
9
8
10
19 1
5
4
6
2
3
21
20
23
22
24
26
25 10
9
11
12
14
13
15
16
17
19
18
20
11
12
10
9
7
8
5
6
2
1
3
4
28
27
29
30
31
32 3
8
5
4
7
6
33
36
34
35
1
2
14
13
16
15
17
18
20
19
(DAX_OUT)
(DATA4_I)
IMSA-9142S-26C
GND
LRCK_I
GND
MCK_I
GND
DATA3_I
DATA2_I
DATA1_I
DATA0_I
GND
SCLK_I
ROWE
REQ_1
RST_1
MOSI
MISO
SPIDS_1
SPICLK
GND
GND
MOT_MODE
(SPIDS_3)
(DS_2_32)
(DATA5_O)
(DATA4_O)
(DATA6_O)
GND
GND
CLK_ON
RST_2
SS_2
GND
DATA0_O
GND
SCLK_O
GND
LRCK_O
GND
BUSY_2
REQ_2
DATA3_O
DATA2_O
DATA1_O
(RST_3)
GND
0V
3.3V
GND
5V
5V
5V
(REQ_3)
IMSA-9142S-26C
0V
3.3V
L
H prohibit
enable
FLASH rewrite
ROWE
A8 A10
A9
A7
A6 A12
A11
XWE
A5
A14
A13
IO3
IO2
IO4
IO5
A1 A0
DQ0
VSS
A4
A7
A5
A6
A3
A2 XCE
DQ1
FLASH ROM
DQ8
XOE
A17
A18 DQ2
DQ9
NC
RY/XBY
S29AL016D70TFI010
DQ3
DQ10
XWE
NC
XRESET
DQ11
DQ4
VCC
3.3V
DQ14
A9
A11
A19
A10
A8
DQ5
DQ6
DQ13
DQ12
DQ7
NC
A14
A15
A12
VSS
XBYTE
A13
A16
DQ15/A-1
LE
Q5
Q6
D7
D5
Q7
D6
GND
LATCH
35mA
NC
D1
D2
Q0
Q1
D3
D4 Q4
Q2
D0
VCC
Q3
XOE
GND
D7 Q7
LE
VCC
VSS
VSS
VCC
IO0
IO1
IO7
IO6
A3
XCE
A4
XOE
A16
A15
SRAM 4M 36Pin(8bit x 512kW)
A2
A0
A18
A17
A1
Q1
Q2
Q3
Q4
Q5
Q6D6
D5
D4
D3
D2
D1
LATCH
3.3V
NC
D0
XOE VCC
Q0
1st DSP Block
3.3V
M1/2 2/8
CN301
L2/8
CN302
L
2/2M
CONT
VSX-AX4AVi-S 67
5678
5678
C
D
F
A
B
E
LCKI
SCKI
MCK1
MCK2
SCK1
LCK1
DSP1
ALE
XRD
PAD14
PAD13
PAD12
PAD15
PAD8
PAD9
PAD10
PAD11
PAD3
XWR
PAD1
PAD2
PAD0
PAD7
PAD6
PAD4
PAD5
DT2O1
DT3O1
DT1O1
DT0O1
DT3I
DT2I
DT1I
DT0I
LCK2
SCK1
SCK2
LCK1
MCK1
REQ1
MCLK1
SPDS1
MOSI
MISO
SPICLK
C186
C185
R148
IC107
R147 IC107
TP902 TP901
R150
IC107
R149
CK62
R142
R141 IC107
L107
C114
C151
C152
R145
R144
C113
R106
R107
C153
C154
C115
C116
C118
C117
C156
C155
C119
C120
R108
R109
TP104
TP106
TP105
R105
C112
C111
R104
C109
C110
C149
R103
C108
C150
TP101
C107
R159
R102
C105
C106
C104
C103
C147
C148
R101
C101
C102
IC101
R126
R124
R125
TP107
C121
C122
R111
C124
C123
TP908
TP906
TP904
TP905
TP903
C158
C157
C126
C125
TP907
R113
C127
TP909
TP910
R116
C128
R117
R118
R119
C129
C130
R120
R160
TP102
C132
C159
C131
TP103
R161
C133
C160
C136
C135
C134
C166
C165
CK55 CK63
L102 L101
R131
R127
C168
C167
R123
C169
R130
C163
C145
C146
R122
C144
C143
C137
C138
C142
C141
C161
C162
C139
C140
470p
0.1 YB
100
CH
100
100
22
22
22
100
TC74VHC08FTS1
V3A8
0.1
QTL1013
0.1
470p
YB
CH
22
470p
47
470p
0.1
470p
0.1
YB
CH
CH
YB
47
0.1
470p
0.1
470p
470p
0.1
YB
CH
YB
CH
CH
YB
47
47
CH
YB
47
47
0.1
470p
YB
CH
470p
0.1
470p
0.1
47
CH
YB YB
CH
YB CH
0.1
100
470p
4.7k
470p CH
0.1 YB
0.1
470p
YB
CH
CH
YB
470p
0.1
4.7k
470p
0.1
CH
YB
ADSP-21266SKSTZ-2D : *1
470p
0.1
22
0.1
470p
GNDD
YB
CH
CH
YB
YB
CH
CH
YB
0.1
470p
470p
0.1
CH 470p
0.1
YB
22
100
22
100
CH 470p
100
YB 0.1
4.7k
YB
CH
0.1
470p
YB
CH
0.1
470p
4.7k
CH 470p
470p
CH
0.1
YB
YB 0.1
0.1
470p
QTL1013
ATL7002
V3A1 V1A1
VD3A VD1A
100
YB
CH
YB
CH
10
0.1
470p
100
100
100
100
4.7k
V1A2
YB
CH
CH
YB
0.1
470p
470p
0.1
YB
0.1
CH
470p
100
YB
0.01
YB
CH 470p
0.1
CH
YB
CH
YB
CH
YB
0.1
470p
470p
0.1
470p
0.1
2
3
7
114
13
11
7
5
6
7
14
4
12 14
10
8
9
7
14
37 39 4038 4241 43 464544 47 48 49 50 5251 53 54 55 585756 616059
36
35
34
33
31
32
29
28
27
26
25
30
23
24
21
22
20
19
18
17
16
15
14
12
13
10
11
9
8
7
5
6
4
3
1
2
144 142143 141140139138 135136137 134133132 129131130 127126128 123124125 120121122
62 63 64 65 66 67 68 7069 7271
73
74
75
76
77
78
79
80
82
81
83
84
85
86
89
87
88
90
91
92
93
94
95
97
96
98
99
102
100
101
103
104
117118119 116 114115 112111110113
106
105
108
107
109
0V
3.3V
(1/4)
(3/4)
(2/4)
(4/4)
3.3V
1.2V
VDDINT
ALE
XRD
GND
AD14
AD13
AD15
AD1 XWR
VDDINT
GND
VDDEXT
AD0
VDDINT
VDDEXT
AD12
AD9
AD11
AD8
AD10
GND
GND
VDDINT
DAI_P2
VDDINT
DAI_P3
GND
GND
VDDEXT
DAI_P1
GND
DAI_P4(DO_6)
AD2
VDDINT
AD5
GND
AD4
AD6
AD3
DAI_P11(DI_0)
DAI_P10(DO_4)
GND
VDDINT
GND
VDDEXT
GND
VDDINT
AD7
FLAG1
GND
FLAG0
VDDINT
VDDINT
GND 1st DSP
VDDINT
GND
GND
VDDEXT
BOOTCFG1
GND CLKCFG1
CLKCFG0
BOOTCFG0
VDDEXT
VDDINT
CLKIN
XTAL
GND
TCK
XTRST
TMS
CLKOUT
VDDEXT
VDDINT
XEMU
TDO
TDI
GND
AVSS
AVDD
SPICLK
VDDINT
XSPIDS
VDDINT
XRESET
MOSI
GND
MISO
GND
GND
0V
3.3V
DAI_P8(DO_2)
DAI_P6(DO_0)
VDDINT
DAI_P9(DO_3)
GND
VDDINT
DAI_P5(DO_5)
DAI_P7(DO_1)
GND
VDDINT
VDDEXT
GND
DAI_P14(DI_3)
DAI_P13(DI_2)
DAI_P15(DI_4)
VDDINT
GND
VDDINT
DAI_P12(DI_1)
GND
GND
VDDINT
DAI_P16(LR_O)
DAI_P18(LR_I)
DAI_P19(SCK_I)
DAI_P17(SCK_O)
GND
VDDEXT
FLAG3
VDDINT
FLAG2
DAI_P20(MCK_I)
GND
GND
VDDINT
VDDINT
GND
VDDINT
VDDINT
VDDINT
GND
GND
GND
VDDEXT
VDDINT
VDDINT
VDDINT
VDDINT
VDDINT
GND
GND
GND
GND
GND
1.2V
3.3V
10mA
320mA:*1
1.2V
3.3V
C164
(T-AIC028:*2)
M
DSP ASSY
(AWX8599)
1/2
M1/2
2/2M
CLK
VSX-AX4AVi-S
68
1234
1234
C
D
F
A
B
E
3.22 DSP ASSY (2/2)
CLKON
MCLK1
MCLK2
CONT
B
E
C
4
682
4
38
4
5
187
2
13 123
3
5
2
1
4
2
13
Q301
C304
C305 R302
C301
C303
C302
L301
X301
R301
CK68
R303
IC301
IC301
R304
R305
C360
C361
CK50
IC354
R353
C363
C364
CK51
IC355
R352
CK49
R351
R357
C353
C351
C354 CK47
R355
R356 IC352
R354
IC351
IC301
C357
CK48
should be replaced with same parts (safety
regulation authorized) of identical designation.
mark found on some component partsThe
(2/3)
*1
(3/3)
(1/3)
3.3V
5V
520mA:*1
*1
CLKON
H
L
DSP MCK ON/OFF Logic
AWX8600
OFF
ON
AWX8599
ON
OFF
1.25V
(F%) (F%)
0V
3.3V
OUTIN
ADJ
OUTIN
VCC
PVCC VO
GND
ADJ
OUTIN
GNDD
100/16
UN5212
GNDD
CH 10p
CH 10p
VSS1171
20MHz
100/16
100/16
YB
CH
0.1
470p
QTL1013
1M
1.5k
22
TC7WHU04FU
TC7WHU04FU
NJM2391DL1-33
YB
0.1
LM1117DT-ADJ
VD3B
1k
YB
0.1
VD1B
0
100/16
100/16
YB
0.1
NJM2391DL1-33
0
0BA00HC5FP
0
VDD5 VD3A VD3A1
V3B5
TC7WHU04FU
2k 1k
100/16
ACH7256*
VD1A
22
22
VD3B
CLK
M2/2
1/2M
CONT
VSX-AX4AVi-S 69
5678
5678
C
D
F
A
B
E
BUSY2
MOSI
REQ2
MISO
SPICLK
SS2
MCLK2
RST2
MODE2
DT4O2
DT5O2
DT1O1
DT3O1
DT2O1
DT0O1
DT0O
DT1O
DT2O
DT3O
LCKO
SCKO
SCK2
LCK2
MCK2
23
22
21
24
25
28
27
26
31
29
30
33
34
32
35
37
36
38
39
40
20
18
19
16
17 44
43
42
45
41
14
15
12
13
11
10
9
49
48
50
51
52
47
46
7
8
5
6
4
3
54
55
56
53
58
57
2
1
80 777879 747576 717273 6970 68
59
60
67 66 65 63 6264 61
E
B
C
R207
R208
R206
R210
C216 C204 C224
L203
C215 C203
C223
C213
C214
R202
R240
C202
R203
C201
C212
C211
IC201
R235
R233
R232
R231
R230
R229
R227
R225
R226
C221 C209
C222 C210
C219
C220
C218
C217 C205
C206
R211
C228
CK79
C207
C208
R213
R215
Q201
R217
R224
TP915
TP916
TP913 TP914
R239
R238
R236
TP911
R237
TP912
CK69
CK64
L201
C229
L202
C230
UNLESS OTHERWISE NOTED
RAB4C***J-T
RS1/16S***J-T
CEVW101M**-TRB
CKSRYB104K16-T
NOTES:
NO INDICATED
CKSRYB103K50-T
CCSRCH****50-T
PARTS IS...
0V
3.3V
1.25V
3.3V
GNDIO
PB0
PB1
VDDIO
TDO
VDDCO
GNDCO
TMS
TCK
TDI
SS
SCK
MISO
MOSI
GNDSP
PF0
PF1
PF10
SCAN
PF9
VDDIO
PF5
PF4
GNDPP
GNDPD
GNDPA
VDDPA
HREQ
VDDPP
PINIT
EXTAL
VDDPD
PF3
BUSY
GNDCO
PF7 DECODER
PF8
PF6 BOOT MODE
01
0UCOM
0
0
D
1
0
CAB
1H
L
MODE2
VDDCO
MODA
MODB
MODC
XRESET
MODD
SDO0
VDDCO
SDO2
SDO1
SDI0
SDO3
VDDIO
GNDIO
FST
FSR
SDO0_1
SDI2_1
SDI1_1
SDI0_1
SDI3_1
SDO1_1
GNDCO
FSR_1
SCKT_1
SCKR_1
*1
SDI1
SCKT
GNDIO
VDDIO
SCKR
VDDCO
PC2
HCKT
ADO
GNDCO
ACI
GNDIO
HCKT_1
PE2
FST_1
VDDIO
1.25V
3.3V 0V
3.3V
STANDBY
0V
3.3V
1.25V
0V
3.3V
*1
2nd DSP Block
0V
3.3V
85mA 75mA
3.3V
100
100
47k
10k
CH
470p
YB
0.1 YB
0.1
CH
470p
YB
0.1
QTL1013
470p
CH
V1B2
YB0.1
10k
100
47k
0.1
YB 0.1
CH
470p
470p
CH 470p
DSP
DSPC56371AF180-K
YB
22
CH
CH
470p CH
470p CH
470p
100
22
22
YB
100
100
YB
0.1 0.1 YB
100
100
100
0.1
YB
0.1
CH
470p
CH
470p
YB
0.1
100
YB
100
0.01
CH
470p
YB
0.1
4.7k
UN5212
0
100
GNDD
0
0
0
0
V1B1
ATL7002
100/16
ATL7002
100/16
V3B1
VD1B VD3B
M
DSP ASSY
(AWX8599)
2/2
M2/2
1/2M
CLK
VSX-AX4AVi-S
70
1234
1234
C
D
F
A
B
E
3.23 INTERFACE ASSY
V+12UN
GNDCV
VCCR_OUT
GNDD
V+5D
VCCR_IN
GNDCV
VCCB_OUT
VCCY_OUT
GNDCV
GNDCV
VCC_OUT
VCCB_IN
GNDCV
GNDCV
GNDCV
VCCY_IN
GNDCV
GNDCV
VCC_IN
VCY_OUT
GNDCV
GNDCV
VCY_IN
VCV_IN
VCV_OUT
GNDCV
IP_POWER
IP_OL
GNDD
XLSSN
FOPT
MRMUTE
VLDT1
S-DET
VLCK
VLDT2
V-5_6V
V+5_6V
FANDRIVE
V+12T
V+12TRG
232C_RXD
232C_CTS
232C_TXD
IPDET
IPRX
IPTX
FANSTOP
SRRX
SRTX
V-CONVERT
FANSTOP
FANDRIVE
IP_OL
IP_POWER
Y18
D4302
CN4311
CN4307
R4311
L4311
J4309
R4328
R4327
4301 4302
R4326
R4325
R4305
C4305
Q4303
R4303
L4321
L4320
CN4306
L4322
L4318
R4319
R4320
R4321
R4322
R4317
R4318
L4319
C4308
C4307
C4306
L4316
L4317
L4315
L4314
L4313
L4312
CN4305 R4324
L4324
R4315
R4316
R4313
R4314
R4312
CN4315
CN4304
J4308
IC4301
Q4301
R4302
CN4303
CN4325
ADX7494
MTZJ6R3(B)
V-12V KM200TA4
AKP7203-A
V+12TRG
V+12V
V+5AD
GNDUC1
VTL1083
STBY
PF08PG-R05
0
V-5_6V 0
51048-0400 51048-0400
V+5_6V
V+12TRG
V-5_6V
STBY
STBY
10k
GNDU
YB 0.1
DTC124EK
100
VTL1083
VTL1083
GNDA
GNDUC XKP3071-A VTL1083
GNDV
GNDUC
VTL1083
1K
STBY
STBY
STBY
V+5D
STBY
STBY
STBY
STBY
0.01
YB
YB 470p
VTL1083
VTL1083
VTL1083
VTL1083
VTL1083
VTL1083
BTEM16S-1S
GNDA GNDUS
KM200TA7
V-12V
STBY
STBY
STBY
STBY
STBY
VTL1083
STBY
V+12V
V+5AD
BTEM20S-1S
V+5_6U
PF11PG-R05
RSR015PO
1.6A
AEK7066
10k
V+5_6V
V_IP
BTEM20S-1S
BTEM14S-1S
XKP3065-
2
3
1
2
4
1
3
2
3
1
4
9
8
7
6
5
10
13
11
14
12
15
16
1
2
3
6
5
8
7
4
4
2
1
3
4
2
1
3
1
2
3
4
5
E
7
8
6
9
C
B
19
20
17
21
22
18
2
4
8
6
10
14
12
16
20
22
24
18
23
3
1
9
7
5
13
11
15
19
17
21
23
13
16
14
15
11
8
9
7
12
10
2
4
5
6
3
1
1
2
3
4
20
19
18
6
7
5
11
16
17
14
15
12
13
7
5
10
9
8
6
1
4
3
2
16
15
18
19
17
20
4
5
6
2
3
1
9
11
8
10
7
12
13
11
10
S
G
D
11
9
14
12
13
10
6
4
8
3
2
7
5
1
10
11
14
3
4
7
6
9
8
5
1
2
V+5D
GNDD
V+12UN
VEF1040- VEF1040- VEF1040-
4303 4305
PCB BINDER
4304 GNDD
GNDD
V+5D
V+5D
SD3
SPDIF
GNDD
WS
SD2
SD1
SD0
SCK
GNDD
HDDI
HDREQI
HDREQO
GNDD
GNDD
MUTEOUT
MCK
GNDD
GNDD
V+5D
V+5D
GNDD
SPDIF
V+12UN
WS
SCK
SD0
SD1
SD2
SD3
HDDI
HDREQO
HDREQI
MUTEOUT
GNDD
MCK
GNDD
V+12TRG
V+12T
V+12V
GNDA
V-12V
V+5AD
GNDA
GNDA
(WHITE)
ADX7493
Y17 Y17
D20PDD0420E
V+12T
J4
V+12TRG
V+5.6V
V-5.6V
BY LITTELFUSE INC. FOR IC4301.
REPLACE ONLY WITH SAME TYPE NO. 49101.6 MFD.
FOR CONTINUED PROTECTION AGAINST RISK OF FIRE,
CAUTION
GNDV
GNDV
V-5.6V
V+5.6V
GNDV
GNDU
GNDU
V+5.6U
V iP
GNDD
V+5D
HDSCK
HDRST
GNDD
HDDO
FOPT
iP OL
iP POWER
XLSSN
VLDT1
GNDA
VLCK
VLDT2
S-DET
MRMUTE
GNDU
GNDU
HDRST
HDSCK
HDDO
GNDD
GNDCV
VCCR_OUT
GNDCV
VCCY_OUT
GNDCV
VCCB_OUT
VNF1084
2
1
KN4301
iPDET
iPRX
iPTX
232CTXD
232CTS
232CRXD
GNDV
GNDV
FANSTOP
FANDRIVE
SRRX
GNDA V-12V
V-12V
V+12V
V+12V
SRTX
GNDU
GNDU
VCCR_IN
GNDCV
VCCB_IN
GNDCV
VCCY_IN
GNDCV
VCY_OUT
GNDCV
VCC_OUT
GNDCV
VCC_IN
GNDCV
VCV_IN
VCV_OUT
GNDCV
GNDCV
VCY_IN
GNDCV
V+5AD
V+5AD
GNDDAC
GNDA
GNDA
GNDA
GNDDAC
GNDDAC
FR OUT
FL OUT
GNDA
GNDA
GNDA
C OUT
FR OUT
FL OUT
FL OUT
FR OUT
GNDA
GNDA
GNDDAC
GNDDAC
C
GNDA
GNDA(SEP)
GNDA(SEP)
FR
FL
GNDA(SEP)
FANDRIVE
FANSTOP
GNDA
GNDA
GNDA
SL OUT
SW OUT
SR OUT
GNDA
GNDA
GNDA
SBL OUT
SBR OUT
STBY L
STBY R
GNDA
GNDA(SEP)
SW
SL
GNDA(SEP)
GNDA(SEP)
STBY L
SR
GNDA(SEP)
SBR
SBL
GNDA(SEP)
STBY R
CN4312
INTERFACE ASSY
(AWX8651)
N
N
(F)
(SB)
(S)
(SW)
(C)
(F)
(F)
(D)
(F)
(C)
(S)
(SB)
(D)
CN6106
S
CN6105
S
5/8
CN201
L
4/8
CN304
L1/8
CN104
L8/8
CN992
L8/8
CN991
L
1/4
CN2506
K
1/4
CN2501
K
CN2402
K
CN4272
T
CN1001
AG
VSX-AX4AVi-S 71
5678
5678
C
D
F
A
B
E
IP_V
SROUT
VCV_OUT
VCV_IN
GNDCV
GNDCV
GNDCV
VCY_OUT
S-DET
VCC_OUT
GNDCV
VCC_IN
GNDCV
VCY_IN
GNDCV
GNDCV
GNDCV
VCCR_OUT
GNDCV
VCCY_OUT
VCCB_OUT
GNDCV
VCCY_IN
GNDCV
GNDCV
VCCB_IN
VCCR_IN
VLCK
VLDT1
VLDT2
XLSSN
GNDFA
FVY
FVC
VLCK
VLDT1
232C_RXD
232C_CTS
232C_TXD
IP_V
232C_DET
SRRX
IPRX
IPTX
IPDET
SRTX
SRIN
RMC
FRONT_IN
GNDFV
MICDET
MIC
232C_DET
SRIN
MICDET
SROUT
RMC
FV-L
FV
FV-R
VLDT2
MRMUTE
VLCK
MIC
UCOM
FOPT
FVY
GNDD
FVC
FV
FV-R
FV-L
CN4323
CN4317
CN4322
CN4316
J4301
CN4314
C4310
C4309
C4312
C4311
CN4319
C4314
C4313
CN4320
L4323
R4323
CN4324
CN4302
C4303
C4304
CN4313
C4302
CN4318 C4301
CN4301
GNDV GNDVI
GNDA GNDUC1 GNDUS
BTEM6S-1S
XKP3067-A
T-AKP083
XKP3068-A
GNDUCGNDUP
GNDA
ADB7021
XKP3066-A
V+5_6V
STBY
STBY
STBY
GNDUC1
STBY
GNDA
XKP3066
GNDUP GNDVI
1000p
V+5_6U
1000p
GNDA
XKP3071
V-12V
VTL1083
STBY
KM200TA7 GNDU V+5_6U
V+5_6U
V_IP
XKP3065-A
47/25
V-12V
AL
AL
47/25
KM2007TA6
V+12V BTEM20S-1S
47/25
V+12V
47/25 52045-1545
V+5D
1
2
6
7
9
8
3
5
4
10
12
11
15
14
13
11
15
13
14
12
17
16
18
19
22
20
21 5
10
4
7
8
6
9
13
12
3
6
4
5
1
2
28
23
24
26
25
27
3
2
1
17
29
30
13
14
11
12
15
16
5
8
7
6
9
10
13
4
3
2
1
11
12
9
10
7
8
1
3
4
5
6
2
2
1
5
6
3
42
1
5
4
3
6
9
10
7
11
8
3
1
5
2
4
23
18
19
20
17
21
22
16
14
13
12
11
15
10
8
7
6
5
3
4
9
1
2
2
15
4
3
6
2
1
7
2
1
4
3
5
6
7
8
9
11
10
7
6
9
11
10
8
14
12
13
16
15
17
18
20
19
5
3
6
4
10
7
8
11
12
9
15
13
14
GNDCV
VCCr OUT
VCY OUT
VCCr IN
VCCb OUT
GNDCV
GNDCV
GNDCV
GNDCV
VCC OUT
VCY IN
GNDCV
VCCb IN
GNDCV
GNDCV
GNDCV
VCV OUT
VCC IN
VCCY IN
VCY OUT
GNDCV
GNDCV
GNDV
V-5.6V
V-5.6V
GNDV
iP_V
MRINH
V+5.6V
GNDV
VMUTE
NC
GNDV
V+5.6V
SROUT
GNDU
IEDI
IEDO
IEIT
IECLK
IERST
ERR
23 VCCr OUT
GNDCV
24
21
GNDCV
VCCb OUT
22
19 VCCY OUT
GNDCV
20
GNDCV
HDS4
VCV IN
HDS6
HDS5
HDS3
STBY
HDS2
HDS1
GNDD
HDCK
17 VCCr IN
GNDCV
18
15 VCCb IN
16 GNDCV
14
13 VCCY IN
GNDCV
GNDCV
12
11
GNDCV
10
VCC OUT
9VCY OUT
8GNDCV
7
6GNDCV
VCC IN
5
GNDCV
VCY IN
4
3
VCV IN
VCV OUT
GNDCV
2
1
AKP7203-A
CN4310
GNDU
V+5_6U
VLDT1
XLSSN
VLCK
VLDT2 FVY
GNDFV
FVC
GNDV(S)
GNDV(S)
VCV IN
VCV OUT
V-5.6V
GNDV V-7V
V+7V
GNDA
i-Pod R
i-Pod L
GNDU
MRINH
GNDV
V+5.6V
V+5.6V
V-5.6V
GNDV
GNDU
GNDA
GNDA
VLDT1
VLCK
S-DET
VCY OUT
VMUTE
VCC OUT
GNDCV
GNDCV
GNDV
GNDCV
VMUTE
GNDCV
VCY IN
VCC IN iP_V
232C CTS
232C TXD
GNDU
232C DET
GNDU
232C RXD
VCCY OUT
VCCb OUT
VCCr OUT
GNDCV
GNDCV
GNDCV
iP TX
iP RX
V+5.6U
GNDU
SRRX
iP DET
GNDCV
GNDCV
VCCr IN
VCCY IN
GNDCV
VCCb IN
V+7V
SRIN
RMC
V-7V
iP R
GNDU
SRTX
GNDiP
iP L
GNDA
GNDA
GNDA
V+12V
V-12V
MICDET
MICOUT
V+5D
V+5.6U
V+5.6U
GNDU
GNDU
V iP
MICDET
V iP
GNDU
SRIN
232CDET
RMC
SROUT
GNDFA
FV-R
GNDA(S)
FV-L
GNDFA
FV
GNDA
MIC
GNDA(S)
GNDA
GNDA
V-12V
V-12V
V+12V
V+12V
VLDT2
VLCK
GNDU
MRMUTE
FOPT
GNDD
FVY
GFV
FV
FVC
GNDFA
FV-R
FV-L
V-5_6V
VC(Y)
N
: VIDEO SIGNAL ROUTE S(Y)
S(Y)
: VIDEO SIGNAL ROUTE (C'Site)
(C'Site)
: VIDEO SIGNAL ROUTE VC(C'Site)
VC(C'Site)
: AUDIO SIGNAL ROUTE S(C)
S(C)
: AUDIO SIGNAL ROUTE VCS(Y)
VCS(Y)
: AUDIO SIGNAL ROUTE VCS(C)
VCS(C)
: VIDEO SIGNAL ROUTE F(C'Site)
F(C'Site)
: VIDEO SIGNAL ROUTE (VIDEO2)
(FVL)
: VIDEO SIGNAL ROUTE FS(C)
FS(C)
: VIDEO SIGNAL ROUTE FS(Y)
FS(Y)
: AUDIO SIGNAL ROUTE C(Cb)
C(Cb)
: AUDIO SIGNAL ROUTE C(Y)
C(Y)
: AUDIO SIGNAL ROUTE VC(Cb)
VC(Cb)
: AUDIO SIGNAL ROUTE C(Cr)
: AUDIO SIGNAL ROUTE VC(Cr)
VC(Cr)
C(Cr)
: AUDIO SIGNAL ROUTEV C(Y)
: AUDIO SIGNAL ROUTE(S)
: AUDIO SIGNAL ROUTE(C)
(S)
(C)
: AUDIO SIGNAL ROUTE(F)
(F)
VC(C'Site)
VCS(Y)
VCS(C)
VC(Y)
VC(Cb)
VC(Cr)
(C'Site)
S(Y)
(FVL)
(FVL)
F(C'Site)
FS(C)
FS(Y)
(D)
(MIC)
FS(Y)
FS(C)
F(C'Site)
S(C)
C(Y)
C(Cb)
C(Cr)
: AUDIO SIGNAL ROUTE(SPDIF)
: AUDIO SIGNAL ROUTE(SW)
(D)
(SW)
: AUDIO SIGNAL ROUTE(SB)
(SB)
1/4
CN102
L
2/4
CN2505
K
2/4
CN2503
K
CN6301
B
3/4
CN2403
K
CN2201
J
CN2001
I
3/8
CN306
L
CN6202
ACN3451
C
CN2802
AE
CN1002
AG
CN1002
AG
C(Y)
C(Cb)
C(Cr)
VC(Y)
VC(Cb)
VC(Cr)
S(Y)
S(C)
VCS(Y)
VCS(C)
VC(C'Site)
(C'Site)
VSX-AX4AVi-S
72
1234
1234
C
D
F
A
B
E
3.24 POWER AMP IN and POWER PROTECT ASSYS
TEMP2
RYHP
RYA
TEMP1
RYB
RYCS
HPSW
WU
RYAC
TEMP2
TEMP1
1
2
3
6
10
4
8
9
7
5
11
8
11
9
10
1
2
3
4
7
5
6
16
19
18
17 15
14
13
10
11
12
9
8
7
18
19
16
14
12
13
15
17
6
5
10
8
7
9
11
4
3
2
1
2
13
6
5
4
1
3
2
4
5
9
13
11
6
12
8
10
7
2
1
5
4
3
9
10
13
11
12
1
3
2
6
4
5
8
7
XKP3065
4.7k
2SC4081(QR)
0.022
RT1N241M
RT1N241M
47k
0.1
RT1N241M
0.1
47k
47k
10k
5.6k
5.6k
1k
0
1SS355
68k
XKP3065
10k
52044-1945
0
0
RT1P241M
RT1P241M
8.2k
0
BA4560RF-TBB
0
22k
52044-1945
XKP3066
STBY
10k
2SD2704K
1k
33k
4.7/50 220
CH220p
51048-0500
XKP3066
CN5702
R5716
C5705
C5701
R5703
R5707
Q5703
C5702
R5715
Q5704
R5717
R5701
R5714
D5701
R5750
R5720
R5721
CN5701
CN5703
Q5701 R5747
R5702
Q5705
R5746
R5705
Q5702
Q5706
R5706
R5708
IC5701
R5710
CN5601
C5603
R5604
Q5601
R5601
R5603
C5602
C5601 R5602
5604
CN5603
CN5602
POSI_1
NC
NC
NC
WT
DC DET
POSI_2
OL DET
POSI_2
GNDU
LOCK DET
TEMP1,2
PROTECTION DETECT
DC DET
OL DET
HL
NORMAL
H
H
L
LH
DETECT
L
(22k) (22k) (22k)
GNDU
POSI_1
NC
NC
NC
OL DET
OL DET
DC DET
POSI_2
WT
NC
NC
NC
GNDU
GNDU
V+5UM
V+5.6U
TEMP2
TEMP1
RYA
RYHP
RYCS
GNDST
RYB
OL DET
DC DET
AGSBL
SBL
AGL
AGLS
RS
AGRS
LS
L
SBR
AGSBR
AGC
AGR
R
C
AMUTE
NECK6
SBMUTE
NECK8
A-12V
(22k)
(22k)
POSI_1 DET
POSI_2 DET
3
2
OUTPUT LEVEL DET
1
SBL
AGL
V+5.6ST
RYAC
GNDST
WATTS
HPSW
AGLS
WUP
VH-
VH-
SBMUTE
AGSBL
OL DET
AMUTE
VH+
L
LS
DC
C
NECK6
NECK8
VH+
VH-
A-12V
R
AGRS
RS
SBR
AGR
VH-
VH-
SBMUTE
DC
AMUTE
VH+
WT
AGSBR
POWER PROTECT ASSY
(AWX8659)
P
PO
(C)
CN4202
U
CN5301
R
2/4
CN2601
K
1/8
CN103
L
CN5002
Q
CN5302
R
CN5001
Q
CP
CP
VSX-AX4AVi-S 73
5678
5678
C
D
F
A
B
E
(YELLOW)
LOCK
FAN-
FAN+
FAN
LOCK
FAN+
FAN-
RYB
RYA
RYHP
RYCS
WU
HPSW
RYAC
1
2
4
5
3
1
28
75
4
3
6
11
14
9
10 12
13
16
1715
3
2
4
1
7
5
6
6475321
4.7k
S5B-PH-K-S
52044-1745
0.01
BA4560RF-TBB
10k
10k
0.01
0.01
STBY
KP250NA7
22p 22p
(1/10W)
330/10
stby
150 1k
1.5k
820 1000p
2SC2705(OY)
IMT4
IMT4
4p/200V
ACG7057
2SA1514K(RS)
stby stby
6.8k
47k
33k
220
10/63
0.22µ150
4.7
MUF
(1/4W)
UDZS4R7(B)
10/100
UDZS4R7(B)
ACN7121
0.18+0.18
4.7k
10k
1SS355
470
22k
10k
150k 1SS355
1.2k
4.7k
ADX7459
47k
470
1SS355
2.2/50
NP
1SS355
2SA1255(OY)
stby
2.0k F
UDZS3R6(B)
100/10
2SA1145(OY)
1.2k
RN,D 150
(1/4W)
10/63
MUF
4.7
KP250NA7
CN5704
C5704
R5712
IC5701
C5703
R5711
R5713
CN5705
C5706
C5627
CN5605
C5615 C5616
C5622
C5617
R5605
R5631 R5630
R5606 C5604
Q5605
Q5602
Q5602 C5608
C5605
R5608
R5609
C5606
Q5603
D5602
R5629
C5624
R5612
C5632R5632
R5624
D5604 D5606
C5609
D5605
Q5604
D5603
R5627
R5646
R5649
D5642
R5642
R5644
R5645
R5650
R5648
R5647
D5644
D5641
R5641
R5643
C5641
Q5641
D5643
Y1(2/2)
C5621
R5607
C5607
D5601
R5611
C5623
R5610
R5623
CN5606
V+12V
V-12V
LOCKDET
+FAN
-FAN
+FAN
-FAN
LOCKDET
V-12V
-FAN
V+12V
+FAN
Ratings: Capacity(µF)/Voltage(V) unless otherwise noted.
Rated Voltage: 50V expect for electrolytic capacitors.
2.CAPACITORS
Unit: p-pF or µF unless otherwise noted.
Unit: k-kΩ , M-MΩ or Ω unless otherwise noted.
Rated power: 1/16W unless otherwise noted.
NOTE
Tolerance: (J) 5% unless otherwise noted.
1.RESISTORS
-
+
7
5
4
86
RYB
RYCS
RYA
RYHP
GNDST
GNDST
V+5.6ST
WUP
RYAC
HPSW
D
b
GAMP
bb
CB
CE
CE
CE
DD
(1/2W)
(5W+5W)
D5602-D5604 : 1SS355
b
AGC
CB
bb
CE
CE
CE
FAN
F.STOP
F.FAN+
F.FAN-
3
1
2
S3B-EH
100k
R5718
CN5706
VEF1040-A
5701
1SS355
D5702
POWER AMP IN ASSY
(AWX8662)
O
PO
: AUDIO SIGNAL ROUTE(C)
(C)
(C)
(C)
(C)
(C)
(C) (C)
(C)
(C)
CN5303
R
CN4003
X
CN4403
G
CN5003
Q
J6104
S
CP
CP
CP
CAUTION
Do not touch any points on the PCB other than CP with
an oscilloscope/tester while power is applied.
(It may damage the amplifier due to the oscillation generated.)
VSX-AX4AVi-S
74
1234
1234
C
D
F
A
B
E
3.25 POWER AMP L ASSY
DC_DET
WT
OL
DC
PRT_L
KM250NA7L
330/10
STBY
150 1k
STBY
stby
1.5k
820 1000p
22p22p
33k
(1/10W)
220
2SC2705(OY)
10/63
0.22µ150
XKP3077
VH-
VH+
XKP3076
10k
2SD2704K
1k 4.7/50
33k
220p
220
CH
IMT4
IMT4
stby stby
6.8k
2SA1514K(RS)
stby
STBY
2.0k F
4p/200V
ACG7057
2SA1145(OY)
10/100
UDZS4R7(B) UDZS4R7(B)
47k
RN D
1.2k
100/10
UDZS3R6(B)
150
22p 22p
10/63
330/10 150 1k
stby
1.5k
820
STBY
10k
2SD2704K
220p
33k
CH
1000p
IMT4
IMT4
1k 4.7/50 220
stby stby
6.8k
(1/10W)
33k
220
10/63
0.22µ
2SC2705(OY)
4p/200V
ACG7057
150 UDZS4R7(B)
2SA1145(OY)
10/100
47k
UDZS4R7(B)
2.0k F
stby
2SA1514K(RS)
STBY
330/10 150 1k
10k
STBY
220p
33k
stby
820
1.5k
1000p
100/10
UDZS3R6(B)
RN D
1.2k 150
10/63
22p 22p
(1/10W)
33k
220
2SC2705(OY)
0.22µ
10/63
150
2SD2704K
4.7/501k
CH
220
IMT4
IMT4
stby stby
6.8k
2SA1514K(RS)
2.0k F
stby
4p/200V
ACG7057
2SA1145(OY)
10/100
UDZS4R7(B) UDZS4R7(B)
47k
100/10
UDZS3R6(B)
RN D
1.2k 150
10/63
CN5003
C5227
C5203
C5217 R5231 R5230
C5222
R5205
R5206 C5204
C5215 C5216
R5229
R5212
C5232
Q5205
R5232
C5224
C5062
KN5061
KN5063
R5062
C5063
R5063
C5061
R5061
CN5001
CN5002
W5096
W5097
TH5001
R5204
Q5201
R5201
R5203
C5202
C5201 R5202
Q5202
Q5202
C5221
C5205
R5208
C5206
Q5203
C5207
R5207
D5204
C5208
C5209
D5206
R5209
D5205 D5203
D5202
Q5204
R5211
D5201
R5210
C5223
C5127
C5117 R5131 R5130
C5122
R5105
R5106
C5103
R5104
Q5101
C5102
R5103
C5104
Q5102
R5101 C5101 R5102
Q5102
C5105
R5108
C5106
C5115 C5116
R5129
R5112
C5132
C5124
Q5105
R5132 D5104
C5108
C5109
D5106
R5109
D5105 D5103
C5121
C5107
R5107
Q5103
C5027
C5017 R5031 R5030
C5003
C5002
R5003
C5022
R5005
R5006 C5004
D5102
Q5104
D5101
R5111 R5110
C5123
C5015 C5016
R5029
R5012
C5032
Q5005
R5032 D5004
C5024
R5004
Q5001
R5001 C5001 R5002
Q5002
Q5002
C5005
R5008
C5006
C5021
Q5003
R5007
C5007
C5008
C5009
D5006 D5005
R5009 D5002
Q5004
D5003
R5011
D5001
R5010
C5023
7
3
4
5
6
1
2
1
4
5
3
2
6
9
7
8
10
11
12
13
7
8
6
11
9
10
1
2
3
4
5
CE
CE
CE
CB
bb
GAMP
b
DDD
CHASSIS STBY
VH+
VH-
AMUTE
VH-
SBMUTE
OL DET
DC
AGSBL
SBL
AGL
L
AGLS
LS
NC
NC
WT
OL DET
NC
DC DET
POSI_2
NC
NC
GNDU
POSI_1
SBL
(1/2W)
D5202-D5204 : 1SS355
D
SL
DD
(1/2W)
D
D5102-D5104 : 1SS355
DD
POSI_1
L
PTFM04BH
222Q2N34B0
(60 )
(1/2W)
D5002-D5004 : 1SS355
W5098
W5099
TH5002
POSI_2
PTFM04BD
222Q2N34B0
(100 )
Q
(SB)
(C)(C)
(S)
(F)
(C)
CP
CP
CP
CP
CP
CP
CPCP
CPCP
CPCP
CN5701
P
CN5601
O
CN5605
O
CAUTION
Do not touch any points on the PCB other than CP with
an oscilloscope/tester while power is applied.
(It may damage the amplifier due to the oscillation generated.)
VSX-AX4AVi-S 75
5678
5678
C
D
F
A
B
E
(GRAY)
(BLUE)
(BLACK)
(RED)
(PURPLE)
(GREEN)
DC WTOL
DC_DET
DC
62 F
100p/200
100
STBY
ACG7056
(1/4W)4.7
MUF
100
0.047
100p/200
ACG7056
SAP17P
ACN7132
0.047
SAP17N
ACN7132
4.7k 1SS355
10k
100
STBY
62 F
SAP17N
(1/4W)
4.7MUF
100p/200
ACG7056
0.18+0.18
470
4.7k
22k
10k
150k
1.2k
1SS355
ACN7121
47k
470
1SS355
NP
2SA1255(OY)
2.2/50
1SS355
ACN7132
0.047
(1/4W)4.7
MUF 100p/200
ACG7056
100
STBY
62 F
ACN7132
0.047
SAP17P
4.7k 1SS355
470
10k
10k
1.2k
1SS355
150k
ACN7121
0.18+0.18
22k
4.7k
47k
1SS355
NP
470
2.2/50
1SS355
100
(1/4W)
4.7 MUF
SAP17N
100p/200
ACG7056
(1/4W)4.7
MUF
100
100p/200 0.047
ACG7056
ACN7132
0.047
2SA1255(OY)
ACN7132
SAP17P
1SS355 4.7k
10k
10k
ADX7458
VH-
10/100
10/100 GAMP
ADX7404
ADX7404
ADX7404
VNF1084
VH+
ADX7458
STBY
100
62 F
SAP17N
(1/4W)
4.7
MUF
100p/200
ACG7056
0.18+0.18
ACN7121
470
22k
4.7k
47k
NP
1SS355
150k
1.2k
1SS355
2.2/50
470
2SA1255(OY)
1SS355
ACN7132
0.047
ADX7459
R5613
R5615
R5621
C5611
R5224
R5222
C5212
IC5601
R5292
R5226
D5242
R5246
R5249
R5271
C5271
Q5271
IC5202
R5215
R5213
IC5201
R5221
R5223
C5211
R5242
R5244
R5245
R5247
R5250
R5248 D5244
R5227
R5241
D5241
C5241
R5243 D5243
Q5241
R5225
R5124
R5122
C5112
R5115
R5113
IC5102
R5126
R5146 D5142
R5144
R5145
R5149
R5150
R5148
R5127
R5142
R5147
R5141
D5141
C5141
D5144
R5121
IC5101
C5111
R5123
R5024
R5022
C5012
R5125
R5143
Q5141
D5143
R5026
IC5002
D5042 R5046
R5049
Q5272
Y3(2/2)
Y5(3/3)
C5052
Y5(2/3)
C5051
C5053
Y5(1/3)
R5051
KN5051
Y3(1/2)
R5015
R5021
R5013
IC5001
R5023
C5011
R5042
R5044
R5045
R5047
R5041
D5041
R5050
R5048 D5044
R5027
R5043
C5041
D5043
Q5041
R5025
Y1(1/2)
(0.5W)
C
(0.5W)
STBY
(5W+5W)
(0.5W)
(0.5W)
(5W+5W)
(0.5W)
(0.5W)
GAMPL
VL-
(CHASSIS)
VL+
STBY
ADB7021-
J5001-5005
(5W+5W)
(0.5W)
POWER AMP L ASSY
(AWX8655)
Q
Q
: AUDIO SIGNAL ROUTE(S)
: AUDIO SIGNAL ROUTE(C)
(S)
(C)
: AUDIO SIGNAL ROUTE(F)
(F) : AUDIO SIGNAL ROUTE(SB)
(SB)
(SB)(SB)
(S)
(F)(F)
(F)
(F)
(S)
(S)
(SB)
(SB)
CP
CP
CPCPCP
CPCP
CP
CP
CPCPCP
CPCP
CP
CP
CP
CP CP
CP
CP
CN4003
X
CN4005
X
CN4005
X
CN4102
X
3
4
5
2
1
1
2
3
5
4
3
4
5
2
1
1
2
3
5
4
3
4
5
2
1
3
4
5
2
1
1
2
3
5
4
12345
Surface
side
Pin number of
SAP17N/SAP17P
VSX-AX4AVi-S
76
1234
1234
C
D
F
A
B
E
3.26 POWER AMP R ASSY
DC
OL
WT
DC_DET
PRT
CE
CE
CB
CE
bb
b
AGC
D
C
DD
CHASSIS
STBY
AMUTE
VH+
VH-
VH-
SBMUTE
DC
WT
AGSBR
SBR
AGR
R
AGRS
RS
NC
WT
DC DET
OL DET
NC
GNDU
POSI_2
POSI_2
NC
NC
POSI_1
SBR
(1/2W)
D5502-D5504 : 1SS355
D
RS
DD
(1/2W)
D
D5402-D5404 : 1SS355
DD
POSI_1 R
PTFM04BH
222Q2N34B0
(60 )
(1/2W)
D5302-D5304 : 1SS355
CN5303
C5527
C5503
C5517 R5531 R5530
C5522
R5506
R5505
C5504
R5622
C5515 C5516
R5529
R5512
C5532
Q5505
R5532
C5524
C5365
KN5362
R5364
C5362
KN5361
R5362
C5363
R5363
R5361
C5361
CN5301
CN5302
W5398
W5399
R5504
Q5501
R5501
R5503
C5502
C5501 R5502
Q5502
Q5502
C5521
C5505
R5508
C5506
Q5503
R5507
C5507
D5504
C5508
D5506
C5509
R5509
D5505 D5503
D5502
Q5504
R5511
D5501
R5510
C5523
C5427
C5417 R5431 R5430
C5422
R5405
R5406
C5403
R5404
Q5401
R5403
C5402
C5404
Q5402
R5401 C5401 R5402
Q5402
C5405
R5408
C5406
C5415 C5416
R5429
R5412
C5432
C5424
Q5405
R5432 D5404
C5408
C5409
D5406
R5409
D5405 D5403
C5421
C5407
Q5403
R5407
C5327
C5317 R5331R5330
C5303
C5302
R5303
C5322
R5305
R5306 C5304
D5402
Q5404
R5411
D5401
R5410
C5423
C5315 C5316
R5329
R5312
C5332
Q5305
R5332 D5304
C5324
TH5301
R5304
Q5301
R5301 R5302C5301
Q5302
Q5302
C5305
R5308
C5306
C5321
Q5303
R5307
C5307
C5308
C5309
D5306 D5305
R5309 D5302
Q5304
D5303
R5311
D5301
R5310
C5323
3
1
4
2
7
5
6
12
13
11
9
10
3
2
4
5
6
7
8
1
1
2
4
3
5
6
8
11
9
10
7
KM250NA7L
330/10 1k150
STBY
STBY
stby
1.5k
820 1000p
100
22p
22p
(1/10W)
33k
220
2SC2705(OY)
0.22µ
10/63
150
XKP3077
VH-
VH+
XKP3076
10k
2SD2704K
4.7/501k
33k
220p
220
CH
IMT4
IMT4
stby stby
6.8k
2SA1514K(RS)
stby
2.0k F
STBY
4p/200V
ACG7057
2SA1145(OY)
UDZS4R7(B)
47k
10/100
UDZS4R7(B)
100/10
UDZS3R6(B)
RN,D
1.2k 150
22p 22p
10/63
330/10
150 1k
stby
1.5k
820
STBY
10k
2SD2704K
33k
220p CH
1000p
IMT4
IMT4
4.7/501k 220
stby stby
6.8k
(1/10W)
33k
220
0.22µ
10/63
2SC2705(OY)
4p/200V
ACG7057
150 UDZS4R7(B)
2SA1145(OY)
47k
10/100
UDZS4R7(B)
stby
2.0k F
2SA1514K(RS)
STBY
330/10 150 1k
10k
STBY
33k
220p
stby
820
1.5k
1000p
100/10
UDZS3R6(B)
RN,D
1.2k 150
10/63
22p 22p
(1/10W)
33k
220
2SC2705(OY)
0.22µ
10/63
150
2SD2704K
1k 4.7/50
CH
220
IMT4
IMT4
stby stby
6.8k
2SA1514K(RS)
stby
2.0k F
4p/200V
ACG7057
2SA1145(OY)
10/100
UDZS4R7(B)UDZS4R7(B)
47k
100/10
UDZS3R6(B)
RN,D
1.2k 150
10/63
R: AUDIO SIGNAL ROUTE(C)
(C)
(C)
(C)
(C)
(C)
CN5702
P
CN5602
O
CN5606
O
CP CP
CP CP
CP CP
CP
CP
CP
CP
CP
CP
CAUTION
Do not touch any points on the PCB other than CP with
an oscilloscope/tester while power is applied.
(It may damage the amplifier due to the oscillation generated.)
VSX-AX4AVi-S 77
5678
5678
C
D
F
A
B
E
(BROWN)
(BLUE)
(BLACK)
(RED)
(WHITE)
(ORANGE)
DC OL WT DC_DET
(0.5W)
(0.5W)
(5W+5W)
(0.5W)
(0.5W)
(5W+5W)
(0.5W)
(0.5W)
GAMPL
VL-
(CHASSIS)
VL+
STBY
ADB7021-
J5301-5305
(5W+5W)
(0.5W)
R5592
C5612
IC5602
R5524
R5522
C5512 R5526
R5546
R5549
R5571
C5571
Q5571
Q5572
R5515
R5513
IC5501
R5521
C5511
R5523
IC5502
D5542
R5542
R5544
R5545
R5547
R5548
R5550
D5544
R5527
R5541
C5541
D5541
R5543 D5543
Q5541
R5525
R5424
R5422
C5412
R5415
R5413
IC5402
R5426
R5446
D5442
R5444
R5445
R5449
R5450
R5448
R5427
R5442
R5447
R5441
C5441
D5441
D5444
R5421
C5411
IC5401
R5423
R5324
R5322
C5312
R5425
R5443 D5443
Q5441
IC5302
R5326
R5346
D5342
R5349
Y4(2/2)
Y6(3/3)
C5352
Y6(2/3)
C5351
C5353
Y6(1/3)
R5351
KN5351
Y4(1/2)
R5315
R5313
R5321
IC5301
R5323
C5311
R5342
R5344
R5345
R5347
R5341
D5341
R5350
R5348 D5344
R5327
C5341
R5343 D5343
Q5341
R5325
Y2
100p/200
ACG7056
0.047
SAP17P
ACN7132
(1/4W)4.7
MUF
100
100p/200
ACG7056
ACN7132
0.047
SAP17P
4.7k
10k
330/10
4.7k
2SC4081(QR)
2SC4081(QR)
SYBY
100
62 F
SAP17N
(1/4W)
4.7
MUF
ACG7056
100p/200
470
1SS355
4.7k
22k
150k
10k
1.2k
1SS355
ACN7121
0.18+0.18
47k
NP
1SS355
470
2SA1255(OY)
2.2/50
1SS355
ACN7132
0.047
MUF
(1/4W)
4.7
100p/200
ACG7056
100
STBY
62 F
ACN7132
0.047
SAP17P
4.7k
1SS355
470
10k
10k
1.2k
1SS355
150k
0.18+0.18
ACN7121
22k
4.7k
47k
NP
1SS355
470
2.2/50
1SS355
100
(1/4W)
4.7
SAP17N
ACG7056
100p/200
MUF
(1/4W)
4.7
MUF
100
100p/200
ACG7056
ACN7132
0.047
2SA1255(OY)
SAP17P
ACN7132
0.047
4.7k
1SS355
10k
10k
ADX7460
VH-
10/100
10/100 GAMP
ADX7498
ADX7498
ADX7498
VH+
ADX7460
STBY
62 F
100
SAP17N
MUF
(1/4W)
4.7
100p/200
ACG7056
ACN7121
0.18+0.18
470
22k
4.7k
47k
1SS355
NP
150k
1.2k
1SS355
2.2/50
2SA1255(OY)
470
1SS355
ACN7132
0.047
ADX7457
POWER AMP R ASSY
(AWX8657)
R
R
CP
CP
CP
CP CP
CP
CP
CP
CP
CP
CP CP
CP
CP
CP
CP
CP
CP CP
CP
CP
CN4101
X
CN4006
X
CN4006
X
CN4004
X
12345
Surface
side
Pin number of
SAP17N/SAP17P
3
4
5
2
1
1
2
3
5
4
3
4
5
2
1
1
2
3
5
4
3
4
5
2
1
1
2
3
5
4
1
2
3
5
4
VSX-AX4AVi-S
78
1234
1234
C
D
F
A
B
E
3.27 LOCAL SUPPLY and DC/DC ASSYS
GNDA
GNDU
23
1
12
10
8
11
9
4
7
5
6
3
2
1
13
2
13
2
23
1
13
2
13
2
R6110
D6128
C6136
C6113
C6114
C6116
IC6106
D6129
C6137
D6118
C6106
C6107 R6107
CN6101
D6127
D6123
C6132
C6108
C6109
C6115
C6135
D6126
D6117
D6122
C6112
D6115
IC6104
D6116
C6134
IC6103
R6109
C6131
D6101
IC6105
C6111
C6133
D6125
D6124
C6127
C6110
C6130
D6121 D6111
C6129
IC6102
C6105
D6114D6113
D6112
IC6109
IC6101
C6123
IC6107
D6102
C6117
D6104 D6103
C6101
R6101
C6122
R6103
R6102
C6125
C6124
D6109
C6102
D6107
D6108
D6105
D6106
C6103
C6104
OUTIN
OUTIN
OUTIN
+-
~
~
OUTIN
OUTIN
OUTIN
STBY
1SR154-400
1SR154-400
2200/25
STBY
STBY
NJM79M12FA
V-12A
220/25
RB501V-40
0.01
STBY
STBY
1SR154-400
1SR154-400
0.1/50
MBA (1/4W)
MUF4.7
B12B-PH-K-S
STBY
2200/25
STBY
STBY
RB501V-40
0.01
220/25
STBY
V+12A
NJM78M12FA
10/50
RB501V-40
0.01
NJM78M12FA
V+12T
STBY
STBY
V+12TRG
D3SBA20(B)
2200/16
NJM79M05FA
0.01
1SS355
100/16
6800/16
0.01
100/16
NJM78M56FA
220/16
STBY
V-5_6V
RB501V-40 RB501V-40
STBY
V+5_6V
BR501V-40
V+5_6U
STBY
0.01
NJM78M05FA
V+IPOD
220/35
STBY
V+5AD
1SR154-400
100/35
-400
1SR154
NP
-400
1SR154
0.1/50
MBA
47k
100/35
MUF390
100/16
STBY
47/50
UDZS6.2B
STBY
0.01
STBY
the importance of the safety factor of the part.
The mark found on some component parts indicates
of identical designation.
Therefore,when replacing,be sure to use parts
-18V -12V
AREG
DREG
AREG_G
AC2
DREG
DREG
AREG
VREG
VREG_G
VREG
DREG
AC1
FOR CONTINUED PROTECTION AGAINST RISK OF FIRE,
REPLACE ONLY WITH SAME TYPE NO. 49101.6 MFD.
BY LITTELFUSE INC. FOR IC6108.
CAUTION
+18V +12V
-12V -5.6V
+12V +5.6V
VIDEO 5.6V
W6154 AD+5V +5V
W6153
(1/4W) -30V
D6107,D6108:
UDZS6.2B
D6105,D6106,
IC6108
C6118
D6120
C6126
C6128
D6119 Q6101
R6105
C6120
D6110
R6106
C6139
Q6103
AEK7012
1.6A
1000/16
1SR154
NP
1000/35
GNDU
10/50
1SR154-400 UMD2N 4.7k
47/25
NP
UDZS27B
2.2k
DTC124EUA
10/50
2SD1763A(DE)
STBY
W6152
-400
+25V (1/2)
FAN
R6108
C6138
Q6102
Q6101
UMD2N
1000P
100
(2/2)
S
J3001
Y
VSX-AX4AVi-S 79
5678
5678
C
D
F
A
B
E
4
3
4
33
1
2
1
2
2
3
1
45
8
11
10
9
5
6
7
4
3
1
2
6
7
8
5
3
4
2
1
3
2
1
4
21
1
2
5
6
2
3
4
5
1
C4278
R4271
C4279
C4272
C4277
KN4271
C4276
R4272 R4273
6102 CN4271
C4271
D4271
C4274
D4272
IC4271
CN6106
R6104
CN6105
C4273
C4275
R4274
L4271
CN4272
J6104
CN6103
+-
~
~
51048-0400 52151-0410
D3SBA20(B)
4.7
1000/16
CEHAZL
10000/16
RB051L-40
STBY CHASSIS
STBY
VNF1084
1.0k
S3B-EH
CEHAZL
1000/6.3
MUF
MBA
0.1/50
STBY
STBY
PQ1CG3032FZ
B11B-PH-K-S
V+5_6U
V+IPOD
V+5_6V
B8B-PH-K-S
V+12A V+12T
V+5AD
STBY
V+12TRG
PF05PG-Q20
3.0k
47µ
100
STBY
ATH7020-
V+12A
52147-0610
V+5_6U
DREG
DREG
VEF1040-A
4273
V+12UN
+13V +5V
DREG
DREG INV
GND
OUTIN
STBY
GNDU
V+iPod
FAN STOP
FAN DRIVE
V+5_6U
V-5_6V
GNDU
V+5_6V
GNDV
GNDV
GNDV
GNDA
GNDA
GNDA
V+5AD
V+12T
V-12A
V+12A
V+12TRG
V-FAN
LOCK DET
V-12A
V+12A
GNDD
V+5D
V+FAN
V+5_6U Ratings: Capacity(µF)/Voltage(V) unless otherwise noted.
Rated Voltage: 50V expect for electrolytic capacitors.
AC2
GNDU
-VF
GNDU Unit: p-pF or µF unless otherwise noted.
Unit: k-kΩ , M-MΩ or Ω unless otherwise noted.
Rated power: 1/16W unless otherwise noted.
NOTE
Tolerance: (J) 5% unless otherwise noted.
1.RESISTORS
2.CAPACITORS
AC1
-
+
LOCAL SUPPLY ASSY
(AWX8672)
S
DC/DC ASSY
(AWX8650)
T
TS
CN5704
P
J4309
N
J4308
N3202
AC
Y18
N
VSX-AX4AVi-S
80
1234
1234
C
D
F
A
B
E
3.28 TRANS2-1, VH-TR, DIODE and SP/PS ASSYS
4
31
2
213 654
321654
4
2
5
3
1
1
4
3
2
3
41
2
+- ~
~+- ~
~
Q4262
C4262
D4262
R4262
R4263
C4263
Q4263
C4264
R4264
Q4264
R4261
C4261
IC4261
Q4261 D4261
C4202
IC4202
C4206
C4201
C4204
R4203
R4201
C4203
D4201
C4205
IC4201
R4205
IC4262
4261 4201
R4208R4206
C4209C4210
D4204 D4206 D4208
Q4203Q4203
D4210 D4212
D4216
D4214
C4208
D4213
D4215
Q4202Q4202
C4207
D4211 D4209
Q4201
D4207 D4205
Q4201
D4203
R4207
CN4202
D4251 D4252
2SB1186A(DE) 1SR154-400
STBY
10
470
STBY
2SC3906K(RS)
ICP-N15
STBY
470
2SA1514K(RS)
10
STBY
2SD1763A(DE)
ICP-N15
1SR154-400
0.1/100
CFTLA
7AAEK7021
470/100
0.1/100
CFTLA
MUF
(1/4W)
47 1000p
(1/4W)
10
MUF
AEK7021
7A
1000p
S1WB(A)60SD
470/100
52147-0610 51048-0600
LMF
(1/2W)
3.3k
LMF
(1W)
4.7k
220/100220/100
8R2(B)7R5(B) 8R2(B)
UMD2NUMD2N
6R8(B) 15(B)
13(B)
100/63
13(B)
UMD2NUMD2N
13(B)15(B)15(B)
100/63
6R8(B)
RN1901
RN1901
9R1(B) 9R1(B) 8R2(B)
LMF LMF
(1W)
4.7k (1/2W)
3.3k
52151-0510
D5SBA20(B) D5SBA20(B)
Ratings: Capacity(µF)/Voltage(V) unless otherwise noted.
Rated Voltage: 50V expect for electrolytic capacitors.
MBA:CQMBA, LA:CFTLA
Unit: p-pF or µF unless otherwise noted.
2.CAPACITORS
of identical designation.
NOTE
LMF:RD1/2LMF, MUF:RD1/4MUF
Unit: k-kΩ , M-MΩ or Ω unless otherwise noted.
Rated power: 1/16W unless otherwise noted.
Tolerance: (J) 5% unless otherwise noted.
1.RESISTORS
-
+
The
the importance of the safety factor of the part.
Therefore, when replacing, be sure to use parts
mark found on some component parts indicates
BY LITTELFUSE INC. FOR IC4201-4202.
BY ROHM CO.,LTD FOR IC4261-4262.
REPLACE ONLY WITH SAME TYPE NO. ICP-N15 MFD.
FOR CONTINUED PROTECTION AGAINST RISK OF FIRE,
CAUTION
REPLACE ONLY WITH SAME TYPE NO. 491007 MFD.
FOR CONTINUED PROTECTION AGAINST RISK OF FIRE,
CAUTION
-67V
VHa 27
VLa 26
25
VLa 24
VHa 23
SECONDARY
TRANS
+67V
-VH
J4201 D20PDY0610E
-B
-C
+VH
+C
+B
-VH
-C
-B
-58V
+B
+C
+VH
+58V
D4203-D4204
D4213-D4214:UDZS***
VH-
NECK6
V-12A
NECK8
VH+
GAMP Y8:ADX7451(BLK)
VL
VL
Y10:ADX7489(GRY)
Y9
Y10
VL
VL
Y9:ADX7488(BWN)
-VL
+VL
Y12:ADX7453(BLU)
Y11:ADX7452(RED)
DIODE ASSY
(AWX8648)
W
VH-TR ASSY
(AWX8649)
V
TRANS2-1 ASSY
(AWX8647)
U
U V W
5604
O
VH REGULATOR
VSX-AX4AVi-S 81
5678
5678
C
D
F
A
B
E
2
1
4
3
EB
C
E
B
E
5
6
7
8
9
10
13
11
12
8
7
9
E
B
C
B
EB
C
C
5
4
6
3
1
1
2
2
1
5
3
4
2
1
2
1
2
2
1
C
312 4132
+
-
+
-
+
-
+
-
+
-
L4002
W4002
Q4001
J4009
C4001
D4006
Q4003
D4004
Q4002
Q4004
D4008
L4001
RY4003
D4005
D4003
RY4002
RY4004
D4007
W4001
R4072
CN4008
CN4006
R4062
C4061
CN4007
R4051
R4052
L4051
R4042
L4041
CN4005
CN4003
CN4004
C4102
R4041
R4032
R4021
R4022
L4021
R4102
R4012
C4011
C4021
C4012
L4011
Q4005
D4010
D4002
RY4005
D4009
D4001
RY4001
C4002
R4071
C4073
C4096
C4095
L4071
C4071
C4062
C4072
RY4004
C4063
CN4002(2/2)
L4061
R4061
C4053
C4094
C4093
C4041
C4051
C4042
C4052
C4043
RY4003 CN4002(1/2)
C4031 C4032
L4031
C4033
CN4001(2/2)
R4031
C4023
RY4002
C4092
C4091
C4022
R4023
R4013
C4013
RY4001 CN4001(1/2)
C4101
CN4102
R4101
R4011
CN4101
RY4005
R4014 R4024
STBY
DTC114TUA
PF13PG-R12
DTC114TUA DTC114TUA
100/50
1SS355
1SS355
DTC114TUA
DTC114TUA
1SS355
STBY
1SS355
1SS355
1SS355
10(1W)
KM200TA9
AKC7010
10(1W)
0.1
KM200TA5
4.7(1/2W)
10(1W)
1.5u
ATH1053
10(1W)
1.5u
0.1
ATH1053
4.7(1/2W)
AKC7009
AKC7008
AKC7005
10(1W)
4.7(1/2W)
10(1W)
ATH1053
1.5u
0.1
CFTLA 0.1
CFTLA
47k(1/4W)
0.1
10(1W)
CFTLA
0.1
CFTLA
ATH1053 1.5u
4.7(1/2W)
1SS355
1SS355 1SS355
1SS355
STBY
CHASSIS
4.7(1/2W)
1.5u
ATH1053
0.1 CFTLA 0.1 CFTLA
CFTLA
0.1
CFTLA
ATH1053 1.5u
4.7(1/2W)
0.1 CFTLA 0.1
CFTLA
CHASSIS
CFTLA
0.1
CFTLA
CHASSIS
CFTLA CFTLA
0.1 0.1
ATH10531.5u
CHASSIS
4.7(1/2W)
330(2W)
330(2W)
47k(1/4W)
AKC7003
AKC7002
PSSP ASSY * Mark parts
V-12V
HPG
HPL
HPR
10k
10k
RY A
RY HP
RY CS
V+12V
V+5.6ST
RY AC
W UP
GNDST
RY B
GNDST
NC
NC
10k
10k
10k
W.UP
GNDST
V+5.6ST
RY AC
NC
NC
SBL
SBR
RS
(BLU)
LS
NC
NC
NC
NC
NC
(YLW)
C
L
(WHT)
NC
R
(RED)
Y8
*
GAMP
-63V
LMF
MUF
LMF
LMF
XSR3002
STBY
STBY
SBR
SBL
LMF
LMF
XSR3002
STBY
STBY
RS
LMF XSR3002
LS
C
LMF
XSR3002
STBY
STBY
R
L
Y12
Y11
-VL
+VL
*
+63V
-VL
+VL
GAMP
MUF
GAMP
Y13:ADX7461-(BLK)
GAMP
+VL
GAMP
-VL
XSR3002
*
*
***
****
XKE3018
XKE3018
XKE3017
XKE3017
C4101,C4102
R4014,R4024
C4013,C4023
C4073
C4053,C4063
C4033,C4043
ACH7218
(15000/71)
STBY STBY
CN4002
103J50
CQMBA CQMBA
103J50
ACH7255
(10000/71)
XKE3017 XKE3017
CN4001 XKE3018
AWX8643 AWX8645
XKE3018
SP/PS ASSY
(VSX-AX4AVi:AWX8643)
(VSX-AX2V:AWX8645)
X
X
: AUDIO SIGNAL ROUTE (S)
: AUDIO SIGNAL ROUTE (C)
(S)
(C)
: AUDIO SIGNAL ROUTE (F)
(F)
(C)
(C) (C) (C)
(F)
(F) (F)
(F)
(F)
(F)
(S)
(S) (S) (S)
(SB)
(SB) (SB)(SB)
: AUDIO SIGNAL ROUTE (SB)
(SB)
Y5
Q
Y2
R
Y1
O
Y1
Q
Y3
Q
Y4
R
Y6
R
CN4402
GCN3062
AA
CN3063
AA
VSX-AX4AVi-S
82
1234
1234
C
D
F
A
B
E
3.29 TRANS2-2, TRANS1 and PRIMARY ASSYS
7
9
8
12
11
9
10
8
6
7
5
3
4
4
6
3
5
1
2
2
5
3
4
2
1
1
H3151 H3152
H3153 H3154
H3157
H3155
H3159
H3156
H3158
CN3062
C3001
J3001
H3160
CN3063
AKR7001 PF12PG-R42
AKR7001
AKR7001
AKR7001
AKR7001
AKR7001
AKR7001
REK1026 (T2.5AL/250V)
REK1026 (T2.5AL/250V)
REK1028 (T4AL/250V)
REK1021 (T800mAL/250V)
REK1021 (T800mAL/250V)
AKR7001
AKR7001
AKR7001
KP200TA9L
STBY
KP200TA5L
AREG
16
15
DREG
14
27
VREG
26
25
24
REPLACE WITH SAME TYPE AND RATINGS OF FUSE.
FOR CONTINUED PROTECTION AGAINST RISK OF FIRE,
MAIN TRANS PRIMARY
1
3
TRANS1 ASSY
4
GNDST
NC
NC
CAUTION
AREG
FU6 AREGG
FU5
AREG
DREG
DREG
FU4 DREG
DREG
FU7
VREG
VREGG
VREG
GNDST
V+5.6ST
AC RY
W.UP
NC
NC
NC
NC
NC
NC
FL
23
29
28
AC1
AC2
FU8
NC
TRANS2-2 ASSY
(AWX8626)
Y
TRANS1 ASSY
Z
ZY
AA
CN4007
X
CN4008
X
CN6101
S
VSX-AX4AVi-S 83
5678
5678
C
D
F
A
B
E
C
E
B
OUT
COM
IN
KN3061
W3080
W3081
C3062
W3079
C3061
L3063
RY3061
D3065 D3064
W3076
W3078
W3077
W3064
L3062
L3061
W3065
W3067
R3063
C3067
C3066
Q3061
R3064
D3063
D3066
C3069
C3071
IC3061
C3068
D3061
C3065 C3064
C3063
W3074
W3072
W3070
W3073
R3062 D3062
IC3062
W3068
C3070
H3062
H3061
T3061 W3066
CHASSIS
VNF1084
ADX7491
ADX7490
RT1N431M
0.01/250
ACG7039
XTF3004
0.01/275
ACE7013
1SS355 1SS355
(1/4 MUF)
STBY
STBY
1000p
S1WB(A)60SD
1000p
10k
STBY
UDZS5R.1(B)
220/25
103 YB
NJM78M56FA
3300/25
1000p
0.01
STBY
CQMBA
STBY
1000p
3.3k 1SS355
STBY
STBY
AKR7001
AKR7001
REK1029
(T5AL/250V)
STBY
of identical designation.
The
the importance of the safety factor of the part.
Therefore,when replacing,be sure to use parts
mark found on some component parts indicates
(XTF3004)
Y14
Y15
L3063
XSR3003
(TV-5 0.25W)
100
STBY
+5.6V
50/60Hz
+5V
0V
ATT7040
FU1
STBY
AKP1034
CN3065
WHT
YEL 3066
ADX7464
LIVE
NEUTRAL
PRIMARY ASSY
(AWX8629)
AA
AA
VSX-AX4AVi-S
84
1234
1234
C
D
F
A
B
E
3.30 VOLUME, DISPLAY and INPUT SELECT ASSYS
GND
Vout
Vcc
1
2
3
3
1
2
5
4
9
7
8
6
13
11
16
12
15
10
14
B2
17
18
22
19
20
21
E2
C2
E
23 E
C
B
B2
E2
C2
B
E
C
6
12
3
B2
C2
E2
B
C
2
1
4
5
6
3
7
8
16
15
14
13
12
11
9
10
E
C
E
B
C
B
E
B
6
C
EE
C
B
C
B
E
C
B
E
5
4
3
2
C
1
B
4
5
3
2
E
B
E
B
E
1CCC
B
E
B
C
3.6
*
MR&S
ON/OFF
RMC
SROUT
SRIN
232C DET
MIC DET
GNDU
GNDU
V+5.6ST
GNDU
STBY
*
DISP RDY
DISP EN
MR IN1
MR IN2
1W WP
Xi-pod
HPDET
DISP DO
DISP RST
DISP CLK
DISP DI
TEMP2
RYAC
(2/2)
(1/2)
12V DET
(1/2)
(2/2)
(1/2)
STANDBY
STBY
3.6 *
3.0 STBY
*
D15A06-
KEY IN VOLTAGE [V]
3.0 MR&S
*
2.4
*
CONT SPEAKERS
ACEQ
*
TONE
MODE *
1.8
*
EXTENDED
1.2
*
*
SETUP
v
*
RETURN
*0.6
*
0.0
*
*
BAND
*
VSG1024-
*S3201~S3227:
*
<
ENTER
>
*
*
v
*
(2/2)
*1
i-LINK(BLUE)
SLR-343BBT(HJKL)
390
R3305
D3315
VSX-AX4AVi
DVC(RED)
SLI-343URW(RST)
330
VSX-AX2AV
(RED)HDMI
J9
150-2651
VENC A
PROCESSING
DIGITAL (BLUE)
MCACC
(ORANGE)
ISOPHASE (RED)
(STBY2)
2.4
KEY IN VOLTAGE [V]
STBY
STBY
*
1.8
*
VSG1024-
*S3572~S3578:
1.2 THX
0.6
*
ADV.SUR
ST.SUR
*STANDBY
0.0
*
(BLUE)
ENCODER
KEY 4
LED7
GNDU
VENC B
V+5UH
(DOOR)
(DOOR)
(DOOR)
(STBY1)
V+56U
IO
KEY27
KEY15
MCDET
23DET
WP
XIPOD
HPDET
DRDY
DISPEN
DDO
DDI
DCLK
RYAC
TEMP2
12VDET
DRST
KEY3
KEY2
KEY1
LED1
LED2
VENCA
LED6
LED5
LED3
LED8
KEY4
LED7
VENCB
LED7
LED4
C3356
C3360
D3355 L3351
R3227
S3227
R3217
C3355
C3359
R3372 R3370
D3359
C3354
R3368
R3361
R3367
R3359
R3365
R3364 D3357
R3356
R3355
R3350
R3358
R3357
Q3356
Q3356
CN3201 Q3355
R3353
D3356
R3352
D3352
Q3354
Q3351
C3351
Q3354
R3351
S3578
R3579
S3577
R3578
C3573
S3571
IC3202
R3226 R3225
S3226
R3216
S3216
S3225
R3215
S3215
R3205
R3371
Q3352
R3369
Q3353
D3354
R3224 R3223
S3224
R3214
S3214
R3204
S3223
R3213
S3213
R3203
R3366 D3358
D3353 R3375
R3222
S3222
R3212
S3212
R3202
S3221 S3211
S3204
S3203
R3328
S3202
S3201
Q3355 R3374
R3373
R3362
R3363
R3221
C3221 C3211
R3211
R3360
R3354
IC3203
R3325
R3201
C3201
R3327
X3201
C3352
C3353
D3351
Q3310
R3376
D3320
D3310
Q3305
C3310
D3315
C3305
D3305
R3310
R3305
Q3304
D3314
D3304
C3304
R3304
Q3307
D3317
Q3308
D3318
R3307
R3308
R3313 C3311
R3314
Q3309
D3319
D3309
R3309
C3309
S3576
R3577
S3575
R3576
C3572
Q3571
R3575
S3574
S3573
R3574
C3571
D3571
3571
S3572
D3572
R3571
3204
D3301
D3311
Q3301
C3301
R3301
D3312
D3302
Q3302
C3302
D3313
R3302
R3303
Q3306
C3303
Q3303
D3303
D3316
C3306
D3306
R3306
DAN202U
0.01
2.2u
LFEA2R2J
100/6.3
V+5UH
220/6.3
RPM7140-H9
5.1k
5.1k
0.01
100
V+5UH
0
1SS355
0.01
100k
0
100k
220
stby
stby
stby
0
0
0
0
0
stby stby
52044-2345
10k
UMH1N
1SS355
22k
DAN217
UMB1N
STBY
RT1N241M
47k
UMB1N
V+5UH
2.7k
0.01
ASX7005
5.1k
2.7k 1.6k
2.7k 1.6k
10k
DAN202U
RT1N241M
1k
2SA1576A
4.7k 1SS355
1.2k 820
1.2k 820
stby
stby
0
680
GNDU
680
1.6k 1.2k 820
4.7k
680
V+5UH
UMH1N
0
0
0
1000p
4.7k
1000p
4.7k
10k
CD4053BNS-TBB
3.9k
V+5UH
GNDU
RT1N431M RT1N431M
4.7k
1000p
100k
1M
VSS1142
5MHz
RT1N431M
0.015
stby
stby
0
SLI-343URW
STBY
STBY
*1
STBY
GNDU
330
*1
RT1N431M
SLR-343BBT
STBY
STBY
220
SLI-343DCW(STU)
RT1N431M
STBY
SLI-343URW(RST)
330
330
STBY STBY
0
RT1N431M
STBY STBY
STBY
STBY
1.6k 1.2k
0.01
STBY
820 680
STBY
STBY
51063-0605
STBY
STBY
51063-0605
STBY
STBY
STBY
STBY
STBY
STBY
STBY
STBY
STBY
STBY STBY
STBY
V+5UH
RT1N431M
STBY
STBY
STBY
STBY
STBY
STBY
STBY
EDIT
TUNER
PTY
EON
SEARCH
VOLUME ASSY(AWX8641)
AB
1/8
CN101
L
AB AC
VOLUME ASSY
S3572 : STANDARD SURROUND
S3573 : ADVANCED SURROUND
S3574 : HOME THX
REMOTE SIGNAL
CONTROL
VSX-AX4AVi-S 85
5678
5678
C
D
F
A
B
E
AAV7105-
2930 28 27 26 2425 23 22 2021 1819
31
32
33
35
34
37
36
38
42
41
40
39
45
43
44
46
47
48
50
49
5351 52 54 55 5756 5958 6160 6362
151617 1314 1112 910 8 7 654321
666564 67 68 69 70 7271 73 74 7675
95
96
97
93
98
99
100
94
87
86
84
83
89
88
91
92
90
85
77 78 79 80
82
81
7
6
8
5
8
7
5
6
4
3
2
1
4
3
2
1
B
EE
B
CC
6
5
4
3
2
1
6162 5758 545556 52 5153 4850 49 46 4547 44 4243 41 3940 38 3637 3235 3334 30 2931 28 27 26 25 24 23 2122 20 18 1719 1416 15 13 12 11 8910 675 21
4.TACT SWITCHES
Indicated in 1SS355.
3.DIODES
Indicated in VSG1024.
KEY4
TEST
LED1
LED2
LED3
AVSS
DISPDO*
DISPDI*
DISPCK
DISPRDY
LED6
LED4
LED5
KEY2
KEY3
232C DET
AVDD
AVREF
KEY1
SRIN
MRIN
DISP EN
VSS
12V DET
MICDET
TEMP2
iPOD SENSE
HP-DET
VDD
S1
S2
S3
S4
S5
S6
S7
S8
S9
S10
S11
S12
S13
S14
S17
S15
S16
LED7
VDD
XT2
XT1
X1
IC(onetime write)
X2
DISPRST
VENC A
VENC B
LED8
MJOG B
MJOG A
IR2SW
IRSW
VDD
1WUP
DISPLAY µ-COM
(NEC)
S18
S19
S20
S21
S23
S22
S25
S24
S27
S26
S29
S28
135k Max
70k Typ
25k Min
G9
G8
G7
G6
G5
G4
G3
G2
G1
S37
G16
G14
G15
G13
G12
G11
G10
S36
S32
S31
S30
S33
VFDP
S34
S35
Ratings: Capacity(µF)/Voltage(V)unless otherwise noted.
Unit: p-pF or µF unless otherwise noted.
Unit: k-kΩ , M-MΩ or Ω unless otherwise noted.
Rated power: 1/10W unless otherwise noted.
Tolerance: (J) 5% unless otherwise noted.
2.CAPACITORS
1.RESISTORS
Rated Voltage: 50V expect for electrolytic capacitors.
-
+
D15A08-
NOTE
150-2651
J10
KEY 2
MJOG B
GNDU
MJOG A
SIGSEL *S3562~S3565:
STANDBY/ON
KEY IN VOLTAGE [V]
4.2
KEY 1
RYAC
LED7
V+5UH
**
SRM DRT
*DIRECT
3.6
*
STEREO/ 3.0
POWER (BLUE)
V+5.6V
GNDU
VF
GNDU
AC2
AC1
AC1
( 3201 FL HOLDER VNF1096-)
AC2
12VDET
MCDET
TEMP2
XIPOD
HPDET
23DET
KEY2
KEY1
KEY3
DISPEN
KEY4
LED1
LED2
LED3
DDI
DCLK
DDO
LED4
DRDY
LED6
LED5
S1
S4
S3
S2
S5
S6
S7
S8
S9
S10
S11
S12
S13
S14
S16
S15
LED7
DRST
VENCB
VENCA
MJOGA
MJOGB
WP
LED8
S18
S17
S19
S20
S22
S23
S21
S25
S24
S26
S27
S28
S29
S30
S31
S32
S33
FL
G3
G2
G1
G6
G5
G4
G7
G8
G9
G10
G12
G11
G14
G13
G15
S37
S36
G16
S35
S34
MJOGB
MJOGA
KEY27
KEY15
RYAC
LED7
V+56U
S1
S2
S5
S3
S4
S8
S6
S7
S9
S11
S10
S14
S13
S12
S17
S16
S15
S18
S19
S20
S22
S21
S23
S24
S25
S26
S28
S29
S27
S31
S30
S32
S33
S34
S35
S36
S37
G16
G15
G13
G14
G11
G10
G12
G8
G9
G7
G4
G5
G6
G3
G1
G2
R3335
R3336
R3346
R3344
R3340
R3343 C3334
R3338
R3345
C3331
C3332
R3347
R3377
R3339
C3333
R3341
R3342 C3330
R3334
C3329
R3333
R3332
R3331
R3330
R3337
C3327
C3326
C3328
R3329
C3321
IC3201
R3321
R3324
R3322
R3323
R3247
R3249
R3248
R3250
R3251
R3252
R3253
C3234
C3323
C3335
C3322
R3256
R3254
R3255
R3257
R3259
R3258
R3261
R3260
R3263
R3262
R3264
R3265
R3266
R3267
R3269
R3268
R3270
R3272
R3271
R3273
R3275
R3274
R3276
R3278
R3277
R3279
R3280
R3281
S3561
C3564
C3563
R3564
S3565
R3563
S3564
S3563
S3562
3203 3561
D3562
Q3561
Q3562
D3564
C3561
D3561
R3561
C3562
D3563
R3562
R3378
L3301
C3250
C3247
C3249
C3245
R3283
R3282
C3248
C3244
C3246
C3241
C3243
C3239
C3235
C3237
C3242
C3238
C3240
C3236
3202
R3246
R3244
R3245
R3242
R3243
R3241
R3240
R3239
R3238
R3235
R3237
R3236
R3234
R3233
R3232
R3231
C3233
V3201
C3232
C3231
STBY
47k
220
220
stby
GNDU
00.01
100k
STBY
STBY
220
100k
470k
STBY
470k
STBY 1000p
100k
STBY
220
220
220
220
100k
100
V+5UH
STBY
0.1
0.1
0
0.01
PE5503A
47/50
47k
47k
V+5UH
47k
47k
STBY
100k
100k
100k
100k
100k
100k
100k
0.01
0.01
100k
100k
100k
100k
100k
100k
100k
100k
100k
100k
100k
100k
100k
100k
100k
100k
100k
100k
100k
100k
100k
100k
100k
100k
100k
100k
100k
100k
GNDU
ASX7047
0.01
0.01
VSG1024-
5.1k 2.7k
51063-0805
V+5UH
51063-0805 RT1N431M
STBY
SLR-343BBT
STBY
STBY
STBY
STBY
STBY
390
STBY
STBY
VTL1083
470p
470p
470p
470p
470p
470p
470p
470p
470p
470p
470p
470p
470p
470p
470p
470p
51048-0600
100k
100k
47k
47k
47k
47k
47k
47k
47k
47k
47k
47k
47k
47k
47k
47k
47k
47k
STBY
100/35
470p
DISPLAY ASSY
(VSX-AX4AVi:AWX8635)
(VSX-AX2AV:AWX8636)
INPUT SELECT ASSY
( AWX8640)
AC AD
AD
AC
CN6103
S
DISPLAY ASSY
S3201 : (TUNE/ST +/-)
S3202 : (TUNE/ST +/-)
S3203 : ENTER
S3204 : (TUNE/ST +/-)
S3211 : TUNER EDIT
S3212 : RETURN
S3213 : (TUNE/ST +/-)
S3214 : SETUP
S3215 : AV PARAMETER
S3216 : SPEAKERS
S3221 : BAND
S3222 : MULTI ROOM & SOURCE/REC SEL CONTROL
S3223 : MULTI ROOM & SOURCE/REC SEL ON/OFF
S3224 : VIDEO SELECT
S3225 : SIGNAL SELECT
S3226 : SBch PROCESSING
S3227 : STEREO
INPUT SELECT ASSY
S3562 : AUTO SURR/STREAM DIRECT
S3563 : MCACC POSITION
S3564 : STANDBY/ON
S3565 : PHASE CONTROL
FL DISPLAY
VSX-AX4AVi-S
86
1234
1234
C
D
F
A
B
E
3.31 PREOUT & CONTROL ASSY
1
6
2
7
3
8
5
4
9
2022 1014 1218 16
19
21
23
13
11
17
15
2846
1
3
9
7
5
8
7
5
6
4
3
2
1
4
1
3
6
7
2
5
7
6
5
4
3
1
2
7
6
10
9
11
12
14
13
16
15
4
5
3
1
2
C2931
R2939
R2936
C2932
R2935
C2939
C2940
R2938
R2996
D2931 R2937
C2941
L2935
Q2931
L2933
CN2802
L2934
C2967 R2975
JA2931 R2932
R2931
C2930
C2936
C2935
C2902
C2903
C2904
IC2931
L2904
C2901
JA2901
L2902
L2903
L2901 D2901
R2901
C2893
R2892
C2882 C2881
R2891
R2882 Q2882
C2884C2883
C2892 CN2807
C2862
Q2881
R2881
R2862 Q2862
R2872R2871
C2861
C2864C2863
R2861
Q2861
CN2806
C2842
R2852R2851
C2841
R2842
C2844
Q2842
C2843
C2894
C2891 CN2806
R2832
C2822
Q2841
R2841
R2822
C2824
Q2822
R2934
R2933
C2937
C2933
C2934
C2938
L2932
L2931 D2951
C2942
R2967 R2968
C2968 R2976
R2888
R2884
C2886
Q2882
C2885
R2890
R2886
R2887
R2883 Q2881
R2864 Q2862
R2889
R2885
R2866
R2868
C2866 C2865
R2863
R2867
Q2861
R2870
R2869
R2865
R2844
R2848
C2846
Q2842
C2845
R2846
R2850
R2847
R2843 Q2841
R2824 Q2822
C2826
R2849
R2845
R2826
CN2805
R2831
C2821
C2823
R2821
Q2821
C2802
R2812R2811
C2801
R2802 Q2802
C2804C2803
CN2805 R2801
Q2801
R2828
R2827
C2825
R2823 Q2821
R2830
R2829
R2825
R2804 Q2802
R2808
C2806 C2805
R2806
R2810
R2807
Q2801
R2803 R2805
R2809
(DSR)
RXD(TD)
(CD)
232C
(DTR)
(NC)
GND
BUSY(CTS)
(NC)
TXD(RD)
GNDV
GNDU
iP VIDEO
GNDU
232C CTS
GNDU
GNDU
V+5.6U
GNDU
ip_DET
232C DET
232C RXD
232C TXD
ip_TX
ip_RX
TXD
0
(L2936)
(R2997)
(R2999)
V+7V
GNDU
i-pod R
GNDA
i-pod L
V-7V
RMC
RXD
SRIN
(R2998)
AT
10/50
C2-
V-10V
C1-
C2+
SR +
V+10V
C1+
GND
RX
TX
SR
SBR (1/2)
SBL
AKB7012 STBY
SBR
(1/2)
(1/2)
(2/2)
SBL (1/2)
RS
*2
(1/2)
(1/2)
(1/2)
LS
PRE OUT
SW (1/2)
RXD
TXD
CLK
BUSY
GND
VCC
100K 100K
AT
10/50
(2/2)
STBY
(2/2)
(2/2)
(2/2)
(2/2)
(2/2)
(2/2)
C
(2/2)
(1/2)
L
R(1/2)
(1/2)
(1/2)
PREOUT
(2/2)
(2/2)
(2/2)
GNDCH
0.01
0
470k
STBY
220k
1SS355
0.01
MAX3232CPW
GNDV
330p
220k
10k
2SC4081(QRS)
STBY
VTL1083
VTL1083
XKP3082
VTL1083
100
AKP1213 100
STBY
0.22u
100
0.047
STBY
0.1
STBY
QTL1013
STBY
XKN3015
QTL1013
QTL1013
QTL1013
1SS355
STBY
STBY
GNDCH
STBY STBY
STBY
STBY
STBY
STBY
STBY
0.01
STBY
STBY
STBY STBY
100
IMX25
AKB7172
STBY STBY
STBY STBY
100 IMX25
GNDCH
STBY
STBY STBY
100
IMX25
STBY STBY
0.01
AKB7172
STBY
100 IMX25
100
STBY
IMX25
100
100
1u
1u
0.01
100/16
AT
QTL1013
STBY
1SS355
STBY
100
STBY
STBY STBY
STBY
STBY
STBY STBY
STBY
STBY
STBY
10k
120
IMX25
STBY
STBY
10k
270
10k
120 IMX25
STBY
10k
STBY
270
120
IMX25
10k
10k
270
STBY
10k
STBY
120 IMX25
120
10k IMX25
10k
270
270
10k
STBY
AKB7012
STBY
STBY
IMX25
100
STBY STBY
100
IMX25
STBY STBY
330p330p330p330p330p330p330p330p
AKB7012 100 IMX25
10k
120 IMX25
STBY
10k
270
10k
120 IMX25
10k
10k
270
STBY STBY
10k
IMX25
120 270
(S)
(SB)
(IP)
(SB)
(SB)
(S)
(C)
(F)
(SW)
(S)
(C)
(C)
(F)
(F)
CN4320
N
AE
(SW)
VSX-AX4AVi-S 87
5678
5678
C
D
F
A
B
E
+
-
+
-
8
1
3
42
20
18
19
15
13
11
14
17
16
12
7
8
5
6
4
26
24
25
22
23
20
21
18
19
10
8
7
6
5
9
1
3
4
2
12
11
13
15
17
16
14
5
6
7
10
9
8
1
4
2
3
C2978
C2969
IC2932
R2965
R2971
R2973
C2965
R2969
C2979
D2960
D2959
C2972
C2973
C2974
D2956
D2955
C2961 C2955 R2953
D2958
D2957
D2953
D2954
C2963
C2964
R2974
C2966
R2972
C2970
R2970
IC2932
R2966
R2962
R2955
C2953
C2971
R2956
C2954
R2954
R2951
C2951
R2952
C2952
C2962 C2956
R2959
Q2952
D2952
R2958
R2963
R2957
D2961
R2964
R2960
Q2951
C2960
CN2804
C2975
C2976
C2977
C2959
R2961
C2958
C2957
CN2801
0.01
(1/2)
STBY
STBY
STBY
0.01
0.47
iP-L
NC
GNDV
iP-VIDEO
ACC PWR
GNDA
GNDA
NC
NC
AUDIO R
SHELL
0.01
(2/2)
iP-R
STBY
STBY
V-iP
GNDU
V-iP
GNDA
STBYLOUT
GNDA
STBYROUT
GNDU
SWOUT
F/W POWER
USB/DGND
DOCK TX
DOCK RX
AUDIO L
SGND
F/W GND
F/W POWER
ACC ID
F/W GND
0.47
0.01
STBY
i-pod
LOUT
GNDA
GNDA
GNDA
GNDA
LSOUT
SBLOUT
GNDA
GNDA
GNDA
ROUT
RSOUT
SBROUT
MUTE MR/SB
COUT
GNDA
AMUTE
Rated Voltage: 50V expect for electrolytic capacitors.
Unit: p-pF or µF unless otherwise noted.
Unit: k-kΩ , M-MΩ or Ω unless otherwise noted.
Rated power: 1/16W unless otherwise noted.
NOTE
Tolerance: (J) 5% unless otherwise noted.
1.RESISTORS
2.CAPACITORS
Ratings: Capacity(µF)/Voltage(V) unless otherwise noted.
-
+
GNDCH
BA4560RF-TBB
4.7K
4.7K
10K
STBY
UDZS6.2(B)
UDZS6.2(B)
GNDCH
GNDA GNDU
10/50 AT AT
10/50 330
UDZS6.2(B)
UDZS6.2(B)
STBY
GNDV
STBY
STBY
STBY
STBY
10K
STBY
10K
STBY
10K
4.7K
4.7K
BA4560RF-TBB
STBY
STBY STBY
10/50 AT 10/50
AT
330
100K 100K
100p100p
100p 100p
RT1N431M
39K
STBY
1SS355
510K
STBY
STBY
0
STBY
V+5_6U
GNDU
STBY
AKP7202
GNDCH
STBY
STBY
0.01
0.01
VI_POD
VI_POD 52045-2645 PREOUT & CONTROL ASSY
(AWX8689)
AE
i-pod CONNECT
(IP)
(IP)
: AUDIO SIGNAL ROUTE (S)
: AUDIO SIGNAL ROUTE (C)
(S)
(C)
: AUDIO SIGNAL ROUTE (F)
(F)
: AUDIO SIGNAL ROUTE (IP)
: AUDIO SIGNAL ROUTE (SW)
(IP)
(SW)
: AUDIO SIGNAL ROUTE (SB)
(SB)
2/4
CN2602
K
AE
GND ISOLATOR
VSX-AX4AVi-S
88
1234
1234
C
D
F
A
B
E
3.32 1394 ASSY (1/2)
7
6
4
5
3
2
2
1
1
12
100
1
2
3
99
31
2
7
5
6
4
10
9
11
8
15
13
12
14
16
98 9697 95 9394 9192 90
34
1
2
56
7
5
20
19
18
17
24
21
22
23
25
2726
4
2
3
1
29 3028 3231 33 35 3634
9
8
10
13
12
11
14
2
31
846
75
462
531
878889 86 85 84 8183 82
842
317
86
75
246
531
7880 79 77
73
74
75
76
71
70
72
69
65
66
67
68
62
63
64
60
61
1
2
753
462
1
8
3
846
75
7
8
3
1
2
6
7
4
5
12
10
11
8
9
13
15
16
14
17
19
18
20
24
22
23
21
48
47
46
43
45
44
42
40
38
39
37
41
36
34
35
33
31
29
30
32
28
26
25
27
753 1 753 7517531 13
86 24
2
846
133
136
137
134
135
138
139
142
140
141
130
132
131
8462
68
42
146
144
143
145
147
149
148
150
154
155
152
153
151
129
128
127
124
125
126
123
121
122
24
31
286
751
118
119
120
115
116
117
112
113
114
846
753
642
531
482
317
110
109
111
108
106
107
104
103
105
37 38 39 41 4240 43 44 45
1
1
2
75
2
3
46
86
753
4
B
C
E
49484746
58
56
57
59
52
55
54
53
51
50
46
3175
2
7
8
1
8
5
2
3
46
8
45
4
21
3
5
21
4
53
1
3
2
8
6
7
6
78
9
4
3
5
12
11
10
7315
7
153
28466824
1
2
14
13
158
157
156
159
163
162
161
160
166
168
165
164
167
170
171
172
169
174
175
173
176
2
3
1
C
B
E
4
5
6
8
7
9
11
10
12
2
31
14
13
15
17
18
16
19
21
20
846
175
2
753
684
22
24
23
26
25
27
30
28
29
86
75
100
102
101
98
97
99
93
94
95
96
5
3
4
1
2
90
91
92
88
89
85
87
86
84
80
81
79
82
83
4682
78
76
77
75
71
73
74
72
70
68
66
69
67
24 4862
1735 3157531
31
33
32
35
36
34
40
39
38
37
62
63
64
65
60
61
58
59
54
55
57
56
53
86
43
42
41
52
49
51
50
47
46
48
45
44
7
4268
3517
1
2
4
3
FLASH
V+12
LINK
FLOW
HOST_ACK
POWER
CNVSS
BYTE
SEL4FS
OUTPUTEN
FLOW_ON
XOUT
XRESET
XVCOE
TEST1
NMI
VCC
XIN
VSS
TEST0
AVDD VREF
XRST_FLW1
VSS
XRST_ARM
MUTEOUT
RX_TRIG
DISABLE
SACDCHSEL
(M30620M8A-GP)
VOUT
VDD
Sub:TC74VHC125FTS1
2A
GND
2Y
N.C.
XSACDDRCT
MER_REQ
CLK_SEL
FS_SEL0
FS_SEL1
MEM_STA0
MEM_STA1
XINIT
HPS
MEM_STA2
WD_TMRZ
2XOE
1Y
1A
1XOE
TXD1/HOST_DOUT
RXD1/HOST_DIN
CLK1/SYS_CLK
JTAG_TRST
CTS0
TXD0
RXD0
XRST_MER
RTS0
WAIT
3XOE
3Y
3A
4XOE
4Y
4A
VCC
SEL_DTYPE1
SEL_DTYPE0
D0
D1
D2
D3
D5
D6
D4
HOST CPU
D7
D9
D8
D10
D12
D11
A1
A0
D15
D14
D13
A5
A4
A3
A2
A8
VSS
A6
A7
A15
A14
A13
A12
A11
A10
A9
A8
NC
NC
XWE
NC
XRESET
NC
NC
RY/XBY
A17
A7
A6
A5
A4
A3
A2
A1
A16
VSS
XBYTE
DQ7
DQ6
DQ15
DQ14
DQ13
DQ5
DQ4
DQ12
VCC
DQ11
DQ3
DQ2
DQ10
DQ9
DQ1
DQ8
DQ0
XOE
VSS
XCE
A0
VDD
VSS
MCIF_ENDI
HSDI0_AV
HSDI0_SYNC
HSDI0_EN
HSDI0_CLK
VSS
VDD
HSDI0_D1
HSDI0_D0
HSDI0_DVALID
HSDI0_D5
HSDI0_D4
HSDI0_D3
HSDI0_D2
HSDI1_EN
HSDI1_CLK
HSDI0_D7
HSDI0_D6
MCIF_A10
MCIF_A9
MCIF_A8
MCIF_A7
MCIF_A6
MCIF_A5
133
134
135
MCIF_A2
MCIF_A4
MCIF_A3
MCIF_MODE0
MCIF_MODE1
MCIF_MODE2
136
137
HSDI0_60958_IN
HSDI0_AMCLK_IN
MCIF_A1
MCIF_D15
MCIF_D14
REG_OUT2
VSS
VDD
MCIF_D11
MCIF_D13
MCIF_D12
(Mercury)
MCIF_D10
MCIF_D9
MCIF_D8
MCIF_D5
MCIF_D7
MCIF_D6
MCIF_D4
MCIF_D3
MCIF_D2
ARM_FIQZ
ARM_JTAG_TDO
ARM_JTAG_TDI
N.C.
XHOLD
N.C.
BUSCLK
XRD
N.C.
XWR
XCS_IO
XCS_MEM
Sub:UN5112
Sub:DTA124EUA
A19
XCS_FL
DSGAIN
A12
A11
A10
A9
VCC
A16
A15
A14
A13
A17
A18
XTALOUT CLKB
XTALIN
GND
CLKC XSD/FS
CLKA
VDD
VCOIN
FSEL PDE
PDOUT
VCOOUT
VCOVDD
VCOGND DGND
DVDD
VCOE
GND
VDD
FINA
FINB
HSDI1_D1
HSDI1_D0
HSDI1_SYNC
HSDI1_AV
HSDI1_DVALID
HSDI1_D2
VDD
VSS
REG_OUT3
HSDI1_D6
HSDI1_D5
HSDI1_D4
HSDI1_D3
HSDI1_D7
HSDI1_AMCLK_OUT
HSDI1_AUDIO_ERR
HSDI1_AUDIO_MUT
HSDI1_AMCLK_IN
VDD
VSS
60958IN
60958OUT
Sub:UN5112
Sub:DTA124EUA
VDD
VCO_CLK
REF_SYT
MLPCM_BCLK
DIV_VCO
PFD
1VSS
MLPCM_LRCK
MLPCM_D1
MLPCM_D0
TEST_MODE1
TEST_MODE0
3
2 MLPCM_D2
MLPCM_A
GPI02
GPI03
GPI04
GPI05
VSS
VDD
MSPCTL
CPS
AVDD
AGND
AGND
TPB0P
TPB0N
AVDD
TPA0P
TPA0N
VDD
MCIF_D1
VSS
WD_TMRZ
MCIF_BUSCLK
MCIF_D0
MCIF_WEZ
88
87
MCIF_OEZ
MCIF_ACKZ
MCIF_WAIT
ARM_JTAG_TMS
83
UART_RX
UART_TX
86
85
84
MCIF_CS_MEMZ
MCIF_STRBZ
MCIF_RW
JTAG_TDO
JTAG_TRST
JTAG_TCK
MCIF_CS_IOZ
MCIF_INTZ
JTAG_TDI
JTAG_TMS
GPI09
GPI08
REG_ENZ
REG_OUT1
GPI07
GPI06
VDD
VSS
SCL
SDA
Sub:TC7SH08FUS1
RESET_ARMZ
DISABLE_IFZ
TEST_MODE3
TEST_MODE2
LOW_PWR_RDY
TPBIAS0
AVDD
TPB1N
NC 42 TPA1N
AGND
TPB1P
NC
NC 43
44
NC
TPA1P
TPBIAS1
GPI01
GPI00
LINKON
RESETZ
PLL GND
HPS
VSS
VDD
PLLVDD
FILTER1
FILTER2
AVDD
AVDD
AGND
NC
XO
XI
R0
R1
CONT VCC
GND OUT
TP7
R142
TP6
C107
R141
TP5
R140
TP3
TP4
TP113
STBY
D102
D101
RB501V-40
TP112
TP8
TP103
TP105
R105
C102
R108
R120
R104
C101
R106
TP2
TP1
CN101
R101
R103
R102
X101
TP104
R132
C106
R131
C111
R107
R153
C112
R148
IC103
R150
R149
TP115
R152
C110
R151
R154
TP117
R110
R111
R109
R113
R112
R115
R114
R116
R147
IC104 R146
R145
R144
R143
C108
R138 IC101
R137
R136
TP111
C105
R135
R155
C109
R130 R129
TP114
IC102
R139
R235
R234
R237
R236
R238 R239 R240
C222
C223
R243
R242
R241
C221
R233
C220
R232 R231 R230
IC201
TP106
TP108
TP109
R118
R117
R119
R122
TP119
TP118
Q101
R123
TP110
R126
R125
R124
C104
C103
L101
R291
R262
R292
R128 R127
C238
R258
C235
R260
R261
IC203
C233
R259
C234
C237 R257
TP303
IC303
C330
R295 R353
R356
R357
C326
R355
C327
R354
R294
C231
C232
L203
R352
C329
C328 R351
R249
R263
IC204
C240
C239 C229
C236
R255
R256
C230
C113
R245
R247
R246
R296 C228
C227
R250
R248
R252
R251
R264
IC202
R244
C224
C225
C226
C201
TP17
R202
R201
Q301 R335
R334
R203
R265
R266 TP208
R204
C202
R205
R206
R207
C203
R208
C204
R209
R210
C219
TP207
R228
R229
R227
C241
R218
R226
R223
C249
R222
IC205
C218
C217
L202
R224
R225
TP206
TP9
TP12
TP11
TP10
TP13
C248
TP15
R221 R220
TP14
TP16
R254
R253
C205
R293
R211
C216
C215
C214
C213
C209
R212
C207
C206
TP204
C212
R217
R219
R216
TP205
TP209
R289 R213
C250
X201 C211
R290
R288 C210
R215
R214
L201
C208
C11
R11
C12
R12
TP100
KN11
GNDD
0
0.1
10k
10k
STBY
0.1
4.7k
6.14MHz
4.7k
0.01
RKN1048
V+5DI
STBY
4.7k
100
4.7k
STBY
VSS1179
4.7k
0.1
100
PD5787A
0.01
100
PST9245
STBY
4.7k
GNDD
SN74LV125APW
STBY
STBY
STBY
0.1
GNDD
0
V+5DI
STBY
100
100
100 10k
STBY
4.7k
10k
100
4.7k
47
4.7k
47
10k
0.1
V+5DI
4.7k*4
4.7k*4
4.7k*4
4.7k*4
0.1
STBY
0.1
(MBM29LV400TC-90PFTN)
100*4100*4
AYW7058
4M FLASH
4.7k
4.7k*4
4.7k
4.7k*4 4.7k*4 4.7k*4
0.1
4.7k
4.7k
0.1
100
4.7k
4.7k
0.1
100*4
0.1
TSB43CA42ZGW
100*4 100*4 100*4
0.1
iceLynx-Micro
100
10k
100*4
10k*4
RT1P241M
100
100 10k
0.1
100/16
GNDD GNDD
GNDP1
V+3DH
ATL7002
V+3D
0
0
0
100*4 100*4
100
STBY
NJU7093AF
STBY
0
STBY
STBY
STBY
0.1
STBY
STBY
STBY STBY V+3AM1
GNDD
NJU7093AF
4700p
0
0
4.7k
0
01
22k
0.1
22k
100/16
DCH1201
STBY
ATL7002
270
10
12k
0.47
STBY
STBY
STBY
CY22381FC STBY
STBY
STBY
STBY
STBY
PLL IC
STBY
STBY
STBY
1000P
100*4
100*4
STBY
STBY
4.7k
4.7k
V+3DF
GNDD
STBY
STBY
BU2370FV
4.7k
0.1
0.1
STBY
STBY
100
0.1
0.1
4.7k
4.7k
V+3D
RT1P241M
0
0
100
47
47
100
0.1
100*4
4.7k*4
4.7k
4.7k
0.1 GNDA
0
GNDD
0.1
0
4.7k
4.7k
4.7k
4.7k
0.1
4.7k 4.7k
SN74AHC1G08DCK
100/16
0.1
V+3D
ATL7002
V+3DM
4.7k
4.7k*4
0.1
4.7k
0.1 4.7k*4 4.7k*4
100
100
0.1 GNDD
STBY
10K
1000p
1000P
0.1
10K
0.1
100/16
1000p
0.1
0.1
4.7k
4.7k
4.7k*4
24.576MHz
100
STBY
6.34K
0.5%
ASS7055
GNDP2
1000p 0
22
00.1 0
ATL7002
V+3AM2 V+3D
GNDD
STBY
GNDS1GNDD
STBY
STBY
STBY
STBY
STBY
VNF1109
XSACDDRCT
MER_REQ
CTS2
DTR2
FLOW
POWER
IE_INT
OUTPUTEN
SEL4FS
XVCOE
RXD2
TXD2
MUTEOUT
XRST_FLW1
XRST_ARM
DISABLE
RX_TRIG
CLK_SEL
FS_SEL0
XINIT
MEM_STA0
MEM_STA1
FS_SEL1
IE_RST
CTS2
CTS0
HPS
M
WD_TMRZ
MEM_STA2
RXD0
RXD2
TRST
XRST_MER
IE_DI
IE_DO
TXD0
IE_CK
CTS0
RXD0
DTR0
TXD2
TXD0
DTR2
DTR0
DQ15
DQ13
DQ14
DQ12
DQ11
DQ9
DQ10
SEL_DTYPE1
SEL_DTYPE0
SACDCHSEL
DQ0
DQ1
DQ2
DQ5
DQ3
DQ4
DQ7
DQ8
DQ6
DQ4
DQ5
DQ1
DQ3
DQ2
DQ6
DQ7
DQ9
DQ8
DQ10
H
DQ12
DQ11
DQ13
DQ14
DQ15
DQ0
XWR
A14
A15
A16
A13
A12
A11
A10
A9
A1
A5
A2
A3
A4
A7
A8
A6
A7
A8
A18
A6
A4
A5
A3
A2
A17
DQ15
DQ6
DQ14
DQ7
DQ5
DQ13
DQ4
DQ12
DQ10
DQ2
DQ11
DQ3
DQ8
DQ9
DQ1
DQ0
SACD_MCK
A9
A10
A7
A8
A6
A
A3
A5
A4
A1
A2
DQ14
DQ15
DQ12
DQ13
DQ11
DQ10
DQ8
DQ9
DQ5
DQ6
DQ7
DQ4
DQ2
DQ3
WAIT
BUSCLK
XRD
XCS_IO
XWR
XCS_MEM
DSGAIN
A10
A11
A9
A12
A14
A16
A15
A13
A18
A17
XRD
A1
MLPCM_DA
MLPCM_D0
MLPCM_D1
MLPCM_D2
SACD_D0
SACD_FRAME
SACD_D2
SACD_D1
SACD_DA
SACD_D5
MCLKOUT SACD_D4
SACD_D3
AMUTEIN
AERRIN
60958OUT
VCOEN
MLPCM_LRCK
MLPCM_BCK
VCOEN
XVCOE
XVCOE
AERRIN
AMUTEIN
60958OUT
MCLKOUT
SACD_D2
SACD_D1
SACD_D4
SACD_DA
SACD_D3
SACD_D5
SACD_FRAME
MLPCM_D0
MLPCM_BCLK SACD_D0
MLPCM_LRCK
MLPCM_D2
MLPCM_A
MLPCM_D1 SACD_MCK
C
MER_REQ
DQ1
DQ0
XWR
BUSCLK
WAIT
XRD
XCS_MEM
XCS_IO
WD_TMRZ
TRST
TDO
X
TMS
TCK
HPS
DISABLE
XRST_MER
XRST_ARM
STBY
+
-
+
-
VRW1773
1/2
AF
VSX-AX4AVi-S 89
5678
5678
C
D
F
A
B
E
IE_DO
IE_INT
IE_DI
IE_RST
IE_CK
POWER
SEL_DTYPE0
SEL_DTYPE1
XSACDDRCT
XINIT
DSGAIN
SEL4FS
60958
AERRIN
MLPCM_DATA1
MLPCM_DATA2
MLPCM_DATA0
MLPCM_DATAA
MLPCM_LRCK
MLPCM_BCK
MCLK
AMCKEN
RCMUTEOUT
SAPCM_BCK
SAPCM_DATA3
SAPCM_LRCK
SAPCM_DATA2
SAPCM_DATA1
SACD_MCLK
SACD_DATA0
SACD_DATA2
SACD_DATA1
SACD_DATA3
SACD_DATA4
SACD_DATA5
4
1
2
3
53
52
54
51
8
7
5
6
12
10
11
13
9
17
16
14
15
19
18
21
20
26
25
24
23
22
27
8
7
4
5
6
48
50
49
47
44
45
42
43
46
40
41
39
38
37
35
34
36
33
32
31
30
29
28
1
2
3
10
9
13
12
11
2
1
16
15
14
5
3
4
2468
7531
1
2846
753
108
109
105
107
106
104
103
102
99
101
100
2846 426 428
7531 5315317
28664282846
371 5 3177531
846 2 846
757531
113
112
111
110
117
114
115
118
116
119
120
121
122
123
125
124
126
129
128
131
130
127
133
132
134
135
138
139
136
137
142
143
140
141
144
96
97
98
93
94
95
90
91
92
87
88
89
86
85
84
81
82
83
78
80
79
75
76
77
73
74
72
70
71
68
69
67
63
64
66
65
62
61
60
59
55
58
57
56
51
52
54
50
53
48
49
46
47
42
43
45
44
37
39
41
40
38
4
32
1
1
3
2
4
8
6
7
5
5
7
6
1
34
2
9
10
8
13
11
12
15
14
16
19
20
17
18
22
23
21
78
6
24
25
26
5
2
3
1
4
27
29
28
32
31
30
35
34
33
36
2
11
22
1
2
1
1
22
1
2
1
2
1
2
1
222
111 6
1
3
2
5
4
6
2
1
2
1
2
1
2
1
4
1
3
2
5
VCC
VCC
D15
D14
GND
GND
Sub:HY57V641620HGT-H
D0
D1
D3
D4
D2
GND
VCC
GND
D5
D6
VCC
D7
XWE
XCAS
DQML
D12
D11
D13
VCC
GND
VCC
D10
D9
GND
D8
CLK
NC
DQMU
XCS
A13
A12
XRAS
A10
A1
A0
A2
VCC
A3
NC
CKE
A11
A9
A8
A6
A7
A5
GND
A4
GND
2Y
1Y
2B
2A
1A
1B
SELECT
3Y
3B
4B
3A
4Y
4A
OE
VCC
SDA3
SDA1
SDA2
VDDO
SDA0
SDATA3I
GNDO
SDATA0I
LRCKI
SDATA1I
SDATA2I
SDA7
SDA6
SDA5
SDA4
SDA8
SDA9
SDA11
SDA10
SDA12
SDD0
SDA13
SDD2
SDD1
SDD3
SDD5
SDD4
SDD6
GNDO
SDD8
SDD7
VDDO
SDD11
SDD13
SDD12
SDD10
SDD9
SDCKE
SDD15
SDCLK
SDD14
SDDQMU
SDXWE
SDXCAS
SDXRAS
GNDO
VDDO
AMCKO
BCKO
AMCKEN
60958OUT
LRCKO
SDATA0O
SDATA1O
SDATA2O
SDATA3O
LPIN
VDDOUT
BCKI
LPOUT
VDDPASS
VSSPASS
GNDC
VDDC
VSSOUT
REFSYTI
VCOEN
DIVVCOI
SDERRI
VCO_CLK2O
VCO_CLK1O
AMCKI
60958IN
SDMUTEI
SACDDAI
SACDD5I
SACDD4I
SACDD1I
SACDD2I
SACDD3I
VDDC
GNDC
SACDD0I
(Gate Array)
SAPCMD1I
SAPCMD2I
SAPCMD3I
SAPCMLRCKI
SAPCMBCKI
SDMUTEO
VDDO
GNDO
SDERRO
VDDC
GNDC
SACDD3O
SACDD2O
SACDD1O
SACDD0O
SACDDAO
SACDMCKO
SACDD4O
RX_START
SACDCHSEL
SACDFRI
TRST
SACDMKI
FSTATE2
FSTATE1
FSTATE0
FMUTE
VDDO
GNDO
FSSEL1
SEL44K
SELDTYPE1
SELDTYPE0
FMODE
FSSEL0
XRESET
SELOSC
CLK44KO
CLK44KI
OUTPUTEN
CONT44
VDDO
GNDO
CLK48KO
CLK44K
CLK48K
CONT48
SEL512
CLK48KI
RJMSBF
XVALMODE
SAPCMMODE
PLLMODE
TESTMODE1
TESTMODE0
SACDFRO
SACDD5O
GUID LABEL:VXW1005
TCK
TMS
TDO
TDI
OUTGND
VCCCONT
Reted power : 1/16W unless otherwise noted.
Unit : k-kΩ , M-MΩ or Ω unless otherwise noted.
Tolerance : (J) 5% unless otherwise noted.
RESISTORS
:CCSRCH
:CKSRYB unless otherwise noted.
Unit : p-pF or µF unless otherwise noted.
:CEVW101M16
CAPACITORS
Indicated in "STBY" parts are STANDBY.
IMPORTANT PARTS FOR SAFETY
12
4
1
3
2
4
1
3
2
TPB0N
TPB0P
TPA0N
TPA0P
12
43
43
TPB1N
TPB1P
TPA1N
TPA1P
C333
IC302
C321
L302
C324
C325
IC305
C323
C322 R358
C331
IC306
R316
C332
R318
R319
R317
R315
R339
C319
R340 R343
R344
R341
R342
R345 R347
R346
C320
R350
R349
R348
C318
R338
R333
R337
C317
R332
C316
IC301
R329
C314
C315
C311
R324
R326
R325
TP27
R328
R312 C313
X301
R314
C312
X302
C310
C309
R327
D213
D215
D214
D216
C301
R301
R302
R304
R303
R305
C302
TP304
R307
TP301
C303 R308
R309
TP302
R310
R311
R313 R321
R320
R322
R323
C306
C305
C304
L301
C245
R277
R275
R278
C244
D205
D208
D206
D207
R281
R282
R283
R276
C242
R280
C243
C247
C246
R279
R284
R287
R286
R285
TP26
C1
L1
TP28
IC1
R267
D209
D212
D210
D211
C2
TP29
R268
R269
R270
R271
R272
R273
R274
L207
L206
JA201
D201
D202
D203
D204
L205
L204
TP19
TP21
TP18
TP22
TP20
JA202
TP23
TP25
TP24
0.1
K4S641632H-TC75
100/16
47*4
ATL7002
1000P
0.1
64M SDRAM
0.1
0.1
47*4 47*4
STBY
TC74VHC257FT
STBY
TC7SH32FUS1
STBY
STBY
STBY
STBY
STBY
STBY
STBY
STBY
V+3D V+3DR
0.1
47*4
47
47
47*4 47*4
47*4 47*4
47
47
0.1
0.1
0.1
STBY
STBY
100 100
0.1
PD8112A
FLOW CONTROL IC
10k
STBY
0.1
0.1
STBY
47
100
100
STBY
STBY
STBY
CH
22.5792MHz
STBY 22.5792MHz
STBY
ASS7054
1000p
CH
0.1
0
GNDD
0.1
47
68*4
47
68
22
0.1
47
0.1 47*4
47
47
0
0STBY
STBY
STBY
STBY
STBY
0.1
100/16
ATL7002
V+3DF V+3D
GNDD
STBY
GNDD GNDA GNDD GNDS
GNDS
1
STBY
STBY
1
5.1k
STBY
0
220P
STBY
220P
0.1
5.1k
1%
CH
CH
1%
0.1
STBY
0
STBY
STBY
STBY
GNDD
0.1
ATL7002
NJM2391DL1-33
V+5D V+5DI
STBY
STBY
STBY
56
STBY
STBY
STBY
STBY
STBY
100/16
CH
V+3D
56
0.5%
56
0.5%
STBY
56
0.5%
0.5%
56
STBY
STBY
STBY
0.5%
56
56
0.5%
ATH7015
0.5%
56
0.5%
ATH7015 ATH7015
VKN1800
STBY
STBY
STBY
STBY
ATH7015
VKN1800
D1D
D0D
Y
D15D
D14D
D3D
D4D
D2D
D6D
D5D
D7D
XWE
DQMU
XCAS
A12D
XRAS
A13D
A3D
A1D
A0D
A10D
A2D
K
SACDCHSEL
SACD_D3
D12D
D13D
D11D
D8D
D10D
D9D
CLK
DQMU
CKE
A9D
A11D
A5D
A6D
A7D
A8D
A4D
SACD_D4
SACD_D5
MUTEOUT
AMUTEIN
MLPCM_BCK
MCLKOUT
MLPCM_LRCLK
MLPCM_A
MLPCM_D2
MLPCM_D1
MLPCM_D0
60958OUT
IE_DO
IE_INT
IE_DI
IE_RST
POWER
IE_CK
A0D
A1D
A3D
A2D
A5D
A7D
A4D
A6D
A9D
A11D
A12D
A10D
A8D
A13D
D2D
D1D
D0D
D3D
D6D
D4D
D5D
D7D
D9D
D8D
D13D
D11D
D10D
D12D
CKE
D14D
D15D
CLK
DQMU
XRAS
XCAS
XWE
SACDCHSEL
TRST
TCK
TMS
MEM_STA2
MEM_STA1
TDO
RX_TRIG
MEM_STA0
MUTEOUT
SEL_DTYPE0
SEL_DTYPE1
XRST_FLW1
FS_SEL1
FS_SEL0
CLK_SEL
OUTPUTEN
FLOW
SEL_DTYPE0
SEL_DTYPE1
XSACDDRCT
XINIT
DSGAIN
SEL4FS
AERRIN
SACD_MCK
SACD_D2
XSACDDRCT
SACD_D0
SACD_D1
OUTIN
1/2
1394 ASSY
(VSX-AX4AVi:AWK7882)
AF
1/2
AF
2/2
AF
VSX-AX4AVi-S
90
1234
1234
C
D
F
A
B
E
3.33 1394 ASSY (2/2)
3
2
4
15
1
8
4
2
C
E
2
1
48 47 46 45
4
5
3
8
6
7
9
11
10
12
13 14 1615
763
4
5
8
B
8
4
67
5
44 43
21
3
4142 40 39
20 222117 18 19
38 37
36
35
32
34
33
31
29
30
27
28
26
23 24
2
25
31
684
75
4
2
3
1
5
6
7
8
IC406
R411
R410
R407
C427
C428
C429
L404 IC410
IC406
R408
R412
C410
C405
C411
C407
C406
C417
Q401
R405
R406
IC401
C408
R404
R409
C409
C404
R403
R402
C412
L405
R401
C403
C402
C430
C401
L401
R427
R426
R452
R451
C421
R449
R450
IC408
L402
C422
R453
C423
STBY
TC7WH02FU
TC7WH02FU
220*4
100/16
0.1
V+5DSV+5D
ATL7002 S-L2980A25MC
V+2D
STBY
0.1
0
0.1
0.1
STBY
STBY
100
STBY 0.1
STBY
RT1P431M
V+3DH
220
220
SM5819AF
220
STBY
STBY
0.1
0.1
0.1
68*4
100
ATL7002
V+2DS
68
STBY
100/16
470p
STBY
V+3DS
ATL7002
CH
V+3D
0
STBY
STBY
STBY
STBY
STBY
STBY
V+3D V+3DP
0
STBY
CY25811SC
STBY
STBY
STBY
SACD_DATA5
SACD_DATA4
SACD_DATA3
SACD_DATA2
SACD_DATA0
SACD_MCLK
SACD_DATA1
AERRIN
XSACDDRCT
AMCKEN
DSGAIN
XINIT
SEL_DTYPE1
SEL_DTYPE0
SEL4FS
SAPCM_BCK
SAPCM_LRCK
SAPCM_DATA3
SAPCM_DATA1
MLPCM_DATAA
60958
SAPCM_DATA2
MLPCM_DATA0
MLPCM_LRCK
MLPCM_DATA2
MLPCM_DATA1
MLPCM_BCK
MCLK
VOUT
VIN
ON/OFF
OADJ
Unit : p-pF or µF unless otherwise noted.
Indicated in "STBY" parts are STANDBY.
CAPACITORS
Rated Voltage : 50V except for
Ratings : Capacity(µF)/Voltage(V)
unless otherwise noted.
electrolytic capacitors.
IMPORTANT PARTS FOR SAFETY
NOTES
RESISTORS
Unit : k-kΩ ,M-MΩ or Ω unless otherwise noted.
Rated power : 1/16W unless otherwise noted.
Tolerance : (J) 5% unless otherwise noted.
:CKSRYB unless otherwise noted
:CEVW101M16
(2/2)
(1/2)
INIT
VSS
VDDL
DIRDSCK
SYNC
SEL4FS
SEL1FS
SELEXT
XMTPCM
VDDH
DSGAIN
TEST1
TEST2
TEST3
FMTPCM
DIRPCK
TOUT1
VSS
VDDL
VSS
Sub:UN511L
Sub:DTA143EUA
DSISR
DSISL
DSISW
DSICT
DSIFR
DSIFL
EXIFLR
EXICSW
EXISLR
EXILRCK
EXIBCK
EXIMCK
(SACD-->LPCM) MCKOUT
TOUT2
POCSW
POSLR
PLRCK
PBCK
VDDH
DSBCK
VDDL
VSS
VDDH
VSS
MCK
VDDL
VSS
POFLR
S0
S1
GND
CLKIN
CLKOUT
FRSEL
VDD
NC
2/2
AF
1/2
AF
1/2
AF
(SB)
(S)
(D)
(C)
(SB)
(F)
(S)
VSX-AX4AVi-S 91
5678
5678
C
D
F
A
B
E
19
1
10 10
8
9
7
6
9
8
5
11 8
12
13 6
4
14
15 2
5
7
3
1
4
3
2
16
17
18
20
3
42 1
5
8
7
5
6
12
9
11
10
2
4
3
1
15
14
16
13
8
5
6
7
4
314
12
13
9
11
10
6
7
4
5
1
2
3
22
18
19
17
20
21
13
16
14
15
9
12
11
10
7
6
8
5
4
2
3
1
2
116
15 3
24
1
5
IC407
C418
R445
IC405
R441
R443
R444
C416
C426
R442
L403 TP57
R439
R440
R456
R457
R438
IC404
R428
R436
R431
R429
R430
R437
C415
IC403
R435
R433
R434
R432
R421
C414
R422
R423
R424
R420
IC402
IC409
TP59 TP63TP60 TP61 TP62 TP64 CN402
TP52TP51 TP53 TP55TP54 TP56
C419
C420
TP50
TP49
TP48
TP47
CN401
R419
C413
R418 R425 TP46
C424
C425
TP45
TP44
TP43
TP42
TP41
R454
STBY
TC7SH00FUS1
STBY
SN74LVC541APW
100
100
0.1
ATL7002
100
100
STBY
100
220
SN74LVC1G125DCK
STBY
STBY
0
STBY STBY
100
0
0.1
0
STBY
STBY
TC74VHC257FT
STBY
STBY
0
STBY
0
0
STBY
STBY
0
STBY
STBY
STBY
TC74VHC257FT
SN74LVC1G126DCK
VKN1414
GNDD
0.1
100/16
V+5D
VKN1426
STBY
STBY
100
V+3DF
47
0.1
STBY
0
IE_INT
IE_DO
IE_CK
IE_DI
IE_RST
RCMUTEOUT
POWER
A1
A2
A3
A4
A5
A6
A7
A8
B1
B2
B3
B4
B5
B6
B7
B8
G1
G2
DSD5
GND
DSD6
2
1
5
34
2B
GND
2Y
1Y
2A
3Y
3B
3A
4B
4Y
1A
SELECT
1B
OE
VCC
4A
2Y
GND
2A
2B
1B
1Y
3A
4Y
4B
4A
3B
3Y
DSD1
DSD4
DSD3
DSD2
GND
DSDCLK
GND
GNDD
IE_FDT
IE_CDT
1394_SPDIF
IE_SDT
IE_BDT
GND
IE_LRCK
V+5D
IE_BCK
GNDP
IE_MCK
GNDP
V+5D
IE_DI
RCMUTEOUT
POWER
IE_RST
IE_CK
GNDD
IE_INT
IE_DO
SELECT
1A OE
VCC
2/2
1394 ASSY
(VSX-AX4AVi:AWK7882)
AF
2/2
AF
4/8
CN303
L
6/8
CN305
L1/2
AF
(DSD)
(DSD)
(SB)
(S)
(C)
(F)
(D)
(C)
(F)
(C)
(D)
(S)
: AUDIO SIGNAL ROUTE(S)
: AUDIO SIGNAL ROUTE(C)
(S)
(C)
: AUDIO SIGNAL ROUTE(F)
(F)
: AUDIO SIGNAL ROUTE(DSD)
: AUDIO SIGNAL ROUTE(SPDIF)
(DSD)
(D)
: AUDIO SIGNAL ROUTE(SB)
(SB)
VSX-AX4AVi-S
92
1234
1234
C
D
F
A
B
E
3.34 HDMI&DVC ASSY (1/2)
R1X2-
R1X2+
R1X1+
R1X1-
R1X0+
R1XC-
R1X0-
R1XC+
WP1
WP0
DSDA1
DSCL1
HPDET1
R0X2+
R0X2-
R0X1+
R0X1-
R0X0+
R0XC-
R0X0-
R0XC+
HPDET0
R1X2-
R1X2+
R1X0-
R1X0+
R1X1+
R1X1-
R0X2-
R1XC+
R1XC-
R0X2+
R0X0-
R0X1-
R0X1+
R0X0+
I2CSELB
I2CSELA
I2CSELB
USDA
USCL
CSDA
CSCL
DSCL0
DSDA0
RXMUTE
SPDIF
SD3
SD2
SD0
SD1
WS
SCK
MCLK
RXRST
SCDT
RXINT
D22
D23
D21
D20
D19
D18
D17
D16
DCK
D15
D14
D12
D13
D11
D10
D9
D8
D7
D6
D4
D5
R0XC+
R0XC-
DSCL0
DSDA1
DSCL1
DSDA0
CSDA
CSCL
D3
D2
D0
D1
VSYNC
HSYNC
DE
1
4
3
2
6
5
7
9
10
8
11
13
12
15
16
14
17
4
1
3
2
5
8
7
6
4
3
2
1
5
6
7
8
3
2
1
4
5
6
7
8
19
18
3
2
1
5
4
6
9
8
7
11
12
10
15
13
14
16
19
17
18
4
3
2
1
5
6
7
8
16
14
15
4
3
5
6
1
2
8
7
10
13
12
11
9
72
73
74
75
70 7169
76
77
78
79
84
80
81
82
83
85
87
86
88
90
89
91
92
97
94
95
96
93
101
98
99
100
103
104
105
102
106
107
108
109111110112
6866 676564636261605756 58 5953 54 5551 525049484744 46454241 43
113114115117118 116119120121122123125124127126128129130131134133132135136137138139140
39 4038
36
34
35
37
33
32
31
30
28
27
26
25
29
21
23
24
22
20
19
18
17
12
14
13
16
15
10
9
8
11
142143 141
7
5
4
6
144
1
2
3
Data2+
Data2 Shield
Data2-
Data1+
Data1 Shield
Data0+
Data1-
Data0 Shield
Data0-
Clock+
Clock Shield
CEC
Clock-
DDC/CEC GND
SDA
NC
SCL
1B
GND
1OE
1A
2A
2B
2OE
VCC
A1(NC)
A2(NC)
VSS
A0(NC)
WP
SCL
SDA
VCC
Y0
Y2
Y1
Y3
INH
VEE
Y
VSS
H
H
DDC0
DDC1H
L
Hot Plug Detect
+5V
Data2 Shield
Data2-
Data2+
Data1 Shield
Data1-
Data1+
Data0 Shield
Data0+
Data0-
Clock Shield
Clock-
Clock+
NC
SCL
CEC
Hot Plug Detect
+5V
DDC/CEC GND
SDA
VSS
A2(NC)
A1(NC)
A0(NC)
SDA
SCL
WP
VCC
VDD
X2
GND
1B 2B
2A
1A
1OE VCC
2OE
L
L
X3
A
X
X0
X1
B
I2CSELA
I2C Select
I2CSELB
-
Rx/Tx
H
L
BUS
IOGND
DVCC18
DGND
CGND
CVCC18
SPDIF
MUTEOUT
IOVCC
SD0
SD1
SD2
SD3
MCLKOUT
MCLKIN
SCK
WS
NC
CVCC18
CGND
IOGND
IOVCC
XTALIN
XTALOUT
AUDPGND
AUDPVCC18
XTALVCC
RSVDL
NC
REGVCC
CGND
CVCC18
INT
SCDT
RESET#
IOGND
CLK48B
AGND
R1X1+
R1X1-
AVCC
AGND
R1X0+
R1X0-
AVCC
AGND
AGND
R1X2+
R1X2-
AVCC
71
72
70
69
Q23
Q22
Q21
IOVCC
R1XC+
R1XC-
AVCC
RSVD_A
PVCC1
TMDSPGND
AGND
R0X2+
R0X2-
HDMI Receiver
AVCC
AGND
R0X1+
R0X1-
AVCC
AGND
R0X0+
R0X0-
AVCC
40
39 R0XC+
R0XC-
AVCC
PVCC037
38
CVCC18
109
110
111 CGND
Q20
112
Q17
Q18
Q19
ODCK
IOGND
Q16
Q14
Q15
IOVCC
CGND
Q12
Q13
CVCC18
Q10
Q11
Q7
Q8
Q9
Q6
IOGND
IOVCC
142
143
144 CVCC18
Q2
Q1
Q0
Q3 141
CGND
Q5
DVCC18
R0PWR5V
AGND
DGND
DSCL0
R1PWR5V
DSDA0
DSCL1
DSDA1
IOVCC
IOGND
CVCC18
DACDVCC18
DACDGND
CSCL
CSDA
CGND
AnBPb
DACVCCB
DACGNDB
DACVCCG
DACVCCR
DACGNDR
DACGNDG
AnRPr
DACAGND
AnGY
COMP
RSET
VREF
DACAVCC
DACOVCC
IOVCC
IOGND
VSYNC
Q4
HSYNC
DE
VA172
VA176
VA175
VA177
VA174
VA173
VA178
VA171
D173 D172
L174
L173
R1177
R1178
R1176
R1175
L172
L171
R1173
R1174
R1171
R1172
R177
C173
Q172
IC172
R171
Q173
Q152
R172
IC171
R173
R175
R176
C171
R174
R178
R179
D171
CN102
R181
Q171
VA151
VA152
VA158
VA154
VA157
VA153
VA156
VA155
D153
L154
L153
R1158
R1157
R1156
D152
L152
L151
R1155
R1153
R1154
R1152
R1151
CN101
R161
Q151
R192
D151
R194 C192
R191 R193 C191
R151
R152
IC151
R153
IC161
C161
R160
C151
R155
R156
R154
R157
C153
IC152 Q153
R165
R166
R158
R159
R141
R143
R144
R142
R145
R111
R112
R125
R122
R113
R123
C137
R119
C138
R124
R1107
X101
R1108
R118
R114
C126
C127
C128
C130
R117
C131
C132
C133
C134
R121
R120
C135
C136
R115
R116
C129
R131
C124
C123
C122
C121
IC101
C120
C119
C143
C142
R130
C141
R132
R129
C140
C139
R128
R127
R137
R138
C144
R135
R136
C145
R133
R134
Q101
C118
R1105 C117
C116
C112
C101
R107
R108
R109
C111
R110
L104 C125
R106
L101
R105
R101
R103
C102
R104
C103
C104
R164
C105
C107
C109
C108
C106
C113
R163
R126
C110
C114
R102
R1102
C115
L103
GNDD
GNDC
GNDC
STBY *8
STBY
STBY
STBY
V+5R1
STBY
GNDD
STBY STBY
47k
0.1
DTC114YUA
GNDD
GNDD
SN74CBT3306CPW
V+5R1
10
V+3RX
UM6K1N
DTC114YUA
GNDD
100
10
BR24L02FV-W 0.1
10k
10k
V+5E1
10k
SN74LV4052APW
4.7k
4.7k
GNDD
AKN7040
DAN202U
1k
DTC114YUA
GNDD
V+5_R1
V+5E1
V+5D
GNDC
STBY *8
GNDC
STBY
STBY
V+5R0
STBY
STBY
DAN202U
AKN7040
1k
DTC114YUA
GNDC GNDD
V+5_R0
STBY
GNDD
V+5E0
GNDC
V+5D
GNDD GNDC
STBY 0.01
STBY STBY 0.1
GNDD
10
100
10
BR24L02FV-W 0.1
0.1
V+3RX
GNDD
STBY
10k
V+5E0
10k
10k
10k
STBY
47k
0.1
SN74CBT3306CPW
V+5R0
UM6K1N
V+3RX
1k
1k
4.7k
4.7k
STBY
STBY
STBY
GNDD
STBY
STBY
GNDD
GNDD
68*4
100
47
68
47
10
CH
12p
CH
ASS7066
27M
10p
1.5k
1M
0
470
0
4.7k
0.1
0.1
0.1
33
0.1
0.1
0.1
0.1
0.1
220
220
STBY
0.01
4.7k
0.01
0.1
47*4
0.1
0.1
0.1
1
SiI9031CTU
0.1
0.1
0.1
0.1
0.1
47*4
33
0.1 47*4
0.1
0.1
47*4
68*4
100k
100k
GNDD
0.01
V+3R3
10k
10k
0.01
V+5_R0
10k
10k
UM6K1N
V+5_R1
01
ATL7010
1
100/16
1
100/16
75
75
75
STBY
STBY
V+3RA
ATL7010
V+1R8 V+1R8RX
10k
10k
10*4
0.1
0.1
47k
10
10
0.1
0.1
0.1
STBY
0.1
STBY
47k
100/16
68*4
0.1
0.1
STBY
47*4
0
V+3DAC V+3RX
ATL7010
V+3R3
1/2
AG
VSX-AX4AVi-S 93
5678
5678
C
D
F
A
B
E
VSYNC
PR
C/PB
CVBS/Y
VIDEO
UC
AUDIO
D18
D16
D17
P2
P4
P3
D23
D21
D19
D20
D22
P6
P5
P7
P9
P8
D12
D11
D9
D10
D8
P13
P12
P14
P15
P16
VCOE
P5
P4
LLC1
P3
P2
P6
P7
P9
VCOE
P8
VCSDA
VCSCL
SFL
D13
D15
D14 P18
P19
P17
DE
HSYNC
VSYNC
DCK
HS
LLC1
F/DE
VS
P13
P12
P14
P15
VCINT
HS
VCOE
P5
P4
P2
P3
P9
P12
P6
P8
P7
VS
F/DE
P17
P16
P18
P19
P13
P15
P16
P14
P17
P19
LLC1
P18
F/DE
HS
VS
VCSDA
VCSCL
VCRST
ACLKOFF
SPDIF
SD3
SD0
SD1
SD2
MCLK
WS
SCK
VSYNC
SPDIFO
SD3O
SD1O
SD0O
SD2O
MCLKO
SCKO
WSO
SPDIF
SD2
MCLK
SD1
SD3
SD0
WS
SCK
TXINT
DSDA
DSCL
HSYNC
VSYNC
DE
D1
D0
D3
D2
D4
D5
D6
D7
D8
PUSEL
TXC-
TXC+
TX0-
TX1-
TX0+
TX2-
TX1+
D10
D11
D9
DCK
D0
D1
D3
D2
D5
D4
D7
D6
D15
D9
D14
D10
D12
D13
D12
D8
D11
TX2+
TXC-
TXC+
TX0+
TX0-
TX1-
TX2-
TX1+
TX2+
D16
D15
D13
D16
D14
D17
D18
D20
D19
D20
D19
D18
D17
D23
D22
D23
D21
D22
D21
CSDA
CSCL
TXRST
10
1
19
13
11
12
9
8
7
14
15
16
6
4
5
18
20
17 3
2
10
1
19
11
12
9
8
14
15
13
5
7
6
25
24
2726 2928 3330 3231 34 35 36 37 40 41 4238 39 4443 4645 47 504948
21
22
23
18
20
19
17
16
15
51
52
53
55
54
57
58
56
59
60
61
16
17
18
3
2
4
20
4
51
2
3
10
19
1
11
12
13 7
9
8
14
15
16
5
4
6
18
20
17 3
2
14
13
12
10
9
11
7
8
6
4
3
5
2
100
1
9799 98 96 939495 9192 8990 88 86 85 8487 8183 8082 767879 77
10
19
1
9
8
11
12
6
5
7
14
15
13
2
3
416
17
18
20
1
787980 7577 76 7374 72 71 6970 68 67 66
2
4
5
3
9
8
7
6
14
10
11
12
13
15
17
18
16
19
20
23
22
21
26
25
24
27
29
28
30
31
32
35
33
34
63
62
64
65
66
67
70
68
69
73
71
72
74
75
19
16
17
18
65 64 63 62 61
60
58
59
56
57
54
55
52
53
50
47
49
48
51
36
37
38
45
44
46
43
42
41
39
40 3
2
2
3
15
13
14
4
110
11
12
1
49
8
7
3
2
2
3
4
1
6
5
4
4
1
3
2
1
P6
P5
P26
P4
P22
P23
P24
P25
P21
XTAL1
LLC1
DCLK_IN
XTAL
DGND
DVDD
P3
P2
P20
ELPF
P0
P1
AGND
AGND
PVDD
PVDD
VIDEO DECODER
DVDDIO
23
24
P10
P9
P7
P8
25
SCLK2
SFL/SYNC_OUT
P28
SDA2
P11 P27
DGND
AGND
AIN3
CAPY2
CAPY1
AIN7 53
52
AIN1
AIN9
AIN8
AIN2
NC
SOG
AGND 51
D2 S2 : 1608 Size
CCSR** ~
CKSR** ~
E1
UM6K1N
S1
G1
C2
B1
HN1C01FU
D1
G2
C1
E2
B2
: 2125 Size
CKSQ** ~
CAPACITOR
RS1/16S ~
: 1608 Size
RESISTOR
: 2125 Size
RS1/10S ~
UMB1N Chip Size
VCC
GND
1
DVDDIO
P15
DGND
P14
DVDD
P29
DGND
P13
P12
P30/INTRQ
P31
P32
2
3
REFOUT
AGND
CML
AVDD
CAPC1
BIAS
AIN10
AIN12 75
AIN11 73
AIN5 74
AGND
CAPC2
FIELD/DE
CS/HS
DVDD
DGND
P34
VS
P33
P16
P17
P35
P36
P19
P18
P37
HS_IN
VS_IN
ALSB
SCLK
AIN6
AIN4
DE_IN
/RESET
P38
P39
SDA
P40
SOY
D2
D4
D3
CVCC18
CGND
IOGND
D5
IOVCC
D6
IDCK
D8
D7
SPDIF
CVCC18
VSYNC
HSYNC
CGND
SD3
MCLK
SD2
SD1
WS
IOVCC
SCK
SD0
80
78
79 DE
D1
D0
HPD
INT
IOGND
CVCC18
CGND
DSDA
DSCL
21RSVDL 22
23PVCC1
PGND1
SWING
EXT_
AGND
TXC-
62
HDMI Transmitter
63 D12
D11
TX0-
AVCC
TXC+
TX0+
AGND
TX1-
38
39PGND2
PVCC2 AVCC
TX2-
TX1+
(1/2) (2/2)
or
RN2903
(1/2)
or
RN2903
(2/2)
Hot Plug Detect
SDA
DDC/CEC GND
+5V
D9
D10
CVCC18
D1361
IOVCC
D14
D15
CGND
D16
D20
D18
D19
D17
D23
D21
D22
CVCC18
IOGND
40NC
CI2CA
RESET#
TX2+
AGND
CSCL
CSDA
CGND
SCL
CEC
NC
Clock Shield
Clock-
Clock+
Data0+
Data0-
Data0 Shield
Data1+
Data1-
Data1 Shield
Data2+
Data2 Shield
Data2-
C409
C410
R455
R454
IC453
C453
R453
R417
X401
R416
R409
R415
R412
R413
R414
C408
R408
R410
R411
C407
R1404
C405
C430
C406
R407 R405
R404
C404
R492
R420
R491
C425
C426
C424
C423
C427
C436
R452
IC452
C452
C454
IC454
R451
R461
IC451
C451
R403
C403
R406
IC401
R402 C402
R401
L401
C401
C438
C439
R427
C437
R421
R422
R428
R1403
R423
R424
R425
R426
IC201
R456 R457 R458 R459 R460
R205
R204
R203
R201
C201
R202
D381
R302
R303
R307
R305
R304
R301
R331
R323
R324 C319
C318
C301
C302
R306
R360
R359
C303
R326
R327
R355
R356
R313
C311
R312
IC301
C308
C310R311
C309R310
C307R309
C421
C434
C422
C417
R418
C420
L402
C435
R419
C415
C418
C419
C413
C411
C412
R389
R387
R388
R385
R384
Q358
R381
R383
R382
R386
Q358
Q359
R352
Q352
R354
Q353
R351
R353
C391
C392
R391
R392
Q351
VA353
VA352
VA355
VA356
VA357
VA354
VA358
VA351
Q351
D352
D351
C351
R322
R325
C317
R332
C312
L305
C316
R319
L304
R333 R334 R335
C313
C305
C304
C314
R318
R317
C306
L302
R308
R1301
R320
R321
R314
R315
R316
C315
R336 R337 R338
R1357
R1358
L354
R1356
R1355 L353
R1353
R1354
L352
R1352
R1351
L351 CN301
GNDD
10p
GNDD
8p
68*4
68*4 0.1
SN74LVC541APW
68*4
100
ASS7067
28.6363M
1M
390 1.3k
0.01
GNDD
56
56
10
10k
56
56
0.082
0
0.1
0.1
33
56*4
33
0.1
33
GNDA
V+1R8VC
GNDD
STBY
0
0
10k
0.1
10
DCH1201
0.01
0.1
0.1
100/16
68*4
SN74LVC541APW
0.1
0.1
SN74LVC1G125DCK
33
STBY STBY
STBY
0.1
47*4 0.1
ADV7400AKSTZ-80
33
STBY
ATL7010
100/16
0.1
100/16
STBY
0.01
V+3R3VC V+3DE
STBY
STBY
47*4
0
V+1R8VC
GNDD
470
10k
V+3DE
33
33
V+3DE
SN74LVC541APW
GNDD
47k*4 47k*4 47k*4 47k*4 47k*4
47
47*4
0.1
47
47
47
UDZS5R1(B)
GNDD
V+3RX
STBY
47k*4
STBY
STBY
0.1
1
STBY
10
STBY
STBY
STBY
0.1
0.1
100
STBY
STBY
0.1
10
10
GNDD
4.7k
4.7k
4.7k
475(F)
0.1
STBYSTBY
V+3TX
SiI9030CTU
0.1
STBYSTBY
STBY STBY
STBY STBY
0.1
10/16
0.1
0.01
2.7k
0.1
ATL7010
10/16
2.7k
V+3R3VC
0.1
0.1
0.1
DCH1201
10
0.1
1000p
1k
STBY
GNDD
STBY
STBY
STBY
STBY
STBY
STBY
STBY
GNDD
STBY
STBY
47k
V+5D
4.7k
GNDD
DTC114YUA
2.7k
UM6K1N
4.7k
2.7k
GNDC
GNDD
0.01
GNDC GNDD
STBY
GNDC
0.1 STBY
V+5D
UMB1N
GNDC
STBY *8
UMB1N
STBY
STBY
V+5D
GNDD
0.1
47k
STBY
33
100/16
1
V+3R3
V+1R8
ATL7010
V+1R8TX
100/16
STBY
V+3TX
ATL7010
47k*4 47k*4 47k*4
0.1
1
0.1
0.1
4.7k
ATL7010
0
V+3R3
STBY
STBY
0.01
STBY
10
10
470
GNDD
47k*4 47k*4 47k*4
V+5HD
ATH7022 *4 AKN7040
A1
A2
A3
A4
A5
A6
A7
A8
B1
B2
B3
B4
B5
B6
B7
B8
G1
G2
A1
A2
A3
A4
A5
A6
A7
A8
B1
B2
B3
B4
B5
B6
B7
B8
G1
G2
A1
A2
A3
A4
A5
A6
A7
A8
B1
B2
B3
B4
B5
B6
B7
B8
G1
G2
A1
A2
A3
A4
A5
A6
A7
A8
B1
B2
B3
B4
B5
B6
B7
B8
G1
G2
1/2
HDMI&DVC ASSY
(AWQ7024)
AG
2/2
AG
2/2
AG
2/2
AG
2/2
AG
1/2
AG
2/2
AG
VSX-AX4AVi-S
94
1234
1234
C
D
F
A
B
E
3.35 HDMI&DVC ASSY (2/2)
VIDEO
VSYNC
UC
12
13 14
9
11
10
8
6
7
5
2
3
4
48
1
47
7
6
4
5
3
2
1
1
3
2
5
4
30
28
26
27
29
23
24
25
20
22
21
19
18
17
16
15
14
13
11
12
17 181615 232119 20 22
25
24
26
27
28
29
30
31
34
35
33
32
434446 45 42 41 40 39 38 37
36
6
78
9
4
3
5
12
11
10
1
2
14
13
32
34
33
31
38
35
37
36
39
42
40
41
43
46
44
45
47
51
50
48
49
53
52
54
55
58
56
57
61
59
60
62
63
64
65
66
67
69
70
68
24 25
22
23
21 28
26
27
19
18
20
31
29
30
15
17
16
34
33
32
13
12
14
36
35
37
10
9
7
6
8
2
3
4
5
1
71
73
72
74
76
75
77
79
78
100
98
99
97
96
94
95
92
93
88
91
90
89
85
84
86
87
82
81
80
83
9
11
10
40
38
39
8
6
742
43
41
4
5
346
44
45
2
148
47
GND
FIELD
HSYNC
GND
VAA
P6
CSO
P7
/HSO
P4
P5
P3
P2
P1
CLOCK
P0
VAA
GND
GND
V+12
CTS2
V+5
RXD2
DTR2
TXD2
NCVSS
VOUT
VDD
(PST3228)
NC
VCINT
ACLKOFF
HD_REQO
TXRST
RXMUTE
RXRST
VSYNC
RXINT
HD_REQI
TXINT
XIN
VCC
NMI
XRESET
XOUT
VSS
/VSYNC
ALSB
VAA
GND
BLANK
SCLOCK
SDATA
RSET2
COMP2
DAC E
DAC F
DAC C
DAC D
VAA GND
VIDEO ENCODER
GND
VAA
VAA
CLAMP
PAL_NTSC
RESET
TTXREQ
DAC B
RSET1
SCRESET
VAA
VSO
VAA
TTX
/RTC
DAC A
COMP1
VREF
TC74VHC125FTS1
or
GND
VCC
USCL
USDA
CLK1
CTS1
TXD0
RTS0
RXD0
RDY
I2CSELB
BCLK
ALE
HOLD
HLDA
WRH
WRL
DSCL
PUSEL
RD
DSDA
CS0
VC_SDA
29
28 VC_SCL
30
MUTE
A16
52
53A17
51A19
A18
A13
A15
A14
A12
A11
A10
CPU
VCC
A8
A9
A7
VSS
A6
A4
A3
A5
A1 A0
A2
A3
A4
VSS
XCE
XOE
A6
A7
A5
DQ8
DQ1
DQ0
A17
RY/XBY
NC DQ2
DQ9
DQ10
NC
XRESET
NC
VCC
DQ11
DQ3
FSEL1
FSEL0
CNVSS
NC
BOOT
BYTE
I2CSELA
F/DE 1
3
2HD_DO
HD_SCK
VCRST
HPDET0
HPDET1
HD_DI
VINSEL2
VINSEL1
A2
A0
A1
79D9 78D10 D13
D15
D14
80D8 D12
D11
AVSS
AVCC
VREF
WP0
WP1
SCDT
VCOE
D0
D3
D2
D5
D4
D1
D7
D6
NC
NC
XWE
DQ5
DQ12
DQ4
A10
A8
A9
DQ13
DQ14
DQ6
A13
A12
A11 DQ7
DQ15
VSS
A14
A15
XBYTE
A16
R711
R704
R703
R708
R707
R754 R753
R712
R709
R710
R705
R706
C705
C704
R750 R749
C702
R702
R701 C701
C703
C713
L701
R715
R573
C571
R572
CN501
R571
C504
R522
R521
R534
R526
R533
IC503
R520 R531
R530
R589
R523
R516
R517
R515
R518
R512
R513
R514
R588
R525
R524
R566
R567
R587
R565
R564
R509
R510
R511
R545
R563
R562
R561
X501
R508
C502
R506 C501
IC701
R746 R745
C709
C708
R742
C712
C707
R741
C706
C714
C710
R737R738
R721
R720
C711
R718
R723 R717
R722
R719
R716
R714
L702
R734 R733
R546
R547
R548
R528
R540
IC504
R544
R543
R542
R541
C507
R527
R549
R532
R529
R581
R582
R569
R583
IC501
C506
C552
R505
R504
R503
R502
R501
R507
R586
R584
R585
R537
R538
C503
L501
R539
C505
R535
R568
D551
R536
C551
R551
IC502
STBY
10k
10k
GNDD
0150(F)
STBY
1.2k(F)
1.2k(F)
10k
10k
0.1
47
47
0.1
0
GNDD
GNDD
GNDD
150(F)
0.1
STBY
STBY 0.1
100/16
0.1
ATL7010
V+3R3VC
47
GNDD STBY
0.1
V+12
STBY
RKN1048
10k
V+5D
STBY
GNDD
STBY
V+5D
STBY
10k
STBY
4.7k
GNDD
10
4.7k
STBY 4.7k
4.7k
STBY 10k
10
10
STBY
STBY
100
STBY
STBY
10k
10k
STBY
STBY
STBY
10k
10k
GNDD
STBY
STBY
STBY
100 10k
10k
STBY
0.1
XSS3004
15.7M
4.7k
220
0.01
ADV7172KSTZ
0.1
0150(F)
GNDD
0.1
0
0.1
0.1
150(F)
0.1
1GNDD
ATL7010
100/16
150(F)0
STBY
10k
0.01
STBY
10k 10k
1.2k(F)
1.2k(F)
470
47
GNDD
V+3R3VC
0150(F)
GNDD
GNDD
47
SN74LV125APW
47
4.7k
10k
47
0.1
V+3R3UC
V+5D
100
STBY
47
STBY
STBY
10
47k
47k
STBY
10k
100
STBY
PEG118A
0.1
0.1
GNDD
0.1
STBY
STBY
STBY
STBY
STBY
STBY 10k
STBY
STBY
100
100
100/16
ATL7010
V+3R3 V+3R3UC
100
0.1
STBY
10k
RB501V-40
STBY
47k
MBM29LV400TC-70PFTN
AYW7045- /J
HS
VS
VCSDA
VCSCL
P18
P17
P16
P19
P14
P12
P13
P15
LLC1
F/DE
DTR2
RXD2
TXD2
USDA
VCSCL
MUTEO
VCSDA
ACLKOFF
HD_REQO
TXRST
VCINT
RXMUTE
RXRST
RXINT
HD_REQI
TXINT
HD_RST
SFL
VCRST
RXD0
DTR0
TXD0
USCL
I2CSELB
PUSEL
DSDA
DSCL
RXD0
RXD2
TXD2
DTR2
DTR0
TXD0
XRD
XWR
XCE
A16
A17
A15
A13
A14
A1
A12
A10
A11
A9 A4
A3
A2
A7
A8
A6
A7
A5
A5
A6
A17
A4
A2
A3
XCE
A0
XRD
DQ0
DQ8
DQ1
DQ10
DQ2
DQ9
DQ11
DQ3
FSEL0
FSEL1
BOOT
VCRST
I2CSELA
HD_SCK
HD_DO
HD_DI
A0
A1 XWR
DQ13
DQ15
DQ14
A10
A9
A8
DQ10
DQ11
DQ12
A13
A11
A12
DQ0
DQ1
DQ3
DQ2
DQ4
DQ5
DQ6
DQ7
DQ8
DQ9
A15
A14
VINSEL2
HPDET1
HPDET0
VINSEL1
WP0
WP1
SCDT
VCOE
DQ4
DQ5
DQ12
DQ14
DQ13
DQ6
DQ15
DQ7
A16
2/2
AG
1/2
AG
1/2
AG
1/2
AG
VC(C'Site)
VCS(Y)
VCS(C)
VC(Y)
VC(Cb)
VC(Cr)
VSX-AX4AVi-S 95
5678
5678
C
D
F
A
B
E
ADJ
VOUT
VC
GND
VIN
CVBS/Y
PR
C/PB
AUDIO
1514
13
11
12
18
17
16
9
8
10 19
21
20
7
5
6
24
23
22
1
3
4
2
7
5
8
6
10
9
11
2
3
425
26
27
128
20
19
1
2
17
16
18 3
5
4
1
3
2
15
14
13
7
6
8
11
12
10
9
4
4
3
2
5
1
5
3
2
1
6
7
13
12
14
15
17
16
20
19
18
4
5
6
21
22
23
24
1
2
4
5
3
7
8
6
10
9
11
13
12
14
15
17
16
18
20
19
22
21
23
24
Cr in GND2
Cb in
CLP
MUTE2
GND2
Cr out
Cb out
BIAS
CY in
I/P
Y out
GND2
CY out
Y in
YC MIX
V in
GND1
S2
S1
V out
GND2
REAR SIDE
GNDA
Cr OUT
GNDA
GNDA
Cb OUT
Cr IN
GNDA
Y OUT
Cb IN
GNDA
GNDA
L:CVBS or Y/C
H:Y/Pb/Pr
Vcc1
MUTE1
C in
Vcc2
DC out
C out
VCC
VCC EXT_SYNC
RGB_SEL
SYNC_IN
IN2_SEL
Y/GOUT
Y1/G1
Y2/G2
Pb1/B1
L:CVBS
H:Y
Pr/ROUT
Pb/BOUT
0dB_SEL Pr2/R2
Pr1/R1
Pb2/B2
VSS
VSS FSEL1
FSEL0
H
H
Bypass
32M
H
L
Cn
15M
8.2M
FSEL1
LH
LL
fc(Hz)FSEL0
Filter Select
Cont
HDMI OUT
GND
NC
Vo
VIDEO DECODER
Sub
Vin
VIDEO ENCODER
VIDEO DECODER
VIDEO FILTER
VIDEO DRIVER
HDMI Tx
HDMI Rx
H
SC OUT
GNDA
Y IN
GNDA
GNDA
SY OUT
SY IN
GNDA
SC IN
LCVBS OUT
GNDA
GNDA
CVBS IN
FRONT SIDE
REAR SIDE
V+5UN
GNDD
GNDD
V+5V
V+5V
LOGIC
SD3
SPDIF
GNDD
SD2
SD1
SD0
SCK
GNDD
WS
MCK
GNDD
MUTEOUT
HDDI
HDREQI
HDREQO
HDDO
HDSCK
HDRST
Ucom
HDMI Rx
H:MUTE ON
FLASH
HDMI Tx
LOGIC
(2/2)
L:MUTE OFF
(1/2)
GNDD
CKSR**~
FRONT SIDE
CCSR**~
: 1608 Size
: 2125 Size
CKSQ**~
CAPACITOR
RS1/16S~
: 2125 Size
: 1608 Size
RS1/10S~
Chip Size
RESISTOR
OUT IN
OUT IN
OUT IN
R801
C810
C809
C808
C807
C806
C811
R802
R816
R815
R814
R813
R1003
R1004
C804
C805
C601
C602
C803
IC801 C801
C802
C608
R811
R812
C605
C604
C603
IC602
IC601
C611
C606
C607
C913
C912
C911
C918
C917
R915
R917
R916
C916
C915
Q912
R914
Q913
R919
D912 D911
C910
IC911
C909
C908
C907
IC904 IC903
D903
C906
C905
C904
IC902
R1001
D902
C903
C902
C901
D901
C609
C610
CN1002
Q911
R911
R918
R913
R912
C1001
C1002
R1002
R1025
R1021
R1024
R1022
R1023
R1020
R1019
R1017
R1018
R1015
R1016
R1014
R1013
R1011
R1012
R594
Q591
R593
R595
IC901
R592
Q591
R591
CN1001
STBY
0.1
0.1
1
0.1
100/16
1
1
10k
GNDD
75(F)
75(F)
75(F)
75(F)
75(F)
GNDD
0
GNDA
0
0.1
GNDA
0.1
100/16
STBY
MM1623BF
0.1
100/16
V+5A
75(F)
0.1
0.1
0.1
0.1
V+5A
MM1503XN
FMS6403MTC
V+5A
0.1
0.1
0.1
GNDD
STBY
2.2
470p
GNDD
100/16
0.1
2k(F)
STBY
1.8k(F)
GNDD
0.22
16V
1
16V
DTC124EUA
PQ200WNA1ZPH
10k
DTC114YUA
10k
(1SR154-400) (1SR154-400)
1
V+5HD
GNDD
STBY
2.2
V+1R8VC
MM1561JF
(1SR154-400)
1
V+3R3VC
BD7802FP
STBY
GNDD
DCG1028
4.7
(1SR154-400)
1
NJM2885DL1-18
0
V+5A
V+1R8
GNDD
STBY
2.2
1
BD7802FP
(1SR154-400)
1
GNDA
1
CKS4668
1k
2SA1576A(RS)-T
6.8
STBY
6.8
V+5UN
GNDD
100/16
0.1
GNDD
10
V+5D
0
STBY
STBY
GNDD V+3R3 V+5
STBY
STBY
STBY
STBY
V+3R3UC
CKS4668
VINSEL1
FSEL1
FSEL0
VINSEL2
BOOT
SPDIFO
SD3O
SD0O
SD2O
SD1O
WSO
SCKO
HD_DI
HD_SCK
HD_DO
HD_REQI
MCLKO
HD_RST
HD_REQO
MUTEO
RXMUTE
2/2
HDMI&DVC ASSY
(AWQ7024)
AG
2/2
AG
1/2
AG
1/2
AG
CN4310
NCN4311
N
: AUDIO SIGNAL ROUTE(S)
: AUDIO SIGNAL ROUTE(C)
(S)
(C)
: AUDIO SIGNAL ROUTE(F)
(F)
: AUDIO SIGNAL ROUTE(SPDIF)
(D)
: AUDIO SIGNAL ROUTE(SB)
(SB)
(F) (C)
(S) (SB)
(D)
: VIDEO SIGNAL ROUTE S(Y)
S(Y)
: VIDEO SIGNAL ROUTE (C'Site)
(C'Site)
: VIDEO SIGNAL ROUTE VC(C'Site)
VC(C'Site)
: AUDIO SIGNAL ROUTE S(C)
S(C)
: AUDIO SIGNAL ROUTE VCS(Y)
VCS(Y)
: AUDIO SIGNAL ROUTE VCS(C)
VCS(C)
VC(Y)
: AUDIO SIGNAL ROUTE C(Cb)
C(Cb)
: AUDIO SIGNAL ROUTE C(Y)
C(Y)
: AUDIO SIGNAL ROUTE VC(Cb)
VC(Cb)
: AUDIO SIGNAL ROUTE C(Cr)
: AUDIO SIGNAL ROUTE VC(Cr)
VC(Cr)
C(Cr)
: AUDIO SIGNAL ROUTE VC(Y)
C(Cr)
C(Cb)
S(C) C(Y)
(C'Site)
S(Y)
VC(Y)
VC(Cb)
VC(Cr)
VCS(Y)
VCS(C)
VC(C'Site)
VSX-AX4AVi-S
96
1234
1234
C
D
F
A
B
E
4. PCB CONNECTION DIAGRAM
NOTE FOR PCB DIAGRAMS :
1. Part numbers in PCB diagrams match those in the schematic
diagrams.
2. A comparison between the main parts of PCB and schematic
diagrams is shown below.
3. The parts mounted on this PCB include all necessary parts for
several destinations.
For further information for respective destinations, be sure to
check with the schematic diagram.
4. View point of PCB diagrams.
Symbol In PCB
Diagrams
Symbol In Schematic
Diagrams Part Name
BCE
D
D
G
G
S
S
BCE
BCE
DGS
BCEBCE
BCE
Transistor
Transistor
with resistor
Field effect
transistor
Resistor array
3-terminal
regulator
Capacitor
Connector
P.C.Board Chip Part
SIDE A
SIDE B
VSX-AX4AVi-S 97
5678
5678
C
D
F
A
B
E
4.1 PRIOUT&CONTROL ASSY
R2965
C2975
C2976
C2977
R2966
R2862
R2865
R2864
C2862
R2826
R2824
R2822
C2822
R2825
R2823
R2821
C2821
R2845
R2844
R2842
C2842
R2846
R2843 R2841
C2841
R2806
R2804
R2802
C2802
R2805 R2803 R2801
C2801
C2891
C2861
R2861
R2863
R2866
R2812 R2831 R2832
R2851
R2852 R2871 R2872
R2811
D2951
R2938
D2931
R2936
R2935
C2940
R2937
R2933
R2932
C2939
C2931
C2932
C2903
C2904
C2902
C2881
R2881
C2882
R2882
R2891
R2886
R2883
R2892
R2884
R2885
R2961
C2959
C2960
L2931
R2953
R2956
R2955
R2951
R2952
R2954
C2952
C2954
C2953
C2951
C2892
R2939
Q2931
C2958
C2957
C2893 C2894
R2969
L2933
L2935
L2936
R2970
R2968
R2967
C2969
IC2932
C2970
C2971
R2975
R2976
R2999
R2997
R2996
A
B
C
1
0
0
321
0987654321
0
1
23 1
4
5
8
1
26 20 10
1
ICT FC
R
LF
CMKM-P3X
V-ip
25.V-ip
GNDU
GNDU
STBYRout
GNDA
20.STBYLout
GNDA
SWout
GNDA
SBLout
15.GNDA
Lout
GNDA
LSout
GNDA
10.RSout
GNDA
Rout
GNDA
SBRout
5.GNDA
Cout
GNDA
AMUTE
1.MUTE_MR/SB
1.i-pod_L
GNDA
i-pod_R
V+7V
5.GNDU
V-7V
RMC
SRIN
TXD
10.RXD
GNDU
V+5.6U
ip_RX
ip_TX
15.ip_DET
232C_DET
232C_TXD
232C_RXD
232C_CTS
20.GNDU
GNDU
ip_VIDEO
GNDV
AWX8625
AWX8689
AWX
R
L
SW
C
RS
LS
SBR
SBL
STBYR
STBYL
C2978
C2979
C2972
C2973
C2974 R2868
R2870 R2830
R2828
R2829
R2827
R2850
R2848
R2849
R2847
R2810
R2808
R2809
R2807
R2867
R2869
Q2802
Q2801
Q2821
Q2822
Q2841
Q2842
Q2861
Q2862
C2804
C2803
C2805C2806
C2823C2824
C2825C2826C2845C2846
C2843C2844C2863
C2864
C2866
C2865
C2942
L2932
C2937
C2938
R2931
R2934
CN2931
C2935C2936
L2903
L2901
C2934
C2901
L2904
JA2901
L2902
D2901
C2933
2801
CN2804
R2959
R2958
R2957
R2887
R2889
R2888
Q2882
Q2881
R2890
C2886
C2884
C2885
C2883
R2960
D2957
D2955
D2958
D2954
D2953
D2956
C2955
C2956
Q2951
R2901
CN2805
CN2806
Q2952
R2963
D2952
CN2802
C2941
R2964
IC2931
D2959
D2960
C2930
C2961
C2962
C2967
C2968
CN2807
D2961
CN2801
R2962
R2971 R2973
R2972
R2974
C2963
C2965
C2964
C2966
R2998
L2934
CMKM-P3X
PRODUCTION
NP NPNPNPNPNPNPNP
1.MUTE_MR/SB
AMUTE
GNDA
GNDA
GNDA
GNDA
GNDA
GNDA
GNDA
GNDA
GNDU
GNDU
25.V-ip
V-ip
Cout
SBRout
Rout
5.GNDA
15.GNDA
10.RSout
LSout
Lout
SBLout
SWout
20.STBYLout
STBYRout
1.i-pod_L
i-pod_R
GNDA
V+7V
5.GNDU
V-7V
RMC
SRIN
TXD
10.RXD
GNDU
V+5.6U
ip_RX
ip_TX
15.ip_DET
232C_DET
232C_TXD
232C_RXD
232C_CTS
20.GNDU
GNDU
ip_VIDEO
GNDV
NP NP
23
1
16 9
81
R
PREOUT & CONTROL ASS'Y
26
1
(6Pjack)
(4Pjack)
ICT FC
CORD
LF
10
20
30
40
50
60
70
80
90
100
110
120
130
140
150
160170180190200210220
X
Y
(ANP7539-C)(ANP7539-C)
10
20
30
40
50
60
70
80
90
100
110
120
130
140
150
160 170 180 190 200 210 220
X
Y
SIDE A SIDE B
AE
AE AE
PRIOUT&CONTROL ASSY
AE
PRIOUT&CONTROL ASSY
CN2602
K
CN2801
CN2801
CN4320
N
CN2802 CN3063
VSX-AX4AVi-S
98
1234
1234
C
D
F
A
B
E
4.2 AUDIO&MULTI CH IN ASSY
W6212
W6208
W6209
W6221
W6215
W6213 W6220
W6223
C6233
C6234
C6237
C6238
C6239
C6240
W6230
CN6204
W6214
W6207
W6206
CN6205
C6235
C6236
C6241
C6242
CN6208
C6243
C6244
W6219
W6228
C6245
CN6209
C6246
C6247
C6248
W6203
W6216
W6229
JA6201
W6211
W6202
W6226
W6225
C6251
C6252
C6255
W6201
W6227
C6264
C6263
C6256
C6266C6265
W6210
CN6207
C6295
C6296
W6224
W6232
W6222
JA6206
6201
W6231
W6217
W6204
W6205
W6218
CN6203
CN6202
1.TUNER_L
TUNER_R
5.MRtoVOL_L
MRtoVOL_R
MR ASEL_L
MR ASEL_R
15.ASEL_R
ASEL_L
MR VASEL_R
MR VASEL_L
GNDA
GNDA
GNDA
GNDA
GNDA
GNDA
GNDA
GNDA
10.GNDA
20.GNDA
GNDA
V+7V
23.V-7V
1.SW
C
5.RS
LS
SBR
SBL
MIC
17.FVR
15.FVL
GNDA
GNDA
GNDA
GNDA
GNDA
GNDA
GNDA
10.GNDA
13.SRout
GNDUS
GNDUS
10.V-7V
V+7V
iP_R
iP_L
GNDA
5.GNDA
GNDA
VLCK
VLDT1
1.GNDU
(6P JACK) (4P JACK)
V-7A V-7A
V-7A
V+7A
V+7A
V+7A
CMKM-P3X
AUDIO &
IN ASS'Y
MULTI CH
AWX8674
AWX8675
AWX8687
AWX
117
123
113
R
L6207
R6217
R6218
R6223
R6224
C6208
C6207
C6206
C6205
C6201
C6202
C6223
C6224
C6297
C6401
C6275 C6276
IC6201
R6269
R6270
R6267
R6268
C6267
C6268
C6269
C6270
R6233R6234 R6237R6238
R6239
R6240
R6285
C6217
C6218
C6221
C6222
R6221
R6222
R6201
R6202 R6205
R6206
R6208 R6207
R6236 C6204
C6203
R6235
C6220
C6219
R6204 R6203
R6219
R6220
R6210
R6241
C6209
R6209
R6242
C6225
R6225
R6226
C6226
R6228
R6211
R6227
C6228
C6212
R6243
C6227
R6212
R6244
R6230
R6213
R6229
C6230
C6213
C6214
R6245
C6229
R6214
R6246
R6232
R6215
R6231
C6232
C6215
C6216
R6247
C6231
R6216
R6248
R6284
C6282
C6281
L6201
R6264
R6261
C6249
C6250
IC6203
L6203L6205
L6204L6206
R6259
R6251
R6253
R6263
C6260
C6259
R6260
R6257 R6255
C6261
C6262
R6262
C6253
C6257
R6252
R6256
R6254
R6258
C6258
C6254
R6266 R6265
R6283
R6282
C6279 C6280
R6249 R6250
C6283
C6285
C6286
C6284
C6293
C6294
C6210
C6211
C6299
C6298
C6400
R6271
R6272
R6273
R6274
C6291
C6292
R6286
R6287
L6208
L6209
R6288
1732
16
1
V+7A
V+7A
V-7A
V-7A
V-7A
AWX8674
AWX8675
AWX
CMKM-P3X
AUDIO & MULTI CH IN ASS'Y
AWX8687
V+7A
117
1
85
4
123
LF
113
R
170180190200210220230
Y
10
20
30
40
50
60
70
80
90
100
110
120
130
140
X
AUDIO&MULTI CH IN ASSY
AAUDIO&MULTI CH IN ASSY
A
(ANP7543-A) (ANP7543-A)
170 180 190 200 210 220 230
Y
10
20
30
40
50
60
70
80
90
100
110
120
130
140
X
A
SIDE A SIDE B
CN4319
N
CN6202 CN6202
CN5455
H
CN6204
CN5454
H
CN6203
CN6204 CN6203
A
VSX-AX4AVi-S 99
5678
5678
C
D
F
A
B
E
4.3 V-AUDIO ASSY
CN6302
JA6301
C6377
C6372
C6371
C6378
W6325
W6324
W6312
W6321
W6317
W6313
W6323
W6322
W6319
W6320
CN6309 CN6308
C6311
C6312
C6329
C6330
C6335
C6336
C6347
C6348
W6306
W6308
C6341
C6342
C6306
C6305
C6317
C6318
C6324
C6323
W6307
CN6307
W6301
W6302
W6304
W6305
CN6301
W6311
W6309
W6316
W6315
W6310
W6314
W6303
W6318
W6326
C6363
C6364
1.GNDA
GNDA
VLDT2
VLCK
5.GNDU
MRMUTE
V+
V+
CMKM-P3X
1.MROUT_R
MROUT_L
GNDA1
GNDA1
GNDA1
GNDA1
GNDA1
GNDA1
GNDA1
GNDA1
GNDA1
10.GNDA1
20.GNDA1
5.MRASEL_L
MRASEL_R
ASEL_R
ASEL_L
MRVASEL_R
15.MRVASEL_L
FR
FL
V+7
V-7
V-AUDIO ASS'Y
AWX8637
AWX8690
AWX
123
16
R
R6371
R6374
R6375
R6369
R6370
Q6301
IC6302
R6367
R6368
C6375
C6376
C6374
R6366
R6365
C6373
R6364
R6373
C6381
R6372
R6309
R6310
R6333
R6334
R6346
R6345
R6363
C6343
C6338
C6337
C6332
C6331
C6326
C6325
C6307
C6308
C6352
R6340
R6339
C6333 C6334
L6304
L6303
IC6301
R6311 R6312
R6329 R6330
R6335 R6336
R6341 R6342
R6347
R6348
L6302
C6345
C6346
C6309 C6310
C6327 C6328
C6339 C6340
R6327
R6328
R6307 R6308
R6325 R6326
R6332R6331
R6338R6337
R6343
R6344
C6301
C6304
C6302
C6303
R6306R6305
R6303
R6301
R6304
R6302
C6349
R6315
R6313
R6323
R6314
R6316
R6324
R6317
C6320
C6316
C6322
C6313
R6318
C6315
C6314
R6319
R6322
C6321
C6319
R6321
R6320
C6353
R6353
R6355
R6351
R6356
R6352
C6354
C6356
C6355
R6354
C6350
C6344
C6351
L6301
C6361
C6362
C6359
C6360
R6361
R6362
C6368
C6369
R6381
L6305
R6382
C6382
C6380
R6383
C6379
R6384
L6306
V-
V+
OUT
DVR1
DVR2 SAT
VIDEO
IN OUT
DVD
DVR2
LL L
RL L
MR OUT
TV
DVR1
R
IN
R
R
RRR
L
LL
RLR
AWX
AWX8690
AWX8637
CMKM-P3X
V-AUDIO ASS'Y
123
NP
14
5
8
116
32 17
16
LF
R
10
0
20
30
40
50
60
70
80
90
100
110
120
130
110 120 130 140 150 160 170
Y
X
V-AUDIO ASSY
BV-AUDIO ASSY
B
(ANP7543-A) (ANP7543-A)
10
0
20
30
40
50
60
70
80
90
100
110
120
130
110120130140150160170
YX
B
SIDE A SIDE B
CN4318
N
CN6301 CN6301
CN5453
H
CN6302
CN6302
B
VSX-AX4AVi-S
100
1234
1234
C
D
F
A
B
E
4.4 HEAD PHONE and FRONT-IN ASSYS
C3462
C3461
C3457
C3470
C3452 C3473
C3472
C3491
C3492
CN3451
C3483
C3484
CN3551
KN3551
KN3452
KN3451
JA3452
3551
W3451
W3452
W3455
W3453
W3454
W3458
W3459
JA3451
W3456
AWX8638
R
15
1
41
1
V+12A
GAV
V-12A
GNDA
FV-L
GNDA
FV-R
GAV
FV
FV-Y
FV-C
FOPT
GNDD
V+5D
V+12A
MICDET
MICOUT
V-12A
GNDA
15
CONTACT SIDE
FRONT IN ASS'Y
CMKM-P3X
AWX
HEADPHONE ASS'Y
AWX8639
R
CMKM-P3X
OPEN SIDE
R3476
R3472
R3474
C3460
C3463
C3456
L3453
C3459
D3453
C3467
D3452
D3451
R3461
C3454
C3453
R3454
R3452
C3451
C3466
C3465
R3552
L3551
R3551
C3552
C3551
C3494
C3495
C3474
R3471
C3486
C3485
C3471
C3478
C3476
R3473
R3481
R3485
R3486
R3482
R3493
R3491
R3492
R3494
R3489
R3490
R3475
C3489
C3490
R3467
C3482
C3481
R3483
R3484
R3487
R3488
C3553
C3554
C3555
R3459
R3453
R3455
R3456
R3463
R3451
D3454
R3460R3464
R3462
C3477
C3479
L3455
R3495
R3496
L3456
L3457
R3497
C3496
C3464
C3475
C3493
R3458
C3455
R3457
R3480
Q3451
R3499
R3465
R3498
R3466
R3468
IC3451
L3451
L3452
R3469
R3470
14
LF
LF
4
5
8
1
R
R
15 1
1
8
V+5D
V+12A
GNDA
MICOUT
MICDET
FOPT
FV-Y
FV
GAV
FV-R
GNDA
FV-L
FV-C
GNDD
NP
V-12A
HEADPHONE ASS'Y
AWX8639
CMKM-P3X
CMKM-P3X
10
0
10
20
30
40
50
60
70
20 30 40 50 60 70 80 90 100 110
X
90
100
110
120
130
140
Y
Y
110 120 130
X
C
C D C D
(ANP7540-A)
(ANP7540-A)
(ANP7540-A)
(ANP7540-A)
FRONT-IN ASSY
DHEAD PHONE ASSY
DHEAD PHONE ASSY CFRONT-IN ASSY
10
0
10
20
30
40
50
60
70
20 30 40 50 60 70 80 90 100 110
X
Y
90
100
110
120
130
140
Y
120 130
X
SIDE A SIDE A
SIDE B SIDE B
CN4301
N
CN3541
CN3541
4401
G
CN3551CN3551
VSX-AX4AVi-S 101
5678
5678
C
D
F
A
B
E
4.5 BRIDGE1 and BRIDGE2 ASSYS
CN5432
CN5431
CN5443
5441
W204
CN5442
W203
W202
W201
CN5441
ICT FC
BRIDGE1 ASSY
123
123
23,V+5.6U
22,V iP
AWX8667
21,GNDU
20,GNDU
19,FMDET
18,T DO
17,T CLK
23,GCONT1
22,GCONT2
21,AMUTE
20,SBMUTE
16,T DI
15,T CE
19,EXPST
18,EXPOE
17,EXPCLK CMKM-P3X
14,MRIN1
13,MRIN2
16,EXPDT
12,12VDET
11,OSDCS
10,OSDRST
9,OSDDT
8,EXPDT
7,EXPCLK
6,EXPOE
5,EXPST
4,SBMUTE
3,AMUTE
2,GCONT2
1,GCONT1
15,OSDDT
14,OSDRST
13,OSDCS
12,12VDET
11,MRIN2
10,MRIN1
9,T CE
8,T DI
7,T CLK
6,T DO
5,FMDET
4,GNDU
3,GNDU
2,V iP
1,V+5.6U
R
1
13
OSDDT4
OSDDT2
17,MRGND
3,OSDRST
2,OSDCS
1,GNDu
16,MRGND
15,MRV
14,GNDV
13,FV
12,GNDV
11,FV/Y
10,GNDV
9,
8,EXPST
7,EXPOE
6,EXP/
5,EXPDT
4,OSDDT
OSDCLK
12,OSDCS
11,OSDRST
9,EXP/
8,EXP/
10,11,GNDu
OSDDT4
2,MRGND
13,GNDu
10,OSDDT
7,EXPOE
6,EXPST
5,FV
4,GNDV
3,MRV
1,MRGND
1,GNDV
2,FRONT V/C
3,GNDV
4,FRONT V/Y
5,EXPST
6,EXPOE
7,EXP/
8,EXP/
9,EXP/
OSDDT2
BRIDGE2 ASSY
OSDCLK
AWX8668
CMKM-P3X
11
1
R
FV/C
17
1
13 1
111
R
17 1
1,GNDu
CN5441
OSDCLK
2,OSDCS
3,OSDRST
4,OSDDT
5,EXPDT
6,EXP/
7,EXPOE
8,EXPST
9,FV/C
10,GNDV
11,FV/Y
12,GNDV
13,FV
14,GNDV
15,MRV
16,MRGND
9,EXP/OSDDT4
8,EXP/OSDDT2
7,EXP/OSDCLK
6,EXPOE
5,EXPST
4,FRONT V/Y
3,GNDV
2,FRONT V/C
1,GNDV
2,MRGND
3,MRV
4,GNDV
5,FV
6,EXPST
8,EXP/
7,EXPOE
9,EXP/
10,OSDDT
11,OSDRST
12,OSDCS
OSDDT4
OSDDT2
CMKM-P3X
13,GNDu
1,MRGND
11,GNDu
10,GNDu
17,MRGND
23
1
123
R
1,GCONT1
2,GCONT2
3,AMUTE
4,SBMUTE
5,EXPST
6,EXPOE
7,EXPCLK
8,EXPDT
9,OSDDT
10,OSDRST
11,OSDCS
13,MRIN2
14,MRIN1
15,T CE
16,T DI
17,T CLK
18,T DO
19,FMDET
20,GNDU
23,V+5.6U
21,GNDU
22,V iP
12,12VDET
22,GCONT2
23,GCONT1
1,V+5.6U
2,V iP
3,GNDU
4,GNDU
5, FMDET
6,T DO
7,T CLK
8,T DI
9,T CE
10,MRIN1
11,MRIN2
12,12VDET
13,OSDCS
14,OSDRST
15,OSDDT
16,EXPDT
17,EXPCLK
18,EXPOE
19,EXPST
20,SBMUTE
21,AMUTE
CMKM-P3X
70
80
90
100
110
120
50 60 70 80
X
Y
BRIDGE1 ASSY
E
BRIDGE1 ASSY
E
BRIDGE2 ASSY
E
BRIDGE2 ASSY
E
E F E F
(ANP7542-A)
(ANP7542-A)
(ANP7542-A)
(ANP7542-A)
50607080 X
Y10
20
30
40
50
60
10
20
30
40
50
60
50 60 70 80
X
Y
50607080
X
70
80
90
100
110
120
Y
SIDE A SIDE A
SIDE A SIDE A
SIDE B SIDE B
SIDE B SIDE B
CN2504
K
CN5431
CN2002
I
CN5443
CN2202
J
CN5442
CN5442
CN105
L
CN5432
CN2409
K
CN5441
CN5443
CN5441
CN5431
CN5432
VSX-AX4AVi-S
102
1234
1234
C
D
F
A
B
E
4.6 TRANS SIDE and BRIDGE3 ASSYs
4401
CN4403
CN5455
W5844
W5842
W5845
W5843
W5841
CN5453
W5847
CN5454
W5846
CN5451
CN5452
UP SIDE
CONTACT
UP SIDE CONTACT
123mm123mm
18,GNDA
19,MR VASEL L
20,GNDA
21,GNDA
22,V+7A
23,V-7A
2,GNDA
11,MR SEL R
3,TUNER R
8,GNDA
14,GNDA
5,MR to VOL L
10,GNDA
9,MR ASEL L
7,MR to VOL R
4,GNDA
1,TUNER L
6,GNDA
AWX
BRIDGE3 ASS'Y
17,MR VASEL R
15,ASEL R
13,ASEL L
12,GNDA
16,GNDA
2,GNDA
5,MR A SEL L
7,MR A SEL R
9,ASEL L
11,ASEL R
12,GNDA
13,MR VASEL R
14,GNDA
15,MR VASEL L
16,GNDA
21,V+7A
4,GNDA
3,MROUT L
6,GNDA
8,GNDA
10,GNDA
1,MROUT R
22,GNDA
23,V-7A
17,FR IN
18,GNDA
19,FL IN
20,GNDA
1,SW IN
1,TUNER L
2,GNDA
3,TUNER R
4,GNDA
5,MRtoVOL L
12,GNDA
6,GNDA
7,MRtoVOL R
8,GNDA
10,GNDA
13,FR IN
9,MR OUTR
8,GNDA
9,SBR IN
10,GNDA
1,SW IN
2,GNDA
3,C IN
11,MR OUTL
4,GNDA
5,RS IN
6,GNDA
7,LS IN
7,LS IN
11,SBL IN
12,GNDA
13,MIC
14,GNDA
15,FV R
16,GNDA
17,FV L
9,SBR IN
11,SBL IN
12,GNDA
10,GNDA
8,GNDA
6,GNDA
5,RS IN
4,GNDA
3,C IN
2,GNDA
13,MIC
15,FV R
17,FV L
14,GNDA
15,FL IN
16,GNDA
17,GNDA
16,GNDA
14,GNDA
18,V+7A
19,V-7A
AWX8669-
19
1
CMKM-P3X
CMKM-P3X
R
4
1
13.LOCK DET
3,HPR
2,HPG
16.+FAN
15.-FAN
17.+FAN
TRANS SIDE
A
1,HPL
5,GNDST
10.RYA4,HPSW
12.-12V
9.RYHP
7.RYB
4.V+5.6ST
3.RYAC
14.-FAN
2.WUP
8.RYCS
1.HPSW
11.+12V
6,GNDST
AWX8652-
17
1
PRODUCTION CODE
ICT FC
17
1
231
123
17
1
R
LF
14
17 1
01
321
0
01
0123456789 C
B
A
4401
CN4403
AWX8652-
TRANS SIDE
A
4,HPSW
3,HPR
2,HPG
1,HPL
1.HPSW
2.WUP
3.RYAC
4.V+5.6ST
6,GNDST
5,GNDST
7.RYB
8.RYCS
9.RYHP
10.RYA
11.+12V
12.-12V
13.LOCK DET
14.-FAN
15.-FAN
16.+FAN
17.+FAN
50 60 70 80 90 100 110 120 130 140 150 160 170 180 190
X
X
TRANS SIDE ASSY
G
TRANS SIDE ASSY
G
BRIDGE3 ASSY
H
G H
50 60 70 80 90 100 110 120 130 140 150 160 170 180 190
SIDE A
SIDE B
SIDE A
CN5705
P
CN4403
CN6204
A
CN5455
CN6203
A
CN5454
CN4403
CN2502
K
CN5451
CN2603
K
CN5452
CN6302
B
CN5453
CN3551
D
44014401
130
140
150
160
170
180
190
110120 90100130140150160170
Y
X
(ANP7543-A)
VSX-AX4AVi-S 103
5678
5678
C
D
F
A
B
E
CN4402
CN4401
13
1
113
9,RYB
10,GNDST
7,RYHP
1,+FAN
8,RYCS
11,V+5.6ST
TRANS SIDE ASS'Y
2,-FAN
3,HPR
2,HPG
4,V-12V
13,WUP
12,RYAC
5,V+12V
3,LOCK DET
1,HPL
6,RYA
AWX8652-
31
L4401
L4402
L4403
L4404
L4405
L4406
L4407
L4408
L4409
L4410
L4411
L4412
L4413
R4401
R4402
R4403
R4404
R4405
R4406
R4407
R4408
R4409
R4410
R4411
R4412
R4413
CMKM-P3X
AWX
BRIDGE3 ASS'Y
CN5452CN5451
CN5454
AWX8669-
5,MRtoVOL L
4,GNDA
3,TUNER R
2,GNDA
1,TUNER L
11,MR OUTL
9,MR OUTR
10,GNDA
8,GNDA
7,MRtoVOL R
6,GNDA
19,V-7A
18,V+7A
17,GNDA
16,GNDA
15,FL IN
14,GNDA
13,FR IN
12,GNDA
7,LS IN
6,GNDA
5,RS IN
4,GNDA
3,C IN
2,GNDA
1,SW IN
9,SBR IN
8,GNDA
17,FV L
16,GNDA
15,FV R
14,GNDA
13,MIC
12,GNDA
11,SBL IN
10,GNDA
2,GNDA
5,MR A SEL L
7,MR A SEL R
4,GNDA
3,MROUT L
6,GNDA
8,GNDA
1,MROUT R
9,ASEL L
11,ASEL R
12,GNDA
13,MR VASEL R
14,GNDA
15,MR VASEL L
16,GNDA
10,GNDA
17,FR IN
21,V+7A
22,GNDA
23,V-7A
18, GNDA
19,FL IN
20,GNDA
6,GNDA
1,TUNER L
4,GNDA
5,MR to VOL L
3,TUNER R
2,GNDA
12,GNDA
13,ASEL L
7,MR to VOL R
9,MR ASEL L
10,GNDA
14,GNDA
8,GNDA
11,MR SEL R
16,GNDA
15,ASEL R
17,MR VASEL R
22,V+7A
21,GNDA
20,GNDA
19,MR VASEL L
18,GNDA
23,V-7A
2,GNDA
3,C IN
4,GNDA
5,RS IN
6,GNDA
1,SW IN
14,GNDA
13,MIC
8,GNDA
10,GNDA
12,GNDA
11,SBL IN
9,SBR IN
7,LS IN
16,GNDA
17,FV L
15,FV R
CN5455
CN5453
1
19
13 1
R
31
AWX8652-
CN4402
CN4401
V+12V
TRANS SIDE ASS'Y
1,+FAN
2,-FAN
3,LOCK DET
HPL
HPG
HPR
V-12V
13.WUP
12.RYAC
RYCS
RYB
GNDST
11.V+5.6ST
RYHP
RYA
CMKM-P3X
LF
1
17
R
23 1
23 1
117
0
7
0180 190 200 210 220 230 240 250 260 270 280 290 300 310 330
10
20
30
40
50
Y
BRIDGE3 ASSY
H
G H
(ANP7541-B)
(ANP7541-B)
320
7
0180 190 200 210 220 230 240 250 260 270 280 290 300 310 330320
SIDE A
SIDE B
SIDE B
CN5455CN5454
J4009
X
CN4402
CN5451CN5452
CN5453
CN4402
10
0
20
30
40
50
Y
90 100 110 120 130 140 150 160 170
Y
130
140
150
160
170
180
190
X
(ANP7543-A)
VSX-AX4AVi-S
104
1234
1234
C
D
F
A
B
E
4.7 COMPOSITE V ASSYS
IC2001
C2002
C2088 C2016 X2001
C2043
C2049
C2038
C2037
R2019
R2020
R2021
R2022
D2001
C2014
C2013
C2044
C2050
C2015
C2020
C2019
C2017
C2018
IC2008
R2014
R2016
R2018
R2013
R2015
C2030
C2031
R2017
IC2002
C2024
C2025
C2004
C2003
C2006
C2005
C2001
C2045
L2003
C2034
C2035
C2036
R2032
R2031
R2029
R2028
R2027
R2030
C2048
C2012
JA2005
IC2006
2001
2003 2002
2004
C2096
C2052
IC2003
IC2004
C2022
C2021
C2046
C2047
C2010
R2010
C2029
C2028
C2070
R2070
R2011
C2011
Q2070
C2090
CN2002
R2090
CN2001
R2091
C2082
R2082
R2036
R2092
LF
9
16
81
916
18
9
16
18
13 1
17
8
14
8
9
16
1
16 9
81
15
1
CMKM-P3X COMPOSITE_V ASSY
R
IC2007
R2001
R2002
R2008 C2008
C2041
C2042
C2040
C2039
C2094
R2007
C2007
R2009
C2009
C2053
C2026
C2027
C2095
R2004
R2003
R2006
R2005
C2092
IC2005
C2051
R2025
R2024
Q2001
R2026
R2023
R2012
R2034
R2035 IC2009
R2033
C2054
C2091
C2093
R2071
C2087
C2055
C2089
C2086
C2097
C2098
C2099
R2095
13
24
112
4
1
85
18
9
16
113
15 1
LF
R
MONI DVD TV SAT VIDEO1 DVR1 OUT DVR1 IN DVR2 INDVR2 OUT
AWX8620
AWX8621
AWX COMPOSITE_V ASSY
CMKM-P3X
B-1
SERVICE
SERVICE
A-2
SERVICE
B-2
SERVICE
A-1
10.GNDV
1.GNDV
2.i-Pod
3.V-5.6V
4.V-5.6V
7.V+5.6V
8.V+5.6V
5.GNDV
6.GNDV
9.MRINH
10.VMUTE
11.NC
12.GNDV
13.VOUT
14.GNDV
15.VIN
1.GNDU
2.OSDCS
3.OSDRT
4.OSDDT
5.EXPDT4
6.EXPCK
7.EXPOE
8.EXPST
9.FV
11.MRV
12.GNDM
13.GNDM
10
20
30
40
50
60
70
80
90
100
110
120
130
140
100 110 120 130 140 150
X
Y
COMPOSITE V ASSY
ICOMPOSITE V ASSY
I
(ANP7539-C) (ANP7539-C)
I
SIDE A SIDE B
CN4317
N
CN2001 CN2001
CN5443
F
CN2002 CN2002
I
10
20
30
40
50
60
70
80
90
100
110
120
130
140
100110120130140150
X
Y
VSX-AX4AVi-S 105
5678
5678
C
D
F
A
B
E
4.8 S-VIDEO ASSY
C2223
C2224
C2226
C2225
C2228
C2227
R2228
C2242 R2224R2226
D2272
C2281
C2282
R2272
R2274
R2273
R2271
C2283
IC2271
C2232
C2231
IC2202
R2295
IC2281
R2282
R2281
R2283
C2284
C2235
C2238
C2236
IC2204
IC2203
C2221
C2296
R2284
C2240
CN2203
CN2204
CN2205
CN2206
R2285
R2286
C2285
IC2282
C2239
C2248
C2247
IC2205
IC2206
C2246
C2245
IC2208
R2256
C2259
C2257
C2256
C2263
C2262
C2255
C2258
R2252
R2254
R2253
R2251 R2255
C2261
C2271
C2274 C2273
IC2210
C2270
C2276
R2265
C2269
C2272
R2263
R2261 C2275
R2262
R2264 R2266
C2251
C2252
IC2207
CN2201
IC2209
C2266
C2265
R2219
R2220
C2219
C2220
R2289
R2290
D2271
R2297
R2291
IC2201
CN2202
C2297
R2287
R2239
C2267
R2247
C2253
R2240
C2200
R2298
C2250
R2248
R2245
C2229
CMKM-P3X
18
9
16
16 9
81
5
8
14
16 9
81
16 9
81
16 9
8
1
18
9
16
4
1
85
14
5
8
18
9
16
117
16 9
18
16 9
8
1
111
17
1
GNDU
DT2
EXPCK
DT4
GNDU
EXPOE
EXPST
FVY
GNDV
GNDV
FVC
11
1
V-5.6V
V-5.6V
GAV
GAV
V+5.6V
GND
SYIN
SCIN
GND
SYOUT
SCOUT
GND
GND
SDET
VMUTE
MRINH
V+5.6V
LF
S-VIDEO
ASSY
R
R2250
C2203 C2286
L2201
R2201
C2241
R2225
R2227
R2223
C2214
R2213
C2293
C2202
R2214
C2294
C2204
R2203
C2210
R2209
C2212
R2211
C2206
R2205
C2208
R2208
R2207
C2237
R2206
R2212
R2210
R2204
R2202
C2243
C2291
R2221
R2222
C2295
C2292
C2222
C2215
R2216
R2215
C2260
C2277
C2217 R2218
R2217
C2213
C2216
C2218
Q2271
C2234
R2242
C2287
C2230
R2244
R2231
R2232
R2249
R2294
C2205
R2241
C2201
C2254
C2288 C2207
R2246
C2289
C2249
C2268
R2230
C2278
C2279
C2280
R2229 L2202
R2243
C2233
117
11 1
LF
RCMKM-P3X
S-VIDEO ASSY
AWX8622
AWX8623
AWX
GND
11
1
GNDV
GNDV
FVY
EXPST
EXPOE
DT4
DT2
EXPCK
FVC
GNDU
GNDU
GAV
GAV
V-5.6V
V-5.6V
V+5.6V
V+5.6V
SCOUT
SDET
GND
VMUTE
MRINH
GND
SYOUT
SCIN
GND
SYIN
1
17
CY
MONI.OUT
CY
IN1 IN2
CYY
C
STBY1 STBY2 DVR1
DVR1 OUT
DVR2
DVR2 OUT
CYY
CCYY
CC
Y
10
10
20
30
40
50
60
70
80
90
100
110
120
130
140
20 30 40 50 60 70
140
X
Y
S-VIDEO ASSY
JS-VIDEO ASSY
J
(ANP7539-C)
J
SIDE A SIDE B
CN4316
N
CN2201 CN2201
J
CN5442
F
CN2202 CN2202
10
10
20
30
40
50
60
70
80
90
100
110
120
130
203040506070
X
Y
(ANP7539-C)
VSX-AX4AVi-S
106
1234
1234
C
D
F
A
B
E
4.9 COMPONENT&VOL ASSY
5
4
8
1
5
4
17
10
1
1
16
19
10
1
19
10
1
71
262010
1
11
10
1
19
10
1
131
17
10
1
71
23 22
21
1110
32
1
22241102
C2515
R9757
R2636
R2635
IC2632
C2634
C2633
R2633
R2634
IC2634
C2643
C2644
R2651
R2652 R2654
R2653
C2639
R2641
IC2633
C2640
R2642
R9758
IC2631
R9759
L2753
R2646
R2649
R2650
R2645
R2629 R2630
R2626R2625
C2642
C2
6
C2652
CN2502
C2648
R2631 R2627
R2628
R2632
D2504
D2505
R2647R2648
C2
6
C2638
2701
IC26
4
CN2603
R2599
R2549
CN2601
CN2505
CN2602
KN2701
CN2702
C2789
C2790
IC2401
C2411 C2412
C2416
C2415
IC2402
C2432C2431
C2420
C2419
IC2404
JA2402
C2460
R2464
C2443
C2442
R2465
C2441
R2466
C2444
C2445
C2446 C2448
C2449
C2447
C2450
C2452
C2451
CN2401
C2472 C2471
R2720
R2723
R2446
R2444
R2443
R2447
R2445
R2448 R2449
C2467
C2468
C2469
C2461
JA2403
C2424
C2425
C2426
CN2403
Q2412
Q2409
Q2413
Q2410
Q2414
Q2411
CN2409
JA2401
C2591
L2757
L2758
L2759
CN2402
JA2702
CN2701 CN2703
L2751
L2752
L2754
L2756L2755
R2751
R2752
R2759
R2760
R2761
D2752
D2753
D2754 C2754
Q2753
C2771
V-5V
V+5V
1.GNDT
FMDET
VSM
TR
V+9T
TL
GNDT
T_DO
T_CLK
T_DI
11.T_CE
1.GNDV
CY_TO_D
GNDV
CY_FR_D
CB_TO_D
CB_FR_D
CR_FR_D
CR_TO_D
VMUTE
DSW1
D53A
19.DINH
GNDV
GNDV
GNDV
GNDV
GNDV
1.CY IN
4
1
85
Cb IN
Cr IN
Cr OUT
4
5
18
9
Cb OUT
CY OUT
1
17.SW
GNDA
GNDA
GNDA
GNDA
16
1
19
1
191
71
26
1
13.VMUTE
GNDV
GNDV
GNDA
GNDV
GNDV
GNDV
GNDV
1.GNDMR
GNDMR
MRV
GNDV
FV
GNDV
7.FY
GNDV
FC
EXPST
GNDA
C
SR
SL
SBR
SBL
MIC
FVL
1.FVR
GNDFA
GNDFA
19.TUNER L
GNDAT
GNDAT
TUNER R
MRINL
GNDA
MRINR
GNDA
MROUTR
GNDAM
MROUTL
GNDAM
FR
GNDA
FL
GNDA
GNDA
1.V-7A
V+7A
GNDA
SWOUT
GNDA
SBLOUT
GNDA
FLOUT
GNDA
SLOUT
16.GNDA
17.SROUT
GNDA
GNDA
FROUT
SBROUT
GNDA
COUT
GNDA
AMUTE
26.MUTE MR/SB
ViPOD
GNDU
STROUT
GNDA
STLOUT
GNDU
1.ViPOD
EXPOE
EXPCK
EXPDT
OSDDT
OSDRT
OSDCS
17.GNDU
ICT FC
PRODUCTION CODE
COMPONENT&VOL ASS'Y
16 9
18
16 9
18
16 9
18
119
1.V+5.6V
GNDV
GNDV
V-5.6V
V12TRG
13 1
17
1
71
GNDTRG
7.V12T
NP
17
1.GNDFV
FVC
FVY
GNDFV
8 FVR
1.GNDU
VLCLK
VLDT2
VLDT1
XLSSN
V+5.6U
7.GNDU
11
1
RCMKM-P3X
1120130140150160170180190200210220230
COMPONENT&VOL ASSY
K
K
SIDE A
(ANP7538-B) CN4315
N
CN2402
CN4314
N
CN2403
CN4324
N
CN2505
CN5451
H
CN2502
CN5441
F
CN2409
CN5603
O
CN2601
CN5452
H
CN2603
CN2801
AE
CN2602
TUNER MODULE
CN2702
VSX-AX4AVi-S 107
5678
5678
C
D
F
A
B
E
85
41
85
41
85
41
56 43
42 29
2815
141
5
4
8
1
5
4
8
1
5
4
8
1
85
41
85
41
56 43
42 29
2815
141
18
916
16
1
20
1
231
111
81
16 9
C2554
IC2551
C2564 C2563
R2558
C2562
R2570
C2561
C2565
C2540
R2536
IC2525
R2544
C2536
R2535
C2538
C2539
C2535
R2543
C2537
IC2501
C2516
R2512
R2511
C2514
C2511
C2512
R2520
R2519
C2515
C2513
IC2637
C2676
C2675
C2551C2526C2525C2501 C2502 C2552
C2668
C2666
C2667
Q2552
R2557
Q2551
R2532
Q2526
R2531
Q2525
R2507
Q2501
Q2502
R2508
C2553
C2528
C2527
C2504
C2503
C2509
C2510
C2533
C2534
C2560
R2562
C2559
R2561
C2505
C2506
C2529
C2530
C2555
C2556
C2663
C2660 C2661
C2662
C2507 C2508 C2531 C2532 C2557 C2558
C2566
4
3
4
4
5
1
5
2 R2654
R2653
IC2635
R2659
C2639
R2641
IC2633
C2640
R2642
IC2631
R2629 R2630
IC2636
C2645
C2646
R2626R2625
C2642
C2649
C2650
C2651
C2652
C2632
R
2627
R
2628
R2689
Q2631
D2507
D2506
D2501
D2504
D2505
D2503
R2647R2648
R2660
C2637
C2638
R2569
Q2633
R2582
R2581
Q2575
Q2576
R2619
IC2601
C2613
C2590
IC2575
R2585
R2586
C2607 C2608
C2588
C2585
R2594
C2678
C2589
C2587
C2604
C2578
C2679
C2687
C2685
C2605
C2580
C2579
C2606
C2603
IC2638
C2680
C2677
C2686
C2688
R2612
C2616
C2689
C2614
R2611
C2612
R2620
C2693
C2692
C2615
C2611
R2608
Q2601
R2607
Q2602
C2582
C2581
C2575
C2576
C2601
C2577
C2683
C2583
C2584
R2593
C2602
C2610
C2609
C2586
C2684
IC2640
D2511
D2512
CN2501
CN2503
R2697
R2694
R2599
R2549
C2697
C2699
C2700
C2698
C2695
C2696
C2626
CN2504
C2627
C2629 C2628
D2513
D2515
D2514
D2516
Q2634
Q2641
Q2642
CN2506
R2699
R2698
IC2641
Q2645
Q2644
C2714
C2715
C2716
C2717
R2719
R2720
R2721
R2722
R2723
C2591
4
58
1
1
85
4
1
8
5
4
2942
28
4356
14
1
15
4
1
85
4
1
85
16 9
8
1
4
1
85
18
9
16
1
8
9
16
41
8
5
4
5
8
1
2942
28
4356
14
1
15
16 9
81
114201
1
23
11 1
81
16 9
1.V+5.6U
ViPOD
GNDU
4.GNDU
5.FMDET
T DO
T DI
TCLK
TCE
MRIN1
MRIN2
12VDET
OSDCS
14.OSDRST
15.OSDDT
MEXDT
MEXCLK
MEXOE
MEXST
MUTE MR/SB
AMUTE
GCONT2
23.GCONT1
1.GNDDAC
GNDDAC
NP
FROUT
FLOUT
GNDA
GNDA
GNDA
GNDA
7.GNDA
GNDA
8.FL
FR
C
14.SW
1.GNDFV
FVC
FVY
GNDFV
GNDFV
FV
GNDFA
7.GNDFA
GNDFA
GNDFA
8.FVR
FVL
MIC
GNDA
GNDA
GNDA
V-12A
V-12A
V+12A
20.V+12A
10
10
0
20
30
40
50
60
70
80
90
100
110
120
130
140
150
160
2030405060708090100110120
Y
X
K
SIDE A
3
24 CN4313
N
CN2503
CN4325
N
CN2501
CN4312
N
CN2506
CN5431
E
CN2504
CN5603
0
1
VSX-AX4AVi-S
108
1234
1234
C
D
F
A
B
E
14 8
71
81
16 9
R2554
R2556
R2564
R2560
R2574 R2573
R2540
R2538
R2548
R2539
R2537
R2547
R2514
R2516
R2515
R2524
R2513
R2677
R2678
C2664
C2665
R2664 R2663
R2667 R2665
R2666
R2668
R2509
R2510
R2533
R2559 R2534
Q2503
Q2504
Q2528
Q2527
R2555
R2553
R2530
R2529
R2527
R2506
R2505
R2504
R2528
R2523
R2517
R2518
R2541
R2542
R2568
R2566
Q2554
R2563
R2565
Q2553
R2567
R2501R2502
R2526
R2525
R2552
R2551
R2679
R2680
C2671
C2669
C2674
C2673
C2672
C2670
C2647
R2662
R2661
R2643
R2644
IC2630
C2641
C2635
C2636
C2654
C2653
C2631
R2658
R2657
D2510 D2509 D2508
Q2630
R2690
Q2632
R2691
D2502
R2503
R2637 R2638
R2655
R2656
R2521
R2522
R2545
R2546
R2572 R2571
R2692
C2656
C2655
IC2639
R2604
R2579
C2682
R2623
R2588
R2590 R2589
R2598
R2587
C2690R2684
Q2603
Q2604
R2614
R2616
R2613
R2615
R2624
R2606
Q2577
R2603
R2584
R2609
R2602
R2601
R2610
R2673
R2669
R2672
R2671
R2597
R2591
R2578
R2583
R2618
R2592
R2617
R2674
R2605
R2576
C2681
R2575
R2681
R2682
C2691
R2683
R2580
Q2578
R2670
C2621
D2520
D2519
D2517
C2623
R2676
R2675
R2687
R2688
R2685
R2686
R2577
R2693
D2518
D2521
R2595
R2596
R2622
R2621
Q2635Q2637 Q2636
Q2639
Q2638
C2657
C2658
Q2643
R2695
C2694
7
8
1
14
81
16 9
14
11
20
23 1
19 1
7
111
LF
11.SL
SR
SBL
SBR
STL
1.STR
AMUTE
MUTE MR/SB
GNDA
SBROUT
GNDA
GNDA
COUT
GNDA
FROUT
SROUT
GNDA
SLOUT
GNDA
FLOUT
GNDA
SBLOUT
1.GNDA
GNDA
GNDA
GNDA
GNDA
GNDA
VLDT1
VLDT2
VLCLK
7.GNDU
1.GNDFV
FVC
GNDFV
FVY
GNDFV
FV
GNDFA
7.GNDFA
8.FVR
GNDFA
FVL
GNDFA
MIC
GNDA
GNDA
GNDA
V-12A
V-12A
V+12A
20.V+12A
1.GNDDAC
FROUT
GNDDAC
FLOUT
GNDA
GNDA
7.GNDA
8.FL
GNDA
FR
GNDA
C
GNDA
14.SW
15.OSDDT
MEXDT
MEXCLK
MEXOE
MEXST
MUTE MR/SB
AMUTE
GCONT2
23.GCONT1
14.OSDRST
OSDCS
12VDET
MRIN2
MRIN1
TCE
T DI
TCLK
5.FMDET
T DO
1.V+5.6U
ViPOD
GNDU
4.GNDU
7
8
14
19.NECK8
NECK6
10
10
0
20
30
40
50
60
70
80
90
100
110
120
130
140
150
160
20 30 40 50 60 70 80 90 100 110 120 13
0
Y
X
COMPONENT&VOL ASSY
K
K
SIDE B
C
N
CN2503CN2501CN2506
CN2504
CN2601
VSX-AX4AVi-S 109
5678
5678
C
D
F
A
B
E
18
9
16
14 8
71
5
05
C2473
C2474
C2475
C2476 C2477
C2647
R9760
R9761
2
502
R
2638
Q2640
Q2639
R2435
R2436
L2761
C2659
C2462
D2771
D2772
R2771
R2773
R2774
R2775
Q2771
C2787
C2788
R2401
C2454
C2457
C2435
C2436
C2437
R2439
R2441
R2440
C2401
C2422
C2428
R2431
C2427
R2432
R2430
C2421
C2423
C2455
C2458
C2402
C2403
C2404
C2405
C2406
C2407
C2408
C2409
R2402
R2403
R2404
R2405
R2406
R2407
R2408
R2409
C2453
C2439
C2440
R2454 R2453 R2451
R2458
R2461
R2455 R2462
R2456
R2459
R2463
R2457
R2460
R2433
IC2407
C2438
R2467
R2468
R2469
IC2405
C2434
Q2407
R2437
D2401
D2402
R2452
Q2408
R2475
R2474 R2476
C2464
C2456
C2463
L2760
C2785
C2786
R2753
R2754
R2781
R2782
R2755
R2756
R2757
R2758
R2772
R2762
D2751
R2763
C2751
C2752
C2753
C2781
C2782
C2783
C2784
C2772
C2459
Q2751
Q2754
Q2752
Q2772
17 1
19 1
19 1
17
26 20 10
1
LF
19 1
9
8
16
1
7
8
1
14
13
1
17 1
17
R
000
111
222
333
444
555
666
777
888
999
AWQ
9
8
7
6
5
4
3
2
1
0
A
MUTE
M
R/SB
G
NDA
S
BROUT
G
NDA
G
NDA
C
OUT
G
NDA
F
ROUT
S
ROUT
G
NDA
S
LOUT
G
NDA
F
LOUT
G
NDA
S
BLOUT
N
DA
COMPONENT&VOL ASSY
GHDMI
13.VMUTE
V+5.6V
V-5.6V
GNDV
GNDV
GNDTRG
V12TRG
V12T
GNDMR
GNDMR
MRV
GNDV
GNDV
GNDV
FV
FY
FC
EXPST
EXPOE
EXPCK
EXPDT
OSDDT
OSDRT
OSDCS
GNDU
V-5V
GNDV
GNDV
GNDV
GNDV
GNDV
GNDV
CY_TO_D
CY_FR_D
CB_FR_D
CB_TO_D
CR_TO_D
CR_FR_D
VMUTE
DSW1
D53A
DINH
GNDT
GNDT
FMDET
VSM
TR
V+9T
TL
T_DO
T_CLK
T_DI
T_CE
19.TUNER L
GNDAT
TUNER R
GNDAT
MRINL
GNDA
MRINR
GNDA
MROUTR
GNDAM
MROUTL
GNDAM
FR
GNDA
FL
GNDA
GNDA
V+7A
1.V-7A
GNDV
Cr OUT
GNDV
Cb OUT
GNDV
CY OUT
GNDV
Cr IN
GNDV
GNDV
Cb IN
1.CY IN
1.GNDU
V+5.6U
XLSSN
VLDT1
VLDT2
17.SW
GNDA
C
GNDA
SR
GNDA
SL
GNDA
SBR
GNDA
SBL
GNDA
MIC
GNDFA
FVL
GNDFA
1.FVR
VLCLK
7.GNDU
1 GNDFV
26.MUTE MR/SB
AMUTE
COUT
GNDA
GNDA
GNDA
SBROUT
FROUT
17.SROUT
GNDA
16.GNDA
SLOUT
GNDA
FLOUT
GNDA
SBLOUT
GNDA
GNDA
SWOUT
STLOUT
STROUT
GNDA
GNDU
GNDU
ViPOD
1.ViPOD
11 1
V+5V
GNDV
10
CMKM-P3X
120 130 140 150 160 170 180 190 200 210 220 230
(ANP7538-B)
K
SIDE B
CN2402CN2403CN2505
CN2502
CN2409
CN2601
CN2603 CN2602
CN2702
VSX-AX4AVi-S
110
1234
1234
C
D
F
A
B
E
4.10 DIGITAL MOTHER ASSY
C102
C118
C125
C128
C133
C134
C202
C203
C208
C211
C212
C213
C221
C222
C346
C347
C348
C349
C350
C354
C377
C378
C451
C452
C453
C454
C455
C456
C481
C482
C483
C484
C485
C486
C487
C488
C489
C490
C491
C601C602
C605
C606
C607
C608
C651
C652
C653
C654
C655
C656
C657
C658
C659
C660
C701C702
C705
C706
C707
C708
C751
C752
C753
C754
C755
C756
C757
C758
C759
C760
C801
C802
C805
C806
C807
C808
C851
C852
C853
C854
C855
C856
C857
C858
C859
C860
C901
C902
C905
C906
C907
C908
C951
C952
C953
C954
C955
C956
C957
C958
C959
C960
C991
C992
CN101
CN102
CN103
CN104
CN105
CN106
CN202
CN302
R855
CN991 CN992
D102
D103
D104
D105
D106
D111
D112
D113
C997
C998
IC103
IC108
IC203
IC204
IC205
IC221
IC481
IC482
IC651
IC652
IC751
IC752
IC851
IC852
IC951
IC952
IC991
L201
L307
C363
L481
L482
L651
L652
L751
L752
L851
L852
L951
L952
Q105
Q107
Q482
R
R235
R236
R238
R241
R
R391
R392
R393
R394
R396
R397
R398
R399
R423
R424
C364
C365
C366
R237
R435
R436
R437
R438
R451
R452
R453
R454
R455
R456
R461
R462
R465
R466
R483
R484
R485
R486
R487
R601R602 R603R604
R609R610
R611R612
R613R614
R615
R616
R651
R652
R653
R654
R655
R656
R657
R658
R659
R660
R661
R701R702 R703R704
R709R710
R711R712
R713R714
R715
R716
R751
R752
R753
R754
R755
R756
R757
R758
R759
R760
R761
R801R802 R803R804
R809
R810
R811
R812
R813
R814
R815
R816
R851
R852
R853
R854 R858
R859
R860
R861
R901R902 R903R904
R909
R910 R911
R912 R913
R914
R915
R916
R951
R952
R953
R954
R958
R959
R960
R961
X181
R272
C974
CN306
R998
R999
CN305
IC315
C201
IC316
C995
R929
R930
R931
R932
R933
R934
R935
R936
R937
R938
R939
R940
R941
R942
R943
R944
C965
C966
IC311
D114
IC310
R200
R499
R949
R101
IC211
R971
R972
R973
R975
R976
R977
R979
R980
R981
R983
R984
R985
R987
R988
R989
R991
R992
R993
R995
R996
C220
R950
R994
D108
R945
R946
R947 R948
C501
C502
C505
C506
C507
C300
C508
C551
C552
C553
C554
C555
C556
C557
C558
C559
C560
D116
Q106
Q108
IC551
IC552
L551
L552
R501
R502 R503R504
R509
R510
R511
R512
R513
R514
R515
R516
R551
R552
R553
R554
R555 R556
R557
R558
R559
R560
R561
C975
IC954
C977
7.MEXCLK
8.MEXDT
9.OSDT
10.OSRST
11.OSCS
12.12VDET
13.MRIN2
14.MRIN1
15.TCE
16.TDI
17.TCLK
18.TDO
19.FMDET
20.GNDU
21.GNDU
22.VIPOD
23.V+5_6U
1.GND
2.DSD6
3.DSD5
4.DSD4
5.DSD3
6.DSD2
7.DSD1
8.GND
9.DSDCLK
10.GND
1.GNDU
2.V+5UM
3.GNDU
4.V+5_6U
5.DCDET
6.OLDET
7.TEMP2
8.TEMP1
9.RYA
10.RYHP
11.RYCS
12.RYB
13.GNDST
14.GNDST
1.12VDET
16.RYAC
15.V+5_6ST
17.W_UP
18.HPSW
19.WATT S
2.RYAC
3.TEMP2
4.DISP_RST
5.DISP_CLK
6.DISP_DI
7.DISP_DO
8.DISP_RDY
9.DISP_EN
10.HPDET
11.IPDET
12.MRIN2
13.MRIN1
14.1W_WP
15.v+5_6ST
16.GNDU
17.GNDU
18.GNDU
19.232CDET
20.MICDET
21.SRIN
22.RMC
23.SROUT
1.V+5_6U
2.V+5_6U
3.GNDU
4.GNDU
5.VIPOD
6.VIPOD
7.232CDET
8.MICDET
9.SRIN
10.RMC
11.SROUT
20.FLIN
3.GNDA(S)
5.GNDA(S)
7.GNDA(S)
9.GNDA(S)
11.GNDA(S)
13.GNDA(S)
15.GNDA(S)
17.GNDA(S)
19.GNDA(S)
1.GNDA(S)
18.FRIN
16.CIN
14.SWIN
12.SLIN
10.SRIN
8.SBLIN
6.SBRIN
4.STLIN
2.STRIN
1.GCONT1
2.GCONT2
3.AMUTE
4.SBMUTE
5.MEXPST
6.MEXPOE
DIGITAL MOTHER ASS'Y
PRODUCTION
C
123
11
1
119
116
123
110
110
26
1
NP
1
20 20
1
18
916
110
18
916
71
14 8
71
14 8
14
85
1120
110
114
1528
14
5
8
114
1528
14
5
8
114
1528
14
5
8
114
1528
14
5
8
NP
NP
1
1
10
18
916
18
916
13
64
110
1120
18
916
NP
114
1528
14
5
8
18
916
10
0
20
30
40
50
60
70
80
90
100
110
120
130
140
150
20 30 40 50 60 70 80 90 100 110
10
Y
X
DIGITAL MOTHER ASSY
L
L
SIDE A
CN5432
E
CN105
CN352
M
CN302
CN305
CN4304
N
CN992
CN4302
N
CN102
CN4303
N
CN991
CN4305
N
CN104
CN
4
N
CN30
6
CN5703
P
CN103
CN3201
CN101
CN402
AF
AC
VSX-AX4AVi-S 111
5678
5678
C
D
F
A
B
E
C103
C105
C106
C108
C109
C110
C111
C114
C115
C116
C117
C122
C126
C128
C130
C131
C132
C181
C182
C183
C184
C185
C188
C189
C202
C203
C204
C205
C206
C207 C209
C210
C211
C212
C213
C215
C216 C217
C218
C219
C261
C262
C263
C267
C268
C269
C281
C283
C284
C286
C289C290
C301
C318
C319
C320
C321
C322
C323
C324
C325
C326
C327
C328 C329
C330
C332
C333
C334
C335
C336
C338
C339
C340
C341
C342
C343
C344
C345
L308
R260
C355
C357
C358
C374
C375
C376
C379
C352
C353
C359
CN106
CN201
CN301
CN302
CN303
CN304
D112
IC101
IC102
IC105 IC106
IC107
IC108
IC181
C294
IC201
IC202
IC203
IC204
IC205
IC206
IC207 IC208
IC209
IC210
IC261
IC281
IC301
IC306
IC307
IC308
IC309
C360
IC321
JA261
CN281
C361
C362
JA302JA303
JA304JA305
JA306
JA307
L101
L181
L281
L282
L301
L303
L304
L305
L306
Q181
Q182
R102 R103
R105
R106
R110
R111
R115 R116 R120
R121
R123 R124
R129
R130
R132 R133
R135
R137
R145
R164
R171
R173
R181
R182
R183R185
R201
R202
R205
R209
R210
R211
R214
R215
R216
R217
R218
R220
R222
R225
R227
R231
R238
R241
R243
R245
R253
R255
R256
R257
R258
R261
R262
R263
R264
R265
R281
R282
R283
R284
R285R286
R291
R292
R293
R294
R296
R319
R320
R321
R322
R323
R327
R328
R329
R330
R331
R333
R334
R335
R336
R337
R338
R339
R340
R341
R342
R343
R344
R345
R346
R347
R348
R349
R350
R351
R352
R353
R354
R355
R356
R357
R358
R359
R360
R361
R362
R363
R364
R365
R366
R367
R368
R369
R370
R371
R372
R373
R374
R375
R376
R377
R378
R379
R380
R381
R382
R383
R384
R385
R386
R387
R388
R389
R390
IC312
R430
R431R432
R433 R434
R435
R436
R437
R438
X101
X181
X201
X261
X281
X301
R178
R273
CN306
R193
C337
C351
R468
R469
R470
IC320
R274
R476
R477
R300
CN305
C223
R269
R270
C383
IC313
IC314
R275
C201
C367
R199
L310
L309
C292
R198
R196
R242
JA301
R921
R922
R923
R924
R925
R926
R927
R928
C963
C964
R277
R478
R479
R480
C384
C385
IC319
IC318
C368
C369
R488
R489
D114
R176
R200
R962
L312
L313
L314
L315
L311
L316
IC211
IC282
R428R429
R439
R440
R441
R442
R443
R444
R447
R448
R491
R492
R495
R496
R963
IC104
R186
R187
IC304 IC317IC305
R278
R279
R152
C300
R967
R968
C381
R295
C382
IC953
C989
C990
C977
(T) (T) (R) (R) (R) (R)
23.FOPT
22.V+5D
21.GNDD
20.GNDD
19.HDRST
18.HDSCK
17.HDDO
16.HDDI
15.HDREQO
14.HDREQI
13.MUTEOUT
12.GNDD
11.MCK
10.GNDD
9.GNDD
8.SCK
7.WS
6.SD0
5.SD1
4.SD2
3.SD3
2.GNDD
1.SPDIF
22.GND
21.SPDIF
20.IBDT
19.ISDT
18.ICDT
1.GND
2.DSD6
3.DSD5
4.DSD4
5.DSD3
6.DSD2
7DSD1
17.IFDT
16.IELCK
15.GND
14.IEBCK
13.D5V
12.D5V
11.GND 10.GND
9.IEMCK
8.ERR
7.POWER
6.IECLK
5.IERST
4.IEDI
3.IEDO
2.IEIT
1.GND
PRODUCTION CODE
16
110
14
26
1
NP
26
NP
22 1
123
138
39 64
65 102
103 128
48
124
25
71
14 8
71
14 8
71
14 8
110
1120
16
1
9
8
25
51
1
75
50
76
26
100
124
25
48
18
916
71
14 8
71
14 8
71
14 8
71
14 8
110
1120
71
14 8
71
14 8
114
1528
112
13 24
25 36
37 48
112
13 24
25 36
37 48
18
916
18
916
18
916
18
916
R
RRR
T
T
71
14 8
NP
NP
FCICT
16
LF 13
64
1
0
71
14 8
71
14 8
1
13
64
18
916
13
54
1
13
64
13
64
13
64
71
14 8
0
110 120 130 140 150 160 170 180 190 200 210 220 230
L
SIDE A
(ANP7537-A)
CN351
M
CN301
CN305 CN303
5
CN4323
N
CN306
CN4306
N
CN304
CN4307
N
CN201
CN402
F
CN401
AF
VSX-AX4AVi-S
112
1234
1234
C
D
F
A
B
E
C107
C119
C120
C121
C127
C135
C190
C186
C187
C214
C264
C265
C266
C270
C271
C272
C282
C285
C287
C288
C291
C302
C303
C304
C305
C306
C307
C308
C309 C310
C311
C312
C313
C314
C315
C316
C317
C331
C371
C372
C373
C380
C983
D101
D281
D282
D115
IC302
IC303
L302
Q101
Q102
Q103
Q281
R104
R107
R108
R109
R112
R113
R117
R118
R119
R122
R125
R126
R127
R128
R131
R136
R138
R139
R140
R141
R142
R143
R144
R146
R147
R148
R151
R153
R154
R155
R156
R157
R165
R166
R167
R168
R169
R170
R172
R174
R175
R184
R203R204
R206
R207
R208
R212
R213
R221
R223
R224
R226
R228
R229
R230
R232
R233
R234
R239
R240
R244
R246
R247
R248
R249
R250
R251
R252
R254
R266
R287
R288
R289
R290
R301
R302
R303
R304
R305
R306
R307
R308
R309
R310
R311
R312
R313
R314
R315
R316
R317
R318
R324
R325
R326
R332
R411
R412
R413
R414
R416
R417
R418
R419
R421
R422
R192
R134
R195
R471
R472
R473
R474
R475
C984
R219
R197
R276
R179
R180
R188
D107
D202
R298
R426
R427
R445
R446
R449
R450
R493
R494
R497
R498
D109
Q104
D110
R114
R191
R965
R190
R267
R268
R297
R299
C293
R969
R966
R964
R177
C978
14
1
26
123
1
8
1
8
NP
16
NP
110120130140150160170180190200210220230
(ANP7537-A)
DIGITAL MOTHER ASSY
L
L
SIDE B
CN301
CN306CN304CN201
VSX-AX4AVi-S 113
5678
5678
C
D
F
A
B
E
C101
C123
C124
C186
C187
C492
C603
C604
C609
C610
C661
C662
C703
C704
C709
C710
C761
C762
C803
C804
C809
C810
C861
C862
C903
C904
C909
C910
C961
C962
D451
D452
R864
C973
L102
Q481
R149
R150
C981
C982
R158
R159
R160
R161
R162
R163
R166
R167
R168
R239
R240
R259
R395
R400
R401
R402
R403
R404 R405
R406 R407
R408
R194
R410
R415
R416
R417
R418
R419 R420
R425
R457
R458
R459
R460
R463R464
R481
R482
R605
R606
R607
R608
R617
R618
R619
R620
R705
R706
R707
R708
R717
R718
R719
R720
R805
R806
R807
R808
R817
R818
R819
R820
R905
R906
R907
R908
R917
R918
R919
R920
R271
R189
R471
R472
R473
R474
R475
R662
R663
R664
R762
R763
R764
C980
C985
C986
C987
C988
C993
C994
C976
R219
D201
Q201
Q202
C972
C996
R190
C503
C504
C509
C510
C561
C562
R505
R506
R507
R508
R517
R518
R519
R520
R562
R563
R564
C979
AWP
9
8
7
6
5
4
3
2
1
0
DIGITAL MOTHER ASS'Y 123
111
1
19
116
123
1
26
120120
NP
16
LF
1
0123456789
0123
0
01
C
B
A
0
1
2
3
4
5
6
7
8
9
00112233445566778899
A-
10 0
20
30
40
50
60
70
80
90
100
110
120
130
140
150
2030405060708090100110
1
20
10
Y
X
L
SIDE B
CN105
CN302
CN992 CN102CN991CN104CN306
CN103CN101
VSX-AX4AVi-S
114
1234
1234
C
D
F
A
B
E
4.11 DSP ASSY
IC101
C101
C102
R101
C148
C147
C104
C103
C105
C106
C107
C108
C149
C150
C109
C110
C111
C112
C114
C113
C151
C152
C153 C154
C116C115
C117 C118
C119 C120
C156C155
C121 C122
C123
C124
C125
C126
C157
C158
C127 C128
C129 C130
C159
C160
C131
C132C134
C133
C136
C135
C137
C138
C164
C163
C168
C167
C166
C165
C170
C177
L106 R139
R140
R130
C140
C139
C162
C161
C142
C141C143
C144
C145
C146
R136
C175
C176L105
IC104
L101
C180
L108
C181
C182
C183
C184
R137
R138
L501
CN351
CN352
R151
IC409
C190
C189
IC109
IC106
R105
R207
C226
C225
R210
C227
L203 R204
R205
R203
R214
Q201
R215
R229
L202
C230
R216
C701
X701
L701 C702
C704
IC701
C703
R701
L702
R705
R706
R707
C301
C363
C364
C362
C360
C361
IC354
L601
IC607
IC608
R628
C618
C617
R633
R632
R629
R626
C619
R631
C616
R627
R630
C601
R211
C357
C755
R301
X301
L301
R302
C302
C304
IC301
C305
C303
R305
R304
R353
IC355
C351C352
R303
R235
R202
R208
R242
R241
R247
R246
R240
C408
C476
C477
C414
C442
C483
C482
R401
C448
Q301
C404
C403 C407
C435
C405
C406
R442
C490
C489
C440
C439
C461
C481
C443
C447
C470
R438
R439
C449
C401
C437
C438
IC408
IC404
C445
C444
C446
IC401
R437
L405
C418 C420
C421
C422
C402
C468
C463
C464
C462
C465
C466
C467
R441
C429
C458
C427
C457
C436
C455
C417
C419
C430
C459
C426
C425
C423
C450
C456
R440
C432
C431
C410
C409
C412
C411
C441
C433
C434
C416
C415
C451
C452
C453
C454
C413
C428
L406
C475
C484
C460
C424
IC406
R405
R501
R158
R356
R755
R645
R357
R756
D752
IC110
D352
REFLOW
ANP7529-B
Second
Side (A)
LF
GND
GND GND
GND
GND
GND
5V
1.25V
1.2V
1.2V
PRE-FLUX
HEATPROOF
72
73
37
361
144 109
108
85
4
1
26
1
1
26
32
1716
1
31
54
19
18
36
1
1
4
1
58
17
8
14
1
8
9
16
58
1
4
3
1
54
4
1
85
109
144
136
37 72
73
108
36
118
19
32
1716
1
10 0
10
0
20
30
40
50
60
70
80
90
100
2030405060708090100110120
X
Y
DSP ASSY
M
(ANP7529-B)
M
SIDE A SIDE A
CN301
L
CN351
CN302
L
CN352
M
VSX-AX4AVi-S 115
5678
5678
C
D
F
A
B
E
IC105
R446
IC102
R102
R109
R116
R119
R118
R122
R123
R124
R125 R126
R128
R129
R131
IC103
R132R133
R134
C172
L103
C171
C179
L104
C178
C173
C174
CN101
R112
R135
R127
L102
R117
R114
R121
C501
C504
C502
C503 IC107
R145
C186
R146
R143
R142
C185
R141
R144
R148
IC108
R149
C187
R147
R150
C188
R120
R115
C169
L107
IC501
R106
R107
R103
R104
R108
R111
R113
R157
R156
R155
R154
R153
R152
R206
C216
C204
C215
C203 C224
C223
C214
C213
C217 C218
C205 C206
R212
C228
R213
C202
C201
C207 C208
C212
R201
C211
R504
C365
R640
IC201
C221 C209 C219
C222 C210 C220
L201 C229
C604
R639
C605
R613
R611
R610
IC603
R618
IC606
R619
R617
IC604
IC601
IC605
R622
R621
R620
C611
C612
C610
C607
C608
R623
R616
R612
R604
R603
R608
C606
C613
C609
C615
C602
C614
IC602
R605
R614
R625
R624
R607
R606
C603
R609
R234
IC351
C358
C356
C355
C354
C353
C756
C752
IC751
C751
C754
C753
R601
R602
R219
R218
R224
CN201
IC352IC752
IC609
R634
R637
C621
R635
R636
C620
R238
R239
R237
R236
R233
R232
R231
R230
R615
R638
R243
R245
R244
R435
R434
L401
IC402
L408
R433
C488
C479
L402
L403
R423
R424
R425
R426
R427
R429
IC405
L407
C480
C471
R412
R422
R432
R430 R431
CN401
R428
R436
C469
R416
R421
R420
R418
C486
C485
C474
C473
C478
L404
R402
C487
IC403
R419
R417
R409
R415
R413
C472
IC407
R406
R407
R403
R408
R404
R411
R414
C494
R444 R445
R443
R642
R502
R447 R448
R449
R410
R110R503
R641
R159
R160 R161
R646
D751
C758
IC502
R644 R643
IC410
D351
R351 R352
R354
R355
R751
R752
R753
R754
REFLOW
UP
LCKI
GND
Side
SCKI
DT0I
DT1I
DT2I
DT3I
DT4I
AWX8600
MCKI
E88558(S)
ICT FC
DAXO
SPCK
SPS1
MISO
MOSI
RST1
REQ1
ROWE
CKON
DS_2
GND
AWX
G
G
GND
GND
GND
DSP Ass'y
GND
Side (B)
First
GND
A
A
1
SS_2
AWX8599
41
RST2
REQ2
BUS2
MTMD
GND
LCKO
GND
SCKO
GND
PC
LF
PRE-FLUX
DT0O
DT1O
DT2O
DT3O
DT4O
DT5O
DT6O
GND
SPS3
RST3
REQ3
GND
5V
5V
5V
GND
GND
GND
GND
GND
GND
1.25V
3.3V 3.3V
3.3V
1.2V
1.2V
2
10
9
HEATPROOF
25
48
124
11
20
1
10
11 20
1
10
8
14
17
13
54
18
19
1
36
R
120
21 40
60
80 61
14
17
8
1
14
8
7
1
14
7
814
17
8
45
13
45
1
3
1
0123456789
0123
0
01
C
B
A
17
7
1
14 8
11 20
1
10
124
25
48
1
2
9
10
11 20
1
10
36
118
19
16
17
32
1
132
16
17
10
0
10
0
20
30
40
50
60
70
80
90
100
2030405060708090100110120
X
Y
DSP ASSY
M
(ANP7529-B)
M
SIDE B SIDE B
M
VSX-AX4AVi-S
116
1234
1234
C
D
F
A
B
E
4.12 INTERFACE ASSY
CN4317
W4352
C4303
CN4320
CN4304
CN4318
C4304
CN4307
CN4306
W4318
CN4311
4302
W4319
W4312
W4313
W4314
W4316
4303
W4320
W
CN4319
CN4316
W4326
CN4314
W4308
CN4324
W4311
W4324
KN4301
W4325
W4323
CN4323
W4354
D4302
W4353
W4317
W4315
CN4322
CN4305
CN4313
J4301
Y18
CN4315
W4355
W4351
W4305
W4301
W4307
W4334
W4303
W4304
W4302
W4306
W4309
W4310
1
15
CN4310 :24pin CONNECTOR
1
23
20
61
41 123
24
1
41
BLACK
WHITE
GNDCV
E
GNDCV
GNDCV
VCCY OUT
5.GNDCV
VCCr OUT
GNDCV
VCCb OUT
IEIT
IEDO
IEDI
IECLK
IERST
ERR
GNDCV
GNDCV
VCCr IN
VCCY IN
VCC OUT
GNDCV
VCY OUT
15.GNDCV
VCC IN
GNDCV
20.VCY IN
GNDCV
VCVOUT
GNDCV
24.VCV IN
10.VCCb IN
4.V+12T
1.V+5_6V
2.V-5_6V
3.V+12TRG
4.V+5D
17.MUTEOUT
18.HDREQI
19.HDREQO
20.HDDI
21.HDDO
2.GNDD
22.HDSCK
23.HDRST
1.V+12UN
24.GNDD
3.GNDD
5.V+5D
6.SPDIF
7.GNDD
8.SD3
9.SD2
10.SD1
11.SD0
12.WS
13.SCK
14.GNDD
15.MCK
16.GNDD
9.SRTX
11.GNDU
1.iP L
2.GND iP
3.iP R
4.V+7A
5.GNDU
6.GNDU
7.RMC
8.SRIN
10.SRRX
12.V+5.6U
13.iP RX
14.iP TX
15.iP DET
16.232C DET
17.232C TXD
18.232C RXD
19.232C CTS
20.GNDU
21.GNDU
22.iP_V
23.GNDV
13.SROUT
10.V-7A
8.i-Pod R
7.GNDA
6.i-Pod L
5.GNDA
4.GNDA
3.VLCK
2.VLDT1
9.V+7A
11.GNDU
12.GNDU
1.GNDU
6.MRMUTE
3.VLDT2
4.VLCK
5.GNDU
2.GNDA
1.GNDA
9.V+5.6V
7.MRINH
5.NC
4.GNDV
8.V+5.6V
6.VMUTE
11.GNDV
10.GNDV
3.VCV OUT
2.GNDV
1.VCV IN
13.V-5.6V
12.V-5.6V
2.GNDV
1.V-5_6V
1.VCY IN
2.GNDCV
3.VCC IN
14.GNDV
15.GNDV
16.V-5.6V
17.V-5.6V
10.VMUTE
11.MRINH
12.V+5.6V
13.V+5.6V
6.GNDCV
8.GNDCV
4.GNDCV
5.VCY OUT
7.VCC OUT
9.S-DET
3.GNDV
5.V+12TRG
4.V+5_6V
6.GNDA
13.VMUTE
12.GNDCV
1.VCCY IN
8.GNDCV
9.VCCb OUT
10.GNDCV
11.VCCr OUT
4.GNDCV
6.GNDCV
2.GNDCV
3.VCCb IN
5.VCCr IN
7.VCCY OUT
7.GNDU
4.VLDT1
2.V+5_6U
6.VLCK
5.VLDT2
10.GNDA(S)
14.GNDA
15.GNDA
16.GNDA
17.V-12A
18.V-12A
19.V+12A
13.MIC
12.GNDA(S)
11.FV-L
20.V+12A
7.V+12T
1.GNDU
1.GNDFV
2.FV/C
6.FV
7.GNDFA
5.GNDV
9.FV-R
8.GNDFA
3.XLSSN
15.GNDU
16.GNDU
17.SRTX
18.SRRX
19.FANDRIVE
20.FANSTOP
4
.
FRIN
5.GNDDAC
6.V+5AD
7.V+5AD
9.GNDA
8.GNDA
10.GNDA
11.V+12A
12.V+12A
13.V-12A
14.V-12A
14.XLSSN
13.VLDT1
12.VLDT2
11.VLCK
10.GNDU
9.GNDU
8.S-DET
7.MRMUTE
6.232CTS
5.232CRXD
4.232CTXD
3.IPDET
2.IPTX
1.IPRX
6.IEIT
5.IEDO
4.IEDI
3.IECLK
1.ERR
1.SPDIF
2.GNDD
3.SD3
4.SD2
5.SD1
6.SD0
7.WS
8.SCK
9.GNDD
10.GNDD
11.MCK
12.GNDD
13.MUTEOUT
14.HDREQI
15.HDREQO
16.HDDI
17.HDDO
22.V+5D
18.HDSCK
19.HDRST
21.GNDD
20.GNDD
13
1
17 1
13
1
2.GNDD
3.V+12UN
1.V+5D
GNDVI
71
3.GNDD
2.V+5D
23.FOPT
2.IERST
4.GNDD
1.V+5D
6
1
F
A
C
1
30
1
1
16
20
1
31
Y17
Y16
16.IP OL
15.IP POWER
71
123mm
123mm
AN
15.GNDV
GNDA
GNDA
BINDER
GNDU
:30pin CONNECTOR
14.IP_V
4.FV/Y
3.GNDV
GNDA
GNDUS
V+7A
GNDUS
GNDUP
V+5_6U
V-5_6V
GNDV
V+5_6V
V-12A
V+12A
V-12A
V-12A
10
0
40
50
60
70
80
90
100
110
120
130
140
150
160
170
180
190
230
240
20 30 40 50 60 70 80 90 100 110 120 130 140 150
X
Y
INTERFACE ASSY
N
N
200
210
220
SIDE A
CN201
L
CN4307
CN304
L
CN4306
CN306
L
CN4323
CN104
L
CN4305
CN99
2
L
CN4304CN4311
K
CN2503
K
CN4313
CN2505
K
CN4324
CN2403
K
CN4314
CN2402
K
CN4315
CN4272
T
Y18
CN2201
J
CN4316
CN2001
I
CN4317
CN6301
B
CN4318
CN6202
A
CN4319
CN1001
AG
CN4310
CN1002
AG
CN4320
CN2802
AE
VSX-AX4AVi-S 117
5678
5678
C
D
F
A
B
E
4301
C4303
R4301
CN4303
CN4304 CN4301
C4301
C4304
CN4302
C4302
CN4312
W4331
W4346
W4332
W4328
J4309
J4308
W4329
W4339
W4327
W4326
W4333
W4341
W4344
W4336
W4337
W4330
W4322
W4342
W4340
W4324
W4343
W4349
W4348
W4347
W4345
W4350
W4321
KN4301
4304
W4335
W4325
CN4325
IC4301
R4306
R4307
4305
W4338
41
2.V-5_6V
HEAT RESIST PRE-FLUX
1
20
1
20
115
11
1
11
1
81 111
3.V+12TRG
4.V+12T
1.V+5_6V
13.FV-R
12.GNDFV
14.GNDFA
9.FVC
7.GNDD
5.V+12A
4.GNDA
8.FOPT
6.V+5D
11.FV
10.FVY
3.V-12A
2.MICOUT
1.MICDET
15.FV-L
3.GNDV
2.GNDV
1.GNDV
4.V+5_6V
5.V-5_6V
6.V+5_6U
7.GNDU
10.FANDRIVE
9.V IP
8.GNDU
11.FANSTOP
2.FR IN
4.FL IN
8.FL
7.GNDA
9.GNDA(SEP)
10.FR
11.GNDA(SEP)
12.C
13.GNDA(SEP)
14.SW
3.GNDDAC
1.V+12VTRG
2.V+12T
3.V+12A
4.V-12A
5.V+5AD
6.GNDA
7.GNDA
8.GNDA
1.STBYR
2.GNDA(SEP)
3.STBYL
4.GNDA(SEP)
5.SBR
6.GNDA(SEP)
7.SBL
8.GNDA(SEP)
9.SR
10.GNDA(SEP)
11.SL
7.232CDET
11.SROUT
10.RMC
9.SRIN
8.MICDET
6.V iP
5.V iP
4.GNDU
3.GNDU
2.V+5_6U
1.V+5_6U
1.GNDA
2.STBY R
3.GNDA
4.STBY L
5.GNDA
6.SBR OUT
7.GNDA
8.SBL OUT
9.GNDA
10.SR OUT
11.GNDA
12.SL OUT
13.GNDA
14.SW OUT
17.GNDA
15.GNDA
16.C OUT
18.FR OUT
19.GNDA
20.FL OUT
15.GNDU
16.GNDU
17.SRTX
18.SRRX
19.FANDRIVE
20 FANSTOP
1.GNDDAC
2.FLIN
3.GNDDAC
4.FRIN
5.GNDDAC
6.V+5AD
7.V+5AD
9.GNDA
8.GNDA
10.GNDA
11.V+12A
12.V+12A
13.V-12A
14.V-12A
V-12A
GNDA
V+12A
CAUTION
REPLACE WITH SAME TYPE NO.49101.6
MFD.BY LITTELFUSE INC. FOR IC4301.
AWX8651-
INTERFACE ASS'Y
GNDD
R
B
D
14
1
6.GNDA
5.GNDA
1.GNDDAC
BLACK
WHITE
Y16
20
Y17
ANP7541-B
CMKM-P3X
V+12A
V+5AD
GNDA
V-12A
V+12A
V-12A
V-12A
GNDU
V+5AD
GNDUS
V+5D
GNDFV
GNDFA
140 150 160 170 180 190 200 210 220 230 240 250 260 270 280 290 300 310 330 N
(ANP7541-B)
320
SIDE A
4
CN992
L
CN4304
CN991
L
CN4303
CN102
L
CN4302
CN3451
C
CN4301
CN2506
K
CN4312
CN6105
S
J4309
CN6106
S
J4308
CN2501
K
CN4325
0
3
VSX-AX4AVi-S
118
1234
1234
C
D
F
A
B
E
R4327
R4302
R4304
R4303
R4305
Q4301
D4301
Q4303
Q4302
C4305
R4328
R4323
R4324
C4313
C4314
L4323
L4324
R4325
R4326
41
20
11
15
10
1
1
11
11 1
81
11 1
R
14
1
LF
V-12A
V-12A
V-12A
V+12A
GNDA
V+5AD
V+5AD
GNDU
GNDUS
V+5D
V+12A
GNDA
V-12A
GNDF
GNDFV
ATTENTION
EN CAS DE REMPLACEMENT DES FUSIBLES IC4301
DE CHEZ LITTELFUSE INC.
N'UTILISER QUE LA REFERENCE 49101.6
GNDD
CMKM-P3X
9
AWX
444
333
222
111
000
999
888
777
666
555
8
150160170180190200210220230240250260270280290300320
(ANP7540-A)
290310
CN43
0
CN4304CN4303CN4301
CN4312
J4309
J4308
CN4325
INTERFACE ASSY
N
N
SIDE B
VSX-AX4AVi-S 119
5678
5678
C
D
F
A
B
E
R4327
L4318
R4311
R4312
R4313
R4314
R4315
R4316
R4328
R4317
R4318
R4319
R4320
R4321
R4322
C4307
C4306
L4319
C4308
C4311
C4312
C4309
C4310
L4311
L4312
L4313
L4314
L4315
L4316
L4317
L4322
L4321
L4320
115
23 1
20 20
1
61
23 1
24
1
14
113
17
1
13
1
71
6
1
1
30
1
16
1
1
20
31
71
V-5_6V
GNDV
V+5_6V
V+5_6U
GNDUP
GNDUS
V-12A
V+12A
V-12A
V-12A
V-12A
V+12A
G
NDA
V+5AD
GNDVI
V+7A
GNDA
GNDUS
GNDU
GNDA
GNDA
10
0
40
50
60
70
80
90
100
110
120
130
140
150
160
170
180
190
200
240
2030405060708090100110120130140150160
7
0
X
Y
210
220
230
CN4307CN4306CN4323CN4305 CN4302
CN4311
CN4325 CN4313 CN4324
CN4314
CN4315 Y18
CN4316
CN4317CN4318CN4319
CN4310
CN4320
N
SIDE B
VSX-AX4AVi-S
120
1234
1234
C
D
F
A
B
E
4.13 POWER AMP IN ASSY
R5609
R5624
R5623
C5622
W906
W907
W908
W902
C5607
W911
W910
R5627
C5624
C5623
W921
CN5605
W909
W912
W913
C5601
W903
W901
C5617
CN5606
C5621
Q5605
Q5604
CN5602
CN5601
5604
C5609
W920
W905
W914
W904
W917
C5641
W919
W915
W918
W922
CN5603
YELLOW
Y1
15.AGLS
14.LS
13.AGRS
16.L
18.SBL
17.AGL
1.GAMP
2.b
3.bb
4.CB
5.CE
6.CE
1.LS
2.AGLS
3.L
4.AGL
5.SBL
6.AGSBL
7.DC
8.OL DET
9.AMUTE
10.SBMUTE
11.VH-
12.VH-
13.VH+
1.VH+
2.VH-
3.VH-
4.SBMUTE
5.AMUTE
6.DC
7.WT
8.AGSBR
9.SBR
10.AGR
11.R
12.AGRS
13.RS
7.CE
CMKM-P3X
7.AGC
10.R
9.AGSBR
8.SBR
12.RS
11.AGR
7.AGC
6.b
5.bb
4.CB
3.CE
2.VH-
3.NECK6
4.NECK8
5.A-12V
1.CE
2.CE
6.C
5.A-12V
4.AMUTE
2.NECK6
1.NECK8
1.VH+
71
71
1
13
1
13
51
NP
19.AGSBL
POWER AMP IN ASSY
3.SBMUTE
19
1
UP SIDE
CONTACT
R
C5603
Q5601
R5604R5601
D5605
D5606
D5604 D5603
C5608
R5612
R5611
R5607
R5631
R5630
C5616
C5615
R5629
C5602
C5627
R5602
R5603
C5606
C5604
R5608
R5606
R5605
C5605
Q5602
Q5603
D5601
D5602
R5641
R5642
R5643
R5644
R5645
R5646
R5647
R5648
R5649
R5650
D5641
D5642
D5643
D5644
Q5641
R5610
R5632
C5632
LF
71
4
3
6
1
71
113
13 1
15
19 1
R
7.CE
19.AGSBL
18.SBL
17.AGL
16.L
15.AGLS
14.LS
13.AGRS
12.RS
11.AGR
10.R
9.AGSBR
8.SBR
7.AGC
6.C
5.A-12V
3.SBMUTE
2.NECK6
1.NECK8
13.RS
12.AGRS
11.R
10.AGR
9.SBR
8.AGSBR
7.WT
6.DC
5.AMUTE
4.BSMUTE
3.VH-
2.VH-
1.VH+
7.AGC
6.b
5.bb
4.CB
3.CE
2.CE
1.CE
1.GAMP
2.b
3.bb
4.CB
5.CE
6.CE
9.AMUTE
8.OL DET
7.DC
6.AGSBL
5.SBL
4.AGL
3.L
2.AGLS
1.LS
13.VH+
12.VH-
11.VH-
10.BSMUTE
1.VH+
3.NECK6
2.VH-
4.NECK8
5.A-12V
POWER AMP IN ASSY
AWX8662
AWX
4.AMUTE
CN5603
NO CONTACT SIDE
FFC
CMKM-P3X
10
0
130
140
150
160
170
180
190
200
240
250
20 30 40 50 60 70 80
X
Y
POWER AMP IN ASSY
O
POWER AMP IN ASSY
O
O
(ANP7542-A)
(ANP7542-A)
210
220
230
10
0
130
140
150
160
170
180
190
200
240
250
20304050607080
X
Y
210
220
230
O
SIDE A SIDE A
SIDE B SIDE B
CN4202
U
5604
5604
CN5001
Q
CN5601CN5601
CN5003
Q
CN5605
CN4003
X
Y1CN5605
CN5301
R
CN5602
CN5602
CN5303
R
CN5606
CN5606
CN2601
K
CN5603
CN5603
VSX-AX4AVi-S 121
5678
5678
C
D
F
A
B
E
4.14 POWER PROTECT ASSY
W102
CN5706
CN5703
CN5701
CN5702
CN5705
W107
W105
5701
W108
W103
W109
W111
CN5704
W110
W104
W106
13
119
11
1
11
1
17
1
9,GNDU
1,NC
10,RYCS 7,POS1_2
3,F.STOP
8,POS1_1
10,NC
6,V-12V
13,GNDST
2,HPSW
17,GNDU
2,F.FAN-
7,GNDST
9,RYHP
11,NC
8,RYA
9,RYCS
4,-FAN
2,NC
1,NC
12,GNDST
5,LOCKDET
5,OL DET
15,RYAC
14,V+5.6ST
6,DC DET
3,WUP
12,TEMP1
13,TEMP2
5,POS1_2
10,RYHP
9,WT
8,OL DET
7,DC DET
6,POS1_2 2,V-12V
1,V+12V
1,WATTS
4,-FAN
5,+FAN
3,POS1_1
11,NC
3,LOCKDET
10,NC
4,GNDU
1,F.FAN+
14,OL DET
15,DC DET
16,V+5.6U
8,RYB
19,GNDU
18,V+5 UM
4,RYAC
5,V+6.5ST
11,RYA
11,RYB
2,NC
3,NC
4,WT
POWER PROTECT ASSY
17,HPSW
6,GNDST
2,+FAN
1,+FAN
16,WUP
7,V+12V
3,-FAN
15
CMKM-P3X
UP SIDE
CONTACT
R
R5721
D5702
R5746
R5712
R5705
D5703
R5701
R5702
R5709
R5719
R5706
R5708
Q5703
R5747
C5704
R5711
C5705
R5716
R5704
R5707
R5715
R5718
R5703
R5714
Q5701
Q5702
Q5706
Q5705
R5710
D5701
C5706
R5720
R5750
R5717
C5703
R5713
C5702
C5701
IC5701
Q5704
CN5702
CN5703
CN5705
CN5704
CN5701
31
19 1
111
11 1
17 1
51
85
41
R
3,-FAN
7,V+12V
UP
1,+FAN
AWX8659
POWER PROTECT ASSY
AWX8660
CN5706
5,+FAN
4,-FAN
1,V+12V
2,V-12V
AWX8658
FFC
NO CONTACT SIDE
NO CONTACT SIDE
FFC
CMKM-P3X
2,+FAN
5,LOCKDET
4,-FAN
8,RYA
9,RYHP
6,V-12V
16,WUP
17,HPSW
11,RYB
14,V+5.6ST
15,RYAC
12,GNDST
13,GNDST
10,RYCS
4,WT
AWX
18,V+5 UM
19,GNDU
16,V+5.6U
15,DC DET 14,OL DET
13,TEMP2 12,TEMP1
17,GNDU
6,GNDST
11,RYA
5,V+6.5ST 4,RYAC
8,RYB
1,WATTS
10,RYHP
3,WUP
9,RYCS
7,GNDST
2,HPSW
3,NC
2,NC
6,DC DET
5,OL DET
1,NC
7,POS1_2
11,NC
10,NC
8,POS1_1
9,GNDU
4,GNDU
3,LOCKDET
11,NC
3,POS1_1
6,POS1_2
7,DC DET
8,OL DET
9,WT
5,POS1_2
10,NC
2,NC
1,NC
10 0
40
50
60
70
80
90
100
110
120
130
140
150
160
170
180
20304050
X
Y
POWER PROTECT ASSY
P
POWER PROTECT ASSY
P
P
(ANP7542-A)
(ANP7542-A)
10
0
40
50
60
70
80
90
100
110
120
130
140
150
160
170
180
20 30 40 50
X
Y
P
SIDE A SIDE A
SIDE B SIDE B
CN5302
R
CN5702
CN5702
CN5002
Q
CN5701
CN5701
CN4403
G
CN5705CN5705
J6104
S
CN103
L
CN5704
CN5703
CN5704 CN5703
VSX-AX4AVi-S
122
1234
1234
C
D
F
A
B
E
4.15 POWER AMP L and POWER AMP R ASSYS
KN5063
C5324
W
C5141
CN5002
W5096
W5097
C5007
C5009
R5009
TH5001
KN5051
W572
C5022
W573
W585
C5021
C5023
R5023
W536
R5027
W537
W559
W560
W538
W539
W505
W506
W581
W580
W504
W502
W509
W507
W518
W511
W516
W514
W513
W519
W535
J5003
W557
Q5004
J5002
W584
C5024
Q5005
R5024
C5041
W558
W571
W586
C5017
C5001
W574
R5
0
W533
J5004
C5117
W566
Q5105
C5122
W567
C5121
W570
W568
C5101
R5109
C5107
W569
W553
W556
R5127
W552
R5123
C5123
C5124
W554
R5124
W555
Q5104
W532
J5001 W534
W582
KN5351
C5341
W728
W707
W708
C5309
Q5304
C5322
C5317
Q5305
W727
C5301
R5309
C5307
W510
C5321
W711
W712
R53
5
W710
R5327
W742
IC5301
W743
W741
IC5302
C5323
W709
W739
W726
W702
C5421
W701
C5417
W723
C5407
Q5404
R5409
W724
C5409
C5401
Q5405
W725
C5423
C5441
R5423
W754
W734
W737
W738
W736
R5427
C5424
R5424
W770
W771
J5301
W773
W735
W774
W776
W775
W756
W777
W704
W706
C5422
W705
W755
W5398
W5399
W8656
W8657
W8658
W8659
W8654
W8655
IC5402
IC5401
C5109
W729
KN5363
W778
W782
IC5001
W515
IC5102
IC5101
IC5002
CN5302
TH5301
J5304
J5302
J5303
W761
W787
W758
W784
W785
W759
W740
W783
W780
R5323
W779
W760
R5324
NP
CMKM-P3X
NP
NO NEED
AWX8654
AWX
8655
111
L
LS
HC
NP
NP
NP
8654
AWX
8655
NO NEED SCREW
W
ER AMP R
WHITE ORANGE
Y4 Y2
POSI_1R
1,NC
11,NC
10,NC
2,NC
9,POSI_1
8,GNDU
7,POSI_2
6,POSI_2
3,WT
5,DC DET
4,OL DET
CMKM-P3X
CMKM-P3X
R
R
R RS
R
POWER AMP
PURPLE GREEN
Y3 Y1
POSI_1L
11,NC
10,NC
9,NC
1,NC
2,NC
8,WT
7,OL DET
6,DC DET
4,POSI_1
5,POSI_2
3,GNDU
CMKM-P3X
CMKM-P3X
CMKM-P3X
R
CMKM-P3X
CMKM-P3X
NP NP
CMKM-P3X
NP
111
8656
8657
SCREW
8656AWX 8657 HC
R
R
R
R
R
CMKM-P3X
R
80 90 100 110 120 130 140 150 160 170 180 190 200 21
0
X
POWER AMP
L ASSY
Q
POWER AMP
R ASSY
R
Q R
(ANP7542-A)
(ANP7542-A)
SIDE A
CN5701
P
CN4005
X
CN5002Y3
CN5702
PCN4006
X
CN5302 Y4
VSX-AX4AVi-S 123
5678
5678
C
D
F
A
B
E
KN5061
C5324
W575
W544
W540
CN5001
W543
W564
W563
W578
W546
C5207
C5221
R5209
Q5204
W565
W592
W579
W5099
C5201
W5098
W589
W576
W590
C5007
TH5002
KN5051 W573
W542
W541
Q5205
C5021
C5023
R5023
R5223
C5223
C5222
W537
C5217
R5227
C5224
R5224
W518
W519
W523
W521
W550
W547
W520
W526
W525
W530
W528
W527
C5241
W586
5
001
C5052
C5051
W561
J5005
W548
W577
W562
W591
W574
R5051
W549
W551
KN5351
W728
W730
C5351
C5322
Q5305
C5301
W593
W594
W595
W711
W712
R5351
W745
W763
W762
W744
C5352
W710
5
327
IC5301
W789
J5305
W791
W748
W788
W721
W753
W768
W583
C5571
W713
W545
C5271
W588
W587
W752
CN5303
W714 IC5502
IC5501
IC5602
C5209
W729
W531
W596
J5006
CN5003
IC5002
IC5201
IC5202
IC5601
W796
W797
W798
W769
W765
W720
W719
W718
C5522
Q5505
C5501
W750
W733
C5509
C5517
W732
R5509
C5541
W716
W715
W717
Q5504
C5507
W731
C5521
R5524
C5524
R5527
W751
W749
W764
R5523
C5523
W800
CN5301
W795
W793
W794
W792
W746
W722
W747
W766
KN5361
W761
W787
W759
W740
R5324
W757
P
CMKM-P3X
NO NEED SCREW
131
SBL
NP
NO NEED
AWX8654 8655 D
1,CE
SCREW
POWER AMP
R
CMKM-P3X
BROWN
Y4
REDBLUE
BLACK
Y6
2,CE
3,CE
4,CB
5,bb
6,b
7,AGC
VH+
VH-
VH-
SBMUTE
AMUTE
DC
WT
AGSBR
SBR
AGR
R
AGRS
RS
R
CMKM-P3X
CMKM-P3X
SBR
O
WER AMP L CMKM-P3X
GRAY
Y3
BLACK
BLUERED
Y5
7
1
POSI_2
1,VH+
2,VH-
3,VH-
4,SBMUTE
5,AMUTE
8,AGSBL
7,DC
6,OL DET
9,SBL
10,AGL
11,L
12,AGLS
13,LS
3,bb
1, GAMP
4,CB
5,CE
6,CE
7,CE
CMKM P3X
CMKM-P3X
CMKM-P3X
R
R
R
C
2,b
CMKM-P3X
CMKM-P3X
R
NNP P
NPN
R
CMKM-P3X
R
Production code
7
1
R
NO USE
NP
131
C
R
0
200 210 220 230 240 250 260 270 280 290 300 310 330
10
20
30
40
50
60
70
80
90
100
110
120
130
140
150
160
170
180
190
200
240
Y
Q R
320
210
220
230
SIDE A
CN4102
X
Y5
CN4003
X
CN4004
X
Y1
Y2
CN5601
O
CN5001
CN5605
O
CN5003
CN5602
O
CN5301
CN5606
O
CN5303
CN4101
X
Y6
VSX-AX4AVi-S
124
1234
1234
C
D
F
A
B
E
Q5203
R5207
C5211
C5205
R5202
C5202 C5206 R5229
R5230
R5206
R5211
R5201 Q5201
R5203
R5204
C5203
C5227
C5208
R5245
R5250
R5246
D5244
Q5202
R5208
C5204
R5215
R5213
D5206
D5204
C5212
D5203
C5215
R5226
C5216
R5231
R5212
D5205
R5225
R5248
C
5
R5247 R5244
R5249
R5243
R5242
R5241
D5242
D5241
D5243
R5004
Q5241
R5001
D5201
D5202
R5210
C5053
R5292
R5205
R5221R5222
R5312
C
C
R5304
R5301
C5303
R5062
C5062
R5061
C5061
C5063
R5063
D5002
D5001
R5510
C5353
R5526
R5521 R5522
R5592
C5363
R5363
C5361
R5361
C5362
R5362
R5364
C5365
Q5572
Q5571
R5571
R5622
C5612
R5271
Q5271
Q5272
R5621
R5615
C5611
R5613
R5010
R5332
C5332
R5504
C5503 Q5501
D5501
R5512
R5506C5508
D5504
C5504 R5505
R5501
D5502
C5512
D5503
C5511
C5505
D5506
R5503
C5502
R5502
D5505
C5515
C5516
R5531 R5529R5530
Q5502
C5506
R5507
Q5503
R5508
R5543
R5541
D5542
D5541
R5545
R5546
R5549
R5550
R5548
R5547
Q5541
D5543
C5527
R5511
R5544
D5544
R5542
R5525
R5515
R5513
R5532
C5532
R5325
R5232
C5232
13 1
4
3
6
1
c2
b2
e2
b
c
e
LF
LF
LF
71
LF
LF LF
LF
LF
LF
1
7
4
3
6
1
c2
b2
e2
b
c
e
13 1
1,CE
7,AGC
6,b
5,bb
4,CB
3,CE
2,CE
RS
AGRS
R
AGR
SBR
AGSBR
WT
DC
AMUTE
13,LS
12,AGLS
11,L
10,AGL
9,SBL
6,OL DET
7,DC
8,AGSBL
5,AMUTE
4,SBMUTE
3,VH-
2,VH-
1,VH+
3,bb
2,b
4,CB
5,CE
6,CE
7,CE
1,GAMP
SBMUTE
VH-
VH-
VH+
C
BB
CE EC
EC
B
CE
B
CE
B
CE
B
CEE
2
0
210220230240250260270280290300330
(ANP7542-A)
(ANP7542-A)
310320
POWER AMP
L ASSY
Q
POWER AMP
R ASSY
R
Q R
SIDE B
CN5001CN5003CN5301 CN5303
VSX-AX4AVi-S 125
5678
5678
C
D
F
A
B
E
R5032
D5342
C5032
Q5141
R5147
R5345
R5346
R5349
R5350
R5348
C5002
C5011
R5002 R5008
R5005
Q5041
R5003
D5043
Q5003
Q5001 C5006
R5042
R5043
R5041
R5011
D5005
D5003
D5044
D5143
R5049
R5025
R5026
D5042
D5041
R5021
C5003
Q5002
R5004
R5110
R5012
R5022
C5012
C5004
R5050
R5045
C5008
R5047
D5006
D5004
C5027
R5030 R5006
C5005
R5029
R5007
R5001
R5031 C5016
C5015 C5115
R5044
R5046
R5048
R5013
R5015
C5053
C5116
R5131
R5129
C5105
R5106
R5130
C5127
C5108
C5104
R5112
Q5102
C5106
R5103
C5102
R5101
R5107
R5104
C5103
Q5101
Q5103
R5108
R5102
R5144
R5141
R5143
R5142
D5144
R5148
R5146
R5145
R5150
D5142
D5141
R5149
D5104
D5106
C5112
R5122
D5105
R5105
R5121
D5103
R5111
C5111
R5126
R5115
R5125
R5113
R5312
R5347
R5306C5308
Q5341
D5343
C5327
C5305
D5304
D5306
C5312
D5305
D5303
C5315 C5316
R5331
R5329
R5330
R5303
C5304
Q5302
C5306
R5305
C5302
R5304
R5301
C5303 Q5301
R5307
Q5303
R5308
R5302
D5002
D5001
C5353
R5311
D5301
D5302
C5311
C5427
R5431
R5402
Q5401
R5403
R5411
D5443
Q5441
R5447
R5448
R5450
R5449
R5446
R5445
R5408
Q5403
R5407
C5406
Q5402
R5430 R5429 C5416
C5415
D5405
C5402
R5405
C5404
D5406
D5404
C5405
C5408 R5406
D5442
D5441
R5442
R5443
R5441
D5444
R5444
C5411
D5403
C5412
R5426
R5413
R5415
D5401
D5402
R5425
C5403
R5401
R5404
R5412
R5321 R5322
R5310
R5421
R5422
R5432
R5132
D5101
D5102
R5410
C5132
C5432
R5010
R5332
C5332
R5344
R5325
D5344
R5341 R5343
R5342
R5315
R5313
R5326
D5341
11 1
4
3
6
1
c2
b2
e2
b
c
e
4
3
6
1
c2
b2
e2
b
c
e
4
3
6
1
c2
b2
e2
b
c
e
4
3
6
1
c2
b2
e2
b
c
e
LF LF
LF
LF
LF
LF
LF
LF
LF
LF
LF
LF
11 1
11,NC
10,NC
9,NC
8,WT
7,OL DET
6,DC DET
5,POSI_2
4,POSI_1
3,GNDU
2,NC
1,NC
11,NC
10,NC
9,POSI_1
8,GNDU
7,POSI_2
6,POSI_2
5,DC DET
4,OL DET
3,WT
2,NC 1,NC
EC
BB
EC
B
EC
B
EC
B
EC
B
CE
B
CE
B
CE
10
20
30
40
50
60
70
80
90
100
110
120
130
140
150
160
170
180
190
200
240
8090100110120130140150160170180190200210
2
20
X
Y
210
220
230
Q R
SIDE B
CN5002CN5302
VSX-AX4AVi-S
126
1234
1234
C
D
F
A
B
E
4.16 LOCAL SUPPLY and DC/DC ASSYS
C6139
C6127
C6132
C6131
C6129
C6137
C6135
IC6106
IC6104
IC6101
IC6109
C6124
C6125
D6101
C6133
C6130 IC6102
IC6105
C6120
C6128
C6118
C6126
W6115
W6126
C6117
C6106
R6102
R6110
R6103
C6123
C6134
IC6103
C6107
R6107
C6122
D6116
IC6108 IC6107
C6101
CN6105
CN6106
Q6103
CN6101
D6117
D6112
D6113
W6120
D6118
D6114
W6112
W6111
W6142
W6108
W6141
W6101
W6103
W6102
W6125
W6140
W6139
W6138
W6130
W6121
W6110
W6151
W6128
W6119
W6127
W6137
W6150
W6116
W6107
W6117
W6122
W6106
W6113
W6123
W6124
W6132
W6133
W6152
W6146
W6131
W6104
6102
W6144
W6153
CN6103
W6136
W6135
W6149
W6134
W6143
W6148
W6114
W6105
W6147
W6154
J6104
C6136
V-12V
GNDU
GNDV
+12V
V+12TRG
GNDA
GNDV
V+5.6V
3.VREG
4,V-12A
AWX
REPLACE WITH SAME TYPE NO.49101.6
GNDU
CAUTION -
MFD.BY Littelfuse INC FOR IC6108.
V-5.6
78M05
79M05
78M56
2.AC2
5.V+FAN
GNDU GNDU
8,GNDU
5,V+5AD
12.AREG
4.VREGG
1,GNDV
9.DREG
1,V+12TRG
1.AC1
11,FANST
1.V+12A
6.DREG
3,V+12A
3.-VF
V+20V
6,V+5.6U
11.AREGG
2.V-12A
5,V-5.6V
3.LOCKDET
6.V-5.6U
GNDU
4.V-FAN 4.GNDU
V+12TRG
7,GNDA
10.AREG
8,GNDA
8.DREG
1.AC1
5.VREG
2,V+12T
6,GNDA
2.AC2
V+5.6
4,V+5.6V
10,FANDR
9,V+iPod
7,GNDU
V+5AD
7.DREG
3,GNDV
2,GNDV
GNDA
GNDU
5.GNDU
B
C
E
V-12A
LOCAL SUPPLY ASS'Y
AWX8671
AWX8672
CMKM-P3X
2SD1763
78M12
78M12
79M12
Production Code
V+12A
V+5AD
GNDV
+12V
V+5AD
V+5AD
+12V
GNDA
GNDA
GNDA
V-20V
V-20V
CMKM-P3X
CMKM-P3X
CMKM-P3X
CMKM-P3X
CMKM-P3X
CMKM-P3X
1
CN4272
C4278
4273
C4273 W4279
D4271
KN4271
L4271
CN4271
C4271
R4271
C4272
C4274
IC4271
W4280
W4273
W4275
W4277
W4274
W4276
W4278
W4271
W4272
R
R
NP
NP
18111
121
14
FCICT
16
R
R
R
R
R
15
1
3
CMKM-P3X
4.DREG
2.DREG
1.DREG
3.V+12UN
2.GNDD
3.DREG
1.V+5D
R
1
4
1
4
BOND
AWX8650
DC/DC ASSY
10
0
10
20
30
40
50
60
70
80
90
100
110
120
130
140
150
20 30 40 50 60 70 80 90 100 110
Y
X
LOCAL SUPPLY ASSY
S
DC/DC ASSY
T
S T
(ANP7543-A)
(ANP7541-B)
40
50
60
70
80
90
60708090100110120130140 X
Y
S T
SIDE A SIDE A
J3001
Y
CN6101
CN4271
T
6102
6102
S
CN4271
3202
CN6103
CN5704
P
J6104
J4309
N
CN6105
J4308
N
CN6106
J4308
N
CN6106
AC
VSX-AX4AVi-S 127
5678
5678
C
D
F
A
B
E
C6138
R6108
C6115
D6122
D6127
D6123
D6128
C6116
C6105
D6126
D6129
D6111
C6108
C6109
C6114
C6113
C6102
C6104
C6103
C6110
D6125
C6111
D6124
D6121
D6110
R6106
Q6102
Q6101
R6105
D6120
D6119
D6105
D6107
D6106
D6108
D6109
R6104
D6103
C6112
D6115
D6102
D6104
R6101
R6109
GNDU
V-12A
EN CAS REMPLACEMENT
GNDU
GNDU
GNDU
GNDA
V+20V
GNDA
CMKM-P3X
CMKM-P3X
CMKM-P3X
CMKM-P3X
CMKM-P3X
V+5AD
V-5.6V
LOCAL SUPPLY ASS'Y
CMKM-P3X
V+12A
GNDA
GNDA
V+12TRG
GNDU
V+5.6V
+12V
GNDV
V+5AD
GNDV
+12V
V+5AD
+12V
GNDV
GNDA
V-12V
V-5.6
V-20V
V-20V
E1
E2B2
B1
C1
C2
DES FUSIBLES IC6108
N'UTILISER QUE LA REFERENCE 49101.6 DE CHEZ
ATTENTION-
CHEZ Littelfuse INC.
AWX8671
AWX8672
AWX
1,V+12TRG
2,V+12T
3,V+12A
4,V-12A
5,V+5AD
6,GNDA
7,GNDA
8,GNDA
1,GNDV
2,GNDV
3,GNDV
4,V+5.6V
5,V-5.6V
6,V+5.6U
7,GNDU
8,GNDU
9,V+iPod
10,FANDR
11,FANST
R4274
C4279
D4272
R4272
C4276
C4277
R4273
C4275
81
111
12 1
R
LF
R
R
R
R
41
61
R
LF
LF
LF
LF
LF
LF
15
1
1
A
B
C
987654321
0
32
0
1
0
0
31
R
LF
41
DC/DC ASSY
AWX8650
CMKM-P3X
10 0
10
20
30
40
50
60
70
80
90
100
110
120
130
140
150
2030405060708090100110
Y
X
(ANP7543-A)
40
50
60
70
80
90
50 60 70 80 90 100 110 120 130 140
X
Y
LOCAL SUPPLY ASSY
S
S T
(ANP7541-B)
S T
SIDE B SIDE B
CN61016102
CN4271
CN6103 J6104
CN6105CN6106
CN6106
DC/DC ASSY
T
VSX-AX4AVi-S
128
1234
1234
C
D
F
A
B
E
4.17 TRANS2-1, VH TR, DIODE and TRANS2-2 ASSYS
61
IC4601
IC4602
D4252
D4251
Y12B
Y10B Y9B
Y11B
W4251
W4252
W4253
W4254
W4256
W4257
W4258
W4259
W4255
W4262
W4263
W4264
W4260
W4261
Q4262
Q4261
CN4261
W4209
C4210
C4209
W4202
4201
W4205
W4203
IC4201
CN4202
C4207C4208
C4204
C4203
C4201
C4202
R4203
R4201
R4205
R4206
R4208
R4207
W4208
IC4202
Y9A
Y8A
Y10A
W4207
C4205
C4206
W4206
W4204
W4201
C3001
H3160 H3159
H3155
H3151
H3157
H3154
H3152
H3156
H3158
H3153
J3001
R
GRYBLU
BRN
RED
AWX8648DIODE ASSY CMKM-P3X
VH TR ASSY
+B
-E-C-B +E+C
+VH
+B
-VH
-B
+C
AWX8649
-C
CMKM-P3X
R
61
R
-
-
-
6
1
J4201
51
TRANS2-1 ASSY
CMKM-P3X
FUSIBLES IC4201 ET IC4202
491007 DECHEZ LITTELFUSE INC.
ATTENTION
BLK
BRN
GLY
1.VH+
2.VH-
3.NECK6
4.NECK8
5.V-12A
1.-C
2.-B
3.-VH
4.+VH
5.+B
6.+C
EN CAS DE REPLACEMENT DES
N'UTILISER QUE LA REFERENCE
15
FU4
FU5 FU6
6.DREG
5.VREG
4.VREGG
3.VREG
2.AC2
1.AC1
1
12.AREG
11.AREGG
10.AREG
9.DREG
8.DREG
7.DREG
12
FU7
FU8
AWX8626
AWX
TRANS2-2 ASS'Y
RCMKM-P3X
121
10
10
0
20
30
203040 X
Y
130
140
150
160
Y
130 140 150 160 170 180 190
X
TRANS2-1
ASSY
U
TRANS2-2
ASSY
Y
VH TR ASSY
V
DIODE ASSY
W
U V W Y U V W Y
90
100
110
120
130
140
150
160
Y
60708090100110120
X
(ANP7541-B)
(ANP7541-B)
(ANP7541-B)
POWER
TRANSFORMER
10
0
20
30
40
50
60
70
80
90
140 150 160 170 180 190
X
Y
SIDE A SIDE A
Y8
X
Z
5604
O
CN4202 J4201
CN6101
S
J3001
CN4261
(ANP7540-A)
TRANS 1
ASSY
Y9
Y9
Y10
Y10
Y8
Y11
X
Y11
Y12
X
Y12
VSX-AX4AVi-S 129
5678
5678
C
D
F
A
B
E
R4261
R4263
R4262
Q4264
Q4263
C4264
C4263
C4262
C4261
R4264
D4261
D4262
D4210
D4204
D4203
D4211
D4209
D4215
D4207
D4205
D4213
D4206
D4216
D4212
D4208
D4214
D4201
Q4202
Q4201
Q4203
R
LF
RLF
61
DIODE ASSY AWX8648 CMKM-P3X
CMKM-P3X
LF
6
1
R
51
~~
+
-
NP
AWX8647
AWX8646
VG
TRANS2-1 ASS'Y
CMKM-P3X
6.+C
5.+B
4.+VH
3.-VH
2.-B
1.-C
5.V-12A
4.NECK8
3.NECK6
2.VH-
1.VH+
AWX
VLa
VLb
VHa
VHb
REPLACE WITH SAME TYPE NO.
INC. FOR IC4201-4202.
491007 MFD. BY LITTELFUSE
CAUTION
BINDER
15
1
23
4
LF
12 1
R
1
12
RISK OF FIRE-
FUSEREPLACE
MARKED.AS
AWX8626
AWX
8.DREG
9.DREG
10.AREG
12.AREG
11.AREGG
3.VREG
1.AC1
2.AC2
5.VREG
4.VREGG
6.DREG
7.DREG
TRANS2-2 ASS'Y
CMKM-P3X
10
10
0
20
30
20 30 40
X
Y
130
140
150
160
Y
130140150160170180190
X
x x
90
100
110
120
130
140
150
160
Y
60708090100110120
X
(ANP7540-A)
(ANP7540-A)
TRANS2-1
ASSY
U
TRANS2-2
ASSY
Y
VH TR ASSY
V
DIODE ASSY
W
U V W Y U V W Y
SIDE B SIDE B
CN4202
J4201
J3001
CN4261
10
0
20
30
40
50
60
70
80
90
140 150 160 170 180 190
X
Y
(ANP7540-A)
VSX-AX4AVi-S
130
1234
1234
C
D
F
A
B
E
4.18 SP/PS ASSY
CN4008
J4009
Y13B
C4101 C4102
L4011
C4011
R4012
R4024
C4012
C4013
C4042
C4041
R4042
C4032
C4031
R4032
C4052
R4052
C4051
C4022
R4022
C4021
Y11A Y12A
Y13A
Y8B
C4023
C4053 C4073
C4063
C4033
R4023
R4013
L4041
L4031
L4021
L4051
C4072
C4071
R4072
L4071
L4061
R4062
C4061
C4062
R4014
R4011
R4021
R4041
R4051
R4031
R4071
R4061
C4002
L4001
C4001
L4002
R4101 R4102
CN4003
CN4004
CN4005
CN4006
W4014
C4043
RY4004
RY4003
RY4002
RY4001
RY4005
4101
CN4102
W4018
W4023
W4016
W4003
W4006
W4002
W4001
W4004
CN4007
W4007
W4011
W4020
W4024 W4025
W4026
W4017
W4015
W4019
W4010
W4012
W4008
W4005
W4022
W4021
CN4001
CN4002
NC
NC
NC
NC
REPLACE WITH SAME
TYPE NO.ICP-N15 MFD.
CAUTION
BY ROHM CO.,LTD
FOR IC4261-4262.
91
113
21
1
2
21
21
NC
31
NC
NC
RS
C
FL
FR
-VL
GNDGND
GND
GND
GND
GND
GND
GND
SBR
RS
SBR
SBL
GNDST
V+12
V-12 V-12
V-12
BOND
1.C
V+12
GNDST
HPG
2.FL
51
GAMP
V+12V
NC
NC
GAMP
GAMP
SBR
-VL
1.FR
RY HP
2.NC
LS
+VL
RS
RED BLU
BLK
BLK
BLK
SBR
SBL
LS
GND
GND
PS/SP ASS'Y
RY CS
RY B
GNDST
V5.6ST
RY AC
13.W UP
RY A
V-12V
BOND
HP R
HP G
1.HP L
CMKM-P3X
GNDST
GNDST
V5.6ST
AC RY
W UP
SBL
+VL
YELLOW
BLUE
RED
WHITE
R
J11
14
140150160170180190200210220230240250260270280290300310330
X
40
50
60
70
80
90
100
110
120
130
140
150
160
Y
SP/PS ASSY
X
X
(ANP7541-B)
320
X
SIDE A SIDE A
CN4402
G
J4009
Y2
R
CN4004
Y1
O
Y1
Q
CN4003
Y3
Q
CN4005
Y4
R
CN4006
Y6
R
CN4101
Y11
W
Y11
Y8
U
Y8
Y12
W
Y12
Y5
Q
CN4102
CN3062
CN4008
CN3063
CN4007
AAAA
VSX-AX4AVi-S 131
5678
5678
C
D
F
A
B
E
D4001
D4002
D4010
D4009
D4006
D4008
D4007
D4005
Q4001
D4004
D4003
C4095
Q4002
Q4003
Q4004
C4091
C4093
C4096
C4094
C4092
Q4005
91
13 1
LF
12
12
12
12
41
31
51
R
ATTENTION
DES FUSIBLES IC4261 ET IC4262
N'UTILISER QUE LA REFERENCE
ICP-N15 DE CHEZ ROHM CO.,LTD.
EN CAS DE REMPLACEMENT
AWX
AWX8643
PS/SP ASSY
AWX8642
AWX
AWX8645
AWX8644
CMKM-P3X
140150160170180190200210220230240250260270280290300320
X
40
50
60
70
80
90
100
110
120
130
140
150
160
Y
(ANP7540-A)
290310
SP/PS ASSY
X
XX
SIDE B SIDE B
J4009
CN4004
CN4003
CN4005
CN4006
CN4101
CN4102
CN4008 CN4007
VSX-AX4AVi-S
132
1234
1234
C
D
F
A
B
E
4.19 TRANS1 and PRIMARY ASSYS
R3063
W3081
W3076
W3077
C3069
C3062
CN3062
W3080
H3064
H3062
KN3062
W3067
W3068
J3061
W3069
W3078
W3079
W3072
R3061
H3065
W3063
W3071
IC3061
3066WHT
W3064
L3063
J3063
3066YEL
H3063
W3073
J22A
CN3063
H3061
L3062
L3061
J3062
W3074
KN3061
H3066
C3070
C3061
J3064
W3065
W3066
W3062
T3061
3064
C3068
J21A
D3066
J23A
W3061
IC3062
Y14A
CN3061
W3075
W3070
Y15A
C3063
CN3065
RY3061
Y15B
Y14B
123mm
123mm
91
8-9.NC
PRINTED SIDE
NL
AS
78M56A
BRN
WHT
BLK
ORG
FUSE
REPLACE
7.GNDST
RISK OF
BRN
PRIMARY ASS'Y
FIRE -
51
GRY
BRN
1-2.NC
SECONDARY
R
PRODUCTION CODE
CMKM-P3X
FU3
FU1
PRIMARY
FU2
PRIMARY ASS'Y
MARKED.
AWX
AWX8633
AWX8632
AWX8631
AWX8630
AWX8629
AWX8628
6.GNDST
5.V+5.6ST
4.AC RY
3.W.UP
BRN
GRY
N
L
SIDE
PRIMARY
20
30
40
50
60
70
80
90
100
110
120
130
140
Y
Z
Z
TRANS1 ASSY
190200210220230240250260270280290300320330 310
X
(ANP7540-A)
(ANP7540-A)
SIDE A SIDE A
AA
AA
Z
AA
PRIMARY ASSY
POWER
TRANSFORMER
UTRANS2-1 ASSY
YTRANS2-2 ASSY
CN4007 ADX7464
X
CN3063
AC INLET ASSY
CN4008
X
CN3062
Y14 Y15
VSX-AX4AVi-S 133
5678
5678
C
D
F
A
B
E
D3062
R3062
C3065
C3064
D3061
C3067
C3066
R3065
Q3061
R3064
C3071
D3063
D3065
D3064
LF
R
L
NPRIMARY
SIDE
CMKM-P3X
1
9
LF
~~
+
-
LF
51
R
AWX8630
AWX
AWX8628
AWX8631
6.GNDST
8-9.NC
7.GNDST
5.V+5.6ST
SECONDARY
4.AC RY
3.W.UP
PRIMARY ASS'Y
1-2.NC
AWX8632
AWX8629
PRIMARY
CMKM-P3X
AWX8633
8
7
6
5
4444
555
666
777
888
9999
1
0000
111
AWM
3
2222
333
CHASSIS
CHASSIS
(ANP7540-A)
190200210220230240250260270280290310330
X
20
30
40
50
60
70
80
90
100
110
120
130
140
Y
300320
(ANP7540-A)
Z
Z
TRANS1 ASSY
SIDE B SIDE B
AA
AA
Z
AA
PRIMARY ASSY
CN3063CN3062
Line Voltage can be changed by the following
modification:
1. Disconnect the AC power cord.
2. Remove the cover.
3. Change the connection wire from TRANS 1 ASSY
to PRIMARY ASSY (Terminal No. Y15) as follows.
Voltage Terminal No.
220-230V Y15 of TRANS 1 ASSY
240V 240V terminal of power transformer
4. Stick a line voltage label on the rear panel.
Description Part No.
220V label AAX-193
240V label AAX-192
Line Voltage Selection
VSX-AX4AVi-S
134
1234
1234
C
D
F
A
B
E
4.20 VOLUME, DISPLAY and INPUT SELECT ASSYS
X3201
S3216 S3215
S3213S3214
S3211
S3212
S3225S3223 S3224S3221 S3222
C3335
W324
5
W3204
W3203
IC3202
C3359
W3242
V3201
S3204 S3203 S3202
S3201
D3311
3203
D3312 D3313
D3314
D3316
D3318 D3317
W324
6
W3278
W3237
W3202
W3277
W3222
W3224
W3238
W3216
W3279
W3201
W3230
W3231
W3226
W3212
W
W3253
W3276
W3234
W3227
W3258
W3251
W3206
W3232
W3223
W3229
W3236
W3235
W3228
W3213
W3207
W3225
W3205
W3208
W3221
W3260
W3259
W3257
W3239
W3240
W3
2
W3254
W3
2
W3262
W3233
W3261
W3263
W32
4
W3
W3
2
W324
3
W3219
W3218
W3217
W3211
W3
2
W3256
W3255
W3266
W3252
W3214
W3241
W3215
3201
S3565
S3561
S3564
S3563 S3562
D3562
D3564
3561
W3561
162
8
1
DISPLAY ASS'Y
AWX8624
AWX8635
AWX8636
AWX8661
AWX
8
1
123mm
FCICT
Ada Klik
INPUTSELECT ASS'Y
AWX8640
RCMKM-P3X
10
0
120
130
140
150
160
170
190
200
210
230
20 30 40 50 60 70 80 90 100 110 120 130 140 150 160 170 180
X
Y
10 0
50
60
70
80
90
100
110
120
2030405060708090100110 X
Y
180
220
240
(ANP7540-A)
(ANP7540-A)
SIDE A
3561
3203
AD
ADAC
INPUT SELECT
ASSY
VSX-AX4AVi-S 135
5678
5678
C
D
F
A
B
E
C3360
L3351
S3225S3224
C3232
W3245
S3571
W3242
S3573 S3574
S3576S3578 S3575S3577
S3227
3202
CN3201
D3572
D3315
D3320
D3319
S3226
3571
3204
S3572
W3246
7
8W3279
W3209
W3258
W3250
W3269
W3220
W3221
W3260
W3259
W3257
W3249
W3268
W3267
W3262
W3264
W3261
W3263
W3244
W3248
W3247
W3243
W3219
W3265
W3271
W3273
W3266
W3572
W3270
W3571
W3280
W3272
W3274 W3275
W3210
1
61
23
1
6
1
1
6
UP SIDE CONTACT
VOLUME ASS'Y
AWX8641
AWX
Tidak Ada Klik
RCMKM-P3X
CMKM-P3X
R
0
170 180 190 200 210 220 230 240
140
150
160
170
180
190
200
220
210
Y
260 270 280 290 300 320 330310
X
230
240
(ANP7540-A)
SIDE A
CN6103
S
3202
CN101
L
CN3201
3571
3204
ACAB
AB
VOLUME ASSY
AC
DISPLAY ASSY
VSX-AX4AVi-S
136
1234
1234
C
D
F
A
B
E
C3356
R3321
R3225
R3351
C3231
R3355
D3355
C3329
Q3351
R3370
R3361
R3352
R3353
C3353
R3369
R3371
R3372
R3366
D3358
R3367
R3368
D3359
C3234
C3354
D3356
R3356
R3357
R3358
R3359
C3573
C3572
C3351
Q3353
Q3352
R3376
C3242
C3241
C3240
C3239
C3238
C3237
C3236
C3235
R3576
R3577
R3579
R3575
R3574
R3578
D3352
IC3203
C3352
D3351
R3364
D3357
D3353
R3365
D3354
R3226
R3571
C3571
D3571
R3322
R3323
R3324
D3305
R3305
C3305
R3310
R3309
D3309
C3310
D3310
C3309
R3227
Q3355
Q3305
Q3309 Q3310
Q3571
R3373
L3301
R3350
R3375
R3374
R3378
16
9
8
1
61
23
1
6
1
6
1
NP
LF
R
GNDU
G
GNDU
1.V+5UH
2.LED7
6
3
9
1
8
2
88
99
9
8777 666 555 444
7
00 11
2
33
4
5
3
22
00
AWX
1
3.KEY4
VOLUME ASS'Y
4.GNDU
5.VENC B
6.VENC A
6.VENC A
5.VENC B
4.GNDU
3.KEY4
2.LED7
1.V+5UH
1.AC1
2.AC2
3.VF
4.GNDU
5.GNDU
6.V+5.6V
21.TEMP2
12.MR IN2
13.XIPOD
20.DISP RST
17.DISP DO
16.DISP RDY
15.DISP EN
11.MR IN1
10.1W WP
9.V+5.6ST
8.GNDU
7.GNDU
6.GNDU
5.232C DET
4.MIC DET
3.SRIN
2.RMC
14.HPDET
18.DISP DI
19.DISP CLK
1.SROUT
V+5UH
V+5UH
V+5UH
V+5UH
V+5UH
V+5UH
GNDU
GNDU
GNDU
GNDU
GNDU
GNDU GN
D
NOTE
SCREW
NO SCREW
22.RYAC
23.12V DET
Tidak Ada Klik
CMKM-P3X
260270280290310330
X
140
150
160
170
180
190
210
230
Y
300
200
220
240
320
1
170180190200210220230240
(ANP7540-A)
SIDE B
3202
CN3201
3571
3204
ACAB
AB
VOLUME ASSY
AC
DISPLAY ASSY
VSX-AX4AVi-S 137
5678
5678
C
D
F
A
B
E
C3323
R3222
R3321
R3221
R3223
R3224
R3225
R3216
R3215
R3214
R3213
R3212
C3221
C3211
C3201
R3211
R3201
C3233
R3217
C3326
C3231
C3322
R3325C3321
C3329
C3328
R3377
IC3201
R3360
R3354
R3352
R3353
C3353
C3355
C3333
C3234
D3356
R3327
C3327
R3331
R3332
R3333
R3334
R3336
R3338
R3339
C3331
C3332
5
2
R3329
R3330
R3341
C3334
R3340
R3261
R3265
R3270
R3260
R3266
R3269
R3250
R3278
R3253
R3264
R3268
R3267
R3281
R3280
R3279
R3245
R3232
R3257
R3282
R3242
R3246
R3276
R3275
R3254
R3255
R3252
R3244
R3258
R3259
R3256
R3283
R3238
R3231
R3273
R3274
R3271
R3272
R3243
R3239
R3241
R3240
R3251
R3277
R3235
R3234
R3233
R3237
R3236
R3262
R3263
R3335
R3337
C3250
R3376
R3248
R3249
R3247
R3328
C3330
R3202
R3205
R3204
R3203
C3249
C3248
C3247
C3246
C3244
C3245
C3243
C3242
C3241
C3240
C3239
C3238
C3237
C3236
C3235
D3352
IC3203
C3352
D3351
R3363
R3362
R3364
D3357
R3365
R3301
D3301
C3301
D3302
C3302
R3302
D3303
C3303
R3303
R3304
D3304
C3304
R3322
R3323
R3324
C3306
D3306
R3307
R3308
R3306
Q3354
Q3355
Q3356
Q3301
Q3302
Q3303
Q3304
Q3306
Q3307
Q3308
R3373
R3314
R3375
R3342
R3374
R3343
C3311
R3313
R3344
R3345
R3346
R3347
C3564
C3563
R3564R3563
D3561
C3561
R3561
D3563
C3562
R3562
Q3562
Q3561
80 51
50
31
301
100
81
16
9
8
1
1
8
NP
NP
NP
0
01
0
23 0123456789
A
B
C
1
1
LF
R
GNDU
GNDU GNDUGNDU
GNDU
7
4
555
667
88
8999
9
6
7
44 333 2222
3
4
5
6
7
8
AWX
111 0000
1
DISPLAY ASS'Y
1.V+5UH
2.RYAC
3.LED7
4.KEY1
5.KEY2
6.GNDU
7.MJOG B
8.MJOG A
VF
V+5UH
V+5UH
V+5UH
V+5UH
V+5UH
V+5UH
V+5UH
GNDU
GNDU
GNDU
GNDU
GNDU
GNDU GNDU
GNDU
GNDU
GNDU
GNDU
GNDU
V+5UH
V+5UH
V+5UH
CMKM-P3X
1
8
LF
R
9999 888 777 666 555 444 333 222
2
3
4
5
6
7
8
AWX
111 000
0
1
INPUTSELECT ASS'Y
1.V+5UH
2.RYAC
3.LED7
4.KEY1
5.KEY2
6.GNDU
7.MJOG B
8.MJOG A
Ada Klik
CMKM-P3X
120
130
140
150
160
170
180
190
200
240
Y
210
220
230
10
0
2030405060708090100110120130140150160170180
X
(ANP7540-A)
(ANP7540-A)
50
60
70
80
90
100
110
120
Y
10
0
2030405060708090100110
X
SIDE B
3561
3203
AD
ADAC
INPUT SELECT
ASSY
VSX-AX4AVi-S
138
1234
1234
C
D
F
A
B
E
4.21 HDMI&DVC ASSY
IC101
CN101
L352
L351
CN301
IC301
C101
C103
C104
C102
C105
C106
C107
C109
C110
C129
C136
C126
C113
C108
L104
C125
L101
C114
C112
C115
R102
R132
C127
R105
R106
C144
C117
R118R124
X101
C138
R126
L304
C314
C303
C302
R321
R322
R319
C301
CN102
Q171
R125
R119
R121
C135
R101
R307
R103
IC201
C201
VA177 VA178
VA352
VA351
R201
R202
R205
IC151
R134
R133
R313
L151
Q151
C151
R320
L305
C316
C317
C312
R203
C128
C130
C131
C132
L103
L401
L353
L354
L152
L153
L154
L171
L172
L173
L174 R116
R115
R392
C391
C392
C191
C192
R191
R192
D152 D153
C137
R127
R128R129
R130
R131
R323 R324
R301
IC401
IC452
IC453
L402
C402
C403
C404
C438
C405
C406
C439
C422
R452 R453
R454 R455
C411
R428
R422
R421
R407
R408
R409
R412
R413
R405
R406
IC451
R461
R417 R416
X401
C410C409
C401
C453
C451
C452
C421
C434
C435
C436
C423
R424
R423
VA353
VA354
VA355
VA356
VA357
VA358
VA176
VA175
VA174VA173
VA172VA171
VA153
VA154VA157
VA158
VA152
VA151 VA155
VA156
Q358
R388
R382
R386 Q359
R384
R387
R135
R136
C145
R334
R335
R336
R337
R338
R332
R420
C412
R204
R457
R458
R459
R460
R456
Q101
Q353
Q153
R194
R193
R391
R137
R138
IC161
R355
R356
R326
R327
R359
R360
R159
R158
IC172
R1151
C173
R178
R179
IC171
Q173
C171
C161
C153
R1152
IC152
D172
D173
R333
R451
IC454
C454
R1105
R1102
R1403
R1404
R331
R521
C504
R520
R522
R544
R543
R541
C507
R542
C551
L501
R545
D551
R506
C503
C552
CN501
R551
IC502
C571
R540
R536
R535
X501
R507
IC504
C501
C502
R573
R1014
R1013
C1002
R1019
R1015
R1017
R1021
R1012
R1023
R1022
R1020
C906
C1001
R1018
R1011
R1025
R1024
R1016
IC701
L701
R704
R705
R717
R720
R706
R709
R710
C704
R707
C706
R718
C707
C708
C709
C705
C702
C701
C713
R723
R722
R721
C712
R708
R719
R716
C711
R715
R701
R702
R505
R504
C703
C710
R733
R734
R738
R737
R742
R741
R745
R746
R749R750
R753
R754
C811
C801
R712
R711
R703
R1003
R1004
R1001
R568
R591
R592
R595
R593
R594
R714
CN1002
CN1001
R569
C714
IC503
C607
C603
C602
C605
C604
IC601
C606
C601
C903
D901
D902
C909
D903
C913
R913
R912
R911
Q911
C918
R581
R582
R583
R1153
L702
Q591
R1154
R1155
R589
R1156
R142
R1157
R918
R1002
D381
C611
R1158
R1171
R1172
R1173
R1174
R1175
R1176
R1177
R1178
R1351
R1352
R1353
R1354
R1355
R1356
R1357
R1358
AWQ7024
HDMI&DVC ASSY 1/2
H.C.T-163
94V-0
LF
B
B
C
C
D
D
E
E
F
F
Production Code
R
136
72
37
10873
109 144
119
119
120
21 40
41 60
61 80
119
110
1120
8
1
5
4
25
51
1
75
50
76
26
100
110
1120
110
1120
110
1120
NP
NP
NP
NP
16 9
8
1
14
85
8
1
5
4
NP
14
85
13
54
17
124
25
48
NP
71
14 8
112
13 24
25 36
37 48
124241
31
54
110
1120
NP
FCICT
10
10
20
30
40
50
60
70
80
90
2030405060708090100110120130140150160
XY
HDMI&DVC ASSY
(ANP7536-A)
SIDE A SIDE A
CN4311
N
CN1001
CN4310
N
CN1002
AG
AG
AG
VSX-AX4AVi-S 139
5678
5678
C
D
F
A
B
E
R145
R165
R166
R587
R588
C430
C118
C116
C139
C141
C143
C140 C142
R110
C111
R109
R117
R312
C313
C318
C319
C305
C308
C311
L302
R325
C304
R181
R113
R122
R123
R120
R111
R112
R314
R315
R316
C315
R305
R304
R303
R302
C133
C134
R114
C351
R306
R308
C306
R309
C307
R310
C309
R311
C310
R317
R318
R154
R155
R161
R153
R152
R151
R104
R108
R107
C119
C120
C121
C122
C123 C124
D352
D351
C413
C415
R411
R404
R402
C424
C425
C426
C418
C419
C417
R418
R419
C420 C427
R425
R427
R414
C407
C408
R415
R383
R381
R385
R426
C437
R492
R491
D171
R410
R401 R403
R351
R352
R354
R353
Q352
R156
Q172
R176
R173
R172
R171 R174
R175
D151
R163
R164
Q152
Q351
R1107
R1108
R1301
R539
R508
R527
R532
R509
R572R571
R502
R530
R525
R528
R531
R533
R516
R517
R514
R515
R512
R513
R534
R524
R529
R537
R538
R511
R501
C506
C505
R523
R526
R510
C904
C905
IC902
R518
C802
IC801
C803
C804
C808
C806
C807
C809
C810
C805
R811
R812
R813
R814
R815
R816
R561
R562
R563
R564
R565
R566
R567
R802
R801
R503
IC904
IC911
C901
C902
IC901
IC903
C908
C907
C910
C911
C912
R914
R915
R916
R917
C917
C916
C915
Q912
D912
D911
IC602
C608
C610
C609
R549
R548
R547
R546
IC501
R143
R144
R141
R389
R919
Q913
R586
R157
R177
R160
R584
R585
LF
NP
114
1528
1
24
1
24
7
1
5
4
1
6
3
4
1
80
30
51
5031
100
81
1
0123456789
0123
0
01
C
B
A
10
10
20
30
40
50
60
70
80
90
2030405060708090100110120130140150160
X
Y
HDMI&DVC ASSY
(ANP7536-A)
SIDE B SIDE B
AG
AG
AG
CN1001CN1002
VSX-AX4AVi-S
140
1234
1234
C
D
F
A
B
E
4.22 1394 ASSY
SIDE A SIDE A
SIDE B SIDE B
R134
R239
R222
R131
R133
R107
R329
L205
R281
R326
R316
C412
L204
R431
R350
R315
R457 R317
C246
R407
R230
R319
R231
R251
R404
R439
CN401
R303
IC101
R130
R401
R129
R440
C247
R402
R203
R138
C216
C230
R137
JA201
R451
C229
C402
R136
C404
R135
R419R452
C239
R328
C214
R426
L401
R280
R423
JA202
R290
C225
L405
R405
R226
C226
R424
R217
R453
C333
C330
R292
C419
R108
C422
R252
R320
KN11
C409
C228
R323
C423
R406
IC306
L402
R354
L207
R249
C329
C332
C420
C326
R318
C327
R321
R234
L206
R435
R344
R438
CN101
R153
R437
R355
R433
C328
R335
C411
R132
C2
C428
R352
R403
Q101
R202
R201
C222
C240
R304
R301
C310
D103
R119
C309
R146
CN402
R109
R144
R348
IC204
IC1
C405
R12
R145
C406
R124
R409
D104
C105
R110
R143
R111
R127
R351
R357
C209
R213
R263
R125
R353
R296
IC303
R126
R236
R256
R349
R115
R255
R283
R147
R118
R322
C231
IC201
R427
R284
C1
R334
R289
X302
R287
R247
R279
R11
C12
R302
R308
R420
C11
R104
R408
R152
R412
R411
R410
C430
C427
IC408
R123
Q401
R117
R106
R342
X101
IC202
R347
R243
IC410
L404
R430
R242
R449
R346
IC401
C403
R128
C401
R450
R345
R295
L1
R116
R286
C102
C410
R341
R332
R340
R219
C429
R244
R339
R428
R434
R429
R285
C227
R422
R421
C320
R432
R266
C248
R265
Q103
R206
C408
R250
R246
R245
Q102
R240
R237
14
5
8
50
48
13
25
24
36
37
76 100
1
26
25
7551
1394 ASSY
FC
1
12
1
AWK7
122
125
26 50
51 75
76 100
11
71
110
14
58
IN
GND
OUT
13
45
14
58
17
814
13
45
48
37
36
25
24
13
121
22
1
13
45
17
110
14
5
8
31
54
000 111 222 333 444 555 666 777 888 999
A-
17
814
31
54
1
5
3
4
13
45
13
45
1
0123456789
0123
0
01
C
B
A
8
1
5
4
13
45
124
25
48
18
916
C417
D102
R241
R150
R225
R218
C109
C319
R151
L203
IC405
C101
R215
R154
C210
R235
R282
C421
C414
R311
IC203
R227
R229
C234
R436
R232
C250
R233
R261
R223
R102
C415
IC305
IC205
R204
R228
C215 R216
R278
IC407
C201
R277
C111
R220
C249
R209
C223
C107
C211
C106
C321
R205
C315
C244 R267
C113
IC406
C110
C316
R291
C413
D213
C224
R358
C220
D209
C425
C304
R264
R262
C206
R214
C217
R305 IC404
IC302
C218
C322
R141
R140
C207
C219
IC301
R210
IC403
C323
C221
C208
R444
R120
R288
R456
R293
R443
R442
C245
C243
D101
R445
C242
R325
R275
R238
C418
R276
R441
C306
R122
R274
R273
R272
C108
C232
R271
C305
R221
R270
C303
C318
R269
R148
C407
R268
C112
R207
R113
IC102
R208
R356
C212
C213
R294
R259
C311
R260
C233
C236
R309
C237
R257
R313
L201
R327
X201
C103
R142
R314
C104
R312
R103
L101
L403
R333
R338
C416
C426
R105
R101
R324
X301
R454
R307
R310
IC104
R337
R139
R155
Q301
R149
L302
C302
R253
R114
C313
C241
C331
R224
C424
C312
R418
R343 C301
IC409
IC402
L301
R112
C317
C205
C204
IC103
C203
C324
C202
C314
C235
L202
C325
D214
R211
R425
D216
R212
D215 D210
D211
R254
D212
D205
D206
R248
D207
D208D204
D203
D202
C238
R258
D201
8
1
18
54
1
108
144
1
109
54
1
10
1120
1
7
14 8
916
5
13
4
16 9
13
27
73
72
36
37
28
1
110
11
20
54
3
1
16
18
9
14
5
8
54 28
27
1
136
37 72
73 108
109 144
16
18
9
17
8
14
16
18
9
54
3
1
CN303
L
CN401
CN305
L
CN402
(ANP7489-A)
(ANP7489-A)
1394 ASSY
AF
AF
AF
10
10
20
30
40
50
60
20 30 40 50 60 70 80 90 100 110 120 130 140
70
X
Y
10 20 30 40 50 60 70 80 90 100 110 120 130 140
X
10
20
30
40
50
60
70
Y
VSX-AX4AVi-S 141
5678
5678
C
D
F
A
B
E
5. PCB PARTS LIST
LIST OF ASSEMBLIES
Parts marked by "NSP" are generally unavailable because they are not in our Master Spare Parts List.
The mark found on some component parts indicates the importance of the safety factor of the part.
Therefore, when replacing, be sure to use parts of identical designation.
When ordering resistors, first convert resistance values into code form as shown in the following examples.
Ex.1 When there are 2 effective digits (any digit apart from 0), such as 560 ohm and 47k ohm (tolerance is shown by J=5%,
and K=10%).
Ex.2 When there are 3 effective digits (such as in high precision metal film resistors).
561
473
R50
1R0
5621
NOTES:
560 Ω
47k Ω
0.5 Ω
1 Ω
RD1/4PU J
RD1/4PU J
RN2H K
RS1P K
56 x 10
1
47 x 10
3
R50
1R0
561
473
5.62k Ω
RN1/4PC F562 x 10
1
5621
Meaning of the figures and others in the parentheses in the parts list.
Example) IC 301 is on the point (face A, 91 of x-axis, and 111 of y-axis) of the corresponding
PC board.
IC 301 (A, 91, 111) IC NJM2068V
Mark Symbol and Description VSX-AX4AVi-S/HYXJ VSX-AX2AV-S/HYXJ
NSP 1..POWER AMP ASSY AWH7008 AWH7008
2..POWER AMP-L ASSY AWX8655 AWX8655
2..POWER AMP-R ASSY AWX8657 AWX8657
2..POWER PROTECT ASSY AWX8659 AWX8659
2..POWER AMP IN ASSY AWX8662 AWX8662
NSP 2..BRIDGE1 ASSY AWX8667 AWX8667
NSP 2..BRIDGE2 ASSY AWX8668 AWX8668
1..1394 ASSY AWK7882 Not used
NSP 1..COMPLEX ASSY AWM7976 AWM7980
2..TRANS 2-2 ASSY AWX8626 AWX8626
2..PRIMARY ASSY AWX8629 AWX8629
NSP 2..FFC GUARD (FRONT) AWX8634 AWX8634
2..DISPLAY ASSY AWX8635 AWX8636
2..FRONT-IN ASSY AWX8638 AWX8638
2..HEADPHONE ASSY AWX8639 AWX8639
2..INPUT SELECT ASSY AWX8640 AWX8640
2..VOLUME ASSY AWX8641 AWX8641
1..DIGITAL MOTHER ASSY AWP7038 AWP7043
1..HDMI & DVC ASSY AWQ7024 AWQ7024
NSP 1..VIDEO ASSY AWQ7033 AWQ7033
2..COMPOSITE V ASSY AWX8620 AWX8620
2..S VIDEO ASSY AWX8622 AWX8622
2..PREOUT & CONTROL ASSY AWX8689 AWX8689
1..COMPONENT & VOL ASSY AWQ7034 AWQ7035
NSP 1..SECONDARY ASSY AWR7024 AWR7027
2..SP/PS ASSY AWX8643 AWX8645
2..TRANS 2-1 ASSY AWX8647 AWX8647
NSP 2..DIODE ASSY AWX8648 AWX8648
2..VH TR ASSY AWX8649 AWX8649
2..DC/DC ASSY AWX8650 AWX8650
2..INTERFACE ASSY AWX8651 AWX8651
NSP 2..TRANS SIDE ASSY AWX8652 AWX8652
NSP 1..AUDIO ASSY AWR7031 AWR7031
2..V-AUDIO ASSY AWX8690 AWX8690
NSP 2..BRIDGE3 ASSY AWX8669 AWX8669
2..LOCAL SUPPLY ASSY AWX8672 AWX8672
2..AUDIO & MULTI CH IN ASSY AWX8687 AWX8687
NSP 2..FFC GUARD (SIDE) ASSY AWX8696 AWX8696
1..DSP ASSY AWX8599 AWX8599
1..FM/AM TUNER MODULE AXX7170 AXX7170
VSX-AX4AVi-S
142
1234
1234
C
D
F
A
B
E
77
77 CONTRAST OF PCB ASSEMBLIES
AWX8645 and AWX8643 are constructed the same except for the following :
AWX8636 and AWX8635 are constructed the same except for the following :
77
77 PCB PARTS LIST FOR VSX-AX4AVi-S UNLESS OTHER WISE NOTED
XSP/PS ASSY
Mark Symbol and Description AWX8643 AWX8645
C4101, C4102 (15000/71) ACH7218 Not used
C4101, C4102 (10000/71) Not used ACH7255
c
DISPLAY ASSY
Mark Symbol and Description AWX8635 AWX8636
D3315 SLR-343BBT SLI-343URW
R3305 RS1/16S391J RS1/16S331J
Mark No. Description Part No.
POWER AMP ASSY
MISCELLANEOUS
J13 JUMPER WIRE D20PDY0525E
Y6 LEAD WITH HOUSING ADX7498
Y3 LEAD WITH HOUSING ADX7458
Y1 LEAD WITH HOUSING ADX7459
Y2 LEAD WITH HOUSING ADX7457
Y5 LEAD WITH HOUSING ADX7404
Y4 LEAD WITH HOUSING ADX7460
COMPLEX ASSY
MISCELLANEOUS
J3 JUMPER WIRE D20PDY0620E
J9 JUMPER WIRE D15A06-150-2651
J10 JUMPER WIRE D15A08-150-2651
Y15AWG18 BOARD IN ADX7491
Y14AWG18 BOARD IN ADX7490
SECONDARY ASSY
MISCELLANEOUS
Y8 AWG14 BOARD IN ADX7451
Y9 AWG14 BOARD IN ADX7488
Y10AWG14 BOARD IN ADX7489
Y11AWG14 BOARD IN ADX7454
Y12AWG14 BOARD IN ADX7455
FFC GUARD (FRONT) ASSY
MISCELLANEOUS
3151(A,205 ,20 ) PCB BINDER VEF1040
3152(A,285 ,14 ) PCB BINDER VEF1040
FFC GUARD (SIDE) ASSY
MISCELLANEOUS
5861(A,171 ,77 ) PCB BINDER VEF1040
5862(A,171 ,32 ) PCB BINDER VEF1040
AAUDIO & MULTI CH IN ASSY
MISCELLANEOUS
IC 6201(B,71 ,191 ) AUDIO IC BD3841FS
IC 6203(B,130 ,185 ) OP-AMP IC BA4560RF
L6201(B,19 ,215 ) CHIP SOLID INDUCTOR QTL1013
L6207(B,38 ,172 ) CHIP BEADS VTL1083
L6208(B,83 ,178 ) CHIP BEADS VTL1083
JA 6201(A,14 ,227 ) JACK RKN1004
CN6202(A,20 ,187 ) 13P SOCKET XKP3077
CN6203(A,109 ,174 ) 23P SOCKET XKP3082
CN6204(A,66 ,174 ) 17P SOCKET XKP3079
CN6205(A,133 ,230 ) PIN JACK(4P) AKB7172
CN6207(A,91 ,230 ) PIN JACK(4P) AKB7172
CN6208(A,63 ,230 ) PIN JACK(4P) AKB7172
CN6209(A,35 ,230 ) PIN JACK(4P) AKB7172
6201(A,141 ,173 ) PCB BINDER VEF1040
RESISTORS
R6201(B,122 ,215 ) RS1/16S473J
R6202(B,126 ,215 ) RS1/16S473J
R6205(B,96 ,215 ) RS1/16S104J
R6206(B,100 ,215 ) RS1/16S104J
R6207(B,82 ,215 ) RS1/16S473J
R6208(B,86 ,215 ) RS1/16S473J
R6209(B,68 ,215 ) RS1/16S473J
R6210(B,72 ,215 ) RS1/16S473J
R6211(B,54 ,215 ) RS1/16S473J
R6212(B,58 ,215 ) RS1/16S473J
R6213(B,41 ,215 ) RS1/16S473J
R6214(B,45 ,215 ) RS1/16S473J
R6215(B,27 ,213 ) RS1/16S473J
R6216(B,31 ,213 ) RS1/16S473J
R6217(B,119 ,214 ) RS1/16S331J
R6218(B,128 ,214 ) RS1/16S331J
R6221(B,93 ,214 ) RS1/16S222J
R6222(B,102 ,214 ) RS1/16S222J
R6223(B,79 ,214 ) RS1/16S331J
R6224(B,88 ,214 ) RS1/16S331J
R6225(B,65 ,214 ) RS1/16S331J
R6226(B,74 ,214 ) RS1/16S331J
R6227(B,52 ,214 ) RS1/16S331J
R6228(B,61 ,214 ) RS1/16S331J
R6229(B,38 ,214 ) RS1/16S331J
Mark No. Description Part No.
VSX-AX4AVi-S 143
5678
5678
C
D
F
A
B
E
R6230(B,47 ,214 ) RS1/16S331J
R6231(B,24 ,212 ) RS1/16S331J
R6232(B,33 ,212 ) RS1/16S331J
R6237(B,96 ,204 ) RS1/16S154J
R6238(B,100 ,204 ) RS1/16S154J
R6251(B,135 ,212 ) RS1/16S104J
R6252(B,139 ,212 ) RS1/16S104J
R6253(B,134 ,209 ) RS1/16S561J
R6254(B,140 ,209 ) RS1/16S561J
R6255(B,136 ,192 ) RS1/16S104J
R6256(B,141 ,181 ) RS1/16S104J
R6257(B,136 ,188 ) RS1/16S561J
R6258(B,136 ,182 ) RS1/16S561J
R6259(B,132 ,196 ) RS1/16S394J
R6260(B,134 ,177 ) RS1/16S394J
R6261(B,124 ,196 ) RS1/16S303J
R6262(B,126 ,177 ) RS1/16S303J
R6263(B,122 ,196 ) RS1/16S471J
R6264(B,124 ,177 ) RS1/16S471J
R6265(B,117 ,191 ) RS1/16S224J
R6266(B,117 ,176 ) RS1/16S224J
R6267(B,49 ,192 ) RS1/16S101J
R6268(B,51 ,191 ) RS1/16S101J
R6269(B,84 ,195 ) RS1/16S0R0J
R6270(B,84 ,193 ) RS1/16S0R0J
R6271(B,102 ,191 ) RS1/16S473J
R6272(B,100 ,191 ) RS1/16S473J
R6273(B,97 ,191 ) RS1/16S473J
R6274(B,95 ,191 ) RS1/16S473J
R6282(B,112 ,203 ) RS1/16S105J
R6283(B,110 ,203 ) RS1/16S105J
R6284(B,43 ,178 ) RS1/16S473J
R6285(B,41 ,176 ) RS1/16S473J
R6288(B,10 ,216 ) RS1/16S0R0J
CAPACITORS
C6201(B,124 ,221 ) CCSRCH101J50
C6202(B,127 ,221 ) CCSRCH101J50
C6205(B,96 ,221 ) CCSRCH101J50
C6206(B,99 ,221 ) CCSRCH101J50
C6207(B,82 ,221 ) CCSRCH101J50
C6208(B,85 ,221 ) CCSRCH101J50
C6209(B,68 ,221 ) CCSRCH101J50
C6210(B,71 ,221 ) CCSRCH101J50
C6211(B,54 ,221 ) CCSRCH101J50
C6212(B,57 ,221 ) CCSRCH101J50
C6213(B,40 ,221 ) CCSRCH101J50
C6214(B,43 ,221 ) CCSRCH101J50
C6215(B,26 ,221 ) CCSRCH101J50
C6216(B,29 ,221 ) CCSRCH101J50
C6217(B,122 ,213 ) CCSRCH151J50
C6218(B,126 ,213 ) CCSRCH151J50
C6221(B,96 ,213 ) CCSRCH220J50
C6222(B,100 ,213 ) CCSRCH220J50
C6223(B,82 ,213 ) CCSRCH151J50
C6224(B,86 ,213 ) CCSRCH151J50
C6225(B,68 ,213 ) CCSRCH151J50
C6226(B,72 ,213 ) CCSRCH151J50
C6227(B,54 ,213 ) CCSRCH101J50
C6228(B,58 ,213 ) CCSRCH101J50
C6229(B,41 ,213 ) CCSRCH101J50
Mark No. Description Part No.
C6230(B,45 ,213 ) CCSRCH101J50
C6231(B,27 ,211 ) CCSRCH101J50
C6232(B,31 ,211 ) CCSRCH101J50
C6237(A,95 ,207 ) CEAT100M50
C6238(A,101 ,207 ) CEAT100M50
C6249(B,138 ,221 ) CCSRCH221J50
C6250(B,141 ,221 ) CCSRCH221J50
C6251(A,134 ,201 ) CEAT100M50
C6252(A,140 ,201 ) CEAT100M50
C6253(B,134 ,192 ) CCSRCH331J50
C6254(B,143 ,181 ) CCSRCH331J50
C6255(A,139 ,189 ) CEAT470M16
C6256(A,139 ,181 ) CEAT470M16
C6257(B,134 ,188 ) CCSRCH561J50
C6258(B,134 ,182 ) CCSRCH561J50
C6259(B,130 ,196 ) CKSRYB822K50
C6260(B,132 ,177 ) CKSRYB822K50
C6261(B,128 ,196 ) CKSRYB122K50
C6262(B,130 ,177 ) CKSRYB122K50
C6263(A,120 ,194 ) CEAT100M50
C6264(A,120 ,174 ) CEAT100M50
C6265(A,122 ,181 ) CEAT470M16
C6266(A,122 ,187 ) CEAT470M16
C6267(B,53 ,190 ) CCSRCH101J50
C6268(B,55 ,190 ) CCSRCH101J50
C6269(B,67 ,182 ) CKSRYB103K50
C6270(B,69 ,182 ) CKSRYB103K50
C6279(B,130 ,222 ) CKSRYB103K50
C6281(B,19 ,222 ) CKSRYB103K50
C6283(B,132 ,222 ) CKSRYB104K16
C6284(B,91 ,224 ) CKSRYB103K50
C6285(B,64 ,223 ) CKSRYB103K50
C6286(B,35 ,224 ) CKSRYB104K16
C6291(B,134 ,222 ) CKSRYB471K50
C6292(B,33 ,224 ) CKSRYB471K50
C6293(B,126 ,196 ) CKSRYB122K50
C6294(B,128 ,177 ) CKSRYB122K50
C6295(A,78 ,180 ) CEAT470M16
C6296(A,73 ,172 ) CEAT470M16
BV-AUDIO ASSY
MISCELLANEOUS
IC 6301(B,53 ,148 ) AUDIO IC BD3841FS
Q6301(B,13 ,143 ) TRANSISTOR IMX25
JA 6301(A,26 ,107 ) PIN JACK(6P) AKB7174
CN6301(A,121 ,143 ) 6P SOCKET KP200TA6L
CN6302(A,38 ,163 ) 23P SOCKET XKP3082
CN6307(A,61 ,107 ) PIN JACK(4P) AKB7172
CN6308(A,89 ,107 ) PIN JACK(4P) AKB7172
CN6309(A,117 ,107 ) PIN JACK(4P) AKB7172
RESISTORS
R6301(B,23 ,127 ) RS1/16S473J
R6302(B,19 ,127 ) RS1/16S473J
R6303(B,26 ,128 ) RS1/16S331J
R6304(B,17 ,128 ) RS1/16S331J
R6307(B,36 ,127 ) RS1/16S473J
R6308(B,32 ,127 ) RS1/16S473J
R6309(B,39 ,128 ) RS1/16S331J
Mark No. Description Part No.
VSX-AX4AVi-S
144
1234
1234
C
D
F
A
B
E
R6310(B,30 ,128 ) RS1/16S331J
R6313(B,49 ,127 ) RS1/16S473J
R6314(B,45 ,127 ) RS1/16S473J
R6315(B,52 ,128 ) RS1/16S331J
R6316(B,43 ,128 ) RS1/16S331J
R6319(B,62 ,127 ) RS1/16S473J
R6320(B,58 ,127 ) RS1/16S473J
R6321(B,65 ,128 ) RS1/16S331J
R6322(B,55 ,128 ) RS1/16S331J
R6325(B,75 ,127 ) RS1/16S104J
R6326(B,71 ,127 ) RS1/16S104J
R6327(B,78 ,128 ) RS1/16S222J
R6328(B,69 ,128 ) RS1/16S222J
R6329(B,75 ,134 ) RS1/16S154J
R6330(B,71 ,134 ) RS1/16S154J
R6331(B,88 ,127 ) RS1/16S473J
R6332(B,84 ,127 ) RS1/16S473J
R6333(B,91 ,128 ) RS1/16S331J
R6334(B,82 ,128 ) RS1/16S331J
R6337(B,101 ,127 ) RS1/16S104J
R6338(B,97 ,127 ) RS1/16S104J
R6339(B,104 ,128 ) RS1/16S222J
R6340(B,95 ,128 ) RS1/16S222J
R6341(B,101 ,134 ) RS1/16S154J
R6342(B,97 ,134 ) RS1/16S154J
R6343(B,113 ,133 ) RS1/16S473J
R6344(B,109 ,127 ) RS1/16S473J
R6345(B,113 ,135 ) RS1/16S331J
R6346(B,109 ,129 ) RS1/16S331J
R6351(B,13 ,131 ) RS1/16S102J
R6352(B,9 ,136 ) RS1/16S102J
R6353(B,18 ,149 ) RS1/16S103J
R6354(B,8 ,149 ) RS1/16S103J
R6355(B,20 ,155 ) RS1/16S102J
R6356(B,11 ,158 ) RS1/16S102J
R6361(B,106 ,145 ) RS1/16S101J
R6362(B,73 ,148 ) RS1/16S101J
R6367(B,116 ,155 ) RS1/16S0R0J
R6368(B,107 ,162 ) RS1/16S0R0J
R6369(B,106 ,166 ) RS1/16S0R0J
R6370(B,105 ,162 ) RS1/16S0R0J
R6371(B,72 ,159 ) RS1/16S0R0J
R6372(B,74 ,159 ) RS1/16S0R0J
R6373(B,76 ,159 ) RS1/16S0R0J
R6374(B,73 ,156 ) RS1/16S0R0J
R6375(B,73 ,154 ) RS1/16S0R0J
R6381(B,41 ,153 ) RS1/16S473J
R6382(B,43 ,152 ) RS1/16S473J
R6383(B,35 ,165 ) RS1/16S0R0J
R6384(B,68 ,166 ) RS1/16S0R0J
R6391 RS1/16S0R0J
R6392 RS1/16S0R0J
CAPACITORS
C6301(B,28 ,116 ) CCSRCH101J50
C6302(B,23 ,116 ) CCSRCH101J50
C6303(B,23 ,129 ) CCSRCH101J50
C6304(B,19 ,129 ) CCSRCH101J50
C6307(B,42 ,116 ) CCSRCH101J50
C6308(B,37 ,116 ) CCSRCH101J50
Mark No. Description Part No.
C6309(B,36 ,129 ) CCSRCH101J50
C6310(B,32 ,129 ) CCSRCH101J50
C6313(B,56 ,116 ) CCSRCH101J50
C6314(B,51 ,116 ) CCSRCH101J50
C6315(B,49 ,129 ) CCSRCH101J50
C6316(B,45 ,129 ) CCSRCH101J50
C6319(B,70 ,116 ) CCSRCH101J50
C6320(B,65 ,116 ) CCSRCH101J50
C6321(B,62 ,129 ) CCSRCH101J50
C6322(B,58 ,129 ) CCSRCH101J50
C6325(B,83 ,114 ) CCSRCH101J50
C6326(B,79 ,113 ) CCSRCH101J50
C6327(B,75 ,129 ) CCSRCH220J50
C6328(B,71 ,129 ) CCSRCH220J50
C6329(A,77 ,137 ) CEAT100M50
C6330(A,70 ,137 ) CEAT100M50
C6331(B,98 ,116 ) CCSRCH101J50
C6332(B,93 ,116 ) CCSRCH101J50
C6333(B,88 ,129 ) CCSRCH101J50
C6334(B,84 ,129 ) CCSRCH101J50
C6337(B,111 ,114 ) CCSRCH101J50
C6338(B,107 ,113 ) CCSRCH101J50
C6339(B,101 ,129 ) CCSRCH220J50
C6340(B,97 ,129 ) CCSRCH220J50
C6341(A,103 ,137 ) CEAT100M50
C6342(A,96 ,137 ) CEAT100M50
C6343(B,126 ,116 ) CCSRCH101J50
C6344(B,121 ,116 ) CCSRCH101J50
C6345(B,113 ,137 ) CCSRCH101J50
C6346(B,109 ,131 ) CCSRCH101J50
C6349(B,33 ,114 ) CKSRYB104K16
C6350(B,61 ,114 ) CKSRYB104K16
C6351(B,89 ,114 ) CKSRYB104K16
C6353(B,14 ,116 ) CCSRCH331J50
C6354(B,9 ,116 ) CCSRCH331J50
C6359(B,69 ,152 ) CCSRCH101J50
C6360(B,71 ,151 ) CCSRCH101J50
C6361(B,61 ,156 ) CKSRYB103K50
C6362(B,58 ,157 ) CKSRYB103K50
C6363(A,68 ,163 ) CEAT470M16
C6364(A,85 ,166 ) CEAT470M16
C6368(B,19 ,114 ) CKSRYB103K50
C6369(B,22 ,111 ) CKSRYB103K50
C6379(B,35 ,114 ) CKSRYB471K50
C6380(B,63 ,114 ) CKSRYB471K50
C6381(B,91 ,114 ) CKSRYB471K50
CFRONT-IN ASSY
MISCELLANEOUS
IC 3451(B,43 ,37 ) OP-AMP IC BA4560RF
Q3451(B,83 ,33 ) CHIP TRANSISTOR HN1C01FU
D3451(B,58 ,42 ) DIODE UDZS5R1(B)
D3452(B,60 ,42 ) DIODE UDZS5R1(B)
D3453(B,24 ,36 ) DIODE UDZS5R1(B)
D3454(B,35 ,31 ) DIODE DAN217
L3451(B,88 ,65 ) CHIP BEADS VTL1083
L3452(B,94 ,50 ) CHIP BEADS VTL1083
L3453(B,30 ,26 ) CHIP SOLID INDUCTOR QTL1013
L3455(B,88 ,24 ) CHIP BEADS VTL1083
Mark No. Description Part No.
VSX-AX4AVi-S 145
5678
5678
C
D
F
A
B
E
JA 3451(A,12 ,11 ) JACK RKN1004
JA 3452(A,97 ,15 ) FRONT AV INPUT AKX7019
KN3451(A,13 ,39 ) WRAPPING TERMINAL VNF1084
KN3452(A,106 ,39 ) WRAPPING TERMINAL VNF1084
CN3451(A,102 ,53 ) CONNECTOR 52045-1545
RESISTORS
R3451(B,20 ,34 ) RS1/16S682J
R3452(B,14 ,28 ) RS1/16S104J
R3453(B,26 ,32 ) RS1/16S101J
R3454(B,32 ,31 ) RS1/16S104J
R3455(B,44 ,29 ) RS1/16S333J
R3456(B,39 ,29 ) RS1/16S432J
R3457(B,50 ,41 ) RS1/16S432J
R3458(B,45 ,44 ) RS1/16S333J
R3459(B,47 ,44 ) RS1/16S101J
R3460(B,7 ,19 ) RS1/16S102J
R3461(B,56 ,44 ) RS1/16S104J
R3462(B,44 ,23 ) RS1/16S101J
R3463(B,34 ,41 ) RS1/16S102J
R3465(B,58 ,46 ) RS1/16S0R0J
R3466(B,60 ,46 ) RS1/16S0R0J
R3467(B,63 ,48 ) RS1/16S0R0J
R3468(B,48 ,34 ) RS1/16S0R0J
R3471(B,53 ,27 ) RS1/16S750J
R3472(B,55 ,31 ) RS1/16S0R0J
R3473(B,60 ,26 ) RS1/16S750J
R3474(B,60 ,30 ) RS1/16S0R0J
R3475(B,65 ,24 ) RS1/16S750J
R3476(B,64 ,31 ) RS1/16S0R0J
R3480(B,47 ,29 ) RS1/16S101J
R3481(B,77 ,23 ) RS1/16S104J
R3482(B,105 ,23 ) RS1/16S104J
R3483(B,75 ,27 ) RS1/16S221J
R3484(B,101 ,27 ) RS1/16S221J
R3485(B,75 ,31 ) RS1/16S104J
R3486(B,93 ,24 ) RS1/16S104J
R3487(B,73 ,35 ) RS1/16S221J
R3488(B,93 ,28 ) RS1/16S221J
R3489(B,96 ,49 ) RS1/16S101J
R3490(B,101 ,47 ) RS1/16S101J
R3491(B,89 ,38 ) RS1/16S153J
R3492(B,91 ,38 ) RS1/16S153J
R3493(B,87 ,38 ) RS1/16S470J
R3494(B,101 ,43 ) RS1/16S470J
R3496(B,101 ,23 ) RS1/16S0R0J
R3497(B,78 ,26 ) RS1/16S0R0J
R3498(B,95 ,36 ) RS1/16S0R0J
R3499(B,97 ,36 ) RS1/16S0R0J
CAPACITORS
C3451(B,12 ,28 ) CCSRCH471J50
C3452(A,29 ,36 ) CEAT100M50
C3453(B,30 ,31 ) CCSRCH101J50
C3454(B,45 ,29 ) CCSRCH220J50
C3455(B,44 ,44 ) CCSRCH220J50
C3457(A,31 ,41 ) CEAT100M50
C3459(B,36 ,35 ) CKSRYB103K50
C3460(B,48 ,38 ) CKSRYB103K50
C3461(A,41 ,44 ) CEAT100M50
C3462(A,53 ,38 ) CEAT100M50
Mark No. Description Part No.
C3463(B,7 ,27 ) CKSRYB105K6R3
C3464(B,8 ,34 ) CKSRYB104K16
C3465(B,6 ,34 ) CKSRYB103K50
C3467(B,32 ,26 ) CKSRYB104K16
C3470(A,50 ,44 ) CEAT100M50
C3471(B,51 ,28 ) CKSRYB104K25
C3475(B,104 ,32 ) CKSRYB104K16
C3476(B,104 ,35 ) CKSRYB471K50
C3481(B,79 ,23 ) CCSRCH221J50
C3482(B,103 ,23 ) CCSRCH221J50
C3483(A,72 ,32 ) CEAT100M50
C3484(A,96 ,31 ) CEAT100M50
C3485(B,75 ,35 ) CCSRCH101J50
C3486(B,91 ,26 ) CCSRCH101J50
C3489(B,87 ,33 ) CKSRYB103K50
C3490(B,93 ,38 ) CKSRYB103K50
C3491(A,90 ,34 ) ELECT. CAPACITOR CEAT330M25
C3492(A,95 ,43 ) ELECT. CAPACITOR CEAT330M25
C3494(B,106 ,29 ) CKSRYB104K16
C3495(B,103 ,29 ) CKSRYB471K50
C3496(B,75 ,23 ) CKSRYB103K50
DHEADPHONE ASSY
MISCELLANEOUS
L3551(B,129 ,129 ) CHIP BEADS VTL1083
KN3551(A,119 ,114 ) WRAPPING TERMINAL VNF1084
CN3551(A,133 ,128 )
4P JUMPER CONNECTOR
52147-0410
3551(A,127 ,85 ) PHONE JACK AKN7029
RESISTORS
R3551(B,132 ,97 ) RS1/16S102J
CAPACITORS
C3551(B,131 ,114 ) CKSRYB392K50
C3552(B,122 ,100 ) CKSRYB392K50
C3553(B,124 ,110 ) CCSRCH471J50
C3554(B,122 ,110 ) CKSRYB103K50
C3555(B,119 ,110 ) CKSRYB104K16
EBRIDGE1 ASSY
MISCELLANEOUS
CN5431(A,51 ,120 ) 23P PLUG XKP3071
CN5432(A,77 ,72 ) 23P PLUG XKP3071
FBRIDGE2 ASSY
MISCELLANEOUS
CN5441(A,48 ,59 ) CONNECTOR 52045-1745
CN5442(A,68 ,43 ) 11P PLUG XKP3065
CN5443(A,69 ,19 ) 13P PLUG XKP3066
GTRANS SIDE ASSY
MISCELLANEOUS
L4401(B,307 ,6 ) CHIP BEADS VTL1083
L4402(B,307 ,8 ) CHIP BEADS VTL1083
L4403(B,307 ,10 ) CHIP BEADS VTL1083
L4404(B,307 ,14 ) CHIP BEADS VTL1083
L4405(B,307 ,16 ) CHIP BEADS VTL1083
Mark No. Description Part No.
VSX-AX4AVi-S
146
1234
1234
C
D
F
A
B
E
L4406(B,307 ,18 ) CHIP BEADS VTL1083
L4407(B,307 ,20 ) CHIP BEADS VTL1083
L4408(B,307 ,22 ) CHIP BEADS VTL1083
L4409(B,307 ,24 ) CHIP BEADS VTL1083
L4410(B,307 ,26 ) CHIP BEADS VTL1083
L4411(B,307 ,28 ) CHIP BEADS VTL1083
L4412(B,307 ,30 ) CHIP BEADS VTL1083
L4413(B,307 ,32 ) CHIP BEADS VTL1083
J5 JUMPER WIRE D20PDY0410E
CN4402(A,319 ,21 ) KR CONNECTOR S13B-PH
CN4403(A,79 ,28 ) CONNECTOR 52045-1745
4401(A,61 ,9 ) 4P CABLE HOLDER 51048-0400
HBRIDGE3 ASSY
MISCELLANEOUS
CN5451(A,169 ,100 ) 17P CONNECTOR 52044-1745
CN5452(A,140 ,100 ) 19P CONNECTOR 52044-1945
CN5453(A,135 ,134 ) 23P PLUG XKP3071
CN5454(A,126 ,166 ) 23P PLUG XKP3071
CN5455(A,169 ,166 ) 17P PLUG XKP3068
ICOMPOSITE V ASSY
MISCELLANEOUS
IC 2001(A,125 ,89 ) IC CD74HC4051PW
IC 2002(A,125 ,77 ) IC CD74HC4051PW
IC 2003(A,129 ,101 ) IC CD74HC4053PW
IC 2004(A,134 ,89 ) IC CD74HC4052PW
IC 2005(B,117 ,126 ) VIDEO AMP IC TK15420M
IC 2006(A,122 ,42 ) VIDEO SW IC NJM2279M
IC 2007(B,145 ,64 )
CHARACTER GENERATOR
PDC131A
IC 2008(A,141 ,111 ) LOGIC IC CD4094BNS
IC 2009(B,132 ,97 ) LOGIC IC CD4094BNS
Q2001(B,143 ,80 ) TRANSISTOR 2SC4081
D2001(A,150 ,29 ) DIODE DAP202K
L2003(A,129 ,68 ) AXIAL INDUCTOR LAU330J
JA 2005(A,95 ,130 ) PIN JACK(1P) AKB7175
X2001(A,134 ,55 ) CRYSTAL RESONATOR ASS1056
(14.31818MHz)
CN2001(A,144 ,24 ) 15P SOCKET XKP3078
CN2002(A,131 ,123 ) 13P SOCKET XKP3077
2002(A,95 ,81 ) PIN JACK(2P) AKB7176
2003(A,95 ,53 ) PIN JACK(2P) AKB7176
2001(A,95 ,109 ) PIN JACK(2P) AKB7176
2004(A,95 ,25 ) PIN JACK(2P) AKB7176
RESISTORS
R2001(B,103 ,116 ) RS1/16S750J
R2002(B,103 ,102 ) RS1/16S750J
R2003(B,103 ,88 ) RS1/16S750J
R2004(B,104 ,75 ) RS1/16S750J
R2005(B,103 ,46 ) RS1/16S750J
R2006(B,104 ,19 ) RS1/16S750J
R2007(B,104 ,130 ) RS1/16S750J
R2008(B,113 ,62 ) RS1/16S750J
R2009(B,114 ,36 ) RS1/16S750J
R2010(A,149 ,118 ) RS1/16S0R0J
R2012(B,141 ,35 ) RS1/16S750J
R2013(A,115 ,128 ) RS1/16S472J
R2014(A,119 ,128 ) RS1/16S472J
Mark No. Description Part No.
R2015(A,115 ,127 ) RS1/16S182J
R2016(A,119 ,127 ) RS1/16S182J
R2017(A,114 ,124 ) RS1/16S202J
R2018(A,120 ,124 ) RS1/16S202J
R2019(A,147 ,75 ) RS1/16S331J
R2020(A,147 ,77 ) RS1/16S331J
R2021(A,147 ,79 ) RS1/16S331J
R2022(A,150 ,75 ) RS1/16S102J
R2023(B,150 ,79 ) RS1/16S512J
R2024(B,148 ,79 ) RS1/16S392J
R2025(B,144 ,83 ) RS1/16S102J
R2027(A,140 ,104 ) RS1/16S473J
R2028(A,142 ,104 ) RS1/16S473J
R2029(A,144 ,104 ) RS1/16S473J
R2030(A,145 ,104 ) RS1/16S473J
R2031(A,149 ,104 ) RS1/16S473J
R2032(A,147 ,104 ) RS1/16S473J
R2033(B,144 ,100 ) RS1/16S473J
R2034(B,144 ,98 ) RS1/16S473J
R2035(B,144 ,96 ) RS1/16S473J
R2036(A,139 ,117 ) RS1/16S0R0J
R2070(A,115 ,109 ) RS1/16S0R0J
R2082(A,133 ,40 ) RS1/16S0R0J
R2091(A,123 ,122 ) RS1/16S0R0J
R2092(A,124 ,26 ) RS1/16S0R0J
R2095(B,129 ,86 ) RS1/16S473J
R9095 RS1/16S0R0J
CAPACITORS
C2007(B,104 ,132 ) CCSRCH181J50
C2008(B,104 ,61 ) CCSRCH181J50
C2009(B,104 ,33 ) CCSRCH181J50
C2012(A,141 ,33 ) ELECT. CAPACITOR CEAT102M6R3
C2013(A,133 ,33 ) CEAT101M10
C2014(A,127 ,33 ) CEAT101M10
C2015(A,119 ,91 ) CKSRYB103K50
C2016(A,130 ,86 ) CKSRYB103K50
C2017(A,118 ,73 ) CKSRYB103K50
C2018(A,128 ,81 ) CKSRYB103K50
C2019(A,128 ,97 ) CKSRYB103K50
C2020(A,130 ,105 ) CKSRYB103K50
C2021(A,130 ,92 ) CKSRYB103K50
C2022(A,139 ,86 ) CKSRYB103K50
C2024(A,119 ,106 ) CEAT101M10
C2025(A,119 ,114 ) CEAT101M10
C2026(B,119 ,122 ) CKSRYB103K50
C2027(B,113 ,131 ) CKSRYB103K50
C2028(A,112 ,116 ) CEAT101M10
C2029(A,127 ,116 ) CEAT101M10
C2034(A,130 ,39 ) CKSRYB103K50
C2035(A,129 ,44 ) CKSRYB103K50
C2036(A,113 ,47 ) CEAT100M50
C2037(A,141 ,48 ) CEAT101M10
C2038(A,150 ,49 ) CEAT101M10
C2039(B,142 ,54 ) CKSRYB473K25
C2040(B,143 ,74 ) CKSRYB473K25
C2041(B,130 ,57 ) CCSRCH120J50
C2042(B,130 ,62 ) CCSRCH120J50
C2043(A,139 ,63 ) CCSRCH240J50
C2044(A,139 ,64 ) CCSRCH240J50
Mark No. Description Part No.
VSX-AX4AVi-S 147
5678
5678
C
D
F
A
B
E
C2045(A,140 ,67 ) CCSRCH101J50
C2046(A,140 ,69 ) CCSRCH101J50
C2047(A,140 ,70 ) CCSRCH101J50
C2048(A,149 ,68 ) CKSRYB122K50
C2049(A,149 ,63 ) CKSRYB122K50
C2050(A,149 ,58 ) CCSRCH101J50
C2052(A,148 ,84 ) CEAT101M10
C2053(B,132 ,112 ) CKSRYB103K50
C2054(B,131 ,105 ) CKSRYB103K50
C2055(B,147 ,76 ) CKSRYB103K50
C2086(B,109 ,58 ) CKSRYB103K50
C2087(B,127 ,110 ) CKSRYB103K50
C2088(A,132 ,120 ) CKSRYB103K50
C2089(B,103 ,25 ) CKSRYB103K50
C2091(B,103 ,109 ) CKSRYB103K50
C2092(B,103 ,81 ) CKSRYB103K50
C2093(B,103 ,53 ) CKSRYB103K50
C2094(B,104 ,127 ) CKSRYB473K25
JS VIDEO ASSY
MISCELLANEOUS
IC 2201(A,39 ,96 ) IC CD74HC4051PW
IC 2202(A,42 ,81 ) IC CD74HC4051PW
IC 2203(A,39 ,111 ) IC CD74HC4052PW
IC 2204(A,32 ,130 ) VIDEO AMP IC TK15420M
IC 2205(A,52 ,96 ) IC CD74HC4051PW
IC 2206(A,57 ,81 ) IC CD74HC4051PW
IC 2207(A,48 ,63 ) IC CD74HC4052PW
IC 2208(A,36 ,60 ) VIDEO AMP IC TK15420M
IC 2209(A,49 ,40 ) IC CD74HC4052PW
IC 2210(A,36 ,37 ) VIDEO AMP IC TK15420M
IC 2271(A,51 ,115 ) IC LA7213
IC 2281(A,67 ,58 ) LOGIC IC CD4094BPW
IC 2282(A,68 ,75 ) LOGIC IC CD4094BPW
Q2271(B,67 ,110 ) TRANSISTOR RT1N241M
D2271(A,65 ,107 ) DIODE 1SS355
D2272(A,61 ,106 ) DIODE 1SS355
CN2201(A,64 ,24 ) 17P SOCKET XKP3079
CN2202(A,62 ,123 ) 11P SOCKET XKP3076
CN2203(A,12 ,116 ) SOCKET AKP7043
CN2205(A,12 ,53 ) SOCKET AKP7020
CN2206(A,12 ,25 ) SOCKET AKP7020
RESISTORS
R2201(B,26 ,115 ) RS1/16S750J
R2202(B,28 ,117 ) RS1/16S750J
R2203(B,26 ,101 ) RS1/16S750J
R2204(B,28 ,103 ) RS1/16S750J
R2205(B,26 ,45 ) RS1/16S750J
R2206(B,28 ,49 ) RS1/16S750J
R2207(B,26 ,17 ) RS1/16S750J
R2208(B,28 ,23 ) RS1/16S750J
R2213(B,28 ,126 ) RS1/16S750J
R2214(B,28 ,133 ) RS1/16S750J
R2215(B,28 ,55 ) RS1/16S750J
R2216(B,28 ,62 ) RS1/16S750J
R2217(B,28 ,28 ) RS1/16S750J
R2218(B,28 ,35 ) RS1/16S750J
R2219(A,66 ,102 ) RS1/16S0R0J
Mark No. Description Part No.
R2220(A,59 ,118 ) RS1/16S0R0J
R2221(B,66 ,33 ) RS1/16S750J
R2222(B,60 ,32 ) RS1/16S750J
R2223(B,33 ,131 ) RS1/16S472J
R2224(A,26 ,132 ) RS1/16S472J
R2225(B,35 ,128 ) RS1/16S182J
R2226(A,26 ,127 ) RS1/16S152J
R2227(B,38 ,128 ) RS1/16S202J
R2228(A,26 ,124 ) RS1/16S182J
R2229(B,50 ,33 ) RS1/16S0R0J
R2250(B,50 ,31 ) RS1/16S0R0J
R2251(A,40 ,58 ) RS1/16S472J
R2252(A,31 ,58 ) RS1/16S472J
R2253(A,42 ,58 ) RS1/16S182J
R2254(A,29 ,58 ) RS1/16S152J
R2255(A,40 ,61 ) RS1/16S202J
R2256(A,29 ,61 ) RS1/16S182J
R2261(A,40 ,34 ) RS1/16S472J
R2262(A,31 ,33 ) RS1/16S472J
R2263(A,42 ,34 ) RS1/16S182J
R2264(A,29 ,33 ) RS1/16S152J
R2265(A,42 ,37 ) RS1/16S202J
R2266(A,31 ,36 ) RS1/16S182J
R2271(A,51 ,112 ) RS1/16S331J
R2272(A,53 ,110 ) RS1/16S224J
R2273(A,57 ,107 ) RS1/16S472J
R2274(A,63 ,114 ) RS1/16S223J
R2281(A,64 ,68 ) RS1/16S473J
R2282(A,64 ,66 ) RS1/16S473J
R2283(A,66 ,51 ) RS1/16S473J
R2284(A,69 ,51 ) RS1/16S473J
R2285(A,68 ,85 ) RS1/16S473J
R2286(A,68 ,86 ) RS1/16S473J
R2287(A,70 ,80 ) RS1/16S0R0J
R2289(A,64 ,69 ) RS1/16S473J
R2290(A,64 ,71 ) RS1/16S473J
R2291(A,66 ,50 ) RS1/16S473J
R2298(A,37 ,115 ) RS1/16S0R0J
CAPACITORS
C2202(B,28 ,119 ) CKSRYB104K16
C2204(B,28 ,105 ) CKSRYB104K16
C2206(B,28 ,51 ) CKSRYB104K16
C2208(B,28 ,24 ) CKSRYB104K16
C2213(B,28 ,127 ) CCSRCH181J50
C2214(B,28 ,131 ) CCSRCH181J50
C2215(B,28 ,57 ) CCSRCH181J50
C2216(B,28 ,61 ) CCSRCH181J50
C2217(B,28 ,30 ) CCSRCH181J50
C2218(B,28 ,33 ) CCSRCH181J50
C2221(A,66 ,31 ) ELECT. CAPACITOR CEAT102M6R3
C2222(B,61 ,34 ) CKSRYB104K16
C2225(A,41 ,101 ) CKSRYB104K16
C2226(A,36 ,92 ) CKSRYB104K16
C2227(A,44 ,85 ) CKSRYB104K16
C2228(A,36 ,79 ) CKSRYB104K16
C2231(A,41 ,115 ) CKSRYB103K50
C2232(A,37 ,107 ) CKSRYB103K50
C2235(A,32 ,123 ) CEAT101M10
C2236(A,38 ,121 ) CEAT101M10
Mark No. Description Part No.
VSX-AX4AVi-S
148
1234
1234
C
D
F
A
B
E
C2237(B,31 ,128 ) CKSRYB103K50
C2238(A,33 ,134 ) CKSRYB103K50
C2239(A,44 ,121 ) CEAT101M10
C2240(A,28 ,134 ) CKSRYB104K16
C2243(B,33 ,133 ) CKSRYB104K16
C2245(A,54 ,101 ) CKSRYB104K16
C2246(A,48 ,93 ) CKSRYB104K16
C2247(A,58 ,85 ) CKSRYB104K16
C2248(A,54 ,77 ) CKSRYB104K16
C2251(A,52 ,61 ) CKSRYB103K50
C2252(A,46 ,68 ) CKSRYB103K50
C2255(A,41 ,68 ) CEAT101M10
C2256(A,35 ,70 ) CEAT101M10
C2257(A,37 ,64 ) CKSRYB103K50
C2258(A,33 ,57 ) CKSRYB103K50
C2259(A,37 ,54 ) CEAT101M10
C2260(B,42 ,59 ) CKSRYB104K16
C2263(A,31 ,64 ) CKSRYB104K16
C2265(A,53 ,38 ) CKSRYB103K50
C2266(A,46 ,46 ) CKSRYB103K50
C2269(A,41 ,45 ) CEAT101M10
C2270(A,35 ,47 ) CEAT101M10
C2271(A,38 ,40 ) CKSRYB103K50
C2272(A,34 ,33 ) CKSRYB103K50
C2273(A,39 ,31 ) CEAT101M10
C2274(A,30 ,29 ) CKSRYB104K16
C2277(B,28 ,36 ) CKSRYB104K16
C2278(B,22 ,122 ) CKSRYB104K16
C2279(B,22 ,52 ) CKSRYB104K16
C2280(B,21 ,23 ) CKSRYB104K16
C2281(A,67 ,116 ) CEAT101M10
C2282(A,62 ,111 ) CEAT101M10
C2283(A,47 ,117 ) ELECT. CAPACITOR CEAT3R3M50
C2284(A,70 ,79 ) CKSRYB103K50
C2285(A,66 ,53 ) CKSRYB103K50
C2286(B,17 ,117 ) CKSRYB103K50
C2288(B,17 ,48 ) CKSRYB103K50
C2289(B,17 ,20 ) CKSRYB103K50
C2292(B,22 ,123 ) CKSRYB103K50
C2293(B,22 ,53 ) CKSRYB103K50
C2294(B,21 ,26 ) CKSRYB103K50
KCOMPONENT ASSY (VSX-AX4AVi-S)
MISCELLANEOUS
IC 2401(A,45 ,189 ) MULTIPLEXER(4CH*2) TC74LVX4052FT
IC 2402(A,36 ,189 ) MULTIPLEXER(4CH*2) TC74LVX4052FT
IC 2404(A,58 ,182 ) MULTIPLEXER(2CH*3) TC74LVX4053FT
IC 2405(B,59 ,208 ) VIDEO IC NJM2581M
IC 2407(B,94 ,175 ) LOGIC IC CD4094BNS
IC 2501(A,116 ,102 ) OP-AMP IC UPC4570G2
IC 2525(A,116 ,84 ) OP-AMP IC UPC4570G2
IC 2551(A,116 ,66 ) OP-AMP IC UPC4570G2
IC 2575(A,116 ,48 ) OP-AMP IC UPC4570G2
IC 2630(B,58 ,91 ) IC TC4066BFN
IC 2631(A,59 ,115 ) IC TC4052BFT
IC 2632(A,66 ,105 ) OP-AMP IC BA4560RF
IC 2633(A,44 ,109 ) OP-AMP IC BA4560RF
IC 2634(A,44 ,116 ) OP-AMP IC BA4560RF
IC 2635(A,44 ,93 ) IC TC4052BFT
Mark No. Description Part No.
IC 2636(A,70 ,93 ) IC TC4052BFT
IC 2637(A,62 ,73 ) AUDIO IC BD3813KS
IC 2638(A,54 ,35 ) AUDIO IC BD3813KS
IC 2639(B,75 ,51 ) IC TC4052BFN
IC 2640(A,146 ,112 ) LOGIC IC CD4094BNS
>Q2407(B,28 ,196 ) TRANSISTOR 2SC4081
>Q2408(B,28 ,183 ) TRANSISTOR 2SA1576A
Q2501(A,93 ,104 ) CHIP TRANSISTOR 2SD2704K
Q2502(A,93 ,99 ) CHIP TRANSISTOR 2SD2704K
Q2503(B,105 ,105 ) CHIP TRANSISTOR 2SD2704K
Q2504(B,105 ,98 ) CHIP TRANSISTOR 2SD2704K
Q2525(A,93 ,86 ) CHIP TRANSISTOR 2SD2704K
Q2526(A,93 ,81 ) CHIP TRANSISTOR 2SD2704K
Q2527(B,105 ,87 ) CHIP TRANSISTOR 2SD2704K
Q2528(B,105 ,80 ) CHIP TRANSISTOR 2SD2704K
Q2551(A,93 ,68 ) CHIP TRANSISTOR 2SD2704K
Q2552(A,93 ,63 ) CHIP TRANSISTOR 2SD2704K
Q2553(B,105 ,69 ) CHIP TRANSISTOR 2SD2704K
Q2554(B,105 ,62 ) CHIP TRANSISTOR 2SD2704K
Q2575(A,93 ,50 ) CHIP TRANSISTOR 2SD2704K
Q2576(A,93 ,45 ) CHIP TRANSISTOR 2SD2704K
Q2577(B,105 ,51 ) CHIP TRANSISTOR 2SD2704K
Q2578(B,105 ,44 ) CHIP TRANSISTOR 2SD2704K
Q2630(B,72 ,101 ) TRANSISTOR RT1N241M
Q2631(A,55 ,94 ) TRANSISTOR RT1N241M
Q2632(B,73 ,106 ) TRANSISTOR RT1N241M
Q2633(A,82 ,48 ) TRANSISTOR RT1N241M
Q2634(A,79 ,48 ) TRANSISTOR RT1N241M
Q2635(B,133 ,41 ) DIGITAL TR(SC-70) RT1P241M
Q2636(B,133 ,36 ) DIGITAL TR(SC-70) RT1P241M
Q2637(B,133 ,24 ) DIGITAL TR(SC-70) RT1P241M
Q2638(B,134 ,31 ) DIGITAL TR(SC-70) RT1P241M
Q2639(B,145 ,129 ) DIGITAL TR(SC-70) RT1P241M
Q2640(B,145 ,134 ) DIGITAL TR(SC-70) RT1P241M
>Q2641(A,28 ,58 ) TRANSISTOR 2SD1858X
>Q2642(A,28 ,75 ) TRANSISTOR 2SB1238X
Q2644(A,134 ,30 ) TRANSISTOR UMH1N
Q2645(A,58 ,96 ) DIGITAL TR(SC-70) RT1P241M
Q2751(B,109 ,216 ) TRANSISTOR 2SA1576A
Q2752(B,116 ,216 ) TRANSISTOR 2SA1576A
Q2753(A,121 ,210 ) TRANSISTOR UMH1N
Q2754(B,126 ,211 ) TRANSISTOR 2SA1576A
Q2771(B,146 ,203 ) TRANSISTOR 2SD1664
Q2772(B,138 ,190 ) TRANSISTOR 2SC4081
D2401(B,20 ,192 ) DIODE 1SS355
D2402(B,21 ,208 ) DIODE 1SS355
D2503(A,22 ,37 ) DIODE DAN217
D2504(A,70 ,124 ) DIODE DAN217
D2505(A,62 ,124 ) DIODE DAN217
D2517(B,20 ,64 ) DIODE UDZS7R5(B)
D2518(B,20 ,69 ) DIODE UDZS7R5(B)
D2519(B,150 ,90 ) DIODE 1SS355
D2520(B,138 ,36 ) DIODE DAP202U
D2521(B,138 ,24 ) DIODE DAN202U
D2751(B,129 ,204 ) DIODE UDZS5R1(B)
D2752(A,124 ,214 ) DIODE 1SS355
D2772(B,151 ,197 ) DIODE UDZS10(B)
L2751(A,127 ,202 ) CHIP SOLID INDUCTOR ATL7002
L2754(A,129 ,217 ) CHIP SOLID INDUCTOR QTL1013
L2755(A,122 ,217 ) CHIP SOLID INDUCTOR QTL1013
Mark No. Description Part No.
VSX-AX4AVi-S 149
5678
5678
C
D
F
A
B
E
L2756(A,126 ,217 ) CHIP SOLID INDUCTOR QTL1013
L2757(A,134 ,191 ) CHIP BEADS VTL1083
L2758(A,143 ,190 ) CHIP BEADS VTL1083
L2759(A,80 ,201 ) CHIP BEADS VTL1083
L2760(B,142 ,205 ) CHIP BEADS VTL1083
JA 2401(A,68 ,231 ) 6P RCA PINJACK XKB3053
JA 2402(A,26 ,231 ) 6P RCA PINJACK XKB3053
JA 2403(A,96 ,231 ) PIN JACK(1P) AKB7175
JA 2702(A,125 ,231 ) 2P JACK XKN3013
KN2701(A,144 ,226 ) SCREW PLATE VNE1948
CN2402(A,14 ,197 ) 7P SOCKET KP200TA7L
CN2403(A,18 ,176 ) 13P SOCKET XKP3077
CN2409(A,78 ,195 ) CONNECTOR 52045-1745
CN2501(A,14 ,55 ) B TO B CONNCTOR BTEM14P-1R
CN2502(A,44 ,137 ) CONNECTOR 52045-1745
CN2503(A,14 ,102 ) B TO B CONNCTOR BTEM20P-1R
CN2504(A,143 ,72 ) 23P SOCKET XKP3082
CN2505(A,14 ,140 ) 7P SOCKET KP200TA7L
CN2506(A,18 ,20 ) 11P SOCKET XKP3076
CN2601(A,110 ,130 ) 19P CONNECTOR 52045-1945
CN2602(A,99 ,137 ) 26P CONNECTOR 52045-2645
CN2603(A,70 ,137 ) 19P CONNECTOR 52045-1945
CN2701(A,110 ,231 ) JACK AKN-209
CN2702(A,151 ,178 ) CONNECTOR 52045-1145
2701(A,143 ,149 ) PCB BINDER VEF1040
RESISTORS
R2401(B,85 ,224 ) RS1/16S750J
R2402(B,69 ,221 ) RS1/16S750J
R2403(B,56 ,223 ) RS1/16S750J
R2404(B,41 ,223 ) RS1/16S750J
R2405(B,28 ,223 ) RS1/16S750J
R2406(B,16 ,223 ) RS1/16S750J
R2407(B,36 ,222 ) RS1/16S750J
R2408(B,23 ,223 ) RS1/16S750J
R2409(B,9 ,222 ) RS1/16S750J
R2433(B,103 ,218 ) RS1/16S750J
R2439(B,65 ,215 ) RS1/16S750J
R2440(B,59 ,215 ) RS1/16S750J
R2441(B,52 ,215 ) RS1/16S750J
R2443(A,93 ,178 ) RS1/16S473J
R2444(A,95 ,178 ) RS1/16S473J
R2445(A,93 ,173 ) RS1/16S473J
R2446(A,97 ,173 ) RS1/16S473J
R2447(A,91 ,176 ) RS1/16S473J
R2448(A,95 ,173 ) RS1/16S473J
R2449(A,95 ,166 ) RS1/16S473J
R2451(B,25 ,195 ) RS1/16S153J
R2452(B,25 ,183 ) RS1/16S153J
R2453(B,25 ,191 ) RS1/16S333J
R2454(B,25 ,187 ) RS1/16S333J
R2467(B,23 ,169 ) RS1/16S750J
R2468(B,25 ,172 ) RS1/16S750J
R2469(B,23 ,176 ) RS1/16S750J
R2501(B,86 ,104 ) RS1/16S563J
R2502(B,86 ,99 ) RS1/16S563J
R2503(B,93 ,103 ) RS1/16S222J
R2504(B,93 ,100 ) RS1/16S222J
R2505(B,99 ,108 ) RS1/16S751J
R2506(B,99 ,95 ) RS1/16S751J
Mark No. Description Part No.
R2507(A,92 ,108 ) RS1/16S472J
R2508(A,92 ,96 ) RS1/16S472J
R2509(B,99 ,104 ) RS1/16S104J
R2510(B,99 ,99 ) RS1/16S104J
R2511(A,105 ,105 ) RS1/16S472J
R2512(A,105 ,98 ) RS1/16S472J
R2513(B,115 ,106 ) RS1/16S102J
R2514(B,115 ,97 ) RS1/16S102J
R2515(B,111 ,104 ) RS1/16S183J
R2516(B,111 ,99 ) RS1/16S183J
R2517(B,109 ,104 ) RS1/16S512J
R2518(B,109 ,99 ) RS1/16S512J
R2519(A,117 ,107 ) RS1/16S153J
R2520(A,117 ,96 ) RS1/16S153J
R2521(B,117 ,106 ) RS1/16S0R0J
R2522(B,117 ,97 ) RS1/16S0R0J
R2523(B,124 ,106 ) RS1/16S104J
R2524(B,124 ,97 ) RS1/16S104J
R2525(B,86 ,87 ) RS1/16S563J
R2526(B,86 ,81 ) RS1/16S563J
R2527(B,93 ,85 ) RS1/16S222J
R2528(B,93 ,82 ) RS1/16S222J
R2529(B,99 ,90 ) RS1/16S751J
R2530(B,99 ,77 ) RS1/16S751J
R2531(A,92 ,89 ) RS1/16S472J
R2532(A,92 ,77 ) RS1/16S472J
R2533(B,99 ,86 ) RS1/16S104J
R2534(B,99 ,81 ) RS1/16S104J
R2535(A,105 ,87 ) RS1/16S472J
R2536(A,105 ,80 ) RS1/16S472J
R2537(B,115 ,88 ) RS1/16S102J
R2538(B,115 ,79 ) RS1/16S102J
R2539(B,111 ,86 ) RS1/16S183J
R2540(B,109 ,81 ) RS1/16S183J
R2541(B,109 ,86 ) RS1/16S512J
R2542(B,111 ,81 ) RS1/16S512J
R2543(A,117 ,89 ) RS1/16S153J
R2544(A,117 ,77 ) RS1/16S153J
R2545(B,117 ,88 ) RS1/16S0R0J
R2546(B,117 ,79 ) RS1/16S0R0J
R2547(B,124 ,88 ) RS1/16S104J
R2548(B,124 ,79 ) RS1/16S104J
R2549(A,102 ,114 ) RS1/16S473J
R2551(B,86 ,69 ) RS1/16S563J
R2552(B,86 ,63 ) RS1/16S563J
R2553(B,93 ,67 ) RS1/16S222J
R2554(B,93 ,64 ) RS1/16S222J
R2555(B,99 ,72 ) RS1/16S751J
R2556(B,99 ,59 ) RS1/16S751J
R2557(A,92 ,72 ) RS1/16S472J
R2558(A,92 ,60 ) RS1/16S472J
R2559(B,99 ,68 ) RS1/16S104J
R2560(B,99 ,63 ) RS1/16S104J
R2561(A,105 ,69 ) RS1/16S472J
R2562(A,105 ,62 ) RS1/16S472J
R2563(B,115 ,70 ) RS1/16S102J
R2564(B,115 ,61 ) RS1/16S102J
R2565(B,111 ,68 ) RS1/16S183J
R2566(B,111 ,63 ) RS1/16S183J
R2567(B,109 ,68 ) RS1/16S512J
Mark No. Description Part No.
VSX-AX4AVi-S
150
1234
1234
C
D
F
A
B
E
R2568(B,109 ,63 ) RS1/16S512J
R2569(A,117 ,71 ) RS1/16S153J
R2570(A,117 ,59 ) RS1/16S153J
R2571(B,117 ,70 ) RS1/16S0R0J
R2572(B,117 ,61 ) RS1/16S0R0J
R2573(B,124 ,70 ) RS1/16S104J
R2574(B,124 ,61 ) RS1/16S104J
R2575(B,73 ,38 ) RS1/16S563J
R2576(B,73 ,33 ) RS1/16S563J
R2577(B,93 ,49 ) RS1/16S202J
R2578(B,93 ,46 ) RS1/16S202J
R2579(B,99 ,54 ) RS1/16S751J
R2580(B,99 ,41 ) RS1/16S751J
R2581(A,92 ,55 ) RS1/16S472J
R2582(A,92 ,42 ) RS1/16S472J
R2583(B,99 ,50 ) RS1/16S104J
R2584(B,99 ,45 ) RS1/16S104J
R2585(A,105 ,51 ) RS1/16S472J
R2586(A,105 ,44 ) RS1/16S472J
R2587(B,115 ,52 ) RS1/16S102J
R2588(B,115 ,43 ) RS1/16S102J
R2589(B,111 ,50 ) RS1/16S822J
R2590(B,111 ,45 ) RS1/16S822J
R2591(B,109 ,50 ) RS1/16S822J
R2592(B,109 ,45 ) RS1/16S822J
R2593(A,117 ,53 ) RS1/16S153J
R2594(A,117 ,42 ) RS1/16S153J
R2595(B,117 ,52 ) RS1/16S0R0J
R2596(B,117 ,43 ) RS1/16S0R0J
R2597(B,124 ,52 ) RS1/16S104J
R2598(B,124 ,43 ) RS1/16S104J
R2599(A,107 ,114 ) RS1/16S473J
R2625(A,58 ,99 ) RS1/16S242J
R2626(A,74 ,99 ) RS1/16S242J
R2627(A,60 ,100 ) RS1/16S560J
R2628(A,72 ,100 ) RS1/16S560J
R2629(A,58 ,101 ) RS1/16S332J
R2630(A,74 ,101 ) RS1/16S332J
R2631(A,59 ,103 ) RS1/16S0R0J
R2632(A,73 ,103 ) RS1/16S0R0J
R2633(A,59 ,106 ) RS1/16S222J
R2634(A,73 ,106 ) RS1/16S222J
R2635(A,61 ,106 ) RS1/16S101J
R2636(A,72 ,106 ) RS1/16S101J
R2637(B,71 ,113 ) RS1/16S474J
R2638(B,71 ,117 ) RS1/16S474J
R2641(A,50 ,109 ) RS1/16S472J
R2642(A,39 ,109 ) RS1/16S472J
R2643(B,48 ,106 ) RS1/16S101J
R2644(B,41 ,106 ) RS1/16S101J
R2645(A,49 ,118 ) RS1/16S113J
R2646(A,39 ,118 ) RS1/16S113J
R2647(A,52 ,113 ) RS1/16S0R0J
R2648(A,37 ,113 ) RS1/16S0R0J
R2649(A,51 ,118 ) RS1/16S153J
R2650(A,37 ,118 ) RS1/16S153J
R2651(A,50 ,115 ) RS1/16S113J
R2652(A,39 ,115 ) RS1/16S113J
R2653(A,50 ,112 ) RS1/16S472J
R2654(A,39 ,112 ) RS1/16S472J
Mark No. Description Part No.
R2655(B,46 ,106 ) RS1/16S474J
R2656(B,43 ,106 ) RS1/16S474J
R2657(B,60 ,75 ) RS1/16S0R0J
R2658(B,57 ,74 ) RS1/16S0R0J
R2663(B,81 ,104 ) RS1/16S101J
R2664(B,81 ,96 ) RS1/16S101J
R2665(B,81 ,85 ) RS1/16S101J
R2666(B,80 ,79 ) RS1/16S101J
R2667(B,80 ,68 ) RS1/16S101J
R2668(B,80 ,64 ) RS1/16S101J
R2669(B,67 ,40 ) RS1/16S101J
R2670(B,67 ,36 ) RS1/16S101J
R2673(B,69 ,27 ) RS1/16S101J
R2674(B,69 ,22 ) RS1/16S101J
R2675(B,75 ,26 ) RS1/16S563J
R2676(B,75 ,22 ) RS1/16S563J
R2677(B,63 ,65 ) RS1/16S102J
R2678(B,67 ,65 ) RS1/16S102J
R2681(B,56 ,28 ) RS1/16S102J
R2682(B,58 ,28 ) RS1/16S102J
R2685(B,23 ,57 ) RS1/16S472J
R2686(B,23 ,76 ) RS1/16S472J
R2687(B,23 ,59 ) RS1/16S101J
R2688(B,23 ,74 ) RS1/16S101J
R2689(A,59 ,94 ) RS1/16S473J
R2690(B,75 ,100 ) RS1/16S473J
R2691(B,77 ,105 ) RS1/16S473J
R2692(B,77 ,41 ) RS1/16S473J
R2693(B,77 ,43 ) RS1/16S473J
R2694(A,133 ,41 ) RS1/16S102J
R2697(A,133 ,23 ) RS1/16S472J
R2698(A,37 ,24 ) RS1/16S0R0J
R2699(A,38 ,36 ) RS1/16S0R0J
R2719(A,134 ,36 ) RS1/16S102J
R2720(A,104 ,114 ) RS1/16S473J
R2721(A,133 ,33 ) RS1/16S473J
R2722(A,133 ,27 ) RS1/16S472J
R2723(A,105 ,114 ) RS1/16S473J
R2751(A,118 ,210 ) RS1/16S472J
R2752(A,121 ,213 ) RS1/16S472J
R2753(B,111 ,216 ) RS1/16S472J
R2754(B,119 ,216 ) RS1/16S472J
R2755(B,121 ,211 ) RS1/16S180J
R2756(B,123 ,211 ) RS1/16S180J
R2757(B,130 ,211 ) RS1/16S103J
R2758(B,133 ,203 ) RS1/16S103J
R2759(A,125 ,210 ) RS1/16S102J
R2760(A,128 ,214 ) RS1/16S0R0J
R2771(B,140 ,197 ) RS1/16S0R0J
R2772(B,151 ,202 ) RS1/16S391J
R2773(B,141 ,190 ) RS1/16S221J
R2775(B,145 ,190 ) RS1/16S472J
R9761(B,130 ,143 ) RS1/16S0R0J
CAPACITORS
C2411(A,41 ,191 ) CKSRYB103K50
C2412(A,41 ,187 ) CKSRYB103K50
C2415(A,32 ,191 ) CKSRYB103K50
C2416(A,32 ,187 ) CKSRYB103K50
C2419(A,53 ,184 ) CKSRYB103K50
Mark No. Description Part No.
VSX-AX4AVi-S 151
5678
5678
C
D
F
A
B
E
C2420(A,53 ,181 ) CKSRYB103K50
C2424(A,63 ,200 ) CEAT101M10
C2425(A,57 ,200 ) CEAT101M10
C2426(A,51 ,200 ) CEAT101M10
C2427(B,65 ,211 ) CKSRYB104K16
C2428(B,65 ,205 ) CKSRYB104K16
C2431(A,69 ,213 ) CEAT101M10
C2432(A,69 ,207 ) CEAT101M10
C2434(B,99 ,222 ) CCSRCH181J50
C2438(B,86 ,172 ) CKSRYB103K50
C2439(B,27 ,191 ) CKSRYB224K10
C2440(B,27 ,187 ) CKSRYB224K10
C2453(B,18 ,221 ) CKSRYB103K50
C2454(B,32 ,222 ) CKSRYB103K50
C2455(B,62 ,223 ) CKSRYB103K50
C2456(B,74 ,223 ) CKSRYB103K50
C2457(B,94 ,219 ) CKSRYB103K50
C2460(A,20 ,212 ) CKSRYB104K16
C2467(A,38 ,167 ) ELECT. CAPACITOR CEAT102M6R3
C2468(A,39 ,176 ) CEAT471M6R3
C2469(A,32 ,176 ) CEAT471M6R3
C2501(A,84 ,105 ) CEAT470M25
C2502(A,84 ,98 ) CEAT470M25
C2503(A,101 ,107 ) CEAT4R7M50
C2504(A,101 ,96 ) CEAT4R7M50
C2505(A,96 ,104 ) CKSRYB103K50
C2506(A,96 ,100 ) CKSRYB103K50
C2507(A,107 ,104 ) CKSRYB223K50
C2508(A,107 ,99 ) CKSRYB223K50
C2509(A,109 ,107 ) CEAT101M16
C2510(A,109 ,96 ) CEAT101M16
C2511(A,117 ,109 ) CCSRCH101J50
C2512(A,117 ,95 ) CCSRCH101J50
C2513(A,120 ,100 ) CKSRYB103K50
C2514(A,120 ,103 ) CKSRYB103K50
C2515(A,121 ,107 ) CEAT470M25
C2516(A,121 ,96 ) CEAT470M25
C2525(A,84 ,87 ) CEAT470M25
C2526(A,84 ,80 ) CEAT470M25
C2527(A,101 ,89 ) CEAT4R7M50
C2528(A,101 ,78 ) CEAT4R7M50
C2529(A,96 ,86 ) CKSRYB103K50
C2530(A,96 ,82 ) CKSRYB103K50
C2531(A,107 ,86 ) CKSRYB223K50
C2532(A,107 ,81 ) CKSRYB223K50
C2533(A,109 ,89 ) CEAT101M16
C2534(A,109 ,78 ) CEAT101M16
C2535(A,117 ,90 ) CCSRCH101J50
C2536(A,117 ,78 ) CCSRCH101J50
C2537(A,120 ,82 ) CKSRYB103K50
C2538(A,120 ,85 ) CKSRYB103K50
C2539(A,121 ,89 ) CEAT470M25
C2540(A,121 ,78 ) CEAT470M25
C2551(A,84 ,69 ) CEAT470M25
C2552(A,84 ,62 ) CEAT470M25
C2553(A,101 ,71 ) CEAT4R7M50
C2554(A,101 ,60 ) CEAT4R7M50
C2555(A,96 ,68 ) CKSRYB103K50
C2556(A,96 ,64 ) CKSRYB103K50
C2557(A,107 ,68 ) CKSRYB223K50
Mark No. Description Part No.
C2558(A,107 ,63 ) CKSRYB223K50
C2559(A,109 ,71 ) CEAT101M16
C2560(A,109 ,60 ) CEAT101M16
C2561(A,117 ,72 ) CCSRCH101J50
C2562(A,117 ,60 ) CCSRCH101J50
C2563(A,120 ,64 ) CKSRYB103K50
C2564(A,120 ,67 ) CKSRYB103K50
C2565(A,121 ,71 ) CEAT470M25
C2566(A,121 ,60 ) CEAT470M25
C2575(A,70 ,39 ) CEAT470M25
C2576(A,70 ,33 ) CEAT470M25
C2577(A,101 ,53 ) CEAT4R7M50
C2578(A,101 ,42 ) CEAT4R7M50
C2579(A,96 ,50 ) CKSRYB103K50
C2580(A,96 ,46 ) CKSRYB103K50
C2581(A,107 ,50 ) CKSRYB223K50
C2582(A,107 ,45 ) CKSRYB223K50
C2583(A,109 ,53 ) CEAT101M16
C2584(A,109 ,42 ) CEAT101M16
C2585(A,117 ,54 ) CCSRCH101J50
C2586(A,117 ,41 ) CCSRCH101J50
C2587(A,120 ,46 ) CKSRYB103K50
C2588(A,120 ,49 ) CKSRYB103K50
C2589(A,121 ,53 ) CEAT470M25
C2590(A,121 ,42 ) CEAT470M25
C2621(B,147 ,117 ) CKSRYB103K50
C2623(B,144 ,75 ) CKSRYB104K16
C2626(A,23 ,61 ) CEAT2R2M50
C2627(A,23 ,69 ) CEAT2R2M50
C2628(A,34 ,61 ) CEAT100M50
C2629(A,34 ,70 ) CEAT100M50
C2631(B,42 ,97 ) CKSRYB103K50
C2632(A,43 ,89 ) CKSRYB103K50
C2633(A,61 ,103 ) CCSRCH101J50
C2634(A,72 ,103 ) CCSRCH101J50
C2635(B,68 ,107 ) CKSRYB103K50
C2636(B,66 ,107 ) CKSRYB103K50
C2637(A,74 ,112 ) CEAT100M50
C2638(A,74 ,118 ) CEAT100M50
C2639(A,51 ,111 ) CCSRCH220J50
C2640(A,37 ,111 ) CCSRCH220J50
C2641(B,42 ,111 ) CKSRYB103K50
C2642(A,46 ,113 ) CKSRYB103K50
C2643(A,51 ,115 ) CCSRCH220J50
C2644(A,37 ,115 ) CCSRCH220J50
C2645(A,47 ,103 ) CEAT100M50
C2646(A,41 ,103 ) CEAT100M50
C2647(B,42 ,117 ) CKSRYB103K50
C2648(A,46 ,120 ) CKSRYB103K50
C2649(A,61 ,94 ) CKSRYB103K50
C2650(A,55 ,88 ) CKSRYB103K50
C2651(A,63 ,113 ) CKSRYB103K50
C2652(A,55 ,117 ) CKSRYB103K50
C2653(B,73 ,94 ) CKSRYB103K50
C2654(B,75 ,94 ) CKSRYB103K50
C2655(B,69 ,48 ) CKSRYB103K50
C2656(B,82 ,54 ) CKSRYB103K50
C2660(A,50 ,59 ) CEAT100M50
C2661(A,56 ,59 ) CEAT100M50
C2662(A,62 ,59 ) CEAT100M50
Mark No. Description Part No.
VSX-AX4AVi-S
152
1234
1234
C
D
F
A
B
E
C2663(A,68 ,59 ) CEAT100M50
C2664(B,66 ,69 ) CCSRCH101J50
C2665(B,64 ,67 ) CCSRCH101J50
C2666(A,70 ,67 ) CKSRYB103K50
C2667(A,71 ,69 ) CKSRYB103K50
C2668(A,70 ,71 ) CKSRYB103K50
C2675(A,67 ,86 ) CEAT100M50
C2676(A,73 ,86 ) CEAT100M50
C2677(A,46 ,19 ) CEAT100M50
C2678(A,51 ,19 ) CEAT100M50
C2679(A,57 ,19 ) CEAT100M50
C2680(A,63 ,19 ) CEAT100M50
C2681(B,60 ,30 ) CCSRCH101J50
C2682(B,54 ,30 ) CCSRCH101J50
C2683(A,62 ,28 ) CKSRYB103K50
C2684(A,64 ,31 ) CKSRYB103K50
C2685(A,62 ,32 ) CKSRYB103K50
C2692(A,48 ,44 ) CEAT100M50
C2693(A,42 ,44 ) CEAT100M50
C2695(A,72 ,27 ) CEAT470M25
C2696(A,72 ,21 ) CEAT470M25
C2698(A,131 ,24 ) CKSRYB104K16
C2699(A,131 ,42 ) CKSRYB473K25
C2700(A,131 ,22 ) CKSRYB224K16
C2714(A,131 ,35 ) CKSRYB473K25
C2716(A,131 ,28 ) CKSRYB224K16
C2717(A,131 ,26 ) CKSRYB104K16
C2751(B,107 ,220 ) CKSRYB103K50
C2752(B,113 ,220 ) CKSRYB103K50
C2754(A,131 ,205 ) ELECT. CAPACITOR CEATR10M50
C2771(A,148 ,198 ) CEAT101M16
C2781(B,151 ,217 ) CKSRYB104K16
C2782(B,149 ,217 ) CKSRYB471K50
C2783(B,151 ,213 ) CKSRYB104K16
C2784(B,149 ,213 ) CKSRYB471K50
KCOMPONENT ASSY (VSX-AX2AV-S)
MISCELLANEOUS
IC 2401(A,45 ,189 ) MULTIPLEXER(4CH*2) TC74LVX4052FT
IC 2402(A,36 ,189 ) MULTIPLEXER(4CH*2) TC74LVX4052FT
IC 2404(A,58 ,182 ) MULTIPLEXER(2CH*3) TC74LVX4053FT
IC 2405(B,59 ,208 ) VIDEO IC NJM2581M
IC 2407(B,94 ,175 ) LOGIC IC CD4094BNS
IC 2501(A,116 ,102 ) OP-AMP IC UPC4570G2
IC 2525(A,116 ,84 ) OP-AMP IC UPC4570G2
IC 2551(A,116 ,66 ) OP-AMP IC UPC4570G2
IC 2575(A,116 ,48 ) OP-AMP IC UPC4570G2
IC 2630(B,58 ,91 ) IC TC4066BFN
IC 2632(A,66 ,105 ) OP-AMP IC BA4560RF
IC 2637(A,62 ,73 ) AUDIO IC BD3813KS
IC 2638(A,54 ,35 ) AUDIO IC BD3813KS
IC 2639(B,75 ,51 ) IC TC4052BFN
IC 2640(A,146 ,112 ) LOGIC IC CD4094BNS
>Q2407(B,28 ,196 ) TRANSISTOR 2SC4081
>Q2408(B,28 ,183 ) TRANSISTOR 2SA1576A
Q2501(A,93 ,104 ) CHIP TRANSISTOR 2SD2704K
Q2502(A,93 ,99 ) CHIP TRANSISTOR 2SD2704K
Q2503(B,105 ,105 ) CHIP TRANSISTOR 2SD2704K
Mark No. Description Part No.
Q2504(B,105 ,98 ) CHIP TRANSISTOR 2SD2704K
Q2525(A,93 ,86 ) CHIP TRANSISTOR 2SD2704K
Q2526(A,93 ,81 ) CHIP TRANSISTOR 2SD2704K
Q2527(B,105 ,87 ) CHIP TRANSISTOR 2SD2704K
Q2528(B,105 ,80 ) CHIP TRANSISTOR 2SD2704K
Q2551(A,93 ,68 ) CHIP TRANSISTOR 2SD2704K
Q2552(A,93 ,63 ) CHIP TRANSISTOR 2SD2704K
Q2553(B,105 ,69 ) CHIP TRANSISTOR 2SD2704K
Q2554(B,105 ,62 ) CHIP TRANSISTOR 2SD2704K
Q2575(A,93 ,50 ) CHIP TRANSISTOR 2SD2704K
Q2576(A,93 ,45 ) CHIP TRANSISTOR 2SD2704K
Q2577(B,105 ,51 ) CHIP TRANSISTOR 2SD2704K
Q2578(B,105 ,44 ) CHIP TRANSISTOR 2SD2704K
Q2631(A,55 ,94 ) TRANSISTOR RT1N241M
Q2633(A,82 ,48 ) TRANSISTOR RT1N241M
Q2634(A,79 ,48 ) TRANSISTOR RT1N241M
Q2635(B,133 ,41 ) DIGITAL TR(SC-70) RT1P241M
Q2636(B,133 ,36 ) DIGITAL TR(SC-70) RT1P241M
Q2637(B,133 ,24 ) DIGITAL TR(SC-70) RT1P241M
Q2638(B,134 ,31 ) DIGITAL TR(SC-70) RT1P241M
Q2639(B,145 ,129 ) DIGITAL TR(SC-70) RT1P241M
Q2640(B,145 ,134 ) DIGITAL TR(SC-70) RT1P241M
>Q2641(A,28 ,58 ) TRANSISTOR 2SD1858X
>Q2642(A,28 ,75 ) TRANSISTOR 2SB1238X
Q2644(A,134 ,30 ) TRANSISTOR UMH1N
Q2645(A,58 ,96 ) DIGITAL TR(SC-70) RT1P241M
Q2751(B,109 ,216 ) TRANSISTOR 2SA1576A
Q2752(B,116 ,216 ) TRANSISTOR 2SA1576A
Q2753(A,121 ,210 ) TRANSISTOR UMH1N
Q2754(B,126 ,211 ) TRANSISTOR 2SA1576A
Q2771(B,146 ,203 ) TRANSISTOR 2SD1664
Q2772(B,138 ,190 ) TRANSISTOR 2SC4081
D2401(B,20 ,192 ) DIODE 1SS355
D2402(B,21 ,208 ) DIODE 1SS355
D2503(A,22 ,37 ) DIODE DAN217
D2504(A,70 ,124 ) DIODE DAN217
D2505(A,62 ,124 ) DIODE DAN217
D2517(B,20 ,64 ) DIODE UDZS7R5(B)
D2518(B,20 ,69 ) DIODE UDZS7R5(B)
D2519(B,150 ,90 ) DIODE 1SS355
D2520(B,138 ,36 ) DIODE DAP202U
D2521(B,138 ,24 ) DIODE DAN202U
D2751(B,129 ,204 ) DIODE UDZS5R1(B)
D2752(A,124 ,214 ) DIODE 1SS355
D2772(B,151 ,197 ) DIODE UDZS10(B)
L2751(A,127 ,202 ) CHIP SOLID INDUCTOR ATL7002
L2754(A,129 ,217 ) CHIP SOLID INDUCTOR QTL1013
L2755(A,122 ,217 ) CHIP SOLID INDUCTOR QTL1013
L2756(A,126 ,217 ) CHIP SOLID INDUCTOR QTL1013
L2757(A,134 ,191 ) CHIP BEADS VTL1083
L2758(A,143 ,190 ) CHIP BEADS VTL1083
L2759(A,80 ,201 ) CHIP BEADS VTL1083
L2760(B,142 ,205 ) CHIP BEADS VTL1083
JA 2401(A,68 ,231 ) 6P RCA PINJACK XKB3053
JA 2402(A,26 ,231 ) 6P RCA PINJACK XKB3053
JA 2403(A,96 ,231 ) PIN JACK(1P) AKB7175
JA 2702(A,125 ,231 ) 2P JACK XKN3013
KN2701(A,144 ,226 ) SCREW PLATE VNE1948
CN2402(A,14 ,197 ) 7P SOCKET KP200TA7L
CN2403(A,18 ,176 ) 13P SOCKET XKP3077
Mark No. Description Part No.
VSX-AX4AVi-S 153
5678
5678
C
D
F
A
B
E
CN2409(A,78 ,195 ) CONNECTOR 52045-1745
CN2501(A,14 ,55 ) B TO B CONNCTOR BTEM14P-1R
CN2502(A,44 ,137 ) CONNECTOR 52045-1745
CN2503(A,14 ,102 ) B TO B CONNCTOR BTEM20P-1R
CN2504(A,143 ,72 ) 23P SOCKET XKP3082
CN2505(A,14 ,140 ) 7P SOCKET KP200TA7L
CN2506(A,18 ,20 ) 11P SOCKET XKP3076
CN2601(A,110 ,130 ) 19P CONNECTOR 52045-1945
CN2602(A,99 ,137 ) 26P CONNECTOR 52045-2645
CN2603(A,70 ,137 ) 19P CONNECTOR 52045-1945
CN2701(A,110 ,231 ) JACK AKN-209
CN2702(A,151 ,178 ) CONNECTOR 52045-1145
2701(A,143 ,149 ) PCB BINDER VEF1040
RESISTORS
R2401(B,85 ,224 ) RS1/16S750J
R2402(B,69 ,221 ) RS1/16S750J
R2403(B,56 ,223 ) RS1/16S750J
R2404(B,41 ,223 ) RS1/16S750J
R2405(B,28 ,223 ) RS1/16S750J
R2406(B,16 ,223 ) RS1/16S750J
R2407(B,36 ,222 ) RS1/16S750J
R2408(B,23 ,223 ) RS1/16S750J
R2409(B,9 ,222 ) RS1/16S750J
R2433(B,103 ,218 ) RS1/16S750J
R2439(B,65 ,215 ) RS1/16S750J
R2440(B,59 ,215 ) RS1/16S750J
R2441(B,52 ,215 ) RS1/16S750J
R2443(A,93 ,178 ) RS1/16S473J
R2444(A,95 ,178 ) RS1/16S473J
R2445(A,93 ,173 ) RS1/16S473J
R2446(A,97 ,173 ) RS1/16S473J
R2447(A,91 ,176 ) RS1/16S473J
R2448(A,95 ,173 ) RS1/16S473J
R2449(A,95 ,166 ) RS1/16S473J
R2451(B,25 ,195 ) RS1/16S153J
R2452(B,25 ,183 ) RS1/16S153J
R2453(B,25 ,191 ) RS1/16S333J
R2454(B,25 ,187 ) RS1/16S333J
R2467(B,23 ,169 ) RS1/16S750J
R2468(B,25 ,172 ) RS1/16S750J
R2469(B,23 ,176 ) RS1/16S750J
R2501(B,86 ,104 ) RS1/16S563J
R2502(B,86 ,99 ) RS1/16S563J
R2503(B,93 ,103 ) RS1/16S222J
R2504(B,93 ,100 ) RS1/16S222J
R2505(B,99 ,108 ) RS1/16S751J
R2506(B,99 ,95 ) RS1/16S751J
R2507(A,92 ,108 ) RS1/16S472J
R2508(A,92 ,96 ) RS1/16S472J
R2509(B,99 ,104 ) RS1/16S104J
R2510(B,99 ,99 ) RS1/16S104J
R2511(A,105 ,105 ) RS1/16S472J
R2512(A,105 ,98 ) RS1/16S472J
R2513(B,115 ,106 ) RS1/16S102J
R2514(B,115 ,97 ) RS1/16S102J
R2515(B,111 ,104 ) RS1/16S183J
R2516(B,111 ,99 ) RS1/16S183J
R2517(B,109 ,104 ) RS1/16S512J
R2518(B,109 ,99 ) RS1/16S512J
Mark No. Description Part No.
R2519(A,117 ,107 ) RS1/16S153J
R2520(A,117 ,96 ) RS1/16S153J
R2521(B,117 ,106 ) RS1/16S0R0J
R2522(B,117 ,97 ) RS1/16S0R0J
R2523(B,124 ,106 ) RS1/16S104J
R2524(B,124 ,97 ) RS1/16S104J
R2525(B,86 ,87 ) RS1/16S563J
R2526(B,86 ,81 ) RS1/16S563J
R2527(B,93 ,85 ) RS1/16S222J
R2528(B,93 ,82 ) RS1/16S222J
R2529(B,99 ,90 ) RS1/16S751J
R2530(B,99 ,77 ) RS1/16S751J
R2531(A,92 ,89 ) RS1/16S472J
R2532(A,92 ,77 ) RS1/16S472J
R2533(B,99 ,86 ) RS1/16S104J
R2534(B,99 ,81 ) RS1/16S104J
R2535(A,105 ,87 ) RS1/16S472J
R2536(A,105 ,80 ) RS1/16S472J
R2537(B,115 ,88 ) RS1/16S102J
R2538(B,115 ,79 ) RS1/16S102J
R2539(B,111 ,86 ) RS1/16S183J
R2540(B,109 ,81 ) RS1/16S183J
R2541(B,109 ,86 ) RS1/16S512J
R2542(B,111 ,81 ) RS1/16S512J
R2543(A,117 ,89 ) RS1/16S153J
R2544(A,117 ,77 ) RS1/16S153J
R2545(B,117 ,88 ) RS1/16S0R0J
R2546(B,117 ,79 ) RS1/16S0R0J
R2547(B,124 ,88 ) RS1/16S104J
R2548(B,124 ,79 ) RS1/16S104J
R2549(A,102 ,114 ) RS1/16S473J
R2551(B,86 ,69 ) RS1/16S563J
R2552(B,86 ,63 ) RS1/16S563J
R2553(B,93 ,67 ) RS1/16S222J
R2554(B,93 ,64 ) RS1/16S222J
R2555(B,99 ,72 ) RS1/16S751J
R2556(B,99 ,59 ) RS1/16S751J
R2557(A,92 ,72 ) RS1/16S472J
R2558(A,92 ,60 ) RS1/16S472J
R2559(B,99 ,68 ) RS1/16S104J
R2560(B,99 ,63 ) RS1/16S104J
R2561(A,105 ,69 ) RS1/16S472J
R2562(A,105 ,62 ) RS1/16S472J
R2563(B,115 ,70 ) RS1/16S102J
R2564(B,115 ,61 ) RS1/16S102J
R2565(B,111 ,68 ) RS1/16S183J
R2566(B,111 ,63 ) RS1/16S183J
R2567(B,109 ,68 ) RS1/16S512J
R2568(B,109 ,63 ) RS1/16S512J
R2569(A,117 ,71 ) RS1/16S153J
R2570(A,117 ,59 ) RS1/16S153J
R2571(B,117 ,70 ) RS1/16S0R0J
R2572(B,117 ,61 ) RS1/16S0R0J
R2573(B,124 ,70 ) RS1/16S104J
R2574(B,124 ,61 ) RS1/16S104J
R2575(B,73 ,38 ) RS1/16S563J
R2576(B,73 ,33 ) RS1/16S563J
R2577(B,93 ,49 ) RS1/16S202J
R2578(B,93 ,46 ) RS1/16S202J
R2579(B,99 ,54 ) RS1/16S751J
Mark No. Description Part No.
VSX-AX4AVi-S
154
1234
1234
C
D
F
A
B
E
R2580(B,99 ,41 ) RS1/16S751J
R2581(A,92 ,55 ) RS1/16S472J
R2582(A,92 ,42 ) RS1/16S472J
R2583(B,99 ,50 ) RS1/16S104J
R2584(B,99 ,45 ) RS1/16S104J
R2585(A,105 ,51 ) RS1/16S472J
R2586(A,105 ,44 ) RS1/16S472J
R2587(B,115 ,52 ) RS1/16S102J
R2588(B,115 ,43 ) RS1/16S102J
R2589(B,111 ,50 ) RS1/16S822J
R2590(B,111 ,45 ) RS1/16S822J
R2591(B,109 ,50 ) RS1/16S822J
R2592(B,109 ,45 ) RS1/16S822J
R2593(A,117 ,53 ) RS1/16S153J
R2594(A,117 ,42 ) RS1/16S153J
R2595(B,117 ,52 ) RS1/16S0R0J
R2596(B,117 ,43 ) RS1/16S0R0J
R2597(B,124 ,52 ) RS1/16S104J
R2598(B,124 ,43 ) RS1/16S104J
R2599(A,107 ,114 ) RS1/16S473J
R2625(A,58 ,99 ) RS1/16S242J
R2626(A,74 ,99 ) RS1/16S242J
R2627(A,60 ,100 ) RS1/16S560J
R2628(A,72 ,100 ) RS1/16S560J
R2629(A,58 ,101 ) RS1/16S332J
R2630(A,74 ,101 ) RS1/16S332J
R2631(A,59 ,103 ) RS1/16S0R0J
R2632(A,73 ,103 ) RS1/16S0R0J
R2633(A,59 ,106 ) RS1/16S222J
R2634(A,73 ,106 ) RS1/16S222J
R2635(A,61 ,106 ) RS1/16S101J
R2636(A,72 ,106 ) RS1/16S101J
R2637(B,71 ,113 ) RS1/16S474J
R2638(B,71 ,117 ) RS1/16S474J
R2659(A,48 ,80 ) RS1/16S0R0J
R2660(A,46 ,85 ) RS1/16S0R0J
R2661(B,46 ,90 ) RS1/16S0R0J
R2662(B,43 ,93 ) RS1/16S0R0J
R2663(B,81 ,104 ) RS1/16S101J
R2664(B,81 ,96 ) RS1/16S101J
R2665(B,81 ,85 ) RS1/16S101J
R2666(B,80 ,79 ) RS1/16S101J
R2667(B,80 ,68 ) RS1/16S101J
R2668(B,80 ,64 ) RS1/16S101J
R2669(B,67 ,40 ) RS1/16S101J
R2670(B,67 ,36 ) RS1/16S101J
R2673(B,69 ,27 ) RS1/16S101J
R2674(B,69 ,22 ) RS1/16S101J
R2675(B,75 ,26 ) RS1/16S563J
R2676(B,75 ,22 ) RS1/16S563J
R2677(B,63 ,65 ) RS1/16S102J
R2678(B,67 ,65 ) RS1/16S102J
R2681(B,56 ,28 ) RS1/16S102J
R2682(B,58 ,28 ) RS1/16S102J
R2685(B,23 ,57 ) RS1/16S472J
R2686(B,23 ,76 ) RS1/16S472J
R2687(B,23 ,59 ) RS1/16S101J
R2688(B,23 ,74 ) RS1/16S101J
R2689(A,59 ,94 ) RS1/16S473J
R2692(B,77 ,41 ) RS1/16S473J
Mark No. Description Part No.
R2693(B,77 ,43 ) RS1/16S473J
R2694(A,133 ,41 ) RS1/16S102J
R2697(A,133 ,23 ) RS1/16S472J
R2698(A,37 ,24 ) RS1/16S0R0J
R2699(A,38 ,36 ) RS1/16S0R0J
R2719(A,134 ,36 ) RS1/16S102J
R2720(A,104 ,114 ) RS1/16S473J
R2721(A,133 ,33 ) RS1/16S473J
R2722(A,133 ,27 ) RS1/16S472J
R2723(A,105 ,114 ) RS1/16S473J
R2751(A,118 ,210 ) RS1/16S472J
R2752(A,121 ,213 ) RS1/16S472J
R2753(B,111 ,216 ) RS1/16S472J
R2754(B,119 ,216 ) RS1/16S472J
R2755(B,121 ,211 ) RS1/16S180J
R2756(B,123 ,211 ) RS1/16S180J
R2757(B,130 ,211 ) RS1/16S103J
R2758(B,133 ,203 ) RS1/16S103J
R2759(A,125 ,210 ) RS1/16S102J
R2760(A,128 ,214 ) RS1/16S0R0J
R2771(B,140 ,197 ) RS1/16S0R0J
R2772(B,151 ,202 ) RS1/16S391J
R2773(B,141 ,190 ) RS1/16S221J
R2775(B,145 ,190 ) RS1/16S472J
R9761(B,130 ,143 ) RS1/16S0R0J
CAPACITORS
C2411(A,41 ,191 ) CKSRYB103K50
C2412(A,41 ,187 ) CKSRYB103K50
C2415(A,32 ,191 ) CKSRYB103K50
C2416(A,32 ,187 ) CKSRYB103K50
C2419(A,53 ,184 ) CKSRYB103K50
C2420(A,53 ,181 ) CKSRYB103K50
C2424(A,63 ,200 ) CEAT101M10
C2425(A,57 ,200 ) CEAT101M10
C2426(A,51 ,200 ) CEAT101M10
C2427(B,65 ,211 ) CKSRYB104K16
C2428(B,65 ,205 ) CKSRYB104K16
C2431(A,69 ,213 ) CEAT101M10
C2432(A,69 ,207 ) CEAT101M10
C2434(B,99 ,222 ) CCSRCH181J50
C2438(B,86 ,172 ) CKSRYB103K50
C2439(B,27 ,191 ) CKSRYB224K10
C2440(B,27 ,187 ) CKSRYB224K10
C2453(B,18 ,221 ) CKSRYB103K50
C2454(B,32 ,222 ) CKSRYB103K50
C2455(B,62 ,223 ) CKSRYB103K50
C2456(B,74 ,223 ) CKSRYB103K50
C2457(B,94 ,219 ) CKSRYB103K50
C2460(A,20 ,212 ) CKSRYB104K16
C2467(A,38 ,167 ) ELECT. CAPACITOR CEAT102M6R3
C2468(A,39 ,176 ) CEAT471M6R3
C2469(A,32 ,176 ) CEAT471M6R3
C2501(A,84 ,105 ) CEAT470M25
C2502(A,84 ,98 ) CEAT470M25
C2503(A,101 ,107 ) CEAT4R7M50
C2504(A,101 ,96 ) CEAT4R7M50
C2505(A,96 ,104 ) CKSRYB103K50
C2506(A,96 ,100 ) CKSRYB103K50
C2507(A,107 ,104 ) CKSRYB223K50
C2508(A,107 ,99 ) CKSRYB223K50
Mark No. Description Part No.
VSX-AX4AVi-S 155
5678
5678
C
D
F
A
B
E
C2509(A,109 ,107 ) CEAT101M16
C2510(A,109 ,96 ) CEAT101M16
C2511(A,117 ,109 ) CCSRCH101J50
C2512(A,117 ,95 ) CCSRCH101J50
C2513(A,120 ,100 ) CKSRYB103K50
C2514(A,120 ,103 ) CKSRYB103K50
C2515(A,121 ,107 ) CEAT470M25
C2516(A,121 ,96 ) CEAT470M25
C2525(A,84 ,87 ) CEAT470M25
C2526(A,84 ,80 ) CEAT470M25
C2527(A,101 ,89 ) CEAT4R7M50
C2528(A,101 ,78 ) CEAT4R7M50
C2529(A,96 ,86 ) CKSRYB103K50
C2530(A,96 ,82 ) CKSRYB103K50
C2531(A,107 ,86 ) CKSRYB223K50
C2532(A,107 ,81 ) CKSRYB223K50
C2533(A,109 ,89 ) CEAT101M16
C2534(A,109 ,78 ) CEAT101M16
C2535(A,117 ,90 ) CCSRCH101J50
C2536(A,117 ,78 ) CCSRCH101J50
C2537(A,120 ,82 ) CKSRYB103K50
C2538(A,120 ,85 ) CKSRYB103K50
C2539(A,121 ,89 ) CEAT470M25
C2540(A,121 ,78 ) CEAT470M25
C2551(A,84 ,69 ) CEAT470M25
C2552(A,84 ,62 ) CEAT470M25
C2553(A,101 ,71 ) CEAT4R7M50
C2554(A,101 ,60 ) CEAT4R7M50
C2555(A,96 ,68 ) CKSRYB103K50
C2556(A,96 ,64 ) CKSRYB103K50
C2557(A,107 ,68 ) CKSRYB223K50
C2558(A,107 ,63 ) CKSRYB223K50
C2559(A,109 ,71 ) CEAT101M16
C2560(A,109 ,60 ) CEAT101M16
C2561(A,117 ,72 ) CCSRCH101J50
C2562(A,117 ,60 ) CCSRCH101J50
C2563(A,120 ,64 ) CKSRYB103K50
C2564(A,120 ,67 ) CKSRYB103K50
C2565(A,121 ,71 ) CEAT470M25
C2566(A,121 ,60 ) CEAT470M25
C2575(A,70 ,39 ) CEAT470M25
C2576(A,70 ,33 ) CEAT470M25
C2577(A,101 ,53 ) CEAT4R7M50
C2578(A,101 ,42 ) CEAT4R7M50
C2579(A,96 ,50 ) CKSRYB103K50
C2580(A,96 ,46 ) CKSRYB103K50
C2581(A,107 ,50 ) CKSRYB223K50
C2582(A,107 ,45 ) CKSRYB223K50
C2583(A,109 ,53 ) CEAT101M16
C2584(A,109 ,42 ) CEAT101M16
C2585(A,117 ,54 ) CCSRCH101J50
C2586(A,117 ,41 ) CCSRCH101J50
C2587(A,120 ,46 ) CKSRYB103K50
C2588(A,120 ,49 ) CKSRYB103K50
C2589(A,121 ,53 ) CEAT470M25
C2590(A,121 ,42 ) CEAT470M25
C2621(B,147 ,117 ) CKSRYB103K50
C2623(B,144 ,75 ) CKSRYB104K16
C2626(A,23 ,61 ) CEAT2R2M50
C2627(A,23 ,69 ) CEAT2R2M50
Mark No. Description Part No.
C2628(A,34 ,61 ) CEAT100M50
C2629(A,34 ,70 ) CEAT100M50
C2633(A,61 ,103 ) CCSRCH101J50
C2634(A,72 ,103 ) CCSRCH101J50
C2635(B,68 ,107 ) CKSRYB103K50
C2636(B,66 ,107 ) CKSRYB103K50
C2637(A,74 ,112 ) CEAT100M50
C2638(A,74 ,118 ) CEAT100M50
C2649(A,61 ,94 ) CKSRYB103K50
C2650(A,55 ,88 ) CKSRYB103K50
C2655(B,69 ,48 ) CKSRYB103K50
C2656(B,82 ,54 ) CKSRYB103K50
C2660(A,50 ,59 ) CEAT100M50
C2661(A,56 ,59 ) CEAT100M50
C2662(A,62 ,59 ) CEAT100M50
C2663(A,68 ,59 ) CEAT100M50
C2664(B,66 ,69 ) CCSRCH101J50
C2665(B,64 ,67 ) CCSRCH101J50
C2666(A,70 ,67 ) CKSRYB103K50
C2667(A,71 ,69 ) CKSRYB103K50
C2668(A,70 ,71 ) CKSRYB103K50
C2675(A,67 ,86 ) CEAT100M50
C2676(A,73 ,86 ) CEAT100M50
C2677(A,46 ,19 ) CEAT100M50
C2678(A,51 ,19 ) CEAT100M50
C2679(A,57 ,19 ) CEAT100M50
C2680(A,63 ,19 ) CEAT100M50
C2681(B,60 ,30 ) CCSRCH101J50
C2682(B,54 ,30 ) CCSRCH101J50
C2683(A,62 ,28 ) CKSRYB103K50
C2684(A,64 ,31 ) CKSRYB103K50
C2685(A,62 ,32 ) CKSRYB103K50
C2692(A,48 ,44 ) CEAT100M50
C2693(A,42 ,44 ) CEAT100M50
C2695(A,72 ,27 ) CEAT470M25
C2696(A,72 ,21 ) CEAT470M25
C2698(A,131 ,24 ) CKSRYB104K16
C2699(A,131 ,42 ) CKSRYB473K25
C2700(A,131 ,22 ) CKSRYB224K16
C2714(A,131 ,35 ) CKSRYB473K25
C2716(A,131 ,28 ) CKSRYB224K16
C2717(A,131 ,26 ) CKSRYB104K16
C2751(B,107 ,220 ) CKSRYB103K50
C2752(B,113 ,220 ) CKSRYB103K50
C2754(A,131 ,205 ) ELECT. CAPACITOR CEATR10M50
C2771(A,148 ,198 ) CEAT101M16
C2781(B,151 ,217 ) CKSRYB104K16
C2782(B,149 ,217 ) CKSRYB471K50
C2783(B,151 ,213 ) CKSRYB104K16
C2784(B,149 ,213 ) CKSRYB471K50
LDIGITAL MOTHER ASSY
(VSX-AX4AVi-S)
MISCELLANEOUS
IC 101 (A,46 ,158 ) CPU PEG116A
IC 102 (A,46 ,180 ) FLASH ROM AYW7084
IC1 FLASH MEMORY (4M)
MBM29F400TC-70PFTN
IC 103 (A,89 ,94 ) LOGIC IC CD4094BPW
IC 104 (A,20 ,147 ) RESET IC BU4842F
IC 105 (A,63 ,122 ) LOGIC IC SN74AHCT32PW
Mark No. Description Part No.
VSX-AX4AVi-S
156
1234
1234
C
D
F
A
B
E
IC 106 (A,63 ,133 ) LOGIC IC SN74AHCT08PW
IC 107 (A,83 ,138 ) IC
TC74VHCT125AFTS1
IC 108 (A,90 ,114 ) LOGIC IC SN74LV244ATPW
IC 181 (A,41 ,124 ) RDS DECODER IC BU1924FS
IC 201 (A,114 ,133 ) CPU PEG117A
IC 202 (A,114 ,154 ) FLASH ROM AYW7080
IC2 FLASH MEMORY(4M)
MBM29LV400TC-70PFTN
IC 203 (A,133 ,107 ) LOGIC IC CD4094BPW
IC 204 (A,107 ,109 ) IC
TC74VHCT125AFTS1
IC 205 (A,115 ,107 ) LOGIC IC SN74AHC02PW
IC 206 (A,84 ,127 ) LOGIC IC SN74LV125APW
IC 207 (A,92 ,127 ) LOGIC IC SN74AHC08PW
IC 208 (A,92 ,138 ) LOGIC IC SN74LV244APW
IC 210 (A,92 ,150 ) LOGIC IC SN74AHC04PW
IC 211 (A,124 ,107 ) LOGIC IC CD4094BPW
>IC 221 (A,121 ,92 ) IC NJM2391DL1-33
IC 261 (A,43 ,208 ) USB CODEC IC PCM2902EG
IC 301 (A,105 ,200 ) DA I/F TRANSCEIVER AK4114VQ
IC 304 (A,15 ,195 ) LOGIC IC SN74LVC1G97DCK
IC 305 (A,22 ,195 ) LOGIC IC SN74LVC1G97DCK
IC 306 (A,89 ,168 ) LOGIC IC SN74LV157APW
IC 307 (A,79 ,168 ) LOGIC IC SN74LV157APW
IC 309 (A,124 ,175 ) LOGIC IC SN74LV157APW
IC 312 (A,67 ,190 ) LOGIC IC SN74AHC08PW
IC 313 (A,77 ,190 ) LOGIC IC SN74AHC08PW
IC 314 (A,86 ,190 ) LOGIC IC SN74AHC08PW
IC 315 (A,53 ,79 ) LOGIC IC SN74LV157APW
IC 316 (A,64 ,79 ) LOGIC IC SN74LV157APW
IC 318 (A,24 ,180 ) LOGIC IC SN74LVC1G97DCK
>IC 321 (A,139 ,183 ) IC NJM2391DL1-33
IC 481 (A,119 ,77 ) OP-AMP IC BA4560RF
IC 482 (A,98 ,76 ) A/D CONVERTER PCM1803DB
IC 551 (A,119 ,52 ) D/A CONVERTER IC DSD1791DBR
IC 552 (A,119 ,35 ) OP-AMP IC BA4560RF
IC 651 (A,98 ,52 ) D/A CONVERTER IC DSD1791DBR
IC 652 (A,98 ,35 ) OP-AMP IC BA4560RF
IC 751 (A,77 ,52 ) D/A CONVERTER IC DSD1791DBR
IC 752 (A,77 ,35 ) OP-AMP IC BA4560RF
IC 851 (A,56 ,52 ) D/A CONVERTER IC DSD1791DBR
IC 852 (A,56 ,35 ) OP-AMP IC BA4560RF
>IC 991 (A,136 ,54 ) IC NJM2391DL1-33
Q101 (B,21 ,146 ) TRANSISTOR DTC143TK
Q102 (B,24 ,134 ) DIGITAL TR(SC-70) RT1P241M
Q103 (B,27 ,134 ) CHIP TR(DUAL) RN2901
Q104 (B,14 ,135 ) CHIP TR (PNP X 2) UMB1N
Q105 (A,23 ,17 ) CHIP TR (PNP X 2) UMB1N
Q106 (A,139 ,87 ) TRANSISTOR RT1N241M
Q107 (A,28 ,17 ) CHIP TR (PNP X 2) UMB1N
Q108 (A,138 ,70 ) CHIP TR (PNP X 2) UMB1N
Q181 (A,34 ,128 ) TRANSISTOR 2SA1036K
Q182 (A,34 ,117 ) DIGITAL TR(SC-70) RT1N431M
Q201 (B,20 ,24 ) TRANSISTOR 2SA1036K
Q202 (B,21 ,36 ) TRANSISTOR RT1N241M
Q481 (B,129 ,77 ) TRANSISTOR IMX25
Q482 (A,139 ,76 ) CHIP TRANSISTOR RN4903
D101 (B,31 ,133 ) DIODE DAN202U
D102 (A,107 ,8 ) DIODE DAN202U
D103 (A,112 ,8 ) DIODE 1SS355
D104 (A,51 ,17 ) DIODE DAP202U
D105 (A,48 ,17 ) DIODE DAN202U
Mark No. Description Part No.
D106 (A,57 ,12 ) DIODE UDZS5R1(B)
D107 (B,19 ,137 ) DIODE DAN202U
D108 (A,110 ,8 ) DIODE RB520S-30
D109 (B,46 ,183 ) CHIP DIODE RB501V-40
D114 (A,92 ,103 ) DIODE 1SS355
D115 (B,66 ,143 ) DIODE 1SS355
D116 (A,140 ,83 ) CHIP DIODE RB501V-40
D201 (B,18 ,18 ) DIODE DAN202U
D202 (B,115 ,157 ) CHIP DIODE RB501V-40
D451 (B,108 ,74 ) DIODE DAN217
D452 (B,108 ,79 ) DIODE DAN217
L101 (A,17 ,124 ) CHIP SOLID INDUCTOR ATL7002
L102 (B,34 ,16 ) CHIP SOLID INDUCTOR ATL7002
L181 (A,36 ,124 ) CHIP SOLID INDUCTOR QTL1013
L201 (A,129 ,98 ) CHIP SOLID INDUCTOR QTL1013
L301 (A,85 ,215 ) CHIP SOLID INDUCTOR QTL1013
L303 (A,99 ,208 ) CHIP SOLID INDUCTOR QTL1013
L304 (A,93 ,207 ) CHIP SOLID INDUCTOR QTL1013
L305 (A,22 ,200 ) CHIP SOLID INDUCTOR QTL1013
L306 (A,75 ,171 ) CHIP SOLID INDUCTOR QTL1013
L307 (A,80 ,82 ) CHIP SOLID INDUCTOR QTL1013
L308 (A,63 ,193 ) CHIP SOLID INDUCTOR QTL1013
L309 (A,22 ,187 ) CHIP SOLID INDUCTOR QTL1013
L311 (A,84 ,171 ) CHIP SOLID INDUCTOR QTL1013
L313 (A,120 ,178 ) CHIP SOLID INDUCTOR QTL1013
L314 (A,72 ,193 ) CHIP SOLID INDUCTOR QTL1013
L316 (A,81 ,193 ) CHIP SOLID INDUCTOR QTL1013
L481 (A,108 ,86 ) CHIP SOLID INDUCTOR QTL1013
L482 (A,89 ,79 ) CHIP SOLID INDUCTOR QTL1013
L551 (A,114 ,61 ) CHIP SOLID INDUCTOR QTL1013
L552 (A,128 ,48 ) CHIP SOLID INDUCTOR QTL1013
L651 (A,94 ,61 ) CHIP SOLID INDUCTOR QTL1013
L652 (A,107 ,48 ) CHIP SOLID INDUCTOR QTL1013
L751 (A,72 ,61 ) CHIP SOLID INDUCTOR QTL1013
L752 (A,86 ,48 ) CHIP SOLID INDUCTOR QTL1013
L851 (A,51 ,61 ) CHIP SOLID INDUCTOR QTL1013
L852 (A,65 ,48 ) CHIP SOLID INDUCTOR QTL1013
JA 261 (A,43 ,232 ) USB CONNECTOR DKN1237
JA 301 (A,119 ,232 ) PIN JACK(2P) AKB7173
JA 302 (A,98 ,232 ) OPT. LINK IN AKS7001
JA 303 (A,84 ,232 ) OPT. LINK IN AKS7001
JA 304 (A,70 ,232 ) OPT. LINK IN AKS7001
JA 305 (A,57 ,232 ) OPT. LINK IN AKS7001
JA 306 (A,28 ,232 ) OPT. LINK OUT AKS7002
JA 307 (A,15 ,232 ) OPT. LINK OUT AKS7002
X101 (A,46 ,146 ) CERAMIC RESONATOR XSS3004
(15.7MHz)
X181 (A,44 ,114 ) CRYSTAL RESONATOR ASS7004
(4.332MHz)
X201 (A,114 ,121 ) CERAMIC RESONATOR XSS3004
(15.7MHz)
X261 (A,38 ,198 ) CRYSTAL RESONATOR ASS7047
(12.00MHz)
X301 (A,102 ,190 ) CRYSTAL RESONATOR XSS3003
(24.567MHz)
CN101 (A,70 ,7 ) 23P CONNECTOR 52045-2345
CN102 (A,142 ,19 ) 11P SOCKET XKP3076
CN103 (A,52 ,11 ) 19P CONNECTOR 52045-1945
CN104 (A,146 ,84 ) B TO B CONNCTOR BTEM16P-1R
CN105 (A,17 ,48 ) 23P SOCKET XKP3082
CN201 (A,146 ,191 ) 4P SOCKET KP200TA4L
Mark No. Description Part No.
VSX-AX4AVi-S 157
5678
5678
C
D
F
A
B
E
CN301 (A,57 ,200 ) 26P PLUG AKM7054
CN302 (A,39 ,98 ) 26P PLUG AKM7054
CN303 (A,18 ,165 ) 22P CONNECTOR RKN1063
CN304 (A,142 ,167 ) 23P SOCKET XKP3083
CN305 (A,17 ,105 ) 10P CONNECTOR AKN7041
CN991 (A,146 ,25 ) B TO B CONNCTOR BTEM20P-1R
CN992 (A,146 ,55 ) B TO B CONNCTOR BTEM20P-1R
RESISTORS
R101 (A,45 ,17 ) RS1/16S105J
R102 (A,33 ,143 ) RAB4C101J
R103 (A,42 ,143 ) RAB4C101J
R104 (B,37 ,142 ) RS1/16S104J
R105 (A,35 ,143 ) RS1/16S101J
R106 (A,37 ,143 ) RS1/16S101J
R107 (B,39 ,142 ) RS1/16S104J
R108 (B,41 ,147 ) RS1/16S512J
R110 (A,38 ,143 ) RS1/16S101J
R111 (A,40 ,143 ) RS1/16S101J
R112 (B,45 ,153 ) RS1/16S101J
R113 (B,47 ,158 ) RS1/16S473J
R115 (A,54 ,143 ) RAB4C101J
R116 (A,58 ,143 ) RAB4C101J
R117 (B,54 ,150 ) RS1/16S104J
R119 (B,58 ,147 ) RS1/16S222J
R120 (A,61 ,143 ) RS1/16S101J
R121 (A,30 ,162 ) RS1/16S101J
R122 (B,36 ,153 ) RS1/16S474J
R123 (A,61 ,150 ) RAB4C101J
R124 (A,61 ,155 ) RAB4C101J
R126 (B,17 ,129 ) RS1/16S473J
R127 (B,51 ,155 ) RS1/16S104J
R128 (B,61 ,159 ) RS1/16S473J
R129 (A,61 ,158 ) RS1/16S473J
R131 (B,49 ,155 ) RS1/16S104J
R132 (A,61 ,162 ) RAB4C101J
R133 (A,61 ,166 ) RAB4C101J
R134 (B,61 ,163 ) RS1/16S473J
R135 (A,56 ,171 ) RS1/16S101J
R136 (B,19 ,132 ) RS1/16S471J
R137 (A,32 ,158 ) RAB4C101J
R138 (B,38 ,158 ) RS1/16S474J
R139 (B,36 ,158 ) RS1/16S104J
R140 (B,53 ,155 ) RS1/16S474J
R141 (B,41 ,158 ) RS1/16S473J
R142 (B,38 ,153 ) RS1/16S473J
R144 (B,40 ,153 ) RS1/16S473J
R145 (A,31 ,148 ) RS1/16S101J
R146 (B,46 ,179 ) RS1/16S104J
R147 (B,36 ,178 ) RS1/16S473J
R149 (B,91 ,93 ) RS1/16S473J
R150 (B,89 ,93 ) RS1/16S473J
R151 (B,50 ,150 ) RS1/16S104J
R153 (B,31 ,129 ) RS1/16S471J
R154 (B,29 ,129 ) RS1/16S473J
R155 (B,21 ,132 ) RS1/16S102J
R156 (B,24 ,129 ) RS1/16S473J
R157 (B,16 ,145 ) RS1/16S470J
R161 (B,54 ,17 ) RS1/16S105J
Mark No. Description Part No.
R162 (B,56 ,12 ) RS1/16S223J
R164 (A,20 ,150 ) RS1/16S104J
R165 (B,33 ,163 ) RS1/16S101J
R166 (B,88 ,116 ) RS1/16S104J
R167 (B,94 ,110 ) RS1/16S104J
R168 (B,90 ,112 ) RS1/16S104J
R169 (B,85 ,129 ) RS1/16S104J
R170 (B,85 ,140 ) RS1/16S104J
R171 (A,80 ,133 ) RS1/16S101J
R172 (B,83 ,129 ) RS1/16S104J
R173 (A,48 ,143 ) RS1/16S101J
R174 (B,50 ,143 ) RS1/16S101J
R176 (A,83 ,144 ) RS1/16S101J
R177 (B,75 ,146 ) RS1/16S0R0J
R178 (A,87 ,145 ) RS1/16S0R0J
R179 (B,25 ,143 ) RS1/16S103J
R180 (B,27 ,153 ) RS1/16S222J
R181 (A,34 ,125 ) RS1/16S473J
R182 (A,33 ,123 ) RS1/16S222J
R183 (A,47 ,126 ) RS1/16S102J
R184 (B,46 ,129 ) RS1/16S102J
R185 (A,47 ,123 ) RS1/16S102J
R186 (A,50 ,143 ) RS1/16S101J
R187 (A,51 ,143 ) RS1/16S101J
R188 (B,29 ,153 ) RS1/16S103J
R191 (B,106 ,129 ) RS1/16S473J
R192 (B,121 ,131 ) RS1/16S473J
R195 (B,123 ,131 ) RS1/16S473J
R197 (B,83 ,140 ) RS1/16S182J
R198 (A,86 ,153 ) RS1/16S0R0J
R199 (A,137 ,149 ) RESISTOR ARRAY RAB4C104J
R201 (A,102 ,125 ) RAB4C101J
R202 (A,106 ,121 ) RAB4C101J
R203 (B,108 ,129 ) RS1/16S472J
R204 (B,108 ,133 ) RS1/16S473J
R205 (A,109 ,121 ) RS1/16S101J
R206 (B,111 ,130 ) RS1/16S101J
R207 (B,113 ,130 ) RS1/16S473J
R208 (B,115 ,130 ) RS1/16S473J
R209 (A,119 ,118 ) RAB4C101J
R210 (A,124 ,122 ) RAB4C101J
R211 (A,124 ,118 ) RAB4C473J
R214 (A,127 ,127 ) RAB4C101J
R215 (A,127 ,129 ) RS1/16S101J
R216 (A,127 ,131 ) RS1/16S101J
R217 (A,121 ,114 ) RS1/16S473J
R218 (A,127 ,133 ) RAB4C101J
R219 (B,90 ,116 ) RS1/16S104J
R220 (A,127 ,136 ) RS1/16S101J
R221 (B,117 ,133 ) RS1/16S473J
R222 (A,127 ,137 ) RS1/16S473J
R223 (B,118 ,138 ) RS1/16S473J
R224 (B,131 ,139 ) RS1/16S101J
R225 (A,127 ,140 ) RS1/16S101J
R226 (B,133 ,139 ) RS1/16S101J
R227 (A,102 ,133 ) RAB4C101J
R228 (B,110 ,136 ) RS1/16S473J
R230 (B,104 ,129 ) RS1/16S101J
R231 (A,22 ,147 ) RS1/16S104J
R232 (B,115 ,153 ) RS1/16S104J
Mark No. Description Part No.
VSX-AX4AVi-S
158
1234
1234
C
D
F
A
B
E
R234 (B,104 ,151 ) RS1/16S473J
R237 (A,134 ,99 ) RS1/16S473J
R238 (A,133 ,114 ) RAB4C473J
R239 (B,114 ,105 ) RS1/16S104J
R240 (B,116 ,105 ) RS1/16S104J
R241 (A,109 ,115 ) RS1/16S101J
R242 (A,29 ,176 ) RS1/16S104J
R243 (A,29 ,177 ) RS1/16S104J
R244 (B,108 ,138 ) RS1/16S473J
R246 (B,89 ,140 ) RS1/16S104J
R247 (B,87 ,140 ) RS1/16S104J
R248 (B,96 ,139 ) RS1/16S104J
R249 (B,94 ,140 ) RS1/16S104J
R250 (B,104 ,147 ) RS1/16S104J
R251 (B,115 ,140 ) RS1/16S104J
R252 (B,106 ,143 ) RS1/16S104J
R253 (A,86 ,150 ) RS1/16S104J
R254 (B,78 ,129 ) RS1/16S0R0J
R256 (A,102 ,138 ) RS1/16S101J
R258 (A,111 ,121 ) RS1/16S101J
R259 (B,19 ,30 ) RS1/16S222J
R260 (A,138 ,118 ) RS1/16S0R0J
R261 (A,48 ,214 ) RS1/16S220J
R262 (A,46 ,214 ) RS1/16S220J
R263 (A,48 ,200 ) RS1/16S470J
R264 (A,43 ,202 ) RS1/16S105J
R265 (A,39 ,202 ) RS1/16S222J
R266 (B,48 ,213 ) RS1/16S152J
R267 (B,41 ,225 ) RS1/16S0R0J
R268 (B,44 ,225 ) RS1/16S0R0J
R271 (B,21 ,30 ) RS1/16S473J
R272 (A,125 ,99 ) RAB4C473J
R274 (A,124 ,114 ) RS1/16S473J
R276 (B,129 ,216 ) RS1/16S0R0J
R301 (B,96 ,220 ) RS1/16S101J
R302 (B,83 ,219 ) RS1/16S101J
R303 (B,69 ,219 ) RS1/16S101J
R304 (B,56 ,219 ) RS1/16S101J
R307 (B,127 ,223 ) RS1/16S750J
R308 (B,116 ,223 ) RS1/16S750J
R309 (B,125 ,219 ) RS1/16S100J
R310 (B,112 ,223 ) RS1/16S100J
R319 (A,96 ,205 ) RS1/16S101J
R320 (A,96 ,201 ) RS1/16S101J
R321 (A,114 ,198 ) RS1/16S1802F
R322 (A,93 ,193 ) RS1/16S470J
R323 (A,95 ,193 ) RS1/16S101J
R324 (B,91 ,193 ) RS1/16S101J
R325 (B,93 ,193 ) RS1/16S101J
R326 (B,95 ,193 ) RS1/16S101J
R327 (A,108 ,191 ) RS1/16S221J
R328 (A,110 ,191 ) RAB4C221J
R329 (A,113 ,191 ) RS1/16S101J
R330 (A,114 ,194 ) RS1/16S0R0J
R331 (A,69 ,216 ) RS1/16S0R0J
R333 (A,17 ,195 ) RS1/16S101J
R335 (A,84 ,161 ) RS1/16S101J
R336 (A,86 ,161 ) RS1/16S101J
R337 (A,87 ,161 ) RS1/16S470J
R339 (A,89 ,161 ) RS1/16S101J
Mark No. Description Part No.
R340 (A,90 ,161 ) RS1/16S101J
R341 (A,92 ,161 ) RS1/16S470J
R343 (A,89 ,175 ) RS1/16S101J
R344 (A,90 ,175 ) RS1/16S101J
R345 (A,92 ,175 ) RS1/16S470J
R347 (A,84 ,175 ) RS1/16S101J
R348 (A,86 ,175 ) RS1/16S101J
R349 (A,87 ,175 ) RS1/16S470J
R351 (A,74 ,161 ) RS1/16S101J
R352 (A,75 ,161 ) RS1/16S101J
R353 (A,77 ,161 ) RS1/16S470J
R356 (A,81 ,161 ) RS1/16S470J
R359 (A,82 ,175 ) RS1/16S470J
R360 (A,75 ,175 ) RS1/16S101J
R361 (A,76 ,175 ) RS1/16S101J
R362 (A,78 ,175 ) RS1/16S470J
R366 (A,102 ,167 ) RS1/16S0R0J
R370 (A,107 ,167 ) RS1/16S0R0J
R374 (A,107 ,185 ) RS1/16S0R0J
R378 (A,103 ,183 ) RS1/16S0R0J
R379 (A,119 ,168 ) RS1/16S101J
R380 (A,121 ,168 ) RS1/16S101J
R381 (A,122 ,168 ) RS1/16S470J
R383 (A,124 ,168 ) RS1/16S101J
R384 (A,125 ,168 ) RS1/16S101J
R385 (A,127 ,168 ) RS1/16S470J
R387 (A,123 ,182 ) RS1/16S101J
R388 (A,125 ,182 ) RS1/16S101J
R389 (A,126 ,182 ) RS1/16S470J
R395 (B,70 ,79 ) RS1/16S0R0J
R400 (B,71 ,75 ) RS1/16S0R0J
R405 (B,72 ,79 ) RS1/16S0R0J
R410 (B,73 ,75 ) RS1/16S0R0J
R411 (B,96 ,129 ) RS1/16S0R0J
R413 (B,92 ,129 ) RS1/16S0R0J
R415 (B,74 ,79 ) RS1/16S0R0J
R416 (B,70 ,117 ) RS1/16S0R0J
R418 (B,74 ,117 ) RS1/16S0R0J
R420 (B,75 ,75 ) RS1/16S0R0J
R422 (B,19 ,197 ) RS1/16S0R0J
R425 (B,76 ,79 ) RS1/16S0R0J
R426 (B,68 ,192 ) RS1/16S101J
R427 (B,66 ,192 ) RS1/16S101J
R428 (A,70 ,196 ) RS1/16S220J
R429 (A,66 ,196 ) RS1/16S470J
R430 (A,69 ,206 ) RS1/16S473J
R431 (A,137 ,161 ) RESISTOR ARRAY RAB4C104J
R432 (A,137 ,157 ) RESISTOR ARRAY RAB4C104J
R433 (A,24 ,157 ) RESISTOR ARRAY RAB4C104J
R434 (A,24 ,161 ) RESISTOR ARRAY RAB4C104J
R435 (A,24 ,102 ) RS1/16S104J
R436 (A,24 ,104 ) RS1/16S104J
R437 (A,24 ,105 ) RS1/16S104J
R438 (A,24 ,108 ) RESISTOR ARRAY RAB4C104J
R439 (A,69 ,184 ) RS1/16S0R0J
R440 (A,66 ,184 ) RS1/16S101J
R441 (A,70 ,184 ) RS1/16S470J
R442 (A,67 ,184 ) RS1/16S470J
R443 (A,75 ,184 ) RS1/16S0R0J
R444 (A,78 ,184 ) RS1/16S0R0J
Mark No. Description Part No.
VSX-AX4AVi-S 159
5678
5678
C
D
F
A
B
E
R445 (B,78 ,195 ) RS1/16S0R0J
R446 (B,73 ,195 ) RS1/16S0R0J
R447 (A,76 ,184 ) RS1/16S470J
R448 (A,79 ,184 ) RS1/16S470J
R449 (B,74 ,188 ) RS1/16S470J
R450 (B,76 ,188 ) RS1/16S470J
R453 (A,130 ,73 ) RS1/16S752J
R454 (A,130 ,80 ) RS1/16S752J
R455 (A,130 ,75 ) RS1/16S822J
R456 (A,130 ,78 ) RS1/16S822J
R457 (B,128 ,71 ) RS1/16S392J
R458 (B,128 ,82 ) RS1/16S392J
R461 (A,137 ,76 ) RS1/16S223J
R462 (A,137 ,77 ) RS1/16S223J
R463 (B,122 ,72 ) RS1/16S104J
R464 (B,122 ,81 ) RS1/16S104J
R465 (A,108 ,73 ) RS1/16S101J
R466 (A,108 ,79 ) RS1/16S101J
R472 (B,95 ,114 ) RS1/16S0R0J
R473 (B,97 ,114 ) RS1/16S0R0J
R474 (B,139 ,118 ) RS1/16S0R0J
R475 (B,137 ,118 ) RS1/16S0R0J
R480 (A,144 ,172 ) RS1/16S0R0J
R481 (B,99 ,82 ) RS1/16S101J
R482 (B,96 ,82 ) RS1/16S101J
R483 (A,91 ,76 ) RS1/16S101J
R484 (A,99 ,82 ) RS1/16S470J
R485 (A,98 ,82 ) RS1/16S101J
R487 (A,137 ,74 ) RS1/16S104J
R488 (A,23 ,177 ) RS1/16S101J
R489 (A,26 ,183 ) RS1/16S470J
R491 (A,83 ,184 ) RS1/16S101J
R493 (B,87 ,193 ) RS1/16S101J
R494 (B,85 ,193 ) RS1/16S470J
R495 (A,85 ,184 ) RS1/16S470J
R496 (A,88 ,184 ) RS1/16S470J
R497 (B,89 ,193 ) RS1/16S470J
R501 (A,127 ,40 ) RS1/16S222J
R502 (A,111 ,40 ) RS1/16S222J
R503 (A,124 ,40 ) RS1/16S222J
R504 (A,115 ,40 ) RS1/16S222J
R505 (B,127 ,36 ) RS1/16S362J
R506 (B,111 ,36 ) RS1/16S362J
R507 (B,125 ,36 ) RS1/16S101J
R508 (B,113 ,36 ) RS1/16S101J
R509 (A,127 ,34 ) RS1/16S362J
R510 (A,111 ,34 ) RS1/16S362J
R511 (A,127 ,36 ) RS1/16S101J
R512 (A,111 ,36 ) RS1/16S101J
R513 (A,127 ,37 ) RS1/16S122J
R514 (A,111 ,37 ) RS1/16S122J
R515 (A,125 ,38 ) RS1/16S122J
R516 (A,114 ,38 ) RS1/16S122J
R517 (B,121 ,31 ) RS1/16S474J
R518 (B,117 ,31 ) RS1/16S474J
R519 (B,123 ,26 ) RS1/16S221J
R520 (B,115 ,26 ) RS1/16S221J
R551 (A,112 ,54 ) RS1/16S101J
R552 (A,112 ,58 ) RS1/16S101J
R553 (A,112 ,56 ) RS1/16S101J
Mark No. Description Part No.
R554 (A,112 ,59 ) RS1/16S0R0J
R555 (A,112 ,55 ) RS1/16S101J
R556 (A,127 ,55 ) RS1/16S0R0J
R557 (A,127 ,53 ) RS1/16S0R0J
R558 (A,127 ,59 ) RS1/16S221J
R559 (A,127 ,58 ) RS1/16S221J
R560 (A,127 ,56 ) RS1/16S221J
R561 (A,112 ,53 ) RS1/16S221J
R601 (A,106 ,40 ) RS1/16S222J
R602 (A,90 ,40 ) RS1/16S222J
R603 (A,103 ,40 ) RS1/16S222J
R604 (A,94 ,40 ) RS1/16S222J
R605 (B,106 ,36 ) RS1/16S302J
R606 (B,90 ,36 ) RS1/16S682J
R607 (B,104 ,36 ) RS1/16S101J
R608 (B,92 ,36 ) RS1/16S101J
R609 (A,106 ,34 ) RS1/16S302J
R610 (A,90 ,34 ) RS1/16S682J
R611 (A,106 ,36 ) RS1/16S101J
R612 (A,90 ,36 ) RS1/16S101J
R613 (A,106 ,37 ) RS1/16S152J
R614 (A,90 ,37 ) RS1/16S102J
R615 (A,104 ,38 ) RS1/16S152J
R616 (A,93 ,38 ) RS1/16S102J
R617 (B,100 ,31 ) RS1/16S474J
R618 (B,96 ,31 ) RS1/16S474J
R619 (B,102 ,26 ) RS1/16S221J
R620 (B,94 ,26 ) RS1/16S221J
R651 (A,91 ,54 ) RS1/16S101J
R652 (A,91 ,58 ) RS1/16S101J
R653 (A,91 ,56 ) RS1/16S101J
R654 (A,91 ,59 ) RS1/16S0R0J
R655 (A,91 ,55 ) RS1/16S101J
R656 (A,106 ,55 ) RS1/16S0R0J
R657 (A,106 ,53 ) RS1/16S0R0J
R658 (A,106 ,59 ) RS1/16S221J
R659 (A,106 ,58 ) RS1/16S221J
R660 (A,106 ,56 ) RS1/16S221J
R661 (A,91 ,53 ) RS1/16S221J
R701 (A,85 ,40 ) RS1/16S222J
R702 (A,69 ,40 ) RS1/16S222J
R703 (A,82 ,40 ) RS1/16S222J
R704 (A,73 ,40 ) RS1/16S222J
R705 (B,85 ,36 ) RS1/16S302J
R706 (B,69 ,36 ) RS1/16S302J
R707 (B,83 ,36 ) RS1/16S101J
R708 (B,71 ,36 ) RS1/16S101J
R709 (A,85 ,34 ) RS1/16S302J
R710 (A,69 ,34 ) RS1/16S302J
R711 (A,85 ,36 ) RS1/16S101J
R712 (A,69 ,36 ) RS1/16S101J
R713 (A,85 ,37 ) RS1/16S152J
R714 (A,69 ,37 ) RS1/16S152J
R715 (A,83 ,38 ) RS1/16S152J
R716 (A,72 ,38 ) RS1/16S152J
R717 (B,79 ,31 ) RS1/16S474J
R718 (B,75 ,31 ) RS1/16S474J
R719 (B,81 ,26 ) RS1/16S221J
R720 (B,73 ,26 ) RS1/16S221J
R751 (A,70 ,54 ) RS1/16S101J
Mark No. Description Part No.
VSX-AX4AVi-S
160
1234
1234
C
D
F
A
B
E
R752 (A,70 ,58 ) RS1/16S101J
R753 (A,70 ,56 ) RS1/16S101J
R754 (A,70 ,59 ) RS1/16S0R0J
R755 (A,70 ,55 ) RS1/16S101J
R756 (A,85 ,55 ) RS1/16S0R0J
R757 (A,85 ,53 ) RS1/16S0R0J
R758 (A,85 ,59 ) RS1/16S221J
R759 (A,85 ,58 ) RS1/16S221J
R760 (A,85 ,56 ) RS1/16S221J
R761 (A,70 ,53 ) RS1/16S221J
R801 (A,64 ,40 ) RS1/16S222J
R802 (A,48 ,40 ) RS1/16S222J
R803 (A,61 ,40 ) RS1/16S222J
R804 (A,52 ,40 ) RS1/16S222J
R805 (B,64 ,36 ) RS1/16S302J
R806 (B,48 ,36 ) RS1/16S302J
R807 (B,62 ,36 ) RS1/16S101J
R808 (B,50 ,36 ) RS1/16S101J
R809 (A,64 ,34 ) RS1/16S302J
R810 (A,48 ,34 ) RS1/16S302J
R811 (A,64 ,36 ) RS1/16S101J
R812 (A,48 ,36 ) RS1/16S101J
R813 (A,64 ,37 ) RS1/16S152J
R814 (A,48 ,37 ) RS1/16S152J
R815 (A,62 ,38 ) RS1/16S152J
R816 (A,51 ,38 ) RS1/16S152J
R817 (B,58 ,31 ) RS1/16S474J
R818 (B,54 ,31 ) RS1/16S474J
R819 (B,60 ,26 ) RS1/16S221J
R820 (B,52 ,26 ) RS1/16S221J
R851 (A,49 ,54 ) RS1/16S101J
R852 (A,49 ,58 ) RS1/16S101J
R853 (A,49 ,56 ) RS1/16S101J
R854 (A,49 ,59 ) RS1/16S0R0J
R858 (A,64 ,59 ) RS1/16S221J
R859 (A,64 ,58 ) RS1/16S221J
R860 (A,64 ,56 ) RS1/16S221J
R861 (A,49 ,53 ) RS1/16S221J
R864 (B,53 ,55 ) RS1/16S0R0J
R950 (A,43 ,55 ) RS1/16S0R0J
R963 (A,16 ,191 ) RS1/16S0R0J
R964 (B,14 ,190 ) RS1/16S101J
R966 (B,21 ,190 ) RS1/16S101J
R969 (B,25 ,195 ) RS1/16S0R0J
R972 (A,50 ,73 ) RS1/16S0R0J
R973 (A,52 ,73 ) RS1/16S470J
R975 (A,53 ,73 ) RS1/16S101J
R976 (A,55 ,73 ) RS1/16S101J
R977 (A,56 ,73 ) RS1/16S470J
R980 (A,54 ,85 ) RS1/16S0R0J
R981 (A,56 ,85 ) RS1/16S470J
R984 (A,61 ,73 ) RS1/16S0R0J
R985 (A,62 ,73 ) RS1/16S470J
R988 (A,65 ,73 ) RS1/16S0R0J
R989 (A,67 ,73 ) RS1/16S470J
R990 RS1/16S0R0J
R992 (A,65 ,85 ) RS1/16S0R0J
R993 (A,67 ,85 ) RS1/16S470J
R994 (A,59 ,85 ) RS1/16S0R0J
R997 RS1/16S0R0J
Mark No. Description Part No.
R998 (A,50 ,85 ) RS1/16S101J
R999 (A,51 ,85 ) RS1/16S220J
R9983 RS1/16S0R0J
R9984 RS1/16S0R0J
R9989 RS1/16S0R0J
R9990 RS1/16S0R0J
CAPACITORS
C101 (B,14 ,38 ) CKSRYB103K50
C102 (A,11 ,38 ) ELECTR.CAPACITOR CEAT102M10
C103 (A,18 ,126 ) CKSRYB103K50
C105 (A,33 ,148 ) CKSRYB104K16
C106 (A,34 ,148 ) CKSRYB471K50
C108 (A,46 ,141 ) CKSRYB104K16
C109 (A,46 ,143 ) CKSRYB471K50
C110 (A,59 ,148 ) CKSRYB104K16
C111 (A,57 ,148 ) CKSRYB471K50
C114 (A,45 ,170 ) CKSRYB104K16
C115 (A,45 ,169 ) CKSRYB471K50
C116 (A,33 ,181 ) CKSRYB104K16
C117 (A,34 ,181 ) CKSRYB471K50
C118 (A,86 ,94 ) CKSRYB104K16
C120 (B,26 ,129 ) CKSRYB472K50
C121 (B,21 ,129 ) CKSRYB103K50
C122 (A,16 ,141 ) CEAT471M6R3
C123 (B,52 ,17 ) CKSRYB473K25
C124 (B,46 ,17 ) CKSRYB473K25
C125 (A,62 ,13 ) CEAT100M50
C126 (A,18 ,147 ) CKSRYB105K10
C127 (B,19 ,129 ) CKSRYB472K50
C128 (A,85 ,114 ) CKSRYB104K16
C130 (A,59 ,133 ) CKSRYB104K16
C131 (A,79 ,138 ) CKSRYB104K16
C132 (A,59 ,122 ) CKSRYB104K16
C133 (A,93 ,17 ) CKSRYB104K16
C135 (B,48 ,150 ) CKSRYB472K50
C181 (A,47 ,134 ) CEJQ2R2M50
C183 (A,38 ,129 ) CKSRYB561K50
C184 (A,38 ,134 ) CEJQ101M10
C185 (A,40 ,119 ) CKSRYB102K50
C186 (B,40 ,118 ) CCSRCH270J50
C187 (B,43 ,118 ) CCSRCH270J50
C190 (B,44 ,129 ) CKSRYB472K50
C201 (A,120 ,108 ) CKSRYB104K16
C202 (A,114 ,116 ) CKSRYB104K16
C203 (A,114 ,118 ) CKSRYB471K50
C204 (A,115 ,145 ) CKSRYB104K16
C205 (A,115 ,143 ) CKSRYB471K50
C206 (A,101 ,129 ) CKSRYB104K16
C207 (A,103 ,129 ) CKSRYB471K50
C208 (A,15 ,17 ) ELECTR.CAPACITOR CEAT102M10
C209 (A,101 ,155 ) CKSRYB104K16
C210 (A,102 ,155 ) CKSRYB471K50
C211 (A,129 ,108 ) CKSRYB104K16
C212 (A,103 ,109 ) CKSRYB104K16
C213 (A,111 ,108 ) CKSRYB104K16
C215 (A,80 ,127 ) CKSRYB104K16
C216 (A,88 ,127 ) CKSRYB104K16
C217 (A,87 ,138 ) CKSRYB104K16
C219 (A,88 ,150 ) CKSRYB104K16
Mark No. Description Part No.
VSX-AX4AVi-S 161
5678
5678
C
D
F
A
B
E
C221 (A,129 ,89 ) CKSRYB104K16
C222 (A,131 ,93 ) CEAT331M10
C261 (A,51 ,216 ) CEAT470M16
C262 (A,50 ,209 ) CKSRYB104K16
C263 (A,48 ,202 ) CKSRYB104K16
C264 (B,46 ,206 ) CKSRYB104K16
C265 (B,42 ,209 ) CKSRYB104K16
C266 (B,39 ,209 ) CKSRYB104K16
C267 (A,41 ,213 ) CKSRYB104K16
C269 (A,38 ,214 ) CKSRYB104K16
C270 (B,43 ,202 ) CCSRCH180J50
C271 (B,38 ,202 ) CCSRCH220J50
C272 (B,38 ,215 ) CKSRYB103K50
C301 (A,79 ,214 ) CEJQ101M10
C302 (B,99 ,220 ) CKSRYB104K16
C303 (B,86 ,219 ) CKSRYB104K16
C304 (B,72 ,219 ) CKSRYB104K16
C305 (B,59 ,219 ) CKSRYB104K16
C306 (B,27 ,219 ) CKSRYB104K16
C307 (B,15 ,219 ) CKSRYB104K16
C308 (B,127 ,219 ) CKSRYB103K50
C309 (B,114 ,223 ) CKSRYB103K50
C319 (A,119 ,195 ) CEJQ101M6R3
C320 (A,114 ,195 ) CKSRYB104K16
C321 (A,114 ,197 ) CKSRYB471K50
C322 (A,96 ,216 ) CEJQ101M10
C323 (A,98 ,205 ) CKSRYB104K16
C324 (A,98 ,204 ) CKSRYB471K50
C325 (A,88 ,210 ) CEJQ101M6R3
C326 (A,97 ,197 ) CKSRYB104K16
C327 (A,99 ,197 ) CKSRYB471K50
C328 (A,100 ,193 ) CCSRCH120J50
C329 (A,103 ,193 ) CCSRCH120J50
C330 (A,114 ,200 ) CKSRYB474K10
C332 (A,19 ,205 ) CEAT101M10
C333 (A,12 ,195 ) CKSRYB104K16
C334 (A,13 ,195 ) CKSRYB471K50
C335 (A,19 ,195 ) CKSRYB104K16
C336 (A,20 ,195 ) CKSRYB471K50
C338 (A,83 ,168 ) CKSRYB104K16
C339 (A,85 ,168 ) CKSRYB471K50
C340 (A,74 ,168 ) CKSRYB104K16
C341 (A,75 ,168 ) CKSRYB471K50
C344 (A,119 ,175 ) CKSRYB104K16
C345 (A,120 ,175 ) CKSRYB471K50
C346 (A,84 ,79 ) CEAT331M10
C352 (A,61 ,190 ) CKSRYB104K16
C353 (A,63 ,190 ) CKSRYB471K50
C354 (A,66 ,94 ) CKSRYB104K16
C355 (A,24 ,166 ) CKSRYB104K16
C357 (A,144 ,187 ) CKSRYB104K16
C358 (A,136 ,193 ) CEAT331M10
C359 (A,71 ,190 ) CKSRYB104K16
C360 (A,73 ,190 ) CKSRYB471K50
C361 (A,80 ,190 ) CKSRYB104K16
C362 (A,82 ,190 ) CKSRYB471K50
C363 (A,47 ,79 ) CKSRYB104K16
C364 (A,49 ,79 ) CKSRYB471K50
C365 (A,59 ,79 ) CKSRYB104K16
C366 (A,60 ,79 ) CKSRYB471K50
Mark No. Description Part No.
C367 (A,19 ,184 ) CEAT101M10
C368 (A,20 ,181 ) CKSRYB104K16
C369 (A,21 ,181 ) CKSRYB471K50
C371 (B,141 ,172 ) CKSRYB104K16
C372 (B,143 ,172 ) CKSRYB472K50
C374 (A,25 ,171 ) CKSRYB104K16
C375 (A,25 ,169 ) CKSRYB472K50
C377 (A,24 ,101 ) CKSRYB104K16
C379 (A,139 ,141 ) CKSRYB104K16
C380 (B,142 ,194 ) CKSRYB104K16
C451 (A,125 ,71 ) CEAT100M50
C452 (A,125 ,82 ) CEAT100M50
C453 (A,112 ,74 ) CEAT100M50
C454 (A,112 ,80 ) CEAT100M50
C455 (A,108 ,75 ) CKSRYB103K50
C456 (A,108 ,78 ) CKSRYB103K50
C481 (A,115 ,77 ) CKSRYB103K50
C482 (A,123 ,76 ) CKSRYB103K50
C483 (A,104 ,69 ) CEAT101M10
C484 (A,99 ,72 ) CKSRYB104K16
C485 (A,92 ,69 ) CEAT101M10
C486 (A,96 ,72 ) CKSRYB104K16
C487 (A,105 ,84 ) CEAT101M10
C488 (A,104 ,77 ) CKSRYB104K16
C489 (A,91 ,80 ) CKSRYB471K50
C490 (A,91 ,78 ) CKSRYB104K16
C491 (A,90 ,83 ) CEAT101M10
C501 (A,127 ,39 ) CKSRYB102K50
C502 (A,111 ,39 ) CKSRYB102K50
C503 (B,123 ,36 ) CCSRCH331J50
C504 (B,115 ,36 ) CCSRCH331J50
C505 (A,125 ,35 ) CCSRCH331J50
C506 (A,114 ,35 ) CCSRCH331J50
C507 (A,127 ,30 ) CEAT100M50
C508 (A,111 ,30 ) CEAT100M50
C509 (B,121 ,26 ) CKSRYB472K50
C510 (B,117 ,26 ) CKSRYB472K50
C551 (A,119 ,31 ) CKSRYB103K50
C552 (A,120 ,39 ) CKSRYB103K50
C553 (A,118 ,64 ) CEAT101M10
C554 (A,112 ,51 ) CKSRYB104K16
C555 (A,119 ,59 ) CKSRYB103K50
C556 (A,127 ,44 ) CEAT101M10
C557 (A,125 ,48 ) CKSRYB104K16
C558 (A,125 ,50 ) CKSRYB104K16
C559 (A,112 ,49 ) CKSRYB104K16
C560 (A,111 ,44 ) CEAT101M10
C561 (B,111 ,47 ) CKSRYB104K16
C601 (A,106 ,39 ) CKSRYB102K50
C602 (A,90 ,39 ) CKSRYB102K50
C603 (B,102 ,36 ) CCSRCH331J50
C604 (B,94 ,36 ) CCSRCH221J50
C605 (A,104 ,35 ) CCSRCH331J50
C606 (A,93 ,35 ) CCSRCH221J50
C607 (A,106 ,30 ) CEAT100M50
C608 (A,90 ,30 ) CEAT100M50
C609 (B,100 ,26 ) CKSRYB472K50
C610 (B,96 ,26 ) CKSRYB472K50
C651 (A,98 ,31 ) CKSRYB103K50
C652 (A,99 ,39 ) CKSRYB103K50
Mark No. Description Part No.
VSX-AX4AVi-S
162
1234
1234
C
D
F
A
B
E
C653 (A,97 ,64 ) CEAT101M10
C654 (A,91 ,51 ) CKSRYB104K16
C655 (A,98 ,59 ) CKSRYB103K50
C656 (A,106 ,44 ) CEAT101M10
C657 (A,104 ,48 ) CKSRYB104K16
C658 (A,104 ,50 ) CKSRYB104K16
C659 (A,91 ,49 ) CKSRYB104K16
C660 (A,90 ,44 ) CEAT101M10
C661 (B,90 ,47 ) CKSRYB104K16
C701 (A,85 ,39 ) CKSRYB102K50
C702 (A,69 ,39 ) CKSRYB102K50
C703 (B,81 ,36 ) CCSRCH331J50
C704 (B,73 ,36 ) CCSRCH331J50
C705 (A,83 ,35 ) CCSRCH331J50
C706 (A,72 ,35 ) CCSRCH331J50
C707 (A,85 ,30 ) CEAT100M50
C708 (A,69 ,30 ) CEAT100M50
C709 (B,79 ,26 ) CKSRYB472K50
C710 (B,75 ,26 ) CKSRYB472K50
C751 (A,77 ,31 ) CKSRYB103K50
C752 (A,78 ,39 ) CKSRYB103K50
C753 (A,76 ,64 ) CEAT101M10
C754 (A,70 ,51 ) CKSRYB104K16
C755 (A,77 ,59 ) CKSRYB103K50
C756 (A,85 ,44 ) CEAT101M10
C757 (A,83 ,48 ) CKSRYB104K16
C758 (A,83 ,50 ) CKSRYB104K16
C759 (A,70 ,49 ) CKSRYB104K16
C760 (A,69 ,44 ) CEAT101M10
C761 (B,69 ,47 ) CKSRYB104K16
C801 (A,64 ,39 ) CKSRYB102K50
C802 (A,48 ,39 ) CKSRYB102K50
C803 (B,60 ,36 ) CCSRCH331J50
C804 (B,52 ,36 ) CCSRCH331J50
C805 (A,62 ,35 ) CCSRCH331J50
C806 (A,51 ,35 ) CCSRCH331J50
C807 (A,64 ,30 ) CEAT100M50
C808 (A,48 ,30 ) CEAT100M50
C809 (B,58 ,26 ) CKSRYB472K50
C810 (B,54 ,26 ) CKSRYB472K50
C851 (A,56 ,31 ) CKSRYB103K50
C852 (A,57 ,39 ) CKSRYB103K50
C853 (A,55 ,64 ) CEAT101M10
C854 (A,49 ,51 ) CKSRYB104K16
C855 (A,56 ,59 ) CKSRYB103K50
C856 (A,64 ,44 ) CEAT101M10
C857 (A,62 ,48 ) CKSRYB104K16
C858 (A,62 ,50 ) CKSRYB104K16
C859 (A,49 ,49 ) CKSRYB104K16
C860 (A,48 ,44 ) CEAT101M10
C861 (B,48 ,47 ) CKSRYB104K16
C979 (B,31 ,70 ) CKSRYB472K50
C980 (B,95 ,77 ) CKSRYB472K50
C981 (B,67 ,15 ) CKSRYB104K16
C982 (B,65 ,15 ) CKSRYB471K50
C985 (B,93 ,77 ) CKSRYB104K16
C986 (B,91 ,77 ) CKSRYB471K50
C987 (B,34 ,70 ) CKSRYB104K16
C988 (B,32 ,70 ) CKSRYB471K50
C991 (A,140 ,57 ) CKSRYB104K16
Mark No. Description Part No.
C992 (A,134 ,64 ) CEAT101M10
C993 (B,137 ,68 ) CKSRYB473K25
C994 (B,137 ,72 ) CKSRYB473K25
LDIGITAL MOTHER ASSY
(VSX-AX4AV-S)
MISCELLANEOUS
IC 101 (A,46 ,158 ) CPU PEG116A
IC 102 (A,46 ,180 ) FLASH ROM AYW7084
IC1 FLASH MEMORY (4M)
MBM29F400TC-70PFTN
IC 103 (A,89 ,94 ) LOGIC IC CD4094BPW
IC 104 (A,20 ,147 ) RESET IC BU4842F
IC 105 (A,63 ,122 ) LOGIC IC SN74AHCT32PW
IC 106 (A,63 ,133 ) LOGIC IC SN74AHCT08PW
IC 107 (A,83 ,138 ) IC
TC74VHCT125AFTS1
IC 108 (A,90 ,114 ) LOGIC IC SN74LV244ATPW
IC 181 (A,41 ,124 ) RDS DECODER IC BU1924FS
IC 201 (A,114 ,133 ) CPU PEG117A
IC 202 (A,114 ,154 ) FLASH ROM AYW7080
IC2 FLASH MEMORY(4M)
MBM29LV400TC-70PFTN
IC 203 (A,133 ,107 ) LOGIC IC CD4094BPW
IC 204 (A,107 ,109 ) IC
TC74VHCT125AFTS1
IC 205 (A,115 ,107 ) LOGIC IC SN74AHC02PW
IC 206 (A,84 ,127 ) LOGIC IC SN74LV125APW
IC 207 (A,92 ,127 ) LOGIC IC SN74AHC08PW
IC 208 (A,92 ,138 ) LOGIC IC SN74LV244APW
IC 210 (A,92 ,150 ) LOGIC IC SN74AHC04PW
>IC 221 (A,121 ,92 ) IC NJM2391DL1-33
IC 301 (A,105 ,200 ) DA I/F TRANSCEIVER AK4114VQ
IC 307 (A,79 ,168 ) LOGIC IC SN74LV157APW
IC 312 (A,67 ,190 ) LOGIC IC SN74AHC08PW
IC 313 (A,77 ,190 ) LOGIC IC SN74AHC08PW
IC 314 (A,86 ,190 ) LOGIC IC SN74AHC08PW
IC 315 (A,53 ,79 ) LOGIC IC SN74LV157APW
IC 316 (A,64 ,79 ) LOGIC IC SN74LV157APW
>IC 321 (A,139 ,183 ) IC NJM2391DL1-33
IC 481 (A,119 ,77 ) OP-AMP IC BA4560RF
IC 482 (A,98 ,76 ) A/D CONVERTER PCM1803DB
IC 551 (A,119 ,52 ) D/A CONVERTER IC DSD1791DBR
IC 552 (A,119 ,35 ) OP-AMP IC BA4560RF
IC 651 (A,98 ,52 ) D/A CONVERTER IC DSD1791DBR
IC 652 (A,98 ,35 ) OP-AMP IC BA4560RF
IC 751 (A,77 ,52 ) D/A CONVERTER IC DSD1791DBR
IC 752 (A,77 ,35 ) OP-AMP IC BA4560RF
IC 851 (A,56 ,52 ) D/A CONVERTER IC DSD1791DBR
IC 852 (A,56 ,35 ) OP-AMP IC BA4560RF
>IC 991 (A,136 ,54 ) IC NJM2391DL1-33
Q101 (B,21 ,146 ) TRANSISTOR DTC143TK
Q102 (B,24 ,134 ) DIGITAL TR(SC-70) RT1P241M
Q103 (B,27 ,134 ) CHIP TR(DUAL) RN2901
Q104 (B,14 ,135 ) CHIP TR (PNP X 2) UMB1N
Q105 (A,23 ,17 ) CHIP TR (PNP X 2) UMB1N
Q106 (A,139 ,87 ) TRANSISTOR RT1N241M
Q107 (A,28 ,17 ) CHIP TR (PNP X 2) UMB1N
Q108 (A,138 ,70 ) CHIP TR (PNP X 2) UMB1N
Q181 (A,34 ,128 ) TRANSISTOR 2SA1036K
Q182 (A,34 ,117 ) DIGITAL TR(SC-70) RT1N431M
Q201 (B,20 ,24 ) TRANSISTOR 2SA1036K
Q202 (B,21 ,36 ) TRANSISTOR RT1N241M
Q481 (B,129 ,77 ) TRANSISTOR IMX25
Mark No. Description Part No.
VSX-AX4AVi-S 163
5678
5678
C
D
F
A
B
E
Q482 (A,139 ,76 ) CHIP TRANSISTOR RN4903
D101 (B,31 ,133 ) DIODE DAN202U
D102 (A,107 ,8 ) DIODE DAN202U
D103 (A,112 ,8 ) DIODE 1SS355
D104 (A,51 ,17 ) DIODE DAP202U
D105 (A,48 ,17 ) DIODE DAN202U
D106 (A,57 ,12 ) DIODE UDZS5R1(B)
D107 (B,19 ,137 ) DIODE DAN202U
D108 (A,110 ,8 ) DIODE RB520S-30
D109 (B,46 ,183 ) CHIP DIODE RB501V-40
D114 (A,92 ,103 ) DIODE 1SS355
D115 (B,66 ,143 ) DIODE 1SS355
D116 (A,140 ,83 ) CHIP DIODE RB501V-40
D201 (B,18 ,18 ) DIODE DAN202U
D202 (B,115 ,157 ) CHIP DIODE RB501V-40
D451 (B,108 ,74 ) DIODE DAN217
D452 (B,108 ,79 ) DIODE DAN217
L101 (A,17 ,124 ) CHIP SOLID INDUCTOR ATL7002
L102 (B,34 ,16 ) CHIP SOLID INDUCTOR ATL7002
L181 (A,36 ,124 ) CHIP SOLID INDUCTOR QTL1013
L201 (A,129 ,98 ) CHIP SOLID INDUCTOR QTL1013
L301 (A,85 ,215 ) CHIP SOLID INDUCTOR QTL1013
L303 (A,99 ,208 ) CHIP SOLID INDUCTOR QTL1013
L304 (A,93 ,207 ) CHIP SOLID INDUCTOR QTL1013
L306 (A,75 ,171 ) CHIP SOLID INDUCTOR QTL1013
L307 (A,80 ,82 ) CHIP SOLID INDUCTOR QTL1013
L308 (A,63 ,193 ) CHIP SOLID INDUCTOR QTL1013
L314 (A,72 ,193 ) CHIP SOLID INDUCTOR QTL1013
L316 (A,81 ,193 ) CHIP SOLID INDUCTOR QTL1013
L481 (A,108 ,86 ) CHIP SOLID INDUCTOR QTL1013
L482 (A,89 ,79 ) CHIP SOLID INDUCTOR QTL1013
L551 (A,114 ,61 ) CHIP SOLID INDUCTOR QTL1013
L552 (A,128 ,48 ) CHIP SOLID INDUCTOR QTL1013
L651 (A,94 ,61 ) CHIP SOLID INDUCTOR QTL1013
L652 (A,107 ,48 ) CHIP SOLID INDUCTOR QTL1013
L751 (A,72 ,61 ) CHIP SOLID INDUCTOR QTL1013
L752 (A,86 ,48 ) CHIP SOLID INDUCTOR QTL1013
L851 (A,51 ,61 ) CHIP SOLID INDUCTOR QTL1013
L852 (A,65 ,48 ) CHIP SOLID INDUCTOR QTL1013
JA 301 (A,119 ,232 ) PIN JACK(2P) AKB7173
JA 302 (A,98 ,232 ) OPT. LINK IN AKS7001
JA 303 (A,84 ,232 ) OPT. LINK IN AKS7001
JA 304 (A,70 ,232 ) OPT. LINK IN AKS7001
JA 305 (A,57 ,232 ) OPT. LINK IN AKS7001
JA 307 (A,15 ,232 ) OPT. LINK OUT AKS7002
X101 (A,46 ,146 ) CERAMIC RESONATOR XSS3004
(15.7MHz)
X181 (A,44 ,114 ) CRYSTAL RESONATOR ASS7004
(4.332MHz)
X201 (A,114 ,121 ) CERAMIC RESONATOR XSS3004
(15.7MHz)
X301 (A,102 ,190 ) CRYSTAL RESONATOR XSS3003
(24.567MHz)
CN101 (A,70 ,7 ) 23P CONNECTOR 52045-2345
CN102 (A,142 ,19 ) 11P SOCKET XKP3076
CN103 (A,52 ,11 ) 19P CONNECTOR 52045-1945
CN104 (A,146 ,84 ) B TO B CONNCTOR BTEM16P-1R
CN105 (A,17 ,48 ) 23P SOCKET XKP3082
CN201 (A,146 ,191 ) 4P SOCKET KP200TA4L
CN301 (A,57 ,200 ) 26P PLUG AKM7054
CN302 (A,39 ,98 ) 26P PLUG AKM7054
Mark No. Description Part No.
CN304 (A,142 ,167 ) 23P SOCKET XKP3083
CN991 (A,146 ,25 ) B TO B CONNCTOR BTEM20P-1R
CN992 (A,146 ,55 ) B TO B CONNCTOR BTEM20P-1R
RESISTORS
R101 (A,45 ,17 ) RS1/16S105J
R102 (A,33 ,143 ) RAB4C101J
R103 (A,42 ,143 ) RAB4C101J
R104 (B,37 ,142 ) RS1/16S104J
R105 (A,35 ,143 ) RS1/16S101J
R106 (A,37 ,143 ) RS1/16S101J
R108 (B,41 ,147 ) RS1/16S512J
R111 (A,40 ,143 ) RS1/16S101J
R112 (B,45 ,153 ) RS1/16S101J
R113 (B,47 ,158 ) RS1/16S473J
R115 (A,54 ,143 ) RAB4C101J
R116 (A,58 ,143 ) RAB4C101J
R117 (B,54 ,150 ) RS1/16S104J
R119 (B,58 ,147 ) RS1/16S222J
R120 (A,61 ,143 ) RS1/16S101J
R121 (A,30 ,162 ) RS1/16S101J
R122 (B,36 ,153 ) RS1/16S474J
R123 (A,61 ,150 ) RAB4C101J
R124 (A,61 ,155 ) RAB4C101J
R126 (B,17 ,129 ) RS1/16S473J
R127 (B,51 ,155 ) RS1/16S104J
R128 (B,61 ,159 ) RS1/16S473J
R129 (A,61 ,158 ) RS1/16S473J
R131 (B,49 ,155 ) RS1/16S104J
R132 (A,61 ,162 ) RAB4C101J
R133 (A,61 ,166 ) RAB4C101J
R134 (B,61 ,163 ) RS1/16S473J
R135 (A,56 ,171 ) RS1/16S101J
R136 (B,19 ,132 ) RS1/16S471J
R137 (A,32 ,158 ) RAB4C101J
R138 (B,38 ,158 ) RS1/16S474J
R139 (B,36 ,158 ) RS1/16S104J
R140 (B,53 ,155 ) RS1/16S474J
R142 (B,38 ,153 ) RS1/16S473J
R143 (B,43 ,158 ) RS1/16S473J
R145 (A,31 ,148 ) RS1/16S101J
R146 (B,46 ,179 ) RS1/16S104J
R147 (B,36 ,178 ) RS1/16S473J
R149 (B,91 ,93 ) RS1/16S473J
R150 (B,89 ,93 ) RS1/16S473J
R151 (B,50 ,150 ) RS1/16S104J
R153 (B,31 ,129 ) RS1/16S471J
R154 (B,29 ,129 ) RS1/16S473J
R155 (B,21 ,132 ) RS1/16S102J
R156 (B,24 ,129 ) RS1/16S473J
R157 (B,16 ,145 ) RS1/16S470J
R161 (B,54 ,17 ) RS1/16S105J
R162 (B,56 ,12 ) RS1/16S223J
R164 (A,20 ,150 ) RS1/16S104J
R165 (B,33 ,163 ) RS1/16S101J
R166 (B,88 ,116 ) RS1/16S104J
R167 (B,94 ,110 ) RS1/16S104J
R168 (B,90 ,112 ) RS1/16S104J
R169 (B,85 ,129 ) RS1/16S104J
R170 (B,85 ,140 ) RS1/16S104J
Mark No. Description Part No.
VSX-AX4AVi-S
164
1234
1234
C
D
F
A
B
E
R171 (A,80 ,133 ) RS1/16S101J
R172 (B,83 ,129 ) RS1/16S104J
R174 (B,50 ,143 ) RS1/16S101J
R176 (A,83 ,144 ) RS1/16S101J
R177 (B,75 ,146 ) RS1/16S0R0J
R178 (A,87 ,145 ) RS1/16S0R0J
R179 (B,25 ,143 ) RS1/16S103J
R180 (B,27 ,153 ) RS1/16S222J
R181 (A,34 ,125 ) RS1/16S473J
R182 (A,33 ,123 ) RS1/16S222J
R183 (A,47 ,126 ) RS1/16S102J
R184 (B,46 ,129 ) RS1/16S102J
R185 (A,47 ,123 ) RS1/16S102J
R186 (A,50 ,143 ) RS1/16S101J
R187 (A,51 ,143 ) RS1/16S101J
R188 (B,29 ,153 ) RS1/16S103J
R191 (B,106 ,129 ) RS1/16S473J
R192 (B,121 ,131 ) RS1/16S473J
R195 (B,123 ,131 ) RS1/16S473J
R197 (B,83 ,140 ) RS1/16S182J
R198 (A,86 ,153 ) RS1/16S0R0J
R199 (A,137 ,149 ) RESISTOR ARRAY RAB4C104J
R201 (A,102 ,125 ) RAB4C101J
R202 (A,106 ,121 ) RAB4C101J
R203 (B,108 ,129 ) RS1/16S472J
R204 (B,108 ,133 ) RS1/16S473J
R205 (A,109 ,121 ) RS1/16S101J
R206 (B,111 ,130 ) RS1/16S101J
R207 (B,113 ,130 ) RS1/16S473J
R208 (B,115 ,130 ) RS1/16S473J
R209 (A,119 ,118 ) RAB4C101J
R210 (A,124 ,122 ) RAB4C101J
R211 (A,124 ,118 ) RAB4C473J
R214 (A,127 ,127 ) RAB4C101J
R215 (A,127 ,129 ) RS1/16S101J
R216 (A,127 ,131 ) RS1/16S101J
R217 (A,121 ,114 ) RS1/16S473J
R218 (A,127 ,133 ) RAB4C101J
R219 (B,90 ,116 ) RS1/16S104J
R220 (A,127 ,136 ) RS1/16S101J
R221 (B,117 ,133 ) RS1/16S473J
R222 (A,127 ,137 ) RS1/16S473J
R223 (B,118 ,138 ) RS1/16S473J
R224 (B,131 ,139 ) RS1/16S101J
R225 (A,127 ,140 ) RS1/16S101J
R226 (B,133 ,139 ) RS1/16S101J
R227 (A,102 ,133 ) RAB4C101J
R229 (B,112 ,138 ) RS1/16S473J
R230 (B,104 ,129 ) RS1/16S101J
R231 (A,22 ,147 ) RS1/16S104J
R232 (B,115 ,153 ) RS1/16S104J
R234 (B,104 ,151 ) RS1/16S473J
R237 (A,134 ,99 ) RS1/16S473J
R238 (A,133 ,114 ) RAB4C473J
R239 (B,114 ,105 ) RS1/16S104J
R240 (B,116 ,105 ) RS1/16S104J
R241 (A,109 ,115 ) RS1/16S101J
R242 (A,29 ,176 ) RS1/16S104J
R243 (A,29 ,177 ) RS1/16S104J
R244 (B,108 ,138 ) RS1/16S473J
Mark No. Description Part No.
R246 (B,89 ,140 ) RS1/16S104J
R247 (B,87 ,140 ) RS1/16S104J
R248 (B,96 ,139 ) RS1/16S104J
R249 (B,94 ,140 ) RS1/16S104J
R250 (B,104 ,147 ) RS1/16S104J
R251 (B,115 ,140 ) RS1/16S104J
R252 (B,106 ,143 ) RS1/16S104J
R253 (A,86 ,150 ) RS1/16S104J
R254 (B,78 ,129 ) RS1/16S0R0J
R256 (A,102 ,138 ) RS1/16S101J
R258 (A,111 ,121 ) RS1/16S101J
R259 (B,19 ,30 ) RS1/16S222J
R267 (B,41 ,225 ) RS1/16S0R0J
R268 (B,44 ,225 ) RS1/16S0R0J
R269 (A,51 ,209 ) RS1/16S0R0J
R270 (A,50 ,206 ) RS1/16S0R0J
R271 (B,21 ,30 ) RS1/16S473J
R274 (A,124 ,114 ) RS1/16S0R0J
R275 (A,123 ,114 ) RS1/16S0R0J
R276 (B,129 ,216 ) RS1/16S0R0J
R300 (A,25 ,172 ) RS1/16S0R0J
R301 (B,96 ,220 ) RS1/16S101J
R302 (B,83 ,219 ) RS1/16S101J
R303 (B,69 ,219 ) RS1/16S101J
R304 (B,56 ,219 ) RS1/16S101J
R307 (B,127 ,223 ) RS1/16S750J
R308 (B,116 ,223 ) RS1/16S750J
R309 (B,125 ,219 ) RS1/16S100J
R310 (B,112 ,223 ) RS1/16S100J
R320 (A,96 ,201 ) RS1/16S101J
R321 (A,114 ,198 ) RS1/16S1802F
R322 (A,93 ,193 ) RS1/16S470J
R323 (A,95 ,193 ) RS1/16S101J
R324 (B,91 ,193 ) RS1/16S101J
R325 (B,93 ,193 ) RS1/16S101J
R326 (B,95 ,193 ) RS1/16S101J
R327 (A,108 ,191 ) RS1/16S221J
R328 (A,110 ,191 ) RAB4C221J
R329 (A,113 ,191 ) RS1/16S101J
R330 (A,114 ,194 ) RS1/16S0R0J
R332 (B,31 ,190 ) RS1/16S0R0J
R338 (A,86 ,159 ) RS1/16S0R0J
R342 (A,91 ,159 ) RS1/16S0R0J
R346 (A,91 ,178 ) RS1/16S0R0J
R350 (A,86 ,178 ) RS1/16S0R0J
R351 (A,74 ,161 ) RS1/16S101J
R352 (A,75 ,161 ) RS1/16S101J
R353 (A,77 ,161 ) RS1/16S470J
R356 (A,81 ,161 ) RS1/16S470J
R359 (A,82 ,175 ) RS1/16S470J
R360 (A,75 ,175 ) RS1/16S101J
R361 (A,76 ,175 ) RS1/16S101J
R362 (A,78 ,175 ) RS1/16S470J
R366 (A,102 ,167 ) RS1/16S0R0J
R370 (A,107 ,167 ) RS1/16S0R0J
R374 (A,107 ,185 ) RS1/16S0R0J
R378 (A,103 ,183 ) RS1/16S0R0J
R382 (A,121 ,166 ) RS1/16S0R0J
R386 (A,125 ,166 ) RS1/16S0R0J
R390 (A,124 ,185 ) RS1/16S0R0J
Mark No. Description Part No.
VSX-AX4AVi-S 165
5678
5678
C
D
F
A
B
E
R416 (B,70 ,117 ) RS1/16S0R0J
R418 (B,74 ,117 ) RS1/16S0R0J
R426 (B,68 ,192 ) RS1/16S101J
R427 (B,66 ,192 ) RS1/16S101J
R428 (A,70 ,196 ) RS1/16S220J
R429 (A,66 ,196 ) RS1/16S470J
R430 (A,69 ,206 ) RS1/16S473J
R431 (A,137 ,161 ) RESISTOR ARRAY RAB4C104J
R432 (A,137 ,157 ) RESISTOR ARRAY RAB4C104J
R439 (A,69 ,184 ) RS1/16S0R0J
R440 (A,66 ,184 ) RS1/16S101J
R441 (A,70 ,184 ) RS1/16S470J
R442 (A,67 ,184 ) RS1/16S470J
R443 (A,75 ,184 ) RS1/16S0R0J
R444 (A,78 ,184 ) RS1/16S0R0J
R445 (B,78 ,195 ) RS1/16S0R0J
R446 (B,73 ,195 ) RS1/16S0R0J
R447 (A,76 ,184 ) RS1/16S470J
R448 (A,79 ,184 ) RS1/16S470J
R449 (B,74 ,188 ) RS1/16S470J
R450 (B,76 ,188 ) RS1/16S470J
R453 (A,130 ,73 ) RS1/16S752J
R454 (A,130 ,80 ) RS1/16S752J
R455 (A,130 ,75 ) RS1/16S822J
R456 (A,130 ,78 ) RS1/16S822J
R457 (B,128 ,71 ) RS1/16S392J
R458 (B,128 ,82 ) RS1/16S392J
R461 (A,137 ,76 ) RS1/16S223J
R462 (A,137 ,77 ) RS1/16S223J
R463 (B,122 ,72 ) RS1/16S104J
R464 (B,122 ,81 ) RS1/16S104J
R465 (A,108 ,73 ) RS1/16S101J
R466 (A,108 ,79 ) RS1/16S101J
R472 (B,95 ,114 ) RS1/16S0R0J
R473 (B,97 ,114 ) RS1/16S0R0J
R474 (B,139 ,118 ) RS1/16S0R0J
R475 (B,137 ,118 ) RS1/16S0R0J
R480 (A,144 ,172 ) RS1/16S0R0J
R481 (B,99 ,82 ) RS1/16S101J
R482 (B,96 ,82 ) RS1/16S101J
R483 (A,91 ,76 ) RS1/16S101J
R484 (A,99 ,82 ) RS1/16S470J
R485 (A,98 ,82 ) RS1/16S101J
R487 (A,137 ,74 ) RS1/16S104J
R491 (A,83 ,184 ) RS1/16S101J
R493 (B,87 ,193 ) RS1/16S101J
R494 (B,85 ,193 ) RS1/16S470J
R495 (A,85 ,184 ) RS1/16S470J
R496 (A,88 ,184 ) RS1/16S470J
R497 (B,89 ,193 ) RS1/16S470J
R499 (A,23 ,98 ) RS1/16S0R0J
R501 (A,127 ,40 ) RS1/16S222J
R502 (A,111 ,40 ) RS1/16S222J
R503 (A,124 ,40 ) RS1/16S222J
R504 (A,115 ,40 ) RS1/16S222J
R505 (B,127 ,36 ) RS1/16S362J
R506 (B,111 ,36 ) RS1/16S362J
R507 (B,125 ,36 ) RS1/16S101J
R508 (B,113 ,36 ) RS1/16S101J
R509 (A,127 ,34 ) RS1/16S362J
Mark No. Description Part No.
R510 (A,111 ,34 ) RS1/16S362J
R511 (A,127 ,36 ) RS1/16S101J
R512 (A,111 ,36 ) RS1/16S101J
R513 (A,127 ,37 ) RS1/16S122J
R514 (A,111 ,37 ) RS1/16S122J
R515 (A,125 ,38 ) RS1/16S122J
R516 (A,114 ,38 ) RS1/16S122J
R517 (B,121 ,31 ) RS1/16S474J
R518 (B,117 ,31 ) RS1/16S474J
R519 (B,123 ,26 ) RS1/16S221J
R520 (B,115 ,26 ) RS1/16S221J
R551 (A,112 ,54 ) RS1/16S101J
R552 (A,112 ,58 ) RS1/16S101J
R553 (A,112 ,56 ) RS1/16S101J
R554 (A,112 ,59 ) RS1/16S0R0J
R558 (A,127 ,59 ) RS1/16S221J
R559 (A,127 ,58 ) RS1/16S221J
R560 (A,127 ,56 ) RS1/16S221J
R561 (A,112 ,53 ) RS1/16S221J
R562 (B,120 ,55 ) RS1/16S0R0J
R563 (B,122 ,55 ) RS1/16S0R0J
R564 (B,116 ,55 ) RS1/16S0R0J
R601 (A,106 ,40 ) RS1/16S222J
R602 (A,90 ,40 ) RS1/16S222J
R603 (A,103 ,40 ) RS1/16S222J
R604 (A,94 ,40 ) RS1/16S222J
R605 (B,106 ,36 ) RS1/16S302J
R606 (B,90 ,36 ) RS1/16S682J
R607 (B,104 ,36 ) RS1/16S101J
R608 (B,92 ,36 ) RS1/16S101J
R609 (A,106 ,34 ) RS1/16S302J
R610 (A,90 ,34 ) RS1/16S682J
R611 (A,106 ,36 ) RS1/16S101J
R612 (A,90 ,36 ) RS1/16S101J
R613 (A,106 ,37 ) RS1/16S152J
R614 (A,90 ,37 ) RS1/16S102J
R615 (A,104 ,38 ) RS1/16S152J
R616 (A,93 ,38 ) RS1/16S102J
R617 (B,100 ,31 ) RS1/16S474J
R618 (B,96 ,31 ) RS1/16S474J
R619 (B,102 ,26 ) RS1/16S221J
R620 (B,94 ,26 ) RS1/16S221J
R651 (A,91 ,54 ) RS1/16S101J
R652 (A,91 ,58 ) RS1/16S101J
R653 (A,91 ,56 ) RS1/16S101J
R654 (A,91 ,59 ) RS1/16S0R0J
R658 (A,106 ,59 ) RS1/16S221J
R659 (A,106 ,58 ) RS1/16S221J
R660 (A,106 ,56 ) RS1/16S221J
R661 (A,91 ,53 ) RS1/16S221J
R662 (B,99 ,55 ) RS1/16S0R0J
R663 (B,101 ,55 ) RS1/16S0R0J
R664 (B,95 ,55 ) RS1/16S0R0J
R701 (A,85 ,40 ) RS1/16S222J
R702 (A,69 ,40 ) RS1/16S222J
R703 (A,82 ,40 ) RS1/16S222J
R704 (A,73 ,40 ) RS1/16S222J
R705 (B,85 ,36 ) RS1/16S302J
R706 (B,69 ,36 ) RS1/16S302J
R707 (B,83 ,36 ) RS1/16S101J
Mark No. Description Part No.
VSX-AX4AVi-S
166
1234
1234
C
D
F
A
B
E
R708 (B,71 ,36 ) RS1/16S101J
R709 (A,85 ,34 ) RS1/16S302J
R710 (A,69 ,34 ) RS1/16S302J
R711 (A,85 ,36 ) RS1/16S101J
R712 (A,69 ,36 ) RS1/16S101J
R713 (A,85 ,37 ) RS1/16S152J
R714 (A,69 ,37 ) RS1/16S152J
R715 (A,83 ,38 ) RS1/16S152J
R716 (A,72 ,38 ) RS1/16S152J
R717 (B,79 ,31 ) RS1/16S474J
R718 (B,75 ,31 ) RS1/16S474J
R719 (B,81 ,26 ) RS1/16S221J
R720 (B,73 ,26 ) RS1/16S221J
R751 (A,70 ,54 ) RS1/16S101J
R752 (A,70 ,58 ) RS1/16S101J
R753 (A,70 ,56 ) RS1/16S101J
R754 (A,70 ,59 ) RS1/16S0R0J
R758 (A,85 ,59 ) RS1/16S221J
R759 (A,85 ,58 ) RS1/16S221J
R760 (A,85 ,56 ) RS1/16S221J
R761 (A,70 ,53 ) RS1/16S221J
R762 (B,78 ,55 ) RS1/16S0R0J
R763 (B,80 ,55 ) RS1/16S0R0J
R764 (B,74 ,55 ) RS1/16S0R0J
R801 (A,64 ,40 ) RS1/16S222J
R802 (A,48 ,40 ) RS1/16S222J
R803 (A,61 ,40 ) RS1/16S222J
R804 (A,52 ,40 ) RS1/16S222J
R805 (B,64 ,36 ) RS1/16S302J
R806 (B,48 ,36 ) RS1/16S302J
R807 (B,62 ,36 ) RS1/16S101J
R808 (B,50 ,36 ) RS1/16S101J
R809 (A,64 ,34 ) RS1/16S302J
R810 (A,48 ,34 ) RS1/16S302J
R811 (A,64 ,36 ) RS1/16S101J
R812 (A,48 ,36 ) RS1/16S101J
R813 (A,64 ,37 ) RS1/16S152J
R814 (A,48 ,37 ) RS1/16S152J
R815 (A,62 ,38 ) RS1/16S152J
R816 (A,51 ,38 ) RS1/16S152J
R817 (B,58 ,31 ) RS1/16S474J
R818 (B,54 ,31 ) RS1/16S474J
R819 (B,60 ,26 ) RS1/16S221J
R820 (B,52 ,26 ) RS1/16S221J
R851 (A,49 ,54 ) RS1/16S101J
R852 (A,49 ,58 ) RS1/16S101J
R853 (A,49 ,56 ) RS1/16S101J
R854 (A,49 ,59 ) RS1/16S0R0J
R858 (A,64 ,59 ) RS1/16S221J
R859 (A,64 ,58 ) RS1/16S221J
R860 (A,64 ,56 ) RS1/16S221J
R861 (A,49 ,53 ) RS1/16S221J
R864 (B,53 ,55 ) RS1/16S0R0J
R950 (A,43 ,55 ) RS1/16S0R0J
R972 (A,50 ,73 ) RS1/16S0R0J
R973 (A,52 ,73 ) RS1/16S470J
R975 (A,53 ,73 ) RS1/16S101J
R976 (A,55 ,73 ) RS1/16S101J
R977 (A,56 ,73 ) RS1/16S470J
R980 (A,54 ,85 ) RS1/16S0R0J
Mark No. Description Part No.
R981 (A,56 ,85 ) RS1/16S470J
R984 (A,61 ,73 ) RS1/16S0R0J
R985 (A,62 ,73 ) RS1/16S470J
R988 (A,65 ,73 ) RS1/16S0R0J
R989 (A,67 ,73 ) RS1/16S470J
R990 RS1/16S0R0J
R992 (A,65 ,85 ) RS1/16S0R0J
R993 (A,67 ,85 ) RS1/16S470J
R994 (A,59 ,85 ) RS1/16S0R0J
R997 RS1/16S0R0J
R998 (A,50 ,85 ) RS1/16S101J
R999 (A,51 ,85 ) RS1/16S220J
R9983 RS1/16S0R0J
R9984 RS1/16S0R0J
R9989 RS1/16S0R0J
R9990 RS1/16S0R0J
CAPACITORS
C101 (B,14 ,38 ) CKSRYB103K50
C102 (A,11 ,38 ) ELECTR.CAPACITOR CEAT102M10
C103 (A,18 ,126 ) CKSRYB103K50
C105 (A,33 ,148 ) CKSRYB104K16
C106 (A,34 ,148 ) CKSRYB471K50
C108 (A,46 ,141 ) CKSRYB104K16
C109 (A,46 ,143 ) CKSRYB471K50
C110 (A,59 ,148 ) CKSRYB104K16
C111 (A,57 ,148 ) CKSRYB471K50
C114 (A,45 ,170 ) CKSRYB104K16
C115 (A,45 ,169 ) CKSRYB471K50
C116 (A,33 ,181 ) CKSRYB104K16
C117 (A,34 ,181 ) CKSRYB471K50
C118 (A,86 ,94 ) CKSRYB104K16
C120 (B,26 ,129 ) CKSRYB472K50
C121 (B,21 ,129 ) CKSRYB103K50
C122 (A,16 ,141 ) CEAT471M6R3
C123 (B,52 ,17 ) CKSRYB473K25
C124 (B,46 ,17 ) CKSRYB473K25
C125 (A,62 ,13 ) CEAT100M50
C126 (A,18 ,147 ) CKSRYB105K10
C127 (B,19 ,129 ) CKSRYB472K50
C128 (A,85 ,114 ) CKSRYB104K16
C130 (A,59 ,133 ) CKSRYB104K16
C131 (A,79 ,138 ) CKSRYB104K16
C132 (A,59 ,122 ) CKSRYB104K16
C133 (A,93 ,17 ) CKSRYB104K16
C135 (B,48 ,150 ) CKSRYB472K50
C181 (A,47 ,134 ) CEJQ2R2M50
C183 (A,38 ,129 ) CKSRYB561K50
C184 (A,38 ,134 ) CEJQ101M10
C185 (A,40 ,119 ) CKSRYB102K50
C186 (B,40 ,118 ) CCSRCH270J50
C187 (B,43 ,118 ) CCSRCH270J50
C190 (B,44 ,129 ) CKSRYB472K50
C202 (A,114 ,116 ) CKSRYB104K16
C203 (A,114 ,118 ) CKSRYB471K50
C204 (A,115 ,145 ) CKSRYB104K16
C205 (A,115 ,143 ) CKSRYB471K50
C206 (A,101 ,129 ) CKSRYB104K16
C207 (A,103 ,129 ) CKSRYB471K50
Mark No. Description Part No.
VSX-AX4AVi-S 167
5678
5678
C
D
F
A
B
E
C208 (A,15 ,17 ) ELECTR.CAPACITOR CEAT102M10
C209 (A,101 ,155 ) CKSRYB104K16
C210 (A,102 ,155 ) CKSRYB471K50
C211 (A,129 ,108 ) CKSRYB104K16
C212 (A,103 ,109 ) CKSRYB104K16
C213 (A,111 ,108 ) CKSRYB104K16
C215 (A,80 ,127 ) CKSRYB104K16
C216 (A,88 ,127 ) CKSRYB104K16
C217 (A,87 ,138 ) CKSRYB104K16
C219 (A,88 ,150 ) CKSRYB104K16
C221 (A,129 ,89 ) CKSRYB104K16
C222 (A,131 ,93 ) CEAT331M10
C301 (A,79 ,214 ) CEJQ101M10
C302 (B,99 ,220 ) CKSRYB104K16
C303 (B,86 ,219 ) CKSRYB104K16
C304 (B,72 ,219 ) CKSRYB104K16
C305 (B,59 ,219 ) CKSRYB104K16
C307 (B,15 ,219 ) CKSRYB104K16
C308 (B,127 ,219 ) CKSRYB103K50
C309 (B,114 ,223 ) CKSRYB103K50
C319 (A,119 ,195 ) CEJQ101M6R3
C320 (A,114 ,195 ) CKSRYB104K16
C321 (A,114 ,197 ) CKSRYB471K50
C322 (A,96 ,216 ) CEJQ101M10
C323 (A,98 ,205 ) CKSRYB104K16
C324 (A,98 ,204 ) CKSRYB471K50
C325 (A,88 ,210 ) CEJQ101M6R3
C326 (A,97 ,197 ) CKSRYB104K16
C327 (A,99 ,197 ) CKSRYB471K50
C328 (A,100 ,193 ) CCSRCH120J50
C329 (A,103 ,193 ) CCSRCH120J50
C330 (A,114 ,200 ) CKSRYB474K10
C332 (A,19 ,205 ) CEAT101M10
C340 (A,74 ,168 ) CKSRYB104K16
C341 (A,75 ,168 ) CKSRYB471K50
C346 (A,84 ,79 ) CEAT331M10
C352 (A,61 ,190 ) CKSRYB104K16
C353 (A,63 ,190 ) CKSRYB471K50
C354 (A,66 ,94 ) CKSRYB104K16
C357 (A,144 ,187 ) CKSRYB104K16
C358 (A,136 ,193 ) CEAT331M10
C359 (A,71 ,190 ) CKSRYB104K16
C360 (A,73 ,190 ) CKSRYB471K50
C361 (A,80 ,190 ) CKSRYB104K16
C362 (A,82 ,190 ) CKSRYB471K50
C363 (A,47 ,79 ) CKSRYB104K16
C364 (A,49 ,79 ) CKSRYB471K50
C365 (A,59 ,79 ) CKSRYB104K16
C366 (A,60 ,79 ) CKSRYB471K50
C371 (B,141 ,172 ) CKSRYB104K16
C372 (B,143 ,172 ) CKSRYB472K50
C379 (A,139 ,141 ) CKSRYB104K16
C380 (B,142 ,194 ) CKSRYB104K16
C451 (A,125 ,71 ) CEAT100M50
C452 (A,125 ,82 ) CEAT100M50
C453 (A,112 ,74 ) CEAT100M50
C454 (A,112 ,80 ) CEAT100M50
C455 (A,108 ,75 ) CKSRYB103K50
C456 (A,108 ,78 ) CKSRYB103K50
C481 (A,115 ,77 ) CKSRYB103K50
Mark No. Description Part No.
C482 (A,123 ,76 ) CKSRYB103K50
C483 (A,104 ,69 ) CEAT101M10
C484 (A,99 ,72 ) CKSRYB104K16
C485 (A,92 ,69 ) CEAT101M10
C486 (A,96 ,72 ) CKSRYB104K16
C487 (A,105 ,84 ) CEAT101M10
C488 (A,104 ,77 ) CKSRYB104K16
C489 (A,91 ,80 ) CKSRYB471K50
C490 (A,91 ,78 ) CKSRYB104K16
C491 (A,90 ,83 ) CEAT101M10
C501 (A,127 ,39 ) CKSRYB102K50
C502 (A,111 ,39 ) CKSRYB102K50
C503 (B,123 ,36 ) CCSRCH331J50
C504 (B,115 ,36 ) CCSRCH331J50
C505 (A,125 ,35 ) CCSRCH331J50
C506 (A,114 ,35 ) CCSRCH331J50
C507 (A,127 ,30 ) CEAT100M50
C508 (A,111 ,30 ) CEAT100M50
C509 (B,121 ,26 ) CKSRYB472K50
C510 (B,117 ,26 ) CKSRYB472K50
C551 (A,119 ,31 ) CKSRYB103K50
C552 (A,120 ,39 ) CKSRYB103K50
C553 (A,118 ,64 ) CEAT101M10
C554 (A,112 ,51 ) CKSRYB104K16
C555 (A,119 ,59 ) CKSRYB103K50
C556 (A,127 ,44 ) CEAT101M10
C557 (A,125 ,48 ) CKSRYB104K16
C558 (A,125 ,50 ) CKSRYB104K16
C559 (A,112 ,49 ) CKSRYB104K16
C560 (A,111 ,44 ) CEAT101M10
C561 (B,111 ,47 ) CKSRYB104K16
C601 (A,106 ,39 ) CKSRYB102K50
C602 (A,90 ,39 ) CKSRYB102K50
C603 (B,102 ,36 ) CCSRCH331J50
C604 (B,94 ,36 ) CCSRCH221J50
C605 (A,104 ,35 ) CCSRCH331J50
C606 (A,93 ,35 ) CCSRCH221J50
C607 (A,106 ,30 ) CEAT100M50
C608 (A,90 ,30 ) CEAT100M50
C609 (B,100 ,26 ) CKSRYB472K50
C610 (B,96 ,26 ) CKSRYB472K50
C651 (A,98 ,31 ) CKSRYB103K50
C652 (A,99 ,39 ) CKSRYB103K50
C653 (A,97 ,64 ) CEAT101M10
C654 (A,91 ,51 ) CKSRYB104K16
C655 (A,98 ,59 ) CKSRYB103K50
C656 (A,106 ,44 ) CEAT101M10
C657 (A,104 ,48 ) CKSRYB104K16
C658 (A,104 ,50 ) CKSRYB104K16
C659 (A,91 ,49 ) CKSRYB104K16
C660 (A,90 ,44 ) CEAT101M10
C661 (B,90 ,47 ) CKSRYB104K16
C701 (A,85 ,39 ) CKSRYB102K50
C702 (A,69 ,39 ) CKSRYB102K50
C703 (B,81 ,36 ) CCSRCH331J50
C704 (B,73 ,36 ) CCSRCH331J50
C705 (A,83 ,35 ) CCSRCH331J50
C706 (A,72 ,35 ) CCSRCH331J50
C707 (A,85 ,30 ) CEAT100M50
C708 (A,69 ,30 ) CEAT100M50
Mark No. Description Part No.
VSX-AX4AVi-S
168
1234
1234
C
D
F
A
B
E
C709 (B,79 ,26 ) CKSRYB472K50
C710 (B,75 ,26 ) CKSRYB472K50
C751 (A,77 ,31 ) CKSRYB103K50
C752 (A,78 ,39 ) CKSRYB103K50
C753 (A,76 ,64 ) CEAT101M10
C754 (A,70 ,51 ) CKSRYB104K16
C755 (A,77 ,59 ) CKSRYB103K50
C756 (A,85 ,44 ) CEAT101M10
C757 (A,83 ,48 ) CKSRYB104K16
C758 (A,83 ,50 ) CKSRYB104K16
C759 (A,70 ,49 ) CKSRYB104K16
C760 (A,69 ,44 ) CEAT101M10
C761 (B,69 ,47 ) CKSRYB104K16
C801 (A,64 ,39 ) CKSRYB102K50
C802 (A,48 ,39 ) CKSRYB102K50
C803 (B,60 ,36 ) CCSRCH331J50
C804 (B,52 ,36 ) CCSRCH331J50
C805 (A,62 ,35 ) CCSRCH331J50
C806 (A,51 ,35 ) CCSRCH331J50
C807 (A,64 ,30 ) CEAT100M50
C808 (A,48 ,30 ) CEAT100M50
C809 (B,58 ,26 ) CKSRYB472K50
C810 (B,54 ,26 ) CKSRYB472K50
C851 (A,56 ,31 ) CKSRYB103K50
C852 (A,57 ,39 ) CKSRYB103K50
C853 (A,55 ,64 ) CEAT101M10
C854 (A,49 ,51 ) CKSRYB104K16
C855 (A,56 ,59 ) CKSRYB103K50
C856 (A,64 ,44 ) CEAT101M10
C857 (A,62 ,48 ) CKSRYB104K16
C858 (A,62 ,50 ) CKSRYB104K16
C859 (A,49 ,49 ) CKSRYB104K16
C860 (A,48 ,44 ) CEAT101M10
C861 (B,48 ,47 ) CKSRYB104K16
C979 (B,31 ,70 ) CKSRYB472K50
C980 (B,95 ,77 ) CKSRYB472K50
C981 (B,67 ,15 ) CKSRYB104K16
C982 (B,65 ,15 ) CKSRYB471K50
C985 (B,93 ,77 ) CKSRYB104K16
C986 (B,91 ,77 ) CKSRYB471K50
C987 (B,34 ,70 ) CKSRYB104K16
C988 (B,32 ,70 ) CKSRYB471K50
C991 (A,140 ,57 ) CKSRYB104K16
C992 (A,134 ,64 ) CEAT101M10
C993 (B,137 ,68 ) CKSRYB473K25
C994 (B,137 ,72 ) CKSRYB473K25
MDSP ASSY
MISCELLANEOUS
IC 101 (A,35 ,60 ) DSP IC
ADSP-21266SKSTZ-2D
IC 102 (B,32 ,38 ) LOGIC IC (LATCHES) TC74VHC573FTS1
IC 103 (B,45 ,38 ) LOGIC IC (LATCHES) TC74VHC573FTS1
IC 104 (A,42 ,22 ) 2 TO 4 LINE DECODER TC7W139FU
IC 105 (B,42 ,17 ) FLASH ROM AYW7081
IC1 FLASH MEMORY IC
S29AL016D70TFI010
IC 106 (A,25 ,17 ) SRAM(4M)
CY7C1049C3312VXC
IC 107 (B,16 ,60 ) LOGIC IC SN74AHC08PW
IC 109 (A,40 ,15 ) LOGIC IC
SN74AHC1G32DCK
IC 201 (B,62 ,57 ) DSP IC DSPC56371AF180
Mark No. Description Part No.
IC 301 (A,70 ,41 ) LOGIC IC TC7WHU04FU
>IC 351 (B,17 ,34 ) IC NJM2391DL1-33
>IC 352 (B,31 ,89 ) REGULATOR IC BA00HC5FP
>IC 354 (A,51 ,11 ) IC NJM2391DL1-33
>IC 355 (A,63 ,11 ) REGULATOR IC LM1117DT-ADJ
Q201 (A,53 ,62 ) TRANSISTOR RT1N241M
Q301 (A,65 ,33 ) TRANSISTOR UN5212
L101 (A,27 ,82 ) CHIP SOLID INDUCTOR ATL7002
L102 (B,15 ,76 ) CHIP SOLID INDUCTOR QTL1013
L103 (B,27 ,31 ) CHIP SOLID INDUCTOR QTL1013
L104 (B,38 ,32 ) CHIP SOLID INDUCTOR QTL1013
L105 (A,37 ,19 ) CHIP SOLID INDUCTOR QTL1013
L106 (A,37 ,18 ) CHIP SOLID INDUCTOR QTL1013
L107 (B,11 ,71 ) CHIP SOLID INDUCTOR QTL1013
L108 (A,12 ,13 ) CHIP SOLID INDUCTOR QTL1013
L201 (B,60 ,27 ) CHIP SOLID INDUCTOR QTL1013
L202 (A,51 ,37 ) CHIP SOLID INDUCTOR QTL1013
L203 (A,55 ,51 ) CHIP SOLID INDUCTOR QTL1013
L301 (A,77 ,39 ) CHIP SOLID INDUCTOR QTL1013
X301 (A,72 ,33 ) CRYSTAL RESONATOR VSS1171
(20MHz)
CN351 (A,11 ,51 ) 26P SOCKET AKP7198
CN352 (A,112 ,69 ) 26P SOCKET AKP7198
RESISTORS
R101 (A,23 ,47 ) RAB4C472J
R102 (B,29 ,48 ) RS1/16S101J
R103 (B,34 ,48 ) RAB4C470J
R104 (B,38 ,48 ) RAB4C470J
R105 (A,45 ,46 ) RS1/16S220J
R106 (B,48 ,51 ) RS1/16S100J
R107 (B,49 ,46 ) RS1/16S470J
R108 (B,42 ,47 ) RAB4C470J
R109 (B,46 ,47 ) RAB4C470J
R111 (B,50 ,70 ) RAB4C220J
R113 (B,42 ,77 ) RAB4C101J
R116 (B,38 ,77 ) RS1/16S220J
R117 (B,36 ,77 ) RS1/16S220J
R118 (B,32 ,76 ) RS1/16S101J
R119 (B,32 ,78 ) RS1/16S101J
R120 (B,28 ,73 ) RS1/16S101J
R122 (B,26 ,65 ) RS1/16S101J
R123 (B,24 ,63 ) RS1/16S101J
R124 (B,24 ,61 ) RS1/16S101J
R125 (B,24 ,54 ) RS1/16S101J
R126 (B,25 ,57 ) RS1/16S101J
R127 (B,29 ,58 ) RS1/16S100J
R130 (A,12 ,29 ) RAB4C472J
R131 (B,31 ,56 ) RS1/16S101J
R132 (B,30 ,32 ) RAB4C470J
R133 (B,34 ,32 ) RAB4C470J
R134 (B,47 ,32 ) RAB4C470J
R135 (B,44 ,32 ) RS1/16S470J
R136 (A,37 ,20 ) RS1/16S470J
R137 (A,37 ,22 ) RS1/16S470J
R139 (A,45 ,16 ) RS1/16S473J
R140 (A,48 ,25 ) RS1/16S473J
R141 (B,13 ,53 ) RS1/16S101J
R142 (B,13 ,55 ) RS1/16S101J
R144 (B,21 ,58 ) RS1/16S220J
Mark No. Description Part No.
VSX-AX4AVi-S 169
5678
5678
C
D
F
A
B
E
R145 (B,21 ,61 ) RS1/16S220J
R147 (B,11 ,65 ) RS1/16S101J
R148 (B,11 ,62 ) RS1/16S101J
R149 (B,19 ,66 ) RS1/16S220J
R150 (B,15 ,66 ) RS1/16S220J
R151 (A,45 ,15 ) RS1/16S470J
R158 (A,45 ,13 ) RS1/16S472J
R159 (B,34 ,58 ) RS1/16S472J
R160 (B,33 ,71 ) RS1/16S472J
R161 (B,30 ,71 ) RS1/16S472J
R202 (A,66 ,74 ) RAB4C103J
R203 (A,70 ,57 ) RS1/16S473J
R206 (B,56 ,38 ) RS1/16S473J
R207 (A,66 ,58 ) RS1/16S101J
R208 (A,62 ,58 ) RAB4C101J
R210 (A,60 ,54 ) RS1/16S103J
R211 (A,58 ,51 ) RS1/16S101J
R213 (B,47 ,60 ) RS1/16S101J
R215 (A,53 ,55 ) RS1/16S472J
R224 (B,56 ,71 ) RAB4C101J
R229 (A,63 ,65 ) RS1/16S101J
R230 (B,68 ,69 ) RS1/16S101J
R231 (B,69 ,69 ) RS1/16S220J
R232 (B,70 ,69 ) RS1/16S101J
R233 (B,71 ,69 ) RS1/16S220J
R235 (A,62 ,74 ) RAB4C220J
R236 (B,58 ,74 ) RS1/16S0R0J
R237 (B,54 ,75 ) RS1/16S0R0J
R238 (B,70 ,73 ) RS1/16S0R0J
R239 (B,73 ,72 ) RS1/16S0R0J
R240 (A,70 ,54 ) RS1/16S101J
R301 (A,69 ,37 ) RS1/16S105J
R302 (A,73 ,37 ) RS1/16S152J
R303 (A,71 ,45 ) RS1/16S220J
R304 (A,65 ,41 ) RS1/16S220J
R305 (A,66 ,39 ) RS1/16S220J
R351 (B,37 ,84 ) RS1/16S1001F
R352 (B,37 ,87 ) RS1/16S2001F
R353 (A,68 ,16 ) RS1/16S102J
R354 (B,13 ,83 ) RS1/16S0R0J
R355 (B,13 ,79 ) RS1/16S0R0J
R356 (A,30 ,33 ) RS1/16S0R0J
R357 (A,30 ,36 ) RS1/16S0R0J
CAPACITORS
C101 (A,24 ,44 ) CCSRCH471J50
C102 (A,24 ,43 ) CKSRYB104K16
C103 (A,30 ,46 ) CCSRCH471J50
C104 (A,30 ,44 ) CKSRYB104K16
C105 (A,32 ,42 ) CCSRCH471J50
C106 (A,32 ,41 ) CKSRYB104K16
C107 (A,34 ,46 ) CCSRCH471J50
C108 (A,34 ,44 ) CKSRYB104K16
C109 (A,37 ,46 ) CCSRCH471J50
C110 (A,37 ,44 ) CKSRYB104K16
C111 (A,40 ,46 ) CCSRCH471J50
C112 (A,40 ,44 ) CKSRYB104K16
C113 (A,49 ,50 ) CCSRCH471J50
C114 (A,50 ,50 ) CKSRYB104K16
C115 (A,49 ,56 ) CCSRCH471J50
Mark No. Description Part No.
C116 (A,51 ,56 ) CKSRYB104K16
C117 (A,49 ,59 ) CCSRCH471J50
C118 (A,51 ,59 ) CKSRYB104K16
C119 (A,49 ,65 ) CCSRCH471J50
C120 (A,51 ,65 ) CKSRYB104K16
C121 (A,49 ,68 ) CCSRCH471J50
C122 (A,51 ,68 ) CKSRYB104K16
C123 (A,49 ,70 ) CCSRCH471J50
C124 (A,51 ,70 ) CKSRYB104K16
C125 (A,44 ,76 ) CCSRCH471J50
C126 (A,44 ,77 ) CKSRYB104K16
C127 (A,41 ,76 ) CCSRCH471J50
C128 (A,41 ,77 ) CKSRYB104K16
C129 (A,38 ,76 ) CCSRCH471J50
C130 (A,38 ,77 ) CKSRYB104K16
C131 (A,32 ,76 ) CCSRCH471J50
C132 (A,32 ,77 ) CKSRYB104K16
C133 (A,29 ,76 ) CCSRCH471J50
C134 (A,29 ,77 ) CKSRYB104K16
C135 (A,26 ,76 ) CCSRCH471J50
C136 (A,26 ,77 ) CKSRYB104K16
C137 (A,20 ,71 ) CCSRCH471J50
C138 (A,19 ,71 ) CKSRYB104K16
C139 (A,20 ,69 ) CCSRCH471J50
C140 (A,19 ,69 ) CKSRYB104K16
C141 (A,20 ,63 ) CCSRCH471J50
C142 (A,19 ,63 ) CKSRYB104K16
C143 (A,20 ,60 ) CCSRCH471J50
C144 (A,19 ,60 ) CKSRYB104K16
C145 (A,20 ,57 ) CCSRCH471J50
C146 (A,19 ,57 ) CKSRYB104K16
C147 (A,27 ,46 ) CCSRCH471J50
C148 (A,27 ,44 ) CKSRYB104K16
C149 (A,35 ,42 ) CCSRCH471J50
C150 (A,35 ,41 ) CKSRYB104K16
C151 (A,43 ,46 ) CCSRCH471J50
C152 (A,43 ,44 ) CKSRYB104K16
C153 (A,49 ,54 ) CCSRCH471J50
C154 (A,51 ,54 ) CKSRYB104K16
C155 (A,49 ,62 ) CCSRCH471J50
C156 (A,51 ,62 ) CKSRYB104K16
C157 (A,47 ,76 ) CCSRCH471J50
C158 (A,47 ,77 ) CKSRYB104K16
C159 (A,35 ,76 ) CCSRCH471J50
C160 (A,35 ,77 ) CKSRYB104K16
C161 (A,20 ,66 ) CCSRCH471J50
C162 (A,19 ,66 ) CKSRYB104K16
C163 (A,19 ,54 ) CCSRCH471J50
C164 (A,18 ,54 ) CKSRYB104K16
C165 (A,20 ,51 ) CCSRCH471J50
C166 (A,19 ,51 ) CKSRYB104K16
C167 (A,22 ,54 ) CCSRCH471J50
C168 (A,21 ,54 ) CKSRYB104K16
C169 (B,30 ,63 ) CKSRYB103K50
C171 (B,27 ,37 ) CCSRCH471J50
C172 (B,26 ,37 ) CKSRYB104K16
C173 (B,40 ,36 ) CCSRCH471J50
C174 (B,39 ,36 ) CKSRYB104K16
C175 (A,42 ,20 ) CCSRCH471J50
C176 (A,42 ,18 ) CKSRYB104K16
Mark No. Description Part No.
VSX-AX4AVi-S
170
1234
1234
C
D
F
A
B
E
C178 (B,41 ,30 ) CCSRCH471J50
C179 (B,41 ,31 ) CKSRYB104K16
C181 (A,18 ,18 ) CCSRCH471J50
C182 (A,17 ,18 ) CKSRYB104K16
C183 (A,32 ,17 ) CCSRCH471J50
C184 (A,34 ,17 ) CKSRYB104K16
C185 (B,12 ,59 ) CCSRCH471J50
C186 (B,11 ,59 ) CKSRYB104K16
C189 (A,38 ,15 ) CCSRCH471J50
C190 (A,36 ,15 ) CKSRYB104K16
C201 (B,72 ,57 ) CCSRCH471J50
C202 (B,74 ,57 ) CKSRYB104K16
C203 (B,63 ,47 ) CCSRCH471J50
C204 (B,63 ,46 ) CKSRYB104K16
C205 (B,52 ,52 ) CCSRCH471J50
C206 (B,51 ,52 ) CKSRYB104K16
C207 (B,51 ,58 ) CCSRCH471J50
C208 (B,50 ,58 ) CKSRYB104K16
C209 (B,62 ,68 ) CCSRCH471J50
C210 (B,62 ,69 ) CKSRYB104K16
C211 (B,72 ,62 ) CCSRCH471J50
C212 (B,74 ,62 ) CKSRYB104K16
C213 (B,72 ,52 ) CCSRCH471J50
C214 (B,74 ,52 ) CKSRYB104K16
C215 (B,67 ,47 ) CCSRCH471J50
C216 (B,67 ,46 ) CKSRYB104K16
C217 (B,52 ,50 ) CCSRCH471J50
C218 (B,51 ,50 ) CKSRYB104K16
C219 (B,59 ,68 ) CCSRCH471J50
C220 (B,59 ,69 ) CKSRYB104K16
C221 (B,65 ,68 ) CCSRCH471J50
C222 (B,65 ,69 ) CKSRYB104K16
C223 (B,56 ,47 ) CCSRCH471J50
C224 (B,56 ,46 ) CKSRYB104K16
C228 (B,50 ,56 ) CKSRYB103K50
C302 (A,73 ,41 ) CCSRCH471J50
C303 (A,74 ,41 ) CKSRYB104K16
C304 (A,69 ,36 ) CCSRCH100D50
C305 (A,73 ,36 ) CCSRCH100D50
C351 (A,115 ,46 ) CEVW101M16
C353 (B,6 ,32 ) CKSRYB104K16
C354 (B,14 ,43 ) CEVW101M16
C357 (A,29 ,88 ) CHIP OS CAPACITOR ACH7256
C360 (A,56 ,16 ) CKSRYB104K16
C361 (A,53 ,21 ) CEVW101M16
C364 (A,65 ,21 ) CHIP ELECT.CAPACITOR CEVW101M4
NINTERFACE ASSY
MISCELLANEOUS
>IC 4301(A,239 ,227 ) PROTECTOR(1.6A) AEK7066
Q4301(B,229 ,221 ) CHIP TRANSISTOR RSR015P03
Q4303(B,215 ,223 ) TRANSISTOR RT1N241C
D4302(A,14 ,206 ) DIODE MTZJ6R2(B)
L4311(B,56 ,163 ) CHIP BEADS VTL1083
L4312(B,134 ,222 ) CHIP BEADS VTL1083
L4313(B,132 ,222 ) CHIP BEADS VTL1083
L4314(B,130 ,222 ) CHIP BEADS VTL1083
L4315(B,128 ,222 ) CHIP BEADS VTL1083
Mark No. Description Part No.
L4316(B,126 ,222 ) CHIP BEADS VTL1083
L4317(B,124 ,222 ) CHIP BEADS VTL1083
L4318(B,122 ,222 ) CHIP BEADS VTL1083
L4320(B,79 ,233 ) CHIP BEADS VTL1083
L4321(B,79 ,228 ) CHIP BEADS VTL1083
L4322(B,79 ,231 ) CHIP BEADS VTL1083
L4323(B,279 ,236 ) CHIP BEADS VTL1083
L4324(B,321 ,226 ) CHIP BEADS VTL1083
J4 4PJUMPER WIRE D20PDD0420E
J4308(A,260 ,197 ) CONNECTOR ASS'Y PF11PG-R05
J4309(A,232 ,197 ) CONNECTOR ASS'Y PF08PG-R05
KN4301(A,151 ,218 ) WRAPPING TERMINAL VNF1084
CN4301(A,285 ,231 ) CONNECTOR 52045-1545
CN4302(A,194 ,232 ) 11P PLUG XKP3065
CN4303(A,188 ,232 ) B TO B CONNCTOR BTEM20S-1S
CN4304(A,158 ,232 ) B TO B CONNCTOR BTEM20S-1S
CN4305(A,129 ,232 ) B TO B CONNCTOR BTEM16S-1S
CN4306(A,46 ,232 ) 23P PLUG XKP3071
CN4307(A,22 ,230 ) 4P PLUG KM200TA4
CN431024P SOCKET AKP7203
CN4311(A,42 ,207 ) 24P SOCKET AKP7203
CN4312(A,192 ,184 ) 11P PLUG XKP3065
CN4313(A,110 ,183 ) B TO B CONNCTOR BTEM20S-1S
CN4314(A,51 ,184 ) 13P PLUG XKP3066
CN4315(A,15 ,185 ) 7P PLUG KM200TA7
CN4316(A,33 ,152 ) 17P PLUG XKP3068
CN4317(A,30 ,128 ) 15P PLUG XKP3067
CN4318(A,18 ,106 ) 6P PLUG KM200TA6
CN4319(A,25 ,73 ) 13P PLUG XKP3066
CN4320(A,37 ,43 ) 23P PLUG XKP3071
CN4324(A,72 ,185 ) 7P PLUG KM200TA7
CN4325(A,157 ,183 ) B TO B CONNCTOR BTEM14S-1S
Y17AWG14 BOARD IN ADX7493
Y18 (A,9 ,202 ) 3P HOUSING WIRE ASSY ADX7494
4301(A,198 ,198 ) 4P CABLE HOLDER 51048-0400
4302(A,31 ,197 ) 4P CABLE HOLDER 51048-0400
4303(A,107 ,175 ) PCB BINDER VEF1040
4304(A,203 ,184 ) PCB BINDER VEF1040
4305(A,224 ,200 ) PCB BINDER VEF1040
RESISTORS
R4302(B,235 ,225 ) RS1/16S103J
R4303(B,224 ,224 ) RS1/16S101J
R4305(B,246 ,219 ) RS1/16S103J
R4319(B,120 ,222 ) RS1/16S102J
R4327(B,150 ,208 ) RS1/16S0R0J
R4328(B,150 ,206 ) RS1/16S0R0J
CAPACITORS
C4301(A,300 ,185 ) CEAT470M25
C4302(A,300 ,191 ) CEAT470M25
C4303(A,136 ,199 ) ELECTR. CAPACITOR CEAL470M25
C4304(A,146 ,201 ) ELECTR. CAPACITOR CEAL470M25
C4305(B,241 ,219 ) CKSRYB104K25
C4307(B,146 ,214 ) CKSRYB103K50
C4308(B,146 ,216 ) CKSRYB471K50
C4313(B,267 ,186 ) CKSRYB102K50
C4314(B,252 ,189 ) CKSRYB102K50
Mark No. Description Part No.
VSX-AX4AVi-S 171
5678
5678
C
D
F
A
B
E
OPOWER AMP IN ASSY
MISCELLANEOUS
Q5601(B,61 ,180 ) CHIP TRANSISTOR 2SD2704K
Q5602(B,41 ,219 ) TRANSISTOR IMT4
Q5603(B,45 ,207 ) CHIP TRANSISTOR 2SA1514K
Q5604(A,28 ,206 ) TRANSISTOR 2SA1145
Q5605(A,30 ,225 ) TRANSISTOR 2SC2705
Q5641(B,15 ,213 ) CHIP TR 2SA1255
D5601(B,38 ,205 ) CHIP ZENER DIODE UDZS3R6(B)
D5602(B,38 ,207 ) DIODE 1SS355
D5603(B,26 ,222 ) DIODE 1SS355
D5604(B,28 ,212 ) DIODE 1SS355
D5605(B,28 ,218 ) DIODE UDZS4R7(B)
D5606(B,26 ,212 ) DIODE UDZS4R7(B)
D5641(B,11 ,229 ) DIODE 1SS355
D5642(B,13 ,229 ) DIODE 1SS355
D5643(B,9 ,229 ) DIODE 1SS355
D5644(B,45 ,238 ) DIODE 1SS355
CN5601(A,71 ,233 ) 13P PLUG XKP3066
CN5602(A,56 ,199 ) 13P PLUG XKP3066
CN5603(A,74 ,131 ) 19P CONNECTOR 52044-1945
CN5605(A,47 ,233 ) SOCKET 7-P KP250NA7
CN5606(A,32 ,199 ) SOCKET 7-P KP250NA7
5604(A,7 ,215 ) 5P CABLE HOLDER 51048-0500
RESISTORS
R5601(B,58 ,178 ) RS1/16S102J
R5602(B,48 ,212 ) RS1/16S221J
R5603(B,48 ,216 ) RS1/16S333J
R5604(B,58 ,182 ) RS1/16S103J
R5605(B,41 ,213 ) RS1/16S152J
R5606(B,38 ,217 ) RS1/16S821J
R5607(B,44 ,203 ) RS1/16S2001F
R5608(B,43 ,212 ) RS1/16S682J
R5609(A,36 ,214 )
CARBON FILM RESISTOR
RD1/2VM473J
R5610(B,32 ,202 ) RS1/16S151J
R5611(B,29 ,203 ) RN1/16SE1201D
R5612(B,31 ,230 ) RS1/16S221J
>R5623(A,69 ,206 )
CARBON FILM RESISTOR
RD1/4MUF4R7J
>R5624(A,56 ,217 )
CARBON FILM RESISTOR
RD1/4MUF4R7J
>R5627(A,20 ,225 ) RESISTOR (0.18, 5W) ACN7121
R5629(B,43 ,224 ) RN1/10SE3302D
R5630(B,45 ,220 ) RN1/16SE1001D
R5631(B,47 ,220 ) RN1/16SE1500D
R5632(B,29 ,229 ) RS1/16S151J
R5641(B,7 ,229 ) RS1/16S473J
R5642(B,13 ,195 ) RS1/16S223J
R5643(B,15 ,230 ) RS1/16S471J
R5644(B,15 ,195 ) RS1/16S471J
R5645(B,11 ,235 ) RS1/16S472J
R5646(B,13 ,235 ) RS1/16S472J
R5647(B,15 ,208 ) RS1/16S122J
R5648(B,48 ,238 ) RS1/16S154J
R5649(B,50 ,235 ) RS1/16S103J
R5650(B,52 ,235 ) RS1/16S103J
CAPACITORS
C5601(A,51 ,212 ) CEAT4R7M50
C5602(B,46 ,216 ) CCSRCH221J50
C5604(B,39 ,213 ) CKSRYB102K50
C5607(A,41 ,203 ) CEAT101M10
Mark No. Description Part No.
C5608(B,35 ,228 ) CAPACITOR(CERAMIC) ACG7057
C5609(A,31 ,210 ) ELECT. CAPACITOR CEAT100M2A
C5615(B,47 ,225 ) CCSRCH220J50
C5616(B,45 ,225 ) CCSRCH220J50
C5617(A,50 ,221 ) CEAT331M10
C5623(A,67 ,209 ) CEAT100M63
C5624(A,63 ,225 ) CEAT100M63
C5632(B,28 ,233 ) CKSRYB224K16
C5641(A,13 ,199 ) CEANP2R2M50
PPOWER PROTECT ASSY
MISCELLANEOUS
IC 5701(B,17 ,153 ) OP-AMP IC BA4560RF
Q5701(B,10 ,107 ) TRANSISTOR RT1N241M
Q5702(B,20 ,107 ) DIGITAL TR(SC-70) RT1P241M
Q5703(B,21 ,118 ) TRANSISTOR RT1N241M
Q5704(B,16 ,166 ) TRANSISTOR 2SC4081
Q5705(B,13 ,107 ) TRANSISTOR RT1N241M
Q5706(B,24 ,107 ) DIGITAL TR(SC-70) RT1P241M
D5701(B,26 ,166 ) DIODE 1SS355
D5702(B,7 ,61 ) DIODE 1SS355
CN5701(A,8 ,97 ) 11P PLUG XKP3065
CN5702(A,21 ,131 ) 11P PLUG XKP3065
CN5703(A,46 ,178 ) 19P CONNECTOR 52044-1945
CN5704(A,17 ,181 ) CONNECTOR S5B-PH
CN5705(A,19 ,39 ) 17P CONNECTOR 52044-1745
CN5706(A,13 ,41 ) 3PIN CONNECTOR S3B-EH
5701(A,7 ,47 ) PCB BINDER VEF1040
RESISTORS
R5701(B,13 ,118 ) RS1/16S562J
R5702(B,16 ,118 ) RS1/16S562J
R5703(B,27 ,88 ) RS1/16S473J
R5705(B,20 ,81 ) RS1/16S0R0J
R5706(B,18 ,118 ) RS1/16S822J
R5707(B,20 ,88 ) RS1/16S473J
R5708(B,25 ,81 ) RS1/16S0R0J
R5710(B,21 ,149 ) RS1/16S223J
R5711(B,21 ,153 ) RS1/16S103J
R5712(B,12 ,155 ) RS1/16S472J
R5713(B,21 ,158 ) RS1/16S103J
R5714(B,13 ,139 ) RS1/16S102J
R5715(B,8 ,166 ) RS1/16S473J
R5716(B,13 ,166 ) RS1/16S472J
R5717(B,19 ,166 ) RS1/16S103J
R5718(B,7 ,57 ) RS1/16S104J
R5720(B,21 ,166 ) RS1/16S103J
R5721(B,24 ,166 ) RS1/16S683J
R5746(B,17 ,88 ) RS1/16S0R0J
R5747(B,18 ,107 ) RS1/16S0R0J
R5750(B,26 ,161 ) RS1/16S0R0J
CAPACITORS
C5701(B,25 ,88 ) CKSRYB104K50
C5702(B,22 ,88 ) CKSRYB104K50
C5703(B,24 ,158 ) CKSRYB104K50
C5704(B,12 ,151 ) CKSRYB104K50
C5705(B,11 ,166 ) CKSRYB223K50
C5706(B,14 ,44 ) CKSRYB103K50
Mark No. Description Part No.
VSX-AX4AVi-S
172
1234
1234
C
D
F
A
B
E
QPOWER AMP-L ASSY
MISCELLANEOUS
>IC 5001(A,169 ,134 )
DARLINGTON POWER IC
SAP17N(OY)
>IC 5002(A,209 ,134 )
DARLINGTON POWER IC
SAP17P(OY)
>IC 5101(A,105 ,134 )
DARLINGTON POWER IC
SAP17N(OY)
>IC 5102(A,137 ,134 )
DARLINGTON POWER IC
SAP17P(OY)
>IC 5201(A,249 ,134 )
DARLINGTON POWER IC
SAP17N(OY)
>IC 5202(A,281 ,134 )
DARLINGTON POWER IC
SAP17P(OY)
>IC 5601(A,313 ,134 )
DARLINGTON POWER IC
SAP17N(OY)
Q5001(B,193 ,207 ) CHIP TRANSISTOR 2SD2704K
Q5002(B,181 ,194 ) TRANSISTOR IMT4
Q5003(B,194 ,198 ) CHIP TRANSISTOR 2SA1514K
Q5004(A,192 ,184 ) TRANSISTOR 2SA1145
Q5005(A,168 ,192 ) TRANSISTOR 2SC2705
Q5041(B,156 ,195 ) CHIP TR 2SA1255
Q5101(B,136 ,207 ) CHIP TRANSISTOR 2SD2704K
Q5102(B,124 ,194 ) TRANSISTOR IMT4
Q5103(B,137 ,198 ) CHIP TRANSISTOR 2SA1514K
Q5104(A,135 ,184 ) TRANSISTOR 2SA1145
Q5105(A,112 ,192 ) TRANSISTOR 2SC2705
Q5141(B,100 ,202 ) CHIP TR 2SA1255
Q5201(B,274 ,206 ) CHIP TRANSISTOR 2SD2704K
Q5202(B,262 ,193 ) TRANSISTOR IMT4
Q5203(B,275 ,197 ) CHIP TRANSISTOR 2SA1514K
Q5204(A,273 ,183 ) TRANSISTOR 2SA1145
Q5205(A,250 ,191 ) TRANSISTOR 2SC2705
Q5241(B,238 ,197 ) CHIP TR 2SA1255
D5001(B,197 ,188 ) CHIP ZENER DIODE UDZS3R6(B)
D5002(B,195 ,188 ) DIODE 1SS355
D5003(B,187 ,183 ) DIODE 1SS355
D5004(B,179 ,183 ) DIODE 1SS355
D5005(B,184 ,183 ) DIODE UDZS4R7(B)
D5006(B,182 ,183 ) DIODE UDZS4R7(B)
D5041(B,156 ,174 ) DIODE 1SS355
D5042(B,158 ,174 ) DIODE 1SS355
D5043(B,158 ,203 ) DIODE 1SS355
D5044(B,161 ,170 ) DIODE 1SS355
D5101(B,141 ,188 ) CHIP ZENER DIODE UDZS3R6(B)
D5102(B,139 ,188 ) DIODE 1SS355
D5103(B,130 ,183 ) DIODE 1SS355
D5104(B,123 ,183 ) DIODE 1SS355
D5105(B,128 ,183 ) DIODE UDZS4R7(B)
D5106(B,125 ,183 ) DIODE UDZS4R7(B)
D5141(B,93 ,187 ) DIODE 1SS355
D5142(B,96 ,187 ) DIODE 1SS355
D5143(B,103 ,205 ) DIODE 1SS355
D5144(B,104 ,182 ) DIODE 1SS355
D5201(B,279 ,187 ) CHIP ZENER DIODE UDZS3R6(B)
D5202(B,276 ,187 ) DIODE 1SS355
D5203(B,268 ,181 ) DIODE 1SS355
D5204(B,261 ,181 ) DIODE 1SS355
D5205(B,266 ,181 ) DIODE UDZS4R7(B)
D5206(B,263 ,181 ) DIODE UDZS4R7(B)
D5241(B,238 ,173 ) DIODE 1SS355
D5242(B,240 ,173 ) DIODE 1SS355
D5243(B,240 ,202 ) DIODE 1SS355
D5244(B,242 ,173 ) DIODE 1SS355
Mark No. Description Part No.
>TH5001(A,160 ,229 ) POSISTOR
PTFM04BH222Q2N34B0
>TH5002(A,240 ,229 ) POSISTOR
PTFM04BD222Q2N34B0
CN5001(A,320 ,205 ) 13P SOCKET XKP3077
CN5002(A,86 ,219 ) 11P SOCKET XKP3076
CN5003(A,313 ,196 ) 7-P PLUG KM250NA7L
RESISTORS
R5001(B,199 ,202 ) RS1/16S102J
R5002(B,187 ,202 ) RS1/16S221J
R5003(B,184 ,203 ) RS1/16S333J
R5004(B,199 ,205 ) RS1/16S103J
R5005(B,177 ,192 ) RS1/16S152J
R5006(B,170 ,200 ) RS1/16S821J
R5007(B,197 ,197 ) RS1/16S2001F
R5008(B,186 ,194 ) RS1/16S682J
R5009(A,189 ,193 )
CARBON FILM RESISTOR
RD1/2VM473J
R5010(B,197 ,183 ) RS1/16S151J
R5011(B,195 ,184 ) RN1/16SE1201D
R5012(B,169 ,197 ) RS1/16S221J
R5013(B,183 ,150 ) CHIP RESISTOR RS1/16S62R0F
R5021(B,176 ,153 ) RS1/16S101J
R5022(B,190 ,153 ) RS1/16S101J
>R5023(A,198 ,166 )
CARBON FILM RESISTOR
RD1/4MUF4R7J
>R5024(A,168 ,176 )
CARBON FILM RESISTOR
RD1/4MUF4R7J
>R5025(B,163 ,156 ) CHIP RESISTOR ACN7132
>R5026(B,200 ,156 ) CHIP RESISTOR ACN7132
>R5027(A,192 ,166 ) RESISTOR (0.18, 5W) ACN7121
R5029(B,174 ,203 ) RN1/10SE3302D
R5030(B,180 ,203 ) RN1/16SE1001D
R5031(B,180 ,205 ) RN1/16SE1500D
R5032(B,167 ,196 ) RS1/16S151J
R5041(B,154 ,169 ) RS1/16S473J
R5042(B,156 ,169 ) RS1/16S223J
R5043(B,152 ,169 ) RS1/16S471J
R5044(B,158 ,169 ) RS1/16S471J
R5045(B,158 ,179 ) RS1/16S472J
R5046(B,161 ,179 ) RS1/16S472J
R5047(B,157 ,187 ) RS1/16S122J
R5048(B,158 ,183 ) RS1/16S154J
R5049(B,161 ,183 ) RS1/16S103J
R5050(B,160 ,187 ) RS1/16S103J
R5101(B,143 ,202 ) RS1/16S102J
R5102(B,130 ,202 ) RS1/16S221J
R5103(B,127 ,203 ) RS1/16S333J
R5104(B,143 ,205 ) RS1/16S103J
R5105(B,120 ,192 ) RS1/16S152J
R5106(B,114 ,200 ) RS1/16S821J
R5107(B,141 ,197 ) RS1/16S2001F
R5108(B,130 ,194 ) RS1/16S682J
R5109(A,133 ,193 )
CARBON FILM RESISTOR
RD1/2VM473J
R5110(B,141 ,183 ) RS1/16S151J
R5111(B,139 ,184 ) RN1/16SE1201D
R5112(B,113 ,197 ) RS1/16S221J
R5113(B,115 ,150 ) CHIP RESISTOR RS1/16S62R0F
R5121(B,108 ,153 ) RS1/16S101J
R5122(B,129 ,150 ) RS1/16S101J
>R5123(A,142 ,166 )
CARBON FILM RESISTOR
RD1/4MUF4R7J
>R5124(A,111 ,176 )
CARBON FILM RESISTOR
RD1/4MUF4R7J
>R5125(B,99 ,156 ) CHIP RESISTOR ACN7132
>R5126(B,136 ,156 ) CHIP RESISTOR ACN7132
>R5127(A,136 ,166 ) RESISTOR (0.18, 5W) ACN7121
Mark No. Description Part No.
VSX-AX4AVi-S 173
5678
5678
C
D
F
A
B
E
R5129(B,117 ,203 ) RN1/10SE3302D
R5130(B,123 ,203 ) RN1/16SE1001D
R5131(B,123 ,205 ) RN1/16SE1500D
R5132(B,110 ,196 ) RS1/16S151J
R5141(B,97 ,182 ) RS1/16S473J
R5142(B,99 ,182 ) RS1/16S223J
R5143(B,95 ,182 ) RS1/16S471J
R5144(B,102 ,182 ) RS1/16S471J
R5145(B,100 ,187 ) RS1/16S472J
R5146(B,102 ,187 ) RS1/16S472J
R5147(B,99 ,195 ) RS1/16S122J
R5148(B,100 ,191 ) RS1/16S154J
R5149(B,102 ,191 ) RS1/16S103J
R5150(B,102 ,195 ) RS1/16S103J
R5201(B,281 ,201 ) RS1/16S102J
R5202(B,268 ,201 ) RS1/16S221J
R5203(B,265 ,202 ) RS1/16S333J
R5204(B,281 ,204 ) RS1/16S103J
R5205(B,258 ,191 ) RS1/16S152J
R5206(B,252 ,199 ) RS1/16S821J
R5207(B,279 ,196 ) RS1/16S2001F
R5208(B,268 ,193 ) RS1/16S682J
R5209(A,271 ,192 )
CARBON FILM RESISTOR
RD1/2VM473J
R5210(B,278 ,183 ) RS1/16S151J
R5211(B,276 ,183 ) RN1/16SE1201D
R5212(B,251 ,196 ) RS1/16S221J
R5213(B,259 ,149 ) CHIP RESISTOR RS1/16S62R0F
R5221(B,251 ,153 ) RS1/16S101J
R5222(B,269 ,153 ) RS1/16S101J
>R5223(A,280 ,164 )
CARBON FILM RESISTOR
RD1/4MUF4R7J
>R5224(A,250 ,175 )
CARBON FILM RESISTOR
RD1/4MUF4R7J
>R5225(B,238 ,156 ) CHIP RESISTOR ACN7132
>R5226(B,279 ,156 ) CHIP RESISTOR ACN7132
>R5227(A,274 ,165 ) RESISTOR (0.18, 5W) ACN7121
R5229(B,255 ,202 ) RN1/10SE3302D
R5230(B,261 ,202 ) RN1/16SE1001D
R5231(B,261 ,204 ) RN1/16SE1500D
R5232(B,248 ,195 ) RS1/16S151J
R5241(B,237 ,169 ) RS1/16S473J
R5242(B,239 ,169 ) RS1/16S223J
R5243(B,235 ,169 ) RS1/16S471J
R5244(B,241 ,169 ) RS1/16S471J
R5245(B,240 ,180 ) RS1/16S472J
R5246(B,242 ,180 ) RS1/16S472J
R5247(B,240 ,189 ) RS1/16S122J
R5248(B,237 ,180 ) RS1/16S154J
R5249(B,242 ,184 ) RS1/16S103J
R5250(B,240 ,184 ) RS1/16S103J
>R5292(B,300 ,156 ) CHIP RESISTOR ACN7132
R5613(B,314 ,153 ) CHIP RESISTOR RS1/16S62R0F
R5621(B,308 ,151 ) RS1/16S101J
CAPACITORS
C5001(A,190 ,203 ) CEAT4R7M50
C5002(B,184 ,200 ) CCSRCH221J50
C5004(B,174 ,197 ) CKSRYB102K50
C5007(A,202 ,193 ) CEAT101M10
C5008(B,171 ,197 ) CAPACITOR(CERAMIC) ACG7057
C5009(A,186 ,188 ) ELECT. CAPACITOR CEAT100M2A
C5011(B,169 ,142 ) CAPACITOR(CERAMIC) ACG7056
Mark No. Description Part No.
C5012(B,197 ,142 ) CAPACITOR(CERAMIC) ACG7056
C5015(B,175 ,205 ) CCSRCH220J50
C5016(B,175 ,207 ) CCSRCH220J50
C5017(A,179 ,207 ) CEAT331M10
C5023(A,197 ,180 ) CEAT100M63
C5024(A,173 ,186 ) CEAT100M63
C5032(B,166 ,199 ) CKSRYB224K16
C5041(A,155 ,190 ) CEANP2R2M50
C5051(A,219 ,183 ) ELECT. CAPACITOR CEAT100M2A
C5052(A,223 ,177 ) ELECT. CAPACITOR CEAT100M2A
C5101(A,133 ,203 ) CEAT4R7M50
C5102(B,127 ,200 ) CCSRCH221J50
C5104(B,117 ,197 ) CKSRYB102K50
C5107(A,145 ,193 ) CEAT101M10
C5108(B,115 ,197 ) CAPACITOR(CERAMIC) ACG7057
C5109(A,129 ,188 ) ELECT. CAPACITOR CEAT100M2A
C5111(B,101 ,142 ) CAPACITOR(CERAMIC) ACG7056
C5112(B,130 ,142 ) CAPACITOR(CERAMIC) ACG7056
C5115(B,119 ,205 ) CCSRCH220J50
C5116(B,119 ,207 ) CCSRCH220J50
C5117(A,123 ,207 ) CEAT331M10
C5123(A,141 ,180 ) CEAT100M63
C5124(A,116 ,186 ) CEAT100M63
C5132(B,110 ,199 ) CKSRYB224K16
C5141(A,96 ,198 ) CEANP2R2M50
C5201(A,271 ,202 ) CEAT4R7M50
C5202(B,265 ,199 ) CCSRCH221J50
C5204(B,255 ,196 ) CKSRYB102K50
C5207(A,283 ,192 ) CEAT101M10
C5208(B,253 ,196 ) CAPACITOR(CERAMIC) ACG7057
C5209(A,267 ,187 ) ELECT. CAPACITOR CEAT100M2A
C5211(B,244 ,142 ) CAPACITOR(CERAMIC) ACG7056
C5212(B,275 ,142 ) CAPACITOR(CERAMIC) ACG7056
C5215(B,257 ,204 ) CCSRCH220J50
C5216(B,257 ,206 ) CCSRCH220J50
C5217(A,261 ,206 ) CEAT331M10
C5223(A,287 ,181 ) CEAT100M63
C5224(A,255 ,185 ) CEAT100M63
C5232(B,248 ,198 ) CKSRYB224K16
C5241(A,237 ,192 ) CEANP2R2M50
C5611(B,307 ,142 ) CAPACITOR(CERAMIC) ACG7056
RPOWER AMP-R ASSY
MISCELLANEOUS
>IC 5301(A,197 ,112 )
DARLINGTON POWER IC
SAP17N(OY)
>IC 5302(A,157 ,112 )
DARLINGTON POWER IC
SAP17P(OY)
>IC 5401(A,125 ,112 )
DARLINGTON POWER IC
SAP17N(OY)
>IC 5402(A,93 ,112 ) DARLINGTON POWER IC SAP17P(OY)
>IC 5501(A,269 ,112 )
DARLINGTON POWER IC
SAP17N(OY)
>IC 5502(A,237 ,112 )
DARLINGTON POWER IC
SAP17P(OY)
>IC 5602(A,301 ,112 )
DARLINGTON POWER IC
SAP17P(OY)
Q5301(B,196 ,38 ) CHIP TRANSISTOR 2SD2704K
Q5302(B,187 ,52 ) TRANSISTOR IMT4
Q5303(B,173 ,49 ) CHIP TRANSISTOR 2SA1514K
Q5304(A,176 ,63 ) TRANSISTOR 2SA1145
Q5305(A,199 ,49 ) TRANSISTOR 2SC2705
Q5341(B,152 ,48 ) CHIP TR 2SA1255
Q5401(B,132 ,38 ) CHIP TRANSISTOR 2SD2704K
Q5402(B,126 ,52 ) TRANSISTOR IMT4
Mark No. Description Part No.
VSX-AX4AVi-S
174
1234
1234
C
D
F
A
B
E
Q5403(B,113 ,48 ) CHIP TRANSISTOR 2SA1514K
Q5404(A,119 ,64 ) TRANSISTOR 2SA1145
Q5405(A,139 ,49 ) TRANSISTOR 2SC2705
Q5441(B,94 ,46 ) CHIP TR 2SA1255
Q5501(B,285 ,38 ) CHIP TRANSISTOR 2SD2704K
Q5502(B,276 ,52 ) TRANSISTOR IMT4
Q5503(B,262 ,49 ) CHIP TRANSISTOR 2SA1514K
Q5504(A,260 ,63 ) TRANSISTOR 2SA1145
Q5505(A,288 ,49 ) TRANSISTOR 2SC2705
Q5541(B,239 ,49 ) CHIP TR 2SA1255
Q5571(B,225 ,38 ) TRANSISTOR 2SC4081
Q5572(B,222 ,38 ) TRANSISTOR 2SC4081
D5301(B,171 ,57 ) CHIP ZENER DIODE UDZS3R6(B)
D5302(B,173 ,59 ) DIODE 1SS355
D5303(B,181 ,64 ) DIODE 1SS355
D5304(B,187 ,64 ) DIODE 1SS355
D5305(B,183 ,64 ) DIODE UDZS4R7(B)
D5306(B,185 ,64 ) DIODE UDZS4R7(B)
D5341(B,153 ,67 ) DIODE 1SS355
D5342(B,151 ,67 ) DIODE 1SS355
D5343(B,151 ,44 ) DIODE 1SS355
D5344(B,155 ,70 ) DIODE 1SS355
D5401(B,114 ,59 ) CHIP ZENER DIODE UDZS3R6(B)
D5402(B,116 ,60 ) DIODE 1SS355
D5403(B,124 ,64 ) DIODE 1SS355
D5404(B,130 ,64 ) DIODE 1SS355
D5405(B,126 ,64 ) DIODE UDZS4R7(B)
D5406(B,128 ,64 ) DIODE UDZS4R7(B)
D5441(B,93 ,58 ) DIODE 1SS355
D5442(B,90 ,58 ) DIODE 1SS355
D5443(B,94 ,40 ) DIODE 1SS355
D5444(B,111 ,79 ) DIODE 1SS355
D5501(B,255 ,57 ) CHIP ZENER DIODE UDZS3R6(B)
D5502(B,257 ,59 ) DIODE 1SS355
D5503(B,265 ,64 ) DIODE 1SS355
D5504(B,271 ,64 ) DIODE 1SS355
D5505(B,267 ,64 ) DIODE UDZS4R7(B)
D5506(B,269 ,64 ) DIODE UDZS4R7(B)
D5541(B,240 ,71 ) DIODE 1SS355
D5542(B,238 ,71 ) DIODE 1SS355
D5543(B,242 ,46 ) DIODE 1SS355
D5544(B,242 ,73 ) DIODE 1SS355
>TH5301(A,166 ,17 ) POSISTOR
PTFM04BH222Q2N34B0
CN5301(A,320 ,26 ) 13P SOCKET XKP3077
CN5302(A,86 ,40 ) 11P SOCKET XKP3076
CN5303(A,313 ,66 ) 7-P PLUG KM250NA7L
RESISTORS
R5301(B,203 ,43 ) RS1/16S102J
R5302(B,191 ,42 ) RS1/16S221J
R5303(B,187 ,41 ) RS1/16S333J
R5304(B,203 ,40 ) RS1/16S103J
R5305(B,194 ,55 ) RS1/16S152J
R5306(B,194 ,52 ) RS1/16S821J
R5307(B,169 ,48 ) RS1/16S2001F
R5308(B,180 ,52 ) RS1/16S682J
R5309(A,177 ,48 )
CARBON FILM RESISTOR
RD1/2VM473J
R5310(B,171 ,64 ) RS1/16S151J
R5311(B,173 ,63 ) RN1/16SE1201D
Mark No. Description Part No.
R5312(B,202 ,52 ) RS1/16S221J
R5313(B,183 ,97 ) CHIP RESISTOR RS1/16S62R0F
R5321(B,190 ,93 ) RS1/16S101J
R5322(B,176 ,93 ) RS1/16S101J
>R5323(A,163 ,72 )
CARBON FILM RESISTOR
RD1/4MUF4R7J
>R5324(A,198 ,83 )
CARBON FILM RESISTOR
RD1/4MUF4R7J
>R5325(B,203 ,90 ) CHIP RESISTOR ACN7132
>R5326(B,166 ,91 ) CHIP RESISTOR ACN7132
>R5327(A,174 ,80 ) RESISTOR (0.18, 5W) ACN7121
R5329(B,179 ,45 ) RN1/10SE3302D
R5330(B,183 ,46 ) RN1/16SE1001D
R5331(B,183 ,43 ) RN1/16SE1500D
R5332(B,203 ,49 ) RS1/16S151J
R5341(B,153 ,77 ) RS1/16S473J
R5342(B,151 ,77 ) RS1/16S223J
R5343(B,153 ,73 ) RS1/16S471J
R5344(B,151 ,73 ) RS1/16S471J
R5345(B,152 ,60 ) RS1/16S472J
R5346(B,150 ,60 ) RS1/16S472J
R5347(B,147 ,58 ) RS1/16S122J
R5348(B,151 ,55 ) RS1/16S154J
R5349(B,151 ,57 ) RS1/16S103J
R5350(B,156 ,46 ) RS1/16S103J
R5401(B,138 ,43 ) RS1/16S102J
R5402(B,126 ,42 ) RS1/16S221J
R5403(B,123 ,41 ) RS1/16S333J
R5404(B,138 ,40 ) RS1/16S103J
R5405(B,134 ,55 ) RS1/16S152J
R5406(B,134 ,52 ) RS1/16S821J
R5407(B,109 ,48 ) RS1/16S2001F
R5408(B,120 ,52 ) RS1/16S682J
R5409(A,117 ,48 )
CARBON FILM RESISTOR
RD1/2VM473J
R5410(B,114 ,65 ) RS1/16S151J
R5411(B,116 ,64 ) RN1/16SE1201D
R5412(B,141 ,52 ) RS1/16S221J
R5413(B,115 ,97 ) CHIP RESISTOR RS1/16S62R0F
R5421(B,128 ,93 ) RS1/16S101J
R5422(B,108 ,93 ) RS1/16S101J
>R5423(A,111 ,75 )
CARBON FILM RESISTOR
RD1/4MUF4R7J
>R5424(A,142 ,83 )
CARBON FILM RESISTOR
RD1/4MUF4R7J
>R5425(B,135 ,91 ) CHIP RESISTOR ACN7132
>R5426(B,96 ,91 ) CHIP RESISTOR ACN7132
>R5427(A,118 ,80 ) RESISTOR (0.18, 5W) ACN7121
R5429(B,114 ,44 ) RN1/10SE3302D
R5430(B,118 ,45 ) RN1/16SE1001D
R5431(B,118 ,43 ) RN1/16SE1500D
R5432(B,143 ,49 ) RS1/16S151J
R5441(B,99 ,85 ) RS1/16S473J
R5442(B,97 ,85 ) RS1/16S223J
R5443(B,101 ,85 ) RS1/16S471J
R5444(B,95 ,85 ) RS1/16S471J
R5445(B,91 ,52 ) RS1/16S472J
R5446(B,91 ,50 ) RS1/16S472J
R5447(B,90 ,46 ) RS1/16S122J
R5448(B,94 ,51 ) RS1/16S154J
R5449(B,96 ,51 ) RS1/16S103J
R5450(B,98 ,46 ) RS1/16S103J
R5501(B,292 ,43 ) RS1/16S102J
R5502(B,280 ,42 ) RS1/16S221J
R5503(B,276 ,41 ) RS1/16S333J
Mark No. Description Part No.
VSX-AX4AVi-S 175
5678
5678
C
D
F
A
B
E
R5504(B,292 ,40 ) RS1/16S103J
R5505(B,283 ,55 ) RS1/16S152J
R5506(B,283 ,52 ) RS1/16S821J
R5507(B,258 ,48 ) RS1/16S2001F
R5508(B,269 ,52 ) RS1/16S682J
R5509(A,266 ,48 )
CARBON FILM RESISTOR
RD1/2VM473J
R5510(B,255 ,63 ) RS1/16S151J
R5511(B,257 ,63 ) RN1/16SE1201D
R5512(B,290 ,52 ) RS1/16S221J
R5513(B,259 ,97 ) CHIP RESISTOR RS1/16S62R0F
R5521(B,270 ,94 ) RS1/16S101J
R5522(B,251 ,93 ) RS1/16S101J
>R5523(A,247 ,69 )
CARBON FILM RESISTOR
RRD1/4MUF4R7J
>R5524(A,283 ,82 )
CARBON FILM RESISTOR
RD1/4MUF4R7J
>R5525(B,277 ,91 ) CHIP RESISTOR ACN7132
>R5526(B,238 ,91 ) CHIP RESISTOR ACN7132
>R5527(A,258 ,80 ) RESISTOR (0.18, 5W) ACN7121
R5529(B,268 ,45 ) RN1/10SE3302D
R5530(B,272 ,46 ) RN1/16SE1001D
R5531(B,272 ,43 ) RN1/16SE1500D
R5532(B,292 ,49 ) RS1/16S151J
R5541(B,241 ,77 ) RS1/16S473J
R5542(B,235 ,77 ) RS1/16S223J
R5543(B,239 ,77 ) RS1/16S471J
R5544(B,237 ,77 ) RS1/16S471J
R5545(B,240 ,64 ) RS1/16S472J
R5546(B,238 ,64 ) RS1/16S472J
R5547(B,238 ,57 ) RS1/16S122J
R5548(B,235 ,68 ) RS1/16S154J
R5549(B,235 ,64 ) RS1/16S103J
R5550(B,245 ,45 ) RS1/16S103J
R5571(B,228 ,38 ) RS1/16S472J
>R5592(B,301 ,91 ) CHIP RESISTOR ACN7132
R5622(B,308 ,96 ) RS1/16S101J
CAPACITORS
C5301(A,194 ,43 ) CEAT4R7M50
C5302(B,187 ,43 ) CCSRCH221J50
C5304(B,198 ,55 ) CKSRYB102K50
C5307(A,164 ,52 ) CEAT101M10
C5308(B,198 ,52 ) CAPACITOR(CERAMIC) ACG7057
C5309(A,181 ,58 ) ELECT. CAPACITOR CEAT100M2A
C5311(B,197 ,104 ) CAPACITOR(CERAMIC) ACG7056
C5312(B,170 ,104 ) CAPACITOR(CERAMIC) ACG7056
C5315(B,179 ,43 ) CCSRCH220J50
C5316(B,174 ,43 ) CCSRCH220J50
C5317(A,179 ,39 ) CEAT331M10
C5323(A,160 ,63 ) CEAT100M63
C5324(A,191 ,61 ) CEAT100M63
C5332(B,204 ,52 ) CKSRYB224K16
C5341(A,147 ,62 ) CEANP2R2M50
C5351(A,228 ,68 ) ELECT. CAPACITOR CEAT100M2A
C5352(A,224 ,62 ) ELECT. CAPACITOR CEAT100M2A
C5401(A,129 ,43 ) CEAT4R7M50
C5402(B,123 ,43 ) CCSRCH221J50
C5404(B,138 ,55 ) CKSRYB102K50
C5407(A,105 ,52 ) CEAT101M10
C5408(B,138 ,52 ) CAPACITOR(CERAMIC) ACG7057
C5409(A,125 ,59 ) ELECT. CAPACITOR CEAT100M2A
C5411(B,130 ,104 ) CAPACITOR(CERAMIC) ACG7056
C5412(B,101 ,104 ) CAPACITOR(CERAMIC) ACG7056
Mark No. Description Part No.
C5415(B,114 ,42 ) CCSRCH220J50
C5416(B,109 ,43 ) CCSRCH220J50
C5417(A,114 ,39 ) CEAT331M10
C5423(A,107 ,61 ) CEAT100M63
C5424(A,135 ,61 ) CEAT100M63
C5432(B,143 ,52 ) CKSRYB224K16
C5441(A,87 ,45 ) CEANP2R2M50
C5501(A,283 ,43 ) CEAT4R7M50
C5502(B,276 ,43 ) CCSRCH221J50
C5504(B,287 ,55 ) CKSRYB102K50
C5507(A,253 ,52 ) CEAT101M10
C5508(B,287 ,52 ) CAPACITOR(CERAMIC) ACG7057
C5509(A,265 ,58 ) ELECT. CAPACITOR CEAT100M2A
C5511(B,272 ,104 ) CAPACITOR(CERAMIC) ACG7056
C5512(B,245 ,104 ) CAPACITOR(CERAMIC) ACG7056
C5515(B,268 ,43 ) CCSRCH220J50
C5516(B,263 ,43 ) CCSRCH220J50
C5517(A,268 ,39 ) CEAT331M10
C5523(A,244 ,59 ) CEAT100M63
C5524(A,280 ,61 ) CEAT100M63
C5532(B,293 ,52 ) CKSRYB224K16
C5541(A,238 ,54 ) CEANP2R2M50
C5571(A,231 ,35 ) CEAT331M10
C5612(B,307 ,104 ) CAPACITOR(CERAMIC) ACG7056
SLOCAL SUPPLY ASSY
MISCELLANEOUS
>IC 6101(A,149 ,69 ) IC NJM78M05FA
>IC 6102(A,149 ,19 ) REGULATOR IC NJM78M56FA
>IC 6103(A,11 ,64 ) REGULATOR IC NJM78M12FA
>IC 6104(A,11 ,39 ) REGULATOR IC NJM78M12FA
>IC 6105(A,149 ,44 ) IC NJM79M05FA
>IC 6106(A,11 ,14 ) REGULATOR IC NJM79M12FA
>IC 6108(A,51 ,63 ) PROTECTOR(1.6A) AEK7012
Q6101(B,40 ,96 ) TRANSISTOR UMD2N
Q6102(B,56 ,82 ) TRANSISTOR RT1N241M
>Q6103(A,11 ,89 ) TRANSISTOR 2SD1763A
>D6101(A,111 ,50 ) DIODE D3SBA20(B)
>D6102(B,65 ,61 ) DIODE 1SR154-400
>D6103(B,56 ,61 ) DIODE 1SR154-400
>D6104(B,61 ,61 ) DIODE 1SR154-400
D6105(B,86 ,72 ) DIODE UDZS6R2(B)
D6106(B,88 ,77 ) DIODE UDZS6R2(B)
D6107(B,85 ,77 ) DIODE UDZS6R2(B)
D6108(B,94 ,80 ) DIODE UDZS6R2(B)
D6109(B,88 ,90 ) DIODE UDZS6R2(B)
D6110(B,40 ,81 ) DIODE UDZS27(B)
D6111(B,140 ,68 ) CHIP DIODE RB501V-40
D6115(B,26 ,71 ) CHIP DIODE RB501V-40
>D6119(B,47 ,73 ) DIODE 1SR154-400
>D6120(B,52 ,73 ) DIODE 1SR154-400
D6121(B,141 ,10 ) CHIP DIODE RB501V-40
>D6122(B,59 ,39 ) DIODE 1SR154-400
>D6123(B,63 ,39 ) DIODE 1SR154-400
D6124(B,142 ,39 ) CHIP DIODE RB501V-40
D6125(B,149 ,50 ) DIODE 1SS355
D6126(B,18 ,43 ) CHIP DIODE RB501V-40
>D6127(B,63 ,26 ) DIODE 1SR154-400
Mark No. Description Part No.
VSX-AX4AVi-S
176
1234
1234
C
D
F
A
B
E
>D6128(B,59 ,26 ) DIODE 1SR154-400
D6129(B,18 ,16 ) CHIP DIODE RB501V-40
J6104(A,70 ,95 ) CONNECTOR ASS'Y PF05PG-Q20
CN6101(A,112 ,73 ) CONNECTOR B12B-PH
CN6103(A,91 ,93 ) 6P JUMPER CONNECTOR 52147-0610
CN6105(A,60 ,8 ) CONNECTOR B8B-PH
CN6106(A,87 ,8 ) CONNECTOR B11B-PH
6102(A,121 ,83 ) 4P CABLE HOLDER 51048-0400
RESISTORS
R6101(B,75 ,71 ) RS1/16S473J
>R6103(A,76 ,77 ) CARBON FILM RESISTOR RD1/4MUF391J
R6105(B,40 ,90 ) RS1/16S472J
R6106(B,68 ,83 ) RS1/16S222J
>R6107(A,97 ,60 ) CARBON FILM RESISTOR RD1/4MUF4R7J
R6108(B,33 ,91 ) RS1/16S101J
CAPACITORS
C6101(A,120 ,76 ) FILM CAPACITOR CQMBA104J50
C6103(B,95 ,89 ) CKSRYB103K50
C6105(B,146 ,72 ) CKSRYB103K50
C6107(A,110 ,61 ) FILM CAPACITOR CQMBA104J50
C6110(B,145 ,22 ) CKSRYB103K50
C6111(B,142 ,46 ) CKSRYB103K50
C6112(B,14 ,63 ) CKSRYB103K50
C6115(B,15 ,37 ) CKSRYB103K50
C6116(B,14 ,11 ) CKSRYB103K50
C6117(A,68 ,52 ) ELECT. CAPACITOR CEANP101M35
C6118(A,44 ,70 ) ELECT. CAPACITOR CEANP102M16
C6120(A,62 ,81 ) ELECT. CAPACITOR CEANP470M25
C6122(A,60 ,70 ) ELECT. CAPACITOR CEAT101M35
C6123(A,71 ,70 ) CEAT221M35
C6124(A,91 ,72 ) CEAT470M50
C6125(A,84 ,89 ) CEAT101M16
C6126(A,46 ,85 ) ELECT. CAPACITOR CEAT102M35
C6127(A,112 ,37 ) ELECT. CAPACITOR CEAT682M16
C6128(A,39 ,84 ) CEAT100M50
C6129(A,144 ,58 ) CEAT221M16
C6130(A,141 ,19 ) CEAT101M16
C6131(A,94 ,37 ) ELECT. CAPACITOR CEAT222M16
C6132(A,48 ,51 ) ELECT. CAPACITOR CEAT222M25
C6133(A,144 ,31 ) CEAT101M16
C6134(A,16 ,68 ) CEAT100M50
C6135(A,18 ,52 ) CEAT221M25
C6136(A,48 ,34 ) ELECT. CAPACITOR CEAT222M25
C6137(A,18 ,27 ) CEAT221M25
C6138(B,16 ,89 ) CKSRYB102K50
C6139(A,56 ,90 ) CEAT100M50
TDC/DC ASSY
MISCELLANEOUS
>IC 4271(A,112 ,80 ) REGULATOR IC PQ1CG3032FZ
>D4271(A,68 ,85 ) DIODE D3SBA20(B)
>D4272(B,124 ,77 ) DIODE RB051L-40
L4271(A,133 ,58 ) INDUCTOR ATH7020
CN4271(A,60 ,54 ) 4PJUMPER CONNECTOR 52151-0410
CN4272(A,107 ,50 ) 3PIN CONNECTOR S3B-EH
4273(A,62 ,68 ) PCB BINDER VEF1040
RESISTORS
>R4271(A,67 ,58 ) CARBON FILM RESISTOR RD1/4MUF4R7J
Mark No. Description Part No.
R4272(B,110 ,76 ) RN1/16SE1001D
R4273(B,106 ,76 ) RN1/16SE3001D
R4274(B,104 ,76 ) RS1/16S101J
CAPACITORS
C4271(A,67 ,53 ) FILM CAPACITOR CQMBA104J50
C4272(A,92 ,66 ) ELECT. CAPACITOR CEAT103M16
C4273(A,118 ,53 ) ELECT. CAPACITOR CEHAZL102M6R3
C4274(A,109 ,67 ) ELECT. CAPACITOR CEHAZL102M16
C4274(B,85 ,85 ) ELECT. CAPACITOR CEHAZL102M16
C4274(B,62 ,71 ) ELECT. CAPACITOR CEHAZL102M16
UTRANS2-1 ASSY
MISCELLANEOUS
>IC 4201(A,111 ,106 ) PROTECTOR(7A) AEK7021
>IC 4202(A,95 ,152 ) PROTECTOR(7A) AEK7021
Q4201(B,90 ,97 ) CHIP TRANSISTOR RN1901
Q4202(B,81 ,97 ) TRANSISTOR UMD2N
Q4203(B,73 ,97 ) TRANSISTOR UMD2N
>D4201(B,100 ,140 ) BRIDGE DIODE S1WB(A)60SD
D4203(B,98 ,105 ) DIODE UDZS8R2(B)
D4204(B,71 ,105 ) DIODE UDZS7R5(B)
D4205(B,100 ,105 ) DIODE UDZS9R1(B)
D4206(B,71 ,102 ) DIODE UDZS8R2(B)
D4207(B,100 ,99 ) DIODE UDZS9R1(B)
D4208(B,76 ,104 ) DIODE UDZS8R2(B)
D4209(B,96 ,99 ) DIODE UDZS6R8(B)
D4210(B,76 ,101 ) DIODE UDZS6R8(B)
D4211(B,94 ,102 ) DIODE UDZS13(B)
D4212(B,81 ,101 ) DIODE UDZS15(B)
D4213(B,96 ,104 ) DIODE UDZS15(B)
D4214(B,81 ,104 ) DIODE UDZS15(B)
D4215(B,77 ,95 ) DIODE UDZS13(B)
D4216(B,68 ,94 ) DIODE UDZS13(B)
J4201JUMPER WIRE D20PDY0610E
4201(A,73 ,128 ) 6P CABLE HOLDER 51048-0600
RESISTORS
>R4201(A,106 ,118 )
CARBON FILM RESISTOR
RD1/4MUF100J
R4203(A,95 ,93 ) CARBON FILM RESISTOR RD1/4MUF470J
>R4205(A,85 ,129 ) METAL OXIDE RESISTOR RS1LMF472J
>R4206(A,71 ,109 ) METAL OXIDE RESISTOR RS1LMF472J
>R4207(A,88 ,126 )
CARBON FILM RESISTOR
RD1/2LMF332J
>R4208(A,75 ,106 )
CARBON FILM RESISTOR
RD1/2LMF332J
CAPACITORS
C4201(A,106 ,112 ) FILM CAPACITOR CFTLA104J2A
C4202(A,110 ,156 ) FILM CAPACITOR CFTLA104J2A
C4203(A,106 ,100 ) PPS CAPACITOR CQHA102J2A
C4204(A,106 ,94 ) PPS CAPACITOR CQHA102J2A
C4205(A,91 ,136 ) ELECT. CAPACITOR CEAT471M2A
C4206(A,81 ,149 ) ELECT. CAPACITOR CEAT471M2A
C4207(A,94 ,119 ) ELECT. CAPACITOR CEAT101M63
C4208(A,94 ,108 ) ELECT. CAPACITOR CEAT101M63
C4209(A,65 ,132 ) ELECT. CAPACITOR CEAT221M2A
C4210(A,72 ,120 ) ELECT. CAPACITOR CEAT221M2A
VVH TR ASSY
MISCELLANEOUS
>IC 4261IC PROTECTOR ICP-N15
Mark No. Description Part No.
VSX-AX4AVi-S 177
5678
5678
C
D
F
A
B
E
>IC 4262IC PROTECTOR ICP-N15
>Q4261(A,36 ,31 ) TRANSISTOR 2SD1763A
>Q4262(A,21 ,31 ) TRANSISTOR 2SB1186A
Q4263(B,30 ,20 ) CHIP TRANSISTOR 2SC3906K
Q4264(B,15 ,20 ) CHIP TRANSISTOR 2SA1514K
>D4261(B,42 ,16 ) DIODE 1SR154-400
>D4262(B,26 ,19 ) DIODE 1SR154-400
CN4261(A,23 ,9 ) 6P JUMPER CONNECTOR 52147-0610
RESISTORS
R4261(B,29 ,24 ) RS1/16S100J
R4262(B,14 ,24 ) RS1/16S100J
R4263(B,30 ,15 ) RS1/16S471J
R4264(B,14 ,13 ) RS1/16S471J
WDIODE ASSY
MISCELLANEOUS
>D4251(A,189 ,128 ) DIODE D5SBA20(B)
>D4252(A,154 ,128 ) DIODE D5SBA20(B)
XSP/PS ASSY (VSX-AX4AVi-S)
MISCELLANEOUS
Q4001(B,150 ,72 ) CHIP TRANSISTOR DTC114TUA
Q4002(B,229 ,97 ) CHIP TRANSISTOR DTC114TUA
Q4003(B,247 ,90 ) CHIP TRANSISTOR DTC114TUA
Q4004(B,290 ,84 ) CHIP TRANSISTOR DTC114TUA
Q4005(B,212 ,99 ) CHIP TRANSISTOR DTC114TUA
D4001(B,168 ,80 ) DIODE 1SS355
D4002(B,165 ,80 ) DIODE 1SS355
D4003(B,216 ,88 ) DIODE 1SS355
D4004(B,213 ,88 ) DIODE 1SS355
D4005(B,247 ,82 ) DIODE 1SS355
D4006(B,244 ,82 ) DIODE 1SS355
D4007(B,291 ,79 ) DIODE 1SS355
D4008(B,289 ,79 ) DIODE 1SS355
D4009(B,217 ,99 ) DIODE 1SS355
D4010(B,215 ,99 ) DIODE 1SS355
L4011(A,188 ,78 ) COIL ATH1053
L4021(A,149 ,68 ) COIL ATH1053
L4031(A,199 ,83 ) COIL ATH1053
L4041(A,258 ,82 ) COIL ATH1053
L4051(A,236 ,90 ) COIL ATH1053
L4061(A,299 ,81 ) COIL ATH1053
L4071(A,280 ,84 ) COIL ATH1053
J4009(A,147 ,76 ) CONNECTOR ASS'Y PF13PG-R12
RY4001(A,163 ,81 ) RELAY XSR3002
RY4002(A,211 ,89 ) RELAY XSR3002
RY4003(A,242 ,83 ) RELAY XSR3002
RY4004(A,286 ,82 ) RELAY XSR3002
RY4005(A,219 ,103 ) RELAY XSR3002
CN4001(A,185 ,33 ) SP TERMINAL 6-P(V0) XKE3018
CN4002(A,248 ,33 ) SP TERMINAL 8-P(V0) XKE3017
CN4007(A,313 ,90 ) 5P PLUG KM200TA5
CN4008(A,313 ,152 ) 9P PLUG KM200TA9
Y13AWG14 BOARD IN ADX7461
RESISTORS
>R4011(A,187 ,68 )
METAL OXIDE RESISTOR
RS1/2LMF4R7J
>R4012(A,175 ,64 )
METAL OXIDE RESISTOR
RS1LMF100J
>R4013(A,193 ,94 )
METAL OXIDE RESISTOR
RS2LMF331J
Mark No. Description Part No.
>R4021(A,158 ,70 )
METAL OXIDE RESISTOR
RS1/2LMF4R7J
>R4022(A,145 ,58 )
METAL OXIDE RESISTOR
RS1LMF100J
>R4023(A,188 ,97 )
METAL OXIDE RESISTOR
RS2LMF331J
>R4031(A,196 ,87 )
METAL OXIDE RESISTOR
RS1/2LMF4R7J
>R4032(A,194 ,67 )
METAL OXIDE RESISTOR
RS1LMF100J
>R4041(A,254 ,82 )
METAL OXIDE RESISTOR
RS1/2LMF4R7J
>R4042(A,267 ,67 )
METAL OXIDE RESISTOR
RS1LMF100J
>R4051(A,240 ,93 )
METAL OXIDE RESISTOR
RS1/2LMF4R7J
>R4052(A,228 ,67 )
METAL OXIDE RESISTOR
RS1LMF100J
>R4061(A,309 ,79 )
METAL OXIDE RESISTOR
RS1/2LMF4R7J
>R4062(A,313 ,73 )
METAL OXIDE RESISTOR
RS1LMF100J
>R4071(A,280 ,88 )
METAL OXIDE RESISTOR
RS1/2LMF4R7J
>R4072(A,268 ,94 )
METAL OXIDE RESISTOR
RS1LMF100J
R4101(A,222 ,115 )
CARBON FILM RESISTOR
RD1/4MUF473J
R4102(A,252 ,115 )
CARBON FILM RESISTOR
RD1/4MUF473J
CAPACITORS
C4001(A,162 ,88 ) CEAT101M50
C4011(A,182 ,60 ) CFTLA104J50
C4012(A,178 ,57 ) CFTLA104J50
C4013(A,169 ,49 ) FILM CAPACITOR CQMBA103J50
C4021(A,145 ,48 ) CFTLA104J50
C4022(A,145 ,39 ) CFTLA104J50
C4023(A,157 ,42 ) FILM CAPACITOR CQMBA103J50
C4031(A,197 ,63 ) CFTLA104J50
C4032(A,192 ,57 ) CFTLA104J50
C4033(A,201 ,67 ) FILM CAPACITOR CQMBA103J50
C4041(A,257 ,63 ) CFTLA104J50
C4042(A,257 ,54 ) CFTLA104J50
C4043(A,247 ,56 ) FILM CAPACITOR CQMBA103J50
C4051(A,224 ,61 ) CFTLA104J50
C4052(A,228 ,55 ) CFTLA104J50
C4053(A,232 ,49 ) FILM CAPACITOR CQMBA103J50
C4061(A,304 ,61 ) CFTLA104J50
C4062(A,304 ,54 ) CFTLA104J50
C4063(A,296 ,57 ) FILM CAPACITOR CQMBA103J50
C4071(A,270 ,65 ) CFTLA104J50
C4072(A,272 ,59 ) CFTLA104J50
C4073(A,276 ,59 ) FILM CAPACITOR CQMBA103J50
C4101(A,212 ,137 ) ELECTR.CAPACITOR ACH7218
C4102(A,258 ,137 ) ELECTR.CAPACITOR ACH7218
YTRANS2-2 ASSY
MISCELLANEOUS
H3151(A,173 ,78 ) FUSE CLIP AKR7001
H3152(A,151 ,78 ) FUSE CLIP AKR7001
H3153(A,174 ,67 ) FUSE CLIP AKR7001
H3154(A,152 ,67 ) FUSE CLIP AKR7001
H3155(A,173 ,56 ) FUSE CLIP AKR7001
H3156(A,151 ,56 ) FUSE CLIP AKR7001
H3157(A,173 ,43 ) FUSE CLIP AKR7001
H3158(A,151 ,43 ) FUSE CLIP AKR7001
H3159(A,173 ,32 ) FUSE CLIP AKR7001
H3160(A,151 ,32 ) FUSE CLIP AKR7001
J3001(A,138 ,39 ) CONNECTOR ASS'Y PF12PG-R40
ZTRANS1 ASSY
TRANS1 ASSY has no service parts.
Mark No. Description Part No.
VSX-AX4AVi-S
178
1234
1234
C
D
F
A
B
E
aPRIMARY ASSY
MISCELLANEOUS
>IC 3061(A,299 ,119 ) REGULATOR IC NJM78M56FA
Q3061(B,281 ,82 ) DIGITAL TR(SC-70) RT1N431M
>D3061(B,296 ,103 ) BRIDGE DIODE S1WB(A)60SD
D3062(B,299 ,89 ) DIODE 1SS355
D3063(B,308 ,89 ) DIODE UDZS5R1(B)
D3064(B,275 ,89 ) DIODE 1SS355
D3065(B,275 ,82 ) DIODE 1SS355
>L3063(A,244 ,46 ) LINE FILTER XTF3004
H3061(A,223 ,68 ) FUSE CLIP AKR7001
H3062(A,243 ,68 ) FUSE CLIP AKR7001
KN3061(A,313 ,32 ) WRAPPING TERMINAL VNF1084
>RY3061(A,271 ,80 ) JOE LOWPOWER RELAY XSR3003
>T3061(A,273 ,106 )
STANDBY TRANSFORMER
ATT7040
>CN3062(A,308 ,137 ) 9P SOCKET KP200TA9L
CN3063(A,246 ,137 ) 5P SOCKET KP200TA5L
CN3065(A,189 ,73 ) AC SOCKET 1-P AKP1034
>3066AC INLET ASSY ADX7464
RESISTORS
R3062(B,303 ,89 ) RS1/16S332J
R3063(A,279 ,95 )
CARBON FILM RESISTOR
RD1/4MUF101J
R3064(B,305 ,89 ) RS1/16S103J
CAPACITORS
>C3061(A,266 ,47 ) FILM CAPACITOR ACE7013
>C3062(A,251 ,74 ) ACG7039
C3063(A,286 ,132 ) FILM CAPACITOR CQMBA103J50
C3064(B,291 ,115 ) CKSRYB102K50
C3065(B,289 ,115 ) CKSRYB102K50
C3066(B,294 ,110 ) CKSRYB102K50
C3067(B,308 ,96 ) CKSRYB102K50
C3068(A,305 ,105 ) ELECT. CAPACITOR CEAT332M25
C3069(A,317 ,134 ) CEAT221M25
C3071(B,311 ,99 ) CKSRYB103K50
bVOLUME ASSY
MISCELLANEOUS
S3571(A,295 ,167 ) ROTARY ENCODER ASX7005
S3572(A,273 ,199 ) SWITCH VSG1024
S3573(A,293 ,199 ) SWITCH VSG1024
S3574(A,312 ,199 ) SWITCH VSG1024
3571(A,266 ,185 ) CABLE HOLDER(6P) 51063-0605
RESISTORS
R3574(B,285 ,200 ) RS1/16S681J
R3575(B,302 ,200 ) RS1/16S821J
CAPACITORS
C3572(B,300 ,172 ) CKSRYB103K50
C3573(B,295 ,172 ) CKSRYB103K50
cDISPLAY ASSY (VSX-AX4AVi-S)
MISCELLANEOUS
IC 3201(B,131 ,214 ) DISPLAY U-COM PE5503A
IC 3202(A,17 ,221 )
REMOTE RECEIVER UNIT
RPM7140-H9
IC 3203(B,171 ,168 ) LOGIC IC CD4053BNS
Q3304(B,110 ,190 ) DIGITAL TR(SC-70) RT1N431M
Mark No. Description Part No.
Q3305(B,219 ,208 ) DIGITAL TR(SC-70) RT1N431M
Q3307(B,31 ,203 ) DIGITAL TR(SC-70) RT1N431M
Q3308(B,16 ,201 ) DIGITAL TR(SC-70) RT1N431M
Q3310(B,204 ,208 ) DIGITAL TR(SC-70) RT1N431M
Q3351(B,205 ,189 ) DIGITAL TR(SC-70) RT1N431M
Q3352(B,189 ,159 ) DIGITAL TR(SC-70) RT1N431M
Q3353(B,200 ,160 ) TRANSISTOR 2SA1576A
Q3354(B,150 ,160 ) CHIP TR (PNP X 2) UMB1N
Q3355(B,176 ,159 ) TRANSISTOR UMH1N
D3314(A,121 ,195 ) LED(BLUE) SLR-343BBT(HJKL)
D3315(A,224 ,208 ) LED(BLUE) SLR-343BBT(HJKL)
D3317(A,31 ,208 ) LED(ORANGE) SLI-343DCW(STU)
D3318(A,16 ,206 ) LED(RED) SLI-343URW(RST)
D3320(A,208 ,206 ) LED(RED) SLI-343URW(RST)
D3352(B,180 ,172 ) DIODE DAN217
D3354(B,190 ,164 ) DIODE DAN202U
D3355(B,232 ,212 ) DIODE DAN202U
D3356(B,181 ,166 ) DIODE 1SS355
D3358(B,192 ,159 ) DIODE 1SS355
D3359(B,202 ,165 ) DIODE 1SS355
L3301(B,232 ,227 ) CHIP BEADS VTL1083
L3351(A,234 ,218 ) RADIAL INDUCTOR LFEA2R2J
V3201(A,182 ,237 ) FL TUBE AAV7105
S3201(A,72 ,150 ) SWITCH VSG1024
S3202(A,82 ,140 ) SWITCH VSG1024
S3203(A,72 ,140 ) SWITCH VSG1024
S3204(A,62 ,140 ) SWITCH VSG1024
S3211(A,103 ,149 ) SWITCH VSG1024
S3212(A,103 ,130 ) SWITCH VSG1024
S3213(A,72 ,130 ) SWITCH VSG1024
S3214(A,41 ,130 ) SWITCH VSG1024
S3215(A,41 ,149 ) SWITCH VSG1024
S3216(A,26 ,149 ) SWITCH VSG1024
S3221(A,119 ,149 ) SWITCH VSG1024
S3222(A,134 ,149 ) SWITCH VSG1024
S3223(A,150 ,149 ) SWITCH VSG1024
S3224(A,165 ,149 ) SWITCH VSG1024
S3225(A,181 ,149 ) SWITCH VSG1024
S3226(A,196 ,149 ) SWITCH VSG1024
S3227(A,212 ,149 ) SWITCH VSG1024
X3201(A,148 ,197 ) CERAMIC RESONATOR VSS1142
(6.60MHz)
CN3201(A,212 ,161 ) 23P CONNECTOR 52044-2345
3204(A,238 ,209 ) CABLE HOLDER(6P) 51063-0605
3203(A,7 ,165 ) CABLE HOLDER(8P) 51063-0805
3202(A,239 ,228 ) 6P CABLE HOLDER 51048-0600
3201(A,121 ,201 ) FL HOLDER(FE) VNF1096
RESISTORS
R3201(B,77 ,159 ) RS1/16S472J
R3202(B,82 ,144 ) RS1/16S681J
R3203(B,78 ,144 ) RS1/16S821J
R3204(B,70 ,144 ) RS1/16S122J
R3205(B,57 ,141 ) RS1/16S162J
R3211(B,108 ,158 ) RS1/16S472J
R3212(B,103 ,140 ) RS1/16S681J
R3213(B,90 ,130 ) RS1/16S821J
R3214(B,60 ,130 ) RS1/16S122J
R3215(B,41 ,139 ) RS1/16S162J
R3216(B,36 ,149 ) RS1/16S272J
Mark No. Description Part No.
VSX-AX4AVi-S 179
5678
5678
C
D
F
A
B
E
R3217(B,26 ,154 ) RS1/16S512J
R3221(B,119 ,158 ) RS1/16S472J
R3222(B,129 ,149 ) RS1/16S681J
R3223(B,137 ,150 ) RS1/16S821J
R3224(B,146 ,150 ) RS1/16S122J
R3225(B,176 ,149 ) RS1/16S162J
R3226(B,192 ,149 ) RS1/16S272J
R3227(B,207 ,153 ) RS1/16S512J
R3231(B,174 ,240 ) RS1/16S473J
R3232(B,172 ,240 ) RS1/16S473J
R3233(B,170 ,240 ) RS1/16S473J
R3234(B,168 ,240 ) RS1/16S473J
R3235(B,166 ,240 ) RS1/16S473J
R3236(B,164 ,240 ) RS1/16S473J
R3237(B,162 ,240 ) RS1/16S473J
R3238(B,160 ,240 ) RS1/16S473J
R3239(B,158 ,240 ) RS1/16S473J
R3240(B,156 ,240 ) RS1/16S473J
R3241(B,154 ,240 ) RS1/16S473J
R3242(B,152 ,240 ) RS1/16S473J
R3243(B,150 ,240 ) RS1/16S473J
R3244(B,148 ,240 ) RS1/16S473J
R3245(B,146 ,240 ) RS1/16S473J
R3246(B,144 ,240 ) RS1/16S473J
R3247(B,68 ,240 ) RS1/16S104J
R3248(B,70 ,240 ) RS1/16S104J
R3249(B,72 ,240 ) RS1/16S104J
R3250(B,74 ,240 ) RS1/16S104J
R3251(B,76 ,240 ) RS1/16S104J
R3252(B,78 ,240 ) RS1/16S104J
R3253(B,80 ,240 ) RS1/16S104J
R3254(B,82 ,240 ) RS1/16S104J
R3255(B,84 ,240 ) RS1/16S104J
R3256(B,86 ,240 ) RS1/16S104J
R3257(B,88 ,240 ) RS1/16S104J
R3258(B,90 ,240 ) RS1/16S104J
R3259(B,92 ,240 ) RS1/16S104J
R3260(B,94 ,240 ) RS1/16S104J
R3261(B,96 ,240 ) RS1/16S104J
R3262(B,98 ,240 ) RS1/16S104J
R3263(B,100 ,240 ) RS1/16S104J
R3264(B,102 ,240 ) RS1/16S104J
R3265(B,104 ,240 ) RS1/16S104J
R3266(B,106 ,240 ) RS1/16S104J
R3267(B,108 ,240 ) RS1/16S104J
R3268(B,110 ,240 ) RS1/16S104J
R3269(B,112 ,240 ) RS1/16S104J
R3270(B,114 ,240 ) RS1/16S104J
R3271(B,116 ,240 ) RS1/16S104J
R3272(B,118 ,240 ) RS1/16S104J
R3273(B,120 ,240 ) RS1/16S104J
R3274(B,122 ,240 ) RS1/16S104J
R3275(B,124 ,240 ) RS1/16S104J
R3276(B,126 ,240 ) RS1/16S104J
R3277(B,128 ,240 ) RS1/16S104J
R3278(B,130 ,240 ) RS1/16S104J
R3279(B,132 ,240 ) RS1/16S104J
R3280(B,134 ,240 ) RS1/16S104J
R3281(B,136 ,240 ) RS1/16S104J
R3282(B,138 ,240 ) RS1/16S104J
Mark No. Description Part No.
R3283(B,140 ,240 ) RS1/16S104J
R3304(B,117 ,192 ) RS1/16S221J
R3305(B,229 ,202 ) RS1/16S391J
R3307(B,34 ,203 ) RS1/16S331J
R3308(B,19 ,201 ) RS1/16S331J
R3310(B,216 ,200 ) RS1/16S331J
R3314(B,110 ,181 ) RS1/16S0R0J
R3321(B,167 ,206 ) RS1/16S473J
R3322(B,169 ,206 ) RS1/16S473J
R3323(B,168 ,211 ) RS1/16S473J
R3324(B,166 ,211 ) RS1/16S473J
R3325(B,149 ,206 ) RS1/16S105J
R3327(B,146 ,204 ) RS1/16S104J
R3328(B,131 ,193 ) RS1/16S472J
R3329(B,144 ,204 ) RS1/16S0R0J
R3330(B,153 ,190 ) RS1/16S221J
R3331(B,151 ,190 ) RS1/16S221J
R3332(B,150 ,187 ) RS1/16S221J
R3333(B,148 ,187 ) RS1/16S221J
R3334(B,128 ,193 ) RS1/16S104J
R3336(B,109 ,197 ) RS1/16S473J
R3337(B,90 ,206 ) RS1/16S101J
R3338(B,102 ,202 ) RS1/16S104J
R3339(B,96 ,211 ) RS1/16S104J
R3341(B,104 ,206 ) RS1/16S474J
R3343(B,104 ,202 ) RS1/16S0R0J
R3344(B,122 ,180 ) RS1/16S221J
R3345(B,94 ,211 ) RS1/16S474J
R3346(B,117 ,181 ) RS1/16S221J
R3347(B,93 ,198 ) RS1/16S221J
R3350(B,215 ,191 ) RS1/16S0R0J
R3351(B,193 ,211 ) RS1/16S473J
R3352(B,179 ,167 ) RS1/16S223J
R3353(B,185 ,167 ) RS1/16S103J
R3354(B,159 ,163 ) RS1/16S392J
R3355(B,205 ,184 ) RS1/16S0R0J
R3356(B,203 ,184 ) RS1/16S0R0J
R3357(B,201 ,184 ) RS1/16S0R0J
R3358(B,199 ,184 ) RS1/16S0R0J
R3359(B,203 ,179 ) RS1/16S221J
R3360(B,161 ,163 ) RS1/16S103J
R3361(B,197 ,160 ) RS1/16S0R0J
R3362(B,161 ,167 ) RS1/16S0R0J
R3363(B,159 ,166 ) RS1/16S0R0J
R3366(B,194 ,161 ) RS1/16S472J
R3367(B,202 ,156 ) RS1/16S104J
R3368(B,202 ,160 ) RS1/16S104J
R3369(B,194 ,165 ) RS1/16S102J
R3371(B,200 ,164 ) RS1/16S103J
R3372(B,205 ,160 ) RS1/16S101J
R3373(B,179 ,163 ) RS1/16S0R0J
R3374(B,179 ,159 ) RS1/16S0R0J
R3376(B,170 ,157 ) RS1/16S0R0J
R3377(B,101 ,213 ) RS1/16S104J
CAPACITORS
C3201(B,77 ,155 ) CKSRYB102K50
C3211(B,108 ,154 ) CKSRYB102K50
C3221(B,119 ,154 ) CKSRYB102K50
C3231(B,186 ,236 ) CCSRCH471J50
C3232(A,194 ,238 ) ELECT. CAPACITOR CEJQ101M35
Mark No. Description Part No.
VSX-AX4AVi-S
180
1234
1234
C
D
F
A
B
E
C3235(B,178 ,231 ) CCSRCH471J50
C3236(B,176 ,231 ) CCSRCH471J50
C3237(B,174 ,231 ) CCSRCH471J50
C3238(B,172 ,231 ) CCSRCH471J50
C3239(B,169 ,231 ) CCSRCH471J50
C3240(B,167 ,231 ) CCSRCH471J50
C3241(B,165 ,231 ) CCSRCH471J50
C3242(B,163 ,231 ) CCSRCH471J50
C3243(B,159 ,231 ) CCSRCH471J50
C3244(B,157 ,231 ) CCSRCH471J50
C3245(B,155 ,231 ) CCSRCH471J50
C3246(B,153 ,231 ) CCSRCH471J50
C3247(B,150 ,231 ) CCSRCH471J50
C3248(B,148 ,231 ) CCSRCH471J50
C3249(B,146 ,231 ) CCSRCH471J50
C3250(B,144 ,231 ) CCSRCH471J50
C3321(B,149 ,215 ) CKSRYB103K50
C3322(B,67 ,229 ) CKSRYB103K50
C3323(B,129 ,230 ) CKSRYB103K50
C3326(B,143 ,200 ) CKSRYB104K25
C3328(B,152 ,205 ) CKSRYB104K25
C3330(B,125 ,193 ) CKSRYB102K50
C3334(B,102 ,206 ) CKSRYB103K50
C3335(A,89 ,194 ) ELECT. CAPACITOR CEJQ470M50
C3353(B,164 ,158 ) CKSRYB153K50
C3354(B,197 ,164 ) CKSRYB103K50
C3355(B,11 ,229 ) CKSRYB103K50
C3356(B,232 ,216 ) CKSRYB103K50
C3359(A,8 ,227 ) CEJQ101M6R3
C3360(A,194 ,224 ) CEJQ221M6R3
dINPUT SELECT ASSY
MISCELLANEOUS
Q3561(B,78 ,95 ) DIGITAL TR(SC-70) RT1N431M
D3562(A,28 ,69 ) LED(BLUE) SLR-343BBT(HJKL)
S3561(A,95 ,86 ) ROTARY ENCODER ASX7047
S3562(A,64 ,103 ) SWITCH VSG1024
S3563(A,64 ,83 ) SWITCH VSG1024
S3564(A,35 ,65 ) SWITCH VSG1024
S3565(A,64 ,63 ) SWITCH VSG1024
3561(A,79 ,106 ) CABLE HOLDER(8P) 51063-0805
RESISTORS
R3561(B,73 ,95 ) RS1/16S391J
R3563(B,59 ,106 ) RS1/16S272J
R3564(B,59 ,87 ) RS1/16S512J
CAPACITORS
C3563(B,91 ,86 ) CKSRYB103K50
C3564(B,89 ,86 ) CKSRYB103K50
ePREOUT & CONTROL ASSY
MISCELLANEOUS
IC 2931(A,192 ,118 ) RS-232C TRANSCEIVER MAX3232CPW
IC 2932(B,167 ,69 ) OP-AMP IC BA4560RF
Q2801(A,197 ,14 ) TRANSISTOR IMX25
Q2802(A,197 ,21 ) TRANSISTOR IMX25
Q2821(A,197 ,27 ) TRANSISTOR IMX25
Q2822(A,197 ,34 ) TRANSISTOR IMX25
Mark No. Description Part No.
Q2841(A,197 ,40 ) TRANSISTOR IMX25
Q2842(A,197 ,47 ) TRANSISTOR IMX25
Q2861(A,197 ,53 ) TRANSISTOR IMX25
Q2862(A,197 ,60 ) TRANSISTOR IMX25
Q2931(B,193 ,126 ) TRANSISTOR 2SC4081
Q2952(A,182 ,96 ) DIGITAL TR(SC-70) RT1N431M
D2901(A,199 ,131 ) DIODE 1SS355
D2931(B,203 ,121 ) DIODE 1SS355
D2951(B,177 ,126 ) DIODE 1SS355
D2952(A,170 ,98 ) DIODE 1SS355
D2957(A,199 ,89 ) DIODE UDZS6R2(B)
D2958(A,193 ,84 ) DIODE UDZS6R2(B)
D2959(A,197 ,89 ) DIODE UDZS6R2(B)
D2960(A,193 ,86 ) DIODE UDZS6R2(B)
L2901(A,203 ,134 ) CHIP SOLID INDUCTOR QTL1013
L2902(A,203 ,133 ) CHIP SOLID INDUCTOR QTL1013
L2903(A,203 ,137 ) CHIP SOLID INDUCTOR QTL1013
L2904(A,203 ,136 ) CHIP SOLID INDUCTOR QTL1013
L2931(B,174 ,119 ) CHIP SOLID INDUCTOR QTL1013
L2933(B,170 ,119 ) CHIP BEADS VTL1083
L2934(A,169 ,129 ) CHIP BEADS VTL1083
L2935(B,189 ,130 ) CHIP BEADS VTL1083
JA 2901(A,219 ,142 ) MINI JACK(4P) /W SW XKN3015
CN2801(A,164 ,23 ) 26P CONNECTOR 52045-2645
CN2802(A,165 ,135 ) 23P SOCKET XKP3082
CN2804(A,220 ,93 ) 20P SOCKET AKP7202
CN2805(A,220 ,23 ) PIN JACK(4P) AKB7172
CN2806(A,220 ,51 ) PIN JACK(4P) AKB7172
CN2931(A,220 ,119 ) 9P D-SUB SOCKET AKP1213
RESISTORS
R2801(B,203 ,14 ) RS1/16S101J
R2802(B,203 ,21 ) RS1/16S101J
R2803(B,197 ,14 ) RS1/16S121J
R2804(B,197 ,21 ) RS1/16S121J
R2805(B,191 ,14 ) RS1/16S271J
R2806(B,191 ,21 ) RS1/16S271J
R2807(A,202 ,16 ) RS1/16S103J
R2808(A,202 ,22 ) RS1/16S103J
R2809(A,193 ,16 ) RS1/16S103J
R2810(A,193 ,22 ) RS1/16S103J
R2821(B,203 ,27 ) RS1/16S101J
R2822(B,203 ,34 ) RS1/16S101J
R2823(B,197 ,27 ) RS1/16S121J
R2824(B,197 ,34 ) RS1/16S121J
R2825(B,191 ,27 ) RS1/16S271J
R2826(B,191 ,34 ) RS1/16S271J
R2827(A,202 ,29 ) RS1/16S103J
R2828(A,202 ,35 ) RS1/16S103J
R2829(A,193 ,29 ) RS1/16S103J
R2830(A,193 ,35 ) RS1/16S103J
R2841(B,203 ,40 ) RS1/16S101J
R2842(B,203 ,47 ) RS1/16S101J
R2843(B,197 ,40 ) RS1/16S121J
R2844(B,197 ,47 ) RS1/16S121J
R2845(B,191 ,40 ) RS1/16S271J
R2846(B,191 ,47 ) RS1/16S271J
R2847(A,202 ,42 ) RS1/16S103J
R2848(A,202 ,48 ) RS1/16S103J
R2849(A,193 ,42 ) RS1/16S103J
R2850(A,193 ,48 ) RS1/16S103J
Mark No. Description Part No.
VSX-AX4AVi-S 181
5678
5678
C
D
F
A
B
E
R2861(B,203 ,53 ) RS1/16S101J
R2862(B,203 ,60 ) RS1/16S101J
R2863(B,197 ,53 ) RS1/16S121J
R2864(B,197 ,60 ) RS1/16S121J
R2865(B,191 ,53 ) RS1/16S271J
R2866(B,191 ,60 ) RS1/16S271J
R2867(A,202 ,55 ) RS1/16S103J
R2868(A,202 ,61 ) RS1/16S103J
R2869(A,193 ,55 ) RS1/16S103J
R2870(A,193 ,61 ) RS1/16S103J
R2931(A,198 ,121 ) RS1/16S101J
R2932(B,203 ,115 ) RS1/16S101J
R2933(B,189 ,118 ) RS1/16S101J
R2934(A,188 ,122 ) RS1/16S101J
R2935(B,203 ,119 ) RS1/16S224J
R2936(B,203 ,123 ) RS1/16S474J
R2937(B,198 ,120 ) RS1/16S103J
R2938(B,198 ,122 ) RS1/16S224J
R2939(B,212 ,113 ) RS1/16S0R0J
R2951(B,187 ,90 ) RS1/16S104J
R2952(B,187 ,86 ) RS1/16S104J
R2953(B,184 ,89 ) RS1/16S331J
R2954(B,184 ,86 ) RS1/16S331J
R2957(A,185 ,100 ) RS1/16S514J
R2959(A,182 ,100 ) RS1/16S393J
R2962(A,175 ,97 ) RS1/16S0R0J
R2965(B,176 ,75 ) RS1/16S472J
R2966(B,167 ,60 ) RS1/16S472J
R2967(B,164 ,94 ) RS1/16S104J
R2968(B,161 ,92 ) RS1/16S104J
R2969(B,174 ,71 ) RS1/16S472J
R2970(B,167 ,58 ) RS1/16S472J
R2971(A,170 ,70 ) RS1/16S103J
R2972(A,164 ,68 ) RS1/16S103J
R2973(A,170 ,67 ) RS1/16S103J
R2974(A,165 ,64 ) RS1/16S103J
R2975(B,169 ,77 ) RS1/16S101J
R2976(B,161 ,71 ) RS1/16S101J
R2996(B,191 ,130 ) RS1/16S0R0J
CAPACITORS
C2801(B,211 ,13 ) CCSRCH331J50
C2802(B,210 ,17 ) CCSRCH331J50
C2821(B,211 ,27 ) CCSRCH331J50
C2822(B,210 ,31 ) CCSRCH331J50
C2841(B,211 ,41 ) CCSRCH331J50
C2842(B,210 ,45 ) CCSRCH331J50
C2861(B,211 ,55 ) CCSRCH331J50
C2862(B,210 ,59 ) CCSRCH331J50
C2891(B,214 ,23 ) CKSRYB103K50
C2892(B,214 ,51 ) CKSRYB103K50
C2903(B,204 ,135 ) CKSRYB104K16
C2931(B,207 ,128 ) CKSRYB103K50
C2933(A,192 ,112 ) CKSRYB105K10
C2934(A,192 ,122 ) CKSRYB105K10
C2935(A,197 ,115 ) CKSRYB473K25
C2936(A,197 ,118 ) CKSRYB224K16
C2937(A,186 ,115 ) CKSRYB103K50
C2938(A,177 ,115 ) CEAT101M16
C2939(B,203 ,117 ) CKSRYB103K50
Mark No. Description Part No.
C2940(B,198 ,124 ) CCSRCH331J50
C2951(B,189 ,90 ) CCSRCH101J50
C2952(B,189 ,86 ) CCSRCH101J50
C2953(B,181 ,90 ) CCSRCH101J50
C2954(B,181 ,86 ) CCSRCH101J50
C2955(A,178 ,91 ) CEAT100M50
C2956(A,178 ,85 ) CEAT100M50
C2957(B,178 ,132 ) CKSRYB103K50
C2958(B,209 ,84 ) CKSRYB103K50
C2961(A,174 ,77 ) CEAT100M50
C2962(A,182 ,77 ) CEAT100M50
C2967(A,167 ,85 ) CEAT100M50
C2968(A,161 ,78 ) CEAT100M50
C2969(B,165 ,75 ) CKSRYB103K50
C2970(B,167 ,73 ) CKSRYB103K50
C2973(A,206 ,105 ) CKSRYB103K50
C2974(A,205 ,105 ) CKSRYB474K10
C2975(B,211 ,86 ) CKSRYB474K10
C2976(B,211 ,88 ) CKSRYB103K50
f1394 ASSY
MISCELLANEOUS
>IC 1 (A,42 ,38 ) IC NJM2391DL1-33
IC 101 (A,61 ,43 ) MICROCOMPUTER PD5787A
IC 103 (B,64 ,31 ) RESET IC PST9245
IC 104 (B,44 ,50 ) LOGIC IC SN74LV125APW
IC 201 (A,99 ,51 ) IEEE1394 PHY LINK TSB43CA42ZGW
IC 205 (B,71 ,60 ) LOGIC IC
SN74AHC1G08DCK
IC 301 (B,100 ,26 ) FLOW CONTROL IC PD8112A
IC 302 (B,125 ,25 ) IC K4S641632H-TC75
IC 303 (A,116 ,27 ) OP AMP IC NJU7093AF
IC 401 (A,25 ,55 ) DSD/PCM CONVERTER IC SM5819AF
IC 404 (B,51 ,23 ) LOGIC IC
SN74LVC1G125DCK
IC 405 (B,23 ,57 ) IC SN74LVC541APW
IC 409 (B,73 ,26 ) LOGIC IC
SN74LVC1G126DCK
>IC 410 (A,27 ,45 ) VOLTAGE REGULATOR
S-L2980A25MC-C6K
Q101 (A,44 ,45 ) DIGITAL TR(SC-70) RT1P241M
Q301 (B,115 ,28 ) DIGITAL TR(SC-70) RT1P241M
Q401 (A,20 ,62 ) DIGITAL TR(SC-70) RT1P431M
D102 (B,63 ,61 ) CHIP DIODE RB501V-40
L1 (A,38 ,33 ) CHIP SOLID INDUCTOR ATL7002
L101 (B,43 ,35 ) CHIP SOLID INDUCTOR ATL7002
L201 (B,75 ,61 ) CHIP SOLID INDUCTOR ATL7002
L202 (B,76 ,41 ) CHIP SOLID INDUCTOR ATL7002
L203 (B,138 ,50 ) CHIP SOLID INDUCTOR ATL7002
>L204 (A,132 ,61 ) COIL ATH7015
>L205 (A,132 ,58 ) COIL ATH7015
>L206 (A,133 ,36 ) COIL ATH7015
>L207 (A,133 ,33 ) COIL ATH7015
L301 (B,80 ,35 ) CHIP SOLID INDUCTOR ATL7002
L302 (B,138 ,45 ) CHIP SOLID INDUCTOR ATL7002
L401 (A,35 ,43 ) CHIP SOLID INDUCTOR ATL7002
L403 (B,19 ,61 ) CHIP SOLID INDUCTOR ATL7002
L404 (A,29 ,42 ) CHIP SOLID INDUCTOR ATL7002
L405 (A,16 ,48 ) CHIP SOLID INDUCTOR ATL7002
JA 201 (A,142 ,35 ) 1394-TERMINAL VKN1800
JA 202 (A,142 ,60 ) 1394-TERMINAL VKN1800
X101 (A,62 ,57 ) CERAMIC RESONATOR VSS1179
Mark No. Description Part No.
VSX-AX4AVi-S
182
1234
1234
C
D
F
A
B
E
(6.14MHz)
X201 (B,105 ,60 ) CRYSTAL RESONATOR ASS7055
(24.5760MHz)
X302 (A,86 ,35 ) CRYSTAL RESONATOR ASS7054
(22.5792MHz)
CN101 (A,138 ,19 ) 07P CONNECTOR RKN1048
CN401 (A,79 ,15 ) 22P CONNECTOR VKN1426
CN402 (A,20 ,37 ) 10P CONNECTOR VKN1414
IC FLASH MEMORY IC
MBM29LV400TC-90PFTN
RESISTORS
R102 (B,69 ,51 ) RS1/16S101J
R103 (B,67 ,51 ) RS1/16S472J
R104 (A,69 ,56 ) RS1/16S472J
R106 (A,61 ,60 ) RS1/16S472J
R108 (A,56 ,56 ) RS1/16S472J
R109 (A,52 ,55 ) RS1/16S101J
R110 (A,50 ,51 ) RS1/16S101J
R111 (A,47 ,51 ) RS1/16S101J
R113 (B,71 ,53 ) RS1/16S103J
R114 (B,49 ,46 ) RS1/16S103J
R115 (A,47 ,53 ) RS1/16S472J
R116 (A,57 ,61 ) RS1/16S101J
R117 (A,49 ,45 ) RS1/16S103J
R118 (A,49 ,43 ) RS1/16S101J
R119 (A,49 ,40 ) RAB4C101J
R122 (B,44 ,40 ) RAB4C103J
R123 (A,49 ,38 ) RS1/16S101J
R124 (A,49 ,33 ) RS1/16S103J
R125 (A,49 ,36 ) RS1/16S101J
R126 (A,49 ,35 ) RS1/16S101J
R127 (A,52 ,31 ) RAB4C101J
R128 (A,56 ,31 ) RAB4C101J
R129 (A,61 ,31 ) RAB4C101J
R130 (A,65 ,31 ) RAB4C101J
R131 (A,76 ,64 ) RS1/16S101J
R132 (A,73 ,48 ) RS1/16S472J
R135 (A,73 ,43 ) RAB4C472J
R136 (A,73 ,39 ) RAB4C472J
R137 (A,73 ,36 ) RAB4C472J
R138 (A,73 ,32 ) RAB4C472J
R139 (B,54 ,33 ) RS1/16S472J
R140 (B,138 ,17 ) RS1/16S103J
R141 (B,138 ,18 ) RS1/16S103J
R142 (B,59 ,61 ) RS1/16S0R0J
R143 (A,42 ,52 ) RS1/16S103J
R144 (A,42 ,51 ) RS1/16S470J
R145 (A,42 ,47 ) RS1/16S472J
R146 (A,42 ,49 ) RS1/16S470J
R147 (A,42 ,53 ) RS1/16S472J
R148 (B,67 ,42 ) RS1/16S101J
R149 (B,66 ,40 ) RS1/16S472J
R151 (B,67 ,32 ) RS1/16S0R0J
R201 (A,112 ,40 ) RS1/16S472J
R202 (A,113 ,40 ) RS1/16S472J
R203 (A,111 ,46 ) RS1/16S101J
R204 (B,104 ,44 ) RS1/16S101J
R205 (B,125 ,46 ) RAB4C101J
R206 (A,116 ,37 ) RAB4C472J
R207 (B,104 ,50 ) RS1/16S472J
R208 (B,104 ,51 ) RS1/16S472J
Mark No. Description Part No.
R209 (B,111 ,61 ) RS1/16S0R0J
R210 (B,112 ,52 ) RS1/16S0R0J
R213 (A,107 ,61 ) CHIP RESISTOR RS1/16S6341D
R214 (B,98 ,57 ) RS1/16S0R0J
R215 (B,100 ,57 ) RS1/16S0R0J
R216 (B,97 ,63 ) RAB4C472J
R217 (A,76 ,57 ) RS1/16S472J
R218 (B,73 ,61 ) RS1/16S472J
R219 (A,76 ,63 ) RS1/16S472J
R220 (B,93 ,63 ) RAB4C472J
R221 (B,89 ,63 ) RAB4C472J
R222 (A,85 ,63 ) RS1/16S472J
R223 (B,98 ,59 ) RAB4C472J
R224 (B,85 ,62 ) RS1/16S472J
R225 (B,85 ,64 ) RS1/16S472J
R226 (A,80 ,61 ) RS1/16S472J
R227 (B,71 ,57 ) RS1/16S472J
R228 (B,85 ,57 ) RS1/16S472J
R229 (B,84 ,57 ) RS1/16S472J
R230 (A,86 ,54 ) RAB4C101J
R231 (A,81 ,53 ) RAB4C101J
R232 (B,85 ,49 ) RAB4C101J
R233 (B,81 ,48 ) RAB4C101J
R234 (A,84 ,45 ) RAB4C472J
R235 (B,89 ,47 ) RS1/16S472J
R236 (A,84 ,42 ) RS1/16S472J
R237 (A,84 ,41 ) RS1/16S472J
R238 (B,84 ,44 ) RAB4C472J
R239 (A,90 ,40 ) RAB4C472J
R240 (A,81 ,40 ) RAB4C472J
R241 (B,101 ,44 ) RS1/16S101J
R242 (A,77 ,40 ) RS1/16S472J
R243 (A,78 ,40 ) RS1/16S472J
R244 (A,98 ,39 ) RS1/16S472J
R245 (A,96 ,33 ) RAB4C101J
R246 (A,100 ,32 ) RAB4C101J
R247 (A,102 ,37 ) RS1/16S472J
R251 (A,110 ,40 ) RS1/16S472J
R252 (A,113 ,37 ) RS1/16S101J
R253 (B,87 ,56 ) RS1/16S101J
R254 (B,88 ,56 ) RS1/16S101J
R261 (B,123 ,42 ) RS1/16S0R0J
R262 (B,106 ,48 ) RS1/16S0R0J
R265 (A,112 ,43 ) RS1/16S470J
R266 (A,112 ,45 ) RS1/16S470J
R267 (B,117 ,63 ) CHIP RESISTOR RS1/16S56R0D
R268 (B,117 ,61 ) CHIP RESISTOR RS1/16S56R0D
R269 (B,117 ,56 ) CHIP RESISTOR RS1/16S56R0D
R270 (B,117 ,55 ) CHIP RESISTOR RS1/16S56R0D
R271 (B,117 ,59 ) CHIP RESISTOR RS1/16S56R0D
R272 (B,117 ,58 ) CHIP RESISTOR RS1/16S56R0D
R273 (B,117 ,53 ) CHIP RESISTOR RS1/16S56R0D
R274 (B,117 ,51 ) CHIP RESISTOR RS1/16S56R0D
R275 (B,120 ,59 ) RS1/16S5101F
R276 (B,120 ,51 ) RS1/16S5101F
R283 (A,136 ,28 ) RS1/16S0R0J
R284 (A,138 ,28 ) RS1/16S0R0J
R288 (B,109 ,61 ) RS1/16S0R0J
R289 (A,104 ,61 ) RS1/16S101J
R290 (A,103 ,64 ) RS1/16S220J
Mark No. Description Part No.
VSX-AX4AVi-S 183
5678
5678
C
D
F
A
B
E
R291 (B,121 ,39 ) RS1/16S0R0J
R292 (A,120 ,37 ) RS1/16S0R0J
R294 (B,128 ,49 ) RS1/16S0R0J
R295 (A,135 ,46 ) RS1/16S0R0J
R301 (A,94 ,18 ) RS1/16S470J
R302 (A,89 ,22 ) RESISTOR ARRAY RAB4C680J
R303 (A,94 ,21 ) RS1/16S680J
R304 (A,94 ,22 ) RS1/16S470J
R305 (B,85 ,20 ) RS1/16S220J
R307 (B,85 ,28 ) RS1/16S470J
R308 (A,89 ,28 ) RAB4C470J
R309 (B,85 ,31 ) RS1/16S470J
R310 (B,85 ,33 ) RS1/16S470J
R311 (B,85 ,34 ) RS1/16S0R0J
R313 (B,85 ,36 ) RS1/16S0R0J
R325 (B,90 ,39 ) RS1/16S470J
R326 (A,91 ,36 ) RS1/16S101J
R327 (B,100 ,41 ) RS1/16S0R0J
R328 (A,77 ,37 ) RS1/16S101J
R329 (A,80 ,37 ) RS1/16S103J
R332 (A,106 ,33 ) RS1/16S101J
R333 (B,113 ,32 ) RS1/16S101J
R334 (A,116 ,32 ) RS1/16S0R0J
R335 (A,117 ,32 ) RS1/16S0R0J
R339 (A,115 ,19 ) RAB4C470J
R340 (A,111 ,17 ) RAB4C470J
R341 (A,107 ,20 ) RS1/16S470J
R342 (A,106 ,20 ) RS1/16S470J
R343 (B,115 ,17 ) RAB4C470J
R344 (A,126 ,16 ) RAB4C470J
R345 (A,103 ,19 ) RAB4C470J
R346 (A,103 ,24 ) RAB4C470J
R347 (A,99 ,19 ) RAB4C470J
R348 (A,96 ,15 ) RS1/16S470J
R349 (A,96 ,17 ) RS1/16S470J
R350 (A,99 ,24 ) RAB4C470J
R351 (A,117 ,24 ) RS1/16S123J
R352 (A,120 ,25 ) RS1/16S271J
R353 (A,117 ,22 ) RS1/16S472J
R354 (A,120 ,34 ) RS1/16S223J
R355 (A,120 ,32 ) RS1/16S223J
R356 (B,117 ,25 ) RS1/16S0R0J
R357 (A,110 ,25 ) RS1/16S0R0J
R401 (A,16 ,55 ) RS1/16S680J
R402 (A,17 ,53 ) RESISTOR ARRAY RAB4C680J
R403 (A,23 ,48 ) RS1/16S101J
R404 (A,33 ,49 ) RS1/16S221J
R405 (A,33 ,50 ) RS1/16S221J
R406 (A,33 ,51 ) RS1/16S221J
R407 (A,33 ,54 ) RAB4C221J
R411 (A,33 ,58 ) RS1/16S101J
R412 (A,30 ,63 ) RS1/16S0R0J
R418 (B,69 ,28 ) RS1/16S101J
R421 (A,69 ,20 ) RS1/16S0R0J
R422 (A,64 ,20 ) RS1/16S0R0J
R425 (B,75 ,23 ) RS1/16S470J
R426 (A,69 ,27 ) RS1/16S0R0J
R427 (A,65 ,27 ) RS1/16S0R0J
R428 (A,56 ,20 ) RS1/16S0R0J
R429 (A,54 ,20 ) RS1/16S0R0J
Mark No. Description Part No.
R432 (A,61 ,20 ) RS1/16S0R0J
R434 (A,60 ,20 ) RS1/16S0R0J
R436 (B,48 ,25 ) RS1/16S221J
R437 (A,52 ,20 ) RS1/16S101J
R441 (B,29 ,60 ) RS1/16S101J
R442 (B,17 ,60 ) RS1/16S101J
R443 (B,17 ,58 ) RS1/16S101J
R444 (B,16 ,56 ) RS1/16S101J
R445 (B,20 ,51 ) RAB4C101J
R454 (B,71 ,20 ) RS1/16S0R0J
R456 (B,51 ,28 ) RS1/16S0R0J
CAPACITORS
C1 (A,38 ,36 ) CKSRYB104K16
C2 (A,42 ,27 ) CEVW101M16
C101 (B,67 ,45 ) CKSRYB103K50
C102 (A,61 ,53 ) CKSRYB104K16
C103 (B,46 ,31 ) CEVW101M16
C104 (B,52 ,32 ) CKSRYB104K16
C105 (A,58 ,31 ) CKSRYB104K16
C106 (B,67 ,48 ) CKSRYB104K16
C107 (B,138 ,20 ) CKSRYB104K16
C108 (B,42 ,53 ) CKSRYB104K16
C109 (B,57 ,58 ) CKSRYB104K16
C110 (B,69 ,33 ) CKSRYB104K16
C111 (B,60 ,30 ) CKSRYB103K50
C113 (B,58 ,32 ) CKSRYB102K50
C201 (B,104 ,48 ) CKSRYB104K16
C202 (B,107 ,50 ) CKSRYB104K16
C203 (B,110 ,52 ) CKSRYB104K16
C204 (B,105 ,54 ) CKSRYB104K16
C205 (B,105 ,53 ) CKSRYB104K16
C206 (B,77 ,56 ) CEVW101M16
C207 (B,81 ,59 ) CKSRYB104K16
C209 (A,106 ,61 ) CKSRYB104K16
C210 (B,105 ,64 ) CKSRYB104K16
C211 (B,105 ,63 ) CKSRYB102K50
C212 (B,100 ,55 ) CKSRYB104K16
C213 (B,99 ,55 ) CKSRYB102K50
C214 (A,101 ,61 ) CKSRYB104K16
C215 (B,100 ,64 ) CKSRYB102K50
C216 (A,99 ,64 ) CKSRYB102K50
C217 (B,73 ,45 ) CEVW101M16
C218 (B,77 ,49 ) CKSRYB104K16
C219 (B,94 ,52 ) CKSRYB104K16
C220 (B,94 ,49 ) CKSRYB104K16
C221 (B,94 ,51 ) CKSRYB104K16
C222 (A,88 ,46 ) CKSRYB104K16
C223 (B,99 ,46 ) CKSRYB104K16
C224 (B,100 ,46 ) CKSRYB104K16
C225 (A,101 ,40 ) CKSRYB104K16
C226 (A,110 ,41 ) CKSRYB104K16
C232 (B,133 ,51 ) CEVW101M16
C235 (B,131 ,56 ) CKSRYB104K16
C241 (B,71 ,63 ) CKSRYB104K16
C242 (B,120 ,61 ) CCSRCH221J50
C243 (B,120 ,53 ) CCSRCH221J50
C244 (B,120 ,63 ) CKSRYB105K6R3
C245 (B,120 ,56 ) CKSRYB105K6R3
Mark No. Description Part No.
VSX-AX4AVi-S
184
1234
1234
C
D
F
A
B
E
C246 (A,138 ,48 ) CKSRYB104K16
C247 (A,138 ,47 ) CKSRYB104K16
C248 (A,85 ,64 ) CKSRYB104K16
C249 (B,95 ,56 ) CKSRYB104K16
C301 (B,86 ,16 ) CKSRYB104K16
C302 (B,85 ,24 ) CKSRYB104K16
C303 (B,85 ,30 ) CKSRYB104K16
C304 (B,75 ,33 ) CEVW101M16
C305 (B,80 ,32 ) CKSRYB104K16
C309 (A,87 ,31 ) CKSRYB104K16
C310 (A,87 ,32 ) CKSRYB102K50
C311 (B,93 ,39 ) CKSRYB104K16
C315 (B,103 ,40 ) CKSRYB104K16
C316 (B,113 ,37 ) CKSRYB104K16
C317 (B,115 ,26 ) CKSRYB104K16
C318 (B,115 ,24 ) CKSRYB104K16
C319 (B,114 ,20 ) CKSRYB104K16
C320 (A,99 ,15 ) CKSRYB104K16
C321 (B,132 ,44 ) CEVW101M16
C322 (B,133 ,25 ) CKSRYB104K16
C323 (B,133 ,18 ) CKSRYB104K16
C324 (B,117 ,21 ) CKSRYB102K50
C325 (B,123 ,38 ) CKSRYB104K16
C326 (A,120 ,30 ) CKSRYB105K6R3
C327 (A,113 ,28 ) CKSRYB104K16
C328 (A,120 ,27 ) CKSRYB474K10
C329 (A,120 ,28 ) ELECT. CAPACITOR DCH1201
C330 (A,120 ,23 ) CKSRYB472K50
C333 (A,122 ,16 ) CKSRYB104K16
C401 (A,33 ,37 ) CEVW101M16
C402 (A,33 ,43 ) CCSRCH471J50
C404 (A,26 ,48 ) CKSRYB104K16
C405 (A,24 ,61 ) CKSRYB104K16
C408 (A,18 ,56 ) CKSRYB104K16
C409 (A,29 ,48 ) CKSRYB104K16
C410 (A,29 ,61 ) CKSRYB104K16
C411 (A,18 ,59 ) CKSRYB104K16
C412 (A,21 ,48 ) CKSRYB104K16
C415 (B,51 ,20 ) CKSRYB104K16
C416 (B,21 ,61 ) CKSRYB104K16
C419 (A,78 ,24 ) CEVW101M16
C420 (A,79 ,19 ) CKSRYB104K16
C424 (B,73 ,24 ) CKSRYB104K16
C427 (A,30 ,44 ) CKSRYB104K16
C428 (A,19 ,44 ) CEVW101M16
gHDMI ASSY
MISCELLANEOUS
IC 101 (A,56 ,65 ) HDMI RECEIVER SII9031CTU
IC 151 (A,25 ,63 ) EEPROM BR24L02FV-W
IC 152 (A,32 ,83 ) LOGIC IC
SN74CBT3306CPW
IC 161 (A,33 ,40 ) LOGIC(MULTIPLEXER) SN74LV4052APW
IC 171 (A,34 ,63 ) EEPROM BR24L02FV-W
IC 172 (A,24 ,40 ) LOGIC IC
SN74CBT3306CPW
IC 201 (A,79 ,40 ) IC SN74LVC541APW
IC 301 (A,52 ,29 ) HDMI TRANSMITER SII9030CTU
IC 401 (A,139 ,75 ) VIDEO DECODER IC ADV7400AKSTZ-80
IC 452 (A,108 ,83 ) IC SN74LVC541APW
Mark No. Description Part No.
IC 453 (A,115 ,73 ) IC SN74LVC541APW
IC 454 (A,110 ,68 ) LOGIC IC
SN74LVC1G125DCK
IC 501 (B,91 ,69 ) CPU PEG118A
IC 502 (A,91 ,68 ) FLASH ROM AYW7078
IC FLASH MEMORY(4M)
MBM29LV400TC-70PFTN
IC 504 (A,96 ,50 ) LOGIC IC SN74LV125APW
IC 601 (A,156 ,38 ) VIDEO FILTER IC FMS6403MTC
IC 602 (B,159 ,34 ) VIDEO SW IC MM1503XN
IC 701 (A,133 ,44 ) VIDEO ENCODER IC ADV7172KSTZ
IC 801 (B,144 ,41 ) DVD VIDEO AMP IC MM1623BF
>IC 901 (B,103 ,39 ) REGULATOR IC BD7802FP
>IC 902 (B,93 ,37 ) IC NJM2885DL1-18
>IC 903 (B,113 ,39 ) REGULATOR IC BD7802FP
>IC 904 (B,122 ,55 ) REGULATOR IC MM1561JF
>IC 911 (B,70 ,38 ) REGULATOR IC PQ200WNA1ZPH
Q101 (A,61 ,84 ) NMOS FET TRANSISTOR UM6K1N
Q151 (A,19 ,87 ) CHIP TRANSISTOR DTC114YUA
Q152 (B,28 ,83 ) CHIP TRANSISTOR DTC114YUA
Q153 (A,29 ,63 ) NMOS FET TRANSISTOR UM6K1N
Q171 (A,19 ,65 ) CHIP TRANSISTOR DTC114YUA
Q172 (B,25 ,42 ) CHIP TRANSISTOR DTC114YUA
Q173 (A,28 ,42 ) NMOS FET TRANSISTOR UM6K1N
Q351 (B,28 ,33 ) CHIP TR (PNP X 2) UMB1N
Q352 (B,31 ,29 ) CHIP TRANSISTOR DTC114YUA
Q353 (A,28 ,15 ) NMOS FET TRANSISTOR UM6K1N
Q911 (A,82 ,50 ) TRANSISTOR 2SA1576A
Q912 (B,78 ,30 ) TRANSISTOR RT1N241M
Q913 (B,83 ,30 ) CHIP TRANSISTOR DTC114YUA
D151 (B,24 ,80 ) DIODE DAN202U
D171 (B,24 ,54 ) DIODE DAN202U
D381 (A,37 ,21 ) DIODE UDZS5R1(B)
D551 (A,84 ,54 ) CHIP DIODE RB501V-40
L101 (A,70 ,88 ) CHIP BEADS ATL7010
L103 (A,85 ,83 ) CHIP BEADS ATL7010
L104 (A,39 ,90 ) CHIP BEADS ATL7010
L302 (B,53 ,25 ) CHIP BEADS ATL7010
L304 (A,67 ,46 ) CHIP BEADS ATL7010
L305 (A,44 ,42 ) CHIP BEADS ATL7010
>L351 (A,26 ,24 ) COIL ATH7022
>L352 (A,26 ,27 ) COIL ATH7022
>L353 (A,26 ,30 ) COIL ATH7022
>L354 (A,26 ,33 ) COIL ATH7022
L401 (A,118 ,81 ) CHIP BEADS ATL7010
L402 (A,159 ,63 ) CHIP BEADS ATL7010
L501 (A,82 ,86 ) CHIP BEADS ATL7010
L701 (A,117 ,57 ) CHIP BEADS ATL7010
L702 (A,149 ,41 ) CHIP BEADS ATL7010
X101 (A,60 ,48 ) CRYSTAL RESONATOR ASS7066
(27MHz)
X401 (A,135 ,61 ) CRYSTAL RESONATOR ASS7067
(28.63636MHz)
X501 (A,101 ,59 ) CERAMIC RESONATOR XSS3004
(15.7MHz)
CN101 (A,16 ,77 ) HDMI CONNECTOR AKN7040
CN102 (A,16 ,54 ) HDMI CONNECTOR AKN7040
CN301 (A,16 ,31 ) HDMI CONNECTOR AKN7040
CN501 (A,17 ,13 ) 07P CONNECTOR RKN1048
CN1001(A,71 ,21 ) CONNECTOR CKS4668
CN1002(A,103 ,21 ) CONNECTOR CKS4668
RESISTORS
Mark No. Description Part No.
VSX-AX4AVi-S 185
5678
5678
C
D
F
A
B
E
R101 (A,52 ,83 ) RESISTOR ARRAY RAB4CQ100J
R102 (A,67 ,80 ) RESISTOR ARRAY RAB4CQ470J
R103 (A,50 ,79 ) RS1/16S100J
R104 (B,52 ,77 ) RS1/16S100J
R105 (A,47 ,79 ) RS1/16S103J
R106 (A,49 ,79 ) RS1/16S103J
R107 (B,53 ,69 ) RS1/16S750J
R108 (B,56 ,69 ) RS1/16S750J
R109 (B,58 ,69 ) RS1/16S750J
R111 (B,49 ,49 ) RS1/16S101J
R112 (B,51 ,53 ) RS1/16S470J
R113 (B,52 ,61 ) RS1/16S680J
R114 (B,62 ,53 ) RS1/16S472J
R115 (A,71 ,49 ) RS1/16S472J
R117 (B,53 ,53 ) RS1/16S330J
R118 (A,61 ,51 ) RS1/16S105J
R119 (A,67 ,49 ) RS1/16S471J
R120 (B,63 ,59 ) RS1/16S221J
R121 (A,67 ,50 ) RS1/16S221J
R122 (B,54 ,61 ) RS1/16S470J
R123 (B,55 ,53 ) RS1/16S100J
R124 (A,58 ,51 ) RS1/16S152J
R125 (A,52 ,46 ) RESISTOR ARRAY RAB4CQ680J
R126 (A,71 ,74 ) RESISTOR ARRAY RAB4CQ680J
R127 (A,71 ,71 ) RESISTOR ARRAY RAB4CQ680J
R128 (A,71 ,67 ) RESISTOR ARRAY RAB4CQ470J
R129 (A,71 ,64 ) RESISTOR ARRAY RAB4CQ470J
R130 (A,71 ,58 ) RESISTOR ARRAY RAB4CQ470J
R131 (A,71 ,55 ) RESISTOR ARRAY RAB4CQ470J
R132 (A,71 ,61 ) RS1/16S330J
R133 (A,65 ,86 ) RS1/16S103J
R134 (A,58 ,83 ) RS1/16S103J
R135 (A,65 ,83 ) RS1/16S103J
R136 (A,58 ,86 ) RS1/16S103J
R137 (A,64 ,86 ) RS1/16S104J
R138 (A,57 ,83 ) RS1/16S104J
R151 (B,28 ,64 ) RS1/16S100J
R152 (B,26 ,64 ) RS1/16S100J
R153 (B,24 ,64 ) RS1/16S101J
R154 (B,28 ,60 ) RS1/16S103J
R155 (B,26 ,60 ) RS1/16S103J
R156 (B,24 ,60 ) RS1/16S103J
R157 (B,21 ,80 ) RS1/16S473J
R158 (A,29 ,66 ) RS1/16S472J
R159 (A,29 ,61 ) RS1/16S472J
R160 (B,33 ,84 ) RS1/16S103J
R161 (B,19 ,80 ) RS1/16S102J
R163 (B,48 ,81 ) RS1/16S473J
R164 (B,54 ,77 ) RS1/16S473J
R165 (B,36 ,41 ) RS1/16S102J
R166 (B,37 ,46 ) RS1/16S102J
R171 (B,38 ,64 ) RS1/16S100J
R172 (B,35 ,64 ) RS1/16S100J
R173 (B,33 ,64 ) RS1/16S101J
R174 (B,38 ,60 ) RS1/16S103J
R175 (B,35 ,60 ) RS1/16S103J
R176 (B,33 ,60 ) RS1/16S103J
R177 (B,18 ,43 ) RS1/16S473J
R178 (A,28 ,45 ) RS1/16S472J
R179 (A,28 ,39 ) RS1/16S472J
Mark No. Description Part No.
R181 (B,20 ,56 ) RS1/16S102J
R201 (A,86 ,42 ) RS1/16S470J
R202 (A,86 ,40 ) RS1/16S470J
R203 (A,86 ,39 ) RS1/16S470J
R204 (A,84 ,35 ) RESISTOR ARRAY RAB4CQ470J
R205 (A,79 ,35 ) RS1/16S470J
R303 (B,57 ,39 ) RS1/16S100J
R306 (B,47 ,39 ) RS1/16S101J
R312 (B,51 ,30 ) CHIP RESISTOR RS1/16S4750F
R313 (A,43 ,36 ) RS1/16S472J
R314 (B,49 ,22 ) RS1/16S100J
R315 (B,45 ,22 ) RS1/16S100J
R316 (B,42 ,20 ) RS1/16S471J
R318 (B,56 ,21 ) RS1/16S472J
R325 (B,59 ,26 ) RS1/16S330J
R326 (A,48 ,39 ) RS1/16S100J
R327 (A,46 ,39 ) RS1/16S100J
R331 (A,60 ,42 ) RESISTOR ARRAY RAB4CQ473J
R332 (A,75 ,61 ) RS1/16S473J
R333 (A,75 ,74 ) RESISTOR ARRAY RAB4CQ473J
R334 (A,75 ,71 ) RESISTOR ARRAY RAB4CQ473J
R335 (A,75 ,67 ) RESISTOR ARRAY RAB4CQ473J
R336 (A,75 ,64 ) RESISTOR ARRAY RAB4CQ473J
R337 (A,75 ,58 ) RESISTOR ARRAY RAB4CQ473J
R338 (A,75 ,55 ) RESISTOR ARRAY RAB4CQ473J
R351 (B,29 ,18 ) RS1/16S472J
R352 (B,31 ,34 ) RS1/16S472J
R353 (B,29 ,22 ) RS1/16S272J
R354 (B,33 ,34 ) RS1/16S272J
R355 (A,25 ,15 ) RS1/16S472J
R356 (A,31 ,15 ) RS1/16S472J
R386 (A,20 ,19 ) RS1/16S473J
R389 (B,21 ,11 ) RS1/16S102J
R403 (B,131 ,73 ) RS1/16S330J
R404 (B,128 ,73 ) RS1/16S330J
R405 (A,125 ,71 ) RS1/16S330J
R406 (A,127 ,77 ) RESISTOR ARRAY RAB4CQ470J
R407 (A,127 ,68 ) RESISTOR ARRAY RAB4CQ560J
R408 (A,130 ,64 ) RS1/16S560J
R409 (A,130 ,63 ) RS1/16S560J
R410 (B,134 ,64 ) RS1/16S103J
R411 (B,137 ,64 ) RS1/16S100J
R412 (A,141 ,63 ) RS1/16S560J
R413 (A,143 ,63 ) RS1/16S560J
R414 (B,144 ,65 ) RS1/16S132J
R415 (B,142 ,65 ) RS1/16S391J
R416 (A,137 ,64 ) RS1/16S105J
R417 (A,134 ,64 ) RS1/16S101J
R418 (B,142 ,72 ) RS1/16S272J
R419 (B,140 ,72 ) RS1/16S272J
R420 (A,148 ,66 ) RS1/16S103J
R423 (A,140 ,87 ) RS1/16S330J
R424 (A,141 ,87 ) RS1/16S330J
R425 (B,137 ,83 ) RS1/16S103J
R426 (B,145 ,85 ) RS1/16S471J
R428 (A,136 ,87 ) RESISTOR ARRAY RAB4CQ470J
R451 (A,104 ,65 ) RS1/16S330J
R452 (A,102 ,81 ) RESISTOR ARRAY RAB4CQ680J
R453 (A,102 ,84 ) RESISTOR ARRAY RAB4CQ680J
R454 (A,109 ,73 ) RESISTOR ARRAY RAB4CQ680J
Mark No. Description Part No.
VSX-AX4AVi-S
186
1234
1234
C
D
F
A
B
E
R455 (A,109 ,76 ) RESISTOR ARRAY RAB4CQ680J
R456 (A,122 ,75 ) RESISTOR ARRAY RAB4CQ473J
R457 (A,122 ,71 ) RESISTOR ARRAY RAB4CQ473J
R458 (A,115 ,84 ) RESISTOR ARRAY RAB4CQ473J
R459 (A,115 ,81 ) RESISTOR ARRAY RAB4CQ473J
R460 (A,117 ,61 ) RESISTOR ARRAY RAB4CQ473J
R491 (B,154 ,61 ) RS1/10S0R0J
R492 (B,151 ,61 ) RS1/10S0R0J
R506 (A,104 ,57 ) RS1/16S221J
R508 (B,102 ,59 ) RS1/16S472J
R511 (B,111 ,55 ) RS1/16S101J
R517 (B,99 ,50 ) RS1/16S101J
R520 (A,103 ,54 ) RS1/16S103J
R524 (B,91 ,50 ) RS1/16S100J
R525 (B,89 ,50 ) RS1/16S100J
R526 (B,86 ,50 ) RS1/16S100J
R527 (B,84 ,50 ) RS1/16S100J
R528 (B,70 ,50 ) RS1/16S470J
R529 (B,77 ,57 ) RS1/16S473J
R530 (B,91 ,45 ) RS1/16S222J
R531 (B,89 ,45 ) RS1/16S222J
R533 (B,87 ,45 ) RS1/16S472J
R534 (B,81 ,50 ) RS1/16S472J
R537 (B,110 ,71 ) RS1/16S101J
R538 (B,111 ,75 ) RS1/16S101J
R539 (B,107 ,79 ) RS1/16S101J
R540 (A,101 ,49 ) RS1/16S470J
R541 (A,90 ,49 ) RS1/16S103J
R542 (A,90 ,50 ) RS1/16S470J
R543 (A,90 ,53 ) RS1/16S472J
R544 (A,90 ,52 ) RS1/16S470J
R546 (B,79 ,50 ) RS1/16S101J
R549 (B,80 ,57 ) RS1/16S473J
R551 (A,84 ,75 ) RS1/16S473J
R561 (B,104 ,59 ) RS1/16S103J
R562 (B,111 ,59 ) RS1/16S103J
R564 (B,104 ,55 ) RS1/16S103J
R565 (B,111 ,50 ) RS1/16S103J
R566 (B,109 ,50 ) RS1/16S103J
R567 (B,104 ,50 ) RS1/16S103J
R568 (A,97 ,91 ) RS1/16S103J
R569 (A,79 ,60 ) RS1/16S103J
R571 (B,18 ,15 ) RS1/16S103J
R586 (B,113 ,73 ) RS1/16S103J
R588 (B,94 ,45 ) RS1/16S103J
R594 (A,90 ,43 ) RS1/16S0R0J
R703 (A,128 ,38 ) RS1/16S103J
R704 (A,128 ,35 ) RS1/16S103J
R705 (A,130 ,36 ) RS1/16S103J
R706 (A,132 ,36 ) RS1/16S103J
R707 (A,138 ,36 ) RS1/16S1201F
R708 (A,138 ,34 ) RS1/16S1201F
R709 (A,135 ,36 ) RS1/16S470J
R710 (A,136 ,36 ) RS1/16S470J
R714 (A,138 ,53 ) RS1/16S470J
R715 (A,127 ,52 ) RS1/16S470J
R716 (A,131 ,54 ) RS1/16S471J
R717 (A,137 ,53 ) RS1/16S103J
R718 (A,143 ,56 ) RS1/16S1201F
R719 (A,143 ,57 ) RS1/16S1201F
Mark No. Description Part No.
R720 (A,130 ,55 ) RS1/16S103J
R722 (A,130 ,57 ) RS1/16S103J
R733 (A,142 ,52 ) RS1/16S1500F
R734 (A,145 ,52 ) RS1/16S0R0J
R737 (A,142 ,48 ) RS1/16S1500F
R738 (A,145 ,48 ) RS1/16S0R0J
R741 (A,142 ,45 ) RS1/16S1500F
R742 (A,145 ,45 ) RS1/16S0R0J
R745 (A,142 ,43 ) RS1/16S1500F
R746 (A,145 ,43 ) RS1/16S0R0J
R749 (A,143 ,38 ) RS1/16S1500F
R750 (A,143 ,35 ) RS1/16S0R0J
R753 (A,141 ,38 ) RS1/16S1500F
R754 (A,141 ,35 ) RS1/16S0R0J
R802 (B,145 ,57 ) RS1/16S103J
R811 (B,138 ,28 ) RS1/10S75R0F
R812 (B,141 ,28 ) RS1/10S75R0F
R813 (B,135 ,28 ) RS1/10S75R0F
R814 (B,144 ,28 ) RS1/10S75R0F
R815 (B,147 ,28 ) RS1/10S75R0F
R816 (B,150 ,28 ) RS1/10S75R0F
R911 (A,78 ,48 ) RS1/10S6R8J
R912 (A,78 ,50 ) RS1/10S6R8J
R914 (B,80 ,33 ) RS1/16S103J
R915 (B,68 ,28 ) RS1/16S2001F
R916 (B,70 ,28 ) RS1/16S1801F
R918 (A,80 ,48 ) RS1/16S102J
R919 (B,80 ,29 ) RS1/16S103J
R1001(A,107 ,32 ) RS1/10S0R0J
R1002(A,95 ,33 ) RS1/10S100J
R1003(A,149 ,26 ) RS1/10S0R0J
R1004(A,149 ,28 ) RS1/10S0R0J
R1102(A,68 ,84 ) RS1/10S0R0J
R1105(A,43 ,79 ) RS1/10S0R0J
R1107(B,60 ,53 ) RS1/16S0R0J
R1108(B,61 ,59 ) RS1/16S0R0J
R1301(B,43 ,35 ) RS1/10S0R0J
R1403(A,142 ,91 ) RS1/10S0R0J
R1404(A,146 ,63 ) RS1/10S0R0J
CAPACITORS
C101 (A,46 ,79 ) CKSRYB105K10
C102 (A,52 ,79 ) CKSRYB104K16
C103 (A,54 ,79 ) CKSRYB104K16
C104 (A,55 ,79 ) CKSRYB104K16
C105 (A,57 ,80 ) CKSRYB104K16
C106 (A,58 ,80 ) CKSRYB104K16
C107 (A,60 ,80 ) CKSRYB104K16
C109 (A,63 ,80 ) CKSRYB104K16
C110 (A,64 ,80 ) CKSRYB104K16
C112 (A,76 ,89 ) CEVW101M16
C115 (A,80 ,81 ) CEVW101M16
C116 (B,46 ,74 ) CKSRYB105K10
C117 (A,43 ,77 ) CKSRYB105K10
C118 (B,49 ,70 ) CKSRYB104K16
C119 (B,46 ,70 ) CKSRYB104K16
C120 (B,49 ,66 ) CKSRYB104K16
C121 (B,46 ,66 ) CKSRYB105K10
C122 (B,49 ,60 ) CKSRYB104K16
C123 (B,45 ,60 ) CKSRYB104K16
C124 (B,45 ,56 ) CKSRYB104K16
Mark No. Description Part No.
VSX-AX4AVi-S 187
5678
5678
C
D
F
A
B
E
C125 (A,39 ,84 ) CEVW101M16
C126 (A,46 ,50 ) CKSRYB104K16
C127 (A,47 ,50 ) CKSRYB104K16
C128 (A,49 ,50 ) CKSRYB104K16
C129 (A,68 ,53 ) CKSRYB104K16
C130 (A,52 ,50 ) CKSRYB104K16
C131 (A,54 ,50 ) CKSRYB104K16
C132 (A,56 ,50 ) CKSRYB104K16
C133 (B,58 ,53 ) CKSRYB104K16
C134 (B,58 ,59 ) CKSRYB104K16
C135 (A,67 ,47 ) CKSRYB103K50
C136 (A,65 ,51 ) CKSRYB103K50
C137 (A,58 ,45 ) CCSRCH120J50
C138 (A,61 ,45 ) CCSRCH100D50
C139 (B,67 ,72 ) CKSRYB104K16
C140 (B,67 ,68 ) CKSRYB104K16
C141 (B,69 ,68 ) CKSRYB104K16
C142 (B,67 ,63 ) CKSRYB104K16
C143 (B,66 ,59 ) CKSRYB104K16
C144 (A,64 ,83 ) CKSRYB103K50
C145 (A,57 ,86 ) CKSRYB103K50
C151 (A,22 ,65 ) CKSRYB104K16
C153 (A,33 ,86 ) CKSRYB104K16
C161 (A,31 ,45 ) CKSRYB104K16
C171 (A,32 ,64 ) CKSRYB104K16
C173 (A,23 ,45 ) CKSRYB104K16
C191 (A,49 ,47 ) CKSRYB104K16
C192 (A,44 ,82 ) CKSRYB103K50
C201 (A,80 ,44 ) CKSRYB104K16
C301 (A,57 ,39 ) CKSRYB104K16
C302 (A,51 ,39 ) CKSRYB104K16
C303 (A,49 ,39 ) CKSRYB104K16
C304 (B,49 ,26 ) CKSRYB104K16
C305 (B,53 ,30 ) CKSRYB105K10
C308 (B,49 ,30 ) CKSRYB104K16
C311 (B,45 ,35 ) CKSRYB104K16
C312 (A,58 ,20 ) CKSRYB105K10
C313 (B,51 ,22 ) CKSRYB104K16
C314 (A,50 ,20 ) CKSRYB104K16
C315 (B,40 ,20 ) CKSRYB103K50
C316 (A,67 ,41 ) CEVW101M16
C317 (A,39 ,42 ) CEVW101M16
C318 (B,56 ,30 ) CKSRYB105K10
C319 (B,59 ,32 ) CKSRYB104K16
C351 (B,20 ,33 ) CKSRYB104K16
C391 (A,39 ,37 ) CKSRYB104K16
C392 (A,42 ,49 ) CKSRYB103K50
C401 (A,122 ,82 ) CEVW101M16
C402 (A,127 ,80 ) CKSRYB104K16
C403 (A,127 ,75 ) CKSRYB104K16
C404 (A,127 ,72 ) CKSRYB104K16
C405 (A,139 ,63 ) CKSRYB104K16
C406 (A,145 ,64 ) CKSRYB104K16
C407 (B,146 ,65 ) CHIP CAPACITOR CKSRYB823K25
C408 (B,139 ,65 ) CKSRYB103K50
C409 (A,133 ,58 ) CCSRCH100D50
C410 (A,137 ,58 ) CCSRCH8R0D50
C411 (A,144 ,87 ) CKSRYB104K16
C412 (A,143 ,87 ) CKSRYB102K50
C413 (B,141 ,81 ) CKSRYB104K16
Mark No. Description Part No.
C415 (B,141 ,77 ) CKSRYB104K16
C417 (B,147 ,77 ) CKSRYB103K50
C418 (B,149 ,77 ) CKSRYB104K16
C419 (B,152 ,76 ) ELECT. CAPACITOR DCH1201
C420 (B,154 ,74 ) CKSRYB104K16
C421 (A,150 ,75 ) CKSRYB104K16
C422 (A,154 ,74 ) CKSRYB104K16
C423 (A,150 ,73 ) CKSRYB104K16
C424 (B,147 ,73 ) CKSRYB103K50
C425 (B,149 ,73 ) CKSRYB104K16
C426 (B,152 ,71 ) ELECT. CAPACITOR DCH1201
C427 (B,154 ,70 ) CKSRYB104K16
C434 (A,150 ,80 ) CEVW100M16
C435 (A,158 ,74 ) CEVW100M16
C436 (A,154 ,68 ) CEVW101M16
C437 (B,147 ,85 ) CKSRYB103K50
C438 (A,138 ,87 ) CKSRYB104K16
C439 (A,149 ,88 ) CEVW101M16
C452 (A,107 ,78 ) CKSRYB104K16
C453 (A,115 ,69 ) CKSRYB104K16
C454 (A,112 ,67 ) CKSRYB104K16
C501 (A,104 ,59 ) CKSRYB103K50
C502 (A,99 ,63 ) CKSRYB104K16
C503 (A,89 ,89 ) CEVW101M16
C505 (B,105 ,79 ) CKSRYB104K16
C506 (B,80 ,78 ) CKSRYB104K16
C507 (A,95 ,47 ) CKSRYB104K16
C551 (A,91 ,80 ) CKSRYB104K16
C552 (A,92 ,55 ) CKSRYB104K16
C571 (A,22 ,11 ) CKSRYB104K16
C601 (A,151 ,41 ) CKSRYB104K16
C602 (A,152 ,46 ) CEVW101M16
C603 (A,152 ,30 ) CKSRYB104K16
C604 (A,154 ,30 ) CKSRYB104K16
C605 (A,155 ,30 ) CKSRYB104K16
C606 (A,158 ,30 ) CKSRYB104K16
C607 (A,160 ,30 ) CKSRYB104K16
C608 (B,160 ,39 ) CKSRYB104K16
C609 (B,160 ,28 ) CKSRYB105K10
C610 (B,158 ,28 ) CKSRYB105K10
C611 (A,160 ,37 ) CKSRYB104K16
C701 (A,126 ,49 ) CKSRYB104K16
C702 (A,126 ,40 ) CKSRYB104K16
C703 (A,123 ,58 ) CEVW101M16
C704 (A,138 ,37 ) CKSRYB104K16
C705 (A,133 ,36 ) CKSRYB104K16
C706 (A,142 ,53 ) CKSRYB104K16
C707 (A,142 ,50 ) CKSRYB104K16
C708 (A,142 ,46 ) CKSRYB104K16
C709 (A,142 ,41 ) CKSRYB104K16
C710 (A,147 ,34 ) CEVW101M16
C711 (A,132 ,52 ) CKSRYB103K50
C712 (A,142 ,54 ) CKSRYB104K16
C713 (A,128 ,52 ) CKSRYB104K16
C714 (A,148 ,39 ) CKSRYB105K10
C801 (A,152 ,53 ) CEVW101M16
C802 (B,133 ,39 ) CKSRYB104K16
C804 (B,135 ,53 ) CKSRYB104K16
C805 (B,138 ,53 ) CKSRYB105K10
C806 (B,140 ,53 ) CKSRYB105K10
Mark No. Description Part No.
VSX-AX4AVi-S
188
1234
1234
C
D
F
A
B
E
6. ADJUSTMENT
C807 (B,143 ,53 ) CKSRYB104K16
C808 (B,147 ,53 ) CKSRYB105K10
C809 (B,150 ,53 ) CKSRYB104K16
C810 (B,152 ,53 ) CKSRYB104K16
C811 (A,152 ,60 ) CEVW101M16
C901 (B,105 ,30 ) CKSRYB105K10
C902 (B,101 ,30 ) CKSQYB225K10
C904 (B,97 ,30 ) CKSRYB105K10
C905 (B,88 ,33 ) CHIP CERAMIC C. DCG1028
C907 (B,118 ,34 ) CKSRYB105K10
C908 (B,109 ,30 ) CKSQYB225K10
C910 (B,117 ,57 ) CKSRYB105K10
C911 (B,117 ,52 ) CCSRCH471J50
C912 (B,122 ,48 ) CKSQYB225K10
C915 (B,75 ,29 ) CKSRYB224K16
C916 (B,75 ,33 ) CKSQYB105K16
C917 (B,65 ,39 ) CKSRYB104K16
C918 (A,72 ,33 ) CEVW101M16
C1001(A,100 ,27 ) CKSRYB104K16
C1002(A,101 ,31 ) CEVW101M16
•FM/AM TUNER MODULE
FM/AM TUNER MODULE has no service parts.
Mark No. Description Part No.
There is no information to be shown in this chapter.
VSX-AX4AVi-S 189
5678
5678
C
D
F
A
B
E
7. GENERAL INFORMATION
7.1 DIAGNOSIS
7.1.1 TEST MODE
Version indication
[Purpose]
[Basic operations]
FL Display
POWER OFF
Mx.xxx : Main microcomputer
Fx.xxx : Display microcomputer
Dx.xxx : DSP microcomputer
Hx.xxx : HDMI microcomputer
fx.xxx : 1st DSP firmware
sx.xxx : 2nd DSP firmware
HOST microcomputer
(only VSX-AX4AVi-S)
5
5
5
5
Main microcomputer and display microcomputer
DSP microcomputer and HDMI microcomputer
HOST microcomputer for iLINK connection
1st DSP firmware
: Flash ROM (IC105) near the DSP IC
2nd DSP firmware
: Flash ROM within the DSP IC (IC201)
Normal display
Description of Version
Indications
Duration
(sec.)
Devices that can be considered generally
normal, with the corresponding indications
The versions for various microcomputers and DSP firmware are displayed.
1. If the version indication becomes "**," a failure in communications between the corresponding microcomputers or
a failure in the corresponding microcomputers is likely.
2. In this submode, the user settings will not be cleared.
[How to enter/exit]
During Standby mode, simultaneously press and hold the STANDBY/ON and STANDARD SURROUND keys for 5
seconds to enter this mode. This mode is automatically exited when the indications of all versions have finished.
[Notes]
VSX-AX4AVi-S
190
1234
1234
C
D
F
A
B
E
Detected protection history
[Purpose]
[Basic operations]
FL Display
POWER OFF
Number of detections of cord
disconnection (DC and OL DET line)
(simultaneous detections of DC and
OVERLOAD)
Number of detections of fan
abnormalities
Number of overload detections
Number of DC detections
Number of detections of abnormal
temperature
3
3
3
3
Normal display
Description of Indications Duration
(sec.)
The numbers of detections for various protection processes are displayed.
When the keys are pressed, the numbers of DC detections, overload detections, detections of connectors
disconnection inside unit (It is detected by both DC and OVERLOAD detections.), detections of fan abnormalities,
and detections of abnormal temperature are displayed for 3 seconds each, in that order.
The maximum value of each detections is 255.
[How to enter/exit]
During Standby mode, simultaneously press and hold the ADVANCED SURROUND and "↑" (TUNE +) keys for
5 seconds to enter this mode. This mode is automatically exited when all the indications have finished.
[Description]
3
VSX-AX4AVi-S 191
5678
5678
C
D
F
A
B
E
When stopping of the fan is detected Flashes 3 times.
Error indications when an abnormality in the amplifier system is detected
[Purpose]
[Error Messages]
FL Display
When the 12-V trigger circuit is
short-circuited
When a thermal shutdown (abnormal
temperature), etc. is detected
When AMP DC is detected Flashes 3 times.
Flashes 3 times.
Status Duration
(sec.)
An error message is displayed when an abnormality in the amplifier system is detected.
After a failure is detected, the shutdown process starts,
then the power will be off. The power can be turned on
again in Normal mode.
AMP ERROR : After a failure in the amplifier block or high DC output is detected, the shutdown process starts, then
the power will be shut off. Then the MCACC LED will flash. The power cannot be turned on again.
If you wish to turn on the unit after a shutdown activated by DC detection, enter Test mode, by
proceeding with the steps described in "How to enter release mode" below.
FAN STOP : The fan does not function.
OVERHEAT : The temperature of the amplifier is
abnormally high.
12V TRG ERR : The 12-V trigger output is short-circuited.
[Description]
[How to enter release mode]
Flashes
Press and hold "ADVANCED SURROUND" and "ENTER" keys
on the front panel simultaneously for 5 seconds in standby mode.
VSX-AX4AVi-S
192
1234
1234
C
D
F
A
B
E
7.1.2 PROTECTION CIRCUIT SPECIFICATION
Protection Circuit Process List
DC Detection Circuit
Item Purpose Detection Method Process Warning Indication Remarks
DC
detection
To detect amplifier damage
(defect status)
A process to protect speakers
(for protection of connected
external devices)
Detects when the DC_PROTECT
port becomes "L".
(Pin 120 of IC101)
Turns muting on and
speaker relay off, then
turns off the power after 3
seconds. Then flashes
MCACC indicator.
Flashing "AMP ERR" for
3 seconds.
Once detected and turned
the power off, input a key
never again. If the
DC_DET port becomes "L"
within 3 seconds, the unit
returns to normal condition
automatically.
AMP
overload
To detect overloading
(abnormal status)
With low-load driving or a
short circuit of the speaker
terminals (for protection of the
amplifier)
Detects when the OL_DET port
becomes "L" (checks by interrupt).
(Pin 28 of IC101)
Turns muting on and
speaker relay off, and
immediately turns off the
power. Then flashes
PHASE CONTROL
indicator.
None
Overheat
detection
Self reset type protection
feature by temperature-rise of
heat sink
Detects when the TEMP2 port
becomes "H" .
(Pin 44 of IC3201)
Turns muting on and
speaker relay off, then
turns off the power after 3
seconds.
Flashing "OVERHEAT"
for 3 seconds.
If the TEMP2 port
becomes "L" within 3
seconds, the unit returns
to normal condition
automatically.
12V
trigger
failure
detection
To detect the shortcircuit of
12V trigger output (load more
than 50mA) (for protection of
the amplifier)
Detects when the 12VDET port
becomes "H" .
(Pin 41 of IC3201)
Turns 12V trigger output
to off.
Flashing "12V TRG
ERR" for 3 seconds.
Continue showing
warning.
Release the FL indication
by switching the INPUT
SEL or the turns the power
off.
R5714
Q5572
GAMP
GNDU
Q5571
IC5301
IC5302
R5341
OUTPUT
DC DETECTOR
R ch
C ch
SR ch
SBR ch
SL ch SBL ch
+VL
V+5UM
Normal: High (5V)
DC det: Low (0V)
+DC detection: Q5571 base is "H".
→ Collector of Q5571 and Q5572 are "L".
-DC detection: Q5572 emitter is minus to the base.
→ Collector of Q5571 and Q5572 are "L".
-VL
R5342
R5441
R5442
R5541
R5542
R5325
R5327
R5326
R5571
R5641
R5642
C5571
R161
C123
D1015-2/2D1014-2/2
FFC J43
UCOM
IC101
120
CN5302
-5
CN5301
-8
CN5702
-7 CN5703
-15
CN5602
-6 CN5601
-7
L ch
R5041
R5042
R5141
R5142
R5241
R5242
CN5001
-7
CN103
-5
POWER AMP R ASSY
R
POWER AMP L ASSY
Q
POWER
PROTECT
ASSY
P
POWER
AMP IN ASSY
O
DIGITAL MOTHER ASSY
L
VSX-AX4AVi-S 193
5678
5678
C
D
F
A
B
E
OL (Over Load) Detection Circuit
Q5704
GAMP GNDU
GNDU
Q5041D5043
D5143
D5243
IC5001
IC5002
R5043 R5715
R5044
OUTPUT
OL DETECTOR
L ch
R ch
C ch
SL ch
SBL ch SR ch
SBR ch
+VL
V+5UM
V+5UM
Normal: High (5V)
OL det: Low (0V)
-VL
R5025
R5027
R5026
R5045
R5047
R5716
R5717 R5720
D5041D5041
R5046
C5041
C5705
R101
C124
D1015-1/2D1014-1/2
FFC J43
UCOM
IC101
28
Normal: Low (0V)
OL det: 0.6V
CN5002
-7
CN5703
-14
CN5701
-5
CN5302
-4
CN5702
-8
CN103
-6
POWER AMP L ASSY
Q
R
POWER
AMP IN ASSY
POWER
AMP R ASSY
P
POWER
PROTECT ASSY
O
DIGITAL MOTHER ASSY
L
D5443
D5543
D5343
CN5601
-8
CN5001
-6 D5143
VSX-AX4AVi-S
194
1234
1234
C
D
F
A
B
E
7.1.3 TROUBLESHOOTING THE DSP BLOCK
• It is assumed that there is no loose connection or damage in the LCRs.
• Refer to "DSP Block Diagram" and "DSP Assy check point" as the parts marked to in the troubleshooting are located.
Simplified diagnosis
Herein is described how to easily diagnose a defective part in the DSP Assy, only with operations of the main unit.
• Is the DSP Assy a cause of the problem?
Input a digital PCM signal (CD, etc.) and check if the sound is output, by switching AUTO SURR/STREAM DIRECT.
If the sound is output in PURE DIRECT (PCM DIRECT) mode but not in AUTO SURR or DIRECT mode, the DSP Assy
may be defective.
• If the sound is not output when Sound Delay is ON
If the sound is output without a problem when Sound Delay is OFF (0.0 fr) but an abnormality in the sound is detected
when Sound Delay is ON (0.1 - 6.0 fr), it is most likely that SRAM (IC106) or DECODER IC (IC104) in the 1st DSP block
is in failure.
Step 2: Power supply
Step 1: Connections
CN351, CN352
Are the
connectors securely
inserted?
Insert the connectors
securely.
No
CN352 (Pins 24-26)
IC351 (Pin 3)
Is the voltage
5V?
No
5V input
1st Block 3.3V
No
Replace CN352.
Check the output from the
DIGITAL MOTHER Assy.
Yes
Replace IC351.
Yes
Is there
any loose connection
at Pins 24-26 of
CN352?
Is the voltage
3.3V?
No No
The output and GND may be short-
circuited. Check the path between
them.
Yes Yes
Is IC351
abnormally hot?
A
Yes
To Step 2
A
A W
B
IC101 (Pin 7, etc.) DSP 3.3V
Is the voltage
3.3V?
No
Yes
C
Check the parts and patterns
in the path.
Check the parts and patterns
in the path.
IC102 (Pin 20) LATCH 1
Is the voltage
3.3V?
No
Yes
D
Check the parts and patterns
in the path.
IC103 (Pin 20) LATCH 2
Is the voltage
3.3V?
No
Yes
E
Check the parts and patterns
in the path.
IC104 (Pin 8) Decoder
Is the voltage
3.3V?
No
Yes
F
Check the parts and patterns
in the path.
IC105 (Pin 37) FLASH ROM
Is the voltage
3.3V?
No
Yes
G
Check the parts and patterns
in the path.
IC106 (Pins 9, 27) SRAM
Is the voltage
3.3V?
No
Yes
H
Troubleshooting
VSX-AX4AVi-S 195
5678
5678
C
D
F
A
B
E
Step 3: Operation of the Master Clock
IC352 (Pin 4) 1st Block 1.2V
Is the voltage
1.2V?
No No
Yes Yes
Is IC352
abnormally hot?
A
J
IC101 (Pin 1, etc.) DSP 1.2V
Is the voltage
1.2V?
No
K
Check the output from the
DIGITAL MOTHER Assy.
Check the parts and patterns
in the path.
CN351 (Pin 23) CLK_ON
Is the logic
gate "L"?
No
Yes
Q
RReplace IC301, Q301, or X301.
(It is most likely that IC301 or Q301
is in failure.)
Does the
crystal oscillate
at 20 MHz
?
No
Yes
Check the path, or replace IC301.
Check the path, or replace IC301.
R131 MCLK1
No
Yes
S
IC201 (Pin 45) MCLK2
No
Yes
T
Check the parts and patterns
in the path.
IC107 (Pin 14) Buffer
Is the voltage
3.3V?
No
Yes
IC354 (Pin 3) 2nd Block 3.3V
Is the voltage
3.3V?
No No
Yes Yes
Is IC354
abnormally hot?
L
IC201 (Pin 3, etc.) DSP 3.3V
Is the voltage
3.3V?
No
M
Check the parts and patterns
in the path.
Yes
IC301 (Pin 8) OSC Inverter
Is the voltage
3.3V?
No
N
Check the parts and patterns
in the path.
Yes
IC355 (Pin 2) 2nd Block 1.25V
Is the voltage
1.25V?
No No
Yes Yes
Is IC355
abnormally hot?
O
IC201 (Pin 8, etc.) DSP 1.25V
Is the voltage
1.25V?
No
P
Check the parts and patterns
in the path.
Yes
Yes
I
To Step 3
To Step 4
Replace IC352.
Replace IC354.
Replace IC355.
The output and GND may be short-
circuited. Check the path between
them.
The output and GND may be short-
circuited. Check the path between
them.
The output and GND may be short-
circuited. Check the path between
them.
Is there
an operation-master
clock signal
(20 MHz)?
Is there
an operation-master
clock signal
(20 MHz)?
VSX-AX4AVi-S
196
1234
1234
C
D
F
A
B
E
Step 4: Audio Clock
Check the output from the
DIGITAL MOTHER Assy.
CN351 (Pin 12) MCK
No
Yes
U
Check the parts and patterns
in the path.
Replace IC107 or check the signal
path.
Replace IC107 or check the signal
path.
IC107 (Pins 9, 13)
No
Yes
V
IC201 (Pin 73)
No
T
Check the output from the
DIGITAL MOTHER Assy.
CN351 (Pin 4)
Is there
a bit clock?
Is there
a bit clock?
Is there
a bit clock?
Is there
an L/R clock?
Is there
an L/R clock?
Is there
an L/R clock?
No
X
R120
SCK
No
Yes
Yes
Yes
Check the parts and patterns
in the path.
IC107 (Pin 1)
No
V
Yes
Replace IC107.
Replace IC107.
R119
No
Y
Yes
Check the output from the
DIGITAL MOTHER Assy.
CN351 (Pin 2)
No
Z
LCK
Yes
Check the parts and patterns
in the path.
IC107 (Pin 4)
No
V
Yes
Check the output from the
DIGITAL MOTHER Assy.
CN351 (Pin 6)
Are there
data coming
in?
Are there
data coming
in?
No
b
DATA
Yes
Check the parts and patterns
in the path.
R113
No
c
Yes
R118
No
a
Yes
W
To Step 5
Is there
a master-clock
signal(24.576
MHz)?
Is there
a master-clock
signal(24.576
MHz)?
Is there
a master-clock
signal(24.576
MHz)?
Is there
a master-clock
signal(24.576
MHz)?
VSX-AX4AVi-S 197
5678
5678
C
D
F
A
B
E
Step 5
The 1st DSP Block is in failure.
Proceed to Step 7.
The 1st DSP Block is in failure.
Proceed to Step 7.
The 1st DSP Block is in failure.
Proceed to Step 7.
R117 SCK
LCK
No
Yes
d
Check the parts and patterns
in the path.
Check the parts and patterns
in the path.
IC201 (Pins 63, 76)
No
Yes
T
IC201 (Pins 61, 78)
No
T
R111
f
R116
DATA
No
Yes
Yes
Check the parts and patterns
in the path.
IC201 (Pin 59)
No
T
No
Yes
Yes
e
To Step 6
Step 6
The 2nd DSP Block is in failure.
Proceed to Step 8.
The 2nd DSP Block is in failure.
Proceed to Step 8.
The 2nd DSP Block is in failure.
Proceed to Step 8.
IC201 (Pin 77) SCK
LCK
No
Yes
T
Check the parts and patterns
in the path.
Check the parts and patterns
in the path.
IC201 (Pin 62)
No
Yes
T
Check the parts and patterns
in the path.
CN352 (Pin 10)
No
Yes
g
IC201 (Pin 60)
No
T
IC201 (Pin 7)
T
IC201 (Pin 79)
DATA
No
Yes
Yes
Check the parts and patterns
in the path.
CN352 (Pin 8)
No
h
Yes
Check the parts and patterns
in the path.
CN352 (Pin 12)
No
j
No
Yes
Yes
T
Check the paths in the DIGITAL MOTHER Assy.
Is there
a bit clock? Is there
a bit clock?
Is there
a bit clock?
Is there
a bit clock?
Is there
a bit clock?
Is there
an L/R clock?
Is there
an L/R clock?
Is there
an L/R clock?
Is there
an L/R clock?
Is there
an L/R clock?
Are there
data coming
in?
Are there
data coming
in?
Are there
data coming
in?
Are there
data coming
in?
VSX-AX4AVi-S
198
1234
1234
C
D
F
A
B
E
Step 7: 1st DSP
Check the output from the
DIGITAL MOTHER Assy.
It is likely a boot error.
(It is very difficult to diagnose
which peripheral part of the
DSP is in failure.)
CN351 (Pin 20) RESET
REQ_1
SPIDS_1
Is the logic
of RST_1 "H"
?
Is the logic
of RST_1 "H"
?
No
Yes
k
Check the parts and patterns
in the path.
The 1st DSP is in failure.
Replace it.
The 1st DSP is in failure.
Replace it.
R122
No
Yes
m
R102
No
n
CN351 (Pin 21)
o
Is the logic
of RST_1 maintained
at "H"? (Does it fall to become
"L" periodically?)
No
Yes
Yes
Does the logic
become "H" for a moment
when the input stream
is changed?
Does the logic
become "H" for a moment
when the input stream
is changed?
Does the logic
become "L" for a moment
when the input stream
is changed?
Does the logic
become "L" for a moment
when the input stream
is changed?
Check the parts and patterns
in the path.
No
R123
qYes
Check the parts and patterns
in the path.
No
CN351 (Pin 17)
pYes
Check the output from the
DIGITAL MOTHER Assy.
No
R124
sYes
Yes
Check the parts and patterns
in the path.
No
Check the output from the
DIGITAL MOTHER Assy.
No
Is the clock
signal output while the
voltage at SPIDS_1
is "L"?
Is the clock
signal output while the
voltage at SPIDS_1
is "L"?
Is the clock
signal output while the
voltage at SPIDS_1
is "L"?
Is the clock
signal output while the
voltage at SPIDS_1
is "L"?
Is the clock
signal output while the
voltage at SPIDS_1
is "L"?
Is the clock
signal output while the
voltage at SPIDS_1
is "L"?
CN351 (Pin 16) SPICLK
r
R126
uYes
Yes
Check the parts and patterns
in the path.
No
Check the output from the
DIGITAL MOTHER Assy.
No
CN351 (Pin 19) MOSI
t
CN351 (Pin 18)
wYes
Yes
Check the parts and patterns
in the path.
No
No
R125 MISO
v
It is very difficult to diagnose
which part is in failure.
For the following diagnosis, a digital
oscilloscope must be used.
VSX-AX4AVi-S 199
5678
5678
C
D
F
A
B
E
Step 8: 2nd DSP
Check the output from the
DIGITAL MOTHER Assy.
Check the output from the
DIGITAL MOTHER Assy.
The 2nd DSP or the commu-
nication path is in failure.
CN352 (Pin 3) RESET
SS_2
SPICLK
Is the logic
of RST_2 "H"
?
Is the logic
of RST_2 "H"
?
No
Yes
x
Check the parts and patterns
in the path.
IC201 (Pin 47)
No
Yes
T
CN352 (Pin 2)
No
y
IC201 (Pin 37)
T
No
Yes
Yes
Does the logic
of RST_2 periodically
become "H" or
"L"?
Check the parts and patterns
in the path.
No
Does the logic
of RST_2 periodically
become "H" or
"L"?
IC201 (Pin 36)
TYes
Check the parts and patterns
in the path.
No
CN351 (Pin 16)
rYes
Check the output from the
DIGITAL MOTHER Assy.
No
Is the clock
signal output while the
voltage at SS_2
is "L"?
Is the clock
signal output while the
voltage at SS_2
is "L"?
Is the clock
signal output while the
voltage at SS_2
is "L"?
Is the clock
signal output while the
voltage at SS_2
is "L"?
Is the clock
signal output while the
voltage at SS_2
is "L"?
Is the clock
signal output while the
voltage at SS_2
is "L"?
IC201 (Pin 34)
TYes
Yes
Check the parts and patterns
in the path.
No
Check the output from the
DIGITAL MOTHER Assy.
No
CN351 (Pin 19) MOSI
t
CN351 (Pin 18)
wYes
Yes
Check the parts and patterns
in the path.
No
No
IC201 (Pin 35) MISO
T
It is very difficult to diagnose
which part is in failure.
For the following diagnosis, a digital
oscilloscope must be used.
Is the logic
of RST_2 maintained
at "H"? (Does it fall to become
"L" periodically?)
The 2nd DSP is in failure.
Replace it.
VSX-AX4AVi-S
200
1234
1234
C
D
F
A
B
E
2nd DSP
MOTOROLA
56371
180MHz
3.3V
1.25V
3.3V &
1.2V
B/L
Data
B/L
Digital Audio
Data & Clock
(I2S) Output
CN351
CN351
From
DIGITAL
MOTHER
Assy
Digital Audio
Data & Clock
(I2S) Input
Data
20MHz
1st DSP
SHARC EX
21266
200MHz
ROM
16M
SRAM
4M
1st DSP
GNDD
GNDDGND
GND
5.0V
GNDD
GNDD
VDD5
REG
1.20V3.3V
REG
3.3V
1.25V
B/L
Data
Audio Clock
MCK: Master Clock
B/L: Bit & LR Clock
Data: Audio Data
DSP UCOM (DIGITAL MOTHER ASSY IC201)
B/L
MCK
Data
DSP Block Diagram
• CORE Block
• Power Block and GND Map
DSP ASSY
DSP ASSY
CN352
CN352
From
DIGITAL
MOTHER
Assy
3.3V
Flash ROM
SRAMs
Logic ICs
GNDD
CN501, CN502
3.3V &
1.25V
2nd DSP
REG
1.25V3.3V
REG
GNDD
: Shows internal ground (GNDD)
3.3V
OSC
M
M
VSX-AX4AVi-S 201
5678
5678
C
D
F
A
B
E
25
48
124
11
20
1
10
11 20
1
10
8
14
17
13
54
18
19
1
36
R
120
21 40
60
80 61
14
17
8
1
14
8
7
1
14
7
814
17
8
45
13
45
1
3
1
0123456789
0123
0
01
C
B
A
17
7
1
14 8
11 20
1
10
124
25
48
1
2
9
10
11 20
1
10
36
118
19
16
17
32
1
132
16
17
IC105
R446
IC102
R102
R109
R116
R119
R118
R122
R123
R124
R125 R126
R128
R129
R131
IC103
R132R133
R134
C172
L103
C171
C179
L104
C178
C173
C174
CN101
R112
R135
R127
L102
R117
R114
R121
C501
C504
C502
C503 IC107
R145
C186
R146
R143
R142
C185
R141
R144
R148
IC108
R149
C187
R147
R150
C188
R120
R115
C169
L107
IC501
R106
R107
R103
R104
R108
R111
R113
R157
R156
R155
R154
R153
R152
R206
C216
C204
C215
C203 C224
C223
C214
C213
C217 C218
C205 C206
R212
C228
R213
C202
C201
C207 C208
C212
R201
C211
R504
C365
R640
IC201
C221 C209 C219
C222 C210 C220
L201 C229
C604
R639
C605
R613
R611
R610
IC603
R618
IC606
R619
R617
IC604
IC601
IC605
R622
R621
R620
C611
C612
C610
C607
C608
R623
R616
R612
R604
R603
R608
C606
C613
C609
C615
C602
C614
IC602
R605
R614
R625
R624
R607
R606
C603
R609
R234
IC351
C358
C356
C355
C354
C353
C756
C752
IC751
C751
C754
C753
R601
R602
R219
R218
R224
CN201
IC352IC752
IC609
R634
R637
C621
R635
R636
C620
R238
R239
R237
R236
R233
R232
R231
R230
R615
R638
R243
R245
R244
R435
R434
L401
IC402
L408
R433
C488
C479
L402
L403
R423
R424
R425
R426
R427
R429
IC405
L407
C480
C471
R412
R422
R432
R430 R431
CN401
R428
R436
C469
R416
R421
R420
R418
C486
C485
C474
C473
C478
L404
R402
C487
IC403
R419
R417
R409
R415
R413
C472
IC407
R406
R407
R403
R408
R404
R411
R414
C494
R444 R445
R443
R642
R502
R447 R448
R449
R410
R110R503
R641
R159
R160 R161
R646
D751
C758
IC502
R644 R643
IC410
D351
R351 R352
R354
R355
R751
R752
R753
R754
REFLOW
UP
LCKI
GND
Side
SCKI
DT0I
DT1I
DT2I
DT3I
DT4I
AWX8600
MCKI
E88558(S)
ICT FC
DAXO
SPCK
SPS1
MISO
MOSI
RST1
REQ1
ROWE
CKON
DS_2
GND
AWX
G
G
GND
GND
GND
DSP Ass'y
GND
Side (B)
First
GND
A
A
1
SS_2
AWX8599
41
RST2
REQ2
BUS2
MTMD
GND
LCKO
GND
SCKO
GND
PC
LF
PRE-FLUX
DT0O
DT1O
DT2O
DT3O
DT4O
DT5O
DT6O
GND
SPS3
RST3
REQ3
GND
5V
5V
5V
GND
GND
GND
GND
GND
GND
1.25V
3.3V 3.3V
3.3V
1.2V
1.2V
2
10
9
HEATPROOF
DSP Assy Check Points
B
u
v
s
H
L P E D nGFO
A
M
N
R
y
x
h
g
J YT f c e d K
C
W
m
b
U
p
t
o
Z
s
a
X
q
V
r
w
k
Q
DSP ASSY SIDE B
M
VSX-AX4AVi-S
202
1234
1234
C
D
F
A
B
E
7.1.4 DIAGNOSIS OF THE HDMI BLOCK AND RELATED SYSTEMS
Please refer to the one point trouble shooting first before checking the flow chart on the next page.
The following chart is for video converting. As you can see HDMI input signal is output to HDMI output terminal only.
Other analog inputs can be converted to HDMI output signal.
As the audio out from HDMI output terminal, only HDMI input terminal is output. No audio out from other input sources.
HDMI
Digital Video Converting System
HDMI Audio routing line
Symptom Remedy
The HDMI indicator blinks
continuously. Check all the points below.
No picture or sound. • This receiver is HDCP-compatible. Check that the components you are connecting are also HDCP-
compatible. If they are not, please connect them using the component, S-video or composite video jacks.
• Depending on the connected source component, itís possible that it will not work with this receiver (even
if it is HDCP-compatible).
• If the problem still persists when connecting your HDMI component directly to your monitor, please
consult the component or monitor manual or contact the manufacturer for support.
No picture. • If your display device is not SD (480i) compatible then neither the setup screens or the 480i to HDMI
converted video will be displayed. In this case, connect using the component, S-video or composite video
jacks.
• Depending in the output settings of the source component, it may be outputting a video format that can't
be displayed. Change the output settings of the source, or connect using the component, S-video or
composite jacks.
No sound, or sound suddenly
ceases. • Check that the HDMI AV setting is set to AMP/THROUGH.
• If the component is a DVI device, use a separate connection for the audio.
• If analog video is being output over HDMI then there will be no HDMI audio output. Please use a separate
connection for the audio.
• Check the audio output settings of the source component.
Note:
1•An HDMI connection can only be made with DVI-equipped components compatible with both DVI and High Bandwidth Digital Content
Protection (HDCP). If you choose to connect to a DVI connector, you will need a separate adaptor (DVI → HDMI) to do so.
A DVI connection, however, does not support audio signals. Consult your local audio dealer for more information.
• This unit has been designed to be compliant with HDMI (High Definition Multimedia Interface) Version 1.1.
Depending on the component you have connected, using a DVI connection may result in unreliable signal transfers. Also, when using
a component with HDMI version 1.0, it is not possible to output copy-controlled DVD-Audio CPPM sources from the HDMI connection.
• SACD playback is not possible when using the HDMI connection.
2 To see this receiver's on-screen display, monitors (or projectors) must be compatible with 480i resolution digital video.
Input
Note: Down converting for component signal is limited with contents with macro vision.
Output
HDMI Terminal
Component
Terminal
S Video Terminal
Composite Video
Terminal
Input Output
HDMI →
HDMI
Pre out
SP Out
HDMI Simple Diagnosis
VSX-AX4AVi-S 203
5678
5678
C
D
F
A
B
E
Something is wrong with HDMI.
Picture is available,
but no sound.
• In either case, check the connection cables, input selection, and initial settings of the unit first.
• "Analog video" hereinafter means composite, S, or component video.
• "Audio cable" hereinafter means either analog or digital audio connection cables.
• "display" hereinafter means HDMI-compatible monitor or plasma display.
Sound is available,
but no picture.
No picture and
no sound
Abnormal picture
(color, etc.)
Picture is available, but no sound.
Turn all the connected components off then back on.
Disconnect then reconnect the HDMI cable.
Recheck the settings of the unit.
In a case where the analog video
signal is input, a audio cable must be
connected separately.
Check the connections of the audio
cables.
Set the AV PARAMETER to
THROUGH. (With THROUGH, no
sound will be output from the
speakers connected to the
amplifier.)
When DVI equipped component is
connected, a audio cable must be
connected separately. Check the
connections of the audio cables.
What are the
picture and sound
like?
Analog Video input
HDMI output connection?
Is the DVI cable used?
(Is DVI equipped component
connected?)
Is the sound unavailable
from the display?
YES
YES
YES
NO
NO
NO
Status confirmation
In a case where picture is available, but no sound
A
A
B C D
The following charts are based on the HDMI connection below.
HDMI equipped component This unit Monitor
HDMI HDMI
VSX-AX4AVi-S
204
1234
1234
C
D
F
A
B
E
Sound is available, but no picture
Turn all the connected equipment off then back
on. Disconnect then reconnect the HDMI cable.
Recheck the settings of the receiver.
If the input video signal is SD (480i), the
display may not be compatible. If the
display is incompatible, and if the
component video input signal is used, set
the output of the source equipment to
Progressive. If composite or S video input
signal is used, connect the analog video
output to the display. Depending on the
conditions of the input video signal, HDMI
output may not be available. In such a
case, connect the analog video output to
the display.
The picture will not be displayed if the
display does not support SD (480i).
In such a case, set the HDMI equipped
component to either Progressive (480p
or 720p) or HD 1080i. If only 480i output
is available with HDMI equipped
component, connect the display, using
the analog video and audio cables.
Check the settings (input
setting, etc.) of the display.
Is it the setup screen
that does not appear?
YES
The setup screen will not be displayed if
the display does not support SD (480i).
In such a case, connect the analog video
output to the display.
YES
YES
NO
Is analog video input?
NO
Is the video output
setting of the HDMI equipped
component 480i?
NO
In a case where the sound is available, but no picture
B
VSX-AX4AVi-S 205
5678
5678
C
D
F
A
B
E
No picture and no sound
If the display does not support HDCP, HDMI connections
cannot be made. Make connections of the analog video
and audio cables.
Check the settings of the source equipment and the display.
Check the settings of the receiver.
Make connections with the analog video and audio cables.
The HDMI equipped component and the
display may not be compatible.
Make connections of the analog video
and audio cables.
It is likely that the HDMI equipped
component does not support the repeater
function. (*1)
Ask the manufacturer of the HDMI
equipped component.
Or make connections of the analog video
and audio cables.
Ex. Digital Set-top-box DirectTV STB H10
*1. "Not support the repeater function"
means some HDMI equipped components are
not compatible with HDMI connection via AV
Receiver with HDMI.
YES
YES
Depending on the conditions of the
analog video signal, the HDMI video
output may be distorted. If it is extremely
distorted, connect the analog video
output to the display.
YES
NO
Is the sound
available after the display is
disconnected and change the
AV Parameter setting
to "AMP"?
NO
Check the settings of the HDMI equipped component
and the display. Disconnect then reconnect the
HDMI cable.Recheck the settings of the unit.
Is the HDMI LED on the
Front Panel flashing
continuously?
In a case of no picture and no sound
C
Abnormal picture (color, etc.),
distorted picture
The signal from the HDMI equipped
component may be unstable. Turn the
HDMI equipped component off then
back on.
If the picture is distorted after switching
the input selection, setting YCbCr/RGB
of the HDMI equipped component to
RGB may stabilize the picture.
YES
NO
Has the picture
become abnormal after the input
selection was changed?
NO
Is the analog video
input?
In a case of abnormal picture
D
VSX-AX4AVi-S
206
1234
1234
C
D
F
A
B
E
No video or audio output from the
equipment supporting HDMI
(in a case of HDMI input/output)
In a case of a failure in the audio
system, input a signal from the
HDMI input then check it at the SP
output.
Diagnose the unit by referring to
the sections on how to diagnose
and troubleshoot the HDMI block,
described on the subsequent pages.
The player or monitor supporting HDMI (or the HDMI
cable) may be defective. Or there may be wrong
settings of some equipment.
Not the HDMI block, but either the DSP block or the analog line is
defective, and which is defective must be judged:
• See "7.1.3 Troubleshooting the DSP Block."
• Check the analog line.
See "3. How to diagnose the product with the Power Amp Block
removed" in "7.1.9 DISASSEMBLY."
When a player
supporting HDMI is directly
connected to a monitor supporting
HDMI (with an HDMI cable) is
there any abnormality?
No (no abnormality)
Yes
(abnormality exists)
Check with other input sources:
Video input (composite, component)
Audio input (analog, digital)
NG (unlit or flashing continuously)
NG
OK
OK
Flowchart of troubleshooting the HDMI block
Check whether
HDMI authentication has
been completed between the
player supporting HDMI and this unit
according to the HDMI indicator on the front panel:
Lit: Authentication OK
Flashing: Authentication in progress
Unlit: Authentication failed
VSX-AX4AVi-S 207
5678
5678
C
D
F
A
B
E
Preparations for diagnosis of the HDMI block and related systems
How to diagnose the HDMI audio/video input/output of this unit is explained here.
Remove the following parts and the PCB Assy, referring to "7.1.9 DISASSEMBLY."
• Power Amp Block (*1)
• Rear Panel
• Shield Case
• COMPONENT & VOL Assy
• V-AUDIO Assy
• AUDIO & MULTI CH IN Assy
• PREOUT & CONTROL Assy
(*1) Follow the steps described in "7.1.10 How to diagnose the product with the Power Amp Block removed" in
"7.1.9 DISASSEMBLY." After diagnosis, be sure to remove the solder used for short-circuiting.
Video input terminals for HDMI output HDMI Audio routing line
Input Output
HDMI Terminal
Component
Terminal
S Video Terminal
Composite Video
Terminal
Input Output
HDMI →
HDMI
Pre out
SP Out
[Procedures]
BRIDGE 2 Assy
S VIDEO Assy
COMPOSITE V Assy
State after all the above-mentioned assys have been removed
VSX-AX4AVi-S
208
1234
1234
C
D
F
A
B
E
Diagnosis of the video and audio lines between HDMI input and HDMI output
How to diagnose the video and audio lines between HDMI input and HDMI output is explained here.
1. Make the preparations described in "Preparations for diagnosis of the HDMI block and related systems" on the
previous page.
2. Remove the COMPOSITE V Assy and S VIDEO Assy.
3. Connect between the HDMI connector and the chassis to mark common GND, as indicated in the photo below. *1
4. Connect a HDMI cable from the source equipment (DVD player, etc.) to HDMI IN 1 or HDMI IN 2.
5. Connect a HDMI cable between the HDMI OUT and a TV monitor.
6. Set the INPUT SELECTOR switch to HDMI function (for the connected HDMI).
*1: Be sure to connect between the HDMI connector and the chassis. Otherwise, operations will be unstable.
[Procedures]
[Tips]
• The following DVD players are compatible with this AV Receiver.
DV-989AVi-S (for Europe)
• Use an HDMI cable with the HDMI logo.
HDMI IN1
HDMI & DVC Assy
HDMI IN2
HDMI OUT
Connect a cable between the HDMI connector and the chassis.
VSX-AX4AVi-S 209
5678
5678
C
D
F
A
B
E
Diagnosis of the line from the composite video input to the HDMI video output
How to diagnose the line from the composite video input to the HDMI video output is explained here.
1. To forcibly input the composite signal to the video converter circuit, bypassing the signal-path switching IC, short-circuit
the following points with a jumper: *1
SERVICE A-1 on the COMPOSITE V Assy <-> SERVICE A-2 (See the photo below.)
2. If the video output from the COMPOSITE V Assy is to be monitored, connect a jumper between SERVICE B-1 and
SERVICE B-2 on the COMPOSITE V Assy. (See the photo below.)
3. Make the preparations described in "Preparations for diagnosis of the HDMI block and related systems."
4. Remove the S VIDEO Assy.
5. Connect between the HDMI connector fitting and the chassis, and between the composite connector fitting and the
chassis, separately. *2
6. Connect a composite cable from the source equipment (DVD player, etc.) to the DVD INPUT (COMPOSITE) connector.
7. Connect between the HDMI OUT connector and a TV monitor. (When Step 2 above is performed, the monitor output
signal from the COMPOSITE OUT connector can be monitored.)
8. Set the INPUT SELECTOR switch to DVD function.
Check that neither S-VIDEO nor COMPONENT is assigned to DVD function in the setting.
*1: Remove the wire used for short-circuiting after the diagnosis is finished.
*2: Be sure to connect between the HDMI connector fitting and the chassis, and the composite connector fitting and the
chassis, separately. Otherwise, operations will be unstable.
[Procedures]
[Appearance of diagnosing
the composite video]
[Tips]
In this diagnosis, the DIGITAL VIDEO CONVERSION setting (ON/OFF) in the AV PARAMETER settings is invalid.
HDMI OUT
COMPOSITE OUT
DVD INPUT
Connect a cable between the
composite connector and the
chassis.
Connect a cable between the HDMI
connector and the chassis.
COMPOSITE V ASSY SIDE B
SERVICE
B-1
SERVICE
B-2
Output
Input
SERVICE
A-1
SERVICE
A-2
VSX-AX4AVi-S
210
1234
1234
C
D
F
A
B
E
Diagnosis of the line from the S video input to the HDMI video output
How to diagnose the line from the S video input to the HDMI video output is explained here.
1. To forcibly input the signal to the video converter circuit, short-circuit between the pads to R2231 (C input) and
R2232 (Y input) on the S VIDEO Assy. *1
2. If the video output from the S VIDEO Assy is to be monitored, short-circuit between R2294 (C output) and
R2295 (Y output) on the S VIDEO Assy.
3. Make the preparations described in "Preparations for diagnosis of the HDMI block and related systems."
4. Connect between the HDMI connector and the chassis, and between the composite connector and the chassis,
separately.*2
5. Connect a S-video cable from the source equipment (DVD player, etc.) to the S-VIDEO INPUT 1 connector.
6. Connect between the HDMI OUT connector and a TV monitor. (When Step 2 above is performed, the signal from the
S-VIDEO OUT connector can be monitored. When Step 2 in "Diagnosis of the line from the composite video input to
the HDMI video output" is performed, the signal from the COMPOSITE OUT connector can also be monitored.)
7. Assign S-VIDEO INPUT 1 as DVD function. Set the INPUT SELECTOR switch to DVD function.
*1: Remove the solder used for short-circuiting after the diagnosis is finished.
*2: Be sure to connect between the HDMI connector fitting and the chassis, and between the composite connector fitting
and the chassis, separately. Otherwise, operations will be unstable.
[Procedures]
[Tips]
In this diagnosis, the DIGITAL VIDEO CONVERSION setting (ON/OFF) in the AV PARAMETER settings is invalid.
S VIDEO OUT
Connect a cable between the HDMI
connector and the chassis.
S VIDEO ASSY SIDE A
HDMI OUT
COMPOSITE OUT
S VIDEO INPUT1
Connect a cable between the composite connector and the
chassis.
S VIDEO ASSY SIDE B
Y output
C output
Y input C input
R2295 R2294 R2232 R2231
[Appearance of
diagnosing the S video]
VSX-AX4AVi-S 211
5678
5678
C
D
F
A
B
E
Diagnosis of the line from the component video input to the HDMI video output
How to diagnose the line from the component video input to the HDMI video output is explained here.
1. Make the preparations described in "Preparations for diagnosis of the HDMI block and related systems" on the
previous page.
2. Remove the COMPOSITE V Assy and S VIDEO Assy.
3. Connect between the HDMI connector and the chassis. *1
4. Insert 75-ohm resistors separately between W4318 and W4316, between W4319 and W4316, and between W4320
and W4316 on the INTERFACE Assy to create impedance that matches the actual input impedance.*2
5. Connect a component video cable from the source equipment (DVD player, etc.) to W4318: Y IN, W4319: Pb IN, and
W4320:Pr IN, separately. *2
6. Connect a HDMI cable between the HDMI OUT connector and a TV monitor.
7. Referring to the instruction manual for this unit, assign COMPONENT INPUT 1 as DVD function. Set the INPUT
SELECTOR switch to DVD function.
*1: Be sure to connect between the HDMI connector and the chassis. Otherwise, operations will be unstable.
*2: Be sure to remove the resistors or jumpers after the diagnosis is finished.
[Procedures]
[Tips]
In this diagnosis, the DIGITAL VIDEO CONVERSION setting (ON/OFF) in the AV PARAMETER settings is invalid.
HDMI OUT
INTERFACE Assy
Connect a cable between
the HDMI connector
and the chassis.
W4320 (Pr IN)
W4319 (Pb IN)
W4318 (Y IN)
W4316 (GND)
75Ω75Ω75Ω
[Appearance of diagnosing the component video]
VSX-AX4AVi-S
212
1234
1234
C
D
F
A
B
E
• It is assumed that there is no loose connection or damage in the
LCRs.
• There must not be an abnormality in pattern.
• The parts marked like in the following chart are located in
"HDMI &DVC Assy Check Points" on the Page 217.
Step 2: Power supply and clock
Step 1: Connections
CN1001, CN1002
Is soldering of
the connectors
OK?
Solder the connectors
correctly.
No
,
C1002 (+ side)
C903 (+ side)
Is the voltage
5V?
No
5V input
3.3V
Check the INTERFACE Assy
and DC/DC Assy.
Check the INTERFACE Assy
and DC/DC Assy.
Yes
Is the voltage
3.3V?
No Check the soldering of IC901.
If soldering has not been done
correctly, replace IC901.
Check the soldering of IC911.
If soldering has not been done
correctly, replace IC911.
Check the soldering of X501 or
IC501. If soldering has not been
done correctly, replace X501 or
IC501.
Check the soldering of X101 or
IC101. If soldering has not been
done correctly, replace X101 or
IC101.
Check the soldering of CN101.
If soldering has not been done
correctly, replace CN101.
Check the soldering of IC902.
If soldering has not been done
correctly, replace IC902.
Check the soldering of IC903.
If soldering has not been done
correctly, replace IC903.
Check the soldering of IC904.
If soldering has not been done
correctly, replace IC904.
Yes
Yes
To Step 2
To Step 3, 4
C
Step 3: HDMI
IC101 (pins 39, 40,
43, 47, 48, 51, 52)
Do signals
(approx. 0.5 Vp-p)
run in all the
lines?
Step 3-1: Rx
No
TMDS_RX1
L
K
A B
D
C906 (+ side) 1.8V
Is the voltage
1.8V?
No
Yes
E
C909 (+ side) 3.3V
Yes
R118-R124 X'TAL
Is oscillation
of 27 MHz
output?
No
Yes
Is the voltage
3.3V?
No
Yes
F
C913 (+ side)
Yes
1.8V
Is the voltage
1.8V?
No
G
Q911 Emitter UNReg input
Is the voltage
about 12V?
No
Yes
H
C918 (+ side) 5V
Is the voltage
5V?
No
Yes
I
X501 X'TAL
Is oscillation
of 15.7 MHz
output?
No
Yes
J
HDMI Troubleshooting
A
A
VSX-AX4AVi-S 213
5678
5678
C
D
F
A
B
E
IC152 (pins 3, 6)
Are
signals the same
as those at Pins 2
and 5 detected
?
No
Yes
Are
signals the same
as those at Pins 2
and 5 detected
?
A
M
Q153 (pins 1, 4)
No
N
IC152 (pins 2, 5) DDC_RX1
Are signals
detected?
No
Yes
M
IC172 (pins 2, 5) DDC_RX2
Are signals
detected?
No
R
Yes
IC161 (pins 2, 15)
No
O
IC151 (pin 8)
Is the voltage
about 5V?
No
Yes
P
Yes
Yes
IC172 (pins 3, 6)
No
Yes
R
Q173 (pins 1, 4)
No
S
Yes
Yes
IC161 (pins 4, 11)
O
IC171 (pin 8)
Is the voltage
about 5V?
No
Yes
TYes
Replace IC171
IC101 (pins 58, 59,
62, 63, 66, 67, 70, 71)
Do signals
(approx. 0.5 Vp-p)
run in all the
lines?
No
TMDS_RX2
Q
Are
signals the
same as those at Pins
6 and 3 but whose voltage
has been converted
from 5V to 3V
detected?
Are
signals the
same as those at Pins
6 and 3 but whose voltage
has been converted
from 5V to 3V
detected?
Are
signals the
same as those at Pins
3 and 13 detected
immediately after
the power is
turned on?
Check the soldering of CN101.
If soldering has not been done
correctly, replace CN101.
Check the soldering of IC152.
If soldering has not been done
correctly, replace IC152.
Check the soldering of Q153.
If soldering has not been done
correctly, replace Q153.
Check the soldering of IC161.
If soldering has not been done
correctly, replace IC161.
No
Are
signals the
same as those at Pins
3 and 13 detected
immediately after
the power is
turned on?
Check the soldering of IC161.
If soldering has not been done
correctly, replace IC161.
Check the soldering of Q173.
If soldering has not been done
correctly, replace Q173.
Check the soldering of IC172.
If soldering has not been done
correctly, replace IC172.
Check the soldering of CN102.
If soldering has not been done
correctly, replace CN102.
Check the soldering of CN102.
If soldering has not been done
correctly, replace CN102.
Check the soldering of D171.
If soldering has not been done
correctly, replace D171.
Check the soldering of D151.
If soldering has not been done
correctly, replace D151.
Check the soldering of IC151.
If soldering has not been done
correctly, replace IC151.
VSX-AX4AVi-S
214
1234
1234
C
D
F
A
B
E
Step 3: HDMI
Step 3-2: CLK, DATA
IC101 (pins 1-3, 121) VIDEO
AUDIO (DVD)
Is there a clock
?
No
Yes
U
IC101 (pins D0-D23)
Is there a data
?
No
Yes
U
Step 3-3: Tx
D381 (Cathode) HPD
DDC_TX
Is the voltage
"H" (5 V)?
No
Yes
W
IC301 (pins 19, 20)
Is there a
signal
?
No
Yes
X
IC101 (pins 78, 88)
Are there
clock and data? No
Yes
U
IC201 (pin 11)
Is there a data
?
No
Yes
V
AUDIO (DVD-AUDIO/Multi ch)
IC101 (pins 81-88)
Are there
clock and data? No
Yes
U
IC201 (pins 12-18)
Are there
clock and data? No
Yes
V
Q353 (pins 3, 6)
No
Y
ZYes
CN301
Is soldering of
CN301 OK?
No Solder the CN301correctly.
Yes
Yes
Do signals
(approx. 0.5 Vp-p)
run in all the
lines?
No
IC301 (pins 26, 27,
29, 30, 32, 33, 35, 36) TMDS_TX
Replace CN301
Check the soldering of IC101.
If soldering has not been done
correctly, replace IC101.
Check the soldering of D381.
If soldering has not been done
correctly, replace D381.
Check the soldering of IC301.
If soldering has not been done
correctly, replace IC301.
Check the soldering of Q353.
If soldering has not been done
correctly, replace Q353.
Check the soldering of IC301.
If soldering has not been done
correctly, replace IC301.
Check the soldering of IC101.
If soldering has not been done
correctly, replace IC101.
Check the soldering of IC101.
If soldering has not been done
correctly, replace IC101.
Check the soldering of IC201.
If soldering has not been done
correctly, replace IC201.
Check the soldering of IC101.
If soldering has not been done
correctly, replace IC101.
Check the soldering of IC201.
If soldering has not been done
correctly, replace IC201.
Check the INTERFACE Assy
and DIGITAL MOTHER Assy.
Check the INTERFACE Assy
and DIGITAL MOTHER Assy.
Yes
Are
signals the
same as those at Pins
4 and 1 but whose voltage
has been converted
from 3V to 5V
detected?
VSX-AX4AVi-S 215
5678
5678
C
D
F
A
B
E
Step 4: DVC
CN1002 (pin 24) COMPOSITE IN
AUDIO (DVD)
Is there a
signal
?
No
Yes
B
IC601 (pin 3)
Is there a
signal
?
No
Yes
b
IC601 (pin 16)
Is there a
signal
?
No
Yes
b
To Step 4-2
Step 4-1
Step 4-1-1
CN1002 (pin 20) S VIDEO IN
Is there a
signal
?
No
Yes
B
IC601 (pin 3)
Is there a
signal
?
No
Yes
b
IC601 (pins 15, 16)
Is there a
signal
?
No
Yes
b
CN1002 (pin 18)
Is there a
signal
?
No
Yes
B
To Step 4-2
To Step 4-2
Step 4-1-2
CN1002 (pins 8, 10, 12) COMPONENT IN
If you can perform the steps described in
"Diagnosis of the line from the component
video input to the HDMI video output,"
follow this flowchart.
Is there a
signal
?
No
Yes
B
IC601 (pins 14-16)
Is there a
signal
?
No
b
Step 4-1-3
a
R416-R417 (common line) X'TAL
Is
oscillation of
28.63636MHz
output?
No
Yes
Check the soldering of X401 or
IC401. If soldering has not been
done correctly, replace X401 or
IC401.
Check the INTERFACE Assy
and COMPOSITE V Assy.
Check the INTERFACE Assy
and S VIDEO Assy.
Check the INTERFACE Assy
and COMPONENT & VOL Assy.
Check the INTERFACE Assy
and S VIDEO Assy.
Check the soldering of IC602.
If soldering has not been done
correctly, replace IC602.
Check the soldering of IC601.
If soldering has not been done
correctly, replace IC601.
Check the soldering of IC601.
If soldering has not been done
correctly, replace IC601.
Check the soldering of IC601.
If soldering has not been done
correctly, replace IC601.
Check the soldering of IC602.
If soldering has not been done
correctly, replace IC602.
VSX-AX4AVi-S
216
1234
1234
C
D
F
A
B
E
IC401 (pin 36) CLK, DATA
Is there a
clock?
No
Yes
d
IC454 (pin 4)
Is there a
clock?
No
Yes
e
IC401 (pins 7-10, 91-94)
Is there a
data?
No
Yes
d
IC452 (pins 11-18)
Is there a
data?
No
Yes
f
To Steps 4-3, 3-3
Step 4-2
IC701 (pin 35) COMPOSITE OUT
Is there a
signal?
No
Yes
g
CN1002 (pin 22)
Is there a
signal?
No
Yes
B
Step 4-3-1
Step 4-3
IC701 (pins 29, 33) S-VIDEO OUT
Is there a
signal?
No
Yes
g
CN1002 (pins 14, 16)
Is there a
signal?
No
Yes
B
Step 4-3-2
IC701 (pins 24, 25, 28) COMPONENT OUT
Is there a
signal?
No
Yes
g
CN1002 (pins 2, 4, 6)
Is there a
signal?
No
Yes
B
Step 4-3-3
Check the soldering of IC401.
If soldering has not been done
correctly, replace IC401.
Check the soldering of IC454.
If soldering has not been done
correctly, replace IC454.
Check the soldering of IC401.
If soldering has not been done
correctly, replace IC401.
Check the soldering of IC452.
If soldering has not been done
correctly, replace IC452. Check the soldering of IC701.
If soldering has not been done
correctly, replace IC701.
Check the soldering of IC801.
If soldering has not been done
correctly, replace IC801.
Check the soldering of IC701.
If soldering has not been done
correctly, replace IC701.
Check the soldering of IC801.
If soldering has not been done
correctly, replace IC801.
Check the soldering of IC701.
If soldering has not been done
correctly, replace IC701.
Check the soldering of IC801.
If soldering has not been done
correctly, replace IC801.
Check the INTERFACE Assy
and COMPOSITE V Assy.
Check the INTERFACE Assy
and COMPONENT & VOL Assy.
Check the INTERFACE Assy
and S VIDEO Assy.
VSX-AX4AVi-S 217
5678
5678
C
D
F
A
B
E
HDMI & DVC Assy Check Points
P
R
O
S
M
Y X K I E D FV A C BW
U J f d
a
g
b
eHTN
L
Q
Z
G
SIDE A
HDMI & DVC ASSY
AG
VSX-AX4AVi-S
218
1234
1234
C
D
F
A
B
E
7.1.5 DIAGNOSIS OF THE 1394 ASSY
Please check the following Trouble shooting prior to repairing the unit.
i.LINK interface
Symptom Remedy
No sound is output. • Check that the source player is compatible with i.LINK audio.
• Check the output settings of the source player.
• Make sure that i.LINK or AUTO is selected using the SIGNAL SELECT button.
• During playback through an i.LINK connection, if you change the settings for other i.LINK components,
the sound will be discontinued momentarily. This is not a malfunction.
• Make sure that i.LINK or AUTO is selected using the SIGNAL SELECT button.
• Check the i.LINK connections; use an i.LINK cable of less than 11 feet (3.5 m).
• Check that the source components conforms to the i.LINK Audio format.
• Make sure that all components connected between the receiver and the source are switched on.
PQLS OFF or PQLS ON is
displayed temporarily on your
player and the sound output is
discontinued.
The program format indicators
don't disappear when SACD
playback stops.
• The program format indicators remain lit until another format source is input. This is not a malfunction.
• Make sure your i.LINK source components are switched on.
• Check that i.LINK is assigned correctly.
• You may need to reset the i.LINK database memory in the receiver (use the front panel):
With the receiver in standby, press STANDBY/ON while holding down RETURN. When you see DB
CLEAR? appear in the display, press ENTER, then SETUP again to confirm. When you've reset the i.LINK
database memory, DB CLEAR SET shows in the display. If DB ERROR is displayed, step through the
procedure again.
You can't get i.LINK to display
when using the SIGNAL
SELECT button.
After upgrading a component, it
is not recognized and cannot be
selected using the i.LINK
connection.
Before Making a Diagnosis
The i.LINK indicator does not
light up even when an i.LINK-
equipped component is selected.
i.LINK messages
You may see the following messages displayed in the front panel display when using the i.LINK interface.
Message Explanation
BUS FULL The i.LINK bus has reached its capacity and cannot transmit any more data.
CANNOT LINK 1 The connection between the receiver and the selected i.LINK-equipped component is unstable. If the
i.LINK cables appear to be connected properly and both the receiver and i.LINK-equipped component are
on, switch both units off, then on again to re-establish the connection between them.
CANNOT LINK 2 The receiver can't identify the selected i.LINK-equipped component. For example, the receiver may not
be able to identify an i.LINK-equipped personal computer.
LINK CHECK The receiver is checking the i.LINK network. It does this when components are added to, or removed from
the network. The sound may be interrupted if this happens during playback.
LOOP CONNECT The i.LINK network cannot function because the connected components form a loop.
NO NAME When an i.LINK-equipped component has no name, this message is displayed instead of the proper
component name.
NO SIGNAL A component is outputting an i.LINK signal that the receiver cannot reproduce. This receiver can only
reproduce signals from i.LINK-Audio-equipped components.
PQLS OFF This is displayed on a playback component when PQLS turns off during playback. The sound may be
interrupted momentarily when this happens.
PQLS ON This is displayed on a playback component when PQLS turns on during playback. The sound may be
interrupted momentarily when this happens.
UNKNOWN When an i.LINK-equipped component name cannot be recognized, this message is displayed instead of
the proper component name.
VSX-AX4AVi-S 219
5678
5678
C
D
F
A
B
E
Preparations for diagnosis
Detach the 1394 Assy with the flexible cables (FFCs) connected, as shown in the photos below, then make a diagnosis.
[Procedures]
1Remove the bonnet, referring to "7.1.9 DISASSEMBLY."
2Remove the HDMI shield, first removing the three screws.
3Remove the two screws that secure the 1394 connector to the rear panel.
4Remove the rivet that secures the 1394 Assy.
5Remove the 1394 Assy.
6Connect a cable between the 1394 connector and the chassis.
7Connect the source equipment (DVD player), using an iLink cable.
2
5
6
7
2
4
2
HDMI Shield
1394 Assy
1394 Assy
3×2
DVD player
iLink cable
AF
VSX-AX4AVi-S
220
1234
1234
C
D
F
A
B
E
• It is assumed that there is no loose connection or damage in the LCRs.
• There must not be an abnormality in pattern.
• The parts marked like are located in the "1394 Assy check points" on page 222.
Step 2: Power supply
Step 1: Connections
CN401, CN402
Are the
FFCs correctly
connected?
Connect the FFCs
correctly.
No
,
C419 (+ side)
C2 (+ side)
Is the voltage
5V?
No No
5V input
3.3V
Yes Yes
Do the
FFCs work
correctly?
Is the voltage
3.3V?
No
Yes
Yes
CN401, CN402
Is soldering of
the connectors
OK?
No
Yes
To Step 2 To Step 4
To Step 3
Replace any
defective FFC.
C
Step 3: Operation of the Master Clock
Do signals
(approx. 0.5 Vp-p)
run in all the
lines?
F
G
A B
,
A B
D
C428 (+ side) 2.5V
Is the voltage
2.5V?
No
E
Yes
X101 Microcomputer clock
Is oscillation
of 6.14MHz
output?
No
Yes
X201 Mercury clock
Is oscillation
of 24.576MHz
output?
No
Yes
To Step 5
Step 4: Operation of the Master External I/F
H
I
JA201 Connection 1
No
Yes
Do signals
(approx. 0.5 Vp-p)
run in all the
lines?
No
Yes
JA202 Connection 2
1394 Assy Troubleshooting
Solder the connectors
correctly.
Check the INTERFACE Assy .
Check the soldering of IC1.
If soldering has not been done
correctly, replace IC1.
Check the soldering of JA202.
If soldering has not been done
correctly, replace JA202.
Check the soldering of JA201.
If soldering has not been done
correctly, replace JA201.
Check the soldering of X201.
If soldering has not been done
correctly, replace X201.
Check the soldering of IC401.
If soldering has not been done
correctly, replace IC401.
Check the soldering of X101 or
IC101. If soldering has not been
done correctly, replace X101 or
IC101.
A
VSX-AX4AVi-S 221
5678
5678
C
D
F
A
B
E
Check the DIGITAL MOTHER Assy.
Step 5:
J
J
IC301 (pin 82)
Step 5-1
60958
DVD playback
(In a case of no DVD audio output)
Is there a data
?
No
Yes
Replace the 1394 Assy.
Replace the 1394 Assy.
IC301 (pin 2)
Is there a data
?
No
Yes
K
IC404 (pin 4)
Is there a data
?
No
Yes
Check the DIGITAL MOTHER Assy.
J
J
IC301 (pins 98-103)
Step 5-2
CLK, DATA
DVD-AUDIO playback
(In a case of no DVD-AUDIO audio output)
Are there
clock and data? No
Yes
Replace the 1394 Assy.
IC301 (pins 3-9)
Are there
clock and data
?
No
Yes
L
IC409 (pin 4)
Is there a MCK
?
No
Yes
To Steps 5-3-1, 5-3-2
M
J
X302 (pin 3)
Step 5-3
CLK, DATA
SACD playback
(In a case of no SACD audio output)
Is
oscillation
of 22.5792MHz
output?
No
Yes
IC301 (pins 70-72, 75-81)
Are there
clock and data
?
No
Yes
J
IC301 (pins 20, 22-25, 28, 29)
Are there
clock and data
?
No
Yes
Check the DIGITAL MOTHER Assy.
Check the DIGITAL MOTHER Assy.
N
J
IC401 (pins 19-23)
Step 5-3-1 Normal
Are there
clock and data
?
No
Yes
O
IC405 (pins 12-18)
Step 5-3-2 SACD DIRECT
(Select PURE DIRECT, using the AUTO
SURR/STREAM DIRECT key.)
Are there
clock and data
?
No
Yes
IC301 (pins 3-9)
Are there
clock and data
?
No
Yes
Check the soldering of X302.
If soldering has not been done
correctly, replace X302.
Check the soldering of IC301.
If soldering has not been done
correctly, replace IC301.
Check the soldering of IC404.
If soldering has not been done
correctly, replace IC404.
Check the soldering of IC409.
If soldering has not been done
correctly, replace IC409.
Check the soldering of IC301 and
IC302. If soldering has not been
done correctly, replace IC301 and
IC302.
Check the soldering of IC301 and
IC302. If soldering has not been
done correctly, replace IC301 and
IC302.
Check the soldering of IC401.
If soldering has not been done
correctly, replace IC401.
Check the soldering of IC301.
If soldering has not been done
correctly, replace IC301.
Check the soldering of IC405.
If soldering has not been done
correctly, replace IC405.
VSX-AX4AVi-S
222
1234
1234
C
D
F
A
B
E
1394 Assy Check Points
M C
G O
D BA
ENF
KLJ
I
H
SIDE A
SIDE B
1394 ASSY
AF
1394 ASSY
AF
VSX-AX4AVi-S 223
5678
5678
C
D
F
A
B
E
7.1.6 iPod INFORMATION
iPod players supported by this unit
This unit supports iPod, iPod mini, and iPod Photo players of the third or subsequent generation that have adopted the
iPod Dock connector.
The iPod cable is available as parts (Part No.: ADE7119).
MONITOR OUT screen FL display
[Cause]
There is a problem with the signal path from the
iPod to the receiver.
[Measures]
Switch off the receiver and reconnect the iPod to the
receiver.
If this doesn’t seem to work, try resetting your iPod.
Error Messages
i P o d T o p
E r r o r I 1
MONITOR OUT screen
i P o d T o p
E r r o r I 2
MONITOR OUT screen
i P o d T o p
N o T r a c k
Error I1
FL display
[Cause]
The software version being used with the iPod
needs to be updated.
[Measures]
Update the software being used with the iPod
(software versions prior to iPod update 2004-10-20
are not supported).
[Cause]
There are no playable songs currently stored in
the iPod.
[Measures]
Input some music files compatible with iPod playback.
Error I2
FL display
No aTr ck
VSX-AX4AVi-S
224
1234
1234
C
D
F
A
B
E
Operation check of iPod functions
Check the power line (Pin 4, 5) of
the iPod connector (CN2804).
Note: The equalizer (EQ) function of an iPod player
cannot be switched from this unit.
* The "DIGITAL PRECISION PROCESSING" indicator on the front panel light off when switching "AUTO SURR/STREAM DIRECT"
button to "PURE DIRECT" or listening through the multichannel analogue inputs.
Connect an iPod player to
this unit, using an iPod cable.
Has
charging started?
(If charging starts, it means
the power line
is OK.)
No
Yes
Check Pins 42, 43 of the main
microcomputer (IC101).
Operation is OK.
No
Yes
No
Is a signal
output from the SP connector
when a digital signal (through a
coaxial or optical cable)
is input?
Diagnose the path between the analog audio
line AUDIO L (Pin10,12), AUDIO R (Pin11,13)
of the iPod connector and the DSP block.
Diagnose the analog audio line
(input AMP block SP output connector).
No Yes
No
Diagnose the path between the audio line
AVDIOL (Pin10, 12), AVDIOR (Pin11, 13) of
the iPod connector and the input function IC
(IC6201).
Yes
Yes
Is "Pioneer"
displayed on the iPod
player? (If it is displayed,
microcomputer
control is OK.)
When audio
data are played back, is a
signal output from the Speaker?
(If a signal is output, the audio line is
OK.) (The audio lines are
analog input signals. )
Is a signal
output from the SP connector
when a signal is input to the
MULTI CH IN
connector?*
VSX-AX4AVi-S 225
5678
5678
C
D
F
A
B
E
7.1.7 HOW TO UPDATE THE DSP FLASH ROM BY PLAYING BACK A CD
1. Reset the receiver.
Note: Note that all the data the receiver retains will be cleared.
Resetting the system
Use this procedure to reset all the receiver’s settings to the factory default. Use the front panel controls to do this.
1 Switch the receiver into standby.
2 While holding down the front panel AV PARAMETER button, press and hold STANDBY/ON for about three
seconds.
The display shows RESET?.
3 Press the front panel ENTER button.
The display shows RESET OK?.
4 Press SETUP to confirm.
OK appears in the display to indicate that the receiver has been reset to the factory default settings.
• Note that all settings will be saved, even if the receiver is unplugged.
[Procedures]
[Connections]
Connect this unit and a player, as shown in the figure below.
[Preparations]
Burn the provided DSP program to a CD-R, using commercially available software for writing. It is necessary to select the writing
format, "For music player", not "for PC data" format .
Note:
Depending on the writing format of the commercially available software to be used, data on a CD-R may not be used for DSP
program rewriting. If the HDMI indicator does not flash when the disc is played back in the way indicated in Step 5 below, data
burned on the CD-R are not appropriate. To know whether the writing software is OK or not, play back the WMA9Pro stream
stored on the last track of the disc. (Refer to "Troubleshooting" on next section.)
If audio data are normally played back, the disc and the player can be used for updating. If audio data are not correctly played
back (with noise, etc.), that writing software is not appropriate. Burn the DSP program on a CD-R disc, using other writing
software.
Please use DVD plaer based on MTK system (DV-270, 370, 373, 575K, 280, 380, 383, etc. ) ,Mitsubishi system (DV-59AVi,
868AVi, S969AVi, 668AVi, etc. ) or Fujitsu system (DV-343, 444, 545, etc.) DO NOT use DVD player based on ST system (DV-
353, 454, 250, 400, 555K, 260, 363, 464, 466, 563, etc. ) The factory confirmed that DVD players based on ST system cannot
send the correct data to the VSX unit using the update disc.
You can check the base system of our DVD players on the firmware version list at PSN web (Niis)
• Coaxial cable or Optical cable
• Update disc(CD-R disc)
• Headphone
[Tools to be used]
[Purpose]
[Note]
• Do NOT disconnect the AC cords of this unit nor the CD/DVD player while rewriting is in progress.
• The "OK" indication displayed after updating means the checksum on the flash ROM is OK.
If the "OK" indication is not displayed, updating has not been completed.
Note that confirmation with audio check or version check is insufficient for checking if updating has been completed.
If you set the unit to STANDBY OFF without confirming of "OK" indication on the FL display, be sure to perform the updating
procedures again.
By referring to this section, rewrite the DSP Flash ROM when required. Rewriting is instructed through service information, etc.
By playing back a CD-R on which a DSP program is recorded, using a normal CD player, rewriting is possible.
This unit
CD or DVD player
Digital connection
VSX-AX4AVi-S
226
1234
1234
C
D
F
A
B
E
2. Check the versions of the DSP and microcomputer.
Check the versions by referring to "Version indication" in "7.1.1 TEST MODE."
3. Connect a CD or DVD player.
(1) Connect the CD or DVD player to be used for updating to any digital input connector of this unit.
(2) With the INPUT SELECTOR, select the input being used.
4. Check if the digital signal is locked (received).
(1) Play back a stream for updating with the player.
(2) Set the receiver to normal setting, "Signal Select" to Auto, then check on the Signal Select indicator whether the
input is set to Auto and Digital.
5. Start up this unit in writing mode.
(1) Relocate the CD playback starting point to the beginning (time: 0:00) of the track No and pause playback.
(2) Set the volume of the receiver to - ∞ dB and set the receiver to STANDBY OFF.
(3) Simultaneously press and hold the ↑ and VIDEO SELECT keys until "DSPF DOWNLOAD" is displayed on the
FL display. The unit enters writing mode.
6. Play back the track on CD disc.
(1) Release Pause mode of the player and play back the track where the DSP program stream signal to be burned is
stored.
(2) After 5-10 seconds, the HDMI indicator starts flashing. Be sure to check that it is flashing.
(3) Flashing indicates that a correct stream is being received and that updating is in progress.
Note: Do NOT turn off the unit while the HDMI indicator is flashing. If the unit is turned off, be sure to go back to Step
5. (As the Flash ROM goes into unusual status if the power is off during rewriting, the unit may not start
properly.) Even in such a case, you can restore the unit by performing Steps 5 to 8.
7. Wait until rewriting is completed.
(1) Basically, wait until "OK" is displayed on the FL display. It takes about 2 minutes for updating.
(2) After confirming that "OK" is displayed, stop or pause the player then after 5 seconds set the player to STANDBY
OFF.
8. Check the version of the program after updating.
(1) Check the version by simultaneously pressing and holding the STANDARD SURROUND and STANDBY keys.
(2) For confirmation, check basic operations.
[Procedures]
VSX-AX4AVi-S 227
5678
5678
C
D
F
A
B
E
Troubleshooting
Symptoms Items to be checked
The HDMI indicator does not start
flashing, and 10 seconds or more has
elapsed after a updating stream is input.
Is DSP writing mode entered? (Simultaneously press and hold the ↑ and VIDEO SELECT keys.)
Is DIR locked? → You can check this on the Signal Select indicator if the input is set to Auto and
Digital. If DIR is not locked, check the input function and digital connections between the player
and this unit.
Is the stream (Track No., etc.) being played back correct?
Are compressed audio signals, such as WMA, being input when or after writing mode is entered ?
→ As soon as the compressed audio signals are input, writing mode is exited. It is recommended
that playback be paused at the beginning of the track of a updating stream then writing mode is
entered by simultaneous pressing of the keys. Release Pause mode after entering of writing mode
is confirmed.
Make sure that the player being used is appropriate for updating, in the following way:
• Turn the receiver off.
• Connect a speaker to the front channel of the receiver.
• Turn the receiver back on normally. (Normal power on, not by simultaneous pressing of the keys)
• Turn the volume up moderately.
• Play back the WMA9Pro stream stored on the last track of the disc.
Note: Do not turn the volume up too much, as a large noise may be generated when this test
stream is played back on some players.
→ If music is played back normally, that player can be used for updating. ("WMA" indication on the
FL display)
→ If noise is output, updating cannot be done with that player. Use another player.
Tips: The fact that PCM data can be played back or that a dts-CD can be played back does not
mean that the player can be used for updating.
Writing mode is not entered upon
simultaneous pressing of the ↑ and
VIDEO SELECT keys.
Is the volume control of the receiver set to -∞ dB? If not, set it to -∞ dB (- - -).
Reset the receiver then enter writing mode.
Note: All the user data stored in the receiver are cleared when the receiver is reset.
"OK" is not displayed.
Is the track played back from the beginning to the end?
→ With the receiver in writing mode, be sure to play back the stream track twice.
If an error is generated because any scratches on the disc, "OK" is not displayed.
→ In such a case, play back the same stream stored on another track as backup.
VSX-AX4AVi-S
228
1234
1234
C
D
F
A
B
E
7.1.8 HOW TO UPDATE THE FLASH ROMS FOR VARIOUS MICROCOMPUTERS
1. Turn off the power to this unit by setting the main volume
level to "---dB."
2. Connect the 232C I/F jigs and the PC, as
indicated in "Connections."
3.
(HDMI microcomputer) :
Simultaneously press and hold the VSEL and keys for
about 5 seconds.
(MAIN microcomputer) :
Simultaneously press and hold the VSEL and keys for
about 5 seconds.
(DSP microcomputer) :
Simultaneously press and hold the VSEL and keys for
about 5 seconds.
4. The unit is turned on, and "HDMI DOWNLOAD", "MAIN
DOWNLOAD" or "DSPM DOWNLOAD" is displayed.
5. Double-click on "ufu.exe".
6. Check that "Full" is selected in MODE SELECT.
7. Select the firm ware file with "mot" extension.
8. Select the communication speed.
• Basic speed: 19200
• Data transfer speed: 57600
9. Click on "START" button.
10.
(HDMI microcomputer) :
"Completed" is displayed for about 1 minutes in
the"ufu.exe" window.
(MAIN microcomputer), (DSP microcomputer) :
"Completed" is displayed for about 3 minutes in
the"ufu.exe" window.
11. Disconnect then reconnect the AC power cord of the
unit. If the unit is not reset, retry from Step 2.
12. Check the version.
Following the procedures described in
"Version indication" in "7.1.1 TEST MODE," check
that the version has been changed to a new one.
[Procedures]
[Connections] (HDMI microcomputer)
Connect as indicated in the figure below:
• PC with a serial port
• RS-232C cable (9-pin to 9- or 25-pin, cross)
• Program for updating (ufu.exe)
• RS-232C I/F jig (GGF1348)
• Firmware ("mot" extension)
• 7-pin FFC (VDA1681)
[Tools to be used]
[Purpose]
[Note]
Do NOT disconnect the AC power cords of this unit nor the PC.
Refer to this section when updating of a Flash ROM is required by the service information, etc.
PC GGF1348
This unit
RS-232C
cross cable
(9-pin to 9- or 25-pin)
FFC
(VDA1681)
Check that "Full" is selected in MODE SELECT.
Select the communication speed.
• Basic speed: 19200
• Data transfer speed: 57600
HDMI, MAIN and DSP microcomputer
OUT
DIGITAL
Rear side
Slit for an HDMI
for downloading
[Connections] (MAIN microcomputer)
(DSP microcomputer)
Connect as indicated in the figure below:
RS-232C
cross cable
(9-pin to 9- or 25-pin)
PC This unit
VSX-AX4AVi-S 229
5678
5678
C
D
F
A
B
E
7.1.9 DISASSEMBLY
4
31
2
321654
4
2
5
3
1
C4202
IC4202
C4206
C4201
C4204
R4203
R4201
C4203
D4201
C4205
IC4201
R4205
4201
R4208
R4206
C4209
C4210
D4204 D4206 D4208
Q4203Q4203
D4210D4212
D4216
D4214
C4208
D4213
D4215
Q4202Q4202
C4207
D4211D4209
Q4201
D4207
D4205
Q4201
D4203
R4207
CN4202
0.1/100
CFTLA
7A
AEK7021
470/100
0.1/100
CFTLA
MUF
(1/4W)
47 1000p
(1/4W)
10 MUF
AEK7021
7A
1000p
S1WB(A)60SD
470/100
51048-0600
LMF(1/2W)
3.3k
LMF
(1W)
4.7k
220/100220/100
*
8R2(B) 8R2(B)
UMD2NUMD2N
6R8(B)
15(B)
13(B)
100/63
*
13(B)
UMD2NUMD2N
*
13(B)
100/63
6R8(B)
RN1901
RN1901
9R1(B)9R1(B)
LMF LMF
(1W)
4.7k
*
(1/2W)
3.3k
52151-0510
-67V
VHa
VLa
VLa
VHa
SECONDARY
TRANS
+67V
-VH
-C
-B
-58V
+B
+C
+VH
9R1(B)
/7R5(B)
+58V
12(B)
/15(B)
12(B)
/15(B)
15(B)12(B)
9R1(B)
D4214
D4213,
8R2(B)10(B)
D4204
D4203
7R5(B)
AWX8647AWX8646
10(B)
/8R2(B)
*OTHERS/KU
D4203-D4204
D4213-D4214:UDZS***
VH-
NECK6
V-12A
NECK8
VH+
GAMP
TRANS 2-1 ASSY
U
U
POWER AMP IN
ASSY
VH TR ASSY
VH REGULATOR
23
24
25
26
27
C4209
C4210
TRANS 2-1 ASSY
2Discharge C4209 and C4210 on the TRANS 2-1 Assy.
Note: For discharging, use a load of 100Ω, 3W or more, to protect the IC protectors. Do NOT discharge instantly by short-circuiting.
3Check that the voltage between the electrodes of each C4209 and C4210 is 1V or less.
4Mount the Power Amp Block.
1Unplug the AC code.
Before the Power Amp Block is removed, discharge C4209 and C4210 on the TRANS 2-1 Assy, as indicated below.
If you don't, the IC protectors (IC4261 and IC4262) on the VH TR Assy may be open, and DC voltage may be generated at the power
amplifier output, which will result in "AMP ERR."
[Procedure]
1. Before the Power Amp Block is removed
Note : Even if the unit shown in the photos and illustrations in this manual may differ from your product, the procedures
described here are common.
VSX-AX4AVi-S
230
1234
1234
C
D
F
A
B
E
Before removing the power AMP Block, discharge C4209
and C4210 on TRANS 2-1 Assy.
Refer to "1. Before the Power AMP Block is removed".
1Remove the four screws.
2Remove the four screws.
3Remove the fourteen screws.
4Remove the bonnet.
Bonnet
1
2. Disassembly
1111
2
2
2
2Rear view
Remove the two screws.
2
1
Remove the four screws.
Power Amp Block
2
Bonnet
Power amp block
4
2 2
22
1
3
3
×3
3×3
3×3
3×2
×3
1
VSX-AX4AVi-S 231
5678
5678
C
D
F
A
B
E
3Disconnect the three flexible cables and one connector.
4Disconnect the six connectors and one jumper.
5Remove the power amp block.
Power amp block
Center beam V1
POWER AMP IN
Assy
POWER PROTECT
Assy
POWER PROTECT
Assy
4
3
3
3
3
×7
1
2
2
2
5
2
POWER AMP IN
Assy
O
O
POWER AMP-L Assy
Q
POWER PROTECT Assy
P
P
P
POWER ANP-R
Assy
R
1Remove the two screws.
2Remove the center beam V1.
Replacing the Power Transistor
3
1
1
Center Beam V1
1Remove the one nylon rivet.
2Remove the POWER PROTECT Assy by removing the two
connectors.
POWER PROTECT Assy
VSX-AX4AVi-S
232
1234
1234
C
D
F
A
B
E
HS angle 74 HS angle 74
POWER AMP IN Assy
POWER AMP-L Assy POWER AMP-R Assy
Power transistor
(IC5301)
1Remove the four screws.
2Remove the HS angle 74.
1
2
HS Angle 74
2Remove the POWER AMP IN Assy by removing the four
connectors.
POWER AMP IN Assy
1Remove the four screws.
2Remove the HS angle 74.
HS Angle 74
1Remove the screw.
Replacing the Power Transistor
2
×21×2
1×21×2
22
2
2
2
1
Replace
1
1Remove the one nylon rivet.
O
Q R
VSX-AX4AVi-S 233
5678
5678
C
D
F
A
B
E
1Remove the four cushion circle 16Bs.
2Remove the two screws and the AC Inlet Assy.
3Remove the screw.
4Remove the three screws.
5Remove the two screws.
6Remove the four screws.
7Remove the two screws.
8Remove the two screws.
(VSX-AX4AVi-S only)
9Remove the 47 screws.
10 Remove the rear panel.
(VSX-AX4AVI-S only)
Replacing the HDMI & DVC ASSY
4
Rear Panel
1Remove the BRIDGE 1 Assy by removing the two
connectors.
2Remove the three screws.
3Remove the HDMI shield.
HDMI Shield
1Remove the FM/AM TUNER Unit by removing the one
flexible cable.
FM/AM TUNER Unit
4
7
7
8
4
5
6 6 6 6
5
4Rear view
Rear view
PRIMARY
Assy
Rear panel
BRIDGE 1 Assy
HDMI shield
FM/AM TUNER Unit
Cushion circle 16B ×4
3
1
1
2
2
2
3
1
×29×47
AA
E
2 2
VSX-AX4AVi-S
234
1234
1234
C
D
F
A
B
E
1Remove the PREOUT & CONTROL, AUDIO & MULTI CH IN,
V-AUDIO, COMPOSITE V, S VIDEO, BRIDGE 2 and
BRIDGE 3 Assys from the INTERFACE Assy.
PCB Assys
1Remove the COMPONENT & VOL Assy from the
INTERFACE Assy.
COMPONENT & VOL Assy
1Remove the nyron rivet.
2Remove the HDMI & DVC Assy from the INTERFACE Assy.
HDMI & DVC Assy
COMPONENT & VOL Assy
HDMI & DVC Assy
1
1
1
2
Replace
AG
K
INTERFACE Assy
N
VSX-AX4AVi-S 235
5678
5678
C
D
F
A
B
E
1Remove the nyron rivet.
2Disconnect the two flexible cables.
(VSX-AX4AVi-S only)
3Disconnect the two flexible cables.
4Remove the DIGITAL MOTHER Assy with DSP Assy from
the INTERFACE Assy.
Replacing the INTERFACE ASSY
5
DIGITAL MOTHER Assy
1Remove the three screws.
2Disconnect the two connectors.
3Remove the DSP shield 74.
DSP Shield 74
1Remove the two screws.
2Remove the four screws.
3Release the locking card spacer.
INTERFACE Assy
DSP Assy
DIGITAL MOTHER
Assy
DSP shield 74
LOCAL SUPPLY Assy
INTERFACE
Assy
INTERFACE
Assy
INTERFACE
Assy
12
3
32
4
1
1
1
2
3
2
1
2×2
2
2
2
Cutting pliers
Locking card spacer
3
Replace
4Remove the INTERFACE Assy.
S
N
M
N
N
L
VSX-AX4AVi-S
236
1234
1234
C
D
F
A
B
E
7.1.10 HOW TO DIAGNOSE THE PRODUCT WITH THE POWER AMP BLOCK REMOVED
The failure in the Power Amp Block is suspected as shown in the table below.
Failure diagnosis with the power on is not possible for some board assys, because the large Power Amp Block lies in the way.
However, if the Power Amp Block is removed, the thermistor connected to the Power Amp Block is disconnected, which will
activate the protection circuits.
To enable failure diagnosis of those board assys, after the Power Amp Block is removed in the manner described below.
[Procedures]
1Remove the bonnet by removing the 22 screws.
2Remove the two screws.
3Remove the four screws.
4Disconnect the six connectors and one jumper.
5Disconnect the flexible cable.
Symptom that is highly suspected to be caused
by a failure in the Power Amp Block Possible cause
1 The power cannot be turned on, and the MCACC LED is flashing.
The DC detection circuit is activated in order to prevent extension of the
failure.
Note: See "7.1.11 Failure Diagnosis of the Power Amp Block."
2 The unit is shut down after "AMP ERR" is displayed on the FL
display. Then the unit goes into the state described in 1 above.
3 "OVER HEAT" is displayed on the FL display.
The posistors (TH5001 and TH5301) in the Power Amp Block are open.
Note: The resistance of the thermistor at normal temperature is about 330 ohms.
4 The unit is shut down without an error message on the FL
display. Then the PHASE CONTROL LED flashes.
Power Amp overloaded, defective overload-detection circuit in the Power
Amp Block, etc.
7
8
7
7
POWER PROTECT
Assy
The POWER PROTECT Assy can be easily removed
with no load applied to the connectors if you pull out the
board by pushing on it at its center from the rear.
6Remove the nylon rivet.
7Remove the POWER PROTECT Assy from the Power Amp
Block.
8Remove the Power Amp Block.
4×7
2
5
2
3 3
3
3
Note:
To prevent an electric shock hazard, after removing the Heat Sink
Block, discharge the condenser of the ±VL line, by discharging
CN4101 or CN4102 on the SP/PS Assy, using a discharging
resistor. (It is recommended to make a resistance of 100 ohms or
more in the series-parallel connection, using four or more
discharging resistors of 100 ohms, 3 W.)
6
P
VSX-AX4AVi-S 237
5678
5678
C
D
F
A
B
E
9Short circuit between pin8 (POSI_1) and pin 9 (GND), between pin7 (POSI_2) and pin 9 (GND) of CN5701 of the POWER PROTECT
Assy, and Pin 3 (POSI_1) and pin 4 (GND) of CN5702 .
10 Turn the power on. (The power is on without the protection circuits activated.)
After performing a diagnosis, be sure to remove the solders at short circuit points. Also, be sure to
discharge the electric charges of the VH line (charges of the electrolytic condenser) before putting
the Power Amp Block back. (See "1. Before the Power Amp Block is removed.")
Note: If you connect the connectors without discharging, some parts, such as a resistor or Fuse
IC on VH line, may be damaged by the inrushing current.
Diagnose
Warning: Before putting the Power Amp Block back
9
9
CN5701 CN5702
POSI_1
POSI_2
POSI_1
GND
GND
POWER PROTECT
Assy
9
POWER PROTECT
Assy
P
P
VSX-AX4AVi-S
238
1234
1234
C
D
F
A
B
E
7.1.11 FAILURE DIAGNOSIS OF THE POWER AMP BLOCK
Operating temperature of the posistor assembling to the heat sink
No. Part No. Operating
temperature Purpose Operation
POS1L TH5001 FAN control FAN activation at more than 60 ºC
POS1R TH5301 FAN control
Detection of abnormal temperature
FAN activation at more than 60 ºC
OVERHEAT perform at more than 100 ºC
POS2 TH5002
* Operating temperature is body temperature of the posistor (the metal part).
PTFM04BH222Q2N34B0 60 ºC
PTFM04BH222Q2N34B0 60 ºC
PTFM04BD222Q2N34B0 100 ºC
If "AMP ERR" flashes on the FL display immediately after the
power is turned on, then the unit is shut down, the power
amplifier block is damaged, and DC voltage is output. In this
case, either or both of the current and voltage amplifier block(s)
is(are) damaged. Herein is described how to diagnose which
block is in failure.
Most cases of damage in the power amplifier block are damage
on the power transistor caused by excess power consumption,
such as short-circuiting of the speaker terminals and use of low-
impedance speakers that are not guaranteed. The failure diagnosis
is therefore conducted on the current amplifier block first, then
on the voltage amplifier block.
Notes:
• During diagnosis of the amplifier block with the power on, if
you touch a high-impedance circuit (in particular, both ends of
100-ohm base resistance of the power transistor) with the probe
of an oscilloscope or a tester, the circuit may be damaged by
oscillation of an oscilloscope or a tester.
• While a failure diagnosis is being conducted with the power on,
do NOT touch parts other than the power, input, and output
blocks.
• Only the points with CP (check point) marks in the schematic
diagram can be diagnosed while the power is on.
1. Damage on the current amplifier block
Check of the power transistor and collector resistance
of each channel, using a tester
Tips:
In most cases where the current amplifier block is damaged by an
excess power consumption of the power transistor, damage is
caused by short-circuiting between the collector and emitter. The
collector resistor is open because of large collector current.
In this case, the channel in failure can be identified by checking
on which channel the resistance between C and E of the power
transistor is 0 Ω (some hundreds of ohms or less) and the resistor
of collector resistor is ∞ Ω. As a damage scar appears on the
surface of the part when the collector resistor is open, you can
also check it by visual inspection.
Note:
Even if the result of the measurement of resistance with the tester
shows that the power transistor is not short-circuited, that power
transistor may be damaged if the paired push-pull power
transistor has been damaged. Therefore, it is recommended to
replace both parts when either needs to be replaced.
2. Damage on the voltage amplifier block
Check of the base resistance (100 Ω) and Power supply
(±VH) resistor (4.7 Ω) of each channel, using a tester
Tips:
In most cases, the voltage amplifier block is damaged by
oscillation generated by a special load connection, a large-
amplitude output at higher frequencies out of the audible range,
or an influence of damage on the current amplifier block (power
transistors). In many cases, the base resistance (100 Ω) is
damaged. It is necessary to check each part of the voltage
amplifier block, as damage may have been extended to other
parts.
In most cases, the resistors are open/damaged, or the transistors
or diodes are short-circuited/damaged.
• The resistors must not be open (the resistance must not be
higher than the indicated value).
• The terminals of transistors or diodes must not be short-
circuited (the resistance must not be extremely low).
(If the resistance is low but you are not sure if it is extremely
low, compare the value with that of the normal channel.)
If the voltage amplifier block is damaged, Power supply (±VH)
resistor (4.7 Ω) may also be damaged.
3. Other damage
Check of the bias protection diodes
Tips:
If the power amplifier is damaged, the bias protection diodes
may be deteriorated or open.
For a channel that has been diagnosed to be in failure, the Vf
(forward descending voltage) of the four diodes must be checked
to confirm that they are not deteriorated or open, using a tester,
after repair of the amplifier. If these diodes are deteriorated, its
distortion/frequency characteristics may be affected. If these
diodes are open, the scale of damage on the power transistors
may be extended if any abnormality is generated in the amplifier
next time.
+VH
-VH
-VL
POWER
TRANSISTOR
(NPN)
POWER
TRANSISTOR
(PNP)
OUTPUT
INPUT
Bias protection
diode
Power supply
resistor
Power supply
resistor
Base
resistor
Base
resistor
Collector
resistor
Collector
resistor
Voltage amplifier block Current amplifier block
+VL
VSX-AX4AVi-S 239
5678
5678
C
D
F
A
B
E
7.2 PARTS
7.2.1 IC
Pin Function
No. Pin Name I/O Pin Function
1 VDDINT −Core power supply (+1.2V)
2 CLKCFG0 Core/CLKIN ratio controlI
3 CLKCFG1 I Core/CLKIN ratio control
4 BOOTCFG0 I Boot configuration select
5 BOOTCFG1 I Boot configuration select
6 GND −Power supply return
7 VDDEXT −I/O power supply (+3.3V)
8 GND −Power supply return
9 VDDINT −Core power supply (+1.2V)
10 GND −Power supply return
11 VDDINT −Core power supply (+1.2V)
12 GND −Power supply return
13 VDDINT −Core power supply (+1.2V)
14 GND −Power supply return
15 FLAG0 I/O Flag pin
16 FLAG1 I/O Flag pin
17 AD7 I/O Parrallel port address/Data
18 GND −Power supply return
19 VDDINT −Core power supply (+1.2V)
20 GND −Power supply return
21 VDDEXT −I/O power supply (+3.3V)
22 GND −Power supply return
23 VDDINT −Core power supply (+1.2V)
24 AD6 I/O Parrallel port address/Data
25 AD5 I/O Parrallel port address/Data
26 AD4 I/O Parrallel port address/Data
27 VDDINT −Core power supply (+1.2V)
28 GND −Power supply return
29 AD3 I/O Parrallel port address/Data
30 AD2 I/O Parrallel port address/Data
31 VDDEXT −I/O power supply (+3.3V)
32 GND −Power supply return
33 AD1 I/O Parrallel port address/Data
34 AD0 I/O Parrallel port address/Data
35 WR I Parallel port write enable
36 VDDINT −Core power supply (+1.2V)
37 VDDINT −Core power supply (+1.2V)
38 GND −Power supply return
39 RD OParallel port read enable
40 ALE I Parallel port address latch enable
41 AD15 I/O Parrallel port address/Data
42 AD14 I/O Parrallel port address/Data
43 AD13 I/O Parrallel port address/Data
44 GND −Power supply return
45 VDDEXT −I/O power supply (+3.3V)
46 AD12 I/O Parrallel port address/Data
ADSP-21266SKSTZ-2D (DSP ASSY: IC101)
• DSP IC
• The information shown in the list is basic information and may not correspond exactly to that shown in the schematic diagrams.
IC101(ADSP-21266SKSTZ-2D), IC104(TC7W139FU), IC106(CY7C1049CV33-12VXC), IC101(PEG116A),
IC103,IC2281,IC2282,IC203,IC211(CD4094BPW), IC2640,IC2407,IC2008,IC2009(CD4094BNS), IC201(PEG117A),
IC304,IC305,IC318(SN74LVC1G97DCK), IC101(SiI9031CTU) IC301(SiI9030CTU), IC401(ADV7400AKSTZ-80),
IC501(PEG118A), IC3201(PE5503A), IC2007(PDC131A)
List of IC
VSX-AX4AVi-S
240
1234
1234
C
D
F
A
B
E
No. Pin Name I/O Function
47 VDDINT −Core power supply (+1.2V)
48 GND −Power supply return
49 AD11 I/O Parrallel port address/Data
50 AD10 I/O Parrallel port address/Data
51 AD9 I/O Parrallel port address/Data
52 AD8 I/O Parrallel port address/Data
53 DAI_P1 (SD0A) I/O Digital audio interface
54 VDDINT −Core power supply (+1.2V)
55 GND −Power supply return
56 DAI_P2 (SD0B) I/O Digital audio interface
57 DAI_P3 (SCLK0) I/O Digital audio interface
58 GND −Power supply return
59 VDDEXT −I/O power supply (+3.3V)
60 VDDINT −Core power supply (+1.2V)
61 GND −Power supply return
62 DAI_P4 (SFS0) I/O Digital audio interface
63 DAI_P5 (SD1A) I/O Digital audio interface
64 DAI_P6 (SD1B) I/O Digital audio interface
65 DAI_P7 (SCLK1) I/O Digital audio interface
66 VDDINT −Core power supply (+1.2V)
67 GND −Power supply return
68 VDDINT −Core power supply (+1.2V)
69 GND −Power supply return
70 DAI_P8 (SFS1) I/O Digital audio interface
71 DAI_P9 (SD2A) I/O Digital audio interface
72 VDDINT −Core power supply (+1.2V)
73 VDDEXT −I/O power supply (+3.3V)
74 GND −Power supply return
75 VDDINT −Core power supply (+1.2V)
76 GND −Power supply return
77 DAI_P10 (SD2B) I/O Digital audio interface
78 DAI_P11 (SD3A) I/O Digital audio interface
79 DAI_P12 (SD3B) I/O Digital audio interface
80 DAI_P13
(SCLK23)
I/O Digital audio interface
81 DAI_P14 (SFS23) I/O Digital audio interface
82 DAI_P15 (SD4A) I/O Digital audio interface
83 VDDINT −Core power supply (+1.2V)
84 GND −Power supply return
85 GND −Power supply return
86 DAI_P16 (SD4B) I/O Digital audio interface
87 DAI_P17 (SD5A) I/O Digital audio interface
88 DAI_P18 (SD5B) I/O Digital audio interface
89 DAI_P19
(SCLK45)
I/O Digital audio interface
90 VDDINT −Core power supply (+1.2V)
91 GND −Power supply return
92 GND −Power supply return
93 VDDEXT −I/O power supply (+3.3V)
94 DAI_P20 (SFS45) I/O Digital audio interface
95 GND −Power supply return
VSX-AX4AVi-S 241
5678
5678
C
D
F
A
B
E
No. Pin Name I/O Function
96 VDDINT −Core power supply (+1.2V)
97 FLAG2 I/O Flag pin
98 FLAG3 I/O Flag pin
99 VDDINT −Core power supply (+1.2V)
100 GND −Power supply return
101 VDDINT −Core power supply (+1.2V)
102 GND −Power supply return
103 VDDINT −Core power supply (+1.2V)
104 GND −Power supply return
105 VDDINT −Core power supply (+1.2V)
106 GND −Power supply return
107 VDDINT −Core power supply (+1.2V)
108 VDDINT −Core power supply (+1.2V)
109 GND −Power supply return
110 VDDINT −Core power supply (+1.2V)
111 GND −Power supply return
112 VDDINT −Core power supply (+1.2V)
113 GND −Power supply return
114 VDDINT −Core power supply (+1.2V)
115 GND −Power supply return
116 VDDEXT −I/O power supply (+3.3V)
117 GND −Power supply return
118 VDDINT −Core power supply (+1.2V)
119 GND −Power supply return
120 VDDINT −Core power supply (+1.2V)
121 RESET I Processor reset
122 SPIDS I Serial peripheral interface slave device select
123 GND −Power supply return
124 VDDINT −Core power supply (+1.2V)
125 SPICLK I/O Serial peripheral interface clock signal
126 MISO I/O SPI master in slave out
127 MOSI I/O SPI master out slave in
128 GND −Power supply return
129 VDDINT −Core power supply (+1.2V)
130 VDDEXT −I/O power supply (+3.3V)
131 AVDD −Analog power supply (+1.2V)
132 AVSS −Analog power supply return
133 GND −Power supply return
134
RSTOUT/CLKOUT
O Reset out/Local clock out
135 EMU O Emulation status
136 TDO O Test data output (JTAG)
137 TDI I Test data input (JTAG)
138 TRST I Test reset (JTAG)
139 TCK I Test clock (JTAG)
140 TMS I Test mode select (JTAG)
141 GND −Power supply return
142 CLKIN I Local clock in
143 XTAL O Crystal oscillator pin
144 VDDEXT −I/O power supply (+3.3V)
VSX-AX4AVi-S
242
1234
1234
C
D
F
A
B
E
TC7W139FU (DSP ASSY : IC104)
• 2-to-4 Line Decoder
Truth Table
A1Vcc
8
B2Y0
7
Y3 3Y1
6
GND 4Y2
5
Inputs Outputs
Selected
Output
Select Y0 Y1 Y2 Y3
BA
LLLHHH Y0
LHHLHH Y1
HLHHLH Y2
HHHHHL Y3
Pin Arrangement (Top view)
CY7C1049CV33-12VXC (DSP ASSY : IC106)
• 512k X 8 Static RAM
Pin Arrangement (Top view)
A0 1NC
36
A1 2A18
35
A2 3A17
34
A3 4A16
33
A4 5A15
32
CE 6OE
31
I/O0 7I/O7
30
I/O1 8I/O6
29
VCC 9GND
28
GND 10 VCC
27
I/O2 11 I/O5
26
I/O3 12 I/O4
25
WE 13 A14
24
A5 14 A13
23
A6 15 A12
22
A7 16 A11
21
A8 17 A10
20
A9 18 NC
19
A0 1I/O0
7
I/O1
8
I/O2
11
I/O3
12
I/O4
25
I/O5
26
I/O6
29
I/O7
30
A1 2
A2 3
A3 4
A4 5
A5 14
A6 15
A7 16
A8 17
A9 18
A10 20
21
CE 6
OE
A11
22
A12
23
A13
24
A14
32
A15
33
A16
34
A17
35
A18
31
WE 13
Block Diagram
Input Buffer
Column Decoder
Power
Down
Sense Amps
512 x 8
Array
Row Decoder
VSX-AX4AVi-S 243
5678
5678
C
D
F
A
B
E
PEG116A (DIGITAL MOTHER ASSY : IC101)
• Main Microcomputer
Pin Arrangement (Top view)
1
Vref(5V) VREF
2
Avcc(5V) AVcc
3
HDMI/DSP DO P97/ADTRG/SIN4
4
HDMI/DSP DI P96/ANEX1/SOUT4
5
HDMI/DSP CLK P95/ANEX0/CLK4
6
HDMI RDY P94/DA1/TB4IN
7
HDMI RST P93/DA0/TB3IN
8
1394 DI P92/TB2IN/SOUT3
9
1394 DO P91/TB1IN/SIN3
10
1394 CLK P90/TB0IN/CLK3
11
SB MUTE P141
12
1394 RST P140
13
L:16 bit width BYTE
14
Vss (exp. mode) CNVss
15
DSP RDY P87/XCIN
16
DSP RST P86/XCOUT
17
RESET RESET
18
Xout XOUT
19
Vss(GND) Vss
20
Xin XIN
21
Vcc1(5V) Vcc1
22
NMI P85/NMI
23
WAKEUP (AC PULSE) P84/INT2
24
1394 INT(RDY) P83/INT1
25
1W WAKEUP P82/INT0
26
RDS CK/XM
LOW SPEED P81/TA4IN/U
27
RDS DT/LINK
ACTIVE(XM)
OL DET
P80/TA4OUT/U
28 P77/TA3IN
29
POFFINFO P76/TA3OUT
30
DISP REQ P75/TA2IN/W
39
Vss(GND) Vss
40
JIG CLK P65/CLK1
41
232C CTS P64/CTS1/RTS1/
CTS0/CLKS1
42
Tx (SR+/iPOD/XM) P63/TXD0/SDA0
43
Rx (SR+/iPOD/XM) P62/RxD0/SCL0
44
LOW COMSUMPTION
S-DET
WAKE_UPB(XM)
XM/iPod SELECT
EXP ST
EXP OE
Vcc(5V)
OPEN
Vcc(5V)
OPEN
P61/CLK0
45 P60/CTS0/RTS0
46 P137
47 P136
48 P135
49 P134
50 P57/RDY/CLKOUT
51 P56/ALE
52 P55/HOLD
53 P54/HLDA
54
OSD RST P133
55
OSD CS P132
56
OSD DT/EXP DT P131
57
OSD CLK/EXP CLK P130
58
OPEN P53/BCLK
128
P100/AN0 HDMI/ DSP REQ
127
Avss Avss(GND)
126
P101/AN1 SIMUKE1
125
P102/AN2 SIMUKE2
124
P103/AN3 WATT IN
123
P104/AN4/KI0
122
P105/AN5/KI1 TEMP1
XM/iPod ERR
121
P106/AN6/KI2 FAN STOP
120
P107/AN7/KI3
119
P110 MRMUTE
118
P111 AMUTE
117
P112
116
P113 TUNER DO
TUNER CE
DC PROTECT
115
P114 TUNER CLK
114
P115 TUNER DI
113
P116 EVOL DT1
112
P117 GAIN CONT2
111
P00/AN00/D0 D0
110
P01/AN01/D1 D1
109
P02/AN02/D2 D2
RD 59 P52/RD
60
OPEN P51/WRH/BHE
61
WR P50/WRL/WR
62
GAIN CONT1 P127
63
UART SW2 P126
64
UART SW1 P125
108
P03/AN03/D3 D3
107
P04/AN04/D4 D4
106
P05/AN05/D5 D5
105
P06/AN06/D6 D6
104
P07/AN07/D7 D7
103
P10/D8 D8
102
P11/D9 D9
101
P12/D10 D10
100
P13/D11 D11
99
P14/D12 D12
98
P15/D13/INT3 D13
97
P16/D14/INT4 D14
96
P17/D15/INT5 D15
95
P20/AN20/A0(/D0/_) OPEN
94
P21/AN21/A1(/D1/D0) A1
93
P22/AN22/A2(/D2/D1) A2
92
P23/AN23/A3(/D3/D2) A3
91
P24/AN24/A4(/D4/D3) A4
90
P25/AN25/A5(/D5/D4) A5
89
P26/AN26/A6(/D6/D5) A6
88
P27/AN27/A7(/D7/D6) A7
87
Vss Vss(GND)
Vcc2(5V)
86
P30/A8(/_/D7) A8
85
Vcc2
84
P120 AC1 RELAY
83
P121 RY HP
82
P122 RY A
81
P123 RY B
80
P124 RY C/R
79
P31/A9 A9
78
P32/A10 A10
77
P33/A11 A11
76
P34/A12 A12
75 A13
74
P36/A14
P35/A13
A14
73
P37/A15 A15
31
DISP RDY P74/TA2OUT/W
32
DISP RST P73/CTS2/RTS2/TA1IN/V
33
DISP CLK P72/CLK2/TA1OUT/V
34
DISP DO P71/RxD2/SCL2/TA0IN/TB5IN
35
DISP DI
232C TxD
P70/TXD2/SDA2/TA0OUT
36 P67/TXD1/SDA1
37
Vcc1(5V) Vcc1
38
232C RxD P66/RxD1/
SCL1
72
P40/A16 A16
71
P41/A17 A17
70
P42/A18 A18
69
P43/A19 OPEN
68
P44/CS0 CS0
67 EVOL CK
66
P46/CS2
P45/CS1
CS2
65
P47/CS3 EVOL DT2
VSX-AX4AVi-S
244
1234
1234
C
D
F
A
B
E
Pin Function
No. Mark Pin Name I/O Pin Function
1 VREF Vref(5V) - Reference voltage
2 AVcc Avcc(5V) - Power supply (5V)
3 P97/ADTRG/SIN4 HDMI/DSP DO I Data input for HDMI/DSP microcomputer
4 P96/ANEX1/SOUT4 HDMI/DSP DI O/L Data output for HDMI/DSP microcomputer
5 P95/ANEX0/CLK4 HDMI/DSP CLK O/L Clock output for HDMI/DSP microcomputer
6 P94/DA1/TB4IN HDMI RDY I Ready input for HDMI microcomputer
7 P93/DA0/TB3IN HDMI RST O/L Reset output for HDMI microcomputer
8 P92/TB2IN/SOUT3 1394 DI O/L Communication with 1394 HOST controller
9 P91/TB1IN/SIN3 1394 DO I Communication with 1395 HOST controller
10 P90/TB0IN/CLK3 1394 CLK O/L Communication with 1396 HOST controller
11 P141 SB MUTE O/L Mute for SB ch (L:MUTE)
12 P140 1394 RST O/L Communication with 1396 HOST controller
13 BYTE L:16 bit width External flash bus width setting L= 16 bit, H= 8 bit.
14 CNVss Vss(exp. mode) Shift from single-chip mode to memory expanded mode.
15 P87/XCIN DSP RDY I Communication with microcomputer Request input to the main
16 P86/XCOUT DSP RST O/L Communication with DSP controller
17 RESET RESET I Reset input from the main microcomputer
18 XOUT Xout O Connect a ceramic resonator (15.7MHz).
19 Vss Vss(GND) - Ground
20 XIN Xin I Connect a ceramic resonator
21 Vcc1 Vcc1(5V) - Power supply(5V)
22 P85/NMI NMI I -
23 P84/INT2
WAKEUP (AC PULSE)
( I ) AC pulse input
24 P83/INT1 1394 INT(RDY) I Communication with 1394 HOST controller
25 P82/INT0 1W WAKEUP I Communication with display microcomputer
26 P81/TA4IN/U
RDS CK/XM LOW SPEED
I (RDS model) CLOCK IN/(XM) DATA IN
27 P80/TA4OUT/U
RDS DT/LINK ACTIVE(XM)
I (RDS model) DATA IN/(XM) LINK signal
28 P77/TA3IN OL DET I OVERLOAD detection (L: abnormality)
29 P76/TA3OUT POFFINFO O/L Notice of power off to the DSP controller (Pull off an outlet)
30 P75/TA2IN/W DISP REQ O/L Communication with display microcomputer
31 P74/TA2OUT/W DISP RDY I Communication with display microcomputer
32 P73/CTS2/RTS2/TA1IN/V DISP RST O/H Communication with display microcomputer
33 P72/CLK2/TA1OUT/V DISP CLK O/L Communication with display microcomputer
34 P71/RxD2/SCL2/TA0IN/TB5IN DISP DO I Communication with display microcomputer
35 P70/TXD2/SDA2/TA0OUT DISP DI O/L Communication with display microcomputer
36 P67/TXD1/SDA1 232C TxD O/L RS-232C
37 Vcc1 Vcc1(5V) - Power supply (5V)
38 P66/RxD1/SCL1 232C RxD I RS-232C
39 Vss Vss(GND) - Ground
40 P65/CLK1 JIG CLK RS-232C
41 P64/CTS1/RTS1/CTS0/CLKS1 232C CTS O/L RS-232C
42 P63/TXD0/SDA0 Tx (SR+/iPOD/XM) O/L Communication with SR+/iPod/XM
43 P62/RxD0/SCL0 Rx (SR+/iPOD/XM) I Communication with SR+/iPod/XM
44 P61/CLK0
LOW COMSUMPTION
O/L AMUTE power ON/OFF(ON: H)
45 P60/CTS0/RTS0 S-DET I S-VIDEO detection (H)
46 P137 WAKE_UPB(XM) I For XMDTcommunication
47 P136 XM/iPod SELECT O/L POD/XM path switch (iPod: L,XM: H)
48 P135 EXP ST O/L Communication with expansion IC
49 P134 EXP OE O/L Communication with expansion IC
50 P57/RDY/CLKOUT Vcc(5V) I Vcc(5V)
VSX-AX4AVi-S 245
5678
5678
C
D
F
A
B
E
No. Mark Pin Name I/O Pin Function
51 P56/ALE OPEN O/L NC (Open at memory expanded mode)
52 P55/HOLD Vcc(5V) I Vcc (5V)
53 P54/HLDA OPEN O/L NC (Open at memory expanded mode )
54 P133 OSD RST O/L OSD communication
55 P132 OSD CS O/L OSD communication
56 P131 OSD DT/EXP DT O/L OSD communication & expansion IC communication
57 P130
OSD CLK/EXP CLK
O/L OSD communication & expansion IC communication
58 P53/BCLK OPEN O/L NC (Open at memory expanded mode)
59 P52/RD RD O/L FLASH MEMORY I/F READ
60 P51/WRH/BHE OPEN O/L FLASH MEMORY I/F WRITE
61 P50/WRL/WR WR O/L FLASH MEMORY I/F WRITE
62 P127 GAIN CONT1 O/L ANALOG GAIN CONTROL
63 P126 UART SW2 O/L L: SR+ path, H: Select iPod or XM path
64 P125 UART SW1 O/L L: DSP microcomputer path, H: Select HDMI microcomputer path
65 P47/CS3 EVOL DT2 O/L Electronic VOL & function IC communication
66 P46/CS2 CS2 O/L Electronic VOL & function IC communication
67 P45/CS1 EVOL CK O/L Electronic VOL & function IC communication
68 P44/CS0 CS0 O/L FLASH MEMORY CE control
69 P43/A19 OPEN O/L Address output of FLASH MEMORY communication
70 P42/A18 A18 O/L Address output of FLASH MEMORY communication
71 P41/A17 A17 O/L Address output of FLASH MEMORY communication
72 P40/A16 A16 O/L Address output of FLASH MEMORY communication
73 P37/A15 A15 O/L Address output of FLASH MEMORY communication
74 P36/A14 A14 O/L Address output of FLASH MEMORY communication
75 P35/A13 A13 O/L Address output of FLASH MEMORY communication
76 P34/A12 A12 O/L Address output of FLASH MEMORY communication
77 P33/A11 A11 O/L Address output of FLASH MEMORY communication
78 P32/A10 A10 O/L Address output of FLASH MEMORY communication
79 P31/A9 A9 O/L Address output of FLASH MEMORY communication
80 P124 RY C/R O/L Center and surround SP relay (ON: H)
81 P123 RY B O/L SP-B relay (ON: H)
82 P122 RY A O/L SP-A relay (ON: H)
83 P121 RY HP O/L HP relay (ON: H)
84 P120 AC1 RELAY O/L AC relay (ON: H)
85 Vcc2 Vcc2(5V) −Power supply (5V)
86 P30/A8(/_/D7) A8 O/L Address output of FLASH MEMORY communication
87 Vss Vss(GND) −Ground
88 P27/AN27/A7(/D7/D6) A7 O/L Address output of FLASH MEMORY communication
89 P26/AN26/A6(/D6/D5) A6 O/L Address output of FLASH MEMORY communication
90 P25/AN25/A5(/D5/D4) A5 O/L Address output of FLASH MEMORY communication
91 P24/AN24/A4(/D4/D3) A4 O/L Address output of FLASH MEMORY communication
92 P23/AN23/A3(/D3/D2) A3 O/L Address output of FLASH MEMORY communication
93 P22/AN22/A2(/D2/D1) A2 O/L Address output of FLASH MEMORY communication
94 P21/AN21/A1(/D1/D0) A1 O/L Address output of FLASH MEMORY communication
95 P20/AN20/A0(/D0/_) OPEN O/L Address output of FLASH MEMORY communication
96 P17/D15/INT5 D15 O/L Data input/output of FLASH MEMORY communication
97 P16/D14/INT4 D14 O/L Data input/output of FLASH MEMORY communication
98 P15/D13/INT3 D13 O/L Data input/output of FLASH MEMORY communication
99 P14/D12 D12 O/L Data input/output of FLASH MEMORY communication
100 P13/D11 D11 O/L Data input/output of FLASH MEMORY communication
VSX-AX4AVi-S
246
1234
1234
C
D
F
A
B
E
Pin Function
CD4094BPW (DIGITAL MOTHER ASSY: IC103)
• Expansion 2 IC
No. Mark Pin Name I/O Pin Function
101 P12/D10 D10 O/L Data input/output of FLASH MEMORY communication
102 P11/D9 D9 O/L Data input/output of FLASH MEMORY communication
103 P10/D8 D8 O/L Data input/output of FLASH MEMORY communication
104 P07/AN07/D7 D7 O/L Data input/output of FLASH MEMORY communication
105 P06/AN06/D6 D6 O/L Data input/output of FLASH MEMORY communication
106 P05/AN05/D5 D5 O/L Data input/output of FLASH MEMORY communication
107 P04/AN04/D4 D4 O/L Data input/output of FLASH MEMORY communication
108 P03/AN03/D3 D3 O/L Data input/output of FLASH MEMORY communication
109 P02/AN02/D2 D2 O/L Data input/output of FLASH MEMORY communication
110 P01/AN01/D1 D1 O/L Data input/output of FLASH MEMORY communication
111 P00/AN00/D0 D0 O/L Data input/output of FLASH MEMORY communication
112 P117 GAIN CONT2 O/L ANALOG GAIN CONTROL
113 P116 EVOL DT1 O/L Electronic VOL & function IC communication
114 P115 TUNER DI O/L TUNER module communication
115 P114 TUNER CLK O/L TUNER module communication
116 P113 TUNER DO I TUNER module communication
117 P112 TUNER CE O/L TUNER module communication
118 P111 AMUTE O/L AMUTE (L: MUTE, H: MUTE OFF)
119 P110 MRMUTE O/L MR MUTE (L: MUTE, H: MUTE OFF)
120 P107/AN7/KI3 DC PROTECT I DC abnormality detection (L detection)
121 P106/AN6/KI2 FAN STOP I FAN STOP detection (L at FAN turn: abnormal)
122 P105/AN5/KI1 TEMP1 I Temperature detection (H: high temperature)
123 P104/AN4/KI0 XM/iPod ERR I
(A/D) 0-2.0V: Normal, 2.0-3.5V: XM abnormality, 3.5-5.0V: iPod abnormality
124 P103/AN3 WATT IN I (A/D) Voltage detection for limitter control
125 P102/AN2 SIMUKE2 I (A/D) Destination distinction
126 P101/AN1 SIMUKE1 I (A/D) Destination distinction
127 Avss Avss(GND) −Ground
128 P100/AN0 HDMI/ DSP REQ O/L REQ output for HDMI/DSP microcomputer
No. Pin Name Pin Function Active
1 232SW Switch the RS232C path. L: MAIN controller, H: DSP controller H
2 MRSP2 When SBch outputs MR&S: H (Movement the same as MRSP) H
3 FAN DRIVE When FAN turns: H H
4 INPUT ATT H at ATT ON H
512VON/OFF Set to H when rewriting MAIN and DSP controllers. H
6 XMPOW XM antenna power supply. Always H. Set to L when detecting the abnormal. H
7 iPodPOW iPod supply power supply. Always H. Set to L when detecting the abnormal. H
8RDS FM+/XM
RESET
Power supply ON/OFF of RDS decoder. H at ON. XM RESET. H at RESET.
Notes: RESET of XMDTIC is L, but output with the reverse logic so that inverting circuit exists. H/H
VSX-AX4AVi-S 247
5678
5678
C
D
F
A
B
E
No. Pin Name Pin Function Active
1 NECK6 Outputs for limitter control H
2 NECK8 Outputs for limitter control H
3 BIAMP At BIAMP: H H
4 MRSP When SBch is MR&S output: H H
512TRG1 12V trigger 1 output H
612TRG2 12V trigger 2 output H
7 CDMIX
Cch setting: None
LISTENING MODE : PURE DIRECT
Playback stream: DVD-AUDIO (fs 44.1, 48, 88.2, 96kHz ch MULTI) or DSD (MULTI) or
PCM (fs 44.1, 48, 88.2, 96kHz ch MULTI)
• Do not turn on in 2 ch source.
• When a device name of "PCM MULTI" is 1394 PC with i.LINK, converted DVD-AUDIO
information into PCM from a DSP microcomputer.
Cch setting: None Function: MULTI CH IN
Turn the CENTER DOWN MIX off except the above-mentioned state.
H
8 DSPIN
At DSP root: H
At analog direct root: L
Condition 1: At Multi-ch-In selection Condition 2: At analog input with PURE DIRECT mode H
No. Pin Name Pin Function Active
1 CSW1 Component Func. SW H
2 CSW2 Component Func. SW H
3 CINH IC2401,2402,2403 inhibit H
4 XMSB MR(ROOM2) / Selector of XM H
5C53B Thr./VC Select H
6 DSW1 D Func. SW H
7D53A Thr.(D)/Component Select H
8 DINH IC1001,1002,1003,1004 inhibit H
No. Pin Name Pin Function Active
1 SSW1 S-Video Main Function H
2 SSW2 S-Video Main Function H
3 SSW3 S-Video Main Function H
4S52A S-Video Through / VC / OSD / Mute select H
5S52B S-Video Through / VC / OSD / Mute select H
6 Vacant H
7 Vacant H
8 SINH IC2201,2202 inhibit H
Pin Function
Pin Function
Pin Function
CD4094BNS (COMPONENT & VOL ASSY: IC2640)
• Expansion 1 IC
CD4094BPW (S VIDEO ASSY: IC2281)
• Expansion IC
CD4094BNS (COMPONENT & VOL ASSY: IC2407)
• Expansion IC
VSX-AX4AVi-S
248
1234
1234
C
D
F
A
B
E
No. Pin Name Pin Function Active
1 SMRA S-Video Room2 Function H
2 SMRB S-Video Room2 Function H
3 SMRC S-Video Room2 Function H
4 SRC1 S-Video Recout Select H
5 SRC2 S-Video Recout Select H
6 Vacant H
7 Vacant H
8 Vacant H
No. Pin Name Pin Function Active
1 VSW1 CVBS Main Function H
2 VSW2 CVBS Main Function H
3 VSW3 CVBS Main Function H
4 MRA CVBS Room2 Function H
5 MRB CVBS Room2 Function H
6 MRC CVBS Room2 Function H
7V52A CVBS Room2 CVBS/OSD select H
8V52B CVBS Room2 CVBS/OSD select H
No. Pin Name Pin Function Active
1V1M CVBS Recout Selector H
2 V2M CVBS Recout Selector H
3 VINH IC2001 inhibit H
4 MUTE Video Mute H
5 MRINH IC2002,2205,2206 inhibit H
6 SWA CVBS Main Through/OSD/VC/Mute select H
7 SWB CVBS Main Through/OSD/VC/Mute select H
8 SWC CVBS Main Through/OSD/VC/Mute select H
CD4094BPW (S VIDEO ASSY: IC2282)
• Expansion IC
CD4094BNS (COMPOSITE V ASSY: IC2008)
• Expansion IC
CD4094BNS (COMPOSITE V ASSY: IC2009)
• Expansion IC
Pin Function
Pin Function
Pin Function
VSX-AX4AVi-S 249
5678
5678
C
D
F
A
B
E
PEG117A (DIGITAL MOTHER ASSY : IC201)
• DSP Microcomputer
Pin Arrangement (Top view)
1
DSP2SSI P94/DA1/TB4IN
2
DSP2BUSY P93/DA0/TB3IN
3
HDO P92/TB2IN/SOUT3
4
HDI P91/TB1IN/SIN3
5
HCLK P90/TB0IN/CLK3
6
BYTE BYTE
7
CNVss CNVss
8
HRDY P87/XCIN
9
IRQ2 P86/XCOUT
10
RESET RESET
11
Xout XOUT
12
Vss VSS
13
Xin XIN
14
Vcc VCC
15
NMI P85/NMI
16
(USB UNLOCK)
P84/INT2
17
HREQ P83/INT1
18
POFF P82/INT0
19
DSP2RST P81/TA4IN/U
20
DSP1RST P80/TA4OUT/U
21
EXOE P77/TA3IN
22
S DATA P76/TA3OUT
23
S CLOCK P75/TA2IN/W
24
STB P74/TA2OUT/W
25
CSN P73/CTS2/RTS2
/TA1IN/V
26
XPDN
P72/CLK2
/TA1OUT/V
27
UNLK/(USB ERROR)
P71/RxD2/SCL2
/TA0IN/TB5IN
28
XMFS
P70/TXD2/SDA2
/TA0OUT
29
232C Tx
P67/TXD1/SDA1
30
232C Rx
P66/RxD1/SCL1
31
JIGCLK
232C RTS
CDTO/DA CDTO/(USB DTO)
CDTI/(USB DTI)
CCLK/DA CCLK/(USB CLK)
DACS1
XRDY
ALE
XHOLD
XHLDA
P65/CLK1
32 P64/CTS1/RTS1/CTS0/CLKS1
33 P63/TXD0/SDA0
34 P62/RxD0/SCL0
35 P61/CLK0
36 P60/CTS0/RTS0
37 P57/RDY/CLKOUT
38 P56/ALE
39 P55/HOLD
40 P54/HLDA
41
BCLK P53/BCLK
42
XOE P52/RD
43
XWRH P51/WRH/BHE
44
XWRL P50/WRL/WR
45
XSMUTE P47/CS3
100
P95/ANEX0
/CLK4
DSP2SCK/DSP CCLK
99
P96/ANEX1
/SOUT4
DSP2MOSI/DSP CDOUT
98
P97/ADTRG
/SIN4
DSP2MISO/DSP CDIN
97
AVcc Avcc
96
VREF Vref
95
P100/AN0
94
AVSS Avss
DSPMUTE
93
P101/AN1 MODEL
92
P102/AN2
91
P103/AN3 ROWE
90
P104/AN4/KI0 DSP1 CS
89
P105/AN5/KI1
88
P106/AN6/KI2 XM CSEL(IREQ3)
IRQ1
MOT_MODE
87
P107/AN7/KI3 XDARST
86
P00/AN00/D0 D0
85
P01/AN01/D1 D1
84
P02/AN02/D2 D2
83
P03/AN03/D3 D3
82
P04/AN04/D4 D4
81
P05/AN05/D5 D5
46
XHDMI(RF UNLOCK) P46/CS2
47
XSPDIF P45/CS1
48
XCE P44/CS0
49
A19 P43/A19
50
A18 P42/A18
80
P06/AN06/D6 D6
79
P07/AN07/D7 D7
78
P10/D8 D8
77
P11/D9 D9
76
P12/D10 D10
75
P13/D11 D11
74
P14/D12 D12
73
P15/D13/INT3 D13
72
P16/D14/INT4 D14
71
P17/D15/INT5 D15
70
P20/AN20/A0(/D0/_) A0
69
P21/AN21/A1(/D1/D0) A1
68
P22/AN22/A2(/D2/D1) A2
67
P23/AN23/A3(/D3/D2) A3
66
P24/AN24/A4(/D4/D3) A4
65
P25/AN25/A5(/D5/D4) A5
64
P26/AN26/A6(/D6/D5) A6
63
P27/AN27/A7(/D7/D6) A7
62
Vss Vss
61
P30/A8(/_/D7) A8
60
Vcc2 Vcc
A10
59
P31/A9 A9
58
P32/A10
57
P33/A11 A11
56
P34/A12 A12
55
P35/A13 A13
54
P36/A14 A14
53
P37/A15 A15
52
P40/A16 A16
51
P41/A17 A17
VSX-AX4AVi-S
250
1234
1234
C
D
F
A
B
E
No. Mark Pin Name I/O Pin Function
1 P94/DA1/TB4IN DSP2SSI I Motorola DSP communication strobe
2 P93/DA0/TB3IN DSP2BUSY I Motorola DSP busy input (at MCACC function)
3 P92/TB2IN/SOUT3 HDO I
Data output of microcomputer communication to the main microcomputer
4 P91/TB1IN/SIN3 HDI I
Data input of microcomputer communication from the main microcomputer
5 P90/TB0IN/CLK3 HCLK I
Clock input of microcomputer communication from the main microcomputer
6 BYTE BYTE O 16 bit setting of the external FLASH bus-width
7 CNVss CNVss −Shift from single-chip mode to memory expanded mode.
8 P87/XCIN HRDY I
Request output of microcomputer communication to the main microcomputer
9 P86/XCOUT IRQ2 I Motorola DSP busy input (at decoder function)
10 RESET RESET I RESET input from the main microcomputer
11 XOUT Xout O Connect a ceramic resonator (15.4MHz)
12 VSS Vss −Ground
13 XIN Xin I Connect a ceramic resonator
14 VCC Vcc −Power supply
15 P85/NMI NMI I
16 P84/INT2 (USB UNLOCK) I (USB communication request: Plan)
17 P83/INT1 HREQ I
Request input of microcomputer communication from the main microcomputer
18 P82/INT0 POFF I Power OFF signal
19 P81/TA4IN/U DSP2RST I Motorola DSP reset
20 P80/TA4OUT/U DSP1RST I 1st DSP reset
21 P77/TA3IN EXOE I OE output of the expansion IC
22 P76/TA3OUT S DATA I Data output of the expansion IC
23 P75/TA2IN/W S CLOCK I Clock output of the expansion IC
24 P74/TA2OUT/W STB I Strobe output of the expansion IC
25 P73/CTS2/RTS2/TA1IN/V CSN I Control CS output of DIR IC
26 P72/CLK2/TA1OUT/V XPDN I DIR reset
27 P71/RxD2/SCL2/TA0IN/TB5IN
UNLK/(USB ERROR)
I UNLOCK signal input/(USB error information input)
28 P70/TXD2/SDA2/TA0OUT XMFS I XM FS information
29 P67/TXD1/SDA1 232C Tx I RS232C communication TxD(rewriting / control)
30 P66/RxD1/SCL1 232C Rx I RS232C communication RxD(rewriting / control)
31 P65/CLK1 JIGCLK I Rewriting
32 P64/CTS1/RTS1/CTS0/CLKS1 232C RTS I RS232C communication RTS(rewriting / control)
33 P63/TXD0/SDA0
CDTO/DA CDTO/(USB DTO)
I DIR/DA/(USB) serial comminication data output
34 P62/RxD0/SCL0 CDTI/(USB DTI) I DIR/(USB) serial comminication data input
35 P61/CLK0
CCLK/DA CCLK/(USB CLK)
I DIR/DA/(USB) serial comminication clock output
36 P60/CTS0/RTS0 DACS1 I Control CS output of DAC IC for F/R
37 P57/RDY/CLKOUT XRDY I Vcc (3.3V)
38 P56/ALE ALE O NC (open at memory expanded mode)
39 P55/HOLD XHOLD I Vcc (3.3V)
40 P54/HLDA XHLDA O NC (open at memory expanded mode)
41 P53/BCLK BCLK O NC (open at memory expanded mode)
42 P52/RD XOE O FLASH MEMORY I/F READ
43 P51/WRH/BHE XWRH O FLASH MEMORY I/F WRITE
44 P50/WRL/WR XWRL O FLASH MEMORY I/F WRITE
45 P47/CS3 XSMUTE I For last stage mute control
46 P46/CS2
XHDMI(RF UNLOCK)
I For mute control of HDMI input (for RF UNLOCK detection)
47 P45/CS1 XSPDIF I For mute control of DIR input
48 P44/CS0 XCE O FLASH MEMORY CE control
49 P43/A19 A19 O Address output of FLASH MEMORY communication
50 P42/A18 A18 O Address output of FLASH MEMORY communication
Pin Function
VSX-AX4AVi-S 251
5678
5678
C
D
F
A
B
E
No. Mark Pin Name I/O Pin Function
51 P41/A17 A17 O Address output of FLASH MEMORY communication
52 P40/A16 A16 O Address output of FLASH MEMORY communication
53 P37/A15 A15 O Address output of FLASH MEMORY communication
54 P36/A14 A14 O Address output of FLASH MEMORY communication
55 P35/A13 A13 O Address output of FLASH MEMORY communication
56 P34/A12 A12 O Address output of FLASH MEMORY communication
57 P33/A11 A11 O Address output of FLASH MEMORY communication
58 P32/A10 A10 O Address output of FLASH MEMORY communication
59 P31/A9 A9 O Address output of FLASH MEMORY communication
60 Vcc2 Vcc −Power supply
61 P30/A8(/_/D7) A8 O Address output of FLASH MEMORY communication
62 Vss Vss −Ground
63 P27/AN27/A7(/D7/D6) A7 O Address output of FLASH MEMORY communication
64 P26/AN26/A6(/D6/D5) A6 O Address output of FLASH MEMORY communication
65 P25/AN25/A5(/D5/D4) A5 O Address output of FLASH MEMORY communication
66 P24/AN24/A4(/D4/D3) A4 O Address output of FLASH MEMORY communication
67 P23/AN23/A3(/D3/D2) A3 O Address output of FLASH MEMORY communication
68 P22/AN22/A2(/D2/D1) A2 O Address output of FLASH MEMORY communication
69 P21/AN21/A1(/D1/D0) A1 O Address output of FLASH MEMORY communication
70 P20/AN20/A0(/D0/_) A0 I Do not connect at 16bit data access
71 P17/D15/INT5 D15 I Data input/output of FLASH MEMORY communication
72 P16/D14/INT4 D14 I Data input/output of FLASH MEMORY communication
73 P15/D13/INT3 D13 I Data input/output of FLASH MEMORY communication
74 P14/D12 D12 I Data input/output of FLASH MEMORY communication
75 P13/D11 D11 I Data input/output of FLASH MEMORY communication
76 P12/D10 D10 I Data input/output of FLASH MEMORY communication
77 P11/D9 D9 I Data input/output of FLASH MEMORY communication
78 P10/D8 D8 I Data input/output of FLASH MEMORY communication
79 P07/AN07/D7 D7 I Data input/output of FLASH MEMORY communication
80 P06/AN06/D6 D6 I Data input/output of FLASH MEMORY communication
81 P05/AN05/D5 D5 I Data input/output of FLASH MEMORY communication
82 P04/AN04/D4 D4 I Data input/output of FLASH MEMORY communication
83 P03/AN03/D3 D3 I Data input/output of FLASH MEMORY communication
84 P02/AN02/D2 D2 I Data input/output of FLASH MEMORY communication
85 P01/AN01/D1 D1 I Data input/output of FLASH MEMORY communication
86 P00/AN00/D0 D0 I Data input/output of FLASH MEMORY communication
87 P107/AN7/KI3 XDARST I DAC reset
88 P106/AN6/KI2 XM CSEL(IREQ3) I
XM information (Control with the main microcomputer information)(3rd DSP FLAG0 input)
89 P105/AN5/KI1 IRQ1 I 1st DSP FLAG0 input
90 P104/AN4/KI0 DSP1 CS I 1st DSP chip select
91 P103/AN3 ROWE I For DSP rewriting control
92 P102/AN2 MOT_MODE I For the Motorola operating state control
93 P101/AN1 MODEL I For model distinction (A/D input use)
94 AVSS Avss −Ground
95 P100/AN0 DSPMUTE I DSP MUTE control output
96 VREF Vref −Reference voltage
97 AVcc Avcc −Power supply
98 P97/ADTRG/SIN4
DSP2MISO/DSP CDIN
I DSP communication data input of Motorola/SHARC
99 P96/ANEX1/SOUT4
DSP2MOSI/DSP CDOUT
I DSP communication data output of Motorola/SHARC
100 P95/ANEX0/CLK4
DSP2SCK/DSP CCLK
I DSP communication clock output of Motorola/SHARC
VSX-AX4AVi-S
252
1234
1234
C
D
F
A
B
E
No. Pin Name Pin Function Active
4 XPDNAD AD IC reset H: Release the A/D reset, L: A/D reset L
5 ADOSR AD Over sampling setting Over-sampling at analog L: 88.2/96kHz, H: Others H
6 DDIRECT Digital Direct setting H
7 XLSSN LSSN setting H: When add a SW signal to the front in analog stage, L: Don't add H
11 XTL0 DIR XTL0 control H
12 DACS2 DA chip select (for C,SW,S,SB ch ) L
13 MPCM Multi PCM input selection H
14 XM XM input selection H
No. Pin Name Pin Function Active
4 DS_2_32 32 bit transmission setting (Not used, "L" fixing) H
5 MRXM XM input setting to DA H
6 DACS3 DA chip select (For +2 ch) L
7 USB(RST3) USB select (3rd DSP reset: plan) H
11 DAX(SP3) DSP3 CS output H
12 DSD DIRECT DSD Direct setting H
13 XON
DSP X'tal ON/OFF control Crystal clock control of DSP H: 06 High model, L: 05 middle model
H
14 XIEEE 1394 input select L
Pin Function
Pin Function
CD4094BPW (DIGITAL MOTHER ASSY: IC203)
• Expansion 1 IC
CD4094BPW (DIGITAL MOTHER ASSY: IC211)
• Expansion 2 IC
Truth Table
SN74LVC1G97DCK (DIGITAL MOTHER ASSY : IC304, IC305, IC318)
• Configurable Multiple-function Gate
Pin Arrangement (Top view)
In1 1In2
6
GND 2VCC
H: High level
L: Low level
5
In0 3Y
4
In0 3
Logic Diagram (positive logic)
In1
Y
1
4
In2 6
INPUTS OUTPUTS
In2 In1 In0 Y
LLL L
LLH L
LHL H
LHH H
HLL L
HLH H
HHL L
HHH H
VSX-AX4AVi-S 253
5678
5678
C
D
F
A
B
E
SiI9031CTU (HDMI & DVC ASSY : IC101)
• HDMI PanelLink Cinema Receiver
Pin Arrangement (Top view)
DVCC18 74
DGND 73
IOGND 75
IOVCC 76
MUTEOUT 77
SPDIF 78
CVCC18 79
CGND 80
SD3 81
SD2 82
SD1 83
SD0 84
WS 85
SCK 86
MCLKIN 87
MCLKOUT 88
IOVCC 89
IOGND 90
CGND 91
CVCC18 92
NC 93
AUDPVCC18 94
AUDPGND 95
XTALOUT 96
XTALIN 97
XTALVCC 98
REGVCC 99
NC 100
RSVDL 101
RESET# 102
SCDT 103
INT 104
CVCC18 105
CGND 106
CLK48B 107
IOGND 108
IOVCC 109
Q23 110
Q22 111
Q21 112
Q20 113
CVCC18 114
CGND 115
Q19 116
Q18 117
Q17 118
Q16 119
IOGND 120
ODCK 121
IOVCC 122
Q15 123
Q14 124
Q13 125
Q12 126
CGND 127
CVCC18 128
Q11 129
Q10 130
Q9 131
Q8 132
Q7 133
IOVCC 134
IOGND 135
Q6 136
Q5 137
CGND 138
CVCC18 139
Q4 140
Q3 141
Q2 142
Q1 143
Q0 144
AGND
72
R1X2+
71
R1X2-
70
AVCC
69
AGND
68
R1X1+
67
R1X1-
66
AVCC
65
AGND
64
R1X0+
63
R1X0-
62
AVCC
61
AGND
60
R1XC+
59
R1XC-
58
AVCC
57
RSVD_A
56
PVCC1
55
TMDSPGND
54
AGND
53
R0X2+
52
R0X2-
51
AVCC
50
AGND
49
R0X1+
48
R0X1-
47
AVCC
46
AGND
45
R0X0+
44
R0X0-
43
AVCC
42
AGND
41
R0XC+
40
R0XC-
39
AVCC
38
PVCC0
37
36
DVCC18
35 DGND
R0PWR5V
34
R1PWR5V
33
DSCL0
32
DSDA0
31
DSCL1
30
DSDA1
29
CSCL
28
CSDA
27
IOVCC
26
IOGND
25
CGND
24
CVCC18
23
DACDVCC18
22
DACDGND
21
AnBPb
20
DACVCCB
19
DACGNDB
18
AnGY
17
DACVCCG
16
DACGNDG
15
AnRPr
14
DACVCCG
13
DACGNDR
12
COMP
11
RSET
10
VREF
9
DACAGND
8
DACAVCCI
7
DACOVCC
6
IOVCC
5
IOGND
4
VSYNC
3
HSYNC
2
DE
1
VSX-AX4AVi-S
254
1234
1234
C
D
F
A
B
E
DSDA0 31
DSCL0 32
DSDA1 29
DSCL1 30
R1XC±
COMP
RSET
11
10
AnGY
17
AnRPr
14
AnBPb
20
WS
85
SCK
86
SD[3:0]
SPDIF
78
HSYNC
2
DE
1
VSYNC
3
ODCK
Q[23:0]
121
CLK48B
107
MCLKOUT
88
INT
104
MCLKIN
87
CSCL
28
RESET#
102
CSDA
27
XTALIN
97
XTALOUT
96
Block Diagram
Port
MUX
Port
MUX
Port
Detect
MUTEOUT
77
SCDT
103
I2C
Slave
Registers
-------------
Configuration
Logic Block
HS,VS,
DE
HS,VS,
DE
24-bit Data
24-bit Encrypted
Pixel Data
24-bit Decrypted
Pixel Data
30
Control Signals
24-bit Data
PanelLink
TMDS
Digital
Core
R0PWR5V 34
R1PWR5V 33
PanelLink
TMDS
Digital
Core
I2C
Slave
TM
24 110-113,116-119,
123-126,129-133,
136,137,140-144
81-84
58,59
R1X0±62,63
R1X1±66,67
R1X2±70,71
R0XC±38,39
R0X0±43,44
R0X1±47,48
R0X2±51,52
XOR
Mask
Aux
Data
HDMI
Mode
Control
HDCP &
Repeater
Decryption
Engine
HDCP Keys
EEPROM
NCLK
Gen.
Audio
Data
Decode
10-bit
Video
DAC
Auto A/V
Exception
Handling
Video Color
Space
Converter
Up/Down
Sampling
VSX-AX4AVi-S 255
5678
5678
C
D
F
A
B
E
No. Pin Name I/O Function No. Pin Name I/O Function
1DE O Data enable 41 AGND −TMDS analog GND
2HSYNC O Horizontal sync output control signal 42 AVCC −TMDS analog VCC (3.3V)
3VSYNC O Vertical sync output control signal 43 R0X0- I TMDS input data pair of HDMI port 0
4IOGND −Input/Output pin GND 44 R0X0+ I TMDS input data pair of HDMI port 0
5IOVCC −Input/Output pin VCC (3.3V) 45 AGND −TMDS analog GND
6DACOVCC −DAC output VCC (3.3V) 46 AVCC −TMDS analog VCC (3.3V)
7DACAVCC −DAC Analog VCC (3.3V) 47 R0X1- I TMDS input data pair of HDMI port 0
8DACAGND −DAC Analog GND 48 R0X1+ I TMDS input data pair of HDMI port 0
9VREF −Reference voltage 49 AGND −TMDS analog GND
10 RSET I Full scale adjust resistor 50 AVCC −TMDS analog VCC (3.3V)
11 COMP I Compensation 51 R0X2- I TMDS input data pair of HDMI port 0
12 DACGNDR −DAC Red GND 52 R0X2+ I TMDS input data pair of HDMI port 0
13 DACVCCR −DAC Red VDD (3.3V) 53 AGND −TMDS analog GND
14 AnRPr O Analog video Red, Pr output 54
TMDSPGND
−TMDS PLL GND
15 DACGNDG −DAC Green GND 55 PVCC1 −TMDS port 1 PLL VCC (3.3V)
16 DACVCCG −DAC Green VDD (3.3V) 56 RSVD_A −Reserved, leave unconnected.
17 AnGY O Analog video Green, Y output 57 AVCC −TMDS analog VCC (3.3V)
18 DACGNDB −DAC Blue GND 58 R1XC- I TMDS input clock pair of HDMI port 1
19 DACVCCB −DAC Blue VDD (3.3V) 59 R1XC+ I TMDS input clock pair of HDMI port 1
20 AnBPb O Analog video Blue, Pb output 60 AGND −TMDS analog GND
21 DACDGND −DAC Digital GND 61 AVCC −TMDS analog VCC (3.3V)
22
DACDVCC18
−DAC Digital VCC (1.8V) 62 R1X0- I TMDS input data pair of HDMI port 1
23 CVCC18 −Digital logic VCC (1.8V) 63 R1X0+ I TMDS input data pair of HDMI port 1
24 CGND −Digital logic GND 64 AGND −TMDS analog GND
25 IOGND −Input/Output pin GND 65 AVCC −TMDS analog VCC (3.3V)
26 IOVCC −Input/Output pin VCC (3.3V) 66 R1X1- I TMDS input data pair of HDMI port 1
27 CSDA Bi-Di Configuration I2C data 67 R1X1+ I TMDS input data pair of HDMI port 1
28 CSCL I Configuration I2C clock 68 AGND −TMDS analog GND
29 DSDA1 Bi-Di DDC I2C data for port 1 69 AVCC −TMDS analog VCC (3.3V)
30 DSCL1 I DDC I2C clock for port 1 70 R1X2- I TMDS input data pair of HDMI port 1
31 DSDA0 Bi-Di DDC I2C clock for port 0 71 R1X2+ I TMDS input data pair of HDMI port 1
32 DSCL0 I DDC I2C data for port 0 72 AGND −TMDS analog GND
33 R1PWR5V I Port 1 transmitter detect 73 DGND −ACR PLL GND
34 R0PWR5V I Port 0 transmitter detect 74 DVCC18 −ACR PLL Digital VCC (1.8V)
35 DVCC18 −ACR PLL Digital VCC (1.8V) 75 IOGND −Input/Output pin GND
36 DGND −ACR PLL GND 76 IOVCC −Input/Output pin VCC (3.3V)
37 PVCC0 −TMDS port 0 PLL VCC (3.3V) 77 MUTEOUT O Mute audio output
38 AVCC −TMDS analog VCC (3.3V) 78 SPDIF O S/PDIF audio output
39 R0XC- I TMDS input clock pair of HDMI port 0 79 CVCC18 −Digital logic VCC (1.8V)
40 R0XC+ I TMDS input clock pair of HDMI port 0 80 CGND −Digital logic GND
Pin Function
VSX-AX4AVi-S
256
1234
1234
C
D
F
A
B
E
No. Pin Name I/O Function No. Pin Name I/O Function
81 SD3 O I2S serial data output 113 Q20 O 24-bit output pixel data bus
82 SD2 O I2S serial data output 114 CVCC18 −Digital logic VCC (1.8V)
83 SD1 O I2S serial data output 115 CGND −Digital logic GND
84 SD0 O I2S serial data output 116 Q19 O 24-bit output pixel data bus
85 WS O I2S word select output 117 Q18 O 24-bit output pixel data bus
86 SCK O I2S serial clock output 118 Q17 O 24-bit output pixel data bus
87 MCLKIN I Audio master clock input reference 119 Q16 O 24-bit output pixel data bus
88 MCLKOUT O Audio master clock output 120 IOGND −Input/Output pin GND
89 IOVCC −Input/Output pin VCC (3.3V) 121 ODCK O Output data clock
90 IOGND −Input/Output pin GND 122 IOVCC −Input/Output pin VCC (3.3V)
91 CGND −Digital logic GND 123 Q15 O 24-bit output pixel data bus
92 CVCC18 −Digital logic VCC (1.8V) 124 Q14 O 24-bit output pixel data bus
93 NC −No connect 125 Q13 O 24-bit output pixel data bus
94
AUDPVCC18
−ACR PLL VCC (1.8V) 126 Q12 O 24-bit output pixel data bus
95 AUDPGND −ACR PLL GND 127 CGND −Digital logic GND
96 XTALOUT O Crystal clock output 128 CVCC18 −Digital logic VCC (1.8V)
97 XTALIN I Crystal clock input 129 Q11 O 24-bit output pixel data bus
98 XTALVCC −ACR PLL crystal input VCC (3.3V) 130 Q10 O 24-bit output pixel data bus
99 REGVCC −ACR PLL regulator VCC (3.3V) 131 Q9 O 24-bit output pixel data bus
100 NC −No connect 132 Q8 O 24-bit output pixel data bus
101 RSVDL I Reserved, must be tied Low. 133 Q7 O 24-bit output pixel data bus
102 RESET# I Reset pin Active Low. 134 IOVCC −Input/Output pin VCC (3.3V)
103 SCDT O Indicates active video at HDMI input port 135 IOGND −Input/Output pin GND
104 INT O Interrupt output 136 Q6 O 24-bit output pixel data bus
105 CVCC18 −Digital logic VCC (1.8V) 137 Q5 O 24-bit output pixel data bus
106 CGND −Digital logic GND 138 CGND −Digital logic GND
107 CLK48B Bi-Di Data bus latch enable 139 CVCC18 −Digital logic VCC (1.8V)
108 IOGND −Input/Output pin GND 140 Q4 O 24-bit output pixel data bus
109 IOVCC −Input/Output pin VCC (3.3V) 141 Q3 O 24-bit output pixel data bus
110 Q23 O 24-bit output pixel data bus 142 Q2 O 24-bit output pixel data bus
111 Q22 O 24-bit output pixel data bus 143 Q1 O 24-bit output pixel data bus
112 Q21 O 24-bit output pixel data bus 144 Q0 O 24-bit output pixel data bus
VSX-AX4AVi-S 257
5678
5678
C
D
F
A
B
E
SiI9030CTU (HDMI & DVC ASSY : IC301)
• HDMI PanelLink Transmitter
Pin Arrangement (Top view)
CI2CA 41
RESET# 42
CSCL 43
CSDA 44
CVCC18 45
CGND 46
IOGND 47
IOVCC 48
D23 49
D22 50
D21 51
D20 52
D19 53
D18 54
D17 55
D16 56
D15 57
D14 58
CVCC18 59
CGND 60
D13 61
D12 62
D11 63
D10 64
D9 65
IDCK 66
D8 67
D7 68
D6 69
D5 70
IOVCC 71
IOGND 72
CGND 73
CVCC18 74
D4 75
D3 76
D2 77
D1 78
D0 79
DE 80
NC
40
PGND2
39
PVCC2
38
AGND
37
TX2+
36
TX2-
35
AVCC
34
TX1+
33
TX1-
32
AGND
31
TX0+
30
TX0-
29
AVCC
28
TXC+
27
TXC-
26
AGND
25
EXT_SWING
24
PVCC1
23
PGND1
22
RSVDL
21
DSCL
20
DSDA
19
HPD
18
INT
17
CVCC18
16
CGND
15
IOGND
14
IOVCC
13
SCK
12
WS
11
SD0
10
SD1
9
SD2
8
SD3
7
MCLK
6
SPDIF
5
CVCC18
4
CGND
3
VSYNC
2
HSYNC
1
DSCL
20
DSDA
44
Block Diagram
IDCK 66
INT
17
HPD
18
EXT_SWING
24
TXC±
TX0±
TX1±
TX2±
CSCL 43
CI2CA 41
RESET# 42
D[23:0]
HSYNC 1
VSYNC 2
DE 80
Video Data
Capture/
DE Gen./
656 Logic
Block
SPDIF 5
MCLK 6
SCK 12
WS 11
SD[3:0]
Audio Data
Capture
Logic
Block
Control Signals
Audio Data
Encrypted
Data
PanelLink
TMDS
Digital
Core
TM
CSDA 44
Registers
-------------
Configuration
Logic Block
I2C
Slave
49-58,61-65,
67-70,75-79 26,27
29,30
32,33
35,36
7-9
4:2:2 to
4:4:4
E-DDC
Master
Receiver Sense + Interrupt Logic
HDCP
Keys
EEPROM
HDCP
Encryption
Engine
CSC XOR
VSX-AX4AVi-S
258
1234
1234
C
D
F
A
B
E
No. Pin Name I/O Function No. Pin Name I/O Function
1HSYNC I Horizontal sync input control signal 41 CI2CA I I2C device address select
2VSYNC I Vertical sync input control signal 42 RESET# I Reset pin (Active Low.)
3CGND −Digital core GND 43 CSCL I I2C clock
4CVCC18 −Digital core VCC (1.8V) 44 CSDA Bi-Di I2C data (Open drain output)
5SPDIF I S/PDIF audio input 45 CVCC18 −Digital core VCC (1.8V)
6MCLK I Audio input master clock 46 CGND −Digital core GND
7SD3 I I2S serial data 47 IOGND −IO pin GND
8SD2 I I2S serial data 48 IOVCC −IO pin VCC (3.3V)
9SD1 I I2S serial data 49 D23 I 12-bit input pixel data bus
10 SD0 I I2S serial data 50 D22 I 12-bit input pixel data bus
11 WS I I2S word select 51 D21 I 12-bit input pixel data bus
12 SCK I I2S serial clock 52 D20 I 12-bit input pixel data bus
13 IOVCC −IO pin VCC (3.3V) 53 D19 I 12-bit input pixel data bus
14 IOGND −IO pin GND 54 D18 I 12-bit input pixel data bus
15 CGND −Digital core GND 55 D17 I 12-bit input pixel data bus
16 CVCC18 −Digital core VCC (1.8V) 56 D16 I 12-bit input pixel data bus
17 INT O Interrupt output 57 D15 I 12-bit input pixel data bus
18 HPD I Hot plug detect input 58 D14 I 12-bit input pixel data bus
19 DSDA Bi-Di DDC data (Open drain output) 59 CVCC18 −Digital core VCC (1.8V)
20 DSCL Bi-Di DDC clock 60 CGND −Digital core GND
21 RSVDL IReserved for use by sillicon image, and
must be tied Low. 61 D13 I 12-bit input pixel data bus
22 PGND1 −TMDS core PLL ground 62 D12 I 12-bit input pixel data bus
23 PVCC1 −TMDS core PLL power (3.3V) 63 D11 I 12-bit input pixel data bus
24
EXT_SWING
I Voltage swing adjust 64 D10 I 12-bit input pixel data bus
25 AGND −Analog GND 65 D9 I 12-bit input pixel data bus
26 TXC- O TMDS output clock pairs 66 IDCK I Input data clock
27 TXC+ O TMDS output clock pairs 67 D8 I 12-bit input pixel data bus
28 AVCC −Analog VCC (3.3V) 68 D7 I 12-bit input pixel data bus
29 TX0- O TMDS output data pairs 69 D6 I 12-bit input pixel data bus
30 TX0+ O TMDS output data pairs 70 D5 I 12-bit input pixel data bus
31 AGND −Analog GND 71 IOVCC −IO pin VCC (3.3V)
32 TX1- O TMDS output data pairs 72 IOGND −IO pin GND
33 TX1+ O TMDS output data pairs 73 CGND −Digital core GND
34 AVCC −Analog VCC (3.3V) 74 CVCC18 −Digital core VCC (1.8V)
35 TX2- O TMDS output data pairs 75 D4 I 12-bit input pixel data bus
36 TX2+ O TMDS output data pairs 76 D3 I 12-bit input pixel data bus
37 AGND −Analog GND 77 D2 I 12-bit input pixel data bus
38 PVCC2 −Filter PLL power (3.3V) 78 D1 I 12-bit input pixel data bus
39 PGND2 −Filter PLL ground 79 D0 I 12-bit input pixel data bus
40 NC −Not connected 80 DE I Data enable
Pin Function
VSX-AX4AVi-S 259
5678
5678
C
D
F
A
B
E
ADV7400AKSTZ-80 (HDMI & DVC ASSY : IC401)
• Video Decoder IC
Pin Arrangement (Top view)
P32 1
P31 2
INT 3
HS/CS 4
DGND 5
DVDDIO 6
P15 7
P14 8
P13 9
P12 10
DGND 11
DVDD 12
P29 13
P28 14
SFL/SYNC_OUT 15
SCLK2 16
DGND 17
DVDDIO 18
SDA2 19
P11 20
P10 21
P9 22
P8 23
P27 24
P6 26
P5 27
P4 28
P26 29
P25 30
P24 31
P23 32
P22 33
P21 34
DCLK_IN 35
LLC1 36
XTAL1 37
XTAL 38
DVDD 39
DGND 40
P3 41
P2 42
P1 43
P0 44
P20 45
ELPF 46
PVDD 47
PVDD 48
AGND 49
AGND 50
P33
100
VS
99
FIELD/DE
98
P34
97
P35
96
P36
95
P16
94
P17
93
P18
92
P19
91
DVDD
90
DGND
89
P37
88
P38
87
HS_IN/CS_IN
86
VS_IN
85
P39
84
P40
83
SCLK1
82
SDA1
81
ALSB
80
DE_IN
79
RESET
78
SOY
77
AIN6
76
AIN12
75
AIN5
74
AIN11
73
AIN4
72
AIN10
71
AGND
70
CAPC2
69
CAPC1
68
BIAS
67
AGND
66
CML
65
REFOUT
64
AVDD
63
CAPY2
62
CAPY1
61
AGND
60
NC
59
AIN3
58
AIN9
57
AIN2
56
AIN8
55
AIN1
54
AIN7
53
SOG
52
P7 25 AGND
51
No. Pin Name I/O Function No. Pin Name I/O Function
1P32 I Video pixel input port 11 DGND −Digital ground
2P31 I Video pixel input port 12 DVDD −Digital core supply voltage (1.8V)
3INT O Interrupt pin 13 P29 I/O Video pixel input/output port
4HS/CS O
H. Sync. output/digital composite sync. signal
14 P28 I/O Video pixel input/output port
5DGND −Digital ground 15
SFL/SYNC_OUT
O
Subcarrier frequency lock/SYNC_OUT is
the sliced sync output signal only
available in CP mode.
6DVDDIO −Digital I/O supply voltage (3.3V) 16 SCLK2 I I2C port serial clock input (max 400kHz)
7P15 O Video pixel output port 17 DGND −Digital ground
8P14 O Video pixel output port 18 DVDDIO −Digital I/O supply voltage (3.3V)
9P13 O Video pixel output port 19 SDA2 I/O I2C port serial data input/output
10 P12 O Video pixel output port 20 P11 I Video pixel input port
Pin Function
VSX-AX4AVi-S
260
1234
1234
C
D
F
A
B
E
No. Pin Name I/O Function No. Pin Name I/O Function
21 P10 I Video pixel input port 61 CAPY1 I ADC capacitor network
22 P9 O Video pixel output port 62 CAPY2 I ADC capacitor network
23 P8 O Video pixel output port 63 AVDD −Analog supply voltage (3.3V)
24 P27 I/O Video pixel input/output port 64 REFOUT O Internal voltage reference output
25 P7 O Video pixel output port 65 CML O
Common-mode level pin for the internal ADCs
26 P6 O Video pixel output port 66 AGND −Analog ground
27 P5 O Video pixel output port 67 BIAS O External bias setting
28 P4 O Video pixel output port 68 CAPC1 I ADC capacitor network
29 P26 I/O Video pixel input/output port 69 CAPC2 I ADC capacitor network
30 P25 I/O Video pixel input/output port 70 AGND −Analog ground
31 P24 I/O Video pixel input/output port 71 AIN10 I Analog video input channel
32 P23 I/O Video pixel input/output port 72 AIN4 I Analog video input channel
33 P22 I/O Video pixel input/output port 73 AIN11 I Analog video input channel
34 P21 I Video pixel input port 74 AIN5 I Analog video input channel
35 DCLK_IN I Clock input signal 75 AIN12 I Analog video input channel
36 LLC1 O
Line-locked output clock for the pixel data output
76 AIN6 I Analog video input channel
37 XTAL1 O 27MHz crystal connect pin 77 SOY I Sync on luma input
38 XTAL I Input pin for 27MHz crystal 78 RESET I System reset input
39 DVDD −Digital core supply voltage (1.8V) 79 DE_IN I Data enable input signal
40 DGND −Digital ground 80 ALSB ISelects the I2C address for the
ADV7400A control and VBI readback port
41 P3 OVideo pixel output port 81 SDA1 I/O I2C port serial data input/output
42 P2 O Video pixel output port 82 SCLK1 I I2C port serial clock input (max 400kHz)
43 P1 I Video pixel input port 83 P40 I Video pixel input port
44 P0 I Video pixel input port 84 P39 I Video pixel input port
45 P20 I Video pixel input port 85 VS_IN I VS input signal
46 ELPF OThe recommend external loop filter must
be connected to this pin 86
HS_IN/CS_IN
I
Can be configured in CP mode to be
either a digital HS input signal or a digital
CS input signal used to extract timing in
5-wire or 4-wire RGB mode.
47 PVDD −PLL supply voltage (1.8V) 87 P38 I Video pixel input port
48 PVDD −PLL supply voltage (1.8V) 88 P37 I Video pixel input port
49 AGND −Analog ground 89 DGND −Digital ground
50 AGND −Analog ground 90 DVDD −Digital core supply voltage (1.8V)
51 AGND −Analog ground 91 P19 O Video pixel output port
52 SOG I Sync on green input 92 P18 O Video pixel output port
53 AIN7 I Analog video input channel 93 P17 O Video pixel output port
54 AIN1 I Analog video input channel 94 P16 O Video pixel output port
55 AIN8 I Analog video input channel 95 P36 I Video pixel input port
56 AIN2 I Analog video input channel 96 P35 I Video pixel input port
57 AIN9 I Analog video input channel 97 P34 I Video pixel input port
58 AIN3 I Analog video input channel 98 FIELD/DE O Field sync signal output/data enable
59 NC −No connect pin 99 VS O Vertical sync output signal
60 AGND −Analog ground 100 P33 I Video pixel input port
VSX-AX4AVi-S 261
5678
5678
C
D
F
A
B
E
PEG118A (HDMI & DVC ASSY : IC501)
• HDMI Microcomputer
Pin Arrangement (Top view)
1
HD_DO P96/ANEX1/SOUT4
2
HD_SCK P95/ANEX0/CLK4
3
VCRST P94/DA1/TB4IN
4
I2CSELA P93/DA0/TB3IN
5
F/DE(NC) P92/TB2IN/SOUT3
6
NC P91/TB1IN/SIN3
7
BOOT P90/TB0IN/CLK3
8
GND BYTE
9
CNVSS CNVss
10
FSEL0 P87/XCIN
11
FSEL1 P86/XCOUT
12
XRESET RESET
13
XOUT XOUT
14
VSS VSS
15
XIN XIN
16
VCC VCC
17
NMI P85/NMI
18
TXINT P84/INT2
19
RXINT P83/INT1
20
HD_REQI P82/INT0
21
VSYNC P81/TA4IN/U
22
RXRST P80/TA4OUT/U
23
RXMUTE P77/TA3IN
24
ACLKOFF P76/TA3OUT
25
TXRST P75/TA2IN/W
31
USDA
USCL
CLK1
CTS1
TXD0
RXD0
I2CSELB
RTS0
RDY
ALE
P67/TXD1/SDA1
32 P66/RxD1/SCL1
33 P65/CLK1
34 P64/CTS1/RTS1
/CTS0/CLKS1
35 P63/TXD0/SDA0
36 P62/RxD0/SCL0
37 P61/CLK0
38 P60/CTS0/RTS0
39 P57/RDY/CLKOUT
40 P56/ALE
41
HOLD P55/HOLD
42
HLDA P54/HLDA
43
BCLK P53/BCLK
44
GND P52/RD
45
WRH P51/WRH/BHE
100
P97/ADTRG
/SIN4
99
AVcc AVCC
HD_DI
98
VREF VREF
97
P100/AN0
96
AVSS AVSS
95
P101/AN1 WP1
94
P102/AN2
93
P103/AN3 HPDET1
WP0
VINSEL2
92
P104/AN4/KI0 HPDET0
91
P105/AN5/KI1 VCOE
90
P106/AN6/KI2 SCDT
89
P107/AN7/KI3 VINSEL1
88
P00/D0 D0
87
P01/D1 D1
86
P02/D2 D2
46
WRL P50/WRL/WR
47
PUSEL P47/CS3
48
DSCL P46/CS2
49
DSDA P45/CS1
50
CS0 P44/CS0
85
P03/D3 D3
84
P04/D4 D4
83
P05/D5 D5
82
P06/D6 D6
81
P07/D7 D7
80
P10/D8 D8
79
P11/D9 D9
78
P12/D10 D10
77
P13/D11 D11
76
P14/D12 D12
75
P15/D13/INT3 D13
74
P16/D14/INT4 D14
73
P17/D15/INT5 D15
72
P20/A0(/D0/_) A0
71
P21/A1(/D1/D0) A1
70
P22/A2(/D2/D1) A2
69
P23/A3(/D3/D2) A3
68
P24/A4(/D4/D3) A4
67
P25/A5(/D5/D4) A5
66
P26/A6(/D6/D5) A6
65
P27/A7(/D7/D6) A7
A8
64
Vss GND
63
P30/A8(/_/D7)
62
Vcc VCC
61
P31/A9 A9
60
P32/A10 A10
59
P33/A11 A11
58
P34/A12 A12
57
P35/A13 A13
56
P36/A14 A14
26
HD_REQO P74/TA2OUT/W
27
VCINT(NC) P73/CTS2/RTS2/TA1IN/V
28
MUTE P72/CLK2/TA1OUT/V
29
VC_SCL P71/RxD2/SCL/TA0IN/TB5IN
30
VC_SDA P70/TXD2/SDA/TA0OUT
55
P37/A15 A15
54
P40/A16 A16
53
P41/A17 A17
52
P42/A18 A18
51
P43/A19 A19
VSX-AX4AVi-S
262
1234
1234
C
D
F
A
B
E
Pin Function
No. Mark Pin Name I/O Pin Function
1 P96/ANEX1/SOUT4 HD_DO O Main controller communication
2 P95/ANEX0/CLK4 HD_SCK I Main controller communication
3 P94/DA1/TB4IN VCRST O ADV7400A, ADV7172K
4 P93/DA0/TB3IN I2CSELA O Access selection of EDID 1or 0 or SiI
5 P92/TB2IN/SOUT3 F/DE(NC) O
6 P91/TB1IN/SIN3 NC O Not connected
7 P90/TB0IN/CLK3 BOOT O
8 BYTE GND Ground
9 CNVss CNVSS −CNVSS
10 P87/XCIN FSEL0 O IC601 FilterSelect
11 P86/XCOUT FSEL1 O IC601 FilterSelect
12 RESET XRESET O Reset circuit of main controller communication
13 XOUT XOUT O XTAL output
14 VSS VSS −Ground
15 XIN XIN I XTA input
16 VCC VCC −3.3V power supply
17 P85/NMI NMI I
18 P84/INT2 TXINT I Sil9030
19 P83/INT1 RXINT I Sil9031
20 P82/INT0 HD_REQI I REQ IN of main controller communication
21 P81/TA4IN/U VSYNC I Not used
22 P80/TA4OUT/U RXRST O Sil9031 RESET
23 P77/TA3IN RXMUTE I Not used
24 P76/TA3OUT ACLKOFF O For radio wave measures
25 P75/TA2IN/W TXRST O Sil9030 reset
26 P74/TA2OUT/W HD_REQO O REQ OUT of main controller communication
27 P73/CTS2/RTS2/TA1IN/V VCINT(NC) O RDY_FP(INT) VIDEO DECODER
28 P72/CLK2/TA1OUT/V MUTE O MUTE control
29 P71/RxD2/SCL/TA0IN/TB5IN VC_SCL O Each IC (video converter)
30 P70/TXD2/SDA/TA0OUT VC_SDA O Each IC
31 P67/TXD1/SDA1 USDA O Microcomputer rewriting connector / TX,RX
32 P66/RxD1/SCL1 USCL O Microcomputer rewriting connector / TX,RX
33 P65/CLK1 CLK1 O Microcomputer rewriting connector / selector
34 P64/CTS1/RTS1/CTS0/CLKS1 CTS1 I Microcomputer rewriting connector / 232C
35 P63/TXD0/SDA0 TXD0 O 232c
36 P62/RxD0/SCL0 RXD0 I 232c
37 P61/CLK0 I2CSELB O Access selection of EDID 1or 0 or SiI
38 P60/CTS0/RTS0 RTS0 O 232c
39 P57/RDY/CLKOUT RDY I Open
40 P56/ALE ALE O Open
41 P55/HOLD HOLD I
42 P54/HLDA HLDA O Open
43 P53/BCLK BCLK O Open
44 P52/RD GND O IC502 (for external Flash)
45 P51/WRH/BHE WRH O IC502 open
46 P50/WRL/WR WRL O IC502 (for external Flash)
47 P47/CS3 PUSEL O IC502 DDC communication 2.7k/4.7k resistor switch
48 P46/CS2 DSCL O IC502 I2C for DDC
49 P45/CS1 DSDA O IC502 I2C for DDC
50 P44/CS0 CS0 O IC502 (for external Flash)
VSX-AX4AVi-S 263
5678
5678
C
D
F
A
B
E
No. Mark Pin Name I/O Pin Function
51 P43/A19 A19 O Address output for IC502 (open)
52 P42/A18 A18 O Address output for IC502
53 P41/A17 A17 O Address output for IC502
54 P40/A16 A16 O Address output for IC502
55 P37/A15 A15 O Address output for IC502
56 P36/A14 A14 O Address output for IC502
57 P35/A13 A13 O Address output for IC502
58 P34/A12 A12 O Address output for IC502
59 P33/A11 A11 O Address output for IC502
60 P32/A10 A10 O Address output for IC502
61 P31/A9 A9 O Address output for IC502
62 Vcc VCC −3.3V power supply
63 P30/A8(/_/D7) A8 O Address output for IC502
64 Vss GND −Ground
65 P27/A7(/D7/D6) A7 O Address output for IC502
66 P26/A6(/D6/D5) A6 O Address output for IC502
67 P25/A5(/D5/D4) A5 O Address output for IC502
68 P24/A4(/D4/D3) A4 O Address output for IC502
69 P23/A3(/D3/D2) A3 O Address output for IC502
70 P22/A2(/D2/D1) A2 O Address output for IC502
71 P21/A1(/D1/D0) A1 O Address output for IC502
72 P20/A0(/D0/_) A0 O Address output for IC502
73 P17/D15/INT5 D15 I Data input for IC502
74 P16/D14/INT4 D14 I Data input for IC502
75 P15/D13/INT3 D13 I Data input for IC502
76 P14/D12 D12 I Data input for IC502
77 P13/D11 D11 I Data input for IC502
78 P12/D10 D10 I Data input for IC502
79 P11/D9 D9 I Data input for IC502
80 P10/D8 D8 I Data input for IC502
81 P07/D7 D7 I Data input for IC502
82 P06/D6 D6 I Data input for IC502
83 P05/D5 D5 I Data input for IC502
84 P04/D4 D4 I Data input for IC502
85 P03/D3 D3 I Data input for IC502
86 P02/D2 D2 I Data input for IC502
87 P01/D1 D1 I Data input for IC502
88 P00/D0 D0 I Data input for IC502
89 P107/AN7/KI3 VINSEL1 O IC602-pin 1 (MM1503XN)
90 P106/AN6/KI2 SCDT I Sil9031
91 P105/AN5/KI1 VCOE O Select RX or DVC L: Si9030, DVC output ON ,H: Si9030 Hz
92 P104/AN4/KI0 HPDET0 O Plug
93 P103/AN3 HPDET1 O Plug
94 P102/AN2 WP0 O EDID
95 P101/AN1 WP1 O EDID
96 AVSS AVSS −Ground Connect to VSS.
97 P100/AN0 VINSEL2 O
98 VREF VREF −3.3V Connect to VCC.
99 AVcc AVCC −3.3V Connect to VCC.
100 P97/ADTRG/SIN4 HD_DI I Main controller communication
VSX-AX4AVi-S
264
1234
1234
C
D
F
A
B
E
PE5503A (DISPLAY ASSY : IC3201)
• Display Microcomputer
Pin Arrangement (Top view)
1
VDD VDD
2
p_1w_wp P37
3
p_gp_out_c_8 P36/BUZ
4
p_xanteck P35/PCL
5
p_gp_out_c_7 P34/TI2
6
p_input_r P33/TI1
7
p_input_l P32/TO2
8
p_vol_m P31/TO1
9
p_vol_p P30/TO0
10
xreset RESET
11
X2 X2
12
X1 X1
13
IC IC
14
XT2 XT2
15
XT1 P04/XT1
16
VDD VDD
17
p_gp_out_c_6 P27/SCK0
18
p_gp_out_c_5 P26/SO0/SB1
19
p_gp_out_c_4 P25/SI0/SB0
20
p_gp_out_c_3 P24/BUSY
21
p_sys_rdy P23/STB
22
p_sys_clk P22/SCK1
23
p_sys_do P21/SO1
24
p_sys_di P20/SI1
25
GND AVSS
31
p_key3
p_key2
p_key1
VDD
AVREF
p_232c_det
p_sys_cs
p_mr_in
p_sr_in
VSS
P12/ANI2
32 P11/ANI1
33 P10/ANI0
34 AVDD
35 AVREF
36 P03/INTP3
37 P02/INTP2
38 P01/INTP1
39 P00/INTP0/TI0
40 VSS
41
p_gp_in_4 P74
42
p_gp_in_3 P73
43
p_gp_in_2 P72
44
p_gp_in_1 P71
45
p_gp_in_0 P70
100
FIP0
99
FIP1 p_2g
p_1g
98
FIP2 p_3g
97
FIP3
96
FIP4 p_5g
95
FIP5 p_6g
94
FIP6
93
FIP7 p_8g
p_7g
p_4g
92
FIP8 p_9g
91
FIP9 p_10g
90
FIP10 p_11g
89
FIP11 p_12g
88
FIP12 p_13g
87
P80/FIP13 p_14g
86
P81/FIP14 p_15g
46
VDD VDD
47
p_37s P127/FIP52
48
p_36s P126/FIP51
49
p_35s P125/FIP50
50
p_34s P124/FIP49
85
P82/FIP15 p_16g
84
P83/FIP16 p_1s
83
P84/FIP17 p_2s
82
P85/FIP18 p_3s
81
P86/FIP19 p_4s
80
P87/FIP20 p_5s
79
Vload VFDP
78
P90/FIP21 p_6s
77
P91/FIP22 p_7s
76
P92/FIP23 p_8s
75
P93/FIP24 p_9s
74
P94/FIP25 p_10s
73
P95/FIP26 p_11s
72
P96/FIP27 p_12s
71
P97/FIP28 p_13s
70
P100/FIP29 p_14s
69
P101/FIP30 p_15s
68
P102/FIP31 p_16s
67
P103/FIP32 p_17s
66
P104/FIP33 p_18s
65
P105/FIP34 p_19s
p_21s
64
P106/FIP35 p_20s
63
P107/FIP36
62
P110/FIP37 p_22s
61
P111/FIP38 p_23s
60
P112/FIP39 p_24s
59
P113/FIP40 p_25s
58
P114/FIP41 p_26s
57
P115/FIP42 p_27s
56
P116/FIP43 p_28s
26
p_gp_out_c_2 P17/ANI7
27
p_gp_out_c_1 P16/ANI6
28
p_gp_out_c_0 P15/ANI5
29
p_test_checker P14/ANI4
30
p_key4 P13/ANI3
55
P117/FIP44 p_29s
54
P120/FIP45 p_30s
53
P121/FIP46 p_31s
52
P122/FIP47 p_32s
51
P123/FIP48 p_33s
VSX-AX4AVi-S 265
5678
5678
C
D
F
A
B
E
Pin Function
No. Mark Pin Name I/O Pin Function
1 VDD VDD −Positive power supply
2 P37 p_1w_wp O Main microcomputer start-up output corresponding to 1W
3 P36/BUZ p_gp_out_c_8 O General-purpose output (CMOS_8) for IR2SW (must be tied L)
4 P35/PCL p_xanteck O xantec correspondence L: set2 (PIONEER), H: set1 (others)
5 P34/TI2 p_gp_out_c_7 O General-purpose output (CMOS_7)
6 P33/TI1 p_input_r I MULTIJOG
7 P32/TO2 p_input_l I MULTIJOG
8 P31/TO1 p_vol_m I vol(-)
9 P30/TO0 p_vol_p I vol(+)
10 RESET xreset −Reset input
11 X2 X2 −Connect a 5MHz crystal for X1 input clock oscillation
12 X1 X1 I
13 IC IC −
14 XT2 XT2 −
15 P04/XT1 XT1 I Pull-down (100k)
16 VDD VDD −Positive power supply
17 P27/SCK0 p_gp_out_c_6 O General-purpose output (CMOS_6)
18 P26/SO0/SB1 p_gp_out_c_5 O General-purpose output (CMOS_5) ISO PHASE LED
19 P25/SI0/SB0 p_gp_out_c_4 O General-purpose output (CMOS_4) MCACC LED
20 P24/BUSY p_gp_out_c_3 O General-purpose output (CMOS_3)
21 P23/STB p_sys_rdy O RDY of Main microcomputer communication
22 P22/SCK1 p_sys_clk I CLK of Main microcomputer communication
23 P21/SO1 p_sys_do O Data output of Main microcomputer communication
24 P20/SI1 p_sys_di I Data input of Main microcomputer communication
25 AVSS GND −A/D converter GND, same electric potential as the EVSS/VSS.
26 P17/ANI7 p_gp_out_c_2 O General-purpose output (CMOS_2) DIGITAL PROCESSING LED
27 P16/ANI6 p_gp_out_c_1 O General-purpose output (CMOS_1) HDMI LED
28 P15/ANI5 p_gp_out_c_0 O
General-purpose output (CMOS_0) i.LINK(upper model),DVC (lower model) LED
29 P14/ANI4 p_test_checker I Test mode input for checker pull-down by 100K
30 P13/ANI3 p_key4 I Front key input (A/D)
31 P12/ANI2 p_key3 I Front key input (A/D)
32 P11/ANI1 p_key2 I Front key input (A/D)
33 P10/ANI0 p_key1 I Front key input (A/D)
34 AVDD VDD −Power supply
35 AVREF AVREF −Reference voltage input of A/Dconverter
36 P03/INTP3 p_232c_det I 232C signal detection A model without RS232C needs pull-up.
37 P02/INTP2 p_sys_cs I CS of Main microcomputer communication
38 P01/INTP1 p_mr_in I
Multi room remote control signal input A model without IR needs pull-up.
39 P00/INTP0/TI0 p_sr_in I Main room remote control signal input
40 VSS VSS −Ground
41 P74 p_gp_in_4 I General-purpose input 4 Pull-down to GND when does not use.
42 P73 p_gp_in_3 I General-purpose input 3 Pull-down to GND when does not use.
43 P72 p_gp_in_2 I General-purpose input 2 Pull-down to GND when does not use.
44 P71 p_gp_in_1 I General-purpose input 1 Pull-down to GND when does not use.
45 P70 p_gp_in_0 I General-purpose input 0 Pull-down to GND when does not use.
46 VDD VDD −Positive power supply
47 P127/FIP52 p_37s O FL drive
48 P126/FIP51 p_36s O FL drive
49 P125/FIP50 p_35s O FL drive
50 P124/FIP49 p_34s O FL drive
VSX-AX4AVi-S
266
1234
1234
C
D
F
A
B
E
No. Mark Pin Name I/O Pin Function
51 P123/FIP48 p_33s O FL drive
52 P122/FIP47 p_32s O FL drive
53 P121/FIP46 p_31s O FL drive
54 P120/FIP45 p_30s O FL drive
55 P117/FIP44 p_29s O FL drive
56 P116/FIP43 p_28s O FL drive
57 P115/FIP42 p_27s O FL drive
58 P114/FIP41 p_26s O FL drive
59 P113/FIP40 p_25s O FL drive
60 P112/FIP39 p_24s O FL drive
61 P111/FIP38 p_23s O FL drive
62 P110/FIP37 p_22s O FL drive
63 P107/FIP36 p_21s O FL drive
64 P106/FIP35 p_20s O FL drive
65 P105/FIP34 p_19s O FL drive
66 P104/FIP33 p_18s O FL drive
67 P103/FIP32 p_17s O FL drive
68 P102/FIP31 p_16s O FL drive
69 P101/FIP30 p_15s O FL drive
70 P100/FIP29 p_14s O FL drive
71 P97/FIP28 p_13s O FL drive
72 P96/FIP27 p_12s O FL drive
73 P95/FIP26 p_11s O FL drive
74 P94/FIP25 p_10s O FL drive
75 P93/FIP24 p_9s O FL drive
76 P92/FIP23 p_8s O FL drive
77 P91/FIP22 p_7s O FL drive
78 P90/FIP21 p_6s O FL drive
79 Vload VFDP −Connect a pull-down resistor of FIP controller/driver
80 P87/FIP20 p_5s O FL drive
81 P86/FIP19 p_4s O FL drive
82 P85/FIP18 p_3s O FL drive
83 P84/FIP17 p_2s O FL drive
84 P83/FIP16 p_1s O FL drive
85 P82/FIP15 p_16g O FL drive
86 P81/FIP14 p_15g O FL drive
87 P80/FIP13 p_14g O FL drive
88 FIP12 p_13g O FL drive
89 FIP11 p_12g O FL drive
90 FIP10 p_11g O FL drive
91 FIP9 p_10g O FL drive
92 FIP8 p_9g O FL drive
93 FIP7 p_8g O FL drive
94 FIP6 p_7g O FL drive
95 FIP5 p_6g O FL drive
96 FIP4 p_5g O FL drive
97 FIP3 p_4g O FL drive
98 FIP2 p_3g O FL drive
99 FIP1 p_2g O FL drive
100 FIP0 p_1g O FL drive
VSX-AX4AVi-S 267
5678
5678
C
D
F
A
B
E
PDC131A (COMPOSITE V ASSY : IC2007)
• Character Generator IC
Pin Arrangement (Top view)
Pin Function
No. Pin Name I/O Pin Function
24
23
22
21
20
19
18
17
16
15
14
13
1
2
3
4
5
6
7
8
9
10
11
12
VDD1
RST
CTRL3
CTRL2
SEPIN
SEPOUT
SEPC
SYNIN
VDD1
CVIN
NC
CVOUT
VSS1
XTALIN
XTALOUT
CTAL1
BLANK
OSCIN
OSCOUT
CHARA
CS
SCLK
SIN
VDD2
1 VSS1 −Ground connection (digital system ground)
2 XtalIN I Crystal oscillator connection
3 XtalOUT O Crystal oscillator connection
4 CTRL1 I Crystal oscillator input switching
5 BLANK O Outputs the blank signal
6 OSCIN I LC oscillator connection
7 OSCOUT O LC oscillator connection
8 CHARA O Outputs the character signal
9CSISerial data input enable input
10 SCLK I Serial data input clock input
11 SIN I Serial data input
12 VDD2 −Power supply
13 CVOUT O Composite video signal output
14 NC −Must be either connected to ground or left open.
15 CVIN I Composite video signal input
16 VDD1 −Power supply (+5 V: digital system power supply)
17 SYNIN I
I
Video signal input for the built-in sync separator circuit
18 SEPC Built-in sync separator circuit bias voltage monitor pin
19 SEPOUT O Built-in sync separator circuit composite sync signal output
20 SEPIN I Inputs a vertical synchronization signal created by integrating the SEPOUT pin output signal
21 CTRL2 I NTSC/PAL-M switching input
22 CTRL3 I Control whether or not the VSYNC signal is input to the SEPIN input
23 RST I System reset input
24 VDD1 −Power supply (+5 V: digital system power supply)
VSX-AX4AVi-S
268
1234
1234
C
D
F
A
B
E
8. PANEL FACILITIES
Front panel
Illustration shows the VSX-AX4AVi front panel
1 INPUT SELECTOR dial
Use to select an input source.
2 STANDBY/ON
Switches the receiver between on and standby.
Power indicator lights when the receiver is on.
3PHASE CONTROL - Press to switch on/off
phase correction.
MCACC POSITION - Press to switch between
MCACC presets.
AUTO SURR / STREAM DIRECT - Press to select
Auto Surround or Stream Direct listening.
4PHASE CONTROL indicator
Lights when Phase Control is switched.
5 Remote sensor
Receives the signals from the remote control
(see Operating range of remote control unit).
6 MCACC indicator
Lights when one of the MCACC presets is selected.
7 Digital Precision Processing indicator
Lights to indicate digital processing (for example, it
disappears when Pure Direct is on, or when
listening through the multichannel analog inputs).
8 Character display
See Display.
SPEAKERS (TUNE +)
ENTER
(TUNE -)
PHONES
AV
PARAMETER
SETUP
(ST -) (ST +)
TUNER
EDIT
BAND
CONTROL ON/OFF
VIDEO
SELECT
SIGNAL
SELECT
SBch
PROCESSING
STEREO
VIDEO/GAME 2 INPUT
DIGITAL IN S-VIDEO VIDEO L RAUDIO
MULTI - ROOM &
SOURCE/REC SEL
MCACC
SETUP MIC
RETURN
STANDBY/ON
AUDIO/VIDEO MULTI-CHANNEL RECEIVER VSX-AX4AVi
INPUT
SELECTOR MASTER
VOLUME
PHASE
CONTROL
MCACC
POSITION
AUTO SURR/
STREAM DIRECT
PHASE
CONTROL
DIGITAL PRECISION
PROCESSING
HOME
THX
STANDARD
SURROUND
ADVANCED
SURROUND
13
1 6 8245 97101112
16 17 19
18 21 22
25 27 28
23 24
14 15
26
3
20
VSX-AX4AVi-S 269
5678
5678
C
D
F
A
B
E
speakers.
finger.
enabled.
9 HDMI indicator
Blinks when connecting an HDMI-equipped
component; lights when the component is connected.
10 i.LINK indicator (VSX-AX4AVi only)
Lights when an i.LINK-Audio-equipped
component is selected.
DIGITAL VIDEO CONVERSION indicator
(VSX-AX2AV only)
Lights when digital video conversion is
11 Listening mode buttons
HOME THX - Press to select a Home THX
listening mode.
STANDARD SURROUND - Press for Standard
decoding and to switch between the various
2 Pro Logic IIx and Neo:6 options.
ADVANCED SURROUND - Use to switch
between the various surround modes.
12 MASTER VOLUME dial
13 Front panel controls
To access the front panel controls, push gently
on the lower third portion of the panel with your
14 SPEAKERS
Use to change the speaker system.
15 AV PARAMETER
Use to access the AV options.
16 TUNER EDIT
Use with / to memorize and name stations
for recall.
17 BAND
Switches between AM and FM radio bands.
18 MULTI ROOM & SOURCE / REC SEL controls
If youíve made multi-room connections (see
Multi-room listening) use these controls to control
the sub room from the main room (see Using the
multi-room controls).
You will also need to use the REC SEL controls
when recording a source (see Making an audio
or a video recording.
19 VIDEO SELECT
Press repeatedly to select the video source.
20 SIGNAL SELECT
Use to select an input signal.
21 SBch PROCESSING
Selects the surround back channel mode or virtual
surround back mode.
22 STEREO
Switches to stereo playback.
23 PHONES jack
Use to connect headphones. When the headphones
are connected, there is no sound output from the
24 SETUP
Press to access the System Setup menu.
25
(TUNE/ST +/–) /ENTER
Use the arrow buttons when setting up your
surround sound system. Use the TUNE +/-
buttons to find radio frequencies and use ST +/-
to find preset stations.
26 RETURN
Press to confirm and exit the current menu screen.
27 MCACC SETUP MIC jack
Use to connect the supplied microphone.
28 VIDEO/GAME 2 INPUT
See Connecting a component to the front panel
inputs.
Operating range of remote control unit
The remote control may not work properly if:
There are obstacles between the remote
control and the receiver's remote sensor.
Direct sunlight or fluorescent light is shining
onto the remote sensor.
The receiver is located near a device that is
emitting infrared rays.
The receiver is operated simultaneously with
another infrared remote control unit.
STANDBY/ON
STANDBY/ON
AUDIO/VIDEO MULTI-CHANNEL RECEIVER
30
30
7m
VSX-AX4AVi-S
270
1234
1234
C
D
F
A
B
E
the minimum level, and +12dBindicates the
EON service.
STEREO - Lights when a stereo FM broadcast
(Digital Stream Direct) to PCM conversion with
Display
1 SIGNAL indicators
Light to indicate the currently selected input signal.
AUTO lights when the receiver is set to select the
input input signal automatically.
2 Program format indicators
These change according to which channels are
active in digital sources.
L - Left front channel
C - Center channel
R - Right front channel
SL - Left surround channel
S - Surround channel (mono)
SR - Right surround channel
SBL - Left surround back channel
SB - Surround back channel (mono)
SBR - Right surround back channel
LFE - Low frequency effects channel (the ((( )))indicators
light when an LFE signal is being input)
3 Digital format indicators
Light when a signal encoded in the corresponding
format is detected (DSD PCM lights during DSD
SACDs).
4 OVER / ATT
OVER lights to indicate that the level of an analog
source is too high. ATT lights when you use the
attenuator (ANALOG ATT) to reduce it.
5 MULTI-ROOM
Lights when the multi-room feature is active.
6 VIDEO CONV.
Lights when digital video conversion is enabled.
7 V.SB
Lights during Virtual surround back processing.
8 Sound processing indicators
Light according to the active AV parameter(s).
9 TUNER indicators
TUNED - Lights when a broadcast is being
received.
is being received in auto stereo mode.
MONO - Lights when the mono mode is set
using the MPX button.
10 EON / RDS indicators
EON - Lights when the EON mode is set
(flashes during EON reception). The indicator
lights when the current station carries the
RDS - Lights when an RDS broadcast is
is received.
11 Master volume level
Shows the overall volume level. -80dB indicates
maximum level.
12 Input source indicators
Light to indicate the input source you have selected.
13 STREAM DIRECT
Lights when Direct / Pure Direct is selected.
14 Speaker indicators
Indicate the current speaker system, A and/or B.
15 Listening mode indicators
THX - Lights when a Home THX mode is
ADV. SURROUND - Lights when an Advanced
Surround mode has been selected.
STEREO - Lights when stereo listening is
switched on (see Listening in stereo).
STANDARD - Lights when a Standard Surround
Surround mode is switched on (see Listening
selected.
in surround sound).
16 SLEEP
Lights when the receiver is in sleep mode.
17 Matrix decoding format indicators
2PRO LOGIC IIx - This lights to indicate
2Pro Logic II / 2Pro Logic IIx decoding.
Neo:6 - When one of the Neo:6 modes of the
receiver is on, this lights to indicate Neo:6
processing .
18 Character display
Displays various system information.
19 SR+
Lights when the SR+ mode is switched.
21 3 876 9 10 11 12
181413 16 1917
45
15
SIGNAL L C R
SL S SR
SBL SB
LFE
SBR
AUTO
ADV.SURROUND
STANDARD
SLEEP
THX
STEREO
SP AB
HDMI
DIGITAL
STREAM DIRECT
PRO LOGIC
DIGITAL
WMA9 Pro
CD
CD-R TUNER
PHONO MULTI IN
iPod DVD
TV SAT
DVR VIDEO
[ 1 ]HDMI
[ 2 ]USB
SR+
DSD PCM
96/24
DTS VIDEO CONV.
MULTI-ROOM
OVER ATT TONE MONO dB
Hi-bit/sampling
DIALOGUE LOUDNESS STEREO
V.SB DNR MIDNIGHT TUNED
EON
RDS
Neo : 6
2
2
ANALOG
VSX-AX4AVi-S 271
5678
5678
C
D
F
A
B
E
The remote has been conveniently color-coded
with DTV).
following controls:
multi-CD player.
system (press the corresponding input source
Remote control
receiver.
button to access):
according to component control using the following
Green - Receiver controls (see below)
Red - DVD controls
Blue - Tuner controls
Yellow - iPod controls
White - Other controls
1 RECEIVER
This switches between standby and on for this
2 INPUT SELECT
Use to select the input source (use SHIFT for
INPUT SELECT ).
3 Input source buttons
Press to select control of other components (see
Controlling the rest of your system
).
4 Number buttons and other receiver/
component controls
Use the number buttons to directly select a radio
frequency or the tracks on a CD, DVD, etc.
DISC (ENTER) can be used to enter commands
for TV or DTV, and also to select a disc in a
Press RECEIVER first to access:
SLEEP - Use to put the receiver in sleep mode
and select the amount of time before sleep.
VIDEO SEL - Press repeatedly to select the
video source.
ANALOG ATT - Attenuates (lowers) the level
of an analog input signal to prevent distortion.
SR+ - Switches the SR+ mode on/off.
DIMMER - Dims or brightens the display.
Press TUNER first to access:
D.ACCESS - After pressing, you can access
a radio station directly using the number buttons.
CLASS- Switches between the three banks
(classes) of radio station presets.
5Tuner/component control buttons/SETUP
These button controls can be accessed after you
have selected the corresponding input source
button (DVD/LD, TV/SAT, etc.). The BAND,
T.EDIT and PTY SEARCH tuner controls are
explained. Press RECEIVER first to access the
AV PARAMETER - Use to access the AV
options.
SETUP - Use to access the System Setup
menu.
CH LEVEL - Press repeatedly to select a
channel, then use / to adjust the level.
RETURN - Press to confirm and exit the current
menu screen (also use to return to the previous
menu with DVDs or to select closed captioning
6 (TUNE / ST) / ENTER
Use the arrow buttons when setting up your
surround sound system and the AV options.
Also used to control DVD menus/options and
for deck 1 of a double cassette deck player. Use
the TUNE / buttons to find radio frequencies
and use ST to find preset stations.
7 TV CONTROL buttons
These buttons are dedicated to control the TV
assigned to the TV CONT button. Thus if you only
have one TV to hook up to this system assign it
to the TV CONT input source button. If you have
two TVs, assign the main TV to the TV CONT
button.
SLEEP
+10
SR+
ANALOG
ATT
DISC
VIDEO
SEL
DIMMER
CLASS
D.ACCESS
RECEIVER SOURCE
SYSTEM OFF
INPUT
SELECT
ENTER
TV CONTROL
SHIFT
VOL
DVD SAT
VIDEO 1
TV CONT
DVR1
TUNE
TUNE
ST ST
STATUS
MCACC S.DIRECT
MULTI OPE
SIGNAL SEL
SBch
STEREO
TV CH
INPUT
SELECT
MPX EON
A
BCD E
AUDIO
SUBTITLE
ADV. SURRSTANDARD
PHASE
THX
MUTE
REC
TV VOL
i Pod
TUNER
RECEIVER
ENTER
REC STOP
HDD
CH CH
DVD
AV PARAMETER
TOP MENU
CH LEVEL
MENU
T.EDIT
BAND
GUIDE
RETURN
SETUP
PTY SEARCH
CD
DVR2 CD-R
TV VIDEO 2
MULTI IN ROOM2/3
DISP
RECEIVER
4
3
5
7
8
11
9
10
6
12
13
14
15
16
17
18
2
1
VSX-AX4AVi-S
272
1234
1234
C
D
F
A
B
E
the sound).
remote control LCD.
sound quality.
signal.
your TV.
TV - Use to turn on/off the power of the TV.
TV VOL +/– - Use to adjust the volume on
INPUT SELECT - Use to select the TV input
TV CH +/– - Use to select channels.
8 Component control buttons
The main buttons (, , etc.) are used to control
a component after you have selected it using the
input source buttons.
The controls above these buttons can be accessed
after you have selected the corresponding input
source button (for example DVD, DVR1, TV or
SAT). The following controls can be accessed
when listening to the built-in tuner:
MPX - Switches between stereo and mono
reception of FM broadcasts. If the signal is
weak then switching to mono will improve the
DISP - Switches between named station
presets and radio frequencies.
EON - Use to search for programs that are
broadcasting traffic or news information.
9STATUS
Press to check selected receiver settings.
10 MULTIOPE
Use this button to perform multi operations.
11 SHIFT
Press to access the controls outlined in white
boxes (for example, INPUT SELECT ), or to
display the currently selected input source in the
12 SOURCE
Press to turn on/off other components connected
to the receiver.
13 Character display (LCD)
This display shows information when transmitting
control signals.
The following commands are shown when youíre
setting the remote to control other components
(see Controlling the rest of your system):
SETUP - Indicates the setup mode, from
which you choose the options below.
PRESET - See Selecting preset codes directly
directly on.
LEARNING - See Programming signals from
other remote controls.
MULTI OP - See Multi Operation and System
Off.
SYS OFF - See Multi Operation and System
Off.
DIRECT F - See Direct function.
RENAME - See Renaming input source names.
ERASE - See Erasing one of the remote control
button settings.
RESET - See Resetting the remote control
presets.
READ ID - See Confirming preset codes.
14 RECEIVER
Switches the remote to control the receiver (used
to select the green commands above the number
buttons (ANALOG ATT, etc). Also use this button
to set up surround sound. With SHIFT, this selects
the multi-room control, shown in the display as
RCV/RM2, RCV/RM3.
15 VOL +/–
Use to set the listening volume.
16 MUTE
Mutes the sound or restores the sound if it has
been muted (adjusting the volume also restores
17 Receiver controls
SIGNAL SEL -Use to select an input signal.
SBch - Use to select the surround/virtual
back channel mode.
STEREO - Switches between direct and stereo
playback. Direct playback bypasses the tone
controls and any other signal processing for
the most accurate reproduction of a source.
THX - Press to select a Home THX listening
mode.
STANDARD - Press for Standard decoding
nd to switch between the various Pro Logic
IIx and Neo:6 options.
ADV.SURR - Use to switch between the various
surround modes.
18
PHASE - Press to switch on/off phase correction
MCACC - Press to switch between MCACC
presets.
S.DIRECT - Press to select Auto Surround
or Stream Direct listening.
VSX-AX4AVi-S 273
5678
5678
C
D
F
A
B
E
Multi-room listening
cord from the power outlet. Plugging in should
Caution
Before making or changing the connections,
switch off the power and disconnect the power
be the final step.
1 Optical digital audio output(s)
Use the OUT1 and (VSX-AX4AVi only) OUT2 jack
for recording to a CD or MiniDisc recorder.
Connecting digital audio sources on.
The OUT1 jack is also used for multi-room
Multi-room listening
2 USB audio input (VSX-AX4AVi only)
Use to connect your PC as an audio source.
Using the USB interface.
3
Optical and coaxial digital audio inputs (x6)
Use for digital audio sources, including DVD
players/recorders, digital satellite receivers, CD
players, etc.
See also The Input Setup menuto assign
the inputs.
4
S-400 i.LINK connectors (x2) (VSX-AX4AVi only)
Use to connect other i.LINK audio devices for high-
resolution, multichannel digital audio input/output.
connections.
Using the i.LINK interface.
5 HDMI connectors (x3)
Two inputs and one output for high-quality
audio/video connection to compatible HDMI
devices.
Connecting using HDMI.
6
Remote input (multi-room and source)
Use for connection to an external remote control
sensor for use in a multi-room setup, for example.
Connecting an IR receiver.
7
12V trigger jacks (total 50 mA max.)(x2)
Use to switch components in your system on and
off according to the input function of the receiver.
Switching components on and off using
the12 volt trigger.
8
Multi-room and source outputs
Use to connect a second amplifier in a separate
Multi-room listening.
9
Component video connections (x4)
Use the inputs to connect any video source that
has component video output, such as a DVD
room.
recorder. Use the output for connection to a
monitor or TV.
Using the component video jacks.
10
AM and FM antenna terminals
Use to connect indoor or outdoor antennas for
radio broadcasts.
Connecting antennas.
IN
2
TV
SAT
VIDEO1/
GAME1
OUT
DVR/
VCR 1
DVR
/
V
C
R
2
OUT
IN
IN
VIDE
O
IDEO
FR
O
N
T
C
ENTE
R
SU
R
-
R
OU
N
D
AC OUTLET
A
C
I
N
L
R
L
R
C
ENTE
R
SU
RR
OU
N
D
SUR
S
R
OU
N
D
BACK
IN
IN
IN
DIG
N
R
D
D
IDEO
T
DIG
21
VSX-AX4AVi-S
274
1234
1234
C
D
F
A
B
E
Power to the outlet switches on and off with the
11 Composite and S-video monitor outputs
Use to connect monitors and TVs.
Connecting your TV and DVD player.
12 Audio/video source inputs/(outputs) (x6)
Use for connection to audio/visual sources, such
as DVD players/recorders, VCRs, etc. Each set
of inputs has jacksfor composite video, S-video
Connecting a DVD/HDD recorder, VCR and
other video sources.
13 Stereo analog audio source inputs/
(outputs) (x3)
Use for connection to audio sources such as CD
players, tape decks, turntables, etc.
and stereo analog audio.
Connecting analog audio sources.
14 Multichannel analog audio inputs
7.1 channel inputs for connection to a DVD player
multichannel analog outputs.
Connecting the multichannel analog inputs.
15 Control input/output
Use to connect other Pioneer components so
that you can control all your equipment from a
single IR remote sensor.
Operating other Pioneer components with
this unit’ssensor.
16 Multichannel pre-amplifier outputs
Use to connect separate amplifiers for center,
surround, surround back and subwoofer channels.
Connecting additional amplifiers(see also
Installing your speaker system for powered
subwoofer connection).
17 iPod input terminal
Use to connect your Apple iPod as an audio
Connecting an iPod.
18 RS-232C connector
Use for connection to a PC for graphical output
when using Advanced MCACC.
source.
Connecting a PC for Advanced MCACC
output.
19 Speaker terminals
Use for connection to the main front, center,
surround and surround back speakers.
Installing your speaker system.
20 AC IN inlet
Connect the supplied power cord here.
21 Switched AC power outlet (100W/0.4A max.)
Use to power another component in the system
receiver.
AC outlet.
RS-232C I/F JIG GGF1348
Flexible Cable (7P) VDA1681
Update of the flash ROM
Name Jig No. Remarks
Update of the flash ROM
Audio control cable for iPod ADE7119 Check of iPod
7 Jigs list
Before shipping out the product, be sure to clean the following positions by using the prescribed cleaning tools:
Position to be cleaned Cleaning tools
Fans Cleaning paper : GED-008
7 CLEANING
