Washing machine Instructions for use
®
VT D2
![](asset-2.png)
2
Introduction
Please read these instructions for use carefully and all other information enclosed with the
washing machine.
Keep all documentation in a safe place for future reference or for any future owners.
This appliances is intended to be used in household and
similar applications such as:
- staff kitchen areas in shops, offices and other working environments;
- farm houses;
- by clients in hotels, motels and other residential type environments;
- bed and breakfast type environments.
A different use of this appliance from household environment or from typical housekeeping
functions, as commercial use by expert or trained users, is excluded even in the above
applications.
If the appliance is used in a manner inconsistent with this it may reduce the life of the
appliance and may void the manufacturer’s warranty.
Any damage to the appliance or other damage or loss arising through use that is not
consistent with domestic or household use (even if located in a domestic or household
environment) shall not be accepted by the manufacturer to the fullest extent permitted by law.
Notes on disposal
All packaging material used is environmentally-friendly and recyclable. Please help dispose of
the packaging via environmentally-friendly means.
Your supplier or local council will be able to give you
details of current means of disposal.
Valuable materials can be salvaged from an old appliance via scrap reprocessing.
Note: pull out the mains plug from any old appliance.
Cut the power cable and dispose of it, together with the
plug.
When disposing of an old washing machine, please ensure that the door lock is rendered
inoperable to prevent children shutting themselves in the appliance.
![](asset-3.png)
Contents Page
Introduction 2
General delivery notes 4
Safety notes 4
Quick start 5
Description of controls 6
Programme Table 12
Programme selector 14
Detergent drawer 17
Detergents, washing aids and amounts to use 18
Useful advice for the user 20
The main wash 21
Cleaning and routine maintenance 23
Investigating malfunctions 25
Technical data 27
Setting up + installation 28
BEFORE SWITCHING ON THE APPLIANCE MAKE SURE
IT IS CORRECTLY INSTALLED AND THAT THE FIXING
SCREWS ARE REMOVED AS SHOWN IN PAGE 28.
3
![](asset-4.png)
General delivery notes
Please check that the following items are delivered with the appliance:
- Instruction manual
- Certificate of guarantee
- Inlet hose
Check that no damage has occurred during transit, and if so, call your nearest Authorised
Technical Support Service agent.
Safety notes.
Note:
for cleaning or maintenance of the washing machine.
A) Pull out the plug
B) Turn off the tap
C) Hoover equips all its appliances with earthing. Ensure that the mains supply is earthed,
and if it is not, seek assistance from a qualified person.
D) Do not touch the appliance when hands or feet are wet or damp. Do not use the appliance
with bare feet.
E) The use of adapters, multiple connectors and/or extensions is not recommended.
Note:
water temperature can reach 90°C during the wash cycle.
F) Check there is no water left in the drum before opening the door.
G) This appliance is not intended for use by persons (including children) with reduced
physical, sensory or mental capabilities, or lack of experience and knowledge, unless
they have been given supervision or instruction concerning use of the appliance by a
person responsible for their safety.
Children should be supervised to ensure that they do not play with the appliance.
H) Do not pull the power cable or the appliance itself to remove the plug from the socket.
I) The appliance must not be exposed to weather conditions (rain, direct sun, etc...)
L) When moving the appliance never lift it by the controls or by the detergent drawer.
When in transit never rest the door against the trolley or transport the appliance without
the polystyrene base.
4
![](asset-5.png)
M) N.B!
If the appliance is installed on a carpeted floor ensure that the ventilation holes on the
base of the appliance are not obstructed.
N) If the appliance is not running properly or breaks down, switch it off, turn off the tap and do
not tamper with the appliance.
Consult only the Authorised Technical Support Service for possible repair and ask them to
use original spare parts.
Failure to comply with the above can compromise the safety of the appliance.
O) If the appliance’s power cable should ever need replacing, consult the Authorised
Technical Support Service
Quick start
Washing
- Open the door by using the handle “A” (Fig. 1, page 6)
- Select laundry and put it in the machine
- Close the door
- Put detergent in the compartments as indicated in the programme guide in this instruction
manual
- Select programme
- The display will show the settings for the programme selected.
Press additional function buttons (if required)
- Press the “Start/Pause” button (page 7)
- The programme starts.
After washing
- The word “End” will appear on the display.
- Wait for the door lock to be released
(about 2 minutes after the programme has finished).
The “Door Security” indicator light will go out.
- Switch off the washing machine by turning the
selector to “OFF” position.
- Open the door and remove the laundry.
Ensure that the machine is correctly installed in line with the instructions found on page 28.
5
![](asset-6.png)
6

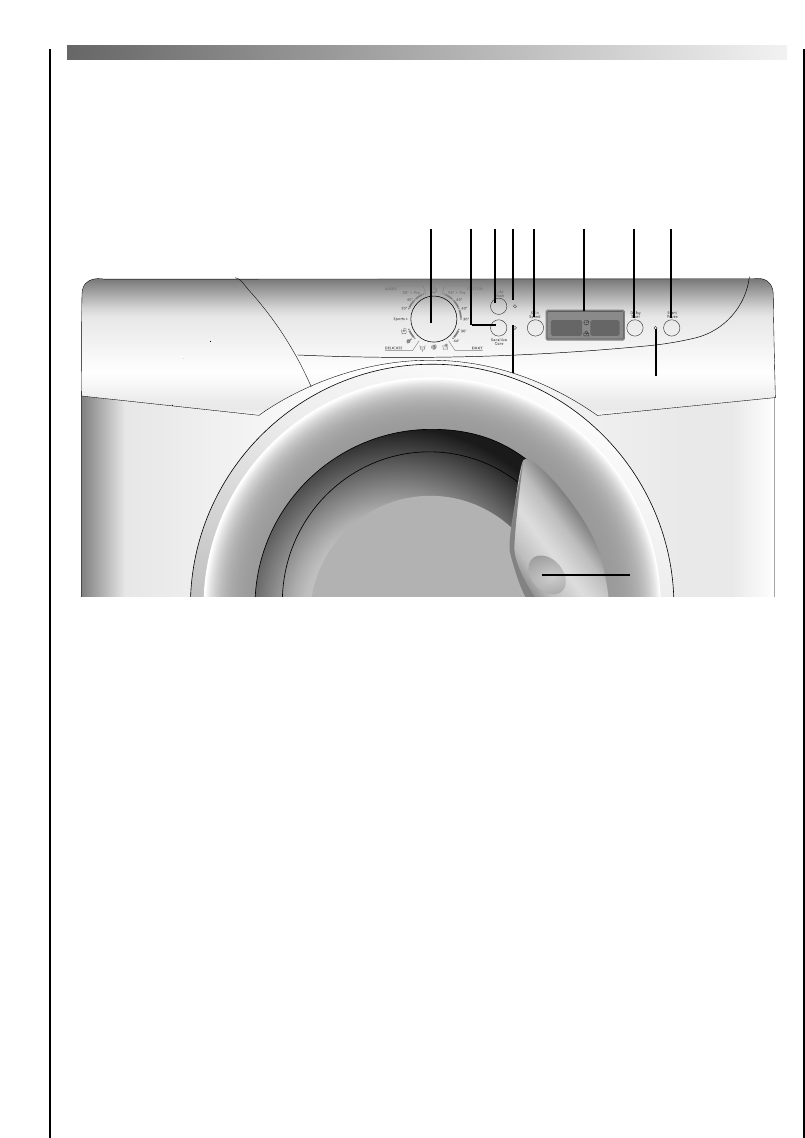

Description of controls
Door handle A
Programme Start light B
"Start/Pause" button C
"Cold Wash" button D
"Sensitive Care" button E
"Delay Start" button F
"Spin Speed" button G
Digital display H
Buttons indicator light M
Programme selector with “OFF” position N
Detergent drawer P
Fig. 1
N
A
P
E D M G H F C
M B
![](asset-7.png)
Door handle
Press the finger-bar inside the door handle to open the door.
A
7
NOTE: When the "Start/Pause" button has been pressed,
the appliance can take few seconds before it starts
working.
“START/PAUSE” button
Press to start the selected cycle .
Changing the settings after the programmes has started (PAUSE)
Press and hold the “START/PAUSE” button for about 2 seconds, the flashing lights on the
options buttons and time remaining indicator will show that the machine has been paused,
adjust as required and press the “START/PAUSE” button again to cancel the flashing lights.
If you wish to add or remove items during washing, wait 2 minutes until the safety device
unlocks the door.
When you have carried out the manoeuvre, close the door, press "Start/Pause" button and
the appliance will continue working where it left off.
CANCELLING THE PROGRAMME
To cancel the programme, set the selector to the OFF position.
Select a different programme.
Re-set the programme selector to the OFF position.
C
B
Programme Start light
This lights up when the START button has been pressed.
![](asset-8.png)
8
The option buttons should be selected before pressing
the "Start/Pause" button.
“SENSITIVE CARE” button
By pressing this button you can activate a special new wash cycle in the Cotton and Mixed
Fabrics programs, thanks to the new Sensor System. This option treats with care the fibres of
garments and the delicate skin of those who wear them.
The load is washed in a much larger quantity of water and this, together with the new combined
action of the drum rotation cycles, where water is filled and emptied, will give you garments which
have been cleaned and rinsed to perfection. The amount of water in the wash is increased so that
the detergent dissolves perfectly, ensuring an efficient cleaning action. The amount of water is also
increased during the rinse procedure so as to remove all traces of detergent from the fibres. This
function has been specifically designed for people with delicate and sensitive skin, for whom even
a very small amount of detergent can cause irritation or allergy.
You are advised to also use this function for children’s clothing and for delicate fabrics in general,
or when washing garments made of towelling, where the fibres tend to absorb a greater quantity of
detergent. To ensure the best performance for your wash, this function is always activated on the
Delicates and Woollens/Handwash programs.
E
“COLD WASH” button
By pressing this button it is possible to transform every programme into a cold washing one,
without modifying other characteristics (water level, times, rythmes, etc...).
Curtains, small carpets, man made delicate fabrics, non coulor fast garments can be safely
washed thanks to this new device.
D
![](asset-9.png)
Warning: If there is any break in the power supply while
the machine is operating, a special memory stores the
selected programme and, when the power is restored, it
continues where it left off.
9
G
F
“DELAY START” button
This button allows you to pre-programme the wash cycle to delay the start of the cycle for up
to 24 hours.
To delay the start use the following procedure:
Set the required programme.
Press the button once to activate it (h00 appears on the display) and then press it again to set
a 1 hour delay (h01 appears on the display); the pre-set delay increases by 1 hour each time
the button is pressed, until h24 appears on the display, at which point pressing the button
again will reset the delay start to zero.
Confirm by pressing the “START/PAUSE” button (the light on the display starts to flash). The
countdown will begin and when it has finished the programme will start automatically.
It is possible to cancel the delay start by taking the following action:
Press and hold the button for 5 seconds until the display will show the settings for the
programme selected.
At this stage it is possible to start the programme previously selected by pressing the
“START/PAUSE” button or to cancel the process by setting the selector to the OFF position
and then selecting another programme.
“SPIN SPEED” button
The spin cycle is very important to remove as much water as possible from the laundry without
damaging the fabrics. You can adjust the spin speed of the machine to suit your needs.
By pressing this button, it is possible to reduce the maximum speed, and if you wish, the spin cycle
can be cancelled.
To reactivate the spin cycle press the button until you reach the spin speed you would like to set.
To prevent damage to the fabrics, it is not possible to increase the speed over that which is
automatically suitable during the selection of the program.
It is possible to modify the spin speed without to pausing the machine.
Note:
The machine is fitted with a special electronic device, which
prevents the spin cycle should the load be unbalanced.
This reduces the noise and vibration in the machine and so
prolongs the life of your machine.
![](asset-a.png)
10

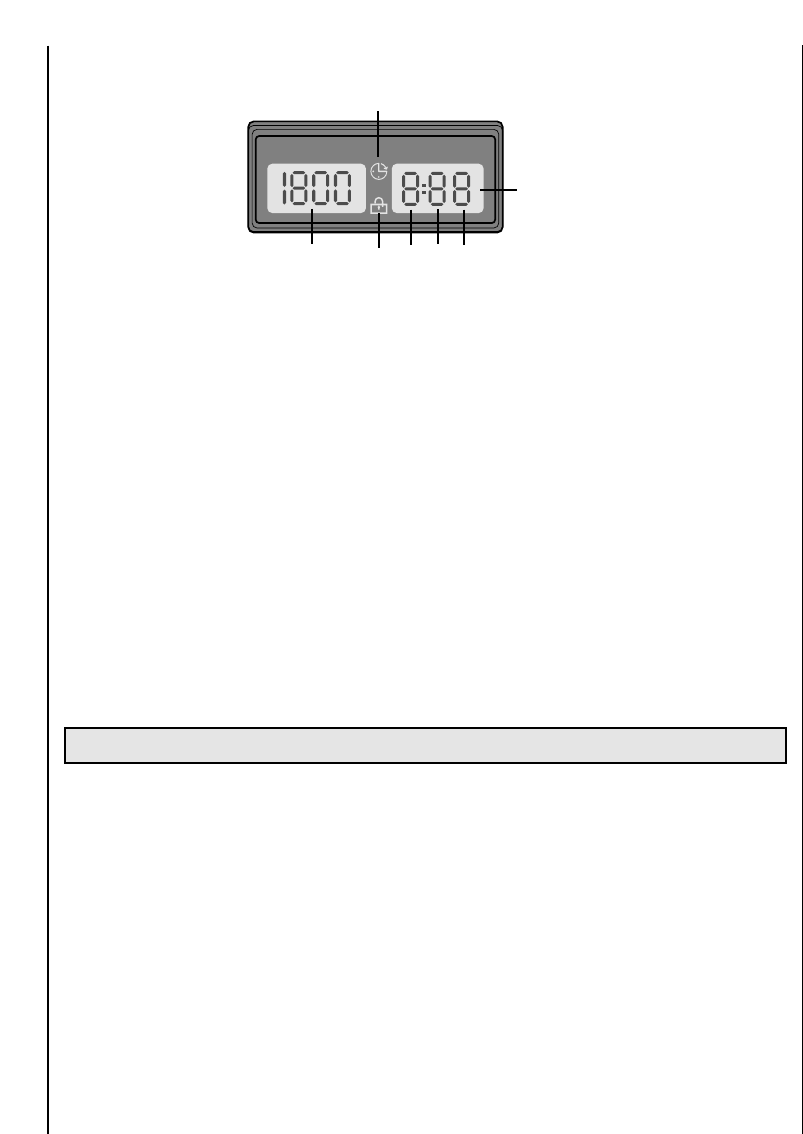

“DIGITAL” Display
The display’s indicator system allows you to be constantly informed about the status of the
machine:
1) SPIN SPEED
Once the programme has been selected, the maximum spin speed allowed for that
programme appears on the display. Pressing the spin button will reduce the speed by 100
rpm each time the button is pressed. The minimum speed allowed is 400 rpm, or it is
possible to omit the spin by pressing the spin button repeatedly.
2) DELAY START LIGHT
This flashes when delay start has been set.
3) “DOOR SECURITY” indicator light
The “Door Security” indicator light is illuminated when the door is fully closed and the machine is ON.
When "Start/Pause" is pressed on the machine with the door closed the indicator will flash
momentarily and then illuminate.
If the door is not closed the indicator will continue to flash.
A special safety device prevents the door from being opened immediately after the end of the cycle.
Wait for 2 minutes after the wash cycle has finished and the “Door Security” light has gone out
before opening the door. At the end of the cycle turn the programme selector to "OFF" .
4) CYCLE DURATION
When a programme is selected the display automatically shows the cycle duration, which
can vary, depending on the options selected.
Once the programme has started you will be kept informed constantly of the time remaining
to the end of the wash.
The appliance calculates the time to the end of the selected programme based upon a
standard loading, during the cycle, the appliance corrects the time to that applicable to the
size and composition of the load.
H
3
1
4
2
hmm
![](asset-b.png)
11

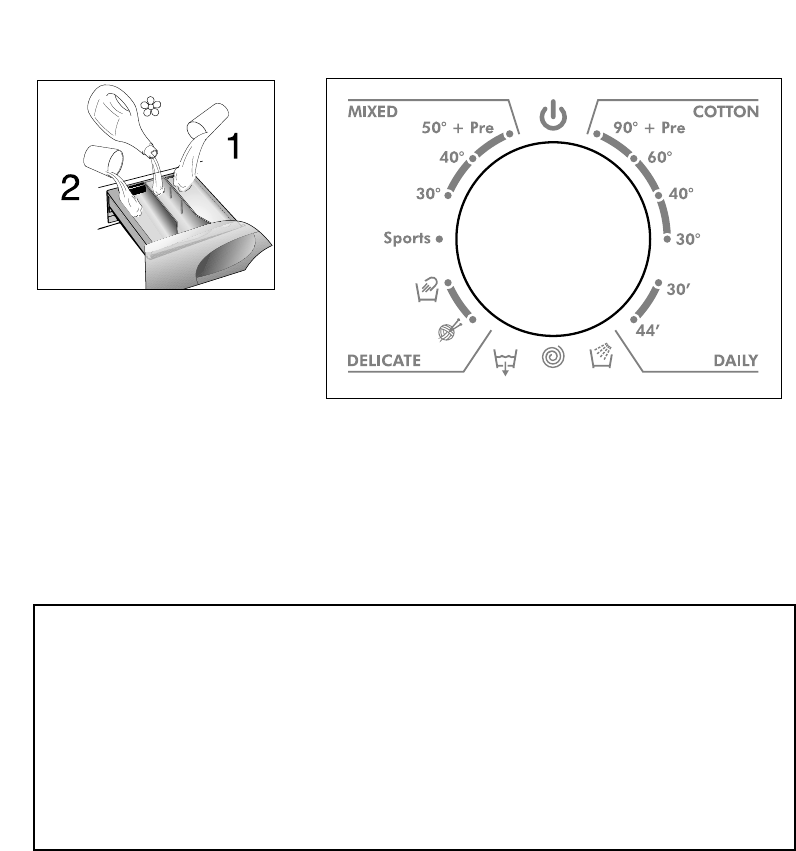

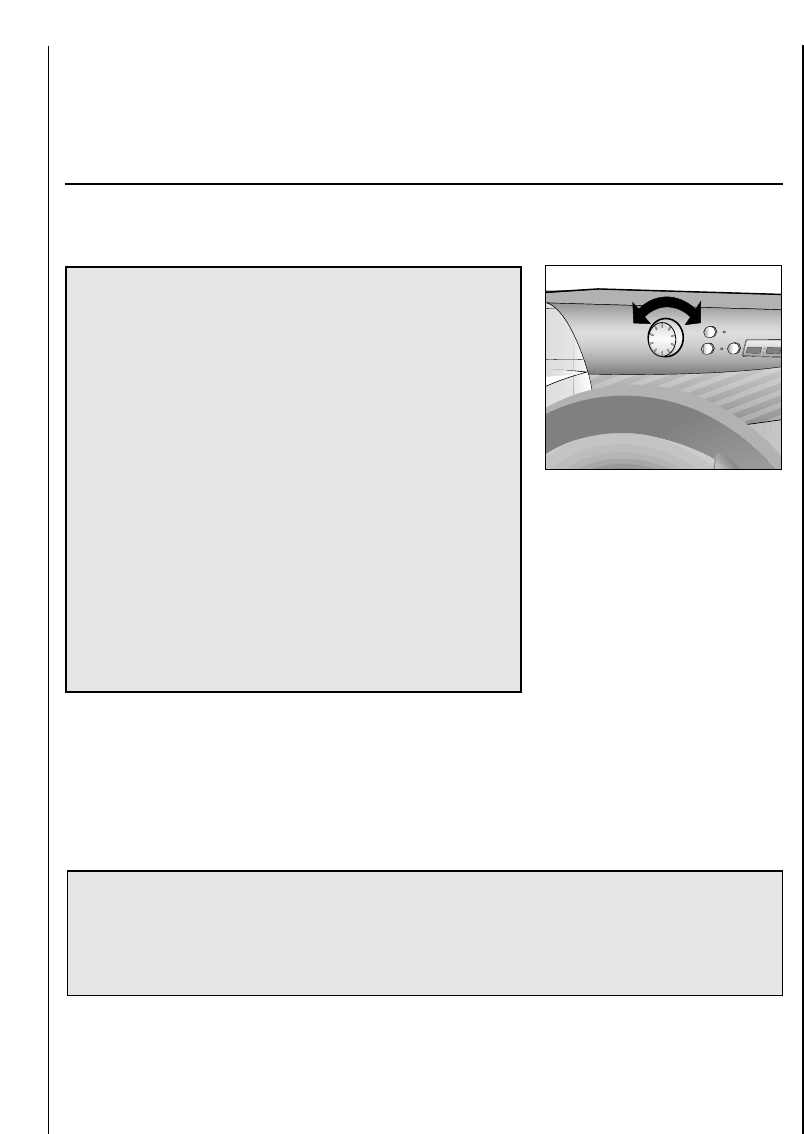

PROGRAMME selector with "OFF" position
WHEN THE PROGRAMME
SELECTOR IS TURNED THE
DISPLAY LIGHTS UP TO SHOW
THE SETTINGS FOR THE
PROGRAMME SELECTED.
FOR ENERGY SAVING, AT THE
END OF THE CYCLE OR WITH AN
INACTIVITY PERIOD, THE
DISPLAY LEVEL CONTRAST WILL
DECREASE.
N.B. TO SWITCH THE MACHINE
OFF, TURN THE PROGRAMME
SELECTOR TO THE “OFF”
POSITION.
Press the "Start/Pause" button to start the selected cycle.
Once a programme is selected the programme selector remains stationary on the selected
programme till cycle ends.
Switch off the washing machine by turning the selector to "OFF".
Note:
The programme selector must be returned to the "OFF" position
at the end of each cycle or when starting a subsequent wash
cycle prior to the next programme being selected and started.
N
Buttons indicator light
These light up when the relevant buttons are pressed.
If an option is selected that is not compatible with the selected programme then the light on
the button first flashes and then goes off.
M
![](asset-c.png)
12
90°
60°
40°
30°
30°
40°
-
-
-
40°
30°
30°
30°
40°
50°
21
●●●
●●
●●
●●
●●
●●
●
●●
●●
●●
●●
●●
● ● ●
7
7
7
7
2
3
-
-
-
1,5
1
2,5
3,5
3,5
3,5
**
**
8
8
8
8
2,5
3,5
-
-
-
2
1,5
2,5
4
4
4
Whites
with Prewash
Fast coloureds
Fast coloureds
Non fast coloureds
Resistant or Mixed
fabrics
Resistant or Mixed
fabrics
Rinse
Fast spin
Drain only
“MACHINE
WASHABLE”
woollens
Hand wash
Mixed fabrics
Shirts
Non fast coloureds
Fast coloureds
with Prewash
TEMP.
°C
WEIGHT
MAX
kg*

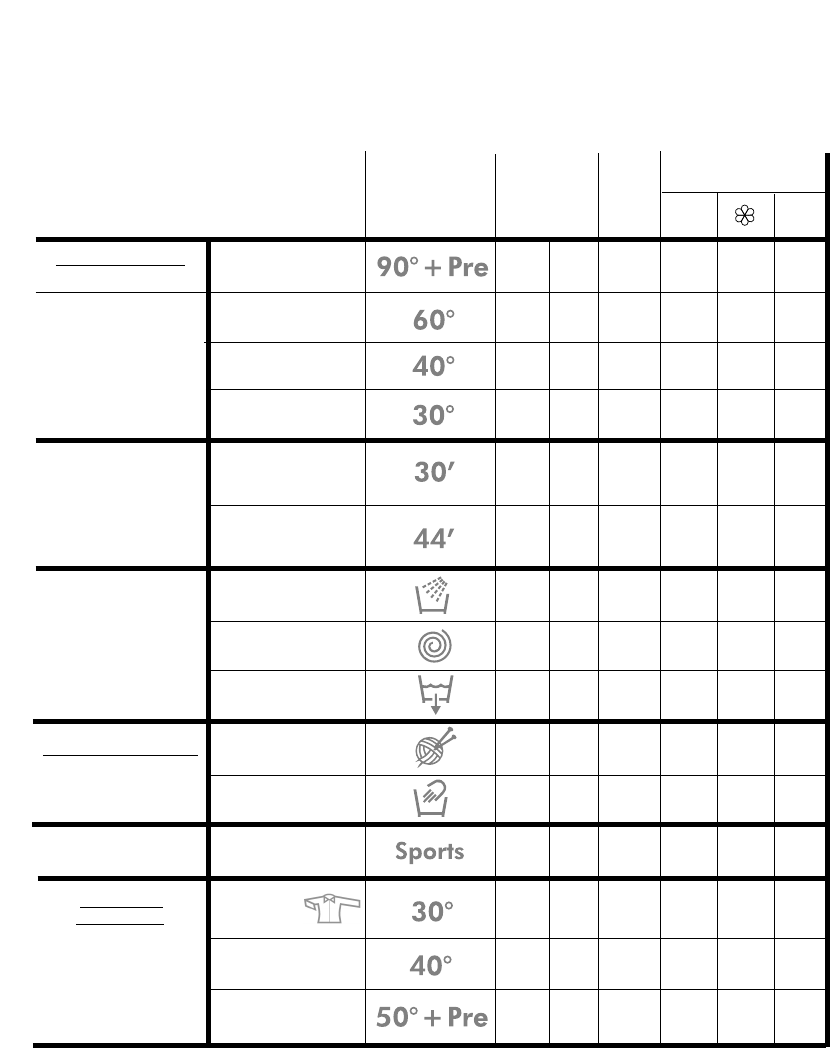

TABLE OF PROGRAMMES
Resistant fabrics
Cotton, linen
Cotton, mixed
Daily
Very delicate fabrics
Mixed fabrics
and synthetics
Synthetics (nylon,
perlon), mixed cotton
CHARGE DETERGENT
PROGRAMME
SELECTOR
ON:
PROGRAM FOR:
Specials
![](asset-d.png)
13
Please read these notes
* Maximum load capacity of dry clothes, according to the model used (see rating
plate).
When washing heavily soiled laundry it is recommended the load is reduced to 3/4 kg
maximum.
** STANDARD COTTON PROGRAMMES ACCORDING TO (EU) No 1015/2010 and
No 1061/2010
COTTON PROGRAMME with a temperature of 60°C
COTTON PROGRAMME with a temperature of 40°C
These programmes are suitable to clean normally soiled cotton laundry and they are the most
efficient programmes in terms of combined energy and water consumptions for washing
cotton laundry.
These programmes have been developed to be compliant with the temperature on the wash
label on the garments and the actual water temperature may slightly differ from the declared
temperature of the cycle.
The spin speed may also be reduced, to match any guidelines suggested on the
fabric label, or for very delicate fabrics cancel the spin completely this option is
available with a spin speed button.
![](asset-e.png)
14
Programme selector
For the various types of fabrics and various degrees of dirt the washing machine has
different programme bands according to: wash cycle, temperature and lenght of cycle (see
table of washing cycle programmes).
RESISTANTS FABRICS
The Cotton programmes are designed for maximum washing and rinsing
efficiency. With spin cycles in between, the programme guarantees the
laundry is rinsed perfectly. The final spin cycle ensures laundry is spun dry
as much as possible up to the maximum speed.
The Cotton programme includes a Prewash cycle. This option is
particularly useful for really dirty loads and can be used independently of
the main wash programme. Additional detergent for the Prewash part of
the programme should be added to the first compartment of the soap
drawer labelled "I" (please refer to the section of this manual entitled
“Detergent”). We recommend you use only 20% of the quantity used for
the main wash programme.
DAILY WASH 30°C – FAST 30’
A complete washing cycle (wash, rinse and spin), able to wash in
approximately 30 minutes:
- a maximum load of 2/2,5 kg;
- lightly soiled fabrics (cotton and mixed fabrics)
We recommend, with this programme, a 20% detergent loading dose
(compared to the normal one), in order to avoid detergent waste.
DAILY WASH 40°C – FAST 44’
A complete washing cycle (wash, rinse and spin), able to wash in
approximately 44 minutes:
- a maximum load of 3/3,5 kg;
- lightly soiled fabrics (cotton and mixed fabrics)
We recommend, with this programme, a 30% detergent loading dose
(compared to the normal one), in order to avoid detergent waste.
SPECIAL “RINSE” PROGRAMME
This programme carries out three rinses with a intermediate spin
(which can be reduced or excluded by using the correct button). It can
be used for rinsing any type of fabric, eg. use after hand-washing.
SPECIAL “SPIN” PROGRAMME
Programme “SPIN” carries out a maximum spin (which can be reduced by
using the correct button).
![](asset-f.png)
15
DRAIN ONLY
This programme drains out the water.
WOOLMARK PROGRAMME
A programme dedicated to washing fabrics labelled with the woolmark .
The cycle comprises of alternate periods of activity and pauses. The
programme has a maximum temperature of 40° and concludes with 3
rinses and a short spin.
SPECIAL “HAND WASH”
This washing machine also has a gentle Hand Wash programme cycle.
This programme allows a complete washing cycle for garments specified
as “Hand Wash only” on the fabric care label. The programme has a
temperature of 30°C and concludes with 3 rinses and a slow spin.
SPORTS
Hoover has given sports items their own wash care programme.
The washing machine has a unique Sportswear programme. It is specially
designed to wash mixed sportswear fabrics that cannot be washed on
hotter programmes and is designed to remove the soil and staining created
by participation in sports activities. This programme washes at a cool 30°C,
rinses and spins slowly for the best care of your heavily soiled, delicate
garments.
MIXED AND SYNTHETIC FABRICS
The main wash and the rinse gives best results thanks to the rotation
rhythms of the drum and to the water levels.
A gentle spin will mean that the fabrics become less creased.
![](asset-10.png)
16
Auto half load
The washing machine is fitted with a self adjusting water level system.
This system enables the machine to use the amount of water needed to wash and rinse the
laundry in relation to the particular load.
This results in a reduction of the water and electricity used, without in any way compromising
the washing and rinsing performance.
In fact the amount of water and electricity used will always be appropriate for the clothes load.
The washing machine automatically ensures excellent washing results at minimum cost whilst
respecting the environment .
![](asset-11.png)

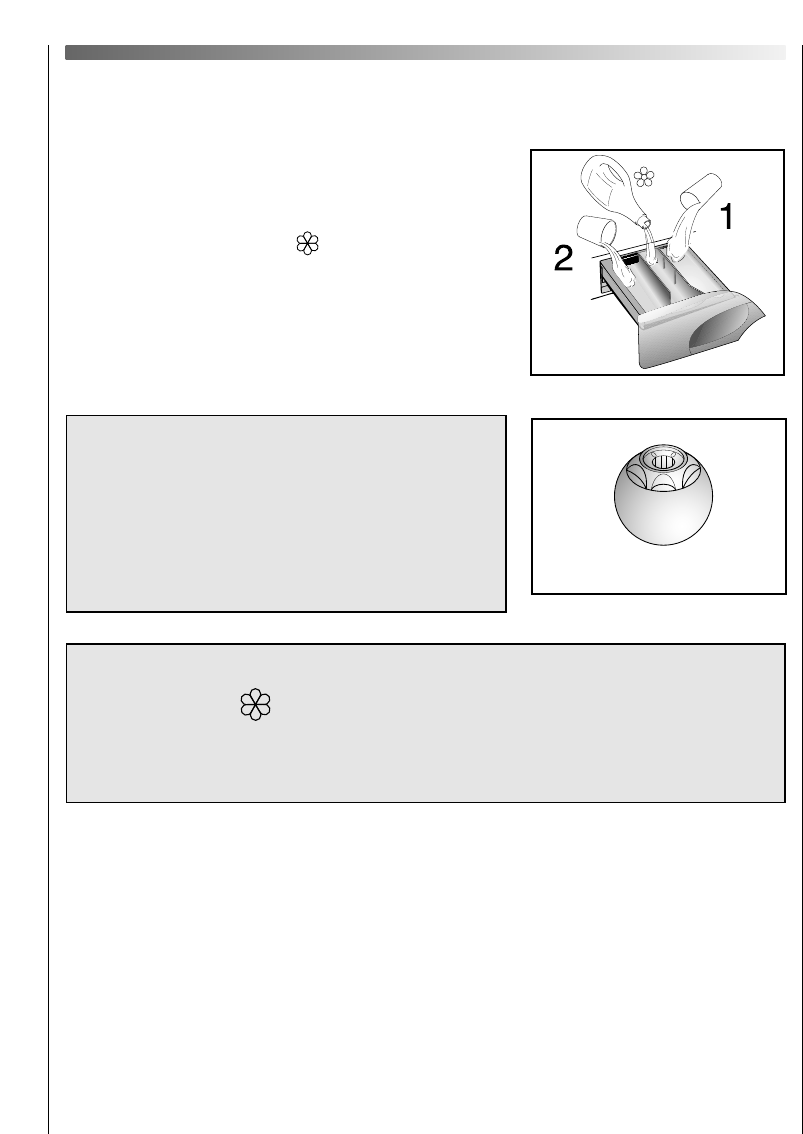

Detergent drawer

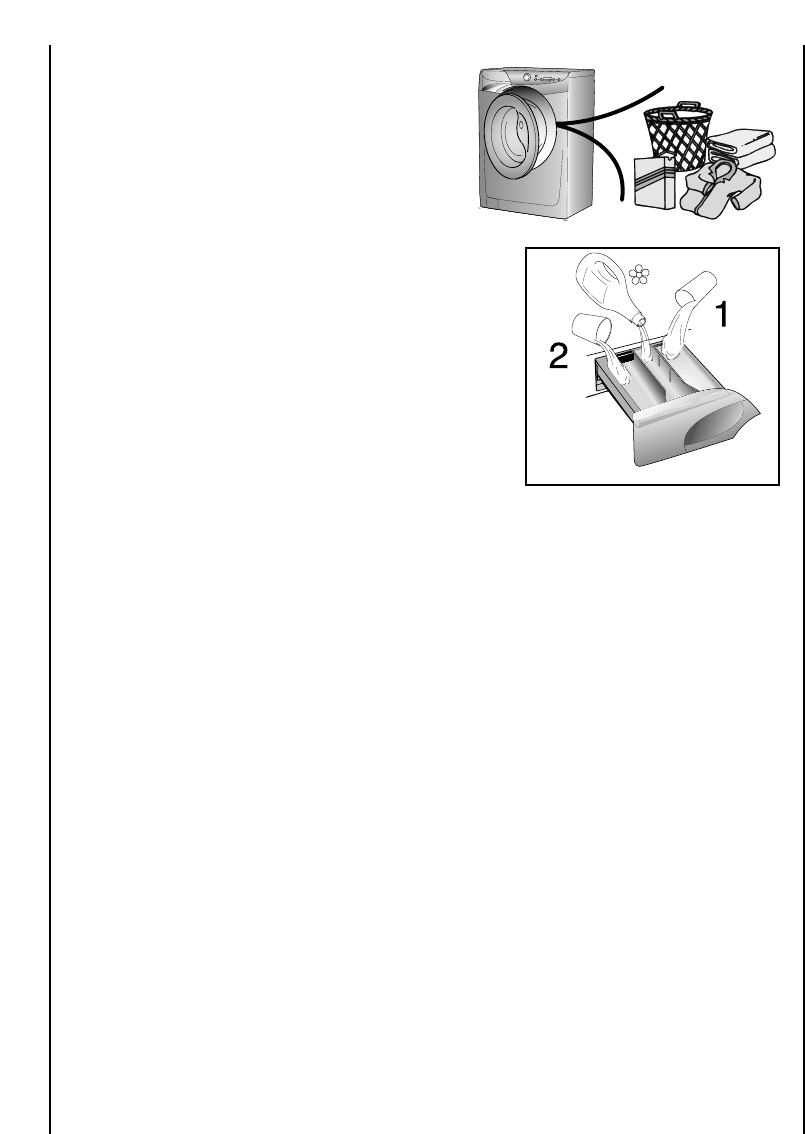

The detergent drawer is split into 3 compartments:
- the compartment labelled "1" is for prewash detergent;
- the compartment labelled " " is for special additives,
fabric softeners, fragrances, starch, brighteners etc;
- the compartment labelled "2" is for main wash
detergent.
NOTE:
Some Detergents are Difficult to
utilise. Ensure to use an in drum
dispenser if recommended by
the detergent Manufacturer.
Note: only put liquid products in the compartment
labelled “ ”. The machine is programmed to
automatically take up additives during the final rinse
stage for all wash cycles.
P
17
![](asset-12.png)
Detergents, washing aids and amounts to use
Choice of detergent
General purpose detergents
- Powder detergents, for a thorough wash, with bleaching agent, particularly suitable for
use in hot wash programmes (60°C and over), for heavily soiled and stained laundry.
- Liquid detergents, particularly suitable for grease stains, such as greasy skin marks,
cosmetics and oil.
These detergents are not suitable for washing stained laundry, as they do not contain
bleach.
-Biological detergents, not all the products available give a really thorough wash.
Additional laundry aids
-Water softener, means less detergent can be used where water hardness is classed as
hard to very hard.
-Prewash substances, for the programmed treatment of stains prior to the main wash.
Using them means the subsequent wash can be at a low temperature or with bleach-free
detergents.
-Fabric softener, prevents static build-up in synthetic fabrics and softens fabrics.
If you own a tumble dryer, clothes are softened even without the use of a fabric softener.
Do not put solvents in the washing machine!
Keep detergents and other laundry products out of children’s reach.
Before pouring in the detergent check that there are no foreign bodies in the detergent
drawer.
Dosage details are usually shown on the detergent packaging. Follow those instructions.
18
![](asset-13.png)
Dosages
Only use detergents which are suitable for use in a washing machine.
You will obtain the best results from your wash with the minimum use of chemical products
and the best care for your laundry if you take into consideration the degree of soiling as well
as the type of detergent to choose.
The amount of detergent to use depends on:
- water hardness: depending on the hardness of the water and the type of detergent used, it
is possible to reduce the amount of detergent.
- the degree of soiling: it is possible to reduce the amount of detergent used depending on
the degree of soiling.
- amount of laundry: it is possible to reduce the amount of detergent when washing only a
small amount of laundry.
Dosage for powder detergent
For normal and low concentration detergents: for normally soiled laundry choose a
programme without prewash.
Put the detergent in compartment “2” of the drawer.
For heavily soiled laundry, choose a programme with prewash.
Put 1/4 of the detergent in compartment “1”, 3/4 in compartment “2” of the drawer.
When using water softeners, first put in the detergent, then add the softener to compartment “2”.
For highly concentrated detergents not in single dose format, follow what is shown on pack
exactly as regards type and amount of dosage.
To avoid the difficulty of checking if the detergent has been taken up, use the dosage aids
provided in the detergent packaging.
Liquid detergent dosage
Liquid detergents may be used in accordance with the instructions on the relevant
packaging, for all programmes without prewash, by using the special container which is
placed in the drum or, for those models that have it, in the special insert for liquid detergents.
19
![](asset-14.png)
Useful advice for users
Tips on using your domestic appliance in the most environmentally-friendly and economical
way
Do a full load in your washing machine
To prevent any possible waste of energy, water or detergent we recommend that you put a
full load in your washing machine, not exceed the recommended maximum load size.
Up to 50% energy saving can be made with one full load compared to two half load washes
When is prewashing really needed?
Only with particularly dirty loads!
Energy savings of 5 to 15% are made by not selecting the prewash option for normal soiled
laundry.
Which wash temperature should you choose?
Using stain removers before machine washing reduces the need to wash at temperatures
over 60°C.
Energy savings of up to 50% can be made by using a 60°C wash temperature rather than
90°C
20
![](asset-15.png)
Main wash
Sorting the laundry

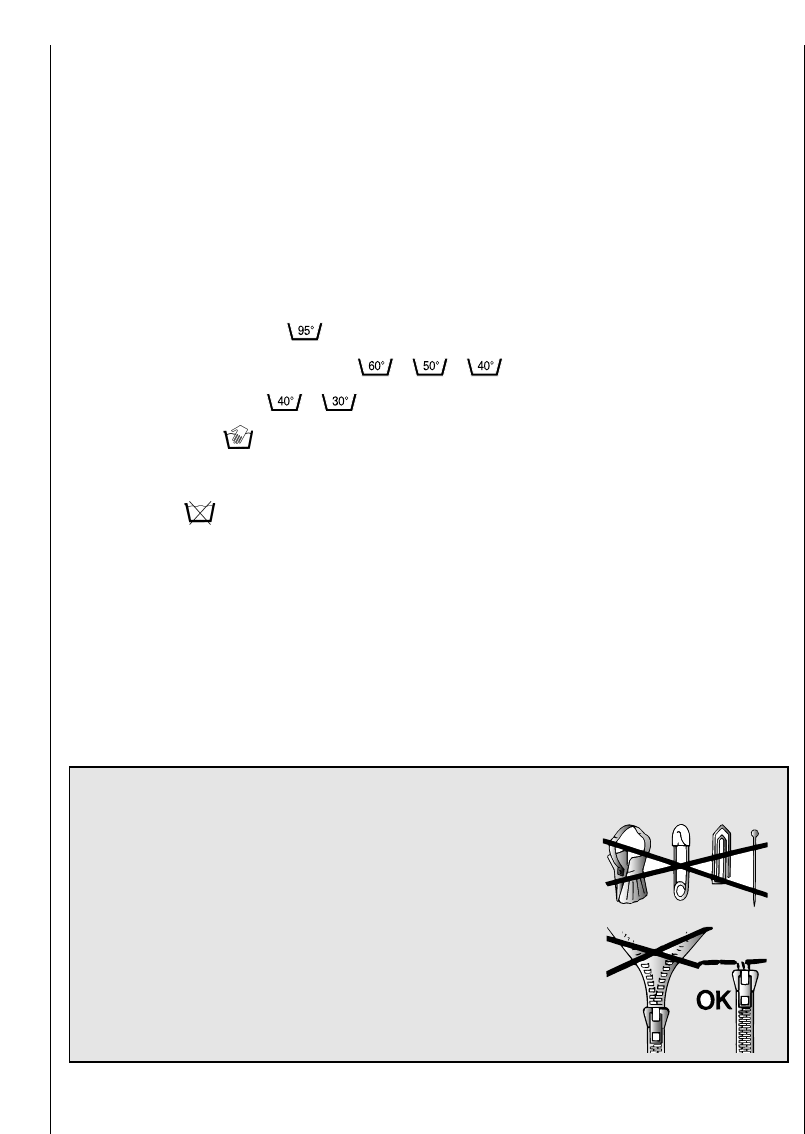

- It is recommended you wash only items which are machine washable with water and
detergent and not dry-clean items.
- If you need to wash rugs, bedspreads or other heavy items, it is best not to spin them.
- Sort the laundry according to fabric type, degree of soiling and wash temperature: Always
follow the wash care advice on the garment label for the most suitable care and
treatment of the laundry
Laundry for hot wash
Coloured, easy-care materials
Delicates and wool
Wash by hand
Items labelled with the following symbol are not suitable for machine washing:
Dry clean
For very delicate items, such as net curtains, underwear, tights etc., you are advised to
use a laundry net or wash bag.
- Woollen items must be labelled with the "Pure New Wool" symbol to be washed in the
machine, and must also be labelled "non-matting" or "machine washable".
- Colour often leaks from new coloured items.
This can then colour other lighter items being washed.
We therefore recommend that coloured items should be washed for the first time
separately.
For future washes, colourfast items can only be washed with whites up to 40°C.
Note: when sorting laundry
- check there are no metal objects in the laundry
(such as paper clips, safety pins, pins, coins
etc...);
- button up pillowcases, fasten zips, hook & eye
fasteners, belts and long dressing gown cords;
- remove curtain hooks;
- pay close attention to the labels on items
- if you notice stubborn stains whilst sorting the
laundry, remove them using a special detergent or
a special stain remover.
- We recommend that you do not do a full load of towelling items only as these become too
heavy since they absorb a lot of water.
21
![](asset-16.png)
The correct way to wash
Preparing the laundry
A) Select the laundry.
Loading the laundry
B) Open the porthole.
C) Put the laundry in the washing machine.
Close the porthole again, ensuring that no items of
laundry are obstructing the lock.
Putting detergent in machine
D) Open the drawer, choose the detergent and put in
the correct amount, according to the manufacturer’s
instructions and the advice on page 18.
Add any other laundry aids (see page 18). Close the
drawer again.
Selecting the wash programme
Refer to the programme guide or the programme descriptions on the machine to select the
most suitable programme.
Turning the selector knob, the required programme is activated.
Press additional function buttons (if required).
Check that the tap is turned on and that the discharge hose is positioned correctly.
Press the "Start/Pause" button.
When the "Start/Pause" button is pressed the machine sets the working sequence in motion.
The programme carries out with the programme selector stationary on the selected
programme till cycle ends.
Warning: If there is any break in the power supply while the machine is operating, a special
memory stores the selected programme and, when the power is restored, it continues where
it left off.
When the programme is finished
The word “End” will appear on the display.
Wait for the door lock to be released (about 2 minutes after the programme has finished).
The "Door Security" indicator light will go out.
Switch off the machine by turning the programme selector on the “OFF” position. Open the
door and remove the laundry. Turn off the tap.
22
![](asset-17.png)
Cleaning and routine maintenance
Do not use alcohol-based scourers and / or thinners on the outside of your washing machine,
just a wipe with a damp cloth will suffice. The washing machine needs very little maintenance:
- Cleaning the drawer compartments.
- Cleaning the filter.
- Cleaning the door glass.
Cleaning the drawer compartments

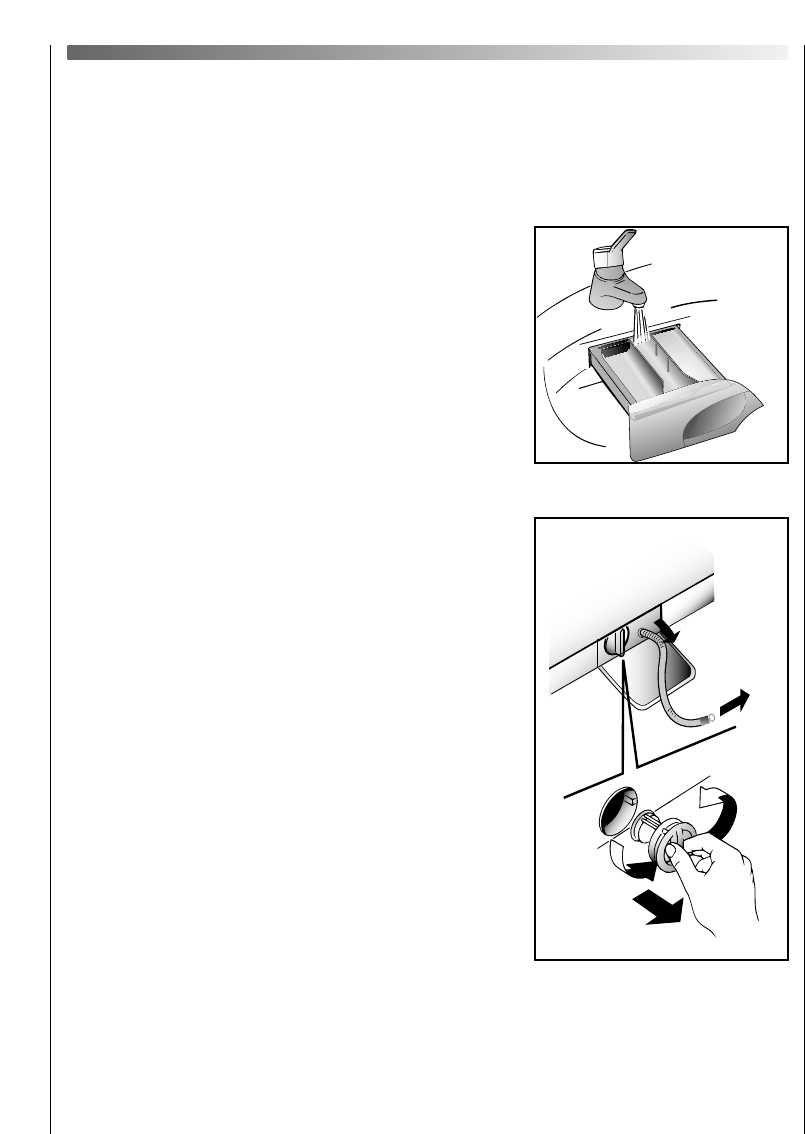

Even if it is not strictly necessary, it is good to clean the
compartments for bleaching detergents and additives
occasionally.
A) To do this you just need to pull them out firmly, but
without forcing them.
B) Clean everything in the compartment under running
water.
C) Put everything back in its proper place.
Cleaning the filter
The washing machine is fitted with a special filter for
handling large deposits which could block the discharge
hose (coins, buttons etc.) and which can, therefore, be
easily retrieved.
We recommend that the filter be cleaned at least
once a month.
The cleaning operation is as follows:
1) Open the flap
2) Only available on certain models:
Pull out the corrugated hose, remove the stopper and
drain the water into a container.
3) Before removing the filter, place an absorbent towel
below the filter cap to collect the small amount of
water likely to be inside the pump
4) Turn the filter anti-clockwise until it stops in the
vertical position.
Remove and clean.
5) After cleaning, replace by turning the notch on the
end of the filter clockwise. Then follow all procedures
described above in reverse order.
23
![](asset-18.png)
Cleaning the door glass
Regularly clean the door glass with a damp cloth. A build
up of soiling and
residues from the water may result in water leaking from
the door.
Do not use abrasive cleaners as they can scratch the
surface.
Transporting the appliance or long
periods when appliance is not in
use

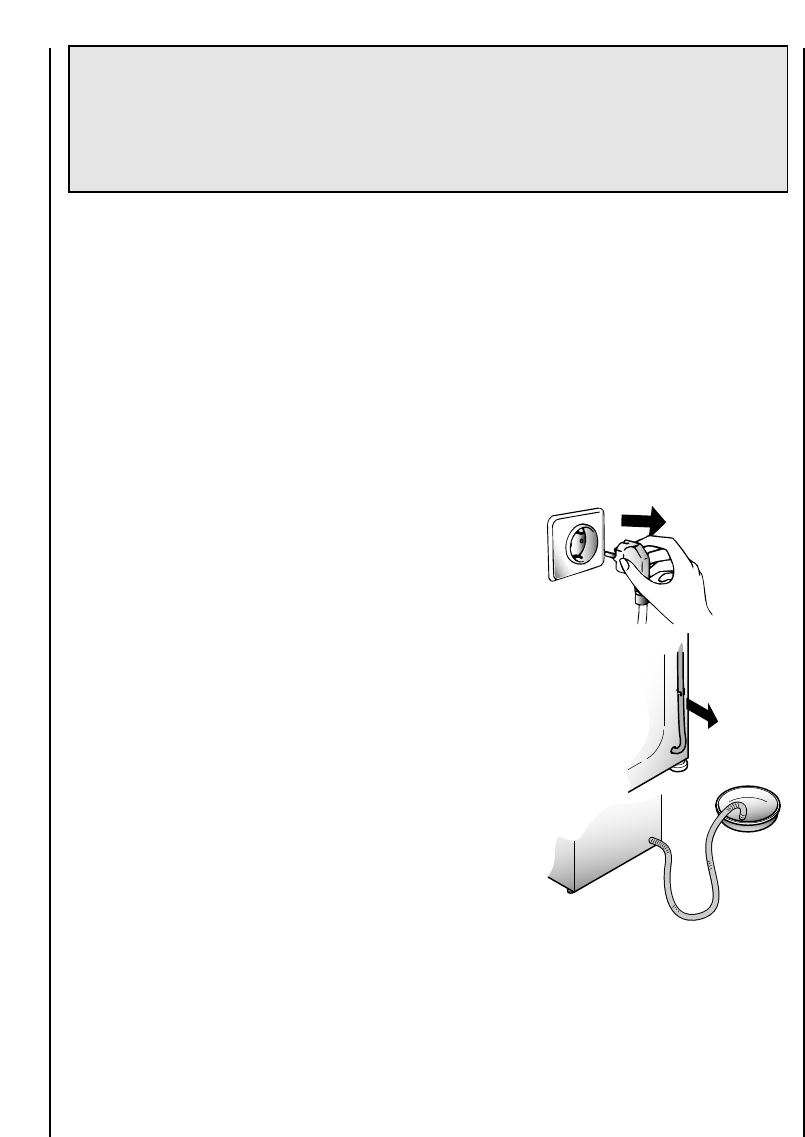

If the appliance is being transported or is out of use for
long periods in unheated places, all remaining water
must be completely removed from the hoses.
Ensure mains power is off, then unclip the hose and
point it downwards into a basin until all the water has
emptied out.
When finished, repeat the operation in the reverse order.
24
Attention: if the filter needs cleaning while there is
washing still in the drum, follow the instructions on the
following page to empty the water. This will prevent
excessive loss of water via the filter.
![](asset-19.png)
Investigating malfunctions
What might be the cause of…
Defects you can remedy yourself
Plug not in socket.
Not switched on.
Power failure.
Fuse blown.
Door open.
See cause 1.
Tap turned off.
Programme selector not correctly
positioned.
Fill hoses are kinked
Kink in discharge hose.
Foreign bodies in filter
House drain is blocked
Leaking gasket between tap and water
inlet hose.
House drain is blocked
Soap drawer blocked with soap residues
Water has not yet drained away.
"No spin" selected (certain models only).
Washing machine not completely level.
Transit brackets not removed yet.
Load not distributed evenly.
Two minutes have not elapsed since the
programme finished.
–
No water fill.
No pump out.
Machine overfilled with water.
MALFUNCTION CAUSE REMEDY
1. Does not work on any
programme
2. Does not fill with water
3. Water does not drain
away
4. Water on floor around
the washing machine
5. Does not spin
6. Machine vibrates a lot
during spin
7. Door will not open
8. Display reads error
0, 1, 5, 7, 8, 9
9. Display reads error 2
10. Display reads error 3
11. Display reads
error 4
Plug it in.
Switch on.
Check.
Check.
Close door.
Check.
Turn on tap.
Position programme selector
correctly.
Straighten fill hoses
Straighten discharge hose.
Examine filter (see pages 23-24)
Clean drain
Replace gasket and tighten hose and
tap well.
Clean drain
Clean soap drawer
Wait a few minutes for machine to empty.
Reset button or turn "no spin" knob.
Adjust the special adjustable feet.
Remove transit brackets.
Rearrange the laundry evenly.
Wait two minutes.
Call service.
Check water supplies are on.
Check drain is clear.
Check drain hose is not kinked.
Turn off water supply to machine.
Call service.
The machine makes a
different noise when
spinning! This is because it
has a brush motor for better
performance.
Only a small level of water can be
seen in the drum! This is because
new machines do not use much
water, yet achieve the same
standard of washing and rinsing.
25
![](asset-1a.png)
Note:
The use of environmentally-friendly, phosphate-free detergents can have the following effects:
- waste water from rinsing may be cloudier because of the presence of zeolites held in
suspension, without the rinse performance being adversely affected;
- presence of white powder (zeolites) on laundry after washing, which is not absorbed by
the fabric and does not alter the colour of the fabric.
- The presence of foam in the final rinsing water is not necessarily an indication of poor
rinsing.
- Anionic surfactants used in washing detergent formulae often prove to be difficult to
remove from the laundry itself and, even in small quantities, can still cause considerable
foam production.
- Carrying out more rinse cycles does not serve any purpose in such cases.
CUSTOMER SERVICE AND GUARANTEE
Your new appliance is fully guaranteed by the manufacturer for 12 months against
electrical/mechanical breakdown excluding:
A. Any faults which occur due to bad installation or misuse of the machine.
B. Any faults which occur due to repair of, or interference with, the machine by any person
not authorised by the manufacturer to carry out service.
C. Any faults which arise from parts fitted to the machine which are not the manufacturers
original parts.
D. Any faults arising from non-domestic use or unusual or abnormal use of the machine.
E. Any faults arising from operation at an incorrect voltage.
F. Any faults arising from incorrect operation of the machine.
The guarantee applies to Gt. Britain and Northern Ireland only, and is an addition to your
statutory rights.
After Sales Service
If, having investigated the possible malfunctions on the chart on the previous page, you
believe the appliance is not working correctly, please call our After Sales Service dept. on
telephone number:
26
Gias Service - Tel: 08444 995599
Support Service (Eire 0818 200021)
![](asset-1b.png)
Appliance complies with European Directives 73/23/EEC and 89/336/EEC, replaced by
2006/95/EC and 2004/108/EC, and subsequent amendments.
Technical data
■
Max. load of dry laundry
■
Water pressure
Measurements
■
Width
■
Depth
■
Height

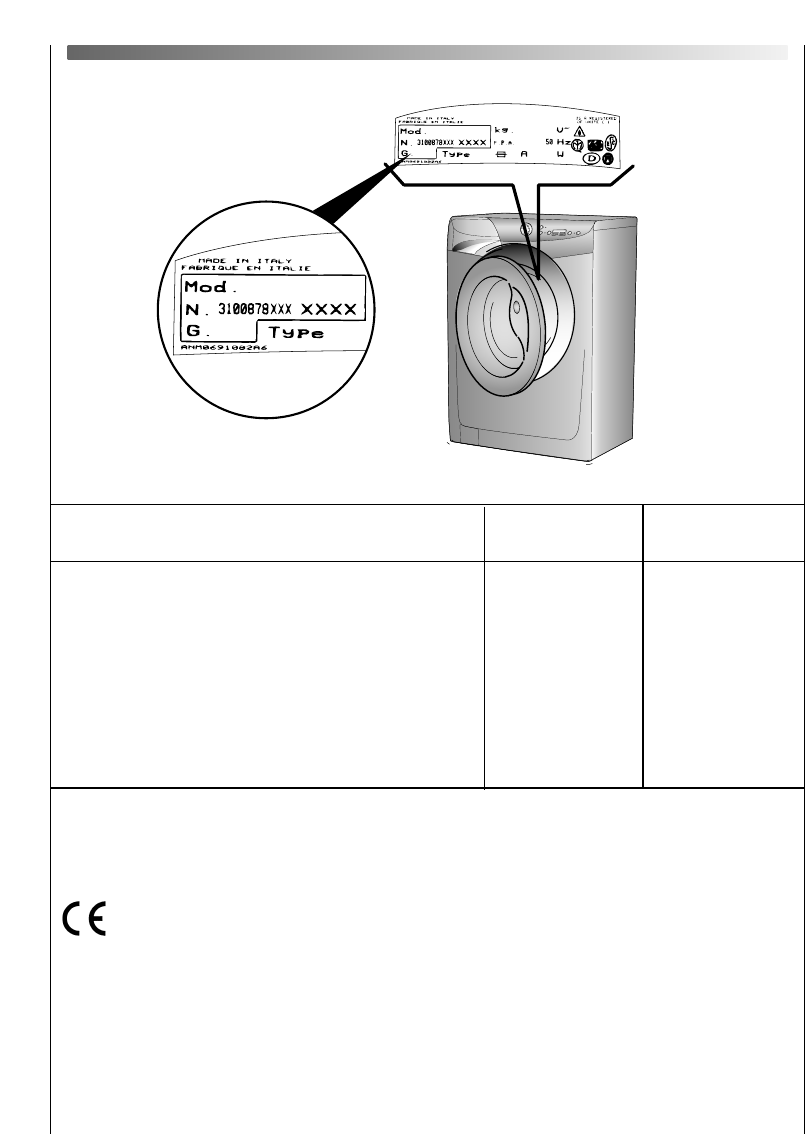

NB: For specifications regarding electrical data, see the data panel on the front of the washing
machine (porthole area) - as shown in diagram above.
Fig. 2
27
8 kg
0,05 ÷ 0,8 MPa
60 cm
52 cm
85 cm
7 kg
0,05 ÷ 0,8 MPa
60 cm
52 cm
85 cm
![](asset-1c.png)
SETTING UP + INSTALLATION

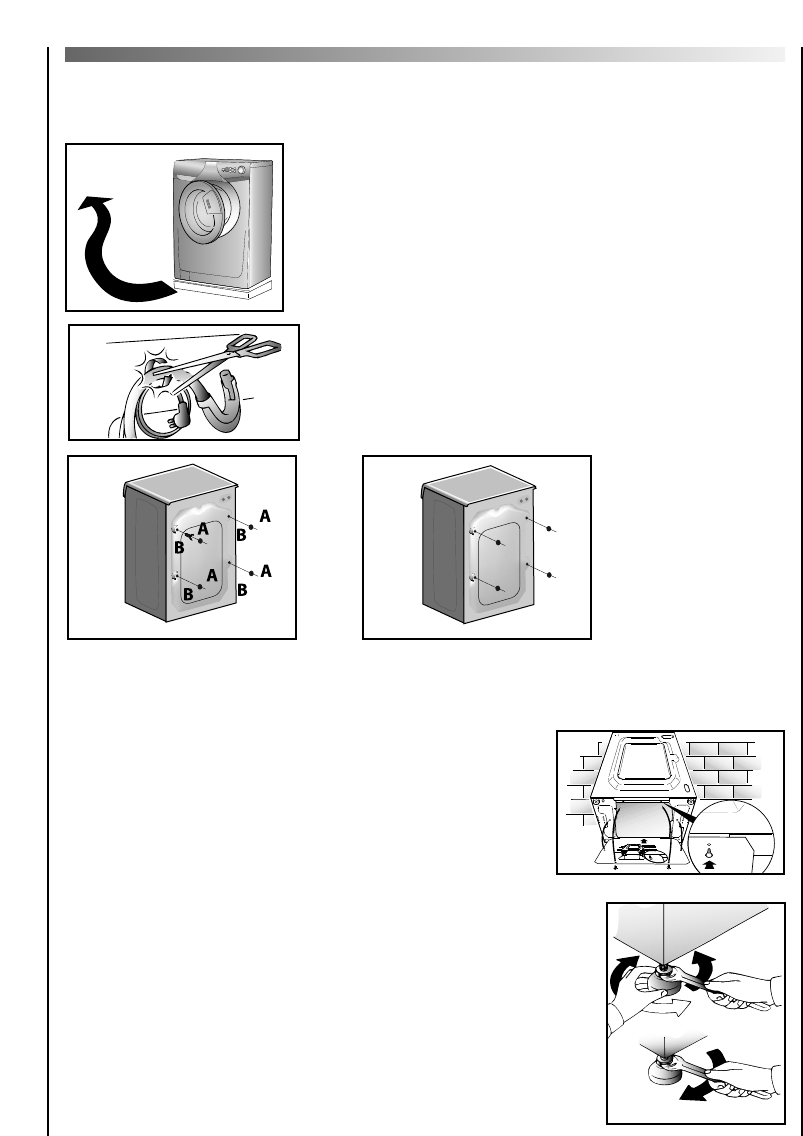

Remove the polystyrene base and place the machine near
its permanent position (diagram 1).
Carefully cut through the hose retaining clip at the rear of
the appliance (diagram 2).
Remove the 2 or 4 fixing screws marked (A) and remove the
2 or 4 spacers marked (B) (diagram 3).
Cover the 2 or 4 holes using the caps provided in the
instruction booklet pack (diagram 4).
WARNING:
DO NOT LEAVE THE PACKAGING WITHIN REACH OF CHILDREN AS IT IS A POTENTIAL
SOURCE OF DANGER.
Apply the insulation sheet of corrugated material to the base
as shown.
Use the 4 feet to level the machine with the floor:
a) Turn the nut clockwise to release the screw adjuster on the foot.
b) Rotate the foot to raise or lower it until it stands firmly on the
ground.
c) Lock the foot in position by turning the nut
anti-clockwise until it comes up against the bottom of the machine.
A
B
C
1
2
34
28
![](asset-1d.png)
Note: we recommend you keep the screws to
immobilise the machine for future transit.
The Manufacturers will not be responsible for any
possible damage to the machine caused by not
following the rules relating to releasing the mechanism.
The user is responsible for all costs of installation.
Water connection
The appliance must be connected to the water mains using new
hose-sets.
The old hose-sets should not be re-used.
The machine has an inlet hose with 3/4" B.S.P threaded end
connection to attach between the threaded connector on the
appliance and the cold water supply.
This machine only uses cold water, therefore
only one hose is needed to connect to the cold
water supply. Do not connect to the hot supply.
Cold fill is an energy efficient system. Only the
water required for the washing is heated.There
is no loss of heat in the pipeline from a hot
water tank or boiler to the machine.
29
min 50 cm
max 85 cm
+2,6 mt max
max 100 cm
min 4 cm
![](asset-1e.png)
Note: it is advisable to turn off the tap after each wash
to isolate the washing machine from the water supply.
For the washing machine to function properly the terminal end of the discharge hose (mouth)
must be at a minimum of 50 cm and a maximum of 85 cm from the ground.
ELECTRICAL CONNECTIONS
After installation, the appliance must be positioned so that the plug is accessible.
If the plug we supply does not fit
CUT IT OFF AND DESTROY IT!
You can’t use it on other appliances, and the exposed wires could be dangerous if plugged in.
To fit a replacement plug, proceed as follows:
Connect to the terminal in the plug
green and yellow wire marked with the letter E,
OR marked
with the symbol,
OR coloured green,
OR coloured green and yellow.
blue wire marked N
OR coloured black.
brown wire marked L
OR coloured red.
WARNING
This appliance must be earthed
Fuses and plugs
This appliance should be used only on a socket with a minimum rating of 13 Amp.
Our ready-fitted plug is already equipped with a 13 amp fuse which is BS 1362 ASTA
approved. Any replacement should be exactly the same.
If the fuse cover is lost, do not use the plug until it is replaced. A correct replacement fuse
cover (obtainable from your local retailer) must be the same colour as shown or named on
the insert on the base of the plug.
30
![](asset-1f.png)
The manufacturer declines all responsibility in the event of any printing mistakes in
this booklet. The manufacturer also reserves the right to make appropriate
modifications to its products without changing the essential characteristics.
![](asset-20.png)
This appliance is marked according to the European directive 2002/96/EC on Waste Electrical and Electronic
Equipment (WEEE).
By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the
environment and human health, which could otherwise be caused by inappropriate waste handling of this
product.
The symbol on the product indicates that this product may not be treated as household waste. Instead it shall
be handed over to the applicable collection point for the recycling of electrical and electronic equipment
Disposal must be carried out in accordance with local environmental regulations for waste disposal.
For more detailed information about treatment, recovery and recycling of this product, please contact your
local city office, your household waste disposal service or the shop where you purchased the product.
®
EN
12.05 - 43003232
