©2006 VERTEX STANDARD CO., LTD. EC044U90B
Rack Mount Repeater
VXR-9000 (UHF)
Service Manual
Specifications ...........................................................A-1
DSUB 25-pin Accessory Connector ...................... B-1

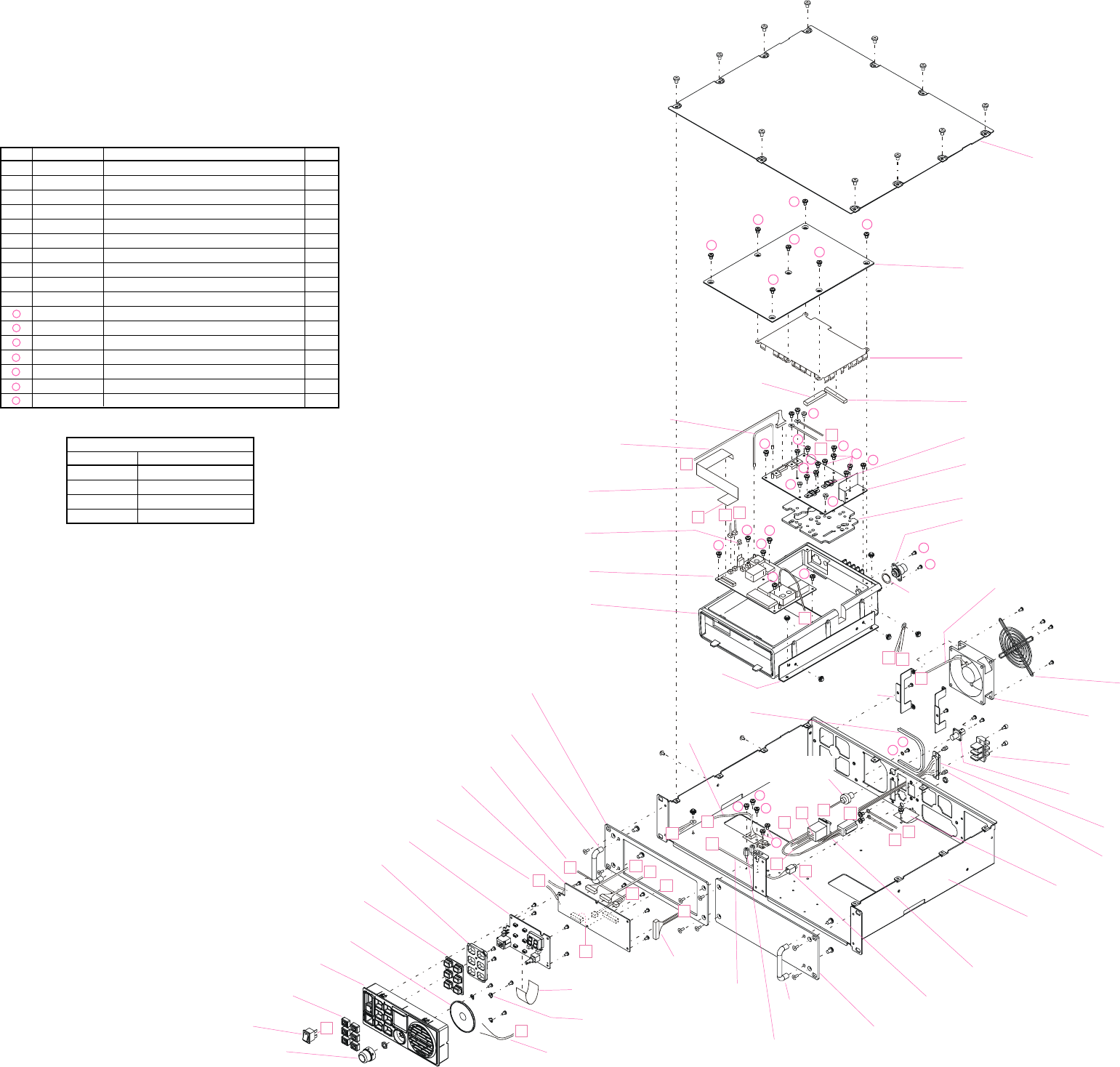

Exploded View & Miscellaneous Parts ............... C-1

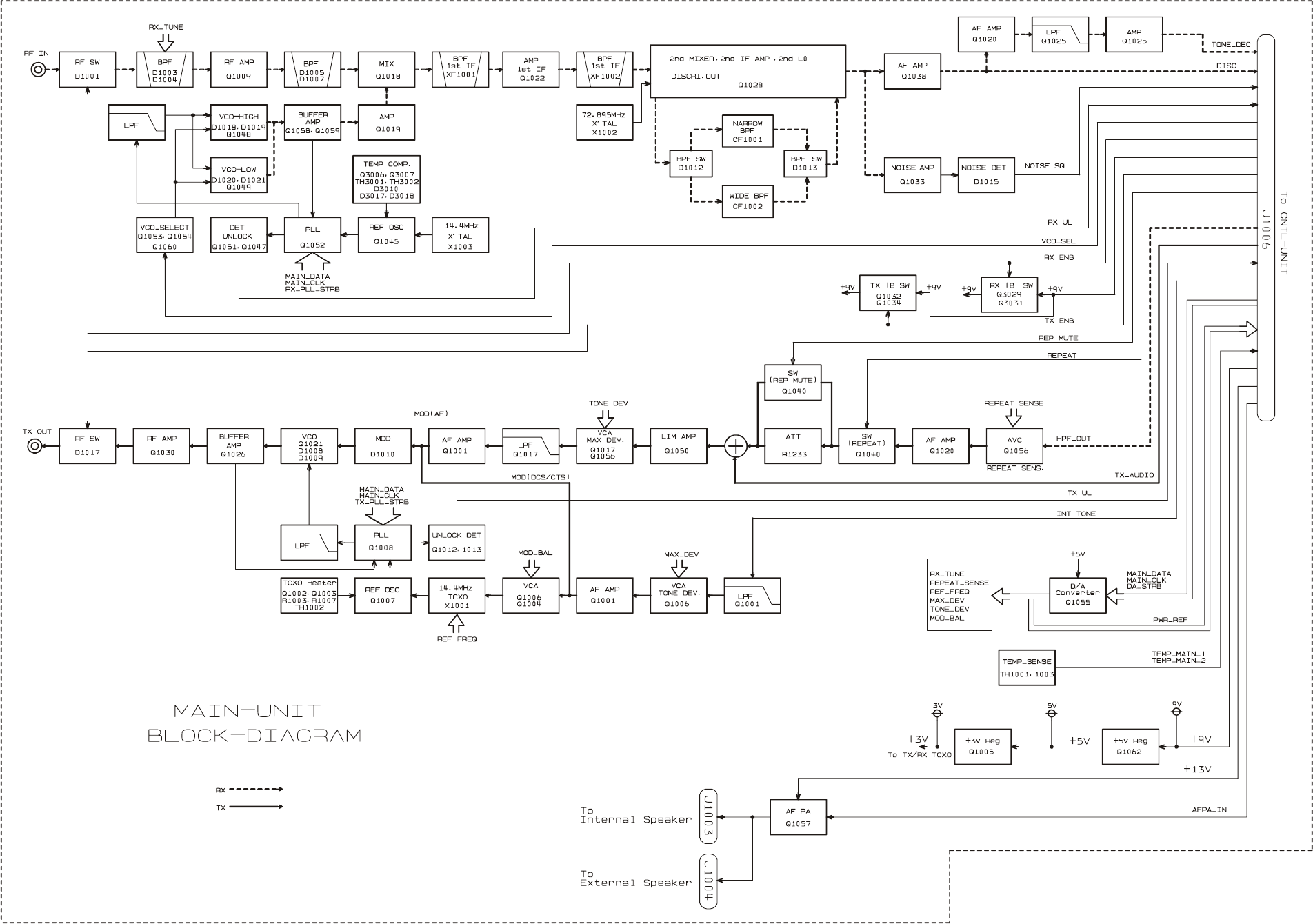

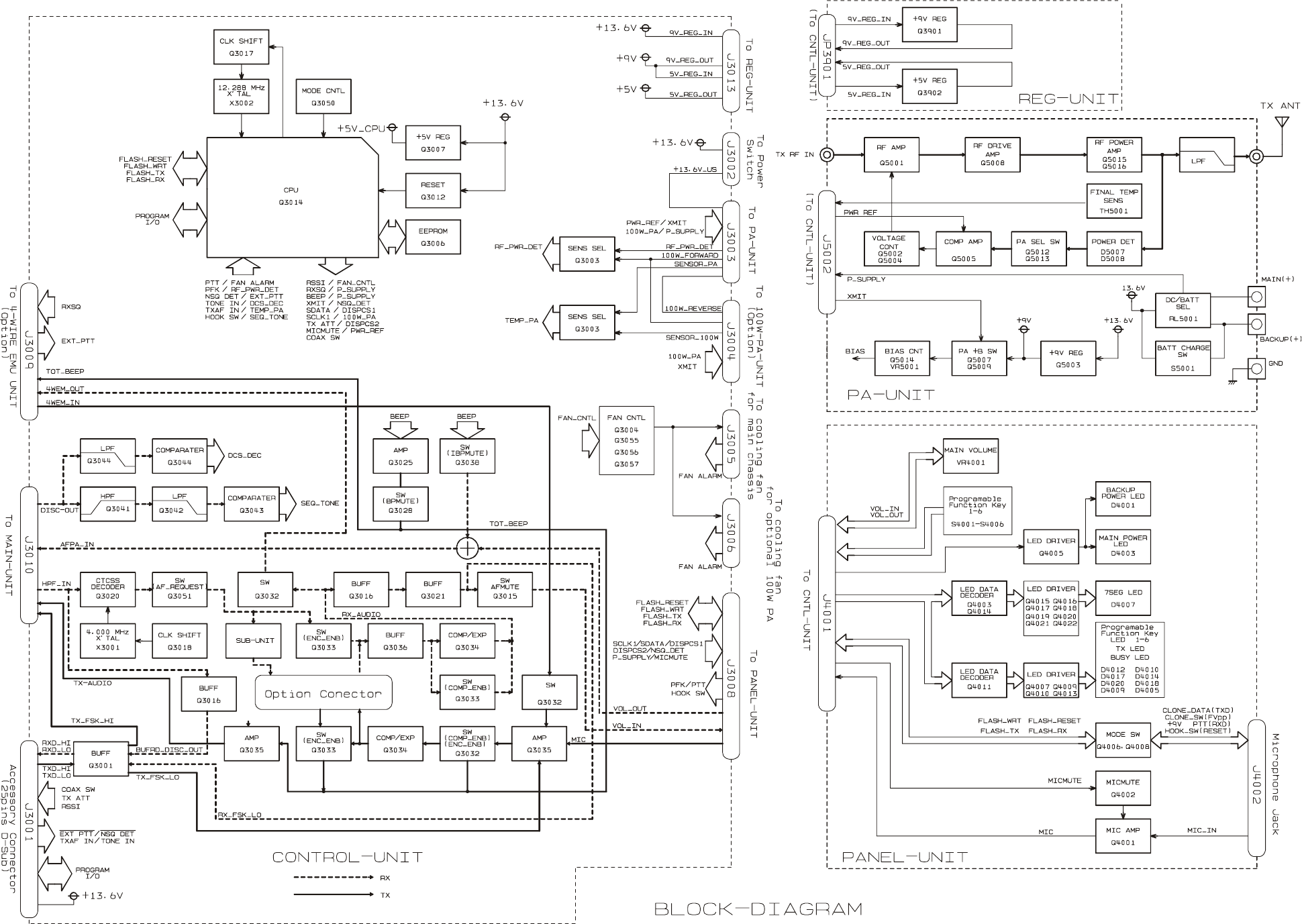

Block Diagram ......................................................... D-1

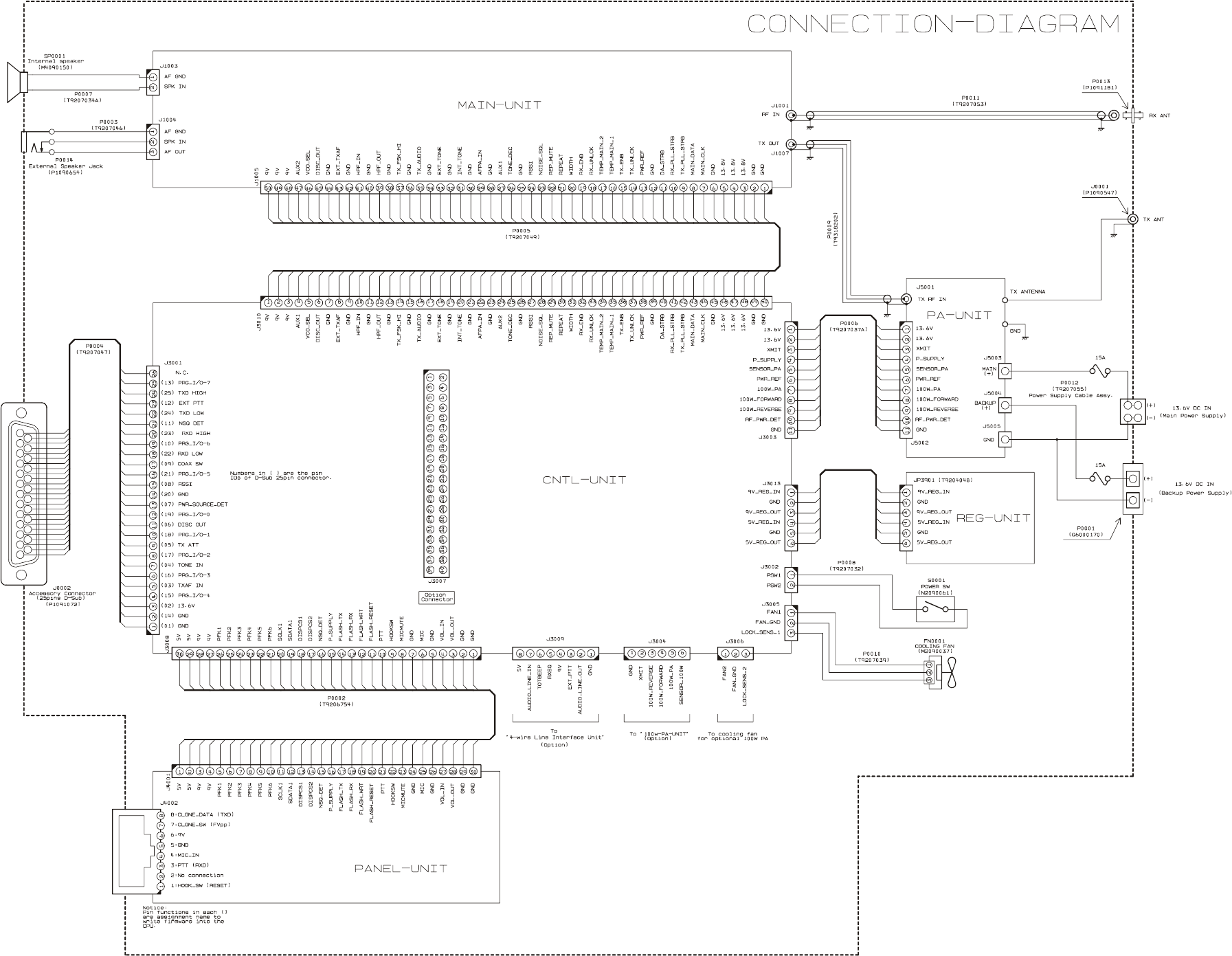

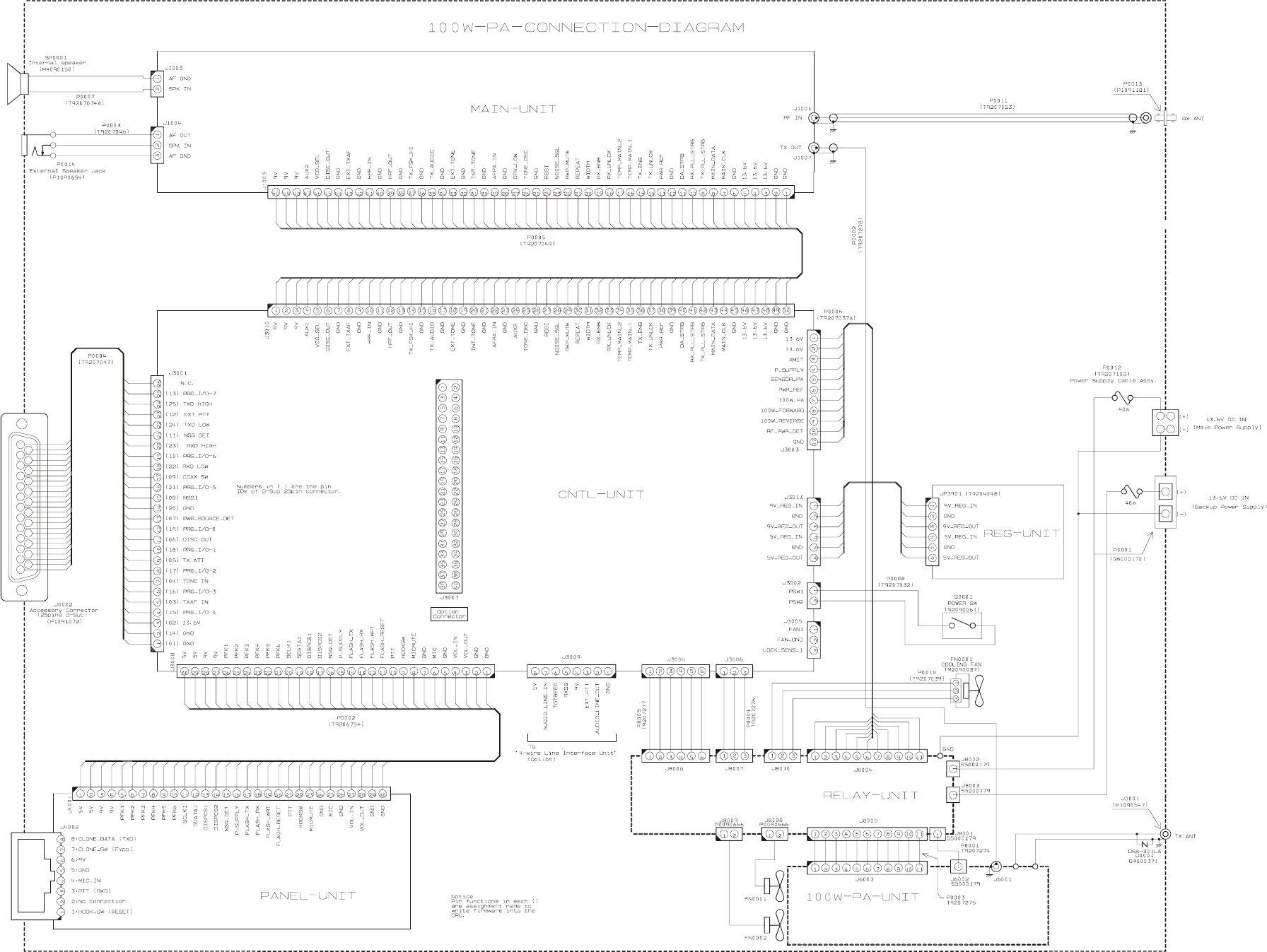

Connection Diagram ............................................... E-1
Circuit Description .................................................. F-1

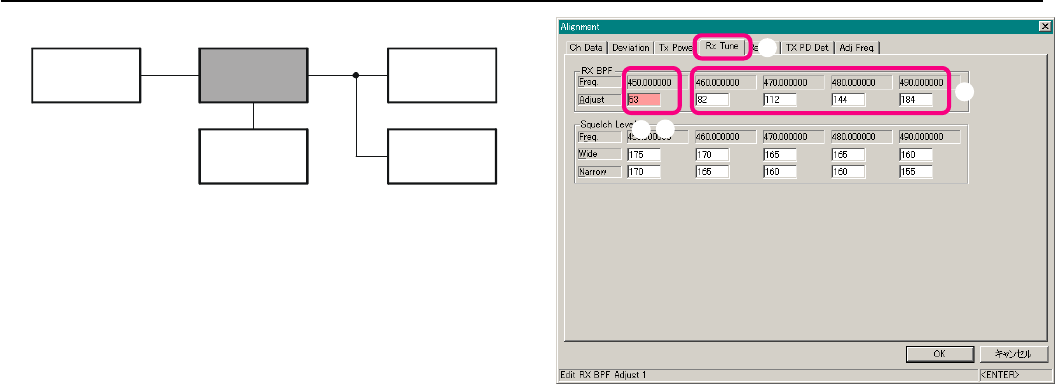

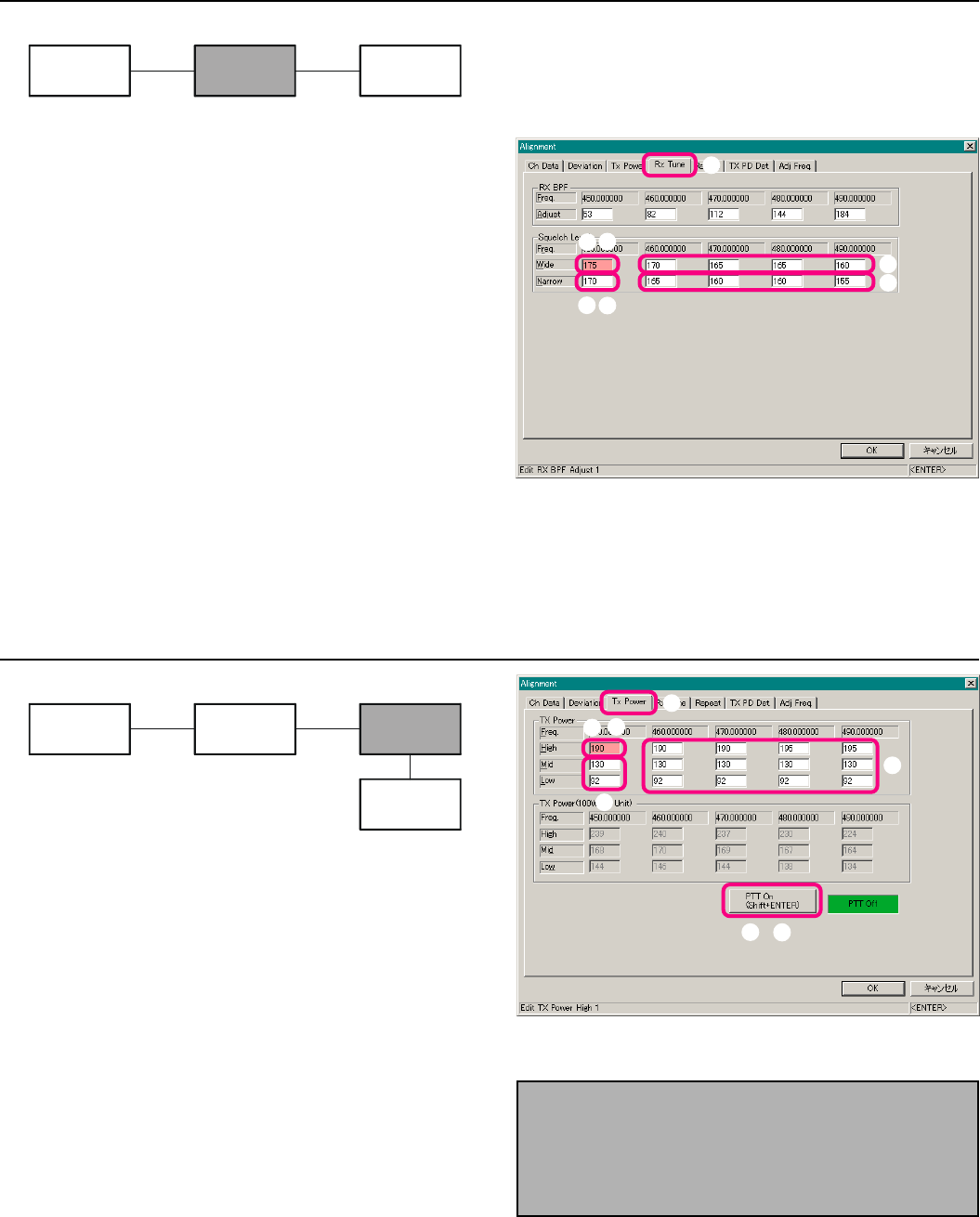

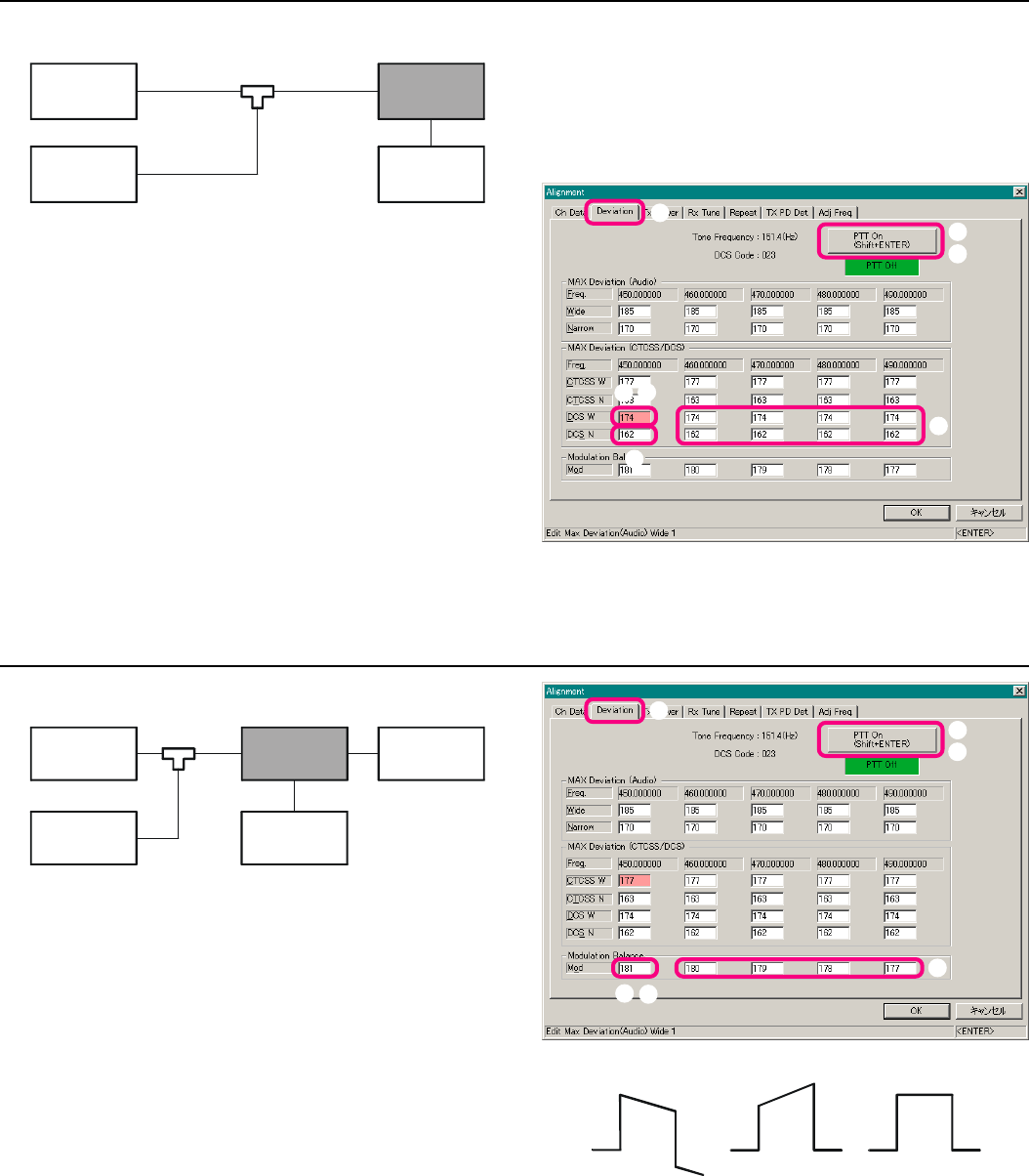

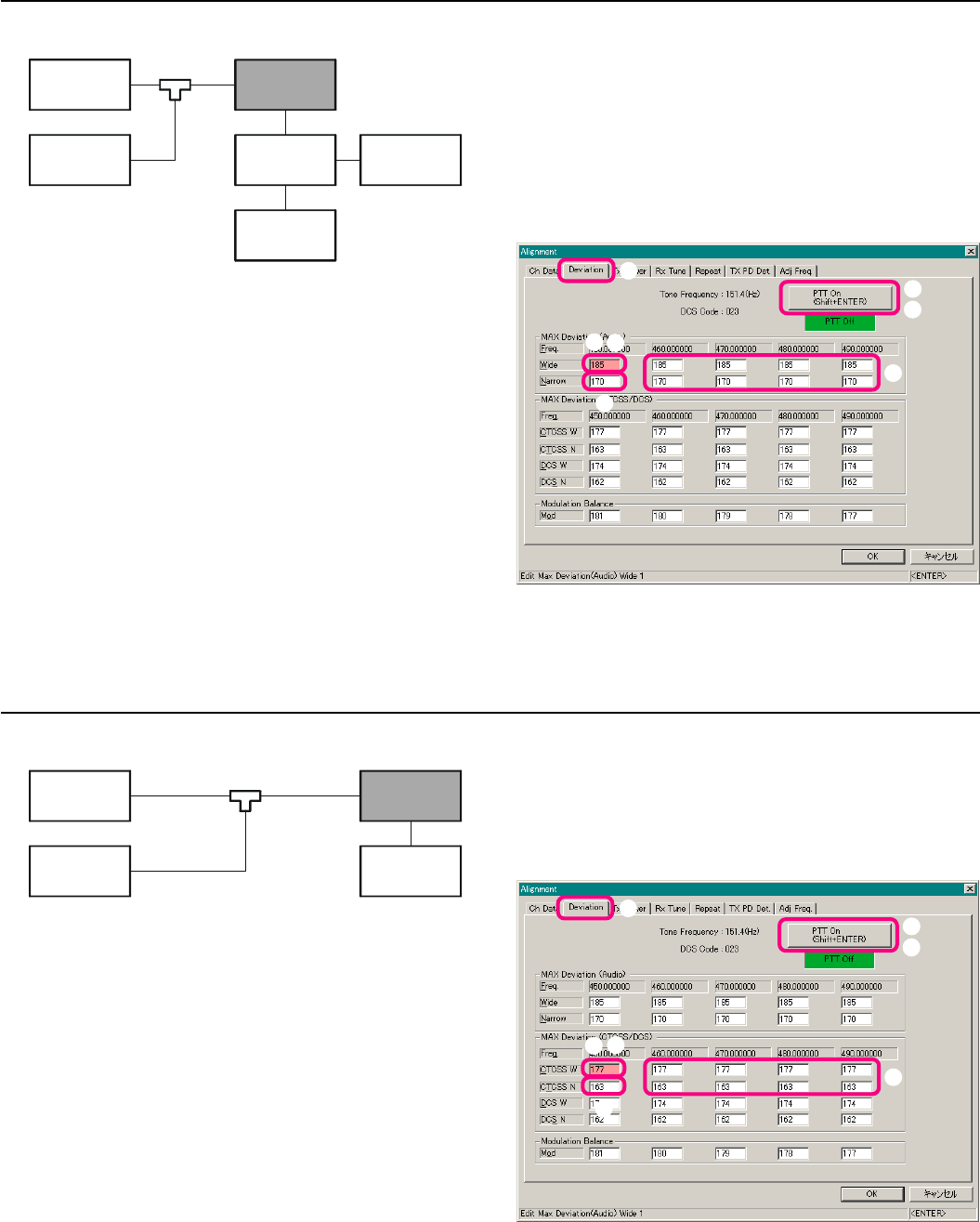

Alignment ................................................................ G-1
Introduction
This manual provides the technical information necessary for servicing the VXR-9000 Rack Mount Repeater.
Servicing this equipment requires expertise in handing surface-mount chip components. Attempts by non-qualified
persons to service this equipment may result in permanent damage not covered by the warranty, and may be illegal
in some countries.

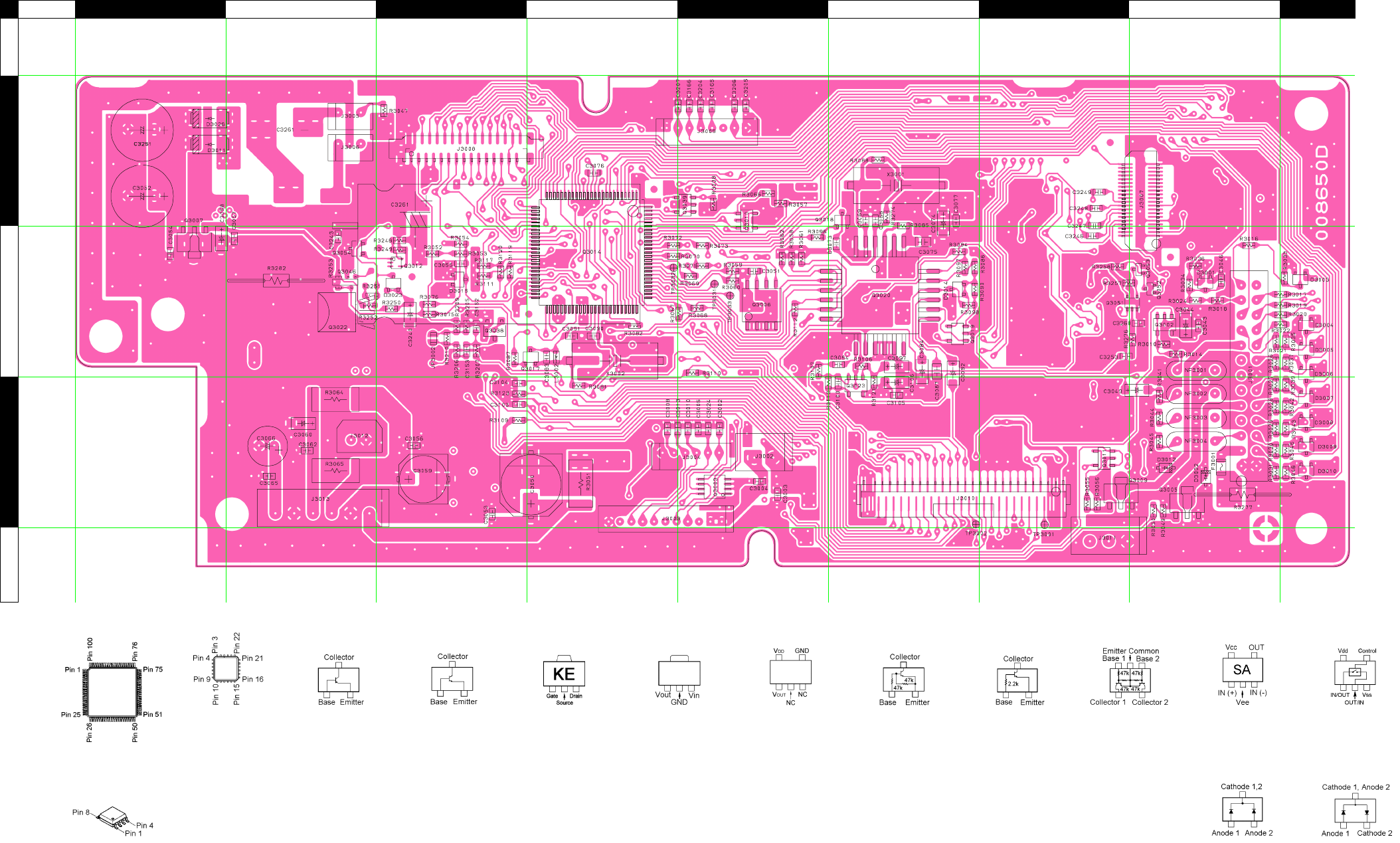

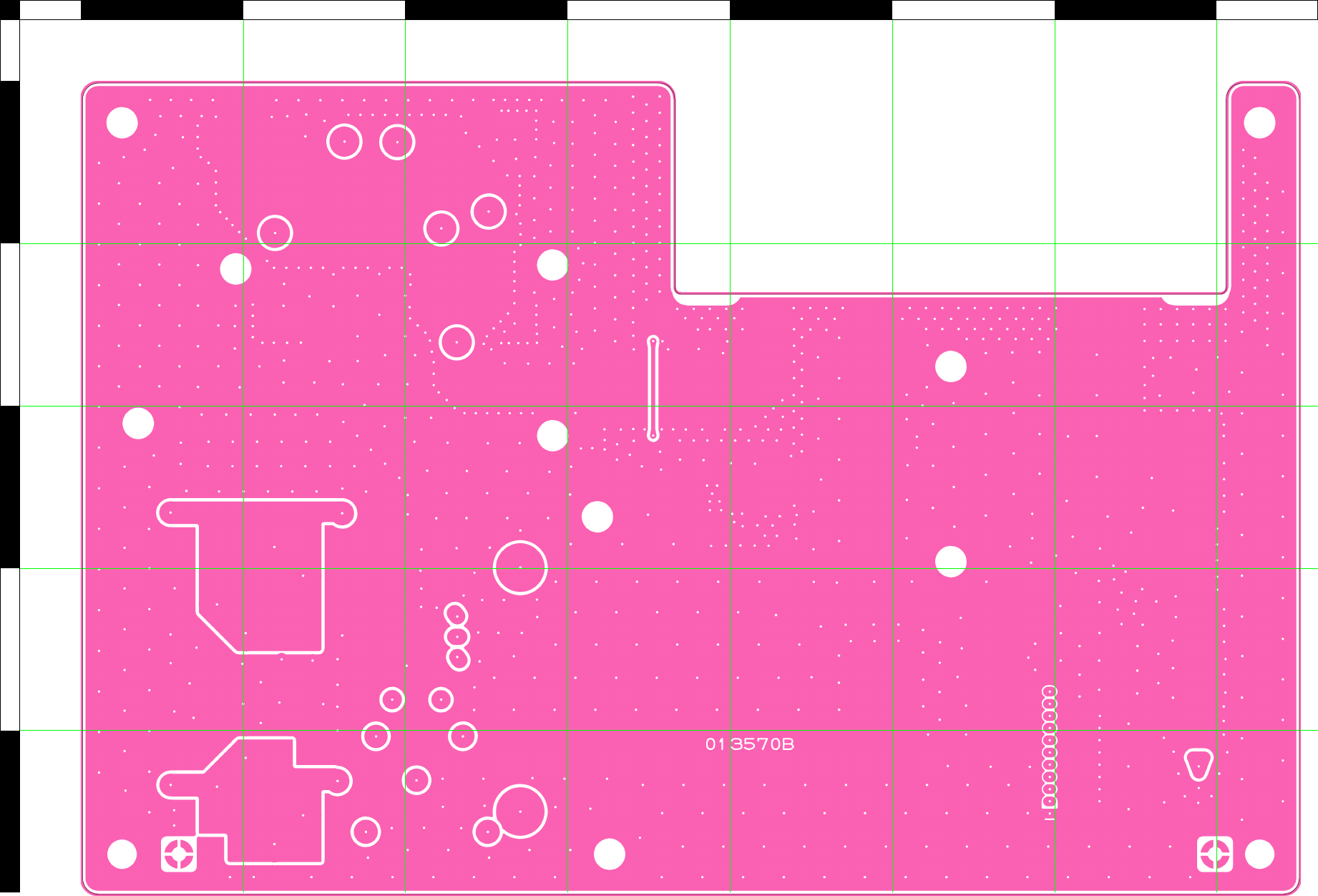

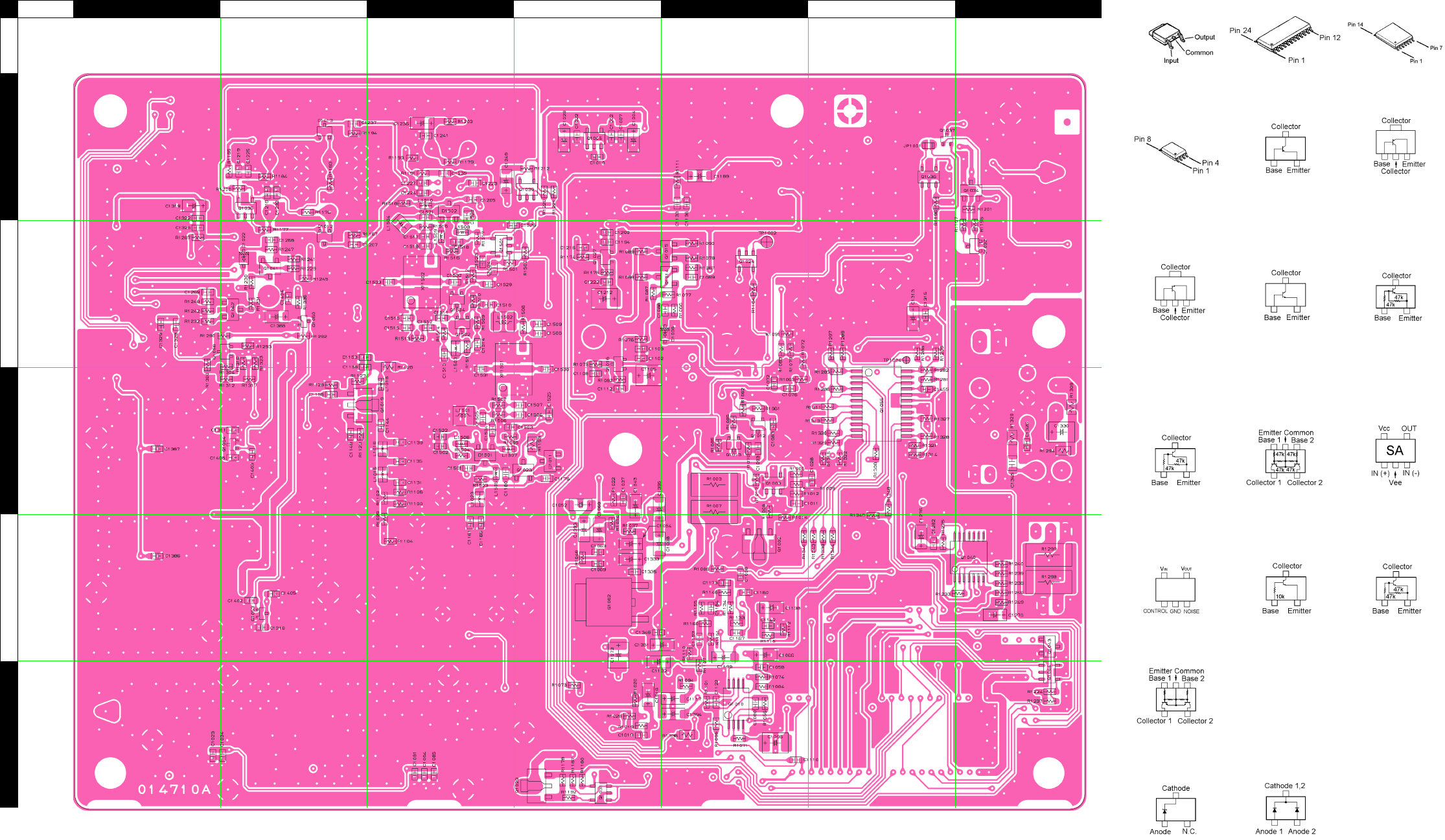

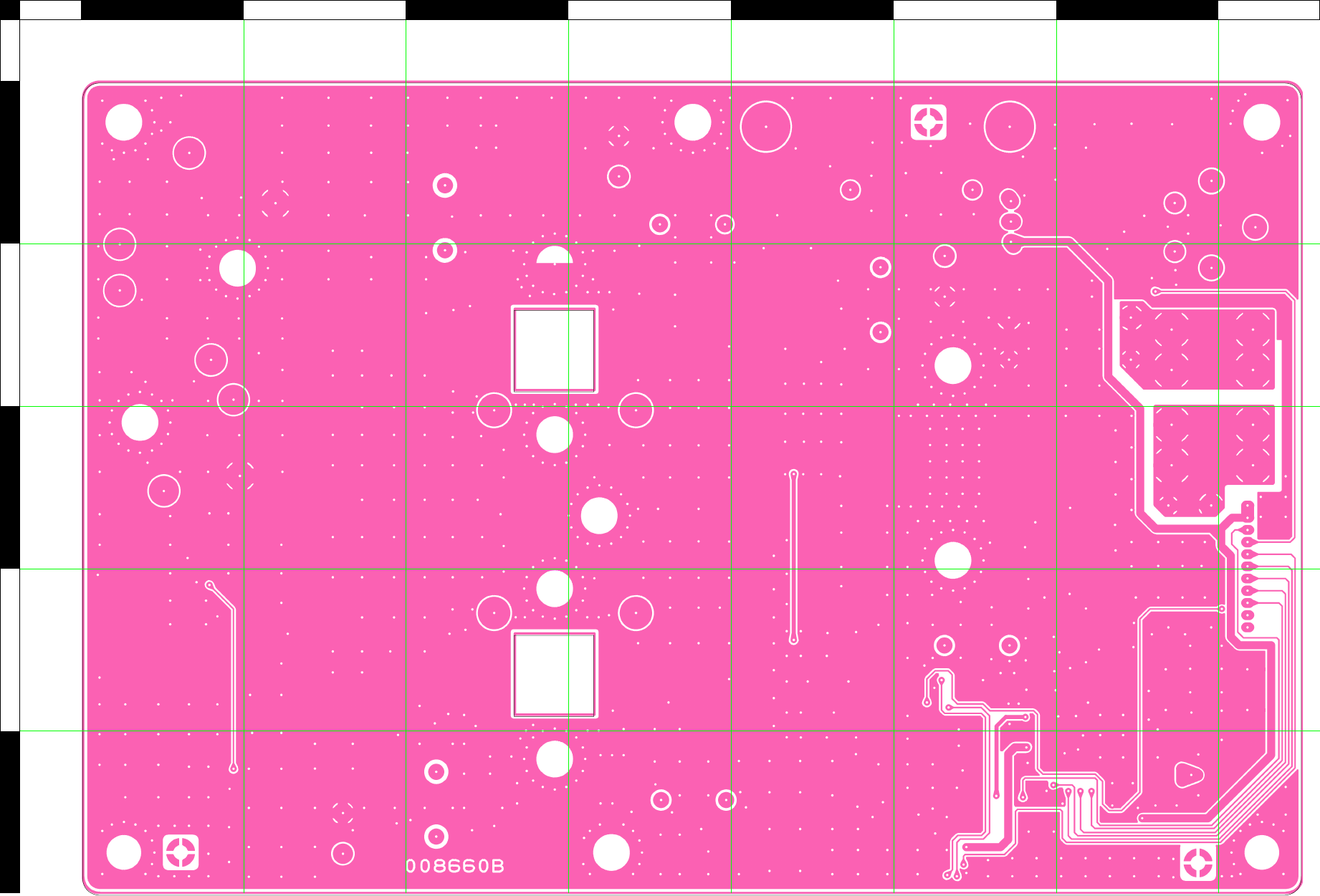

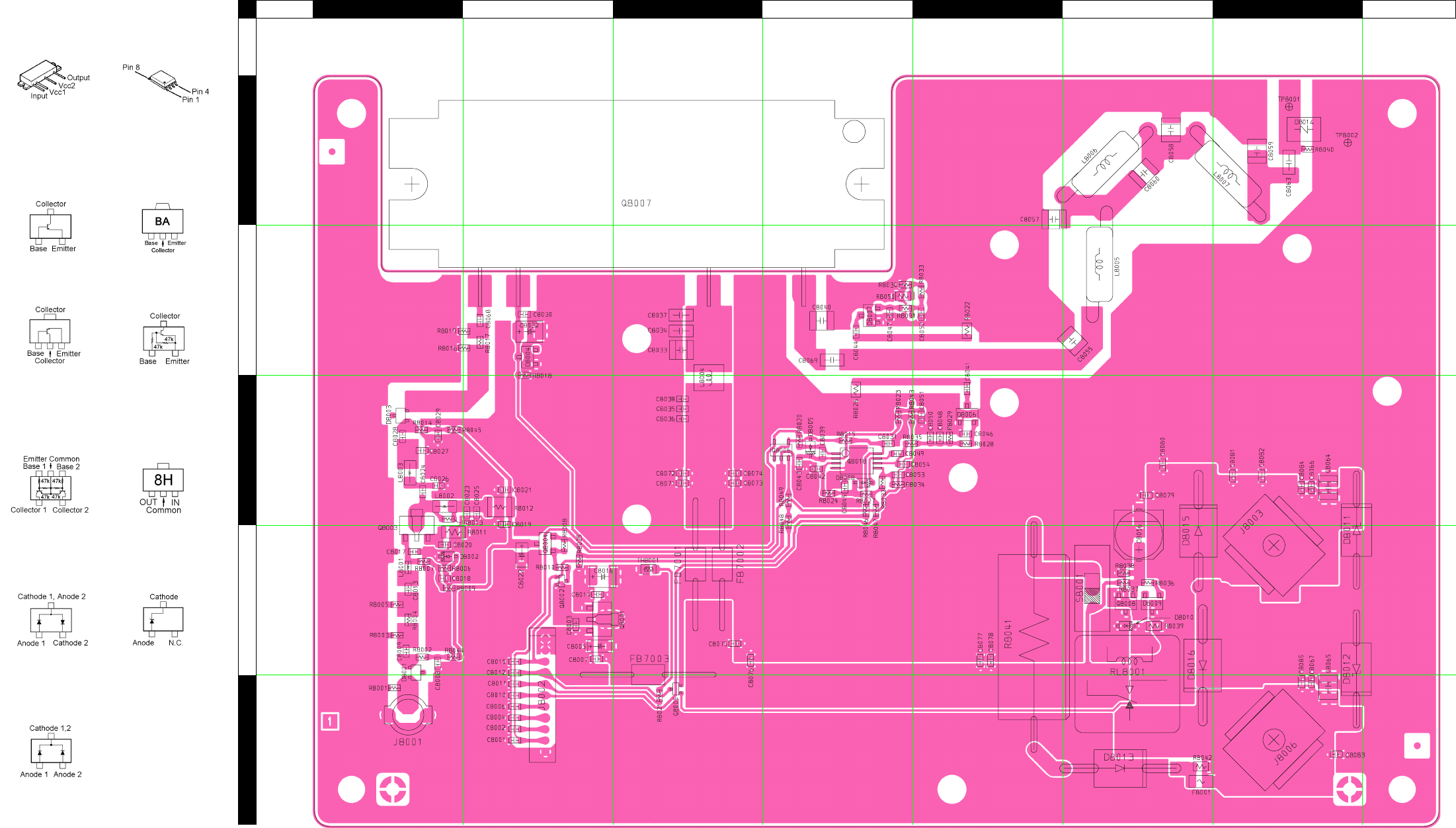

Two PCB layout diagrams are provided for each double-sided board in this transceiver. Each side of the board is
referred to by the type of the majority of components installed on that side (“Side A” or “Side B”). In most cases one
side has only chip components (surface-mount devices), and the other has either a mixture of both chip and leaded
components (trimmers, coils, electrolytic capacitors, ICs, etc.), or leaded components only.
As described in the pages to follow, the advanced microprocessor design of the VXR-9000 allows a complete align-
ment of this transceiver to be performed without opening the case of the radio; all adjustments can be performed from
the personal computer, using with the Vertex Standard VPL-1 Programming Cable and CE60 Software.
While we believe the information in this manual to be correct, Vertex Standard assumes no liability for damage that
may occur as a result of typographical or other errors that may be present. Your cooperation in pointing out any
inconsistencies in the technical information would be appreciated.
Contents

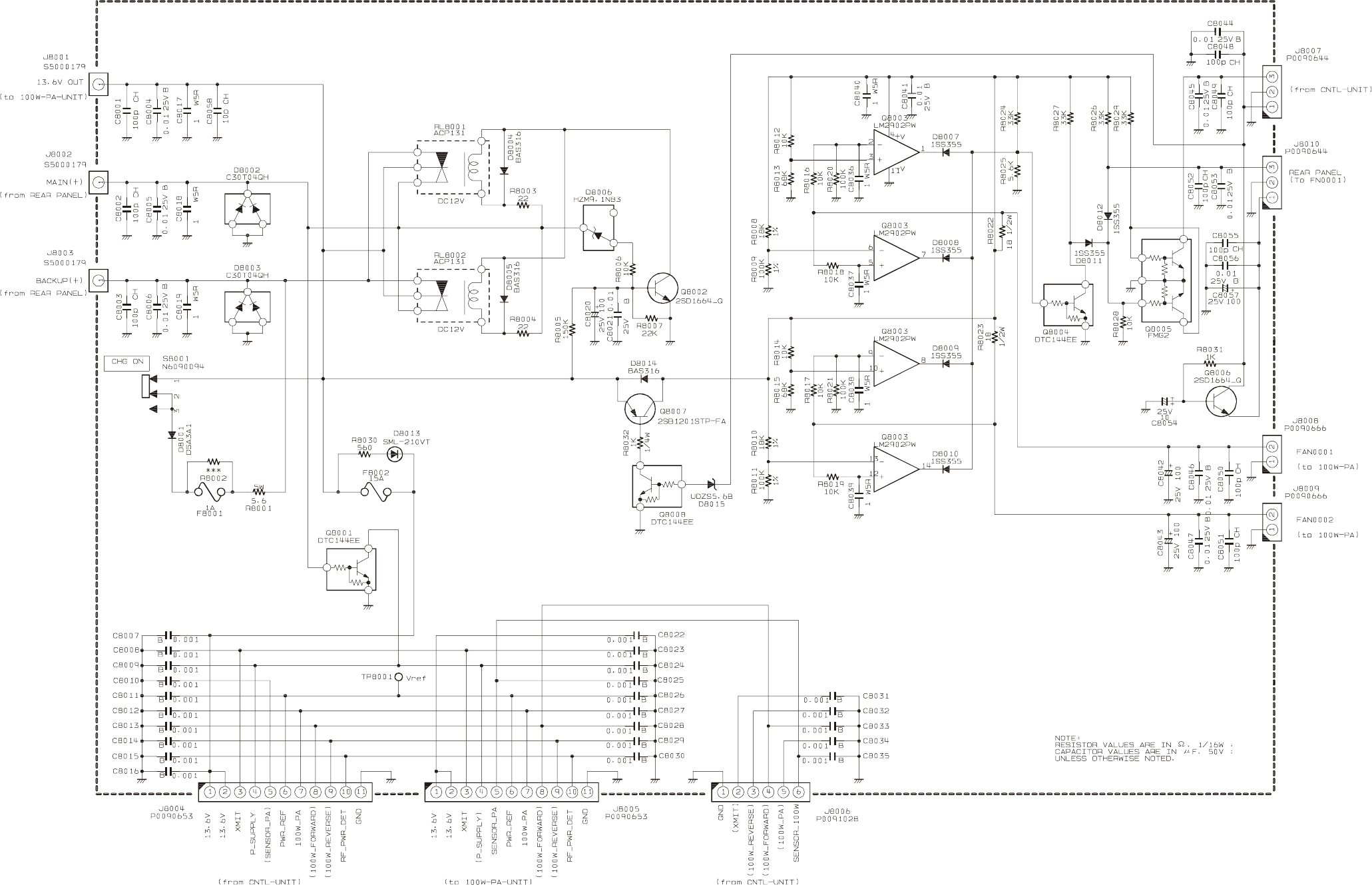

Board Units (Schematics, Layouts & Parts)

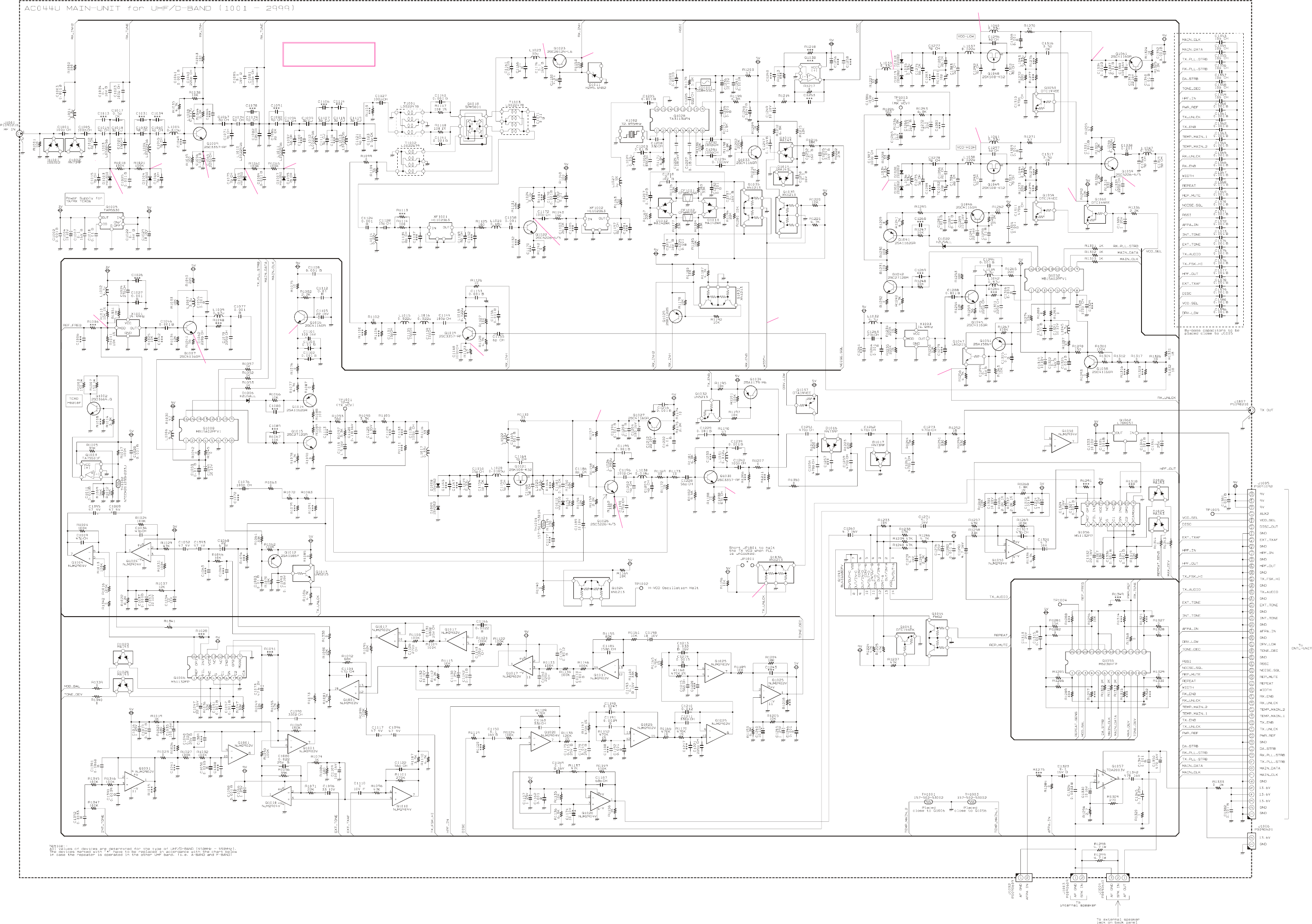

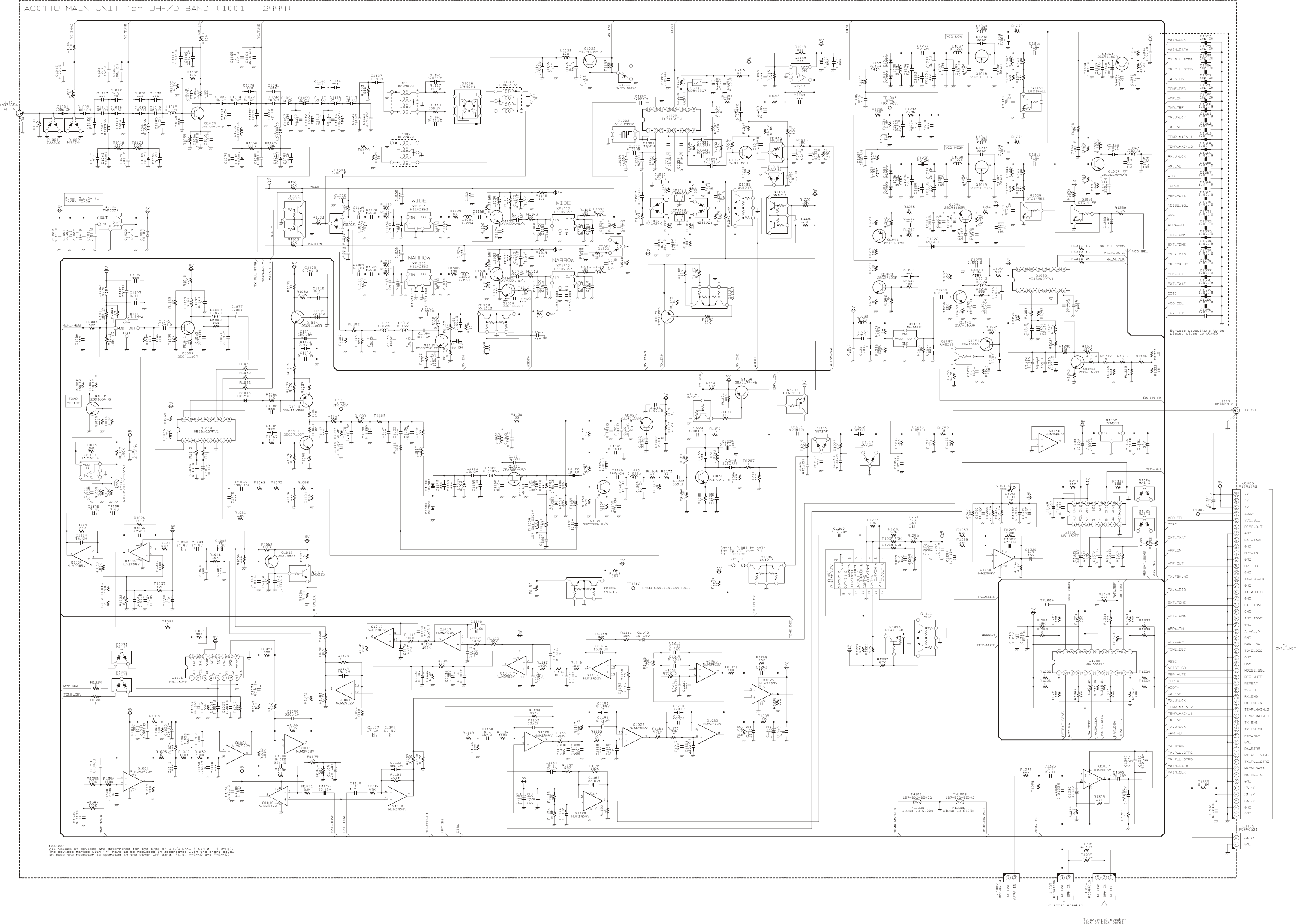

MAIN Unit .......................................................... H-1

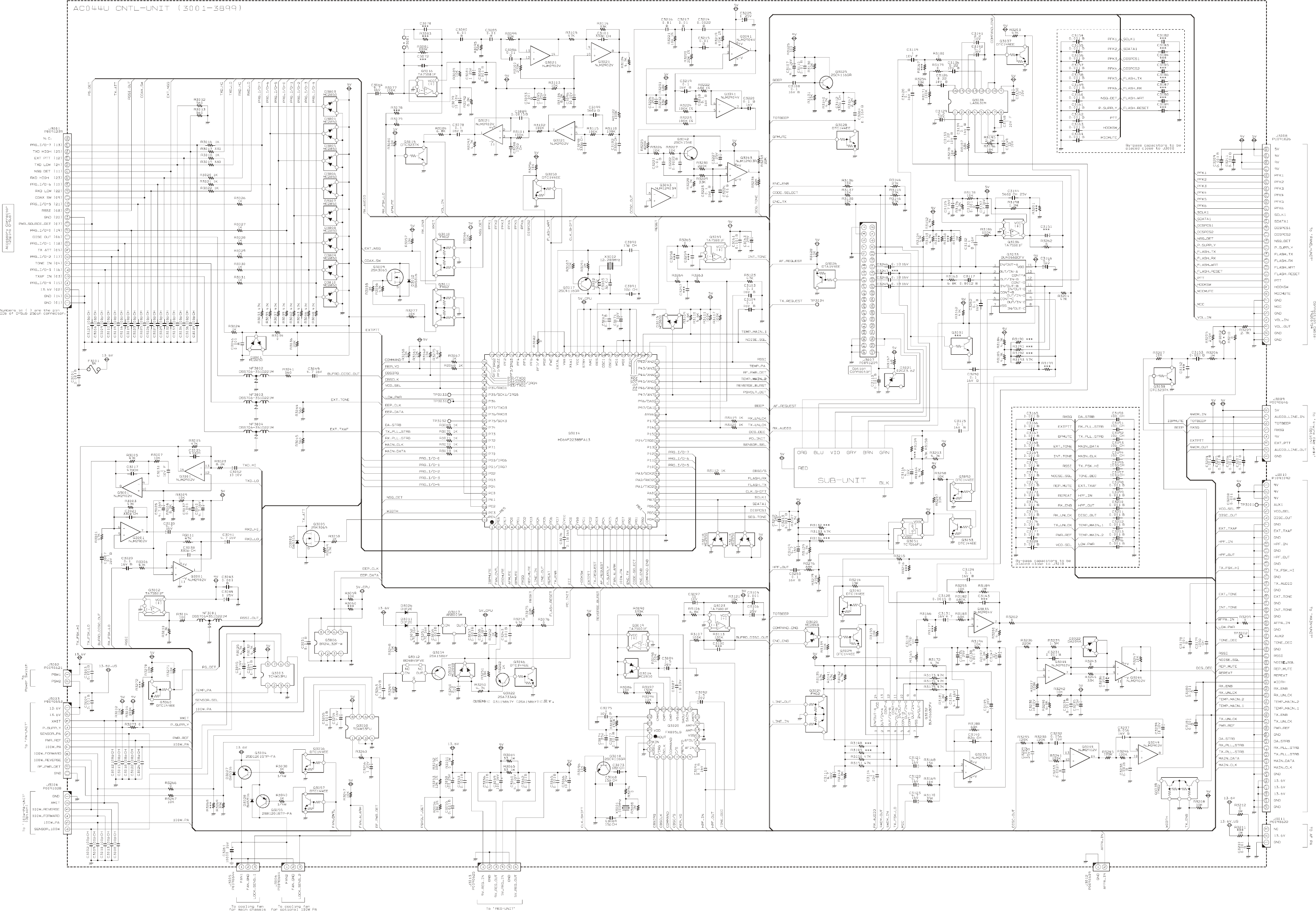

CNTL Unit ............................................................ I-1

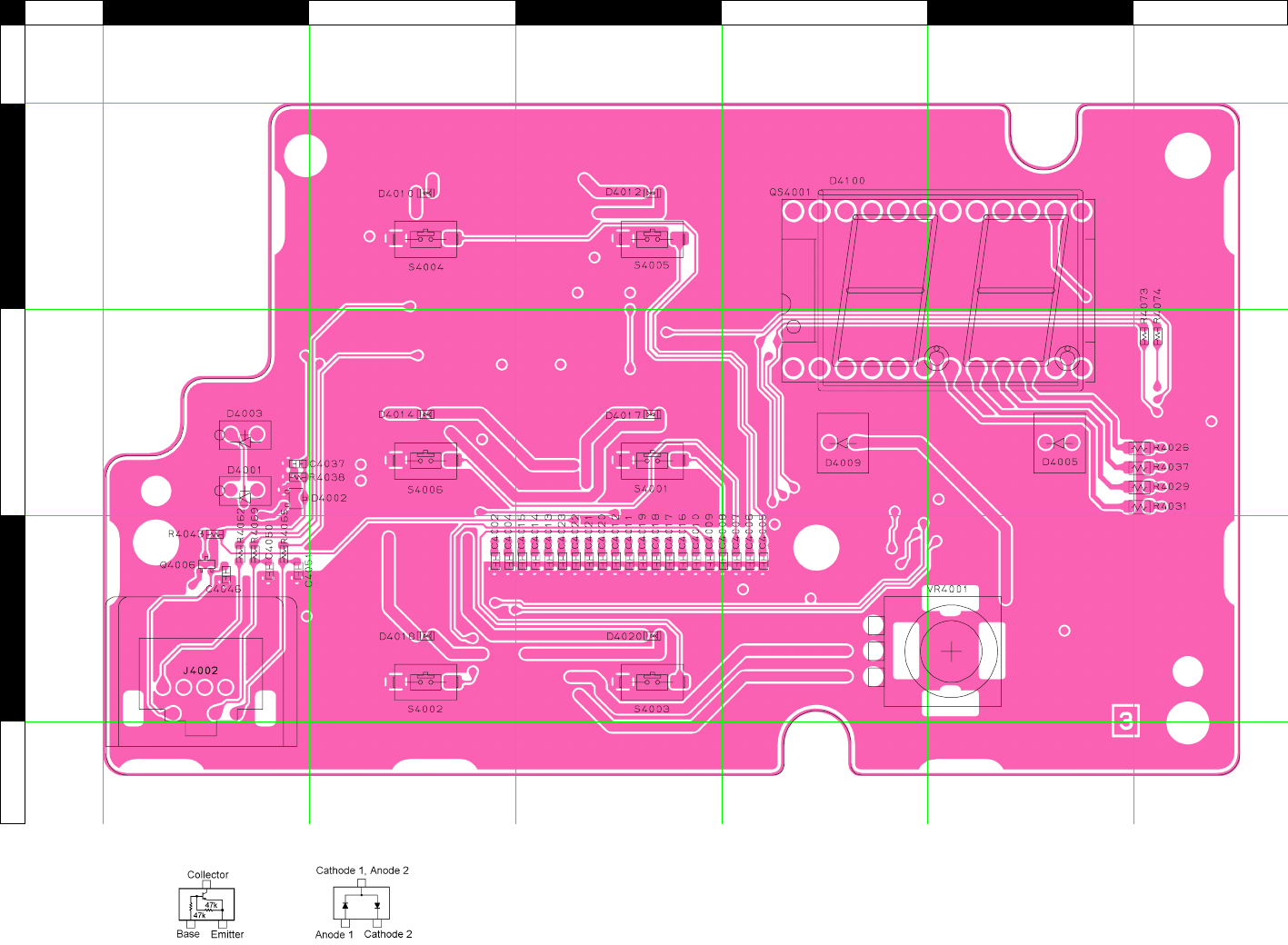

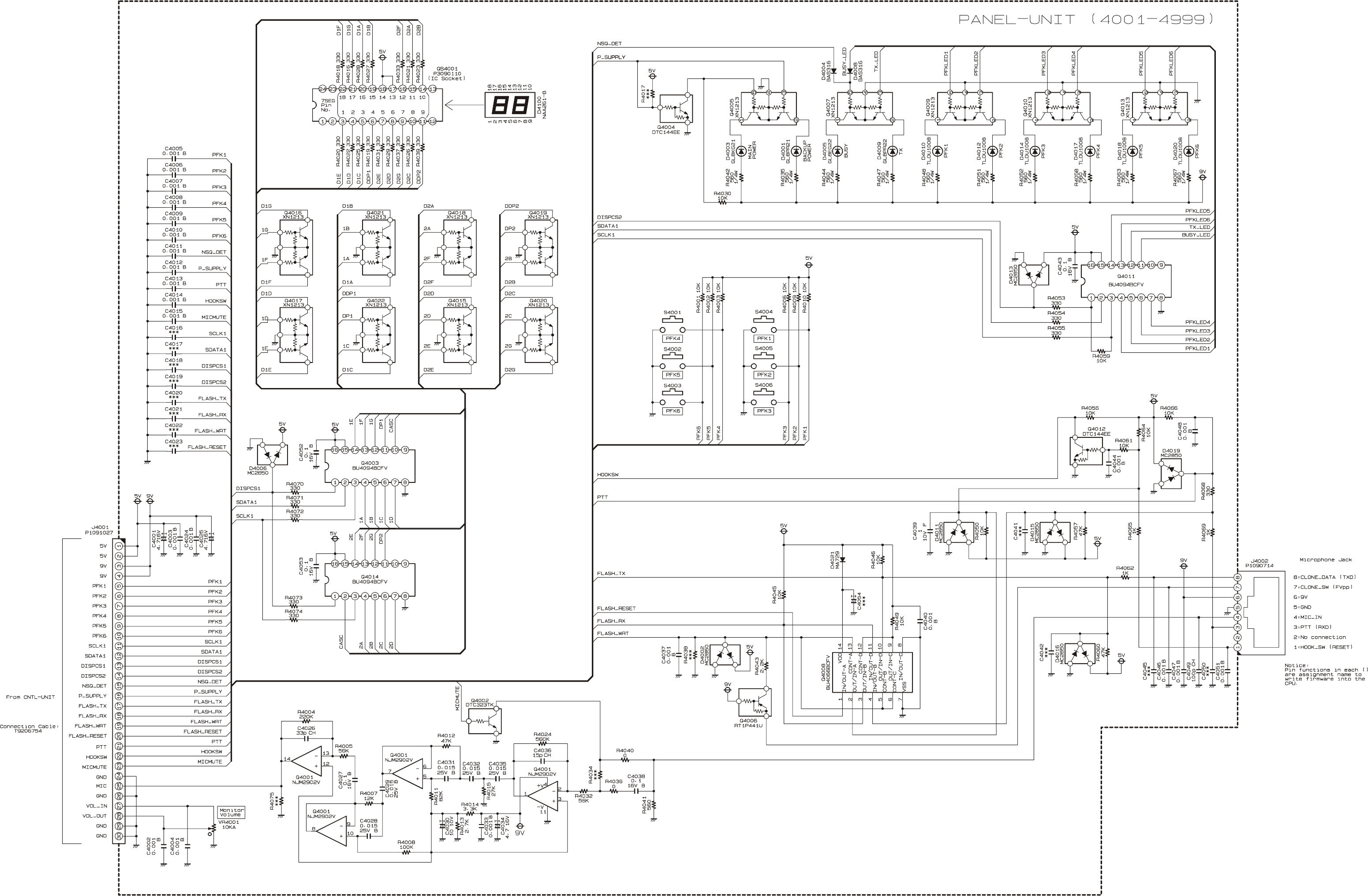

PANEL Unit .......................................................... J-1

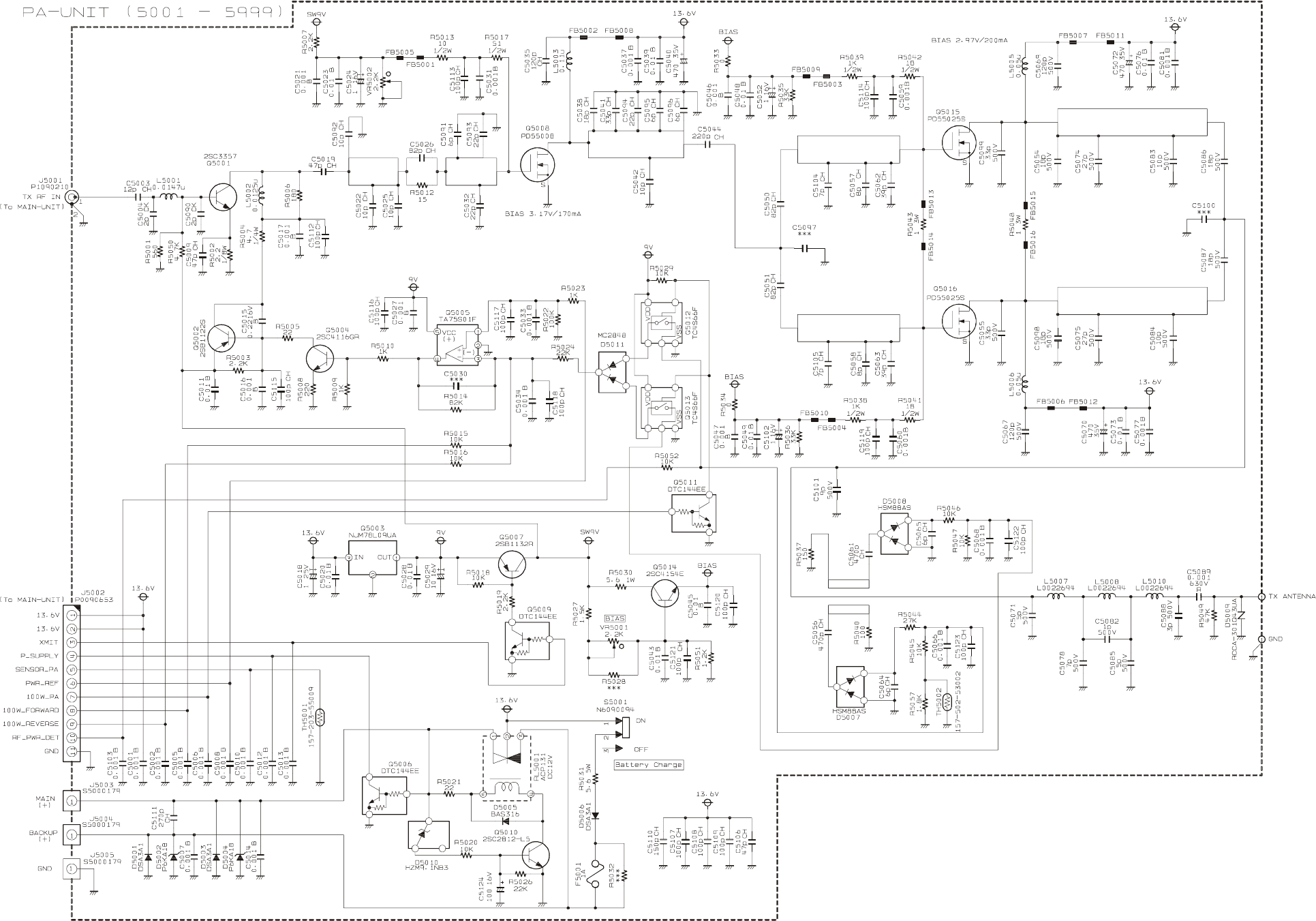

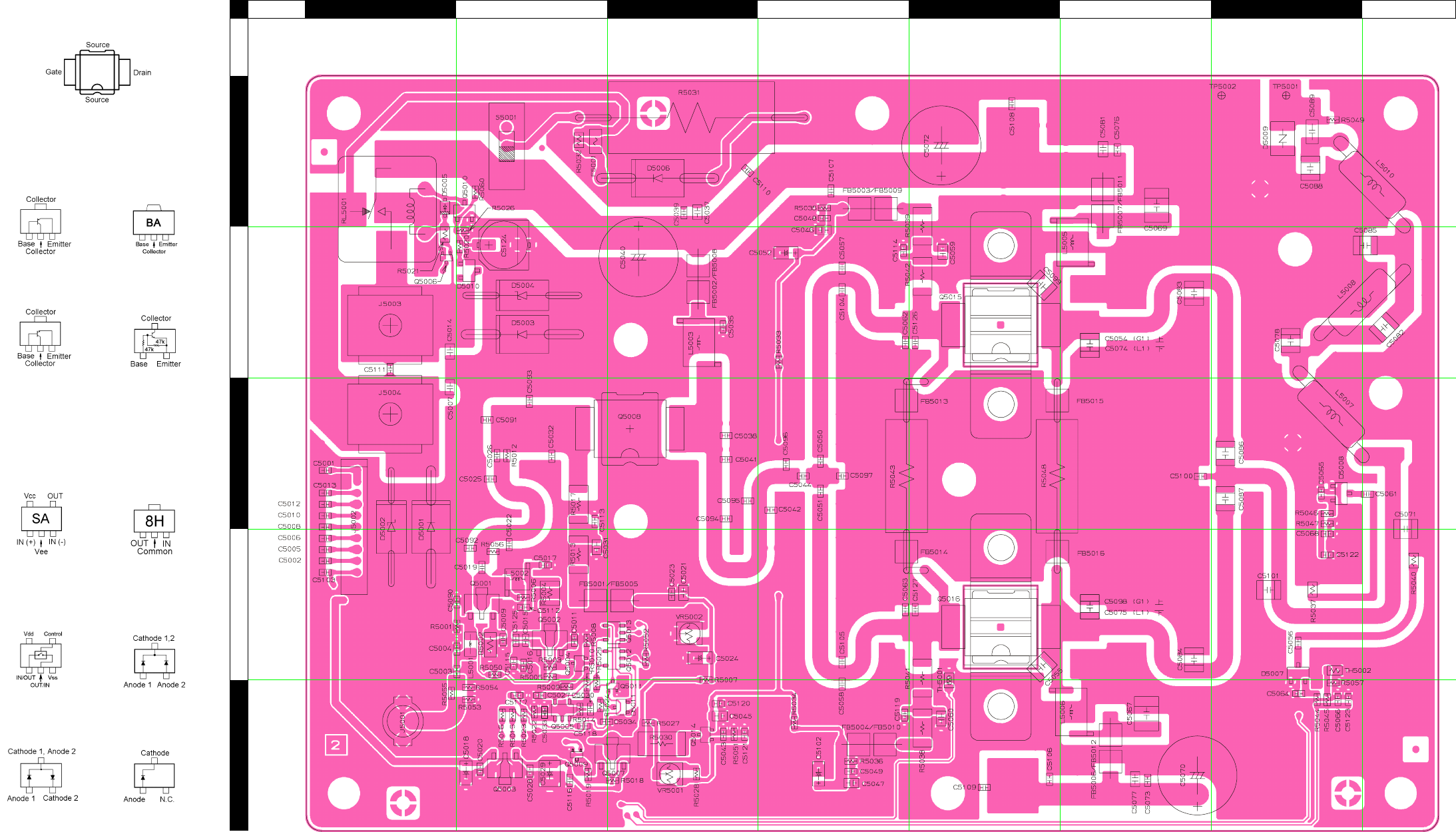

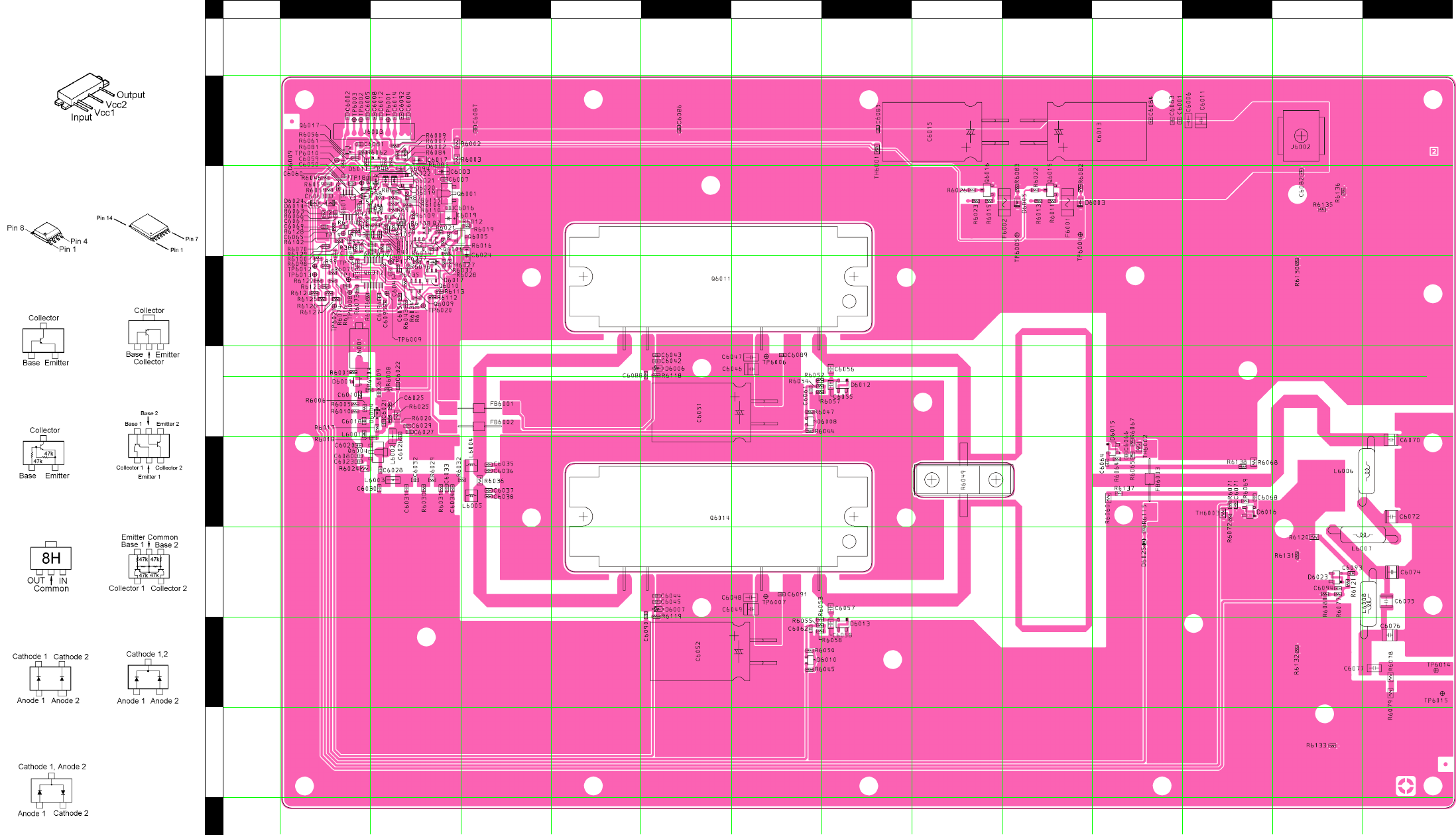

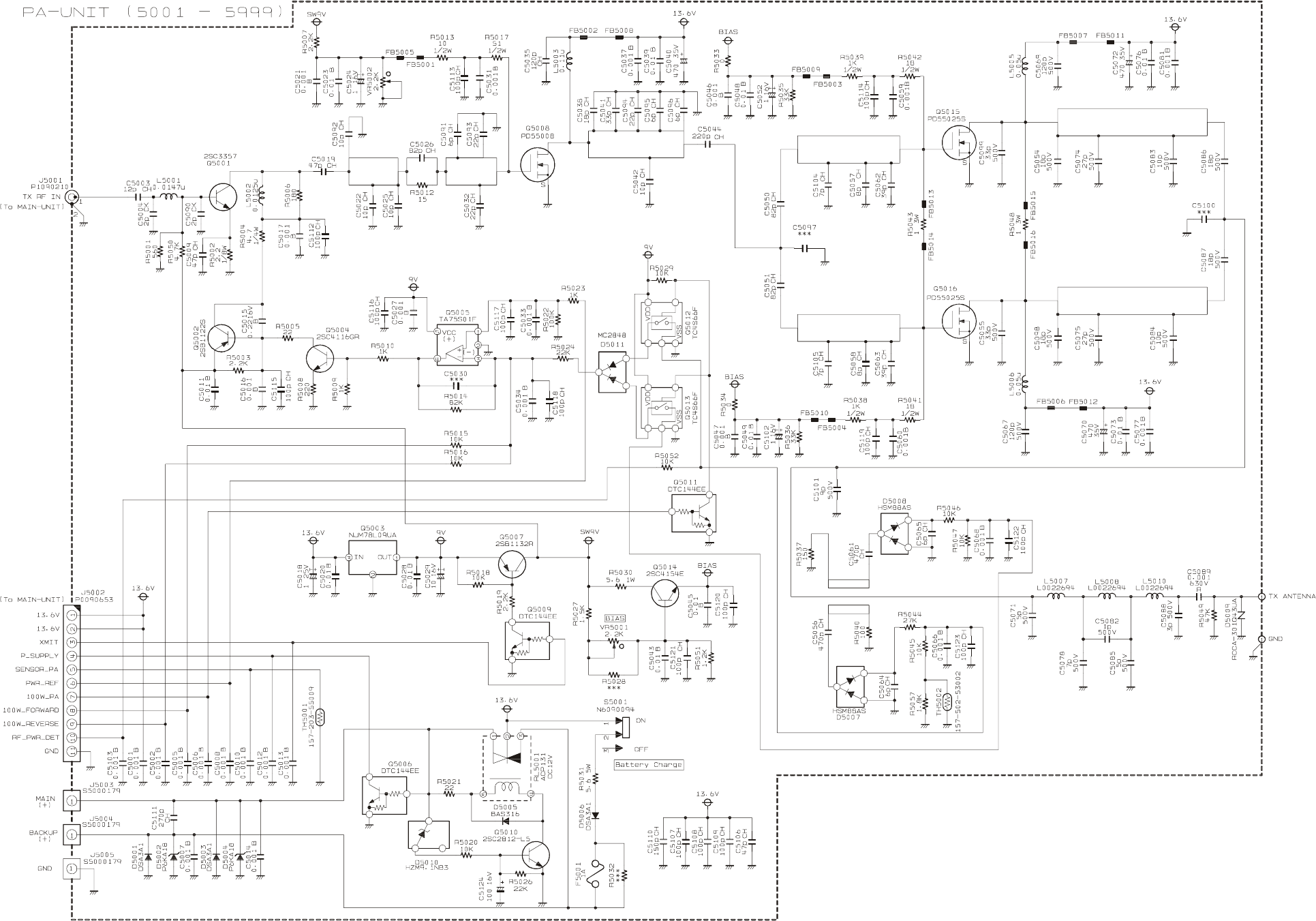

PA Unit ................................................................. K-1
PA-2 Unit .............................................................. L-1

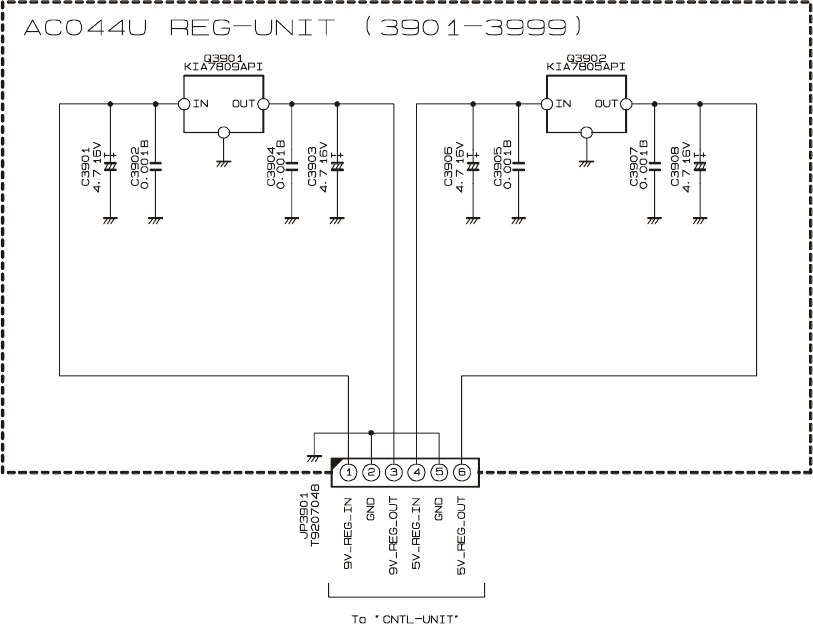

REG Unit ............................................................. M-1

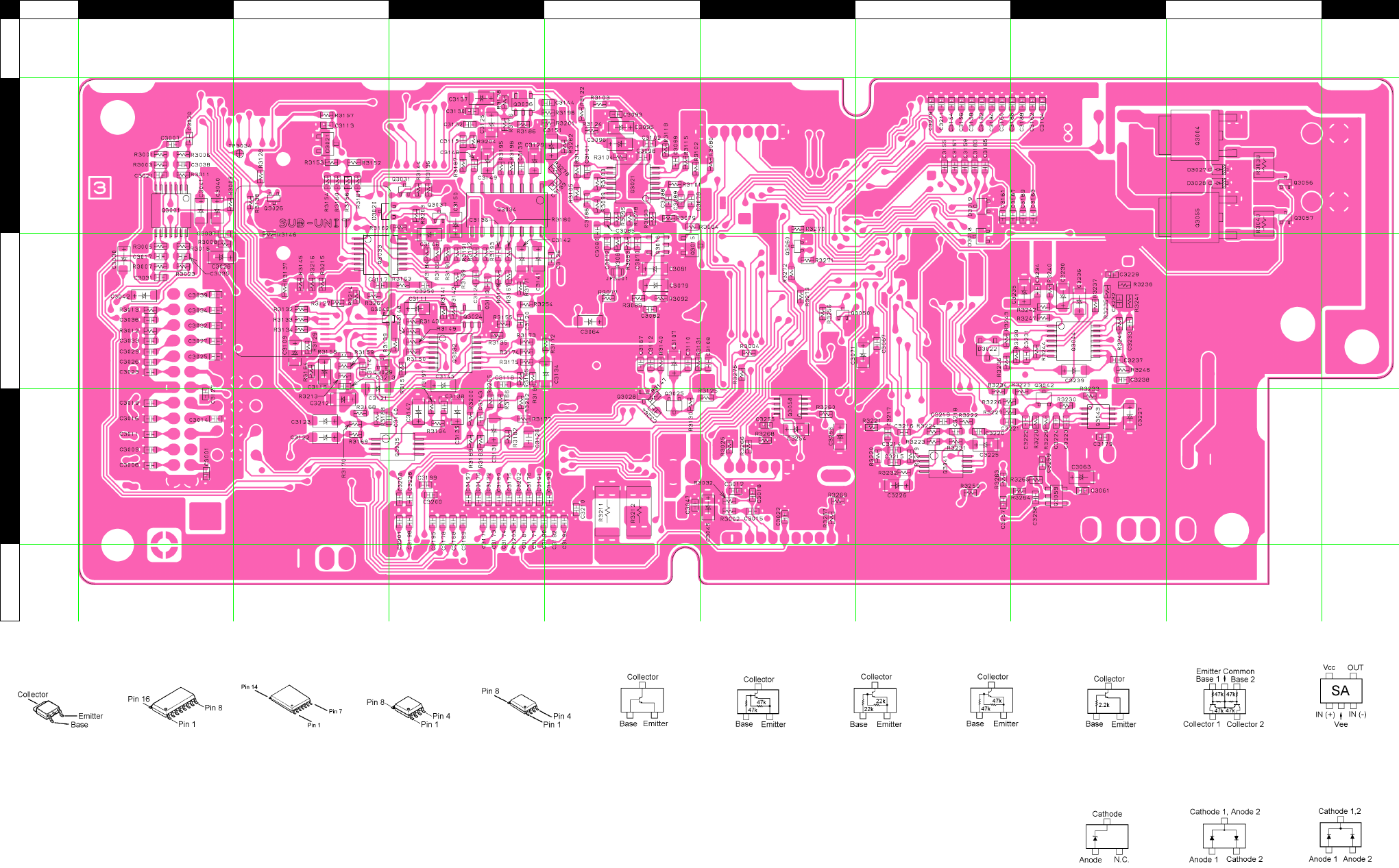

SUB Unit .............................................................. N-1
100 W PA Unit (Option: Version D) .................O-1
RELAY Unit (Option) ......................................... P-1
VERTEX STANDARD CO., LTD.
4-8-8 Nakameguro, Meguro-Ku, Tokyo 153-8644, Japan
VERTEX STANDARD
US Headquarters
10900 Walker Street, Cypress, CA 90630, U.S.A.
YAESU EUROPE B.V.
P.O. Box 75525, 1118 ZN Schiphol, The Netherlands
YAESU UK LTD.
Unit 12, Sun Valley Business Park, Winnall Close
Winchester, Hampshire, SO23 0LB, U.K.
VERTEX STANDARD HK LTD.
Unit 5, 20/F., Seaview Centre, 139-141 Hoi Bun Road,
Kwun Tong, Kowloon, Hong Kong
Specifications
A-1
General
Frequency Range: A : 400 - 430 MHz, D : 450 - 490 MHz, F : 480 - 512 MHz
Number of channel:32
Channel Spacing: 5 kHz/6.25 kHz
Operating Voltage: 13.6 V DC ±10 %
Current Drain: 12 A Maximum
Duty Cycle: Receive : 100 %
Transmit : 100 % (@25 W output)
Frequency Stability: 1.5 ppm
1.0 ppm (30min after wake up)
Operating Temperature Range: –22 °F to +140 °F (–30 °C to +60 °C)
Dimensions (W x H x D): 19 x 3-1/2 x 13-1/2 inch (483 x 88 x 343 mm)
Weight (Approx.): 21.4 lbs. (9.7 kg)
Receiver
Antenna Impedance: 50 ohm
Antenna Connector: Type-BNC
Receiver Type: Double-Conversion Superheterodyne
Sensitivity: 0.35 µV (12dB SINAD), 0.45 µV (20dB Noise Quieting)
Selectivity: 83 dB (Wide), 75 dB (Narrow)
Intermodulation: 82 dB (Wide), 78 dB (Narrow)
Image Rejection: 90 dB
Squelch Threshold: –5 dBµ
Audio Output: 4 W @4 ohm
Audio Distortion:< 3 %
Hum and Noise: > 50 dB (Wide), > 45 dB (Narrow)
Audio Frequency Response: De-emphasis : 6 dB/oct (From 300 Hz to 3 kHz)
Conducted Spurious: < –80 dBm
Transmitter
RF Output Power: 50/25/10 W (High/Mid/Low)
Antenna Impedance: 50 ohm
Antenna Connector: Type-N
Modulation Type: 16K0F3E/11K0F3E
System Deviation: ±5.0 kHz (Wide), ±2.5 kHz (Narrow)
Hum and Noise: >46 dB (Wide), >43 dB (Narrow)
Microphone Sensitivity:5 mV
Audio Frequency Response: Pre-emphasis : 6dB/oct (From 300 Hz to 3 kHz)
Spurious Emission: 70 dB below carrier
Audio Distortion: 3.0 % @1 kHz
Microphone Impedance: 600 ohm
100 W PA Unit (Option)
Frequency Range: 450 - 490 MHz
Antenna Impedance: 50 ohm
Antenna Connector: Type-N
RF Output Power: 100/75/50 W (High/Mid/Low)
Duty Cycle: 100 % (@Cooling Fan “ON”)
Spurious Emission: 75 dB below carrier
Operating Voltage: 13.6 V DC ±10 %
Current Drain: 30 A Maximum
Operating Temperature Range: –22 °F to +140 °F (–30 °C to +60 °C)
Specifications subject to change without notice or obligation.
DSUB 25-pin Accessory Connector
The VXR-9000 repeater is provided with a 25-pin DB-25F
female connector for interconnections to accessories.Use
a DB-25M 25-pin male connector to connect accessories
to the repeater. The pins on the accessory connector are
explained in detail as follows:
Pin 1: GND
Chassis ground for all logic levels and power supply re-
turn.
Pin 2: +13.6 V
[POWER SUPPLY]
This pin provides 13.6 Volts, 2.0 A, DC from the repeater
supply. There is a internal 3 A fuse to prevent damage to
the repeater.
Pin 3: TX AF IN
[ANALOG TRANSMITTER INPUT] (VOICE BAND: 300 ~ 3,000 HZ)
This pin is s audio input. Input impedance is 600 Ohms.
This audio is injected before the splatter filter stage, so
excess signal input levels are clipped.
Use shielded cable to connect to this pin, and connect the
shield to GND.
Pin 4: TONE IN
[TRANSMITTER INPUT] (SUB-AUDIBLE BAND: 5 ~ 250 HZ)
This pin is sub-audible tone produces 10% of full system
deviation. The nominal input voltage is 77.5 mVrms. The
input impedance is@600 Ohms, and has a flat response
characteristic (repeater deviation is constant for a given
signal level over the frequency range of 5 ~ 250 Hz). In-
jecting too high a voltage here causes over-deviation of
CTCSS or DCS, degrading performance. Use shielded
cable to connect to this pin, connecting the shield to GND.
B-1

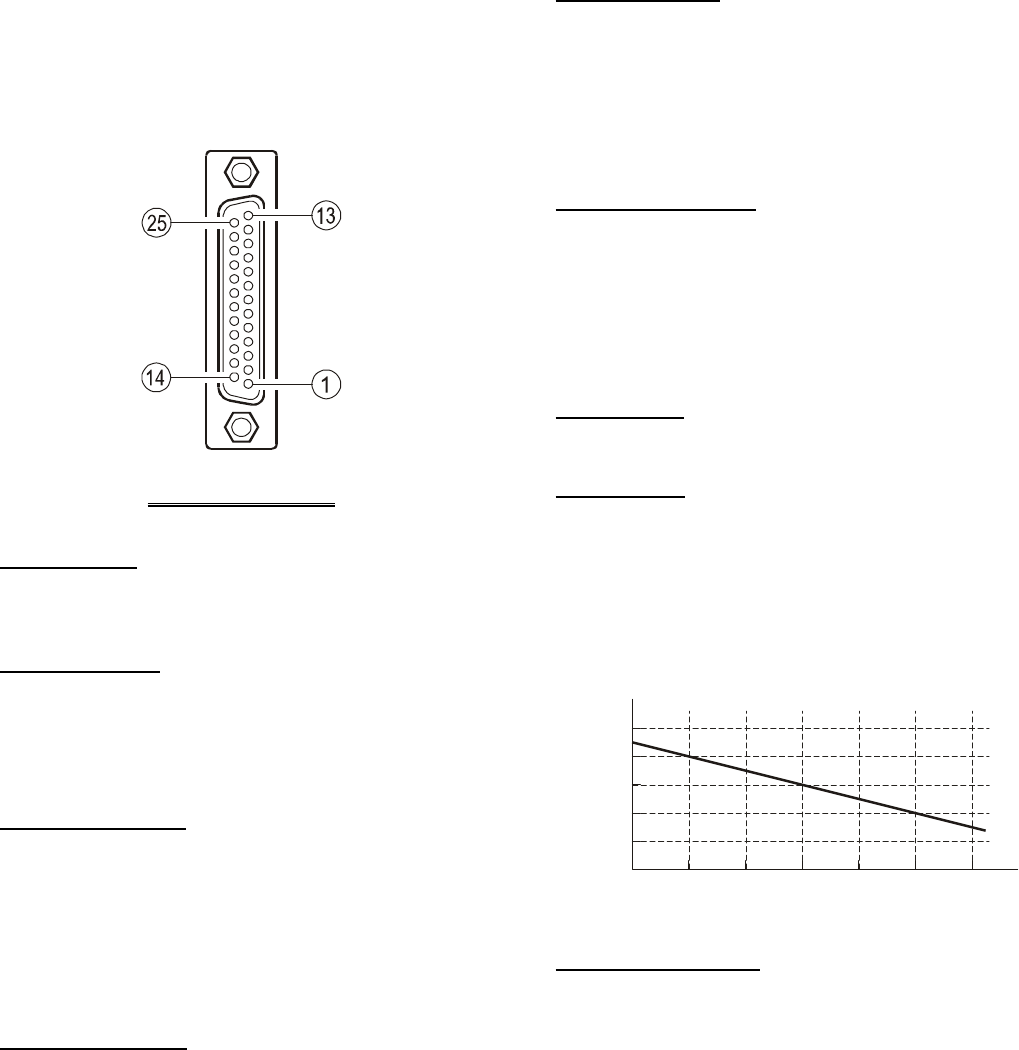

DB-25 PIN NUMBERING
Pin 5: TX ATT
This output is intended for controlling an external coaxial
switching relay. It is an open drain output which can sink
approx. 1.5 A when active. The delay time which is be-
tween the repeater cause to transmit mode and this port
switches to ground can be programmed by your VERTEX
STANDARD dealer.
Pin 6: DISC OUT
[ANALOG OUTPUT] (WIDE-BAND: 0 ~ 3,000 HZ)
Received signals with full system deviation produce 350
mVrms audio at this pin. The output impedance is 600
Ohm, and is extracted before the de-emphasis and squelch
circuitry. Use shielded cable to connect to this pin, and
connect the shield to GND.
Pin 7: N.C.
No connection.
Pin 8: RSSI
[ANALOG OUTPUT]
A DC voltage proportional to the strength of the signal
currently being received (Receiver Signal Strength Indi-
cator) is provided on this pin. This low impedance out-
put is generated by the receiver IF sub-system and buff-
ered by an internal op-amp. Typical voltages are graphed
as follows:
Pin 9: COAX. SW
[LOGIC OUTPUT (ACTIVE LOW)]
This output is intended for controlling an external coaxial
switching relay. It is an open drain output which can sink
approx. 1.5 A when active. This signal only switches if the
repeater has been programmed for “SIMPLEX” mode. If
programmed for “DUPLEX,” the signal remains open
(high impedance) at all time.
0
–60 –100 –110 –120 (dBm)–70 –80 –90
0.5
1.0
1.5
2.0
2.5
(DC V)
Input Signal Level
RSSI Output Voltage
DSUB 25-pin Accessory Connector
B-2
Pin 10, 13, 15, 16, 17, 18, 19, 21:
PROGRAMMABLE I/O “0” ~ ”7”
The VXR-9000 provides eight ports (PIO) that can be pro-
grammed for various input or output signals, or for con-
trol functions. Each port may be programmed as to its
function, its status (input or output), and its logic (for out-
put ports only). See Tables on the next page for detail re-
garding the input and output signals.
Pin 11: NSQ DET
This is an open-collector, active-low output capable of
sinking about 10 mA. It indicates that the receiver squelch
is open. If the squelch control is properly set, this indi-
cates a carrier on the receiver channel.
Pin 12: EXT PTT
This input is internally pulled up to 5 VDC. When pulled
low by an external device, it keys the repeater transmitter
while the repeater is operating in the “Remote” mode.
Avoid voltage in excess of 5 V on this pin, or internal dam-
age to the microprocessor on the repeater CNTL Unit may
result.
Pin 14, 20: GND
Chassis ground for all logic levels and power supply re-
turn.
Pin 22: RXD LOW
[ANALOG OUTPUT FOR DATA COMMUNICATIONS]
(300 ~ 3,000 Hz)
This pin is an output for low speed receiving data signals
(typically 1200 bps), with the data being extracted after
the de-emphasis and low pass filter stages.
Pin 23: RXD HIGH
[DIGITAL OUTPUT FOR DATA COMMUNICATIONS]
(Max.: 5 kHz)
This pin is an output for high speed receiving data sig-
nals (typically 9600 bps), with the data being extracted
immediately after the discriminator (prior to any de-em-
phasis).
Pin 24: TXD LOW
[ANALOG INPUT FOR DATA COMMUNICATIONS]
(300 ~ 3,000 Hz)
This pin is intended to be used as a low speed data signal
input to the repeater (typically 1200 bps). This digital data
signal is injected before the transmitter pre-emphasis and
limiting stages, so excess signal input levels are clipped.
Pin 25: TXD HIGH
[DIGITAL INPUT FOR THE DATA COMMUNICATIONS]
(0 ~ 5 kHz)
This pin is intended to be used as a high speed digital
data signal input to the repeater (typically 9600 bps). This
digital data signal is injected after the transmitter splatter
filter stage.
CHANNEL STEERING CHART
OPERATING
CHANNEL
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
0
1
0
1
0
1
0
1
0
1
0
1
0
1
0
1
0
3
1
1
1
1
1
1
1
1
0
0
0
0
0
0
0
0
2
1
1
1
1
0
0
0
0
1
1
1
1
0
0
0
0
1
1
1
0
0
1
1
0
0
1
1
0
0
1
1
0
0
Bin CH
4
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
OPERATING
CHANNEL
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
0
1
0
1
0
1
0
1
0
1
0
1
0
1
0
1
0
3
1
1
1
1
1
1
1
1
0
0
0
0
0
0
0
0
2
1
1
1
1
0
0
0
0
1
1
1
1
0
0
0
0
1
1
1
0
0
1
1
0
0
1
1
0
0
1
1
0
0
Bin CH
4
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
B-3
Item
Bin_CH _0
Bin_CH _1
Bin_CH _2
Bin_CH _3
Bin_CH _4
Channel_Down
Channel_Up
Compander_On
Compander_Off
Compander _Toggle
CTCSS/DCS
_Enc _On
CTCSS/DCS
_Enc _Off
CTCSS/CS
_Enc _Toggle
CTCSS/DCS
_Dec _On
CTCSS/DCS
_Dec _Off
CTCSS/CS
_Dec _Toggle
Two _Tone_Dec _On
Two _Tone_Dec_Off
Two _Tone_Dec _Toggle
CW_ID _On
CW_ID_Off
CW_ID_Toggle
CW_ID _Single
CW_Message_1
CW_Message_2
CW_Message_3
CW_Message_4
CW_Message_5
CW_Message_6
CW_Message_7
CW_Message_8
CW_Message _Bin _0
CW_Message _Bin _1
CW_Message _Bin _2
CW_Message _Bin_Trig
DC_Power_Save_On
DC_Power_Save_Off
DC_Power _Save _Toggle
Encryption_On
Encryption_Off
Encryption_Toggle
Encryption_Code
Local _PTT_On
Local_PTT_Off
Local _PTT _Toggle
Function
Recall the Memory Channel (Binary LSB)
Recall the Memory Channel (Binary)
Recall the Memory Channel (Binary)
Recall the Memory Channel (Binary)
Recall the Memory Channel (Binary MSB)
Step to the next-lower Operating Channel
Step to the next-higher Operating Channel
Turn the Compander Circuit "On"
Turn the Compander Circuit "Off"
Turn the Compander Circuit "On" or "Off" (Toggle)
Turn the CTCSS/DCS Encoder "On"
Turn the CTCSS/DCS Encoder "Off"
Turn the CTCSS/DCS Encoder "On" or "Off" (Toggle)
Turn the CTCSS/DCS Decoder "On"
Turn the CTCSS/DCS Decoder "Off"
Turn the CTCSS/DCS Decoder "On" or "Off" (Toggle)
Turn the 2-Tone Decoder "On"
Turn the 2-Tone Decoder "Off"
Turn the 2-Tone Decoder "On" or "Off" (Toggle)
Turn the CW IDer "On"
Turn the CW IDer "Off"
Turn the CW IDer "On" or "Off" (Toggle)
Transmit the CW ID
Send the CW Message 1
Send the CW Message 2
Send the CW Message 3
Send the CW Message 4
Send the CW Message 5
Send the CW Message 6
Send the CW Message 7
Send the CW Message 8
CW Message Recall (Binary LSB)
CW Message Recall (Binary)
CW Message Recall (Binary MSB)
Send the CW Message which is recalled from I/O port
Turn the DC Power Save Feature "On"
Turn the DC Power Save Feature "Off"
Turn the DC Power Save Featuer "On" or "Off" (Toggle)
Turn the Encryption Circuit "On"
Turn the Encryption Circuit "Off"
Turn the Encryption Circuit "On" or "Off" (Toggle)
Select the Encryption Code
Enable the Local PTT Switch
Disable the Local PTT Switch
Enable/Disable the Local PTT Switch (Toggle)
PROGRAMMABLE I/O PORT INPUT ITEMS
Item
Monitor_On
Monitor_Off
Monitor_Toggle
Monitor_M
Multi _Tone_Main
Multi_Tone_Sub
Multi _Tone_Toggle
Panel _Indicator_On
Panel_Indicator_Off
Panel _Indicator_Toggle
Repeat_On
Repeat_Off
Repeat_Toggle
Reset
Scan_On
Scan _Off
Scan_Toggle
Squelch_On
Squelch_Off
Squelch_Toggle
Test_Tone_On
Test_Tone _Off
Test_Tone_Toggle
Test_Tone _M
TOT _On
TOT _Off
TOT _Toggle
Transmit_On
Transmit_Off
Transmit_Toggle
TX_Power _Mid _On
TX_Power _Mid _Off
TX_Power_Mid_Toggle
TX_Power _Low_On
TX_Power_Low_Off
TX_Power _Low _Toggle
Function
Turn the Monitor Function "On"
Turn the Monitor Function "Off"
Turn the Monitor Function "On" or "Off" (Toggle)
Turn the Monitor Function "On" when the I/O port is
"High"
Select the Tone Table to "Main"
Select the Tone Table to "Sub"
Switch the Tone Table between "Main" and "Sub"
(Toggle)
Turn the Front Panel's Illumination "On"
Turn the Front Panel's Illumination Off
Turn the Front Panel's Illumination "On" or "Off" (Toggle)
Set theOperating Mode to "Repeat" mode
Set theOperating Mode to "Base" mode
Toggle theOperating Mode between the "Repeat"
mode and "Base" mode
Reset the Repeater
Start Scanning
Stop Scanning
Toggle the Scanner between "Start" and "Stop"
Turn the Squelch Circuit "On (Close)"
Turn the Squelch Circuit "Off (Close)"
Turn the Squelch Circuit "On" or "Off" (Toggle)
Generate the Test Tone Signal
Stop the generation of the Test Tone
Toggle the Test Tone genetation "On" and "Off"
Generate the Test Tone Signal when the I/O port is
"High"
Turn the Time-Out Timer featuer "On"
Turn the Time-Out Timer featuer "Off"
Turn the Time-Out Timer featuer "On" or "Off"
Enable the transmission of the Repeater
Disable the transmission of the Repeater
Enable/Disable the transmission of the Repeater
Set the transmitter power to the "Mid" level
Return the transmitter power to "Original" power level
Toggle the transmitter power between the "Mid" level
and "Original" power level
Set the transmitter power to the "Low" level
Return the transmitter power to "Original" power level
Toggle the transmitter power between the "Low" level
and "Original" power level
PROGRAMMABLE I/O PORT OUTPUT ITEMS
DSUB 25-pin Accessory Connector
Item
Remote_Enb
Busy
CTCSS_Correspond
DCS _Correspond
CTCSS/
DCS _Correspond
RX_Unlock
TX_Unlock
PLL _Unlock
Function
Output the signal when the Operating mode is set to
"Repeat" mode.
Output the signal when the squelch is opened.
Output the signal when the receiving CTCSS tone is
matched.
Output the signal when the receiving DCS code is
matched.
Output the signal when the receiving CTCSS tone or
DCS code is matched.
Output the signal when the RX PLL Circuit is Unlocked.
Output the signal when the TX PLL Circuit is Unlocked.
Output the signal when the TX or RX PLL Circuit is
Unlocked.
Item
Power_Supply_Backup
Power_Supply_Voltage
Transmit
Fan _Alarm
Fan _Status
High_Temperature
TX_PD _Det
Anser _Back
Function
Output the signal when the backup power source is
used.
Output the signal when the main power source is
used.
Output the signal when the repeater is transmitting.
Output the signal when the Coolig Fan is disabled.
Output the signal when the Coolig Fan is activated.
Output the signal when the PA Unit is High Tempera-
ture.
Output the signal when the TX power is abnormalily.
Output the signal when the repeater status is
changed from the Remote Control command.
B-4
DSUB 25-pin Accessory Connector
Note:
Exploded View & Miscellaneous Parts
C-1
H
F
O
P
J
K
N
M
G
C
B
A
D
CF
E
GH
I
D
E
J
I
L
L
M
N
P
O
K
RA0506800
RUBBER KNOB
REF.
QTY.
4
8
2
2
14
4
7
3
12
2
12
13
8
1
1
2
1
DESCRIPTION
PAN HEAD SCREW M5X8
FLAT HEAD SCREW M4X8B
HEXA SOCKET BOLT M4X16B
BINDING HEAD SCREW M2.6X8NI
BINDING HEAD SCREW M4X6NI
BINDING HEAD SCREW M4X10NI
SEMS SCREW HSM4X8
TAPTITE SCREW M2.6X6
TAPTITE SCREW M3X8
SEMS SCREW HSM3X6NI
BINDING HEAD SCREW M3X5NI
TAPTITE SCREW M3X8
TAPTITE SCREW M3X10
HEX HEAD BOLT M4X8NI
TOOTHED LOCK WASHER OW4NI
BINDING HEAD SCREW M3X8NI
SEMS SCREW HSM4X8
VXSTD P/N
U00508001
U30408007
U51416007
U20208002
U20406002
U20410002
U04408001
U24206001
U23308001
U04306002
U20305002
U24308001
U24310001
U52408002
U72004002
U20308002
U04408001
11
12
13
14
17
16
15
RA0505300
TOP CASE
11
11
11
11
11
11
11
12
12
12
12
12
13
13
13
12
12
12
12 12
12
12 12
11
11 11
11
14
15
16
16
RA03328A0
CASE
RA0332900
SHIELD CASE COVER
RA0517900
GASKET
RA0530900
GASKET
RA0506300 (2 pcs)
PLATE
RA0506100
HEATSINK PLATE
P1090547
CONNECTOR
S5000236
WASHER
RA0506500 (2 pcs)
MOTOR HOLDER
S5000242
FINGER GUARD
M2090037
FAN
Q6000170
TERMINAL STRIP
P1091181
CONNECTOR
S5000182
SCREW
P1091072
CONNECTOR
RA0506600
COVER
P1090654
CONNECTOR
RA0505400
BASE
RA0532800
LABELREAR
RA0505500
PANEL
S5000241
HANDLE
T9206754
WIRE ASSY
R0145680 (3 pcs)
HOLDER
T9207034A
WIRE ASSY
RA0510000
FRONT PANEL ASSY
N2090061
ROCKER SWITCH
RA02543A0
KNOB
M4090150
SPEAKER
RA0507000
PLATE
T9207032
WIRE ASSY
T9318204
WIRE ASSY
RA0506000
PANEL
CNTL UNIT
PANEL UNIT
S5000241
HANDLE
T9318202
WIRE ASSY
T9207037A
WIRE ASSY
T9207049
WIRE ASSY
R0134490
HOLDER
MAIN UNIT
RA050140A
CHASSIS
RA0505900
BRACKET
S0000074
RUBBER GROMMET
T9207053
WIRE ASSY
T9207055
WIRE ASSY
T9207047
WIRE ASSY
T9207046
WIRE ASSY
T9207039
WIRE ASSY
S5000223 (3 pcs)
SPACER
T9207048
WIRE ASSY
Non-designated parts are available only as
part of a designated assembly.
PA UNIT
RA0506900 (6 pcs)
KNOB CAP (ACCESSORIES)
DESCRIPTION
BLADE FUSE
DC CABLE
NAME PLATE
KNOB CAP
VXSTD P/N
Q0000075
T9023499
RA0508500
RA0506900
ACCESSORIES
Exploded View & Miscellaneous Parts
C-2
Note
D-1
Block Diagam
MAIN Unit
D-2
Block Diagam
CNTL Unit, PANEL Unit, & PA Unit
E-1
Connection Diagam
E-2
Connection Diagam (with Optional 100 W PA Unit)
RECEIVE SIGNAL PATH
Incoming RF from the RX antenna jack is delivered to the
MAIN Unit and passes through the protection diode
D1001 (1SS302) and a varactor-tuned band pass filter con-
sisting of coils L1003 and L1004, capacitors C1015, C1018,
C1021, C1032, and C1044, and diodes D1003 and D1004
(both HVU350). Signals are then applied to the RF ampli-
fier, Q1009 (2SC3357). The amplified RF signal is applied
through a varactor-tuned band pass filter consisting of
coils L1010 and L1011, capacitors C1079, C1092, C1082,
C1095 and C1075, and diodes D1007 and D1005 (both
HVU350) to the first mixer Q1018 (SPM5001) along with
the first local signal from the PLL circuit.
The first local signal is generated between 376.65 MHz
and 416.65 MHz by the RX VCO, which consists of FET
Q1048 (2SK508) and varactor diodes D1018 and D1019
(both 1SV282) or FET Q1049 (2SK508) and varactor di-
odes D1020 and D1021 (both 1SV282), according to the
programmed receiving frequency; the local signal then
passes through buffer amplifier Q1059 (2SC5226) and
first local amplifier Q1019 (2SC3357) to the first mixer
Q1018 (SPM5001).
The 73.35 MHz first IF signal is applied to monolithic crys-
tal filters XF1001 and XF1002 which strip away unwant-
ed mixer products, and the IF signal is applied to the first
IF amplifiers Q1022 (2SC5226). The amplified first IF sig-
nal is then delivered to the FM IF subsystem IC Q1028
(TA31136FN), which contains the second mixer, second
local oscillator, limiter amplifier, noise amplifier, and FM
detector.
The second local oscillator signal, generated by the 72.895
MHz crystal X1002, produces the 455 kHz second IF sig-
nal when mixed with the first IF signal within Q1028
(TA31136FN). The second IF signal passes through ce-
ramic filter CF1001 or CF1002 which strips away all but
the desired signal, and then passes through the limiter
amplifier within Q1028 (TA31136FN) to ceramic discrim-
inator CD1001, which removes any amplitude variations
in the 455 kHz IF signal before detection of speech. The
detected audio passes through the low pass filter, con-
sisting of R1199 and C1244, which rejects the 455 kHz IF
component.
The audio signal from the MAIN Unit is delivered to the
CNTL Unit and passes through the audio amplifier Q1020
(NJM2904V) to the active high pass filter section of Q3020
(FX805LG), which rejects the sub-audible frequency com-
ponent. The filtered audio signal is delivered to electron-
ic volume Q1056, which adjusts the audio sensitivity to
compensate for audio level variations, then passes through
audio amplifier Q1020 (NJM2904V), audio switch Q1040
(BU4066BCFV), attenuator consisting of R1233, and lim-
iter amplifier Q1050 (NJM2904V), to the electronic vol-
Circuit Description
ume control Q1056 (M51132FP), where the maximum de-
viation is set. The audio signal subsequently passes
through the 3-section active low pass filter consisting of
Q1017-1/-2/-3 (NJM2902V) and audio amplifier Q1001
(NJM2902V) to providing the repeater transmit audio.
A portion of the audio signal from the active high pass
filter section of Q4024 (NJM2902V) is de-emphasized con-
sisting of Q3036 (TA75S01F), R3198, and C3144, provid-
ing a flat audio response. The filtered audio then passes
through the active band pass filter Q3021 (NJM2902V)
and audio mute gate Q3015 (DTC323TK) to audio power
amplifier Q1057 (TDA2003), providing up to 2 Watts of
audio power to the 8 Ohm loudspeaker.
SUB-AUDIBLE SIGNALING (DECODER)
A portion of the audio signal from the audio amplifier
Q1020 (NJM2904V) passes through the 3-section active
low pass filter Q1025 (NJM2902V) and the low pass fil-
tering section of Q3020 (FX805LG) to separate the CTC-
SS tones from the received audio signal. The CTCSS tones
are sent to the CTCSS decoder section of Q3020
(FX805LG). When a CTCSS tone is received, the CTCSS
information is delivered to pin 77 of the Main CPU Q3014
(HD64F2238) from pin 4 and 8 of Q3020 (FX805LG) which
compares the CTCSS tone with the programmed tone.
Another portion of the audio signal passes through the 3-
section active low pass filter Q3044 (NJM2902V) to sepa-
rate the DCS codes from the received audio signal. The
low pass filtered signal passes through the phase detec-
tor Q3044 (NJM2902V) to pin 39 of the Main CPU Q3014
(HD64F2238). When a DCS code is received, the Main
CPU Q3014 (HD64F2238) compares the DCS code with
the programmed code.
If the received CTCSS tone or DCS code matches the pro-
grammed tone or code, pin 4 of the Main CPU Q3014
(HD64F2238) goes low, turning off the squelch switch
Q3015 (DTC323TK) and passing the received audio sig-
nal to the audio power amplifier Q1057 (TDA2003V).
SQUELCH CONTROL
The squelch circuit consists of noise amplifier Q1033
(2SC4116GR) and noise detector D1015 (MA143) on the
MAIN Unit, and control circuitry within Main CPU Q3014
(HD64F2238) on the CNTL Unit.
When no carrier is received, noise at the output of the au-
dio detector stage of Q1028 (TA31136FN) is amplified by
Q1033 (2SC4116GR), and then rectified by D1015
(MA143) to provide a DC control voltage for the squelch
switch. The resulting DC voltage is delivered to pin 23 of
J1005.
The DC voltage from the MAIN Unit is delivered to the
A-D analog input port (pin 51) of the Main CPU Q3014
F-1
(HD64F2238) on the CNTL Unit, which compares the
squelch threshold level to that which is memorized in EE-
PROM Q3006 (BR24L32F) or set by the front panel SQL
control.
RX PLL AND VCO CIRCUITS
The receiver’s PLL circuitry consists of PLL subsystem IC
Q1052 (MB15A02PFV1) on the MAIN Unit, which con-
tains a reference oscillator/divider, serial-to-parallel data
latch, programmable divider, phase comparator and a
swallow counter. Stability is obtained by a regulated 5
VDC supply via Q1062 (L78M05T) and temperature com-
pensated 14.4 MHz crystal oscillator X1003.
The RX VCO made up two VCO circuit, one is Low-Band
RX VCO, consisting of FET Q1048 (2SK508) and varactor
diodes D1018 and D1019 (both 1SV282), and another one
is High-Band RX VCO, consisting of FET Q1049 (2SK508)
and varactor diodes D1020 and D1021 (both 1SV282), os-
cillates between 376.65 MHz and 416.65 MHz according to
the programmed receiving frequency. The RX VCO out-
put passes through buffer amplifier Q1059 (2SC5226) and
first local amplifier Q1019 (2SC3357) to the first mixer
Q1018 (SPM5001), as described previously. A portion of
the RX VCO output is applied to the prescaler/swallow
counter section in the PLL IC Q1052 (MB15A02PFV1).
There the RX VCO signal is divided by 64 or 65, according
to a control signal from the Main CPU Q3014 (HD64F2238)
on the CNTL Unit, before being applied to the program-
mable divider section of the PLL IC Q1052
(MB15A02PFV1).
The data latch section of the PLL IC Q1052
(MB15A02PFV1) also receives serial dividing data from
the Main CPU Q3014 (HD64F2238), which causes the pre-
divided RX VCO signal to be further divided by 75,330 ~
81,330 (or 60,264 ~ 65,064) in the programmable divider
section in the PLL IC Q1052 (MB15A02PFV1), depend-
ing upon the desired receive frequency, so as to produce
a 5 kHz (or 6.25 kHz) derivative of the current RX VCO
frequency. Meanwhile, the reference divider section of the
PLL IC Q1052 (MB15A02PFV1) divides the 14.4 MHz
crystal reference from the reference oscillator X1003 and
Q1045 (2SC4116GR) by 2880 (or 2304) to produce the 5
kHz (or 6.25 kHz) loop reference.
The 5 kHz or 6.25 kHz signal from the programmable di-
vider (derived from the RX VCO) and that derived from
the crystal are applied to the phase detector section of the
PLL IC Q1052 (MB15A02PFV1), which produces a pulsed
output with pulse duration depending on the phase dif-
ference between the input signals. This pulse train is then
converted to DC, low pass filtered, then fed back to the
RX VCO varactor diodes D1018/D1019 and D1020/D1021
(all 1SV282).
Changes in the DC voltage applied to the varactor diodes
D1018/D1019 and D1020/D1021 (all 1SV282) affect the
reactance in the tank circuit RX VCO Q1048/1049 (both
2SK508), changing the oscillating frequency according
to the phase difference between the signals derived from
the RX VCO and the crystal reference oscillator. The RX
VCO is thus phase-locked to the reference frequency stan-
dard.
TRANSMIT SIGNAL PATH
The speech audio from the CNTL Unit is applied to the
varactor diode D1010 (HVU350), which frequency mod-
ulates the TX VCO from the unmodulated carrier at the
transmit frequency. The modulated transmit signal is buff-
ered by Q1026 (2SC5226), then passes through the RF
amplifier Q1030 (2SC3357) and RF diode switch D1016
(RN739F) to the PA Unit.

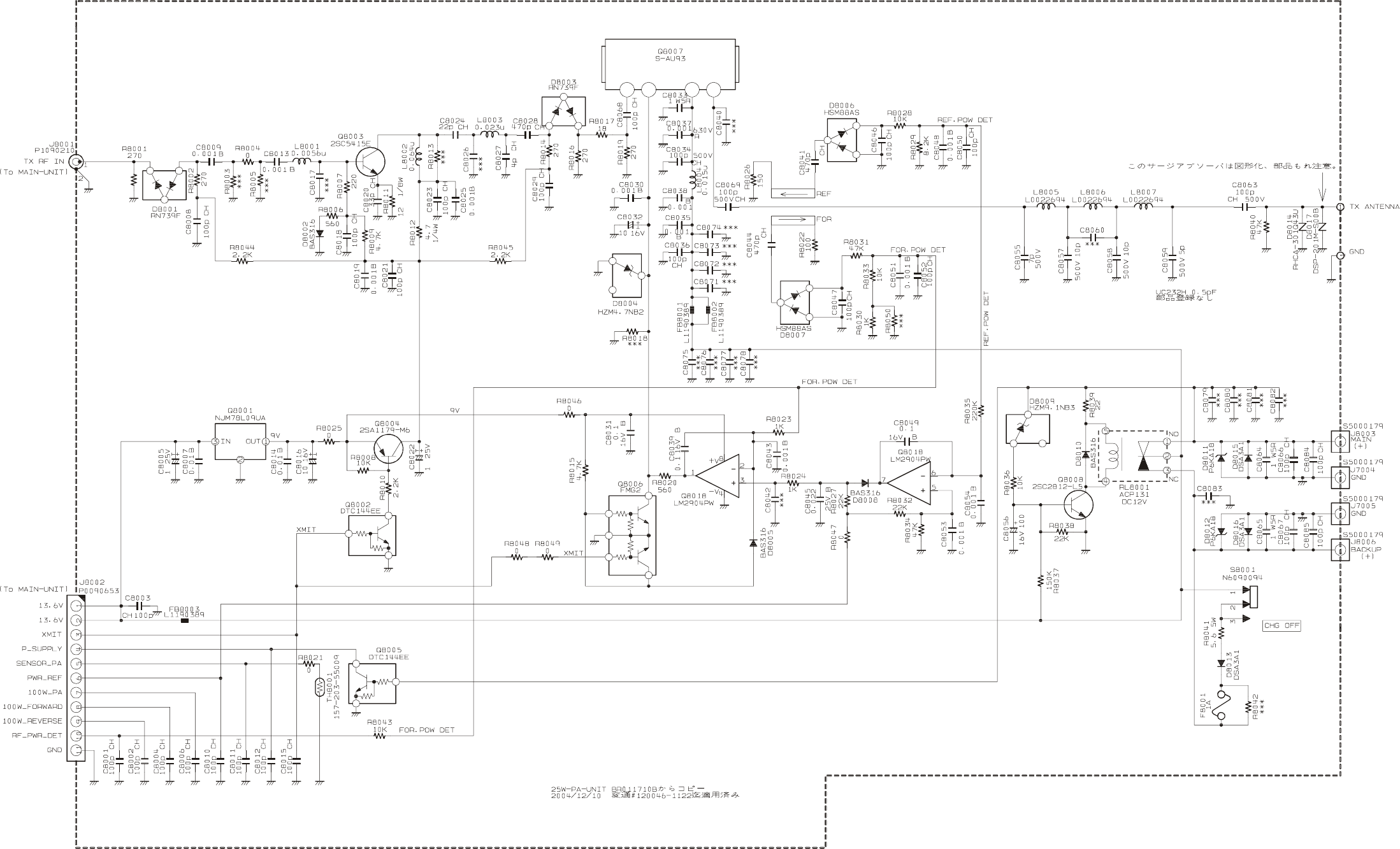

The transmit signal is applied to the RF amplifier Q5001
(2SC3357) and Q5008 (PD55008), then finally amplified
by power amplifier Q5015 and Q5016 (both PD55025S)
up to 50 Watts. Harmonic and spurious radiation in the
final output is suppressed by a low pass filter consisting
of coils L5007 ~ L5010, plus capacitors C5071, C5078,
C5082, C5085, and C5088 on the PA Unit, before delivery
to the TX antenna jack.
TX PLL AND VCO CIRCUITS
The Transmitter’s PLL circuitry consists of PLL subsystem
IC Q1008 (MB15A02PFV1) on the MAIN Unit, which con-
tains a reference oscillator/divider, serial-to-parallel data
latch, programmable divider, phase comparator and a
swallow counter. Stability is obtained by a regulated 5
VDC supply via Q1062 (L78M05T) and temperature com-
pensated 14.4 MHz crystal oscillator X1001.
The TX VCO, consisting of FET Q1021 (2SK508) and var-
actor diodes D1008 and D1009 (both 1SV282), oscillates
between 450 MHz and 490 MHz according to the pro-
grammed transmit frequency. The theory of operation of
the remainder of the PLL circuitry is similar to that of the
RX PLL circuit; however, dividing data from the Main
CPU Q3014 (HD64F2238) on the CNTL Unit is such that
the VCO frequency is the actual transmit frequency.
APC (AUTOMATIC POWER CONTROL)
RF power output from the final amplifier Q5015/Q5016
(both PD55025S) is sampled by C5061/C5056 and is then
rectified by D5007 and D5008 (both HSM88AS). The re-
sulting DC voltage is applied to the comparator Q5005
(TA75S01F), where the voltage is compared with a refer-
ence voltage from the Main CPU Q3014 (HD64F2238) on
the CNTL Unit, to produce a control voltage for the Au-
tomatic Power Controller Q5004 (2SC4116GR) and
Circuit Description
F-2
Q5002 (2SB1122S), which regulates supply voltage to
Q5001 (2SC3357).

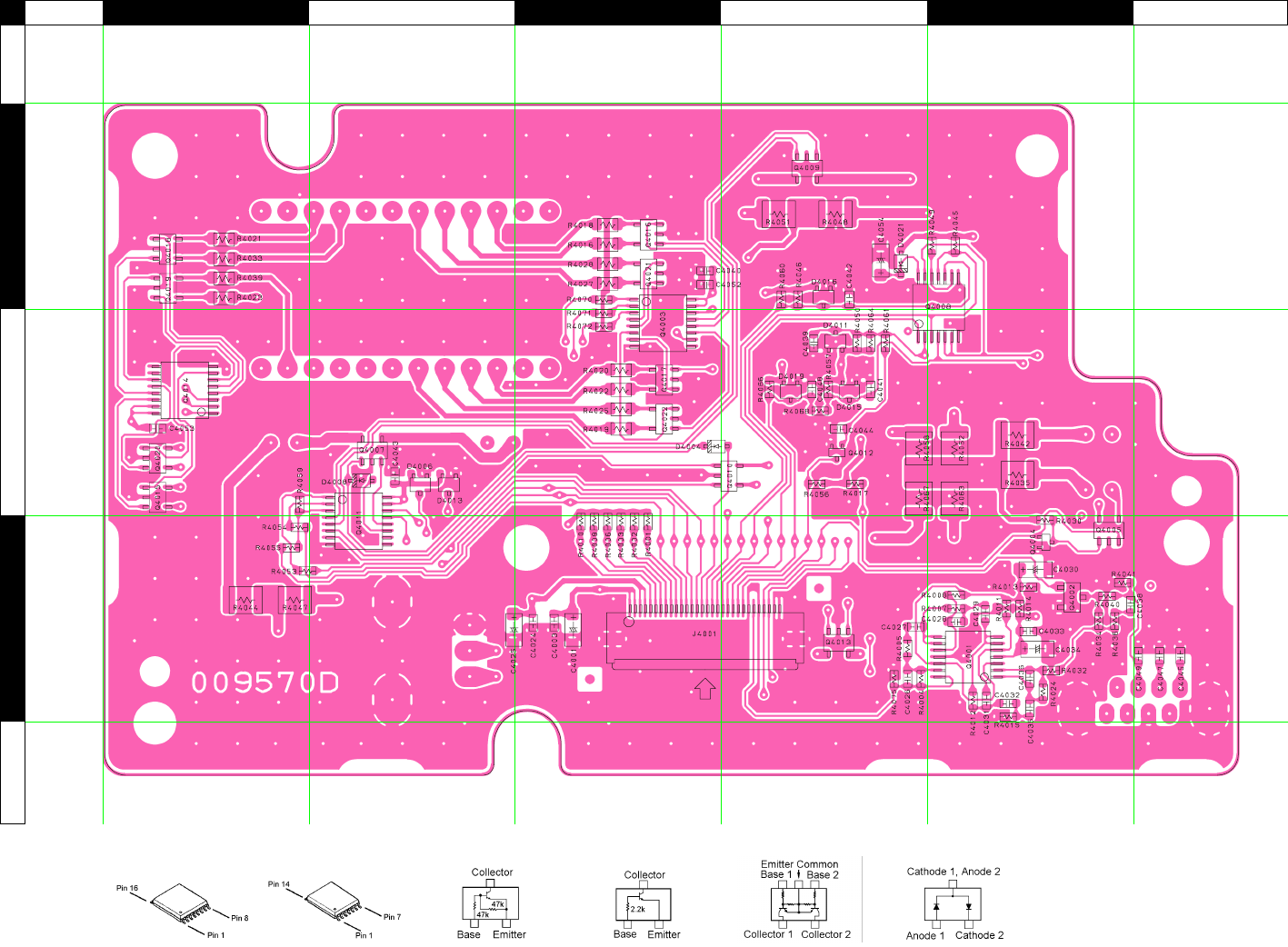

CNTL (CONTROL) UNIT
The CNTL Unit consists of 8-bit CPU Q3014 (HD64F2238),
EEPROM Q3006 (BR24L32F), RX and TX speech audio
circuits, and various analog switches for the CPU and re-
peater interconnections.
Microprocessor operational code is stored in Q3006
(BR24L32F), while channel data and repeater configura-
tion information is programmed from an external PC con-
nected to the front panel’s MIC jack via a VPL-1 program-
ming cable.
The output from the Main CPU Q3014 (HD64F2238) con-
tains serial control data used for REPEATER/BASE mode
control, as well as TX and RX PLL data. Crystal X3002
oscillates at 12.288 MHz, and provides stable clock tim-
ing for the Main CPU. When the repeater is powered on,
the voltage at pin 62 of Q3014 (HD64F2238) becomes sta-
ble, and the output of voltage detector IC Q3012
(BD4845FVE), which is tied to pin 59 (RST) of Q3014
(HD64F2238) becomes high, resetting the Main CPU.
BASE OPERATION (TX, MIC-INPUT AUDIO)
Microphone input is delivered past the MIC MUTE switch
Q4002 (DTC323TK), then passes through the audio am-
plifier and active high pass filter at Q4001 (NJM2902V)
when the signal is processed in the same manner as pre-
viously described.
Circuit Description
F-3
Circuit Description
F-4
Note:
Introduction
The VXR-9000 has been aligned at the factory for the spec-
ified performance across the entire frequency range spec-
ified. Realignment should therefore not be necessary ex-
cept in the event of a component failure. All component
replacement and service should be performed only by an
authorized Vertex Standard representative, or the war-
ranty policy may be voided.
The following procedures cover the sometimes critical and
tedious adjustments that are not normally required once
the transceiver has left the factory. However, if damage
occurs and some parts are replaced, realignment may be
required. If a sudden problem occurs during normal op-
eration, it is likely due to component failure; realignment
should not be done until after the faulty component has
been replaced.
We recommend that servicing be performed only by au-
thorized Vertex Standard service technicians who are ex-
perienced with the circuitry and fully equipped for re-
pair and alignment. Therefore, if a fault is suspected, con-
tact the dealer from whom the transceiver was purchased
for instructions regarding repair. Authorized Vertex Stan-
dard service technicians realign all circuits and make com-
plete performance checks to ensure compliance with fac-
tory specifications after replacing any faulty components.
Those who do undertake any of the following alignments
are cautioned to proceed at their own risk. Problems
caused by unauthorized attempts at realignment are not
covered by the warranty policy. Also, Vertex Standard
must reserve the right to change circuits and alignment
procedures in the interest of improved performance, with-
out notifying owners. Under no circumstances should any
alignment be attempted unless the normal function and
operation of the transceiver are clearly understood, the
cause of the malfunction has been clearly pinpointed and
any faulty components replaced, and the need for realign-
ment determined to be absolutely necessary. The follow-
ing test equipment (and thorough familiarity with its cor-
rect use) is necessary for complete realignment. Correc-
tion of problems caused by misalignment resulting from
use of improper test equipment is not covered under the
warranty policy. While most steps do not require all of
the equipment listed, the interactions of some adjustments
may require that more complex adjustments be performed
afterwards. Do not attempt to perform only a single step
unless it is clearly isolated electrically from all other steps.
Have all test equipment ready before beginning, and fol-
low all of the steps in a section in the order presented.
Required Test Equipment
RF Signal Generator with calibrated output level at 1
GHz
AF Signal Generator
Frequency Counter: ±0.2 ppm accuracy at 1 GHz
In-line Wattmeter with 5% accuracy at 1 GHz
50-ohm, 50-W RF Dummy Load (50 W mode) or 50-
ohm, 100-W RF Dummy Load (100 W mode)
13.6V Regulated DC Power Supply with capable up to
15A (50 W mode) or 30A (100 W mode).
AC Voltmeter
DC Voltmeter
UHF Sampling Coupler
Microsoft® Windows® 98 or later operating system
Vertex Standard VPL-1 Connection Cable, FRB-4 Tun-
ing I/F Box, and CE60 Programming Software
Alignment Preparation & Precautions
A 50-ohm RF Dummy load and in-line wattmeter must
be connected to the main antenna jack in all procedures
that call for transmission, except where specified other-
wise. Correct alignment is not possible with an antenna.
After completing one step, read the following step to de-
termine whether the same test equipment will be required.
If not, remove the test equipment (except dummy load
and wattmeter, if connected) before proceeding.
Correct alignment requires that the ambient temperature
be the same as that of the transceiver and test equipment,
and that this temperature be held constant between 20 °C
and 30 °C (68 °F ~ 86 °F). When the transceiver is brought
into the shop from hot or cold air, it should be allowed
time to come to room temperature before alignment.
Whenever possible, alignments should be made with os-
cillator shields and circuit boards firmly affixed in place.
Also, the test equipment must be thoroughly warmed up
before beginning.
Note: Signal levels in dB referred to in this procedure are
based on 0 dBµ EMF = 1.0 µV.
Alignment
G-1
Alignment
G-2
RX Sensitivity
Open the “Alignment” window, then click the left
mouse button on the “Rx Tune” tab to move to the “Rx
Tune” screen.
Click the left mouse button on the “Low Band Edge
Frequency” box on the “RX BPF” field (highlighted in
“pink”).
Set the RF Signal Generator output to the “Low Band
Edge” Frequency, at a level of –6 dBµV, ±3.0 kHz de-
viation with a 1 kHz audio tone.
Press the [Page Up]/[Page Down] key so that the
SINAD meter reaches maximum deflection.
Repeat above steps at the other four points (box: fre-
quencies).
Computer
(CE60)
MIC
VXR-9000
SINAD Meter
4-ohm
Dummy Load
RF Signal
Generator
RX ANT
EXT SP
The Alignment Tool Outline
1. Install the CE60 (Programming Software) to your PC.
2. Execute the CE60 with the “/d” option (Dealer mode:
type “ce60win.exe /d” [ENTER]).
3. You may adjust the following parameters from the
computer.
RX Sensitivity
Squelch Sensitivity
TX Power
Maximum Deviation <Wide/Narrow>
Maximum Deviation <Wide/Narrow>
Sub-Audio (CTCSS/DCS) Deviation <Wide/Nar-
row>
Modulation Balance
Repeat Sensitivity
TX Power Down Detect
PLL Reference Frequency

Setup the test equipment as shown below.
Alignment
SQL Sensitivity
Setup the test equipment as shown below.
Computer
(CE60)
MIC
VXR-9000
RF Signal
Generator
RX ANT
G-3
Open the “Alignment” window, then click the left
mouse button on the “Rx Tune” tab to move to the “Rx
Tune” screen.
Click the left mouse button on the “Wide” box on the
“Low Band Edge Frequency” area of the “Squelch
Level” field (highlighted in “pink”).
Set the RF Signal Generator output to the “Low Band
Edge” Frequency, at a level of –3 dBµV, ±3.0 kHz de-
viation with a 1 kHz audio tone.
Press the [Page Down] key until the squelch close, then
press the [Page Up] key to the point where the squelch
is just opened.
Repeat above steps at the other four points (box: fre-
quencies).
Click the left mouse button on the “Narrow” box on
the “Low Band Edge Frequency” area of the “Squelch
Level” field (highlighted in “pink”).
Set the RF Signal Generator output to the “Low Band
Edge” Frequency, at a level of –3 dBµV, ±1.5 kHz de-
viation with a 1 kHz audio tone.
TX Power
Open the “Alignment” window, then click the left
mouse button on the “Tx Power” tab to move to the
“Tx Power” screen.
Click the left mouse button on the “High” box on the
“Low Band Edge Frequency” area of the “TX Power”
field (highlighted in “pink”).
Click the left mouse button on the “PTT On” button to
actitvate the transmitter (the “PTT On” label is changed
to “PTT Off”).
Press the [Page Up]/[Page Down] key so that the
Power Meter reading is 50 W.
Click the left mouse button on the “PTT Off” button
to disable the transmitter (the “PTT Off” label is re-
turned to “PTT On”).
Repeat the above steps at the “Mid” (25 W) and “Low”
(10 W) boxs.
Repeat the above steps at the 12 points (box: frequen-
cies).
50-ohm
Dummy Load
Computer
(CE60)
MIC
VXR-9000
Inline
Wattmeter
TX ANT
Note: When the optional 100 PA Unit is installed, per-
form this adjustment parameter in the “TX Power (100
W Unit)” field. In this case, adjust the “High” power to
“100 W,” “Mid” power to “50 W,” and “Low” power to
“25 W.”
Press the [Page Down] key until the squelch close, then
press the [Page Up] key to the point where the squelch
is just opened.
Repeat the above steps at the four points (box: frequen-
cies).
Setup the test equipment as shown below.
Sub-Audio (CTCSS) Deviation
Open the “Alignment” window, then click the left
mouse button on the “Deviation” tab to move to the
“Deviation” screen.
Click the left mouse button on the “CTCSS W” box on
the “Low Band Edge Frequency” area of the “MAX
Deviation (CTCSS/DCS)” field (highlighted in “pink”).
Click the left mouse button on the “PTT On” button to
actitvate the transmitter (the “PTT On” label is changed
to “PTT Off”).
Press the [Page Up]/[Page Down] key so that the De-
viation Meter reading is 0.75 kHz ±0.05 kHz.
Click the left mouse button on the “PTT Off” button
to disable the transmitter (the “PTT Off” label is re-
turned to “PTT On”).
VXR-9000
Deviation
Meter
Computer
(CE60)
50-ohm
Dummy Load
Sampling
Coupler
TX ANT
MIC
Alignment
G-4
Maximum Deviation
Set the AF Signal Generator output to 35 mVrms at 1
kHz.
Open the “Alignment” window, then click the left
mouse button on the “Deviation” tab to move to the
“Deviation” screen.
Click the left mouse button on the “Wide” box on the
“Low Band Edge Frequency” area of the “MAX De-
viation (Audio)” field (highlighted in “pink”).
Click the left mouse button on the “PTT On” button to
actitvate the transmitter (the “PTT On” label is changed
to “PTT Off”).
Press the [Page Up]/[Page Down] key so that the De-
viation Meter reading is 4.2 kHz ±0.2 kHz.
VXR-9000
Deviation
Meter
TUNING I/F BOX
(FRB-4)
Computer
(CE60)
AF Signal
Generator
50-ohm
Dummy Load
Sampling
Coupler
TX ANT
MIC
Setup the test equipment as shown below. Click the left mouse button on the “PTT Off” button
to disable the transmitter (the “PTT Off” label is re-
turned to “PTT On”).
Repeat the above steps at the “Narrow” box on the
“Low Band Edge Frequency” area of the “MAX De-
viation (Audio)” field (highlighted in “pink”) so that
the Deviation Meter reading is 2.1 kHz ±0.1 kHz.
Repeat the above steps at the eight points (box: fre-
quencies).
Setup the test equipment as shown below. Repeat the above steps at the “CTCSS N” box on the
“Low Band Edge Frequency” area of the “MAX De-
viation (CTCSS/DCS)” field (highlighted in “pink”) so
that the Deviation Meter reading is 0.38 kHz ±0.02 kHz.
Repeat the above steps at the eight points (box: fre-
quencies).
Alignment
G-7
Sub-Audio (DCS) Deviation
Setup the test equipment as shown below.
VXR-9000
Deviation
Meter
Computer
(CE60)
50-ohm
Dummy Load
Samplin
g
Coupler
TX ANT
MIC
Open the “Alignment” window, then click the left
mouse button on the “Deviation” tab to move to the
“Deviation” screen.
Click the left mouse button on the “DCS W” box on
the “Low Band Edge Frequency” area of the “MAX
Deviation (CTCSS/DCS)” field (highlighted in “pink”).
Click the left mouse button on the “PTT On” button to
actitvate the transmitter (the “PTT On” label is changed
to “PTT Off”).
Press the [Page Up]/[Page Down] key so that the De-
viation Meter reading is 0.75 kHz ±0.1 kHz.
Click the left mouse button on the “PTT Off” button
to disable the transmitter (the “PTT Off” label is re-
turned to “PTT On”).
Repeat the above steps at the “DCS N” box on the “Low
Band Edge Frequency” area of the “MAX Deviation
(CTCSS/DCS)” field (highlighted in “pink”) so that the
Deviation Meter reading is 0.38 kHz ±0.08 kHz.
Repeat the above steps at the eight points (box: fre-
quencies).
Modulation Balance
Setup the test equipment as shown below.
VXR-9000
Oscilloscope
Computer
(CE60)
AF Signal
Generator
50-ohm
Dummy Load
Sampling
Coupler
TX ANT
DSUB 25-pin Accessory Connector
Pin 25 (TXD HIGH)
MIC
NG
NG OK
Set the AF Signal Generator output to 500 mVp-p, 100
Hz square signal.
Open the “Alignment” window, then click the left
mouse button on the “Deviation” tab to move to the
“Deviation” screen.
Click the left mouse button on the “Mod” box on the
“Low Band Edge Frequency” area of the “Modulation
Balance” field (highlighted in “pink”).
Click the left mouse button on the “PTT On” button to
actitvate the transmitter (the “PTT On” label is changed
to “PTT Off”).
Press the [Page Up]/[Page Down] key so that the Os-
cilloscope shown 100 Hz square wave is obtained. See
illustrations at the right.
Click the left mouse button on the “PTT Off” button
to disable the transmitter (the “PTT Off” label is re-
turned to “PTT On”).
Repeat the above steps at the four points (box: frequen-
cies).
Alignment
G-7
Repeat Sensitivity
Setup the test equipment as shown below.
VXR-9000
Deviation
Meter
Computer
(CE60)
RF Signal
Generator
50-ohm
Dummy Load
Sampling
Coupler
TX ANT
RX ANT
MIC
Open the “Alignment” window, then click the left
mouse button on the “Repeat” tab to move to the “Re-
peat” screen.
Set the RF Signal Generator output to the “Repeat RX
Frequency,” at a level of +40 dBµV, ±3.0 kHz deviation
with a 1 kHz audio tone.
Click the left mouse button on the “Repeat Sensitiv-
ity” box.
Click the left mouse button on the “Repeat Sens. Enb”
button to actitvate the transmitter (the “Repeat Sens.
Enb” label is changed to “Repeat TX Off”).
Press the [Page Up]/[Page Down] key so that the De-
viation Meter reading is 3.0 kHz ±0.2 kHz.
Click the left mouse button on the “Repeat TX Off”
button to disable the transmitter (the “Repeat TX Off”
label is returned to “Repeat Sens. Enb”).
TX Power Down Detect
Setup the test equipment as shown below.
50-ohm
Dummy Load
Computer
(CE60)
MIC
VXR-9000
Inline
Wattmeter
TX ANT
Open the “Alignment” window, then click the left
mouse button on the “TX PD Det.” tab to move to the
“TX PD Det.” screen.
Click the left mouse button on the “Adjust” box on the
“Low Band Edge Frequency” area of the “Tx Power
Low Temporary ADJ” field (highlighted in “pink”).
Click the left mouse button on the “TX PD Det. Enb”
button to actitvate the transmitter (the “TX PD Det.
Enb” label is changed to “PTT Off”).
Press the [Page Up]/[Page Down] key so that the
Power Meter reading is 5 W.
Click the left mouse button on the “READ” button to
save the “TX Power Down Detect” data.
Click the left mouse button on the “PTT Off” button
to disable the transmitter (the “PTT Off” label is re-
turned to “TX PD Det. Enb”).
Repeat the above steps at the four points (box: frequen-
cies).
Alignment
G-8
PLL Reference Frequency
Important Note: (1) Do not this adjustment unless you have a
high-performance frequency counter. (2) This adjustment
needs to add a “Chip Resistor” on to the Main Unit. For fur-
ther details contact to Vertex Standard.
Setup the test equipment as shown below.
VXR-9000
Frequency
Counter
Computer
(CE60)
50-ohm
Dummy Load
Samplin
g
Coupler
TX ANT
MIC
Open the “Alignment” window, then click the left
mouse button on the “TX PD Det.” tab to move to the
“TX PD Det.” screen.
Click the left mouse button on the “TX Frequency”
box (highlighted in “pink”).
Click the left mouse button on the “TX PD Det. Enb”
button to actitvate the transmitter (the “TX PD Det.
Enb” label is changed to “PTT Off”).
Press the [Page Up]/[Page Down] key so that the Fre-
quency Counter reading is “Low Band Edge Fre-
quency” ±100 Hz.
Click the left mouse button on the “PTT Off” button
to disable the transmitter (the “PTT Off” label is re-
turned to “TX PD Det. Enb”).
Alignment
G-9
Note:
MAIN Unit (Lot. 1~2)
H-1

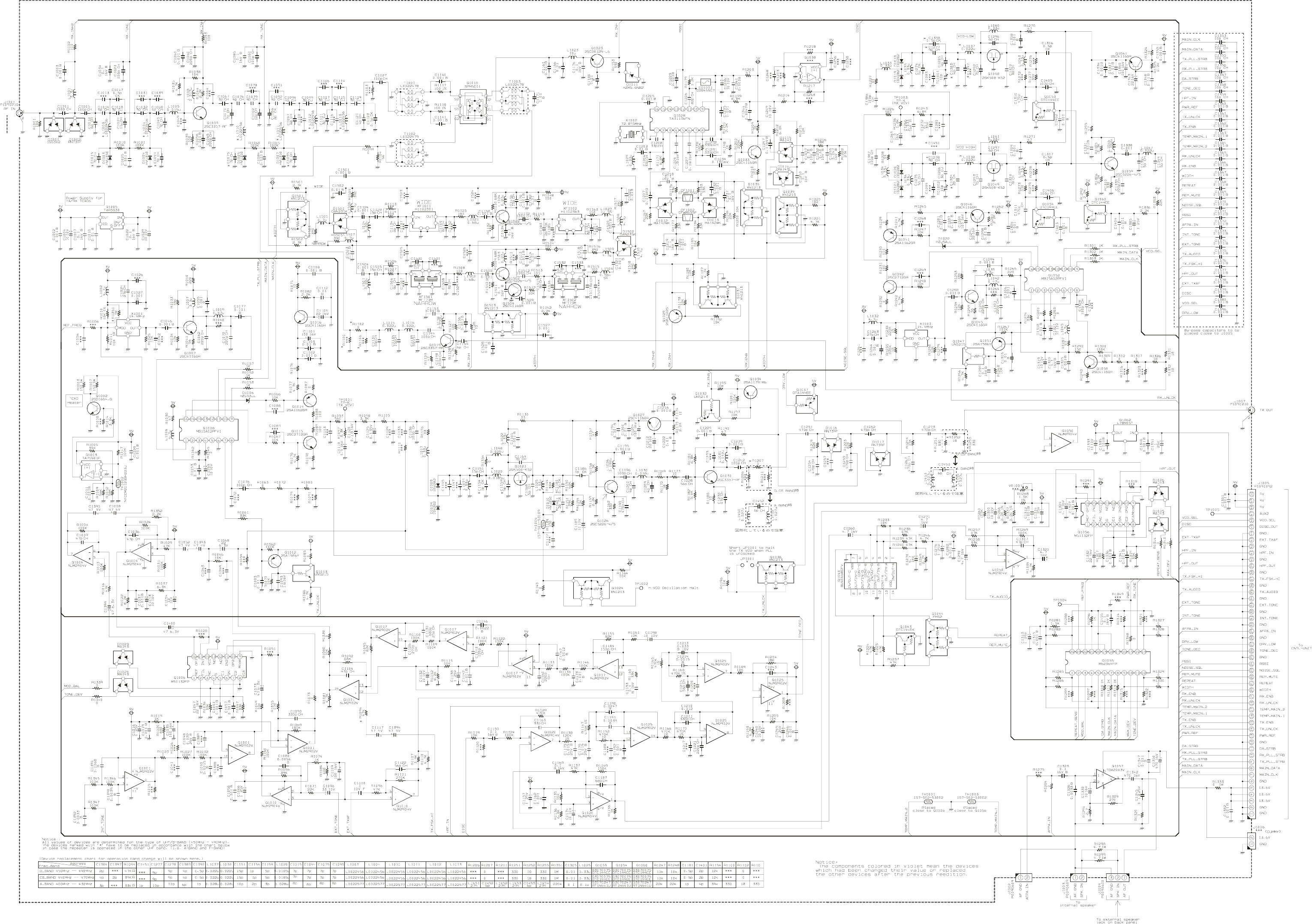

Circuit Diagram
2.2 V
2.2 V
1.3 V
2.2 V
2.2 V
8.9 V
4.9 V
7.1 V
1.3 V
8.6 V
0.4 V
1.5 V
8.0 V
2.3 V
WIDE: 0.1 V
NARROW: 7.5 V
0.9 V
8.0 V
(8.4 V)
(8.0 V)
8.9 V
0 V
(4.2 V)2.3 V
LOCK: 0 V
UNLOCK: 5.0 V
0.5 V
LOCK: 0 V
UNLOCK: 5.0 V
Frequency: 470.20 MHz
(468.80 MHz)
MAIN Unit (Lot. 1~2)
H-2
Note
H-3
MAIN Unit (Lot. 1~2)

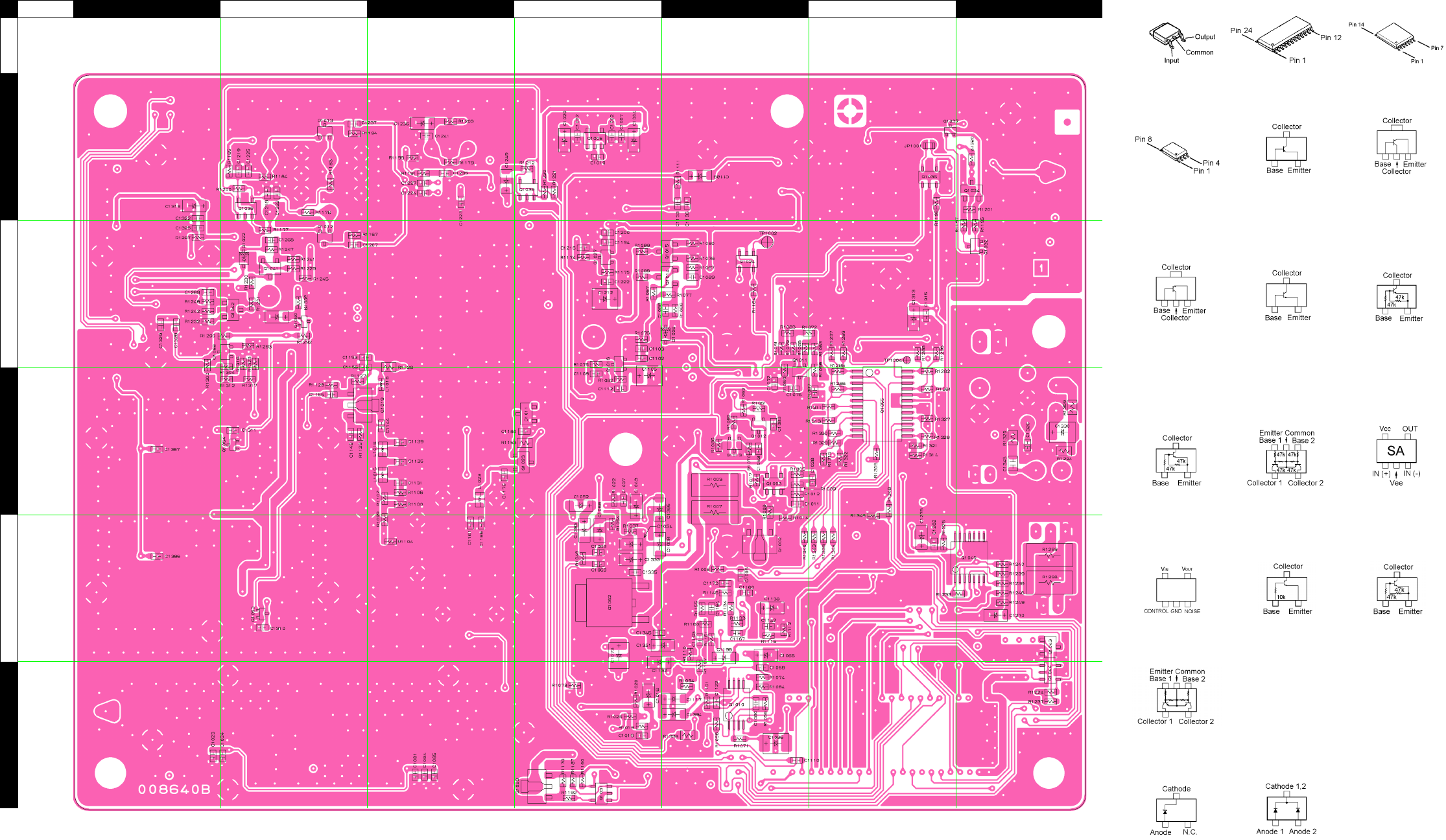

Parts Layout (Side A)
BADCFE G
1
3
5
2
4
2SA1586Y (SY)
(Q1051)
2SC3357 (RK)
(Q1009, 1030)
2SC4116GR (LG)
(Q1007, 1033, 1045,
1046, 1061)
2SC5226 (R22)
(Q1022, 1026, 1059)
2SK508 (K52)
(Q1021, 1048,
1049)
M51132FP
(Q1006, 1056)
MB15A02PFV1
(Q1008, 1052)
TA31136FN
(Q1028)
NJM2902V
(Q1001, 1017, 1025)
NJM2904V
(Q1004, 1020, 1050)
TDA2003
(Q1057)
UN5215 (8E)
(Q1047)
MA143 (MC)
(D1014, 1015, 1023,
1024, 1025, 1026)
RN739F (5F)
(D1002, 1016, 1017)
SPM5001
(Q1018)
1SS302 (C3)
(D1001)
H-4
MAIN Unit (Lot. 1~2)

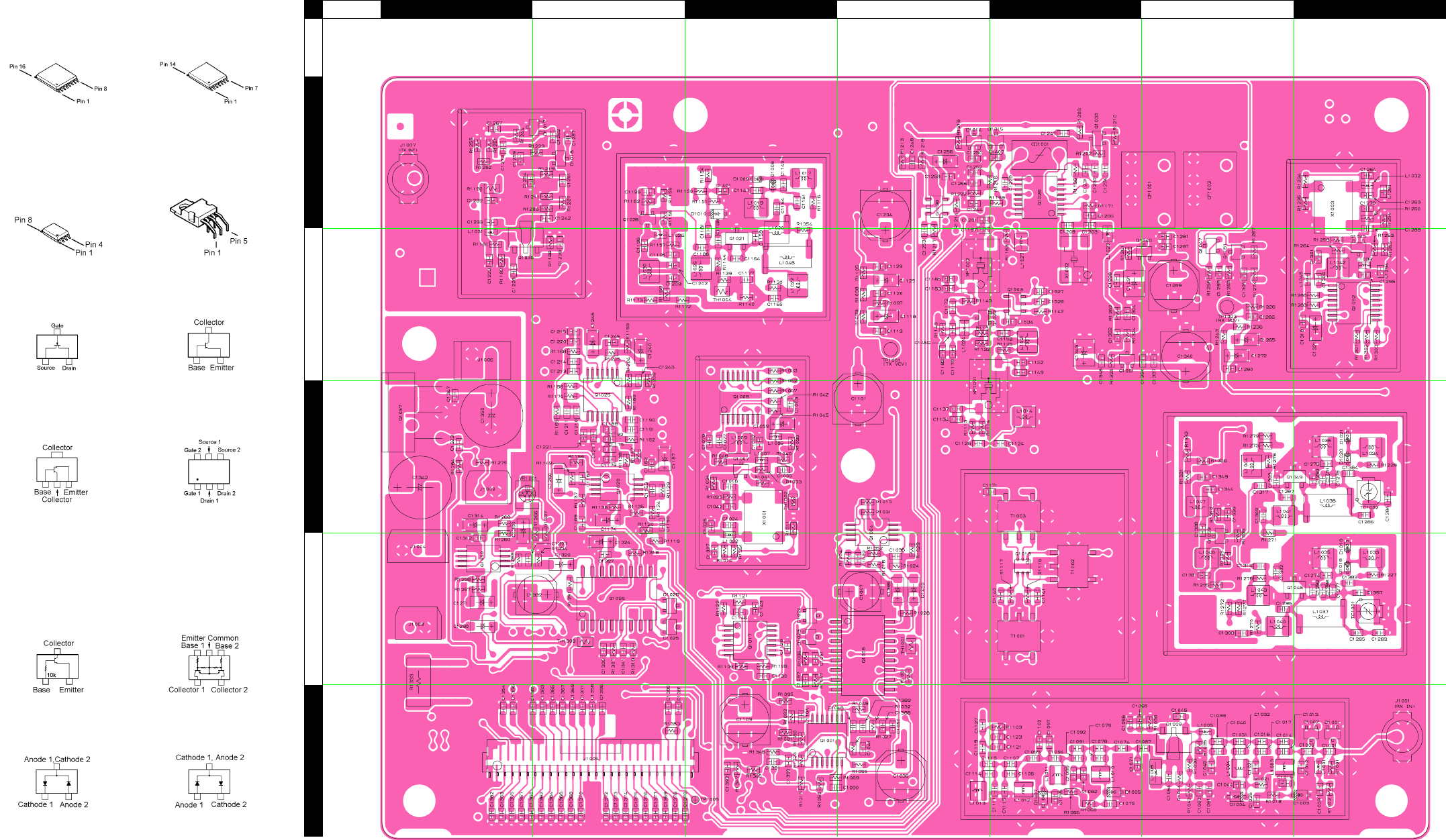

Parts Layout (Side B)
2SB1122S (BE)
(Q1029)
2SC2712GR (LG)
(Q1015, 1042)
2SC2812 (LG)
(Q1023)
2SC4116GR (LG)
(Q1016, 1027, 1058)
FMG2 (G2)
(Q1044)
HZM5.6NB2 (562)
(D1011)
MA142WK (MU)
(D1012, 1013)
1
3
5
2
4
badcfeg
2SC3357 (RK)
(Q1019)
2SD1664 (DA)
(Q1002)
BU4066BCFV
(Q1040)
L78M05T
(Q1062)
M62364FP
(Q1055)
NJM2904V
(Q1010)
TA75S01F (SA)
(Q1003)
TAR5S30
(Q1005)
UN5213 (8C)
(Q1032)
UN5215 (8E)
(Q1013)
2SA1162GR (SG)
(Q1014, 1041)
2SA1179 (M6)
(Q1034)
2SA1586Y (SY)
(Q1012)
XN1213 (9L)
(Q1024, 1031, 1035,
1036, 1039)
DTA144EE (16)
(Q1037)
DTC144EE (26)
(Q1053, 1054, 1060)
DTC144EK (26)
(Q1043)
MAIN Unit (Lot. 3~24)
H-5
Circuit Diagram
MAIN Unit (Lot. 3~24)
H-6
Note
H-7
MAIN Unit (Lot. 3~24)
Parts Layout (Side A)
BADCFE G
1
3
5
2
4
2SA1586Y (SY)
(Q1051)
2SC3357 (RK)
(Q1009, 1030)
2SC4116GR (LG)
(Q1007, 1033, 1045,
1046, 1061)
2SC5226 (R22)
(Q1022, 1026, 1059)
2SK508 (K52)
(Q1021, 1048,
1049)
M51132FP
(Q1006, 1056)
MB15A02PFV1
(Q1008, 1052)
TA31136FN
(Q1028)
NJM2902V
(Q1001, 1017, 1025)
NJM2904V
(Q1004, 1020, 1050)
TDA2003
(Q1057)
UN5215 (8E)
(Q1047)
MA143 (MC)
(D1014, 1015, 1023,
1024, 1025, 1026)
RN739F (5F)
(D1002, 1016, 1017)
SPM5001
(Q1018)
1SS302 (C3)
(D1001)
XN1213 (9L)
(Q1503)
H-8
MAIN Unit (Lot. 3~24)
Parts Layout (Side B)
1
3
5
2
4
badcfeg
2SB1122S (BE)
(Q1029)
2SC2712GR (LG)
(Q1015, 1042)
2SC2812 (LG)
(Q1023)
2SC4116GR (LG)
(Q1016, 1027, 1058,
1504)
FMG2 (G2)
(Q1044)
HZM5.6NB2 (562)
(D1011)
MA142WK (MU)
(D1012, 1013)
2SC3357 (RK)
(Q1019)
2SD1664 (DA)
(Q1002)
2SC5226 (R22)
(Q1502)
BU4066BCFV
(Q1040)
L78M05T
(Q1062)
M62364FP
(Q1055)
NJM2904V
(Q1010)
TA75S01F (SA)
(Q1003)
TAR5S30
(Q1005)
UN5213 (8C)
(Q1032)
UN5215 (8E)
(Q1013)
2SA1162GR (SG)
(Q1014, 1041)
2SA1179 (M6)
(Q1034)
2SA1586Y (SY)
(Q1012)
XN1213 (9L)
(Q1024, 1031, 1035,
1036, 1039, 1501)
DTA144EE (16)
(Q1037)
DTC144EE (26)
(Q1053, 1054, 1060)
DTC144EK (26)
(Q1043)
MAIN Unit (Lot. 25~)
H-9
Circuit Diagram
MAIN Unit (Lot. 25~)
H-10
Note
H-11
MAIN Unit (Lot. 25~)
Parts Layout (Side A)
BADCFE G
1
3
5
2
4
2SA1586Y (SY)
(Q1051)
2SC3357 (RK)
(Q1009, 1030)
2SC4116GR (LG)
(Q1007, 1033, 1045,
1046, 1061)
2SC5226 (R22)
(Q1022, 1026, 1059)
2SK508 (K52)
(Q1021, 1048,
1049)
M51132FP
(Q1006, 1056)
MB15A02PFV1
(Q1008, 1052)
TA31136FN
(Q1028)
NJM2902V
(Q1001, 1017, 1025)
NJM2904V
(Q1004, 1020, 1050)
TDA2003
(Q1057)
UN5215 (8E)
(Q1047)
MA143 (MC)
(D1014, 1015, 1023,
1024, 1025, 1026)
RN739F (5F)
(D1002, 1016, 1017)
SPM5001
(Q1018)
1SS302 (C3)
(D1001)
XN1213 (9L)
(Q1503)
H-12
MAIN Unit (Lot. 25~)
Parts Layout (Side B)
1
3
5
2
4
badcfeg
2SB1122S (BE)
(Q1029)
2SC2712GR (LG)
(Q1015, 1042)
2SC2812 (LG)
(Q1023)
2SC4116GR (LG)
(Q1016, 1027, 1058,
1504)
FMG2 (G2)
(Q1044)
HZM5.6NB2 (562)
(D1011)
MA142WK (MU)
(D1012, 1013)
2SC3357 (RK)
(Q1019)
2SD1664 (DA)
(Q1002)
2SC5226 (R22)
(Q1502)
BU4066BCFV
(Q1040)
L78M05T
(Q1062)
M62364FP
(Q1055)
NJM2904V
(Q1010)
TA75S01F (SA)
(Q1003)
TAR5S30
(Q1005)
UN5213 (8C)
(Q1032)
UN5215 (8E)
(Q1013)
2SA1162GR (SG)
(Q1014, 1041)
2SA1179 (M6)
(Q1034)
2SA1586Y (SY)
(Q1012)
XN1213 (9L)
(Q1024, 1031, 1035,
1036, 1039, 1501)
DTA144EE (16)
(Q1037)
DTC144EE (26)
(Q1053, 1054, 1060)
DTC144EK (26)
(Q1043)
H-13
MAIN Unit
Parts List
REF DESCRIPTION VALUE V/W TOL. MFR'S DESIG VXSTD P/N VERS. LOT SIDE
LAY ADR
Parts List
PCB with Components CB2115001 VER. D
CB2115002 VER. CS
CB2115003 VER. A
Printed Circuit Board. AC044U000 FR008640B 1-
AC044U000 FR008640C 3-22
AC044U000 FR014710A VER. A 23-24
AC044U000 FR008640C VER. CS 23-24
AC044U000 FR008640C VER. D 23-24
AC044U000 FR014710A 25-
C 1001 CHIP CAP. 100pF 50V CH GRM1882C1H101JA01D K22174235 1- A G5
C 1002 CHIP CAP. 0.001uF 50V B GRM188B11H102KA01D K22174821 1- B d1
C 1003 CHIP CAP. 0.001uF 50V B GRM188B11H102KA01D K22174821 1- A G5
C 1004 CHIP TA.CAP. 10uF 10V TEMSVA1A106M-8R K78100028 1- B d1
C 1005 CHIP CAP. 100pF 50V CH GRM1882C1H101JA01D K22174235 1- A G5
C 1007 CHIP CAP. 0.1uF 16V B GRM188B11C104KA01D K22124805 1- B d1
C 1008 CHIP TA.CAP. 47uF 4V SK7-0G476M-RA K78060048 1- B d4
C 1009 CHIP CAP. 47pF 50V CH GRM1882C1H470JA01D K22174227 1- A D4
C 1010 CHIP CAP. 0.01uF 50V B GRM188B11H103KA01D K22174823 1- B d1
C 1011 CHIP CAP. 0.001uF 50V B GRM188B11H102KA01D K22174821 1- B e3
C 1012 CHIP CAP. 6pF 50V CH GRM1882C1H6R0DZ01D K22174207 1- A G5
C 1014 CHIP CAP. 4pF 50V CH GRM1882C1H4R0CZ01D K22174205 1- A F5
C 1015 CHIP CAP. 7pF 50V CH GRM1882C1H7R0DZ01D K22174208 1-20 A F5
C 1015 CHIP CAP. 8pF 50V CH GRM1882C1H8R0CZ01D K22174246 VER. A 21- A F5
C 1015 CHIP CAP. 7pF 50V CH GRM1882C1H7R0DZ01D K22174208 VER. CS 21- A F5
C 1015 CHIP CAP. 7pF 50V CH GRM1882C1H7R0DZ01D K22174208 VER. D 21- A F5
C 1016 CHIP TA.CAP. 1uF 25V TEMSVA1E105M-8R K78140013 1- B d5
C 1017 CHIP CAP. 0.5pF 50V CK GRM1884C1HR50CZ01D K22174201 1- A F5
C 1018 CHIP CAP. 3pF 50V CJ GRM1883C1H3R0CZ01D K22174204 1- A F5
C 1019 CHIP CAP. 0.001uF 50V B GRM188B11H102KA01D K22174821 1- B d5
C 1021 CHIP CAP. 15pF 50V CH GRM1882C1H150JA01D K22174215 1- A F5
C 1022 CHIP CAP. 0.1uF 16V B GRM188B11C104KA01D K22124805 1- B d1
C 1023 CHIP CAP. 100pF 50V CH GRM1882C1H101JA01D K22174235 1- B a5
C 1024 CHIP CAP. 27pF 50V CH GRM1882C1H270JA01D K22174221 1- A C3
C 1025 CHIP CAP. 0.001uF 50V B GRM188B11H102KA01D K22174821 1- A F5
C 1027 CHIP CAP. 0.001uF 50V B GRM188B11H102KA01D K22174821 1- A C4
C 1028 CHIP CAP. 0.001uF 50V B GRM188B11H102KA01D K22174821 1- B f3
C 1029 CHIP TA.CAP. 10uF 10V TEMSVA1A106M-8R K78100028 1- B d1
C 1032 CHIP CAP. 4pF 50V CH GRM1882C1H4R0CZ01D K22174205 1- A F5
C 1034 CHIP CAP. 0.1uF 16V B GRM188B11C104KA01D K22124805 1- B b5
C 1035 AL.ELECTRO.CAP. 100uF 16V ECEV1CA101WP K48120012 1- A D5
C 1036 CHIP CAP. 47pF 50V CH GRM1882C1H470JA01D K22174227 1- A D4
C 1037 CHIP CAP. 0.001uF 50V B GRM188B11H102KA01D K22174821 1- B d3
C 1040 CHIP CAP. 4pF 50V CH GRM1882C1H4R0CZ01D K22174205 1- A F5
C 1043 CHIP TA.CAP. 10uF 10V TEMSVA1A106M-8R K78100028 1- B d3
C 1044 CHIP CAP. 7pF 50V CH GRM1882C1H7R0DZ01D K22174208 1-20 A F5
C 1044 CHIP CAP. 8pF 50V CH GRM1882C1H8R0CZ01D K22174246 VER. A 21- A F5
C 1044 CHIP CAP. 7pF 50V CH GRM1882C1H7R0DZ01D K22174208 VER. CS 21- A F5
C 1044 CHIP CAP. 7pF 50V CH GRM1882C1H7R0DZ01D K22174208 VER. D 21- A F5
C 1045 CHIP CAP. 7pF 50V CH GRM1882C1H7R0DZ01D K22174208 1- A F5
C 1046 CHIP CAP. 0.001uF 50V B GRM188B11H102KA01D K22174821 1- A C3
C 1047 AL.ELECTRO.CAP. 22uF 16V ECEV1CA220SR K48120002 1- A D4
C 1048 CHIP CAP. 0.022uF 25V B GRM39B223K25PT K22144807 1- A D5
C 1050 CHIP CAP. 0.0015uF 50V B GRM188B11H152KA01D K22174827 1- A D5
C 1051 CHIP CAP. 0.001uF 50V B GRM188B11H102KA01D K22174821 1- A C4
C 1052 CHIP TA.CAP. 47uF 4V SK7-0G476M-RA K78060048 1- B d3
C 1053 CHIP CAP. 0.01uF 50V B GRM188B11H103KA01D K22174823 1- A C3
C 1054 CHIP TA.CAP. 10uF 10V TEMSVA1A106M-8R K78100028 1- B d4
C 1055 CHIP CAP. 0.001uF 50V B GRM188B11H102KA01D K22174821 1- A C3
C 1056 CHIP CAP. 0.001uF 50V B GRM188B11H102KA01D K22174821 1- A E5
C 1057 CHIP CAP. 0.001uF 50V B GRM188B11H102KA01D K22174821 1- A C4
C 1058 CHIP CAP. 0.001uF 50V B GRM188B11H102KA01D K22174821 1- B e5
C 1059 CHIP TA.CAP. 10uF 10V TEMSVA1A106M-8R K78100028 1- A C3
C 1060 CHIP CAP. 220pF 50V CH GRM1882C1H221JA01D K22174243 1- A F5
C 1061 CHIP CAP. 0.001uF 50V B GRM188B11H102KA01D K22174821 1- A F5
C 1062 CHIP CAP. 220pF 50V CH GRM1882C1H221JA01D K22174243 1- A C3
C 1065 CHIP CAP. 220pF 50V CH GRM1882C1H221JA01D K22174243 1- A E5
C 1066 CHIP TA.CAP. 1uF 25V TEMSVA1E105M-8R K78140013 1- B e4
C 1067 CHIP CAP. 8pF 50V CH GRM1882C1H8R0DZ01D K22174209 1- A F5
C 1068 CHIP TA.CAP. 22uF 6.3V TEMSVA0J226M-8R K78080047 1- B d4
C 1070 CHIP CAP. 220pF 50V CH GRM1882C1H221JA01D K22174243 1- A C3
C 1071 CHIP CAP. 7pF 50V CH GRM1882C1H7R0DZ01D K22174208 1- A E5
C 1073 CHIP TA.CAP. 47uF 6.3V TEMSVB20J476M-8R K78080048 1- B d4
C 1074 CHIP CAP. 4pF 50V CH GRM1882C1H4R0CZ01D K22174205 1- A E5
H-14
MAIN Unit
Parts List
REF DESCRIPTION VALUE V/W TOL. MFR'S DESIG VXSTD P/N VERS. LOT SIDE
LAY ADR
C 1075 CHIP CAP. 7pF 50V CH GRM1882C1H7R0DZ01D K22174208 1-20 A E5
C 1075 CHIP CAP. 8pF 50V CH GRM1882C1H8R0CZ01D K22174246 VER. A 21- A E5
C 1075 CHIP CAP. 7pF 50V CH GRM1882C1H7R0DZ01D K22174208 VER. CS 21- A E5
C 1075 CHIP CAP. 7pF 50V CH GRM1882C1H7R0DZ01D K22174208 VER. D 21- A E5
C 1076 CHIP CAP. 100pF 50V CH GRM1882C1H101JA01D K22174235 1- B e3
C 1077 CHIP CAP. 0.001uF 50V B GRM188B11H102KA01D K22174821 1- A C3
C 1079 CHIP CAP. 4pF 50V CH GRM1882C1H4R0CZ01D K22174205 1- A E5
C 1080 CHIP CAP. 0.0056uF 50V B GRM188B11H562KA01D K22174818 1- B e5
C 1081 CHIP CAP. 100pF 50V CH GRM1882C1H101JA01D K22174235 1- B c5
C 1082 CHIP CAP. 12pF 50V CH GRM1882C1H120JA01D K22174213 1- A E5
C 1083 CHIP CAP. 0.01uF 50V B GRM188B11H103KA01D K22174823 1- B e3
C 1084 CHIP CAP. 0.001uF 50V B GRM188B11H102KA01D K22174821 1- B c5
C 1085 CHIP CAP. 0.1uF 16V B GRM188B11C104KA01D K22124805 1- B c5
C 1086 CHIP CAP. 2pF 50V CK GRM1884C1H2R0CZ01D K22174203 1- A E5
C 1090 CHIP CAP. 330pF 50V CH GRM1882C1H331JA01D K22174253 1- A C5
C 1092 CHIP CAP. 4pF 50V CH GRM1882C1H4R0CZ01D K22174205 1- A E5
C 1093 CHIP CAP. 0.1uF 16V B GRM188B11C104KA01D K22124805 1- B e3
C 1094 CHIP CAP. 4pF 50V CH GRM1882C1H4R0CZ01D K22174205 1- A E5
C 1095 CHIP CAP. 7pF 50V CH GRM1882C1H7R0DZ01D K22174208 1-20 A E5
C 1095 CHIP CAP. 8pF 50V CH GRM1882C1H8R0CZ01D K22174246 VER. A 21- A E5
C 1095 CHIP CAP. 7pF 50V CH GRM1882C1H7R0DZ01D K22174208 VER. CS 21- A E5
C 1095 CHIP CAP. 7pF 50V CH GRM1882C1H7R0DZ01D K22174208 VER. D 21- A E5
C 1096 CHIP TA.CAP. 33uF 10V TEMSVB21A336M-8R K78100047 1- B e5
C 1097 CHIP CAP. 6pF 50V CH GRM1882C1H6R0DZ01D K22174207 1- A E5
C 1099 CHIP CAP. 3pF 50V CJ GRM1883C1H3R0CZ01D K22174204 1- A E5
C 1101 AL.ELECTRO.CAP. 100uF 16V ECEV1CA101WP K48120012 1- A D3
C 1102 CHIP CAP. 0.001uF 50V B GRM188B11H102KA01D K22174821 1- B d2
C 1103 CHIP CAP. 0.01uF 50V B GRM188B11H103KA01D K22174823 1- B d2
C 1104 CHIP CAP. 47pF 50V CH GRM1882C1H470JA01D K22174227 1- A C5
C 1105 CHIP TA.CAP. 22uF 16V TEMSVB21C226M-8R K78120028 1- B d3
C 1107 CHIP CAP. 3pF 50V CJ GRM1883C1H3R0CZ01D K22174204 1- A E5
C 1108 CHIP CAP. 0.001uF 50V B GRM188B11H102KA01D K22174821 1- B d3
C 1109 AL.ELECTRO.CAP. 100uF 16V ECEV1CA101WP K48120012 1- A C5
C 1110 CHIP CAP. 1uF 10V F GRM188F11A105ZA01D K22105001 1- B e5
C 1111 CHIP CAP. 3pF 50V CJ GRM1883C1H3R0CZ01D K22174204 1- A E5
C 1112 CHIP CAP. 0.01uF 50V B GRM188B11H103KA01D K22174823 1- B d3
C 1115 CHIP CAP. 3pF 50V CJ GRM1883C1H3R0CZ01D K22174204 1- A D5
C 1117 CHIP TA.CAP. 47uF 4V SK7-0G476M-RA K78060048 1- B e5
C 1118 CHIP TA.CAP. 1.5uF 16V TESVA1C155M1-8R K78120020 1- A D2
C 1119 CHIP CAP. 3pF 50V CJ GRM1883C1H3R0CZ01D K22174204 1- A D5
C 1120 CHIP CAP. 0.1uF 16V B GRM188B11C104KA01D K22124805 1- A D2
C 1121 CHIP CAP. 4pF 50V CH GRM1882C1H4R0CZ01D K22174205 1- A E5
C 1122 CHIP CAP. 56pF 50V CH GRM1882C1H560JA01D K22174229 1- B e5
C 1123 CHIP CAP. 0.5pF 50V CK GRM1884C1HR50CZ01D K22174201 1- A E5
C 1124 CHIP CAP. 0.001uF 50V B GRM188B11H102KA01D K22174821 1- A E3
C 1125 CHIP TA.CAP. 0.1uF 35V TESVA1V104M1-8R K78160025 1- A D2
C 1126 CHIP CAP. 270pF 50V CH GRM1882C1H271JA01D K22174251 1- A C4
C 1127 CHIP CAP. 100pF 50V CH GRM1882C1H101JA01D K22174235 1- A D5
C 1128 CHIP CAP. 15pF 50V CH GRM1882C1H150JA01D K22174215 1- A D3
C 1130 CHIP CAP. 680pF 25V CH GRM39CH681J25PT K22144203 1- A C4
C 1131 CHIP CAP. 10pF 50V CH GRM1882C1H100JA01D K22174211 1- B c3
C 1132 CHIP TA.CAP. 10uF 10V TEMSVA1A106M-8R K78100028 1- B d4
C 1134 CHIP CAP. 8pF 50V CH GRM1882C1H8R0DZ01D K22174209 1- A D3
C 1135 CHIP CAP. 15pF 50V CH GRM1882C1H150JA01D K22174215 1- B c3
C 1136 CHIP CAP. 100pF 50V CH GRM1882C1H101JA01D K22174235 1- B e1
C 1138 CHIP TA.CAP. 1uF 25V TEMSVA1E105M-8R K78140013 1- B e4
C 1139 CHIP CAP. 10pF 50V CH GRM1882C1H100JA01D K22174211 1- B c3
C 1140 CHIP CAP. 0.001uF 50V B GRM188B11H102KA01D K22174821 1- A E4
C 1141 CHIP CAP. 0.001uF 50V B GRM188B11H102KA01D K22174821 1- A E4
C 1142 CHIP CAP. 0.001uF 50V B GRM188B11H102KA01D K22174821 1- B e4
C 1143 CHIP CAP. 120pF 50V CH GRM1882C1H121JA01D K22174237 1- A C4
C 1144 CHIP CAP. 100pF 50V CH GRM1882C1H101JA01D K22174235 1- B c3
C 1146 CHIP CAP. 0.0022uF 50V B GRM188B11H222KA01D K22174822 1- A C4
C 1148 CHIP CAP. 100pF 50V CH GRM1882C1H101JA01D K22174235 1- B b3
C 1149 CHIP CAP. 8pF 50V CH GRM1882C1H8R0DZ01D K22174209 1- A E2
C 1150 CHIP CAP. 0.1uF 16V B GRM188B11C104KA01D K22124805 1- A B3
C 1151 CHIP CAP. 15pF 50V CH GRM1882C1H150JA01D K22174215 1-20 A C1
C 1151 CHIP CAP. 9pF 50V CH GRM1882C1H9R0DZ01D K22174210 VER. A 21- A C1
C 1151 CHIP CAP. 10pF 50V CH GRM1882C1H100JA01D K22174211 VER. A 23- A C1
C 1151 CHIP CAP. 15pF 50V CH GRM1882C1H150JA01D K22174215 VER. CS 21- A C1
C 1151 CHIP CAP. 12pF 50V CH GRM1882C1H120JA01D K22174213 VER. CS 26- A C1
C 1151 CHIP CAP. 15pF 50V CH GRM1882C1H150JA01D K22174215 VER. D 21- A C1
C 1151 CHIP CAP. 12pF 50V CH GRM1882C1H120JA01D K22174213 VER. D 25- A C1
H-15
MAIN Unit
Parts List
REF DESCRIPTION VALUE V/W TOL. MFR'S DESIG VXSTD P/N VERS. LOT SIDE
LAY ADR
C 1153 CHIP CAP. 0.001uF 50V B GRM188B11H102KA01D K22174821 1- B b2
C 1154 CHIP CAP. 1pF 50V CK GRM1884C1H1R0CZ01D K22174202 1-20 A C1
C 1154 CHIP CAP. 2pF 50V CK GRM1884C1H2R0CZ01D K22174203 VER. A 21- A C1
C 1154 CHIP CAP. 2pF 50V CK GRM1884C1H2R0CZ01D K22174203 VER. A 23- A C1
C 1154 CHIP CAP. 1pF 50V CK GRM1884C1H1R0CZ01D K22174202 VER. CS 21- A C1
C 1154 CHIP CAP. 1pF 50V CK GRM1884C1H1R0CZ01D K22174202 VER. CS 23- A C1
C 1154 CHIP CAP. 1pF 50V CK GRM1884C1H1R0CZ01D K22174202 VER. D 21- A C1
C 1154 CHIP CAP. 1pF 50V CK GRM1884C1H1R0CZ01D K22174202 VER. D 23- A C1
C 1155 CHIP CAP. 6pF 50V CH GRM1882C1H6R0DZ01D K22174207 1- B b3
C 1156 CHIP CAP. 0.001uF 50V B GRM188B11H102KA01D K22174821 1- B b2
C 1157 CHIP TA.CAP. 1uF 25V TEMSVA1E105M-8R K78140013 1- A B3
C 1158 CHIP CAP. 0.001uF 50V B GRM188B11H102KA01D K22174821 1- A E2
C 1159 CHIP CAP. 5pF 50V CH GRM1882C1H5R0CZ01D K22174206 1-20 A C2
C 1159 CHIP CAP. 3pF 50V CJ GRM1883C1H3R0CZ01D K22174204 VER. A 21- A C2
C 1159 CHIP CAP. 4pF 50V CH GRM1882C1H4R0CZ01D K22174205 VER. A 23- A C2
C 1159 CHIP CAP. 5pF 50V CH GRM1882C1H5R0CZ01D K22174206 VER. CS 21- A C2
C 1159 CHIP CAP. 5pF 50V CH GRM1882C1H5R0CZ01D K22174206 VER. D 21- A C2
C 1160 CHIP CAP. 220pF 50V CH GRM1882C1H221JA01D K22174243 1- B e4
C 1161 CHIP CAP. 0.001uF 50V B GRM188B11H102KA01D K22174821 1- B c4
C 1162 CHIP CAP. 0.001uF 50V B GRM188B11H102KA01D K22174821 1- A B3
C 1163 CHIP CAP. 33pF 50V CH GRM1882C1H330JA01D K22174223 1- A B3
C 1164 CHIP CAP. 7pF 50V CH GRM1882C1H7R0DZ01D K22174208 1-22 A C2
C 1164 CHIP CAP. 8pF 50V CH GRM1882C1H8R0DZ01D K22174209 VER. A 23- A C2
C 1164 CHIP CAP. 7pF 50V CH GRM1882C1H7R0DZ01D K22174208 VER. CS 23- A C2
C 1164 CHIP CAP. 7pF 50V CH GRM1882C1H7R0DZ01D K22174208 VER. D 23- A C2
C 1165 CHIP CAP. 0.001uF 50V B GRM188B11H102KA01D K22174821 1- A C2
C 1166 CHIP CAP. 0.01uF 50V B GRM188B11H103KA01D K22174823 1- B c4
C 1167 CHIP CAP. 0.0012uF 50V B GRM188B11H122KA01D K22174826 1- B e4
C 1168 CHIP CAP. 5pF 50V CH GRM1882C1H5R0CZ01D K22174206 1- A C2
C 1169 CHIP CAP. 0.1uF 16V B GRM188B11C104KA01D K22124805 1- A B3
C 1171 CHIP CAP. 0.01uF 50V B GRM188B11H103KA01D K22174823 1- A D3
C 1172 CHIP CAP. 100pF 50V CH GRM1882C1H101JA01D K22174235 1- A D2
C 1173 CHIP CAP. 0.001uF 50V B GRM188B11H102KA01D K22174821 1- B e4
C 1174 CHIP TA.CAP. 10uF 10V TEMSVA1A106M-8R K78100028 1- A B3
C 1175 CHIP CAP. 0.015uF 25V B GRM39B153K25PT K22144805 1- A B3
C 1176 CHIP CAP. 0.1uF 16V B GRM188B11C104KA01D K22124805 1- B d3
C 1178 CHIP CAP. 0.001uF 50V B GRM188B11H102KA01D K22174821 1- A D2
C 1179 CHIP CAP. 0.015uF 25V B GRM39B153K25PT K22144805 1- A B3
C 1180 CHIP CAP. 0.01uF 50V B GRM188B11H103KA01D K22174823 1- B c3
C 1181 CHIP CAP. 0.5pF 50V CK GRM1884C1HR50CZ01D K22174201 1-22 A C2
C 1181 CHIP CAP. 1pF 50V CK GRM1884C1H1R0CZ01D K22174202 VER. A 23- A C2
C 1181 CHIP CAP. 0.5pF 50V CK GRM1884C1HR50CZ01D K22174201 VER. CS 23- A C2
C 1181 CHIP CAP. 0.5pF 50V CK GRM1884C1HR50CZ01D K22174201 VER. D 23- A C2
C 1182 CHIP CAP. 0.01uF 50V B GRM188B11H103KA01D K22174823 1- A D2
C 1183 CHIP CAP. 2pF 50V CK GRM1884C1H2R0CZ01D K22174203 1- A D2
C 1184 CHIP CAP. 150pF 50V CH GRM1882C1H151JA01D K22174239 1- B e4
C 1186 CHIP CAP. 1pF 50V CK GRM1884C1H1R0CZ01D K22174202 1- A C2
C 1187 CHIP CAP. 68pF 50V CH GRM1882C1H680JA01D K22174231 1- A B3
C 1189 CHIP TA.CAP. 10uF 10V TEMSVA1A106M-8R K78100028 1- B e1
C 1190 CHIP CAP. 0.0047uF 50V B ECJ1VB1H472K K22179622 1- A B3
C 1191 CHIP CAP. 0.0039uF 50V B GRM188B11H392KA01D K22174830 1- A B3
C 1192 CHIP CAP. 0.001uF 50V B GRM188B11H102KA01D K22174821 1- A B3
C 1193 CHIP CAP. 0.1uF 16V B GRM188B11C104KA01D K22124805 1- B e4
C 1194 CHIP CAP. 0.001uF 50V B GRM188B11H102KA01D K22174821 1- B d2
C 1195 CHIP CAP. 0.001uF 50V B GRM188B11H102KA01D K22174821 1- A B2
C 1196 CHIP CAP. 100pF 50V CH GRM1882C1H101JA01D K22174235 1- A B2
C 1197 CHIP CAP. 8pF 50V CH GRM1882C1H8R0DZ01D K22174209 1- A D2
C 1198 CHIP TA.CAP. 10uF 10V TEMSVA1A106M-8R K78100028 1- B e4
C 1199 CHIP CAP. 470pF 50V CH GRM1882C1H471JA01D K22174249 1- A B1
C 1200 CHIP CAP. 0.01uF 50V B GRM188B11H103KA01D K22174823 1- B d2
C 1202 CHIP CAP. 4pF 50V CH GRM1882C1H4R0CZ01D K22174205 1- A B2
C 1203 CHIP CAP. 0.01uF 50V B GRM188B11H103KA01D K22174823 1- A E1
C 1204 AL.ELECTRO.CAP. 100uF 16V ECEV1CA101WP K48120012 1- A D1
C 1205 CHIP CAP. 0.001uF 50V B GRM188B11H102KA01D K22174821 1- B c1
C 1206 CHIP CAP. 39pF 50V CH GRM1882C1H390JA01D K22174225 1- A E1
C 1207 CHIP CAP. 0.1uF 16V B GRM188B11C104KA01D K22124805 1- B b2
C 1208 CHIP CAP. 33pF 50V CH GRM1882C1H330JA01D K22174223 1- A E1
C 1209 CHIP CAP. 4pF 50V CH GRM1882C1H4R0CZ01D K22174205 1- A B2
C 1210 CHIP CAP. 0.012uF 50V B GRM188B11H123KA01D K22174825 1- A B3
C 1211 CHIP CAP. 330pF 50V CH GRM1882C1H331JA01D K22174253 1- A B3
C 1212 CHIP TA.CAP. 22uF 16V TEMSVB21C226M-8R K78120028 1- B d2
C 1213 CHIP CAP. 0.033uF 16V B ECJ1VB1C333K K22129515 1- A B2
C 1214 CHIP CAP. 0.0015uF 50V B GRM188B11H152KA01D K22174827 1- A B2
H-16
MAIN Unit
Parts List
REF DESCRIPTION VALUE V/W TOL. MFR'S DESIG VXSTD P/N VERS. LOT SIDE
LAY ADR
C 1215 CHIP CAP. 56pF 50V CH GRM1882C1H560JA01D K22174229 1- A B2
C 1216 CHIP CAP. 0.001uF 50V B GRM188B11H102KA01D K22174821 1- B d2
C 1218 CHIP CAP. 0.1uF 16V B GRM188B11C104KA01D K22124805 1- B b1
C 1219 CHIP CAP. 0.1uF 16V B GRM188B11C104KA01D K22124805 1- B b1
C 1221 CHIP CAP. 220pF 50V CH GRM1882C1H221JA01D K22174243 1- A B3
C 1222 CHIP CAP. 0.01uF 50V B GRM188B11H103KA01D K22174823 1- B d2
C 1223 CHIP CAP. 0.001uF 50V B GRM188B11H102KA01D K22174821 1- B c1
C 1224 CHIP CAP. 0.1uF 16V B GRM188B11C104KA01D K22124805 1- B c1
C 1225 CHIP CAP. 0.001uF 50V B GRM188B11H102KA01D K22174821 1- B b1
C 1226 CHIP CAP. 82pF 50V CH GRM1882C1H820JA01D K22174233 1- A E1
C 1227 CHIP CAP. 0.1uF 16V B GRM188B11C104KA01D K22124805 1- B c1
C 1228 CHIP CAP. 56pF 50V CH GRM1882C1H560JA01D K22174229 1- A A2
C 1229 CHIP CAP. 0.001uF 50V B GRM188B11H102KA01D K22174821 1- A A2
C 1230 CHIP CAP. 180pF 50V CH GRM1882C1H181JA01D K22174241 1- A E1
C 1230 CHIP CAP. 330pF 50V CH GRM1882C1H331JA01D K22174253 22- A E1
C 1231 CHIP CAP. 180pF 50V CH GRM1882C1H181JA01D K22174241 1- A E1
C 1231 CHIP CAP. 330pF 50V CH GRM1882C1H331JA01D K22174253 22- A E1
C 1232 CHIP CAP. 0.001uF 50V B GRM188B11H102KA01D K22174821 1- B b1
C 1234 CHIP CAP. 0.1uF 16V B GRM188B11C104KA01D K22124805 1- A E1
C 1235 CHIP CAP. 0.001uF 50V B GRM188B11H102KA01D K22174821 1- B c1
C 1236 CHIP TA.CAP. 10uF 10V TEMSVA1A106M-8R K78100028 1- B c1
C 1237 CHIP CAP. 0.1uF 16V B GRM188B11C104KA01D K22124805 1- B b1
C 1238 CHIP CAP. 47pF 50V CH GRM1882C1H470JA01D K22174227 1- A B2
C 1239 CHIP CAP. 0.001uF 50V B GRM188B11H102KA01D K22174821 1- A A1
C 1240 CHIP TA.CAP. 10uF 10V TEMSVA1A106M-8R K78100028 1- A B2
C 1241 CHIP CAP. 0.001uF 50V B GRM188B11H102KA01D K22174821 1- B c1
C 1242 CHIP CAP. 100pF 50V CH GRM1882C1H101JA01D K22174235 1- A B1
C 1244 CHIP CAP. 0.0047uF 50V B GRM188B11H472KA01D K22174833 1-22 A D1
C 1244 CHIP CAP. 0.001uF 50V B GRM188B11H102KA01D K22174821 VER. A 23- A D1
C 1244 CHIP CAP. 0.0047uF 50V B GRM188B11H472KA01D K22174833 VER. CS 23- A D1
C 1244 CHIP CAP. 0.0047uF 50V B GRM188B11H472KA01D K22174833 VER. D 23- A D1
C 1245 CHIP TA.CAP. 1uF 25V TEMSVA1E105M-8R K78140013 1- A B2
C 1246 CHIP CAP. 0.001uF 50V B GRM188B11H102KA01D K22174821 1- A B2
C 1247 CHIP CAP. 0.1uF 16V B GRM188B11C104KA01D K22124805 1- A E1
C 1249 CHIP TA.CAP. 10uF 10V TEMSVA1A106M-8R K78100028 1- B c1
C 1250 CHIP CAP. 0.1uF 16V B GRM188B11C104KA01D K22124805 1- A D1
C 1251 CHIP CAP. 470pF 50V CH GRM1882C1H471JA01D K22174249 1- A B1
C 1252 CHIP CAP. 0.1uF 16V B GRM188B11C104KA01D K22124805 1- A D1
C 1252 CHIP CAP. 0.33uF 10V B GRM188B11A334KA61D K22104802 22- A D1
C 1254 CHIP CAP. 470pF 50V CH GRM1882C1H471JA01D K22174249 1- A A1
C 1255 CHIP CAP. 0.047uF 16V B GRM39B473K16PT K22124804 1- A D1
C 1259 CHIP CAP. 470pF 50V CH GRM1882C1H471JA01D K22174249 1- A A1
C 1260 CHIP TA.CAP. 4.7uF 16V TEMSVA1C475M-8R K78120031 1- A B3
C 1262 CHIP CAP. 470pF 50V CH GRM1882C1H471JA01D K22174249 1- A B1
C 1263 CHIP CAP. 27pF 50V CH GRM1882C1H270JA01D K22174221 1- A G1
C 1264 CHIP CAP. 0.001uF 50V B GRM188B11H102KA01D K22174821 1- A G1
C 1265 CHIP TA.CAP. 1.5uF 16V TESVA1C155M1-8R K78120020 1- A F2
C 1266 CHIP CAP. 0.033uF 16V R GRM188R11C333KA01D K22124801 1- A F2
C 1267 CHIP CAP. 470pF 50V CH GRM1882C1H471JA01D K22174249 1- A A1
C 1270 CHIP TA.CAP. 4.7uF 16V TEMSVA1C475M-8R K78120031 1- B g4
C 1271 CHIP TA.CAP. 4.7uF 16V TEMSVA1C475M-8R K78120031 1- A A4
C 1272 CHIP TA.CAP. 0.1uF 35V TESVA1V104M1-8R K78160025 1- A F2
C 1273 CHIP CAP. 470pF 50V CH GRM1882C1H471JA01D K22174249 1- A A1
C 1274 CHIP CAP. 1pF 50V CK GRM1884C1H1R0CZ01D K22174202 1- A G4
C 1275 CHIP CAP. 5pF 50V CH GRM1882C1H5R0CZ01D K22174206 1-22 A G3
C 1275 CHIP CAP. 1pF 50V CK GRM1884C1H1R0CZ01D K22174202 VER. A 23- A G3
C 1275 CHIP CAP. 5pF 50V CH GRM1882C1H5R0CZ01D K22174206 VER. CS 23- A G3
C 1275 CHIP CAP. 1pF 50V CK GRM1884C1H1R0CZ01D K22174202 VER. CS 26- A G3
C 1275 CHIP CAP. 5pF 50V CH GRM1882C1H5R0CZ01D K22174206 VER. D 23- A G3
C 1276 CHIP TA.CAP. 1uF 25V TEMSVA1E105M-8R K78140013 1- B f4
C 1277 CHIP CAP. 9pF 50V CH GRM1882C1H9R0DZ01D K22174210 1-20 A G4
C 1277 CHIP CAP. 10pF 50V CH GRM1882C1H100JA01D K22174211 VER. A 21- A G4
C 1277 CHIP CAP. 9pF 50V CH GRM1882C1H9R0DZ01D K22174210 VER. CS 21- A G4
C 1277 CHIP CAP. 10pF 50V CH GRM1882C1H100JA01D K22174211 VER. CS 26- A G4
C 1277 CHIP CAP. 9pF 50V CH GRM1882C1H9R0DZ01D K22174210 VER. D 21- A G4
C 1277 CHIP CAP. 10pF 50V CH GRM1882C1H100JA01D K22174211 VER. D 25- A G4
C 1278 CHIP CAP. 9pF 50V CH GRM1882C1H9R0DZ01D K22174210 1-20 A G3
C 1278 CHIP CAP. 10pF 50V CH GRM1882C1H100JA01D K22174211 VER. A 21-22 A G3
C 1278 CHIP CAP. 9pF 50V CH GRM1882C1H9R0DZ01D K22174210 VER. CS 21-22 A G3
C 1278 CHIP CAP. 9pF 50V CH GRM1882C1H9R0DZ01D K22174210 VER. D 21-22 A G3
C 1278 CHIP CAP. 9pF 50V CH GRM1882C1H9R0DZ01D K22174210 23-25 A G3
C 1278 CHIP CAP. 9pF 50V CH GRM1882C1H9R0DZ01D K22174210 VER. A 26- A G3
C 1278 CHIP CAP. 8pF 50V CH GRM1882C1H8R0DZ01D K22174209 VER. CS 26- A G3
H-17
MAIN Unit
Parts List
REF DESCRIPTION VALUE V/W TOL. MFR'S DESIG VXSTD P/N VERS. LOT SIDE
LAY ADR
C 1278 CHIP CAP. 9pF 50V CH GRM1882C1H9R0DZ01D K22174210 VER. D 26- A G3
C 1281 CHIP CAP. 0.001uF 50V B GRM188B11H102KA01D K22174821 1- A F2
C 1282 CHIP CAP. 0.001uF 50V B GRM188B11H102KA01D K22174821 1- B f4
C 1283 CHIP CAP. 3pF 50V CJ GRM1883C1H3R0CZ01D K22174204 VER. A 23- A G4
C 1283 CHIP CAP. 5pF 50V CH GRM1882C1H5R0CZ01D K22174206 VER. CS 26- A G4
C 1283 CHIP CAP. 2pF 50V CK GRM1884C1H2R0CZ01D K22174203 VER. D 25- A G4
C 1284 CHIP CAP. 3pF 50V CJ GRM1883C1H3R0CZ01D K22174204 VER. A 23- A G3
C 1284 CHIP CAP. 3pF 50V CJ GRM1883C1H3R0CZ01D K22174204 VER. CS 26- A G3
C 1285 CHIP CAP. 3pF 50V CJ GRM1883C1H3R0CZ01D K22174204 1- A G4
C 1285 CHIP CAP. 4pF 50V CH GRM1882C1H4R0CZ01D K22174205 3-22 A G4
C 1285 CHIP CAP. 8pF 50V CH GRM1882C1H8R0DZ01D K22174209 VER. A 23- A G4
C 1285 CHIP CAP. 4pF 50V CH GRM1882C1H4R0CZ01D K22174205 VER. CS 23- A G4
C 1285 CHIP CAP. 10pF 50V CH GRM1882C1H100JA01D K22174211 VER. CS 26- A G4
C 1285 CHIP CAP. 4pF 50V CH GRM1882C1H4R0CZ01D K22174205 VER. D 23- A G4
C 1285 CHIP CAP. 8pF 50V CH GRM1882C1H8R0DZ01D K22174209 VER. D 25- A G4
C 1286 CHIP CAP. 2pF 50V CK GRM1884C1H2R0CZ01D K22174203 1- A G3
C 1286 CHIP CAP. 3pF 50V CJ GRM1883C1H3R0CZ01D K22174204 3-22 A G3
C 1286 CHIP CAP. 8pF 50V CH GRM1882C1H8R0DZ01D K22174209 VER. A 23- A G3
C 1286 CHIP CAP. 3pF 50V CJ GRM1883C1H3R0CZ01D K22174204 VER. CS 23- A G3
C 1286 CHIP CAP. 10pF 50V CH GRM1882C1H100JA01D K22174211 VER. CS 26- A G3
C 1286 CHIP CAP. 3pF 50V CJ GRM1883C1H3R0CZ01D K22174204 VER. D 23- A G3
C 1286 CHIP CAP. 6pF 50V CH GRM1882C1H6R0DZ01D K22174207 VER. D 25- A G3
C 1287 CHIP CAP. 0.01uF 50V B GRM188B11H103KA01D K22174823 1- A F2
C 1288 CHIP CAP. 0.001uF 50V B GRM188B11H102KA01D K22174821 1- A G1
C 1289 AL.ELECTRO.CAP. 100uF 16V ECEV1CA101WP K48120012 1- A F2
C 1290 CHIP TA.CAP. 4.7uF 16V TEMSVA1C475M-8R K78120031 1- A A4
C 1291 CHIP TA.CAP. 22uF 16V TEMSVB21C226M-8R K78120028 1- A E2
C 1292 CHIP CAP. 7pF 50V CH GRM1882C1H7R0DZ01D K22174208 1- A G4
C 1293 CHIP CAP. 7pF 50V CH GRM1882C1H7R0DZ01D K22174208 1- A G3
C 1294 CHIP CAP. 0.001uF 50V B GRM188B11H102KA01D K22174821 1- A G2
C 1295 CHIP CAP. 220pF 50V CH GRM1882C1H221JA01D K22174243 1- A G2
C 1296 CHIP CAP. 6pF 50V CH GRM1882C1H6R0DZ01D K22174207 1- A F4
C 1297 CHIP CAP. 6pF 50V CH GRM1882C1H6R0DZ01D K22174207 1- A F3
C 1298 CHIP CAP. 0.01uF 50V B GRM188B11H103KA01D K22174823 1- A E2
C 1299 CHIP CAP. 0.1uF 16V B GRM188B11C104KA01D K22124805 1- A F2
C 1300 CHIP TA.CAP. 10uF 10V TEMSVA1A106M-8R K78100028 1- A A3
C 1301 CHIP CAP. 220pF 50V CH GRM1882C1H221JA01D K22174243 1- A G2
C 1302 CHIP CAP. 8pF 50V CH GRM1882C1H8R0DZ01D K22174209 1- A F4
C 1303 CHIP CAP. 7pF 50V CH GRM1882C1H7R0DZ01D K22174208 1- A F3
C 1304 CHIP CAP. 0.001uF 50V B GRM188B11H102KA01D K22174821 1- A E2
C 1305 CHIP CAP. 0.01uF 50V B GRM188B11H103KA01D K22174823 1-3 A F2
C 1305 CHIP CAP. 0.1uF 16V B GRM188B11C104KA01D K22124805 VER. A 21- A F2
C 1305 CHIP CAP. 0.1uF 16V B GRM188B11C104KA01D K22124805 VER. CS 4- A F2
C 1305 CHIP CAP. 0.01uF 50V B GRM188B11H103KA01D K22174823 VER. D 4- A F2
C 1305 CHIP CAP. 0.1uF 16V B GRM188B11C104KA01D K22124805 VER. D 11- A F2
C 1306 CHIP CAP. 0.001uF 50V B GRM188B11H102KA01D K22174821 1- A G2
C 1307 CHIP CAP. 47pF 50V CH GRM1882C1H470JA01D K22174227 1- A A4
C 1308 CHIP CAP. 0.001uF 50V B GRM188B11H102KA01D K22174821 1- A F4
C 1309 CHIP CAP. 0.001uF 50V B GRM188B11H102KA01D K22174821 1- A F3
C 1310 CHIP CAP. 470pF 50V CH GRM1882C1H471JA01D K22174249 1- B b4
C 1311 CHIP CAP. 470pF 50V CH GRM1882C1H471JA01D K22174249 1- B b3
C 1312 CHIP CAP. 0.001uF 50V B GRM188B11H102KA01D K22174821 1- A A4
C 1313 CHIP TA.CAP. 1uF 25V TEMSVA1E105M-8R K78140013 1- B f2
C 1314 CHIP TA.CAP. 1uF 25V TEMSVA1E105M-8R K78140013 1- A A3
C 1315 CHIP CAP. 0.001uF 50V B GRM188B11H102KA01D K22174821 1- B f2
C 1316 CHIP CAP. 0.5pF 50V CK GRM1884C1HR50CZ01D K22174201 1- A F4
C 1317 CHIP CAP. 0.5pF 50V CK GRM1884C1HR50CZ01D K22174201 1- A F3
C 1318 CHIP CAP. 0.01uF 50V B GRM188B11H103KA01D K22174823 1- A G2
C 1319 CHIP TA.CAP. 10uF 10V TEMSVA1A106M-8R K78100028 1- B a1
C 1320 CHIP TA.CAP. 4.7uF 16V TEMSVA1C475M-8R K78120031 1- A B4
C 1321 CHIP TA.CAP. 10uF 10V TEMSVA1A106M-8R K78100028 1- A G2
C 1322 CHIP CAP. 0.1uF 16V B GRM188B11C104KA01D K22124805 1- B a1
C 1323 CHIP CAP. 0.1uF 16V B GRM188B11C104KA01D K22124805 1- A A3
C 1324 CHIP TA.CAP. 4.7uF 16V TEMSVA1C475M-8R K78120031 1- A B4
C 1325 CHIP CAP. 0.001uF 50V B GRM188B11H102KA01D K22174821 1- B a2
C 1326 CHIP CAP. 0.0033uF 50V B GRM188B11H332KA01D K22174831 1- B g3
C 1327 CHIP CAP. 0.001uF 50V B GRM188B11H102KA01D K22174821 1- A B4
C 1328 CHIP CAP. 100pF 50V CH GRM1882C1H101JA01D K22174235 1- B a2
C 1330 CHIP TA.CAP. 10uF 16V TEMSVB21C106M-8R K78120025 1- B g3
C 1331 CHIP CAP. 0.001uF 50V B GRM188B11H102KA01D K22174821 1- A F4
C 1332 AL.ELECTRO.CAP. 22uF 16V ECEV1CA220SR K48120002 1- A B4
C 1333 CHIP TA.CAP. 10uF 10V TEMSVA1A106M-8R K78100028 1- B d4
C 1334 CHIP CAP. 0.001uF 50V B GRM188B11H102KA01D K22174821 1- A E2
H-18
MAIN Unit
Parts List
REF DESCRIPTION VALUE V/W TOL. MFR'S DESIG VXSTD P/N VERS. LOT SIDE
LAY ADR
C 1335 CHIP CAP. 0.001uF 50V B GRM188B11H102KA01D K22174821 1- B d4
C 1336 CHIP CAP. 0.001uF 50V B GRM188B11H102KA01D K22174821 1- A B4
C 1337 CHIP CAP. 0.01uF 50V B GRM188B11H103KA01D K22174823 1- A F2
C 1338 CHIP CAP. 0.001uF 50V B GRM188B11H102KA01D K22174821 1- A F3
C 1339 CHIP CAP. 220pF 50V CH GRM1882C1H221JA01D K22174243 1- A F3
C 1340 AL.ELECTRO.CAP. 100uF 16V ECEV1CA101WP K48120012 1- A F2
C 1341 CHIP CAP. 0.001uF 50V B GRM188B11H102KA01D K22174821 1- A B4
C 1342 AL.ELECTRO.CAP. 470uF 16V RE3-16V471MG3# K40129066 1- A A3
C 1343 CHIP TA.CAP. 22uF 16V TEMSVB21C226M-8R K78120028 1- A E2
C 1344 CHIP CAP. 5pF 50V CH GRM1882C1H5R0CZ01D K22174206 1- A F3
C 1345 CHIP CAP. 0.1uF 25V B GRM40B104M25PT K22140811 1- B g3
C 1346 CHIP CAP. 0.001uF 50V B GRM188B11H102KA01D K22174821 1- B d4
C 1347 CHIP CAP. 0.001uF 50V B GRM188B11H102KA01D K22174821 1- A A3
C 1348 CHIP CAP. 0.01uF 50V B GRM188B11H103KA01D K22174823 1- A E2
C 1349 CHIP CAP. 5pF 50V CH GRM1882C1H5R0CZ01D K22174206 1- A F3
C 1350 AL.ELECTRO.CAP. 470uF 16V RE3-16V471MG3# K40129066 1- A A3
C 1351 CHIP TA.CAP. 1uF 25V TEMSVA1E105M-8R K78140013 1- B d4
C 1352 CHIP CAP. 0.001uF 50V B GRM188B11H102KA01D K22174821 1- A E2
C 1353 CHIP CAP. 10pF 50V CH GRM1882C1H100JA01D K22174211 1- A A5
C 1354 CHIP CAP. 10pF 50V CH GRM1882C1H100JA01D K22174211 1- A A5
C 1355 CHIP CAP. 10pF 50V CH GRM1882C1H100JA01D K22174211 1- A A5
C 1356 CHIP CAP. 10pF 50V CH GRM1882C1H100JA01D K22174211 1- A A5
C 1357 CHIP CAP. 10pF 50V CH GRM1882C1H100JA01D K22174211 1- A A5
C 1358 CHIP CAP. 10pF 50V CH GRM1882C1H100JA01D K22174211 1- A B5
C 1359 CHIP CAP. 10pF 50V CH GRM1882C1H100JA01D K22174211 1- A B5
C 1360 CHIP CAP. 0.001uF 50V B GRM188B11H102KA01D K22174821 1- A A5
C 1361 CHIP CAP. 0.001uF 50V B GRM188B11H102KA01D K22174821 1- A A5
C 1362 CHIP CAP. 0.001uF 50V B GRM188B11H102KA01D K22174821 1- A B5
C 1363 CHIP CAP. 0.001uF 50V B GRM188B11H102KA01D K22174821 1- A B5
C 1364 CHIP CAP. 0.001uF 50V B GRM188B11H102KA01D K22174821 1- A B5
C 1365 CHIP CAP. 0.001uF 50V B GRM188B11H102KA01D K22174821 1- A B5
C 1366 CHIP CAP. 0.001uF 50V B GRM188B11H102KA01D K22174821 1- A B5
C 1367 CHIP CAP. 0.001uF 50V B GRM188B11H102KA01D K22174821 1- A B5
C 1368 CHIP CAP. 0.001uF 50V B GRM188B11H102KA01D K22174821 1- A B5
C 1369 CHIP CAP. 0.001uF 50V B GRM188B11H102KA01D K22174821 1- A B5
C 1370 CHIP CAP. 0.001uF 50V B GRM188B11H102KA01D K22174821 1- A B5
C 1371 CHIP CAP. 0.001uF 50V B GRM188B11H102KA01D K22174821 1- A B5
C 1372 CHIP CAP. 0.001uF 50V B GRM188B11H102KA01D K22174821 1- A B5
C 1373 CHIP CAP. 0.001uF 50V B GRM188B11H102KA01D K22174821 1- A B5
C 1374 CHIP CAP. 0.001uF 50V B GRM188B11H102KA01D K22174821 1- A B5
C 1375 CHIP CAP. 0.001uF 50V B GRM188B11H102KA01D K22174821 1- A B5
C 1376 CHIP CAP. 0.001uF 50V B GRM188B11H102KA01D K22174821 1- A B5
C 1377 CHIP CAP. 0.001uF 50V B GRM188B11H102KA01D K22174821 1- A B5
C 1378 CHIP CAP. 0.001uF 50V B GRM188B11H102KA01D K22174821 1- A B5
C 1379 CHIP CAP. 0.001uF 50V B GRM188B11H102KA01D K22174821 1- A B5
C 1380 CHIP CAP. 0.001uF 50V B GRM188B11H102KA01D K22174821 1- A B5
C 1381 CHIP CAP. 0.001uF 50V B GRM188B11H102KA01D K22174821 1- A B5
C 1382 CHIP CAP. 0.001uF 50V B GRM188B11H102KA01D K22174821 1- A A5
C 1383 CHIP CAP. 4pF 50V CH GRM1882C1H4R0CZ01D K22174205 1-20 A G4
C 1383 CHIP CAP. 6pF 50V CH GRM1882C1H6R0DZ01D K22174207 VER. A 21- A G4
C 1383 CHIP CAP. 2pF 50V CK GRM1884C1H2R0CZ01D K22174203 VER. A 23- A G4
C 1383 CHIP CAP. 4pF 50V CH GRM1882C1H4R0CZ01D K22174205 VER. CS 21- A G4
C 1383 CHIP CAP. 1pF 50V CK GRM1884C1H1R0CZ01D K22174202 VER. CS 26- A G4
C 1383 CHIP CAP. 4pF 50V CH GRM1882C1H4R0CZ01D K22174205 VER. D 21- A G4
C 1383 CHIP CAP. 1pF 50V CK GRM1884C1H1R0CZ01D K22174202 VER. D 25- A G4
C 1384 CHIP CAP. 2pF 50V CK GRM1884C1H2R0CZ01D K22174203 1-3 A G3
C 1384 CHIP CAP. 3pF 50V CJ GRM1883C1H3R0CZ01D K22174204 VER. A 21- A G3
C 1384 CHIP CAP. 1pF 50V CK GRM1884C1H1R0CZ01D K22174202 VER. A 23- A G3
C 1384 CHIP CAP. 4pF 50V CH GRM1882C1H4R0CZ01D K22174205 VER. CS 4- A G3
C 1384 CHIP CAP. 1pF 50V CK GRM1884C1H1R0CZ01D K22174202 VER. CS 26- A G3
C 1384 CHIP CAP. 2pF 50V CK GRM1884C1H2R0CZ01D K22174203 VER. D 4-24 A G3
C 1385 CHIP TA.CAP. 1uF 25V TEMSVA1E105M-8R K78140013 1- B b2
C 1386 CHIP CAP. 100pF 50V CH GRM1882C1H101JA01D K22174235 1- B a4
C 1387 CHIP CAP. 100pF 50V CH GRM1882C1H101JA01D K22174235 1- B a3
C 1390 CHIP CAP. 0.0039uF 50V B GRM188B11H392KA01D K22174830 1- A C5
C 1391 CHIP CAP. 0.0068uF 50V B GRM188B11H682KA01D K22174834 1- A C5
C 1392 CHIP CAP. 0.0033uF 50V B GRM188B11H332KA01D K22174831 1- A C5
C 1393 CHIP TA.CAP. 47uF 4V SK7-0G476M-RA K78060048 1- B d4
C 1394 CHIP TA.CAP. 47uF 4V SK7-0G476M-RA K78060048 1- B e5
C 1395 CHIP TA.CAP. 47uF 4V SK7-0G476M-RA K78060048 1- B d3
C 1396 CHIP CAP. 0.001uF 50V B GRM188B11H102KA01D K22174821 1- A B5
C 1397 CHIP CAP. 0.5pF 50V CK GRM1884C1HR50CZ01D K22174201 1-2 A G4
C 1397 CHIP CAP. 2pF 50V CK GRM1884C1H2R0CZ01D K22174203 VER. CS 4-25 A G4
H-19
MAIN Unit
Parts List
REF DESCRIPTION VALUE V/W TOL. MFR'S DESIG VXSTD P/N VERS. LOT SIDE
LAY ADR
C 1398 CHIP CAP. 0.5pF 50V CK GRM1884C1HR50CZ01D K22174201 3-20 A G4
C 1398 CHIP CAP. 1pF 50V CK GRM1884C1H1R0CZ01D K22174202 VER. A 21- A G4
C 1398 CHIP CAP. 0.5pF 50V CK GRM1884C1HR50CZ01D K22174201 VER. CS 21-25 A G4
C 1398 CHIP CAP. 0.5pF 50V CK GRM1884C1HR50CZ01D K22174201 VER. D 21-24 A G4
C 1399 TANTALUM CAP. 47uF 6.3V DN0J470M1S K70087476 3-22 A D4
C 1399 CHIP TA.CAP. 47uF 6.3V TEESVA0J476M8R K78080085 VER. A 23-24 A D4
C 1399 TANTALUM CAP. 47uF 6.3V DN0J470M1S K70087476 VER. CS 23-24 A D4
C 1399 TANTALUM CAP. 47uF 6.3V DN0J470M1S K70087476 VER. D 23-24 A D4
C 1399 CHIP TA.CAP. 47uF 6.3V TEESVA0J476M8R K78080085 25- A D4
C 1400 TANTALUM CAP. 47uF 6.3V DN0J470M1S K70087476 3-22 A D4
C 1400 CHIP TA.CAP. 47uF 6.3V TEESVA0J476M8R K78080085 VER. A 23-24 A D4
C 1400 TANTALUM CAP. 47uF 6.3V DN0J470M1S K70087476 VER. CS 23-24 A D4
C 1400 TANTALUM CAP. 47uF 6.3V DN0J470M1S K70087476 VER. D 23-24 A D4
C 1400 CHIP TA.CAP. 47uF 6.3V TEESVA0J476M8R K78080085 25- A D4
C 1401 CHIP CAP. 2pF 50V CK GRM1884C1H2R0CZ01D K22174203 VER. A 21- A C1
C 1401 CHIP CAP. 4pF 50V CH GRM1882C1H4R0CZ01D K22174205 VER. A 23- A C1
C 1401 CHIP CAP. 2pF 50V CK GRM1884C1H2R0CZ01D K22174203 VER. CS 4- A C1
C 1401 CHIP CAP. 2pF 50V CK GRM1884C1H2R0CZ01D K22174203 VER. D 11- A C1
C 1402 CHIP CAP. 0.001uF 50V B GRM155B11H102KA01D K22178809 11-22 B b4
C 1402 CHIP CAP. 0.001uF 50V B GRM188B11H102KA01D K22174821 VER. A 23-24 B b4
C 1402 CHIP CAP. 0.001uF 50V B GRM155B11H102KA01D K22178809 VER. CS 23-24 B b4
C 1402 CHIP CAP. 0.001uF 50V B GRM155B11H102KA01D K22178809 VER. D 23-24 B b4
C 1402 CHIP CAP. 0.001uF 50V B GRM188B11H102KA01D K22174821 25- B b4
C 1403 CHIP CAP. 0.001uF 50V B GRM155B11H102KA01D K22178809 11-22 B b3
C 1403 CHIP CAP. 0.001uF 50V B GRM188B11H102KA01D K22174821 VER. A 23-24 B b3
C 1403 CHIP CAP. 0.001uF 50V B GRM155B11H102KA01D K22178809 VER. CS 23-24 B b3
C 1403 CHIP CAP. 0.001uF 50V B GRM155B11H102KA01D K22178809 VER. D 23-24 B b3
C 1403 CHIP CAP. 0.001uF 50V B GRM188B11H102KA01D K22174821 25- B b3
C 1404 CHIP CAP. 0.001uF 50V B GRM155B11H102KA01D K22178809 11-22 B b2
C 1404 CHIP CAP. 0.001uF 50V B GRM188B11H102KA01D K22174821 VER. A 23-24 B b2
C 1404 CHIP CAP. 0.001uF 50V B GRM155B11H102KA01D K22178809 VER. CS 23-24 B b2
C 1404 CHIP CAP. 0.001uF 50V B GRM155B11H102KA01D K22178809 VER. D 23-24 B b2
C 1404 CHIP CAP. 0.001uF 50V B GRM188B11H102KA01D K22174821 25- B b2
C 1405 CHIP CAP. 100pF 50V CH GRM2162C1H101JA01D K22170235 11-22 B b4
C 1405 CHIP CAP. 100pF 50V CH GRM1882C1H101JA01D K22174235 VER. A 23-24 B b4
C 1405 CHIP CAP. 100pF 50V CH GRM2162C1H101JA01D K22170235 VER. CS 23-24 B b4
C 1405 CHIP CAP. 100pF 50V CH GRM2162C1H101JA01D K22170235 VER. D 23-24 B b4
C 1405 CHIP CAP. 100pF 50V CH GRM1882C1H101JA01D K22174235 25- B b4
C 1406 CHIP CAP. 100pF 50V CH GRM2162C1H101JA01D K22170235 11-22 B b3
C 1406 CHIP CAP. 100pF 50V CH GRM1882C1H101JA01D K22174235 VER. A 23-24 B b3
C 1406 CHIP CAP. 100pF 50V CH GRM2162C1H101JA01D K22170235 VER. CS 23-24 B b3
C 1406 CHIP CAP. 100pF 50V CH GRM2162C1H101JA01D K22170235 VER. D 23-24 B b3
C 1406 CHIP CAP. 100pF 50V CH GRM1882C1H101JA01D K22174235 25- B b3
C 1407 CHIP CAP. 0.33uF 10V B GRM188B11A334KA61D K22104802 22 A E1
C 1407 CHIP CAP. 0.33uF 10V B GRM188B11A334KA61D K22104802 VER. A 23- A E1
C 1407 CHIP CAP. 0.33uF 10V B GRM188B11A334KA61D K22104802 VER. CS 23- A E1
C 1407 CHIP CAP. 0.33uF 10V B GRM188B11A334KA61D K22104802 VER. D 23- A E1
C 1408 CHIP CAP. 1pF 50V CK GRM1884C1H1R0CZ01D K22174202 VER. CS 26-
C 1408 CHIP CAP. 1pF 50V CK GRM1884C1H1R0CZ01D K22174202 VER. D 25-
C 1451 CHIP CAP. 1pF 50V CK GRM1884C1H1R0CZ01D K22174202 VER. A 21-22 A G3
C 1451 CHIP CAP. 0.5pF 50V CK GRM1884C1HR50CZ01D K22174201 VER. D 25- A G3
C 1452 CHIP CAP. 6pF 50V CH GRM1882C1H6R0DZ01D K22174207 VER. A 21-
C 1453 CHIP CAP. 6pF 50V CH GRM1882C1H6R0DZ01D K22174207 VER. A 21-
C 1455 CHIP CAP. 0.1uF 16V B GRM188B11C104KA01D K22124805 VER. A 23-24 B f3
C 1455 CHIP CAP. 0.1uF 16V B GRM188B11C104KA01D K22124805 25- B f3
C 1456 CHIP CAP. 15pF 50V CH GRM1882C1H150JA01D K22174215 VER. A 23-24 A D2
C 1456 CHIP CAP. 15pF 50V CH GRM1882C1H150JA01D K22174215 25- A D2
C 1501 CHIP CAP. 0.001uF 50V B GRM188B11H102KA01D K22174821 3- B c3
C 1502 CHIP CAP. 0.01uF 50V B GRM188B11H103KA01D K22174823 3- B c3
C 1503 CHIP CAP. 0.01uF 50V B GRM188B11H103KA01D K22174823 3- B c3
C 1504 CHIP CAP. 0.001uF 50V B GRM188B11H102KA01D K22174821 3- B c3
C 1505 CHIP CAP. 15pF 50V CH GRM1882C1H150JA01D K22174215 3- B c3
C 1506 CHIP CAP. 8pF 50V CH GRM1882C1H8R0DZ01D K22174209 3- B d3
C 1508 CHIP CAP. 8pF 50V CH GRM1882C1H8R0DZ01D K22174209 3- B d2
C 1510 CHIP CAP. 0.001uF 50V B GRM188B11H102KA01D K22174821 3- B c2
C 1511 CHIP CAP. 0.1uF 16V B GRM188B11C104KA01D K22124805 VER. A 23-24 B c2
C 1511 CHIP CAP. 0.1uF 16V B GRM188B11C104KA01D K22124805 25- B c2
C 1512 CHIP CAP. 100pF 50V CH GRM1882C1H101JA01D K22174235 3- B c2
C 1513 CHIP CAP. 0.001uF 50V B GRM188B11H102KA01D K22174821 3- B c2
C 1514 CHIP CAP. 0.01uF 50V B GRM188B11H103KA01D K22174823 3- B c2
C 1515 CHIP CAP. 2pF 50V CK GRM1884C1H2R0CZ01D K22174203 3- B c2
C 1515 CHIP CAP. 2pF 50V CK GRM1884C1H2R0CZ01D K22174203 16-22 B c2
C 1515 CHIP CAP. 8pF 50V CH GRM1882C1H8R0DZ01D K22174209 VER. A 23-24 B c2
H-20
MAIN Unit
Parts List
REF DESCRIPTION VALUE V/W TOL. MFR'S DESIG VXSTD P/N VERS. LOT SIDE
LAY ADR
C 1515 CHIP CAP. 8pF 50V CH GRM1882C1H8R0DZ01D K22174209 25- B c2
C 1517 CHIP CAP. 8pF 50V CH GRM1882C1H8R0DZ01D K22174209 3- B c2
C 1518 CHIP CAP. 0.01uF 50V B GRM188B11H103KA01D K22174823 3- B c2
C 1520 CHIP CAP. 0.001uF 50V B GRM188B11H102KA01D K22174821 3- B c1
C 1521 CHIP CAP. 0.001uF 50V B GRM188B11H102KA01D K22174821 3- B c1
C 1522 CHIP CAP. 0.01uF 50V B GRM188B11H103KA01D K22174823 3- B c3
C 1527 CHIP CAP. 0.001uF 50V B GRM188B11H102KA01D K22174821 VER. A 23-24 A E2
C 1527 CHIP CAP. 0.001uF 50V B GRM188B11H102KA01D K22174821 25- A E2
C 1528 CHIP CAP. 0.001uF 50V B GRM188B11H102KA01D K22174821 VER. A 23-24 A E2
C 1528 CHIP CAP. 0.001uF 50V B GRM188B11H102KA01D K22174821 25- A E2
C 1529 CHIP CAP. 0.001uF 50V B GRM188B11H102KA01D K22174821 VER. A 23-24 B c2
C 1529 CHIP CAP. 0.001uF 50V B GRM188B11H102KA01D K22174821 25- B c2
C 1530 CHIP CAP. 27pF 50V CH GRM1882C1H270JA01D K22174221 VER. A 23-24 B d3
C 1530 CHIP CAP. 27pF 50V CH GRM1882C1H270JA01D K22174221 25- B d3
C 1532 CHIP CAP. 27pF 50V CH GRM1882C1H270JA01D K22174221 VER. A 23-24 B c2
C 1532 CHIP CAP. 27pF 50V CH GRM1882C1H270JA01D K22174221 25- B c2
C 1534 CHIP CAP. 0.1uF 16V B GRM188B11C104KA01D K22124805 VER. A 23-24 A E2
C 1534 CHIP CAP. 0.1uF 16V B GRM188B11C104KA01D K22124805 25- A E2
CD1001 CERAMIC DISC CDBLA455KCAY07-B0 H7900180 1- A E1
CF1001 CERAMIC FILTER CFWLB455KGFA-B0 H3900399 1- A F1
CF1002 CERAMIC FILTER CFWLB455KFFA-B0 H3900395 1- A F1
D 1001 DIODE 1SS302 TE85R G2070088 1- A G5
D 1002 DIODE RN739F T106 G2070626 1- A G5
D 1003 DIODE HVU350TRF G2070380 1- A G5
D 1004 DIODE HVU350TRF G2070380 1- A F5
D 1005 DIODE HVU350TRF G2070380 1- A E5
D 1006 DIODE HZU5ALL-TR G2070754 1- B e2
D 1007 DIODE HVU350TRF G2070380 1- A E5
D 1008 DIODE 1SV282(TPH3) G2070778 1- A C1
D 1009 DIODE 1SV282(TPH3) G2070778 1- A C1
D 1010 DIODE HVU350TRF G2070380 1- A C1
D 1011 DIODE HZM5.6NB2 TR G2070722 1- B d3
D 1012 DIODE MA142WK-(TX) G2070534 1- B b2
D 1013 DIODE MA142WK-(TX) G2070534 1- B b1
D 1014 DIODE MA143-(TX) G2070536 1- A D1
D 1015 DIODE MA143-(TX) G2070536 1- A E1
D 1016 DIODE RN739F T106 G2070626 1- A B1
D 1017 DIODE RN739F T106 G2070626 1- A B1
D 1018 DIODE 1SV282(TPH3) G2070778 1- A G4
D 1019 DIODE 1SV282(TPH3) G2070778 1- A G4
D 1020 DIODE 1SV282(TPH3) G2070778 1- A G3
D 1021 DIODE 1SV282(TPH3) G2070778 1- A G3
D 1022 DIODE HZU5ALL-TR G2070754 1- B b2
D 1023 DIODE MA143-(TX) G2070536 1- A C4
D 1024 DIODE MA143-(TX) G2070536 1- A C4
D 1025 DIODE MA143-(TX) G2070536 1- A B4
D 1026 DIODE MA143-(TX) G2070536 1- A B4
D 1501 DIODE 1SS321 TE85R G2070076 16-22 B c3
D 1501 DIODE DAN235K T97 G2070082 VER. A 23-24 B c3
D 1501 DIODE DAN235K T97 G2070082 25- B c3
D 1502 DIODE 1SS321 TE85R G2070076 16-22 B c1
D 1502 DIODE DAN235K T97 G2070082 VER. A 23-24 B c1
D 1502 DIODE DAN235K T97 G2070082 25- B c1
J 1001 CONNECTOR TMP-J01X-V6 P1090210 1- A G5
J 1002 CONNECTOR SB20-02WS P0090609 1- A A3
J 1003 CONNECTOR SB20-02WS P0090609 1- A A4
J 1004 CONNECTOR SB20-03WS P0090610 1- A A4
J 1005 CONNECTOR FH12-50S-0.5SV P1091092 1- A B5
J 1006 CONNECTOR SC25-02WS P0090621 1- A A2
J 1007 CONNECTOR TMP-J01X-V6 P1090210 1- A A1
JP1001 WIRE ASSY GRN 35 2/2 T50503500 1-2 B f1
JP1002 WIRE ASSY GRN 105 2/2 T50510500 1-2
JP1003 WIRE ASSY GRN 45 2/2 T50504500 1-2
L 1001 M.RFC 3.3uH LK1608 3R3K-T L1690686 1- A G5
L 1002 M.RFC 4.7uH LK1608 4R7K-T L1690688 1- A C4
L 1003 COIL E2 0.35-1.6-4T-L L0022456 1-20 A F5
L 1003 COIL E2 0.35-1.6-4.5T-L L0022577 VER. A 21- A F5
L 1003 COIL E2 0.35-1.6-4T-L L0022456 VER. CS 21- A F5
L 1003 COIL E2 0.35-1.6-4T-L L0022456 VER. D 21- A F5
L 1004 COIL E2 0.35-1.6-4T-L L0022456 1-20 A F5
L 1004 COIL E2 0.35-1.6-4.5T-L L0022577 VER. A 21- A F5
L 1004 COIL E2 0.35-1.6-4T-L L0022456 VER. CS 21- A F5
L 1004 COIL E2 0.35-1.6-4T-L L0022456 VER. D 21- A F5
H-21
MAIN Unit
Parts List
REF DESCRIPTION VALUE V/W TOL. MFR'S DESIG VXSTD P/N VERS. LOT SIDE
LAY ADR
L 1005 M.RFC 0.015uH LL1608-F15NK L1690361 1- A F5
L 1006 M.RFC 4.7uH LK1608 4R7K-T L1690688 1- A C3
L 1007 M.RFC 3.3uH LK1608 3R3K-T L1690686 1- A C3
L 1008 CHIP COIL 0.017uH LQW31HN17NJ03L L1690249 1- A F5
L 1009 CHIP COIL 0.47uH C2520C-R47J L1690552 1- A C3
L 1010 COIL E2 0.35-1.6-4T-L L0022456 1-20 A E5
L 1010 COIL E2 0.35-1.6-4.5T-L L0022577 VER. A 21- A E5
L 1010 COIL E2 0.35-1.6-4T-L L0022456 VER. CS 21- A E5
L 1010 COIL E2 0.35-1.6-4T-L L0022456 VER. D 21- A E5
L 1011 COIL E2 0.35-1.6-4T-L L0022456 1-20 A E5
L 1011 COIL E2 0.35-1.6-4.5T-L L0022577 VER. A 21- A E5
L 1011 COIL E2 0.35-1.6-4T-L L0022456 VER. CS 21- A E5
L 1011 COIL E2 0.35-1.6-4T-L L0022456 VER. D 21- A E5
L 1012 COIL E2 0.35-1.6-4T-L L0022456 1-20 A E5
L 1012 COIL E2 0.35-1.6-4.5T-L L0022577 VER. A 21- A E5
L 1012 COIL E2 0.35-1.6-4T-L L0022456 VER. CS 21- A E5
L 1012 COIL E2 0.35-1.6-4T-L L0022456 VER. D 21- A E5
L 1013 COIL E2 0.35-1.6-4T-L L0022456 1-20 A D5
L 1013 COIL E2 0.35-1.6-4.5T-L L0022577 VER. A 21- A D5
L 1013 COIL E2 0.35-1.6-4T-L L0022456 VER. CS 21- A D5
L 1013 COIL E2 0.35-1.6-4T-L L0022456 VER. D 21- A D5
L 1014 CHIP COIL 0.22uH C2520C-R22J L1690548 1- A E3
L 1015 M.RFC 0.022uH HK2125 22NK-T L1690381 1- B c3
L 1016 M.RFC 0.022uH HK2125 22NK-T L1690381 1- B c3
L 1017 CHIP COIL 0.33uH C2520C-R33J L1690550 1- A C1
L 1018 M.RFC 0.022uH HK1608 22NJ-T L1690520 1- B c3
L 1019 CHIP COIL 0.33uH C2520C-R33J L1690550 1- A C1
L 1020 M.RFC 0.0185uH C3328A-18NG L1691078 1-20 A C2
L 1020 M.RFC 0.028uH C6328A-28NG L1691081 VER. A 21-22 A C2
L 1020 M.RFC 0.0185uH C3328A-18NG L1691078 VER. CS 21- A C2
L 1020 M.RFC 0.0185uH C3328A-18NG L1691078 VER. D 21- A C2
L 1021 CHIP COIL 0.68uH C2520C-R68J L1690554 1- A E2
L 1022 CHIP COIL 0.33uH C2520C-R33J L1690550 1- A C2
L 1023 M.RFC 10uH LK2125 100K-T L1690331 1- B c3
L 1024 M.RFC 0.1uH LK2125 R10K-T L1690307 1- A D2
L 1024 M.RFC 0.1uH LK2125 R10K-T L1690307 16-22 A D2
L 1024 M.RFC 0.27uH LK2125 R27K-T L1690312 VER. A 23-24 A D2
L 1024 M.RFC 0.1uH LK2125 R10K-T L1690307 VER. CS 23-24 A D2
L 1024 M.RFC 0.1uH LK2125 R10K-T L1690307 VER. D 23-24 A D2
L 1024 M.RFC 0.27uH LK2125 R27K-T L1690312 25- A D2
L 1025 CHIP COIL 0.33uH C2520C-R33J L1690550 1-3 A C2
L 1025 CHIP COIL 0.1uH C2520C-R10J L1690544 VER. A 21- A C2
L 1025 CHIP COIL 0.1uH C2520C-R10J L1690544 VER. CS 4- A C2
L 1025 CHIP COIL 0.33uH C2520C-R33J L1690550 VER. D 4- A C2
L 1025 CHIP COIL 0.1uH C2520C-R10J L1690544 VER. D 11- A C2
L 1026 M.RFC 0.082uH HK1608 82NJ-T L1690527 1- A B2
L 1027 M.RFC 1uH 5% C2012C-1R0J L1691160 1- A E2
L 1029 M.RFC 0.33uH LK2125 R33K-T L1690313 1- A E2
L 1030 CHIP COIL 0.018uH C2520C-18NK L1690535 1- A B2
L 1031 M.RFC 0.012uH HK1608 12NJ-T L1690517 1- A A2
L 1032 M.RFC 4.7uH LK1608 4R7K-T L1690688 1- A G1
L 1033 CHIP COIL 0.33uH C2520C-R33J L1690550 1- A G4
L 1034 CHIP COIL 0.33uH C2520C-R33J L1690550 1- A G3
L 1035 CHIP COIL 0.33uH C2520C-R33J L1690550 1- A G4
L 1036 CHIP COIL 0.33uH C2520C-R33J L1690550 1- A G3
L 1037 M.RFC 0.022uH C6328A-22NG L1691080 1-20 A G4
L 1037 M.RFC 0.028uH C6328A-28NG L1691081 VER. A 21- A G4
L 1037 M.RFC 0.022uH C6328A-22NG L1691080 VER. CS 21- A G4
L 1037 M.RFC 0.022uH C6328A-22NG L1691080 VER. D 21- A G4
L 1038 M.RFC 0.022uH C6328A-22NG L1691080 1-20 A G3
L 1038 M.RFC 0.028uH C6328A-28NG L1691081 VER. A 21- A G3
L 1038 M.RFC 0.022uH C6328A-22NG L1691080 VER. CS 21- A G3
L 1038 M.RFC 0.022uH C6328A-22NG L1691080 VER. D 21- A G3
L 1039 M.RFC 3.3uH LK1608 3R3K-T L1690686 1- A G2
L 1040 CHIP COIL 0.33uH C2520C-R33J L1690550 1- A F4
L 1041 CHIP COIL 0.33uH C2520C-R33J L1690550 1- A F3
L 1042 CHIP COIL 0.47uH C2520C-R47J L1690552 1- A G2
L 1043 CHIP COIL 0.33uH C2520C-R33J L1690550 1- A F4
L 1044 CHIP COIL 0.33uH C2520C-R33J L1690550 1- A F3
L 1045 M.RFC 4.7uH LK1608 4R7K-T L1690688 1- A G2
L 1046 CHIP COIL 0.082uH C2520C-82NK L1690543 1- A F4
L 1047 CHIP COIL 0.022uH C2520C-22NK L1690536 1- A F3
L 1048 M.RFC 0.022uH C6328A-22NG L1691080 VER. A 23- A C2
H-22
MAIN Unit
Parts List
REF DESCRIPTION VALUE V/W TOL. MFR'S DESIG VXSTD P/N VERS. LOT SIDE
LAY ADR
L 1451 M.RFC 0.027uH HK1608 27NJ-T L1690521 VER. A 21-
L 1452 M.RFC 0.027uH HK1608 27NJ-T L1690521 VER. A 21-
L 1453 M.RFC 0.027uH HK1608 27NJ-T L1690521 VER. A 21-
L 1454 M.RFC 0.027uH HK1608 27NJ-T L1690521 VER. A 21-
L 1501 CHIP COIL 0.22uH C2520C-R22J L1690548 3- B c3
L 1502 CHIP COIL 0.68uH C2520C-R68J L1690554 3- B c2
L 1503 M.RFC 0.1uH LK2125 R10K-T L1690307 3- B c2
L 1503 M.RFC 0.1uH LK2125 R10K-T L1690307 16-22 B c2
L 1503 M.RFC 0.27uH LK2125 R27K-T L1690312 VER. A 23-24 B c2
L 1503 M.RFC 0.27uH LK2125 R27K-T L1690312 25- B c2
L 1504 M.RFC 1uH 5% C2012C-1R0J L1691160 3- B c2
L 1504 M.RFC 0.56uH 5% C2012C-R56J L1691020 23- B c2
L 1505 M.RFC 4.7uH LK1608 4R7K-T L1690688 VER. A 23-24 B c3
L 1505 M.RFC 4.7uH LK1608 4R7K-T L1690688 25- B c3
L 1506 M.RFC 4.7uH LK1608 4R7K-T L1690688 VER. A 23-24 B c3
L 1506 M.RFC 4.7uH LK1608 4R7K-T L1690688 25- B c3
L 1507 M.RFC 4.7uH LK1608 4R7K-T L1690688 VER. A 23-24 B c3
L 1507 M.RFC 4.7uH LK1608 4R7K-T L1690688 25- B c3
L 1508 M.RFC 4.7uH LK1608 4R7K-T L1690688 VER. A 23-24 B c2
L 1508 M.RFC 4.7uH LK1608 4R7K-T L1690688 25- B c2
L 1509 M.RFC 4.7uH LK1608 4R7K-T L1690688 VER. A 23-24 B c2
L 1509 M.RFC 4.7uH LK1608 4R7K-T L1690688 25- B c2
L 1510 M.RFC 4.7uH LK1608 4R7K-T L1690688 VER. A 23-24 B c1
L 1510 M.RFC 4.7uH LK1608 4R7K-T L1690688 25- B c1
Q 1001 IC NJM2902V-TE1 G1091679 1- A C5
Q 1002 TRANSISTOR 2SD1664 T100 Q G3416647Q 1- B e4
Q 1003 IC TA75S01F TE85R G1091593 1- B e3
Q 1004 IC NJM2904V-TE1 G1091677 1- A D3
Q 1005 IC TAR5S30(TE85L) G1093570 1- B d1
Q 1006 IC M51132FP 600C G1091930 1- A D4
Q 1007 TRANSISTOR 2SC4116GR TE85R G3341167G 1- A C3
Q 1008 IC MB15A02PFV1-G-BND-EFE1 G1092541 1- A C3
Q 1009 TRANSISTOR 2SC3357-T2 RF G3333577F 1- A F5
Q 1010 IC NJM2904V-TE1 G1091677 1- B e5
Q 1012 TRANSISTOR 2SA1586Y TE85R G3115867Y 1- B e3
Q 1013 TRANSISTOR UN5215-(TX) G3070193 1- B e3
Q 1014 TRANSISTOR 2SA1162GR TE85R G3111627G 1- B e2
Q 1015 TRANSISTOR 2SC2712GR TE85R G3327127G 1- B e2
Q 1016 TRANSISTOR 2SC4116GR TE85R G3341167G 1- B d2
Q 1017 IC NJM2902V-TE1 G1091679 1- A C4
Q 1018 IC SPM5001 G1093686 1- A E4
Q 1019 TRANSISTOR 2SC3357-T2 RF G3333577F 1- B b3
Q 1020 IC NJM2904V-TE1 G1091677 1- A B3
Q 1021 FET 2SK508-T2B K52 G3805087B 1- A C2
Q 1022 TRANSISTOR 2SC5226-4/5-TL G3352268Z 1- A D2
Q 1023 TRANSISTOR 2SC2812NL6-TB G3328128F 1- B d3
Q 1024 TRANSISTOR XN1213-(TX) G3070194 1- B e2
Q 1025 IC NJM2902V-TE1 G1091679 1- A B3
Q 1026 TRANSISTOR 2SC5226-4/5-TL G3352268Z 1- A B1
Q 1027 TRANSISTOR 2SC4116GR TE85R G3341167G 1- B d2
Q 1028 IC TA31136FN(EL) G1091605 1- A E1
Q 1029 TRANSISTOR 2SB1122S-TD G3211228S 1- B d5
Q 1030 TRANSISTOR 2SC3357-T2 RF G3333577F 1- A A2
Q 1031 TRANSISTOR XN1213-(TX) G3070194 1- B d5
Q 1032 TRANSISTOR UN5213-(TX) G3070192 1- B g2
Q 1033 TRANSISTOR 2SC4116GR TE85R G3341167G 1- A E1
Q 1034 TRANSISTOR 2SA1179M6-TA G3111797F 1- B g1
Q 1035 TRANSISTOR XN1213-(TX) G3070194 1- B b1
Q 1036 TRANSISTOR XN1213-(TX) G3070194 1- B f1
Q 1037 TRANSISTOR DTA144EE TL G3070074 1- B f1
Q 1039 TRANSISTOR XN1213-(TX) G3070194 1- B d1
Q 1040 IC BU4066BCFV-E2 G1093537 1- B g4
Q 1041 TRANSISTOR 2SA1162GR TE85R G3111627G 1- B b2
Q 1042 TRANSISTOR 2SC2712GR TE85R G3327127G 1- B b2
Q 1043 TRANSISTOR DTC144EK T146 G3070033 1- B g4
Q 1044 TRANSISTOR FMG2 T148 G3070015 1- B g5
Q 1045 TRANSISTOR 2SC4116GR TE85R G3341167G 1- A G2
Q 1046 TRANSISTOR 2SC4116GR TE85R G3341167G 1- A F2
Q 1047 TRANSISTOR UN5215-(TX) G3070193 1- A F2
Q 1048 FET 2SK508-T2B K52 G3805087B 1- A F4
Q 1049 FET 2SK508-T2B K52 G3805087B 1- A F3
Q 1050 IC NJM2904V-TE1 G1091677 1- A A4
Q 1051 TRANSISTOR 2SA1586Y TE85R G3115867Y 1- A F2
H-23
MAIN Unit
Parts List
REF DESCRIPTION VALUE V/W TOL. MFR'S DESIG VXSTD P/N VERS. LOT SIDE
LAY ADR
Q 1052 IC MB15A02PFV1-G-BND-EFE1 G1092541 1- A G2
Q 1053 TRANSISTOR DTC144EE TL G3070075 1-3 B b4
Q 1053 TRANSISTOR RT1N441U-T11-1 G3070247 VER. A 21- B b4
Q 1053 TRANSISTOR RT1N441U-T11-1 G3070247 VER. CS 4- B b4
Q 1053 TRANSISTOR DTC144EE TL G3070075 VER. D 4- B b4
Q 1053 TRANSISTOR RT1N441U-T11-1 G3070247 VER. D 11- B b4
Q 1054 TRANSISTOR DTC144EE TL G3070075 1-3 B b3
Q 1054 TRANSISTOR RT1N441U-T11-1 G3070247 VER. A 21- B b3
Q 1054 TRANSISTOR RT1N441U-T11-1 G3070247 VER. CS 4- B b3
Q 1054 TRANSISTOR DTC144EE TL G3070075 VER. D 4- B b3
Q 1054 TRANSISTOR RT1N441U-T11-1 G3070247 VER. D 11- B b3
Q 1055 IC M62364FP 600D G1093033 1- B f3
Q 1056 IC M51132FP 600C G1091930 1- A B4
Q 1057 IC TDA2003 G1090769 1- A A3
Q 1058 TRANSISTOR 2SC4116GR TE85R G3341167G 1- B b2
Q 1059 TRANSISTOR 2SC5226-4/5-TL G3352268Z 1- A F4
Q 1060 TRANSISTOR DTC144EE TL G3070075 1-3 B b2
Q 1060 TRANSISTOR RT1N441U-T11-1 G3070247 VER. A 21- B b2
Q 1060 TRANSISTOR RT1N441U-T11-1 G3070247 VER. CS 4- B b2
Q 1060 TRANSISTOR DTC144EE TL G3070075 VER. D 4- B b2
Q 1060 TRANSISTOR RT1N441U-T11-1 G3070247 VER. D 11- B b2
Q 1061 TRANSISTOR 2SC4116GR TE85R G3341167G 1- A E2
Q 1062 IC L78M05T-TL G1091731 1- B d4
Q 1501 TRANSISTOR XN1213-(TX) G3070194 3- B c2
Q 1502 TRANSISTOR 2SC5226-4/5-TL G3352268Z 3- B c2
Q 1503 TRANSISTOR XN1213-(TX) G3070194 3- A E2
Q 1504 TRANSISTOR 2SC4116GR TE85R G3341167G 3- B c2
R 1001 CHIP RES. 10k 1/16W 5% RMC1/16 103JATP J24185103 1- A G5
R 1002 CHIP RES. 100 1/16W 5% RMC1/16 101JATP J24185101 1- A G5
R 1003 CHIP RES. 150 1W 5% RMC1 151JTE J24305151 1- B e3
R 1004 CHIP RES. 100k 1/16W 5% RMC1/16 104JATP J24185104 1- A D4
R 1005 CHIP RES. 39k 1/16W 5% RMC1/16 393JATP J24185393 1- B e3
R 1007 CHIP RES. 150 1W 5% RMC1 151JTE J24305151 1- B e3
R 1009 CHIP RES. 56k 1/16W 5% RMC1/16 563JATP J24185563 1- B e3
R 1010 CHIP RES. 10k 1/16W 1% RMC1/16 103FTP J24183103 1- A C4
R 1011 CHIP RES. 10k 1/16W 1% RMC1/16 103FTP J24183103 1- A C3
R 1012 CHIP RES. 56k 1/16W 5% RMC1/16 563JATP J24185563 1- B e3
R 1013 CHIP RES. 100k 1/16W 5% RMC1/16 104JATP J24185104 1- A D3
R 1014 CHIP RES. 3.3k 1/16W 5% RMC1/16 332JATP J24185332 1- B e4
R 1016 CHIP RES. 100k 1/16W 5% RMC1/16 104JATP J24185104 1- A D4
R 1016 CHIP RES. 47k 1/16W 5% RMC1/16 473JATP J24185473 3- A D4
R 1017 CHIP RES. 100k 1/16W 5% RMC1/16 104JATP J24185104 1- B e3
R 1018 CHIP RES. 100k 1/16W 5% RMC1/16 104JATP J24185104 1- A F5
R 1019 CHIP RES. 1k 1/16W 5% RMC1/16 102JATP J24185102 1- B d5
R 1020 CHIP RES. 680 1/16W 5% RMC1/16 681JATP J24185681 1- B d5
R 1021 CHIP RES. 100k 1/16W 5% RMC1/16 104JATP J24185104 1- A F5
R 1022 CHIP RES. 8.2k 1/16W 5% RMC1/16 822JATP J24185822 1- B d3
R 1023 CHIP RES. 0 1/16W 5% RMC1/16 000JATP J24185000 1- A C5
R 1024 CHIP RES. 100k 1/16W 5% RMC1/16 104JATP J24185104 1- A D4
R 1025 CHIP RES. 10k 1/16W 5% RMC1/16 103JATP J24185103 1- A C3
R 1027 CHIP RES. 100k 1/16W 5% RMC1/16 104JATP J24185104 1- A D5
R 1029 CHIP RES. 47k 1/16W 5% RMC1/16 473JATP J24185473 1- A D4
R 1030 CHIP RES. 47 1/16W 5% RMC1/16 470JATP J24185470 1- A C3
R 1031 CHIP RES. 100k 1/16W 5% RMC1/16 104JATP J24185104 1- A D3
R 1032 CHIP RES. 100k 1/16W 5% RMC1/16 104JATP J24185104 1- A D5
R 1033 CHIP RES. 18k 1/16W 5% RMC1/16 183JATP J24185183 1- A C3
R 1034 CHIP RES. 12k 1/16W 5% RMC1/16 123JATP J24185123 1- A C3
R 1035 CHIP RES. 4.7k 1/16W 5% RMC1/16 472JATP J24185472 1- A F5
R 1036 CHIP RES. 33k 1/16W 5% RMC1/16 333JATP J24185333 1- A C4
R 1037 CHIP RES. 12k 1/16W 5% RMC1/16 123JATP J24185123 1- B d4
R 1037 CHIP RES. 6.8k 1/16W 5% RMC1/16 682JATP J24185682 3- B d4
R 1038 CHIP RES. 10k 1/16W 5% RMC1/16 103JATP J24185103 1- A F5
R 1039 CHIP RES. 100 1/16W 5% RMC1/16 101JATP J24185101 1- A F5
R 1040 CHIP RES. 220 1/16W 5% RMC1/16 221JATP J24185221 1- A C3
R 1041 CHIP RES. 56 1/16W 5% RMC1/16 560JATP J24185560 1- A C3
R 1042 CHIP RES. 0 1/16W 5% RMC1/16 000JATP J24185000 1- A C3
R 1043 CHIP RES. 100 1/16W 5% RMC1/16 101JATP J24185101 1- A F5
R 1044 CHIP RES. 2.2k 1/16W 5% RMC1/16 222JATP J24185222 1- A F5
R 1045 CHIP RES. 0 1/16W 5% RMC1/16 000JATP J24185000 1- A C3
R 1046 CHIP RES. 10k 1/16W 5% RMC1/16 103JATP J24185103 1- B d4
R 1047 CHIP RES. 33k 1/16W 5% RMC1/16 333JATP J24185333 1- A C4
R 1049 CHIP RES. 10k 1/16W 5% RMC1/16 103JATP J24185103 1- A D5
R 1050 CHIP RES. 100k 1/16W 5% RMC1/16 104JATP J24185104 1-22 A C5
H-24
MAIN Unit
Parts List
REF DESCRIPTION VALUE V/W TOL. MFR'S DESIG VXSTD P/N VERS. LOT SIDE
LAY ADR
R 1050 CHIP RES. 150k 1/16W 5% RMC1/16 154JATP J24185154 VER. A 23- A C5
R 1050 CHIP RES. 100k 1/16W 5% RMC1/16 104JATP J24185104 VER. CS 23- A C5
R 1050 CHIP RES. 100k 1/16W 5% RMC1/16 104JATP J24185104 VER. D 23- A C5
R 1052 CHIP RES. 1k 1/16W 5% RMC1/16 102JATP J24185102 1- A C2
R 1053 CHIP RES. 1k 1/16W 5% RMC1/16 102JATP J24185102 1- A C2
R 1055 CHIP RES. 47k 1/16W 5% RMC1/16 473JATP J24185473 1- A D5
R 1056 CHIP RES. 39k 1/16W 5% RMC1/16 393JATP J24185393 1- B e5
R 1057 CHIP RES. 1k 1/16W 5% RMC1/16 102JATP J24185102 1- A C3
R 1060 CHIP RES. 100k 1/16W 5% RMC1/16 104JATP J24185104 1- A E5
R 1061 CHIP RES. 33k 1/16W 5% RMC1/16 333JATP J24185333 1- B e3
R 1062 CHIP RES. 100k 1/16W 5% RMC1/16 104JATP J24185104 1- B e3
R 1063 CHIP RES. 0 1/16W 5% RMC1/16 000JATP J24185000 1- B e3
R 1065 CHIP RES. 100k 1/16W 5% RMC1/16 104JATP J24185104 1- A E5
R 1066 CHIP RES. 10k 1/16W 5% RMC1/16 103JATP J24185103 1-22 B e2
R 1066 CHIP RES. 6.8k 1/16W 5% RMC1/16 682JATP J24185682 VER. A 23- B e2
R 1066 CHIP RES. 10k 1/16W 5% RMC1/16 103JATP J24185103 VER. CS 23- B e2
R 1066 CHIP RES. 10k 1/16W 5% RMC1/16 103JATP J24185103 VER. D 23- B e2
R 1067 CHIP RES. 10k 1/16W 5% RMC1/16 103JATP J24185103 1-22 B e2
R 1067 CHIP RES. 6.8k 1/16W 5% RMC1/16 682JATP J24185682 VER. A 23- B e2
R 1067 CHIP RES. 10k 1/16W 5% RMC1/16 103JATP J24185103 VER. CS 23- B e2
R 1067 CHIP RES. 10k 1/16W 5% RMC1/16 103JATP J24185103 VER. D 23- B e2
R 1069 CHIP RES. 180k 1/16W 5% RMC1/16 184JATP J24185184 1- A C5
R 1070 CHIP RES. 10k 1/16W 5% RMC1/16 103JATP J24185103 1- B e3
R 1071 CHIP RES. 22k 1/16W 5% RMC1/16 223JATP J24185223 1- B e5
R 1072 CHIP RES. 0 1/16W 5% RMC1/16 000JATP J24185000 1- B e2
R 1073 CHIP RES. 0 1/16W 5% RMC1/16 000JATP J24185000 1- B d5
R 1074 CHIP RES. 1k 1/16W 5% RMC1/16 102JATP J24185102 1- B e5
R 1075 CHIP RES. 10 1/16W 5% RMC1/16 100JATP J24185100 1- B d2
R 1076 CHIP RES. 0 1/16W 5% RMC1/16 000JATP J24185000 1- B d2
R 1077 CHIP RES. 4.7k 1/16W 5% RMC1/16 472JATP J24185472 1- B e2
R 1078 CHIP RES. 4.7k 1/16W 5% RMC1/16 472JATP J24185472 1- B e2
R 1080 CHIP RES. 10k 1/16W 5% RMC1/16 103JATP J24185103 1- A C5
R 1081 CHIP RES. 4.7k 1/16W 5% RMC1/16 472JATP J24185472 1- A C5
R 1082 CHIP RES. 2.2k 1/16W 5% RMC1/16 222JATP J24185222 1- B d3
R 1083 CHIP RES. 0 1/16W 5% RMC1/16 000JATP J24185000 1- B e2
R 1084 CHIP RES. 680 1/16W 5% RMC1/16 681JATP J24185681 1- B e5
R 1085 CHIP RES. 0 1/16W 5% RMC1/16 000JATP J24185000 1- B e3
R 1086 CHIP RES. 4.7k 1/16W 5% RMC1/16 472JATP J24185472 1- B e3
R 1087 CHIP RES. 0 1/16W 5% RMC1/16 000JATP J24185000 1- B d2
R 1088 CHIP RES. 100 1/16W 5% RMC1/16 101JATP J24185101 1- B d2
R 1089 CHIP RES. 100 1/16W 5% RMC1/16 101JATP J24185101 1- B d2
R 1090 CHIP RES. 0 1/16W 5% RMC1/16 000JATP J24185000 1- B e2
R 1092 CHIP RES. 68k 1/16W 5% RMC1/16 683JATP J24185683 1- A C5
R 1093 CHIP RES. 560 1/16W 5% RMC1/16 561JATP J24185561 1- A D2
R 1094 CHIP RES. 100k 1/16W 5% RMC1/16 104JATP J24185104 1- B e5
R 1094 CHIP RES. 39k 1/16W 5% RMC1/16 393JATP J24185393 3 B e5
R 1094 CHIP RES. 33k 1/16W 5% RMC1/16 333JATP J24185333 VER. A 21- B e5
R 1094 CHIP RES. 56k 1/16W 5% RMC1/16 563JATP J24185563 VER. A 23- B e5
R 1094 CHIP RES. 39k 1/16W 5% RMC1/16 393JATP J24185393 VER. CS 4- B e5
R 1094 CHIP RES. 39k 1/16W 5% RMC1/16 393JATP J24185393 VER. D 4- B e5
R 1094 CHIP RES. 33k 1/16W 5% RMC1/16 333JATP J24185333 VER. D 12- B e5
R 1095 CHIP RES. 82k 1/16W 5% RMC1/16 823JATP J24185823 1- A C5
R 1096 CHIP RES. 47k 1/16W 5% RMC1/16 473JATP J24185473 1-22 B e5
R 1096 CHIP RES. 56k 1/16W 5% RMC1/16 563JATP J24185563 VER. A 23- B e5
R 1096 CHIP RES. 47k 1/16W 5% RMC1/16 473JATP J24185473 VER. CS 23- B e5
R 1096 CHIP RES. 47k 1/16W 5% RMC1/16 473JATP J24185473 VER. D 23- B e5
R 1097 CHIP RES. 3.3k 1/16W 5% RMC1/16 332JATP J24185332 1- A D2
R 1098 CHIP RES. 3.3k 1/16W 5% RMC1/16 332JATP J24185332 1- A D2
R 1099 CHIP RES. 0 1/16W 5% RMC1/16 000JATP J24185000 1- B c4
R 1101 CHIP RES. 270k 1/16W 5% RMC1/16 274JATP J24185274 1- B e5
R 1102 CHIP RES. 0 1/16W 5% RMC1/16 000JATP J24185000 1- B c3
R 1104 CHIP RES. 56 1/16W 5% RMC1/16 560JATP J24185560 1- B c4
R 1105 CHIP RES. 0 1/16W 5% RMC1/16 000JATP J24185000 1- A D2
R 1107 CHIP RES. 3.9k 1/16W 5% RMC1/16 392JATP J24185392 1- B e5
R 1108 CHIP RES. 100k 1/16W 5% RMC1/16 104JATP J24185104 1- A C4
R 1109 CHIP RES. 100k 1/16W 5% RMC1/16 104JATP J24185104 1- A C4
R 1110 CHIP RES. 4.7k 1/16W 5% RMC1/16 472JATP J24185472 1- B e4
R 1112 CHIP RES. 8.2k 1/16W 5% RMC1/16 822JATP J24185822 1- B e4
R 1114 CHIP RES. 100 1/16W 5% RMC1/16 101JATP J24185101 1- A D3
R 1115 CHIP RES. 10k 1/16W 5% RMC1/16 103JATP J24185103 1- B e4
R 1116 CHIP RES. 33 1/16W 5% RMC1/16 330JATP J24185330 1- A C1
R 1117 CHIP RES. 100 1/16W 1% RMC1/16 101FTP J24183101 1- A E4
R 1118 CHIP RES. 100 1/16W 1% RMC1/16 101FTP J24183101 1- A E4
H-25
MAIN Unit
Parts List
REF DESCRIPTION VALUE V/W TOL. MFR'S DESIG VXSTD P/N VERS. LOT SIDE
LAY ADR
R 1119 CHIP RES. 0 1/16W 5% RMC1/16 000JATP J24185000 1 A B4
R 1119 CHIP RES. 6.8k 1/16W 5% RMC1/16 682JATP J24185682 2- A B4
R 1119 CHIP RES. 10k 1/16W 5% RMC1/16 103JATP J24185103 4- A B4
R 1121 CHIP RES. 100k 1/16W 5% RMC1/16 104JATP J24185104 1- A C4
R 1122 CHIP RES. 100k 1/16W 5% RMC1/16 104JATP J24185104 1- A C4
R 1123 CHIP RES. 47 1/16W 5% RMC1/16 470JATP J24185470 1- B b3
R 1124 CHIP RES. 100k 1/16W 5% RMC1/16 104JATP J24185104 1- A B3
R 1125 CHIP RES. 180 1/16W 5% RMC1/16 181JATP J24185181 1- A E2
R 1126 CHIP RES. 10 1/10W 5% RMC1/10T 100J J24205100 1- B c2
R 1127 CHIP RES. 10k 1/16W 5% RMC1/16 103JATP J24185103 1- B b3
R 1128 CHIP RES. 4.7k 1/16W 5% RMC1/16 472JATP J24185472 1- B b3
R 1129 CHIP RES. 470k 1/16W 5% RMC1/16 474JATP J24185474 1- A B3
R 1130 CHIP RES. 33 1/16W 5% RMC1/16 330JATP J24185330 1- A C2
R 1131 CHIP RES. 68k 1/16W 5% RMC1/16 683JATP J24185683 1- A D2
R 1133 CHIP RES. 100k 1/16W 5% RMC1/16 104JATP J24185104 1- B e4
R 1134 CHIP RES. 100k 1/16W 5% RMC1/16 104JATP J24185104 1- B e4
R 1135 CHIP RES. 10k 1/16W 5% RMC1/16 103JATP J24185103 1- A B3
R 1136 CHIP RES. 6.8k 1/16W 5% RMC1/16 682JATP J24185682 1- A B3
R 1137 CHIP RES. 47k 1/16W 5% RMC1/16 473JATP J24185473 1- A B3
R 1138 CHIP RES. 120k 1/16W 1% RMC1/16 124FTP J24183124 1- A B3
R 1139 CHIP RES. 150 1/16W 5% RMC1/16 151JATP J24185151 1- A C2
R 1140 CHIP RES. 0 1/16W 5% RMC1/16 000JATP J24185000 1- A C2
R 1142 CHIP RES. 0 1/16W 5% RMC1/16 000JATP J24185000 1- A E2
R 1142 CHIP RES. 10k 1/16W 5% RMC1/16 103JATP J24185103 3- A E2
R 1142 CHIP RES. 10k 1/16W 5% RMC1/16 103JATP J24185103 16-22 A E2
R 1142 CHIP RES. 2.2k 1/16W 5% RMC1/16 222JATP J24185222 VER. A 23-24 A E2
R 1142 CHIP RES. 2.2k 1/16W 5% RMC1/16 222JATP J24185222 25- A E2
R 1143 CHIP RES. 150 1/16W 5% RMC1/16 151JATP J24185151 1- A D2
R 1146 CHIP RES. 100k 1/16W 5% RMC1/16 104JATP J24185104 1- B e4
R 1147 CHIP RES. 470k 1/16W 1% RMC1/16 474FTP J24183474 1- A B3
R 1148 CHIP RES. 100 1/16W 5% RMC1/16 101JATP J24185101 1- A D2
R 1149 CHIP RES. 150k 1/16W 5% RMC1/16 154JATP J24185154 1- A B3
R 1150 CHIP RES. 68k 1/16W 5% RMC1/16 683JATP J24185683 1- A C1
R 1151 CHIP RES. 39k 1/16W 5% RMC1/16 393JATP J24185393 1- A C1
R 1152 CHIP RES. 470k 1/16W 1% RMC1/16 474FTP J24183474 1- A B3
R 1153 CHIP RES. 330 1/10W 5% RMC1/10T 331J J24205331 1- B d3
R 1154 CHIP RES. 12k 1/16W 5% RMC1/16 123JATP J24185123 1-22 A C1
R 1154 CHIP RES. 39k 1/16W 5% RMC1/16 393JATP J24185393 VER. A 23- A C1
R 1154 CHIP RES. 12k 1/16W 5% RMC1/16 123JATP J24185123 VER. CS 23- A C1
R 1154 CHIP RES. 12k 1/16W 5% RMC1/16 123JATP J24185123 VER. D 23- A C1
R 1155 CHIP RES. 82k 1/16W 5% RMC1/16 823JATP J24185823 1- B e4
R 1156 CHIP RES. 1k 1/16W 5% RMC1/16 102JATP J24185102 1- A B3
R 1157 CHIP RES. 47 1/16W 5% RMC1/16 470JATP J24185470 1- A B2
R 1158 CHIP RES. 3.3k 1/16W 5% RMC1/16 332JATP J24185332 1- A B1
R 1159 CHIP RES. 2.2k 1/16W 5% RMC1/16 222JATP J24185222 1- A B1
R 1160 CHIP RES. 33k 1/16W 5% RMC1/16 333JATP J24185333 1- B e4
R 1161 CHIP RES. 10k 1/16W 5% RMC1/16 103JATP J24185103 1- B e4
R 1162 CHIP RES. 330 1/16W 5% RMC1/16 331JATP J24185331 1- A B1
R 1163 CHIP RES. 150 1/16W 5% RMC1/16 151JATP J24185151 1- A E2
R 1164 CHIP RES. 10k 1/16W 5% RMC1/16 103JATP J24185103 1- B e2
R 1165 CHIP RES. 470k 1/16W 1% RMC1/16 474FTP J24183474 1- A B3
R 1166 CHIP RES. 470k 1/16W 1% RMC1/16 474FTP J24183474 1- A B3
R 1167 CHIP RES. 22k 1/16W 5% RMC1/16 223JATP J24185223 1- B b2
R 1168 CHIP RES. 470k 1/16W 1% RMC1/16 474FTP J24183474 1- A B2
R 1169 CHIP RES. 10 1/16W 5% RMC1/16 100JATP J24185100 1- A B2
R 1170 CHIP RES. 470k 1/16W 1% RMC1/16 474FTP J24183474 1- A B3
R 1171 CHIP RES. 6.8k 1/16W 5% RMC1/16 682JATP J24185682 1- A E1
R 1172 CHIP RES. 18 1/16W 5% RMC1/16 180JATP J24185180 1- A B2
R 1173 CHIP RES. 10 1/16W 5% RMC1/16 100JATP J24185100 1- A B2
R 1174 CHIP RES. 10 1/16W 5% RMC1/16 100JATP J24185100 1- B d2
R 1175 CHIP RES. 2.2k 1/16W 5% RMC1/16 222JATP J24185222 1- B d2
R 1176 CHIP RES. 33k 1/16W 5% RMC1/16 333JATP J24185333 1- B b1
R 1177 CHIP RES. 33k 1/16W 5% RMC1/16 333JATP J24185333 1- B b2
R 1178 CHIP RES. 10k 1/16W 5% RMC1/16 103JATP J24185103 1- B d5
R 1179 CHIP RES. 1.2k 1/16W 5% RMC1/16 122JATP J24185122 1- B c1
R 1180 CHIP RES. 10k 1/16W 5% RMC1/16 103JATP J24185103 1- B d5
R 1181 CHIP RES. 6.8k 1/16W 5% RMC1/16 682JATP J24185682 1- A A2
R 1182 CHIP RES. 5.6k 1/16W 5% RMC1/16 562JATP J24185562 1- A A2
R 1183 CHIP RES. 33k 1/16W 5% RMC1/16 333JATP J24185333 1- B b1
R 1184 CHIP RES. 33k 1/16W 5% RMC1/16 333JATP J24185333 1- B b1
R 1185 CHIP RES. 10k 1/16W 5% RMC1/16 103JATP J24185103 1- B b1
R 1186 CHIP RES. 150k 1/16W 5% RMC1/16 154JATP J24185154 1- A E1
R 1186 CHIP RES. 180k 1/16W 5% RMC1/16 184JATP J24185184 22- A E1
H-26
MAIN Unit
Parts List
REF DESCRIPTION VALUE V/W TOL. MFR'S DESIG VXSTD P/N VERS. LOT SIDE
LAY ADR
R 1187 CHIP RES. 4.7k 1/16W 5% RMC1/16 472JATP J24185472 1- B d5
R 1188 CHIP RES. 10 1/16W 5% RMC1/16 100JATP J24185100 1- A B2
R 1189 CHIP RES. 10k 1/16W 5% RMC1/16 103JATP J24185103 1- A B3
R 1190 CHIP RES. 47 1/10W 5% RMC1/10T 470J J24205470 1- A A1
R 1191 CHIP RES. 1.8k 1/16W 5% RMC1/16 182JATP J24185182 1- B c1
R 1191 CHIP RES. 2.2k 1/16W 5% RMC1/16 222JATP J24185222 22- B c1
R 1192 CHIP RES. 10k 1/16W 5% RMC1/16 103JATP J24185103 1- B d5
R 1193 CHIP RES. 6.8k 1/16W 5% RMC1/16 682JATP J24185682 1- A B2
R 1194 CHIP RES. 22k 1/16W 5% RMC1/16 223JATP J24185223 1- B b1
R 1195 CHIP RES. 10k 1/16W 5% RMC1/16 103JATP J24185103 1- B g2
R 1196 CHIP RES. 10k 1/16W 5% RMC1/16 103JATP J24185103 1- B f1
R 1197 CHIP RES. 10k 1/16W 5% RMC1/16 103JATP J24185103 1- B g2
R 1198 CHIP RES. 1.8k 1/16W 5% RMC1/16 182JATP J24185182 1- B c1
R 1198 CHIP RES. 1k 1/16W 5% RMC1/16 102JATP J24185102 22- B c1
R 1199 CHIP RES. 6.8k 1/16W 5% RMC1/16 682JATP J24185682 1- A E1
R 1200 CHIP RES. 10k 1/16W 5% RMC1/16 103JATP J24185103 1- B b1
R 1201 CHIP RES. 100k 1/16W 5% RMC1/16 104JATP J24185104 1- B g1
R 1202 CHIP RES. 220k 1/16W 5% RMC1/16 224JATP J24185224 1- A E1
R 1203 CHIP RES. 47 1/16W 5% RMC1/16 470JATP J24185470 1- B c1
R 1204 CHIP RES. 18k 1/16W 5% RMC1/16 183JATP J24185183 1- A B2
R 1205 CHIP RES. 10k 1/16W 5% RMC1/16 103JATP J24185103 1- A B2
R 1207 CHIP RES. 0 1/16W 5% RMC1/16 000JATP J24185000 1-20 A B1
R 1207 CHIP RES. 0 1/16W 5% RMC1/16 000JATP J24185000 VER. CS 21- A B1
R 1207 CHIP RES. 0 1/16W 5% RMC1/16 000JATP J24185000 VER. D 21- A B1
R 1209 CHIP RES. 1k 1/16W 5% RMC1/16 102JATP J24185102 1- A E1
R 1210 CHIP RES. 100 1/16W 5% RMC1/16 101JATP J24185101 1- A E1
R 1212 CHIP RES. 6.8k 1/16W 5% RMC1/16 682JATP J24185682 1- B d1
R 1214 CHIP RES. 0 1/16W 5% RMC1/16 000JATP J24185000 1- A D1
R 1215 CHIP RES. 12k 1/16W 5% RMC1/16 123JATP J24185123 1- A D1
R 1216 CHIP RES. 18k 1/16W 5% RMC1/16 183JATP J24185183 1- A D1
R 1217 CHIP RES. 0 1/16W 5% RMC1/16 000JATP J24185000 1- A D2
R 1219 CHIP RES. 820 1/16W 5% RMC1/16 821JATP J24185821 1- A B1
R 1220 CHIP RES. 10k 1/16W 5% RMC1/16 103JATP J24185103 1- B d1
R 1221 CHIP RES. 4.7k 1/16W 5% RMC1/16 472JATP J24185472 1- B d1
R 1222 CHIP RES. 27k 1/16W 5% RMC1/16 273JATP J24185273 1- A D1
R 1223 CHIP RES. 820 1/16W 5% RMC1/16 821JATP J24185821 1- A B1
R 1224 CHIP RES. 47k 1/16W 5% RMC1/16 473JATP J24185473 1- B g5
R 1225 CHIP RES. 47k 1/16W 5% RMC1/16 473JATP J24185473 1- B f4
R 1226 CHIP RES. 560 1/16W 5% RMC1/16 561JATP J24185561 1- A F2
R 1227 CHIP RES. 33 1/16W 5% RMC1/16 330JATP J24185330 1- A G4
R 1228 CHIP RES. 33 1/16W 5% RMC1/16 330JATP J24185330 1- A G3
R 1229 CHIP RES. 0 1/16W 5% RMC1/16 000JATP J24185000 1- B b2
R 1230 CHIP RES. 100 1/16W 5% RMC1/16 101JATP J24185101 1- B b2
R 1231 CHIP RES. 100 1/16W 5% RMC1/16 101JATP J24185101 1- B b2
R 1232 CHIP RES. 0 1/16W 5% RMC1/16 000JATP J24185000 1- B a2
R 1233 CHIP RES. 10k 1/16W 5% RMC1/16 103JATP J24185103 1- B g4
R 1233 CHIP RES. 470k 1/16W 5% RMC1/16 474JATP J24185474 19- B g4
R 1234 CHIP RES. 220k 1/16W 1% RMC1/16 224FTP J24183224 1- A G1
R 1235 CHIP RES. 220k 1/16W 1% RMC1/16 224FTP J24183224 1- A G1
R 1236 CHIP RES. 1.8k 1/16W 5% RMC1/16 182JATP J24185182 1- A F2
R 1237 CHIP RES. 47k 1/16W 5% RMC1/16 473JATP J24185473 1- B g5
R 1238 CHIP RES. 47k 1/16W 5% RMC1/16 473JATP J24185473 1- B g4
R 1239 CHIP RES. 47k 1/16W 5% RMC1/16 473JATP J24185473 1- B g4
R 1240 CHIP RES. 47k 1/16W 5% RMC1/16 473JATP J24185473 1- B g4
R 1241 CHIP RES. 4.7k 1/16W 5% RMC1/16 472JATP J24185472 1- B b2
R 1242 CHIP RES. 4.7k 1/16W 5% RMC1/16 472JATP J24185472 1- B a2
R 1243 CHIP RES. 6.8k 1/16W 5% RMC1/16 682JATP J24185682 1- A F2
R 1244 CHIP RES. 15k 1/16W 5% RMC1/16 153JATP J24185153 1- A A1
R 1245 CHIP RES. 0 1/16W 5% RMC1/16 000JATP J24185000 1- B b2
R 1246 CHIP RES. 4.7k 1/16W 5% RMC1/16 472JATP J24185472 1- B g4
R 1247 CHIP RES. 10k 1/16W 5% RMC1/16 103JATP J24185103 1-3 B b2
R 1247 CHIP RES. 2.2k 1/16W 5% RMC1/16 222JATP J24185222 VER. A 21- B b2
R 1247 CHIP RES. 2.2k 1/16W 5% RMC1/16 222JATP J24185222 VER. CS 4- B b2
R 1247 CHIP RES. 10k 1/16W 5% RMC1/16 103JATP J24185103 VER. D 4- B b2
R 1247 CHIP RES. 3.9k 1/16W 5% RMC1/16 392JATP J24185392 VER. D 11- B b2
R 1248 CHIP RES. 10k 1/16W 5% RMC1/16 103JATP J24185103 1-3 B a2
R 1248 CHIP RES. 2.2k 1/16W 5% RMC1/16 222JATP J24185222 VER. A 21- B a2
R 1248 CHIP RES. 2.2k 1/16W 5% RMC1/16 222JATP J24185222 VER. CS 4- B a2
R 1248 CHIP RES. 10k 1/16W 5% RMC1/16 103JATP J24185103 VER. D 4- B a2
R 1248 CHIP RES. 3.9k 1/16W 5% RMC1/16 392JATP J24185392 VER. D 11- B a2
R 1249 CHIP RES. 2.7k 1/16W 5% RMC1/16 272JATP J24185272 1- B g4
R 1250 CHIP RES. 10k 1/16W 5% RMC1/16 103JATP J24185103 1- A G1
R 1251 CHIP RES. 330 1/16W 5% RMC1/16 331JATP J24185331 1-20 A A1
H-27
MAIN Unit
Parts List
REF DESCRIPTION VALUE V/W TOL. MFR'S DESIG VXSTD P/N VERS. LOT SIDE
LAY ADR
R 1251 CHIP RES. 330 1/16W 5% RMC1/16 331JATP J24185331 VER. CS 21- A A1
R 1251 CHIP RES. 330 1/16W 5% RMC1/16 331JATP J24185331 VER. CS 23- A A1
R 1251 CHIP RES. 330 1/16W 5% RMC1/16 331JATP J24185331 VER. D 21- A A1
R 1252 CHIP RES. 18 1/16W 5% RMC1/16 180JATP J24185180 1-20 A A1
R 1252 CHIP RES. 18 1/16W 5% RMC1/16 180JATP J24185180 VER. CS 21- A A1
R 1252 CHIP RES. 18 1/16W 5% RMC1/16 180JATP J24185180 VER. CS 23- A A1
R 1252 CHIP RES. 18 1/16W 5% RMC1/16 180JATP J24185180 VER. D 21- A A1
R 1253 CHIP RES. 18k 1/16W 5% RMC1/16 183JATP J24185183 1- A G2
R 1254 CHIP RES. 12k 1/16W 5% RMC1/16 123JATP J24185123 1- A G1
R 1255 CHIP RES. 330 1/16W 5% RMC1/16 331JATP J24185331 1-20 A A1
R 1255 CHIP RES. 330 1/16W 5% RMC1/16 331JATP J24185331 VER. CS 21- A A1
R 1255 CHIP RES. 330 1/16W 5% RMC1/16 331JATP J24185331 VER. CS 23- A A1
R 1255 CHIP RES. 330 1/16W 5% RMC1/16 331JATP J24185331 VER. D 21- A A1
R 1256 CHIP RES. 4.7k 1/16W 5% RMC1/16 472JATP J24185472 1- A F2
R 1257 CHIP RES. 47k 1/16W 5% RMC1/16 473JATP J24185473 1- A A4
R 1258 CHIP RES. 33k 1/16W 5% RMC1/16 333JATP J24185333 1- A A4
R 1259 CHIP RES. 56 1/16W 5% RMC1/16 560JATP J24185560 1- A G2
R 1260 CHIP RES. 100k 1/16W 5% RMC1/16 104JATP J24185104 1- A A3
R 1261 CHIP RES. 2.2k 1/16W 5% RMC1/16 222JATP J24185222 1- A E2
R 1262 CHIP RES. 10 1/16W 5% RMC1/16 100JATP J24185100 1- A E2
R 1263 CHIP RES. 10k 1/16W 5% RMC1/16 103JATP J24185103 1- A F2
R 1265 CHIP RES. 220 1/16W 5% RMC1/16 221JATP J24185221 1- A G2
R 1266 CHIP RES. 2.2k 1/16W 1% RMC1/16 222FTP J24183222 1- A B4
R 1267 CHIP RES. 100k 1/16W 5% RMC1/16 104JATP J24185104 1- A F2
R 1268 CHIP RES. 1.8k 1/16W 1% RMC1/16 182FTP J24183182 1- A A3
R 1269 CHIP RES. 100k 1/16W 5% RMC1/16 104JATP J24185104 1- A A4
R 1270 CHIP RES. 47 1/16W 5% RMC1/16 470JATP J24185470 1- A F4
R 1271 CHIP RES. 47 1/16W 5% RMC1/16 470JATP J24185470 1- A F3
R 1272 CHIP RES. 220 1/16W 5% RMC1/16 221JATP J24185221 1-22 A F4
R 1272 CHIP RES. 220 1/16W 5% RMC1/16 221JATP J24185221 VER. CS 23- A F4
R 1272 CHIP RES. 220 1/16W 5% RMC1/16 221JATP J24185221 VER. D 23- A F4
R 1273 CHIP RES. 220 1/16W 5% RMC1/16 221JATP J24185221 1-22 A F3
R 1273 CHIP RES. 330 1/16W 5% RMC1/16 331JATP J24185331 VER. A 23- A F3
R 1273 CHIP RES. 220 1/16W 5% RMC1/16 221JATP J24185221 VER. CS 23- A F3
R 1273 CHIP RES. 220 1/16W 5% RMC1/16 221JATP J24185221 VER. D 23- A F3
R 1274 CHIP RES. 33k 1/16W 5% RMC1/16 333JATP J24185333 1- A F2
R 1277 CHIP RES. 390 1/16W 5% RMC1/16 391JATP J24185391 VER. A 23- A F4
R 1280 CHIP RES. 0 1/16W 5% RMC1/16 000JATP J24185000 1- A G2
R 1281 CHIP RES. 15k 1/16W 5% RMC1/16 153JATP J24185153 1- B f3
R 1281 CHIP RES. 1.5k 1/16W 5% RMC1/16 152JATP J24185152 23- B f3
R 1282 CHIP RES. 0 1/16W 5% RMC1/16 000JATP J24185000 1- B f3
R 1283 CHIP RES. 0 1/16W 5% RMC1/16 000JATP J24185000 1- A G2
R 1284 CHIP RES. 0 1/16W 5% RMC1/16 000JATP J24185000 1- A A3
R 1285 CHIP RES. 0 1/16W 5% RMC1/16 000JATP J24185000 1- B f3
R 1286 CHIP RES. 0 1/16W 5% RMC1/16 000JATP J24185000 1- B f3
R 1287 CHIP RES. 47 1/16W 5% RMC1/16 470JATP J24185470 1- B a2
R 1290 CHIP RES. 150 1/16W 5% RMC1/16 151JATP J24185151 1- B b2
R 1292 CHIP RES. 10k 1/16W 5% RMC1/16 103JATP J24185103 1- B b2
R 1292 CHIP RES. 2.2k 1/16W 5% RMC1/16 222JATP J24185222 11- B b2
R 1293 CHIP RES. 0 1/16W 5% RMC1/16 000JATP J24185000 1- B b2
R 1294 CHIP RES. 2.7 1/10W 5% RMC1/10T 2R7J J24205279 1- B g3
R 1295 CHIP RES. 47 1/16W 5% RMC1/16 470JATP J24185470 1- A F4
R 1296 CHIP RES. 10k 1/16W 5% RMC1/16 103JATP J24185103 1- B f2
R 1296 CHIP RES. 1k 1/16W 5% RMC1/16 102JATP J24185102 23- B f2
R 1298 CHIP RES. 4.7 1W 5% RMC1 4R7JTE J24305479 1- B g4
R 1299 CHIP RES. 4.7 1W 5% RMC1 4R7JTE J24305479 1- B g4
R 1300 CHIP RES. 100k 1/16W 5% RMC1/16 104JATP J24185104 1- B a2
R 1301 CHIP RES. 1k 1/16W 5% RMC1/16 102JATP J24185102 1- A G2
R 1302 CHIP RES. 1k 1/16W 5% RMC1/16 102JATP J24185102 1- A G2
R 1303 CHIP RES. 1k 1/16W 5% RMC1/16 102JATP J24185102 1- A G2
R 1304 CHIP RES. 0 1/16W 5% RMC1/16 000JATP J24185000 1- B b2
R 1305 CHIP RES. 3.3k 1/16W 5% RMC1/16 332JATP J24185332 1- A F4
R 1306 CHIP RES. 2.2k 1/16W 5% RMC1/16 222JATP J24185222 1- A F4
R 1307 CHIP RES. 18k 1/16W 5% RMC1/16 183JATP J24185183 1- A B4
R 1308 CHIP RES. 1k 1/16W 5% RMC1/16 102JATP J24185102 1- B f3
R 1309 CHIP RES. 270 1/10W 5% RMC1/10T 271J J24205271 1- B g3
R 1310 CHIP RES. 330 1/16W 5% RMC1/16 331JATP J24185331 1- A F3
R 1311 CHIP RES. 1k 1/16W 5% RMC1/16 102JATP J24185102 1- B f3
R 1312 CHIP RES. 0 1/16W 5% RMC1/16 000JATP J24185000 1- B b3
R 1313 CHIP RES. 1k 1/16W 5% RMC1/16 102JATP J24185102 1- B f3
R 1317 CHIP RES. 0 1/16W 5% RMC1/16 000JATP J24185000 1- B b3
R 1319 CHIP RES. 33k 1/16W 5% RMC1/16 333JATP J24185333 1- A B4
R 1320 CHIP RES. 1 1/10W 5% RMC1/10T 1R0J J24205010 1- B g3
H-28
MAIN Unit
Parts List
REF DESCRIPTION VALUE V/W TOL. MFR'S DESIG VXSTD P/N VERS. LOT SIDE
LAY ADR
R 1324 CHIP RES. 10 1/16W 5% RMC1/16 100JATP J24185100 1- A E2
R 1325 CHIP RES. 2.2k 1/16W 5% RMC1/16 222JATP J24185222 1- A E2
R 1326 CHIP RES. 18 1/16W 5% RMC1/16 180JATP J24185180 1- A F3
R 1327 CHIP RES. 0 1/16W 5% RMC1/16 000JATP J24185000 1- B f3
R 1328 CHIP RES. 0 1/16W 5% RMC1/16 000JATP J24185000 1- B f3
R 1329 CHIP RES. 0 1/16W 5% RMC1/16 000JATP J24185000 1- B f3
R 1330 CHIP RES. 0 1/16W 5% RMC1/16 000JATP J24185000 1- B f3
R 1331 CHIP RES. 18 1/16W 5% RMC1/16 180JATP J24185180 1- A F3
R 1332 CHIP RES. 18 1/16W 5% RMC1/16 180JATP J24185180 1- A F3
R 1333 CHIP RES. 0 1W 5% RMC1 JPATE J24305000 1- A A4
R 1334 CHIP RES. 4.7k 1/16W 5% RMC1/16 472JATP J24185472 1- A B4
R 1336 CHIP RES. 2.2k 1/16W 5% RMC1/16 222JATP J24185222 1- B b2
R 1337 CHIP RES. 2.2k 1/16W 1% RMC1/16 222FTP J24183222 1- A B4
R 1338 CHIP RES. 0 1/10W 5% RMC1/10T 000J J24205000 1- B e5
R 1339 CHIP RES. 0 1/16W 5% RMC1/16 000JATP J24185000 1- B f4
R 1340 CHIP RES. 0 1/16W 5% RMC1/16 000JATP J24185000 1- B e4
R 1341 CHIP RES. 0 1/10W 5% RMC1/10T 000J J24205000 1-2
R 1342 CHIP RES. 0 1/10W 5% RMC1/10T 000J J24205000 1-2
R 1343 CHIP RES. 0 1/16W 5% RMC1/16 000JATP J24185000 1- B f4
R 1344 CHIP RES. 0 1/16W 5% RMC1/16 000JATP J24185000 1- B f4
R 1345 CHIP RES. 100k 1/16W 5% RMC1/16 104JATP J24185104 1- A C5
R 1346 CHIP RES. 100k 1/16W 5% RMC1/16 104JATP J24185104 1- A C5
R 1347 CHIP RES. 100k 1/16W 5% RMC1/16 104JATP J24185104 1- A C5
R 1348 CHIP RES. 0 1/16W 5% RMC1/16 000JATP J24185000 1- B f3
R 1350 CHIP RES. 0 1/16W 5% RMC1/16 000JATP J24185000 1-2
R 1351 CHIP RES. 1M 1/16W 5% RMC1/16 105JATP J24185105 1-20 A C4
R 1351 CHIP RES. 220k 1/16W 1% RMC1/16 224FTP J24183224 VER. A 21- A C4
R 1351 CHIP RES. 1M 1/16W 5% RMC1/16 105JATP J24185105 VER. CS 21- A C4
R 1351 CHIP RES. 1M 1/16W 5% RMC1/16 105JATP J24185105 VER. D 21- A C4
R 1352 CARBON FILM RES. 2.2k 1/6W 5% RD16PJ222 2.2K J01225222 3-22 A D4
R 1352 CHIP RES. 2.2k 1/16W 5% RMC1/16 222JATP J24185222 VER. A 23-24 A D4
R 1352 CARBON FILM RES. 2.2k 1/6W 5% RD16PJ222 2.2K J01225222 VER. CS 23-24 A D4
R 1352 CARBON FILM RES. 2.2k 1/6W 5% RD16PJ222 2.2K J01225222 VER. D 23-24 A D4
R 1352 CHIP RES. 2.2k 1/16W 5% RMC1/16 222JATP J24185222 25- A D4
R 1353 CARBON FILM RES. 22k 1/6W 5% RD16PJ223 22K J01225223 11-22 A B5
R 1353 CHIP RES. 22k 1/16W 5% RMC1/16 223JATP J24185223 VER. A 23-24 A B5
R 1353 CARBON FILM RES. 22k 1/6W 5% RD16PJ223 22K J01225223 VER. CS 23-24 A B5
R 1353 CARBON FILM RES. 22k 1/6W 5% RD16PJ223 22K J01225223 VER. D 23-24 A B5
R 1353 CHIP RES. 22k 1/16W 5% RMC1/16 223JATP J24185223 25- A B5
R 1354 CHIP RES. 0 1/16W 5% RMC1/16 000JATP J24185000 VER. A 23- A C2
R 1501 CHIP RES. 10k 1/16W 5% RMC1/16 103JATP J24185103 3- B c2
R 1501 CHIP RES. 1k 1/16W 5% RMC1/16 102JATP J24185102 16- B c2
R 1501 CHIP RES. 2.7k 1/16W 5% RMC1/16 272JATP J24185272 23- B c2
R 1502 CHIP RES. 10k 1/16W 5% RMC1/16 103JATP J24185103 3- B d2
R 1502 CHIP RES. 1k 1/16W 5% RMC1/16 102JATP J24185102 16- B d2
R 1502 CHIP RES. 2.7k 1/16W 5% RMC1/16 272JATP J24185272 23- B d2
R 1503 CHIP RES. 390 1/16W 5% RMC1/16 391JATP J24185391 VER. A 23-24 B c3
R 1503 CHIP RES. 390 1/16W 5% RMC1/16 391JATP J24185391 25- B c3
R 1504 CHIP RES. 390 1/16W 5% RMC1/16 391JATP J24185391 VER. A 23-24 B c3
R 1504 CHIP RES. 390 1/16W 5% RMC1/16 391JATP J24185391 25- B c3
R 1505 CHIP RES. 390 1/16W 5% RMC1/16 391JATP J24185391 VER. A 23-24 B c3
R 1505 CHIP RES. 390 1/16W 5% RMC1/16 391JATP J24185391 25- B c3
R 1507 CHIP RES. 100 1/16W 5% RMC1/16 101JATP J24185101 3- B c3
R 1508 CHIP RES. 180 1/16W 5% RMC1/16 181JATP J24185181 3- B d2
R 1508 CHIP RES. 180 1/16W 5% RMC1/16 181JATP J24185181 16-22 B d2
R 1508 CHIP RES. 100 1/16W 5% RMC1/16 101JATP J24185101 VER. A 23-24 B d2
R 1508 CHIP RES. 100 1/16W 5% RMC1/16 101JATP J24185101 25- B d2
R 1509 CHIP RES. 68k 1/16W 5% RMC1/16 683JATP J24185683 3- B c2
R 1512 CHIP RES. 10k 1/16W 5% RMC1/16 103JATP J24185103 3- B c2
R 1513 CHIP RES. 150 1/16W 5% RMC1/16 151JATP J24185151 3- B c2
R 1513 CHIP RES. 150 1/16W 5% RMC1/16 151JATP J24185151 16-22 B c2
R 1513 CHIP RES. 100 1/16W 5% RMC1/16 101JATP J24185101 VER. A 23-24 B c2
R 1513 CHIP RES. 100 1/16W 5% RMC1/16 101JATP J24185101 25- B c2
R 1514 CHIP RES. 100 1/16W 5% RMC1/16 101JATP J24185101 VER. A 23-24 B c2
R 1514 CHIP RES. 100 1/16W 5% RMC1/16 101JATP J24185101 25- B c2
R 1515 CHIP RES. 150 1/16W 5% RMC1/16 151JATP J24185151 3- B c2
R 1515 CHIP RES. 150 1/16W 5% RMC1/16 151JATP J24185151 16-22 B c2
R 1515 CHIP RES. 100 1/16W 5% RMC1/16 101JATP J24185101 VER. A 23-24 B c2
R 1515 CHIP RES. 100 1/16W 5% RMC1/16 101JATP J24185101 25- B c2
R 1516 CHIP RES. 390 1/16W 5% RMC1/16 391JATP J24185391 VER. A 23-24 B c2
R 1516 CHIP RES. 390 1/16W 5% RMC1/16 391JATP J24185391 25- B c2
R 1517 CHIP RES. 390 1/16W 5% RMC1/16 391JATP J24185391 VER. A 23-24 B c2
R 1517 CHIP RES. 390 1/16W 5% RMC1/16 391JATP J24185391 25- B c2
H-29
MAIN Unit
Parts List
REF DESCRIPTION VALUE V/W TOL. MFR'S DESIG VXSTD P/N VERS. LOT SIDE
LAY ADR
R 1518 CHIP RES. 390 1/16W 5% RMC1/16 391JATP J24185391 VER. A 23-24 B c1
R 1518 CHIP RES. 390 1/16W 5% RMC1/16 391JATP J24185391 25- B c1
R 1519 CHIP RES. 0 1/16W 5% RMC1/16 000JATP J24185000 3-
R 1519 CHIP RES. 0 1/16W 5% RMC1/16 000JATP J24185000 16-22
R 1519 CHIP RES. 0 1/16W 5% RMC1/16 000JATP J24185000 VER. CS 23-24
R 1519 CHIP RES. 0 1/16W 5% RMC1/16 000JATP J24185000 VER. D 23-24
R 1520 CHIP RES. 0 1/10W 5% RMC1/10T 000J J24205000 3-
R 1520 CHIP RES. 0 1/10W 5% RMC1/10T 000J J24205000 16-22
R 1520 CHIP RES. 0 1/10W 5% RMC1/10T 000J J24205000 VER. CS 23-24
R 1520 CHIP RES. 0 1/10W 5% RMC1/10T 000J J24205000 VER. D 23-24
R 1521 CHIP RES. 0 1/10W 5% RMC1/10T 000J J24205000 3-
R 1521 CHIP RES. 0 1/10W 5% RMC1/10T 000J J24205000 16-22
R 1521 CHIP RES. 0 1/10W 5% RMC1/10T 000J J24205000 VER. CS 23-24
R 1521 CHIP RES. 0 1/10W 5% RMC1/10T 000J J24205000 VER. D 23-24
T 1001 COIL WIDE-TRANS. 3-317611 L0022478 1- A E4
T 1002 COIL WIDE-TRANS. 3-317610 L0022479 1- A E4
T 1003 COIL WIDE-TRANS. 3-317611 L0022478 1- A E3
TC1001 TRIMMER CAP. 10pF TC13C100C-TP03 K91000255 1- A G4
TC1002 TRIMMER CAP. 10pF TC13C100C-TP03 K91000255 1- A G3
TH1001 THERMISTOR 157-502-53002TP G9090049 1- A D4
TH1002 THERMISTOR NTCCM20123SH223JCT G9090106 1- A C3
TH1003 THERMISTOR 157-502-53002TP G9090049 1- A B4
TH1004 THERMISTOR 157-501-53009TP G9090058 1- A C2
TP1001 TERMINAL TP-K IPS-1136 Q5000050 1- A D2
TP1003 TERMINAL TP-K IPS-1136 Q5000050 1- A F2
X 1001 XTAL OSC 14.4MHz TTS12V 14.4MHZ H9500650 1- A C3
X 1002 XTAL TSS-6035B 72.895MHz 72.895MHZ H0103290 1- A E2
X 1003 XTAL OSC 14.4MHz TTS12V 14.4MHZ H9500650 1- A G1
XF1001 XTAL FILTER TM7050A MF73P H1102363 1- A D3
XF1001 XTAL FILTER TM7050A MF73P2 H1102381 7- A D3
XF1002 XTAL FILTER TM7050A MF73P H1102363 1- A D2
XF1501 XTAL FILTER TM7050A MF73P H1102363 3- B c3
XF1501 XTAL FILTER TM7050A MF73P H1102363 16-22 B c3
XF1501 XTAL FILTER MFT73M 73.35MHZ H1102391 VER. A 23-24 B c3
XF1501 XTAL FILTER MFT73M 73.35MHZ H1102391 25- B c3
XF1502 XTAL FILTER TM7050A MF73P H1102363 3- B c2
XF1502 XTAL FILTER TM7050A MF73P H1102363 16-22 B c2
XF1502 XTAL FILTER MFT73M 73.35MHZ H1102391 VER. A 23-24 B c2
XF1502 XTAL FILTER MFT73M 73.35MHZ H1102391 25- B c2
SHIELD CASE CASE-S7GDH L9190016 1-5
SHIELD CASE RA0014200 1-
SHIELD CASE VCO R0151950 1-
SHIELD CASE (A) RA0073900 1-
SHIELD CASE (A) RA0073900 1-
SHIELD CASE RA0498300 1-
SHIELD CASE RA0014300 1-
SHIELD CASE (MIXER) RA0439400 1-
LEAF SPRING R0140031 VER. CS 4-
LEAF SPRING R0140031 VER. CS 4-
LEAF SPRING R0140031 VER. CS 4-
LEAF SPRING R0140031 VER. CS 4-
LEAF SPRING R0140031 VER. A 23-
LEAF SPRING R0140031 VER. CS 4-
LEAF SPRING R0140031 VER. D 23-
H-30
MAIN Unit
Parts List
REF DESCRIPTION VALUE V/W TOL. MFR'S DESIG VXSTD P/N VERS. LOT SIDE
LAY ADR
Note
CNTL Unit
I-1
Circuit Diagram
CNTL Unit
I-2
Note
I-3
CNTL Unit
Parts Layout (Side A)
BADCFE G
1
3
2
4
HI
2SC4116GR (LG)
(Q3025)
2SC4154 (LE)
(Q3042)
2SB1201S
(Q3004, 3055)
BU4066BCFV
(Q3030, 3032, 3033)
NJM2902V
(Q3001, 3021, 3044)
DTA144EE (16)
(Q3026)
DTC144EE (26)
(Q3028, 3029, 3037,
3040, 3050, 3056,
3057, 3060)
DTC124TE (25)
(Q3031)
DTC323TK (H02)
(Q3015)
FMG2 (G2)
(Q3024)
LA8630M
(Q3034)
NJM12903R
(Q3043)
NJM2904V
(Q3035, 3041)
TC4W53FU
(Q3058)
TA75S01F (SA)
(Q3016, 3036, 3059)
02CZ3.6Z (36Z)
(D3021)
DA204K (K)
(D3022)
MC2850 (A7)
(D3018, 3019)
MC2848 (A6)
(D3020)
I-4
CNTL Unit

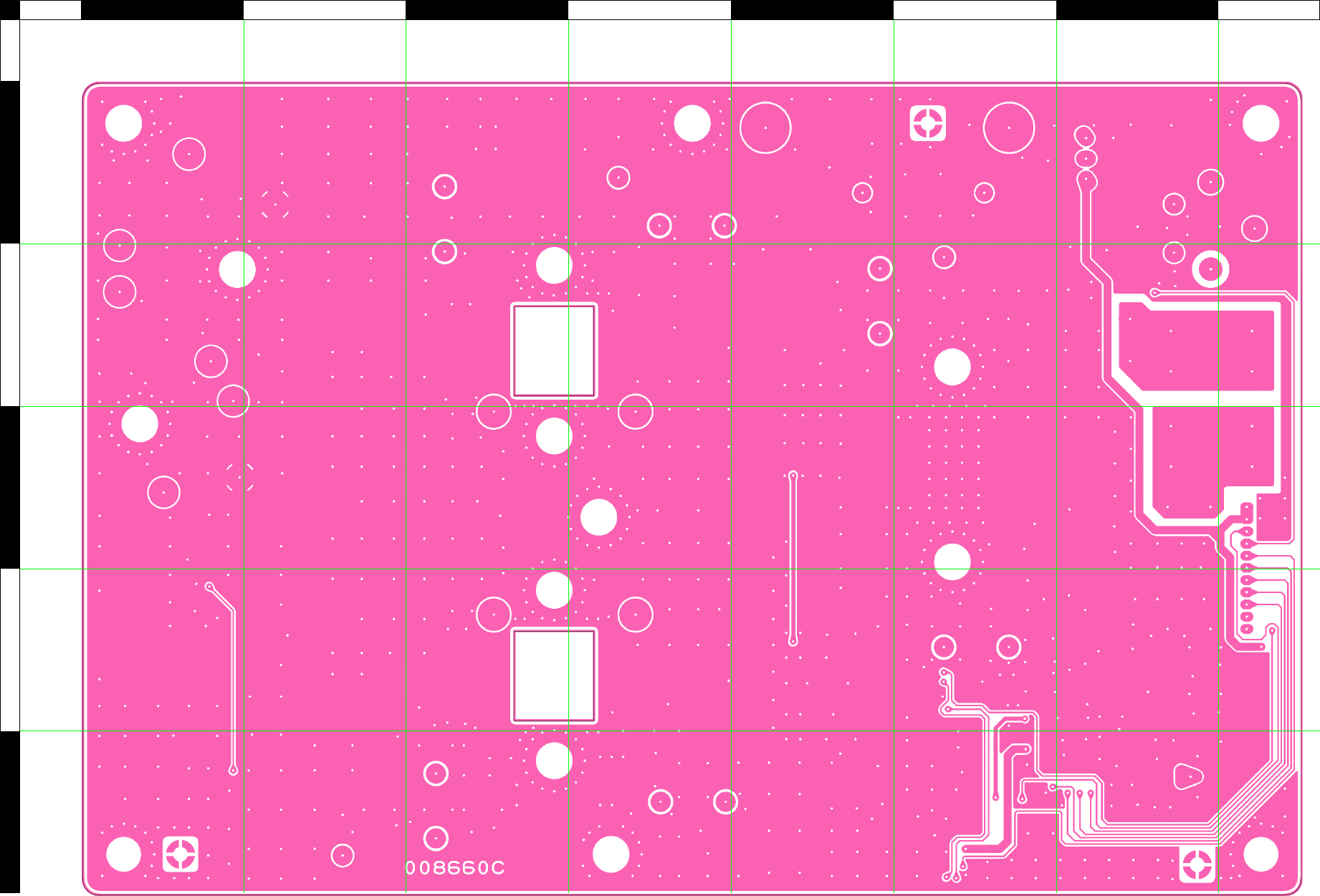

Parts Layout (Side B)
badcfeg
1
3
2
4
hi
2SC4116GR (LG)
(Q3017, 3018)
2SA1586Y (SY)
(Q3022, 3054)
AN8005M (LG)
(Q3007)
BR24L32F
(Q3006)
TC4W53FU
(Q3003)
DTC144EE (26)
(Q3046, 3052, 3053)
DTC323TK (H02)
(Q3038)
FMG2 (G2)
(Q3010, 3011, 3039)
FX805LG
(Q3020)
HD64F2238BFA
(Q3014)
TA75S01F (SA)
(Q3002, 3019, 3023)
TC7S66FU (E9)
(Q3051)
3SK3065 (LG)
(Q3005, 3009)
BD4845FVE
(Q3012)
MC2848 (A6)
(D3023)
MC2850 (A7)
(D3001, 3003, 3004,
3005, 3006, 3007,
3008, 3009, 3010,
3014, 3015)
I-9
CNTL Unit
Parts List
REF DESCRIPTION VALUE V/W TOL. MFR'S DESIG VXSTD P/N VERS. LOT SIDE
LAY ADR
Parts List
PCB with Components CS1843001 VER. VTX D
CS1843002 VER. EXP D
CS1843003 VER. EXP CS
CS1843004 VER. AUS D
CS1843005 VER. VTX A
CS1843006 VER. EXP A
Printed Circuit Board AC044U000 FR008650D 1-2
FR008650E 3-
C 3001 CHIP CAP. 0.001uF 50V B GRM188B11H102KA01D K22174821 1- A A3
C 3002 CHIP CAP. 100pF 50V CH GRM1882C1H101JA01D K22174235 1- B e3
C 3003 CHIP CAP. 0.001uF 50V B GRM188B11H102KA01D K22174821 1- B e3
C 3004 CHIP CAP. 0.001uF 50V B GRM188B11H102KA01D K22174821 1- B e3
C 3005 CHIP CAP. 100pF 50V CH GRM1882C1H101JA01D K22174235 1- B e3
C 3006 CHIP CAP. 100pF 50V CH GRM1882C1H101JA01D K22174235 1- A A3
C 3007 CHIP CAP. 0.1uF 16V B GRM188B11C104KA01D K22124805 1- A A1
C 3008 CHIP CAP. 100pF 50V CH GRM1882C1H101JA01D K22174235 1- B d3
C 3009 CHIP CAP. 100pF 50V CH GRM1882C1H101JA01D K22174235 1- A A3
C 3010 CHIP CAP. 100pF 50V CH GRM1882C1H101JA01D K22174235 1- B e3
C 3011 CHIP CAP. 100pF 50V CH GRM1882C1H101JA01D K22174235 1- A A3
C 3012 CHIP CAP. 100pF 50V CH GRM1882C1H101JA01D K22174235 1- A E3
C 3013 CHIP CAP. 100pF 50V CH GRM1882C1H101JA01D K22174235 1- B d3
C 3014 CHIP CAP. 100pF 50V CH GRM1882C1H101JA01D K22174235 1- A A3
C 3015 CHIP CAP. 100pF 50V CH GRM1882C1H101JA01D K22174235 1- A E3
C 3016 CHIP CAP. 100pF 50V CH GRM1882C1H101JA01D K22174235 1- A A3
C 3017 CHIP CAP. 47pF 50V CH GRM1882C1H470JA01D K22174227 1- A A2
C 3018 CHIP CAP. 100pF 50V CH GRM1882C1H101JA01D K22174235 1- A E3
C 3019 CHIP CAP. 100pF 50V CH GRM1882C1H101JA01D K22174235 1- A A3
C 3020 CHIP CAP. 0.1uF 16V B GRM188B11C104KA01D K22124805 1- A A1
C 3021 CHIP CAP. 330pF 50V CH GRM1882C1H331JA01D K22174253 1- A A1
C 3022 CHIP CAP. 100pF 50V CH GRM1882C1H101JA01D K22174235 1- A E3
C 3023 CHIP CAP. 100pF 50V CH GRM1882C1H101JA01D K22174235 1- A A2
C 3024 CHIP CAP. 100pF 50V CH GRM1882C1H101JA01D K22174235 1- B e3
C 3025 CHIP CAP. 100pF 50V CH GRM1882C1H101JA01D K22174235 1- A A2
C 3026 CHIP CAP. 100pF 50V CH GRM1882C1H101JA01D K22174235 1- A A2
C 3027 CHIP CAP. 100pF 50V CH GRM1882C1H101JA01D K22174235 1- A A2
C 3028 CHIP TA.CAP. 4.7uF 16V TEMSVA1C475M-8R K78120031 1- A A2
C 3029 CHIP CAP. 100pF 50V CH GRM1882C1H101JA01D K22174235 1- A A2
C 3030 CHIP TA.CAP. 4.7uF 16V TEMSVA1C475M-8R K78120031 1- A A2
C 3031 CHIP CAP. 1uF 10V F GRM188F11A105ZA01D K22105001 1- A A2
C 3032 CHIP CAP. 100pF 50V CH GRM1882C1H101JA01D K22174235 1- A A2
C 3033 CHIP CAP. 100pF 50V CH GRM1882C1H101JA01D K22174235 1- A A2
C 3034 CHIP CAP. 100pF 50V CH GRM1882C1H101JA01D K22174235 1- A A2
C 3035 CHIP CAP. 47pF 50V CH GRM1882C1H470JA01D K22174227 1- A A2
C 3036 CHIP CAP. 100pF 50V CH GRM1882C1H101JA01D K22174235 1- A A2
C 3037 CHIP CAP. 0.001uF 50V B GRM188B11H102KA01D K22174821 1- A A1
C 3038 CHIP CAP. 330pF 50V CH GRM1882C1H331JA01D K22174253 1- A A1
C 3039 CHIP CAP. 100pF 50V CH GRM1882C1H101JA01D K22174235 1- A A2
C 3040 CHIP TA.CAP. 4.7uF 16V TEMSVA1C475M-8R K78120031 1- A A1
C 3041 CHIP TA.CAP. 4.7uF 16V TEMSVA1C475M-8R K78120031 1- A A1
C 3042 CHIP TA.CAP. 10uF 10V TEMSVA1A106M-8R K78100028 1- A A2
C 3043 CHIP CAP. 0.001uF 50V B GRM188B11H102KA01D K22174821 1- B h2
C 3044 CHIP TA.CAP. 1uF 25V TEMSVA1E105M-8R K78140013 1- B h2
C 3045 CHIP TA.CAP. 4.7uF 16V TEMSVA1C475M-8R K78120031 1- A E3
C 3046 CHIP CAP. 0.001uF 50V B GRM188B11H102KA01D K22174821 1- B h2
C 3047 CHIP CAP. 0.001uF 50V B GRM188B11H102KA01D K22174821 1- A D3
C 3049 CHIP TA.CAP. 4.7uF 16V TEMSVA1C475M-8R K78120031 1- B h3
C 3050 AL.ELECTRO.CAP. 100uF 25V ECEV1EA101UP K48140013 1- B d3
C 3051 CHIP CAP. 0.01uF 50V B GRM188B11H103KA01D K22174823 1- B e2
C 3052 AL.ELECTRO.CAP. 470uF 16V RE3-16V471MG3# K40129066 1- B a1
C 3053 CHIP CAP. 0.001uF 50V B GRM188B11H102KA01D K22174821 1- B c3
C 3054 CHIP CAP. 0.001uF 50V B GRM188B11H102KA01D K22174821 1- B a2
C 3055 CHIP CAP. 0.001uF 50V B GRM188B11H102KA01D K22174821 1- B c2
C 3056 CHIP CAP. 0.001uF 50V B GRM188B11H102KA01D K22174821 1- B c3
C 3057 CHIP CAP. 0.001uF 50V B GRM188B11H102KA01D K22174821 1- B b2
C 3058 CHIP TA.CAP. 4.7uF 16V TEMSVA1C475M-8R K78120031 1- B a2
C 3059 AL.ELECTRO.CAP. 100uF 16V ECEV1CA101WP K48120012 1- B c3
C 3060 CHIP TA.CAP. 4.7uF 16V TEMSVA1C475M-8R K78120031 1- B b3
C 3061 CHIP CAP. 0.001uF 50V B GRM188B11H102KA01D K22174821 1- A G3
C 3062 CHIP CAP. 0.001uF 50V B GRM188B11H102KA01D K22174821 1- B b3
C 3063 CHIP TA.CAP. 1uF 25V TEMSVA1E105M-8R K78140013 1- A G3
C 3064 CHIP TA.CAP. 4.7uF 16V TEMSVA1C475M-8R K78120031 1- A D2
C 3065 CHIP CAP. 0.001uF 50V B GRM188B11H102KA01D K22174821 1- B b3
C 3066 AL.ELECTRO.CAP. 10uF 25V RC2-25V100ME1# K40149012 1- B b3
I-10
CNTL Unit
Parts List
REF DESCRIPTION VALUE V/W TOL. MFR'S DESIG VXSTD P/N VERS. LOT SIDE
LAY ADR
C 3067 CHIP CAP. 0.01uF 50V B GRM188B11H103KA01D K22174823 1- A F2
C 3068 CHIP CAP. 15pF 50V CH GRM1882C1H150JA01D K22174215 1- B f1
C 3069 CHIP CAP. 15pF 50V CH GRM1882C1H150JA01D K22174215 1- B f1
C 3071 CHIP TA.CAP. 4.7uF 16V TEMSVA1C475M-8R K78120031 1- A F2
C 3073 CHIP CAP. 18pF 50V CH K22174217 1- B f2
C 3074 CHIP TA.CAP. 1uF 25V TEMSVA1E105M-8R K78140013 1- B f1
C 3075 CHIP CAP. 1uF 10V B GRM40B105K10PT K22100802 1- B f2
C 3076 CHIP CAP. 0.1uF 16V B GRM188B11C104KA01D K22124805 1- B d1
C 3077 CHIP CAP. 0.001uF 50V B GRM188B11H102KA01D K22174821 1- B f1
C 3078 CHIP CAP. 0.1uF 16V B GRM188B11C104KA01D K22124805 1- A D1
C 3079 CHIP TA.CAP. 10uF 10V TEMSVA1A106M-8R K78100028 1- A D2
C 3080 CHIP CAP. 0.01uF 50V B GRM188B11H103KA01D K22174823 1- A D1
C 3081 CHIP TA.CAP. 1uF 25V TEMSVA1E105M-8R K78140013 1- A D2
C 3082 CHIP CAP. 0.001uF 50V B GRM188B11H102KA01D K22174821 1- A D2
C 3083 CHIP CAP. 3pF 50V CJ GRM1883C1H3R0CZ01D K22174204 1- B d2
C 3084 CHIP TA.CAP. 1.5uF 20V TEMSVA1D155M-8R K78130013 1- B f2
C 3085 CHIP CAP. 0.01uF 50V B GRM188B11H103KA01D K22174823 1- A D1
C 3086 CHIP CAP. 0.01uF 50V B GRM188B11H103KA01D K22174823 1- A D1
C 3087 CHIP CAP. 1uF 10V B GRM40B105K10PT K22100802 1- B f2
C 3088 CHIP CAP. 150pF 50V CH GRM1882C1H151JA01D K22174239 1- A D1
C 3089 CHIP CAP. 0.0015uF 50V B GRM188B11H152KA01D K22174827 1- A D1
C 3090 CHIP CAP. 15pF 50V CH GRM1882C1H150JA01D K22174215 1- B d2
C 3091 CHIP CAP. 10pF 50V CH GRM1882C1H100JA01D K22174211 1- B d2
C 3092 CHIP TA.CAP. 1.5uF 20V TEMSVA1D155M-8R K78130013 1- B f2
C 3093 CHIP CAP. 0.001uF 50V B GRM188B11H102KA01D K22174821 1- A D1
C 3094 CHIP CAP. 0.1uF 16V B GRM188B11C104KA01D K22124805 1- B f2
C 3095 CHIP TA.CAP. 1uF 25V TEMSVA1E105M-8R K78140013 1- A D1
C 3096 CHIP TA.CAP. 10uF 10V TEMSVA1A106M-8R K78100028 1- A D1
C 3097 CHIP TA.CAP. 10uF 10V TEMSVA1A106M-8R K78100028 1- B f2
C 3098 CHIP CAP. 330pF 50V CH GRM1882C1H331JA01D K22174253 1-22 A D1
C 3098 CHIP CAP. 150pF 50V CH GRM1882C1H151JA01D K22174239 VER. A 23- A D1
C 3098 CHIP CAP. 330pF 50V CH GRM1882C1H331JA01D K22174253 VER. CS 23- A D1
C 3098 CHIP CAP. 330pF 50V CH GRM1882C1H331JA01D K22174253 VER. D 23- A D1
C 3099 CHIP CAP. 560pF 50V B ECUV1H561KBV K22179611 1- A D1
C 3101 CHIP CAP. 330pF 50V CH GRM1882C1H331JA01D K22174253 1- A D1
C 3102 CHIP CAP. 330pF 50V CH GRM1882C1H331JA01D K22174253 1- A D1
C 3103 CHIP CAP. 0.1uF 16V B GRM188B11C104KA01D K22124805 1- B c3
C 3104 CHIP CAP. 0.1uF 16V B GRM188B11C104KA01D K22124805 1- B c3
C 3105 CHIP CAP. 0.001uF 50V B GRM188B11H102KA01D K22174821 1- B f3
C 3106 CHIP TA.CAP. 1uF 25V TEMSVA1E105M-8R K78140013 1- B f3
C 3107 CHIP TA.CAP. 4.7uF 16V TEMSVA1C475M-8R K78120031 1- A D2
C 3108 CHIP CAP. 0.1uF 16V B GRM188B11C104KA01D K22124805 1- A E2
C 3109 CHIP TA.CAP. 4.7uF 16V TEMSVA1C475M-8R K78120031 1- A B2
C 3110 CHIP CAP. 0.01uF 50V B GRM188B11H103KA01D K22174823 1- A D2
C 3111 CHIP TA.CAP. 4.7uF 16V TEMSVA1C475M-8R K78120031 1- A C2
C 3112 CHIP CAP. 330pF 50V CH GRM1882C1H331JA01D K22174253 1- A D2
C 3113 CHIP CAP. 0.001uF 50V B GRM188B11H102KA01D K22174821 1- A B1
C 3114 CHIP CAP. 1uF 10V F GRM188F11A105ZA01D K22105001 1- A B2
C 3115 CHIP CAP. 0.1uF 16V B GRM188B11C104KA01D K22124805 1- A C1
C 3116 CHIP TA.CAP. 4.7uF 16V TEMSVA1C475M-8R K78120031 1- A B2
C 3117 CHIP CAP. 0.0012uF 50V B GRM188B11H122KA01D K22174810 1- A B2
C 3118 CHIP CAP. 270pF 50V CH GRM1882C1H271JA01D K22174251 1- A C2
C 3119 CHIP CAP. 1uF 10V F GRM188F11A105ZA01D K22105001 1- A C2
C 3120 CHIP CAP. 0.1uF 16V B GRM188B11C104KA01D K22124805 1- A C2
C 3121 CHIP TA.CAP. 4.7uF 16V TEMSVA1C475M-8R K78120031 1- A B2
C 3122 CHIP TA.CAP. 4.7uF 16V TEMSVA1C475M-8R K78120031 1- A B3
C 3123 CHIP TA.CAP. 4.7uF 16V TEMSVA1C475M-8R K78120031 1- A B3
C 3124 CHIP CAP. 0.1uF 16V B GRM188B11C104KA01D K22124805 1- A C2
C 3125 CHIP TA.CAP. 4.7uF 16V TEMSVA1C475M-8R K78120031 1- A C1
C 3126 CHIP CAP. 0.22uF 10V B GRM188B11A224KA01D K22104801 1- A D2
C 3127 CHIP CAP. 100pF 50V CH GRM1882C1H101JA01D K22174235 1- A A3
C 3128 CHIP CAP. 0.0015uF 50V B GRM40B152M50PT K22170807 1- A C3
C 3129 CHIP TA.CAP. 2.2uF 10V TESVA1A225M1-8R K78100021 1- A C1
C 3130 CHIP CAP. 0.001uF 50V B GRM188B11H102KA01D K22174821 1- A C1
C 3131 CHIP TA.CAP. 4.7uF 16V TEMSVA1C475M-8R K78120031 1- A C3
C 3132 CHIP CAP. 0.1uF 16V B GRM188B11C104KA01D K22124805 1- A C1
C 3133 CHIP CAP. 0.22uF 10V B GRM188B11A224KA01D K22104801 1- A D1
C 3134 CHIP TA.CAP. 4.7uF 16V TEMSVA1C475M-8R K78120031 1- A D2
C 3135 CHIP TA.CAP. 1uF 25V TEMSVA1E105M-8R K78140013 1- A C3
C 3136 CHIP CAP. 0.22uF 10V B GRM188B11A224KA01D K22104801 1- A C2
C 3137 CHIP TA.CAP. 4.7uF 16V TEMSVA1C475M-8R K78120031 1- A C1
C 3138 CHIP CAP. 0.001uF 50V B GRM188B11H102KA01D K22174821 1- A C3
C 3139 CHIP CAP. 0.1uF 16V B GRM188B11C104KA01D K22124805 1- A C1
I-11
CNTL Unit
Parts List
REF DESCRIPTION VALUE V/W TOL. MFR'S DESIG VXSTD P/N VERS. LOT SIDE
LAY ADR
C 3140 CHIP CAP. 82pF 50V CH GRM1882C1H820JA01D K22174233 1- A B3
C 3141 CHIP TA.CAP. 2.2uF 10V TESVA1A225M1-8R K78100021 1- A C2
C 3142 CHIP TA.CAP. 4.7uF 16V TEMSVA1C475M-8R K78120031 1- A C2
C 3144 CHIP CAP. 560pF 25V CH GRM39CH561J25PT K22144201 1- A D1
C 3145 CHIP TA.CAP. 4.7uF 16V TEMSVA1C475M-8R K78120031 1- A C2
C 3146 CHIP TA.CAP. 4.7uF 16V TEMSVA1C475M-8R K78120031 1- A C2
C 3147 CHIP TA.CAP. 10uF 10V TEMSVA1A106M-8R K78100028 1- A C3
C 3148 CHIP CAP. 1uF 10V F GRM188F11A105ZA01D K22105001 1- A C1
C 3149 CHIP TA.CAP. 10uF 10V TEMSVA1A106M-8R K78100028 1- A C1
C 3150 CHIP TA.CAP. 10uF 10V TEMSVA1A106M-8R K78100028 1- A C1
C 3153 CHIP CAP. 0.001uF 50V B GRM188B11H102KA01D K22174821 1- B c2
C 3154 CHIP CAP. 0.001uF 50V B GRM188B11H102KA01D K22174821 1- A F1
C 3155 CHIP CAP. 0.001uF 50V B GRM188B11H102KA01D K22174821 1- A F1
C 3156 CHIP CAP. 0.001uF 50V B GRM188B11H102KA01D K22174821 1- A F1
C 3157 CHIP CAP. 0.001uF 50V B GRM188B11H102KA01D K22174821 1- A F1
C 3158 CHIP CAP. 0.001uF 50V B GRM188B11H102KA01D K22174821 1- A F1
C 3159 CHIP CAP. 0.001uF 50V B GRM188B11H102KA01D K22174821 1- A F1
C 3160 CHIP CAP. 0.001uF 50V B GRM188B11H102KA01D K22174821 1- A F1
C 3161 CHIP CAP. 0.001uF 50V B GRM188B11H102KA01D K22174821 1- A F1
C 3162 CHIP CAP. 0.001uF 50V B GRM188B11H102KA01D K22174821 1- A G1
C 3163 CHIP CAP. 0.001uF 50V B GRM188B11H102KA01D K22174821 1- A G1
C 3164 CHIP CAP. 0.001uF 50V B GRM188B11H102KA01D K22174821 1- A G1
C 3165 CHIP CAP. 0.001uF 50V B GRM188B11H102KA01D K22174821 1- B e1
C 3166 CHIP CAP. 0.001uF 50V B GRM188B11H102KA01D K22174821 1- B e1
C 3167 CHIP CAP. 0.001uF 50V B GRM188B11H102KA01D K22174821 1- A D2
C 3168 CHIP CAP. 0.001uF 50V B GRM188B11H102KA01D K22174821 1- A C3
C 3169 CHIP CAP. 0.001uF 50V B GRM188B11H102KA01D K22174821 1- A C3
C 3170 CHIP CAP. 0.001uF 50V B GRM188B11H102KA01D K22174821 1- A C3
C 3171 CHIP CAP. 0.001uF 50V B GRM188B11H102KA01D K22174821 1- A C3
C 3172 CHIP CAP. 0.001uF 50V B GRM188B11H102KA01D K22174821 1- A C3
C 3173 CHIP CAP. 0.001uF 50V B GRM188B11H102KA01D K22174821 1- A C3
C 3174 CHIP CAP. 0.001uF 50V B GRM188B11H102KA01D K22174821 1- A C3
C 3175 CHIP CAP. 0.001uF 50V B GRM188B11H102KA01D K22174821 1- A C3
C 3176 CHIP CAP. 0.001uF 50V B GRM188B11H102KA01D K22174821 1- A C3
C 3177 CHIP CAP. 0.001uF 50V B GRM188B11H102KA01D K22174821 1- A C3
C 3178 CHIP CAP. 0.001uF 50V B GRM188B11H102KA01D K22174821 1- A C3
C 3179 CHIP CAP. 100pF 50V CH GRM1882C1H101JA01D K22174235 1- A G3
C 3180 CHIP CAP. 0.001uF 50V B GRM188B11H102KA01D K22174821 1- A C3
C 3181 CHIP CAP. 0.001uF 50V B GRM188B11H102KA01D K22174821 1- A C3
C 3190 CHIP CAP. 10pF 50V CH GRM1882C1H100JA01D K22174211 1- A C3
C 3191 CHIP CAP. 10pF 50V CH GRM1882C1H100JA01D K22174211 1- A C3
C 3192 CHIP CAP. 10pF 50V CH GRM1882C1H100JA01D K22174211 1- A D3
C 3193 CHIP CAP. 10pF 50V CH GRM1882C1H100JA01D K22174211 1- A D3
C 3194 CHIP CAP. 10pF 50V CH GRM1882C1H100JA01D K22174211 1- A D3
C 3195 CHIP CAP. 100pF 50V CH GRM1882C1H101JA01D K22174235 1- A C3
C 3196 CHIP CAP. 0.001uF 50V B GRM188B11H102KA01D K22174821 1- A C3
C 3197 CHIP CAP. 100pF 50V CH GRM1882C1H101JA01D K22174235 1- A C3
C 3198 CHIP CAP. 0.001uF 50V B GRM188B11H102KA01D K22174821 1- A C3
C 3199 CHIP CAP. 0.001uF 50V B GRM188B11H102KA01D K22174821 1- A C3
C 3200 CHIP CAP. 0.001uF 50V B GRM188B11H102KA01D K22174821 1- A C3
C 3201 CHIP CAP. 0.001uF 50V B GRM188B11H102KA01D K22174821 1- A C3
C 3202 CHIP CAP. 0.001uF 50V B GRM188B11H102KA01D K22174821 1- A C3
C 3203 CHIP CAP. 0.001uF 50V B GRM188B11H102KA01D K22174821 1- A C3
C 3204 CHIP CAP. 0.001uF 50V B GRM188B11H102KA01D K22174821 1- B e1
C 3205 CHIP CAP. 0.001uF 50V B GRM188B11H102KA01D K22174821 1- B e1
C 3206 CHIP CAP. 0.001uF 50V B GRM188B11H102KA01D K22174821 1- B e1
C 3207 CHIP CAP. 0.001uF 50V B GRM188B11H102KA01D K22174821 1- B d1
C 3208 CHIP CAP. 0.001uF 50V B GRM188B11H102KA01D K22174821 1- A C3
C 3209 CHIP CAP. 0.001uF 50V B GRM188B11H102KA01D K22174821 1- A F1
C 3210 CHIP CAP. 0.001uF 50V B GRM188B11H102KA01D K22174821 1- A D3
C 3211 CHIP CAP. 0.001uF 50V B GRM188B11H102KA01D K22174821 1- A F1
C 3212 CHIP TA.CAP. 1uF 25V TEMSVA1E105M-8R K78140013 1- A B2
C 3213 CHIP CAP. 0.001uF 50V B GRM188B11H102KA01D K22174821 1- A B2
C 3214 CHIP CAP. 0.0022uF 50V B GRM188B11H222KA01D K22174822 1- A F3
C 3215 CHIP CAP. 0.01uF 50V B GRM188B11H103KA01D K22174823 1- A F3
C 3216 CHIP CAP. 0.01uF 50V B GRM188B11H103KA01D K22174823 1- A F3
C 3217 CHIP CAP. 0.01uF 50V B GRM188B11H103KA01D K22174823 1- A F3
C 3218 CHIP CAP. 0.1uF 16V B GRM188B11C104KA01D K22124805 1- A F3
C 3219 CHIP CAP. 0.1uF 16V B GRM188B11C104KA01D K22124805 1- A F3
C 3220 CHIP CAP. 0.1uF 16V B GRM188B11C104KA01D K22124805 1- A F3
C 3221 CHIP CAP. 0.01uF 50V B GRM188B11H103KA01D K22174823 1- A F3
C 3222 CHIP CAP. 0.0022uF 50V B GRM188B11H222KA01D K22174822 1- A G3
C 3223 CHIP CAP. 0.1uF 16V B GRM188B11C104KA01D K22124805 1- A G3
I-12
CNTL Unit
Parts List
REF DESCRIPTION VALUE V/W TOL. MFR'S DESIG VXSTD P/N VERS. LOT SIDE
LAY ADR
C 3224 CHIP CAP. 0.01uF 50V B GRM188B11H103KA01D K22174823 1- A G3
C 3225 CHIP TA.CAP. 1uF 25V TEMSVA1E105M-8R K78140013 1- A F3
C 3226 CHIP TA.CAP. 1uF 25V TEMSVA1E105M-8R K78140013 1- A F3
C 3227 CHIP TA.CAP. 1uF 25V TEMSVA1E105M-8R K78140013 1- A G3
C 3228 CHIP CAP. 0.001uF 50V B GRM188B11H102KA01D K22174821 1- A C3
C 3229 CHIP CAP. 0.022uF 25V B GRM39B223K25PT K22144807 1- A G2
C 3230 CHIP TA.CAP. 10uF 10V TEMSVA1A106M-8R K78100028 1- A G2
C 3231 CHIP CAP. 0.001uF 50V B GRM188B11H102KA01D K22174821 1- A G2
C 3232 CHIP CAP. 0.056uF 16V B GRM188B11C563KA01D K22124807 1- A G2
C 3233 CHIP CAP. 0.0027uF 50V B ECJ1VB1H272K K22179619 1- A G2
C 3234 CHIP CAP. 0.001uF 50V B GRM188B11H102KA01D K22174821 1- A G2
C 3235 CHIP TA.CAP. 1uF 25V TEMSVA1E105M-8R K78140013 1- A G2
C 3236 CHIP TA.CAP. 1uF 25V TEMSVA1E105M-8R K78140013 1- A G2
C 3237 CHIP CAP. 0.056uF 16V B GRM188B11C563KA01D K22124807 1- A G2
C 3238 CHIP CAP. 0.0018uF 50V B ECJ1VB1H182K K22179617 1- A G2
C 3239 CHIP TA.CAP. 10uF 10V TEMSVA1A106M-8R K78100028 1- A G2
C 3240 CHIP TA.CAP. 2.2uF 10V TESVA1A225M1-8R K78100021 1- B c2
C 3243 CHIP CAP. 0.001uF 50V B GRM188B11H102KA01D K22174821 1- B b2
C 3246 CHIP CAP. 0.1uF 16V B GRM188B11C104KA01D K22124805 1- B g2
C 3248 CHIP CAP. 0.1uF 16V B GRM188B11C104KA01D K22124805 1- B g1
C 3249 CHIP CAP. 0.1uF 16V B GRM188B11C104KA01D K22124805 1- B g1
C 3250 CHIP CAP. 0.1uF 16V B GRM188B11C104KA01D K22124805 1- A C2
C 3251 AL.ELECTRO.CAP. 470uF 16V RE3-16V471MG3# K40129066 1- B a1
C 3253 CHIP CAP. 0.1uF 16V B GRM188B11C104KA01D K22124805 1- B g2
C 3254 CHIP TA.CAP. 4.7uF 16V TEMSVA1C475M-8R K78120031 1- A E3
C 3255 CHIP CAP. 0.001uF 50V B GRM188B11H102KA01D K22174821 1- A E3
C 3256 CHIP TA.CAP. 1uF 25V TEMSVA1E105M-8R K78140013 1- A E3
C 3261 AL.ELECTRO.CAP. 10000uF 16V RE3-16V103MK8# K40129098 1- B b1
C 3262 CHIP CAP. 0.1uF 16V B GRM188B11C104KA01D K22124805 1- A B2
C 3263 CHIP CAP. 0.1uF 16V B GRM188B11C104KA01D K22124805 1- B c1
C 3264 CHIP CAP. 0.1uF 16V B GRM188B11C104KA01D K22124805 1- A D3
C 3265 CHIP CAP. 0.001uF 50V B GRM188B11H102KA01D K22174809 3- A B2
C 3266 CHIP CAP. 0.01uF 25V B GRM39B103M25PT K22144802 3- A B2
C 3267 CHIP CAP. 0.001uF 50V B GRM188B11H102KA01D K22174809 3- A B1
C 3268 CHIP CAP. 0.01uF 25V B GRM39B103M25PT K22144802 3- A B1
C 3269 CHIP CAP. 0.1uF 16V B GRM188B11C104KA01D K22124805 3- A B1
C 3270 CHIP CAP. 1uF 6.3V B GRM188B10J105KA01D K22084801 4-
D 3001 DIODE MC2850-T11-1 G2070704 1- B h2
D 3002 DIODE BAS316 G2070716 1- B h3
D 3003 DIODE MC2850-T11-1 G2070704 1- B i2
D 3004 DIODE MC2850-T11-1 G2070704 1- B i2
D 3005 DIODE MC2850-T11-1 G2070704 1- B i2
D 3006 DIODE MC2850-T11-1 G2070704 1- B i2
D 3007 DIODE MC2850-T11-1 G2070704 1- B i3
D 3008 DIODE MC2850-T11-1 G2070704 1- B i3
D 3009 DIODE MC2850-T11-1 G2070704 1- B i3
D 3010 DIODE MC2850-T11-1 G2070704 1- B i3
D 3011 DIODE D1F20-4063 G2070474 1- B a1
D 3012 DIODE BAS316 G2070716 1- B h3
D 3014 DIODE MC2850-T11-1 G2070704 1- B f2
D 3015 DIODE MC2850-T11-1 G2070704 1- B c2
D 3018 DIODE MC2850-T11-1 G2070704 1- A F2
D 3019 DIODE MC2850-T11-1 G2070704 1- A F1
D 3020 DIODE MC2848-T11-1 G2070694 1- A B1
D 3021 DIODE 02CZ3.6Z TE85R G2070164 1- A B1
D 3022 DIODE DA204K T146 G2070388 1- A F2
D 3023 DIODE MC2848-T11-1 G2070694 1- B c2
D 3026 DIODE D1F20-4063 G2070474 1- B a1
D 3027 DIODE BAS316 G2070716 1- A H1
D 3028 DIODE BAS316 G2070716 1- A H1
D 3029 DIODE MC2848-T11-1 G2070694 3- A B2
F 3001 CHIP FUSE 3A F0805B3R00FWTR Q0000082 1- B h3
J 3001 CONNECTOR B26B-PHDSS P0091239 1- B h3
J 3002 CONNECTOR SC25-02WS P0090621 1- B e3
J 3003 CONNECTOR IL-Y-11P-S15T2-E P0090653 1- B e3
J 3004 CONNECTOR IL-Y-6P-S15T2-EF P0091028 1- B d3
J 3005 CONNECTOR IL-Y-3P-S15T2-EF P0090644 1- B b1
J 3006 CONNECTOR IL-Y-3P-S15T2-EF P0090644 1- B b1
J 3007 CONNECTOR AXK6S40535P P0091209 1- B h1
J 3008 CONNECTOR IL-FPR-30S-VF-E1500 P1091026 1- B c1
J 3009 CONNECTOR IL-Y-8P-S15T2-EF P0090646 1- B d1
J 3010 CONNECTOR FH12-50S-0.5SV P1091092 1- B f3
J 3011 CONNECTOR SC25-03WS P0090622 1- B g4
I-13
CNTL Unit
Parts List
REF DESCRIPTION VALUE V/W TOL. MFR'S DESIG VXSTD P/N VERS. LOT SIDE
LAY ADR
J 3012 CONNECTOR SB20-02WS P0090609 1- B b3
J 3013 CONNECTOR SC25-06WS P0090625 1- B b3
JP3001 WIRE ASSY GRN 65 2/2 T50506500 1-2 A D2
JP3003 WIRE ASSY GRN 50 2/2 T50505000 4-
L 3002 M.RFC 2.7uH LK1608 2R7K-T L1690848 1- B d2
NF3001 EMI FILTER DSS706-351D221M25-50 Q9000642 1- B h2
NF3002 EMI FILTER DSS706-351D221M25-50 Q9000642 1- B h3
NF3003 EMI FILTER DSS706-351D221M25-50 Q9000642 1- B h3
NF3004 EMI FILTER DSS706-351D221M25-50 Q9000642 1- B h3
P 3001 WIRE ASSY BLK 80 FV2-M4/(5) T9318204 1-
Q 3001 IC NJM2902V-TE1 G1091679 1- A A1
Q 3002 IC TA75S01F TE85R G1091593 1- B h2
Q 3003 IC TC4W53FU TE12L G1091675 1- B e3
Q 3004 TRANSISTOR 2SB1201S-TL G3070195 1- A H1
Q 3005 FET 2SK3065 T100 G3830657 1- B h3
Q 3006 IC BR24L32F-WE2 G1093913 1- B e2
Q 3007 IC AN8005M-(E1) G1091454 1- B a2
Q 3009 FET 2SK3065 T100 G3830657 1- B g3
Q 3010 TRANSISTOR FMG2 T148 G3070015 1- B e1
Q 3011 TRANSISTOR FMG2 T148 G3070015 1- B g3
Q 3012 IC BD4845FVE-TR G1093784 1- B c2
Q 3014 IC HD64F2238BFA13(FLASH) 1- B d2
Q 3015 TRANSISTOR DTC323TK T146 G3070042 1- A D2
Q 3016 IC TA75S01F TE85R G1091593 1- A D2
Q 3017 TRANSISTOR 2SC4116GR TE85R G3341167G 1- B d2
Q 3018 TRANSISTOR 2SC4116GR TE85R G3341167G 1- B f1
Q 3019 IC TA75S01F TE85R G1091593 1- B f2
Q 3020 IC FX805LG-TR G1092528 1- B f2
Q 3021 IC NJM2902V-TE1 G1091679 1- A D1
Q 3022 TRANSISTOR 2SA733AQ G3107331Q 1- B b2
Q 3022 TRANSISTOR 2SA1586Y TE85R G3115867Y 3- B b2
Q 3023 IC TA75S01F TE85R G1091593 1- B f3
Q 3024 TRANSISTOR FMG2 T148 G3070015 1- A C2
Q 3025 TRANSISTOR 2SC4116GR TE85R G3341167G 1- A D3
Q 3026 TRANSISTOR DTA144EE TL G3070074 1- A B1
Q 3028 TRANSISTOR DTC144EE TL G3070075 1- A D3
Q 3029 TRANSISTOR DTC144EE TL G3070075 1- A B2
Q 3032 IC BU4066BCFV-E2 G1093537 1- A C2
Q 3033 IC BU4066BCFV-E2 G1093537 1- A B2
Q 3034 IC LA8630M-B-TE-R G1093452 1- A C1
Q 3035 IC NJM2904V-TE1 G1091677 1- A C3
Q 3036 IC TA75S01F TE85R G1091593 1- A C1
Q 3037 TRANSISTOR DTC144EE TL G3070075 1- A C1
Q 3038 TRANSISTOR DTC323TK T146 G3070042 1- B c2
Q 3039 TRANSISTOR FMG2 T148 G3070015 1- B e1
Q 3040 TRANSISTOR DTC144EE TL G3070075 1- A B2
Q 3041 IC NJM2904V-TE1 G1091677 1- A F3
Q 3042 TRANSISTOR 2SC4154-T11-1E G3341548E 1- A G3
Q 3043 IC NJM12903R-TE1 G1093336 1- A G3
Q 3044 IC NJM2902V-TE1 G1091679 1- A G2
Q 3046 TRANSISTOR DTC144EE TL G3070075 1- B b2
Q 3050 TRANSISTOR DTC144EE TL G3070075 1- A E2
Q 3051 IC TC7S66FU TE85R G1092116 1- B h2
Q 3052 TRANSISTOR DTC144EE TL G3070075 1- B h2
Q 3053 TRANSISTOR DTC144EE TL G3070075 1- B h2
Q 3054 TRANSISTOR 2SA1586Y TE85R G3115867Y 1- B b2
Q 3055 TRANSISTOR 2SB1201S-TL G3070195 1- A H1
Q 3056 TRANSISTOR DTC144EE TL G3070075 1- A H1
Q 3057 TRANSISTOR DTC144EE TL G3070075 1- A H1
Q 3058 IC TC4W53FU TE12L G1091675 1- A E3
Q 3059 IC TA75S01F TE85R G1091593 1- A G3
Q 3060 TRANSISTOR DTC144EE TL G3070075 1- A E2
Q 3061 IC TC4S81F TE85R G1090895 3- A B2
Q 3062 TRANSISTOR FMG2 T148 G3070015 3- A B1
Q 3063 TRANSISTOR FMG2 T148 G3070015 3- A B2
Q 3064 IC TC4S66F TE85R G1090893 3- A B1
R 3001 CHIP RES. 47k 1/16W 5% RMC1/16 473JATP J24185473 1- A A1
R 3002 CHIP RES. 10k 1/16W 5% RMC1/16 103JATP J24185103 1- A E3
R 3003 CHIP RES. 47k 1/16W 5% RMC1/16 473JATP J24185473 1- A A1
R 3004 CHIP RES. 180k 1/16W 5% RMC1/16 184JATP J24185184 1-22 A E2
R 3004 CHIP RES. 22k 1/16W 5% RMC1/16 223JATP J24185223 25W 23- A E2
R 3004 CHIP RES. 180k 1/16W 5% RMC1/16 184JATP J24185184 50W 23- A E2
R 3004 CHIP RES. 22k 1/16W 5% RMC1/16 223JATP J24185223 50W 23- A E2
: Please contact Vertex Standard
I-14
CNTL Unit
Parts List
REF DESCRIPTION VALUE V/W TOL. MFR'S DESIG VXSTD P/N VERS. LOT SIDE
LAY ADR
R 3005 CHIP RES. 47k 1/16W 5% RMC1/16 473JATP J24185473 1- A A2
R 3006 CHIP RES. 68k 1/16W 5% RMC1/16 683JATP J24185683 1- A A1
R 3007 CHIP RES. 15k 1/16W 5% RMC1/16 153JATP J24185153 1- A A2
R 3008 CHIP RES. 8.2k 1/16W 5% RMC1/16 822JATP J24185822 1- A A2
R 3009 CHIP RES. 10k 1/16W 5% RMC1/16 103JATP J24185103 1- A A1
R 3010 CHIP RES. 4.7k 1/16W 5% RMC1/16 472JATP J24185472 1- B h2
R 3011 CHIP RES. 47k 1/16W 5% RMC1/16 473JATP J24185473 1- A A1
R 3012 CHIP RES. 560 1/16W 5% RMC1/16 561JATP J24185561 1- A A2
R 3013 CHIP RES. 560 1/16W 5% RMC1/16 561JATP J24185561 1- A A2
R 3014 CHIP RES. 100 1/16W 5% RMC1/16 101JATP J24185101 1- B h2
R 3015 CHIP RES. 47k 1/16W 5% RMC1/16 473JATP J24185473 1- A A2
R 3016 CHIP RES. 1k 1/16W 5% RMC1/16 102JATP J24185102 1- B h2
R 3017 CHIP RES. 330 1/16W 5% RMC1/16 331JATP J24185331 1- B h2
R 3018 CHIP RES. 1k 1/16W 5% RMC1/16 102JATP J24185102 1- B h2
R 3019 CHIP RES. 330 1/16W 5% RMC1/16 331JATP J24185331 1- B h2
R 3020 CHIP RES. 1k 1/16W 5% RMC1/16 102JATP J24185102 1- B h2
R 3021 CHIP RES. 1k 1/16W 5% RMC1/16 102JATP J24185102 1- B h2
R 3022 CHIP RES. 1k 1/16W 5% RMC1/16 102JATP J24185102 1- B h2
R 3023 CHIP RES. 15k 1/16W 5% RMC1/16 153JATP J24185153 1- A A2
R 3023 CHIP RES. 33k 1/16W 5% RMC1/16 333JATP J24185333 3- A A2
R 3024 CHIP RES. 1k 1/16W 5% RMC1/16 102JATP J24185102 1- B h2
R 3025 CHIP RES. 4.7k 1/16W 5% RMC1/16 472JATP J24185472 1- A E3
R 3026 CHIP RES. 1k 1/16W 5% RMC1/16 102JATP J24185102 1- B h2
R 3027 CHIP RES. 1k 1/16W 5% RMC1/16 102JATP J24185102 1- B h3
R 3028 CHIP RES. 1k 1/16W 5% RMC1/16 102JATP J24185102 1- B h3
R 3029 CHIP RES. 1k 1/16W 5% RMC1/16 102JATP J24185102 1- B h3
R 3030 CHIP RES. 1k 1/16W 5% RMC1/16 102JATP J24185102 1- B h3
R 3031 CHIP RES. 1k 1/16W 5% RMC1/16 102JATP J24185102 1- B h3
R 3032 CHIP RES. 4.7k 1/16W 5% RMC1/16 472JATP J24185472 1- A E3
R 3033 CHIP RES. 47k 1/16W 5% RMC1/16 473JATP J24185473 1- B i2
R 3034 CHIP RES. 0 1/16W 5% RMC1/16 000JATP J24185000 1- B h2
R 3035 CHIP RES. 47k 1/16W 5% RMC1/16 473JATP J24185473 1- B i2
R 3036 CHIP RES. 22k 1/16W 5% RMC1/16 223JATP J24185223 1- B h2
R 3037 CHIP RES. 47k 1/16W 5% RMC1/16 473JATP J24185473 1- B i2
R 3038 CHIP RES. 1k 1/4W 5% RMC1/4 102JATP J24245102 1- A H1
R 3039 CHIP RES. 47k 1/16W 5% RMC1/16 473JATP J24185473 1- B i3
R 3040 CHIP RES. 1k 1/4W 5% RMC1/4 102JATP J24245102 1- A H1
R 3041 CHIP RES. 560 1/16W 5% RMC1/16 561JATP J24185561 1- B h3
R 3042 CHIP RES. 47k 1/16W 5% RMC1/16 473JATP J24185473 1- B i3
R 3043 CHIP RES. 47k 1/16W 5% RMC1/16 473JATP J24185473 1- B i3
R 3045 CHIP RES. 560 1/16W 5% RMC1/16 561JATP J24185561 1- B h3
R 3046 CHIP RES. 47k 1/16W 5% RMC1/16 473JATP J24185473 1- B i3
R 3047 CHIP RES. 10k 1/16W 5% RMC1/16 103JATP J24185103 1- B b1
R 3048 CHIP RES. 47k 1/16W 5% RMC1/16 473JATP J24185473 1- B i3
R 3049 CHIP RES. 47k 1/16W 5% RMC1/16 473JATP J24185473 1- B h3
R 3050 CHIP RES. 1k 1/16W 5% RMC1/16 102JATP J24185102 1- B h3
R 3051 CHIP RES. 0 1W 5% RMC1 JPATE J24305000 1- B d3
R 3052 CHIP RES. 18k 1/16W 1% RMC1/16 183FTP J24183183 1- B c2
R 3053 CHIP RES. 12k 1/16W 1% RMC1/16 123FTP J24183123 1- B c2
R 3054 CHIP RES. 10k 1/16W 1% RMC1/16 103FTP J24183103 1- B c2
R 3055 CHIP RES. 1k 1/16W 5% RMC1/16 102JATP J24185102 1- B g3
R 3056 CHIP RES. 47k 1/16W 5% RMC1/16 473JATP J24185473 1- B g3
R 3057 CHIP RES. 10k 1/16W 5% RMC1/16 103JATP J24185103 1- B e1
R 3058 CHIP RES. 10k 1/16W 5% RMC1/16 103JATP J24185103 1- B e2
R 3059 CHIP RES. 10k 1/16W 5% RMC1/16 103JATP J24185103 1- B e2
R 3061 CHIP RES. 10k 1/16W 5% RMC1/16 103JATP J24185103 1- B e2
R 3062 CHIP RES. 10k 1/16W 5% RMC1/16 103JATP J24185103 1- B e2
R 3064 CHIP RES. 33 1W 5% RMC1 330JTE J24305330 1- B b3
R 3065 CHIP RES. 33 1W 5% RMC1 330JTE J24305330 1- B b3
R 3066 CHIP RES. 10k 1/16W 5% RMC1/16 103JATP J24185103 1- B e1
R 3067 CHIP RES. 1k 1/16W 5% RMC1/16 102JATP J24185102 1- B d2
R 3068 CHIP RES. 1k 1/16W 5% RMC1/16 102JATP J24185102 1- B e2
R 3069 CHIP RES. 1k 1/16W 5% RMC1/16 102JATP J24185102 1- B e2
R 3070 CHIP RES. 1k 1/16W 5% RMC1/16 102JATP J24185102 1- B d2
R 3071 CHIP RES. 1k 1/16W 5% RMC1/16 102JATP J24185102 1- B e2
R 3072 CHIP RES. 1k 1/16W 5% RMC1/16 102JATP J24185102 1- B d2
R 3073 CHIP RES. 1k 1/16W 5% RMC1/16 102JATP J24185102 1- B e2
R 3075 CHIP RES. 22k 1/16W 5% RMC1/16 223JATP J24185223 1- B c2
R 3076 CHIP RES. 0 1/16W 5% RMC1/16 000JATP J24185000 1- B c2
R 3077 CHIP RES. 100k 1/16W 5% RMC1/16 104JATP J24185104 1- A D2
R 3079 CHIP RES. 0 1/16W 5% RMC1/16 000JATP J24185000 1- A D1
R 3080 CHIP RES. 10k 1/16W 5% RMC1/16 103JATP J24185103 1- A E1
R 3081 CHIP RES. 330k 1/16W 5% RMC1/16 334JATP J24185334 1- A D2
I-15
CNTL Unit
Parts List
REF DESCRIPTION VALUE V/W TOL. MFR'S DESIG VXSTD P/N VERS. LOT SIDE
LAY ADR
R 3082 CHIP RES. 0 1/16W 5% RMC1/16 000JATP J24185000 1- B d2
R 3084 CHIP RES. 6.8k 1/16W 5% RMC1/16 682JATP J24185682 1- A D1
R 3085 CHIP RES. 150k 1/16W 5% RMC1/16 154JATP J24185154 1- B f1
R 3086 CHIP RES. 10k 1/16W 5% RMC1/16 103JATP J24185103 1- B f2
R 3087 CHIP RES. 10k 1/16W 5% RMC1/16 103JATP J24185103 1- B c2
R 3088 CHIP RES. 1M 1/16W 5% RMC1/16 105JATP J24185105 1- B f1
R 3089 CHIP RES. 10k 1/16W 5% RMC1/16 103JATP J24185103 1- A D2
R 3090 CHIP RES. 330k 1/16W 5% RMC1/16 334JATP J24185334 1- B f2
R 3091 CHIP RES. 1M 1/16W 5% RMC1/16 105JATP J24185105 1- B d3
R 3092 CHIP RES. 8.2k 1/16W 5% RMC1/16 822JATP J24185822 1- A D2
R 3093 CHIP RES. 4.7k 1/16W 5% RMC1/16 472JATP J24185472 1- A D1
R 3094 CHIP RES. 10k 1/16W 5% RMC1/16 103JATP J24185103 1- B f2
R 3095 CHIP RES. 56k 1/16W 5% RMC1/16 563JATP J24185563 1- A D1
R 3096 CHIP RES. 10k 1/16W 5% RMC1/16 103JATP J24185103 1- B e2
R 3097 CHIP RES. 150k 1/16W 5% RMC1/16 154JATP J24185154 1- B f2
R 3098 CHIP RES. 100k 1/16W 5% RMC1/16 104JATP J24185104 1- B f2
R 3099 CHIP RES. 22k 1/16W 5% RMC1/16 223JATP J24185223 1- A D1
R 3100 CHIP RES. 270k 1/16W 5% RMC1/16 274JATP J24185274 1- A D1
R 3101 CHIP RES. 100k 1/16W 5% RMC1/16 104JATP J24185104 1- A D1
R 3102 CHIP RES. 100k 1/16W 5% RMC1/16 104JATP J24185104 1- A D1
R 3103 CHIP RES. 10k 1/16W 5% RMC1/16 103JATP J24185103 1- A D1
R 3104 CHIP RES. 8.2k 1/16W 5% RMC1/16 822JATP J24185822 1- A D1
R 3105 CHIP RES. 47k 1/16W 5% RMC1/16 473JATP J24185473 1- A D1
R 3106 CHIP RES. 6.8k 1/16W 5% RMC1/16 682JATP J24185682 1- B f2
R 3107 CHIP RES. 100k 1/16W 5% RMC1/16 104JATP J24185104 1- B e2
R 3109 CHIP RES. 5.6k 1/16W 5% RMC1/16 562JATP J24185562 1- B c3
R 3110 CHIP RES. 5.6k 1/16W 5% RMC1/16 562JATP J24185562 1- B e2
R 3111 CHIP RES. 100k 1/16W 5% RMC1/16 104JATP J24185104 1- B c2
R 3112 CHIP RES. 1k 1/16W 5% RMC1/16 102JATP J24185102 1- B e2
R 3113 CHIP RES. 120k 1/16W 5% RMC1/16 124JATP J24185124 1- B e3
R 3114 CHIP RES. 33k 1/16W 5% RMC1/16 333JATP J24185333 1- A D1
R 3115 CHIP RES. 100k 1/16W 5% RMC1/16 104JATP J24185104 1- A D1
R 3117 CHIP RES. 100k 1/16W 5% RMC1/16 104JATP J24185104 1- B c2
R 3118 CHIP RES. 100k 1/16W 5% RMC1/16 104JATP J24185104 1- A D1
R 3119 CHIP RES. 1k 1/16W 5% RMC1/16 102JATP J24185102 1- B c2
R 3120 CHIP RES. 1k 1/16W 5% RMC1/16 102JATP J24185102 1- B c2
R 3121 CHIP RES. 10k 1/16W 5% RMC1/16 103JATP J24185103 1- B f3
R 3122 CHIP RES. 100k 1/16W 5% RMC1/16 104JATP J24185104 1- A D1
R 3123 CHIP RES. 47k 1/16W 5% RMC1/16 473JATP J24185473 1- B c3
R 3124 CHIP RES. 4.7k 1/16W 5% RMC1/16 472JATP J24185472 1- A D1
R 3125 CHIP RES. 100 1/16W 5% RMC1/16 101JATP J24185101 1- A E3
R 3127 CHIP RES. 4.7k 1/16W 5% RMC1/16 472JATP J24185472 1- A B2
R 3128 CHIP RES. 10k 1/16W 5% RMC1/16 103JATP J24185103 1- A B1
R 3129 CHIP RES. 4.7k 1/16W 5% RMC1/16 472JATP J24185472 1- A B2
R 3130 CHIP RES. 10k 1/16W 5% RMC1/16 103JATP J24185103 1- A D3
R 3131 CHIP RES. 10k 1/16W 5% RMC1/16 103JATP J24185103 1- A D2
R 3133 CHIP RES. 47k 1/16W 5% RMC1/16 473JATP J24185473 1- A B2
R 3135 CHIP RES. 47k 1/16W 5% RMC1/16 473JATP J24185473 1- A C2
R 3136 CHIP RES. 10k 1/16W 5% RMC1/16 103JATP J24185103 1- A C1
R 3137 CHIP RES. 10k 1/16W 5% RMC1/16 103JATP J24185103 1- A B2
R 3138 CHIP RES. 10k 1/16W 5% RMC1/16 103JATP J24185103 1- A B1
R 3139 CHIP RES. 10k 1/16W 5% RMC1/16 103JATP J24185103 1- A C2
R 3140 CHIP RES. 4.7k 1/16W 5% RMC1/16 472JATP J24185472 1- A D2
R 3141 CHIP RES. 47k 1/16W 5% RMC1/16 473JATP J24185473 1- A C2
R 3142 CHIP RES. 4.7k 1/16W 5% RMC1/16 472JATP J24185472 1- A C2
R 3143 CHIP RES. 1.8k 1/16W 5% RMC1/16 182JATP J24185182 1- A C2
R 3144 CHIP RES. 27k 1/16W 5% RMC1/16 273JATP J24185273 1- A C1
R 3145 CHIP RES. 27k 1/16W 5% RMC1/16 273JATP J24185273 1- A B2
R 3146 CHIP RES. 27k 1/16W 5% RMC1/16 273JATP J24185273 1- A B1
R 3147 CHIP RES. 2.2k 1/16W 5% RMC1/16 222JATP J24185222 1- A D3
R 3150 CHIP RES. 47k 1/16W 5% RMC1/16 473JATP J24185473 1- A C2
R 3151 CHIP RES. 47k 1/16W 5% RMC1/16 473JATP J24185473 1- A C2
R 3152 CHIP RES. 4.7k 1/16W 5% RMC1/16 472JATP J24185472 1- A B1
R 3153 CHIP RES. 4.7k 1/16W 5% RMC1/16 472JATP J24185472 1- A B1
R 3154 CHIP RES. 47k 1/16W 5% RMC1/16 473JATP J24185473 1- A B1
R 3155 CHIP RES. 10k 1/16W 5% RMC1/16 103JATP J24185103 1- A C2
R 3157 CHIP RES. 68 1/16W 5% RMC1/16 680JATP J24185680 1- A B1
R 3158 CHIP RES. 1M 1/16W 5% RMC1/16 105JATP J24185105 1- A B2
R 3161 CHIP RES. 1M 1/16W 5% RMC1/16 105JATP J24185105 1- A B1
R 3162 CHIP RES. 47k 1/16W 5% RMC1/16 473JATP J24185473 1- A C1
R 3163 CHIP RES. 6.8k 1/16W 5% RMC1/16 682JATP J24185682 1- A C2
R 3164 CHIP RES. 4.7k 1/16W 5% RMC1/16 472JATP J24185472 1- A B2
R 3165 CHIP RES. 0 1/16W 5% RMC1/16 000JATP J24185000 1- A C2
I-16
CNTL Unit
Parts List
REF DESCRIPTION VALUE V/W TOL. MFR'S DESIG VXSTD P/N VERS. LOT SIDE
LAY ADR
R 3166 CHIP RES. 0 1/16W 5% RMC1/16 000JATP J24185000 1- A C3
R 3168 CHIP RES. 15k 1/16W 5% RMC1/16 153JATP J24185153 1- A B3
R 3169 CHIP RES. 10k 1/16W 5% RMC1/16 103JATP J24185103 1- A B3
R 3170 CHIP RES. 39k 1/16W 5% RMC1/16 393JATP J24185393 1- A B3
R 3171 CHIP RES. 100k 1/16W 5% RMC1/16 104JATP J24185104 1- A C2
R 3172 CHIP RES. 4.7k 1/16W 5% RMC1/16 472JATP J24185472 1- A D2
R 3173 CHIP RES. 47k 1/16W 5% RMC1/16 473JATP J24185473 1- A C2
R 3174 CHIP RES. 47k 1/16W 5% RMC1/16 473JATP J24185473 1- A C2
R 3175 CHIP RES. 47k 1/16W 5% RMC1/16 473JATP J24185473 1- A C2
R 3176 CHIP RES. 8.2k 1/16W 5% RMC1/16 822JATP J24185822 1- A C1
R 3178 CHIP RES. 10k 1/16W 5% RMC1/16 103JATP J24185103 1- A C1
R 3179 CHIP RES. 0 1/16W 5% RMC1/16 000JATP J24185000 1- A C2
R 3180 CHIP RES. 0 1/16W 5% RMC1/16 000JATP J24185000 1- A C2
R 3181 CHIP RES. 1.8k 1/16W 5% RMC1/16 182JATP J24185182 1- A C2
R 3182 CHIP RES. 680k 1/16W 5% RMC1/16 684JATP J24185684 1- A C3
R 3183 CHIP RES. 68k 1/16W 5% RMC1/16 683JATP J24185683 1- A C3
R 3184 CHIP RES. 4.7k 1/16W 5% RMC1/16 472JATP J24185472 1- A C2
R 3185 CHIP RES. 4.7k 1/16W 5% RMC1/16 472JATP J24185472 1- A C2
R 3186 CHIP RES. 100k 1/16W 5% RMC1/16 104JATP J24185104 1- A C1
R 3187 CHIP RES. 68k 1/16W 5% RMC1/16 683JATP J24185683 1- A C1
R 3188 CHIP RES. 68k 1/16W 5% RMC1/16 683JATP J24185683 1- A B3
R 3189 CHIP RES. 1M 1/16W 5% RMC1/16 105JATP J24185105 1- A C3
R 3193 CHIP RES. 47k 1/16W 5% RMC1/16 473JATP J24185473 1- A C2
R 3194 CHIP RES. 10k 1/16W 5% RMC1/16 103JATP J24185103 1- A C3
R 3195 CHIP RES. 2.2M 1/16W 5% RMC1/16 225JATP J24185225 1- A C1
R 3196 CHIP RES. 18k 1/16W 5% RMC1/16 183JATP J24185183 1- A C1
R 3197 CHIP RES. 8.2k 1/16W 5% RMC1/16 822JATP J24185822 1- A C3
R 3198 CHIP RES. 1.2M 1/16W 5% RMC1/16 125JATP J24185125 1- A D1
R 3200 CHIP RES. 4.7k 1/16W 5% RMC1/16 472JATP J24185472 1- A C3
R 3202 CHIP RES. 0 1/16W 5% RMC1/16 000JATP J24185000 1- A C3
R 3203 CHIP RES. 47k 1/16W 5% RMC1/16 473JATP J24185473 1- A C1
R 3204 CHIP RES. 47k 1/16W 5% RMC1/16 473JATP J24185473 1- A C1
R 3205 CHIP RES. 270k 1/16W 5% RMC1/16 274JATP J24185274 1- B c2
R 3206 CHIP RES. 1M 1/16W 5% RMC1/16 105JATP J24185105 1- B c2
R 3207 CHIP RES. 10k 1/16W 5% RMC1/16 103JATP J24185103 1- B c2
R 3208 CHIP RES. 10k 1/16W 5% RMC1/16 103JATP J24185103 1- B e1
R 3209 CHIP RES. 2.7k 1/16W 5% RMC1/16 272JATP J24185272 1- B c2
R 3210 CHIP RES. 0 1/16W 5% RMC1/16 000JATP J24185000 1- B c2
R 3212 CHIP RES. 0 1W 5% RMC1 JPATE J24305000 1- A D3
R 3213 CHIP RES. 4.7k 1/16W 5% RMC1/16 472JATP J24185472 1- A B2
R 3214 CHIP RES. 10k 1/16W 5% RMC1/16 103JATP J24185103 1- A B2
R 3215 CHIP RES. 0 1/16W 5% RMC1/16 000JATP J24185000 1- A B2
R 3219 CHIP RES. 470k 1/16W 1% RMC1/16 474FTP J24183474 1- A F3
R 3220 CHIP RES. 22k 1/16W 1% RMC1/16 223FTP J24183223 1- A F3
R 3221 CHIP RES. 10k 1/16W 1% RMC1/16 103FTP J24183103 1- A F3
R 3222 CHIP RES. 680 1/16W 1% RMC1/16 681FTP J24183681 1- A F3
R 3223 CHIP RES. 100k 1/16W 1% RMC1/16 104FTP J24183104 1- A F3
R 3224 CHIP RES. 100k 1/16W 1% RMC1/16 104FTP J24183104 1- A F3
R 3225 CHIP RES. 820k 1/16W 5% RMC1/16 824JATP J24185824 1- A G3
R 3226 CHIP RES. 10k 1/16W 5% RMC1/16 103JATP J24185103 1- A F3
R 3227 CHIP RES. 10k 1/16W 5% RMC1/16 103JATP J24185103 1- A F3
R 3228 CHIP RES. 4.7k 1/16W 5% RMC1/16 472JATP J24185472 1- A G3
R 3229 CHIP RES. 33k 1/16W 5% RMC1/16 333JATP J24185333 1- A G3
R 3230 CHIP RES. 220k 1/16W 5% RMC1/16 224JATP J24185224 1- A G3
R 3231 CHIP RES. 68k 1/16W 5% RMC1/16 683JATP J24185683 1- A F3
R 3232 CHIP RES. 33k 1/16W 5% RMC1/16 333JATP J24185333 1- A F3
R 3233 CHIP RES. 22k 1/16W 5% RMC1/16 223JATP J24185223 1- A G3
R 3234 CHIP RES. 22k 1/16W 5% RMC1/16 223JATP J24185223 1- A F3
R 3235 CHIP RES. 120k 1/16W 5% RMC1/16 124JATP J24185124 1- A G2
R 3236 CHIP RES. 220k 1/16W 5% RMC1/16 224JATP J24185224 1- A F2
R 3237 CHIP RES. 100k 1/16W 5% RMC1/16 104JATP J24185104 1- A G2
R 3238 CHIP RES. 120k 1/16W 5% RMC1/16 124JATP J24185124 1- A G2
R 3239 CHIP RES. 1.5M 1/16W 5% RMC1/16 155JATP J24185155 1- A G2
R 3240 CHIP RES. 6.8k 1/16W 5% RMC1/16 682JATP J24185682 1- A G2
R 3241 CHIP RES. 120k 1/16W 5% RMC1/16 124JATP J24185124 1- A G2
R 3242 CHIP RES. 10k 1/16W 5% RMC1/16 103JATP J24185103 1- A G2
R 3243 CHIP RES. 0 1/16W 5% RMC1/16 000JATP J24185000 1- A F2
R 3244 CHIP RES. 33k 1/16W 5% RMC1/16 333JATP J24185333 1- A G2
R 3245 CHIP RES. 120k 1/16W 5% RMC1/16 124JATP J24185124 1- A G2
R 3246 CHIP RES. 120k 1/16W 5% RMC1/16 124JATP J24185124 1- A G2
R 3247 CHIP RES. 10k 1/16W 5% RMC1/16 103JATP J24185103 1- A G2
R 3248 CHIP RES. 15k 1/16W 5% RMC1/16 153JATP J24185153 1- B c2
R 3249 CHIP RES. 22k 1/16W 5% RMC1/16 223JATP J24185223 1- B c2
I-17
CNTL Unit
Parts List
REF DESCRIPTION VALUE V/W TOL. MFR'S DESIG VXSTD P/N VERS. LOT SIDE
LAY ADR
R 3250 CHIP RES. 4.7k 1/16W 5% RMC1/16 472JATP J24185472 1- B c2
R 3251 CHIP RES. 10k 1/16W 5% RMC1/16 103JATP J24185103 1- B b2
R 3252 CHIP RES. 1k 1/16W 5% RMC1/16 102JATP J24185102 1- B b2
R 3253 CHIP RES. 47k 1/16W 5% RMC1/16 473JATP J24185473 1- B b2
R 3254 CHIP RES. 33k 1/16W 5% RMC1/16 333JATP J24185333 1- A C2
R 3255 CHIP RES. 10k 1/16W 5% RMC1/16 103JATP J24185103 1- A C3
R 3256 CHIP RES. 10k 1/16W 5% RMC1/16 103JATP J24185103 1- A E2
R 3257 CHIP RES. 10k 1/16W 5% RMC1/16 103JATP J24185103 1- B h2
R 3258 CHIP RES. 10k 1/16W 5% RMC1/16 103JATP J24185103 1- B g2
R 3259 CHIP RES. 0 1/16W 5% RMC1/16 000JATP J24185000 1-3 A F3
R 3260 CHIP RES. 0 1/16W 5% RMC1/16 000JATP J24185000 1- A E3
R 3262 CHIP RES. 0 1/16W 5% RMC1/16 000JATP J24185000 1- A D1
R 3263 CHIP RES. 0 1/16W 5% RMC1/16 000JATP J24185000 1- A F3
R 3264 CHIP RES. 0 1/16W 5% RMC1/16 000JATP J24185000 1- A G3
R 3265 CHIP RES. 0 1/16W 5% RMC1/16 000JATP J24185000 1- A G3
R 3266 CHIP RES. 0 1/16W 5% RMC1/16 000JATP J24185000 1- A E3
R 3267 CHIP RES. 10k 1/16W 5% RMC1/16 103JATP J24185103 1- A E3
R 3269 CHIP RES. 39k 1/16W 5% RMC1/16 393JATP J24185393 1- A E3
R 3270 CHIP RES. 10k 1/16W 5% RMC1/16 103JATP J24185103 1- A E1
R 3271 CHIP RES. 10k 1/16W 5% RMC1/16 103JATP J24185103 1- A E2
R 3273 CHIP RES. 0 1/16W 5% RMC1/16 000JATP J24185000 1- A E2
R 3274 CHIP RES. 0 1/16W 5% RMC1/16 000JATP J24185000 1- B f1
R 3275 CHIP RES. 5.6k 1/16W 5% RMC1/16 562JATP J24185562 1- A E2
R 3276 CHIP RES. 68k 1/16W 5% RMC1/16 683JATP J24185683 1- B h2
R 3277 CARBON FILM RES. 10k 1/6W 5% RD16PJ103 10K J01225103 1- B g3
R 3277 CHIP RES. 10k 1/16W 5% RMC1/16 103JATP J24185103 3- B g3
R 3278 CHIP RES. 10k 1/16W 5% RMC1/16 103JATP J24185103 1- A D1
R 3279 CHIP RES. 270k 1/16W 5% RMC1/16 274JATP J24185274 1- B h2
R 3282 CARBON FILM RES. 1k 1/6W 5% RD16PJ102 1K J01225102 1- B b2
R 3282 CHIP RES. 1k 1/16W 5% RMC1/16 102JATP J24185102 3- B b2
R 3283 CHIP RES. 47k 1/16W 5% RMC1/16 473JATP J24185473 3- A B2
R 3284 CHIP RES. 47k 1/16W 5% RMC1/16 473JATP J24185473 3- B g2
R 3285 CHIP RES. 47k 1/16W 5% RMC1/16 473JATP J24185473 3- A B2
R 3286 CHIP RES. 47k 1/16W 5% RMC1/16 473JATP J24185473 3- A B1
R 3287 CHIP RES. 0 1/16W 5% RMC1/16 000JATP J24185000 3- A B1
R 3288 CARBON FILM RES. 2.2k 1/6W 5% RD16PJ222 2.2K J01225222 4-
X 3001 XTAL TRS-4.0 4MHz 4.000MHZ H0103283 1- B f1
X 3002 XTAL TRS-4.0 12.288MHz 12.288MHZ H0103291 1- B d2
I-18
CNTL Unit
Parts List
REF DESCRIPTION VALUE V/W TOL. MFR'S DESIG VXSTD P/N VERS. LOT SIDE
LAY ADR
Note
PANEL Unit
J-1
Circuit Diagram
PANEL Unit
J-2
Note
J-3
PANEL Unit
Parts Layout (Side A)
BADCFE
1
3
2
4
RT1P441U (P3)
(Q4006)
MC2850 (A7)
(D4002)
J-4
PANEL Unit
Parts Layout (Side B)
badcfe
1
3
2
4
MC2850 (A7)
(D4006, 4011, 4013,
4015, 4016, 4019)
BU4066BCFV
(Q4008)
NJM2902V
(Q4001)
BU4094BCFV
(Q4003, 4011, 4014)
DTC144EE (26)
(Q4004, 4012)
DTC144EK (26)
(Q1043)
DTC323TK (H02)
(Q4002)
XN1213 (9L)
(Q4005, 4007, 4009,
4010, 4013, 4015,
4016, 4017, 4018,
4019, 4020, 4021,
4022)
J-5
PANEL Unit
Parts List
REF DESCRIPTION VALUE V/W TOL. MFR'S DESIG VXSTD P/N VERS. LOT SIDE
LAY ADR
PCB with Components CB2328001
Printed Circuit Board AC044U000 FR009570D 1-
C 4001 CHIP TA.CAP. 4.7uF 16V TEMSVA1C475M-8R K78120031 1- B c3
C 4002 CHIP CAP. 0.001uF 50V B GRM188B11H102KA01D K22174821 1- A B3
C 4003 CHIP CAP. 0.001uF 50V B GRM188B11H102KA01D K22174821 1- B c3
C 4004 CHIP CAP. 0.001uF 50V B GRM188B11H102KA01D K22174821 1- A B3
C 4005 CHIP CAP. 0.001uF 50V B GRM188B11H102KA01D K22174821 1- A D3
C 4006 CHIP CAP. 0.001uF 50V B GRM188B11H102KA01D K22174821 1- A D3
C 4007 CHIP CAP. 0.001uF 50V B GRM188B11H102KA01D K22174821 1- A D3
C 4008 CHIP CAP. 0.001uF 50V B GRM188B11H102KA01D K22174821 1- A C3
C 4009 CHIP CAP. 0.001uF 50V B GRM188B11H102KA01D K22174821 1- A C3
C 4010 CHIP CAP. 0.001uF 50V B GRM188B11H102KA01D K22174821 1- A C3
C 4011 CHIP CAP. 0.001uF 50V B GRM188B11H102KA01D K22174821 1- A C3
C 4012 CHIP CAP. 0.001uF 50V B GRM188B11H102KA01D K22174821 1- A C3
C 4013 CHIP CAP. 0.001uF 50V B GRM188B11H102KA01D K22174821 1- A C3
C 4014 CHIP CAP. 0.001uF 50V B GRM188B11H102KA01D K22174821 1- A C3
C 4015 CHIP CAP. 0.001uF 50V B GRM188B11H102KA01D K22174821 1- A C3
C 4024 CHIP CAP. 0.001uF 50V B GRM188B11H102KA01D K22174821 1- B c3
C 4025 CHIP TA.CAP. 4.7uF 16V TEMSVA1C475M-8R K78120031 1- B b3
C 4026 CHIP CAP. 33pF 50V CH GRM1882C1H330JA01D K22174223 1- B d3
C 4027 CHIP CAP. 0.1uF 16V B GRM188B11C104KA01D K22124805 1- B d3
C 4028 CHIP CAP. 0.015uF 25V B GRM39B153K25PT K22144805 1- B e3
C 4029 CHIP CAP. 0.015uF 25V B GRM39B153K25PT K22144805 1- B e3
C 4030 CHIP TA.CAP. 10uF 10V TEMSVA1A106M-8R K78100028 1- B e3
C 4031 CHIP CAP. 0.015uF 25V B GRM39B153K25PT K22144805 1- B e3
C 4032 CHIP CAP. 0.015uF 25V B GRM39B153K25PT K22144805 1- B e3
C 4033 CHIP CAP. 0.001uF 50V B GRM188B11H102KA01D K22174821 1- B e3
C 4034 CHIP TA.CAP. 4.7uF 16V TEMSVA1C475M-8R K78120031 1- B e3
C 4035 CHIP CAP. 0.015uF 25V B GRM39B153K25PT K22144805 1- B e3
C 4036 CHIP CAP. 15pF 50V CH GRM1882C1H150JA01D K22174215 1- B e3
C 4037 CHIP CAP. 0.001uF 50V B GRM188B11H102KA01D K22174821 1- A A2
C 4038 CHIP CAP. 0.1uF 16V B GRM188B11C104KA01D K22124805 1- B e3
C 4039 CHIP CAP. 1uF 10V F GRM188F11A105ZA01D K22105001 1- B d2
C 4040 CHIP CAP. 0.001uF 50V B GRM188B11H102KA01D K22174821 1- B c1
C 4043 CHIP CAP. 0.1uF 16V B GRM188B11C104KA01D K22124805 1- B b2
C 4044 CHIP CAP. 0.001uF 50V B GRM188B11H102KA01D K22174821 1- B d2
C 4046 CHIP CAP. 0.001uF 50V B GRM188B11H102KA01D K22174821 1- A A3
C 4047 CHIP CAP. 0.001uF 50V B GRM188B11H102KA01D K22174821 1- B f3
C 4048 CHIP CAP. 0.001uF 50V B GRM188B11H102KA01D K22174821 1- B d2
C 4049 CHIP CAP. 100pF 50V CH GRM1882C1H101JA01D K22174235 1- B f3
C 4051 CHIP CAP. 0.001uF 50V B GRM188B11H102KA01D K22174821 1- A A3
C 4052 CHIP CAP. 0.1uF 16V B GRM188B11C104KA01D K22124805 1- B c1
C 4053 CHIP CAP. 0.1uF 16V B GRM188B11C104KA01D K22124805 1- B a2
D 4001 LED GL8PR21 G2090395 1- A A2
D 4002 DIODE MC2850-T11-1 G2070704 1- A A2
D 4003 LED GL8KG21 G2090625 1- A A2
D 4004 DIODE BAS316 G2070716 1- B c2
D 4005 LED GL8EG22 G2090561 1- A E2
D 4006 DIODE MC2850-T11-1 G2070704 1- B b2
D 4008 DIODE BAS316 G2070716 1- B b2
D 4009 LED GL8PR22 G2090431 1- A D2
D 4010 LED TLOU1008(T04) G2070796 1- A B1
D 4011 DIODE MC2850-T11-1 G2070704 1- B d2
D 4012 LED TLOU1008(T04) G2070796 1- A C1
D 4013 DIODE MC2850-T11-1 G2070704 1- B b2
D 4014 LED TLOU1008(T04) G2070796 1- A B2
D 4015 DIODE MC2850-T11-1 G2070704 1- B d2
D 4016 DIODE MC2850-T11-1 G2070704 1- B d1
D 4017 LED TLOU1008(T04) G2070796 1- A C2
D 4018 LED TLOU1008(T04) G2070796 1- A B3
D 4019 DIODE MC2850-T11-1 G2070704 1- B d2
D 4020 LED TLOU1008(T04) G2070796 1- A C3
D 4021 DIODE MA729-(TX) G2070320 1- B d1
D 4100 LED LB-602DA2 G2090779 1-
J 4001 CONNECTOR IL-FHR-F30S-HF-E3000 P1091027 1- B c3
J 4001 CONNECTOR 9637S-30-Y905 P1091169 4- B c3
J 4002 CONNECTOR R41-2509H P1090714 1- A A4
JP4001 WIRE ASSY BLK 70 (5)/(5) T54007022 1-
JP4002 WIRE ASSY BLK 85 (5)/(5) T54008522 1-
Q 4001 IC NJM2902V-TE1 G1091679 1- B e3
Q 4002 TRANSISTOR DTC323TK T146 G3070042 1- B e3
Q 4003 IC BU4094BCFV-E2 G1093527 1- B c2
Q 4004 TRANSISTOR DTC144EE TL G3070075 1- B e3
J-6
PANEL Unit
Parts List
REF DESCRIPTION VALUE V/W TOL. MFR'S DESIG VXSTD P/N VERS. LOT SIDE
LAY ADR
Q 4005 TRANSISTOR XN1213-(TX) G3070194 1- B e3
Q 4006 TRANSISTOR RT1P441U-T11-1 G3070248 1- A A3
Q 4007 TRANSISTOR XN1213-(TX) G3070194 1- B b2
Q 4008 IC BU4066BCFV-E2 G1093537 1- B e1
Q 4009 TRANSISTOR XN1213-(TX) G3070194 1- B d1
Q 4010 TRANSISTOR XN1213-(TX) G3070194 1- B d2
Q 4011 IC BU4094BCFV-E2 G1093527 1- B b3
Q 4012 TRANSISTOR DTC144EE TL G3070075 1- B d2
Q 4013 TRANSISTOR XN1213-(TX) G3070194 1- B d3
Q 4014 IC BU4094BCFV-E2 G1093527 1- B a2
Q 4015 TRANSISTOR XN1213-(TX) G3070194 1- B a2
Q 4016 TRANSISTOR XN1213-(TX) G3070194 1- B c1
Q 4017 TRANSISTOR XN1213-(TX) G3070194 1- B c2
Q 4018 TRANSISTOR XN1213-(TX) G3070194 1- B a1
Q 4019 TRANSISTOR XN1213-(TX) G3070194 1- B a1
Q 4020 TRANSISTOR XN1213-(TX) G3070194 1- B a2
Q 4021 TRANSISTOR XN1213-(TX) G3070194 1- B c1
Q 4022 TRANSISTOR XN1213-(TX) G3070194 1- B c2
QS4001 IC SOCKET 110-99-624 P3090110 1- A E1
QS4001 IC SOCKET DIP624G11S1 P3090112 17- A E1
R 4001 CHIP RES. 10k 1/16W 5% RMC1/16 103JATP J24185103 1- B c3
R 4002 CHIP RES. 10k 1/16W 5% RMC1/16 103JATP J24185103 1- B c3
R 4003 CHIP RES. 10k 1/16W 5% RMC1/16 103JATP J24185103 1- B c3
R 4004 CHIP RES. 220k 1/16W 5% RMC1/16 224JATP J24185224 1- B d3
R 4005 CHIP RES. 56k 1/16W 5% RMC1/16 563JATP J24185563 1- B d3
R 4006 CHIP RES. 10k 1/16W 5% RMC1/16 103JATP J24185103 1- B c3
R 4007 CHIP RES. 12k 1/16W 5% RMC1/16 123JATP J24185123 1- B e3
R 4008 CHIP RES. 100k 1/16W 5% RMC1/16 104JATP J24185104 1- B e3
R 4009 CHIP RES. 10k 1/16W 5% RMC1/16 103JATP J24185103 1- B c3
R 4010 CHIP RES. 10k 1/16W 5% RMC1/16 103JATP J24185103 1- B c3
R 4011 CHIP RES. 82k 1/16W 5% RMC1/16 823JATP J24185823 1- B e3
R 4012 CHIP RES. 47k 1/16W 5% RMC1/16 473JATP J24185473 1- B e3
R 4013 CHIP RES. 2.7k 1/16W 5% RMC1/16 272JATP J24185272 1- B e3
R 4014 CHIP RES. 3.3k 1/16W 5% RMC1/16 332JATP J24185332 1- B e3
R 4015 CHIP RES. 27k 1/16W 5% RMC1/16 273JATP J24185273 1- B e3
R 4016 CHIP RES. 330 1/10W 5% RMC1/10T 331J J24205331 1- B c1
R 4018 CHIP RES. 330 1/10W 5% RMC1/10T 331J J24205331 1- B c1
R 4019 CHIP RES. 330 1/10W 5% RMC1/10T 331J J24205331 1- B c2
R 4020 CHIP RES. 330 1/10W 5% RMC1/10T 331J J24205331 1- B c2
R 4021 CHIP RES. 330 1/10W 5% RMC1/10T 331J J24205331 1- B a1
R 4022 CHIP RES. 330 1/10W 5% RMC1/10T 331J J24205331 1- B c2
R 4023 CHIP RES. 330 1/10W 5% RMC1/10T 331J J24205331 1- B a1
R 4024 CHIP RES. 560k 1/16W 5% RMC1/16 564JATP J24185564 1- B e3
R 4025 CHIP RES. 330 1/10W 5% RMC1/10T 331J J24205331 1- B c2
R 4026 CHIP RES. 330 1/10W 5% RMC1/10T 331J J24205331 1- A F2
R 4027 CHIP RES. 330 1/10W 5% RMC1/10T 331J J24205331 1- B c1
R 4028 CHIP RES. 330 1/10W 5% RMC1/10T 331J J24205331 1- B c1
R 4029 CHIP RES. 330 1/10W 5% RMC1/10T 331J J24205331 1- A F2
R 4030 CHIP RES. 10k 1/16W 5% RMC1/16 103JATP J24185103 1- B e3
R 4031 CHIP RES. 330 1/10W 5% RMC1/10T 331J J24205331 1- A F2
R 4032 CHIP RES. 56k 1/16W 5% RMC1/16 563JATP J24185563 1- B e3
R 4033 CHIP RES. 330 1/10W 5% RMC1/10T 331J J24205331 1- B a1
R 4035 CHIP RES. 560 1/4W 5% RMC1/4 561JATP J24245561 1- B e2
R 4036 CHIP RES. 0 1/16W 5% RMC1/16 000JATP J24185000 1- B e3
R 4037 CHIP RES. 330 1/10W 5% RMC1/10T 331J J24205331 1- A F2
R 4039 CHIP RES. 330 1/10W 5% RMC1/10T 331J J24205331 1- B a1
R 4040 CHIP RES. 0 1/16W 5% RMC1/16 000JATP J24185000 1- B e3
R 4041 CHIP RES. 560 1/16W 5% RMC1/16 561JATP J24185561 1- B e3
R 4042 CHIP RES. 560 1/4W 5% RMC1/4 561JATP J24245561 1- B e2
R 4043 CHIP RES. 2.2k 1/16W 5% RMC1/16 222JATP J24185222 1- A A3
R 4044 CHIP RES. 560 1/4W 5% RMC1/4 561JATP J24245561 1- B a3
R 4045 CHIP RES. 10k 1/16W 5% RMC1/16 103JATP J24185103 1- B e1
R 4046 CHIP RES. 10k 1/16W 5% RMC1/16 103JATP J24185103 1- B d1
R 4047 CHIP RES. 560 1/4W 5% RMC1/4 561JATP J24245561 1- B a3
R 4048 CHIP RES. 560 1/4W 5% RMC1/4 561JATP J24245561 1- B d1
R 4049 CHIP RES. 10k 1/16W 5% RMC1/16 103JATP J24185103 1- B e1
R 4050 CHIP RES. 10k 1/16W 5% RMC1/16 103JATP J24185103 1- B d2
R 4051 CHIP RES. 560 1/4W 5% RMC1/4 561JATP J24245561 1- B d1
R 4052 CHIP RES. 560 1/4W 5% RMC1/4 561JATP J24245561 1- B e2
R 4053 CHIP RES. 330 1/16W 5% RMC1/16 331JATP J24185331 1- B a3
R 4054 CHIP RES. 330 1/16W 5% RMC1/16 331JATP J24185331 1- B a3
R 4055 CHIP RES. 330 1/16W 5% RMC1/16 331JATP J24185331 1- B a3
R 4056 CHIP RES. 10k 1/16W 5% RMC1/16 103JATP J24185103 1- B d2
J-7
PANEL Unit
Parts List
REF DESCRIPTION VALUE V/W TOL. MFR'S DESIG VXSTD P/N VERS. LOT SIDE
LAY ADR
R 4057 CHIP RES. 47k 1/16W 5% RMC1/16 473JATP J24185473 1- B d2
R 4058 CHIP RES. 560 1/4W 5% RMC1/4 561JATP J24245561 1- B d2
R 4059 CHIP RES. 10k 1/16W 5% RMC1/16 103JATP J24185103 1- B a2
R 4060 CHIP RES. 47k 1/16W 5% RMC1/16 473JATP J24185473 1- B d1
R 4061 CHIP RES. 10k 1/16W 5% RMC1/16 103JATP J24185103 1- B d2
R 4062 CHIP RES. 1k 1/16W 5% RMC1/16 102JATP J24185102 1- A A3
R 4063 CHIP RES. 560 1/4W 5% RMC1/4 561JATP J24245561 1- B e2
R 4064 CHIP RES. 10k 1/16W 5% RMC1/16 103JATP J24185103 1- B d2
R 4065 CHIP RES. 1k 1/16W 5% RMC1/16 102JATP J24185102 1- A A3
R 4066 CHIP RES. 10k 1/16W 5% RMC1/16 103JATP J24185103 1- B d2
R 4067 CHIP RES. 560 1/4W 5% RMC1/4 561JATP J24245561 1- B d2
R 4068 CHIP RES. 330 1/16W 5% RMC1/16 331JATP J24185331 1- B d2
R 4069 CHIP RES. 1k 1/16W 5% RMC1/16 102JATP J24185102 1- A A3
R 4070 CHIP RES. 330 1/16W 5% RMC1/16 331JATP J24185331 1- B c1
R 4071 CHIP RES. 330 1/16W 5% RMC1/16 331JATP J24185331 1- B c2
R 4072 CHIP RES. 330 1/16W 5% RMC1/16 331JATP J24185331 1- B c2
R 4073 CHIP RES. 330 1/16W 5% RMC1/16 331JATP J24185331 1- A F2
R 4074 CHIP RES. 330 1/16W 5% RMC1/16 331JATP J24185331 1- A F2
S 4001 TACT SWITCH SKQMAL N5090105 1- A C2
S 4002 TACT SWITCH SKQMAL N5090105 1- A B3
S 4003 TACT SWITCH SKQMAL N5090105 1- A C3
S 4004 TACT SWITCH SKQMAL N5090105 1- A B1
S 4005 TACT SWITCH SKQMAL N5090105 1- A C1
S 4006 TACT SWITCH SKQMAL N5090105 1- A B2
VR4001 POT. RK09L1141 F1B A14 10KA J60800266 1- A E3
LED SPACER LH-3-6 S6000343 1-
LED SPACER LH-3-6 S6000343 1-
LED SPACER LH-3-8 S6000345 1-
LED SPACER LH-3-8 S6000345 1-
J-8
PANEL Unit
Parts List
REF DESCRIPTION VALUE V/W TOL. MFR'S DESIG VXSTD P/N VERS. LOT SIDE
LAY ADR
Note:
K-1
Circuit Diagram
PA Unit (Lot. 1~2)
K-2
Note:
PA Unit (Lot. 1~2)
K-3
Parts Layout (Side A)
BADCFE G
1
3
5
2
4
H
2SB1122S (BE)
(Q5002)
2SB1132 (BA)
(Q5007)
2SC2812 (L6)
(Q5010)
2SC3357 (RK)
(Q5001)
2SC4116GR (LG)
(Q5004)
2SC4154 (LE)
(Q5014)
DTC144EE (26)
(Q5006, 5009, 5011)
TA75S01F (SA)
(Q5005)
TC4S66F (C9)
(Q5012, 5013)
NJM78L09 (8H)
(Q5003)
PD55008
(Q5008)
PD55025S
(Q5015, 5016)
HSM88AS
(D5007, 5008)
PA Unit (Lot. 1~2)
MC2848 (A6)
(D5011)
K-4
Parts Layout (Side B)
1
3
5
2
4
badcfegh
PA Unit (Lot. 1~2)
K-5
PA Unit (Lot. 3~20)
Circuit Diagram
K-6
PA Unit (Lot. 3~20)
Note:
K-7
PA Unit (Lot. 3~20)
Parts Layout (Side A)
BADCFE G
1
3
5
2
4
H
2SB1122S (BE)
(Q5002)
2SB1132 (BA)
(Q5007)
2SC2812 (L6)
(Q5010)
2SC3357 (RK)
(Q5001)
2SC4116GR (LG)
(Q5004)
2SC4154 (LE)
(Q5014)
DTC144EE (26)
(Q5006, 5009, 5011)
TA75S01F (SA)
(Q5005)
TC4S66F (C9)
(Q5012, 5013)
NJM78L09 (8H)
(Q5003)
PD55008
(Q5008)
PD55025S
(Q5015, 5016)
HSM88AS
(D5007, 5008)
HZM9.1NB
(D5010)
MC2848 (A6)
(D5011)
K-8
PA Unit (Lot. 3~20)
Parts Layout (Side B)
1
3
5
2
4
badcfegh
K-9
PA Unit (Lot. 1~20)
Parts List
REF DESCRIPTION VALUE V/W TOL. MFR'S DESIG VXSTD P/N VERS. LOT SIDE
LAY ADR
PCB with Components CS1813001
Printed Circuit Board AC044U000 FR008660B 1-
FR008660C 3-
C 5001 CHIP CAP. 0.001uF 50V B GRM188B11H102KA01D K22174821 1- A A3
C 5002 CHIP CAP. 0.001uF 50V B GRM188B11H102KA01D K22174821 1- A A4
C 5003 CHIP CAP. 12pF 50V CH GRM1882C1H120JA01D K22174213 1- A A4
C 5004 CHIP CAP. 2pF 50V CK GRM1884C1H2R0CZ01D K22174203 1- A A4
C 5005 CHIP CAP. 0.001uF 50V B GRM188B11H102KA01D K22174821 1- A A4
C 5006 CHIP CAP. 0.001uF 50V B GRM188B11H102KA01D K22174821 1- A A4
C 5007 CHIP CAP. 0.001uF 50V B ECUV1H102KBN K22179550 1- A A3
C 5008 CHIP CAP. 0.001uF 50V B GRM188B11H102KA01D K22174821 1- A A3
C 5009 CHIP CAP. 470pF 50V CH GRM1882C1H471JA01D K22174249 1- A B4
C 5010 CHIP CAP. 0.001uF 50V B GRM188B11H102KA01D K22174821 1- A A3
C 5011 CHIP CAP. 0.01uF 50V B GRM188B11H103KA01D K22174823 1- A B4
C 5012 CHIP CAP. 0.001uF 50V B GRM188B11H102KA01D K22174821 1- A A3
C 5013 CHIP CAP. 0.001uF 50V B GRM188B11H102KA01D K22174821 1- A A3
C 5014 CHIP CAP. 0.001uF 50V B ECUV1H102KBN K22179550 1- A A2
C 5015 CHIP CAP. 0.22uF 16V B GRM40B224M16PT K22120806 1- A B4
C 5015 CHIP CAP. 0.22uF 10V B GRM188B11A224KA01D K22104801 3- A B4
C 5016 CHIP CAP. 0.001uF 50V B GRM188B11H102KA01D K22174821 1- A B4
C 5017 CHIP CAP. 0.001uF 50V B GRM188B11H102KA01D K22174821 1- A B4
C 5018 CHIP TA.CAP. 1uF 25V TEMSVA1E105M-8R K78140013 1- A B5
C 5019 CHIP CAP. 47pF 50V CH GRM1882C1H470JA01D K22174227 1- A B4
C 5020 CHIP CAP. 0.01uF 50V B GRM188B11H103KA01D K22174823 1- A B5
C 5021 CHIP CAP. 0.001uF 50V B ECUV1H102KBN K22179550 1- A C4
C 5022 CHIP CAP. 10pF 50V CH GRM1882C1H100JA01D K22174211 1- A B4
C 5023 CHIP CAP. 0.01uF 50V B GRM188B11H103KA01D K22174823 1- A C4
C 5025 CHIP CAP. 22pF 50V CH GRM1882C1H220JA01D K22174219 1- A B3
C 5026 CHIP CAP. 82pF 50V CH GRM1882C1H820JA01D K22174233 1- A B3
C 5027 CHIP CAP. 0.001uF 50V B GRM188B11H102KA01D K22174821 1- A B5
C 5028 CHIP CAP. 0.01uF 50V B GRM188B11H103KA01D K22174823 1- A B5
C 5029 CHIP TA.CAP. 10uF 16V TEMSVB21C106M-8R K78120025 1- A B5
C 5031 CHIP CAP. 0.001uF 50V B ECUV1H102KBN K22179550 1- A B4
C 5032 CHIP CAP. 22pF 50V CH GRM1882C1H220JA01D K22174219 1- A B3
C 5033 CHIP CAP. 0.001uF 50V B GRM188B11H102KA01D K22174821 1- A B5
C 5034 CHIP CAP. 0.001uF 50V B GRM188B11H102KA01D K22174821 1- A B5
C 5035 CHIP CAP. 120pF 50V CH GRM1882C1H121JA01D K22174237 1- A C2
C 5037 CHIP CAP. 0.001uF 50V B ECUV1H102KBN K22179550 1- A C1
C 5038 CHIP CAP. 22pF 50V CH GRM1882C1H220JA01D K22174219 1- A C3
C 5039 CHIP CAP. 0.01uF 50V B GRM188B11H103KA01D K22174823 1- A C1
C 5040 AL.ELECTRO.CAP. 470uF 35V RE2-35V471MMA K40169026 1- A C2
C 5041 CHIP CAP. 33pF 50V CH GRM1882C1H330JA01D K22174223 1- A C3
C 5042 CHIP CAP. 8pF 50V CH GRM1882C1H8R0DZ01D K22174209 1- A D3
C 5043 CHIP CAP. 0.01uF 50V B GRM188B11H103KA01D K22174823 1- A C5
C 5044 CHIP CAP. 220pF 50V CH GRM1882C1H221JA01D K22174243 1- A D3
C 5045 CHIP CAP. 0.01uF 50V B ECUV1H103KBG K22179562 1- A C5
C 5046 CHIP CAP. 0.001uF 50V B ECUV1H102KBN K22179550 1- A D2
C 5047 CHIP CAP. 0.001uF 50V B ECUV1H102KBN K22179550 1- A D5
C 5048 CHIP CAP. 0.01uF 50V B GRM188B11H103KA01D K22174823 1- A D1
C 5049 CHIP CAP. 0.01uF 50V B GRM188B11H103KA01D K22174823 1- A D5
C 5050 CHIP CAP. 82pF 50V CH GRM1882C1H820JA01D K22174233 1- A D3
C 5051 CHIP CAP. 82pF 50V CH GRM1882C1H820JA01D K22174233 1- A D3
C 5054 FILM CAP. 18pF 500V UC232H0180J-T K33279029 1- A F2
C 5055 FILM CAP. 33pF 500V UC232H0330J-T K33279024 1- A E4
C 5056 CHIP CAP. 470pF 50V CH GRM1882C1H471JA01D K22174249 1- A G4
C 5057 CHIP CAP. 8pF 50V CH GRM1882C1H8R0DZ01D K22174209 1- A D2
C 5058 CHIP CAP. 8pF 50V CH GRM1882C1H8R0DZ01D K22174209 1- A D5
C 5059 CHIP CAP. 0.001uF 50V B ECUV1H102KBN K22179550 1- A E2
C 5060 CHIP CAP. 0.001uF 50V B ECUV1H102KBN K22179550 1- A E5
C 5061 CHIP CAP. 470pF 50V CH GRM1882C1H471JA01D K22174249 1- A H3
C 5062 CHIP CAP. 39pF 50V CH GRM1882C1H390JA01D K22174225 1- A D2
C 5063 CHIP CAP. 39pF 50V CH GRM1882C1H390JA01D K22174225 1- A D4
C 5064 CHIP CAP. 6pF 50V CH GRM1882C1H6R0DZ01D K22174207 1- A G5
C 5065 CHIP CAP. 6pF 50V CH GRM1882C1H6R0DZ01D K22174207 1- A G3
C 5066 CHIP CAP. 0.001uF 50V B GRM188B11H102KA01D K22174821 1- A G5
C 5067 FILM CAP. 120pF 500V UC342H1200J-T K33279026 1- A F5
C 5068 CHIP CAP. 0.001uF 50V B GRM188B11H102KA01D K22174821 1- A G4
C 5069 FILM CAP. 120pF 500V UC342H1200J-T K33279026 1- A F1
C 5070 AL.ELECTRO.CAP. 470uF 35V RE2-35V471MMA K40169026 1- A F5
C 5071 FILM CAP. 5pF 500V UC232H0050D-T K33279010 1- A H4
C 5072 AL.ELECTRO.CAP. 470uF 35V RE2-35V471MMA K40169026 1- A E1
C 5073 CHIP CAP. 0.01uF 50V B GRM188B11H103KA01D K22174823 1- A F5
C 5074 FILM CAP. 27pF 500V UC232H0270J-T K33279023 1- A F2
K-10
PA Unit (Lot. 1~20)
Parts List
REF DESCRIPTION VALUE V/W TOL. MFR'S DESIG VXSTD P/N VERS. LOT SIDE
LAY ADR
C 5075 FILM CAP. 27pF 500V UC232H0270J-T K33279023 1- A F4
C 5076 CHIP CAP. 0.01uF 50V B GRM188B11H103KA01D K22174823 1- A F1
C 5077 CHIP CAP. 0.001uF 50V B ECUV1H102KBN K22179550 1- A F5
C 5078 FILM CAP. 7pF 500V UC232H0070D-T K33279046 1- A G2
C 5081 CHIP CAP. 0.001uF 50V B ECUV1H102KBN K22179550 1- A F1
C 5082 FILM CAP. 1pF 500V UC232H0010D-T K33279036 1- A H2
C 5082 FILM CAP. 2pF 500V UC232H0020D-T K33279043 4- A H2
C 5083 FILM CAP. 10pF 500V UC232H0100D-T K33279019 1- A F2
C 5084 FILM CAP. 10pF 500V UC232H0100D-T K33279019 1- A F4
C 5085 FILM CAP. 5pF 500V UC232H0050D-T K33279010 1- A H2
C 5086 FILM CAP. 18pF 500V UC232H0180J-T K33279029 1- A G3
C 5087 FILM CAP. 18pF 500V UC232H0180J-T K33279029 1- A G3
C 5088 FILM CAP. 3pF 500V UC232H0030D-T K33279027 1- A G1
C 5089 CHIP CAP. 0.001uF 630V R GRM31BR32J102KY01L K22281801 1- A G1
C 5090 CHIP CAP. 2pF 50V CK GRM1884C1H2R0CZ01D K22174203 1- A A4
C 5091 CHIP CAP. 6pF 50V CH GRM1882C1H6R0DZ01D K22174207 1- A B3
C 5092 CHIP CAP. 10pF 50V CH GRM1882C1H100JA01D K22174211 1- A B4
C 5093 CHIP CAP. 22pF 50V CH GRM1882C1H220JA01D K22174219 1- A B3
C 5094 CHIP CAP. 22pF 50V CH GRM1882C1H220JA01D K22174219 1- A C3
C 5095 CHIP CAP. 6pF 50V CH GRM1882C1H6R0DZ01D K22174207 1- A C3
C 5096 CHIP CAP. 4pF 50V CH GRM1882C1H4R0CZ01D K22174205 1- A D3
C 5098 FILM CAP. 18pF 500V UC232H0180J-T K33279029 1- A F4
C 5099 FILM CAP. 33pF 500V UC232H0330J-T K33279024 1- A E2
C 5100 FILM CAP. 3pF 500V UC232H0030D-T K33279027 4- A F3
C 5101 FILM CAP. 9pF 500V UC232H0090D-T K33279047 1- A G4
C 5103 CHIP CAP. 0.001uF 50V B GRM188B11H102KA01D K22174821 1- A A4
C 5104 CHIP CAP. 7pF 50V CH GRM1882C1H7R0DZ01D K22174208 1- A D2
C 5104 CHIP CAP. 10pF 50V CH GRM1882C1H100JA01D K22174211 4- A D2
C 5105 CHIP CAP. 7pF 50V CH GRM1882C1H7R0DZ01D K22174208 1- A D4
C 5105 CHIP CAP. 10pF 50V CH GRM1882C1H100JA01D K22174211 4- A D4
C 5106 CHIP CAP. 47pF 50V CH GRM1882C1H470JA01D K22174227 1- A E5
C 5107 CHIP CAP. 100pF 50V CH GRM1882C1H101JA01D K22174235 1- A D1
C 5108 CHIP CAP. 100pF 50V CH GRM1882C1H101JA01D K22174235 1-2 A E1
C 5109 CHIP CAP. 100pF 50V CH GRM1882C1H101JA01D K22174235 1- A E5
C 5110 CHIP CAP. 150pF 50V CH GRM1882C1H151JA01D K22174239 1- A C1
C 5112 CHIP CAP. 100pF 50V CH GRM1882C1H101JA01D K22174235 1- A B4
C 5113 CHIP CAP. 100pF 50V CH GRM1882C1H101JA01D K22174235 1- A B3
C 5114 CHIP CAP. 100pF 50V CH GRM1882C1H101JA01D K22174235 1- A D2
C 5115 CHIP CAP. 100pF 50V CH GRM1882C1H101JA01D K22174235 1- A B4
C 5116 CHIP CAP. 100pF 50V CH GRM1882C1H101JA01D K22174235 1- A B5
C 5117 CHIP CAP. 100pF 50V CH GRM1882C1H101JA01D K22174235 1- A B5
C 5118 CHIP CAP. 100pF 50V CH GRM1882C1H101JA01D K22174235 1- A B5
C 5119 CHIP CAP. 100pF 50V CH GRM1882C1H101JA01D K22174235 1- A D5
C 5120 CHIP CAP. 100pF 50V CH GRM1882C1H101JA01D K22174235 1- A C5
C 5121 CHIP CAP. 100pF 50V CH GRM1882C1H101JA01D K22174235 1- A C5
C 5122 CHIP CAP. 100pF 50V CH GRM1882C1H101JA01D K22174235 1- A G4
C 5123 CHIP CAP. 100pF 50V CH GRM1882C1H101JA01D K22174235 1- A G5
C 5124 AL.ELECTRO.CAP. 100uF 16V RE3-16V101ME3# K40129063 1- A B2
C 5124 AL.ELECTRO.CAP. 100uF 16V ECEV1CA101WP K48120012 3- A B2
C 5125 CHIP CAP. 0.22uF 10V B GRM188B11A224KA01D K22104801 1- A B4
C 5126 CHIP CAP. 10pF 50V CH GRM1882C1H100JA01D K22174211 1- A E2
C 5127 CHIP CAP. 10pF 50V CH GRM1882C1H100JA01D K22174211 1- A E4
C 5128 CHIP CAP. 8pF 50V CH GRM1882C1H8R0DZ01D K22174209 4-
D 5001 DIODE DSA3A1 G2090445 1- A A3
D 5002 SURGE ABSORBER P6KA18 Q9000721 1- A A3
D 5003 DIODE DSA3A1 G2090445 1- A B2
D 5004 SURGE ABSORBER P6KA18 Q9000721 1- A B2
D 5005 DIODE BAS316 G2070716 1- A A1
D 5006 DIODE DSA3A1 G2090445 1- A B1
D 5007 DIODE HSM88AS TR G2070170 1- A G4
D 5008 DIODE HSM88AS TR G2070170 1- A G3
D 5009 SURGE ABSORBER RCCA-301Q43UA Q9000756 1- A G1
D 5009 SURGE ABSORBER RHCA-201Q43U Q9000825 5- A G1
D 5010 DIODE HZM9.1NB3TR G2070404 1- A B2
D 5011 DIODE MC2848-T11-1 G2070694 1- A C5
F 5001 CHIP FUSE 1A R429 001 Q0000089 1- A B1
FB5001 FERRITE BEADS 4A2 RI3X3-1 L9190001 1-
FB5002 FERRITE BEADS 4A2 RI3X3-1 L9190001 1-
FB5003 FERRITE BEADS 4A2 RI3X3-1 L9190001 1-
FB5004 FERRITE BEADS 4A2 RI3X3-1 L9190001 1-
FB5005 FERRITE BEADS 4A2 RI3X3-1 L9190001 1-
FB5006 FERRITE BEADS 4A2 RI3X3-1 L9190001 1-
FB5007 FERRITE BEADS 4A2 RI3X3-1 L9190001 1-
K-11
PA Unit (Lot. 1~20)
Parts List
REF DESCRIPTION VALUE V/W TOL. MFR'S DESIG VXSTD P/N VERS. LOT SIDE
LAY ADR
FB5008 FERRITE BEADS 4A2 RI3X3-1 L9190001 1-
FB5009 FERRITE BEADS 4A2 RI3X3-1 L9190001 1-
FB5010 FERRITE BEADS 4A2 RI3X3-1 L9190001 1-
FB5011 FERRITE BEADS 4A2 RI3X3-1 L9190001 1-
FB5012 FERRITE BEADS 4A2 RI3X3-1 L9190001 1-
FB5013 FERRITE BEADS 4A2 RI3X3-1 L9190001 1-
FB5014 FERRITE BEADS 4A2 RI3X3-1 L9190001 1-
FB5015 FERRITE BEADS 4A2 RI3X3-1 L9190001 1-
FB5016 FERRITE BEADS 4A2 RI3X3-1 L9190001 1-
J 5001 CONNECTOR TMP-J01X-V6 P1090210 1- A A5
J 5002 CONNECTOR IL-Y-11P-S15T2-E P0090653 1- A A3
J 5003 TERMINAL Y106 S5000179 1- A A2
J 5004 TERMINAL Y106 S5000179 1- A A3
JP5001 WIRE ASSY GRN 20 2/2 T50502000 1-2
L 5001 CHIP COIL 0.0147uH LQW31HN15NJ03L L1690251 1- A B4
L 5002 M.RFC 0.0125uH C3328A-12NG L1691077 1- A B4
L 5003 M.RFC 0.11uH C6342A-R11G L1691087 1- A C2
L 5005 M.RFC 0.05uH C6342A-50NG L1691084 1- A F2
L 5006 M.RFC 0.05uH C6342A-50NG L1691084 1- A F5
L 5007 COIL C1 1.0T6.0D1.6PEW R L0022694 1- A G2
L 5008 COIL C1 1.0T6.0D1.6PEW R L0022694 1- A H2
L 5010 COIL C1 1.0T6.0D1.6PEW R L0022694 1- A G1
P 5001 WIRE ASSY RED 125 <7>/<7> T9318109 1-
P 5002 TERMINAL B5 AG M3 Q6000115 1-22
P 5002 TERMINAL B5 AG M3 Q6000115 50W 23-
Q 5001 TRANSISTOR 2SC3357-T2 G3333577 1- A B4
Q 5002 TRANSISTOR 2SB1122S-TD G3211228S 1- A B4
Q 5003 IC NJM78L09UA-TE2 G1091305 1- A B5
Q 5004 TRANSISTOR 2SC4116GR TE85R G3341167G 1- A B4
Q 5005 IC TA75S01F TE85R G1091593 1- A B5
Q 5006 TRANSISTOR DTC144EE TL G3070075 1- A A2
Q 5007 TRANSISTOR 2SB1132 T100 R G3211327R 1- A C5
Q 5008 FET PD55008TR G3070307 1- A C3
Q 5009 TRANSISTOR DTC144EE TL G3070075 1- A B5
Q 5010 TRANSISTOR 2SC2812L5-TA G3328127E 1- A B1
Q 5011 TRANSISTOR DTC144EE TL G3070075 1- A C5
Q 5012 IC TC4S66F TE85R G1090893 1- A C4
Q 5013 IC TC4S66F TE85R G1090893 1- A C4
Q 5014 TRANSISTOR 2SC4154-T11-1E G3341548E 1- A C5
Q 5015 FET PD55025STR G3070319 1-3 A E2
Q 5015 FET PD55025STR G3070319 50W 4- A E2
Q 5016 FET PD55025STR G3070319 1-3 A E4
Q 5016 FET PD55025STR G3070319 50W 4- A E4
R 5001 CHIP RES. 560 1/16W 5% RMC1/16 561JATP J24185561 1- A A4
R 5002 CHIP RES. 2.2 1/8W 5% RMC1/8T 2R2J J24215229 1- A B4
R 5003 CHIP RES. 2.2k 1/16W 5% RMC1/16 222JATP J24185222 1- A B4
R 5004 CHIP RES. 4.7 1/4W 5% RMC1/4 4R7JATP J24245479 1- A B4
R 5005 CHIP RES. 22 1/16W 5% RMC1/16 220JATP J24185220 1- A B4
R 5006 CHIP RES. 180 1/16W 5% RMC1/16 181JATP J24185181 1- A B4
R 5007 CHIP RES. 2.2k 1/16W 5% RMC1/16 222JATP J24185222 1- A C5
R 5008 CHIP RES. 220 1/16W 5% RMC1/16 221JATP J24185221 1- A B4
R 5009 CHIP RES. 1k 1/16W 5% RMC1/16 102JATP J24185102 1- A B5
R 5010 CHIP RES. 1k 1/16W 5% RMC1/16 102JATP J24185102 1- A B5
R 5012 CHIP RES. 15 1/16W 5% RMC1/16 150JATP J24185150 1- A B3
R 5013 CHIP RES. 10 1/2W 5% RMC1/2 100JCTP J24275100 1- A B4
R 5014 CHIP RES. 82k 1/16W 5% RMC1/16 823JATP J24185823 1- A B5
R 5015 CHIP RES. 10k 1/16W 5% RMC1/16 103JATP J24185103 1- A B5
R 5016 CHIP RES. 10k 1/16W 5% RMC1/16 103JATP J24185103 1- A B5
R 5017 CHIP RES. 51 1/2W 5% RMC1/2 510JTE J24275510 1- A B3
R 5018 CHIP RES. 10k 1/16W 5% RMC1/16 103JATP J24185103 1- A C5
R 5019 CHIP RES. 2.2k 1/16W 5% RMC1/16 222JATP J24185222 1- A B5
R 5020 CHIP RES. 10k 1/16W 5% RMC1/16 103JATP J24185103 1- A B2
R 5021 CHIP RES. 22 1/10W 5% RMC1/10T 220J J24205220 1- A A2
R 5022 CHIP RES. 100k 1/16W 5% RMC1/16 104JATP J24185104 1- A B5
R 5023 CHIP RES. 1k 1/16W 5% RMC1/16 102JATP J24185102 1- A B5
R 5024 CARBON FILM RES. 22k 1/6W 5% RD16PJ223 22K J01225223 1- A B5
R 5024 CHIP RES. 22k 1/16W 5% RMC1/16 223JATP J24185223 3- A B5
R 5026 CHIP RES. 22k 1/16W 5% RMC1/16 223JATP J24185223 1- A B2
R 5027 CHIP RES. 1.5k 1/16W 5% RMC1/16 152JATP J24185152 1- A C5
R 5029 CHIP RES. 10k 1/16W 5% RMC1/16 103JATP J24185103 1- A B5
R 5030 CHIP RES. 5.6 1W 5% RMC1 5R6JTE J24305569 1- A C5
R 5031 CEMENT RES. 5.6 5W 10% ERF-5AK5R6 J30376569 1- A D1
R 5033 CHIP RES. 0 1/16W 5% RMC1/16 000JATP J24185000 1- A D2
K-12
PA Unit (Lot. 1~20)
Parts List
REF DESCRIPTION VALUE V/W TOL. MFR'S DESIG VXSTD P/N VERS. LOT SIDE
LAY ADR
R 5034 CHIP RES. 0 1/16W 5% RMC1/16 000JATP J24185000 1- A D5
R 5035 CHIP RES. 33k 1/16W 5% RMC1/16 333JATP J24185333 1- A D1
R 5036 CHIP RES. 33k 1/16W 5% RMC1/16 333JATP J24185333 1- A D5
R 5037 CHIP RES. 150 1/10W 5% RMC1/10T 151J J24205151 1- A G4
R 5038 CHIP RES. 1k 1/2W 5% RMC1/2 102JCTP J24275102 1- A E5
R 5039 CHIP RES. 1k 1/2W 5% RMC1/2 102JCTP J24275102 1- A E1
R 5040 CHIP RES. 100 1/10W 5% RMC1/10T 101J J24205101 1- A H4
R 5041 CHIP RES. 18 1/2W 5% RMC1/2 180JTE J24275180 1- A E4
R 5042 CHIP RES. 18 1/2W 5% RMC1/2 180JTE J24275180 1- A E2
R 5043 METAL FILM RES. 1 3W 5% ERX-3SJ1R0 1 J22359044 1- A E4
R 5044 CHIP RES. 27k 1/16W 5% RMC1/16 273JATP J24185273 1- A G5
R 5045 CHIP RES. 10k 1/10W 5% RMC1/10T 103J J24205103 1- A G5
R 5045 CHIP RES. 10k 1/16W 5% RMC1/16 103JATP J24185103 3- A G5
R 5046 CHIP RES. 10k 1/16W 5% RMC1/16 103JATP J24185103 1- A G3
R 5047 CHIP RES. 10k 1/16W 5% RMC1/16 103JATP J24185103 1- A G3
R 5048 METAL FILM RES. 1 3W 5% ERX-3SJ1R0 1 J22359044 1- A E4
R 5049 CHIP RES. 47k 1/16W 5% RMC1/16 473JATP J24185473 1- A G1
R 5050 CHIP RES. 4.7k 1/16W 5% RMC1/16 472JATP J24185472 1- A B4
R 5051 CHIP RES. 1.2k 1/16W 5% RMC1/16 122JATP J24185122 1- A C5
R 5052 CHIP RES. 10k 1/16W 5% RMC1/16 103JATP J24185103 1- A C4
R 5055 CHIP RES. 0 1/16W 5% RMC1/16 000JATP J24185000 3- A A5
R 5057 CHIP RES. 1.8k 1/10W 5% RMC1/10T 182J J24205182 1- A G5
R 5057 CHIP RES. 1.8k 1/16W 5% RMC1/16 182JATP J24185182 3- A G5
R 5060 CARBON FILM RES. 150k 1/6W 5% RD16PJ154 150K J01225154 1- A B1
R 5060 CHIP RES. 150k 1/16W 5% RMC1/16 154JATP J24185154 3- A B1
RL5001 RELAY DC12V ACP131 DC12V M1190152 1- A A2
S 5001 SLIDE SWITCH SSSS912N-2A-OR N6090094 1- A B1
TH5001 THERMISTOR 157-203-55009TP G9090045 1- A E5
TH5002 THERMISTOR 157-502-53002TP G9090049 1- A G4
VR5001 POT. 2.2k RH03A3AJ3X 2.2K J51807222 1- A C5
VR5002 POT. 2.2k RH03A3AJ3X 2.2K J51807222 1- A C4
SHIELD PLATE (PA) RA0506200 1-22
SHIELD PLATE (PA) RA0506200 50W 23-
GASKET L=10 RA0515000 1-
LEAF SPRING R0120250 1-
LEAF SPRING R0120250 4-
LEAF SPRING R0140031 4-
L-1
Circuit Diagram
PA-2 Unit (Lot. 21~)
L-2
Note:
PA-2 Unit (Lot. 21~)
L-3
Parts Layout (Side A)
BADCFE G
1
3
5
2
4
H
2SA1179 (M6)
(Q8004)
2SB1132 (BA)
(Q5007)
2SC2812 (L6)
(Q8008)
2SC5415E (EA)
(Q8003)
DTC144EE (26)
(Q8002, 8005)
FMG2 (G2)
(Q8006)
NJM78L09 (8H)
(Q8001)
HSM88AS
(D8006, 8007)
RN739F (5F)
(D8001, 8003)
PA-2 Unit (Lot. 21~)
MC2848 (A6)
(D5011)
LM2904PWR
(Q8018)
S-AU82L
(Q8007)
S-AU93
(Q8007)
HZM4.7NB2 (472)
(D8004)
HZM9.1NB2 (912)
(D8009)
L-4
Parts Layout (Side B)
1
3
5
2
4
badcfegh
PA-2 Unit (Lot. 21~)
L-5
PA-2 Unit (Lot. 21~)
Parts List
REF DESCRIPTION VALUE V/W TOL. MFR'S DESIG VXSTD P/N VERS. LOT SIDE
LAY ADR
PCB with Components CB3195001 VER. A
CB3195002 VER. D
Printed Circuit Board AC044U000 FR013570B 24-
C 8001 CHIP CAP. 100pF 50V CH GRM1882C1H101JA01D K22174235 24- A B5
C 8002 CHIP CAP. 100pF 50V CH GRM1882C1H101JA01D K22174235 24- A B5
C 8003 CHIP CAP. 100pF 50V CH GRM1882C1H101JA01D K22174235 24- A B4
C 8004 CHIP CAP. 100pF 50V CH GRM1882C1H101JA01D K22174235 24- A B5
C 8005 CHIP TA.CAP. 1uF 25V TEMSVA1E105M-8R K78140013 24- A B4
C 8006 CHIP CAP. 100pF 50V CH GRM1882C1H101JA01D K22174235 24- A B5
C 8007 CHIP CAP. 0.01uF 50V B GRM188B11H103KA01D K22174823 24- A B4
C 8008 CHIP CAP. 100pF 50V CH GRM1882C1H101JA01D K22174235 24- A A4
C 8009 CHIP CAP. 0.001uF 50V B GRM188B11H102KA01D K22174821 24- A A4
C 8010 CHIP CAP. 100pF 50V CH GRM1882C1H101JA01D K22174235 24- A B5
C 8011 CHIP CAP. 100pF 50V CH GRM1882C1H101JA01D K22174235 24- A B5
C 8012 CHIP CAP. 100pF 50V CH GRM1882C1H101JA01D K22174235 24- A B4
C 8013 CHIP CAP. 0.001uF 50V B GRM188B11H102KA01D K22174821 24- A A4
C 8014 CHIP CAP. 0.01uF 50V B GRM188B11H103KA01D K22174823 24- A B4
C 8015 CHIP CAP. 100pF 50V CH GRM1882C1H101JA01D K22174235 24- A B4
C 8016 CHIP TA.CAP. 10uF 16V TEMSVB21C106M-8R K78120025 24- A B4
C 8018 CHIP CAP. 100pF 50V CH GRM1882C1H101JA01D K22174235 24- A A4
C 8019 CHIP CAP. 0.001uF 50V B GRM188B11H102KA01D K22174821 24- A B3
C 8020 CHIP CAP. 33pF 50V CH GRM1882C1H330JA01D K22174223 24- A A4
C 8021 CHIP CAP. 100pF 50V CH GRM1882C1H101JA01D K22174235 24- A B3
C 8022 CHIP TA.CAP. 1uF 25V TEMSVA1E105M-8R K78140013 24- A B4
C 8023 CHIP CAP. 100pF 50V CH GRM1882C1H101JA01D K22174235 24- A B3
C 8024 CHIP CAP. 22pF 50V CH GRM1882C1H220JA01D K22174219 24- A A3
C 8025 CHIP CAP. 0.001uF 50V B GRM188B11H102KA01D K22174821 24- A B3
C 8027 CHIP CAP. 4pF 50V CH GRM1882C1H4R0CZ01D K22174205 24- A A3
C 8028 CHIP CAP. 470pF 50V CH GRM1882C1H471JA01D K22174249 24- A A3
C 8029 CHIP CAP. 100pF 50V CH GRM1882C1H101JA01D K22174235 24- A A3
C 8030 CHIP CAP. 0.001uF 50V B GRM188B11H102KA01D K22174821 24- A B2
C 8031 CHIP CAP. 0.1uF 16V B GRM188B11C104KA01D K22124805 24- A D3
C 8032 CHIP TA.CAP. 10uF 16V TEMSVB21C106M-8R K78120025 24- A B2
C 8033 CHIP CAP. 1uF 50V B GRM42-2B105K50PT K22175801 24- A C2
C 8034 CHIP CAP. 100pF 500V CH CF316CH101J500AT K22271267 24- A C2
C 8035 CHIP CAP. 0.001uF 50V B GRM188B11H102KA01D K22174821 24- A C3
C 8036 CHIP CAP. 100pF 50V CH GRM1882C1H101JA01D K22174235 24- A C3
C 8037 CHIP CAP. 0.001uF 630V R GRM31BR32J102KY01L K22281801 24- A C2
C 8038 CHIP CAP. 0.001uF 50V B GRM188B11H102KA01D K22174821 24- A C3
C 8039 CHIP CAP. 0.1uF 16V B GRM188B11C104KA01D K22124805 24- A D3
C 8041 CHIP CAP. 470pF 50V CH GRM1882C1H471JA01D K22174249 24- A E3
C 8043 CHIP CAP. 0.001uF 50V B GRM188B11H102KA01D K22174821 24- A D3
C 8044 CHIP CAP. 470pF 50V CH GRM1882C1H471JA01D K22174249 24- A D2
C 8045 CHIP CAP. 0.022uF 25V B GRM39B223K25PT K22144807 24- A D3
C 8046 CHIP CAP. 100pF 50V CH GRM1882C1H101JA01D K22174235 24- A E3
C 8047 CHIP CAP. 100pF 50V CH GRM1882C1H101JA01D K22174235 24- A D2
C 8048 CHIP CAP. 0.001uF 50V B GRM188B11H102KA01D K22174821 24- A E3
C 8049 CHIP CAP. 0.1uF 16V B GRM188B11C104KA01D K22124805 24- A D3
C 8050 CHIP CAP. 100pF 50V CH GRM1882C1H101JA01D K22174235 24- A E3
C 8051 CHIP CAP. 0.001uF 50V B GRM188B11H102KA01D K22174821 24- A E3
C 8052 CHIP CAP. 100pF 50V CH GRM1882C1H101JA01D K22174235 24- A E2
C 8053 CHIP CAP. 0.001uF 50V B GRM188B11H102KA01D K22174821 24- A D3
C 8054 CHIP CAP. 0.001uF 50V B GRM188B11H102KA01D K22174821 24- A D3
C 8055 FILM CAP. 7pF 500V UC232H0070D-T K33279046 24- A F2
C 8056 AL.ELECTRO.CAP. 100uF 16V ECEV1CA101WP K48120012 24- A F4
C 8057 FILM CAP. 10pF 500V UC232H0100D-T K33279019 24- A E1
C 8058 FILM CAP. 10pF 500V UC232H0100D-T K33279019 24- A F1
C 8059 FILM CAP. 5pF 500V UC232H0050D-T K33279010 24- A G1
C 8063 CHIP CAP. 100pF 500V CH CF316CH101J500AT K22271267 24- A G1
C 8064 CHIP CAP. 1uF 50V B GRM42-2B105K50PT K22175801 24- A G3
C 8065 CHIP CAP. 1uF 50V B GRM42-2B105K50PT K22175801 24- A G5
C 8066 CHIP CAP. 100pF 50V CH GRM1882C1H101JA01D K22174235 24- A G3
C 8067 CHIP CAP. 100pF 50V CH GRM1882C1H101JA01D K22174235 24- A G5
C 8068 CHIP CAP. 100pF 50V CH GRM1882C1H101JA01D K22174235 24- A B2
C 8069 CHIP CAP. 100pF 500V CH CF316CH101J500AT K22271267 24- A D2
C 8084 CHIP CAP. 100pF 50V CH GRM1882C1H101JA01D K22174235 24- A G3
C 8085 CHIP CAP. 100pF 50V CH GRM1882C1H101JA01D K22174235 24- A G5
D 8001 DIODE RN739F T106 G2070626 24- A A4
D 8002 DIODE BAS316 G2070716 24- A A4
D 8003 DIODE RN739F T106 G2070626 24- A A3
D 8004 DIODE HZM4.7NB2 TR G2070782 24- A B2
D 8005 DIODE BAS316 G2070716 24- A D3
D 8006 DIODE HSM88AS TR G2070170 24- A E3
L-6
PA-2 Unit (Lot. 21~)
Parts List
REF DESCRIPTION VALUE V/W TOL. MFR'S DESIG VXSTD P/N VERS. LOT SIDE
LAY ADR
D 8007 DIODE HSM88AS TR G2070170 24- A D2
D 8008 DIODE BAS316 G2070716 24- A D3
D 8009 DIODE HZM9.1NB3TR G2070404 24- A F4
D 8010 DIODE BAS316 G2070716 24- A F4
D 8011 SURGE ABSORBER P6KA18 Q9000721 24- A G3
D 8012 SURGE ABSORBER P6KA18 Q9000721 24- A G5
D 8013 DIODE DSA3A1 G2090445 24- A F5
D 8014 SURGE ABSORBER RHCA-301Q43U Q9000827 24- A G1
D 8015 DIODE DSA3A1 G2090445 24- A F3
D 8016 DIODE DSA3A1 G2090445 24- A F5
D 8017 SURGE ABSORBER DSP201M-S00B Q9000375 24-
F 8001 CHIP FUSE 1A R429 001 Q0000089 24- A F5
FB8001 M.RFC FBA03VA450AB-00 L1190389 24-
FB8002 M.RFC FBA03VA450AB-00 L1190389 24-
FB8003 M.RFC FBA03VA450AB-00 L1190389 24-
J 8001 CONNECTOR TMP-J01X-V6 P1090210 24- A A5
J 8002 CONNECTOR IL-Y-11P-S15T2-E P0090653 24- A B4
J 8003 TERMINAL Y106 S5000179 24- A G4
J 8006 TERMINAL Y106 S5000179 24- A G5
L 8001 M.RFC 0.0056uH HK1608 5N6S-T L1690513 24- A A4
L 8002 CHIP COIL 0.064uH LQW31HN64NJ03L L1690258 24- A A3
L 8003 CHIP COIL 0.023uH LQW31HN23NJ03L L1690252 24- A A3
L 8004 COIL 0.015uH AS0803-15NK L0022536 24- A C3
L 8005 COIL C1 1.0T6.0D1.6PEW R L0022694 24- A F2
L 8006 COIL C1 1.0T6.0D1.6PEW R L0022694 24- A E1
L 8007 COIL C1 1.0T6.0D1.6PEW R L0022694 24- A F1
Q 8001 IC NJM78L09UA-TE2 G1091305 24- A B4
Q 8002 TRANSISTOR DTC144EE TL G3070075 24- A B4
Q 8003 TRANSISTOR 2SC5415E-TD-E G3354158E 24- A A3
Q 8004 TRANSISTOR 2SA1179M6-TA G3111797F 24- A B4
Q 8005 TRANSISTOR DTC144EE TL G3070075 24- A C5
Q 8006 TRANSISTOR FMG2 T148 G3070015 24- A D3
Q 8007 IC S-AU93 G1094203 VER. D 24- A A1
Q 8007 IC S-AU82L G1093918 VER. A 24- A A1
Q 8008 TRANSISTOR 2SC2812L5-TA G3328127E 24- A F4
Q 8018 IC LM2904PWR G1094010 24- A D3
R 8001 CHIP RES. 270ohm 1/16W 5% RMC1/16 271JATP J24185271 24- A A5
R 8002 CHIP RES. 270ohm 1/16W 5% RMC1/16 271JATP J24185271 24- A A4
R 8004 CHIP RES. 0ohm 1/16W 5% RMC1/16 000JATP J24185000 24- A A4
R 8006 CHIP RES. 560ohm 1/16W 5% RMC1/16 561JATP J24185561 24- A A4
R 8007 CHIP RES. 220ohm 1/16W 5% RMC1/16 221JATP J24185221 24- A A4
R 8008 CHIP RES. 10kohm 1/16W 5% RMC1/16 103JATP J24185103 24- A B4
R 8009 CHIP RES. 4.7kohm 1/16W 5% RMC1/16 472JATP J24185472 24- A A4
R 8010 CHIP RES. 2.2kohm 1/16W 5% RMC1/16 222JATP J24185222 24- A B4
R 8011 CHIP RES. 10ohm 1/8W 5% RMC1/8T 100J J24215100 VER. A 24- A A4
R 8011 CHIP RES. 12ohm 1/8W 5% RMC1/8T 120J J24215120 VER. D 24- A A4
R 8012 CHIP RES. 4.7ohm 1/4W 5% RMC1/4 4R7JATP J24245479 24- A B3
R 8014 CHIP RES. 270ohm 1/16W 5% RMC1/16 271JATP J24185271 24- A A3
R 8015 CHIP RES. 12kohm 1/16W 5% RMC1/16 123JATP J24185123 VER. A 24-22 A D3
R 8015 CHIP RES. 4.7kohm 1/16W 5% RMC1/16 472JATP J24185472 VER. D 24-22 A D3
R 8015 CHIP RES. 4.7kohm 1/16W 5% RMC1/16 472JATP J24185472 23- A D3
R 8016 CHIP RES. 270ohm 1/16W 5% RMC1/16 271JATP J24185271 24- A B2
R 8017 CHIP RES. 0ohm 1/16W 5% RMC1/16 000JATP J24185000 VER. A 24- A B2
R 8017 CHIP RES. 18ohm 1/16W 5% RMC1/16 180JATP J24185180 VER. D 24- A B2
R 8019 CHIP RES. 270ohm 1/16W 5% RMC1/16 271JATP J24185271 VER. D 24- A B2
R 8020 CHIP RES. 560ohm 1/16W 5% RMC1/16 561JATP J24185561 24- A D3
R 8021 CHIP RES. 0ohm 1/16W 5% RMC1/16 000JATP J24185000 24- A C5
R 8022 CHIP RES. 100ohm 1/10W 5% RMC1/10T 101J J24205101 24- A E2
R 8023 CHIP RES. 1kohm 1/16W 5% RMC1/16 102JATP J24185102 24- A D3
R 8024 CHIP RES. 1kohm 1/16W 5% RMC1/16 102JATP J24185102 24- A D3
R 8025 CHIP RES. 0ohm 1/16W 5% RMC1/16 000JATP J24185000 24- A B4
R 8026 CHIP RES. 150ohm 1/10W 5% RMC1/10T 151J J24205151 24- A D3
R 8027 CHIP RES. 22kohm 1/16W 5% RMC1/16 223JATP J24185223 24- A D3
R 8028 CHIP RES. 10kohm 1/16W 5% RMC1/16 103JATP J24185103 24- A E3
R 8029 CHIP RES. 8.2kohm 1/16W 5% RMC1/16 822JATP J24185822 24- A E3
R 8030 CHIP RES. 1kohm 1/16W 5% RMC1/16 102JATP J24185102 24- A D2
R 8031 CHIP RES. 47kohm 1/16W 5% RMC1/16 473JATP J24185473 24- A D2
R 8032 CHIP RES. 22kohm 1/16W 5% RMC1/16 223JATP J24185223 24- A D3
R 8033 CHIP RES. 10kohm 1/16W 5% RMC1/16 103JATP J24185103 24- A E2
R 8034 CHIP RES. 47kohm 1/16W 5% RMC1/16 473JATP J24185473 24- A D3
R 8035 CHIP RES. 220kohm 1/16W 5% RMC1/16 224JATP J24185224 24- A D3
R 8036 CHIP RES. 10kohm 1/16W 5% RMC1/16 103JATP J24185103 24- A F4
R 8037 CHIP RES. 150kohm 1/16W 5% RMC1/16 154JATP J24185154 24- A F4
L-7
PA-2 Unit (Lot. 21~)
Parts List
REF DESCRIPTION VALUE V/W TOL. MFR'S DESIG VXSTD P/N VERS. LOT SIDE
LAY ADR
R 8038 CHIP RES. 22kohm 1/16W 5% RMC1/16 223JATP J24185223 24- A F4
R 8039 CHIP RES. 22ohm 1/10W 5% RMC1/10T 220J J24205220 24- A F4
R 8040 CHIP RES. 47kohm 1/16W 5% RMC1/16 473JATP J24185473 24- A G1
R 8041 CEMENT RES. 5.6ohm 5W 10% ERF-5AK5R6 J30376569 24- A E5
R 8043 CHIP RES. 10kohm 1/16W 5% RMC1/16 103JATP J24185103 24- A D3
R 8044 CHIP RES. 2.2kohm 1/16W 5% RMC1/16 222JATP J24185222 24- A A4
R 8045 CHIP RES. 2.2kohm 1/16W 5% RMC1/16 222JATP J24185222 24- A A3
R 8046 CHIP RES. 0ohm 1/16W 5% RMC1/16 000JATP J24185000 24- A D3
R 8047 CHIP RES. 0ohm 1/16W 5% RMC1/16 000JATP J24185000 24- A D3
R 8048 CHIP RES. 0ohm 1/16W 5% RMC1/16 000JATP J24185000 24- A D3
R 8049 CHIP RES. 0ohm 1/16W 5% RMC1/16 000JATP J24185000 24- A D3
RL8001 RELAY DC12V ACP131 DC12V M1190152 24- A F5
S 8001 SLIDE SWITCH SSSS912N-2A-OR N6090094 24- A F4
TH8001 THERMISTOR 157-203-55009TP G9090045 24- A C4
SHIELD PLATE PA R0124501 24-
BINDING HEAD SCREW M3X10NI U20310002 24-
BINDING HEAD SCREW M3X10NI U20310002 24-
TERMINAL B4 AG M3 Q6000114 24-
TERMINAL B4 AG M3 Q6000114 24-
GASKET L=50 RA0650800 24-
L-8
PA-2 Unit (Lot. 21~)
Parts List
REF DESCRIPTION VALUE V/W TOL. MFR'S DESIG VXSTD P/N VERS. LOT SIDE
LAY ADR
Note
M-1
REG Unit
Circuit Diagram
M-2
REG Unit
Parts Layout
Side B
Side A
KIA7809API
(Q3901, 3902)
Parts List
REF DESCRIPTION VALUE V/W TOL. MFR'S DESIG VXSTD P/N VERS. LOT SIDE
LAY ADR
PCB with Components CB2565001
Printed Circuit Board AC044U000 FR0108700 1-
C 3901 CHIP TA.CAP. 4.7uF 16V TEMSVA1C475M-8R K78120031 1- A
C 3902 CHIP CAP. 0.001uF 50V B GRM39B102K50PT K22174821 1- A
C 3903 CHIP TA.CAP. 4.7uF 16V TEMSVA1C475M-8R K78120031 1- A
C 3904 CHIP CAP. 0.001uF 50V B GRM39B102K50PT K22174821 1- A
C 3905 CHIP CAP. 0.001uF 50V B GRM39B102K50PT K22174821 1- A
C 3906 CHIP TA.CAP. 4.7uF 16V TEMSVA1C475M-8R K78120031 1- A
C 3907 CHIP CAP. 0.001uF 50V B GRM39B102K50PT K22174821 1- A
C 3908 CHIP TA.CAP. 4.7uF 16V TEMSVA1C475M-8R K78120031 1- A
JP3901 WIRE ASSY AC044N/U T9207048 1- A
Q 3901 IC KIA7809API G1093165 1- B
Q 3902 IC KIA7805API G1093163 1- B
N-1
SUB Unit (Lot. 1~2)
Circuit Diagram
N-2
SUB Unit (Lot. 1~2)
Parts Layout
Side BSide A
TC4S81F (C2)
(Q3801)
Parts List
TC4S66F (C9)
(Q3804)
FMG2 (G2)
(Q3802, 3803)
MC2848 (A6)
(D3801)
REF DESCRIPTION VALUE V/W TOL. MFR'S DESIG VXSTD P/N VERS. LOT SIDE
LAY ADR
PCB with Components CB2672001
Printed Circuit Board AC044U000 FR011450A 1-
C 3801 CHIP CAP. 0.001uF 50V B GRM39B102M50PT K22174809 1- A
C 3802 CHIP CAP. 0.01uF 25V B GRM39B103M25PT K22144802 1- A
C 3803 CHIP CAP. 0.001uF 50V B GRM39B102M50PT K22174809 1- A
C 3804 CHIP CAP. 0.01uF 25V B GRM39B103M25PT K22144802 1- A
C 3805 CHIP CAP. 0.1uF 16V B GRM39B104K16PT K22124805 1- A
D 3801 DIODE MC2848-T11-1 G2070694 1- A
Q 3801 IC TC4S81F TE85R G1090895 1- A
Q 3802 TRANSISTOR FMG2 T148 G3070015 1- A
Q 3803 TRANSISTOR FMG2 T148 G3070015 1- A
Q 3804 IC TC4S66F TE85R G1090893 1- A
R 3805 CHIP RES. 47k 1/16W 5% RMC1/16 473JATP J24185473 1- A
R 3809 CHIP RES. 47k 1/16W 5% RMC1/16 473JATP J24185473 1- A
R 3813 CHIP RES. 47k 1/16W 5% RMC1/16 473JATP J24185473 1- A
R 3815 CHIP RES. 47k 1/16W 5% RMC1/16 473JATP J24185473 1- A
R 3819 CHIP RES. 0 1/16W 5% RMC1/16 000JATP J24185000 1- A
O-1
100W PA Unit (Option: Version D)
Circuit Diagram
O-2
100W PA Unit (Option: Version D)
Note
O-3
100W PA Unit (Option: Version D)
Parts Layout (Side A)
BADCFE G
1
3
2
4
H
2SA812 (M7)
(Q6005, 6015,
6016)
2SC5415E (EA)
(Q6004)
DTC144EE (26)
(Q6002, 6009,
6010)
FMG2 (G2)
(Q6002, 6009,
6010)
NJM78L09 (8H)
(Q6001)
S-AU82L (Ver. A)
(Q6011, 6014)
S-AU93 (Ver. D)
(Q6011, 6014)
RN739F (5F)
(D6001)
1SS319 (A4)
(D6012, 6013,
6015, 6016, 6023)
LM2904
(Q6013)
JILK M
5
6
7
8
9
LM2902
(Q6012)
UMZ2N (Z2)
(Q6003, 6008)
DAN235 (M)
(D6021)
MC2850 (A7)
(D6006, 6010,
6011)
O-4
100W PA Unit (Option: Version D)
Parts Layout (Side B)
badcfeg
1
3
2
4
hj
ilk m
5
6
7
8
9
O-5
100W PA Unit (Option: Version D)
Parts List
REF DESCRIPTION VALUE V/W TOL. MFR'S DESIG VXSTD P/N VERS. LOT SIDE
LAY ADR
PCB with Components CS1866001 VER. D
Printed Circuit Board AAE21U000 FR0134100 1-
C 6001 CHIP CAP. 100pF 50V CH GRM1882C1H101JA01D K22174235 1- A J1
C 6002 CHIP CAP. 100pF 50V CH GRM1882C1H101JA01D K22174235 1- A A1
C 6003 CHIP TA.CAP. 1uF 25V TEMSVA1E105M-8R K78140013 1- A B2
C 6004 CHIP CAP. 100pF 50V CH GRM1882C1H101JA01D K22174235 1- A B1
C 6005 CHIP CAP. 100pF 50V CH GRM1882C1H101JA01D K22174235 1- A A1
C 6006 CHIP CAP. 0.001uF 630V R GRM31BR32J102KY01L K22281801 1- A K1
C 6007 CHIP CAP. 0.01uF 50V B GRM188B11H103KA01D K22174823 1- A B2
C 6008 CHIP CAP. 100pF 50V CH GRM1882C1H101JA01D K22174235 1- A B1
C 6009 CHIP CAP. 100pF 50V CH GRM1882C1H101JA01D K22174235 1- A B5
C 6010 CHIP CAP. 100pF 50V CH GRM1882C1H101JA01D K22174235 1- A A5
C 6011 CHIP CAP. 1uF 50V B GRM42-2B105K50PT K22175801 1- A K1
C 6012 CHIP CAP. 100pF 50V CH GRM1882C1H101JA01D K22174235 1- A B1
C 6013 AL.ELECTRO.CAP. 1000uF 25V RJ3-25V102MI5# K40149041 1- A I1
C 6014 CHIP CAP. 100pF 50V CH GRM1882C1H101JA01D K22174235 1- A B1
C 6015 AL.ELECTRO.CAP. 1000uF 25V RJ3-25V102MI5# K40149041 1- A H2
C 6016 CHIP CAP. 0.01uF 50V B GRM188B11H103KA01D K22174823 1- A B2
C 6017 CHIP TA.CAP. 1uF 25V TEMSVA1E105M-8R K78140013 1- A B2
C 6018 CHIP CAP. 100pF 50V CH GRM1882C1H101JA01D K22174235 1- A A5
C 6019 CHIP TA.CAP. 10uF 16V TEMSVB21C106M-8R K78120025 1- A B3
C 6021 CHIP CAP. 100pF 50V CH GRM1882C1H101JA01D K22174235 1- A B5
C 6022 CHIP CAP. 100pF 50V CH GRM1882C1H101JA01D K22174235 1- A B4
C 6023 CHIP CAP. 15pF 50V CH GRM1882C1H150JA01D K22174215 1- A A5
C 6024 CHIP TA.CAP. 1uF 25V TEMSVA1E105M-8R K78140013 1- A C3
C 6025 CHIP CAP. 0.01uF 50V B GRM188B11H103KA01D K22174823 1- A B5
C 6027 CHIP CAP. 100pF 50V CH GRM1882C1H101JA01D K22174235 1- A B5
C 6028 CHIP CAP. 22pF 50V CH GRM1882C1H220JA01D K22174219 1- A B5
C 6029 CHIP CAP. 0.01uF 50V B GRM188B11H103KA01D K22174823 1- A B5
C 6032 CHIP CAP. 100pF 50V CH GRM1882C1H101JA01D K22174235 1- A B5
C 6034 CHIP CAP. 9pF 50V CH GRM1882C1H9R0CZ01D K22174247 1- A B6
C 6036 CHIP CAP. 4pF 50V CH GRM1882C1H4R0CZ01D K22174205 1- A C5
C 6037 CHIP CAP. 4pF 50V CH GRM1882C1H4R0CZ01D K22174205 1- A C6
C 6041 CHIP CAP. 0.1uF 16V B GRM188B11C104KA01D K22124805 1- A B3
C 6042 CHIP CAP. 1uF 6.3V B GRM188B10J105KA01D K22084801 1- A E4
C 6043 CHIP CAP. 100pF 50V CH GRM1882C1H101JA01D K22174235 1- A E4
C 6044 CHIP CAP. 100pF 50V CH GRM1882C1H101JA01D K22174235 1- A E7
C 6045 CHIP CAP. 1uF 6.3V B GRM188B10J105KA01D K22084801 1- A E7
C 6046 CHIP CAP. 1uF 50V B GRM42-2B105K50PT K22175801 1- A F4
C 6047 CHIP CAP. 0.001uF 630V R GRM31BR32J102KY01L K22281801 1- A F4
C 6048 CHIP CAP. 0.001uF 630V R GRM31BR32J102KY01L K22281801 1- A F7
C 6049 CHIP CAP. 1uF 50V B GRM42-2B105K50PT K22175801 1- A F7
C 6050 CHIP CAP. 0.22uF 10V B GRM188B11A224KA01D K22104801 1- A A2
C 6051 AL.ELECTRO.CAP. 1000uF 25V RJ3-25V102MI5# K40149041 1- A F5
C 6052 AL.ELECTRO.CAP. 1000uF 25V RJ3-25V102MI5# K40149041 1- A F7
C 6053 CHIP CAP. 0.1uF 16V B GRM188B11C104KA01D K22124805 1- A A2
C 6055 CHIP CAP. 1pF 200V CK GRM2194C2D1R0CY21D K22230208 1- A G4
C 6056 CHIP CAP. 1pF 200V CK GRM2194C2D1R0CY21D K22230208 1- A G4
C 6057 CHIP CAP. 1pF 200V CK GRM2194C2D1R0CY21D K22230208 1- A G7
C 6058 CHIP CAP. 1pF 200V CK GRM2194C2D1R0CY21D K22230208 1- A G7
C 6059 CHIP CAP. 0.001uF 50V B GRM188B11H102KA01D K22174821 1- A A2
C 6061 CHIP CAP. 100pF 50V CH GRM1882C1H101JA01D K22174235 1- A F4
C 6062 CHIP CAP. 100pF 50V CH GRM1882C1H101JA01D K22174235 1- A F7
C 6063 CHIP CAP. 0.022uF 25V B GRM39B223K25PT K22144807 1- A A2
C 6064 CHIP CAP. 100pF 50V CH GRM1882C1H101JA01D K22174235 1- A J5
C 6065 CHIP CAP. 0.1uF 16V B GRM188B11C104KA01D K22124805 1- A A3
C 6066 CHIP CAP. 100pF 50V CH GRM1882C1H101JA01D K22174235 1- A J5
C 6067 CHIP CAP. 0.001uF 50V B GRM188B11H102KA01D K22174821 1- A A3
C 6068 CHIP CAP. 100pF 50V CH GRM1882C1H101JA01D K22174235 1- A K6
C 6069 CHIP CAP. 0.001uF 50V B GRM188B11H102KA01D K22174821 1- A A3
C 6070 FILM CAP. 6pF 500V UC232H0060D-T K33279045 1- A M5
C 6071 CHIP CAP. 100pF 50V CH GRM1882C1H101JA01D K22174235 1- A K6
C 6072 CHIP CAP. 10pF 500V CH ERE22X6C2H100JD01L K22273217 1- A M6
C 6074 CHIP CAP. 10pF 500V CH ERE22X6C2H100JD01L K22273217 1- A M6
C 6076 FILM CAP. 6pF 500V UC232H0060D-T K33279045 1- A M7
C 6077 CHIP CAP. 0.001uF 630V R GRM31BR32J102KY01L K22281801 1- A M8
C 6080 CHIP CAP. 15pF 50V CH GRM1882C1H150JA01D K22174215 1- A A5
C 6082 CHIP CAP. 10pF 50V CH GRM1882C1H100JA01D K22174211 1- A L2
C 6083 CHIP CAP. 10pF 50V CH GRM1882C1H100JA01D K22174211 1- A J1
C 6084 CHIP CAP. 10pF 50V CH GRM1882C1H100JA01D K22174211 1- A J1
C 6085 CHIP CAP. 10pF 50V CH GRM1882C1H100JA01D K22174211 1- A G2
C 6086 CHIP CAP. 10pF 50V CH GRM1882C1H100JA01D K22174211 1- A E2
C 6087 CHIP CAP. 10pF 50V CH GRM1882C1H100JA01D K22174211 1- A C2
O-6
100W PA Unit (Option: Version D)
Parts List
REF DESCRIPTION VALUE V/W TOL. MFR'S DESIG VXSTD P/N VERS. LOT SIDE
LAY ADR
C 6088 CHIP CAP. 10pF 50V CH GRM1882C1H100JA01D K22174211 1- A E4
C 6089 CHIP CAP. 10pF 50V CH GRM1882C1H100JA01D K22174211 1- A F4
C 6090 CHIP CAP. 10pF 50V CH GRM1882C1H100JA01D K22174211 1- A E7
C 6091 CHIP CAP. 10pF 50V CH GRM1882C1H100JA01D K22174211 1- A F7
C 6092 CHIP CAP. 10pF 50V CH GRM1882C1H100JA01D K22174211 1- A B1
C 6093 CHIP CAP. 100pF 50V CH GRM1882C1H101JA01D K22174235 1- A L6
C 6094 CHIP CAP. 100pF 50V CH GRM1882C1H101JA01D K22174235 1- A L7
C 6095 CHIP CAP. 0.1uF 16V B GRM188B11C104KA01D K22124805 1- A B4
C 6096 CHIP CAP. 0.001uF 50V B GRM188B11H102KA01D K22174821 1- A B3
D 6001 DIODE RN739F T106 G2070626 1- A A4
D 6002 DIODE BAS316 G2070716 1- A B2
D 6003 LED SML-210VTT86 G2070768 1- A I2
D 6004 DIODE BAS316 G2070716 1- A B5
D 6005 LED SML-210VTT86 G2070768 1- A I2
D 6006 DIODE UDZS TE-17 5.6B G2070910 1- A E4
D 6007 DIODE UDZS TE-17 5.6B G2070910 1- A E7
D 6008 DIODE MC2850-T11-1 G2070704 1- A F5
D 6009 DIODE BAS316 G2070716 1- A A2
D 6010 DIODE MC2850-T11-1 G2070704 1- A F7
D 6011 DIODE MC2850-T11-1 G2070704 1- A B2
D 6012 DIODE 1SS319 TE85R G2070080 1- A G4
D 6013 DIODE 1SS319 TE85R G2070080 1- A G7
D 6014 DIODE BAS316 G2070716 1- A A2
D 6015 DIODE 1SS319 TE85R G2070080 1- A J5
D 6016 DIODE 1SS319 TE85R G2070080 1- A K6
D 6017 DIODE UDZS TE-17 5.6B G2070910 1- A B3
D 6019 LED SML-210VTT86 G2070768 1- A B2
D 6020 LED SML-210VTT86 G2070768 1- A B2
D 6021 DIODE DAN235K T97 G2070082 1- A B2
D 6022 DIODE UDZS TE-17 5.6B G2070910 1- A B2
D 6023 DIODE 1SS319 TE85R G2070080 1- A L7
D 6024 DIODE BAS316 G2070716 1- A A2
D 6025 DIODE 1SS400 TE61 G2070634 1- A J6
F 6001 CHIP FUSE 15A 451 015.MR 15A Q0000105 1- A I2
F 6002 CHIP FUSE 15A 451 015.MR 15A Q0000105 1- A I2
FB6001 M.RFC FBA03VA450AB-00 L1190389 1-
FB6002 M.RFC FBA03VA450AB-00 L1190389 1-
FB6003 M.RFC FBA03VA450AB-00 L1190389 1-
J 6001 CONNECTOR TMP-S01X-C1 P1091254 1- A A4
J 6002 TERMINAL Y106 S5000179 1- A L2
J 6003 CONNECTOR IL-Y-11P-S15T2-E P0090653 1- A B2
JP6001 WIRE ASSY RED 125 <7>/<7> T9318109 1-
JP6002 WIRE ASSY RED 145 <7>/<7> T9318176 1-
L 6001 M.RFC 0.0015uH HK1608 1N5S-T L1690506 1- A A5
L 6002 CHIP COIL 0.064uH LQW31HN64NJ03L L1690258 1- A B5
L 6003 CHIP COIL 0.023uH LQW31HN23NJ03L L1690252 1- A B5
L 6004 CHIP COIL 0.022uH 2% C2520C-22NG L1691286 1- A C5
L 6005 CHIP COIL 0.022uH 2% C2520C-22NG L1691286 1- A C6
L 6006 COIL C1 1.0T6.0D1.6PEW R L0022694 1- A M5
L 6007 COIL C1 1.0T6.0D1.6PEW R L0022694 1- A M6
L 6008 COIL C1 1.0T6.0D1.6PEW R L0022694 1- A M6
Q 6001 IC NJM78L09UA-TE2 G1091305 1- A B2
Q 6002 TRANSISTOR FMG2 T148 G3070015 1- A B3
Q 6003 TRANSISTOR UMZ2N TR G3070117 1- A B2
Q 6004 TRANSISTOR 2SC5415E-TD-E G3354158E 1- A B5
Q 6005 TRANSISTOR 2SA812-T2B M5B G3108127E 1- A B3
Q 6006 TRANSISTOR DTC144EE TL G3070075 1- A B3
Q 6007 TRANSISTOR DTC144EE TL G3070075 1- A B3
Q 6008 TRANSISTOR UMZ2N TR G3070117 1- A B3
Q 6009 TRANSISTOR FMG2 T148 G3070015 1- A B3
Q 6010 TRANSISTOR FMG2 T148 G3070015 1- A B3
Q 6011 IC S-AU82L G1093918 VER. A 1- A D3
Q 6011 IC S-AU93 G1094203 VER. D 1- A D3
Q 6012 IC LM2902PWR G1094009 1- A B3
Q 6013 IC LM2904PWR G1094010 1- A A2
Q 6014 IC S-AU82L G1093918 VER. A 1- A D6
Q 6014 IC S-AU93 G1094203 VER. D 1- A D6
Q 6015 TRANSISTOR 2SA812-T2B M5B G3108127E 1- A I2
Q 6016 TRANSISTOR 2SA812-T2B M5B G3108127E 1- A H2
Q 6017 TRANSISTOR DTC144EE TL G3070075 1- A A2
R 6001 CHIP RES. 270 1/16W 5% RMC1/16 271JATP J24185271 1- A A4
R 6002 CHIP RES. 0 1/10W 5% RMC1/10T 000J J24205000 1- A B2
R 6003 CHIP RES. 0 1/10W 5% RMC1/10T 000J J24205000 1- A B2
O-7
100W PA Unit (Option: Version D)
Parts List
REF DESCRIPTION VALUE V/W TOL. MFR'S DESIG VXSTD P/N VERS. LOT SIDE
LAY ADR
R 6004 CHIP RES. 270 1/16W 5% RMC1/16 271JATP J24185271 1- A A4
R 6005 CHIP RES. 270 1/16W 5% RMC1/16 271JATP J24185271 1- A A5
R 6006 CHIP RES. 18 1/16W 5% RMC1/16 180JATP J24185180 1- A A5
R 6007 CHIP RES. 10k 1/16W 5% RMC1/16 103JATP J24185103 1- A B2
R 6008 CHIP RES. 2.2k 1/16W 5% RMC1/16 222JATP J24185222 1- A B4
R 6009 CHIP RES. 0 1/16W 5% RMC1/16 000JATP J24185000 1- A B2
R 6010 CHIP RES. 270 1/16W 5% RMC1/16 271JATP J24185271 1- A A5
R 6011 CHIP RES. 10k 1/16W 5% RMC1/16 103JATP J24185103 1- A I2
R 6012 CHIP RES. 0 1/16W 5% RMC1/16 000JATP J24185000 1- A C3
R 6013 CHIP RES. 1k 1/16W 5% RMC1/16 102JATP J24185102 1- A I2
R 6014 CHIP RES. 10k 1/16W 5% RMC1/16 103JATP J24185103 1- A B3
R 6015 CHIP RES. 10k 1/16W 5% RMC1/16 103JATP J24185103 1- A H2
R 6016 CHIP RES. 10k 1/16W 5% RMC1/16 103JATP J24185103 1- A B3
R 6017 CHIP RES. 560 1/16W 5% RMC1/16 561JATP J24185561 1- A B5
R 6018 CHIP RES. 220 1/16W 5% RMC1/16 221JATP J24185221 1- A B5
R 6019 CHIP RES. 10k 1/16W 5% RMC1/16 103JATP J24185103 1- A B3
R 6020 CHIP RES. 4.7k 1/16W 5% RMC1/16 472JATP J24185472 1- A B5
R 6021 CHIP RES. 2.2k 1/16W 5% RMC1/16 222JATP J24185222 1- A B3
R 6022 CHIP RES. 10k 1/16W 5% RMC1/16 103JATP J24185103 1- A I2
R 6023 CHIP RES. 1k 1/16W 5% RMC1/16 102JATP J24185102 1- A H2
R 6024 CHIP RES. 12 1/10W 5% RMC1/10T 120J J24205120 1- A A5
R 6025 CHIP RES. 12 1/10W 5% RMC1/10T 120J J24205120 1- A B5
R 6026 CHIP RES. 10k 1/16W 5% RMC1/16 103JATP J24185103 1- A H2
R 6027 CHIP RES. 0 1/16W 5% RMC1/16 000JATP J24185000 1- A B3
R 6029 CHIP RES. 18 1/16W 5% RMC1/16 180JATP J24185180 1- A B5
R 6030 CHIP RES. 270 1/16W 5% RMC1/16 271JATP J24185271 1- A B6
R 6031 CHIP RES. 270 1/16W 5% RMC1/16 271JATP J24185271 1- A B6
R 6032 CHIP RES. 0 1/16W 5% RMC1/16 000JATP J24185000 1- A B5
R 6033 CHIP RES. 1k 1/16W 5% RMC1/16 102JATP J24185102 1- A A3
R 6035 CHIP RES. 1k 1/16W 5% RMC1/16 102JATP J24185102 1- A B3
R 6036 CHIP RES. 100 1/10W 5% RMC1/10T 101J J24205101 1- A C5
R 6037 CHIP RES. 2.2k 1/16W 5% RMC1/16 222JATP J24185222 1- A B3
R 6038 CHIP RES. 10k 1/16W 5% RMC1/16 103JATP J24185103 1- A A3
R 6039 CHIP RES. 10k 1/16W 5% RMC1/16 103JATP J24185103 1- A B3
R 6040 CHIP RES. 0 1/16W 5% RMC1/16 000JATP J24185000 1- A A3
R 6041 CHIP RES. 1k 1/16W 5% RMC1/16 102JATP J24185102 1- A A2
R 6042 CHIP RES. 4.7k 1/16W 5% RMC1/16 472JATP J24185472 1- A B3
R 6043 CHIP RES. 4.7k 1/16W 5% RMC1/16 472JATP J24185472 1- A B4
R 6044 CHIP RES. 0 1/16W 5% RMC1/16 000JATP J24185000 1- A F5
R 6045 CHIP RES. 0 1/16W 5% RMC1/16 000JATP J24185000 1- A F8
R 6046 CHIP RES. 1k 1/16W 5% RMC1/16 102JATP J24185102 1- A A2
R 6047 CHIP RES. 0 1/16W 5% RMC1/16 000JATP J24185000 1- A F5
R 6048 CHIP RES. 0 1/16W 5% RMC1/16 000JATP J24185000 1- A B2
R 6049 METAL FILM RES. 100 150W 1% RFRF150C100F J22529001 1- A H5
R 6050 CHIP RES. 0 1/16W 5% RMC1/16 000JATP J24185000 1- A F7
R 6051 CHIP RES. 1k 1/16W 5% RMC1/16 102JATP J24185102 1- A A2
R 6052 CHIP RES. 1k 1/16W 5% RMC1/16 102JATP J24185102 1- A F4
R 6053 CHIP RES. 1k 1/16W 5% RMC1/16 102JATP J24185102 1- A F7
R 6054 CHIP RES. 100 1/16W 5% RMC1/16 101JATP J24185101 1- A F4
R 6055 CHIP RES. 100 1/16W 5% RMC1/16 101JATP J24185101 1- A F7
R 6056 CHIP RES. 0 1/16W 5% RMC1/16 000JATP J24185000 1- A A2
R 6057 CHIP RES. 0 1/16W 5% RMC1/16 000JATP J24185000 1- A F4
R 6058 CHIP RES. 0 1/16W 5% RMC1/16 000JATP J24185000 1- A F7
R 6059 CHIP RES. 22k 1/16W 5% RMC1/16 223JATP J24185223 1- A A2
R 6060 CHIP RES. 150 1/10W 5% RMC1/10T 151J J24205151 1- A J6
R 6061 CHIP RES. 0 1/16W 5% RMC1/16 000JATP J24185000 1- A A2
R 6062 CHIP RES. 0 1/16W 5% RMC1/16 000JATP J24185000 1- A A2
R 6063 CHIP RES. 22k 1/16W 5% RMC1/16 223JATP J24185223 1- A A3
R 6064 CHIP RES. 1k 1/16W 5% RMC1/16 102JATP J24185102 1- A J5
R 6065 CHIP RES. 470 1/16W 5% RMC1/16 471JATP J24185471 1- A J5
R 6066 CHIP RES. 12k 1/16W 5% RMC1/16 123JATP J24185123 1- A A3
R 6067 CHIP RES. 0 1/16W 5% RMC1/16 000JATP J24185000 1- A J5
R 6068 CHIP RES. 150 1/10W 5% RMC1/10T 151J J24205151 1- A K5
R 6069 CHIP RES. 1k 1/16W 5% RMC1/16 102JATP J24185102 1- A K6
R 6070 CHIP RES. 220k 1/16W 5% RMC1/16 224JATP J24185224 1- A A3
R 6071 CHIP RES. 680 1/16W 5% RMC1/16 681JATP J24185681 1- A K6
R 6072 CHIP RES. 0 1/16W 5% RMC1/16 000JATP J24185000 1- A K6
R 6073 CHIP RES. 0 1/16W 5% RMC1/16 000JATP J24185000 1- A A3
R 6074 CHIP RES. 220k 1/16W 5% RMC1/16 224JATP J24185224 1- A A3
R 6075 CHIP RES. 1k 1/16W 5% RMC1/16 102JATP J24185102 1- A A3
R 6077 CHIP RES. 1k 1/16W 5% RMC1/16 102JATP J24185102 1- A L7
R 6078 CHIP RES. 15k 1/10W 5% RMC1/10T 153J J24205153 1- A M8
R 6079 CHIP RES. 15k 1/10W 5% RMC1/10T 153J J24205153 1- A M8
O-8
100W PA Unit (Option: Version D)
Parts List
REF DESCRIPTION VALUE V/W TOL. MFR'S DESIG VXSTD P/N VERS. LOT SIDE
LAY ADR
R 6080 CHIP RES. 1k 1/16W 5% RMC1/16 102JATP J24185102 1- A L7
R 6082 CHIP RES. 1k 1/16W 5% RMC1/16 102JATP J24185102 1- A I2
R 6083 CHIP RES. 1k 1/16W 5% RMC1/16 102JATP J24185102 1- A I2
R 6084 CHIP RES. 0 1/16W 5% RMC1/16 000JATP J24185000 1- A B2
R 6085 CHIP RES. 0 1/16W 5% RMC1/16 000JATP J24185000 1- A B2
R 6086 CHIP RES. 2.2k 1/16W 5% RMC1/16 222JATP J24185222 1- A B2
R 6087 CHIP RES. 2.2k 1/16W 5% RMC1/16 222JATP J24185222 1- A B2
R 6088 CHIP RES. 10k 1/16W 5% RMC1/16 103JATP J24185103 1- A B2
R 6089 CHIP RES. 10k 1/16W 5% RMC1/16 103JATP J24185103 1- A B2
R 6090 CHIP RES. 10k 1/16W 5% RMC1/16 103JATP J24185103 1- A A3
R 6091 CHIP RES. 10k 1/16W 5% RMC1/16 103JATP J24185103 1- A B3
R 6092 CHIP RES. 1k 1/16W 5% RMC1/16 102JATP J24185102 1- A A2
R 6093 CHIP RES. 1k 1/16W 5% RMC1/16 102JATP J24185102 1- A B3
R 6095 CHIP RES. 0 1/16W 5% RMC1/16 000JATP J24185000 1- A B3
R 6096 CHIP RES. 0 1/16W 5% RMC1/16 000JATP J24185000 1- A B3
R 6097 CHIP RES. 0 1/16W 5% RMC1/16 000JATP J24185000 1- A B3
R 6098 CHIP RES. 0 1/16W 5% RMC1/16 000JATP J24185000 1- A A3
R 6099 CHIP RES. 0 1/16W 5% RMC1/16 000JATP J24185000 1- A A3
R 6100 CHIP RES. 0 1/16W 5% RMC1/16 000JATP J24185000 1- A A3
R 6101 CHIP RES. 0 1/16W 5% RMC1/16 000JATP J24185000 1- A B3
R 6102 CHIP RES. 0 1/16W 5% RMC1/16 000JATP J24185000 1- A A3
R 6103 CHIP RES. 0 1/16W 5% RMC1/16 000JATP J24185000 1- A A3
R 6104 CHIP RES. 0 1/16W 5% RMC1/16 000JATP J24185000 1- A A3
R 6105 CHIP RES. 0 1/16W 5% RMC1/16 000JATP J24185000 1- A B3
R 6106 CHIP RES. 0 1/16W 5% RMC1/16 000JATP J24185000 1- A B2
R 6107 CHIP RES. 0 1/16W 5% RMC1/16 000JATP J24185000 1- A B3
R 6108 CHIP RES. 0 1/16W 5% RMC1/16 000JATP J24185000 1- A B3
R 6109 CHIP RES. 0 1/16W 5% RMC1/16 000JATP J24185000 1- A B3
R 6110 CHIP RES. 0 1/16W 5% RMC1/16 000JATP J24185000 1- A B2
R 6111 CHIP RES. 0 1/16W 5% RMC1/16 000JATP J24185000 1- A B2
R 6112 CHIP RES. 0 1/16W 5% RMC1/16 000JATP J24185000 1- A B3
R 6113 CHIP RES. 0 1/16W 5% RMC1/16 000JATP J24185000 1- A B3
R 6115 CHIP RES. 0 1/16W 5% RMC1/16 000JATP J24185000 1- A J6
R 6116 CHIP RES. 22k 1/16W 5% RMC1/16 223JATP J24185223 1- A A3
R 6118 CHIP RES. 3.3k 1/16W 5% RMC1/16 332JATP J24185332 1- A E4
R 6119 CHIP RES. 3.3k 1/16W 5% RMC1/16 332JATP J24185332 1- A E7
R 6120 CHIP RES. 150 1/10W 5% RMC1/10T 151J J24205151 1- A L6
R 6121 CHIP RES. 1k 1/16W 5% RMC1/16 102JATP J24185102 1- A L7
R 6122 CHIP RES. 0 1/16W 5% RMC1/16 000JATP J24185000 1- A A3
R 6123 CHIP RES. 0 1/16W 5% RMC1/16 000JATP J24185000 1- A A3
R 6124 CHIP RES. 0 1/16W 5% RMC1/16 000JATP J24185000 1- A A3
R 6125 CHIP RES. 0 1/16W 5% RMC1/16 000JATP J24185000 1- A A3
R 6126 CHIP RES. 0 1/16W 5% RMC1/16 000JATP J24185000 1- A A3
R 6127 CHIP RES. 0 1/16W 5% RMC1/16 000JATP J24185000 1- A A3
R 6128 CHIP RES. 0 1/16W 5% RMC1/16 000JATP J24185000 1- A A3
R 6129 CHIP RES. 0 1/16W 5% RMC1/16 000JATP J24185000 1- A A3
R 6130 CHIP RES. 0 1/16W 5% RMC1/16 000JATP J24185000 1- A L3
R 6131 CHIP RES. 0 1/16W 5% RMC1/16 000JATP J24185000 1- A L6
R 6132 CHIP RES. 0 1/16W 5% RMC1/16 000JATP J24185000 1- A L7
R 6133 CHIP RES. 0 1/16W 5% RMC1/16 000JATP J24185000 1- A L8
R 6134 CHIP RES. 0 1/16W 5% RMC1/16 000JATP J24185000 1- A B3
R 6135 CHIP RES. 0 1/16W 5% RMC1/16 000JATP J24185000 1- A L2
R 6136 CHIP RES. 0 1/16W 5% RMC1/16 000JATP J24185000 1- A L2
R 6137 CHIP RES. 0 1/16W 5% RMC1/16 000JATP J24185000 1- A J6
R 6138 CHIP RES. 0 1/16W 5% RMC1/16 000JATP J24185000 1- A K5
TH6001 THERMISTOR 157-203-55009TP G9090045 1- A G2
P-1
RELAY Unit (Option)
Circuit Diagram
P-2
RELAY Unit (Option)
Parts Layout
BADCFE G
1
3
2
4
H
2SD1664 (DA)
(Q8002, 8006)
DTC144EE (26)
(Q8001, 8004, 8008)
FMG2 (G2)
(Q8005)
LM2902
(Q8003)
2SB1201S
(Q8007)
badcfeg
1
3
2
4
h
C30T04QH
(D8002, 8003)
HZM9.1NB3 (913)
(D6006)
Side B
Side A
P-3
RELAY Unit (Option)
Parts List
REF DESCRIPTION VALUE V/W TOL. MFR'S DESIG VXSTD P/N VERS. LOT SIDE
LAY ADR
PCB with Components CS1867001
Printed Circuit Board AAE21U000 FR0144000 1-
C 8001 CHIP CAP. 100pF 50V CH GRM1882C1H101JA01D K22174235 1- A B1
C 8002 CHIP CAP. 100pF 50V CH GRM1882C1H101JA01D K22174235 1- A C2
C 8003 CHIP CAP. 100pF 50V CH GRM1882C1H101JA01D K22174235 1- A C3
C 8004 CHIP CAP. 0.01uF 25V B GRM39B103M25PT K22144802 1- A B1
C 8005 CHIP CAP. 0.01uF 25V B GRM39B103M25PT K22144802 1- A C2
C 8006 CHIP CAP. 0.01uF 25V B GRM39B103M25PT K22144802 1- A C3
C 8007 CHIP CAP. 0.001uF 50V B GRM188B11H102KA01D K22174809 1- A F3
C 8008 CHIP CAP. 0.001uF 50V B GRM188B11H102KA01D K22174809 1- A F3
C 8009 CHIP CAP. 0.001uF 50V B GRM188B11H102KA01D K22174809 1- A F3
C 8010 CHIP CAP. 0.001uF 50V B GRM188B11H102KA01D K22174809 1- A F3
C 8011 CHIP CAP. 0.001uF 50V B GRM188B11H102KA01D K22174809 1- A F3
C 8012 CHIP CAP. 0.001uF 50V B GRM188B11H102KA01D K22174809 1- A F3
C 8013 CHIP CAP. 0.001uF 50V B GRM188B11H102KA01D K22174809 1- A F3
C 8014 CHIP CAP. 0.001uF 50V B GRM188B11H102KA01D K22174809 1- A F3
C 8015 CHIP CAP. 0.001uF 50V B GRM188B11H102KA01D K22174809 1- A F3
C 8016 CHIP CAP. 0.001uF 50V B GRM188B11H102KA01D K22174809 1- A F3
C 8017 CHIP CAP. 1uF 50V B GRM42-2B105K50PT K22175801 1- A B1
C 8018 CHIP CAP. 1uF 50V B GRM42-2B105K50PT K22175801 1- A C2
C 8019 CHIP CAP. 1uF 50V B GRM42-2B105K50PT K22175801 1- A C3
C 8020 AL.ELECTRO.CAP. 100uF 25V RJ3-25V101MF3#-T2 K46140010 1- A B2
C 8021 CHIP CAP. 0.01uF 25V B GRM39B103M25PT K22144802 1- A B3
C 8022 CHIP CAP. 0.001uF 50V B GRM188B11H102KA01D K22174809 1- A F3
C 8023 CHIP CAP. 0.001uF 50V B GRM188B11H102KA01D K22174809 1- A F3
C 8024 CHIP CAP. 0.001uF 50V B GRM188B11H102KA01D K22174809 1- A F3
C 8025 CHIP CAP. 0.001uF 50V B GRM188B11H102KA01D K22174809 1- A F3
C 8026 CHIP CAP. 0.001uF 50V B GRM188B11H102KA01D K22174809 1- A F3
C 8027 CHIP CAP. 0.001uF 50V B GRM188B11H102KA01D K22174809 1- A F3
C 8028 CHIP CAP. 0.001uF 50V B GRM188B11H102KA01D K22174809 1- A F3
C 8029 CHIP CAP. 0.001uF 50V B GRM188B11H102KA01D K22174809 1- A F3
C 8030 CHIP CAP. 0.001uF 50V B GRM188B11H102KA01D K22174809 1- A F3
C 8031 CHIP CAP. 0.001uF 50V B GRM188B11H102KA01D K22174809 1- A G3
C 8032 CHIP CAP. 0.001uF 50V B GRM188B11H102KA01D K22174809 1- A G3
C 8033 CHIP CAP. 0.001uF 50V B GRM188B11H102KA01D K22174809 1- A G3
C 8034 CHIP CAP. 0.001uF 50V B GRM188B11H102KA01D K22174809 1- A G3
C 8035 CHIP CAP. 0.001uF 50V B GRM188B11H102KA01D K22174809 1- A G3
C 8036 CHIP CAP. 1uF 50V B GRM42-2B105K50PT K22175801 1- A G3
C 8037 CHIP CAP. 1uF 50V B GRM42-2B105K50PT K22175801 1- A G3
C 8038 CHIP CAP. 1uF 50V B GRM42-2B105K50PT K22175801 1- A G2
C 8039 CHIP CAP. 1uF 50V B GRM42-2B105K50PT K22175801 1- A G2
C 8040 CHIP CAP. 1uF 50V B GRM42-2B105K50PT K22175801 1- A G3
C 8041 CHIP CAP. 0.01uF 25V B GRM39B103M25PT K22144802 1- A G3
C 8042 AL.ELECTRO.CAP. 100uF 25V RJ3-25V101MF3#-T2 K46140010 1- A H1
C 8043 AL.ELECTRO.CAP. 100uF 25V RJ3-25V101MF3#-T2 K46140010 1- A G1
C 8044 CHIP CAP. 0.01uF 25V B GRM39B103M25PT K22144802 1- A H2
C 8045 CHIP CAP. 0.01uF 25V B GRM39B103M25PT K22144802 1- A H2
C 8046 CHIP CAP. 0.01uF 25V B GRM39B103M25PT K22144802 1- A H1
C 8047 CHIP CAP. 0.01uF 25V B GRM39B103M25PT K22144802 1- A G1
C 8048 CHIP CAP. 100pF 50V CH GRM1882C1H101JA01D K22174235 1- A H2
C 8049 CHIP CAP. 100pF 50V CH GRM1882C1H101JA01D K22174235 1- A H2
C 8050 CHIP CAP. 100pF 50V CH GRM1882C1H101JA01D K22174235 1- A H1
C 8051 CHIP CAP. 100pF 50V CH GRM1882C1H101JA01D K22174235 1- A G1
C 8052 CHIP CAP. 100pF 50V CH GRM1882C1H101JA01D K22174235 1- A H2
C 8053 CHIP CAP. 0.01uF 25V B GRM39B103M25PT K22144802 1- A H2
C 8054 CHIP TA.CAP. 10uF 25V TEMSVC1E106M12R K78140021 1- A G3
C 8055 CHIP CAP. 100pF 50V CH GRM1882C1H101JA01D K22174235 1- A H3
C 8056 CHIP CAP. 0.01uF 25V B GRM39B103M25PT K22144802 1- A H3
C 8057 AL.ELECTRO.CAP. 100uF 25V RJ3-25V101MF3#-T2 K46140010 1- A H3
C 8058 CHIP CAP. 10pF 50V CH GRM1882C1H100JA01D K22174211 1- A B1
D 8001 DIODE DSA3A1 G2090445 1- A A3
D 8002 DIODE C30T04QH-TE24L G2070896 1- A D2
D 8003 DIODE C30T04QH-TE24L G2070896 1- A D3
D 8004 DIODE BAS316 G2070716 1- A B1
D 8005 DIODE BAS316 G2070716 1- A B2
D 8006 DIODE HZM9.1NB3TR G2070404 1- A B2
D 8007 DIODE 1SS355 TE-17 G2070470 1- A G3
D 8008 DIODE 1SS355 TE-17 G2070470 1- A G3
D 8009 DIODE 1SS355 TE-17 G2070470 1- A G3
D 8010 DIODE 1SS355 TE-17 G2070470 1- A G3
D 8011 DIODE 1SS355 TE-17 G2070470 1- A H2
D 8012 DIODE 1SS355 TE-17 G2070470 1- A H2
D 8013 LED SML-210VTT86 G2070768 1- A E3
P-4
RELAY Unit (Option)
Parts List
REF DESCRIPTION VALUE V/W TOL. MFR'S DESIG VXSTD P/N VERS. LOT SIDE
LAY ADR
D 8014 DIODE BAS316 G2070716 1- A F2
D 8015 DIODE UDZS TE-17 5.6B G2070910 1- A G2
F 8001 CHIP FUSE 1A R429 001 Q0000089 1- A A3
F 8002 CHIP FUSE 15A 451 015.MR 15A Q0000105 1- A F3
J 8001 TERMINAL Y106 S5000179 1- A A2
J 8002 TERMINAL Y106 S5000179 1- A C2
J 8003 TERMINAL Y106 S5000179 1- A C3
J 8004 CONNECTOR IL-Y-11P-S15T2-E P0090653 1- A F3
J 8005 CONNECTOR IL-Y-11P-S15T2-E P0090653 1- A F3
J 8006 CONNECTOR IL-Y-6P-S15T2-EF P0091028 1- A G3
J 8007 CONNECTOR IL-Y-3P-S15T2-EF P0090644 1- A H2
J 8008 CONNECTOR B2B-EH P0090666 1- A G1
J 8009 CONNECTOR B2B-EH P0090666 1- A G1
J 8010 CONNECTOR IL-Y-3P-S15T2-EF P0090644 1- A H3
Q 8001 TRANSISTOR DTC144EE TL G3070075 1- A D2
Q 8002 TRANSISTOR 2SD1664 T100 Q G3416647Q 1- A B3
Q 8003 IC LM2902PWR G1094009 1- A G3
Q 8004 TRANSISTOR DTC144EE TL G3070075 1- A G2
Q 8005 TRANSISTOR FMG2 T148 G3070015 1- A H2
Q 8006 TRANSISTOR 2SD1664 T100 Q G3416647Q 1- A H3
Q 8007 TRANSISTOR 2SB1201S-TL G3070195 1- A F2
Q 8008 TRANSISTOR DTC144EE TL G3070075 1- A G2
R 8001 CEMENT RES. 5.6 5W 10% ERF-5AK5R6 J30376569 1- A C3
R 8003 CHIP RES. 22 1/10W 5% RMC1/10T 220J J24205220 1- A B2
R 8004 CHIP RES. 22 1/10W 5% RMC1/10T 220J J24205220 1- A B2
R 8005 CHIP RES. 150k 1/16W 5% RMC1/16 154JATP J24185154 1- A B3
R 8006 CHIP RES. 10k 1/16W 5% RMC1/16 103JATP J24185103 1- A B2
R 8007 CHIP RES. 22k 1/16W 5% RMC1/16 223JATP J24185223 1- A B3
R 8008 CHIP RES. 18k 1/16W 1% RMC1/16 183FTP J24183183 1- A G2
R 8009 CHIP RES. 100k 1/16W 1% RMC1/16 104FTP J24183104 1- A G2
R 8010 CHIP RES. 18k 1/16W 1% RMC1/16 183FTP J24183183 1- A G2
R 8011 CHIP RES. 100k 1/16W 1% RMC1/16 104FTP J24183104 1- A G2
R 8012 CHIP RES. 10k 1/16W 5% RMC1/16 103JATP J24185103 1- A G2
R 8013 CHIP RES. 68k 1/16W 5% RMC1/16 683JATP J24185683 1- A G2
R 8014 CHIP RES. 10k 1/16W 5% RMC1/16 103JATP J24185103 1- A G2
R 8015 CHIP RES. 68k 1/16W 5% RMC1/16 683JATP J24185683 1- A G2
R 8016 CHIP RES. 10k 1/16W 5% RMC1/16 103JATP J24185103 1- A G2
R 8017 CHIP RES. 10k 1/16W 5% RMC1/16 103JATP J24185103 1- A G3
R 8018 CHIP RES. 10k 1/16W 5% RMC1/16 103JATP J24185103 1- A H2
R 8019 CHIP RES. 10k 1/16W 5% RMC1/16 103JATP J24185103 1- A G3
R 8020 CHIP RES. 100k 1/16W 5% RMC1/16 104JATP J24185104 1- A G3
R 8021 CHIP RES. 100k 1/16W 5% RMC1/16 104JATP J24185104 1- A G2
R 8022 CHIP RES. 18 1/2W 5% RMC1/2 180JTE J24275180 1- A G2
R 8023 CHIP RES. 18 1/2W 5% RMC1/2 180JTE J24275180 1- A G2
R 8024 CHIP RES. 33k 1/16W 5% RMC1/16 333JATP J24185333 1- A G2
R 8025 CHIP RES. 5.6k 1/16W 5% RMC1/16 562JATP J24185562 1- A G2
R 8026 CHIP RES. 33k 1/16W 5% RMC1/16 333JATP J24185333 1- A H2
R 8027 CHIP RES. 33k 1/16W 5% RMC1/16 333JATP J24185333 1- A H2
R 8028 CHIP RES. 10k 1/16W 5% RMC1/16 103JATP J24185103 1- A H2
R 8029 CHIP RES. 33k 1/16W 5% RMC1/16 333JATP J24185333 1- A H2
R 8030 CHIP RES. 560 1/16W 5% RMC1/16 561JATP J24185561 1- A E3
R 8031 CHIP RES. 1k 1/16W 5% RMC1/16 102JATP J24185102 1- A G3
R 8032 CHIP RES. 1k 1/4W 5% RMC1/4 102JATP J24245102 1- A G2
RL8001 RELAY DC12V ACP131 DC12V M1190152 1- A C2
RL8002 RELAY DC12V ACP131 DC12V M1190152 1- A C3
S 8001 SLIDE SWITCH SSSS912N-2A-OR N6090094 1- A A1
TP8001 TERMINAL TP-K IPS-1136 Q5000050 1- A G3
Copyright 2006
VERTEX STANDARD CO., LTD.
All rights reserved
No portion of this manual
may be reproduced without
the permission of
VERTEX STANDARD CO., LTD.

Navigation menu
