User Manual: Waldorf 800 series

Open the PDF directly: View PDF PDF.
Page Count: 64

2
800 SERIES BURNER 10
WHAT’S NEW 11
COOKTOPS 15
INDUCTION COOKTOP 22
OVEN RANGES 25
TARGET TOPS 31
GRIDDLES 35
CHARGRILLS 42
SALAMANDERS 44
FRYERS 47

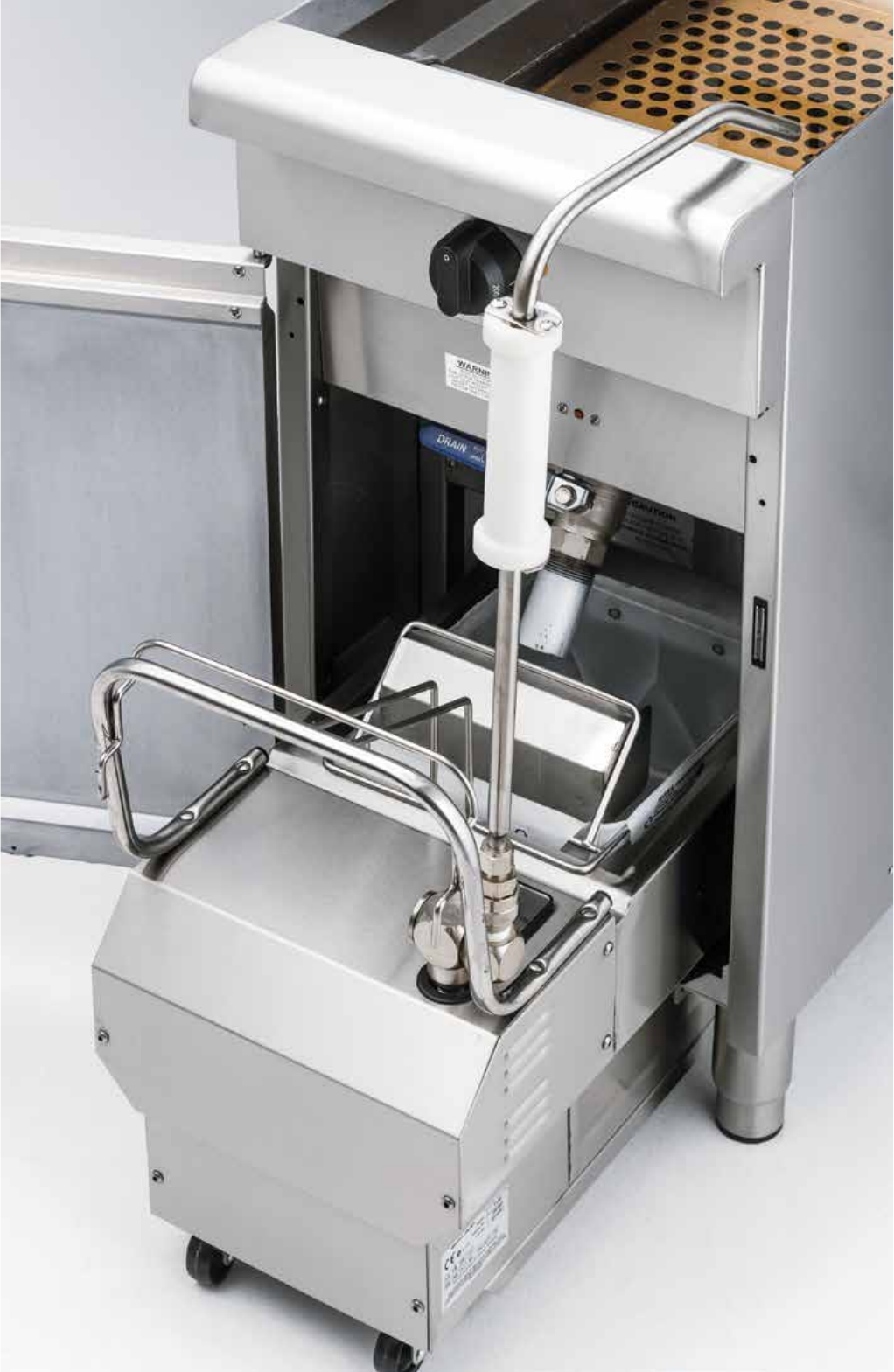

FILTAMAX 51
BRATT PANS 52
PASTA COOKER 54
BENCH TOPS 56
3
THE WALDORF 800 SERIES
CONTINUES A TRADITION OF
BULLETPROOF PERFORMANCE
AND DEPENDABILITY WITH
A RANGE OF EUROPEAN
INSPIRED EQUIPMENT THAT
REDEFINES HOW THE ULTIMATE
KITCHEN SHOULD BE.
4
AN EXPANDED RANGE OF
EQUIPMENT MEANS MORE
OPTIONS AND UNLIMITED
CREATIVE POSSIBILITIES.
Cleaner lines and consistency in modular design across the entire range enable
units to fit together to create an almost seamless workspace. The industry preferred
800mm depth ensures ecient use of space, while easily accommodating the
advanced performance features that define the 800 Series.
YOUR WORLD IS NOW FLATTER.
The new Waldorf 800 Series low back units deliver a seamless solution for the
island suite kitchen. Create the layout you desire, mix and match tops and bottoms
for your perfect result.
8
9
MORE POWER TO DESIGN
YOUR OWN WORKSPACE.
THE CREATIVE POSSIBILITIES
ARE ALMOST ENDLESS.
Need a Oven to go under that Griddle? A Gas Cooktop with storage
underneath? Are you desperate for extra refrigeration? With a bigger
range of tops and bottoms available as individual units, the 800 Series
enables you to configure your kitchen just about any way you like.
10
MORE POWER TO COOK.
The advanced performance made possible by the open burner design of the
800 Series gives the workhorse in your kitchen serious power to burn.
The 28MJ burners allow precise heat adjustment across the entire spectrum
(from high to low heat/simmer), providing just the right amount of heat,
whatever the cooking task. Constructed from heavy-duty cast iron, with a
forged brass cap for even flame spread, the non-clogging burner design
ensures that continuous performance is never compromised.
Flame failure protection is fitted as standard with burner pilots optional. Robust gas controls
are easy to use and designed to withstand the rigours of a busy commercial kitchen.
Heavy-duty pot supports.
Heavyweight iron castings and full vitreous enamel finish add extra
durability to the 800 Series. Levelled tops allow easy movement of
pans between burners, while extended pot support fingers provide
greater stability for small pan use.

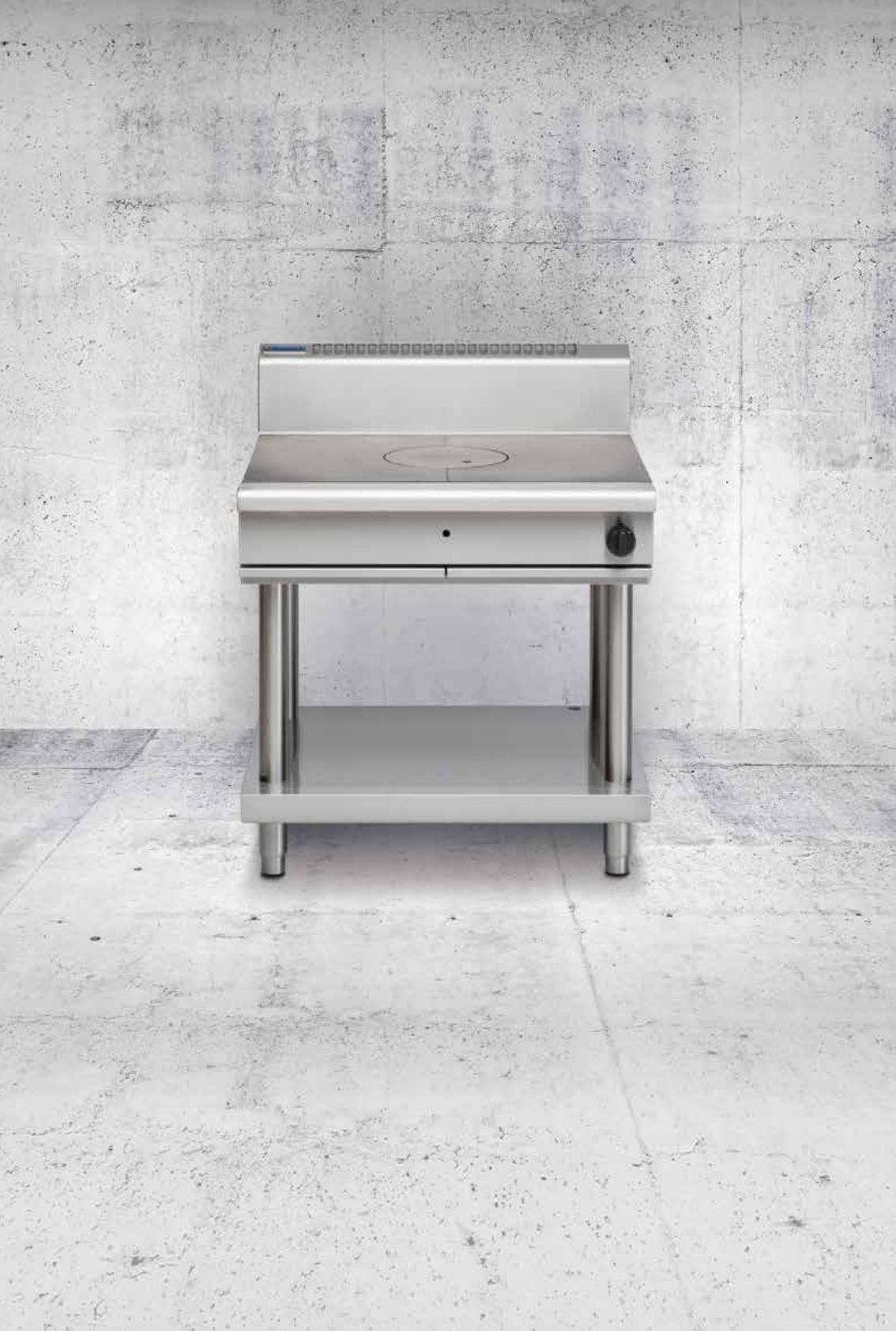

Simmer plates spread the heat.
A solid top simmer plate distributes heat evenly and provides
excellent heat retention. It sits at the same level and is easily
interchangeable with pot supports on all 800 Series Gas Cooktops.
11

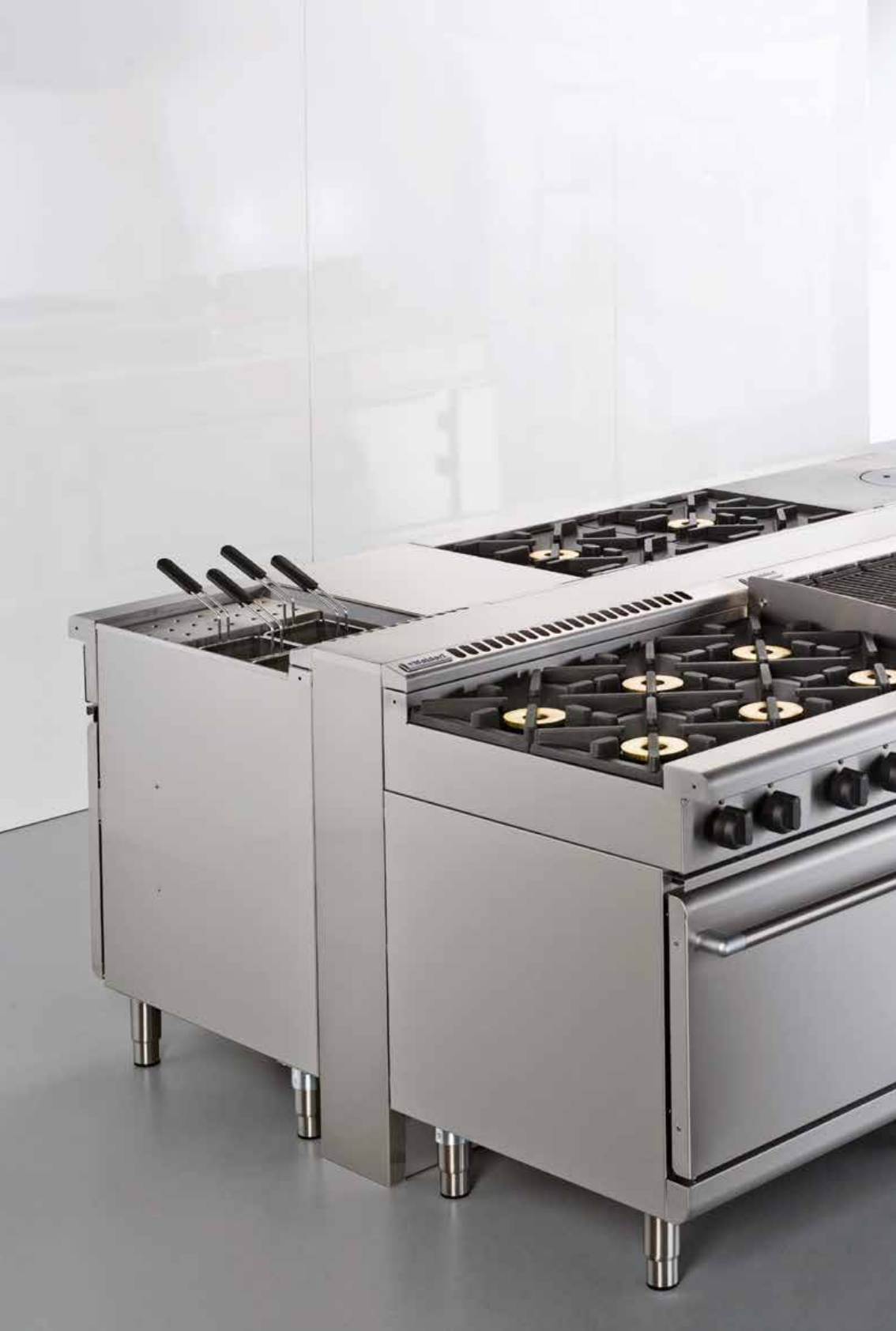

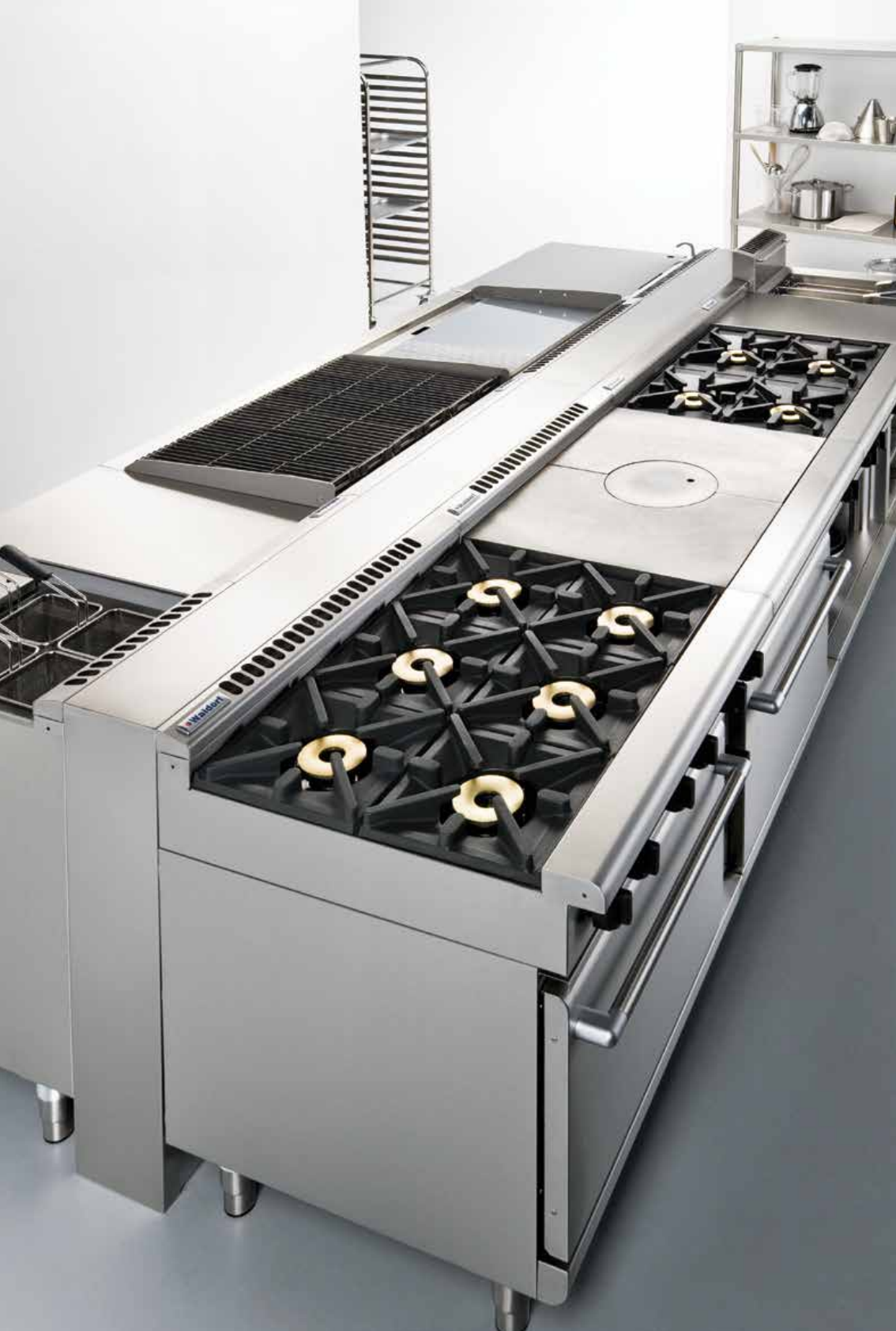

Smooth operation.
On its own, or as part of a whole cooking line,
every unit in the 800 Series is designed to
look fantastic. The same design philosophy
has been applied across all units to create
a streamlined, consistent appearance, and
increase the amount of useable work surface.
Continuous workspaces make transferring pots
and pans between units much easier.
MORE OF EVERYTHING
MEANS MORE FLEXIBILITY.
With an expanded range of products and features, the 800 Series can be
configured to suit virtually any application.
New products include:
• Low back height option on all units, ideal for island suite applications
• 450mm gas Chargrill - bench, leg stand and cabinet base models
• 400mm single pan gas Fryer
• 900mm 4 burner Cooktops - available with leg stand, cabinet base orrefrigeratedbase
• 450mm 2 burner Cooktops - leg stand or cabinet base
• 900mm 4 burner Ranges - gas or electric, static or convection ovens
• 450mm electric Pasta Cooker - 7kW or 10.5kW options

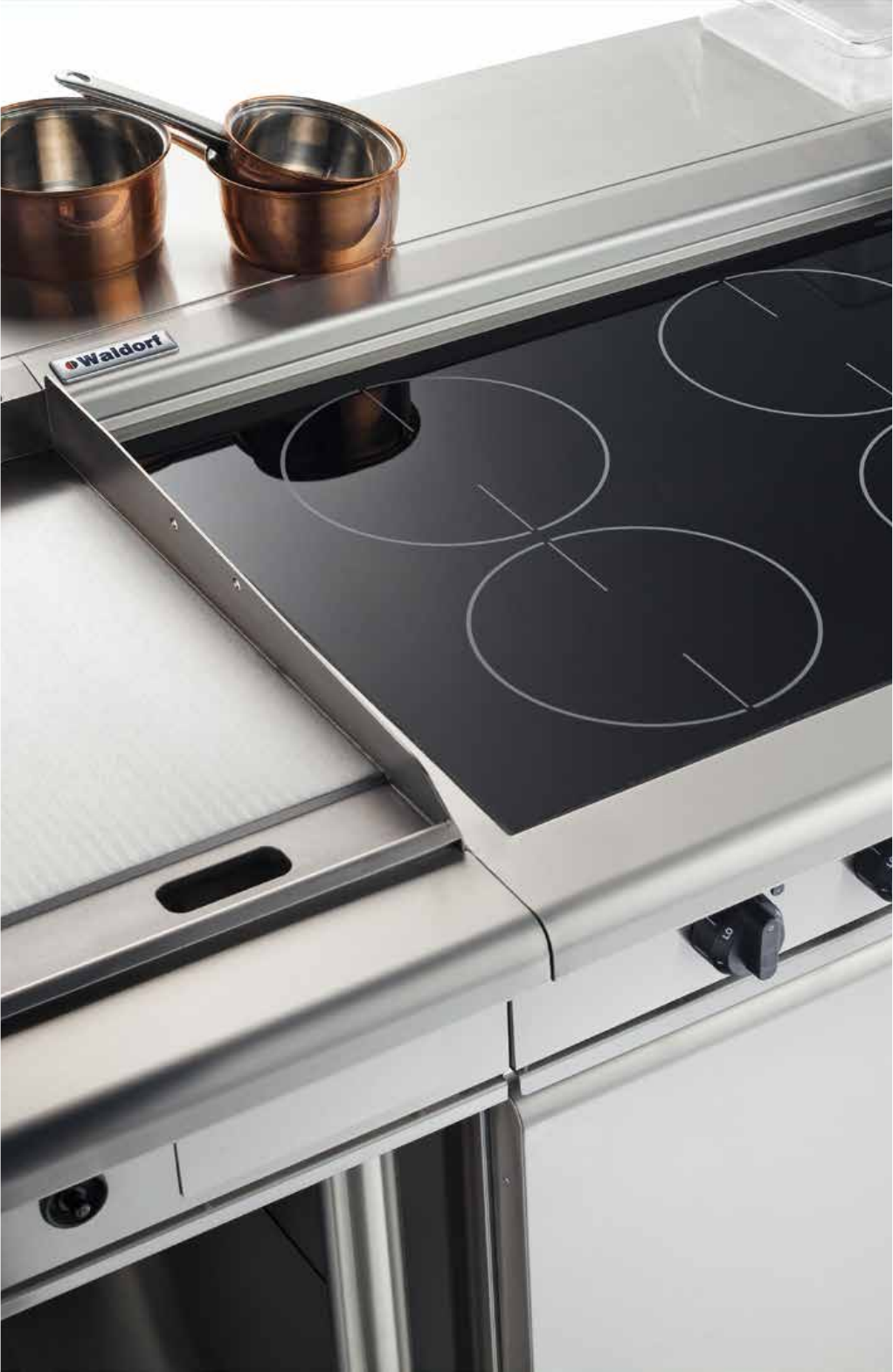

• 450 and 900mm Induction Cooktops available with cabinet base
• Adjustable electric Salamander
• Open cabinet bases in 450, 600, 900 or 1200mm
• Modular stainless steel preparation benches in 200, 300, 450, 600, and 900mm
Gas and electric Cooktops, Target Tops and Griddles can be ordered in the following options:
• Bench mounted
• Leg stand with shelf
• Cabinet with optional racking
12
OUR ENVIRONMENT.
All Moat technology is both a product of its environment
and a product for the environment. That means that
whether the design, development or construction stage
every detail is checked to ensure that our equipment is
as energy ecient and earth-friendly as possible. We will
continue to use every tool at our disposal to work towards
reducing environmental impact even further. This way our
products can be enjoyed by not just those who use them,
but everyone.
13
Robust as always.
All 800 Series units are finished in thick gauge 304
grade stainless steel. Fully framed doors incorporate
a new robust hinging system. All our ranges are built
on a full galvanized steel chassis construction. And
the superb finishing that has become the hallmark of
Waldorf products includes fully welded seams (including
all bullnoses) and polished stainless steel surfaces.

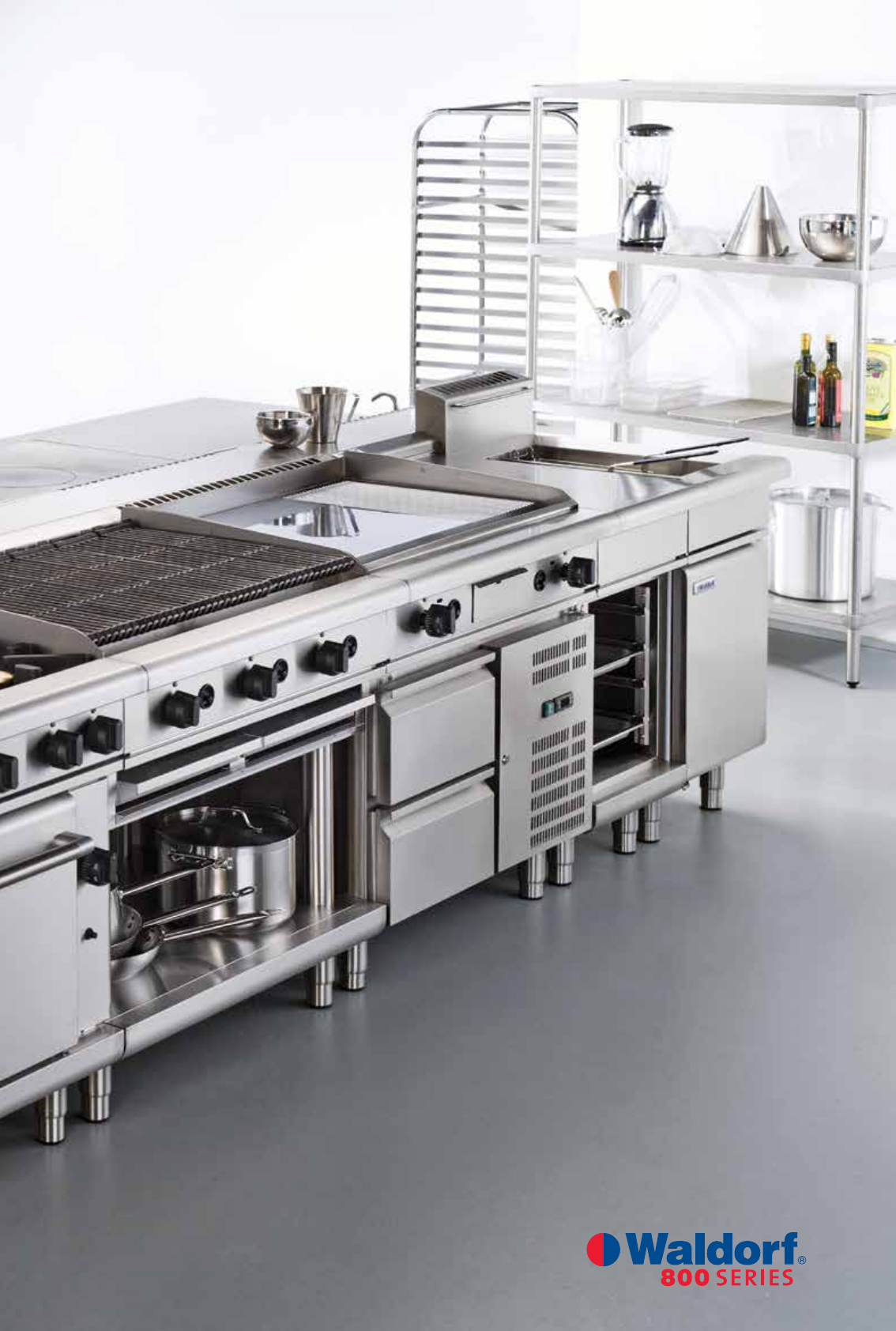

Here comes the chill factor.
The addition of refrigeration units to the 800 Series
range means food can be contained and cooked in
one place. Cooktops, Griddles and Target Tops can be
matched with 900 or 1200mm gastronorm refrigeration
bases, available in a range of door/drawer combinations.
All units accept 1/1 gastronorm sizing.
Waldorf refrigeration units are rated for tropical
temperatures up to 40°C and have a holding
temperature of -2 to + 8°C. A digital temperature control
and an automatic defrosting and condensate heater are
standard on all units.
How do you like your griddle?
Waldorf Cooktop griddle sections can now be fitted
anywhere within your Gas Cooktop layout. They are
available in 300, 600 and 900mm sections, with
smooth or ribbed surfaces, or a mixture of both.
Cleaning made easier.
The 800 Series range is designed for labour saving,
easy cleaning. Rounded corners, internal and external
edges enable easier wipe down and hygiene control.
Streamlined surfaces make for eortless wiping down
of a whole cooking line.
Service while you cook.
The 800 Series design allows full service and
maintenance to be carried out while units are installed
within the cooking line. This minimises the need to shut
down a whole line to service one unit.
14
15
COOKTOPS.
Simplicity of operation and augmented performance are the key
features defining Waldorf’s range of Gas and Electric Cooktops.
Gas Cooktops feature heavy-duty, vitreous enamel pot stands with extended finger
supports that allow pots and pans to slide easily from one burner to another, while
their advanced open burners generate an impressive 28MJ of heat. The electric
versions oer a choice of heavy-duty, 2.4kW radiant elements, or 2kW solid plates.
Both versions of Cooktop provide flexibility in terms of the type of Cooktop surface
that can be used. Hot top simmer plates can be incorporated into the Gas Cooktop,
while both gas and electric can accommodate 300, 600 or 900mm griddle plates.
16
GAS COOKTOPS.
Standard Features.
Heavy-duty 304 grade stainless steel finish
28MJ rated open burners
2, 4, 6 or 8 burner Cooktop configuration
Flame failure protection on all burners
Removable heavy-duty cast iron burners and
vitreous enamel pot stands
Heavy-duty reinforced control knobs
Griddles fitted with push-button piezo ignition
12mm griddle plate
Mounted on leg stand with suite matching shelf
Adjustable feet and 2 additional rollers
Easy clean, installation and service
Options.
Flame failure with standing pilot
Choice of griddle surface – smooth, ribbed, or both
Bench mounted
Gastronorm storage cabinet underneath
Gastronorm refrigeration module underneath
Castor or plinth mounting
Accessories.
Solid top simmer plates
Mobile castor kit (set of 4 castors, 2 lockable)
Joining caps
17
RN8200G-B
RN8203G-B
RN8450G-CB
RN8450G-LS
RN8400G-B
RN8400G-CB
RN8400G-LS
RN8403G-B
RN8403G-CB
RN8403G-LS
RN8406G-B
RN8406G-CB
RN8406G-LS
RN8900G-CB
RN8900G-LS
RN8900G-RB
300MM
WALDORF 8200 SERIES
2 BURNER COOKTOP
450MM
WALDORF 8450 SERIES
2 BURNER COOKTOP
600MM
WALDORF 8400 SERIES
4 BURNER COOKTOP
900MM
WALDORF 8900 SERIES
4 BURNER COOKTOP
BENCH MODEL ONLY
CABINET BASE MODEL
LEG STAND MODEL
BENCH MODEL
CABINET BASE MODEL
LEG STAND MODEL
CABINET BASE MODEL
LEG STAND MODEL
REFRIGERATED BASE MODEL
Bench models
W 300mm, D 805mm, H 315mm
Incl. splashback 530mm
Incl. low back (RNL) 372mm
All models
W 450mm, D 805mm, H 915mm
Incl. splashback 1130mm
Incl. low back (RNL) 972mm
Bench models
W 600mm, D 805mm, H 315mm
Incl. splashback 530mm
Incl. low back (RNL) 372mm
All other models
W 600mm, D 805mm, H 915mm
Incl. splashback 1130mm
Incl. low back (RNL) 972mm
All models
W 900mm, D 805mm, H 915mm
Incl. splashback 1130mm
Incl. low back (RNL) 972mm
Model CodesHob VariationsDimensions Model OptionsGAS COOKTOPS
RN8200G-B
RN8450G-CB
RN8400G-LS
RN8900G-LS
Ask for a detailed specification sheet on any of the Waldorf 800 Series Cooktops outlining construction, features and installation information.
18
RN8600G-B
RN8600G-CB
RN8600G-LS
RN8600G-RB
RN8603G-B
RN8603G-CB
RN8603G-LS
RN8603G-RB
RN8606G-B
RN8606G-CB
RN8606G-LS
RN8606G-RB
RN8609G-B
RN8609G-CB
RN8609G-LS
RN8609G-RB
900MM
WALDORF 8600 SERIES
6 BURNER COOKTOP
BENCH MODEL
CABINET BASE MODEL
LEG STAND MODEL
REFRIGERATED BASE MODEL
Bench models
W 900mm, D 805mm, H 315mm
Incl. splashback 530mm
Incl. low back (RNL) 372mm
All other models
W 900mm, D 805mm, H 915mm
Incl. splashback 1130mm
Incl. low back (RNL) 972mm
Model CodesHob VariationsDimensions Model OptionsGAS COOKTOPS
RN8603G-LS
RN8800G-B
RN8800G-CB
RN8800G-LS
RN8800G-RB
RN8803G-B
RN8803G-CB
RN8803G-LS
RN8803G-RB
RN8806G-B
RN8806G-CB
RN8806G-LS
RN8806G-RB
RN8809G-B
RN8809G-CB
RN8809G-LS
RN8809G-RB
1200MM
WALDORF 8800 SERIES
8 BURNER COOKTOP
BENCH MODEL
CABINET BASE MODEL
LEG STAND MODEL
REFRIGERATED BASE MODEL
Bench models
W 1200mm, D 805mm, H 315mm
Incl. splashback 530mm
Incl. low back (RNL) 372mm
All other models
W 1200mm, D 805mm, H 915mm
Incl. splashback 1130mm
Incl. low back (RNL) 972mm
RN8800G-RB
Ask for a detailed specification sheet on any of the Waldorf 800 Series Cooktops outlining construction, features and installation information.
19
ELECTRIC COOKTOPS.
Standard Features.
Heavy-duty 304 stainless steel finish
2.4kW radiant elements
2, 4 or 6 hot plate size configuration
Six temperature settings with simmer setting
Heavy-duty reinforced control knobs
12mm griddle plate
Mounted on leg stand with suite matching shelf
Adjustable feet and 2 additional rollers
Easy clean, installation and service
Options.
2kW solid plates
Choice of griddle surface – smooth, ribbed, or both
Bench mounted
Gastronorm storage cabinet underneath
Gastronorm refrigeration module underneath
Castor or plinth mounting
Accessories.
Mobile castor kit (set of 4 castors, 2 lockable)
Joining caps
20
RN8200E-B
RN8203E-B
RN8400E-B
RN8400E-CB
RN8400E-LS
RN8403E-B
RN8403E-CB
RN8403E-LS
RN8406E-B
RN8406E-CB
RN8406E-LS
300MM
WALDORF 8200 SERIES
2 ELEMENT COOKTOP
600MM
WALDORF 8400 SERIES
4 ELEMENT COOKTOP
BENCH MODEL ONLY
BENCH MODEL
CABINET BASE MODEL
LEG STAND MODEL
Bench models
W 300mm, D 805mm, H 315mm
Incl. splashback 530mm
Incl. low back (RNL) 372mm
Bench models
W 600mm, D 805mm, H 315mm
Incl. splashback 530mm
Incl. low back (RNL) 372mm
All other models
W 600mm, D 805mm, H 915mm
Incl. splashback 1130mm
Incl. low back (RNL) 972mm
Model CodesHob VariationsDimensions Model OptionsELECTRIC COOKTOPS
RN8200E-B
RN8400E-LS
RN8600E-B
RN8600E-CB
RN8600E-LS
RN8600E-RB
RN8603E-B
RN8603E-CB
RN8603E-LS
RN8603E-RB
RN8606E-B
RN8606E-CB
RN8606E-LS
RN8606E-RB
RN8609E-B
RN8609E-CB
RN8609E-LS
RN8609E-RB
900MM
WALDORF 8600 SERIES
6 ELEMENT COOKTOP
BENCH MODEL
CABINET BASE MODEL
LEG STAND MODEL
REFRIGERATED BASE MODEL
Bench models
W 900mm, D 805mm, H 315mm
Incl. splashback 530mm
Incl. low back (RNL) 372mm
All other models
W 900mm, D 805mm, H 915mm
Incl. splashback 1130mm
Incl. low back (RNL) 972mm
RN8600E-LS
Ask for a detailed specification sheet on any of the Waldorf 800 Series Cooktops outlining construction, features and installation information.
21
22
The new Waldorf range of Induction Cooktops
utilise large 270mm induction zones that
automatically detect various sized cooking pans.
The cooking zone switches o when the pan is removed.
Each induction model is equipped with either two or
four 5kW heavy-duty induction zones that have variable
power controls for each cooking zone. The overall
construction is heavy-duty 6mm thick ceramic glass,
enabling pans to glide across the cooking surface. All
Induction Cooktops are supplied with suite matching
modular cabinet bases with doors and adjustable feet as
standard.
With a large control knob for each induction zone with a
(green) indicator light including pan detection indication.
Waldorf Induction Cooktops oer the additional benefits
of reduced energy consumption and lowering the amount
of latent heat in the cooking area.
Standard Features.
Heavy-duty 304 stainless steel finish
5kW rated induction cooking zones
270mm diameter induction cooking zones
2 or 4 induction cooktop configuration
Fully sealed 6mm thick ceramic cooking surface
Adjustable stainless steel legs
Large easy use control knobs
Automatic pan detection
Easy clean, installation and service
Accessories.
Mobile castor kit (set of 4 castors, 2 lockable)
Joining caps
INDUCTION COOKTOPS.
23
IN8200E-CB
IN8400E-CB
450MM
WALDORF 8200 SERIES
2 INDUCTION ZONE
COOKTOP
900MM
WALDORF 8400 SERIES
4 INDUCTION ZONE
COOKTOP
CABINET BASE MODEL ONLY
CABINET BASE MODEL ONLY
W 450mm, D 805mm, H 915mm
Incl. splashback 1130mm
Incl. low back (RNL) 972mm
W 900mm, D 805mm, H 915mm
Incl. splashback 1130mm
Incl. low back (RNL) 972mm
Model CodesDimensions Model OptionsINDUCTION COOKTOPS
IN8200E-CB
IN8400E-CB
Ask for a detailed specification sheet on any of the Waldorf 800 Series Cooktops outlining construction, features and installation information.
24
25
OVEN RANGES.
The 800 Series of Oven Ranges oers a number of gas and electric
options designed to meet the varying demands of commercial kitchens.
In terms of sheer cooking power, both gas and electric have lifted performance to
a new level. In the gas lineup, enhanced performance up top comes by way of the
patented 28MJ open Cooktop burners, while the power of the Electric Cooktop is
generated through heavy-duty, 2.4kW radiant elements, or optional 2kW solid plates.
Down below, both Gas and Electric Ovens feature cast iron sole plates for even heat
distribution. Heavy-duty motors and circulation fans in the Convection Ovens enable
reduced cooking times and lower temperatures.
26

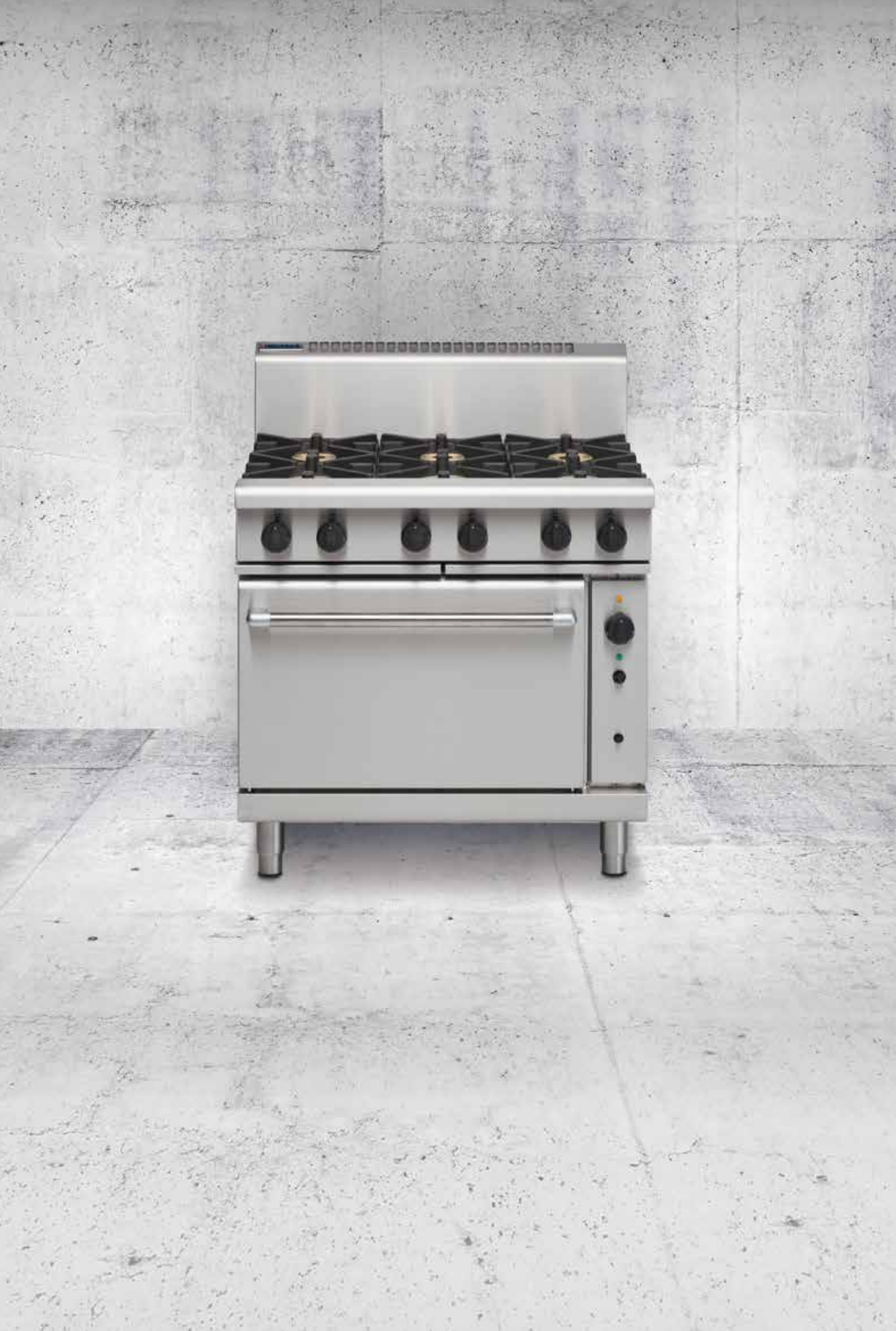

GAS RANGES.
Standard Features.
Heavy-duty 304 grade stainless steel finish
28MJ rated open burners
2, 4, 6 or 8 burner Cooktop configuration
Flame failure protection on all burners
Removable heavy-duty cast iron burners and
vitreous enamel pot stands
Heavy-duty reinforced control knobs
Drop down door with welded frame
Fully welded and vitreous enamelled oven liner
Cool touch stainless steel door handle
Adjustable feet and 2 additional rollers
Easy clean, installation and service
Options.
Gas or electric, static or convection
Flame failure with standing pilot
Choice of griddle surface – smooth, ribbed, or both
Castor or plinth mounting
Accessories.
Solid top simmer plates
Mobile castor kit (set of 4 castors, 2 lockable)
Joining caps
27
RN8820G
RN8410G
Ask for a detailed specification sheet on any of the Waldorf 800 Series Oven Ranges outlining construction, features and installation information.
Waldorf 800 Series Oven
Ranges start with a heavy-
duty galvanized steel
chassis. All oven liners are
fully welded and vitreous
enamelled. Cast iron sole
plates in all ovens and
welded frame doors ensure
durable performance.
RN8410G
RN8413G
RN8416G
600MM
WALDORF 8410 SERIES
4 BURNER COOKTOP
W 600mm, D 805mm, H 915mm
Incl. splashback 1130mm
Incl. low back (RNL) 972mm
Model CodesHob VariationsDimensions GAS RANGES
RN8820G
RN8823G
RN8826G
RN8829G
1200MM
WALDORF 8820 SERIES
8 BURNER COOKTOP
W 1200mm, D 805mm, H 915mm
Incl. splashback 1130mm
Incl. low back (RNL) 972mm
Oven Options
G GAS STATIC OVEN
G GAS DOUBLE
STATIC OVEN
28
750MM
WALDORF 8510 SERIES
4 BURNER COOKTOP
RN8610G
RN8610GC
RN8610GE
RN8610GEC
RN8613G
RN8613GC
RN8613GE
RN8613GEC
RN8616G
RN8616GC
RN8616GE
RN8616GEC
RN8619G
RN8619GC
RN8619GE
RN8619GEC
RN8810G
RN8810GC
RN8810GE
RN8810GEC
RN8813G
RN8813GC
RN8813GE
RN8813GEC
RN8816G
RN8816GC
RN8816GE
RN8816GEC
RN8819G
RN8819GC
RN8819GE
RN8819GEC
900MM
WALDORF 8610 SERIES
6 BURNER COOKTOP
1200MM
WALDORF 8810 SERIES
8 BURNER COOKTOP
RN8510G
RN8510GC
RN8510GE
RN8510GEC
RN8513G
RN8513GC
RN8513GE
RN8513GEC
W 750mm, D 805mm, H 915mm
Incl. splashback 1130mm
Incl. low back (RNL) 972mm
W 900mm, D 805mm, H 915mm
Incl. splashback 1130mm
Incl. low back (RNL) 972mm
W 900mm, D 805mm, H 915mm
Incl. splashback 1130mm
Incl. low back (RNL) 972mm
W 1200mm, D 805mm, H 915mm
Incl. splashback 1130mm
Incl. low back (RNL) 972mm
Model CodesHob VariationsDimensions GAS RANGES
RN8510GE
RN8510G
RN8610G
RN8810GE
RN8910G
RN8910GC
RN8910GE
RN8910GEC
900MM
WALDORF 8910 SERIES
4 BURNER COOKTOP
G GAS STATIC OVEN
GC GAS CONVECTION
OVEN
GE ELECTRIC STATIC
OVEN
GEC ELECTRIC
CONVECTION OVEN
G GAS STATIC OVEN
GC GAS CONVECTION
OVEN
GE ELECTRIC STATIC
OVEN
GEC ELECTRIC
CONVECTION OVEN
G GAS STATIC OVEN
GC GAS CONVECTION
OVEN
GE ELECTRIC STATIC
OVEN
GEC ELECTRIC
CONVECTION OVEN
G GAS STATIC OVEN
GC GAS CONVECTION
OVEN
GE ELECTRIC STATIC
OVEN
GEC ELECTRIC
CONVECTION OVEN
Oven Options
29
ELECTRIC RANGES.
Standard Features.
Heavy-duty 304 grade stainless steel finish
2.4 kW radiant elements
4 or 6 hot plate size configuration.
Six hot plate temperature settings with simmer
setting
Heavy-duty reinforced control knobs
12mm griddle plate
Drop down door with welded frame
Fully welded and vitreous enamelled oven liner
Cool touch stainless steel door handle
Adjustable feet and 2 additional rollers
Easy clean, installation service
Options.
Choice of griddle surface - smooth ribbed or both
2kW solid plates
Electric - static or convection
Castor or plinth mounting
Accessories.
Mobile castor kit (set of 4 castors, 2 lockable)
Joining caps
RN8610E
RN8610EC
RN8613E
RN8613EC
RN8616E
RN8616EC
RN8619E
RN8619EC
900MM
WALDORF 8610 SERIES
6 ELEMENT COOKTOP
W 900mm, D 805mm, H 915mm
Incl. splashback 1130mm
Incl. low back (RNL) 972mm
RN8610E
E ELECTRIC STATIC
OVEN
EC ELECTRIC
CONVECTION OVEN
Model CodesHob VariationsDimensions ELECTRIC RANGES Oven Options
Ask for a detailed specification sheet on any of the Waldorf 800 Series Oven Ranges outlining construction, features and installation information.
30
31
TARGET TOPS.
Waldorf 900mm Target Tops are available as stand-alone hobs,
or with a choice of four base units – cabinet base, leg stand,
refrigeration base, or oven base (static/convection, gas/electric).
Featuring a high output, dual ring cast iron burner, the super heavy-duty
Target Top casting provides outstanding heat recovery and heat control.
Outstanding thermal eciency is achieved by way of a burner box lined
with 50mm refractory ceramic blocks.
32
TARGET TOPS.
Standard Features.
Heavy-duty 304 grade stainless steel finish
45MJ dual ring cast iron burner
Flame failure protection and continuous pilot burner
Top plates and removable centre with spill protection design
Heavy-duty reinforced control knobs
Mounted on leg stand with suite matching shelf
Adjustable feet and 2 additional rollers
Target Top Oven Range includes -
Drop down door with welded frame
Fully welded and vitreous enamelled oven liner
Cool touch stainless steel door handle
Easy clean, installation and service
Options.
Bench mounted
Gastronorm storage cabinet underneath
Gastronorm refrigeration module underneath
Castor or plinth mounting
Accessories.
Mobile castor kit (set of 4 castors, 2 lockable)
Joining caps
33
Ask for a detailed specification sheet on any of the Waldorf 800 Series Target Tops and
Target Top Ranges outlining construction, maintenance and installation information.
RN8100G-B
RN8100G-CB
RN8100G-LS
RN8100G-RB
900MM
WALDORF 8100 SERIES
TARGET TOP
BENCH MODEL
CABINET BASE MODEL
LEG STAND MODEL
REFRIGERATED BASE MODEL
All models
W 900mm, D 805mm, H 915mm
Incl. splashback 1130mm
Incl. low back (RNL) 972mm
RN8100G-CB
Model CodesDimensions Model OptionsGAS TARGET TOPS
RN8110G
RN8110GC
RN8110GE
RN8110GEC
900MM
WALDORF 8110 SERIES
TARGET TOP OVEN
W 900mm, D 805mm, H 915mm
Incl. splashback 1130mm
Incl. low back (RNL) 972mm
RN8110G
G GAS STATIC OVEN
GC GAS CONVECTION
OVEN
GE ELECTRIC STATIC
OVEN
GEC ELECTRIC
CONVECTION OVEN
Model CodesDimensions Oven Options
34
35

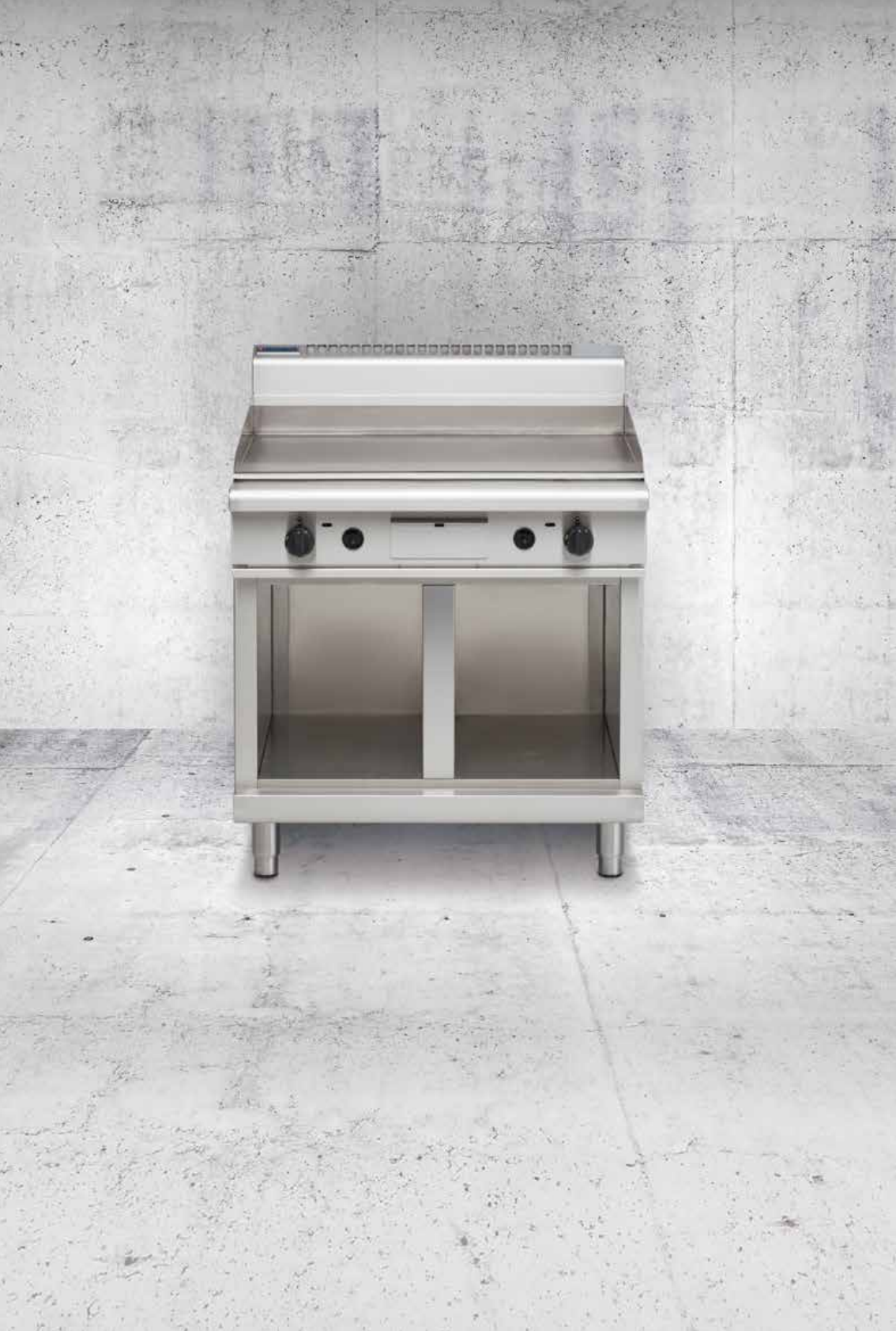

GRIDDLES.
Waldorf heavy-duty Gas Griddles are available in 450, 600, 900 and 1200mm
widths and Electric Griddles are available in 600, 900 and 1200mm widths.
Gas Griddle Ranges are available in 900 and 1200mm, Electric Griddle Ranges
are available in 900mm, both have with electric ovens in static or convection.
All heavy-duty Griddles feature seamless weld construction with a solid 20mm
thick plate as standard, for maximum heat retention and distribution. They are
thermostatically controlled for accurate temperature setting, and are available in machine
finished mild steel plate, or the new mirror chromed finish for more consistent performance.
They also oer a choice of smooth or ribbed surfaces, or a mixture of both.
36
GRIDDLES.
Standard Features.
Heavy-duty 304 grade stainless steel finish
Thermostatic control
20mm thick machined top plates
Full pilot and flame failure protection
Top weld sealed plates
Stainless steel grease drawer
Heavy-duty reinforced control knobs
Push-button piezo ignition
Mounted on leg stand with suite matching shelf
Adjustable feet and 2 additional rollers
Easy clean, installation and service
Griddle Oven Range includes -
Drop down door with welded frame
Fully welded and vitreous enamelled oven liner
Cool touch stainless steel door handle
Easy clean, installation and service
Options.
Choice of griddle surface – smooth, ribbed, or both
Mirror chromed plate option
Bench mounted
Gastronorm storage cabinet underneath
Gastronorm refrigeration module underneath
Castor or plinth mounting
Accessories.
Mobile castor kit (set of 4 castors, 2 lockable)
Joining caps
37
GP8450G-B
GP8450G-CB
GP8450G-LS
GP8600G-B
GP8600G-CB
GP8600G-LS
GP8900G-B
GP8900G-CB
GP8900G-LS
GP8900G-RB
GP8120G-B
GP8120G-CB
GP8120G-LS
GP8120G-RB
450MM
WALDORF 8450 SERIES
GRIDDLE
600MM
WALDORF 8600 SERIES
GRIDDLE
900MM
WALDORF 8900 SERIES
GRIDDLE
1200MM
WALDORF 8120 SERIES
GRIDDLE
BENCH MODEL
CABINET BASE MODEL
LEG STAND MODEL
BENCH MODEL
CABINET BASE MODEL
LEG STAND MODEL
BENCH MODEL
CABINET BASE MODEL
LEG STAND MODEL
REFRIGERATED BASE MODEL
BENCH MODEL
CABINET BASE MODEL
LEG STAND MODEL
REFRIGERATED BASE MODEL
Bench models
W 450mm, D 805mm, H 315mm
Incl. splashback 530mm
Incl. low back (GPL) 372mm
All other models
W 450mm, D 805mm, H 915mm
Incl. splashback 1130mm
Incl. low back (GPL) 972mm
Bench models
W 600mm, D 805mm, H 315mm
Incl. splashback 530mm
Incl. low back (GPL) 372mm
All other models
W 600mm, D 805mm, H 915mm
Incl. splashback 1130mm
Incl. low back (GPL) 972mm
Bench models
W 900mm, D 805mm, H 315mm
Incl. splashback 530mm
Incl. low back (GPL) 372mm
All other models
W 900mm, D 805mm, H 915mm
Incl. splashback 1130mm
Incl. low back (GPL) 972mm
Bench models
W 1200mm, D 805mm, H 315mm
Incl. splashback 530mm
Incl. low back (RNL) 372mm
All other models
W 1200mm, D 805mm, H 915mm
Incl. splashback 1130mm
Incl. low back (GPL) 972mm
GP8450G-LS
GP8600G-LS
GP8900G-CB
GP8120G-LS
Model CodesDimensions Model OptionsGAS GRIDDLES
Ask for a detailed specification sheet on the Waldorf 800 Series Griddles outlining construction, features and installation information.
38 Ask for a detailed specification sheet on the Waldorf 800 Series Griddles outlining construction, features and installation information.
Model CodesDimensions Model OptionsELECTRIC GRIDDLES
GP8600E-B
GP8600E-CB
GP8600E-LS
GP8900E-B
GP8900E-CB
GP8900E-LS
GP8900E-RB
GP8120E-B
GP8120E-CB
GP8120E-LS
GP8120E-RB
600MM
WALDORF 8600 SERIES
GRIDDLE
900MM
WALDORF 8900 SERIES
GRIDDLE
1200MM
WALDORF 8120 SERIES
GRIDDLE
BENCH MODEL
CABINET BASE MODEL
LEG STAND MODEL
BENCH MODEL
CABINET BASE MODEL
LEG STAND MODEL
REFRIGERATED BASE MODEL
BENCH MODEL
CABINET BASE MODEL
LEG STAND MODEL
REFRIGERATED BASE MODEL
Bench models
W 600mm, D 805mm, H 315mm
Incl. splashback 530mm
Incl. low back (GPL) 372mm
All other models
W 600mm, D 805mm, H 915mm
Incl. splashback 1130mm
Incl. low back (GPL) 972mm
Bench models
W 900mm, D 805mm, H 315mm
Incl. splashback 530mm
Incl. low back (GPL) 372mm
All other models
W 900mm, D 805mm, H 915mm
Incl. splashback 1130mm
Incl. low back (GPL) 972mm
Bench models
W 1200mm, D 805mm, H 315mm
Incl. splashback 530mm
Incl. low back (GPL) 372mm
All other models
W 1200mm, D 805mm, H 915mm
Incl. splashback 1130mm
Incl. low back (GPL) 972mm
GP8600E-LS
GP8900E-LS
GP8120E-LS
39
900MM
WALDORF 8910 SERIES
GRIDDLE OVEN
GP8910GE
GP8910GEC
W 900mm, D 805mm, H 915mm
Incl. splashback 1130mm
Incl. low back (GPL) 972mm
W 1200mm, D 805mm, H 915mm
Incl. splashback 1130mm
Incl. low back (GPL) 972mm
Model CodesDimensions GAS GRIDDLE
GP8910G
GP8121GEC
GP8121GE
GP8121GEC
900MM
WALDORF 8121 SERIES
GRIDDLE OVEN
GE ELECTRIC STATIC
OVEN
GEC ELECTRIC
CONVECTION OVEN
GE ELECTRIC STATIC
OVEN
GEC ELECTRIC
CONVECTION OVEN
Oven Options
GP8910E
GP8910EC
900MM
WALDORF 8910 SERIES
GRIDDLE OVEN
W 900mm, D 805mm, H 915mm
Incl. splashback 1130mm
Incl. low back (GPL) 972mm
GP8910EC
E ELECTRIC STATIC
OVEN
EC ELECTRIC
CONVECTION OVEN
Model CodesDimensions ELECTRIC GRIDDLE Oven Options
40
GRIDDLE TOASTER.
The Waldorf 800 Series Griddle Toaster uses one set of
specially designed burners and stainless steel radiants to
perform two functions. The burners heat the 16mm thick grill
plate above them while providing heat to the toasting rack
below, without compromising cooking times or performance.
GT8600G
600MM
WALDORF 8600 SERIES
GRIDDLE TOASTER
W 600mm, D 805mm, H 915mm
Incl. splashback 1130mm
Incl. low back (GTL) 972mm
Model CodeDimensions GRIDDLE TOASTER
Ask for a detailed specification sheet on the Waldorf 800 Series Griddles outlining construction, features and installation information.
GT8600G
41
42
GAS CHARGRILLS.
Powerful stainless steel burners are the engine room of the
800 Series Chargrills. Heavy-duty cast iron grates and radiants
deliver maximum heat right to the cooking surface edge.
The inclined position incorporates a flare reducing grate fin design, with
grooves, to run grease into a front collection channel. Interchangeable
300 and 450mm drop-on griddle sections add an extra dimension to
800 Series Chargrills.
Standard Features.
Heavy-duty 304 grade stainless steel finish
Reversible heavy-duty top grates
Inclined position to reduce flare and enhance grease run
33MJ/hr stainless steel burners per 300mm section
Flame failure protection with continuous pilot burner
Lift out grates, radiants and baes for cleaning
Heavy-duty reinforced control knobs
Mounted on leg stand with suite matching shelf
Adjustable feet and 2 additional rollers
Easy clean, installation and service
Options.
Castor or plinth mounting
Accessories.
Interchangeable drop-on griddle plates
Mobile castor kit (set of 4 castors, 2 lockable)
Joining caps
43
CH8300G-B
CH8450G-B
CH8450G-CB
CH8450G-LS
CH8600G-B
CH8600G-CB
CH8600G-LS
CH8900G-B
CH8900G-CB
CH8900G-LS
CH8120G-B
CH8120G-CB
CH8120G-LS
300MM
WALDORF 8300 SERIES
CHARGRILL
450MM
WALDORF 8450 SERIES
CHARGRILL
600MM
WALDORF 8600 SERIES
CHARGRILL
900MM
WALDORF 8900 SERIES
CHARGRILL
1200MM
WALDORF 8120 SERIES
CHARGRILL
BENCH MODEL ONLY
BENCH MODEL
CABINET BASE MODEL
LEG STAND MODEL
BENCH MODEL
CABINET BASE MODEL
LEG STAND MODEL
BENCH MODEL
CABINET BASE MODEL
LEG STAND MODEL
BENCH MODEL
CABINET BASE MODEL
LEG STAND MODEL
W 300mm, D 805mm, H 315mm
Incl. splashback 530mm
Incl. low back (CHL) 372mm
Bench models
W 450mm, D 805mm, H 315mm
Incl. splashback 530mm
Incl. low back (CHL) 372mm
All other models
W 450mm, D 805mm, H 915mm
Incl. splashback 1130mm
Incl. low back (CHL) 972mm
Bench models
W 600mm, D 805mm, H 315mm
Incl. splashback 530mm
Incl. low back (CHL) 372mm
All other models
W 600mm, D 805mm, H 915mm
Incl. splashback 1130mm
Incl. low back (CHL) 972mm
Bench models
W 900mm, D 805mm, H 315mm
Incl. splashback 530mm
Incl. low back (CHL) 372mm
All other models
W 900mm, D 805mm, H 915mm
Incl. splashback 1130mm
Incl. low back (CHL) 972mm
Bench models
W 1200mm, D 805mm, H 315mm
Incl. splashback 530mm
Incl. low back (CHL) 372mm
All other models
W 1200mm, D 805mm, H 915mm
Incl. splashback 1130mm
Incl. low back (CHL) 972mm
Model CodesDimensions Model OptionsGAS CHARGRILL
Ask for a detailed specification sheet on the Waldorf 800 Series Griddles outlining construction, features and installation information.
CH8300G-B
CH8600G-LS
CH8900G-LS
CH8120G-LS
CH8450G-LS
44
SALAMANDERS.
User-friendly Waldorf Gas and Electric Salamanders are well
equipped to meet the production and performance demands
of the professional kitchen.
Eciency comes by way of high-speed infrared burners and elements that
heat up rapidly and use less energy to get the job done by directing more
heat to the cooking surfaces.
Both gas and electric options can accommodate a Gastronorm GN 1/1 tray.
Standard Features.
Heavy-duty 304 grade stainless steel finish
Powerful 2 x 3kW elements or 2 x infrared 15.5MJ burners (8200 models)
SN8100E model features 2 x 1.8kW elements
Standing pilot with flame failure on gas models
Left and right hand heat control
Wall mounting bracket
Easy clean, installation and service
Bottom collection tray
Accessories.
Branding plate
45
900MM
WALDORF 8200 SERIES
SALAMANDER
900MM
WALDORF 8200 SERIES
SALAMANDER
600MM
WALDORF 8100 SERIES
ADJUSTABLE SALAMANDER
SN8200G
SN8200GB
SN8200E
SN8200EB
SN8100E
W 900mm, D 390mm (420mm
with wall mounting bracket),
H 400mm
W 900mm, D 390mm (420mm
with wall mounting bracket),
H 400mm
W 600mm, D 510mm (540mm
with wall mounting bracket),
H 514mm
Model Codes
Model Codes
Dimensions
Dimensions
GAS SALAMANDER
ELECTRIC SALAMANDER
SN8200G
Four position racking (flat or
inclined)
SN8200GB
Four position racking (flat or
inclined) with branding plate
SN8200E
Four position racking (flat or
inclined)
SN8200EB
Four position racking (flat or
inclined) with branding plate
Self balancing
adjustable grill height
Options
Options
Ask for a detailed specification sheet on the Waldorf 800 Series Salamanders outlining construction, features and installation information.
SN8200G
SN8200E
SN8100E
46
47
FRYERS.
Waldorf Fryers have long set the benchmark for durability,
speed and economy. The 800 Series builds on this tradition
with a redesigned range of Fryers. Whatever your deep-
frying demands, Waldorf covers all possibilities with a range
including single or twin pan, Gas, Electric or High Performance
and Output (HPO) Fryers in 400, 450 or 600mm.
Gas units feature Waldorf’s unique Fast Fri technology, incorporating
patented infrared burners for industry leading frying output and recovery.
All Fryers are available with either mechanical or digital controls. Digital
control models oer precise temperature control, three product timers,
as well as time and temperature digital display. Twin pan models have
independent digital controls for each pan and six product timers.
For high volume operations, the 800 Series High Performance and
Output (HPO) Fryers take speed and performance to another level again.
Increased production (up to 50kg/hr) and superior recovery times are
made possible through a blower system that pushes greater volumes of
air and gas through specially designed ceramic fibre burners. More heat
is absorbed by the oil, resulting in lower flue exhaust temperatures and
lower production costs per kilo.
Standard Features.
Heavy-duty 304 grade stainless steel finish
Gas models feature the patented infrared burner system
Easy clean stainless steel open pan with 10-year limited warranty
32mm drain valve
Oil level and over temperature safety cut-outs
Stainless steel exterior
Fully modular
Baskets and lids included
Adjustable feet with additional rear rollers
Easy clean, installation and service
Options.
Waldorf Filtamax Filtration System
Castor or plinth mounting
Accessories.
Extra baskets
Side splash guards
Mobile castor kit (set of 4 castors, 2 lockable)
Joining caps
48
FN8118G
FN8120G
FN8120GE
FN8226G
FN8226GE
FN8130G
FN8130GE
FN8130G-HPO
400MM
WALDORF SINGLE PAN
GAS FRYER
450MM
WALDORF SINGLE PAN
GAS FRYER
450MM
WALDORF TWIN PAN
GAS FRYER
600MM
WALDORF SINGLE PAN
GAS FRYER
18 LITRE CAPACITY
20 LITRE CAPACITY
13 LITRE CAPACITY
EACH PAN
31 LITRE CAPACITY
EACH PAN
MECHANICAL
CONTROLS
MECHANICAL
CONTROLS
DIGITAL DISPLAY
ELECTRONIC
CONTROLS
MECHANICAL
CONTROLS
DIGITAL DISPLAY
ELECTRONIC
CONTROLS
MECHANICAL
CONTROLS
DIGITAL DISPLAY
ELECTRONIC
CONTROLS
HPO FRYER -
ELECTRONIC
CONTROLS
High Performance and
Output Infrared burner
system
W 400mm, D 805mm, H 915mm
Incl. splashback 1130mm
Incl. low back (FNL) 1082mm
W 450mm, D 805mm, H 915mm
Incl. splashback 1130mm
Incl. low back (FNL) 1082mm
W 450mm, D 805mm, H 915mm
Incl. splashback 1130mm
Incl. low back (FNL) 1082mm
W 600mm, D 805mm, H 915mm
Incl. splashback 1130mm
Incl. low back (FNL) 1082mm
FN8118G
FN8120G
FN8226G
FN8130G-HPO
Model CodesDimensions Variations
Capacity
GAS FRYER
49
FN8127E
FN8127EE
FN8224E
FN8224EE
450MM
WALDORF SINGLE PAN
ELECTRIC FRYER
450MM
WALDORF TWIN PAN
ELECTRIC FRYER
27 LITRE CAPACITY
12 LITRE CAPACITY
EACH PAN
MECHANICAL
CONTROLS
DIGITAL DISPLAY
ELECTRONIC
CONTROLS
MECHANICAL
CONTROLS
DIGITAL DISPLAY
ELECTRONIC
CONTROLS
W 450mm, D 805mm, H 915mm
Incl. splashback 1130mm
Incl. low back (FNL) 1082mm
W 450mm, D 805mm, H 915mm
Incl. splashback 1130mm
Incl. low back (FNL) 1082mm
FN8127E
FN8224EE
Model CodesDimensions Variations
Capacity
ELECTRIC FRYER
Ask for a detailed specification sheet on the Waldorf 800 Series Fryers outlining construction, features and installation information.
50
51
Model CodesDimensions
Capacity
ELECTRIC FILTAMAX
FILTAMAX.
Waldorf Filtamax is a fully integrated
filtration system, designed to fit in the
unused space beneath the Waldorf
Fast Fri Gas and Electric Fryers.
Moisture, fatty acids and food residue spoil
the taste of fried food by contaminating the
oil in which food is cooked. Filtamax removes
these impurities, enabling you to produce
better tasting food and more consistent
results. It also reduces your operating costs
by extending the life of your cooking oil by up
to 50%.
Filtamax can be configured to the filtering
method best suited to your application
- either a reusable filter bag or filter pad
kit used in conjunction with Filtamax pad
consumables.
All Filtamax filters are mobile and can be used
to filter fryers other than Waldorf, as long as
the cooking oil capacity of the fryer does
not exceed the recommended Filtamax oil
capacity.
Standard Features.
Heavy-duty 304 grade stainless steel finish
Powerful reversible 1/3 HP pump
Reusable filter bag
Mounted on two fixed and two swivel castors
Rigid delivery hose with heavy-duty insulated
handle
Easy clean, installation and service
Options.
Additional reusable filter bags
Carbon pad upgrade kit
Drain adaptor kit
Drain extension kit
WALDORF 800 SERIES
FILTAMAX FRYER FILTER
Ask for a detailed specification sheet on the Waldorf 800 Series Filtamax outlining construction, features and installation information.
FF8130E
FF8135E
FF8140E
20 LITRE CAPACITY
30 LITRE CAPACITY
32 LITRE CAPACITY
W 324mm, D 683mm, H 562mm
W 324mm, D 735mm, H 562mm
W 474mm, D 683mm, H 562mm
FF8135E
52
BRATT PANS.
Big on performance, the 800 Series of tilting Bratt Pans has
expanded to include a choice of 80 litre (900mm wide) or
120 litre (1200mm wide) options in gas or electric. Easy clean,
easy service and superb finishing make the new Bratt Pans
a welcome addition to the 800 Series line-up.
Standard Features.
Heavy-duty 304 grade stainless steel finish
Manually operated tilting mechanism
Heavy-duty lid and hinge system
Galvanized steel chassis
Stainless steel exterior
Full stainless steel pan with 2mm pan body
12mm thick stainless steel even heat pan base
Large capacity pouring spout
Heavy-duty stainless steel legs with adjustable feet
Large easy use control knobs - heat resistant reinforced
Thermostatic control
Over temperature safety cut-out
Fold away handle on manual pan tilt
Easy clean, installation and service
Options.
Electric power tilting mechanism
Plinth mounting
Accessories.
Joining caps
53
900MM
WALDORF 800 SERIES
ELECTRIC BRATT PANS
ELECTRIC BRATT PANS
1200MM
WALDORF 800 SERIES
ELECTRIC BRATT PANS
BP8080E
BP8080EE
BP8120E
BP8120EE
80 LITRE CAPACITY
120 LITRE CAPACITY
MANUALLY OPERATED
TILTING MECHANISIM
ELECTRIC POWER
TILTING MECHANISIM
MANUALLY OPERATED
TILTING MECHANISIM
ELECTRIC POWER
TILTING MECHANISIM
W 900mm, D 805mm, H 915mm
Incl. splashback 1130mm
Incl. low back (BPL) 972mm
With lid open 1600mm
W 1200mm, D 805mm, H 915mm
Incl. splashback 1130mm
Incl. low back (BPL) 972mm
With lid open 1600mm
BP8080EE
BP8120EE
Model CodesDimensions Variations
Capacity
Ask for a detailed specification sheet on the Waldorf 800 Series Bratt Pans outlining construction, features and installation information.
900MM
WALDORF 800 SERIES
GAS BRATT PANS
GAS BRATT PANS
1200MM
WALDORF 800 SERIES
GAS BRATT PANS
BP8080G
BP8080GE
BP8120G
BP8120GE
80 LITRE CAPACITY
120 LITRE CAPACITY
MANUALLY OPERATED
TILTING MECHANISIM
ELECTRIC POWER
TILTING MECHANISIM
MANUALLY OPERATED
TILTING MECHANISIM
ELECTRIC POWER
TILTING MECHANISIM
W 900mm, D 805mm, H 915mm
Incl. splashback 1130mm
Incl. low back (BPL) 972mm
With lid open 1600mm
W 1200mm, D 805mm, H 915mm
Incl. splashback 1130mm
Incl. low back (BPL) 972mm
With lid open 1600mm
BP8080G
BP8120G
Model CodesDimensions Variations
Capacity
54
PASTA COOKERS.
The 800 Series Pasta Cooker is built for speed. Fully modular,
and featuring a unique pan design, it comes well equipped for
the continuous production of perfect pasta.
From variable high boil to standby simmer, our patented infrared burner system
maintains constant water temperature and enables faster turnaround of product
through outstanding recovery times from low heat settings. The standard provision
of four baskets allows four dierent pastas to be cooked at the same time.
Standard Features.
Unique pan design
Fine adjustment water faucet for pan filling
Starch-skimming system for constant water freshness
316 grade stainless steel pan for extra resistance to salt eects
Easy clean stainless steel open pan with 10-year limited warranty
25mm drain valve for safe and easy cleaning
Four stainless steel pasta baskets for multiple pasta cooking
Safety cut out thermostat for empty pan/water boil out
Hinged basket drain stand
Removable basket support grid
Adjustable feet and additional rear rollers
Easy clean, installation and service
Options.
Plinth mounting
Rectangular baskets
Accessories.
Side splashguards
Joining caps
55
450MM
WALDORF 8140 SERIES
SINGLE PAN PASTA COOKER
450MM
WALDORF 8140 SERIES
SINGLE PAN PASTA COOKER
PC8140G
PC8140E
GAS PASTA COOKER
ELECTRIC PASTA COOKER
Ask for a detailed specification sheet on any of the Waldorf 800 Series Pasta Cookers outlining construction, features and installation information.
PC8140G
PC8140E
40 LITRE CAPACITY
40 LITRE CAPACITY
W 450mm, D 805mm, H 915mm
Incl. splashback 1130mm
Incl. low back (PCL) 972mm
W 450mm, D 805mm, H 915mm
Incl. splashback 1130mm
Incl. low back (PCL) 972mm
Model Codes
Model Codes
Dimensions
Dimensions
Capacity
Capacity
56
BENCH TOPS.
The 800 Series Bench Top has been designed to seamlessly
be added to any cooking lineup or to a new low back island
suite. In a variety of widths, combinations and end models to
streamline your kitchen - 200mm, 300mm, 400mm, 450mm,
550mm, 600mm and 700mm width models are available with a
mixture of cabinet base, cabinet base with doors and leg stand.
900mm width are available with cabinet base, leg stand or
refrigerated base.
Waldorf 800 Series Bench Tops give you the option of extra work area,
storage or refrigeration.
Standard Features.
3.5mm thick compound work surface
- 1.5mm heavy-duty 304 grade stainless steel top
- 2.0mm galvanised steel backing
Mounted on leg stand with suite matching shelf
Adjustable feet at front with rear rollers
Options.
Gastronorm storage cabinet underneath
Gastronorm refrigeration module underneath
Plinth mounting
Castors
Accessories.
Mobile castor kit (set of 4 castors, 2 lockable)
Joining caps
57
BT8200-CB
BT8200-CD
BT8300-CD
BT8400-CD-LH
BT8400-CD-RH
BT8450-CB
BT8450-LS
200MM
WALDORF 8200 SERIES
BENCH TOP
300MM
WALDORF 8300 SERIES
BENCH TOP
400MM
WALDORF 8400 SERIES
BENCH TOP
450MM
WALDORF 8450 SERIES
BENCH TOP
CABINET BASE MODEL
CABINET BASE WITH DOORS
CABINET BASE WITH DOORS
CABINET BASE WITH DOORS
LEFT HAND END
CABINET BASE WITH DOORS
RIGHT HAND END
CABINET BASE MODEL
LEG STAND MODEL
W 200mm, D 805mm, H 915mm
Incl. splashback 1130mm
Incl. low back (BTL) 972mm
W 300mm, D 805mm, H 915mm
Incl. splashback 1130mm
Incl. low back (BYL) 972mm
W 400mm, D 805mm, H 915mm
Incl. splashback 1130mm
Incl. low back (BTL) 972mm
W 450mm, D 805mm, H 915mm
Incl. splashback 1130mm
Incl. low back (BTL) 972mm
BT8200-CD
BT8300-CD
BT8400-CD-LH
BT8450-LS
Model CodesDimensions Model OptionsBENCH TOPS
Ask for a detailed specification sheet on the Waldorf 800 Series Bench Tops outlining construction, features and installation information.
58
BT8550-CD-LH
BT8550-CD-RH
BT8600-CD
BT8600-LS
BT8700-CD-LH
BT8700-CD-RH
BT8900-CB
BT8900-CD
BT8900-RB
550MM
WALDORF 8550 SERIES
BENCH TOP
600MM
WALDORF 8600 SERIES
BENCH TOP
700MM
WALDORF 8700 SERIES
BENCH TOP
900MM
WALDORF 8900 SERIES
BENCH TOP
CABINET BASE WITH DOORS
LEFT HAND END
CABINET BASE WITH DOORS
RIGHT HAND END
CABINET BASE MODEL
LEG STAND MODEL
CABINET BASE WITH DOORS
LEFT HAND END
CABINET BASE WITH DOORS
RIGHT HAND END
CABINET BASE MODEL
LEG STAND MODEL
REFRIGERATED BASE
W 550mm, D 805mm, H 915mm
Incl. splashback 1130mm
Incl. low back (BTL) 972mm
W 600mm, D 805mm, H 915mm
Incl. splashback 1130mm
Incl. low back (BYL) 972mm
W 700mm, D 805mm, H 915mm
Incl. splashback 1130mm
Incl. low back (BTL) 972mm
W 900mm, D 805mm, H 915mm
Incl. splashback 1130mm
Incl. low back (BTL) 972mm
BT8550-CD-LH
BT8600-CD
BT8700-CD-LH
BT8900-LS
Model CodesDimensions Model OptionsBENCH TOPS
59
BT8900S-CB
BT8900S-CD
BT8900S-RB
900MM
WALDORF 8900 SERIES
BENCH TOP
CABINET BASE MODEL
LEG STAND MODEL
REFRIGERATED BASE
W 900mm, D 805mm, H 915mm
Incl. splashback 1130mm
Incl. low back (BTL) 972mm
BT8900S-RB
Model CodesDimensions Model OptionsBENCH TOPS
Ask for a detailed specification sheet on the Waldorf 800 Series Bench Tops outlining construction, features and installation information.
60
61
62
Taste the Waldorf 800 Series.
Our network of dealer showrooms is well resourced
to provide all the information you need on the
Waldorf 800 Series. To see it in action, book in for a
demonstration at a Moat Test Kitchen near you.
Our skilled chefs and knowledgeable sales team will help you in
selecting the right appliances for your kitchen.
Introductory sessions can be booked online through
www.moat.com.au Moat Australia or
www.moat.co.nz Moat New Zealand.
On call service where you are.
Moat provides full service backup, 24 hours a day,
7 days a week. Our own Technical Service Department
provides full support to a team of trained service
personnel in each of our branches.
Strategically placed, authorised service providers provide
backup to outlying areas and a national toll free number enables
immediate access to our service network.
63
Waldorf 800 Series AGA Gas Certified Products
Gas Pasta Cooker - PC8410G and PCL model Cert. No. 7027
Gas Griddle Toaster - GT8600G Cert. No. 6869
Gas Target Top - RN8100G , RNL8100G and RNL models Cert. No. 6872
Gas Chargrill - CH8300G, CH8600G, CH8900G, CH8120G and CHL models Cert. No. 6878
Gas Salamander - SN8200G Cert. No. 4337
Gas Cooktop - RN8200G, RN8400G, RN8450G, RN8600G, RN8800G, RN8900G and RNL models Cert. No. 6902
Gas Range Static Oven 600mm - RN8410G, RN8820G and RNL models Cert. No. 6901
Gas Range Static Oven - RN8510G, RN8610G, RN8810G, RN8910G and RNL models Cert. No. 6892
Gas Range Electric Static Oven - RN8510GE, RN8610GE, RN8810GE, RN8910GE and RNL models Cert. No. 6892
Gas Range Convection Oven - RN8510GC, RN8610GC, RN8810GC, RN8910GC and RNL models Cert. No. 6913
Gas Range Electric Convection Oven - RN8510GCE, RN8610GCE, RN8810GCE, RN8910GCE and RNL models Cert. No. 6913
Gas Target Top Range - RN8110G, RN8110GC and RNL models Cert. No. 6918
Gas Target Top Range Electric Oven - RN8110GE, RN8110GEC and RNL models Cert. No. 6918
Gas Bratt Pan - BP8080G(E), BP8120G(E) and RNL models Cert. No. 6923
Gas Griddle Plate - GP8600G, GP8900G, GP8120G and GPL models Cert. No. 6898
Gas Griddle Range Electric Oven - GP8910GE, GP8910GEC, GP8121GE, GP8121GEC and GPL models Cert. No. 7088
Gas Fryer - FN8120G, FN8226G, FN8130G and FNL models Cert. No. 6882
Gas Fryer DigitalControl - FN8120GE, FN8226GE, FN8130GE and FNL models Cert. No. 6882
Gas HPO Fryer - FN8130GHPO and FNL models Cert. No. 6125
64
ISO9001
All Waldorf products are designed and
manufactured by Moat using the
internationally recognised ISO9001
quality management system, covering
design, manufacture and final inspection,
ensuring consistent high quality at all
times.
In line with policy to continually develop
and improve its products, Moat
Limited reserves the right to change
specifications and design without notice.
© Copyright Moat Ltd
AN.W8S.B.1501
Designed and manufactured by
ISO9001
Quality
Management
Standard
Australia
moat.com.au
Moat Pty Limited
Victoria/Tasmania
740 Springvale Road
Mulgrave, Victoria 3170
Telephone +61 3-9518 3888
Facsimile +61 3-9518 3833
vsales@moat.com.au
New South Wales
Telephone +61 2-8833 4111
nswsales@moat.com.au
South Australia
Telephone +61 3-9518 3888
vsales@moat.com.au
Queensland / Northern Territory
Telephone +61 7-3630 8600
qldsales@moat.com.au
Western Australia
Telephone +61 8-9202 6820
bgarcia@moat.com.au
New Zealand
moat.co.nz
Moat Limited
Rolleston
45 Illinois Drive
Izone Business Hub
Rolleston 7675
Telephone +64 3-983 6600
Facsimile +64 3-983 6660
sales@moat.co.nz
Auckland
Telephone +64 9-574 3150
sales@moat.co.nz
International
moat.com
Moat Limited
Rolleston
45 Illinois Drive
Izone Business Hub
Rolleston 7675
Telephone +64 3-983 6600
Facsimile +64 3-983 6660
international@moat.co.nz
Australia New Zealand International

Navigation menu
