COLOR TELEVISION RECEIVER

Chassis : S64A(P)_Unlimited

Model : WS32Z419D8XXEU

COLOR TELEVISION RECEIVER FEATURES

■■Slimfit(Low Depth) CRT

■Built In D-TV(IDTV)

■

■DVB-T Broadcasting Receiver

■Flash Download

■

■OTA(Over The Air) D-TV S/W Upgrade

■7 Days EPG Service

SERVICE Manual

WS-32Z419D

This Service Manual is a property of Samsung Electronics Co.,Ltd.

Any unauthorized use of Manual can be punished under applicable

International and/or domestic law.

©Samsung Electronics Co., Ltd. Apr. 2006

Printed in Korea

AA82-03476A

Table of Contents

Chapter 1 Precaution

■1-1 Safety Precautions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-1

■1-2 Servicing Precautions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-3

■1-3 Static Electricity Precautions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-4

■1-4 Installation Precautions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-5

Chapter 2 Product Specification

■2-1 Product Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-1

■2-2 Key Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-2

■2-3 Specifications Analysis . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-3

■2-4 Accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-4

Chapter 3 Alignment & Adjustment

■3-1 Service Instruction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-1

■3-2 How to Access Service Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-2

■3-3 Factory Data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-3

■3-4 Service Adjustment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-25

■3-5 Replacements & Calibration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-27

Chapter 4 Exploded View & Part List

■4-1 WS32Z419D8XXEU . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-1

Chapter 5 Electrical Part List

■5-1 WS32Z419D8XXEU . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-1

Chapter 6 Troubleshooting

■6-1 Checkpoints by Error Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-1

■6-2 Trouble-shooting with New Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-4

■6-3 Troubleshooting Procedures by Error Modes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-7

■6-4 Troubleshooting Procedures by ASS'Y . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-8

■6-5 Troubleshooting by Blocks . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-12

Chapter 7 Block Diagram

■7-1 Overall Block Diagram . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-1

■7-2 Partial Block Diagram . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-3

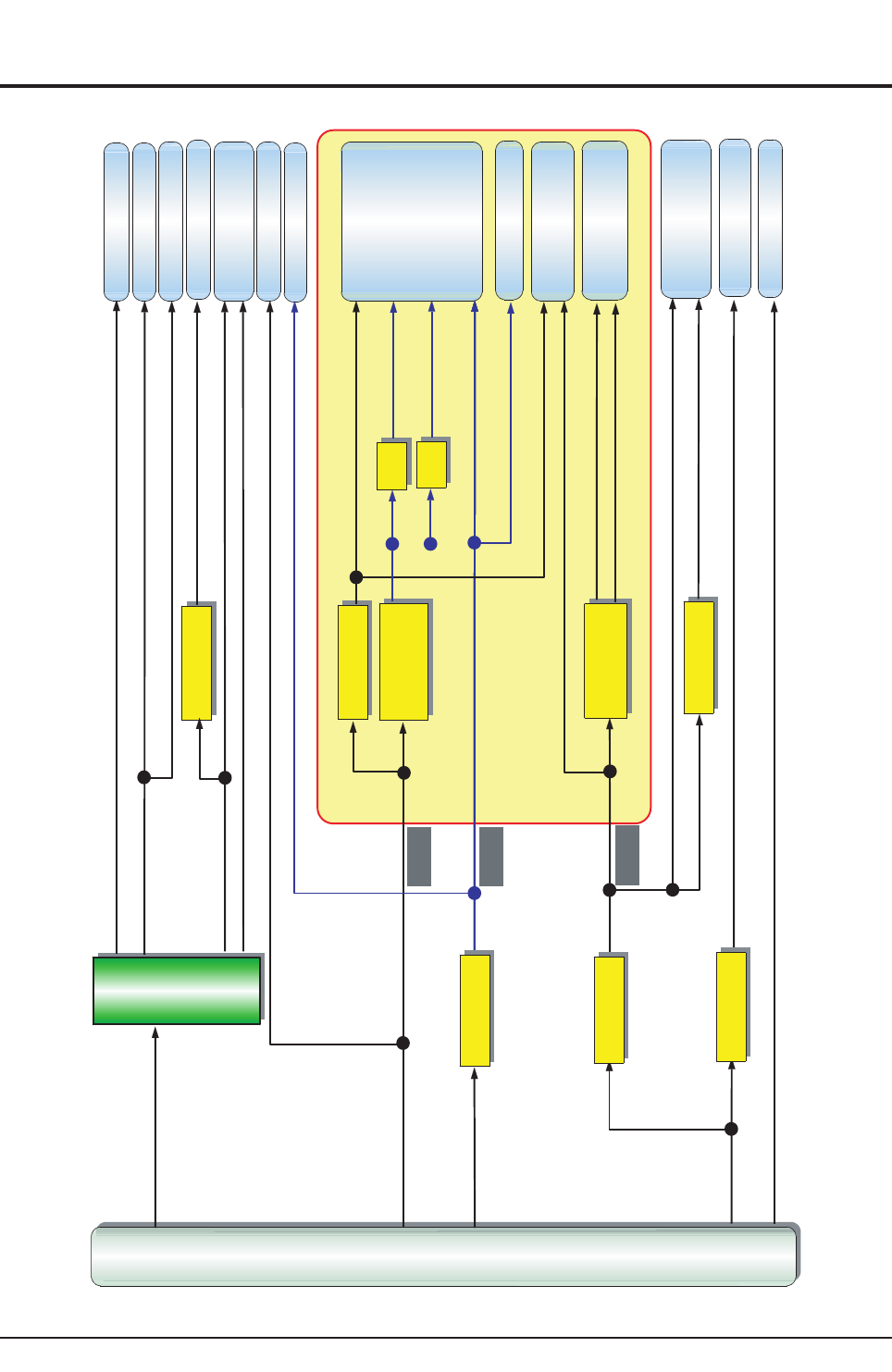

■7-3 Power current block diagram . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-5

Chapter 8 Wiring Diagram

■8-1 Overall Wiring . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-1

■8-2 Pin Connection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-2

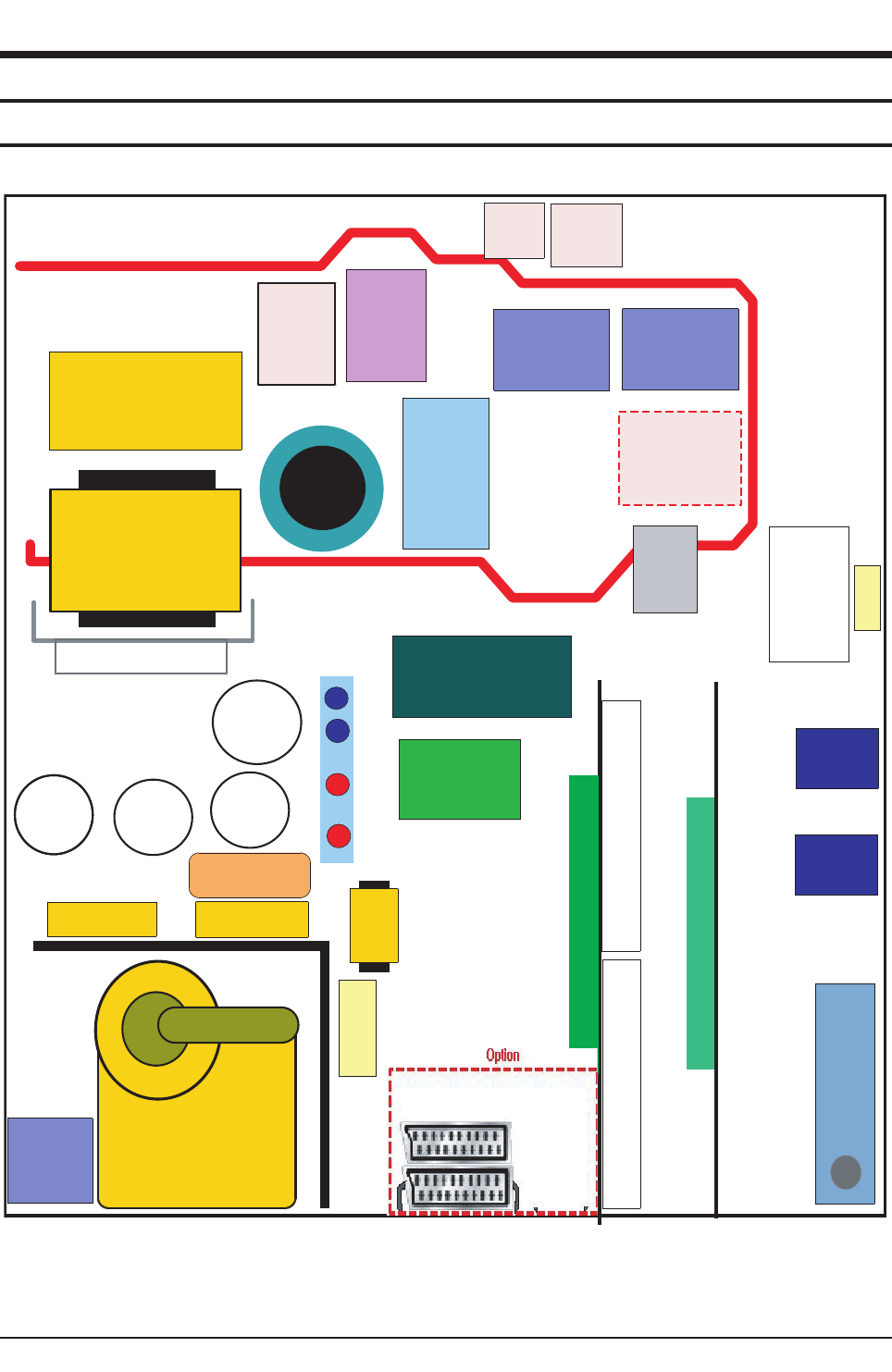

Chapter 9 PCB Diagram

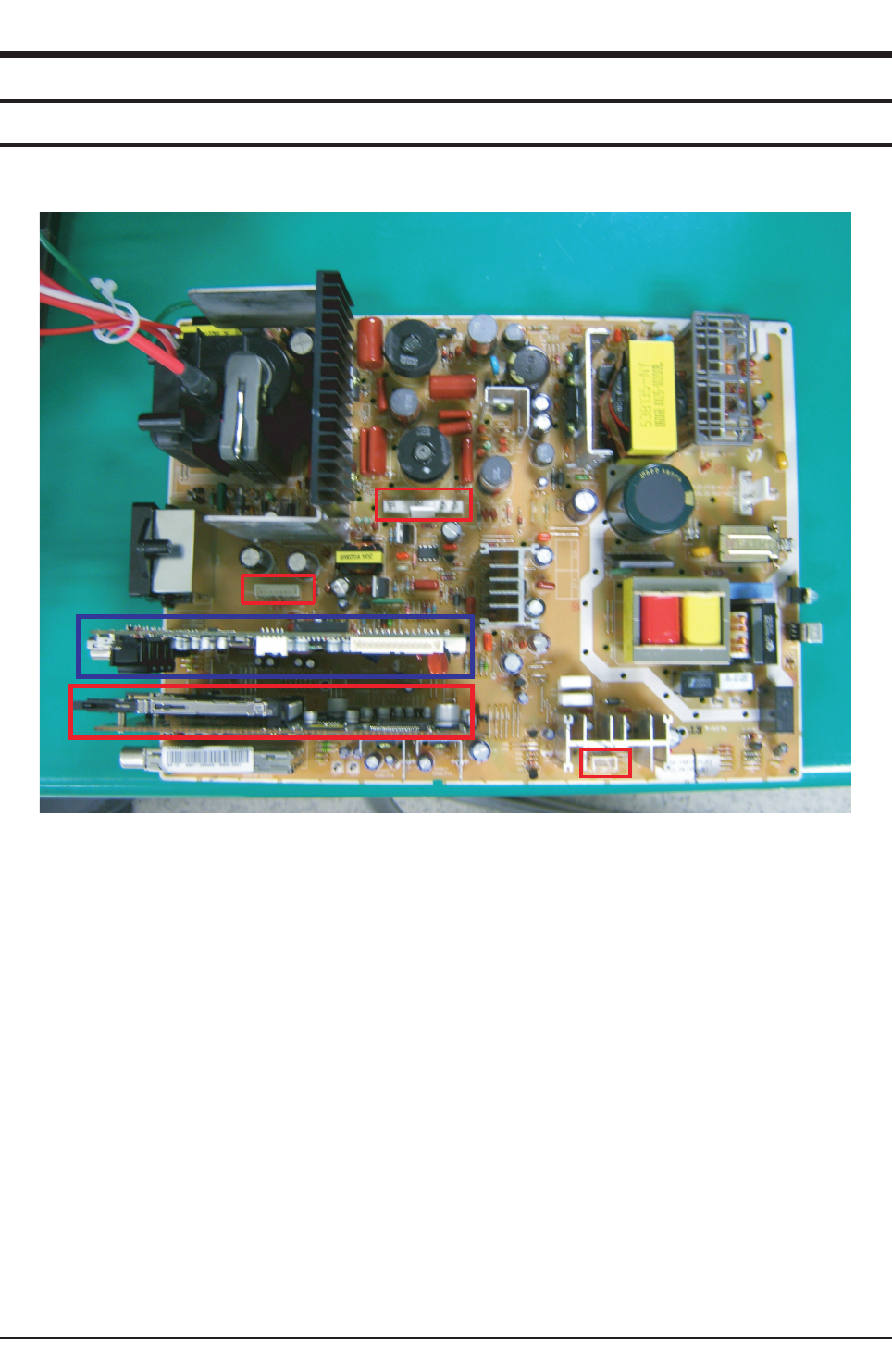

■9-1 Main Board . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9-1

■9-2 Feature Box Board . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9-3

■9-3 CRT Board . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9-5

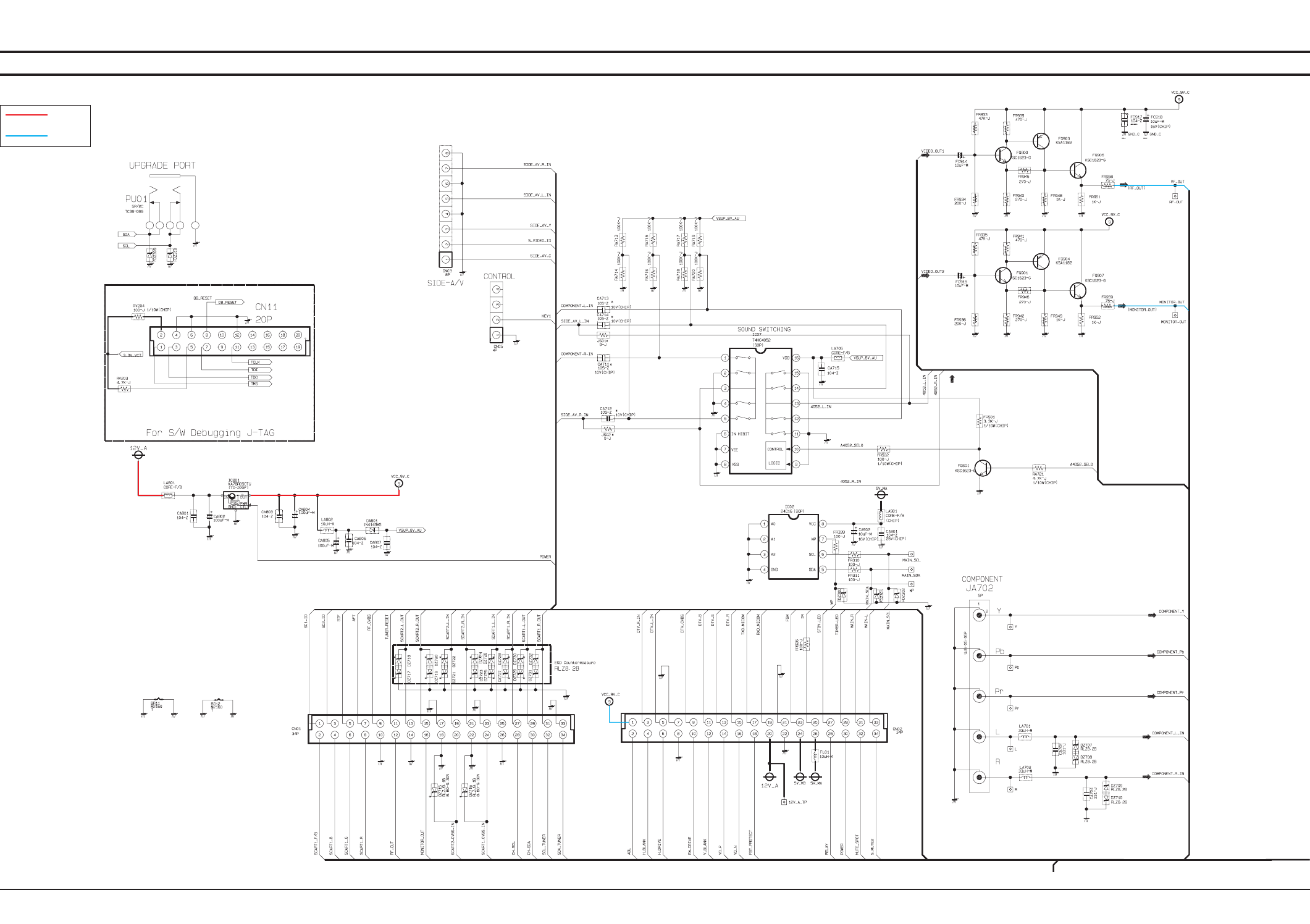

Chapter 10 Schematic Diagram

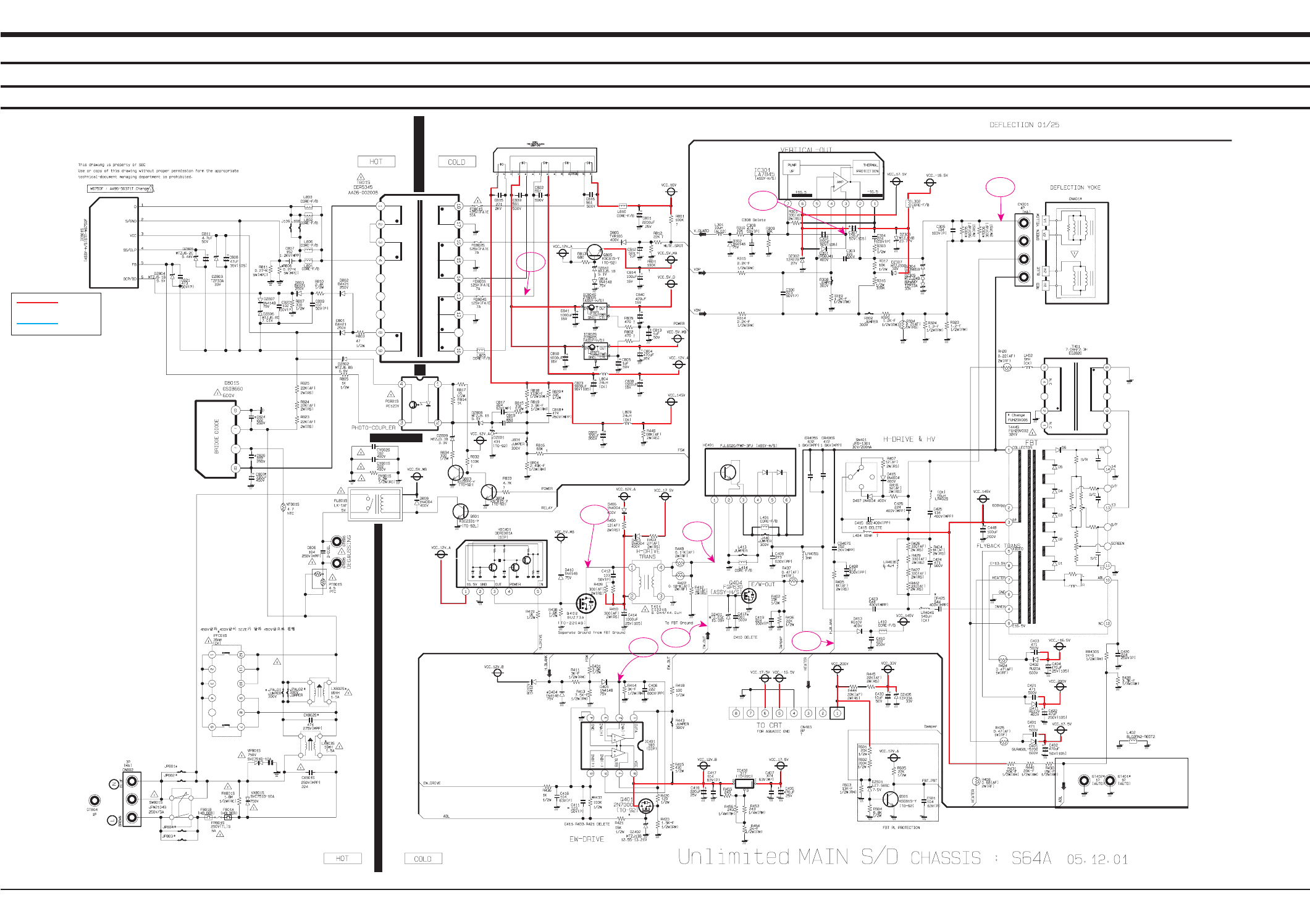

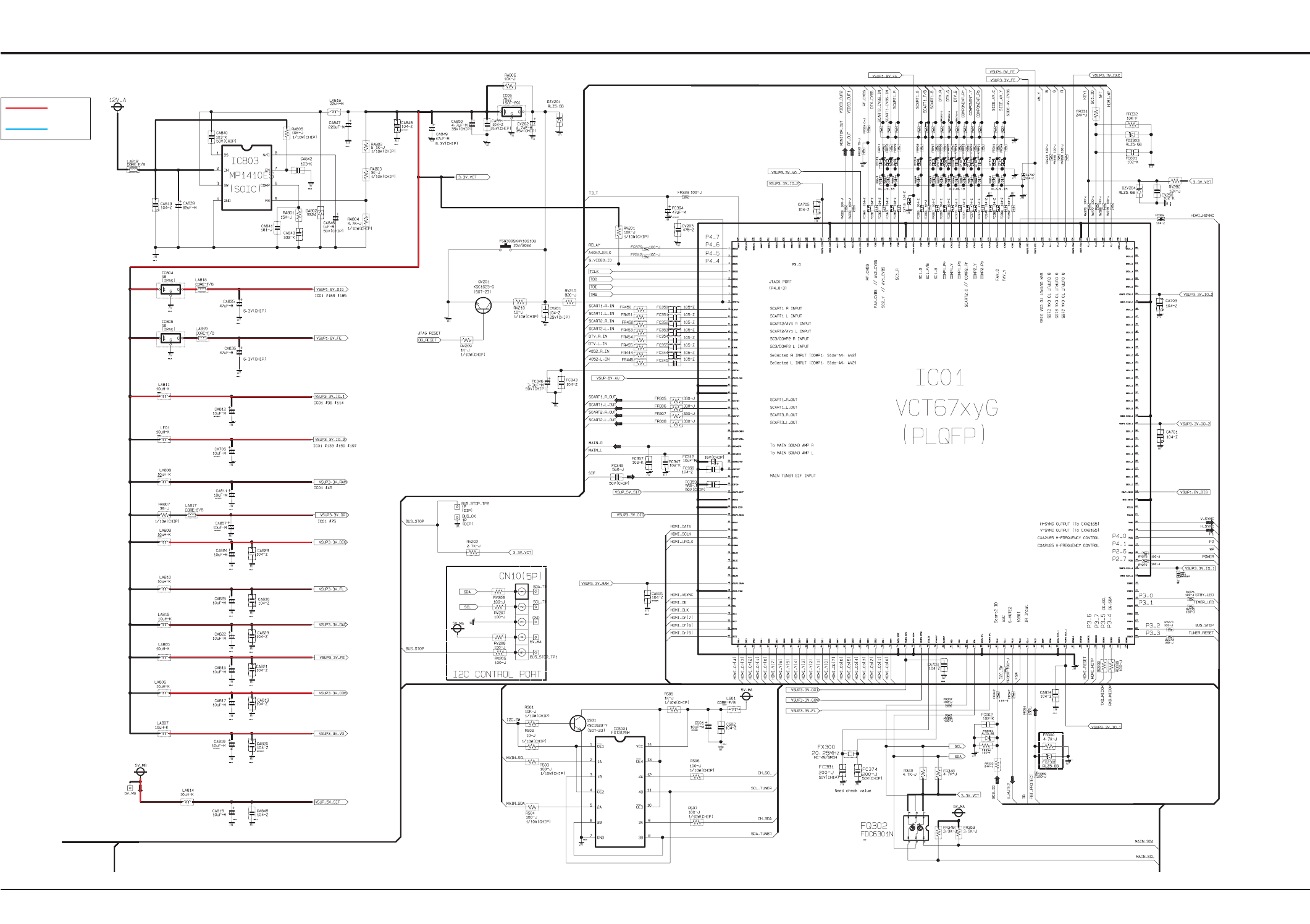

■10-1 MAIN . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10-1

■10-2 Feature Box . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10-3

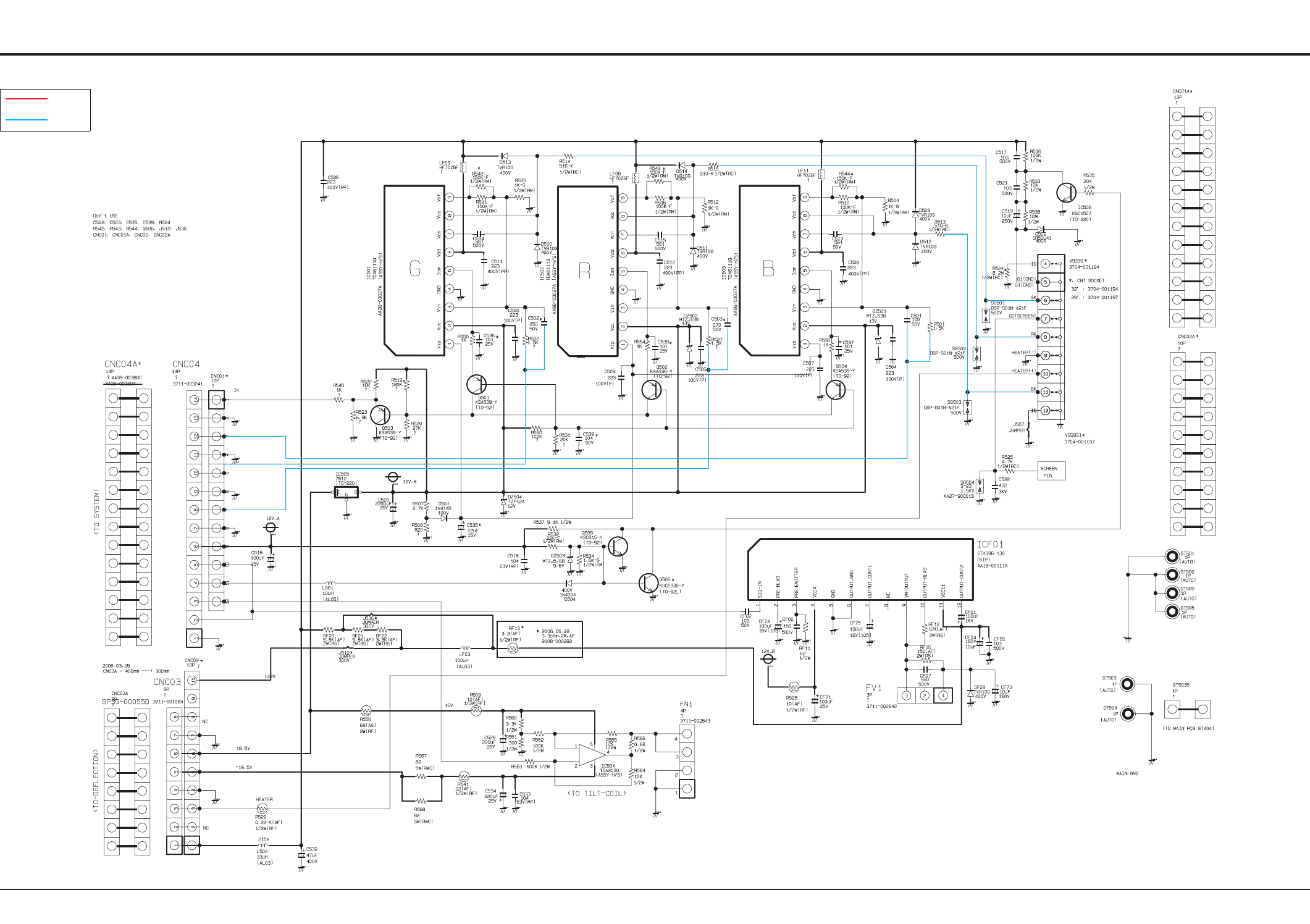

■10-3 CRT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10-7

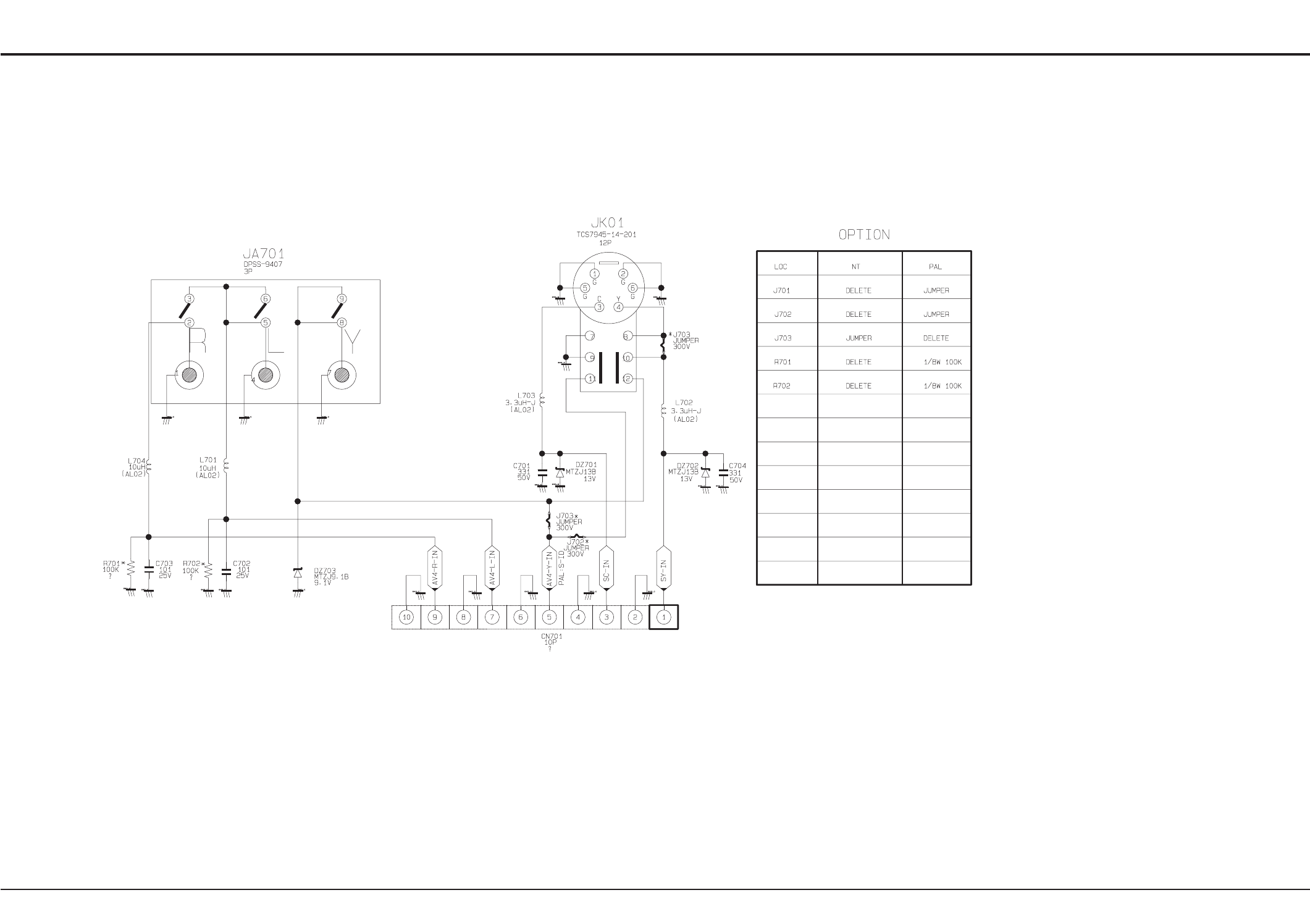

■10-4 AV . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10-8

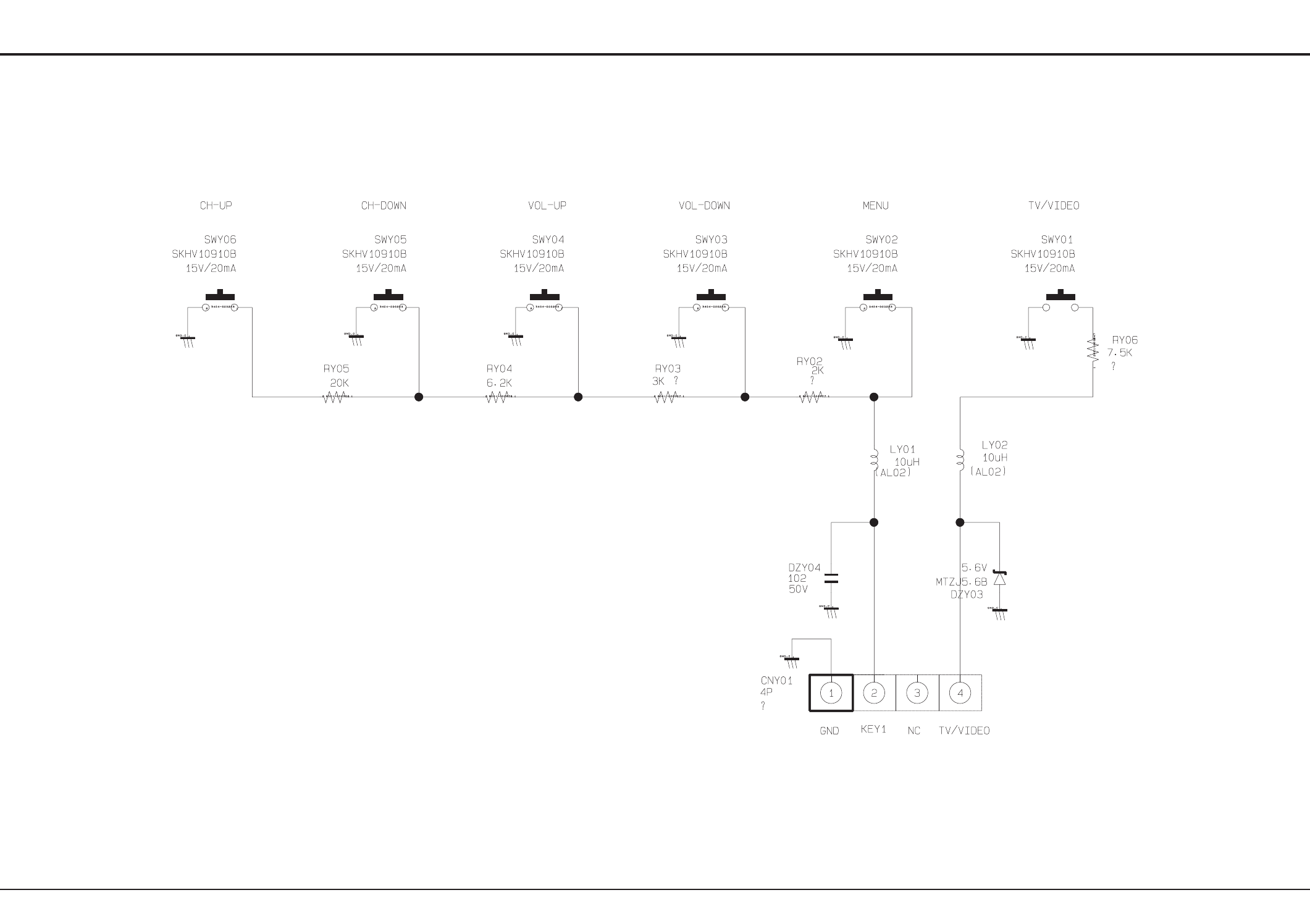

■10-5 CONTROL . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10-9

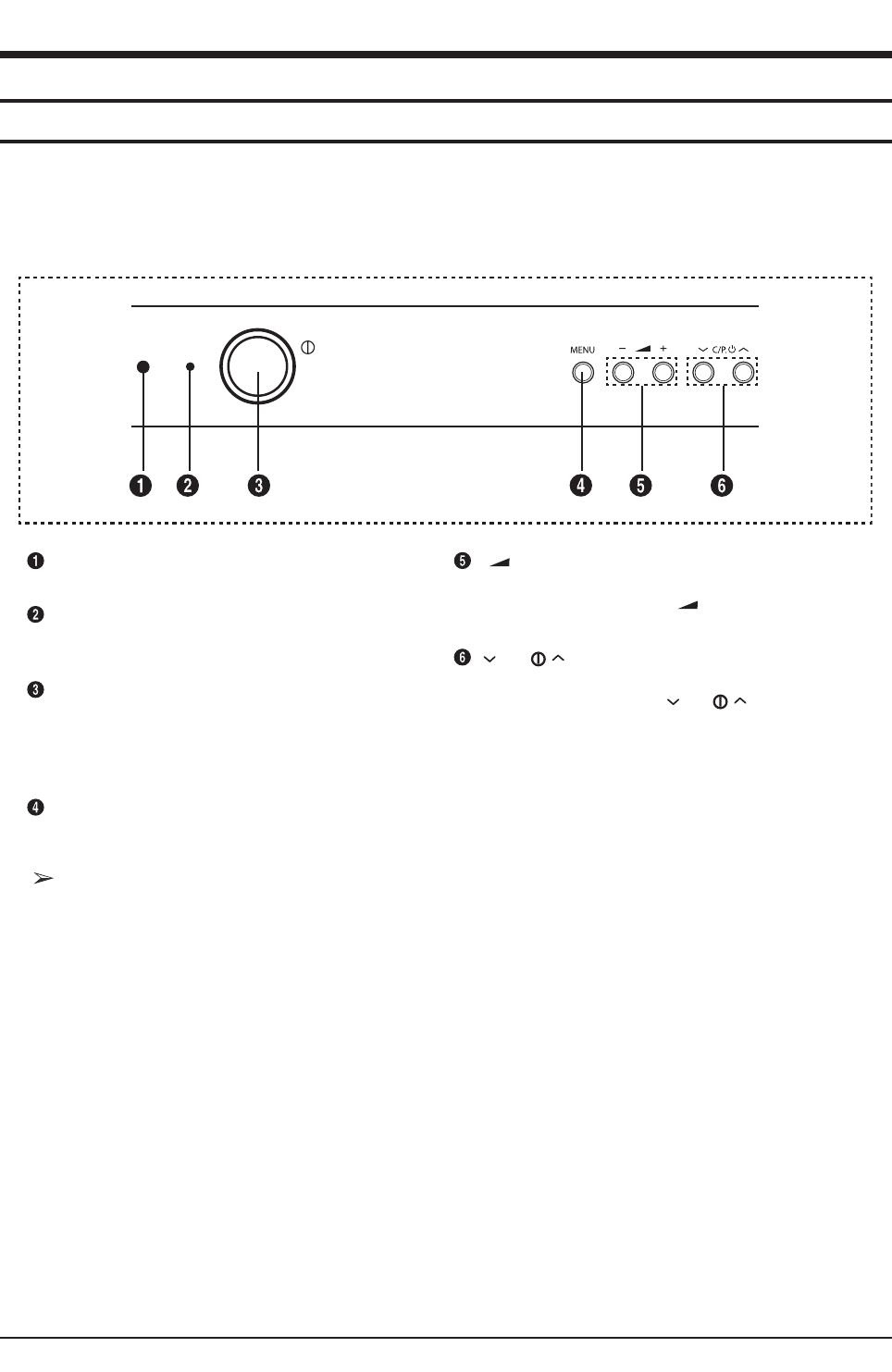

Chapter 11 Operation Instruction & Installation

■11-1 Product Features and Functions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11-1

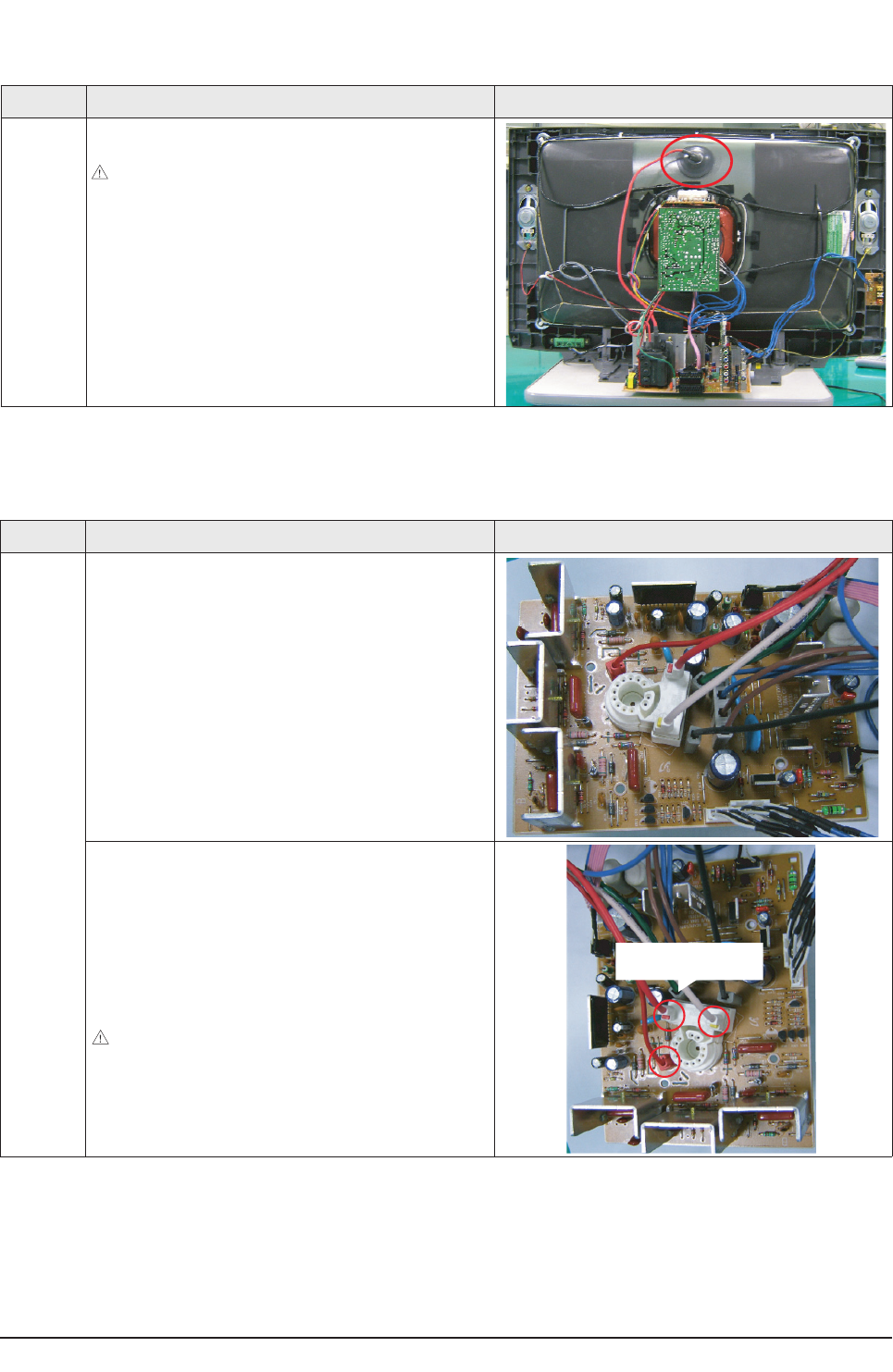

Chapter 12 Disassembly & Reassembly

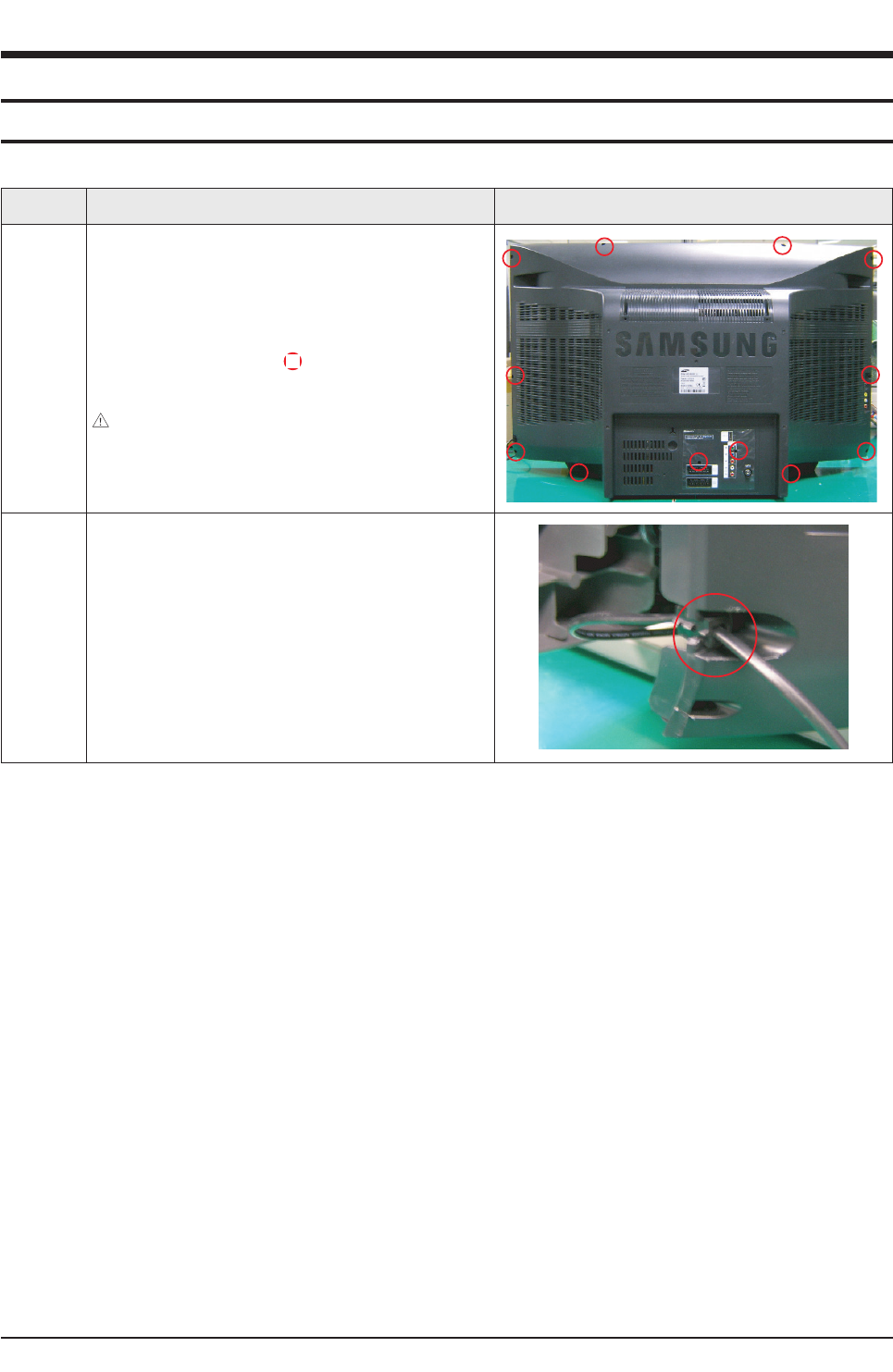

■12-1 Overhaul Disassembly & Reassembly . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12-1

Chapter 13 Circuit Description

■13-1 Overall Block Description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13-1

■13-2 Partial Block Description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13-3

■13-3 IC Line up . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13-8

Chapter 14 Reference Information

■14-1 Other issues related to other products . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14-1

■14-2 Technical Terms . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14-2

Product Specification

Samsung Electronics 2-1

2. Product Specification

2-1 Product Features

Block Specfication EU Remark

CRT - Slimmer than existing CRTs

Existing: 495mm →Slimfit : 365mm Vixlim CRT

RF Part - Same as for the OZ(S62A) Model DNOS403ZV261B

Unification of Analog & Digital

Power - Input Voltage : AC 230V (Europe)

- Stand-By : Less than 3W STR-W6750

Video - PAL/SECAM/NT4.43

- Progressive 100Hz(Full 100Hz)

VCT69xyP

CXA2165

Audio - Output : 10W x 2

- Function : A2/Nicam, SRS Trusurround VCT69xyP

Digital

- DVB-T

- OTA,Flash Download,7Days-EPG

- MHEG

STI5517SUA

MHEG v1.07 / Built in CI

Cabinet

- New Front and Back Cabinets

- 185mm of saved space compared to

the existing model

A11:600mm →Z41/Z40:415mm

Z41 Design Applied

FPTV Looking Design

Black 1Tone

(Z40:Black Bezel 2Tone)

■Core Parts Functions

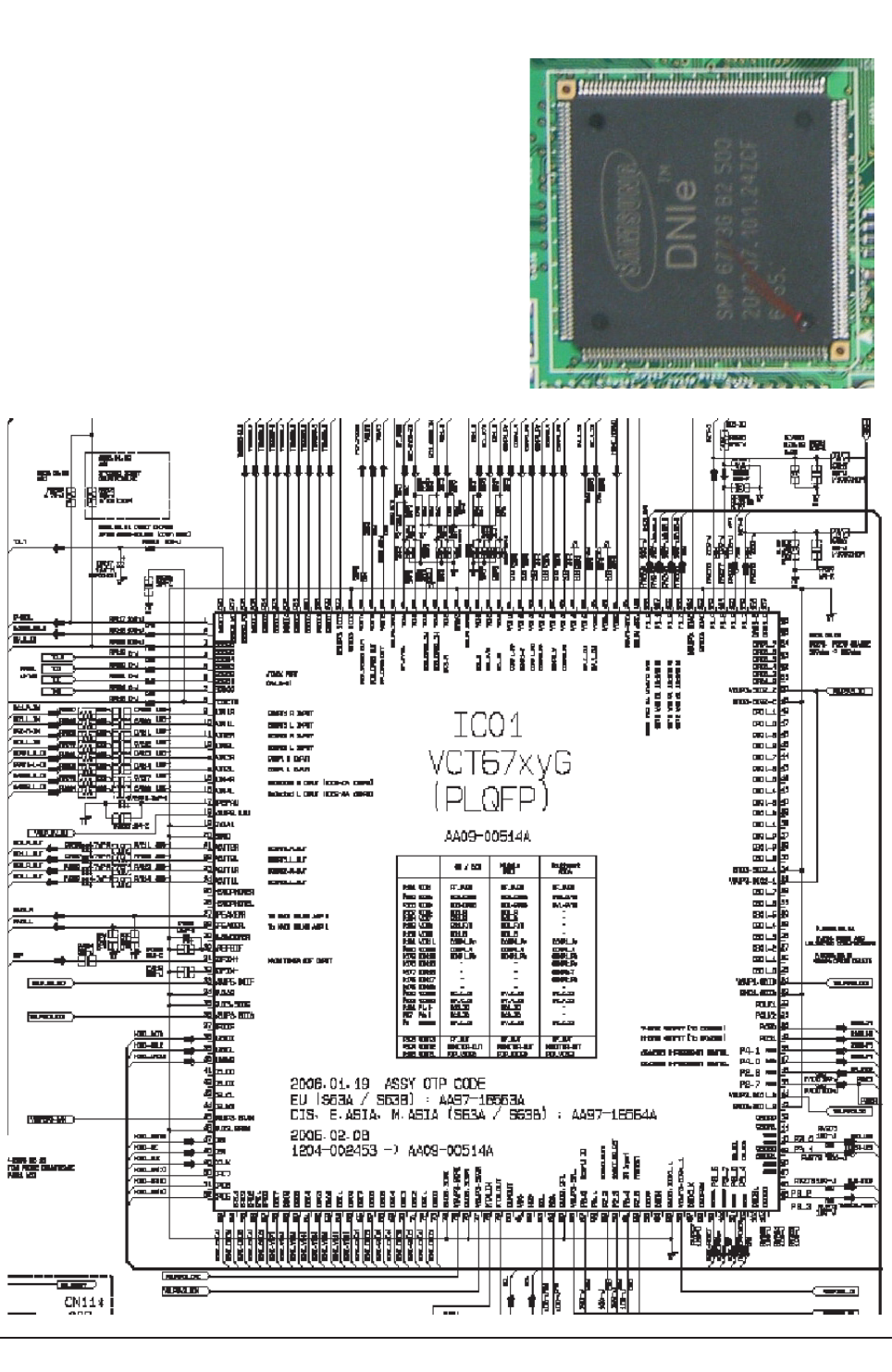

- VCT69xyP : RF-CVBS,EXT-CVBS,FRONT Y,C,SCART1 R/G/B input and Video Signal Processing.

Provides S-IF Analog audio And Digital audio signal input and decoding functions.

I2C-Comunication,Master Control Micom, Unit(ROM), Flash Down Load.

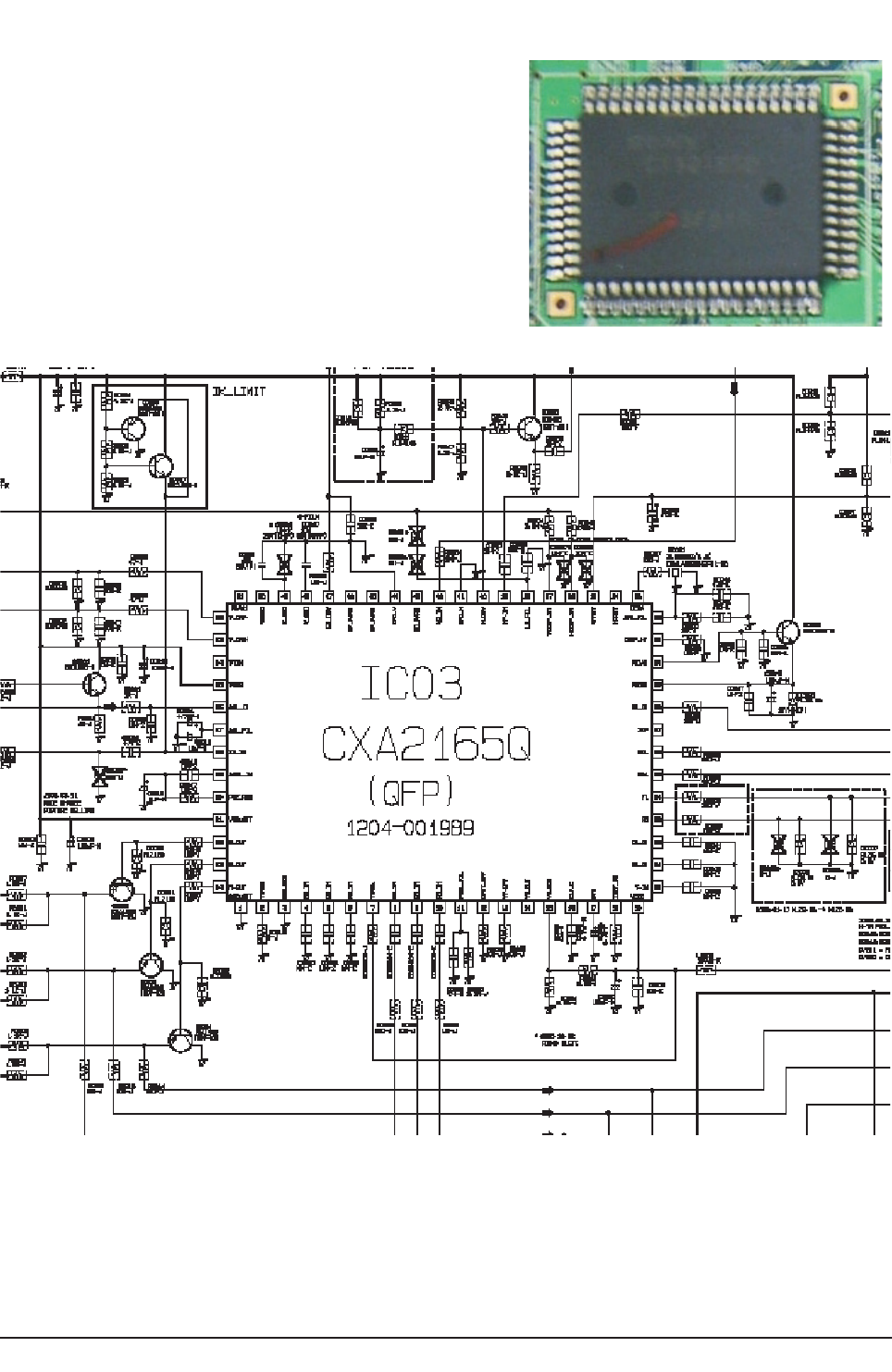

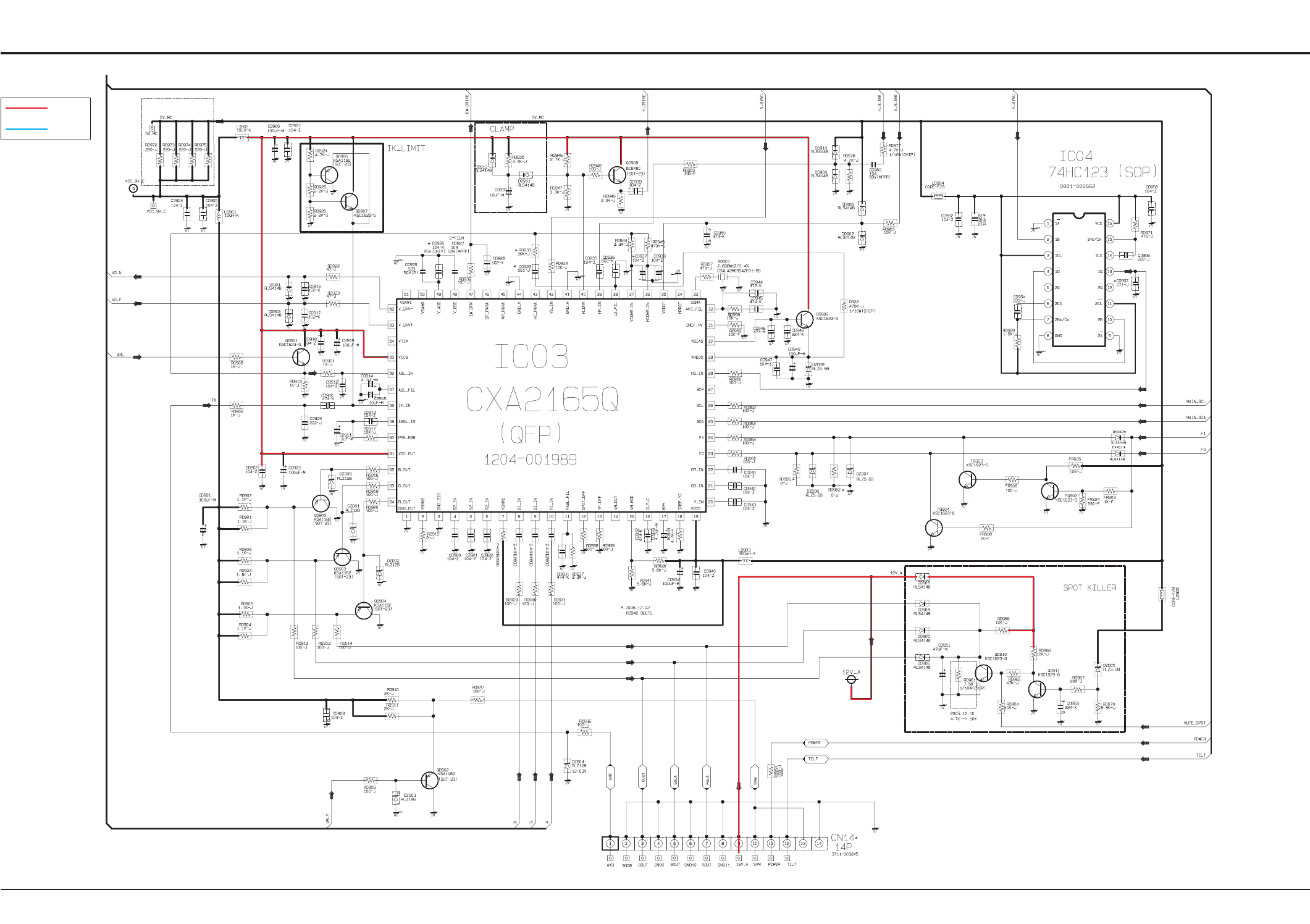

- CXA2165 : H-out,VD-P,VD-N,RGB output,Video and Deflection Signal Processing.

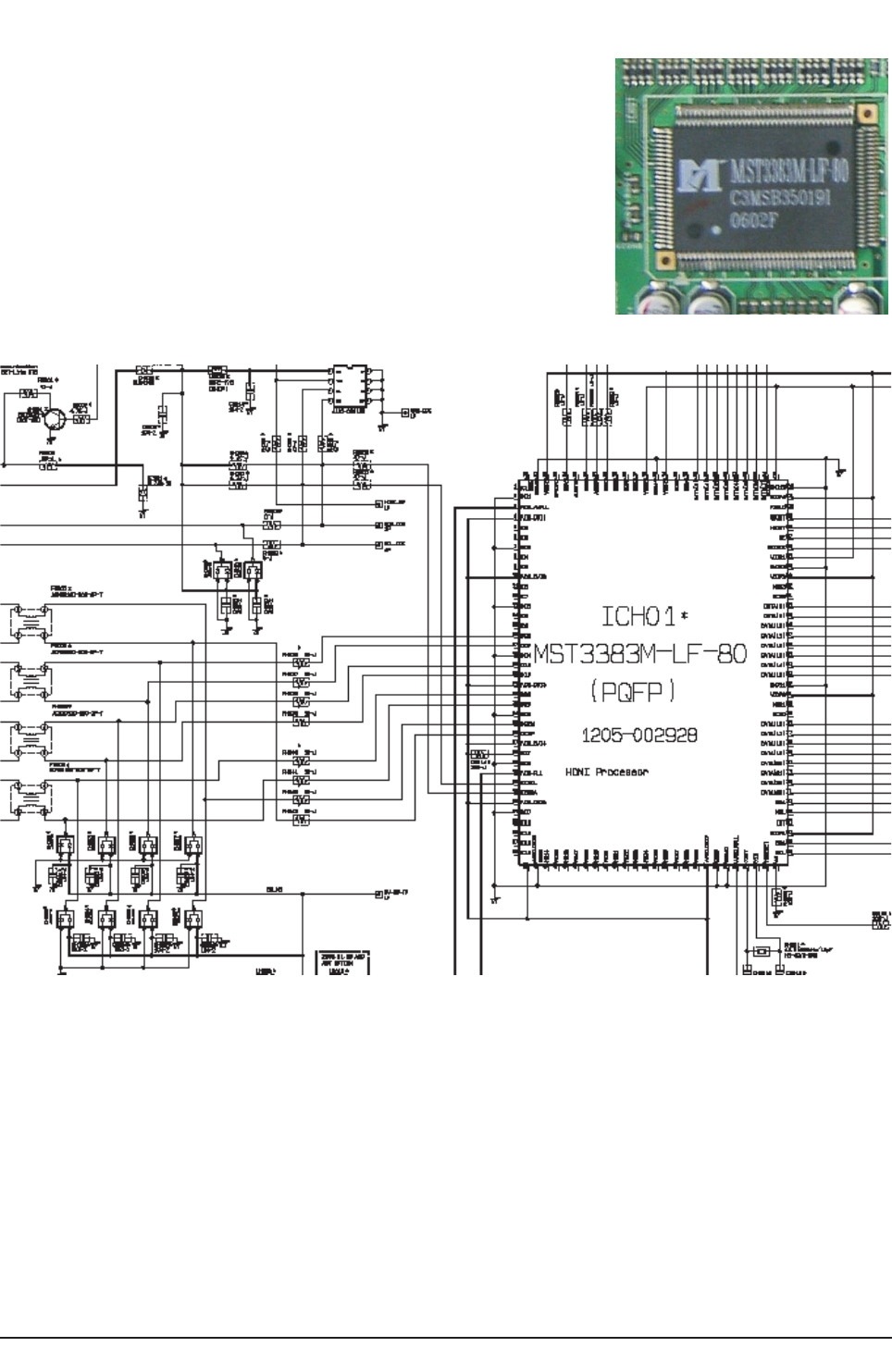

- MST3383M : HDMI decoding Functions

- STi5517 : CPU of Digital Block.DEMUX, MPEG Decoder

Product Specification

2-2 Samsung Electronics

2-2 Key Features

Model WS32Z419D/WS32Z408D

Voltage AC230V

Frequency of Operation 50/60 Hz

Dimensions(mm) 910 X 415 X 570 mm

Weight(Kg) 53.2 Kg

■H/W Configuration

- Slimfit(Low Depth) CRT adopted

- Progressive 100Hz (Full 100Hz)

- HD Ready(Option):720P,1080i

- DVB-T

■S/W Configuration

- VCTP 1 Chip UART communication.

- Output Format identification embodiment by input signal that use Scaler

- Multi Systems PAL/SECAM

- ATS,Auto Wide,Pre Channel, On/Off Timer,Zoom,Blue Screen

- HDMI Algorithm

■Picture

- Multi Systems : PAL/SECAM/NT4.43

- SCAN : Progressive Scan (Full 100Hz)

- AKB (Auto Kinetic Bias)

- Still Picture, Digital Noise Reduction

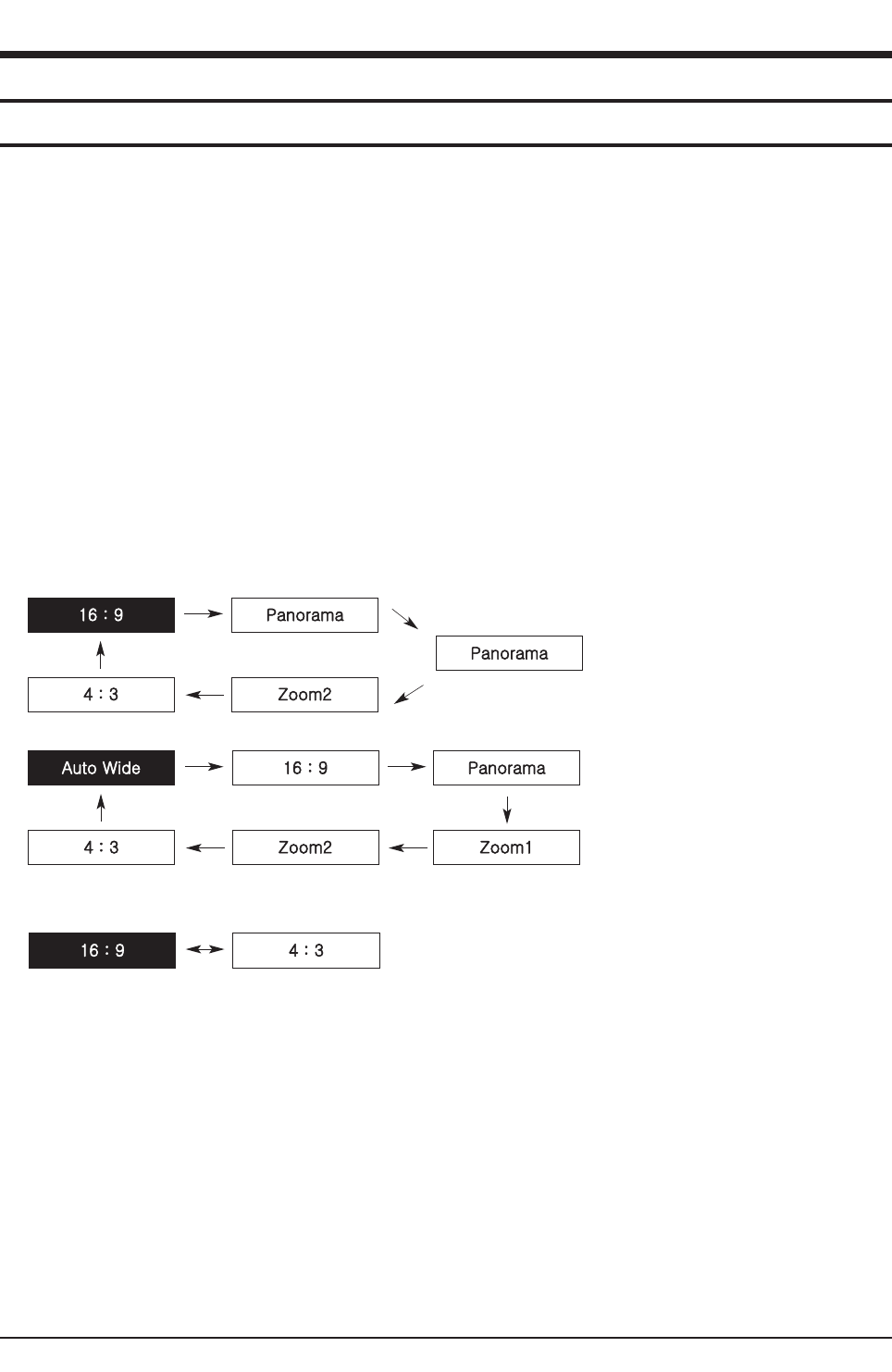

- Auto Wide

- Black Level expansion,CTI,VM,Dynamic Focus

■Sound

- System : A2/Niacam Stereo, SRS Trusurround

- Output : 10Wx2

- Speaker : 2EA

- AVL, Melody, Auto Stereo, Auto Mute, Equalize

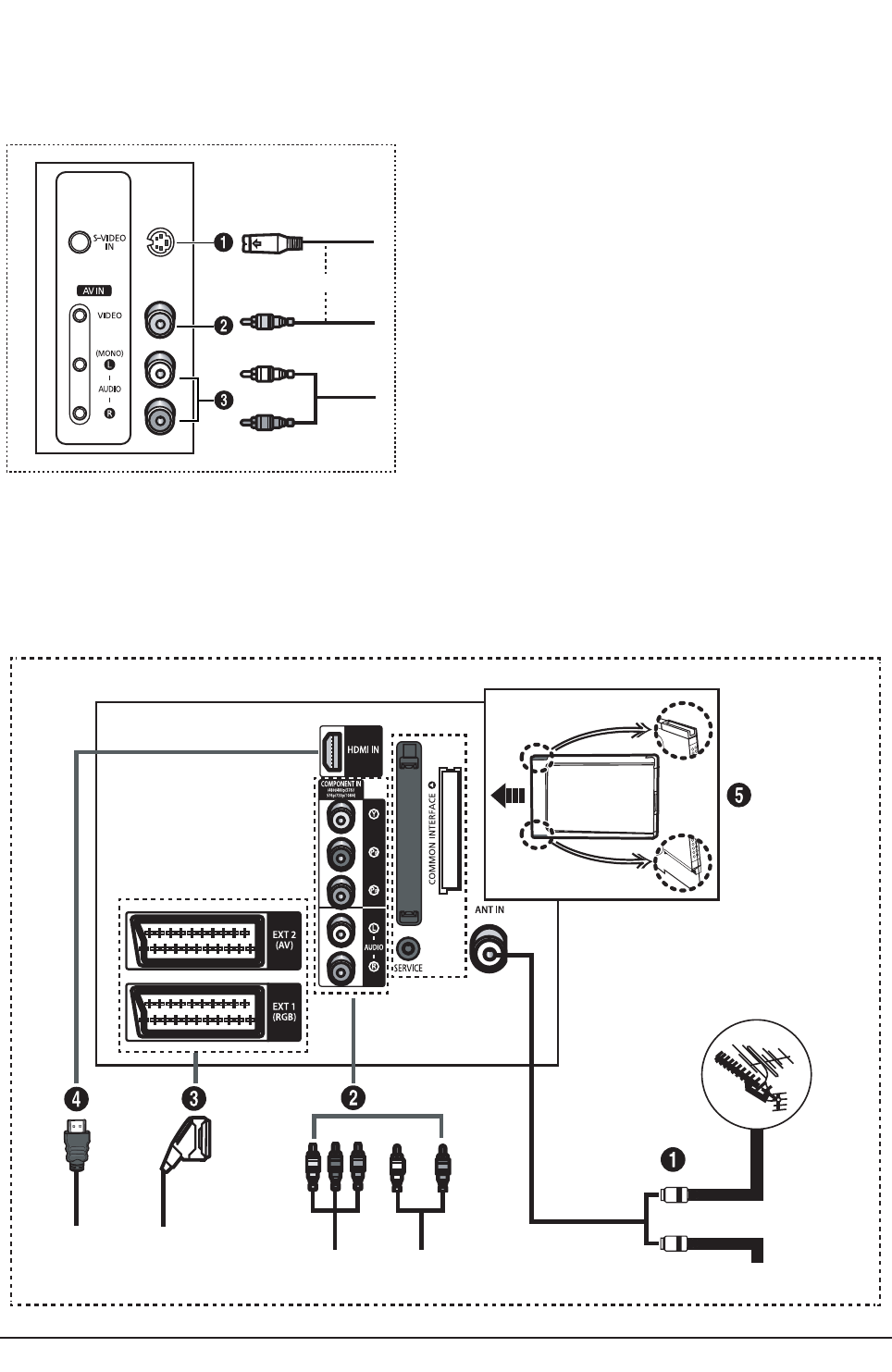

■In/Out Terminals

- Side : 1 CVBS Input, 1 S-Video Input, Sound L/R

- Rear : 2 Scart, 1 CI-Slot, 1 Tuner.

※Options - 1 Component(480i/480p/576i/576p/720p/1080i 50Hz/60Hz)

1 HDMI(480p/576p/720p/1080i 50Hz,60Hz)

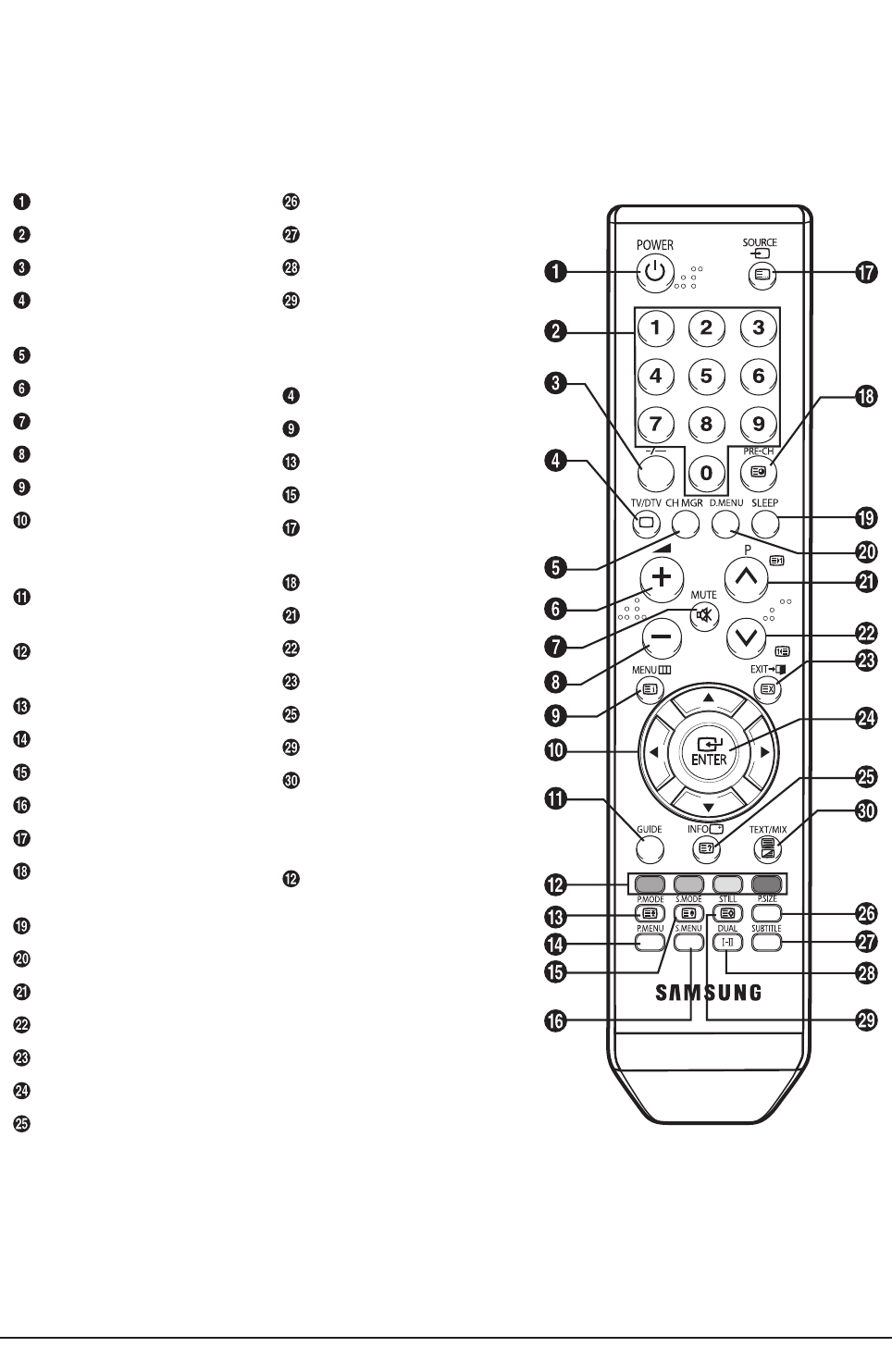

■Remocon : TM86

■Power Supply

- Europe(230V), CIS(160V- 300V)

■Power Supply and Power Comsumption

- Input : AC 230V

- Max Power : 180W / Stand by : Less than 3W

Product Specification

Samsung Electronics 2-3

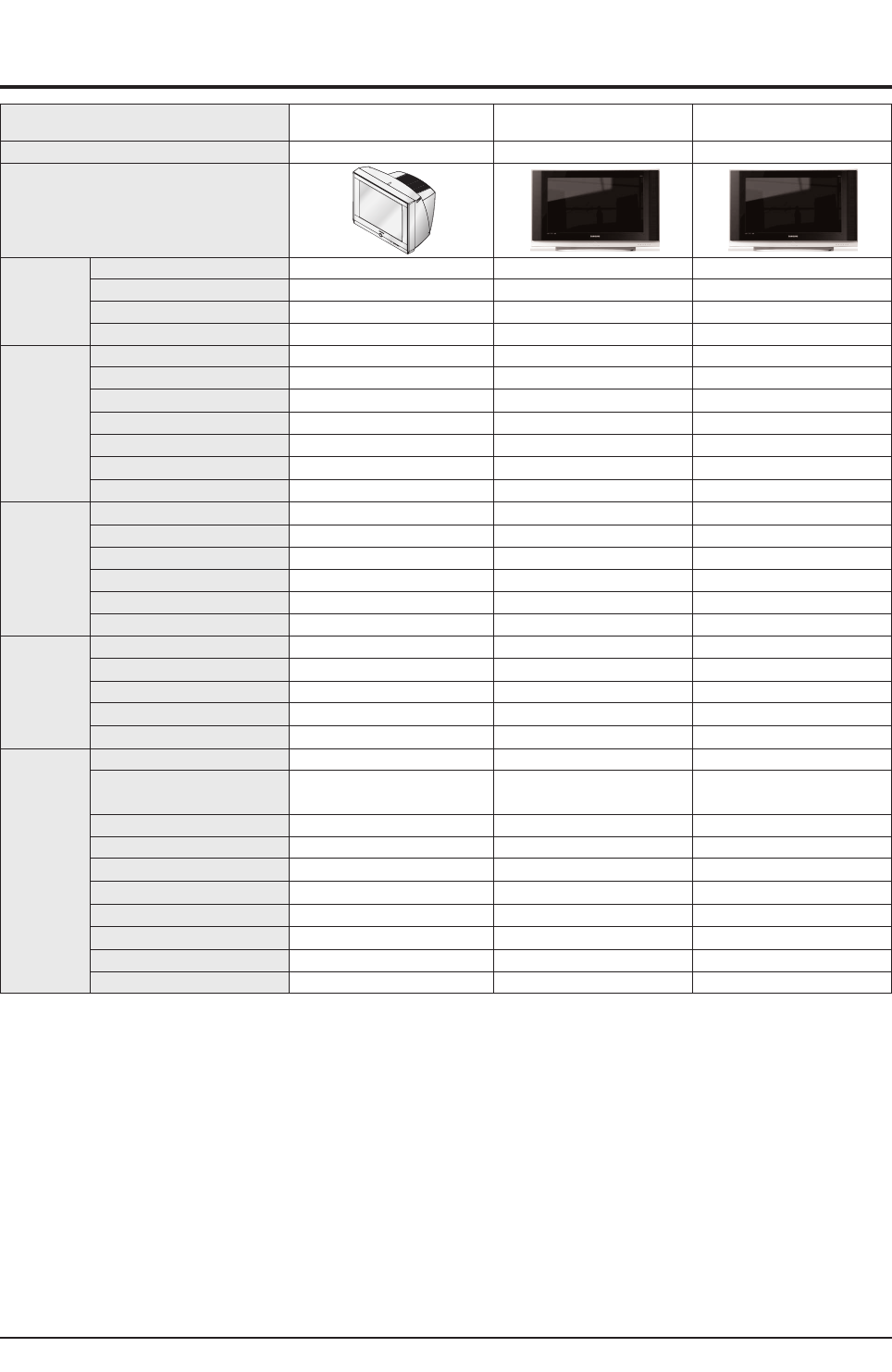

2-3 Specifications Analysis

Model WS-32M204D WS-32Z419D WS-32Z408D

Chassis S59B S64A S64A

Design

Basic

Product Type FLAT CRT Slim Fit CRT Slim Fit CRT

Digital Display SD SD SD

Screen Size 32 Inch 32 Inch 32 Inch

Aspect Ratio 16:9 16:9 16:9

Visual Quality

Progressive Scan -O O

Digital Comb Filter -4H 4H

Screen Pitch 0.68 0.73 0.73

AKB O O O

Digital Noise Reduction O O

DNIe - - -

3:2 Pull Down Support -

Audio

Base/Treble/Balance

Equalizer 5 Band 5 Band

AVL O O

Surround SRS-Trusurround SRS-Trusurround

Speaker System Direct Direct

Speaker Output 10W + 10W 10W + 10W

Function

Dual Screen Function - - -

Double Screen - - -

TTX

Still Picture O O

Auto Jack Recognition - - -

Ports

Antenna In Rear : 1 Rear : 1 Rear : 1

External In Rear : 2 SCART

Side : 1 CVBS

Rear : 2 SCART

Side : 1 CVBS

Rear : 2 SCART

Side : 1 CVBS

S-Video Side : 1 Side : 1 Side : 1

Y/Pb/Pr - Rear : 1 -

PC - - -

DVI - - -

HDMI - Rear : 1 -

Digital Audio Out - - -

Video Out Rear : 1 Rear : 1 Rear : 1

Audio Out Rear : 1 - -

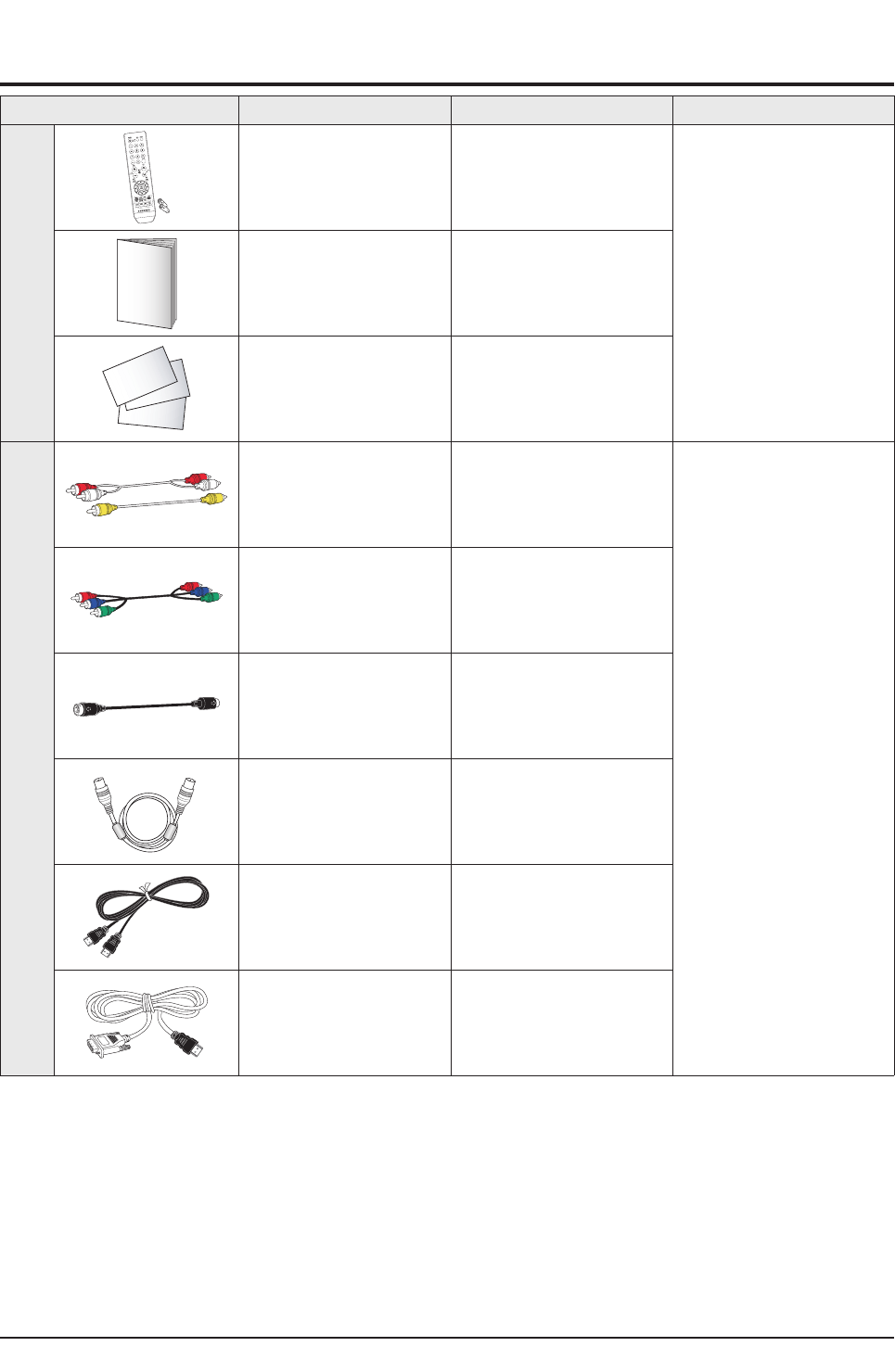

2-4 Accessories

Accessories Item Item code Remark

Supplied Accessories

Remote Control

AAA Alkaline Battery (2)

AA59-00379A

4301-000121

Samsung Service centerOwner's Instructions AA68-03776A

Warranty Card

Registration Card

Safety Guide Manual

BN68-00514B

AA68-03575A

AA68-03242E

Accessories that can be

purchased additionally

Video Cable /

Audio Cable -

Internal shopping mall

Component Cable -

S-Video Cable -

Antenna Cable -

HDMI Cable -

HDMI/DVI Cable -

Product Specification

2-4 Samsung Electronics

Alignment & Adjustment

Samsung Electronics 3-1

3. Alignment & Adjustment

3-1 Service Instruction

1. General Adjustment :

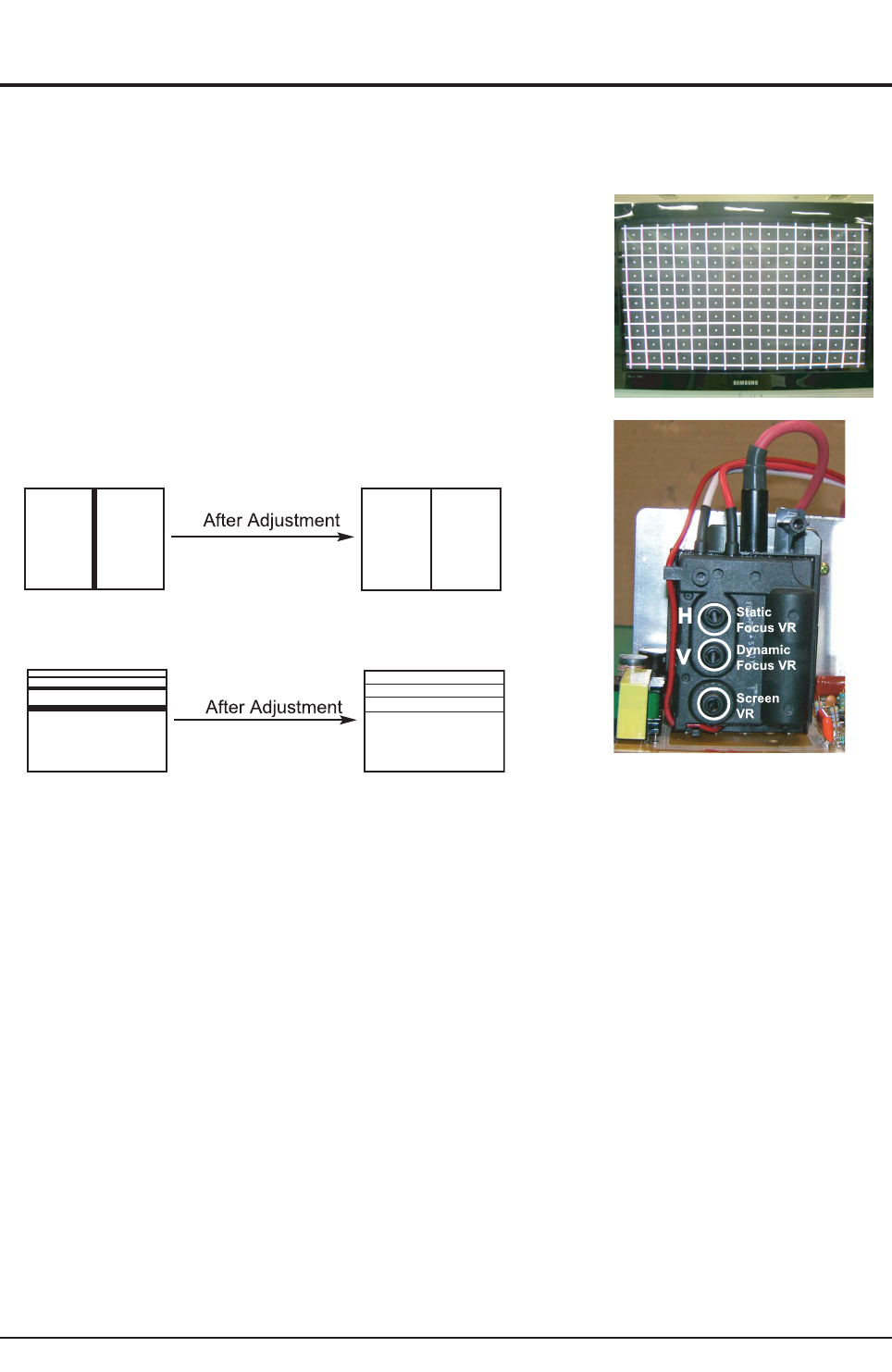

In general, a color TV can provide ideal visual quality by adjusting the basic settings such as the vertical size, horizontal size,

focus, etc.

Display a black and white picture on the screen to check if the picture is clearly displayed.

If there are some 'spotted' points on the screen when displaying a black and white picture, degauss the screen using the

degauss coil. If the spotted points remain, re-adjust the purity and the convergence. This completes the basic performance

examination.

Notice.

■These adjustments and the check list are only applied to S64A chassis-applied models.

■Only use 230V for the measurement set. It is recommended using an insulation transformer when supplying power to

the set so as to prevent shock to the set or to yourself.

■These adjustment specifications have been created on the basis of the domestic S64A chassis-applied remote control

model. Some of the contents may be changed subject to the sales location and the product specifications.

2. When replacing the F_Box Board :

Since the software is loaded to the EPROM of the F_box board, check the version of the

software of the EPROM.

To check the version of the software, Enter service mode presee the key on the reomte

control according to the following seguenu.

(in stand-by status) Info →Menu →Mute →Power →ON

The software information will then be displayed below the OSD menu.

The notation of the software information : For example, T_SHPEU_1009 refers to

"CORSET BASIC MODEL Europe. ver.1009".

Since the settings including the Channel

information, Deflection, etc. are saved to the

nvRAM, reconfigure these settings when

replacing the System Board

3. When replacing the Main Board : No adjustments required. Except that Tilt adjustment, focus adjustment, screen voltage

setting and W/B adjustment are all required.

4. When replacing the CRT Ass'y : No adjustments required.

5. When replacing the front panel master power switch : No adjustments required.

6. When replacing the Side AV : No adjustments required.

7. When replacing the control switch : No adjustments required.

Alignment & Adjustment

3-2 Samsung Electronics

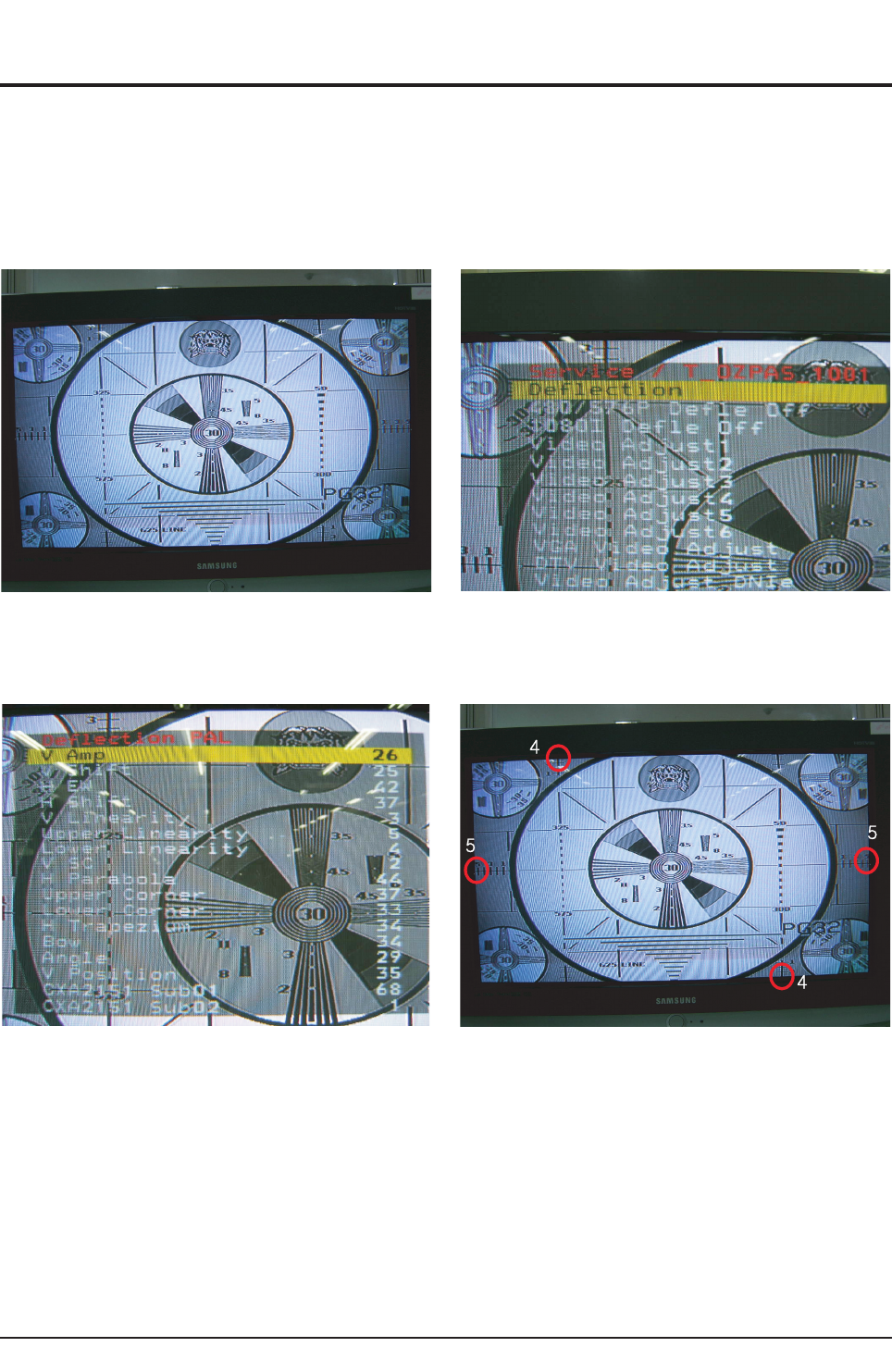

3-2 How to Access Service Mode

MENU Show all menus

▲/ ▼Move the cursor to select an item.

◀/ ▶Adjust the selected configuration value

1. To enter Service Mode, press the keys on the remote control according to the following sequence. (in Stand-by status)

Info →Menu →Mute →Power On

※When failing to enter Service Mode, repeat the procedure above.

2. The initial screen of Service Mode.

< Europe>

3. Functions of the Keys within Service Mode

Service

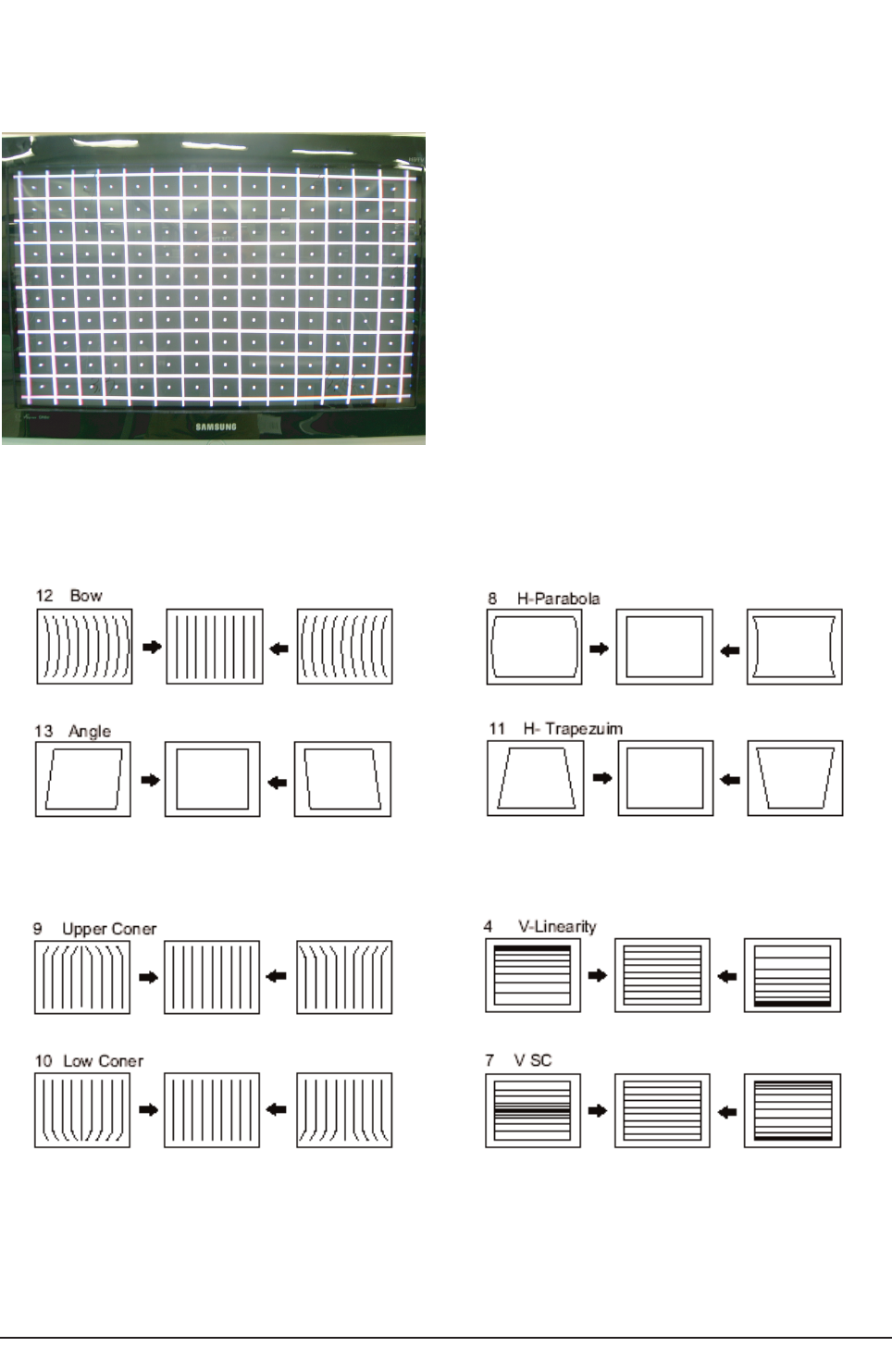

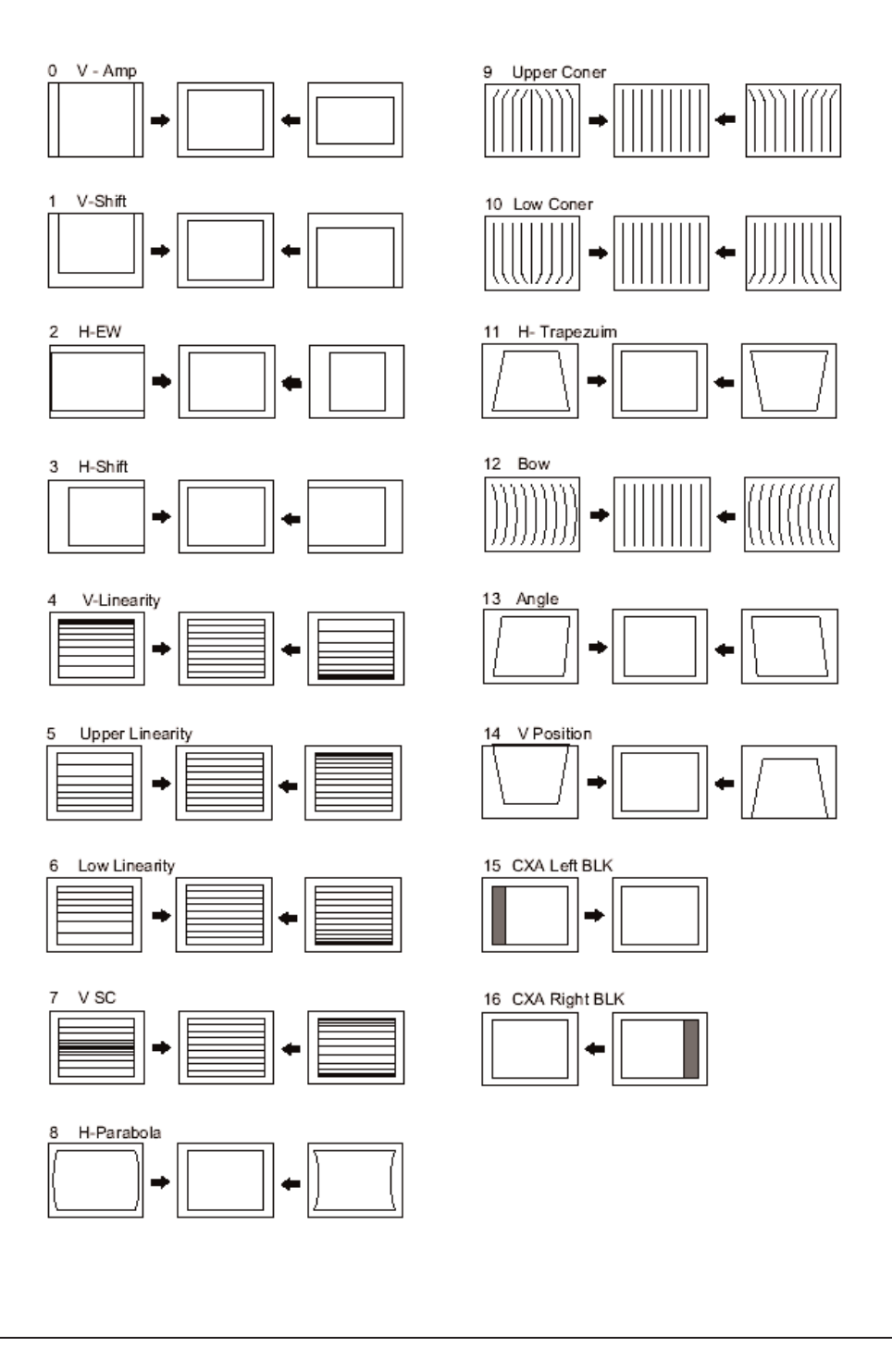

Deflection

480/576P Deflect Offset

1080i Deflect Offset

4:3 Offset -- Vixlim

Video Adjust 1

Video Adjust 2

Video Adjust 3

Video Adjust 4

Video Adjust 5

Video Adjust 6

Video Adjust 7

Video Adjust 8

IDTV Video Adjust

Option(XX XX XX)

YC Delay

EEPROM

Checksum(XXXX)

Reset

T_ULTPEU_XXXX XX-XX-XX

Alignment & Adjustment

Samsung Electronics 3-3

3-3 Factory Data

■Europe

1. Deflection Adjustment (PAL)

No item WS-32Z419D Remark

Data

1V Amp -6 Adjust

2V Shift -3 Adjust

3H EW 0 Adjust

4H Shift -1 Adjust

5V Linearity 0 Adjust

6Upper Linearity 0 FIX

7Lower Linearity 0 FIX

8V SC 0 FIX

9H Parabola 0 Adjust

10 Upper Corner 0 Adjust

11 Lower Corner 0 Adjust

12 H Trapezium 4 Adjust

13 Bow 0 Adjust

14 Angle 0 Adjust

15 V Position 0 FIX

2. Deflection Adiustment (NTSC)

※Input NTSC signal.Then, can control this articles.

No item WS-32Z419D Remark

Data

1V Amp 18 Adjust

2V Shift 24 Adjust

3H EW 24 Adjust

4H Shift 48 Adjust

5V Linearity 6 FIX

6Upper Linearity 0 FIX

7Lower Linearity 1 FIX

8V SC 4 FIX

9H Parabola 48 Adjust

10 Upper Corner 38 Adjust

11 Lower Corner 36 Adjust

12 H Trapezium 42 Adjust

13 Bow 36 Adjust

14 Angle 34 Adjust

15 V Position 40 FIX

Alignment & Adjustment

3-4 Samsung Electronics

Alignment & Adjustment

Samsung Electronics 3-5

3. 4:3 Offset__Vixlim

4. 480P Deflect Offset

No item WS-32Z419D Remark

Data

1H Para_4:3 1

2 Up_Corner_4:3 1

3 Low_Corner_4:3 1

4 Angle_4:3 0

5 Bow_4:3 1

6 H_Shift_4:3 0

7H Para_NT_4:3 -1

8 Up_Corner_NT_4:3 0

9 Low_Corner_NT_4:3 1

10 Angle_NT_4:3 0

11 Bow_NT_4:3 0

12 H_Shift_NT_4:3 0

No item WS-32Z419D Remark

Data

1V Amp 1 Adjust

2V Shift 0 Adjust

3H EW 0 Adjust

4H Shift 3 Adjust

5V Linearity 0 Adjust

6Upper Linearity 0 FIX

7Lower Linearity 0 FIX

8V SC 0 FIX

9H Parabola 2 Adjust

10 Upper Corner 1 Adjust

11 Lower Corner 2 Adjust

12 H Trapezium -4 Adjust

13 Bow 0 Adjust

14 Angle 0 Adjust

15 V Position 0 FIX

※Input signal of each resolution, then, can control the article.

Alignment & Adjustment

3-6 Samsung Electronics

5. 576P Deflect Offset

6. 720P Deflect Offset

No item WS-32Z419D Remark

Data

1V Amp 4 Adjust

2V Shift -4 Adjust

3H EW 0 Adjust

4H Shift 2 Adjust

5V Linearity 0 Adjust

6Upper Linearity 0 FIX

7Lower Linearity 0 FIX

8V SC 0 FIX

9H Parabola 2 Adjust

10 Upper Corner 0 Adjust

11 Lower Corner 1 Adjust

12 H Trapezium 2 Adjust

13 Bow 0 Adjust

14 Angle 0 Adjust

15 V Position 0 FIX

No item WS-32Z419D Remark

Data

1V Amp 0 Adjust

2V Shift 0 Adjust

3H EW 0 Adjust

4H Shift -2 Adjust

5V Linearity 0 Adjust

6Upper Linearity 0 FIX

7Lower Linearity 0 FIX

8V SC 0 FIX

9H Parabola 0 Adjust

10 Upper Corner 0 Adjust

11 Lower Corner 0 Adjust

12 H Trapezium -2 Adjust

13 Bow 0 Adjust

14 Angle 0 Adjust

15 V Position 0 FIX

Alignment & Adjustment

Samsung Electronics 3-7

7. 1080i Deflect Offset

8. Video Adjustment 1

No item WS-32Z419D Remark

Data

1V Amp -14 Adjust

2V Shift -5 Adjust

3H EW 2 Adjust

4H Shift -10 Adjust

5V Linearity 0 Adjust

6Upper Linearity 0 FIX

7Lower Linearity 0 FIX

8V SC 0 FIX

9H Parabola -4 Adjust

10 Upper Corner -4 Adjust

11 Lower Corner -3 Adjust

12 H Trapezium 4 Adjust

13 Bow 0 Adjust

14 Angle 0 Adjust

15 V Position 0 FIX

No item WS-32Z419D Remark

Data

1R CutOff 18 Adjust

2G CutOff 20 FIX

3B CutOff 20 Adjust

4R Drive 42 Adjust

5G Drive 32 FIX

6B Drive 32 Adjust

7Sub Bright 24 Adjust

8Sub Contrast 8 Adjust

9Bright VCTP 140 FIX

10 Contrast VCTP 30 FIX

11 SAT-VCTP 18 FIX

12 Tint VCTP 10 FIX

13 SC_RGB_BRTADJ 128 FIX

14 SC_RGB_CONADJ 38 FIX

15 RGB U_Sat 38 FIX

16 RGB V_Sat 42 FIX

17 RGB24_BRTADJ 16 FIX

18 RGB24_CONADJ 28 FIX

19 RGB24_ USATADJ 32 FIX

20 RGB24_ VSATADJ 32 FIX

Alignment & Adjustment

3-8 Samsung Electronics

9. Video Adjustment 2

10. Video Adjustment 3

No item WS-32Z419D Remark

Data

1 ABL Mode 3 FIX

2 Gamma 0 FIX

3 ABL TH 3 FIX

4AKB Time 15 FIX

5S - ABL 3 FIX

6P - ABL 9 FIX

7 VSU 0 FIX

8 LNA EXE 3 FIX

9 H_EHT comp 3 FIX

10 V_EHT comp 5 FIX

11 PIN EHT comp 2 FIX

12 AFC EHT comp 0 FIX

13 Sync Phase 0 FIX

14 Sync Phase (480) 1 FIX

15 Sync Phase (576P) 0 FIX

16 Sync Phase (720P) 1 FIX

17 Sync Phase (1080) 0 FIX

No item WS-32Z419D Remark

Data

1TNR Enable 1 FIX

2TNR Chroma 10 FIX

3TNR Luma 7 FIX

4LTI Enable 1 FIX

5LTI Gain 15 FIX

6LTI Gain x2 1 FIX

7LTI Coring 3 FIX

8Lmix gain 3 FIX

9Lmix offset 12 FIX

10 Peak Center Freq 3 FIX

11 Peaking Coring 2 FIX

12 CTI BW 1 FIX

13 CTI LP 1 FIX

14 CTI Gain 5 FIX

15 CTI Coring 3 FIX

16 V Peaking 2 FIX

17 V Peak Coring gain 0 FIX

18 V Peak high gain 0 FIX

19 V Peak coring high 0 FIX

20 IF Comp Filter 0 FIX

21 DHYAPRESC 2 FIX

22 DHCAPRESC 2 FIX

23 Nega Peaking 11 FIX

24 DCE Gain 45 FIX

25 CORBP 0 FIX

Alignment & Adjustment

Samsung Electronics 3-9

11. Video Adjustment 4

No item WS-32Z419D Remark

Data

1SVM RW 2 FIX

2SVM Delay 0 FIX

3SVM Coring 2 FIX

4SVM Gain 45 FIX

5SVM C_Gain 0 FIX

6OSD Contrast 32 FIX

7OSD Bright 127 FIX

8TTX Contrast 17 FIX

9TTX Bright 127 FIX

10 Melody Volume 6 FIX

11 VCR Mode Cnt 30 FIX

12 SLLTHD 2 FIX

13 SLLTHDV 3 FIX

14 THRSEL 0 FIX

15 LPCDEL 0 FIX

Alignment & Adjustment

3-10 Samsung Electronics

12. Video Adjustment 5 (576i)

No item WS-32Z419D Remark

Data

1 HORWIDTHP_H 5 FIX

2 HORWIDTHP_L 50 FIX

3 VERIWDTHP_H 1 FIX

4 VERIWDTHP_L 30 FIX

5 HORPOSP_H 1 FIX

6 HORPOSP_L 65 FIX

7 VERPOSP_H 0 FIX

8 VERPOSP_L 26 FIX

9 NAPPLIP_H 1 FIX

10 NAPPLIP_L 176 FIX

11 NALPFIP_H 0 FIX

12 NALPFIP_L 18 FIX

13 HSCPOSC_H 8 FIX

14 HSCPOSC_L 160 FIX

15 VSCPOSC_H 31 FIX

16 VSCPOSC_L 100 FIX

17 HORWIDTH_M_H 5 FIX

18 HORWIDTH_M_L 50 FIX

19 VERWIDTH_M_H 1 FIX

20 VERWIDTH_M_L 39 FIX

21 HORPOS_M_H 1 FIX

22 HORPOS_M_L 60 FIX

23 VERPOS_M_H 0 FIX

24 VERPOS_M_L 26 FIX

25 VSCPRESC_H 0 FIX

26 VSCPRESC_L 0 FIX

27 SD_BRTADJ 145

28 SD_CONADJ 46

29 SD_USATADJ 32

30 SD_VSATADJ 32

Alignment & Adjustment

Samsung Electronics 3-11

13. Video Adjustment 5 (480i)

No item WS-32Z419D Remark

Data

1 HORWIDTHP_H 5 FIX

2 HORWIDTHP_L 48 FIX

3 VERIWDTHP_H 1 FIX

4 VERIWDTHP_L 246 FIX

5 HORPOSP_H 1 FIX

6 HORPOSP_L 60 FIX

7 VERPOSP_H 0 FIX

8 VERPOSP_L 21 FIX

9 NAPPLIP_H 1 FIX

10 NAPPLIP_L 101 FIX

11 NALPFIP_H 0 FIX

12 NALPFIP_L 16 FIX

13 HSCPOSC_H 8 FIX

14 HSCPOSC_L 158 FIX

15 VSCPOSC_H 12 FIX

16 VSCPOSC_L 0 FIX

17 HORWIDTH_M_H 5 FIX

18 HORWIDTH_M_L 48 FIX

19 VERWIDTH_M_H 1 FIX

20 VERWIDTH_M_L 241 FIX

21 HORPOS_M_H 1 FIX

22 HORPOS_M_L 48 FIX

23 VERPOS_M_H 0 FIX

24 VERPOS_M_L 24 FIX

25 VSCPRESC_H 4 FIX

26 VSCPRESC_L 0 FIX

27 SD_BRTADJ 145 FIX

28 SD_CONADJ 46 FIX

29 SD_USATADJ 32 FIX

30 SD_VSATADJ 32 FIX

Alignment & Adjustment

3-12 Samsung Electronics

14. Video Adjustment 6 (480P)

No item WS-32Z419D Remark

Data

1 HORWIDTHP_H 5 FIX

2 HORWIDTHP_L 45 FIX

3 VERWIDTHP_H 1 FIX

4 VERWIDTHP_L 226 FIX

5 HORPOSP_H 1 FIX

6 HORPOSP_L 104 FIX

7 VERPOSP_H 0 FIX

8 VERPOSP_L 26 FIX

9 DHSCPRESC_H 11 FIX

10 DHSCPRESC_L 100 FIX

11 DNAPPLIP_H 1 FIX

12 DNAPPLIP_L 11 FIX

13 DVOFPOSC 128 FIX

14 VERPOS_S 6 FIX

15 VEROFFS_S 0 FIX

16 HORPOS_S_H 1 FIX

17 HORPOS_S_L 45 FIX

18 HPULLINMODE 0 FIX

19 DVSCPOSC_HI 64 FIX

20 DVSCPOSC_LO_H 131 FIX

21 DVSCPOSC_LO_L 17 FIX

22 DHSCPOSC_HI 14 FIX

23 DHSCPOSC_LO 255 FIX

24 HD_BRTADJ 145 FIX

25 HD_CONADJ 47 FIX

26 HD_USATADJ 38 FIX

27 HD_VSATADJ 42 FIX

Alignment & Adjustment

Samsung Electronics 3-13

15. Video Adjustment 6 (576P)

No item WS-32Z419D Remark

Data

1 HORWIDTHP_H 5 FIX

2 HORWIDTHP_L 20 FIX

3 VERWIDTHP_H 2 FIX

4 VERWIDTHP_L 68 FIX

5 HORPOSP_H 1 FIX

6 HORPOSP_L 85 FIX

7 VERPOSP_H 0 FIX

8 VERPOSP_L 26 FIX

9 DHSCPRESC_H 11 FIX

10 DHSCPRESC_L 210 FIX

11 DNAPPLIP_H 1 FIX

12 DNAPPLIP_L 35 FIX

13 DVOFPOSC 100 FIX

14 VERPOS_S 5 FIX

15 VEROFFS_S 6 FIX

16 HORPOS_S_H 1 FIX

17 HORPOS_S_L 0 FIX

18 HPULLINMODE 0 FIX

19 DVSCPOSC_HI 64 FIX

20 DVSCPOSC_LO_H 66 FIX

21 DVSCPOSC_LO_L 203 FIX

22 DHSCPOSC_HI 14 FIX

23 DHSCPOSC_LO 201 FIX

24 HD_BRTADJ 145 FIX

25 HD_CONADJ 47 FIX

26 HD_USATADJ 38 FIX

27 HD_VSATADJ 42 FIX

Alignment & Adjustment

3-14 Samsung Electronics

16. Video Adjustment 6 (720P_50Hz)

No item WS-32Z419D Remark

Data

1 HORWIDTHP_H 4 FIX

2 HORWIDTHP_L 226 FIX

3 VERWIDTHP_H 2 FIX

4 VERWIDTHP_L 125 FIX

5 HORPOSP_H 1 FIX

6 HORPOSP_L 50 FIX

7 VERPOSP_H 0 FIX

8 VERPOSP_L 26 FIX

9 DHSCPRESC_H 2 FIX

10 DHSCPRESC_L 30 FIX

11 DNAPPLIP_H 0 FIX

12 DNAPPLIP_L 240 FIX

13 DVOFPOSC 128 FIX

14 VERPOS_S 6 FIX

15 VEROFFS_S 0 FIX

16 HORPOS_S_H 1 FIX

17 HORPOS_S_L 0 FIX

18 HPULLINMODE 1 FIX

19 DVSCPOSC_HI 71 FIX

20 DVSCPOSC_LO_H 60 FIX

21 DVSCPOSC_LO_L 178 FIX

22 DHSCPOSC_HI 15 FIX

23 DHSCPOSC_LO 255 FIX

24 HD_BRTADJ 145 FIX

25 HD_CONADJ 49 FIX

26 HD_USATADJ 38 FIX

27 HD_VSATADJ 42 FIX

Alignment & Adjustment

Samsung Electronics 3-15

17. Video Adjustment 6 (720P_60Hz)

No item WS-32Z419D Remark

Data

1 HORWIDTHP_H 4 FIX

2 HORWIDTHP_L 225 FIX

3 VERWIDTHP_H 2 FIX

4 VERWIDTHP_L 16 FIX

5 HORPOSP_H 1 FIX

6 HORPOSP_L 53 FIX

7 VERPOSP_H 0 FIX

8 VERPOSP_L 26 FIX

9 DHSCPRESC_H 3 FIX

10 DHSCPRESC_L 210 FIX

11 DNAPPLIP_H 0 FIX

12 DNAPPLIP_L 214 FIX

13 DVOFPOSC 128 FIX

14 VERPOS_S 24 FIX

15 VEROFFS_S 0 FIX

16 HORPOS_S_H 0 FIX

17 HORPOS_S_L 233 FIX

18 HPULLINMODE 1 FIX

19 DVSCPOSC_HI 85 FIX

20 DVSCPOSC_LO_H 70 FIX

21 DVSCPOSC_LO_L 255 FIX

22 DHSCPOSC_HI 14 FIX

23 DHSCPOSC_LO 162 FIX

24 HD_BRTADJ 145 FIX

25 HD_CONADJ 49 FIX

26 HD_USATADJ 38 FIX

27 HD_VSATADJ 42 FIX

Alignment & Adjustment

3-16 Samsung Electronics

18. Video Adjustment 6 (1080i_50Hz)

No item WS-32Z419D Remark

Data

1 HORWIDTHP_H 4 FIX

2 HORWIDTHP_L 220 FIX

3 VERWIDTHP_H 2 FIX

4 VERWIDTHP_L 129 FIX

5 HORPOSP_H 0 FIX

6 HORPOSP_L 250 FIX

7 VERPOSP_H 0 FIX

8 VERPOSP_L 26 FIX

9 DHSCPRESC_H 15 FIX

10 DHSCPRESC_L 30 FIX

11 DNAPPLIP_H 0 FIX

12 DNAPPLIP_L 0 FIX

13 DVOFPOSC 128 FIX

14 VERPOS_S 6 FIX

15 VEROFFS_S 0 FIX

16 HORPOS_S_H 0 FIX

17 HORPOS_S_L 118 FIX

18 HPULLINMODE 1 FIX

19 DVSCPOSC_HI 53 FIX

20 DVSCPOSC_LO_H 69 FIX

21 DVSCPOSC_LO_L 255 FIX

22 DHSCPOSC_HI 13 FIX

23 DHSCPOSC_LO 246 FIX

24 HD_BRTADJ 145 FIX

25 HD_CONADJ 49 FIX

26 HD_USATADJ 38 FIX

27 HD_VSATADJ 42 FIX

Alignment & Adjustment

Samsung Electronics 3-17

19. Video Adjustment 6 (1080i_60Hz)

No item WS-32Z419D Remark

Data

1 HORWIDTHP_H 5 FIX

2 HORWIDTHP_L 30 FIX

3 VERWIDTHP_H 2 FIX

4 VERWIDTHP_L 17 FIX

5 HORPOSP_H 0 FIX

6 HORPOSP_L 180 FIX

7 VERPOSP_H 0 FIX

8 VERPOSP_L 26 FIX

9 DHSCPRESC_H 14 FIX

10 DHSCPRESC_L 130 FIX

11 DNAPPLIP_H 0 FIX

12 DNAPPLIP_L 100 FIX

13 DVOFPOSC 128 FIX

14 VERPOS_S 6 FIX

15 VEROFFS_S 0 FIX

16 HORPOS_S_H 0 FIX

17 HORPOS_S_L 178 FIX

18 HPULLINMODE 1 FIX

19 DVSCPOSC_HI 64 FIX

20 DVSCPOSC_LO_H 0 FIX

21 DVSCPOSC_LO_L 183 FIX

22 DHSCPOSC_HI 14 FIX

23 DHSCPOSC_LO 66 FIX

24 HD_BRTADJ 147 FIX

25 HD_CONADJ 46 FIX

26 HD_USATADJ 38 FIX

27 HD_VSATADJ 42 FIX

Alignment & Adjustment

3-18 Samsung Electronics

20. Video Adjustment 7

No item WS-32Z419D Remark

Data

1R drive offset Warm2 3 FIX

2B drive offset Warm2 -9 FIX

3R cutoff offset Warm2 6 FIX

4B cutoff offset Warm2 -11 FIX

5R drive offset Warm1 2 FIX

6B drive offset Warm1 -2 FIX

7R cutoff offset Warm1 3 FIX

8B cutoff offset Warm1 -2 FIX

9R drive offset Normal 0 FIX

10 B drive offset Normal 0 FIX

11 R cutoff offset Normal 0 FIX

12 B cutoff offset Normal 0 FIX

13 R drive offset Cool 1 0 FIX

14 B drive offset Cool 1 4 FIX

15 R cutoff offset Cool 1 2 FIX

16 B cutoff offset Cool 1 6 FIX

17 R drive offset Cool 2 -2 FIX

18 B drive offset Cool 2 6 FIX

19 R cutoff offset Cool 2 0 FIX

20 B cutoff offset Cool 2 9 FIX

Alignment & Adjustment

Samsung Electronics 3-19

21. Video Adjustment 8

No item WS-32Z419D Remark

Data

0LTI Gain NTSC 15 FIX

1 Peak_f0_NTSC 2 FIX

2 Peak_cor_NTSC 2 FIX

3 CTI_gain_NTSC 5 FIX

4Lmix gain_NTSC 3 FIX

5Lmix offset_NT 12 FIX

6LTI Gain AV 15 FIX

7 Peak_f0_AV 0 FIX

8 Peak_cor_AV 6 FIX

9 CTI_gain_AV 15 FIX

10 Lmix gain_AV 3 FIX

11 Lmix offset_AV 13 FIX

12 LTI Gain SD 15 FIX

13 Peak_f0_SD 0 FIX

14 Peak_cor_SD 6 FIX

15 CTI_gain_SD 0 FIX

16 Lmix gain_SD 3 FIX

17 Lmix offset_SD 13 FIX

18 LTI Gain HD 15 FIX

19 Peak_f0_ HD 0 FIX

20 Peak_cor_ HD 6 FIX

21 CTI_gain_ HD 15 FIX

22 Lmix gain_ HD 3 FIX

23 Lmix offset_ HD 13 FIX

※Convert by DTV mode.then,can control this article.

Alignment & Adjustment

3-20 Samsung Electronics

22. IDTV Video Adjust

No item WS-32Z419D Remark

Data

1 NAPPLIP_L 224 FIX

2 NAPPLIP_H 1 FIX

4 HSCPOSC_L 128 FIX

3 HSCPOSC_H 8 FIX

6 HORPOS_M_L 42 FIX

5 HORPOS_M_H 1 FIX

7 VSCPOSC_L 20 FIX

8 VSCPOSC_H 31 FIX

10 VERPOS_M_L 25 FIX

9 VERPOS_M_H 0 FIX

11 DTV_RGB_BRTADJ 136 FIX

12 DTV_RGB_CONADJ 38 FIX

13 DTV_RGB_USATADJ 38 FIX

14 DTV_RGB_VSATADJ 42 FIX

15 TUNER TOP 8 FIX

16 DTV_SAT-VP 32 FIX

17 DTV_SD YFDEL 100 FIX

18 DTV_SD_UVDEL 100 FIX

19 DTV_DCE_GAIN 5 FIX

20 DTV_V AMP_Offset 6 FIX

23. YC Delay

No item WS-32Z419D Remark

Data

1P.YC (AV) Delay 2 FIX

2S.YC (AV) Delay 0 FIX

4N.YC (AV) Delay 2 FIX

3P.BG.YC Delay 4 FIX

6P.DK.YC Delay 4 FIX

5P.I.YC Delay 3 FIX

7P.M.YC Delay 0 FIX

8P.L.YC Delay 0 FIX

10 S.BG.YC Delay -1 FIX

9S.DK.YC Delay -1 FIX

11 S.I.YC Delay 0 FIX

12 S.M.YC Delay 0 FIX

13 S.L.YC Delay 0 FIX

14 N.M.YC Delay 4 FIX

15 SD YFDEL 64 FIX

16 SD_UVDEL 64 FIX

17 RGB Y_Delay 118 FIX

18 RGB UV_Delay 118 FIX

19 HD_DELB 0 FIX

20 HD_DELG 0 FIX

21 HD_DELR 0 FIX

Alignment & Adjustment

Samsung Electronics 3-21

24. EEPROM

No item WS-32Z419D Remark

Data

0 System 1 FIX

1 System_480 2 FIX

2 System_1080 3 FIX

4Dynamic Contrast 100 FIX

3Dynamic Brightness 40 FIX

6Dynamic Shapness 65 FIX

5Dynamic Color 50 FIX

7Dynamic Tint 50 FIX

8Dynamic Color Tone 2 FIX

10 Standard Contrast 70 FIX

9Standard Brightness 50 FIX

11 Standard Shapness 50 FIX

12 Standard Color 45 FIX

13 Standard Tint 50 FIX

14 Standard Color Tone 2 FIX

15 Movie Contrast 50 FIX

16 Movie Brightness 50 FIX

17 Movie Shapness 40 FIX

18 Movie Color 40 FIX

19 Movie Tint 50 FIX

20 Movie Color Tone 4 FIX

21 Left _Blank 17 FIX

22 Right_Blank 25 FIX

23 Left Blanking (480) 25 FIX

24 Right Blanking (480) 25 FIX

25 Left Blanking (720) 44 FIX

26 Right Blanking (720) 25 FIX

27 Left Blanking (1080) 44 FIX

28 Right Blanking (1080) 25 FIX

29 RGB Tint 0 FIX

30 DVD Tint 0 FIX

31 Bypass Deint 0 FIX

32 SLMCSW 1 FIX

33 DCE Gain 30 FIX

34 TTX V-Position 43 FIX

35 TTX H-Position 195 FIX

36 PIP CONT 255

37 PIP-Bright 255

38 PIP-SCURVE 255

39 PIP-CTI 255

40 PIP-Sharp 255

41 PIP-Tint 255

42 - 255

43 - 255

44 - 255

Alignment & Adjustment

3-22 Samsung Electronics

No item WS-32Z419D Remark

Data

45 - 255

46 - 255

47 - 255

48 - 255

49 - 255

50 - 255

51 - 255

52 - 255

53 - 255

54 - 255

55 - 255

56 - 255

57 - 255

58 - 255

59 - 255

60 - 255

61 - 255

62 - 255

63 - 255

64 TTX_Bow offset -1

65 TTX_H_Para offset -1

66 TTX_Up corner offset -1

67 TTX_Low corner offset -1

68 SECAM Dr 1 FIX

69 SECAM Db 2 FIX

70 50_Trap 2 FIX

71 60_Trap 2 FIX

72 LNA PLUS STEP2 14 FIX

73 LNA PLUS STEP3 14 FIX

74 LNA PLUS STEP4 14 FIX

75 LNA PLUS STEP5 14 FIX

76 LNA PLUS STEP6 14 FIX

77 H-PLL(AV) 0 FIX

78 RF color sens 210 FIX

79 AV color sens 210 FIX

80 R drive offset 1080P 7 FIX

81 G drive offset 1080P 3 FIX

82 R cutoff offset 1080P -1 FIX

83 G cutoff offset 1080P 2 FIX

84 R drive offset 1080i 0 FIX

85 G drive offset 1080i 0 FIX

86 R cutoff offset 1080i 3 FIX

87 G cutoff offset 1080i 3 FIX

88 R drive offset 720P-60HZ 0 FIX

89 G drive offset 720P-60HZ 0 FIX

Alignment & Adjustment

Samsung Electronics 3-23

No item WS-32Z419D Remark

Data

90 R cutoff offset 720P-60HZ 3 FIX

91 G cutoff offset 720P-60HZ 3 FIX

92 R drive offset 720P-50HZ 0 FIX

93 G drive offset 720P-50HZ 0 FIX

94 R cutoff offset 720P-50HZ 3 FIX

95 G cutoff offset 720P-50HZ 3 FIX

96 R drive offset 480P 0 FIX

97 G drive offset 480P 0 FIX

98 R cutoff offset 480P 0 FIX

99 G cutoff offset 480P 0 FIX

100 R drive offset 576P 3 FIX

101 G drive offset 576P 2 FIX

102 R cutoff offset 576P -3 FIX

103 G cutoff offset 576P -1 FIX

104 R drive offset 480i 0 FIX

105 G drive offset 480i 0 FIX

106 R cutoff offset 480i 0 FIX

107 G cutoff offset 480i 0 FIX

108 R drive offset 576i 0 FIX

109 G drive offset 576i 0 FIX

110 R cutoff offset 576i 0 FIX

111 G cutoff offset 576i 0 FIX

112 H_EHT comp_720p 1

113 V_EHT comp_720p 5

114 PIN EHT comp_720p 2

115 ABL TH_1080i 2

116 Color On_NTSC 2

117 Color Killer Threshold_NTSC 210

118 ACC Limitation_NTSC 16

119 Color Killer Threshold_AV 230

245 HDMI 480P H.Shift Offset -6 FIX

246 HDMI 576P H.Shift Offset -4 FIX

247 HDMI 720P H.Shift Offset 6 FIX

248 HDMI 1080i H.Shift Offset 6 FIX

Alignment & Adjustment

3-24 Samsung Electronics

25. Option

No Option Byte Alterable Change mode WS32Z419D WS32Z408D Remark

1 System CS/CW CW CW

2 CRT WIDE / 4:3 WIDE WIDE

3 Jack 2 Scart/ 2 Scart+Component 2 Scart+Component 2 Scart

4 Auto-FM OFF/ON ON ON

5High DEV OFF/ON OFF OFF

6 LNA OFF/ON ON ON

7Time Sync OFF/ON OFF OFF

8 TTX OFF/ON ON ON

9Txt Group -West EU West EU

10 OSD Language ENGLISH / CIS ENGLISH ENGLISH

11 Digital NR OFF/ON ON ON

12 Carrier Mute OFF/ON ON ON

13 Search-LNA OFF/ON ON ON

14 HDMI OFF/ON ON OFF

15 WSS Wide Fix OFF/ON OFF OFF

16 Blue Screen OFF/ON ON ON

Alignment & Adjustment

Samsung Electronics 3-25

3-4 Service Adjustment

3-4-1 Adjusting the Picture Size

■Since the S62A chassis has the deflection settings data within the Factory Data, the picture size has to be adjusted when

replacing the System Board or the Deflection Board, according to the following procedures.

①Display the Lion pattern. ②Press "Info →Menu →Mute →Power On"

using the remote control and enter Factory Mode.

③Enter Deflection Mode. ④Adjust the V-AMP, V-SHIFT, H-AMP and H-SHIFT items so

that the width becomes 5 and the height becomes 4.

Alignment & Adjustment

3-26 Samsung Electronics

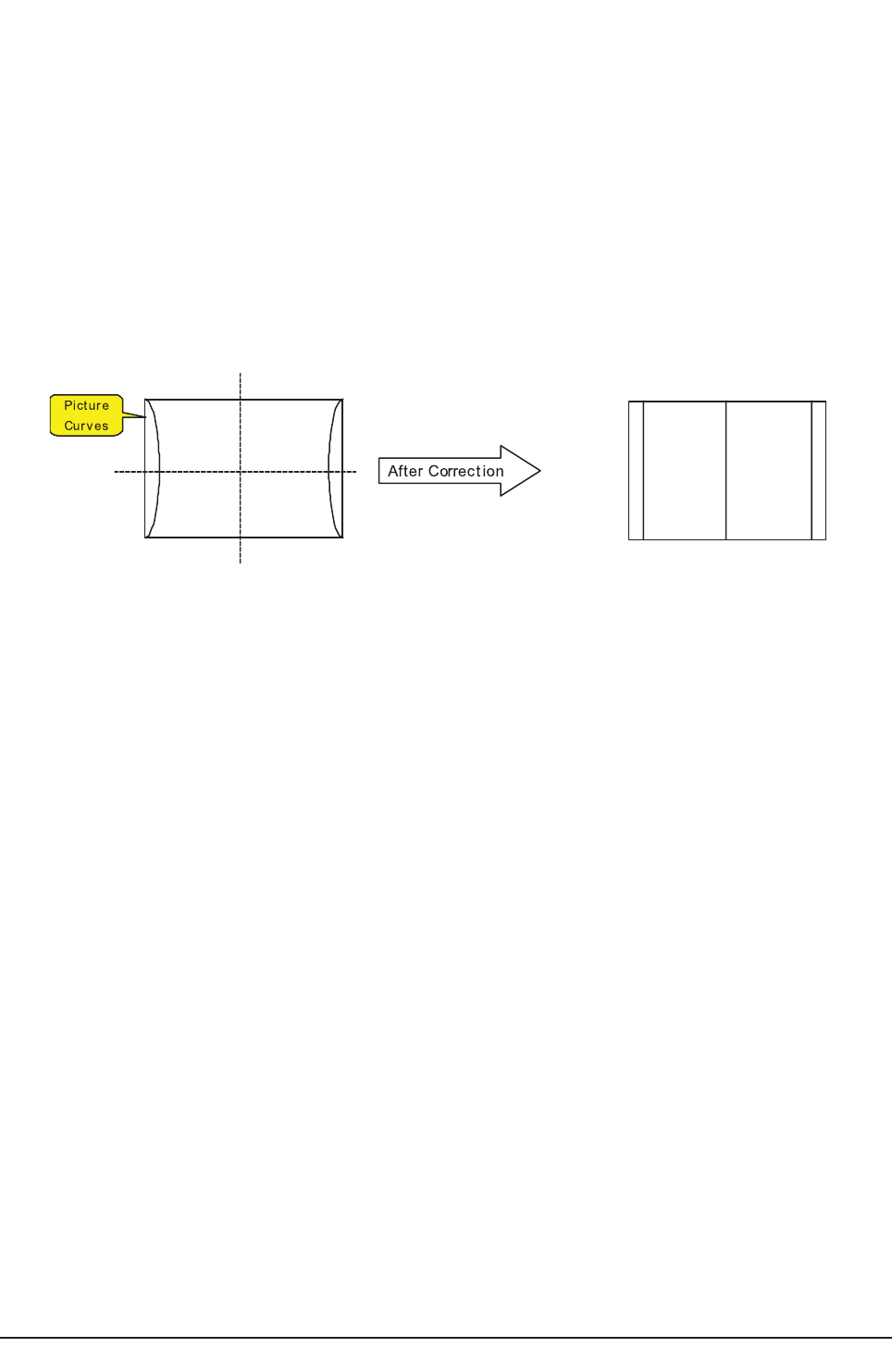

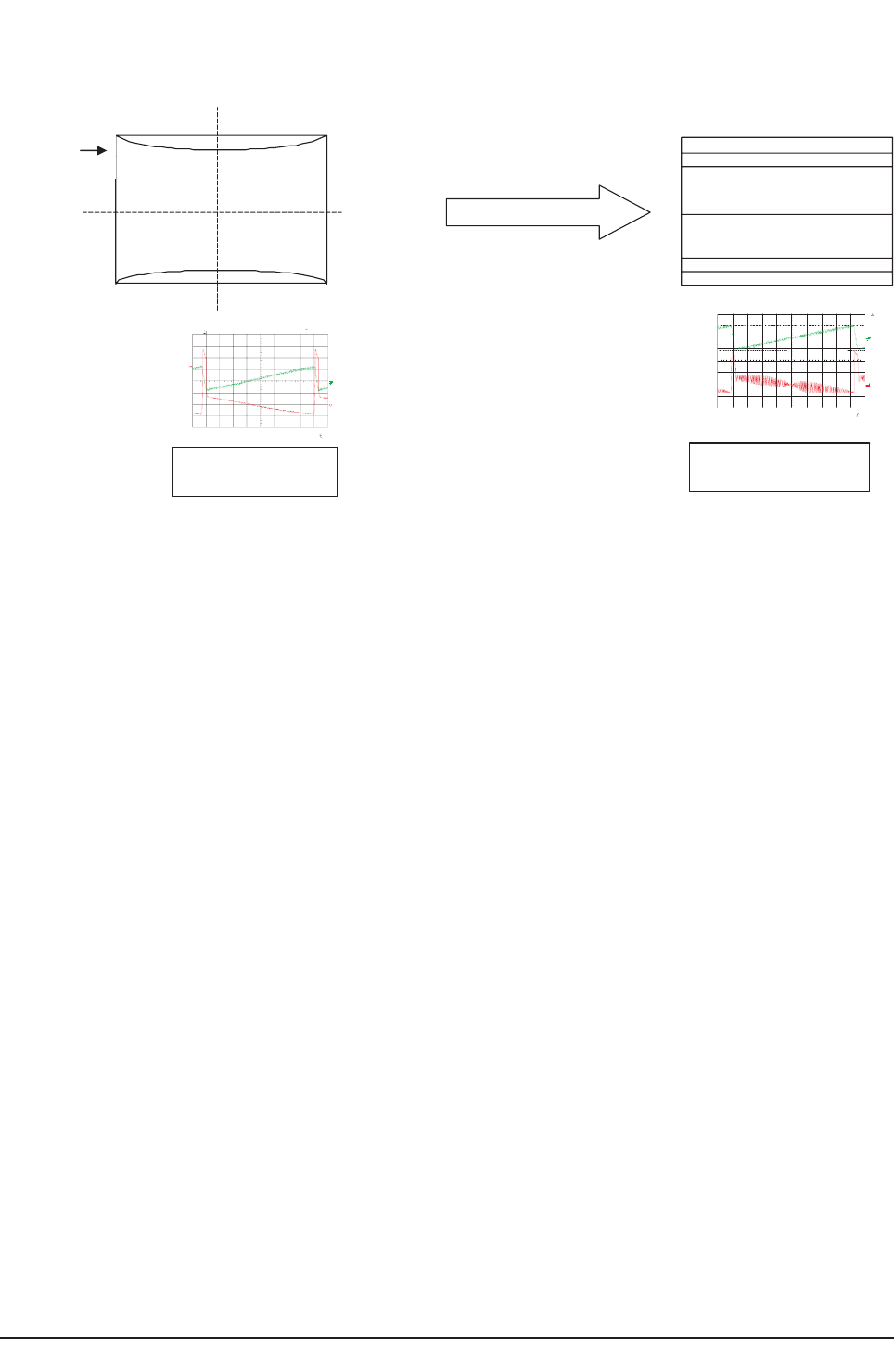

3-4-2 Adjusting the Picture Straight Lines

①Display the Cross Hatch pattern.

②Adjust settings other than V-AMP, V-SHIFT, H-AMP and H-SHIFT so that straight lines are displayed without curves.

⑦When the adjustments are complete, display the Lion pattern and check that the picture size has not been changed.

If there is no change, finish the adjustments.

③Adjust BOW and the Angle settings so that the center line

becomes a straight line.

④Adjust the H-Parabola and H-Trapezium settings so that

the left and right lines become straight.

⑤Adjust the Upper Corner and the Low Corner settings so that

the end of the lines become straight.

⑥Adjust the V-Linearity and V-SC settings so that the

intervals of the horizontal lines become uniform.

Alignment & Adjustment

Samsung Electronics 3-27

3-5 Replacements & Calibration

3-5-1 Adjusting the Focus

■Since the S62A chassis has a built-in dynamic focus circuit, take care when adjusting the focus. When the CRT PCB, FBT or

CRT has been replaced, the focus has to be adjusted according to the following procedures.

1. Display the CROSS Hatch pattern.

2. Set the Screen Adjustment to "View as Standard".

3. Turn the Static Focus VR clockwise to the maximum position.

(End of clockwise direction)

4. Turn the Dynamic Focus VR counter clockwise to the maximum position.

(End of counter clockwise direction)

5. Slowly turn the Static Focus VR counter clockwise so that the center vertical line

is the most clearly displayed.

6. Slowly turn the Dynamic Focus VR clockwise so that the 2nd line is the most clearly

displayed.

7. Check the entire screen focus and repeat steps 3 to 6, if necessary.

Alignment & Adjustment

3-28 Samsung Electronics

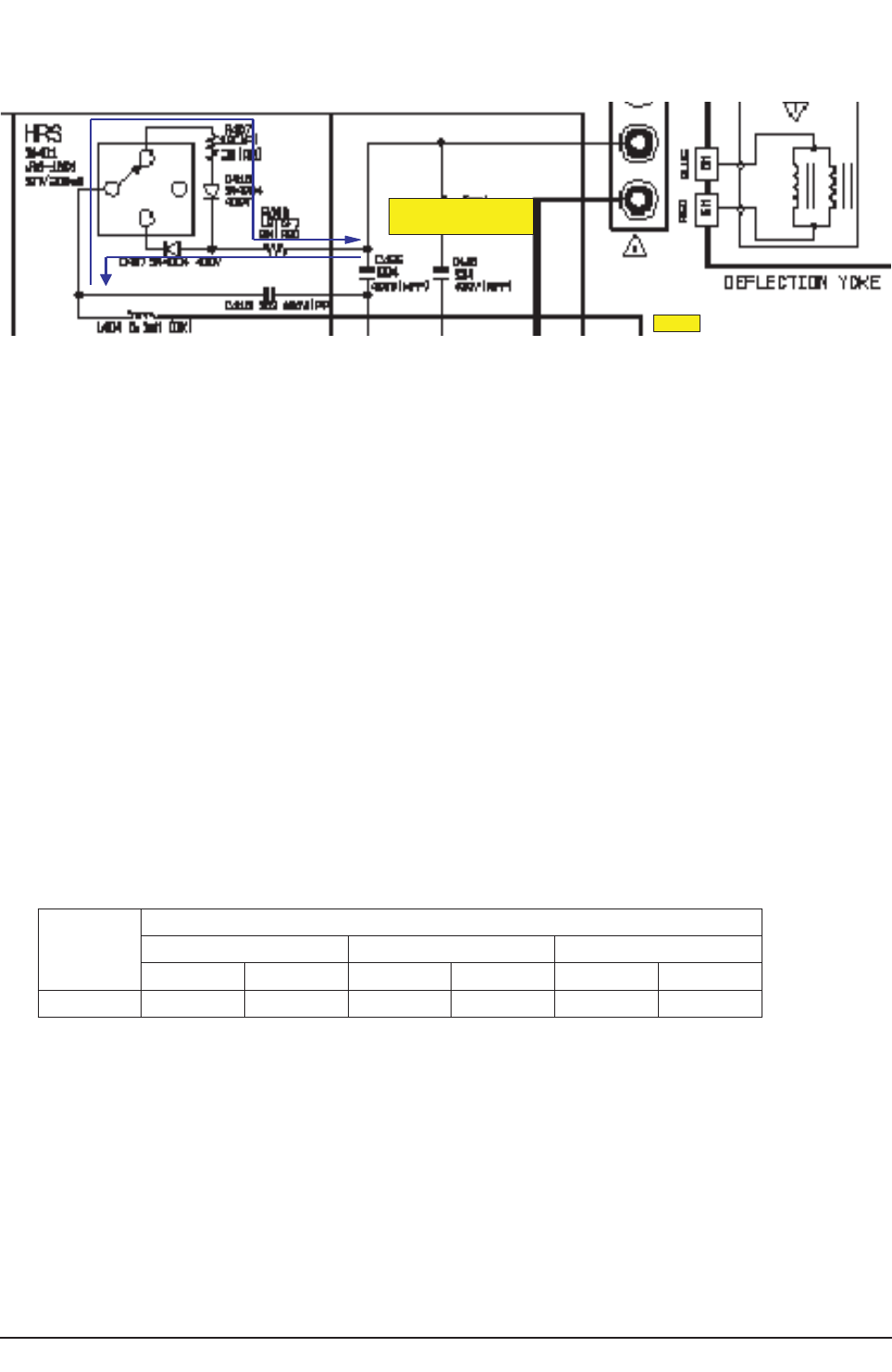

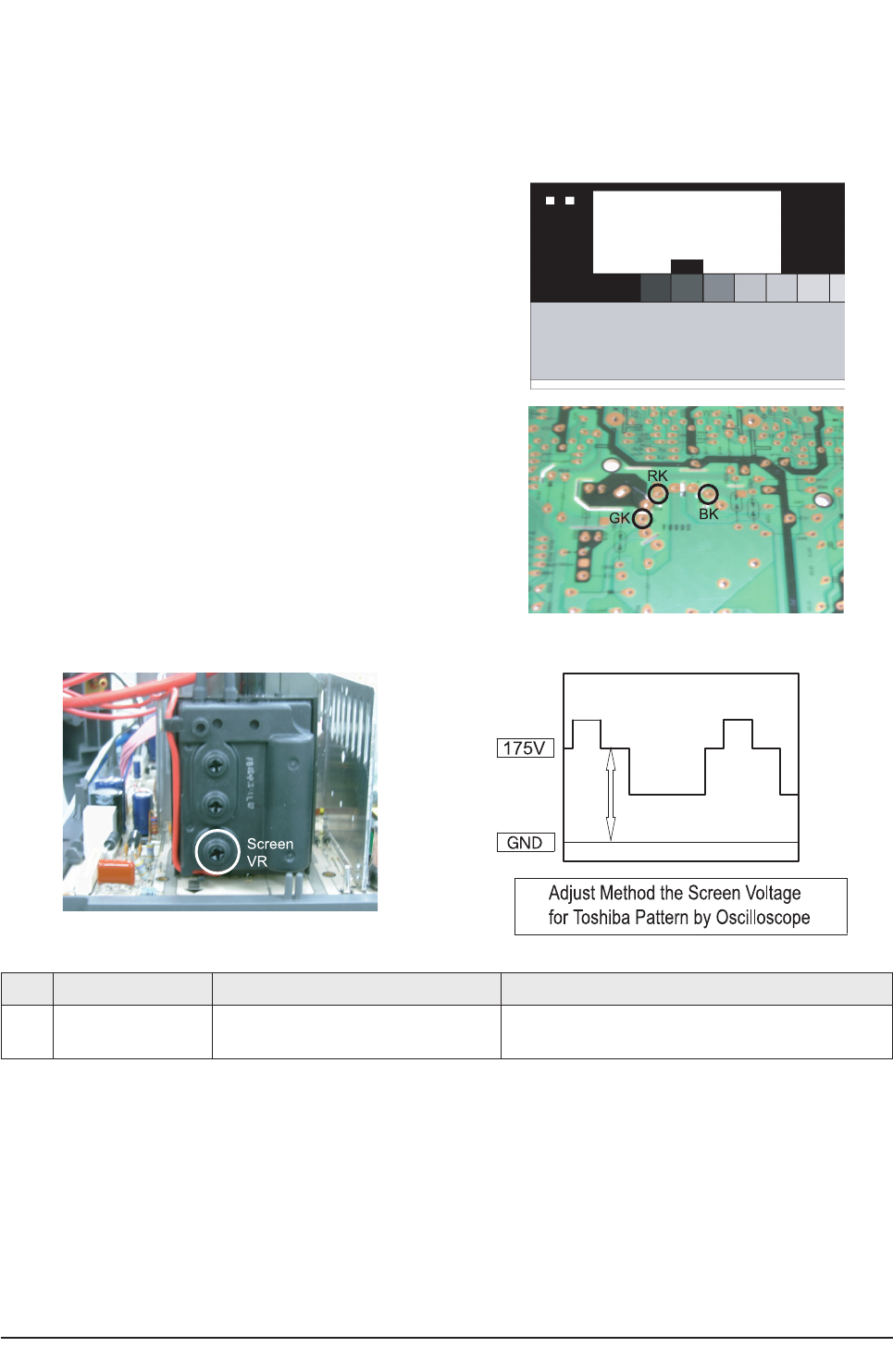

3-5-2 Adjusting the Screen Voltage

1. Select "Info →Menu →Mute →Power On" to enter Service Mode.

2. Initialize all settings to the values appropriate to the corresponding model.

3. Display the Toshiba pattern.

4. Using an Oscilloscope, measure the size of RK, BK and GK to the

Pedestal Level.

5. Adjust the Screen VR of FEB so that the highest point of the Pedestal Level is 175V.

※Screen Voltage Measurement Data

No Item Data Required Adjustment

1Screen Voltage The Highest Voltage among RK, GK and

BK 190Vp-p-3V Screen Voltage

Alignment & Adjustment

Samsung Electronics 3-29

3-5-3 Adjusting the White Balance

1. Initialize all settings to the values appropriate to the corresponding model.

2. Select "Info →Menu →Mute →Power On" to enter Service Mode.

3. Initialize all settings to the values appropriate to the corresponding model.

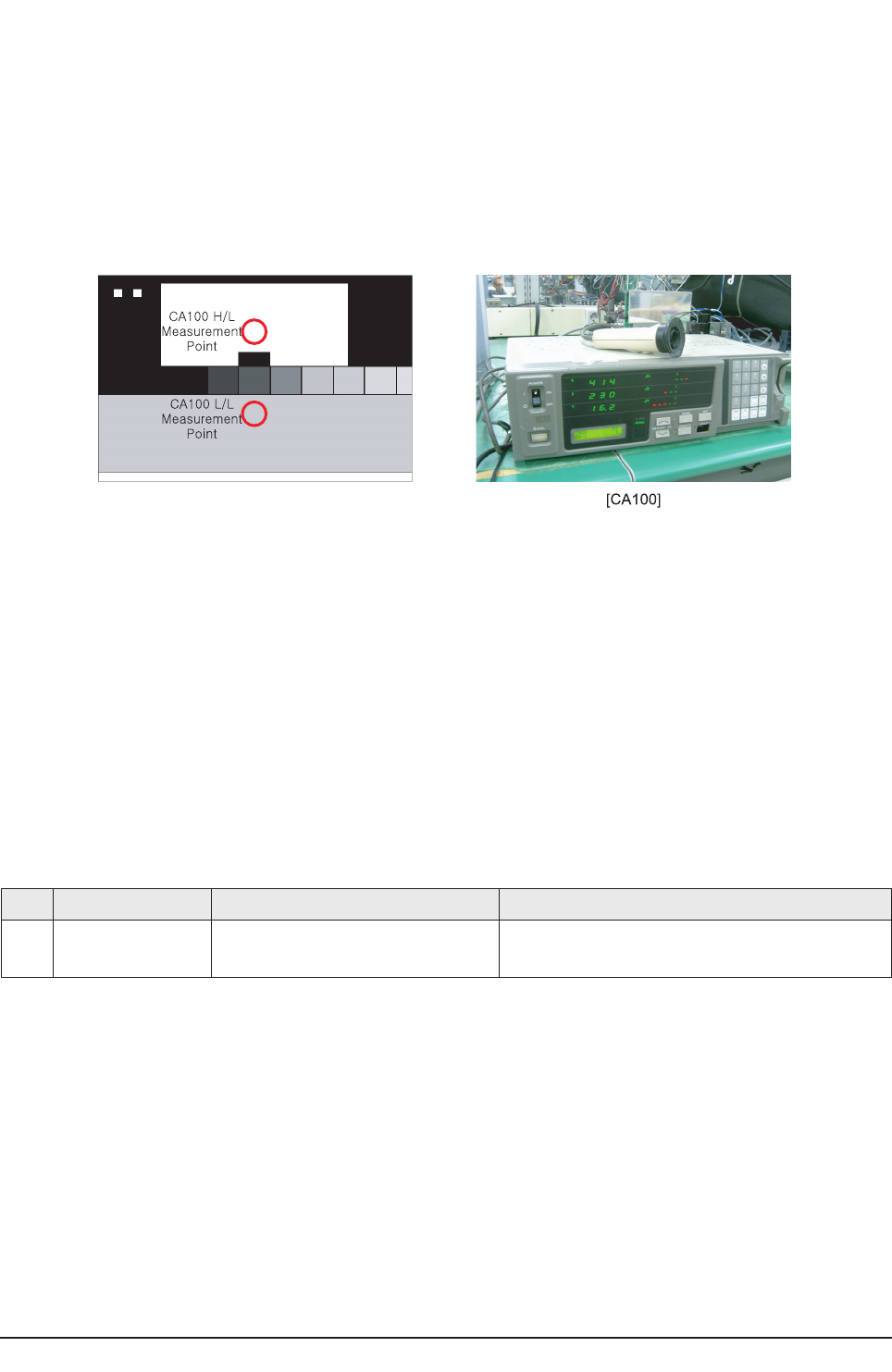

4. Display the Toshiba pattern and adjust the White Balance using CA100 with the coordinates of the corresponding model.

5. Enter Video Adjust1 of Service Mode. Adjust Low/Light.

- Adjust Sub Bright to set Y.

- Adjust B Cutoff to set y.

- Adjust R Cutoff to set x.

6. Enter Video Adjust1 of Service Mode. Adjust High/Light.

- Adjust Sub Contrast to set Y.

- Adjust B Drive to set y.

- Adjust R Drive to set x.

7. Check Low/Light and readjust it if its value has been changed.

8. If you have readjusted Low/Light, readjust High/Light until the two values are identical to the coordinates of the corresponding

model.

※White Balance Standard Data

3-5-4 Check List for the Screen Voltage and White Balance Adjustment

1. The Screen Voltage and White Balance are connected each other, and both of them have to be configured to the correct values.

2. Adjust the White Balance after the Screen Voltage was adjusted, and check if the Screen Voltage is normal after adjusting the

White Balance.

3. If the White Balance is readjusted, check the Screen Voltage again.

4. When the adjustment is finished, check the following checklist.

- If there is a spot on the screen when turning the TV set off/on, adjust the Screen Voltage again.

- If there is a ghost line on the screen, adjust the Screen Voltage again.

No Item Data Required Adjustment

1White

Balance

x:282±3/ y:290±3/ 40± 3(High)

x:282±3/ y:290±3/ 2.5±0.2(Low) White Balance (Europe)

3-30 Samsung Electronics

MEMO

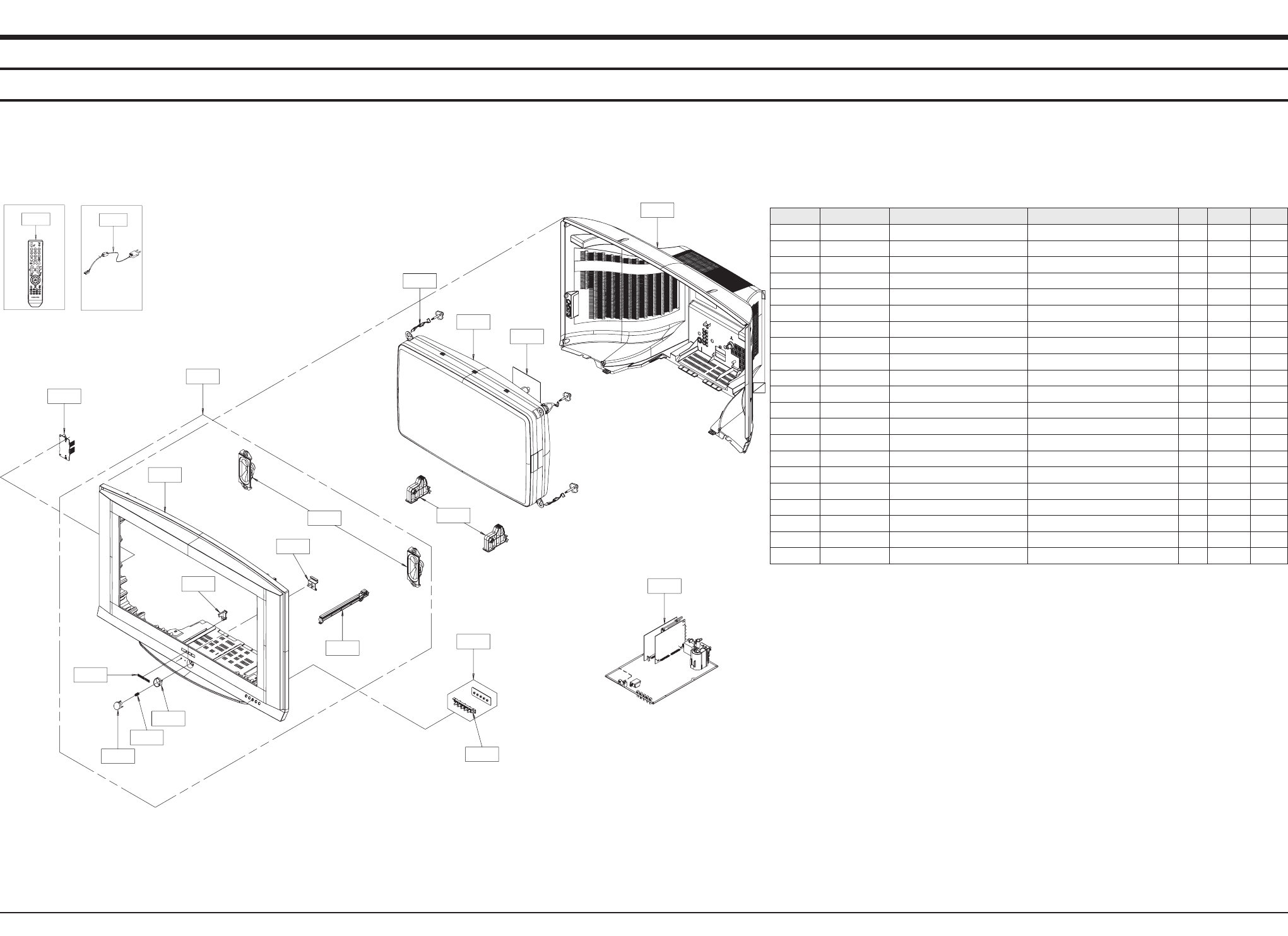

4. Exploded View & Part List

Exploded View & Part List

Samsung Electronics 4-1

T0074 T0268

T0091

T0003

T0527

T0063

T0065

M0006

M0112

T0175 T0569

T0098

T0022

T0238

T0245

T0607

T0057

CIS3

CIS7

T0023

M0014

You can search for the updated part code through ITSELF web site.

URL:http://itself.sec.samsung.co.kr

4-1 WS32Z419D8XXEU

Loc.No. Code No. Description Specification Q'ty SA/SNA Remark

CIS3 AA64-04333A DECORATION-POWER Z40,ABS,HB,GR515,AL 1 S.N.A

CIS7 AA61-60003J SPRING ETC-CS -,SUS304,-,-,OD6,N7,OD6,-, 1 S.N.A

M0006 AA63-01369B COVER-REAR 32Z40(SEH),HIPS,FV2,BK500,S64 1 S.A

M0014 AA94-15817C ASSY PCB MAIN WS32Z419D8XXEU,S64A,UNLIMI 1 S.A

M0112 AA63-01364C COVER-FRONT 32Z41,SEH,HIPS,HB,BLK,BKN157 1 S.A

T0003 AA96-04064C ASSY COVER P-FRONT 32Z41,XEU,HIPS HB,BLK 1 S.A

T0022 AA64-04326B KNOB CONTROL Z41,ABS,HB,BK500 1 S.N.A

T0023 AA64-04328B KNOB POWER Z40,ABS,HB,BKN1576 1 S.N.A

T0057 AA64-01062B BADGE-BRAND ALL,AL,T1.5,10.6,L65,BLK.SIL 1 S.N.A

T0063 AA03-00482A CRT COLOR W76QFV891X302,+380mG,0.245,14. 1 S.A

T0065 AA94-15823A ASSY PCB CRT WS32Z409D8XXEU,S64A,UNLIMIT 1 S.A

T0074 AA59-00379A REMOCON WS32Z40,TM86,44,PAL,S59B,IDTV/TV 1 S.A

T0091 AA94-15824A ASSY PCB MISC-A/V SIDE WS32Z409D8XXEU,S6 1 S.A

T0098 AA94-15114H ASSY PCB MISC-CONTROL 32Z41,S64A,UNLIMIT 1 S.N.A

T0175 AA96-03164A ASSY SPEAKER P 8ohm,6*13cm,Z31,10W,SPK+W 1 S.A

T0238 AA64-04340A WINDOW REMOCON-LED Z40(SEH,TSE),PC,CLEAR 1 S.N.A

T0245 AA61-00711D HOLDER-PCB 29U1,U2,HIPS VO,BK502(HB-PROP 1 S.N.A

T0268 AA39-10007X CBF-POWER CORD -,EP3/YES(HK),H03VVH2-F,2 1 S.A

T0527 AA65-00061A CLAMPER CORE-D,COIL NYLON-66,VO,NTR 5 S.N.A

T0569 AA61-01433A SUPPORT-CRT Z40,HIPS V0,GR503 2 S.A

T0607 AA61-40113A STOPPER-PCB 501H,HIPS,-,-,HB,NTR,- 1 S.A

5-1Samsung Electronics

Electrical Part List

ASSY CHASSIS

M0017 AA91-09846A ASSY CHASSIS WS32Z419D8XXEU,S64A,UNLIMIT 1 S.N.A

T0098 AA94-15114H ASSY PCB MISC-CONTROL 32Z41,S64A,UNLIMIT 1 S.N.A

DZY04 2202-000796 C-CERAMIC,MLC-AXIAL 1NF,10%,50V,Y5P,TP,3 1 S.A

LY01 2701-000114 INDUCTOR-AXIAL 10UH,10%,2534 1 S.A

M0119 AA41-01199A PCB CONTROL CT-32Z30HDK,FR-1,1L,A,1.6T,2 1 S.N.A

M2893 BH39-00419A LEAD CONNECTOR CT-32Z32HD,UL1007#26,UL/C 1 S.A

RY02 2001-000577 R-CARBON 2KOHM,5%,1/8W,AA,TP,1.8X3.2MM 1 S.A

RY03 2001-000007 R-CARBON 3KOHM,5%,1/8W,AA,TP,1.8X3.2MM 1 S.A

RY04 2001-000878 R-CARBON 6.2KOHM,5%,1/8W,AA,TP,1.8X3.2MM 1 S.A

RY05 2001-000009 R-CARBON 20KOHM,5%,1/8W,AA,TP,1.8X3.2MM 1 S.A

SWY02 3404-000243 SWITCH-TACT 15V,20mA,160gf,6x3.4mm,SPST 1 S.A

SWY03 3404-000243 SWITCH-TACT 15V,20mA,160gf,6x3.4mm,SPST 1 S.A

SWY04 3404-000243 SWITCH-TACT 15V,20mA,160gf,6x3.4mm,SPST 1 S.A

SWY05 3404-000243 SWITCH-TACT 15V,20mA,160gf,6x3.4mm,SPST 1 S.A

SWY06 3404-000243 SWITCH-TACT 15V,20mA,160gf,6x3.4mm,SPST 1 S.A

T0022 AA64-04326B KNOB CONTROL Z41,ABS,HB,BK500 1 S.N.A

T0057 AA97-15792E ASSY AUTO-CONTROL CT-32Z40HD,K63A,NATURA 1 S.N.A

T0245 0202-001522 SOLDER-WIRE FLUX LFA3-107,-,D1.2,96.5Sn/ 0.001 S.N.A

T0065 AA94-15823A ASSY PCB CRT WS32Z409D8XXEU,S64A,UNLIMIT 1 S.A

C501 2201-000193 C-CERAMIC,DISC 0.01nF,0.25pF,50V,C0G,-,4 1 S.A

C504 2301-000016 C-FILM,LEAD-PEF 22nF,5%,100V,TP,7.2x4.5x 1 S.A

C505 2301-000016 C-FILM,LEAD-PEF 22nF,5%,100V,TP,7.2x4.5x 1 S.A

C506 2301-000016 C-FILM,LEAD-PEF 22nF,5%,100V,TP,7.2x4.5x 1 S.A

C507 2301-000016 C-FILM,LEAD-PEF 22nF,5%,100V,TP,7.2x4.5x 1 S.A

C508 2301-001211 C-FILM,LEAD-PPF 22nF,5%,400V,TP,20x7x14m 1 S.A

C509 2301-000016 C-FILM,LEAD-PEF 22nF,5%,100V,TP,7.2x4.5x 1 S.A

C511 2301-001211 C-FILM,LEAD-PPF 22nF,5%,400V,TP,20x7x14m 1 S.A

C512 2301-001211 C-FILM,LEAD-PPF 22nF,5%,400V,TP,20x7x14m 1 S.A

C513 2201-000600 C-CERAMIC,DISC 0.56NF,10%,50V,Y5P,TP,5X3 1 S.A

C514 2201-000599 C-CERAMIC,DISC 0.56NF,10%,500V,Y5P,TP,5. 1 S.A

C515 2201-000599 C-CERAMIC,DISC 0.56NF,10%,500V,Y5P,TP,5. 1 S.A

C516 2401-000302 C-AL 100uF,20%,25V,GP,TP,6.3x11,5 1 S.A

C517 2201-000173 C-CERAMIC,DISC 10NF,10%,500V,Y5P,BK,16X4 1 S.A

C518 2305-000665 C-FILM,LEAD-PEF 100nF,5%,63V,TP,7.5x4.0x 1 S.A

C519 2401-000430 C-AL 10uF,20%,250V,GP,TP,10x16mm,5m 1 S.A

C520 2401-000703 C-AL 2200uF,20%,25V,GP,-,12.5x25mm, 1 S.A

C521 2201-000173 C-CERAMIC,DISC 10NF,10%,500V,Y5P,BK,16X4 1 S.A

C522 2201-002117 C-CERAMIC,DISC 4.7nF,20%,3000V,Y5U,-,16x 1 S.A

C526 2301-001211 C-FILM,LEAD-PPF 22nF,5%,400V,TP,20x7x14m 1 S.A

C528 2401-000832 C-AL 220uF,20%,25V,GP,TP,8x11.5,5 1 S.A

C532 2401-001563 C-AL 47uF,20%,400V,GP,TP,16x25,7.5 1 S.A

C533 2305-000665 C-FILM,LEAD-PEF 100nF,5%,63V,TP,7.5x4.0x 1 S.A

C534 2401-000832 C-AL 220uF,20%,25V,GP,TP,8x11.5,5 1 S.A

C536 2202-000121 C-CERAMIC,MLC-AXIAL 0.1nF,10%,50V,Y5P,-, 1 S.A

C537 2202-000121 C-CERAMIC,MLC-AXIAL 0.1nF,10%,50V,Y5P,-, 1 S.A

C538 2202-000121 C-CERAMIC,MLC-AXIAL 0.1nF,10%,50V,Y5P,-, 1 S.A

CF01 2401-000025 C-AL 100uF,20%,16V,GP,TP,6.3x11,5 1 S.A

CF02 2201-000017 C-CERAMIC,DISC 1nF,10%,50V,Y5P,-,5x3.5mm 1 S.A

CF04 2401-000045 C-AL 10uF,20%,160V,GP,TP,10x16,5 1 S.A

CF05 2201-000019 C-CERAMIC,DISC 10nF,+80-20%,500V,Y5V,-,1 1 S.A

CF06 2201-002103 C-CERAMIC,DISC 0.015NF,5%,500V,C0G,TP,6. 1 S.A

CF07 2201-000604 C-CERAMIC,DISC 0.056nF,+100-0%,500V,SL,- 1 S.A

CF71 2401-000318 C-AL 100uF,20%,25V,LZ,TP,8x11.5,5 1 S.A

CF73 2401-000045 C-AL 10uF,20%,160V,GP,TP,10x16,5 1 S.A

Loc.No. Code No. Description Specification Q'ty SA/SNA Remark

5. Electrical Part List

5-1 WS32Z419D8XXEU

You can search for the updated part code through ITSELF web site.

URL:http://itself.sec.samsung.co.kr

CF74 2401-000287 C-AL 100uF,20%,16V,WT,TP,6.3x11,5 1 S.A

CF75 2401-000287 C-AL 100uF,20%,16V,WT,TP,6.3x11,5 1 S.A

CIS1 0205-001154 OIL-SILICON G746,-,- 0.1 S.N.A

CNC03 3711-001084 HEADER-BOARD TO CABLE BOX,8P,1R,2.5MM,ST 1 S.A

CNC04 3711-003241 HEADER-BOARD TO CABLE BOX,14P,1R,2.5MM,S 1 S.A

D501 0401-000005 DIODE-SWITCHING 1N4148,75V,150mA,DO-35,T 1 S.A

D502 0402-000493 DIODE-RECTIFIER 1R5GU41,400V,1.5A,DO-15L 1 S.A

D504 0402-000132 DIODE-RECTIFIER 1N4004,400V,1A,DO-41,TP 1 S.A

D509 0402-000546 DIODE-RECTIFIER TVR10G,400V,1A,DO-41,TP 1 S.A

D510 0402-000546 DIODE-RECTIFIER TVR10G,400V,1A,DO-41,TP 1 S.A

D511 0402-000546 DIODE-RECTIFIER TVR10G,400V,1A,DO-41,TP 1 S.A

D512 0402-000546 DIODE-RECTIFIER TVR10G,400V,1A,DO-41,TP 1 S.A

D513 0402-000546 DIODE-RECTIFIER TVR10G,400V,1A,DO-41,TP 1 S.A

D514 0402-000546 DIODE-RECTIFIER TVR10G,400V,1A,DO-41,TP 1 S.A

DF08 0402-000546 DIODE-RECTIFIER TVR10G,400V,1A,DO-41,TP 1 S.A

DU410 1201-000010 IC-OP AMP 2030,PENTAWATT,5P,-,SINGLE,-,C 1 S.A

DZ501 0403-000708 DIODE-ZENER MTZJ13B,12.55-13.21V,500mW,D 1 S.A

DZ502 0403-000708 DIODE-ZENER MTZJ13B,12.55-13.21V,500mW,D 1 S.A

DZ503 0403-000509 DIODE-ZENER MTZJ5.6B,5.4-5.7V,500mW,DO-3 1 S.A

DZ504 0403-000698 DIODE-ZENER TZP12A,5%,1000mW,DO-41,TP 1 S.A

F101 2901-000297 FILTER-EMI ON BOARD -,3A,-,-,3.5x5,TP,- 1 S.A

FN1 3711-002643 HEADER-BOARD TO CABLE BOX,4P,1R,2.5mm,ST 1 S.A

FV1 3711-002642 HEADER-BOARD TO CABLE BOX,3P,1R,2.5mm,ST 1 S.A

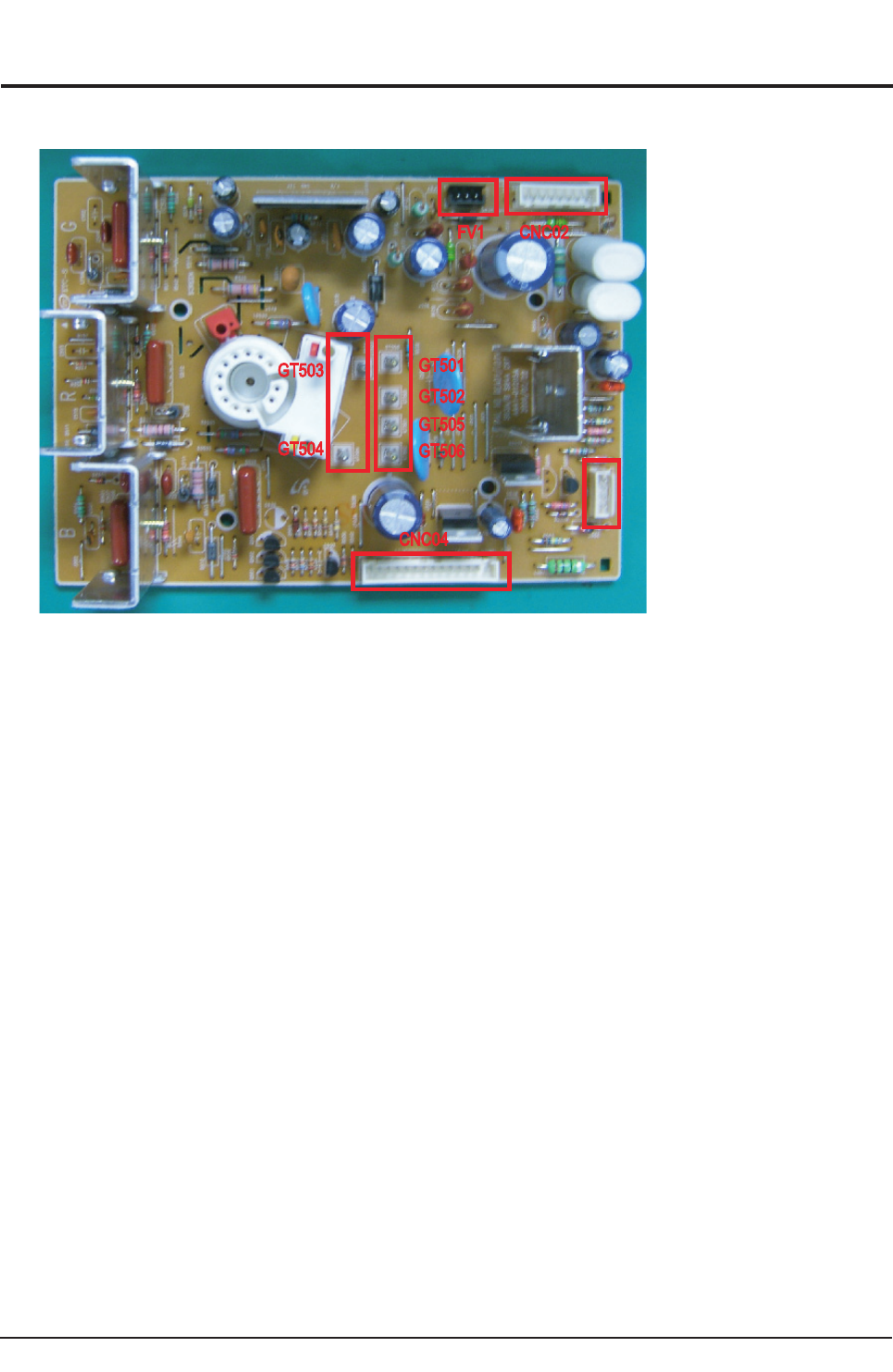

GT501 BH71-40300A PIN-HINGE BRASS,D2.36!,HEAT/SINK,SN 1 S.N.A

GT502 BH71-40300A PIN-HINGE BRASS,D2.36!,HEAT/SINK,SN 1 S.N.A

GT503 BH71-40300A PIN-HINGE BRASS,D2.36!,HEAT/SINK,SN 1 S.N.A

GT504 BH71-40300A PIN-HINGE BRASS,D2.36!,HEAT/SINK,SN 1 S.N.A

GT505 BH71-40300A PIN-HINGE BRASS,D2.36!,HEAT/SINK,SN 1 S.N.A

GT506 BH71-40300A PIN-HINGE BRASS,D2.36!,HEAT/SINK,SN 1 S.N.A

IC063 AA13-00111A IC HYBRID STK396-130,WT-32A20HD,12,105C, 1 S.A

IC501 AA96-03027A ASSY HEAT SINK P AA62-00147A,TDA6111Q,HE 1 S.N.A

IC502 AA96-03027A ASSY HEAT SINK P AA62-00147A,TDA6111Q,HE 1 S.N.A

IC503 AA96-03027A ASSY HEAT SINK P AA62-00147A,TDA6111Q,HE 1 S.N.A

IC504 BH99-00038E ASSY HEAT/SINK TDA2030,AMP,HERCULES,BH62 1 S.N.A

IC506 0502-000006 TR-POWER KSC1507,NPN,15W,TO-220,TP,120- 1 S.A

L501 2701-001040 INDUCTOR-AXIAL 10UH,10%,4514 1 S.A

L502 2701-000178 INDUCTOR-AXIAL 33UH,10%,3070 1 S.A

LF03 2701-000112 INDUCTOR-AXIAL 100UH,10%,3070 1 S.A

LX085 AA27-90001B COIL-SPARK,GAP S-23,1.5KV,-,-,-,-,-,-,-, 1 S.A

M0081 6003-000334 SCREW-TAPTITE RH,+,2S,M3,L6,ZPC(YEL),SWR 1 S.N.A

M0144 BH61-00004A SPRING ETC-TR CDA,CDB,SUS304,-,-,-,-,-,T 1 S.N.A

M2893 AA39-00380C LEAD CONNECTOR WS32Z409D,UL1185#26,14PIN 1 S.A

M2893 BP39-00055D LEAD CONNECTOR V18C,UL1007#26,UL/CSA,8P, 1 S.A

PCB AA41-01205A PCB CRT WS32Z40,FR-1,1L,A,1.6T,245X330,S 1 S.N.A

Q501 0501-000283 TR-SMALL SIGNAL KSA539,PNP,400mW,TO-92,T 1 S.A

Q502 0501-000283 TR-SMALL SIGNAL KSA539,PNP,400mW,TO-92,T 1 S.A

Q503 0501-000283 TR-SMALL SIGNAL KSA539,PNP,400mW,TO-92,T 1 S.A

Q504 0501-000283 TR-SMALL SIGNAL KSA539,PNP,400mW,TO-92,T 1 S.A

Q505 0501-000389 TR-SMALL SIGNAL KSC815,NPN,400mW,TO-92,T 1 S.A

R501 2001-000241 R-CARBON 1.5KOHM,5%,1/8W,AA,TP,1.8X3.2MM 1 S.A

R502 2001-000241 R-CARBON 1.5KOHM,5%,1/8W,AA,TP,1.8X3.2MM 1 S.A

R504 2004-001390 R-METAL(S) 1Kohm,2%,1/2W,AA,TP,2.4x6.4mm 1 S.A

R505 2004-001390 R-METAL(S) 1Kohm,2%,1/2W,AA,TP,2.4x6.4mm 1 S.A

R506 2004-001373 R-METAL(S) 100Kohm,1%,1/2W,AA,TP,2.4x6.4 1 S.A

R507 2001-000472 R-CARBON 2.7KOHM,5%,1/8W,AA,TP,1.8X3.2MM 1 S.A

R508 2001-000995 R-CARBON 820OHM,5%,1/8W,AA,TP,1.8X3.2MM 1 S.A

R509 2008-000205 R-FUSIBLE(S) 10ohm,5%,1/2W,AF,TP,2.5x6.5 1 S.A

R510 2004-001373 R-METAL(S) 100Kohm,1%,1/2W,AA,TP,2.4x6.4 1 S.A

R511 2004-001373 R-METAL(S) 100Kohm,1%,1/2W,AA,TP,2.4x6.4 1 S.A

R512 2004-001390 R-METAL(S) 1Kohm,2%,1/2W,AA,TP,2.4x6.4mm 1 S.A

R513 2002-001102 R-COMPOSITION 510OHM,10%,1/2W,AA,TP,3.3X 1 S.A

R514 2002-001102 R-COMPOSITION 510OHM,10%,1/2W,AA,TP,3.3X 1 S.A

R515 2002-001102 R-COMPOSITION 510OHM,10%,1/2W,AA,TP,3.3X 1 S.A

R519 2001-000397 R-CARBON 180KOHM,5%,1/8W,AA,TP,1.8X3.2MM 1 S.A

R520 2001-000563 R-CARBON 27KOHM,5%,1/8W,AA,TP,1.8X3.2MM 1 S.A

R522 2001-000290 R-CARBON 10KOHM,5%,1/8W,AA,TP,1.8X3.2MM 1 S.A

Loc.No. Code No. Description Specification Q'ty SA/SNA Remark

Samsung Electronics5-2

Electrical Part List

5-3Samsung Electronics

Electrical Part List

R523 2001-000890 R-CARBON 6.8KOHM,5%,1/8W,AA,TP,1.8X3.2MM 1 S.A

R525 2002-001006 R-COMPOSITION 4.7Kohm,15%,1/2W,AA,TP,3.7 1 S.A

R527 2001-000241 R-CARBON 1.5KOHM,5%,1/8W,AA,TP,1.8X3.2MM 1 S.A

R528 2008-000205 R-FUSIBLE(S) 10ohm,5%,1/2W,AF,TP,2.5x6.5 1 S.A

R529 2008-000204 R-FUSIBLE(S) 0.22ohm,10%,1/2W,AF,TP,2.5x 1 S.A

R530 2001-000273 R-CARBON 100KOHM,5%,1/8W,AA,TP,1.8X3.2MM 1 S.A

R531 2001-000009 R-CARBON 20KOHM,5%,1/8W,AA,TP,1.8X3.2MM 1 S.A

R532 2004-001893 R-METAL(S) 22Kohm,1%,1/2W,AA,TP,2.5x6.5m 1 S.A

R533 2001-000066 R-CARBON(S) 10KOHM,5%,1/2W,AA,TP,2.4X6.4 1 S.A

R534 2004-004097 R-METAL 1.6Kohm,2%,1/2W,AA,TP,2.4X6.4mm 1 S.A

R535 2001-001103 R-CARBON(S) 20KOHM,5%,1/2W,AA,TP,2.4X6.4 1 S.A

R536 2001-000085 R-CARBON(S) 100KOHM,5%,1/2W,AA,TP,2.4X6. 1 S.A

R537 2001-001196 R-CARBON(S) 9.1KOHM,5%,1/2W,AA,TP,2.4X6. 1 S.A

R538 2001-001062 R-CARBON(S) 10MOHM,5%,1/2W,AA,TP,2.4X6.4 1 S.A

R540 2001-000429 R-CARBON 1KOHM,5%,1/8W,AA,TP,1.8X3.2MM 1 S.A

R541 2008-001053 R-FUSIBLE 22ohm,5%,1/2W,AF,TP,2.5x6.5mm 1 S.A

R554 2001-000429 R-CARBON 1KOHM,5%,1/8W,AA,TP,1.8X3.2MM 1 S.A

R555 2001-000429 R-CARBON 1KOHM,5%,1/8W,AA,TP,1.8X3.2MM 1 S.A

R556 2001-000429 R-CARBON 1KOHM,5%,1/8W,AA,TP,1.8X3.2MM 1 S.A

R559 2008-001110 R-FUSIBLE(S) 68ohm,5%,2W,AG,TP,3.9X12mm 1 S.A

R560 2001-000052 R-CARBON(S) 3.3KOHM,5%,1/2W,AA,TP,2.4X6. 1 S.A

R561 2001-001126 R-CARBON(S) 300OHM,5%,1/2W,AA,TP,2.4X6.4 1 S.A

R562 2001-000085 R-CARBON(S) 100KOHM,5%,1/2W,AA,TP,2.4X6. 1 S.A

R563 2001-000085 R-CARBON(S) 100KOHM,5%,1/2W,AA,TP,2.4X6. 1 S.A

R564 2001-000066 R-CARBON(S) 10KOHM,5%,1/2W,AA,TP,2.4X6.4 1 S.A

R565 2001-001071 R-CARBON(S) 12KOHM,5%,1/2W,AA,TP,2.4X6.4 1 S.A

R566 2001-001040 R-CARBON(S) 0.68OHM,5%,1/2W,AA,TP,2.4X6. 1 S.A

R567 2006-001081 R-CEMENT 82ohm,5%,5W,CJ,TP,14x10x27mm 1 S.A

R568 2006-001081 R-CEMENT 82ohm,5%,5W,CJ,TP,14x10x27mm 1 S.A

RF11 2001-001175 R-CARBON(S) 62OHM,5%,1/2W,AA,TP,2.4X6.4M 1 S.A

RF12 2003-001093 R-METAL OXIDE(S) 12Kohm,5%,2W,AF,TP,3.9x 1 S.A

RF13 2008-000292 R-FUSIBLE(S) 3.3ohm,5%,2W,AF,TP,3.9x10mm 1 S.A

RF20 2003-001042 R-METAL OXIDE(S) 5.6Kohm,5%,2W,AF,TP,3.9 1 S.A

RF21 2003-001042 R-METAL OXIDE(S) 5.6Kohm,5%,2W,AF,TP,3.9 1 S.A

RF22 2003-000995 R-METAL OXIDE(S) 3.3Kohm,5%,2W,AF,TP,3.9 1 S.A

RF35 2003-001024 R-METAL OXIDE(S) 150ohm,5%,2W,AF,TP,3.9x 1 S.A

T0074 1201-001131 IC-VIDEO AMP 6111,SIP,9P,-,SINGLE,-,PLAS 1 S.A

T0081 BH62-00041A HEAT SINK-TR PN17LT,A1050S,T1.0,50,23,WH 1 S.N.A

T0087 1203-000243 IC-POSI.FIXED REG. 7812,TO-220,3P,-,PLAS 1 S.A

T0100 AA97-16540A ASSY AUTO-CRT WS32Z409D8XXEU,S64A,UNLIMI 1 S.N.A

T0175 AA62-00147A HEAT SINK-PS K62A,A1050,T2.0,35mm,40mm,W 1 S.N.A

T0245 0202-001522 SOLDER-WIRE FLUX LFA3-107,-,D1.2,96.5Sn/ 0.01 S.N.A

T0245 AA39-20010D LEAD CONNECTOR-ASSY ,1P,400,YFH800-01,S, 1 S.A

T0310 4715-001036 SURGE ABSORBER 500V,20%,-,-,TP 1 S.N.A

V999S 3704-001194 SOCKET-CRT 8P+SEN,29PI,22.5PI,NI+SN,- 1 S.A

T0091 AA94-15824A ASSY PCB MISC-A/V SIDE WS32Z409D8XXEU,S6 1 S.A

C701 2202-000279 C-CERAMIC,MLC-AXIAL 47pF,5%,50V,SL,TP,3. 1 S.A

C702 2202-000121 C-CERAMIC,MLC-AXIAL 0.1nF,10%,50V,Y5P,-, 1 S.A

C703 2202-000121 C-CERAMIC,MLC-AXIAL 0.1nF,10%,50V,Y5P,-, 1 S.A

C704 2202-000279 C-CERAMIC,MLC-AXIAL 47pF,5%,50V,SL,TP,3. 1 S.A

DZ701 0403-000708 DIODE-ZENER MTZJ13B,12.55-13.21V,500mW,D 1 S.A

DZ702 0403-000708 DIODE-ZENER MTZJ13B,12.55-13.21V,500mW,D 1 S.A

DZ703 0403-000720 DIODE-ZENER MTZJ9.1B,8.57-9.01V,500mW,DO 1 S.A

DZ704 0403-001322 DIODE-ZENER MTZJ8.2B,7.78-8.19V,500mW,DO 1 S.A

DZ705 0403-001322 DIODE-ZENER MTZJ8.2B,7.78-8.19V,500mW,DO 1 S.A

DZ706 0403-001322 DIODE-ZENER MTZJ8.2B,7.78-8.19V,500mW,DO 1 S.A

DZ707 0403-001322 DIODE-ZENER MTZJ8.2B,7.78-8.19V,500mW,DO 1 S.A

JA701 3722-001164 JACK-PIN 3P,SN,WH:YE:RE,STRAIGHT 1 S.A

JK01 3722-000544 JACK-VHS 4P,AG,BLK,STRAIGHT 1 S.A

L701 2701-000114 INDUCTOR-AXIAL 10UH,10%,2534 1 S.A

L702 2701-000168 INDUCTOR-AXIAL 3.3UH,5%,2534 1 S.A

L703 2701-000168 INDUCTOR-AXIAL 3.3UH,5%,2534 1 S.A

L704 2701-000114 INDUCTOR-AXIAL 10UH,10%,2534 1 S.A

M2893 AA39-00381A LEAD CONNECTOR CS29M6SPNX/BWT,UL1185#26, 1 S.A

R701 2001-000273 R-CARBON 100KOHM,5%,1/8W,AA,TP,1.8X3.2MM 1 S.A

Loc.No. Code No. Description Specification Q'ty SA/SNA Remark

R702 2001-000273 R-CARBON 100KOHM,5%,1/8W,AA,TP,1.8X3.2MM 1 S.A

T0091 AA41-01211A PCB-SIDE A/V WS32Z40,FR-1,1,A,1.6T,330X2 1 S.N.A

T0245 0202-001522 SOLDER-WIRE FLUX LFA3-107,-,D1.2,96.5Sn/ 0.001 S.N.A

T0569 AA97-16541A ASSY AUTO-A/V SIDE WS32Z409D8XXEU,S64A,U 1 S.N.A

M0014 AA94-15817C ASSY PCB MAIN WS32Z419D8XXEU,S64A,UNLIMI 1 S.A

C101 2401-000603 C-AL 1UF,20%,50V,GP,TP,5X11,2 1 S.A

C102 2305-000665 C-FILM,LEAD-PEF 100nF,5%,63V,TP,7.5x4.0x 1 S.A

C103 2305-000665 C-FILM,LEAD-PEF 100nF,5%,63V,TP,7.5x4.0x 1 S.A

C104 2401-002463 C-AL 470uF,20%,16V,GP,TP,8x11.5,5 1 S.A

C105 2305-000665 C-FILM,LEAD-PEF 100nF,5%,63V,TP,7.5x4.0x 1 S.A

C106 2401-003578 C-AL 1000uF,20%,10V,GP,TP,8x20mm,5 1 S.A

C107 2401-000480 C-AL 10uF,20%,50V,GP,TP,5x11,5 1 S.A

C108 2401-002144 C-AL 47uF,20%,16V,GP,TP,5x11,5 1 S.A

C109 2202-000121 C-CERAMIC,MLC-AXIAL 0.1nF,10%,50V,Y5P,-, 1 S.A

C110 2202-000121 C-CERAMIC,MLC-AXIAL 0.1nF,10%,50V,Y5P,-, 1 S.A

C302 2401-000365 C-AL 100uF,20%,50V,WT,TP,10x12.5mm, 1 S.A

C303 2201-000132 C-CERAMIC,DISC 0.1NF,10%,500V,Y5P,TP,6.5 1 S.A

C304 2305-000285 C-FILM,LEAD-PEF 220NF,5%,100V,TP,10.5X5. 1 S.A

C306 2301-000224 C-FILM,LEAD-PEF 22nF,5%,50V,TP,7.4x3.9x1 1 S.A

C307 2401-000365 C-AL 100uF,20%,50V,WT,TP,10x12.5mm, 1 S.A

C308 2305-000411 C-FILM,LEAD-PEF 470nF,5%,50V,TP,7.3x4.8x 1 S.A

C401 2201-000556 C-CERAMIC,DISC 0.47NF,10%,500V,Y5P,TP,5. 1 S.A

C402 2401-002231 C-AL 470uF,20%,50V,WT,TP,13x20mm,5m 1 S.A

C403 2201-000556 C-CERAMIC,DISC 0.47NF,10%,500V,Y5P,TP,5. 1 S.A

C404 2401-001838 C-AL 470uF,20%,25V,WT,TP,10x16,5 1 S.A

C405 2401-000038 C-AL 470uF,20%,25V,GP,TP,10x12.5mm, 1 S.A

C406 2303-000163 C-FILM,LEAD-PPF 2.2nF,5%,800V,TP,15x13x8 1 S.A

C407 2305-000412 C-FILM,LEAD-PEF 470nF,5%,63V,TP,-,5mm 1 S.A

C408 2301-001083 C-FILM,LEAD-PPF 27nF,5%,400V,TP,20x7.5x1 1 S.A

C409 2301-001211 C-FILM,LEAD-PPF 22nF,5%,400V,TP,20x7x14m 1 S.A

C411 2301-000160 C-FILM,LEAD-PEF 12nF,5%,50V,TP,11.0x6.0x 1 S.A

C412 2301-000383 C-FILM,LEAD-PEF 10nF,5%,50V,TP,6x7x3.2mm 1 S.A

C414 2401-003139 C-AL 1000uF,20%,25V,WT,TP,10*20,5mm 1 S.A

C415 2303-000002 C-FILM,LEAD-PPF 8.2nF,0.05,400V,TP,19x18 1 S.A

C416 2305-000665 C-FILM,LEAD-PEF 100nF,5%,63V,TP,7.5x4.0x 1 S.A

C417 2305-000665 C-FILM,LEAD-PEF 100nF,5%,63V,TP,7.5x4.0x 1 S.A

C418 2401-002459 C-AL 220uF,20%,25V,LZ,TP,10x16,5 1 S.A

C419 2305-000285 C-FILM,LEAD-PEF 220NF,5%,100V,TP,10.5X5. 1 S.A

C420 2301-000213 C-FILM,LEAD-PEF 220nF,5%,250V,TP,21.5x11 1 S.A

C421 2201-000556 C-CERAMIC,DISC 0.47NF,10%,500V,Y5P,TP,5. 1 S.A

C422 2401-000040 C-AL 47UF,20%,250V,WT,TP,12.5X25MM,5 1 S.A

C423 2301-001257 C-FILM,LEAD 640nF,5%,400V,BK,26x14.5x24, 1 S.A

C424 2201-000556 C-CERAMIC,DISC 0.47NF,10%,500V,Y5P,TP,5. 1 S.A

C425 2301-001774 C-FILM,LEAD 130nF,5%,400V,TP,18.0X13.5X7 1 S.A

C426 2306-000166 C-FILM,LEAD-PPF 220nF,5%,400V,BK,26x17x9 1 S.A

C433 2401-000480 C-AL 10uF,20%,50V,GP,TP,5x11,5 1 S.A

C448 2401-000787 C-AL 220uF,20%,160V,GP,BK,16x31.5mm,7.5 1 S.A

C601 2401-001261 C-AL 4.7uF,20%,50V,BP,TP,5x11mm,5mm 1 S.A

C602 2401-001261 C-AL 4.7uF,20%,50V,BP,TP,5x11mm,5mm 1 S.A

C603 2401-001261 C-AL 4.7uF,20%,50V,BP,TP,5x11mm,5mm 1 S.A

C604 2401-001261 C-AL 4.7uF,20%,50V,BP,TP,5x11mm,5mm 1 S.A

C607 2301-000342 C-FILM,LEAD-PEF 2.2nF,5%,50V,TP,7.4x3.9x 1 S.A

C608 2301-000342 C-FILM,LEAD-PEF 2.2nF,5%,50V,TP,7.4x3.9x 1 S.A

C609 2401-001914 C-AL 1uF,20%,50V,BP,TP,5x11,5 1 S.A

C610 2401-001914 C-AL 1uF,20%,50V,BP,TP,5x11,5 1 S.A

C615 2202-000231 C-CERAMIC,MLC-AXIAL 0.33NF,10%,50V,Y5P,T 1 S.A

C616 2202-000231 C-CERAMIC,MLC-AXIAL 0.33NF,10%,50V,Y5P,T 1 S.A

C619 2202-000231 C-CERAMIC,MLC-AXIAL 0.33NF,10%,50V,Y5P,T 1 S.A

C621 2202-000231 C-CERAMIC,MLC-AXIAL 0.33NF,10%,50V,Y5P,T 1 S.A

C628 2202-000231 C-CERAMIC,MLC-AXIAL 0.33NF,10%,50V,Y5P,T 1 S.A

C629 2202-000231 C-CERAMIC,MLC-AXIAL 0.33NF,10%,50V,Y5P,T 1 S.A

C630 2202-000231 C-CERAMIC,MLC-AXIAL 0.33NF,10%,50V,Y5P,T 1 S.A

C634 2202-000231 C-CERAMIC,MLC-AXIAL 0.33NF,10%,50V,Y5P,T 1 S.A

C640 2401-002075 C-AL 4.7uF,20%,50V,GP,TP,5x11,5 1 S.A

C642 2401-001998 C-AL 1000uF,20%,25V,GP,TP,10x20,5mm 1 S.A

C648 2305-000665 C-FILM,LEAD-PEF 100nF,5%,63V,TP,7.5x4.0x 1 S.A

C801 2401-000703 C-AL 2200uF,20%,25V,GP,-,12.5x25mm, 1 S.A

Loc.No. Code No. Description Specification Q'ty SA/SNA Remark

Samsung Electronics5-4

Electrical Part List

5-5Samsung Electronics

Electrical Part List

C802 2401-000822 C-AL 220uF,20%,200V,WT,BK,22x35,10 1 S.A

C803 2401-002227 C-AL 330uF,20%,450V,GP,BK,35x45,10 1 S.A

C804 2401-002463 C-AL 470uF,20%,16V,GP,TP,8x11.5,5 1 S.A

C805 2401-000480 C-AL 10uF,20%,50V,GP,TP,5x11,5 1 S.A

C806 2306-000112 C-FILM,LEAD-PPF 100nF,20%,250V,BK,-,15mm 1 S.A

C807 2301-001435 C-FILM,LEAD-PPF 1.5nF,5%,1.2kV,TP,15x8x1 1 S.A

C808 2401-001561 C-AL 47uF,20%,35V,WT,TP,8x11.5,5 1 S.A

C809 2301-000192 C-FILM,LEAD-PEF 1nF,5%,50V,TP,5.3x10mm,5 1 S.A

C810 2401-000039 C-AL 1000uF,20%,16V,GP,TP,10x16,5 1 S.A

C811 2401-002075 C-AL 4.7uF,20%,50V,GP,TP,5x11,5 1 S.A

C812 2401-000603 C-AL 1UF,20%,50V,GP,TP,5X11,2 1 S.A

C813 2401-000603 C-AL 1UF,20%,50V,GP,TP,5X11,2 1 S.A

C814 2401-003036 C-AL 100uF,20%,16V,GP,TP,5X11mm,5mm 1 S.A

C815 2201-000406 C-CERAMIC,DISC 0.27NF,10%,2KV,Y5P,TP,6.3 1 S.A

C816 2201-000599 C-CERAMIC,DISC 0.56NF,10%,500V,Y5P,TP,5. 1 S.A

C817 2305-000289 C-FILM,LEAD-PEF 220nF,5%,63V,TP,-,5mm 1 S.A

C818 2301-001194 C-FILM,LEAD-PPF 470nF,5%,250V,TP,18x16x8 1 S.A

C819 2201-000374 C-CERAMIC,DISC 0.22NF,5%,50V,C0G,TP,10.5 1 S.A

C820 2301-000192 C-FILM,LEAD-PEF 1nF,5%,50V,TP,5.3x10mm,5 1 S.A

C821 2301-000356 C-FILM,LEAD-PEF 47nF,5%,50V,TP,7.5x4.0x6 1 S.A

C822 2201-000599 C-CERAMIC,DISC 0.56NF,10%,500V,Y5P,TP,5. 1 S.A

C823 2401-000142 C-AL 1000uF,20%,16V,WT,TP,10x20,5 1 S.A

C825 2401-000038 C-AL 470uF,20%,25V,GP,TP,10x12.5mm, 1 S.A

C826 2201-000332 C-CERAMIC,DISC 2.2nF,20%,250V,Y5U,-,9x4m 1 S.A

C838 2401-000039 C-AL 1000uF,20%,16V,GP,TP,10x16,5 1 S.A

C839 2201-000599 C-CERAMIC,DISC 0.56NF,10%,500V,Y5P,TP,5. 1 S.A

C840 2401-002463 C-AL 470uF,20%,16V,GP,TP,8x11.5,5 1 S.A

C841 2401-000039 C-AL 1000uF,20%,16V,GP,TP,10x16,5 1 S.A

C842 2401-003036 C-AL 100uF,20%,16V,GP,TP,5X11mm,5mm 1 S.A

C843 2401-003036 C-AL 100uF,20%,16V,GP,TP,5X11mm,5mm 1 S.A

C901 2401-002144 C-AL 47uF,20%,16V,GP,TP,5x11,5 1 S.A

C902 2202-002037 C-CERAMIC,MLC-AXIAL 100nF,80-20%,50V,Y5V 1 S.A

CA701 2203-000189 C-CER,CHIP 100nF,+80-20%,25V,Y5V,1608 1 S.A

CA702 2203-000783 C-CER,CHIP 0.33nF,5%,50V,C0G,1608 1 S.A

CA703 2203-000189 C-CER,CHIP 100nF,+80-20%,25V,Y5V,1608 1 S.A

CA704 2203-000783 C-CER,CHIP 0.33nF,5%,50V,C0G,1608 1 S.A

CA705 2203-000189 C-CER,CHIP 100nF,+80-20%,25V,Y5V,1608 1 S.A

CA706 2402-001178 C-AL,SMD 10uF,20%,16V,WT,TP,4.3x4.3x5.8m 1 S.A

CA707 2203-000189 C-CER,CHIP 100nF,+80-20%,25V,Y5V,1608 1 S.A

CA709 2203-000189 C-CER,CHIP 100nF,+80-20%,25V,Y5V,1608 1 S.A

CA710 2203-000189 C-CER,CHIP 100nF,+80-20%,25V,Y5V,1608 1 S.A

CA711 2203-005065 C-CER,CHIP 1000nF,+80-20%,10V,Y5V,1608 1 S.A

CA712 2203-005065 C-CER,CHIP 1000nF,+80-20%,10V,Y5V,1608 1 S.A

CA713 2203-005065 C-CER,CHIP 1000nF,+80-20%,10V,Y5V,1608 1 S.A

CA714 2203-005065 C-CER,CHIP 1000nF,+80-20%,10V,Y5V,1608 1 S.A

CA715 2203-000189 C-CER,CHIP 100nF,+80-20%,25V,Y5V,1608 1 S.A

CA801 2203-000189 C-CER,CHIP 100nF,+80-20%,25V,Y5V,1608 1 S.A

CA802 2402-001042 C-AL,SMD 100uF,20%,16V,GP,TP,6.6x6.6x5.4 1 S.A

CA803 2203-000189 C-CER,CHIP 100nF,+80-20%,25V,Y5V,1608 1 S.A

CA804 2402-001042 C-AL,SMD 100uF,20%,16V,GP,TP,6.6x6.6x5.4 1 S.A

CA805 2402-001042 C-AL,SMD 100uF,20%,16V,GP,TP,6.6x6.6x5.4 1 S.A

CA806 2203-000189 C-CER,CHIP 100nF,+80-20%,25V,Y5V,1608 1 S.A

CA807 2203-000189 C-CER,CHIP 100nF,+80-20%,25V,Y5V,1608 1 S.A

CA811 2402-001178 C-AL,SMD 10uF,20%,16V,WT,TP,4.3x4.3x5.8m 1 S.A

CA812 2402-001178 C-AL,SMD 10uF,20%,16V,WT,TP,4.3x4.3x5.8m 1 S.A

CA813 2203-000189 C-CER,CHIP 100nF,+80-20%,25V,Y5V,1608 1 S.A

CA815 2402-001178 C-AL,SMD 10uF,20%,16V,WT,TP,4.3x4.3x5.8m 1 S.A

CA816 2402-001178 C-AL,SMD 10uF,20%,16V,WT,TP,4.3x4.3x5.8m 1 S.A

CA817 2402-001178 C-AL,SMD 10uF,20%,16V,WT,TP,4.3x4.3x5.8m 1 S.A

CA818 2402-001178 C-AL,SMD 10uF,20%,16V,WT,TP,4.3x4.3x5.8m 1 S.A

CA819 2203-000189 C-CER,CHIP 100nF,+80-20%,25V,Y5V,1608 1 S.A

CA820 2203-000189 C-CER,CHIP 100nF,+80-20%,25V,Y5V,1608 1 S.A

CA821 2203-000189 C-CER,CHIP 100nF,+80-20%,25V,Y5V,1608 1 S.A

CA822 2402-001178 C-AL,SMD 10uF,20%,16V,WT,TP,4.3x4.3x5.8m 1 S.A

CA823 2203-000189 C-CER,CHIP 100nF,+80-20%,25V,Y5V,1608 1 S.A

CA824 2402-001178 C-AL,SMD 10uF,20%,16V,WT,TP,4.3x4.3x5.8m 1 S.A

CA825 2402-001178 C-AL,SMD 10uF,20%,16V,WT,TP,4.3x4.3x5.8m 1 S.A

CA827 2203-000189 C-CER,CHIP 100nF,+80-20%,25V,Y5V,1608 1 S.A

Loc.No. Code No. Description Specification Q'ty SA/SNA Remark

CA829 2203-000189 C-CER,CHIP 100nF,+80-20%,25V,Y5V,1608 1 S.A

CA830 2203-000189 C-CER,CHIP 100nF,+80-20%,25V,Y5V,1608 1 S.A

CA831 2203-000189 C-CER,CHIP 100nF,+80-20%,25V,Y5V,1608 1 S.A

CA834 2203-000189 C-CER,CHIP 100nF,+80-20%,25V,Y5V,1608 1 S.A

CA835 2409-001049 C-ORGANIC 47UF,20%,6.3V,FX,TP,5X5.9MM,- 1 S.A

CA836 2409-001049 C-ORGANIC 47UF,20%,6.3V,FX,TP,5X5.9MM,- 1 S.A

CA839 2409-001065 C-ORGANIC 82uF,20%,16V,WT,TP,8X6.9mm,- 1 S.A

CA840 2203-000257 C-CER,CHIP 10nF,10%,50V,X7R,1608 1 S.A

CA841 2203-000405 C-CER,CHIP 0.18nF,5%,50V,C0G,1608 1 S.A

CA842 2203-000257 C-CER,CHIP 10nF,10%,50V,X7R,1608 1 S.A

CA843 2203-000715 C-CER,CHIP 3.3nF,10%,50V,X7R,1608 1 S.A

CA845 2203-000189 C-CER,CHIP 100nF,+80-20%,25V,Y5V,1608 1 S.A

CA846 2402-001158 C-AL,SMD 1UF,20%,50V,WT,TP,4X5.2MM 1 S.A

CA847 2409-001114 C-POLYMER ,CHIP 220UF,20%,10V,LR,TP,7343 1 S.A

CA848 2203-000189 C-CER,CHIP 100nF,+80-20%,25V,Y5V,1608 1 S.A

CA849 2409-001049 C-ORGANIC 47UF,20%,6.3V,FX,TP,5X5.9MM,- 1 S.A

CA850 2402-000173 C-AL,SMD 4.7uF,20%,35V,GP,TP,4.3x4.3x5.4 1 S.A

CA851 2203-000189 C-CER,CHIP 100nF,+80-20%,25V,Y5V,1608 1 S.A

CA901 2203-000189 C-CER,CHIP 100nF,+80-20%,25V,Y5V,1608 1 S.A

CA902 2402-000108 C-AL,SMD 10uF,20%,16V,WT,TP,4.3x4.3x5.2m 1 S.A

CD901 2402-001042 C-AL,SMD 100uF,20%,16V,GP,TP,6.6x6.6x5.4 1 S.A

CD902 2203-000189 C-CER,CHIP 100nF,+80-20%,25V,Y5V,1608 1 S.A

CD903 2402-001042 C-AL,SMD 100uF,20%,16V,GP,TP,6.6x6.6x5.4 1 S.A

CD904 2203-000189 C-CER,CHIP 100nF,+80-20%,25V,Y5V,1608 1 S.A

CD905 2203-000189 C-CER,CHIP 100nF,+80-20%,25V,Y5V,1608 1 S.A

CD906 2402-001042 C-AL,SMD 100uF,20%,16V,GP,TP,6.6x6.6x5.4 1 S.A

CD907 2203-000189 C-CER,CHIP 100nF,+80-20%,25V,Y5V,1608 1 S.A

CD908 2203-000189 C-CER,CHIP 100nF,+80-20%,25V,Y5V,1608 1 S.A

CD909 2203-001397 C-CER,CHIP 2.2nF,5%,50V,NP0,1608 1 S.A

CD910 2203-002494 C-CER,CHIP 470nF,10%,16V,X7R,2012 1 S.A

CD911 2402-001238 C-AL,SMD 1uF,20%,50V,HR,TP,4.3x4.3x5.2mm 1 S.A

CD912 2203-000189 C-CER,CHIP 100nF,+80-20%,25V,Y5V,1608 1 S.A

CD913 2203-000189 C-CER,CHIP 100nF,+80-20%,25V,Y5V,1608 1 S.A

CD914 2402-001165 C-AL,SMD 4.7UF,20%,35V,WT,TP,4X5.8MM 1 S.A

CD915 2402-001178 C-AL,SMD 10uF,20%,16V,WT,TP,4.3x4.3x5.8m 1 S.A

CD916 2203-000440 C-CER,CHIP 1nF,10%,50V,X7R,1608 1 S.A

CD917 2203-000440 C-CER,CHIP 1nF,10%,50V,X7R,1608 1 S.A

CD918 2203-000189 C-CER,CHIP 100nF,+80-20%,25V,Y5V,1608 1 S.A

CD919 2402-001042 C-AL,SMD 100uF,20%,16V,GP,TP,6.6x6.6x5.4 1 S.A

CD920 2203-000189 C-CER,CHIP 100nF,+80-20%,25V,Y5V,1608 1 S.A

CD921 2203-000189 C-CER,CHIP 100nF,+80-20%,25V,Y5V,1608 1 S.A

CD922 2203-000189 C-CER,CHIP 100nF,+80-20%,25V,Y5V,1608 1 S.A

CD923 2203-000189 C-CER,CHIP 100nF,+80-20%,25V,Y5V,1608 1 S.A

CD924 2203-000189 C-CER,CHIP 100nF,+80-20%,25V,Y5V,1608 1 S.A

CD925 2203-000189 C-CER,CHIP 100nF,+80-20%,25V,Y5V,1608 1 S.A

CD927 2301-001664 C-FILM,LEAD-OTHER 100nF,3%,50V,TP,20x16x 1 S.A

CD928 2203-000440 C-CER,CHIP 1nF,10%,50V,X7R,1608 1 S.A

CD930 2402-001178 C-AL,SMD 10uF,20%,16V,WT,TP,4.3x4.3x5.8m 1 S.A

CD931 2203-002494 C-CER,CHIP 470nF,10%,16V,X7R,2012 1 S.A

CD932 2203-002494 C-CER,CHIP 470nF,10%,16V,X7R,2012 1 S.A

CD933 2402-001165 C-AL,SMD 4.7UF,20%,35V,WT,TP,4X5.8MM 1 S.A

CD934 2402-001042 C-AL,SMD 100uF,20%,16V,GP,TP,6.6x6.6x5.4 1 S.A

CD935 2203-000189 C-CER,CHIP 100nF,+80-20%,25V,Y5V,1608 1 S.A

CD936 2203-001034 C-CER,CHIP 5.6nF,10%,50V,X7R,1608 1 S.A

CD939 2203-000189 C-CER,CHIP 100nF,+80-20%,25V,Y5V,1608 1 S.A

CD940 2203-000189 C-CER,CHIP 100nF,+80-20%,25V,Y5V,1608 1 S.A

CD941 2203-000189 C-CER,CHIP 100nF,+80-20%,25V,Y5V,1608 1 S.A

CD942 2203-000189 C-CER,CHIP 100nF,+80-20%,25V,Y5V,1608 1 S.A

CD943 2203-000189 C-CER,CHIP 100nF,+80-20%,25V,Y5V,1608 1 S.A

CD944 2203-000888 C-CER,CHIP 4.7nF,10%,50V,X7R,1608 1 S.A

CD945 2203-002494 C-CER,CHIP 470nF,10%,16V,X7R,2012 1 S.A

CD946 2203-002494 C-CER,CHIP 470nF,10%,16V,X7R,2012 1 S.A

CD947 2203-000189 C-CER,CHIP 100nF,+80-20%,25V,Y5V,1608 1 S.A

CD948 2203-006170 C-CER,CHIP 220nF,10%,16V,X7R,1608 1 S.A

CD949 2402-001042 C-AL,SMD 100uF,20%,16V,GP,TP,6.6x6.6x5.4 1 S.A

CD950 2203-000975 C-CER,CHIP 47nF,10%,25V,X7R,TP,1608,- 1 S.A

CD951 2402-001129 C-AL,SMD 47UF,20%,16V,WT,TP,6.3X5.2MM 1 S.A

CD952 2203-000189 C-CER,CHIP 100nF,+80-20%,25V,Y5V,1608 1 S.A

Loc.No. Code No. Description Specification Q'ty SA/SNA Remark

Samsung Electronics5-6

Electrical Part List

5-7Samsung Electronics

Electrical Part List

CD953 2203-006170 C-CER,CHIP 220nF,10%,16V,X7R,1608 1 S.A

CD954 2203-001397 C-CER,CHIP 2.2nF,5%,50V,NP0,1608 1 S.A

CD955 2203-006333 C-CER,CHIP 10000nF,20%,16V,X5R,TP,3216 1 S.A

CD956 2203-001397 C-CER,CHIP 2.2nF,5%,50V,NP0,1608 1 S.A

CD958 2203-000189 C-CER,CHIP 100nF,+80-20%,25V,Y5V,1608 1 S.A

CD959 2301-000224 C-FILM,LEAD-PEF 22nF,5%,50V,TP,7.4x3.9x1 1 S.A

CD960 2301-001664 C-FILM,LEAD-OTHER 100nF,3%,50V,TP,20x16x 1 S.A

CF01 2203-000783 C-CER,CHIP 0.33nF,5%,50V,C0G,1608 1 S.A

CF02 2203-000783 C-CER,CHIP 0.33nF,5%,50V,C0G,1608 1 S.A

CF03 2203-000783 C-CER,CHIP 0.33nF,5%,50V,C0G,1608 1 S.A

CF05 2203-000783 C-CER,CHIP 0.33nF,5%,50V,C0G,1608 1 S.A

CF06 2203-000783 C-CER,CHIP 0.33nF,5%,50V,C0G,1608 1 S.A

CF07 2203-000236 C-CER,CHIP 0.1nF,5%,50V,C0G,1608 1 S.A

CF08 2203-000236 C-CER,CHIP 0.1nF,5%,50V,C0G,1608 1 S.A

CF09 2203-000236 C-CER,CHIP 0.1nF,5%,50V,C0G,1608 1 S.A

CF10 2203-000236 C-CER,CHIP 0.1nF,5%,50V,C0G,1608 1 S.A

CF11 2203-000236 C-CER,CHIP 0.1nF,5%,50V,C0G,1608 1 S.A

CF12 2203-000236 C-CER,CHIP 0.1nF,5%,50V,C0G,1608 1 S.A

CH001 2203-000189 C-CER,CHIP 100nF,+80-20%,25V,Y5V,1608 1 S.A

CH002 2203-000189 C-CER,CHIP 100nF,+80-20%,25V,Y5V,1608 1 S.A

CH003 2203-000189 C-CER,CHIP 100nF,+80-20%,25V,Y5V,1608 1 S.A

CH004 2203-000189 C-CER,CHIP 100nF,+80-20%,25V,Y5V,1608 1 S.A

CH005 2203-000189 C-CER,CHIP 100nF,+80-20%,25V,Y5V,1608 1 S.A

CH006 2203-000189 C-CER,CHIP 100nF,+80-20%,25V,Y5V,1608 1 S.A

CH007 2203-000189 C-CER,CHIP 100nF,+80-20%,25V,Y5V,1608 1 S.A

CH008 2203-000189 C-CER,CHIP 100nF,+80-20%,25V,Y5V,1608 1 S.A

CH009 2203-000189 C-CER,CHIP 100nF,+80-20%,25V,Y5V,1608 1 S.A

CH010 2203-000189 C-CER,CHIP 100nF,+80-20%,25V,Y5V,1608 1 S.A

CH011 2203-000626 C-CER,CHIP 0.022nF,5%,50V,C0G,1608 1 S.A

CH012 2203-000626 C-CER,CHIP 0.022nF,5%,50V,C0G,1608 1 S.A

CH013 2203-000189 C-CER,CHIP 100nF,+80-20%,25V,Y5V,1608 1 S.A

CH014 2203-000189 C-CER,CHIP 100nF,+80-20%,25V,Y5V,1608 1 S.A

CH015 2402-001128 C-AL,SMD 100UF,20%,16V,WT,TP,6.3X5.7MM 1 S.A

CH016 2203-000189 C-CER,CHIP 100nF,+80-20%,25V,Y5V,1608 1 S.A

CH017 2203-000189 C-CER,CHIP 100nF,+80-20%,25V,Y5V,1608 1 S.A

CH018 2203-000189 C-CER,CHIP 100nF,+80-20%,25V,Y5V,1608 1 S.A

CH019 2203-000189 C-CER,CHIP 100nF,+80-20%,25V,Y5V,1608 1 S.A

CH020 2203-000189 C-CER,CHIP 100nF,+80-20%,25V,Y5V,1608 1 S.A

CH021 2203-000189 C-CER,CHIP 100nF,+80-20%,25V,Y5V,1608 1 S.A

CH022 2203-000189 C-CER,CHIP 100nF,+80-20%,25V,Y5V,1608 1 S.A

CH023 2203-000189 C-CER,CHIP 100nF,+80-20%,25V,Y5V,1608 1 S.A

CH024 2203-000189 C-CER,CHIP 100nF,+80-20%,25V,Y5V,1608 1 S.A

CH025 2203-000189 C-CER,CHIP 100nF,+80-20%,25V,Y5V,1608 1 S.A

CH026 2203-000189 C-CER,CHIP 100nF,+80-20%,25V,Y5V,1608 1 S.A

CH027 2203-000189 C-CER,CHIP 100nF,+80-20%,25V,Y5V,1608 1 S.A

CH028 2203-000189 C-CER,CHIP 100nF,+80-20%,25V,Y5V,1608 1 S.A

CH029 2203-000189 C-CER,CHIP 100nF,+80-20%,25V,Y5V,1608 1 S.A

CH030 2203-000189 C-CER,CHIP 100nF,+80-20%,25V,Y5V,1608 1 S.A

CH031 2203-000189 C-CER,CHIP 100nF,+80-20%,25V,Y5V,1608 1 S.A

CH032 2203-000189 C-CER,CHIP 100nF,+80-20%,25V,Y5V,1608 1 S.A

CH033 2203-000189 C-CER,CHIP 100nF,+80-20%,25V,Y5V,1608 1 S.A

CH034 2203-000189 C-CER,CHIP 100nF,+80-20%,25V,Y5V,1608 1 S.A

CH035 2203-000189 C-CER,CHIP 100nF,+80-20%,25V,Y5V,1608 1 S.A

CH036 2402-000176 C-AL,SMD 10uF,20%,16V,GP,TP,4.3x4.3x5.4 1 S.A

CH037 2402-000176 C-AL,SMD 10uF,20%,16V,GP,TP,4.3x4.3x5.4 1 S.A

CH038 2402-000176 C-AL,SMD 10uF,20%,16V,GP,TP,4.3x4.3x5.4 1 S.A

CH039 2402-000176 C-AL,SMD 10uF,20%,16V,GP,TP,4.3x4.3x5.4 1 S.A

CH040 2402-000176 C-AL,SMD 10uF,20%,16V,GP,TP,4.3x4.3x5.4 1 S.A

CH041 2402-000176 C-AL,SMD 10uF,20%,16V,GP,TP,4.3x4.3x5.4 1 S.A

CH042 2402-001128 C-AL,SMD 100UF,20%,16V,WT,TP,6.3X5.7MM 1 S.A

CH043 2203-000189 C-CER,CHIP 100nF,+80-20%,25V,Y5V,1608 1 S.A

CH044 2203-000189 C-CER,CHIP 100nF,+80-20%,25V,Y5V,1608 1 S.A

CIS05 0202-001477 SOLDER-CREAM LST309-M,-,D20~45§-,96.5Sn/ 0.465 S.N.A

CIS1 0205-001154 OIL-SILICON G746,-,- 0.2 S.N.A

CIS1 0205-001154 OIL-SILICON G746,-,- 0.1 S.N.A

CIS1 0205-001154 OIL-SILICON G746,-,- 0.4 S.N.A

CIS1 0205-001154 OIL-SILICON G746,-,- 0.1 S.N.A

Loc.No. Code No. Description Specification Q'ty SA/SNA Remark

CIS1 0205-001154 OIL-SILICON G746,-,- 0.1 S.N.A

CIS1 0205-001154 OIL-SILICON G746,-,- 0.2 S.N.A

CIS3 AA40-00154A TUNER DNOS403ZV261B(S),DNOS403ZV261B(S), 1 S.A

CN01 3711-003495 HEADER-BOARD TO BOARD NOWALL,34P,2R,2.54 1 S.A

CN02 3711-003495 HEADER-BOARD TO BOARD NOWALL,34P,2R,2.54 1 S.A

CN03 3711-001111 HEADER-BOARD TO CABLE BOX,8P,1R,2.5MM,AN 1 S.A

CN05 3711-004067 HEADER-BOARD TO CABLE BOX,4P,1R,2mm,ANGL 1 S.A

CN10 3711-004484 HEADER-BOARD TO CABLE BOX,5P,1R,2mm,STRA 1 S.A

CN11 3711-002001 HEADER-BOARD TO CABLE BOX,20P,2R,2MM,STR 1 S.A

CN14 3711-003245 HEADER-BOARD TO CABLE BOX,14P,1R,2.5MM,A 1 S.A

CN301 AA60-40012F PIN-GT 4P,2.36PI,6/12/14mm,NYLON66,LOCKI 1 S.N.A

CN403 3711-001084 HEADER-BOARD TO CABLE BOX,8P,1R,2.5MM,ST 1 S.A

CN601 3711-003043 HEADER-BOARD TO CABLE BOX,4P,1R,2.5MM,ST 1 S.A

CN802 AA60-40012G PIN-GT 3P,2.36PI,10/5mm,NYLON66,LOCKING 1 S.N.A

CN906 3711-003543 CONNECTOR-HEADER NOWALL,16P,1R,2.5MM,ANG 1 S.A

CN909 AA37-00001A CONNECTOR-FBT FIX PIN JM-3500,CPTTV,0.36 1 S.A

CR405S 2306-000353 C-FILM,LEAD-PPF 6.3nF,5%,1.6KV,BK,26.5x8 1 S.A

CR406S 2306-000326 C-FILM,LEAD-PPF 4.7NF,5%,1.6KV,BK,28.5X1 1 S.A

CR407S 2301-001418 C-FILM,LEAD-PPF 1.5nF,5%,2kV,TP,29x7x13. 1 S.A

CR425 2301-001420 C-FILM,LEAD-PPF 1200nF,5%,400V,BK,31x16. 1 S.A

CS01 2402-001178 C-AL,SMD 10uF,20%,16V,WT,TP,4.3x4.3x5.8m 1 S.A

CS01 2401-000603 C-AL 1UF,20%,50V,GP,TP,5X11,2 1 S.A

CS02 2203-000189 C-CER,CHIP 100nF,+80-20%,25V,Y5V,1608 1 S.A

CV201 2203-000189 C-CER,CHIP 100nF,+80-20%,25V,Y5V,1608 1 S.A

CV202 2402-000173 C-AL,SMD 4.7uF,20%,35V,GP,TP,4.3x4.3x5.4 1 S.A

CV203 2203-005384 C-CER,CHIP 4700nF,+80-20%,10V,Y5V,2012 1 S.A

CV250 2203-000440 C-CER,CHIP 1nF,10%,50V,X7R,1608 1 S.A

CX801S 2306-000318 C-FILM,LEAD-PPF 220nF,20%,275V,BK,26x7x1 1 S.A

CY801S 2201-000987 C-CERAMIC,DISC 2.2NF,20%,400V,Y5U,BK,12. 1 S.A

CY802S 2201-000963 C-CERAMIC,DISC 1NF,20%,400V,Y5U,TP,9.5X6 1 S.A

D301 0402-000493 DIODE-RECTIFIER 1R5GU41,400V,1.5A,DO-15L 1 S.A

D302 0401-000005 DIODE-SWITCHING 1N4148,75V,150mA,DO-35,T 1 S.A

D401 0402-001295 DIODE-RECTIFIER GUR460L-5700,600V,4A,DO- 1 S.A

D402 0402-000540 DIODE-RECTIFIER RU20A,600V,1.5A,-,TP 1 S.A

D403 0402-000132 DIODE-RECTIFIER 1N4004,400V,1A,DO-41,TP 1 S.A

D404 0401-000005 DIODE-SWITCHING 1N4148,75V,150mA,DO-35,T 1 S.A

D405 0401-000005 DIODE-SWITCHING 1N4148,75V,150mA,DO-35,T 1 S.A

D406 0402-000132 DIODE-RECTIFIER 1N4004,400V,1A,DO-41,TP 1 S.A

D407 0402-000132 DIODE-RECTIFIER 1N4004,400V,1A,DO-41,TP 1 S.A

D410 0401-000005 DIODE-SWITCHING 1N4148,75V,150mA,DO-35,T 1 S.A

D411 0402-000534 DIODE-RECTIFIER RG10V,400V,1.2A,DO-201,T 1 S.A

D412 0402-000534 DIODE-RECTIFIER RG10V,400V,1.2A,DO-201,T 1 S.A

D413 0402-000534 DIODE-RECTIFIER RG10V,400V,1.2A,DO-201,T 1 S.A

D415 0402-000132 DIODE-RECTIFIER 1N4004,400V,1A,DO-41,TP 1 S.A

D604 0401-000005 DIODE-SWITCHING 1N4148,75V,150mA,DO-35,T 1 S.A

D801 0401-000006 DIODE-SWITCHING BAV21,250V,200mA,DO-35,T 1 S.A

D801S 0402-001399 DIODE-BRIDGE GSIB660,600V,6A,SIP-4,BK 1 S.A

D802 0401-000006 DIODE-SWITCHING BAV21,250V,200mA,DO-35,T 1 S.A

D803 0401-000006 DIODE-SWITCHING BAV21,250V,200mA,DO-35,T 1 S.A

D804 0401-000005 DIODE-SWITCHING 1N4148,75V,150mA,DO-35,T 1 S.A

D805 0402-000546 DIODE-RECTIFIER TVR10G,400V,1A,DO-41,TP 1 S.A

D806 0401-000005 DIODE-SWITCHING 1N4148,75V,150mA,DO-35,T 1 S.A

D807 0401-000005 DIODE-SWITCHING 1N4148,75V,150mA,DO-35,T 1 S.A

D808 0402-000132 DIODE-RECTIFIER 1N4004,400V,1A,DO-41,TP 1 S.A

DA801 0401-001099 DIODE-SWITCHING 1N4148WS,75V,150mA,SOD-3 1 S.A

DA802 0402-000553 DIODE-RECTIFIER SS24,40V,2A,DO-214AA,TP 1 S.A

DC100 2203-000257 C-CER,CHIP 10nF,10%,50V,X7R,1608 1 S.A

DC101 2203-005005 C-CER,CHIP 100nF,10%,16V,X7R,1608 1 S.A

DC102 2203-000257 C-CER,CHIP 10nF,10%,50V,X7R,1608 1 S.A

DC103 2203-005005 C-CER,CHIP 100nF,10%,16V,X7R,1608 1 S.A

DC104 2203-005005 C-CER,CHIP 100nF,10%,16V,X7R,1608 1 S.A

DC105 2203-000257 C-CER,CHIP 10nF,10%,50V,X7R,1608 1 S.A

DC106 2203-005005 C-CER,CHIP 100nF,10%,16V,X7R,1608 1 S.A

DC107 2203-000257 C-CER,CHIP 10nF,10%,50V,X7R,1608 1 S.A

DC108 2203-005005 C-CER,CHIP 100nF,10%,16V,X7R,1608 1 S.A

DC109 2203-000257 C-CER,CHIP 10nF,10%,50V,X7R,1608 1 S.A

Loc.No. Code No. Description Specification Q'ty SA/SNA Remark

Samsung Electronics5-8

Electrical Part List

5-9Samsung Electronics

Electrical Part List

DC110 2203-005005 C-CER,CHIP 100nF,10%,16V,X7R,1608 1 S.A

DC111 2203-000257 C-CER,CHIP 10nF,10%,50V,X7R,1608 1 S.A

DC112 2203-000257 C-CER,CHIP 10nF,10%,50V,X7R,1608 1 S.A

DC113 2203-005005 C-CER,CHIP 100nF,10%,16V,X7R,1608 1 S.A

DC114 2203-000257 C-CER,CHIP 10nF,10%,50V,X7R,1608 1 S.A

DC115 2203-005005 C-CER,CHIP 100nF,10%,16V,X7R,1608 1 S.A

DC116 2203-000257 C-CER,CHIP 10nF,10%,50V,X7R,1608 1 S.A

DC117 2203-005005 C-CER,CHIP 100nF,10%,16V,X7R,1608 1 S.A

DC118 2203-000257 C-CER,CHIP 10nF,10%,50V,X7R,1608 1 S.A

DC119 2203-005005 C-CER,CHIP 100nF,10%,16V,X7R,1608 1 S.A

DC120 2203-005005 C-CER,CHIP 100nF,10%,16V,X7R,1608 1 S.A

DC121 2402-000108 C-AL,SMD 10uF,20%,16V,WT,TP,4.3x4.3x5.2m 1 S.A

DC122 2402-000108 C-AL,SMD 10uF,20%,16V,WT,TP,4.3x4.3x5.2m 1 S.A

DC123 2402-000108 C-AL,SMD 10uF,20%,16V,WT,TP,4.3x4.3x5.2m 1 S.A

DC124 2402-000108 C-AL,SMD 10uF,20%,16V,WT,TP,4.3x4.3x5.2m 1 S.A

DC125 2402-000108 C-AL,SMD 10uF,20%,16V,WT,TP,4.3x4.3x5.2m 1 S.A

DC126 2203-005005 C-CER,CHIP 100nF,10%,16V,X7R,1608 1 S.A

DC127 2203-005005 C-CER,CHIP 100nF,10%,16V,X7R,1608 1 S.A

DC128 2203-005005 C-CER,CHIP 100nF,10%,16V,X7R,1608 1 S.A

DC129 2203-005005 C-CER,CHIP 100nF,10%,16V,X7R,1608 1 S.A

DC130 2203-005005 C-CER,CHIP 100nF,10%,16V,X7R,1608 1 S.A

DC131 2203-005005 C-CER,CHIP 100nF,10%,16V,X7R,1608 1 S.A

DC132 2203-005005 C-CER,CHIP 100nF,10%,16V,X7R,1608 1 S.A

DC133 2203-005005 C-CER,CHIP 100nF,10%,16V,X7R,1608 1 S.A

DC134 2203-005005 C-CER,CHIP 100nF,10%,16V,X7R,1608 1 S.A

DC135 2203-005005 C-CER,CHIP 100nF,10%,16V,X7R,1608 1 S.A

DC136 2203-005005 C-CER,CHIP 100nF,10%,16V,X7R,1608 1 S.A

DC137 2203-005005 C-CER,CHIP 100nF,10%,16V,X7R,1608 1 S.A

DC138 2203-005005 C-CER,CHIP 100nF,10%,16V,X7R,1608 1 S.A

DC139 2203-005005 C-CER,CHIP 100nF,10%,16V,X7R,1608 1 S.A

DC140 2203-005005 C-CER,CHIP 100nF,10%,16V,X7R,1608 1 S.A

DC141 2203-005005 C-CER,CHIP 100nF,10%,16V,X7R,1608 1 S.A

DC142 2203-005005 C-CER,CHIP 100nF,10%,16V,X7R,1608 1 S.A

DC143 2203-005005 C-CER,CHIP 100nF,10%,16V,X7R,1608 1 S.A

DC144 2203-005005 C-CER,CHIP 100nF,10%,16V,X7R,1608 1 S.A

DC145 2203-005005 C-CER,CHIP 100nF,10%,16V,X7R,1608 1 S.A

DC146 2203-005005 C-CER,CHIP 100nF,10%,16V,X7R,1608 1 S.A

DC147 2203-005005 C-CER,CHIP 100nF,10%,16V,X7R,1608 1 S.A

DC148 2203-005005 C-CER,CHIP 100nF,10%,16V,X7R,1608 1 S.A

DC149 2203-005005 C-CER,CHIP 100nF,10%,16V,X7R,1608 1 S.A

DC150 2203-005005 C-CER,CHIP 100nF,10%,16V,X7R,1608 1 S.A

DC151 2203-005005 C-CER,CHIP 100nF,10%,16V,X7R,1608 1 S.A

DC152 2203-005005 C-CER,CHIP 100nF,10%,16V,X7R,1608 1 S.A

DC153 2203-005005 C-CER,CHIP 100nF,10%,16V,X7R,1608 1 S.A

DC154 2402-001128 C-AL,SMD 100UF,20%,16V,WT,TP,6.3X5.7MM 1 S.A

DC155 2203-001630 C-CER,CHIP 330nF,+80-20%,16V,Y5V,1608 1 S.A

DC202 2402-001216 C-AL,SMD 470uF,20%,16V,WT,TP,10.3x10.3x1 1 S.A

DC203 2203-005005 C-CER,CHIP 100nF,10%,16V,X7R,1608 1 S.A

DC400 2203-005005 C-CER,CHIP 100nF,10%,16V,X7R,1608 1 S.A

DC401 2203-005005 C-CER,CHIP 100nF,10%,16V,X7R,1608 1 S.A

DC402 2203-005005 C-CER,CHIP 100nF,10%,16V,X7R,1608 1 S.A

DC403 2203-005005 C-CER,CHIP 100nF,10%,16V,X7R,1608 1 S.A

DC404 2203-005005 C-CER,CHIP 100nF,10%,16V,X7R,1608 1 S.A

DC500 2203-005005 C-CER,CHIP 100nF,10%,16V,X7R,1608 1 S.A

DC501 2203-005005 C-CER,CHIP 100nF,10%,16V,X7R,1608 1 S.A

DC502 2203-005005 C-CER,CHIP 100nF,10%,16V,X7R,1608 1 S.A

DC503 2203-005005 C-CER,CHIP 100nF,10%,16V,X7R,1608 1 S.A

DC504 2203-005005 C-CER,CHIP 100nF,10%,16V,X7R,1608 1 S.A

DC505 2203-005005 C-CER,CHIP 100nF,10%,16V,X7R,1608 1 S.A

DC506 2203-005005 C-CER,CHIP 100nF,10%,16V,X7R,1608 1 S.A

DC507 2203-005005 C-CER,CHIP 100nF,10%,16V,X7R,1608 1 S.A

DC508 2203-005005 C-CER,CHIP 100nF,10%,16V,X7R,1608 1 S.A

DC509 2203-005005 C-CER,CHIP 100nF,10%,16V,X7R,1608 1 S.A

DC510 2203-005005 C-CER,CHIP 100nF,10%,16V,X7R,1608 1 S.A

DC511 2203-005005 C-CER,CHIP 100nF,10%,16V,X7R,1608 1 S.A

DC512 2203-005005 C-CER,CHIP 100nF,10%,16V,X7R,1608 1 S.A

DC513 2203-005005 C-CER,CHIP 100nF,10%,16V,X7R,1608 1 S.A

DC514 2203-005005 C-CER,CHIP 100nF,10%,16V,X7R,1608 1 S.A

Loc.No. Code No. Description Specification Q'ty SA/SNA Remark

DC522 2402-001128 C-AL,SMD 100UF,20%,16V,WT,TP,6.3X5.7MM 1 S.A

DC601 2203-005005 C-CER,CHIP 100nF,10%,16V,X7R,1608 1 S.A

DC602 2402-000108 C-AL,SMD 10uF,20%,16V,WT,TP,4.3x4.3x5.2m 1 S.A

DC611 2402-001128 C-AL,SMD 100UF,20%,16V,WT,TP,6.3X5.7MM 1 S.A

DC612 2203-005005 C-CER,CHIP 100nF,10%,16V,X7R,1608 1 S.A

DC613 2402-001216 C-AL,SMD 470uF,20%,16V,WT,TP,10.3x10.3x1 1 S.A

DC614 2203-005005 C-CER,CHIP 100nF,10%,16V,X7R,1608 1 S.A

DC631 2203-005005 C-CER,CHIP 100nF,10%,16V,X7R,1608 1 S.A

DC632 2203-005005 C-CER,CHIP 100nF,10%,16V,X7R,1608 1 S.A

DC633 2203-005005 C-CER,CHIP 100nF,10%,16V,X7R,1608 1 S.A

DC634 2402-001128 C-AL,SMD 100UF,20%,16V,WT,TP,6.3X5.7MM 1 S.A

DC635 2402-001158 C-AL,SMD 1UF,20%,50V,WT,TP,4X5.2MM 1 S.A

DC636 2402-001158 C-AL,SMD 1UF,20%,50V,WT,TP,4X5.2MM 1 S.A

DC637 2402-001159 C-AL,SMD 3.3UF,20%,50V,WT,TP,4X5.2MM 1 S.A

DC638 2402-001159 C-AL,SMD 3.3UF,20%,50V,WT,TP,4X5.2MM 1 S.A

DC700 2203-001630 C-CER,CHIP 330nF,+80-20%,16V,Y5V,1608 1 S.A

DC701 2203-001630 C-CER,CHIP 330nF,+80-20%,16V,Y5V,1608 1 S.A

DC801 2203-000659 C-CER,CHIP 0.27nF,5%,50V,C0G,1608 1 S.A

DC804 2203-000659 C-CER,CHIP 0.27nF,5%,50V,C0G,1608 1 S.A

DC807 2203-000659 C-CER,CHIP 0.27nF,5%,50V,C0G,1608 1 S.A

DC810 2203-000659 C-CER,CHIP 0.27nF,5%,50V,C0G,1608 1 S.A

DC901 2402-001128 C-AL,SMD 100UF,20%,16V,WT,TP,6.3X5.7MM 1 S.A

DC902 2203-005005 C-CER,CHIP 100nF,10%,16V,X7R,1608 1 S.A

DC903 2203-005005 C-CER,CHIP 100nF,10%,16V,X7R,1608 1 S.A

DC904 2402-001128 C-AL,SMD 100UF,20%,16V,WT,TP,6.3X5.7MM 1 S.A

DC905 2203-005005 C-CER,CHIP 100nF,10%,16V,X7R,1608 1 S.A

DC906 2203-005005 C-CER,CHIP 100nF,10%,16V,X7R,1608 1 S.A

DC907 2203-005005 C-CER,CHIP 100nF,10%,16V,X7R,1608 1 S.A

DC909 2203-005005 C-CER,CHIP 100nF,10%,16V,X7R,1608 1 S.A

DC910 2203-005005 C-CER,CHIP 100nF,10%,16V,X7R,1608 1 S.A

DC915 2203-005005 C-CER,CHIP 100nF,10%,16V,X7R,1608 1 S.A

DC916 2203-005005 C-CER,CHIP 100nF,10%,16V,X7R,1608 1 S.A

DC921 2203-005005 C-CER,CHIP 100nF,10%,16V,X7R,1608 1 S.A

DC922 2203-005005 C-CER,CHIP 100nF,10%,16V,X7R,1608 1 S.A

DC9906 2203-005005 C-CER,CHIP 100nF,10%,16V,X7R,1608 1 S.A

DD901 0401-000133 DIODE-SWITCHING RLS4148,75V,150mA,LL-34, 1 S.A

DD902 0401-000133 DIODE-SWITCHING RLS4148,75V,150mA,LL-34, 1 S.A

DD903 0401-000133 DIODE-SWITCHING RLS4148,75V,150mA,LL-34, 1 S.A

DD904 0401-000133 DIODE-SWITCHING RLS4148,75V,150mA,LL-34, 1 S.A

DD905 0401-000133 DIODE-SWITCHING RLS4148,75V,150mA,LL-34, 1 S.A

DD906 0401-000133 DIODE-SWITCHING RLS4148,75V,150mA,LL-34, 1 S.A

DD907 0401-000133 DIODE-SWITCHING RLS4148,75V,150mA,LL-34, 1 S.A

DD908 0401-000133 DIODE-SWITCHING RLS4148,75V,150mA,LL-34, 1 S.A

DD909 0401-000133 DIODE-SWITCHING RLS4148,75V,150mA,LL-34, 1 S.A

DD910 0401-000133 DIODE-SWITCHING RLS4148,75V,150mA,LL-34, 1 S.A

DD911 0401-000133 DIODE-SWITCHING RLS4148,75V,150mA,LL-34, 1 S.A

DD912 0401-000133 DIODE-SWITCHING RLS4148,75V,150mA,LL-34, 1 S.A

DH001 0401-001056 DIODE-SWITCHING MMBD4148SE,100V,200mA,SO 1 S.A

DH002 0401-001056 DIODE-SWITCHING MMBD4148SE,100V,200mA,SO 1 S.A

DH003 0401-001056 DIODE-SWITCHING MMBD4148SE,100V,200mA,SO 1 S.A

DH004 0401-001056 DIODE-SWITCHING MMBD4148SE,100V,200mA,SO 1 S.A

DH005 0401-001056 DIODE-SWITCHING MMBD4148SE,100V,200mA,SO 1 S.A

DH006 0401-001056 DIODE-SWITCHING MMBD4148SE,100V,200mA,SO 1 S.A

DH007 0401-001056 DIODE-SWITCHING MMBD4148SE,100V,200mA,SO 1 S.A

DH008 0401-001056 DIODE-SWITCHING MMBD4148SE,100V,200mA,SO 1 S.A

DH009 0401-001056 DIODE-SWITCHING MMBD4148SE,100V,200mA,SO 1 S.A

DH010 0401-001056 DIODE-SWITCHING MMBD4148SE,100V,200mA,SO 1 S.A

DH011 0401-000133 DIODE-SWITCHING RLS4148,75V,150mA,LL-34, 1 S.A

DH012 0401-000133 DIODE-SWITCHING RLS4148,75V,150mA,LL-34, 1 S.A

DJ301 3709-001346 CONNECTOR-CARD SLOT 68P,0.27mm,ANGLE,AU1 1 S.A

DJ402 3722-001055 JACK-PHONE 5P/2C,AG,BLK,ANGLE 1 S.A

DQ401 0501-000669 TR-SMALL SIGNAL KTA1505Y,PNP,150mW,SOT-2 1 S.A

DQ402 0501-000669 TR-SMALL SIGNAL KTA1505Y,PNP,150mW,SOT-2 1 S.A

DQ701 0501-000434 TR-SMALL SIGNAL KTC3875S-GR,NPN,150mW,SO 1 S.A

DQ703 0501-000669 TR-SMALL SIGNAL KTA1505Y,PNP,150mW,SOT-2 1 S.A

DQ704 0501-000669 TR-SMALL SIGNAL KTA1505Y,PNP,150mW,SOT-2 1 S.A

DR101 2007-000119 R-CHIP 560ohm,5%,1/10W,TP,1608 1 S.A

DR102 2007-000102 R-CHIP 100Kohm,5%,1/10W,TP,1608 1 S.A

Loc.No. Code No. Description Specification Q'ty SA/SNA Remark

Samsung Electronics5-10

Electrical Part List

5-11Samsung Electronics

Electrical Part List

DR104 2007-000074 R-CHIP 100ohm,5%,1/10W,TP,1608 1 S.A

DR105 2007-000074 R-CHIP 100ohm,5%,1/10W,TP,1608 1 S.A

DR1101 2007-000074 R-CHIP 100ohm,5%,1/10W,TP,1608 1 S.A

DR1102 2007-000072 R-CHIP 47ohm,5%,1/10W,TP,1608 1 S.A

DR111 2007-000072 R-CHIP 47ohm,5%,1/10W,TP,1608 1 S.A

DR112 2007-000074 R-CHIP 100ohm,5%,1/10W,TP,1608 1 S.A

DR113 2007-000074 R-CHIP 100ohm,5%,1/10W,TP,1608 1 S.A

DR114 2007-000084 R-CHIP 4.7Kohm,5%,1/10W,TP,1608 1 S.A

DR116 2007-000072 R-CHIP 47ohm,5%,1/10W,TP,1608 1 S.A

DR117 2007-000090 R-CHIP 10Kohm,5%,1/10W,TP,1608 1 S.A

DR118 2007-000074 R-CHIP 100ohm,5%,1/10W,TP,1608 1 S.A

DR119 2007-000074 R-CHIP 100ohm,5%,1/10W,TP,1608 1 S.A

DR120 2007-000074 R-CHIP 100ohm,5%,1/10W,TP,1608 1 S.A

DR121 2007-000074 R-CHIP 100ohm,5%,1/10W,TP,1608 1 S.A

DR122 2007-000074 R-CHIP 100ohm,5%,1/10W,TP,1608 1 S.A

DR123 2007-000074 R-CHIP 100ohm,5%,1/10W,TP,1608 1 S.A

DR124 2007-000074 R-CHIP 100ohm,5%,1/10W,TP,1608 1 S.A

DR125 2007-000074 R-CHIP 100ohm,5%,1/10W,TP,1608 1 S.A

DR126 2007-000074 R-CHIP 100ohm,5%,1/10W,TP,1608 1 S.A

DR127 2007-000074 R-CHIP 100ohm,5%,1/10W,TP,1608 1 S.A

DR128 2007-000074 R-CHIP 100ohm,5%,1/10W,TP,1608 1 S.A

DR129 2007-000074 R-CHIP 100ohm,5%,1/10W,TP,1608 1 S.A

DR130 2007-000074 R-CHIP 100ohm,5%,1/10W,TP,1608 1 S.A

DR131 2007-000074 R-CHIP 100ohm,5%,1/10W,TP,1608 1 S.A

DR132 2007-000539 R-CHIP 200ohm,5%,1/10W,TP,1608 1 S.A

DR133 2007-000539 R-CHIP 200ohm,5%,1/10W,TP,1608 1 S.A

DR134 2007-000539 R-CHIP 200ohm,5%,1/10W,TP,1608 1 S.A

DR135 2007-000539 R-CHIP 200ohm,5%,1/10W,TP,1608 1 S.A

DR137 2007-000074 R-CHIP 100ohm,5%,1/10W,TP,1608 1 S.A

DR138 2007-000074 R-CHIP 100ohm,5%,1/10W,TP,1608 1 S.A

DR139 2007-000084 R-CHIP 4.7Kohm,5%,1/10W,TP,1608 1 S.A

DR140 2007-000070 R-CHIP 0ohm,5%,1/10W,TP,1608 1 S.A

DR141 2007-000084 R-CHIP 4.7Kohm,5%,1/10W,TP,1608 1 S.A

DR142 2007-000084 R-CHIP 4.7Kohm,5%,1/10W,TP,1608 1 S.A

DR143 2007-000084 R-CHIP 4.7Kohm,5%,1/10W,TP,1608 1 S.A

DR144 2007-000084 R-CHIP 4.7Kohm,5%,1/10W,TP,1608 1 S.A

DR145 2007-000074 R-CHIP 100ohm,5%,1/10W,TP,1608 1 S.A

DR146 2007-000074 R-CHIP 100ohm,5%,1/10W,TP,1608 1 S.A

DR147 2007-000074 R-CHIP 100ohm,5%,1/10W,TP,1608 1 S.A

DR148 2007-000074 R-CHIP 100ohm,5%,1/10W,TP,1608 1 S.A

DR149 2007-000074 R-CHIP 100ohm,5%,1/10W,TP,1608 1 S.A

DR150 2007-000074 R-CHIP 100ohm,5%,1/10W,TP,1608 1 S.A

DR151 2007-000074 R-CHIP 100ohm,5%,1/10W,TP,1608 1 S.A

DR152 2007-000074 R-CHIP 100ohm,5%,1/10W,TP,1608 1 S.A

DR153 2007-000084 R-CHIP 4.7Kohm,5%,1/10W,TP,1608 1 S.A

DR154 2007-000070 R-CHIP 0ohm,5%,1/10W,TP,1608 1 S.A

DR155 2007-000052 R-CHIP 10Kohm,1%,1/10W,TP,1608 1 S.A

DR156 2007-000052 R-CHIP 10Kohm,1%,1/10W,TP,1608 1 S.A

DR158 2007-000070 R-CHIP 0ohm,5%,1/10W,TP,1608 1 S.A

DR159 2007-000070 R-CHIP 0ohm,5%,1/10W,TP,1608 1 S.A

DR160 2007-000074 R-CHIP 100ohm,5%,1/10W,TP,1608 1 S.A

DR161 2007-000074 R-CHIP 100ohm,5%,1/10W,TP,1608 1 S.A

DR162 2007-000076 R-CHIP 330ohm,5%,1/10W,TP,1608 1 S.A

DR163 2007-000076 R-CHIP 330ohm,5%,1/10W,TP,1608 1 S.A

DR164 2007-000076 R-CHIP 330ohm,5%,1/10W,TP,1608 1 S.A

DR165 2007-000076 R-CHIP 330ohm,5%,1/10W,TP,1608 1 S.A

DR166 2007-000074 R-CHIP 100ohm,5%,1/10W,TP,1608 1 S.A

DR167 2007-000539 R-CHIP 200ohm,5%,1/10W,TP,1608 1 S.A

DR169 2007-000072 R-CHIP 47ohm,5%,1/10W,TP,1608 1 S.A

DR170 2007-000072 R-CHIP 47ohm,5%,1/10W,TP,1608 1 S.A

DR171 2007-000074 R-CHIP 100ohm,5%,1/10W,TP,1608 1 S.A

DR172 2007-000074 R-CHIP 100ohm,5%,1/10W,TP,1608 1 S.A

DR173 2007-000372 R-CHIP 130ohm,5%,1/10W,TP,1608 1 S.A

DR174 2007-000072 R-CHIP 47ohm,5%,1/10W,TP,1608 1 S.A

DR175 2007-000074 R-CHIP 100ohm,5%,1/10W,TP,1608 1 S.A

DR176 2007-000072 R-CHIP 47ohm,5%,1/10W,TP,1608 1 S.A

DR177 2007-000090 R-CHIP 10Kohm,5%,1/10W,TP,1608 1 S.A

DR178 2007-000090 R-CHIP 10Kohm,5%,1/10W,TP,1608 1 S.A

Loc.No. Code No. Description Specification Q'ty SA/SNA Remark

DR179 2007-000090 R-CHIP 10Kohm,5%,1/10W,TP,1608 1 S.A

DR180 2007-000074 R-CHIP 100ohm,5%,1/10W,TP,1608 1 S.A

DR181 2007-000074 R-CHIP 100ohm,5%,1/10W,TP,1608 1 S.A

DR182 2007-000072 R-CHIP 47ohm,5%,1/10W,TP,1608 1 S.A

DR183 2007-000072 R-CHIP 47ohm,5%,1/10W,TP,1608 1 S.A

DR184 2007-000072 R-CHIP 47ohm,5%,1/10W,TP,1608 1 S.A

DR185 2007-000072 R-CHIP 47ohm,5%,1/10W,TP,1608 1 S.A

DR186 2007-000072 R-CHIP 47ohm,5%,1/10W,TP,1608 1 S.A

DR187 2007-000072 R-CHIP 47ohm,5%,1/10W,TP,1608 1 S.A

DR188 2007-000090 R-CHIP 10Kohm,5%,1/10W,TP,1608 1 S.A

DR189 2007-000090 R-CHIP 10Kohm,5%,1/10W,TP,1608 1 S.A

DR190 2007-000090 R-CHIP 10Kohm,5%,1/10W,TP,1608 1 S.A

DR191 2007-000090 R-CHIP 10Kohm,5%,1/10W,TP,1608 1 S.A

DR192 2007-000090 R-CHIP 10Kohm,5%,1/10W,TP,1608 1 S.A

DR193 2007-000090 R-CHIP 10Kohm,5%,1/10W,TP,1608 1 S.A

DR194 2007-000090 R-CHIP 10Kohm,5%,1/10W,TP,1608 1 S.A

DR195 2007-000072 R-CHIP 47ohm,5%,1/10W,TP,1608 1 S.A

DR196 2007-000072 R-CHIP 47ohm,5%,1/10W,TP,1608 1 S.A

DR197 2007-000072 R-CHIP 47ohm,5%,1/10W,TP,1608 1 S.A

DR198 2007-000072 R-CHIP 47ohm,5%,1/10W,TP,1608 1 S.A

DR199 2007-000072 R-CHIP 47ohm,5%,1/10W,TP,1608 1 S.A

DR200 2007-000074 R-CHIP 100ohm,5%,1/10W,TP,1608 1 S.A

DR201 2007-000074 R-CHIP 100ohm,5%,1/10W,TP,1608 1 S.A

DR202 2007-000072 R-CHIP 47ohm,5%,1/10W,TP,1608 1 S.A

DR203 2007-000072 R-CHIP 47ohm,5%,1/10W,TP,1608 1 S.A

DR204 2007-000072 R-CHIP 47ohm,5%,1/10W,TP,1608 1 S.A

DR205 2007-000372 R-CHIP 130ohm,5%,1/10W,TP,1608 1 S.A

DR22 2007-000107 R-CHIP 470Kohm,5%,1/10W,TP,1608 1 S.A

DR221 2007-000074 R-CHIP 100ohm,5%,1/10W,TP,1608 1 S.A

DR400 2007-000074 R-CHIP 100ohm,5%,1/10W,TP,1608 1 S.A

DR401 2007-000074 R-CHIP 100ohm,5%,1/10W,TP,1608 1 S.A

DR402 2007-000074 R-CHIP 100ohm,5%,1/10W,TP,1608 1 S.A

DR403 2007-000074 R-CHIP 100ohm,5%,1/10W,TP,1608 1 S.A

DR404 2007-000074 R-CHIP 100ohm,5%,1/10W,TP,1608 1 S.A

DR405 2007-000074 R-CHIP 100ohm,5%,1/10W,TP,1608 1 S.A

DR406 2007-000074 R-CHIP 100ohm,5%,1/10W,TP,1608 1 S.A

DR407 2007-000074 R-CHIP 100ohm,5%,1/10W,TP,1608 1 S.A

DR408 2007-000113 R-CHIP 33ohm,5%,1/10W,TP,1608 1 S.A

DR409 2007-000113 R-CHIP 33ohm,5%,1/10W,TP,1608 1 S.A

DR410 2007-000113 R-CHIP 33ohm,5%,1/10W,TP,1608 1 S.A

DR411 2007-000113 R-CHIP 33ohm,5%,1/10W,TP,1608 1 S.A

DR412 2007-000113 R-CHIP 33ohm,5%,1/10W,TP,1608 1 S.A

DR413 2007-000113 R-CHIP 33ohm,5%,1/10W,TP,1608 1 S.A

DR414 2007-000113 R-CHIP 33ohm,5%,1/10W,TP,1608 1 S.A

DR415 2007-000113 R-CHIP 33ohm,5%,1/10W,TP,1608 1 S.A

DR416 2007-000090 R-CHIP 10Kohm,5%,1/10W,TP,1608 1 S.A

DR417 2007-000084 R-CHIP 4.7Kohm,5%,1/10W,TP,1608 1 S.A

DR418 2007-000084 R-CHIP 4.7Kohm,5%,1/10W,TP,1608 1 S.A

DR419 2007-000074 R-CHIP 100ohm,5%,1/10W,TP,1608 1 S.A

DR420 2007-001167 R-CHIP 75ohm,5%,1/10W,TP,1608 1 S.A

DR421 2007-001167 R-CHIP 75ohm,5%,1/10W,TP,1608 1 S.A

DR423 2007-000090 R-CHIP 10Kohm,5%,1/10W,TP,1608 1 S.A

DR424 2007-000090 R-CHIP 10Kohm,5%,1/10W,TP,1608 1 S.A

DR501 2007-000072 R-CHIP 47ohm,5%,1/10W,TP,1608 1 S.A

DR502 2007-000078 R-CHIP 1Kohm,5%,1/10W,TP,1608 1 S.A

DR503 2007-000078 R-CHIP 1Kohm,5%,1/10W,TP,1608 1 S.A

DR505 2007-000078 R-CHIP 1Kohm,5%,1/10W,TP,1608 1 S.A

DR601 2007-000113 R-CHIP 33ohm,5%,1/10W,TP,1608 1 S.A

DR632 2007-000090 R-CHIP 10Kohm,5%,1/10W,TP,1608 1 S.A

DR633 2007-000090 R-CHIP 10Kohm,5%,1/10W,TP,1608 1 S.A

DR700 2007-000097 R-CHIP 47Kohm,5%,1/10W,TP,1608 1 S.A

DR701 2007-000084 R-CHIP 4.7Kohm,5%,1/10W,TP,1608 1 S.A

DR702 2007-000078 R-CHIP 1Kohm,5%,1/10W,TP,1608 1 S.A

DR703 2007-000084 R-CHIP 4.7Kohm,5%,1/10W,TP,1608 1 S.A

DR704 2007-000074 R-CHIP 100ohm,5%,1/10W,TP,1608 1 S.A

DR705 2007-000084 R-CHIP 4.7Kohm,5%,1/10W,TP,1608 1 S.A

DR706 2007-000097 R-CHIP 47Kohm,5%,1/10W,TP,1608 1 S.A

DR707 2007-000084 R-CHIP 4.7Kohm,5%,1/10W,TP,1608 1 S.A

Loc.No. Code No. Description Specification Q'ty SA/SNA Remark

Samsung Electronics5-12

Electrical Part List

5-13Samsung Electronics

Electrical Part List

DR800 2007-000763 R-CHIP 330ohm,1%,1/10W,TP,1608 1 S.A

DR801 2007-000763 R-CHIP 330ohm,1%,1/10W,TP,1608 1 S.A

DR802 2007-000763 R-CHIP 330ohm,1%,1/10W,TP,1608 1 S.A

DR803 2007-000763 R-CHIP 330ohm,1%,1/10W,TP,1608 1 S.A

DR804 2007-000763 R-CHIP 330ohm,1%,1/10W,TP,1608 1 S.A

DR805 2007-000763 R-CHIP 330ohm,1%,1/10W,TP,1608 1 S.A

DR806 2007-000763 R-CHIP 330ohm,1%,1/10W,TP,1608 1 S.A

DR807 2007-000763 R-CHIP 330ohm,1%,1/10W,TP,1608 1 S.A

DR811 2007-000070 R-CHIP 0ohm,5%,1/10W,TP,1608 1 S.A

DR812 2007-000070 R-CHIP 0ohm,5%,1/10W,TP,1608 1 S.A

DR901 2007-000090 R-CHIP 10Kohm,5%,1/10W,TP,1608 1 S.A

DR902 2007-000072 R-CHIP 47ohm,5%,1/10W,TP,1608 1 S.A

DR903 2007-000090 R-CHIP 10Kohm,5%,1/10W,TP,1608 1 S.A

DR904 2007-000090 R-CHIP 10Kohm,5%,1/10W,TP,1608 1 S.A

DR905 2007-000072 R-CHIP 47ohm,5%,1/10W,TP,1608 1 S.A

DR906 2007-000072 R-CHIP 47ohm,5%,1/10W,TP,1608 1 S.A

DR907 2007-000070 R-CHIP 0ohm,5%,1/10W,TP,1608 1 S.A

DR908 2007-000113 R-CHIP 33ohm,5%,1/10W,TP,1608 1 S.A

DR909 2007-000113 R-CHIP 33ohm,5%,1/10W,TP,1608 1 S.A

DR910 2007-000113 R-CHIP 33ohm,5%,1/10W,TP,1608 1 S.A

DR911 2007-000113 R-CHIP 33ohm,5%,1/10W,TP,1608 1 S.A

DR912 2007-000113 R-CHIP 33ohm,5%,1/10W,TP,1608 1 S.A

DR913 2007-000113 R-CHIP 33ohm,5%,1/10W,TP,1608 1 S.A

DR914 2007-000113 R-CHIP 33ohm,5%,1/10W,TP,1608 1 S.A

DR915 2007-000113 R-CHIP 33ohm,5%,1/10W,TP,1608 1 S.A

DR916 2007-000072 R-CHIP 47ohm,5%,1/10W,TP,1608 1 S.A

DR917 2007-000072 R-CHIP 47ohm,5%,1/10W,TP,1608 1 S.A

DR918 2007-000090 R-CHIP 10Kohm,5%,1/10W,TP,1608 1 S.A

DR919 2007-000090 R-CHIP 10Kohm,5%,1/10W,TP,1608 1 S.A

DR920 2007-000090 R-CHIP 10Kohm,5%,1/10W,TP,1608 1 S.A

DR921 2007-000090 R-CHIP 10Kohm,5%,1/10W,TP,1608 1 S.A

DR922 2007-000090 R-CHIP 10Kohm,5%,1/10W,TP,1608 1 S.A

DR923 2007-000072 R-CHIP 47ohm,5%,1/10W,TP,1608 1 S.A

DR999 2007-000113 R-CHIP 33ohm,5%,1/10W,TP,1608 1 S.A

DRA103 2011-001011 R-NET 10Kohm,5%,1/16W,L,CHIP,8P,TP,3.2x1 1 S.A

DRA108 2011-001410 R-NET 120OHM,5%,1/16W,L,CHIP,8P,TP,3.2X1 1 S.A

DRA109 2011-001410 R-NET 120OHM,5%,1/16W,L,CHIP,8P,TP,3.2X1 1 S.A

DRA110 2011-001410 R-NET 120OHM,5%,1/16W,L,CHIP,8P,TP,3.2X1 1 S.A

DRA111 2011-001410 R-NET 120OHM,5%,1/16W,L,CHIP,8P,TP,3.2X1 1 S.A

DRA112 2011-001410 R-NET 120OHM,5%,1/16W,L,CHIP,8P,TP,3.2X1 1 S.A

DRA113 2011-001410 R-NET 120OHM,5%,1/16W,L,CHIP,8P,TP,3.2X1 1 S.A

DRA114 2011-001410 R-NET 120OHM,5%,1/16W,L,CHIP,8P,TP,3.2X1 1 S.A

DRA115 2011-001410 R-NET 120OHM,5%,1/16W,L,CHIP,8P,TP,3.2X1 1 S.A

DRA116 2011-001410 R-NET 120OHM,5%,1/16W,L,CHIP,8P,TP,3.2X1 1 S.A

DRA117 2011-001410 R-NET 120OHM,5%,1/16W,L,CHIP,8P,TP,3.2X1 1 S.A

DRA118 2011-001410 R-NET 120OHM,5%,1/16W,L,CHIP,8P,TP,3.2X1 1 S.A

DRA119 2011-001410 R-NET 120OHM,5%,1/16W,L,CHIP,8P,TP,3.2X1 1 S.A

DRA120 2011-001410 R-NET 120OHM,5%,1/16W,L,CHIP,8P,TP,3.2X1 1 S.A

DRA121 2011-001410 R-NET 120OHM,5%,1/16W,L,CHIP,8P,TP,3.2X1 1 S.A

DRA122 2011-001410 R-NET 120OHM,5%,1/16W,L,CHIP,8P,TP,3.2X1 1 S.A

DRA123 2011-001410 R-NET 120OHM,5%,1/16W,L,CHIP,8P,TP,3.2X1 1 S.A

DRA124 2011-001410 R-NET 120OHM,5%,1/16W,L,CHIP,8P,TP,3.2X1 1 S.A

DRA125 2011-001410 R-NET 120OHM,5%,1/16W,L,CHIP,8P,TP,3.2X1 1 S.A

DRA401 2011-001011 R-NET 10Kohm,5%,1/16W,L,CHIP,8P,TP,3.2x1 1 S.A

DU101 1204-002400 IC-DECODER STI5517SUA,PBGA,416P,27x27mm, 1 S.A

DU402 1006-001165 IC-LINE TRANSCEIVER MAX3243CDBR,SSOP,28P 1 S.A

DU701 1203-001824 IC-VOL. DETECTOR 7042,SOT-89,3P,-,PLASTI 1 S.A

DV201 0401-000133 DIODE-SWITCHING RLS4148,75V,150mA,LL-34, 1 S.A

DX601 2806-001308 OSCILLATOR-VCXO 27MHZ,-,30PF,TP,3.3V,50M 1 S.A

DZ302 0403-000699 DIODE-ZENER TZP27B,27-30.8V,1000mW,DO-41 1 S.A

DZ303 0403-001329 DIODE-ZENER MTZJ24B,22.75-23.73V,500mW,D 1 S.A

DZ304 0403-001221 DIODE-ZENER UZ39BSB,35.36-37.19V,500mW,D 1 S.A

DZ305 0403-001329 DIODE-ZENER MTZJ24B,22.75-23.73V,500mW,D 1 S.A

DZ306 0403-000700 DIODE-ZENER TZP33A,5%,1000mW,DO-41,TP 1 S.A

DZ307 0403-000754 DIODE-ZENER MTZJ30C,28.2-29.6V,500mW,DO- 1 S.A

DZ401 0403-001325 DIODE-ZENER MTZJ15C,14.42-15.02V,500MW,D 1 S.A

DZ402 0403-000708 DIODE-ZENER MTZJ13B,12.55-13.21V,500mW,D 1 S.A

DZ405 0403-000700 DIODE-ZENER TZP33A,5%,1000mW,DO-41,TP 1 S.A

Loc.No. Code No. Description Specification Q'ty SA/SNA Remark

DZ707 0403-000614 DIODE-ZENER RLZ8.2B,7.78-8.19V,500mW,LL- 1 S.A

DZ708 0403-000614 DIODE-ZENER RLZ8.2B,7.78-8.19V,500mW,LL- 1 S.A

DZ709 0403-000614 DIODE-ZENER RLZ8.2B,7.78-8.19V,500mW,LL- 1 S.A

DZ710 0403-000614 DIODE-ZENER RLZ8.2B,7.78-8.19V,500mW,LL- 1 S.A

DZ715 0403-000314 DIODE-ZENER RLZJ9.1B,8.8-9.3V,500MW,LL-3 1 S.A

DZ716 0403-000314 DIODE-ZENER RLZJ9.1B,8.8-9.3V,500MW,LL-3 1 S.A

DZ717 0403-000614 DIODE-ZENER RLZ8.2B,7.78-8.19V,500mW,LL- 1 S.A

DZ718 0403-000614 DIODE-ZENER RLZ8.2B,7.78-8.19V,500mW,LL- 1 S.A

DZ719 0403-000614 DIODE-ZENER RLZ8.2B,7.78-8.19V,500mW,LL- 1 S.A

DZ720 0403-000614 DIODE-ZENER RLZ8.2B,7.78-8.19V,500mW,LL- 1 S.A

DZ721 0403-000614 DIODE-ZENER RLZ8.2B,7.78-8.19V,500mW,LL- 1 S.A

DZ722 0403-000614 DIODE-ZENER RLZ8.2B,7.78-8.19V,500mW,LL- 1 S.A

DZ723 0403-000614 DIODE-ZENER RLZ8.2B,7.78-8.19V,500mW,LL- 1 S.A

DZ724 0403-000614 DIODE-ZENER RLZ8.2B,7.78-8.19V,500mW,LL- 1 S.A

DZ725 0403-000614 DIODE-ZENER RLZ8.2B,7.78-8.19V,500mW,LL- 1 S.A

DZ726 0403-000614 DIODE-ZENER RLZ8.2B,7.78-8.19V,500mW,LL- 1 S.A

DZ727 0403-000614 DIODE-ZENER RLZ8.2B,7.78-8.19V,500mW,LL- 1 S.A

DZ728 0403-000614 DIODE-ZENER RLZ8.2B,7.78-8.19V,500mW,LL- 1 S.A

DZ729 0403-000614 DIODE-ZENER RLZ8.2B,7.78-8.19V,500mW,LL- 1 S.A

DZ730 0403-000614 DIODE-ZENER RLZ8.2B,7.78-8.19V,500mW,LL- 1 S.A

DZ731 0403-000614 DIODE-ZENER RLZ8.2B,7.78-8.19V,500mW,LL- 1 S.A

DZ732 0403-000614 DIODE-ZENER RLZ8.2B,7.78-8.19V,500mW,LL- 1 S.A

DZ802 0403-000718 DIODE-ZENER MTZJ6.8B,6.52-6.79V,500mW,DO 1 S.A

DZ803 0403-000700 DIODE-ZENER TZP33A,5%,1000mW,DO-41,TP 1 S.A

DZ804 0403-000720 DIODE-ZENER MTZJ9.1B,8.57-9.01V,500mW,DO 1 S.A

DZ805 0403-001320 DIODE-ZENER MTZJ6.2C,6.16-6.4V,500mW,DO- 1 S.A

DZ806 0403-001321 DIODE-ZENER MTZJ6.8C,6.7-6.97V,500mW,DO- 1 S.A

DZ808 0403-000717 DIODE-ZENER MTZJ5.1B,4.94-5.2V,500mW,DO- 1 S.A

DZ809 0403-000714 DIODE-ZENER MTZJ3.3B,3.32-3.53V,500mW,DO 1 S.A

DZ810 0403-000717 DIODE-ZENER MTZJ5.1B,4.94-5.2V,500mW,DO- 1 S.A

DZ901 0403-000509 DIODE-ZENER MTZJ5.6B,5.4-5.7V,500mW,DO-3 1 S.A

DZ902 0403-000509 DIODE-ZENER MTZJ5.6B,5.4-5.7V,500mW,DO-3 1 S.A

DZD01 0403-001117 DIODE-ZENER RLZ12B,11.44-12.03V,500mW,LL 1 S.A

DZD02 0403-001117 DIODE-ZENER RLZ12B,11.44-12.03V,500mW,LL 1 S.A

DZD03 0403-001117 DIODE-ZENER RLZ12B,11.44-12.03V,500mW,LL 1 S.A

DZD04 0403-001117 DIODE-ZENER RLZ12B,11.44-12.03V,500mW,LL 1 S.A

DZD05 0403-000746 DIODE-ZENER RLZ3.9B,3.89-4.16V,500mW,LL- 1 S.A

DZD06 0403-000620 DIODE-ZENER RLZ5.6B,5.45-5.73V,500mW,LL- 1 S.A

DZD07 0403-000620 DIODE-ZENER RLZ5.6B,5.45-5.73V,500mW,LL- 1 S.A

DZD08 0403-000620 DIODE-ZENER RLZ5.6B,5.45-5.73V,500mW,LL- 1 S.A

DZD09 0403-001117 DIODE-ZENER RLZ12B,11.44-12.03V,500mW,LL 1 S.A

DZH01 0403-000314 DIODE-ZENER RLZJ9.1B,8.8-9.3V,500MW,LL-3 1 S.A

DZS01 0403-000367 DIODE-ZENER UZ7.5BSC,7.3-7.7V,500mW,DO-3 1 S.A

DZV201 0403-000620 DIODE-ZENER RLZ5.6B,5.45-5.73V,500mW,LL- 1 S.A

DZV204 0403-000620 DIODE-ZENER RLZ5.6B,5.45-5.73V,500mW,LL- 1 S.A

EL100 6042-000001 EYELET ID2.2,OD2.7,L3.1,NI+SN,BSP3-1/2H 1 S.N.A

EL101 6042-000001 EYELET ID2.2,OD2.7,L3.1,NI+SN,BSP3-1/2H 1 S.N.A

EL102 6042-000001 EYELET ID2.2,OD2.7,L3.1,NI+SN,BSP3-1/2H 1 S.N.A

EL103 6042-000001 EYELET ID2.2,OD2.7,L3.1,NI+SN,BSP3-1/2H 1 S.N.A

EL104 6042-000001 EYELET ID2.2,OD2.7,L3.1,NI+SN,BSP3-1/2H 1 S.N.A

EL105 6042-000001 EYELET ID2.2,OD2.7,L3.1,NI+SN,BSP3-1/2H 1 S.N.A

EL106 6042-000001 EYELET ID2.2,OD2.7,L3.1,NI+SN,BSP3-1/2H 1 S.N.A

EL107 6042-000001 EYELET ID2.2,OD2.7,L3.1,NI+SN,BSP3-1/2H 1 S.N.A

EL108 6042-000001 EYELET ID2.2,OD2.7,L3.1,NI+SN,BSP3-1/2H 1 S.N.A

EL109 6042-000001 EYELET ID2.2,OD2.7,L3.1,NI+SN,BSP3-1/2H 1 S.N.A

EL110 6042-000001 EYELET ID2.2,OD2.7,L3.1,NI+SN,BSP3-1/2H 1 S.N.A

EL112 6042-000001 EYELET ID2.2,OD2.7,L3.1,NI+SN,BSP3-1/2H 1 S.N.A

EL401 6042-000001 EYELET ID2.2,OD2.7,L3.1,NI+SN,BSP3-1/2H 1 S.N.A

EY400 6042-000002 EYELET ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H 1 S.A

EY401 6042-000002 EYELET ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H 1 S.A

EY402 6042-000002 EYELET ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H 1 S.A

EY403 6042-000002 EYELET ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H 1 S.A

EY404 6042-000002 EYELET ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H 1 S.A

EY405 6042-000002 EYELET ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H 1 S.A

EY406 6042-000002 EYELET ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H 1 S.A

EY407 6042-000002 EYELET ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H 1 S.A

EY408 6042-000002 EYELET ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H 1 S.A

EY409 6042-000002 EYELET ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H 1 S.A

Loc.No. Code No. Description Specification Q'ty SA/SNA Remark

Samsung Electronics5-14

Electrical Part List

5-15Samsung Electronics

Electrical Part List

EY410 6042-000002 EYELET ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H 1 S.A

EY411 6042-000002 EYELET ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H 1 S.A

EY412 6042-000002 EYELET ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H 1 S.A

EY415 6042-000002 EYELET ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H 1 S.A

EY416 6042-000002 EYELET ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H 1 S.A

EY417 6042-000002 EYELET ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H 1 S.A

EY418 6042-000002 EYELET ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H 1 S.A

EY419 6042-000002 EYELET ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H 1 S.A

EY420 6042-000002 EYELET ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H 1 S.A

EY421 6042-000002 EYELET ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H 1 S.A

EY422 6042-000002 EYELET ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H 1 S.A

EY423 6042-000002 EYELET ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H 1 S.A

EY424 6042-000002 EYELET ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H 1 S.A

EY425 6042-000002 EYELET ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H 1 S.A

EY426 6042-000002 EYELET ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H 1 S.A

EY427 6042-000002 EYELET ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H 1 S.A

EY428 6042-000002 EYELET ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H 1 S.A

EY429 6042-000002 EYELET ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H 1 S.A

EY430 6042-000002 EYELET ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H 1 S.A

EY431 6042-000002 EYELET ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H 1 S.A

EY432 6042-000002 EYELET ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H 1 S.A

EY433 6042-000002 EYELET ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H 1 S.A

EY434 6042-000002 EYELET ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H 1 S.A

EY435 6042-000002 EYELET ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H 1 S.A

EY436 6042-000002 EYELET ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H 1 S.A

EY437 6042-000002 EYELET ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H 1 S.A

EY438 6042-000002 EYELET ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H 1 S.A

EY439 6042-000002 EYELET ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H 1 S.A

EY440 6042-000002 EYELET ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H 1 S.A

EY441 6042-000002 EYELET ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H 1 S.A

EY442 6042-000002 EYELET ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H 1 S.A

EY443 6042-000002 EYELET ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H 1 S.A

EY444 6042-000002 EYELET ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H 1 S.A

EY445 6042-000002 EYELET ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H 1 S.A

EY447 6042-000002 EYELET ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H 1 S.A

EY448 6042-000002 EYELET ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H 1 S.A

EY449 6042-000002 EYELET ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H 1 S.A

EY450 6042-000002 EYELET ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H 1 S.A

EY451 6042-000002 EYELET ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H 1 S.A

EY452 6042-000002 EYELET ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H 1 S.A

EY453 6042-000002 EYELET ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H 1 S.A

EY454 6042-000002 EYELET ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H 1 S.A

EY455 6042-000002 EYELET ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H 1 S.A

EY456 6042-000002 EYELET ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H 1 S.A

EY800 6042-000002 EYELET ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H 1 S.A

EY801 6042-000002 EYELET ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H 1 S.A

EY802 6042-000002 EYELET ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H 1 S.A

EY803 6042-000002 EYELET ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H 1 S.A

EY804 6042-000002 EYELET ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H 1 S.A

EY805 6042-000002 EYELET ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H 1 S.A

EY806 6042-000002 EYELET ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H 1 S.A

EY807 6042-000002 EYELET ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H 1 S.A

EY808 6042-000002 EYELET ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H 1 S.A

EY809 6042-000002 EYELET ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H 1 S.A

EY810 6042-000002 EYELET ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H 1 S.A

EY811 6042-000002 EYELET ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H 1 S.A

EY812 6042-000002 EYELET ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H 1 S.A

EY813 6042-000002 EYELET ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H 1 S.A

EY814 6042-000002 EYELET ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H 1 S.A

EY815 6042-000002 EYELET ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H 1 S.A

EY816 6042-000002 EYELET ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H 1 S.A

EY817 6042-000002 EYELET ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H 1 S.A

EY818 6042-000002 EYELET ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H 1 S.A

EY819 6042-000002 EYELET ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H 1 S.A

EY820 6042-000002 EYELET ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H 1 S.A

EY821 6042-000002 EYELET ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H 1 S.A

EY822 6042-000002 EYELET ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H 1 S.A

EY823 6042-000002 EYELET ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H 1 S.A

Loc.No. Code No. Description Specification Q'ty SA/SNA Remark

EY824 6042-000002 EYELET ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H 1 S.A

EY825 6042-000002 EYELET ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H 1 S.A

EY827 6042-000002 EYELET ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H 1 S.A

EY828 6042-000002 EYELET ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H 1 S.A

EY829 6042-000002 EYELET ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H 1 S.A

EY830 6042-000002 EYELET ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H 1 S.A

EY831 6042-000002 EYELET ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H 1 S.A

EY832 6042-000002 EYELET ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H 1 S.A

EY833 6042-000002 EYELET ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H 1 S.A

EY834 6042-000002 EYELET ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H 1 S.A

EY835 6042-000002 EYELET ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H 1 S.A

EY836 6042-000002 EYELET ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H 1 S.A

EY837 6042-000002 EYELET ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H 1 S.A

EY838 6042-000002 EYELET ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H 1 S.A

EY839 6042-000002 EYELET ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H 1 S.A

EY840 6042-000002 EYELET ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H 1 S.A

EY841 6042-000002 EYELET ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H 1 S.A

EY842 6042-000002 EYELET ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H 1 S.A

EY843 6042-000002 EYELET ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H 1 S.A

EY844 6042-000002 EYELET ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H 1 S.A

EY845 6042-000002 EYELET ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H 1 S.A

EY846 6042-000002 EYELET ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H 1 S.A

EY847 6042-000002 EYELET ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H 1 S.A

EY848 6042-000002 EYELET ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H 1 S.A

EY849 6042-000002 EYELET ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H 1 S.A

EY850 6042-000002 EYELET ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H 1 S.A

EY851 6042-000002 EYELET ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H 1 S.A

EY852 6042-000002 EYELET ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H 1 S.A

EY853 6042-000002 EYELET ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H 1 S.A

EY854 6042-000002 EYELET ID1.5,OD2,L2.8,NI+SN,BSP3-1/2H 1 S.A

F101 2901-000299 FILTER-EMI ON BOARD -,6A,UL/CSA,-,9x7.5, 1 S.A

F103 2901-001302 FILTER-EMI SMD 20V,0.3A,-,-,2.0x1.2x1.3m 1 S.A

F801A 3602-000114 FUSE-HOLDER -,-,30mohm 1 S.A

F801B 3602-000114 FUSE-HOLDER -,-,30mohm 1 S.A

FC001 2203-000440 C-CER,CHIP 1nF,10%,50V,X7R,1608 1 S.A

FC002 2203-000440 C-CER,CHIP 1nF,10%,50V,X7R,1608 1 S.A

FC312 2402-001178 C-AL,SMD 10uF,20%,16V,WT,TP,4.3x4.3x5.8m 1 S.A

FC343 2203-000189 C-CER,CHIP 100nF,+80-20%,25V,Y5V,1608 1 S.A

FC344 2203-005065 C-CER,CHIP 1000nF,+80-20%,10V,Y5V,1608 1 S.A

FC345 2203-005065 C-CER,CHIP 1000nF,+80-20%,10V,Y5V,1608 1 S.A

FC346 2402-001159 C-AL,SMD 3.3UF,20%,50V,WT,TP,4X5.2MM 1 S.A

FC347 2203-000440 C-CER,CHIP 1nF,10%,50V,X7R,1608 1 S.A

FC348 2203-000189 C-CER,CHIP 100nF,+80-20%,25V,Y5V,1608 1 S.A

FC349 2203-001071 C-CER,CHIP 0.056nF,5%,50V,C0G,1608 1 S.A

FC350 2203-005065 C-CER,CHIP 1000nF,+80-20%,10V,Y5V,1608 1 S.A

FC351 2203-005065 C-CER,CHIP 1000nF,+80-20%,10V,Y5V,1608 1 S.A

FC352 2203-005065 C-CER,CHIP 1000nF,+80-20%,10V,Y5V,1608 1 S.A

FC353 2203-005065 C-CER,CHIP 1000nF,+80-20%,10V,Y5V,1608 1 S.A

FC354 2203-005065 C-CER,CHIP 1000nF,+80-20%,10V,Y5V,1608 1 S.A

FC355 2203-005065 C-CER,CHIP 1000nF,+80-20%,10V,Y5V,1608 1 S.A

FC356 2203-000189 C-CER,CHIP 100nF,+80-20%,25V,Y5V,1608 1 S.A

FC357 2203-000440 C-CER,CHIP 1nF,10%,50V,X7R,1608 1 S.A

FC358 2203-000189 C-CER,CHIP 100nF,+80-20%,25V,Y5V,1608 1 S.A

FC359 2203-001071 C-CER,CHIP 0.056nF,5%,50V,C0G,1608 1 S.A

FC360 2203-000189 C-CER,CHIP 100nF,+80-20%,25V,Y5V,1608 1 S.A

FC361 2203-000189 C-CER,CHIP 100nF,+80-20%,25V,Y5V,1608 1 S.A

FC362 2203-000189 C-CER,CHIP 100nF,+80-20%,25V,Y5V,1608 1 S.A

FC363 2203-000189 C-CER,CHIP 100nF,+80-20%,25V,Y5V,1608 1 S.A

FC364 2203-000189 C-CER,CHIP 100nF,+80-20%,25V,Y5V,1608 1 S.A

FC365 2203-000189 C-CER,CHIP 100nF,+80-20%,25V,Y5V,1608 1 S.A

FC368 2203-000189 C-CER,CHIP 100nF,+80-20%,25V,Y5V,1608 1 S.A

FC369 2203-000189 C-CER,CHIP 100nF,+80-20%,25V,Y5V,1608 1 S.A

FC370 2203-000189 C-CER,CHIP 100nF,+80-20%,25V,Y5V,1608 1 S.A

FC371 2203-001652 C-CER,CHIP 470nF,+80-20%,16V,Y5V,1608 1 S.A

FC372 2203-001652 C-CER,CHIP 470nF,+80-20%,16V,Y5V,1608 1 S.A

Loc.No. Code No. Description Specification Q'ty SA/SNA Remark

Samsung Electronics5-16

Electrical Part List

5-17Samsung Electronics

Electrical Part List

FC373 2203-001652 C-CER,CHIP 470nF,+80-20%,16V,Y5V,1608 1 S.A

FC374 2203-000552 C-CER,CHIP 0.02nF,5%,50V,C0G,1608 1 S.A

FC381 2203-000552 C-CER,CHIP 0.02nF,5%,50V,C0G,1608 1 S.A

FC388 2203-000189 C-CER,CHIP 100nF,+80-20%,25V,Y5V,1608 1 S.A

FC390 2203-000189 C-CER,CHIP 100nF,+80-20%,25V,Y5V,1608 1 S.A

FC392 2203-000189 C-CER,CHIP 100nF,+80-20%,25V,Y5V,1608 1 S.A

FC394 2402-000179 C-AL,SMD 47uF,20%,16V,GP,TP,6.6x6.6x5.7m 1 S.A

FC914 2402-001178 C-AL,SMD 10uF,20%,16V,WT,TP,4.3x4.3x5.8m 1 S.A

FC915 2402-001178 C-AL,SMD 10uF,20%,16V,WT,TP,4.3x4.3x5.8m 1 S.A

FC917 2203-000189 C-CER,CHIP 100nF,+80-20%,25V,Y5V,1608 1 S.A

FC918 2402-001178 C-AL,SMD 10uF,20%,16V,WT,TP,4.3x4.3x5.8m 1 S.A

FD801S 3601-001228 FUSE-AXIAL LEAD 125V,10A,FAST-ACTING,EPO 1 S.A

FD802 3601-000414 FUSE-CARTRIDGE 250V,5A,SLOW-BLOW,GLASS,5 1 S.A

FD802S 3601-001163 FUSE-AXIAL LEAD 125V,7A,-,EPOXY,2.4X7.1M 1 S.A

FD804S 3601-001163 FUSE-AXIAL LEAD 125V,7A,-,EPOXY,2.4X7.1M 1 S.A

FD805S 3601-001163 FUSE-AXIAL LEAD 125V,7A,-,EPOXY,2.4X7.1M 1 S.A

FDZ01 0403-000314 DIODE-ZENER RLZJ9.1B,8.8-9.3V,500MW,LL-3 1 S.A

FDZ02 0403-000314 DIODE-ZENER RLZJ9.1B,8.8-9.3V,500MW,LL-3 1 S.A

FDZ03 0403-000314 DIODE-ZENER RLZJ9.1B,8.8-9.3V,500MW,LL-3 1 S.A

FDZ05 0403-000314 DIODE-ZENER RLZJ9.1B,8.8-9.3V,500MW,LL-3 1 S.A

FDZ06 0403-000314 DIODE-ZENER RLZJ9.1B,8.8-9.3V,500MW,LL-3 1 S.A

FDZ07 0403-000314 DIODE-ZENER RLZJ9.1B,8.8-9.3V,500MW,LL-3 1 S.A

FDZ08 0403-000314 DIODE-ZENER RLZJ9.1B,8.8-9.3V,500MW,LL-3 1 S.A

FDZ09 0403-000314 DIODE-ZENER RLZJ9.1B,8.8-9.3V,500MW,LL-3 1 S.A

FDZ10 0403-000314 DIODE-ZENER RLZJ9.1B,8.8-9.3V,500MW,LL-3 1 S.A

FDZ11 0403-000314 DIODE-ZENER RLZJ9.1B,8.8-9.3V,500MW,LL-3 1 S.A

FDZ12 0403-000314 DIODE-ZENER RLZJ9.1B,8.8-9.3V,500MW,LL-3 1 S.A

FDZ13 0403-000314 DIODE-ZENER RLZJ9.1B,8.8-9.3V,500MW,LL-3 1 S.A

FDZ14 0403-000314 DIODE-ZENER RLZJ9.1B,8.8-9.3V,500MW,LL-3 1 S.A

FDZ300 0403-000620 DIODE-ZENER RLZ5.6B,5.45-5.73V,500mW,LL- 1 S.A

FDZ301 0403-000620 DIODE-ZENER RLZ5.6B,5.45-5.73V,500mW,LL- 1 S.A

FDZ302 0403-000620 DIODE-ZENER RLZ5.6B,5.45-5.73V,500mW,LL- 1 S.A

FDZ303 0403-000620 DIODE-ZENER RLZ5.6B,5.45-5.73V,500mW,LL- 1 S.A

FDZ304 0403-000620 DIODE-ZENER RLZ5.6B,5.45-5.73V,500mW,LL- 1 S.A

FDZ306 0403-000620 DIODE-ZENER RLZ5.6B,5.45-5.73V,500mW,LL- 1 S.A

FDZ309 0403-000620 DIODE-ZENER RLZ5.6B,5.45-5.73V,500mW,LL- 1 S.A

FDZ310 0403-000620 DIODE-ZENER RLZ5.6B,5.45-5.73V,500mW,LL- 1 S.A

FQ900 0501-000344 TR-SMALL SIGNAL KSC1623-G,NPN,200mW,SOT- 1 S.A

FQ901 0501-000344 TR-SMALL SIGNAL KSC1623-G,NPN,200mW,SOT- 1 S.A

FQ903 0501-000280 TR-SMALL SIGNAL KSA1182,PNP,150MW,SOT-23 1 S.A

FQ904 0501-000280 TR-SMALL SIGNAL KSA1182,PNP,150MW,SOT-23 1 S.A

FQ906 0501-000344 TR-SMALL SIGNAL KSC1623-G,NPN,200mW,SOT- 1 S.A

FQ907 0501-000344 TR-SMALL SIGNAL KSC1623-G,NPN,200mW,SOT- 1 S.A

FQS01 0501-000344 TR-SMALL SIGNAL KSC1623-G,NPN,200mW,SOT- 1 S.A

FQS02 0501-000344 TR-SMALL SIGNAL KSC1623-G,NPN,200mW,SOT- 1 S.A

FQS03 0501-000344 TR-SMALL SIGNAL KSC1623-G,NPN,200mW,SOT- 1 S.A

FR300 2007-000084 R-CHIP 4.7Kohm,5%,1/10W,TP,1608 1 S.A

FR305 2007-000076 R-CHIP 330ohm,5%,1/10W,TP,1608 1 S.A

FR306 2007-000076 R-CHIP 330ohm,5%,1/10W,TP,1608 1 S.A

FR307 2007-000076 R-CHIP 330ohm,5%,1/10W,TP,1608 1 S.A

FR308 2007-000076 R-CHIP 330ohm,5%,1/10W,TP,1608 1 S.A

FR310 2007-000074 R-CHIP 100ohm,5%,1/10W,TP,1608 1 S.A

FR311 2007-000074 R-CHIP 100ohm,5%,1/10W,TP,1608 1 S.A

FR312 2007-000074 R-CHIP 100ohm,5%,1/10W,TP,1608 1 S.A

FR324 2007-000070 R-CHIP 0ohm,5%,1/10W,TP,1608 1 S.A

FR325 2007-001167 R-CHIP 75ohm,5%,1/10W,TP,1608 1 S.A

FR329 2007-000074 R-CHIP 100ohm,5%,1/10W,TP,1608 1 S.A

FR331 2007-000616 R-CHIP 24Kohm,5%,1/10W,TP,1608 1 S.A

FR332 2007-000052 R-CHIP 10Kohm,1%,1/10W,TP,1608 1 S.A

FR333 2007-000616 R-CHIP 24Kohm,5%,1/10W,TP,1608 1 S.A

FR334 2007-000052 R-CHIP 10Kohm,1%,1/10W,TP,1608 1 S.A

FR337 2007-000074 R-CHIP 100ohm,5%,1/10W,TP,1608 1 S.A

FR338 2007-000074 R-CHIP 100ohm,5%,1/10W,TP,1608 1 S.A

FR341 2007-000074 R-CHIP 100ohm,5%,1/10W,TP,1608 1 S.A

FR342 2007-000074 R-CHIP 100ohm,5%,1/10W,TP,1608 1 S.A

FR344 2007-000074 R-CHIP 100ohm,5%,1/10W,TP,1608 1 S.A

FR347 2007-000074 R-CHIP 100ohm,5%,1/10W,TP,1608 1 S.A

FR348 2007-000084 R-CHIP 4.7Kohm,5%,1/10W,TP,1608 1 S.A

Loc.No. Code No. Description Specification Q'ty SA/SNA Remark

FR349 2007-000125 R-CHIP 3.9Kohm,5%,1/10W,TP,1608 1 S.A

FR350 2007-000074 R-CHIP 100ohm,5%,1/10W,TP,1608 1 S.A

FR351 2007-000329 R-CHIP 11Kohm,5%,1/10W,TP,1608 1 S.A

FR353 2007-000125 R-CHIP 3.9Kohm,5%,1/10W,TP,1608 1 S.A

FR359 2007-000074 R-CHIP 100ohm,5%,1/10W,TP,1608 1 S.A

FR366 2007-000078 R-CHIP 1Kohm,5%,1/10W,TP,1608 1 S.A

FR367 2203-000189 C-CER,CHIP 100nF,+80-20%,25V,Y5V,1608 1 S.A

FR379 2007-000074 R-CHIP 100ohm,5%,1/10W,TP,1608 1 S.A

FR399 2007-000074 R-CHIP 100ohm,5%,1/10W,TP,1608 1 S.A

FR444 2007-000075 R-CHIP 220ohm,5%,1/10W,TP,1608 1 S.A

FR445 2007-000075 R-CHIP 220ohm,5%,1/10W,TP,1608 1 S.A

FR450 2007-000075 R-CHIP 220ohm,5%,1/10W,TP,1608 1 S.A

FR451 2007-000075 R-CHIP 220ohm,5%,1/10W,TP,1608 1 S.A

FR452 2007-000075 R-CHIP 220ohm,5%,1/10W,TP,1608 1 S.A

FR453 2007-000075 R-CHIP 220ohm,5%,1/10W,TP,1608 1 S.A

FR454 2007-000075 R-CHIP 220ohm,5%,1/10W,TP,1608 1 S.A

FR455 2007-000075 R-CHIP 220ohm,5%,1/10W,TP,1608 1 S.A

FR926 2007-000290 R-CHIP 100ohm,5%,1/8W,TP,2012 1 S.A

FR933 2007-000097 R-CHIP 47Kohm,5%,1/10W,TP,1608 1 S.A

FR934 2007-000093 R-CHIP 20Kohm,5%,1/10W,TP,1608 1 S.A

FR935 2007-000097 R-CHIP 47Kohm,5%,1/10W,TP,1608 1 S.A

FR936 2007-000093 R-CHIP 20Kohm,5%,1/10W,TP,1608 1 S.A

FR939 2007-000077 R-CHIP 470ohm,5%,1/10W,TP,1608 1 S.A

FR940 2007-000643 R-CHIP 270ohm,5%,1/10W,TP,1608 1 S.A

FR941 2007-000077 R-CHIP 470ohm,5%,1/10W,TP,1608 1 S.A

FR942 2007-000643 R-CHIP 270ohm,5%,1/10W,TP,1608 1 S.A

FR945 2007-000643 R-CHIP 270ohm,5%,1/10W,TP,1608 1 S.A

FR946 2007-000643 R-CHIP 270ohm,5%,1/10W,TP,1608 1 S.A

FR948 2007-000078 R-CHIP 1Kohm,5%,1/10W,TP,1608 1 S.A

FR949 2007-000078 R-CHIP 1Kohm,5%,1/10W,TP,1608 1 S.A

FR951 2007-000078 R-CHIP 1Kohm,5%,1/10W,TP,1608 1 S.A

FR952 2007-000078 R-CHIP 1Kohm,5%,1/10W,TP,1608 1 S.A

FR958 2007-001167 R-CHIP 75ohm,5%,1/10W,TP,1608 1 S.A

FR959 2007-001167 R-CHIP 75ohm,5%,1/10W,TP,1608 1 S.A

FRP01 2007-000074 R-CHIP 100ohm,5%,1/10W,TP,1608 1 S.A

FRP02 2007-000074 R-CHIP 100ohm,5%,1/10W,TP,1608 1 S.A

FRP03 2007-000074 R-CHIP 100ohm,5%,1/10W,TP,1608 1 S.A

FRP04 2007-000074 R-CHIP 100ohm,5%,1/10W,TP,1608 1 S.A

FRP05 2007-000074 R-CHIP 100ohm,5%,1/10W,TP,1608 1 S.A

FRP06 2007-000074 R-CHIP 100ohm,5%,1/10W,TP,1608 1 S.A

FRP07 2007-000074 R-CHIP 100ohm,5%,1/10W,TP,1608 1 S.A

FRP08 2007-000074 R-CHIP 100ohm,5%,1/10W,TP,1608 1 S.A

FRP09 2007-000074 R-CHIP 100ohm,5%,1/10W,TP,1608 1 S.A

FRP10 2007-000074 R-CHIP 100ohm,5%,1/10W,TP,1608 1 S.A

FRP11 2007-000074 R-CHIP 100ohm,5%,1/10W,TP,1608 1 S.A

FRP12 2007-001167 R-CHIP 75ohm,5%,1/10W,TP,1608 1 S.A

FRP13 2007-001167 R-CHIP 75ohm,5%,1/10W,TP,1608 1 S.A

FRP14 2007-001167 R-CHIP 75ohm,5%,1/10W,TP,1608 1 S.A

FRP15 2007-001167 R-CHIP 75ohm,5%,1/10W,TP,1608 1 S.A

FRP16 2007-001167 R-CHIP 75ohm,5%,1/10W,TP,1608 1 S.A

FRP17 2007-000078 R-CHIP 1Kohm,5%,1/10W,TP,1608 1 S.A

FRP18 2007-000078 R-CHIP 1Kohm,5%,1/10W,TP,1608 1 S.A

FRP19 2007-000078 R-CHIP 1Kohm,5%,1/10W,TP,1608 1 S.A

FRP20 2007-001167 R-CHIP 75ohm,5%,1/10W,TP,1608 1 S.A

FRP21 2007-001167 R-CHIP 75ohm,5%,1/10W,TP,1608 1 S.A

FRP22 2007-001167 R-CHIP 75ohm,5%,1/10W,TP,1608 1 S.A

FRP23 2007-001167 R-CHIP 75ohm,5%,1/10W,TP,1608 1 S.A

FRP24 2007-001167 R-CHIP 75ohm,5%,1/10W,TP,1608 1 S.A

FRP25 2007-001167 R-CHIP 75ohm,5%,1/10W,TP,1608 1 S.A

FRS01 2007-000082 R-CHIP 3.3Kohm,5%,1/10W,TP,1608 1 S.A

FRS02 2007-000074 R-CHIP 100ohm,5%,1/10W,TP,1608 1 S.A

FRS03 2007-000043 R-CHIP 1Kohm,1%,1/10W,TP,1608 1 S.A

FRS04 2007-000763 R-CHIP 330ohm,1%,1/10W,TP,1608 1 S.A

FRS05 2007-000090 R-CHIP 10Kohm,5%,1/10W,TP,1608 1 S.A

FRS06 2007-000074 R-CHIP 100ohm,5%,1/10W,TP,1608 1 S.A

FRS07 2007-000070 R-CHIP 0ohm,5%,1/10W,TP,1608 1 S.A

FSW300 3404-000243 SWITCH-TACT 15V,20mA,160gf,6x3.4mm,SPST 1 S.A

FX300 2801-004004 CRYSTAL-SMD 20.25MHz,20ppm,28-AAN,13pF,2 1 S.A

Loc.No. Code No. Description Specification Q'ty SA/SNA Remark

Samsung Electronics5-18

Electrical Part List

5-19Samsung Electronics

Electrical Part List

G101 3301-000316 CORE-FERRITE BEAD 120ohm,2012,TP,-,- 1 S.N.A

GT101 BH71-40300A PIN-HINGE BRASS,D2.36!,HEAT/SINK,SN 1 S.N.A

GT102 BH71-40300A PIN-HINGE BRASS,D2.36!,HEAT/SINK,SN 1 S.N.A

GT113 BH71-40300A PIN-HINGE BRASS,D2.36!,HEAT/SINK,SN 1 S.N.A

GT114 BH71-40300A PIN-HINGE BRASS,D2.36!,HEAT/SINK,SN 1 S.N.A

GT120 BH71-40300A PIN-HINGE BRASS,D2.36!,HEAT/SINK,SN 1 S.N.A

GT121 BH71-40300A PIN-HINGE BRASS,D2.36!,HEAT/SINK,SN 1 S.N.A

GT401 BH71-40300A PIN-HINGE BRASS,D2.36!,HEAT/SINK,SN 1 S.N.A

GT402 BH71-40300A PIN-HINGE BRASS,D2.36!,HEAT/SINK,SN 1 S.N.A

GT804 BH71-40300A PIN-HINGE BRASS,D2.36!,HEAT/SINK,SN 1 S.N.A

GT805 BH71-40300A PIN-HINGE BRASS,D2.36!,HEAT/SINK,SN 1 S.N.A

GT806 BH71-40300A PIN-HINGE BRASS,D2.36!,HEAT/SINK,SN 1 S.N.A

HC401 AA96-04116A ASSY HEAT SINK P AA62-00152A,SCREW,FJL69 1 S.N.A

HC801 BP96-00006E ASSY HEAT SINK P BP62-00001A,SCREW,SLA10 1 S.N.A

IC012 1203-000162 IC-POSI.ADJUST REG. 317,TO-220,3P,-,PLAS 1 S.A

IC012 1203-001217 IC-POSI.ADJUST REG. 431,TO-92,3P,4.58MIL 1 S.A

IC06 1203-001211 IC-VOL. DETECTOR 7027,SOT-89,3P,-,PLASTI 1 S.A

IC062 1203-003183 IC-MULTI REG. SI-3002KWM-TL,DPAK,5P,6.6X 1 S.A

IC063 AA13-00116A IC HYBRID STR-W6750F,6,-20 to +115,TO-3P 1 S.A

IC063 AA13-00094A IC HYBRID -,DDRI001A,SIP,5P,-,TP 1 S.A

IC07 1001-000164 IC-ANALOG MULTIPLEX 74HC4052,CMOS,SOP,16 1 S.A

IC104 0801-000662 IC-CMOS LOGIC 74HC123,MULTIVIBATOR,SOP,1 1 S.A

IC104 0801-002095 IC-CMOS LOGIC 74LCX245,TRANSCEIVER,TSSOP 1 S.A

IC104 0801-002172 IC-CMOS LOGIC 74LCX16244,BUFFER/LINE DRI 1 S.A

IC104 0801-002237 IC-CMOS LOGIC 74V(A)HC1G04,INVERTER,SC70 1 S.A

IC104 0801-002394 IC-CMOS LOGIC 74LCX32,OR GATE,SOIC,14P,1 1 S.A

IC104 0801-002407 IC-CMOS LOGIC 74LCX08,AND GATE,SOIC,14P, 1 S.A

IC104 0801-002683 IC-CMOS LOGIC 74HCT245,TRANSCEIVER,TSSOP 1 S.A

IC104 0801-002709 IC-CMOS LOGIC 74HC373,D FLIP-FLOP,TSSOP, 1 S.A

IC107 1002-001227 IC-D/A CONVERTER CS4340-KSR,24BIT,SOP,16 1 S.A

IC112 1103-000129 IC-EEPROM 24C02,2Kbit,256x8Bit,SOP,8P,5x 1 S.A

IC112 1103-001314 IC-EEPROM 24C16,2Kx8,SOP,8P,5x4mm,2.7/5. 1 S.A

IC113 1105-001305 IC-DRAM 4S641632,-,64MBIT,1MX16X4BIT,TSO 1 S.A

IC113 1105-001308 IC-DRAM K4S281632,128Mbit,8Mx16,TSOP,54P 1 S.A

IC115 1107-001475 IC-FLASH MEMORY 29LV320,32MBIT,4MX8/2MX1 1 S.A

IC118 1204-001989 IC-VIDEO PROCESS CXA2165Q,QFP,64P,20X14M 1 S.A

IC301 AA96-50381A ASSY HEAT SINK P ,AA62-30180B,LA7845 1 S.N.A

IC401 1202-000103 IC-VOLTAGE COMP. 393,DIP,8P,300MIL,DUAL, 1 S.A

IC602 AA96-50398E ASSY HEAT SINK P AA62-30182E,TDA7297SA,S 1 S.N.A

IC801S AA96-04018B ASSY HEAT SINK P AA62-30181X,SCREW,STR-W 1 S.N.A

IC802S BP96-00020N ASSY HEAT SINK P HS TR,SCREW,278R05,OIL 1 S.N.A

IC803 1203-003015 IC-DC/DC CONVERTER MP1410ES,SOIC,8P,4.9x 1 S.A

IC804S BP96-00020N ASSY HEAT SINK P HS TR,SCREW,278R05,OIL 1 S.N.A

ICH01 1205-002928 IC-RECEIVER MST3383M-LF-80,PQFP,128P,20x 1 S.A

ICH02 BN11-00002A IC MASK ROM CAT24WC08W,SOIC,0to+70,5x4mm 1 S.N.A

ICS001 1001-001109 IC-ANALOG SWITCH FST3125M,BUS SWITCH & C 1 S.A

J302 2701-001040 INDUCTOR-AXIAL 10UH,10%,4514 1 S.A

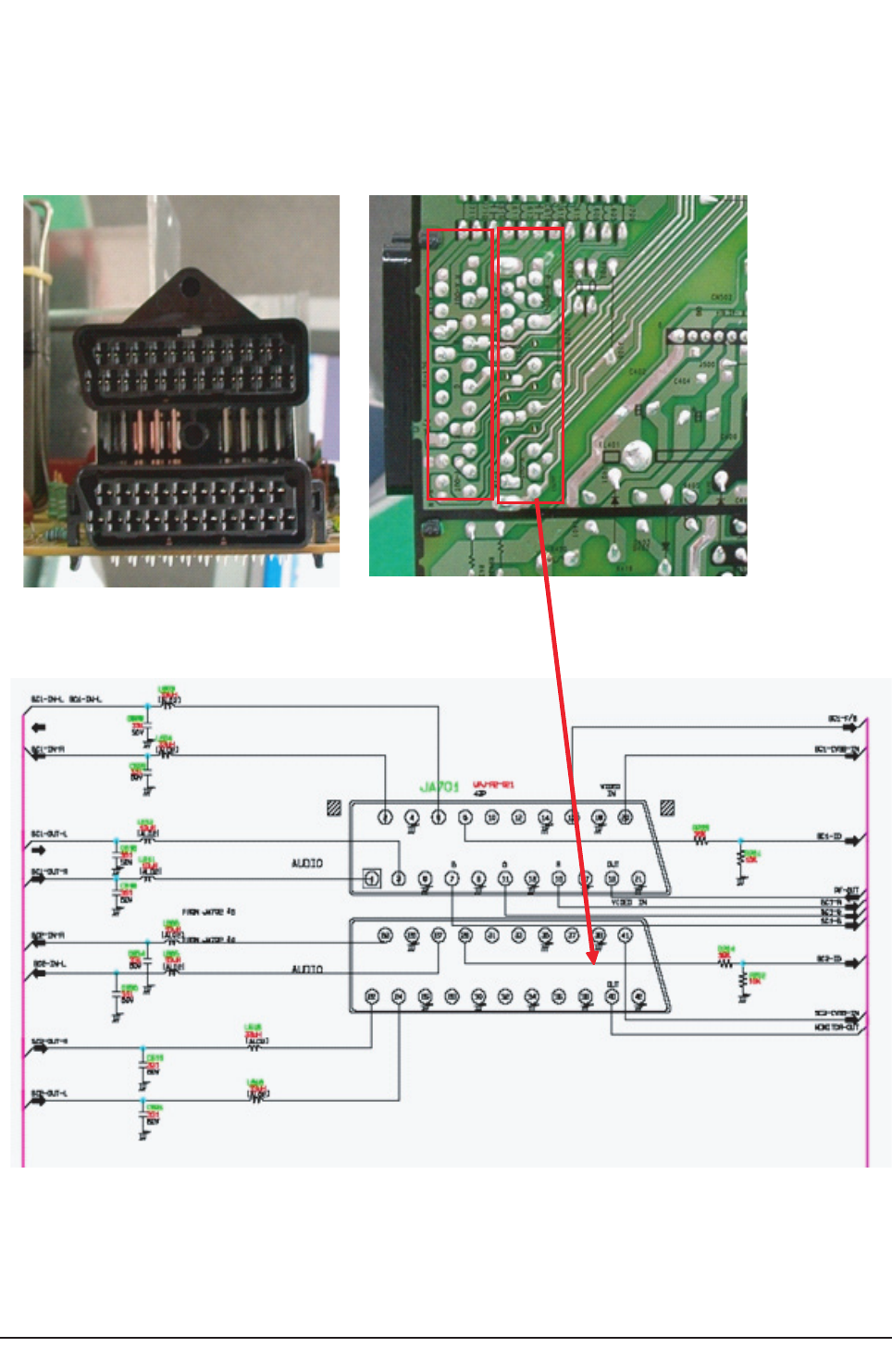

JA701 3722-001884 JACK-SCART 42P,SnPb,BLK 1 S.A

JA702 3722-002447 JACK-PIN 5P,SN,GN/BU/RD/WT/RD,ANGLE 1 S.A

JH001 3701-001293 CONNECTOR-DSUB 19P,2R,FEMALE,SMD-A,AU 1 S.A

JS04 2007-000070 R-CHIP 0ohm,5%,1/10W,TP,1608 1 S.A

L101 2701-000115 INDUCTOR-AXIAL 10UH,10%,3070 1 S.A

L102 2701-000116 INDUCTOR-AXIAL 10UH,10%,4298 1 S.A

L103 2701-000116 INDUCTOR-AXIAL 10UH,10%,4298 1 S.A

L2514 3301-000287 BEAD-AXIAL ,3.5x1.0x6.0mm,3000mA,TP,,,50 1 S.N.A

L2514 3301-001223 BEAD-AXIAL 62ohm,3.5x0.8x5mm,TP,-,- 1 S.A

Loc.No. Code No. Description Specification Q'ty SA/SNA Remark

L2514 3301-000374 BEAD-AXIAL ,3.5x1.0x9.0mm,3000mA,TP,,,50 1 S.A

L301 2701-000114 INDUCTOR-AXIAL 10UH,10%,2534 1 S.A

L403 2701-000115 INDUCTOR-AXIAL 10UH,10%,3070 1 S.A

L410 2701-001030 INDUCTOR-AXIAL 43UH,10%,4514 1 S.A

L611 2701-000177 INDUCTOR-AXIAL 33UH,10%,2534 1 S.A

L612 2701-000177 INDUCTOR-AXIAL 33UH,10%,2534 1 S.A

L613 2701-000177 INDUCTOR-AXIAL 33UH,10%,2534 1 S.A

L614 2701-000177 INDUCTOR-AXIAL 33UH,10%,2534 1 S.A

L615 2701-000177 INDUCTOR-AXIAL 33UH,10%,2534 1 S.A

L616 2701-000177 INDUCTOR-AXIAL 33UH,10%,2534 1 S.A

L617 2701-000177 INDUCTOR-AXIAL 33UH,10%,2534 1 S.A

L618 2701-000177 INDUCTOR-AXIAL 33UH,10%,2534 1 S.A

L805 3301-001660 BEAD-RADIAL 100ohm,3.5x9.0x0.8,50mA,TP,, 1 S.N.A

LD901 AA96-00461A ASSY LED GUIDE -,-,SL-255D,RED/GRN 1 S.A

LH009 2007-000070 R-CHIP 0ohm,5%,1/10W,TP,1608 1 S.A

LX803S AA29-30002N FILTER LINE NOISE -,16MH,1.5A,AC100~260V 1 S.A

M0014 AA97-16531C ASSY AUTO-MAIN WS32Z419D8XXEU,S63A,UNLIM 1 S.N.A

M0018 AA97-16618A ASSY MICOM T_ULTPEU_0020,S64A,VCTP69xyP 1 S.A

M0018 AA97-16567A ASSY MICOM T_UNLIDUK0_0012,S64A,29LV320, 1 S.A

M0081 6003-000333 SCREW-TAPTITE RH,+,2S,M3,L10,ZPC(YEL),SW 1 S.N.A

M0081 6003-000333 SCREW-TAPTITE RH,+,2S,M3,L10,ZPC(YEL),SW 3 S.N.A

M0081 6003-000335 SCREW-TAPTITE RH,+,2S,M3,L8,ZPC(YEL),SWR 1 S.N.A

M0081 6003-000333 SCREW-TAPTITE RH,+,2S,M3,L10,ZPC(YEL),SW 2 S.N.A

M0107 AA61-10068A BRACKET-PCB M2160,SPTE,T0.3,-,-,-,- 1 S.N.A

OR112 2007-000070 R-CHIP 0ohm,5%,1/10W,TP,1608 1 S.A

OR113 2007-000070 R-CHIP 0ohm,5%,1/10W,TP,1608 1 S.A

P803T 1404-001154 THERMISTOR-PTC 4.5OHM,+30%/-20%,220V,270 1 S.A

PC801S 0604-001038 PHOTO-COUPLER TR,130-260%,200mW,DIP-4,ST 1 S.A

PCB AA41-01195A PCB SUB-F/BOX WS32Z40,FR-4,4,00,1.6,156* 1 S.N.A

PCB BN41-00684A PCB-DIGITAL B/D BORDEAUX,FR-4,6L,1.0,1.6 1 S.N.A

PFC01S AA27-00269A COIL CHOKE-PFC 35MH,CPTTV,35MH,10%,2.0OH 1 S.A

PU01 3722-001055 JACK-PHONE 5P/2C,AG,BLK,ANGLE 1 S.A

Q404 BP96-00020P ASSY HEAT SINK P AA62-00045A,SCREW,FQP63 1 S.N.A

Q409 0505-001116 FET-SILICON BUZ73A,N,200V,22A,0.6ohm,40W 1 S.A

Q409 0505-001679 FET-SILICON FDC6301N,N,25V,0.22A,5OHM,0. 1 S.A

Q409 0505-000109 FET-SILICON 2N7000,N,60V,200mA,5ohm,400m 1 S.A

Q409 0505-001723 FET-SILICON FQP630TSTU,N,200V,9A,0.4OHM, 1 S.A

Q603 0501-000389 TR-SMALL SIGNAL KSC815,NPN,400mW,TO-92,T 1 S.A

Q604 0501-000389 TR-SMALL SIGNAL KSC815,NPN,400mW,TO-92,T 1 S.A

Q801 0501-000369 TR-SMALL SIGNAL KSC2331-Y,NPN,1000mW,TO- 1 S.A

Q802 0501-000389 TR-SMALL SIGNAL KSC815,NPN,400mW,TO-92,T 1 S.A

Q803 0501-000389 TR-SMALL SIGNAL KSC815,NPN,400mW,TO-92,T 1 S.A

Q804 0501-000389 TR-SMALL SIGNAL KSC815,NPN,400mW,TO-92,T 1 S.A

Q805 0501-000389 TR-SMALL SIGNAL KSC815,NPN,400mW,TO-92,T 1 S.A

QD901 0501-000344 TR-SMALL SIGNAL KSC1623-G,NPN,200mW,SOT- 1 S.A

QD902 0501-000280 TR-SMALL SIGNAL KSA1182,PNP,150MW,SOT-23 1 S.A

QD903 0501-000280 TR-SMALL SIGNAL KSA1182,PNP,150MW,SOT-23 1 S.A

QD904 0501-000280 TR-SMALL SIGNAL KSA1182,PNP,150MW,SOT-23 1 S.A

QD905 0501-000280 TR-SMALL SIGNAL KSA1182,PNP,150MW,SOT-23 1 S.A

QD906 0501-000280 TR-SMALL SIGNAL KSA1182,PNP,150MW,SOT-23 1 S.A

QD907 0501-000344 TR-SMALL SIGNAL KSC1623-G,NPN,200mW,SOT- 1 S.A

QD908 0501-000727 TR-SMALL SIGNAL BC848C,NPN,310mW,SOT-23, 1 S.A

QD909 0501-000344 TR-SMALL SIGNAL KSC1623-G,NPN,200mW,SOT- 1 S.A

QD910 0501-000344 TR-SMALL SIGNAL KSC1623-G,NPN,200mW,SOT- 1 S.A

QD911 0501-000344 TR-SMALL SIGNAL KSC1623-G,NPN,200mW,SOT- 1 S.A

QH001 0501-000344 TR-SMALL SIGNAL KSC1623-G,NPN,200mW,SOT- 1 S.A

QS01 0501-000342 TR-SMALL SIGNAL KSC1623-Y,NPN,200mW,SOT- 1 S.A

QS01 0501-000389 TR-SMALL SIGNAL KSC815,NPN,400mW,TO-92,T 1 S.A

QV201 0501-000344 TR-SMALL SIGNAL KSC1623-G,NPN,200mW,SOT- 1 S.A

R101 2701-000114 INDUCTOR-AXIAL 10UH,10%,2534 1 S.A

R102 2701-000114 INDUCTOR-AXIAL 10UH,10%,2534 1 S.A

R103 2001-000734 R-CARBON 4.7KOHM,5%,1/8W,AA,TP,1.8X3.2MM 1 S.A

Loc.No. Code No. Description Specification Q'ty SA/SNA Remark

Samsung Electronics5-20

Electrical Part List

5-21Samsung Electronics

Electrical Part List

R104 2001-000645 R-CARBON 330KOHM,5%,1/8W,AA,TP,1.8X3.2MM 1 S.A

R106 2001-000449 R-CARBON 2.2KOHM,5%,1/8W,AA,TP,1.8X3.2MM 1 S.A

R108 2001-000273 R-CARBON 100KOHM,5%,1/8W,AA,TP,1.8X3.2MM 1 S.A

R301 2003-000652 R-METAL OXIDE(S) 330ohm,5%,2W,AF,TP,4x12 1 S.A

R303 2001-000016 R-CARBON(S) 1OHM,5%,1/2W,AA,TP,2.4X6.4MM 1 S.A

R305 2003-002071 R-METAL OXIDE 560ohm,5%,2W,AF,TP,3.9x10m 1 S.A

R306 2003-002071 R-METAL OXIDE 560ohm,5%,2W,AF,TP,3.9x10m 1 S.A

R309 2001-000290 R-CARBON 10KOHM,5%,1/8W,AA,TP,1.8X3.2MM 1 S.A

R310 2001-000290 R-CARBON 10KOHM,5%,1/8W,AA,TP,1.8X3.2MM 1 S.A

R314 2004-001394 R-METAL(S) 2Kohm,1%,1/2W,AA,TP,2.4x6.4mm 1 S.A

R315 2004-001394 R-METAL(S) 2Kohm,1%,1/2W,AA,TP,2.4x6.4mm 1 S.A

R316 2001-001129 R-CARBON(S) 330KOHM,5%,1/2W,AA,TP,2.4X6. 1 S.A

R317 2001-000066 R-CARBON(S) 10KOHM,5%,1/2W,AA,TP,2.4X6.4 1 S.A

R319 2004-001369 R-METAL(S) 1.2Kohm,1%,1/2W,AA,TP,2.4x6.4 1 S.A

R320 2004-001369 R-METAL(S) 1.2Kohm,1%,1/2W,AA,TP,2.4x6.4 1 S.A

R323 2004-004087 R-METAL(S) 1.5ohm,1%,1/2W,AA,TP,2.5x6.5m 1 S.A

R324 2004-004087 R-METAL(S) 1.5ohm,1%,1/2W,AA,TP,2.5x6.5m 1 S.A

R343 2007-000084 R-CHIP 4.7Kohm,5%,1/10W,TP,1608 1 S.A

R401 2001-001121 R-CARBON(S) 3.6KOHM,5%,1/2W,AA,TP,2.4X6. 1 S.A

R402 2001-001078 R-CARBON(S) 15KOHM,5%,1/2W,AA,TP,2.4X6.4 1 S.A

R403 2003-001035 R-METAL OXIDE(S) 27ohm,5%,2W,AF,TP,3.9x1 1 S.A

R404 2003-000540 R-METAL OXIDE(S) 1Kohm,5%,2W,AF,TP,4x12m 1 S.A

R405 2003-000540 R-METAL OXIDE(S) 1Kohm,5%,2W,AF,TP,4x12m 1 S.A

R406 2001-001108 R-CARBON(S) 22KOHM,5%,1/2W,AA,TP,2.4X6.4 1 S.A

R407 2003-000493 R-METAL OXIDE(S) 12ohm,5%,2W,AF,TP,4x12m 1 S.A

R408 2008-000254 R-FUSIBLE(S) 0.68ohm,5%,2W,AF,TP,3.9x10m 1 S.A

R409 2003-000998 R-METAL OXIDE 300ohm,5%,2W,AF,TP,3.9x10m 1 S.A

R410 2003-000998 R-METAL OXIDE 300ohm,5%,2W,AF,TP,3.9x10m 1 S.A

R411 2004-004072 R-METAL(S) 3Kohm,1%,1/2W,AA,TP,2.5x6.5mm 1 S.A

R412 2003-000493 R-METAL OXIDE(S) 12ohm,5%,2W,AF,TP,4x12m 1 S.A

R413 2004-001403 R-METAL(S) 7.5Kohm,1%,1/2W,AA,TP,2.4x6.4 1 S.A

R414 2004-004072 R-METAL(S) 3Kohm,1%,1/2W,AA,TP,2.5x6.5mm 1 S.A

R415 2001-001185 R-CARBON(S) 750OHM,5%,1/2W,AA,TP,2.4X6.4 1 S.A

R416 2003-000493 R-METAL OXIDE(S) 12ohm,5%,2W,AF,TP,4x12m 1 S.A

R418 2001-000028 R-CARBON(S) 100OHM,5%,1/2W,AA,TP,2.4X6.4 1 S.A

R419 2001-001088 R-CARBON(S) 1KOHM,5%,1/2W,AA,TP,2.4X6.4M 1 S.A

R420 2001-001070 R-CARBON(S) 120OHM,5%,1/2W,AA,TP,2.4X6.4 1 S.A

R421 2001-001112 R-CARBON(S) 24KOHM,5%,1/2W,AA,TP,2.4X6.4 1 S.A

R422 2008-001011 R-FUSIBLE(S) 0.18ohm,10%,2W,AF,TP,3.9x10 1 S.A

R423 2004-001371 R-METAL(S) 1.5Kohm,1%,1/2W,AA,TP,2.4x6.4 1 S.A

R424 2008-000253 R-FUSIBLE(S) 0.47ohm,5%,1W,AF,TP,3.9x10m 1 S.A

R425 2008-000253 R-FUSIBLE(S) 0.47ohm,5%,1W,AF,TP,3.9x10m 1 S.A

R426 2003-000652 R-METAL OXIDE(S) 330ohm,5%,2W,AF,TP,4x12 1 S.A

R427 2003-000652 R-METAL OXIDE(S) 330ohm,5%,2W,AF,TP,4x12 1 S.A

R428 2004-000698 R-METAL 3.3Kohm,1%,1/4W,AA,TP,2.4x6.4m 1 S.A

R429 2003-000652 R-METAL OXIDE(S) 330ohm,5%,2W,AF,TP,4x12 1 S.A

R430 2004-002016 R-METAL(S) 15Kohm,1%,1/2W,AA,TP,2.5x6.5m 1 S.A

R431 2004-000531 R-METAL 20Kohm,1%,1/2W,AA,TP,2.3x6.5mm 1 S.A

R433 2001-001194 R-CARBON(S) 82KOHM,5%,1/2W,AA,TP,2.4X6.4 1 S.A

R436 2001-001088 R-CARBON(S) 1KOHM,5%,1/2W,AA,TP,2.4X6.4M 1 S.A

R437 2008-000253 R-FUSIBLE(S) 0.47ohm,5%,1W,AF,TP,3.9x10m 1 S.A

R438 2001-001054 R-CARBON(S) 1.6KOHM,5%,1/2W,AA,TP,2.4X6. 1 S.A

R440 2004-000531 R-METAL 20Kohm,1%,1/2W,AA,TP,2.3x6.5mm 1 S.A

R442 2003-000652 R-METAL OXIDE(S) 330ohm,5%,2W,AF,TP,4x12 1 S.A

R444 2003-000586 R-METAL OXIDE(S) 22Kohm,5%,2W,AF,TP,4x12 1 S.A

R445 2003-000586 R-METAL OXIDE(S) 22Kohm,5%,2W,AF,TP,4x12 1 S.A

R446 2003-002102 R-METAL OXIDE(S) 68Kohm,5%,2W,AF,TP,4x12 1 S.A

R448 2008-000284 R-FUSIBLE(S) 0.1OHM,10%,2W,AF,TP,3.9X10M 1 S.A

R450 2003-000493 R-METAL OXIDE(S) 12ohm,5%,2W,AF,TP,4x12m 1 S.A

R453 2004-000612 R-METAL 243ohm,1%,1/4W,AA,TP,2.4x6.4mm 1 S.A

R454 2004-001394 R-METAL(S) 2Kohm,1%,1/2W,AA,TP,2.4x6.4mm 1 S.A

R455 2001-000534 R-CARBON 240OHM,5%,1/8W,AA,TP,1.8X3.2MM 1 S.A

R456 2004-000612 R-METAL 243ohm,1%,1/4W,AA,TP,2.4x6.4mm 1 S.A

R618 2001-000290 R-CARBON 10KOHM,5%,1/8W,AA,TP,1.8X3.2MM 1 S.A

R621 2001-000258 R-CARBON 1.8KOHM,5%,1/8W,AA,TP,1.8X3.2MM 1 S.A

R622 2001-000258 R-CARBON 1.8KOHM,5%,1/8W,AA,TP,1.8X3.2MM 1 S.A

R623 2001-000734 R-CARBON 4.7KOHM,5%,1/8W,AA,TP,1.8X3.2MM 1 S.A

R626 2001-000290 R-CARBON 10KOHM,5%,1/8W,AA,TP,1.8X3.2MM 1 S.A

Loc.No. Code No. Description Specification Q'ty SA/SNA Remark

R627 2001-000290 R-CARBON 10KOHM,5%,1/8W,AA,TP,1.8X3.2MM 1 S.A

R633 2001-000290 R-CARBON 10KOHM,5%,1/8W,AA,TP,1.8X3.2MM 1 S.A

R636 2001-000290 R-CARBON 10KOHM,5%,1/8W,AA,TP,1.8X3.2MM 1 S.A

R646 2001-000290 R-CARBON 10KOHM,5%,1/8W,AA,TP,1.8X3.2MM 1 S.A

R647 2001-000290 R-CARBON 10KOHM,5%,1/8W,AA,TP,1.8X3.2MM 1 S.A

R670 2001-000281 R-CARBON 100OHM,5%,1/8W,AA,TP,1.8X3.2MM 1 S.A

R671 2001-000281 R-CARBON 100OHM,5%,1/8W,AA,TP,1.8X3.2MM 1 S.A

R801 2001-000273 R-CARBON 100KOHM,5%,1/8W,AA,TP,1.8X3.2MM 1 S.A

R802 2001-000780 R-CARBON 470OHM,5%,1/8W,AA,TP,1.8X3.2MM 1 S.A

R803 2001-001153 R-CARBON(S) 47ohm,5%,1/2W,AA,TP,2.4x6.4m 1 S.A

R804 2004-001983 R-METAL(S) 2.49Kohm,1%,1/2W,AA,TP,2.4x6. 1 S.A

R805 2001-001088 R-CARBON(S) 1KOHM,5%,1/2W,AA,TP,2.4X6.4M 1 S.A

R806 2009-001012 R-METAL PLATE 0.27OHM,10%,5W,CL,TP,5X14X 1 S.A

R807 2001-000037 R-CARBON(S) 330OHM,5%,1/2W,AA,TP,2.4X6.4 1 S.A

R810 2001-001097 R-CARBON(S) 2.4KOHM,5%,1/2W,AA,TP,2.4X6. 1 S.A

R811 2009-001012 R-METAL PLATE 0.27OHM,10%,5W,CL,TP,5X14X 1 S.A

R812 2001-000522 R-CARBON 22KOHM,5%,1/8W,AA,TP,1.8X3.2MM 1 S.A

R813 2001-000924 R-CARBON 680OHM,5%,1/8W,AA,TP,1.8X3.2MM 1 S.A

R814 2001-000429 R-CARBON 1KOHM,5%,1/8W,AA,TP,1.8X3.2MM 1 S.A

R815 2001-001131 R-CARBON(S) 33KOHM,5%,1/2W,AA,TP,2.4X6.4 1 S.A

R817 2001-001088 R-CARBON(S) 1KOHM,5%,1/2W,AA,TP,2.4X6.4M 1 S.A

R818 2004-001891 R-METAL(S) 133Kohm,1%,1/2W,AA,TP,2.5x6.5 1 S.A

R819 2004-004048 R-METAL(S) 3.9Kohm,1%,1/2W,AA,TP,2.5x6.5 1 S.A

R820 2001-001131 R-CARBON(S) 33KOHM,5%,1/2W,AA,TP,2.4X6.4 1 S.A

R821 2001-000273 R-CARBON 100KOHM,5%,1/8W,AA,TP,1.8X3.2MM 1 S.A

R823 2003-000586 R-METAL OXIDE(S) 22Kohm,5%,2W,AF,TP,4x12 1 S.A

R824 2003-000586 R-METAL OXIDE(S) 22Kohm,5%,2W,AF,TP,4x12 1 S.A

R825 2003-000586 R-METAL OXIDE(S) 22Kohm,5%,2W,AF,TP,4x12 1 S.A

R832 2001-000273 R-CARBON 100KOHM,5%,1/8W,AA,TP,1.8X3.2MM 1 S.A

R833 2001-000734 R-CARBON 4.7KOHM,5%,1/8W,AA,TP,1.8X3.2MM 1 S.A

R834 2001-000037 R-CARBON(S) 330OHM,5%,1/2W,AA,TP,2.4X6.4 1 S.A

R835 2001-000780 R-CARBON 470OHM,5%,1/8W,AA,TP,1.8X3.2MM 1 S.A

R901 2001-000924 R-CARBON 680OHM,5%,1/8W,AA,TP,1.8X3.2MM 1 S.A

R902 2001-000924 R-CARBON 680OHM,5%,1/8W,AA,TP,1.8X3.2MM 1 S.A

R903 2001-000028 R-CARBON(S) 100OHM,5%,1/2W,AA,TP,2.4X6.4 1 S.A

R904 2001-000028 R-CARBON(S) 100OHM,5%,1/2W,AA,TP,2.4X6.4 1 S.A

RA713 2007-000102 R-CHIP 100Kohm,5%,1/10W,TP,1608 1 S.A

RA714 2007-000102 R-CHIP 100Kohm,5%,1/10W,TP,1608 1 S.A

RA715 2007-000102 R-CHIP 100Kohm,5%,1/10W,TP,1608 1 S.A

RA716 2007-000102 R-CHIP 100Kohm,5%,1/10W,TP,1608 1 S.A

RA717 2007-000102 R-CHIP 100Kohm,5%,1/10W,TP,1608 1 S.A

RA718 2007-000102 R-CHIP 100Kohm,5%,1/10W,TP,1608 1 S.A

RA719 2007-000102 R-CHIP 100Kohm,5%,1/10W,TP,1608 1 S.A

RA720 2007-000102 R-CHIP 100Kohm,5%,1/10W,TP,1608 1 S.A

RA721 2007-000084 R-CHIP 4.7Kohm,5%,1/10W,TP,1608 1 S.A

RA801 2007-000092 R-CHIP 15Kohm,5%,1/10W,TP,1608 1 S.A

RA802 2007-000965 R-CHIP 5.1Kohm,5%,1/10W,TP,1608 1 S.A

RA803 2007-000083 R-CHIP 3Kohm,5%,1/10W,TP,1608 1 S.A

RA804 2007-000084 R-CHIP 4.7Kohm,5%,1/10W,TP,1608 1 S.A

RA805 2007-000090 R-CHIP 10Kohm,5%,1/10W,TP,1608 1 S.A

RA806 2007-000090 R-CHIP 10Kohm,5%,1/10W,TP,1608 1 S.A

RD899 2007-000074 R-CHIP 100ohm,5%,1/10W,TP,1608 1 S.A

RD900 2007-000074 R-CHIP 100ohm,5%,1/10W,TP,1608 1 S.A

RD901 2007-000211 R-CHIP 1.1Kohm,5%,1/10W,TP,1608 1 S.A

RD902 2007-000211 R-CHIP 1.1Kohm,5%,1/10W,TP,1608 1 S.A

RD903 2007-000211 R-CHIP 1.1Kohm,5%,1/10W,TP,1608 1 S.A

RD904 2007-000211 R-CHIP 1.1Kohm,5%,1/10W,TP,1608 1 S.A

RD905 2007-000211 R-CHIP 1.1Kohm,5%,1/10W,TP,1608 1 S.A

RD906 2007-000078 R-CHIP 1Kohm,5%,1/10W,TP,1608 1 S.A

RD907 2007-000211 R-CHIP 1.1Kohm,5%,1/10W,TP,1608 1 S.A

RD908 2007-000078 R-CHIP 1Kohm,5%,1/10W,TP,1608 1 S.A

RD909 2007-000074 R-CHIP 100ohm,5%,1/10W,TP,1608 1 S.A

RD910 2007-000080 R-CHIP 2Kohm,5%,1/10W,TP,1608 1 S.A

RD911 2007-000080 R-CHIP 2Kohm,5%,1/10W,TP,1608 1 S.A

RD912 2007-000074 R-CHIP 100ohm,5%,1/10W,TP,1608 1 S.A

RD913 2007-000074 R-CHIP 100ohm,5%,1/10W,TP,1608 1 S.A

RD914 2007-000074 R-CHIP 100ohm,5%,1/10W,TP,1608 1 S.A

RD915 2007-000070 R-CHIP 0ohm,5%,1/10W,TP,1608 1 S.A

Loc.No. Code No. Description Specification Q'ty SA/SNA Remark

Samsung Electronics5-22

Electrical Part List

5-23Samsung Electronics

Electrical Part List

RD916 2007-000078 R-CHIP 1Kohm,5%,1/10W,TP,1608 1 S.A

RD917 2007-000090 R-CHIP 10Kohm,5%,1/10W,TP,1608 1 S.A

RD918 2007-000074 R-CHIP 100ohm,5%,1/10W,TP,1608 1 S.A

RD919 2007-000074 R-CHIP 100ohm,5%,1/10W,TP,1608 1 S.A

RD920 2007-000074 R-CHIP 100ohm,5%,1/10W,TP,1608 1 S.A

RD921 2007-000078 R-CHIP 1Kohm,5%,1/10W,TP,1608 1 S.A

RD922 2007-000072 R-CHIP 47ohm,5%,1/10W,TP,1608 1 S.A

RD923 2007-000072 R-CHIP 47ohm,5%,1/10W,TP,1608 1 S.A

RD924 2007-000084 R-CHIP 4.7Kohm,5%,1/10W,TP,1608 1 S.A

RD925 2007-000124 R-CHIP 2.2Kohm,5%,1/10W,TP,1608 1 S.A

RD926 2007-000124 R-CHIP 2.2Kohm,5%,1/10W,TP,1608 1 S.A

RD927 2007-000074 R-CHIP 100ohm,5%,1/10W,TP,1608 1 S.A

RD928 2007-000074 R-CHIP 100ohm,5%,1/10W,TP,1608 1 S.A

RD929 2007-000074 R-CHIP 100ohm,5%,1/10W,TP,1608 1 S.A

RD930 2007-000074 R-CHIP 100ohm,5%,1/10W,TP,1608 1 S.A

RD931 2007-000074 R-CHIP 100ohm,5%,1/10W,TP,1608 1 S.A

RD932 2007-000074 R-CHIP 100ohm,5%,1/10W,TP,1608 1 S.A

RD934 2007-000074 R-CHIP 100ohm,5%,1/10W,TP,1608 1 S.A

RD935 2007-000084 R-CHIP 4.7Kohm,5%,1/10W,TP,1608 1 S.A

RD936 2007-000074 R-CHIP 100ohm,5%,1/10W,TP,1608 1 S.A

RD937 2007-000691 R-CHIP 3.3Mohm,5%,1/10W,TP,1608 1 S.A

RD938 2007-000074 R-CHIP 100ohm,5%,1/10W,TP,1608 1 S.A

RD939 2007-000074 R-CHIP 100ohm,5%,1/10W,TP,1608 1 S.A

RD941 2007-000086 R-CHIP 5.6Kohm,5%,1/10W,TP,1608 1 S.A

RD942 2007-000086 R-CHIP 5.6Kohm,5%,1/10W,TP,1608 1 S.A

RD943 2007-000869 R-CHIP 4.7Kohm,1%,1/10W,TP,1608 1 S.A

RD944 2007-000691 R-CHIP 3.3Mohm,5%,1/10W,TP,1608 1 S.A

RD945 2007-000107 R-CHIP 470Kohm,5%,1/10W,TP,1608 1 S.A

RD946 2007-000081 R-CHIP 2.7Kohm,5%,1/10W,TP,1608 1 S.A

RD947 2007-000082 R-CHIP 3.3Kohm,5%,1/10W,TP,1608 1 S.A

RD948 2007-000074 R-CHIP 100ohm,5%,1/10W,TP,1608 1 S.A

RD949 2007-000124 R-CHIP 2.2Kohm,5%,1/10W,TP,1608 1 S.A

RD950 2007-000821 R-CHIP 390ohm,1%,1/10W,TP,1608 1 S.A

RD951 2007-000074 R-CHIP 100ohm,5%,1/10W,TP,1608 1 S.A

RD952 2007-000074 R-CHIP 100ohm,5%,1/10W,TP,1608 1 S.A

RD953 2007-000074 R-CHIP 100ohm,5%,1/10W,TP,1608 1 S.A

RD954 2007-000074 R-CHIP 100ohm,5%,1/10W,TP,1608 1 S.A

RD955 2007-000074 R-CHIP 100ohm,5%,1/10W,TP,1608 1 S.A

RD957 2007-000077 R-CHIP 470ohm,5%,1/10W,TP,1608 1 S.A

RD958 2007-000092 R-CHIP 15Kohm,5%,1/10W,TP,1608 1 S.A

RD959 2007-000052 R-CHIP 10Kohm,1%,1/10W,TP,1608 1 S.A

RD960 2007-000074 R-CHIP 100ohm,5%,1/10W,TP,1608 1 S.A

RD961 2007-000088 R-CHIP 7.5Kohm,5%,1/10W,TP,1608 1 S.A

RD963 2007-000090 R-CHIP 10Kohm,5%,1/10W,TP,1608 1 S.A

RD964 2007-000090 R-CHIP 10Kohm,5%,1/10W,TP,1608 1 S.A

RD965 2007-000097 R-CHIP 47Kohm,5%,1/10W,TP,1608 1 S.A

RD966 2007-000090 R-CHIP 10Kohm,5%,1/10W,TP,1608 1 S.A

RD967 2007-000094 R-CHIP 22Kohm,5%,1/10W,TP,1608 1 S.A

RD968 2007-000090 R-CHIP 10Kohm,5%,1/10W,TP,1608 1 S.A

RD969 2007-000259 R-CHIP 1.6Kohm,5%,1/10W,TP,1608 1 S.A

RD970 2007-000087 R-CHIP 6.8Kohm,5%,1/10W,TP,1608 1 S.A

RD971 2007-000077 R-CHIP 470ohm,5%,1/10W,TP,1608 1 S.A

RD972 2007-000075 R-CHIP 220ohm,5%,1/10W,TP,1608 1 S.A

RD973 2007-000075 R-CHIP 220ohm,5%,1/10W,TP,1608 1 S.A

RD974 2007-000075 R-CHIP 220ohm,5%,1/10W,TP,1608 1 S.A

RD975 2007-000075 R-CHIP 220ohm,5%,1/10W,TP,1608 1 S.A

RD976 2007-000084 R-CHIP 4.7Kohm,5%,1/10W,TP,1608 1 S.A

RD977 2007-000084 R-CHIP 4.7Kohm,5%,1/10W,TP,1608 1 S.A

RF001 2007-000072 R-CHIP 47ohm,5%,1/10W,TP,1608 1 S.A

RH001 2007-000078 R-CHIP 1Kohm,5%,1/10W,TP,1608 1 S.A

RH002 2007-000072 R-CHIP 47ohm,5%,1/10W,TP,1608 1 S.A

RH003 2007-000084 R-CHIP 4.7Kohm,5%,1/10W,TP,1608 1 S.A

RH005 2007-000084 R-CHIP 4.7Kohm,5%,1/10W,TP,1608 1 S.A

RH006 2007-000084 R-CHIP 4.7Kohm,5%,1/10W,TP,1608 1 S.A

RH007 2007-000084 R-CHIP 4.7Kohm,5%,1/10W,TP,1608 1 S.A

RH008 2007-000070 R-CHIP 0ohm,5%,1/10W,TP,1608 1 S.A

RH009 2007-000070 R-CHIP 0ohm,5%,1/10W,TP,1608 1 S.A

RH010 2007-000072 R-CHIP 47ohm,5%,1/10W,TP,1608 1 S.A

Loc.No. Code No. Description Specification Q'ty SA/SNA Remark

RH011 2007-000072 R-CHIP 47ohm,5%,1/10W,TP,1608 1 S.A

RH012 2007-000072 R-CHIP 47ohm,5%,1/10W,TP,1608 1 S.A

RH014 2007-000118 R-CHIP 390ohm,5%,1/10W,TP,1608 1 S.A

RH015 2007-000074 R-CHIP 100ohm,5%,1/10W,TP,1608 1 S.A

RH016 2007-000090 R-CHIP 10Kohm,5%,1/10W,TP,1608 1 S.A

RH018 2007-000074 R-CHIP 100ohm,5%,1/10W,TP,1608 1 S.A

RH019 2007-000074 R-CHIP 100ohm,5%,1/10W,TP,1608 1 S.A

RH020 2007-000090 R-CHIP 10Kohm,5%,1/10W,TP,1608 1 S.A

RH021 2007-000090 R-CHIP 10Kohm,5%,1/10W,TP,1608 1 S.A

RH022 2007-000309 R-CHIP 10ohm,5%,1/10W,TP,1608 1 S.A

RH023 2007-000309 R-CHIP 10ohm,5%,1/10W,TP,1608 1 S.A

RH024 2007-000309 R-CHIP 10ohm,5%,1/10W,TP,1608 1 S.A

RH025 2007-000309 R-CHIP 10ohm,5%,1/10W,TP,1608 1 S.A

RH032 2007-000072 R-CHIP 47ohm,5%,1/10W,TP,1608 1 S.A

RH033 2007-000072 R-CHIP 47ohm,5%,1/10W,TP,1608 1 S.A

RH036 2007-000309 R-CHIP 10ohm,5%,1/10W,TP,1608 1 S.A

RH037 2007-000309 R-CHIP 10ohm,5%,1/10W,TP,1608 1 S.A

RH038 2007-000309 R-CHIP 10ohm,5%,1/10W,TP,1608 1 S.A

RH039 2007-000309 R-CHIP 10ohm,5%,1/10W,TP,1608 1 S.A

RH040 2007-000309 R-CHIP 10ohm,5%,1/10W,TP,1608 1 S.A

RH041 2007-000309 R-CHIP 10ohm,5%,1/10W,TP,1608 1 S.A

RH042 2007-000309 R-CHIP 10ohm,5%,1/10W,TP,1608 1 S.A

RH043 2007-000309 R-CHIP 10ohm,5%,1/10W,TP,1608 1 S.A

RH28 2008-001149 R-FUSIBLE(S) 0.22OHM,5%,2W,AF,TP,3.8X11M 1 S.A

RHN03 2011-000002 R-NET 22ohm,5%,1/16W,L,CHIP,8P,TP,3216 1 S.A

RHN04 2011-000002 R-NET 22ohm,5%,1/16W,L,CHIP,8P,TP,3216 1 S.A

RHN05 2011-000002 R-NET 22ohm,5%,1/16W,L,CHIP,8P,TP,3216 1 S.A

RHN06 2011-000002 R-NET 22ohm,5%,1/16W,L,CHIP,8P,TP,3216 1 S.A

RHN07 2011-000002 R-NET 22ohm,5%,1/16W,L,CHIP,8P,TP,3216 1 S.A

RHN08 2011-000002 R-NET 22ohm,5%,1/16W,L,CHIP,8P,TP,3216 1 S.A

RHN09 2011-000002 R-NET 22ohm,5%,1/16W,L,CHIP,8P,TP,3216 1 S.A

RL801S 3501-001053 RELAY-POWER 5Vdc,530mW,10000mA,1FormA,15 1 S.A

RM901 AA32-00015A Module Remocon FRP-3521H31,38KHZ,940MM,M 1 S.A

RR430S 2004-001390 R-METAL(S) 1Kohm,2%,1/2W,AA,TP,2.4x6.4mm 1 S.A

RS01 2007-000090 R-CHIP 10Kohm,5%,1/10W,TP,1608 1 S.A

RS01 2001-001103 R-CARBON(S) 20KOHM,5%,1/2W,AA,TP,2.4X6.4 1 S.A

RS02 2007-000309 R-CHIP 10ohm,5%,1/10W,TP,1608 1 S.A

RS02 2001-000002 R-CARBON(S) 200KOHM,5%,1/2W,AA,TP,2.4X6. 1 S.A

RS03 2007-000074 R-CHIP 100ohm,5%,1/10W,TP,1608 1 S.A

RS03 2004-001382 R-METAL(S) 13Kohm,1%,1/2W,AA,TP,2.4x6.4m 1 S.A

RS04 2007-000074 R-CHIP 100ohm,5%,1/10W,TP,1608 1 S.A

RS04 2001-001168 R-CARBON(S) 6.8KOHM,5%,1/2W,AA,TP,2.4X6. 1 S.A

RS05 2007-000078 R-CHIP 1Kohm,5%,1/10W,TP,1608 1 S.A

RS05 2001-001108 R-CARBON(S) 22KOHM,5%,1/2W,AA,TP,2.4X6.4 1 S.A

RS06 2007-000074 R-CHIP 100ohm,5%,1/10W,TP,1608 1 S.A

RS07 2007-000074 R-CHIP 100ohm,5%,1/10W,TP,1608 1 S.A

RV201 2007-000090 R-CHIP 10Kohm,5%,1/10W,TP,1608 1 S.A

RV202 2007-000081 R-CHIP 2.7Kohm,5%,1/10W,TP,1608 1 S.A

RV203 2007-000084 R-CHIP 4.7Kohm,5%,1/10W,TP,1608 1 S.A

RV204 2007-000074 R-CHIP 100ohm,5%,1/10W,TP,1608 1 S.A

RV205 2007-000074 R-CHIP 100ohm,5%,1/10W,TP,1608 1 S.A

RV206 2007-000074 R-CHIP 100ohm,5%,1/10W,TP,1608 1 S.A

RV207 2007-000074 R-CHIP 100ohm,5%,1/10W,TP,1608 1 S.A

RV208 2007-000074 R-CHIP 100ohm,5%,1/10W,TP,1608 1 S.A

RV209 2007-000078 R-CHIP 1Kohm,5%,1/10W,TP,1608 1 S.A

RV210 2007-000309 R-CHIP 10ohm,5%,1/10W,TP,1608 1 S.A

RV215 2007-000121 R-CHIP 820ohm,5%,1/10W,TP,1608 1 S.A

RV229 2007-000074 R-CHIP 100ohm,5%,1/10W,TP,1608 1 S.A

RV230 2007-000074 R-CHIP 100ohm,5%,1/10W,TP,1608 1 S.A

RV243 2007-000074 R-CHIP 100ohm,5%,1/10W,TP,1608 1 S.A

RV246 2007-000074 R-CHIP 100ohm,5%,1/10W,TP,1608 1 S.A

RV258 2007-000074 R-CHIP 100ohm,5%,1/10W,TP,1608 1 S.A

RV270 2007-000074 R-CHIP 100ohm,5%,1/10W,TP,1608 1 S.A

RV271 2007-000074 R-CHIP 100ohm,5%,1/10W,TP,1608 1 S.A

RV272 2007-000074 R-CHIP 100ohm,5%,1/10W,TP,1608 1 S.A

RV273 2007-000074 R-CHIP 100ohm,5%,1/10W,TP,1608 1 S.A

RV274 2007-000074 R-CHIP 100ohm,5%,1/10W,TP,1608 1 S.A

RV275 2007-000074 R-CHIP 100ohm,5%,1/10W,TP,1608 1 S.A

Loc.No. Code No. Description Specification Q'ty SA/SNA Remark

Samsung Electronics5-24

Electrical Part List

5-25Samsung Electronics

Electrical Part List

RV276 2007-000074 R-CHIP 100ohm,5%,1/10W,TP,1608 1 S.A

RV277 2007-000074 R-CHIP 100ohm,5%,1/10W,TP,1608 1 S.A

RV279 2007-000074 R-CHIP 100ohm,5%,1/10W,TP,1608 1 S.A

RV280 2007-000091 R-CHIP 12Kohm,5%,1/10W,TP,1608 1 S.A

RV288 2007-000074 R-CHIP 100ohm,5%,1/10W,TP,1608 1 S.A

RX801S 2002-001010 R-COMPOSITION 1.8Mohm,5%,1/2W,AA,TP,3.7x 1 S.A

RY801S 2002-001012 R-COMPOSITION 8.2Mohm,5%,1/2W,AA,TP,3.7x 1 S.A

SW401 3409-000138 SWITCH-LEVER 30V,200mA,SP3T,-,30deg 1 S.A

SW801S 3403-000179 SWITCH-PUSH 250V,5A,DPST,-,JPW-2104B 1 S.A

T0010 AA27-00025A COIL CHOKE -,1MH,10%,-,-,BK,-,12X20,14X2 1 S.A

T0010 AA27-00057B COIL CHOKE 10mH,YL-9N 15x27.5 C:9.5,0.3m 1 S.A

T0010 AA27-00308B COIL CHOKE 3mH,10%,1.8ohm,0.7,14X20 C6.0 1 S.A

T0010 AA27-00344A COIL CHOKE CORE(K62A),55uH,10%,0.1ohm,17 1 S.A

T0010 AA27-00354A COIL CHOKE WS32Z30HE,140 uH,10%,0.300 ¥Ø 1 S.A

T0010 AA27-10002L COIL CHOKE -,24uH,K,-,2A,-,24UH-K,10x10m 1 S.A

T0052 2703-000125 INDUCTOR-SMD 10uH,10%,2012 1 S.A

T0052 2703-000398 INDUCTOR-SMD 10uH,10%,3225 1 S.A

T0052 2703-001070 INDUCTOR-SMD 100uH,10%,4532 1 S.A

T0052 2703-001802 INDUCTOR-SMD 33uH,20%,2012 1 S.A

T0052 2703-002836 INDUCTOR-SMD 22uH,20%,10x10.2mm 1 S.A

T0052 2703-000125 INDUCTOR-SMD 10uH,10%,2012 1 S.A

T0066 AA62-30181X HEAT SINK-ES WS32Z409P,AL6063,T2.0,64,40 1 S.N.A

T0066 AA62-30180B HEAT SINK-ES -,A6063 EXTR.,2,WHT,70MM,-, 1 S.N.A

T0066 AA62-30182E HEAT SINK-ES -,A6063 EXTR,-,WHT,-,-,-,40 1 S.N.A

T0077 AA41-01194A PCB MAIN WS32Z40,FR-1,1,A,1.6,330*245,S6 1 S.N.A

T0085 1201-002118 IC-AUDIO AMP TDA7297SA,ZIP,15P,-,DUAL,32 1 S.A

T0087 1203-003955 IC-POSI.FIXED REG. KA78R09CTU,TO-220F,4P 1 S.A

T0087 1203-002186 IC-POSI.FIXED REG. 18,DPAK,3P,240MIL,PLA 1 S.A

T0087 1203-002842 IC-POSI.FIXED REG. AP1117D-33A,TO-252,3P 1 S.A

T0087 1203-003704 IC-POSI.FIXED REG. G953-18T6U,SOT-223,3P 1 S.A

T0087 1203-003958 IC-POSI.FIXED REG. KA278R05CTU,TO-220F,4 1 S.A

T0087 1203-001944 IC-POSI.FIXED REG. 78RM33,TO-220,3P,-,PL 1 S.A

T0088 1204-000517 IC-VERTICAL DEF. LA7845,SIP,7P,-,PLASTIC 1 S.A

T0098 BP62-00001A HEAT SINK COMMANDO,A1050P,T2.0,W62.0,H50 1 S.N.A

T0105 AA60-30001A WASHER-PLATE M3,ID3.5,15X8.5,T1.0,SBHG 1 S.N.A

T0119 AA09-00514A IC MICOM J60D,PLASTIC,TR,28X28MM 1 S.A

T0122 2802-001177 RESONATOR-CERAMIC 2.696MHZ,0.4%,BK,10X4. 1 S.A

T0175 AA62-00045A HEAT SINK-PS -,-,T1.0,-,-,DREAM,-,-,-,-, 1 S.N.A

T0175 AA62-00152B HEAT SINK-PS S63A,A1050,T2.0,108*53*90,6 1 S.N.A

T0198 AA95-03467C ASSY SUB PCB-FEATURE BOX iDTV WITH Compo 1 S.A

T0239 BH73-00028B SILICON/RUBBER-HS TV ALL,SILICON,26*30*T 1 S.N.A

T0245 0202-001522 SOLDER-WIRE FLUX LFA3-107,-,D1.2,96.5Sn/ 0.003 S.N.A

T0266 AA95-03468A ASSY SUB PCB-DTV MODULE S64A,UNLIMITED 1 S.N.A

T0296 AA27-00360A COIL LINEARITY 6.40uH,+,-8A,USTC 0.12©ªx 1 S.A

T0568 3301-001082 BEAD-SMD 60ohm,3225,TP,43ohm/40MHz,83ohm 1 S.N.A

T0568 3301-001526 BEAD-SMD 10ohm,1.6x0.8x0.8mm,1000mA,TP,, 1 S.N.A

Loc.No. Code No. Description Specification Q'ty SA/SNA Remark

T0568 3301-001526 BEAD-SMD 10ohm,1.6x0.8x0.8mm,1000mA,TP,, 1 S.N.A

T0568 3301-001569 BEAD-SMD 600ohm,2012,1000mA,TP,520ohm/90 1 S.N.A

T0607 AA61-01390A BRACKET-IC CT-29A20HR,SECC,T1.0 1 S.N.A

T0900 1404-001045 THERMISTOR-NTC 4.7ohm,4.565A,2900K,-,-,- 1 S.A

T401 AA26-00255A TRANS-H.DRIVE EI2218,P60A,4,6.0 mH,12V,4 1 S.A

T444 AA26-00269A TRANS FBT FUH32V001B,CATCH ME,2.5mH,FUR5 1 S.A

T801S AA26-00200B TRANS SWITCHING 53B135-SC,WS32A20HE,AC16 1 S.A

TH01 AA26-00227A TRANS-FOCUS EI-2820,TXP3067WHD,6P,7.0 mH 1 S.A

VP801S 1405-000187 VARISTOR 615Vdc,1250A,12.5x7mm,TP 1 S.A

VX801S 1405-000187 VARISTOR 615Vdc,1250A,12.5x7mm,TP 1 S.A

XH001 2801-003667 CRYSTAL-SMD 14.31818MHz,30ppm,28-AAN,16, 1 S.A

AA97-16532C ASSY SMD-F/BOX iDTV WITH Component,WITH 1 S.N.A

AA97-16533A ASSY SMD-DTV MODULE S64A,UNLIMITED 1 S.N.A

0402-001230 DIODE-RECTIFIER FMG-G2CS,1000V,3A,DO-41, 1 S.A

0402-001596 DIODE-RECTIFIER SLA1004,200/700,3.5A,-,S 1 S.A

0402-001296 DIODE-RECTIFIER FMP-3FU,1.5KV,5A,DO-201A 1 S.A

0502-001230 TR-POWER FJL6920YDTU,N,200000MW,TO-264 F 1 S.A

ASSY COVER FRONT

M0001 AA90-05504P ASSY COVER FRONT WS32Z419D8XXEU 1 S.N.A

M0081 6003-001026 SCREW-TAPTITE RH,+,B,M4,L15,ZPC(BLK),SWR 10 S.A

M0081 6003-001026 SCREW-TAPTITE RH,+,B,M4,L15,ZPC(BLK),SWR 2 S.A

M0081 6003-001268 SCREW-TAPTITE TH,+,B,M4,L12,ZPC(YEL),SWR 2 S.N.A

M0081 6003-001268 SCREW-TAPTITE TH,+,B,M4,L12,ZPC(YEL),SWR 1 S.N.A

T0238 AA60-10050V BOLT-HEX -,SWRCH18A,M6,L30,HH,+,WC,-,Z 4 S.N.A

T0569 AA61-01433A SUPPORT-CRT Z40,HIPS V0,GR503 2 S.A

T0609 AA63-60004Z SPACER-GUM,CRT ALL MODEL,NTR RUBBER,-,-, 4 S.N.A

T0003 AA96-04064C ASSY COVER P-FRONT 32Z41,XEU,HIPS HB,BLK 1 S.A

M0081 6003-001268 SCREW-TAPTITE TH,+,B,M4,L12,ZPC(YEL),SWR 1 S.N.A

M0081 6006-001096 SCREW-TAPTITE BH,+,WP,B,M4.0,L12,ZPC(BLK 4 S.N.A

T0069 AA60-00091J SPACER-FELT -,FELT,330X10,-,-,BLK,T0.5,- 1 S.N.A

T0069 AA60-00091R SPACER-FELT ,FELT,250X10,,,BLK,T0.5,, 2 S.N.A

CIS7 AA61-60003J SPRING ETC-CS -,SUS304,-,-,OD6,N7,OD6,-, 1 S.N.A

M0112 AA63-01364C COVER-FRONT 32Z41,SEH,HIPS,HB,BLK,BKN157 1 S.A

T0057 AA64-01062B BADGE-BRAND ALL,AL,T1.5,10.6,L65,BLK.SIL 1 S.N.A

T0023 AA64-04328B KNOB POWER Z40,ABS,HB,BKN1576 1 S.N.A

CIS3 AA64-04333A DECORATION-POWER Z40,ABS,HB,GR515,AL 1 S.N.A

T0238 AA64-04340A WINDOW REMOCON-LED Z40(SEH,TSE),PC,CLEAR 1 S.N.A

T0175 AA96-03164A ASSY SPEAKER P 8ohm,6*13cm,Z31,10W,SPK+W 1 S.A

T0382 BP61-00509C HOLDER-CARE PJT,ACRYL-FOAM,T0.25,W20.0mm 0.28 S.N.A

CIS1 AA65-00011C CLAMPER CORE-WIRE ALL MODEL,NYLON 66,V2, 1 S.N.A

CIS1 AA65-30105A CLAMPER CORE-WIRE ALL MODEL,NYLON 66,V2, 1 S.N.A

T0245 AA61-00711D HOLDER-PCB 29U1,U2,HIPS VO,BK502(HB-PROP 1 S.N.A

T0607 AA61-40113A STOPPER-PCB 501H,HIPS,-,-,HB,NTR,- 1 S.A

T0382 BP61-00495C HOLDER-CARE PJT,ACRYL-FOAM,T0.25,W30.0mm 0.2 S.N.A

ASSY COVER REAR

M0002 AA90-05505C ASSY COVER REAR 32Z40(SEH) 1 S.N.A

T0066 AA64-04344A INLAY-BACK Z40,PAL,PS SHEET,T0.5,S64A,SC 1 S.N.A

Loc.No. Code No. Description Specification Q'ty SA/SNA Remark

Samsung Electronics5-26

Electrical Part List

5-27Samsung Electronics

Electrical Part List

T0522 AA65-30008A CLAMPER CORE-CORD -,PE,HB,-,BLK,- 1 S.N.A

T0578 AA64-04297P INLAY AV Z30,32,40,PS,SHEET,T0.5,BLK,SI4 1 S.N.A

M0006 AA63-01369B COVER-REAR 32Z40(SEH),HIPS,FV2,BK500,S64 1 S.A

T0069 AA60-00091K SPACER-FELT -,FELT,330X10,-,-,BLK,T0.35, 3 S.N.A

ASSY FIXING

T0892 AA91-09847A ASSY FIXING WS32Z409D8XXEU,S64A,UNLIMITE 1 S.N.A

T0268 AA39-10007X CBF-POWER CORD -,EP3/YES(HK),H03VVH2-F,2 1 S.A

T0010 AA61-20284A HOLDER P-CORD,PP,-,-,-,BLK,VO,KE-002 1 S.N.A

CIS1 AA65-00011C CLAMPER CORE-WIRE ALL MODEL,NYLON 66,V2, 1 S.N.A

CIS1 AA65-00029A CLAMPER CORE-WIRE PJTV,NYLON66,OD24,DONG 1 S.N.A

CIS1 AA65-30104B CLAMPER CORE-WIRE ALL MODEL,NYLON 66,V2, 1 S.N.A

ASSY BOX

M0003 AA92-11528P ASSY BOX WS32Z419D8XXEU 1 S.N.A

T0130 AA69-03357G BOX-00,SET 32Z40(SEH),DY-07,AB,YEL,A1,EU 1.01 S.N.A

ASSY P/MATERIAL

M0113 AA92-11529C ASSY P/MATERIAL 32Z40(SEH) 1 S.N.A

T0376 6902-000001 BAG AIR LDPE,T0.2,L1800,W1000,TRP,,,LDPE 0.015 S.N.A

T0524 6902-000007 BAG PE HDPE/NITRON/HDPE,T0.015/T0.5/T0.0 1 S.N.A

T0376 6902-000061 BAG AIR LDPE,T0.2,L1000,W500,TRP,,, 0.08 S.N.A

T0214 AA60-40006A PIN-STAPLE AUTO,33X17.8X2.4,H18,33X17.8X 6 S.N.A

T0172 AA69-02609A BAND-PP W18,CLEA,1G 6.2 S.N.A

ASSY ACCESSORY

M0045 AA92-11539A ASSY ACCESSORY WS32Z409D8XXEU,S64A,UNLIM 1 S.N.A

M0045 AA96-04155A ASSY ACCESSORY WS32Z419D8XXEU,S64A,UNLIM 1 S.N.A

T0524 6902-000009 BAG PE HDPE,T0.03,L400,W240,TRP,8,2,PE M 1 S.N.A

AA68-03575A MANUAL FLYER-01,REGISTRATION C XEU,ENG,U 1 S.N.A

M0596 AA68-03776A MANUAL USERS-00 Comm,Samsung,English,UK, 1 S.N.A

2 BN68-00514B MANUAL FLYER-02,WARRANTY CARD PDP/LCD TV 1 S.N.A

T0074 AA59-00379A REMOCON WS32Z40,TM86,44,PAL,S59B,IDTV/TV 1 S.A

AA68-03242E MANUAL FLYER-01,SAFETY GUIDE All Model,S 1 S.N.A

ASSY CPT

T0521 AA91-09865H ASSY CPT W76QFV891X302,+380MG,32 INCH,32 1 S.N.A

T0089 AA27-00343B COIL DEGAUSSING CORE(K62A),23.40mH,70TS, 1 S.A

T0090 AA27-00345A COIL DEGAUSSING-TILT 32,51.0mH,300Turns, 1 S.A

CIS1 AA65-00056A CLAMPER CORE-WIRE 32Z30,NYLON-66,V0,NTR 4 S.N.A

T0527 AA65-00061A CLAMPER CORE-D,COIL NYLON-66,VO,NTR 5 S.N.A

M0909 AA72-00030B SPONGE 29Z30,CR VO BLK,T2.0,10,680 2 S.N.A

T0603 AA96-02967A ASSY TBC WIRE P K62A,32,NTSC,4P 1 S.N.A

T0063 AA03-00482A CRT COLOR W76QFV891X302,+380mG,0.245,14. 1 S.A

Loc.No. Code No. Description Specification Q'ty SA/SNA Remark

MEMO

Samsung Electronics5-28

Troubleshooting

Samsung Electronics 6-1

6. Troubleshooting

6-1 Checkpoints by Error Mode

■Power LED: Check that the LED works when turning the Master Switch ON/OFF

■LED Indicators: See table 6-2-1 Basic Troubleshooting: LED Diagnosis on the Front Panel.

■In case of a power failure or abnormal screen, check the following items.

1) Check that the power cord is correctly connected to a 220V wall outlet.

2) Check that the Master Switch has been pressed.

3) Check that the transmitter is turned on.

4) Check that transmitter device selection is set to TV.

5) Check that the signal cable is properly connected.

6) Check that channel setting has been set.

Troubleshooting

6-2 Samsung Electronics

6-1-1 Basic Approaches for Troubleshooting

■Troubleshooting Mechanism :

- The Main Board has Power part which supplies power to Deflection and Feature Box.

- The Feature Box receives all signal inputs,the signal-processed signal is sent to CRT Ass'y.

- Deflection and Focus are controlled by the Main Board.

■Troubleshooting by Modules

1) Enter Service Mode

(In SET Stand-By Status,if you press "Info"→"Menu"→"Mute" and "Power" button in sequence on the remote control, the

screen is turned on and the Service Mode screen appears.)

2) Check if the Power part of the Main Board Board, which supplies power to Feature Box, is out of order.

If you cannot turn the screen on by pressing the POWER ON/OFF button or the screen repeatedly turns on and off when

pressing the POWER ON/Off button, check if the Power part of the Main Board is out of order. (Refer to the circuit diagram)

4) Check if the Deflection part of the Main Borad is out of order.

When the screen is not properly displayed and the left or right side of the picture is shrunk, or the top or bottom of the screen

is expanded or shrunk, check if the Deflection Board is out of order.

Troubleshooting

Samsung Electronics 6-3

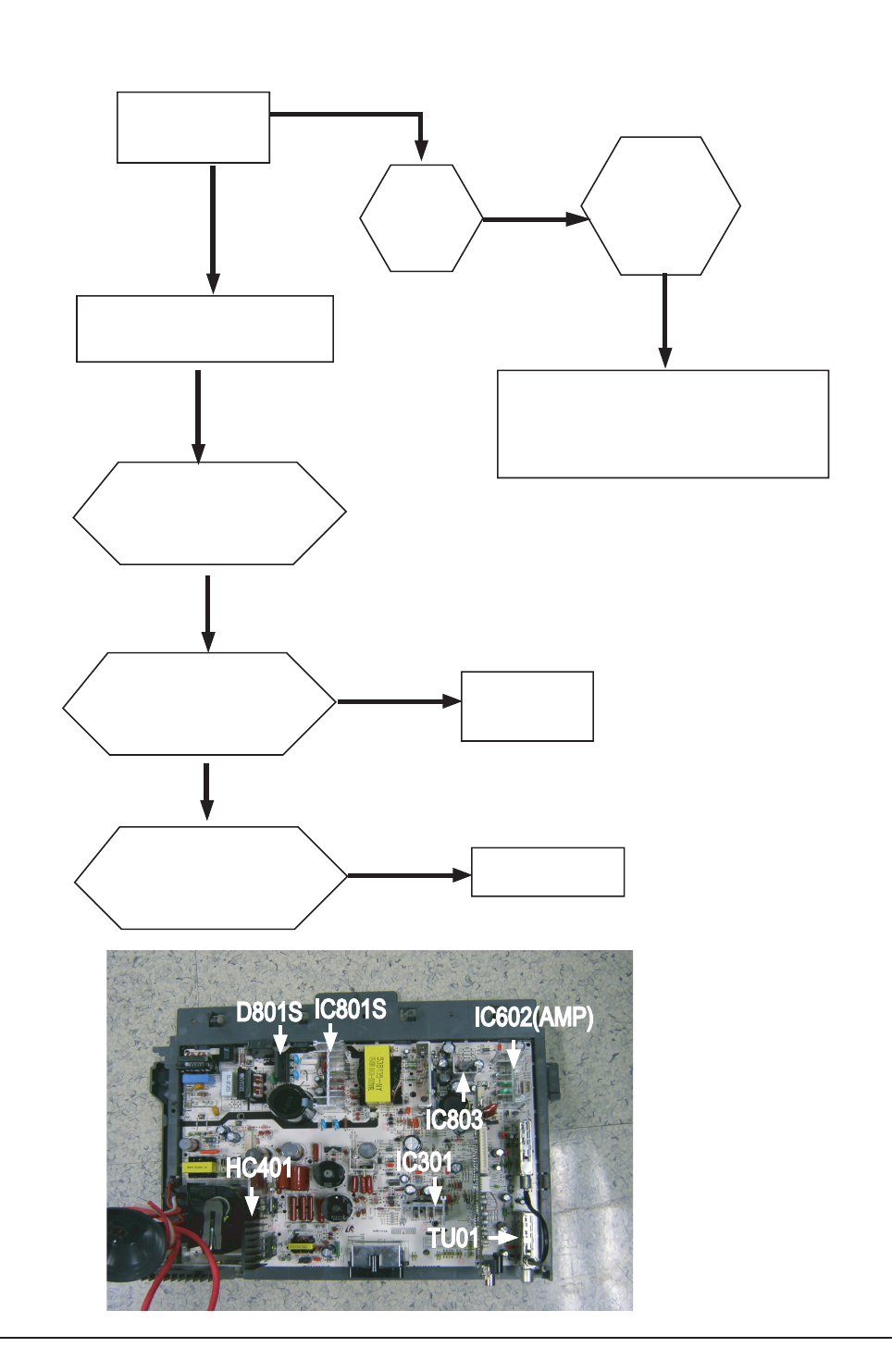

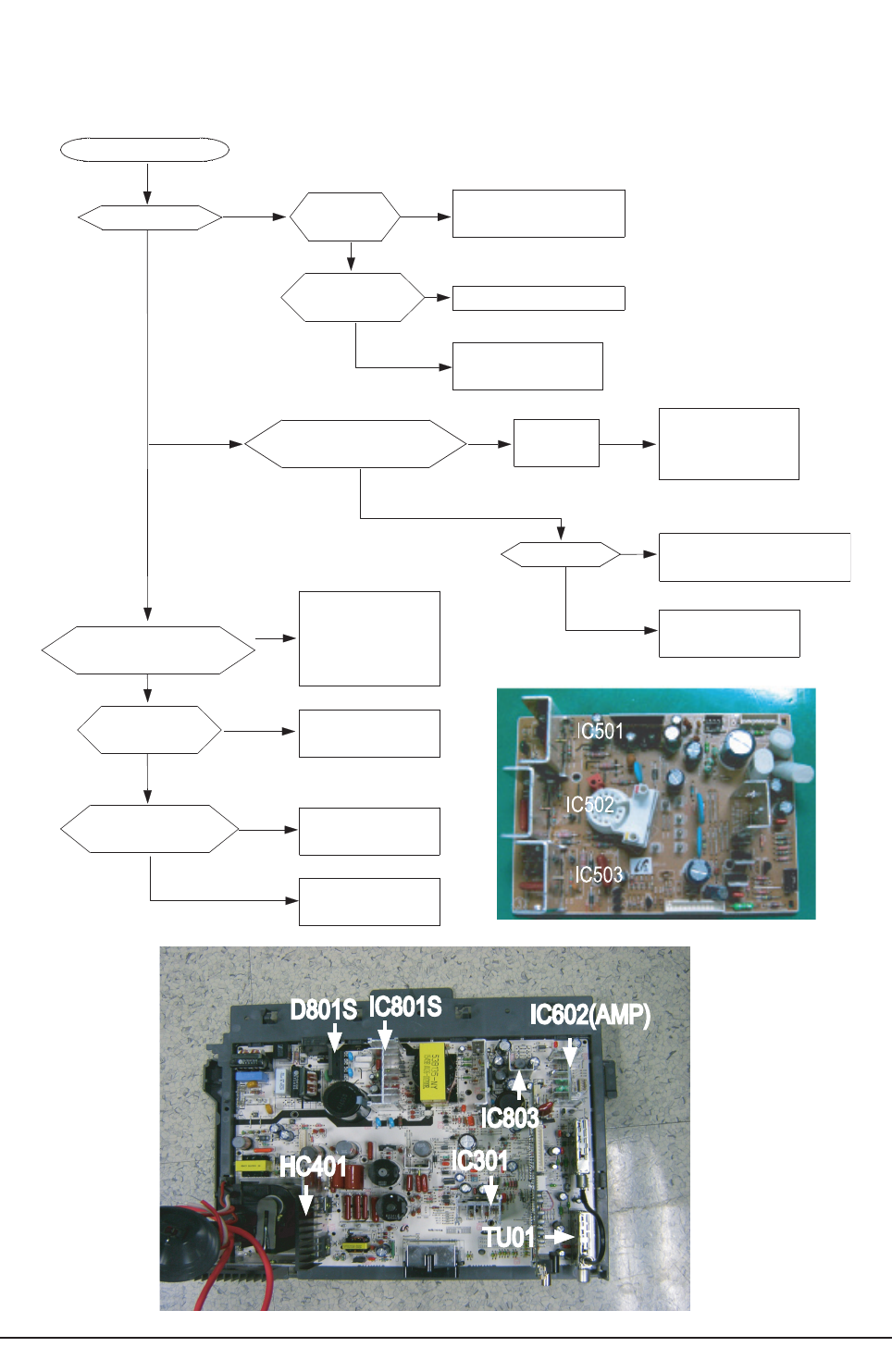

6-1-2 Flow Chart for Malfunction

Does t h e TV wo rk?

Is there

something on

the Screen

Does the OSD

menu on t he

screen work?

Is the power cord or the

master switch out of order ?

Is the cable connecting

the Power Board and the

Def l ecti on Board proper l y

connected?

Is a CRT high voltage

been me asured?

YES

Check t hat the cabl es ar e proper l y

connected to Mai n Boar d.

Rep l ace t he Feature Box, i f necessar y .

Connect the cable

Repl ace t he

Main Board

Is the cable f rom the

Mai n Board to t he CRT

Ass'y properly connected?

Troubleshooting

6-4 Samsung Electronics

6-2 Trouble-shooting with New Features

6-2-1 Installation & Connection

Problem Solution

The power does not turn on. Check if the power cord is properly connected.

Air broadcasting does not work. Check if the antenna is properly installed.

Cable broadcasting does not

work. Subscribe to a local cable broadcasting firm and get support.

Satellite broadcasting does not

work. Install a satellite antenna (Parabola) and connect it to the TV.

6-2-2 Menu & Remote Control

Problem Solution

The remote control does not

work.

■Press the Select Device button to select the TV or external device.

■Replace the battery of the remote control with a new one.

■Insert the battery making sure the polarity (+,-) is correct.

■Check if the angle or the distance is sufficient, or if there is any interference between the

product and the remote control.

■Make sure the user has pressed the correct button.

■To avoid direct sunlight to the receiving panel of the TV, remove any indoor lighting or

change the location of the TV.

■Check if the power switch at the back left of the TV is turned on.

Cannot change the channel with

the remote control.

■Press the Select Device button to select the TV.

■Change the channel using the remote control of the cable or satellite receiver.

Cannot select an A/V channel. Press the TV/AV button and check if the AV item is grayed out. When the AV item is grayed

out, you cannot select an A/V channel. Check if the connector is properly connected.

Cannot select a menu. Check if the menu is grayed out. If a menu is grayed out, it cannot be selected.

Troubleshooting

Samsung Electronics 6-5

6-2-3 Screen

Problem Solution

The screen is black and there is

no sound.

■Check if the power cord is properly connected.

■Turn on the power.

■Select an AV channel that corresponds to the external device.

Only the screen is blank/it is dark

or too bright. Adjust the screen brightness.

The screen is blue/the external

channel is not displayed.

■Check if the connector is properly installed.

■Select an AV channel that corresponds to the external device.

The screen overlaps

(double/triple).

■Check if the antenna is properly installed.

■Adjust the position, angle or direction of the antenna.

The screen is snowy or unclear.

The picture quality gets worse

when it is windy

■Check if the antenna has been bent or moved by the wind.

■Check the antenna for its lifetime. (Normally 3 - 5 years, 1-2 years near the coast)

Dotted or semi-dotted lines are

displayed on the screen. Install the antenna as far away from the road as possible.

The screen is black and white. ■Adjust the color density.

■Check if the connector is properly installed.

The colors of the screen are

odd/strange. Adjust the color tones.

Unusual lines appear on the

screen. Keep the antenna away from the power cord or connectors if possible.

Unusual lines appear on the

screen when watching or

recording to video.

Keep the video player as far away from the TV as possible.

6-2-4 Sound

Problem Solution

There is no sound. ■Increase the volume.

■Press the Mute button.

The sound is very low. ■Increase the volume.

■Set the auto volume control to ON.

There is a lot of noise. Keep the antenna away from the power cord or connectors if possible.

The selected language does not

appear. Press the Multiplex button to select the TV.

Troubleshooting

6-6 Samsung Electronics

6-2-5 Channel

Problem Solution

There are no channels available.

■Check if the antenna is properly installed.

■Press the Auto Channel button to store channels.

■Contact your local broadcasting service station.

Some channels are not available.

■Adjust the position, angle or direction of the antenna.

■Activate the Reception Sensitivity Boost feature.

■Contact your local broadcasting service station.

■Use the number keys to select a specific channel and press Store/Clear to memorize it.

Only the UHF (14-69) channels

are not available. Check if the antenna is able to receive UHF signals.

6-2-6 Others

Problem Solution

The TV makes a noise as if

something is dropping inside.

This noise may occur when the plastic material inside the TV expands or contracts according

to the seasonal temperature or humidity. This is like the noise from a furniture/cabinet/sink

unit, and there is no need for concern.

Troubleshooting

Samsung Electronics 6-7

6-3 Troubleshooting Procedures by Error Modes

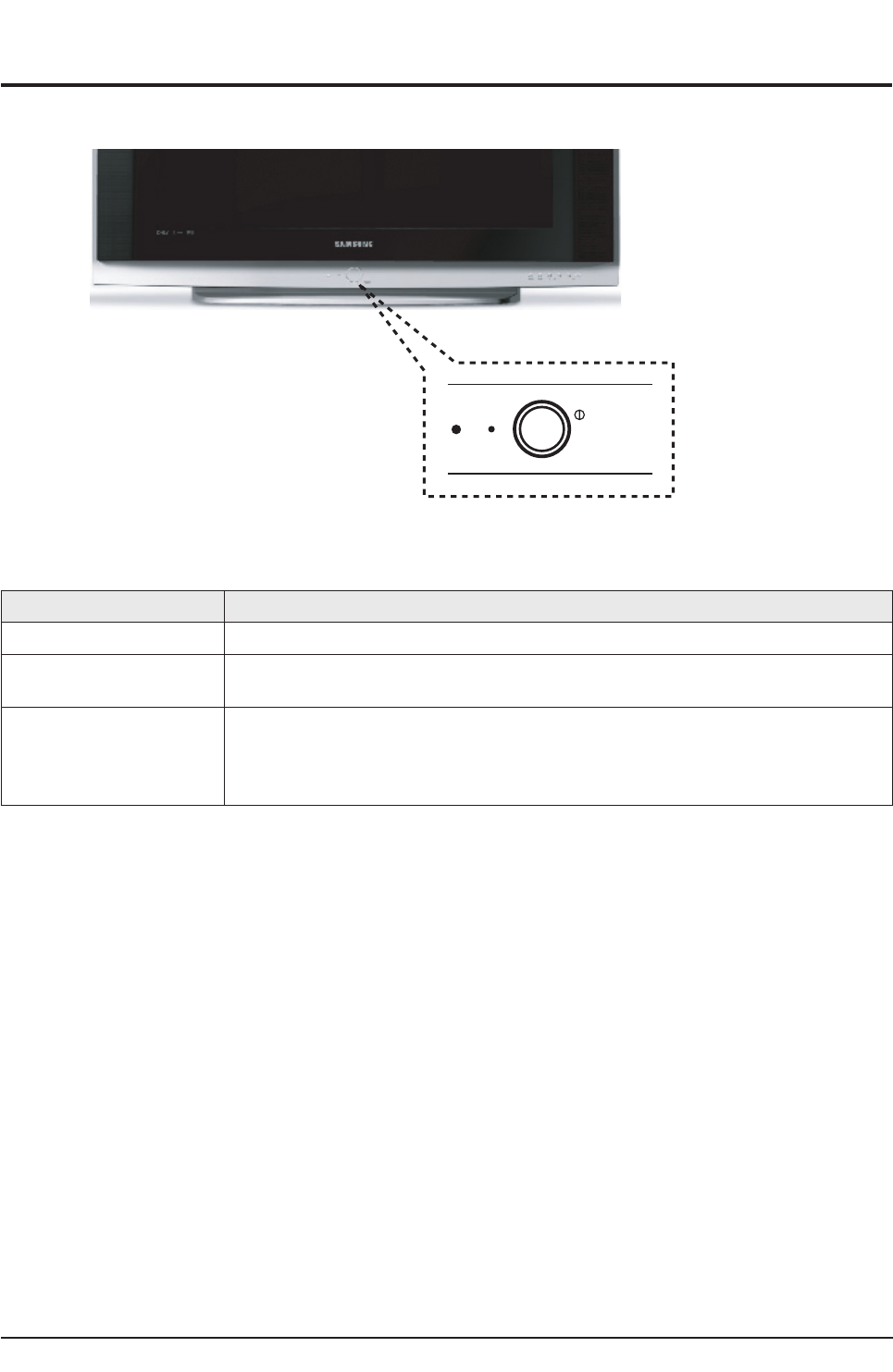

6-3-1 Basic Troubleshooting: Diagnosis of LED on the Front Panel

6-3-2 Troubleshooting by the Checksum

■Diagnosis of trouble by the checksum is neither reliable nor convenient.

You can only use the checksume of the current direct-view TV to determine whether the software is corrupted or not.

The Checksum value is determined according to the version of the software loaded on the set.

Therefore, you can determine whether the software has been properly downloaded, if you know the correct checksum for that

version of the software.

You can check the checksum according in the following order.

Factory Mode →Checksum →Right Button →Calculate Checksum →Output Checksum (e.g. 0xab2b)

■Checksum Examples

T_ULTPEU_1002 : Checksum = 0x4faa

Power Description

○This happens when the Master Switch is not pressed or the power cord is disconnected.

●This happens when the power cord is connected and the power switch is pressed.

If you cannot set the power switch on by pressing it, check the power switch Ass'y.

○→◑→●

If you press the power switch of the transmitter or the channel key on the remote control when in

St-BY status, the screen will be turned on.

If the LED blinks and the screen is not displayed, check the connection between the Power and

the System Board.

●: Light is On

◑: Light is Blinking

○: Light is Off

Troubleshooting

6-8 Samsung Electronics

6-4 Troubleshooting Procedures by ASS'Y

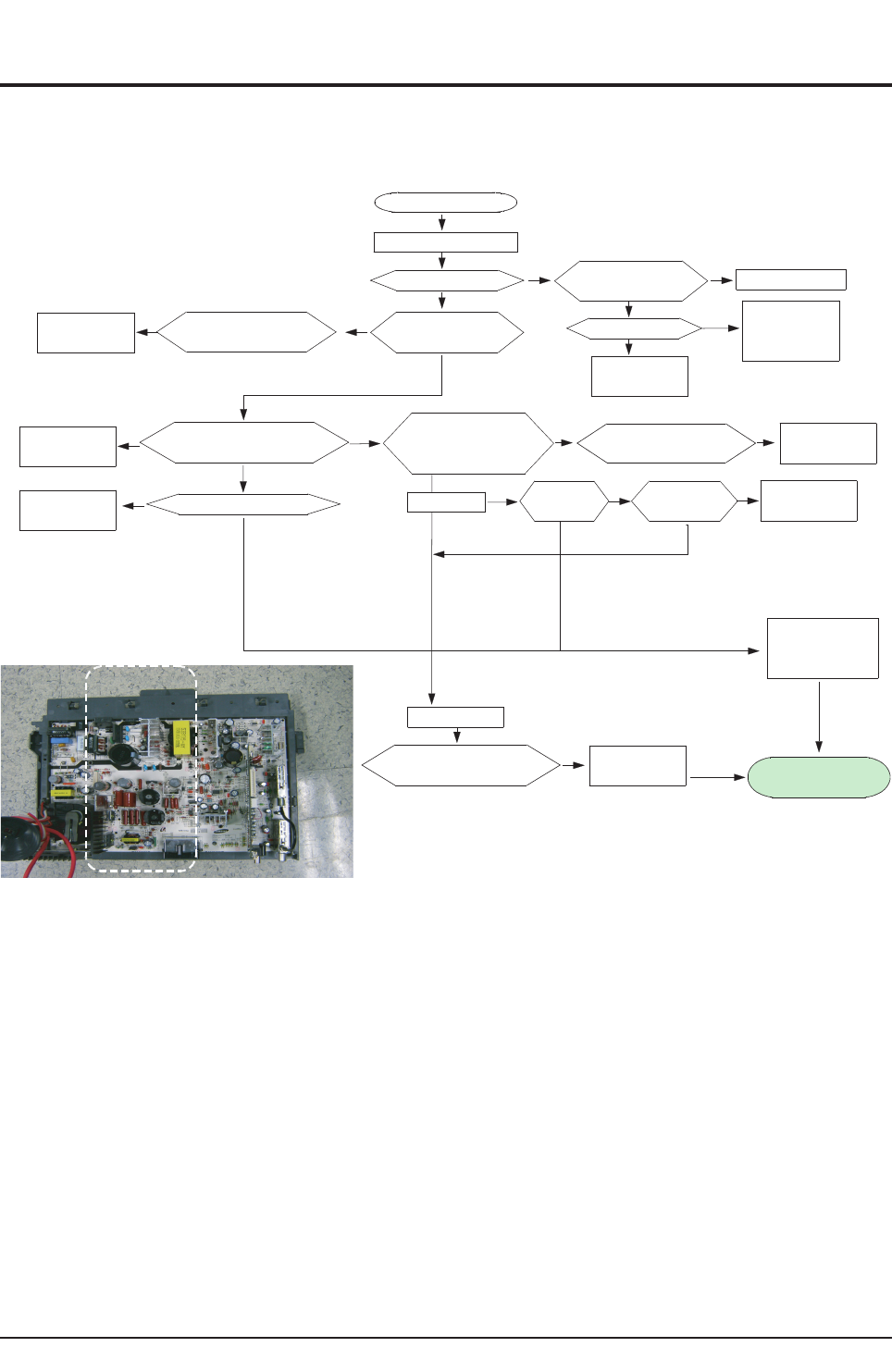

6-4-1 NO Power

1. Power part of the Main Board Check

No-Power

AC Voltage Impress

IC801S #1 CHECK FP801S FUSE

CHECK AC FUSE CHANGE

D801S CHECK

D801S

BRIGE DIODE

CHANGE

IC801S

STR IC CHANGE

IC801S #4 CHECK

DC:16~24V

CHECK HOT BLOCK

Materials

C802(B+) Voltage check

DC :135V

F/back Line Check

■ 135V F/B Line

■ 12V Line

L804 Open

B+ check

R817 Line

Check

Change

Materials

F-Box Check

and Change the

Module

OVER

OK NG

Change

Materials

12V Line

NG NG

B+(132V) Line

OK OK

F/BACK LINE CHECK

PC801S/DZ801/Q803...

Change

Materials

No-Power

Repair End

OK or Low

HC401 H-OUT TR Cehck

FD801S/FD802S FUSE/

Diode Check

Change

Materials

Change

Materials

Change

Materials

IC801S

Troubleshooting

Samsung Electronics 6-9

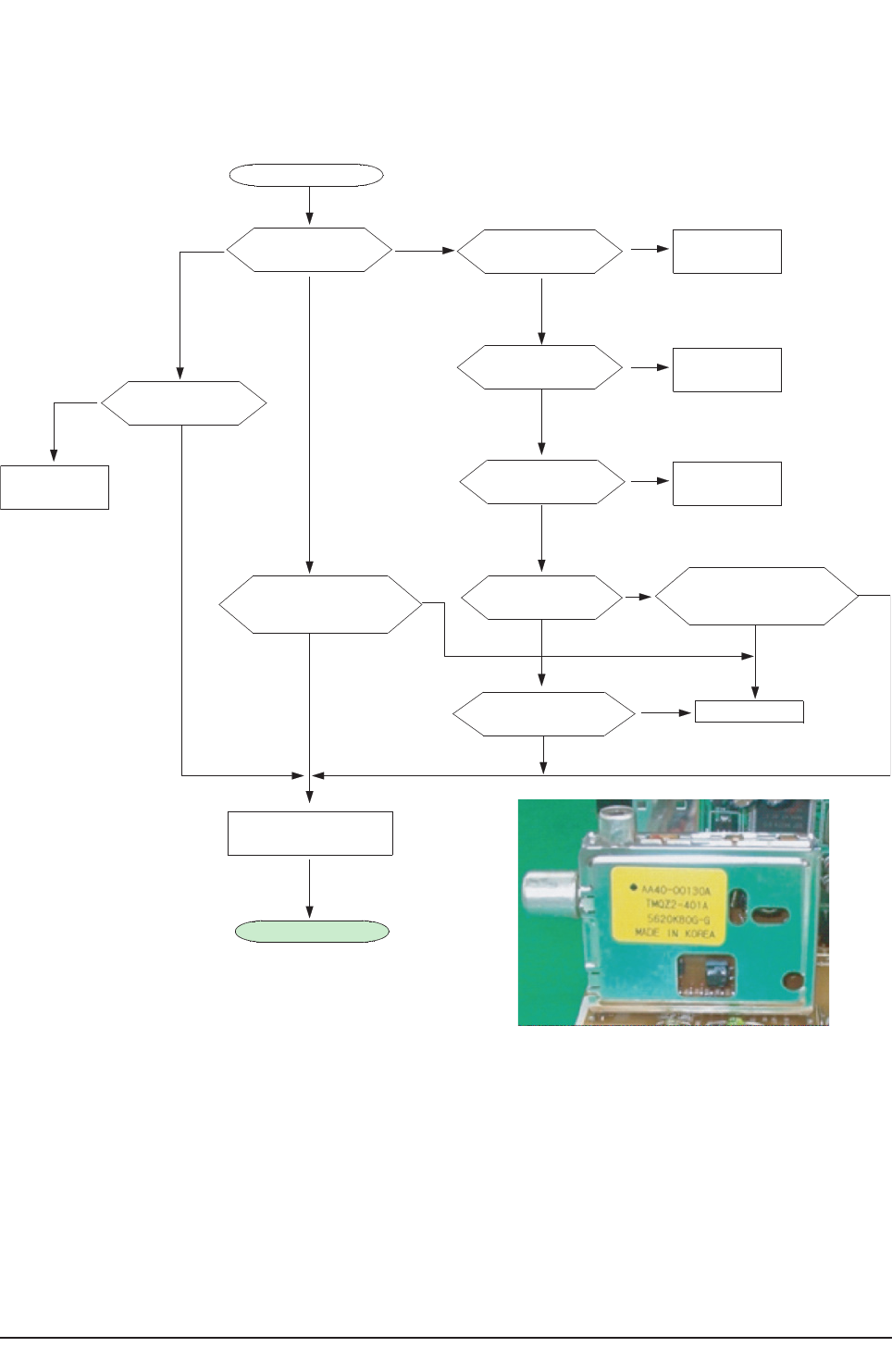

6-4-2 NO Video

1. when the power is normal

No-Signal

RF,VIDEO

CEHCK

TU01

9V check

SCART1/SCART2

CVBS Check

TU01

5V check

TU01

33V check

TU01 SDA/SCL

check

C117 CVBS

CHECK

F-Box Module

Change

IC801 78R09

CHANGE

IC803S 78R05

CHANGE

OPEN Tuer SDA/SCL

Check SCL/SDA

Tuner Change

DZ405 TZP33A

Change

OPEN Tuer SDA/SCL

Check SCL/SDA

Repair End

EXT :No

RF :Ok

EXT :Ok

RF :No

Video:No

RF:No

Cehck A/V

Cabile

OK OK

TU01

Troubleshooting

6-10 Samsung Electronics

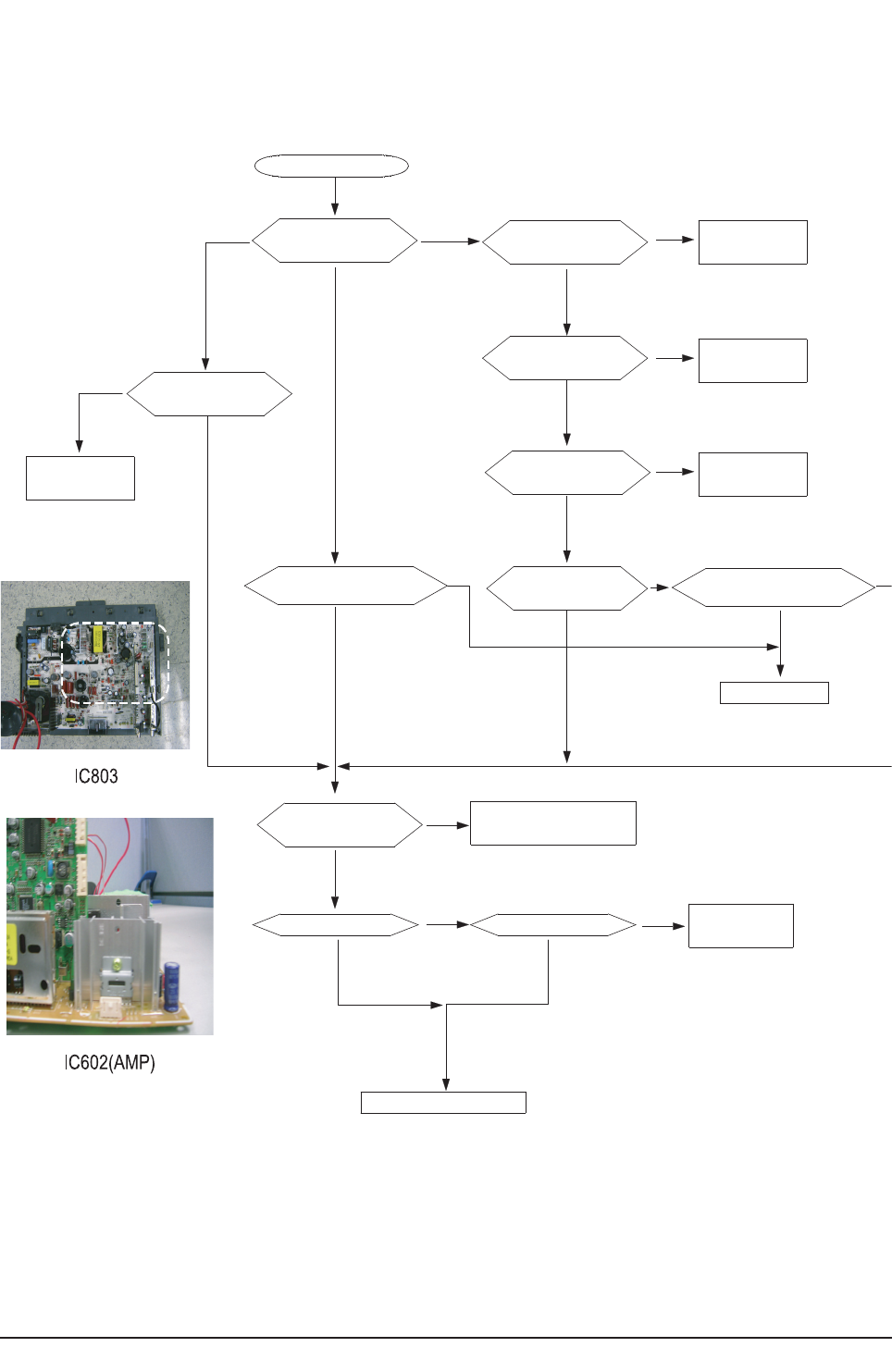

6-4-3 No Sound

1. when the power is normal

Cehck A/V

Cabile

EXT :No

RF :No

EXT :Ok

RF :No

EXT :No

RF :Ok

OPEN Tuer SDA/SCL PIN

Check SCL/SDA

DZ405 TZP33A

Change

OPEN Tuer SDA/SCL PIN

Check SCL/SDA

Tuner Change

IC803S 78R05

CHANGE

IC801 78R09

CHANGE

F-Box Module

R/L-OUT Check

TU01 SDA/SCL

check

TU01

33V check

TU01

5V check

SCART1/SCART2

CVBS Check

TU01

9V check

RF,EXT-IN

CEHCK

No-Signal

F-Box Module

Change

AMP B+ Check NG FD801S CEHCK Change

Materials

AMP CHANGE

Troubleshooting

Samsung Electronics 6-11

6-4-4 No Raster

1. when the H/V is normal

No-Raster

FBT Screen VR MAX

And Screen check

CRT ASSY

CHECK

Heater Line

Fusible Resistor

change

FBT 16.5V/-16.5V

Line Diode and

Fusible Resistor

check and Change

Raster Check IC501 B+

CHECK

IC501 B+ Line Check and

Materials change

IC501 Output

Signal Check IC501 TDA6111Q change

RGB Line Materials

Check and Change

Raster

Black or

Horizetal line in

middle of screen

Black

Raster

Black

FBT 16.5/-16.5V

CHECK

Go to the No-Video check

Flow Chart

IC301 #4,#5

V-Sync Check

F-BOX Module

Change

hori

Vertical Block

Materials Check

F-BOX Module

Change

Verticla IC

LA7845 Change

OSD Check OK

F-BOX Module

Change

Troubleshooting

6-12 Samsung Electronics

6-5 Troubleshooting by Blocks

6-5-1 Troubleshooting System Boards

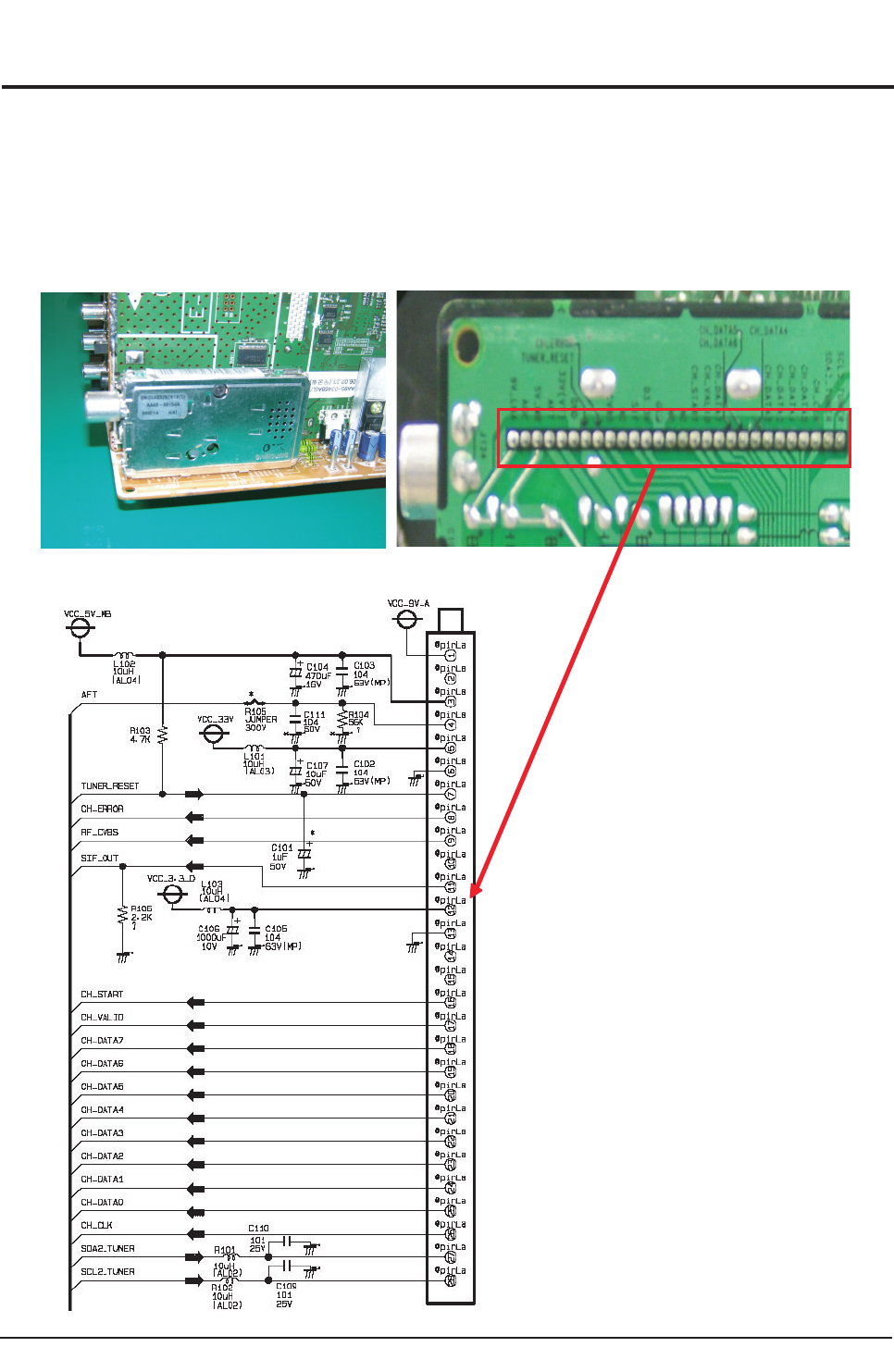

1. Tuner Diagnosis

If no signal is received even though the RF signal from the external aerial is connected to the MAIN Board Tuner, check the

following items.

- Supply Power: 5V, 3.3V, 33V

- Check for an RF defect: Check the CVBS output

- Check for an AUDIO defect: Check the SiF Signal output

Troubleshooting

Samsung Electronics 6-13

2. External Input Diagnosis

It receives the EXT1/EXT2/signal and consists of monitor output (video and audio).

The signal is input to VSP9402 through the port. If no signal input/output is detected, check the following items.

- Power supply : VSP9402(3.3V,1.8V) , CXA2180(5V)

- Check if the input and output jacks are defective.

Troubleshooting

6-14 Samsung Electronics

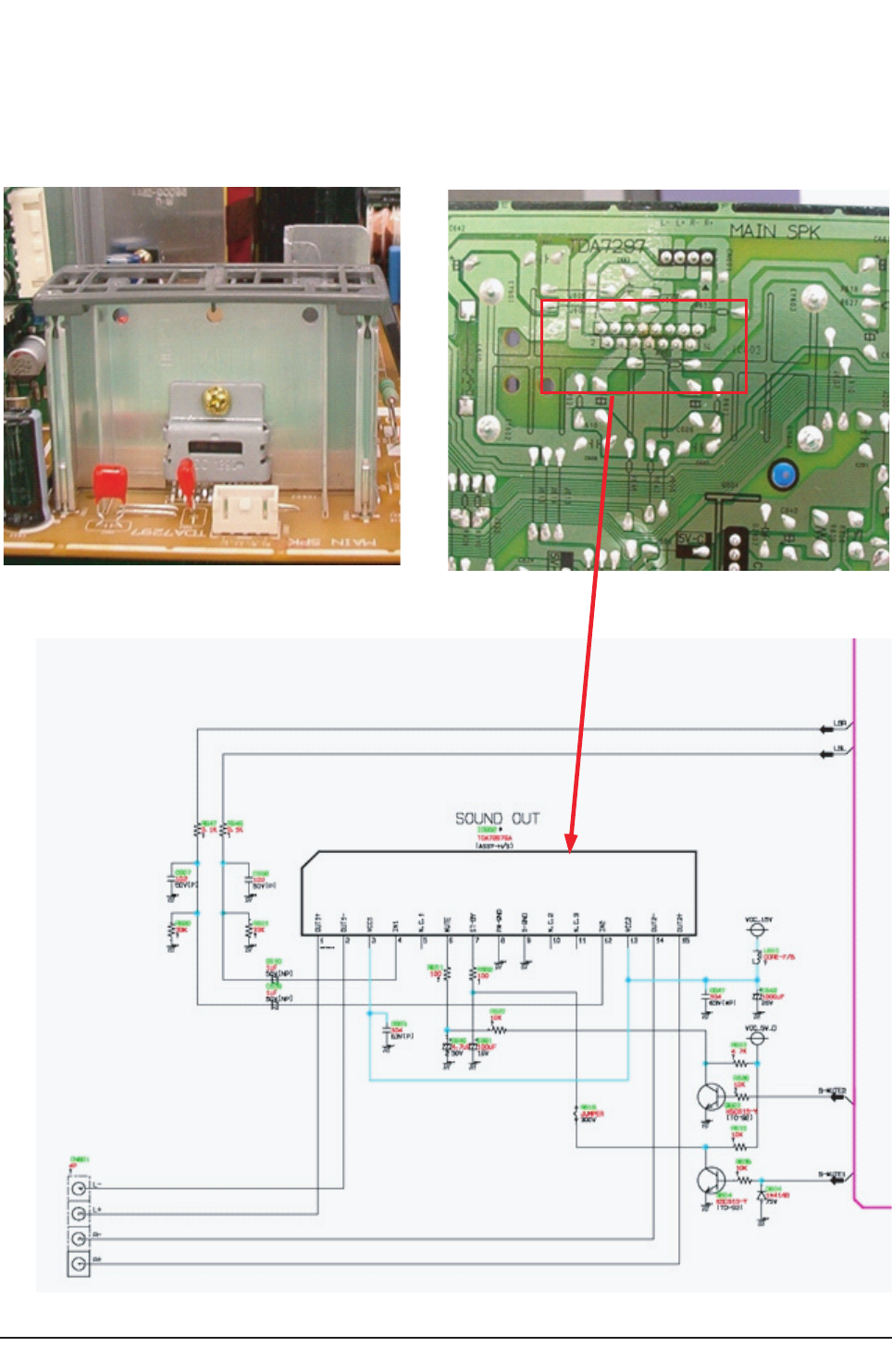

3. TDA7297(Audio AMP) Diagnosis

The signal is received from the Audio Processor (VCT69xyP) and sound is output at 10W + 10W power.

- Power supply :15V

- Check for input defects : L/R

- Check for output defects : L+, L-, R+, R-

Troubleshooting

Samsung Electronics 6-15

4. VCT67xyG Diagnosis

It processes the one chip that Micom, Switching, Decoder

- Power supply : 8V, 5V, 3.3V, 1.8V

- Check for input defects : RF, SCL, SDA, S-Video(Y,C), SIF,

Scart 1/2, Component 1/2, HDMI

- Check for output defects : RF, Monitor out, R/G/B

Sound L/R

Troubleshooting

6-16 Samsung Electronics

5. CX2165 Diagnosis

The Y/Pb/Pr signal is received from VCT69xyP and the signal is output as

R/G/B. It also outputs the V/H Drive, E/W and performs the ABL and EHT

operation. If V-Drive output is not detected, check for an IC defect.

- Power supply : 5V, 9V

- Check for input defects : R/G/B, H/V

- Check for output defects :

Troubleshooting

Samsung Electronics 6-17

6. MST3383M Diagnosis

HDMI Decoder

- Power supply : 5V, 3.3V, 2.5V

- Check for input defects : SCL, SDA, Reset

- Check for output defects : HDMI 24bit Data, I2S, H/V

6-18 Samsung Electronics

MEMO

Block Diagram

Samsung Electronics 7-1

7. Block Diagram

7-1 Overall Block Diagram

SM PS

B l o c k C A P

B RID G E

D IO D E

PFC

( O p tio n )

LINE FILTER

MAIN

TRANS RELAY

INPU T

AUDIO

AMP 4P

LED

M AIN

TU NER

34P

M u lti D IO D E

Re g ula to r

(KA393)

F B T

Vertic al

Am p

H - O UT TR

D am p e r H D T

Dyn am ic

Fo c u s

TRANS

REM O C O N

M O D U LE

MASTER

S/ W LINE FILTER

Ct / Cs

C o nd en se r

Linearity

C o il

In n er

C o il

In n er

C o il

W id t h

C o il

Block Diagram

7-2 Samsung Electronics

2" Sl i m Fi t

FBT

-V/+V

L-tupnIpmA

DTV Module

)GEHM715

5iTS

(

nIFIS

VC3V

VCFR

Audio AMP

)AS7927ADT(

TUO-L

W01

Ver ti cal

A0839VTS

RGB Dr i ve

Q1116ADT

Dr ive TR

96LJF(

EEPROM

C42

(

S2I

Y1tnenopmoC

bP1tnenopmoC

rP1tnenopmoC

IMDH M

ST3383M

V CT 6 9 x y P

OFDM/NIM&

ANALO

GTM-BLO

nISB

,1tr

A-L3VA

A-R3

R/LoiduA2,1tracS

tuOBGR

B/F,BG,

1tracS

tuOSBVC2,1tracS

tuOR/LoiduA2,1tracS

R/LB,G,RSBVC

TRAU

XT/XR

enuT_CI

CXA2165

oediV-S

VUYCII

R-tupnIpmA

EEPROM

)80C42(

CII

EEPROM

)20C42(

FST3125

tib42

BGR

CII

VTD-CII

CII

renuT_CII

F/ BOX

145V

14V

220V AC

STR

F0576X

12V

14V

5V Tr ans

5435REE

145V

+16/ - 16V

200V

5V/ 3. 3V/ 33V

+16/ - 16V

Block Diagram

Samsung Electronics 7-3

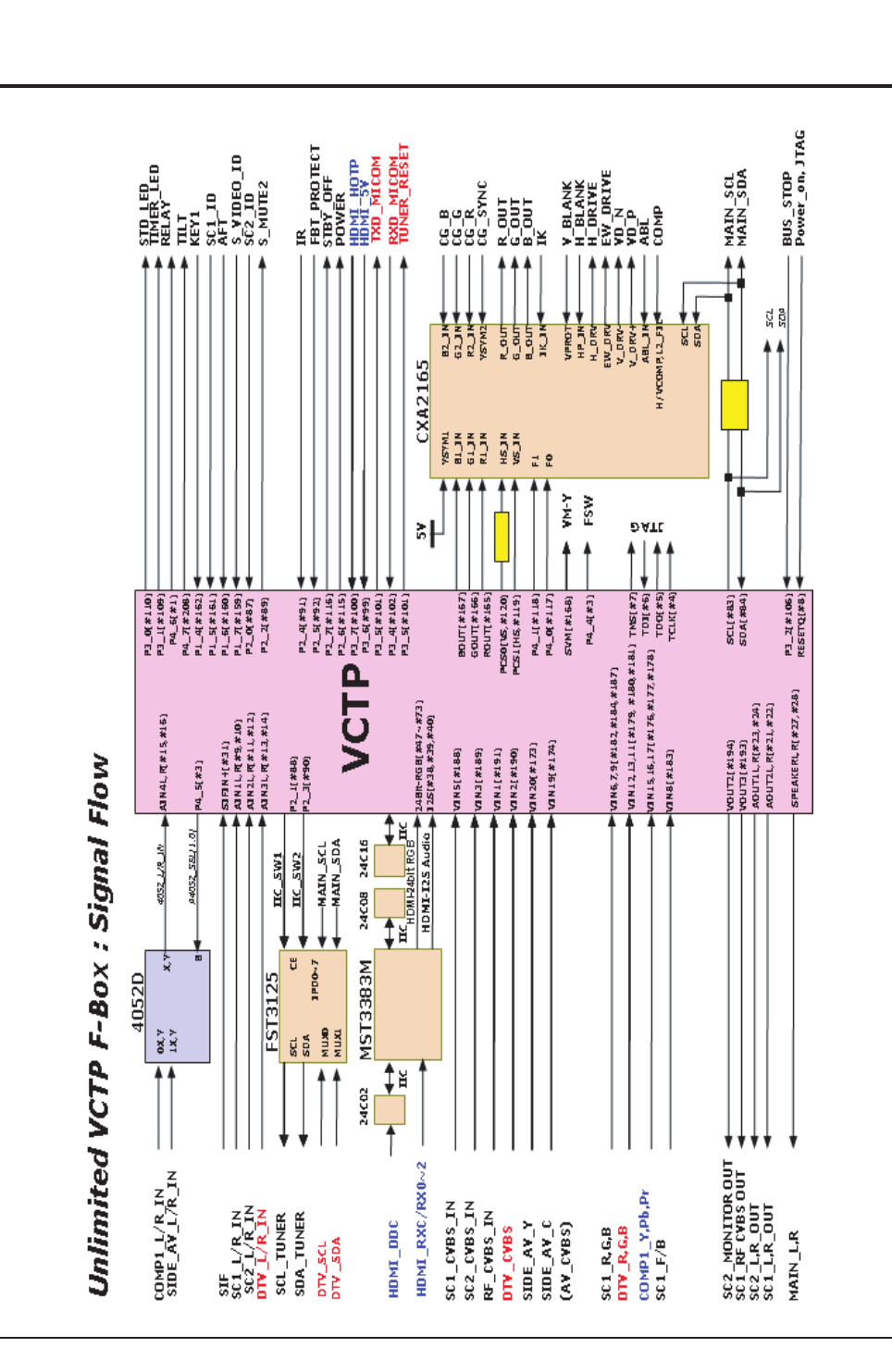

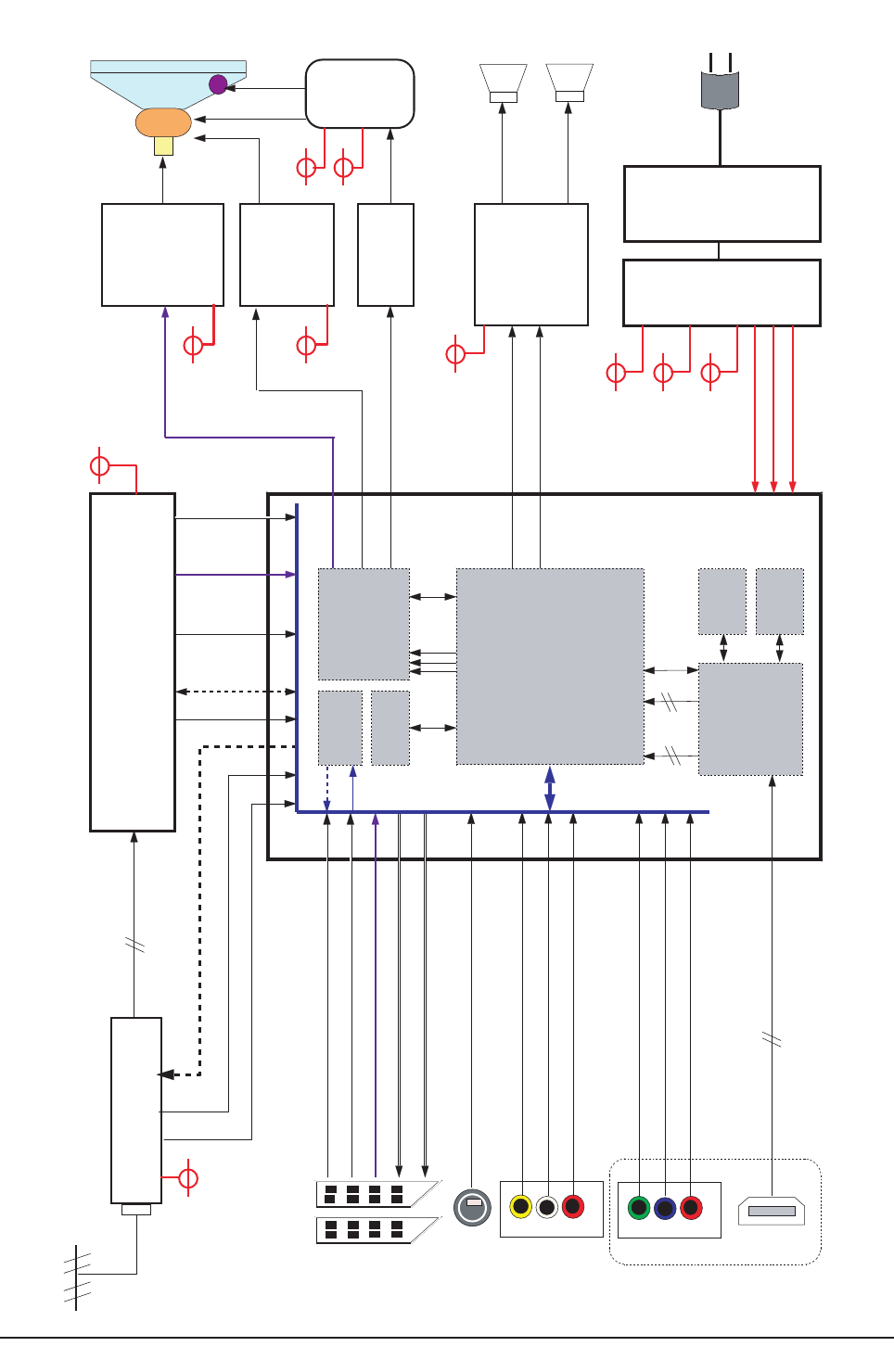

7-2-1 F-Box Block Diagram

7-2 Partial Block Diagram

Block Diagram

7-4 Samsung Electronics

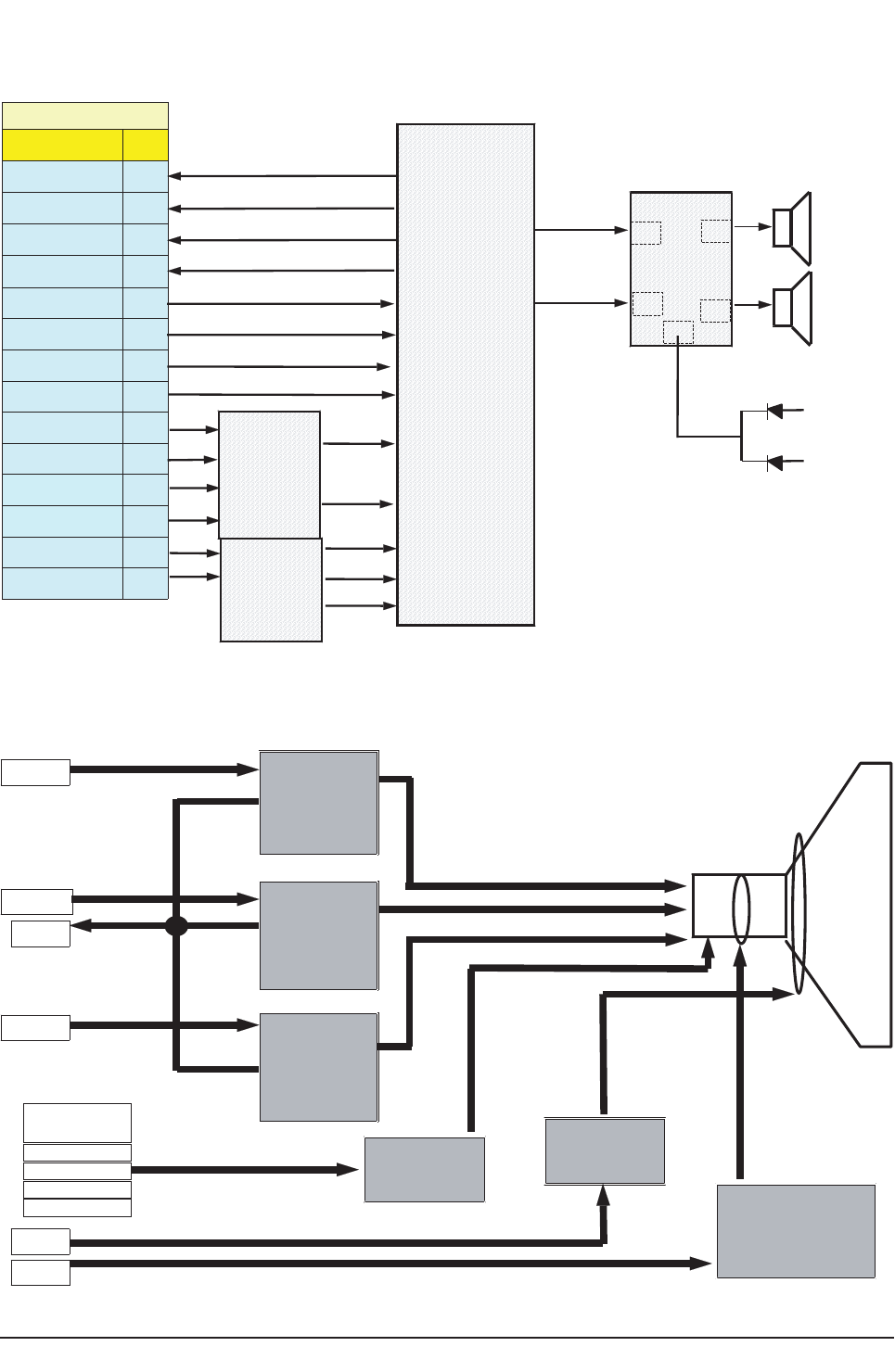

7-2-2 Sound Block Diagram

4052

#11

MST

3383M

NPUT SOURCE

SCART PI NO

S1 RF OUT - R #31

S1 RF OUT - L #29

S2 MONITOR OUT- R #15

S2 - L #13

S1 AUDIO I

- L #27

S1 - R #25

S2 - L #21

S2 - R #19

FRONTAVIN- L

- R

COMP1 I N- L

- R

HDMI I N- L

HDMI I N- R

MAIN- L OUT

MAIN- ROUT

MAIN

AMP

7297SA

S- MUTE1

Fr om B+

S- MUTE2

Fr om M icom #49

MAIN SPK- L

MAIN SPK- R

#12

#21

#22

#50

#49

#13

#61

#60

#10

#12

#11

#23

#24

#14

#39

#121

LRCLK

SCLK

#122 #40

DATA #38

#120

MONITOR OUT

AUDIO I N

FRONTAVIN

COMP1 I N

7-2-3 CRT Diagram

Q1116ADT

EVIR

D-

)Q1116(

EVIRD-R

Q1116ADT

EVIRD-G

)Q1116(

Q1116ADT

EVIRD-B

)Q1116(

0302ADT

)$5.0(TLIT

-B

LIT

TIUCRIC

)DIRBYH(

,OE

OFV

LIT

TRO

21-

TROPREW

FV0

ETR

TOPS

RELLIK

Block Diagram

Samsung Electronics 7-5

7-3 Power current block diagram

PMABGR

V541

retaeHTPC

V42.6

V33 V33renuT

V5.61 pmAlacitreV A0839VTS

)A44.

(A80

1pmAdnuoS

V3.3 CD-CD

ROTREVNO

PTCV

Pyx96

V5.61-

DEL/RI

IRD

TDH

Am045/V3.3

Am00

8.1

A6.1/V0.7

XOB-F

50R87

Am06

ITLUM

1-'GER

M3833TSM

5612AXC

MORPEE/2504

50R872

V3.3/V5renuT

eludoMVTD

Am051/V3.3

Am071/V5.2

33MR87

Am011/V5renuT

Am061/V3.3renuT

Am088/V0.7

m35

1/V5

Am02/V5

R87

713 evirD-WE

V21

Am91

m02

Am347/V

Am051/V5

Am011/V5

V002

syawlA

BM_V5

AM_V5

A_V21

7-6 Samsung Electronics

MEMO

Wiring Diagram

Samsung Electronics 8-1

8. Wiring Diagram

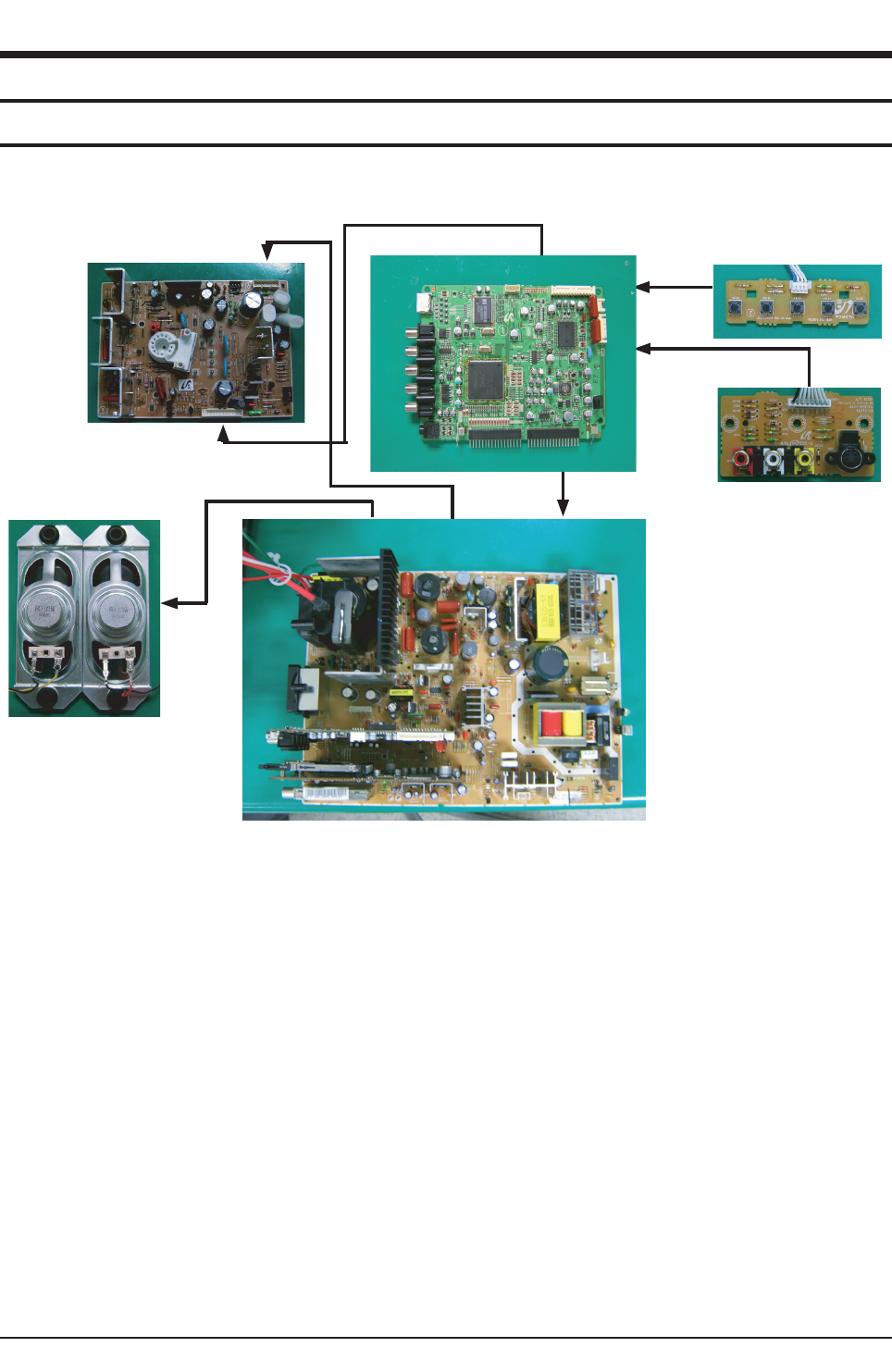

8-1 Overall Wiring

CRT PCB SIGNAL

KEY-CONTROL

AV-IN

F-BOX INSERT

SOUND OUT

CRT PCB POWER

Wiring Diagram

8-2 Samsung Electronics

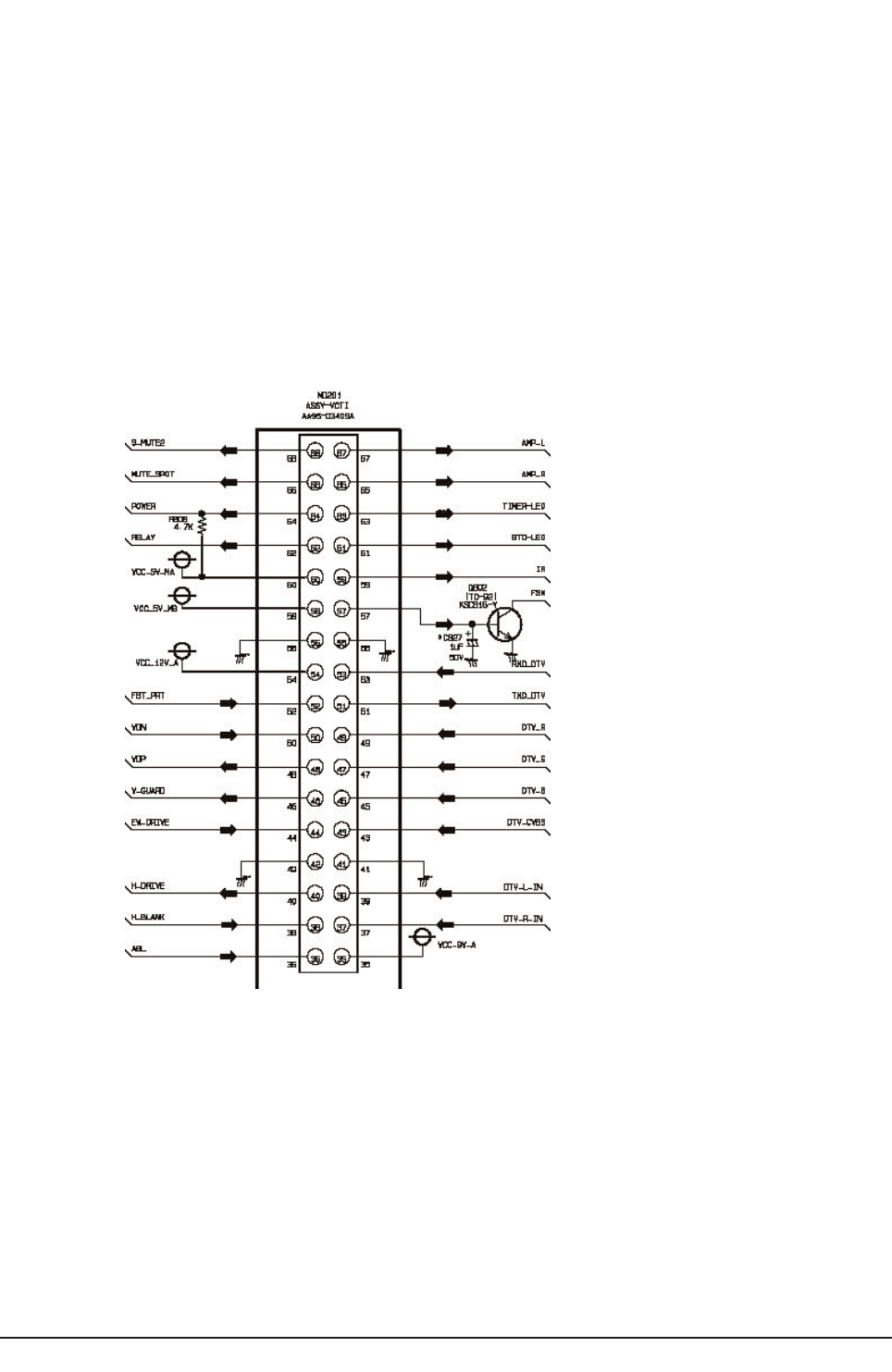

8-2 Pin Connection

VCT I

Mod u l e

....

36 35

34 33

.. ...

2 1

PCB Top Ref er enc e

(Rear)

(Front)

SDA2( Tuner ) 34 33 GND

SCL2( Tuner ) 32 31 Scar t 1 R- out

CH- SDA ( DT V I 2 C ) 30 29 Scart 1 L- out

CH- SCL ( DT V I 2 C ) 28 27 Scart 1 R-in

GND 26 25 Scart 1 L-in

Sc ar t 1- CVBS 24 23 GND

GND 22 21 Scart 2 R- in

Sc ar t 2- CVBS 20 19 Scart 2 L-in

GND 18 17 GND

Moni tor Out 16 15 Scart 2 R-out

GND 14 13 Scart 2 L-out

RF- out 12 11 Tuner Reset

GND 10 9RF-CVBS

Sc ar t 1- R 87AFT

Sc ar t 1- G 65SIF

Sc ar t 1- B 43Scart2-ID

Sc a r t 1 - F / B 21Scart1-ID

S- Mute 2( Amp) 68 67 Amp- L

Mut e ( Sp o t Ki l l er ) 66 65 Amp- R

Power CTL 64 63 Timer - LED

Re l a y 62 61 ST D- L ED

5V_MA 60 59 IR

5V_MB 58 57 FSW

GND 56 55 GND

12V_A 54 53 RXD( M i c o m)

FBT- Pr t 52 51 TXD( Mi com)

V- Gua r d 50 49 DTV- R/ Pr

V- Dr i v e - 48 47 DT V - G / Y

V- Dr i v e + 46 45 DTV- B/ Pb

EW Dr i v e 44 43 DTV- CVBS

GND 42 41 DTV L - i n

H- Dr i v e 40 39 DTV R- i n

H- Bl a n k 38 37 GND

ABL 36 35 SP_DI F

(CN02) (CN01)

( CN0 2 )

(CN01)

PCB Diagram

Samsung Electronics 9-1

9. PCB Diagram

9-1 Main Board

CN403

CN601

GT805

GT806

CN802

GT804

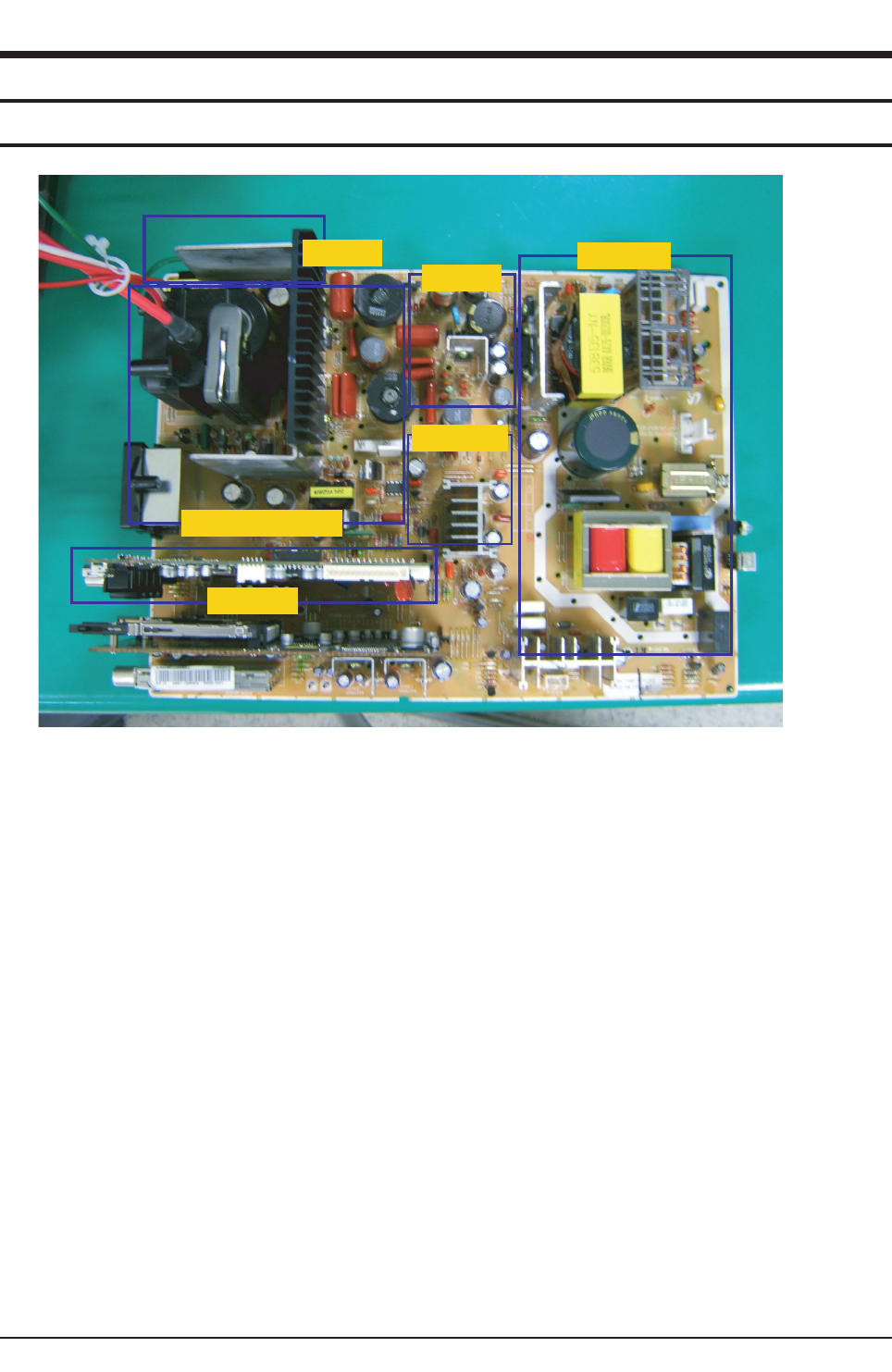

9-1-1 Assy Main Board

■The System Board that Controls Various Signals for Video Signal Processing and Product Operations

9-1-2 Names & Roles of Key Parts

＊CN601 : This is a 4 pin port connected to the Speaker, and sends the signal from the AMP to the speakers.

＊CN403 : This is a 8 pin port connected to the CRT Board and supplies 200V, +16V, -16V and Heater voltage.

＊GT804 : This is a ground port to prevent high voltage due to lighting.

＊CN802 : This is a 3 pin port connected to the AC power cable. It is connected to the power cable socket.

＊GT805, GT806 : This is a port connected to the D-Coil surrounding the CRT.

PCB Diagram

9-2 Samsung Electronics

9-1-3 Main Board Connector Pin

CN401

Connected to the CRT Board

PIN No. Pin Name

1 200V

2 NC

3 Heater

4 GND

5 -16.5V

6 +16.5V

7 GND

8 NC

PIN No. Pin Name

1 R+

2 R-

3 L+

4 L-

CN601

Connected to the Speaker Port

PCB Diagram

Samsung Electronics 9-3

9-2 Feature Box Board

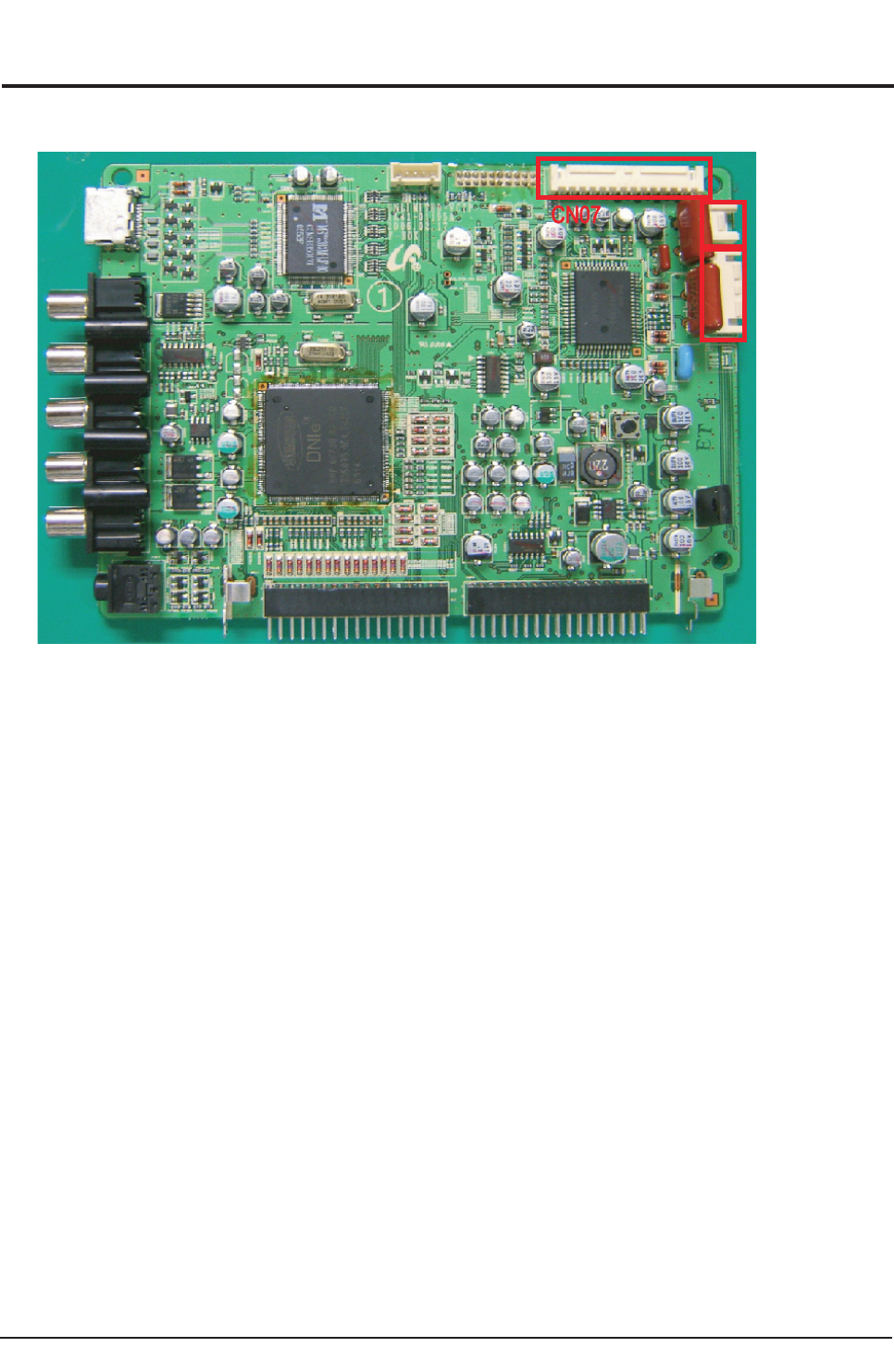

9-2-1 Assy Feature Box Board

CN05

CN03

■This controls the path of the electron beams from the CRT electron guns using the deflection coil.

9-2-2 Names & Roles of Key Parts

* CN07 : This is a 14 pin port connected to the CRT Assy's, and outputs final R/G/B signals to the CRT Ass'y.

In addition, it outputs the Tilt, VM, and Power signals for the CRT Drive.

* CN05 : This is a 4 pin port connected to the Control Ass'y, and receives TV/Video, Menu, Ch Up/Down and Vol -/+ signals.

* CN03 : This is a 8 pin port connected to the Side AV, and receives S-Video2 and AV4 external inputs.

PCB Diagram

9-4 Samsung Electronics

9-2-3 Feature Box Board Connector Pin

CN07

Connected to the CRT Ass'y

CN05

Connected to the Control Ass'y

CN03

Connected to the Side AV Port

PIN No. Pin Name

1 AKB

2 GND

3 B-OUT

4 GND

5 G-OUT

6 GND

7 R-OUT

8 GND

9 12V_A

10 SVM

11 POWER

12 TILT

13 SVM

14 GND

PIN No. Pin Name

1 GND

2 KEY-1

3 NC

4 KEY-2

PIN No. Pin Name

1 SV-C-IN

2 SV-C-ID

3F-CVBS IN

4 GND

5 FAV-L-IN

6 GND

7 FAV-R-IN

8 GND

PCB Diagram

Samsung Electronics 9-5

9-3 CRT Board

9-3-1 Assy CRT Board

FN1

■CRT Drive

This supplies the final R/G/B signal from the F-Box and the CRT deflection signal to the CRT

9-3-2 Names & Roles of Key Parts

*GT501, GT502, GT505, GT506 : This is a port connected to the TBC-Wire and plays the role of CRT ground.

*GT503, GT504 : This is a port for countermeasures against compulsory discharges and is connected to the Main Board.

*CNC04 : This is a port to receive the R/G/B output signals from the Feature Box.

*CNC02 : This is a port that receives power for the CRT and AMP from the Main Board.

*FV1 : A port to connect the VM signal to the DY Ass'y.

*FN1 : A port to connect signals to the Tilt Coil and is regured for the screen slant adjustment.

PCB Diagram

9-6 Samsung Electronics

9-3-3 CRT Board Connector Pin

CNC04

Connected to R/G/B signal from the Feature Box

CNC02

Connects the power from the Main Board

FV1

Connected the VM signal to the DY Ass'y

FN1

Connects the signal to the Tilt Coil

PIN No. Pin Name

1 AKB

2 GND

3 B-OUT

4 GND

5 G-OUT

6 GND

7 R-OUT

8 GND

9 12V_A

10 SVM

11 POWER

12 TILT

13 SVM

14 GND

PIN No. Pin Name

1 200V

2 NC

3 Heater

4 GND

5 -16.5V

6 +16.5V

7 GND

8 NC

PIN No. Pin Name

1 VM

2 NC

3 VM

PIN No. Pin Name

1 GND

2 GND

3 TILT

4 TILT

10. Schematic Diagram

Samsung Electronics

Schematic Diagram

10-1

TP01

TP02

TP03

TP04

TP05

TP08

TP07

TP06

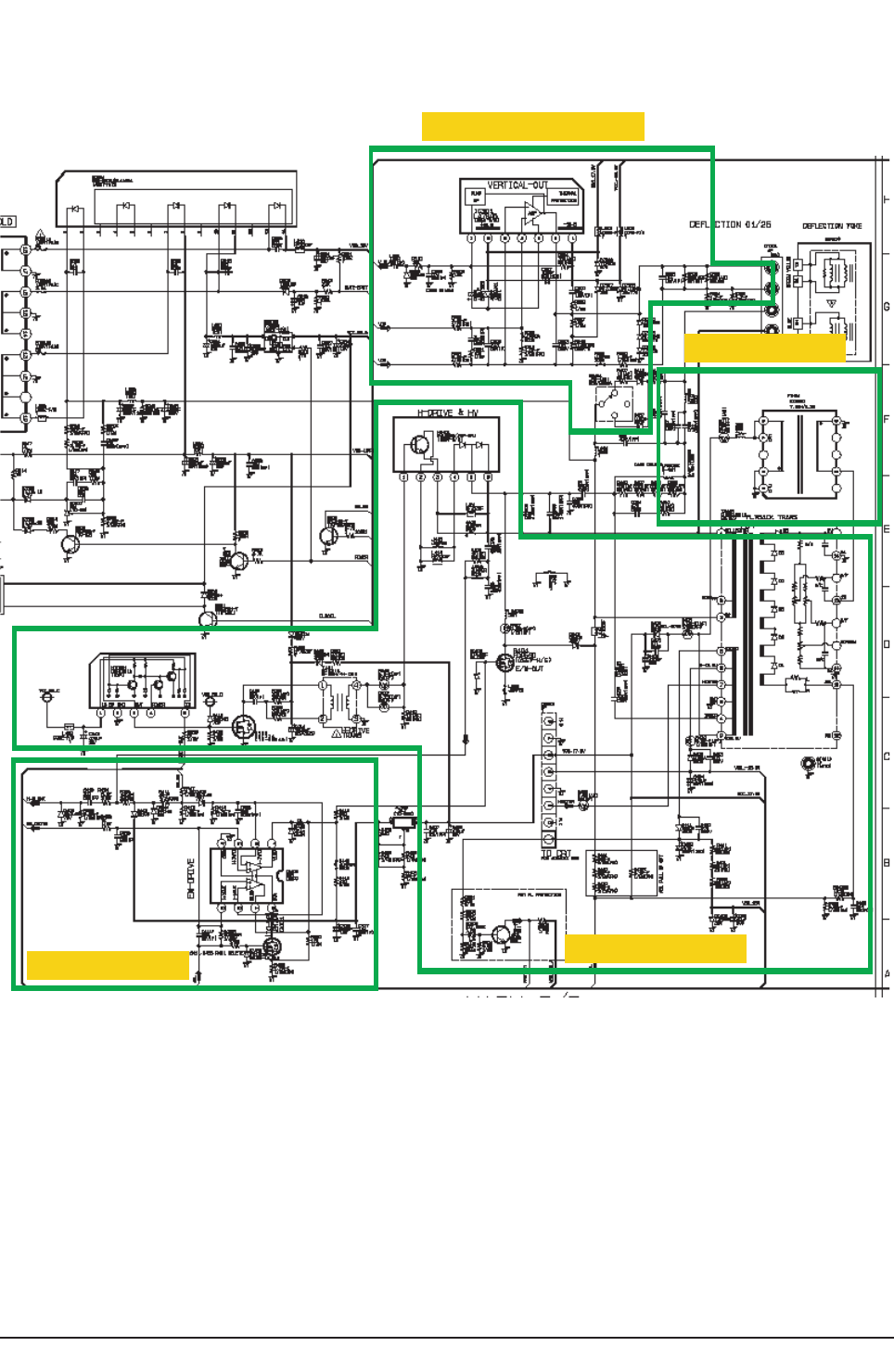

10-1 MAIN

This Document can not be used without Samsung’s authorization.

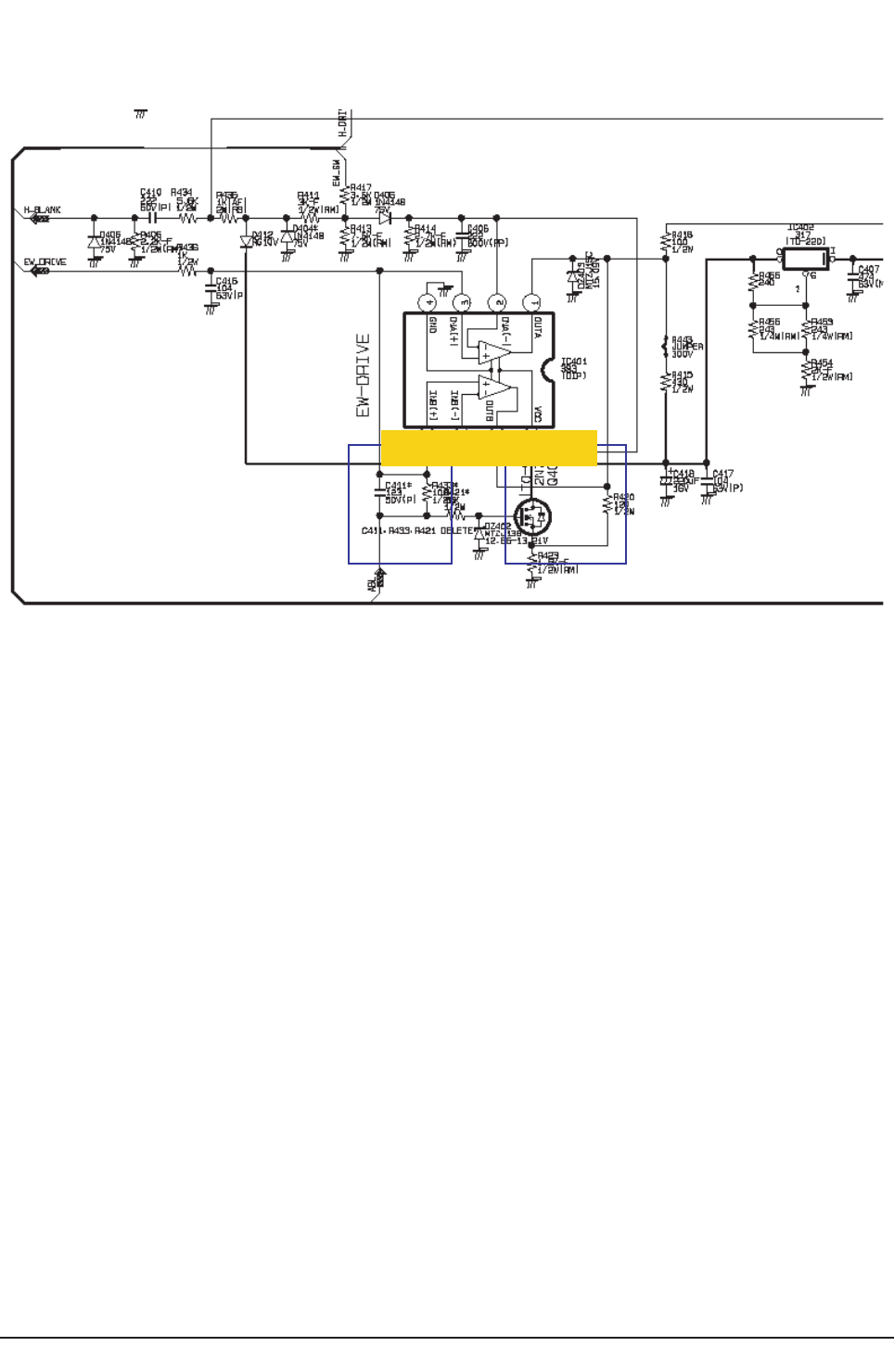

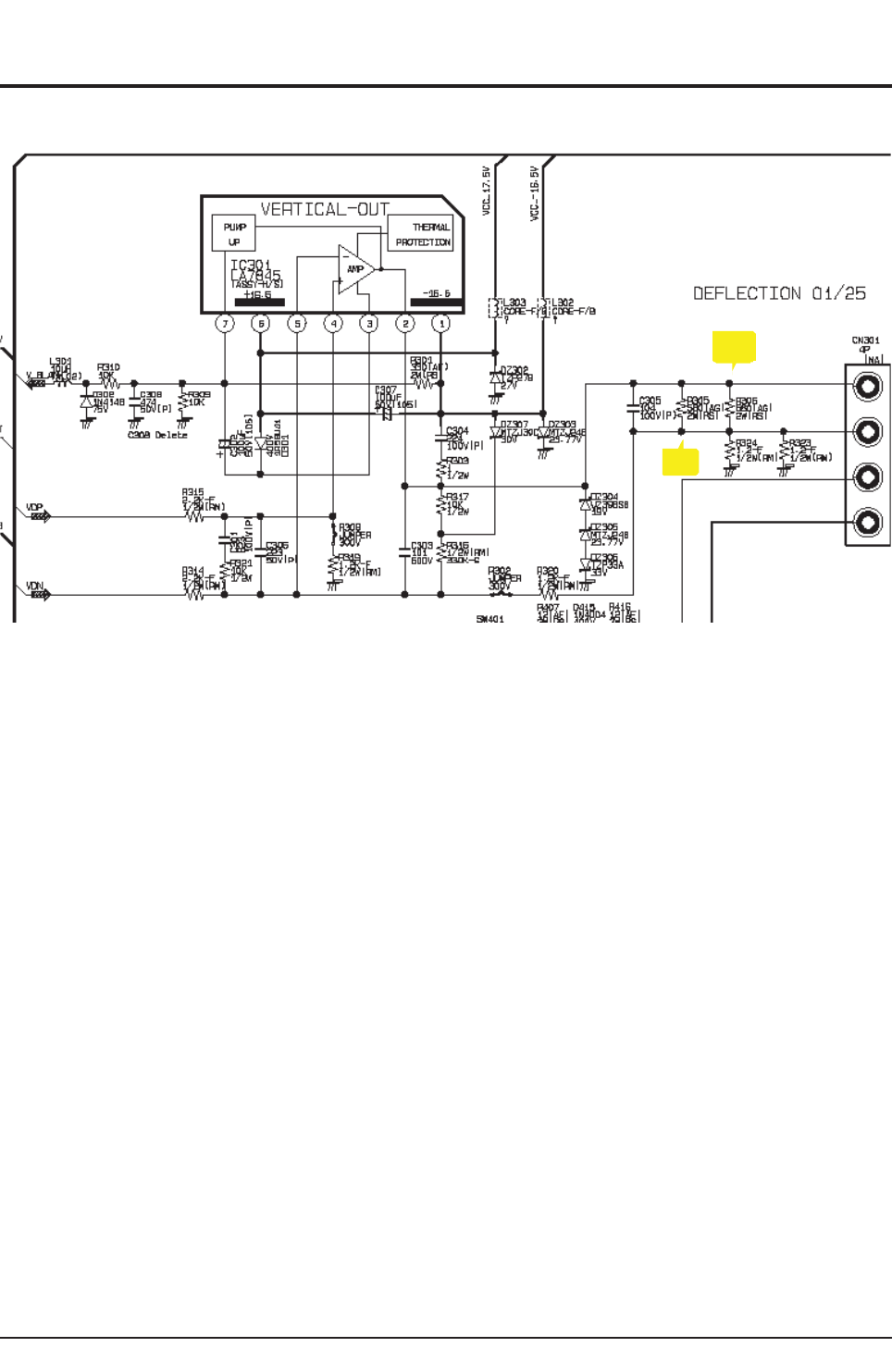

10-1-1 POWER & DEF

Power

Signal

Schematic Diagram

10-2 Samsung Electronics

TP09

TP10

TP12

TP13

TP14

TP15

TP16

TP17

TP18

TP19

TP11

This Document can not be used without Samsung’s authorization.

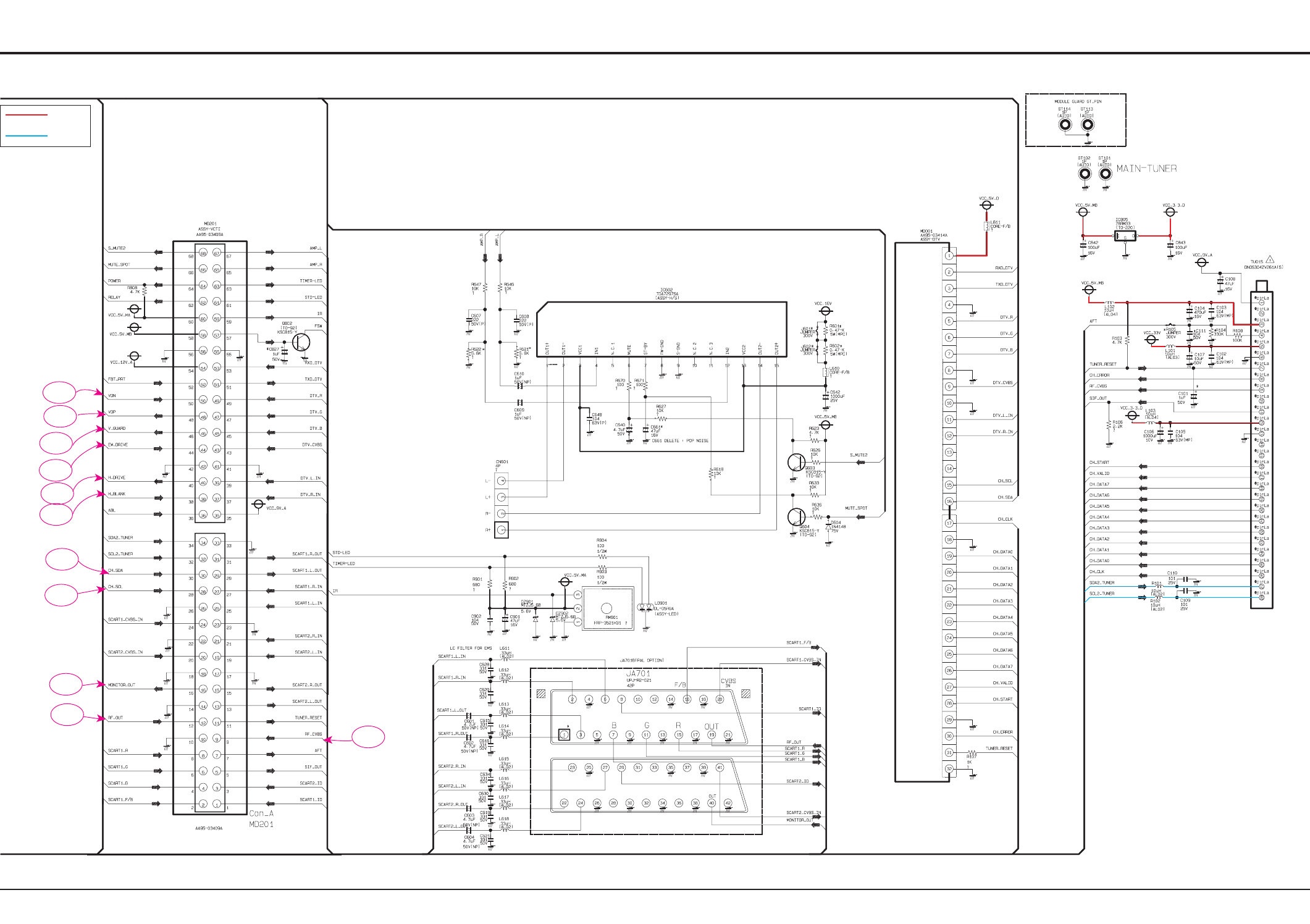

10-1-2 Tuner

Power

Signal

Samsung Electronics

Schematic Diagram

10-3

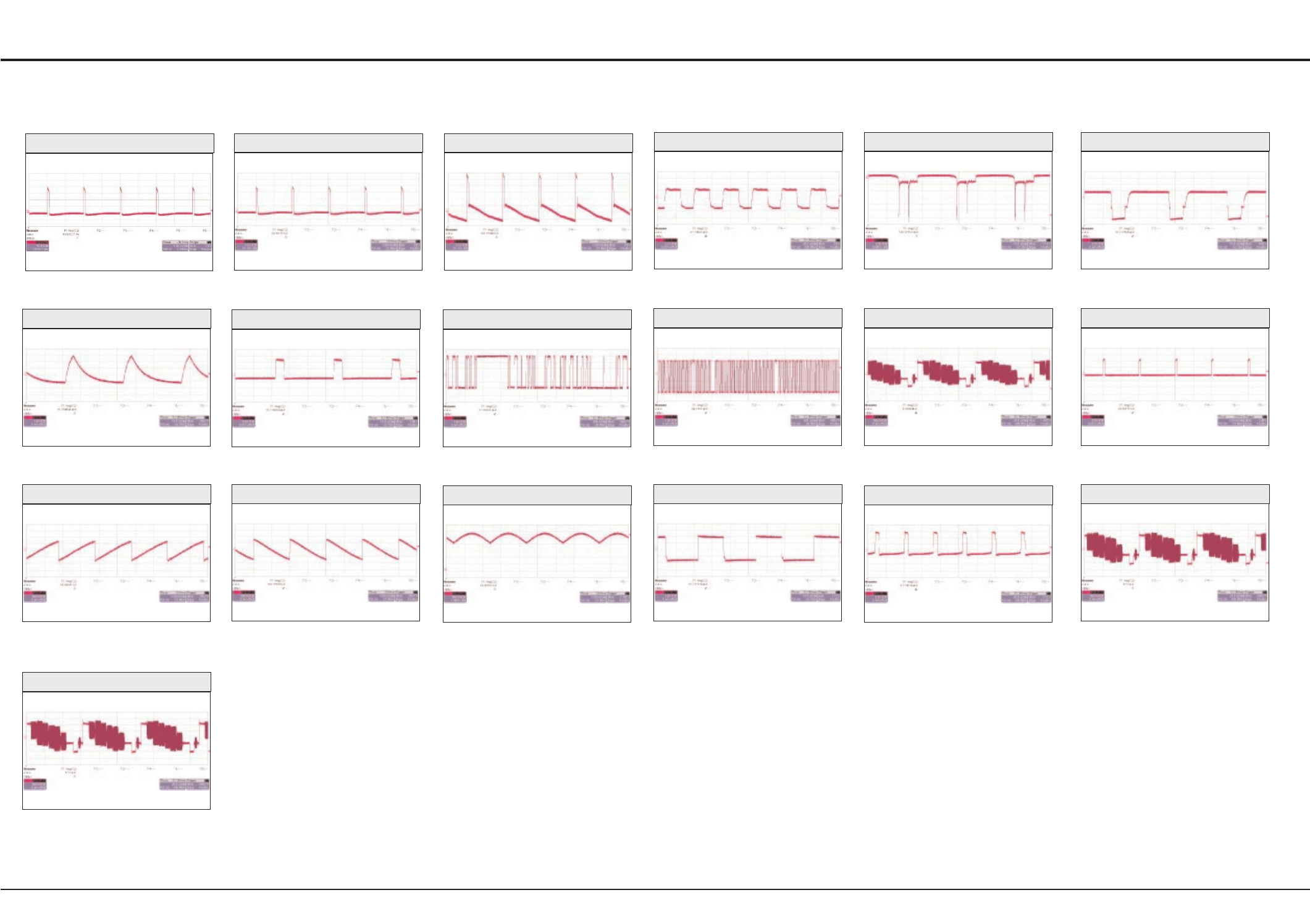

WAVEFORM

TP01

TP07

TP13

TP02

TP08

TP14

TP03

TP09

TP15

TP04

TP10

TP16

TP05

TP011

TP17

TP06

TP12

TP18

TP19

Schematic Diagram

10-4 Samsung Electronics

10-2 Feature Box

This Document can not be used without Samsung’s authorization.

10-2-1 Signal Input

Power

Signal

Samsung Electronics

Schematic Diagram

10-5

10-2-2 VCTP

This Document can not be used without Samsung’s authorization.

Power

Signal

Schematic Diagram

10-6 Samsung Electronics

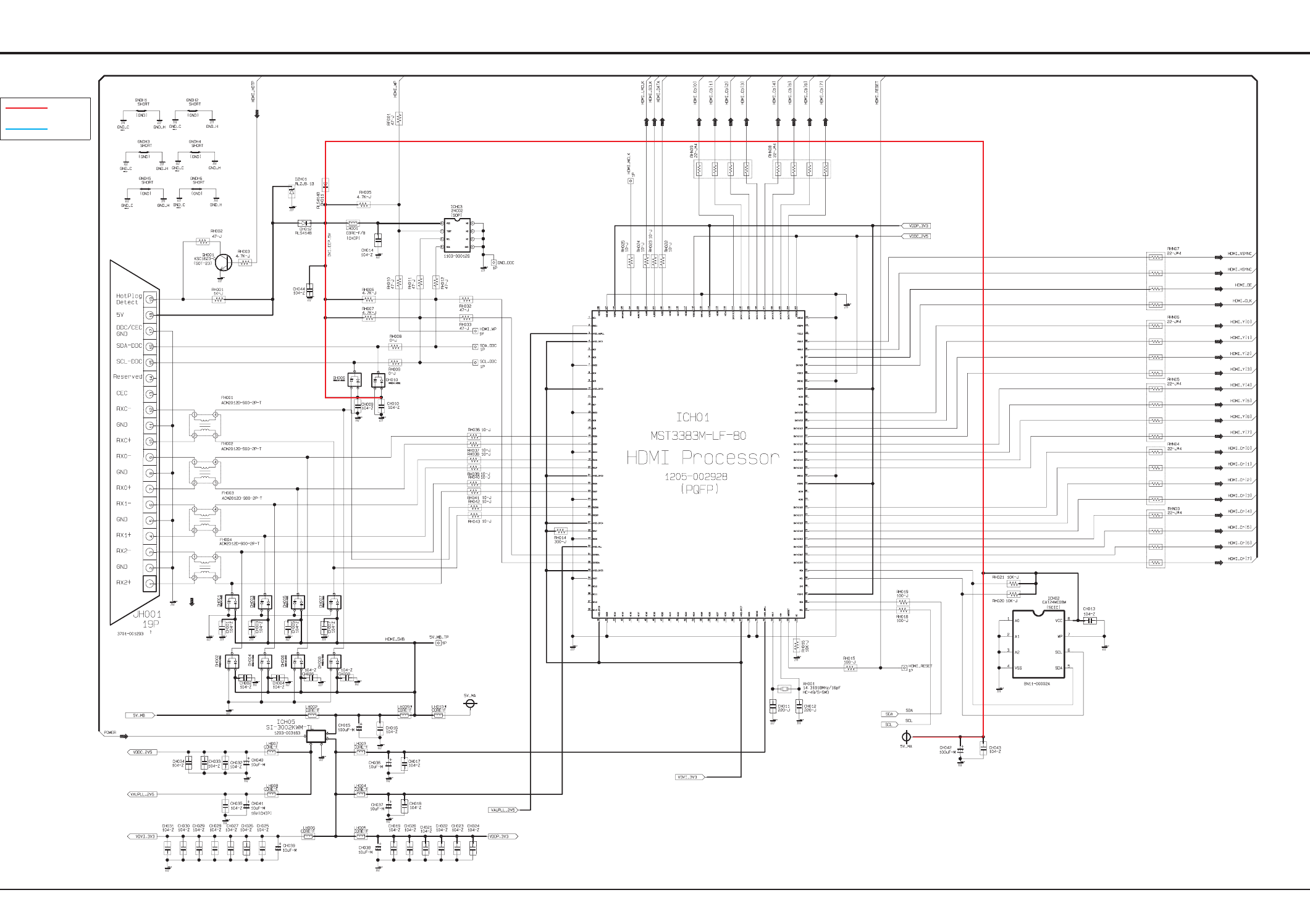

10-2-3 HDMI

This Document can not be used without Samsung’s authorization.

Power

Signal

Samsung Electronics

Schematic Diagram

10-7

10-2-4 CXA2165

This Document can not be used without Samsung’s authorization.

Power

Signal

Schematic Diagram

10-8 Samsung Electronics

10-3 CRT

This Document can not be used without Samsung’s authorization.

Power

Signal

Samsung Electronics

Schematic Diagram

10-9

10-4 AV

This Document can not be used without Samsung’s authorization.

Schematic Diagram

10-10 Samsung Electronics

10-5 CONTROL

This Document can not be used without Samsung’s authorization.

Operation Instruction & Installation

Samsung Electronics 11-1

11. Operation Instruction & Installation

11-1 Product Features and Functions

11-1-1 Control Buttons

You can control your TV's basic features, including the on-screen menu.

To use the more advanced features, you must use the remote control.

Remote control sensor

Aim the remote control towards this spot on the TV.

Standby indicator

Blinks and turns off when the power is on and lights up in

stand-by mode.

Power On/Off

Press to turn the TV on and off.

If the TV was turned off by using the POWER button on the

front panel, you will not be able to turn on the TV by using

a remote control.

Press to see an on-screen menu of your TV’s features.

- +

Press to decrease or increase the volume.

In the on-screen menu, use the - + buttons as you use

the ◄ and ► buttons on the remote control.

C/P.

Press to change channels.

In the on-screen menu, use the C/P. buttons as

you use the ▲ and ▼ buttons on the remote control.

Press the MENU button in DTV mode to display the DTV menu.

The analog menu appears when you press the MENU button again.

To dismiss the menu, press the MENU button once again.

Operation Instruction & Installation

11-2 Samsung Electronics

11-1-3 Connection Jacks (Rear)

Use the rear panel jacks to connect an A/V component that will be connected continuously, such as a VCR or a DVD player.

Because there are three sets of input jacks, you can connect three different A/V components (i.e., a VCR and a DVD, 2 VCRs,

etc.)

Cable Television Network

Inserting the CI (Common Interface) card

If you want to watch the scrambled channel,

insert the CI card into the “COMMON

INTERFACE” slot.

Please insert the

card as shown

11-1-2 Side Panel Jacks

You can use the side panel jacks to connect an A/V component that is used only occasionally, such as a camcorder or video game.

①S-VIDEO INPUT

Connect a S-video signal from a camcorder or video game.

②VIDEO INPUT

Used to connect a video signal from a camcorder or video

game.

③AUDIO INPUT

Connect the audio signals from a camcorder or video game.

Operation Instruction & Installation

Samsung Electronics 11-3

Connecting to an Aerial or Cable Television Network

Connect the aerial or network input cable to the 75 Ω coaxial socket.

To view television channels correctly, a signal must be received by the set from one of the sources: an outdoor aerial, cable

television network, or satellite network. If you are using an indoor aerial, you may need to adjust it when tuning your television

until you obtain a picture that is both sharp and clear.

Connecting to the COMPONENT Input

Connect component video cables to component connector ( Y, PB, PR) on the rear of your television and the other ends to

corresponding component video out connectors on the DTV receiver or DVD player.

The Y, PB and P R connectors on your component devices (DTV receiver or DVD player) are sometimes labeled Y, B-Y and R-Y

or Y, Cb and Cr.

Connect RCA audio cables to AUDIO (L/R) IN on the rear of your television and the other ends to corresponding audio out

connectors on the DTV receiver or DVD player.

Connecting to the SCART Input/Output

Connect SCART cable to an appropriate external A/V device such as a VCR, DVD player, decoder, satellite receiver, video game

device, or video disc player.

- The EXT1 (RGB) connector is used for equipment with an RGB output, such as a video game device or video disc player.

- The EXT2 (AV) connector is used for the audio/video output of current television programme.

Input/Output Specification

Connector Input Output

Video Audio(L/R) S-Video RGB Video Audio(L/R)

EXT 1 O O X O O O

EXT 2 O O X X O O

Connecting to the HDMI

Supports connections between HDMI-connection-enabled AV devices (Set-Top Boxes, DVD players, AV receivers and

digital TVs).

No additional Audio connection is needed for an HDMI to HDMI connection.

What is HDMI?

“High Definition Multimedia interface” allows the transmission of high definition digital video data and multiple channels

of digital audio (5.1 channels).

The HDMI/DVI terminal supports DVI connection to an extended device with the appropriate cable (not supplied). The

difference between HDMI and DVI is that the HDMI device is smaller in size, has the HDCP (High Bandwidth Digital Copy

Protection) coding feature installed, and supports multi - channel digital audio.

You should use the DVI-to-HDMI cable or DVI-HDMI Adapter for the connection, and the AUDIO (L/R) connector on DVI for

sound output.

When connecting this product via HDMI or DVI to a Set Top Box, DVD Player or Games Console etc, make sure that it has

been set to a compatible video output mode as shown in the table below. Failure to observe this may result in picture

distortion, image breakup or no picture.

Supported modes for DVI or HDMI Component

480i 480p 576i 576p 720p 1080i-50Hz 1080i-60Hz

HDMI-50Hz X X X O O O X

HDMI-60Hz X O X X O X O

Component O O O O O O O

Do not attempt to connect the HDMI connector to a PC or Laptop Graphics Card.

(This will result in a blank screen being displayed)

COMMON INTERFACE

PCMCIA Slot supports the DVB Common Interface (DVB-CI) standard. This connection is provided for future expansion of your

Samsung DTV set allowing the installation of DVB-CI compatible peripherals, for example a DVB-CI module to support pay TV

services. The availability of DVB-CI peripherals varies country by country. Please contact your retailer for information about the

availability of DVB-CI peripherals in your region.

Operation Instruction & Installation

11-4 Samsung Electronics

11-1-4 Remote Control

You can use the remote control up to about 23 feet from the TV. When using the remote, always point it directly at the TV.

You can also use your remote control to operate your VCR, DVD, Cable box, and Samsung Set-top Boxes.

Television stand-by

Direct channel selection

One/Two-digit channel selection

Switch between TV and DTV

mode selection

Channel control

Volume increase

Temporary sound switch-off

Volume decrease

Menu display

Move to the required menu

option / Adjust an option value

respectively

Electronic Program Guide (EPG)

display

EPG Display/ favourite channel

edition

Picture effect selection

Picture menu display

Sound effect selection

Sound menu display

External input selection

Switch repeatedly between the

last two channels displayed

Automatic switch-off

DTV Menu Display

Next channel

Previous channel

Exit from any display

Change confirmation

Information display

Picture size selection

Digital subtitle display

Sound mode selection

Still picture

Teletext Functions

Exit from the teletext display

Teletext index

Teletext page hold

Teletext size selection

Teletext mode selection (LIST/

FLOF)

Teletext sub-page

Teletext next page

Teletext previous page

Teletext cancel

Teletext reveal

Teletext store

Teletext display / Mix both

Pressing TEXT/MIX selects

Teletext, Double, or Mix mode in

sequence.

Fastext topic selection

Disassembly & Reassembly

Samsung Electronics 12-1

12. Disassembly & Reassembly

12-1 Overhaul Disassembly & Reassembly

12-1-1 Disassembling the Cabinet

Part Name Description Description Photo

Back

Cover

①Remove the 12 screws fixing the Back Cover.

: RH, +, B, M4, L15, ZPC(BLK), SWRCH18A

②Tap the upper part of the Back Cover 2 or 3 times and pull

the Back Cover to separate it from the unit.

③Lift the fixing Chassis up at and pull the Back Cabinet to

separate it from the unit.

Notice: Disassemble the product after disconnecting the

power cord and discharge the unit to prevent an electric

shock and damage to the product due to static electricity.

Power

Cord

①Remove the power cord fixing the Back Cover

Disassembly & Reassembly

12-2 Samsung Electronics

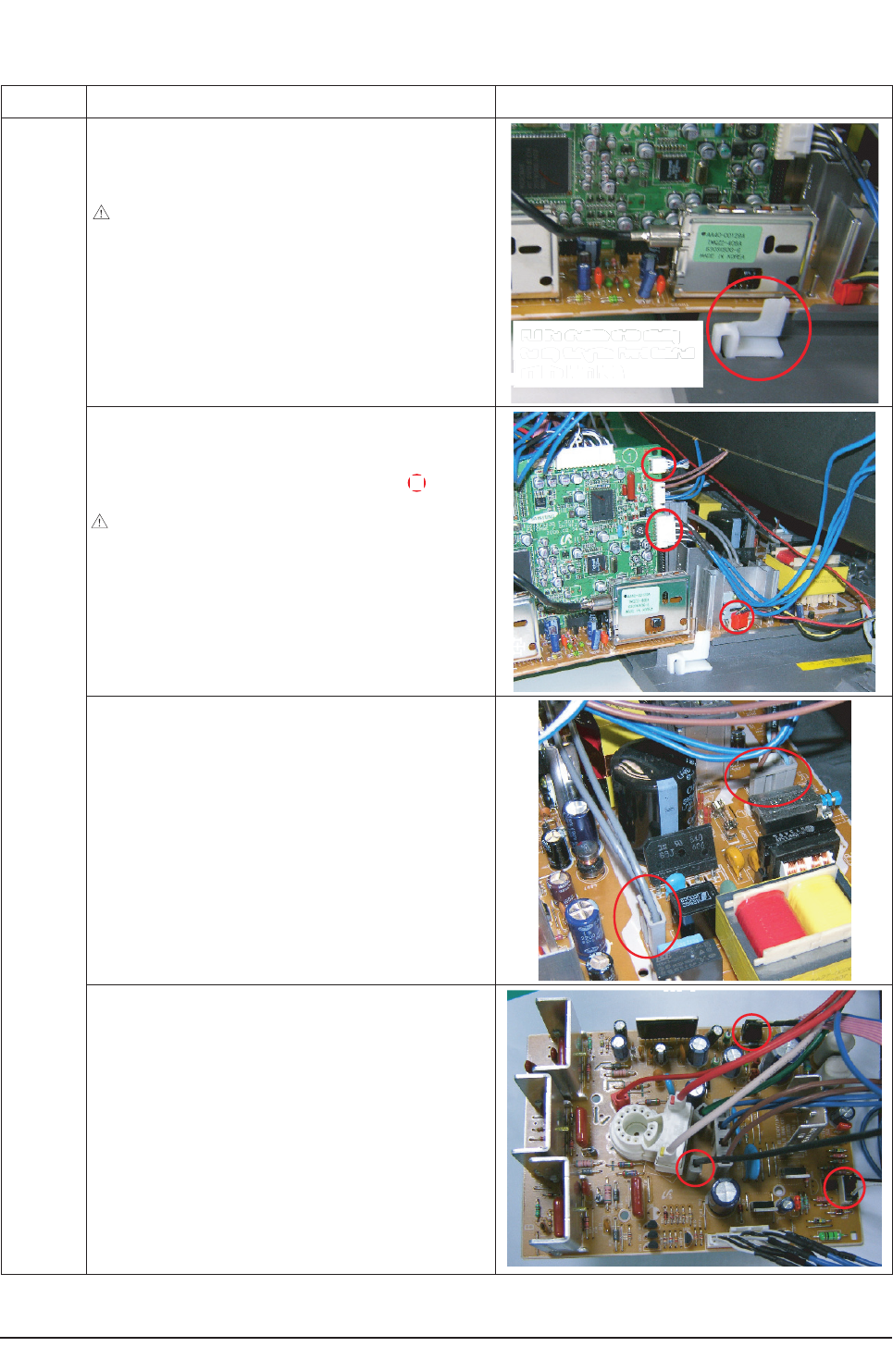

Part Name Description Description Photo

Chassis ①Separate the Main chassis from the Front Cabinet.

②Pull the Chassis lifting the fixing clip up.

Notice: Pulling the Chassis by force may damage the clip or

the connector. Pull the Chassis just until the clip comes off

the hole.

①Separate the Speakers, the Side AV Wire, the Front Control

from the Feature Box Board.

②Separate the wire from the Wire fixing holder at .

Notice: Since there is a clip to connect the Connector Header

in the Wire Connector, pulling it by force may damage the clip

or the connector. Press the clip down completely and pull the

connector.

①Separate the D-Coil and power cable from the Front Cabinet

and Power Board.

②To separate the power cord, slide the fixing clip and lift the

cable up.

①Separate the CRT Ass'y from the CRT

②Separate the TBC wire, GND, VM and Tilt cables from the

CRT Ass'y sequentially.

Pull the chassis while raising

the clip fixing the Front Cabinet

and the Main PCB.

12-1-2 Disassembling the CRT and Chassis

Disassembly & Reassembly

Samsung Electronics 12-3

Part Name Description Description Photo

CRT

Ass'y

①Separate the cables from the Feature Box/Main Board and

CRT Ass'y.

①Separate the wires from the FBT of the Deflection Board and

the CRT Ass'y.

②To separate the thick red and white wires, pull the wires while

pressing the push-type clip at the connector.

③To separate the thin red wire, insert a pin in the small hold

next to the hole and pull the wire.

Notice: Take care when separating the wires because pulling

the wires by force may damage the socket. In addition, sepa-

rate the wires on a flat and clean surface so as to prevent

scratching of the material and the PCB.

Part Name Description Description Photo

Chassis

Holder

①Separate the cables connecting the FBT and the CRT.

Notice: Since there may be a remaining high-voltage current

within the CRT, take care not to touch the CRT hole with

metal or a part of yourself when separating the cables.

Pull the wires while

pressing on the fixing dip

12-1-3 Disassembling the CRT Ass'y

Disassembly & Reassembly

12-4 Samsung Electronics

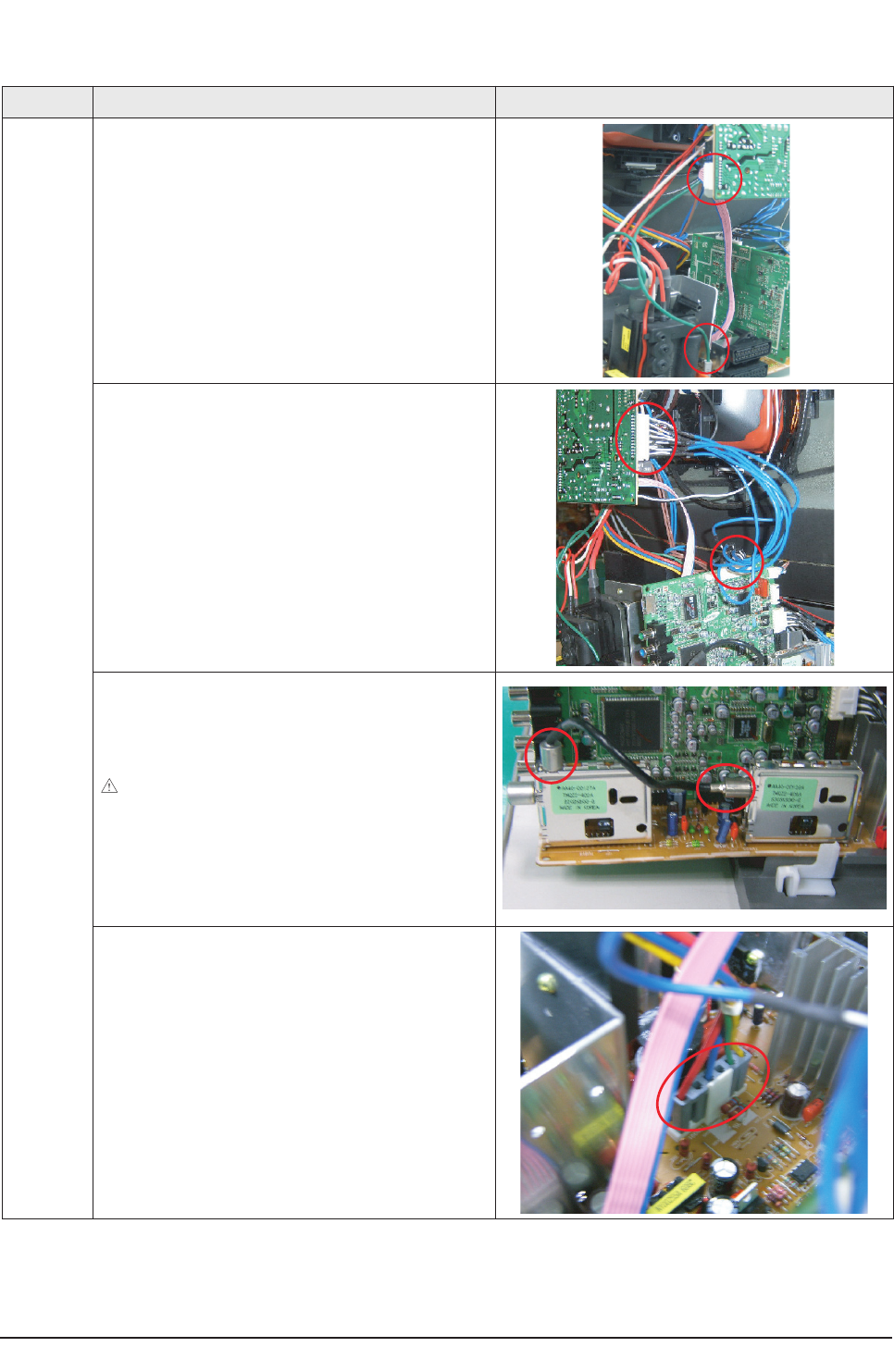

Part Name Description Description Photo

Deflection

Board

①Separate the 8 pin cable from the CRT Assy's.

①Separate the 14 pin cable from the Feature Box.

①Separate the cable from the Splitter and the Tuner.

②First separate the cable from the Splitter using a tool such

as nippers.

Notice: Since pulling the wire by force may damage the

coating of the wire, separate the wire holding the metal part

with the tool.

①Remove the DY Connector from the Main Board.

12-1-4 Disassembling the Deflection Board

Circuit Description

Samsung Electronics 13-1

13. Circuit Description

13-1 Overall Block Description

Horizontal & HRS Circuit

F-Box Circuit

D/F Circuit

EW Circuit

Vertical Circuit

Power Circuit

※Bias Circuit structure of S64A sis the same as the existing S62A Circuit.

■Circuit Constitution.

1. Horizontal Bias Part

- Controls the high voltage generation and horizontal bias.. FBT, HDT, CT condenser etc.

2. Vertical Bias & Vertical (North / South) Correction Circuit

- While mostly controlling the vertical bias, also corrects the picture lowering of top and bottom. ..LA7845, Vertical TRANS, etc.

3. HRS (Horizontal Raster Shift) Correction Circuit

- A correction circuit of Linearity distortion on the left and right side of a picture which is caused by awry electron beam from an

electron gun.. Correction S/W and surrounding circuits.

4. D/F (Dynamic Focus) Correction Circuit.

- Improved Focus feature circuit due to the widened angle of a picture¡¦..D/F Trans, Vertical/Horizontal circuit

5. E/W (East / West) Correction Circuit.

- A circuit for correcting the spool shape which appears on the left and right part of a picture. This is caused by the difference

between the distances from the center of a picture to each corner. KA393, FQP630 etc. (Adopt PWM circuit)

Circuit Description

13-2 Samsung Electronics

e r t i c al B i as C o r r e c t io n C ir c u i t

D / F C o r r e c t i o n C i r c u it

H o r i z o nt a l& H RS C i r c u i t

E/ W Co r r ec t ion Cir cui t

Circuit Description

Samsung Electronics 13-3

13-2 Partial Block Description

13-2-1 Vertical & Vertical Correction Circuit

ⓐUnderstanding of Vertical Circuit and Operation Principle.

▶What is a Vertical correction circuit?

- If the bias angle of a picture widens, the distance from the center of a picture to each corner becomes farther as it moves to

periphery. This causes the picture being distorted (Picture Lowering) vertically in a shape of a spool because of the strong

bias at four corners which are the farthest from the center.

Correction effect to the amount of a correction signal can be made by crossing Parabolic current of a vertical period over the

vertical bias current and applying it.

▶Vertical Circuit Constitution and Operation Principle.

- Consists of L304, C305, C439, R312. Symmetrize the up and down amplitude using the saturable reactor of L304 and adjust

Vertical Gain by controlling the capacity value of C305 and C439

If the correction vector is excessive, one can slightly reduce the resistance of R312

Circuit Description

13-4 Samsung Electronics

ppotS

90 4

2 v

d/sm

/Sk0

MRON

=1H

001 C

liF

mS L

UF : WB

HC V000

.0 :

ceR

aM K4 : mo

GDE

yaleD

MUM

: f

odloH

car

V08.6

P-

xaM

V42.

smR z

qer

=2e

arT

2.1

-P Vm04.

1 x

0.0

:53

41 41/

sm2s

:MR

=1H

01 CD

=2H

1 CD

06.12

)

(

nihto

LLUF : WB

V0.0

: 1H

: 2HC

V0.0

: 3H

V0.0

dro

: n

1 : mooZ

doM

1HC

E :

epyT

sn0

MUM

After correction

rutc

<NormalVertical

Signal>

<Vert ical Wave form

after correct i

on >

pot

500

221:5

vid

MR/

k00

HCV02=1

D C1:001

CVm01=2

D C:11

tli

F=r

t gnih:NO

UL L

O==

HC1: V0.0

C2: V0000.0

HC3: V0

HC4: V0.0

htgn

L droceR

niaM: K00

moo

Z:K

rT=reggi=

edo

M:U

AOT

epy

TEG

E C 1

yale

D: sn0.

fodloH: fM INIMUM

utciP

noitrotsiD

ⓑComparison before and after of Vertical signal correction

Circuit Description

Samsung Electronics 13-5

13-2-2 HRS Correction

145 V

: 145. 05V

: 145. 10V

Right side

Left side

ⓐUnderstanding and Constitution of HRS Correction

▶What is HRS (Horizontal Raster Shift) circuit?

- When electron BEAM emanates from CRT, it must form the image evenly on the center of a screen. However, the left-right

linearity can be awry due to the micro-distortion of horizontal angle while producing CRT. HRS is a compensatory circuit

which crosses DC voltage over CS condenser on horizontal output board to correct the distortion.

ⓑHRS Circuit Operation and Picture Movement

▶Operational Principle.

- HRS circuit consists of R407, D415, D407, SW401, C415, L404. If switch SW401

(Service S/W) to the direction of R407, it raises the C426 CS condenser voltage through D415 and the picture moves to

right. If switch SW401 to the direction of D417, the picture moves to left.

C415 is functioning as a condenser which stops generating current. It can control the left-right movement since the

rechargeable voltage varies as the condenser capacity value varies.

That is, the larger the C415 capacity value becomes, the bigger the left-right movement will be.

▶Picture Movement during 0HRS Connection

* Direction of SW407 Switch .... Center : Not corrected.

.... D415 : moves to the right of a picture

.... D417 : moves to the left of a picture

Condition

Total Length of a Picture Moved (m/m)

Left Center Right

To Left To Right To Left To Right To Left To Right

After 5.5 6.5 1.5 2 6.5 6

Circuit Description

13-6 Samsung Electronics

13-2-3 E/W Circuit Block

EHT Correction Circuit

ⓐUnderstanding of E/W Circuit

▶What is an E/W (East / West) Correction Circuit?

- If the bias angle of a picture widens, the distance from the center of a picture to each corner becomes farther as it moves to

periphery. This causes the picture being distorted (Picture Lowering) horizontally in a shape of a spool because of the strong

bias at four corners where are the farthest from the center. E/W is a circuit which corrects the spool-shape on the left and right

part by crossing Parabollic wave form over the horizontal output board and controls the current which flows through terminal

no.47. Parabollic wave comes out from terminal no.47 of CXA2165 CHROMA IC(IC31)

It also controls the horizontal-related factors of Factory data such as picture size, size change and Parabola gain change. It

has an essential role of minimizing the picture swaying (High Voltage Regulation)

ⓑE/W Circuit Constitution and Operation

▶E/W Circuit Constitution and Operation Principles.

- E/W circuit consists of KA393(comparator), FQP630(output TR), and other parts. This uses a method in which PWM controls

the circuit using a comparator. The advantage of this PWM Control method is that POWER Loss hardly occurs and

generates little heat when using low H/S.

Input E/W signal to terminal no 3,5 of IC401(KA393) and carrier wave to terminal no 2,6. Carrier wave can be made by

reducing the horizontal collector voltage and integrating the wave form using D405,R414 and C406.

Then the carrier wave is compared with E/W signal in IC401 and outputs PWM(Pulse Width Modulation) wave form. Bias

current shall be controlled using Q404.

Picture swaying occurs as the picture brightness varies. To correct this, control the high voltage regulation using

Q401(1N7000), R433 and C411 That is, Q401 is a circuit for correcting Static Regulation and used to prevent the picture

size changing as the picture brightness varies.

It detects the ABL voltage and inputs to Q401 Gate through R423 resistance. Then the ABL voltage change is sent to

IC401(KA393) output and controls the DC of Q404(FQP630) Gate terminal, to keep the picture size from changing.

Circuit Description

Samsung Electronics 13-7

▶E/W Circuit Constitution and Operation Principle.

Also, E/W circuit functions as a compensatory circuit against the picture shaking by reversely compensating the picture

swaying. This is possible by inputting ABL voltage to E/W using R433 as the picture brightness varies.

There are H,V, PIN-COMP as well in Factory data and these correct the high voltage regulation. If the H-COMP capacity

value increases, correction vector increases too and this causes a strong picture swaying. On the other hand, if the H-COMP

capacity value decreases, correction vector decreases causing extensive picture size change. V-COMP, likewise, controls the

vertical correction vector and operates in the same mechanism as H-COMP.

PIN-COMP is a function which corrects the movement of four corners of a picture. If the capacity value is excessive, a picture

curves outwards when the picture is bright. COMP capacity value, therefore, should be varied +/- 1step from the factory-

adjusted condition, since a gain widely varies dependant on the SET distribution.

▶Before and After of E/W Circuit Correction

Circuit Description

13-8 Samsung Electronics

13-3 IC Line up

■F-Box Board

Items Descriptions Remarks

Micom, Scaler, Switching,

Sound Processor VCT69xyP

Deflection Processor CX2165

PIP Processor TW9906

HDMI IC MST3383

DC/DC Converter MP1410ES

EEPROM 24C02 2Kbit

EEPROM 24C16 16Kbit

Regulator SI-3002KWM-TL Multi Regulator

Regulator KA78R09CTU 9V Regulator

Regulator 78D05 5V Regulator

■Main Board

Items Descriptions Remarks

BRIDGE DIODE GSIB660

Didode SLA1004L

Trans Switching 53B135-SC

Trans Switching-ST BY EE2020

STR STR-6759 (Asia)

STR STR-6750 (Europe/CIS)

EW Driver KA393

Vertical Focus MC4558C

FET FQP630

Vertical DEF LA7845

Horizontal DEF FJ6920, FMP3FU

■CRT Board

Items Descriptions Remarks

DRIVE IC TDA6111Q

IC HYBRID STK396-130

AMP TDA2030

Reference Information

Samsung Electronics 14-1

14. Reference Information

14-1 Other issues related to other products

■SD/HD broadcasts and the TV's display capability are related

1. A digital broadcast should be transmitted in wide screen (an aspect ratio of 16:9) HD. If the broadcasting station converts a

conventional program created in normal screen (aspect ratio of 4:3) into a digital signal and broadcasts the signal, the left and

right of the picture will not be displayed.

This symptom also appears in other manufacturer's TV's. The three appliance companies are trying to resolve the problem

through the Ministry of Information and Communication.

＊When watching an SD (normal) broadcast through a Digital (Wide) TV (480P normal broadcast)

＊When watching an SD (normal) broadcast through a Digital Ready (Wide) TV (Using a set-top-box)

＊When watching an analog (normal) broadcast through a wide TV

(When watching a broadcast after changing the aspect ratio of the TV from 16:9 (wide screen) to 4:3)

2. When watching a DVD title or video tape in wide screen (21:9) through a wide (16:9) TV, watching video from a computer or

game console by selecting the aspect ratio to 4:3, or watching video from a DVD, VCR, computer or game console through a

wide TV by selecting the aspect ratio to normal (4:3) or wide (21:9), the left and right, or top and bottom of the picture will not be

displayed.

This symptom appears in other manufacturer's TV's. The three appliance companies are trying to resolve the problem through

the Ministry of Information and Communication.

■Changing the Order of the Picture Size for 16:9 Display Devices

■Changing the Order of the Picture Size for DTV 1080i/720p Sources

■Restrictions

1. When you want to change the picture size in PIP 'ON', you must turn the PIP off before changing the size.

However, you can change the main picture size even in PIP ON for products with no restrictions.

2. When the picture size is not Normal (4:3 for 4:3 display devices, 16:9 for 16:9 display devices) and you turn PIP on, the picture

size is changed to Normal.

However, you can turn PIP on without changing the picture size for products with no restrictions.

3. In the OSD notation for the picture size, 16:9 is represented as "Wide" instead of "16:9" for devices other than with 16:9 dis

plays.

Ex: For LCD 15:9 devices, "Wide" is displayed on the OSD instead of "16:9".

4. The picture size can be changed even in the blue screen.

However, the picture size should be controlled by the product specifications if the change is impossible due to hardware

restrictions.

Reference Information

14-2 Samsung Electronics

Analog Broadcast

Analog Broadcast is a television broadcasting signal transmit-

ted according to the NTSC standard.

Anynet

Anynet is an AV network system that enables the easy-to-use

AV interface for users by controlling connected AV devices

through the Anynet menu when AV devices of Samsung

Electronics are connected.

ANTENNA Terminal

A port to connect the TV aerial using a coaxial cable. It is gen-

erally used to watch public broadcast programs.

Audio Multimix

Audio Multimix provides 2 languages for audio when broadcast-

ing a foreign movie, drama, news, etc. You can select and lis-

ten to one of the supported languages or you can select and

listen to both languages simultaneously.

Cable Broadcast

Cable Broadcast transmits programs via cable instead of radio

wave. To view a cable broadcast, you need to subscribe to your

local cable broadcast service provider and install an additional

receiver.

Component Terminal (Green, Blue, Red)

The Component Port separately transmits the luminance signal

and provides the best quality of all video connection types.

Digital Broadcast

Digital Broadcast is a television broadcasting signal digitized

and transmitted according to the United States' terrestrial digital

broadcast standard, or ATSC.

DVD (Digital Versatile Disc)

DVD is a large capacity media that can save multimedia con-

tent such as video, game, audio applications, etc. using MPEG-

2 video compression technology on a CD-sized disc.

English Caption

A function that shows English caption or text information includ-

ed in the broadcasting signal or video tape. You can use this

function to study English by watching AFKN or CC marked

video tapes.

External Source

External Input is connecting video devices such as a VCR,

camcorder, DTV receiver, DVD, etc. as a video source.

HDMI (High Definition Multimedia Interface)

An interface into which the digital signals as well as the high

quality image data can be connected with one cable. There is

no need to compress the bit rate.

Mono

A type of audio interface that transmits audio signals through a

single channel.

Through a mono interface, it is hard to experience stereophonic

sound and sound is played only by one speaker.

Reception Sensitivity Amplification

A signal amplification technique that amplifies weak broadcast-

ing signals by applying satellite technology to provide a better

visual quality even for users in regions where only weak broad-

casting signals are available.

Satellite Broadcast

Satellite Broadcast transmits programs via satellite so that the

broadcast is viable in all areas at a high visual and sound quali-

ty. It provides approximately 100 channels including public

broadcast channels. To view satellite broadcast, you have to

install an additional receiver.

S-VIDEO Terminal

This is called super video. S-Video is a type of video signal

which has the video luminance and color signals separated in

order to provide a better visual quality.

Stereo

A type of audio interface that transmits audio signals through 2

channels.

Stereo transmits audio signals for the right and left channels so

that you can experience stereophonic sound, and the sound is

played with 2 speakers.

Tuner

A device that enables selecting a specific frequency for a chan-

nel on a TV or radio.

VHF/UHF

VHF refers to TV channels 2 to 13, and UHF refers to TV chan-

nels 14 to 69.

Video/Audio Terminal

You may experience poor visual and audio quality when watch-

ing a video tape on channel 3 or 4 through the antenna cable.

You can experience better visual and audio quality connecting

the TV and VCR through the Video/Audio ports. The video port

is distinguished by the color yellow, and the audio ports are dis-

tinguished by the white (left) and red colors (right).

Wired Broadcast

Satellite Broadcast refers to movie, entertainment and educa-

tional programs transmitted by the broadcasting station in a

hotel or school.

14-2 Technical Terms

L62b N Cover WS32Z419D

Navigation menu

Versions of this User Manual:

Views

Navigation
