The w
orld’s best-selling electric floor heating brand
™
The world’s best-selling electric floor heating brand
RELAY-4X30
SUBMITTAL SHEET WSC-0811
WARMUP INC.
USA: us@warmup.com
Tel.: 1-888-927-6333
www.warmup.com
CANADA: ca@warmup.com
Tel.: 1-888-592-7687
www.warmup.ca
PRODUCT CODE
RELAY 4x30
PRODUCT DESCRIPTION
The RELAY 4x30 are 4 x 30A-2P 240V relays in NEMA1 enclosure.
Suitable to extend amperage capacity of stand-alone controls, they are designed to work with the 3iE Energy-Monitoring, 4iE
Smart WiFi and Warmup outdoor controls.
SPECIFICATIONS
Max load 120Amps/240V
Made in USA
Approvals cULus
APPLICATION
The RELAY 4x30 from Warmup houses four 30A/240V 2-pole relays.
When combined with a Warmup indoor our outdoor controller, it allows for additional amperage to be switched by that
controller. The 240V coil of the relays are activated by the load side of the Warmup controllers.
INDOORS
Compatible with the 3iE®, 4iE® and DUALUDG-4999® thermostats from Warmup, the RELAY 4x30 is ideal to connect larger
floor heating applications to a single thermostat. It can handle up to 2,000 sqft of heated floors.
OUTDOORS
Compatible with all Warmup outdoor controllers when powered at 240V. Ideal for larger snow melting applications and roof
deicing jobs requiring more than the traditional 30 Amps (DS-2C and DS-8C) or 60 Amps (DS-5C) available.
™
The w
orld’s best-selling electric floor heating brand
WARMUP INC.
USA: us@warmup.com
Tel.: 1-888-927-6333
www.warmup.com
CANADA: ca@warmup.com
Tel.: 1-888-592-7687
www.warmup.ca
™
The world’s best-selling electric floor heating brand
RELAY-4X30
SUBMITTAL SHEET WSC-0811
WARRANTY & MAINTENANCE
When installed according to the installation manual, the RELAY 4x30 is covered with Warmup’s 1-year manufacturer warranty.
TECHNICAL SUPPORT
Warmup is available 24/7/365 at (888) 927-6333.
For quotes, layouts and specific technical information, contact us at:
Warmup USA
52 Federal Rd #1F, Danbury, CT 06810
(888) 927-6333
us@warmup.com
Warmup CANADA
374 Wellington St W, Toronto, ON M5V 1E3
(905) 990-2075
ca@warmup.com
RELATED PRODUCTS
• 3iE Energy-Monitoring thermostat - see WSC-0722
• 4iE Smart WiFi thermostat - see WSC-0926
• Outdoor Controllers - ASE-DS2C, ASE-DS5c and ASE-DS8C - see WSC-0809

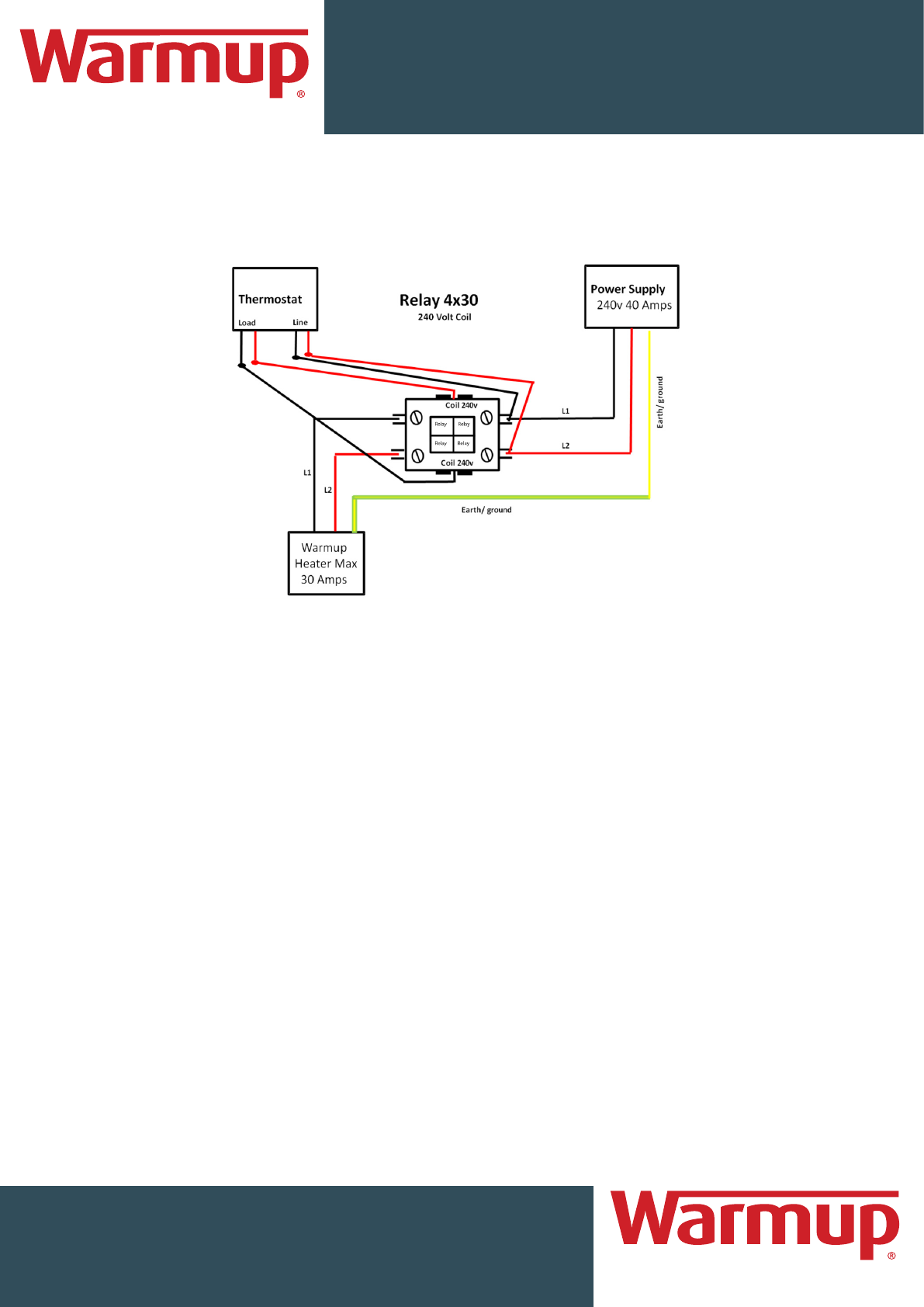

WIRING
