MULTI ZONE SNOW MELTING CONTROLLER - RESIBOX-120
SPECIFICATION SHEET WSC-0928
The outdoor temperature set-point as well as
ground Upper limit temperature and ambient lower
limit temperature can be easily set.
The Technician Settings mode allows installer or
technician to adjust the parameters for customized
installations.

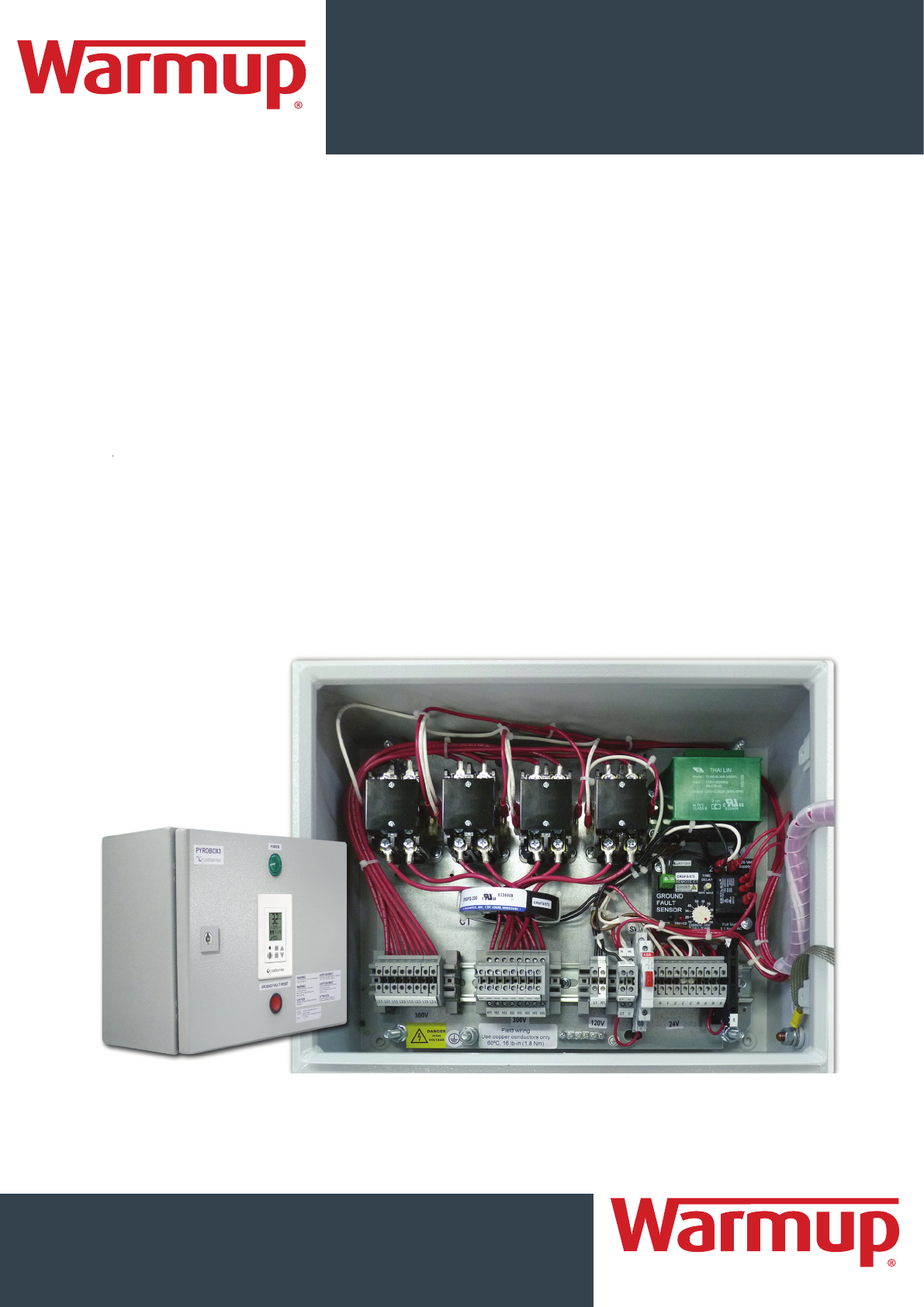

The RESIBOX-120 is a "Plug and Play" controlled
power distribution panel for frost protection, ice
and snow melting applications.
When receiving a signal from the snow sensor/s,
it activates the contactors energizing the heating
elements.
Based on the DIP switches configuration, the zones
are activated either continuously or in customized
sequencing between the zones.
The adjustable Hold-On timer, keeps the outputs to
the zones active to ensure complete snow melting.
The Hold-On (Time delay) is adjustable in the range
of up to 99 hours.
The RESIBOX-120 Built-in Ground Fault interrupter
allows settings for the tripping current between 0.1
– 1.0 A.
The GFS adjustable time delay provides a simple
and safe protection from nuisance tripping.
DESCRIPTION
™
The w
orld’s best-selling electric floor heating brand
™
The world’s best-selling electric floor heating brand
MULTI ZONE SNOW MELTING CONTROLLER - RESIBOX-120
SPECIFICATION SHEET WSC-0928
WARMUP INC.
USA: us@warmup.com
Tel.: 1-888-927-6333
www.warmup.com
CANADA: ca@warmup.com
Tel.: 1-888-592-7687
www.warmup.ca
THE PARAMETERS THAT CAN BE MODIFIED ARE AS FOLLOW:
• Temperature set point
• Lower ambient temperature limit
• Slab Upper Temperature Limit to deactivate
heaters for Energy Efficiency
• Time delay (Hold-on) before deactivating the
heaters
• ON time for Manual mode
• Heaters cycle time / Splitting time between
zones
• Number of zones and sequence of operation
(Sensors and heaters control logic)
• Snow sensor RH sensitivity
• Number of snow sensors connected
• DIP Switches located on the controllers provide
easy access to technician mode and to the
system configuration settings.
• The RESIBOX-120 allows snow sensor input
both from the sensors and also from a 3rd
party snow sensors.
• 3 terminals in the RESIBOX-120 are available
to connect a CIT-1™, GIT-1™ or SIT-6E™ sensors
and use them to control some or all of the
zones.
• Installing the system is a quick and easy task.
Apart of mounting the metal box to the wall,
the installer needs only to connect the line in
and line out wires in the marked terminals and
the system is ready to work.
• Automatic Power/Load Distribution
• Up to 4 zones, 120A
• GFEP Protection Built-in
• Sequencing allows sharing of minimum
required power supply
• Multiple Snow Sensor inputs
• User-friendly interface
• Integrated Electronic Controller with backlit
display
• Energy Efficient Algorithm
• ETL approved with UL approved
components.
FEATURES AND BENEFITS
™
The w
orld’s best-selling electric floor heating brand
™
The w
orld’s best-selling electric floor heating brand
WARMUP INC.
USA: us@warmup.com
Tel.: 1-888-927-6333
www.warmup.com
CANADA: ca@warmup.com
Tel.: 1-888-592-7687
www.warmup.ca
MULTI ZONE SNOW MELTING CONTROLLER - RESIBOX-120
SPECIFICATION SHEET WSC-0928

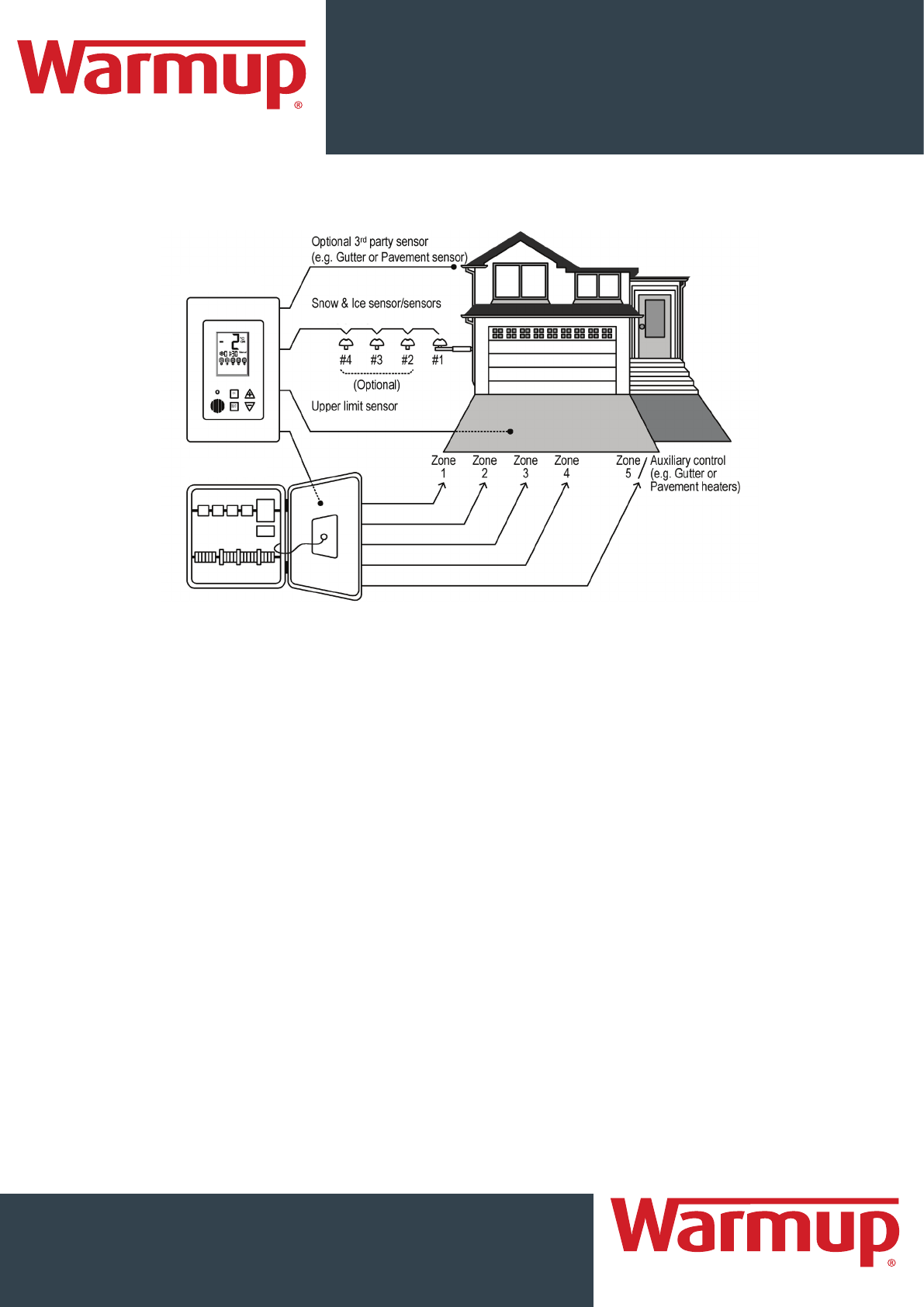

GENERAL SYSTEM LAYOUT
TECHNICAL SPECIFICATIONS
Approvals
Enclosure Protection
Dimensions
Ground Fault
Equipment Protection
GFS
ETL Listed
CAN/CSA-C22.2 No. 14 | UL-508A
IP20, Indoor Mounting
11.8x15x6.1 inch (30x38x15.5 cm)
Adjustable triping current 0.01-0.1
A (default 0.03A)
Adjustable time delay
0.1-1 sec. (default 0.1 sec.)
Manual Reset GFS
Four Satellite
Contactors
Terminal blocks
Push button on Front Panel
240 VACS, 30 A Max
(Resistive), 50/60 Hz, 2-Poles
6 mm2 ,10 AWG (max)
RELATED PRODUCTS
• COMMBOX-600 - see WSC-0927
• CIT1 - see WSC-1104
• GIT1 - see WSC-1204
• SIT6E - see WSC-1304
• APS3C - see WSC-1404
• AIRsense - see WSC-0205
