WARNING: ALL OPERATING AND MAINTENANCE PROCEDURES SHOWN ON THE NEXT

PAGE OF THIS MANUAL MUST BE FOLLOWED DAILY FOR PROPER OPERATION OF

YOUR WASCOMAT MACHINE.

PLEASE ENTER THE FOLLOWING INFORMATION AS IT APPEARS ON THE MACHINE(S)

DATA PLATE(S).

MAKE CERTAIN TO KEEP THIS MANUAL IN A SECURE PLACE FOR FUTURE

REFERENCE.

MACHINE TYPE OR MODEL

MACHINE SERIAL NUMBER(S)

ELECTRICAL CHARACTERISTICS: ________ VOLTS, _______ PHASE, _______ HZ.

OPERATING & MAINTENANCE MANUAL

WASCOMAT JUNIOR W 75

WASCOMAT SUPER JUNIOR W 105

WASCOMAT SENIOR W 125

WASCOMAT GIANT W 185

471 1562-75/04

00.23

WARNING: ALL OPERATING AND MAINTENANCE PROCEDURES SHOWN ON THE NEXT

PAGE OF THIS MANUAL MUST BE FOLLOWED DAILY FOR PROPER OPERATION OF

YOUR WASCOMAT MACHINE.

PLEASE ENTER THE FOLLOWING INFORMATION AS IT APPEARS ON THE MACHINE(S)

DATA PLATE(S).

MAKE CERTAIN TO KEEP THIS MANUAL IN A SECURE PLACE FOR FUTURE

REFERENCE.

MACHINE TYPE OR MODEL

MACHINE SERIAL NUMBER(S)

ELECTRICAL CHARACTERISTICS: ________ VOLTS, _______ PHASE, _______ HZ.

OPERATING & MAINTENANCE MANUAL

WASCOMAT JUNIOR W 75

WASCOMAT SUPER JUNIOR W 105

WASCOMAT SENIOR W 125

WASCOMAT GIANT W 185

NOTICE TO: OWNERS, OPERATORS AND DEALERS OF WASCOMAT MACHINES

IMPROPER INSTALLATION AND INADEQUATE MAINTENANCE, POOR HOUSEKEEPING AND WILLFUL

NEGLECT OR BYPASSING OF SAFETY DEVICES MAY RESULT IN SERIOUS ACCIDENTS OR INJURY.

TO ASSURE THE SAFETY OF CUSTOMERS AND/OR OPERATORS OF YOUR MACHINE, THE FOLLO-

WING MAINTENANCE CHECKS MUST BE PERFORMED ON A DAILY BASIS.

NOTICE À L’ATTENTION DES PROPRIÉTAIRES, UTILISATEURS ET REVENDEURS

DE MACHINES WASCOMAT

UNE INSTALLATION INCORRECTE ET UN ENTRETIEN INADÉQUAT, DE MÊME QUE LA NÉGLIGENCE

OU LA NEUTRALISATION DÉLIBÉRÉES DES DISPOSITIFS DE SÉCURITÉ, PEUVENT ÊTRE CAUSES

DE BLESSURES OU D’ACCIDENTS SÉRIEUX. POUR ASSURER LA SÉCURITÉ DES CLIENTS ET/OU

DES UTILISATEURS DE VOTRE MACHINE, IL EST INDISPENSABLE DE PROCÉDER CHAQUE JOUR

AUX CONTRÔLES DE ROUTINE CI-APRÈS.

1. Prior to operation of the machine, check to make certain that all operating instructions and

warning signs are affixed to the machine and legible. (See the following page of this manual

for description and location of the signs.) Missing or illegible ones must be replaced imme-

diately. Be sure you have spare signs and labels available at all times. These can be obtai-

ned from your dealer or Wascomat.

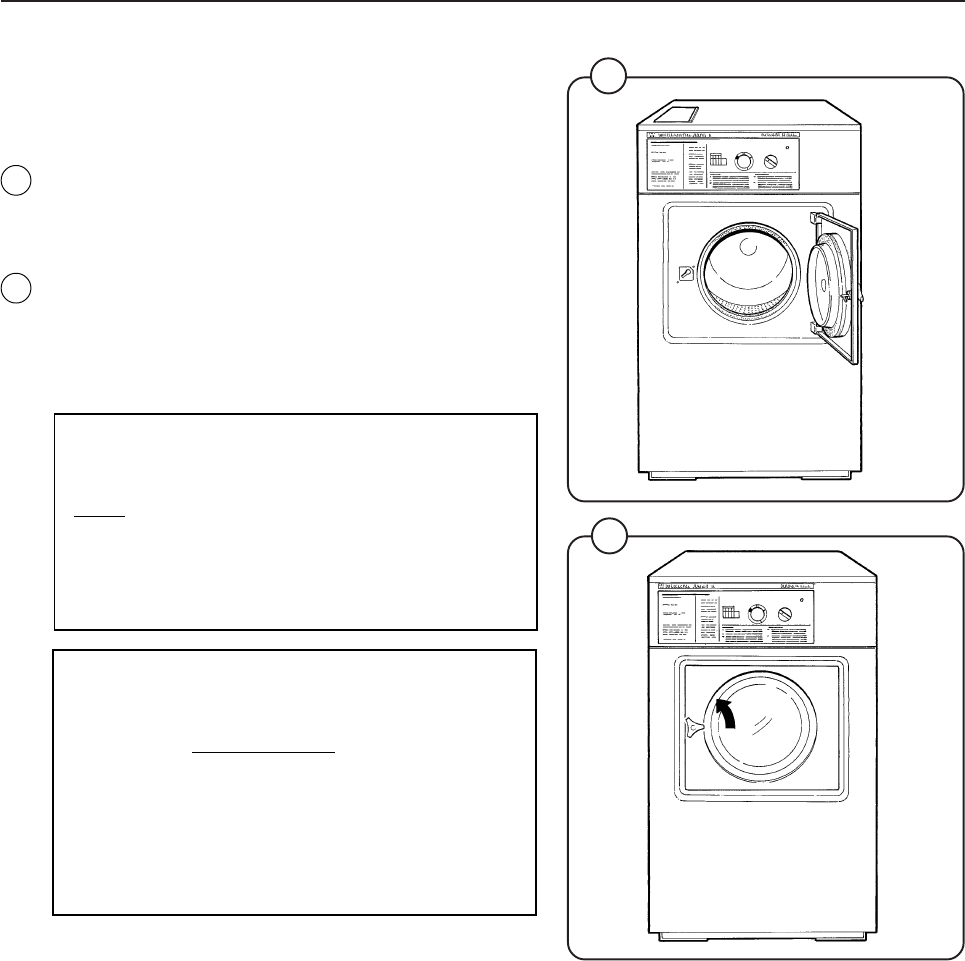

2. Check the door safety interlock, as follows:

(a) OPEN THE DOOR of the machine and attempt to start in the normal manner:

For coin-operated models, insert the proper coins to start the machine.

For manually operated models, place the ON-OFF switch in the ON position and

press the Start switch.

THE MACHINE(S) MUST NOT START !

(b) CLOSE THE DOOR to start machine operation and, while it is operating, attempt to

open the door without exerting extreme force on the door handle. The door should

remain locked!

If the machine can start with the door open, or can continue to operate with the door

unlocked, the door interlock is no longer operating properly. The machine must be

placed out of order and the interlock immediately replaced.

(See the door interlock section of the manual.)

3. DO NOT UNDER ANY CIRCUMSTANCES ATTEMPT TO BYPASS OR REWIRE ANY OF

THE MACHINE SAFETY DEVICES AS THIS CAN RESULT IN SERIOUS ACCIDENTS.

4. Be sure to keep the machine(s) in proper working order: Follow all maintenance and

safety procedures. Further information regarding machine safety, service and parts can be

obtained from your dealer or from Wascomat through its Teletech Service Hotline - 516/371-

0700.

All requests for assistance must include the model, serial number and electrical characteristics as

they appear on the machine identification plate. Insert this information in the space provided on the

previous page of this manual.

5. WARNING: DO NOT OPERATE MACHINE(S) WITH SAFETY DEVICES BYPASSED, REWIRED OR

INOPERATIVE! DO NOT OPEN MACHINE DOOR UNTIL DRUM HAS STOPPED ROTATING!

AVERTISSEMENT: NE PAS FAIRE FONCTIONNER LA (LES) MACHINE(S) AVEC UN DISPOSITIF

DE SÉCURITÉ NEUTRALISÉ, RECÂBLÉ OU NON OPÉRATIONNEL! NE PAS OUVRIR LA

MACHINE TANT QUE LE TAMBOUR NE S’EST PAS IMMOBILISÉ!

SAFETY AND WARNINGS SIGNS

Replace If Missing Or Illegible

One or more of these signs must be affixed on each machine as indica-

ted, when not included as part of the front instruction panel.

LOCATED ON THE OPERATING INSTRUCTION SIGN OF THE MACHINE:

LOCATED AT THE REAR OF THE MACHINE:

INSTALLATION AND MAINTENANCE WARNINGS

1. This machine MUST be securely bolted according to the installation instruction to

reduce the risk of fire and to prevent serious injury, or damage to the machine.

Pour reduire les risques d'incendie, fixer cet appareil sur un plancher beton sans

revetement.

2. If installed on a floor of combustible material, the floor area below this machine must

be covered by a metal sheet extending to the outer edges of the machine.

3. This machine MUST be connected to a dedicated electrical circuit to which no other

lightning unit or general purpose receptacle is connected. Use copper conductor only.

Utiliser seulement des conducteurs en cuivre.

4. This machine MUST be serviced and operated in compliance with manufacturer's

instructions. CHECK DOOR LOCKS EVERY DAY FOR PROPER OPERATION TO PRE-

VENT INJURY OR DAMAGE. IF THE DOOR LOCK FAILS TO OPERATE PROPERLY,

PLACE THE MACHINE OUT OF ORDER UNTIL THE PROBLEM IS CORRECTED.

5. Disconnect power prior to servicing of machine.

Deconnecter cet appareil del'alimentation avant de proceder a l'entretien.

6. To remove top panel, first remove screws at the rear. When remounting the top,

reinstall them. To remove the top panel on models on which it is secured by one or

two keylocks, use the keys originally shipped in the drum package. Be certain to

relock after remounting the top panel.

MANUFACTURED BY WASCATOR

DISTRIBUTED BY WASCOMAT INWOOD, NEW YORK, USA

LOCATED ON THE DOOR:

If you need to order more safety or warning

signs, call Wascomat's parts department at

516-371-2000, or call your local dealer.

CAUTION

1. Do not open washer door until cycle is completed, operating

light is off, and wash cylinder has stopped rotating.

2. Do not tamper with the door safety switch or door lock.

3. Do not attempt to open door or place hands into washer to

remove or add clothes during operation. This can cause

serious injury.

MACHINE SHOULD NOT BE USED BY CHILDREN

PRECAUCION

1. No abra la puerta de la máquina lavadora sino hasta que la

máquina haya terminado su ciclo, la luz operativa esté apaga da

y el cilindro de lavado haya completamento terminado de girar.

2. No interferia o manipule el switch o la cerradura de la puerta.

3. No trate de abrir la puerta o meta las manos dentro de la

máquina para meter o sacar ropa mientras la máquina está en

operación, pues puede resultar seriamento herido.

LAS MÁQUINAS NO DEBEN SER USADAS POR NIÑOS

DO NOT ATTEMPT TO OPEN DOOR

UNTIL PROGRAM HAS FINISHED

AND DRUM HAS STOPPED ROTA-

TING.

WARNING !

471 7662-02

471 7661-17

Wascomat Junior W 75 • Wascomat Super Junior W 105

Wascomat Senior W 125 • Wascomat Giant W 185

Safety instructions

• The machine is designed for water washing only.

• The machine must not be used by children.

• All installation operations are to be carried out by qualified

personnel. Licensed personnel are necessary for all electric

power wiring.

• The interlock of the door must be checked daily for proper

operation and must not be bypased.

• All seepage in the system, due to faulty gaskets etc., must be

repaired immediately.

• All service personnel must be fully familiar with the operating

manual before attempting any repair or maintenance of the

machine.

• The machine must not be sprayed with water, otherwise short

circuiting may occur.

• Fabric softeners with volatile or inflammable fluids are not to

be used in the machine.

Contents

Consignes de sécurité

• La machine est conçue pour le lavage à l’eau exclusivement.

• La machine ne peut être utilisée par des enfants.

• Tous les travaux d’installation doivent être effectués par une

personne qualifiée. Tous les câblages électriques doivent être

réalisés par un électricien diplômé.

• Le verrouillage du hublot doit être vérifié chaque jour et ne

peut être neutralisé.

• Toute fuite du système, due à des joints défectueux etc., doit

être réparée sans délai.

•Tous les membres du personnel d’entretien doivent être

parfaitement familiarisés avec le manuel d’entretien avant

d’entreprendre une réparation ou un entretien de la machine.

• Ne jamais asperger d’eau la machine sous peine de risquer un

court-circuit.

• Ne pas utiliser dans la machine des adoucissants textiles

contenant des liquides volatils ou inflammables.

Introduction ...................................................................... 1

Technical data .................................................................. 2

Installation ........................................................................ 7

Safety rules .................................................................... 14

Operating instructions .................................................... 15

Wash programs .............................................................. 16

Mechanical and electrical design ................................... 22

Maintenance................................................................... 40

Trouble-shooting ............................................................ 41

The manufacturer reservs the right to make changes to design and

material specifications.

Introduction

The Wascomat Junior, Super Junior, Senior and Giant models washer/

extractors have been developed to cover the heavy duty and various size

requirements of coin laundries, apartment houses, hotels, motels, nursing

homes, hospitals, professional laundries, restaurants, schools, colleges and

all on-premises laundries where high quality automatic washing and quick

formula variation are required.

The W models offer four pre-set wash programs Hot, Warm, Cold and

Delicate which can be selected by turning the rotary program selector on

the front panel. These programs are designed to suit a variety of fabrics

and offer different water temperature programs. The machine is designed

for connection to hot and cold water supplies.

All parts of the machine which come into contact with the items being

washed are made of heavy gauge surgical stainless steel, ensuring long life

and lasting beauty, as well as full protection for no-iron fabrics. All electrical

components are made accessible for servicing by simply removing the top

panel.

This manual contains a technical description of the Wascomat W75, W105,

W125 and W185 model machines and instructions for their installation,

operation and maintenance. Together with the wiring diagram which

accompanies each individual machine it should be kept in a safe place for

easy reference.

When ordering spare parts always give the machine serial number, model,

voltage and other electrical characteristics appearing on the nameplate at

the rear of the machine.

1193

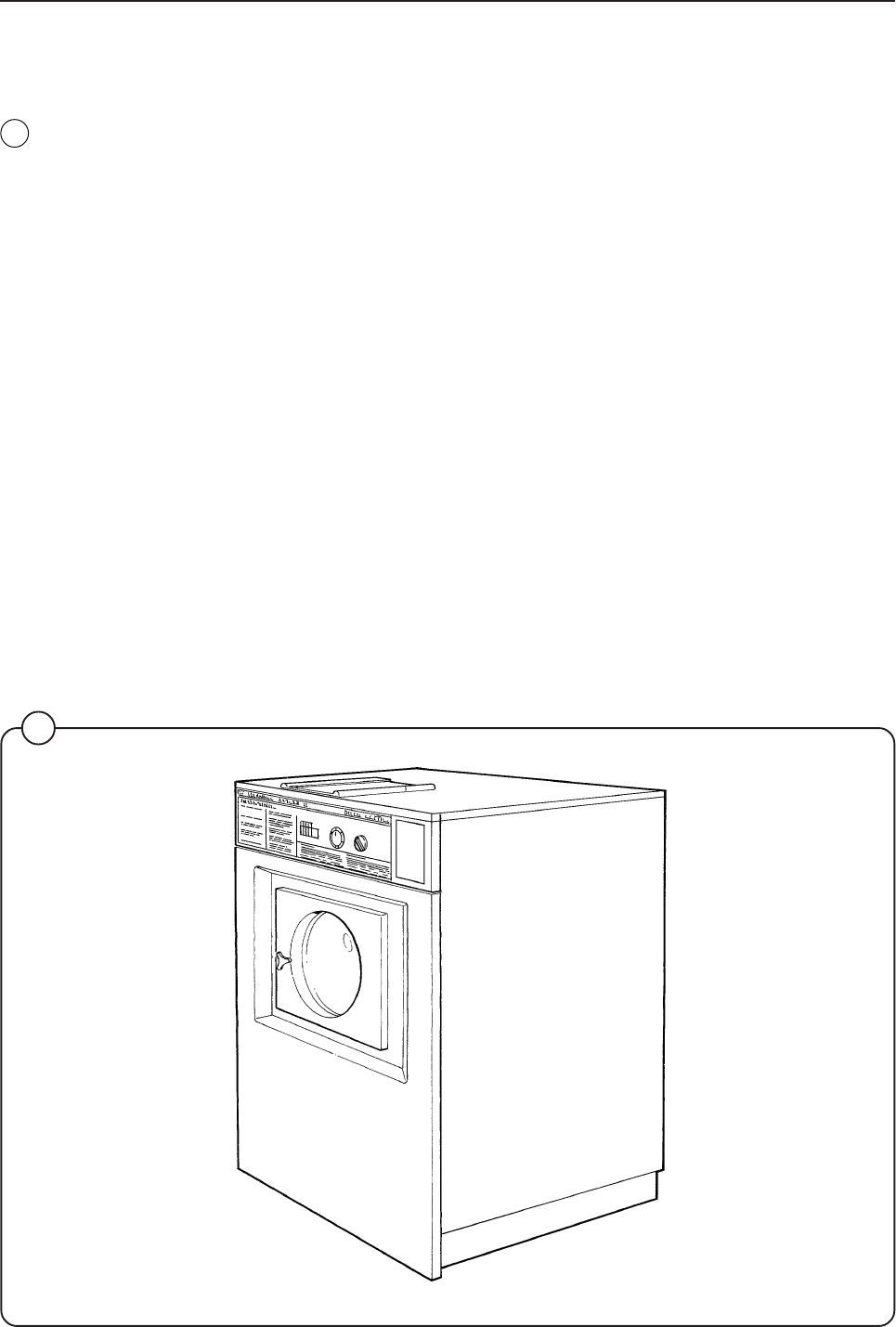

Fig.

2Technical data

Technical data Wascomat Junior W75

Dry load capacity up to 7.5 kg 18 lbs

Overall dimensions Width 660 mm 26 in

Depth

(at the top) 593 mm 23 3/8 in

Height 1050 mm 41 5/16 in

Inner drum Diameter 520 mm 20 1/2 in

Depth 356 mm 14 in

Volume 75 litre 2.7 cu.ft

Speed of rotation Wash 54 r.p.m.

Extraction 543 r.p.m.

G-factor During wash 0.8

During extraction 90

Floor loading Net weight 107 kg 235 lbs

Dyn force 1.2±2.6 kN 290±620 lbs. force

Motor speed During wash 360 r.p.m.

During extraction 3380 r.p.m.

Rated output power Motor, wash, 3-phase 110 W

0.15 HP

Motor, extract., 3-phase 550 W

0.75 HP

Motor, wash, 1-phase 110 W

0.15 HP

Motor, extract., 1-phase 370 W

0.5 HP

Voltage requirements Choice:

120 V 1-phase 60 Hz

208-240 V 3-Phase 60 Hz

Overcurrent protection Three-phase 15 A

Single-phase 20 A

Water connections

Recommended water pressure 2-6 kp/cm225-85 psi

Hose connection, water 20 DN 3/4 in

Hose connection, drain 74 mm 3 in

Technical data

Technical data Wascomat Super Junior W105

Dry load capacity up to 11.5 kg 25 lbs

Overall dimensions Width 660 mm 26 in

Depth

(at the top) 710 mm 27 5/16 in

Height 1135 mm 44 11/16 in

Inner drum Diameter 520 mm 20 1/2 in

Depth 473 mm 18 5/8 in

Volume 100 litre 3.6 cu.ft

Speed of rotation Wash 54 r.p.m.

Extraction 543 r.p.m.

G-factor During wash 0.8

During extraction 90

Floor load Net weight 161 kg 355 lbs

Dyn force 1.7 ±3.4 kN 408±816 lbs. force

Motor speed During wash 360 r.p.m.

During extraction 3450 r.p.m.

Rated output power Motor, wash 3-phase 150 W

0.2 HP

Motor, extract. 3-phase 900 W

1.2 HP

Motor, wash 1-phase 140 W

0.18 HP

Motor, extract. 1-phase 550 W

0.75 HP

Voltage requirements Choice:

120 V 1-phase 60 Hz

208-240 V 3-Phase 60 Hz

Overcurrent protection Three-phase 15 A

Single-phase 20 A

Water connections

Recommended water pressure 2-6 kp/cm225-85 psi

Hose connection, water 20 DN 3/4"

Hose connection, drain 74 mm 3"

4Technical data

Technical data Wascomat Senior W125

Dry load capacity up to 16 kg 35 lbs

Overall dimensions Width 745 mm 29 5/16 in

Depth

(at the top) 915 mm 36 in

Height 1196 mm 47 1/16 in

Inner drum Diameter 620 mm 24 1/2 in

Depth 520 mm 20 1/2 in

Volume 157 litre 5.65 cu.ft

Speed of rotation Wash 52 r.p.m.

Extraction 500 r.p.m.

G-factor During wash 0.9

During extraction 87

Floor load Net weight 210 kg 462 lbs

Dyn force 2.4±4.8 kN 576±1152 lbs. force

Motor speed During wash 360 r.p.m

During extraction 3450 r.p.m

Rated output power Motor, wash 3-phase 300 W

0.4 HP

Motor, extract. 3-phase 1300 W

1.8 HP

Motor, wash 1-phase 280 W

0.4 HP

Motor, extract. 1-phase 1300 W

1,8 HP

Voltage requirements Choice:

208-240 V 1-phase 60 Hz

208-240 V 3-Phase 60 Hz

Overcurrent protection Three-phase 15 A

Single-phase 20 A

Water connections

Recommended water pressure 2-6 kp/cm225-85 psi

Hose connection, water 20 DN 3/4"

Hose connection, drain 74 mm 3"

Technical data

Technical data Wascomat Giant W 185

Dry load capacity up to 23 kg 50 lbs

Overall dimensions Width 827 mm 32 9/16 in

Depth

(at the top) 960 mm 37 13/16 in

Height 1315 mm 51 3/4 in

Inner drum Diameter 700 mm 27 9/16 in

Depth 600 mm 23 5/8 in

Volume 230 litre 8.1 cu.ft

Speed of rotation Wash 45 r.p.m.

Extraction 455 r.p.m.

G-factor During wash 0.8

During extraction 81

Floor load Net weight 264 kg 582 lbs

Dyn force 3.1±5.2 kN 744±1248 lbs. force

Motor speed During wash 360 r.p.m

During extraction 3480 r.p.m

Rated output power Motor, wash 3-phase 400 W

0.55 HP

Motor, extract. 3-phase 2000 W

2.7 HP

Motor, wash 1-phase 400 W

0.55 HP

Motor, extract. 1-phase 1800 W

2.4 HP

Voltage requirements Choice:

208-240 V 1-phase 60 Hz

208-240 V 3-Phase 60 Hz

Overcurrent protection Three-phase 15 A

Single-phase 20 A

Water connections

Recommended water pressure 2-6 kp/cm225-85 psi

Hose connection, water 20 DN 3/4"

Hose connection, drain 74 mm 3"

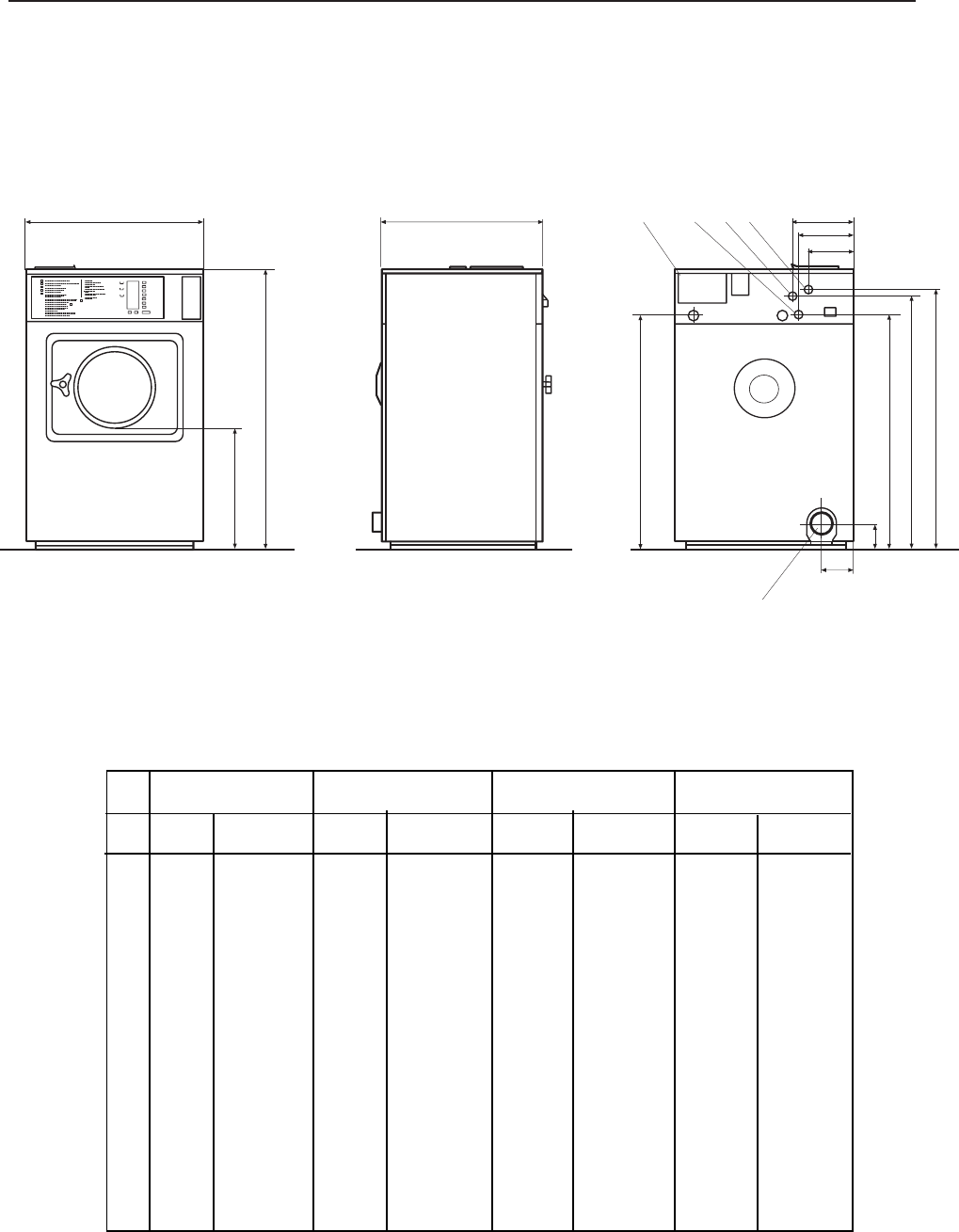

Outline and dimensions

Technical data

1 Cold water

2 Hot water

3 Hot water (W185)

4 Drain outlet

3210 A

Electrical

cable

connection

231

W75 W105 W125 W185

mm inches mm inches mm inches mm inches

A 1050 41 5/16 1135 44 11/16 1196 47 1/16 1315 51 3/4

B 437 17 3/16 522 20 9/16 465 18 5/16 540 21 1/4

C 660 26 660 26 745 29 5/16 827 32 9/16

D 593 23 3/8 710 27 15/16 915 36 960 37 13/16

E 895 35 1/4 980 38 9/16 1040 40 15/16 1160 45 11/16

F 100 3 15/16 185 7 5/16 100 3 15/16 100 3 15/16

G 125 4 15/16 125 4 15/16 270 10 5/8 260 10 1/4

H 980 38 9/16 1065 41 15/16 1130 44 11/16 1255 49 7/16

J – – – – – – 1215 47 13/16

K 890 35 975 38 3/8 1035 40 3/4 1155 45 1/2

L – – – – – – 295 11 5/8

M 205 8 1/6 205 8 1/16 205 8 1/16 205 8 1/16

N 160 6 5/16 160 6 5/16 160 6 5/16 160 6 5/16

W75 W105 W125 W185

mm inches mm inches mm inches mm inches

A 364 14 5/16 481 18 15/16 508 20 600 23 5/8

B 593 23 3/8 710 27 15/16 915 36 960 37 13/16

C 643 25 5/16 760 29 15/16 965 38 1010 39 3/4

D 100 4 100 4 115 4 1/2 115 4 1/2

E 530 20 7/8 530 20 7/8 600 23 5/8 700 27 9/16

G 700 27 9/16 700 27 9/16 815 32 1/16 900 35 7/16

H 643 25 5/16 715,6 28 3/16 786 30 15/16 922 36 1/8

I - - - - 991 39 1090 42 7/8

K - - - - 281 11 236 9 5/16

Installation

0271

1677

1132

Installation

Machine foundation

The machines are designed to be bolted in

position to a concrete floor or specially prepared

concrete foundation. A template showing the size

of the foundation and positioning of the foun-

dation bolts can be provided by Wascomat.

For installation on an existing concrete floor, the

floor must be at least 8" thick and of good quality.

If the floor does not meet these requirements,

then a 6-8" high concrete foundation should be

made. A prefabricated steel base is available for

mounting of machines without an additional

foundation.

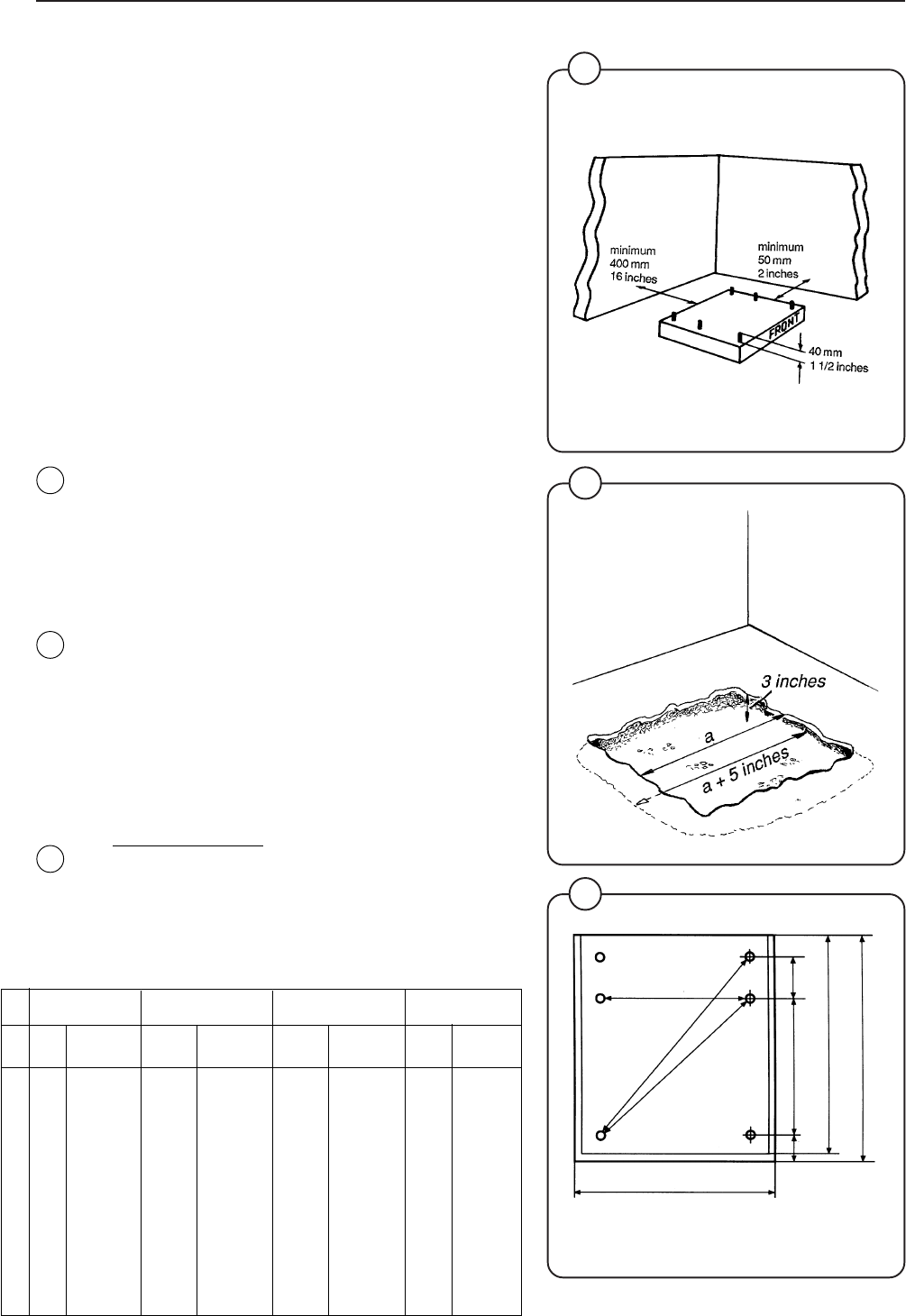

Follow the instructions below when making a

concrete foundation:

1. Decide where to place the machine and

consider maintenance requirements, i.e.

determine a suitable distance from the rear of

the foundation to the wall, and the distance

from the foundation to the nearest side wall.

The distance should be at least 16 and 12

inches, respectively.

2. Break up the floor to a depth of 3 inches,

making sure that the sides of the hole slope

inwards - the bottom of the hole should be 5

inches longer than the upper length.

3. Wet the hole well. Brush the bottom and sides

with cement grout.

4. Prepare a casing and fill with 3,000 PSI min.

concrete to form a pad. Make sure the foun-

dation is level.

5. Use the template to position the foundation

bolts correctly - bolts are to extend 1 1/2"

above concrete.

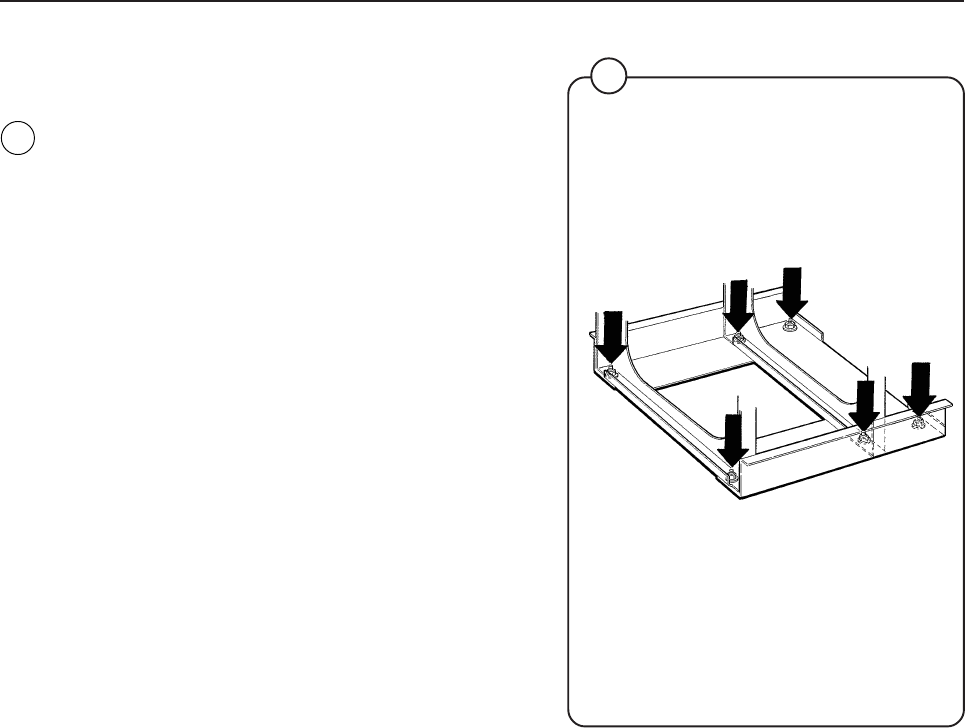

NOTE: A prefabricated steel frame, designed

to be placed in the concrete instead of the

individual mounting bolts, is available from

Wascomat.

Fig.

B = machine outline to edge of front panel

C, G = minimum foundation for one machine

8Installation

0274

0950

1133

Mechanical installation

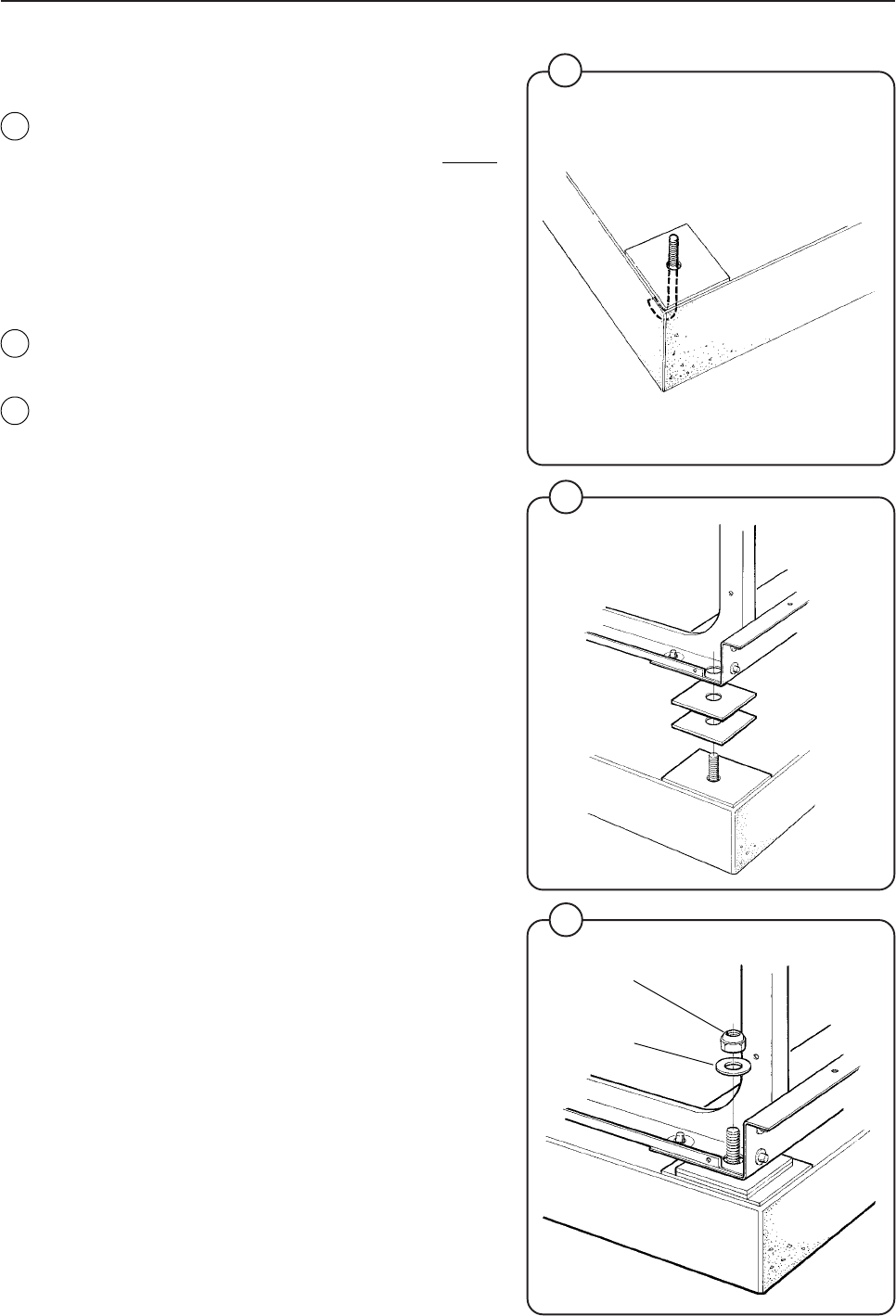

• Place wide steel shims on the concrete foun-

dation over the bolts.

• Lift the machine and lower it in position. Never

use the door or the door handle to lift or lower

the machine.

• Check that the machine is level front-to-rear

and side-to-side and standing firmly on the

four (W75, W105) or six (W125 W185) sup-

porting points. Spacing washers must be

mounted if one or more of these points is not

resting against the floor/foundation.

• Place flat washers over the foundation bolts

and secure the machine in position by tighte-

ning the self-locking nuts. See illustration

below.

• Check and tighten the nuts every week for the

first month to compensate for any setting of

the foundation.

selflocking

nut

flat washer

Fig.

Installation

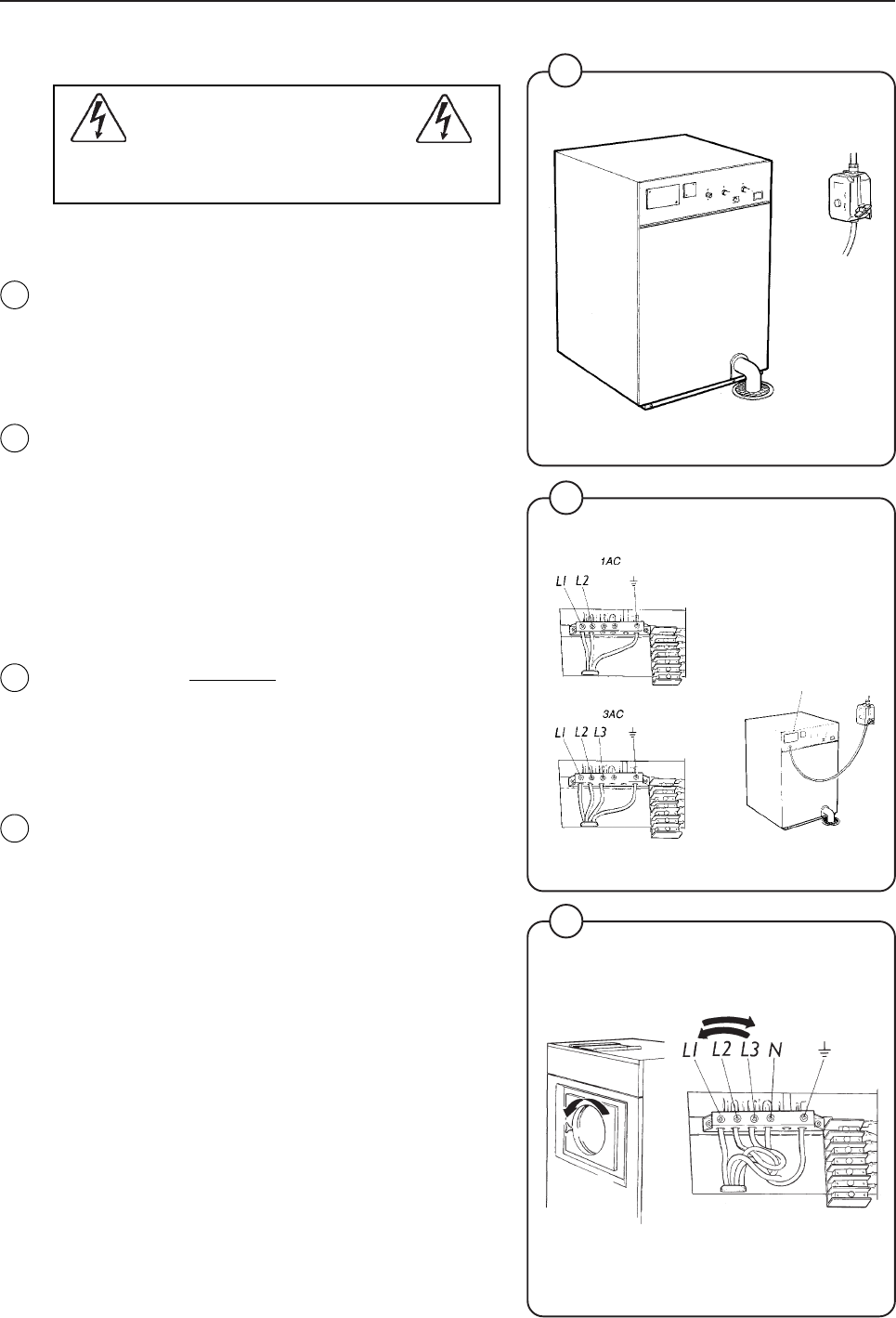

Electrical installation

All electrical installations are to be carried

out by licenced personnel.

Although the machines are equipped with

thermal overloads in the motor windings a

separate three-phase common-trip circuit breaker

must be installed for all three-phase machines.

For proper overcurrent protection, check the data

plate at the rear of the machine. Also consult

local electrical code for special requirements.

Use inverse-time circuit breaker only.

Connect L1, L2, L3 and ground wires according

to the markings of the terminal block at the upper

left rear corner of the machine. The cable is to

hang in a large loose loop, supported by the clip

of the terminal block.

After installation, do the following for 3-phase

machines:

Check the incoming power for a high voltage or

"stinger" leg. This will usually measure higher

than 150 Volts to ground. If present, connect that

line to L2 on the terminal block.

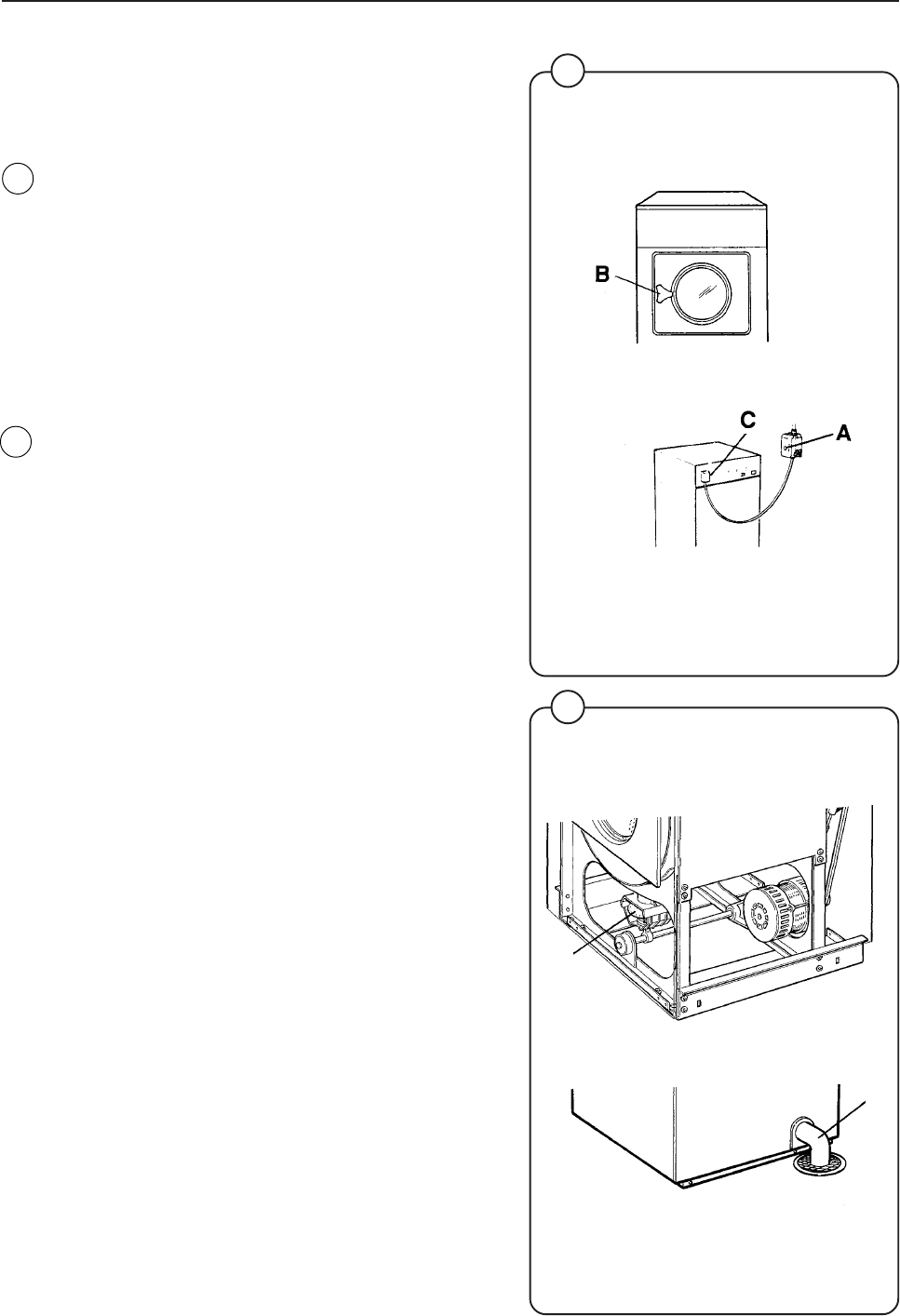

For 3-phase machines start the machine and

check that the drum rotates in the ccw direction

during extraction, when seen from the front. If the

drum rotates in the wrong direction interchange

lines L1 and L3 at the power connection termin-

als.

Recommended overcurrent protection

W75 3-phase – 15 A max

W75 1-phase – 20 A max

W105 3-phase – 15 A max

W105 1-phase – 20 A max

W125 3-phase – 15 A max

W125 1-phase – 20 A max

W185 3-phase – 15 A max

W185 1-phase – 20 A max

Signals for external supply (non-metered

machines).

At the rear of the machine, next to the incoming

lower terminal block, there is another terminal

block for connection of signal wires to an external

supply dispenser. The connection points are

marked 1, 2, 3 and C (common).

1830

1838

Fig.

1839

10 Installation

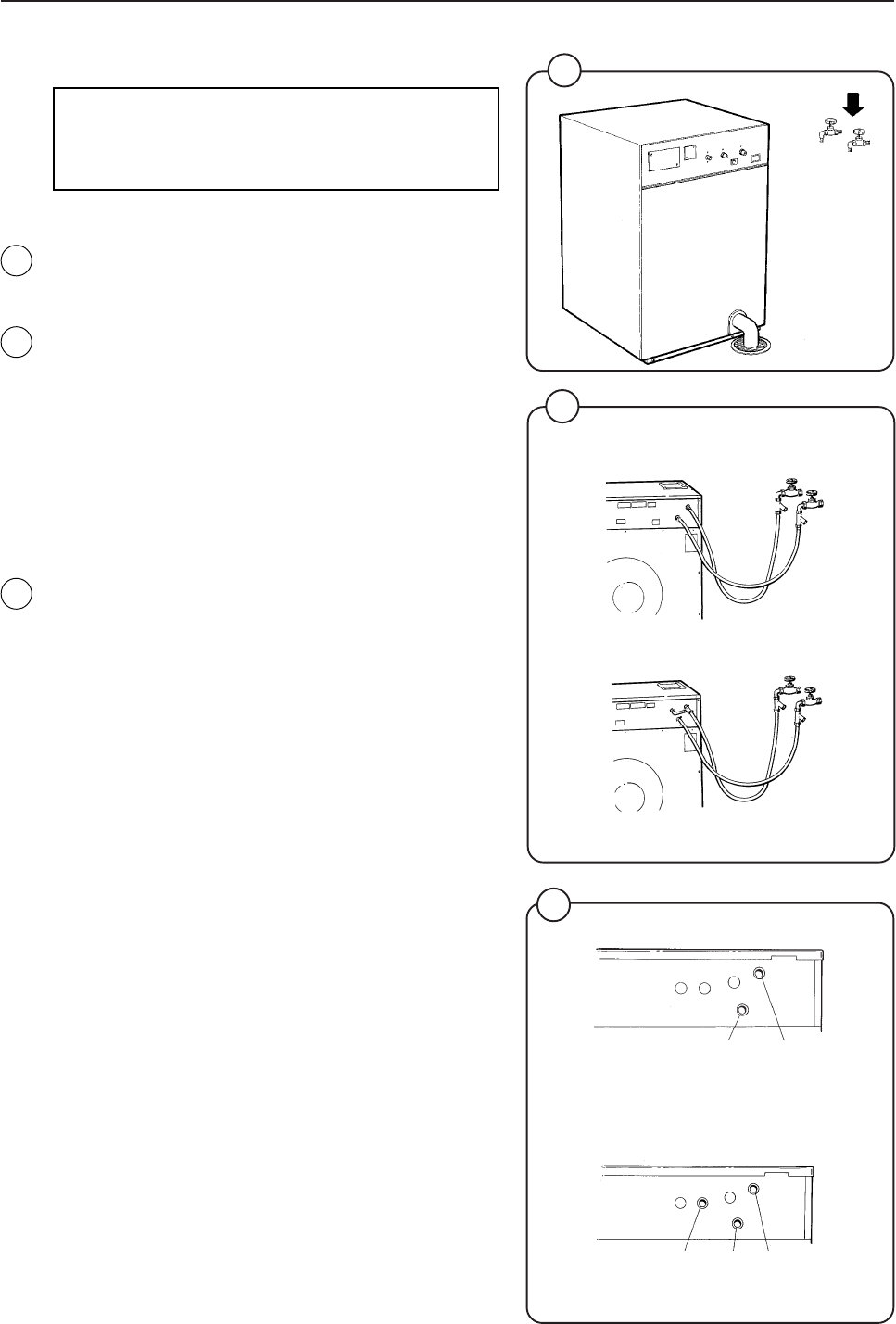

Water connections

NOTE

All plumbing must conform to national

and local plumbing codes.

Incoming water lines should not require non-

return or back-suction valves, as the machine is

already equipped with backflow prevention. Shut-

off valves must be provided on all incoming water

lines.

• Water inlets are labelled for hot and cold

water connection.

• Before connecting the water hoses flush the

water lines thoroughly and check that the filter

at the machine inlet is fitted correctly. This is

essential since dirt and grit in the water lines

may clog the inlet valve filter screens and/or

drain pilot valve, causing the machine to fill

very slowly or the drain valve not to operate

properly.

• Connect the water supply to the machine with

3/4" reinforced rubber hosing not to exceed 6

ft in length. Hang the hosing in a large loop.

Do not use rigid piping.

• Never force a hose onto the threads or you

may cause cross-threading and leaks. If this

occurs, place the threaded portion of the hose

over the valve threads and push forward

firmly, to catch the next thread. Then tighten.

1832

W 75, W105, W125

W 185

1870

hot water cold water

1846

1844

hot water cold water cold water

(to detergent supply box)

Fig.

W 75, W105, W125

W 185

Installation

1833

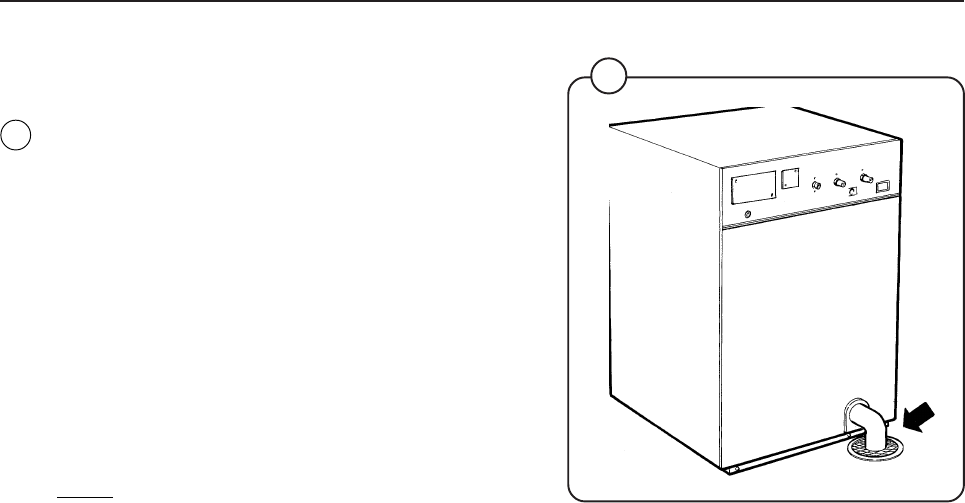

Drain connection

Connect a 3" (75 mm) flexible drain hose to the

drain outlet of the machine.

The drain hose may be connected to a 2" to 3"

T-connection coming out of your main drain line,

which is typically four inches diameter, or the

washer may dump into a trough which slopes to

a drain, or directly into a floor drain as shown in

the illustration. Check local codes for required

installation procedure.

The drain hose must not have sharp bends and

must slope from the machine to assure proper

drainage. If the machine(s) drain into an open

trough the trough should have a slope of 1/8"-

1/4" per foot towards the main drain.

Note:

To simplify installation, Wascomat has made

available the following hose kits:

For W75, W105 and W125 Partno. 002008

For W185 Partno. 002009

These kits contain inlet hoses, drain hose, hose

clamps and washers.

Fig.

12 Installation

Before the machine is operated, the door safety

interlock must be checked for proper operation

as follows:

• When washer loading door is open, the ma-

chine must not start. Verify this by attempting

to start washer with door open.

• When washer is in operation, the loading door

is locked and cannot be opened. Verify this by

attempting to open the loading door when the

machine is operating. If necessary, consult

this manual for proper operation of the door

lock and door safety interlock or call a quali-

fied serviceman.

IMPORTANT:

Door safety interlock must be checked

daily in accordance with above procedure.

WARNING:

Before servicing Wascomat equipment,

disconnect electrical power.

IMPORTANT:

Le verrouillage de sûreté de la porte doit

être vérifié tous les jours selon la

procédure ci-dessus.

AVERTISSEMENT:

Couper l’alimentation électrique avant

tous travaux d’entretien sur un appareil

Wascomat.

1195

1196

Fig.

Function control check-out list

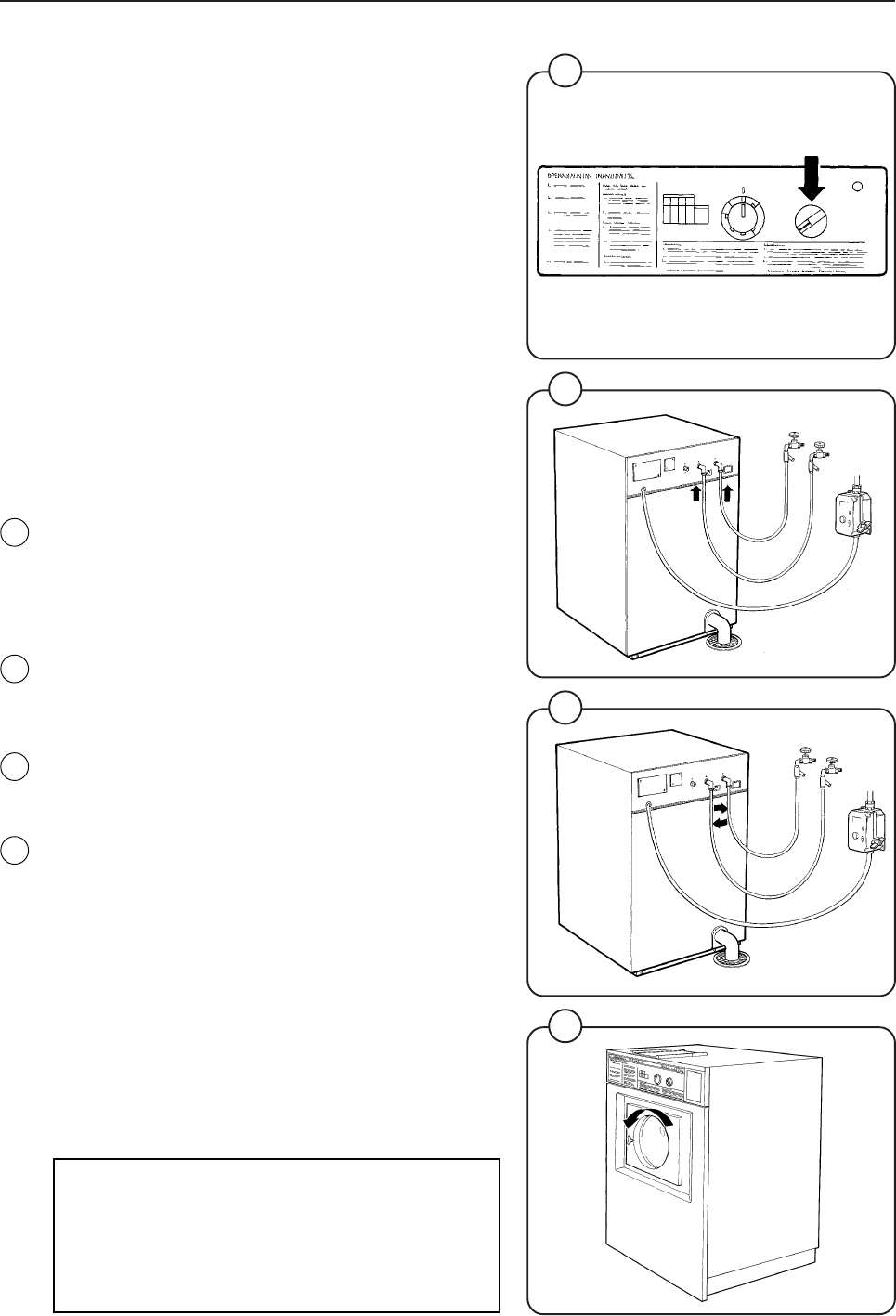

In the machine cylinder, you will find the warranty

registration card, a copy of the warranty policy

and other pertinent materia. The warranty card

should be completed and sent to Wascomat. All

other items should be placed in a safe place for

future reference.

The machine should be cleaned when the instal-

lation is completed, and checked out as detailed

below without loading the machine with fabrics:

1. Check the incoming power for proper voltage,

phase and cycles.

2. Open manual shut-off valves to the machine.

3. Turn on electric power.

4. Check the function of the door safety interlock

as detailed on page 10 of this manual.

5. Select the HOT program and start the

machine.

6. Run through a complete cycle, checking for

water temperature, drain operation and extract

direction.

7. When the program is in the Prewash cycle,

hot and cold water should be entering the

machine. In the Wash cycle only hot water

should enter.

8. If cold water comes in, the hoses are impro-

perly connected. Reverse hot and cold water

hoses.

9. Machine must spin in a counter-clockwise

direction, as seen from the front, during extra-

ction. If it does not, reverse lines L1 and L3 on

3-phase machines.

If the side panels of the washer move during

extraction, remove the shipping security which

connects the top rear of the cylinder to the

upper section of the back panel. It is used to

prevent shipping damage but has no function

when the washer is installed in a laundry. In

some rare installations this bracket may

transmit vibrations to the side panels. If it

does, remove the shipping security; otherwise,

leave it in place.

NOTE

All machines are factory tested prior to

shipment. Occasionally, some residual

water may be found when the machine is

installed.

Installation

1189

1835

1836

1190

Fig.

Delicate

Hot

Cold

Warm

Consignes de sécurité

• La machine est conçue pour le lavage à l’eau exclusivement.

• Tous les travaux d’installation doivent être effectués par une

personne qualifiée. Tous les câblages électriques doivent être

réalisés par un électricien diplômé.

• Le verrouillage du hublot doit être vérifié chaque jour et ne peut

être neutralisé.

• Toute fuite du système, due à des joints défectueux etc., doit

être réparée sans délai.

• Tous les membres du personnel d’entretien doivent être

parfaitement familiarisés avec le manuel d’entretien avant

d’entreprendre une réparation ou un entretien de la machine.

• Ne jamais asperger d’eau la machine sous peine de risquer un

court-circuit.

• La machine ne peut être utilisée par des enfants.

• Ne pas utiliser dans la machine des adoucissants textiles

contenant des liquides volatils ou inflammables.

Safety rules

• This machine is designed for water washing only.

• All installation operations are to be carried out by qualified

personnel. Licensed personnel are necessary for all electric

power wiring.

• The interlock of the door must be checked daily for proper

operation and must not be bypassed.

• All seepage in the system, due to faulty gaskets etc., must be

repaired immediately.

• All service personnel must be fully familiar with the operating

manual before attempting any repair or maintenance of the

machine.

• This machine must not be sprayed with water, otherwise short

circuiting may occur.

• This machine must not be used by children.

• Fabrics softener with volatile or inflammable fluids are not to be

used in the machine.

Operating instructions

1199

0256

1200

Procedure for use

Preparation

Sort the laundry according to the washing

instructions on garment tags.

Empty pockets and close zippers.

Open door, put laundry in the machine and close

door.

Start

Turn the control knob to the desired wash pro-

gram.

Add detergent and fabric softener in the compart-

ments on top of the machine:

• pre-wash detergent in compartment 1

• regular detergent in compartment 2

• liquid fabric softener in compartment 3

Follow dosage instructions on the detergent

package.

Liquid detergent can only be added at the begin-

ning of the specific cycle.

Insert coins or tokens. When the right amount has

been added the machine starts automatically.

Finishing

When the wash program is finished, open the

door and take out the laundry.

Leave the door open when the machine is not in

use.

Leave the machine in the condition you would

expect to find it in.

When necessary, clean the door gasket and

detergent compartments. Wipe off the machine

with a damp cloth.

Fig.

Wash Programs

In the figure below is an overview of the four wash programs.

On the following pages you will find a more detailed description of the

programs.

Wash Programs

1202

HOT WARM COLD DELICATE

Time Temp. Water Time Temp. Water Time Temp. Water Time Temp. Water

(Min.) Level (Min.) Level (Min.) Level (Min.) Level

Prewash 3 Warm High 3 Warm High 3 Cold High 3 Warm High

Detergent 1

Drain 1 1 1 1

Mainwash 6 Hot High 6 Warm High 6 Cold High 6 Warm High

Detergent 2

Drain 1 1 1 1

Rinse 1 1 Cold High 1 Cold High 1 Cold High 1 Cold High

Drain 1 1 1 1

Extract 0.5 0.5 0.5 0.5

Rinse 2 1 Cold High 1 Cold High 1 Cold High 1 Cold High

Drain 1 1 1 1

Extract 0.5 0.5 0.5 0.5

Rinse 3 2 Cold High 2 Cold High 2 Cold High 2 Cold High

Detergent 3

Drain 1 1 1 1

Extract 4 4 4 1

Shake-out 1.5 1.5 1.5 1.5

Total time 24.5 24.5 24.5 21.5

(water fill time

not included)

Fig.

Wash Programs

1203

Wash program, Hot

After the machine has started and the door

automatically locked, the drain valve will close

and the hot and cold water valves will open to fill

the machine with mixed hot and cold water to the

level determined by the level control.

When this level is reached, both water valves will

close. During filling and then through the wash

program the drum has a reversing rotation.

At the end of the pre-wash, the drain valve will

open, whereafter hot water will fill to the level

determined by the level control. At the same time

detergent from compartment 2 is mixed with the

incoming hot water.

The water level controlled machine will now wash

the fabrics for 6 minutes. The machine is then

emptied.

Cold water is filled to the high level for the first

rinse which lasts one minute, followed by spin

extraction for 30 seconds. After the extraction

comes the second rinse in cold water, ending

with spin extraction, whereafter the third rinse is

started. Fabric softener is automatically admitted

during the third rinse. The fabrics are rinsed in

cold water for two minutes followed by a spin

extraction of four minutes duration. Finally there

is a shake out for one and a half minutes.

HOT

Time Temp. Water

(Min.) Level

Prewash 3 Warm High

Detergent 1

Drain 1

Mainwash 6 Hot High

Detergent 2

Drain 1

Rinse 1 1 Cold High

Drain 1

Extract 0.5

Rinse 2 1 Cold High

Drain 1

Extract 0.5

Rinse 3 2 Cold High

Detergent 3

Drain 1

Extract 4

Shake-out 1.5

Total time 24.5

(water fill time

not included)

Fig.

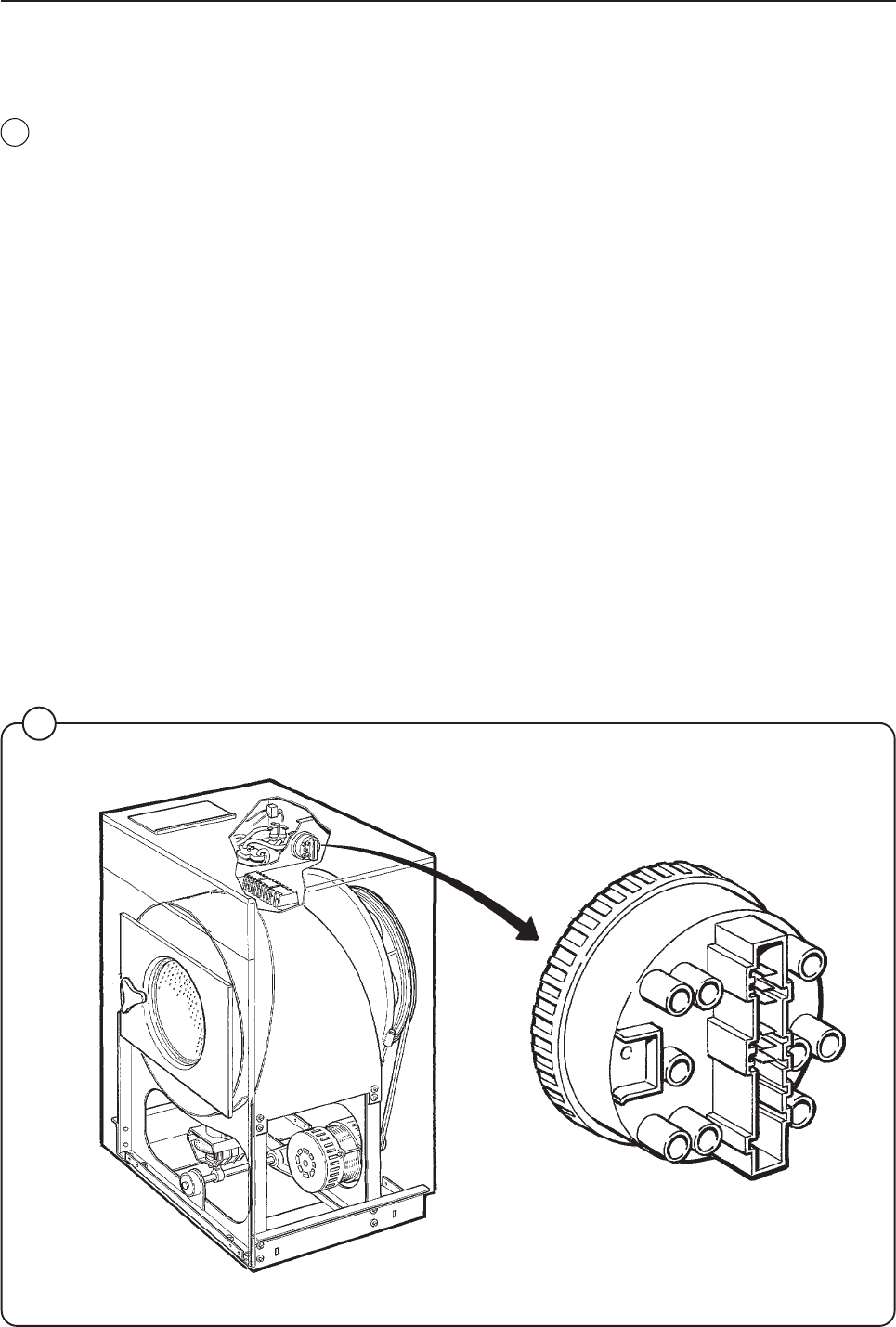

Wash Program, Warm

On starting the machine, the door will automatic-

ally be locked, and the pre-wash carried out as

previously described, whereafter the main wash

is started.

As the main wash is started, the drain valve

closes, detergent is admitted and mixed hot and

cold water is filled to the level determined by the

level control.

On reaching this level, the water valves are

closed.

The water level controlled machine will now wash

the fabrics for six minutes. The machine is then

emptied.

Cold water is filled for the first rinse which lasts

one minute, followed by spin extraction for 30

seconds.

After this extraction comes the second rinse in

cold water ending with spin extraction, whereafter

the third rinse is started. Fabric softener is

automatically admitted during the third rinse. The

fabrics are rinsed with cold water for two minutes

followed by a spin extraction of four minutes

duration. Finally there is a shake out for one and

a half minutes.

Wash Programs

1204

WARM

Time Temp. Water

(Min.) Level

Prewash 3 Warm High

Detergent 1

Drain 1

Mainwash 6 Warm High

Detergent 2

Drain 1

Rinse 1 1 Cold High

Drain 1

Extract 0.5

Rinse 2 1 Cold High

Drain 1

Extract 0.5

Rinse 3 2 Cold High

Detergent 3

Drain 1

Extract 4

Shake-out 1.5

Total time 24.5

(water fill time

not included)

Fig.

Wash Programs

1205

Wash Program, Cold

On starting the machine, the door will automatic-

ally be locked, the drain valve closed, the cold

water valve opened and the pre-wash carried out

as previously described, whereafter the main

wash is started.

As the main wash is started, the drain valve

closes, detergent is admitted and cold water is

filled to the level determined by the level control.

On reaching this level, cold water is closed.

The water level controlled machine will now wash

the fabrics for six minutes. The machine is then

emptied.

Cold water is filled for the first rinse which lasts

one minute, followed by spin extraction for 30

seconds.

After this extraction comes the second rinse in

cold water concluded with spin extraction, whe-

reafter the third rinse is started.

Fabric softener is automatically admitted during

the third rinse. The fabrics are rinsed with cold

water for two minutes followed by a spin extra-

ction of four minutes duration. Finally there is a

shake out for one and a half minutes.

COLD

Time Temp. Water

(Min.) Level

Prewash 3 Cold High

Detergent 1

Drain 1

Mainwash 6 Cold High

Detergent 2

Drain 1

Rinse 1 1 Cold High

Drain 1

Extract 0.5

Rinse 2 1 Cold High

Drain 1

Extract 0.5

Rinse 3 2 Cold High

Detergent 3

Drain 1

Extract 4

Shake-out 1.5

Total time 24.5

(water fill time

not included)

Fig.

Wash Program, Delicate

On starting the machine, the door will automatic-

ally be locked, the drain valve closed, the hot and

cold water valves opened and the pre-wash will

be carried out as previously described, where-

after the main wash is started.

As the main wash is started, the drain valve

closes, detergent is admitted and mixed hot and

cold water is filled to the level determined by the

level control.

On reaching this level, the water valves are

closed and the wash motor starts its reversing

rotation.

The water level controlled machine will now wash

the fabrics for six minutes. The machine is then

emptied.

Cold water is filled for the first rinse which lasts

one minute, followed by spin extraction for 30

seconds.

Fabric softener is automatically admitted during

the third rinse. The fabrics are rinsed with cold

water for two minutes followed by a spin extra-

ction of one minutes duration. Finally there is a

shake out for one and a half minutes.

Wash Programs

1206

DELICATE

Time Temp. Water

(Min.) Level

Prewash 3 Warm High

Detergent 1

Drain 1

Mainwash 6 Warm High

Detergent 2

Drain 1

Rinse 1 1 Cold High

Drain 1

Extract 0.5

Rinse 2 1 Cold High

Drain 1

Extract 0.5

Rinse 3 2 Cold High

Detergent 3

Drain 1

Extract 1

Shake-out 1.5

Total time 21.5

(water fill time

not included)

Fig.

3962

To change the wash programs

You can change the following parameters in the

wash programs by adding jumper wires to the

terminal block at the rear of the machine.

- no prewash

- only two rinses

Water level during prewash/mainwash

With jumper A (see figure) in place the machine

fills water to the high level during prewash,

mainwash and rinses.

If you remove jumper A the machine fills water to

the low level during pre- and mainwash and to

the high level during rinses.

Contact your local dealer for detailed information.

To change the wash programs

Fig.

Terminal connection

22 Mechanical and electrical design

General

The door, cycle indicator, coin meter or manual start switches, indicator

light and program-selection knob are located at the front of the machine.

All control and indicating components, i.e. relays, level control, cycle timer,

etc are assembled under the top cover, easily accessible at the top of the

machine for simplified servicing.

Main units

1 Program-selector - rotary switch for choice of different wash programs.

2 Door - with automatic locking device which remains locked until the cycle

is completed and the drum has stopped rotating.

3 Detergent supply box - three compartments for automatic injection of

powdered detergents and fabric softener.

4 Inner cylinder - of stainless steel supported at the rear by two ballraces.

5 Outer drum - of stainless steel (18/8) securely attached to the frame.

6 Wash and extract motor - for reversing wash action and high speed

extraction.

7 Hot and cold water valves - program and level controlled solenoid valves

for filling with water, and for flushdown of automatic detergent dispenser.

8 Drain valve - timer controlled for draining the machine of water.

9 Siphon breaker - to prevent water in the machine from re-entering the

water supply system.

10 Control unit - plug-in type for time and temperature control of the diffe-

rent wash cycles.

11. Coin-meter or manual start switches.

Fig.

Mechanical and electrical design

Machine construction

Outer shell

The outer shell is made of heavy gauge surgical steel and is attached to a heavy

duty, rigid head casting (back gable).

The whole assembly is mounted on a heavy gauge fabricated steel base,

galvanized for long life and corrosion resistance.

Panels

The machines are equipped with a top panel made of stainless steel. The front

panel is available in different colors or in stainless steel. The colored panels are

made of phosphatized steel plate. For servicing purposes, the panels can easily be

removed.

Inner cylinder

The inner cylinder is made of perforated surgical stainless steel. It is equipped with

three lifting ribs and has highly-polished side sheets and back with maximum

embossed perforated area to assure high flow of water and supplies through fabrics.

Scientifically correct ratio of cylinder diameter and depth assures maximum washing

action.

The shaft is electrically welded to the reinforced back of the cylinder. A specially

designed chrome-plated sleeve bushing protects the seals from wear.

1678

397

Fig.

Panels

The machines are equipped with a top panel made of stainless steel. The

front panel is available in different colours or in stainless steel. The colored

panels are made of phosphatized steel plate with electrostatically applied

baked enamel paint finish for rust and chip resistance. For servicing

purposes, the panels can easily be removed.

Back gable and bearing

The back gable and the bearing trunnion housing are constructed of a

webbed heavy casting for extra rigidity. The bearings are protected against

imfiltration of water by three neoprene seals. An intermediate safety outlet

provides an escape for any possible condensation.

The seals are mounted on a stainless steel, noncorrosive, specially harde-

ned sleeve bushing that is mounted on the drive shaft to prevent wear of

the seals and shaft. The main bearing is fitted machine-tight into the bea-

ring trunnion housing. A nut is tightened on the shaft to prevent the cylinder

from moving in and out.

The extension of the bearing trunnion housing supports the rear bearing

holding the shaft. A grease seal is mounted to prevent escape of grease.

The bearings are permanently lubricated and need no maintenance.

Wascomat's design transfers the weight of the loaded wash cylinder to the

largest possible surface area away from the bearings, for longest machine

life.

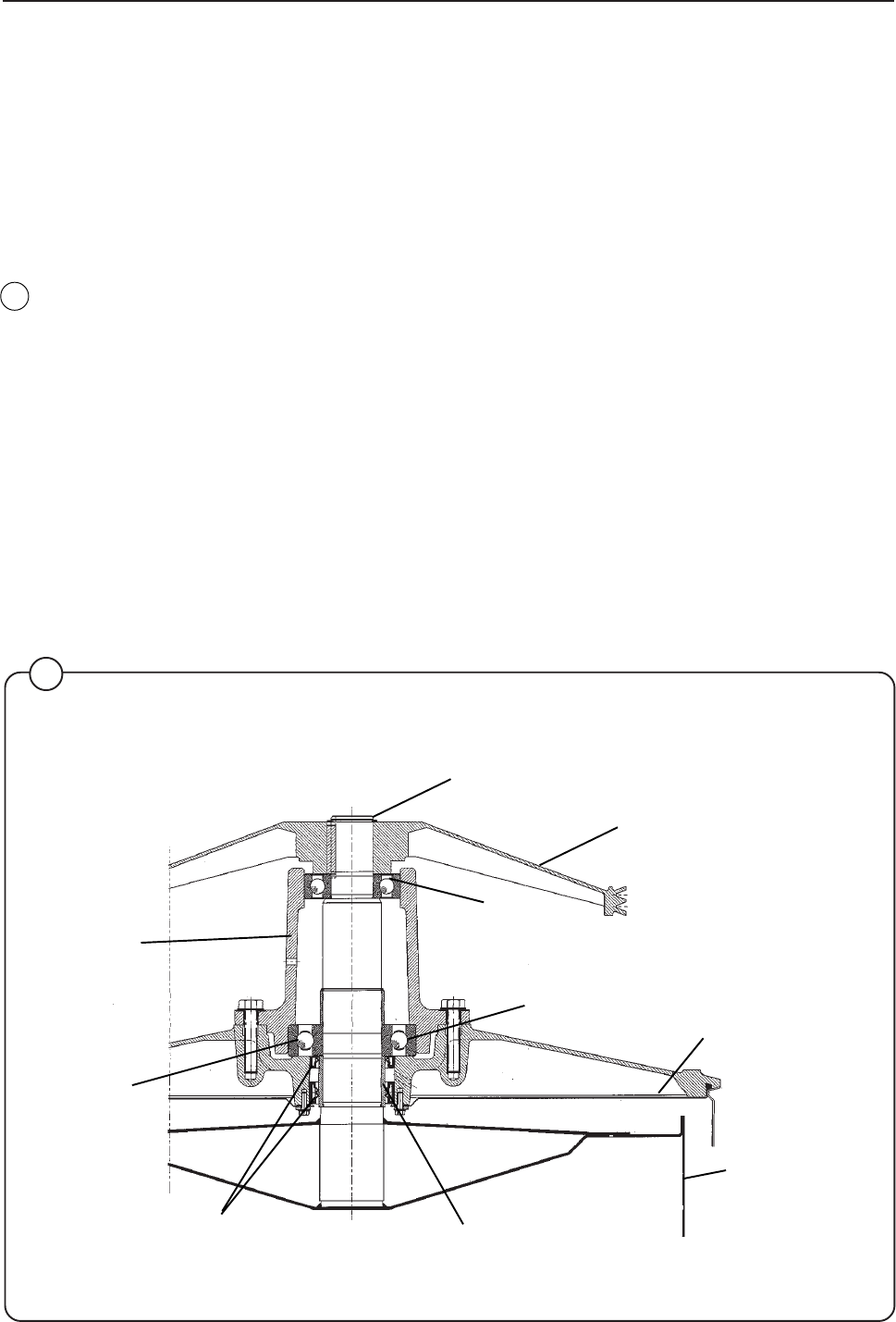

Mechanical and electrical design

1726

Fig.

W125

Clamp

Pulley

Rear

bearing

Front

bearing

Rear lining

Inner drum

Bushing

Seals

Front

bearing

Bearing

housing

Mechanical and electrical design

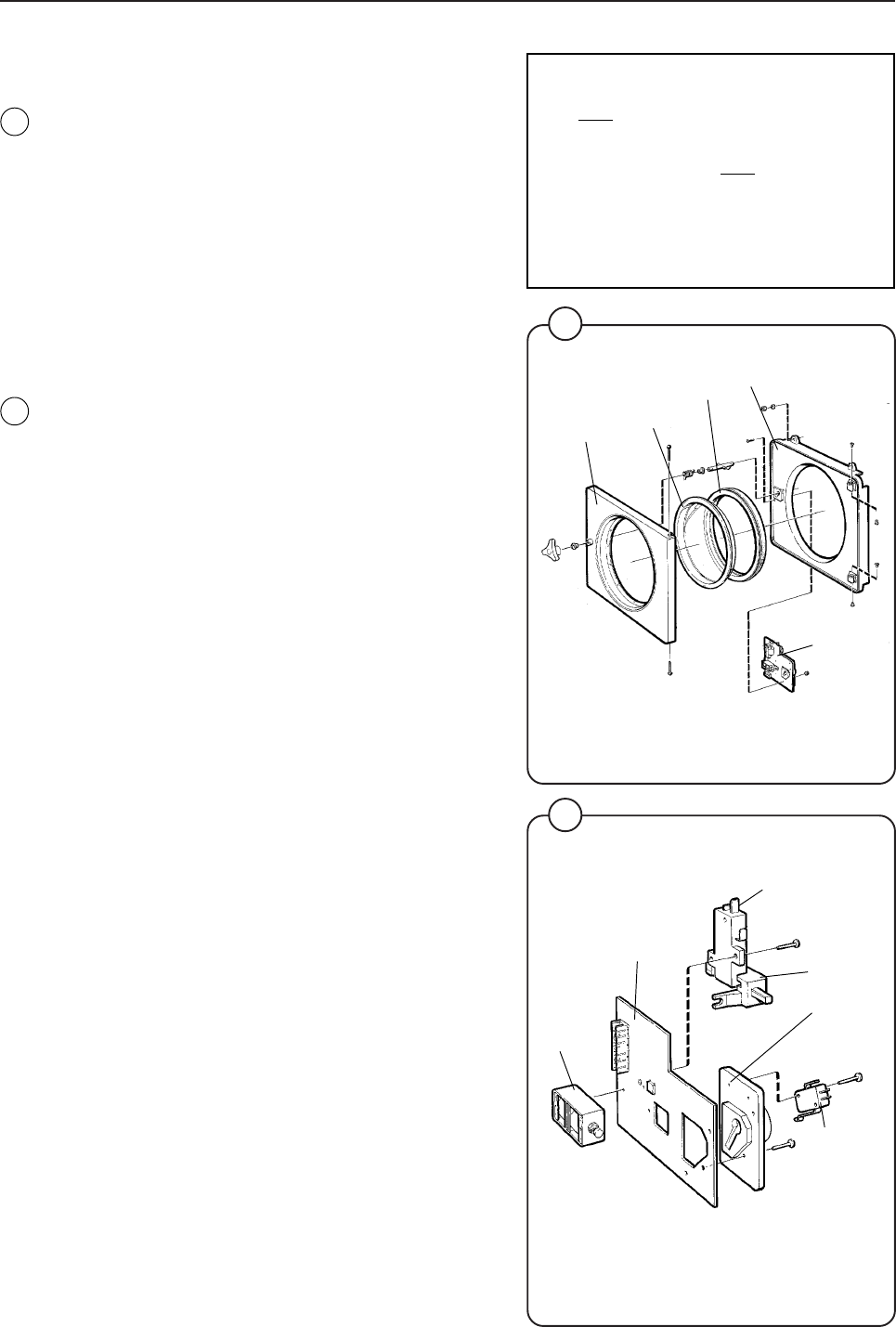

Door

The door consists of: a door skirt (1), door (2),

glass (3) and gasket (4). The frame skirt and

door frame are both made of enameled alumi-

nium. The skirt is bolted directly to the outer

shell of the washing machine.The door hinges

are fastened on the outside of the skirt and the

door lock (5) is attached to the inside. The heat-

hardened glass is mounted in the door using a

special rubber seal which also acts as a gasket

between the door and the washing machine’s

outer shell when the door is closed.

Door lock

The door lock consists of a circuit board (1) with

a connector. Mounted on the board are the lock

plate (2), against which the locking bolt turns to

lock the door, and a microswitch (3) which closes

when the locking bolt has locked the door.

There is also a locking device on the circuit board

which acts to lock the locking bolt in place when

the machine starts up.

The locking device consists of a double-acting

solenoid (4), a delay unit (5) and the locking

device itself (6) which operates sideways in

blocking the locking bolt with a stud. The locking

device can be affected by both the solenoid and

the delay unit.

The lock operates as follows:

• When the door is shut and the locking bolt

moved to the lock position, the micro switch

will indicate that the door is closed.

• When the machine is started, the solenoid

actuates the locking device, blocking the door

lock. The locking device signals the delay unit,

closing a switch in the unit. The washing

machine motor will start and water enter the

machine only after the delay unit receives the

information that the door is locked. The bi-

metallic spring in the delay unit is warmed up

at the beginning of the program.

• Once the washing machine stops at the end of

a cycle, the solenoid pulls back the locking

stud and allows the door to open. The delay

unit is spring-mounted in the locking device

and is also pulled back by the solenoid, which

operates for about two minutes to allow the bi-

metallic spring to cool down enough not to

lock the door again.

• If current should disappear during a cycle, the

delay unit will keep the door locked for about

two minutes, ensuring that the wash water can

drain out (The drain valve opens automatically

when current is lost).

1148

1149

NOTE

Do not attempt to repair a faulty

door lock. The individual

components are not available.

Always replace the old unit with

a new one to assure proper

operation of the door safety

interlock.

Fig.

26 Mechanical and electrical design

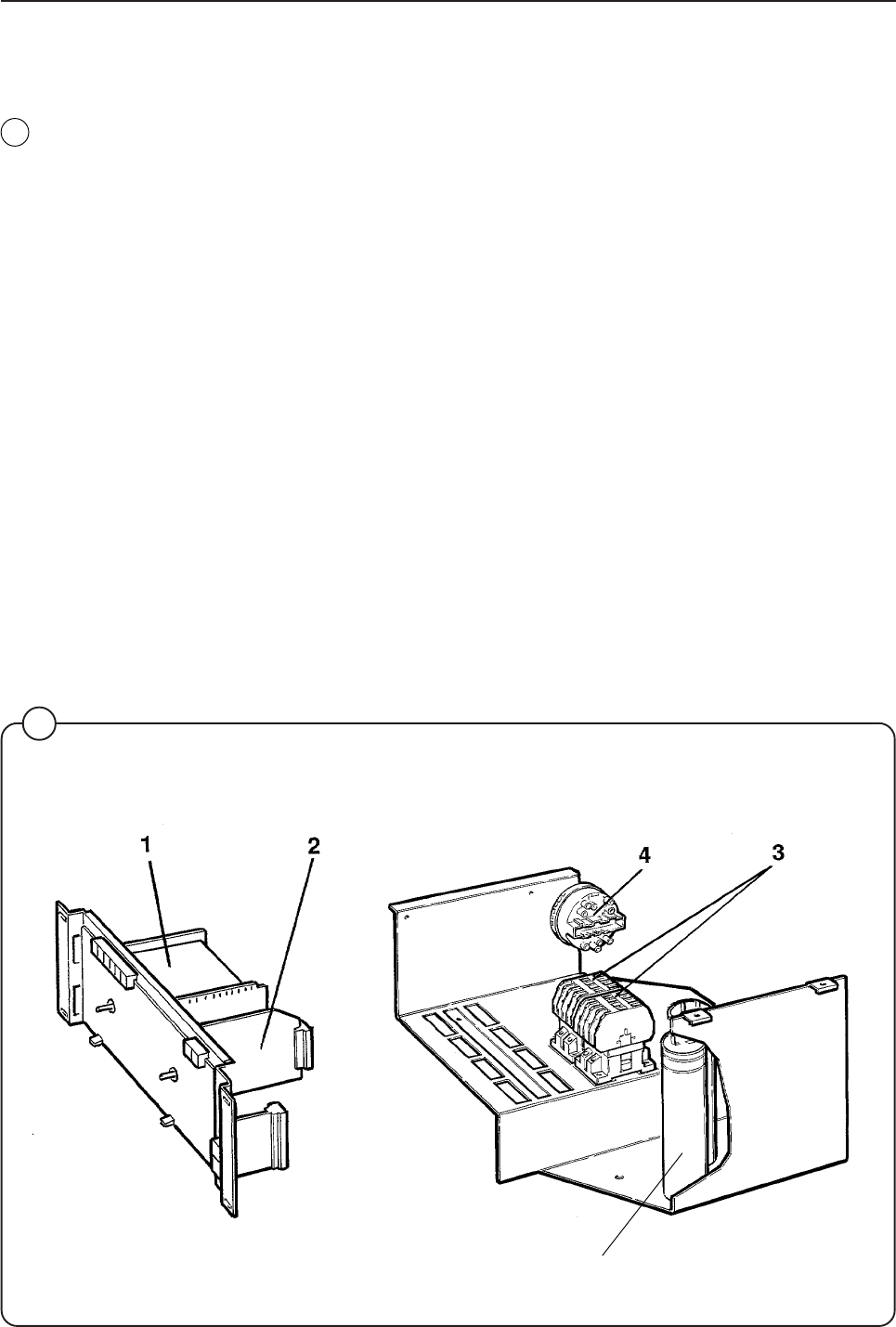

Control unit

The wash cycle timer (1) and rotary program selector switch (2) are

mounted just behind the control panel.

The relays (3) and level controls (4) are located at the top of the machine,

easily accessible for service, as are the motor capacitors (5) on 1-phase

models.

Electrical connections to the machine are made by quick-disconnect plugs.

1192

Fig.

Mechanical and electrical design

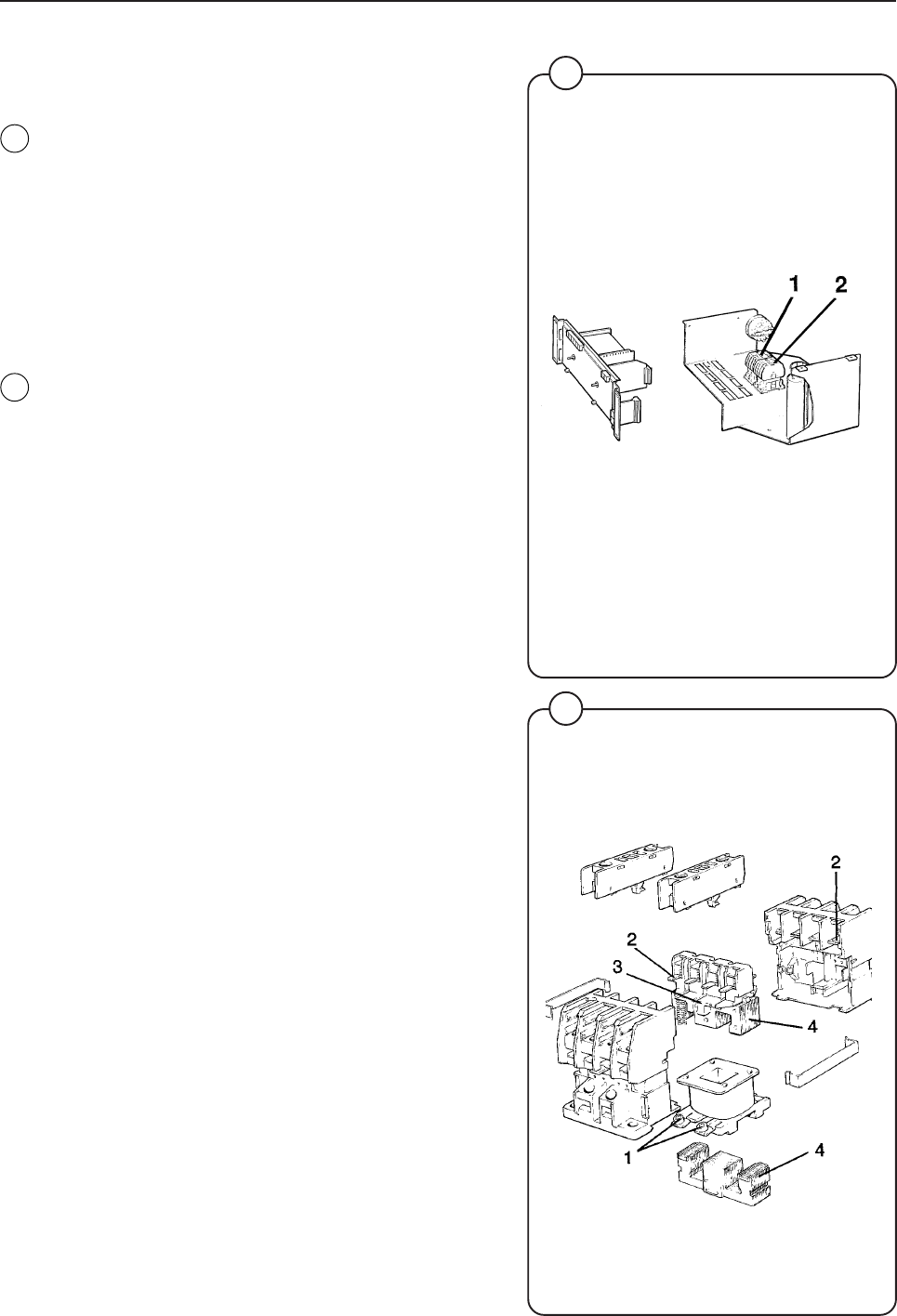

Relays

The W-series models employ either two

(W75, 105) or three (W125, 185) relays to

energize the windings of the wash/extract motor.

The relays control:

• The reversing action of the motor at wash

speed.

• The action of the motor at extraction speed.

Construction

The body of the relay holding the stationary

contacts is made of current-resistant plastic.

A solenoid and a contact bank hold the moving

contacts. The contacts are spring-loaded to

assure the correct contact pressure.

The relay is constructed for continous operation,

whether mounted horizontally or vertically.

Screw-type terminals provide perfect connections

even when one or two wires have different dia-

meters.

Operation

When the solenoid is energized, the two halves

of the magnet core are drawn together, pulling

down the moving contacts, thus making or

breaking the circuit. When the current cuts out,

springs force the contact bank into its original

position, thus closing or opening the circuits.

Trouble shooting

If the relay fails to operate despite power to the

coil, turn off the power and check the solenoid by

measuring the resistance across the terminals

(1).

If the relay hums when power is applied, this

indicates either a break in the insulator holding

the moving contacts at the axle where it holds the

top half of core (3), or a rusty core (4), which can

be cleaned.

Make sure that the moving contact assembly

moves freely. Always replace burnt or pitted

contacts (2) ... do not reuse contacts.

1197

0301

Fig.

28 Mechanical and electrical design

Water level controls

One pressure switch is used to control the correct water levels during

various cycles of the washing program.

Adjustment

All pressure switches are factory-calibrated to meet specific requirements.

The trip level for any one pressure switch can be changed only within

narrow limits because each trip range requires a different set of springs.

Call Wascomat's Service Department at 516-371-0700 before attempting to

adjust the level control.

Water level

As a guide for checking the level control for proper functioning, the normal

level should be approximately at the bottom of the door glass. It is primarily

the reverse-wash mechanical action of the washer which gets clothes

clean, not the level of water or amount of detergent. The water levels are

set at the factory to get a full load clean without wasting a drop of water, to

save you money and protect the environment.

1158

Fig.

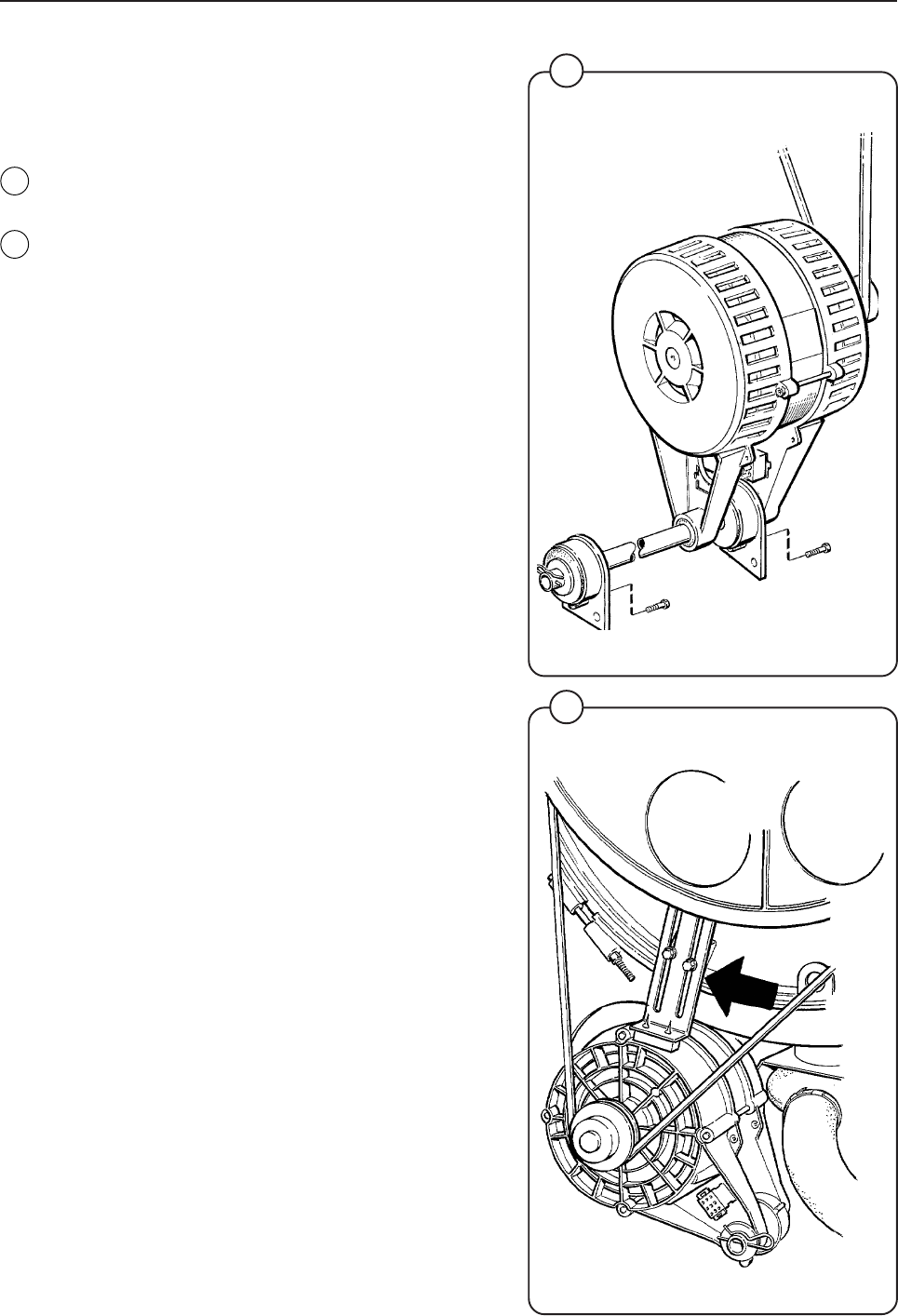

Drive motor

Description in general

The motor is mounted on an axle with rubber

dampeners.

The V-belt is tightened by turning the motor on

the axle and locking it in place using the

tensioner on the rear side of the motor. The

motor and tensioner have vibration and noise

dampening rubber suspensions.

Construction in general

The motor consists of stator, rotor and end-

shields with ball-bearings. The stator and the

rotor consist of plates, insulated from each other

and welded together. The stator is provided with

slots in which the 2-pole and 18-pole windings

are wound. The windings are impregnated with a

temperature-resistant sound-insulating resin

varnish according to class B. The end-shields are

die-cast. The ball bearings are permanently

lubricated.

Construction of single-phase motor

Single-phase motors have an 18-pole winding

(wash-speed) the same as three-phase motors,

using a continuously connected capacitor, while

the 2-pole winding (extract-speed) is a specially

designed winding with both a continuously

connected capacitor and a starting capacitor.

Function of 3-phase motor

When the stator winding is charged, a magnetic

field will occur, which in turn will rotate the rotor

at a fixed RPM depending upon the number of

poles in the winding. The 18-pole winding gives

the wash speed and the 2-pole winding the

extract-speed. When operating with load, the

speed deviates slightly from the synchronous

(no-load) speed. This difference is called the slip

and is usually expressed as a percentage of the

syncronous speed. The motors will work satisfac-

torily at nominal voltage +10%-15%.

Function of single-phase motor

When the stator winding is charged without a

capacitor, two counteracting magnetic fields are

created. When a capacitor is connected, it will

displace one of the two magnetic fields adding it

to the other, creating a torque turning the rotor in

a specific direction. The RPM is the same as for

the 3-phase motor.

Mechanical and electrical design

1153

1154

Fig.

30 Mechanical and electrical design

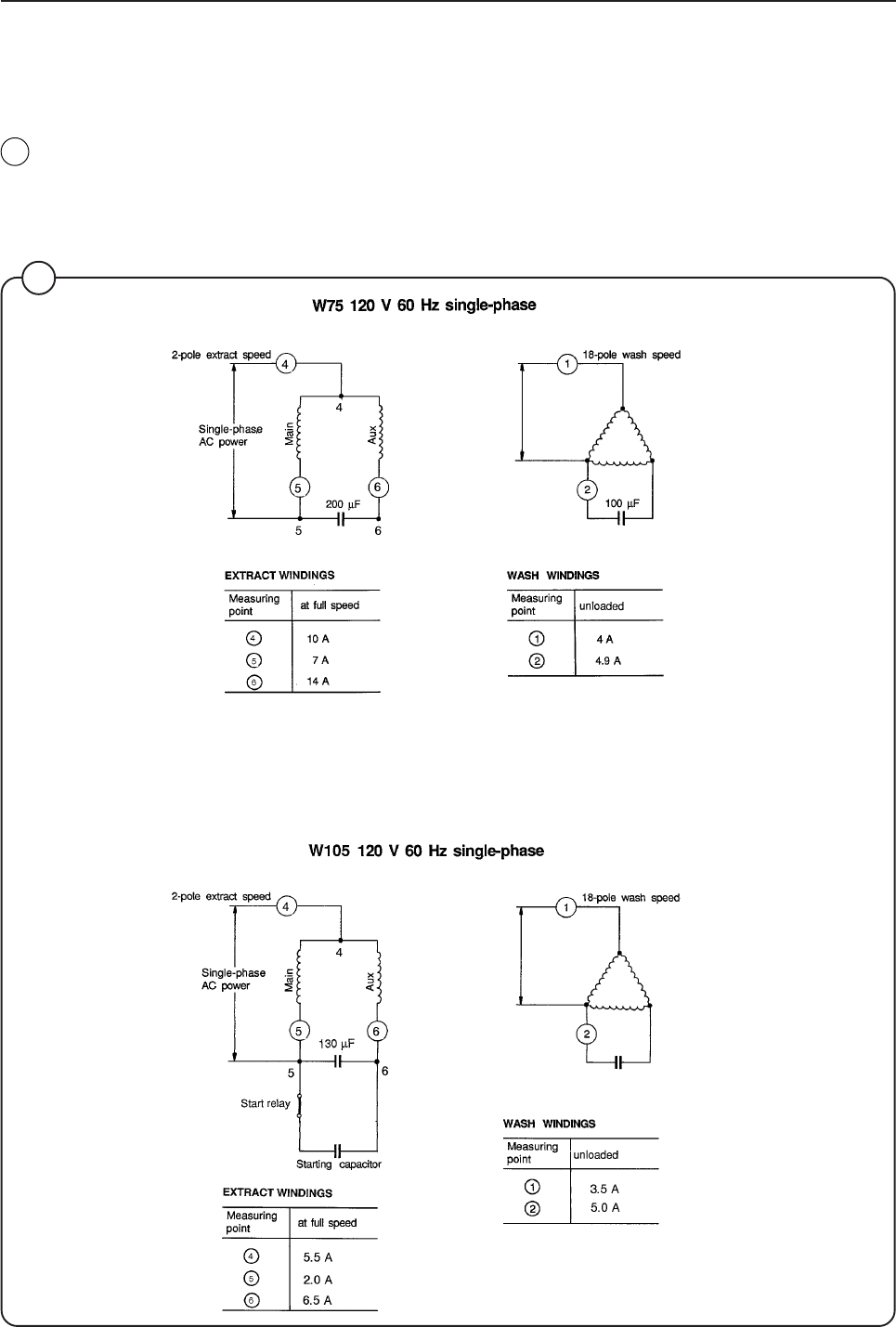

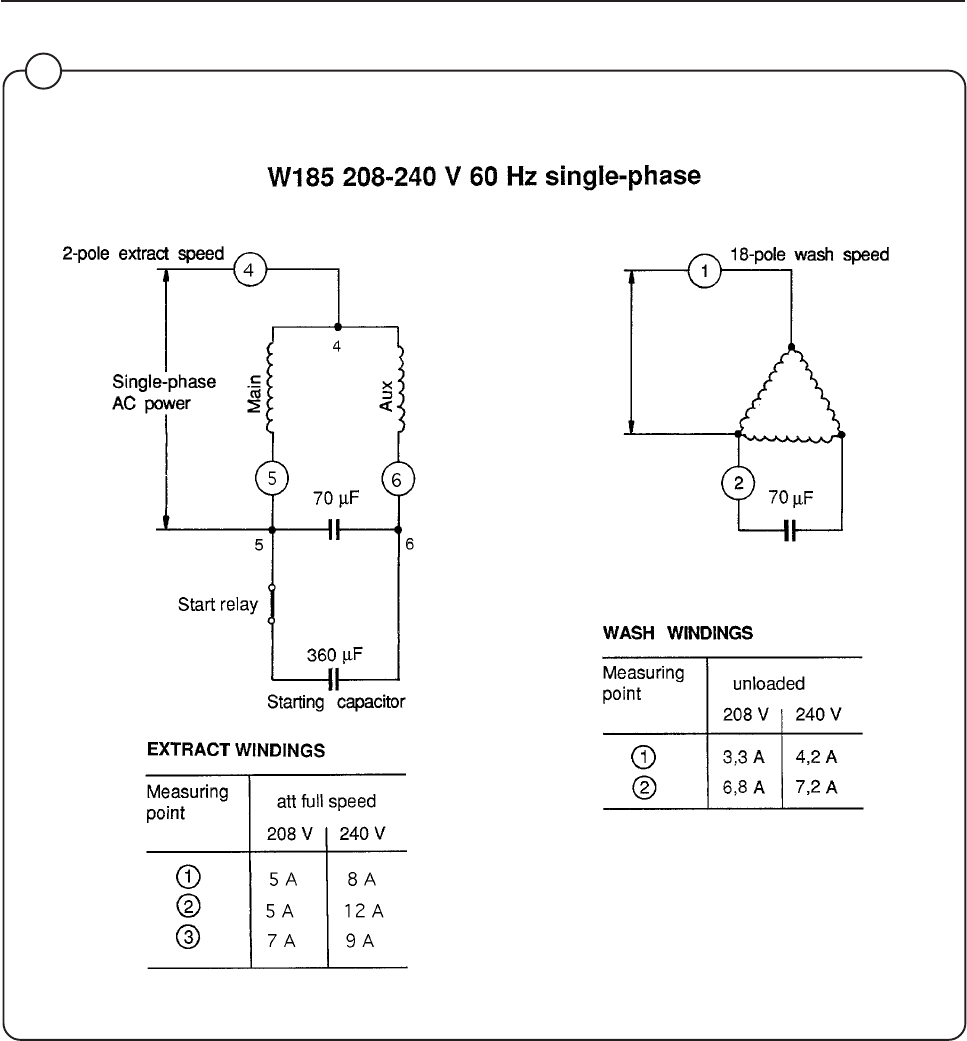

Principal wiring and points of measuring on single-phase

motors.

The numbers at the connection points refer to the terminal num-

bers at the motor connector plug.

The numbers in circles indicate points of ampere measurements.

1216

Fig.

130µF

200µF

Mechanical and electrical design

1700

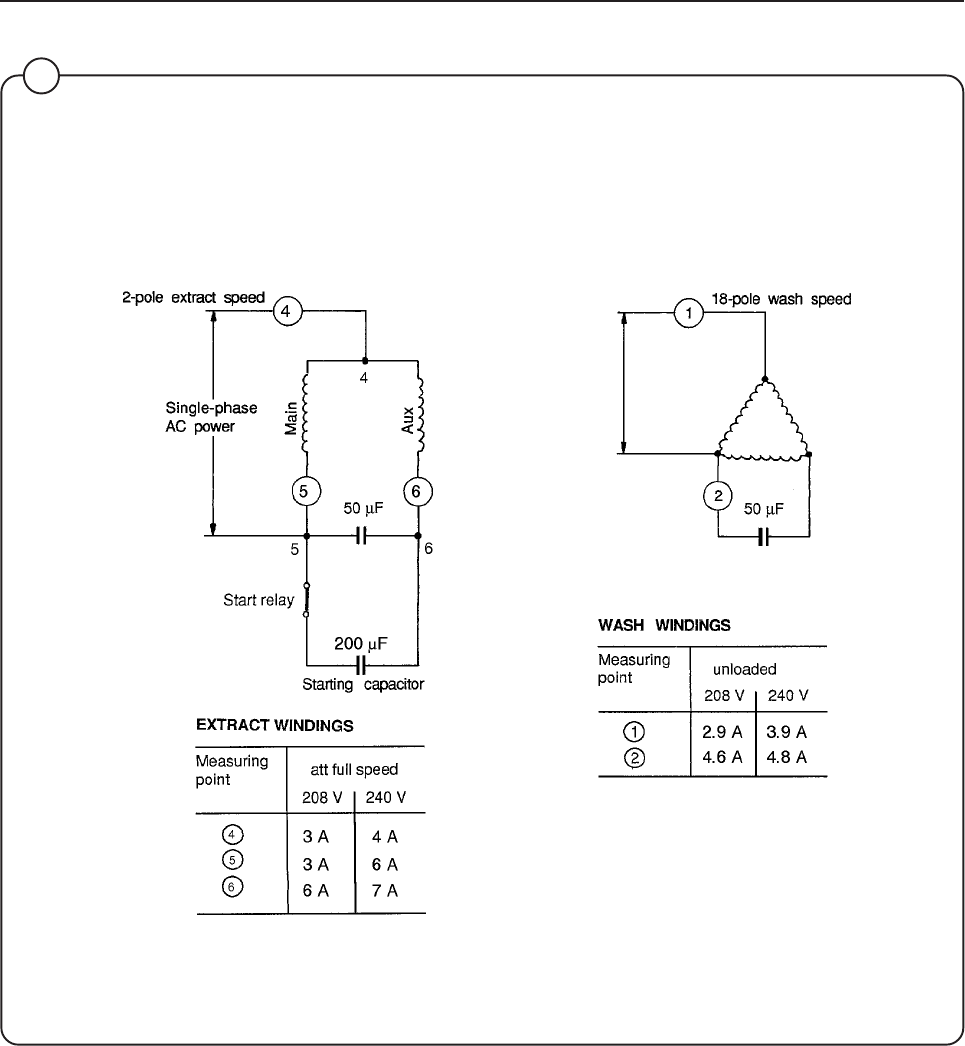

W125 208-240 V 60 Hz single-phase

Mechanical and electrical design

1791

Mechanical and electrical design

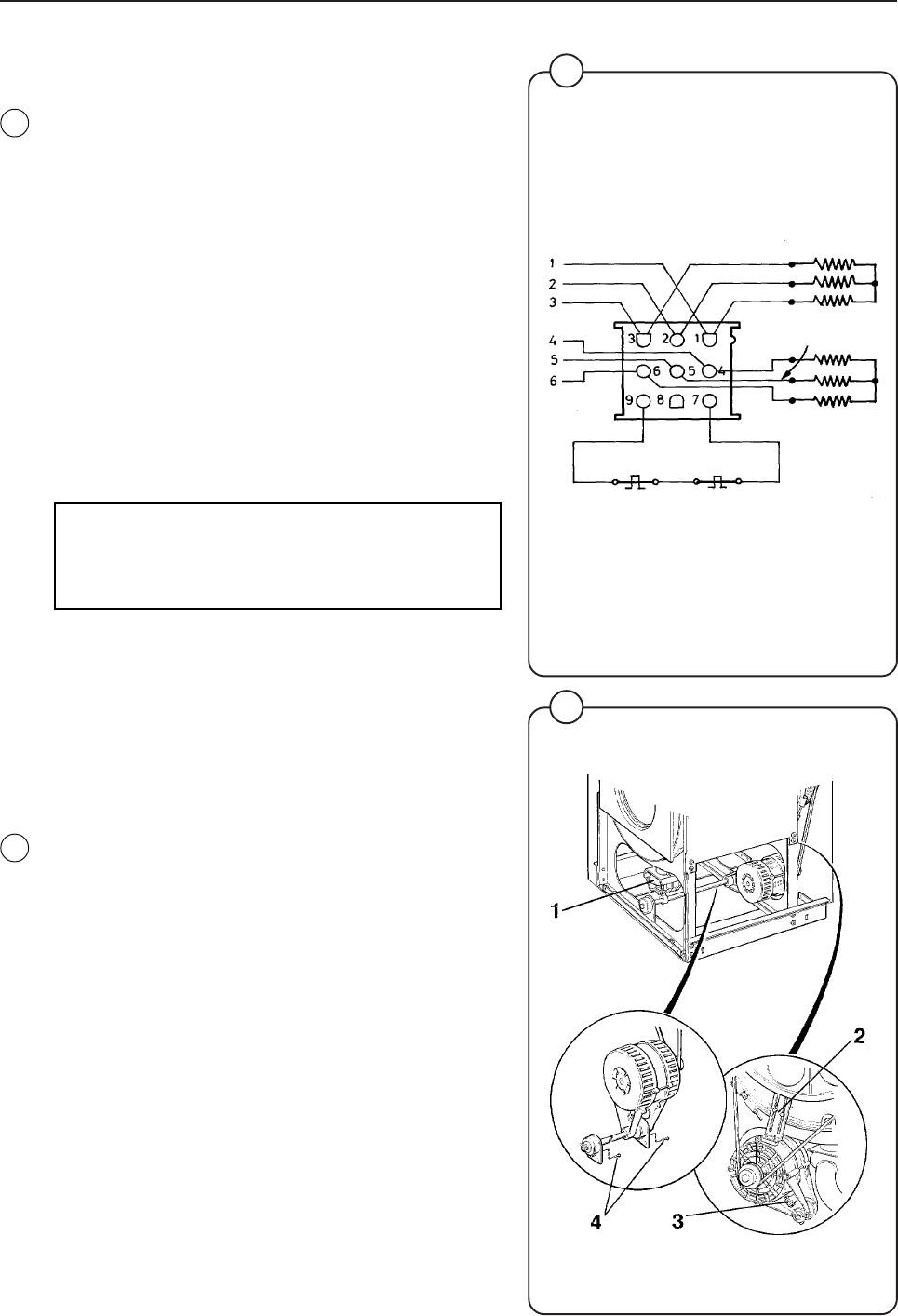

Motor connections

1, 2 and 3: wash speed (18-pole winding).

4, 5 and 6: extract speed (2-pole winding)

7 and 9: motor overload protector.

Motor overload protector

The motor is equipped with two self-resetting,

thermal overload protectors, situated one in each

of the windings of the stator. The protectors are

connected in series and will trip at a temperature

of 120°C (248°F) (3-phase) or 130°C (266°F)

(single phase). In the event the protectors fail

but the motor remains otherwise undamaged, an

overload protector may be mounted in the control

unit of the machine. Before making such installa-

tion check to ascertain that the windings are not

damaged. A burned out motor can be re-wound.

NOTE

Before connecting a separate overload

protector consult the local code.

Single-phase W125 and W185 machines are

also equipped with a manually resettable

overload protector mounted on the extract relay

in the control unit. This overload protector

protects the motor during the start-up of the

extraction.

Removing the motor

•Remove the drain valve (1) from the long shaft

by pulling it straight up.

• Remove the tensioning unit (2) on the rear of

the motor.

• Disconnect the connector (3) placed

diagonally under the rear edge of the motor.

• Remove the two screws (4). Pull the shaft

forward slightly until the guide pins pull out of

the shaft brackets. Remove the motor unit.

0304

1157

Blue

White

Black

HIGH SPEED

Overload protector

White

LOW SPEED

Blue

Fig.

34 Mechanical and electrical design

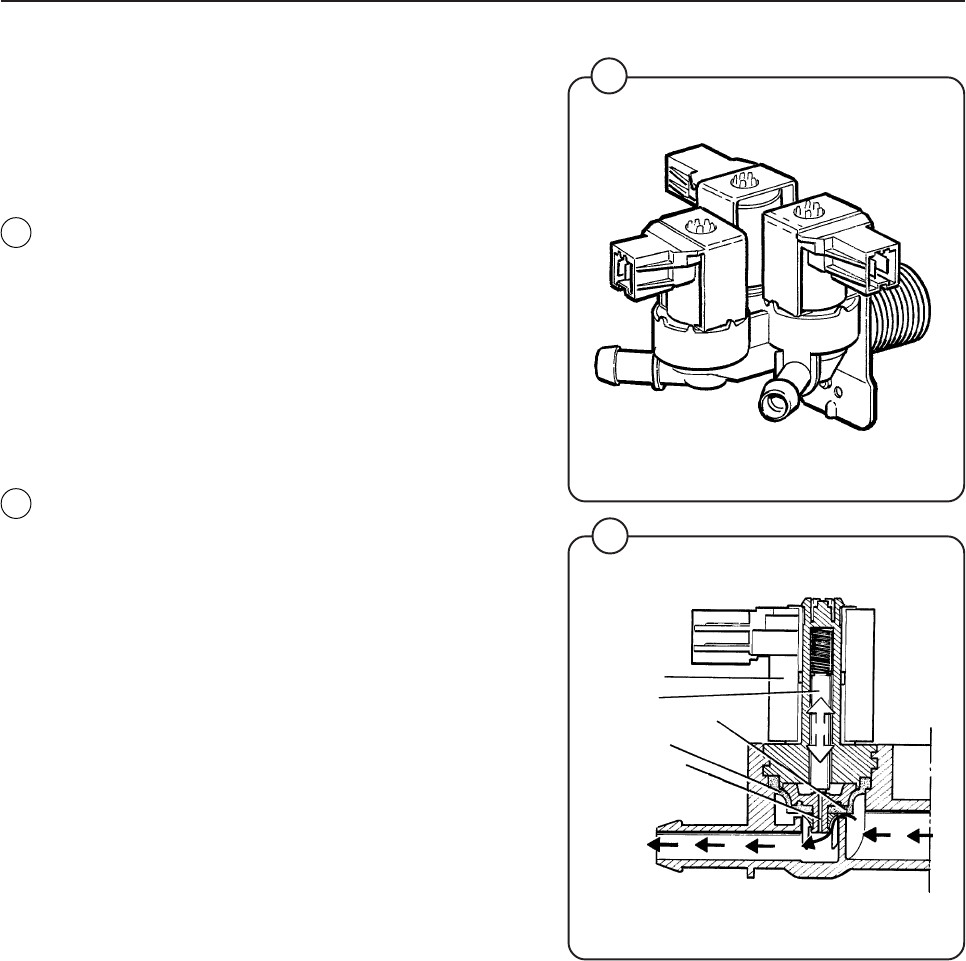

Inlet valves for W75, W105, W125

and detergent valve for W185

Construction

Each valve has a single-inlet with either one, two

or three outlets, each with its own solenoid coil.

The body is made of heat-resistant polyamid

plastic and the solenoids encased in water-tight

plastic.

A filter screen on the inlet side prevents dirt from

entering the valve. Flow restrictors can be placed

at either the inlet or any of the outlets.

Operation

When the solenoid is energized, the spring-

loaded plunger is drawn up and the pilot valve in

the center of the diaphragm open. Because of

the difference in diameter between the pilot valve

opening and the ventilating hole in the diaph-

ragm, the pressure above the diaphragm drops

to a point where the admission pressure below

the diaphragm can lift the diaphragm, thus

opening the valve.

When the current to the solenoid is cut off, the

plunger spring will press the plunger against the

pilot opening of the diaphragm. The pressure

above the diaphragm then rises to correspond to

the water inlet pressure and the pressure of the

spring will close the valve.

1161

1185

solenoid

plunger

ventilating hole

diaphragm

pilot valve

Fig.

Mechanical and electrical design

1181

1186

1187

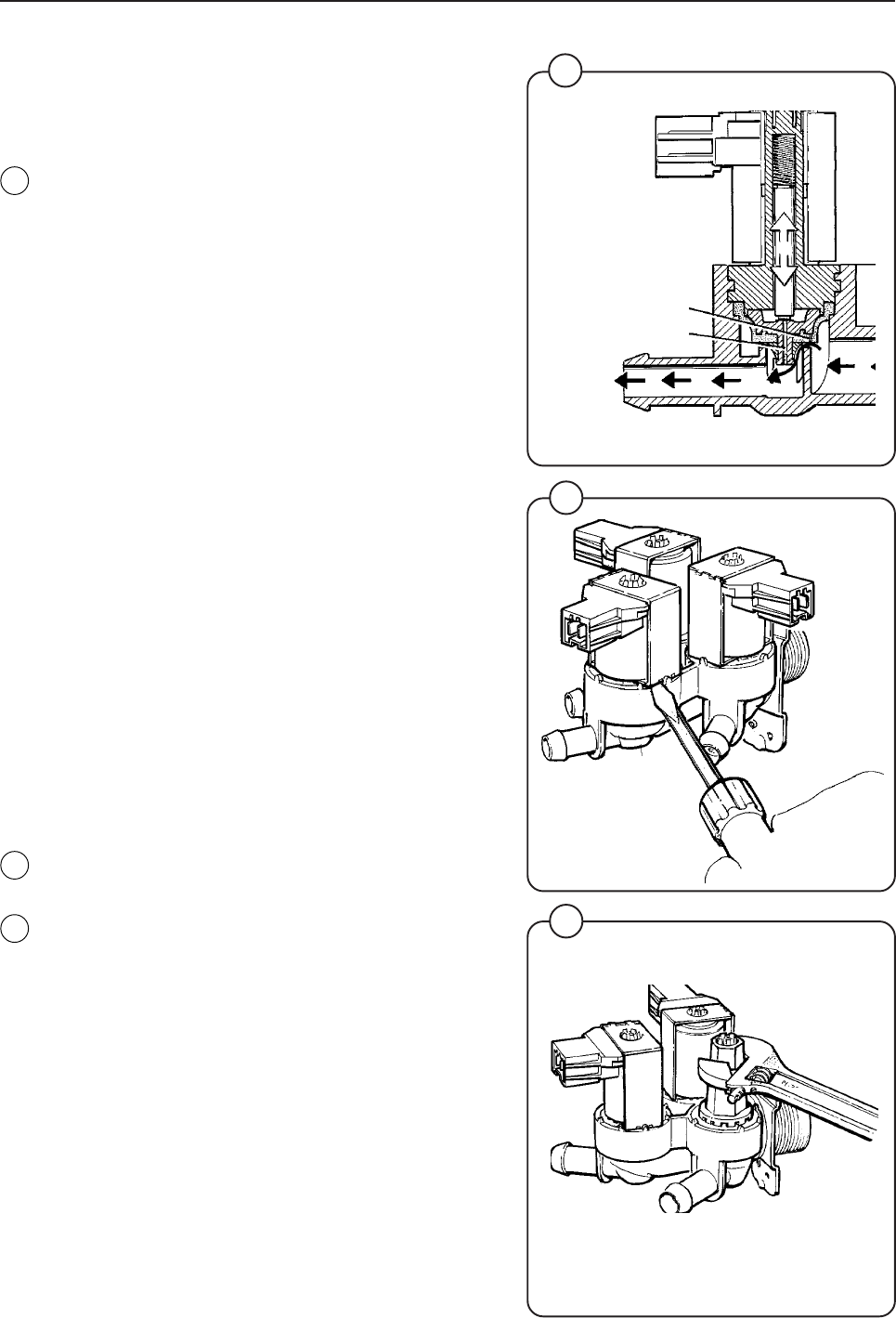

Maintenance instructions

Limescale can block the hole in the valve diaph-

ragm and interfere with the function of the valve.

It is therefore advisable to dismantle and clean

the valve at certain regular intervals. The fre-

quency depends on operating conditions and the

level of contamination in the water.

Trouble shooting

If the valve does not open

• Check that power is supplied to the coil.

• Check the coil with an instrument to determine

whether there is a break or a short circuit.

• Dismantle the valve (see below) and check

the openings in the valve diaphragm.

• Check the inlet strainer and clean as required.

• Undo the coil and clean the surfaces of the

magnetic core.

If the valve does not close

• Check that the coil is not live. The valve is

normally closed when the magnet is not

energised.

• Check the return spring.

• Check the diaphragm (pilot pressure opening).

Dismantling the valve

• Pull the coil straight upwards. Use a screwdri-

ver if necessary to carefully undo the coil.

• Use the tool supplied with the machine

(attached to one of the hoses when the

machine is delivered) to open the valve

housing. Slide the tool over the protruding

plastic sleeve to that the pegs on the tool

engage the corresponding sockets in the

valve housing.

• Use a spanner or a pair of pliers and unscrew

the upper part of the valve housing.

Fig.

ventilating hole

pilot valve

Fig.

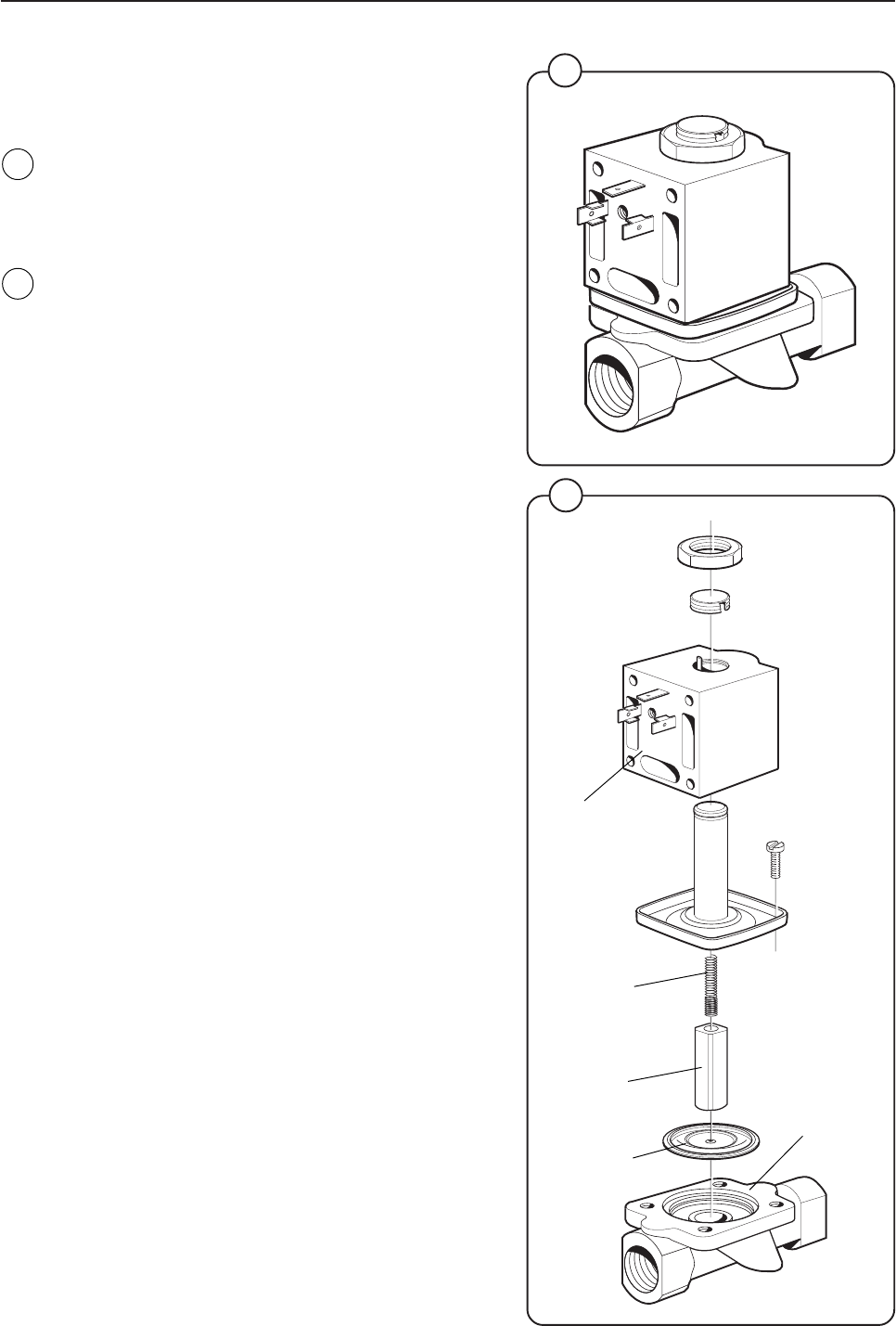

Inlet valve for W185

from S/N 9508/011935

The water inlets have brass bodies with larger

cross section of the outlet in order to achieve a

shorter filling time for the machine.

Construction

The valve housing is made of pressed brass. The

spring-loaded plunger is made of stainless steel

and located at its lower end.

Operation

The valve is automatically operated by means of

a rubber diaphragm and a pilot valve in exactly

the same way as the supply injector valve.

NOTE: To strip, clean, re-assemble and

troubleshoot the inlet valve, follow the

instructions outlined for the supply injector

valve.

Fig.

3963

Mechanical and electrical design

3961

Fig.

Coil

Spring

Plunger

Diaphragm

Body

Inlet valve for W185

up to S/N 9508/011934

The water inlets have brass bodies with larger

cross section of the outlet in order to achieve a

shorter filling time for the machine.

Construction

The valve housing is made of pressed brass. The

spring-loaded plunger is made of stain-less steel

and located at its lower end is a rubber gasket for

the pilot valve.

Operation

The valve is automatically operated by means of

a rubber diaphragm and a pilot valve in exactly

the same way as the supply injector valve.

NOTE: To strip, clean, re-assemble and

troubleshoot the inlet valve, follow the

instructions outlined for the supply

injector valve.

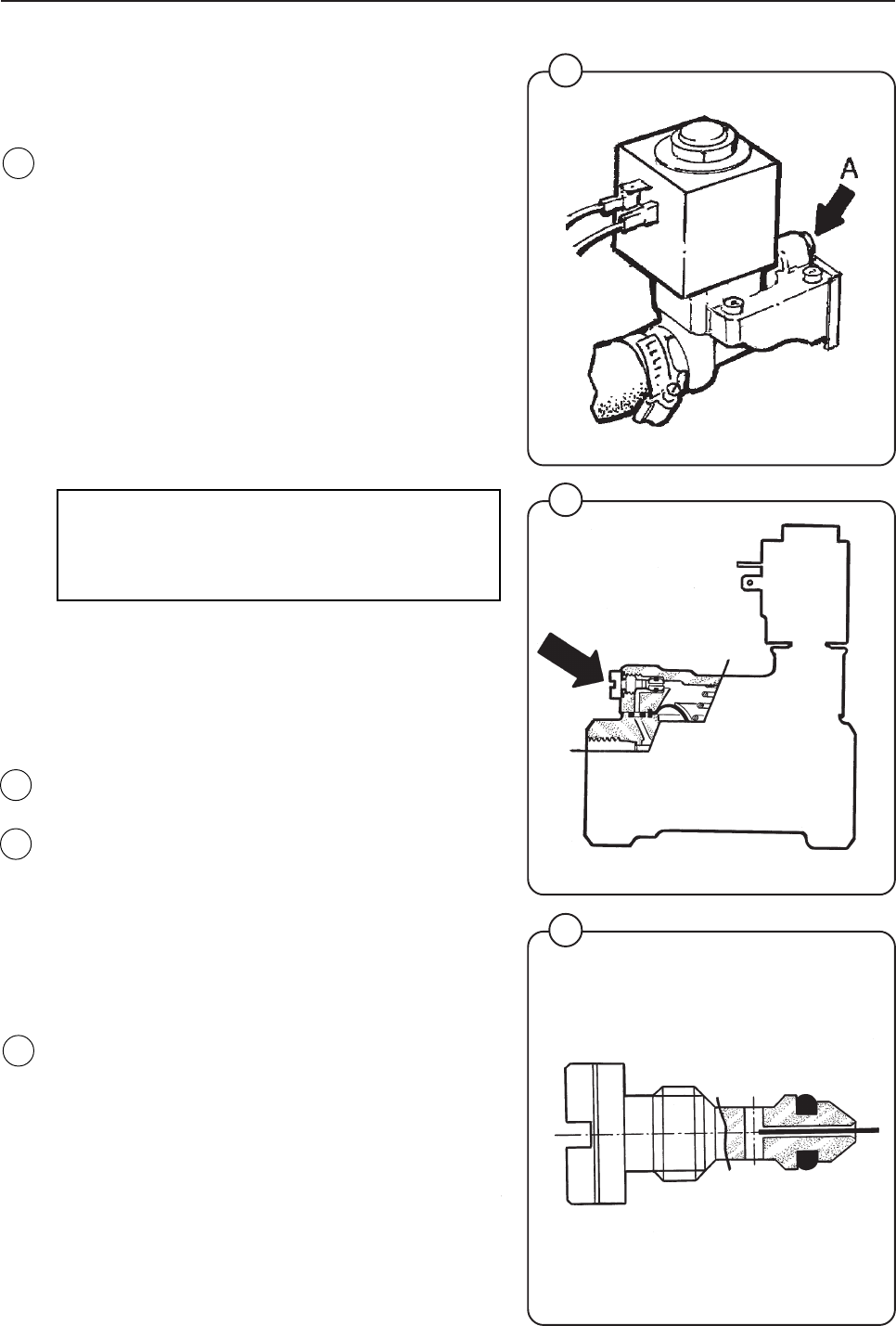

Clean out

At water temperatures of more than 60°C/140°F,

the lime deposits are heavily increased. This can

cause function problems due to blocking up the

equalizing orifice of the valve.

The fault can be eliminated by cleaning the

equalizing orifice (marked A).

If there are much deposits the orifice can be

changed from 0.5 mm to 0.8 mm. The screwhead

of the orifice is marked with 1 ring for the size of

0.5 mm and 2 rings for the size of 0.8 mm.

Clean the orifice as follows:

1. Shut off the main supply.

2. Unscrew the orifice.

3. Clean the hole in the orifice carefully with a

pin or similar not thicker than 0.5 resp.

0.8 mm.

4. Mount the orifice, be careful with sealing and

tighten.

5. Open the main supply.

Fig.

0311

Mechanical and electrical design

Fig.

0369

0368

Fig.

38 Mechanical and electrical design

1159

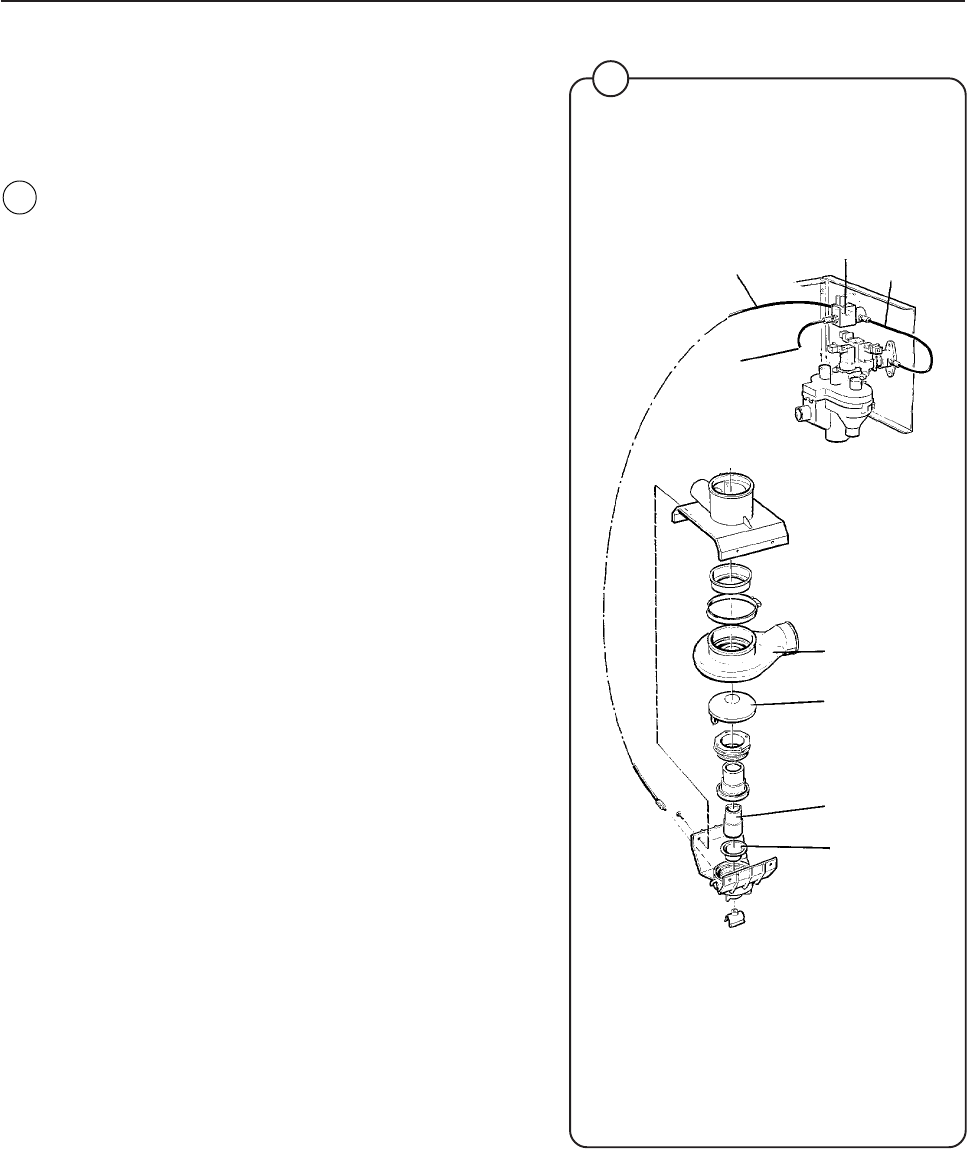

Drain valve

Description

The drain valve is operated by using the pressure

in the cold water intake. A tube (1) is connected

between the cold water intake and a solenoid

valve (2). When the solenoid valve is activated, it

opens and allows water to flow into the feeder

tube (3).The water presses up a piston (4), which

uses the pressure lid (5) to close the drain valve

rubber membrane. When the solenoid valve cuts

out, the water presure push the piston back,

allowing the water to pass the solenoid valve and

drain out via the return tube (7).

Trouble shooting

If the drain valve doesn’t close:

• Check that the solenoid valve (2) receives

electricity.

• Check that the solenoid valve and the tubes

are clear by:

- removing the drain hose (3).

- Check that water exits the hose when the

valve is activated.

• Check that the diaphragm (8) is undamaged.

If the drain valve doesn’t open:

• Check that the return tube (7) is open.

• Check that the piston (4) doesn’t seize.

Fig.

Mechanical and electrical design

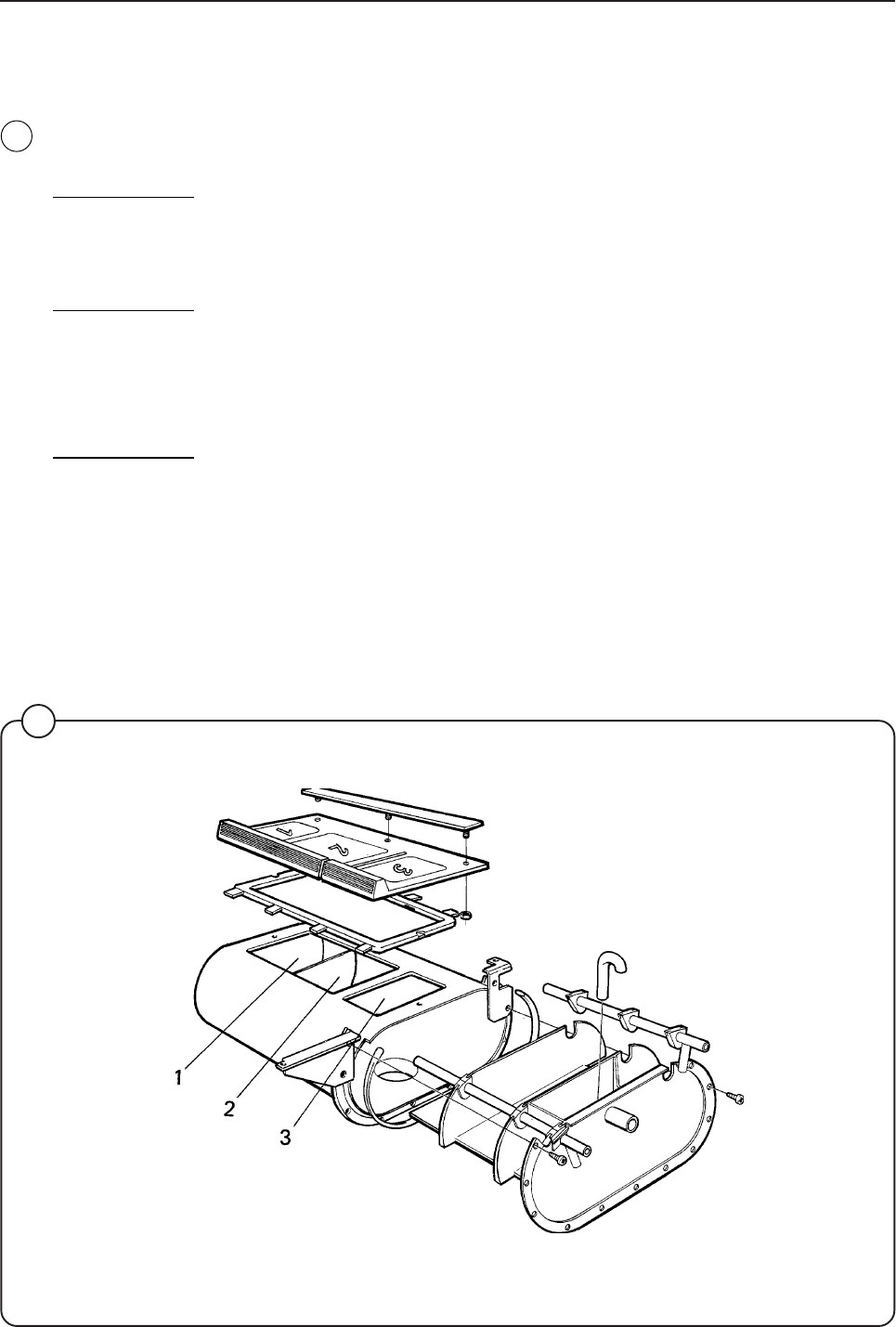

Soap supply box

The three-compartment soap supply box is located at the top of the

machine. Viewed from the front, the compartments are marked with figures

1, 2 and 3 and are used as follows:

Compartment 1

This compartment is used for adding powder detergent at the beginning of

the Prewash cycle. Powders may be loaded immediately; for liquids, wait

until the compartment flushes with water.

Compartment 2

This compartment is used for adding detergent at the beginning of the

Wash cycle. If liquid bleach is used, it is added to this compartment when

the compartment is flushed with water.

The insert is used to help prevent oversudsing.

Compartment 3

This compartment is used for liquid fabric softener, which is siphoned into

the drum at the start of the third rinse. Liquid softener may be added at the

beginning of the cycle or during the final rinse.

Fig.

1182

Maintenance

Preventive maintenance has been reduced to a

minimum by the careful design of reliable compo-

nents and material.

However, the following measures should be

taken at regular intervals and in proportion to the

hours of service.

IMPORTANT!

Make certain that all electrical power to

the machine is shut off before removing

top or rear panels.

Daily

• Check the door lock and interlock before

starting operations.

• The soap supply box should be cleaned at the

end of each working day as follows:

- Use a spatula to scrape loose any deter-

gent which may have stuck on the inside of

the dispenser.

- Flush the loosened detergent with warm

water.

- Wipe dry and leave lid open.

• Check that the drain valve does not leak and

that it opens properly.

• Check that the door does not leak. Clean

residual detergent and foreign matter from the

door gasket.

• Wipe the outside of the machine.

• When the machine is not in use, leave door

slightly open to allow moisture to evaporate.

Weekly

• Remove the hose from the drain connection

and clean the inside of the drain valve.

Every three months

• Remove the rear panel of the machine and

check that the V-belt of the wash motor is

undamaged and correctly tensioned.

• Check that all tubing, piping and connections

are free from leaks.

• Wipe and clean the inside of the machine,

making sure that the control components are

protected from moisture and dirt during the

cleaning operation.

Maintenance

1833

1207

Fig.

Trouble shooting

The purpose of the trouble-shooting guide is to facilitate the location and

correction of the most common machine problems.

Before the top panel is removed, power to the machine must be switched

off at the main source or at the separete circuit breaker.

At each trouble-shooting attempt, the plug in connectors on the control

panel should be moved in and out in order to eliminate improper contact

due to faulty connection.

Please note that this guide does not include all possibilities, but only those

most likely to cause the symtoms listed.

In trouble-shooting electrical problems, always make certain to have the

proper electrical schematic or wiring diagram at hand. Test for power using

a V-O-M or similiar meter on the AC voltage scale. Test for continuity with

all electrical power off.

Trouble shooting

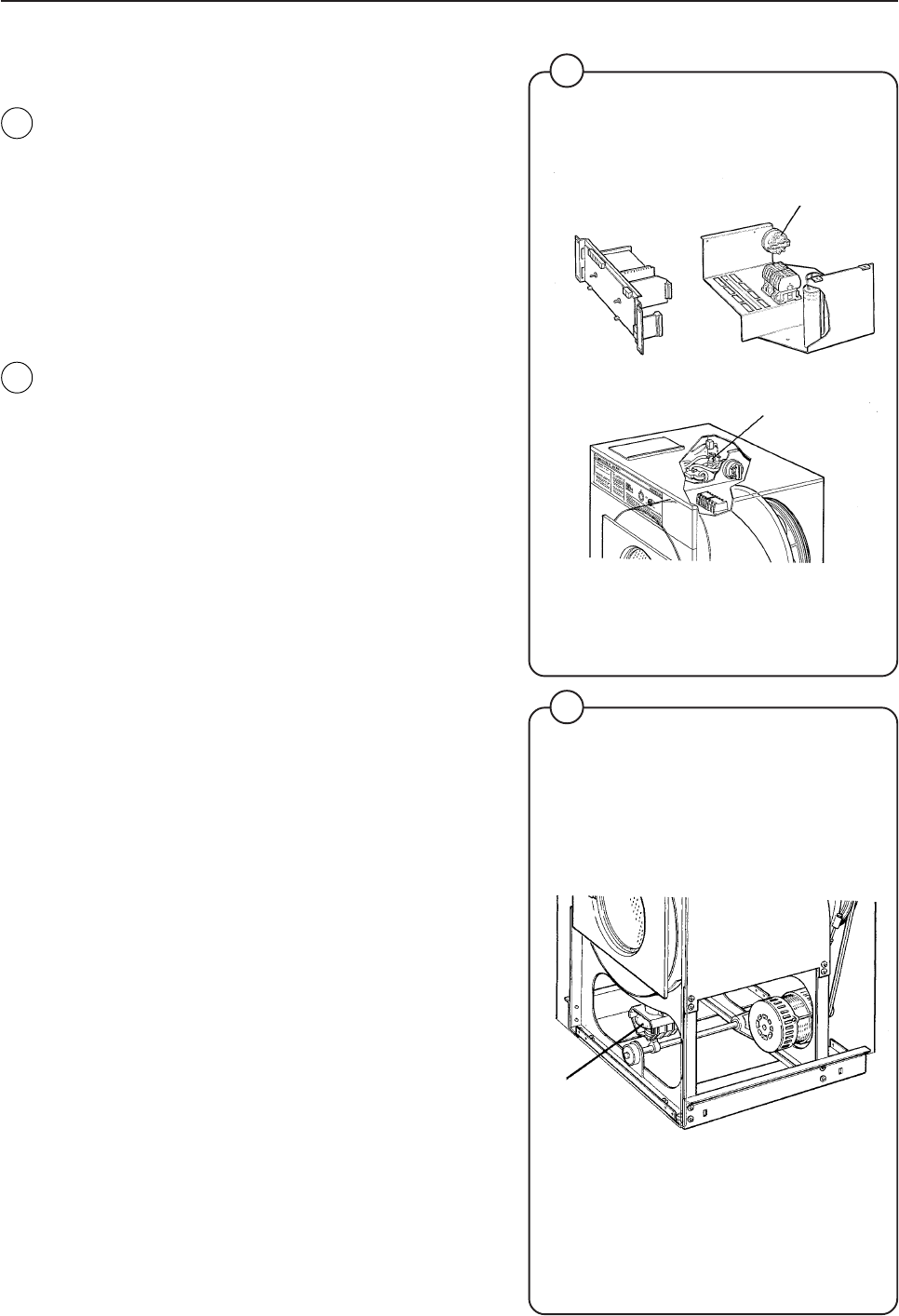

If the machine does not start

A Check the circuit breaker in the electrical

power line to the machine.

B Check the door safety switch and door lock.

C Check the glass cartridge fuses.

D Check for loose wires at the incoming power

terminal block.

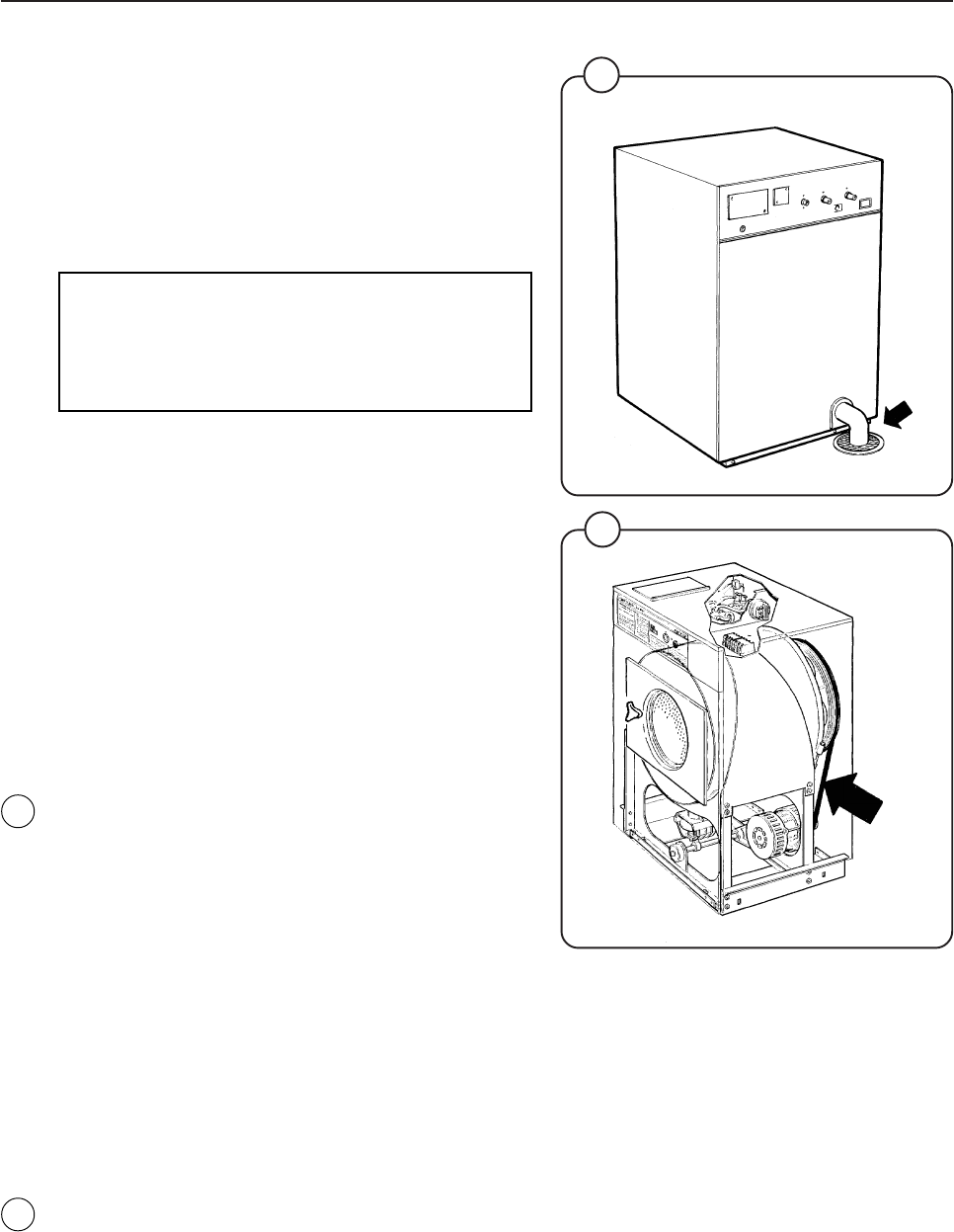

If water does not drain

A Check the drain valve and drain solenoid for

proper operation.

B Disconnect the drain hose connected to the

drain line. If a full flow of water comes out, the

problem is in the main waste line. If water flow

is slow, the problem is the accumulation of

foreign materials between the drain valve and

shell outlet of machine. Clean the valve body

of any foreign objects found.

1208

1209

Trouble shooting

Fig.

1210

1211

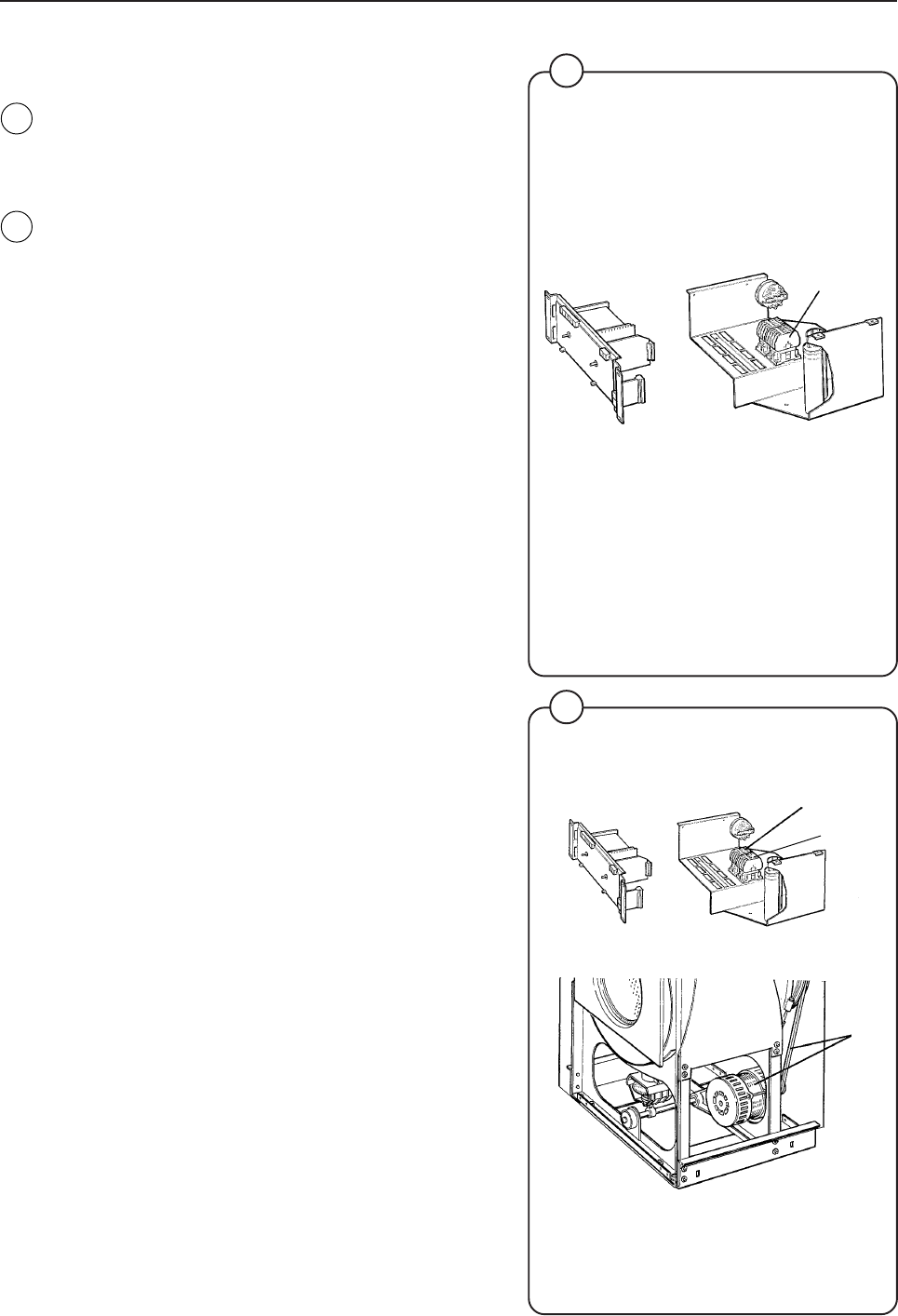

If the machine does not extract

A Check the extract relay and relay coil

for proper operation.

If the motor does not operate at wash speed

A Check the wash relay(s).

B Check the normally-closed contact of the

extract relay.

C Check the motor and V-belt.

D Review procedures outlined under section ”If

machine does not start”.

Trouble shooting

Fig.

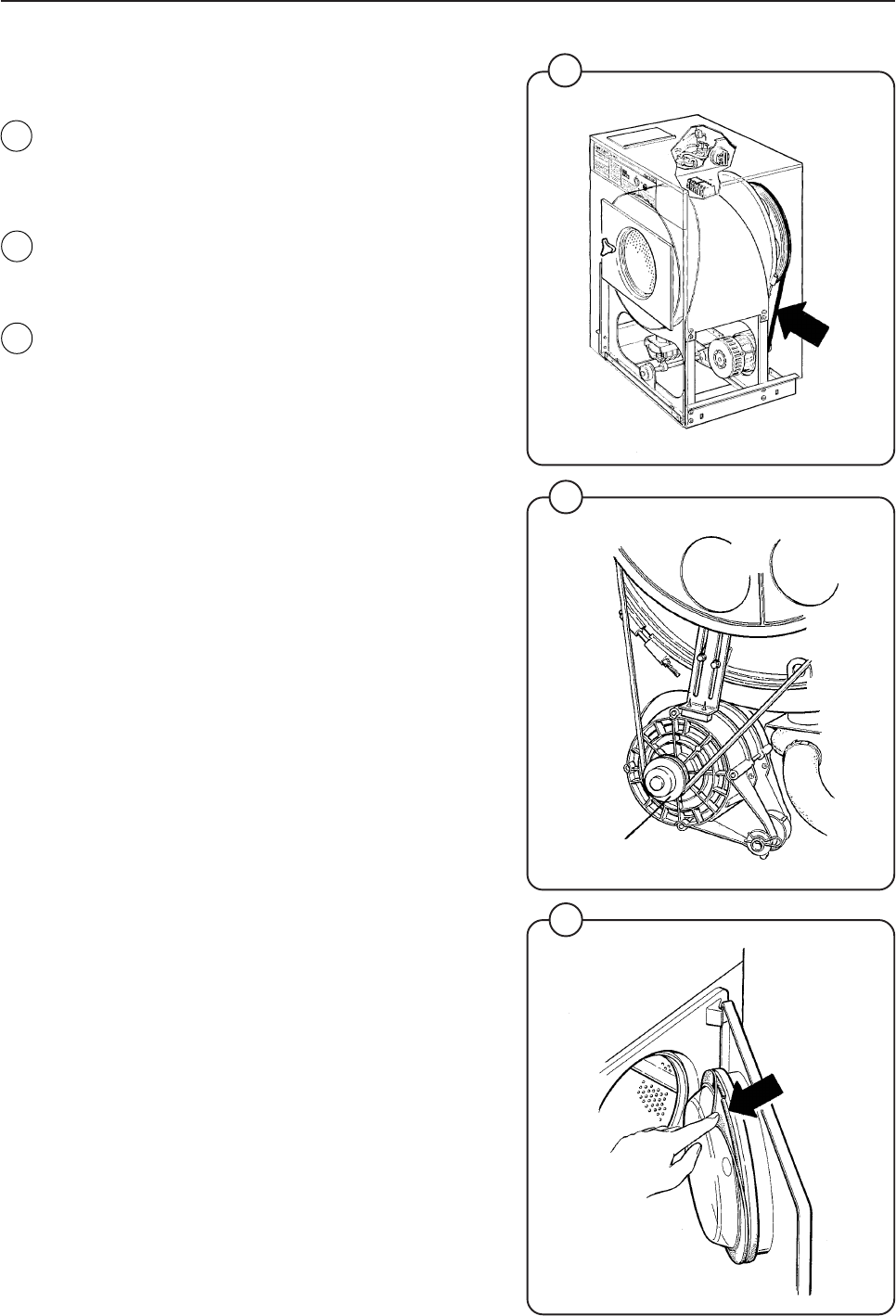

If the machine runs slowly on wash speed or

there is a slapping or thumping noise.

A Replace the V-belts

If a metallic noise can be heard at rear of

machine

A Tighten the pulley on the motor shaft

If the door is leaking

A Check the door gasket. If the gasket is in good

condition, install a 4-7 mm rubber hose seal

around the entire gasket, using the slits

provided.

Trouble shooting

1207

1175

1176

Fig.

If there is a leaking around the glass

A Replace the door gasket if worn.

If water does not enter the machine.

A Check the valve coils on the inlet valves.

B Check wires leading to the valve coils.

C Be sure manual shut-off valves are in open

position.

Trouble shooting

1212

1837

Fig.

If water continues to fill without stopping.

A Check the hose attached to the level control

unit.

B Check inlet valves for dirt underneath the

valve diaphragm. To isolate the cause, shut

off power. If water continues to flow, inlet

valves have foreign material in them and

should be thoroughly cleaned.

If water continues to flow without filling the

machine.

A Check seating of the drain valve.

Trouble shooting

1214

1215

Fig.

If the machine vibrates excessively.

Tighten the mounting bolts.

Check that the shipping security has been

removed. Refer to Function control on page

14.

1140

Fig.

Trouble shooting

W 185 Wascomat W75 W185 Operating And Maintenance

Navigation menu

Versions of this User Manual:

Views

Navigation
