X10SLH-LN6TF

USER’S MANUAL

Revision 1.0

The information in this User’s Manual has been carefully reviewed and is believed to be accurate.

The vendor assumes no responsibility for any inaccuracies that may be contained in this document,

makes no commitment to update or to keep current the information in this manual, or to notify any

person or organization of the updates. Please Note: For the most up-to-date version of this

manual, please see our web site at www.supermicro.com.

Super Micro Computer, Inc. ("Supermicro") reserves the right to make changes to the product

described in this manual at any time and without notice. This product, including software and docu-

mentation, is the property of Supermicro and/or its licensors, and is supplied only under a license.

Any use or reproduction of this product is not allowed, except as expressly permitted by the terms

of said license.

IN NO EVENT WILL SUPERMICRO BE LIABLE FOR DIRECT, INDIRECT, SPECIAL, INCIDENTAL,

SPECULATIVE OR CONSEQUENTIAL DAMAGES ARISING FROM THE USE OR INABILITY TO

USE THIS PRODUCT OR DOCUMENTATION, EVEN IF ADVISED OF THE POSSIBILITY OF

SUCH DAMAGES. IN PARTICULAR, SUPERMICRO SHALL NOT HAVE LIABILITY FOR ANY

HARDWARE, SOFTWARE, OR DATA STORED OR USED WITH THE PRODUCT, INCLUDING THE

COSTS OF REPAIRING, REPLACING, INTEGRATING, INSTALLING OR RECOVERING SUCH

HARDWARE, SOFTWARE, OR DATA.

Any disputes arising between manufacturer and customer shall be governed by the laws of Santa

Clara County in the State of California, USA. The State of California, County of Santa Clara shall

be the exclusive venue for the resolution of any such disputes. Super Micro's total liability for all

claims will not exceed the price paid for the hardware product.

FCC Statement: This equipment has been tested and found to comply with the limits for a class B

digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable

protection against harmful interference in a residential installation. This equipment generates, uses,

and can radiate radio frequency energy and, if not installed and used in accordance with the instruc-

tions, may cause harmful interference to radio communications. However, there is no guarantee that

interference will not occur in a particular installation. If this equipment does cause harmful interfer-

ence to radio or television reception, which can be determined by turning the equipment off and on,

the user is encouraged to try to correct the interference by one or more of the following measures:

•Reorient or relocate the receiving antenna.

•Increase the separation between the equipment and receiver.

•Connect the equipment to an outlet on a circuit different from that to which the receiver

is connected.

•Consult the authorized dealer or an experienced radio/TV technician for help.

California Best Management Practices Regulations for Perchlorate Materials: This Perchlorate warn-

ing applies only to products containing CR (Manganese Dioxide) Lithium coin cells. “Perchlorate

Material-special handling may apply. See www.dtsc.ca.gov/hazardouswaste/perchlorate”

WARNING: Handling of lead solder materials used in this

product may expose you to lead, a chemical known to the

State of California to cause birth defects and other repro-

ductive harm.

Manual Revision 1.0

Release Date: December 5, 2014

Unless you request and receive written permission from Super Micro Computer, Inc., you may not

copy any part of this document.

Information in this document is subject to change without notice. Other products and companies

referred to herein are trademarks or registered trademarks of their respective companies or mark

holders.

Printed in the United States of America

iii

Preface

This manual is written for system integrators, IT technicians and

knowledgeable end users. It provides information for the installation and use of the

X10SLH-LN6TF motherboard.

About This Motherboard

The X10SLH-LN6TF supports a single Intel® Xeon™ E3-1200 v3 proces-

sor in an LGA 1150 H3 socket. With the Intel® C226 Express chipset built in, the

X10SLH-LN6TF motherboard supports Intel® Rapid Storage Technology, offering

great system enhancement to Denlow Server platforms. Please refer to our website

(http://www.supermicro.com/products/) for processor and memory support updates.

This product is intended to be installed and serviced by professional technicians.

Manual Organization

Chapter 1 describes the features, specications and performance of the mother-

board, and provides detailed information on the Intel® C226 Express chipset.

Chapter 2 provides hardware installation instructions. Read this chapter when in-

stalling the processor, memory modules and other hardware components into the

system. If you encounter any problems, see Chapter 3, which describes trouble-

shooting procedures for video, memory and system setup stored in the CMOS.

Chapter 4 includes an introduction to the BIOS, and provides detailed information

on running the CMOS Setup utility.

Appendix A provides BIOS Error Beep Codes.

Appendix B lists software program installation instructions.

Appendix C contains UEFI BIOS Recovery instructions.

Appendix D provides Dual BIOS Boot Block information for BIOS crisis recovery.

Conventions Used in the Manual:

Special attention should be given to the following symbols for proper installation and

to prevent damage done to the components or injury to yourself:

Warning: Critical information to prevent damage to the components or injury to your-

self.

Important: Important information given to ensure proper system installa-

tion or to relay safety precautions.

Note: Additional Information given to differentiate various models or pro-

vides information for correct system setup.

X10SLH-LN6TF User’s Manual

Contacting Supermicro

Headquarters

Address: Super Micro Computer, Inc.

980 Rock Ave.

San Jose, CA 95131 U.S.A.

Tel: +1 (408) 503-8000

Fax: +1 (408) 503-8008

Email: marketing@supermicro.com (General Information)

support@supermicro.com (Technical Support)

Web Site: www.supermicro.com

Europe

Address: Super Micro Computer B.V.

Het Sterrenbeeld 28, 5215 ML

's-Hertogenbosch, The Netherlands

Tel: +31 (0) 73-6400390

Fax: +31 (0) 73-6416525

Email: sales@supermicro.nl (General Information)

support@supermicro.nl (Technical Support)

rma@supermicro.nl (Customer Support)

Web Site: www.supermicro.nl

Asia-Pacic

Address: Super Micro Computer, Inc.

3F, No. 150, Jian 1st Rd.

Zhonghe Dist., New Taipei City 235

Taiwan (R.O.C)

Tel: +886-(2) 8226-3990

Fax: +886-(2) 8226-3992

Email: support@supermicro.com.tw

Web Site: www.supermicro.com.tw

Table of Contents

Preface

About This Motherboard ................................................................................................ iii

Manual Organization .....................................................................................................iii

Conventions Used in the Manual: .................................................................................iv

Contacting Supermicro ...................................................................................................v

Chapter 1 Introduction

1-1 Overview ......................................................................................................... 1-1

Checklist .......................................................................................................... 1-1

Motherboard Features ..................................................................................... 1-7

1-2 Chipset Overview ......................................................................................... 1-10

Intel® C226 Express Chipset Features ......................................................... 1-10

1-3 Special Features ............................................................................................1-11

Recovery from AC Power Loss ......................................................................1-11

1-4 PC Health Monitoring .....................................................................................1-11

Fan Status Monitor with Firmware Control ...................................................1-11

Environmental Temperature Control ..............................................................1-11

System Resource Alert ................................................................................. 1-12

1-5 ACPI Features ............................................................................................... 1-12

Slow Blinking LED for Suspend-State Indicator ........................................... 1-12

1-6 Power Supply ................................................................................................ 1-12

1-7 Super I/O ....................................................................................................... 1-13

1-8 Advanced Power Management ..................................................................... 1-13

Intel® Intelligent Power Node Manager (NM) (Available when the NMView

utility is installed in the system) .................................................................... 1-13

Manageability Engine (ME) ........................................................................... 1-14

Chapter 2 Installation

2-1 Standardized Warning Statements ................................................................. 2-1

Battery Handling .............................................................................................. 2-1

Product Disposal ............................................................................................. 2-3

2-2 Static-Sensitive Devices .................................................................................. 2-4

Precautions ..................................................................................................... 2-4

Unpacking ....................................................................................................... 2-4

2-3 Motherboard Installation .................................................................................. 2-5

Tools Needed .................................................................................................. 2-5

Location of Mounting Holes ............................................................................ 2-5

Installing the Motherboard .............................................................................. 2-6

2-4 Processor and Heatsink Installation................................................................ 2-7

X10SLH-LN6TF User’s Manual

vii

Table of Contents

Installing the LGA1150 Processor ................................................................. 2-7

Installing an Active CPU Heatsink with Fan ................................................. 2-10

Removing the Heatsink ................................................................................. 2-12

2-5 Installing DDR3 Memory ............................................................................... 2-13

DIMM Installation .......................................................................................... 2-13

Removing Memory Modules ......................................................................... 2-14

Memory Support ............................................................................................ 2-14

Memory Population Guidelines ..................................................................... 2-14

2-6 Connectors/IO Ports ...................................................................................... 2-16

Backplane I/O Panel ..................................................................................... 2-16

Serial Ports ............................................................................................... 2-17

Video Connection ..................................................................................... 2-17

Universal Serial Bus (USB) ...................................................................... 2-18

Ethernet Ports .......................................................................................... 2-19

Unit Identier Switch/UID LED Indicators ................................................ 2-20

Front Control Panel ....................................................................................... 2-21

Front Control Panel Pin Denitions............................................................... 2-22

NMI Button ............................................................................................... 2-22

Power LED .............................................................................................. 2-22

HDD LED .................................................................................................. 2-23

NIC1/NIC2 LEDs ...................................................................................... 2-23

Overheat (OH)/Fan Fail/PWR Fail/UID LED ............................................ 2-24

Power Fail LED ........................................................................................ 2-24

Reset Button ........................................................................................... 2-25

Power Button ........................................................................................... 2-25

2-7 Connecting Cables ........................................................................................ 2-26

ATX Main PWR & CPU PWR Connectors (JPW1 & JPW2) ................... 2-26

Fan Headers (Fan 1- Fan 4/Fan A) ......................................................... 2-27

Chassis Intrusion (JL1) ........................................................................... 2-27

Internal Buzzer (SPKR1) .......................................................................... 2-28

Onboard Power LED (JLED1) .................................................................. 2-28

DOM PWR Connectors (JSD1/JSD2) ...................................................... 2-29

Standby Power Header ............................................................................ 2-29

T-SGPIO 1/2 Headers .............................................................................. 2-30

TPM Header/Port 80 Header ................................................................... 2-30

Power SMB (I2C) Connector .................................................................... 2-31

2-8 Jumper Settings ............................................................................................ 2-32

Explanation of Jumpers ................................................................................ 2-32

GLAN Enable/Disable .............................................................................. 2-32

viii

CMOS Clear (JBT1) ................................................................................. 2-33

PCI Slot SMB Enable (JI2C1/JI2C2) ......................................................... 2-33

Watch Dog Enable/Disable ...................................................................... 2-34

Rear USB 4/5_Wake_Up Enable ............................................................. 2-34

ME Recovery ........................................................................................... 2-35

Manufacturer Mode Select ....................................................................... 2-35

VGA Enable .............................................................................................. 2-36

BIOS Recovery (JBR1) ............................................................................ 2-36

2-9 Onboard Indicators ........................................................................................ 2-37

LAN Port LEDs ......................................................................................... 2-37

IPMI_Dedicated LAN LEDs ...................................................................... 2-37

Onboard Power LED (LE3) ..................................................................... 2-38

BMC Heartbeat LED ................................................................................ 2-38

Unit Identication LED (LE4) .................................................................... 2-39

2-10 SATA Connections ......................................................................................... 2-40

SATA 3.0 Connections .............................................................................. 2-40

Chapter 3 Troubleshooting

3-1 Troubleshooting Procedures ........................................................................... 3-1

Before Power On ............................................................................................ 3-1

No Power ........................................................................................................ 3-1

No Video ......................................................................................................... 3-2

Memory Errors ............................................................................................... 3-2

Losing the System’s Setup Conguration ....................................................... 3-2

3-2 Technical Support Procedures ........................................................................ 3-3

3-3 Frequently Asked Questions ........................................................................... 3-4

3-4 Battery Removal and Installation .................................................................... 3-5

Battery Removal .............................................................................................. 3-5

3-5 Returning Merchandise for Service................................................................. 3-6

Proper Battery Disposal .................................................................................. 3-6

Battery Installation ........................................................................................... 3-6

Chapter 4 BIOS

4-1 Introduction ...................................................................................................... 4-1

Starting BIOS Setup Utility .............................................................................. 4-1

How To Change the Conguration Data ......................................................... 4-1

How to Start the Setup Utility ......................................................................... 4-2

4-2 Main Setup ...................................................................................................... 4-2

The following Main menu items will be displayed: ..................................... 4-3

System Time/System Date ........................................................................ 4-3

X10SLH-LN6TF User’s Manual

Table of Contents

Supermicro X10SLH-LN6TF....................................................................... 4-3

Version ........................................................................................................ 4-3

Build Date ................................................................................................... 4-3

Memory Information ................................................................................... 4-3

Total Memory .............................................................................................. 4-3

4-3 Advanced Setup Congurations...................................................................... 4-4

Boot Feature ................................................................................................. 4-4

Quiet Boot .................................................................................................. 4-4

AddOn ROM Display Mode ........................................................................ 4-4

Bootup Num-Lock ....................................................................................... 4-5

Wait For 'F1' If Error ................................................................................... 4-5

Interrupt 19 Capture ................................................................................... 4-5

Re-try Boot ................................................................................................. 4-5

Power Conguration ..................................................................................... 4-5

Watch Dog Function ................................................................................... 4-5

Power Button Function ............................................................................... 4-5

Restore on AC Power Loss ........................................................................ 4-5

CPU Conguration ....................................................................................... 4-6

Clock Spread Spectrum ............................................................................. 4-7

Hyper-threading .......................................................................................... 4-7

Active Processor Cores .............................................................................. 4-7

Limit CPUID Maximum ............................................................................... 4-7

Execute-Disable Bit (Available if supported by the OS & the CPU) .......... 4-7

Intel® Virtualization Technology (Available when supported by the CPU) . 4-7

Hardware Prefetcher (Available when supported by the CPU) ................. 4-7

Adjacent Cache Line Prefetch (Available when supported by the CPU) ... 4-7

CPU AES .................................................................................................... 4-8

Boot Perfomrance Mode ............................................................................ 4-8

EIST ............................................................................................................ 4-8

Turbo Mode ................................................................................................ 4-8

Energy Performance ................................................................................ 4-10

VR Current Value ..................................................................................... 4-10

CPU C States ........................................................................................... 4-10

CPU C7 Report (Available when "CPU C-States" is set to Enabled ...... 4-10

Package C-State limit ................................................................................4-11

LakeTiny Feature .......................................................................................4-11

ACPI T State .............................................................................................4-11

Chipset Conguration .....................................................................................4-11

System Agent (SA) Conguration ...............................................................4-11

X10SLH-LN6TF User’s Manual

VT-d .......................................................................................................... 4-12

PCH-IO Conguration ................................................................................ 4-15

Legacy USB Support ................................................................................ 4-15

Port 60/64 Emulation ................................................................................ 4-15

XHCI Hand-Off ......................................................................................... 4-16

EHCI Hand-Off ......................................................................................... 4-16

XHCI Mode ............................................................................................... 4-16

SATA Conguration .................................................................................... 4-16

SATA Controllers ...................................................................................... 4-16

SATA Mode Selection ............................................................................... 4-16

SATA RAID Option ROM/UEFI Driver ...................................................... 4-16

PCIe/PCI/PnP Conguration ..................................................................... 4-18

Above 4G Decoding ................................................................................. 4-18

VGA Palette Snoop .................................................................................. 4-18

CPU SLOT6 PCI-E 3.0 X8 (IN X16) OPROM ......................................... 4-18

PCH SLOT4 PCI-E 2.0 X4 (IN X8) OPROM ........................................... 4-18

Launch Storage OpROM Policy ............................................................... 4-18

Other PCI Device ROM Priority ............................................................... 4-18

Onboard LAN1 Option ROM .................................................................... 4-19

Onboard LAN2/LAN3/LAN4/LAN5/LAN6 Option ROM ............................ 4-19

VGA Priority .............................................................................................. 4-19

Network Stack .......................................................................................... 4-19

ACPI Settings ............................................................................................ 4-19

High Precision Event Timer ...................................................................... 4-19

ACPI Sleep State ..................................................................................... 4-19

WHEA Support ......................................................................................... 4-19

Intel Server Platform Services Conguration ............................................ 4-20

Super IO Conguration ............................................................................ 4-20

Super IO Chip NCT6776F ...................................................................... 4-20

Serial Port 1 Conguration / Serial Port 2 Conguration ...................... 4-20

Serial Port ................................................................................................. 4-20

Change Settings ....................................................................................... 4-20

Serial Port Console Redirection ................................................................. 4-21

EMS (Emergency Management Services) Console Redirection ............. 4-22

EMS Console Redirection Settings ............................................................ 4-22

Trusted Computing (Available when a TPM device is installed and detected

by the BIOS) ................................................................................................. 4-23

Conguration ............................................................................................ 4-23

Security Device Support ........................................................................... 4-23

TPM State ................................................................................................ 4-24

Pending Operation ................................................................................... 4-24

Current Status Information ....................................................................... 4-24

Intel TXT (LT) Support .............................................................................. 4-24

4-4 Event Logs .................................................................................................... 4-25

Change SMBIOS Event Log Settings ........................................................ 4-25

SMBIOS Event Log .................................................................................. 4-25

PCI Error Logging Support ....................................................................... 4-25

Erasing Settings ....................................................................................... 4-25

Erase Event Log ....................................................................................... 4-25

When Log is Full ...................................................................................... 4-25

SMBIOS Event Log Standard Settings .................................................... 4-26

Log System Boot Event ........................................................................... 4-26

MECI (Multiple Event Count Increment) .................................................. 4-26

METW (Multiple Event Count Time Window) ........................................... 4-26

View SMBIOS Event Log ........................................................................... 4-26

IPMI ............................................................................................................ 4-27

System Event Log ...................................................................................... 4-27

When SEL is Full ...................................................................................... 4-27

BMC Network Conguration ...................................................................... 4-28

IPMI LAN Selection .................................................................................. 4-28

IPMI Network Link Status ......................................................................... 4-28

Update IPMI LAN Conguration ............................................................... 4-28

Conguration Address Source ................................................................. 4-28

4-5 Boot Settings ................................................................................................. 4-29

Set Boot Priority ....................................................................................... 4-29

Delete Boot Option ................................................................................ 4-29

Delete Driver Option ............................................................................. 4-29

Network Device BBS Priorities.............................................................. 4-30

UEFI Boot Drive BBS Priorities............................................................. 4-30

4-6 Security Settings ........................................................................................... 4-31

Password Check ...................................................................................... 4-31

Administrator Password .......................................................................... 4-31

4-7 Save & Exit ................................................................................................... 4-32

Discard Changes and Exit ...................................................................... 4-32

Save Changes and Reset ........................................................................ 4-32

Save Options ............................................................................................ 4-32

Save Changes .......................................................................................... 4-32

Discard Changes ...................................................................................... 4-32

Table of Contents

xii

Restore Optimized Defaults ..................................................................... 4-33

Save As User Defaults ............................................................................. 4-33

Restore User Defaults .............................................................................. 4-33

Boot Override ........................................................................................... 4-33

Appendix A BIOS Error Beep Codes

A-1 BIOS Error Beep Codes .................................................................................A-1

Appendix B Software Installation Instructions

B-1 Installing Software Programs ..........................................................................B-1

B-2 Installing SuperDoctor® 5 ................................................................................B-2

Appendix C UEFI BIOS Recovery Instructions

C-1 An Overview to the UEFI BIOS ......................................................................C-1

C-2 How to Recover the UEFI BIOS Image (the Main BIOS Block) .....................C-1

C-3 To Recover the Main BIOS Block Using a USB-Attached Device..................C-1

Appendix D Dual Boot Block

D-1 Introduction ......................................................................................................D-1

BIOS Boot Block .............................................................................................D-1

BIOS Boot Block Corruption Occurrence ......................................................D-1

D-2 Steps to Reboot the System by Using Jumper JBR1 (Available when JBR1 is

Installed onboard) .......................................................................................................D-2

X10SLH-LN6TF User’s Manual

Chapter 1: Introduction

1-1

Chapter 1

Introduction

1-1 Overview

Checklist

Congratulations on purchasing your computer motherboard from an acknowledged

leader in the industry. Supermicro boards are designed with the utmost attention to

detail to provide you with the highest standards in quality and performance.

Please check that the following items have all been included with your motherboard.

If anything listed here is damaged or missing, contact your retailer.

The following items are included in the retail box.

•One (1) Supermicro Motherboard

•Six (6) SATA cables

•One (1) I/O shield

•One (1) Quick Reference Guide

Note: For your system to work properly, please follow the links below to

download all necessary drivers/utilities and the user's manual for your

motherboard.

SMCI product manuals: http://www.supermicro.com/support/manuals/

Product Drivers and utilities: ftp://ftp.supermicro.com/

If you have any questions, please contact our support team at support@supermicro.

com.

1-2

X10SLH-LN6TF User’s Manual

X10SLH-LN6TF Motherboard Image

Note: All graphics shown in this manual were based upon the latest PCB Revision

available at the time of publishing of the manual. The motherboard you've received

may or may not look exactly the same as the graphics shown in this manual.

Chapter 1: Introduction

1-3

X10SLH-LN6TF Motherboard Layout

Important Notes to the User

•See Chapter 2 for detailed information on jumpers, I/O ports and JF1 front

panel connections.

•" " indicates the location of "Pin 1".

•Jumpers/components not indicated are for testing only.

•When LE3 (Onboard Power LED Indicator) is on, system power is on. Unplug

the power cable before installing or removing any components.

IPMI CODE

BIOS

LICENSE

BAR CODE

MAC CODE

JLAN3 JLAN2 JLAN1

JP1000

JPW1

JPW2

JSTBY1

LE6

DIMM1

DIMM2

DIMM4

DIMM3

FAN4

FAN3

FAN2 FAN1

FANA

JPME1

JI2C1

JPME2

JI2C2

JPUSB1

JPL1

JPL2

JPL3

JPG1

JBR1

JWD1

JLED1

LE5

LE4

LE1

LE3

JL1

JLED_LAN4

JLED_LAN3

JLED_LAN6

JLED_LAN5

JPI2C1

JTPM1 T-SGPIO1

T-SGPIO2

JSD2

JSD1

SPKR1

JBT1

JF1

SW1

COM1

COM2

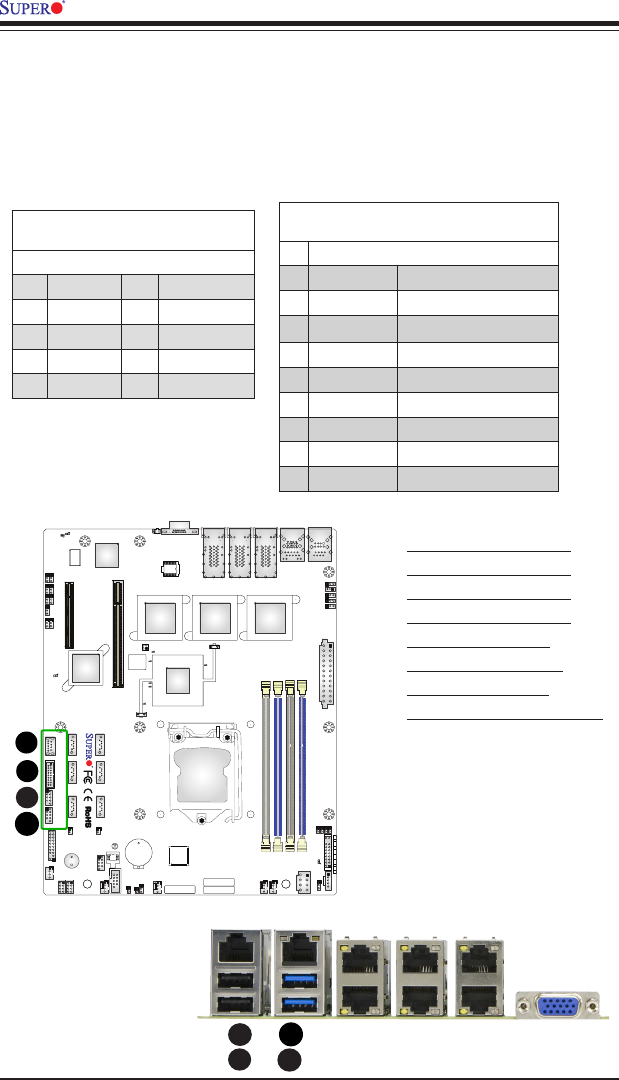

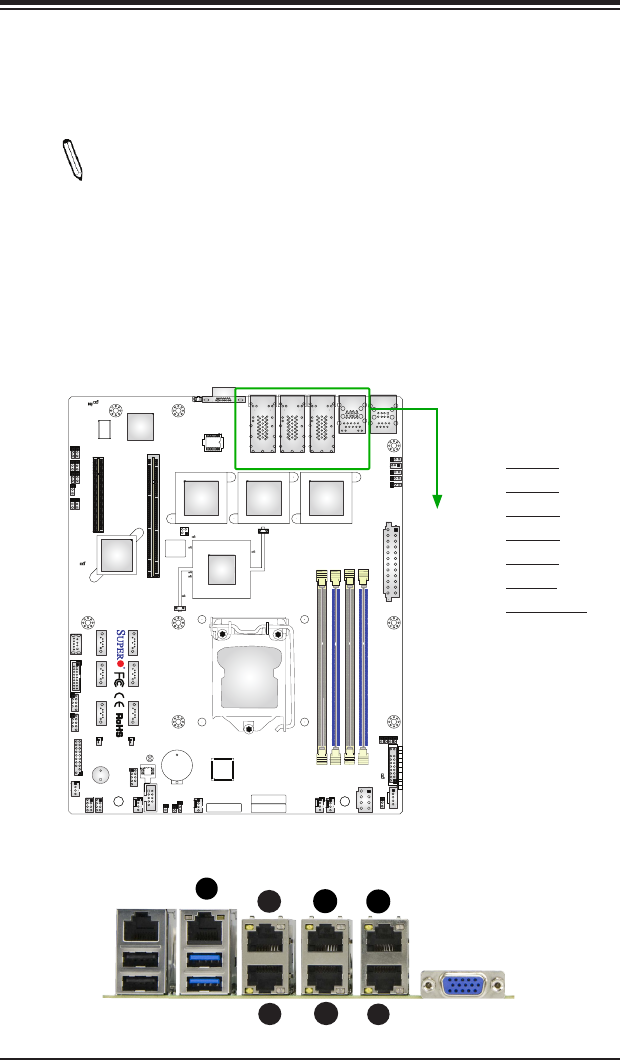

PCH SLOT4 PCI-E 2.0 X4(IN X8)

DESIGNED IN USA

X10SLH-LN6TF

REV:1.01

USB0(3.0)

USB1(3.0)

USB12/13

USB8/9

CPU SLOT6 PCI-E 3.0 X8(IN X16)

I-SATA 0I-SATA2

I-SATA 1I-SATA3

I-SATA 4

I-SATA 5

VGA

LAN5/6 LAN3/4 LAN1/2

USB4/5 (2.0)

USB2/3(3.0)

JLED1:3 pin Power LED

IPMI LAN

JF1

NIC2

NIC1

PWR

RST

OH/

LED

HDD

PWR

NMI

C226

X540 X540 X540

BMC

PLX

1-4

X10SLH-LN6TF User’s Manual

X10SLH-LN6TF Quick Reference

IPMI CODE

BIOS

LICENSE

BAR CODE

MAC CODE

JLAN3 JLAN2 JLAN1

JP1000

JPW1

JPW2

JSTBY1

LE6

DIMM1

DIMM2

DIMM4

DIMM3

FAN4

FAN3

FAN2 FAN1

FANA

JPME1

JI2C1

JPME2

JI2C2

JPUSB1

JPL1

JPL2

JPL3

JPG1

JBR1

JWD1

JLED1

LE5

LE4

LE1

LE3

JL1

JLED_LAN4

JLED_LAN3

JLED_LAN6

JLED_LAN5

JPI2C1

JTPM1 T-SGPIO1

T-SGPIO2

JSD2

JSD1

SPKR1

JBT1

JF1

SW1

COM1

COM2

PCH SLOT4 PCI-E 2.0 X4(IN X8)

DESIGNED IN USA

X10SLH-LN6TF

REV:1.01

USB0(3.0)

USB1(3.0)

USB12/13

USB8/9

CPU SLOT6 PCI-E 3.0 X8(IN X16)

I-SATA 0I-SATA2

I-SATA 1I-SATA3

I-SATA 4

I-SATA 5

VGA

LAN5/6 LAN3/4 LAN1/2

USB4/5 (2.0)

USB2/3(3.0)

JLED1:3 pin Power LED

IPMI LAN

JF1

NIC2

NIC1

PWR

RST

OH/

LED

HDD

PWR

NMI

C226

X540 X540 X540

BMC

PLX

Chapter 1: Introduction

1-5

X10SLH-LN6TF Jumpers

Jumper Description Default

JBR1 BIOS Recovery Pins 1-2 (Normal)

JBT1 CMOS Clear (See Chpt. 2)

JI2C1/JI2C2 SMB to PCI Slots Off (Disabled)

JPG1 VGA Enable Pins 1-2 (Enabled)

JPL1/JPL2JPL3 LAN1/2, LAN3/4, LAN5/6 Enable Pins 1-2 (Enabled)

JPME1 ME Recovery Pins 1-2 (Normal)

JPME2 Manufacturing Mode Pins 1-2 (Normal)

JPUSB1 USB4/5 Wake_Up Enable Pins 1-2 (Enabled)

JWD1 Watch Dog Enable Pins 1-2 (RST)

X10SLH-LN6TF Headers/Connectors

Connector Description

Battery (B1) Onboard Battery

COM1/COM2 COM1/COM2 Port Headers

Fan1 - Fan4, FanA System/CPU Fan Headers

IPMI LAN IPMI Dedicated LAN

JF1 Front Panel Control Header

JL1 Chassis Intrusion Header

JLED1 Power LED Indicator Header

JLED_LAN3 - JLED_LAN6 LAN3 - LAN6 Activity LED

JPI2C1 Power System Management Bus (Power SMB)

JPW1 24-pin ATX Main Power Connector (Required)

JPW2 +12V 8-pin CPU power Connector (Required)

JSD1/JSD2 SATA DOM (Device_On_Module) Power Connector

JSTBY1 Standby Power Header

JTPM1 Trusted Platform Module/Port 80 Connector

LAN1 - LAN6 10 Gigabit (RJ45) Ports (LAN1 - LAN6)

SPKR1 Internal Speaker/Buzzer

I-SATA0 - I-SATA5 (SATA 3.0) (Intel PCH) Serial ATA (SATA 3.0) Ports 0-5 (6Gb/sec)

Slot 6 (CPU) PCI-Express 3.0 x8 (in x16 Slot)

Slot 4 (PCH) PCI-Express 2.0 x4 (in x8 Slot)

SW1 Unit Identier (UID) Switch

T-SGPIO 1/2 Serial_Link General Purpose I/O Connection Headers 1/2

USB 0 (3.0)/USB 1 (3.0) USB 3.0 Port 0/USB 3.0 Vertical Header 1

USB 2/3 Backpanel USB 3.0 Ports 2/3

1-6

X10SLH-LN6TF User’s Manual

USB 4/5 Backpanel USB 2.0 Ports 4/5

USB 8/9, USB 12/13 Front Panel Accessible USB 2.0 Headers 8/9, 12/13

VGA Backpanel VGA Port

X10SLH-LN6TF LED Indicators

LED Description Color/State Status

LE3 Onboard Standby PWR LED Green: Solid on Dual Power On

LE4 Unit Identifer (UID) LED Blue: On Unit Identied

LE5 BMC Heartbeat LED Green Blinking BMC Normal

LE6 System Sleep State LED Red: S5, Green: S0

Chapter 1: Introduction

1-7

Motherboard Features

CPU Single Intel® Xeon™ E3-1200 v3 processor in an LGA 1150

H3 socket.

Memory Supports up to 32 GB of DDR3 Unbuffered ECC 1600/1333

MHz (1.35V/1.5V) memory in four memory slots.

Dual-channel memory

DIMM sizes

UDIMM 1 GB, 2 GB, 4GB, and 8GB

Chipset Intel® C226 Express

Expansion Slots One (1) PCI Express 2.0 x4 (in x8) slot (CPU Slot 4)

One (1) PCI Express 3.0 x8 (in x16) slot (CPU Slot 6)

Network Connections Intel® X540 Gigabit Ethernet Controller:

•Six (6) RJ-45 LAN ports in the rear I/O panel with

Link and Activity LEDs

I/O Devices SATA Connections

SATA 3.0 (6Gb/s) Six (6) I-SATA 0-5 via Intel® C226

Express with Intel® Rapid Storage

Technology support

RAID 0, 1, 5, 10

USB Devices

Two (2) USB 3.0 ports on the rear I/O panel (USB 2/3),

Two (2) USB 2.0 ports on the rear I/O panel (USB 4/5)

Four (4) Front Accessible USB 2.0 ports on two headers

(USB 8/9, USB 12/13),

One (1) Front Accessible Type A USB 3.0 (USB 0)

One (1) Front Accessible Header USB 3.0 (USB 1)

Serial (COM) Ports

One (1) Backpanel Serial Port (COM1)

One (1) Front Accessible Header (COM2)

Super I/O

Nuvoton NCT6776

BIOS 128 Mb AMI BIOS® SPI Flash BIOS

Plug and Play (PnP), DMI 2.3, PCI 2.3, ACPI 1.0/2.0/3.0,

USB Keyboard and SMBIOS 2.5

Power Conguration ACPI/APM Power Management

Main Switch Override Mechanism

Keyboard Wake-up from Soft-Off

Power-on mode for AC power recovery

1-8

X10SLH-LN6TF User’s Manual

PC Health Monitoring CPU Monitoring

Onboard voltage monitors for CPU core, +3.3V, +5V,-12V,

+12V, +3.3V Stdby, VBAT, Memory, VCORE for CPU

CPU 3-phase switching voltage regulator

CPU/System overheat LED and control

CPU Thermal Trip support

Thermal Monitor 2 (TM2) support

Fan Control

Fan status monitoring with rmware 4-pin fan speed control

via IPMI interface

Low noise fan speed control

System Management PECI (Platform Environment Conguration Interface) 3.0

support

System resource alert via SuperDoctor® 5

SuperDoctor® 5, Watch Dog, NMI

Chassis Intrusion header and detection

CD Utilities BIOS ash upgrade utility

Other ROHS 6/6 (Full Compliance, Lead Free)

Dimensions ATX form factor (9.6" x 12") (243.84 mm x 304.8 mm)

Chapter 1: Introduction

1-9

System Block Diagram

Note: This is a general block diagram and may not exactly represent

the features on your motherboard. See the Motherboard Features

pages for the actual specications of each motherboard.

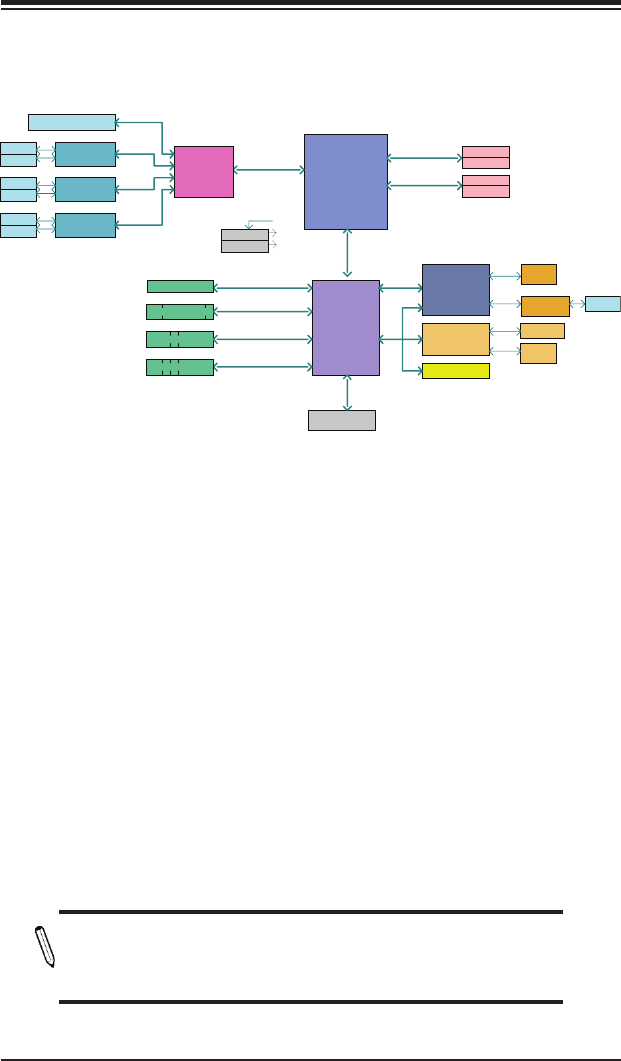

X10SLH-LN6TF Block Diagram

DDR3 (CHA)

PCIe3.0_x16

VRM 12.5

SVID

LPC I/O

NCT6776D

PCIe x16 SLOT

DDR3 (CHB)

DIMM1

DIMM2(Far)

DIMM1

DIMM2(Far)

4 UDIMM

MISC VRs

1600/1333MHz

8.0Gb

x4 DMI II

5.0Gb

5.0Gbps

PCIe_x4

PCIe x8 SLOT

6 SATA PORTS

SATA-III

6.0Gbps

4 USB PORTS

USB3.0

FLASH

SPI 128Mb

SPI

COM1,2

HEALTH

INFO

TPM1.2 Header

LPC

RGMII

VGA

PORT

RTL8211E

PHY

ASPEED

ASP2400

PCIe x1

RJ45

PCH

C220 series

1600/1333MHz

480Mbps

USB2.0

6 USB PORTS

4.8Gbps

PLX

PEX8747

Intel X540

RJ45

8.0Gb

5.0Gb

1-10

X10SLH-LN6TF User’s Manual

1-2 Chipset Overview

The X10SLH-LN6TF supports a single Intel® Xeon™ E3-1200 v3 processor in an

LGA 1150 H3 socket. Built upon the functionality and the capability of the C226 Ex-

press chipset, the motherboard provides substantial enhancement to system per-

formance and storage capability for high performance platforms in a sleek package.

The high-speed Direct Media Interface (DMI) featured in the Intel® C226 Express

chipset supports high-speed Direct Media Interface (DMI) for chip-to-chip true iso-

chronous communication, providing up to 10 Gb/s of software-transparent data

transfer rate on each read/write direction. In addition, the X10SLH-LN6TF also

features a TCO timer which allows the system to recover from a software/hardware

lock and perform tasks, including Function Disable and Intruder Detect.

Intel® C226 Express Chipset Features

•Direct Media Interface (up 20 Gb/s transfer, Full Duplex)

•Intel® Matrix Storage Technology and Intel Rapid® Storage Technology

•Intel® I/O Virtualization (VT-d) Support

•Intel® Smart Response Technology

•Intel® Trusted Execution Technology Support

•PCI Express 2.0 Interface (up to 5.0 GT/s)

•SATA Controller (up to 6Gb/sec)

•Advanced Host Controller Interface (AHCI)

•Intel® Active Management Technology (iAMT) 9.0 and vPRO 9.0 support

Chapter 1: Introduction

1-11

1-3 Special Features

Recovery from AC Power Loss

Basic I/O System (BIOS) provides a setting for you to determine how the system will

respond when AC power is lost and then restored to the system. You can choose

for the system to remain powered off, (in which case you must press the power

switch to turn it back on), or for it to automatically return to a power-on state. See

the Advanced BIOS Setup section to change this setting. The default setting is

Last State.

1-4 PC Health Monitoring

This section describes the PC health monitoring features of the board. All have an

onboard System Hardware Monitoring chip that supports PC health monitoring. An

onboard voltage monitor will scan these onboard voltages continuously: CPU Vcore,

12V, -12V, 5V, 3.3V, 3.3VSB, memory and battery voltages. Once a voltage becomes

unstable, a warning is given, or an error message is sent to the screen. The user

can adjust the voltage thresholds to dene the sensitivity of the voltage monitor.

Fan Status Monitor with Firmware Control

PC health monitoring in the BIOS can check the RPM status of the cooling fans.

The onboard CPU and chassis fans are controlled by Thermal Management via

IPMI Firmware.

Environmental Temperature Control

The thermal control sensor monitors the CPU temperature in real time and will turn

on the thermal control fan whenever the CPU temperature exceeds a user-dened

threshold. The overheat circuitry runs independently from the CPU. Once the ther-

mal sensor detects that the CPU temperature is too high, it will automatically turn

on the thermal fans to prevent the CPU from overheating. The onboard chassis

thermal circuitry can monitor the overall system temperature and alert the user when

the chassis temperature is too high.

Note: To avoid possible system overheating, please be sure to provide

adequate airow to your system.

1-12

X10SLH-LN6TF User’s Manual

System Resource Alert

This feature is available when the system is used with SuperDoctor® 5 in the

Windows OS environment or used with SuperDoctor II in Linux. SuperDoctor

is used to notify the user of certain system events. For example, you can also

congure SuperDoctor to provide you with warnings when the system temperature,

CPU temperatures, voltages and fan speeds go beyond predened thresholds.

1-5 ACPI Features

ACPI stands for Advanced Conguration and Power Interface. The ACPI specica-

tion denes a exible and abstract hardware interface that provides a standard

way to integrate power management features throughout a PC system, including

its hardware, operating system and application software. This enables the system

to automatically turn on and off peripherals such as CD-ROMs, network cards, hard

disk drives and printers.

In addition to enabling operating system-directed power management, ACPI also

provides a generic system event mechanism for Plug and Play, and an operating

system-independent interface for conguration control. ACPI leverages the Plug and

Play BIOS data structures, while providing a processor architecture-independent

implementation that is compatible with Windows 7, Windows 8, and Windows 2008

Operating Systems.

Slow Blinking LED for Suspend-State Indicator

When the CPU goes into a suspend state, the chassis power LED will start to blink

to indicate that the CPU is in suspend mode. When the user presses any key, the

CPU will "wake up", and the LED will automatically stop blinking and remain on.

1-6 Power Supply

As with all computer products, a stable power source is necessary for proper and

reliable operation. It is even more important for processors that have high CPU

clock rates.

This motherboard accommodates 24-pin ATX power supplies. Although most

power supplies generally meet the specications required by the CPU, some are

inadequate. In addition, the 12V 8-pin power connector located at JPW2 is also

required to ensure adequate power supply to the system. Also your power supply

must supply at least 3A +5STBY for the Ethernet ports.

Warning: 1. To prevent damage to the power supply or motherboard, please use a

power supply that contains a 24-pin and a 8-pin power connectors. Be sure to connect

these connectors to the 24-pin (JPW1) and the 8-pin (JPW2) power connectors on the

Chapter 1: Introduction

1-13

motherboard. Failure in doing so will void the manufacturer warranty on your power

supply and motherboard. 2. To provide adequate power to SATA devices, please con-

nect the SATA DOM PWR connector (JSD1) to the power supply.

It is strongly recommended that you use a high quality power supply that meets ATX

power supply Specication 2.02 or above. It must also be SSI compliant. (For more

information, please refer to the web site at http://www.ssiforum.org/). Additionally, in

areas where noisy power transmission is present, you may choose to install a line

lter to shield the computer from noise. It is recommended that you also install a

power surge protector to help avoid problems caused by power surges.

1-7 Super I/O

The Super I/O supports two high-speed, 16550 compatible serial communication

ports (UARTs). Each UART includes a 16-byte send/receive FIFO, a programmable

baud rate generator, complete modem control capability and a processor interrupt

system. Both UARTs provide legacy speed with baud rate of up to 115.2 Kbps

as well as an advanced speed with baud rates of 250 K, 500 K, or 1 Mb/s, which

support higher speed modems.

The Super I/O provides functions that comply with ACPI (Advanced Conguration

and Power Interface), which includes support of legacy and ACPI power manage-

ment through an SMI or SCI function pin. It also features auto power management

to reduce power consumption.

1-8 Advanced Power Management

The following advanced power management features are supported by this moth-

erboard:

Intel® Intelligent Power Node Manager (NM) (Available

when the NMView utility is installed in the system)

The Intel® Intelligent Power Node Manager (IPNM) provides your system with

real-time thermal control and power management for maximum energy efciency.

Although IPNM Specication Version 1.5/2.0 is supported by the BMC (Baseboard

Management Controller), your system must also have IPNM-compatible Manage-

ability Engine (ME) rmware installed to use this feature.

Note: Support for IPNM Specication Version 1.5 or Version 2.0 depends

on the power supply used in the system.

1-14

X10SLH-LN6TF User’s Manual

Manageability Engine (ME)

The Manageability Engine, which is an ARC controller embedded in the PCH,

provides Server Platform Services (SPS) to your system. The services provided by

SPS are different from those provided by the ME on client platforms.

Chapter 2: Installation

2-1

Chapter 2

Installation

2-1 Standardized Warning Statements

The following statements are industry-standard warnings, provided to warn the user

of situations which have the potential for bodily injury. Should you have questions or

experience difculty, contact Supermicro's Technical Support department for assis-

tance. Only certied technicians should attempt to install or congure components.

Read this section in its entirety before installing or conguring components in the

Supermicro chassis.

Battery Handling

Warnung

Bei Einsetzen einer falschen Batterie besteht Explosionsgefahr. Ersetzen Sie die

Batterie nur durch den gleichen oder vom Hersteller empfohlenen Batterietyp.

Entsorgen Sie die benutzten Batterien nach den Anweisungen des Herstellers.

Warning!

There is a danger of explosion if the battery is replaced incorrectly. Replace the

battery only with the same or equivalent type recommended by the manufacturer.

Dispose of used batteries according to the manufacturer's instructions

電池の取り扱い

電池交換が正しく行われなかった場合、破裂の危険性があります。交換する電池はメー

カーが推奨する型、または同等のものを使用下さい。使用済電池は製造元の指示に従

って処分して下さい。

警告

电池更换不当会有爆炸危险。请只使用同类电池或制造商推荐的功能相当的电池更

换原有电池。请按制造商的说明处理废旧电池。

警告

電池更換不當會有爆炸危險。請使用製造商建議之相同或功能相當的電池更換原有

電池。請按照製造商的說明指示處理廢棄舊電池。

2-2

X10SLH-LN6TF User’s Manual

Attention

Danger d'explosion si la pile n'est pas remplacée correctement. Ne la remplacer

que par une pile de type semblable ou équivalent, recommandée par le fabricant.

Jeter les piles usagées conformément aux instructions du fabricant.

¡Advertencia!

Existe peligro de explosión si la batería se reemplaza de manera incorrecta. Re-

emplazar la batería exclusivamente con el mismo tipo o el equivalente recomen-

dado por el fabricante. Desechar las baterías gastadas según las instrucciones

del fabricante.

!הרהזא

תנכס תמייקץוציפ .הניקת אל ךרדב הפלחוהו הדימב הללוסה לש ףילחהל שי

גוסב הללוסה תא מ םאותה תרבחלמומ ןרציתצ.

תוללוסה קוליס תושמושמה עצבל שי .ןרציה תוארוה יפל









경고!

배터리가 올바르게 교체되지 않으면 폭발의 위험이 있습니다. 기존 배터리와 동일

하거나 제조사에서 권장하는 동등한 종류의 배터리로만 교체해야 합니다. 제조사

의 안내에 따라 사용된 배터리를 처리하여 주십시오.

Waarschuwing

Er is ontplofngsgevaar indien de batterij verkeerd vervangen wordt. Vervang de

batterij slechts met hetzelfde of een equivalent type die door de fabrikant aan-

bevolen wordt. Gebruikte batterijen dienen overeenkomstig fabrieksvoorschriften

afgevoerd te worden.

Chapter 2: Installation

2-3

Product Disposal

Warning!

Ultimate disposal of this product should be handled according to all national laws

and regulations.

製品の廃棄

この製品を廃棄処分する場合、国の関係する全ての法律・条例に従い処理する必要が

あります。

警告

本产品的废弃处理应根据所有国家的法律和规章进行。

警告

本產品的廢棄處理應根據所有國家的法律和規章進行。

Warnung

Die Entsorgung dieses Produkts sollte gemäß allen Bestimmungen und Gesetzen

des Landes erfolgen.

¡Advertencia!

Al deshacerse por completo de este producto debe seguir todas las leyes y regla-

mentos nacionales.

Attention

La mise au rebut ou le recyclage de ce produit sont généralement soumis à des

lois et/ou directives de respect de l'environnement. Renseignez-vous auprès de

l'organisme compétent.

רצומה קוליס

!הרהזא

ו תויחנהל םאתהב תויהל בייח הז רצומ לש יפוס קוליס.הנידמה יקוח

2-4

X10SLH-LN6TF User’s Manual

2-2 Static-Sensitive Devices

Electrostatic-Discharge (ESD) can damage electronic com ponents. To avoid dam-

aging your system board, it is important to handle it very carefully. The following

measures are generally sufcient to protect your equipment from ESD.

Precautions

• Use a grounded wrist strap designed to prevent static discharge.

• Touch a grounded metal object before removing the board from the antistatic

bag.

• Handle the board by its edges only; do not touch its components, peripheral

chips, memory modules or gold contacts.

• When handling chips or modules, avoid touching their pins.

• Put the motherboard and peripherals back into their antistatic bags when not in

use.

• For grounding purposes, make sure your computer chassis provides excellent

conductivity between the power supply, the case, the mounting fasteners and

the motherboard.

• Use only the correct type of onboard CMOS battery. Do not install the onboard

battery upside down to avoid possible explosion.

Unpacking

The motherboard is shipped in antistatic packaging to avoid static damage. When

unpacking the board, make sure that the person handling it is static protected.

Waarschuwing

De uiteindelijke verwijdering van dit product dient te geschieden in overeenstemming

met alle nationale wetten en reglementen.

 

경고!

이 제품은 해당 국가의 관련 법규 및 규정에 따라 폐기되어야 합니다.

Chapter 2: Installation

2-5

IPMI CODE

BIOS

LICENSE

BAR CODE

MAC CODE

JLAN3 JLAN2 JLAN1

JP1000

JPW1

JPW2

JSTBY1

LE6

DIMM1

DIMM2

DIMM4

DIMM3

FAN4

FAN3

FAN2 FAN1

FANA

JPME1

JI2C1

JPME2

JI2C2

JPUSB1

JPL1

JPL2

JPL3

JPG1

JBR1

JWD1

JLED1

LE5

LE4

LE1

LE3

JL1

JLED_LAN4

JLED_LAN3

JLED_LAN6

JLED_LAN5

JPI2C1

JTPM1 T-SGPIO1

T-SGPIO2

JSD2

JSD1

SPKR1

JBT1

JF1

SW1

COM1

COM2

PCH SLOT4 PCI-E 2.0 X4(IN X8)

DESIGNED IN USA

X10SLH-LN6TF

REV:1.01

USB0(3.0)

USB1(3.0)

USB12/13

USB8/9

CPU SLOT6 PCI-E 3.0 X8(IN X16)

I-SATA0I-SATA2

I-SATA1I-SATA3

I-SATA4

I-SATA5

VGA

LAN5/6 LAN3/4 LAN1/2

USB4/5 (2.0)

USB2/3(3.0)

JLED1:3 pin Power LED

IPMI LAN

JF1

NIC2

NIC1

PWR

RST

OH/

LED

HDD

PWR

NMI

C226

X540 X540 X540

BMC

PLX

Caution: 1) To avoid damaging the motherboard and its components, please do

not use a force greater than 8 lb/inch on each mounting screw during motherboard

installation. 2) Some components are very close to the mounting holes. Please take

precautionary measures to avoid damaging these components when installing the

motherboard to the chassis.

2-3 Motherboard Installation

All motherboards have standard mounting holes to t different types of chassis.

Make sure that the locations of all the mounting holes for both motherboard and

chassis match. Although a chassis may have both plastic and metal mounting fas-

teners, metal ones are highly recommended because they ground the motherboard

to the chassis. Make sure that the metal standoffs click in or are screwed in tightly.

Then use a screwdriver to secure the motherboard onto the motherboard tray.

Tools Needed

Philips Screwdriver

(1)

Standoffs (10)

Only if Needed

Philips Screws (10)

Location of Mounting Holes

2-6

X10SLH-LN6TF User’s Manual

Installing the Motherboard

1. Install the I/O shield into the back of the chassis.

2. Locate the mounting holes on the motherboard. (See the previous page.)

3. Locate the matching mounting holes on the chassis. Align the mounting holes

on the motherboard against the mounting holes on the chassis.

4. Install standoffs in the chassis as needed.

5. Install the motherboard into the chassis carefully to avoid damaging other

motherboard components.

6. Using the Phillips screwdriver, insert a Phillips head #6 screw into a mounting

hole on the motherboard and its matching mounting hole on the chassis.

7. Repeat Step 5 to insert #6 screws into all mounting holes.

8. Make sure that the motherboard is securely placed in the chassis.

Note: Images displayed are for illustration only. Your chassis or system

components may or may not look exactly the same as graphics shown

in this manual.

Chapter 2: Installation

2-7

2-4 Processor and Heatsink Installation

Warning: When handling the processor package, avoid placing direct pressure on the

label area of the fan.

Important:

•Always connect the power cord last, and always remove it before adding,

removing or changing any hardware components. Make sure that you install

the processor into the CPU socket before you install the CPU heatsink.

•If you buy a CPU separately, make sure that you use an Intel-certied multi-

directional heatsink only.

•Make sure to install the system board into the chassis before you install

the CPU heatsink.

•When receiving a server board without a processor pre-installed, make sure

that the plastic CPU socket cap is in place and none of the socket pins are

bent; otherwise, contact your retailer immediately.

•Refer to the Supermicro website for updates on CPU support.

Load Lever

Installing the LGA1150 Processor

1. Press the load lever to release the load plate, which covers the CPU socket,

from its locking position.

Load Plate

2-8

X10SLH-LN6TF User’s Manual

2. Gently lift the load lever to open the load plate. Remove the plastic cap.

3. Use your thumb and your index nger to hold the CPU at the North center

edge and the South center edge of the CPU.

4. Align the CPU key that is the semi-circle cutouts against the socket keys.

Once it is aligned, carefully lower the CPU straight down into the socket. (Do

not drop the CPU on the socket. Do not move the CPU horizontally or verti-

cally.

South Center Edge

North Center Edge

Chapter 2: Installation

2-9

Warning: You can only install the CPU inside the socket only in one direction. Make

sure that it is properly inserted into the CPU socket before closing the load plate. If it

doesn't close properly, do not force it as it may damage your CPU. Instead, open the

load plate again and double-check that the CPU is aligned properly.

CPU properly

installed

Load lever locked

into place

5. Do not rub the CPU against the surface or against any pins of the socket to

avoid damaging the CPU or the socket.)

6. With the CPU inside the socket, inspect the four corners of the CPU to make

sure that the CPU is properly installed.

7. Use your thumb to gently push the load lever down to the lever lock.

2-10

X10SLH-LN6TF User’s Manual

Thermal Grease

Heatsink

Fins

Recommended Supermicro

heatsink:

SNK-P0046A4 active heatsink

Installing an Active CPU

Heatsink with Fan

1. Locate the CPU Fan power connec-

tor on the motherboard. (Refer to

the layout on the right for the CPU

Fan location.)

2. Position the heatsink so that the

heatsink fan wires are closest to the

CPU fan power connector and are

not interfered with other compo-

nents.

3. Inspect the CPU Fan wires to make

sure that the wires are routed

through the bottom of the heatsink.

4. Remove the thin layer of the protec-

tive lm from the heatsink.

Warning: CPU overheat may occur if the

protective film is not removed from the

heatsink.

5. Apply the proper amount of thermal

grease on the CPU.

Note: If your heatsink came with

a thermal pad, please ignore

this step.

6. If necessary, rearrange the wires

to make sure that the wires are not

pinched between the heatsink and

the CPU. Also make sure to keep

clearance between the fan wires

and the ns of the heatsink.

Chapter 2: Installation

2-11

7. Align the four heatsink fasten-

ers with the mounting holes

on the motherboard. Gently

push the pairs of diagonal

fasteners (#1 & #2, and #3 &

#4) into the mounting holes

until you hear a click. Also,

make sure to orient each

fastener so that the narrow

end of the groove is pointing

outward.

8. Repeat Step 7 to insert all

four heatsink fasteners into

the mounting holes.

9. Once all four fasteners are

securely inserted into the

mounting holes, and the heat-

sink is properly installed on

the motherboard, connect the

heatsink fan wires to the CPU

Fan connector.

2-12

X10SLH-LN6TF User’s Manual

Removing the Heatsink

Warning: We do not recommend that the

CPU or the heatsink be removed. However, if

you do need to remove the heatsink, please

follow the instructions below to prevent dam-

age to the CPU or other components.

Active Heatsink Removal

1. Unplug the power cord from the

power supply.

2. Disconnect the heatsink fan wires

from the CPU fan header.

3. Use your nger tips to gently press

on the fastener cap and turn it

counterclockwise to make a 1/4 (900)

turn, and pull the fastener upward to

loosen it.

4. Repeat Step 3 to loosen all fasteners

from the mounting holes.

5. With all fasteners loosened, remove

the heatsink from the CPU.

Unplug the

PWR cord

Pull Up

For the 1U passive heat sink, ask for SNK-P0046P (back plate is included),

for the 2U active heat sink, SNK-P0046A4.

Chapter 2: Installation

2-13

IPMI CODE

BIOS

LICENSE

BAR CODE

MAC CODE

JLAN3 JLAN2 JLAN1

JP1000

JPW1

JPW2

JSTBY1

LE6

DIMM1

DIMM2

DIMM4

DIMM3

FAN4

FAN3

FAN2 FAN1

FANA

JPME1

JI2C1

JPME2

JI2C2

JPUSB1

JPL1

JPL2

JPL3

JPG1

JBR1

JWD1

JLED1

LE5

LE4

LE1

LE3

JL1

JLED_LAN4

JLED_LAN3

JLED_LAN6

JLED_LAN5

JPI2C1

JTPM1 T-SGPIO1

T-SGPIO2

JSD2

JSD1

SPKR1

JBT1

JF1

SW1

COM1

COM2

PCH SLOT4 PCI-E 2.0 X4(IN X8)

DESIGNED IN USA

X10SLH-LN6TF

REV:1.01

USB0(3.0)

USB1(3.0)

USB12/13

USB8/9

CPU SLOT6 PCI-E 3.0 X8(IN X16)

I-SATA0I-SATA2

I-SATA1I-SATA3

I-SATA4

I-SATA5

VGA

LAN5/6 LAN3/4 LAN1/2

USB4/5 (2.0)

USB2/3(3.0)

JLED1:3 pin Power LED

IPMI LAN

JF1

NIC2

NIC1

PWR

RST

OH/

LED

HDD

PWR

NMI

C226

X540 X540 X540

BMC

PLX

2-5 Installing DDR3 Memory

Note: Check the Supermicro website for recommended memory mod-

ules.

CAUTION

Exercise extreme care when installing or removing DIMM

modules to prevent any possible damage.

DIMM Installation

1. Insert the desired number of DIMMs

into the memory slots, starting with

DIMMA2 (Channel A, Slot 2, see

the next page for the location). For

the system to work properly, please

use the memory modules of the

same type and speed in the same

motherboard.

Release Tabs

Notches

2. Push the release tabs outwards on

both ends of the DIMM slot to unlock

it.

Press both notches

straight down into

the memory slot.

3. Align the key of the DIMM mod-

ule with the receptive point on the

memory slot.

4. Align the notches on both ends of

the module against the receptive

points on the ends of the slot.

5. Use two thumbs together to press

the notches on both ends of the

module straight down into the slot

until the module snaps into place.

6. Press the release tabs to the lock

positions to secure the DIMM module

into the slot.

2-14

X10SLH-LN6TF User’s Manual

Removing Memory Modules

Reverse the steps above to remove the DIMM modules from the motherboard.

Memory Support

The X10SLH-LN6TF supports up to 32GB of Unbuffered (UDIMM) DDR3 ECC

1600/1333 MHz (1.35V/1.5V) memory in four slots. Populating these DIMM mod-

ules with a pair of memory modules of the same type and same size will result

in interleaved memory, which will improve memory performance. Please refer to

the table below:

Memory Population Guidelines

Please follow the table below when populating the X10SLH-LN6TF.

DDR3 Unbuffered ECC (UDIMM) Memory

DIMM Slots per

Channel

DIMMs Populat-

ed per Channel

DIMM Type POR Speeds Ranks per DIMM (any

combination)

2 1 Unbuffered

DDR3

1333, 1600 Single Rank, Dual Rank

2 2 Unbuffered

DDR3

1333, 1600 Single Rank, Dual Rank

Notes:

•Be sure to use memory modules of the same type, same speed, same

frequency on the same motherboard. Mixing of memory modules of dif-

ferent types and speeds is not allowed.

•Due to memory allocation to system devices, the amount of memory that

remains available for operational use will be reduced when 4 GB of RAM

is used. The reduction in memory availability is disproportional. See the

following table for details.

Slot B2 (Blue Slot)

Slot B1

Slot A1

Slot A2 (Blue Slot)

Towards the edge of the motherboard

Towards the CPU

Chapter 2: Installation

2-15

•For Microsoft Windows users: Microsoft implemented a design change in the

Windows XP with Service Pack 2 (SP2) and Windows Vista. This change is

specic to the behavior of Physical Address Extension (PAE) mode which

improves driver compatibility. For more information, please read the following

article at Microsoft’s Knowledge Base website at: http://support.microsoft.

com/kb/888137.

Possible System Memory Allocation & Availability

System Device Size Physical Memory

Remaining (-Available)

(4 GB Total System

Memory)

Firmware Hub ash memory (System BIOS) 1 MB 3.99

Local APIC 4 KB 3.99

Area Reserved for the chipset 2 MB 3.99

I/O APIC (4 Kbytes) 4 KB 3.99

PCI Enumeration Area 1 256 MB 3.76

PCI Express (256 MB) 256 MB 3.51

PCI Enumeration Area 2 (if needed) -Aligned on 256-MB

boundary-

512 MB 3.01

VGA Memory 16 MB 2.85

TSEG 1 MB 2.84

Memory available to OS and other applications 2.84

2-16

X10SLH-LN6TF User’s Manual

IPMI CODE

BIOS

LICENSE

BAR CODE

MAC CODE

JLAN3 JLAN2 JLAN1

JP1000

JPW1

JPW2

JSTBY1

LE6

DIMM1

DIMM2

DIMM4

DIMM3

FAN4

FAN3

FAN2 FAN1

FANA

JPME1

JI2C1

JPME2

JI2C2

JPUSB1

JPL1

JPL2

JPL3

JPG1

JBR1

JWD1

JLED1

LE5

LE4

LE1

LE3

JL1

JLED_LAN4

JLED_LAN3

JLED_LAN6

JLED_LAN5

JPI2C1

JTPM1 T-SGPIO1

T-SGPIO2

JSD2

JSD1

SPKR1

JBT1

JF1

SW1

COM1

COM2

PCH SLOT4 PCI-E 2.0 X4(IN X8)

DESIGNED IN USA

X10SLH-LN6TF

REV:1.01

USB0(3.0)

USB1(3.0)

USB12/13

USB8/9

CPU SLOT6 PCI-E 3.0 X8(IN X16)

I-SATA0I-SATA2

I-SATA1I-SATA3

I-SATA4

I-SATA5

VGA

LAN5/6 LAN3/4 LAN1/2

USB4/5 (2.0)

USB2/3(3.0)

JLED1:3 pin Power LED

IPMI LAN

JF1

NIC2

NIC1

PWR

RST

OH/

LED

HDD

PWR

NMI

C226

X540 X540 X540

BMC

PLX

2-6 Connectors/IO Ports

The I/O ports are color coded in conformance with the industry standards. See the

gure below for the colors and locations of the various I/O ports.

Backplane I/O Panel

A. COM1 F. USB Port 3 (3.0) K. LAN6

B. USB Port 5 (2.0) G. LAN2 L. LAN5

C. USB Port 4 (2.0) H. LAN1 M. VGA

D. IPMI LAN I. LAN4

E. USB Port 2 (3.0) J. LAN3

Chapter 2: Installation

2-17

IPMI CODE

BIOS

LICENSE

BAR CODE

MAC CODE

JLAN3 JLAN2 JLAN1

JP1000

JPW1

JPW2

JSTBY1

LE6

DIMM1

DIMM2

DIMM4

DIMM3

FAN4

FAN3

FAN2 FAN1

FANA

JPME1

JI2C1

JPME2

JI2C2

JPUSB1

JPL1

JPL2

JPL3

JPG1

JBR1

JWD1

JLED1

LE5

LE4

LE1

LE3

JL1

JLED_LAN4

JLED_LAN3

JLED_LAN6

JLED_LAN5

JPI2C1

JTPM1 T-SGPIO1

T-SGPIO2

JSD2

JSD1

SPKR1

JBT1

JF1

SW1

COM1

COM2

PCH SLOT4 PCI-E 2.0 X4(IN X8)

DESIGNED IN USA

X10SLH-LN6TF

REV:1.01

USB0(3.0)

USB1(3.0)

USB12/13

USB8/9

CPU SLOT6 PCI-E 3.0 X8(IN X16)

I-SATA0I-SATA2

I-SATA1I-SATA3

I-SATA4

I-SATA5

VGA

LAN5/6 LAN3/4 LAN1/2

USB4/5 (2.0)

USB2/3(3.0)

JLED1:3 pin Power LED

IPMI LAN

JF1

NIC2

NIC1

PWR

RST

OH/

LED

HDD

PWR

NMI

C226

X540 X540 X540

BMC

PLX

Video Connection

A Video (VGA) port is located next

to LAN2 on the I/O backplane. Refer

to the board layout below for the

location.

Serial Ports

Two COM connections (COM1 &

COM2) are located on the mother-

board. COM1 is located on the Back-

plane I/O panel. COM2 is located next

to the onboard battery. See the table on

the right for pin denitions.

Serial COM2 Port

Pin Denitions

Pin # Denition Pin # Denition

1DCD 6 DSR

2 RXD 7 RTS

3 TXD 8 CTS

4 DTR 9 RI

5 Ground 10 N/A

COM1

COM2

A. COM1 - RJ45 Type Connector

B. COM2

C. VGA

COM2

2-18

X10SLH-LN6TF User’s Manual

IPMI CODE

BIOS

LICENSE

BAR CODE

MAC CODE

JLAN3 JLAN2 JLAN1

JP1000

JPW1

JPW2

JSTBY1

LE6

DIMM1

DIMM2

DIMM4

DIMM3

FAN4

FAN3

FAN2 FAN1

FANA

JPME1

JI2C1

JPME2

JI2C2

JPUSB1

JPL1

JPL2

JPL3

JPG1

JBR1

JWD1

JLED1

LE5

LE4

LE1

LE3

JL1

JLED_LAN4

JLED_LAN3

JLED_LAN6

JLED_LAN5

JPI2C1

JTPM1 T-SGPIO1

T-SGPIO2

JSD2

JSD1

SPKR1

JBT1

JF1

SW1

COM1

COM2

PCH SLOT4 PCI-E 2.0 X4(IN X8)

DESIGNED IN USA

X10SLH-LN6TF

REV:1.01

USB0(3.0)

USB1(3.0)

USB12/13

USB8/9

CPU SLOT6 PCI-E 3.0 X8(IN X16)

I-SATA0I-SATA2

I-SATA1I-SATA3

I-SATA4

I-SATA5

VGA

LAN5/6 LAN3/4 LAN1/2

USB4/5 (2.0)

USB2/3(3.0)

JLED1:3 pin Power LED

IPMI LAN

JF1

NIC2

NIC1

PWR

RST

OH/

LED

HDD

PWR

NMI

C226

X540 X540 X540

BMC

PLX

A. Backpanel USB 4 (2.0)

B. Backpanel USB 5 (2.0)

C. Backpanel USB 3 (3.0)

D. Backpanel USB 2 (3.0)

E. Front USB 8/9 (2.0)

F. Front USB 12/13 (2.0)

G. Type A USB 0 (3.0)

H. Front Accessible USB 1 (3.0)

Universal Serial Bus (USB)

Two Universal Serial Bus 3.0 ports (USB2/3) and two USB 2.0 ports (USB4/5) are

located on the I/O back panel. In addition, two USB 2.0 headers (four USB 2.0 con-

nections: 8/9, 12/13), a Type A USB 3.0 header (USB0), and a front accessible USB

3.0 header (USB1) are also located on the motherboard to provide front chassis

access using USB cables (not included). See the tables below for pin denitions.

Front Panel USB (2.0) 8/9, 12/13

Pin Denitions

Pin # Denition Pin # Denition

1+5V 2+5V

3 USB_PN2 4 USB_PN3

5 USB_PP2 6 USB_PP3

7 Ground 8 Ground

9Key 10 Ground

Front Panel USB (3.0) 1

Pin Denitions

Signal Name Description

1VBUS Power

2 D- USB 2.0 Differential Pair

3 D+

4 Ground Ground of PWR Return

5 StdA_SSRX- SuperSpeed Receiver

6 StdA_SSRX+ Differential Pair

7 GND_DRAIN Ground for Signal Return

8 StdA_SSTX- SuperSpeed Transmitter

9 StdA_SSTX+ Differential Pair

Chapter 2: Installation

2-19

IPMI CODE

BIOS

LICENSE

BAR CODE

MAC CODE

JLAN3 JLAN2 JLAN1

JP1000

JPW1

JPW2

JSTBY1

LE6

DIMM1

DIMM2

DIMM4

DIMM3

FAN4

FAN3

FAN2 FAN1

FANA

JPME1

JI2C1

JPME2

JI2C2

JPUSB1

JPL1

JPL2

JPL3

JPG1

JBR1

JWD1

JLED1

LE5

LE4

LE1

LE3

JL1

JLED_LAN4

JLED_LAN3

JLED_LAN6

JLED_LAN5

JPI2C1

JTPM1 T-SGPIO1

T-SGPIO2

JSD2

JSD1

SPKR1

JBT1

JF1

SW1

COM1

COM2

PCH SLOT4 PCI-E 2.0 X4(IN X8)

DESIGNED IN USA

X10SLH-LN6TF

REV:1.01

USB0(3.0)

USB1(3.0)

USB12/13

USB8/9

CPU SLOT6 PCI-E 3.0 X8(IN X16)

I-SATA0I-SATA2

I-SATA1I-SATA3

I-SATA4

I-SATA5

VGA

LAN5/6 LAN3/4 LAN1/2

USB4/5 (2.0)

USB2/3(3.0)

JLED1:3 pin Power LED

IPMI LAN

JF1

NIC2

NIC1

PWR

RST

OH/

LED

HDD

PWR

NMI

C226

X540 X540 X540

BMC

PLX

Ethernet Ports

Six Gigabit Ethernet ports (LAN1 ~ LAN6) and an IPMI_LAN port are located next

to the VGA Connector on the I/O backpanel to provide network connections. These

ports accept RJ45 type cables.

Note: Please refer to the LED Indicator Section for LAN LED information.

A. LAN1

B. LAN2

C. LAN3

D. LAN4

E. LAN5

F. LAN6

G. IPMI LAN

2-20

X10SLH-LN6TF User’s Manual

IPMI CODE

BIOS

LICENSE

BAR CODE

MAC CODE

JLAN3 JLAN2 JLAN1

JP1000

JPW1

JPW2

JSTBY1

LE6

DIMM1

DIMM2

DIMM4

DIMM3

FAN4

FAN3

FAN2 FAN1

FANA

JPME1

JI2C1

JPME2

JI2C2

JPUSB1

JPL1

JPL2

JPL3

JPG1

JBR1

JWD1

JLED1

LE5

LE4

LE1

LE3

JL1

JLED_LAN4

JLED_LAN3

JLED_LAN6

JLED_LAN5

JPI2C1

JTPM1 T-SGPIO1

T-SGPIO2

JSD2

JSD1

SPKR1

JBT1

JF1

SW1

COM1

COM2

PCH SLOT4 PCI-E 2.0 X4(IN X8)

DESIGNED IN USA

X10SLH-LN6TF

REV:1.01

USB0(3.0)

USB1(3.0)

USB12/13

USB8/9

CPU SLOT6 PCI-E 3.0 X8(IN X16)

I-SATA0I-SATA2

I-SATA1I-SATA3

I-SATA4

I-SATA5

VGA

LAN5/6 LAN3/4 LAN1/2

USB4/5 (2.0)

USB2/3(3.0)

JLED1:3 pin Power LED

IPMI LAN

JF1

NIC2

NIC1

PWR

RST

OH/

LED

HDD

PWR

NMI

C226

X540 X540 X540

BMC

PLX

Power Button

Blue+ (OH/Fan Fail/

PWR FaiL/UID LED)

LAN1_Activity

LED

Reset Button

Power Fail LED

HDD LED

PWRLED

Reset

PWR

Red+ (Blue LED Cathode)

Ground

1920

LED_Anode+

Ground NMI-

LAN2 Activity

LED

LED_Anode+

A. UID Switch

B. Rear UID LED

C. Front UID LED

Unit Identier Switch/UID LED Indicators

A Unit Identier (UID) Switch and two LED Indi-

cators are located on the motherboard. The UID

Switch is located next to the VGA port on the

backplane. The Rear UID LED (LE4) is located

next to the UID Switch. The Front Panel UID

LED is located at Pins 7/8 of the Front Control

Panel at JF1. Connect a cable to Pin 8 on JF1

for Front Panel UID LED indication. When you

press the UID switch, both Rear UID LED and

Front Panel UID LED Indicators will be turned

on. Press the UID switch again to turn off both

LED Indicators. These UID Indicators provide

easy identication of a system unit that may be

in need of service.

Note: UID can also be triggered via

IPMI on the motherboard. For more

information on IPMI, please refer to the

IPMI User's Guide posted on our web-

site @ http://www.supermicro.com.

UID Switch

Pin# Denition

1 Ground

2 Ground

3 Button In

4 Button In

UID LED

Status

Color/State Status

Blue: On Unit Identied

Chapter 2: Installation

2-21

IPMI CODE

BIOS

LICENSE

BAR CODE

MAC CODE

JLAN3 JLAN2 JLAN1

JP1000

JPW1

JPW2

JSTBY1

LE6

DIMM1

DIMM2

DIMM4

DIMM3

FAN4

FAN3

FAN2 FAN1

FANA

JPME1

JI2C1

JPME2

JI2C2

JPUSB1

JPL1

JPL2

JPL3

JPG1

JBR1

JWD1

JLED1

LE5

LE4

LE1

LE3

JL1

JLED_LAN4

JLED_LAN3

JLED_LAN6

JLED_LAN5

JPI2C1

JTPM1 T-SGPIO1

T-SGPIO2

JSD2

JSD1

SPKR1

JBT1

JF1

SW1

COM1

COM2

PCH SLOT4 PCI-E 2.0 X4(IN X8)

DESIGNED IN USA

X10SLH-LN6TF

REV:1.01

USB0(3.0)

USB1(3.0)

USB12/13

USB8/9

CPU SLOT6 PCI-E 3.0 X8(IN X16)

I-SATA0I-SATA2

I-SATA1I-SATA3

I-SATA4

I-SATA5

VGA

LAN5/6 LAN3/4 LAN1/2

USB4/5 (2.0)

USB2/3(3.0)

JLED1:3 pin Power LED

IPMI LAN

JF1

NIC2

NIC1

PWR

RST

OH/

LED

HDD

PWR

NMI

C226

X540 X540 X540

BMC

PLX

Front Control Panel

JF1 contains header pins for various buttons and indicators that are normally located

on a control panel at the front of the chassis. These connectors are designed spe-

cically for use with Supermicro chassis. See the gure below for the descriptions

of the front control panel buttons and LED indicators. Refer to the following section

for descriptions and pin denitions.

JF1 Header Pins

Power Button

Blue+ (OH/Fan Fail/

PWR FaiL/UID LED)

LAN1_Activity

LED

Reset Button

Power Fail LED

HDD LED

PWRLED

Reset

PWR

Red+ (Blue LED Cathode)

Ground

1920

LED_Anode+

Ground NMI-

LAN2 Activity

LED

LED_Anode+

2-22

X10SLH-LN6TF User’s Manual

IPMI CODE

BIOS

LICENSE

BAR CODE

MAC CODE

JLAN3 JLAN2 JLAN1

JP1000

JPW1

JPW2

JSTBY1

LE6

DIMM1

DIMM2

DIMM4

DIMM3

FAN4

FAN3

FAN2 FAN1

FANA

JPME1

JI2C1

JPME2

JI2C2

JPUSB1

JPL1

JPL2

JPL3

JPG1

JBR1

JWD1

JLED1

LE5

LE4

LE1

LE3

JL1

JLED_LAN4

JLED_LAN3

JLED_LAN6

JLED_LAN5

JPI2C1

JTPM1 T-SGPIO1

T-SGPIO2

JSD2

JSD1

SPKR1

JBT1

JF1

SW1

COM1

COM2

PCH SLOT4 PCI-E 2.0 X4(IN X8)

DESIGNED IN USA

X10SLH-LN6TF

REV:1.01

USB0(3.0)

USB1(3.0)

USB12/13

USB8/9

CPU SLOT6 PCI-E 3.0 X8(IN X16)

I-SATA0I-SATA2

I-SATA1I-SATA3

I-SATA4

I-SATA5

VGA

LAN5/6 LAN3/4 LAN1/2

USB4/5 (2.0)

USB2/3(3.0)

JLED1:3 pin Power LED

IPMI LAN

JF1

NIC2

NIC1

PWR

RST

OH/

LED

HDD

PWR

NMI

C226

X540 X540 X540

BMC

PLX

Power Button

Blue+ (OH/Fan Fail/

PWR FaiL/UID LED)

LAN1_Activity

LED

Reset Button

Power Fail LED

HDD LED

PWRLED

Reset

PWR

Red+ (Blue LED Cathode)

Ground

1920

LED_Anode+

Ground NMI-

LAN2 Activity

LED

LED_Anode+

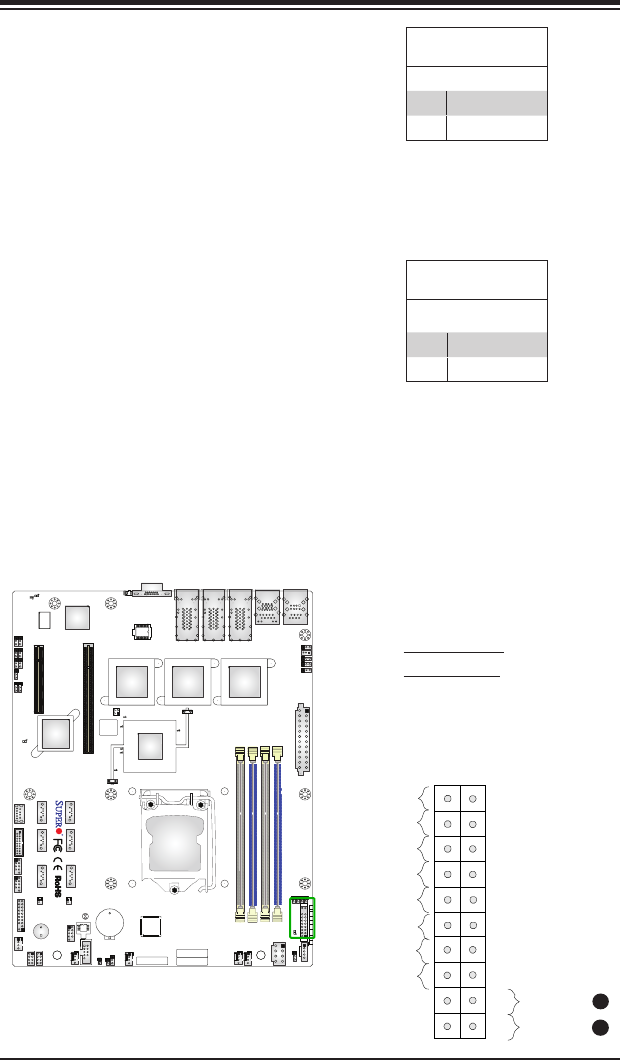

Front Control Panel Pin Denitions

A. NMI

B. PWR LED

Power LED

The Power LED connection is located

on pins 15 and 16 of JF1. Refer to the

table on the right for pin denitions.

NMI Button

The non-maskable interrupt button

header is located on pins 19 and 20

of JF1. Refer to the table on the right

for pin denitions.

NMI Button

Pin Denitions (JF1)

Pin# Denition

19 Control

20 Ground

Power LED

Pin Denitions (JF1)

Pin# Denition

15 LED_Anode+

16 PWR LED

Chapter 2: Installation

2-23

Power Button

Blue+ (OH/Fan Fail/

PWR FaiL/UID LED)

LAN1_Activity

LED

Reset Button

Power Fail LED

HDD LED

PWRLED

Reset

PWR

Red+ (Blue LED Cathode)

Ground

1920

LED_Anode+

Ground NMI-

LAN2 Activity

LED

LED_Anode+

HDD LED

The HDD LED connection is located

on pins 13 and 14 of JF1. Attach a

cable here to indicate HDD activ-

ity. See the table on the right for pin

denitions.

HDD LED

Pin Denitions (JF1)

Pin# Denition

13 LED_Anode+

14 HD Active

NIC1/NIC2 LEDs

The NIC (Network Interface Control-

ler) LED connection for GLAN Port 1

is located on pins 11 and 12 of JF1,

and the LED connection for GLAN

Port 2 is on Pins 9 and 10. Attach the

NIC LED cables to the LED indicators

mentioned above to display network

activity. Refer to the layout below for

the locations of NIC LED indicators.

GLAN1/2 LED

Pin Denitions (JF1)

Pin# Denition

9 LED_Anode+

10 LAN2 Activity LED

11 LED_Anode+

12 LAN1 Activity LED

A. HDD LED

B. NIC1 LED

C. NIC2 LED

IPMI CODE

BIOS

LICENSE

BAR CODE

MAC CODE

JLAN3 JLAN2 JLAN1

JP1000

JPW1

JPW2

JSTBY1

LE6

DIMM1

DIMM2

DIMM4

DIMM3

FAN4

FAN3

FAN2 FAN1

FANA

JPME1

JI2C1

JPME2

JI2C2

JPUSB1

JPL1

JPL2

JPL3

JPG1

JBR1

JWD1

JLED1

LE5

LE4

LE1

LE3

JL1

JLED_LAN4

JLED_LAN3

JLED_LAN6

JLED_LAN5

JPI2C1

JTPM1 T-SGPIO1

T-SGPIO2

JSD2

JSD1

SPKR1

JBT1

JF1

SW1

COM1

COM2

PCH SLOT4 PCI-E 2.0 X4(IN X8)

DESIGNED IN USA

X10SLH-LN6TF

REV:1.01

USB0(3.0)

USB1(3.0)

USB12/13

USB8/9

CPU SLOT6 PCI-E 3.0 X8(IN X16)

I-SATA0I-SATA2

I-SATA1I-SATA3

I-SATA4

I-SATA5

VGA

LAN5/6 LAN3/4 LAN1/2

USB4/5 (2.0)

USB2/3(3.0)

JLED1:3 pin Power LED

IPMI LAN

JF1

NIC2

NIC1

PWR

RST

OH/

LED

HDD

PWR

NMI

C226

X540 X540 X540

BMC

PLX

2-24

X10SLH-LN6TF User’s Manual

Power Button

Blue+ (OH/Fan Fail/

PWR FaiL/UID LED)

LAN1_Activity

LED

Reset Button

Power Fail LED

HDD LED

PWRLED

Reset

PWR

Red+ (Blue LED Cathode)

Ground

1920

LED_Anode+

Ground NMI-

LAN2 Activity

LED

LED_Anode+

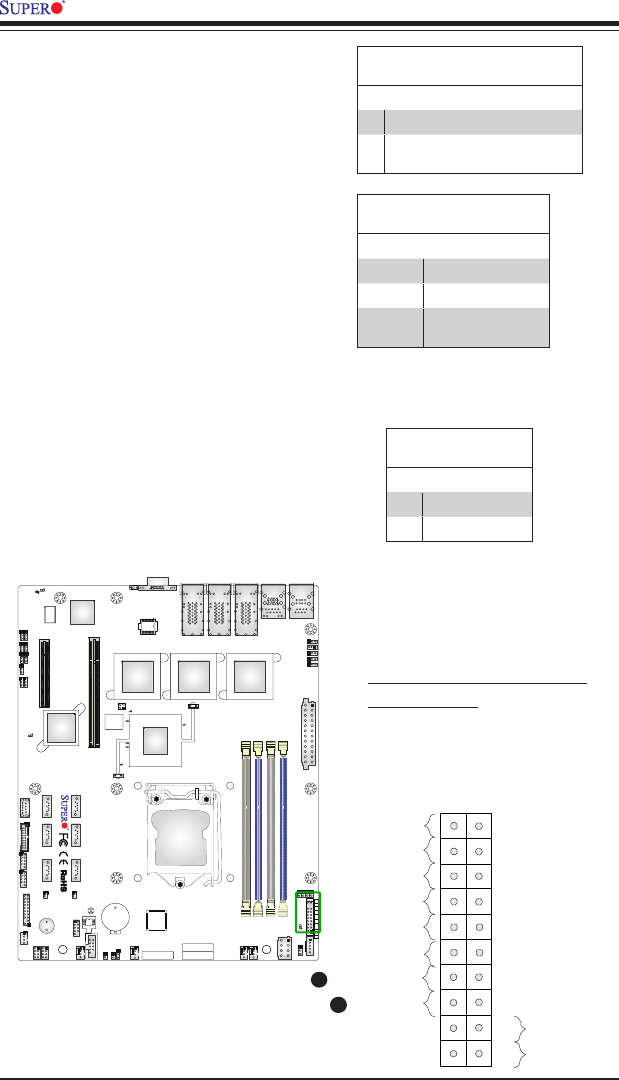

Power Fail LED

The Power Fail LED connection is

located on pins 5 and 6 of JF1. Re-

fer to the table on the right for pin

denitions.

PWR Fail LED

Pin Denitions (JF1)

Pin# Denition

5 LED_Anode+

6 PWR Supply Fail

Overheat (OH)/Fan Fail/PWR Fail/

UID LED

Connect an LED cable to pins 7 and

8 of Front Control Panel to use the

Overheat/Fan Fail/Power Fail and

UID LED connections. The Red LED

on pin 7 provides warnings of over-

heat, fan failure or power failure. The

Blue LED on pin 8 works as the front

panel UID LED indicator. The Red

LED takes precedence over the Blue

LED by default. Refer to the table on

the right for pin denitions.

OH/Fan Fail/ PWR Fail/Blue_UID

LED Pin Denitions (JF1)

Pin# Denition

7Red+(Blue LED Cathode)

8 Blue+ (OH/Fan Fail/Power Fail/

UID LED)

OH/Fan Fail/PWR Fail LED

Status (Red LED)

State Denition

Off Normal

On Overheat

Flashing 1 Hz & 1/4Hz

Fan Fail & PWR Fail

A. OH/Fan Fail/PWR Fail/UID LED

B. PWR Fail LED

IPMI CODE

BIOS

LICENSE

BAR CODE

MAC CODE

JLAN3 JLAN2 JLAN1

JP1000

JPW1

JPW2

JSTBY1

LE6

DIMM1

DIMM2

DIMM4

DIMM3

FAN4

FAN3

FAN2 FAN1

FANA

JPME1

JI2C1

JPME2

JI2C2

JPUSB1

JPL1

JPL2

JPL3

JPG1

JBR1

JWD1

JLED1

LE5

LE4

LE1

LE3

JL1

JLED_LAN4

JLED_LAN3

JLED_LAN6

JLED_LAN5

JPI2C1

JTPM1 T-SGPIO1

T-SGPIO2

JSD2

JSD1

SPKR1

JBT1

JF1

SW1

COM1

COM2

PCH SLOT4 PCI-E 2.0 X4(IN X8)

DESIGNED IN USA

X10SLH-LN6TF

REV:1.01

USB0(3.0)

USB1(3.0)

USB12/13

USB8/9

CPU SLOT6 PCI-E 3.0 X8(IN X16)

I-SATA0I-SATA2

I-SATA1I-SATA3

I-SATA4

I-SATA5

VGA

LAN5/6 LAN3/4 LAN1/2

USB4/5 (2.0)

USB2/3(3.0)

JLED1:3 pin Power LED

IPMI LAN

JF1

NIC2

NIC1

PWR

RST

OH/

LED

HDD

PWR

NMI

C226

X540 X540 X540

BMC

PLX

Chapter 2: Installation

2-25

Power Button

Blue+ (OH/Fan Fail/

PWR FaiL/UID

LED)

LAN1_Activity

LED

Reset Button

Power Fail LED

HDD LED

PWRLED

Reset

PWR

Red+ (Blue LED Cathode)

Ground

1920

LED_Anode+

Ground NMI-

LAN2 Activity

LED

LED_Anode+

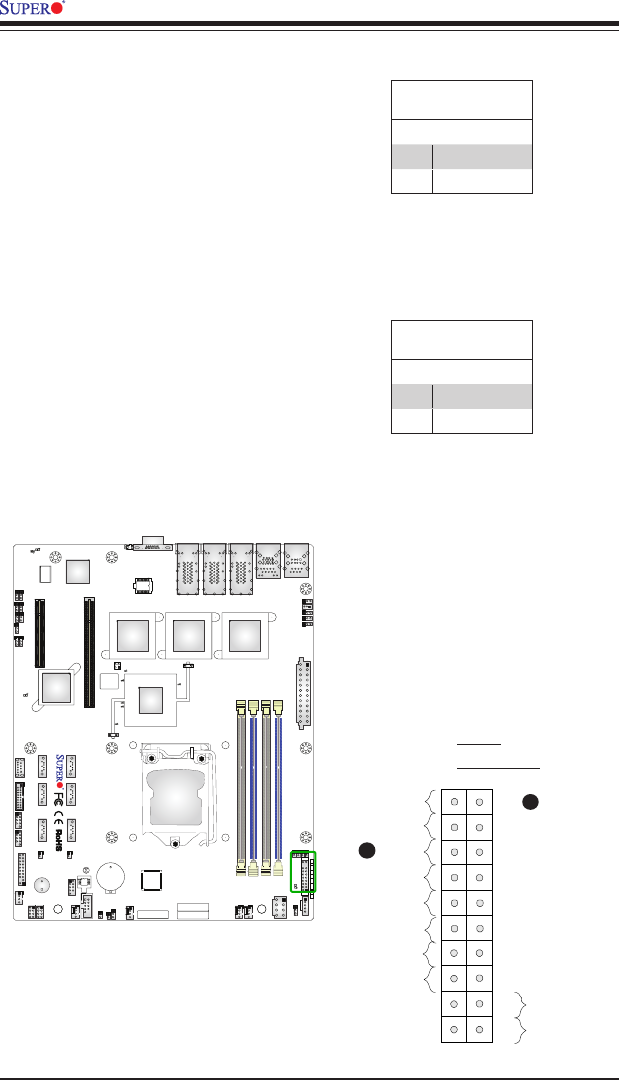

Power Button

The Power Button connection is located

on pins 1 and 2 of JF1. Momentarily

contacting both pins will power on/off

the system. This button can also be con-

gured to function as a suspend button

(with a setting in the BIOS - See Chapter

5). To turn off the power when the system

is in suspend mode, press the button for

4 seconds or longer. Refer to the table on

the right for pin denitions.

Power Button

Pin Denitions (JF1)

Pin# Denition

1 Signal

2 Ground

Reset Button

Pin Denitions (JF1)

Pin# Denition

3 Reset

4 Ground

A. Reset Button

B. PWR Button

Reset Button

The Reset Button connection is located

on pins 3 and 4 of JF1. Attach it to a

hardware reset switch on the computer

case. Refer to the table on the right for

pin denitions.

IPMI CODE

BIOS

LICENSE

BAR CODE

MAC CODE

JLAN3 JLAN2 JLAN1

JP1000

JPW1

JPW2

JSTBY1

LE6

DIMM1

DIMM2

DIMM4

DIMM3

FAN4

FAN3

FAN2 FAN1

FANA

JPME1

JI2C1

JPME2

JI2C2

JPUSB1

JPL1

JPL2

JPL3

JPG1

JBR1

JWD1

JLED1

LE5

LE4

LE1

LE3

JL1

JLED_LAN4

JLED_LAN3

JLED_LAN6

JLED_LAN5

JPI2C1

JTPM1 T-SGPIO1

T-SGPIO2

JSD2

JSD1

SPKR1

JBT1

JF1

SW1

COM1

COM2

PCH SLOT4 PCI-E 2.0 X4(IN X8)

DESIGNED IN USA

X10SLH-LN6TF

REV:1.01

USB0(3.0)

USB1(3.0)

USB12/13

USB8/9

CPU SLOT6 PCI-E 3.0 X8(IN X16)

I-SATA0I-SATA2

I-SATA1I-SATA3

I-SATA4

I-SATA5

VGA

LAN5/6 LAN3/4 LAN1/2

USB4/5 (2.0)

USB2/3(3.0)

JLED1:3 pin Power LED

IPMI LAN

JF1

NIC2

NIC1

PWR

RST

OH/

LED

HDD

PWR

NMI

C226

X540 X540 X540

BMC

PLX

2-26

X10SLH-LN6TF User’s Manual

IPMI CODE

BIOS

LICENSE

BAR CODE

MAC CODE

JLAN3 JLAN2 JLAN1

JP1000

JPW1

JPW2

JSTBY1

LE6

DIMM1

DIMM2

DIMM4

DIMM3

FAN4

FAN3

FAN2 FAN1

FANA

JPME1

JI2C1

JPME2

JI2C2

JPUSB1

JPL1

JPL2

JPL3

JPG1

JBR1

JWD1

JLED1

LE5

LE4

LE1

LE3

JL1

JLED_LAN4

JLED_LAN3

JLED_LAN6

JLED_LAN5

JPI2C1

JTPM1 T-SGPIO1

T-SGPIO2

JSD2

JSD1

SPKR1

JBT1

JF1

SW1

COM1

COM2

PCH SLOT4 PCI-E 2.0 X4(IN X8)

DESIGNED IN USA

X10SLH-LN6TF

REV:1.01

USB0(3.0)

USB1(3.0)

USB12/13

USB8/9

CPU SLOT6 PCI-E 3.0 X8(IN X16)

I-SATA0I-SATA2

I-SATA1I-SATA3

I-SATA4

I-SATA5

VGA

LAN5/6 LAN3/4 LAN1/2

USB4/5 (2.0)

USB2/3(3.0)

JLED1:3 pin Power LED

IPMI LAN

JF1

NIC2

NIC1

PWR

RST

OH/

LED

HDD

PWR

NMI

C226

X540 X540 X540

BMC

PLX

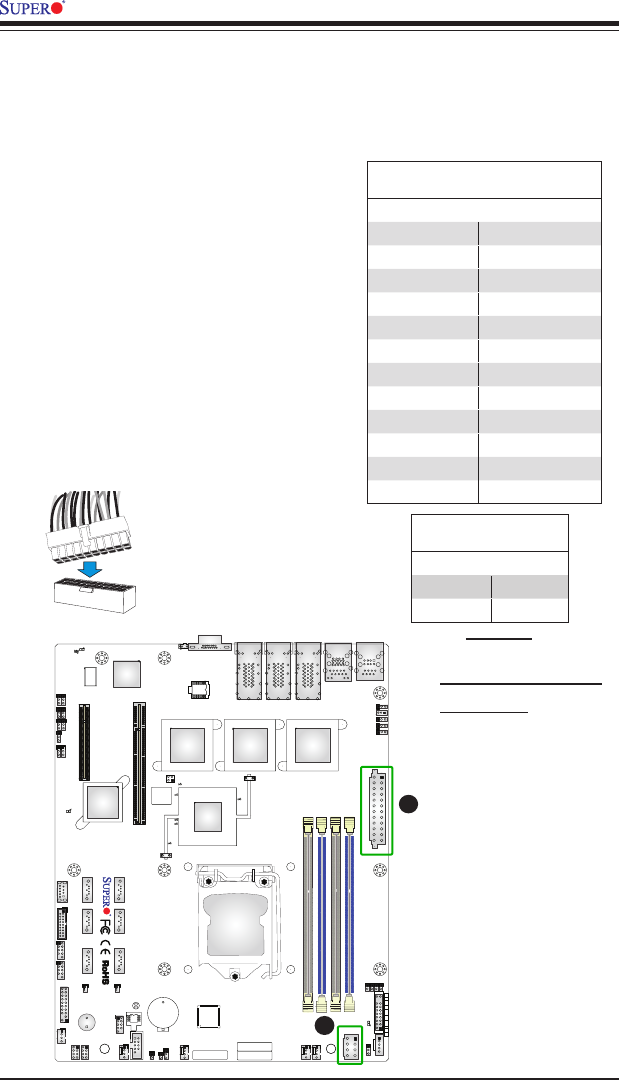

2-7 Connecting Cables

This section provides brief descriptions and pin-out denitions for onboard headers

and connectors. Be sure to use the correct cable for each header or connector.

For information on Backpanel USB and Front Panel USB ports, refer to page 2-21.

A. 24-Pin ATX Main PWR

B. 8-Pin PWR

ATX Power 24-pin Connector

Pin Denitions (JPW1)

Pin# Denition Pin # Denition

13 +3.3V 1+3.3V

14 -12V 2+3.3V

15 COM 3COM

16 PS_ON 4 +5V

17 COM 5COM

18 COM 6+5V

19 COM 7COM

20 Res (NC) 8PWR_OK

21 +5V 95VSB

22 +5V 10 +12V

23 +5V 11 +12V

24 COM 12 +3.3V

(Required)

12V 8-pin Power Connec-

tor Pin Denitions

Pins Denition

1 through 4 Ground

5 through 8 +12V

ATX Main PWR & CPU PWR

Connectors (JPW1 & JPW2)

The 24-pin main power connector

(JPW1) is used to provide power to

the motherboard. The 8-pin CPU

PWR connector (JPW2) is also

required for the processor. These

power connectors meet the SSI EPS

12V specication. See the table on

the right for pin denitions.

24-Pin Main PWR

Chapter 2: Installation

2-27

IPMI CODE

BIOS

LICENSE

BAR CODE

MAC CODE

JLAN3 JLAN2 JLAN1

JP1000

JPW1

JPW2

JSTBY1

LE6

DIMM1

DIMM2

DIMM4

DIMM3

FAN4

FAN3

FAN2 FAN1

FANA

JPME1

JI2C1

JPME2

JI2C2

JPUSB1

JPL1

JPL2

JPL3

JPG1

JBR1

JWD1

JLED1

LE5

LE4

LE1

LE3

JL1

JLED_LAN4

JLED_LAN3

JLED_LAN6

JLED_LAN5

JPI2C1

JTPM1 T-SGPIO1

T-SGPIO2

JSD2

JSD1

SPKR1

JBT1

JF1

SW1

COM1

COM2

PCH SLOT4 PCI-E 2.0 X4(IN X8)

DESIGNED IN USA

X10SLH-LN6TF

REV:1.01

USB0(3.0)

USB1(3.0)

USB12/13

USB8/9

CPU SLOT6 PCI-E 3.0 X8(IN X16)

I-SATA0I-SATA2

I-SATA1I-SATA3

I-SATA4

I-SATA5

VGA

LAN5/6 LAN3/4 LAN1/2

USB4/5 (2.0)

USB2/3(3.0)

JLED1:3 pin Power LED

IPMI LAN

JF1

NIC2

NIC1

PWR

RST

OH/

LED

HDD

PWR

NMI

C226

X540 X540 X540

BMC

PLX

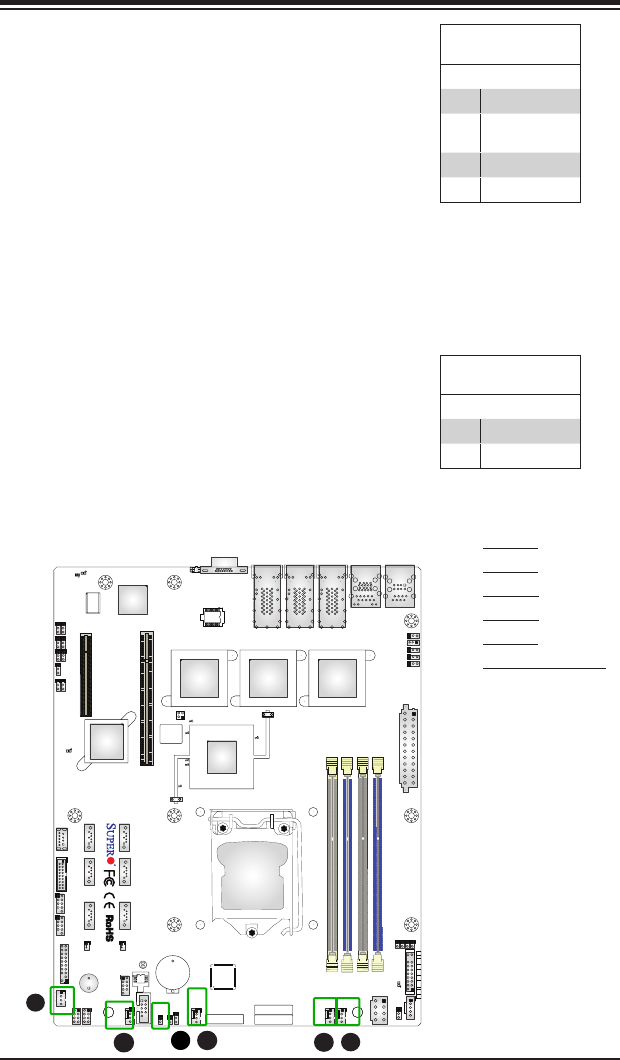

A. Fan 1

B. Fan 2

C. Fan 3

D. Fan 4

E. Fan A

F. Chassis Intrusion

Fan Header

Pin Denitions

Pin# Denition

1Ground (Black)

22.5A/+12V

(Red)

3 Tachometer

4PWM_Control

Fan Headers (Fan 1- Fan 4/Fan A)

The X10SLH-LN6TF has ve fan headers (Fan

1-Fan 4, Fan A). These fans are 4-pin fan head-

ers. Although pins 1-3 of the fan headers are

backward compatible with the traditional 3-pin

fans, we recommend that 4-pin fans be used

to take advantage of the fan speed control via

IPMI interface. This allows the fan speeds to be

automatically adjusted based on the tempera-

tures of the CPU or the motherboard. Refer to

the table on the right for pin denitions.

Chassis Intrusion (JL1)

A Chassis Intrusion header is located at JL1 on

the motherboard. Attach the appropriate cable

from the chassis to inform you of a chassis intru-

sion when the chassis is opened.

Chassis Intrusion

Pin Denitions (JL1)

Pin# Denition

1 Intrusion Input

2 Ground

2-28

X10SLH-LN6TF User’s Manual

IPMI CODE

BIOS

LICENSE

BAR CODE

MAC CODE

JLAN3 JLAN2 JLAN1

JP1000

JPW1

JPW2

JSTBY1

LE6

DIMM1

DIMM2

DIMM4

DIMM3

FAN4

FAN3

FAN2 FAN1

FANA

JPME1

JI2C1

JPME2

JI2C2

JPUSB1

JPL1

JPL2

JPL3

JPG1

JBR1

JWD1

JLED1

LE5

LE4

LE1

LE3

JL1

JLED_LAN4

JLED_LAN3

JLED_LAN6

JLED_LAN5

JPI2C1

JTPM1 T-SGPIO1

T-SGPIO2

JSD2

JSD1

SPKR1

JBT1

JF1

SW1

COM1

COM2

PCH SLOT4 PCI-E 2.0 X4(IN X8)

DESIGNED IN USA

X10SLH-LN6TF

REV:1.01

USB0(3.0)

USB1(3.0)

USB12/13

USB8/9

CPU SLOT6 PCI-E 3.0 X8(IN X16)

I-SATA0I-SATA2

I-SATA1I-SATA3

I-SATA4

I-SATA5

VGA

LAN5/6 LAN3/4 LAN1/2

USB4/5 (2.0)

USB2/3(3.0)

JLED1:3 pin Power LED

IPMI LAN

JF1

NIC2

NIC1

PWR

RST

OH/

LED

HDD

PWR

NMI

C226

X540 X540 X540

BMC

PLX

Internal Buzzer (SPKR1)

The Internal Buzzer (SPKR1) can be

used to provide audible indications for

various beep codes. See the table on

the right for pin denitions.

A. Internal Buzzer

B. Onboard Power LED

Internal Buzzer

Pin Denition

Pin# Denitions

Pin 1 Pos. (+) VCC

Pin 2 Neg. (-) Beep In

Onboard Power LED (JLED1)

An onboard Power LED header is

located at JLED1. This Power LED

header is connected to Front Control

Panel located at JF1 to indicate the

status of system power. See the table

on the right for pin denitions.

Onboard PWR LED

Pin Denitions

Pin# Denition

1VCC

2No Connection

3Connection to PWR

LED in JF1

Chapter 2: Installation

2-29

IPMI CODE

BIOS

LICENSE

BAR CODE

MAC CODE

JLAN3 JLAN2 JLAN1

JP1000

JPW1

JPW2

JSTBY1

LE6

DIMM1

DIMM2

DIMM4

DIMM3

FAN4

FAN3

FAN2 FAN1

FANA

JPME1

JI2C1

JPME2

JI2C2

JPUSB1

JPL1

JPL2

JPL3

JPG1

JBR1

JWD1

JLED1

LE5

LE4

LE1

LE3

JL1

JLED_LAN4

JLED_LAN3

JLED_LAN6

JLED_LAN5

JPI2C1

JTPM1 T-SGPIO1

T-SGPIO2

JSD2

JSD1

SPKR1

JBT1

JF1

SW1

COM1

COM2

PCH SLOT4 PCI-E 2.0 X4(IN X8)

DESIGNED IN USA

X10SLH-LN6TF

REV:1.01

USB0(3.0)

USB1(3.0)

USB12/13

USB8/9

CPU SLOT6 PCI-E 3.0 X8(IN X16)

I-SATA0I-SATA2

I-SATA1I-SATA3

I-SATA4

I-SATA5

VGA

LAN5/6 LAN3/4 LAN1/2

USB4/5 (2.0)

USB2/3(3.0)

JLED1:3 pin Power LED

IPMI LAN

JF1

NIC2

NIC1

PWR

RST

OH/

LED

HDD

PWR

NMI

C226

X540 X540 X540

BMC

PLX

A. DOM PWR (JSD1/JSD2)

B. Standby PWR

DOM PWR Connectors (JSD1/

JSD2)

The Disk-On-Module (DOM) power

connectors, located at JSD1 and

JSD2, provide 5V (Gen1/Gen) power

to a solid state DOM storage device

connected to one of the SATA ports.

See the table on the right for pin

denitions.

DOM PWR

Pin Denitions

Pin# Denition

15V

2 Ground

3 Ground

Standby Power Header

The Standby Power header is located

at JSTBY1 on the motherboard. See

the table on the right for pin deni-

tions.

Standby Power

Pin Denitions

Pin# Denition

1+5V Standby

2 Ground

3No Connection

2-30

X10SLH-LN6TF User’s Manual

IPMI CODE

BIOS

LICENSE

BAR CODE

MAC CODE

JLAN3 JLAN2 JLAN1

JP1000

JPW1

JPW2

JSTBY1

LE6

DIMM1

DIMM2

DIMM4

DIMM3

FAN4

FAN3

FAN2 FAN1

FANA

JPME1

JI2C1

JPME2

JI2C2

JPUSB1

JPL1

JPL2

JPL3

JPG1

JBR1

JWD1

JLED1

LE5

LE4

LE1

LE3

JL1

JLED_LAN4

JLED_LAN3

JLED_LAN6

JLED_LAN5

JPI2C1

JTPM1 T-SGPIO1

T-SGPIO2

JSD2

JSD1

SPKR1

JBT1

JF1

SW1

COM1

COM2

PCH SLOT4 PCI-E 2.0 X4(IN X8)

DESIGNED IN USA

X10SLH-LN6TF

REV:1.01

USB0(3.0)

USB1(3.0)

USB12/13

USB8/9

CPU SLOT6 PCI-E 3.0 X8(IN X16)

I-SATA0I-SATA2

I-SATA1I-SATA3

I-SATA4

I-SATA5

VGA

LAN5/6 LAN3/4 LAN1/2

USB4/5 (2.0)

USB2/3(3.0)

JLED1:3 pin Power LED

IPMI LAN

JF1

NIC2

NIC1

PWR

RST

OH/

LED

HDD

PWR

NMI

C226

X540 X540 X540

BMC

PLX

A.T-SGPIO 1

B.T-SGPIO 2

C.JTPM1

T-SGPIO 1/2 Headers

Two Serial-Link General Purpose

Input/Output headers (T-SGPIO 1/2)

are located on the motherboard to en-

hance system performance. See the

table on the right for pin denitions.

Note: NC= No Connection

T-SGPIO

Pin Denitions

Pin# Denition Pin Denition

1NC 2NC

3 Ground 4 Data

5 Load 6 Ground

7Clock 8NC

TPM Header/Port 80 Header

A Trusted Platform Module/Port 80

header is located at JTPM1 to provide

TPM support and Port 80 connection.

Use this header to enhance system

performance and data security. See

the table on the right for pin deni-

tions.

TPM/Port 80 Header

Pin Denitions

Pin # Denition Pin # Denition

1LCLK 2 GND

3 LFRAME# 4 <(KEY)>

5 LRESET# 6 +5V (X)

7 LAD 3 8 LAD 2

9+3.3V 10 LAD1

11 LAD0 12 GND

13 SMB_CLK4 14 SMB_DAT4

15 +3V_DUAL 16 SERIRQ

17 GND 18 CLKRUN# (X)

19 LPCPD# 20 LDRQ# (X)

Chapter 2: Installation

2-31

IPMI CODE

BIOS

LICENSE

BAR CODE

MAC CODE

JLAN3 JLAN2 JLAN1

JP1000

JPW1

JPW2

JSTBY1

LE6

DIMM1

DIMM2

DIMM4

DIMM3

FAN4

FAN3

FAN2 FAN1

FANA

JPME1

JI2C1

JPME2

JI2C2

JPUSB1

JPL1

JPL2

JPL3

JPG1

JBR1

JWD1

JLED1

LE5

LE4

LE1

LE3

JL1

JLED_LAN4

JLED_LAN3

JLED_LAN6

JLED_LAN5

JPI2C1

JTPM1 T-SGPIO1

T-SGPIO2

JSD2

JSD1

SPKR1

JBT1

JF1

SW1

COM1

COM2

PCH SLOT4 PCI-E 2.0 X4(IN X8)

DESIGNED IN USA

X10SLH-LN6TF

REV:1.01

USB0(3.0)

USB1(3.0)

USB12/13

USB8/9

CPU SLOT6 PCI-E 3.0 X8(IN X16)

I-SATA0I-SATA2

I-SATA1I-SATA3

I-SATA4

I-SATA5

VGA

LAN5/6 LAN3/4 LAN1/2

USB4/5 (2.0)

USB2/3(3.0)

JLED1:3 pin Power LED

IPMI LAN

JF1

NIC2

NIC1

PWR

RST

OH/

LED

HDD

PWR

NMI

C226

X540 X540 X540

BMC

PLX

A. PWR SMB

Power SMB (I2C) Connector

Power System Management Bus (I2C)

Connector (JPI2C1) monitors power

supply, fan and system temperatures.

See the table on the right for pin

denitions.

PWR SMB

Pin Denitions

Pin# Denition

1Clock

2 Data

3 PWR Fail

4 Ground

5+3.3V

2-32

X10SLH-LN6TF User’s Manual

IPMI CODE

BIOS

LICENSE

BAR CODE

MAC CODE

JLAN3 JLAN2 JLAN1

JP1000

JPW1

JPW2

JSTBY1

LE6

DIMM1

DIMM2

DIMM4

DIMM3

FAN4

FAN3

FAN2 FAN1

FANA

JPME1

JI2C1

JPME2

JI2C2

JPUSB1

JPL1

JPL2

JPL3

JPG1

JBR1

JWD1

JLED1

LE5

LE4

LE1

LE3

JL1

JLED_LAN4

JLED_LAN3

JLED_LAN6

JLED_LAN5

JPI2C1

JTPM1 T-SGPIO1

T-SGPIO2

JSD2

JSD1

SPKR1

JBT1

JF1

SW1

COM1

COM2

PCH SLOT4 PCI-E 2.0 X4(IN X8)

DESIGNED IN USA

X10SLH-LN6TF

REV:1.01

USB0(3.0)

USB1(3.0)

USB12/13

USB8/9

CPU SLOT6 PCI-E 3.0 X8(IN X16)

I-SATA0I-SATA2

I-SATA1I-SATA3

I-SATA4

I-SATA5

VGA

LAN5/6 LAN3/4 LAN1/2

USB4/5 (2.0)

USB2/3(3.0)

JLED1:3 pin Power LED

IPMI LAN

JF1

NIC2

NIC1

PWR

RST

OH/

LED

HDD

PWR

NMI

C226

X540 X540 X540

BMC

PLX

2-8 Jumper Settings

Explanation of Jumpers

To modify the operation of the motherboard,

jumpers can be used to choose between

optional settings. Jumpers create shorts be-

tween two pins to change the function of the

connector. Pin 1 is identied with a square

solder pad on the printed circuit board.

Note: On two-pin jumpers, "Closed"

means the jumper is on, and "Open"

means the jumper is off the pins.

A. JPL1: LAN1/2 Enable

B. JPL2: LAN3/4 Enable

c. JPL3: LAN5/6 Enable

GLAN Enable/Disable

Jumpers JPL1/JPL2/JPL3 enable or disable

LAN ports 1/2/3 on the motherboard. See

the table on the right for jumper settings. The

default setting is enabled.

GLAN Enable

Jumper Settings

Jumper Setting Denition

1-2 Enabled (default)

2-3 Disabled

Chapter 2: Installation

2-33

IPMI CODE

BIOS

LICENSE

BAR CODE

MAC CODE

JLAN3 JLAN2 JLAN1

JP1000

JPW1

JPW2

JSTBY1

LE6

DIMM1

DIMM2

DIMM4

DIMM3

FAN4

FAN3

FAN2 FAN1

FANA

JPME1

JI2C1

JPME2

JI2C2

JPUSB1

JPL1

JPL2

JPL3

JPG1

JBR1

JWD1

JLED1

LE5

LE4

LE1

LE3

JL1

JLED_LAN4

JLED_LAN3

JLED_LAN6

JLED_LAN5

JPI2C1

JTPM1 T-SGPIO1

T-SGPIO2

JSD2

JSD1

SPKR1

JBT1

JF1

SW1

COM1

COM2

PCH SLOT4 PCI-E 2.0 X4(IN X8)

DESIGNED IN USA

X10SLH-LN6TF

REV:1.01

USB0(3.0)

USB1(3.0)

USB12/13

USB8/9

CPU SLOT6 PCI-E 3.0 X8(IN X16)

I-SATA0I-SATA2

I-SATA1I-SATA3

I-SATA4

I-SATA5

VGA

LAN5/6 LAN3/4 LAN1/2

USB4/5 (2.0)

USB2/3(3.0)

JLED1:3 pin Power LED

IPMI LAN

JF1

NIC2

NIC1

PWR

RST

OH/

LED

HDD

PWR

NMI

C226

X540 X540 X540

BMC

PLX

CMOS Clear (JBT1)

JBT1 is used to clear the saved system setup conguration stored in the CMOS chip.

To clear the contents of the CMOS, completely shut down the system, remove the

AC power cord and then short JBT1 with a jumper. This will erase all user settings

and revert everything to their factory-set defaults.

A. Clear CMOS

B. JI2C1

C. JI2C2

PCI Slot_SMB Enable

Jumper Settings

Jumper Setting Denition

1-2 Enabled

2-3 Disabled

PCI Slot SMB Enable (JI2C1/JI2C2)

Use jumpers JI2C1/JI2C2 to enable PCI

SMB (System Management Bus) support

to improve system management for the

PCI slots. See the table on the right for

jumper settings.

2-34

X10SLH-LN6TF User’s Manual

A. Watch Dog Enable

B Rear USB4/5 Enable

Watch Dog Enable/Disable

Watch Dog (JWD1) is a system monitor that

can reboot the system when a software appli-

cation hangs. Close pins 1-2 to reset the sys-

tem if an application hangs. Close Pins 2-3 to

generate a non-maskable interrupt signal for

the application that hangs. See the table on

the right for jumper settings. Watch Dog must

also be enabled in the BIOS.

Watch Dog

Jumper Settings

Jumper Setting Denition

Pins 1-2 Reset (default)

Pins 2-3 NMI

Open Disabled

Rear USB 4/5_Wake_Up Enable

Set jumper JPUSB1 to Enabled to "wake up"

the system when a device installed in USB 4

or 5 receives a signal. See the table on the

right for jumper settings.

Rear USB 4/5 Wake_Up En-

able Jumper Settings

Jumper Setting Denition

Pins 1-2 Enabled (Default)

Pins 2-3 Disabled

IPMI CODE

BIOS

LICENSE

BAR CODE

MAC CODE

JLAN3 JLAN2 JLAN1

JP1000

JPW1

JPW2

JSTBY1

LE6

DIMM1

DIMM2

DIMM4

DIMM3

FAN4

FAN3

FAN2 FAN1

FANA

JPME1

JI2C1

JPME2

JI2C2

JPUSB1

JPL1

JPL2

JPL3

JPG1

JBR1

JWD1

JLED1

LE5

LE4

LE1

LE3

JL1

JLED_LAN4

JLED_LAN3

JLED_LAN6

JLED_LAN5

JPI2C1

JTPM1 T-SGPIO1

T-SGPIO2

JSD2

JSD1

SPKR1

JBT1

JF1

SW1

COM1

COM2

PCH SLOT4 PCI-E 2.0 X4(IN X8)

DESIGNED IN USA

X10SLH-LN6TF

REV:1.01

USB0(3.0)

USB1(3.0)

USB12/13

USB8/9

CPU SLOT6 PCI-E 3.0 X8(IN X16)

I-SATA0I-SATA2

I-SATA1I-SATA3

I-SATA4

I-SATA5

VGA

LAN5/6 LAN3/4 LAN1/2

USB4/5 (2.0)

USB2/3(3.0)

JLED1:3 pin Power LED

IPMI LAN

JF1

NIC2

NIC1

PWR

RST

OH/

LED

HDD

PWR

NMI

C226

X540 X540 X540

BMC

PLX

Chapter 2: Installation

2-35

Manufacturer Mode Select

Close jumper JPME2 to bypass SPI ash

security and force the system to use the

Manufacturer Mode which will allow the

user to ash the system rmware from

a host server to modify system settings.

See the table on the right for jumper

settings.

ME Mode Select

Jumper Settings

Jumper Setting Denition

1-2 Normal (Default)

2-3 Manufacturer Mode

ME Recovery

Jumper Settings

Jumper Setting Denition

1-2 Normal (Default)

2-3 ME Recovery

ME Recovery

Set jumper JPME1 to select ME Firm-

ware Recovery mode, which will limit

system resource for essential function

use only without putting restrictions on

power use. In the single operation mode,

online upgrade will be available via Re-

covery mode. See the table on the right

for pin denitions.

A. ME Recovery

B. Manufacturer Mode

IPMI CODE

BIOS

LICENSE

BAR CODE

MAC CODE

JLAN3 JLAN2 JLAN1

JP1000

JPW1

JPW2

JSTBY1

LE6

DIMM1

DIMM2

DIMM4

DIMM3

FAN4

FAN3

FAN2 FAN1

FANA

JPME1

JI2C1

JPME2

JI2C2

JPUSB1

JPL1

JPL2

JPL3

JPG1

JBR1

JWD1

JLED1

LE5

LE4

LE1

LE3

JL1

JLED_LAN4

JLED_LAN3

JLED_LAN6

JLED_LAN5

JPI2C1

JTPM1 T-SGPIO1

T-SGPIO2

JSD2

JSD1

SPKR1

JBT1

JF1

SW1

COM1

COM2

PCH SLOT4 PCI-E 2.0 X4(IN X8)

DESIGNED IN USA

X10SLH-LN6TF

REV:1.01

USB0(3.0)

USB1(3.0)

USB12/13

USB8/9

CPU SLOT6 PCI-E 3.0 X8(IN X16)

I-SATA0I-SATA2

I-SATA1I-SATA3

I-SATA4

I-SATA5

VGA

LAN5/6 LAN3/4 LAN1/2

USB4/5 (2.0)

USB2/3(3.0)

JLED1:3 pin Power LED

IPMI LAN

JF1

NIC2

NIC1

PWR

RST

OH/

LED

HDD

PWR

NMI

C226

X540 X540 X540

BMC

PLX

2-36

X10SLH-LN6TF User’s Manual

IPMI CODE

BIOS

LICENSE

BAR CODE

MAC CODE

JLAN3 JLAN2 JLAN1

JP1000

JPW1

JPW2

JSTBY1

LE6

DIMM1

DIMM2

DIMM4

DIMM3

FAN4

FAN3

FAN2 FAN1

FANA

JPME1

JI2C1

JPME2

JI2C2

JPUSB1

JPL1

JPL2

JPL3

JPG1

JBR1

JWD1

JLED1

LE5

LE4

LE1

LE3

JL1

JLED_LAN4

JLED_LAN3

JLED_LAN6

JLED_LAN5

JPI2C1

JTPM1 T-SGPIO1

T-SGPIO2

JSD2

JSD1

SPKR1

JBT1

JF1

SW1

COM1

COM2

PCH SLOT4 PCI-E 2.0 X4(IN X8)

DESIGNED IN USA

X10SLH-LN6TF

REV:1.01

USB0(3.0)

USB1(3.0)

USB12/13

USB8/9

CPU SLOT6 PCI-E 3.0 X8(IN X16)

I-SATA0I-SATA2

I-SATA1I-SATA3

I-SATA4

I-SATA5

VGA

LAN5/6 LAN3/4 LAN1/2

USB4/5 (2.0)

USB2/3(3.0)

JLED1:3 pin Power LED

IPMI LAN

JF1

NIC2

NIC1

PWR

RST

OH/

LED

HDD

PWR

NMI

C226

X540 X540 X540

BMC

PLX

A. VGA Enable

B. BIOS Recovery

VGA Enable

Jumper JPG1 allows the user to enable

the onboard VGA connector. The default

setting is 1-2 to enable the connection.

See the table on the right for jumper

settings.

VGA Enable

Jumper Settings

Jumper Setting Denition

1-2 Enabled (Default)

2-3 Disabled

BIOS Recovery (JBR1)

Close pins 2 and 3 of jumper JBR1 for

BIOS recovery. The default setting is on

pins 1 and 2 for normal operation. See

the table on the right for jumper settings.

BIOS Recovery

Jumper Settings

Jumper Setting Denition

Pins 1-2 Normal

Pins 2-3 BIOS Recovery

Chapter 2: Installation

2-37

IPMI CODE

BIOS

LICENSE

BAR CODE

MAC CODE

JLAN3 JLAN2 JLAN1

JP1000

JPW1

JPW2

JSTBY1

LE6

DIMM1

DIMM2

DIMM4

DIMM3

FAN4

FAN3

FAN2 FAN1

FANA

JPME1

JI2C1

JPME2

JI2C2

JPUSB1

JPL1

JPL2

JPL3

JPG1

JBR1

JWD1

JLED1

LE5

LE4

LE1

LE3

JL1

JLED_LAN4

JLED_LAN3

JLED_LAN6

JLED_LAN5

JPI2C1

JTPM1 T-SGPIO1

T-SGPIO2

JSD2

JSD1

SPKR1

JBT1

JF1

SW1

COM1

COM2

PCH SLOT4 PCI-E 2.0 X4(IN X8)

DESIGNED IN USA

X10SLH-LN6TF

REV:1.01

USB0(3.0)

USB1(3.0)

USB12/13

USB8/9

CPU SLOT6 PCI-E 3.0 X8(IN X16)

I-SATA0I-SATA2

I-SATA1I-SATA3

I-SATA4

I-SATA5

VGA

LAN5/6 LAN3/4 LAN1/2

USB4/5 (2.0)

USB2/3(3.0)

JLED1:3 pin Power LED

IPMI LAN

JF1

NIC2

NIC1

PWR

RST

OH/

LED

HDD

PWR

NMI

C226

X540 X540 X540

BMC

PLX

A. LAN Ports LEDs

B. IPMI_LAN LED

LAN Port LEDs

Six LAN ports (LAN1-LAN6) are

located on the I/O backplane of the

motherboard. Each Ethernet LAN port

has two LEDs. The yellow LED indi-

cates activity, while the Link LED may

be green, amber, or off to indicate the

speed of the connections. See the

tables at right for more information.

2-9 Onboard Indicators

Activity LED

Link LED

GLAN Ports 1/2 Link Indicator

LED Settings

LED Color Denition

Off No Connection or 100 Mbps

Amber 1 Gbps

Green 10 Gbps

GLAN 1/2 Activity Indicator

LED Settings

Color Status Denition

Yellow Flashing Active

IPMI_Dedicated LAN LEDs

An IPMI_Dedicated LAN is also located

on the I/O Backplane of the X10SLH-

LN6TF. The amber LED on the right in-

dicates connection and activity, while

the green LED on the left indicates the

speed of the connection. See the tabls

on the right.

IPMI LAN

IPMI LAN Link Speed LED (Left) &

Connection Activity LED (Right)

LED Color/State Denition

Off Off No Connection

Activity Yellow: Blinking Active

Speed Orange 1 Gbps

Speed Green 100 Mbps

Activity LEDLink LED

LAN Ports

2-38

X10SLH-LN6TF User’s Manual

IPMI CODE

BIOS

LICENSE

BAR CODE

MAC CODE

JLAN3 JLAN2 JLAN1

JP1000

JPW1

JPW2

JSTBY1

LE6

DIMM1

DIMM2

DIMM4

DIMM3

FAN4

FAN3

FAN2 FAN1

FANA

JPME1

JI2C1

JPME2

JI2C2

JPUSB1

JPL1

JPL2

JPL3

JPG1

JBR1

JWD1

JLED1

LE5

LE4

LE1

LE3

JL1

JLED_LAN4

JLED_LAN3

JLED_LAN6

JLED_LAN5

JPI2C1

JTPM1 T-SGPIO1

T-SGPIO2

JSD2

JSD1

SPKR1

JBT1

JF1

SW1

COM1

COM2

PCH SLOT4 PCI-E 2.0 X4(IN X8)

DESIGNED IN USA

X10SLH-LN6TF

REV:1.01

USB0(3.0)

USB1(3.0)

USB12/13

USB8/9

CPU SLOT6 PCI-E 3.0 X8(IN X16)

I-SATA0I-SATA2

I-SATA1I-SATA3

I-SATA4

I-SATA5

VGA

LAN5/6 LAN3/4 LAN1/2

USB4/5 (2.0)

USB2/3(3.0)

JLED1:3 pin Power LED

IPMI LAN

JF1

NIC2

NIC1

PWR

RST

OH/

LED

HDD

PWR

NMI

C226

X540 X540 X540

BMC

PLX

Onboard PWR LED Indicator

LED Status

Status Denition

Off System Off

On System on, or

System off and PWR

Cable Connected

Onboard Power LED (LE3)

An onboard Power LED is located at LE3

on the motherboard. When LE3 is on, the

AC power cable is connected. Make sure

to disconnect the power cable before re-

moving or installing any component. See

the layout below for the LED location.

A. Onboard PWR LED

B. BMC LED

BMC Heartbeat LED

A BMC Heartbeat LED is located at LE5

on the motherboard. When LE5 is blink-

ing, BMC functions normally. See the

table on the right for more information.

BMC Heartbeat LED

Status

Color/State Denition

Green:

Blinking

BMC: Normal

Chapter 2: Installation

2-39

IPMI CODE

BIOS

LICENSE

BAR CODE

MAC CODE

JLAN3 JLAN2 JLAN1

JP1000

JPW1

JPW2

JSTBY1

LE6

DIMM1

DIMM2

DIMM4

DIMM3

FAN4

FAN3

FAN2 FAN1

FANA

JPME1

JI2C1

JPME2

JI2C2

JPUSB1

JPL1

JPL2

JPL3

JPG1

JBR1

JWD1

JLED1

LE5

LE4

LE1

LE3

JL1

JLED_LAN4

JLED_LAN3

JLED_LAN6

JLED_LAN5

JPI2C1

JTPM1 T-SGPIO1

T-SGPIO2

JSD2

JSD1

SPKR1

JBT1

JF1

SW1

COM1

COM2

PCH SLOT4 PCI-E 2.0 X4(IN X8)

DESIGNED IN USA

X10SLH-LN6TF

REV:1.01

USB0(3.0)

USB1(3.0)

USB12/13

USB8/9

CPU SLOT6 PCI-E 3.0 X8(IN X16)

I-SATA0I-SATA2

I-SATA1I-SATA3

I-SATA4

I-SATA5

VGA

LAN5/6 LAN3/4 LAN1/2

USB4/5 (2.0)

USB2/3(3.0)

JLED1:3 pin Power LED

IPMI LAN

JF1

NIC2

NIC1

PWR

RST

OH/

LED

HDD

PWR

NMI

C226

X540 X540 X540

BMC

PLX

A. UID Identier

UID LED Status

Color/State OS Status

Blue: On Windows OS Unit Identied

Unit Identication LED (LE4)

A rear UID LED indicator (LE4) is located

next to the I/O backplane. This UID indicator

provides easy identication of a system unit

that may be in need of service.

Note: UID can also be triggered via

IPMI on the motherboard. For more

information on IPMI, please refer to

the IPMI User's Guide posted on

our website @ http://www.super-

micro.com.

2-40

X10SLH-LN6TF User’s Manual

IPMI CODE

BIOS

LICENSE

BAR CODE

MAC CODE

JLAN3 JLAN2 JLAN1

JP1000

JPW1

JPW2

JSTBY1

LE6

DIMM1

DIMM2

DIMM4

DIMM3

FAN4

FAN3

FAN2 FAN1

FANA

JPME1

JI2C1

JPME2

JI2C2

JPUSB1

JPL1

JPL2

JPL3

JPG1

JBR1

JWD1

JLED1

LE5

LE4

LE1

LE3

JL1

JLED_LAN4

JLED_LAN3

JLED_LAN6

JLED_LAN5

JPI2C1

JTPM1 T-SGPIO1

T-SGPIO2

JSD2

JSD1

SPKR1

JBT1

JF1

SW1

COM1

COM2

PCH SLOT4 PCI-E 2.0 X4(IN X8)

DESIGNED IN USA

X10SLH-LN6TF

REV:1.01

USB0(3.0)

USB1(3.0)

USB12/13

USB8/9

CPU SLOT6 PCI-E 3.0 X8(IN X16)

I-SATA0I-SATA2

I-SATA1I-SATA3

I-SATA4

I-SATA5

VGA

LAN5/6 LAN3/4 LAN1/2

USB4/5 (2.0)

USB2/3(3.0)

JLED1:3 pin Power LED

IPMI LAN

JF1

NIC2

NIC1

PWR

RST

OH/

LED

HDD

PWR

NMI

C226

X540 X540 X540

BMC

PLX

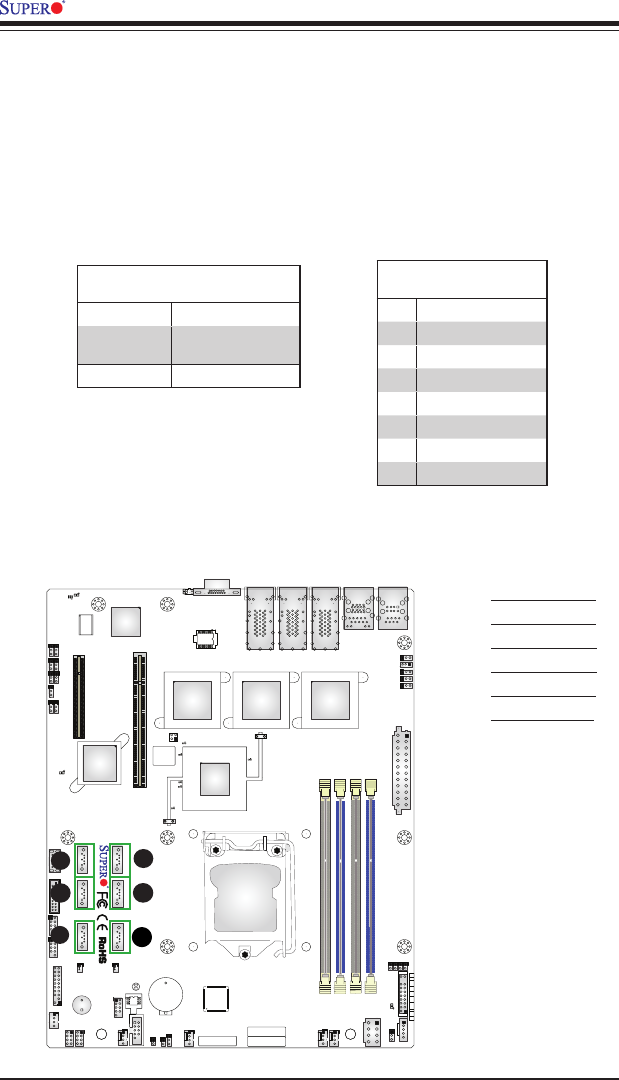

2-10 SATA Connections

SATA 3.0 Connections

Six Serial ATA (SATA) 3.0 connectors (I-SATA0-5) are located on the X10SLH-

LN6TF. These SATA 3.0 ports are supported by the Intel® C226 PCH chip. The SATA

3.0 ports support RAID 0, 1, 10, and 5; while the SATA 2.0 ports support RAID 0

and 1. These Serial Link connections provide faster data transmission than legacy

Parallel ATA. See the table on the right for pin denitions.

SATA 2.0/3.0 Connectors

Pin Denitions

Pin# Signal

1 Ground

2 SATA_TXP

3 SATA_TXN

4 Ground

5 SATA_RXN

6 SATA_RXP

7 Ground

A. I-SATA 3.0 #0

B. I-SATA 3.0 #1

C. I-SATA 3.0 #2

D. I-SATA 3.0 #3

E. I-SATA 3.0 #4

F. I-SATA 3.0 #5

X10SLH-LN6TF SATA Connector

Types

Port# Connection Type

I-SATA 0-5 SATA 3.0/6 Gb/s

RAID 0, 1, 10, 5

Supported by Intel C226 PCH-Exp.

3-1

Chapter 3: Troubleshooting

Chapter 3

Troubleshooting

3-1 Troubleshooting Procedures

Use the following procedures to troubleshoot your system. If you have followed all

of the procedures below and still need assistance, refer to the ‘Technical Support

Procedures’ and/or ‘Returning Merchandise for Service’ section(s) in this chapter.

Always disconnect the AC power cord before adding, changing or installing any

hardware components.

Before Power On

1. Make sure that the Onboard Power LED is not on. (Note: If it is on, the

onboard power is on. Be sure to unplug the power cable before installing or

removing the components.)

2. Make sure that there are no short circuits between the motherboard and

chassis.

3. Disconnect all ribbon/wire cables from the motherboard, including those for

the keyboard and mouse. Also, be sure to remove all add-on cards.

4. Install a CPU and heatsink (be sure that it is fully seated) and then connect

the chassis speaker and the power LED to the motherboard. Check all jumper

settings as well.

No Power

1. Make sure that there are no short circuits between the motherboard and

chassis.

2. Make sure that all jumpers are set to their default positions.

3. Check if the 115V/230V switch on the power supply is properly set.

4. Turn the power switch on and off to test the system.

5. The battery on your motherboard may be old. Check to make sure that it still

supplies ~3VDC. If it does not, replace it with a new one.

3-2

X10SLH-LN6TF User’s Manual

No Video

1. If the power is on, but you have no video--in this case, you will need to re-

move all the add-on cards and cables rst.

2. Use the speaker to determine if any beep codes exist. (Refer to Appendix A

for details on beep codes.)

3. Remove all memory modules and turn on the system. (If the alarm is on,

check the specications of memory modules, reset the memory or try a differ-

ent one.)

Memory Errors

1. Make sure that the DIMM modules are properly installed and fully seated in

the slots.

2. You should be using unbuffered ECC DDR3 (1.5V) 1600/1333 MHz memory

recommended by the manufacturer. Also, it is recommended that you use the

memory modules of the same type and speed for all DIMMs in the system.

Do not use memory modules of different sizes, different speeds and different

types on the same motherboard.

3. Check for bad DIMM modules or slots by swapping modules between slots to

see if you can locate the faulty ones.

4. Check the switch of 115V/230V power supply.

Losing the System’s Setup Conguration

1. Please be sure to use a high quality power supply. A poor quality power sup-

ply may cause the system to lose CMOS setup information. Refer to Section

1-6 for details on recommended power supplies.

2. The battery on your motherboard may be old. Check to verify that it still sup-

plies ~3VDC. If it does not, replace it with a new one.

3. If the above steps do not x the Setup Conguration problem, contact your

vendor for repairs.

3-3

Chapter 3: Troubleshooting

3-2 Technical Support Procedures

Before contacting Technical Support, please make sure that you have followed all

the steps listed below. Also, Note that as a motherboard manufacturer, Supermicro

does not sell directly to end users, so it is best to rst check with your distributor or

reseller for troubleshooting services. They should know of any possible problem(s)

with the specic system conguration that was sold to you.

1. Please go through the ‘Troubleshooting Procedures’ and 'Frequently Asked

Question' (FAQ) sections in this chapter or see the FAQs on our website

(http://www.supermicro.com/support/faqs/) before contacting Technical Sup-

port.

2. BIOS upgrades can be downloaded from our website at (http://www.supermi-

cro.com/support/bios/).

Note: Not all BIOS can be ashed. Some cannot be ashed; it depends

on the boot block code of the BIOS.

3. If you've followed the instructions above to troubleshoot your system, and still

cannot resolve the problem, then contact Supermicro's technical support and

provide them with the following information:

• Motherboard model and PCB revision number

• BIOS release date/version (this can be seen on the initial display when your

system rst boots up)

•System conguration

•An example of a Technical Support form is on our website at (http://www.su-

permicro.com/support/contact.cfm).

4. Distributors: For immediate assistance, please have your account number

ready when placing a call to our technical support department. We can be

reached by e-mail at support@supermicro.com, by phone at: (408) 503-

8000, option 2, or by fax at (408)503-8019.

3-4

X10SLH-LN6TF User’s Manual

3-3 Frequently Asked Questions

Question: What type of memory does my motherboard support?

Answer: The X10SLH-LN6TF supports up to 32GB of unbuffered ECC DDR3

1600/1333 MHz (1.5V/1.35V) memory modules. See Section 2-5 for details on

installing memory.

Question: How do I update my BIOS?

Answer: We do NOT recommend that you upgrade your BIOS if you are not

experiencing any problems with your system. Updated BIOS les are located on

our website at http://www.supermicro.com/support/bios/. Please check our BIOS

warning message and the information on how to update your BIOS on our web

site. Select your motherboard model and download the BIOS ROM le to your

computer. Also, check the current BIOS revision to make sure that it is newer than

your BIOS before downloading. You may choose the zip le or the .exe le. If you

choose the zipped BIOS le, please unzip the BIOS le onto a bootable device or

a USB pen/thumb drive. To ash the BIOS, run the batch le named "ami.bat" with

the new BIOS ROM le from your bootable device or USB pen/thumb drive. Use

the following format:

F:\> ami.bat BIOS-ROM-lename.xxx <Enter>

Note: Always use the le named “ami.bat” to update the BIOS, and insert

a space between "ami.bat" and the lename. The BIOS-ROM-lename

will bear the motherboard name (i.e., X10SLH-LN6TF) and build version

as the extension. For example, "X10SLH-LN6TF.115". When completed,

your system will automatically reboot.

If you choose the .exe le, please run the .exe le under Windows to create

the BIOS ash oppy disk. Insert the oppy disk into the system you wish

to ash the BIOS. Then, boot the system to the oppy disk. The BIOS util-

ity will automatically ash the BIOS without any prompts. Please note that

this process may take a few minutes to complete. Do not be concerned if

the screen is paused for a few minutes.

When the BIOS ashing screen is completed, the system will reboot and

will show “Press F1 or F2”. At this point, you will need to load the BIOS

defaults. Press <F1> to go to the BIOS setup screen, and press <F9> to

load the default settings. Next, press <F10> to save and exit. The system

will then reboot.

Warning: Do not shut down or reset the system while updating the BIOS to prevent

possible system boot failure!

3-5

Chapter 3: Troubleshooting

Important: The SPI BIOS chip installed on this motherboard is not re-

movable. To repair or replace a damaged BIOS chip, please send your

motherboard to RMA at Supermicro for service.

Question: I think my BIOS is corrupted. How can I recover my BIOS?

Answer: Please see Appendix C - BIOS Recovery for detailed instructions.

Question: Why do I get an error message “IASTOR.SYS read error” and "press F6

to install Intel RAID driver" when installing Windows on my motherboard?

Answer: To solve this issue, disable the IPMI jumper. Another solution is to use a

USB oppy drive instead of the onboard oppy drive. For the IPMI jumper location,

please check Chapter 1.

Question: What is the heatsink part number for my X10SLH-LN6TF motherboard?

Answer: For the 1U passive heatsink, ask for SNK-P0046P (back plate is included).

For the 2U active heatsink, use SNK-P0046A4.

Question: Why can't I recover the BIOS even when I’ve followed the instructions

in the user’s manual for the motherboard?

Answer: Please disable the IPMI jumper and try it again. For the jumper location,

please check Chapter 1.

3-4 Battery Removal and Installation

Battery Removal

To remove the onboard battery, follow the steps below:

1. Power off your system and unplug your power cable.

2. Locate the onboard battery as shown below.

3. Using a tool such as a pen or a small screwdriver, push the battery lock out-

wards to unlock it. Once unlocked, the battery will pop out from the holder.

4. Remove the battery.

3-6

X10SLH-LN6TF User’s Manual

3-5 Returning Merchandise for Service

A receipt or copy of your invoice marked with the date of purchase is required

before any warranty service will be rendered. You can obtain service by calling

your vendor for a Returned Merchandise Authorization (RMA) number. For faster

service, you may also obtain RMA authorizations online (http://www.supermicro.

com/RmaForm/). When you return the motherboard to the manufacturer, the RMA

number should be prominently displayed on the outside of the shipping carton, and

mailed prepaid or hand-carried. Shipping and handling charges will be applied for

all orders that must be mailed when service is complete.

This warranty only covers normal consumer use and does not cover damages

incurred in shipping or from failure due to the alteration, misuse, abuse or improper

maintenance of products.

During the warranty period, contact your distributor rst for any product problems.

Proper Battery Disposal

Warning: Please handle used batteries carefully. Do not damage the battery in any

way; a damaged battery may release hazardous materials into the environment. Do

not discard a used battery in the garbage or a public landll. Please comply with the

regulations set up by your local hazardous waste management agency to dispose of

your used battery properly.

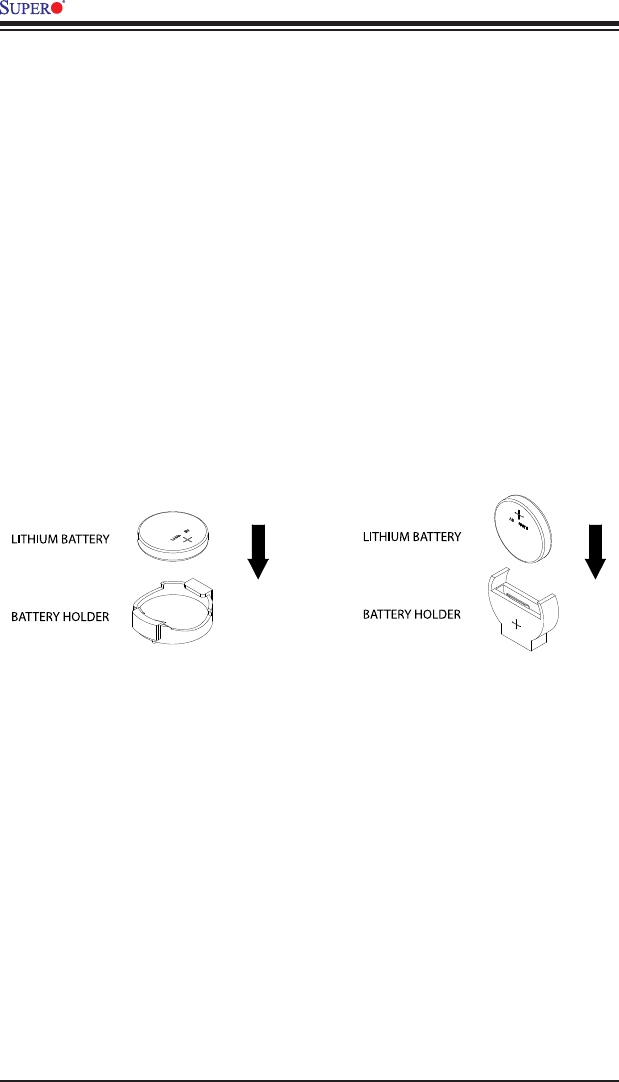

Battery Installation

1. To install an onboard battery, follow the steps 1 & 2 above and continue

below:

2. Identify the battery's polarity. The positive (+) side should be facing up.

3. Insert the battery into the battery holder and push it down until you hear a

click to ensure that the battery is securely locked.

Warning: When replacing a battery, be sure to only replace it with the same type.

Chapter 4: AMI BIOS

4-1

Chapter 4

BIOS

4-1 Introduction

This chapter describes the AMI BIOS Setup Utility for the X10SLH-LN6TF. The

ROM BIOS is stored in a Flash EEPROM and can be easily updated. This chapter

describes the basic navigation of the AMI BIOS Setup Utility setup screens.

Note: For AMI BIOS Recovery, please refer to the UEFI BIOS Recovery

Instructions in Appendix C.

Starting BIOS Setup Utility

To enter the AMI BIOS Setup Utility screens, press the <Delete> key while the

system is booting up.

Note: In most cases, the <Delete> key is used to invoke the AMI BIOS

setup screen. There are a few cases when other keys are used, such as

<F1>, <F2>, etc.

Each main BIOS menu option is described in this manual. The Main BIOS setup

menu screen has two main frames. The left frame displays all the options that can

be congured. Grayed-out options cannot be congured. Options in blue can be

congured by the user. The right frame displays the key legend. Above the key

legend is an area reserved for a text message. When an option is selected in the

left frame, it is highlighted in white. Often a text message will accompany it. (Note:

the AMI BIOS has default text messages built in. Supermicro retains the option to

include, omit, or change any of these text messages.)

The AMI BIOS Setup Utility uses a key-based navigation system called "hot keys".

Most of the AMI BIOS setup utility "hot keys" can be used at any time during the

setup navigation process. These keys include <F1>, <F10>, <Enter>, <ESC>, ar-

row keys, etc.

Note: Options printed in Bold are default settings.

How To Change the Conguration Data

The conguration data that determines the system parameters may be changed by

entering the AMI BIOS Setup utility. This Setup utility can be accessed by pressing

<Del> at the appropriate time during system boot.

4-2

X10SLH-LN6TF User’s Manual

How to Start the Setup Utility

Normally, the only visible Power-On Self-Test (POST) routine is the memory test.

As the memory is being tested, press the <Delete> key to enter the main menu of

the AMI BIOS Setup Utility. From the main menu, you can access the other setup

screens. An AMI BIOS identication string is displayed at the left bottom corner of

the screen, below the copyright message.

Warning: Do not upgrade the BIOS unless your system has a BIOS-related issue.

Flashing the wrong BIOS can cause irreparable damage to the system. In no event

shall Supermicro be liable for direct, indirect, special, incidental, or consequential dam-

ages arising from a BIOS update. If you have to update the BIOS, do not shut down

or reset the system while the BIOS is updating. This is to avoid possible boot failure.

4-2 Main Setup

When you rst enter the AMI BIOS Setup Utility, you will enter the Main setup screen.

You can always return to the Main setup screen by selecting the Main tab on the

top of the screen. The Main BIOS Setup screen is shown below.

Chapter 4: AMI BIOS

4-3

The following Main menu items will be displayed:

System Time/System Date

Use this option to change the system time and date. Highlight System Time or

System Date using the arrow keys. Enter new values through the keyboard. Press

the <Tab> key or the arrow keys to move between elds. The date must be entered

in Day MM/DD/YY format. The time is entered in HH:MM:SS format.

Note: The time is in the 24-hour format. For example, 5:30 P.M. appears

as 17:30:00.

The following BIOS items will also be displayed:

Supermicro X10SLH-LN6TF

Version

Build Date

Memory Information

Total Memory

4-4

X10SLH-LN6TF User’s Manual

4-3 Advanced Setup Congurations

Use the arrow keys to select Boot Setup and press <Enter> to access the submenu

items:

Warning: Take Caution when changing the Advanced settings. An incorrect value, a

very high DRAM frequency or an incorrect DRAM timing setting may cause system

to become unstable. When this occurs, revert to the setting to its manufacture default

setting.

Boot Feature

Quiet Boot

This feature selects the screen display between POST messages or the OEM

logo at bootup. Select Disabled to display the POST messages. Select Enabled

to display the OEM logo instead of the normal POST messages. The options are

Enabled and Disabled.

AddOn ROM Display Mode

This feature sets the display mode for the Option ROM. Select Keep Current to

use the current AddOn ROM display setting. Select Force BIOS to use the Option

ROM display mode set by the system BIOS. The options are Force BIOS and

Keep Current.

Chapter 4: AMI BIOS

4-5

Bootup Num-Lock

This feature selects the Power-on state for the Numlock key. The options are Off

and On.

Wait For 'F1' If Error

This feature forces the system to wait until the 'F1' key is pressed if an error oc-

curs. The options are Disabled and Enabled.

Interrupt 19 Capture

Interrupt 19 is the software interrupt that handles the boot disk function. When this

item is set to Enabled, the ROM BIOS of the host adaptors will "capture" Interrupt

19 at bootup and allow the drives that are attached to these host adaptors to func-

tion as bootable disks. If this item is set to Disabled, the ROM BIOS of the host

adaptors will not capture Interrupt 19, and the drives attached to these adaptors

will not function as bootable devices. The options are Postponed and Immediate.

Re-try Boot

If this item is enabled, the BIOS will automatically reboot the system from a speci-

ed boot device after its initial boot failure. The options are Disabled, Legacy

Boot, and EFI Boot.

Power Conguration

Watch Dog Function

If enabled, the Watch Dog Timer will allow the system to reboot when it is inactive

for more than 5 minutes. The options are Enabled and Disabled.

Power Button Function

This feature controls how the system shuts down when the power button is pressed.

Select 4_Seconds_Override for the user to power off the system after pressing and

holding the power button for 4 seconds or longer. Select Instant Off to instantly

power off the system as soon as the user presses the power button. The options

are 4 Second Override and Instant Off.

Restore on AC Power Loss

Use this feature to set the power state after a power outage. Select Power-Off for

the system power to remain off after a power loss. Select Power-On for the system

power to be turned on after a power loss. Select Last State to allow the system

to resume its last power state before a power loss. The options are Power-On,

Stay-Off and Last State.

4-6

X10SLH-LN6TF User’s Manual

CPU Conguration

The following CPU information will be displayed:

•Type of CPU

•CPU Signature

•CPU Stepping

•Processor Family

•Microcode Patch

•Maximum CPU Speed

•Minimum CPU Speed

•CPU Speed

•Processor Cores

•Intel® HT(Hyper-Threading) Technology

•Intel® VT-x (Virtualization) Technology

•Intel® SMX (Safer Mode Extensions) Technology

•64-bit

•EIST (Enhanceed Intel SpeedstepTechnology) Technology

•CPU C3 State

•CPU C6 State

•CPU C7 State

•L1 Data Cache

•L1 Code Cache

•L2 Cache

•L3 Cache

Chapter 4: AMI BIOS

4-7

Clock Spread Spectrum

If this feature is set to Enabled, the BIOS will monitor the level of Electromagnetic

Interference caused by the components and will attempt to reduce the interference

whenever needed. The options are Enabled and Disabled.

Hyper-threading

Select Enabled to support Intel Hyper-threading Technology to enhance CPU per-

formance. The options are Enabled and Disabled.

Active Processor Cores

This feature determines how many CPU cores will be activated for each CPU. When

all is selected, all cores in the CPU will be activated. (Please refer to Intel's web

site for more information.) The options are All, 1, 2, and 3.

Limit CPUID Maximum

Select Enabled to set the maximum CPU ID value and to boot the legacy operat-

ing systems that cannot support processors with extended CPUID functions. The

options are Enabled and Disabled (for the Windows OS).

Execute-Disable Bit (Available if supported by the OS & the CPU)

Set to Enabled to enable the Execute Disable Bit which will allow the processor

to designate areas in the system memory where an application code can execute

and where it cannot, thus preventing a worm or a virus from ooding illegal codes

to overwhelm the processor or damage the system during an attack. The default is

Enabled. (Refer to Intel and Microsoft Web Sites for more information.)

Intel® Virtualization Technology (Available when supported by the CPU)

Select Enabled to use the Intel Virtualization Technology to allow one platform to

run multiple operating systems and applications in independent partitions, creat-

ing multiple "virtual" systems in one physical computer. The options are Enabled

and Disabled.

Hardware Prefetcher (Available when supported by the CPU)

If set to Enabled, the hardware prefetcher will prefetch streams of data and instruc-

tions from the main memory to the L2 cache to improve CPU performance. The

options are Disabled and Enabled.

Adjacent Cache Line Prefetch (Available when supported by the CPU)

Select Enabled for the CPU to prefetch both cache lines for 128 bytes as comprised.

Select Disabled for the CPU to prefetch both cache lines for 64 bytes. The options

are Disabled and Enabled.

4-8

X10SLH-LN6TF User’s Manual

Note: If there is any change to this setting, you will need to power off and

restart the system for the change to take effect. Please refer to Intel’s

website for detailed information.

CPU AES

Select Enable to enable Intel CPU Advanced Encryption Standard (AES) Instruc-

tions for CPU to enhance data integrity. The options are Enabled and Disabled.

Boot Perfomrance Mode

Use this feature to select the performance state that the BIOS will set before OS

handoff. The options are Max Non-Turbo Performance and Turbo Perfromance.

EIST

EIST (Enhanced Intel SpeedStep Technology) allows the system to automatically

adjust processor voltage and core frequency in an effort to reduce power consump-

tion and heat dissipation. Please refer to Intel’s web site for detailed information.

The options are Disabled and Enabled.

Turbo Mode

This feature allows processor cores to run faster than the frequency recommended

by the manufacturer. The options are Disabled and Enabled. If this feature is set

to Enabled, the following items will display:

CPU Power Limit1 (Available when "Turbo Mode" is set to Enabled)

Use this feature to set the power limit for CPU1. Press "+" or "-" on your keyboard

to change this value. Enter 0 to use the manufacture default setting.

CPU Power Limit1 Time (Available when "Turbo Mode" is set to Enabled)

This item allows the user to determine how long CPU1 should operate at the

power limit set by the user for the item above. Press "+" or "-" on your keyboard

to change this value. Enter 0 to use the manufacture default setting.

CPU Power Limit2 (Available when "Turbo Mode" is set to Enabled)

Use this feature to set the power limit for CPU2. Press "+" or "-" on your keyboard

to change this value. Enter 0 to use the manufacture default setting.

Platform Power Limit Lock

If set to Enabled, the Platform Power Limit MSR will be locked and a reset will

be required to unlock the register. The options are Disabled and Enabled.

CPU Power Limit3 (Available when "Turbo Mode" is set to Enabled)

Use this feature to set the power limit for the CPU. Press "+" or "-" on your

keyboard to change this value. Enter 0 to use the manufacture default setting.

Chapter 4: AMI BIOS

4-9

CPU Power Limit3 Time (Available when "Turbo Mode" is set to Enabled)

This item allows the user to determine how long the CPU should operate at the

power limit set by the user for the item above. Press "+" or "-" on your keyboard

to change this value. Enter 0 to use the manufacture default setting.

CPU Power Limit3 Duty Cycle (Available when "Turbo Mode" is set to

Enabled)

Use this feature to specify the duty cycle that the CPU is required to maintain

over the congured Power Limit3 time windows. Press "+" or "-" on your keyboard

to change this value. Enter 0 to use the manufacture default setting.

DDR Power Limit1 (Available when "Turbo Mode" is set to Enabled)

Use this feature to set the power limit for DDR1. Press "+" or "-" on your keyboard

to change this value. Enter 0 to use the manufacture default setting.

DDR Power Limit1 Time (Available when "Turbo Mode" is set to Enabled)

This item allows the user to determine how long DDR1 should operate at the

power limit set by the item above. Press "+" or "-" on your keyboard to change

this value. Enter 0 to use the manufacture default setting.

DDR Power Limit2 (Available when "Turbo Mode" is set to Enabled)

Use this feature to set the power limit for DDR2. Press "+" or "-" on your keyboard

to change this value. Enter 0 to use the manufacture default setting.

1-Core Ratio Limit (Available when "Turbo Mode" is set to Enabled)

This increases (multiplies) 1 clock speed in the CPU core in relation to the bus

speed when one CPU core is active. Press "+" or "-" on your keyboard to change

this value. Enter 0 to use the manufacture default setting.

2-Core Ratio Limit (Available when "Turbo Mode" is set to Enabled)

This increases (multiplies) 2 clock speeds in the CPU core in relation to the bus

speed when two CPU cores are active. Press "+" or "-" on your keyboard to

change this value. Enter 0 to use the manufacture default setting.

3-Core Ratio Limit (Available when "Turbo Mode" is set to Enabled)

This increases (multiplies) 3 clock speeds in the CPU core in relation to the bus

speed when three CPU cores are active. Press "+" or "-" on your keyboard to

change this value Enter 0 to use the manufacture default setting.

4-Core Ratio Limit (Available when "Turbo Mode" is set to Enabled)

This increases (multiplies) 4 clock speeds in the CPU core in relation to the bus

speed when four CPU cores are active. Press "+" or "-" on your keyboard to

change this value Enter 0 to use the manufacture default setting.

4-10

X10SLH-LN6TF User’s Manual

Energy Performance

Use this feature to select an appropriate fan setting to achieve the maximum system

performance (with maximum cooling) or maximum energy efciency (with maximum

power saving). The fan speeds are controlled by the rmware management via IPMI

2.0. The options are Performance, Balanced Performance, Balanced Energy, and

Energy Efcient.

VR Current Value

Use this feature to set the limit on the current voltage regulator. Press "+" or "-" on

your keyboard to change this value. Enter 0 to use the manufacture default setting.

CPU C States

C-States architecture, a processor power management platform developed by

Intel, can further reduce power consumption from the basic C1 (Halt State) state

that blocks clock cycles to the CPU. Select Enabled for CPU C-Sates support. The

options are Enabled and Disabled. If this feature is set to Enabled, the following

items will display:

Enhanced C1 State (Available when "CPU C-States" is set to Enabled)

Select Enabled to enable Enhanced C1 Power State to boost system perfor-

mance. The options are Enabled and Disabled.

CPU C3 Report (Available when "CPU C-States" is set to Enabled)

Select Enabled to allow the BIOS to report the CPU C3 State (ACPI C2) to the

operating system. During the CPU C3 State, the CPU clock generator is turned

off. The options are Enabled and Disabled.

CPU C6 Report (Available when "CPU C-States" is set to Enabled)

Select Enabled to allow the BIOS to report the CPU C6 State (ACPI C3) to the

operating system. During the CPU C6 State, the power to all caches is turned

off. The options are Enabled and Disabled.

C6 Latency (Available when "CPU C-States" is set to Enabled)

Select Short to set a short delay time(period) during which the BIOS reports

CPU C6 State (ACPI C3) to the operating system. Select Long to set a long

delay time(period) during which the BIOS reports CPU C6 State (ACPI C3)

to the operating system. The options are Short and Long.

CPU C7 Report (Available when "CPU C-States" is set to Enabled

Select Enabled to allow the BIOS to report the CPU C7 State (ACPI C3) to the

operating system. CPU C7 State is a processor-specic low C-State. The options

are Enabled and Disabled.

Chapter 4: AMI BIOS

4-11

C7 Latency (Available when "CPU C-States" is set to Enabled)

Select Short to set a short delay time(period) during which the BIOS reports

CPU C7 State (ACPI C3) to the operating system. Select Long to set a long

delay time(period) during which the BIOS reports CPU C7 State (ACPI C3)

to the operating system. The options are Short and Long.

C1 State Auto Demotion

When this item is enabled, the CPU will conditionally demote C3, C6 or C7

requests to C1 based on un-cored auto-demote information. The options are

Disabled and Enabled.

C3 State Auto Demotion

When this item is enabled, the CPU will conditionally demote C6 or C7 requests

to C3 based on un-cored auto-demote information. The options are Disabled

and Enabled.

C State Pre-Wake

Select Enabled to support C State Pre-Wake State features. The options are

Enabled and Disabled

Package C-State limit

Select Auto for the AMI BIOS to automatically set the limit on the C-State package

LakeTiny Feature

Select Enabled for LakeTing feature support. The options are Disabled and En-

abled.

ACPI T State

Select Enabled for ACPI T state (processor throttling) feature support. The options

are Disabled and Enabled.

Chipset Conguration

Warning: Setting the wrong values in the following sections may cause the system

to malfunction.

System Agent (SA) Conguration

This item displays the information for the system Agent.

•System Agent Bridge Name

•VT-d Capability

4-12

X10SLH-LN6TF User’s Manual

VT-d

Select Enabled to enable Intel's Virtualization Technology support for Direct I/O VT-d

by reporting the I/O device assignments to VMM through the DMAR ACPI Tables.

This feature offers fully-protected I/O resource-sharing across the Intel platforms,

providing the user with greater reliability, security and availability in networking and

data-sharing. The settings are Enabled and Disabled.

Graphics Conguration

This item displays the information the system Bridge.

Internal Graphics

Select Auto to keep Internal Graphics Device (IGD) enabled. The options are

Auto, Disabled, and Enabled.

Aperture Size for Haswell

Use this feature to select the graphics aperture size. The options are 128MB,

256MB, and 512MB.

DVMT Pre-Allocated For Haswell

Use this feature to select the DVMT 5.0 pre-allocated graphics memory size used

by the Internal Graphics Device. The options are 32M, 64M, 96M, 128M, 160M,

192M, 224M, 256M, 288M, 320M, 352M, 384M, 416M, 448M, 480M, and 512M.

DVMT Total Gfx Mem

Use this feature to select the DVMT 5.0 total graphic memory size used by the

Internal Graphics Device. The options are 128M, 256M, and MAX.

PCI-E Conguration

This item displays the information of the (graphics) device installed on a PCI-E

slot:

•PEG0

•PEG1

•PEG2

Chapter 4: AMI BIOS

4-13

Run-time C7 Allowed

Select Enabled for Run-time C7 support, which will allow the CPU to enter the

deep sleep state while the system is in operation to reduce power consumption.

(Note: Please be sure to restore the default settings and save appropriate end-

point settings for all components associated with this feature before you enable

it.) The options are Enabled and Disabled.

Detect Non-Compliance Device

This feature detects non-compliance PCI-Express devices. The options are

Enabled and Disabled.

Program PCI-E ASPM After OpROM

PCI-E ASPM, Active State Power Management, is a power management pro-

tocol used to manage power consumption of serial-link devices installed on

PCI-Exp slots during a prolonged off-peak time. If this item is set to Enabled,

PCI-E ASPM will be programmed after the OpROM. If this item is set Disabled,

the PCI-E ASPM will be programmed before OpROM. The options are Enabled

and Disabled.

CPU SLOT6 PCI-E 3.0 X8 (IN X16) - ASPM

Use this feature to control the Active State Power Management support for the

PEG device. The options are Disabled, Auto, ASPM L0s, ASPM L1, and ASPM

L0sL1.

DMI Link ASPM Control

Use this feature to enable or disable the control of the Active State Power

Management on the SA side of the DMI Link. The options are Disabled, L0s,

L1, and L0sL1.

PCH DMI Link ASPM Control

Use this feature to control the Active State Power Management on both NB side

and SB side of the DMI Link. The options are Disabled and Enabled.

PCH SLOT4 PCI-E 2.0 X4 (IN X8) - ASPM

Use this feature to set the Active State Power Management level. The options

are Disabled, L0s, L1, L0sL1, and Auto.

Memory Conguration

This item displays the information on the memory modules installed on the

motherboard:

•Memory RC Version

4-14

X10SLH-LN6TF User’s Manual

•Memory Frequency

•Total Memory

•Memory Voltage

•DIMM A1

•DIMM A2

•DIMM B1

•DIMM B2

•CAS Latency (tCL)

•Minimum Delay Time

•CAS to RAS (tRCDmin)

•Row Precharge (tRPmin)

•Active to Precharege (tRASmin)

Memory Frequency Limiter

This feature sets the limit of memory frequency for DIMM modules installed on

the the motherboard. The options are 1067 (MHz), 1333 (MHz), 1600 (MHz),

and Auto.

Max TOLUD (Top of Low Usable DRAM)

This feature sets the maximum TOLUD value, which species the "Top of Low

Usable DRAM" memory space to be used by internal graphics devices, GTT

Stolen Memory, and TSEG, respectively, if these devices are enabled. The op-

tions are Enabled and Dynamic, 1 GB, 1.25 GB, 1.5 GB, 1.75 GB,. 2 GB, 2.25

GB, 2.5 GB, 2.75 GB, 3 GB and 3.25 GB.

Note: TSEG is a block of memory that is only accessible by the processor

while operating in SMM mode.

Memory Scrambler

This feature enables or disables memory scrambler support for memory error

correction. The settings are Enabled and Disabled.

Chapter 4: AMI BIOS

4-15

Thermal Throttling

This feature selects from the different throttling methods. The options are Dis-

abled and CLTM.

Memory Refresh Rate

Use this item to select the memory refresh rate. The memory refresh rate is

2X for warm and hot conditions and 1X for normal conditions. The options are

Always 1X and Auto.

PCH-IO Conguration

This item displays the information for PCH-IO Chip.

•Intel® PCH Rev ID

•USB Conguration

•USB Devices

EHCI1

Select Enabled to enable EHCI (Enhanced Host Controller Interface) Controller 1

for USB 2.0 support. One EHCI controller must always be enabled. The settings

are Enabled and Disabled.

EHCI2

Select Enabled to enable EHCI (Enhanced Host Controller Interface) Controller 2

for USB 2.0 support. One EHCI controller must always be enabled. The settings

are Enabled and Disabled..

Legacy USB Support

This feature enables support for legacy USB devices. Select Auto to disable

legacy support if USB devices are not present. Select Disable to have USB

devices available only for EFI applications. The options are Enabled, Disabled

and Auto.

Port 60/64 Emulation

This feature enables or disables I/O port 60h/64h emulation support. This should

be enabled for complete USB keyboard legacy support for non-USB-aware Op-

erating Systems. The options are Disabled and Enabled.

4-16

X10SLH-LN6TF User’s Manual

XHCI Hand-Off

This item is a work-around for Operating Systems that do not have XHCI (Ex-

tensible Host Controller Interface) hand-off support. The XHCI ownership change

should be claimed by the XHCI driver. The settings are Enabled and Disabled.

EHCI Hand-Off

This item is for Operating Systems that does not support Enhanced Host Con-

troller Interface (EHCI) hand-off. When enabled, EHCI ownership change will be

claimed by the EHCI driver. The settings are Disabled and Enabled.

XHCI Mode

This feature handles the mode of operation for the XHCI (Extensible Host

Controller Interface) controller. The settings are Smart Auto, Auto, Enabled,

Disabled and Manual.

SATA Conguration

When this submenu is selected, the AMI BIOS automatically detects the presence

of the SATA Devices and displays the following items:

SATA Controllers

This item Enables or Disables the built-in SATA controllers on the motherboard.

The options are Enabled and Disabled.

SATA Mode Selection

This item selects the mode for the installed SATA drives. The options are Disabled,

IDE, AHCI, and RAID.

SATA RAID Option ROM/UEFI Driver

This item enables either the onboard SATA option ROM or the EFI driver. The op-

tions are Enabled or Disabled.

If AHCI is selected in SATA Mode Selection above, the following items are

displayed:

Serial ATA Port 0~ Port 5

This item displays the information detected on the installed SATA drives on the

particular SATA port.

•Model number of drive and capacity

•Software Preserve Support

Chapter 4: AMI BIOS

4-17

Port 0 ~ Port 5 Hot Plug

This feature designates the port specied as hot pluggable. Set this item to

Enabled to enable hot-plugging. The options are Disabled and Enabled.

Port 0 ~ Port 5 SATA Device Type

This feature congures the selected SATA port to support either a solid state

drive or hard disk drive. The options are Hard Disk Drive and Solid Sate Drive.

Port 0 ~ Port 5 Spin Up Device

On an edge detect from 0 to 1, set this item to allow the PCH to start a COMRE-

SET initialization sequence to the device. The options are Disabled and Enabled.

If IDE is selected in SATA Mode Selection above, the following items are

displayed:

Serial ATA Port 0~ Port 5

This item displays the information detected on the installed SATA drives on the

particular SATA port.

•Model number of drive and capacity

•Software Preserve Support

If RAID is selected in SATA Mode Selection above, the following items are

displayed:

Serial ATA Port 0~ Port 5

This item displays the information detected on the installed SATA drives on the

particular SATA port.

•Model number of drive and capacity

•Software Preserve Support

Port 0 ~ Port 5 Hot Plug

This feature designates this port as hot pluggable. Set this item to Enabled to

enable hot-plugging. The options are Hard Disk Drive and Solid State Drive.

Port 0 ~ Port 5 SATA Device Type

This feature congures the selected SATA port to support either a solid state

drive or hard disk drive. Set this item to Enabled to enable hot-plugging. The

options are Enabled and Disabled.

4-18

X10SLH-LN6TF User’s Manual

Port 0 ~ Port 5 Spin Up Device

On an edge detect from 0 to 1, set this item to allow the PCH to start a COMRE-

SET initialization sequence to the device. The options are Enabled and Disabled.

PCIe/PCI/PnP Conguration

This feature allows the user to set the PCI/PnP congurations for the following items:

Above 4G Decoding

Select Enabled for 64-bit devices to be decoded above the 4GB address space

If 64bit PCI decoding is supported by the system. The options are Disabled and

Enabled.

VGA Palette Snoop

Select Enabled to support VGA palette register snooping which will allow the

PCI cards that do not contain their own VGA color palette to examine the video

cards palette and mimic it for proper color display. The options are Disabled and

Enabled.

CPU SLOT6 PCI-E 3.0 X8 (IN X16) OPROM

Use this feature to enable or disable PCIe slot Option ROMs to boot the computer

using a device installed on the slot specied. The options are Disabled, Legacy

and EFI.

PCH SLOT4 PCI-E 2.0 X4 (IN X8) OPROM

Use this feature to enable or disable PCIe slot Option ROMs to boot the computer

using a device installed on the slot specied. The options are Disabled, Legacy

and EFI.

Launch Storage OpROM Policy

This feature controls how the system executes UEFI (Unied Extensible Firmware

Interface), and legacy storage OPROM. Select Legacy Only to boot the system

using a legacy device installed in a PCI slot. The options are Do Not Launch, UEFI

Only and Legacy Only.

Other PCI Device ROM Priority

This feature selects a PCI device OPROM to launch for system boot if this device

is not a network, mass storage, or video device. The options are UEFI Only and

Legacy Only.

Chapter 4: AMI BIOS

4-19

Onboard LAN1 Option ROM

Select iSCSI to use the iSCSI Option ROM to boot the computer using an iSCSI

device installed in a LAN port specied. Select PXE (Preboot Execution Environ-

ment) to boot the computer using a PXE device installed in a LAN port specied.

Select Disabled to prevent system boot using a device installed in a LAN port.

The options are Disabled, PXE, iSCSI, and FCoE.

Onboard LAN2/LAN3/LAN4/LAN5/LAN6 Option ROM

Select PXE (Preboot Execution Environment) or to boot the computer using a

PXE device installed in a LAN port specied. Select Disabled to prevent system

boot using a device installed in a LAN port. Select FCoE for Fiber Channel over

Ethernet. The options are Disabled, PXE, and FCoE.

VGA Priority

This feature selects the priority between the onboard and rst offboard video device

that has been detected. The options are Onboard and Offboard.

Network Stack

Select Enabled enable PXE (Preboot Execution Environment) or UEFI (Unied

Extensible Firmware Interface) for network stack support. The options are Enabled

and Disabled.

ACPI Settings

High Precision Event Timer

Select Enabled to activate the High Performance Event Timer (HPET) that produces

periodic interrupts at a much higher frequency than a Real-time Clock (RTC) does in

synchronizing multimedia streams, providing smooth playback and reducing the de-

pendency on other timestamp calculation devices, such as an x86 RDTSC Instruc-

tion embedded in the CPU. The High Performance Event Timer is used to replace

the 8254 Programmable Interval Timer. The options are Enabled and Disabled.

ACPI Sleep State

This feature selects the ACPI Sleep State that the system will enter into when

the suspend button is activated. The options are Suspend Disabled and S3 only

(suspend to RAM).

WHEA Support

This feature Enables the Windows Hardware Error Architecture (WHEA) support for

the Windows 2008 (or a later vision) operating system. The options are Enabled

and Disabled.

4-20

X10SLH-LN6TF User’s Manual

Intel Server Platform Services Conguration

The following status information for this motherboard are displayed:

•ME BIOS Interface Version

•SPS Version

•ME FW (Firmware) Status Value

•ME FW State

•ME FW Operation State

•ME FW Error Code

•ME NM FW Status Value

•BIOS Booting Mode

•Cores Disabled

•ME FW SKU Information

•End-of-POST Status

Super IO Conguration

Super IO Chip NCT6776F

Serial Port 1 Conguration / Serial Port 2 Conguration

Serial Port

Select Enabled to enable the onboard serial port. The options are En-

abled and Disabled.

Change Settings

This option species the base I/O port address and the Interrupt Request

address of Serial Port 1 and 2. Select Auto to let the BIOS automatically

assign the base I/O and IRQ address.

The options for Serial Port 1 are Auto, (IO=3F8h; IRQ=4), (IO=3F8h;

IRQ=3, 4, 10, 11), (IO=2F8h; IRQ=3, 4, 10, 11), (IO=3E8h; IRQ=3, 4,

10, 11) and (IO=2E8h; IRQ=3, 4, 10, 11).

Chapter 4: AMI BIOS

4-21

The options for Serial Port 2 are Auto, (IO=2F8h; IRQ=3), (IO=3F8h;

IRQ=3, 4, 10, 11), (IO=2F8h; IRQ=3, 4, 10, 11), (IO=3E8h; IRQ=3, 4,

10, 11) and (IO=2E8h; IRQ=3, 4, 10, 11).

Serial Port Console Redirection

Console Redirection (COM1, SOL)

Use this feature to enable console redirection for COM1 and SOL ports. The op-

tions are Enabled and Disabled. The default for both COM ports is Disabled. The

default for SOL is Enabled.

Console Redirection Settings

Terminal Type

This feature allows the user to select the target terminal emulation type for Con-

sole Redirection. Select VT100 to use the ASCII Character set. Select VT100+ to

add color and function key support. Select ANSI to use the Extended ASCII Char-

acter Set. Select VT-UTF8 to use UTF8 encoding to map Unicode characters

into one or more bytes. The options are VT100, VT100+, VT-UTF8, and ANSI.

Bits Per second

Use this item to set the transmission speed for a serial port used in Console

Redirection. Make sure that the same speed is used in the host computer and the

client computer. A lower transmission speed may be required for long and busy

lines. The options are 9600, 19200, 38400, 57600, and 115200 (bits per second).

Data Bits

Use this feature to set the data transmission size for Console Redirection. The

options are 7 (Bits) and 8 (Bits).

Parity

A parity bit can be sent along with regular data bits to detect data transmission

errors. Select Even if the parity bit is set to 0, and the number of 1's in data bits

is even. Select Odd if the parity bit is set to 0, and the number of 1's in data bits

is odd. Select None if you do not want to send a parity bit with your data bits

in transmission. Select Mark to add a mark as a parity bit to be sent along with

the data bits. Select Space to add a Space as a parity bit to be sent with your

data bits. The options are None, Even, Odd, Mark, and Space.

Stop Bits

A stop bit indicates the end of a serial data packet. Select 1 Stop Bit for standard

serial data communication. Select 2 Stop Bits if slower devices are used. The

options are 1 and 2.

4-22

X10SLH-LN6TF User’s Manual

Flow Control

Use this item to set the ow control for Console Redirection to prevent data

loss caused by buffer overow. Send a "Stop" signal to stop sending data when

the receiving buffer is full. Send a "Start" signal to start sending data when the

receiving buffer is empty. The options are None and Hardware RTS/CTS.

VT-UTF8 Combo Key Support

Select Enabled to enable VT-UTF8 Combination Key support for ANSI/VT100

terminals. The options are Enabled and Disabled.

Recorder Mode

Select Enabled to capture the data displayed on a terminal and send it as text

messages to a remote server. The options are Disabled and Enabled.

Resolution 100x31

Select Enabled for extended-terminal resolution support. The options are Dis-

abled and Enabled.

Legacy OS Redirection Resolution

Use this item to select the number of rows and columns used in Console Redi-

rection for legacy OS support. The options are 80x24 and 80x25.

Putty KeyPad

This feature selects Function Keys and KeyPad settings for Putty, which is a

terminal emulator designed for the Windows OS. The options are VT100, LINUX,

XTERMR6, SCO, ESCN, and VT400.

Redirection After BIOS POST

Use this feature to enable or disable legacy Console Redirection after BIOS

POST. When set to Bootloader, legacy Console Redirection is disabled before

booting the OS. When set to Always Enable, legacy Console Redirection remains

enabled when booting the OS. The options are Always Enable and Bootloader.

EMS (Emergency Management Services) Console Redirection

Select Enabled to use a COM port selected by the user for EMS Console Redirec-

tion. The options are Enabled and Disabled.

*If the item above set to Enabled, the following items will become available

for user's conguration:

EMS Console Redirection Settings

This feature allows the user to specify how the host computer will exchange

data with the client computer, which is the remote computer used by the user.

Chapter 4: AMI BIOS

4-23

Out-of-Band Management Port

The feature selects a serial port in a client server to be used by the Microsoft

Windows Emergency Management Services (EMS) to communicate with a re-

mote host server. The options are COM1 and SOL.

Terminal Type

Use this feature to select the target terminal emulation type for Console Redirec-

tion. Select VT100 to use the ASCII character set. Select VT100+ to add color

and function key support. Select ANSI to use the extended ASCII character set.

Select VT-UTF8 to use UTF8 encoding to map Unicode characters into one or

more bytes. The options are VT100, VT100+, VT-UTF8, and ANSI.

Bits Per Second

This item sets the transmission speed for a serial port used in Console Redirec-

tion. Make sure that the same speed is used in the host computer and the client

computer. A lower transmission speed may be required for long and busy lines.

The options are 9600, 19200, 57600, and 115200 (bits per second).

Flow Control

Use this item to set the ow control for Console Redirection to prevent data

loss caused by buffer overow. Send a "Stop" signal to stop sending data when

the receiving buffer is full. Send a "Start" signal to start sending data when

the receiving buffer is empty. The options are None, Hardware RTS/CTS, and

Software Xon/Xoff.

The setting for each these features is displayed:

Data Bits, Parity, Stop Bits

Trusted Computing (Available when a TPM device is

installed and detected by the BIOS)

Conguration

Security Device Support

If this feature and the TPM jumper on the motherboard are both set to Enabled,

onboard security devices will be enabled for TPM support to enhance data integrity

and network security. Please reboot the system for a change on this setting to take

effect. The options are Enabled and Disabled.

4-24

X10SLH-LN6TF User’s Manual

TPM State

Select Enabled to use TPM (Trusted Platform Module) settings to enhance system

data security. Please reboot your system for any change on the TPM state to take

effect. The options are Disabled and Enabled.

Pending Operation

Use this item to schedule a TPM-related operation to be performed by a security

device for system data integrity. Your system will reboot to carry out a pending TPM

operation. The options are 0, Enable Take Ownership, Disable Take Ownership,

and TPM Clear.

Note: Your system will reboot to carry out a pending TPM operation.

Current Status Information

This feature indicates the status of the following TPM items:

•TPM Enabled Status

•TPM Active Status

•TPM Owner Status.

Intel TXT (LT) Support

Intel TXT (Trusted Execution Technology) helps protect against software-based at-

tackes to ensure the security, condentiality, and integrity of all data stored in the

system. The options are Enabled and Disabled.

Chapter 4: AMI BIOS

4-25

4-4 Event Logs

Change SMBIOS Event Log Settings

SMBIOS Event Log

Change this item to enable or disable all features of the SMBIOS Event Logging

during system boot. The options are Enabled and Disabled.

PCI Error Logging Support

Use this item to enable or disable PCI error logging. The options are Enabled and

Disabled.

Erasing Settings

Erase Event Log

If this feature is set to Yes, all logged events will be erased. The options are No,

Yes, Next reset and Yes, Every reset.

When Log is Full

Select Erase Immediately for all messages to be automatically erased from the

event log when the event log memory is full. The options are Do Nothing and

Erase Immediately.

4-26

X10SLH-LN6TF User’s Manual

SMBIOS Event Log Standard Settings

Log System Boot Event

This option toggles the System Boot Event logging to enabled or disabled. The

options are Disabled and Enabled.

MECI (Multiple Event Count Increment)

The Multiple Event Count Increment (MECI) counter counts the number of oc-

curences a duplicate event must happen before the MECI counter is incremented.

This is a numeric value. The default value is 1.

METW (Multiple Event Count Time Window)

The Multiple Event Time Window (METW) denes number of minutes must pass

between duplicate log events before MECI is incremented. This is in minutes, from

0 to 99. The default value is 60.

View SMBIOS Event Log

This section displays the contents of the SMBIOS Event Log.

Chapter 4: AMI BIOS

4-27

IPMI

System Event Log

This feature is used to change the Sytem Event Log (SEL) conguration.

SEL Components - Change this item to enable or disable all features of System

Event Logging. The options are Enabled and Disabled. When Enabled, the

following can be congured:

Erase SEL - This option erases all logged SEL events. The options are No, Yes,

On Next reset and Yes, On Every reset.

When SEL is Full

This option automatically clears the System Event Log memory of all messages

when it is full. The options are Do Nothing and Erase Immediately.

Note: Restart the computer for these changes to take effect.

4-28

X10SLH-LN6TF User’s Manual

BMC Network Conguration

The following items will be displayed:

IPMI LAN Selection

This item displays the IPMI LAN setting. The default setting is Failover.

IPMI Network Link Status

This item displays the IPMI Network Link status. The default setting is Shared LAN.

Update IPMI LAN Conguration

Select Yes for the BIOS to implement all IP/MAC address changes at the next

system boot. The options are No and Yes

Conguration Address Source

Use this item to select the source of the IP address for this computer. If Static is

selected, you will need to know the IP address of this computer and enter it to the

system manually in the eld. If DHCP is selected, the BIOS will search for a DHCP

(Dynamic Host Conguration Protocol) server in the network that is attached to

and request the next available IP address for this computer. The options are DHCP

and Static.

The following items are assigned IP addresses automatically if DHCP is selected,

or they can be congured manually if Static is selected.

Station MAC Address

This item displays the Station MAC address for this computer. Mac addresses are

6 two-digit hexadecimal numbers.

Station IP Address

This item displays the Station IP address for this computer. This should be in decimal

and in dotted quad form (i.e., 192.168.10.253).

Subnet Mask

This item displays the sub-network that this computer belongs to. The value of each

three-digit number separated by dots should not exceed 255.

Gateway IP Address

This item displays the Gateway IP address for this computer. This should be in

decimal and in dotted quad form (i.e., 192.168.10.253).

Chapter 4: AMI BIOS

4-29

4-5 Boot Settings

Use this feature to congure Boot Settings:

Set Boot Priority

This option prioritizes the order of bootable devices that the system to boot from.

Press [ENTER] on each entry from top to bottom to select devices.

•1st Boot Device

•2nd Boot Device

•3rd Boot Device

•4th Boot Device

•5th Boot Device

•6th Boot Device

Delete Boot Option

This feature allows the user to delete a previously dened boot device from which

the systems boots during startup. The settings are [any pre dened boot device]

Delete Driver Option

This feature allows the user to delete a previously dened boot device from which

the systems boots during startup. The settings are [any pre dened boot device]

4-30

X10SLH-LN6TF User’s Manual

Network Device BBS Priorities

This feature allows the use to specify the the boot device priority sequence from

available network devices. The settings are [any detected boot device] and Disabled.

UEFI Boot Drive BBS Priorities

This feature allows the user to specify which devices are boot devices and appear

as boot devices to the system. The settings are [any detected boot device] and

Disabled.

Chapter 4: AMI BIOS

4-31

4-6 Security Settings

This menu allows the user to congure the following security settings for the

system.

• If the Administrator password is dened ONLY - this controls access to the

BIOS setup ONLY.

• If the User's password is dened ONLY - this password will need to be entered

upon each system boot, and will also have Administrator rights in the setup.

• Passwords must be at least 3 and up to 20 characters long.

Password Check

Select Setup for the system to check for a password at Setup. Select Always for the

system to check for a password at bootup or upon entering the BIOS Setup utility.

The options are Setup and Always.

Administrator Password

Press Enter to create a new, or change an existing Administrator password.

4-32

X10SLH-LN6TF User’s Manual

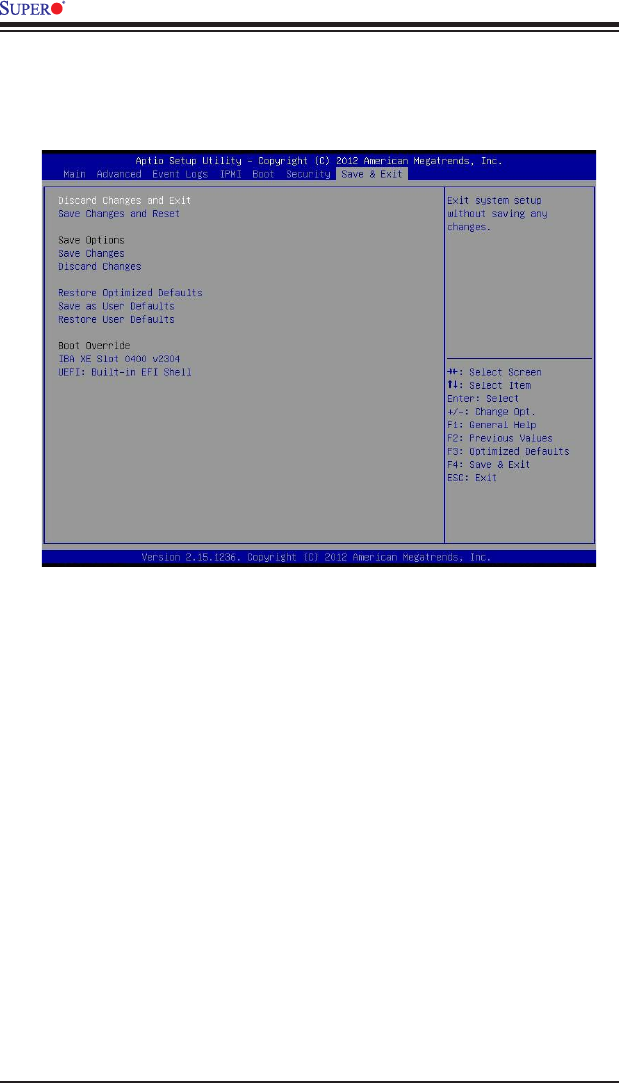

4-7 Save & Exit

Select the Exit tab from the BIOS Setup Utility screen to enter the Exit BIOS Setup

screen.

Discard Changes and Exit

Select this option to quit the BIOS Setup without making any permanent changes

to the system conguration, and reboot the computer. Select Discard Changes and

Exit from the Exit menu and press <Enter>.

Save Changes and Reset

When you have completed the system conguration changes, select this option

to leave the BIOS Setup Utility and reboot the computer, so the new system con-

guration parameters can take effect. Select Save Changes and Exit from the Exit

menu and press <Enter>.

Save Options

Save Changes

When you have completed the system conguration changes, select this option to

save any changes made. This will not reset (reboot) the system.

Discard Changes

Select this option and press <Enter> to discard all the changes and return to the

AMI BIOS Utility Program.

Chapter 4: AMI BIOS

4-33

Restore Optimized Defaults

To set this feature, select Restore Defaults from the Exit menu and press <Enter>.

These are factory settings designed for maximum system stability, but not for

maximum performance.

Save As User Defaults

To set this feature, select Save as User Defaults from the Exit menu and press <En-

ter>. This enables the user to save any changes to the BIOS setup for future use.

Restore User Defaults

To set this feature, select Restore User Defaults from the Exit menu and press <En-

ter>. Use this feature to retrieve user-dened settings that were saved previously.

Boot Override

Listed on this section are other boot options for the system (i.e., Built-in EFI shell).

Select an option and press <Enter>. Your system will boot to the selected boot

option.

4-34

X10SLH-LN6TF User’s Manual

Notes

Appendix A: POST Error Beep Codes

A-1

Appendix A

BIOS Error Beep Codes

During the POST (Power-On Self-Test) routines, which are performed each time

the system is powered on, errors may occur.

Non-fatal errors are those which, in most cases, allow the system to continue

with bootup. The error messages normally appear on the screen.

Fatal errors will not allow the system to continue to bootup. If a fatal error oc-

curs, you should consult with your system manufacturer for possible repairs.

These fatal errors are usually communicated through a series of audible beeps.

The numbers on the fatal error list correspond to the number of beeps for the

corresponding error.

A-1 BIOS Error Beep Codes

BIOS Error Beep Codes

Beep Code/LED Error Message Description

1 beep Refresh Circuits have been reset.

(Ready to power up)

5 short beeps + 1 long

beep

Memory error No memory detected in the

system

8 beeps Display memory

read/write error

Video adapter missing or with

faulty memory

OH LED On System OH System Overheat

A-2

X10SLH-LN6TF User’s Manual

Notes

Appendix B: Software Installation Instructions

B-1

Appendix B

Software Installation Instructions

B-1 Installing Software Programs

The Supermicro ftp site contains drivers and utilities for your system at ftp://ftp.

supermicro.com. Some of these must be installed, such as the chipset driver.

After accessing the ftp site, go into the CDR_Images directory and locate the ISO

le for your motherboard. Download this le to create a CD/DVD of the drivers and

utilities it contains. (You may also use a utility to extract the ISO le if preferred.)

Another option is to go to the Supermicro Website at http://www.supermicro.com/

products/. Find the product page for your motherboard here, where you may down-

load individual drivers and utilities.

After creating a CD/DVD with the ISO les, insert the disk into the CD/DVD drive

on your system and the display shown below should appear.

Note 1: Click the icons showing a hand writing on paper to view the

readme les for each item. Click the computer icons to the right of these

items to install each item (from top to the bottom) one at a time. After

installing each item, you must re-boot the system before moving on

to the next item on the list. The bottom icon with a CD on it allows you

to view the entire contents.

Note 2: When making a storage driver diskette by booting into a Driver

CD, please set the SATA Conguration to "Compatible Mode" and congure

SATA as IDE in the BIOS Setup. After making the driver diskette, be sure

to change the SATA settings back to your original settings.

Driver/Tool Installation Display Screen

B-2

X10SLH-LN6TF User’s Manual

B-2 Installing SuperDoctor5

The Supermicro SuperDoctor® 5 is a hardware monitoring program that functions in

a command-line or web-based interface in Windows and Linux operating systems.

The program monitors system health information such as CPU temperature, system

voltages, system power consumption, fan speed, and provides alerts via email or

Simple Network Management Protocol (SNMP).

SuperDoctor® 5 comes in local and remote management versions and can be

used with Nagios to maximize your system monitoring needs. With SuperDoctor®

5 Management Server (SSM Server), you can remotely control power on/off and

reset chassis intrusion for multiple systems with SuperDoctor® 5 or IPMI. SD5

Management Server monitors HTTP, FTP, and SMTP services to optimize the ef-

ciency of your operation.

Note: The default User Name and Password for SuperDoctor® 5 is admin

/admin.

SuperDoctor® 5 Interface Display Screen (Health Information)

Note: The SuperDoctor® 5 program and User’s Manual can be downloaded

from the Supermicro web site at http://www.supermicro.com/products/nfo/

sms_sd5.cfm.

Appendix C: UEFI BIOS Recovery

C-1

Appendix C

UEFI BIOS Recovery Instructions

Warning: Do not upgrade the BIOS unless your system has a BIOS-related issue.

Flashing the wrong BIOS can cause irreparable damage to the system. In no event shall

Supermicro be liable for direct, indirect, special, incidental, or consequential damages

arising from a BIOS update. If you need to update the BIOS, do not shut down or reset

the system while the BIOS is updating to avoid possible boot failure.

C-1 An Overview to the UEFI BIOS

The Unied Extensible Firmware Interface (UEFI) specication provides a software-

based interface between the operating system and the platform rmware in the

pre-boot environment. The UEFI specication supports an architecture-independent

mechanism for add-on card initialization to allow the UEFI OS loader, which is stored

in the add-on card, to boot up the system. UEFI offers a clean, hands-off control

to a computer system at bootup.

C-2 How to Recover the UEFI BIOS Image (the Main

BIOS Block)

A UEF BIOS ash chip consists of a recovery BIOS block, comprised of two boot

blocks and a main BIOS block (a main BIOS image). The boot block contains critical

BIOS codes, including memory detection and recovery codes for the user to ash

a new BIOS image if the original main BIOS image is corrupted. When the system

power is on, the boot block codes execute rst. Once that is completed, the main

BIOS code will continue with system initialization and bootup.

Note: Follow the BIOS Recovery instructions below for BIOS recovery

when the main BIOS boot crashes. However, when the BIOS boot block

crashes, you will need to follow the procedures in Appendix D.

C-3 To Recover the Main BIOS Block Using a USB-

Attached Device

This feature allows the user to recover a BIOS image using a USB-attached device

without additional utilities used. A USB ash device such as a USB Flash Drive, or

a USB CD/DVD ROM/RW device can be used for this purpose. However, a USB

Hard Disk drive cannot be used for BIOS recovery at this time.

C-2

X10SLH-LN6TF User’s Manual

5. When the screen as shown above displays, using the arrow key, select the

item- "Proceed with ash update" and press the <Enter> key. You will see the

progress of BIOS Recovery as shown in the screen below.

Note: Do not interrupt the process of BIOS ashing until it is com-

pleted.

To perform UEFI BIOS recovery using a USB-attached device, follow the instruc-

tions below.

1. Using a different machine, copy the "Super.ROM" binary image le into the

disc Root "\" Directory of a USB device or a writeable CD/DVD.

Note: If you cannot locate the "Super.ROM" le in your driver disk, visit

our website at www.supermicro.com to download the BIOS image into

a USB ash device and rename it "Super ROM" for BIOS recovery use.

2. Insert the USB device that contains the new BIOS image ("Super.ROM") into

your USB drive and power on the system

3. While powering on the system, keep pressing <Ctrl> and <Home> simultane-

ously on your keyboard until your hear two short beeps. This may take from a

few seconds to one minute.

4. After locating the new BIOS binary image, the system will enter the BIOS

Recovery menu as shown below.

Note: At this point, you may decide if you want to start with BIOS Recov-

ery. If you decide to proceed with BIOS Recovery, follow the procedures

below.

Appendix C: UEFI BIOS Recovery

C-3

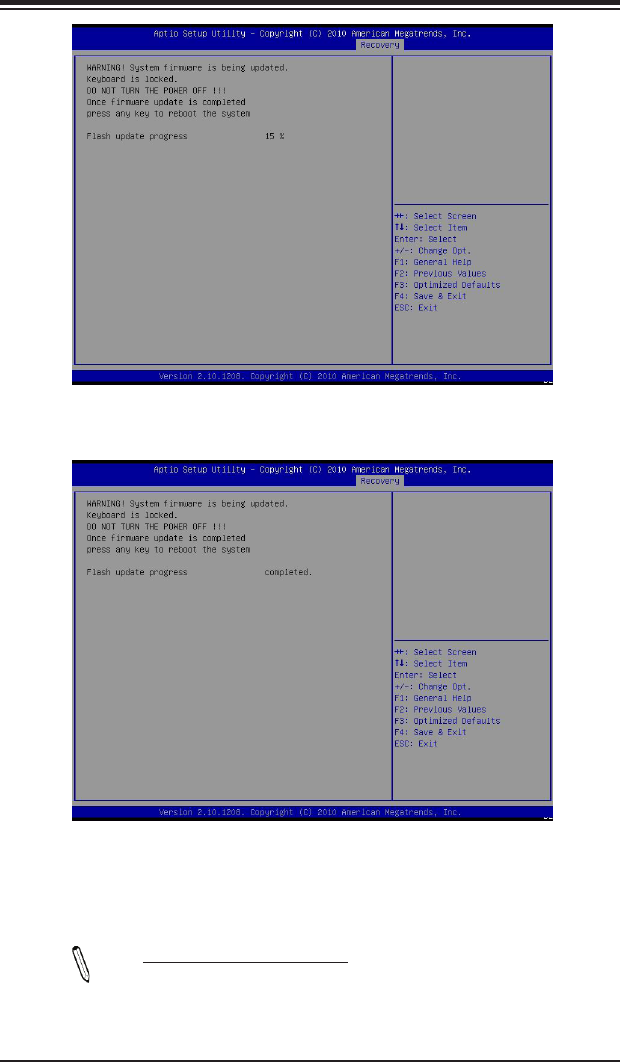

6. After the process of BIOS Recovery is complete, press any key to reboot the

system.

7. Using a different system, extract the BIOS package into a bootable USB ash

drive.

8. When a DOS prompt appears, enter AMI.BAT BIOSname.### at the prompt.

Note: Do not interrupt this process until BIOS ashing is completed.

C-4

X10SLH-LN6TF User’s Manual

9. After seeing the message that BIOS update is completed, unplug the AC pow-

er cable from the power supply to clear CMOS, and then plug the AC power

cable in the power supply again to power on the system.

10. Press <Del> continuously to enter the BIOS Setup utility.

11. Press <F3> to load default settings.

12. After loading default settings, press <F4> to save the settings and exit the

BIOS Setup utility.

Appendix D: Dual Boot Block

D-1

Appendix D

Dual Boot Block

D-1 Introduction

This motherboard supports the Dual Boot Block feature, which is the last-ditch

mechanism to recover the BIOS boot block. This section provides an introduction

to the feature.

BIOS Boot Block

A BIOS boot block is the minimum BIOS loader required to enable necessary

hardware components for the BIOS crisis recovery ash that will update the main

BIOS block. An on-call BIOS boot-block corruption may occur due to a software

tool issue (see image below) or an unexpected power outage during BIOS updates.

BIOS Boot Block Corruption Occurrence

When a BIOS boot block is corrupted due to an unexpected power outage or a

software tool malfunctioning during BIOS updates, you can still reboot the system

by closing pins 2 and 3 using a cap on Jumper JBR1. When JBR1 is set to pins

2 and 3, the system will boot from a backup boot block pre-loaded in the BIOS by

the manufacturer.

D-2

X10SLH-LN6TF User’s Manual

D-2 Steps to Reboot the System by Using Jumper JBR1

(Available when JBR1 is Installed onboard)

1. Power down the system.

2. Close pins 2-3 on Jumper JBR1, and power on the system.

3. Follow the BIOS recovery SOP listed in the previous chapter (Appendix C).

4. After completing the steps above, power down the system.

5. Close pins 1-2 on Jumper JBR1, and power on the system.

(Disclaimer Continued)

The products sold by Supermicro are not intended for and will not be used in life support systems,

medical equipment, nuclear facilities or systems, aircraft, aircraft devices, aircraft/emergency com-

munication devices or other critical systems whose failure to perform be reasonably expected to result

in signicant injury or loss of life or catastrophic property damage. Accordingly, Supermicro disclaims

any and all liability, and should buyer use or sell such products for use in such ultra-hazardous ap-

plications, it does so entirely at its own risk. Furthermore, buyer agrees to fully indemnify, defend

and hold Supermicro harmless for and against any and all claims, demands, actions, litigation, and

proceedings of any kind arising out of or related to such ultra-hazardous use or sale.

X10SLH LN6TF

X10SLH-LN6TF X10SLH-LN6TF

Navigation menu

Versions of this User Manual:

Views

Navigation
