XL-AM107 Rev C 1
HOLLAND
PARTS
FW35, FW3500, FW8, FW2000, FW2500 &
FW2535 Series & Simplex Series, Castloc
Series & 400C Fifth Wheels & SE, Taperloc
&Inboard Sliders
Parts List Information and Service Repair Kits
For parts, service, and warranty
questions, call 888-396-6501
F
FI
IF
FT
TH
H W
WH
HE
EE
EL
L
Q
QU
UI
IC
CK
K R
RE
EF
FE
ER
RE
EN
NC
CE
E G
GU
UI
ID
DE
E
2XL-AM107 Rev C
TABLE OF CONTENTS
Table of Contents.........................................................................................................................................................................2
Holland’s Quick Reference Parts Guide .....................................................................................................................................3
Fifth Wheel Assemblies................................................................................................................................................................4
Bracket Identification...................................................................................................................................................................5
Identifying the Fifth Wheel Assembly.........................................................................................................................................5
Types of Fifth Wheel Mounts......................................................................................................................................................6
Brackets.........................................................................................................................................................................................7
FW3500 Series Parts Explosion ...................................................................................................................................................8
FW35 Series Parts Explosion .......................................................................................................................................................9
FW2000 Series Parts Explosion .................................................................................................................................................10
FW8 Series Parts Explosion .......................................................................................................................................................11
Explanation of Part Number Sequence.....................................................................................................................................12
Rebuilding and Parts Kits...........................................................................................................................................................12
Rubber Upshock Cushions ........................................................................................................................................................15
FW8, FW35, FW2500 & FW2535 Series Slide Bracket Parts....................................................................................................16
FW2500-H, FW2535-H & FW2536-H Series Slide Bracket Parts..............................................................................................17
Holland Fifth Wheel Air Cylinders............................................................................................................................................18
Holland Fifth Wheel Air Cylinder Parts List .............................................................................................................................19
Holland Fifth Wheel Parts List...................................................................................................................................................20
Simplex, Castloc, 400C and Slider Kits .....................................................................................................................................21
Contact Information ...................................................................................................................................................................24
XL-AM107 Rev C 3
HOLLAND’S QUICK REFERENCE PARTS GUIDE
At last! Holland has compiled parts breakdowns of our top products. This quick reference
parts guide allows you to easily and accurately identify the correct Service Repair Kits
(SRKs), rebuild kit (RK) and other parts needed to repair your Holland products.
Use only genuine Holland replacement parts made to meet or exceed OEM requirements.
Protect your products and ensure long service life. Keep in mind, when you use other
than genuine Holland parts, you risk voiding your warranty.
Visit the Holland website www.thehollandgroupinc.com for additional information.
When you visit our website:
• Click the “News” button for the latest updates on Holland products
• Download the current Holland List Price file or Hierarchy Guide
• Check the “Literature” button for a complete list of Quick Reference Parts Guides
1. Fifth Wheels form number XL-AM107
2. Landing Gear form number XL-AM109
3. Trailer Suspensions form number XL-AM108
4. Truck Suspensions form number XL-AM _ _ _ (yet to be developed)
5. Couplers form number XL-PH329
•Download and print any Holland sales or service literature
• Order Holland sales or service literature, product videos, DVDs or CDs and FedEx
Kinko’s will send it to you—no charge.
4XL-AM107 Rev C
FW2000 or FW2500 Assembly — XA-2009 series top plate (obsolete)*
RK-62000 rebuild kit (right hand)
RK-62001 rebuild kit (left hand)

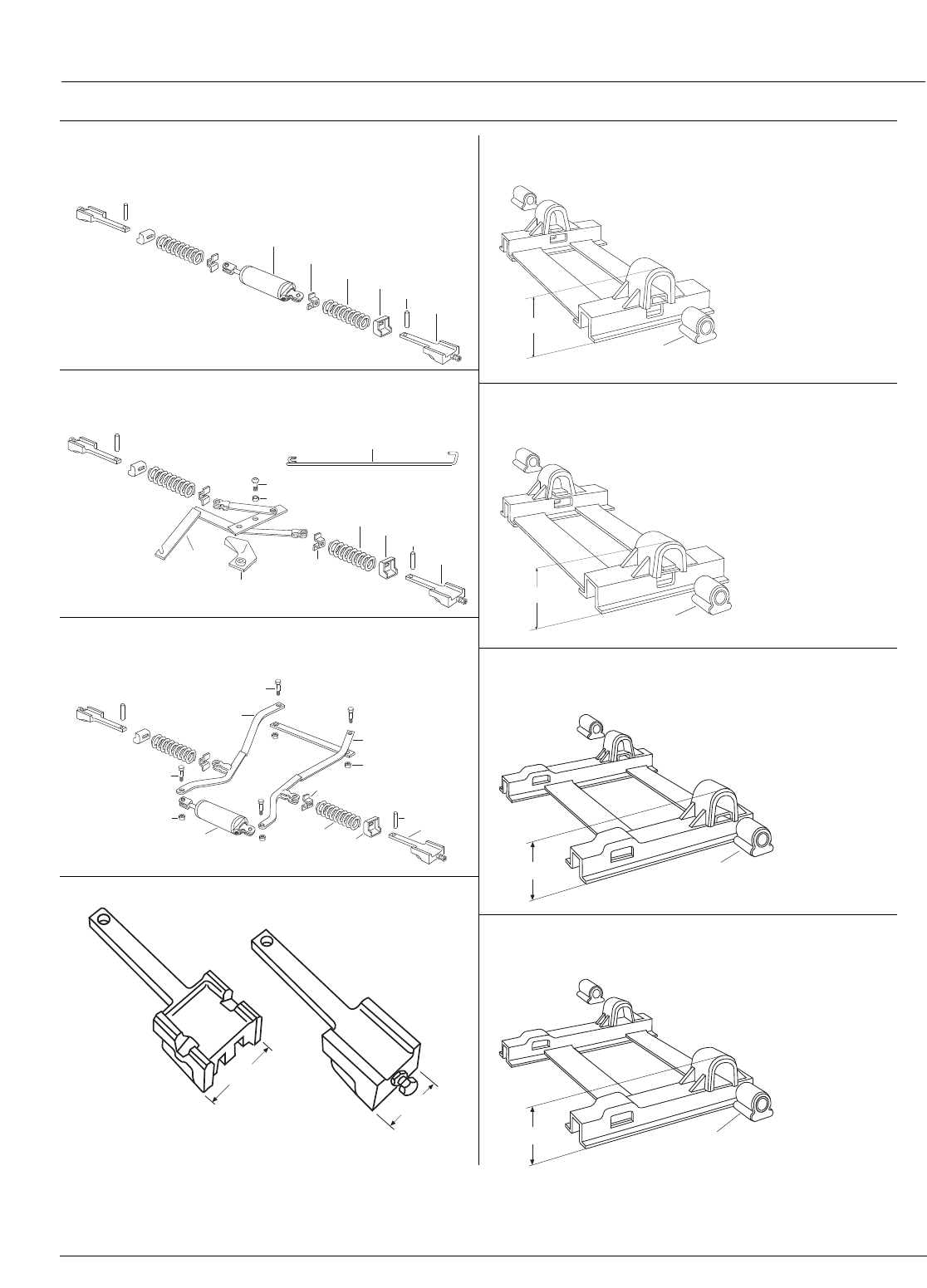

FIFTH WHEEL ASSEMBLIES
FW35 Assembly — XA-351-A-L-P (top plate)
RK-351-A-L rebuild kit (left hand)
RK-351-A rebuild kit (right hand)
FW3500 or FW2535 Assembly — (Old style) — XA-3501 series (top plate)
RK-63501 rebuild kit (left hand)
RK-63500 rebuild kit (right hand)
FW8 Assembly — XA-201-A-L-P (top plate)
RK-201-A3 rebuild kit (right hand)
RK-201-A3-L rebuild kit (left hand)

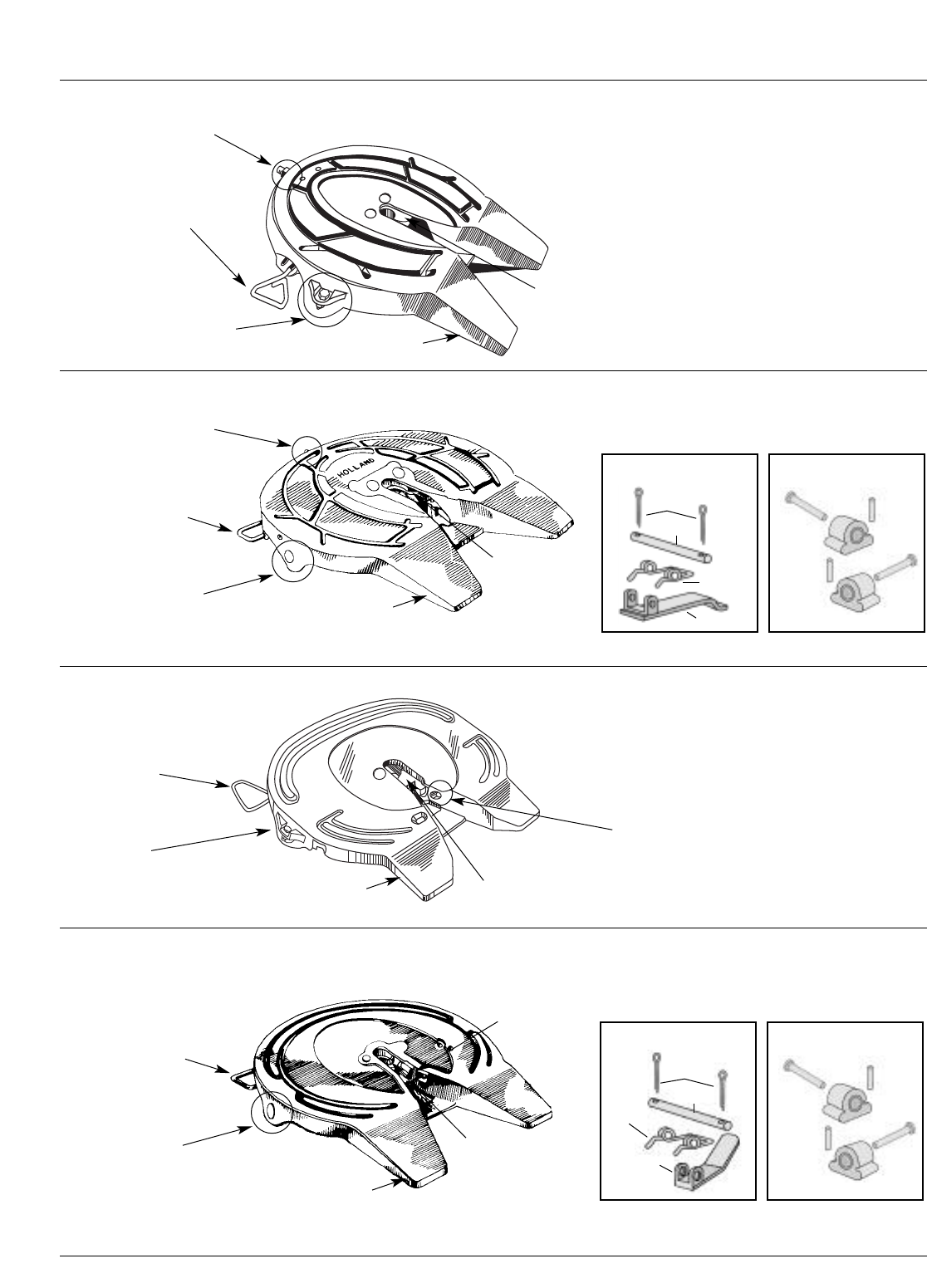

Lock adjustment nut
Closed loop handle
straight handle pull
Single stage double jaw lock
External pivot pin retention Identification tag location
Lock adjustment in throat
Lock adjustment nut
Open loop handle
straight handle pull
Lock guard kit for
3500 series Pivot pin and bushing kit
Lock guard kit for
2000 series Pivot pin and bushing kit
Dual stage
“split” lock
with lock guardPivot pin captured
underneath Identification tag location
Closed loop handle
“Z” pattern pull
Single stage “swing” lock
External pivot
pin retention
Identification tag location
Lock adjustment
in throat
Open loop handle
straight handle pull
Dual stage
“swing” lock
with lock guard
Pivot pin retained
underneath
Identification tag location
For FW3500 Series fith wheels
RK-05329 RK-04413
Retention pins
XB-16
XA-1055
XB-1044
XA-3514
Roll
pins
Upshock
cushions
For FW2000 Series fith wheels
RK-05328 RK-04413
Retention pins
XB-16
XA-1055
XB-1044
Roll
pins
Upshock
cushions
XA-1621
* Top plate available to UPS and the Post Office only
BRACKET IDENTIFICATION

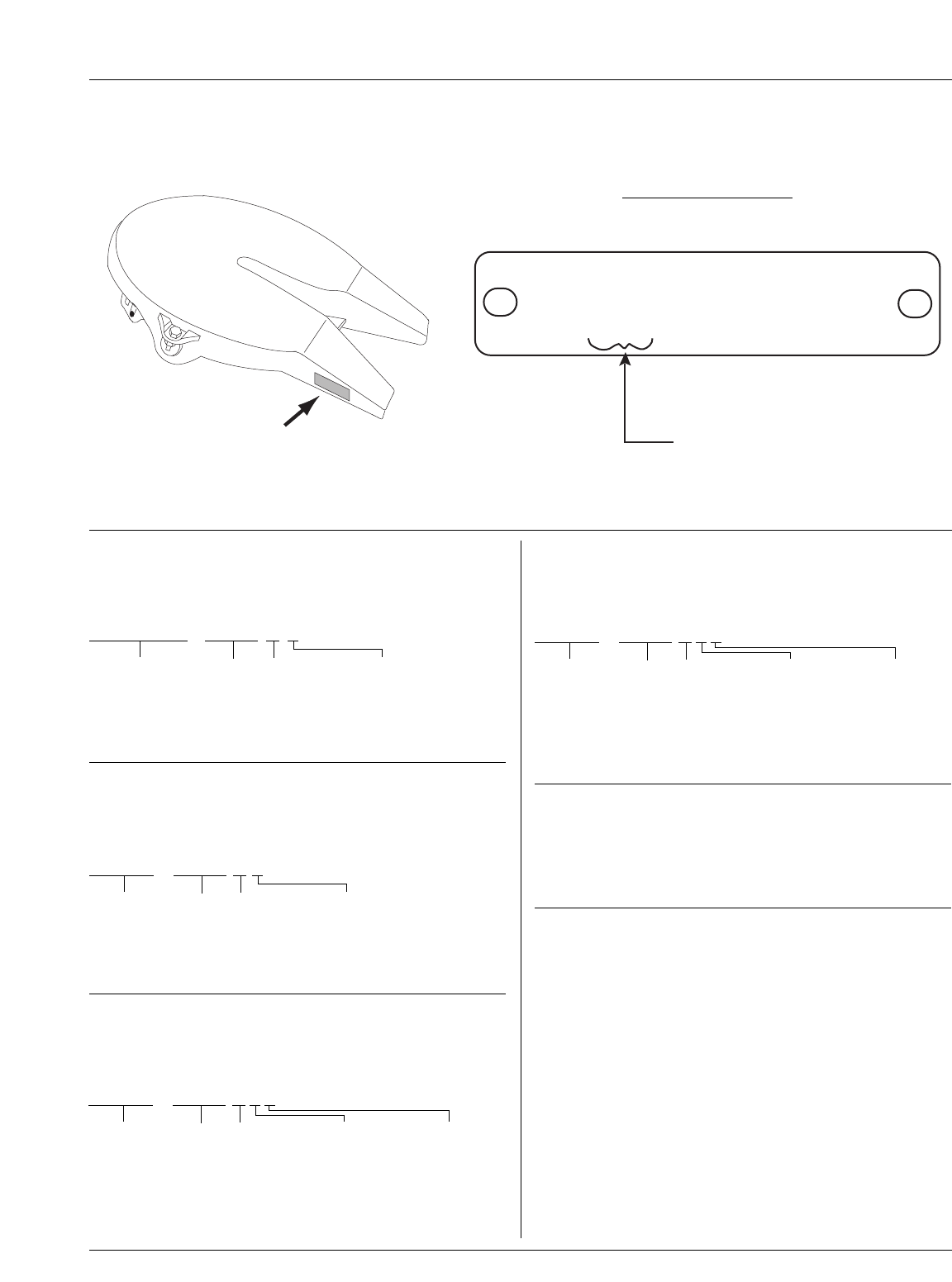

All of the information needed to determine your current fifth wheel bracket style and height
is included in the fifth wheel model number printed on the serial number tag attached to the
driver side pick-up ramp of the fifth wheel. The first four digits after the first “dash” (“-”) identify
your bracket.
MODEL NO. MFG. DATE/SER. NO.
A981234H
FW__-XXXX- ____
Serial Number and
Model Number Tag
SERIAL NUMBER TAG
Located on the Driver-Side “Pick-up Ramp” of the Fifth Wheel
These four digits identify your current fifth
wheel bracket style and height.
IDENTIFYING THE FIFTH WHEEL ASSEMBLY
Stationary over-the-frame angle mount
FW3500-7813GL
Top plate Bracket Frame width Left hand release
FW3500 series:
Stationary with obsolete XA-3501 top plate
G= 34˝ frame width
L= left hand release
FW35-7883XR
Top plate Bracket Frame width Right hand release
X= no frame width used
R= right hand release
Stationary outboard angle mount
FW35 series:
Stationary with XA-351 top plate
FW35-8002T3L
Top plate Bracket Frame width Slide length LH Release
T= outboard angle
3= 24.5˝ slide travel
L= left hand release
Air slide outboard angle mount
FW35 series:
Slider with XA-351 top plate
Stationary over-the-frame angle mount
FW2000-7811GL
Stationery with XA-2009 top plate and 34˝ frame width
Slider with over-the-frame angle mount
FW2500-7003G3L
Stationery with XA-2009 top plate and 34˝ frame width
FW35-7002G3L
Top plate Bracket Frame width Slide length LH Release
G= 34˝ frame width
3= 24.5˝ slide travel
L= left hand release
Air slide over-the-frame angle mount
FW35 series:
Slider with XA-351 top plate
XL-AM107 Rev C 5
6XL-AM107 Rev C
TYPES OF FIFTH WHEEL MOUNTS

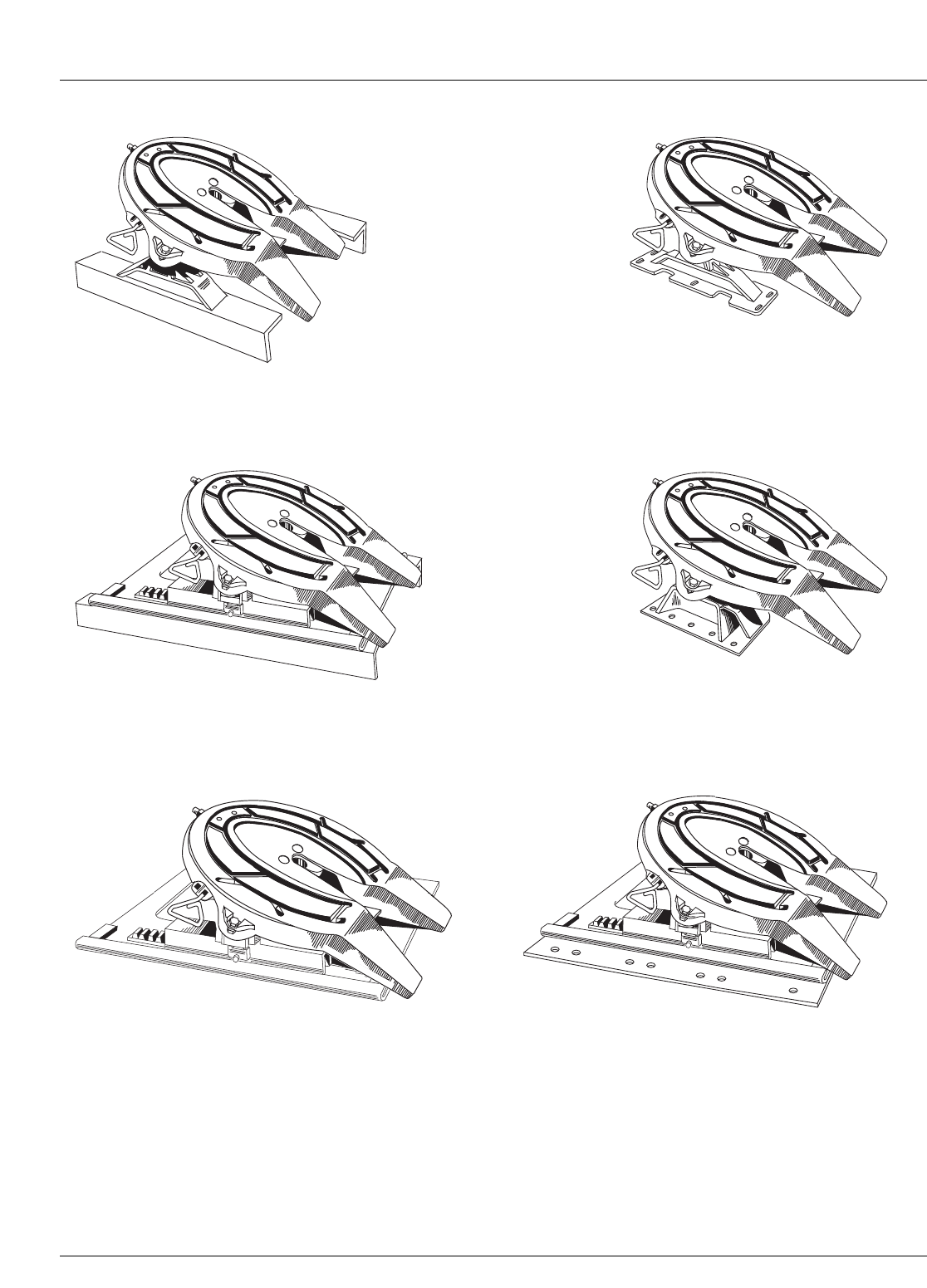

Over-the-frame stationary mount
Over-the-frame slider mount
Over-the-frame slider for angle mount
Plate/base mount
Outboard angle stationary
Outboard angle slider mount
Measurements
Frame width: from the outside of the tractor frame to the opposite side of the outside frame
Fifth wheel height: from the top of the tractor frame to the top of the fifth wheel when it’s level
(do not include the angles or brackets)
BRACKETS
XL-AM107 Rev C 7

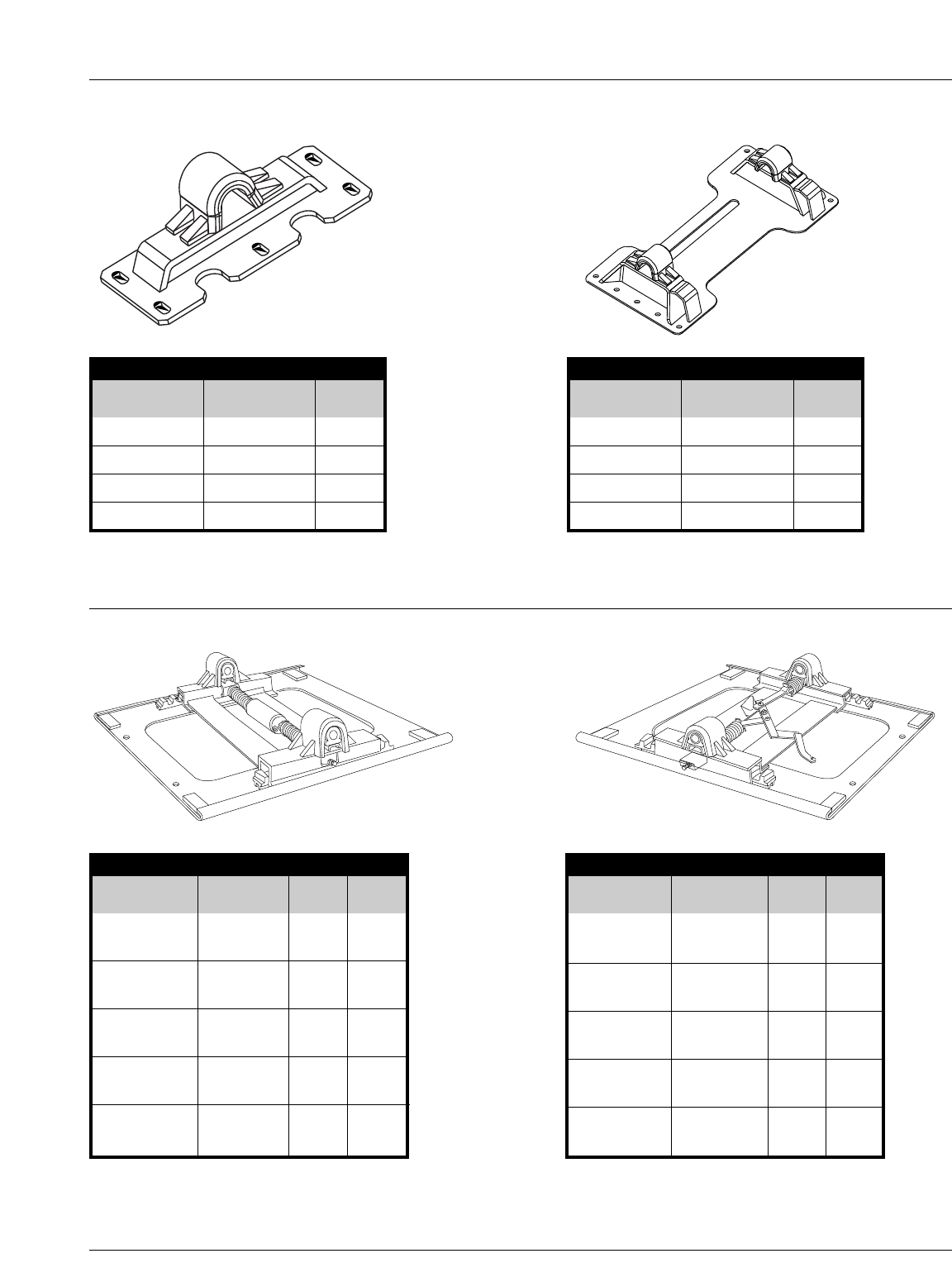

Air Style Manual Release Style
AIR STYLE BRACKETS MANUAL STYLE BRACKETS
Fifth Wheel Bracket Release
Model Number Part Number Style Height*
FW __-7011___
FW __-8011___
FW __-7012___
FW __-8012___
FW __-7013___
FW __-8013___
FW __-7311___
FW __-8311___
FW __-7019___
FW __-8019___
XA-7011 MANUAL 9.00˝
XA-7012 MANUAL 8.00˝
XA-7013 MANUAL 7.00˝
XA-7311 MANUAL 8.50˝
XA-7019 MANUAL 10.50˝
*Height of the fifth wheel from the tractor frame to the top of the fifth wheel plate when level.
Mounting Base Style “Dog Bone” Style
MOUNTING BASE STYLE BRACKETS
Fifth Wheel Bracket
Model Number Part Number Height*
FW ___-7801 ___ XA-7801 8.69˝
FW ___-7802 ___ XA-7802 7.69˝
FW ___-7803 ___ XA-7803 6.69˝
FW ___-7804 ___ XA-7804 5.69˝
“DOG BONE” STYLE BRACKETS
Fifth Wheel Bracket
Model Number Part Number Height*
FW ___-7883 ___ XA-7883 8.69˝
FW ___-7884 ___ XA-7884 7.69˝
FW ___-7885 ___ XA-7885 6.69˝
FW ___-7886 ___ XA-7886 5.69˝
*Height of the fifth wheel from the tractor frame to the top of the fifth wheel plate when level.
Fifth Wheel Bracket Release
Model Number Part Number Style Height*
FW __-7001___
FW __-8001___
FW __-7002___
FW __-8002___
FW __-7003___
FW __-8003___
FW __-7301___
FW __-8301___
FW __-7009___
FW __-8009___
XA-7001 AIR 9.00˝
XA-7002 AIR 8.00˝
XA-7003 AIR 7.00˝
XA-7301 AIR 8.50˝
XA-7009 AIR 10.50˝
8XL-AM107 Rev C

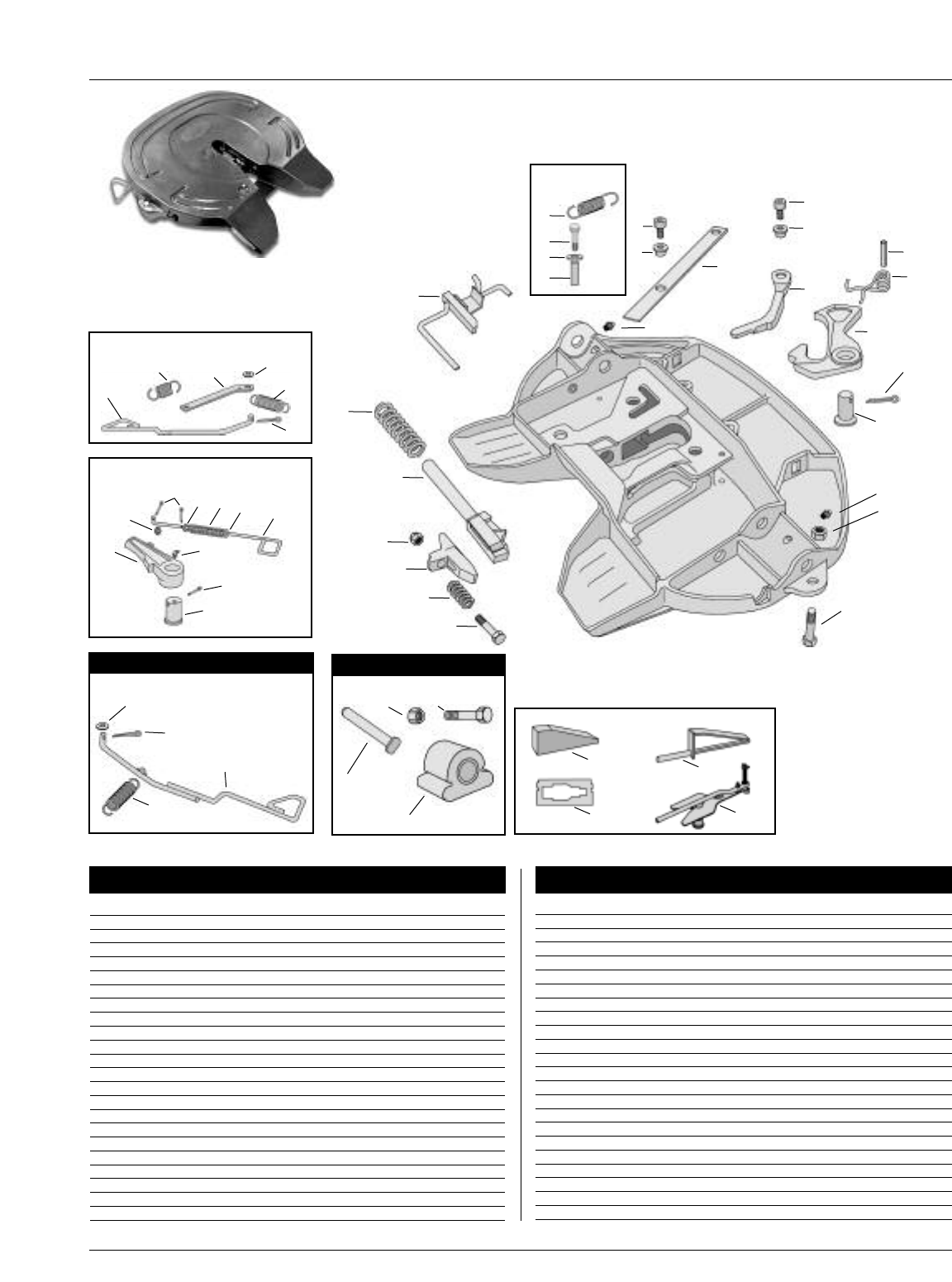

FW3500 SERIES PARTS EXPLOSION — Yokeshaft in front, No “ears”
XA-3501 SERIES PARTS LIST
1XA-1704* 1Lock Jaws
2 XA-1313 2 Lock Pin
3XB-5 2Cotter Pin 1/4” x 2”
4 XA-1703-F 1 Yoke Sub-Assembly
5 XB-1505 1 Spring
6 XA-1706 1 Yoke Shaft
7 XB-02312 1 Lock Adjustment Tag
8 XB-1127 1 Rubber Washer
9 XB-PW-1316-112 1 Washer 1-1⁄2” OD x 13/16” ID
10 XB-HNH-34-F 1 Locknut 3/4”-16
11 XB-T-49 3 Washer 1-3⁄4” OD x 9/16” ID
12L RK-1707-M 1 Left-Hand Release Handle S/A
(Part No. (11) must be installed on
handle for complete assembly.)
12R RK-1707-6 1 Right-Hand Release Handle S/A
(Part No. (11) must be installed on
handle for complete assembly.)
13 XA-1705 1 Cam Plate
14 XA-1029 1 Roller
1*
3
32
(2
Req.)
30
(2 Req.)
1*
3
2
23** 24**
25
22
20L
12L
12R
20R
11
11
7
10
6
4
8
21
9
515
11
14
13
11
16
19
17
18
17
FOR RIGHT-HAND RELEASE
11
12R
2
FOR MODELS
EQUIPPED WITH
MANUAL
SECONDARY LOCK
26
23**
24**
25
26
RK-63503
LOCK REPLACEMENT KIT
2
RK-05329
LOCK GUARD
REPLACEMENT KIT
RK-04413
BRACKET PIN &
BUSHING
REPLACEMENT KIT
RK-1707-M
LEFT-HAND RELEASE HANDLE KIT
RK-1707-6
RIGHT-HAND RELEASE HANDLE KIT
* Not available individually; order RK-63503 ** Not available individually; order RK-05329
For XA-3501 fifth wheel rebuilding procedures,
see Holland publication XL-FW129
27 (2 Req.)
28
29
31
(2
Req.)
15 XB-2083 1 Bolt 1/2”-20 x 1-3⁄4”
16 XB-T-69-A 1 Locknut 1/2”-20
17 XB-1030-1 2 Washer
18 XA-1507 1 Roller
19 XB-CX-58-F-134 1 Bolt 5/8”-18 x 1-3⁄4”
20L XA-3542-L 1 Secondary Lock, Left-Hand
20R XA-3542-R 1 Secondary Lock, Right-Hand
21 XB-2149 1 Torsion Spring
22 XB-21-S-500-2750 1 Roll Pin
23 XA-3514** 1 Lock Guard
24 XB-1044** 1 Torsion Spring
25 XA-1055 1 Pin
26 XB-16 2 Cotter Pin 1/8” x 1”
27 XB-H-38 2 Grease Fitting
28 XA-3542-M 1 Manual Secondary Lock Handle
29 XA-3528 1 Manual Secondary Lock
30 XA-2016 2 Bracket Pin
31 XB-21-S-375-1750 2 Roll Pin
32 XB-0011-2 2 Rubber Bushing
NO.
ITEM PART NO. REQ’D. PART NAME NO.
ITEM PART NO. REQ’D. PART NAME
12L
11
XA-3501 Rebuild Kit
RK-63500: Right-hand Release RK-63501: Left-hand Release
XL-AM107 Rev C 9
FW35 SERIES PARTS EXPLOSION — Yokeshaft in front, With “ears”
XA-351 SERIES PARTS LIST
1 XA-07292-T 2 Lock Pin
2 XB-5 2 Cotter Pin (1/4” x 2”)
3 XA-07296* 1 Lock Jaw Set
4 XB-07628 1 Extension Spring
5 XB-HNH-34-F 1 Locknut (3/4”-16)
6
XB-PW-1316-112
1 Washer (11⁄2” O.D. x 13/16” I.D.)
7 XB-1127 1 Rubber Washer
8 XB-02312 1 Lock Adjustment Tag
9 XA-1706 1 Yoke Shaft
10 XB-1505 1 Compression Spring
11 XA-07295 1 Yoke
12 XB-2149 1 Torsion Spring
13
XB-21-S-500-2750
1 Roll Pin (1/2” x 23⁄4”)
14L XA-3542-L 1 Secondary Lock (left-hand)
14R XA-3542-R 1 Secondary Lock (right-hand)
15 XB-2083 1
Hex Head Cap Screw (1/2”-20 x 1-3⁄4”)
16 XB-08559 2 Washer (13⁄4” O.D. x 9/16” I.D.)
17 XA-1029 1 Roller (1/2” I.D.)
18
XB-CX-58-F-134
1
Hex Head Cap Screw (5/8”-18 x 1-3⁄4”)
* Not available individually; order RK-351-07296
19 XB-07431 2 Washer (2-5⁄8” x 21/32”)
20 XA-1507 1 Roller (5/8” I.D.)
21L XA-07150-L 1 Cam Plate (left-hand)
21R XA-07150-R 1 Cam Plate (right-hand)
22 XB-T-69-A 1 Locknut (1/2”-20)
23 XA-07151-1 1 Release Handle (universal for both
left and right)
24 XB-07291 1 Compression Spring
25
XB-PW-1732-1-116
1 Washer (11⁄16” O.D. x 1/2” I.D.)
26 XB-07508 1 Cotter Pin (1/8” x 1-1⁄4”)
27 XB-T-49 1 Washer (1-3⁄8” O.D. x 9/16” I.D.)
28 XB-07610 1 Operation Tag
29 XB-H-38 2 Grease Zerk
30 XB-C-95 2
Hex Head Cap Screw (1/2”-20 x 1-1⁄4”)
31 XE-06356 2 Bracket Pin
32 XB-0011-2 2 Rubber Bushing
33 XA-3542-M 1 Manual Second. Lock Release Handle
34 XA-3528 1 Manual Secondary Lock
NO.
ITEM PART NO. REQ’D. PART NAME NO.
ITEM PART NO. REQ’D. PART NAME
XA-351 Rebuild Kit
RK-351-A: Right-hand Release RK-351-A-L: Left-hand Release
2
1
4
2
29
(2 Req.)
3*
28
14L
13
12
11
15
5
6
7
8
9
10
26
24
25
23
27
16
17
21L
16
22
18
19
20
19
34
33
FOR MODELS EQUIPPED
WITH MANUAL
SECONDARY LOCK
RK-06973-1
BRACKET PIN & BUSHING
REPLACEMENT KIT
22
(2 Req.)
32 (2 Req.)
31 (2 Req.)
30 (2 Req.)
RK-08415-1
RIGHT OR LEFT-HAND RELEASE
HANDLE KIT
RK-351-07296
LOCK REPLACEMENT KIT
3* 1
2
2
For XA-351 fifth wheel rebuilding procedures,
see Holland publication XL-FW290
25 24 2723
26
FOR RIGHT-HAND RELEASE
14R
21R
10 XL-AM107 Rev C
FW2000 SERIES PARTS EXPLOSION — No yokeshaft in front, No “ears”
XA-2009 PARTS LIST
1 XB-1007 (Red) 1 Compression Spring 1-5⁄8˝ O.D. x 5˝
2XA-1119 1Plunger
3 XB-15 1 Set Screw 3/8˝-16 x 3/4˝
4XB-T-49 1 Plain Washer 1/2˝
5L RK-1117-1-L 1 Left-Hand Release Handle (Item No. (4) must be
installed on handle to complete assembly)
5R RK-1117-1 1Right-Hand Release Handle (Item No. (4) must be
installed on handle to complete assembly)
6L XA-1118-2-L 1 Left-Hand Cam Plate
6R XA-1118-1 1Right-Hand Cam Plate
7 XA-1029 2 Roller
8XB-1030 3Washer (right-hand only) 1/2˝ I.D. x 2-1⁄4˝ O.D.
9 XB-2083 1 Hex Head Screw 1/2˝-20 x 1-3⁄4˝ with
Locking Patch
10 XB-1031 1 1/2˝-20 x 2˝ Hex Head Cap Screw
11 XB-403 1 Spring
12 XD-3123-1 1 Lock Adjusting Wedge
13 XB-2001 1 5/8˝-11 x 3-3⁄4˝ Socket Head Screw
14 XB-HNH-58-C 1 5/8˝-11 Locknut
* Not available individually; order RK-62004 ** Not available individually; order RK-05328
15 XB-1006 (Green) 1 Compression Spring 1-1⁄4˝ O.D. x 5˝
16A&B XA-1102* 1 Lock Set
17 XA-1016 1 Hinged Lock Pin
18 XB-5 1 Cotter Pin 1/4˝ x 2˝
19 XA-1621** 1 Lock Guard
20 XB-1044** 1 Torsion Spring
21 XA-1055 1 Pin
22 XB-16 2 Cotter Pin 1/8˝ x 1˝
23 XA-1668 1 Safety Lock Block
24 XB-NRJ-34-F 1 Jam Nut
25 XA-1674 1 Safety Release Arm
26 XB-V-919 1 1/2˝ Diameter Steel Ball
27 XB-V-932 1 Compression Spring
28 XB-V-1025 1 Set Screw 5/8˝-18
29 XB-H-38 2 Grease Fitting
30 XA-2016 2Bracket Pin
31 XB-21-S-375-1750 2 Roll Pin
32 XB-0011-2 2Rubber Bushing
33 XB-02846 2 Washer (left-hand only) 1/2˝ I.D. x 2-5⁄8˝ O.D.
NO.
ITEM PART NO. REQ’D. PART NAME NO.
ITEM PART NO. REQ’D. PART NAME
XA-2009 Rebuild Kit
RK-62000: Right-hand Release RK-62001: Left-hand Release
For XA-2009 fifth wheel rebuilding procedures,
see Holland publication XL-FW134
1
2
3
4
5R
6R
9
8
7
10
8
7
8
15
21
20**
19**
22
16A*
16B*
17 18
14 12 11 13
FOR RIGHT-HAND RELEASE
23 24 25 27
28
26
9
8
7
10
33
7
33
4
6L
5L
FOR MODELS EQUIPPED
WITH SECONDARY LOCKS
30 (2 Req.)
31 (2 Req.)
32 (2 Req.)
17
16A*
16B*
18
21
20**
19**
22
RK-04413
BRACKET PIN AND BUSHING KIT
29
(2 Req.)
RK-62004
LOCK REPLACEMENT KIT
RK-05328
LOCK GUARD REPLACEMENT KIT
For XA-2009 fifth wheel
rebuilding procedures,
see Holland publication
XL-FW134
XL-AM107 Rev C 11
FW8 SERIES PARTS EXPLOSION — FLEETMASTER — No yokeshaft in front, With “ears”
XA-201 PARTS LIST
1 XB-06329-1 1
Hex Head Cap Screw 5/8˝-11 x 4-1⁄4
˝
2 XB-09495 1 Spring
3 XD-06328 1 Adjusting Wedge
4 XB-06179-2 1 Locknut 5/8˝-11
5XB-06330 1 Plunger Spring
6XA-09417-1 1 Locking Plunger
7 XE-09415 1 Cam Arm
8XA-08162 2Roller
9XB-08558 2SHCS 1/2˝-13 x 3/4˝
10R XA-09580† 1 Right-Hand Release Arm
10L XA-09514 1Left-Hand Release Arm
11R-3 XB-09629† 1Extension Spring
11R-6 XB-09581† 1 Extension Spring
11L XB-09408** 1 Extension Spring
12R XA-09632† 1Right-Hand Release Handle
12L XA-09484** 1 Left-Hand Release Handle
13 XB-T-199 1 5/8˝ Washer
14 XB-06336 1Cotter Pin .19˝ x 1-1⁄4˝
15 XA-09416* 1 Hinged Lock
16 XA-06344 1 Lock Pin
17 XB-5 1 Cotter Pin 1⁄4˝ x 2˝
18 XB-08764 1 Lock Return Spring
19
XB-21-S-500-2750
1 Roll Pin
* Not available individually; order RK-201-A3-L or RK-201-A3 ** Not available individually; order RK-09557 † Not available individually; order RK-09556
20 XA-09558 1 Spacer
21 XB-1108 1 Washer
22 XB-C-38-C-214 1 HHCS, 3/8˝ x 2-1/4”
23 XB-09517-1 1 Extension Spring
24 XB-H-38 2 Grease Fitting
25 XB-T-69-A 2 Locknut, 1/2˝-20
26 XB-C-95 2 Hex Head Cap Screw 1/2˝-20 x 1-1⁄4˝
27 XA-09590 1Wedge Stop Block
28 XA-06349 1 Manual Secondary Lock Arm
29 XB-767-C 1 45° Grease Fitting
30 XA-1016-C 1Secondary Lock Pin
31 XB-5 1Cotter Pin 1/4˝ x 2˝ (Same as #17)
32 XA-06345 1 Secondary Lock Release Handle
33 XB-1204 2 7/16˝ Washer
34 XB-1028-1 1 Spring
35 XB-06337 2 Cotter Pin 1/8˝ x 1˝
36 XB-PWC-38-78 1 Washer, 3/8˝ Clipped
37 XE-06356 2 Bracket Pin
38 XB-0011-2 2 Rubber Bushing
39 TF-TLN-08284 1 Helper Block (Wood)
40 TF-TLN-4000 1 Helper Block (Steel)
41 TF-TLN-0110 1 Kingpin Gage
42 TF-TLN-5001 1 2˝ Lock Adjustment Tool
NO.
ITEM PART NO. REQ’D. PART NAME NO.
ITEM PART NO. REQ’D. PART NAME
XA-201 Rebuild Kit
RK-201-A3: Right-hand Release RK-201-A3-L: Left-hand Release
37 (2 Req.)
38 (2 Req.)
25 (2 Req.) 26 (2 Req.)
RK-06973-1
BRACKET PIN AND BUSHING KIT
RIGHT-HAND RELEASE
MODELS EQUIPPED WITH
MANUAL SECONDARY LOCKS
ACCESSORIES
13
26 (2 Req.)
25 (2 Req.)
24
17
19
18
7
10L
24
9
8
9
8
27
5
6
4
3
2
1
15
16
14
12L
11L 41 42
40
39
RK-09557
FOR LEFT-HAND RELEASE
11R-3
12R
10R 13
11R-6
14
35
36
28
32
31
30
29
33
34
33
23
22
21
20
LEFT-HAND
RELEASE ONLY
For XA-201 fifth wheel rebuilding procedures,
see Holland publication XL-FW355
REBUILDING AND PARTS KITS
EXPLANATION OF PART NUMBER SEQUENCE
12 XL-AM107 Rev C
PART
NUMBER DESCRIPTION
RK-01370 ..........Komp. lockout kit - both sides
RK-03156 ..........Release lever kit
RK-03185-1 .......Kit for XA-2801-03815 & -1
RK-03618 ..........Liner brkt. kit - XA-3501-UB
RK-03809 ..........Cushion & riser kit
RK-03810 ..........Cushion & riser kit
RK-04077 ..........Drop handle kit for XA-3501-A-28-LH
RK-04413 ..........Cushion & pin kit for old style FW2000/FW3500
RK-04489 ..........
Hyd. cylinder rep. kit (XA-2810-1 piston w/1 groove)
RK-05327 ..........Lock guard kit, FW1226
RK-05328 ..........Lock guard kit, XA-2009
RK-05329 ..........Lock guard kit, XA-3501
RK-05466 ..........Lock kit - XA-3501-S05154
RK-06122 ..........No-tilt conv. kit - 7.88˝
RK-06123 ..........No-tilt conv. kit - 8.88˝
RK-06356 ..........Mounting kit - includes bracket pins, bolts, & nuts
RK-06535 ..........Air line kit
RK-06559 ..........Air release kit for air release kingpins
RK-06973-1 .......Cushion & pin kit, FW8, FW35, FW33 (New style)
RK-07370 ..........Air release kit
RK-0778 ............Lockout kit retrofit (FW2080)
RK-07814 ..........Air release kit - includes RK-06559 & RK-09649
RK-08415-1 .......Handle kit – field replacement
RK-09063 ..........Repair kit for XA-351-03505
RK-09429 ..........LH handle kit for XA-201-A-L (Gen. II Series only)
RK-09555 ..........RH handle kit for XA-201-A (Gen. II Series only)
RK-09556 ..........RH handle kit for XA-201-A (Gen. III Series only)
RK-09557 ..........LH handle kit for XA-201-A-L (Gen. III Series only)
RK-09922-L........Sensor harness and brackets (left hand release)
RK-09922 ..........Sensor harness and brackets (right hand release)
RK-10073 ..........ELI retrofit kit without top plate (XA-351, XA-331)
RK-10073-U.......ELI yard spotter retrofit kit without top plate
RK-10076 ..........ELI date download kit
RK-10130 ..........Sensor harness and brackets (yard spotter)
RK-1117-1 .........Release handle kit (XA-2009-A)
RK-1117-1-L ......Release handle kit (XA-2009-A-LH)
RK-1117-6-L ......Release handle kit (XA-2009-A-UP-LH)
RK-1118-2-L ......Rebuild kit - LH cam (XA-2009-A-LH)
RK-1707-1 .........RH handle kit (XA-1501-BA)
RK-1707-10 .......Release handle kit (XA-581-AU1)
RK-1707-2 .........Release handle kit (XA-1901-A)
RK-1707-5 .........Release handle kit (XA-1501-CA1)
RK-1707-6 .........Handle kit (XA-3501-A) (RH)
RK-1707-M ........Handle kit (XA-3501-A) (LH)
RK-201-A3 .........Service kit XA-201-A) RH release
RK-201-A3-02....Service kit (XA-201-A-02) RH release w/manual sec.
RK-201-A3-02-L
...Service kit (XA-201-A-02-L) LH rel. w/manual sec.
RK-201-A3-14-L
....Service kit (XA-201-A-02) RH rel. w/lube fittings
RK-201-A3-L ......Service kit (XA-201-A-L) LH release
RK-2500-10 .......Air slide hose kit
RK-2500-10A .....Air slide hose kit with valve
RK-2774 ............Rod bearing kit (hydraulic cylinder)
RK-2800-11-G....Gear pump & hyd. control valve - single cyl.
RK-2800-20-G....Hose & fitting for single cyl. models
RK-2800-30-G....Hose & fitting for twin cyl. models
RK-2800-41-G....Hyd. gear pump, cont. valve, flange kit for twin cyl.
RK-2800-50 .......Air operated lift control for all models
RK-2922 ............Hydraulic cyl. repair kit
RK-331-1 ...........LowLube plates kit
RK-331-2 ...........Pocket inserts kit
RK-331-3 ...........Plates and pocket insert kit
PART
NUMBER DESCRIPTION
RK-351-03505 ...Rebuild kit (XA-351-03505 & XA-351-03505-2)
RK-351-03505-3
...Rebuild kit (XA-351-03505-3)
RK-351-03505-4
...Rebuild kit (XA-351-03505-S)
RK-351-06-1 ......No-Tilt con. kit for FW35-7811 Series
RK-351-06-2 ......No-Tilt con. kit for FW35-7812 Series
RK-351-07296 ...Lock kit (XA-351 Series)
RK-351-08332-1
...Lock kit (XA-351-03505)
RK-351-09967 ...Handle kit (XA-351-A-28-L)
RK-351-A ...........Rebuild kit – XA-351-A – RH release
RK-351-A-02......Rebuild kit – XA-351-A-02 manual secondary (RH)
RK-351-A-02-L ...Rebuild kit – XA-351-A-02-L manual secondary (LH)
RK-351-A-80-L ...Rebuild kit - XA-351-A-80-L
RK-351-A-L ........Rebuild kit – XA-351-A-L – LH release
RK-351-UB.........Rebuild kit – XA-351-UB (used on FW67-16B)
RK-6003 ............Release handle kit (XA-6001-A)
RK-62000 ..........Rebuild kit - XA-2009-A
RK-62000-1 .......Rebuild - XA-2009-A w/RK-04413
RK-62001 ..........Rebuild kit - XA-2009-A-LH
RK-62001-1 .......Rebuild kit - XA-2009-A-LH with RK-04413
RK-62002 ..........Rebuild kit - XA-2009-A-UP
RK-62002-1 .......Rebuild Kit - XA-2009-A-UP with RK-04413
RK-62004 ..........Lock kit - XA-2009-A
RK-62005 ..........Rebuild kit - FW1226-UP w/LH release
RK-62005-1 .......Rebuild kit - FW1226-0087 w/RH release
RK-62008 ..........Rebuild kit - FW1226
RK-62011 ..........Rebuild kit - XA-2009-01633
RK-62012 ..........Rebuild kit - XA-2009-01633-1
RK-63500 ..........Rebuild kit - XA-3501-A
RK-63500-1 .......Reb. kit - XA-3501-A w/ RK-04413
RK-63501 ..........Rebuild kit - XA-3501-A-LH
RK-63501-1 .......Reb. kit - XA-3501-A-LH with RK-04413
RK-63502 ..........Rebuild kit - XA-3501-UB for air lift wheels FW6700
RK-63503 ..........Lock kit - XA-3501-A, XA-1501-BA
RK-63504 ..........Lock kit - XA-3501-UB
RK-63505 ..........Rebuild kit - XA-3501-A-SM
RK-63506 ..........Rebuild kit - XA-3501-A-LH-SM
RK-63507 ..........Rebuild kit - FW1900
RK-63508 ..........Rebuild kit - XA-3501-01244
RK-63509 ..........Rebuild kit - XA-351-01244-1
RK-63510 ..........Rebuild kit - XA-3501-1244-2
RK-63512 ..........Rebuild kit - XA-6001-A
RK-63513 ..........Rebuild kit - XA-6201-A
RK-63518 ..........Kit for XA-3501-03505 for yd.sptr. FW3500-03344
RK-65000 ..........Reb. kit - XA-1501-BA, XA-1581-A1
RK-65005 ..........Rebuild kit - XA-1501-CA1
RK-65006 ..........Rebuild kit XA-1581-AU1
RK-65010 ..........Slider spring conversion kit
RK-65012 ..........Rebuild kit - XA-101-DA
RK-65013 ..........Rebuild kit - XA-101-OA
RK-65014 ..........Rebuild kit - XA-71-DA
RK-65014-1 .......Rebuild kit - XA-71-DA-03705
RK-65015 ..........Rebuild kit - XA-71-OA
RK-65015-1 .......Rebuild kit - XA-71-OA-0713
RK-65021 ..........Rebuild kit - XA-2801-AX-1
RK-65021-1 .......Rebuiild kit - XA-2801-S0848
RK-65022 ..........Rebuild kit - XA-71-DUA
RK-65024 ..........Lock kit, 2˝ - XA-71-DA, XA-101-DA
RK-65024-1 .......Lock kit, 3.5˝ - XA-71-OA, XA-101-OA
RK-65025 ..........Secondary lock kit - XA-71, XA-101, XA-2801 Series
RK-6811 ............Air lift fitting kit
RK-6813 ............Air tank & tank bracket kit
1. Most part numbers have been assigned a prefix
˝XA˝ or ˝XB˝.
2. Listing is alpha-numeric, following the prefix.
3. Parts are listed in the following sequence:
A. Prefix
B. Alpha (letter)
C. Numeric (number) - sequence is left to right.
Examples:
A. XA part numbers precede XB part numbers.
B. XA-A part numbers precede XA-B part numbers.
C. XA-A-1 part numbers precede XA-A-2
part numbers.
D. XA-1 part numbers precede XA-2 part numbers.
E. Old part number ˝5˝ is now found after
part number
XB-4606 - in the following sequence:
XB-4606
XB-5
XB-635-A
Notes:
Part numbers marked with an asterisk (*) indicate that other frame
widths are available. For frame widths other than 34˝, replace “G”
with the appropriate letter from the Frame Width Code chart found
on page 2.
XL-AM107 Rev C 13
Slide Plates without Mounting Angles
Standard Capacity
For FW8 FleetMaster Series, FW35 Series, or FW33 LowLube Series Fifth Wheels
Over-the-Frame Mount
PLATE 6.62˝ 7.62˝ and 8.62˝ 10.1˝ APPROX.
MODEL LENGTH TRAVEL TRAVEL TRAVEL WEIGHT
XA-0750-1-11...................................................32.8˝ .......................N.A.........................12.2˝.........................N.A........................83 lbs.
XA-0751-1........................................................38.9˝......................10.7˝.......................18.4˝........................13.9˝ ....................103 lbs.
XA-0751-2........................................................45.0˝......................16.8˝.......................24.5˝........................19.9˝ ....................118 lbs.
XA-0751-3........................................................57.2˝.......................N.A.........................36.7˝........................32.1˝ ....................149 lbs.
XA-0751-3A......................................................52.6˝......................24.5˝ ........................N.A...........................N.A......................138 lbs.
XA-0751-4........................................................69.5˝......................41.3˝.......................48.9˝........................44.4˝ ....................169 lbs.
XA-0751-5........................................................82.0˝......................53.6˝.......................61.2˝........................56.6˝ ....................229 lbs.
XA-0751-6........................................................94.0˝......................65.8˝.......................73.4˝........................68.8˝ ....................283 lbs.
All solid slide plates (XA-0750-1 through -7) are available on special order – no additional up charge.
Slide Plates with Attached Mounting Angles
Standard Capacity
For FW8 FleetMaster Series, FW35 Series, or FW33 LowLube Series Fifth Wheels
Over-the-Frame Mount
PLATE 7.00˝ 8.00˝ and 9.00˝ 10.4˝ APPROX.
MODEL LENGTH TRAVEL TRAVEL TRAVEL WEIGHT
XA-0752-G1-11 ................................................32.8˝.......................N.A.........................12.2˝.........................N.A......................137 lbs.
XA-0753-G1 .....................................................38.9˝......................10.7˝.......................18.4˝........................13.9˝ ....................179 lbs.
XA-0753-G2 .....................................................45.0˝......................16.8˝.......................24.5˝........................19.9˝ ....................198 lbs.
XA-0753-G3 .....................................................57.2˝.......................N.A.........................36.7˝........................32.1˝ ....................249 lbs.
XA-0753-G3A ...................................................52.6˝......................24.5˝ ........................N.A...........................N.A......................231 lbs.
XA-0753-G4 .....................................................69.5˝......................41.3˝.......................48.9˝........................44.4˝ ....................290 lbs.
XA-0753-G5 .....................................................82.0˝......................53.6˝.......................61.2˝........................56.6˝ ....................370 lbs.
XA-0753-G6 .....................................................94.0˝......................65.8.........................73.4 .........................68.8......................445 lbs.
NOTE: For frame width other than 34˝, replace “G” with appropriate letter – see Page 2.
Slide Plates
Standard Capacity
For FW8 FleetMaster Series, FW35 Series, or FW33 LowLube Series Fifth Wheels
Outboard Angle Mount
MOUNTING PLATE 6.62˝ and 8.12˝ 7.62˝ and 8.62˝ 10.1˝ APPROX.
MODEL LENGTH TRAVEL TRAVEL TRAVEL WEIGHT
XA-07871-1......................................................34.2˝.......................N.A.........................12.2˝.........................N.A......................107 lbs.
XA-07871-2......................................................42.2˝.......................N.A.........................18.4˝.........................N.A......................121 lbs.
XA-07871-3......................................................46.2˝.......................N.A.........................24.5˝.........................N.A......................152 lbs.
XA-07871-4......................................................58.2˝.......................N.A.........................36.7˝.........................N.A......................185 lbs.
XA-07871-5......................................................70.2˝.......................N.A.........................48.9˝.........................N.A......................225 lbs.
XA-07871-1L ....................................................42.2˝......................10.7˝ ........................N.A. ........................13.9˝ ....................136 lbs.
XA-07871-2L ....................................................50.2˝......................16.8˝ ........................N.A. ........................19.9˝ ....................156 lbs.
XA-07871-3L ....................................................55.2˝......................24.5˝ ........................N.A. ........................32.1˝ ....................184 lbs.
XA-07871-4L ....................................................74.2˝......................41.3˝ ........................N.A. ........................44.4˝ ....................237 lbs.
XA-0758-5* ......................................................86.2˝......................52.0˝.......................61.2˝........................56.6˝ ....................340 lbs.
XA-0758-6* ......................................................98.2˝......................64.3˝.......................73.4˝........................68.8˝ ....................410 lbs.
NOTE: * Slide plates will yield F.W. height 3/8˝ taller. All slide plate numbers listed above are Weight Savers.
14 XL-AM107 Rev C
Slide Plates continued
Extra Capacity
For FW2555 Series Fifth Wheel
Outboard Angle Mount
MOUNTING PLATE APPROX.
MODEL LENGTH TRAVEL WEIGHT
XA-0758-2........................................................50.2˝......................16.8˝..........................................................................................185 lbs.
XA-0758-3A......................................................58.2˝......................24.5˝..........................................................................................215 lbs.
XA-0758-4........................................................74.2˝......................41.3˝..........................................................................................265 lbs.
XA-0758-5........................................................86.2˝......................52.0˝..........................................................................................340 lbs.
XA-0758-6........................................................98.2˝......................64.3˝..........................................................................................410 lbs.
For FW2570 Series Fifth Wheels
Over-the-Frame Mount
PLATE NOMINAL APPROX.
MODEL LENGTH TRAVEL F.W. HEIGHT WEIGHT
Slide Plate without Mounting Angles
XA-0284-1..................................................................38.9˝............................10.7˝ ....................8.00˝ or 9.00˝..............................223 lbs.
XA-0284-2..................................................................45.0˝............................16.8˝ ....................8.00˝ or 9.00˝..............................245 lbs.
XA-0284-3A................................................................52.6˝............................24.5˝ ....................8.00˝ or 9.00˝..............................300 lbs.
XA-0284-4..................................................................69.5˝............................41.3˝ ....................8.00˝ or 9.00˝..............................375 lbs.
XA-0284-5..................................................................82.0˝............................53.6˝ ....................8.00˝ or 9.00˝..............................442 lbs.
XA-0284-6..................................................................94.0˝............................64.3˝ ....................8.00˝ or 9.00˝..............................515 lbs.
Slide Plate with .5˝x 4˝x 4˝ Angles
XA-02136-G1*............................................................38.9˝............................10.7˝ ....................8.50˝ or 9.50˝..............................313 lbs.
XA-02136-G2*............................................................45.0˝............................16.8˝ ....................8.50˝ or 9.50˝..............................347 lbs.
XA-02136-G3A*..........................................................52.6˝............................24.5˝ ....................8.50˝ or 9.50˝..............................419 lbs.
XA-02136-G4*............................................................69.5˝............................41.3˝ ....................8.50˝ or 9.50˝..............................531 lbs.
XA-02136-G5*............................................................82.0˝............................53.6˝ ....................8.50˝ or 9.50˝..............................623 lbs.
XA-02136-G6*............................................................94.0˝............................64.3˝ ....................8.50˝ or 9.50˝..............................722 lbs.
* For frame width other than 34˝, replace “G” with appropriate letter – see chart on Page 2.
Slide Brackets
Standard Capacity
For FW8 FleetMaster Series, FW35 Series, or FW33 LowLube Series Fifth Wheels
Slide Bracket – Air and Manual
AIR MODEL MANUAL MODEL NOMINAL F.W. HEIGHT APPROX. WEIGHT
XA-7001........................XA-7011 .......................................................................................8.62˝..................................115 lbs.
XA-7002........................XA-7012 .......................................................................................7.62˝..................................110 lbs.
XA-7003........................XA-7013 .......................................................................................6.62˝..................................123 lbs.
XA-7003-1*...................––-––––.........................................................................................6.62˝..................................118 lbs.
XA-7301........................XA-7311 .......................................................................................8.12˝..................................130 lbs.
XA-7301-1*...................––-––––.........................................................................................8.12˝..................................127 lbs.
XA-7009........................XA-7019 .....................................................................................10.12˝..................................158 lbs.
No-Tilt
XA-7401........................XA-7411 .......................................................................................8.62˝..................................125 lbs.
XA-7409........................XA-7419 .....................................................................................10.12˝..................................155 lbs.
* FW8 Series only.
For FW2555 Series Fifth Wheels
Slide Bracket – Air and Manual
AIR MODEL MANUAL MODEL NOMINAL F.W. HEIGHT APPROX. WEIGHT
XA-7321........................XA-7322 .......................................................................................8.12˝ ..................................118 lbs.
XA-7325........................XA-7326 .......................................................................................9.62˝..................................151 lbs.
For FW2570 Series Fifth Wheels
Slide Bracket – Air and Manual
AIR MODEL MANUAL MODEL NOMINAL F.W. HEIGHT APPROX. WEIGHT
XA-7102........................XA-7112 .......................................................................................9.00˝ ..................................132 lbs.
XA-7103........................XA-7113 .......................................................................................8.00˝..................................123 lbs.
XL-AM107 Rev C 15
XB-1604-5 XB-1604-9
OLD STYLE
Mfg. prior to May, 1982
FW0070OLD STYLE
Mfg. prior to May, 1982
Mfg. May, 1982 - June, 1987
CURRENT
FW2000
FW3500
FW3600
XB-0011
FW2000 KOMPENSATOR
FW3500 KOMPENSATOR
FW3600 KOMPENSATOR
FW3501-UB
XB-0011-1 XB-0011-2
FW2000
FW3500
FW3600
CURRENT
FW2000
FW3500
FW3600
XB-0012-2
AVAILABLE OCT. 1987
FW0070
Mfg. May, 1982 - Oct. 1987
FW0070
CURRENT
FW0070 KOMPENSATOR
RUBBER UPSHOCK CUSHIONS

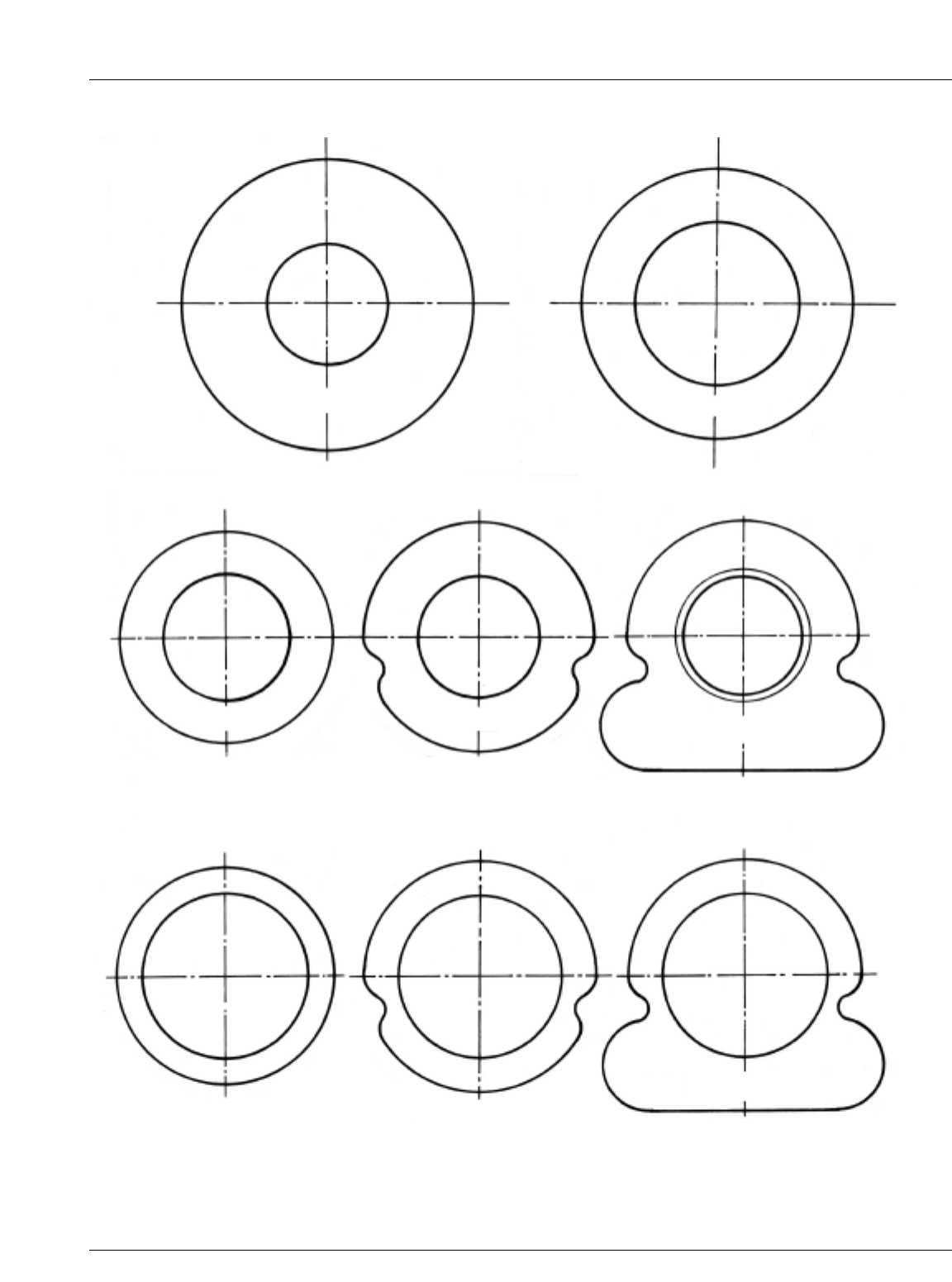

illustrations shown at 90% of actual size
XL-AM107 Rev C
16
AIR RELEASE
8.62” and 7.62” Fifth Wheel Heights
8.12˝ and 6.62˝ Fifth Wheel Heights for FW8
XA-2524-R
XA-2501
XB-2502
XA-01586
XA-2503
XA-0372-A
XA-02748-1
XA-03748 XA-2501
XB-2502
XA-01586
XA-2503
XA-0372-A
XA-0756
XA-03082
XB-03730-1
XB-2083
XB-T-69-A
XA-2524-R XB-2502
XA-01586
XA-2503
XA-0372-A
XA-2501
XB-338
XA-0708
XB-C-375-C-125
XA-0709
4.23"
2.49"
USED PRIOR TO
MAY 1, 1982 USED AFTER
MAY 1, 1982
XA-1658-2
(Air & single manual release)
XA-2535-1
(Double manual release with handle) XA-0372-A
(Air & manual release)
MANUAL RELEASE
All Fifth Wheel Heights
AIR RELEASE
8.12” and 6.62” Fifth Wheel Heights for FW35
AIR & MANUAL RELEASE
8.62” Fifth Wheel Heights
AIR & MANUAL RELEASE
7.62” Fifth Wheel Heights
AIR & MANUAL RELEASE
8.12” Fifth Wheel Heights
AIR & MANUAL RELEASE
6.62” Fifth Wheel Heights
7.56”
See
Page 4
6.56”
See
Page 4
7.06” See
Page 4
5.56" See
Page 4
Brackets are available
only as part of complete
bracket assemblies –
XA-7003 (air) or XA-
7013 (manual). Rubber
bushings included.

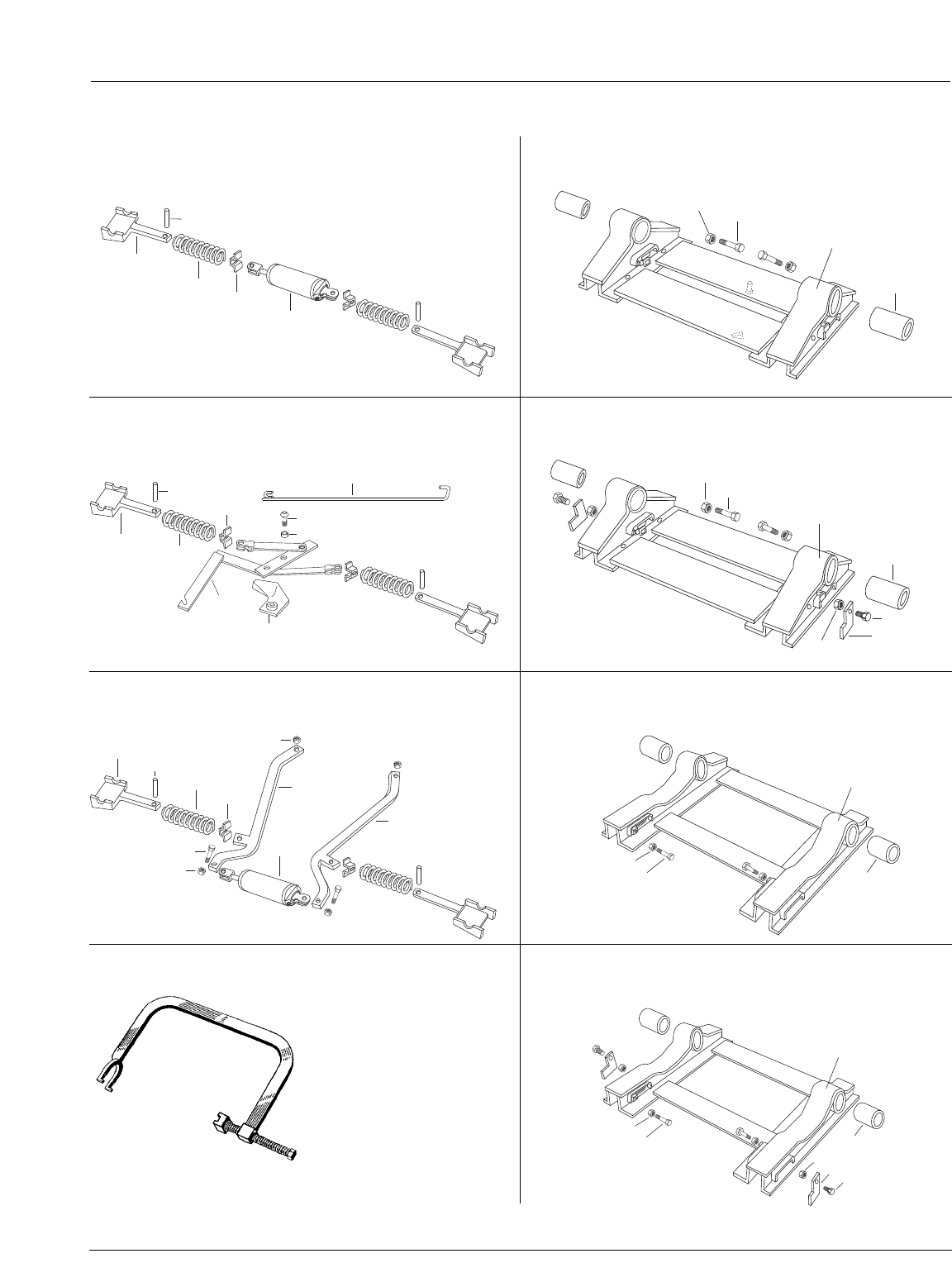

FW8, FW35, FW2500 & FW2535 SERIES SLIDE BRACKET PARTS
Manual Release Installation Instructions — Manufactured AFTER May 1, 1982
PLUNGER STYLES
Brackets are available
only as part of complete
bracket assemblies –
XA-7301 (air) or XA-7311
(manual). Rubber bush-
ings included.
Brackets are available
only as part of complete
bracket assemblies –
XA-7002 (air) or XA-
7012 (manual). Rubber
bushings included.
Brackets are available
only as part of complete
bracket assemblies –
XA-7001 (air) or XA-
7011 (manual). Rubber
bushings included.
NOT AVAILABLE
XL-AM107 Rev C 17
Manufactured PRIOR May 1, 1982
FW2500-H, FW2535-H & FW2536-H SERIES SLIDE BRACKET PARTS
AIR RELEASE
8.69” and 7.69” Fifth Wheel Heights
XA-2524-R
XA-2501
XA-2503
XB-2502
XA-1658-2
SINGLE MANUAL RELEASE
All Fifth Wheel Heights
AIR & SINGLE MANUAL RELEASE
8.69” & 7.69” Fifth Wheel Heights
DOUBLE MANUAL RELEASE
8.69” & 7.69” Fifth Wheel Heights
AIR & SINGLE MANUAL RELEASE
6.75” Fifth Wheel Heights
DOUBLE MANUAL RELEASE
6.75” Fifth Wheel Heights
XB-T-64XB-C-59
XB-1604-5
INTERCHANGABLE
WITH BRACKETS
ON PAGE 1
XA-2534
XB-1604-5
XB-3103
XB-3102-1
XB-T-64
XB-C-59 INTERCHANGABLE
WITH BRACKETS
ON PAGE 1
XB-C-59
XB-T-64 XB-1604-5
INTERCHANGABLE
WITH BRACKETS
ON PAGE 1
XB-C-59
XB-T-64 XB-1604-5
XB-3103
XA-2534
XB-3102-1
INTERCHANGABLE
WITH BRACKETS
ON PAGE 1
AIR RELEASE
6.75” Fifth Wheel Heights
XA-02748-1
XA-03748
XA-2501
XB-2502
XA-2503
XA-1658-2
XA-0756
XA-03082
XB-03730-1
XB-2083
XB-T-69-A
XA-2524-R
XB-2502
XA-2501
XB-2503
XA-1658-2
XA-2508-R
XA-2508-L
XB-T-69-A
TF-TLN-2500
Slider Spring Compressor
Slider Bracket
Maintenance Tool
XL-AM107 Rev C18

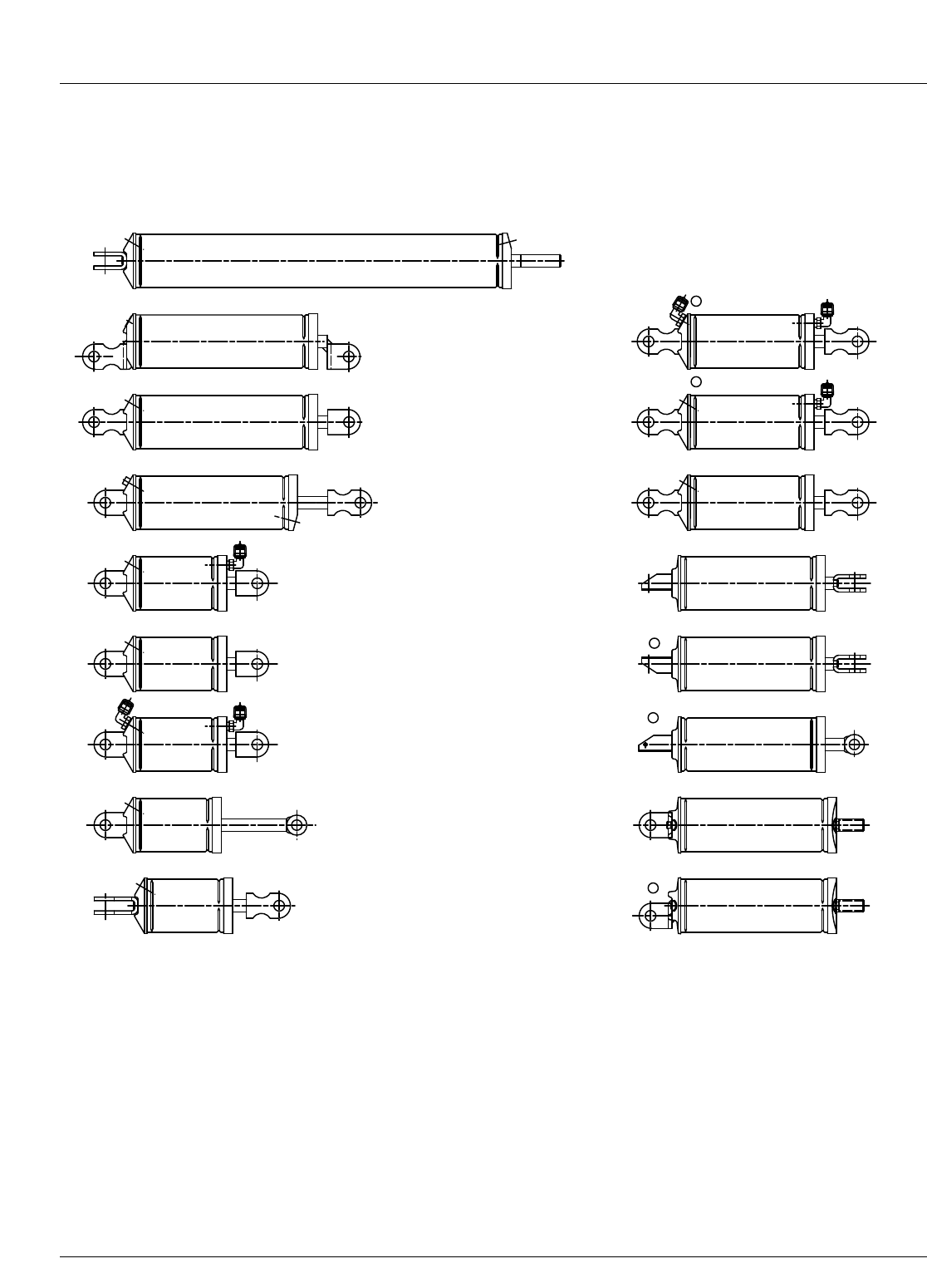

FIFTH WHEEL AIR CYLINDER ILLUSTRATIONS
Air Cylinders
XA-2801-03185-3
F
H286
ET
10-13-98
XA-S02392-R
G
FBLIND
XA-3501-06533
END
4.899.05 REF13.95 REFXA-2524-R-15-R
E
E
ADDED
10-1-98 H272
ET
FW503-SERIES
ENDS
BOTH
5.13
10.468 MIN
10.625 MAX
15.782 MAX
15.598 MIN
XA-2524-07237-1
BLIND
END
3.64
10.452 MAX
10.252 MIN
14.108 MAX
13.863 MIN
XA-2524-R-4-2
Holland
DET
PART NO.
QTY.
DESCRIPTION
SCALE
DATE
DRAWN BY
CHECKED
APPROVED
DRAWING
NUMBER
HOLLAND HITCH COMPANY
NAME
MATERIAL
FILE
NO.
PART
NUMBER
FIRST
USED
CHANGE RECORD
LETTER
WAS
DATE
BY
E.C.N.
WARRANTY
BLIND
END
6.77
12.750 MAX
12.506 MIN
19.650 MAX
19.171 MIN
XA-2524-R1
BLIND
END XA-3501-065334.899.05 REF13.95 REFXA-2524-R-15-L
FW503-SERIES
BOTH
ENDS
5.13
10.625 MAX
10.468 MIN
15.782 MAX
15.598 MIN
XA-2524-07237
/disc4/me10/chart/cyl-chart.mi
16.06
38.742 MAX
38.556 MIN
BSV
BVD
-------
9-1-98
E TERPSMA
26972
CHART, AIR CYLINDER
9.649 MAX
9.464 MIN
10.840 MAX
10.361 MIN
11.690 MAX
11.280 MIN
18.560 MAX
18.171 MIN
19.650 MAX
19.171 MIN
XA-2524-2
XA-2524-2A
12.750 MAX
12.506 MIN
7.613 MAX
7.473 MIN
22.680 MAX
22.496 MIN
9.570 MAX
9.385 MIN
12.750 MAX
12.506 MIN
8.720 MAX
8.476 MIN
SUPERSEDES #24062
H219
FW1500 SERIES
FW3500 SERIES
FW1580 SERIES
FW2800 SERIES
FW2900 SERIES
FW1560 SERIES
FW0070, FW0100
& FW2080 SERIES
SLIDING
5TH WHEELS
BLIND
END
BLIND
END
2.02
1.99
XA-2524-13
XA-2524-R-13
XA-2524-R-13-1
XA-2760-1
XA-2760-R-1
BLIND
END
1.99
XA-2524-13-X
XA-2524-R-13-X
BLIND
END
XA-2524-4
xA-2524-R-4
XA-2524-R-4-1
ROD
END
5.74
XA-2524-R-2
BLIND
END
6.77
XA-2524XA-2524-R
ET
9-1-98
REPLACES
PART NO.
PART NO.
TF-675
USED ON
BOTH
ENDS
AIR
INLET
STROKE
REF
RETRACTEDEXTENDED
HOLE TO HOLE DIM.
XA-2524-12
XA-2524-R-12
H219
ET
9-1-98
XA-2524-R-13
A
THIRD ANGLE PROJECTION
IN.
MM
±1.5 ±.060
±0.8 ±.030
±0.5 ±.020
UNSPECIFIED TOLERANCES
ONE PLACE(.X)
TWO PLACE(.XX)
THREE PLACE(.XXX)
ANGLES ±1∞
FRACTIONAL
OR NO DECIMAL(X. )
±3 ± 1/8
B
XA-2524-R-4
9-1-98 ETH219
XA-2524-R-13-3
XA-2524-R-13-2 9.649 MAX
9.464 MIN
7.613 MAX
7.473 MIN
2.02 BLIND
END
FW1500 SERIES
FW3500 SERIES
FW3500 SERIES
FW1500 SERIES
END
BLIND
2.02
7.613 MAX
7.473 MIN
9.649 MAX
9.464 MIN
A
B
C
C
C
9-1-98 ET H219
ADDED
C
D
REVISED ALL END CRIMPS
9-1-98 ET H219
14.108 MAX
13.863 MIN
10.452 MAX
10.252 MIN
3.64
XA-2524-R-16-L 13.95 REF 9.05 REF 4.89
BLIND
END
OPT. CODE 80
F
ADDED
10-13-98 ETH286
F
XA-2524-R-4-3 14.108 MAX
13.863 MIN
10.452 MAX
10.252 MIN
3.64 BLIND
END
XA-2801-03185-4
G
B
L
I
N
D
E
N
D
R
O
D
E
N
D
F
E
F
D
F
XA-2524-R-12
XA-2524-R1
XA-2524-R
XA-2524-R-2
XA-2524-R-13-2
XA-2524-R-13-3
XA-2524-R-13-X
XA-2760-R-1
XA-2524-R-4-3
XA-2524-R-4-2
XA-2524-R-4-1
XA-2524-R-15-L
XA-2524-R-15-R
XA-2524-R-16-L
XA-2524-07237
XA-2524-07237-1
B
L
I
N
D
E
N
D
R
O
D
E
N
D
B
L
I
N
D
E
N
D
R
O
D
E
N
D
XA-2524-R-13-1
XL-AM107 Rev C 19
FIFTH WHEEL AIR CYLINDER PARTS LIST
Air Cylinder Chart
HOLLAND HOLE-TO-HOLE DIM. STROKE
PART N0. EXTENDED RETRACTED REF AIR INLET USED ON
XA-2524-R-13-2 9.649˝ 9.464˝ 7.613˝ 7.473˝ 2.02˝ Blind End FW1500, FW3500
XA-2524-R-13-3 9.649˝ 9.464˝ 7.613˝ 7.473˝ 2.02˝ Blind End FW1500, FW3500
XA-2524-R-12 38.742˝ 38.556˝ 22.680˝ 22.496˝ 16.06˝ Both Ends TF-675
XA-2524-R 19.650˝ 19.171˝ 12.750˝ 12.506˝ 6.77˝ Blind End Sliding 5th Wheels
XA-2524-R-2 18.560˝ 18.171˝ 12.750˝ 12.506˝ 5.74˝ Rod End FW0070, FW0100, & FW2080
XA-2524-R-4-3 14.108˝ 13.863˝ 10.452˝ 10.252˝ 3.64˝ Blind End XA-2801-03185-4
XA-2524-R-4-2 14.108˝ 13.863˝ 10.452˝ 10.252˝ 3.64˝ Blind End XA-2801-03185-3
XA-2524-R-4-1 14.108˝ 13.863˝ 10.452˝ 10.252˝ 3.64˝ Blind End FW1560 Series
XA-2524-R-13-X 11.690˝ 11.280˝ 9.570˝ 9.385˝ 1.99˝ Blind End FW2800 Series, FW2900
XA-2760-R-1 10.840˝ 10.361˝ 8.720˝ 8.476˝ 1.99˝ Blind End FW1580
XA-2524-R-13-1 9.649˝ 9.464˝ 7.613˝ 7.473˝ 2.02˝ Blind End FW1500, FW3500
XA-2524-R-16-L 13.95˝ REF 9.05˝ REF 4.89˝ Blind End OPT. CODE 80
XA-2524-R-15-R 13.95˝ REF 9.05˝ REF 4.89˝ Blind End XA-3501-06533
XA-2524-R-15-L 13.95˝ REF 9.05˝ REF 4.89˝ Blind End XA-3501-06533
XA-2524-07237-1 15.782˝ 15.598˝ 10.625˝ 10.468˝ 5.13˝ Both Ends FW503 (Obsolete)
XA-2524-07237 15.782˝ 15.598˝ 10.625˝ 10.468˝ 5.13˝ Both Ends FW503 (Obsolete)
XA-2524-R1 19.650˝ 19.171˝ 12.750˝ 12.506˝ 6.77˝ Blind End Warranty
TO BE COMPLETED
IN FUTURE RELEASES
20 XL-AM107 Rev C
FIFTH WHEEL PARTS LIST
Fifth Wheel Components
TOP REBUILD LOCK LOCK HANDLE BUSHING/ AIR
PRODUCT TYPE PLATE KIT GUARD KIT KIT PIN KIT CYLINDER
FW3500 Stationary XA-3501-A-LH RK-63501 RK-05329 RK-63503 RK-1707-M RK-04413 None
FW2535 Sliding XA-3501-A-RH RK-63500 RK-05329 RK-63503 RK-1707-6 RK-04413 XA-2524
FW2000 Stationary XA-2009-A-LH RK-62001 RK-05328 RK-62004 RK-1117-1 RK-04413 None
FW2500 Sliding XA-2009-A-RH RK-62000 RK-05328 RK-62004 RK-1117-1-L RK-04413 XA-2524
FW2555 Sliding XA-71-A-DAS RK-65014 - RK-65024 - - -
FW2570 HD Sliding XA-71-A-DAS RK-65014 - RK-65024 - - -
FW35 Stationary XA-351-A-L RK-351-A-L N/A RK-351-07296 XA-07151-1 RK-06973-1 None
FW35 Sliding XA-351-A RK-351-A N/A RK-351-07296 XA-07151-1 RK-06973-1 XA-2524
FW35-89xx No-tilt Stationary XA-351-A-06-L-P RK-351-A-L N/A - - - -
FW35-7401 No-tilt Sliding XA-351-A-06-L-P RK-351-A-L N/A - XA-07151-1 RK-06973-1 XA-2524
FW35-8401 No-tilt Sliding XA-351-A-06-L-P RK-351-A-L N/A - XA-07151-1 RK-06973-1 -
FW8 Stationary XA-201-A3-L RK-201-A3-L N/A N/A N/A RK-06973-1 None
FW8 Sliding XA-201-A3 RK-201-A3 N/A N/A N/A RK-06973-1 XA-2524
FW17 Stationary XA-17-A-L-P RK-17-A-L N/A - - - None
FW17 Sliding LH* only LH* only N/A - - - XA-2524
FW6700-16B Air Elevating XA-3501-UB RK-63502 N/A RK-63504 - - -
FW67-16B Air Elevating XA-351-UB-P RK-351-UB N/A - - - -
FW35-03344 Yard Spotter XA-351-03505S RK-351-03505 N/A N/A - - XA-2524-R-13-1
FW35-03344-1 Yard Spotter XA-351-03505S RK-351-03505 N/A N/A - - XA-2524-R-13-1
FW2870-03184 Yard Spotter XA-2801-03185-1 N/A RK-03185-1 - - XA-2524-R-4-1
FW1560 Side Oscillating XA-1501-CA1S RK-65005 N/A
FW0100-D HD** (2˝ KP†) XA-101-DAS RK-65012 N/A RK-65024 N/A
FW0100-0 HD** (3.5˝ KP†) XA-101-OAS RK-65013 N/A RK-65024-1 N/A
FW0070 HD** (2˝ KP†) XA-71-DAS RK-65014 N/A RK-65024 N/A
FW0070 HD** (3.5˝ KP†) XA-71-OAS RK-65015 N/A RK-65024-1 N/A
FW2800-X Lift*** XA-2801-AX-1S RK-65021 N/A N/A
FW2900-X Lift*** XA-2801-AX-1S RK-65021 N/A N/A
FW1580 XA-1581-A-1 RK-65006 - - - - -
FW2870-03184 XA-2801-03185-1S - - - - - -
*Left Hand.
** Heavy Duty
*** Hydraulic Lift Wheel
†King pin.
TO BE COMPLETED
IN FUTURE RELEASES
XL-AM107 Rev C 21
SIMPLEX, CASTLOC, 400C AND SLIDER KITS
Simplex Active Fifth Wheels & Sliders
SIMPLEX
SIMPLEX II SE SIMPLEX II YARD
ITEM SIMPLEX SE SIMPLEX II SE RH* RH TRACTOR
NO. FIFTH WHEEL MODEL SIMPLEX SE TOUCHLOC SIMPLEX II SE TOUCHLOC (RIGHT-HAND) (RIGHT-HAND) (SPOTTER)
1 Fifth Wheel Sub-Assembly 1040 2727 1060 2720 4102 2727 9502 720 1120 2720 1120 2700 4100 129
1040 2720 4102 2720 4100 219
2 Serial Number Prefix- S1LS- S1LT- S2LS- S2LT- S2RS- SR- SA-
3 Replaced by Simplex Model NA NA NA NA NA II SE RH NA
Kit Names and Numbers
1060 2700 1080 2700 1100 2700 4102 707 9502 700 7102 700
4 Handle Kit 4000 507 4000 531 4000 507 4000 531 4000 646 4000 512
(handle part number) (4100 382) (4100 420) (4100 382) (4100 420) (4100 448) (4100 441) NA
5Alternate Handle Kit (45˚ chamfer) 4000 531 4000 531
(handle part number) (4100 420) NA (4100 420) NA NA NA NA
6 Jaw w/ Standard Pin 4000 644 4000 644 4000 644 4000 644 4000 645 4000 503 4000 503
7Jaw w/ Oversized Pin NA NA NA NA NA 4000 523 4000 523
8 Jaw & Return Spring Retrofit NA NA NA NA NA 4000 540 NA
9 Kingpin Gauge (Jaw Adjustment Tool) 4000 171 4000 171 4000 171 4000 171 4000 171 4000 171 4000 171
10 Lock 4000 647 4000 647 4000 647 4000 647 4000 648 4000 574 4000 574
11 ** Standard pad: 0.38˝ thickness 4000 504 4000 504 4000 504 4000 504 4000 504 4000 504 NA
12 ** Large pad: 0.42˝ thickness 4000 588 4000 588 4000 588 4000 588 4000 588 4000 588 NA
13 ** Small Pad: 0.33˝ thickness 4000 641 4000 641 4000 641 4000 641 4000 641 4000 641 NA
14 ** Simplex RH Pad: 0.58˝ thickness NA NA NA NA NA NA 4000 505
15 ** Castloc & Castloc II NA NA NA NA NA NA NA
16 ** 400C NA NA NA NA NA NA NA
17 Pad, Standard: 0.38˝ thickness) 4000 528 4000 528 4000 528 4000 528 4000 528 4000 528 NA
18 Pad, Large: 0.42˝ thickness 4000 587 4000 587 4000 587 4000 587 4000 587 4000 587 NA
19 Pad, Small: 0.33˝ thickness 4000 640 4000 640 4000 640 4000 640 4000 640 4000 640 NA
20 Pad, Simplex RH: 0.58˝ thickness NA NA NA NA NA NA 4000 529
21 Touchloc Air Cylinder NA 4000 273 NA 4000 273 NA NA 4100 304
22 Shims, Poly (Castloc Series) NA NA NA NA NA NA NA
23 Shims, Steel - weld to bracket NA NA NA NA NA NA NA
Bulk Kits - Individual Parts (Quantity/Kit)
24 Handle (5) B4100 382 NA B4100 382 NA NA B4100 441 NA
25 Indicator (5) (10 for 400C) B4101 250 NA B4101 250 NA B4100 428 B4100 428 NA
26 Handle (45˚ Chamfer) (5) B4100 420 B4100 420 B4100 420 B4100 420 NA NA NA
27 Indicator (45˚ Chamfer) (5) B4100 294 B4100 294 B4100 294 B4100 294 NA NA NA
28 Lock Spring (5) B1200 706 B1200 706 B1200 706 B1200 706 B1200 706 B1200 706 B1200 706
29 Jaw Return Spring (10) B1200 101 B1200 101 B1200 101 B1200 101 B1200 101 NA NA
30 Poly Shoes (10) B4100 328 B4100 328 B4100 328 B4100 328 B4100 328 B4100 328 NA
31 Steel Shoes (10) NA NA NA NA NA NA B4109 811
32 Pads, Standard, .38˝ (20) B4100 329 B4100 329 B4100 329 B4100 329 B4100 329 B4100 329 NA
33 Pads, Large, .42˝ (20) B4100 376 B4100 376 B4100 376 B4100 376 B4100 376 B4100 376 NA
34 Pads, Small, .33˝ (20) B4100 339 B4100 339 B4100 339 B4100 339 B4100 339 B4100 339 NA
35 Pads, Simplex RH, .58˝ (20) NA NA NA NA NA NA B4100 358
36 Poly Shims (20) NA NA NA NA NA NA NA
37 Steel Shims (20) - weld to bracket NA NA NA NA NA B4100 655
SE,
1060 27 00
TAPERLOC SE, TAPERLOC INBOARD
SLIDER MODEL TAPERLOC XL (4˝ INCREMENT) INTEGRAL
38 Serial Number Prefix- TL2- TL- IBS-
Kit Names and Numbers
39 Air Cylinder 4300 228 4300 162 4300 610
40 Bolt-on removable stops 4300 227*** 4300 209 4300 226***
41 Slide Bracket air 6.81˝ 4300 298 4300 165 4300 596***
42 Slide Bracket air 7.75˝ 4300 299 4300 166 4300 597***
43 Slide Bracket air 8.75˝ 4300 300 4300 167 4300 598***
44 Slide Bracket air 9.75˝ NA 4300 172 NA
45 Slide Bracket manual 6.81˝ NA 4300 204 NA
46 Slide Bracket manual 7.75˝ NA 4300 205 NA
47 Slide Bracket manual 8.75 NA 4300 206 NA
48 Slide Bracket manual 9.75 NA 4300 173 NA
* Available in Spring 2006; **, bracket connection; ***, check for availability; NA, not applicable.
22 XL-AM107 Rev C
SIMPLEX, CASTLOC, 400C AND SLIDER KITS continued
Simplex Discontinued Fifth Wheels
SIMPLEX IIR &
SIMPLEX SIMPLEX SIMPLEX II & SIMPLEX IIR & SIMPLEX IIIR SIMPLEX
ITEM SIMPLEX LITE SIMPLEX LITE ROTARY SIMPLEX II & SIMPLEX III SIMPLEX IIIR ROTARY RH
NO. LITE TOUCHLOC LITE ROTARY TOUCHLOC SIMPLEX III TOUCHLOC ROTARY TOUCHLOC (RIGHT-HAND)
1 1040 2700 1060 2700 1080 2700 1100 2700 4102 700 9502 700 7102 700 7502 700 4102 764
1040 2707 4102 707 4101 414
4101 424
2 SLS-, LSLS- SLS-, LSLS- SLR SLR- SL-, LSL-, SRY- SL-, LSL-, SRY- SRL-, SRYL- SRL-, SRYL- SR-
3 SE SE Touchloc SE SE Touchloc II SE II SE Touchloc II SE II SE Touchloc II SE RH
Kit Numbers
4 4000 507 4000 531 4000 508 4000 508 4000 650 4000 532 4000 510 4000 510 4000 511
(4100 382) (4100 420) (4100 386) (4100 386) (4100 332) (4100 296) (4100 357) (4100 357) (4100 350)
5400 531 4000 509
(4100 420) NA NA NA (4100 342) NA NA NA NA
6 4000 501 4000 501 4000 501 4000 501 4000 501 4000 501 4000 501 4000 501 4000 503
7 4000 502 4000 502 4000 502 4000 502 4000 502 4000 502 4000 502 4000 502 4000 523
8 4000 539 4000 539 4000 539 4000 539 4000 539 4000 539 4000 539 4000 539 4000 540
9 4000 171 4000 171 4000 171 4000 171 4000 171 4000 171 4000 171 4000 171 4000 171
10 4000 570 4000 570 4000 578 4000 578 4000 572 4000 572 4000 576 4000 576 4000 574
11 4000 504 4000 504 4000 504 4000 504 4000 504 4000 504 4000 504 4000 504 NA
12 4000 588 4000 588 4000 588 4000 588 4000 588 4000 588 4000 588 4000 588 NA
13 4000 641 4000 641 4000 641 4000 641 4000 641 4000 641 4000 641 4000 641 NA
14 NA NA NA NA NA NA NA NA 4000 505
15 NA NA NA NA NA NA NA NA NA
16 NA NA NA NA NA NA NA NA NA
17 4000 528 4000 528 4000 528 4000 528 4000 528 4000 528 4000 528 4000 528 NA
18 4000 587 4000 587 4000 587 4000 587 4000 587 4000 587 4000 587 4000 587 NA
19 4000 640 4000 640 4000 640 4000 640 4000 640 4000 640 4000 640 4000 640 NA
20 NA NA NA NA NA NA NA NA 4000 529
21 NA 4000 273 NA 4000 272 NA 4100 269 NA 4100 258 NA
22 NA NA NA NA NA NA NA NA NA
23 NA NA NA NA NA NA NA NA NA
Bulk Kits - Individual Parts (Quantity/Kit)
24 B4100 382 NA B4100 386 B4100 386 B4100 332 NA B4100 357 B4100 357 B4100 350
25 B4101 250 NA B4100 374 B4100 374 B4101 250 NA B4100 150 B4100 150 B4100 428
26 B4100 420 B4100 420 NA NA B4100 342 B4100 296 NA NA NA
27 B4100 294 B4100 294 NA NA B4100 294 B4100 294 NA NA NA
28 B1200 706 B1200 706 B1200 706 B1200 706 B1200 706 B1200 706 B1200 706 B1200 706 B1200 706
29 NA NA NA NA NA NA NA NA NA
30 B4100 328 B4100 328 B4100 328 B4100 328 B4100 328 B4100 328 B4100 328 B4100 328 NA
31 NA NA NA NA NA NA NA NA B4109 811
32 B4100 329 B4100 329 B4100 329 B4100 329 B4100 329 B4100 329 B4100 329 B4100 329 NA
33 B4100 376 B4100 376 B4100 376 B4100 376 B4100 376 B4100 376 B4100 376 B4100 376 NA
34 B4100 339 B4100 339 B4100 339 B4100 339 B4100 339 B4100 339 B4100 339 B4100 339 NA
35 NA NA NA NA NA NA NA NA B4100 358
36 NA NA NA NA NA NA NA NA NA
37 NA NA NA NA NA NA NA NA NA
XL-AM107 Rev. C 23
SIMPLEX, CASTLOC, 400C AND SLIDER KITS continued
Castloc & 400C Discontinued Fifth Wheels
CASTLOC II & CASTLOC
ITEM CASTLOC II & CASTLOC III CASTLOC ROTARY
NO. FIFTH WHEEL MODEL CASTLOC III TOUCHLOC ROTARY TOUCHLOC 400C
1 Fifth Wheel Sub-Assembly A7202 700 A7602 700 7202 700 7602 700 4102 846
7202 700A 7602 700A
2 Serial Number Prefix- CA-, CR-, CV- CA-, CR-, CV- CL- CL- AL-
3 Replaced by Simplex Model II SE II SE Touchloc II SE II SE Touchloc II SE
Kit Names and Numbers
4 Handle Kit 4000 650 4000 532 4000 510 4000 510 4000 632
(handle part number) (4100 332) (4100 296) (4100 357) (4100 357) (4109 944)
5Alternate Handle Kit (45˚ chamfer)
(handle part number) NA NA NA NA NA
6 Jaw w/ Standard Pin 4000 501 4000 501 4000 501 4000 501 4000 178
7Jaw w/ Oversized Pin 4000 502 4000 502 4000 502 4000 502 NA
8 Jaw & Return Spring Retrofit 4000 539 4000 539 4000 539 4000 539 NA
9 Kingpin Gauge (Jaw Adjustment Tool) 4000 171 4000 171 4000 171 4000 171 NA
10 Lock 4000 572 4000 572 4000 576 4000 576 NA
11 * Standard pad: 0.38˝ thickness NA NA NA NA NA
12 * Large pad: 0.42˝ thickness NA NA NA NA NA
13 * Small Pad: 0.33˝ thickness NA NA NA NA NA
14 * Simplex RH Pad: 0.58˝ thickness NA NA NA NA NA
15 * Castloc & Castloc II 4000 506 4000 506 4000 506 4000 506 NA
16 **400C NA NA NA NA 4000 195
17 Pad, Standard: 0.38˝ thickness) NA NA NA NA NA
18 Pad, Large: 0.42˝ thickness NA NA NA NA NA
19 Pad, Small: 0.33˝ thickness NA NA NA NA NA
20 Pad, Simplex RH: 0.58˝ thickness NA NA NA NA NA
21 Touchloc Air Cylinder NA 4100 269 NA 4100 258 NA
22 Shims, Poly (Castloc Series) 4000 530 4000 530 4000 530 4000 530 NA
23 Shims, Steel - weld to bracket 4000 630 4000 630 4000 630 4000 630 4000 630
Bulk Kits - Individual Parts (Quantity/Kit)
24 Handle (5) B4100 332 B4100 296 B4100 357 B4100 357 NA
25 Indicator (5) (10 for 400C) B4101 250 B4100 294 B4100 150 B4100 150 B4109 948
26 Handle (45° Chamfer) (5) NA NA NA NA NA
27 Indicator (45° Chamfer) (5) NA NA NA NA NA
28 Lock Spring (5) B1200 706 B1200 706 B1200 706 B1200 706 NA
29 Jaw Return Spring (10) NA NA NA NA NA
30 Poly Shoes (10) NA NA NA NA NA
31 Steel Shoes (10) NA NA NA NA NA
32 Pads, Standard, .38˝ (20) NA NA NA NA NA
33 Pads, Large, .42˝ (20) NA NA NA NA NA
34 Pads, Small, .33˝ (20) NA NA NA NA NA
35 Pads, Simplex RH, .58˝ (20) NA NA NA NA NA
36 Poly Shims (20) B4000 263 B4000 263 B4000 263 B4000 263 NA
37 Steel Shims (20) - weld to bracket B4100 655 B4100 655 B4100 655 B4100 655 B4100 655
24 XL-AM107 Rev C
Copyright © September 2005 • The Holland Group, Inc.
Holland USA, Inc. Facilities:
Dumas, AR Muskegon, MI
Holland, MI Warrenton, MO
Monroe, NC Wylie, TX
Ph: 888-396-6501 Fax: 800-356-3929
Holland International, Inc.
Holland, MI
Phone: 616-396-6501
Fax: 616-396-1511
Holland Equipment, Ltd.
Norwich, Ontario • Canada
Phone: 519-863-3414
Fax: 519-863-2398
Holland Hitch of Canada, Ltd.
Surrey, British Columbia • Canada
Phone: 604-574-7491
Fax: 604-574-0244
Holland Hitch of Canada, Ltd.
Woodstock, Ontario • Canada
Phone: 519-537-3494
Fax: 800-565-7753
