Yealink SIP W52P Manual

Yealink_SIP-W52P_Manual

User Manual:

Open the PDF directly: View PDF PDF.
Page Count: 84

Copyright © 2013 YEALINK NETWORK TECHNOLOGY CO., LTD.
Copyright © 2013 Yealink Network Technology CO., LTD. All rights reserved. No parts of this
publication may be reproduced or transmitted in any form or by any means, electronic or
mechanical, photocopying, recording, or otherwise, for any purpose, without the express written
permission of Yealink Network Technology CO., LTD. Under the law, reproducing includes
translating into another language or format.
When this publication is made available on media, Yealink Network Technology CO., LTD. gives
its consent to downloading and printing copies of the content provided in this file only for private
use but not for redistribution. No parts of this publication may be subject to alteration,
modification or commercial use. Yealink Network Technology CO., LTD. will not be liable for any
damages arising from use of an illegally modified or altered publication.
THE SPECIFICATIONS AND INFORMATION REGARDING THE PRODUCTS IN THIS GUIDE ARE
SUBJECT TO CHANGE WITHOUT NOTICE. ALL STATEMENTS, INFORMATION, AND
RECOMMENDATIONS IN THIS GUIDE ARE BELIEVED TO BE ACCURATE AND PRESENTED
WITHOUT WARRANTY OF ANY KIND, EXPRESS OR IMPLIED. USERS MUST TAKE FULL
RESPONSIBILITY FOR THEIR APPLICATION OF PRODUCTS.
YEALINK NETWORK TECHNOLOGY CO., LTD. MAKES NO WARRANTY OF ANY KIND WITH
REGARD TO THIS GUIDE, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF
MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE. Yealink Network Technology CO.,
LTD. shall not be liable for errors contained herein nor for incidental or consequential damages
in connection with the furnishing, performance, or use of this guide.
Hereby, Yealink Network Technology CO., LTD. declares that this phone is in conformity with the essential
requirements and other relevant provisions of the CE, FCC.
This device is marked with the CE mark in compliance with EC Directives 1999/5/EC (R&TTE).
This device complies with the following standards:
1. Safety: EN 60950-1:2006+A11:2009+A1:2010+A12:2011
2. SAR: EN62479:2010
3. EMC: ETSI EN 301 489-1 V1.9.2 (2011-09) & ETSI EN 301 489-6 V1.3.1 (2008-08)
4. Radio: ETSI EN 301 406 V2.1.1 (2009-07)
This device is compliant with Part 15 of the FCC Rules. Operation is subject to the following two conditions:
1. This device may not cause harmful interference, and
2. This device must accept any interference received, including interference that may cause undesired
operation.
This equipment is tested and complies with the limits for a Class B digital device, pursuant to Part 15 of the
FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a
residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not
installed and used in accordance with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference will not occur in a particular installation.
Privacy of communications may not be ensured when using this telephone. If this equipment does cause
harmful interference to radio or television reception, which can be determined by turning the equipment off
and on, the user is encouraged to try to correct the interference by one or more of the following measures:
1. Reorient or relocate the receiving antenna.
2. Increase the separation between the equipment and receiver.
3. Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
4. Consult the dealer or an experience radio/TV technician for help.
Note: Changes or modifications not expressly approved by Yealink Network Technology Co., Ltd could void
the user's authority to operate the equipment.
This equipment complies with Part 68 of the FCC rules and the requirements adopted by the ACTA. On the
bottom of the base station is a label that contains, among other information, a product identifier in the
format US: T2LXXXXXXX.
This telephone system meets FCC standards for Hearing Aid Compatibility.
This equipment complies with FCC RF radiation exposure limits set forth for an uncontrolled environment.
This equipment should be installed and operated with a minimum distance of 20 centimeters between the
radiator and your body. This transmitter must not be co-located or operated in conjunction with any other
antenna or transmitter.
For body worn operation, this phone has been tested and meets the FCC RF exposure guidelines when used
with the belt clip supplied with this product. Use of other accessories may not ensure compliance with FCC
RF exposure guidelines.
This telephone is compliant with the DECT 6.0 standard which operates in the 1.92GHz to
1.93GHz frequency range. Installation of this equipment is subject to notification and
coordination with UTAM. Any relocation of this equipment must be coordinated through and
approved by UTAM. UTAM may be contacted at 1-800-429-8826.
To avoid the potential effects on the environment and human health as a result of the
presence of hazardous substances in electrical and electronic equipment, end users of
electrical and electronic equipment should understand the meaning of the crossed-out
wheeled bin symbol. Do not dispose of WEEE as unsorted municipal waste and have to
collect such WEEE separately.
We are striving to improve our documentation quality and we appreciate your feedback. Email your
opinions and comments to DocsFeedback@yealink.com.
Yealink W52P firmware contains third-party software under the GNU General Public License (GPL). Yealink
uses software under the specific terms of the GPL. Please refer to the GPL for the exact terms and conditions
of the license.
The original GPL license, source code of components licensed under GPL and used in Yealink products can
be downloaded online:
http://www.yealink.com/GPLOpenSource.aspx?BaseInfoCateId=293&NewsCateId=293&CateId=293.
About This Guide
vii
Yealink W52P IP DECT phone is a full-featured mobile device, which can provide reliable
and convenient wireless voice communications. In addition, it provides many widely
accepted benefits of the DECT standard, including high security, scalability, and low
power consumption to better meet your requirements.
This guide provides everything you need to quickly use your new phone. First, verify with
your system administrator that the network is ready for phone configuration. Also be
sure to read the Packaging Contents and Regulatory Notices sections in this guide
before you set up and use your W52P IP DECT phone.
If this is your first time using the W52P IP DECT phone, we recommend that you first refer
to the
Quick Installation Guide
and
Quick Reference Guide
, available online:
http://www.yealink.com/SupportDownloadfiles_detail.aspx?CateId=308&flag=142.
Topics provided in this guide include:
- Chapter 1 Getting Started
- Chapter 2 Overview
- Chapter 3 Basic Operations
- Chapter 4 Phone Settings
- Chapter 5 Call Features
This section describes the changes to this guide for each release and guide version.
Major updates have occurred to the following sections:
- Charging the Handset on page 6
- Call Transfer on page 53
- Troubleshooting on page 59
User Guide for the W52P IP DECT Phone
viii
The following section is new for this version:
- Repeater Mode on page 46
Major updates have occurred to the following sections:
- Auto Intercom on page 43
Major updates have occurred to the following sections:
- Base Station Description on page 9
- Displaying Information on LCD Screen on page 12
- Language on page 24
- Auto Intercom on page 43
- Handset Reset on page 44
- Base Reset on page 44
- Troubleshooting on page 59

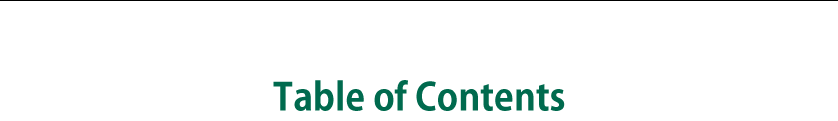

Table of Contents
ix
About This Guide ................................................................. vii
In This Guide................................................................................................................... vii
Summary of Changes .................................................................................................... vii
Changes for Release 40, Guide Version 40.15 .......................................................... vii
Changes for Release 30, Guide Version 30.40 ......................................................... viii
Changes for Release 30, Guide Version 30.30 ......................................................... viii
Table of Contents .................................................................. ix
Getting Started .....................................................................1
Packaging Contents ......................................................................................................... 1
Connecting the W52P Base Station ................................................................................. 3
Setting up the W52P/W52H Handset............................................................................... 5
Setting up the Charger Cradle........................................................................................ 6
Charging the Handset ..................................................................................................... 6
Overview ..............................................................................9
Base Station Description.................................................................................................. 9
Handset Description ...................................................................................................... 10
Displaying Information on LCD Screen ......................................................................... 12
Icon Instructions.............................................................................................................. 13
Basic Operations ................................................................. 15
Handset Registration ..................................................................................................... 15
Basic Network Settings .................................................................................................. 16
Checking System Status ................................................................................................ 17
Account Registration ...................................................................................................... 18
Checking Line Status ..................................................................................................... 19
Turning Handset On/Off ................................................................................................. 19
Adjusting Ringer Volume ............................................................................................... 19
Locking/Unlocking Keypad ............................................................................................ 20
Locating a Handset ....................................................................................................... 20
Switching Silent Mode On/Off ...................................................................................... 20
Menu Guidance ............................................................................................................. 21
Main Menu .................................................................................................................. 21
User Guide for the W52P IP DECT Phone
x
Submenu ..................................................................................................................... 22
Returning to Idle Screen ............................................................................................. 22
Phone Settings ..................................................................... 23
Handset Name ............................................................................................................... 24
Language ....................................................................................................................... 24
Ring Tones....................................................................................................................... 24
Advisory Tones ............................................................................................................... 25
Backlight ......................................................................................................................... 25
Screen Saver .................................................................................................................. 26
Color Schemes ............................................................................................................... 26
Keypad Light .................................................................................................................. 26
Notification Light ............................................................................................................ 26
Date and Time ............................................................................................................... 27
Shortcuts ......................................................................................................................... 28
Contact Management ................................................................................................... 29
Local Directory ............................................................................................................ 29
Blacklist........................................................................................................................ 32
Remote Phone Book .................................................................................................... 33
Network Directory ....................................................................................................... 34
Call History Management ............................................................................................. 35
Network Call Log ........................................................................................................... 37
Dial Plan ......................................................................................................................... 38
Replace Rule ............................................................................................................... 39
Area Code................................................................................................................... 40
Block Out ..................................................................................................................... 40
Emergency Numbers ..................................................................................................... 40
Outgoing Lines ............................................................................................................... 41
Incoming Lines ............................................................................................................... 41
Speed Dial...................................................................................................................... 42
Assigning a Speed Dial Number ............................................................................... 42
Deleting a Speed Dial Number.................................................................................. 42
Placing a Call Using Speed Dial Key ......................................................................... 43
Auto Answer ................................................................................................................... 43
Auto Intercom ................................................................................................................. 43
Handset Reset ................................................................................................................ 44
Base Reset ...................................................................................................................... 44
Auto Provision ................................................................................................................. 45
Eco Mode+ .................................................................................................................... 45
Eco Mode ....................................................................................................................... 46
Repeater Mode .............................................................................................................. 46
Call Features ....................................................................... 47
Table of Contents
xi
Placing Calls ................................................................................................................... 47
Placing Internal Calls .................................................................................................. 48
Placing External Calls ................................................................................................. 48
Answering Calls ............................................................................................................. 49

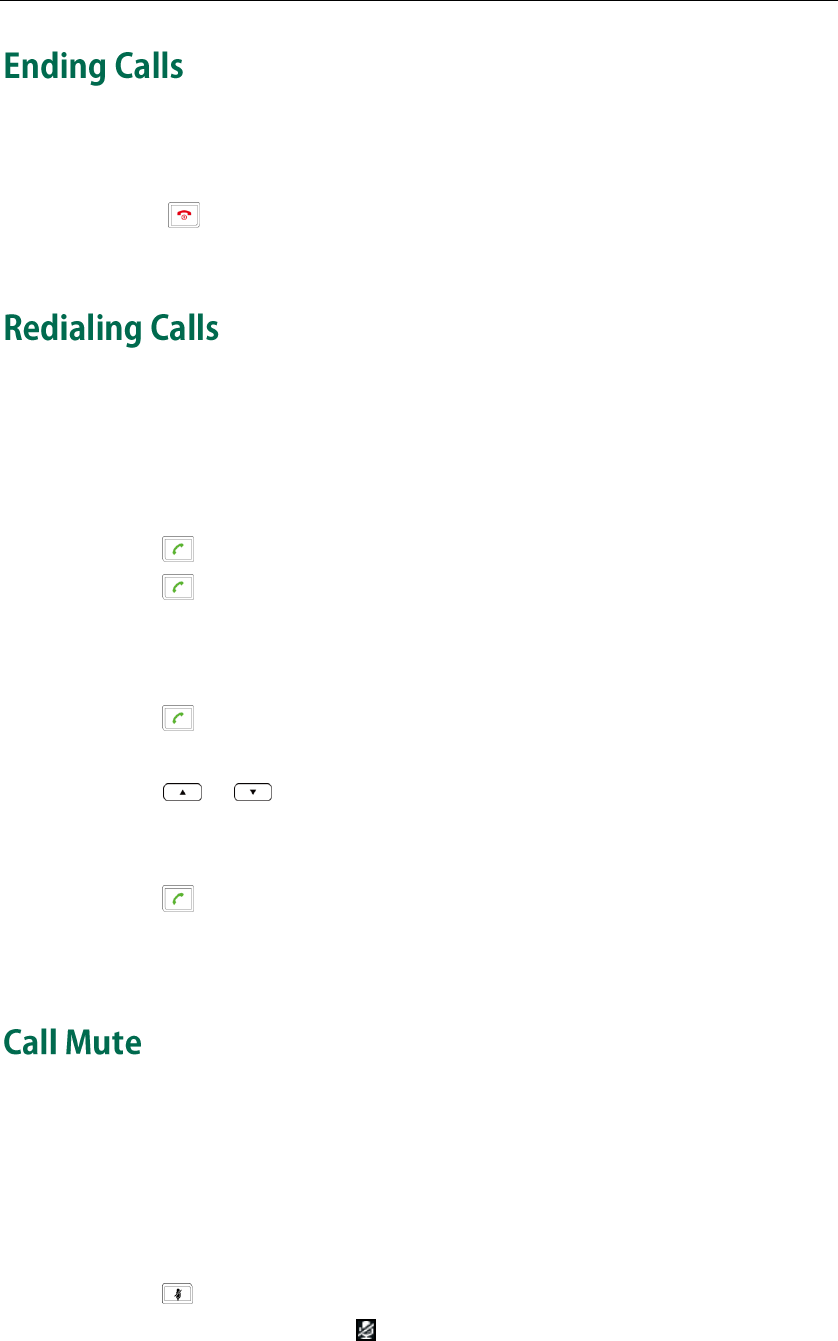

Ending Calls ................................................................................................................... 50
Redialing Calls ............................................................................................................... 50
Call Mute ........................................................................................................................ 50
Call Hold/Resume .......................................................................................................... 51
Call Waiting .................................................................................................................... 51
Do Not Disturb (DND) .................................................................................................... 52
Call Forward................................................................................................................... 52
Call Transfer ................................................................................................................... 53
Conference Call ............................................................................................................. 54
Anonymous Call ............................................................................................................. 55
Anonymous Call Rejection ............................................................................................. 56
Voice Mail ....................................................................................................................... 56
Troubleshooting ................................................................... 59
Appendix ............................................................................ 63
Upgrading the Base Station .......................................................................................... 63

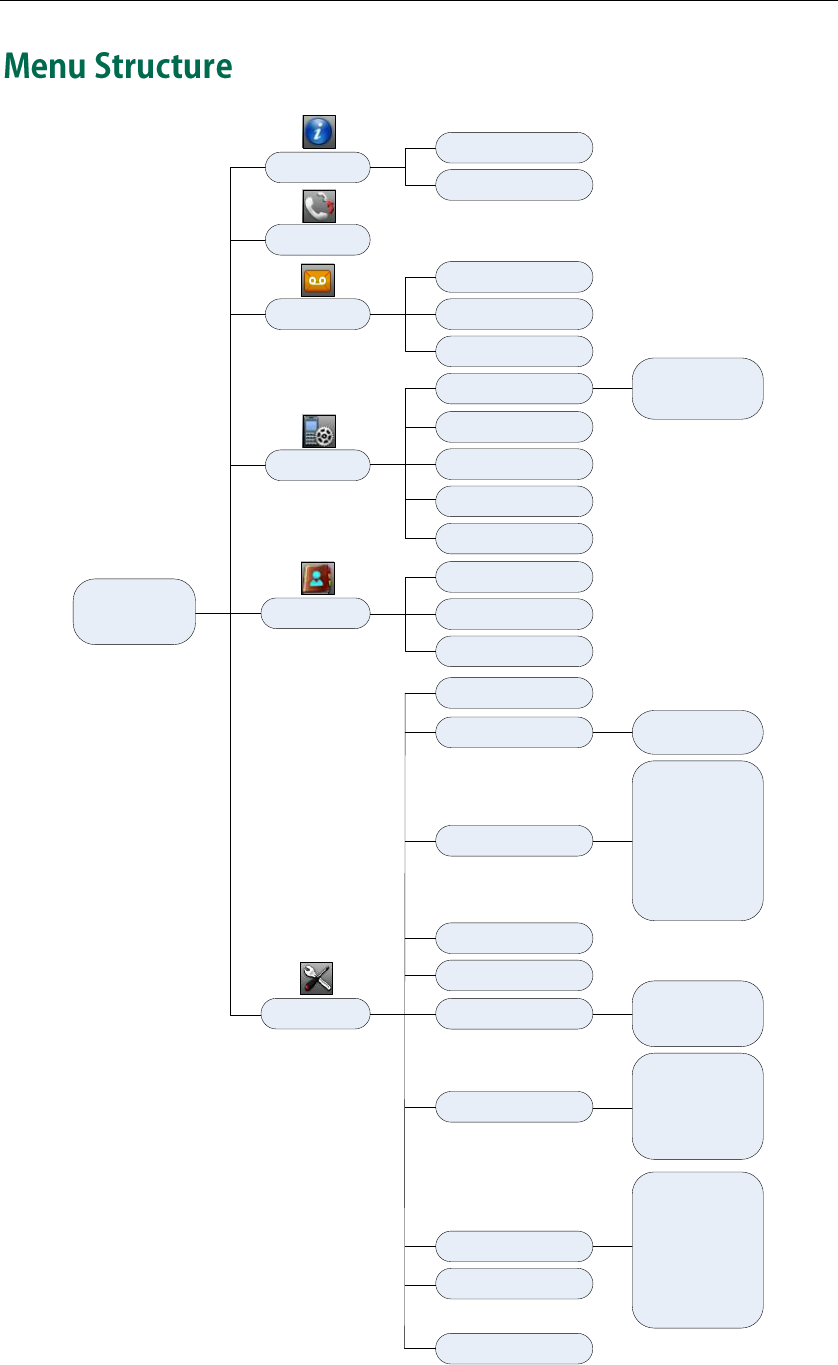

Menu Structure ............................................................................................................... 64
Appendix A - Time Zones .............................................................................................. 65
Regulatory Notices .............................................................. 69
Important Safety Information ........................................................................................ 69
Index ................................................................................... 71
User Guide for the W52P IP DECT Phone
xii

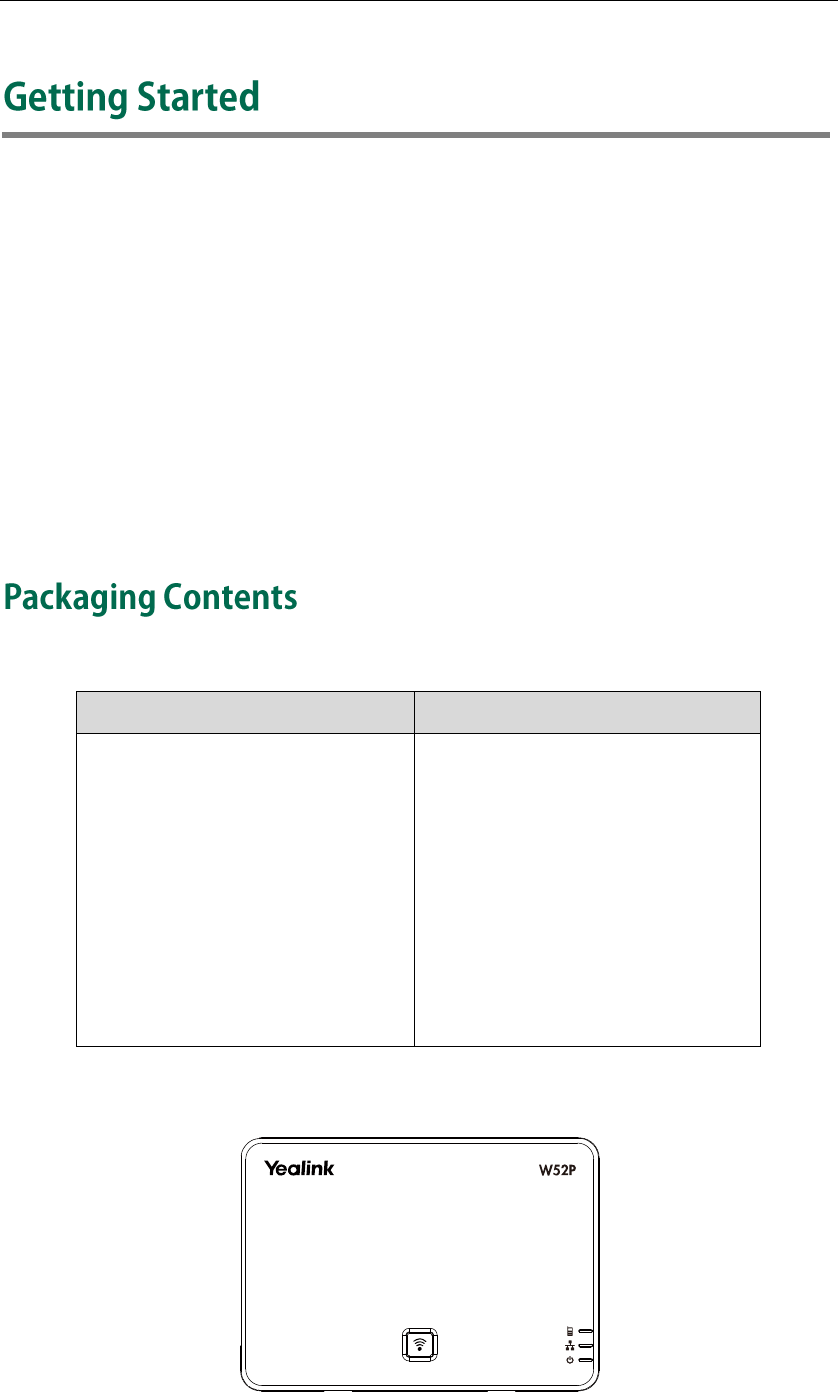

Getting Started
1
This chapter provides basic installation instructions and information for obtaining the
best performance with the W52P IP DECT phone. Topics include:
- Packaging Contents
- Connecting the W52P Base Station
- Setting up the W52P/W52H Handset
- Setting up the Charger Cradle
- Charging the Handset
If you require additional information or assistance with your new phone, contact your
system administrator.
The following components are included in your W52P/W52H IP DECT phone packages:
W52P Package
W52H Package
- 1 Base Station
- 1 Handset
- 1 Charge Cradle
- 2 Power Adapters
- 2 Rechargeable Batteries
- 1 Ethernet Cable
- 1 Belt Clip
- 1 Quick Installation Guide and
1 Quick Reference Guide
- 1 CD ROM
- 1 Handset
- 1 Charge Cradle
- 1 Power Adapter
- 2 Rechargeable Batteries
- 1 Belt Clip
- W52P Base Station
User Guide for the W52P IP DECT Phone
2

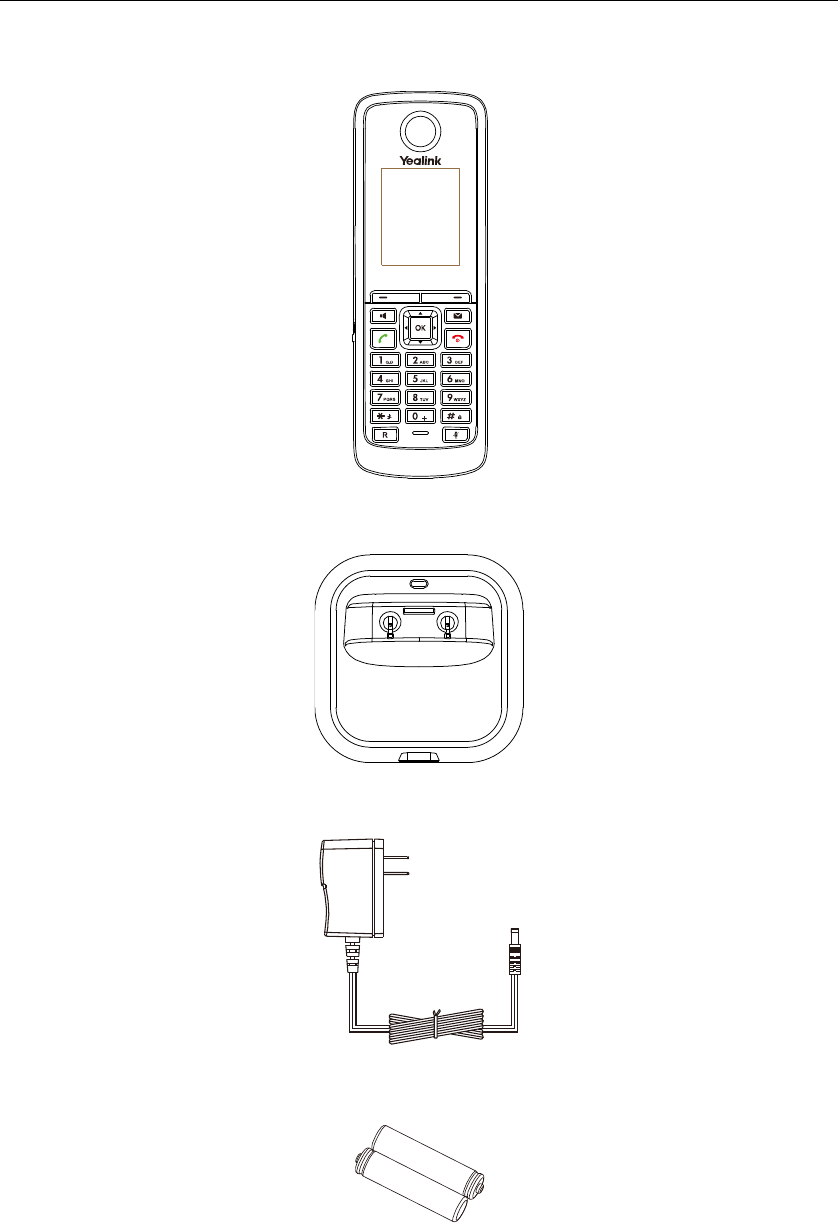

- W52P/W52H Handset
- Charger Cradle
- Power Adapter
- Two Rechargeable Batteries
Getting Started
3

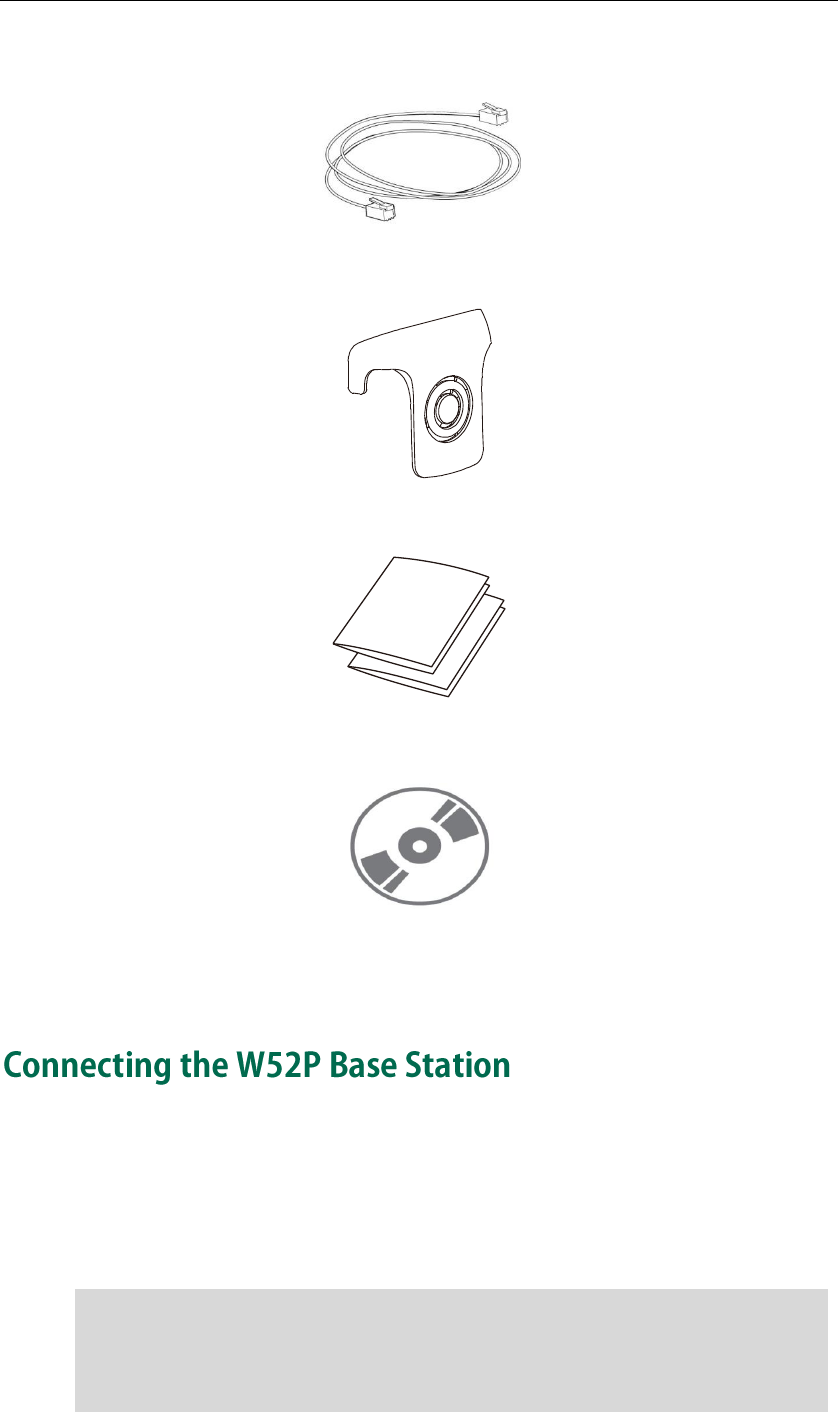

- Ethernet Cable
- Belt Clip
- Quick Installation Guide & Quick Reference Guide
- CD-ROM
Check the package before installation. If you find anything missing, contact your system
administrator.
You have two options for power and network connection of the base station. Your
system administrator will advise you which one to use.
- AC power
- Power over Ethernet (PoE)
Note
Please pay attention to the radio coverage of the base station. It is up to 300m in
unobstructed outdoor areas and up to 50m inside buildings.
Set up the base station and the charger cradle at a central location on a flat, non-slip
surface in your house or apartment.
User Guide for the W52P IP DECT Phone
4

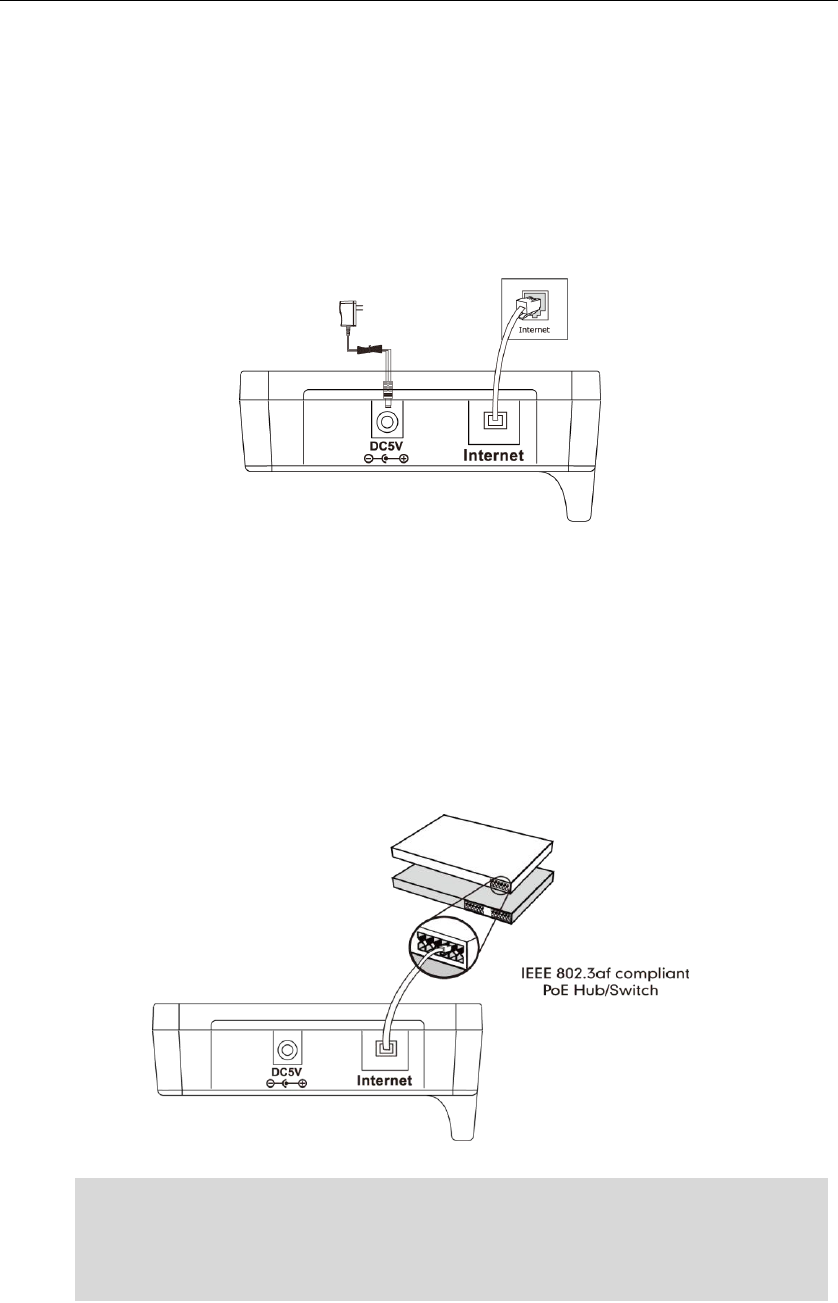

AC Power
To connect the AC power:
1. Connect the DC plug on the power adapter to the DC5V port on the base station
and connect the other end of the power adapter into an electrical power outlet.
2. Connect the supplied Ethernet cable between the Internet port on the base station
and the Internet port in your network or the switch/hub device port.
Power over Ethernet
Using a regular Ethernet cable, the base station can be powered from a PoE-compliant
(IEEE 802.3af) switch or hub.
To connect the PoE:
1. Connect the Ethernet cable between the Internet port on the base station and an
available port on the in-line power switch/hub.
Note
If in-line power is provided, you don‟t need to connect the AC adapter. Make sure the
Ethernet cable and switch/hub are PoE compliant.
Important! Do not unplug or remove the power and network to the base station while it is
updating firmware and configurations.
Getting Started
5

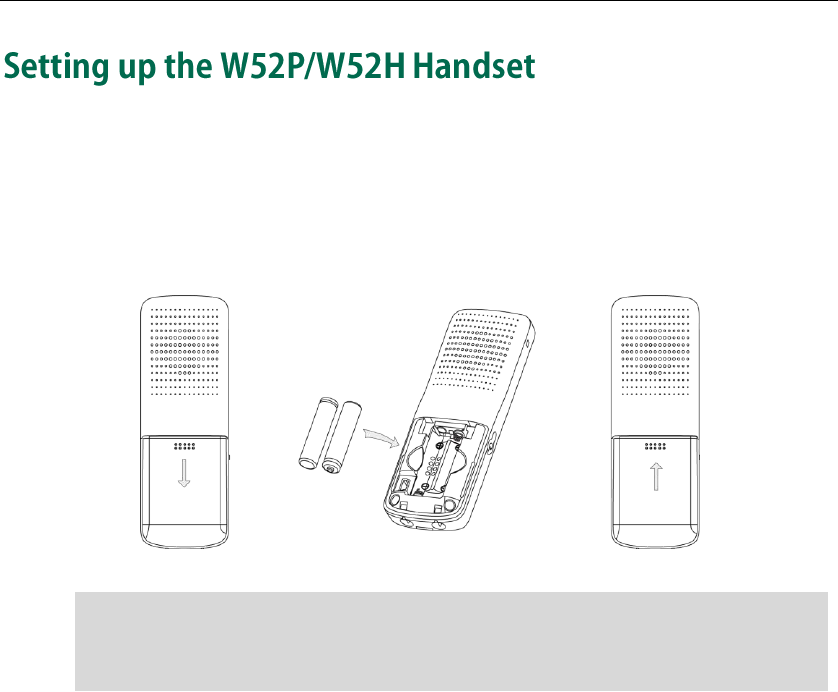

To insert batteries into the handset:
1. Open the battery cover.
2. Insert the batteries in the correct polarity.
3. Close the battery cover.
Note
Battery Information
Technology: Nickel Metal Hydride (NiMH)
Size: AAA
Voltage: 1.2V
Capacity: 800mAh
We strongly recommend you use the batteries complying with the above parameters.
Because the compliant ones can guarantee the specified operating time, full
functionality and long service life. The operating time of your handset depends on the
capacity and age of the batteries and the way they are used.
We recommend you use only the batteries that came with the handset or replacement
batteries approved by Yealink technology:
- Sanyo NiMH 800
- GP 850 mAh
- Yuasa Technologies AAA 800
Battery Capacity
The capacity of the batteries depends on the use of backlight and talk time.
Charging time: approximately 6 hours (fully discharged to full capacity).
Standby time: up to 100 hours when the backlight is disabled.
Do not short-circuit the batteries, as short-circuiting the terminals may damage the
batteries or the handset.
Do not use a damaged battery, this may cause an explosion.
User Guide for the W52P IP DECT Phone
6
Talk time: up to 10 hours active talk time (with full charged batteries).

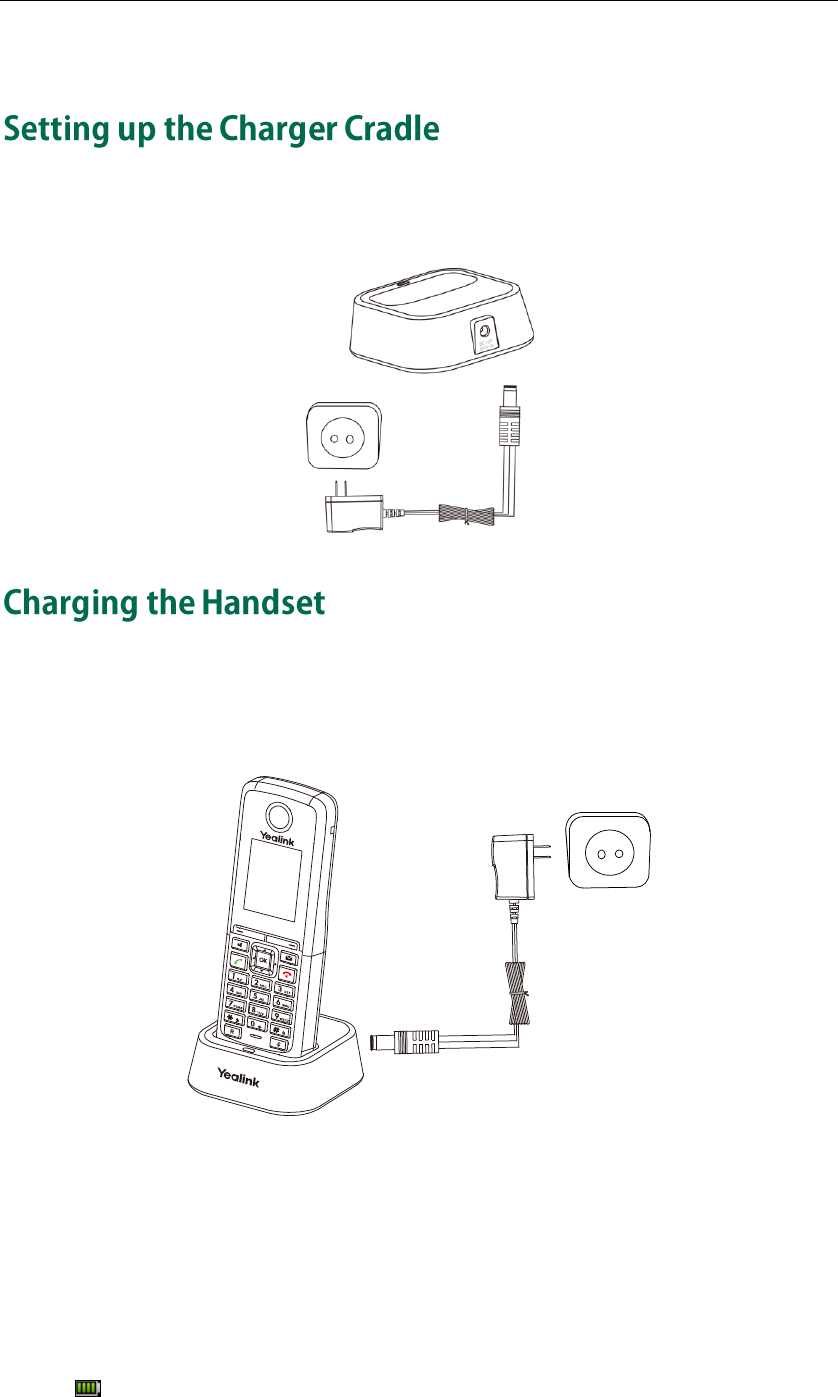

1. Connect the DC plug on the power adapter to the DC5V port on the charger cradle.
2. Connect the other end of the power adapter into an electrical power outlet.
To charge the handset:
1. After setting up the handset and charger cradle, place the handset in the charger
cradle.
The original handset included in the W52P package is pre-registered to the base station.
After charging, the handset is ready for use.
Battery Charging Status
The handset batteries take 6 hours to fully charge. Charging status of batteries is
displayed on the top right-hand corner of the LCD screen:
Icon Charging Status
Fully Charged
Getting Started
7
75% Charged
50% Charged
25% Charged
10% Charged
Almost Flat
User Guide for the W52P IP DECT Phone
8
Overview
9
This chapter provides the overview of the W52P IP DECT phone. Topics include:
- Base Station Description
- Handset Description
- Displaying Information on LCD Screen
- Icon Instructions
If you require additional information or assistance with your new phone, contact your
system administrator.

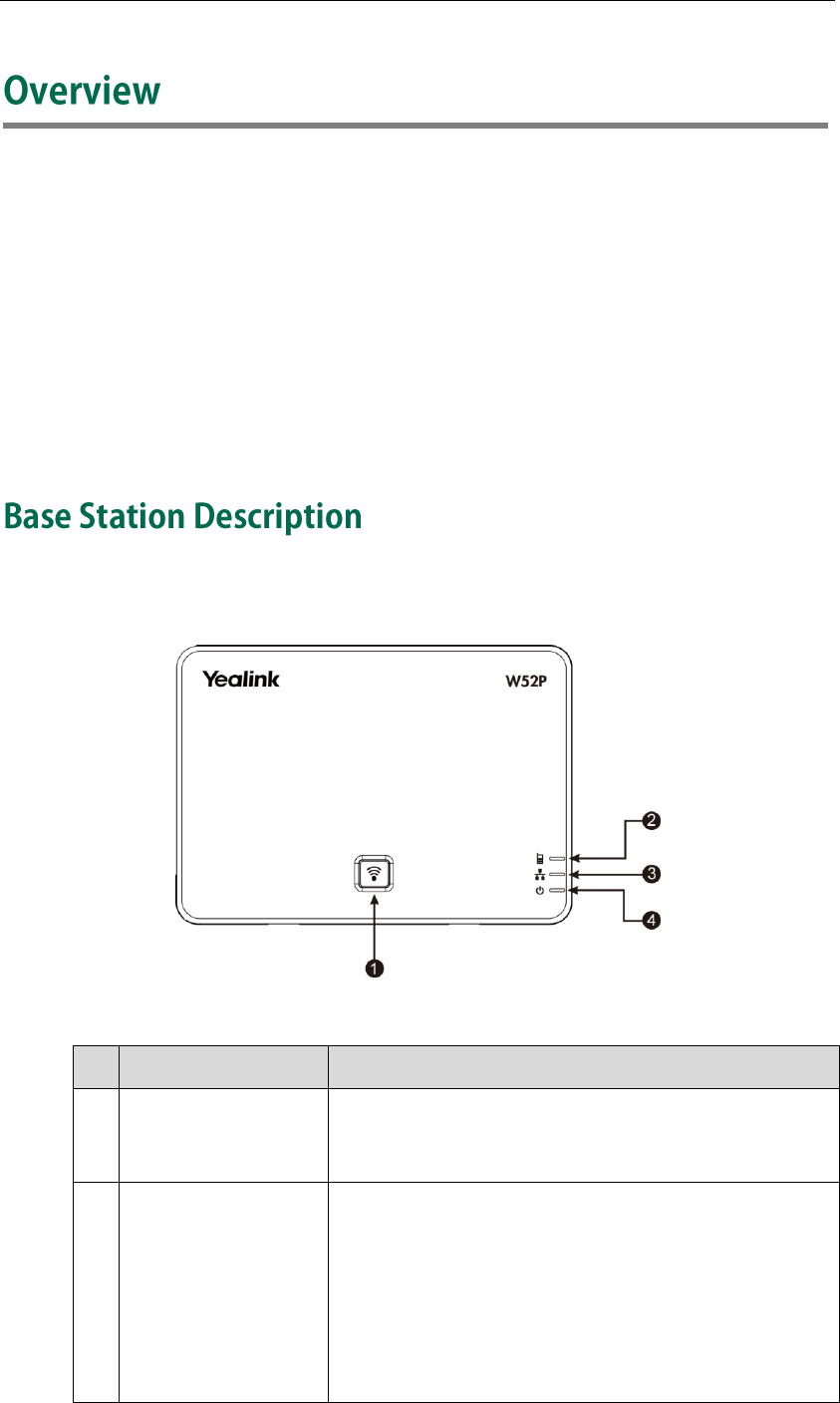

After the base station starts up successfully and the handset is registered to the base
station, all LEDs on the base station illuminate solid green.
Hardware component instructions of the W52P base station are:
Item
Description
①
Paging Key
Locates a misplaced handset.
Toggles the registration mode.
Resets the base station to factory settings.
②
Registration LED
Indicates the mode of the base station:
Fast flashes green when the base station is in the paging
mode.
Slow flashes green when the base station is in the
registration mode.
Illuminates solid green when there is at least one
handset registered to the base station.
User Guide for the W52P IP DECT Phone
10
Item
Description
③
Network Status LED
Indicates the network status:
Slow flashes green when the network is unavailable.
Illuminates solid green when the network is available.
④
Power Indicator LED
Indicates the power status of the base station:
Slow flashes green when the base station is during the
firmware upgrading process.
Slow flashes green when the base station is during the
resetting process.
Illuminates solid green when the base station is powered
on.

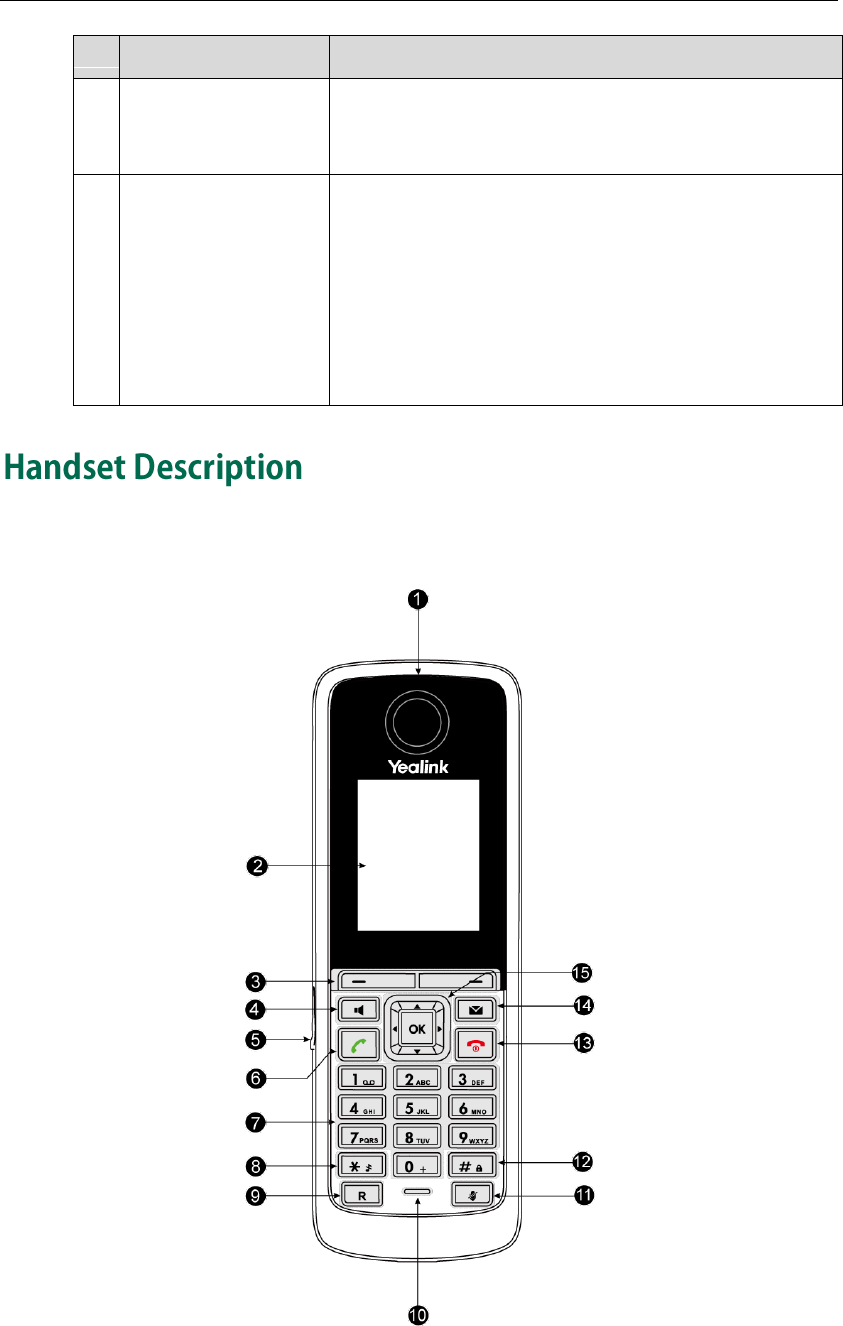

The main hardware components of the W52P/W52H handset are the LCD screen and the
keypad.
Overview
11
Hardware component instructions of the W52P/W52H handset are:
Item
Description
①
Earpiece
Outputs audio during the earpiece call.
②
LCD Screen
Shows call information, handset status icons, prompt
messages and so on.
③
Soft Keys
Label automatically to identity their context-sensitive
features.
④
Speakerphone Key
Switches between the earpiece and speakerphone
modes.
Answers an incoming call.
⑤
Headset Connector
Connects a headset.
⑥
Off-hook Key
Answers an incoming call.
Enters into the redial call list.
Places a call.
⑦
Keypad
Provides digits, letters, and special characters in
context-sensitive applications.
⑧
Star Key
Enters the star symbol.
Switches the silent mode on or off.
⑨
Redirect Key
Transfers a call to another party.
⑩
Microphone
Picks up audio during earpiece and hands-free calls.
⑪
Mute Key
Toggles Mute feature on or off.
⑫
Pound Key
Enters the pound symbol.
Locks or unlocks the handset keypad.
Switches the input method.
⑬
On-hook Key/Power
key
Long presses in the menu mode to return to the idle
screen.
Long presses to turn the handset on or off when the
handset is idle.
Cancels actions or ends a call.
Rejects an incoming call.
⑭
Message Key
Indicates a new receiving voice mail or a missed call.
Accesses the voice mail or the missed call list.
⑮
Scroll through the displaying information.
Move the cursor.
Adjust the ringer volume.
Act as shortcuts.
Confirms actions or enters into the main menu.
User Guide for the W52P IP DECT Phone
12

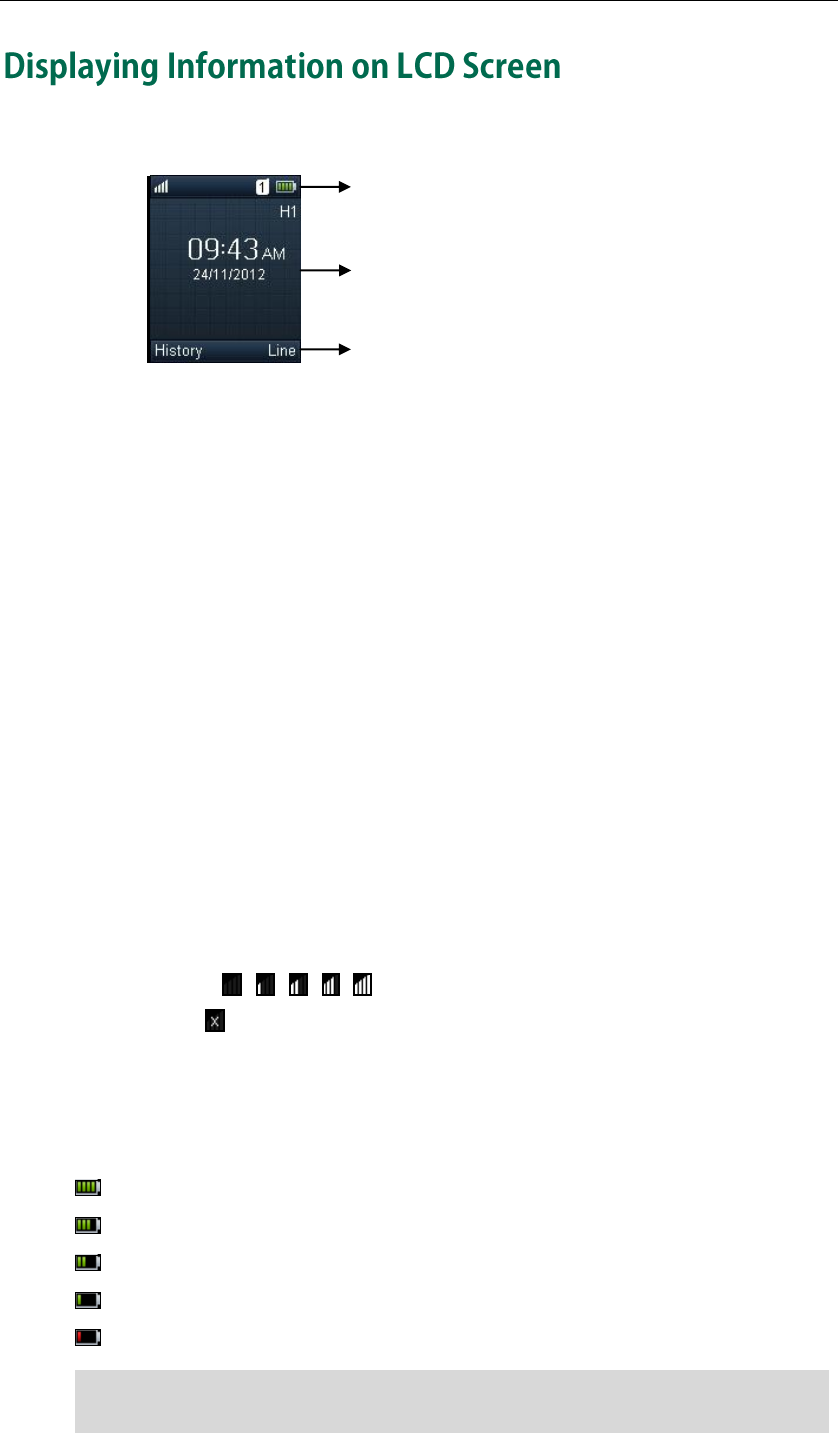

The idle screen may be shown as below:
The LCD screen is divided into three parts: status line, text line and soft key line.
The information shown in the status line:
- On hook (idle) — displays the signal strength indicator, internal handset number
and battery status.
- Off hook — displays line ID.
The information shown in the text line:
- On hook (idle) — displays handset name, time and date, caller information when
receiving an incoming call and prompt messages.
- Off hook — displays the dialed digits.
The information shown in the soft key line:
- On hook (idle) — displays History and Line.
- Off hook — displays various terms according to the context of the specific feature.
Signal Strength
The strength of reception signal between the base station and handset may display as:
Weak to strong:
No reception:
Battery Status
The battery status displays on the top right-hand corner of the LCD screen:
Icon Battery Level
Full
High
Medium
Low
Need Charging
Note
Status Line
Text Line
Soft Key Line
When the capacity of batteries is low, and the handset is not charged timely, the handset
will play a warning tone and display a prompt box every hour.
Overview
13

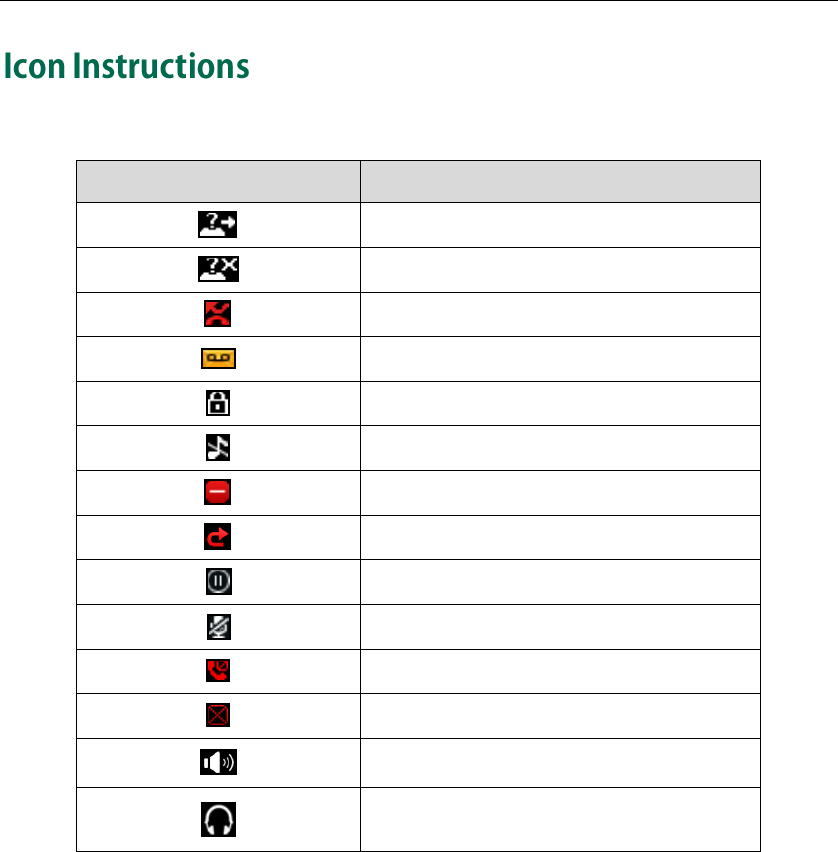

Icons appearing on the LCD screen are described in the following table:
Icon
Description
Anonymous Call
Anonymous Call Rejection
Missed Call
Voice Mail
Keypad Lock
Silent Mode
Do Not Disturb
Call Forward
Call Hold
Call Mute
Unassigned Outgoing Line
Unusable Line
Loudspeaker On
Headset Mode On
User Guide for the W52P IP DECT Phone
14
Basic Operations
15
This chapter provides you with the basic operating instructions of the W52P IP DECT
phone. Topics include:
- Handset Registration
- Basic Network Settings
- Checking System Status
- Account Registration
- Checking Line Status
- Turning Handset On/Off
- Adjusting Ringer Volume
- Locking/Unlocking Keypad
- Locating a Handset
- Switching Silent Mode On/Off
- Menu Guidance
If you require additional information or assistance with your new phone, contact your
system administrator.
You can register up to 5 handsets to one W52P base station. Each handset can be
registered to 4 different base stations.
To register a handset manually:
1. Long press on the base station.
The registration LED slow flashes, indicating the base station is in the registration
mode.
2. Press on the handset to enter the main menu.
3. Select ->Registration->Register Handset.
The LCD screen displays the base (1-4).
4. Press or to highlight the desired one, and press the OK soft key.
The handset begins to search for the base station.
5. Press the OK soft key when the LCD screen displays the RFPI code of the base
station.
6. Enter the system PIN (default: 0000).
7. Press the Done soft key.
User Guide for the W52P IP DECT Phone
16
The handset plays a warning tone and prompts “Handset Subscribed”, which
indicates the handset is registered successfully.
After successful registration, an internal handset number and handset name appear on
the LCD screen.
You can also register a handset via web user interface at the path
Status->Handset&VoIP.
To de-register a handset:
1. Press to enter the main menu.
2. Select ->Registration->De-reg. Handset.
3. Enter the system PIN (default: 0000).
4. Press the Done soft key.
The LCD screen displays the names of the handsets registered to the same base
station. The name of the handset itself is highlighted and followed by a left arrow.
5. Press or to highlight the desired handset name, and then press the OK
soft key.
The LCD screen prompts “De-register Handset”.
6. Press the Yes soft key to de-register the handset or the No soft key to cancel.
To select the base station:
1. Press to enter the main menu.
2. Select ->Registration->Select Base.
The LCD screen displays all base stations the handset registered to and the
Bestbase option (if the handset is registered to more than one base station). The
radio box of the currently used base station is marked. You can select Bestbase to
search for the base station with the best signal strength.
3. Press or to highlight the desired base station or the Bestbase option, and
press the Select soft key.
The handset begins to search for base station. After successful connection, the
handset plays a warning tone and prompts “Base selected successfully!”.
You can highlight the base station the handset registered to, and then press the
Rename soft key to rename the base station name.
The base station attempts to contact a DHCP server in your network to obtain valid
network settings (e.g., IP address, subnet mask, gateway address and DNS address) by
default.
If the base station cannot contact a DHCP server for any reason, you need to configure
basic network settings manually.
Basic Operations
17
To configure basic network settings manually:
1. Press to enter the main menu.
2. Select ->System Settings->Network.
3. Enter the system PIN (default: 0000).
4. Press the Done soft key.
5. Press or to select Static from the IP Address Type field.
6. Enter the valid values in the IP Address, Subnet Mask, Default Gateway, Primary
DNS and Secondary DNS fields respectively.
7. Press the Save soft key to accept the change.
If you are using an xDSL modem, you can connect your base station to the Internet via
PPPoE mode. Set the Internet port as a PPPoE port. The PPPoE port will perform a PPP
negotiation to obtain the IP address. Contact your system administrator for the PPPoE
user name and password.
To configure PPPoE:
1. Press to enter the main menu.
2. Select ->System Settings->Network.
3. Enter the system PIN (default: 0000).
4. Press the Done soft key.
5. Press or to select PPPoE from the IP Address Type field.
6. Enter the valid values in the PPPoE User and PPPoE Password fields.
7. Press the Save soft key to accept the change.
Note
You can view the system status on your handset. Available information of the system
status includes:
- General information (e.g., IP address, firmware version and RFPI code of the base
station)
- Network status (e.g., IP address type, gateway address and DNS address)
- Handset status (e.g., hardware version, product ID, IPUI code and firmware version
of the handset)
To check general information:
1. Press to enter the main menu.
Using wrong network settings may result in inaccessibility of your phone and may also
have an impact on your network performance. For more information on these
parameters, contact your system administrator.
User Guide for the W52P IP DECT Phone
18
2. Select ->System Status.
The LCD screen displays the general information and the More… option.
3. Press or to scroll through the list and view the specific information.
To check the network status:
1. Press to enter the main menu.
2. Select ->System Status.
The LCD screen displays the general information and the More… option.
3. Select More …->Network.
The LCD screen displays the network status.
4. Press or to scroll through the list and view the specific information.
To check the handset status:
1. Press to enter the main menu.
2. Select ->System Status.
The LCD screen displays the general information and the More… option.
3. Select More…->Handset.
The LCD screen displays the handset status.
4. Press or to scroll through the list and view the specific information.
The base station supports up to 5 lines. You can register an account for each line via
web user interface. To log into the web user interface of the base station, you should
obtain the IP address of the base station in advance. For more information on how to
obtain the IP address, refer to Checking System Status on page 17.
To register an account via web user interface:
1. Enter the IP address of the base station in the address bar of the browser and press
the Enter key.
2. Enter the user name (default: admin) and password (default: admin) in the
corresponding fields of the pop-up dialogue box.
3. Click Confirm to login.
4. Click on Account->Basic.
5. Select the desired account from the pull-down list of Account.
6. Select Enabled from the pull-down list of Account Active.
7. Enter the valid values in the Label, Display Name, Register Name, User Name,
Password and SIP Server fields respectively.
Contact your system administrator for the account information.
8. Click Confirm to accept the change.
Basic Operations
19
You can register up to 5 lines to one base station. The status of each registered line can
be checked on the handset.
To check line status:
1. Press to enter the main menu.
2. Select ->Line Status.
The LCD screen displays all lines registered to the base station with icons for
indicating the line status. For example, the icon in the bottom of a line indicates
that you cannot place a call using this line on the handset.
To turn the handset on:
Do one of the following:
- Long press until the LCD screen lights up.
- Place the handset in the charger cradle.
The handset will be turned on automatically.
To turn the handset off:
1. Long press again when the handset is idle.
You can adjust the ringer volume of your handset according to the noise level of the
surrounding environment. The ringer volume can be adjusted using the menu or the
predefined shortcuts (left and right navigation keys) on the keypad when the handset is
idle. The handset supports 5 different ringer volume levels. The default level is 3.
For more information on adjusting the ringer volume using the menu, refer to Ring Tones
on page 24.
To adjust ringer volume using the predefined shortcuts:
1. Press or when the handset is idle.
Press to decrease the ringer volume, or press to increase the ringer volume.
2. Press the Save soft key to accept the change or the Back soft key to cancel.
Note
If the ringer volume is adjusted to the minimum, the icon will appear on the idle
screen.
User Guide for the W52P IP DECT Phone
20
You can lock the handset keypad to prevent keys from being accidentally pressed.
To lock the keypad:
1. Long press when the handset is idle until the LCD screen prompts “Keypad
Locked, Press and hold „#‟ to unlock!”.
The keypad is locked and the icon appears on the idle screen.
You can still answer or reject incoming calls as usual. You can also end the
answered call by pressing .
To unlock the keypad:
1. Long press again until the LCD screen prompts “Keypad Unlocked”.
The keypad is unlocked and the icon disappears from the idle screen.
Note
You can locate a misplaced handset using the base station to which the handset is
registered.
To locate a handset:
1. Press on the base station.
All handsets registered to this base station will ring simultaneously (Paging) and
display the IP address of the base station on the LCD screen.
This helps you locate your handset easily.
You can press any key on the handset or press again on the base station to
end paging.
You can also locate handsets via web user interface at the path
Status->Handset&VoIP.
If the silent mode is switched on, the handset will not ring when receiving an incoming
call, but you can still see the incoming call information on the LCD screen. You can switch
the silent mode on if you do not want to be disturbed.
If the keypad is locked, only the emergency numbers can be dialed out. You must enter
the emergency number continuously. To place emergency calls, you should configure the
emergency numbers in advance. For more information, refer to Emergency Numbers on
page 40.
Basic Operations
21
To switch the silent mode on:
1. Long press until the LCD screen prompts “All Ring Tones Off”.
The silent mode is on. The icon appears on the idle screen.
To switch the silent mode off:
1. Long press again until the LCD screen prompts “All Ring Tones On”.
The silent mode is off. The icon disappears from the idle screen.

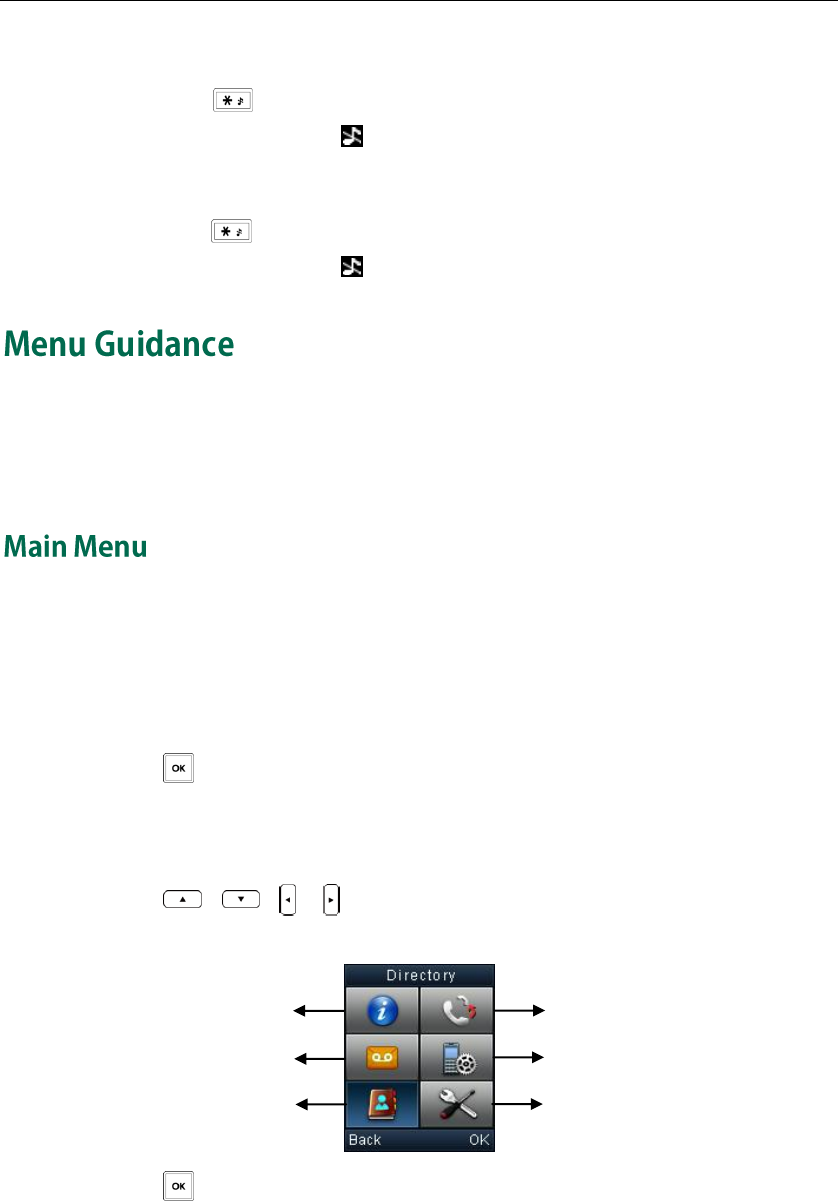

The handset provides a variety of features that are grouped into menu. This section
provides you with some basic guidance of accessing and navigating the menu. For a
quick overview of features of each menu, refer to Menu Structure on page 64.
The handset menu has a number of levels. The main menu is the top-level menu, which
consists of six menu items: Status, Intercom, Voice Mail, Call Features, Directory and
Settings.
To enter the main menu:
1. Press when the handset is idle.
The six menus appear as a list of icons on the LCD screen.
To access a main menu feature:
1. Press , , or to scroll through the six menus.
The name of the selected menu item appears on the top of the LCD screen.
2. Press or the OK soft key to enter the corresponding submenu.
Intercom
Call Features
Settings
Status
Voice Mail
Directory
User Guide for the W52P IP DECT Phone
22
The submenus are displayed on the LCD screen and they are shown as a list. You can
access features of the submenu by entering the submenu.
To access features of a submenu:
1. Press or to highlight the desired submenu.
2. Press or the OK soft key to access features of the submenu.
You can press or the Back soft key to return to the previous menu level.
To return to the idle screen:
1. Long press to quickly exit the menu and return to the idle screen.
If you do not press any key in a period of time, the LCD screen will automatically exit the
menu and return to the idle screen.
Note
When you are navigating the menu, the LCD screen will automatically exit the menu if an
incoming call arrives. The incoming call can be handled as usual. When the call is
terminated, the LCD screen returns to the idle screen.
Phone Settings
23

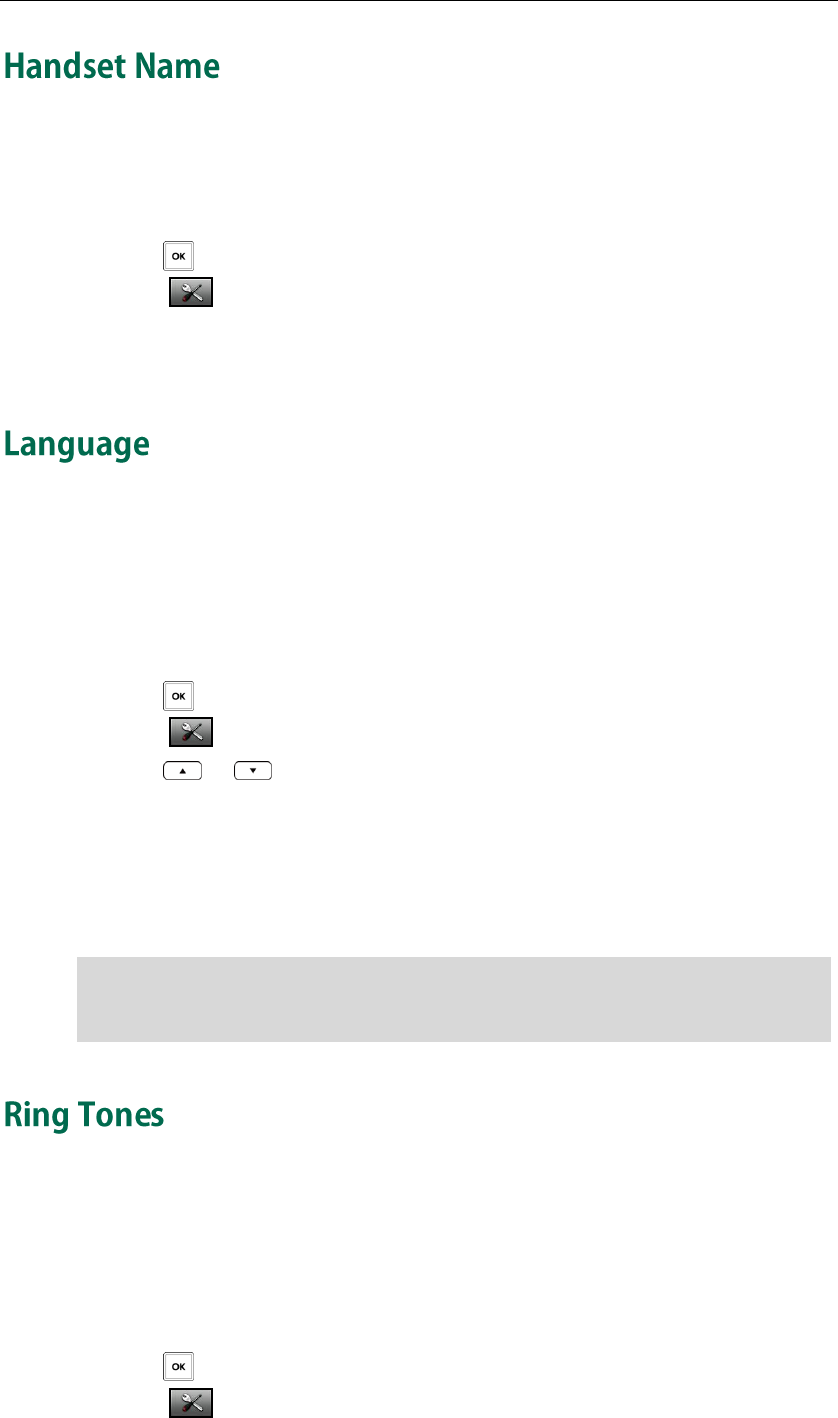

This chapter provides you with some instructions on how to change the settings of your
phone. Topics include:
- Handset Name
- Language
- Ring Tones
- Advisory Tones
- Backlight
- Screen Saver
- Color Schemes
- Keypad Light
- Notification Light
- Date and Time
- Shortcuts
- Contact Management
- Call History Management
- Network Call Log
- Dial Plan
- Emergency Numbers
- Outgoing Lines
- Incoming Lines
- Speed Dial
- Auto Answer
- Auto Intercom
- Handset Reset
- Base Reset
- Auto Provision
- Eco Mode+
- Eco Mode
- Repeater Mode
If you require additional information or assistance with your new phone, contact your
system administrator.
User Guide for the W52P IP DECT Phone
24
The handset will be assigned a name by default if successfully registered to the base
station. You can personalize the handset name.
To rename the handset:
1. Press to enter the main menu.
2. Select ->Handset Name.
3. Edit the current name in the Rename field.
4. Press the Save soft key to accept the change.
The handset supports displaying text in different languages. The handset supports 11
languages: English, French, Turkish, Portuguese, Spanish, Italian, Deutsch, Polski, Czech,
Swedish and Hebrew. The default language of the handset is English. You can change
the language according to your requirement.
To change the language of the handset:
1. Press to enter the main menu.
2. Select ->Language.
3. Press or to highlight the desired language and press the Select soft key.
The LCD screen prompts “Change phone language to xxx?” (xxx is the language
you selected).
4. Press the Yes soft key to accept the change.
Text displayed on the handset will change to the selected language.
Note
Ring tones are used to indicate incoming calls. You can set different ring tones to
distinguish the incoming lines from each other on your handset. You can also set a ring
tone for an incoming intercom call. When receiving an incoming call, the handset rings
the specified ring tone.
To configure ring tones:
1. Press to enter the main menu.
2. Select ->Audio->Ring Tones->Melodies.
Languages available for selection depend on the language packs currently loaded to
the handset. Please contact your system administrator for more information on the
available languages of your handset.
Phone Settings
25
3. Press or to highlight the Intercom Call option or the desired line.
4. Press or to select and listen to the desired ring tone.
5. Press the Save soft key to accept the change or the Back soft key to cancel.
You can also enter the menu ->Audio->Ring Tones->Volume, and press or to
decrease/increase the ringer volume.
Advisory tones are acoustic signals of your handset, which inform you of different
actions and states. The following advisory tones can be configured independently of
each other:
- Keypad Tone: plays when a user presses any key of the keypad.
- Confirmation: plays when a user saves settings or places the handset in the
charger cradle.
- Low Battery: plays when the capacity of the batteries is low and the handset
requires charging.
To configure advisory tones:
1. Press to enter the main menu.
2. Select ->Audio->Advisory Tones.
3. Press or to select the desired value from the Keypad Tone field.
4. Press or to select the desired value from the Confirmation field.
5. Press or to select the desired value from the Low Battery field.
6. Press the Save soft key to accept the change or the Back soft key to cancel.
Handset backlight status in the charging state or out of the charging state can be
configured independently of each other. If enabled, the backlight is always on.
Otherwise, the backlight is turned off after the handset is idle for a period of time. But
the backlight is automatically turned on when an incoming call arrives, a key is pressed
or the status of handset changes. You can disable the backlight to save power.
To configure backlight:
1. Press to enter the main menu.
2. Select ->Display->Display Backlight.
3. Press or to select the desired value from the In Charger field.
4. Press or to select the desired value from the Out Of Charger field.
5. Press the Save soft key to accept the change or the Back soft key to cancel.
User Guide for the W52P IP DECT Phone
26
The screen saver of the handset is designed to protect your LCD screen by filling it with
an analog clock. You can enable the screen saver to protect the LCD screen if you do
not use your handset for a long time. When the screen saver is enabled, an analog clock
will be activated and appears on the LCD screen if no user activity is sensed for
approximately 10 seconds.
To configure screen saver:
1. Press to enter the main menu.
2. Select ->Display->Screen Saver.
3. Press the Change soft key to check or uncheck the Screen Saver checkbox.
You can change the background of your handset by changing the color theme. There
are 2 color themes available.
To change color scheme:
1. Press to enter the main menu.
2. Select ->Display->Color Schemes.
3. Press or to highlight the desired color scheme and preview its effect.
4. Press the Select soft key to mark the radio box of the highlighted color theme.
The color theme of the handset is changed accordingly.
You can enable the keypad light to make the keypad light up when any key is pressed.
This helps you distinguish keys from each other in a dark environment.
To configure keypad light:
1. Press to enter the main menu.
2. Select ->Display->Keypad Light.
3. Press the Change soft key to check or uncheck the Keypad Light checkbox.
Notification light is used to indicate voice mails and missed calls. When the handset
receives a voice mail or misses a call, the message key LED flashes red. You can
configure the notification light to indicate the voice mails or missed calls respectively.
Phone Settings
27
To configure notification light:
1. Press to enter the main menu.
2. Select ->Display->Notification Light.
3. Press or to select the desired value from the Voice Mail field.
If Enabled is selected, the message key LED flashes red when the handset receives
a voice mail.
4. Press or to select the desired value from the Missed Call field.
If Enabled is selected, the message key LED flashes red when the handset misses a
call.
5. Press the Save soft key to accept the change or the Back soft key to cancel.
Date and time are displayed on the idle screen of your handset. The handset obtains
the date and time from the Simple Network Time Protocol (SNTP) server by default. If
your handset cannot obtain the date and time from the SNTP server, you need to
configure the date and time manually.
You can configure the time format and date format respectively. The handset supports
two time formats (12 Hour or 24 Hour) and six date formats. The available date formats
are listed in the following table:
Date Format
Example(2011-8-17)
d M,D
17 Aug,Wed
M d,D
Aug 17,Wed
D,d M
Wed,17 Aug
DD/MM/YYYY
17/08/2011
MM/DD/YYYY
08/17/2011
YYYY/MM/DD
2011/08/17
To configure date and time manually:
1. Press to enter the main menu.
2. Select ->Date & Time.
3. Edit the current values in the Date and Time fields.
4. Press the Save soft key to accept the change.
The date and time displayed on the LCD screen will change accordingly.
To configure the time format:
1. Press to enter the main menu.
2. Select ->Display->Time Format.
User Guide for the W52P IP DECT Phone
28
3. Press or to highlight the desired time format, and press the Change soft
key.
The radio box of the highlighted time format is marked. The time format displayed
on the LCD screen will be changed accordingly.
To configure the date format:
1. Press to enter the main menu.
2. Select ->Display->Date Format.
3. Press or to highlight the desired date format, and press the Change soft
key.
The radio box of the selected date format is marked. The date format displayed on
the LCD screen will be changed accordingly.
For the list of available time zones on the IP phone, please refer to Appendix A - Time
Zones on page 65.
There are two types of shortcut on the handset: changeable and unchangeable
shortcuts. A feature is pre-assigned to each shortcut. For example, long press to
turn on/off the silent mode, long press to lock/unlock the keypad, press to
access the directory and so on.
The changeable shortcuts are the two soft keys and four navigation keys. The available
features that can be assigned to each key may vary.
You can assign the frequently used features to the changeable shortcuts of your handset.
This helps you get quick access to a feature by pressing the corresponding shortcut
directly without having to scroll through the menu when the handset is idle.
To configure a shortcut:
1. Press to enter the main menu.
2. Select ->Shortcut.
The LCD screen displays the changeable shortcuts with features currently assigned
to them.
3. Press or to highlight the desired shortcut.
4. Press the Change soft key to access the available features.
The feature currently assigned to the selected key is highlighted and followed by a
left arrow.
5. Press or to highlight the desired feature.
6. Press the OK soft key to accept the change or the Back soft key to cancel.
Phone Settings
29
This section provides operating instructions on how to manage contacts. Topics include:
- Local Directory
- Blacklist
- Remote Phone Book
- Network Directory
You can store the frequently used contacts in the handset‟s local directory, where names
and numbers can be freely added, deleted and edited. You can store up to 100
contacts per handset, each with a name, a mobile number and an office number. You
can also dial a contact from the local directory. This allows you to place calls without
having to dial the number manually.
The directory entries are usually sorted in alphabetical order by the name attribute.
Spaces and digits take first priority. The sort order is as follows:
1. Space
2. Digits (0-9)
3. Letters (alphabetical)
Other special characters are sorted completely in accordance with the ASCII sort order.
You can edit names and numbers of the contacts stored in the local directory using the
keypad. The digit keys 0-1 are devoid of any letters. But the digit keys 2-9 are all
alphanumeric keys containing one digit and three or four letters in alphabetical order.
The following describes how to use the alphanumeric keys in detail.
To configure the input method:
The handset provides you with 11 different input methods. You can disable the
infrequently used input method. Then you can only switch among the enabled input
methods when editing.
1. Press to enter the main menu.
2. Select ->Display->Input Method.
The LCD screen displays all available input methods.
3. Press or to highlight the desired input method.
4. Press the Change soft key to check or uncheck the checkbox.
User Guide for the W52P IP DECT Phone
30
To enter a character:
You can press the key which contains your desired character a certain number of times
to enter the character.
To switch the input method:
1. Press .
The current input method is indicated on the bottom right-hand corner of the LCD
screen. For example, “ABC” represents the upper-case input method, “abc”
represents the lower-case input method and “123” represents the digital input
method.
To make a space:
1. Press when the input method is not “123”.
To move the cursor:
1. Press or to move the cursor.
To delete a wrong input character:
1. Place the cursor behind the wrong input character.
2. Press the Del soft key to delete the character.
You can add contacts to your local directory manually or from the call history. You can
also add contacts to your local directory from the remote phone book or the network
directory. For more information, refer to Remote Phone Book on page 33 and Network
Directory on page 34.
To add a contact to the local directory manually:
1. Press to enter the main menu.
2. Select .
3. Press the Options soft key, and select New Contact.
If there is no contact in the local directory, press the New soft key directly.
4. Enter the desired values in the Name, Number and Mobile fields.
5. Press the Save soft key to accept the change or the Back soft key to cancel.
To add a contact to the local directory from the call history:
1. Press the History soft key when the handset is idle.
2. Press or to highlight the desired call history list, and press the OK key.
3. Press or to highlight the desired entry.
4. Press the Options soft key, and select Add To Local->New Entry.
5. Press or to set the number to be the office number or the mobile number
Phone Settings
31
of the new entry, and press the OK soft key.
6. Enter the name of the new entry in the Name field.
7. Press the Save soft key to accept the change or the Back soft key to cancel.
Note
To edit a contact in the local directory:
1. Press to enter the main menu.
2. Select .
3. Press or to highlight the desired entry.
4. Press the Options soft key, and select Edit.
5. Edit the values in the Name, Number and Mobile fields.
6. Press the Save soft key to accept the change.
You can delete a contact or all contacts from the local directory.
To delete a contact:
1. Press to enter the main menu.
2. Select .
3. Press or to highlight the desired entry.
4. Press the Options soft key, and select Delete.
The selected entry will be deleted successfully.
To delete all contacts:
1. Press to enter the main menu.
2. Select .
3. Press the Options soft key, and select Delete All.
The LCD screen prompts “Delete All?”.
4. Press the Yes soft key to delete all contacts or the No soft key to cancel.
When you add a contact, the office number and the mobile number cannot be left blank
at the same time. When the contact name is left blank, the handset sets the office
number or the mobile number as the contact name.
If the information of the contact you want to add is totally same with that of an existing
entry in the local directory, the screen will prompt “Contact save failed!”.
User Guide for the W52P IP DECT Phone
32
You can search for the contacts by simply typing a few continuous characters of the
desired contact name or number, and the results of potential matches are dynamically
filtered and displayed on the LCD screen.
To search for contacts in the local directory:
1. Press to enter the main menu.
2. Select .
3. Enter a few continuous characters of the desired contact name or number using the
keypad.
The contact whose name or number matches the search will appear on the LCD
screen after a timeout or when the Search soft key is pressed. You can dial a
contact from the result list.
To place a call from the local directory:
1. Press to enter the main menu.
2. Select .
3. Press or to highlight the desired entry.
4. Do one of the following:
- If only one number is stored for the contact in the local directory, press to
dial out directly.
- If both the office number and the mobile number are stored for the contact in
the local directory, press the View soft key to display the two numbers.
Press or to highlight the desired number.
Press to dial out.
You can store up to 30 contacts in the handset‟s blacklist. You can add, edit or delete
contacts in the blacklist. You can also dial a call from the blacklist, but an incoming call
from a contact in the blacklist will be rejected automatically.
To add an entry to the blacklist manually:
1. Press to enter the main menu.
2. Press ->Telephony->Caller Blacklist.
3. Press the OK soft key.
If there is already an entry, press the Options soft key, and select New Entry.
4. Enter the desired number in the Phone Number field.
Phone Settings
33
5. Press the Save soft key to accept the change or the Back soft key to cancel.
You can also add an entry to the blacklist from the call history. For more information,
refer to Call History Management on page 35.
To delete an entry from the blacklist:
1. Press to enter the main menu.
2. Select ->Telephony->Caller Blacklist.
3. Press or to highlight the desired entry.
4. Press the Options soft key, and select Delete.
The selected entry will be deleted successfully.
To delete all entries from the blacklist:
1. Press to enter the main menu.
2. Select ->Telephony->Caller Blacklist.
3. Press the Options soft key, and select Delete All.
The LCD screen prompts “Delete All?”.
4. Press the Yes soft key to delete all entries or the No soft key to cancel.
To place a call from the blacklist:
1. Press to enter the main menu.
2. Select ->Telephony->Caller Blacklist.
3. Press or to highlight the desired entry.
4. Press to dial out.
You can access your corporate directory on your handset. You can add contacts to the
local directory from the corporate directory. You can also dial a contact from the
corporate directory. Contact your system administrator for the access URL of the
corporate directory.
To configure the access URL of the corporate directory via web user interface:
1. Click on Contacts->Remote Phone Book.
2. Enter the access URL in the RemoteURL field.
3. Enter the name in the Display Name field.
4. Click Confirm to accept the change.
To access your corporate directory:
1. Press to enter the main menu.
2. Select .
User Guide for the W52P IP DECT Phone
34
3. Press or to highlight the name of your corporate directory, and then
press the Enter soft key.
The handset connects to load the corporate directory, and then displays the contact
list on the LCD screen.
To place a call from the corporate directory:
1. Press to enter the main menu.
2. Select .
3. Press or to highlight the name of your corporate directory, and then
press the Enter soft key.
4. Select the desired contact from the corporate directory.
5. Do one of the following:
- If only one number is stored for the contact in the corporate directory, press
to dial out directly.
- If both the office number and the mobile number are stored for the contact in
the corporate directory, press the View soft key to display the two numbers.
Press or to highlight the desired number.
Press to dial out.
To add a contact to the local directory from the corporate directory:
1. Press to enter the main menu.
2. Select .
3. Press or to highlight the name of your corporate directory, and then
press the Enter soft key.
4. Select the desired contact from the corporate directory.
5. Press the Options soft key, and select Add To Local->New Entry.
6. Press the Save soft key to add the contact to the local directory.

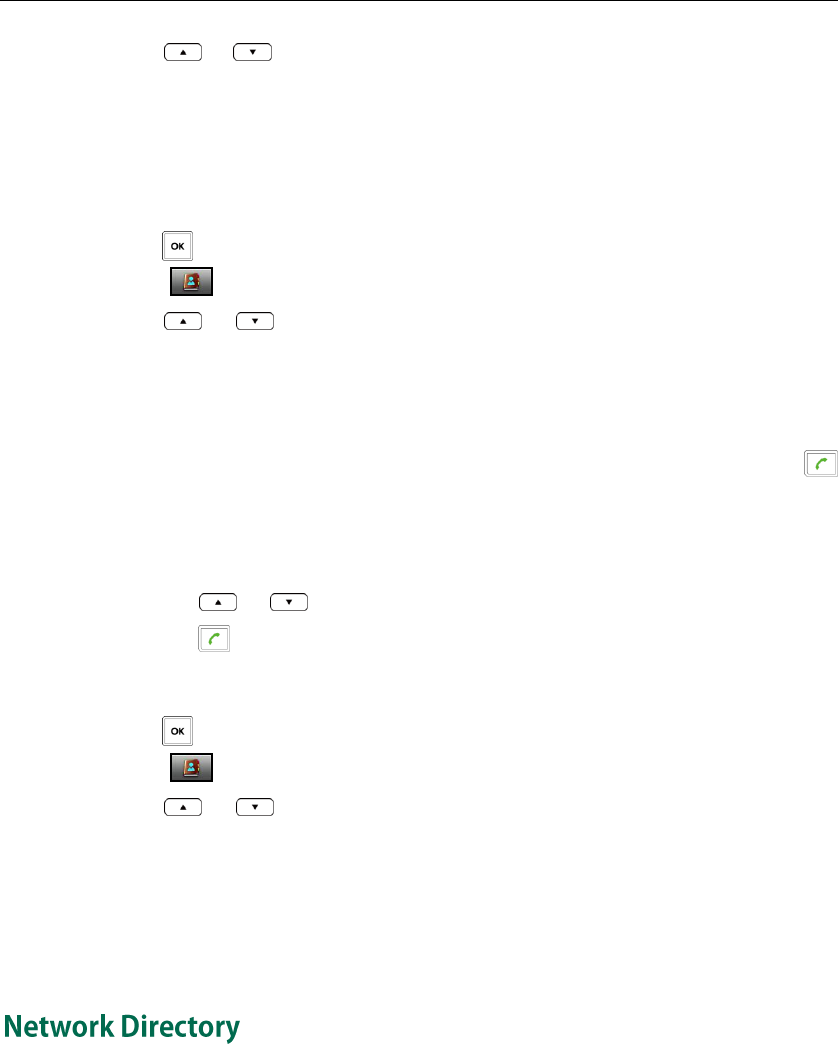

You can access the network directory on your handset. Contacts in the network directory
can be added to the local directory. You can also call the contact from the network
directory.
Contact your system administrator for the XSI server address, XSI user name and XSI
password to access the network directory.
To configure the network directory via web user interface:
1. Click on Contacts->Network Directory.
2. Enter valid values in the XSI Server, XSI Username and XSI Password fields.
3. Select the desired values from the pull-down lists of Group, GroupCommon,
Phone Settings
35
Enterprise, EnterpriseCommon and Personal.
These parameters decide the type of network contact lists to be displayed on the
handset.
4. Click Confirm to accept the change.
To access the network directory:
1. Press to enter the main menu.
2. Select ->Network Dir.
3. Press or to highlight the desired group, and press the Enter soft key.
The handset connects to load the network directory, and then displays the desired
network contact list on the LCD screen.
To place a call from the network directory:
1. Press to enter the main menu.
2. Select ->Network Dir.
3. Press or to highlight the desired group, and press the Enter soft key.
The LCD screen displays the desired network contact list.
4. Press or to highlight the desired entry.
6. Do one of the following:
- If only one number is stored for the contact in the network directory, press
to dial out directly.
- If multiple numbers are stored for the contact in the network directory, press the
View soft key to display all the numbers.
Press or to highlight the desired number.
Press to dial out.
To add a contact to the local directory from the network directory:
1. Press to enter the main menu.
2. Select ->Network Dir.
3. Press or to highlight the desired group, and then press the Enter soft key.
The LCD screen displays the desired network contact list.
4. Press or to highlight the desired entry.
5. Press the Options soft key, and select Add to Local->New Entry.
6. Press the Save soft key to add the contact to the local directory.

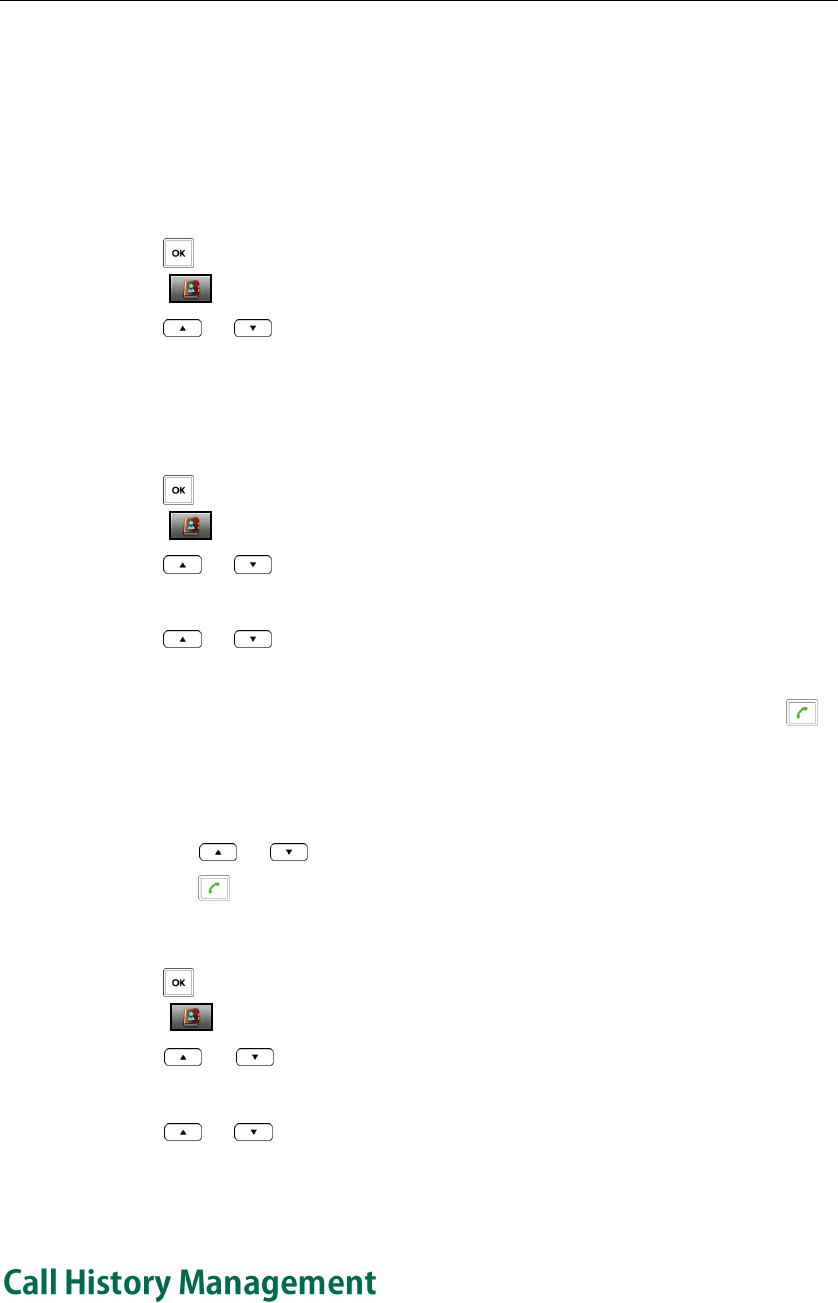

Call history contains call information such as calling/called party identification, time and
date, and call duration. The handset maintains call history lists of All Calls, Outgoing
Calls, Missed Calls and Accepted Calls. Each call history list can store a list of entries
User Guide for the W52P IP DECT Phone
36
sorted by date and time of the call, starting with the latest call entry. You can check the
detailed information of an entry in the call history. You can also dial a call, add an entry
to the blacklist or delete entries from the call history.
To check the local call history:
1. Press the History soft key when the handset is idle.
The LCD screen displays 4 call history lists: All Calls, Outgoing Calls, Missed Calls
and Accepted Calls.
2. Press or to highlight the desired list, and press the OK soft key.
The LCD screen displays all entries of the selected list.
3. Press or to highlight the desired entry, and press the View soft key.
The LCD screen displays the detailed information of the entry.
To add an entry to the blacklist from the call history:
You can block the phone from dialing a number by adding this number to the blacklist.
For more information on blacklist, refer to Blacklist on page 32.
1. Press the History soft key when the handset is idle.
The LCD screen displays 4 call history lists: All Calls, Outgoing Calls, Missed Calls
and Accepted Calls.
2. Press or to highlight the desired list, and press the OK soft key.
The LCD screen displays all entries of the selected list.
3. Press or to highlight the desired entry.
4. Press the Options soft key, and select Add To Blacklist.
The LCD screen prompts “Are you sure?”.
5. Press the Yes soft key to add the selected entry to the blacklist or the No soft key to
cancel.
To delete an entry from the call history:
1. Press the History soft key when the handset is idle.
The LCD screen displays 4 call history lists: All Calls, Outgoing Calls, Missed Calls
and Accepted Calls.
2. Press or to highlight the desired list, and press the OK soft key.
The LCD screen displays all entries of the selected list.
3. Press or to highlight the desired entry.
4. Press the Options soft key, and select Delete.
The selected entry is deleted successfully.
To delete all entries of a list from the call history:
1. Press the History soft key when the handset is idle.
The LCD screen displays 4 call history lists: All Calls, Outgoing Calls, Missed Calls
Phone Settings
37
and Accepted Calls.
2. Press or to highlight the desired list, and press the OK soft key.
The LCD screen displays all entries of the selected list.
3. Press the Options soft key, and select Delete All.
The LCD screen prompts “Delete All?”.
4. Press the Yes soft key to delete all entries of the selected list or the No soft key to
cancel.
To place a call from the call history:
1. Press the History soft key when the handset is idle.
The LCD screen displays 4 call history lists: All Calls, Outgoing Calls, Missed Calls
and Accepted Calls.
2. Press or to highlight the desired list, and press the OK soft key.
The LCD screen displays all entries of the selected list.
3. Press or to highlight the desired entry.
4. Press .

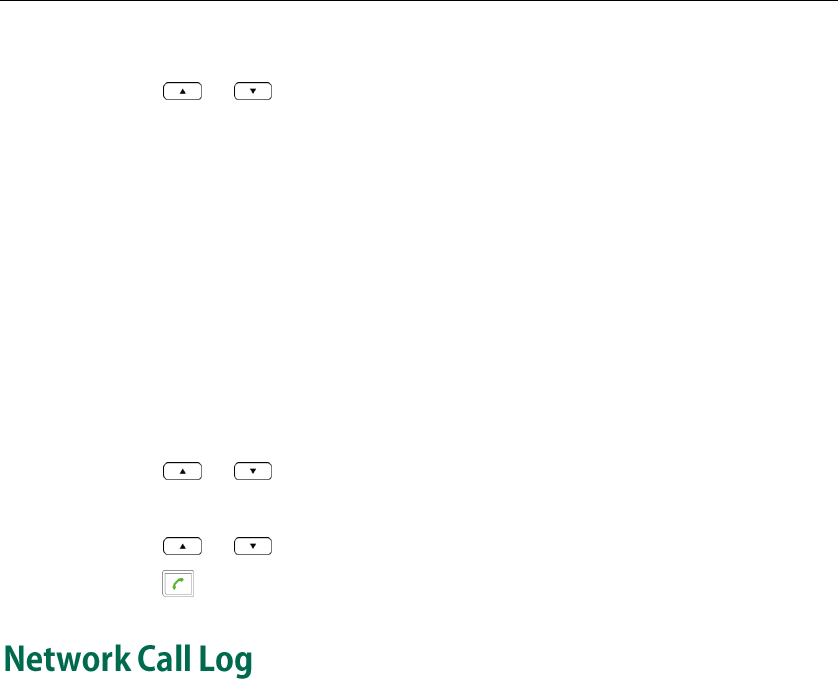

You can access the network call log on the handset. The network call log contains call
information such as calling/called party identification, time and date. You can check the
call log and dial a call from the call log list. The network call log allows users to view
and dial the stored numbers in the following lists: All Calls, Outgoing Calls, Missed Calls
and Accepted Calls.
To manage the entries of the network call log, you should enable network call log
feature in advance.
To enable network call log feature via web user interface:
1. Click on Contacts->Network Directory.
2. Select Enabled from the pull-down list of Network Call Log.
The LCD screen displays the network call log lists when you press the History soft
key.
If Disabled is selected, the LCD screen displays the local call history lists when you
press the History soft key.
3. Click Confirm to accept the change.
To check the network call log:
1. Press the History soft key when the handset is idle.
The LCD screen displays 4 network call log lists: All Calls, Outgoing Calls, Missed
Calls and Accepted Calls.
User Guide for the W52P IP DECT Phone
38
2. Press or to highlight the desired list, and press the OK soft key.
The LCD screen displays all entries of the selected list.
3. Press or to highlight the desired entry, and press the View soft key.
The LCD screen displays the detailed information of the entry.
To place a call from the network call log:
1. Press the History soft key when the handset is idle.
The LCD screen displays 4 network call log lists: All Calls, Outgoing Calls, Missed
Calls and Accepted Calls.
2. Press or to highlight the desired list, and press the OK soft key.
The LCD screen displays all entries of the selected list.
3. Press or to highlight the desired entry.
4. Press .
Dial plan is a string of characters that governs the way your handset processes the
inputs received from your handset keypad. The handset supports the following dial plan
features:
- Replace Rule
- Area Code
- Block Out
Basic expression syntaxes you need to know:
.
The dot “.” can be used as a placeholder or multiple placeholders for any
character. Example:
“12.” would match “123”, “1234”, “12345”, “12abc”, etc.
x
An “x” can be used as a placeholder for any character. Example:
“12x” would match “121”, “122”, “123”, “12a”, etc.
[]
The square brackets “[]”can be used as a placeholder for a single character
which matches any of a set of characters. Example:
“91[5-7]1234” would match “9151234”, “9161234”, “9171234”, etc.
()
The parentheses “()”can be used to group together patterns, for instance, to
logically combine two or more patterns. Example:
“91([5-7])1(x)” would match “91511”, “91618”, “91715”, etc.
$
The “$” should be followed by the sequence number of a parenthesis. The
“$” plus the sequence number means the whole character or characters
placed in the parenthesis. The number directs to the right parenthesis when
there are more than one. Example:
A replace rule configuration: Prefix: “9([5-7]) (.)”, Replace: “5$2”. When you
enter “96123” to dial out on your phone, the number will be replaced as
Phone Settings
39
“5123” and then dialed out. “$2” means the characters in the second
parenthesis, that is, “123”.
Note
You can configure one or more replace rules (up to 20) to remove the specified string
and replace it with another string. You can configure a pattern with wildcards (refer to
the expression syntax in the table above), so that any string that matches the pattern
will be replaced. This feature is convenient for you to dial out a long number. For
example, a replace rule is configured as “Prefix: 1” and “Replace: 1234567”, when you
want to dial out the number “1234567”, you just need to enter “1”.
To add a replace rule via web user interface:
1. Click on Phone->Dial Plan->Replace Rule.
2. Enter the string (e.g., 2xx) in the Prefix field.
3. Enter the string (e.g., 12345) in the Replace field.
4. Enter the desired line ID in the Account field or leave it blank.
5. Click Add to add the replace rule.
When you enter the number “234” using the keypad and then dial out using the
configured account, the handset will dial out “12345” instead.
To edit a replace rule via web user interface:
1. Click on Phone->Dial Plan->Replace Rule.
2. Select the desired replace rule by checking the check box.
3. Edit the values in the Prefix and Replace fields.
4. Enter the desired line ID in the Account field or leave it blank.
5. Click Edit to accept the change.
To delete one or more replace rules via web user interface:
1. Click on Phone->Dial Plan->Replace Rule.
2. Select the one or more replace rules by checking the check box(es).
3. Click Delete to delete the replace rule(s).
When adding a dial plan rule, you can specify the accounts to apply the dial plan rule in
the Account field. The valid value of the “Account” parameter can be one or more digits
among 1, 2, 3, 4 and 5, each of which represents a line ID. Digits must be separated by
commas. For example, when you enter the value “1, 2” in the Account field, this dial plan
rule will apply to account1 and account2.
If you leave the Account field blank or enter 0, then this dial plan rule will apply to all
accounts.
User Guide for the W52P IP DECT Phone
40
Area codes are also known as Numbering Plan Areas (NPAs). They usually indicate
geographical areas in a country. This feature is necessary only when dialing the number
outside the code area. For example, area code is configured as “Code: 011, Minimum
Length: 4, Maximum Length: 11”, then when you dial out the number “56789”, which has
digits between 4 and 11, the phone will add the area code before the number and dial
out (01156789).
To configure area code via web user interface:
1. Click on Phone->Dial Plan->Area Code.
2. Enter the desired values in the Code, Minimum Length (1-15) and Maximum Length
(1-15) fields.
3. Enter the desired line ID in the Account field or leave it blank.
4. Click Confirm to accept the change.
Note
You can block the dialing of specific numbers (up to 10). When you dial the block out
number on the handset, the dialing will fail and the LCD screen will prompt “Num
Block”.
To add a block out number via web user interface:
1. Click on Phone->Dial Plan->Block Out.
2. Enter the desired value in the BlockOut Number field.
3. Enter the desired line ID in the Account field or leave it blank.
4. Click Confirm to add the block out number.
Public telephone networks in countries around the world have a single emergency
telephone number (emergency services number), that allows a caller to contact local
emergency services for assistance when necessary. The emergency telephone number
may differ from country to country. It is typically a three-digit number so that it can be
easily remembered and dialed quickly. Some countries have different emergency
numbers for different emergency services. You can specify the emergency numbers for
contacting the emergency services in an emergency situation.
Note
The default values of minimum and maximum lengths are 1 and 15 respectively.
Contact your local phone service provider for available emergency numbers in your
area.
Phone Settings
41
To specify emergency numbers via web user interface:
1. Click on Phone->Features.
2. Enter the emergency services number in the Emergency Numbers field.
For multiple numbers, enter a comma between every two emergency numbers.
3. Click Confirm to accept the change.
After the handset is registered to the base station, you can assign one or more outgoing
lines for the handset. The handset can only use the assigned outgoing line(s) to place
calls. When multiple outgoing lines are assigned to the handset, the handset uses the
first line as the default outgoing line. You can change the default outgoing line of the
handset.
To change the default outgoing line of the handset:
1. Press to enter the main menu.
2. Select ->Telephony->Default Line.
The LCD screen displays all outgoing lines currently assigned to the handset. The
default outgoing line is highlighted and followed by a left arrow.
3. Press or to highlight the desired line, and then press the OK soft key.
The default outgoing line is changed successfully.
After the handset is registered to the base station, you can assign one or more incoming
lines for the handset. The handset can only receive incoming calls of the assigned
incoming line(s). You can assign incoming lines to all handsets registered to the same
base station on your handset.
To assign the incoming line to handsets:
1. Press to enter the main menu.
2. Select ->Telephony->Incoming Lines.
3. Enter the system PIN (default: 0000).
4. Press the Done soft key.
The LCD screen displays all handsets registered to the base station. The handset
itself is highlighted and followed by a left arrow.
5. Press or to highlight the desired handset, and press the OK soft key.
6. Press or to select Accept from the desired line fields.
7. Press the Save soft key to accept the change.
8. Press the Back soft key to return to the previous interface.
User Guide for the W52P IP DECT Phone
42
9. Repeat steps 5-8 to assign incoming lines for other handsets.
If a line is assigned to multiple handsets as an incoming line, an incoming call to this
line will cause these handsets to ring simultaneously, but the incoming call can be
only answered by one of them.
Speed dial allows you to perform single-digit dialing to predefined numbers. This
feature is particular useful to users who dial certain numbers on regular basis. A
maximum of 8 speed dial numbers are allowed.
You can assign the important numbers of your directory (including local directory,
remote phone book and network directory) to the speed dial keys of your handset. This
helps you dial a contact quickly and easily by long pressing the speed dial key without
having to enter the directory. The available speed dial keys are the digit keys 2-9.
To assign a speed dial number from the directory:
1. Press to enter the main menu.
2. Select ->Telephony->Speed Dial.
The LCD screen displays all available speed dial keys.
3. Press or to highlight the desired speed dial key, and press the Assign
soft key.
4. Press or to highlight the desired directory if there are multiple
directories.
5. Select the desired contact from the directory.
6. Do one of the following:
- If only one number is stored for the contact in the selected directory, press the
OK soft key to assign the number to the selected speed dial key.
- If both the office number and the mobile number are stored for the contact in
the selected directory, press the OK soft key to display the two numbers.
Press or to highlight the desired number.
Press the OK soft key to assign the number to the selected speed dial key.
To delete a speed dial number:
1. Press to enter the main menu.
2. Select ->Telephony->Speed Dial.
Phone Settings
43
The LCD screen displays all available speed dial keys.
3. Press or to highlight the desired speed dial key, which is already
assigned a number.
4. Press or the Clear Key soft key to delete the assigned speed dial number.

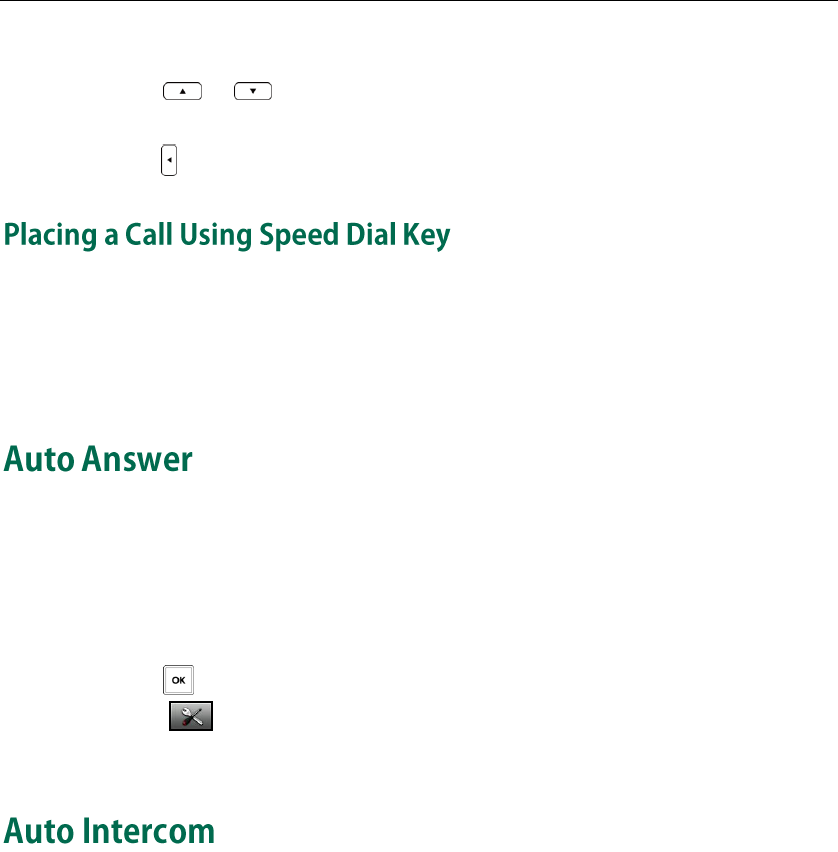

To place a call using the speed dial key:
1. Long press the speed dial key (digit key) when the handset is idle.
The number assigned to this speed dial key is dialed out.
When auto answer feature is enabled, you can simply answer the incoming calls by
lifting the handset from the charger cradle without having to press the off-hook key. The
auto answer feature works only if the handset is placed in the charger cradle.
To configure auto answer:
1. Press to enter the main menu.
2. Select ->Telephony->Auto Answer.
3. Press the Change soft key to check or uncheck the Auto Answer checkbox.
Intercom is a useful feature in an office environment to quickly connect with the operator
or the secretary. You can make internal intercom calls and external intercom calls on the
phone. Internal intercom calls are made between handsets registered to the same base
station. External intercom calls can be made by dialing the feature access code
followed by the number. External intercom calls depend on support from a SIP server.
The handset can automatically answer an incoming external intercom call and play
warning tone only when there is only one handset subscribed and no call in progress on
the handset.
To automatically answer an incoming internal intercom call, you need to enable auto
intercom feature on the handset. The following configuration types of auto intercom
feature are available for selection:
- On (Beep On): Auto intercom feature is on. The handset will answer an incoming
internal intercom call automatically and play a warning tone.
- On (Beep Off): Auto intercom feature is on. The handset will answer an incoming
internal intercom call automatically without warning tone.
- Off: Auto intercom feature is off. You need to answer an incoming internal intercom
User Guide for the W52P IP DECT Phone
44
call by pressing the Accept soft key.
To configure auto intercom:
1. Press to enter the main menu.
2. Select ->Telephony->Auto Intercom.
The LCD screen displays three configuration types.
3. Press or to highlight the desired configuration type, and press the
Change soft key.
The radio box of the selected configuration type is marked.
You can reset individual settings that you have made on the handset. Resetting handset
will not overwrite settings of directory, call history, voice mail and the handset
registration to the base station. Other customized settings on the handset will be reset to
factory settings after handset reset. We recommend that you ask your system
administrator for advice before resetting your handset.
To reset the handset:
1. Press to enter the main menu.
2. Select ->System Settings->Handset Reset.
The LCD screen prompts “Reset handset to default?”.
3. Press the Yes soft key to reset the handset or the No soft key to cancel.
You can reset the base station to factory settings. This will clear all individual settings of
the base station (e.g., directory and account registrations). Handset registrations and
the system PIN will not be reset to factory defaults. We recommend that you ask your
system administrator for advice before resetting your base station.
To reset the base station:
1. Press to enter the main menu.
2. Select ->System Settings->Base Reset.
3. Enter the system PIN (default: 0000).
4. Press the Done soft key.
All individual settings of the base station are reset to factory defaults successfully.
The power indicator LED on the base station slow flashes during the resetting
process.
Note
Base station reset may take a few minutes. Do not power off until the base station starts
up successfully.
Phone Settings
45
You can trigger the auto provisioning process using the wizard. After you enter the user
name and password in the wizard and confirm to perform an update, the base station
tries to connect the RPS (Redirection and Provisioning Service) server. If the base station
successfully connects the RPS server, the RPS server responds the base station with the
URL for downloading the configuration files. Then the base station tries to perform auto
provisioning. Contact your system administrator for the user name and password used
to connect the RPS server.
To trigger the auto provisioning process:
1. Press to enter the main menu.
2. Select ->System Settings->Auto Provision.
3. Enter the system PIN (default: 0000) and press the Done soft key.
4. Enter the valid value in the Username field and press the OK soft key.
5. Enter the valid value in the Password field and press the OK soft key.
The LCD screen prompts “Update now?”.
6. Press the Yes soft key to perform an update or press the No soft key to cancel.
Eco mode+ turns off the transmission power and the radio waves emitted are
virtually zero when the phone is in the standby mode. If the eco mode+ is
enabled, and there is no signal interaction between the handset and the base
station, the color of the signal strength indicator on the idle screen displays in
green. When a call comes in or a connection occurs, the phone exits the eco
mode+ automatically, and the signal strength indicator on the idle screen
changes from green to white.
To configure eco mode+:
1. Press to enter the main menu.
2. Select ->System Settings->Eco Mode+.
3. Press the Change soft key to check or uncheck the Eco Mode+ checkbox.
4. Enter the system PIN (default: 0000) and press the Done soft key.
The LCD screen prompts “Are you sure you want to reboot the base station?”.
5. Press the Yes soft key to reboot the base station.
The base station reboots to make the configuration take effect. The configuration
applies to all the handsets registered to the base station.
User Guide for the W52P IP DECT Phone
46
Eco mode greatly reduces the transmission power and signal output when the
phone is in the talk mode. The attenuation range is 20m. When the distance
between the base station and the handset is over 20m, the eco mode is
disabled automatically.
To configure eco mode:
1. Press to enter the main menu.
2. Select ->System Settings->Eco Mode.
3. Press the Change soft key to check or uncheck the Eco Mode checkbox.
If the Eco Mode checkbox is checked, the eco mode is enabled. The color of the
signal strength indicator on the idle screen will change from white to green.
Note
Repeater mode extends the radio coverage of the base station. The repeater has the
same radio coverage as the base station. This feature is especially useful for users who
require mobility in large dwellings. If the repeater mode is enabled, and a repeater is
registered to the base station, the handset registered to the base station can be used
either in the base station or the repeater coverage area, thereby providing users with
greater freedom in mobility.
To configure the repeater mode:
1. Press to enter the main menu.
2. Select ->System Settings->Repeater Mode.
3. Press the Change soft key to check the Repeater Mode checkbox.
The LCD screen prompts “Setting takes effect after base reboot. Reboot now or
not?”.
4. Press the Yes soft key to reboot the base station.
The base station reboots to make the configuration take effect. The configuration
applies to all the handsets registered to the same base station.
Note
If the eco mode is enabled, the coverage area of the base station will be reduced.
Repeater mode and eco mode+ cancel each other out. These two features cannot be
used at the same time.
To use repeater mode, make sure both the base station and handset are upgraded to
the supported firmware version (x.30.x.40 or later).
For more information on how to use DECT repeater with the base station, refer to
Yealink
DECT Repeater RT10 User Guide
.
Call Features
47
The W52P IP DECT phone is designed to be easily used like a regular phone on a public
switched telephone network (PSTN). You can place internal and external calls, answer
calls, transfer a call to someone else, or conduct a conference call.
This chapter provides operating instructions of the call features. Topics include:
- Placing Calls
- Answering Calls
- Ending Calls
- Redialing Calls
- Call Mute
- Call Hold/Resume
- Call Waiting
- Do Not Disturb (DND)
- Call Forward
- Call Transfer
- Conference Call
- Anonymous Call
- Anonymous Call Rejection
- Voice Mail
If you require additional information or assistance with your new phone, contact your
system administrator.
You can use your handset to place an internal or external call. You can place a call using
the following call modes:
- Earpiece mode—pressing the off-hook key to dial out.
- Speakerphone mode—pressing the speakerphone key to dial out.
- Headset mode—connecting a headset.
During the call, you can switch the call mode by pressing the corresponding keys or
connecting a headset.
You can cancel the dialing operation by pressing the on-hook key. During the call
conversation, you can press the left and right navigation keys to adjust the volume of
User Guide for the W52P IP DECT Phone
48
the currently engaged audio devices (earpiece, headset or loudspeaker). The call
duration is displayed on the LCD screen while the call is in progress.
You can make free internal calls between the handsets registered to the same base
station. You can place an internal call to one handset or all handsets registered to the
same base station.
To place an internal call to one handset:
1. Press to enter the main menu.
2. Select .
The LCD screen displays all other registered handset names and the All HS option.
3. Press or to highlight the desired handset name.
4. Press , , or the OK soft key to dial out.
To place an internal call to all handsets:
1. Press to enter the main menu.
2. Select .
The LCD screen displays all registered handset names and the All HS option.
3. Select All HS.
4. Press , , or the OK soft key to dial out.
All other subscribed handsets will ring simultaneously.
You can place external calls on the handset. External calls based on the public
telephone network require the use of SIP lines. Your system administrator needs to
assign the SIP line to the handset beforehand, and then assign the line to the handset as
outgoing line. For more information on outgoing line, refer to Outgoing Lines on page
41.
To place an external call:
1. Enter the desired number using the keypad.
2. Press , or to dial out.
If there are multiple lines assigned to your handset as outgoing lines, press the Line
soft key to select the desired line and then press or the Dial soft key to dial out.
If you do not select a line, the handset uses the default outgoing line to dial out.
Call Features
49
To place a new call during an active call:
You can place at most two calls on your handset.
1. Press the Ext.Call soft key.
The active call is placed on hold.
2. Enter the desired number in the Call To field using the keypad.
3. Press or to dial out.
Note
You can answer a call in three ways:
- Using the earpiece
- Using the speakerphone
- Using the headset
Note
Answering When Not in Another Call
In all cases, the active call will appear on the LCD screen showing call duration and
destination.
To answer a call using the earpiece:
1. Press or the Accept soft key.
To answer a call using the speakerphone mode:
1. Press .
To answer a call using the headset:
1. With a headset connected, press the Accept soft key.
Answering When in Another Call
If you are during an active call, an incoming call arrives on the handset, do the
following:
1. Press , or the Accept soft key.
The incoming call is answered, and the original call is placed on hold.
You can ignore an incoming call by pressing the Silence soft key or reject an incoming
call by pressing the on-hook key.
You can also activate Do Not Disturb mode on a per-line basis to reject all incoming calls
of the specified line.
You can also make an IP call by directly dialing the IP address of any IP phone. For
example, IP: 192.168.1.15.
User Guide for the W52P IP DECT Phone
50
To end a call:
Do one of the following:
- Press .
- Place the handset in the charger cradle.
The redial number list stores the twenty last dialed phone numbers. When the memory
of the redial number list is full, the handset will automatically erase the oldest dialed
number when a new number is dialed. You can redial a call from the redial number list.
To redial the last dialed number:
1. Press when the handset is idle.
2. Press again.
A call to your last dialed number is attempted.
To redial a previously dialed number:
1. Press when the handset is idle.
The handset displays the dialed phone numbers.
2. Press or to highlight the desired entry.
You can press Options->Edit Before Call to edit the phone number or select the
desired line by pressing the Line soft key.
3. Press again.
You can add local contacts from the redial number list. You can also delete an entry or
all entries from the redial number list.
You can mute the microphone during an active call. When muting the microphone, you
can hear the other party but he or she cannot hear you. For example, if you do not want
the other party to listen in while you talk to someone in the room, you can mute the
microphone temporarily.
To mute a call:
1. Press during an active call.
The call is on mute, and the icon is displayed on the LCD screen.
Call Features
51
To un-mute a call:
1. Press again.
The icon disappears from the LCD screen.
You can place an active call on hold. At any time, at most one active call can be in
progress on your handset. Another call can be answered and made while placing the
original call on hold.
To place a call on hold:
1. Press the Options soft key during a call, and then select Hold.
The call is placed on hold and the icon is displayed on the LCD screen.
To resume a hold call:
Do one of the following:
- Press the Resume soft key.
- Press .
- Press .
Two calls on Hold:
If two calls are placed on hold on the handset, press the Resume soft key to resume the
current call. Press , or the Swap soft key to swap between two calls.
Note
You can enable or disable call waiting feature on the handset. If call waiting feature is
enabled, the handset will notify you of a new incoming call during a call, and present
the incoming call information visually on the LCD screen. You can also enable the
handset to play a warning tone when receiving a new incoming call during a call. If call
waiting feature is disabled, the new incoming call will be automatically rejected by the
handset.
To configure call waiting feature:
1. Press to enter the main menu.
2. Select ->Call Waiting.
3. Press or to select the desired value from the Status field.
When the call on the handset is placed on hold, placing the handset in the charger
cradle will not end the call.
User Guide for the W52P IP DECT Phone
52
4. Press or to select the desired value from the Tone field.
5. Press the Save soft key to accept the change or the Back soft key to cancel.
Note
To answer a new incoming call during a call:
If call waiting feature is enabled, a new incoming call can be answered during a call.
1. Press the Accept soft key to answer the new incoming call.
The original call is placed on hold.
You can activate or deactivate the DND mode on a per-line basis. If DND mode is
activated for a specific line, all incoming calls to the line will be rejected automatically,
and the callers will hear a busy tone.
To activate DND mode for a specific line:
1. Press to enter the main menu.
2. Select ->Do Not Disturb.
The LCD screen displays the incoming lines currently assigned to the handset.
3. Press or to highlight the desired line, and press the OK soft key.
4. Press or to select Enabled from the Status field.
5. Press the OK soft key to accept the change.
The icon on the idle screen indicates the DND mode is activated. You can press the
Line soft key when the handset is idle to check the line status. The icon in the bottom
of a line indicates that the DND mode is activated for this line.
The handset will reject all incoming calls to this line, and the LCD screen displays the
missed call icon followed by the number of missed calls.
You can enable call forward feature on a per-line basis. The handset will forward
incoming calls of the line to another party.
Three forwarding types:
- Always Forward: Incoming calls are immediately forwarded.
- Busy Forward: Incoming calls are immediately forwarded if the line is busy.
- No Answer Forward: Incoming calls are forwarded if not answered after a period of
time.
The call waiting tone works only if call waiting feature is enabled.
Call Features
53
To enable call forward feature for a specific line:
1. Press to enter the main menu.
2. Select ->Call Forward.
The LCD screen displays the incoming lines currently assigned to the handset.
3. Press or to highlight the desired line, and then press the OK soft key.
4. Press or to highlight the desired forwarding type, and then press the OK
soft key.
5. Press or to select Enabled from the Status field.
6. Enter the destination number you want to forward incoming calls to in the Target
field.
7. Press or to select the desired ring time to wait before forwarding from the After
Ring Time field (only available for No Answer Forward).
8. Press the Save soft key to accept the change.
The icon on the idle screen indicates call forward feature is enabled.
If Always Forward is selected, there is no prompt on the LCD screen when the line
receives an incoming call. The incoming call is logged in the Accepted Calls list.
Note
You can transfer a call to another party in one of the following ways:
- Blind Transfer: Transfer a call directly to another party without consulting.
- Semi-Attended Transfer: Transfer a call when receiving the ring-back.
- Attended Transfer: Transfer a call with prior consulting.
To perform a blind transfer:
1. Press the Options soft key during a call, and then select Blind Transfer.
You can also press directly.
2. Do one of the following:
- Enter the number or select the handset you want to transfer the call to.
Press or the Transfer soft key.
- Press the Directory soft key, and select the desired contact.
Press the Call soft key.
If both the office number and the mobile number of the contact are stored,
select the desired number and then press or the OK soft key.
The call is connected to the number or the handset you specified, and the LCD
Call forward feature may be overridden by the server settings. For more information,
contact your system administrator.
User Guide for the W52P IP DECT Phone
54
screen prompts “Call Transferred”.
To perform a semi-attended transfer:
1. Press the Options soft key during a call, and select Transfer.
2. Do one of the following:
- Enter the number or select the handset you want to transfer the call to.
Press or the OK soft key to dial out.
- Press the Directory soft key, and select the desired contact.
Press the Call soft key.
If both the office number and the mobile number of the contact are stored,
select the desired number and press or the OK soft key to dial out.
3. Press or the Transfer soft key to complete the transfer when receiving the
ring-back.
The LCD screen prompts “Call Transferred”.
To perform an attended transfer:
1. Press the Options soft key during a call, and select Transfer.
2. Do one of the following:
- Enter the number or select the handset you want to transfer the call to.
Press or the OK soft key to dial out.
- Press the Directory soft key, and select the desired contact.
Press the Call soft key.
If both the office number and the mobile number of the contact are stored,
select the desired number and press or the OK soft key to dial out.
3. Press the Transfer soft key to complete the transfer after the party answers the call.
The LCD screen prompts “Call Transferred”.
You can use the handset to create a local conference with other parties. The handset
supports up to 3 parties (including yourself) in a conference call. You can create a
conference between an active call and a held call on the handset (on the same line or
different lines).
To set up a local conference call:
1. Place a call to the first party.
2. Press the Options soft key, and select Conference.
3. Do one of the following:
- Enter the number of the second party or select the handset you want to add to
the conference.
Call Features
55
Press or the Conf. soft key to dial out.
- Press the Directory soft key, and select the desired contact.
Press the Call soft key.
If both the office number and the mobile number of the contact are stored,
select the desired number and press or the OK soft key to dial out.
4. When the second party answers the call, you can consult with him or her before
adding the call to the conference.
5. Press the Conf. soft key again to join all parties in the conference.
To join two calls in a conference:
1. Place two calls on the handset.
2. Select the desired call and make sure the call is active.
3. Press the Options soft key, and select Conference.
Two calls are joined in the conference.
To drop the conference call, press or the End soft key.
You can use anonymous call feature to block the identity and phone number from
showing up to the called party when you call someone. For example, you want to call to
consult some service, but do not want to be harassed. You can configure anonymous
call feature on a per-line basis.
Note
To enable anonymous call feature for a specific line:
1. Press to enter the main menu.
2. Select ->Anonymous Call.
The LCD screen displays the outgoing lines currently assigned to the handset. The
default outgoing line is highlighted and followed by a left arrow.
3. Press or to highlight the desired line, and press the OK soft key.
4. Press or to select Enabled from the Status field.
5. Press the OK soft key to accept the change.
To place an anonymous call:
1. Using the specific line on the handset to place a call.
The LCD screen of the phone receiving this call prompts an incoming call from
anonymity.
The anonymous call feature is not available on all servers. Contact your system
administrator for more information.
User Guide for the W52P IP DECT Phone
56
You can use anonymous call rejection feature to reject incoming calls from anonymous
callers. Anonymous call rejection automatically rejects incoming calls from callers who
deliberately block their identities and numbers from showing up. You can configure
anonymous call rejection feature on a per-line basis.
To enable anonymous call rejection feature for a specific line:
1. Press to enter the main menu.
2. Select ->Anon.Call Rejection.
The LCD screen displays the incoming lines currently assigned to the handset.
3. Press or to highlight the desired line, and press the OK soft key.
4. Press or to select Enabled from the Status field.
5. Press the OK soft key to accept the change.
You can leave voice mails to someone else. You can also receive and listen to voice
mails via the handset. Voice mail feature ensures that you will never miss any important
messages. When receiving a new voice mail, the icon appears on the LCD screen
with the number of unread voice mails, and the message key LED flashes red.
Note
To leave a voice mail:
You can leave a voice mail to someone else when he or she is busy or inconvenient to
answer the call. Follow the voice prompts from the system server to leave a voice mail,
and then hang up.
To configure the voice mail access code:
1. Press to enter the main menu.
2. Select ->Set Voice Mail.
The LCD screen displays the lines assigned to the handset as incoming lines and
outgoing lines simultaneously, and the number of voice mails for each line.
3. Press or to highlight the desired line, and press the Select soft key.
4. Press or to select Enabled from the Status field.
5. Enter the voice mail access code in the Number field.
6. Press the OK soft key to accept the change or the Back soft key to cancel.
Voice mail feature is not available on all servers. Contact your system administrator for
more information.
Call Features
57
To configure fast access for voice mail:
You can configure fast access to connect straight to the voice mails of the desired line by
long pressing the digit key 1 without having to scroll through the menu when the
handset is idle.
1. Press to enter the main menu.
2. Select ->Set Key 1.
The LCD screen displays the lines assigned to the handset as incoming lines and
outgoing lines simultaneously, and the number of voice mails for each line.
3. Press or to highlight the desired line and press the Select soft key.
The radio box of the selected line is marked.
To listen to the voice mail using the menu:
1. Press the OK key to enter the main menu.
2. Select ->Play Message.
The LCD screen displays the lines assigned to the handset as incoming lines and
outgoing lines simultaneously, and the number of voice mails for each line.
3. Press or to highlight the desired line, and press the Select soft key.
The handset dials out the voice mail access code using the selected line
automatically.
4. Listen to the voice mail following the voice prompts from the system server.
To listen to the voice mail via fast access:
1. Long press when the handset is idle.
The handset automatically dials out the voice mail access code using the line you
selected when configuring fast access for voice mail.
2. Listen to the voice mail of this line following the voice prompts from the server.
You can also listen to the voice mail by pressing to enter into the Message & Call
screen. Select the desired line and press the Select soft key.
Note
Before listening to the voice mails, make sure the voice mail access code has been
configured.
When all new voice mails are retrieved, the icon disappears from the screen.
User Guide for the W52P IP DECT Phone
58
Troubleshooting
59
This chapter provides some general troubleshooting information to help you solve the
problems you might encounter when using your W52P IP DECT phone.
If you require additional information or assistance with your new phone, contact your
system administrator.
Why doesn‟t the handset ring?
- Ensure that the ringer volume of your handset is not adjusted to the minimum. Refer
to Adjusting Ringer Volume on page 19.
- Ensure that the silent mode is not switched on. Refer to Switching Silent Mode
On/Off on page 20.
Why can‟t I receive calls?
- Ensure that the DND mode is not activated. Refer to Do Not Disturb (DND) on page
52.
- Ensure that Always Forward feature is not enabled. Refer to Call Forward on page
52.
Why does the handset prompt the message “Not Subscribed”?
Check the registration status of your handset. If your handset is not registered to the
base station, register it manually. Refer to Handset Registration on page 15.
Why does the handset prompt the message “Not In Range”?
- Ensure that the base station is properly plugged into a functional AC outlet.
- Ensure that the handset is not too far from the base station.
Why does the handset prompt the message “Network unavailable”?
- Ensure that the Ethernet cable is plugged into the Internet port on the base station
and the Ethernet cable is not loose.
- Ensure that the switch or hub in your network is operational.
Why does paging fail?
- Check the current mode of the base station. If the base station is not in the paging
mode, press the paging key on the base station to enter into the paging mode.
- Ensure that there is at least one handset subscribed to the base station.
User Guide for the W52P IP DECT Phone
60
Why can‟t I turn the handset on?
Ensure the batteries are inserted into the handset. If the batteries are already inserted
into the handset, place the handset into the charger cradle.
Why do I hear some noise during a call?
- Ensure that you are not using the handset or base station in an area with high
electrical interference. You can reposition the handset and the base station to keep
them far away from sources of high electrical interference.
- Ensure that the handset is not too far from the base station.
- Restart the base station and place a call to see if there is still noise heard during the
call.
Can I transfer an internal call to another party?
The phone does not support this feature. You can only transfer external calls from the
phone.
How to export PCAP trace?
We may need you to provide a PCAP trace to help analyze your problem.
To export a PCAP trace via web user interface:
1. Click on Phone->Upgrade.
2. Click Start to begin capturing signal traffic.
3. Recreate the error to be documented in the trace.
4. Click Stop to stop the capture.
5. Click Export to open file download window, and then save the file to your local
system.
How to export system log?
We may need you to provide a system log to help analyze your problem.
To export the system log to local PC via web user interface:
1. Click on Phone->Configuration.
2. Select 6 from the pull-down list of Log Level.
3. Click Confirm to accept the change.
The web user interface prompts “Do you want to restart your machine?”. The
configuration will take effect after a reboot.
4. Click OK to reboot the phone.
After the IP phone finishes reboot, the system log level is set as 6, the debug level.
5. Mark the Local radio box in the Export System Log field.
Troubleshooting
61
6. Click Export to open file download window, and then save the file to your local
system.
You can also export the system log to a syslog server, contact your system administrator
for more information.
Note
How to export/import the phone configurations?
We may need you to provide the phone configurations to help analyze problem. In
some instance, you may need to import configurations to your phone.
To export the phone configurations via web user interface:
1. Click on Phone->Configuration.
2. Click Export to open file download window, and then save the file to your local
system.
To import the phone configurations via web user interface:
1. Click on Phone->Configuration.
2. Click Browse to locate a configuration file from your local system.
3. Click Import to import the configuration file.
Note
How to reset the system PIN?
1. Disconnect the power adapter.
2. Long press the paging key and reconnect the power adapter.
When base station finishes reset, the power indicator LED, network status LED and
registration LED illuminate in sequence. System PIN and all individual settings are
reset to factory defaults. Handset registrations will also be cleared after base
station reset.
The file format of configuration file must be .bin.
It is recommended to reset the log level to 3 after exporting the system log.
User Guide for the W52P IP DECT Phone
62
Appendix
63
You can upgrade your base station to the latest firmware version. The latest firmware
version not only improves the performance of the base station, but also provides more
features compared to the previous version. This section provides you with instruction on
upgrading the base station via web user interface. For more information on upgrading
the base station via auto provisioning, refer to
Yealink W52P IP DECT Phones Auto
Provisioning Guide
.
To upgrade the base station firmware, contact your system administrator for the latest
firmware file, and store it on your local system in advance.
To upgrade base station firmware via web user interface:
1. Click on Phone->Upgrade.
2. In the Select and Upgrade Base Firmware field, click Browse to locate the firmware
file from your local system.
3. Click Upgrade to upgrade the firmware of the base station.
The browser pops up the dialog box “Firmware of the SIP Phone will be updated. It
will take 5 minutes to complete. Please don't power off!”.
4. Click OK to confirm upgrading.
The upgrading process will take a few minutes. The power indicator LED on the
base station flashes when the base station is during the firmware upgrading
process.
Once the base station firmware has been successfully upgraded, the base station
reboots automatically. The handset will perform an auto registration to the base station.
You can check the firmware version of the base station using the handset. For more
information, refer to Checking System Status on page 17.
Note
Do not refresh or close the browser during the upgrading process of the base station.
User Guide for the W52P IP DECT Phone
64
Call Features
Directory
Settings
Intercom
Voice Mail
Status
Anon. Call Rejection
Play Message
Set Voice Mail
Set Key 1
Do Not Disturb
Anonymous Call
Call Forward
Call Waiting
Screen Saver
Colour Schemes
Display Backlight
Keypad Light
Notification Light
Time Format
Date Format
Input Method
Always
Busy
No Answer
Date & Time
Audio
Display
Shortcut
Language
Registration
Telephony
System Settings
Handset Name
Advisory Tones
Ring Tones
Register Handset
De-reg. Handset
Select Base
Auto Answer
Auto Intercom
Default Line
Incoming Lines
Speed Dial
Caller Blacklist
Network
Handset Reset
Change Base PIN
Base Reset
Base Restart
Auto Provision
Eco Mode+
Eco Mode
Repeater Mode
Menu
Structure
Local Dir
Network Dir
System Status
Line Status
Remote Phonebook
Upgrade Firmware
Appendix
65
Time Zone
Time Zone Name
−11:00
Samoa
−10:00
United States-Hawaii-Aleutian
−10:00
United States-Alaska-Aleutian
−09:00
United States-Alaska Time
−08:00
Canada(Vancouver, Whitehorse)
−08:00
Mexico(Tijuana, Mexicali)
−08:00
United States-Pacific Time
−07:00
Canada(Edmonton, Calgary)
−07:00
Mexico(Mazatlan, Chihuahua)
−07:00
United States-Mountain Time
−07:00
United States-MST no DST
−06:00
Canada-Manitoba(Winnipeg)
−06:00
Chile(Easter Islands)
−06:00
Mexico(Mexico City, Acapulco)
−06:00
United States-Central Time
−05:00
Bahamas(Nassau)
−05:00
Canada(Montreal, Ottawa, Quebec)
−05:00
Cuba(Havana)
−05:00
United States-Eastern Time
−04:30
Venezuela(Caracas)
−04:00
Canada(Halifax, Saint John)
−04:00
Chile(Santiago)
−04:00
Paraguay(Asuncion)
−04:00
United Kingdom-Bermuda(Bermuda)
−04:00
United Kingdom(Falkland Islands)
−04:00
Trinidad&Tobago
−03:30
Canada-New Foundland(St.Johns)
−03:00
Denmark-Greenland(Nuuk)
−03:00
Argentina(Buenos Aires)
−03:00
Brazil(no DST)
−03:00
Brazil(DST)
−02:00
Brazil(no DST)
−01:00
Portugal(Azores)
0
GMT
0
Greenland
0
Denmark-Faroe Islands(Torshavn)
0
Ireland(Dublin)
0
Portugal(Lisboa, Porto, Funchal)
0
Spain-Canary Islands(Las Palmas)
User Guide for the W52P IP DECT Phone
66
Time Zone
Time Zone Name
0
United Kingdom(London)
0
Morocco
+01:00
Albania(Tirane)
+01:00
Austria(Vienna)
+01:00
Belgium(Brussels)
+01:00
Caicos
+01:00
Chad
+01:00
Croatia(Zagreb)
+01:00
Czech Republic(Prague)
+01:00
Denmark(Kopenhagen)
+01:00
France(Paris)
+01:00
Germany(Berlin)
+01:00
Hungary(Budapest)
+01:00
Italy(Rome)
+01:00
Luxembourg(Luxembourg)
+01:00
Macedonia(Skopje)
+01:00
Netherlands(Amsterdam)
+01:00
Namibia(Windhoek)
+02:00
Estonia(Tallinn)
+02:00
Finland(Helsinki)
+02:00
Gaza Strip(Gaza)
+02:00
Greece(Athens)
+02:00
Israel(Tel Aviv)
+02:00
Jordan(Amman)
+02:00
Latvia(Riga)
+02:00
Lebanon(Beirut)
+02:00
Moldova(Kishinev)
+02:00
Russia(Kaliningrad)
+02:00
Romania(Bucharest)
+02:00
Syria(Damascus)
+02:00
Turkey(Ankara)
+02:00
Ukraine(Kyiv, Odessa)
+03:00
East Africa Time
+03:00
Iraq(Baghdad)
+03:00
Russia(Moscow)
+03:30
Iran(Teheran)
+04:00
Armenia(Yerevan)
+04:00
Azerbaijan(Baku)
+04:00
Georgia(Tbilisi)
+04:00
Kazakhstan(Aktau)
+04:00
Russia(Samara)
+04:30
Afghanistan
Appendix
67
Time Zone
Time Zone Name
+05:00
Kazakhstan(Aqtobe)
+05:00
Kyrgyzstan(Bishkek)
+05:00
Pakistan(Islamabad)
+05:00
Russia(Chelyabinsk)
+05:30
India(Calcutta)
+06:00
Kazakhstan(Astana, Almaty)
+06:00
Russia(Novosibirsk, Omsk)
+07:00
Russia(Krasnoyarsk)
+07:00
Thailand(Bangkok)
+08:00
China(Beijing)
+08:00
Singapore(Singapore)
+08:00
Australia(Perth)
+09:00
Korea(Seoul)
+09:00
Japan(Tokyo)
+09:30
Australia(Adelaide)
+09:30
Australia(Darwin)
+10:00
Australia(Sydney, Melbourne, Canberra)
+10:00
Australia(Brisbane)
+10:00
Australia(Hobart)
+10:00
Russia(Vladivostok)
+10:30
Australia(Lord Howe Islands)
+11:00
New Caledonia(Noumea)
+12:00
New Zealand(Wellington, Auckland)
+12:45
New Zealand(Chatham Islands)
+13:00
Tonga(Nukualofa)
User Guide for the W52P IP DECT Phone
68
Regulatory Notices
69
To reduce risk of fire, severe personal injury and damage to property, read the following
safety information carefully before using the product.
Environmental Requirements
- Place the product on a stable, level and non-slip surface.
- Do not place the product close to heat sources, in direct sunlight or next to
any household appliance with strong magnetic field or electromagnetic field,
such as a microwave oven or a refrigerator.
- Do not allow the product to come into contact with water, dust and
chemicals.
- Protect the product from aggressive liquids and vapors.
- Do not place the product on or near any inflammable or fire-vulnerable
object, such as rubber-made materials.
- Do not install the product in rooms with high humidity, for example, in
bathrooms, laundry rooms and wet basements.
Safety Notes During Operation
- Use only spare parts and accessories supplied or authorized by Yealink. The
operation of non- authorized parts cannot be guaranteed.
- Do not place heavy objects on top of the handset or the base station in case
of damage and deformation caused by the heavy load.
- Do not open the handset or the base station by yourself for repair purpose,
which could expose you to high votages. Have all repairs carried out by
authorized service personel.
- Do not let a child operate the product without guidance.
- Keep the small accessories contained in your product out of reach of small
children in case of accidental swallowing.
- Before plugging or unplugging any cable, make sure that your hands are
completely dry.
- Do not hold the handset up to your ear when speakphone is on or when the
ringer is ringing as the volumn can be very loud, which may be harmful to
your hearing.
- During a thunderstorm, stop using the product and disconnect it from the
power supply to avoid lightning strike.
- If the product is left unused for a rather long time, disconnect the base station
from the power supply and unplug the power adapter.
User Guide for the W52P IP DECT Phone
70
- When there is smoke emitted from the product, or some abnormal noise or
smell, disconnect the product from the power supply, and unplug the power
adapter immediately.
- Remove the electrical cord from an outlet by pulling gently on the power
adapter, not by pulling the cord.
Battery Precautions
- Do not immerse the battery into water, which could short-circuit and damage
the battery.
- Do not expose the battery to an open flame or leave the battery where it
could be subjected to extremly high temperatues, which could cause the
battery to explode.
- Do power the handset off before removing the battery.
- Do not try to use the bettery for the power supply of any device other than
this handset.
- Do not open or mutilate the battery, released electrolyte is corrosive and
may cause damage to the your eyes or skin.
- Use only the rechargeable battery pack delivered with the handset or those
rechargeable battery packs expressly recommended by Yealink.
- Defective or exhausted batteries should never be disposed of as municipal
waste. Return old batteries to the battery supplier, a licensed battery dealer
or a designated collection facility.
Notices of Cleaning
- Before cleaning the base station, stop using it and disconnect it from the
power supply.
- Remove the battery before cleaning the handset to reduce risk of electric
shock.
- Only clean your product with a piece of slightly moist and anti-static cloth.
- Keep the power plug clean and dry. Using a dirty or wet power plug may
lead to electric shock or other perils.
Index
71
A
About This Guide vii
Account Registration 18
Adding Contacts 30
Adjusting Ringer Volume 19
Advisory Tones 25
Always Forward 52
Anonymous Call 55
Anonymous Call Rejection 56f
Answering Calls 49
Appendix 63
Area Code 40
Assigning a Speed Dial Number 42
Attended Transfer 53
Auto Answer 43
Auto Intercom 43
Auto Provision 45
AC Power 4
B
Backlight 25
Base Reset 44
