Form Z299A 1 Date 2013March11/F

11

REVERSING

NON-REVERSING

1

2

5

6

7

8910

3

12

13

14

14

15

15

16

17

18 19

20

21

22

23

24

25 26

27

28

29

30 31

32

33

34

35

36

4

37

13

13

13

16

17

15. 21211 Spring

16. 66020 Plunger

17. 35235 Non-Locking Lever (For 1AM... Models)

65669TM Locking Lever (For 1AML... Models)

18. 66222 Housing Assembly (Reversing)

(800, 1100, 1500 RPM)(Includes Figure 18)

66221 Housing Assembly (Reversing)

(2200, 2800, 3400, 4300 RPM)

(Includes Figure 18)

19. 66032 Retaining Screw

20. 21441 Spring

21. 66021 Valve

22. 04210 O-Ring

23. 66018 Silencer Housing

24. 66191 Felt Washer (2)*

25. 66017 Diffuser Screen

26. 66035 Valve Assembly

27 21441 Spring

28. 66016 Inlet Adapter

29. 14312 O-Ring

30. 30463 Screen

31. 21541 Retaining Ring

32. 66034 Retaining Ring

33. 14371 O-Ring

34. 66033 Exhaust Adapter

35. 1359 Air Hose

36. 65723 Exhaust Hose

37. 3302 Remote Exhaust Kit

PARTS LIST FOR NO. 1 SERIES

“1AM” ANGLE TOOLS

(SERIAL “B”)

1. 66124 Housing Sleeve (Long)(800, 1100, 1500 RPM)

66193 Housing Sleeve (Short)(2200, 2800, 3400, 4300 RPM)

2. 66132 Pin

3. 65998 Ball Bearing

4. 65995 Lower End Plate

5. 14391 O-Ring

6. 65994 Cylinder (800, 1100, 1500, 2200, 2800, 3400 RPM)

66005 Cylinder (4300 RPM)

7. 65991 Rotor (6 Tooth)(2200 RPM)

65992 Rotor (8 Tooth)(800, 1100, 1500, 2800 RPM)

66084 Rotor (10 Tooth)(3400, 4300 RPM)

8. SP66190 Vane (Set of 5)

9. 65997 Upper End Plate (800, 1100, 1500, 2200, 2800, 3400 RPM)

66004 Upper End Plate (4300 RPM)

10. 10255 Ball Bearing

11. 65999 Motor (6 Tooth)(2200 RPM)

66000 Motor (8 Tooth)(800, 1100, 1500, 2800 RPM)

66146 Motor (10 Tooth)(3400 RPM)

66085 Motor (10 Tooth)(4300 RPM)

12. 66220 Housing Assembly (Non-Reversing)(800, 1100, 1500 RPM)

66219 Housing Assembly (Non-Reversing)

(2200, 2800, 3400, 4300 RPM)

13. 06099 Screw (2)*

14. 10299 Steel Ball, 1/4" Dia

Form Z299A

Date 2013March11/F

Page 1 of 6

Fig. Part

No. No. Description

*Order Quantity As Required

FURNISH CATALOG, SERIAL, AND

MODEL NUMBER WHEN

ORDERING PARTS

Fig. Part

No. No. Description

Housing And Motor

Remote Exhaust

250 Snap-on Drive • PO Box 1596 • Murphy, NC 28906 • USA • Phone: 828-835-9765 •www.siouxtools.com

Form Z299A 2 Date 2013March11/F

Double Reduction

(800, 1100, 1500 RPM)

Single Reduction

(2200, 2800, 3400, 4300 RPM)

Fig. Part

No. No. Description

1. 43298 Planetary Assembly (800 RPM)

43301 Planetary Assembly (1100 RPM)

66089 Planetary Assembly (1500 RPM)

2. 10246 Ball Bearing

3. 25680 Washer (4)*

4. 44455 Gear Carrier (800 RPM)

44456 Gear Carrier (1100 RPM)

66081 Gear Carrier (1500 RPM)

5. 66077 Pinion Gear (1500 RPM)

6. 10241 Ball Bearing (3)*

7. 30453 Pin (4)*

8. 19195 Idler Gear (800 RPM)(2)*

19191 Idler Gear (1100 RPM)(2)*

66078 Idler Gear (1500 RPM)(2)*

9. 19190 Ring Gear

10. 21537 Retaining Ring

11. 66087 1st Planetary Assembly (800, 1500 RPM)

66088 1st Planetary Assembly (1100 RPM)

12. 66079 Gear Carrier (800, 1500 RPM)

66080 Gear Carrier (1100 RPM)

13. 66078 Idler Gear (800, 1100 1500 RPM)(2)*

14. 66077 Pinion Gear (800, 1100 1500 RPM)

Fig. Part

No. No. Description

1. 43713 Planetary Assembly (2200 RPM)

43298 Planetary Assembly (2800 RPM)

66090 Planetary Assembly (3400, 4300 RPM)

2. 10246 Ball Bearing

3. 25680 Washer (2)*

4. 44878 Gear Carrier (2200 RPM)

44455 Gear Carrier (2800 RPM)

66083 Gear Carrier (3400, 4300 RPM)

5. 10241 Ball Bearing

6. 30453 Pin (2)*

7. 19212 Idler Gear (2200 RPM)(2)*

19195 Idler Gear (2800 RPM)(2)*

66082 Idler Gear (3400, 4300 RPM)(2)*

8. 19189 Ring Gear

1

234

5

3

6

7

8

6

3

3

6

7

9

10

11

12

13 14

PARTS LIST FOR NO. 1 SERIES “1AM” ANGLE TOOLS

(SERIAL “B”)

PARTS LIST FOR NO. 1 SERIES “1AM” AIRCRAFT ANGLE TOOLS

(SERIAL “B”)

Single Reduction

(2200, 2800 RPM)

1. 43803 Planetary Assembly (2200 RPM)

43804 Planetary Assembly (2800 RPM)

2. 10257 Ball Bearing

3. 25680 Washer (2)*

4. 30453A Pin (2)*

5. 19212 Idler Gear (2200RPM)

19195 Idler Gear (2800RPM)

6. 44920 Gear Carrier (2200 RPM)

44921 Gear Carrier (2800 RPM)

7. 10241 Ball Bearing

8. 19189 Ring Gear

Fig. Part

No. No. Description

23

45

6

7

1

8

3

1

2

34

3

5

6

7

8

*Order Quantity As Required

FURNISH CATALOG, SERIAL, AND

MODEL NUMBER WHEN

ORDERING PARTS

Form Z299A 3 Date 2013March11/F

1. 44981 Retainer

2. 35258 Output Gear Spacer

3. 53347 Socket Retainer Assembly

4. 53457 Spindle Assembly 1/4" Square

(Includes Figure 3)

5. 44977 Nut

6. 14291 O-Ring

7. 19328 Bit Holder Assembly, 1/4" Hex Female

8. 10291 Ball, 7/32" Dia

9. 11567 Angle Head

10. 30375 Grease Fitting

1. 44981 Retainer

2. 35258 Output Gear Spacer

3. 53347 Socket Retainer Assembly

4. 53457 Spindle Assembly 1/4" Square

(Includes Fig. 3)

5. 44977 Nut

6. 14291 O-Ring

7. 19328 Bit Holder Assembly 1/4" Hex Female

8. 10291 Ball, 7/32" Dia

9. 11567 Angle Head

10. 30375 Grease Fitting

11. 19469 Pinion

12. 35259 Input Gear Spacer

13. 44980 Locknut

14. 66139 Angle Head Adapter

8

9

10

11

12

13

14

15

16

17

19

20

21

18

22

23

24

25

26

27 28

29

30 (Torque Specification 15 lb-ft)

5

6

1

2

7

1

2

34

Angle Attachment Direct Clutch

(Screwdriver and Nutrunner)

Fig. Part

No. No. Description

PARTS LIST FOR NO. 1 SERIES “1AM” ANGLE TOOLS

(SERIAL “B”)

Screwdriver

Nutrunner

Angle Attachment Adjustable Clutch

(Screwdriver and Nutrunner)

Nutrunner

Screwdriver

Fig. Part

No. No. Description

11. 19469 Pinion

12. 35259 Input Gear Spacer

13. 44980 Locknut

14. 66139 Angle Head Adapter

15. 66147 Connector

16. 66169 Retainer

66144 Angle Head Assembly (1/4" Hex Female Screwdriver)

(Includes Figures 1, 2, 5 thru 14)

66145 Angle Head Assembly (1/4" Hex Square Nutrunner)

(Includes Figures 1 thru 4, 8 thru 14)

8

9

10

11

12

13

14

15

16 (Torque

Specification

15 lb-ft)

5

6

1

2

7

1

2

34

Fig. Part

No. No. Description

Fig. Part

No. No. Description

15. 67990 Coupler Drive

16. 67997 Adjustable Clutch Assembly (Angle)

17. 66063 Retaining Ring

18. 67150 Clutch Jaw

19. 10303 Ball, 1/8" Dia (10)*

20. 66055 Plug

21. 10306 Ball, 3/16" Dia (6)*

22. 67149 Clutch Spindle

23. 68014 Thrust Race

24. 66053 Thrust Washer

25. 66048 Spring (Silver)(800, 1100 RPM)(30-50 in-lb)

66049 Spring (Blue)(1500 RPM)(15-35 in-lb)

66050 Spring (Green)(2800 RPM)(2-20 in-lb)

26. 66047 Adjustment Washer

27. 66046 Adjustment Nut

28. 21493 Retaining Ring

29. 66058 Cover

30. 66138 Retainer (Adjustable Clutch)

Items Not Shown:

2366 Clutch Adjustment Wrench

*Order Quantity As Required

FURNISH CATALOG, SERIAL, AND

MODEL NUMBER WHEN

ORDERING PARTS

Form Z299A 4 Date 2013March11/F

1

2

3

4

5

6

7

8

9

10

11

12

13

14

15

16

17

18 (Torque Specification 15 lb-ft)

PARTS LIST FOR NO. 1 SERIES

“1AM” ANGLE TOOLS

(SERIAL “B”)

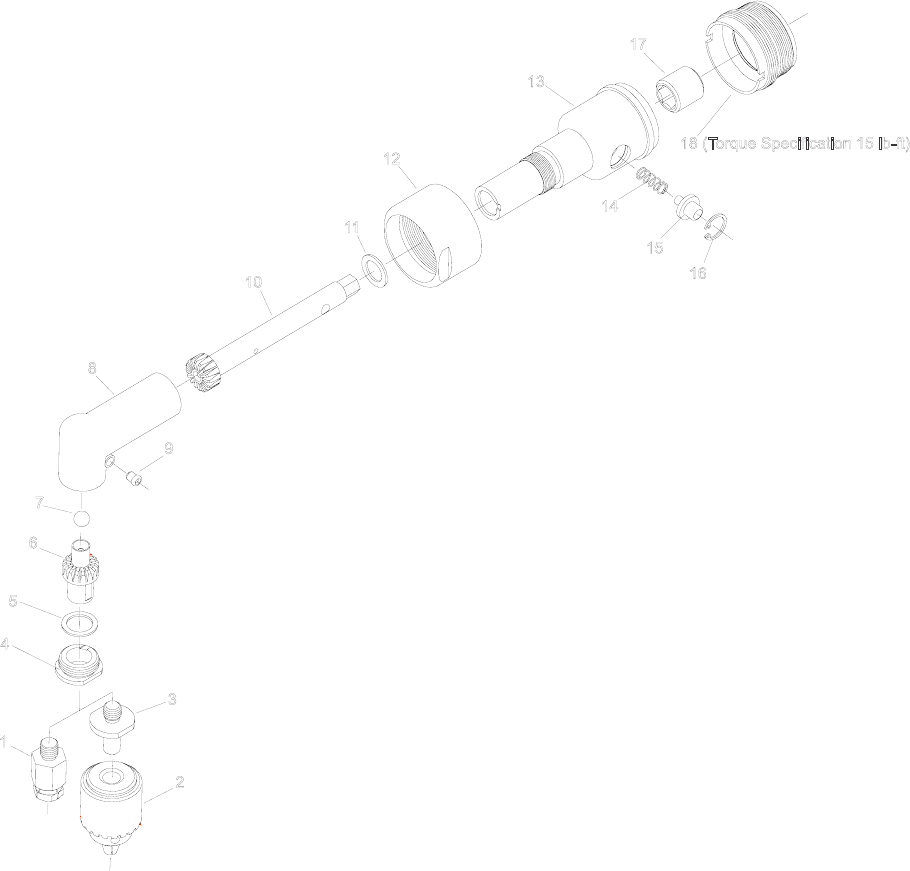

Angle Attachment Drill

Fig. Part

No. No. Description

1. 2420 3/16" Collet Chuck

2418 1/16" Collet Chuck

2419 1/8" Collet Chuck

2. 43881 Chuck & Spindle Assembly, 5/32" (Includes Figure 3)

30631 Chuck Key

3. 44840 Chuck Spindle

4. 44981 Retainer

5. 35258 Output Gear Spacer

6. 19329 Spindle Assembly, 1/4"-28 Female Thread

7. 10291 Ball, 7/32" Dia

8. 11567 Angle Head

9. 30375 Grease Fitting

10. 19468 Pinion

11. 35259 Input Gear Spacer

12. 44980 Locknut

13. 53035 Angle Attachment Sleeve Assembly (Includes Figures 14 thru 16)

14. 21211 Spring

15. 54145 Spindle Lock

16. 21765 Retaining Ring

17. 44996 Connector

18. 44982 Retainer

53000 Complete Drill Angle Assembly (Includes Figures 4 thru 18)

*Order Quantity As Required

FURNISH CATALOG, SERIAL, AND

MODEL NUMBER WHEN

ORDERING PARTS

Form Z299A 5 Date 2013March11/F

1. 65238 Flange Bushing

2. 65246 Pin (Set of 22)(2)*

3. 65236 Collet Gear (1/4-28 Th’d)

65264 Collet Gear (#10-32 Th’d)

65538 Collet Gear (9/32"-40 Th’d)

4. 30375 Grease Fitting

5. 65237 45 Degree Housing (Includes Figure 4)

6. 65235 Pinion

7. 65245 Bearing Retainer

8. 65242 Shim, .005" (Order Quantity As Needed)

9. 65244 Angle Drill Housing

10. 10257 Ball Bearing

11. 65243 Retaining Nut

12. 65143 Jam Nut

13. 65146 Spindle Adapter

14. 44122 Spacer

15. 65231 Adapter

16. 65486 Drive Shaft Extension

17. 65487 Housing Extension

65213 Complete Assembly (1/4"-28 Th’d)(Includes Figures 1 thru 11)

65265 Complete Assembly (#10-32 Th’d)(Includes Figures 1 thru 11)

65541 Complete Assembly (9/32"-40 Th’d)(Includes Figures 1 thru 11)

45 Degree Angle Head Assembly

Fig. Part

No. No. Description

PARTS LIST FOR NO. 1 SERIES

“1AM” ANGLE TOOLS

(SERIAL “B”)

1

2

3

4

5

6

7

2

8

9

11

10

12 13

14

15 (Torque Specification 15 lb-ft)

16

17

*Order Quantity As Required

FURNISH CATALOG, SERIAL, AND

MODEL NUMBER WHEN

ORDERING PARTS

Form Z299A 6 Date 2013March11/F

PARTS LIST FOR NO. 1 SERIES

“1AM” ANGLE TOOLS

(SERIAL “B”)

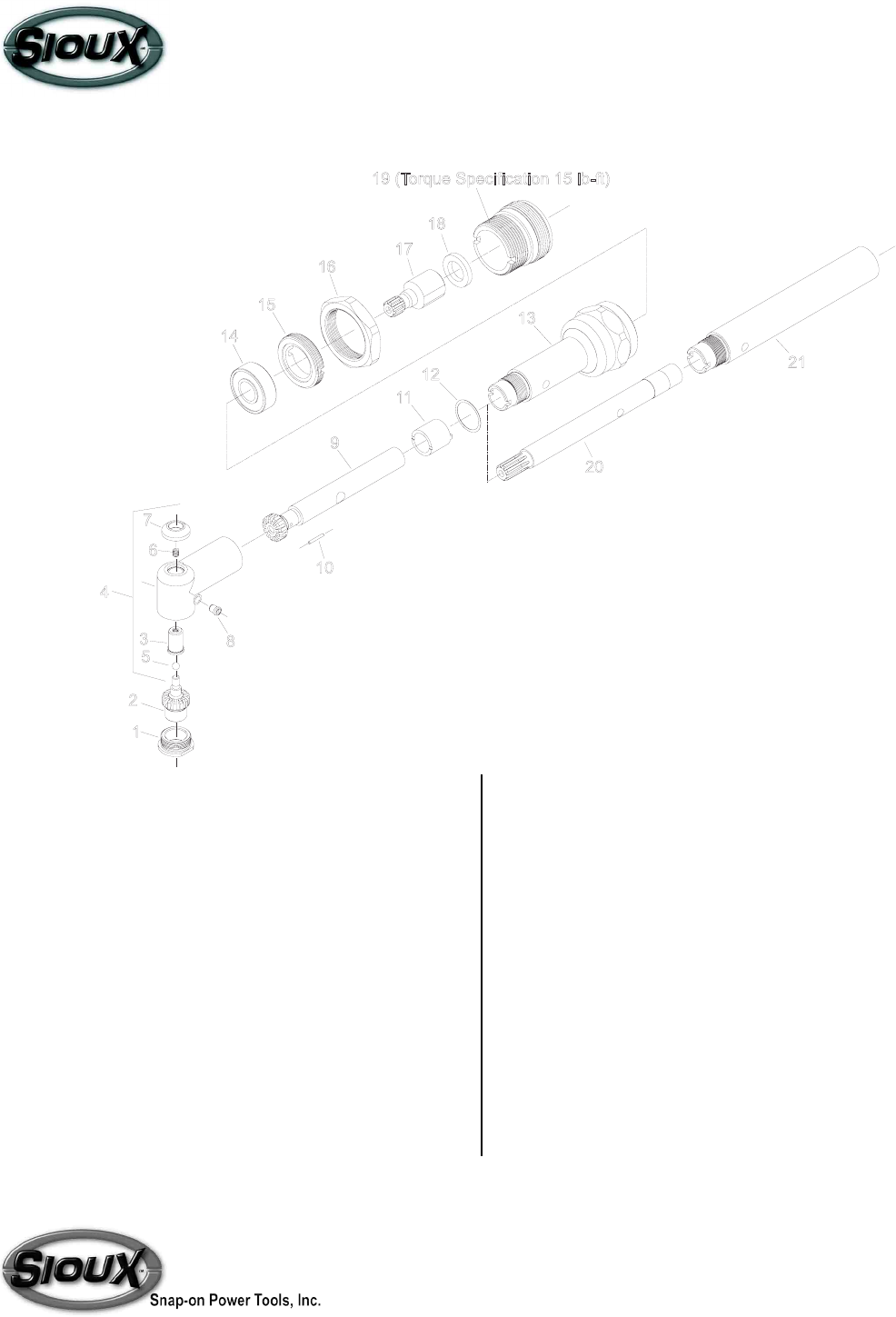

90 Degree Angle Head Assembly

Fig. Part

No. No. Description

1. 65248 Bearing Bushing

2. 67495A Set Gear (1/4"-28 Th’d)

(Includes Figures 3, 5, 6, 7, 9)

67496A Set Gear (#10-32 Th’d)

(Includes Figures 3, 5, 6, 7, 9)

67497A Set Gear (9/32"-40 Th’d)

(Includes Figures 3, 5, 6, 7, 9)

3. 67852 Bushing (Includes Figures 5, 6)

4. 65247A 90° Housing

5. 10303 Steel Ball, Ø1/8"

6. 06012 Set Screw, #4-40 x 1/8" Socket Hex

7. 67853 Cap

8. 30375 Grease Fitting

9. 90° Pinion (Not Available Individually,

Refer to Figure 2)

10. 65246 Pin (Set of 22)

11. 65245 Bearing Retainer

12. 65242 Shim, .005" (Order Quantity As Needed)

13. 65244 Angle Drill Housing

14. 10257 Ball Bearing

15. 65243 Retaining Nut

16. 65143 Jam Nut

17. 65146 Spindle Adapter

18. 44122 Spacer

19. 65231 Adapter

20. 65486 Drive Shaft Extension

21. 65487 Housing Extension

65214A Complete Assembly (1/4-28 Th’d)

(Includes Figures 1 thru 15)

65266A Complete Assembly (#10-32 Th’d)

(Includes Figures 1 thru 15)

65542A Complete Assembly (9/32"-40 Th’d)

(Includes Figures 1 thru 15)

1

2

3

4

5

6

7

8

9

11

12

13

14

15

16

17

18

19 (Torque Specification 15 lb-ft)

20

21

10

250 Snap-on Drive • PO Box 1596 • Murphy, NC 28906 • USA • Phone: 828-835-9765 •www.siouxtools.com

*Order Quantity As Required

FURNISH CATALOG, SERIAL, AND

MODEL NUMBER WHEN

ORDERING PARTS

Fig. Part

No. No. Description

This pdf incorporates the following model numbers:

1AM1141, 1AM1151, 1AM1441, 1AM1451, 1AM1452, 1AM1541, 1AM1542, 1AM1550, 1AM1551,

1AM1552, 1AM1611, 1AM2101, 1AM2102, 1AM2105, 1AM2106, 1AM2201, 1AM2205, 1AML1451,

1AML1541, 1AML1551
