Aspire 4810T/4810TZ/4410T/4810TG Series
Service Guide
PRINTED IN TAIWAN
Service guide files and updates are available
on the ACER/CSD web; for more information,
please refer to http://csd.acer.com.tw
II
Revision History
Please refer to the table below for the updates made on Aspire 4810T/4810TZ/4410T/4810TG Series service
guide.
Date Chapter Updates
III
Copyright
Copyright © 2009 by Acer Incorporated. All rights reserved. No part of this publication may be reproduced,
transmitted, transcribed, stored in a retrieval system, or translated into any language or computer language, in
any form or by any means, electronic, mechanical, magnetic, optical, chemical, manual or otherwise, without
the prior written permission of Acer Incorporated.
Disclaimer
The information in this guide is subject to change without notice.
Acer Incorporated makes no representations or warranties, either expressed or implied, with respect to the
contents hereof and specifically disclaims any warranties of merchantability or fitness for any particular
purpose. Any Acer Incorporated software described in this manual is sold or licensed "as is". Should the
programs prove defective following their purchase, the buyer (and not Acer Incorporated, its distributor, or its
dealer) assumes the entire cost of all necessary servicing, repair, and any incidental or consequential
damages resulting from any defect in the software.
Acer is a registered trademark of Acer Corporation.
Intel is a registered trademark of Intel Corporation.
Other brand and product names are trademarks and/or registered trademarks of their respective holders.
IV
Conventions
The following conventions are used in this manual:
SCREEN MESSAGES Denotes actual messages that appear
on screen.
NOTE Gives bits and pieces of additional
information related to the current
topic.
WARNING Alerts you to any damage that might
result from doing or not doing specific
actions.
CAUTION Gives precautionary measures to
avoid possible hardware or software
problems.
IMPORTANT Reminds you to do specific actions
relevant to the accomplishment of
procedures.
V
Preface
Before using this information and the product it supports, please read the following general information.
1. This Service Guide provides you with all technical information relating to the BASIC CONFIGURATION
decided for Acer's "global" product offering. To better fit local market requirements and enhance product
competitiveness, your regional office MAY have decided to extend the functionality of a machine (e.g.
add-on card, modem, or extra memory capability). These LOCALIZED FEATURES will NOT be covered
in this generic service guide. In such cases, please contact your regional offices or the responsible
personnel/channel to provide you with further technical details.
2. Please note WHEN ORDERING FRU PARTS, that you should check the most up-to-date information
available on your regional web or channel. If, for whatever reason, a part number change is made, it will
not be noted in the printed Service Guide. For ACER-AUTHORIZED SERVICE PROVIDERS, your Acer
office may have a DIFFERENT part number code to those given in the FRU list of this printed Service
Guide. You MUST use the list provided by your regional Acer office to order FRU parts for repair and
service of customer machines.
VI
VII
Table of Contents
System Specifications 1
Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1

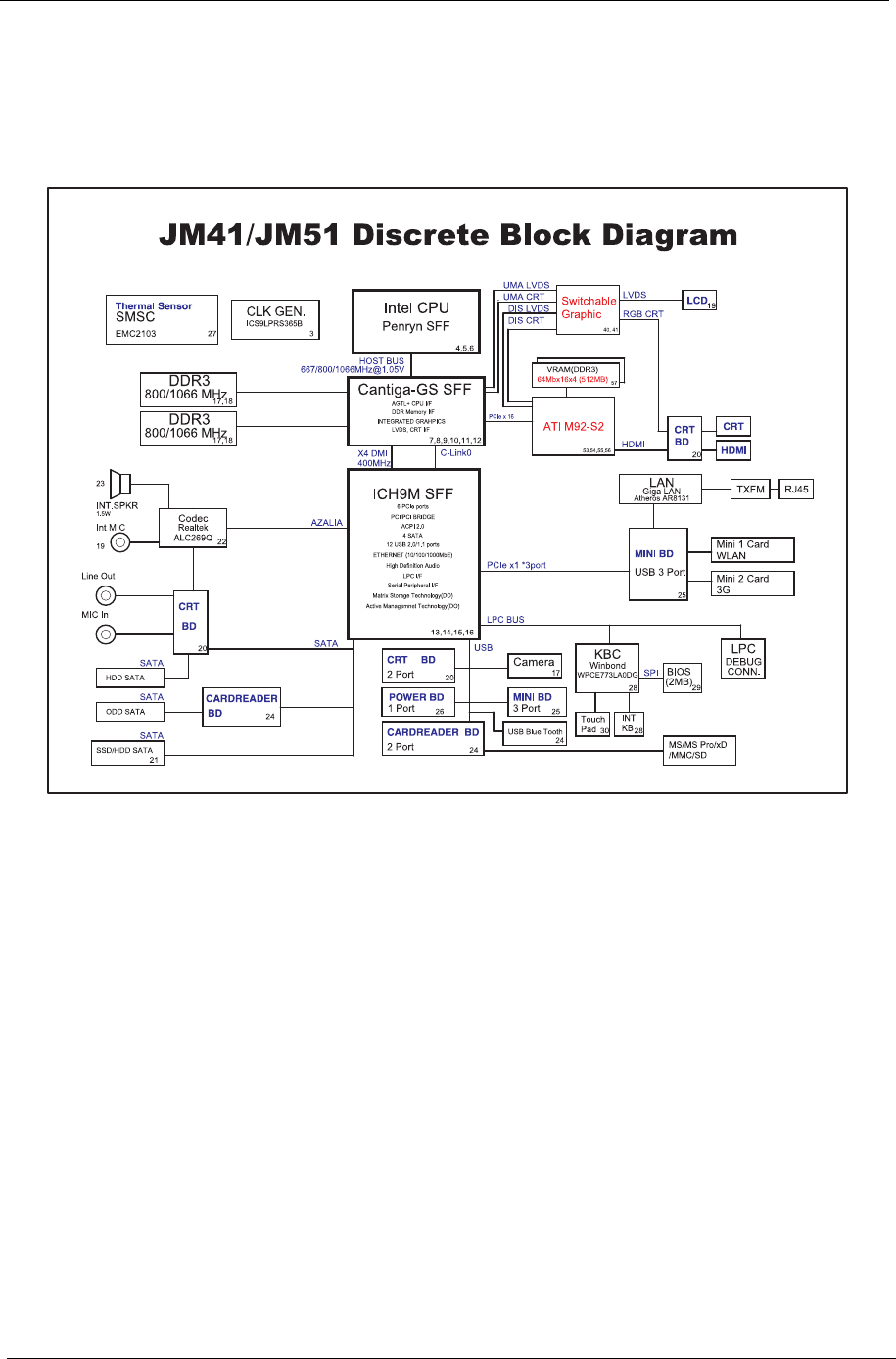

Aspire 4810T/4810TZ/4410T System Block Diagram . . . . . . . . . . . . . . . . . . . . . . . . .3
Aspire 4810TG System Block Diagram . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4
Your Acer Notebook Tour . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5
Right View . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8
Indicators . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11
Easy-Launch Buttons . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11
Touchpad Basics (with two-click buttons) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11
Using the Keyboard . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13
Lock Keys and Numeric Keypad . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13
Windows Keys . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14
Hot Keys . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .15
Special Key (only for certain models) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .15
Windows Mobility Center . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .16
Using the System Utilities . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .17

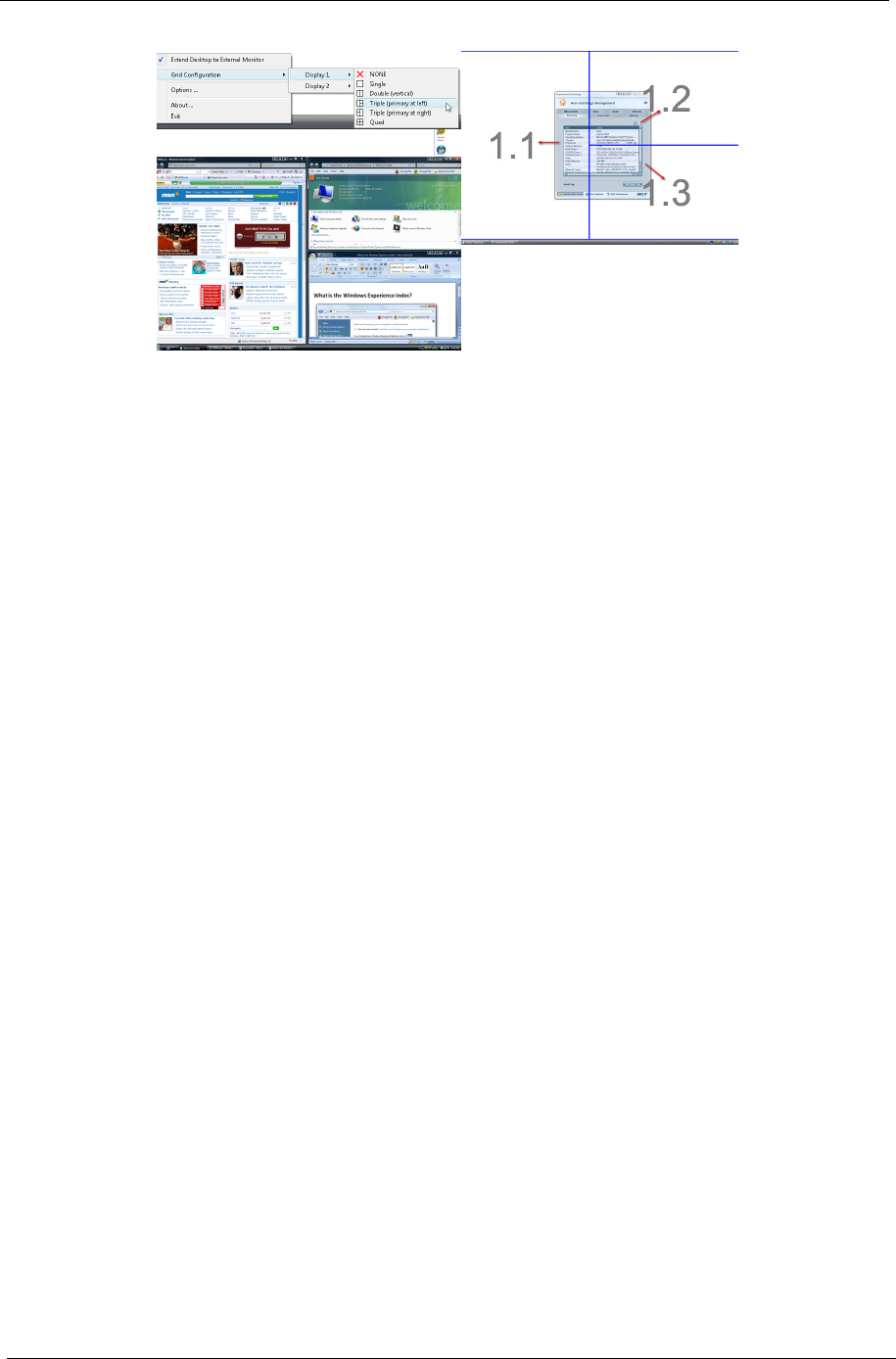

Acer GridVista (dual-display compatible) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .17
Hardware Specifications and Configurations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .19
System Utilities 27
BIOS Setup Utility . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .27
Navigating the BIOS Utility . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .28
Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .29
Main . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .30
Security . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .32
Boot . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .35
Exit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .36
BIOS Flash Utility . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .37
BIOS Flash Utility . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .37
Remove HDD and BIOS Passwords . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .38
Machine Disassembly and Replacement 41
Disassembly Requirements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .41
General Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .42
Pre-disassembly Instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .42
Disassembly Process . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .42
External Module Disassembly Process . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .43
Removing the Battery Pack . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .44
Removing the Lower Cover . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .45
Removing the Optical Drive Module . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .46
Removing the DIMM . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .46
Removing the Hard Disk Drive Module . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .47
Removing the SSD Module . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .48
Removing the RTC Battery . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .49
Main Unit Disassembly Process . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .50

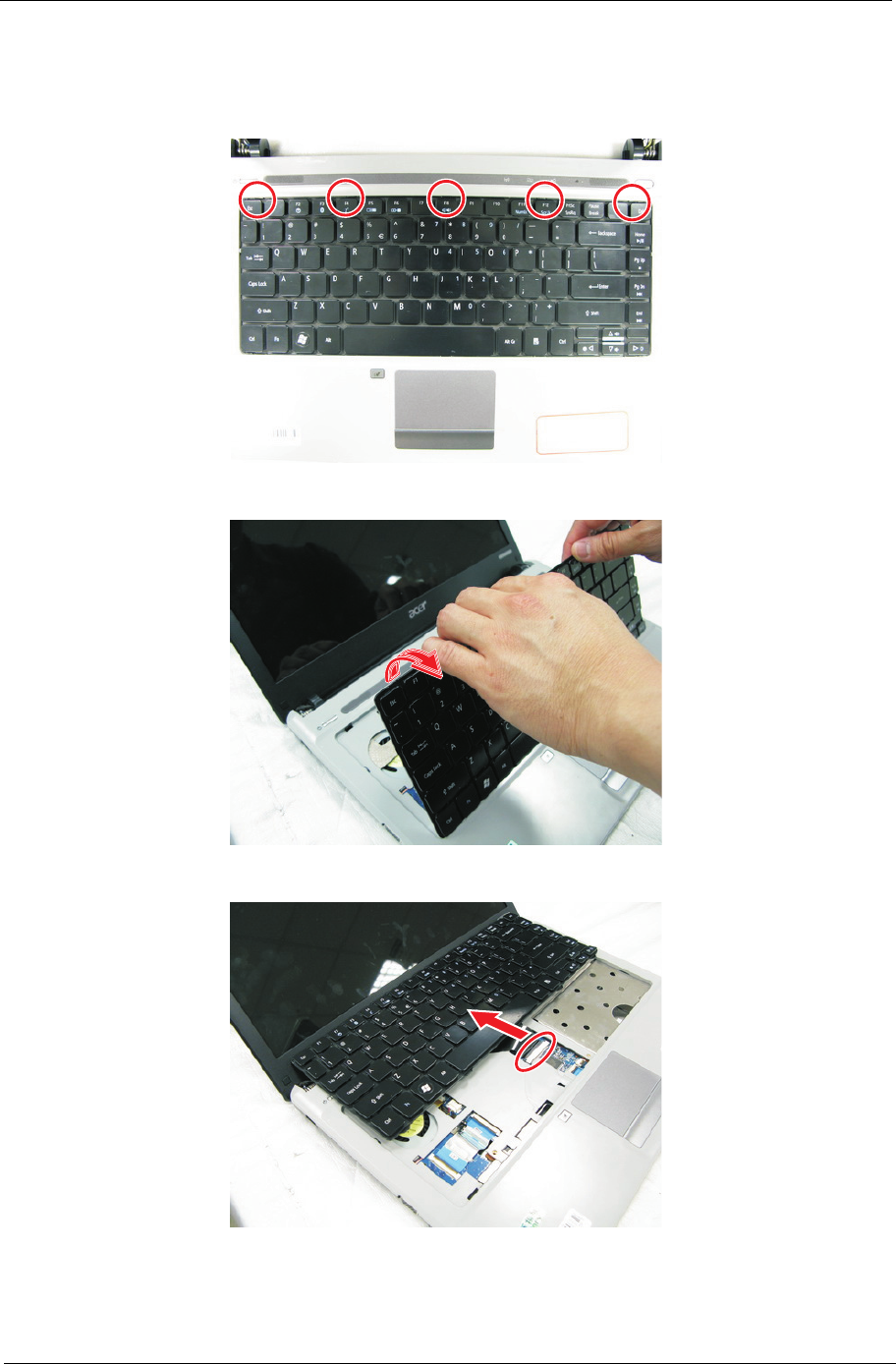

Removing the Keyboard . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .51

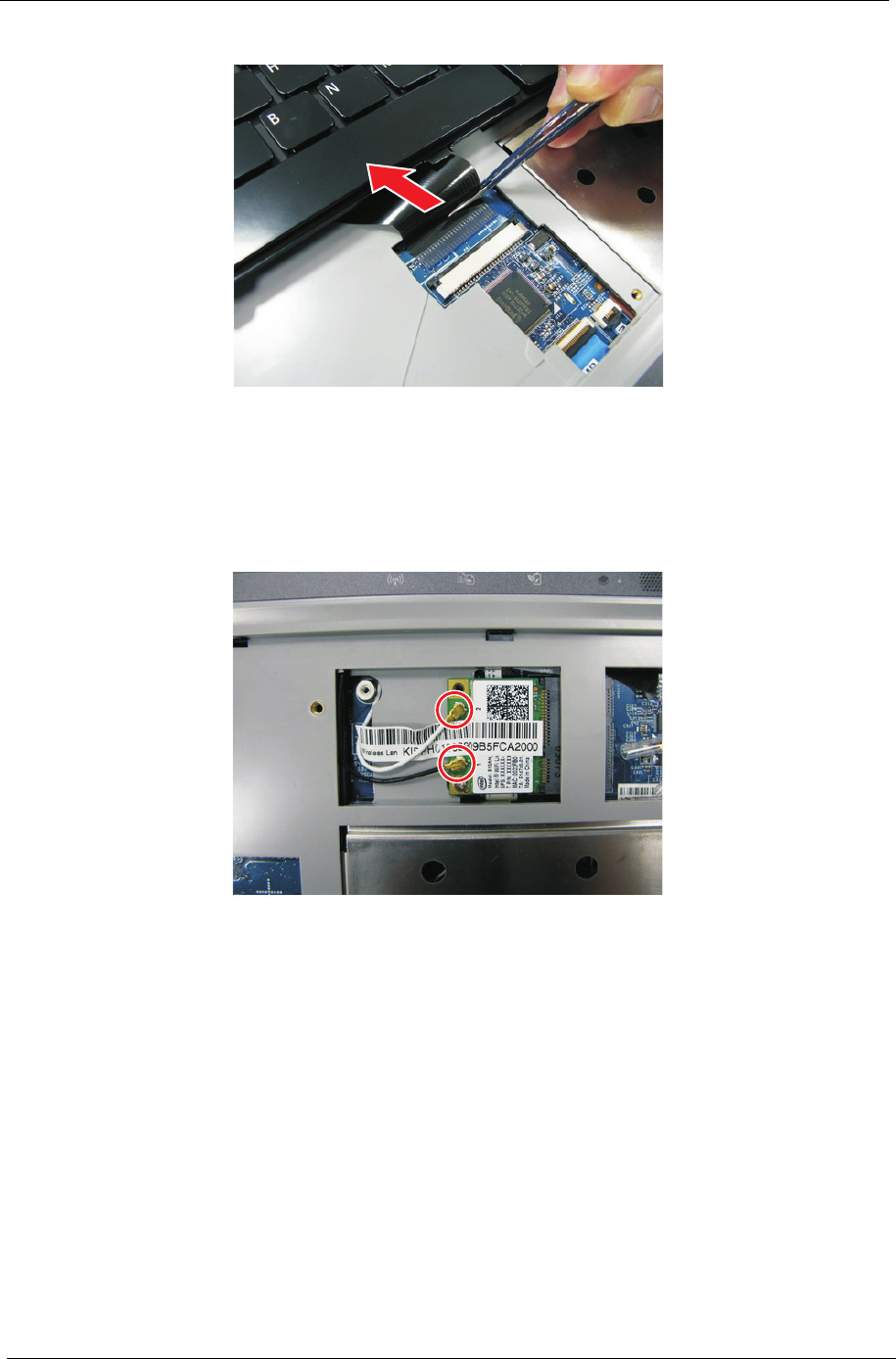

Removing the WLAN Board Module . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .52
Separating the Upper Case from the Lower Case . . . . . . . . . . . . . . . . . . . . . . .53
Removing the Power Button Board . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .56

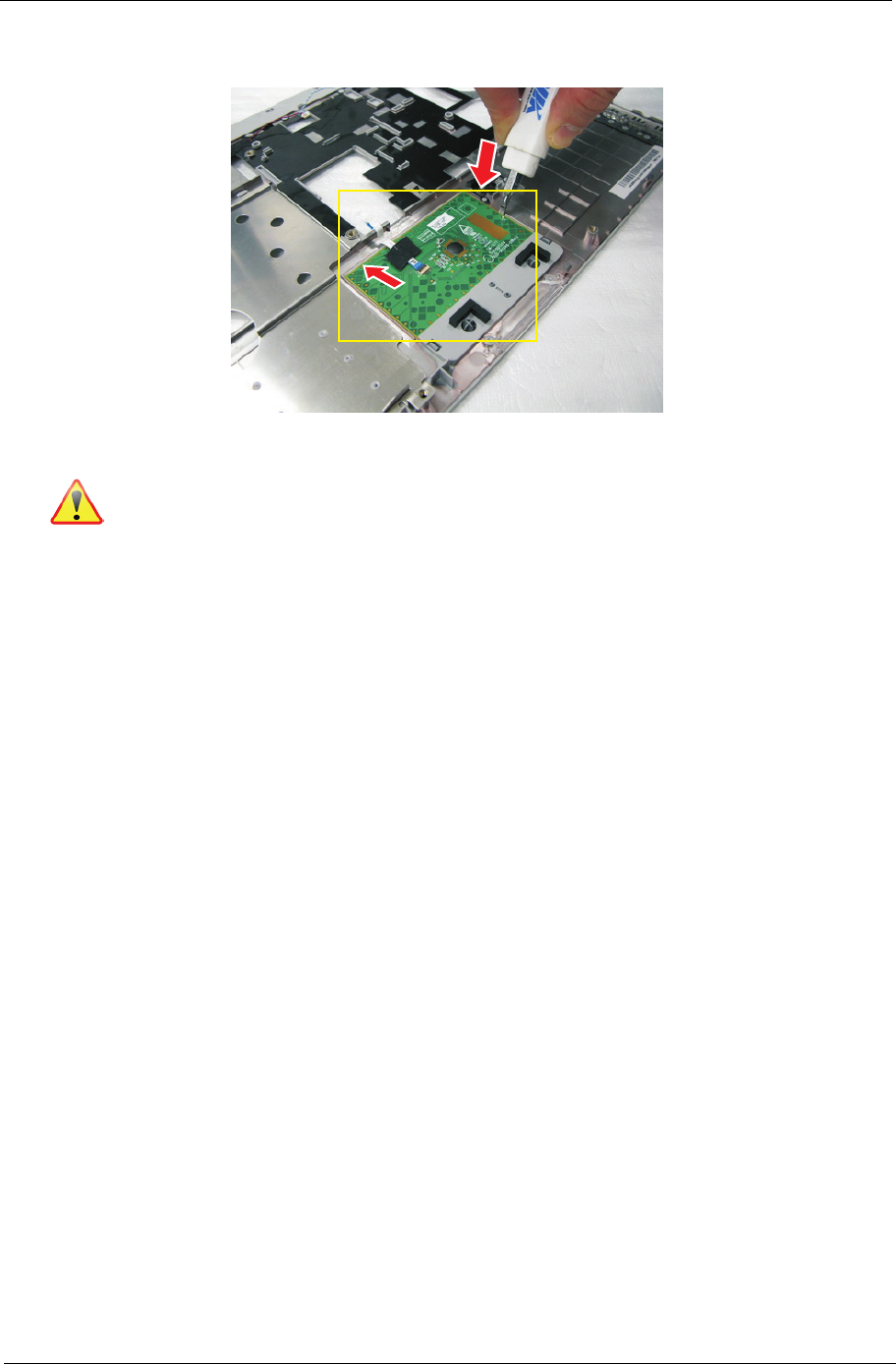

Removing the Touchpad Module . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .56
Removing the Speaker Module . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .57
Removing the LED Board . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .58
Removing the LCD Module . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .59
Removing the System Board . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .61
VIII
Table of Contents

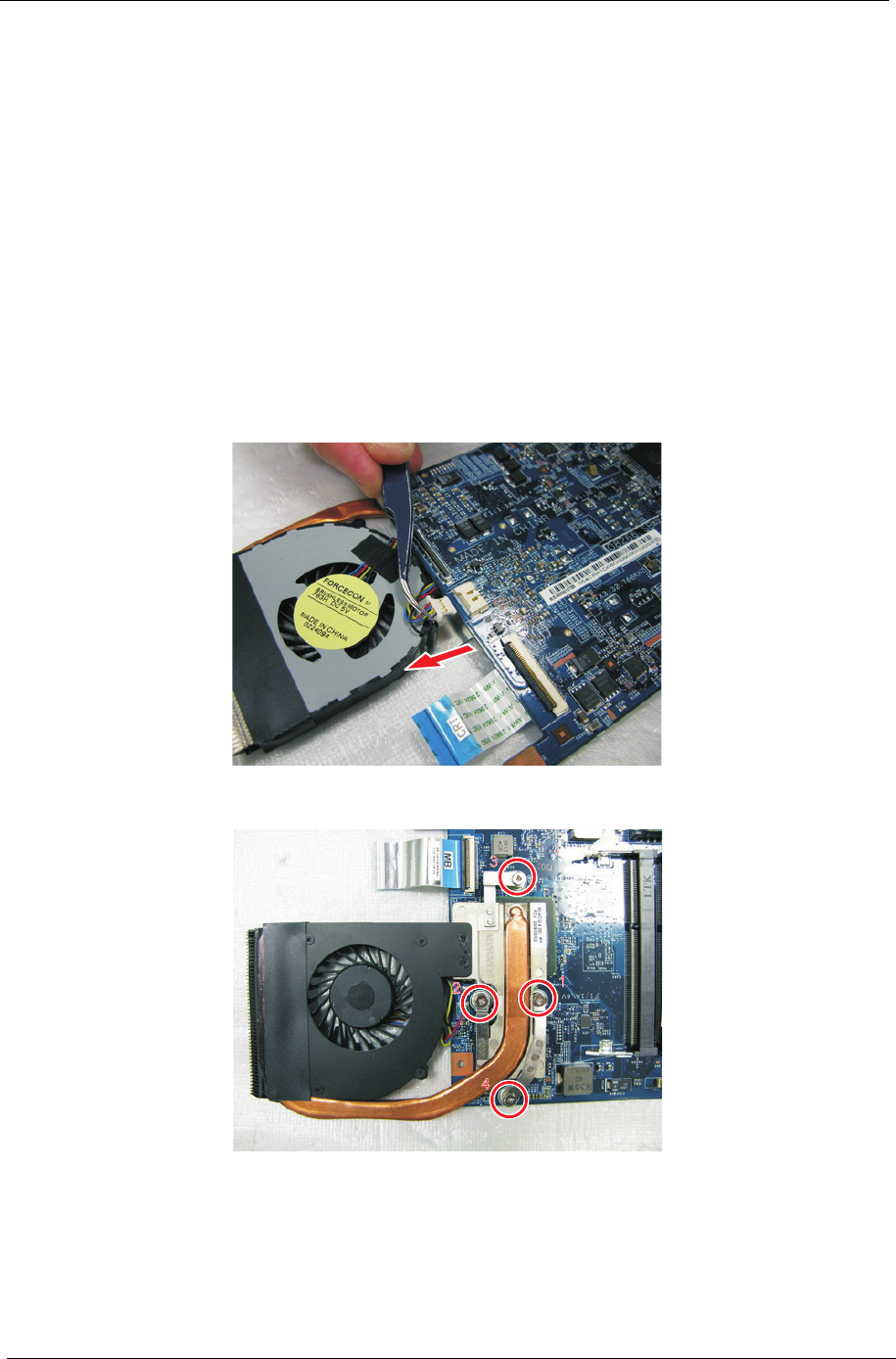

Removing the Thermal Module . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .63
Removing the Mini Board Module . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .65
Removing the CRT Board Module . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .66
Removing the Card Reader Board . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .67

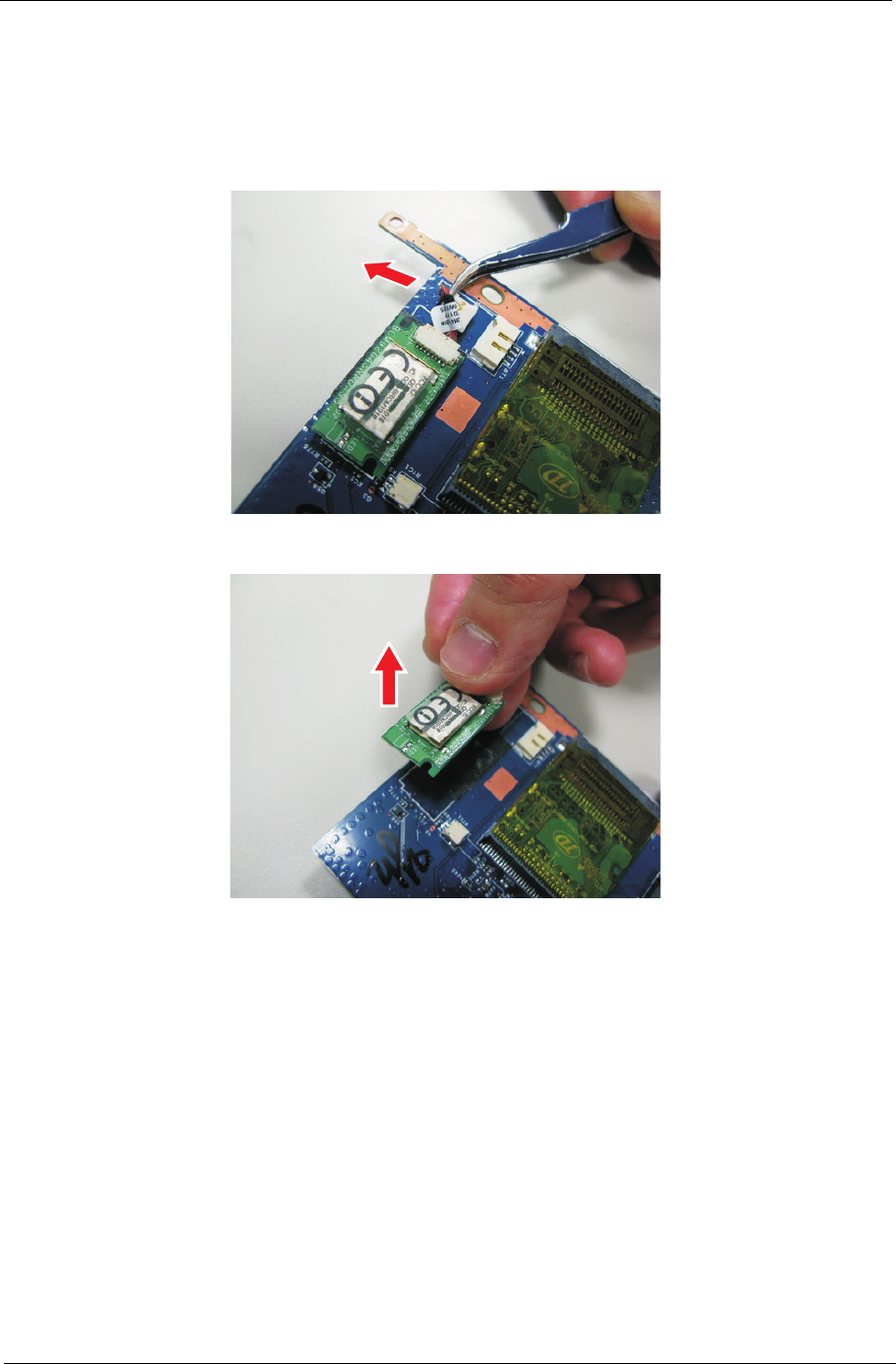

Removing the Bluetooth Module . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .68
Removing the Touchpad Lock Board . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .69
LCD Module Disassembly Process . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .71

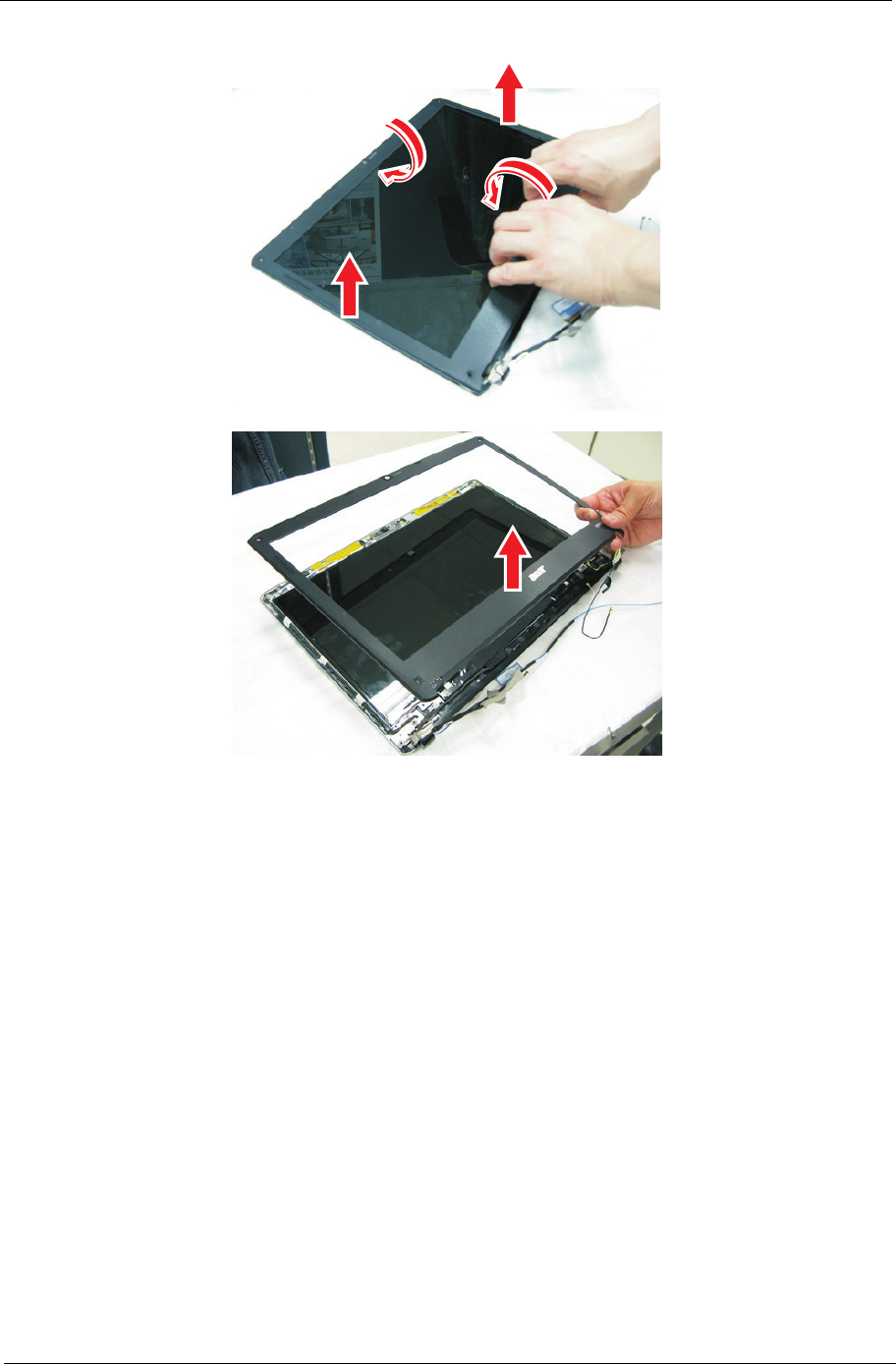

Removing the LCD Bezel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .72
Removing the LCD Panel Hinges . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .73
Removing the LCD Panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .74

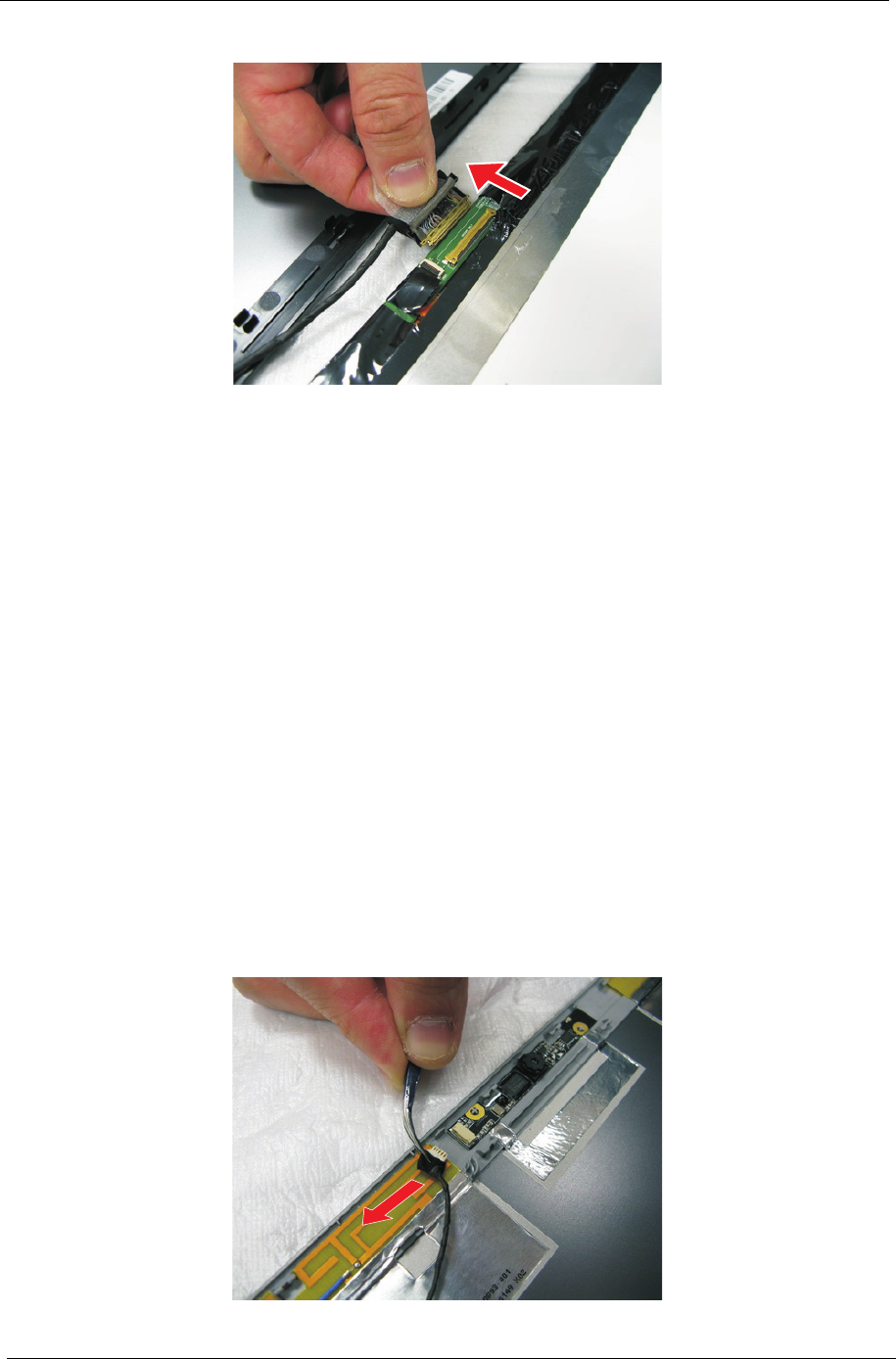

Removing the Webcam . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .76

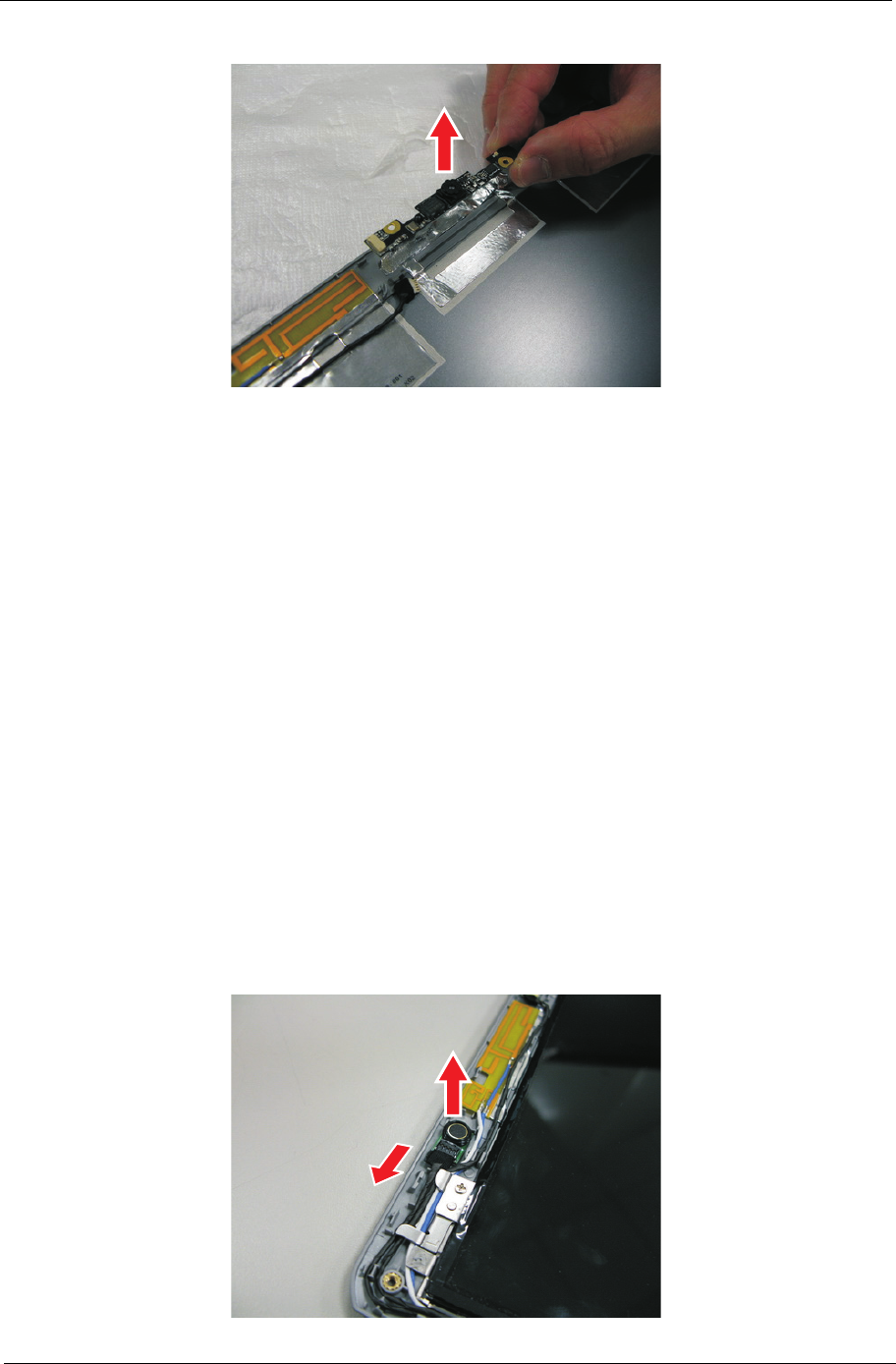

Removing the Microphone . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .77
Troubleshooting 79
System Check Procedures . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .80
External Diskette Drive Check . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .80
External Optical Disk Drive Check . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .80
Keyboard or Auxiliary Input Device Check . . . . . . . . . . . . . . . . . . . . . . . . . . . . .80
Memory Check . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .81
Power System Check . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .81
Touchpad Check . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .82
Power-On Self-Test (POST) Error Messages . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .83
Post Code Table . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .84
Index of Symptom-to-FRU Errors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .87
Intermittent Problems . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .91
Undetermined Problems . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .92
Connector Locations 93
Top and Bottom Views . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .93
Aspire 4810T/4810TZ/4410T Top View . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .93
Aspire 4810T/4810TZ/4410T Bottom View . . . . . . . . . . . . . . . . . . . . . . . . . . . . .94
Aspire 4810TG Top View . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .95
Aspire 4810TG Bottom View . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .96
Clearing Password Check and BIOS Recovery . . . . . . . . . . . . . . . . . . . . . . . . .97

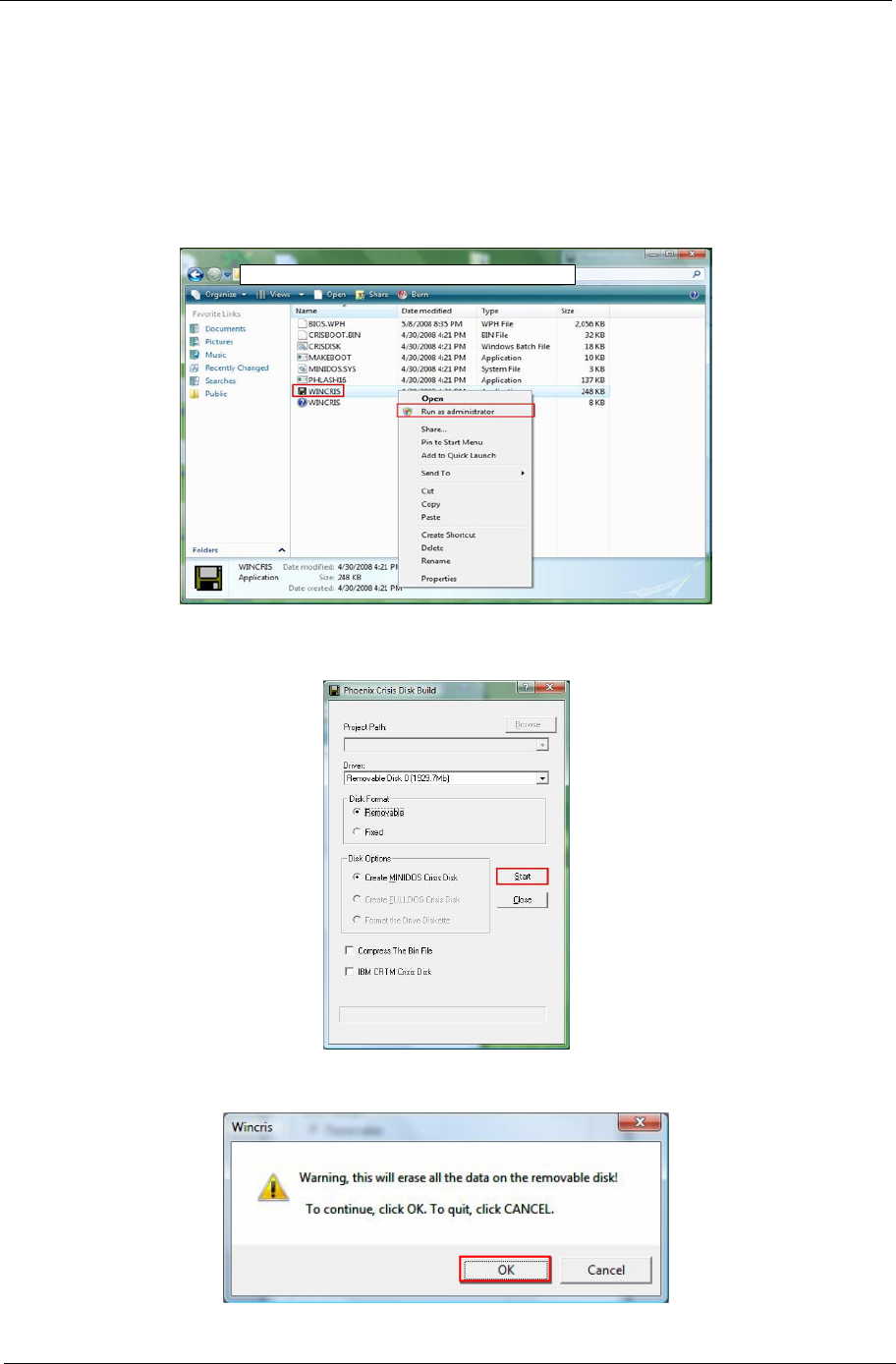

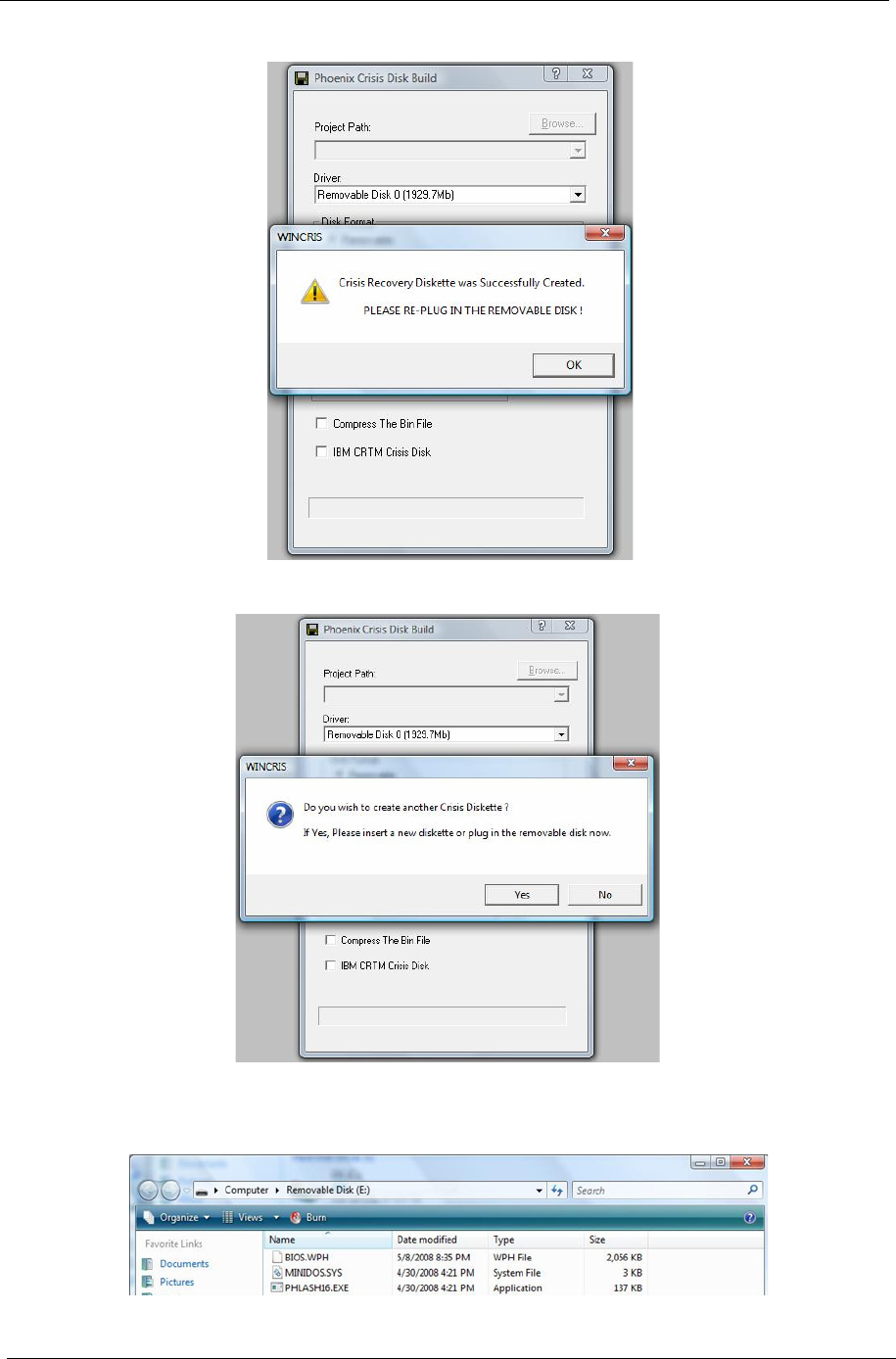

BIOS Recovery by Crisis Disk . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .98
FRU (Field Replaceable Unit) List 101

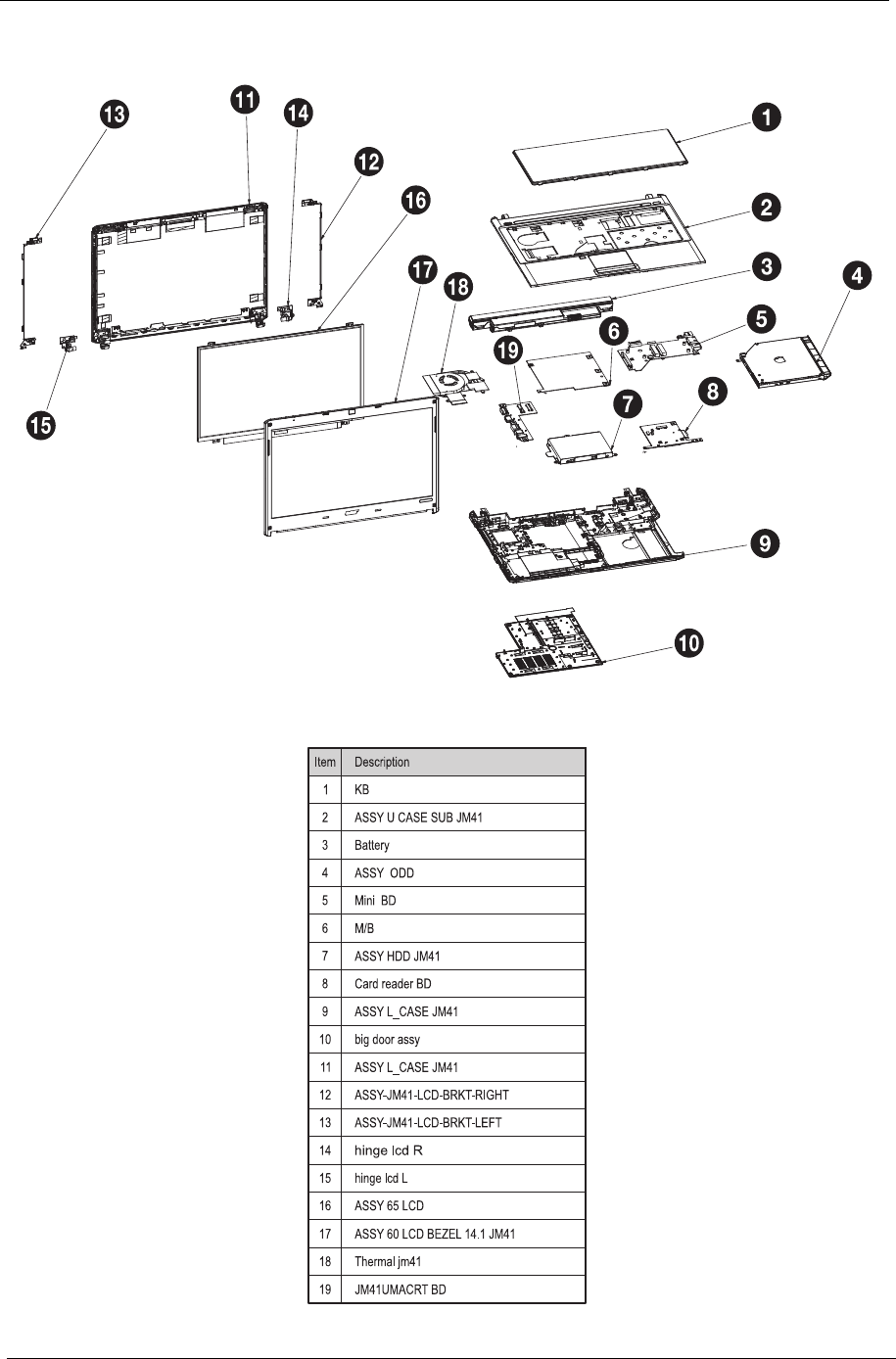

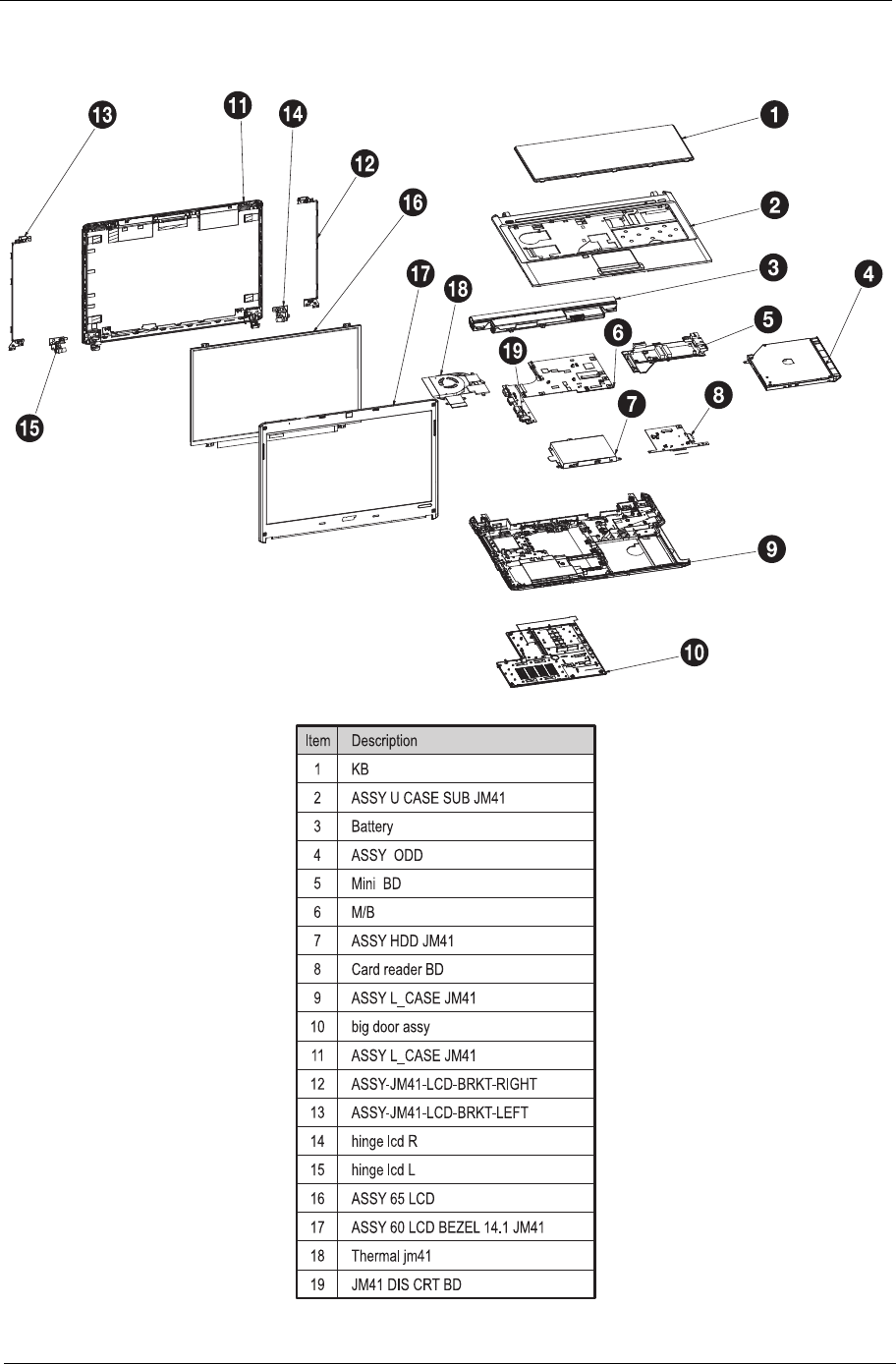

Aspire 4810T/4810TZ/4410T Series Exploded Diagram . . . . . . . . . . . . . . . . . . . . .102
Aspire 4810TG Series Exploded Diagram . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .103
Aspire 4810T/4810TZ/4410T/4810TG Series . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .127
Model Definition and Configuration 127
Test Compatible Components 141
Microsoft® Windows® Vista Environment Test . . . . . . . . . . . . . . . . . . . . . . . . . . . .142
Online Support Information 145
Index 147
Chapter 1 1
Features
Below is a brief summary of the computer’s many feature:
Platform
•Intel® Centrino® 2 mobile processor technology, featuring:
•Intel® Core™2 Duo processor*
•Intel® Core™2 Solo processor*
•Mobile Intel® GS45 Express Chipset
•Intel® Wireless WiFi Link 5100*
•Intel® Wireless WiFi Link 5150*
•Intel® Pentium® mobile processor*
•Intel® Celeron® mobile processor*
•Mobile Intel® GS45 Express Chipset
•Acer InviLink™ Nplify™ 802.11b/g/Draft-N*
System Memory
•Dual-Channel SDRAM support
•Up to 2 GB of DDR3 1066 MHz memory, upgradeable to 4 GB using two soDIMM modules*
•Up to 4 GB of DDR3 1066 MHz memory, upgradeable to 8 GB using two soDIMM modules*
Display and Graphics
•16:9 aspect ratio
•14" HD 1366 x 768
• Screen resolution support :
800*600
1024*768
1280*720
1280*768
1366*768
Storage Subsystem
•2.5" hard disk drive / solid state drive
•DVD-Super Multi double-layer drive
•5-in-1 card reader
Special Keys and Controls
•86-/87-/91-key keyboard
•Touchpad pointing device
System Specifications
Chapter 1
2Chapter 1
Audio
•High-definition audio support
•S/PDIF (Sony/Philips Digital Interface) support for digital speakers
•MS-Sound compatible
•Built-in microphone
Communication
•Integrated Acer Crystal Eye webcam
•Wi-Fi/WiMAX: Intel® Wireless WiFi Link 5150*
•WWAN:
•UMTS/HSPA at 900 MHz/2100 MHz and quad-band GSM/GPRS/EDGE
(850/900/1800/1900 MHz)*
•UMTS/HSPA at 850 MHz/900 MHz/1900 MHz/2100 MHz and quad-band GSM/GPRS/EDGE
(850/900/1800/1900 MHz)*
•WLAN:
•Intel® Wireless WiFi Link 5100*
•Acer InviLink™ Nplify™ 802.11b/g/Draft-N*
•WPAN: Bluetooth® 2.0+Enhanced Data Rate (EDR)*
•LAN: Gigabit Ethernet; Wake-on-LAN ready
I/O Ports
•5-in-1 card reader (SD/MMC/MS/MS PRO/xD)
•USB 2.0 port
•HDMI™ port with HDCP support
•External display (VGA) port
•Headphones/speaker/line-out jack with S/PDIF support
•Microphone-in jack
•Ethernet (RJ-45) port
•DC-in jack for AC adapter
Environment
•Temperature:
•Operating: 5 °C to 35 °C
•Non-operating: -20 °C to 65 °C
•Humidity (non-condensing):
•Operating: 20% to 80%
•Non-operating: 20% to 80%
Dimension and Weight
•Dimension: 338.6 mm x 242.45 mm x 30.85 mm
•Weight:
Aspire 4810T/4810TZ/4410T:1998 gm
Aspire 4810TG: 2030 gm
NOTE: * Only for certain models.
NOTE: The specifications listed above are for reference only. The exact configuration of your PC depends on
the model purchased.
Chapter 1 3
Aspire 4810T/4810TZ/4410T System Block Diagram
4Chapter 1
Aspire 4810TG System Block Diagram
Chapter 1 5
Your Acer Notebook Tour
After knowing your computer features, let us show you around your new computer.
Top View
#Icon Item Description
1 Acer Crystal Eye webcam Web camera for video communication.
2 Microphone Internal microphone for sound recording.
3 Display screen Also called Liquid-Crystal Display (LCD), displays computer output
(Configuration may vary by models).
4 Power button / indicator Turns the computer on and off. / Indicates the computer's power status.
5 Keyboard For entering data into your computer.
6 Touchpad Touch-sensitive pointing device which functions like a computer mouse.
7 Click buttons (left and right) The left and right buttons function like the left and right mouse buttons.
8 Palmrest Comfortable support area for your hands when you use the computer.
9 Touchpad toggle Turns the internal touchpad on and off.
10 Communication key Enables / disables the WLAN / 3G functions.
Backup key Launches Acer Backup Management for three-step data backup.
Acer PowerSmart key Puts your computer into power-saving mode.
HDD Indicates when the hard disk drive is active.
11 Eject button Presses to eject the optical disk from the drive.
12 Speakers Left and right speakers deliver stereo audio output.
6Chapter 1
Closed Front View
Icon Item Description
1 Battery Indicates the computer's battery status.
1. Charging: The light shows amber when the battery is
charging.
2. Fully charged: The light shows blue when in AC mode.
2 5-in-1 card reader Accepts Secure Digital (SD), MultiMediaCard (MMC),
Memory Stick (MS), Memory Stick PRO (MS PRO), xD-
Picture Card (xD).
Note: Push to remove/install the card. Only one card can
operate at any given time.
Chapter 1 7
Left View
#Icon Item Description
1 USB 2.0 port Connect to USB 2.0 devices (e.g., USB mouse, USB
camera).
2 Ventilation slots Enable the computer to stay cool, even after prolonged
use.
3 External display
(VGA) port
Connects to a display device (e.g., external monitor, LCD
projector).
4HDMI HDMI port Supports high definition digital video connections.
5 USB 2.0 port Connect to USB 2.0 devices (e.g., USB mouse, USB
camera).
6Microphone-in jack Accepts inputs from external microphones.
Headphones/
speaker/line-out
jack with
S/PDIF support
Connects to audio line-out devices
(e.g., speakers, headphones).
8Chapter 1
Right View
#Icon Item Description
1 Optical drive Internal optical drive; accepts CDs or DVDs.
2 Optical disk access
indicator
Lights up when the optical drive is active.
3 Emergency eject hole Ejects the optical drive tray when the computer is
turned off.
Note: Insert a paper clip to the emergency eject
hole to eject the optical drive tray when the
computer is off.
4 USB 2.0 port Connects to USB 2.0 devices (e.g., USB mouse,
USB camera).
5 Ethernet (RJ-45) port Connects to an Ethernet 10/100/1000-based
network.
6 DC-in jack Connects to an AC adapter.
7 Kensington lock slot Connects to a Kensington-compatible computer
security lock.
Note: Wrap the computer security lock cable
around an immovable object such as a table or
handle of a locked drawer. Insert the lock into the
notch and turn the key to secure the lock. Some
keyless models are also available.
Chapter 1 9
Rear View
#Icon Item Description
1 Battery bay Houses the computer's battery pack.
10 Chapter 1
Bottom View
Icon Item Description
1 Battery bay Houses the computer's battery pack.
2 Battery lock Locks the battery in position.
3 Memory
compartment
Houses the computer's main memory.
4 Hard disk bay Houses the computer's hard disk
(secured with screws).
5 Ventilation slots
and cooling fan
Enable the computer to stay cool, even after prolonged
use.
Note: Do not cover or obstruct the opening of the fan.
6 Battery release
latch
Releases the battery for removal.
Chapter 1 11
Indicators
The computer has several easy-to-read status indicators. The front panel indicators are visible even when the
computer cover is closed.
Easy-Launch Buttons
Located above the keyboard are application buttons. These buttons are called easy-launch buttons. They are:
Backup and Acer PowerSmart indicators/buttons.
Touchpad Basics (with two-click buttons)
The following items show you how to use the touchpad with two-click buttons.
•Move your finger across the touchpad (1) to move the cursor.
•Press the left (2) and right (3) buttons located beneath the touchpad to perform selection and execution
functions. These two buttons are similar to the left and right buttons on a mouse. Tapping on the
touchpad is the same as clicking the left button.
Icon Function Description
WLAN/3G (Manufacturing
option)
Indicates the status of WLAN/3Gcommunication.
Backup key Launches Acer Backup Management for three-
step data backup.
Acer PowerSmart key Puts your computer into power-saving mode.
HDD Indicates when the hard disk drive is active.
Power button / indicator Turns the computer on and off. /
Indicates the computer's power status.
Battery Indicates the computer's battery status.
1. Charging: The light shows amber when the
battery is charging.
2. Fully charged: The light shows blue when in
AC mode.
Icon Function Description
Backup key Launches Acer Backup Management for three-step data
backup.
Acer PowerSmart key Puts your computer into power-saving mode.
123
12 Chapter 1
NOTE: Illustrations for reference only. The exact configuration of your PC depends on the model purchased.
NOTE: When using the touchpad, keep it — and your fingers — dry and clean. The touchpad is sensitive to
finger movement; hence, the lighter the touch, the better the response. Tapping harder will not increase
the touchpad's responsiveness.
NOTE: By default, vertical and horizontal scrolling is enabled on your touchpad. It can be disabled under
Mouse settings in Windows Control Panel.
Function Left button (2) Right button (3) Main touchpad (1)
Execute Quickly click twice. Tap twice (at the same speed as double-clicking
a mouse button).
Select Click once. Tap once.
Drag Click and hold, then use
finger on the touchpad
to drag the cursor.
Tap twice (at the same speed as double-clicking
a mouse button); rest your finger on the touchpad
on the second tap and drag the cursor.
Access
context menu
Click once.
Chapter 1 13
Using the Keyboard
The keyboard has full-sized keys and an embedded numeric keypad, separate cursor, lock, Windows, function
and special keys.
Lock Keys and Numeric Keypad
The keyboard has three lock keys which you can toggle on and off.
The keyboard has a numeric keypad with cursor-control keys.
Lock key Description
Caps Lock When Caps Lock is on, all alphabetic characters typed are
in uppercase.
Num Lock When Num Lock is on, the numeric keypad is in numeric mode. The keys
function as a calculator (complete with the arithmetic operators +, -, *, and /).
Use this mode when you need to do a lot of numeric data entry. A better solution
would be to connect an external keypad.
Scroll Lock <Fn> +
<F12>
When Scroll Lock is on, the screen moves one line up or down when you press
the up or down arrow keys respectively. Scroll Lock does not work with some
applications.
Desired access Num Lock on Num Lock off
Number keys on
embedded keypad
Type numbers in a normal manner.
Cursor-control keys on
embedded keypad
Hold <Shift> while using cursor-
control keys.
Hold <Fn> while using cursor-
control keys.
Main keyboard keys Hold <Fn> while typing letters on
embedded keypad.
Type the letters in a normal
manner.
14 Chapter 1
Windows Keys
The keyboard has two keys that perform Windows-specific functions.
Key Description
Windows
key
Pressed alone, this key has the same effect as clicking on the Windows Start button;
it launches the Start menu.
It can also be used with other keys to provide a variety of functions:
< >: Open or close the Start menu
< > + <D>: Display the desktop
< > + <E>: Open Windows Explore
< > + <F>: Search for a file or folder
< > + <G>: Cycle through Sidebar gadgets
< > + <L>: Lock your computer (if you are connected to a network domain), or
switch users (if you're not connected to a network domain)
< > + <M>: Minimizes all windows
< > + <R>: Open the Run dialog box
< > + <T>: Cycle through programs on the taskbar
< > + <U>: Open Ease of Access Center
< > + <X>: Open Windows Mobility Center
< > + <BREAK>: Display the System Properties dialog box
< > + <SHIFT+M>: Restore minimized windows to the desktop
< > + <TAB>: Cycle through programs on the taskbar by using Windows Flip 3-D
< > + <SPACEBAR>: Bring all gadgets to the front and select Windows Sidebar
<CTRL> + < > + <F>: Search for computers (if you are on a network)
<CTRL> + < > + <TAB>: Use the arrow keys to cycle through programs on the
taskbar by using Windows Flip 3-D
Note: Depending on your edition of Windows Vista, some shortcuts may not function
as described.
Application
key
This key has the same effect as clicking the right mouse button; it opens the
application's context menu.
Chapter 1 15
Hot Keys
The computer employs hotkeys or key combinations to access most of the computer’s controls like screen
brightness, volume output and the BIOS utility.
To activate hot keys, press and hold the <Fn> key before pressing the other key in the hotkey combination.
Special Key (only for certain models)
You can locate the Euro symbol and the US dollar sign at the upper-center and/or bottom-right of your
keyboard.
The Euro symbol
1. Open a text editor or word processor.
2. Either press < > at the bottom-right of the keyboard, or hold <Alt Gr> and then press the <5> key at the
upper-center of the keyboard.
NOTE: Some fonts and software do not support the Euro symbol. Please refer to www.microsoft.com/
typography/faq/faq12.htm for more information.
The US dollar sign
1. Open a text editor or word processor.
2. Either press < > at the bottom-right of the keyboard, or hold <Shift> and then press the <4> key at the
upper-center of the keyboard.
NOTE: This function varies according to the language settings.
Hotkey Icon Function Description
<Fn> + <F2> System property Starts System Property for displaying system
information.
<Fn> + <F3> Bluetooth Enables/disables the Bluetooth function. (only
for certain models)
<Fn> + <F4> Sleep Puts the computer in Sleep mode.
<Fn> + <F5> Display toggle Switches display output between the display
screen, external monitor (if connected) and both.
<Fn> + <F6> Screen blank Turns the display screen backlight off to save
power. Press any key to return.
<Fn> + <F8> Speaker toggle Turns the speakers on and off.
<Fn> + < > Brightness up Increases the screen brightness.
<Fn> + < > Brightness down Decreases the screen brightness.
<Fn> + < > Volume up Increases the sound volume.
<Fn> + < > Volume down Decreases the sound volume.
16 Chapter 1
Windows Mobility Center
The Windows Mobility Center collects key mobile-related system settings in one easy-to-find place, so you can
quickly configure your Acer system to fit the situation as you change locations, networks or activities. Settings
include display brightness, volume, power plan, wireless networking on/off, external display settings,
synchronization status and presentation settings.
Windows Mobility Center also includes Acer-specific settings like sharing folders overview/sharing service on
or off, Bluetooth Add Device (if applicable), and a shortcut to the Acer user guide, drivers and utilities.
To launch Windows Mobility Center:
qUse the shortcut key < > + <X>.
qStart Windows Mobility Center from the Control panel.
qStart Windows Mobility Center from the Accessories program group in the Start menu.
qLaunch Windows Mobility Center by right-clicking in the system tray and select Windows Mobility
Center.
Chapter 1 17
Using the System Utilities
Acer GridVista (dual-display compatible)
NOTE: This feature is only available on certain models.
To enable the dual monitor feature of the notebook, first ensure that the second monitor is connected, then
select Start, Control Panel, Display and click on Settings. Select the secondary monitor (2) icon in the
display box and then click the check box Extend my windows desktop onto this monitor. Finally, click
Apply to confirm the new settings and click OK to complete the process.
Acer GridVista is a handy utility that offers four pre-defined display settings so you can view multiple windows
on the same screen. To access this function, please go to Start>All Programs and click on Acer GridVista.
You may choose any one of the four display settings indicated below:
Double (vertical), Triple (primary at left), Triple (primary at right), or Quad Acer Gridvista is dual-display
compatible, allowing two displays to be partitioned independently.
Acer Gridvista is dual-display compatible, allowing two displays to be partitioned independently.
AcerGridVista is simple to set up:
1. Run Acer GridVista and select your preferred screen configuration for each display from the task bar.
2. Drag and drop each window into the appropriate grid.
3. Enjoy the convenience of a well-organized desktop.
Note:
Start Control Panel Display
Settings (2)
Extend my windows desktop onto this monitor
Apply OK
Start All Programs Acer GridVista
18 Chapter 1
NOTE: Please ensure that the resolution setting of the second monitor is set to the manufacturer's
recommended value.
Chapter 1 19
Hardware Specifications and Configurations
Processor
Throttling 50%: On= 99 C; OFF=93 C
OS shut down at 105 C; H/W shot down at 110 .C
System Memory
Item Specification
CPU type 4810T/4810TZ/4410T (UMA):
Intel® Core™2 Duo Mobile SU9300 (1.20G)
Intel® Core™2 Solo SU3500 (1.4G);
Intel® Core™2 Duo SU9400 (1.4G)
Aspire 4810TG (DIS): Intel Core2 Solo SU3500 1.4G;
Intel® Core™2 Duo SU9400 (1.4G)
Core logic Mobile Intel® GS45 Express Chipset
CPU package Micro-FCBGA ( SU9300 and SU9400) and BGA (SU3500)
CPU core voltage 0.775 - 1.1 V
CPU Fan True Value Table
DTS(degree C) Fan Speed (rpm) Acoustic Level (dBA)
45-50 0-3000 29
55-66 0-3300 33
68-74 3300-3800 38
78-83 3800-4100 40
86-91 4100-4800 40
BIOS
Item Specification
BIOS vendor Insyde H2O
BIOS Version 1.06
Item Specification
Memory controller Built-in
Memory size 0MB (no on-board memory)
DIMM socket number 2 sockets
Supports memory size per socket 2048MB
Supports maximum memory size 4G for 64bit OS (with two 2GB SODIMM)
Supports DIMM type DDR 3 Synchronous DRAM
Supports DIMM Speed 800/1066 MHz
Supports DIMM voltage 1.5V
Supports DIMM package 204-pin soDIMM
Memory module combinations You can install memory modules in any combinations as long as
they match the above specifications.
20 Chapter 1
NOTE: Above table lists some system memory configurations. You may combine DIMMs with various
capacities to form other combinations. On above table, the configuration of slot 1 and slot 2 could be
reversed.
Memory Combinations
Slot 1 Slot 2 Total Memory
0MB 1024MB 1024MB
0MB 2048MB 2048MB
1024MB 0MB 1024MB
1024MB 1024MB 2048MB
1024MB 2048MB 3072MB
2048MB 0MB 2048MB
2048MB 1024MB 3072MB
2048MB 2048MB 4096MB
Item Specification
LAN Chipset Atheros AR8131L
Supports LAN protocol 10/100/1000 Mbps
LAN connector type RJ45
LAN connector location Right side
Features Integrated 10/100 BASE-T transceiver
Wake on LAN support compliant with ACPI 2.0
PCI v2.2
Bluetooth Interface
Item Specification
Chipset Broadcom BCM2046
Data throughput 3 Mbps (full speed data rate)
Protocol Bluetooth 2.1
Interface USB 2.0
Connector type USB
Wireless Module
Item Specification
Chipset WLAN 802.11ABGN SHIRLEYPEAK1*2
WLAN 802.11ABG SHIRLEYPEAK1*2
Data throughput 11~54 Mbps, up to 270 Mbps for Draft-N
Protocol 802.11b+g, Draft-N
Interface PCI bus (mini PCI socket for wireless module)
Chapter 1 21
Hard Disk Drive Interface
Item
Vendor &
Model Name
HGST
HTS543216L9A300
SEAGATE SATA
ST9160310AS F/
TOSHIBA
MK1655GSX
WD WD1600BEVT-
22ZCT0
HGST
HTS545025B9A300
SEAGATE
ST9250315AS
TOSHIBA
MK2555GSX
WD WD2500BEVT-
22ZCT0
HGST
HTS545032B9A300
SEAGATE
ST9320320A
TOSHIBA
MK3255GSX
WD WD3200BEVT-
22ZCT0
HGST
HTS545050B9A300
SEAGATE
ST9500325AS
TOSHIBA
MK5055GS
WD5000BEVT-
22ZAT0
Capacity
(MB)
160000 250000 320000 500000
Bytes per
sector
512 512 512 512
Data heads 3/4 2 3 4
Drive Format
Disks 2 2 2 2
Spindle
speed
(RPM)
5400 RPM 5400 RPM 5400 RPM 5400 RPM
Performance Specifications
Buffer size 8MB 8MB 8MB 8MB
Interface SATA SATA SATA SATA
Max. media
transfer rate
(disk-buffer,
Mbytes/s)
540 875
(Max. 3.0 Gbit/s
Buffer-host data
transfer)
875
(Max. 3.0 Gbit/s
Buffer-host data
transfer)
875
(Max. 3.0 Gbit/s
Buffer-host data
transfer)
DC Power Requirements
Voltage
tolerance
5V(DC) +/- 5% 5V(DC) +/- 5% 5V(DC) +/- 5% 5V(DC) +/- 5%
Optical Disc Drive
Item Specification
Vendor & model name TOSHIBA Super-Multi DRIVE DL 8X TS-U633A LF
PANASONIC Super-Multi DRIVE DL 8X UJ862 LF
PANASONIC Super-Multi DRIVE DL 8X UJ862AC LF
HLDS Super-Multi DRIVE DL 8X GU10N LF
Performance Specification With CD Diskette With DVD Diskette
Transfer rate (KB/sec) Sustained:
Max 3.6Mbytes/sec
Sustained:
Max 10.08Mbytes/sec
Buffer Memory 2MB
Interface SATA
22 Chapter 1
Applicable disc format Applicable disc format
CD: CD-DA, CD-ROM, CD-ROM XA, Photo CD (multi-session), Video
CD, Cd-Extra (CD+), CD-text
DVD: DVD-VIDEO, DVD-ROM, DVD-R (3.9GB, 4.7GB) DVD-R DL,
DVD-RW, DVD-RAM, DVD+R, DVD+R DL, DVD+RW
CD:
CD-DA (Red Book) - Standard Audio CD & CD-TEXT
CD-ROM (Yellow Book Mode1 & 2) - Standard Data
CD-ROM XA (Mode2 Form1 & 2) - Photo CD, Multi-Session
CD-I (Green Book, Mode2 Form1 & 2, Ready, Bridge)
CD-Extra/ CD-Plus (Blue Book) - Audio & Text/Video
Video-CD (White Book) - MPEG1 Video
CD-R (Orange Book Part)
CD-RW & HSRW (Orange Book Part Volume1 & Volume 2
Super Audio CD (SACD) Hybrid type
US & US+ RW
DVD:
DVD-ROM (Book 1.02), DVD-Dual
DVD-Video (Book 1.1)
DVD-R (Book 1.0, 3.9G)
DVD-R (Book 2.0, 4.7G) - General & Authoring
DVD+R (Version 1.0)
DVD+RW
DVD-RW (Non CPRM & CPRM)
DVD°”R Dual
Loading mechanism Load: Manual
Release: (a) Electrical Release (Release Button)
(b) Release by ATAPI command
(c) Emergency Release
Power Requirement
Input Voltage 5 V +/- 5% (Operating)
Audio Interface
Item Specification
Audio Controller Realtek Audio Codec ALC269X
Audio onboard or optional Built-in
Mono or Stereo Stereo
Resolution 18 bit stereo full duplex
Compatibility HD audio Interface; S/PDIF output for PCM or AC-3
content
Sampling rate 1Hz resolution VSR (Variable Sampling Rate)
Internal microphone Yes
Internal speaker / Quantity Yes/2 (1.5W speakers)
Optical Disc Drive
Item Specification
Chapter 1 23
USB
Video Memory
Item Specification
Chipset Intel CS GS45NB (Aspire 4810T/4810TZ/4410T) /AMD
M92LP (Aspire 4810TG)
Memory size 512M DDR3 (Aspire 4810TG)
Item Specification
Chipset ICH9M
USB Compliancy Level 2.0
OHCI USB 1.1 and USB 2.0 Host controller
Number of USB port 3
Location Two on the right side/one on the front
Serial port function control Enable/Disable by BIOS Setup
System Board Major Chips
Item Controller
Core logic NB Chipset Intel CS GS45NB + SB Chipset Intel CS AM82801IUX
VGA AMD M92LP (Aspire 4810TG)/UMA (Aspire 4810T/4810TZ/4410T)
USB 2.0 Intel ICH9M
Super I/O controller N/A
MODEM N/A
Bluetooth BCM2046
Wireless 802.11 b+g WLAN 802.11ABGN SHIRLEYPEAK1*2
PCMCIA/ 5-in-1 Card Reader
Audio Codec Realtek Audio Codec ALC269X
Keyboard
Item Specification
Keyboard controller Winbond WP CE 773LA
Total number of keypads 86-/87-/91-key
Windows logo key Yes
Internal & external keyboard work
simultaneously
Plug USB keyboard to the USB port directly: Yes
Battery
Item Specification
Vendor Sanyo/Simplo
Battery Type Li-ion
Pack capacity 6-Cell 5600mAh
Number of battery cell 6
Package configuration 3 cells in series, 2 series in parallel
24 Chapter 1
LCD 14” inch
Item Specification
Vendor & model name AUO (B140XW02 V1 LF)
CMO (N140B6-L06 LF)
LPL (LP140WH2-TLA1 LF)
SAMSUNG (LTN140AT06-A01 LF)
Screen Diagonal (mm) 14 inches
Display resolution (pixels) 1366 x 768 WXGA Glare
Pixel Pitch 0.204 x 0.204
Pixel Arrangement R.G.B. Vertical Stripe
Display Mode Normally White
Typical White Luminance (NIT)
also called Brightness
220
Luminance Uniformity 1.25 max.
Contrast Ratio 500 typical
Response Time msec 8
Nominal Input Voltage VDD +3.3V
Viewing Angle (degree)
Horizontal: Right/Left
Vertical: Upper/Lower
45/45
15/35
Temperature Range( C)
Operating
Storage (shipping)
0 to +50
-40 to +60
AC Adaptor
Item Specification
Input 100-240V~ 1.5A, 50-60Hz/
Output 19V 65W
System Power Management
ACPI mode Power Management
Mech. Off (G3) All devices in the system are turned off completely.
Soft Off (G2/S5) OS initiated shutdown. All devices in the system are turned
off completely.
Working (G0/S0) Individual devices such as the CPU and hard disc may be
power managed in this state.
Suspend to RAM (S3) CPU set power down
VGA Suspend
PCMCIA Suspend
Audio Power Down
Hard Disk Power Down
CD-ROM Power Down
Super I/O Low Power mode
Chapter 1 25
Save to Disk (S4) Also called Hibernation Mode. System saves all system
states and data onto the disc prior to power off the whole
system.
System Power Management
ACPI mode Power Management
26 Chapter 1
Chapter 2 27
BIOS Setup Utility
The BIOS Setup Utility is a hardware configuration program built into your computer’s BIOS (Basic Input/
Output System).
Your computer is already properly configured and optimized, and you do not need to run this utility. However, if
you encounter configuration problems, you may need to run Setup. Please also refer to Chapter 4
Troubleshooting when problem arises.
To activate the BIOS Utility, press F2 during POST (when “Press <F2> to enter Setup” message is prompted
on the bottom of screen).
Press F2 to enter setup. The default parameter of F12 Boot Menu is set to “disabled”. If you want to change
boot device without entering BIOS Setup Utility, please set the parameter to “enabled”.
Press <F12> during POST to enter multi-boot menu. In this menu, user can change boot device without
entering BIOS SETUP Utility.
System Utilities
Chapter 2
28 Chapter 2
Navigating the BIOS Utility
There are six menu options: Information, Main, Security, Boot, and Exit.
Follow these instructions:
•To choose a menu, use the left and right arrow keys.
•To choose an item, use the up and down arrow keys.
•To change the value of a parameter, press F5 or F6.
•A plus sign (+) indicates the item has sub-items. Press Enter to expand this item.
•Press Esc while you are in any of the menu options to go to the Exit menu.
•In any menu, you can load default settings by pressing F9. You can also press F10 to save any
changes made and exit the BIOS Setup Utility.
NOTE: You can change the value of a parameter if it is enclosed in square brackets. Navigation keys for a
particular menu are shown on the bottom of the screen. Help for parameters are found in the Item
Specific Help part of the screen. Read this carefully when making changes to parameter values. Please
note that system information is subject to different models.
Chapter 2 29
Information
The Information screen displays a summary of your computer hardware information.
NOTE: The system information is subject to different models.
Parameter Description
CPU Type This field shows the CPU type and speed of the system.
CPU Speed This field shows the speed of the CPU.
IDE0 Model Name This field shows the model name of HDD installed on primary IDE master. The hard disk
model name is automatically detected by the system. If there is no hard disk present or
unknown type, None should be shown on this field.
IDE0 Serial Number This field displays the serial number of HDD installed on primary IDE master. If no Hard
disk or other devices are installed on Primary IDE master, then it will display a blank line.
ATAPI Model Name This field shows the model name of the Optical device installed in the system.
System BIOS Version Displays system BIOS version.
VGA BIOS Version This field displays the VGA firmware version of the system.
KBC Ver This field shows the keyboard
Serial Number This field displays the serial number of this unit.
Asset Tag Number This field displays the asset tag number of the system.
Product Name This field shows product name of the system.
Manufacturer Name This field displays the manufacturer of this system.
UUID Number Universally Unique Identifier (UUID) is an identifier standard used in software construction,
standardized by the Open Software Foundation (OSF) as part of the Distributed
Computing Environment (DCE). This will be visible only when there is an internal LAN
device present.
30 Chapter 2
Main
The Main screen allows the user to set the system time and date as well as enable and disable boot option
and recovery.
NOTE: The screen above is for your reference only. Actual values may differ.
The table below describes the parameters in this screen. Settings in boldface are the default and suggested
parameter settings.
Parameter Description Format/Option
System Time Sets the system time. The hours are displayed
with 24-hour format.
Format: HH:MM:SS
(hour:minute:second) System Time
System Date Sets the system date. Format MM/DD/YYYY (month/day/
year)
System Date
System Memory This field reports the memory size of the system.
Memory size is fixed to 640MB
Extended Memory This field reports the memory size of the
extended memory in the system.
Extended Memory size=Total memory size-1MB
Video Memory Shows the video memory size.
Quiet Boot Determines if Customer Logo will be displayed or
not; shows Summary Screen is disabled or
enabled.
Enabled: Customer Logo is displayed, and
Summary Screen is disabled.
Disabled: Customer Logo is not displayed, and
Summary Screen is enabled.
Option: Enabled or Disabled
Network Boot Enables, disables the system boot from LAN
(remote server).
Option: Enabled or Disabled
F12 Boot Menu Enables, disables Boot Menu during POST. Option: Disabled or Enabled
I t e m S p e c i f i c H e l p
This is the help for the
hour field. Valid range
is from 0 to 23. REDUCE
/INCREASE : F5/F6.
System Time:
System Memory:
Extended Memory:
Video Memory:
System Date:
Quiet Boot
Network Boot
F 1 2 B o o t M e n u
D2D Recovery
SATA Mode
[]
[]
:53:38
04/07/2009
640 KB
2046 MB
256 MB
14
[Enabled]
[Enabled]
[Enabled]
[Enabled]
[AHCI Mode]
InsydeH20 Setup Utility
Main
Information Security Boot Exit
R e v. 3 . 5
F1
Esc
Help
Exit
Select Item
S e l e c t M e n u
Change Values
Select►Sub-Menu
F5/F6
Enter
F9
F10
Setup Default
S a v e a n d E x i t
Chapter 2 31
NOTE: The sub-items under each device will not be shown if the device control is set to disable or auto. This is
because the user is not allowed to control the settings in these cases.
D2D Recovery Enables, disables D2D Recovery function. The
function allows the user to create a hidden
partition on hard disc drive to store operation
system and restore the system to factory
defaults.
Option: Enabled or Disabled
SATA Mode Control the mode in which the SATA controller
should operate.
Option: AHCI or IDE
Parameter Description Format/Option
32 Chapter 2
Security
The Security screen contains parameters that help safeguard and protect your computer from unauthorized
use.
NOTE: Please refer to “Remove HDD/BIOS Password” section if you need to know how to remove HDD/BIOS
Password.
The table below describes the parameters in this screen. Settings in boldface are the default and suggested
parameter settings.
Parameter Description Option
Supervisor Password Is Shows the setting of the Supervisor password Clear or Set
User Password Is Shows the setting of the user password. Clear or Set
HDD Password Is Shows the setting of the hard disk password. Clear or Set
Set Supervisor Password Press Enter to set the supervisor password.
When set, this password protects the BIOS
Setup Utility from unauthorized access. The
user can not either enter the Setup menu nor
change the value of parameters.
Set User Password Press Enter to set the user password. When
user password is set, this password protects
the BIOS Setup Utility from unauthorized
access. The user can enter Setup menu only
and does not have right to change the value of
parameters.
Set HDD Password Enter HDD Password.
Password on Boot Defines whether a password is required or not
while the events defined in this group
happened. The following sub-options are all
requires the Supervisor password for changes
and should be grayed out if the user password
was used to enter setup.
Disabled or Enabled
I t e m S p e c i f i c H e l p
I n s t a l l o r C h a n g e t h e
passeord and the length
o f p a s s w o r d m u s t b e
greater than one word.
Supervisor Password Is
User Password Is
HDD Password
S e t U s e r P a s s w o r d
P o w e r o n p a s s w o r d
Set Supervisor Password
S e t H d d P a s s w o r d
Clear
Clear
Clear
[Disabled]
InsydeH20 Setup Utility
Main
Information Security Boot Exit
R e v. 3 . 5
F1
Esc
Help
Exit
Select Item
S e l e c t M e n u
Change Values
Select►Sub-Menu
F5/F6
Enter
F9
F10
Setup Default
S a v e a n d E x i t
Chapter 2 33
NOTE: When you are prompted to enter a password, you have three tries before the system halts. Don’t forget
your password. If you forget your password, you may have to return your notebook computer to your
dealer to reset it.

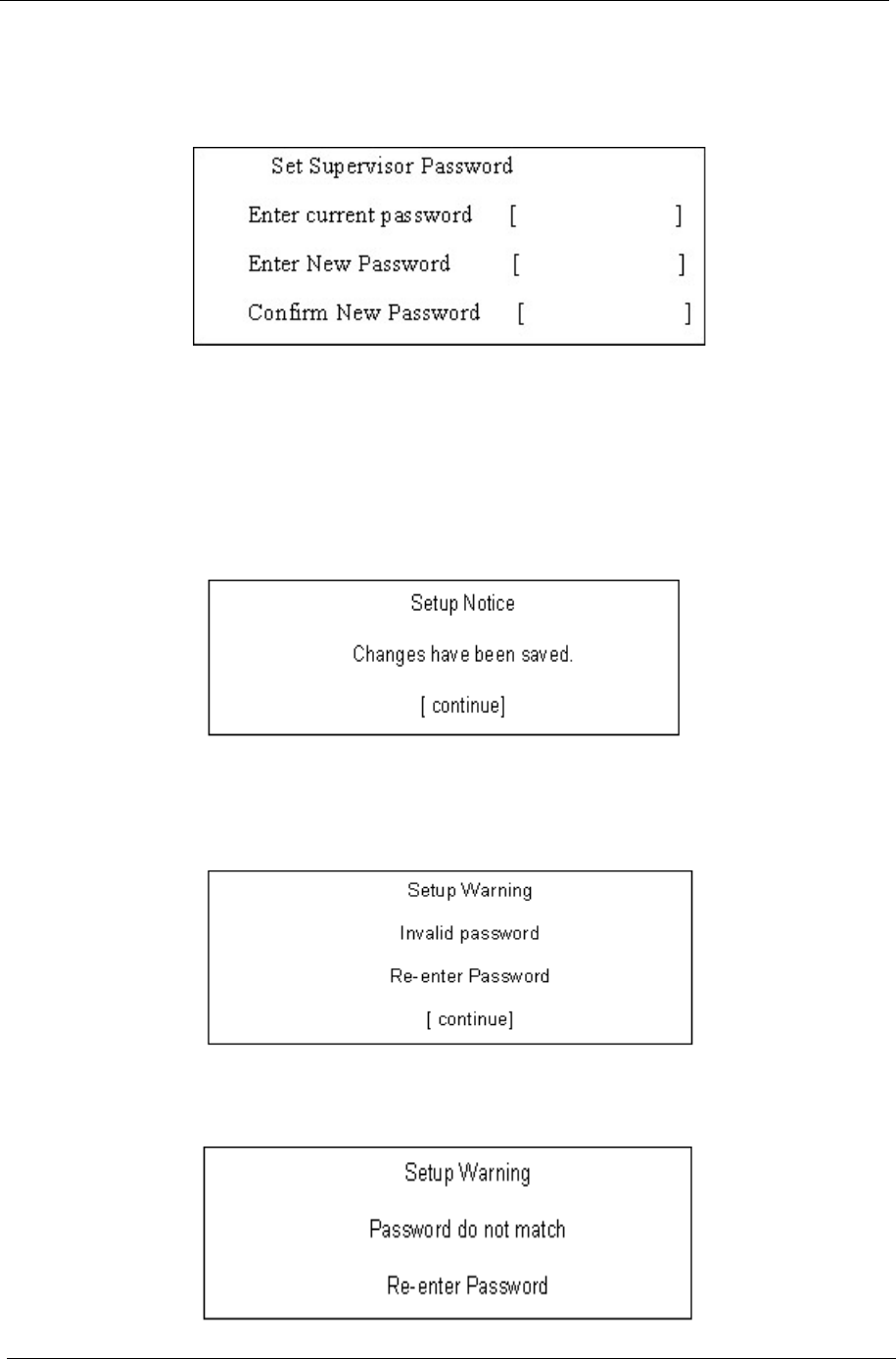

Setting a Password
Follow these steps as you set the user or the supervisor password:
1. Use the up/down keys to highlight the Set Supervisor Password parameter and press the Enter key. The
Set Supervisor Password box appears:
2. Type a password in the “Enter New Password” field. The password length can not exceeds 8
alphanumeric characters (A-Z, a-z, 0-9, not case sensitive). Retype the password in the “Confirm New
Password” field.
IMPORTANT:Be very careful when typing your password because the characters do not appear on the screen.
3. Press Enter.
After setting the password, the computer sets the User Password parameter to “Set”.
4. If desired, you can opt to enable the Password on boot parameter.
5. When you are done, press F10 to save the changes and exit the BIOS Setup Utility.
Removing a Password
Follow these steps:
1. Use the up/down keys to highlight the Set Supervisor Password parameter and press the Enter key. The
Set Password box appears:
2. Type the current password in the Enter Current Password field and press Enter.
3. Press e twice without typing anything in the Enter New Password and Confirm New Password fields. The
computer then sets the Supervisor Password parameter to “Clear”.
4. When you have changed the settings, press F10 to save the changes and exit the BIOS Setup Utility.
34 Chapter 2
Changing a Password
1. Use the up/down keys to highlight the Set Supervisor Password parameter and press the Enter key. The
Set Password box appears:
2. Type the current password in the Enter Current Password field and press Enter.
3. Type a password in the Enter New Password field. Retype the password in the Confirm New Password
field.
4. Press Enter. After setting the password, the computer sets the User Password parameter to “Set”.
5. If desired, you can enable the Password on boot parameter.
6. When you are done, press u to save the changes and exit the BIOS Setup Utility.
If the verification is OK, the screen will display as following.
The password setting is complete after the user presses Enter.
If the current password entered does not match the actual current password, the screen will show you the
Setup Warning.
If the new password and confirm new password strings do not match, the screen will display the following
message.
Chapter 2 35
Boot
This menu allows the user to decide the order of boot devices to load the operating system. Bootable devices
includes the diskette drive in module bay, the onboard hard disk drive and the CD-ROM in module bay.
36 Chapter 2
Exit
The Exit screen contains parameters that confirmed or discard the changes made to the parameters in the
BIOS Setup Utility.
The table below describes the parameters in this screen.
Parameter Description
Exit Saving Changes Exit System Setup and save your changes to CMOS.
Exit Discarding Changes Exit utility without saving setup data to CMOS.
Load Setup Default Load default values for all SETUP item.
Discard Changes Load previous values from CMOS for all SETUP items.
Save Changes Save Setup Data to CMOS.
I t e m S p e c i f i c H e l p
E x i t S y s t e m S e t u p a n d
save your changes to
CMOS.
Exit Saving Changes
Exit Discarding Changes
Discard Changes
Save Changes
InsydeH20 Setup Utility
Main
Information Security Boot Exit
R e v. 3 . 5
F1
Esc
Help
Exit
Select Item
S e l e c t M e n u
Change Values
Select►Sub-Menu
F5/F6
Enter
F9
F10
Setup Default
S a v e a n d E x i t
Chapter 2 37
BIOS Flash Utility
BIOS Flash Utility
The BIOS flash memory update is required for the following conditions:
•New versions of system programs
•New features or options
•Restore a BIOS when it becomes corrupted.
Use the Flash utility to update the system BIOS flash ROM.
NOTE: If you do not have a crisis recovery disk at hand, then you should create a Crisis Disk (See “Steps for
BIOS Recovery by Crisis Disk” on page 117) before you use the Flash utility.
NOTE: Do not install memory-related drivers (XMS, EMS, DPMI) when you use the Flash.
NOTE: Please connect the AC adapter power supply when you run the Flash utility. If the battery pack does
not contain enough power to finish BIOS flash, you may not boot the system because the BIOS is not
completely loaded.
Follow the steps below to run the Flash utility:
1. Rename the BIOS file as “XXXXXXX.FD”
2. Copy the “XXXXXXX.FD” file to a bootable USB device containing the Crisis Disk.
3. Turn off the system power.
4. Insert the USB device containing the renamed BIOS file and Crisis Disk to any USB port.
5. Make sure the AC adapter is connected to a power outlet and plugged in to the system.
6. Power on the system from an off state (i.e. cold boot) while holding down the Fn + ESC key.
7. After POST, release Fn + ESC key. The system should boot from the USB device and perform crisis
recovery action.
38 Chapter 2
Remove HDD and BIOS Passwords
This section teaches you how to remove HDD password:
Remove HDD Password
•If you key in the wrong HDD password thrice, “HDD password error code” will appear on the
screen. See the image below.
•If you need to solve HDD password locked problem, you can run HDD_PW.EXE
1. Key in “hdd_pw 15494 0”
2. Select “2”
3. Choose one of the uppercase strings
•Reboot the system and key in “0KJFN42” or “UVEIQ96” as your HDD user password.
Chapter 2 39
Remove BIOS Password
•If you key in wrong Supervisor Password for three time, “System Disabled” would display on the
screen. See the image below.
•If you need to solve BIOS password locked problem, you can run BIOS_PW.EXE
1. Key in “bios_pw 14452 0”
2. Choose one upper-case string
•Reboot the system and key in “qjjg9vy” or “07yqmjd” as your BIOS user password.
40 Chapter 2
Chapter 3 41
This chapter contains step-by-step procedures on how to disassemble the notebook computer for
maintenance and troubleshooting.
Disassembly Requirements
To disassemble the computer, you need the following tools:
•Wrist grounding strap and conductive mat for preventing electrostatic discharge
•Flat screwdriver
•Philips screwdriver
•Hex screwdriver
•Plastic flat screwdriver
•Plastic tweezers
NOTE: The screws for the different components vary in size. During the disassembly process, group the
screws with the corresponding components to avoid mismatch when putting back the components.
Machine Disassembly and Replacement
Chapter 3
42 Chapter 3
General Information
Pre-disassembly Instructions
Before proceeding with the disassembly procedure, make sure that you do the following:
1. Turn off the power to the system and all peripherals.
2. Unplug the AC adapter and all power and signal cables from the system.
3. Place the system on a flat, stable surface.
4. Remove any dummy card that might still be inside the card slot.
Disassembly Process
The disassembly process is divided into the following stages:
•External module disassembly
•Main unit disassembly
•LCD module disassembly
The flowcharts provided in the succeeding disassembly sections illustrate the entire disassembly sequence.
Observe the order of the sequence to avoid damage to any of the hardware components. For example, if you
want to remove the main board, you must first remove the keyboard, then disassemble the inside assembly
frame in that order.
Main Screw List
Item Screw Color Part No.
A M2 x L4 Black 86.00E13.524
B M2 x L3 Silver 86.9A522.3R0
C M2.5 X L3.5 Silver 86.9A563.3R5
D M3 x L3 Black 86.00E90.743
E M2.5 x L6 Black 86.00E12.536
F M2.5 x L11 Black 86.1A353.110
G M2 x L2.5 Silver 86.9A562.2R5
H M2.5 x L5 Black 86.00F87.735
I M2 x L6 Black 86.00K64.524
J M2 x L3 Black 86.00K60.630
K M2.5 x L4 SIlver 86.00K04.734
Chapter 3 43
External Module Disassembly Process
Item Screw Color Part No.
B M2 x L3 Silver 86.9A522.3R0
D M3 x L3 Black 86.00E90.743
E M2.5 x L6 Black 86.00E12.536
F M2.5 x L11 Black 86.1A353.110
EXTERNAL MODULE DISASSEMBLY
SSD
MODULE
TURN OFF POWER
AND PERIPHERALS
UNPLUG POWER
CABLES
LOWER
COVER
Captive Screwx5
DIMM
MODULES
REMOVE BATTERY
PACK
Bx1
ODD
MODULE
OPTICAL DISK
DRIVE
OPTICAL
LOCKER
BRACKET
Dx2
HDD
MODULE
HARD DISK
BRACKET
HARD DISK
DRIVE
Ex1
RTC
BATTERY
Fx2
44 Chapter 3
Removing the Battery Pack
1. Turn base unit over.
2. Slide the battery lock/unlock latch to the unlock position.
3. Slide and hold the battery release latch to the release position.
4. Then slide out the battery from the battery bay.
Note: Battery has been highlighted with the yellow circle as above image shows. Please detach the
battery and follow local regulations for disposal.
Chapter 3 45
Removing the Lower Cover
1. See “Removing the Battery Pack” on page 44.
2. Remove the two screws (F) and five captive screws securing the lower cover.
3. Use a plastic screw driver to carefully pry open the lower cover.
4. Remove the lower cover from the lower case.
Step Size (Quantity) Color Torque
1~2 M2.5 x L11 (2) Black 3.0 kgf-cm
46 Chapter 3
Removing the Optical Drive Module
1. See “Removing the Battery Pack” on page 44.
2. See “Removing the Lower Cover” on page 45.
3. Remove the one screw (E) securing the optical drive.
4. Remove the one screw (B) securing the locker bracket and remove the locker bracket from the optical
disk drive module.
Removing the DIMM
1. See “Removing the Battery Pack” on page 44.
2. See “Removing the Lower Cover” on page 45.
Step Size (Quantity) Color Torque
1 M2.5 x L6 (1) SIlver 3.0 kgf-cm
Step Size (Quantity) Color Torque
1 M2 x L3 (1) Silver 1.6 kgf-cm
Chapter 3 47
3. Push out the latches on both sides of the DIMM socket to release the DIMM and remove it from the
socket.
4. Do the same to the other socket if there is any DIMM present.
Removing the Hard Disk Drive Module
1. See “Removing the Battery Pack” on page 44.
2. See “Removing the Lower Cover” on page 45.
3. Using the plastic tab, lift up the the hard disk drive module and remove it from the bay.
NOTE: To prevent damage to device, avoid pressing down on it or placing heavy objects on top of it.
48 Chapter 3
4. Remove the two screws (D) securing the hard disk to the bracket and remove the hard disk from the
bracket.
Removing the SSD Module
1. See “Removing the Battery Pack” on page 44.
2. See “Removing the Lower Cover” on page 45.
3. Using the plastic tab, slide the SSD module away from the connector and lift to remove it from the system.
Step Size (Quantity) Color Torque
1~2 M3 x L3 (2) Black 3.0 kgf-cm
Chapter 3 49
Removing the RTC Battery
1. See “Removing the Battery Pack” on page 44.
2. See “Removing the Lower Cover” on page 45.
3. Disconnect the RTC battery cable from the system board and lift to remove it.
NOTE: Be careful when removing the RTC battery. It is glued to the system board.
Note: RTC battery has been highlighted with the yellow circle as above image shows. Please
detach the RTC battery and follow local regulations for disposal.
50 Chapter 3
Main Unit Disassembly Process
Item Screw Color Part No.
A M2 x L4 Black 86.00E13.524
E M2.5 x L6 Black 86.00E12.536
H M2.5 x L5 Black 86.00F87.735
I M2 x L6 Black 86.00K64.524
Chapter 3 51
Removing the Keyboard
1. See “Removing the Battery Pack” on page 44.
2. Release the keyboard from the latches securing it.
3. Carefully pry loose the keyboard.
4. Place the keyboard below the LCD screen to gain access to the keyboard cable.
52 Chapter 3
5. Disconnect the keyboard cable from the main board to remove the keyboard.
Removing the WLAN Board Module
1. See “Removing the Battery Pack” on page 44.
2. See “Removing the Keyboard” on page 51.
3. Disconnect the antenna cables from the WLAN board.
NOTE: There are 2 antenna cables connected to the WLAN board. The Black antenna cable is connected to
connector 1and the White antenna cable is connected to connector 2.
Chapter 3 53
4. Remove the one screw (A) on the WLAN board to release the WLAN board.
5. Detach the WLAN board from the WLAN socket.
NOTE: When attaching the antenna back to the WLAN board, make sure the cable are arranged properly.
Separating the Upper Case from the Lower Case
1. See “Removing the Battery Pack” on page 44.
2. See “Removing the Lower Cover” on page 45.
3. See “Removing the Lower Cover” on page 45.
4. See “Removing the Optical Drive Module” on page 46.
5. See “Removing the DIMM” on page 46.
6. See “Removing the Hard Disk Drive Module” on page 47.
7. See “Removing the SSD Module” on page 48.
8. See “Removing the RTC Battery” on page 49.
9. See “Removing the Keyboard” on page 51.
10. See “Removing the WLAN Board Module” on page 52.
Step Size (Quantity) Color Torque
1 M2 x L4 (1) Black 1.6 kgf-cm
54 Chapter 3
11. Remove the twelve screws (I, E, H) from the bottom panel.
12. Disconnect the touchpad cable from the TPAD1 connector on the main board.
13. Disconnect the function key board cable from the MMB1 connector on the system board.
Step Size (Quantity) Color Torque
1~2 M2.5 x L6 (2) Black 3.0 kgf-cm
3~4 M2 x L4 (2) Black 3.0 kgf-cm
5~12 M2.5 x L5 (8) Black 3.0 kgf-cm
Chapter 3 55
14. Disconnect the power button cable from the BTB2 connector on the system board.
15. Disconnect the speaker cable from the SPK1 connector on the system board.
16. Gently separate the upper case from the lower case.
56 Chapter 3
Removing the Power Button Board
1. See “Removing the Battery Pack” on page 44.
2. See “Removing the Lower Cover” on page 45.
3. See “Removing the Lower Cover” on page 45.
4. See “Removing the Optical Drive Module” on page 46.
5. See “Removing the DIMM” on page 46.
6. See “Removing the Hard Disk Drive Module” on page 47.
7. See “Removing the SSD Module” on page 48.
8. See “Removing the RTC Battery” on page 49.
9. See “Removing the Keyboard” on page 51.
10. See “Removing the WLAN Board Module” on page 52.
11. See “Separating the Upper Case from the Lower Case” on page 53.
12. Release the power button board from that latches and remove from the upper case.
Removing the Touchpad Module
1. See “Removing the Battery Pack” on page 44.
2. See “Removing the Lower Cover” on page 45.
3. See “Removing the Lower Cover” on page 45.
4. See “Removing the Optical Drive Module” on page 46.
5. See “Removing the DIMM” on page 46.
6. See “Removing the Hard Disk Drive Module” on page 47.
7. See “Removing the SSD Module” on page 48.
8. See “Removing the RTC Battery” on page 49.
9. See “Removing the Keyboard” on page 51.
10. See “Removing the WLAN Board Module” on page 52.
11. See “Separating the Upper Case from the Lower Case” on page 53.
Chapter 3 57
12. Disconnect the touchpad cable from the touchpad board; then carefully pry loose and remove the touch
pad board
WARNING:The touchpad board is glued to the upper case, only remove the touchpad board if it is defective.
Note: Circuit boards >10 cm² has been highlighted with the yellow rectangle as above image shows.
Please detach the Circuit boards and follow local regulations for disposal.
Removing the Speaker Module
1. See “Removing the Battery Pack” on page 44.
2. See “Removing the Lower Cover” on page 45.
3. See “Removing the Lower Cover” on page 45.
4. See “Removing the Optical Drive Module” on page 46.
5. See “Removing the DIMM” on page 46.
6. See “Removing the Hard Disk Drive Module” on page 47.
7. See “Removing the SSD Module” on page 48.
8. See “Removing the RTC Battery” on page 49.
9. See “Removing the Keyboard” on page 51.
10. See “Removing the WLAN Board Module” on page 52.
11. See “Separating the Upper Case from the Lower Case” on page 53.
58 Chapter 3
12. Remove the two screws (A) securing the left and right speaker modules, peel off the stickers securing the
speaker cables, and remove them from the upper case.
Removing the LED Board
1. See “Removing the Battery Pack” on page 44.
2. See “Removing the Lower Cover” on page 45.
3. See “Removing the Lower Cover” on page 45.
4. See “Removing the Optical Drive Module” on page 46.
5. See “Removing the DIMM” on page 46.
6. See “Removing the Hard Disk Drive Module” on page 47.
7. See “Removing the SSD Module” on page 48.
8. See “Removing the RTC Battery” on page 49.
9. See “Removing the Keyboard” on page 51.
10. See “Removing the WLAN Board Module” on page 52.
11. See “Separating the Upper Case from the Lower Case” on page 53.
12. Peel off the covering of the LED board.
Step Size (Quantity) Color Torque
1~2 M2 x L4 (2) Black 1.6 kgf-cm
Chapter 3 59
13. Carefully pry loose and remove the LED board from the upper case.
WARNING:The LED board is glued to the upper case, only remove the LED board if it is defective.
Removing the LCD Module
1. See “Removing the Battery Pack” on page 44.
2. See “Removing the Lower Cover” on page 45.
3. See “Removing the Lower Cover” on page 45.
4. See “Removing the Optical Drive Module” on page 46.
5. See “Removing the DIMM” on page 46.
6. See “Removing the Hard Disk Drive Module” on page 47.
7. See “Removing the SSD Module” on page 48.
8. See “Removing the RTC Battery” on page 49.
9. See “Removing the Keyboard” on page 51.
10. See “Removing the WLAN Board Module” on page 52.
11. See “Separating the Upper Case from the Lower Case” on page 53.
12. Release the wireless antenna cables from the latches.
60 Chapter 3
13. Disconnect the LCD cable.
14. Pell off the LCD cable from the fan.
15. Remove the two screws (E) from the left and right hinge of the LCD module.
Step Size (Quantity) Color Torque
1~2 M2.5 x L6 (2) Black 3.0 kgf-cm
Chapter 3 61
16. Carefully remove the LCD module from the base unit.
NOTE: When connecting the cables back to the unit, please note that the cables should be routed well.
Removing the System Board
1. See “Removing the Battery Pack” on page 44.
2. See “Removing the Lower Cover” on page 45.
3. See “Removing the Lower Cover” on page 45.
4. See “Removing the Optical Drive Module” on page 46.
5. See “Removing the DIMM” on page 46.
6. See “Removing the Hard Disk Drive Module” on page 47.
7. See “Removing the SSD Module” on page 48.
8. See “Removing the RTC Battery” on page 49.
9. See “Removing the Keyboard” on page 51.
10. See “Removing the WLAN Board Module” on page 52.
11. See “Separating the Upper Case from the Lower Case” on page 53.
12. See “Removing the LCD Module” on page 59.
13. Disconnect the card reader board cable from the system board.
62 Chapter 3
14. For the UMA model, disconnect the top CRT cable from the system board and the bottom CRT cable from
the CRT board.
15. For the Discrete model, disconnect the CRT cable from CN2 on the system board and disconnect the
CRT cable connector from CN3 on the system board.
Chapter 3 63
16. Remove the one screw (A) securing the system board and the mini board..
17. Carefully remove the main board.
Removing the Thermal Module
There are two version of thermal module. For this section, we are going to use the UMA model (for Aspire
4810T/4810TZ/4410T). The discrete version (for Aspire 4810TG) looks like the picture below.
Step Size (Quantity) Color Torque
1 M2 x L4 (1) Black 1.6 kgf-cm
64 Chapter 3
1. See “Removing the Battery Pack” on page 44.
2. See “Removing the Lower Cover” on page 45.
3. See “Removing the Lower Cover” on page 45.
4. See “Removing the Optical Drive Module” on page 46.
5. See “Removing the DIMM” on page 46.
6. See “Removing the Hard Disk Drive Module” on page 47.
7. See “Removing the SSD Module” on page 48.
8. See “Removing the RTC Battery” on page 49.
9. See “Removing the Keyboard” on page 51.
10. See “Removing the WLAN Board Module” on page 52.
11. See “Separating the Upper Case from the Lower Case” on page 53.
12. See “Removing the System Board” on page 61.
13. Disconnect the thermal module cable from the system board.
14. Turn over the system board and loosen the four captive screws securing the thermal module.
For the discrete model (Aspire 4810TG), please loosen the five captive screws securing the thermal
Chapter 3 65
module as shown below.
15. Carefully remove the heatsink module from the system.
Removing the Mini Board Module
1. See “Removing the Battery Pack” on page 44.
2. See “Removing the Lower Cover” on page 45.
3. See “Removing the Lower Cover” on page 45.
4. See “Removing the Optical Drive Module” on page 46.
5. See “Removing the DIMM” on page 46.
6. See “Removing the Hard Disk Drive Module” on page 47.
7. See “Removing the SSD Module” on page 48.
8. See “Removing the RTC Battery” on page 49.
9. See “Removing the Keyboard” on page 51.
10. See “Removing the WLAN Board Module” on page 52.
11. See “Separating the Upper Case from the Lower Case” on page 53.
12. See “Removing the System Board” on page 61.
5
2
4
3
1
66 Chapter 3
13. Remove the one screw (A) securing the mini board to the system board.
14. Detach the system board from the mini board.
Note: Circuit boards >10 cm² has been highlighted with the yellow rectangle as above image shows.
Please detach the Circuit boards and follow local regulations for disposal.
Removing the CRT Board Module
1. See “Removing the Battery Pack” on page 44.
2. See “Removing the Lower Cover” on page 45.
3. See “Removing the Lower Cover” on page 45.
4. See “Removing the Optical Drive Module” on page 46.
5. See “Removing the DIMM” on page 46.
6. See “Removing the Hard Disk Drive Module” on page 47.
7. See “Removing the SSD Module” on page 48.
8. See “Removing the RTC Battery” on page 49.
9. See “Removing the Keyboard” on page 51.
10. See “Removing the WLAN Board Module” on page 52.
Step Size (Quantity) Color Torque
1 M2 x L4 (1) Black 1.6 kgf-cm
Chapter 3 67
11. See “Separating the Upper Case from the Lower Case” on page 53.
12. See “Removing the System Board” on page 61.
13. Release the CRT board from the latch.
14. Carefully lift the CRT board and remove it from the lower case.
Note: Circuit boards >10 cm² has been highlighted with the yellow rectangle as above image shows.
Please detach the Circuit boards and follow local regulations for disposal.
Removing the Card Reader Board
1. See “Removing the Battery Pack” on page 44.
2. See “Removing the Lower Cover” on page 45.
3. See “Removing the Lower Cover” on page 45.
4. See “Removing the Optical Drive Module” on page 46.
5. See “Removing the DIMM” on page 46.
6. See “Removing the Hard Disk Drive Module” on page 47.
7. See “Removing the SSD Module” on page 48.
8. See “Removing the RTC Battery” on page 49.
9. See “Removing the Keyboard” on page 51.
10. See “Removing the WLAN Board Module” on page 52.
68 Chapter 3
11. See “Separating the Upper Case from the Lower Case” on page 53.
12. See “Removing the System Board” on page 61.
13. Remove the one screw (A) securing the card reader board to the lower case.
14. Remove the card reader board from the lower case.
Note: Circuit boards >10 cm² has been highlighted with the yellow rectangle as above image shows.
Please detach the Circuit boards and follow local regulations for disposal.
Removing the Bluetooth Module
1. See “Removing the Battery Pack” on page 44.
2. See “Removing the Lower Cover” on page 45.
3. See “Removing the Lower Cover” on page 45.
4. See “Removing the Optical Drive Module” on page 46.
5. See “Removing the DIMM” on page 46.
6. See “Removing the Hard Disk Drive Module” on page 47.
7. See “Removing the SSD Module” on page 48.
8. See “Removing the RTC Battery” on page 49.
Step Size (Quantity) Color Torque
1 M2 x L4 (1) Black 1.6 kgf-cm
Chapter 3 69
9. See “Removing the Keyboard” on page 51.
10. See “Removing the WLAN Board Module” on page 52.
11. See “Separating the Upper Case from the Lower Case” on page 53.
12. See “Removing the Card Reader Board” on page 67.
13. Disconnect the Bluetooth module cable from the bottom of the card reader board.
14. Carefully pry loose and remove the Bluetooth module from the card reader board.
WARNING:The Bluetooth module is glued to the card reader board, only remove the Bluetooth module if it is
defective.
Removing the Touchpad Lock Board
1. See “Removing the Battery Pack” on page 44.
2. See “Removing the Lower Cover” on page 45.
3. See “Removing the Lower Cover” on page 45.
4. See “Removing the Optical Drive Module” on page 46.
5. See “Removing the DIMM” on page 46.
6. See “Removing the Hard Disk Drive Module” on page 47.
7. See “Removing the SSD Module” on page 48.
8. See “Removing the RTC Battery” on page 49.
9. See “Removing the Keyboard” on page 51.
10. See “Removing the WLAN Board Module” on page 52.
70 Chapter 3
11. See “Separating the Upper Case from the Lower Case” on page 53.
12. Carefully pry loose and remove the touchpad lock board from the lower case.
WARNING:The touchpad lock board is glued to the lower case, only remove the touchpad lock board if it is
defective.
Chapter 3 71
LCD Module Disassembly Process
Item Screw Color Part No.
C M2.5 X L3.5 Silver 86.9A563.3R5
G M2 x L2.5 Silver 86.9A562.2R5
J M2 x L3 Black 86.00K60.630
LCD MODULE
LCD BEZEL
Cx4
LCD PANEL
LCD FPC
CABLE
LCD MODULE DISASSEMBLY
WEB
CAMERA
LEFT HINGE RIGHT HINGE
Jx2 Jx2
Gx4
MICROPHONE
72 Chapter 3
Removing the LCD Bezel
1. See “Removing the Battery Pack” on page 44.
2. See “Removing the Lower Cover” on page 45.
3. See “Removing the Lower Cover” on page 45.
4. See “Removing the Optical Drive Module” on page 46.
5. See “Removing the DIMM” on page 46.
6. See “Removing the Hard Disk Drive Module” on page 47.
7. See “Removing the SSD Module” on page 48.
8. See “Removing the RTC Battery” on page 49.
9. See “Removing the Keyboard” on page 51.
10. See “Removing the WLAN Board Module” on page 52.
11. See “Separating the Upper Case from the Lower Case” on page 53.
12. See “Removing the LCD Module” on page 59.
13. Remove the four rubber screw covers from the LCD bezel.
14. Remove the four screws (C) on the LCD module as shown.
Step Size (Quantity) Color Torque
1~4 M2.5 x L3.5 (4) Silver 3.0 kgf-cm
Chapter 3 73
15. Carefully pry open the LCD bezel and and remove the bezel from the LCD panel.
Removing the LCD Panel Hinges
1. See “Removing the Battery Pack” on page 44.
2. See “Removing the Lower Cover” on page 45.
3. See “Removing the Lower Cover” on page 45.
4. See “Removing the Optical Drive Module” on page 46.
5. See “Removing the DIMM” on page 46.
6. See “Removing the Hard Disk Drive Module” on page 47.
7. See “Removing the SSD Module” on page 48.
8. See “Removing the RTC Battery” on page 49.
9. See “Removing the Keyboard” on page 51.
10. See “Removing the WLAN Board Module” on page 52.
11. See “Separating the Upper Case from the Lower Case” on page 53.
12. See “Removing the LCD Module” on page 59.
13. See “Removing the LCD Bezel” on page 72.
14. Remove the hinge caps on both side of the hinges.
74 Chapter 3
15. Remove the four screws (J) securing the left and right hinges, and remove the hinges
Removing the LCD Panel
1. See “Removing the Battery Pack” on page 44.
2. See “Removing the Lower Cover” on page 45.
3. See “Removing the Lower Cover” on page 45.
4. See “Removing the Optical Drive Module” on page 46.
5. See “Removing the DIMM” on page 46.
6. See “Removing the Hard Disk Drive Module” on page 47.
7. See “Removing the SSD Module” on page 48.
8. See “Removing the RTC Battery” on page 49.
9. See “Removing the Keyboard” on page 51.
10. See “Removing the WLAN Board Module” on page 52.
11. See “Separating the Upper Case from the Lower Case” on page 53.
12. See “Removing the LCD Module” on page 59.
13. See “Removing the LCD Bezel” on page 72.
14. See “Removing the LCD Panel Hinges” on page 73.
Step Size (Quantity) Color Torque
1~4 M2.5 x L2.5 (4) Black 1.6 kgf-cm
Chapter 3 75
15. Remove the four screws (G) securing the LCD panel to the back cover.
16. Carefully lift up the LCD panel and turn it over to gain access to the LCD cable.
17. Detach the acetic tape on the LCD cable.
Step Size (Quantity) Color Torque
1~4 M2 x L2.5 (4) Silver 1.6 kgf-cm
76 Chapter 3
18. Detach the LCD cable from the LCD panel.
19. Remove the LCD panel from the back cover.
Removing the Webcam
1. See “Removing the Battery Pack” on page 44.
2. See “Removing the Lower Cover” on page 45.
3. See “Removing the Lower Cover” on page 45.
4. See “Removing the Optical Drive Module” on page 46.
5. See “Removing the DIMM” on page 46.
6. See “Removing the Hard Disk Drive Module” on page 47.
7. See “Removing the SSD Module” on page 48.
8. See “Removing the RTC Battery” on page 49.
9. See “Removing the Keyboard” on page 51.
10. See “Removing the WLAN Board Module” on page 52.
11. See “Separating the Upper Case from the Lower Case” on page 53.
12. See “Removing the LCD Module” on page 59.
13. See “Removing the LCD Bezel” on page 72.
14. See “Removing the LCD Panel” on page 74.
15. Disconnect the cable from the webcam.
Chapter 3 77
16. Carefully pry loose the webcam.
CAUTION: Only remove the webcam if it is defective as it is glued to the back cover.
Removing the Microphone
1. See “Removing the Battery Pack” on page 44.
2. See “Removing the Lower Cover” on page 45.
3. See “Removing the Lower Cover” on page 45.
4. See “Removing the Optical Drive Module” on page 46.
5. See “Removing the DIMM” on page 46.
6. See “Removing the Hard Disk Drive Module” on page 47.
7. See “Removing the SSD Module” on page 48.
8. See “Removing the RTC Battery” on page 49.
9. See “Removing the Keyboard” on page 51.
10. See “Removing the WLAN Board Module” on page 52.
11. See “Separating the Upper Case from the Lower Case” on page 53.
12. See “Removing the LCD Module” on page 59.
13. See “Removing the LCD Bezel” on page 72.
14. See “Removing the LCD Panel” on page 74.
15. Disconnect the cable from the microphone, then remove the microphone.
78 Chapter 3
Chapter 4 79
Use the following procedure as a guide for computer problems.
NOTE: The diagnostic tests are intended to test only Acer products. Non-Acer products, prototype cards, or
modified options can give false errors and invalid system responses.
1. Obtain the failing symptoms in as much detail as possible.
2. Verify the symptoms by attempting to re-create the failure by running the diagnostic test or by repeating
the same operation.
3. Use the following table with the verified symptom to determine which page to go to.
Symptoms (Verified) Go To
Power failure. (The power indicator does
not go on or stay on.)
See “Power System Check” on page 81..
POST does not complete. No beep or error
codes are indicated.
See “Post Code Table” on page 84.
“Undetermined Problems” on page 92
POST detects an error and displayed
messages on screen.
See “Post Code Table” on page 84.
Other symptoms (i.e. LCD display problems
or others).
See “Post Code Table” on page 84.
Symptoms cannot be re-created
(intermittent problems).
Use the customer-reported symptoms and
go to “Post Code Table” on page 84.
See “Intermittent Problems” on page 91.
See “Undetermined Problems” on page 92.
Troubleshooting
Chapter 4
80 Chapter 4
System Check Procedures
External Diskette Drive Check
Do the following to isolate the problem to a controller, driver, or diskette. A write-enabled, diagnostic diskette is
required.
NOTE: Make sure that the diskette does not have more than one label attached to it. Multiple labels can cause
damage to the drive or cause the drive to fail.
Do the following to select the test device.
1. Boot from the diagnostics diskette and start the diagnostics program.
2. See if FDD Test is passed as the program runs to FDD Test.
3. Follow the instructions in the message window.
If an error occurs with the internal diskette drive, reconnect the diskette connector on the system board.
If the error still remains:
1. Reconnect the external diskette drive/DVD-ROM module.
2. Replace the external diskette drive/CD-ROM module.
3. Replace the main board.
External Optical Disk Drive Check
Do the following to isolate the problem to a controller, drive, or optical disk. Make sure that the optical disk
does not have any label attached to it. The label can cause damage to the drive or can cause the drive to fail.
Do the following to select the test device:
1. Boot from the diagnostics disc and start the diagnostics program.
2. See if CD-ROM Test is passed when the program runs to CD-ROM Test.
3. Follow the instructions in the message window.
If an error occurs, reconnect the connector on the System board. If the error still remains:
1. Reconnect the optical disk drive module.
2. Replace the optical disk drive module.
3. Replace the main board.
Keyboard or Auxiliary Input Device Check
Remove the external keyboard if the internal keyboard is to be tested.
If the internal keyboard does not work or an unexpected character appears, make sure that the flexible cable
extending from the keyboard is correctly seated in the connector on the system board.
If the keyboard cable connection is correct, run the Keyboard Test.
If the tests detect a keyboard problem, do the following one at a time to correct the problem. Do not replace a
non-defective FRU:
1. Reconnect the keyboard cables.
2. Replace the keyboard.
3. Replace the main board.
The following auxiliary input devices are supported by this computer:
•Numeric keypad
Chapter 4 81
•External keyboard
If any of these devices do not work, reconnect the cable connector and repeat the failing operation.
Memory Check
Memory errors might stop system operations, show error messages on the screen, or hang the system.
1. Boot from the diagnostics diskette and start the diagnostic program (please refer to main board.
2. Go to the diagnostic memory in the test items.
3. Press F2 in the test items.
4. Follow the instructions in the message window.
NOTE: Make sure that the DIMM is fully installed into the connector. A loose connection can cause an error.
Power System Check
To verify the symptom of the problem, power on the computer using each of the following power sources:
1. Remove the battery pack.
2. Connect the power adapter and check that power is supplied.
3. Disconnect the power adapter and install the charged battery pack; then check that power is supplied by
the battery pack.
If you suspect a power problem, see the appropriate power supply check in the following list:
•“Check the Power Adapter” on page 81
•“Check the Battery Pack” on page 82
Check the Power Adapter
Unplug the power adapter cable from the computer and measure the output voltage at the plug of the power
adapter cable. See the following figure
1. If the voltage is not correct, replace the power adapter.
2. If the voltage is within the range, do the following:
•Replace the System board.
•If the problem is not corrected, see “Undetermined Problems” on page 92.
•If the voltage is not correct, go to the next step.
NOTE: An audible noise from the power adapter does not always indicate a defect.
3. If the power-on indicator does not light up, check the power cord of the power adapter for correct
continuity and installation.
4. If the operational charge does not work, see “Check the Battery Pack” on page 82.
Pin 1: +19 to +20.5V
Pin 2: 0V, Ground
82 Chapter 4
Check the Battery Pack
To check the battery pack, do the following:
From Software:
1. Check out the Power Management in control Panel
2. In Power Meter, confirm that if the parameters shown in the screen for Current Power Source and Total
Battery Power Remaining are correct.
3. Repeat the steps 1 and 2, for both battery and adapter.
4. This helps you identify first the problem is on recharging or discharging.
From Hardware:
1. Power off the computer.
2. Remove the battery pack and measure the voltage between battery terminals 1(+) and 6(ground).
3. If the voltage is still less than 7.5 Vdc after recharging, replace the battery.
To check the battery charge operation, use a discharged battery pack or a battery pack that has less than 50%
of the total power remaining when installed in the computer.
If the battery status indicator does not light up, remove the battery pack and let it return to room temperature.
Re-install the battery pack.
If the charge indicator still does not light up, replace the battery pack. If the charge indicator still does not light
up, replace the DC/DC charger board.
Touchpad Check
If the touchpad doesn’t work, do the following actions one at a time to correct the problem. Do not replace a
non-defective FRU:
1. Reconnect the touchpad cables.
2. Replace the touchpad.
3. Replace the system board.
After you use the touchpad, the pointer drifts on the screen for a short time. This self-acting pointer movement
can occur when a slight, steady pressure is applied to the touchpad pointer. This symptom is not a hardware
problem. No service actions are necessary if the pointer movement stops in a short period of time.
Chapter 4 83
Power-On Self-Test (POST) Error Messages
The POST error message index lists the error message and their possible causes. The most likely cause is
listed first.
NOTE: Perform the FRU replacement or actions in the sequence shown in FRU/Action column, if the FRU
replacement does not solve the problem, put the original part back in the computer. Do not replace a
non-defective FRU.
This index can also help you determine the next possible FRU to be replaced when servicing a computer.
If the symptom is not listed, see “Undetermined Problems” on page 92.
The following lists the error messages that the BIOS displays on the screen and the error symptoms classified
by function.
NOTE: Most of the error messages occur during POST. Some of them display information about a hardware
device, e.g., the amount of memory installed. Others may indicate a problem with a device, such as the
way it has been configured.
NOTE: If the system fails after you make changes in the BIOS Setup Utility menus, reset the computer, enter
Setup and install Setup defaults or correct the error.
84 Chapter 4
Post Code Table
POST Code Description
01 Prepare PEI Event Log service (bios debug purpose)
02 OEM service Initialization (bios debug purpose)
04 Status code report service initialization (bios debug purpose)
05 CPU IO and PCI IO (bios debug purpose)
08 CPU Initialization
09 PC Init at stage 1 (SB related init)
0A Firmware Flash Device (for BIOS ROM) Read Services (bios debug purpose)
0D PC Init at stage 2 (NB related init)
0E SMbus
10 Memory Initialization
11 Restore system configuration for S3 resume (bios debug purpose)
12 Clock generator Initialization
13 Provide TPM Presence policy (bios debug purpose)
14 TPM Module
2F Extract BIOS ROM to memory
32 Prepare services for S3 resume (bios debug purpose)
33 Prepare services for S3 resume (bios debug purpose)
34 8254 timer chip initialization
36 PCX decoder
37 CPU Initialization
38 Prepare stall (delay) related services (bios debug purpose)
39 BIOS ROM reclaims relative
3A Install EFI Runtime Protocol (bios debug purpose)
3B The counter for System boot times (bios debug purpose)
3C Watchdog timer service initialization (bios debug purpose)
3D EFI driver format verification (bios debug purpose)
3E Provide CPU IO protocol service (bios debug purpose)
3F Provide reset service (bios debug purpose)
40 Real Time Clock Initialization
41 Status code report service initialization (bios debug purpose)
42 Firmware Flash Device (for BIOS ROM) Read/Write Services
43 Firmware Flash Device Read/Write for BIOS ROM recovery (bios debug purpose)
46 PC Init at stage 1 (SB related init)
46 PCI Host Bridge Initialization
47 PCI-E Initialization
48 SB Controller Initialization
4A SATA Controller Initialization
4B SM Bus Initialization
4D NB Initialization
4D ISA Bus Initialization
4E ISA Serial Device Initialization
Chapter 4 85
4F IDE Bus Initialization (bios debug purpose)
50 PCI Bus Initialization (bios debug purpose)
51 Boot option policy services initialization (bios debug purpose)
52 Firmware Flash Device (for BIOS ROM) Read/Write Services
53 ACPI Table creation (bios debug purpose)
54 PCI Hot Plug Services Initialization (bios debug purpose)
55 Platform policy services initialization (bios debug purpose)
56 IDE device platform policy relative services initialization (bios debug purpose)
57 SmBios Services (bios debug purpose)
58 Memory relative SmBios creation (bios debug purpose)
59 SmBios Creation (bios debug purpose)
5A Console In/Out Device
5C ACPI Table creation services (bios debug purpose)
5D Console In/Out Device
5E Console Out Device
5F DataHub Service (bios debug purpose)
61 Memory Test
63 Legacy 8259 Interrupt router relative initialization
64 Shadow RAM Control Service
65 Legacy Interrupt router relative initialization
66 PS2 Keyboard Service
67 VGA device Service
68 The service of monitor insert key from Keyboard (bios debug purpose)
69 EFI CSM service (bios debug purpose)
6A EFI CSM service (bios debug purpose)
6B PCI Bus platform policy relative services initialization (bios debug purpose)
6C Acer INT15 Hook
6B Acer WMI
6E USB relative initialization
6F USB relative initialization
70 USB relative initialization
71 USB Keyboard
72 USB Mass Storage (CD-ROM, HD…)
73 USB UHCI Controller
74 USB Mouse
75 USB Bus
76 Setup Utility Services (bios debug purpose)
78 USB relative service
78 CCD Detcction
79 Console Out Device
7A Console In/Out Device
7B DataHub Service (bios debug purpose)
POST Code Description
86 Chapter 4
7E BIOS Human Interface Font Services (bios debug purpose)
80 BIOS Human Interface Services (bios debug purpose)
82 BIOS Human Interface Services (bios debug purpose)
83 Logo service Initialization
84 Mouse service
8A Prepare BDS Protocol service (bios debug purpose)
8F USB EHCI Controller
93 EFI EBC-VM service initialization (bios debug purpose)
99 AHCI Bus Initialization (bios debug purpose)
A1 SPI Flash ROM
A3 ICH Serial GPIO Interface (bios debug purpose)
A5 System Management Mode IO Trap service (bios debug purpose)
A6 System Management Mode service for ICH S3 resume
A6 HD Password
AB Acer Int15 Function
AB System Password relative Initialization
AC System Password relative Initialization
AD DataHub relative service (bios debug purpose)
AE TPM Module
B1 BIOS Human Interface Services (bios debug purpose)
B6 Prepare services for Firmware File Extract (bios debug purpose)
B7 OEM service Initialization (bios debug purpose)
C0 RAM accessed in System Management Mode service
C1 System Management Interrupt services initialization
C2 System Management Mode Core Initialization
C4 System Management Mode Core Initialization
C5 System Management Mode Core Initialization
C7 System Management Mode runtime services initialization
C8 System Management services initialization
C9 System Management Mode Thunk initialization
CC Platform policy services for System Management Mode
CE Firmware Flash Device (for BIOS ROM) Read/Write Services
CF Firmware Flash Device (for BIOS ROM) Read/Write Services
D0 Insyde Flash Service Initialization
D1 Microcode Update Service
D2 Desktop Management Service Initialization
D7 HD Password
D8 System Management Mode OEM service Initialization (bios debug purpose)
D9 Provide OEM override ASPM
DA Digital Thermal Sensor
POST Code Description
Chapter 4 87
Index of Symptom-to-FRU Errors
LCD-Related Symptoms
Symptom / Error Action in Sequence
LCD backlight doesn't work
LCD is too dark
LCD brightness cannot be adjusted
LCD contrast cannot be adjusted
Enter BIOS Utility to execute “Load Setup Default Settings”,
then reboot system.
Reconnect the LCD connectors.
Keyboard (if contrast and brightness function key doesn't
work).
LCD inverter ID
LCD cable
LCD inverter
LCD
System board
Unreadable LCD screen
Missing pels in characters
Abnormal screen
Wrong color displayed
Reconnect the LCD connector
LCD inverter ID
LCD cable
LCD inverter
LCD
System board
LCD has extra horizontal or vertical lines
displayed.
LCD inverter ID
LCD inverter
LCD cable
LCD
System board
Indicator-Related Symptoms
Symptom / Error Action in Sequence
Indicator incorrectly remains off or on, but
system runs correctly
Reconnect the inverter board
Inverter board
System board
Power-Related Symptoms
Symptom / Error Action in Sequence
Power shuts down during operation Power source (battery pack and power adapter). See “Power
System Check” on page 81.
Battery pack
Power adapter
Hard drive & battery connection board
System board
The system doesn’t power-on. Power source (battery pack and power adapter). See “Power
System Check” on page 81.
Battery pack
Power adapter
Hard drive & battery connection board
System board
88 Chapter 4
The system doesn’t power-off. Power source (battery pack and power adapter). See “Power
System Check” on page 81.
Hold and press the power switch for more than 4 seconds.
System board
Battery can’t be charged See “Check the Battery Pack” on page 82.
Battery pack
System board
PCMCIA-Related Symptoms
Symptom / Error Action in Sequence
System cannot detect the PC Card
(PCMCIA)
PCMCIA slot assembly
System board
PCMCIA slot pin is damaged. PCMCIA slot assembly
Memory-Related Symptoms
Symptom / Error Action in Sequence
Memory count (size) appears different from
actual size.
Enter BIOS Setup Utility to execute “Load Default Settings,
then reboot system.
DIMM
System board
Speaker-Related Symptoms
Symptom / Error Action in Sequence
In Windows, multimedia programs, no
sound comes from the computer.
Audio driver
Speaker
System board
Internal speakers make noise or emit no
sound.
Speaker
System board
Power Management-Related Symptoms
Symptom / Error Action in Sequence
The system will not enter hibernation See “Save to Disk (S4)” on page 25.
Keyboard (if control is from the keyboard)
Hard disk drive
System board
The system doesn't enter hibernation mode
and four short beeps every minute.
Press Fn+o and see if the computer enters hibernation
mode.
Touchpad
Keyboard
Hard disk connection board
Hard disk drive
System board
The system doesn’t enter standby mode
after closing the LCD
See “Save to Disk (S4)” on page 25.
LCD cover switch
System board
Power-Related Symptoms
Symptom / Error Action in Sequence
Chapter 4 89
The system doesn't resume from
hibernation mode.
See “Save to Disk (S4)” on page 25.
Hard disk connection board
Hard disk drive
System board
The system doesn't resume from standby
mode after opening the LCD.
See “Save to Disk (S4)” on page 25.
LCD cover switch
System board
Battery fuel gauge in Windows doesn’t go
higher than 90%.
Remove battery pack and let it cool for 2 hours.
Refresh battery (continue use battery until power off, then
charge battery).
Battery pack
System board
System hangs intermittently. Reconnect hard disk/CD-ROM drives.
Hard disk connection board
System board
Peripheral-Related Symptoms
Symptom / Error Action in Sequence
System configuration does not match the
installed devices.
Enter BIOS Setup Utility to execute “Load Default Settings”,
then reboot system.
Reconnect hard disk/CD-ROM/diskette drives.
External display does not work correctly. Press Fn+F5, LCD/CRT/Both display switching
System board
USB does not work correctly System board
Print problems. Ensure the “Parallel Port” in the “Onboard Devices
Configuration” of BIOS Setup Utility is set to Enabled.
Onboard Devices Configuration
Run printer self-test.
Printer driver
Printer cable
Printer
System Board
Serial or parallel port device problems. Ensure the “Serial Port” in the Devices Configuration” of
BIOS Setup Utility is set to Enabled.
Device driver
Device cable
Device
System board
Keyboard/Touchpad-Related Symptoms
Symptom / Error Action in Sequence
Keyboard (one or more keys) does not
work.
Reconnect the keyboard cable.
Keyboard
System board
Power Management-Related Symptoms
Symptom / Error Action in Sequence
90 Chapter 4
NOTE: If you cannot find a symptom or an error in this list and the problem remains, see “Undetermined
Problems” on page 92.
Touchpad does not work. Reconnect touchpad cable.
Touchpad board
System board
Modem-Related Symptoms
Symptom / Error Action in Sequence
Internal modem does not work correctly. Modem phone port
modem combo board
System board
Keyboard/Touchpad-Related Symptoms
Symptom / Error Action in Sequence
Chapter 4 91
Intermittent Problems
Intermittent system hang problems can be caused by a variety of reasons that have nothing to do with a
hardware defect, such as: cosmic radiation, electrostatic discharge, or software errors. FRU replacement
should be considered only when a recurring problem exists.
When analyzing an intermittent problem, do the following:
1. Run the advanced diagnostic test for the system board in loop mode at least 10 times.
2. If no error is detected, do not replace any FRU.
3. If any error is detected, replace the FRU. Rerun the test to verify that there are no more errors.
92 Chapter 4
Undetermined Problems
The diagnostic problems does not identify which adapter or device failed, which installed devices are incorrect,
whether a short circuit is suspected, or whether the system is inoperative.
Follow these procedures to isolate the failing FRU (do not isolate non-defective FRU).
NOTE: Verify that all attached devices are supported by the computer.
NOTE: Verify that the power supply being used at the time of the failure is operating correctly. (See “Power
System Check” on page 81.):
1. Power-off the computer.
2. Visually check them for damage. If any problems are found, replace the FRU.
3. Remove or disconnect all of the following devices:
qNon-Acer devices
qPrinter, mouse, and other external devices
qBattery pack
qHard disk drive
qDIMM
qCD-ROM/Diskette drive Module
qPC Cards
4. Power-on the computer.
5. Determine if the problem has changed.
6. If the problem does not recur, reconnect the removed devices one at a time until you find the failing FRU.
7. If the problem remains, replace the following FRU one at a time. Do not replace a non-defective FRU:
qSystem board
qLCD assembly
Chapter 5 93
Top and Bottom Views
Aspire 4810T/4810TZ/4410T Top View
No. Code Connector
1 SPK1 Speaker cable connector
2 KB1 Keyboard cable connector
3 TP1 Touchpad cable connector
4 CN1 Card reader cable connector
5 CN3 Top CRT cable connector
6 FAN1 Thermal module fan cable connector
7 LCD1 LCD cable connector
8 BTB2 Power button cable connector
Connector Locations
Chapter 5
94 Chapter 5
Aspire 4810T/4810TZ/4410T Bottom View
No. Code Connector
1 DM1 DIMM slot 1
2 DM2 DIMM slot 2
3 CN2 Bottom CRT cable connector
4 SSD1 SSD connector
5 BTB1 Miniboard connector
Chapter 5 95
Aspire 4810TG Top View
No. Code Connector
1 SPK1 Speaker cable connector
2 KB1 Keyboard cable connector
3 TP1 Touchpad cable connector
4 CN1 Card reader cable connector
5 CN3 CRT cable connector
6 CN2 CRT cable connector
7 FAN1 Thermal module fan cable connector
8 LCD1 LCD cable connector
9 BTB2 Power button cable connector
96 Chapter 5
Aspire 4810TG Bottom View
No. Code Connector
1 DM1 DIMM slot 1
2 DM2 DIMM slot 2
3 SSD1 SSD connector
4 BTB1 Miniboard connector
Chapter 5 97
Clearing Password Check and BIOS Recovery
This section provides the standard operating procedures for clearing the password and BIOS recovery for
Aspire 4810T/4810TZ/4410T/4810TG Series. There is one Hardware Open Gap on the main board for
clearing the password check and one Hotkey for enabling BIOS Recovery.
Clearing Password Check
Hardware Open Gap Description
HW Gap position on M/B space:
Gap name is G61.
Hardware Default Setting Operation Description
Gap Open (Normal) Short (Clearing Password Check)
G61
98 Chapter 5
Steps for Clearing BIOS Password Check
If the user sets the BIOS Password (Supervisor Password and/or User Password) for a security reason, the
BIOS will ask for the password during system POST or when the system enters into the BIOS Setup menu. If
it is necessary to bypass the password check, the user needs to short the hardware gap to clear the password
by following these steps:
• Power off the system, and remove the HDD, AC adapter and battery from the computer.
• Open the back cover of the computer and look for the hardware gap on the main board as shown
in the picture(s) above.
• Use an electric conductivity tool to short the two points of the hardware gap.
• Plug in the AC adapter while retaining the short condition on the hardware gap. Press the power
button to turn on the computer until the BIOS POST routine is finished. Finally, remove the tool
from the hardware gap.
• Restart the system. Press the F2 key to enter BIOS Setup menu.
• If there is no password request, the BIOS Password is cleared. Otherwise, repeat the steps above
and try again.
NOTE: The steps are only for clearing the BIOS password (Supervisor Password and User Password).
BIOS Recovery by Crisis Disk
BIOS Recovery Boot Block
BIOS Recovery Boot Block is a special block of the BIOS. It is used to boot up the system with minimum BIOS
initialization. Users can enable this feature to restore the BIOS firmware to a successful one once the previous
BIOS flashing process failed.
BIOS Recovery Hotkey
The system provides a function hotkey: Fn+Esc, for enabling the BIOS Recovery process at system power-on
during BIOS POST. To use this function, the AC adapter and the battery must be connected. If this function is
enabled, the system will force the BIOS to enter a special BIOS block called Boot Block.
Steps for BIOS Recovery by Crisis Disk
Before doing this, prepare a Crisis Disk (refer to the “Steps for Creating the Crisis Disk in Windows XP/Vista”
section below) and keep it ready in hand.
Follow these steps for BIOS recovery:
1. Power off the system.
2. Connect a removable USB storage device containing the Crisis Disk to a USB port connected to the BIOS
flash failed system.
3. Under power-off state, press and hold Fn+Esc and then press the power button. The system should be
powered on with the Crisis BIOS Recovery process.
4. BIOS Boot Block starts to restore the BIOS code from the Crisis Disk to BIOS ROM on the failed system.
5. After the crisis flashing process is finished, the system will restart.
After the Crisis Recovery process is finished, the system should have a successful and workable BIOS after
power on. The user can then update the latest BIOS version for this system using the regular BIOS flashing
process.
Chapter 5 99
Creating the Crisis Disk in Windows XP/Vista
Follow these steps to create the Crisis Disk:
1. Prepare a removable USB storage device (size greater than 10MB). Note that all data on the USB
storage device will be cleared during the creation of the Crisis Disk.
2. Set up another computer loaded with Windows XP or Vista operating system.
3. Decompress the Crisis Package Source. Select WINCRIS.EXE and then select Run as administrator
under Vista.
4. Keep the default settings and then click on the Start button.
5. When the pop-up warning dialog box appears, press OK to continue creating the Crisis Disk.
100 Chapter 5
6. The Crisis Disk will be created after a few seconds.
7. Press No if you do not want to create another Crisis Disk.
8. Reconnect the USB removable storage device and check if it contains the 3 files shown in the following
figure.
Chapter 6 101
This chapter gives you the FRU (Field Replaceable Unit) listing in global configurations of Aspire 4810T/
4810TZ/4410T/4810TG Series. Refer to this chapter whenever ordering for parts to repair or for RMA (Return
Merchandise Authorization).
Please note that WHEN ORDERING FRU PARTS, you should check the most up-to-date information available
on your regional web or channel. For whatever reasons a part number change is made, it will not be noted on
the printed Service Guide. For ACER AUTHORIZED SERVICE PROVIDERS, your Acer office may have a
DIFFERENT part number code from those given in the FRU list of this printed Service Guide. You MUST use
the local FRU list provided by your regional Acer office to order FRU parts for repair and service of customer
machines.
To scrap or to return the defective parts, you should follow the local government ordinance or regulations on
how to dispose it properly, or follow the rules set by your regional Acer office on how to return it.
FRU (Field Replaceable Unit) List
Chapter 6
102 Chapter 6
Aspire 4810T/4810TZ/4410T Series Exploded Diagram
Chapter 6 103
Aspire 4810TG Series Exploded Diagram
104 Chapter 6
Aspire 4810T/4810TZ/4410T/4810TG Series FRU List
1. ACER_ASPIRE 4810T UMACSS_JM41_MS(NO:LX.PBA0X.030)
Category No. Part Name Acer Part No.
ADAPTER 1 ADAPTER 65W 19V GREEN DELTA ADP-65JH DB A
1.7X5.5X11 YELLOW LV5 LED LF
AP.0650A.013
1 ADAPTER 65W 19V GREEN LITEON PA-1650-22AC
1.7X5.5X11 YELLOW LV5 LED LF
AP.06501.027
1 ADAPTER 65W 19V GREEN HIPRO HP-A0652R3B
1.7X5.5X11 YELLOW 1LF LV5 LED LF
AP.06503.026
BATTERY 1 BATTERY PANASONIC LI-ION 3S2P PANASONIC 6 CELL
5800MAH MAIN COMMON
BT.00605.038
1 BATTERY PANASONIC AS-2009D LI-ION 3S2P
PANASONIC 6 CELL 4400MAH MAIN COMMON ID:
AS09D51
BT.00603.082
1 BATTERY SANYO AS-2009D LI-ION 3S2P SANYO 6 CELL
4400MAH MAIN COMMON ID: AS09D31
BT.00604.039
1 BATTERY SANYO AS-2009D LI-ION 3S2P SANYO 6 CELL
5200MAH MAIN COMMON
BT.00603.079
1 BATTERY SANYO AS-2009D LI-ION 3S2P SANYO 6 CELL
5600MAH MAIN COMMON
BT.00607.082
1 BATTERY SIMPLO AS-2009D LI-ION 3S2P SAMSUNG 6
CELL 5600MAH MAIN COMMON ID : AS09D70
BT.00607.080
1 BATTERY SIMPLO AS-2009D LI-ION 3S2P PANASONIC 6
CELL 4400MAH MAIN COMMON 2.2CG , ID: AS09D71
BT.00605.041
1 BATTERY SIMPLO AS-2009D LI-ION 3S2P LGC 6 CELL
4400MAH MAIN COMMON 2.2S3 , ID: AS09D73
BT.00607.078
1 BATTERY SIMPLO AS-2009D LI-ION 3S2P SAMSUNG 6
CELL 4400MAH MAIN COMMON 2.2F , ID: AS09D75
BT.00607.079
1 BATTERY SONY AS-2009D LI-ION 3S2P SONY 6 CELL
4400MAH MAIN COMMON ID : AS09D41
BT.00603.080
BOARDS 1 BLUETOOTH BOARD FOXCONN BCM2045 V2
T60H928.11
BT.21100.005
1 CARD READER BOARD UMA 4 IN 1-BUILD IN W/RTC
BATTERY & BLUETOOTH CABLE & TOUCHPAD LOCK
BOARD CABLE
55.PBA01.003
1 CRT BOARD UMA 55.PBA01.002
1 MINI BOARD UMA/DIS NON-3G 55.PBA01.001
Chapter 6 105
1 MULTI MEDIA BUTTON BOARD NS-JM4151-CY 56.41010.211
1 MULTI MEDIA BUTTON BOARD NS-JM4151-AQ 56.41010.201
1 POWER BUTTON BOARD UMA W/CABLE 55.PBA01.005
1 TOUCHPAD BOARD SYNAPTICS TM-01277-001 56.17010.211
1 TOUCHPAD BOARD ALPS KGDFF0040A 56.17025.101
BOARDS 1 TOUCHPAD LOCK BOARD 55.PBA01.004
1 WIRELESS LAN BOARD 512AN_HMWG SHIRLEY PEAK
5100 MM#895373
KI.SPH01.003
1 WIRELESS LAN BOARD INTEL 512AG_HMWG
SHIRLEYPEAK1*2 5100 MM#897072
KI.SPH01.005
1 WIRELESS LAN BOARD 512AN_MMWG SHIRLEY PEAK
5100 MM#895361
KI.SPM01.003
1 WIRELESS LAN BOARD 512AG_MMWG SHIRLEY PEAK
5100 MM#897004
KI.SPM01.005
CABLES 1 BLUETOOTH BOARD CABLE 50.4CQ02.031
1 BLUETOOTH BOARD CABLE 50.4CQ02.001
1 BLUETOOTH BOARD CABLE 50.4CQ02.011
2 BLUETOOTH CABLE RESERVE
2 CARD READER BOARD CABLE 50.4CR08.011
2 CARD READER BOARD CABLE 50.4CR08.001
2 CRT BOARD CABLE 32PIN 50.4CR09.011
2 CRT BOARD CABLE 32PIN 50.4CR09.001
2 CRT BOARD CABLE 40PIN 50.4CR10.011
2 CRT BOARD CABLE 40PIN 50.4CR10.001
2 LED LCD/CAMERA/MICROPHONE CABLE 50.4CQ04.021
2 LED LCD/CAMERA/MICROPHONE CABLE 50.4CQ04.001
2 LED LCD/CAMERA/MICROPHONE CABLE 50.4CQ04.011
1 MULTI MEDIA BUTTON BOARD CABLE 50.4CQ11.011
1 MULTI MEDIA BUTTON BOARD CABLE 50.4CQ11.001
2 POWER BUTTON CABLE 50.4CQ03.031
2 POWER BUTTON CABLE 50.4CQ03.001
2 POWER BUTTON CABLE 50.4CQ03.011
Category No. Part Name Acer Part No.
106 Chapter 6
1 POWER CORD 3A 250V 3PIN UK 27.03118.001
1 POWER CORD 5A 250V 3PIN UK BK 27.01518.541
1 POWER CORD 10A 250V SWISS 27.01518.691
1 POWER CORD 10A 250V 3PIN SWISS BK 27.01518.581
1 POWER CORD 10A 250V ARGENTINE 27.01518.0U1
1 POWER CORD 10A 125V US 27.01518.641
1 POWER CORD 10A 125V 3PIN US BK 27.01518.521
1 POWER CORD 7A 250V 2PIN KOREAN 27.01518.531
1 POWER CORD 7A 125V 2PIN JAPAN 27.01518.551
1 POWER CORD 10A 3PIN BK DENMARK 27.01518.671
1 POWER CORD 10A 250V 3PIN DENMARK BK 27.01518.561
1 POWER CORD 10A 250V 3PIN BK SOUTH AFRICA 27.01518.681
1 POWER CORD 16A 250V SOUTH AFRICA BK 27.01518.571
1 POWER CORD 10A 250V 3PIN CHINA 27.01518.701
1 POWER CORD 10A 250V 3PIN CHINA BK 27.01518.591
1 POWER CORD 250V 3PIN EUR BK 27.01518.731
1 POWER CABLE 16A 250V 3PIN EUR BK 27.01518.601
1 POWER CORD 10A 250V 3PIN ITALY 27.01518.711
1 POWER CORD 10A 250V 3PIN ITALY BK 27.01518.611
1 POWER CORD 2.5A 250V AUSTRALIA 27.01518.621
1 POWER CORD 2.5A 250V SOUTH AFRICA BK (INDIA) 27.01518.721
1 POWER CORD 10A 250V SOUTH AFRICA BK (INDIA) 27.01518.631
1 POWER CORD 7A 125V 2PIN JAPAN BK 27.01518.661
1 POWER CORD 250V 10A 3PIN ISRAEL 27.01518.761
1 POWER CORD 2.5A 125V USA 27.01518.A11
1 POWER CORD 2.5A 125V 1.8M BLACK TAIWANESE 27.01518.781
1 POWER CORD 10A 250V 1.8M BRAZIL BLK 27.01518.A41
1 POWER CORD ACA / ACNZ 27.03218.051
1 POWER CORD 7.5A 250V 3P AUSTRALIA BK 27.03218.021
1 POWER CODE 7A 125V 2PIN JAPAN 27.03518.161
1 TOUCHPAD BOARD CABLE 50.4CQ09.011
1 TOUCHPAD BOARD CABLE 50.4CQ09.001
2 TOUCHPAD LOCK BOARD CABLE 50.4CQ08.011
2 TOUCHPAD LOCK BOARD CABLE 50.4CQ08.001
CAMERA 2 CAMERA 1.0M SUYIN CN1014-S36D-OV05 LAVENDER_G 56.18007.273
2 CAMERA 1.0M CHICONY CNF911321004970L 56.18012.113
CASE/COVER/BRACKET
ASSEMBLY
2 DVD-RW SUPER-MULTI BEZEL FOR GBAS 42.PBA01.002
2 DVD-RW SUPER-MULTI BEZEL NONE GBAS 42.PBA01.003
Category No. Part Name Acer Part No.
Chapter 6 107
2 HDD BRACKET 2.5 "33.PBA01.002
2 HDD CONNECTOR 20.PBA01.001
2 LCD BEZEL 14.1" NONE FLUSH W/LOGO & CAMERA
HOLE
60.PBA01.004
2 LED LCD BEZEL CAP RIGHT 42.PBA01.005
2 LED LCD BEZEL CAP LEFT 42.PBA01.004
2 LED LCD COVER 14" ALUMINUM SLIVER W/ANTENNA*2
& MICROPHONE
60.PBA01.005
2 LED LCD HINGE LEFT 34.4CQ06.101
2 LED LCD HINGE LEFT 34.4CQ06.001
2 LED LCD HINGE RIGHT 34.4CQ07.101
2 LED LCD HINGE RIGHT 34.4CQ07.001
1 LOWER CASE 60.PBA01.001
2 OPTICAL BRACKET 33.PBA01.001
Category No. Part Name Acer Part No.
108 Chapter 6
1 UNITLOAD COVER 42.PBA01.001
1 UPPER CASE SLIVER W/SPEAKER (NONE 3G) 60.PBA01.002
DVD-RW DRIVE 1 DVD-RW SUPER-MULTI MODULE 8X 9.5MM SATA FOR
GBAS
6M.PBA01.001
1 DVD-RW SUPER-MULTI MODULE 8X 9.5MM SATA NONE
GBAS
6M.PBA01.002
2 ODD TOSHIBA SUPER-MULTI DRIVE 8X 9.5MM TRAY DL
TS-U633A LF SATA GBAS2.0 W/O BEZEL
KU.0080D.046
2 ODD HLDS SUPER-MULTI DRIVE 8X 9.5MM TRAY DL
GU10N LF W/O BEZEL FW:AP03 HF SATA
KU.00801.031
2 ODD PANASONIC SUPER-MULTI DRIVE 8X 9.5MM TRAY
DL UJ862 LF W/O BEZEL SATA NON GBASE
KU.00807.069
2 ODD PANASONIC SUPER-MULTI DRIVE 8X 9.5MM TRAY
DL UJ862AC LF W/O BEZEL SATA NON GBASE FW1.10
KU.00807.067
HDD/HARD DISK DRIVE 2 HDD 160GB 5400RPM SATA SEAGATE ST9160310AS F/
W:2010
KH.16008.022
2 HDD 160GB 5400RPM SATA TOSHIBA LIBRA-BS
MK1655GSX F/W:FG0101J 5.4
KH.16001.034
2 HDD 160GB 5400RPM 2.5" SATA HGST
HTS543216L9A300 F/W:C30C
KH.16004.006
2 HDD 160GB 5400RPM 2.5" SATA WD WD1600BEVT-
22ZCT0 FW:11.01A11
KH.16007.019
2 HDD 250GB 5400RPM SATA HGST HTS545025B9A300
PANTHER-B LF
KH.25008.021
2 HDD 2.5" 5400RPM 250GB SEAGATE ST9250315AS
WYATT SATA LF F/W:0001SDM1
KH.25007.015
2 HDD 250GB 5400RPM SATA TOSHIBA LIBRA-BS
MK2555GSX F/W:FG000J 5.4K
KH.25001.016
2 HDD 250GB 5400RPM SATA WD WD2500BEVT-22ZCT0 F/
W:11.01A11
KH.25004.003
2 HDD 320GB 5400RPM SATA HGST HTS545032B9A300
PANTHER B LF
KH.32008.013
2 HDD 320GB 5400RPM SATA SEAGATE ST9320320AS F/
W:2010
KH.32007.007
2 HDD 320GB 5400RPM SATA TOSHIBA MK3255GSX LIBRA
LF F/W:FG010J
KH.32001.008
2 HDD 320GB 5400RPM SATA WD WD3200BEVT-22ZCT0
ML125 F/W:01.01A01
KH.32004.002
2 HDD 500GB 5400RPM SEAGATE ST9500325AS SATA LF
F/W:0001SDM1
KH.50008.013
2 HDD 2.5" 5400RPM 500GB TOSHIBA MK5055GSX LIBRA
SATA LF F/W:FG001J
KH.50001.011
2 HDD 500GB 5400RPM HGST SATA HTS545050B9A300
PANTHER B LF
KH.50004.001
Category No. Part Name Acer Part No.
Chapter 6 109
HDD/HARD DISK DRIVE 2 HDD 500GB 5400RPM WD SATA WD5000BEVT-22ZAT0 F/
W:01.01A01
KH.50007.009
HEATSINK 1 CPU HEATSINK UMA W/FAN 60.4CQ14.001
1 CPU HEATSINK UMA W/FAN 60.4CQ12.001
KEYBOARD 1 KEYBOARD 87KEYS AC4G JM41 INTERNAL 14
STANDARD BLACK UV GLOSSY UK
KB.I140A.084
1 KEYBOARD 86KEYS AC4G JM41 INTERNAL 14
STANDARD BLACK UV GLOSSY GREEK
KB.I140A.070
1 KEYBOARD 86KEYS AC4G JM41 INTERNAL 14
STANDARD BLACK UV GLOSSY CHINESE
KB.I140A.065
1 KEYBOARD 86KEYS AC4G JM41 INTERNAL 14
STANDARD BLACK UV GLOSSY THAILAND
KB.I140A.082
1 KEYBOARD 86KEYS AC4G JM41 INTERNAL 14
STANDARD BLACK UV GLOSSY HEBREW
KB.I140A.086
1 KEYBOARD 86KEYS AC4G JM41 INTERNAL 14
STANDARD BLACK UV GLOSSY ARABIC
KB.I140A.061
1 KEYBOARD 86KEYS AC4G JM41 INTERNAL 14
STANDARD BLACK UV GLOSSY US-INTERNATIONAL
KB.I140A.085
1 KEYBOARD 86KEYS AC4G JM41 INTERNAL 14
STANDARD BLACK UV GLOSSY RUSSIAN
KB.I140A.077
1 KEYBOARD 87KEYS AC4G JM41 INTERNAL 14
STANDARD BLACK UV GLOSSY SWEDEN
KB.I140A.080
1 KEYBOARD 87KEYS AC4G JM41 INTERNAL 14
STANDARD BLACK UV GLOSSY FRENCH
KB.I140A.068
1 KEYBOARD 87KEYS AC4G JM41 INTERNAL 14
STANDARD BLACK UV GLOSSY PORTUGUESE
KB.I140A.076
1 KEYBOARD 87KEYS AC4G JM41 INTERNAL 14
STANDARD BLACK UV GLOSSY SLOVENIA
KB.I140A.078
1 KEYBOARD 87KEYS AC4G JM41 INTERNAL 14
STANDARD BLACK UV GLOSSY BRAZILIAN
KB.I140A.063
1 KEYBOARD 87KEYS AC4G JM41 INTERNAL 14
STANDARD BLACK UV GLOSSY SWISS
KB.I140A.081
1 KEYBOARD 87KEYS AC4G JM41 INTERNAL 14
STANDARD BLACK UV GLOSSY DANISH
KB.I140A.066
1 KEYBOARD 87KEYS AC4G JM41 INTERNAL 14
STANDARD BLACK UV GLOSSY ITALIAN
KB.I140A.072
1 KEYBOARD 87KEYS AC4G JM41 INTERNAL 14
STANDARD BLACK UV GLOSSY BELGIUM
KB.I140A.062
1 KEYBOARD 87KEYS AC4G JM41 INTERNAL 14
STANDARD BLACK UV GLOSSY GERMAN
KB.I140A.069
1 KEYBOARD 87KEYS AC4G JM41 INTERNAL 14
STANDARD BLACK UV GLOSSY NORWEGIAN
KB.I140A.075
1 KEYBOARD 87KEYS AC4G JM41 INTERNAL 14
STANDARD BLACK UV GLOSSY HUNGARIAN
KB.I140A.071
1 KEYBOARD 87KEYS AC4G JM41 INTERNAL 14
STANDARD BLACK UV GLOSSY SPANISH
KB.I140A.079
1 KEYBOARD 87KEYS AC4G JM41 INTERNAL 14
STANDARD BLACK UV GLOSSY TURKISH
KB.I140A.083
1 KEYBOARD 87KEYS AC4G JM41 INTERNAL 14
STANDARD BLACK UV GLOSSY NORDIC
KB.I140A.074
Category No. Part Name Acer Part No.
110 Chapter 6
KEYBOARD 1 KEYBOARD 87KEYS AC4G JM41 INTERNAL 14
STANDARD BLACK UV GLOSSY FRENCH/ARABIC
KB.I140A.067
1 KEYBOARD 87KEYS AC4G JM41 INTERNAL 14
STANDARD BLACK UV GLOSSY US FRENCH CANADIAN
KB.I140A.087
1 KEYBOARD 87KEYS AC4G JM41 INTERNAL 14
STANDARD BLACK UV GLOSSY CZECH/SLOVAK
KB.I140A.064
1 KEYBOARD 91KEYS AC4G JM41 INTERNAL 14
STANDARD BLACK UV GLOSSY JAPANESE
KB.I140A.073
LCD 1 LED LCD MODULE 14" WXGA GLARE ALUMINUM SLIVER
W/ANTENNA*2&CAMERA 1.0M NONE 3G&FLUSH
6M.PBA01.003
2 LED LCD AUO 14" WXGA GLARE B140XW02 V0 LF
200NIT 8MS 500:1
LK.1400D.005
2 LED LCD SAMSUNG 14" WXGA GLARE LTN140AT06-A01
LF 200NIT 16MS
LK.14005.007
2 LED LCD LPL 14" WXGA GLARE LP140WH2-TLA1 LF
200NIT 16MS 500:1
LK.14006.010
2 LED LCD CMO 14" WXGA GLARE N140B6-L06 LF 220NIT
8MS 400:1
LK.14008.002
MAINBOARD 1 MAINBOARD JM41/51 UMA GS45 ICH9M CPU INTEL
CORE2SOLO SU3500 1.4G 3M 800 5.5W W/CARD
READER BOARD CABLE&CRT BOARD CABLE
32PIN&40PIN W/O MEMORY NONE 3G
MB.PBB01.003
1 MAINBOARD JM41/51 UMA GS45 ICH9M CPU INTEL
CORE2DUAL SU9400 BGA 1.4G 3M 800 10W W/CARD
READER BOARD CABLE&CRT BOARD CABLE
32PIN&40PIN W/O MEMORY NONE 3G
MB.PBB01.002
1 MAINBOARD JM41/51 UMA GS45 ICH9M CPU INTEL
CORE2DUAL SU9600 BGA 1.6G 3M 800 W/CARD
READER BOARD CABLE&CRT BOARD CABLE
32PIN&40PIN W/O MEMORY NONE 3G
MB.PBB01.001
MEMORY 1 SODIMM 1GB DDRIII 1066MHZ SAMSUNG
M471B2873EH1-CF8
KN.1GB0B.019
1 SODIMM 1GB DDRIII 1066MHZ MICRON
MT8JSF12864HY-1G1D1
KN.1GB0B.028
1 SODIMM 1GB DDRLLL 1066MHZ ELPIDA
EBJ11UE6BBS0-AE-F
KN.1GB04.003
1 SODIMM 1GB DDRIII 1066MHZ SAMSUNG
M471B2874DZ1-CF8
KN.1GB09.011
1 SODIMM 2GB DDRIII 1066MHZ SAMSUNG
M471B5673DZ1-CF8
KN.2GB0B.012
1 SODIMM 2GB DDRIII 1066MHZ MICRON
MT16JSF25664HY-1G1D1
KN.2GB0B.005
1 SODIMM 2GB DDRLLL 1066MHZ ELPIDA
EBJ21UE8BBS0-AE-F
KN.2GB04.004
1 SODIMM 2GB DDRIII 1066MHZ SAMSUNG
M471B5673EH1-CF8
KN.2GB09.004
MICROPHONE 3 MICROPHONE RESERVE
MISCELLANEOUS 1 NAME PLATE AS4810T 40.PBA01.001
1 LCD SCREW RUBBER NONE FLUSH 47.PBA01.001
SCREWS 1 SCREW M2.5 X L6 86.00E12.536
1 SCREW M2 X L4 86.00E13.524
1 SCREW M3 X L3 BZNYLOK 86.W2301.003
1 SCREW M2.5 X L5 BLACK ZN+NYLOK 86.TK501.001
Category No. Part Name Acer Part No.
Chapter 6 111
2. ACER_ASPIRE 4810TZ UMACSS_JM41_MS(NO:LX.PDN0X.006)
SCREWS 1 SCREW M2.5 X L2.5 NYLOK 86.00K60.630
1 SCREW M2 X L4 NYLOK 86.00K64.524
1 SCREW M2.5 X L11 NYLOK 86.1A353.110
1 SCREW M2 X L3 86.9A552.3R0
1 SCREW M2 X L2.5 NYLOK 86.9A562.2R5
1 SCREW M2.5 X L3.5 86.9A563.3R5
SPEAKER 2 SPEAKER 23.40576.001
2 SPEAKER 23.40574.001
2 SPEAKER 23.40575.001
Category No. Part Name Acer Part No.
ADAPTER 1 ADAPTER 65W 19V GREEN DELTA ADP-65JH DB A
1.7X5.5X11 YELLOW LV5 LED LF
AP.0650A.013
1 ADAPTER 65W 19V GREEN LITEON PA-1650-22AC
1.7X5.5X11 YELLOW LV5 LED LF
AP.06501.027
1 ADAPTER 65W 19V GREEN HIPRO HP-A0652R3B
1.7X5.5X11 YELLOW 1LF LV5 LED LF
AP.06503.026
BATTERY 1 BATTERY SIMPLO AS-2009D LI-ION 3S2P SAMSUNG 6
CELL 5600MAH MAIN COMMON ID : AS09D70
BT.00607.080
1 BATTERY SANYO AS-2009D LI-ION 3S2P SANYO 6 CELL
5600MAH MAIN COMMON
BT.00607.082
1 BATTERY SONY AS-2009D LI-ION 3S2P SONY 6 CELL
4400MAH MAIN COMMON ID : AS09D41
BT.00603.080
1 BATTERY SANYO AS-2009D LI-ION 3S2P SANYO 6 CELL
4400MAH MAIN COMMON ID: AS09D31
BT.00604.039
1 BATTERY PANASONIC AS-2009D LI-ION 3S2P
PANASONIC 6 CELL 4400MAH MAIN COMMON ID:
AS09D51
BT.00603.082
1 BATTERY SIMPLO AS-2009D LI-ION 3S2P PANASONIC 6
CELL 4400MAH MAIN COMMON 2.2CG , ID: AS09D71
BT.00605.041
1 BATTERY SIMPLO AS-2009D LI-ION 3S2P LGC 6 CELL
4400MAH MAIN COMMON 2.2S3 , ID: AS09D73
BT.00607.078
1 BATTERY SIMPLO AS-2009D LI-ION 3S2P SAMSUNG 6
CELL 4400MAH MAIN COMMON 2.2F , ID: AS09D75
BT.00607.079
1 BATTERY SANYO AS-2009D LI-ION 3S2P SANYO 6 CELL
5200MAH MAIN COMMON
BT.00603.079
1 BATTERY PANASONIC LI-ION 3S2P PANASONIC 6 CELL
5800MAH MAIN COMMON
BT.00605.038
BOARDS 1 BLUETOOTH BOARD FOXCONN BCM2045 V2
T60H928.11
BT.21100.005
Category No. Part Name Acer Part No.
112 Chapter 6
BOARDS 1 CARD READER BOARD UMA 4 IN 1-BUILD IN W/RTC
BATTERY & BLUETOOTH CABLE & TOUCHPAD LOCK
BOARD CABLE
55.PBA01.003
1 CRT BOARD UMA 55.PBA01.002
1 MINI BOARD UMA/DIS NON-3G 55.PBA01.001
1 MULTI MEDIA BUTTON BOARD NS-JM4151-CY 56.41010.211
1 MULTI MEDIA BUTTON BOARD NS-JM4151-AQ 56.41010.201
1 POWER BUTTON BOARD UMA W/CABLE 55.PBA01.005
1 TOUCHPAD BOARD SYNAPTICS TM-01277-001 56.17010.211
1 TOUCHPAD BOARD ALPS KGDFF0040A 56.17025.101
1 TOUCHPAD LOCK BOARD 55.PBA01.004
1 WIRELESS LAN BOARD 802.11BGN FOXCONN
T77H053.00 ATHEROS AR5B91 1X2
54.03345.011
1 WIRELESS LAN BOARD 802.11BGN QMI EM303-AR
ATHEROS AR5B91 1X2 MINICARD
54.03346.001
CABLES 2 BLUETOOTH CABLE RESERVE
1 BLUETOOTH BOARD CABLE 50.4CQ02.031
1 BLUETOOTH BOARD CABLE 50.4CQ02.001
1 BLUETOOTH BOARD CABLE 50.4CQ02.011
2 CARD READER BOARD CABLE 50.4CR08.011
2 CARD READER BOARD CABLE 50.4CR08.001
2 CRT BOARD CABLE 32PIN 50.4CR09.011
2 CRT BOARD CABLE 32PIN 50.4CR09.001
2 CRT BOARD CABLE 40PIN 50.4CR10.011
2 CRT BOARD CABLE 40PIN 50.4CR10.001
Category No. Part Name Acer Part No.
Chapter 6 113
CABLES 2 LED LCD/CAMERA/MICROPHONE CABLE 50.4CQ04.021
2 LED LCD/CAMERA/MICROPHONE CABLE 50.4CQ04.001
2 LED LCD/CAMERA/MICROPHONE CABLE 50.4CQ04.011
1 MULTI MEDIA BUTTON BOARD CABLE 50.4CQ11.011
1 MULTI MEDIA BUTTON BOARD CABLE 50.4CQ11.001
2 POWER BUTTON CABLE 50.4CQ03.031
2 POWER BUTTON CABLE 50.4CQ03.001
2 POWER BUTTON CABLE 50.4CQ03.011
1 POWER CORD 3A 250V 3PIN UK 27.03118.001
1 POWER CORD 5A 250V 3PIN UK BK 27.01518.541
1 POWER CORD 10A 250V SWISS 27.01518.691
1 POWER CORD 10A 250V 3PIN SWISS BK 27.01518.581
1 POWER CORD 10A 250V ARGENTINE 27.01518.0U1
1 POWER CORD 10A 125V US 27.01518.641
1 POWER CORD 10A 125V 3PIN US BK 27.01518.521
1 POWER CORD 7A 250V 2PIN KOREAN 27.01518.531
1 POWER CORD 7A 125V 2PIN JAPAN 27.01518.551
1 POWER CORD 10A 3PIN BK DENMARK 27.01518.671
1 POWER CORD 10A 250V 3PIN DENMARK BK 27.01518.561
1 POWER CORD 10A 250V 3PIN BK SOUTH AFRICA 27.01518.681
1 POWER CORD 16A 250V SOUTH AFRICA BK 27.01518.571
1 POWER CORD 10A 250V 3PIN CHINA 27.01518.701
1 POWER CORD 10A 250V 3PIN CHINA BK 27.01518.591
1 POWER CORD 250V 3PIN EUR BK 27.01518.731
1 POWER CABLE 16A 250V 3PIN EUR BK 27.01518.601
1 POWER CORD 10A 250V 3PIN ITALY 27.01518.711
1 POWER CORD 10A 250V 3PIN ITALY BK 27.01518.611
1 POWER CORD 2.5A 250V AUSTRALIA 27.01518.621
1 POWER CORD 2.5A 250V SOUTH AFRICA BK (INDIA) 27.01518.721
1 POWER CORD 10A 250V SOUTH AFRICA BK (INDIA) 27.01518.631
1 POWER CORD 7A 125V 2PIN JAPAN BK 27.01518.661
1 POWER CORD 250V 10A 3PIN ISRAEL 27.01518.761
1 POWER CORD 2.5A 125V USA 27.01518.A11
1 POWER CORD 2.5A 125V 1.8M BLACK TAIWANESE 27.01518.781
1 POWER CORD 10A 250V 1.8M BRAZIL BLK 27.01518.A41
1 POWER CORD ACA / ACNZ 27.03218.051
1 POWER CORD 7.5A 250V 3P AUSTRALIA BK 27.03218.021
1 POWER CODE 7A 125V 2PIN JAPAN 27.03518.161
2 TOUCHPAD LOCK BOARD CABLE 50.4CQ08.011
2 TOUCHPAD LOCK BOARD CABLE 50.4CQ08.001
1 TOUCHPAD BOARD CABLE 50.4CQ09.011
1 TOUCHPAD BOARD CABLE 50.4CQ09.001
Category No. Part Name Acer Part No.
114 Chapter 6
CAMERA 2 CAMERA 1.0M SUYIN CN1014-S36D-OV05 LAVENDER_G 56.18007.273
2 CAMERA 1.0M CHICONY CNF911321004970L 56.18012.113
CASE/COVER/BRACKET
ASSEMBLY
2 DVD-RW SUPER-MULTI BEZEL FOR GBAS 42.PBA01.002
2 DVD-RW SUPER-MULTI BEZEL NONE GBAS 42.PBA01.003
2 HDD BRACKET 2.5 "33.PBA01.002
2 HDD CONNECTOR 20.PBA01.001
2 LCD BEZEL 14.1" NONE FLUSH W/LOGO & CAMERA
HOLE
60.PBA01.004
2 LED LCD BEZEL CAP RIGHT 42.PBA01.005
2 LED LCD BEZEL CAP LEFT 42.PBA01.004
2 LED LCD COVER 14" ALUMINUM SLIVER W/ANTENNA*2
& MICROPHONE
60.PBA01.005
2 LED LCD HINGE LEFT 34.4CQ06.101
2 LED LCD HINGE LEFT 34.4CQ06.001
2 LED LCD HINGE RIGHT 34.4CQ07.101
2 LED LCD HINGE RIGHT 34.4CQ07.001
Category No. Part Name Acer Part No.
Chapter 6 115
CASE/COVER/BRACKET
ASSEMBLY
1 LOWER CASE 60.PBA01.001
2 OPTICAL BRACKET 33.PBA01.001
1 UNITLOAD COVER 42.PBA01.001
1 UPPER CASE SLIVER W/SPEAKER (NONE 3G) 60.PBA01.002
DVD-RW DRIVE 1 DVD-RW SUPER-MULTI MODULE 8X 9.5MM SATA FOR
GBAS
6M.PBA01.001
2 ODD TOSHIBA SUPER-MULTI DRIVE 8X 9.5MM TRAY DL
TS-U633A LF SATA GBAS2.0 W/O BEZEL
KU.0080D.046
2 ODD HLDS SUPER-MULTI DRIVE 8X 9.5MM TRAY DL
GU10N LF W/O BEZEL FW:AP03 HF SATA
KU.00801.031
1 DVD-RW SUPER-MULTI MODULE 8X 9.5MM SATA NONE
GBAS
6M.PBA01.002
2 ODD PANASONIC SUPER-MULTI DRIVE 8X 9.5MM TRAY
DL UJ862 LF W/O BEZEL SATA NON GBASE
KU.00807.069
2 ODD PANASONIC SUPER-MULTI DRIVE 8X 9.5MM TRAY
DL UJ862AC LF W/O BEZEL SATA NON GBASE FW1.10
KU.00807.067
HDD/HARDDISKDRIVE 2 HDD 160GB 5400RPM SATA SEAGATE ST9160310AS F/
W:2010
KH.16008.022
2 HDD 160GB 5400RPM SATA TOSHIBA LIBRA-BS
MK1655GSX F/W:FG0101J 5.4
KH.16001.034
2 HDD 160GB 5400RPM 2.5" SATA HGST
HTS543216L9A300 F/W:C30C
KH.16004.006
2 HDD 160GB 5400RPM 2.5" SATA WD WD1600BEVT-
22ZCT0 FW:11.01A11
KH.16007.019
2 HDD 250GB 5400RPM SATA TOSHIBA LIBRA-BS
MK2555GSX F/W:FG000J 5.4K
KH.25008.021
2 HDD 250GB 5400RPM SATA HGST HTS545025B9A300
PANTHER-B LF
KH.25004.003
2 HDD 2.5" 5400RPM 250GB SEAGATE ST9250315AS
WYATT SATA LF F/W:0001SDM1
KH.25007.015
2 HDD 250GB 5400RPM SATA WD WD2500BEVT-22ZCT0 F/
W:11.01A11
KH.25001.016
2 HDD 320GB 5400RPM SATA HGST HTS545032B9A300
PANTHER B LF
KH.32008.013
2 HDD 320GB 5400RPM SATA SEAGATE ST9320320AS F/
W:2010
KH.32007.007
Category No. Part Name Acer Part No.
116 Chapter 6
HDD/HARDDISKDRIVE 2 HDD 320GB 5400RPM SATA TOSHIBA MK3255GSX
LIBRA LF F/W:FG010J
KH.32001.008
2 HDD 320GB 5400RPM SATA WD WD3200BEVT-22ZCT0
ML125 F/W:01.01A01
KH.32004.002
2 HDD 500GB 5400RPM SEAGATE ST9500325AS SATA LF
F/W:0001SDM1
KH.50008.013
2 HDD 2.5" 5400RPM 500GB TOSHIBA MK5055GSX LIBRA
SATA LF F/W:FG001J
KH.50001.011
2 HDD 500GB 5400RPM HGST SATA HTS545050B9A300
PANTHER B LF
KH.50004.001
2 HDD 500GB 5400RPM WD SATA WD5000BEVT-22ZAT0 F/
W:01.01A01
KH.50007.009
HEATSINK 1 CPU HEATSINK UMA W/FAN 60.4CQ14.001
1 CPU HEATSINK UMA W/FAN 60.4CQ12.001
KEYBOARD 1 KEYBOARD 86KEYS AC4G JM41 INTERNAL 14
STANDARD BLACK UV GLOSSY ARABIC
KB.I140A.061
1 KEYBOARD 87KEYS AC4G JM41 INTERNAL 14
STANDARD BLACK UV GLOSSY UK
KB.I140A.084
1 KEYBOARD 86KEYS AC4G JM41 INTERNAL 14
STANDARD BLACK UV GLOSSY GREEK
KB.I140A.070
1 KEYBOARD 86KEYS AC4G JM41 INTERNAL 14
STANDARD BLACK UV GLOSSY CHINESE
KB.I140A.065
1 KEYBOARD 86KEYS AC4G JM41 INTERNAL 14
STANDARD BLACK UV GLOSSY THAILAND
KB.I140A.082
1 KEYBOARD 86KEYS AC4G JM41 INTERNAL 14
STANDARD BLACK UV GLOSSY HEBREW
KB.I140A.086
1 KEYBOARD 86KEYS AC4G JM41 INTERNAL 14
STANDARD BLACK UV GLOSSY US-INTERNATIONAL
KB.I140A.085
1 KEYBOARD 86KEYS AC4G JM41 INTERNAL 14
STANDARD BLACK UV GLOSSY RUSSIAN
KB.I140A.077
1 KEYBOARD 87KEYS AC4G JM41 INTERNAL 14
STANDARD BLACK UV GLOSSY SWEDEN
KB.I140A.080
1 KEYBOARD 87KEYS AC4G JM41 INTERNAL 14
STANDARD BLACK UV GLOSSY FRENCH
KB.I140A.068
1 KEYBOARD 87KEYS AC4G JM41 INTERNAL 14
STANDARD BLACK UV GLOSSY PORTUGUESE
KB.I140A.076
1 KEYBOARD 87KEYS AC4G JM41 INTERNAL 14
STANDARD BLACK UV GLOSSY SLOVENIA
KB.I140A.078
1 KEYBOARD 87KEYS AC4G JM41 INTERNAL 14
STANDARD BLACK UV GLOSSY BRAZILIAN
KB.I140A.063
1 KEYBOARD 87KEYS AC4G JM41 INTERNAL 14
STANDARD BLACK UV GLOSSY SWISS
KB.I140A.081
1 KEYBOARD 87KEYS AC4G JM41 INTERNAL 14
STANDARD BLACK UV GLOSSY DANISH
KB.I140A.066
1 KEYBOARD 87KEYS AC4G JM41 INTERNAL 14
STANDARD BLACK UV GLOSSY ITALIAN
KB.I140A.072
1 KEYBOARD 87KEYS AC4G JM41 INTERNAL 14
STANDARD BLACK UV GLOSSY BELGIUM
KB.I140A.062
1 KEYBOARD 87KEYS AC4G JM41 INTERNAL 14
STANDARD BLACK UV GLOSSY GERMAN
KB.I140A.069
Category No. Part Name Acer Part No.
Chapter 6 117
KEYBOARD 1 KEYBOARD 87KEYS AC4G JM41 INTERNAL 14
STANDARD BLACK UV GLOSSY NORWEGIAN
KB.I140A.075
1 KEYBOARD 87KEYS AC4G JM41 INTERNAL 14
STANDARD BLACK UV GLOSSY HUNGARIAN
KB.I140A.071
1 KEYBOARD 87KEYS AC4G JM41 INTERNAL 14
STANDARD BLACK UV GLOSSY SPANISH
KB.I140A.079
1 KEYBOARD 87KEYS AC4G JM41 INTERNAL 14
STANDARD BLACK UV GLOSSY TURKISH
KB.I140A.083
1 KEYBOARD 87KEYS AC4G JM41 INTERNAL 14
STANDARD BLACK UV GLOSSY NORDIC
KB.I140A.074
1 KEYBOARD 87KEYS AC4G JM41 INTERNAL 14
STANDARD BLACK UV GLOSSY FRENCH/ARABIC
KB.I140A.067
1 KEYBOARD 87KEYS AC4G JM41 INTERNAL 14
STANDARD BLACK UV GLOSSY US FRENCH CANADIAN
KB.I140A.087
1 KEYBOARD 87KEYS AC4G JM41 INTERNAL 14
STANDARD BLACK UV GLOSSY CZECH/SLOVAK
KB.I140A.064
1 KEYBOARD 91KEYS AC4G JM41 INTERNAL 14
STANDARD BLACK UV GLOSSY JAPANESE
KB.I140A.073
LCD 2 LED LCD AUO 14" WXGA GLARE B140XW02 V0 LF
200NIT 8MS 500:1
LK.1400D.005
2 LED LCD SAMSUNG 14" WXGA GLARE LTN140AT06-A01
LF 200NIT 16MS
LK.14005.007
2 LED LCD LPL 14" WXGA GLARE LP140WH2-TLA1 LF
200NIT 16MS 500:1
LK.14006.010
2 LED LCD CMO 14" WXGA GLARE N140B6-L06 LF 220NIT
8MS 400:1
LK.14008.002
1 LED LCD MODULE 14" WXGA GLARE ALUMINUM
SLIVER W/ANTENNA*2&CAMERA 1.0M NONE
3G&FLUSH
6M.PBA01.003
MAINBOARD 1 MAINBOARD JM41/51 UMA GS45 ICH9M CPU INTEL
PENTIUM SINGLE-CORE SU2700 1.3G 2M 800 10W W/
CARD READER BOARD CABLE&CRT BOARD CABLE
32PIN&40PIN W/O MEMORY NONE 3G
MB.PDM01.001
MEMORY 1 SODIMM 1GB DDRIII 1066MHZ SAMSUNG
M471B2873EH1-CF8
KN.1GB0B.019
1 SODIMM 1GB DDRIII 1066MHZ MICRON
MT8JSF12864HY-1G1D1
KN.1GB0B.028
1 SODIMM 1GB DDRLLL 1066MHZ ELPIDA
EBJ11UE6BBS0-AE-F
KN.1GB04.003
1 SODIMM 1GB DDRIII 1066MHZ SAMSUNG
M471B2874DZ1-CF8
KN.1GB09.011
1 SODIMM 2GB DDRIII 1066MHZ SAMSUNG
M471B5673DZ1-CF8
KN.2GB0B.012
1 SODIMM 2GB DDRIII 1066MHZ MICRON
MT16JSF25664HY-1G1D1
KN.2GB0B.005
1 SODIMM 2GB DDRLLL 1066MHZ ELPIDA
EBJ21UE8BBS0-AE-F
KN.2GB04.004
1 SODIMM 2GB DDRIII 1066MHZ SAMSUNG
M471B5673EH1-CF8
KN.2GB09.004
MICROPHONE 3 MICROPHONE RESERVE
Category No. Part Name Acer Part No.
118 Chapter 6
3. ACER_ASPIRE 4810TG M92LP512CSS_JM41_MS (NO: LX.PE10X.191 )
MISCELLANEOUS 1 NAME PLATE AS4810T 40.PBA01.001
1 LCD SCREW RUBBER NONE FLUSH 47.PBA01.001
SCREWS 1 SCREW M2.5 X L6 86.00E12.536
1 SCREW M2 X L4 86.00E13.524
1 SCREW M3 X L3 BZNYLOK 86.W2301.003
1 SCREW M2.5 X L5 BLACK ZN+NYLOK 86.TK501.001
1 SCREW M2.5 X L2.5 NYLOK 86.00K60.630
1 SCREW M2 X L4 NYLOK D=0.34 86.00K64.524
1 SCREW M2.5 X L11 NYLOK 86.1A353.110
1 SCREW NYLOK NI M2 X L3 86.9A552.3R0
1 SCREW M2 X L2.5 NYLOK 86.9A562.2R5
1 SCREW M2.5 X L3.5 86.9A563.3R5
SPEAKER 2 SPEAKER 23.40576.001
2 SPEAKER 23.40574.001
2 SPEAKER 23.40575.001
Category No. Part Name Acer Part No.
ADAPTER 1 ADAPTER 65W 19V GREEN DELTA ADP-65JH DB A
1.7X5.5X11 YELLOW LV5 LED LF
AP.0650A.013
1 ADAPTER 65W 19V 3PIN DELTA ADP-65JH DB A LV5 LED
LF YELLOW
AP.06501.027
1 ADAPTER 65W 19V 3PIN LITEON PA-1650-22AC LV5 LED
LF YELLOW
AP.06501.026
1 ADAPTER 65W 19V 3PIN HIPRO HP-A0652R3B 1LF LV5
LED LF YELLOW
AP.06503.024
1 ADAPTER 65W 19V GREEN HIPRO HP-A0652R3B
1.7X5.5X11 YELLOW 1LF LV5 LED LF
AP.0650A.012
BATTERY 1 BATTERY SIMPLO AS-2009D LI-ION 3S2P SAMSUNG 6
CELL 5600MAH MAIN COMMON ID : AS09D70
BT.00603.080
1 BATTERY SANYO AS-2009D LI-ION 3S2P SANYO 6 CELL
5600MAH MAIN COMMON
BT.00607.082
1 BATTERY SANYO AS-2009D LI-ION 3S2P SANYO 6 CELL
4400MAH MAIN COMMON ID: AS09D31
BT.00607.080
1 BATTERY SONY AS-2009D LI-ION 3S2P SONY 6 CELL
4400MAH MAIN COMMON ID : AS09D41
BT.00603.082
1 BATTERY SONY AS-2009D LI-ION 3S2P SANYO 6 CELL
4400MAH MAIN COMMON AS09D41
BT.00604.039
1 BATTERY PANASONIC AS-2009D LI-ION 3S2P
PANASONIC 6 CELL 4400MAH MAIN COMMON ID:
AS09D51
BT.00604.043
1 BATTERY SIMPLO AS-2009D LI-ION 3S2P PANASONIC 6
CELL 4400MAH MAIN COMMON 2.2CG , ID: AS09D71
BT.00605.041
1 BATTERY SIMPLO AS-2009D LI-ION 3S2P LGC 6 CELL
4400MAH MAIN COMMON 2.2S3 , ID: AS09D73
BT.00607.078
1 BATTERY SIMPLO AS-2009D LI-ION 3S2P SAMSUNG 6
CELL 4400MAH MAIN COMMON 2.2F , ID: AS09D75
BT.00607.079
1 BATTERY SANYO AS-2009D LI-ION 3S2P SANYO 6 CELL
5200MAH MAIN COMMON
BT.00603.079
Category No. Part Name Acer Part No.
Chapter 6 119
BATTERY 1 BATTERY PANASONIC LI-ION 3S2P PANASONIC 6 CELL
5800MAH MAIN COMMON
BT.00605.038
BOARDS 1 BLUETOOTH BOARD FOXCONN BCM2045 V2
T60H928.11
BT.21100.005
1 CARD READER BOARD UMA/DIS 4 IN 1-BUILD IN W/RTC
BATTERY & TOUCHPAD LOCK BOARD CABLE
55.4CQ04.001G
1 CARD READER BOARD UMA/DIS 4 IN 1-BUILD IN W/RTC
BATTERY & TOUCHPAD LOCK BOARD CABLE
55.4CQ08.001G
1 CRT BOARD DIS W/CRT BOARD CABLE 40PIN 55.4CQ07.001G
1 MINI BOARD UMA/DIS NON-3G 55.4CQ02.051G
1 MINI BOARD UMA/DIS NON-3G 55.4CQ02.031G
1 MULTI MEDIA BUTTON BOARD NS-JM4151-CY 56.41010.211
1 MULTI MEDIA BUTTON BOARD NS-JM4151-AQ 56.41010.201
1 POWER BUTTON BOARD UMA W/CABLE 55.4CQ05.001G
1 POWER BUTTON BOARD UMA W/CABLE 55.4CQ09.001G
1 TOUCHPAD BOARD SYNAPTICS TM-01277-001 56.17010.211
1 TOUCHPAD BOARD ALPS KGDFF0040A 56.17025.101
1 TOUCHPAD LOCK BOARD 55.4CQ06.001G
1 TOUCHPAD LOCK BOARD 55.4CQ10.001G
1 WIRELESS LAN BOARD 512AN_HMWG SHIRLEY PEAK
5100 MM#895373
KI.SPH01.003
1 WIRELESS LAN BOARD 512AN_MMWG SHIRLEY PEAK
5100 MM#895361
KI.SPM01.003
1 WIRELESS LAN BOARD 512AG_MMWG SHIRLEY PEAK
5100 MM#897004
KI.SPM01.005
1 WIRELESS LAN BOARD INTEL 512AG_HMWG
SHIRLEYPEAK1*2 5100 MM#897072
KI.SPH01.005
CABLES 1 BLUETOOTH BOARD CABLE 50.4CQ02.001
1 BLUETOOTH BOARD CABLE 50.4CQ02.011
1 BLUETOOTH BOARD CABLE 50.4CQ02.031
2 CARD READER BOARD CABLE 50.4CR08.002
2 CARD READER BOARD CABLE 50.4CR08.012
120 Chapter 6
CABLES 2 CRT BOARD CABLE 20PIN FOR DIS 50.4CQ05.001
2 CRT BOARD CABLE 20PIN FOR DIS 50.4CQ05.011
2 CRT BOARD CABLE 40PIN FOR DIS 50.4CQ13.001
2 CRT BOARD CABLE 40PIN FOR DIS 50.4CQ13.101
2 LED LCD/CAMERA/MICROPHONE CABLE 50.4CQ04.001
2 LED LCD/CAMERA/MICROPHONE CABLE 50.4CQ04.011
2 LED LCD/CAMERA/MICROPHONE CABLE 50.4CQ04.021
2 LED LCD/CAMERA/MICROPHONE CABLE 50.4CQ04.031
1 MULTI MEDIA BUTTON BOARD CABLE 50.4CQ11.001
1 MULTI MEDIA BUTTON BOARD CABLE 50.4CQ11.011
1 POWER BUTTON CABLE 50.4CQ03.001
1 POWER BUTTON CABLE 50.4CQ03.011
1 POWER BUTTON CABLE 50.4CQ03.031
1 POWER CORD16A 250V 3PIN EUR BK 27.01518.601
1 POWER CORD 10A 250V ARGENTINE 27.01518.0U1
1 POWER CORD 10A 125V US 27.01518.641
1 POWER CORD 10A 125V 3PIN US BK 27.01518.521
1 POWER CORD 7A 250V 2PIN KOREAN 27.01518.531
1 POWER CORD 250V 3PIN EUR BK 27.01518.731
1 POWER CORD 3A 250V 3PIN UK 27.03118.001
1 POWER CORD 5A 250V 3PIN UK BK 27.01518.541
1 POWER CORD 7A 125V 2PIN JAPAN 27.01518.551
1 POWER CORD 10A 3PIN BK DENMARK 27.01518.671
1 POWER CORD 10A 250V 3PIN DENMARK BK 27.01518.561
1 POWER CORD 10A 250V 3PIN BK SOUTH AFRICA 27.01518.681
1 POWER CORD 16A 250V SOUTH AFRICA BK 27.01518.571
1 POWER CORD 10A 250V SWISS 27.01518.691
1 POWER CORD 10A 250V 3PIN SWISS BK 27.01518.581
1 POWER CORD 10A 250V 3PIN CHINA 27.01518.701
1 POWER CORD 10A 250V 3PIN CHINA BK 27.01518.591
1 POWER CORD 10A 250V 3PIN ITALY 27.01518.711
1 POWER CORD 10A 250V 3PIN ITALY BK 27.01518.611
1 POWER CORD 2.5A 250V AUSTRALIA 27.01518.621
1 POWER CORD 2.5A 250V SOUTH AFRICA BK (INDIA) 27.01518.721
1 POWER CORD 10A 250V SOUTH AFRICA BK (INDIA) 27.01518.631
1 POWER CORD 7A 125V 2PIN JAPAN BK 27.01518.661
1 POWER CORD 250V 10A 3PIN ISRAEL 27.01518.761
1 POWER CORD 2.5A 125V USA 27.01518.A11
1 POWER CORD 2.5A 125V 1.8M BLACK TAIWANESE 27.01518.781
1 POWER CORD 10A 250V 1.8M BRAZIL BLK 27.01518.A41
1 POWER CORD ACA / ACNZ 27.03218.051
1 POWER CORD 7.5A 250V 3P AUSTRALIA BK 27.03218.021
1 POWER CODE 7A 125V 2PIN JAPAN 27.03518.161
Chapter 6 121
CABLES 2 TOUCHPAD LOCK BOARD CABLE 50.4CQ08.011
2 TOUCHPAD LOCK BOARD CABLE 50.4CQ08.001
1 TOUCHPAD BOARD CABLE 50.4CQ09.011
1 TOUCHPAD BOARD CABLE 50.4CQ09.001
CAMERA 2 CAMERA 1.0M CHICONY CNF911321004970L 56.18012.113
2 CAMERA 1.0M SUYIN CN1014-S36D-OV05 LAVENDER_G 56.18007.273
CASE/COVER/BRACKET
ASSEMBLY
2 DVD-RW SUPER-MULTI BEZEL FOR GBAS 42.PBA01.002
2 DVD-RW SUPER-MULTI BEZEL NONE GBAS 42.PBA01.003
2 HDD BRACKET 2.5 "33.PBA01.002
2 HDD CONNECTOR 20.PBA01.001
2 LCD BEZEL 14.1" NONE FLUSH W/LOGO & CAMERA
HOLE
60.PBA01.004
2 LED LCD BEZEL CAP RIGHT 42.PBA01.005
2 LED LCD BEZEL CAP LEFT 42.PBA01.004
2 LED LCD COVER 14" ALUMINUM SLIVER W/ANTENNA*2
& MICROPHONE
60.PBA01.005
2 LED LCD HINGE LEFT 34.4CQ06.101
2 LED LCD HINGE LEFT 34.4CQ06.001
2 LED LCD HINGE RIGHT 34.4CQ07.101
2 LED LCD HINGE RIGHT 34.4CQ07.001
122 Chapter 6
CASE/COVER/BRACKET
ASSEMBLY
1 LOWER CASE FOR DIS 60.4CQ24.001
2 OPTICAL BRACKET 33.PBA01.001
1 UNITLOAD COVER 60.4CQ25.001
1 UPPER CASE SLIVER W/SPEAKER (NONE 3G) 60.PBA01.002
DVD-RW DRIVE 1 DVD-RW SUPER-MULTI MODULE 8X 9.5MM SATA FOR
GBAS
6M.PBA01.001
1 DVD-RW SUPER-MULTI MODULE 8X 9.5MM SATA NONE
GBAS
6M.PBA01.002
2 ODD HLDS SUPER-MULTI DRIVE 8X 9.5MM TRAY DL
GU10N LF W/O BEZEL FW:AP03 HF SATA
KU.00801.031
2 ODD PANASONIC SUPER-MULTI DRIVE 8X 9.5MM TRAY
DL UJ862AC LF W/O BEZEL SATA NON GBASE FW1.10
KU.00807.067
2 ODD PANASONIC SUPER-MULTI DRIVE 8X 9.5MM TRAY
DL UJ862 LF W/O BEZEL SATA NON GBASE
KU.00807.069
2 ODD TOSHIBA SUPER-MULTI DRIVE 8X 9.5MM TRAY DL
TS-U633A LF SATA GBAS2.0 W/O BEZEL
KU.0080D.046
Chapter 6 123
HDD/HARD DISK DRIVE 1 HDD MODULE 160G 5400RPM 2.5" SATA WITH 1ND HDD
2 HDD 160GB 5400RPM SATA SEAGATE ST9160310AS F/
W:2010
KH.16008.022
2 HDD 160GB 5400RPM SATA TOSHIBA LIBRA-BS
MK1655GSX F/W:FG0101J 5.4
KH.16001.034
2 HDD 160GB 5400RPM 2.5" SATA HGST
HTS543216L9A300 F/W:C30C
KH.16004.006
2 HDD 160GB 5400RPM 2.5" SATA WD WD1600BEVT-
22ZCT0 FW:11.01A11
KH.16007.019
1 HDD 250G 5400RPM 2.5" SATA WITH 1ND HDD
2 HDD 2.5" 5400RPM 250GB SEAGATE ST9250315AS
WYATT SATA LF F/W:0001SDM1
KH.25008.021
2 HDD 250GB 5400RPM SATA TOSHIBA LIBRA-BS
MK2555GSX F/W:FG000J 5.4K
KH.25001.016
2 HDD 250GB 5400RPM SATA HGST HTS545025B9A300
PANTHER-B LF
KH.25004.003
2 HDD 250GB 5400RPM SATA WD WD2500BEVT-22ZCT0 F/
W:11.01A11
KH.25007.015
1 HDD 320G 5400RPM 2.5" SATA WITH 1ND HDD
2 HDD 320GB 5400RPM SATA HGST HTS545032B9A300
PANTHER B LF
KH.32008.013
2 HDD 320GB 5400RPM SATA SEAGATE ST9320320AS F/
W:2010
KH.32007.007
2 HDD 320GB 5400RPM SATA TOSHIBA MK3255GSX LIBRA
LF F/W:FG010J
KH.32001.008
HDD/HARD DISK DRIVE 2 HDD 320GB 5400RPM SATA WD WD3200BEVT-22ZCT0
ML125 F/W:01.01A01
KH.32004.002
1 HDD 500G 5400RPM 2.5" SATA WITH 1ND HDD
2 HDD 500GB 5400RPM SEAGATE ST9500325AS SATA LF
F/W:0001SDM1
KH.50008.013
2 HDD 2.5" 5400RPM 500GB TOSHIBA MK5055GSX LIBRA
SATA LF F/W:FG001J
KH.50001.011
2 HDD 500GB 5400RPM HGST SATA HTS545050B9A300
PANTHER B LF
KH.50004.001
2 HDD 500GB 5400RPM WD SATA WD5000BEVT-22ZAT0 F/
W:01.01A01
KH.50007.009
HEATSINK 1 CPU HEATSINK DIS W/FAN 60.4CQ13.001
1 CPU HEATSINK DIS W/FAN 60.4CQ15.001
124 Chapter 6
KEYBOARD 1 KEYBOARD 86KEYS AC4G JM41 INTERNAL 14
STANDARD BLACK UV GLOSSY RUSSIAN
KB.I140A.077
1 KEYBOARD 87KEYS AC4G JM41 INTERNAL 14
STANDARD BLACK UV GLOSSY SWISS
KB.I140A.081
1 KEYBOARD 86KEYS AC4G JM41 INTERNAL 14
STANDARD BLACK UV GLOSSY CHINESE
KB.I140A.065
1 KEYBOARD 86KEYS AC4G JM41 INTERNAL 14
STANDARD BLACK UV GLOSSY THAILAND
KB.I140A.082
1 KEYBOARD 87KEYS AC4G JM41 INTERNAL 14
STANDARD BLACK UV GLOSSY PORTUGUESE
KB.I140A.076
1 KEYBOARD 86KEYS AC4G JM41 INTERNAL 14
STANDARD BLACK UV GLOSSY ARABIC
KB.I140A.061
1 KEYBOARD 87KEYS AC4G JM41 INTERNAL 14
STANDARD BLACK UV GLOSSY DANISH
KB.I140A.066
1 KEYBOARD 87KEYS AC4G JM41 INTERNAL 14
STANDARD BLACK UV GLOSSY ITALIAN
KB.I140A.072
1 KEYBOARD 87KEYS AC4G JM41 INTERNAL 14
STANDARD BLACK UV GLOSSY FRENCH
KB.I140A.068
1 KEYBOARD 87KEYS AC4G JM41 INTERNAL 14
STANDARD BLACK UV GLOSSY GERMAN
KB.I140A.069
1 KEYBOARD 86KEYS AC4G JM41 INTERNAL 14
STANDARD BLACK UV GLOSSY HEBREW
KB.I140A.086
1 KEYBOARD 91KEYS AC4G JM41 INTERNAL 14
STANDARD BLACK UV GLOSSY JAPANESE
KB.I140A.073
1 KEYBOARD 86KEYS AC4G JM41 INTERNAL 14
STANDARD BLACK UV GLOSSY GREEK
KB.I140A.070
1 KEYBOARD 87KEYS AC4G JM41 INTERNAL 14
STANDARD BLACK UV GLOSSY NORWEGIAN
KB.I140A.075
1 KEYBOARD 87KEYS AC4G JM41 INTERNAL 14
STANDARD BLACK UV GLOSSY HUNGARIAN
KB.I140A.071
1 KEYBOARD 87KEYS AC4G JM41 INTERNAL 14
STANDARD BLACK UV GLOSSY SPANISH
KB.I140A.079
1 KEYBOARD 87KEYS AC4G JM41 INTERNAL 14
STANDARD BLACK UV GLOSSY TURKISH
KB.I140A.083
1 KEYBOARD 87KEYS AC4G JM41 INTERNAL 14
STANDARD BLACK UV GLOSSY UK
KB.I140A.084
1 KEYBOARD 87KEYS AC4G JM41 INTERNAL 14
STANDARD BLACK UV GLOSSY SWEDEN
KB.I140A.080
1 KEYBOARD 87KEYS AC4G JM41 INTERNAL 14
STANDARD BLACK UV GLOSSY CZECH/SLOVAK
KB.I140A.064
KEYBOARD 1 KEYBOARD 87KEYS AC4G JM41 INTERNAL 14
STANDARD BLACK UV GLOSSY BELGIUM
KB.I140A.062
1 KEYBOARD 87KEYS AC4G JM41 INTERNAL 14
STANDARD BLACK UV GLOSSY BRAZILIAN
KB.I140A.063
1 KEYBOARD 86KEYS AC4G JM41 INTERNAL 14
STANDARD BLACK UV GLOSSY US-INTERNATIONAL
KB.I140A.085
1 KEYBOARD 87KEYS AC4G JM41 INTERNAL 14
STANDARD BLACK UV GLOSSY SLOVENIA
KB.I140A.078
1 KEYBOARD 87KEYS AC4G JM41 INTERNAL 14
STANDARD BLACK UV GLOSSY NORDIC
KB.I140A.074
1 KEYBOARD 87KEYS AC4G JM41 INTERNAL 14
STANDARD BLACK UV GLOSSY FRENCH/ARABIC
KB.I140A.067
1 KEYBOARD 87KEYS AC4G JM41 INTERNAL 14
STANDARD BLACK UV GLOSSY US FRENCH CANADIAN
KB.I140A.087
Chapter 6 125
LCD 1 LED LCD MODULE 14" WXGA GLARE ALUMINUM SLIVER
W/ANTENNA*2&CAMERA 1.0M NONE 3G&FLUSH
6M.PBA01.003
2 LED LCD AUO 14" WXGA GLARE B140XW02 V0 LF
200NIT 8MS 500:1
LK.1400D.005
2 LED LCD SAMSUNG 14" WXGA GLARE LTN140AT06-A01
LF 200NIT 16MS
LK.14005.007
2 LED LCD LPL 14" WXGA GLARE LP140WH2-TLA1 LF
200NIT 16MS 500:1
LK.14006.010
2 LED LCD CMO 14" WXGA GLARE N140B6-L06 LF 220NIT
8MS 400:1
LK.14008.002
MAINBOARD 1 MAINBOARD JM41/51 DIS GS45 ICH9M VRAM DDRIII 800
1GB CPU INTEL CORE2SOLO SU3500 BGA 1.4G 3M 800
5.5W ULV LF W/CARD READER BOARD CABLE&CRT
BOARD CABLE 20PIN W/O MEMORY NONE 3G
55.4CR01.101G
1 MAINBOARD JM41/51 DIS GS45 ICH9M VRAM DDRIII 800
1GB CPU INTEL CORE2SOLO SU3500 BGA 1.4G 3M 800
5.5W ULV LF W/CARD READER BOARD CABLE&CRT
BOARD CABLE 20PIN W/O MEMORY NONE 3G
55.4CR01.071G
MEMORY 1 SODIMM 1GB DDRLLL 1066MHZ ELPIDA EBJ11UE6BBS0-
AE-F
KN.1GB0G.019
1 SODIMM 1G DDRIII 1066MHZ NANYA NT1GC64BH8A1PS-
BE LF 64*16 0.07UM
KN.1GB09.011
1 SODIMM 1GB DDRIII 1066MHZ ELPIDA EBJ11UE6BAU0-
AE-E LF 64*16 0.07UM
KN.1GB03.031
1 SODIMM 1GB DDRIII 1066MHZ SAMSUNG
M471B2874DZ1-CF8
KN.1GB09.009
1 SODIMM 1GB DDRIII 1066MHZ SAMSUNG
M471B2873EH1-CF8
KN.1GB0B.019
1 SODIMM 1GB DDRIII 1066MHZ HYNIX HMT112S6AFP6C-
G7N0
KN.1GB0B.028
1 SODIMM 2GB DDRIII 1066MHZ ELPIDA EBJ21UE8BBS0-
AE-F
KN.2GB0G.014
1 SODIMM 2GB DDRIII 1066MHZ NANYA
NT2GC64B8HA1NS-BE LF 128*8 0.07UM
KN.2GB09.004
1 SODIMM 2GB DDRIII 1066MHZ ELPIDA EBJ21UE8BAU0-
AE-E
KN.2GB03.012
1 SODIMM 2GB DDRIII 1066MHZ SAMSUNG
M471B5673DZ1-CF8
KN.2GB09.002
1 SODIMM 2GB DDRIII 1066MHZ SAMSUNG
M471B5673EH1-CF8
KN.2GB0B.005
MEMORY 1 SODIMM 2GB DDRIII 1066MHZ HYNIX HMT125S6AFP8C-
G7N0
KN.2GB0B.012
1 SODIMM 2GB DDRIII 1066MHZ HYNIX HMT125S6BFR8C-
G7 N0 LF 128*8 0.055UM
KN.2GB0G.009
MICROPHONE 3 MICROPHONE 23.42267.001
3 MICROPHONE 23.42268.001
MISCELLANEOUS 1 NAME PLATE AS4810T 40.PBA01.001
1 LCD SCREW RUBBER NONE FLUSH 47.PBA01.001
126 Chapter 6
SCREWS 1 SCREW M2.5 X L6 86.00E12.536
1 SCREW M2 X L4 86.00E13.524
1 SCREW M3 X L3 86.W2301.003
1 SCREW M2.5 X L2.5 NYLOK 86.00K60.630
1 SCREW M2.5 X L6 HALF NYLOK 86.00K62.536
1 SCREW M2 X L4 NYLOK D=0.34 86.00K64.524
1 SCREW M2.5 X L11 NYLOK 86.1A353.110
1 SCREW M2 X L3 NYLOK 86.9A552.3R0
1 SCREW M2 X L2.5 NYLOK 86.9A562.2R5
1 SCREW M2.5 X L3.5 86.9A563.3R5
SPEAKER 2 SPEAKER 23.40576.001
2 SPEAKER 23.40574.001
2 SPEAKER 23.40575.001
Appendix A 127
Aspire 4810T/4810TZ/4410T/4810TG Series
Model Definition and Configuration
Appendix A
Appendix A 128
Model RO Country Acer Part No Description CPU LCD VGA
Chip VRAM 1 Memory 1 Memory 2 HDD 1(GB) ODD Card Reader Wireless
LAN
Wireless
LAN1 Bluetooth Battery Adapter Camera K/B Power Cord
AS4810TG-
354G50Mn
EMEA South
Africa
LX.PE10X.047 AS4810TG-354G50Mn EM VHP32ATZA2 MC M92LP512Css
2*2G/500_L/BT/6L2.8/5R/cb_n2_1.0D_AL_EN16
C2SSU3500B NLED14WXGAGS M92LP 512M-
DDR3
(64*16*4)
SO2GBIII10 SO2GBIII10 N500GB5.4KS NSM8XS9.5 5 in 1-Build in SP1x2HMW SP1x2HMW BT 2.0 6CELL2.8 65W 1.0M DV US International
(KB.I140A.085)
AF
AS4810TG-
354G50Mn
EMEA Belgium LX.PE10X.039 AS4810TG-354G50Mn VHP32ATBE1 MC M92LP512Css
2*2G/500_L/BT/6L2.8/5R/cb_n2_1.0D_AL_NL13
C2SSU3500B NLED14WXGAGS M92LP 512M-
DDR3
(64*16*4)
SO2GBIII10 SO2GBIII10 N500GB5.4KS NSM8XS9.5 5 in 1-Build in SP1x2HMW SP1x2HMW BT 2.0 6CELL2.8 65W 1.0M DV Belgium (KB.I140A.062) Continental
AS4810TG-
354G50Mn
EMEA Holland LX.PE10X.040 AS4810TG-354G50Mn VHP32ATNL1 MC M92LP512Css
2*2G/500_L/BT/6L2.8/5R/cb_n2_1.0D_AL_NL12
C2SSU3500B NLED14WXGAGS M92LP 512M-
DDR3
(64*16*4)
SO2GBIII10 SO2GBIII10 N500GB5.4KS NSM8XS9.5 5 in 1-Build in SP1x2HMW SP1x2HMW BT 2.0 6CELL2.8 65W 1.0M DV US International
(KB.I140A.085)
Continental
AS4810TG-
354G50Mn
EMEA Middle
East
LX.PE10X.042 AS4810TG-354G50Mn EM VHP32ATME9 MC
M92LP512Css 2*2G/500_L/BT/6L2.8/5R/
cb_n2_1.0D_AL_FR22
C2SSU3500B NLED14WXGAGS M92LP 512M-
DDR3
(64*16*4)
SO2GBIII10 SO2GBIII10 N500GB5.4KS NSM8XS9.5 5 in 1-Build in SP1x2HMW SP1x2HMW BT 2.0 6CELL2.8 65W 1.0M DV FR/Arabic (KB.I140A.067) Continental
AS4810TG-
354G50Mn
EMEA Luxembou
rg
LX.PE10X.041 AS4810TG-354G50Mn VHP32ATLU3 MC M92LP512Css
2*2G/500_L/BT/6L2.8/5R/cb_n2_1.0D_AL_IT41
C2SSU3500B NLED14WXGAGS M92LP 512M-
DDR3
(64*16*4)
SO2GBIII10 SO2GBIII10 N500GB5.4KS NSM8XS9.5 5 in 1-Build in SP1x2HMW SP1x2HMW BT 2.0 6CELL2.8 65W 1.0M DV Swiss/G (KB.I140A.081) Continental
AS4810TG-
354G50Mn
EMEA Middle
East
LX.PE10X.043 AS4810TG-354G50Mn EM VHP32ATME2 MC
M92LP512Css 2*2G/500_L/BT/6L2.8/5R/
cb_n2_1.0D_AL_EN15
C2SSU3500B NLED14WXGAGS M92LP 512M-
DDR3
(64*16*4)
SO2GBIII10 SO2GBIII10 N500GB5.4KS NSM8XS9.5 5 in 1-Build in SP1x2HMW SP1x2HMW BT 2.0 6CELL2.8 65W 1.0M DV Arabic (KB.I140A.061) UK and US-110V
AS4810TG-
354G50Mn
EMEA Middle
East
LX.PE10X.045 AS4810TG-354G50Mn EM VHP32ATME3 MC
M92LP512Css 2*2G/500_L/BT/6L2.8/5R/
cb_n2_1.0D_AL_FR23
C2SSU3500B NLED14WXGAGS M92LP 512M-
DDR3
(64*16*4)
SO2GBIII10 SO2GBIII10 N500GB5.4KS NSM8XS9.5 5 in 1-Build in SP1x2HMW SP1x2HMW BT 2.0 6CELL2.8 65W 1.0M DV French (KB.I140A.068) Continental
AS4810TG-
354G50Mn
EMEA Poland LX.PE10X.046 AS4810TG-354G50Mn VHP32ATPL1 MC M92LP512Css
2*2G/500_L/BT/6L2.8/5R/cb_n2_1.0D_AL_PL11
C2SSU3500B NLED14WXGAGS M92LP 512M-
DDR3
(64*16*4)
SO2GBIII10 SO2GBIII10 N500GB5.4KS NSM8XS9.5 5 in 1-Build in SP1x2HMW SP1x2HMW BT 2.0 6CELL2.8 65W 1.0M DV US International
(KB.I140A.085)
Continental
AS4810TG-
354G50Mn
EMEA Middle
East
LX.PE10X.044 AS4810TG-354G50Mn EM VHP32ATME4 MC
M92LP512Css 2*2G/500_L/BT/6L2.8/5R/
cb_n2_1.0D_AL_RU61
C2SSU3500B NLED14WXGAGS M92LP 512M-
DDR3
(64*16*4)
SO2GBIII10 SO2GBIII10 N500GB5.4KS NSM8XS9.5 5 in 1-Build in SP1x2HMW SP1x2HMW BT 2.0 6CELL2.8 65W 1.0M DV Russian (KB.I140A.077) Continental
AS4810TG-
354G50Mn
EMEA South
Africa
LX.PE10X.033 AS4810TG-354G50Mn EM VHP32ATZA1 MC M92LP512Css
2*2G/500_L/BT/6L2.8/5R/cb_n2_1.0D_AL_FR23
C2SSU3500B NLED14WXGAGS M92LP 512M-
DDR3
(64*16*4)
SO2GBIII10 SO2GBIII10 N500GB5.4KS NSM8XS9.5 5 in 1-Build in SP1x2HMW SP1x2HMW BT 2.0 6CELL2.8 65W 1.0M DV French (KB.I140A.068) Continental
AS4810TG-
354G50Mn
EMEA South
Africa
LX.PE10X.034 AS4810TG-354G50Mn EM VHP32ATZA4 MC M92LP512Css
2*2G/500_L/BT/6L2.8/5R/cb_n2_1.0D_AL_ENI1
C2SSU3500B NLED14WXGAGS M92LP 512M-
DDR3
(64*16*4)
SO2GBIII10 SO2GBIII10 N500GB5.4KS NSM8XS9.5 5 in 1-Build in SP1x2HMW SP1x2HMW BT 2.0 6CELL2.8 65W 1.0M DV US International
(KB.I140A.085)
UK
AS4810TG-
354G50Mn
EMEA Norway LX.PE10X.025 AS4810TG-354G50Mn VHP32ATNO3 MC M92LP512Css
2*2G/500_L/BT/6L2.8/5R/cb_n2_1.0D_AL_ENS3
C2SSU3500B NLED14WXGAGS M92LP 512M-
DDR3
(64*16*4)
SO2GBIII10 SO2GBIII10 N500GB5.4KS NSM8XS9.5 5 in 1-Build in SP1x2HMW SP1x2HMW BT 2.0 6CELL2.8 65W 1.0M DV Nordic (KB.I140A.074) Danish/Continental
AS4810TG-
354G50Mn
EMEA Austria LX.PE10X.027 AS4810TG-354G50Mn VHP32ATAT1 MC M92LP512Css
2*2G/500_L/BT/6L2.8/5R/cb_n2_1.0D_AL_DE11
C2SSU3500B NLED14WXGAGS M92LP 512M-
DDR3
(64*16*4)
SO2GBIII10 SO2GBIII10 N500GB5.4KS NSM8XS9.5 5 in 1-Build in SP1x2HMW SP1x2HMW BT 2.0 6CELL2.8 65W 1.0M DV German (KB.I140A.069) Continental
AS4810TG-
354G50Mn
EMEA Czech LX.PE10X.029 AS4810TG-354G50Mn VHP32ATCZ2 MC M92LP512Css
2*2G/500_L/BT/6L2.8/5R/cb_n2_1.0D_AL_SK12
C2SSU3500B NLED14WXGAGS M92LP 512M-
DDR3
(64*16*4)
SO2GBIII10 SO2GBIII10 N500GB5.4KS NSM8XS9.5 5 in 1-Build in SP1x2HMW SP1x2HMW BT 2.0 6CELL2.8 65W 1.0M DV CZ/SK (KB.I140A.064) Continental
AS4810TG-
354G50Mn
EMEA Portugal LX.PE10X.020 AS4810TG-354G50Mn VHP32ATPT1 MC M92LP512Css
2*2G/500_L/BT/6L2.8/5R/cb_n2_1.0D_AL_PT12
C2SSU3500B NLED14WXGAGS M92LP 512M-
DDR3
(64*16*4)
SO2GBIII10 SO2GBIII10 N500GB5.4KS NSM8XS9.5 5 in 1-Build in SP1x2HMW SP1x2HMW BT 2.0 6CELL2.8 65W 1.0M DV Portuguese (KB.I140A.076) Continental
AS4810TG-
354G50Mn
EMEA Hungary LX.PE10X.019 AS4810TG-354G50Mn VHP32ATHU1 MC M92LP512Css
2*2G/500_L/BT/6L2.8/5R/cb_n2_1.0D_AL_HU13
C2SSU3500B NLED14WXGAGS M92LP 512M-
DDR3
(64*16*4)
SO2GBIII10 SO2GBIII10 N500GB5.4KS NSM8XS9.5 5 in 1-Build in SP1x2HMW SP1x2HMW BT 2.0 6CELL2.8 65W 1.0M DV Hungarian (KB.I140A.071) Continental
AS4810TG-
354G50Mn
EMEA Finland LX.PE10X.018 AS4810TG-354G50Mn VHP32ATFI2 MC M92LP512Css
2*2G/500_L/BT/6L2.8/5R/cb_n2_1.0D_AL_FI11
C2SSU3500B NLED14WXGAGS M92LP 512M-
DDR3
(64*16*4)
SO2GBIII10 SO2GBIII10 N500GB5.4KS NSM8XS9.5 5 in 1-Build in SP1x2HMW SP1x2HMW BT 2.0 6CELL2.8 65W 1.0M DV Sweden (KB.I140A.080) Continental
AS4810TG-
354G50Mn
EMEA Eastern
Europe
LX.PE10X.017 AS4810TG-354G50Mn VHP32ATEU5 MC M92LP512Css
2*2G/500_L/BT/6L2.8/5R/cb_n2_1.0D_AL_RO12
C2SSU3500B NLED14WXGAGS M92LP 512M-
DDR3
(64*16*4)
SO2GBIII10 SO2GBIII10 N500GB5.4KS NSM8XS9.5 5 in 1-Build in SP1x2HMW SP1x2HMW BT 2.0 6CELL2.8 65W 1.0M DV US International
(KB.I140A.085)
Continental
AS4810TG-
354G50Mn
EMEA Eastern
Europe
LX.PE10X.016 AS4810TG-354G50Mn VHP32ATEU3 MC M92LP512Css
2*2G/500_L/BT/6L2.8/5R/cb_n2_1.0D_AL_RU23
C2SSU3500B NLED14WXGAGS M92LP 512M-
DDR3
(64*16*4)
SO2GBIII10 SO2GBIII10 N500GB5.4KS NSM8XS9.5 5 in 1-Build in SP1x2HMW SP1x2HMW BT 2.0 6CELL2.8 65W 1.0M DV Russian (KB.I140A.077) Continental
AS4810TG-
354G50Mn
EMEA Eastern
Europe
LX.PE10X.015 AS4810TG-354G50Mn VHP32ATEU5 MC M92LP512Css
2*2G/500_L/BT/6L2.8/5R/cb_n2_1.0D_AL_PL13
C2SSU3500B NLED14WXGAGS M92LP 512M-
DDR3
(64*16*4)
SO2GBIII10 SO2GBIII10 N500GB5.4KS NSM8XS9.5 5 in 1-Build in SP1x2HMW SP1x2HMW BT 2.0 6CELL2.8 65W 1.0M DV US International
(KB.I140A.085)
Continental
AS4810TG-
354G50Mn
EMEA Eastern
Europe
LX.PE10X.032 AS4810TG-354G50Mn VHP32ATEU4 MC M92LP512Css
2*2G/500_L/BT/6L2.8/5R/cb_n2_1.0D_AL_SV22
C2SSU3500B NLED14WXGAGS M92LP 512M-
DDR3
(64*16*4)
SO2GBIII10 SO2GBIII10 N500GB5.4KS NSM8XS9.5 5 in 1-Build in SP1x2HMW SP1x2HMW BT 2.0 6CELL2.8 65W 1.0M DV Sweden (KB.I140A.080) Continental
AS4810TG-
354G50Mn
EMEA Eastern
Europe
LX.PE10X.031 AS4810TG-354G50Mn VHP32ATEU7 MC M92LP512Css
2*2G/500_L/BT/6L2.8/5R/cb_n2_1.0D_AL_ENR2
C2SSU3500B NLED14WXGAGS M92LP 512M-
DDR3
(64*16*4)
SO2GBIII10 SO2GBIII10 N500GB5.4KS NSM8XS9.5 5 in 1-Build in SP1x2HMW SP1x2HMW BT 2.0 6CELL2.8 65W 1.0M DV SLO/CRO (KB.I140A.078) Continental
AS4810TG-
354G50Mn
EMEA Eastern
Europe
LX.PE10X.030 AS4810TG-354G50Mn VHP32ATEU7 MC M92LP512Css
2*2G/500_L/BT/6L2.8/5R/cb_n2_1.0D_AL_SL11
C2SSU3500B NLED14WXGAGS M92LP 512M-
DDR3
(64*16*4)
SO2GBIII10 SO2GBIII10 N500GB5.4KS NSM8XS9.5 5 in 1-Build in SP1x2HMW SP1x2HMW BT 2.0 6CELL2.8 65W 1.0M DV SLO/CRO (KB.I140A.078) Continental
AS4810TG-
354G50Mn
EMEA UK LX.PE10X.006 AS4810TG-354G50Mn VHP32ATGB1 MC M92LP512Css
2*2G/500_L/BT/6L2.8/5R/cb_n2_1.0D_AL_EN14
C2SSU3500B NLED14WXGAGS M92LP 512M-
DDR3
(64*16*4)
SO2GBIII10 SO2GBIII10 N500GB5.4KS NSM8XS9.5 5 in 1-Build in SP1x2HMW SP1x2HMW BT 2.0 6CELL2.8 65W 1.0M DV UK (KB.I140A.084) UK
129 Appendix A
AS4810TG-
354G50Mn
EMEA Ukraine LX.PE10X.007 AS4810TG-354G50Mn VHP32ATUK1 MC M92LP512Css
2*2G/500_L/BT/6L2.8/5R/cb_n2_1.0D_AL_RU11
C2SSU3500B NLED14WXGAGS M92LP 512M-
DDR3
(64*16*4)
SO2GBIII10 SO2GBIII10 N500GB5.4KS NSM8XS9.5 5 in 1-Build in SP1x2HMW SP1x2HMW BT 2.0 6CELL2.8 65W 1.0M DV Russian (KB.I140A.077) Continental
AS4810TG-
354G50Mn
EMEA Turkey LX.PE10X.009 AS4810TG-354G50Mn EM VHP32ATTR1 MC M92LP512Css
2*2G/500_L/BT/6L2.8/5R/cb_n2_1.0D_AL_TR33
C2SSU3500B NLED14WXGAGS M92LP 512M-
DDR3
(64*16*4)
SO2GBIII10 SO2GBIII10 N500GB5.4KS NSM8XS9.5 5 in 1-Build in SP1x2HMW SP1x2HMW BT 2.0 6CELL2.8 65W 1.0M DV Turkish (KB.I140A.083) Continental
AS4810TG-
354G50Mn
EMEA Switzerlan
d
LX.PE10X.008 AS4810TG-354G50Mn VHP32ATCH1 MC M92LP512Css
2*2G/500_L/BT/6L2.8/5R/cb_n2_1.0D_AL_IT42
C2SSU3500B NLED14WXGAGS M92LP 512M-
DDR3
(64*16*4)
SO2GBIII10 SO2GBIII10 N500GB5.4KS NSM8XS9.5 5 in 1-Build in SP1x2HMW SP1x2HMW BT 2.0 6CELL2.8 65W 1.0M DV Swiss/G (KB.I140A.081) Swiss
AS4810TG-
354G50Mn
EMEA Middle
East
LX.PE10X.010 AS4810TG-354G50Mn EM VHP32ATME2 MC
M92LP512Css 2*2G/500_L/BT/6L2.8/5R/
cb_n2_1.0D_AL_AR23
C2SSU3500B NLED14WXGAGS M92LP 512M-
DDR3
(64*16*4)
SO2GBIII10 SO2GBIII10 N500GB5.4KS NSM8XS9.5 5 in 1-Build in SP1x2HMW SP1x2HMW BT 2.0 6CELL2.8 65W 1.0M DV Arabic (KB.I140A.061) UK and US-110V
AS4810TG-
354G50Mn
EMEA Middle
East
LX.PE10X.011 AS4810TG-354G50Mn EM VHP32ATME2 MC
M92LP512Css 2*2G/500_L/BT/6L2.8/5R/
cb_n2_1.0D_AL_AR13
C2SSU3500B NLED14WXGAGS M92LP 512M-
DDR3
(64*16*4)
SO2GBIII10 SO2GBIII10 N500GB5.4KS NSM8XS9.5 5 in 1-Build in SP1x2HMW SP1x2HMW BT 2.0 6CELL2.8 65W 1.0M DV Arabic (KB.I140A.061) UK and US-110V
AS4810TG-
354G50Mn
EMEA Middle
East
LX.PE10X.012 AS4810TG-354G50Mn EM VHP32ATME4 MC
M92LP512Css 2*2G/500_L/BT/6L2.8/5R/
cb_n2_1.0D_AL_EN11
C2SSU3500B NLED14WXGAGS M92LP 512M-
DDR3
(64*16*4)
SO2GBIII10 SO2GBIII10 N500GB5.4KS NSM8XS9.5 5 in 1-Build in SP1x2HMW SP1x2HMW BT 2.0 6CELL2.8 65W 1.0M DV Russian (KB.I140A.077) Continental
AS4810TG-
354G50Mn
EMEA Middle
East
LX.PE10X.013 AS4810TG-354G50Mn EM VHP32ATME6 MC
M92LP512Css 2*2G/500_L/BT/6L2.8/5R/
cb_n2_1.0D_AL_EN15
C2SSU3500B NLED14WXGAGS M92LP 512M-
DDR3
(64*16*4)
SO2GBIII10 SO2GBIII10 N500GB5.4KS NSM8XS9.5 5 in 1-Build in SP1x2HMW SP1x2HMW BT 2.0 6CELL2.8 65W 1.0M DV US International
(KB.I140A.085)
UK
AS4810TG-
354G50Mn
EMEA Italy LX.PE10X.014 AS4810TG-354G50Mn VHP32ATIT1 MC M92LP512Css
2*2G/500_L/BT/6L2.8/5R/cb_n2_1.0D_AL_IT12
C2SSU3500B NLED14WXGAGS M92LP 512M-
DDR3
(64*16*4)
SO2GBIII10 SO2GBIII10 N500GB5.4KS NSM8XS9.5 5 in 1-Build in SP1x2HMW SP1x2HMW BT 2.0 6CELL2.8 65W 1.0M DV Italian (KB.I140A.072) Italian
AS4810TG-
354G50Mn
EMEA Israel LX.PE10X.023 AS4810TG-354G50Mn VHP32ATIL1 MC M92LP512Css
2*2G/500_L/BT/6L2.8/5R/cb_n2_1.0D_AL_HE12
C2SSU3500B NLED14WXGAGS M92LP 512M-
DDR3
(64*16*4)
SO2GBIII10 SO2GBIII10 N500GB5.4KS NSM8XS9.5 5 in 1-Build in SP1x2HMW SP1x2HMW BT 2.0 6CELL2.8 65W 1.0M DV US International w/ Hebrew
(KB.I140A.086)
Israel
AS4810TG-
354G50Mn
EMEA Greece LX.PE10X.022 AS4810TG-354G50Mn VHP32ATGR1 MC M92LP512Css
2*2G/500_L/BT/6L2.8/5R/cb_n2_1.0D_AL_EL32
C2SSU3500B NLED14WXGAGS M92LP 512M-
DDR3
(64*16*4)
SO2GBIII10 SO2GBIII10 N500GB5.4KS NSM8XS9.5 5 in 1-Build in SP1x2HMW SP1x2HMW BT 2.0 6CELL2.8 65W 1.0M DV Greek (KB.I140A.070) Continental
AS4810TG-
354G50Mn
EMEA Spain LX.PE10X.021 AS4810TG-354G50Mn VHP32ATES1 MC M92LP512Css
2*2G/500_L/BT/6L2.8/5R/cb_n2_1.0D_AL_ES22
C2SSU3500B NLED14WXGAGS M92LP 512M-
DDR3
(64*16*4)
SO2GBIII10 SO2GBIII10 N500GB5.4KS NSM8XS9.5 5 in 1-Build in SP1x2HMW SP1x2HMW BT 2.0 6CELL2.8 65W 1.0M DV Spanish (KB.I140A.079) Continental
AS4810TG-
354G50Mn
EMEA Sweden LX.PE10X.028 AS4810TG-354G50Mn VHP32ATSE1 MC M92LP512Css
2*2G/500_L/BT/6L2.8/5R/cb_n2_1.0D_AL_FI13
C2SSU3500B NLED14WXGAGS M92LP 512M-
DDR3
(64*16*4)
SO2GBIII10 SO2GBIII10 N500GB5.4KS NSM8XS9.5 5 in 1-Build in SP1x2HMW SP1x2HMW BT 2.0 6CELL2.8 65W 1.0M DV Sweden (KB.I140A.080) Continental
AS4810TG-
354G50Mi
EMEA Russia LX.PE10X.026 AS4810TG-354G50Mi VHP32ATRU1 MC M92LP512Css
2*2G/500_L/BT/6L2.8/5R/cb_abg_1.0D_AL_RU11
C2SSU3500B NLED14WXGAGS M92LP 512M-
DDR3
(64*16*4)
SO2GBIII10 SO2GBIII10 N500GB5.4KS NSM8XS9.5 5 in 1-Build in SP1x2HMW SP1x2MABG BT 2.0 6CELL2.8 65W 1.0M DV Russian (KB.I140A.077) Continental
AS4810TG-
354G50Mn
EMEA Norway LX.PE10X.024 AS4810TG-354G50Mn VHP32ATNO1 MC M92LP512Css
2*2G/500_L/BT/6L2.8/5R/cb_n2_1.0D_AL_NO12
C2SSU3500B NLED14WXGAGS M92LP 512M-
DDR3
(64*16*4)
SO2GBIII10 SO2GBIII10 N500GB5.4KS NSM8XS9.5 5 in 1-Build in SP1x2HMW SP1x2HMW BT 2.0 6CELL2.8 65W 1.0M DV Norwegian (KB.I140A.075) Continental
AS4810TG-
354G50Mn
EMEA Denmark LX.PE10X.035 AS4810TG-354G50Mn VHP32ATDK1 MC M92LP512Css
2*2G/500_L/BT/6L2.8/5R/cb_n2_1.0D_AL_NO13
C2SSU3500B NLED14WXGAGS M92LP 512M-
DDR3
(64*16*4)
SO2GBIII10 SO2GBIII10 N500GB5.4KS NSM8XS9.5 5 in 1-Build in SP1x2HMW SP1x2HMW BT 2.0 6CELL2.8 65W 1.0M DV Danish (KB.I140A.066) Danish
AS4810TG-
354G50Mn
EMEA Germany LX.PE10X.038 AS4810TG-354G50Mn VHP32ATDE1 MC M92LP512Css
2*2G/500_L/BT/6L2.8/5R/cb_n2_1.0D_AL_DE13
C2SSU3500B NLED14WXGAGS M92LP 512M-
DDR3
(64*16*4)
SO2GBIII10 SO2GBIII10 N500GB5.4KS NSM8XS9.5 5 in 1-Build in SP1x2HMW SP1x2HMW BT 2.0 6CELL2.8 65W 1.0M DV German (KB.I140A.069) Continental
AS4810TG-
354G50Mn
EMEA France LX.PE10X.037 AS4810TG-354G50Mn VHP32ATFR1 MC M92LP512Css
2*2G/500_L/BT/6L2.8/5R/cb_n2_1.0D_AL_FR23
C2SSU3500B NLED14WXGAGS M92LP 512M-
DDR3
(64*16*4)
SO2GBIII10 SO2GBIII10 N500GB5.4KS NSM8XS9.5 5 in 1-Build in SP1x2HMW SP1x2HMW BT 2.0 6CELL2.8 65W 1.0M DV French (KB.I140A.068) Continental
AS4810TG-
354G50Mn
EMEA Denmark LX.PE10X.036 AS4810TG-354G50Mn VHP32ATDK2 MC M92LP512Css
2*2G/500_L/BT/6L2.8/5R/cb_n2_1.0D_AL_ENS3
C2SSU3500B NLED14WXGAGS M92LP 512M-
DDR3
(64*16*4)
SO2GBIII10 SO2GBIII10 N500GB5.4KS NSM8XS9.5 5 in 1-Build in SP1x2HMW SP1x2HMW BT 2.0 6CELL2.8 65W 1.0M DV Nordic (KB.I140A.074) Danish/Continental
AS4810TG-
352G25Mn
AAP Thailand LX.PE10X.004 AS4810TG-352G25Mn EM VHP32ATTH1 MC M92LP512Css
1*2G/250/BT/6L2.8/5R/cb_n2_1.0D_AL_TH22
C2SSU3500B NLED14WXGAGS M92LP 512M-
DDR3
(64*16*4)
SO2GBIII10 N N250GB5.4KS NSM8XS9.5 5 in 1-Build in SP1x2HMW SP1x2HMW BT 2.0 6CELL2.8 65W 1.0M DV Thailand (KB.I140A.082) US-110V
AS4810TG-
352G32Mn
AAP Thailand LX.PE10X.005 AS4810TG-352G32Mn EM VHP32ATTH1 MC M92LP512Css
1*2G/320/BT/6L2.8/5R/cb_n2_1.0D_AL_TH22
C2SSU3500B NLED14WXGAGS M92LP 512M-
DDR3
(64*16*4)
SO2GBIII10 N N320GB5.4KS NSM8XS9.5 5 in 1-Build in SP1x2HMW SP1x2HMW BT 2.0 6CELL2.8 65W 1.0M DV Thailand (KB.I140A.082) US-110V
AS4810TG-
942G32Mn
AAP Thailand LX.PE10X.003 AS4810TG-942G32Mn EM VHP32ATTH1 MC M92LP512Css
1*2G/320/BT/6L2.8/5R/cb_n2_1.0D_AL_TH22
C2DSU9400B NLED14WXGAGS M92LP 512M-
DDR3
(64*16*4)
SO2GBIII10 N N320GB5.4KS NSM8XS9.5 5 in 1-Build in SP1x2HMW SP1x2HMW BT 2.0 6CELL2.8 65W 1.0M DV Thailand (KB.I140A.082) US-110V
AS4810TG-
944G32Mn
AAP Thailand LX.PE10X.002 AS4810TG-944G32Mn EM VHP32ATTH1 MC M92LP512Css
2*2G/320/BT/6L2.8/5R/cb_n2_1.0D_AL_TH22
C2DSU9400B NLED14WXGAGS M92LP 512M-
DDR3
(64*16*4)
SO2GBIII10 SO2GBIII10 N320GB5.4KS NSM8XS9.5 5 in 1-Build in SP1x2HMW SP1x2HMW BT 2.0 6CELL2.8 65W 1.0M DV Thailand (KB.I140A.082) US-110V
AS4810TG-
352G32Mn
TWN GCTWN LX.PE10Y.001 AS4810TG-352G32Mn VHB32ATTW1 MC
M92LP512Css_V3 1*2G/320/BT/6L2.8/5R/
cb_n2_1.0D_AL_TC11
C2SSU3500B NLED14WXGAGS M92LP 512M-
DDR3
(64*16*4)
SO2GBIII10 N N320GB5.4KS NSM8XS9.5 5 in 1-Build in SP1x2HMW SP1x2HMW BT 2.0 6CELL2.8 65W 1.0M DV Chinese (KB.I140A.065) US-110V (BSMI)
AS4810TG-
942G32Mn
TWN GCTWN LX.PE10X.001 AS4810TG-942G32Mn VHP32ATTW1 MC
M92LP512Css_V3 1*2G/320/BT/6L2.8/5R/
cb_n2_1.0D_AL_TC11
C2DSU9400B NLED14WXGAGS M92LP 512M-
DDR3
(64*16*4)
SO2GBIII10 N N320GB5.4KS NSM8XS9.5 5 in 1-Build in SP1x2HMW SP1x2HMW BT 2.0 6CELL2.8 65W 1.0M DV Chinese (KB.I140A.065) US-110V (BSMI)
AS4810TG-
942G32Mn
CHIN
A
Hong
Kong
LX.PE10Y.002 AS4810TG-942G32Mn VHB32ATHK2 MC M92LP512Css_V3
2*1G/320/6L2.8/5R/cb_n2_1.0D_AL_ZH31
C2DSU9400B NLED14WXGAGS M92LP 512M-
DDR3
(64*16*4)
SO1GBIII10 SO1GBIII10 N320GB5.4KS NSM8XS9.5 5 in 1-Build in SP1x2HMW SP1x2HMW N 6CELL2.8 65W 1.0M DV US International
(KB.I140A.085)
UK
Model RO Country Acer Part No Description CPU LCD VGA
Chip VRAM 1 Memory 1 Memory 2 HDD 1(GB) ODD Card Reader Wireless
LAN
Wireless
LAN1 Bluetooth Battery Adapter Camera K/B Power Cord
Appendix A 130
AS4810TG-
942G32Mn
CHIN
A
China LX.PE10Y.003 AS4810TG-942G32Mn VHB32ATCN1 MC M92LP512Css_V3
2*1G/320/6L2.8/5R/cb_n2_1.0D_AL_SC11
C2DSU9400B NLED14WXGAGS M92LP 512M-
DDR3
(64*16*4)
SO1GBIII10 SO1GBIII10 N320GB5.4KS NSM8XS9.5 5 in 1-Build in SP1x2HMW SP1x2HMW N 6CELL2.8 65W 1.0M DV US International
(KB.I140A.085)
PRC
AS4810TZG
-274G32Mn
EMEA South
Africa
LX.PE30X.040 AS4810TZG-274G32Mn EM VHP32ATZA2 MC
M92LP512Css 2*2G/320/6L2.8/5R/cb_bgn_1.0D_AL_EN16
PMSSU2700B NLED14WXGAGS M92LP 512M-
DDR3
(64*16*4)
SO2GBIII10 SO2GBIII10 N320GB5.4KS NSM8XS9.5 5 in 1-Build in 3rd WiFi 1x2
BGN
3rd WiFi 1x2
BGN
N 6CELL2.8 65W 1.0M DV US International
(KB.I140A.085)
AF
AS4810TZG
-274G32Mn
EMEA South
Africa
LX.PE30X.039 AS4810TZG-274G32Mn EM VHP32ATZA1 MC
M92LP512Css 2*2G/320/6L2.8/5R/cb_bgn_1.0D_AL_FR23
PMSSU2700B NLED14WXGAGS M92LP 512M-
DDR3
(64*16*4)
SO2GBIII10 SO2GBIII10 N320GB5.4KS NSM8XS9.5 5 in 1-Build in 3rd WiFi 1x2
BGN
3rd WiFi 1x2
BGN
N 6CELL2.8 65W 1.0M DV French (KB.I140A.068) Continental
AS4810TZG
-274G32Mn
EMEA South
Africa
LX.PE30X.041 AS4810TZG-274G32Mn EM VHP32ATZA4 MC
M92LP512Css 2*2G/320/6L2.8/5R/cb_bgn_1.0D_AL_ENI1
PMSSU2700B NLED14WXGAGS M92LP 512M-
DDR3
(64*16*4)
SO2GBIII10 SO2GBIII10 N320GB5.4KS NSM8XS9.5 5 in 1-Build in 3rd WiFi 1x2
BGN
3rd WiFi 1x2
BGN
N 6CELL2.8 65W 1.0M DV US International
(KB.I140A.085)
UK
AS4810TZG
-274G32Mn
EMEA Denmark LX.PE30X.042 AS4810TZG-274G32Mn VHP32ATDK1 MC M92LP512Css
2*2G/320/6L2.8/5R/cb_bgn_1.0D_AL_NO13
PMSSU2700B NLED14WXGAGS M92LP 512M-
DDR3
(64*16*4)
SO2GBIII10 SO2GBIII10 N320GB5.4KS NSM8XS9.5 5 in 1-Build in 3rd WiFi 1x2
BGN
3rd WiFi 1x2
BGN
N 6CELL2.8 65W 1.0M DV Danish (KB.I140A.066) Danish
AS4810TZG
-274G32Mn
EMEA Denmark LX.PE30X.038 AS4810TZG-274G32Mn VHP32ATDK2 MC M92LP512Css
2*2G/320/6L2.8/5R/cb_bgn_1.0D_AL_ENS3
PMSSU2700B NLED14WXGAGS M92LP 512M-
DDR3
(64*16*4)
SO2GBIII10 SO2GBIII10 N320GB5.4KS NSM8XS9.5 5 in 1-Build in 3rd WiFi 1x2
BGN
3rd WiFi 1x2
BGN
N 6CELL2.8 65W 1.0M DV Nordic (KB.I140A.074) Danish/Continental
AS4810TZG
-274G32Mn
EMEA France LX.PE30X.027 AS4810TZG-274G32Mn VHP32ATFR1 MC M92LP512Css
2*2G/320/6L2.8/5R/cb_bgn_1.0D_AL_FR23
PMSSU2700B NLED14WXGAGS M92LP 512M-
DDR3
(64*16*4)
SO2GBIII10 SO2GBIII10 N320GB5.4KS NSM8XS9.5 5 in 1-Build in 3rd WiFi 1x2
BGN
3rd WiFi 1x2
BGN
N 6CELL2.8 65W 1.0M DV French (KB.I140A.068) Continental
AS4810TZG
-274G32Mn
EMEA Germany LX.PE30X.028 AS4810TZG-274G32Mn VHP32ATDE1 MC M92LP512Css
2*2G/320/6L2.8/5R/cb_bgn_1.0D_AL_DE13
PMSSU2700B NLED14WXGAGS M92LP 512M-
DDR3
(64*16*4)
SO2GBIII10 SO2GBIII10 N320GB5.4KS NSM8XS9.5 5 in 1-Build in 3rd WiFi 1x2
BGN
3rd WiFi 1x2
BGN
N 6CELL2.8 65W 1.0M DV German (KB.I140A.069) Continental
AS4810TZG
-274G32Mn
EMEA Belgium LX.PE30X.029 AS4810TZG-274G32Mn VHP32ATBE1 MC M92LP512Css
2*2G/320/6L2.8/5R/cb_bgn_1.0D_AL_NL13
PMSSU2700B NLED14WXGAGS M92LP 512M-
DDR3
(64*16*4)
SO2GBIII10 SO2GBIII10 N320GB5.4KS NSM8XS9.5 5 in 1-Build in 3rd WiFi 1x2
BGN
3rd WiFi 1x2
BGN
N 6CELL2.8 65W 1.0M DV Belgium (KB.I140A.062) Continental
AS4810TZG
-274G32Mn
EMEA Holland LX.PE30X.030 AS4810TZG-274G32Mn VHP32ATNL1 MC M92LP512Css
2*2G/320/6L2.8/5R/cb_bgn_1.0D_AL_NL12
PMSSU2700B NLED14WXGAGS M92LP 512M-
DDR3
(64*16*4)
SO2GBIII10 SO2GBIII10 N320GB5.4KS NSM8XS9.5 5 in 1-Build in 3rd WiFi 1x2
BGN
3rd WiFi 1x2
BGN
N 6CELL2.8 65W 1.0M DV US International
(KB.I140A.085)
Continental
AS4810TZG
-274G32Mn
EMEA Luxembou
rg
LX.PE30X.031 AS4810TZG-274G32Mn VHP32ATLU3 MC M92LP512Css
2*2G/320/6L2.8/5R/cb_bgn_1.0D_AL_IT41
PMSSU2700B NLED14WXGAGS M92LP 512M-
DDR3
(64*16*4)
SO2GBIII10 SO2GBIII10 N320GB5.4KS NSM8XS9.5 5 in 1-Build in 3rd WiFi 1x2
BGN
3rd WiFi 1x2
BGN
N 6CELL2.8 65W 1.0M DV Swiss/G (KB.I140A.081) Continental
AS4810TZG
-274G32Mn
EMEA Norway LX.PE30X.032 AS4810TZG-274G32Mn VHP32ATNO1 MC M92LP512Css
2*2G/320/6L2.8/5R/cb_bgn_1.0D_AL_NO12
PMSSU2700B NLED14WXGAGS M92LP 512M-
DDR3
(64*16*4)
SO2GBIII10 SO2GBIII10 N320GB5.4KS NSM8XS9.5 5 in 1-Build in 3rd WiFi 1x2
BGN
3rd WiFi 1x2
BGN
N 6CELL2.8 65W 1.0M DV Norwegian (KB.I140A.075) Continental
AS4810TZG
-274G32Mn
EMEA Norway LX.PE30X.018 AS4810TZG-274G32Mn VHP32ATNO3 MC M92LP512Css
2*2G/320/6L2.8/5R/cb_bgn_1.0D_AL_ENS3
PMSSU2700B NLED14WXGAGS M92LP 512M-
DDR3
(64*16*4)
SO2GBIII10 SO2GBIII10 N320GB5.4KS NSM8XS9.5 5 in 1-Build in 3rd WiFi 1x2
BGN
3rd WiFi 1x2
BGN
N 6CELL2.8 65W 1.0M DV Nordic (KB.I140A.074) Danish/Continental
AS4810TZG
-274G32Mi
EMEA Russia LX.PE30X.019 AS4810TZG-274G32Mi VHP32ATRU1 MC M92LP512Css
2*2G/320/6L2.8/5R/cb_bg_1.0D_AL_RU11
PMSSU2700B NLED14WXGAGS M92LP 512M-
DDR3
(64*16*4)
SO2GBIII10 SO2GBIII10 N320GB5.4KS NSM8XS9.5 5 in 1-Build in 3rd WiFi 1x2
BGN
3rd WiFi BG N 6CELL2.8 65W 1.0M DV Russian (KB.I140A.077) Continental
AS4810TZG
-274G32Mn
EMEA Austria LX.PE30X.020 AS4810TZG-274G32Mn VHP32ATAT1 MC M92LP512Css
2*2G/320/6L2.8/5R/cb_bgn_1.0D_AL_DE11
PMSSU2700B NLED14WXGAGS M92LP 512M-
DDR3
(64*16*4)
SO2GBIII10 SO2GBIII10 N320GB5.4KS NSM8XS9.5 5 in 1-Build in 3rd WiFi 1x2
BGN
3rd WiFi 1x2
BGN
N 6CELL2.8 65W 1.0M DV German (KB.I140A.069) Continental
AS4810TZG
-274G32Mn
EMEA Sweden LX.PE30X.021 AS4810TZG-274G32Mn VHP32ATSE1 MC M92LP512Css
2*2G/320/6L2.8/5R/cb_bgn_1.0D_AL_FI13
PMSSU2700B NLED14WXGAGS M92LP 512M-
DDR3
(64*16*4)
SO2GBIII10 SO2GBIII10 N320GB5.4KS NSM8XS9.5 5 in 1-Build in 3rd WiFi 1x2
BGN
3rd WiFi 1x2
BGN
N 6CELL2.8 65W 1.0M DV Sweden (KB.I140A.080) Continental
AS4810TZG
-274G32Mn
EMEA Czech LX.PE30X.022 AS4810TZG-274G32Mn VHP32ATCZ2 MC M92LP512Css
2*2G/320/6L2.8/5R/cb_bgn_1.0D_AL_SK12
PMSSU2700B NLED14WXGAGS M92LP 512M-
DDR3
(64*16*4)
SO2GBIII10 SO2GBIII10 N320GB5.4KS NSM8XS9.5 5 in 1-Build in 3rd WiFi 1x2
BGN
3rd WiFi 1x2
BGN
N 6CELL2.8 65W 1.0M DV CZ/SK (KB.I140A.064) Continental
AS4810TZG
-274G32Mn
EMEA Eastern
Europe
LX.PE30X.023 AS4810TZG-274G32Mn VHP32ATEU7 MC M92LP512Css
2*2G/320/6L2.8/5R/cb_bgn_1.0D_AL_SL11
PMSSU2700B NLED14WXGAGS M92LP 512M-
DDR3
(64*16*4)
SO2GBIII10 SO2GBIII10 N320GB5.4KS NSM8XS9.5 5 in 1-Build in 3rd WiFi 1x2
BGN
3rd WiFi 1x2
BGN
N 6CELL2.8 65W 1.0M DV SLO/CRO (KB.I140A.078) Continental
AS4810TZG
-274G32Mn
EMEA Eastern
Europe
LX.PE30X.024 AS4810TZG-274G32Mn VHP32ATEU7 MC M92LP512Css
2*2G/320/6L2.8/5R/cb_bgn_1.0D_AL_ENR2
PMSSU2700B NLED14WXGAGS M92LP 512M-
DDR3
(64*16*4)
SO2GBIII10 SO2GBIII10 N320GB5.4KS NSM8XS9.5 5 in 1-Build in 3rd WiFi 1x2
BGN
3rd WiFi 1x2
BGN
N 6CELL2.8 65W 1.0M DV SLO/CRO (KB.I140A.078) Continental
AS4810TZG
-274G32Mn
EMEA Eastern
Europe
LX.PE30X.025 AS4810TZG-274G32Mn VHP32ATEU4 MC M92LP512Css
2*2G/320/6L2.8/5R/cb_bgn_1.0D_AL_SV22
PMSSU2700B NLED14WXGAGS M92LP 512M-
DDR3
(64*16*4)
SO2GBIII10 SO2GBIII10 N320GB5.4KS NSM8XS9.5 5 in 1-Build in 3rd WiFi 1x2
BGN
3rd WiFi 1x2
BGN
N 6CELL2.8 65W 1.0M DV Sweden (KB.I140A.080) Continental
AS4810TZG
-274G32Mn
EMEA Eastern
Europe
LX.PE30X.026 AS4810TZG-274G32Mn VHP32ATEU5 MC M92LP512Css
2*2G/320/6L2.8/5R/cb_bgn_1.0D_AL_PL13
PMSSU2700B NLED14WXGAGS M92LP 512M-
DDR3
(64*16*4)
SO2GBIII10 SO2GBIII10 N320GB5.4KS NSM8XS9.5 5 in 1-Build in 3rd WiFi 1x2
BGN
3rd WiFi 1x2
BGN
N 6CELL2.8 65W 1.0M DV US International
(KB.I140A.085)
Continental
AS4810TZG
-274G32Mn
EMEA Eastern
Europe
LX.PE30X.017 AS4810TZG-274G32Mn VHP32ATEU3 MC M92LP512Css
2*2G/320/6L2.8/5R/cb_bgn_1.0D_AL_RU23
PMSSU2700B NLED14WXGAGS M92LP 512M-
DDR3
(64*16*4)
SO2GBIII10 SO2GBIII10 N320GB5.4KS NSM8XS9.5 5 in 1-Build in 3rd WiFi 1x2
BGN
3rd WiFi 1x2
BGN
N 6CELL2.8 65W 1.0M DV Russian (KB.I140A.077) Continental
AS4810TZG
-274G32Mn
EMEA Eastern
Europe
LX.PE30X.033 AS4810TZG-274G32Mn VHP32ATEU5 MC M92LP512Css
2*2G/320/6L2.8/5R/cb_bgn_1.0D_AL_RO12
PMSSU2700B NLED14WXGAGS M92LP 512M-
DDR3
(64*16*4)
SO2GBIII10 SO2GBIII10 N320GB5.4KS NSM8XS9.5 5 in 1-Build in 3rd WiFi 1x2
BGN
3rd WiFi 1x2
BGN
N 6CELL2.8 65W 1.0M DV US International
(KB.I140A.085)
Continental
AS4810TZG
-274G32Mn
EMEA Finland LX.PE30X.016 AS4810TZG-274G32Mn VHP32ATFI2 MC M92LP512Css
2*2G/320/6L2.8/5R/cb_bgn_1.0D_AL_FI11
PMSSU2700B NLED14WXGAGS M92LP 512M-
DDR3
(64*16*4)
SO2GBIII10 SO2GBIII10 N320GB5.4KS NSM8XS9.5 5 in 1-Build in 3rd WiFi 1x2
BGN
3rd WiFi 1x2
BGN
N 6CELL2.8 65W 1.0M DV Sweden (KB.I140A.080) Continental
AS4810TZG
-274G32Mn
EMEA Hungary LX.PE30X.034 AS4810TZG-274G32Mn VHP32ATHU1 MC M92LP512Css
2*2G/320/6L2.8/5R/cb_bgn_1.0D_AL_HU13
PMSSU2700B NLED14WXGAGS M92LP 512M-
DDR3
(64*16*4)
SO2GBIII10 SO2GBIII10 N320GB5.4KS NSM8XS9.5 5 in 1-Build in 3rd WiFi 1x2
BGN
3rd WiFi 1x2
BGN
N 6CELL2.8 65W 1.0M DV Hungarian (KB.I140A.071) Continental
Model RO Country Acer Part No Description CPU LCD VGA
Chip VRAM 1 Memory 1 Memory 2 HDD 1(GB) ODD Card Reader Wireless
LAN
Wireless
LAN1 Bluetooth Battery Adapter Camera K/B Power Cord
131 Appendix A
AS4810TZG
-274G32Mn
EMEA Portugal LX.PE30X.015 AS4810TZG-274G32Mn VHP32ATPT1 MC M92LP512Css
2*2G/320/6L2.8/5R/cb_bgn_1.0D_AL_PT12
PMSSU2700B NLED14WXGAGS M92LP 512M-
DDR3
(64*16*4)
SO2GBIII10 SO2GBIII10 N320GB5.4KS NSM8XS9.5 5 in 1-Build in 3rd WiFi 1x2
BGN
3rd WiFi 1x2
BGN
N 6CELL2.8 65W 1.0M DV Portuguese (KB.I140A.076) Continental
AS4810TZG
-274G32Mn
EMEA Spain LX.PE30X.035 AS4810TZG-274G32Mn VHP32ATES1 MC M92LP512Css
2*2G/320/6L2.8/5R/cb_bgn_1.0D_AL_ES22
PMSSU2700B NLED14WXGAGS M92LP 512M-
DDR3
(64*16*4)
SO2GBIII10 SO2GBIII10 N320GB5.4KS NSM8XS9.5 5 in 1-Build in 3rd WiFi 1x2
BGN
3rd WiFi 1x2
BGN
N 6CELL2.8 65W 1.0M DV Spanish (KB.I140A.079) Continental
AS4810TZG
-274G32Mn
EMEA Greece LX.PE30X.014 AS4810TZG-274G32Mn VHP32ATGR1 MC M92LP512Css
2*2G/320/6L2.8/5R/cb_bgn_1.0D_AL_EL32
PMSSU2700B NLED14WXGAGS M92LP 512M-
DDR3
(64*16*4)
SO2GBIII10 SO2GBIII10 N320GB5.4KS NSM8XS9.5 5 in 1-Build in 3rd WiFi 1x2
BGN
3rd WiFi 1x2
BGN
N 6CELL2.8 65W 1.0M DV Greek (KB.I140A.070) Continental
AS4810TZG
-274G32Mn
EMEA Israel LX.PE30X.036 AS4810TZG-274G32Mn VHP32ATIL1 MC M92LP512Css
2*2G/320/6L2.8/5R/cb_bgn_1.0D_AL_HE12
PMSSU2700B NLED14WXGAGS M92LP 512M-
DDR3
(64*16*4)
SO2GBIII10 SO2GBIII10 N320GB5.4KS NSM8XS9.5 5 in 1-Build in 3rd WiFi 1x2
BGN
3rd WiFi 1x2
BGN
N 6CELL2.8 65W 1.0M DV US International w/ Hebrew
(KB.I140A.086)
Israel
AS4810TZG
-274G32Mn
EMEA Italy LX.PE30X.013 AS4810TZG-274G32Mn VHP32ATIT1 MC M92LP512Css
2*2G/320/6L2.8/5R/cb_bgn_1.0D_AL_IT12
PMSSU2700B NLED14WXGAGS M92LP 512M-
DDR3
(64*16*4)
SO2GBIII10 SO2GBIII10 N320GB5.4KS NSM8XS9.5 5 in 1-Build in 3rd WiFi 1x2
BGN
3rd WiFi 1x2
BGN
N 6CELL2.8 65W 1.0M DV Italian (KB.I140A.072) Italian
AS4810TZG
-274G32Mn
EMEA Middle
East
LX.PE30X.037 AS4810TZG-274G32Mn EM VHP32ATME9 MC
M92LP512Css 2*2G/320/6L2.8/5R/cb_bgn_1.0D_AL_FR22
PMSSU2700B NLED14WXGAGS M92LP 512M-
DDR3
(64*16*4)
SO2GBIII10 SO2GBIII10 N320GB5.4KS NSM8XS9.5 5 in 1-Build in 3rd WiFi 1x2
BGN
3rd WiFi 1x2
BGN
N 6CELL2.8 65W 1.0M DV FR/Arabic (KB.I140A.067) Continental
AS4810TZG
-274G32Mn
EMEA Middle
East
LX.PE30X.011 AS4810TZG-274G32Mn EM VHP32ATME6 MC
M92LP512Css 2*2G/320/6L2.8/5R/cb_bgn_1.0D_AL_EN15
PMSSU2700B NLED14WXGAGS M92LP 512M-
DDR3
(64*16*4)
SO2GBIII10 SO2GBIII10 N320GB5.4KS NSM8XS9.5 5 in 1-Build in 3rd WiFi 1x2
BGN
3rd WiFi 1x2
BGN
N 6CELL2.8 65W 1.0M DV US International
(KB.I140A.085)
UK
AS4810TZG
-274G32Mn
EMEA Middle
East
LX.PE30X.012 AS4810TZG-274G32Mn EM VHP32ATME2 MC
M92LP512Css 2*2G/320/6L2.8/5R/cb_bgn_1.0D_AL_EN15
PMSSU2700B NLED14WXGAGS M92LP 512M-
DDR3
(64*16*4)
SO2GBIII10 SO2GBIII10 N320GB5.4KS NSM8XS9.5 5 in 1-Build in 3rd WiFi 1x2
BGN
3rd WiFi 1x2
BGN
N 6CELL2.8 65W 1.0M DV Arabic (KB.I140A.061) UK and US-110V
AS4810TZG
-274G32Mn
EMEA Middle
East
LX.PE30X.010 AS4810TZG-274G32Mn EM VHP32ATME4 MC
M92LP512Css 2*2G/320/6L2.8/5R/cb_bgn_1.0D_AL_EN11
PMSSU2700B NLED14WXGAGS M92LP 512M-
DDR3
(64*16*4)
SO2GBIII10 SO2GBIII10 N320GB5.4KS NSM8XS9.5 5 in 1-Build in 3rd WiFi 1x2
BGN
3rd WiFi 1x2
BGN
N 6CELL2.8 65W 1.0M DV Russian (KB.I140A.077) Continental
AS4810TZG
-274G32Mn
EMEA Middle
East
LX.PE30X.009 AS4810TZG-274G32Mn EM VHP32ATME4 MC
M92LP512Css 2*2G/320/6L2.8/5R/cb_bgn_1.0D_AL_RU61
PMSSU2700B NLED14WXGAGS M92LP 512M-
DDR3
(64*16*4)
SO2GBIII10 SO2GBIII10 N320GB5.4KS NSM8XS9.5 5 in 1-Build in 3rd WiFi 1x2
BGN
3rd WiFi 1x2
BGN
N 6CELL2.8 65W 1.0M DV Russian (KB.I140A.077) Continental
AS4810TZG
-274G32Mn
EMEA Middle
East
LX.PE30X.002 AS4810TZG-274G32Mn EM VHP32ATME2 MC
M92LP512Css 2*2G/320/6L2.8/5R/cb_bgn_1.0D_AL_AR13
PMSSU2700B NLED14WXGAGS M92LP 512M-
DDR3
(64*16*4)
SO2GBIII10 SO2GBIII10 N320GB5.4KS NSM8XS9.5 5 in 1-Build in 3rd WiFi 1x2
BGN
3rd WiFi 1x2
BGN
N 6CELL2.8 65W 1.0M DV Arabic (KB.I140A.061) UK and US-110V
AS4810TZG
-274G32Mn
EMEA Middle
East
LX.PE30X.003 AS4810TZG-274G32Mn EM VHP32ATME3 MC
M92LP512Css 2*2G/320/6L2.8/5R/cb_bgn_1.0D_AL_FR23
PMSSU2700B NLED14WXGAGS M92LP 512M-
DDR3
(64*16*4)
SO2GBIII10 SO2GBIII10 N320GB5.4KS NSM8XS9.5 5 in 1-Build in 3rd WiFi 1x2
BGN
3rd WiFi 1x2
BGN
N 6CELL2.8 65W 1.0M DV French (KB.I140A.068) Continental
AS4810TZG
-274G32Mn
EMEA Middle
East
LX.PE30X.004 AS4810TZG-274G32Mn EM VHP32ATME2 MC
M92LP512Css 2*2G/320/6L2.8/5R/cb_bgn_1.0D_AL_AR23
PMSSU2700B NLED14WXGAGS M92LP 512M-
DDR3
(64*16*4)
SO2GBIII10 SO2GBIII10 N320GB5.4KS NSM8XS9.5 5 in 1-Build in 3rd WiFi 1x2
BGN
3rd WiFi 1x2
BGN
N 6CELL2.8 65W 1.0M DV Arabic (KB.I140A.061) UK and US-110V
AS4810TZG
-274G32Mn
EMEA Poland LX.PE30X.008 AS4810TZG-274G32Mn VHP32ATPL1 MC M92LP512Css
2*2G/320/6L2.8/5R/cb_bgn_1.0D_AL_PL11
PMSSU2700B NLED14WXGAGS M92LP 512M-
DDR3
(64*16*4)
SO2GBIII10 SO2GBIII10 N320GB5.4KS NSM8XS9.5 5 in 1-Build in 3rd WiFi 1x2
BGN
3rd WiFi 1x2
BGN
N 6CELL2.8 65W 1.0M DV US International
(KB.I140A.085)
Continental
AS4810TZG
-274G32Mn
EMEA Switzerlan
d
LX.PE30X.007 AS4810TZG-274G32Mn VHP32ATCH1 MC M92LP512Css
2*2G/320/6L2.8/5R/cb_bgn_1.0D_AL_IT42
PMSSU2700B NLED14WXGAGS M92LP 512M-
DDR3
(64*16*4)
SO2GBIII10 SO2GBIII10 N320GB5.4KS NSM8XS9.5 5 in 1-Build in 3rd WiFi 1x2
BGN
3rd WiFi 1x2
BGN
N 6CELL2.8 65W 1.0M DV Swiss/G (KB.I140A.081) Swiss
AS4810TZG
-274G32Mn
EMEA Turkey LX.PE30X.006 AS4810TZG-274G32Mn EM VHP32ATTR1 MC
M92LP512Css 2*2G/320/6L2.8/5R/cb_bgn_1.0D_AL_TR33
PMSSU2700B NLED14WXGAGS M92LP 512M-
DDR3
(64*16*4)
SO2GBIII10 SO2GBIII10 N320GB5.4KS NSM8XS9.5 5 in 1-Build in 3rd WiFi 1x2
BGN
3rd WiFi 1x2
BGN
N 6CELL2.8 65W 1.0M DV Turkish (KB.I140A.083) Continental
AS4810TZG
-274G32Mn
EMEA Ukraine LX.PE30X.005 AS4810TZG-274G32Mn VHP32ATUK1 MC M92LP512Css
2*2G/320/6L2.8/5R/cb_bgn_1.0D_AL_RU11
PMSSU2700B NLED14WXGAGS M92LP 512M-
DDR3
(64*16*4)
SO2GBIII10 SO2GBIII10 N320GB5.4KS NSM8XS9.5 5 in 1-Build in 3rd WiFi 1x2
BGN
3rd WiFi 1x2
BGN
N 6CELL2.8 65W 1.0M DV Russian (KB.I140A.077) Continental
AS4810TZG
-274G32Mn
EMEA UK LX.PE30X.001 AS4810TZG-274G32Mn VHP32ATGB1 MC M92LP512Css
2*2G/320/6L2.8/5R/cb_bgn_1.0D_AL_EN14
PMSSU2700B NLED14WXGAGS M92LP 512M-
DDR3
(64*16*4)
SO2GBIII10 SO2GBIII10 N320GB5.4KS NSM8XS9.5 5 in 1-Build in 3rd WiFi 1x2
BGN
3rd WiFi 1x2
BGN
N 6CELL2.8 65W 1.0M DV UK (KB.I140A.084) UK
AS4810TZ-
273G32Mn
EMEA Greece LX.PDN0X.126 AS4810TZ-273G32Mn VHP32ATGR1 MC UMACss 2G+1G/
320/6L2.8/5R/cb_bgn_1.0D_AL_EL32
PMSSU2700B NLED14WXGAGS UMA N SO2GBIII10 SO1GBIII10 N320GB5.4KS NSM8XS9.5 5 in 1-Build in 3rd WiFi 1x2
BGN
3rd WiFi 1x2
BGN
N 6CELL2.8 65W 1.0M DV Greek (KB.I140A.070) Continental
AS4810TZ-
273G32Mn
EMEA Middle
East
LX.PDN0X.118 AS4810TZ-273G32Mn EM VHP32ATME2 MC UMACss
2G+1G/320/6L2.8/5R/cb_bgn_1.0D_AL_EN15
PMSSU2700B NLED14WXGAGS UMA N SO2GBIII10 SO1GBIII10 N320GB5.4KS NSM8XS9.5 5 in 1-Build in 3rd WiFi 1x2
BGN
3rd WiFi 1x2
BGN
N 6CELL2.8 65W 1.0M DV Arabic (KB.I140A.061) UK and US-110V
AS4810TZ-
273G32Mn
EMEA Middle
East
LX.PDN0X.121 AS4810TZ-273G32Mn EM VHP32ATME6 MC UMACss
2G+1G/320/6L2.8/5R/cb_bgn_1.0D_AL_EN15
PMSSU2700B NLED14WXGAGS UMA N SO2GBIII10 SO1GBIII10 N320GB5.4KS NSM8XS9.5 5 in 1-Build in 3rd WiFi 1x2
BGN
3rd WiFi 1x2
BGN
N 6CELL2.8 65W 1.0M DV US International
(KB.I140A.085)
UK
AS4810TZ-
273G32Mn
EMEA Middle
East
LX.PDN0X.120 AS4810TZ-273G32Mn EM VHP32ATME4 MC UMACss
2G+1G/320/6L2.8/5R/cb_bgn_1.0D_AL_RU61
PMSSU2700B NLED14WXGAGS UMA N SO2GBIII10 SO1GBIII10 N320GB5.4KS NSM8XS9.5 5 in 1-Build in 3rd WiFi 1x2
BGN
3rd WiFi 1x2
BGN
N 6CELL2.8 65W 1.0M DV Russian (KB.I140A.077) Continental
AS4810TZ-
273G32Mn
EMEA Middle
East
LX.PDN0X.119 AS4810TZ-273G32Mn EM VHP32ATME4 MC UMACss
2G+1G/320/6L2.8/5R/cb_bgn_1.0D_AL_EN11
PMSSU2700B NLED14WXGAGS UMA N SO2GBIII10 SO1GBIII10 N320GB5.4KS NSM8XS9.5 5 in 1-Build in 3rd WiFi 1x2
BGN
3rd WiFi 1x2
BGN
N 6CELL2.8 65W 1.0M DV Russian (KB.I140A.077) Continental
AS4810TZ-
273G32Mn
EMEA Portugal LX.PDN0X.117 AS4810TZ-273G32Mn VHP32ATPT1 MC UMACss 2G+1G/
320/6L2.8/5R/cb_bgn_1.0D_AL_PT12
PMSSU2700B NLED14WXGAGS UMA N SO2GBIII10 SO1GBIII10 N320GB5.4KS NSM8XS9.5 5 in 1-Build in 3rd WiFi 1x2
BGN
3rd WiFi 1x2
BGN
N 6CELL2.8 65W 1.0M DV Portuguese (KB.I140A.076) Continental
AS4810TZ-
273G32Mn
EMEA Middle
East
LX.PDN0X.122 AS4810TZ-273G32Mn EM VHP32ATME9 MC UMACss
2G+1G/320/6L2.8/5R/cb_bgn_1.0D_AL_FR22
PMSSU2700B NLED14WXGAGS UMA N SO2GBIII10 SO1GBIII10 N320GB5.4KS NSM8XS9.5 5 in 1-Build in 3rd WiFi 1x2
BGN
3rd WiFi 1x2
BGN
N 6CELL2.8 65W 1.0M DV FR/Arabic (KB.I140A.067) Continental
AS4810TZ-
273G32Mn
EMEA South
Africa
LX.PDN0X.116 AS4810TZ-273G32Mn EM VHP32ATZA4 MC UMACss
2G+1G/320/6L2.8/5R/cb_bgn_1.0D_AL_ENI1
PMSSU2700B NLED14WXGAGS UMA N SO2GBIII10 SO1GBIII10 N320GB5.4KS NSM8XS9.5 5 in 1-Build in 3rd WiFi 1x2
BGN
3rd WiFi 1x2
BGN
N 6CELL2.8 65W 1.0M DV US International
(KB.I140A.085)
UK
AS4810TZ-
273G25Mn
EMEA Italy LX.PDN0X.133 AS4810TZ-273G25Mn VHP32ATIT1 MC UMACss 2G+1G/
250/BT/6L2.8/5R/cb_bgn_1.0D_AL_IT12
PMSSU2700B NLED14WXGAGS UMA N SO2GBIII10 SO1GBIII10 N250GB5.4KS NSM8XS9.5 5 in 1-Build in 3rd WiFi 1x2
BGN
3rd WiFi 1x2
BGN
BT 2.0 6CELL2.8 65W 1.0M DV Italian (KB.I140A.072) Italian
Model RO Country Acer Part No Description CPU LCD VGA
Chip VRAM 1 Memory 1 Memory 2 HDD 1(GB) ODD Card Reader Wireless
LAN
Wireless
LAN1 Bluetooth Battery Adapter Camera K/B Power Cord
Appendix A 132
AS4810TZ-
273G32Mn
EMEA South
Africa
LX.PDN0X.132 AS4810TZ-273G32Mn EM VHP32ATZA2 MC UMACss
2G+1G/320/6L2.8/5R/cb_bgn_1.0D_AL_EN16
PMSSU2700B NLED14WXGAGS UMA N SO2GBIII10 SO1GBIII10 N320GB5.4KS NSM8XS9.5 5 in 1-Build in 3rd WiFi 1x2
BGN
3rd WiFi 1x2
BGN
N 6CELL2.8 65W 1.0M DV US International
(KB.I140A.085)
AF
AS4810TZ-
273G32Mn
EMEA South
Africa
LX.PDN0X.131 AS4810TZ-273G32Mn EM VHP32ATZA1 MC UMACss
2G+1G/320/6L2.8/5R/cb_bgn_1.0D_AL_FR23
PMSSU2700B NLED14WXGAGS UMA N SO2GBIII10 SO1GBIII10 N320GB5.4KS NSM8XS9.5 5 in 1-Build in 3rd WiFi 1x2
BGN
3rd WiFi 1x2
BGN
N 6CELL2.8 65W 1.0M DV French (KB.I140A.068) Continental
AS4810TZ-
273G32Mn
EMEA Ukraine LX.PDN0X.130 AS4810TZ-273G32Mn VHP32ATUK1 MC UMACss 2G+1G/
320/6L2.8/5R/cb_bgn_1.0D_AL_RU11
PMSSU2700B NLED14WXGAGS UMA N SO2GBIII10 SO1GBIII10 N320GB5.4KS NSM8XS9.5 5 in 1-Build in 3rd WiFi 1x2
BGN
3rd WiFi 1x2
BGN
N 6CELL2.8 65W 1.0M DV Russian (KB.I140A.077) Continental
AS4810TZ-
273G32Mn
EMEA Turkey LX.PDN0X.129 AS4810TZ-273G32Mn EM VHP32ATTR1 MC UMACss
2G+1G/320/6L2.8/5R/cb_bgn_1.0D_AL_TR33
PMSSU2700B NLED14WXGAGS UMA N SO2GBIII10 SO1GBIII10 N320GB5.4KS NSM8XS9.5 5 in 1-Build in 3rd WiFi 1x2
BGN
3rd WiFi 1x2
BGN
N 6CELL2.8 65W 1.0M DV Turkish (KB.I140A.083) Continental
AS4810TZ-
273G32Mn
EMEA Sweden LX.PDN0X.128 AS4810TZ-273G32Mn VHP32ATSE1 MC UMACss 2G+1G/
320/6L2.8/5R/cb_bgn_1.0D_AL_FI13
PMSSU2700B NLED14WXGAGS UMA N SO2GBIII10 SO1GBIII10 N320GB5.4KS NSM8XS9.5 5 in 1-Build in 3rd WiFi 1x2
BGN
3rd WiFi 1x2
BGN
N 6CELL2.8 65W 1.0M DV Sweden (KB.I140A.080) Continental
AS4810TZ-
273G32Mi
EMEA Russia LX.PDN0X.127 AS4810TZ-273G32Mi VHP32ATRU1 MC UMACss 2G+1G/
320/6L2.8/5R/cb_bg_1.0D_AL_RU11
PMSSU2700B NLED14WXGAGS UMA N SO2GBIII10 SO1GBIII10 N320GB5.4KS NSM8XS9.5 5 in 1-Build in 3rd WiFi 1x2
BGN
3rd WiFi BG N 6CELL2.8 65W 1.0M DV Russian (KB.I140A.077) Continental
AS4810TZ-
273G32Mn
EMEA Poland LX.PDN0X.125 AS4810TZ-273G32Mn VHP32ATPL1 MC UMACss 2G+1G/
320/6L2.8/5R/cb_bgn_1.0D_AL_PL11
PMSSU2700B NLED14WXGAGS UMA N SO2GBIII10 SO1GBIII10 N320GB5.4KS NSM8XS9.5 5 in 1-Build in 3rd WiFi 1x2
BGN
3rd WiFi 1x2
BGN
N 6CELL2.8 65W 1.0M DV US International
(KB.I140A.085)
Continental
AS4810TZ-
273G32Mn
EMEA Norway LX.PDN0X.124 AS4810TZ-273G32Mn VHP32ATNO1 MC UMACss 2G+1G/
320/6L2.8/5R/cb_bgn_1.0D_AL_NO12
PMSSU2700B NLED14WXGAGS UMA N SO2GBIII10 SO1GBIII10 N320GB5.4KS NSM8XS9.5 5 in 1-Build in 3rd WiFi 1x2
BGN
3rd WiFi 1x2
BGN
N 6CELL2.8 65W 1.0M DV Norwegian (KB.I140A.075) Continental
AS4810TZ-
273G32Mn
EMEA Holland LX.PDN0X.123 AS4810TZ-273G32Mn VHP32ATNL1 MC UMACss 2G+1G/
320/6L2.8/5R/cb_bgn_1.0D_AL_NL12
PMSSU2700B NLED14WXGAGS UMA N SO2GBIII10 SO1GBIII10 N320GB5.4KS NSM8XS9.5 5 in 1-Build in 3rd WiFi 1x2
BGN
3rd WiFi 1x2
BGN
N 6CELL2.8 65W 1.0M DV US International
(KB.I140A.085)
Continental
AS4810TZ-
273G32Mn
EMEA Finland LX.PDN0X.107 AS4810TZ-273G32Mn VHP32ATFI2 MC UMACss 2G+1G/
320/6L2.8/5R/cb_bgn_1.0D_AL_FI11
PMSSU2700B NLED14WXGAGS UMA N SO2GBIII10 SO1GBIII10 N320GB5.4KS NSM8XS9.5 5 in 1-Build in 3rd WiFi 1x2
BGN
3rd WiFi 1x2
BGN
N 6CELL2.8 65W 1.0M DV Sweden (KB.I140A.080) Continental
AS4810TZ-
273G32Mn
EMEA Eastern
Europe
LX.PDN0X.108 AS4810TZ-273G32Mn VHP32ATEU7 MC UMACss 2G+1G/
320/6L2.8/5R/cb_bgn_1.0D_AL_SL11
PMSSU2700B NLED14WXGAGS UMA N SO2GBIII10 SO1GBIII10 N320GB5.4KS NSM8XS9.5 5 in 1-Build in 3rd WiFi 1x2
BGN
3rd WiFi 1x2
BGN
N 6CELL2.8 65W 1.0M DV SLO/CRO (KB.I140A.078) Continental
AS4810TZ-
273G32Mn
EMEA Eastern
Europe
LX.PDN0X.109 AS4810TZ-273G32Mn VHP32ATEU7 MC UMACss 2G+1G/
320/6L2.8/5R/cb_bgn_1.0D_AL_ENR2
PMSSU2700B NLED14WXGAGS UMA N SO2GBIII10 SO1GBIII10 N320GB5.4KS NSM8XS9.5 5 in 1-Build in 3rd WiFi 1x2
BGN
3rd WiFi 1x2
BGN
N 6CELL2.8 65W 1.0M DV SLO/CRO (KB.I140A.078) Continental
AS4810TZ-
273G32Mn
EMEA Eastern
Europe
LX.PDN0X.110 AS4810TZ-273G32Mn VHP32ATEU5 MC UMACss 2G+1G/
320/6L2.8/5R/cb_bgn_1.0D_AL_RO12
PMSSU2700B NLED14WXGAGS UMA N SO2GBIII10 SO1GBIII10 N320GB5.4KS NSM8XS9.5 5 in 1-Build in 3rd WiFi 1x2
BGN
3rd WiFi 1x2
BGN
N 6CELL2.8 65W 1.0M DV US International
(KB.I140A.085)
Continental
AS4810TZ-
273G32Mn
EMEA Eastern
Europe
LX.PDN0X.111 AS4810TZ-273G32Mn VHP32ATEU5 MC UMACss 2G+1G/
320/6L2.8/5R/cb_bgn_1.0D_AL_PL13
PMSSU2700B NLED14WXGAGS UMA N SO2GBIII10 SO1GBIII10 N320GB5.4KS NSM8XS9.5 5 in 1-Build in 3rd WiFi 1x2
BGN
3rd WiFi 1x2
BGN
N 6CELL2.8 65W 1.0M DV US International
(KB.I140A.085)
Continental
AS4810TZ-
273G32Mn
EMEA Eastern
Europe
LX.PDN0X.112 AS4810TZ-273G32Mn VHP32ATEU4 MC UMACss 2G+1G/
320/6L2.8/5R/cb_bgn_1.0D_AL_SV22
PMSSU2700B NLED14WXGAGS UMA N SO2GBIII10 SO1GBIII10 N320GB5.4KS NSM8XS9.5 5 in 1-Build in 3rd WiFi 1x2
BGN
3rd WiFi 1x2
BGN
N 6CELL2.8 65W 1.0M DV Sweden (KB.I140A.080) Continental
AS4810TZ-
273G32Mn
EMEA Denmark LX.PDN0X.113 AS4810TZ-273G32Mn VHP32ATDK2 MC UMACss 2G+1G/
320/6L2.8/5R/cb_bgn_1.0D_AL_ENS3
PMSSU2700B NLED14WXGAGS UMA N SO2GBIII10 SO1GBIII10 N320GB5.4KS NSM8XS9.5 5 in 1-Build in 3rd WiFi 1x2
BGN
3rd WiFi 1x2
BGN
N 6CELL2.8 65W 1.0M DV Nordic (KB.I140A.074) Danish/Continental
AS4810TZ-
273G32Mn
EMEA Denmark LX.PDN0X.114 AS4810TZ-273G32Mn VHP32ATDK1 MC UMACss 2G+1G/
320/6L2.8/5R/cb_bgn_1.0D_AL_NO13
PMSSU2700B NLED14WXGAGS UMA N SO2GBIII10 SO1GBIII10 N320GB5.4KS NSM8XS9.5 5 in 1-Build in 3rd WiFi 1x2
BGN
3rd WiFi 1x2
BGN
N 6CELL2.8 65W 1.0M DV Danish (KB.I140A.066) Danish
AS4810TZ-
273G32Mn
EMEA Germany LX.PDN0X.115 AS4810TZ-273G32Mn VHP32ATDE1 MC UMACss 2G+1G/
320/6L2.8/5R/cb_bgn_1.0D_AL_DE13
PMSSU2700B NLED14WXGAGS UMA N SO2GBIII10 SO1GBIII10 N320GB5.4KS NSM8XS9.5 5 in 1-Build in 3rd WiFi 1x2
BGN
3rd WiFi 1x2
BGN
N 6CELL2.8 65W 1.0M DV German (KB.I140A.069) Continental
AS4810TZ-
273G32Mn
EMEA France LX.PDN0X.106 AS4810TZ-273G32Mn VHP32ATFR1 MC UMACss 2G+1G/
320/6L2.8/5R/cb_bgn_1.0D_AL_FR23
PMSSU2700B NLED14WXGAGS UMA N SO2GBIII10 SO1GBIII10 N320GB5.4KS NSM8XS9.5 5 in 1-Build in 3rd WiFi 1x2
BGN
3rd WiFi 1x2
BGN
N 6CELL2.8 65W 1.0M DV French (KB.I140A.068) Continental
AS4810TZ-
273G32Mn
EMEA Hungary LX.PDN0X.105 AS4810TZ-273G32Mn VHP32ATHU1 MC UMACss 2G+1G/
320/6L2.8/5R/cb_bgn_1.0D_AL_HU13
PMSSU2700B NLED14WXGAGS UMA N SO2GBIII10 SO1GBIII10 N320GB5.4KS NSM8XS9.5 5 in 1-Build in 3rd WiFi 1x2
BGN
3rd WiFi 1x2
BGN
N 6CELL2.8 65W 1.0M DV Hungarian (KB.I140A.071) Continental
AS4810TZ-
273G32Mn
EMEA Italy LX.PDN0X.103 AS4810TZ-273G32Mn VHP32ATIT1 MC UMACss 2G+1G/
320/6L2.8/5R/cb_bgn_1.0D_AL_IT12
PMSSU2700B NLED14WXGAGS UMA N SO2GBIII10 SO1GBIII10 N320GB5.4KS NSM8XS9.5 5 in 1-Build in 3rd WiFi 1x2
BGN
3rd WiFi 1x2
BGN
N 6CELL2.8 65W 1.0M DV Italian (KB.I140A.072) Italian
AS4810TZ-
273G32Mn
EMEA Middle
East
LX.PDN0X.099 AS4810TZ-273G32Mn EM VHP32ATME2 MC UMACss
2G+1G/320/6L2.8/5R/cb_bgn_1.0D_AL_AR23
PMSSU2700B NLED14WXGAGS UMA N SO2GBIII10 SO1GBIII10 N320GB5.4KS NSM8XS9.5 5 in 1-Build in 3rd WiFi 1x2
BGN
3rd WiFi 1x2
BGN
N 6CELL2.8 65W 1.0M DV Arabic (KB.I140A.061) UK and US-110V
AS4810TZ-
273G32Mn
EMEA Middle
East
LX.PDN0X.101 AS4810TZ-273G32Mn EM VHP32ATME2 MC UMACss
2G+1G/320/6L2.8/5R/cb_bgn_1.0D_AL_AR13
PMSSU2700B NLED14WXGAGS UMA N SO2GBIII10 SO1GBIII10 N320GB5.4KS NSM8XS9.5 5 in 1-Build in 3rd WiFi 1x2
BGN
3rd WiFi 1x2
BGN
N 6CELL2.8 65W 1.0M DV Arabic (KB.I140A.061) UK and US-110V
AS4810TZ-
273G32Mn
EMEA Luxembou
rg
LX.PDN0X.102 AS4810TZ-273G32Mn VHP32ATLU3 MC UMACss 2G+1G/
320/6L2.8/5R/cb_bgn_1.0D_AL_IT41
PMSSU2700B NLED14WXGAGS UMA N SO2GBIII10 SO1GBIII10 N320GB5.4KS NSM8XS9.5 5 in 1-Build in 3rd WiFi 1x2
BGN
3rd WiFi 1x2
BGN
N 6CELL2.8 65W 1.0M DV Swiss/G (KB.I140A.081) Continental
AS4810TZ-
273G32Mn
EMEA Israel LX.PDN0X.104 AS4810TZ-273G32Mn VHP32ATIL1 MC UMACss 2G+1G/
320/6L2.8/5R/cb_bgn_1.0D_AL_HE12
PMSSU2700B NLED14WXGAGS UMA N SO2GBIII10 SO1GBIII10 N320GB5.4KS NSM8XS9.5 5 in 1-Build in 3rd WiFi 1x2
BGN
3rd WiFi 1x2
BGN
N 6CELL2.8 65W 1.0M DV US International w/ Hebrew
(KB.I140A.086)
Israel
AS4810TZ-
273G32Mn
EMEA South
Africa
LX.PDN0X.075 AS4810TZ-273G32Mn EM VHP32ATZA2 MC UMACss
2G+1G/320/6L2.8/5R/cb_bgn_1.0D_AL_EN16
PMSSU2700B NLED14WXGAGS UMA N SO2GBIII10 SO1GBIII10 N320GB5.4KS NSM8XS9.5 5 in 1-Build in 3rd WiFi 1x2
BGN
3rd WiFi 1x2
BGN
N 6CELL2.8 65W 1.0M DV US International
(KB.I140A.085)
AF
AS4810TZ-
273G32Mn
EMEA South
Africa
LX.PDN0X.076 AS4810TZ-273G32Mn EM VHP32ATZA1 MC UMACss
2G+1G/320/6L2.8/5R/cb_bgn_1.0D_AL_FR23
PMSSU2700B NLED14WXGAGS UMA N SO2GBIII10 SO1GBIII10 N320GB5.4KS NSM8XS9.5 5 in 1-Build in 3rd WiFi 1x2
BGN
3rd WiFi 1x2
BGN
N 6CELL2.8 65W 1.0M DV French (KB.I140A.068) Continental
AS4810TZ-
273G32Mn
EMEA Denmark LX.PDN0X.078 AS4810TZ-273G32Mn VHP32ATDK1 MC UMACss 2G+1G/
320/6L2.8/5R/cb_bgn_1.0D_AL_NO13
PMSSU2700B NLED14WXGAGS UMA N SO2GBIII10 SO1GBIII10 N320GB5.4KS NSM8XS9.5 5 in 1-Build in 3rd WiFi 1x2
BGN
3rd WiFi 1x2
BGN
N 6CELL2.8 65W 1.0M DV Danish (KB.I140A.066) Danish
AS4810TZ-
273G32Mn
EMEA Germany LX.PDN0X.081 AS4810TZ-273G32Mn VHP32ATDE1 MC UMACss 2G+1G/
320/6L2.8/5R/cb_bgn_1.0D_AL_DE13
PMSSU2700B NLED14WXGAGS UMA N SO2GBIII10 SO1GBIII10 N320GB5.4KS NSM8XS9.5 5 in 1-Build in 3rd WiFi 1x2
BGN
3rd WiFi 1x2
BGN
N 6CELL2.8 65W 1.0M DV German (KB.I140A.069) Continental
AS4810TZ-
273G32Mn
EMEA France LX.PDN0X.080 AS4810TZ-273G32Mn VHP32ATFR1 MC UMACss 2G+1G/
320/6L2.8/5R/cb_bgn_1.0D_AL_FR23
PMSSU2700B NLED14WXGAGS UMA N SO2GBIII10 SO1GBIII10 N320GB5.4KS NSM8XS9.5 5 in 1-Build in 3rd WiFi 1x2
BGN
3rd WiFi 1x2
BGN
N 6CELL2.8 65W 1.0M DV French (KB.I140A.068) Continental
AS4810TZ-
273G32Mn
EMEA Denmark LX.PDN0X.079 AS4810TZ-273G32Mn VHP32ATDK2 MC UMACss 2G+1G/
320/6L2.8/5R/cb_bgn_1.0D_AL_ENS3
PMSSU2700B NLED14WXGAGS UMA N SO2GBIII10 SO1GBIII10 N320GB5.4KS NSM8XS9.5 5 in 1-Build in 3rd WiFi 1x2
BGN
3rd WiFi 1x2
BGN
N 6CELL2.8 65W 1.0M DV Nordic (KB.I140A.074) Danish/Continental
AS4810TZ-
273G32Mn
EMEA South
Africa
LX.PDN0X.077 AS4810TZ-273G32Mn EM VHP32ATZA4 MC UMACss
2G+1G/320/6L2.8/5R/cb_bgn_1.0D_AL_ENI1
PMSSU2700B NLED14WXGAGS UMA N SO2GBIII10 SO1GBIII10 N320GB5.4KS NSM8XS9.5 5 in 1-Build in 3rd WiFi 1x2
BGN
3rd WiFi 1x2
BGN
N 6CELL2.8 65W 1.0M DV US International
(KB.I140A.085)
UK
AS4810TZ-
273G32Mn
EMEA Belgium LX.PDN0X.082 AS4810TZ-273G32Mn VHP32ATBE1 MC UMACss 2G+1G/
320/6L2.8/5R/cb_bgn_1.0D_AL_NL13
PMSSU2700B NLED14WXGAGS UMA N SO2GBIII10 SO1GBIII10 N320GB5.4KS NSM8XS9.5 5 in 1-Build in 3rd WiFi 1x2
BGN
3rd WiFi 1x2
BGN
N 6CELL2.8 65W 1.0M DV Belgium (KB.I140A.062) Continental
Model RO Country Acer Part No Description CPU LCD VGA
Chip VRAM 1 Memory 1 Memory 2 HDD 1(GB) ODD Card Reader Wireless
LAN
Wireless
LAN1 Bluetooth Battery Adapter Camera K/B Power Cord
Appendix A 133
AS4810TZ-
273G32Mn
EMEA Middle
East
LX.PDN0X.070 AS4810TZ-273G32Mn EM VHP32ATME4 MC UMACss
2G+1G/320/6L2.8/5R/cb_bgn_1.0D_AL_RU61
PMSSU2700B NLED14WXGAGS UMA N SO2GBIII10 SO1GBIII10 N320GB5.4KS NSM8XS9.5 5 in 1-Build in 3rd WiFi 1x2
BGN
3rd WiFi 1x2
BGN
N 6CELL2.8 65W 1.0M DV Russian (KB.I140A.077) Continental
AS4810TZ-
273G32Mn
EMEA Middle
East
LX.PDN0X.066 AS4810TZ-273G32Mn EM VHP32ATME2 MC UMACss
2G+1G/320/6L2.8/5R/cb_bgn_1.0D_AL_EN15
PMSSU2700B NLED14WXGAGS UMA N SO2GBIII10 SO1GBIII10 N320GB5.4KS NSM8XS9.5 5 in 1-Build in 3rd WiFi 1x2
BGN
3rd WiFi 1x2
BGN
N 6CELL2.8 65W 1.0M DV Arabic (KB.I140A.061) UK and US-110V
AS4810TZ-
273G32Mn
EMEA Middle
East
LX.PDN0X.065 AS4810TZ-273G32Mn EM VHP32ATME6 MC UMACss
2G+1G/320/6L2.8/5R/cb_bgn_1.0D_AL_EN15
PMSSU2700B NLED14WXGAGS UMA N SO2GBIII10 SO1GBIII10 N320GB5.4KS NSM8XS9.5 5 in 1-Build in 3rd WiFi 1x2
BGN
3rd WiFi 1x2
BGN
N 6CELL2.8 65W 1.0M DV US International
(KB.I140A.085)
UK
AS4810TZ-
273G32Mn
EMEA Czech LX.PDN0X.098 AS4810TZ-273G32Mn VHP32ATCZ2 MC UMACss 2G+1G/
320/6L2.8/5R/cb_bgn_1.0D_AL_SK12
PMSSU2700B NLED14WXGAGS UMA N SO2GBIII10 SO1GBIII10 N320GB5.4KS NSM8XS9.5 5 in 1-Build in 3rd WiFi 1x2
BGN
3rd WiFi 1x2
BGN
N 6CELL2.8 65W 1.0M DV CZ/SK (KB.I140A.064) Continental
AS4810TZ-
273G32Mn
EMEA Middle
East
LX.PDN0X.064 AS4810TZ-273G32Mn EM VHP32ATME9 MC UMACss
2G+1G/320/6L2.8/5R/cb_bgn_1.0D_AL_FR22
PMSSU2700B NLED14WXGAGS UMA N SO2GBIII10 SO1GBIII10 N320GB5.4KS NSM8XS9.5 5 in 1-Build in 3rd WiFi 1x2
BGN
3rd WiFi 1x2
BGN
N 6CELL2.8 65W 1.0M DV FR/Arabic (KB.I140A.067) Continental
AS4810TZ-
273G32Mn
EMEA Italy LX.PDN0X.063 AS4810TZ-273G32Mn VHP32ATIT1 MC UMACss 2G+1G/
320/6L2.8/5R/cb_bgn_1.0D_AL_IT12
PMSSU2700B NLED14WXGAGS UMA N SO2GBIII10 SO1GBIII10 N320GB5.4KS NSM8XS9.5 5 in 1-Build in 3rd WiFi 1x2
BGN
3rd WiFi 1x2
BGN
N 6CELL2.8 65W 1.0M DV Italian (KB.I140A.072) Italian
AS4810TZ-
273G32Mn
EMEA Israel LX.PDN0X.062 AS4810TZ-273G32Mn VHP32ATIL1 MC UMACss 2G+1G/
320/6L2.8/5R/cb_bgn_1.0D_AL_HE12
PMSSU2700B NLED14WXGAGS UMA N SO2GBIII10 SO1GBIII10 N320GB5.4KS NSM8XS9.5 5 in 1-Build in 3rd WiFi 1x2
BGN
3rd WiFi 1x2
BGN
N 6CELL2.8 65W 1.0M DV US International w/ Hebrew
(KB.I140A.086)
Israel
AS4810TZ-
273G32Mn
EMEA Greece LX.PDN0X.061 AS4810TZ-273G32Mn VHP32ATGR1 MC UMACss 2G+1G/
320/6L2.8/5R/cb_bgn_1.0D_AL_EL32
PMSSU2700B NLED14WXGAGS UMA N SO2GBIII10 SO1GBIII10 N320GB5.4KS NSM8XS9.5 5 in 1-Build in 3rd WiFi 1x2
BGN
3rd WiFi 1x2
BGN
N 6CELL2.8 65W 1.0M DV Greek (KB.I140A.070) Continental
AS4810TZ-
273G32Mn
EMEA Eastern
Europe
LX.PDN0X.090 AS4810TZ-273G32Mn VHP32ATEU7 MC UMACss 2G+1G/
320/6L2.8/5R/cb_bgn_1.0D_AL_SL11
PMSSU2700B NLED14WXGAGS UMA N SO2GBIII10 SO1GBIII10 N320GB5.4KS NSM8XS9.5 5 in 1-Build in 3rd WiFi 1x2
BGN
3rd WiFi 1x2
BGN
N 6CELL2.8 65W 1.0M DV SLO/CRO (KB.I140A.078) Continental
AS4810TZ-
273G32Mn
EMEA Czech LX.PDN0X.074 AS4810TZ-273G32Mn VHP32ATCZ2 MC UMACss 2G+1G/
320/6L2.8/5R/cb_bgn_1.0D_AL_SK12
PMSSU2700B NLED14WXGAGS UMA N SO2GBIII10 SO1GBIII10 N320GB5.4KS NSM8XS9.5 5 in 1-Build in 3rd WiFi 1x2
BGN
3rd WiFi 1x2
BGN
N 6CELL2.8 65W 1.0M DV CZ/SK (KB.I140A.064) Continental
AS4810TZ-
273G32Mn
EMEA Sweden LX.PDN0X.089 AS4810TZ-273G32Mn VHP32ATSE1 MC UMACss 2G+1G/
320/6L2.8/5R/cb_bgn_1.0D_AL_FI13
PMSSU2700B NLED14WXGAGS UMA N SO2GBIII10 SO1GBIII10 N320GB5.4KS NSM8XS9.5 5 in 1-Build in 3rd WiFi 1x2
BGN
3rd WiFi 1x2
BGN
N 6CELL2.8 65W 1.0M DV Sweden (KB.I140A.080) Continental
AS4810TZ-
273G32Mn
EMEA Austria LX.PDN0X.088 AS4810TZ-273G32Mn VHP32ATAT1 MC UMACss 2G+1G/
320/6L2.8/5R/cb_bgn_1.0D_AL_DE11
PMSSU2700B NLED14WXGAGS UMA N SO2GBIII10 SO1GBIII10 N320GB5.4KS NSM8XS9.5 5 in 1-Build in 3rd WiFi 1x2
BGN
3rd WiFi 1x2
BGN
N 6CELL2.8 65W 1.0M DV German (KB.I140A.069) Continental
AS4810TZ-
273G32Mi
EMEA Russia LX.PDN0X.087 AS4810TZ-273G32Mi VHP32ATRU1 MC UMACss 2G+1G/
320/6L2.8/5R/cb_bg_1.0D_AL_RU11
PMSSU2700B NLED14WXGAGS UMA N SO2GBIII10 SO1GBIII10 N320GB5.4KS NSM8XS9.5 5 in 1-Build in 3rd WiFi 1x2
BGN
3rd WiFi BG N 6CELL2.8 65W 1.0M DV Russian (KB.I140A.077) Continental
AS4810TZ-
273G32Mn
EMEA Norway LX.PDN0X.086 AS4810TZ-273G32Mn VHP32ATNO3 MC UMACss 2G+1G/
320/6L2.8/5R/cb_bgn_1.0D_AL_ENS3
PMSSU2700B NLED14WXGAGS UMA N SO2GBIII10 SO1GBIII10 N320GB5.4KS NSM8XS9.5 5 in 1-Build in 3rd WiFi 1x2
BGN
3rd WiFi 1x2
BGN
N 6CELL2.8 65W 1.0M DV Nordic (KB.I140A.074) Danish/Continental
AS4810TZ-
273G32Mn
EMEA Norway LX.PDN0X.085 AS4810TZ-273G32Mn VHP32ATNO1 MC UMACss 2G+1G/
320/6L2.8/5R/cb_bgn_1.0D_AL_NO12
PMSSU2700B NLED14WXGAGS UMA N SO2GBIII10 SO1GBIII10 N320GB5.4KS NSM8XS9.5 5 in 1-Build in 3rd WiFi 1x2
BGN
3rd WiFi 1x2
BGN
N 6CELL2.8 65W 1.0M DV Norwegian (KB.I140A.075) Continental
AS4810TZ-
273G32Mn
EMEA Luxembou
rg
LX.PDN0X.084 AS4810TZ-273G32Mn VHP32ATLU3 MC UMACss 2G+1G/
320/6L2.8/5R/cb_bgn_1.0D_AL_IT41
PMSSU2700B NLED14WXGAGS UMA N SO2GBIII10 SO1GBIII10 N320GB5.4KS NSM8XS9.5 5 in 1-Build in 3rd WiFi 1x2
BGN
3rd WiFi 1x2
BGN
N 6CELL2.8 65W 1.0M DV Swiss/G (KB.I140A.081) Continental
AS4810TZ-
273G32Mn
EMEA Holland LX.PDN0X.083 AS4810TZ-273G32Mn VHP32ATNL1 MC UMACss 2G+1G/
320/6L2.8/5R/cb_bgn_1.0D_AL_NL12
PMSSU2700B NLED14WXGAGS UMA N SO2GBIII10 SO1GBIII10 N320GB5.4KS NSM8XS9.5 5 in 1-Build in 3rd WiFi 1x2
BGN
3rd WiFi 1x2
BGN
N 6CELL2.8 65W 1.0M DV US International
(KB.I140A.085)
Continental
AS4810TZ-
273G32Mn
EMEA Switzerlan
d
LX.PDN0X.091 AS4810TZ-273G32Mn VHP32ATCH1 MC UMACss 2G+1G/
320/6L2.8/5R/cb_bgn_1.0D_AL_IT42
PMSSU2700B NLED14WXGAGS UMA N SO2GBIII10 SO1GBIII10 N320GB5.4KS NSM8XS9.5 5 in 1-Build in 3rd WiFi 1x2
BGN
3rd WiFi 1x2
BGN
N 6CELL2.8 65W 1.0M DV Swiss/G (KB.I140A.081) Swiss
AS4810TZ-
273G32Mn
EMEA Belgium LX.PDN0X.092 AS4810TZ-273G32Mn VHP32ATBE1 MC UMACss 2G+1G/
320/6L2.8/5R/cb_bgn_1.0D_AL_NL13
PMSSU2700B NLED14WXGAGS UMA N SO2GBIII10 SO1GBIII10 N320GB5.4KS NSM8XS9.5 5 in 1-Build in 3rd WiFi 1x2
BGN
3rd WiFi 1x2
BGN
N 6CELL2.8 65W 1.0M DV Belgium (KB.I140A.062) Continental
AS4810TZ-
273G32Mn
EMEA Austria LX.PDN0X.093 AS4810TZ-273G32Mn VHP32ATAT1 MC UMACss 2G+1G/
320/6L2.8/5R/cb_bgn_1.0D_AL_DE11
PMSSU2700B NLED14WXGAGS UMA N SO2GBIII10 SO1GBIII10 N320GB5.4KS NSM8XS9.5 5 in 1-Build in 3rd WiFi 1x2
BGN
3rd WiFi 1x2
BGN
N 6CELL2.8 65W 1.0M DV German (KB.I140A.069) Continental
AS4810TZ-
273G32Mn
EMEA Middle
East
LX.PDN0X.094 AS4810TZ-273G32Mn EM VHP32ATME3 MC UMACss
2G+1G/320/6L2.8/5R/cb_bgn_1.0D_AL_FR23
PMSSU2700B NLED14WXGAGS UMA N SO2GBIII10 SO1GBIII10 N320GB5.4KS NSM8XS9.5 5 in 1-Build in 3rd WiFi 1x2
BGN
3rd WiFi 1x2
BGN
N 6CELL2.8 65W 1.0M DV French (KB.I140A.068) Continental
AS4810TZ-
273G32Mn
EMEA UK LX.PDN0X.095 AS4810TZ-273G32Mn VHP32ATGB1 MC UMACss 2G+1G/
320/6L2.8/5R/cb_bgn_1.0D_AL_EN14
PMSSU2700B NLED14WXGAGS UMA N SO2GBIII10 SO1GBIII10 N320GB5.4KS NSM8XS9.5 5 in 1-Build in 3rd WiFi 1x2
BGN
3rd WiFi 1x2
BGN
N 6CELL2.8 65W 1.0M DV UK (KB.I140A.084) UK
AS4810TZ-
273G32Mn
EMEA Eastern
Europe
LX.PDN0X.096 AS4810TZ-273G32Mn VHP32ATEU3 MC UMACss 2G+1G/
320/6L2.8/5R/cb_bgn_1.0D_AL_RU23
PMSSU2700B NLED14WXGAGS UMA N SO2GBIII10 SO1GBIII10 N320GB5.4KS NSM8XS9.5 5 in 1-Build in 3rd WiFi 1x2
BGN
3rd WiFi 1x2
BGN
N 6CELL2.8 65W 1.0M DV Russian (KB.I140A.077) Continental
AS4810TZ-
273G32Mn
EMEA Spain LX.PDN0X.097 AS4810TZ-273G32Mn VHP32ATES1 MC UMACss 2G+1G/
320/6L2.8/5R/cb_bgn_1.0D_AL_ES22
PMSSU2700B NLED14WXGAGS UMA N SO2GBIII10 SO1GBIII10 N320GB5.4KS NSM8XS9.5 5 in 1-Build in 3rd WiFi 1x2
BGN
3rd WiFi 1x2
BGN
N 6CELL2.8 65W 1.0M DV Spanish (KB.I140A.079) Continental
AS4810TZ-
273G32Mn
EMEA Finland LX.PDN0X.069 AS4810TZ-273G32Mn VHP32ATFI2 MC UMACss 2G+1G/
320/6L2.8/5R/cb_bgn_1.0D_AL_FI11
PMSSU2700B NLED14WXGAGS UMA N SO2GBIII10 SO1GBIII10 N320GB5.4KS NSM8XS9.5 5 in 1-Build in 3rd WiFi 1x2
BGN
3rd WiFi 1x2
BGN
N 6CELL2.8 65W 1.0M DV Sweden (KB.I140A.080) Continental
AS4810TZ-
273G32Mn
EMEA Eastern
Europe
LX.PDN0X.068 AS4810TZ-273G32Mn VHP32ATEU5 MC UMACss 2G+1G/
320/6L2.8/5R/cb_bgn_1.0D_AL_RO12
PMSSU2700B NLED14WXGAGS UMA N SO2GBIII10 SO1GBIII10 N320GB5.4KS NSM8XS9.5 5 in 1-Build in 3rd WiFi 1x2
BGN
3rd WiFi 1x2
BGN
N 6CELL2.8 65W 1.0M DV US International
(KB.I140A.085)
Continental
AS4810TZ-
273G32Mn
EMEA Eastern
Europe
LX.PDN0X.067 AS4810TZ-273G32Mn VHP32ATEU3 MC UMACss 2G+1G/
320/6L2.8/5R/cb_bgn_1.0D_AL_RU23
PMSSU2700B NLED14WXGAGS UMA N SO2GBIII10 SO1GBIII10 N320GB5.4KS NSM8XS9.5 5 in 1-Build in 3rd WiFi 1x2
BGN
3rd WiFi 1x2
BGN
N 6CELL2.8 65W 1.0M DV Russian (KB.I140A.077) Continental
AS4810TZ-
273G32Mn
EMEA Eastern
Europe
LX.PDN0X.071 AS4810TZ-273G32Mn VHP32ATEU5 MC UMACss 2G+1G/
320/6L2.8/5R/cb_bgn_1.0D_AL_PL13
PMSSU2700B NLED14WXGAGS UMA N SO2GBIII10 SO1GBIII10 N320GB5.4KS NSM8XS9.5 5 in 1-Build in 3rd WiFi 1x2
BGN
3rd WiFi 1x2
BGN
N 6CELL2.8 65W 1.0M DV US International
(KB.I140A.085)
Continental
AS4810TZ-
273G32Mn
EMEA Eastern
Europe
LX.PDN0X.072 AS4810TZ-273G32Mn VHP32ATEU4 MC UMACss 2G+1G/
320/6L2.8/5R/cb_bgn_1.0D_AL_SV22
PMSSU2700B NLED14WXGAGS UMA N SO2GBIII10 SO1GBIII10 N320GB5.4KS NSM8XS9.5 5 in 1-Build in 3rd WiFi 1x2
BGN
3rd WiFi 1x2
BGN
N 6CELL2.8 65W 1.0M DV Sweden (KB.I140A.080) Continental
AS4810TZ-
273G32Mn
EMEA Eastern
Europe
LX.PDN0X.073 AS4810TZ-273G32Mn VHP32ATEU7 MC UMACss 2G+1G/
320/6L2.8/5R/cb_bgn_1.0D_AL_ENR2
PMSSU2700B NLED14WXGAGS UMA N SO2GBIII10 SO1GBIII10 N320GB5.4KS NSM8XS9.5 5 in 1-Build in 3rd WiFi 1x2
BGN
3rd WiFi 1x2
BGN
N 6CELL2.8 65W 1.0M DV SLO/CRO (KB.I140A.078) Continental
AS4810TZ-
273G32Mn
EMEA Hungary LX.PDN0X.058 AS4810TZ-273G32Mn VHP32ATHU1 MC UMACss 2G+1G/
320/6L2.8/5R/cb_bgn_1.0D_AL_HU13
PMSSU2700B NLED14WXGAGS UMA N SO2GBIII10 SO1GBIII10 N320GB5.4KS NSM8XS9.5 5 in 1-Build in 3rd WiFi 1x2
BGN
3rd WiFi 1x2
BGN
N 6CELL2.8 65W 1.0M DV Hungarian (KB.I140A.071) Continental
AS4810TZ-
273G32Mn
EMEA Portugal LX.PDN0X.059 AS4810TZ-273G32Mn VHP32ATPT1 MC UMACss 2G+1G/
320/6L2.8/5R/cb_bgn_1.0D_AL_PT12
PMSSU2700B NLED14WXGAGS UMA N SO2GBIII10 SO1GBIII10 N320GB5.4KS NSM8XS9.5 5 in 1-Build in 3rd WiFi 1x2
BGN
3rd WiFi 1x2
BGN
N 6CELL2.8 65W 1.0M DV Portuguese (KB.I140A.076) Continental
AS4810TZ-
273G32Mn
EMEA Ukraine LX.PDN0X.050 AS4810TZ-273G32Mn VHP32ATUK1 MC UMACss 2G+1G/
320/6L2.8/5R/cb_bgn_1.0D_AL_RU11
PMSSU2700B NLED14WXGAGS UMA N SO2GBIII10 SO1GBIII10 N320GB5.4KS NSM8XS9.5 5 in 1-Build in 3rd WiFi 1x2
BGN
3rd WiFi 1x2
BGN
N 6CELL2.8 65W 1.0M DV Russian (KB.I140A.077) Continental
Model RO Country Acer Part No Description CPU LCD VGA
Chip VRAM 1 Memory 1 Memory 2 HDD 1(GB) ODD Card Reader Wireless
LAN
Wireless
LAN1 Bluetooth Battery Adapter Camera K/B Power Cord
Appendix A 134
AS4810TZ-
273G32Mn
EMEA Turkey LX.PDN0X.051 AS4810TZ-273G32Mn EM VHP32ATTR1 MC UMACss
2G+1G/320/6L2.8/5R/cb_bgn_1.0D_AL_TR33
PMSSU2700B NLED14WXGAGS UMA N SO2GBIII10 SO1GBIII10 N320GB5.4KS NSM8XS9.5 5 in 1-Build in 3rd WiFi 1x2
BGN
3rd WiFi 1x2
BGN
N 6CELL2.8 65W 1.0M DV Turkish (KB.I140A.083) Continental
AS4810TZ-
273G32Mn
EMEA Switzerlan
d
LX.PDN0X.055 AS4810TZ-273G32Mn VHP32ATCH1 MC UMACss 2G+1G/
320/6L2.8/5R/cb_bgn_1.0D_AL_IT42
PMSSU2700B NLED14WXGAGS UMA N SO2GBIII10 SO1GBIII10 N320GB5.4KS NSM8XS9.5 5 in 1-Build in 3rd WiFi 1x2
BGN
3rd WiFi 1x2
BGN
N 6CELL2.8 65W 1.0M DV Swiss/G (KB.I140A.081) Swiss
AS4810TZ-
273G32Mn
EMEA Poland LX.PDN0X.054 AS4810TZ-273G32Mn VHP32ATPL1 MC UMACss 2G+1G/
320/6L2.8/5R/cb_bgn_1.0D_AL_PL11
PMSSU2700B NLED14WXGAGS UMA N SO2GBIII10 SO1GBIII10 N320GB5.4KS NSM8XS9.5 5 in 1-Build in 3rd WiFi 1x2
BGN
3rd WiFi 1x2
BGN
N 6CELL2.8 65W 1.0M DV US International
(KB.I140A.085)
Continental
AS4810TZ-
273G32Mn
EMEA Middle
East
LX.PDN0X.052 AS4810TZ-273G32Mn EM VHP32ATME2 MC UMACss
2G+1G/320/6L2.8/5R/cb_bgn_1.0D_AL_AR23
PMSSU2700B NLED14WXGAGS UMA N SO2GBIII10 SO1GBIII10 N320GB5.4KS NSM8XS9.5 5 in 1-Build in 3rd WiFi 1x2
BGN
3rd WiFi 1x2
BGN
N 6CELL2.8 65W 1.0M DV Arabic (KB.I140A.061) UK and US-110V
AS4810TZ-
273G32Mn
EMEA Middle
East
LX.PDN0X.053 AS4810TZ-273G32Mn EM VHP32ATME3 MC UMACss
2G+1G/320/6L2.8/5R/cb_bgn_1.0D_AL_FR23
PMSSU2700B NLED14WXGAGS UMA N SO2GBIII10 SO1GBIII10 N320GB5.4KS NSM8XS9.5 5 in 1-Build in 3rd WiFi 1x2
BGN
3rd WiFi 1x2
BGN
N 6CELL2.8 65W 1.0M DV French (KB.I140A.068) Continental
AS4810TZ-
273G32Mn
EMEA Middle
East
LX.PDN0X.056 AS4810TZ-273G32Mn EM VHP32ATME2 MC UMACss
2G+1G/320/6L2.8/5R/cb_bgn_1.0D_AL_AR13
PMSSU2700B NLED14WXGAGS UMA N SO2GBIII10 SO1GBIII10 N320GB5.4KS NSM8XS9.5 5 in 1-Build in 3rd WiFi 1x2
BGN
3rd WiFi 1x2
BGN
N 6CELL2.8 65W 1.0M DV Arabic (KB.I140A.061) UK and US-110V
AS4810TZ-
273G32Mn
EMEA Middle
East
LX.PDN0X.057 AS4810TZ-273G32Mn EM VHP32ATME4 MC UMACss
2G+1G/320/6L2.8/5R/cb_bgn_1.0D_AL_EN11
PMSSU2700B NLED14WXGAGS UMA N SO2GBIII10 SO1GBIII10 N320GB5.4KS NSM8XS9.5 5 in 1-Build in 3rd WiFi 1x2
BGN
3rd WiFi 1x2
BGN
N 6CELL2.8 65W 1.0M DV Russian (KB.I140A.077) Continental
AS4810TZ-
273G32Mn
EMEA Spain LX.PDN0X.060 AS4810TZ-273G32Mn VHP32ATES1 MC UMACss 2G+1G/
320/6L2.8/5R/cb_bgn_1.0D_AL_ES22
PMSSU2700B NLED14WXGAGS UMA N SO2GBIII10 SO1GBIII10 N320GB5.4KS NSM8XS9.5 5 in 1-Build in 3rd WiFi 1x2
BGN
3rd WiFi 1x2
BGN
N 6CELL2.8 65W 1.0M DV Spanish (KB.I140A.079) Continental
AS4810TZ-
273G32Mn
EMEA UK LX.PDN0X.049 AS4810TZ-273G32Mn VHP32ATGB1 MC UMACss 2G+1G/
320/6L2.8/5R/cb_bgn_1.0D_AL_EN14
PMSSU2700B NLED14WXGAGS UMA N SO2GBIII10 SO1GBIII10 N320GB5.4KS NSM8XS9.5 5 in 1-Build in 3rd WiFi 1x2
BGN
3rd WiFi 1x2
BGN
N 6CELL2.8 65W 1.0M DV UK (KB.I140A.084) UK
AS4810TZ-
273G32Mn
PA AC L A -
Spanish
LX.PDN0X.048 AS4810TZ-273G32Mn EM VHP32ATEA1 MC UMACss
2G+1G/320/BT/6L2.8/5R/cb_bgn_1.0D_AL_ES51
PMSSU2700B NLED14WXGAGS UMA N SO2GBIII10 SO1GBIII10 N320GB5.4KS NSM8XS9.5 5 in 1-Build in 3rd WiFi 1x2
BGN
3rd WiFi 1x2
BGN
BT 2.0 6CELL2.8 65W 1.0M DV Spanish (KB.I140A.079) US-110V
AS4810TZ-
273G32Mn
PA Canada LX.PDN0X.046 AS4810TZ-273G32Mn VHP32ATCA2 MC UMACss 2G+1G/
320/6L2.8/5R/cb_bgn_1.0D_AL_ENJ1
PMSSU2700B NLED14WXGAGS UMA N SO2GBIII10 SO1GBIII10 N320GB5.4KS NSM8XS9.5 5 in 1-Build in 3rd WiFi 1x2
BGN
3rd WiFi 1x2
BGN
N 6CELL2.8 65W 1.0M DV US w/ Canadian French
(KB.I140A.087)
US-110V
AS4810TZ-
272G32Mn
AAP Thailand LX.PDN0X.047 AS4810TZ-272G32Mn EM VHP32ATTH1 MC UMACss 1*2G/
320/BT/6L2.8/5R/cb_bgn_1.0D_AL_TH22
PMSSU2700B NLED14WXGAGS UMA N SO2GBIII10 N N320GB5.4KS NSM8XS9.5 5 in 1-Build in 3rd WiFi 1x2
BGN
3rd WiFi 1x2
BGN
BT 2.0 6CELL2.8 65W 1.0M DV Thailand (KB.I140A.082) US-110V
AS4810TZ-
272G32Mn
TWN GCTWN LX.PDN0Y.009 AS4810TZ-272G32Mn VHB32ATTW1 MC UMACss 1*2G/
320/BT/6L2.8/5R/cb_bgn_1.0D_AL_TC11
PMSSU2700B NLED14WXGAGS UMA N SO2GBIII10 N N320GB5.4KS NSM8XS9.5 5 in 1-Build in 3rd WiFi 1x2
BGN
3rd WiFi 1x2
BGN
BT 2.0 6CELL2.8 65W 1.0M DV Chinese (KB.I140A.065) US-110V (BSMI)
AS4810TZ-
273G32Mn
PA USA LX.PDN0X.045 AS4810TZ-273G32Mn VHP32ATUS1 MC UMACss 2G+1G/
320/6L2.8/5R/cb_bgn_1.0D_AL_EN32
PMSSU2700B NLED14WXGAGS UMA N SO2GBIII10 SO1GBIII10 N320GB5.4KS NSM8XS9.5 5 in 1-Build in 3rd WiFi 1x2
BGN
3rd WiFi 1x2
BGN
N 6CELL2.8 65W 1.0M DV US International
(KB.I140A.085)
US-110V
AS4810TZ-
272G25Mn
AAP Thailand LX.PDN0X.044 AS4810TZ-272G25Mn EM VHP32ATTH1 MC UMACss 1*2G/
250/BT/6L2.8/5R/cb_bgn_1.0D_AL_TH22
PMSSU2700B NLED14WXGAGS UMA N SO2GBIII10 N N250GB5.4KS NSM8XS9.5 5 in 1-Build in 3rd WiFi 1x2
BGN
3rd WiFi 1x2
BGN
BT 2.0 6CELL2.8 65W 1.0M DV Thailand (KB.I140A.082) US-110V
AS4810TZ-
272G16Mn
AAP Thailand LX.PDN0X.043 AS4810TZ-272G16Mn EM VHP32ATTH1 MC UMACss 1*2G/
160/BT/6L2.8/5R/cb_bgn_1.0D_AL_TH22
PMSSU2700B NLED14WXGAGS UMA N SO2GBIII10 N N160GB5.4KS NSM8XS9.5 5 in 1-Build in 3rd WiFi 1x2
BGN
3rd WiFi 1x2
BGN
BT 2.0 6CELL2.8 65W 1.0M DV Thailand (KB.I140A.082) US-110V
AS4810TZ-
271G16Mn
AAP Singapore LX.PDN0Y.007 AS4810TZ-271G16Mn VHB32ATSG1 MC UMACss 1*1G/
160/BT/6L2.8/5R/cb_bgn_1.0D_AL_EN12
PMSSU2700B NLED14WXGAGS UMA N SO1GBIII10 N N160GB5.4KS NSM8XS9.5 5 in 1-Build in 3rd WiFi 1x2
BGN
3rd WiFi 1x2
BGN
BT 2.0 6CELL2.8 65W 1.0M DV US International
(KB.I140A.085)
UK
AS4810TZ-
272G16Mn
AAP Australia/
New
Zealand
LX.PDN0Y.008 AS4810TZ-272G16Mn VHB32ATAU1 MC UMACss 1*2G/
160/BT/6L2.8/5R/cb_bgn_1.0D_AL_EN12
PMSSU2700B NLED14WXGAGS UMA N SO2GBIII10 N N160GB5.4KS NSM8XS9.5 5 in 1-Build in 3rd WiFi 1x2
BGN
3rd WiFi 1x2
BGN
BT 2.0 6CELL2.8 65W 1.0M DV US International
(KB.I140A.085)
Australia w/label
AS4810TZ-
272G32Mn
CHIN
A
China LX.PDN0Y.006 AS4810TZ-272G32Mn VHB32ATCN1 MC UMACss 2*1G/
320/BT/6L2.8/5R/cb_bgn_1.0D_AL_SC11
PMSSU2700B NLED14WXGAGS UMA N SO1GBIII10 SO1GBIII10 N320GB5.4KS NSM8XS9.5 5 in 1-Build in 3rd WiFi 1x2
BGN
3rd WiFi 1x2
BGN
BT 2.0 6CELL2.8 65W 1.0M DV US International
(KB.I140A.085)
PRC
AS4810TZ-
272G32Mn
CHIN
A
Hong
Kong
LX.PDN0Y.005 AS4810TZ-272G32Mn VHB32ATHK2 MC UMACss 2*1G/
320/BT/6L2.8/5R/cb_bgn_1.0D_AL_ZH31
PMSSU2700B NLED14WXGAGS UMA N SO1GBIII10 SO1GBIII10 N320GB5.4KS NSM8XS9.5 5 in 1-Build in 3rd WiFi 1x2
BGN
3rd WiFi 1x2
BGN
BT 2.0 6CELL2.8 65W 1.0M DV US International
(KB.I140A.085)
UK
AS4810TZ-
272G25Mn
TWN GCTWN LX.PDN0Y.004 AS4810TZ-272G25Mn VHB32ATTW1 MC UMACss 1*2G/
250/BT/6L2.8/5R/cb_bgn_1.0D_AL_TC11
PMSSU2700B NLED14WXGAGS UMA N SO2GBIII10 N N250GB5.4KS NSM8XS9.5 5 in 1-Build in 3rd WiFi 1x2
BGN
3rd WiFi 1x2
BGN
BT 2.0 6CELL2.8 65W 1.0M DV Chinese (KB.I140A.065) US-110V (BSMI)
AS4810TZ-
274G25Mn
EMEA South
Africa
LX.PDN0X.042 AS4810TZ-274G25Mn EM VHP32ATZA1 MC UMACss 2*2G/
250/BT/6L2.8/5R/cb_bgn_1.0D_AL_FR23
PMSSU2700B NLED14WXGAGS UMA N SO2GBIII10 SO2GBIII10 N250GB5.4KS NSM8XS9.5 5 in 1-Build in 3rd WiFi 1x2
BGN
3rd WiFi 1x2
BGN
BT 2.0 6CELL2.8 65W 1.0M DV French (KB.I140A.068) Continental
AS4810TZ-
274G25Mn
EMEA South
Africa
LX.PDN0X.041 AS4810TZ-274G25Mn EM VHP32ATZA4 MC UMACss 2*2G/
250/BT/6L2.8/5R/cb_bgn_1.0D_AL_ENI1
PMSSU2700B NLED14WXGAGS UMA N SO2GBIII10 SO2GBIII10 N250GB5.4KS NSM8XS9.5 5 in 1-Build in 3rd WiFi 1x2
BGN
3rd WiFi 1x2
BGN
BT 2.0 6CELL2.8 65W 1.0M DV US International
(KB.I140A.085)
UK
AS4810TZ-
274G25Mn
EMEA Denmark LX.PDN0X.040 AS4810TZ-274G25Mn VHP32ATDK1 MC UMACss 2*2G/
250/BT/6L2.8/5R/cb_bgn_1.0D_AL_NO13
PMSSU2700B NLED14WXGAGS UMA N SO2GBIII10 SO2GBIII10 N250GB5.4KS NSM8XS9.5 5 in 1-Build in 3rd WiFi 1x2
BGN
3rd WiFi 1x2
BGN
BT 2.0 6CELL2.8 65W 1.0M DV Danish (KB.I140A.066) Danish
AS4810TZ-
274G25Mn
EMEA Denmark LX.PDN0X.039 AS4810TZ-274G25Mn VHP32ATDK2 MC UMACss 2*2G/
250/BT/6L2.8/5R/cb_bgn_1.0D_AL_ENS3
PMSSU2700B NLED14WXGAGS UMA N SO2GBIII10 SO2GBIII10 N250GB5.4KS NSM8XS9.5 5 in 1-Build in 3rd WiFi 1x2
BGN
3rd WiFi 1x2
BGN
BT 2.0 6CELL2.8 65W 1.0M DV Nordic (KB.I140A.074) Danish/Continental
AS4810TZ-
274G25Mn
EMEA France LX.PDN0X.038 AS4810TZ-274G25Mn VHP32ATFR1 MC UMACss 2*2G/
250/BT/6L2.8/5R/cb_bgn_1.0D_AL_FR23
PMSSU2700B NLED14WXGAGS UMA N SO2GBIII10 SO2GBIII10 N250GB5.4KS NSM8XS9.5 5 in 1-Build in 3rd WiFi 1x2
BGN
3rd WiFi 1x2
BGN
BT 2.0 6CELL2.8 65W 1.0M DV French (KB.I140A.068) Continental
AS4810TZ-
274G25Mn
EMEA Germany LX.PDN0X.037 AS4810TZ-274G25Mn VHP32ATDE1 MC UMACss 2*2G/
250/BT/6L2.8/5R/cb_bgn_1.0D_AL_DE13
PMSSU2700B NLED14WXGAGS UMA N SO2GBIII10 SO2GBIII10 N250GB5.4KS NSM8XS9.5 5 in 1-Build in 3rd WiFi 1x2
BGN
3rd WiFi 1x2
BGN
BT 2.0 6CELL2.8 65W 1.0M DV German (KB.I140A.069) Continental
AS4810TZ-
274G25Mn
EMEA Belgium LX.PDN0X.036 AS4810TZ-274G25Mn VHP32ATBE1 MC UMACss 2*2G/
250/BT/6L2.8/5R/cb_bgn_1.0D_AL_NL13
PMSSU2700B NLED14WXGAGS UMA N SO2GBIII10 SO2GBIII10 N250GB5.4KS NSM8XS9.5 5 in 1-Build in 3rd WiFi 1x2
BGN
3rd WiFi 1x2
BGN
BT 2.0 6CELL2.8 65W 1.0M DV Belgium (KB.I140A.062) Continental
AS4810TZ-
274G25Mn
EMEA Czech LX.PDN0X.027 AS4810TZ-274G25Mn VHP32ATCZ2 MC UMACss 2*2G/
250/BT/6L2.8/5R/cb_bgn_1.0D_AL_SK12
PMSSU2700B NLED14WXGAGS UMA N SO2GBIII10 SO2GBIII10 N250GB5.4KS NSM8XS9.5 5 in 1-Build in 3rd WiFi 1x2
BGN
3rd WiFi 1x2
BGN
BT 2.0 6CELL2.8 65W 1.0M DV CZ/SK (KB.I140A.064) Continental
AS4810TZ-
274G25Mn
EMEA Eastern
Europe
LX.PDN0X.028 AS4810TZ-274G25Mn VHP32ATEU5 MC UMACss 2*2G/
250/BT/6L2.8/5R/cb_bgn_1.0D_AL_RO12
PMSSU2700B NLED14WXGAGS UMA N SO2GBIII10 SO2GBIII10 N250GB5.4KS NSM8XS9.5 5 in 1-Build in 3rd WiFi 1x2
BGN
3rd WiFi 1x2
BGN
BT 2.0 6CELL2.8 65W 1.0M DV US International
(KB.I140A.085)
Continental
AS4810TZ-
274G25Mn
EMEA South
Africa
LX.PDN0X.029 AS4810TZ-274G25Mn EM VHP32ATZA2 MC UMACss 2*2G/
250/BT/6L2.8/5R/cb_bgn_1.0D_AL_EN16
PMSSU2700B NLED14WXGAGS UMA N SO2GBIII10 SO2GBIII10 N250GB5.4KS NSM8XS9.5 5 in 1-Build in 3rd WiFi 1x2
BGN
3rd WiFi 1x2
BGN
BT 2.0 6CELL2.8 65W 1.0M DV US International
(KB.I140A.085)
AF
AS4810TZ-
274G25Mn
EMEA Holland LX.PDN0X.035 AS4810TZ-274G25Mn VHP32ATNL1 MC UMACss 2*2G/
250/BT/6L2.8/5R/cb_bgn_1.0D_AL_NL12
PMSSU2700B NLED14WXGAGS UMA N SO2GBIII10 SO2GBIII10 N250GB5.4KS NSM8XS9.5 5 in 1-Build in 3rd WiFi 1x2
BGN
3rd WiFi 1x2
BGN
BT 2.0 6CELL2.8 65W 1.0M DV US International
(KB.I140A.085)
Continental
Model RO Country Acer Part No Description CPU LCD VGA
Chip VRAM 1 Memory 1 Memory 2 HDD 1(GB) ODD Card Reader Wireless
LAN
Wireless
LAN1 Bluetooth Battery Adapter Camera K/B Power Cord
135 Appendix A
AS4810TZ-
274G25Mn
EMEA Luxembou
rg
LX.PDN0X.034 AS4810TZ-274G25Mn VHP32ATLU3 MC UMACss 2*2G/
250/BT/6L2.8/5R/cb_bgn_1.0D_AL_IT41
PMSSU2700B NLED14WXGAGS UMA N SO2GBIII10 SO2GBIII10 N250GB5.4KS NSM8XS9.5 5 in 1-Build in 3rd WiFi 1x2
BGN
3rd WiFi 1x2
BGN
BT 2.0 6CELL2.8 65W 1.0M DV Swiss/G (KB.I140A.081) Continental
AS4810TZ-
274G25Mn
EMEA Norway LX.PDN0X.033 AS4810TZ-274G25Mn VHP32ATNO1 MC UMACss 2*2G/
250/BT/6L2.8/5R/cb_bgn_1.0D_AL_NO12
PMSSU2700B NLED14WXGAGS UMA N SO2GBIII10 SO2GBIII10 N250GB5.4KS NSM8XS9.5 5 in 1-Build in 3rd WiFi 1x2
BGN
3rd WiFi 1x2
BGN
BT 2.0 6CELL2.8 65W 1.0M DV Norwegian (KB.I140A.075) Continental
AS4810TZ-
274G25Mn
EMEA Norway LX.PDN0X.032 AS4810TZ-274G25Mn VHP32ATNO3 MC UMACss 2*2G/
250/BT/6L2.8/5R/cb_bgn_1.0D_AL_ENS3
PMSSU2700B NLED14WXGAGS UMA N SO2GBIII10 SO2GBIII10 N250GB5.4KS NSM8XS9.5 5 in 1-Build in 3rd WiFi 1x2
BGN
3rd WiFi 1x2
BGN
BT 2.0 6CELL2.8 65W 1.0M DV Nordic (KB.I140A.074) Danish/Continental
AS4810TZ-
274G25Mi
EMEA Russia LX.PDN0X.031 AS4810TZ-274G25Mi VHP32ATRU1 MC UMACss 2*2G/250/
BT/6L2.8/5R/cb_bg_1.0D_AL_RU11
PMSSU2700B NLED14WXGAGS UMA N SO2GBIII10 SO2GBIII10 N250GB5.4KS NSM8XS9.5 5 in 1-Build in 3rd WiFi 1x2
BGN
3rd WiFi BG BT 2.0 6CELL2.8 65W 1.0M DV Russian (KB.I140A.077) Continental
AS4810TZ-
274G25Mn
EMEA Austria LX.PDN0X.030 AS4810TZ-274G25Mn VHP32ATAT1 MC UMACss 2*2G/250/
BT/6L2.8/5R/cb_bgn_1.0D_AL_DE11
PMSSU2700B NLED14WXGAGS UMA N SO2GBIII10 SO2GBIII10 N250GB5.4KS NSM8XS9.5 5 in 1-Build in 3rd WiFi 1x2
BGN
3rd WiFi 1x2
BGN
BT 2.0 6CELL2.8 65W 1.0M DV German (KB.I140A.069) Continental
AS4810TZ-
274G25Mn
EMEA Sweden LX.PDN0X.018 AS4810TZ-274G25Mn VHP32ATSE1 MC UMACss 2*2G/
250/BT/6L2.8/5R/cb_bgn_1.0D_AL_FI13
PMSSU2700B NLED14WXGAGS UMA N SO2GBIII10 SO2GBIII10 N250GB5.4KS NSM8XS9.5 5 in 1-Build in 3rd WiFi 1x2
BGN
3rd WiFi 1x2
BGN
BT 2.0 6CELL2.8 65W 1.0M DV Sweden (KB.I140A.080) Continental
AS4810TZ-
274G25Mn
EMEA Eastern
Europe
LX.PDN0X.026 AS4810TZ-274G25Mn VHP32ATEU7 MC UMACss 2*2G/
250/BT/6L2.8/5R/cb_bgn_1.0D_AL_SL11
PMSSU2700B NLED14WXGAGS UMA N SO2GBIII10 SO2GBIII10 N250GB5.4KS NSM8XS9.5 5 in 1-Build in 3rd WiFi 1x2
BGN
3rd WiFi 1x2
BGN
BT 2.0 6CELL2.8 65W 1.0M DV SLO/CRO (KB.I140A.078) Continental
AS4810TZ-
274G25Mn
EMEA Eastern
Europe
LX.PDN0X.025 AS4810TZ-274G25Mn VHP32ATEU7 MC UMACss 2*2G/
250/BT/6L2.8/5R/cb_bgn_1.0D_AL_ENR2
PMSSU2700B NLED14WXGAGS UMA N SO2GBIII10 SO2GBIII10 N250GB5.4KS NSM8XS9.5 5 in 1-Build in 3rd WiFi 1x2
BGN
3rd WiFi 1x2
BGN
BT 2.0 6CELL2.8 65W 1.0M DV SLO/CRO (KB.I140A.078) Continental
AS4810TZ-
274G25Mn
EMEA Eastern
Europe
LX.PDN0X.024 AS4810TZ-274G25Mn VHP32ATEU4 MC UMACss 2*2G/
250/BT/6L2.8/5R/cb_bgn_1.0D_AL_SV22
PMSSU2700B NLED14WXGAGS UMA N SO2GBIII10 SO2GBIII10 N250GB5.4KS NSM8XS9.5 5 in 1-Build in 3rd WiFi 1x2
BGN
3rd WiFi 1x2
BGN
BT 2.0 6CELL2.8 65W 1.0M DV Sweden (KB.I140A.080) Continental
AS4810TZ-
274G25Mn
EMEA Eastern
Europe
LX.PDN0X.023 AS4810TZ-274G25Mn VHP32ATEU5 MC UMACss 2*2G/
250/BT/6L2.8/5R/cb_bgn_1.0D_AL_PL13
PMSSU2700B NLED14WXGAGS UMA N SO2GBIII10 SO2GBIII10 N250GB5.4KS NSM8XS9.5 5 in 1-Build in 3rd WiFi 1x2
BGN
3rd WiFi 1x2
BGN
BT 2.0 6CELL2.8 65W 1.0M DV US International
(KB.I140A.085)
Continental
AS4810TZ-
274G25Mn
EMEA Eastern
Europe
LX.PDN0X.022 AS4810TZ-274G25Mn VHP32ATEU3 MC UMACss 2*2G/
250/BT/6L2.8/5R/cb_bgn_1.0D_AL_RU23
PMSSU2700B NLED14WXGAGS UMA N SO2GBIII10 SO2GBIII10 N250GB5.4KS NSM8XS9.5 5 in 1-Build in 3rd WiFi 1x2
BGN
3rd WiFi 1x2
BGN
BT 2.0 6CELL2.8 65W 1.0M DV Russian (KB.I140A.077) Continental
AS4810TZ-
274G25Mn
EMEA Finland LX.PDN0X.021 AS4810TZ-274G25Mn VHP32ATFI2 MC UMACss 2*2G/250/
BT/6L2.8/5R/cb_bgn_1.0D_AL_FI11
PMSSU2700B NLED14WXGAGS UMA N SO2GBIII10 SO2GBIII10 N250GB5.4KS NSM8XS9.5 5 in 1-Build in 3rd WiFi 1x2
BGN
3rd WiFi 1x2
BGN
BT 2.0 6CELL2.8 65W 1.0M DV Sweden (KB.I140A.080) Continental
AS4810TZ-
274G25Mn
EMEA Hungary LX.PDN0X.020 AS4810TZ-274G25Mn VHP32ATHU1 MC UMACss 2*2G/
250/BT/6L2.8/5R/cb_bgn_1.0D_AL_HU13
PMSSU2700B NLED14WXGAGS UMA N SO2GBIII10 SO2GBIII10 N250GB5.4KS NSM8XS9.5 5 in 1-Build in 3rd WiFi 1x2
BGN
3rd WiFi 1x2
BGN
BT 2.0 6CELL2.8 65W 1.0M DV Hungarian (KB.I140A.071) Continental
AS4810TZ-
274G25Mn
EMEA Portugal LX.PDN0X.019 AS4810TZ-274G25Mn VHP32ATPT1 MC UMACss 2*2G/250/
BT/6L2.8/5R/cb_bgn_1.0D_AL_PT12
PMSSU2700B NLED14WXGAGS UMA N SO2GBIII10 SO2GBIII10 N250GB5.4KS NSM8XS9.5 5 in 1-Build in 3rd WiFi 1x2
BGN
3rd WiFi 1x2
BGN
BT 2.0 6CELL2.8 65W 1.0M DV Portuguese (KB.I140A.076) Continental
AS4810TZ-
274G25Mn
EMEA Spain LX.PDN0X.017 AS4810TZ-274G25Mn VHP32ATES1 MC UMACss 2*2G/
250/BT/6L2.8/5R/cb_bgn_1.0D_AL_ES22
PMSSU2700B NLED14WXGAGS UMA N SO2GBIII10 SO2GBIII10 N250GB5.4KS NSM8XS9.5 5 in 1-Build in 3rd WiFi 1x2
BGN
3rd WiFi 1x2
BGN
BT 2.0 6CELL2.8 65W 1.0M DV Spanish (KB.I140A.079) Continental
AS4810TZ-
274G25Mn
EMEA Greece LX.PDN0X.016 AS4810TZ-274G25Mn VHP32ATGR1 MC UMACss 2*2G/
250/BT/6L2.8/5R/cb_bgn_1.0D_AL_EL32
PMSSU2700B NLED14WXGAGS UMA N SO2GBIII10 SO2GBIII10 N250GB5.4KS NSM8XS9.5 5 in 1-Build in 3rd WiFi 1x2
BGN
3rd WiFi 1x2
BGN
BT 2.0 6CELL2.8 65W 1.0M DV Greek (KB.I140A.070) Continental
AS4810TZ-
274G25Mn
EMEA Israel LX.PDN0X.015 AS4810TZ-274G25Mn VHP32ATIL1 MC UMACss 2*2G/250/
BT/6L2.8/5R/cb_bgn_1.0D_AL_HE12
PMSSU2700B NLED14WXGAGS UMA N SO2GBIII10 SO2GBIII10 N250GB5.4KS NSM8XS9.5 5 in 1-Build in 3rd WiFi 1x2
BGN
3rd WiFi 1x2
BGN
BT 2.0 6CELL2.8 65W 1.0M DV US International w/ Hebrew
(KB.I140A.086)
Israel
AS4810TZ-
274G25Mn
EMEA Italy LX.PDN0X.014 AS4810TZ-274G25Mn VHP32ATIT1 MC UMACss 2*2G/250/
BT/6L2.8/5R/cb_bgn_1.0D_AL_IT12
PMSSU2700B NLED14WXGAGS UMA N SO2GBIII10 SO2GBIII10 N250GB5.4KS NSM8XS9.5 5 in 1-Build in 3rd WiFi 1x2
BGN
3rd WiFi 1x2
BGN
BT 2.0 6CELL2.8 65W 1.0M DV Italian (KB.I140A.072) Italian
AS4810TZ-
274G25Mn
EMEA Middle
East
LX.PDN0X.013 AS4810TZ-274G25Mn EM VHP32ATME9 MC UMACss
2*2G/250/BT/6L2.8/5R/cb_bgn_1.0D_AL_FR22
PMSSU2700B NLED14WXGAGS UMA N SO2GBIII10 SO2GBIII10 N250GB5.4KS NSM8XS9.5 5 in 1-Build in 3rd WiFi 1x2
BGN
3rd WiFi 1x2
BGN
BT 2.0 6CELL2.8 65W 1.0M DV FR/Arabic (KB.I140A.067) Continental
AS4810TZ-
274G25Mn
EMEA Middle
East
LX.PDN0X.012 AS4810TZ-274G25Mn EM VHP32ATME6 MC UMACss
2*2G/250/BT/6L2.8/5R/cb_bgn_1.0D_AL_EN15
PMSSU2700B NLED14WXGAGS UMA N SO2GBIII10 SO2GBIII10 N250GB5.4KS NSM8XS9.5 5 in 1-Build in 3rd WiFi 1x2
BGN
3rd WiFi 1x2
BGN
BT 2.0 6CELL2.8 65W 1.0M DV US International
(KB.I140A.085)
UK
AS4810TZ-
274G25Mn
EMEA Middle
East
LX.PDN0X.011 AS4810TZ-274G25Mn EM VHP32ATME2 MC UMACss
2*2G/250/BT/6L2.8/5R/cb_bgn_1.0D_AL_EN15
PMSSU2700B NLED14WXGAGS UMA N SO2GBIII10 SO2GBIII10 N250GB5.4KS NSM8XS9.5 5 in 1-Build in 3rd WiFi 1x2
BGN
3rd WiFi 1x2
BGN
BT 2.0 6CELL2.8 65W 1.0M DV Arabic (KB.I140A.061) UK and US-110V
AS4810TZ-
274G25Mn
EMEA Middle
East
LX.PDN0X.010 AS4810TZ-274G25Mn EM VHP32ATME4 MC UMACss
2*2G/250/BT/6L2.8/5R/cb_bgn_1.0D_AL_EN11
PMSSU2700B NLED14WXGAGS UMA N SO2GBIII10 SO2GBIII10 N250GB5.4KS NSM8XS9.5 5 in 1-Build in 3rd WiFi 1x2
BGN
3rd WiFi 1x2
BGN
BT 2.0 6CELL2.8 65W 1.0M DV Russian (KB.I140A.077) Continental
AS4810TZ-
274G25Mn
EMEA Middle
East
LX.PDN0X.009 AS4810TZ-274G25Mn EM VHP32ATME4 MC UMACss
2*2G/250/BT/6L2.8/5R/cb_bgn_1.0D_AL_RU61
PMSSU2700B NLED14WXGAGS UMA N SO2GBIII10 SO2GBIII10 N250GB5.4KS NSM8XS9.5 5 in 1-Build in 3rd WiFi 1x2
BGN
3rd WiFi 1x2
BGN
BT 2.0 6CELL2.8 65W 1.0M DV Russian (KB.I140A.077) Continental
AS4810TZ-
274G25Mn
EMEA Middle
East
LX.PDN0X.008 AS4810TZ-274G25Mn EM VHP32ATME2 MC UMACss
2*2G/250/BT/6L2.8/5R/cb_bgn_1.0D_AL_AR13
PMSSU2700B NLED14WXGAGS UMA N SO2GBIII10 SO2GBIII10 N250GB5.4KS NSM8XS9.5 5 in 1-Build in 3rd WiFi 1x2
BGN
3rd WiFi 1x2
BGN
BT 2.0 6CELL2.8 65W 1.0M DV Arabic (KB.I140A.061) UK and US-110V
AS4810TZ-
274G25Mn
EMEA Middle
East
LX.PDN0X.007 AS4810TZ-274G25Mn EM VHP32ATME3 MC UMACss
2*2G/250/BT/6L2.8/5R/cb_bgn_1.0D_AL_FR23
PMSSU2700B NLED14WXGAGS UMA N SO2GBIII10 SO2GBIII10 N250GB5.4KS NSM8XS9.5 5 in 1-Build in 3rd WiFi 1x2
BGN
3rd WiFi 1x2
BGN
BT 2.0 6CELL2.8 65W 1.0M DV French (KB.I140A.068) Continental
AS4810TZ-
274G25Mn
EMEA Middle
East
LX.PDN0X.006 AS4810TZ-274G25Mn EM VHP32ATME2 MC UMACss
2*2G/250/BT/6L2.8/5R/cb_bgn_1.0D_AL_AR23
PMSSU2700B NLED14WXGAGS UMA N SO2GBIII10 SO2GBIII10 N250GB5.4KS NSM8XS9.5 5 in 1-Build in 3rd WiFi 1x2
BGN
3rd WiFi 1x2
BGN
BT 2.0 6CELL2.8 65W 1.0M DV Arabic (KB.I140A.061) UK and US-110V
AS4810TZ-
274G25Mn
EMEA Poland LX.PDN0X.005 AS4810TZ-274G25Mn VHP32ATPL1 MC UMACss 2*2G/250/
BT/6L2.8/5R/cb_bgn_1.0D_AL_PL11
PMSSU2700B NLED14WXGAGS UMA N SO2GBIII10 SO2GBIII10 N250GB5.4KS NSM8XS9.5 5 in 1-Build in 3rd WiFi 1x2
BGN
3rd WiFi 1x2
BGN
BT 2.0 6CELL2.8 65W 1.0M DV US International
(KB.I140A.085)
Continental
AS4810TZ-
274G25Mn
EMEA Switzerlan
d
LX.PDN0X.004 AS4810TZ-274G25Mn VHP32ATCH1 MC UMACss 2*2G/
250/BT/6L2.8/5R/cb_bgn_1.0D_AL_IT42
PMSSU2700B NLED14WXGAGS UMA N SO2GBIII10 SO2GBIII10 N250GB5.4KS NSM8XS9.5 5 in 1-Build in 3rd WiFi 1x2
BGN
3rd WiFi 1x2
BGN
BT 2.0 6CELL2.8 65W 1.0M DV Swiss/G (KB.I140A.081) Swiss
AS4810TZ-
274G25Mn
EMEA Turkey LX.PDN0X.003 AS4810TZ-274G25Mn EM VHP32ATTR1 MC UMACss 2*2G/
250/BT/6L2.8/5R/cb_bgn_1.0D_AL_TR33
PMSSU2700B NLED14WXGAGS UMA N SO2GBIII10 SO2GBIII10 N250GB5.4KS NSM8XS9.5 5 in 1-Build in 3rd WiFi 1x2
BGN
3rd WiFi 1x2
BGN
BT 2.0 6CELL2.8 65W 1.0M DV Turkish (KB.I140A.083) Continental
AS4810TZ-
274G25Mn
EMEA Ukraine LX.PDN0X.002 AS4810TZ-274G25Mn VHP32ATUK1 MC UMACss 2*2G/
250/BT/6L2.8/5R/cb_bgn_1.0D_AL_RU11
PMSSU2700B NLED14WXGAGS UMA N SO2GBIII10 SO2GBIII10 N250GB5.4KS NSM8XS9.5 5 in 1-Build in 3rd WiFi 1x2
BGN
3rd WiFi 1x2
BGN
BT 2.0 6CELL2.8 65W 1.0M DV Russian (KB.I140A.077) Continental
AS4810TZ-
274G25Mn
EMEA UK LX.PDN0X.001 AS4810TZ-274G25Mn VHP32ATGB1 MC UMACss 2*2G/
250/BT/6L2.8/5R/cb_bgn_1.0D_AL_EN14
PMSSU2700B NLED14WXGAGS UMA N SO2GBIII10 SO2GBIII10 N250GB5.4KS NSM8XS9.5 5 in 1-Build in 3rd WiFi 1x2
BGN
3rd WiFi 1x2
BGN
BT 2.0 6CELL2.8 65W 1.0M DV UK (KB.I140A.084) UK
AS4810TZ-
272G32Mn
AAP Philippine
s
LX.PDN0Y.003 AS4810TZ-272G32Mn EM VHB32ATPH1 MC UMACss 1*2G/
320/BT/6L2.8/5R/cb_bgn_1.0D_AL_EN14
PMSSU2700B NLED14WXGAGS UMA N SO2GBIII10 N N320GB5.4KS NSM8XS9.5 5 in 1-Build in 3rd WiFi 1x2
BGN
3rd WiFi 1x2
BGN
BT 2.0 6CELL2.8 65W 1.0M DV US International
(KB.I140A.085)
US-110V
AS4810TZ-
271G16Mn
AAP Philippine
s
LX.PDN0Y.002 AS4810TZ-271G16Mn EM VHB32ATPH1 MC UMACss 1*1G/
160/BT/6L2.8/5R/cb_bgn_1.0D_AL_EN14
PMSSU2700B NLED14WXGAGS UMA N SO1GBIII10 N N160GB5.4KS NSM8XS9.5 5 in 1-Build in 3rd WiFi 1x2
BGN
3rd WiFi 1x2
BGN
BT 2.0 6CELL2.8 65W 1.0M DV US International
(KB.I140A.085)
US-110V
Model RO Country Acer Part No Description CPU LCD VGA
Chip VRAM 1 Memory 1 Memory 2 HDD 1(GB) ODD Card Reader Wireless
LAN
Wireless
LAN1 Bluetooth Battery Adapter Camera K/B Power Cord
Appendix A 136
AS4810TZ-
272G25Mn
AAP Philippine
s
LX.PDN0Y.001 AS4810TZ-272G25Mn EM VHB32ATPH1 MC UMACss 1*2G/
250/BT/6L2.8/5R/cb_bgn_1.0D_AL_EN14
PMSSU2700B NLED14WXGAGS UMA N SO2GBIII10 N N250GB5.4KS NSM8XS9.5 5 in 1-Build in 3rd WiFi 1x2
BGN
3rd WiFi 1x2
BGN
BT 2.0 6CELL2.8 65W 1.0M DV US International
(KB.I140A.085)
US-110V
AS4810T-
354G50Mn
EMEA Italy LX.PBA0X.138 AS4810T-354G50Mn VHP32ATIT1 MC UMACss 2*2G/
500_L/BT/6L2.8/5R/cb_n2_1.0D_AL_IT12
C2SSU3500B NLED14WXGAGS UMA N SO2GBIII10 SO2GBIII10 N500GB5.4KS NSM8XS9.5 5 in 1-Build in SP1x2HMW SP1x2HMW BT 2.0 6CELL2.8 65W 1.0M DV Italian (KB.I140A.072) Italian
AS4810T-
354G50Mn
EMEA Hungary LX.PBA0X.119 AS4810T-354G50Mn VHP32ATHU1 MC UMACss 2*2G/
500_L/BT/6L2.8/5R/cb_n2_1.0D_AL_HU13
C2SSU3500B NLED14WXGAGS UMA N SO2GBIII10 SO2GBIII10 N500GB5.4KS NSM8XS9.5 5 in 1-Build in SP1x2HMW SP1x2HMW BT 2.0 6CELL2.8 65W 1.0M DV Hungarian (KB.I140A.071) Continental
AS4810T-
354G50Mn
EMEA Middle
East
LX.PBA0X.112 AS4810T-354G50Mn EM VHP32ATME9 MC UMACss 2*2G/
500_L/BT/6L2.8/5R/cb_n2_1.0D_AL_FR22
C2SSU3500B NLED14WXGAGS UMA N SO2GBIII10 SO2GBIII10 N500GB5.4KS NSM8XS9.5 5 in 1-Build in SP1x2HMW SP1x2HMW BT 2.0 6CELL2.8 65W 1.0M DV FR/Arabic (KB.I140A.067) Continental
AS4810T-
354G50Mn
EMEA Middle
East
LX.PBA0X.111 AS4810T-354G50Mn EM VHP32ATME6 MC UMACss 2*2G/
500_L/BT/6L2.8/5R/cb_n2_1.0D_AL_EN15
C2SSU3500B NLED14WXGAGS UMA N SO2GBIII10 SO2GBIII10 N500GB5.4KS NSM8XS9.5 5 in 1-Build in SP1x2HMW SP1x2HMW BT 2.0 6CELL2.8 65W 1.0M DV US International
(KB.I140A.085)
UK
AS4810T-
354G50Mn
EMEA Middle
East
LX.PBA0X.110 AS4810T-354G50Mn EM VHP32ATME4 MC UMACss 2*2G/
500_L/BT/6L2.8/5R/cb_n2_1.0D_AL_RU61
C2SSU3500B NLED14WXGAGS UMA N SO2GBIII10 SO2GBIII10 N500GB5.4KS NSM8XS9.5 5 in 1-Build in SP1x2HMW SP1x2HMW BT 2.0 6CELL2.8 65W 1.0M DV Russian (KB.I140A.077) Continental
AS4810T-
354G50Mn
EMEA Middle
East
LX.PBA0X.109 AS4810T-354G50Mn EM VHP32ATME4 MC UMACss 2*2G/
500_L/BT/6L2.8/5R/cb_n2_1.0D_AL_EN11
C2SSU3500B NLED14WXGAGS UMA N SO2GBIII10 SO2GBIII10 N500GB5.4KS NSM8XS9.5 5 in 1-Build in SP1x2HMW SP1x2HMW BT 2.0 6CELL2.8 65W 1.0M DV Russian (KB.I140A.077) Continental
AS4810T-
354G50Mn
EMEA Middle
East
LX.PBA0X.108 AS4810T-354G50Mn EM VHP32ATME3 MC UMACss 2*2G/
500_L/BT/6L2.8/5R/cb_n2_1.0D_AL_FR23
C2SSU3500B NLED14WXGAGS UMA N SO2GBIII10 SO2GBIII10 N500GB5.4KS NSM8XS9.5 5 in 1-Build in SP1x2HMW SP1x2HMW BT 2.0 6CELL2.8 65W 1.0M DV French (KB.I140A.068) Continental
AS4810T-
354G50Mn
EMEA Middle
East
LX.PBA0X.107 AS4810T-354G50Mn EM VHP32ATME2 MC UMACss 2*2G/
500_L/BT/6L2.8/5R/cb_n2_1.0D_AL_EN15
C2SSU3500B NLED14WXGAGS UMA N SO2GBIII10 SO2GBIII10 N500GB5.4KS NSM8XS9.5 5 in 1-Build in SP1x2HMW SP1x2HMW BT 2.0 6CELL2.8 65W 1.0M DV Arabic (KB.I140A.061) UK and US-110V
AS4810T-
354G50Mn
EMEA Middle
East
LX.PBA0X.123 AS4810T-354G50Mn EM VHP32ATME2 MC UMACss 2*2G/
500_L/BT/6L2.8/5R/cb_n2_1.0D_AL_AR23
C2SSU3500B NLED14WXGAGS UMA N SO2GBIII10 SO2GBIII10 N500GB5.4KS NSM8XS9.5 5 in 1-Build in SP1x2HMW SP1x2HMW BT 2.0 6CELL2.8 65W 1.0M DV Arabic (KB.I140A.061) UK and US-110V
AS4810T-
354G50Mn
EMEA Luxembou
rg
LX.PBA0X.118 AS4810T-354G50Mn VHP32ATLU3 MC UMACss 2*2G/
500_L/BT/6L2.8/5R/cb_n2_1.0D_AL_IT41
C2SSU3500B NLED14WXGAGS UMA N SO2GBIII10 SO2GBIII10 N500GB5.4KS NSM8XS9.5 5 in 1-Build in SP1x2HMW SP1x2HMW BT 2.0 6CELL2.8 65W 1.0M DV Swiss/G (KB.I140A.081) Continental
AS4810T-
354G50Mn
EMEA Israel LX.PBA0X.122 AS4810T-354G50Mn VHP32ATIL1 MC UMACss 2*2G/
500_L/BT/6L2.8/5R/cb_n2_1.0D_AL_HE12
C2SSU3500B NLED14WXGAGS UMA N SO2GBIII10 SO2GBIII10 N500GB5.4KS NSM8XS9.5 5 in 1-Build in SP1x2HMW SP1x2HMW BT 2.0 6CELL2.8 65W 1.0M DV US International w/ Hebrew
(KB.I140A.086)
Israel
AS4810T-
354G50Mn
EMEA Eastern
Europe
LX.PBA0X.126 AS4810T-354G50Mn VHP32ATEU5 MC UMACss 2*2G/
500_L/BT/6L2.8/5R/cb_n2_1.0D_AL_RO12
C2SSU3500B NLED14WXGAGS UMA N SO2GBIII10 SO2GBIII10 N500GB5.4KS NSM8XS9.5 5 in 1-Build in SP1x2HMW SP1x2HMW BT 2.0 6CELL2.8 65W 1.0M DV US International
(KB.I140A.085)
Continental
AS4810T-
354G50Mn
EMEA Eastern
Europe
LX.PBA0X.131 AS4810T-354G50Mn VHP32ATEU5 MC UMACss 2*2G/
500_L/BT/6L2.8/5R/cb_n2_1.0D_AL_PL13
C2SSU3500B NLED14WXGAGS UMA N SO2GBIII10 SO2GBIII10 N500GB5.4KS NSM8XS9.5 5 in 1-Build in SP1x2HMW SP1x2HMW BT 2.0 6CELL2.8 65W 1.0M DV US International
(KB.I140A.085)
Continental
AS4810T-
354G50Mn
EMEA Eastern
Europe
LX.PBA0X.132 AS4810T-354G50Mn VHP32ATEU4 MC UMACss 2*2G/
500_L/BT/6L2.8/5R/cb_n2_1.0D_AL_SV22
C2SSU3500B NLED14WXGAGS UMA N SO2GBIII10 SO2GBIII10 N500GB5.4KS NSM8XS9.5 5 in 1-Build in SP1x2HMW SP1x2HMW BT 2.0 6CELL2.8 65W 1.0M DV Sweden (KB.I140A.080) Continental
AS4810T-
354G50Mn
EMEA Eastern
Europe
LX.PBA0X.133 AS4810T-354G50Mn VHP32ATEU3 MC UMACss 2*2G/
500_L/BT/6L2.8/5R/cb_n2_1.0D_AL_RU23
C2SSU3500B NLED14WXGAGS UMA N SO2GBIII10 SO2GBIII10 N500GB5.4KS NSM8XS9.5 5 in 1-Build in SP1x2HMW SP1x2HMW BT 2.0 6CELL2.8 65W 1.0M DV Russian (KB.I140A.077) Continental
AS4810T-
354G50Mn
EMEA Spain LX.PBA0X.134 AS4810T-354G50Mn VHP32ATES1 MC UMACss 2*2G/
500_L/BT/6L2.8/5R/cb_n2_1.0D_AL_ES22
C2SSU3500B NLED14WXGAGS UMA N SO2GBIII10 SO2GBIII10 N500GB5.4KS NSM8XS9.5 5 in 1-Build in SP1x2HMW SP1x2HMW BT 2.0 6CELL2.8 65W 1.0M DV Spanish (KB.I140A.079) Continental
AS4810T-
354G50Mn
EMEA Denmark LX.PBA0X.135 AS4810T-354G50Mn VHP32ATDK2 MC UMACss 2*2G/
500_L/BT/6L2.8/5R/cb_n2_1.0D_AL_ENS3
C2SSU3500B NLED14WXGAGS UMA N SO2GBIII10 SO2GBIII10 N500GB5.4KS NSM8XS9.5 5 in 1-Build in SP1x2HMW SP1x2HMW BT 2.0 6CELL2.8 65W 1.0M DV Nordic (KB.I140A.074) Danish/Continental
AS4810T-
354G50Mn
EMEA Denmark LX.PBA0X.136 AS4810T-354G50Mn VHP32ATDK1 MC UMACss 2*2G/
500_L/BT/6L2.8/5R/cb_n2_1.0D_AL_NO13
C2SSU3500B NLED14WXGAGS UMA N SO2GBIII10 SO2GBIII10 N500GB5.4KS NSM8XS9.5 5 in 1-Build in SP1x2HMW SP1x2HMW BT 2.0 6CELL2.8 65W 1.0M DV Danish (KB.I140A.066) Danish
AS4810T-
354G50Mn
EMEA Germany LX.PBA0X.137 AS4810T-354G50Mn VHP32ATDE1 MC UMACss 2*2G/
500_L/BT/6L2.8/5R/cb_n2_1.0D_AL_DE13
C2SSU3500B NLED14WXGAGS UMA N SO2GBIII10 SO2GBIII10 N500GB5.4KS NSM8XS9.5 5 in 1-Build in SP1x2HMW SP1x2HMW BT 2.0 6CELL2.8 65W 1.0M DV German (KB.I140A.069) Continental
AS4810T-
354G50Mn
EMEA Middle
East
LX.PBA0X.116 AS4810T-354G50Mn EM VHP32ATME2 MC UMACss 2*2G/
500_L/BT/6L2.8/5R/cb_n2_1.0D_AL_AR13
C2SSU3500B NLED14WXGAGS UMA N SO2GBIII10 SO2GBIII10 N500GB5.4KS NSM8XS9.5 5 in 1-Build in SP1x2HMW SP1x2HMW BT 2.0 6CELL2.8 65W 1.0M DV Arabic (KB.I140A.061) UK and US-110V
AS4810T-
354G50Mn
EMEA Ukraine LX.PBA0X.103 AS4810T-354G50Mn VHP32ATUK1 MC UMACss 2*2G/
500_L/BT/6L2.8/5R/cb_n2_1.0D_AL_RU11
C2SSU3500B NLED14WXGAGS UMA N SO2GBIII10 SO2GBIII10 N500GB5.4KS NSM8XS9.5 5 in 1-Build in SP1x2HMW SP1x2HMW BT 2.0 6CELL2.8 65W 1.0M DV Russian (KB.I140A.077) Continental
AS4810T-
354G50Mn
EMEA Turkey LX.PBA0X.102 AS4810T-354G50Mn EM VHP32ATTR1 MC UMACss 2*2G/
500_L/BT/6L2.8/5R/cb_n2_1.0D_AL_TR33
C2SSU3500B NLED14WXGAGS UMA N SO2GBIII10 SO2GBIII10 N500GB5.4KS NSM8XS9.5 5 in 1-Build in SP1x2HMW SP1x2HMW BT 2.0 6CELL2.8 65W 1.0M DV Turkish (KB.I140A.083) Continental
AS4810T-
354G50Mn
EMEA Sweden LX.PBA0X.101 AS4810T-354G50Mn VHP32ATSE1 MC UMACss 2*2G/
500_L/BT/6L2.8/5R/cb_n2_1.0D_AL_FI13
C2SSU3500B NLED14WXGAGS UMA N SO2GBIII10 SO2GBIII10 N500GB5.4KS NSM8XS9.5 5 in 1-Build in SP1x2HMW SP1x2HMW BT 2.0 6CELL2.8 65W 1.0M DV Sweden (KB.I140A.080) Continental
AS4810T-
354G50Mi
EMEA Russia LX.PBA0X.104 AS4810T-354G50Mi VHP32ATRU1 MC UMACss 2*2G/
500_L/BT/6L2.8/5R/cb_abg_1.0D_AL_RU11
C2SSU3500B NLED14WXGAGS UMA N SO2GBIII10 SO2GBIII10 N500GB5.4KS NSM8XS9.5 5 in 1-Build in SP1x2HMW SP1x2MABG BT 2.0 6CELL2.8 65W 1.0M DV Russian (KB.I140A.077) Continental
AS4810T-
354G50Mn
EMEA Portugal LX.PBA0X.114 AS4810T-354G50Mn VHP32ATPT1 MC UMACss 2*2G/
500_L/BT/6L2.8/5R/cb_n2_1.0D_AL_PT12
C2SSU3500B NLED14WXGAGS UMA N SO2GBIII10 SO2GBIII10 N500GB5.4KS NSM8XS9.5 5 in 1-Build in SP1x2HMW SP1x2HMW BT 2.0 6CELL2.8 65W 1.0M DV Portuguese (KB.I140A.076) Continental
AS4810T-
354G50Mn
EMEA Poland LX.PBA0X.105 AS4810T-354G50Mn VHP32ATPL1 MC UMACss 2*2G/
500_L/BT/6L2.8/5R/cb_n2_1.0D_AL_PL11
C2SSU3500B NLED14WXGAGS UMA N SO2GBIII10 SO2GBIII10 N500GB5.4KS NSM8XS9.5 5 in 1-Build in SP1x2HMW SP1x2HMW BT 2.0 6CELL2.8 65W 1.0M DV US International
(KB.I140A.085)
Continental
AS4810T-
354G50Mn
EMEA Norway LX.PBA0X.113 AS4810T-354G50Mn VHP32ATNO1 MC UMACss 2*2G/
500_L/BT/6L2.8/5R/cb_n2_1.0D_AL_NO12
C2SSU3500B NLED14WXGAGS UMA N SO2GBIII10 SO2GBIII10 N500GB5.4KS NSM8XS9.5 5 in 1-Build in SP1x2HMW SP1x2HMW BT 2.0 6CELL2.8 65W 1.0M DV Norwegian (KB.I140A.075) Continental
AS4810T-
354G50Mn
EMEA Holland LX.PBA0X.106 AS4810T-354G50Mn VHP32ATNL1 MC UMACss 2*2G/
500_L/BT/6L2.8/5R/cb_n2_1.0D_AL_NL12
C2SSU3500B NLED14WXGAGS UMA N SO2GBIII10 SO2GBIII10 N500GB5.4KS NSM8XS9.5 5 in 1-Build in SP1x2HMW SP1x2HMW BT 2.0 6CELL2.8 65W 1.0M DV US International
(KB.I140A.085)
Continental
AS4810T-
354G50Mn
EMEA South
Africa
LX.PBA0X.097 AS4810T-354G50Mn EM VHP32ATZA4 MC UMACss 2*2G/
500_L/BT/6L2.8/5R/cb_n2_1.0D_AL_ENI1
C2SSU3500B NLED14WXGAGS UMA N SO2GBIII10 SO2GBIII10 N500GB5.4KS NSM8XS9.5 5 in 1-Build in SP1x2HMW SP1x2HMW BT 2.0 6CELL2.8 65W 1.0M DV US International
(KB.I140A.085)
UK
AS4810T-
354G50Mn
EMEA South
Africa
LX.PBA0X.098 AS4810T-354G50Mn EM VHP32ATZA2 MC UMACss 2*2G/
500_L/BT/6L2.8/5R/cb_n2_1.0D_AL_EN16
C2SSU3500B NLED14WXGAGS UMA N SO2GBIII10 SO2GBIII10 N500GB5.4KS NSM8XS9.5 5 in 1-Build in SP1x2HMW SP1x2HMW BT 2.0 6CELL2.8 65W 1.0M DV US International
(KB.I140A.085)
AF
AS4810T-
354G50Mn
EMEA Greece LX.PBA0X.115 AS4810T-354G50Mn VHP32ATGR1 MC UMACss 2*2G/
500_L/BT/6L2.8/5R/cb_n2_1.0D_AL_EL32
C2SSU3500B NLED14WXGAGS UMA N SO2GBIII10 SO2GBIII10 N500GB5.4KS NSM8XS9.5 5 in 1-Build in SP1x2HMW SP1x2HMW BT 2.0 6CELL2.8 65W 1.0M DV Greek (KB.I140A.070) Continental
AS4810T-
354G50Mn
EMEA France LX.PBA0X.117 AS4810T-354G50Mn VHP32ATFR1 MC UMACss 2*2G/
500_L/BT/6L2.8/5R/cb_n2_1.0D_AL_FR23
C2SSU3500B NLED14WXGAGS UMA N SO2GBIII10 SO2GBIII10 N500GB5.4KS NSM8XS9.5 5 in 1-Build in SP1x2HMW SP1x2HMW BT 2.0 6CELL2.8 65W 1.0M DV French (KB.I140A.068) Continental
Model RO Country Acer Part No Description CPU LCD VGA
Chip VRAM 1 Memory 1 Memory 2 HDD 1(GB) ODD Card Reader Wireless
LAN
Wireless
LAN1 Bluetooth Battery Adapter Camera K/B Power Cord
137 Appendix A
AS4810T-
354G50Mn
EMEA South
Africa
LX.PBA0X.099 AS4810T-354G50Mn EM VHP32ATZA1 MC UMACss 2*2G/
500_L/BT/6L2.8/5R/cb_n2_1.0D_AL_FR23
C2SSU3500B NLED14WXGAGS UMA N SO2GBIII10 SO2GBIII10 N500GB5.4KS NSM8XS9.5 5 in 1-Build in SP1x2HMW SP1x2HMW BT 2.0 6CELL2.8 65W 1.0M DV French (KB.I140A.068) Continental
AS4810T-
354G50Mn
EMEA Eastern
Europe
LX.PBA0X.124 AS4810T-354G50Mn VHP32ATEU7 MC UMACss 2*2G/
500_L/BT/6L2.8/5R/cb_n2_1.0D_AL_SL11
C2SSU3500B NLED14WXGAGS UMA N SO2GBIII10 SO2GBIII10 N500GB5.4KS NSM8XS9.5 5 in 1-Build in SP1x2HMW SP1x2HMW BT 2.0 6CELL2.8 65W 1.0M DV SLO/CRO (KB.I140A.078) Continental
AS4810T-
354G50Mn
EMEA Eastern
Europe
LX.PBA0X.125 AS4810T-354G50Mn VHP32ATEU7 MC UMACss 2*2G/
500_L/BT/6L2.8/5R/cb_n2_1.0D_AL_ENR2
C2SSU3500B NLED14WXGAGS UMA N SO2GBIII10 SO2GBIII10 N500GB5.4KS NSM8XS9.5 5 in 1-Build in SP1x2HMW SP1x2HMW BT 2.0 6CELL2.8 65W 1.0M DV SLO/CRO (KB.I140A.078) Continental
AS4810T-
354G50Mn
EMEA UK LX.PBA0X.121 AS4810T-354G50Mn VHP32ATGB1 MC UMACss 2*2G/
500_L/BT/6L2.8/5R/cb_n2_1.0D_AL_EN14
C2SSU3500B NLED14WXGAGS UMA N SO2GBIII10 SO2GBIII10 N500GB5.4KS NSM8XS9.5 5 in 1-Build in SP1x2HMW SP1x2HMW BT 2.0 6CELL2.8 65W 1.0M DV UK (KB.I140A.084) UK
AS4810T-
354G50Mn
EMEA Austria LX.PBA0X.127 AS4810T-354G50Mn VHP32ATAT1 MC UMACss 2*2G/
500_L/BT/6L2.8/5R/cb_n2_1.0D_AL_DE11
C2SSU3500B NLED14WXGAGS UMA N SO2GBIII10 SO2GBIII10 N500GB5.4KS NSM8XS9.5 5 in 1-Build in SP1x2HMW SP1x2HMW BT 2.0 6CELL2.8 65W 1.0M DV German (KB.I140A.069) Continental
AS4810T-
354G50Mn
EMEA Switzerlan
d
LX.PBA0X.129 AS4810T-354G50Mn VHP32ATCH1 MC UMACss 2*2G/
500_L/BT/6L2.8/5R/cb_n2_1.0D_AL_IT42
C2SSU3500B NLED14WXGAGS UMA N SO2GBIII10 SO2GBIII10 N500GB5.4KS NSM8XS9.5 5 in 1-Build in SP1x2HMW SP1x2HMW BT 2.0 6CELL2.8 65W 1.0M DV Swiss/G (KB.I140A.081) Swiss
AS4810T-
354G50Mn
EMEA Czech LX.PBA0X.130 AS4810T-354G50Mn VHP32ATCZ2 MC UMACss 2*2G/
500_L/BT/6L2.8/5R/cb_n2_1.0D_AL_SK12
C2SSU3500B NLED14WXGAGS UMA N SO2GBIII10 SO2GBIII10 N500GB5.4KS NSM8XS9.5 5 in 1-Build in SP1x2HMW SP1x2HMW BT 2.0 6CELL2.8 65W 1.0M DV CZ/SK (KB.I140A.064) Continental
AS4810T-
354G50Mn
EMEA Finland LX.PBA0X.120 AS4810T-354G50Mn VHP32ATFI2 MC UMACss 2*2G/
500_L/BT/6L2.8/5R/cb_n2_1.0D_AL_FI11
C2SSU3500B NLED14WXGAGS UMA N SO2GBIII10 SO2GBIII10 N500GB5.4KS NSM8XS9.5 5 in 1-Build in SP1x2HMW SP1x2HMW BT 2.0 6CELL2.8 65W 1.0M DV Sweden (KB.I140A.080) Continental
AS4810T-
354G50Mn
EMEA Belgium LX.PBA0X.128 AS4810T-354G50Mn VHP32ATBE1 MC UMACss 2*2G/
500_L/BT/6L2.8/5R/cb_n2_1.0D_AL_NL13
C2SSU3500B NLED14WXGAGS UMA N SO2GBIII10 SO2GBIII10 N500GB5.4KS NSM8XS9.5 5 in 1-Build in SP1x2HMW SP1x2HMW BT 2.0 6CELL2.8 65W 1.0M DV Belgium (KB.I140A.062) Continental
AS4810T-
354G32Mn
PA USA LX.PBA0X.090 AS4810T-354G32Mn VHP64ATUS1 MC UMACss 2*2G/320/
6L2.8/5R/cb_n2_1.0D_AL_ENP3
C2SSU3500B NLED14WXGAGS UMA N SO2GBIII10 SO2GBIII10 N320GB5.4KS NSM8XS9.5 5 in 1-Build in SP1x2HMW SP1x2HMW N 6CELL2.8 65W 1.0M DV US International
(KB.I140A.085)
US-110V
AS4810T-
352G32Mn
AAP Philippine
s
LX.PBA0Y.012 AS4810T-352G32Mn EM VHB32ATPH1 MC UMACss 1*2G/
320/BT/6L2.8/5R/cb_n2_1.0D_AL_EN14
C2SSU3500B NLED14WXGAGS UMA N SO2GBIII10 N N320GB5.4KS NSM8XS9.5 5 in 1-Build in SP1x2HMW SP1x2HMW BT 2.0 6CELL2.8 65W 1.0M DV US International
(KB.I140A.085)
US-110V
AS4810T-
351G16Mn
AAP Philippine
s
LX.PBA0Y.011 AS4810T-351G16Mn EM VHB32ATPH1 MC UMACss 1*1G/
160/BT/6L2.8/5R/cb_n2_1.0D_AL_EN14
C2SSU3500B NLED14WXGAGS UMA N SO1GBIII10 N N160GB5.4KS NSM8XS9.5 5 in 1-Build in SP1x2HMW SP1x2HMW BT 2.0 6CELL2.8 65W 1.0M DV US International
(KB.I140A.085)
US-110V
AS4810T-
354G32Mn
PA Mexico LX.PBA0X.080 AS4810T-354G32Mn EM VHP64ATMX2 MC UMACss 2*2G/
320/6L2.8/5R/cb_n2_1.0D_AL_ES51
C2SSU3500B NLED14WXGAGS UMA N SO2GBIII10 SO2GBIII10 N320GB5.4KS NSM8XS9.5 5 in 1-Build in SP1x2HMW SP1x2HMW N 6CELL2.8 65W 1.0M DV Spanish (KB.I140A.079) US-110V
AS4810T-
352G32Mn
TWN GCTWN LX.PBA0Y.010 AS4810T-352G32Mn VHB32ATTW1 MC UMACss 1*2G/320/
BT/6L2.8/5R/cb_n2_1.0D_AL_TC11
C2SSU3500B NLED14WXGAGS UMA N SO2GBIII10 N N320GB5.4KS NSM8XS9.5 5 in 1-Build in SP1x2HMW SP1x2HMW BT 2.0 6CELL2.8 65W 1.0M DV Chinese (KB.I140A.065) US-110V (BSMI)
AS4810T-
942G32Mn
TWN GCTWN LX.PBA0Y.009 AS4810T-942G32Mn VHB32ATTW1 MC UMACss 1*2G/320/
BT/6L2.8/5R/cb_n2_1.0D_AL_TC11
C2DSU9400B NLED14WXGAGS UMA N SO2GBIII10 N N320GB5.4KS NSM8XS9.5 5 in 1-Build in SP1x2HMW SP1x2HMW BT 2.0 6CELL2.8 65W 1.0M DV Chinese (KB.I140A.065) US-110V (BSMI)
AS4810T-
354G32Mn
PA Canada LX.PBA0X.096 AS4810T-354G32Mn VHP64ATCA2 MC UMACss 2*2G/320/
6L2.8/5R/cb_n2_1.0D_AL_FR31
C2SSU3500B NLED14WXGAGS UMA N SO2GBIII10 SO2GBIII10 N320GB5.4KS NSM8XS9.5 5 in 1-Build in SP1x2HMW SP1x2HMW N 6CELL2.8 65W 1.0M DV US w/ Canadian French
(KB.I140A.087)
US-110V
AS4810T-
354G32Mn
PA USA LX.PBA0X.088 AS4810T-354G32Mn VHP64ATUS1 MC UMACss 2*2G/320/
6L2.8/5R/cb_n2_1.0D_AL_ENP1
C2SSU3500B NLED14WXGAGS UMA N SO2GBIII10 SO2GBIII10 N320GB5.4KS NSM8XS9.5 5 in 1-Build in SP1x2HMW SP1x2HMW N 6CELL2.8 65W 1.0M DV US International
(KB.I140A.085)
US-110V
AS4810T-
354G32Mn
PA Chile LX.PBA0X.081 AS4810T-354G32Mn EM VHP64ATCL3 MC UMACss 2*2G/
320/6L2.8/5R/cb_n2_1.0D_AL_ES52
C2SSU3500B NLED14WXGAGS UMA N SO2GBIII10 SO2GBIII10 N320GB5.4KS NSM8XS9.5 5 in 1-Build in SP1x2HMW SP1x2HMW N 6CELL2.8 65W 1.0M DV Spanish (KB.I140A.079) Italian
AS4810T-
354G32Mn
PA AC L A -
Spanish
LX.PBA0X.082 AS4810T-354G32Mn EM VHP64ATEA1 MC UMACss 2*2G/
320/6L2.8/5R/cb_n2_1.0D_AL_ES21
C2SSU3500B NLED14WXGAGS UMA N SO2GBIII10 SO2GBIII10 N320GB5.4KS NSM8XS9.5 5 in 1-Build in SP1x2HMW SP1x2HMW N 6CELL2.8 65W 1.0M DV Spanish (KB.I140A.079) US-110V
AS4810T-
354G32Mn
PA AC L A -
Spanish
LX.PBA0X.083 AS4810T-354G32Mn EM VHP64ATEA3 MC UMACss 2*2G/
320/6L2.8/5R/cb_n2_1.0D_AL_ES21
C2SSU3500B NLED14WXGAGS UMA N SO2GBIII10 SO2GBIII10 N320GB5.4KS NSM8XS9.5 5 in 1-Build in SP1x2HMW SP1x2HMW N 6CELL2.8 65W 1.0M DV Spanish (KB.I140A.079) Argentine Power Cord
AS4810T-
354G32Mn
PA AC L A -
Portugues
e
LX.PBA0X.084 AS4810T-354G32Mn EM VHP64ATXC2 MC UMACss 2*2G/
320/6L2.8/5R/cb_n2_1.0D_AL_XC21
C2SSU3500B NLED14WXGAGS UMA N SO2GBIII10 SO2GBIII10 N320GB5.4KS NSM8XS9.5 5 in 1-Build in SP1x2HMW SP1x2HMW N 6CELL2.8 65W 1.0M DV Brazilian Portuguese
(KB.I140A.063)
Brazil IMETRO
AS4810T-
354G32Mn
PA USA LX.PBA0X.085 AS4810T-354G32Mn VHP64ATUS1 MC UMACss 2*2G/320/
6L2.8/5R/cb_n2_1.0D_AL_EN34
C2SSU3500B NLED14WXGAGS UMA N SO2GBIII10 SO2GBIII10 N320GB5.4KS NSM8XS9.5 5 in 1-Build in SP1x2HMW SP1x2HMW N 6CELL2.8 65W 1.0M DV US International
(KB.I140A.085)
US-110V
AS4810T-
354G32Mn
PA USA LX.PBA0X.086 AS4810T-354G32Mn VHP64ATUS1 MC UMACss 2*2G/320/
6L2.8/5R/cb_n2_1.0D_AL_EN32
C2SSU3500B NLED14WXGAGS UMA N SO2GBIII10 SO2GBIII10 N320GB5.4KS NSM8XS9.5 5 in 1-Build in SP1x2HMW SP1x2HMW N 6CELL2.8 65W 1.0M DV US International
(KB.I140A.085)
US-110V
AS4810T-
354G32Mn
PA USA LX.PBA0X.087 AS4810T-354G32Mn VHP64ATUS1 MC UMACss 2*2G/320/
6L2.8/5R/cb_n2_1.0D_AL_ENP2
C2SSU3500B NLED14WXGAGS UMA N SO2GBIII10 SO2GBIII10 N320GB5.4KS NSM8XS9.5 5 in 1-Build in SP1x2HMW SP1x2HMW N 6CELL2.8 65W 1.0M DV US International
(KB.I140A.085)
US-110V
AS4810T-
354G32Mn
PA USA LX.PBA0X.089 AS4810T-354G32Mn VHP64ATUS1 MC UMACss 2*2G/320/
6L2.8/5R/cb_n2_1.0D_AL_EN33
C2SSU3500B NLED14WXGAGS UMA N SO2GBIII10 SO2GBIII10 N320GB5.4KS NSM8XS9.5 5 in 1-Build in SP1x2HMW SP1x2HMW N 6CELL2.8 65W 1.0M DV US International
(KB.I140A.085)
US-110V
AS4810T-
354G32Mn
PA USA LX.PBA0X.091 AS4810T-354G32Mn VHP64ATUS1 MC UMACss 2*2G/320/
6L2.8/5R/cb_n2_1.0D_AL_EN11
C2SSU3500B NLED14WXGAGS UMA N SO2GBIII10 SO2GBIII10 N320GB5.4KS NSM8XS9.5 5 in 1-Build in SP1x2HMW SP1x2HMW N 6CELL2.8 65W 1.0M DV US International
(KB.I140A.085)
US-110V
AS4810T-
354G32Mn
PA Canada LX.PBA0X.095 AS4810T-354G32Mn VHP64ATCA2 MC UMACss 2*2G/320/
6L2.8/5R/cb_n2_1.0D_AL_FR32
C2SSU3500B NLED14WXGAGS UMA N SO2GBIII10 SO2GBIII10 N320GB5.4KS NSM8XS9.5 5 in 1-Build in SP1x2HMW SP1x2HMW N 6CELL2.8 65W 1.0M DV US w/ Canadian French
(KB.I140A.087)
US-110V
AS4810T-
354G32Mn
PA Canada LX.PBA0X.094 AS4810T-354G32Mn VHP64ATCA2 MC UMACss 2*2G/320/
6L2.8/5R/cb_n2_1.0D_AL_FR82
C2SSU3500B NLED14WXGAGS UMA N SO2GBIII10 SO2GBIII10 N320GB5.4KS NSM8XS9.5 5 in 1-Build in SP1x2HMW SP1x2HMW N 6CELL2.8 65W 1.0M DV US w/ Canadian French
(KB.I140A.087)
US-110V
AS4810T-
354G32Mn
PA USA LX.PBA0X.092 AS4810T-354G32Mn VHP64ATUS1 MC UMACss 2*2G/320/
6L2.8/5R/cb_n2_1.0D_AL_EN31
C2SSU3500B NLED14WXGAGS UMA N SO2GBIII10 SO2GBIII10 N320GB5.4KS NSM8XS9.5 5 in 1-Build in SP1x2HMW SP1x2HMW N 6CELL2.8 65W 1.0M DV US International
(KB.I140A.085)
US-110V
AS4810T-
354G32Mn
PA Canada LX.PBA0X.093 AS4810T-354G32Mn VHP64ATCA2 MC UMACss 2*2G/320/
6L2.8/5R/cb_n2_1.0D_AL_FR81
C2SSU3500B NLED14WXGAGS UMA N SO2GBIII10 SO2GBIII10 N320GB5.4KS NSM8XS9.5 5 in 1-Build in SP1x2HMW SP1x2HMW N 6CELL2.8 65W 1.0M DV US w/ Canadian French
(KB.I140A.087)
US-110V
AS4810T-
942G50Mn
WW WW S2.PBA0X.002 AS4810T-942G50Mn VHP32AWW1 MC UMACss 2*1G/
500_L/BT/6L2.8/5R/cb_n2_1.0D_AL_EN11
C2DSU9400B NLED14WXGAGS UMA N SO1GBIII10 SO1GBIII10 N500GB5.4KS NSM8XS9.5 5 in 1-Build in SP1x2MMW SP1x2MMW BT 2.0 6CELL2.8 65W 1.0M DV US International
(KB.I140A.085)
US and Continental
AS4810T-
352G16Mn
AAP Singapore LX.PBA0Y.007 AS4810T-352G16Mn VHB32ATSG1 MC UMACss 1*2G/160/
BT/6L2.8/5R/cb_n2_1.0D_AL_EN12
C2SSU3500B NLED14WXGAGS UMA N SO2GBIII10 N N160GB5.4KS NSM8XS9.5 5 in 1-Build in SP1x2MMW SP1x2MMW BT 2.0 6CELL2.8 65W 1.0M DV US International
(KB.I140A.085)
UK
Model RO Country Acer Part No Description CPU LCD VGA
Chip VRAM 1 Memory 1 Memory 2 HDD 1(GB) ODD Card Reader Wireless
LAN
Wireless
LAN1 Bluetooth Battery Adapter Camera K/B Power Cord
Appendix A 138
AS4810T-
352G16Mn
AAP Singapore LX.PBA0X.079 AS4810T-352G16Mn VHP32ATSG1 MC UMACss 1*2G/160/
BT/6L2.8/5R/cb_n2_1.0D_AL_EN12
C2SSU3500B NLED14WXGAGS UMA N SO2GBIII10 N N160GB5.4KS NSM8XS9.5 5 in 1-Build in SP1x2MMW SP1x2MMW BT 2.0 6CELL2.8 65W 1.0M DV US International
(KB.I140A.085)
UK
AS4810T-
353G32Mn
AAP Singapore LX.PBA0X.078 AS4810T-353G32Mn VHP32ATSG1 MC UMACss 2G+1G/
320/BT/6L2.8/5R/cb_n2_1.0D_AL_EN12
C2SSU3500B NLED14WXGAGS UMA N SO2GBIII10 SO1GBIII10 N320GB5.4KS NSM8XS9.5 5 in 1-Build in SP1x2MMW SP1x2MMW BT 2.0 6CELL2.8 65W 1.0M DV US International
(KB.I140A.085)
UK
AS4810T-
354G50Mn
AAP Singapore LX.PBA0X.077 AS4810T-354G50Mn VHP32ATSG1 MC UMACss 2*2G/
500_L/BT/6L2.8/5R/cb_n2_1.0D_AL_EN12
C2SSU3500B NLED14WXGAGS UMA N SO2GBIII10 SO2GBIII10 N500GB5.4KS NSM8XS9.5 5 in 1-Build in SP1x2MMW SP1x2MMW BT 2.0 6CELL2.8 65W 1.0M DV US International
(KB.I140A.085)
UK
AS4810T-
354G32Mn
EMEA South
Africa
LX.PBA0X.066 AS4810T-354G32Mn EM VHP32ATZA2 MC UMACss 2*2G/
320/BT/6L2.8/5R/cb_n2_1.0D_AL_EN16
C2SSU3500B NLED14WXGAGS UMA N SO2GBIII10 SO2GBIII10 N320GB5.4KS NSM8XS9.5 5 in 1-Build in SP1x2HMW SP1x2HMW BT 2.0 6CELL2.8 65W 1.0M DV US International
(KB.I140A.085)
AF
AS4810T-
354G32Mn
EMEA South
Africa
LX.PBA0X.070 AS4810T-354G32Mn EM VHP32ATZA4 MC UMACss 2*2G/
320/BT/6L2.8/5R/cb_n2_1.0D_AL_ENI1
C2SSU3500B NLED14WXGAGS UMA N SO2GBIII10 SO2GBIII10 N320GB5.4KS NSM8XS9.5 5 in 1-Build in SP1x2HMW SP1x2HMW BT 2.0 6CELL2.8 65W 1.0M DV US International
(KB.I140A.085)
UK
AS4810T-
354G32Mn
EMEA Denmark LX.PBA0X.068 AS4810T-354G32Mn VHP32ATDK2 MC UMACss 2*2G/320/
BT/6L2.8/5R/cb_n2_1.0D_AL_ENS3
C2SSU3500B NLED14WXGAGS UMA N SO2GBIII10 SO2GBIII10 N320GB5.4KS NSM8XS9.5 5 in 1-Build in SP1x2HMW SP1x2HMW BT 2.0 6CELL2.8 65W 1.0M DV Nordic (KB.I140A.074) Danish/Continental
AS4810T-
354G32Mn
EMEA Germany LX.PBA0X.065 AS4810T-354G32Mn VHP32ATDE1 MC UMACss 2*2G/320/
BT/6L2.8/5R/cb_n2_1.0D_AL_DE13
C2SSU3500B NLED14WXGAGS UMA N SO2GBIII10 SO2GBIII10 N320GB5.4KS NSM8XS9.5 5 in 1-Build in SP1x2HMW SP1x2HMW BT 2.0 6CELL2.8 65W 1.0M DV German (KB.I140A.069) Continental
AS4810T-
354G32Mn
EMEA Holland LX.PBA0X.063 AS4810T-354G32Mn VHP32ATNL1 MC UMACss 2*2G/320/
BT/6L2.8/5R/cb_n2_1.0D_AL_NL12
C2SSU3500B NLED14WXGAGS UMA N SO2GBIII10 SO2GBIII10 N320GB5.4KS NSM8XS9.5 5 in 1-Build in SP1x2HMW SP1x2HMW BT 2.0 6CELL2.8 65W 1.0M DV US International
(KB.I140A.085)
Continental
AS4810T-
944G32Mn
CHIN
A
Hong
Kong
LX.PBA0Y.005 AS4810T-944G32Mn VHB32ATHK2 MC UMACss 2*2G/320/
BT/6L2.8/5R/cb_n2_1.0D_AL_ZH31
C2DSU9400B NLED14WXGAGS UMA N SO2GBIII10 SO2GBIII10 N320GB5.4KS NSM8XS9.5 5 in 1-Build in SP1x2MMW SP1x2MMW BT 2.0 6CELL2.8 65W 1.0M DV US International
(KB.I140A.085)
UK
AS4810T-
352G25Mn
CHIN
A
Hong
Kong
LX.PBA0Y.006 AS4810T-352G25Mn VHB32ATHK2 MC UMACss 1*2G/250/
BT/6L2.8/5R/cb_n2_1.0D_AL_ZH31
C2SSU3500B NLED14WXGAGS UMA N SO2GBIII10 N N250GB5.4KS NSM8XS9.5 5 in 1-Build in SP1x2MMW SP1x2MMW BT 2.0 6CELL2.8 65W 1.0M DV US International
(KB.I140A.085)
UK
AS4810T-
354G32Mn
PA USA LX.PBA0X.073 AS4810T-354G32Mn VHP64ATUS1 MC UMACss 2*2G/320/
6L2.8/5R/cb_n2_1.0D_AL_EN34
C2SSU3500B NLED14WXGAGS UMA N SO2GBIII10 SO2GBIII10 N320GB5.4KS NSM8XS9.5 5 in 1-Build in SP1x2MMW SP1x2MMW N 6CELL2.8 65W 1.0M DV US International
(KB.I140A.085)
US-110V
AS4810T-
354G32Mn
PA USA LX.PBA0X.074 AS4810T-354G32Mn VHP64ATUS1 MC UMACss 2*2G/320/
6L2.8/5R/cb_n2_1.0D_AL_EN11
C2SSU3500B NLED14WXGAGS UMA N SO2GBIII10 SO2GBIII10 N320GB5.4KS NSM8XS9.5 5 in 1-Build in SP1x2MMW SP1x2MMW N 6CELL2.8 65W 1.0M DV US International
(KB.I140A.085)
US-110V
AS4810T-
354G32Mn
PA USA LX.PBA0X.075 AS4810T-354G32Mn VHP64ATUS1 MC UMACss 2*2G/320/
6L2.8/5R/cb_n2_1.0D_AL_EN31
C2SSU3500B NLED14WXGAGS UMA N SO2GBIII10 SO2GBIII10 N320GB5.4KS NSM8XS9.5 5 in 1-Build in SP1x2MMW SP1x2MMW N 6CELL2.8 65W 1.0M DV US International
(KB.I140A.085)
US-110V
AS4810T-
354G32Mn
EMEA Eastern
Europe
LX.PBA0X.055 AS4810T-354G32Mn VHP32ATEU4 MC UMACss 2*2G/320/
BT/6L2.8/5R/cb_n2_1.0D_AL_SV22
C2SSU3500B NLED14WXGAGS UMA N SO2GBIII10 SO2GBIII10 N320GB5.4KS NSM8XS9.5 5 in 1-Build in SP1x2HMW SP1x2HMW BT 2.0 6CELL2.8 65W 1.0M DV Sweden (KB.I140A.080) Continental
AS4810T-
354G32Mn
EMEA Czech LX.PBA0X.059 AS4810T-354G32Mn VHP32ATCZ2 MC UMACss 2*2G/320/
BT/6L2.8/5R/cb_n2_1.0D_AL_SK12
C2SSU3500B NLED14WXGAGS UMA N SO2GBIII10 SO2GBIII10 N320GB5.4KS NSM8XS9.5 5 in 1-Build in SP1x2HMW SP1x2HMW BT 2.0 6CELL2.8 65W 1.0M DV CZ/SK (KB.I140A.064) Continental
AS4810T-
354G32Mn
EMEA Sweden LX.PBA0X.058 AS4810T-354G32Mn VHP32ATSE1 MC UMACss 2*2G/320/
BT/6L2.8/5R/cb_n2_1.0D_AL_FI13
C2SSU3500B NLED14WXGAGS UMA N SO2GBIII10 SO2GBIII10 N320GB5.4KS NSM8XS9.5 5 in 1-Build in SP1x2HMW SP1x2HMW BT 2.0 6CELL2.8 65W 1.0M DV Sweden (KB.I140A.080) Continental
AS4810T-
354G32Mn
EMEA Austria LX.PBA0X.057 AS4810T-354G32Mn VHP32ATAT1 MC UMACss 2*2G/320/
BT/6L2.8/5R/cb_n2_1.0D_AL_DE11
C2SSU3500B NLED14WXGAGS UMA N SO2GBIII10 SO2GBIII10 N320GB5.4KS NSM8XS9.5 5 in 1-Build in SP1x2HMW SP1x2HMW BT 2.0 6CELL2.8 65W 1.0M DV German (KB.I140A.069) Continental
AS4810T-
354G32Mi
EMEA Russia LX.PBA0X.056 AS4810T-354G32Mi VHP32ATRU1 MC UMACss 2*2G/320/
BT/6L2.8/5R/cb_abg_1.0D_AL_RU11
C2SSU3500B NLED14WXGAGS UMA N SO2GBIII10 SO2GBIII10 N320GB5.4KS NSM8XS9.5 5 in 1-Build in SP1x2HMW SP1x2MABG BT 2.0 6CELL2.8 65W 1.0M DV Russian (KB.I140A.077) Continental
AS4810T-
354G32Mn
EMEA Norway LX.PBA0X.060 AS4810T-354G32Mn VHP32ATNO3 MC UMACss 2*2G/320/
BT/6L2.8/5R/cb_n2_1.0D_AL_ENS3
C2SSU3500B NLED14WXGAGS UMA N SO2GBIII10 SO2GBIII10 N320GB5.4KS NSM8XS9.5 5 in 1-Build in SP1x2HMW SP1x2HMW BT 2.0 6CELL2.8 65W 1.0M DV Nordic (KB.I140A.074) Danish/Continental
AS4810T-
354G32Mn
EMEA Norway LX.PBA0X.061 AS4810T-354G32Mn VHP32ATNO1 MC UMACss 2*2G/320/
BT/6L2.8/5R/cb_n2_1.0D_AL_NO12
C2SSU3500B NLED14WXGAGS UMA N SO2GBIII10 SO2GBIII10 N320GB5.4KS NSM8XS9.5 5 in 1-Build in SP1x2HMW SP1x2HMW BT 2.0 6CELL2.8 65W 1.0M DV Norwegian (KB.I140A.075) Continental
AS4810T-
354G32Mn
EMEA Luxembou
rg
LX.PBA0X.062 AS4810T-354G32Mn VHP32ATLU3 MC UMACss 2*2G/320/
BT/6L2.8/5R/cb_n2_1.0D_AL_IT41
C2SSU3500B NLED14WXGAGS UMA N SO2GBIII10 SO2GBIII10 N320GB5.4KS NSM8XS9.5 5 in 1-Build in SP1x2HMW SP1x2HMW BT 2.0 6CELL2.8 65W 1.0M DV Swiss/G (KB.I140A.081) Continental
AS4810T-
354G32Mn
EMEA Belgium LX.PBA0X.064 AS4810T-354G32Mn VHP32ATBE1 MC UMACss 2*2G/320/
BT/6L2.8/5R/cb_n2_1.0D_AL_NL13
C2SSU3500B NLED14WXGAGS UMA N SO2GBIII10 SO2GBIII10 N320GB5.4KS NSM8XS9.5 5 in 1-Build in SP1x2HMW SP1x2HMW BT 2.0 6CELL2.8 65W 1.0M DV Belgium (KB.I140A.062) Continental
AS4810T-
942G32Mn
TWN GCTWN LX.PBA0X.076 AS4810T-942G32Mn VHP32ATTW1 MC UMACss 1*2G/320/
BT/6L2.8/5R/cb_n2_1.0D_AL_TC11
C2DSU9400B NLED14WXGAGS UMA N SO2GBIII10 N N320GB5.4KS NSM8XS9.5 5 in 1-Build in SP1x2MMW SP1x2MMW BT 2.0 6CELL2.8 65W 1.0M DV Chinese (KB.I140A.065) US-110V (BSMI)
AS4810T-
354G32Mn
EMEA France LX.PBA0X.071 AS4810T-354G32Mn VHP32ATFR1 MC UMACss 2*2G/320/
BT/6L2.8/5R/cb_n2_1.0D_AL_FR23
C2SSU3500B NLED14WXGAGS UMA N SO2GBIII10 SO2GBIII10 N320GB5.4KS NSM8XS9.5 5 in 1-Build in SP1x2HMW SP1x2HMW BT 2.0 6CELL2.8 65W 1.0M DV French (KB.I140A.068) Continental
AS4810T-
354G32Mn
EMEA Denmark LX.PBA0X.069 AS4810T-354G32Mn VHP32ATDK1 MC UMACss 2*2G/320/
BT/6L2.8/5R/cb_n2_1.0D_AL_NO13
C2SSU3500B NLED14WXGAGS UMA N SO2GBIII10 SO2GBIII10 N320GB5.4KS NSM8XS9.5 5 in 1-Build in SP1x2HMW SP1x2HMW BT 2.0 6CELL2.8 65W 1.0M DV Danish (KB.I140A.066) Danish
AS4810T-
354G32Mn
EMEA South
Africa
LX.PBA0X.067 AS4810T-354G32Mn EM VHP32ATZA1 MC UMACss 2*2G/
320/BT/6L2.8/5R/cb_n2_1.0D_AL_FR23
C2SSU3500B NLED14WXGAGS UMA N SO2GBIII10 SO2GBIII10 N320GB5.4KS NSM8XS9.5 5 in 1-Build in SP1x2HMW SP1x2HMW BT 2.0 6CELL2.8 65W 1.0M DV French (KB.I140A.068) Continental
AS4810T-
942G32Mn
AAP Singapore LX.PBA0X.027 AS4810T-942G32Mn VHP32ATSG1 MC UMACss 1*2G/320/
BT/6L2.8/5R/cb_n2_1.0D_AL_EN12
C2DSU9400B NLED14WXGAGS UMA N SO2GBIII10 N N320GB5.4KS NSM8XS9.5 5 in 1-Build in SP1x2MMW SP1x2MMW BT 2.0 6CELL2.8 65W 1.0M DV US International
(KB.I140A.085)
UK
AS4810T-
354G32Mn
EMEA Eastern
Europe
LX.PBA0X.052 AS4810T-354G32Mn VHP32ATEU5 MC UMACss 2*2G/320/
BT/6L2.8/5R/cb_n2_1.0D_AL_PL13
C2SSU3500B NLED14WXGAGS UMA N SO2GBIII10 SO2GBIII10 N320GB5.4KS NSM8XS9.5 5 in 1-Build in SP1x2HMW SP1x2HMW BT 2.0 6CELL2.8 65W 1.0M DV US International
(KB.I140A.085)
Continental
AS4810T-
354G32Mn
EMEA Eastern
Europe
LX.PBA0X.050 AS4810T-354G32Mn VHP32ATEU5 MC UMACss 2*2G/320/
BT/6L2.8/5R/cb_n2_1.0D_AL_RO12
C2SSU3500B NLED14WXGAGS UMA N SO2GBIII10 SO2GBIII10 N320GB5.4KS NSM8XS9.5 5 in 1-Build in SP1x2HMW SP1x2HMW BT 2.0 6CELL2.8 65W 1.0M DV US International
(KB.I140A.085)
Continental
AS4810T-
354G32Mn
EMEA Hungary LX.PBA0X.047 AS4810T-354G32Mn VHP32ATHU1 MC UMACss 2*2G/320/
BT/6L2.8/5R/cb_n2_1.0D_AL_HU13
C2SSU3500B NLED14WXGAGS UMA N SO2GBIII10 SO2GBIII10 N320GB5.4KS NSM8XS9.5 5 in 1-Build in SP1x2HMW SP1x2HMW BT 2.0 6CELL2.8 65W 1.0M DV Hungarian (KB.I140A.071) Continental
AS4810T-
354G32Mn
EMEA Spain LX.PBA0X.049 AS4810T-354G32Mn VHP32ATES1 MC UMACss 2*2G/320/
BT/6L2.8/5R/cb_n2_1.0D_AL_ES22
C2SSU3500B NLED14WXGAGS UMA N SO2GBIII10 SO2GBIII10 N320GB5.4KS NSM8XS9.5 5 in 1-Build in SP1x2HMW SP1x2HMW BT 2.0 6CELL2.8 65W 1.0M DV Spanish (KB.I140A.079) Continental
AS4810T-
354G32Mn
EMEA UK LX.PBA0X.030 AS4810T-354G32Mn VHP32ATGB1 MC UMACss 2*2G/320/
BT/6L2.8/5R/cb_n2_1.0D_AL_EN14
C2SSU3500B NLED14WXGAGS UMA N SO2GBIII10 SO2GBIII10 N320GB5.4KS NSM8XS9.5 5 in 1-Build in SP1x2HMW SP1x2HMW BT 2.0 6CELL2.8 65W 1.0M DV UK (KB.I140A.084) UK
AS4810T-
354G32Mn
EMEA Ukraine LX.PBA0X.031 AS4810T-354G32Mn VHP32ATUK1 MC UMACss 2*2G/320/
BT/6L2.8/5R/cb_n2_1.0D_AL_RU11
C2SSU3500B NLED14WXGAGS UMA N SO2GBIII10 SO2GBIII10 N320GB5.4KS NSM8XS9.5 5 in 1-Build in SP1x2HMW SP1x2HMW BT 2.0 6CELL2.8 65W 1.0M DV Russian (KB.I140A.077) Continental
Model RO Country Acer Part No Description CPU LCD VGA
Chip VRAM 1 Memory 1 Memory 2 HDD 1(GB) ODD Card Reader Wireless
LAN
Wireless
LAN1 Bluetooth Battery Adapter Camera K/B Power Cord
139 Appendix A
AS4810T-
354G32Mn
EMEA Turkey LX.PBA0X.032 AS4810T-354G32Mn EM VHP32ATTR1 MC UMACss 2*2G/
320/BT/6L2.8/5R/cb_n2_1.0D_AL_TR33
C2SSU3500B NLED14WXGAGS UMA N SO2GBIII10 SO2GBIII10 N320GB5.4KS NSM8XS9.5 5 in 1-Build in SP1x2HMW SP1x2HMW BT 2.0 6CELL2.8 65W 1.0M DV Turkish (KB.I140A.083) Continental
AS4810T-
354G32Mn
EMEA Switzerlan
d
LX.PBA0X.033 AS4810T-354G32Mn VHP32ATCH1 MC UMACss 2*2G/320/
BT/6L2.8/5R/cb_n2_1.0D_AL_IT42
C2SSU3500B NLED14WXGAGS UMA N SO2GBIII10 SO2GBIII10 N320GB5.4KS NSM8XS9.5 5 in 1-Build in SP1x2HMW SP1x2HMW BT 2.0 6CELL2.8 65W 1.0M DV Swiss/G (KB.I140A.081) Swiss
AS4810T-
354G32Mn
EMEA Poland LX.PBA0X.034 AS4810T-354G32Mn VHP32ATPL1 MC UMACss 2*2G/320/
BT/6L2.8/5R/cb_n2_1.0D_AL_PL11
C2SSU3500B NLED14WXGAGS UMA N SO2GBIII10 SO2GBIII10 N320GB5.4KS NSM8XS9.5 5 in 1-Build in SP1x2HMW SP1x2HMW BT 2.0 6CELL2.8 65W 1.0M DV US International
(KB.I140A.085)
Continental
AS4810T-
354G32Mn
EMEA Middle
East
LX.PBA0X.035 AS4810T-354G32Mn EM VHP32ATME2 MC UMACss 2*2G/
320/BT/6L2.8/5R/cb_n2_1.0D_AL_AR23
C2SSU3500B NLED14WXGAGS UMA N SO2GBIII10 SO2GBIII10 N320GB5.4KS NSM8XS9.5 5 in 1-Build in SP1x2HMW SP1x2HMW BT 2.0 6CELL2.8 65W 1.0M DV Arabic (KB.I140A.061) UK and US-110V
AS4810T-
354G32Mn
EMEA Middle
East
LX.PBA0X.036 AS4810T-354G32Mn EM VHP32ATME3 MC UMACss 2*2G/
320/BT/6L2.8/5R/cb_n2_1.0D_AL_FR23
C2SSU3500B NLED14WXGAGS UMA N SO2GBIII10 SO2GBIII10 N320GB5.4KS NSM8XS9.5 5 in 1-Build in SP1x2HMW SP1x2HMW BT 2.0 6CELL2.8 65W 1.0M DV French (KB.I140A.068) Continental
AS4810T-
354G32Mn
EMEA Middle
East
LX.PBA0X.037 AS4810T-354G32Mn EM VHP32ATME2 MC UMACss 2*2G/
320/BT/6L2.8/5R/cb_n2_1.0D_AL_AR13
C2SSU3500B NLED14WXGAGS UMA N SO2GBIII10 SO2GBIII10 N320GB5.4KS NSM8XS9.5 5 in 1-Build in SP1x2HMW SP1x2HMW BT 2.0 6CELL2.8 65W 1.0M DV Arabic (KB.I140A.061) UK and US-110V
AS4810T-
354G32Mn
EMEA Middle
East
LX.PBA0X.038 AS4810T-354G32Mn EM VHP32ATME4 MC UMACss 2*2G/
320/BT/6L2.8/5R/cb_n2_1.0D_AL_RU61
C2SSU3500B NLED14WXGAGS UMA N SO2GBIII10 SO2GBIII10 N320GB5.4KS NSM8XS9.5 5 in 1-Build in SP1x2HMW SP1x2HMW BT 2.0 6CELL2.8 65W 1.0M DV Russian (KB.I140A.077) Continental
AS4810T-
354G32Mn
EMEA Middle
East
LX.PBA0X.039 AS4810T-354G32Mn EM VHP32ATME4 MC UMACss 2*2G/
320/BT/6L2.8/5R/cb_n2_1.0D_AL_EN11
C2SSU3500B NLED14WXGAGS UMA N SO2GBIII10 SO2GBIII10 N320GB5.4KS NSM8XS9.5 5 in 1-Build in SP1x2HMW SP1x2HMW BT 2.0 6CELL2.8 65W 1.0M DV Russian (KB.I140A.077) Continental
AS4810T-
354G32Mn
EMEA Middle
East
LX.PBA0X.040 AS4810T-354G32Mn EM VHP32ATME2 MC UMACss 2*2G/
320/BT/6L2.8/5R/cb_n2_1.0D_AL_EN15
C2SSU3500B NLED14WXGAGS UMA N SO2GBIII10 SO2GBIII10 N320GB5.4KS NSM8XS9.5 5 in 1-Build in SP1x2HMW SP1x2HMW BT 2.0 6CELL2.8 65W 1.0M DV Arabic (KB.I140A.061) UK and US-110V
AS4810T-
354G32Mn
EMEA Middle
East
LX.PBA0X.041 AS4810T-354G32Mn EM VHP32ATME6 MC UMACss 2*2G/
320/BT/6L2.8/5R/cb_n2_1.0D_AL_EN15
C2SSU3500B NLED14WXGAGS UMA N SO2GBIII10 SO2GBIII10 N320GB5.4KS NSM8XS9.5 5 in 1-Build in SP1x2HMW SP1x2HMW BT 2.0 6CELL2.8 65W 1.0M DV US International
(KB.I140A.085)
UK
AS4810T-
354G32Mn
EMEA Middle
East
LX.PBA0X.042 AS4810T-354G32Mn EM VHP32ATME9 MC UMACss 2*2G/
320/BT/6L2.8/5R/cb_n2_1.0D_AL_FR22
C2SSU3500B NLED14WXGAGS UMA N SO2GBIII10 SO2GBIII10 N320GB5.4KS NSM8XS9.5 5 in 1-Build in SP1x2HMW SP1x2HMW BT 2.0 6CELL2.8 65W 1.0M DV FR/Arabic (KB.I140A.067) Continental
AS4810T-
354G32Mn
EMEA Italy LX.PBA0X.045 AS4810T-354G32Mn VHP32ATIT1 MC UMACss 2*2G/320/
BT/6L2.8/5R/cb_n2_1.0D_AL_IT12
C2SSU3500B NLED14WXGAGS UMA N SO2GBIII10 SO2GBIII10 N320GB5.4KS NSM8XS9.5 5 in 1-Build in SP1x2HMW SP1x2HMW BT 2.0 6CELL2.8 65W 1.0M DV Italian (KB.I140A.072) Italian
AS4810T-
354G32Mn
EMEA Israel LX.PBA0X.044 AS4810T-354G32Mn VHP32ATIL1 MC UMACss 2*2G/320/
BT/6L2.8/5R/cb_n2_1.0D_AL_HE12
C2SSU3500B NLED14WXGAGS UMA N SO2GBIII10 SO2GBIII10 N320GB5.4KS NSM8XS9.5 5 in 1-Build in SP1x2HMW SP1x2HMW BT 2.0 6CELL2.8 65W 1.0M DV US International w/ Hebrew
(KB.I140A.086)
Israel
AS4810T-
354G32Mn
EMEA Greece LX.PBA0X.043 AS4810T-354G32Mn VHP32ATGR1 MC UMACss 2*2G/320/
BT/6L2.8/5R/cb_n2_1.0D_AL_EL32
C2SSU3500B NLED14WXGAGS UMA N SO2GBIII10 SO2GBIII10 N320GB5.4KS NSM8XS9.5 5 in 1-Build in SP1x2HMW SP1x2HMW BT 2.0 6CELL2.8 65W 1.0M DV Greek (KB.I140A.070) Continental
AS4810T-
354G32Mn
EMEA Portugal LX.PBA0X.048 AS4810T-354G32Mn VHP32ATPT1 MC UMACss 2*2G/320/
BT/6L2.8/5R/cb_n2_1.0D_AL_PT12
C2SSU3500B NLED14WXGAGS UMA N SO2GBIII10 SO2GBIII10 N320GB5.4KS NSM8XS9.5 5 in 1-Build in SP1x2HMW SP1x2HMW BT 2.0 6CELL2.8 65W 1.0M DV Portuguese (KB.I140A.076) Continental
AS4810T-
354G32Mn
EMEA Finland LX.PBA0X.046 AS4810T-354G32Mn VHP32ATFI2 MC UMACss 2*2G/320/
BT/6L2.8/5R/cb_n2_1.0D_AL_FI11
C2SSU3500B NLED14WXGAGS UMA N SO2GBIII10 SO2GBIII10 N320GB5.4KS NSM8XS9.5 5 in 1-Build in SP1x2HMW SP1x2HMW BT 2.0 6CELL2.8 65W 1.0M DV Sweden (KB.I140A.080) Continental
AS4810T-
354G32Mn
EMEA Eastern
Europe
LX.PBA0X.051 AS4810T-354G32Mn VHP32ATEU3 MC UMACss 2*2G/320/
BT/6L2.8/5R/cb_n2_1.0D_AL_RU23
C2SSU3500B NLED14WXGAGS UMA N SO2GBIII10 SO2GBIII10 N320GB5.4KS NSM8XS9.5 5 in 1-Build in SP1x2HMW SP1x2HMW BT 2.0 6CELL2.8 65W 1.0M DV Russian (KB.I140A.077) Continental
AS4810T-
354G32Mn
EMEA Eastern
Europe
LX.PBA0X.054 AS4810T-354G32Mn VHP32ATEU7 MC UMACss 2*2G/320/
BT/6L2.8/5R/cb_n2_1.0D_AL_ENR2
C2SSU3500B NLED14WXGAGS UMA N SO2GBIII10 SO2GBIII10 N320GB5.4KS NSM8XS9.5 5 in 1-Build in SP1x2HMW SP1x2HMW BT 2.0 6CELL2.8 65W 1.0M DV SLO/CRO (KB.I140A.078) Continental
AS4810T-
944G50Mn
AAP Singapore LX.PBA0X.025 AS4810T-944G50Mn VHP32ATSG1 MC UMACss 2*2G/
500_L/BT/6L2.8/5R/cb_n2_1.0D_AL_EN12
C2DSU9400B NLED14WXGAGS UMA N SO2GBIII10 SO2GBIII10 N500GB5.4KS NSM8XS9.5 5 in 1-Build in SP1x2MMW SP1x2MMW BT 2.0 6CELL2.8 65W 1.0M DV US International
(KB.I140A.085)
UK
AS4810T-
354G32Mn
EMEA Eastern
Europe
LX.PBA0X.053 AS4810T-354G32Mn VHP32ATEU7 MC UMACss 2*2G/320/
BT/6L2.8/5R/cb_n2_1.0D_AL_SL11
C2SSU3500B NLED14WXGAGS UMA N SO2GBIII10 SO2GBIII10 N320GB5.4KS NSM8XS9.5 5 in 1-Build in SP1x2HMW SP1x2HMW BT 2.0 6CELL2.8 65W 1.0M DV SLO/CRO (KB.I140A.078) Continental
AS4810T-
352G32Mn
AAP Australia/
New
Zealand
LX.PBA0X.023 AS4810T-352G32Mn VHP32ATAU1 MC UMACss 1*2G/320/
BT/6L2.8/5R/cb_n2_1.0D_AL_EN12
C2SSU3500B NLED14WXGAGS UMA N SO2GBIII10 N N320GB5.4KS NSM8XS9.5 5 in 1-Build in SP1x2MMW SP1x2MMW BT 2.0 6CELL2.8 65W 1.0M DV US International
(KB.I140A.085)
Australia w/label
AS4810T-
352G32Mn
AAP Singapore LX.PBA0X.022 AS4810T-352G32Mn VHP32ATSG1 MC UMACss 1*2G/320/
BT/6L2.8/5R/cb_n2_1.0D_AL_EN12
C2SSU3500B NLED14WXGAGS UMA N SO2GBIII10 N N320GB5.4KS NSM8XS9.5 5 in 1-Build in SP1x2MMW SP1x2MMW BT 2.0 6CELL2.8 65W 1.0M DV US International
(KB.I140A.085)
UK
AS4810T-
352G32Mn
AAP Indonesia LX.PBA0X.020 AS4810T-352G32Mn EM VHP32ATID1 MC UMACss 1*2G/
320/BT/6L2.8/5R/cb_n2_1.0D_AL_ID24
C2SSU3500B NLED14WXGAGS UMA N SO2GBIII10 N N320GB5.4KS NSM8XS9.5 5 in 1-Build in SP1x2MMW SP1x2MMW BT 2.0 6CELL2.8 65W 1.0M DV US International
(KB.I140A.085)
Europe
AS4810T-
352G32Mn
AAP Malaysia LX.PBA0X.018 AS4810T-352G32Mn EM VHP32ATMY1 MC UMACss 1*2G/
320/BT/6L2.8/5R/cb_n2_1.0D_AL_EN14
C2SSU3500B NLED14WXGAGS UMA N SO2GBIII10 N N320GB5.4KS NSM8XS9.5 5 in 1-Build in SP1x2MMW SP1x2MMW BT 2.0 6CELL2.8 65W 1.0M DV US International
(KB.I140A.085)
UK
AS4810T-
352G32Mn
AAP Vietnam LX.PBA0X.016 AS4810T-352G32Mn EM VHP32ATVN1 MC UMACss 1*2G/
320/BT/6L2.8/5R/cb_n2_1.0D_AL_EN13
C2SSU3500B NLED14WXGAGS UMA N SO2GBIII10 N N320GB5.4KS NSM8XS9.5 5 in 1-Build in SP1x2MMW SP1x2MMW BT 2.0 6CELL2.8 65W 1.0M DV US International
(KB.I140A.085)
Europe
AS4810T-
352G32Mn
AAP India LX.PBA0X.021 AS4810T-352G32Mn VHP32ATIN1 MC UMACss 1*2G/320/
BT/6L2.8/5R/cb_n2_1.0D_AL_EN12
C2SSU3500B NLED14WXGAGS UMA N SO2GBIII10 N N320GB5.4KS NSM8XS9.5 5 in 1-Build in SP1x2MMW SP1x2MMW BT 2.0 6CELL2.8 65W 1.0M DV US International
(KB.I140A.085)
South Africa-S (India)
AS4810T-
942G50Mn
WW GCTWN S2.PBA0X.003 AS4810T-942G50Mn VHP32AWW1 MC UMACss 2*1G/
500_L/BT/6L2.8/5R/cb_n2_1.0D_AL_ENX1
C2DSU9400B NLED14WXGAGS UMA N SO1GBIII10 SO1GBIII10 N500GB5.4KS NSM8XS9.5 5 in 1-Build in SP1x2HMW SP1x2HMW BT 2.0 6CELL2.8 65W 1.0M DV US International
(KB.I140A.085)
US and Continental
AS4810T-
353G25Mn
PA USA LX.PBA0Y.008 AS4810T-353G25Mn VHB32ATUS1 MC UMACss 2G+1G/
250/6L2.8/cb_n2_1.0D_AL_EN32
C2SSU3500B NLED14WXGAGS UMA N SO2GBIII10 SO1GBIII10 N250GB5.4KS NSM8XS9.5 5 in 1-Build in SP1x2MMW SP1x2MMW N 6CELL2.8 65W 1.0M DV US International
(KB.I140A.085)
US-110V
AS4810T-
351G25Mn
CHIN
A
China LX.PBA0Y.004 AS4810T-351G25Mn VHB32ATCN1 MC UMACss 1*1G/250/
6L2.8/5R/cb_n2_1.0D_AL_SC11
C2SSU3500B NLED14WXGAGS UMA N SO1GBIII10 N N250GB5.4KS NSM8XS9.5 5 in 1-Build in SP1x2MMW SP1x2MMW N 6CELL2.8 65W 1.0M DV US International
(KB.I140A.085)
PRC
AS4810T-
351G25Mn
CHIN
A
Hong
Kong
LX.PBA0Y.003 AS4810T-351G25Mn VHB32ATHK2 MC UMACss 1*1G/250/
6L2.8/5R/cb_n2_1.0D_AL_ZH31
C2SSU3500B NLED14WXGAGS UMA N SO1GBIII10 N N250GB5.4KS NSM8XS9.5 5 in 1-Build in SP1x2MMW SP1x2MMW N 6CELL2.8 65W 1.0M DV US International
(KB.I140A.085)
UK
AS4810T-
944G50Mi
WW WW S2.PBA0X.001 AS4810T-944G50Mi VHP32AWW1 MC UMACss 2*2G/
500_L/BT/6L/5R/cb_abg_1.0D_AL_EN11
C2DSU9400B NLED14WXGAGS UMA N SO2GBIII10 SO2GBIII10 N500GB5.4KS NSM8XS9.5 5 in 1-Build in SP1x2MABG SP1x2MABG BT 2.0 6CELL2.9 65W 1.0M DV US International
(KB.I140A.085)
US and Continental
AS4810T-
352G25Mn
AAP Singapore LX.PBA0X.026 AS4810T-352G25Mn VHP32ATSG1 MC UMACss 1*2G/250/
BT/6L2.8/5R/cb_n2_1.0D_AL_EN12
C2SSU3500B NLED14WXGAGS UMA N SO2GBIII10 N N250GB5.4KS NSM8XS9.5 5 in 1-Build in SP1x2MMW SP1x2MMW BT 2.0 6CELL2.8 65W 1.0M DV US International
(KB.I140A.085)
UK
Model RO Country Acer Part No Description CPU LCD VGA
Chip VRAM 1 Memory 1 Memory 2 HDD 1(GB) ODD Card Reader Wireless
LAN
Wireless
LAN1 Bluetooth Battery Adapter Camera K/B Power Cord
Appendix A 140
AS4810T-
944G32Mn
AAP Singapore LX.PBA0X.006 AS4810T-944G32Mn VHP32ATSG1 MC UMACss 2*2G/320/
BT/6L2.8/5R/cb_n2_1.0D_AL_EN12
C2DSU9400B NLED14WXGAGS UMA N SO2GBIII10 SO2GBIII10 N320GB5.4KS NSM8XS9.5 5 in 1-Build in SP1x2MMW SP1x2MMW BT 2.0 6CELL2.8 65W 1.0M DV US International
(KB.I140A.085)
UK
AS4810T-
944G32Mn
AAP India LX.PBA0X.007 AS4810T-944G32Mn VHP32ATIN1 MC UMACss 2*2G/320/
BT/6L2.8/5R/cb_n2_1.0D_AL_EN12
C2DSU9400B NLED14WXGAGS UMA N SO2GBIII10 SO2GBIII10 N320GB5.4KS NSM8XS9.5 5 in 1-Build in SP1x2MMW SP1x2MMW BT 2.0 6CELL2.8 65W 1.0M DV US International
(KB.I140A.085)
South Africa-S (India)
AS4810T-
352G32Mn
TWN GCTWN LX.PBA0X.072 AS4810T-352G32Mn VHP32ATTW1 MC UMACss 1*2G/320/
BT/6L2.8/5R/cb_n2_1.0D_AL_TC11
C2SSU3500B NLED14WXGAGS UMA N SO2GBIII10 N N320GB5.4KS NSM8XS9.5 5 in 1-Build in SP1x2MMW SP1x2MMW BT 2.0 6CELL2.8 65W 1.0M DV Chinese (KB.I140A.065) US-110V (BSMI)
AS4810T-
352G32Mn
AAP Thailand LX.PBA0X.017 AS4810T-352G32Mn EM VHP32ATTH1 MC UMACss 1*2G/
320/BT/6L2.8/5R/cb_n2_1.0D_AL_TH22
C2SSU3500B NLED14WXGAGS UMA N SO2GBIII10 N N320GB5.4KS NSM8XS9.5 5 in 1-Build in SP1x2MMW SP1x2MMW BT 2.0 6CELL2.8 65W 1.0M DV Thailand (KB.I140A.082) US-110V
AS4810T-
352G32Mn
AAP Philippine
s
LX.PBA0X.019 AS4810T-352G32Mn EM VHP32ATPH1 MC UMACss 1*2G/
320/BT/6L2.8/5R/cb_n2_1.0D_AL_EN14
C2SSU3500B NLED14WXGAGS UMA N SO2GBIII10 N N320GB5.4KS NSM8XS9.5 5 in 1-Build in SP1x2MMW SP1x2MMW BT 2.0 6CELL2.8 65W 1.0M DV US International
(KB.I140A.085)
US-110V
AS4810T-
944G32Mn
AAP Indonesia LX.PBA0X.008 AS4810T-944G32Mn EM VHP32ATID1 MC UMACss 2*2G/
320/BT/6L2.8/5R/cb_n2_1.0D_AL_ID24
C2DSU9400B NLED14WXGAGS UMA N SO2GBIII10 SO2GBIII10 N320GB5.4KS NSM8XS9.5 5 in 1-Build in SP1x2MMW SP1x2MMW BT 2.0 6CELL2.8 65W 1.0M DV US International
(KB.I140A.085)
Europe
AS4810T-
944G50Mn
AAP Australia/
New
Zealand
LX.PBA0X.024 AS4810T-944G50Mn VHP32ATAU1 MC UMACss 2*2G/
500_L/BT/6L2.8/5R/cb_n2_1.0D_AL_EN12Ultra HE ANZ
C2DSU9400B NLED14WXGAGS UMA N SO2GBIII10 SO2GBIII10 N500GB5.4KS NSM8XS9.5 5 in 1-Build in SP1x2MMW SP1x2MMW BT 2.0 6CELL2.8 65W 1.0M DV US International
(KB.I140A.085)
Australia w/label
AS4810T-
944G32Mn
AAP Australia/
New
Zealand
LX.PBA0X.005 AS4810T-944G32Mn VHP32ATAU1 MC UMACss 2*2G/320/
BT/6L2.8/5R/cb_n2_1.0D_AL_EN12
C2DSU9400B NLED14WXGAGS UMA N SO2GBIII10 SO2GBIII10 N320GB5.4KS NSM8XS9.5 5 in 1-Build in SP1x2MMW SP1x2MMW BT 2.0 6CELL2.8 65W 1.0M DV US International
(KB.I140A.085)
Australia w/label
AS4810T-
944G32Mn
AAP Philippine
s
LX.PBA0X.004 AS4810T-944G32Mn EM VHP32ATPH1 MC UMACss 2*2G/
320/BT/6L2.8/5R/cb_n2_1.0D_AL_EN14
C2DSU9400B NLED14WXGAGS UMA N SO2GBIII10 SO2GBIII10 N320GB5.4KS NSM8XS9.5 5 in 1-Build in SP1x2MMW SP1x2MMW BT 2.0 6CELL2.8 65W 1.0M DV US International
(KB.I140A.085)
US-110V
AS4810T-
944G32Mn
AAP Malaysia LX.PBA0X.003 AS4810T-944G32Mn EM VHP32ATMY1 MC UMACss 2*2G/
320/BT/6L2.8/5R/cb_n2_1.0D_AL_EN14
C2DSU9400B NLED14WXGAGS UMA N SO2GBIII10 SO2GBIII10 N320GB5.4KS NSM8XS9.5 5 in 1-Build in SP1x2MMW SP1x2MMW BT 2.0 6CELL2.8 65W 1.0M DV US International
(KB.I140A.085)
UK
AS4810T-
944G32Mn
AAP Thailand LX.PBA0X.002 AS4810T-944G32Mn EM VHP32ATTH1 MC UMACss 2*2G/
320/BT/6L2.8/5R/cb_n2_1.0D_AL_TH22
C2DSU9400B NLED14WXGAGS UMA N SO2GBIII10 SO2GBIII10 N320GB5.4KS NSM8XS9.5 5 in 1-Build in SP1x2MMW SP1x2MMW BT 2.0 6CELL2.8 65W 1.0M DV Thailand (KB.I140A.082) US-110V
AS4810T-
944G32Mn
AAP Vietnam LX.PBA0X.001 AS4810T-944G32Mn EM VHP32ATVN1 MC UMACss 2*2G/
320/BT/6L2.8/5R/cb_n2_1.0D_AL_EN13
C2DSU9400B NLED14WXGAGS UMA N SO2GBIII10 SO2GBIII10 N320GB5.4KS NSM8XS9.5 5 in 1-Build in SP1x2MMW SP1x2MMW BT 2.0 6CELL2.8 65W 1.0M DV US International
(KB.I140A.085)
Europe
AS4810T-
354G32Mn
WW WW S2.PBV0X.001 AS4810T-354G32Mn VHP32AWW1 MC UMAGCss 2*2G/
320/BT/6L/5R/cb_n2_1.0D_3G_AL_EN11
C2SSU3500B NLED14WXGAGS UMA N SO2GBIII10 SO2GBIII10 N320GB5.4KS NSM8XS9.5 5 in 1-Build in SP1x2HMW SP1x2HMW BT 2.0 6CELL2.2 65W 1.0M DV US International
(KB.I140A.085)
US and Continental
AS4810T-
944G50Mn
AAP Thailand LX.PBV0Y.002 AS4810T-944G50Mn EM VHB32ATTH1 MC UMAGCss 2*2G/
500_L/BT/6L2.8/5R/cb_n2_1.0D_3G_AL_TH22
C2DSU9400B NLED14WXGAGS UMA N SO2GBIII10 SO2GBIII10 N500GB5.4KS NSM8XS9.5 5 in 1-Build in SP1x2MMW SP1x2MMW BT 2.0 6CELL2.8 65W 1.0M DV Thailand (KB.I140A.082) US-110V
AS4810T-
352G32Mn
AAP Thailand LX.PBV0Y.001 AS4810T-352G32Mn EM VHB32ATTH1 MC UMAGCss 1*2G/
320/BT/6L2.8/5R/cb_n2_1.0D_3G_AL_TH22
C2SSU3500B NLED14WXGAGS UMA N SO2GBIII10 N N320GB5.4KS NSM8XS9.5 5 in 1-Build in SP1x2MMW SP1x2MMW BT 2.0 6CELL2.8 65W 1.0M DV Thailand (KB.I140A.082) US-110V
Model RO Country Acer Part No Description CPU LCD VGA
Chip VRAM 1 Memory 1 Memory 2 HDD 1(GB) ODD Card Reader Wireless
LAN
Wireless
LAN1 Bluetooth Battery Adapter Camera K/B Power Cord
Appendix B 141
This computer’s compatibility is tested and verified by Acer’s internal testing department. All of its system
functions are tested under Windows® XP Home, Windows® XP Pro environment.
Refer to the following lists for components, adapter cards, and peripherals which have passed these tests.
Regarding configuration, combination and test procedures, please refer to the Aspire 4810T/4810TZ/4410T/
4810TG series Compatibility Test Report released by the Acer Mobile System Testing Department.
Test Compatible Components
Appendix B
142 Appendix B
Microsoft® Windows® Vista Environment Test
Item Specification
CRT Port Test
CRT Monitor Acer 211c 21”, ViewSonic G220F, ViewSonic PF790 19”
LCD Monitor Acer FP751 17” TFT LCD, Acer AL1521, Acer AL1721, ViewSonic VD201b,
Westinghouse W37G, HP LP2065, HP S9500
Projector Dell 3300MP
USB Port Test
USB Keyboard/Mouse Microsoft Natural Keyboard Pro
Dell USB Keyboard
Logicool USB Mouse (OWCM-USB)
Logitech USB Wheel Mouse
Logitech First Wheel Mouse
Dell by Logitech
Dell Internet Navigator Keyboard
Dell Smart Card Keyboard
HP USB Optical Austin Mouse
Belkin Miniglow Optical USB Mouse
HP USB Optical Mouse (RB129AA)
USB Speaker/Joystick Aiwa Multimedia Digital Speaker (SC-UC78)
Panasonic USB Speaker EAB-MPC57USB
USB Storage Drive Iomega USB Zip 250MB
Transcend 80G HDD
Plextor DVD+R/RW
LG DVD+R/RW
Sony DVD+R/RW
USB Camera Intel Easy PC Camera (A20953-001)
Orange Micro USB 2.0 Web Cam
USB HUB and Others A TEN UH-204
IOGEAR 4-Port Hub
Corega CG-WLUSBST11
USB Printer/Scanner HP 450WBT Deskjet Printer
USB Flash Drive Sony Memory Key 128MB
Sony Micro Vault Pro USD-5G
IBM 128MB Memory Key
IBM 512MB Memory Key
Apacer Handy Drive
Apacer The USB Flash Drive 256MB
USB ODD Logitec CDRW+DVDROM combo
LG DVD+R/RW
Sony DVD+R/RW
1394 Camera Sony DV-TRV10
Access Point 802.11a Intel Pro/Wireless 5000
NetGear HE 102
Access Point 802.11g D-Link Building Networks People WiFi Certified a/b/g Wireless 108AG
Access Point 802.11n Belkin N1MIMO Wireless Router High Performance wireless 802.11n
Bluetooth Device Sony Ericsson Wireless Headset
Sony Ericsson T610
X Bridge Bluetooth Access Point BT300
Appendix B 143
PCMCIA Test
LAN/Modem Card TDK CardBus Ethernet 10/100 32-Bit CBE-10/100BTX
Storage Card Hitachi Microdrive 4G
1394 Card Buffalo 1394 Interface Cardbus (IFC-ILCB/DV)
USB2.0 Card IBM EtherJet CardBus Adapter 10/100
Wireless Lan Card
(Not recommended for wireless ready
model)
Cisco Wireless LAN Card 802.11a
NETGEAR Wireless LAN card 802.11a
ISDN Card Toshiba Type B for Bluetooth 128K ISDN Card
GPRS Card Vodafone QL1ACC-21581 3G/GPRS card
Sony Ericsson GC83 GPRS card
Sony Ericsson GC89 GPRS card
ExpressCard Test
Express Card Abcom 5-in-1 Adapter ExpressCard Reader
Abcom GigaLan ExpressCard
Sunix ECF2400 2 Ports 1394A ExpressCard
Memory Card Test (SD/MS/MMC/SM/CF/Microdrive/XD)
SD Card Apacer 128/256MB
SanDisk 256MB
Apacer 2GB (150x Hi-Speed)
KINGMAX 1GB (66x Hi-Speed)
SanDisk 1GB
RiDATA 4GB SD PRO Memory Card
MS Card Sony 512 MS PRO
Lexar 512MB MS PRO
Lexar 1GB MS PRO
Sony 2GB MS PRO
MMC Card SanDisk 32MB
Transcend 64/128MB
Transcend 256MB
SanDisk RS-MMC 128MB
PQI RS-MMC 256MB
Transcend 512MB
A-DATA Turbo 200X 2GB MMC Card
XD Card Apacer 256/512MB
SanDisk 2GB
Olympus 512MB
CF Card Apacer 256/512
SanDisk 2GB
Item Specification
144 Appendix B
Appendix C 145
This section describes online technical support services available to help you repair your Acer Systems.
If you are a distributor, dealer, ASP or TPM, please refer your technical queries to your local Acer branch
office. Acer Branch Offices and Regional Business Units may access our website. However some information
sources will require a user i.d. and password. These can be obtained directly from Acer CSD Taiwan.
Acer's Website offers you convenient and valuable support resources whenever you need them.
In the Technical Information section you can download information on all of Acer's Notebook, Desktop and
Server models including:
qService guides for all models
qUser's manuals
qTraining materials
qBios updates
qSoftware utilities
qSpare parts lists
qTABs (Technical Announcement Bulletin)
For these purposes, we have included an Acrobat File to facilitate the problem-free downloading of our
technical material.
Also contained on this website are:
qDetailed information on Acer's International Traveller’s Warranty (ITW)
qReturned material authorization procedures
qAn overview of all the support services we offer, accompanied by a list of telephone, fax and email
contacts for all your technical queries.
We are always looking for ways to optimize and improve our services, so if you have any suggestions or
comments, please do not hesitate to communicate these to us.
Online Support Information
Appendix C
146 Appendix C
147
A
Aspire 4
Audio 22
B
battery pack
removing 44
BIOS 19
vendor 19
Version 19
BIOS Recovery Boot Block 98
BIOS Recovery by Crisis Disk 98
steps 98
BIOS Recovery Hotkey 98
BIOS Utility 27–37
Flash 37
Navigating 28
C
Clearing BIOS Password
steps 98
Connector Locations 93
Core logic 19
CPU core voltage 19
CPU Fan True Value Table 19
CPU package 19
CPU type 19
Creating the Crisis Disk in Windows XP/Vista 99
Crisis Disk
creating 99
Crisis Recovery Disk 37
CRT board module
removing 66
D
DIMM module
removing 46
Disassembly Process 42
E
Environment Test 142
error messages
Power-On Self-Test (POST) 83
Euro 15
Euro symbol 15
External CD-ROM Drive Check 80
External Diskette Drive Check 80
External Module Disassembly
Flowchart 43
F
Features 1
FRU (Field Replaceable Unit) List 101
H
Hard disk 21
hard disk drive module
removing 47
HDD 21
Hot key
Bluetooth 15
brightness down 15
brightness up 15
Display 15
Screen blank 15
Sleep 15
Speaker 15
System property 15
volume down 15
volume up 15
Hot Keys 13, 15
I
Indicator
battery 11
HDD 11
WLANG/3G 11
Indicator/button
Acer PowerSmart key 11
backup key 11
power 11
Indicators 11
Intermittent Problems 91
K
Keyboard 23
removing 51
using 13
Keyboard or Auxiliary Input Device Check 80
L
Launch Board 56
LCD bezel
removing 72
LCD hinges
removing 73
LCD Module Disassembly
Index
148
Flowchart 71
LCD panel
removing 74
Lock key
Caps Lock 13
Num Lock 13
Scroll Lock 13
Lock Keys 13
lower cover
removing 45
M
Main Unit Disassembly
Flowchart 50
media access
on indicator 5
Memory Check 81
Menu
Boot 35
Exit 36
Main 30
Security 32
microphone
removing 77
N
Numeric Keypad 13
O
Online Support Information 145
P
password
changing 34
removing 33
power button board
removing 56
Power System Check 81
Battery Pack 82
Power Adapter 81
Processor 19
S
Screw List 42
Special Key 15
SSD module
removing 48
System
Block Diagram 3
System block diagram 3
system board
removing 61
System board Layout
top 94
System board layout
bottom 94
top 93, 95
top and bottom 93
system board layout
bottom 96
System Check Procedures 80
System Utilities 27
T
Test Compatible Components 141
Top 93
Touchpad 11
touchpad board
removing 56
Touchpad Check 82
touchpad lock board
removing 69
Troubleshooting 79
U
Undetermined Problems 92
utility
BIOS 27–37
V
View
top 5
view
bottom 10
left 7
rear 9
right 8
W
webcam
removing 76
Windows 2000 Environment Test 142
WLAN board module
removing 52
www.s-manuals.com

Navigation menu
