Acer Aspire 7336, 7540, 7736, 7736Z Series Sevice Guide. Www.s Manuals.com. Service Guide

User Manual: Notebook Acer Aspire 7336 - Service manuals and Schematics, Disassembly / Assembly. Free.

Open the PDF directly: View PDF PDF.
Page Count: 187 [warning: Documents this large are best viewed by clicking the View PDF Link!]

Aspire 7736/7736Z/7336 Series
Aspire 7540 Series
Service Guide
PRINTED IN TAIWAN
Service guide files and updates are available
on the ACER/CSD web; for more information,
please refer to http://csd.acer.com.tw
II
Revision History
Please refer to the table below for the updates made on Aspire 7736/7736Z/7336 and Aspire 7540 Series
service guide.
Date Chapter Updates
III
Copyright
Copyright © 2009 by Acer Incorporated. All rights reserved. No part of this publication may be reproduced,
transmitted, transcribed, stored in a retrieval system, or translated into any language or computer language, in
any form or by any means, electronic, mechanical, magnetic, optical, chemical, manual or otherwise, without
the prior written permission of Acer Incorporated.
Disclaimer
The information in this guide is subject to change without notice.
Acer Incorporated makes no representations or warranties, either expressed or implied, with respect to the
contents hereof and specifically disclaims any warranties of merchantability or fitness for any particular
purpose. Any Acer Incorporated software described in this manual is sold or licensed "as is". Should the
programs prove defective following their purchase, the buyer (and not Acer Incorporated, its distributor, or its
dealer) assumes the entire cost of all necessary servicing, repair, and any incidental or consequential
damages resulting from any defect in the software.
Acer is a registered trademark of Acer Corporation.
Intel is a registered trademark of Intel Corporation.
Other brand and product names are trademarks and/or registered trademarks of their respective holders.
IV
Conventions
The following conventions are used in this manual:
SCREEN MESSAGES Denotes actual messages that appear
on screen.
NOTE Gives bits and pieces of additional
information related to the current
topic.
WARNING Alerts you to any damage that might
result from doing or not doing specific
actions.
CAUTION Gives precautionary measures to
avoid possible hardware or software
problems.
IMPORTANT Reminds you to do specific actions
relevant to the accomplishment of
procedures.
V
Preface
Before using this information and the product it supports, please read the following general information.
1. This Service Guide provides you with all technical information relating to the BASIC CONFIGURATION
decided for Acer's "global" product offering. To better fit local market requirements and enhance product
competitiveness, your regional office MAY have decided to extend the functionality of a machine (e.g.
add-on card, modem, or extra memory capability). These LOCALIZED FEATURES will NOT be covered
in this generic service guide. In such cases, please contact your regional offices or the responsible
personnel/channel to provide you with further technical details.
2. Please note WHEN ORDERING FRU PARTS, that you should check the most up-to-date information
available on your regional web or channel. If, for whatever reason, a part number change is made, it will
not be noted in the printed Service Guide. For ACER-AUTHORIZED SERVICE PROVIDERS, your Acer
office may have a DIFFERENT part number code to those given in the FRU list of this printed Service
Guide. You MUST use the list provided by your regional Acer office to order FRU parts for repair and
service of customer machines.
VI
VII
Table of Contents
System Specifications 1
Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1

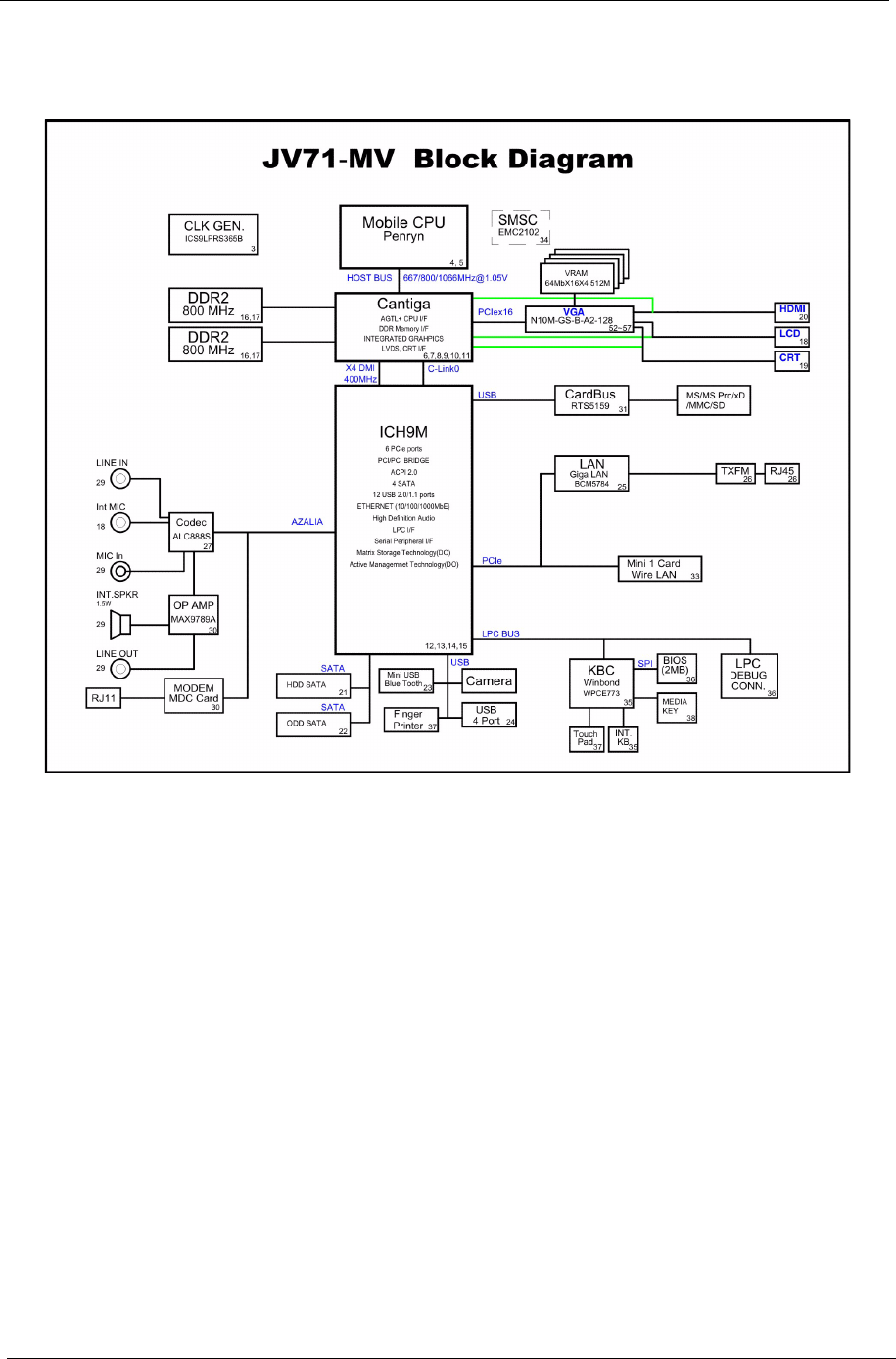

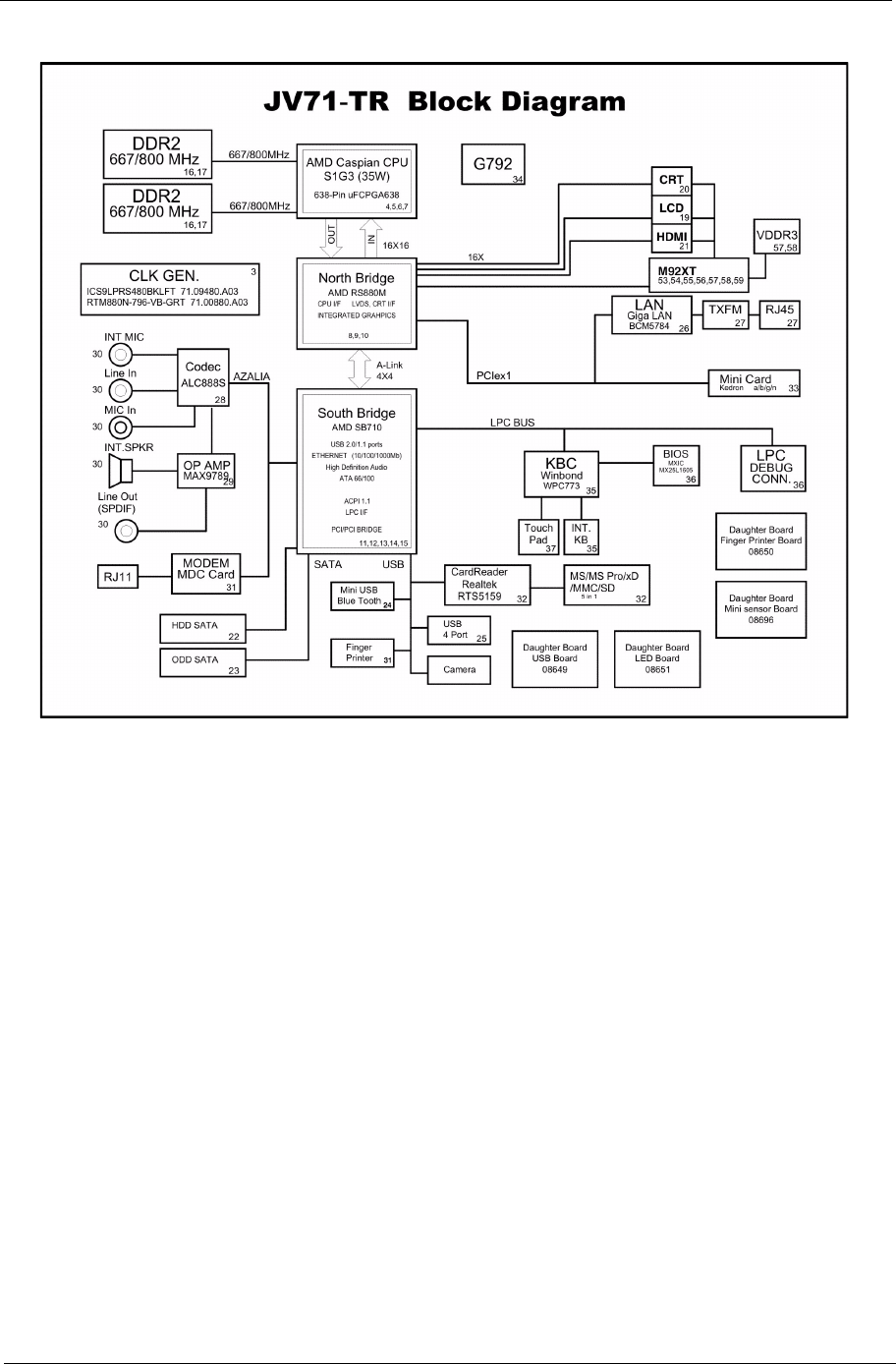

System Block Diagram . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4

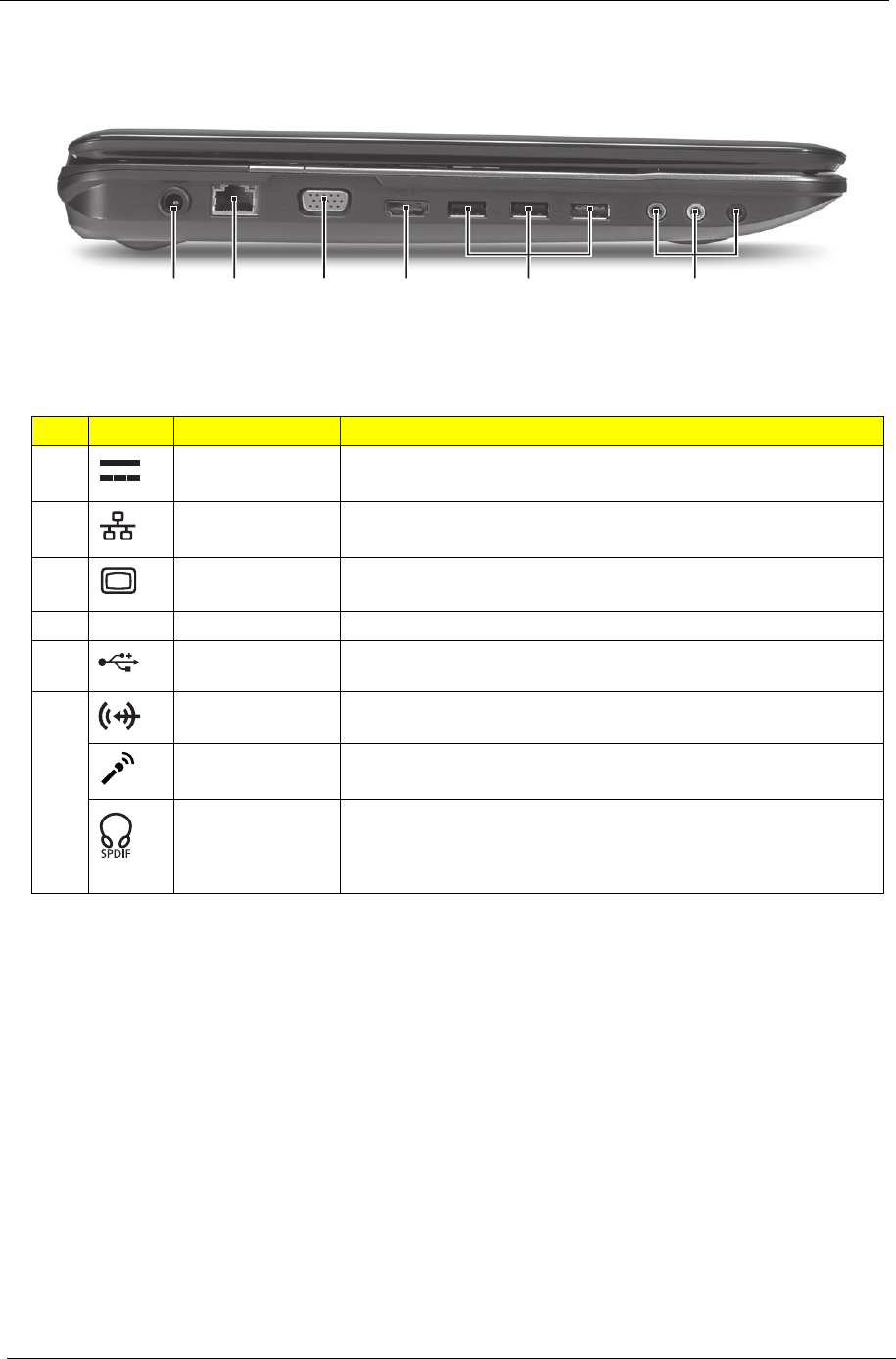

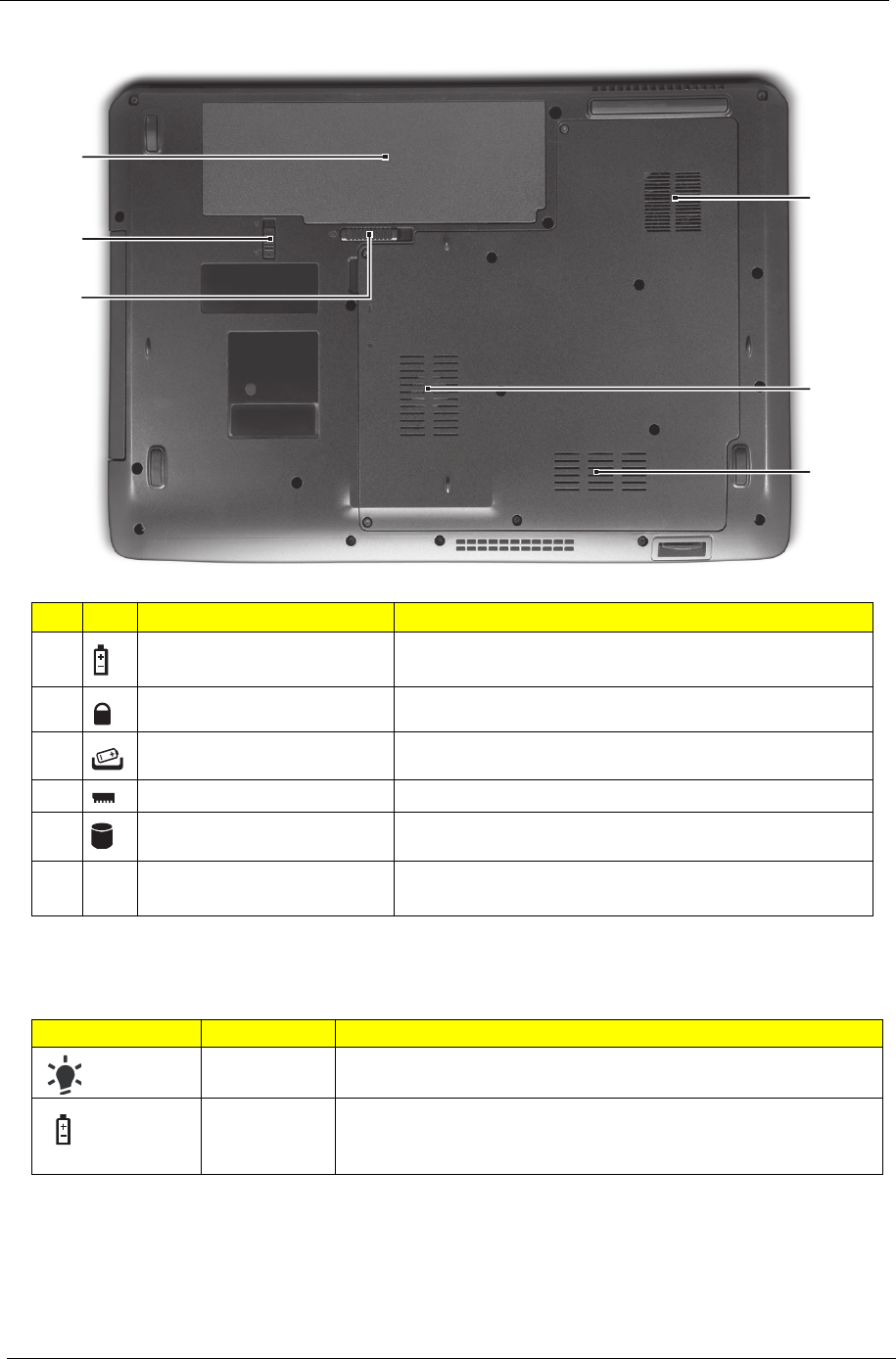

Your Acer Notebook tour . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6

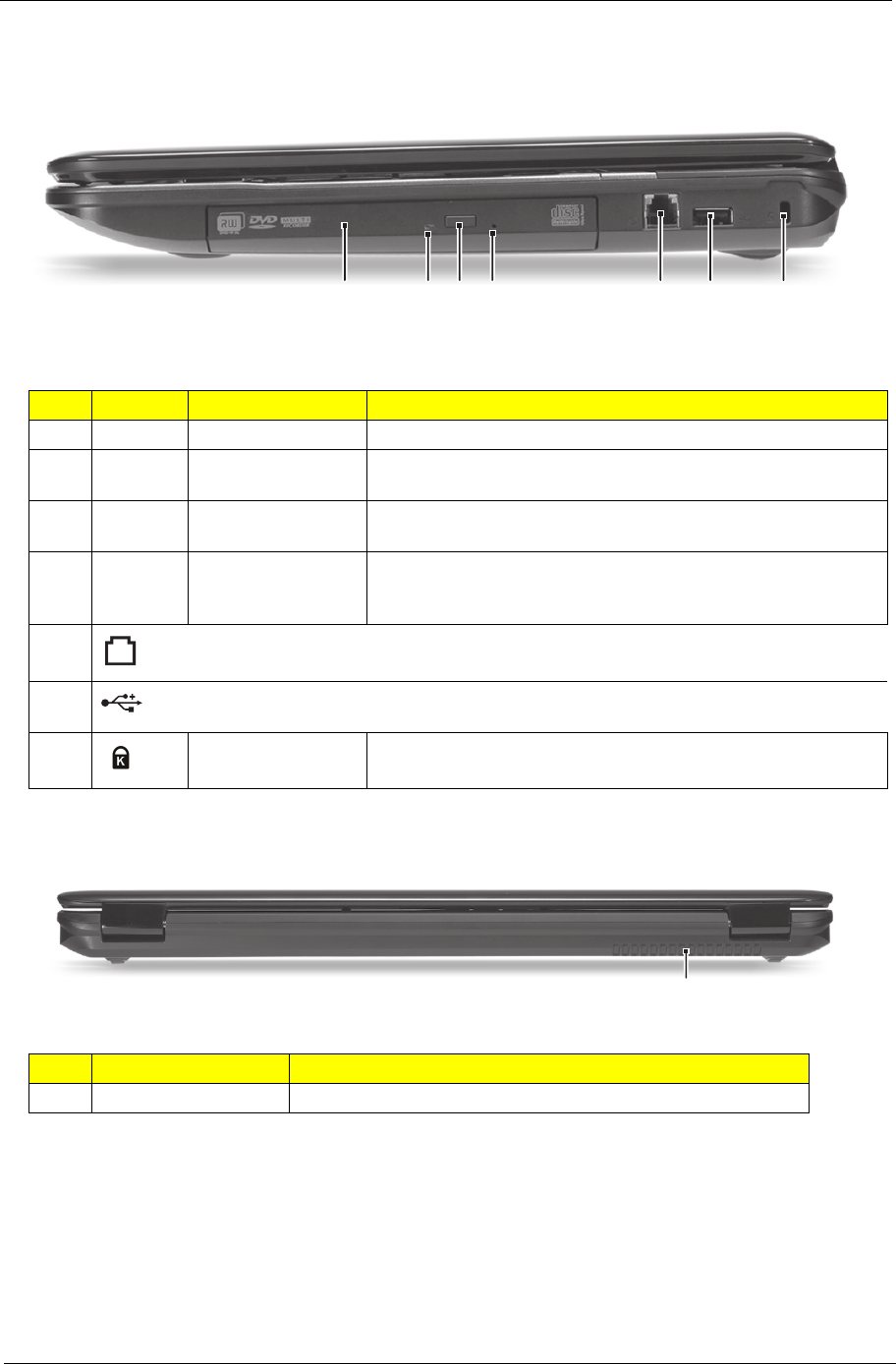

Right View . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9

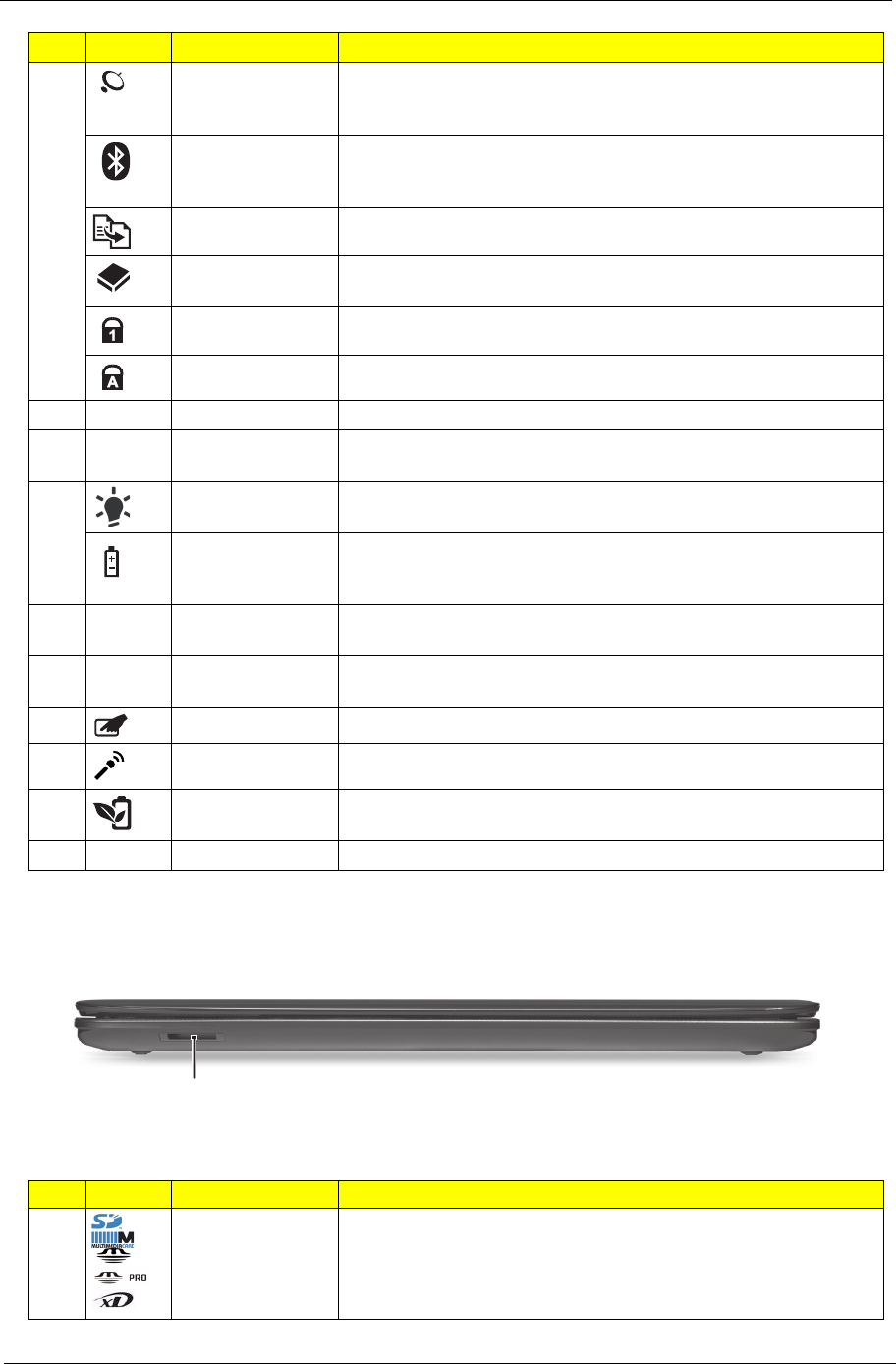

Indicators . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10
Easy-Launch Buttons . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11

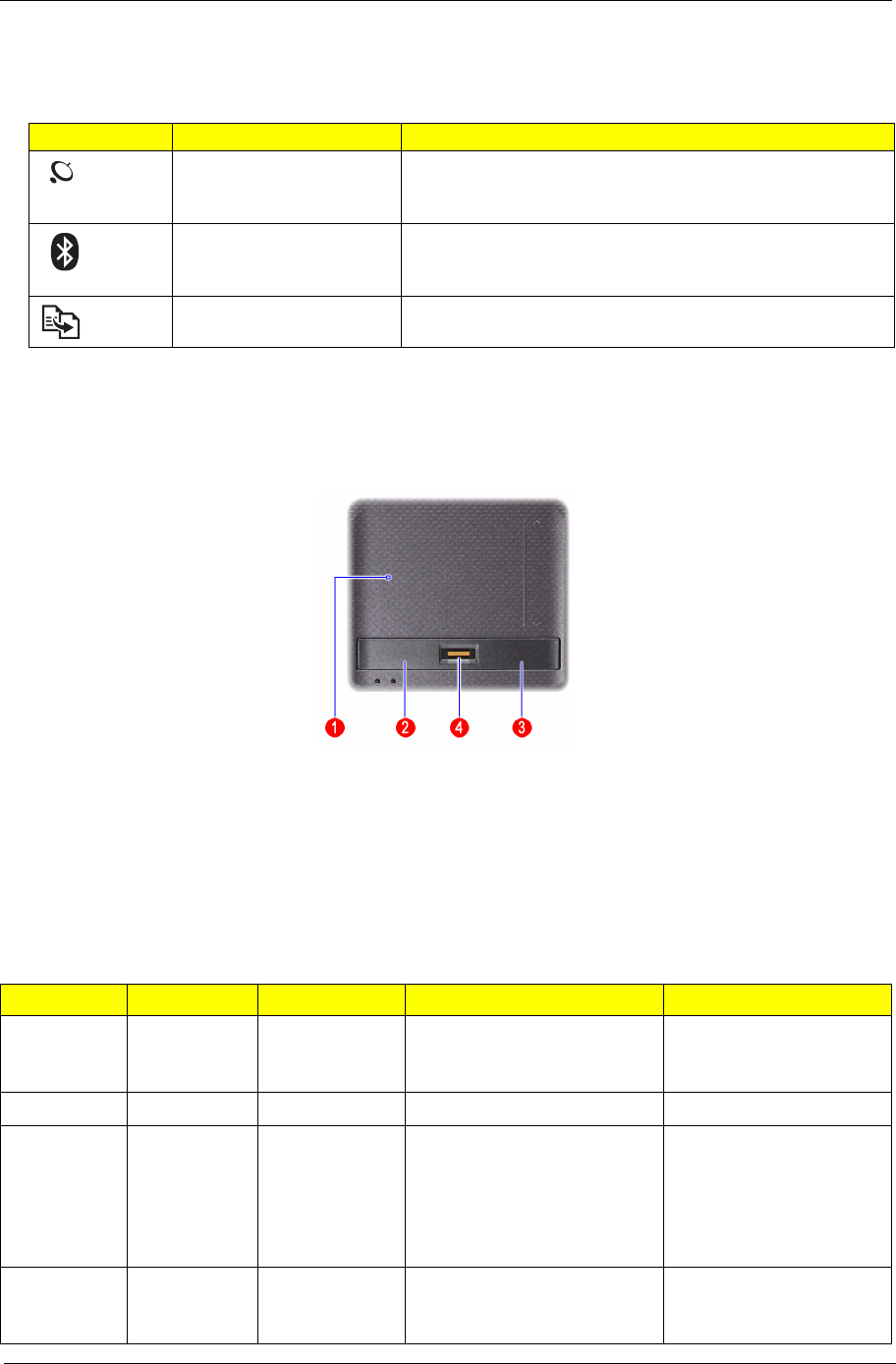

Touchpad Basics (with fingerprint reader) . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11
Touchpad basics (with two-click buttons) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12
Using the Keyboard . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13
Lock Keys and numeric keypad . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13
Windows Keys . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14

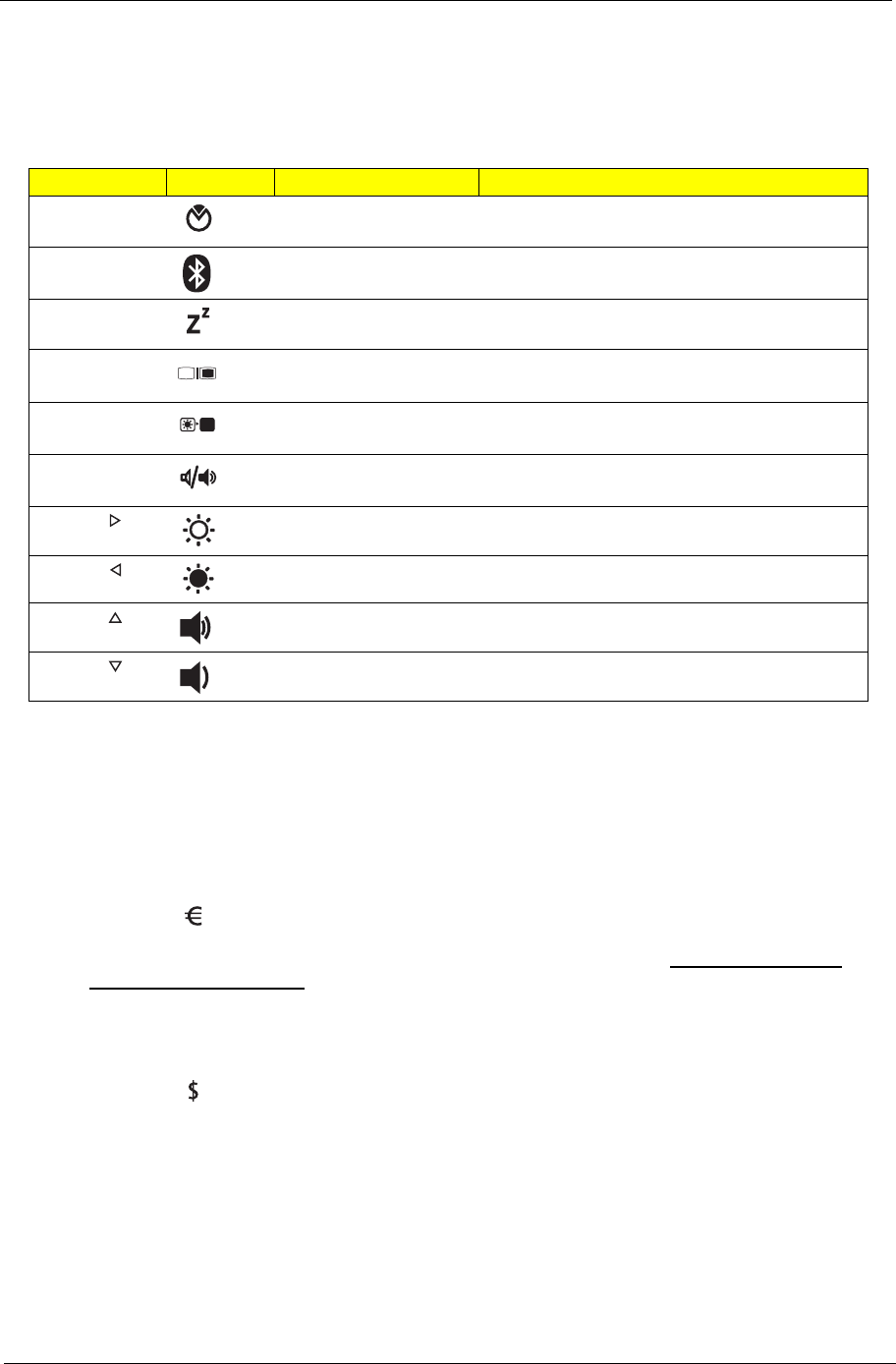

Hot Keys . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .15
Special Key (only for certain models) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .15

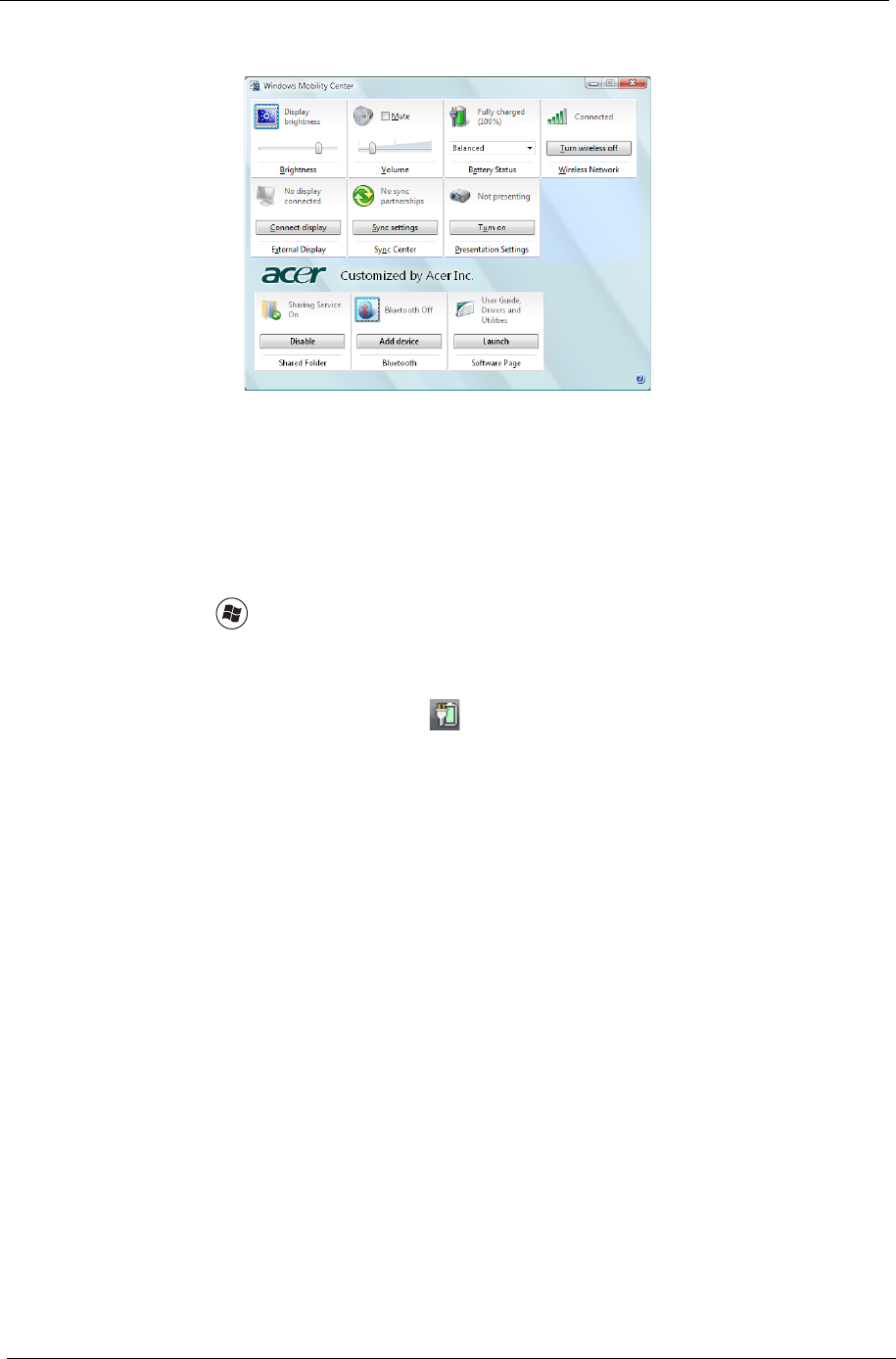

Windows Mobility Center . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .16
Using the System Utilities . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .17

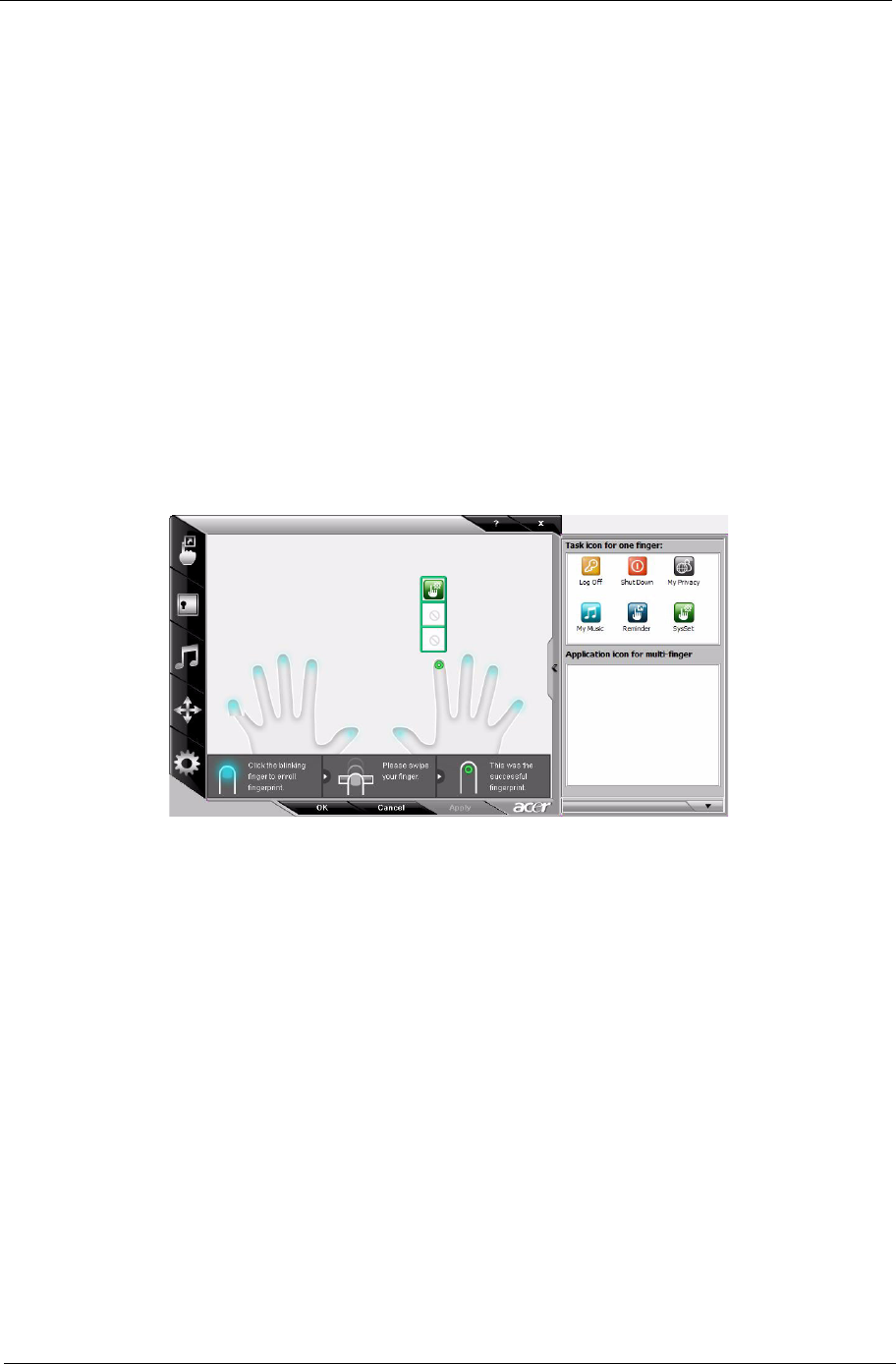

Acer Bio-Protection (only for certain models) . . . . . . . . . . . . . . . . . . . . . . . . . . .17
Acer GridVista (dual-display compatible) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .18
Hardware Specifications and Configurations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .19
System Utilities 27
BIOS Setup Utility . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .27
Navigating the BIOS Utility . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .28
Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .29
Main . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .31

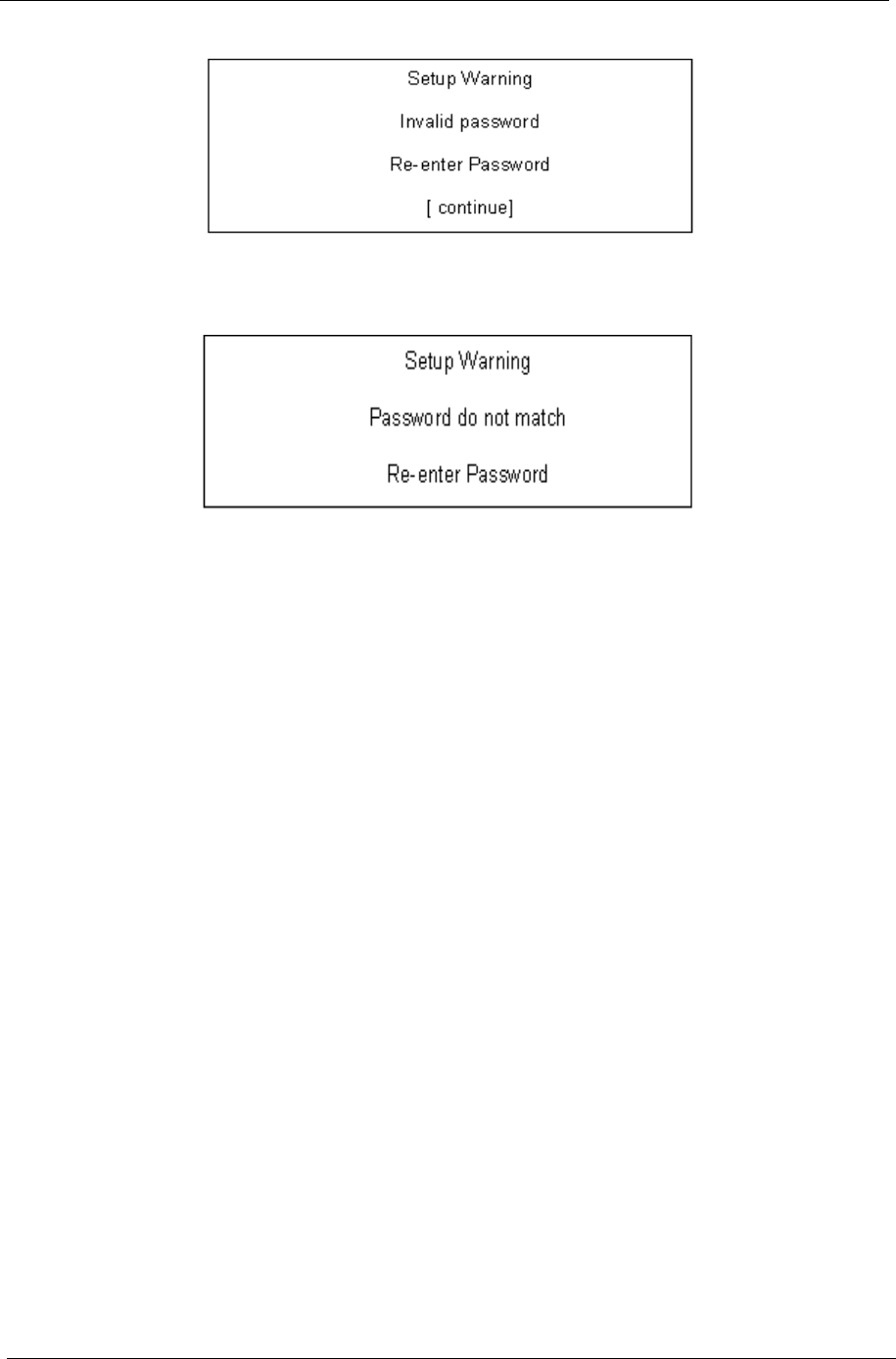

Security . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .33
Boot . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .37
Exit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .38

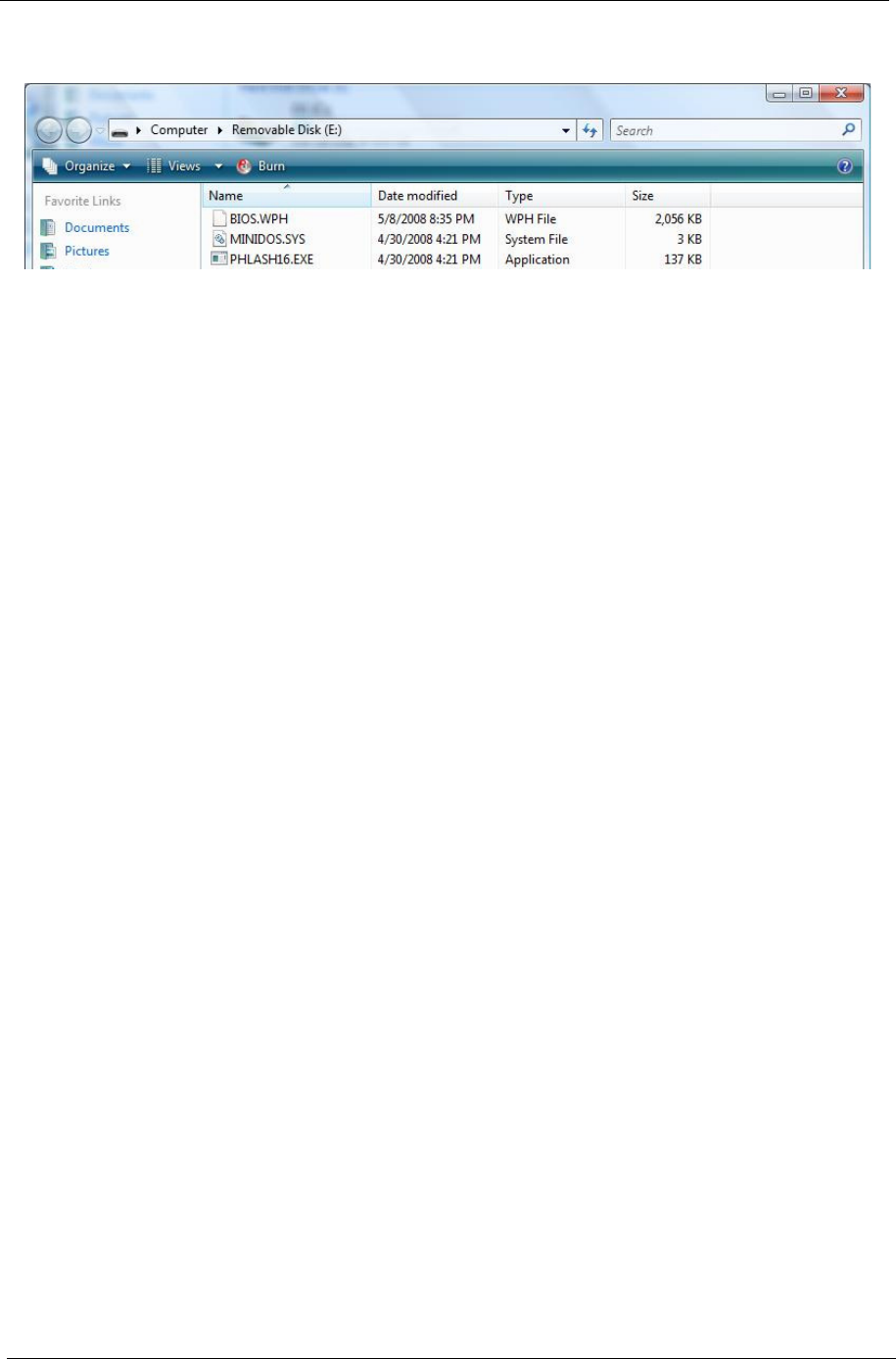

BIOS Flash Utility . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .39
Remove HDD Password . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .40
Machine Disassembly and Replacement 41
Disassembly Requirements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .41
General Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .42

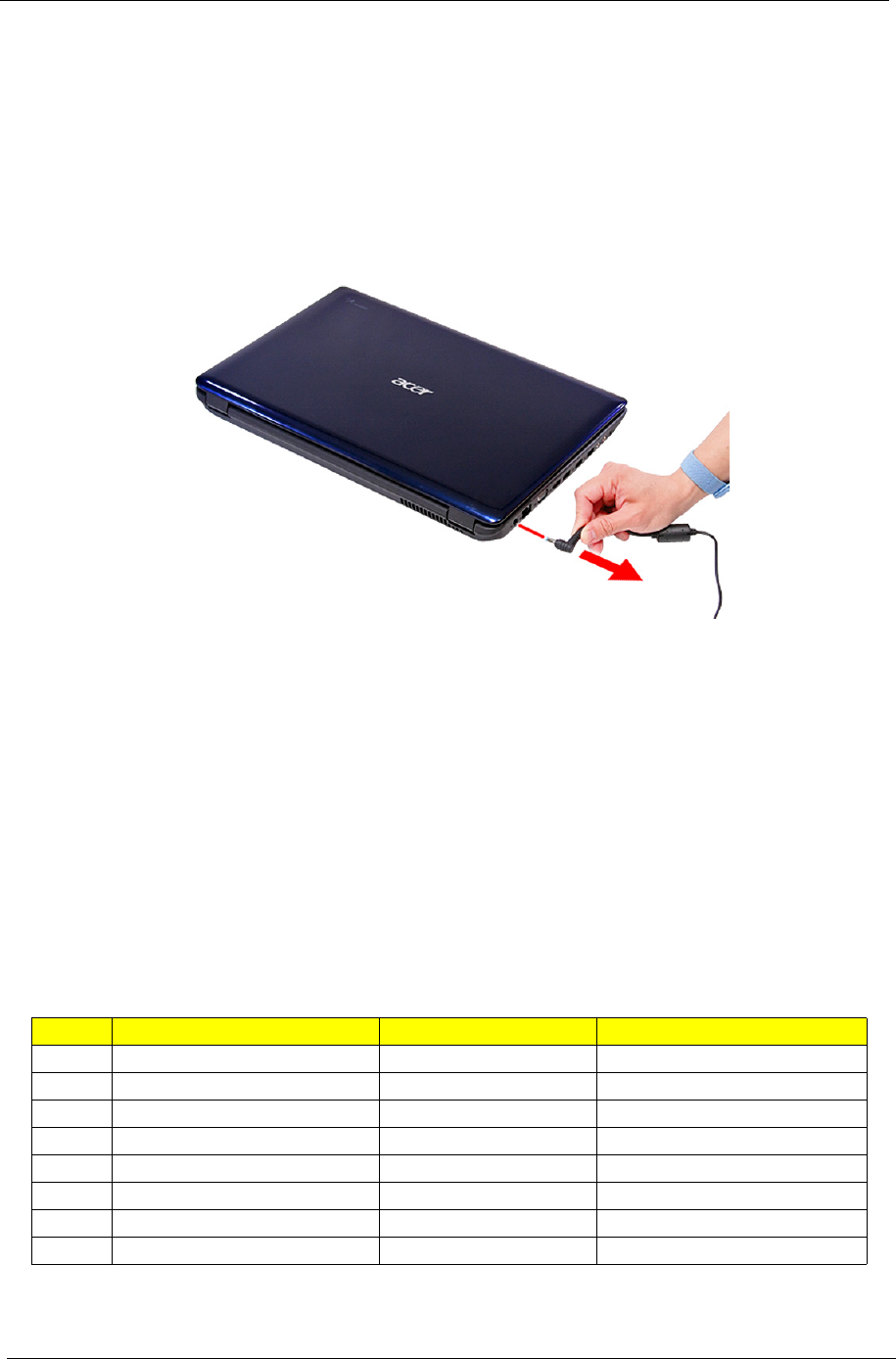

Pre-disassembly Instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .42
Disassembly Process . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .42
External Module Disassembly Process . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .43
External Modules Disassembly Flowchart . . . . . . . . . . . . . . . . . . . . . . . . . . . . .43

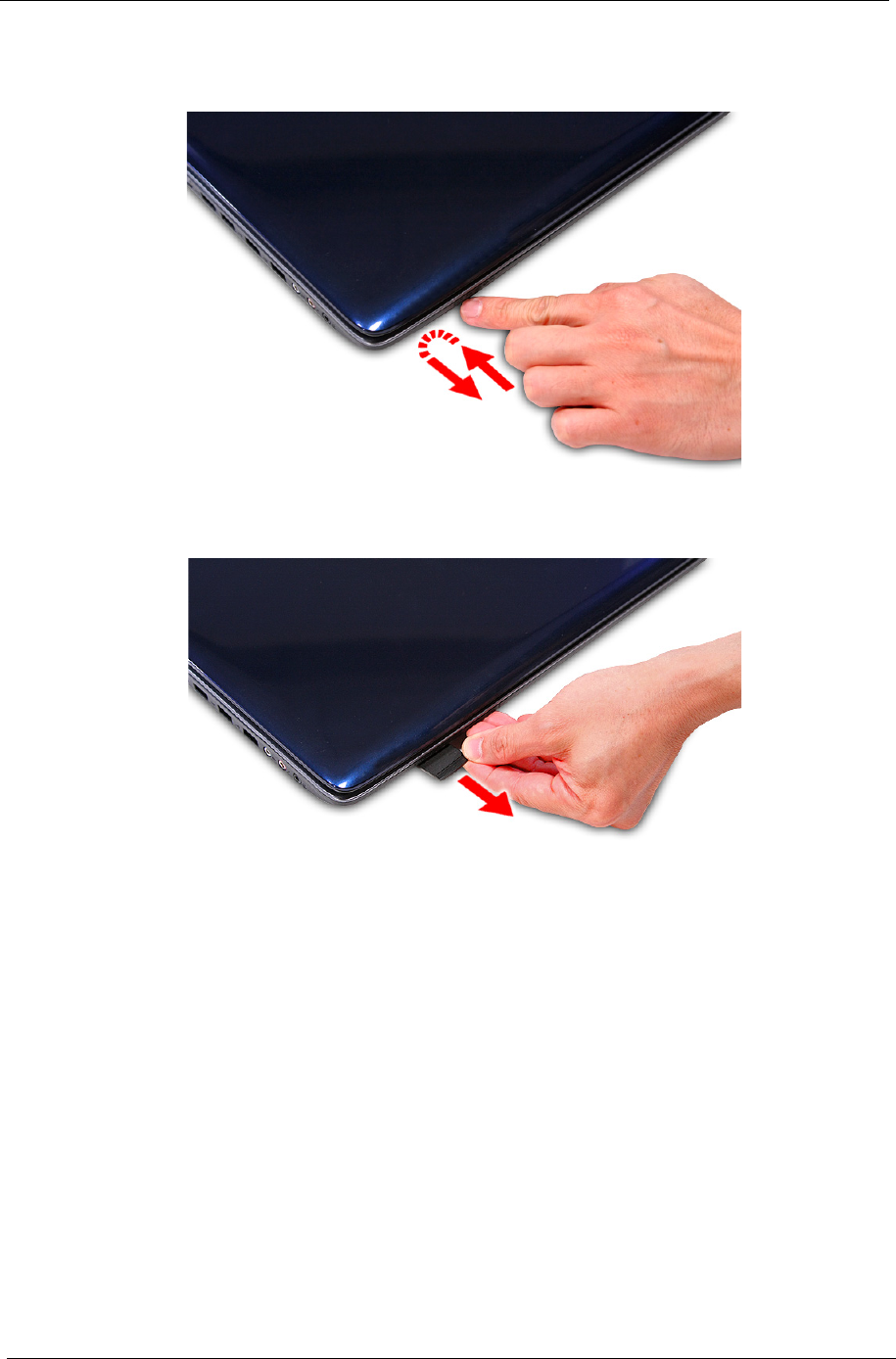

Removing the SD Dummy Card . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .44

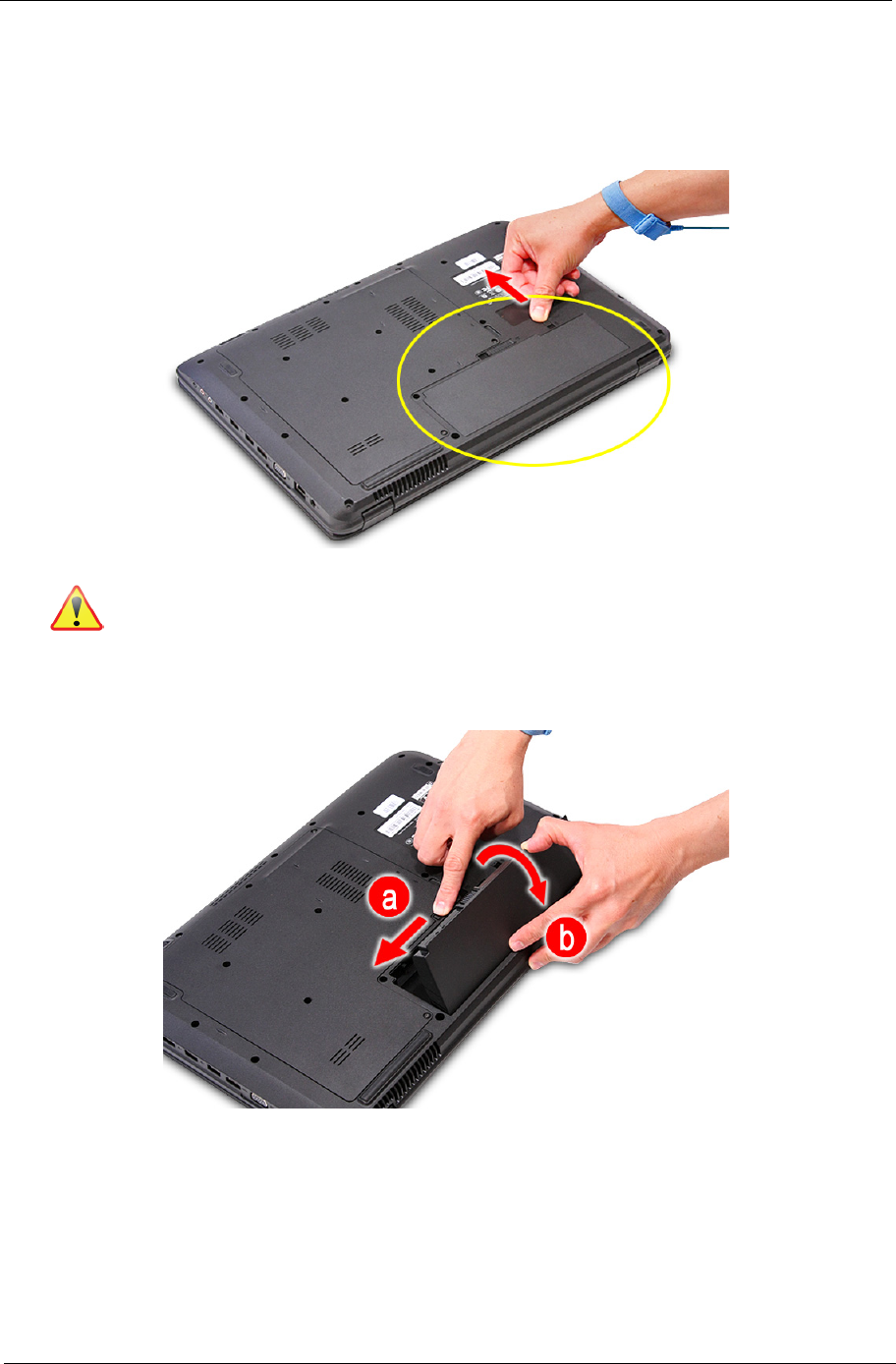

Removing the Battery Pack . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .45

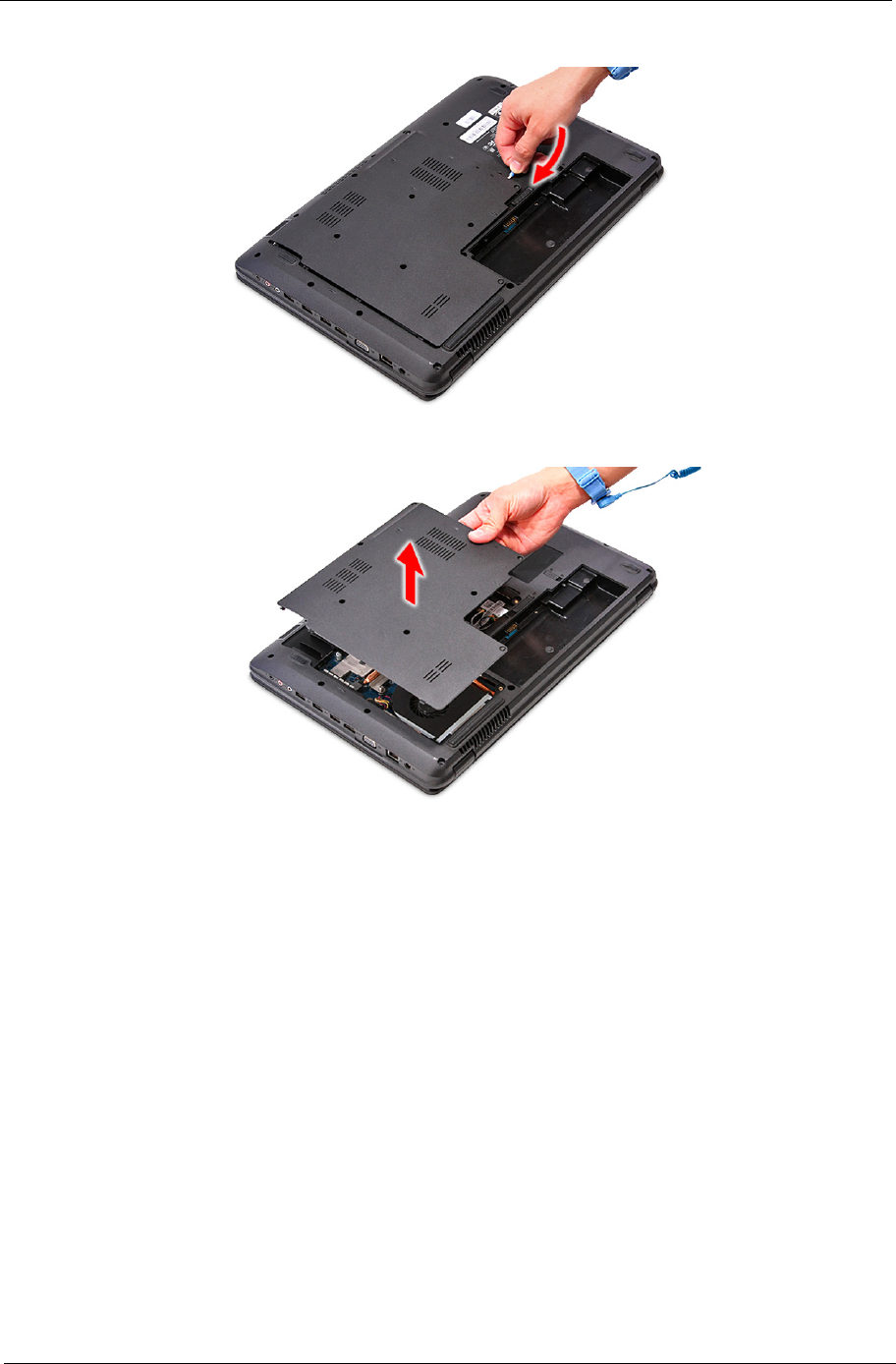

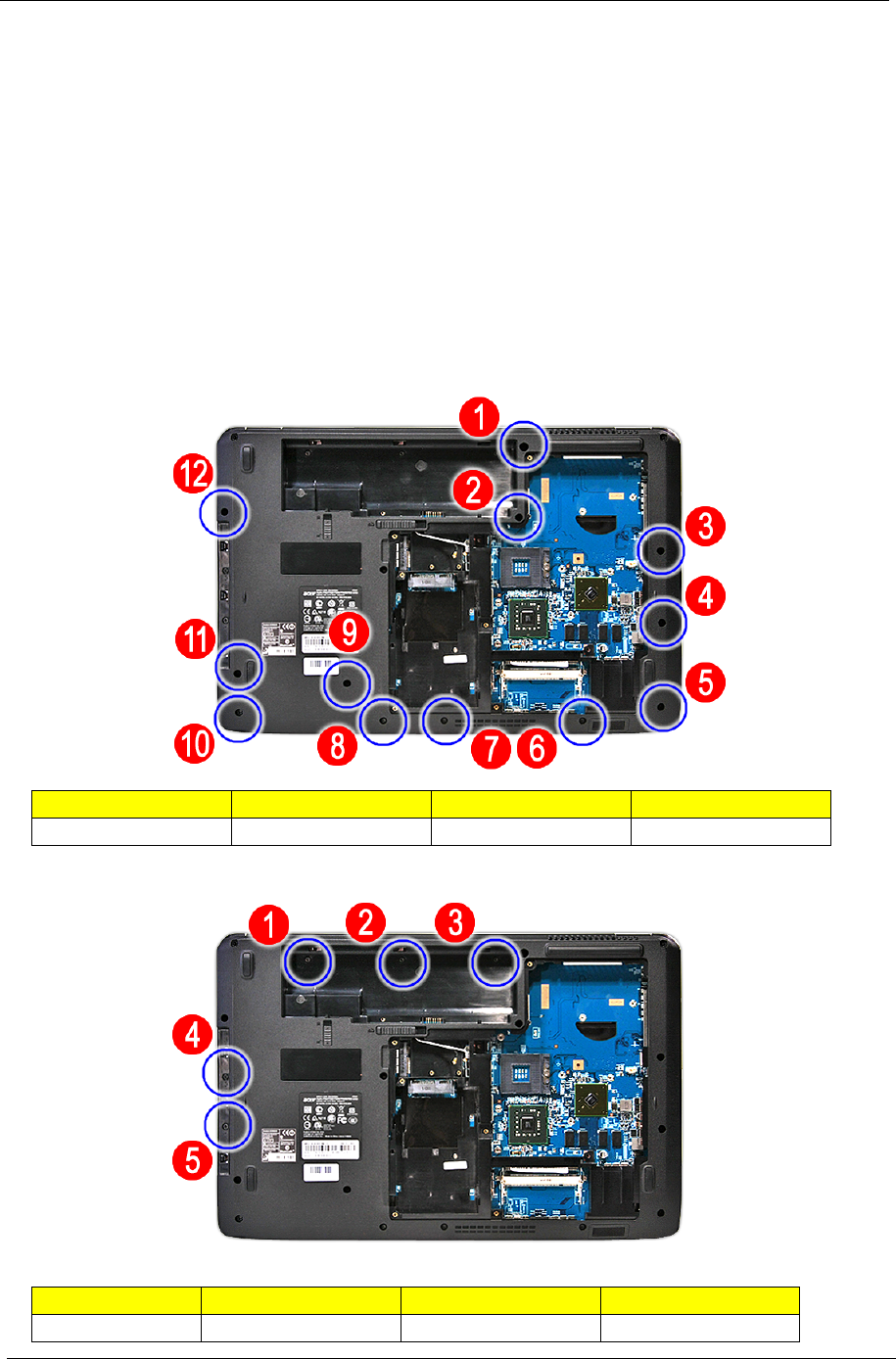

Removing the Back Cover . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .46

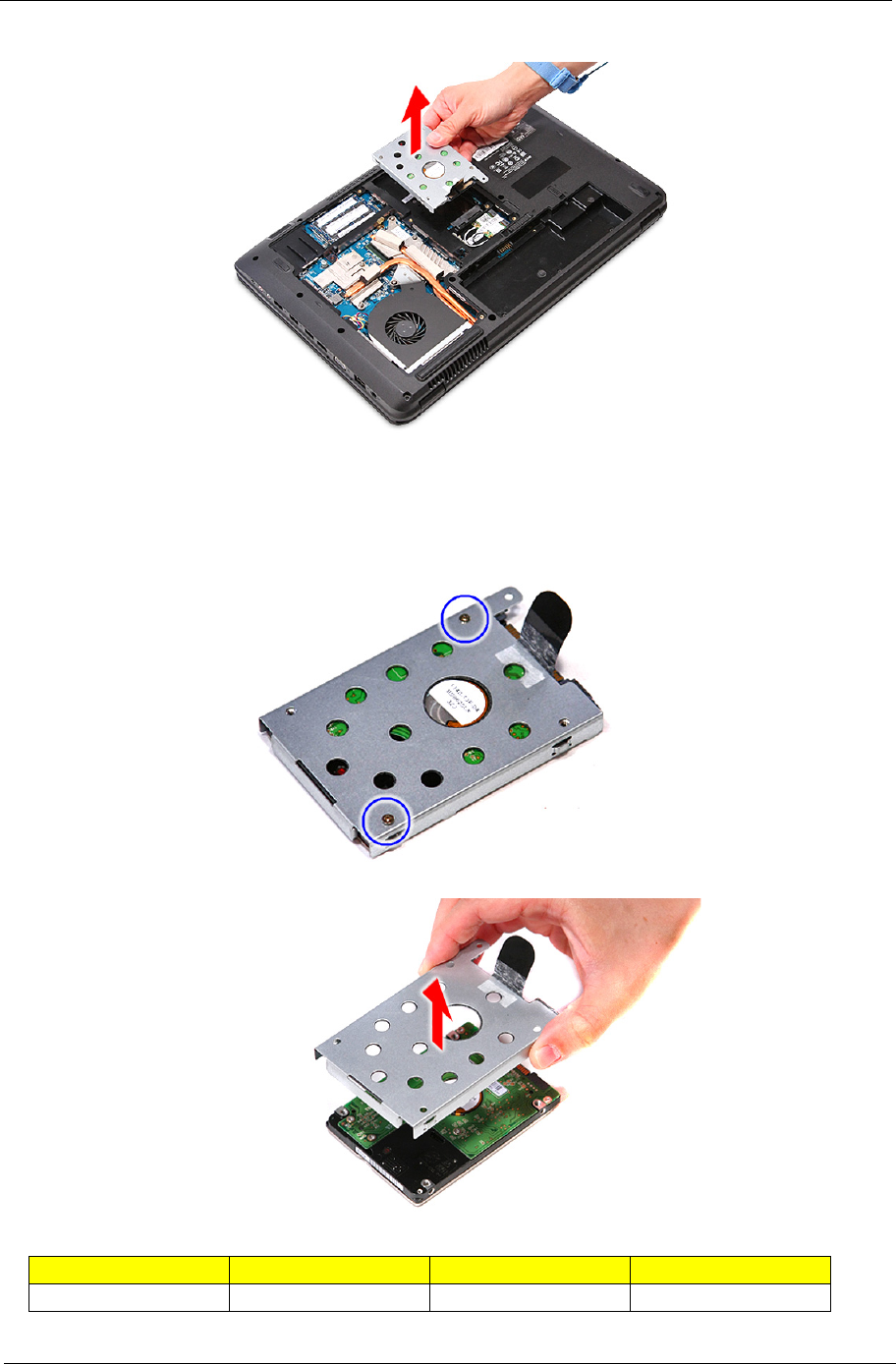

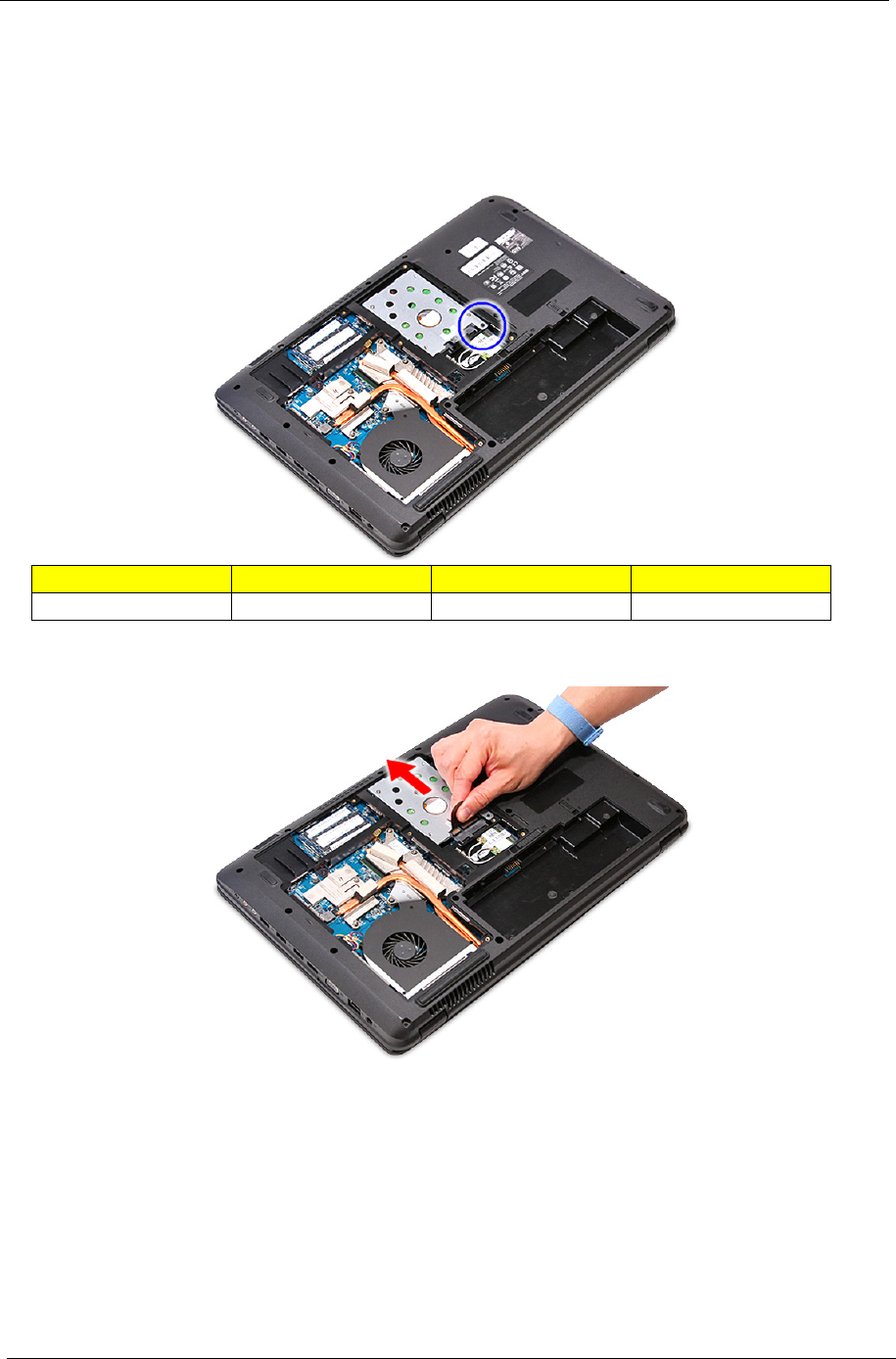

Removing the Hard Disk Drive Module . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .48

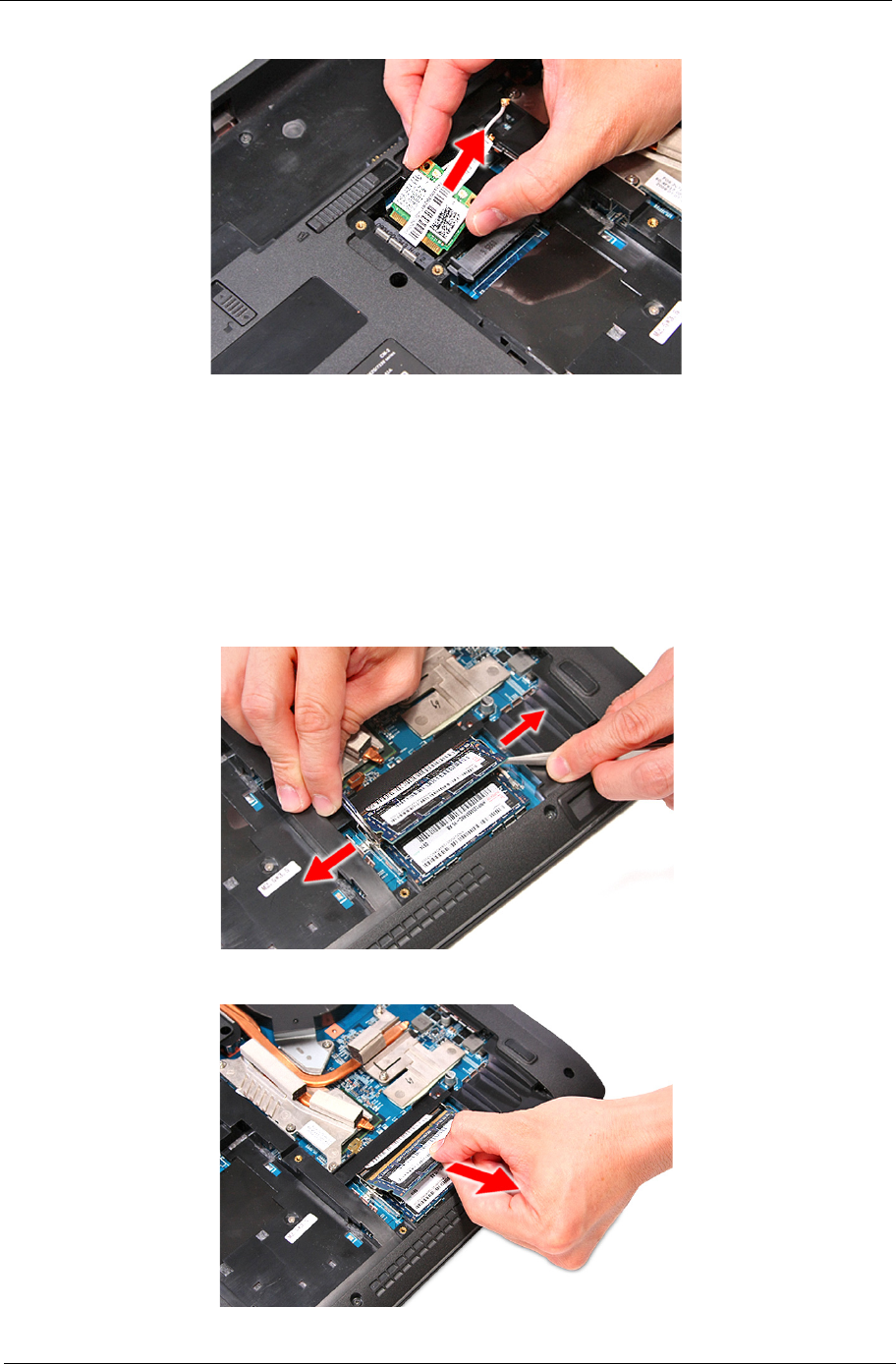

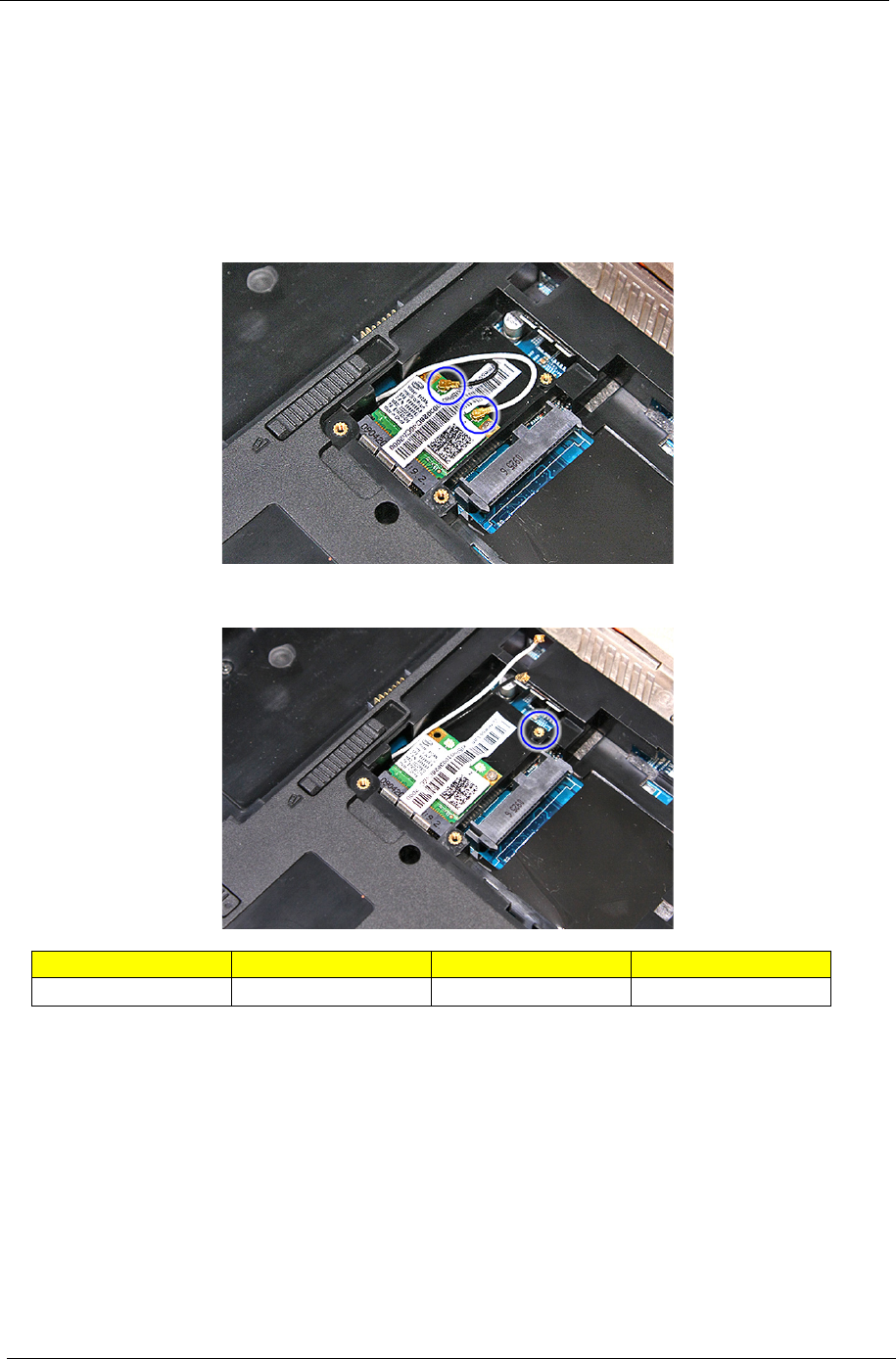

Removing the Wireless LAN Card . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .50
Removing the DIMM Module . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .51

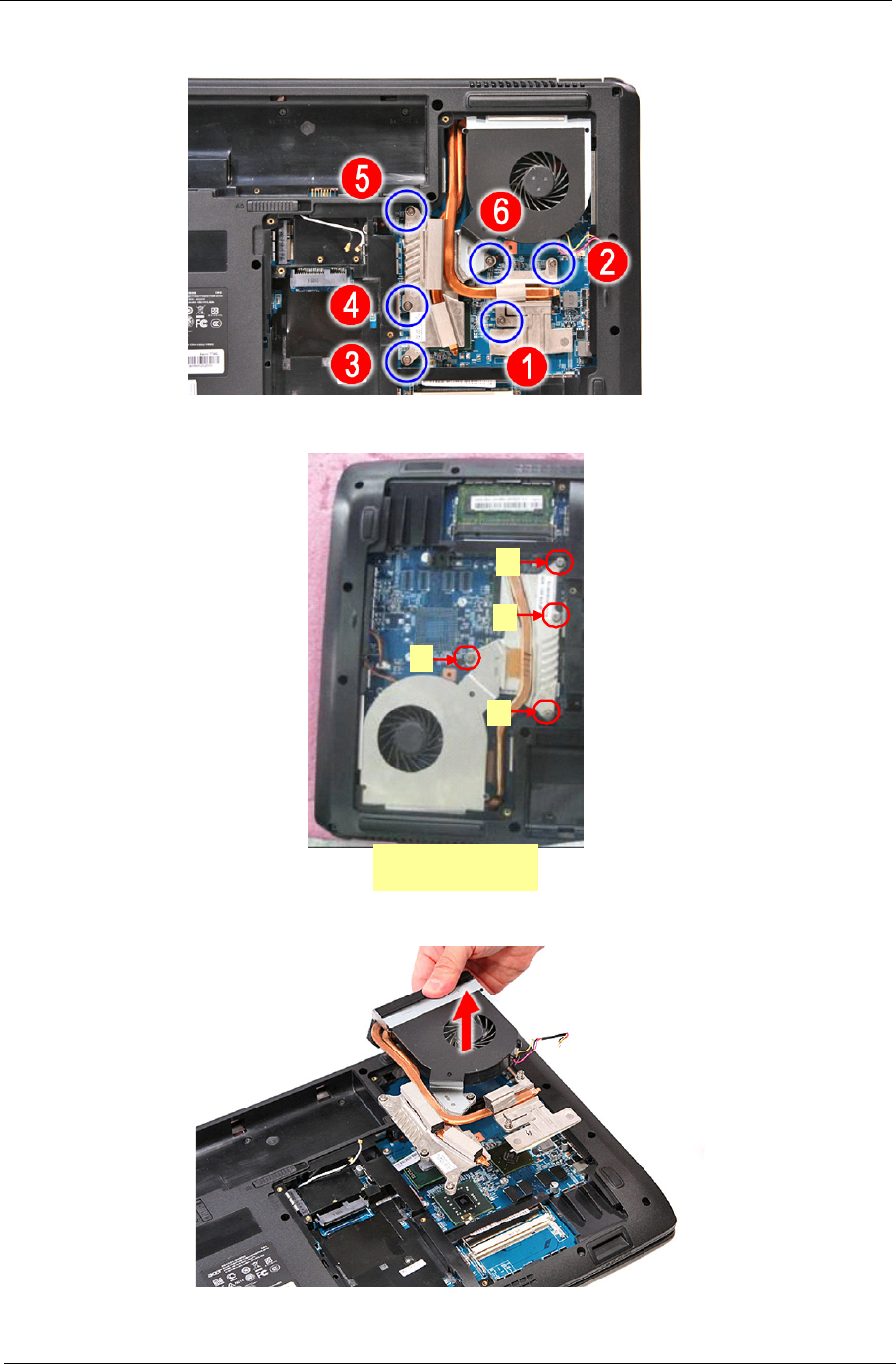

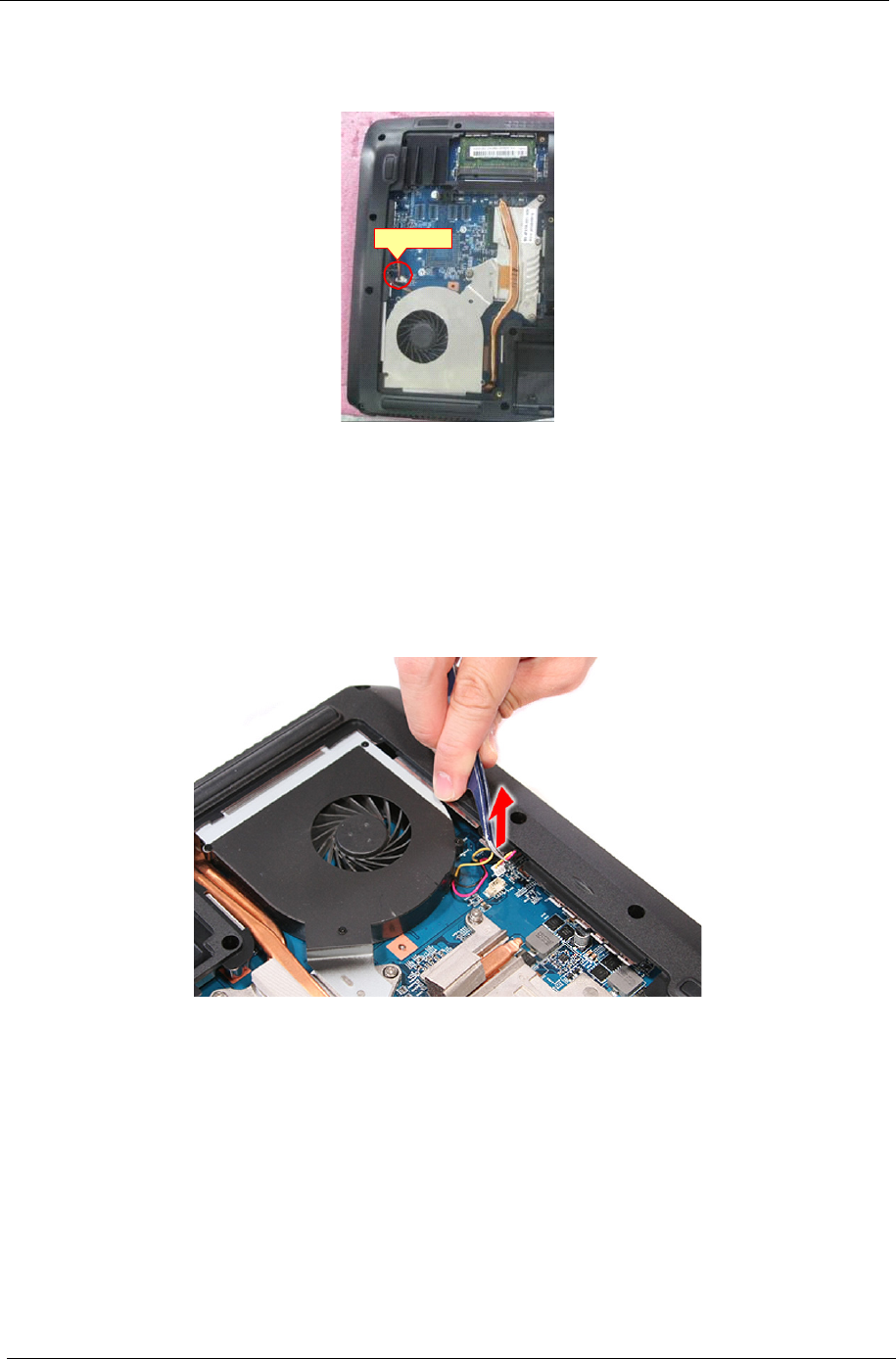

Removing the Heatsink Module . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .52

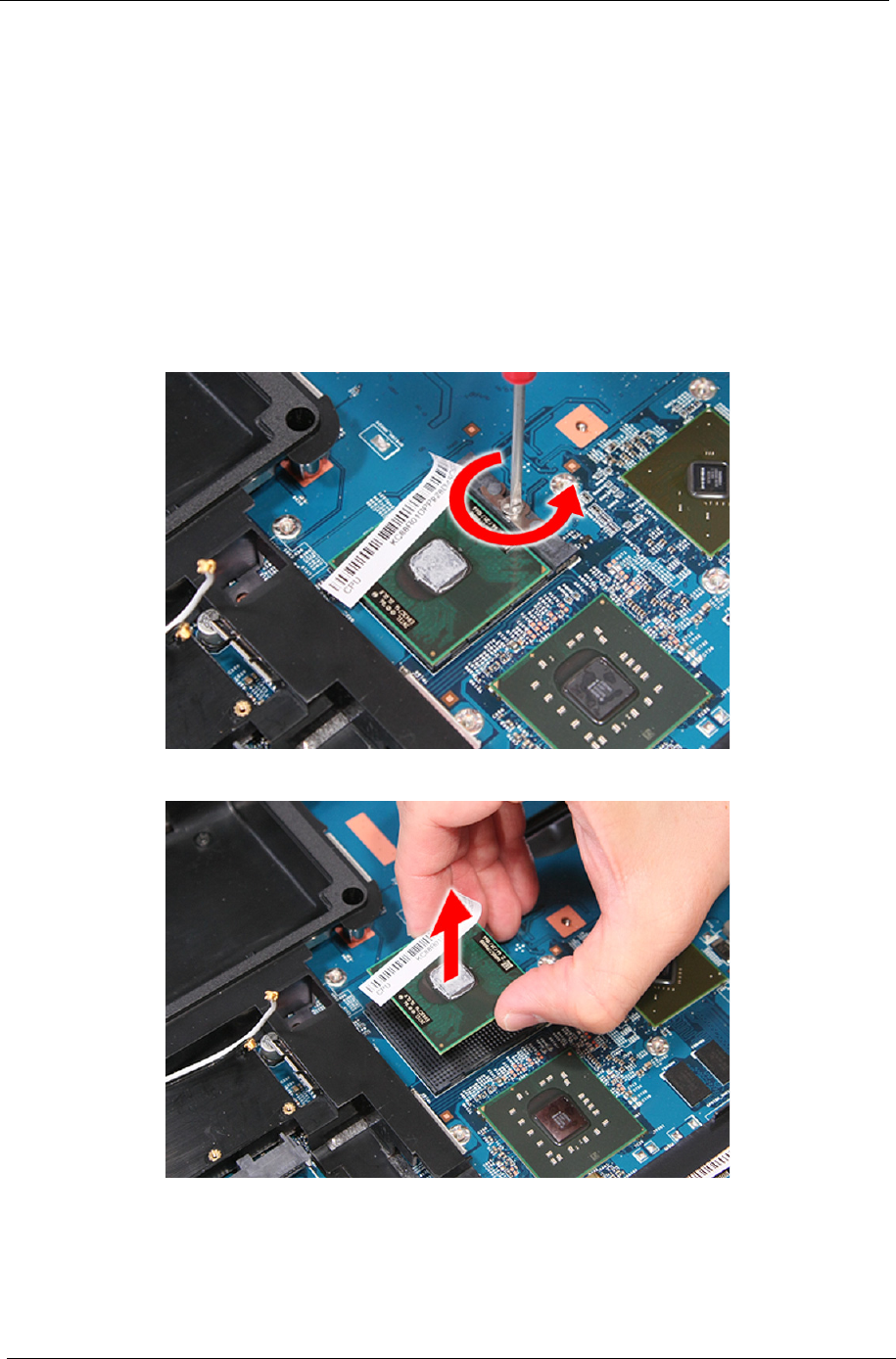

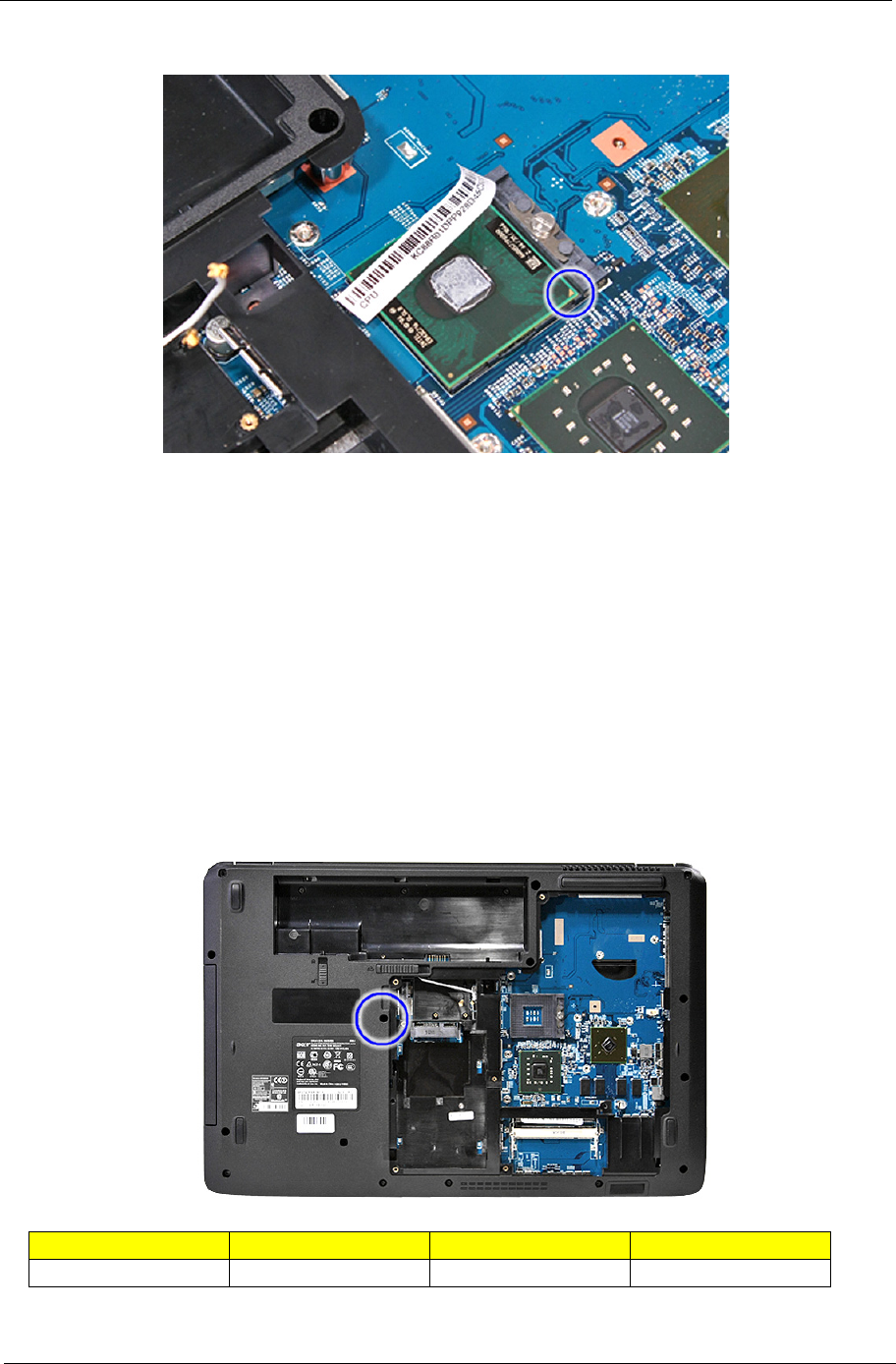

Removing the CPU . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .54

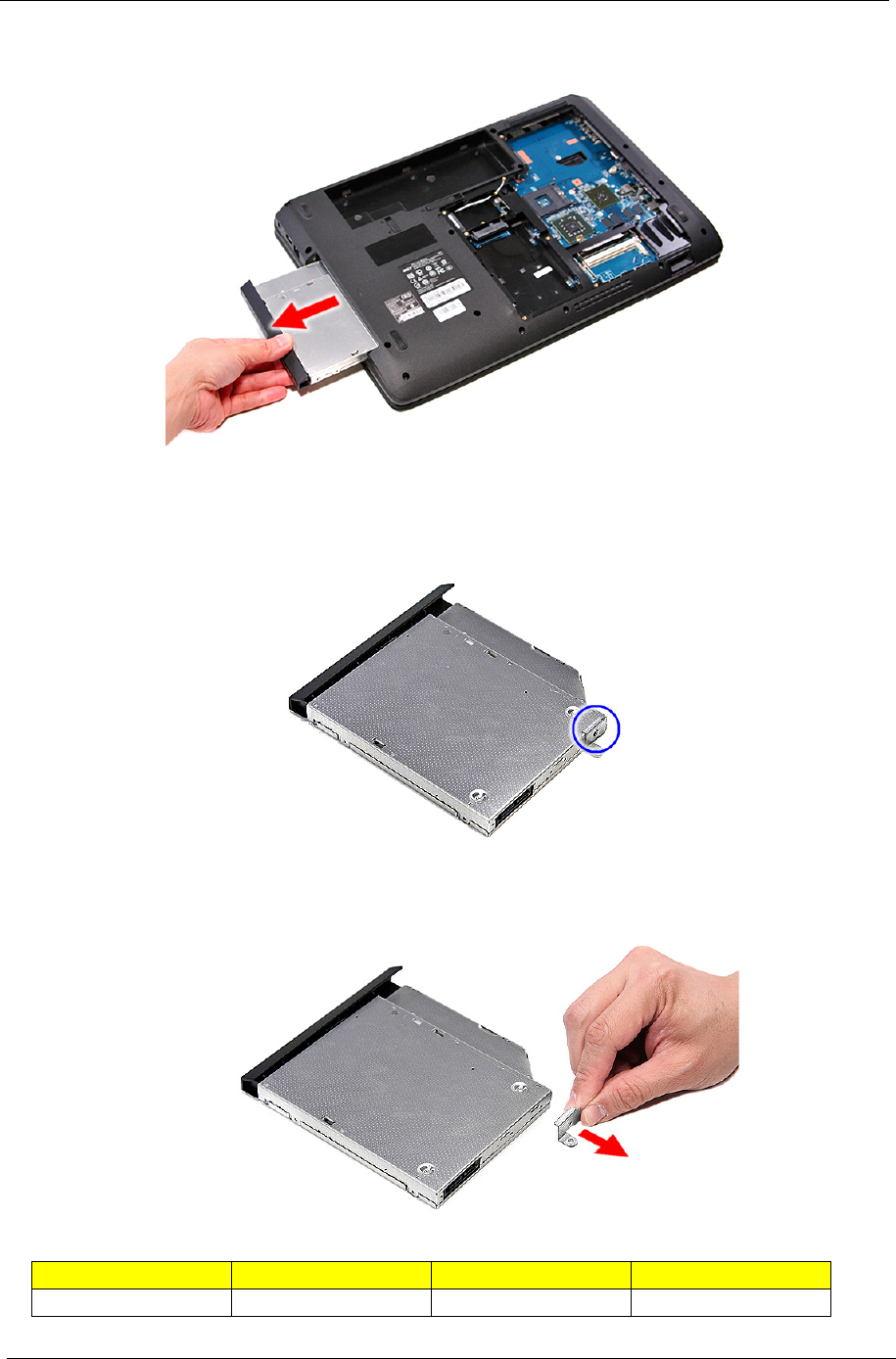

Removing the Optical Drive Module . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .55
Main Unit Disassembly Process . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .57

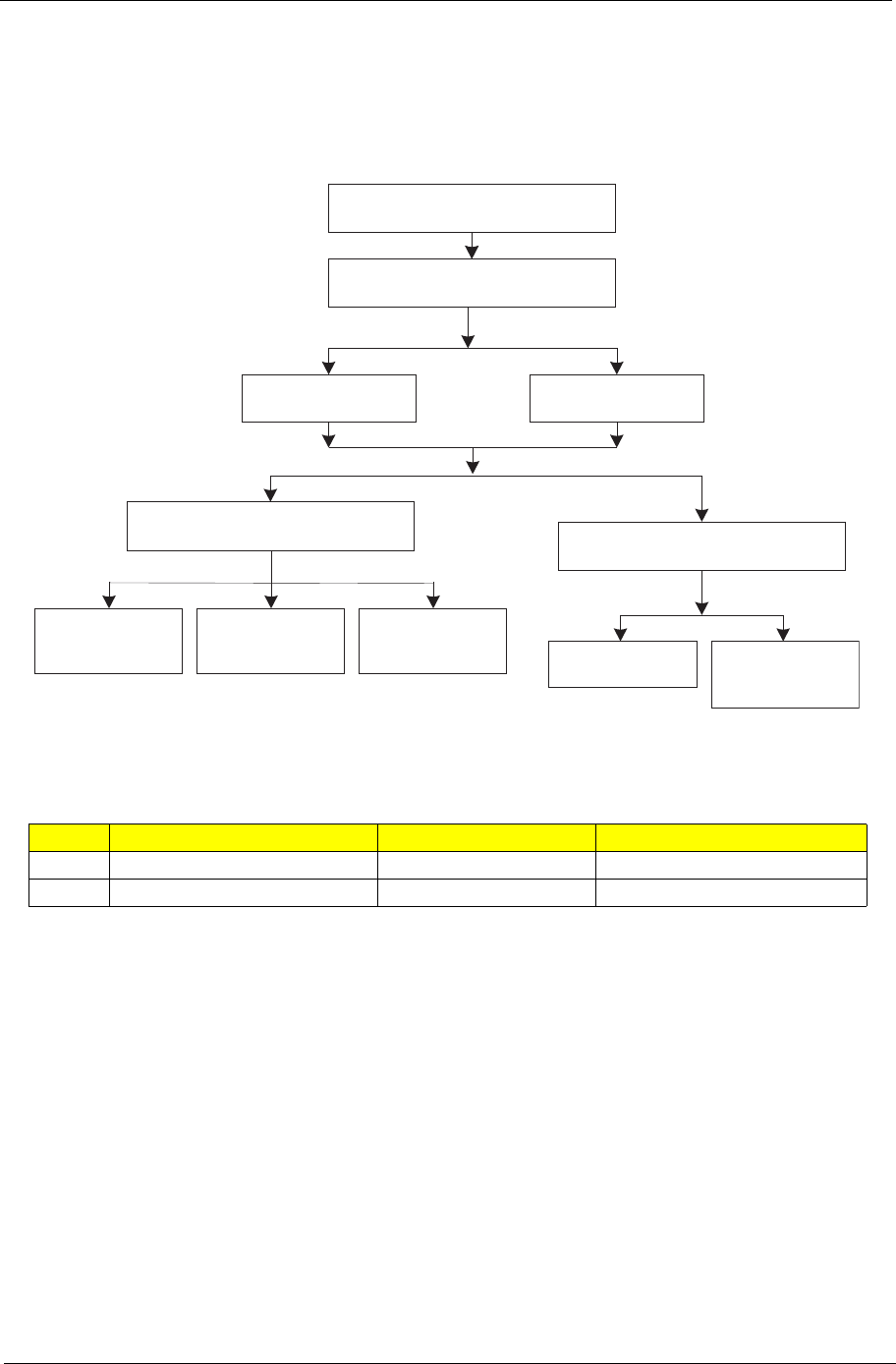

Main Unit Disassembly Flowchart . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .57

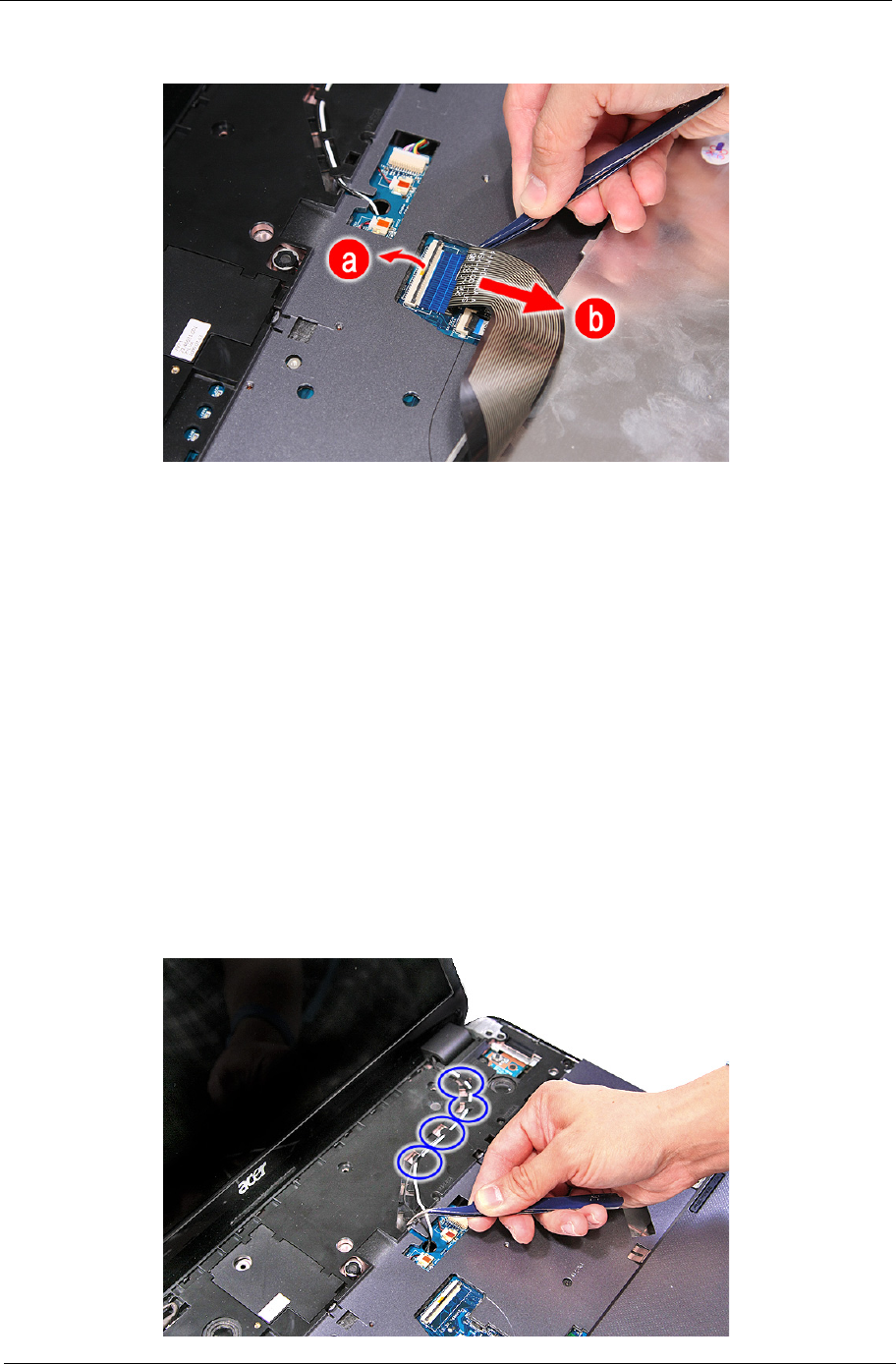

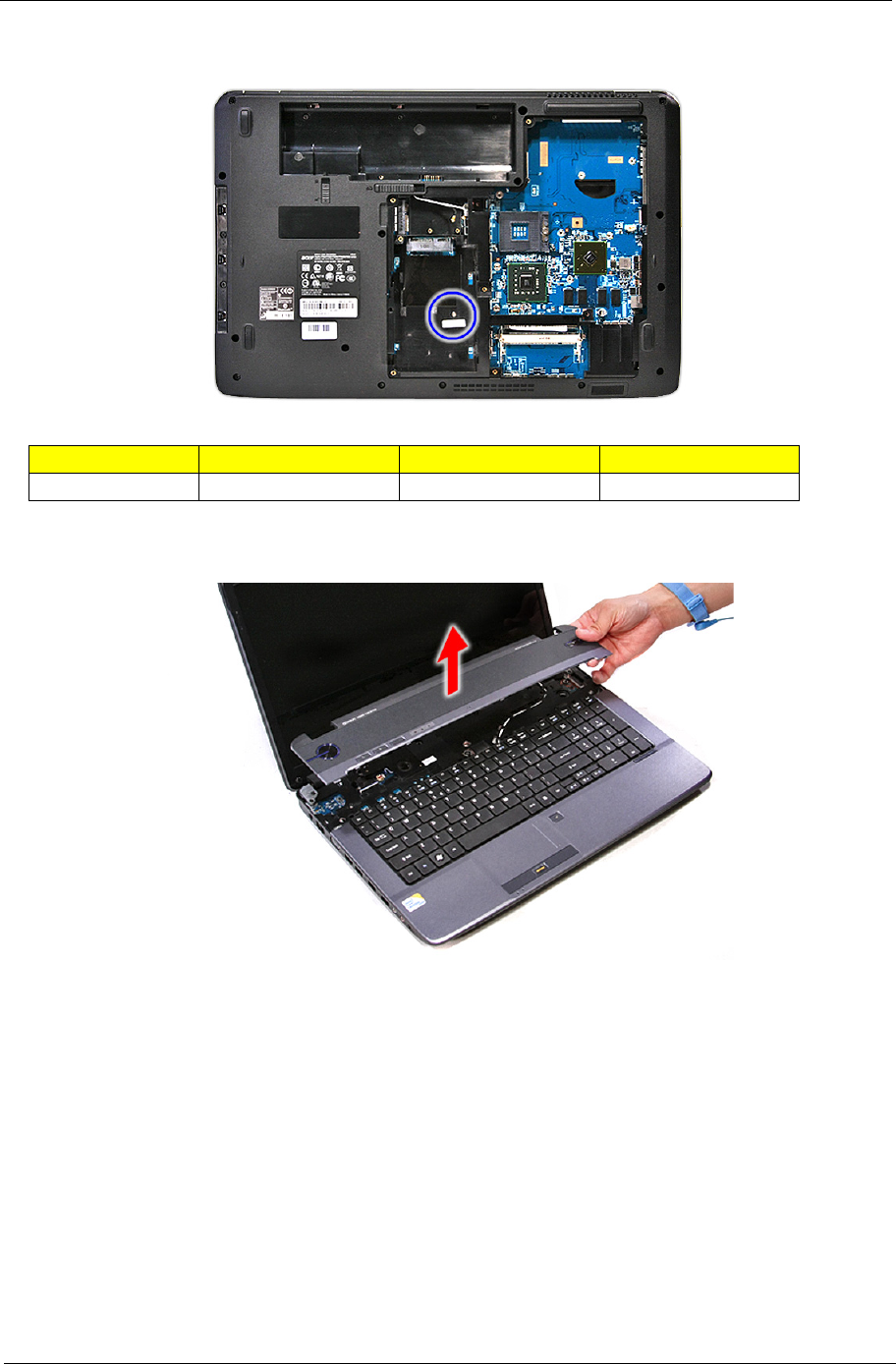

Removing the Middle Cover . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .58

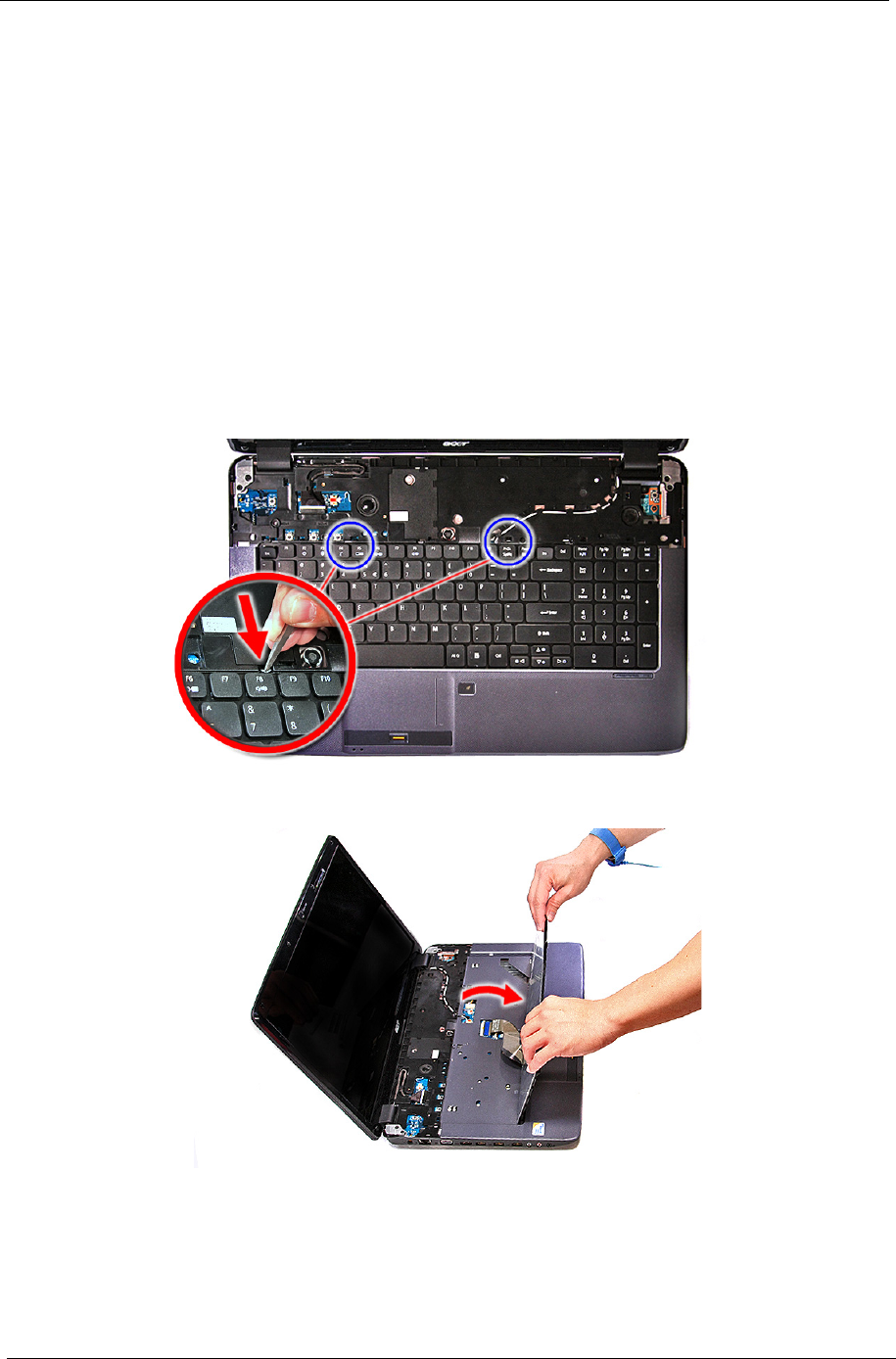

Removing the Keyboard . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .60

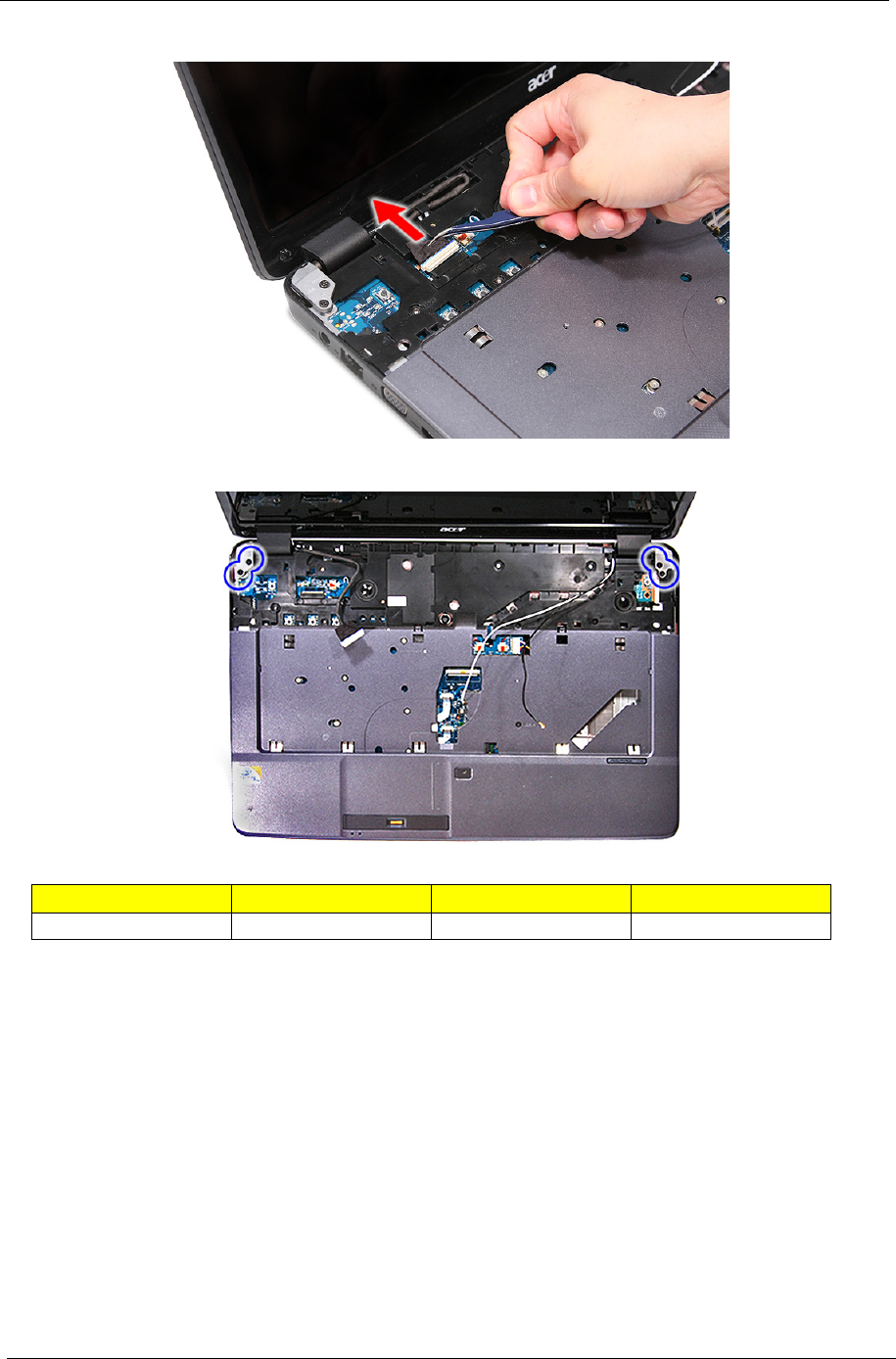

Removing the LCD Module . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .61

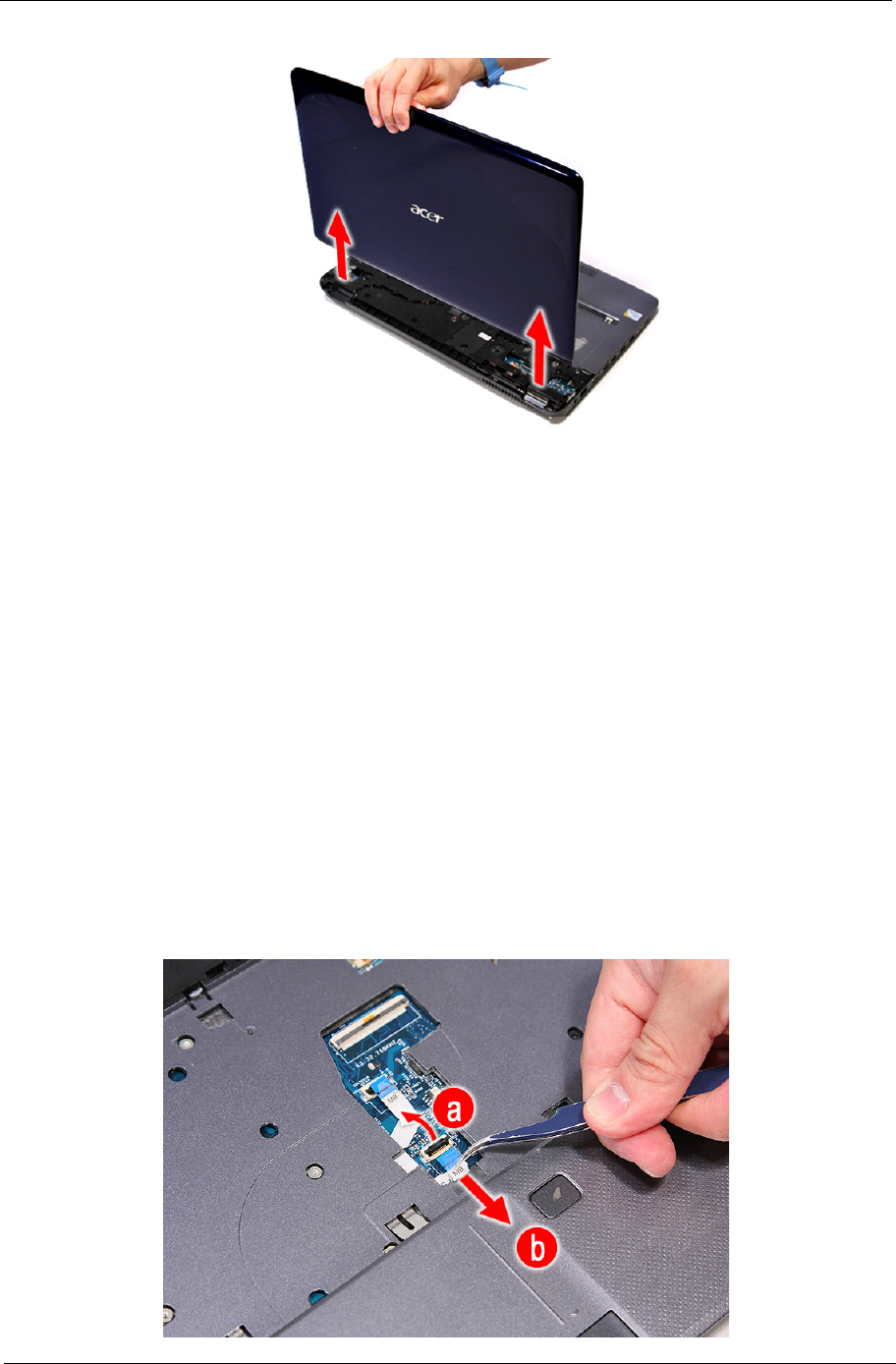

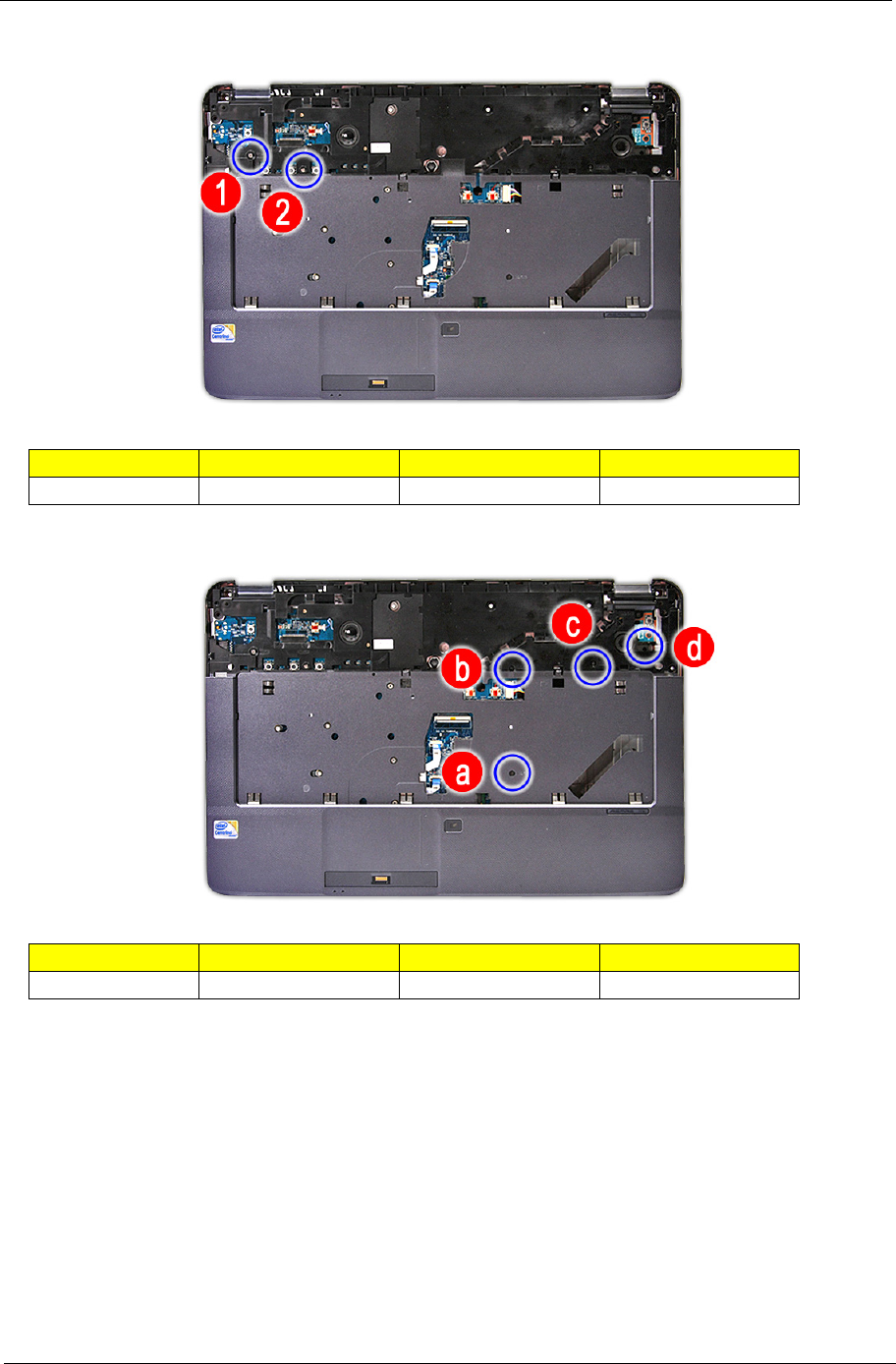

Separating the Upper Case from the Lower Case . . . . . . . . . . . . . . . . . . . . . . .63

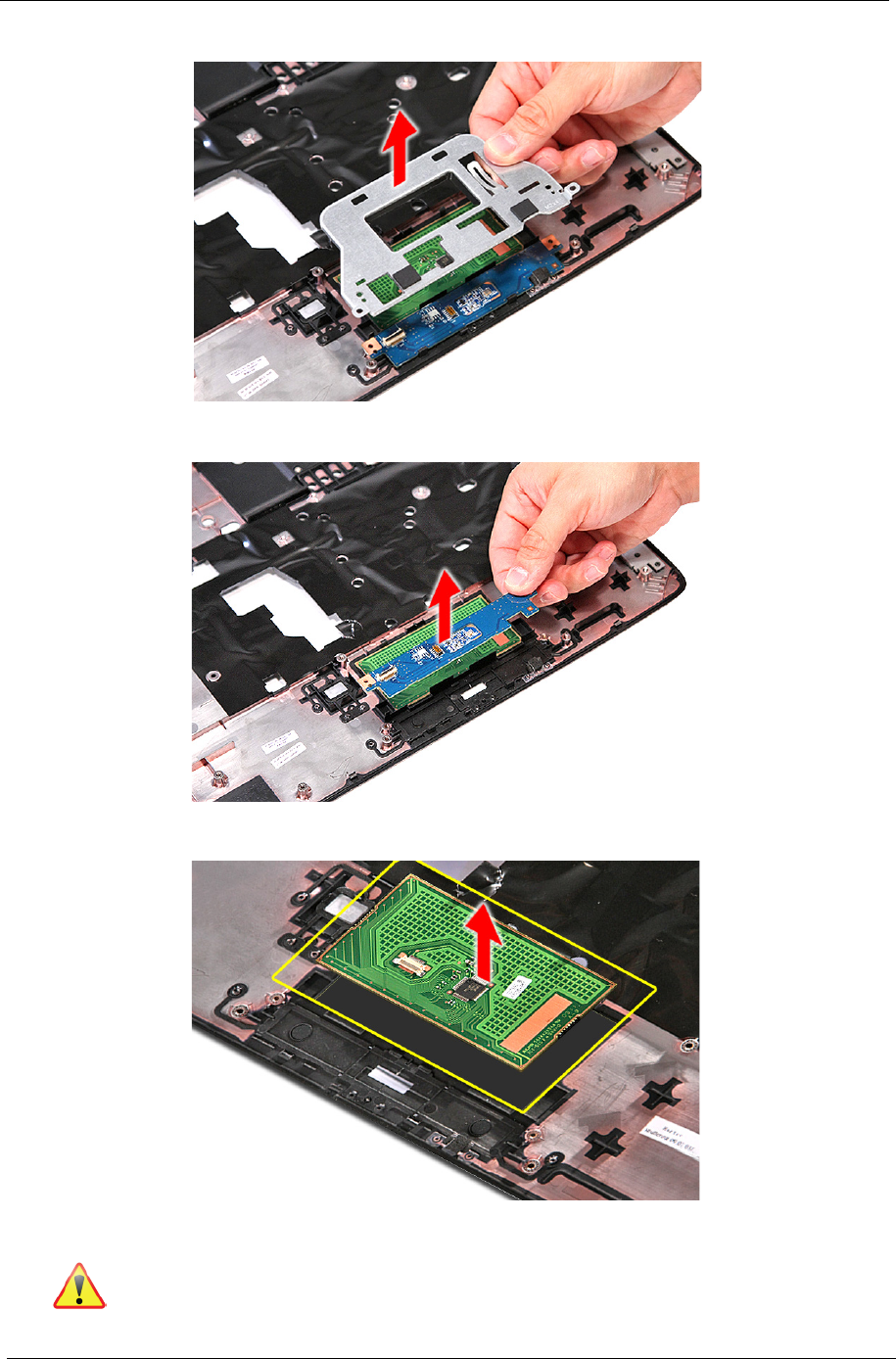

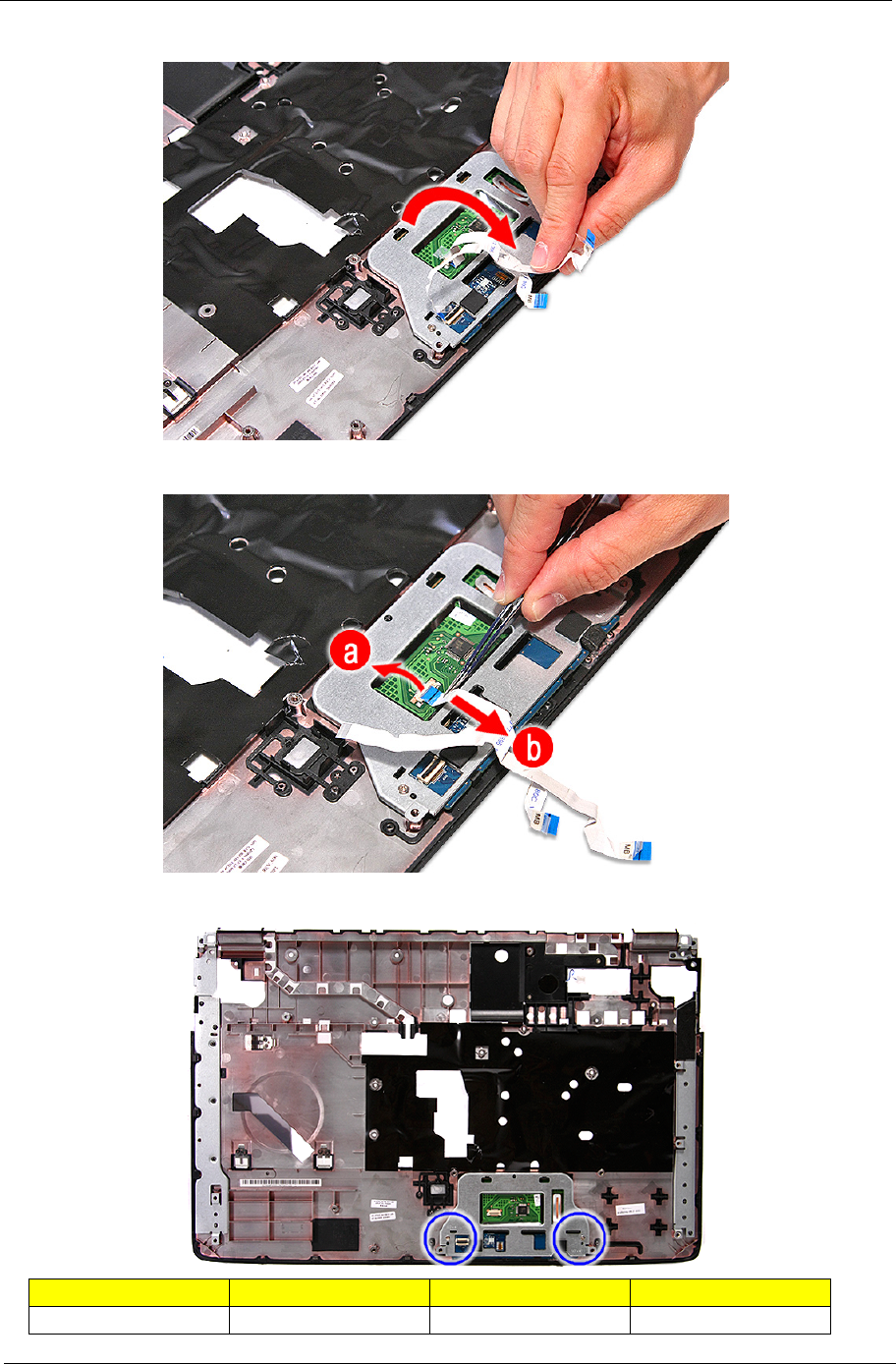

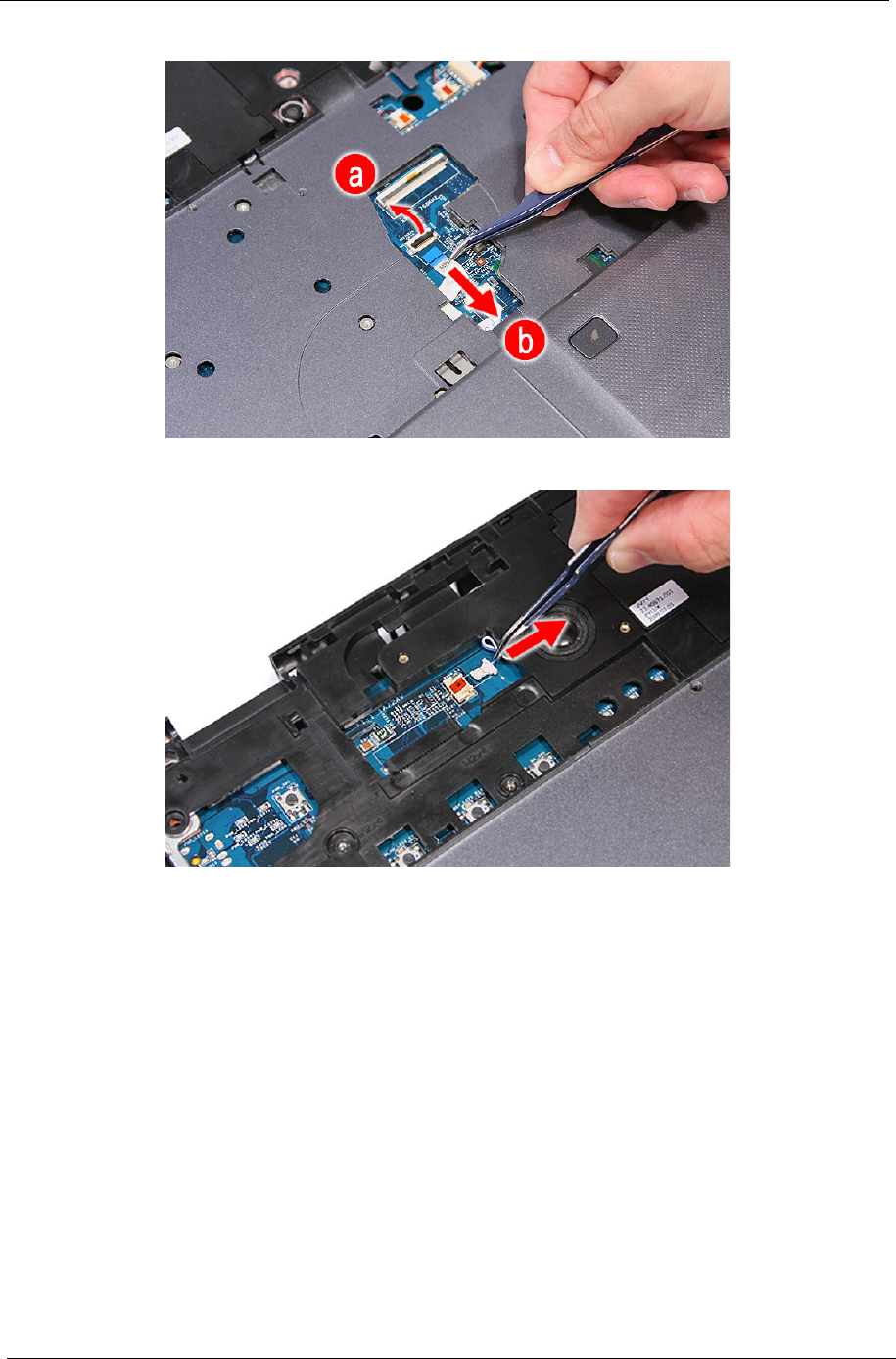

Removing the Fingerprint/Button and Touchpad Boards . . . . . . . . . . . . . . . . . .66
VIII
Table of Contents

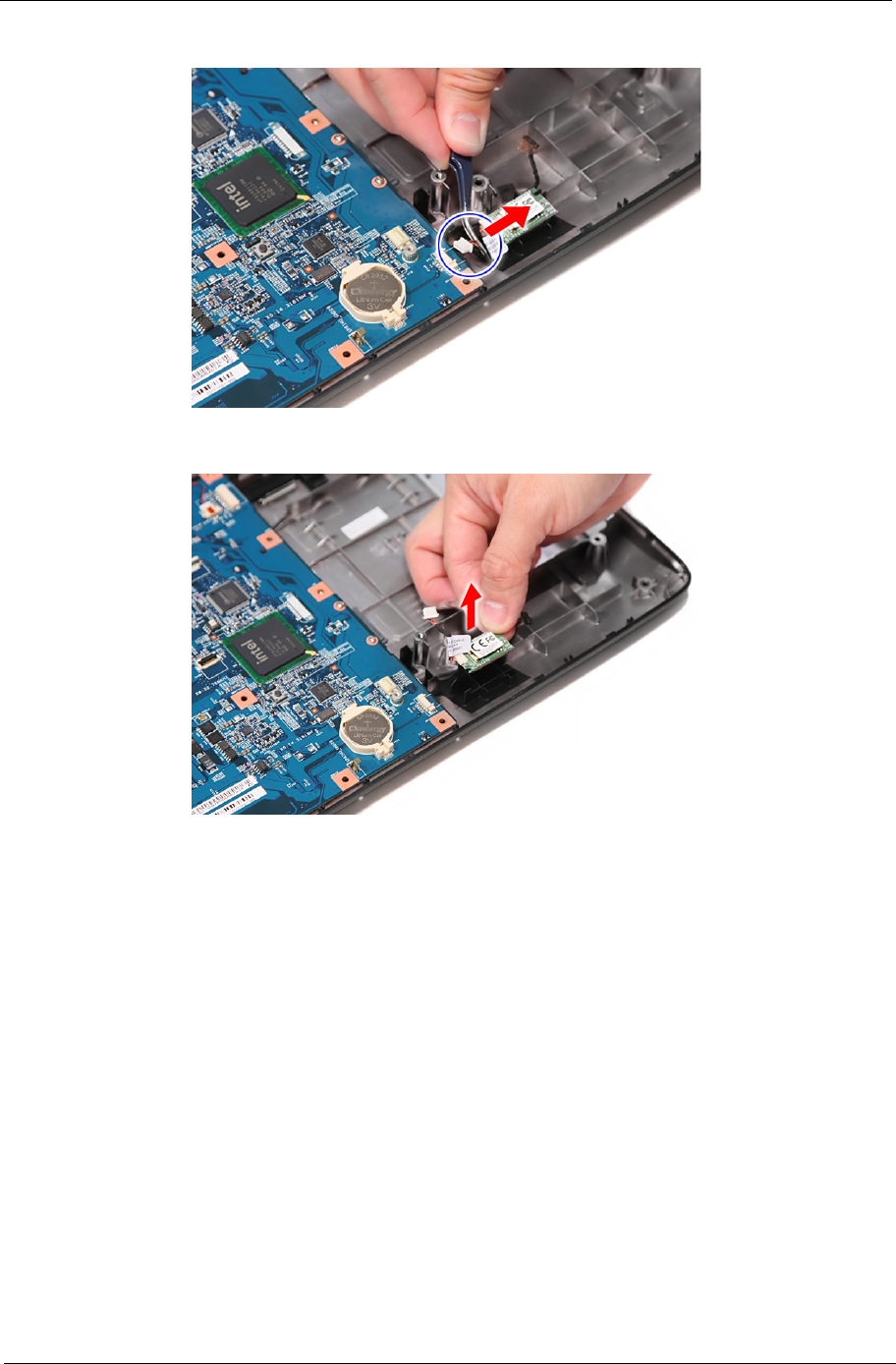

Removing the USB Board Module . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .69

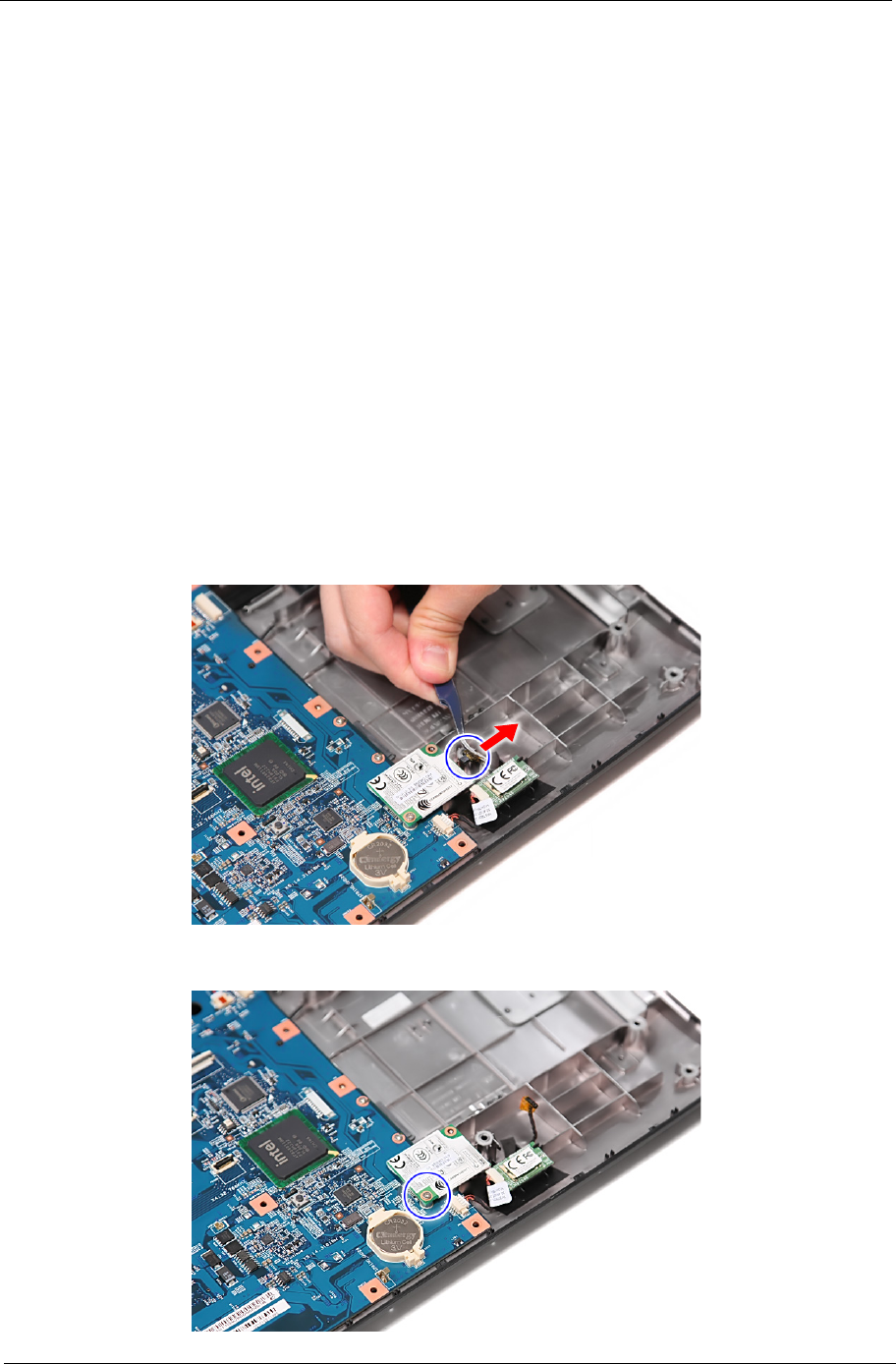

Removing the Modem Board . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .71
Removing the Bluetooth Board . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .72
Removing the Microphone Module . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .74

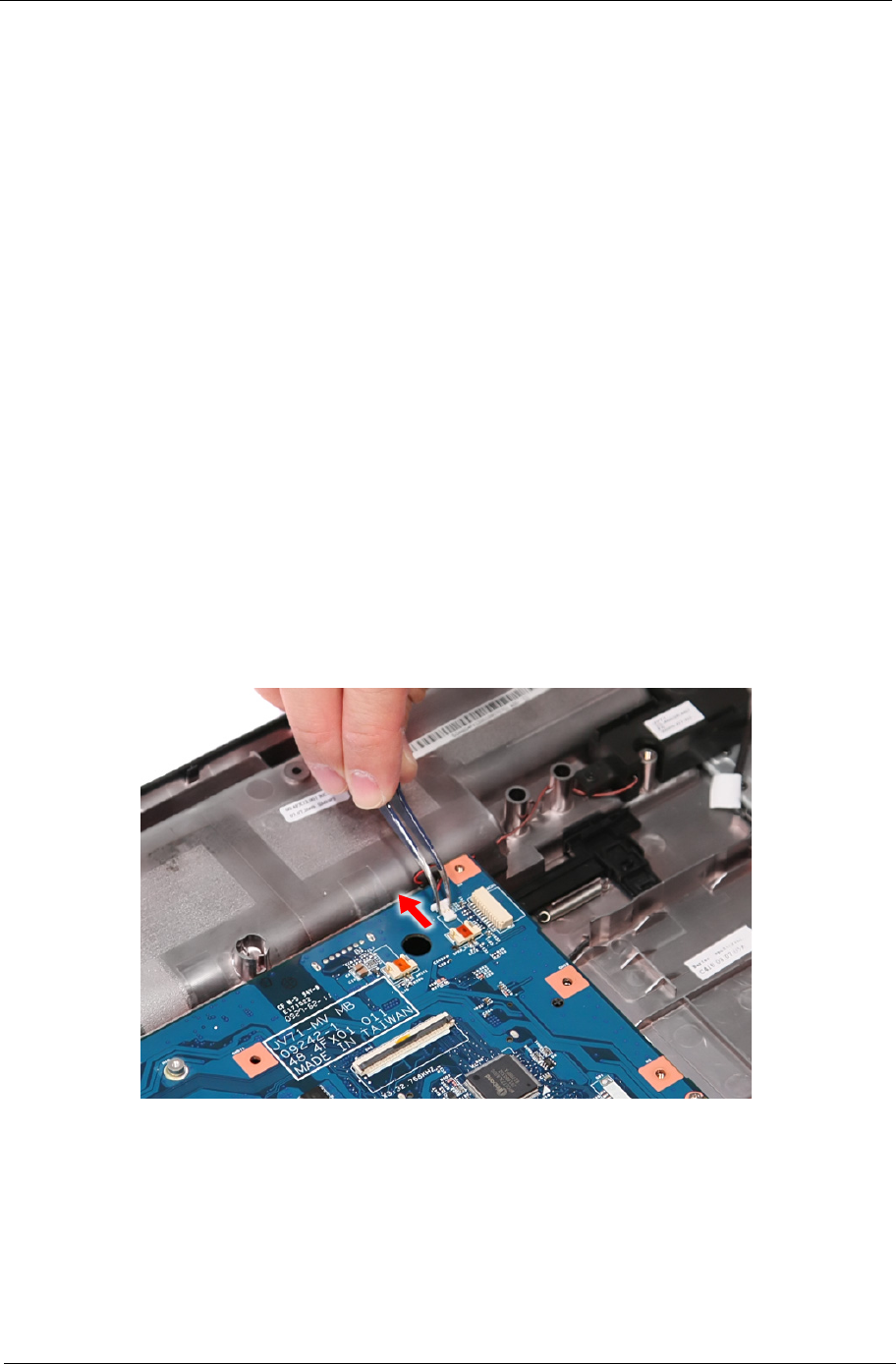

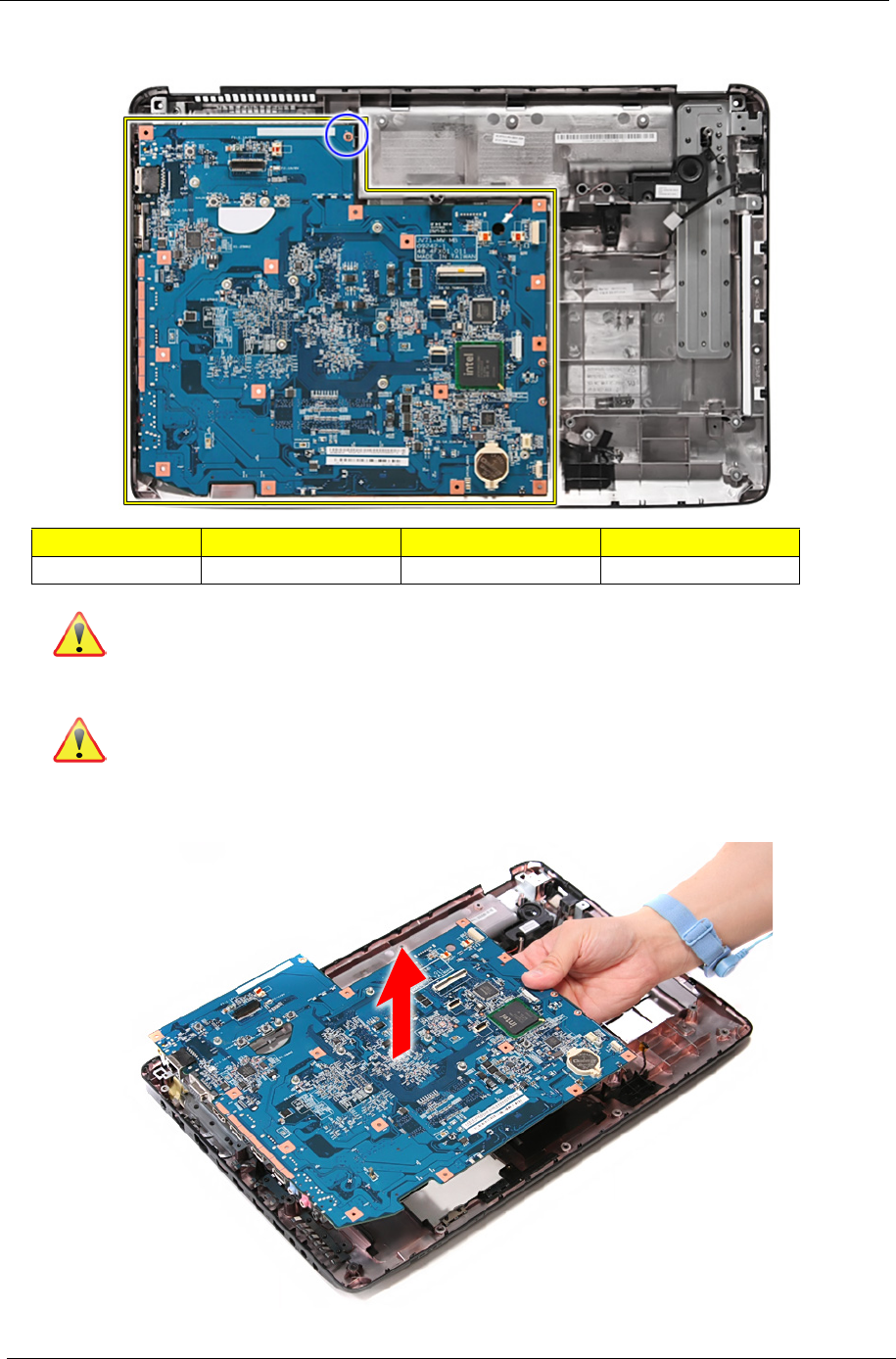

Removing the Main Board . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .75
LCD Module Disassembly Process . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .77
LCD Module Disassembly Flowchart . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .77

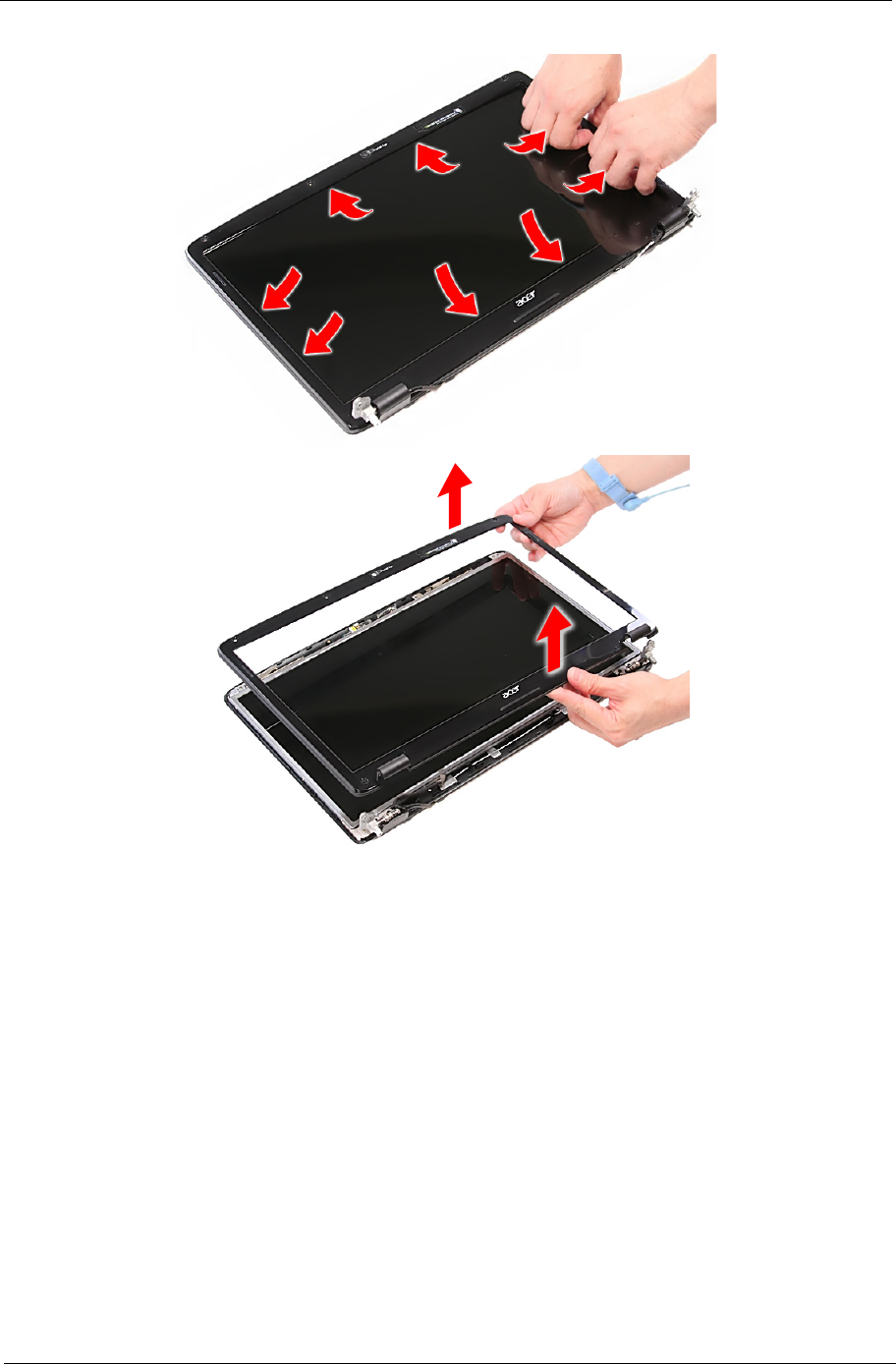

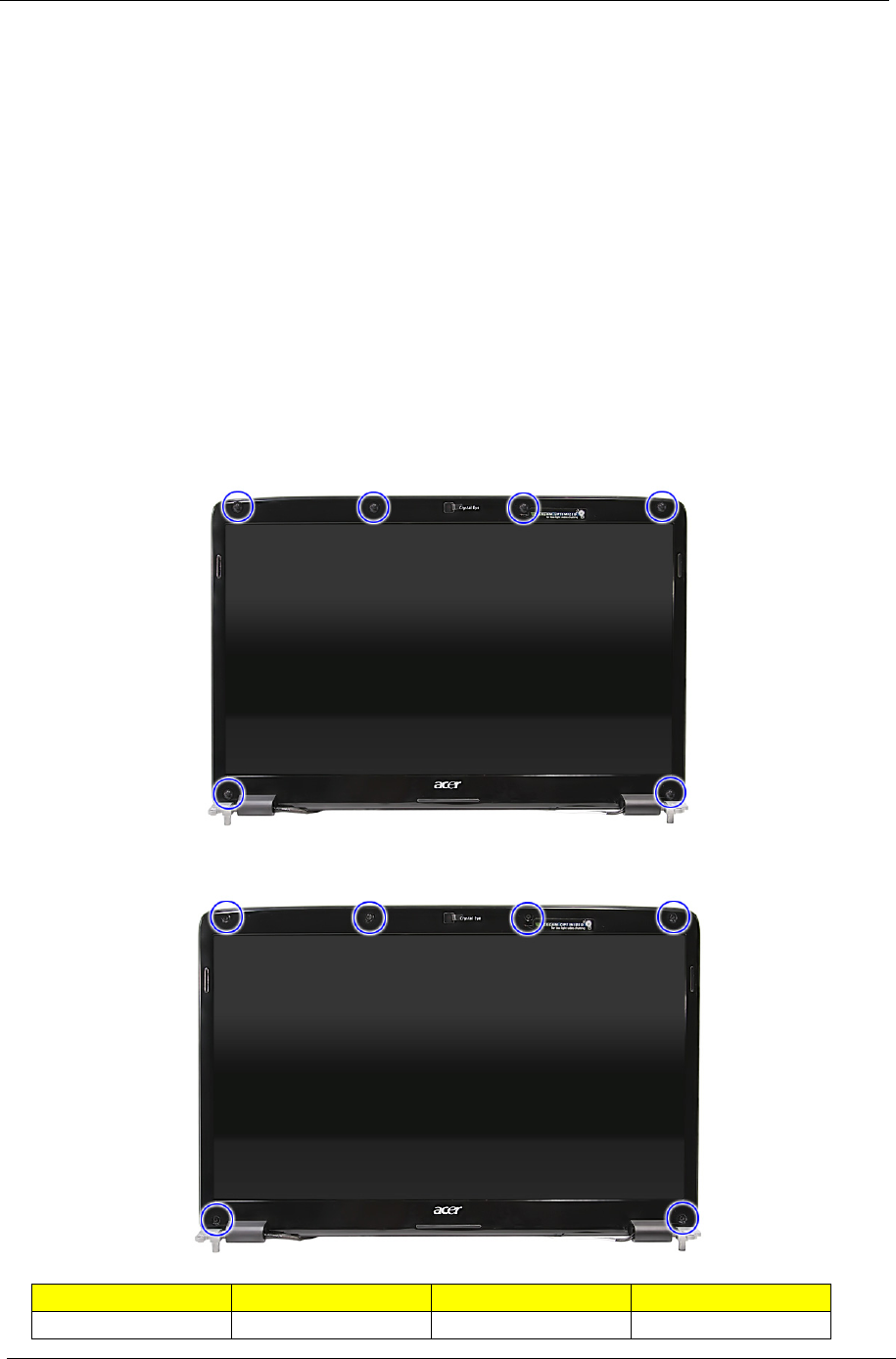

Removing the LCD Bezel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .78

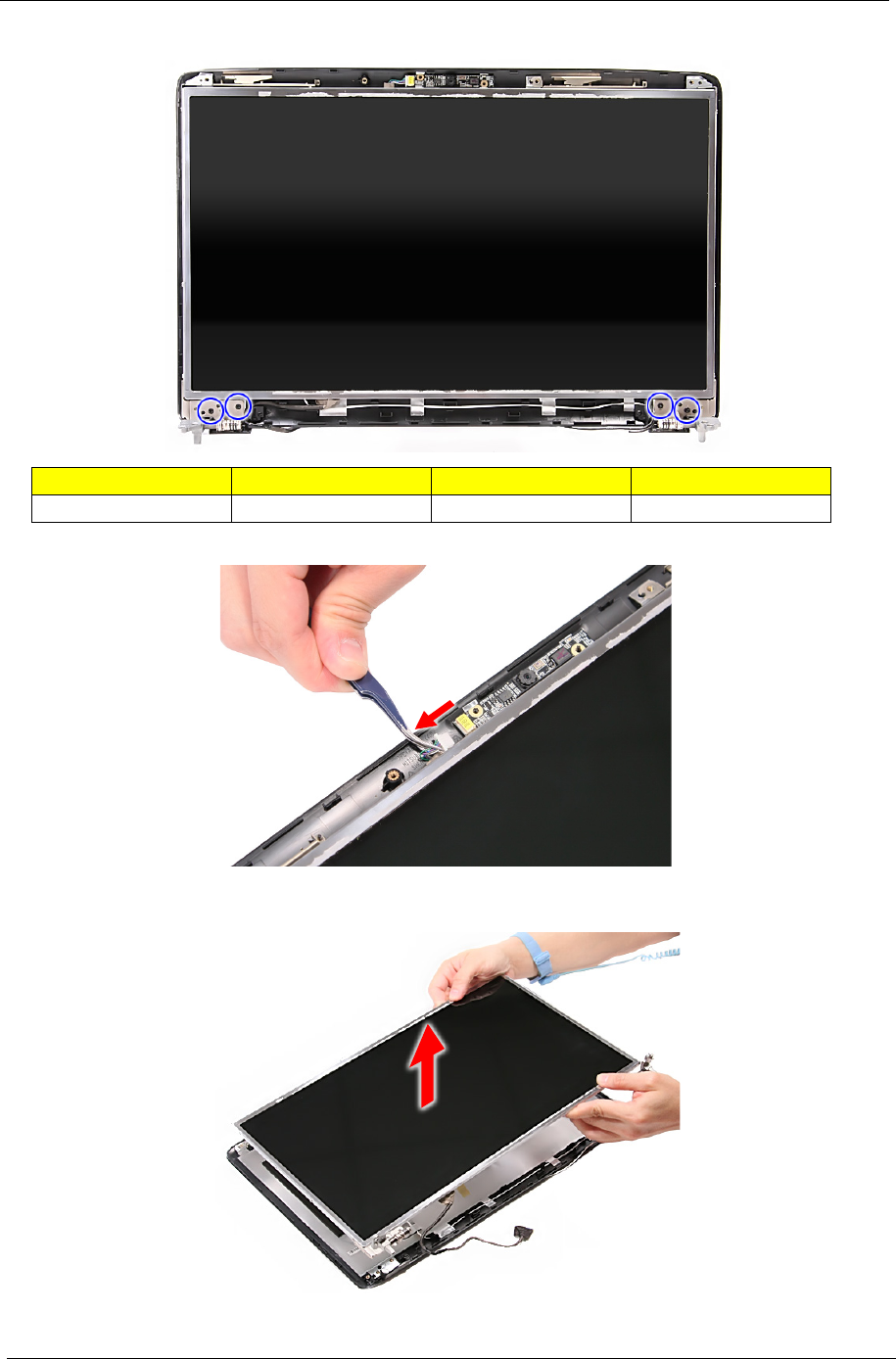

Removing the LCD panel with the Brackets . . . . . . . . . . . . . . . . . . . . . . . . . . . .79

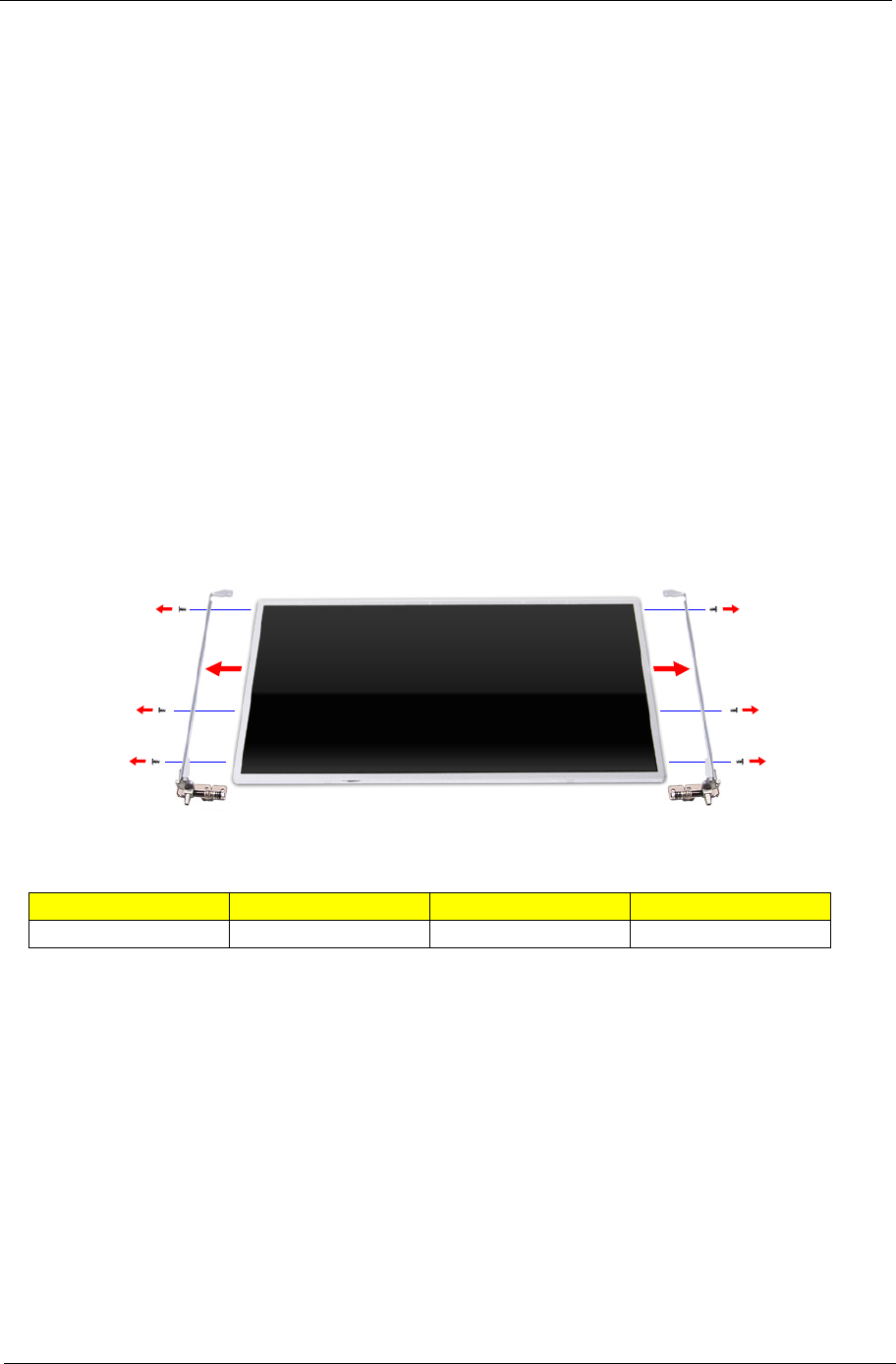

Removing the LCD Brackets . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .81

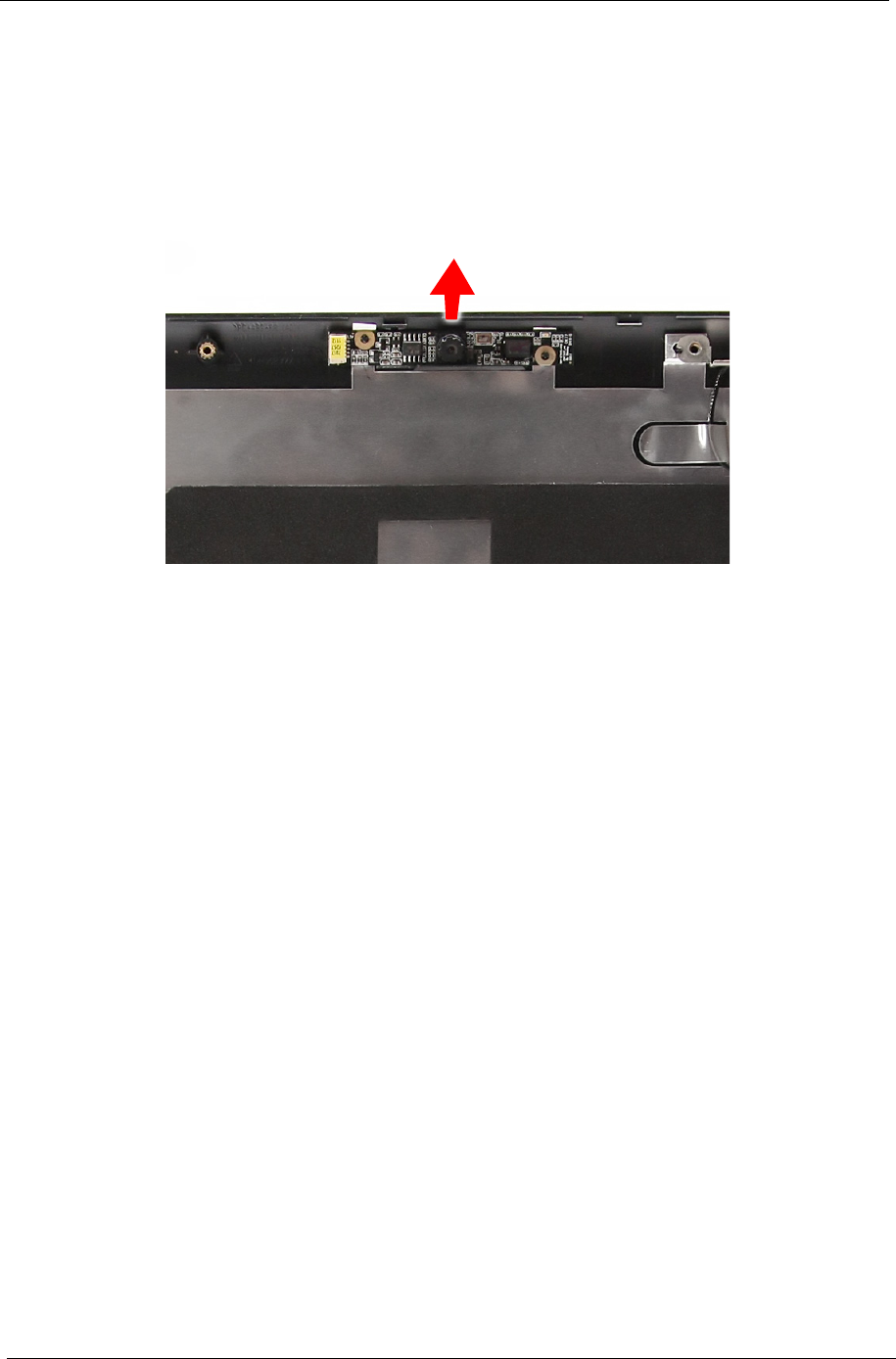

Removing the Web Camera . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .81

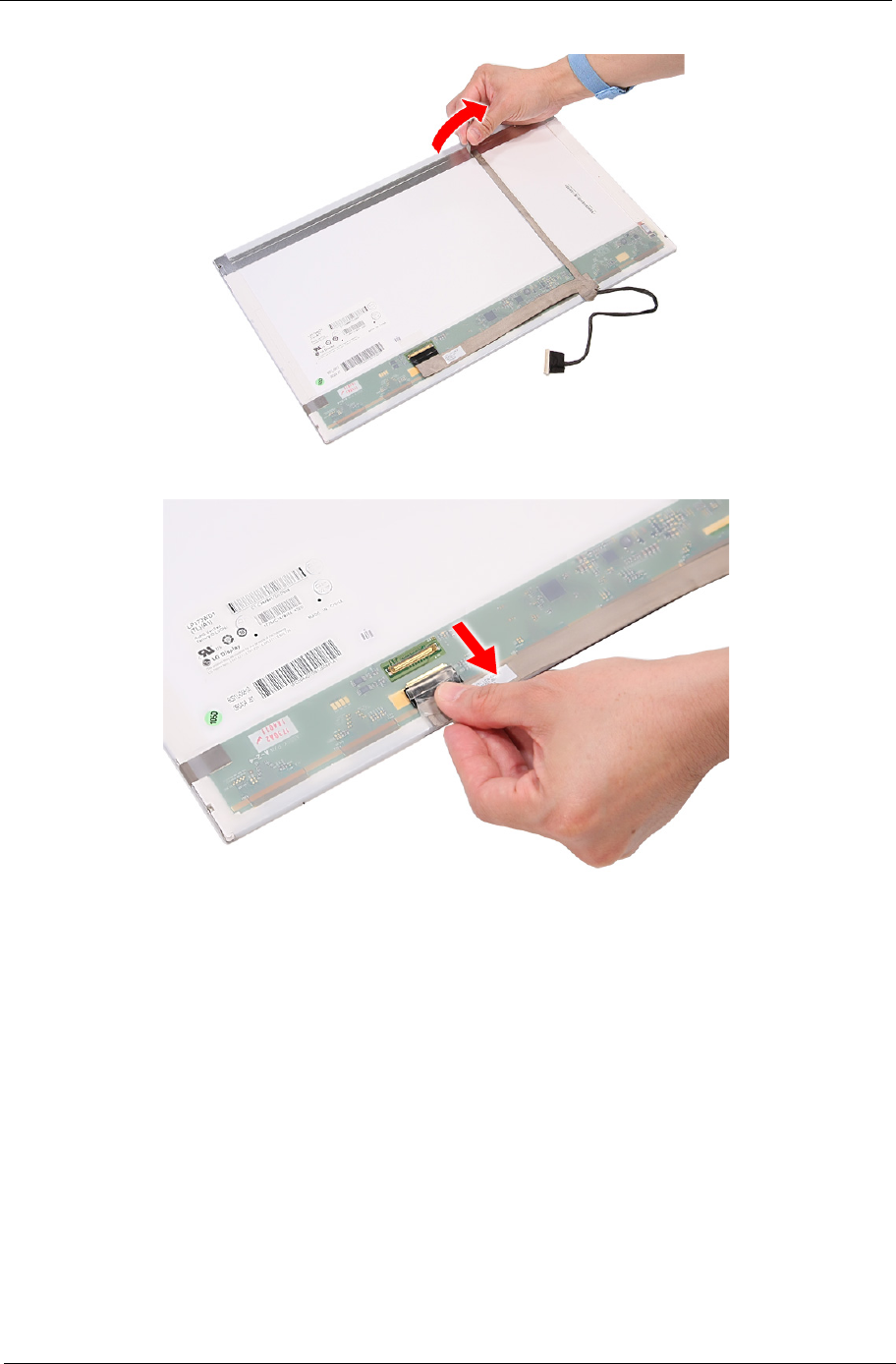

Removing the FPC Cable . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .82
Removing the Antennas . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .84
Troubleshooting 85
System Check Procedures . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .86
External Diskette Drive Check . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .86
External Optical Disk Drive Check . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .86
Keyboard or Auxiliary Input Device Check . . . . . . . . . . . . . . . . . . . . . . . . . . . . .86
Memory Check . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .87
Power System Check . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .87
Touchpad Check . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .88
Power-On Self-Test (POST) Error Message . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .88
Index of Error Messages . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .89
Phoenix BIOS Beep Codes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .93
Index of Symptom-to-FRU Error Message . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .97
Intermittent Problems . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .101
Undetermined Problems . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .102
Connector Locations 103

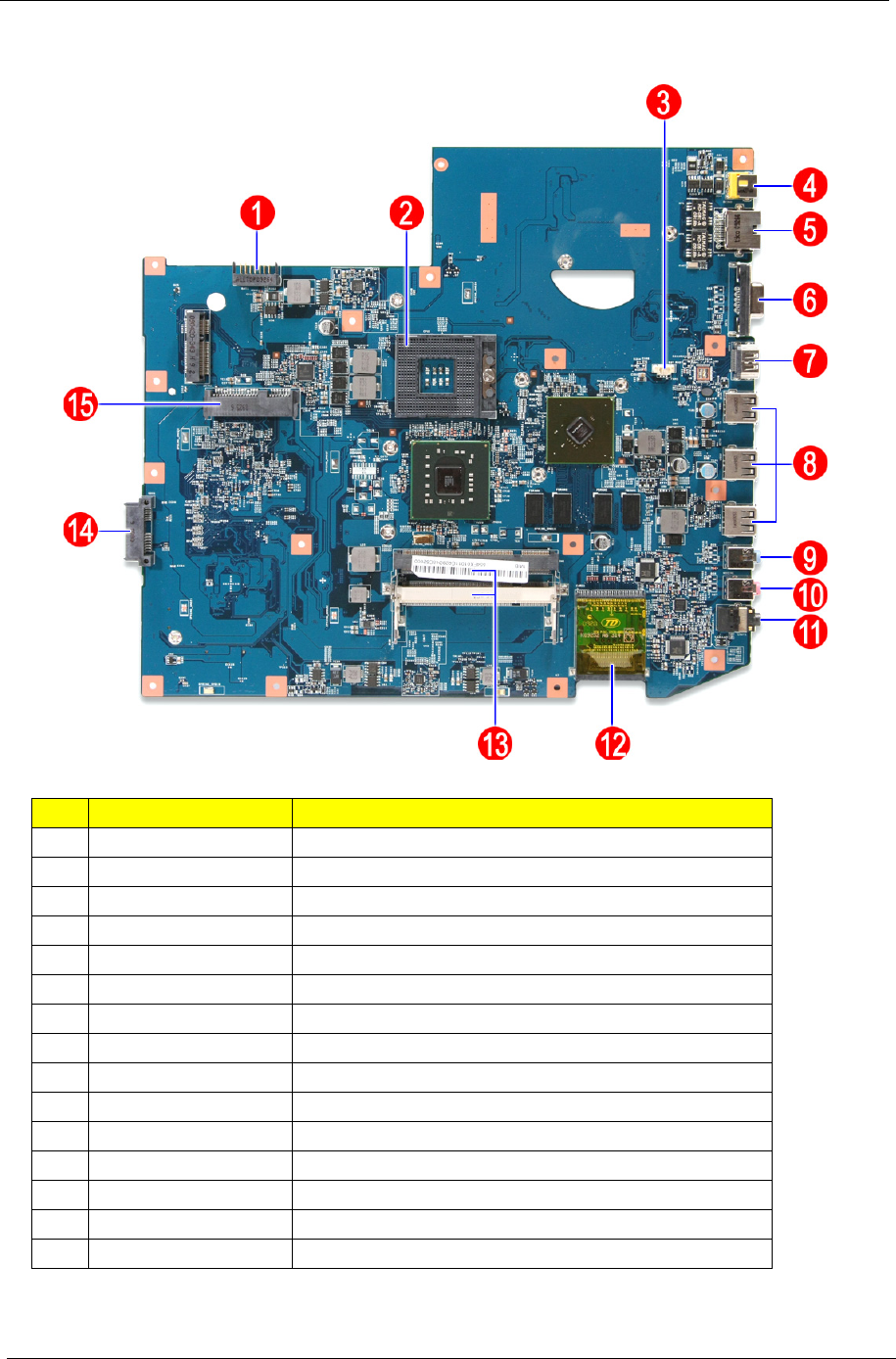

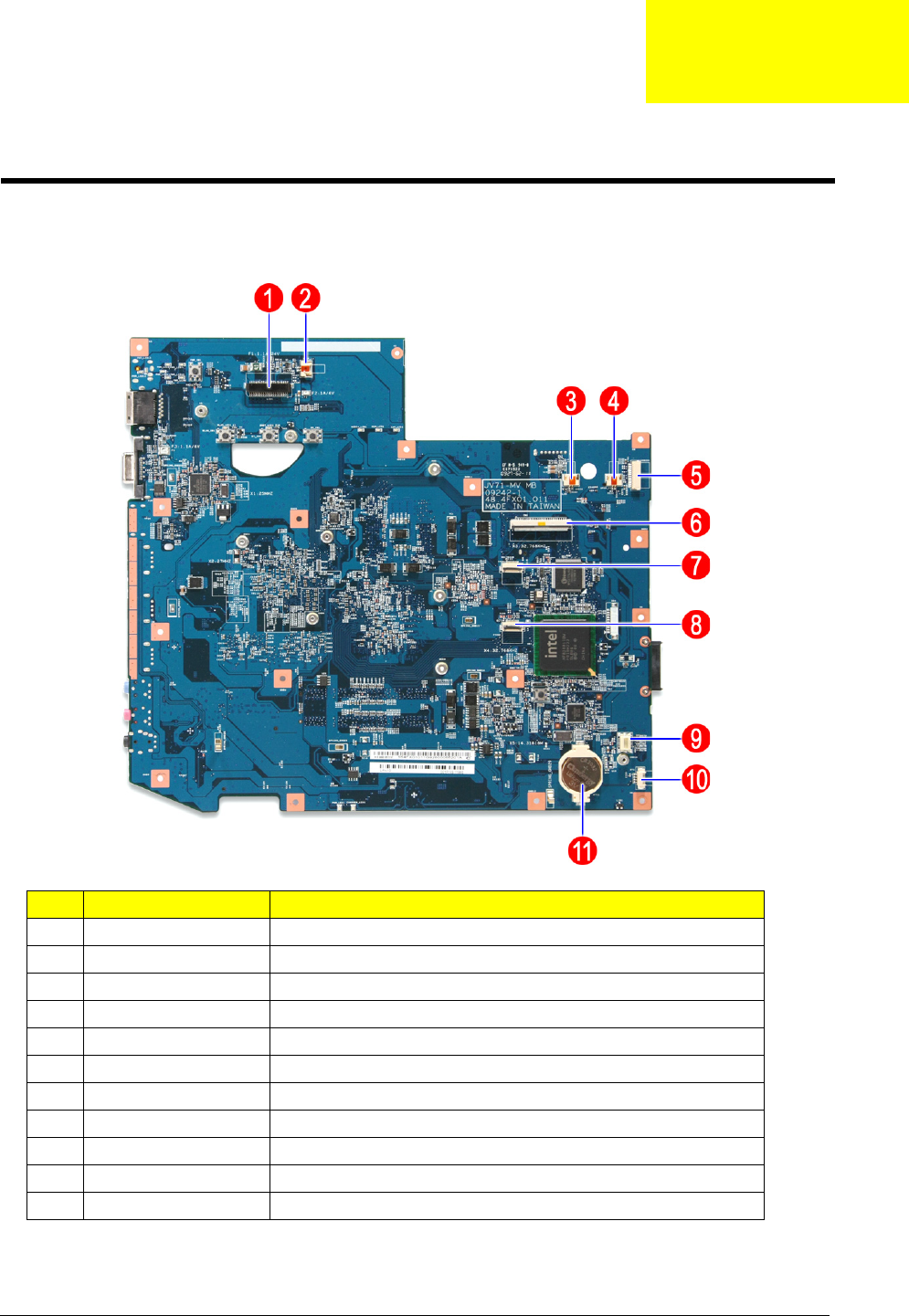

Main Board . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .103
Clearing Password Check and BIOS Recovery . . . . . . . . . . . . . . . . . . . . . . . . . . . .105

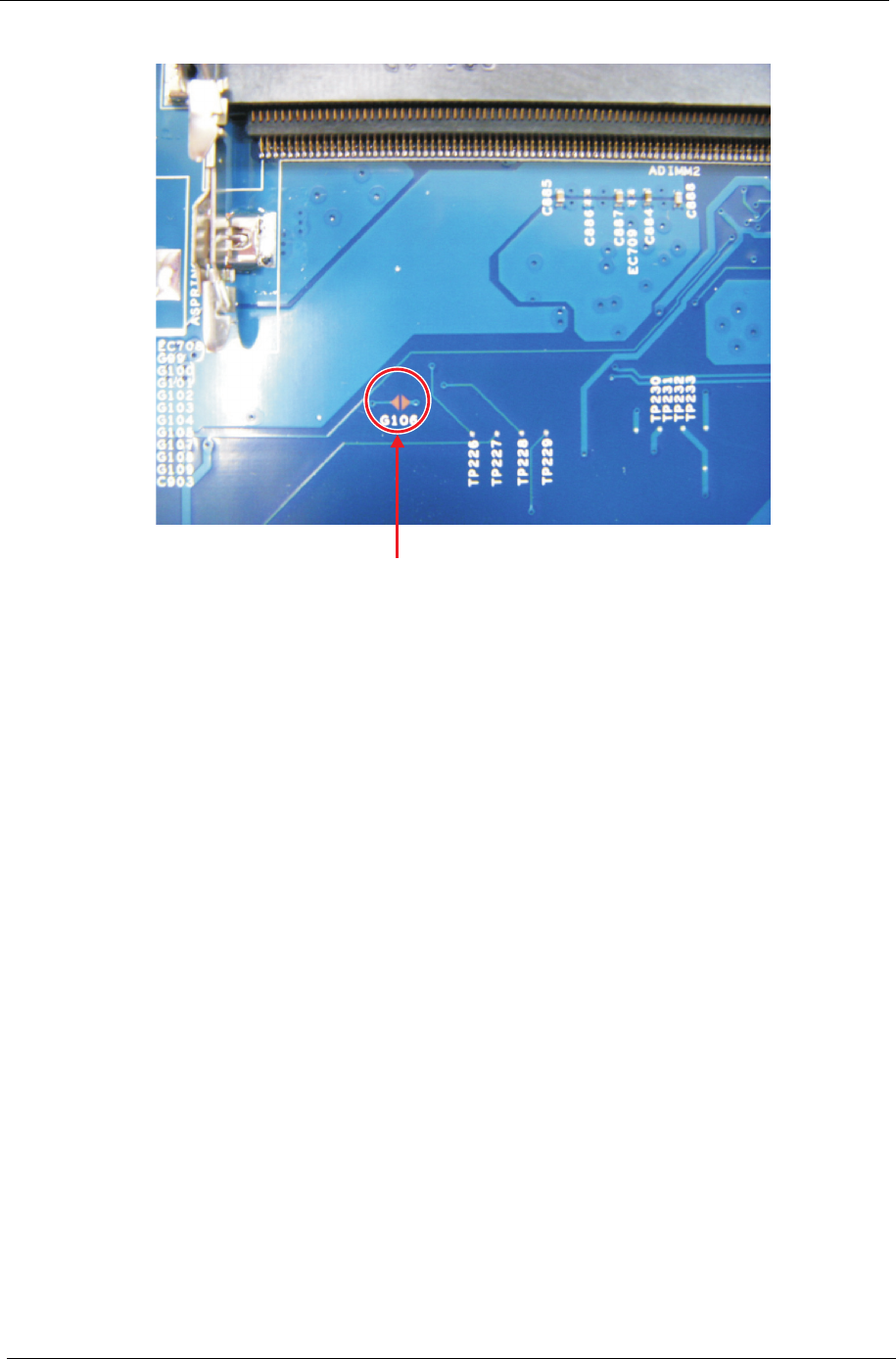

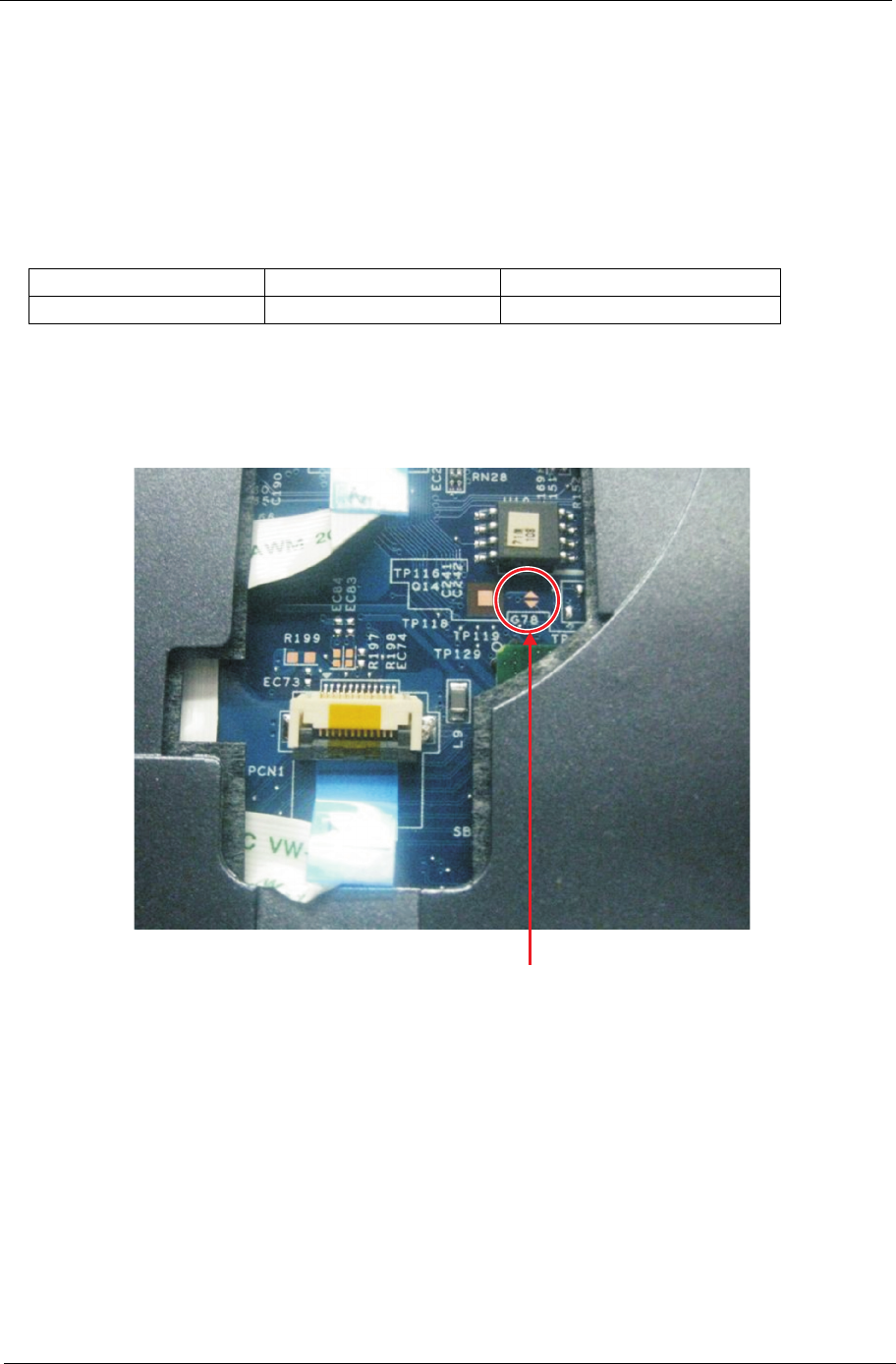

Clearing Password Check . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .105

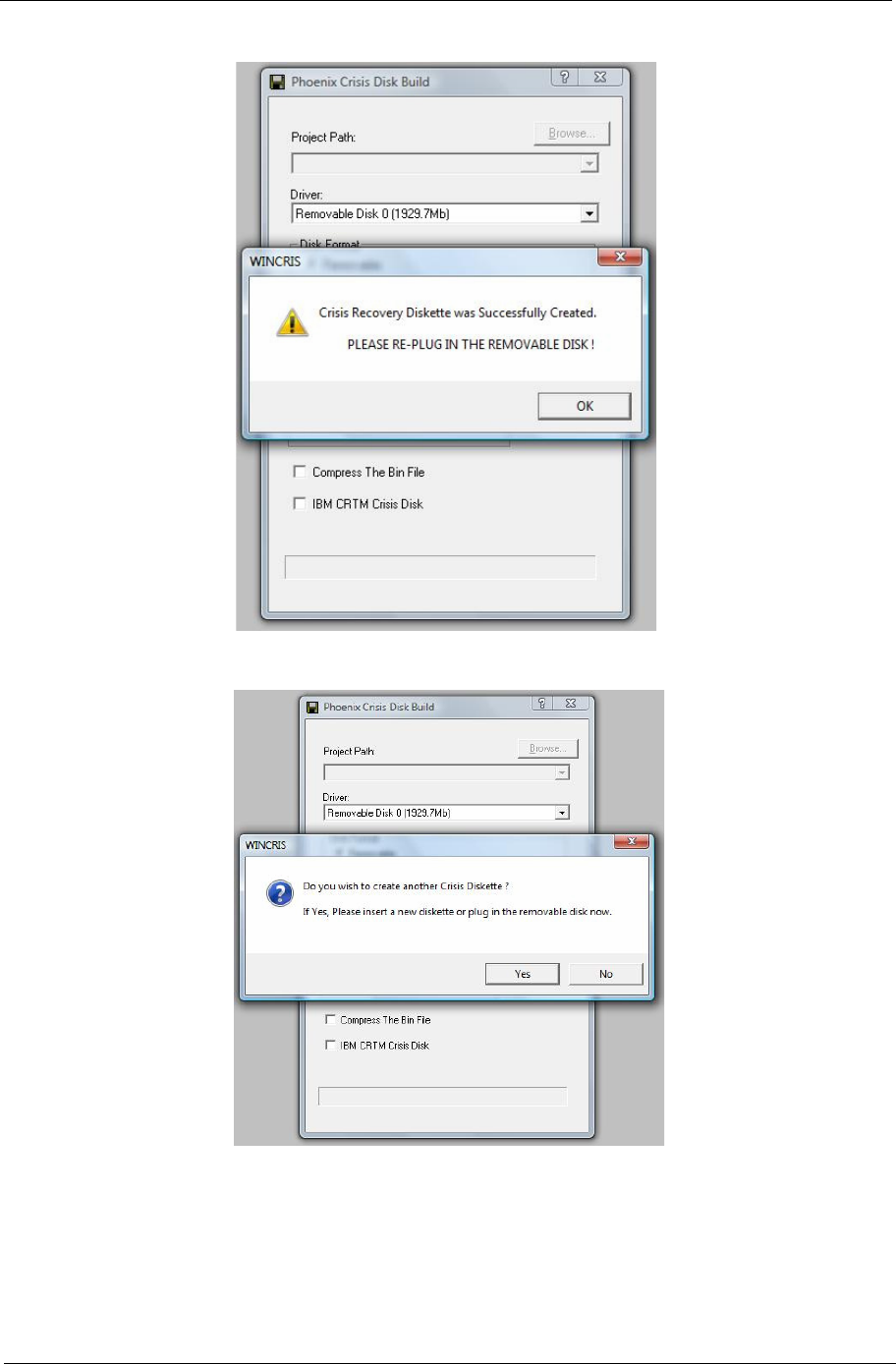

BIOS Recovery by Crisis Disk . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .107

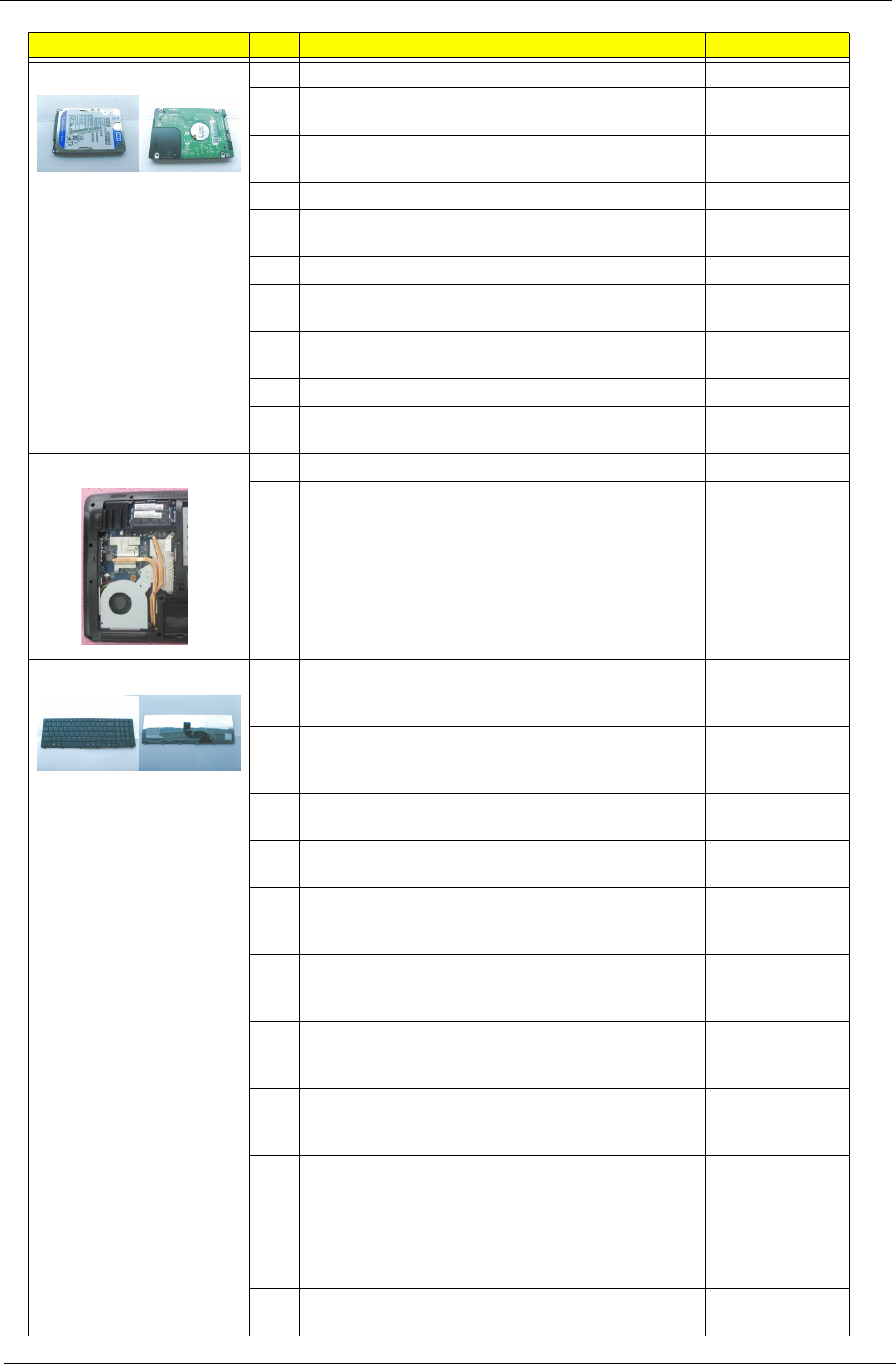

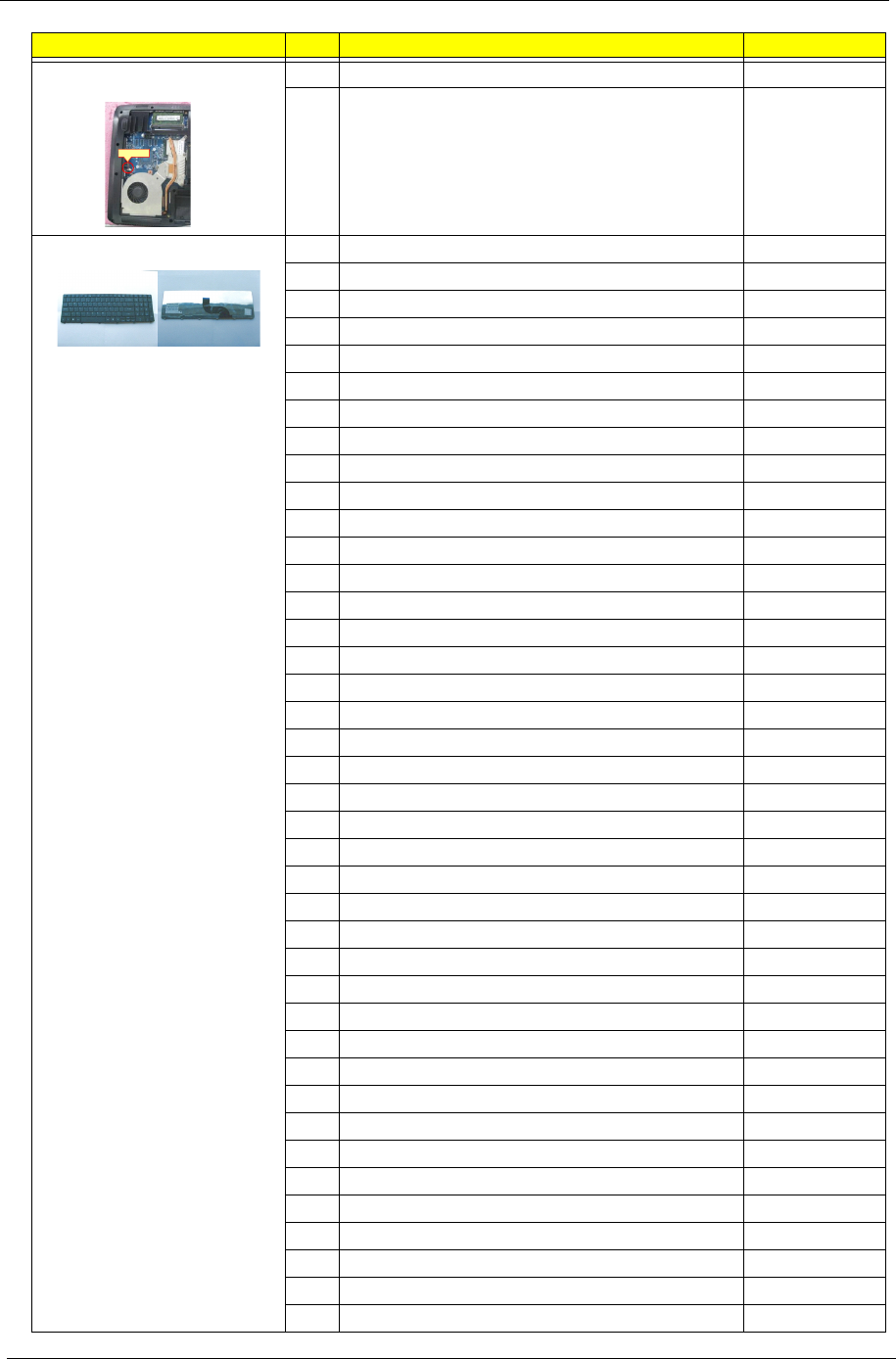

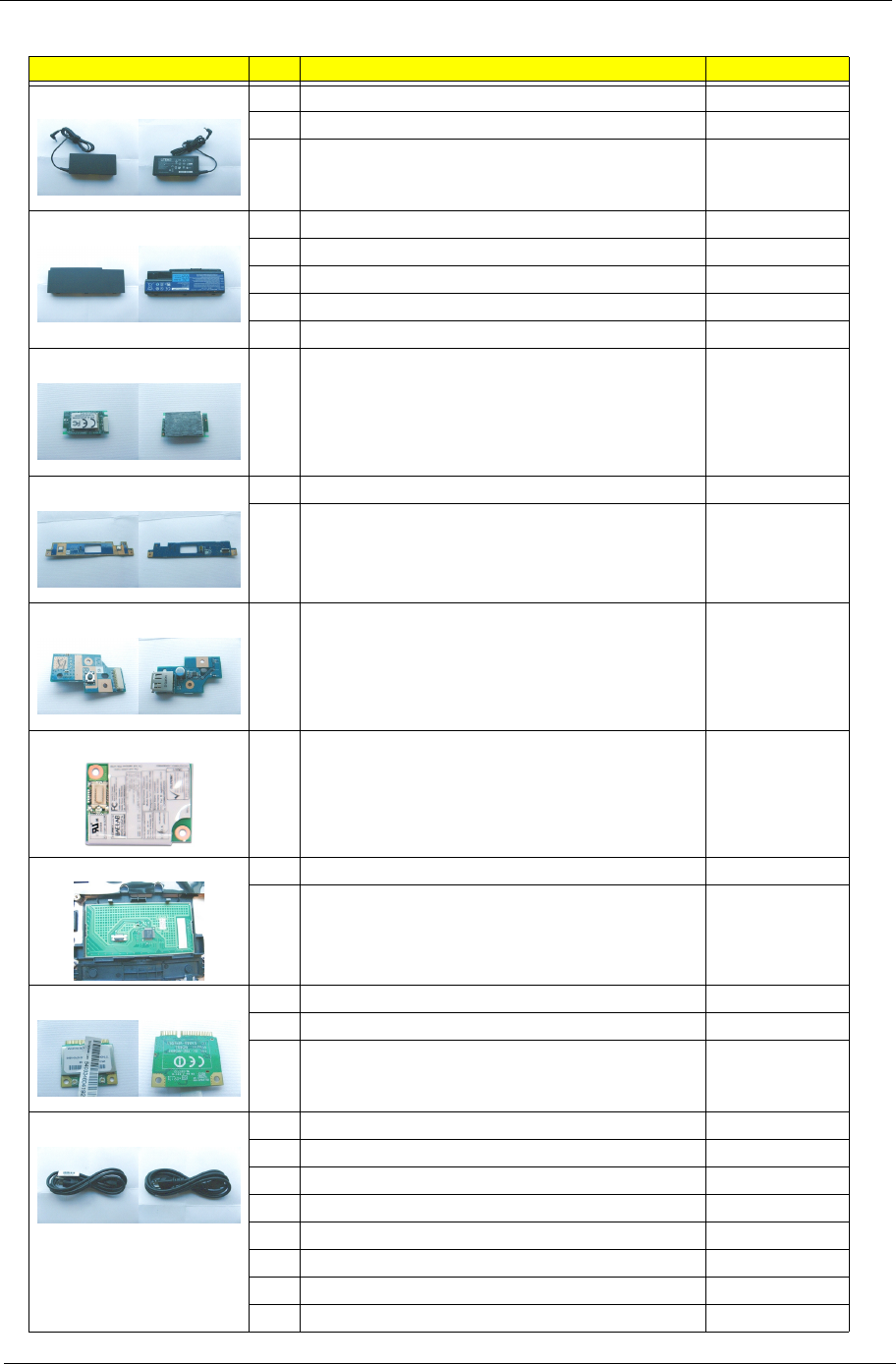

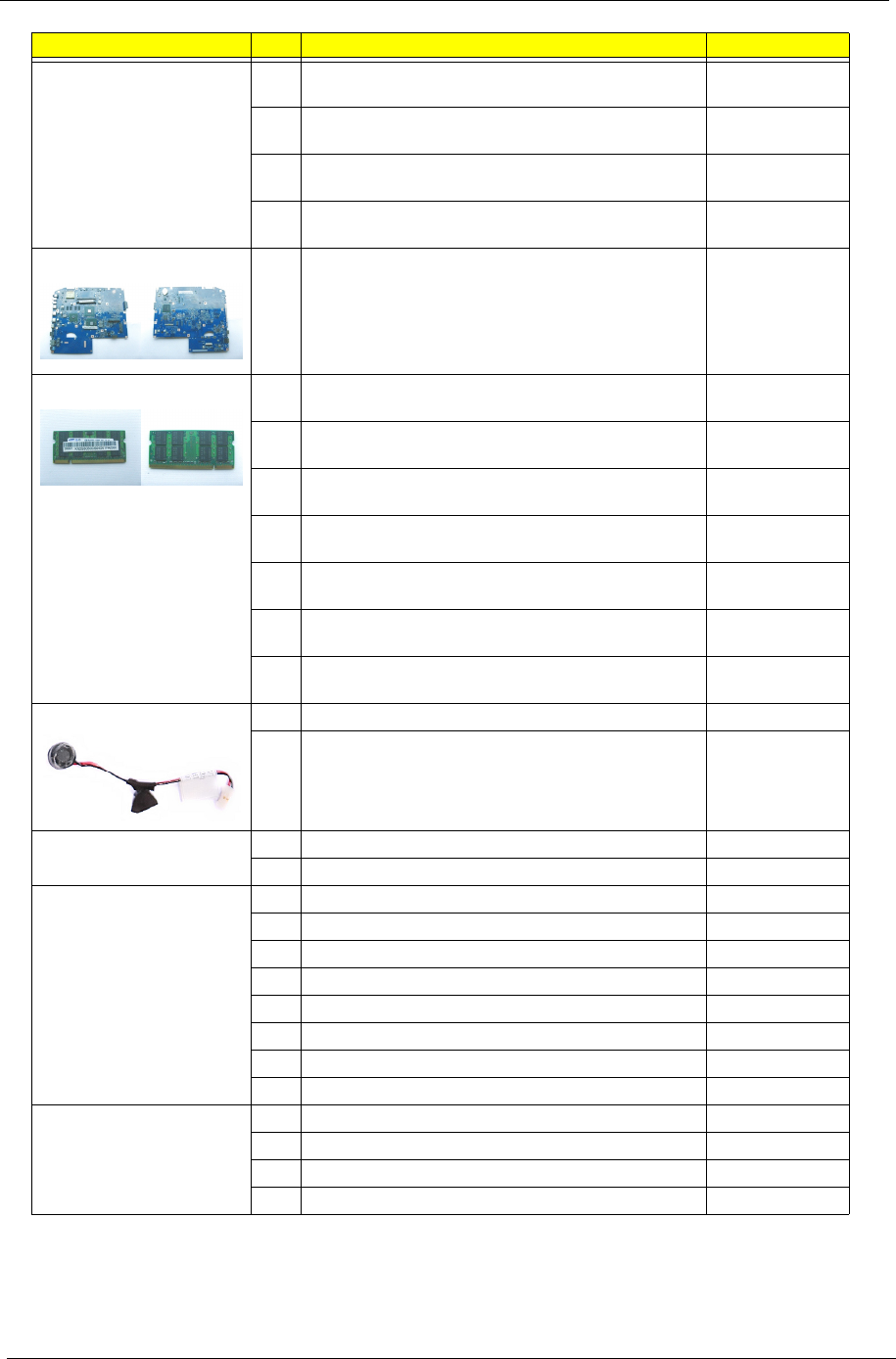

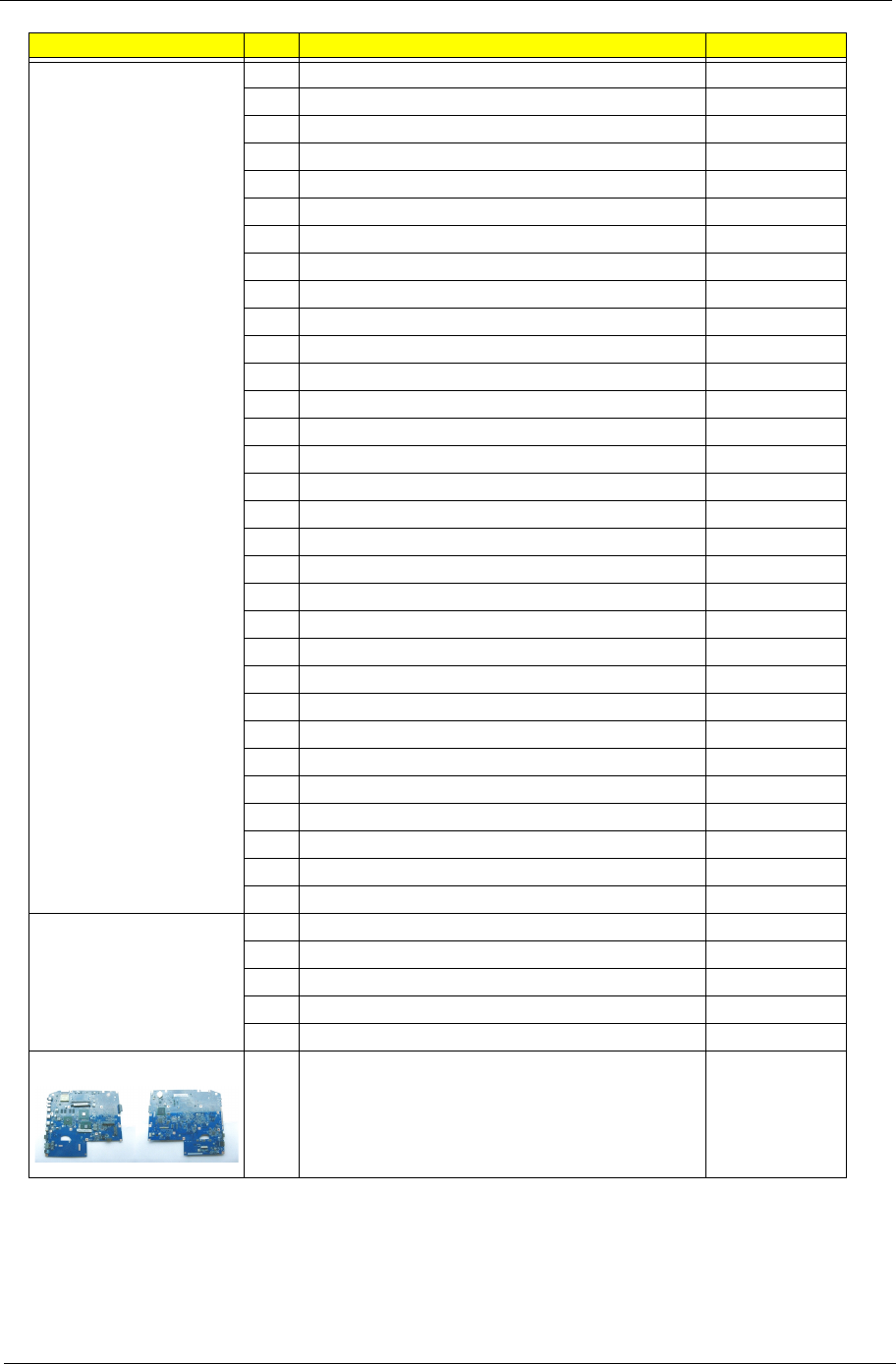

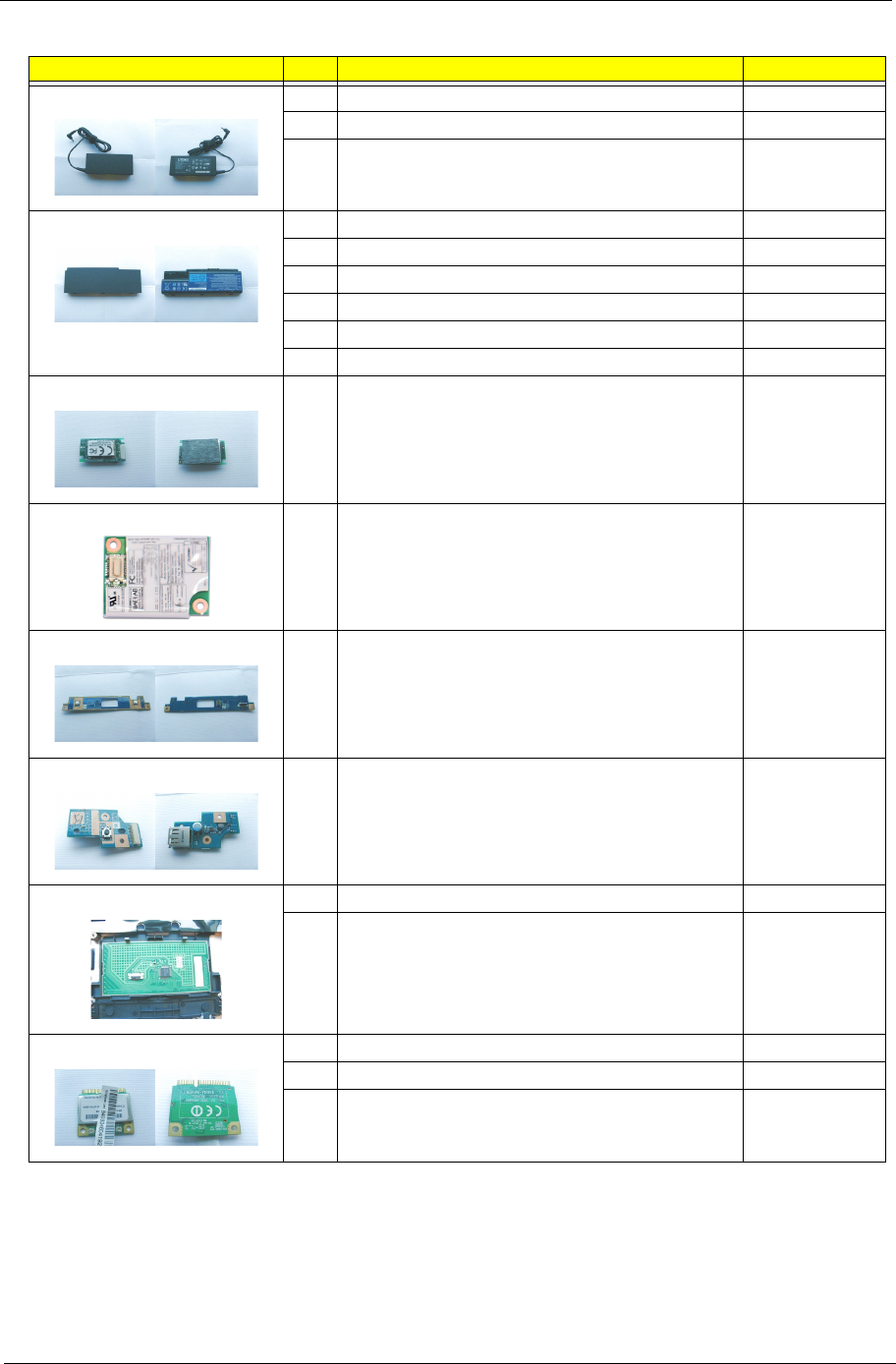

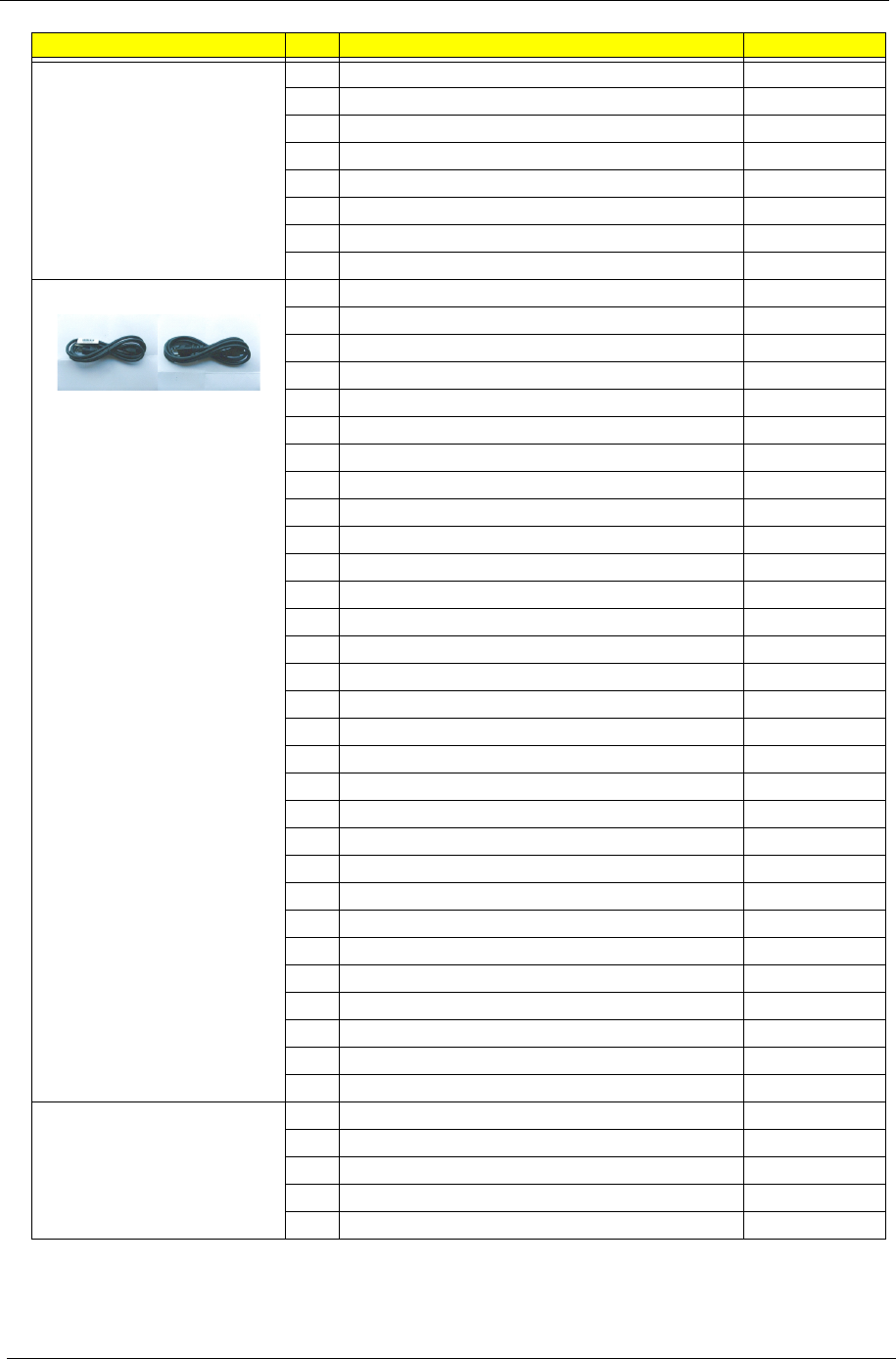

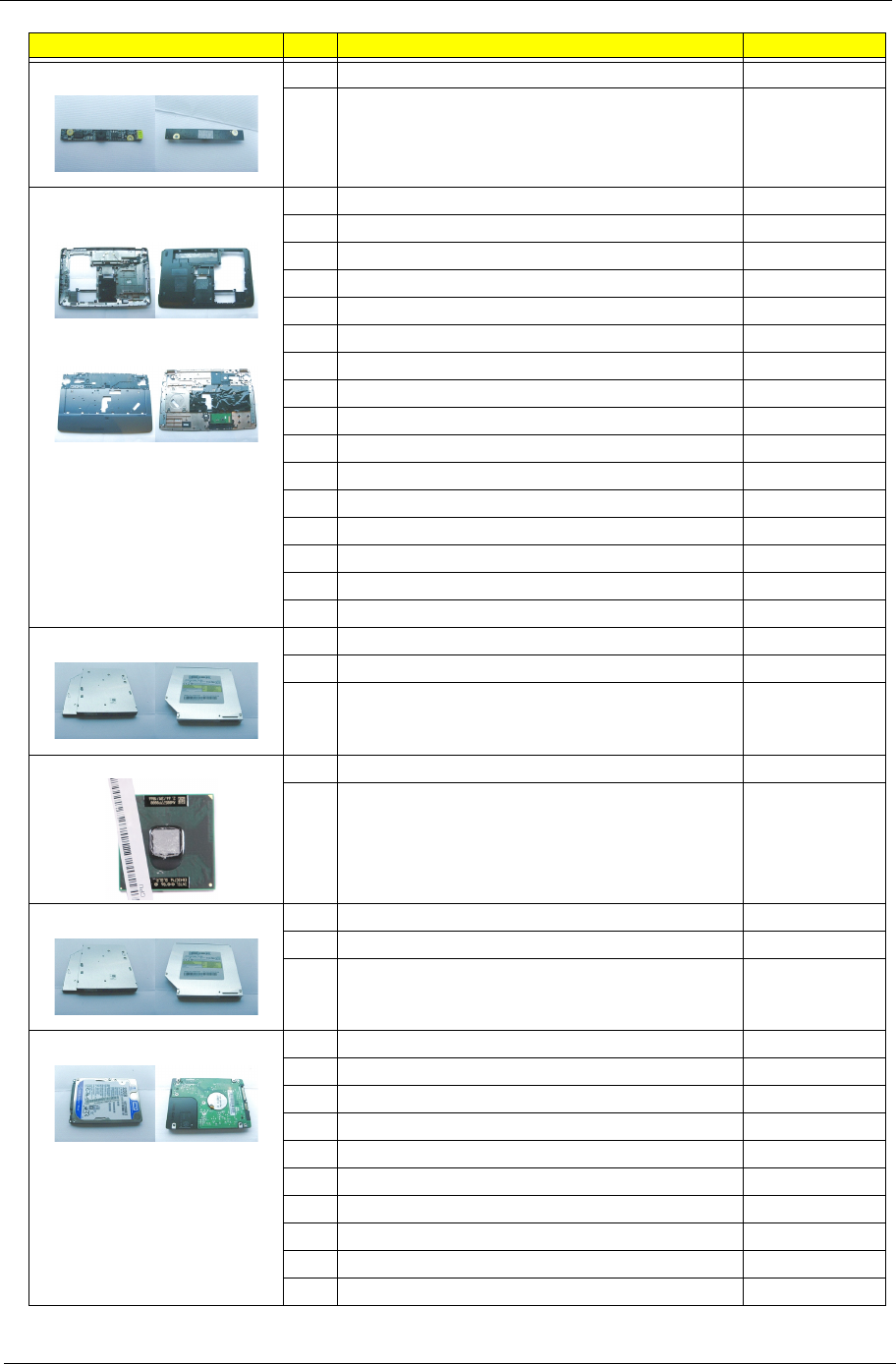

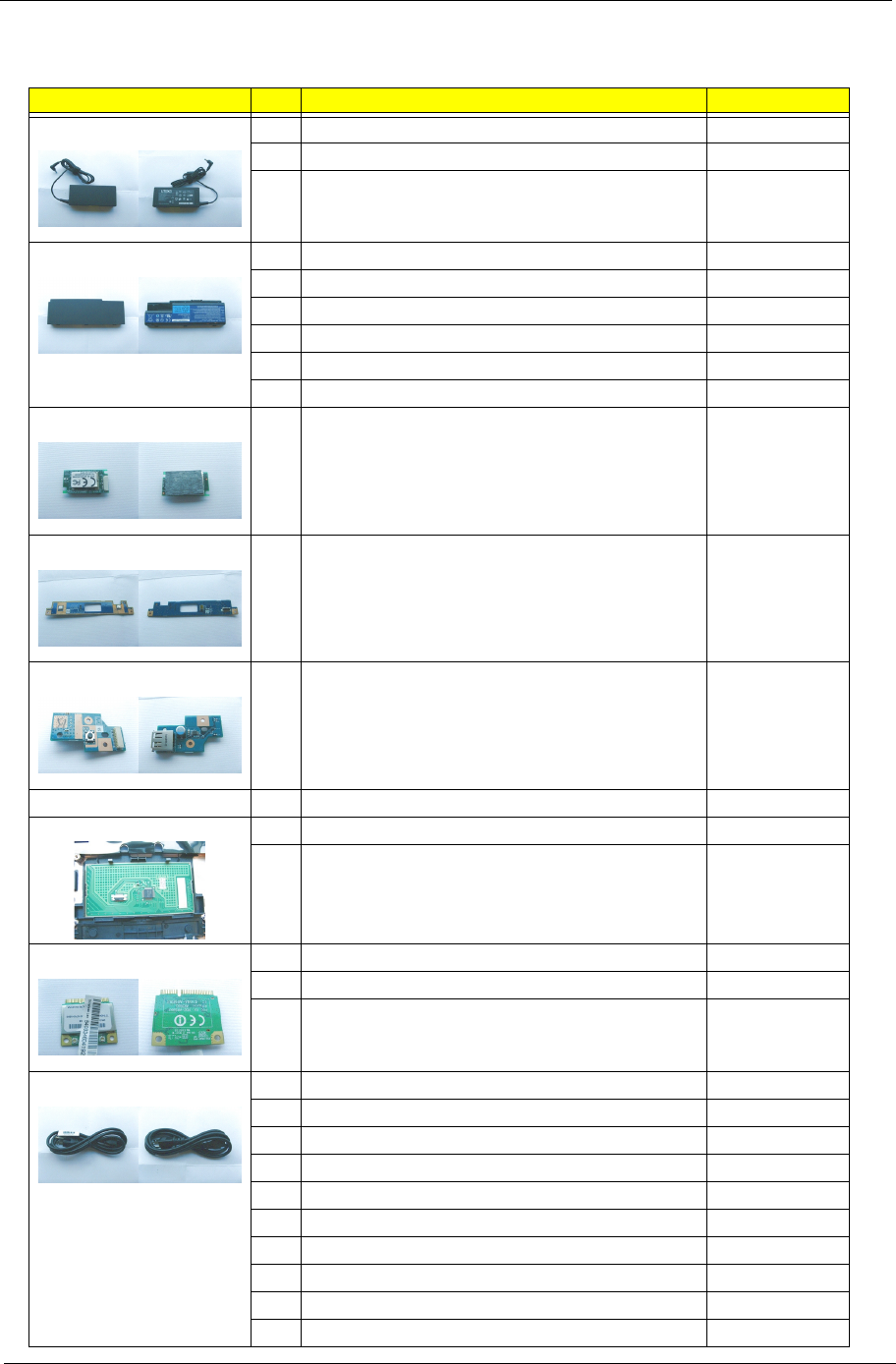

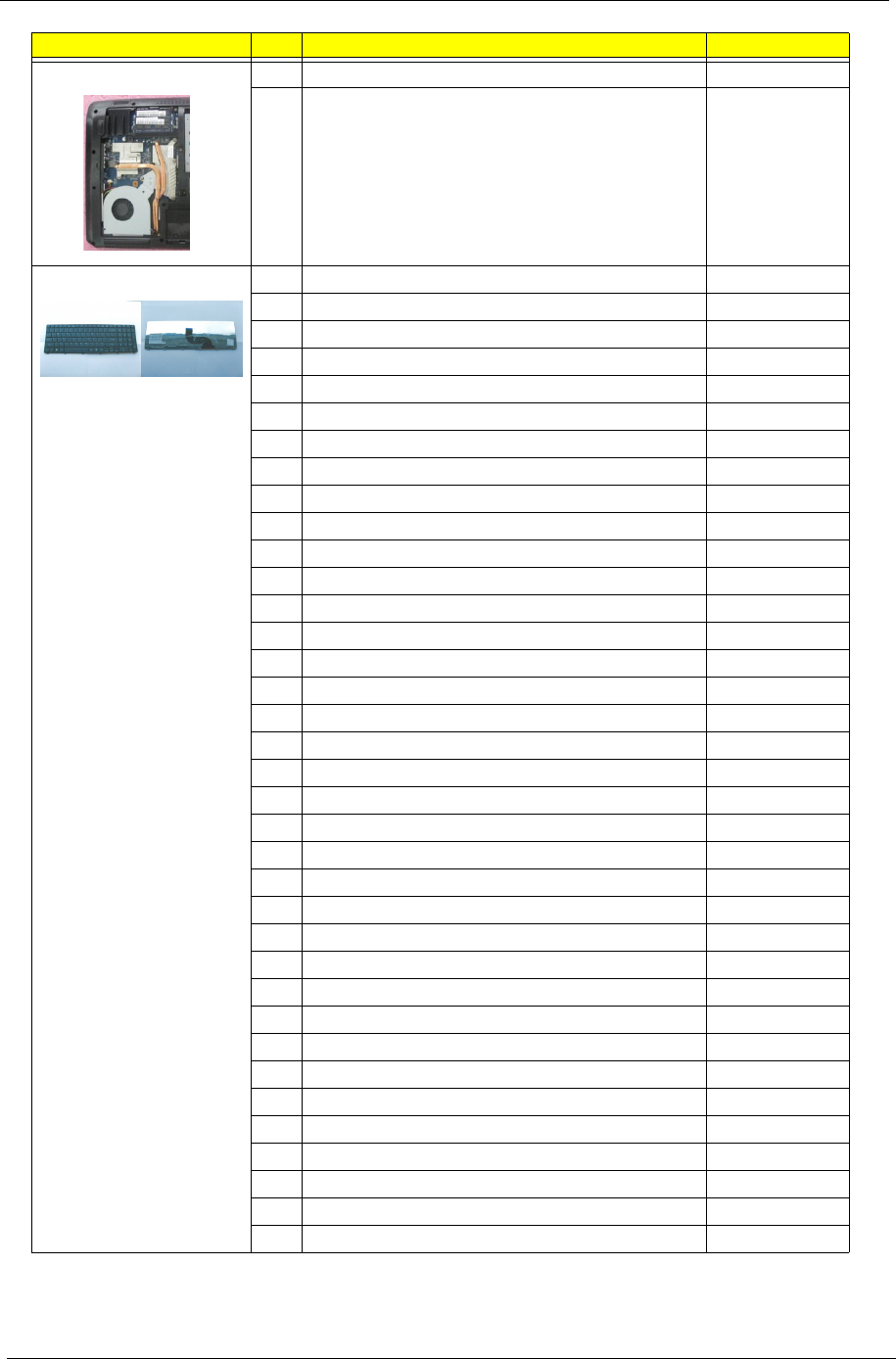

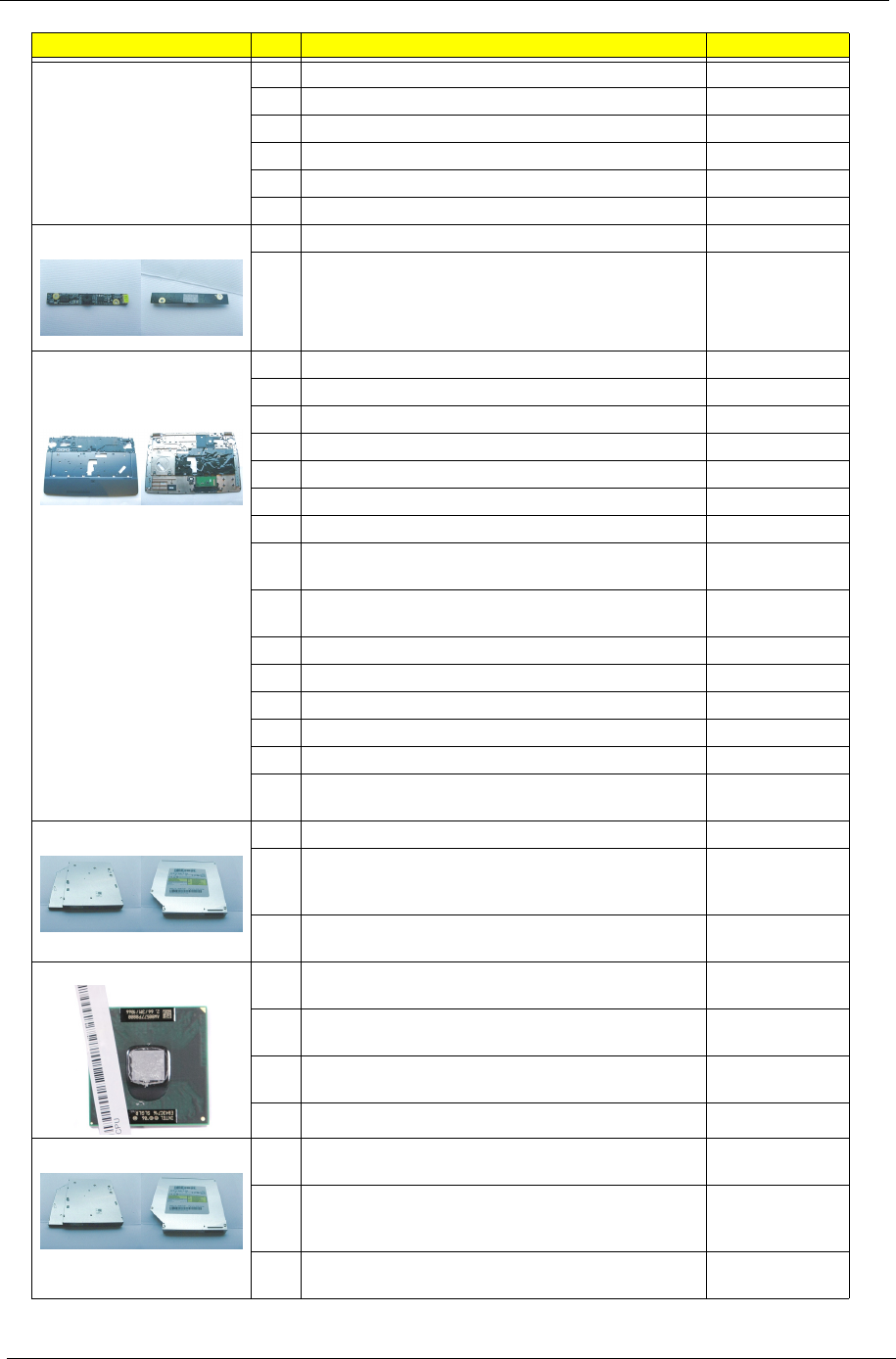

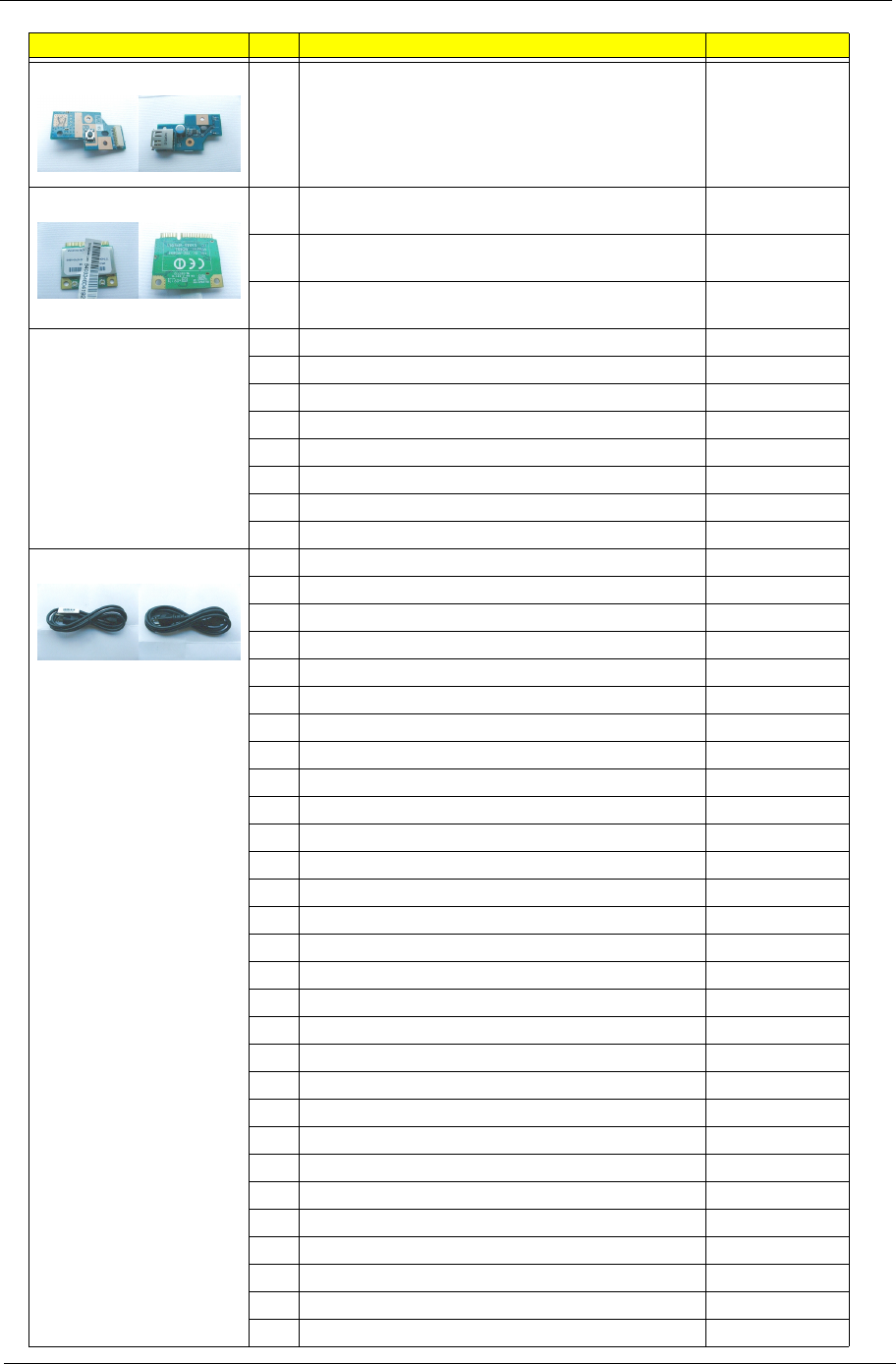

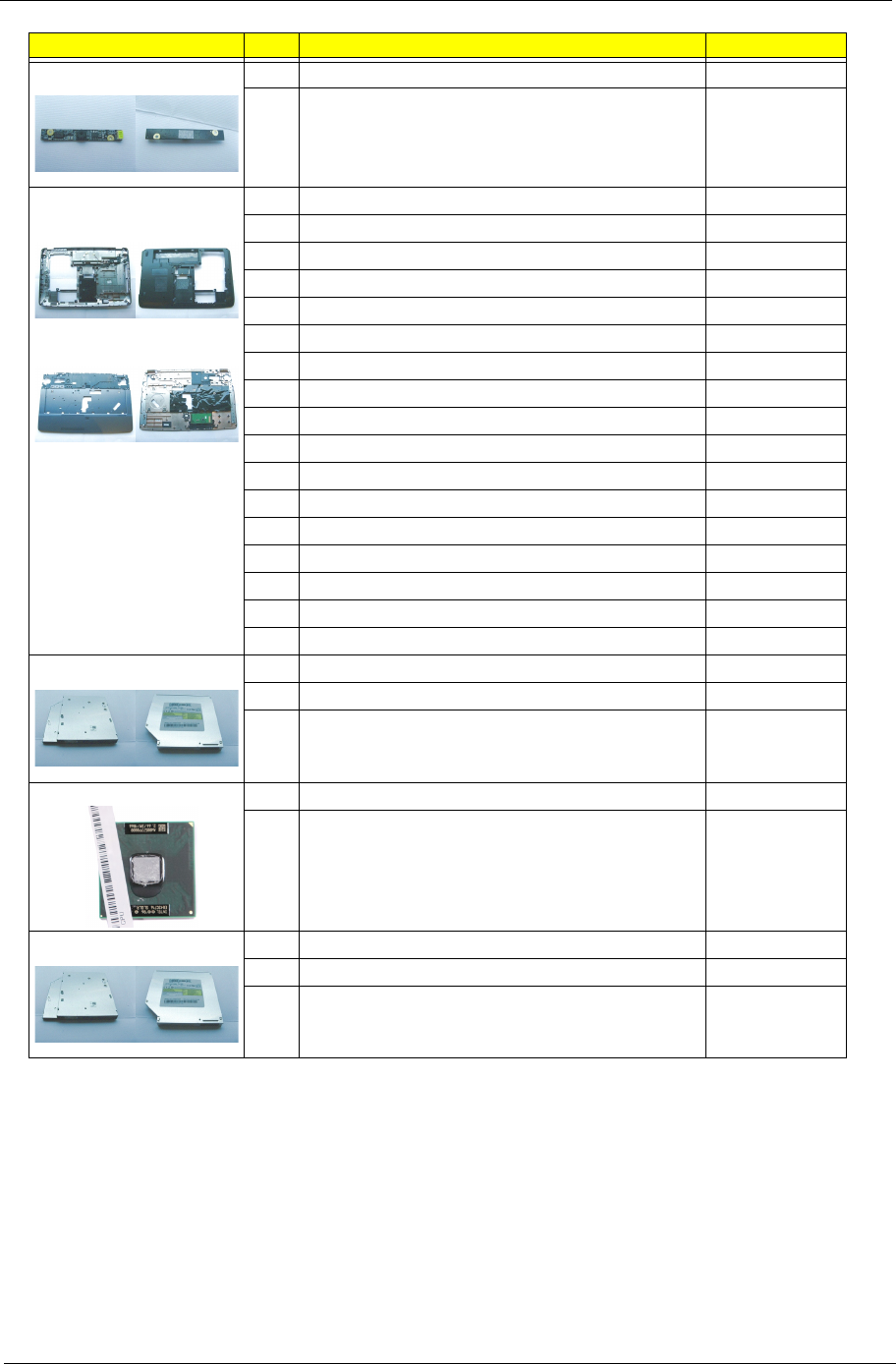

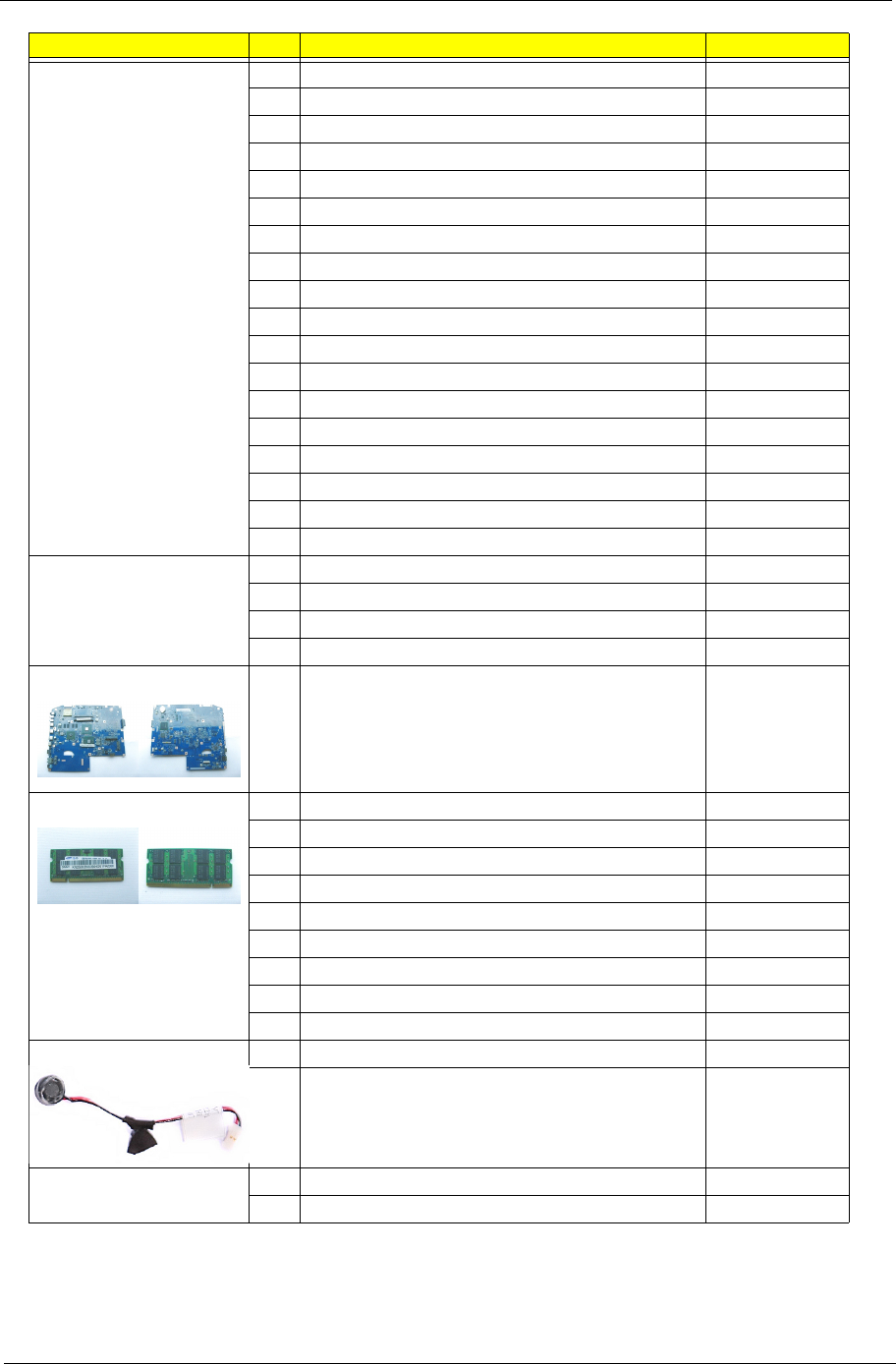

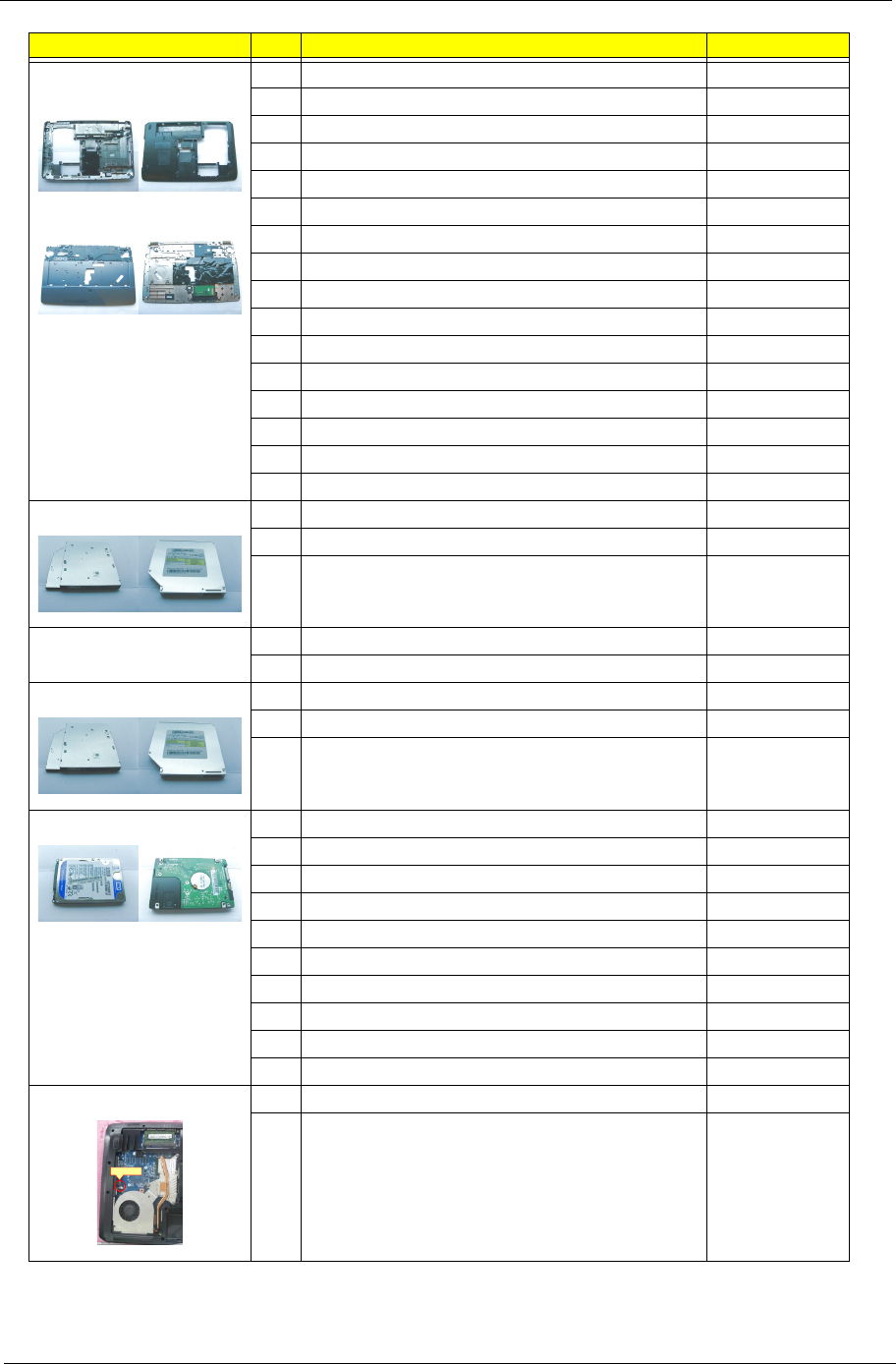

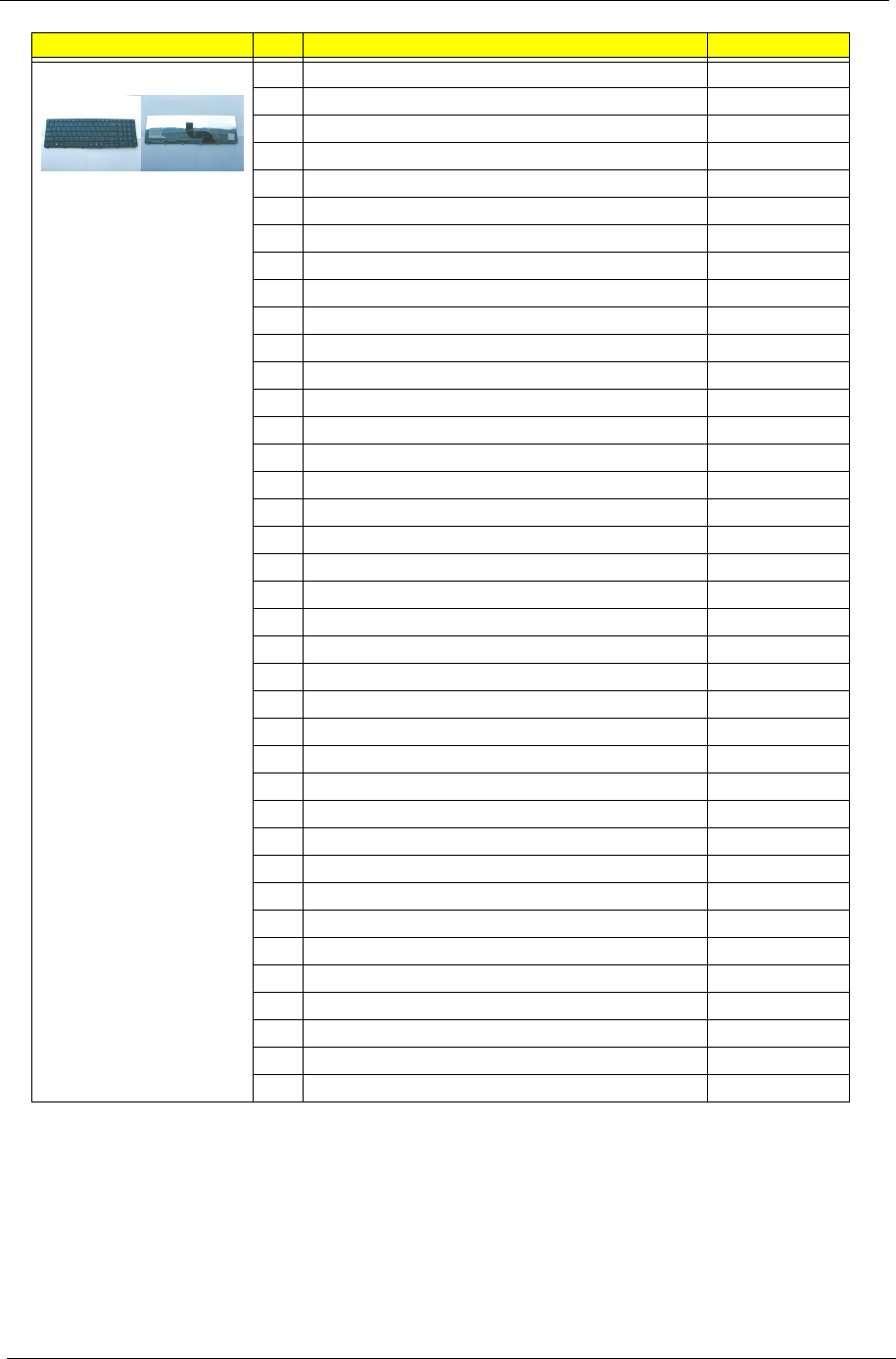

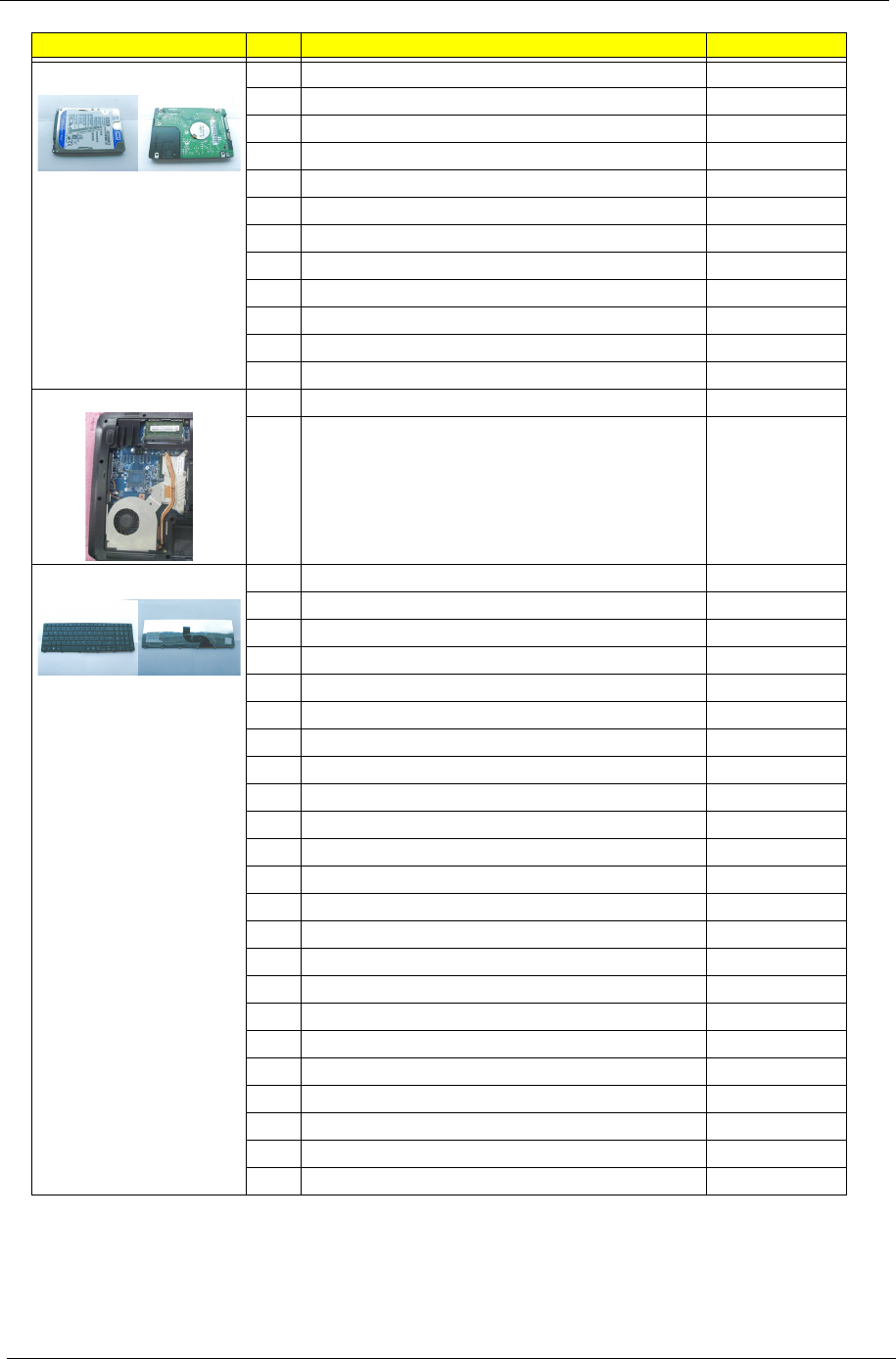

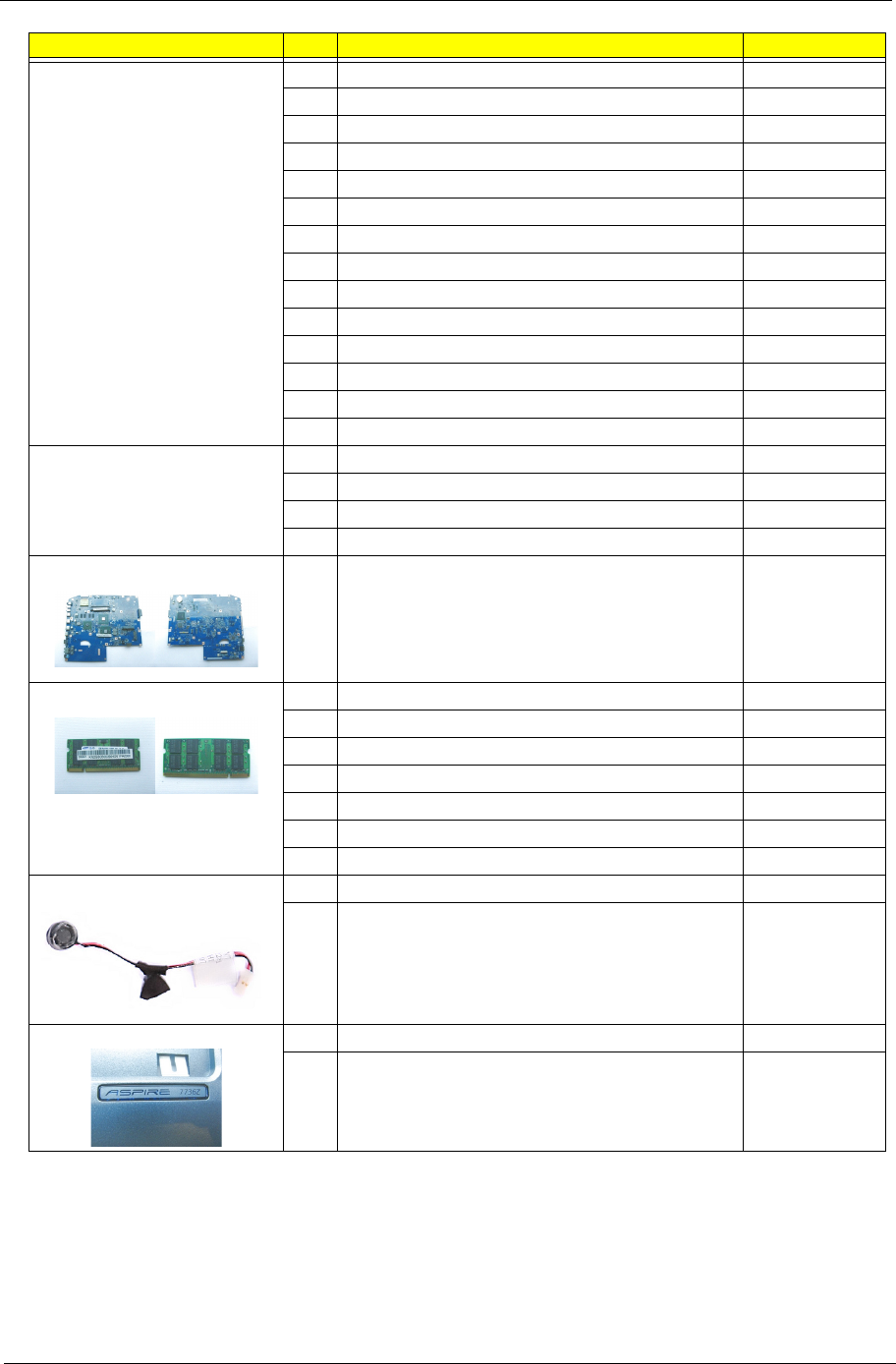

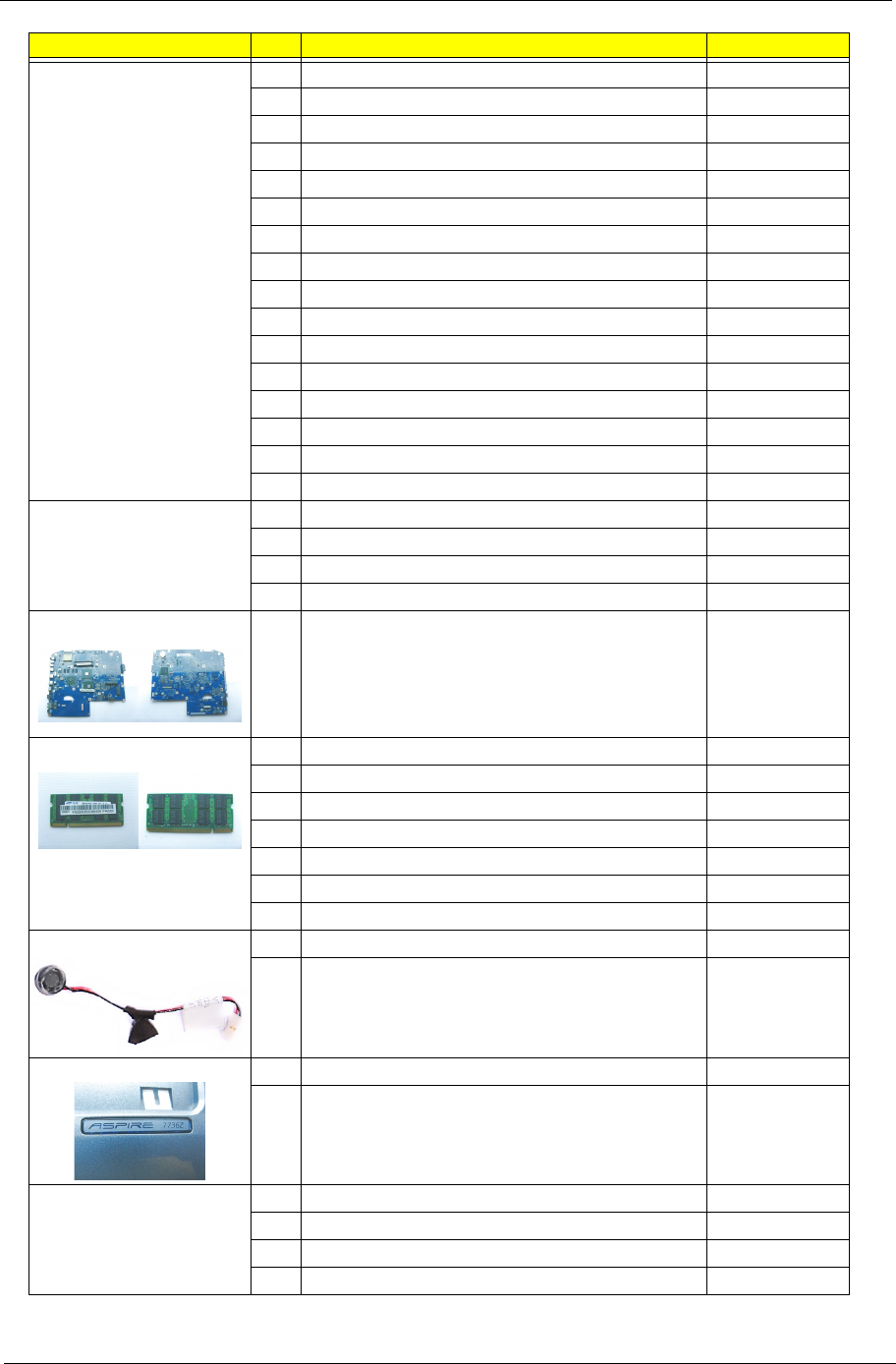

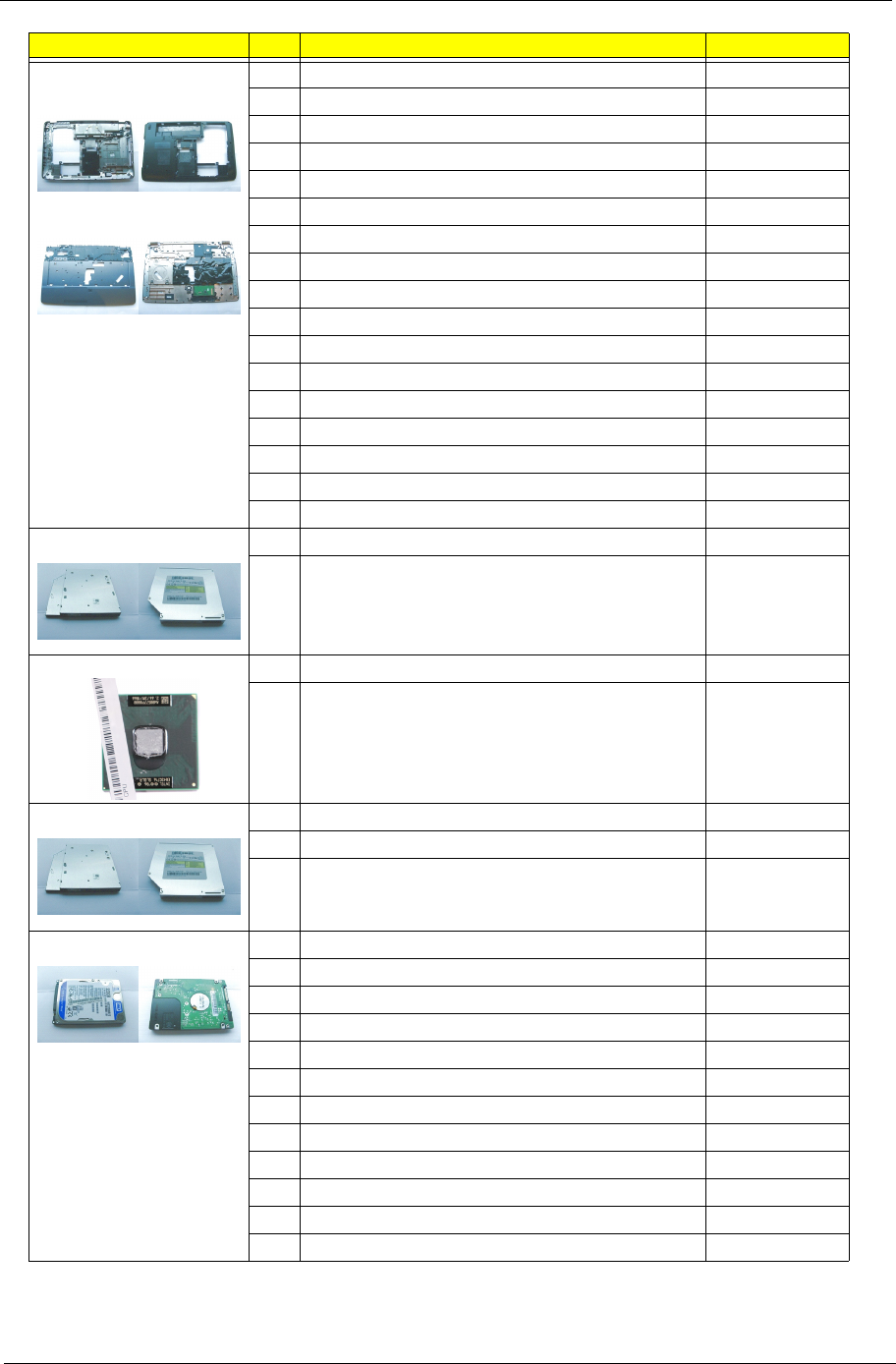

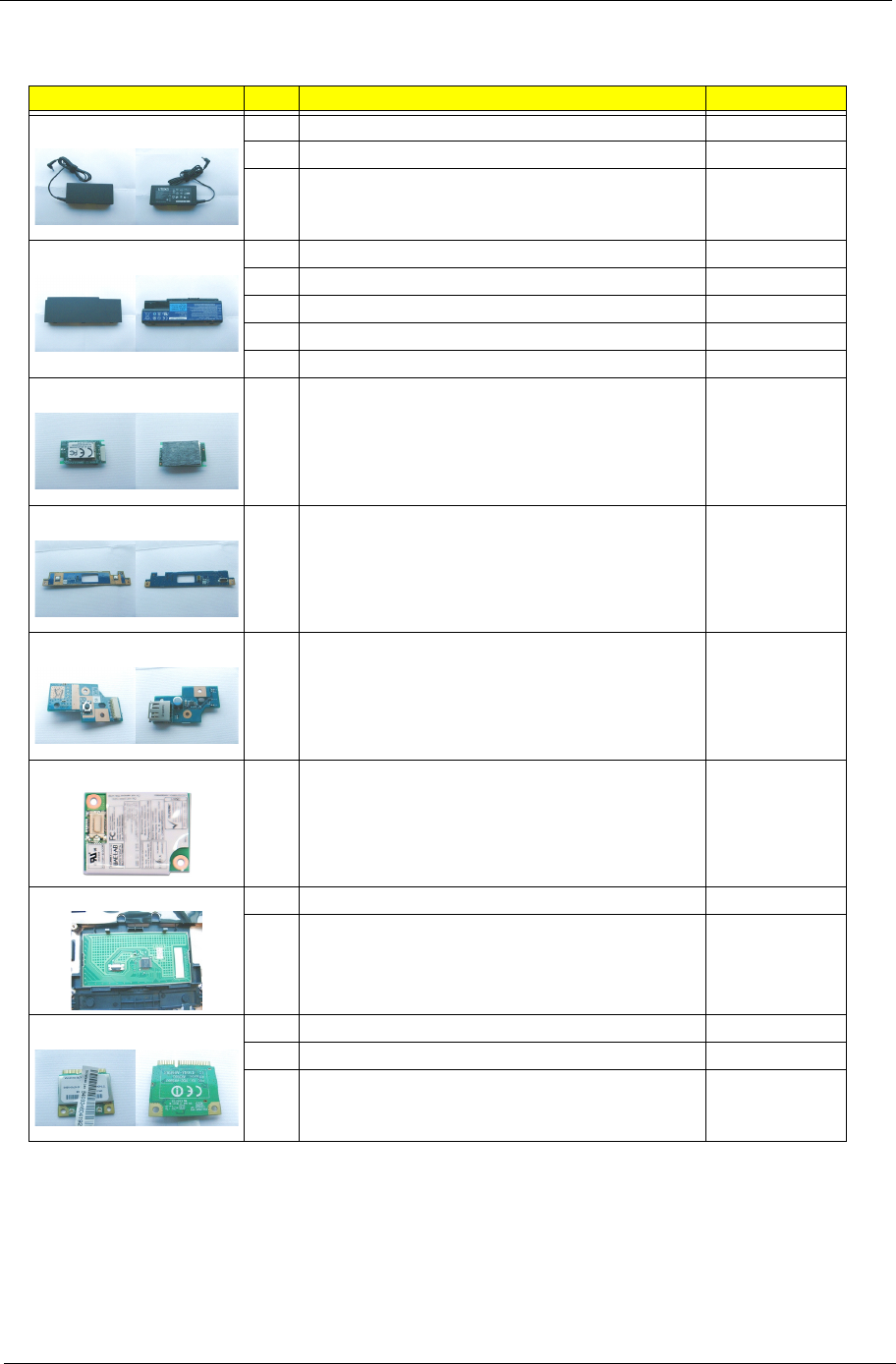

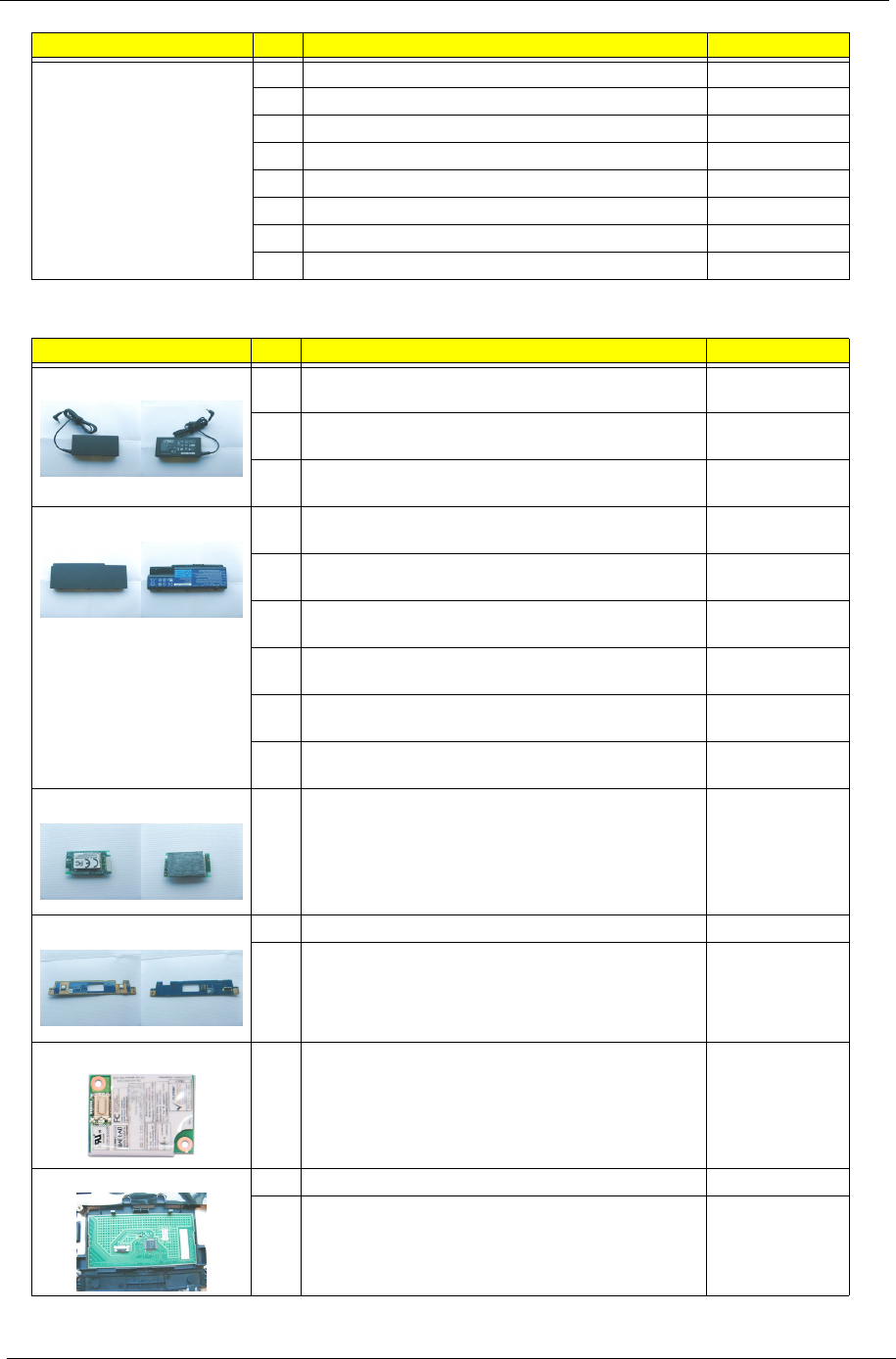

FRU (Field Replaceable Unit) List 111

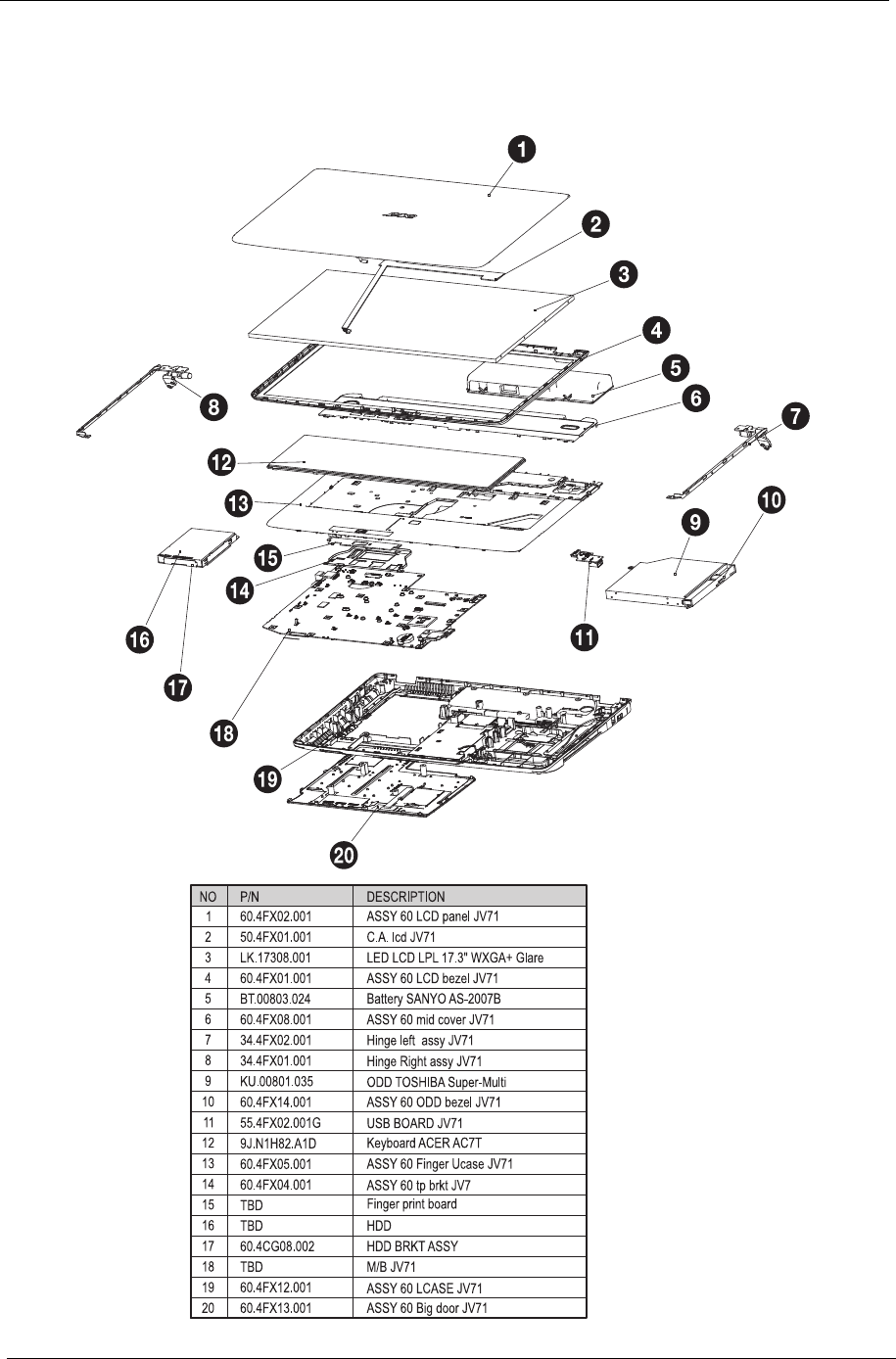

Aspire 7736/7736Z/7336 Series and Aspire 7540 Series Exploded Diagram . . . . .112
Model Definition and Configuration 143
Aspire 7736/7736Z/7336 Series . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .144
Test Compatible Components 171
Microsoft® Windows® Vista Environment Test . . . . . . . . . . . . . . . . . . . . . . . . . . . .172
Online Support Information 175
Index 177
Chapter 1 1
Features
Below is a brief summary of the computer’s many features:
Platform
For Aspire 7736/7736Z/7336 Series
•Intel® Centrino® 2 processor technology, featuring:
•Intel® Core™2 Duo processor
•Intel Celeron processor
•Mobile Intel® PM45/GM45/GL40 Express Chipset*
•Intel® Wireless WiFi Link 5100/5300*
•Intel® Pentium® mobile processor*
•Mobile Intel® GM45/GL40 Express Chipset*
•Acer InviLink™ Nplify™ 802.11b/g/Draft-N*
•Acer InviLink™ 802.11b/g*
For Aspire 7540 Series
•AMD Better By Design Program, featuring:
•AMD Turion™ II Ultra dual-core processor*
•AMD Turion™ II dual-core processor*
•AMD Athlon™ 64 II dual-core processor*
•AMD M880G Chipset
•Acer InviLink™ Nplify™ 802.11b/g/Draft-N*
•Acer InviLink™ 802.11b/g*
System Memory
•Dual-channel SDRAM support
•Up to 2 GB of DDR2 667 MHz memory, upgradeable to 4 GB using two soDIMM modules
Display and graphics
•16:9 aspect ratio
•17.3" HD+ 1600 x 900
For Aspire 7736/7736Z/7336 Series
•Mobile Intel® GL40 Express Chipset
•Mobile Intel® GM45 Express Chipset*
•NVIDIA® GeForce® G210M*
For Aspire 7540 Series
•ATI Mobility Radeon™ HD 4570*
•ATI Radeon™ HD 4200 Graphics*
System Specifications
Chapter 1
2Chapter 1
•Screen resolution support
For UMA models: 640x480, 720x480, 800x480, 800x600, 1024x480, 1024x600, 1024x768, 1152x864,
1280x600, 1280x720, 1280x768, 1600x900
• For Discrete models: 800x600, 1024x768, 1152x862, 1280x720, 1280x768, 1280*800, 1360*768,
1600x900
Storage subsystem
•2.5" hard disk drive
•Optical drive options:
•Blu-ray Disc™/DVD-Super Multi double-layer drive*
•DVD-Super Multi double-layer drive*
•Multi-in-1 card reader
Special keys and controls
•103-/104-/107-key keyboard
•Touchpad pointing device
Audio
•Dolby®-optimized surround sound system with two built-in stereo speakers
•True 5.1-channel surround sound output
•High-definition audio support
•S/PDIF (Sony/Philips Digital Interface) support for digital speakers
•MS-Sound compatible
•Built-in microphone
Communication
•Integrated Acer Crystal Eye webcam*
•WLAN:
•Intel® Wireless WiFi Link 5100/5300 (For Aspire 7736/7736Z/7336 Series)
•Acer InviLink™ Nplify™ 802.11b/g/Draft-N*
•Acer InviLink™ 802.11b/g*
•WPAN: Bluetooth® 2.1+Enhanced Data Rate (EDR)*
•LAN: Gigabit Ethernet; Wake-on-LAN ready
•Modem: 56K ITU V.92; Wake-on-Ring ready
I/O Ports
•Acer Bio-Protection fingerprint reader* (For Aspire 7736/7736Z/7336 Series)
•Multi-in-1 card reader (SD/MMC/MS/MS PRO/xD)
•USB 2.0 port
•HDMI™ port with HDCP support
•External display (VGA) port
•Headphones/speaker/line-out jack with S/PDIF support
•Microphone-in jack
•Line-in jack
•Ethernet (RJ-45) port
Chapter 1 3
•Modem (RJ-11) port
•DC-in jack for AC adapter
Environment
•Temperature:
•Operating: 5 °C to 35 °C
•Non-operating: -20 °C to 65 °C
•Humidity (non-condensing):
•Operating: 20% to 80%
•Non-operating: 20% to 80%
Dimension and weight
• Dimension: 411 (W) x 274 (D) x 40/45.0 (H) mm
• Weight: <3.3kg
NOTE: 1. "*" means only for certain models".
2. The specifications listed above are for reference only. The exact configuration of your PC depends
on the model purchased.
4Chapter 1
System Block Diagram
For Aspire 7736/7736Z/7336 Series:
Chapter 1 5
For Aspire 7540 Series:
6Chapter 1
Your Acer Notebook tour
After knowing your computer features, let us show you around your new computer.

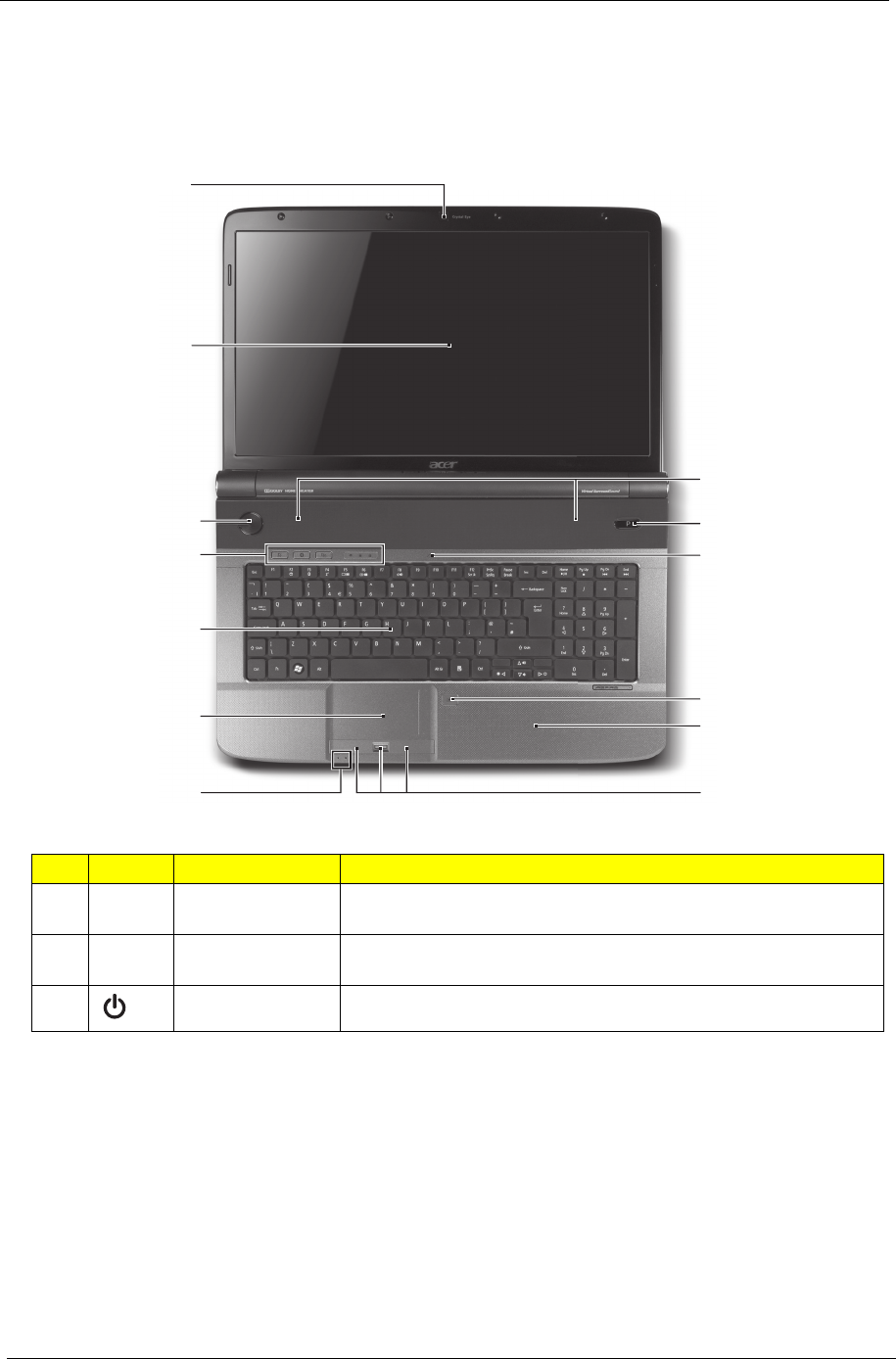

Front View
#Icon Item Description
1 Acer Crystal Eye
webcam
Web camera for video communication. (only for certain models)
2 Display screen Also called Liquid-Crystal Display (LCD), displays computer output
(Configuration may vary by models).
3 Power button Turns the computer on and off.
1
2
3
4
5
6
78
9
10
11
12
13
Chapter 1 7
Closed Front View
4 Wireless LAN
communication
button/indicator
Enables/disables the wireless LAN function. Indicates the status of
wireless LAN communication.
Bluetooth
communication
button/indicator
Enables/disables the Bluetooth function. Indicates the status of
Bluetooth communication. (only for certain models)
Backup key Launches Acer Backup Management for three-step data backup.
HDD Indicates when the hard disk drive is active.
Num Lock Lights up when Num Lock is activated.
Caps Lock Lights up when Caps Lock is activated.
5 Keyboard For entering data into your computer.
6 Touchpad Touch-sensitive pointing device which functions like a computer
mouse.
7Power1Indicates the computer's power status.
Battery1Indicates the computer's battery status.
1. Charging: The light shows amber when the battery is charging.
2. Fully charged: The light shows blue when in AC mode.
8 Click buttons
(left and right)
The left and right buttons function like the left and right mouse
buttons.
9 Palmrest Comfortable support area for your hands when you use the
computer.
10 Touchpad toggle Turns the internal touchpad on and off.
11 Microphone Internal microphone for sound recording.
12 Acer PowerSmart
key
Puts your computer into power-saving mode.
13 Speakers Left and right speakers deliver stereo audio output.
#Icon Item Description
1 Multi-in-1 card
reader
Accepts Secure Digital (SD), MultiMediaCard (MMC), Memory Stick
(MS), Memory Stick PRO (MS PRO), xD-Picture Card (xD).
Note: Push to remove/install the card. Only one card can operate at
any given time.
#Icon Item Description
1
8Chapter 1
Left View
#Icon Item Description
1 DC-in jack Connects to an AC adapter.
2 Ethernet (RJ-45)
port
Connects to an Ethernet 10/100/1000-based network.
3 External display
(VGA) port
Connects to a display device
(e.g., external monitor, LCD projector).
4 HDMI HDMI port Supports high definition digital video connections.
5 USB 2.0 port Connect to USB 2.0 devices
(e.g., USB mouse, USB camera).
6 Line-in jack Accepts audio line-in devices (e.g., audio CD player, stereo
walkman, mp3 player)
Microphone jack Accepts inputs from external microphones.
Headphones/
speaker/line-out
jack with
S/PDIF support
Connects to audio line-out devices
(e.g., speakers, headphones).
12 3 4 5 6
Chapter 1 9
Right View
Rear View
#Icon Item Description
1 Optical drive Internal optical drive; accepts CDs or DVDs.
2 Optical disk access
indicator
Lights up when the optical drive is active.
3 Optical drive eject
button
Ejects the optical disk from the drive.
4 Emergency eject
hole
Ejects the optical drive tray when the computer is turned off.
Note: Insert a paper clip to the emergency eject hole to eject the
optical drive tray when the computer is off.
5 Modem
(RJ-11) port
Connects to a phone line.
6 USB 2.0 port Connect to USB 2.0 devices
(e.g., USB mouse, USB camera).
7 Kensington lock slot Connects to a Kensington-compatible computer security lock.
#Item Description
1 Ventilation slots Enable the computer to stay cool, even after prolonged use.
1234 567
1
10 Chapter 1
Bottom View
Indicators
The computer has several easy-to-read status indicators.
NOTE: 1. Charging: The light shows amber when the battery is charging. 2. Fully charged: The light shows
green when in AC mode.
#Icon Item Description
1 Battery bay Houses the computer's battery pack.
2 Batter Lock Locks the battery in position.
3 Battery release latch Releases the battery for removal.
4 Memory compartment Houses the computer's main memory.
5 Hard disk bay Houses the computer's hard disk (secured with screws).
6 Ventilation slots and cooling fan Enable the computer to stay cool, even after prolonged use.
Note: Do not cover or obstruct the opening of the fan.
Icon Function Description
Power Indicates the computer's power status.
Battery Indicates the computer's battery status.
1. Charging: The light shows amber when the battery is charging.
2. Fully charged: The light shows blue when in AC mode.
1
2
3
4
5
6
Chapter 1 11
Easy-Launch Buttons
Located on the left of the keyboard are the application buttons. These buttons are called easy-launch buttons.
They are: WLAN, Bluetooth and Backup.
Touchpad Basics (with fingerprint reader)
The following items show you how to use the touchpad with Acer Bio-Protection fingerprint reader.
•Move your finger across the touchpad (2) to move the cursor.
•Press the left (1) and right (4) buttons located beneath the touchpad to perform selection and execution
functions. These two buttons are similar to the left and right buttons on a mouse. Tapping on the
touchpad is the same as clicking the left button.
•Use Acer Bio-Protection fingerprint reader (3) supporting Acer FingerNav 4-way control function (only
for certain models) to scroll up or down and move left or right a page. This fingerprint reader or button
mimics your cursor pressing on the right scroll bar of Windows applications.
Icon Function Description
Wireless LAN
communication button/
indicator
Enables/disables the wireless LAN function. Indicates the
status of wireless LAN communication.
Bluetooth communication
button/indicator
Enables/disables the Bluetooth function. Indicates the
status of Bluetooth communication. (only for certain
models)
Backup key Launches Acer Backup Management for three-step data
backup.
Function Left button (1) Right button (4) Main touchpad (2) Center button (3)
Execute Quickly click
twice.
Tap twice (at the same speed
as double-clicking a mouse
button).
Select Click once. Tap once.
Drag Click and
hold, then
use finger on
the touchpad
to drag the
cursor.
Tap twice (at the same speed
as double-clicking a mouse
button); rest your finger on the
touchpad on the second tap
and drag the cursor.
Access
context
menu
Click once.
12 Chapter 1
Touchpad basics (with two-click buttons)
The following items show you how to use the touchpad with two-click buttons.
•Move your finger across the touchpad (1) to move the cursor.
•Press the left (2) and right (3) buttons located beneath the touchpad to perform selection and execution
functions. These two buttons are similar to the left and right buttons on a mouse. Tapping on the
touchpad is the same as clicking the left button.
NOTE: Illustrations are for reference only. The exact configuration of your PC depends on the model
purchased.
NOTE: When using the touchpad, keep it — and your fingers — dry and clean. The touchpad is sensitive to
finger movement; hence, the lighter the touch, the better the response. Tapping harder will not increase
the touchpad's responsiveness.
NOTE: By default, vertical and horizontal scrolling is enabled on your touchpad. It can be disabled under
Mouse settings in Windows Control Panel.
Scroll Swipe up/down/left/right
using Acer FingerNav 4-
way control function
(Manufacturing option).
Function Left button (2) Right button (3) Main touchpad (1)
Execute Quickly click twice. Tap twice (at the same speed as double-clicking
a mouse button).
Select Click once. Tap once.
Drag Click and hold, then use
finger on the touchpad
to drag the cursor.
Tap twice (at the same speed as double-clicking
a mouse button); rest your finger on the touchpad
on the second tap and drag the cursor.
Access
context menu
Click once.
Function Left button (1) Right button (4) Main touchpad (2) Center button (3)
Chapter 1 13
Using the Keyboard
The keyboard has full-sized keys and an embedded numeric keypad, separate cursor, lock, Windows, function
and special keys.
Lock Keys and numeric keypad
The keyboard has three lock keys which you can toggle on and off.
The keyboard has a numeric keypad with cursor-control keys.
Lock key Description
Caps Lock When Caps Lock is on, all alphabetic characters typed are
in uppercase.
Num Lock When Num Lock is on, the numeric keypad is in numeric mode. The keys
function as a calculator (complete with the arithmetic operators +, -, *, and /).
Use this mode when you need to do a lot of numeric data entry. A better solution
would be to connect an external keypad.
Scroll Lock <Fn> +
<F12>
When Scroll Lock is on, the screen moves one line up or down when you press
the up or down arrow keys respectively. Scroll Lock does not work with some
applications.
Desired access Num Lock on Num Lock off
Number keys on
embedded keypad
Type numbers in a normal manner.
Cursor-control keys on
embedded keypad
Hold <Shift> while using cursor-
control keys.
Hold <Fn> while using cursor-
control keys.
Main keyboard keys Hold <Fn> while typing letters on
embedded keypad.
Type the letters in a normal
manner.
14 Chapter 1
Windows Keys
The keyboard has two keys that perform Windows-specific functions.
Key Description
Windows
key
Pressed alone, this key has the same effect as clicking on the Windows Start
button; it launches the Start menu.
It can also be used with other keys to provide a variety of functions:
< >: Open or close the Start menu
< > + <D>: Display the desktop
< > + <E>: Open Windows Explore
< > + <F>: Search for a file or folder
< > + <G>: Cycle through Sidebar gadgets
< > + <L>: Lock your computer (if you are connected to a network domain), or
switch users (if you're not connected to a network domain)
< > + <M>: Minimizes all windows
< > + <R>: Open the Run dialog box
< > + <T>: Cycle through programs on the taskbar
< > + <U>: Open Ease of Access Center
< > + <X>: Open Windows Mobility Center
< > + <BREAK>: Display the System Properties dialog box
< > + <SHIFT+M>: Restore minimized windows to the desktop
< > + <TAB>: Cycle through programs on the taskbar by using Windows Flip 3-
D
< > + <SPACEBAR>: Bring all gadgets to the front and select Windows
Sidebar
<CTRL> + < > + <F>: Search for computers (if you are on a network)
<CTRL> + < > + <TAB>: Use the arrow keys to cycle through programs on the
taskbar by using Windows Flip 3-D
Note: Depending on your edition of Windows Vista, some shortcuts may not
function as described.
Application
key
This key has the same effect as clicking the right mouse button; it opens the
application's context menu.
Chapter 1 15
Hot Keys
The computer employs hotkeys or key combinations to access most of the computer’s controls like screen
brightness, volume output and the BIOS utility.
To activate hot keys, press and hold the <Fn> key before pressing the other key in the hotkey combination.
Special Key (only for certain models)
You can locate the Euro symbol and the US dollar sign at the upper-center and/or bottom-right of your
keyboard.
The Euro symbol
1. Open a text editor or word processor.
2. Either press < > on the keyboard, or hold <Alt Gr> and then press the <5> key at the upper-center of
the keyboard.
NOTE: Some fonts and software do not support the Euro symbol. Please refer to www.microsoft.com/
typography/faq/faq12.htm for more information.
The US dollar sign
1. Open a text editor or word processor.
2. Either press < > at the bottom-right of the keyboard, or hold <Shift> and then press the <4> key at the
upper-center of the keyboard.
NOTE: This function varies according to the language settings.
Hotkey Icon Function Description
<Fn> + <F2> System property Starts System Property for displaying system
information.
<Fn> + <F3> Bluetooth Enables/disables the Bluetooth function.
<Fn> + <F4> Sleep Puts the computer in Sleep mode.
<Fn> + <F5> Display toggle Switches display output between the display
screen, external monitor (if connected) and both.
<Fn> + <F6> Screen blank Turns the display screen backlight off to save
power. Press any key to return.
<Fn> + <F8> Speaker toggle Turns the speakers on and off.
<Fn> + < > Brightness up Increases the screen brightness.
<Fn> + < > Brightness down Decreases the screen brightness.
<Fn> + < > Volume up Increases the sound volume.
<Fn> + < > Volume down Decreases the sound volume.
16 Chapter 1
Windows Mobility Center
The Windows Mobility Center collects key mobile-related system settings in one easy-to-find place, so you can
quickly configure your Acer system to fit the situation as you change locations, networks or activities. Settings
include display brightness, volume, power plan, wireless networking on/off, external display settings,
synchronization status and presentation settings.
Windows Mobility Center also includes Acer-specific settings like sharing folders overview/sharing service on
or off, Bluetooth Add Device (if applicable), and a shortcut to the Acer user guide, drivers and utilities.
To launch Windows Mobility Center:
qUse the shortcut key < > + <X>.
qStart Windows Mobility Center from the Control panel.
qStart Windows Mobility Center from the Accessories program group in the Start menu.
qLaunch Windows Mobility Center by right-clicking in the system tray and select Windows Mobility
Center.
Chapter 1 17
Using the System Utilities
Acer Bio-Protection (only for certain models)
Acer Bio-Protection Fingerprint Solution is a multi-purpose fingerprint software package integrated with the
Microsoft Windows operating system. Utilizing the uniqueness of one's fingerprint features, Acer Bio-
Protection Fingerprint Solution has incorporated protection against unauthorized access to your computer with
centralized password management with Password Bank, easy music player launching with Acer MusicLaunch,
secure Internet favorites via Acer MyLaunch, and fast application/website launching and login with Acer
FingerLaunch, while Acer ProfileLaunch can launch up to three applications/websites from a single finger
swipe.
Acer Bio-Protection Fingerprint Solution also allows you to navigate through web browsers and documents
using Acer FingerNav. With Acer Bio-Protection Fingerprint Solution, you can now enjoy an extra layer of
protection for your personal computer, as well as the convenience of accessing your daily tasks with a simple
swipe of your finger!
For more information refer to the Acer Bio-Protection help files.
18 Chapter 1

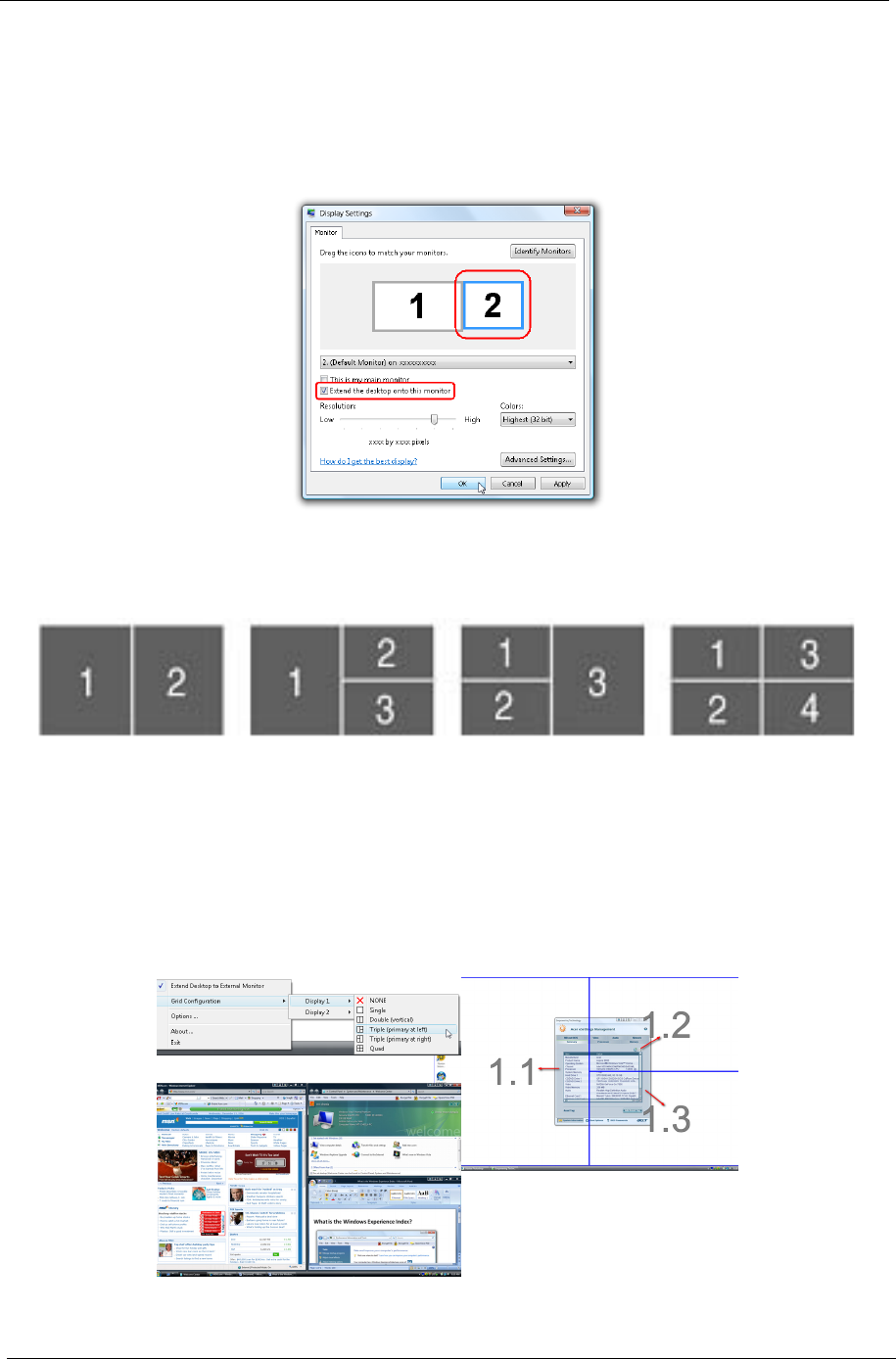

Acer GridVista (dual-display compatible)
NOTE: This feature is only available on certain models.
To enable the dual monitor feature of the notebook, first ensure that the second monitor is connected, then
select Start, Control Panel, Display and click on Settings. Select the secondary monitor (2) icon in the
display box and then click the check box Extend my windows desktop onto this monitor. Finally, click
Apply to confirm the new settings and click OK to complete the process.
Acer GridVista is a handy utility that offers four pre-defined display settings so you can view multiple windows
on the same screen. To access this function, please go to Start>All Programs and click on Acer GridVista.
You may choose any one of the four display settings indicated below:
Double (vertical), Triple (primary at left), Triple (primary at right), or Quad Acer Gridvista is dual-display
compatible, allowing two displays to be partitioned independently.
Acer Gridvista is dual-display compatible, allowing two displays to be partitioned independently.
AcerGridVista is simple to set up:
1. Run Acer GridVista and select your preferred screen configuration for each display from the task bar.
2. Drag and drop each window into the appropriate grid.
3. Enjoy the convenience of a well-organized desktop.
NOTE: Please ensure that the resolution setting of the second monitor is set to the manufacturer's
recommended value.
Note:
Start Control Panel Display
Settings (2)
Extend my windows desktop onto this monitor
Apply OK
Start All Programs Acer GridVista
Chapter 1 19
Hardware Specifications and Configurations
Processor
Throttling 50%: On= 99 C; OFF=93 C
OS shut down at 105 C; H/W shot down at 110 .C
Item Specification
CPU type Aspire 7736/7336 Series:
Intel® Core™2 Duo P8800 PGA (2.66 GHz)
Intel® Core™2 Duo T6500 PGA (2.1 GHz)
Intel Celeron 900 PGA (2.2 GHz)
Aspire 7736Z Series: Intel Pentium Dual-Core T4200 PGA (2.0 GHz)
Aspire 7540 Series: AMD Turion II M520 2.3 GHz
AMD Athlon II M320 2.1 GHz
AMD Turion M620 2.5 GHz
Core logic Aspire 7736/7736Z/7336 Series: Mobile Intel® PM45/GM45/GL40
Express Chipset
Aspire 7540 Series: AMD M880G Chipset
CPU package Aspire 7736/7736Z/7336 Series: 478-pin micro-FCPGA
Aspire 7540 Series: Socket S1
CPU core voltage Aspire 7736/7736Z/7336 Series:: 1.0375V to 1.3V
Aspire 7540 Series: 1.35V to 1.5V
CPU Fan True Value Table
DTS(degree C) Fan Speed (rpm) Acoustic Level (dBA)
45-50 0-3000 29
55-66 0-3300 33
68-74 3300-3800 38
78-83 3800-4100 40
86-91 4100-4800 40
BIOS
Item Specification
BIOS vendor Phoenix
BIOS Version Aspire 7736/7736Z/7336 Series: v1.16
Aspire 7540 Series: v1.07
System Memory
Item Specification
Memory controller Built-in
Memory size 0MB (no on-board memory)
DIMM socket number 2 sockets
Supports memory size per socket 2048MB
Supports maximum memory size 4GB for 64bit OS (with two 2GB SODIMM)
Supports DIMM type DDR 2 Synchronous DRAM
Supports DIMM Speed 667 MHz
Supports DIMM voltage 1.5V
Supports DIMM package 240-pin soDIMM
20 Chapter 1
NOTE: Above table lists some system memory configurations. You may combine DIMMs with various
capacities to form other combinations. On above table, the configuration of slot 1 and slot 2 could be
reversed.
Memory module combinations You can install memory modules in any combinations as long as
they match the above specifications.
Memory Combinations
Slot 1 Slot 2 Total Memory
0MB 1024MB 1024MB
0MB 2048MB 2048MB
1024MB 0MB 1024MB
1024MB 1024MB 2048MB
1024MB 2048MB 3072MB
2048MB 0MB 2048MB
2048MB 1024MB 3072MB
2048MB 2048MB 4096MB
0MB 4096MB 4096MB
4096MB 0MB 4096MB
Item Specification
LAN Chipset Broadcom BCM5784
Supports LAN protocol 10/100/1000 Mbps
LAN connector type RJ45
LAN connector location Left side
Features Integrated 10/100 BASE-T transceiver
Wake on LAN support compliant with ACPI 1.0b/2.0/3.0
PCI v2.2
Bluetooth Interface
Item Specification
Chipset Foxconn Bluetooth BRM 2046 BT2.1
Data throughput 723 bps (full speed data rate)
Protocol Bluetooth 2.1
Interface USB
Connector type USB
System Memory
Item Specification
Chapter 1 21
Wireless Module 802.11b/g/n
Item Specification
Chipset Aspire 7736 series: Lan Intel WLAN 512AN_HMWG
Shirley Peak 5100 MM#895373;Lan Intel WLAN
512AN_MMWG Shirley Peak 5100 MM#895361
Aspire 7736Z Series: Foxconn Wirelss LAN Atheros HB95
1x1 BG (HM)
Aspire 7336 series: QMI Wireless LAN Atheros HB93 1x2
BGN (HM) EM306
Aspire 7540 Series: QMI Wireless LAN Atheros HB93 1x2
BGN (HM) EM306; Foxconn Wirelss LAN Atheros HB95
1x1 BG (HM)
Data throughput 11~54 Mbps, up to 270 Mbps for Draft-N
Protocol 802.11b+g, Draft-N
Interface PCI bus (mini PCI socket for wireless module)
Hard Disk Drive
Item
Vendor & Model Name HGST 2.5"
HTS545016B9A300
Panther B SATA LF F/
W:C60F
HGST 2.5"
HTS545025B9A300
Panther B SATA LF F/
W:C60F
WD 2.5" WD2500BEVT-
22ZCT0 ML160 SATA LF
F/W:11.01A11
HGST 2.5"
HTS545032B9A300
Panther B SATA LF F/W:
C60F
WD 2.5" WD5000BEVT-
22ZAT0 ML250 SATA LF
F/W:01.01A01
Capacity (MB) 160000 250000 320000 500000
Bytes per sector 512 512 512 512
Data heads 3/4 2 3 4
Drive Format
Disks2222
Spindle speed (RPM) 5400 RPM 5400 RPM 5400 RPM 5400 RPM
Performance Specifications
Buffer size 8MB 8MB 8MB 8MB
InterfaceSATASATASATASATA
Max. media transfer
rate (disk-buffer,
Mbytes/s)
540 875
(Max. 3.0 Gbit/s Buffer-
host data transfer)
875
(Max. 3.0 Gbit/s Buffer-
host data transfer)
875
(Max. 3.0 Gbit/s Buffer-
host data transfer)
DC Power Requirements
Voltage tolerance 5V(DC) +/- 5% 5V(DC) +/- 5% 5V(DC) +/- 5% 5V(DC) +/- 5%
Optical Disc Drive
Item Specification
Vendor & model name HLDS Super-Multi DRIVE 12.7mm Tray DL 8X GT30N LF
TOSHIBA Super-Multi DRIVE 12.7mm Tray DL 8X TS-L633C LF
Performance Specification With CD Diskette With DVD Diskette
Transfer rate (KB/sec) Sustained:
Max 3.6Mbytes/sec
Sustained:
Max 10.08Mbytes/sec
Buffer Memory 2MB
Interface SATA
22 Chapter 1
Applicable disc format Applicable disc format
CD: CD-DA, CD-ROM, CD-ROM XA, Photo CD (multi-session), Video
CD, Cd-Extra (CD+), CD-text
DVD: DVD-VIDEO, DVD-ROM, DVD-R (3.9GB, 4.7GB) DVD-R DL,
DVD-RW, DVD-RAM, DVD+R, DVD+R DL, DVD+RW
CD:
CD-DA (Red Book) - Standard Audio CD & CD-TEXT
CD-ROM (Yellow Book Mode1 & 2) - Standard Data
CD-ROM XA (Mode2 Form1 & 2) - Photo CD, Multi-Session
CD-I (Green Book, Mode2 Form1 & 2, Ready, Bridge)
CD-Extra/ CD-Plus (Blue Book) - Audio & Text/Video
Video-CD (White Book) - MPEG1 Video
CD-R (Orange Book Part)
CD-RW & HSRW (Orange Book Part Volume1 & Volume 2
Super Audio CD (SACD) Hybrid type
US & US+ RW
DVD:
DVD-ROM (Book 1.02), DVD-Dual
DVD-Video (Book 1.1)
DVD-R (Book 1.0, 3.9G)
DVD-R (Book 2.0, 4.7G) - General & Authoring
DVD+R (Version 1.0)
DVD+RW
DVD-RW (Non CPRM & CPRM)
DVD°”R Dual
Loading mechanism Load: Manual
Release: (a) Electrical Release (Release Button)
(b) Release by ATAPI command
(c) Emergency Release
Power Requirement
Input Voltage 5 V +/- 5% (Operating)
Blu-Ray Disc Drive
Item Specification
Vendor & model name HLDS BD COMBO DRIVE TRAY DL 4X CT10 LF
SONY BD COMBO 12.7mm Tray DL 4X BC-5500S LF
Performance
Specification
With CD Disc With DVD Disc With Blu-ray Disc
Transfer rate (KB/sec) Sustained:
Max 3.6Mbytes/sec
Sustained:
Max 10.08Mbytes/sec
Sustained:
Max 11 Mbytes/sec
Buffer Memory 2MB 4.5 MB
Interface SATA
Optical Disc Drive
Item Specification
Chapter 1 23
Applicable disc format Applicable disc format
CD: CD-DA, CD-ROM, CD-ROM XA, Photo CD (multi-session), Video CD,
Cd-Extra (CD+), CD-text
DVD: DVD-VIDEO, DVD-ROM, DVD-R (3.9GB, 4.7GB) DVD-R DL, DVD-RW,
DVD-RAM, DVD+R, DVD+R DL, DVD+RW
CD:
CD-DA (Red Book) - Standard Audio CD & CD-TEXT
CD-ROM (Yellow Book Mode1 & 2) - Standard Data
CD-ROM XA (Mode2 Form1 & 2) - Photo CD, Multi-Session
CD-I (Green Book, Mode2 Form1 & 2, Ready, Bridge)
CD-Extra/ CD-Plus (Blue Book) - Audio & Text/Video
Video-CD (White Book) - MPEG1 Video
CD-R (Orange Book Part)
CD-RW & HSRW (Orange Book Part Volume1 & Volume 2
Super Audio CD (SACD) Hybrid type
US & US+ RW
DVD:
DVD-ROM (Book 1.02), DVD-Dual
DVD-Video (Book 1.1)
DVD-R (Book 1.0, 3.9G)
DVD-R (Book 2.0, 4.7G) - General & Authoring
DVD+R (Version 1.0)
DVD+RW
DVD-RW (Non CPRM & CPRM)
DVD+/-R Dual
Blu-Ray:
BD-R, BD-R DL, BD-RE, BD-RE DL
Loading mechanism Load: Manual
Release: (a) Electrical Release (Release Button)
(b) Release by ATAPI command
(c) Emergency Release
Power Requirement
Input Voltage 5 V +/- 5% (Operating)
Audio Interface
Item Specification
Audio Controller Realtek ALC888S
Audio onboard or optional Built-in
Mono or Stereo Stereo
Resolution 18 bit stereo full duplex
Compatibility HD audio Interface; S/PDIF output for PCM or AC-3
content
Sampling rate 1Hz resolution VSR (Variable Sampling Rate)
Internal microphone Yes
Internal speaker / Quantity Yes/2.1 (1.5 W speakers)
Blu-Ray Disc Drive
Item Specification
24 Chapter 1
Video Memory
Item Specification
Chipset Aspire 7736/7736Z/7336 Series:
•Mobile Intel® GL40 Express Chipset*
•Mobile Intel® GM45 Express Chipset*
•NVIDIA® GeForce® G210M*
Aspire 7540 Series:
•ATI Radeon™ HD 200 Graphics*
•ATI Mobility Radeon™ HD 4570*
Memory size 1024M DDR3
USB
Item Specification
Chipset Aspire 7736/7736Z/7336 Series: ICH9M
Aspire 7540 Series: AMD SB710
USB Compliancy Level 2.0
OHCI USB 1.1 and USB 2.0 Host controller
Number of USB ports 5
Location Three on the right side/two on the left side
Serial port function control Enable/Disable by BIOS Setup
System Board Major Chips
Item Controller
Core logic Aspire 7736/7736Z/7336 Series: Mobile Intel® GM45/
GL40/PM45
Aspire 7540 Series: ATI RS780MN
USB 2.0 Aspire 7736/7736Z/7336 Series: Intel ICH-9M
Aspire 7540 Series: AMD SB710
Super I/O controller N/A
MODEM Aspire 7736/7736Z/7336 Series: Lite-On Conexant -
Unizion 1.5_3.3v AUS RD02-D330; Foxconn Delphi-AM5
V2H 1.5_3.3v AUS T60M951;
Aspire 7540 Series: Foxconn Delphi-AM5 V2H 1.5_3.3v
AUS T60M951
Bluetooth Aspire 7736/7736Z/7336 Series: Foxconn Bluetooth BRM
2046 BT2.1 (T60H928.33)
Aspire 7540 Series: Foxconn BCM2046 V2.1
(T60H928.33)
Wireless 802.11 b/g/n Aspire 7736/7736Z/7336 Series: Lan Intel WLAN
512AN_HMWG Shirley Peak 5100 MM#895373; Foxconn
Wirelss LAN Atheros HB95 1x1 BG (HM); Lan Intel WLAN
512AN_MMWG Shirley Peak 5100 MM#895361;QMI
Wireless LAN Atheros HB93 1x2 BGN (HM) EM306
Aspire 7540 Series: QMI Wireless LAN Atheros HB93 1x2
BGN (HM) EM306;Foxconn Wirelss LAN Atheros HB95
1x1 BG (HM);
Multi-in-1 Card Reader Realtek RTS5159
Chapter 1 25
Audio Codec Realtek ALC888s
Keyboard
Item Specification
Keyboard controller Winbond WPCE773
Total number of keypads 103-/104-/107-key keyboard
Windows logo key Yes
Internal & external keyboard work
simultaneously
Plug USB keyboard to the USB port directly: Yes
Battery
Item Specification
Vendor SONY/SANYO/PANASONIC/SIMPLO
Battery Type Li-ion
Pack capacity 4400/4800mAh
Number of battery cell 6/8
Package configuration 3/4 cells in series, 2 series in parallel
LCD 17.3” inch
Item Specification
Vendor & model name AUO/CMO/LPL
Screen Diagonal (mm) 17.3 inches
Display resolution (pixels) 17.3" WXGA+ Glare
Pixel Pitch 0.204 x 0.204
Pixel Arrangement R.G.B. Vertical Stripe
Display Mode Normally White
Typical White Luminance (NIT)
also called Brightness
220
Luminance Uniformity 1.25 max.
Contrast Ratio 400 typical
Response Time msec 8
Nominal Input Voltage VDD +3.3V
Viewing Angle (degree)
Horizontal: Right/Left
Vertical: Upper/Lower
45/45
15/35
Temperature Range( C)
Operating
Storage (shipping)
0 to +50
-40 to +60

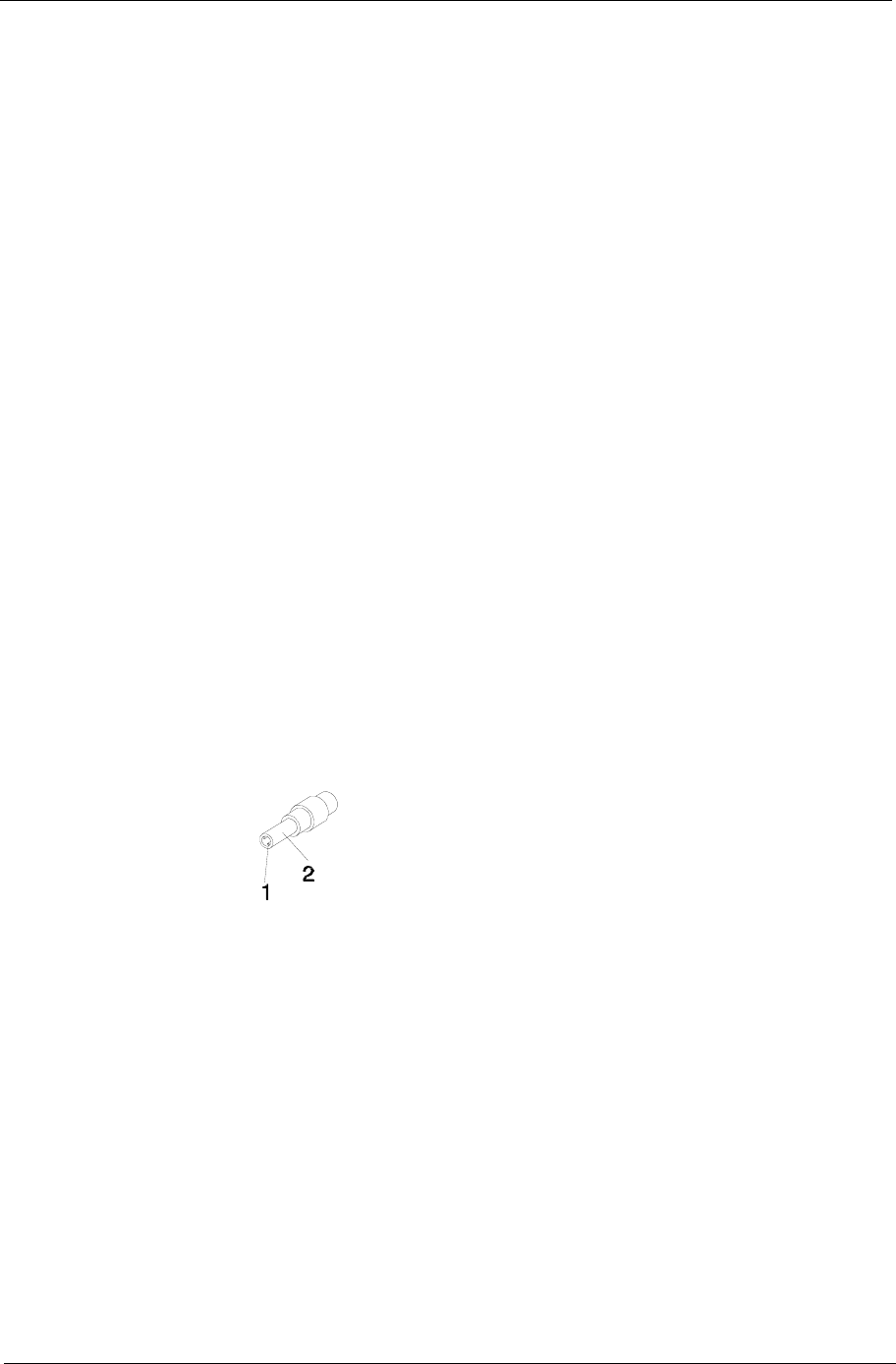

AC Adaptor
Item Specification
Input 100-240V~ 1.5A, 50-60Hz
System Board Major Chips
Item Controller
26 Chapter 1
Output 19V, 65W/90W
System Power Management
ACPI mode Power Management
Mech. Off (G3) All devices in the system are turned off completely.
Soft Off (G2/S5) OS initiated shutdown. All devices in the system are
turned off completely.
Working (G0/S0) Individual devices such as the CPU and hard disc may be
power managed in this state.
Suspend to RAM (S3) CPU set power down
VGA Suspend
PCMCIA Suspend
Audio Power Down
Hard Disk Power Down
CD-ROM Power Down
Super I/O Low Power mode
Save to Disk (S4) Also called Hibernation Mode. System saves all system
states and data onto the disc prior to power off the whole
system.
AC Adaptor
Item Specification
Chapter 2 27
BIOS Setup Utility
The BIOS Setup Utility is a hardware configuration program built into your computer’s BIOS (Basic Input/
Output System).
Your computer is already properly configured and optimized, and you do not need to run this utility. However, if
you encounter configuration problems, you may need to run Setup. Please also refer to Chapter 4
Troubleshooting when problem arises.
To activate the BIOS Utility, press F2 during POST (when “Press <F2> to enter Setup” message is prompted
on the bottom of screen).
Press F2 to enter setup. The default parameter of F12 Boot Menu is set to “disabled”. If you want to change
boot device without entering BIOS Setup Utility, please set the parameter to “enabled”.
Press <F12> during POST to enter multi-boot menu. In this menu, user can change boot device without
entering BIOS SETUP Utility.
System Utilities
Chapter 2
28 Chapter 2
Navigating the BIOS Utility
There are five menu options: Information, Main, Security, Boot, and Exit.
Follow these instructions:
•To choose a menu, use the left and right arrow keys.
•To choose an item, use the up and down arrow keys.
•To change the value of a parameter, press F5 or F6.
•A plus sign (+) indicates the item has sub-items. Press Enter to expand this item.
•Press Esc while you are in any of the menu options to go to the Exit menu.
•In any menu, you can load default settings by pressing F9. You can also press F10 to save any
changes made and exit the BIOS Setup Utility.
NOTE: You can change the value of a parameter if it is enclosed in square brackets. Navigation keys for a
particular menu are shown on the bottom of the screen. Help for parameters are found in the Item
Specific Help part of the screen. Read this carefully when making changes to parameter values. Please
note that system information is subject to different models.
Chapter 2 29
Information
The Information screen displays a summary of your computer hardware information.
Aspire 7736/7736Z/7336 Series:
Aspire 7540 Series:
NOTE: The system information is subject to different models.
Phoenix SecureCore(tm) Setup Utility
Main
CPU Type:
CPU Speed:
IDE0 Model Name:
I D E 0 S e r i a l N u m b e r :
IDE1 Model Name:
I D E 1 S e r i a l N u m b e r :
ATAPI Model Name:
System BIOS Version:
VGA BIOS Version:
KBC Version:
Serial Number:
Asset Tag Number:
Product Name:
Manufacturer Name:
UUID:
Intel (R) Core (TM)2 Duo CPU T6500 @ 2.10GHz
2.10GHz
XXXXXXXXXXX-(XX)
XXXXXXXX
None
None
XXXXXXXXXXX-XXX XX-XXXX-(XX)
VX.XX
XX-XXX XXXXXX.XXX.XXX.XXX.XXXXXX
XX.XX
XXXXXXXXXXXXXXXXXXXXXXX
None
Aspire 7736
Acer
XXXxXxXX-xXxX-XXxx-xXXx-xXXxXXxXxxXX
F1
Esc
Help
Exit
Select Item
Select Menu
Change Values
Select Sub-Menu
-/+
Enter
F9
F10
Setup Defaults
S a v e a n d E x i t
Information Security Boot Exit
30 Chapter 2
Parameter Description
CPU Type This field shows the CPU type and speed of the system.
CPU Speed This field shows the speed of the CPU.
IDE0 Model Name This field shows the model name of HDD installed on primary IDE master.
IDE0 Serial Number This field displays the serial number of HDD installed on primary IDE master.
IDE1 Model Name This field shows the model name of HDD installed on secondary IDE master.
IDE1 Serial Number This field displays the serial number of HDD installed on secondary IDE master.
ATAPI Model Name This field shows the model name of the Optical device installed in the system.
System BIOS Version Displays system BIOS version.
VGA BIOS Version This field displays the VGA firmware version of the system.
KBC Ver This field shows the keyboard
Serial Number This field displays the serial number of this unit.
Asset Tag Number This field displays the asset tag number of the system.
Product Name This field shows product name of the system.
Manufacturer Name This field displays the manufacturer of this system.
UUID Number Universally Unique Identifier (UUID) is an identifier standard used in software construction,
standardized by the Open Software Foundation (OSF) as part of the Distributed
Computing Environment (DCE).
Chapter 2 31
Main
The Main screen allows the user to set the system time and date as well as enable and disable boot option
and recovery.
Aspire 7736/7736Z/7336 Series:
Aspire 7540 Series:
NOTE: The screen above is for your reference only. Actual values may differ.
Phoenix SecureCore(tm) Setup Utility
Main
Item Specific Help
<Tab>, <Shift-Tab>, or
<Enter> selects field.
System Time:
System Date:
System Memory:
Extended Memory:
Video Memory:
Quiet Boot:
Network Boot:
F12 Boot Menu:
D2D Recovery:
SATAMode
F1
Esc
Help
Exit
Select Item
Select Menu
Change Values
Select Sub-Menu
-/+
Enter
F9
F10
Setup Defaults
S a v e a n d E x i t
Information Security Boot Exit
[]
[]
:10:10
03/30/2009
640 KB
957 MB
6 4 M B
[Enabled]
[Enabled]
[Disabled]
[Enabled]
[AHCI]
10
Phoenix SecureCore(tm) Setup Utility
Main
Item Specific Help
<Tab>, <Shift-Tab>, or
<Enter> selects field.
System Time:
System Date:
Total Memory:
Video Memory:
Quiet Boot:
Network Boot:
F12 Boot Menu:
D2D Recovery:
SATAMode
F1
Esc
Help
Exit
Select Item
Select Menu
Change Values
Select Sub-Menu
-/+
Enter
F9
F10
Setup Defaults
S a v e a n d E x i t
Information Security Boot Exit
[]
[]
:10:10
03/31/2009
4096 KB
1024 MB
[Enabled]
[Enabled]
[Disabled]
[Enabled]
[AHCI Mode]
10
32 Chapter 2
The table below describes the parameters in this screen. Settings in boldface are the default and suggested
parameter settings.
NOTE: The sub-items under each device will not be shown if the device control is set to disable or auto. This is
because the user is not allowed to control the settings in these cases.
Parameter Description Format/Option
System Time Sets the system time. The hours are displayed
with 24-hour format.
Format: HH:MM:SS
(hour:minute:second) System Time
System Date Sets the system date. Format MM/DD/YYYY (month/day/
year)
System Date
System Memory This field reports the memory size of the system.
Memory size is fixed to 640MB
Total Memory This field reports the total memory size of the
system. For Aspire 8530 Series only.
Extended Memory This field reports the memory size of the
extended memory in the system.
Extended Memory size=Total memory size-1MB
VGA Memory Shows the VGA memory size.
Quiet Boot Determines if Customer Logo will be displayed or
not; shows Summary Screen is disabled or
enabled.
Enabled: Customer Logo is displayed, and
Summary Screen is disabled.
Disabled: Customer Logo is not displayed, and
Summary Screen is enabled.
Option: Enabled or Disabled
Network Boot Enables, disables the system boot from LAN
(remote server).
Option: Enabled or Disabled
F12 Boot Menu Enables, disables Boot Menu during POST. Option: Disabled or Enabled
D2D Recovery Enables, disables D2D Recovery function. The
function allows the user to create a hidden
partition on hard disc drive to store operation
system and restore the system to factory
defaults.
Option: Enabled or Disabled
SATA Mode Control the mode in which the SATA controller
should operate.
Option: AHCI or IDE
Chapter 2 33
Security
The Security screen contains parameters that help safeguard and protect your computer from unauthorized
use.
NOTE: Please refer to “Remove HDD/BIOS Password” section if you need to know how to remove HDD/BIOS
Password.
Phoenix SecureCore(tm) Setup Utility
Main
F1
Esc
Help
Exit
Select Item
Select Menu
Change Values
Select Sub-Menu
-/+
Enter
F9
F10
Setup Defaults
S a v e a n d E x i t
Information Security Boot Exit
Item Specific Help
Supervisor Password
c o n t r o l s a c c e s s o f t h e
whole setup utility.
I t c a n b e u s e d t o b o o t
u p w h e n P a s s w o r d o n
boot is enabled.
Supervisor Password s:
User Password s:
:
S e t U s e r P a s s w o r d
Set Password
P a s s w o r d o n B o o t :
i
i
H D D P a s s w o r d i s
HDD
Set Supervisor Password
Clear
Clear
Clear
[Enter]
[Enter]
[Disabled]
[]Enter
34 Chapter 2
The table below describes the parameters in this screen. Settings in boldface are the default and suggested
parameter settings.
NOTE: When you are prompted to enter a password, you have three tries before the system halts. Don’t forget
your password. If you forget your password, you may have to return your notebook computer to your
dealer to reset it.
Setting a Password
Follow these steps as you set the user or the supervisor password:
1. Use the up/down keys to highlight the Set Supervisor Password parameter and press the Enter key. The
Set Supervisor Password box appears:
2. Type a password in the “Enter New Password” field. The password length can not exceeds 8
alphanumeric characters (A-Z, a-z, 0-9, not case sensitive). Retype the password in the “Confirm New
Password” field.
IMPORTANT:Be very careful when typing your password because the characters do not appear on the screen.
3. Press Enter.
After setting the password, the computer sets the User Password parameter to “Set”.
4. If desired, you can opt to enable the Password on boot parameter.
5. When you are done, press F10 to save the changes and exit the BIOS Setup Utility.
Removing a Password
Follow these steps:
Parameter Description Option
Supervisor Password Is Shows the setting of the Supervisor password Clear or Set
User Password Is Shows the setting of the user password. Clear or Set
HDD Password Is Shows the setting of the hard disk password. Clear or Set
Set Supervisor Password Press Enter to set the supervisor password.
When set, this password protects the BIOS
Setup Utility from unauthorized access. The
user can not either enter the Setup menu nor
change the value of parameters.
Set User Password Press Enter to set the user password. When
user password is set, this password protects
the BIOS Setup Utility from unauthorized
access. The user can enter Setup menu only
and does not have right to change the value of
parameters.
Set HDD Password Enter HDD Password.
Password on Boot Defines whether a password is required or not
while the events defined in this group
happened. The following sub-options are all
requires the Supervisor password for changes
and should be grayed out if the user password
was used to enter setup.
Disabled or Enabled
Chapter 2 35

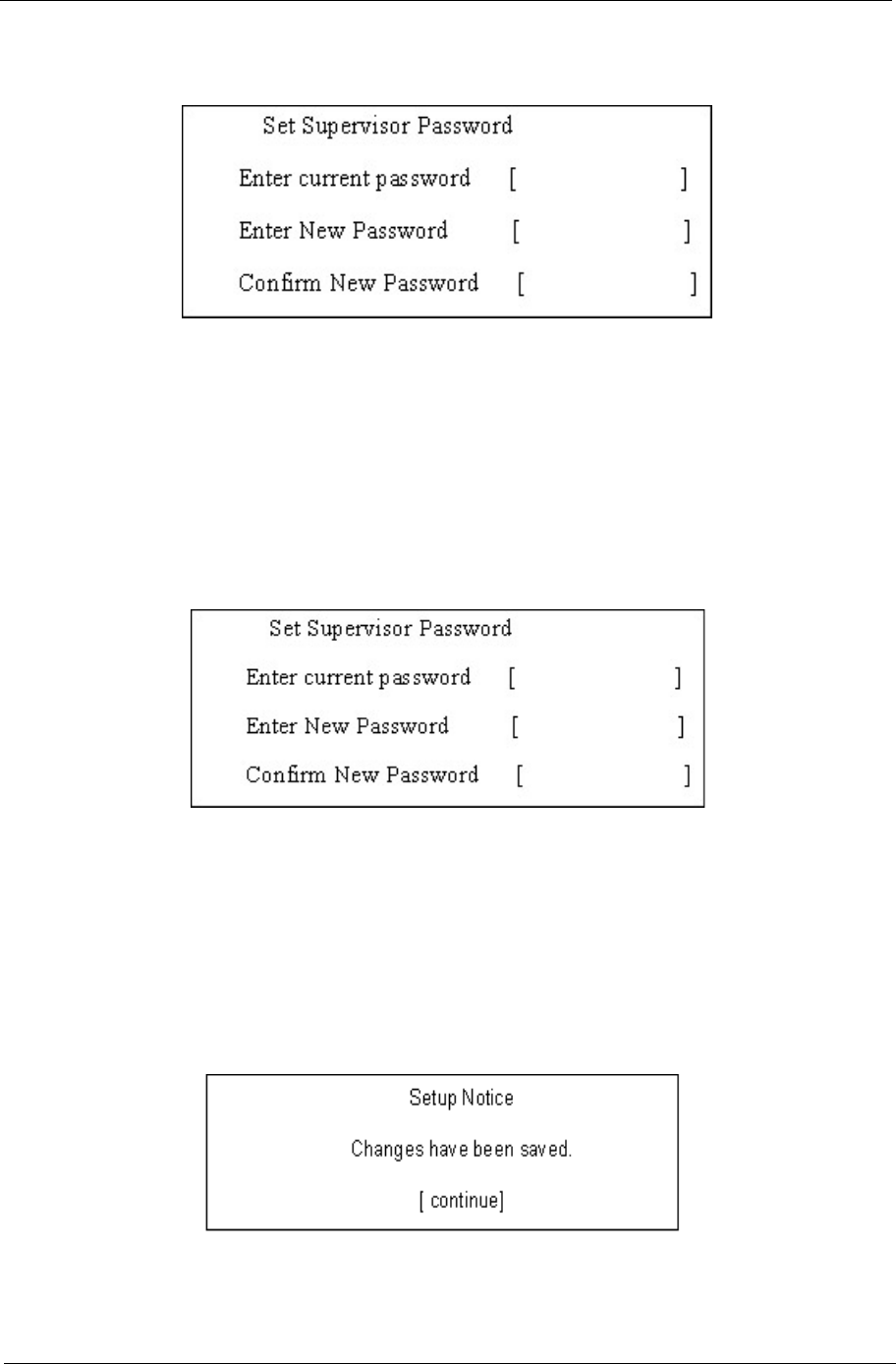

1. Use the up/down keys to highlight the Set Supervisor Password parameter and press the Enter key. The
Set Password box appears:
2. Type the current password in the Enter Current Password field and press Enter.
3. Press Enter twice without typing anything in the Enter New Password and Confirm New Password fields.
The computer then sets the Supervisor Password parameter to “Clear”.
4. When you have changed the settings, press F10 to save the changes and exit the BIOS Setup Utility.
Changing a Password
1. Use the up/down keys to highlight the Set Supervisor Password parameter and press the Enter key. The
Set Password box appears:
2. Type the current password in the Enter Current Password field and press Enter.
3. Type a password in the Enter New Password field. Retype the password in the Confirm New Password
field.
4. Press Enter. After setting the password, the computer sets the User Password parameter to “Set”.
5. If desired, you can enable the Password on boot parameter.
6. When you are done, press F10 to save the changes and exit the BIOS Setup Utility.
If the verification is OK, the screen will display as following.
The password setting is complete after the user presses Enter.
If the current password entered does not match the actual current password, the screen will show you the
Setup Warning.
36 Chapter 2
If the new password and confirm new password strings do not match, the screen will display the following
message.
Chapter 2 37
Boot
This menu allows the user to decide the order of boot devices to load the operating system. Bootable devices
includes the diskette drive in module bay, the onboard hard disk drive and the CD-ROM in module bay.
Phoenix SecureCore(tm) Setup Utility
Main
Item Specific Help
U s e < > o r < > t o
select a device, then
p r e s s < F 6 > t o m o v e i t
u p t h e l i s t , o r < F 5 >
t o m o v e i t d o w n t h e
list. Press <Esc> to
escape the menu.
Boot priority order:
F1
Esc
Help
Exit
Select Item
Select Menu
Change Values
Select Sub-Menu
-/+
Enter
F9
F10
Setup Defaults
S a v e a n d E x i t
Information Security Boot Exit
2:
3:
4:
5:
6:
7:
:
CD/DVD:
N e t w o r k B o o t : X X X v X X . X . X X X X X X X X X
USB HDD:
USB FDD:
U S B K e y :
8 : U S B C D / D V D R O M :
1: IDE0 HDD: XXXXXXXXXXX-(XX)
IDE1
XXXXXXXXXXX-XXX XX-XXXX-XX
38 Chapter 2
Exit
The Exit screen contains parameters that confirmed or discard the changes made to the parameters in the
BIOS Setup Utility.
The table below describes the parameters in this screen.
Parameter Description
Exit Saving Changes Exit System Setup and save your changes to CMOS.
Exit Discarding Changes Exit utility without saving setup data to CMOS.
Load Setup Default Load default values for all SETUP item.
Discard Changes Load previous values from CMOS for all SETUP items.
Save Changes Save Setup Data to CMOS.
Phoenix SecureCore(tm) Setup Utility
Main
Item Specific Help
E x i t S y s t e m S e t u p a n d
save your changes to
CMOS.
F1
Esc
Help
Exit
Select Item
Select Menu
Change Values
Select Sub-Menu
-/+
Enter
F9
F10
Setup Defaults
S a v e a n d E x i t
Information Security Boot Exit
Exit Discarding Changes
Load Setup Defaults
Discard Changes
Save Changes
Exit Saving Changes
Chapter 2 39
BIOS Flash Utility
The BIOS flash memory update is required for the following conditions:
•New versions of system programs
•New features or options
•Restore a BIOS when it becomes corrupted.
Use the Flash utility to update the system BIOS flash ROM.
NOTE: If you do not have a crisis recovery disk at hand, then you should create a Crisis Disk (See “Steps for
BIOS Recovery by Crisis Disk” on page 107) before you use the Flash utility.
NOTE: Do not install memory-related drivers (XMS, EMS, DPMI) when you use the Flash.
NOTE: Please connect the AC adapter power supply when you run the Flash utility. If the battery pack does
not contain enough power to finish BIOS flash, you may not boot the system because the BIOS is not
completely loaded.
Follow the steps below to run the Flash utility:
1. Rename the BIOS file as “XXXXXXX.FD”
2. Copy the “XXXXXXX.FD” file to a bootable USB device containing the Crisis Disk.
3. Turn off the system power.
4. Insert the USB device containing the renamed BIOS file and Crisis Disk to any USB port.
5. Make sure the AC adapter is connected to a power outlet and plugged in to the system.
6. Power on the system from an off state (i.e. cold boot) while holding down the Fn + ESC key.
7. After POST, release Fn + ESC key. The system should boot from the USB device and perform crisis
recovery action.
40 Chapter 2
Remove HDD Password
This section teaches you how to remove HDD password:
Remove HDD Password:
•If you key in the wrong HDD password thrice, “HDD password error code” will appear on the
screen. See the image below.
•If you need to solve HDD password locked problem, you can run HDD_PW.EXE
1. Key in “hdd_pw 15494 0”
2. Select “2”
3. Choose one of the uppercase strings
•Reboot the system and key in “0KJFN42” or “UVEIQ96” as your HDD user password.
Chapter 3 41
This chapter contains step-by-step procedures on how to disassemble the notebook computer for
maintenance and troubleshooting.
Disassembly Requirements
To disassemble the computer, you need the following tools:
•Wrist grounding strap and conductive mat for preventing electrostatic discharge
•Flat screwdriver
•Philips screwdriver
•Hex screwdriver
•Plastic flat screwdriver
•Plastic tweezers
NOTE: The screws for the different components vary in size. During the disassembly process, group the
screws with the corresponding components to avoid mismatch when putting back the components.
Chapter 3
Machine Disassembly and Replacement
42 Chapter 3
General Information
Pre-disassembly Instructions
Before proceeding with the disassembly procedure, make sure that you do the following:
1. Turn off the power to the system and all peripherals.
2. Unplug the AC adapter and all power and signal cables from the system.
3. Place the system on a flat, stable surface.
4. Remove the battery pack.
Disassembly Process
The disassembly process is divided into the following stages:
•External module disassembly
•Main unit disassembly
•LCD module disassembly
The flowcharts provided in the succeeding disassembly sections illustrate the entire disassembly sequence.
Observe the order of the sequence to avoid damage to any of the hardware components. For example, if you
want to remove the main board, you must first remove the keyboard, then disassemble the inside assembly
frame in that order.
Main Screw List
Item Screw Color Part No.
A M2.5 x L4 Black 86.00H59.734
B M2 x L4 Silver 86.9A552.4R0
C M2.5 x L6 Black 86.00E12.536
D M2.5 x L10 Black 86.00F84.73A
E M2.5 x L5 Black 86.00F87.735
F M3 x L4 Silver 86.9A554.4R0
G M2.5 x L3.5 Silver 86.9A536.3R5
H M2 x L3 Silver 86.9A552.3R0
Chapter 3 43
External Module Disassembly Process
External Modules Disassembly Flowchart
The flowchart below gives you a graphic representation on the entire disassembly sequence and instructs you
on the components that need to be removed during servicing. For example, if you want to remove the main
board, you must first remove the keyboard, then disassemble the inside assembly frame in that order.
Screw List
Item Screw Color Part No.
A M2.5 x L4 Black 86.00H59.734
B M2 x L4 Silver 86.9A552.4R0
C M2.5 x L6 Black 86.00E12.536
F M3 x L4 Silver 86.9A554.4R0
G M2.5 x L3.5 Silver 86.9A536.3R5
H M2 x L3 Silver 86.9A552.3R0
EXTERNAL MODULE DISASSEMBLY
WLAN
BOARD
TURN OFF POWER
AND PERIPHERALS
UNPLUG POWER
CABLES
Bx1
BACK
COVER
Screwx6
DIMM
MODULES
REMOVE BATTERY
PACK
SD DUMMY CARD
Hx1
ODD
MODULE
OPTICAL DISK
DRIVE
OPTICAL
LOCKER
BRACKET
CPU
Fx2
HDD
MODULE
HARD DISK
BRACKET
HARD DISK
DRIVE
Ax1
THERMAL
MODULE
Cx4
Cx1
44 Chapter 3
Removing the SD Dummy Card
1. Push the SD dummy card all the way in to eject it.
2. Pull it out from the slot.
Chapter 3 45
Removing the Battery Pack
1. See “Removing the SD Dummy Card” on page 44.
2. Turn the notebook over so the bottom is facing up.
3. Slide the battery lock/unlock latch to the unlock position.
Note: Battery has been highlighted with the yellow circle as above image shows. Please detach the
battery and follow local regulations for disposal.
4. Slide the battery release latch to the release position (a) to pop out the battery pack, then remove the
battery pack from the main unit (b).
46 Chapter 3
Removing the Back Cover
1. See “Removing the SD Dummy Card” on page 44.
2. See “Removing the Battery Pack” on page 45.

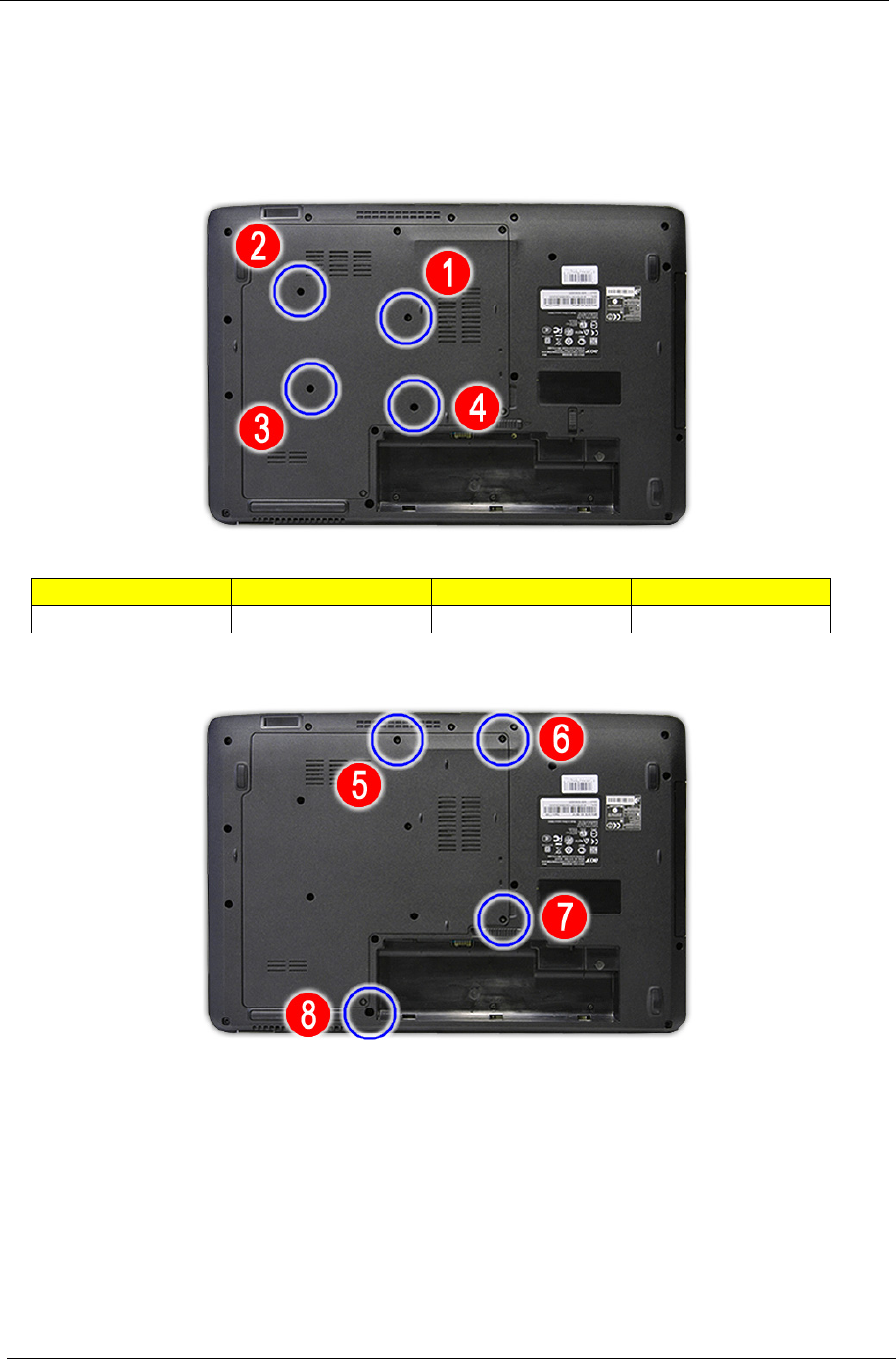

3. Remove the four screws (C) on the back cover.
4. Remove the four captive screws on the back cover.
Size (Quantity) Color Torque Part No.
M2.5 x L6 (4) Black 3.0 kgf-cm 86.00E12.536
Chapter 3 47
5. Use a plastic screw driver to carefully pry open the back cover.
6. Carefully lift and remove the back cover.
48 Chapter 3
Removing the Hard Disk Drive Module
1. See “Removing the SD Dummy Card” on page 44.
2. See “Removing the Battery Pack” on page 45.
3. See “Removing the Back Cover” on page 46.
4. Remove the one screw (A) securing the hard disk drive module to the system.
5. Pull the plastic tab in the direction indicated by the arrow to disengage the HDD module from the
connector.
Size (Quantity) Color Torque Part No.
M2.5 x L4 (1) Black 3.0 kgf-cm 86.00H59.734
Chapter 3 49
6. Lift the HDD module and remove it from the HDD bay.
NOTE: To prevent damage to device, avoid pressing down on it or placing heavy objects on top of it.
7. Remove the two screws (F) securing the hard disk to the bracket and remove the hard disk from the
bracket.
Size (Quantity) Color Torque Part No.
M3 x L4 (2) Silver 3.0 kgf-cm 86.9A554.4R0
50 Chapter 3
Removing the Wireless LAN Card
1. See “Removing the SD Dummy Card” on page 44.
2. See “Removing the Battery Pack” on page 45.
3. See “Removing the Back Cover” on page 46.
4. See “Removing the Hard Disk Drive Module” on page 48.
5. For 2-antenna WLAN card, detach the black cable from connector 1 and the white cable from connector 2
on the WLAN card.
6. Remove the one screw (B) on the WLAN card and detach the card.
Size (Quantity) Color Torque Part No.
M2 x L4 (1) Silver 1.6 kgf-cm 86.9A552.4R0
Chapter 3 51
7. Release the wireless LAN card from its connector and detach the card.
Removing the DIMM Module
1. See “Removing the SD Dummy Card” on page 44.
2. See “Removing the Battery Pack” on page 45.
3. See “Removing the Back Cover” on page 46.
4. See “Removing the Hard Disk Drive Module” on page 48.
5. See “Removing the Wireless LAN Card” on page 50.
6. Push out the latches on both sides of the DIMM sockets to release the DIMMs.
7. Remove the DIMM module(s).
52 Chapter 3
Removing the Heatsink Module
NOTE: There are two version of heatsink module. For this section, we are going to use the Discrete model.
The UMA version looks like the picture below:
1. See “Removing the SD Dummy Card” on page 44.
2. See “Removing the Battery Pack” on page 45.
3. See “Removing the Back Cover” on page 46.
4. See “Removing the Hard Disk Drive Module” on page 48.
5. See “Removing the Wireless LAN Card” on page 50.
6. See “Removing the DIMM Module” on page 51.
7. Disconnect the fan cable connector from its connector on the main board.
Fan Cable
Chapter 3 53
8. Loosen the six screws securing the heatsink module in the order shown.
NOTE: For the UMA model, loosen the four screws securing the heatsink module in the order shown.l
9. Carefully lift up the heatsink module.
UMA
4
3
2
1
54 Chapter 3
Removing the CPU
NOTE: Aspire 7736/7736Z/7336 Series uses the Intel® processor, while Aspire 7540 Series uses the AMD®
processor. But the process in removing the CPU are the same for all the models.
1. See “Removing the SD Dummy Card” on page 44.
2. See “Removing the Battery Pack” on page 45.
3. See “Removing the Back Cover” on page 46.
4. See “Removing the Hard Disk Drive Module” on page 48.
5. See “Removing the Wireless LAN Card” on page 50.
6. See “Removing the DIMM Module” on page 51.
7. See “Removing the Heatsink Module” on page 52.
8. Using a flat screwdriver, turn the CPU socket latch counter-clockwise to release the CPU.
9. Lift up carefully to remove the CPU.
Chapter 3 55
NOTE: When installing the CPU, make sure to install the CPU with Pin 1 at the corner as shown.
Removing the Optical Drive Module
1. See “Removing the SD Dummy Card” on page 44.
2. See “Removing the Battery Pack” on page 45.
3. See “Removing the Back Cover” on page 46.
4. See “Removing the Hard Disk Drive Module” on page 48.
5. See “Removing the Wireless LAN Card” on page 50.
6. See “Removing the DIMM Module” on page 51.
7. See “Removing the Heatsink Module” on page 52.
8. See “Removing the CPU” on page 54.
9. Remove the one screw (C) securing the optical drive module to the system.
Size (Quantity) Color Torque Part No.
M2.5 x L6 (1) Black 3.0 kgf-cm 86.00E12.536
56 Chapter 3
10. Slowly pull out the ODD module from the ODD drive bay.
11. Remove the one screw (H) securing the locker bracket and remove the locker bracket from the optical
disk drive module.
Size (Quantity) Color Torque Part No.
M2 x L3 (1) Silver 1.6 kgf-cm 86.9A552.3R0
Chapter 3 57
Main Unit Disassembly Process
Main Unit Disassembly Flowchart
Screw List
Item Screw Color Part No.
A M2.5 x L4 Black 86.00H59.734
B M2 x L4 Silver 86.9A552.4R0
C M2.5 x L6 Black 86.00E12.536
G M2.5 x L3.5 Silver 86.9A536.3R5
H M2 x L3 Silver 86.9A552.3R0
MAIN UNIT
KEYBOARD
MAIN
BOARD
Hx1
MAIN UNIT DISASSEMBLY
LCD MODULE
Dx4
UPPER CASE
Bx2, Cx4
MIDDLE COVER
FINGERPRINT
MODULE
Bx2
TOUCHPAD
MODULE
MICROPHONE
MODULE
Cx12, Ax5, Gx1
MODEM
CARD
Fx1
LOWER CASE
USB
MODULE
Ax1
58 Chapter 3
Removing the Middle Cover
1. See “Removing the SD Dummy Card” on page 44.
2. See “Removing the Battery Pack” on page 45.
3. See “Removing the Back Cover” on page 46.
4. See “Removing the Hard Disk Drive Module” on page 48.
5. See “Removing the Wireless LAN Card” on page 50.
6. See “Removing the DIMM Module” on page 51.
7. See “Removing the Heatsink Module” on page 52.
8. See “Removing the CPU” on page 54.
9. See “Removing the Optical Drive Module” on page 55.
10. Remove the twelve (C) from the lower case.
11. Remove the five screws (A) from the lower case.
Size (Quantity) Color Torque Part No.
M2.5 x L6 (11) Black 3.0 kgf-cm 86.00E12.536
Size (Quantity) Color Torque Part No.
M2.5 x L4 (5) Black 3.0 kgf-cm 86.00H59.734
Chapter 3 59
12. Remove the one screw (G) from the lower case.
13. Turn the notebook over so the top is facing up. Open the LCD panel.
14. Carefully pry and lift the middle cover.
Size (Quantity) Color Torque Part No.
M2.5 x L3.5 (1) Silver 3.0 kgf-cm 86.9A536.3R5
60 Chapter 3
Removing the Keyboard
1. See “Removing the SD Dummy Card” on page 44.
2. See “Removing the Battery Pack” on page 45.
3. See “Removing the Back Cover” on page 46.
4. See “Removing the Hard Disk Drive Module” on page 48.
5. See “Removing the Wireless LAN Card” on page 50.
6. See “Removing the DIMM Module” on page 51.
7. See “Removing the Heatsink Module” on page 52.
8. See “Removing the CPU” on page 54.
9. See “Removing the Optical Drive Module” on page 55.
10. See “Removing the Middle Cover” on page 58.
11. Release the keyboard from the latches.
12. Turn it over on the touchpad area.
Chapter 3 61
13. Release the latch (a) and disconnect the keyboard cable (b) from its connector on the main board and
detach the keyboard.
Removing the LCD Module
1. See “Removing the SD Dummy Card” on page 44.
2. See “Removing the Battery Pack” on page 45.
3. See “Removing the Back Cover” on page 46.
4. See “Removing the Hard Disk Drive Module” on page 48.
5. See “Removing the Wireless LAN Card” on page 50.
6. See “Removing the DIMM Module” on page 51.
7. See “Removing the Heatsink Module” on page 52.
8. See “Removing the CPU” on page 54.
9. See “Removing the Optical Drive Module” on page 55.
10. See “Removing the Middle Cover” on page 58.
11. See “Removing the Keyboard” on page 60.
12. Release the wireless antenna cables from the latches and carefully pull out the wireless antenna cables
from the hole..
62 Chapter 3
13. Remove the LCD cable from its connector on the main board and release the cable from the latches.
14. Remove the four screws (D) from the left and right hinges.
Size (Quantity) Color Torque Part No.
M2.5 x L10 (4) Black 3.0 kgf-cm 86.00F84.73A
Chapter 3 63
15. Carefully remove the LCD module from the base unit.
NOTE: When connecting the cables back to the unit, please note that the cables should be routed well.
Separating the Upper Case from the Lower Case
1. See “Removing the SD Dummy Card” on page 44.
2. See “Removing the Battery Pack” on page 45.
3. See “Removing the Back Cover” on page 46.
4. See “Removing the Hard Disk Drive Module” on page 48.
5. See “Removing the Wireless LAN Card” on page 50.
6. See “Removing the DIMM Module” on page 51.
7. See “Removing the Heatsink Module” on page 52.
8. See “Removing the CPU” on page 54.
9. See “Removing the Optical Drive Module” on page 55.
10. See “Removing the Middle Cover” on page 58.
11. See “Removing the Keyboard” on page 60.
12. See “Removing the LCD Module” on page 61.
13. Release the latch (a) and disconnect the fingerprint cable (b) from its connector on the main board.
64 Chapter 3
14. Release the latch (a) and disconnect the touchpad cable (B) from its connector on the main board.
15. Disconnect the left speaker cable from its connector on the main board.
Chapter 3 65
16. Remove the two screws (B) securing the upper case to the system.
17. Remove the four screws (C) securing the upper case to the system.
Size (Quantity) Color Torque Part No.
M2 x L4 (2) Silver 1.6 kgf-cm 86.9A552.4R0
Size (Quantity) Color Torque Part No.
M2.5 x L6 (4) Black 3.0 kgf-cm 86.00E12.536
66 Chapter 3

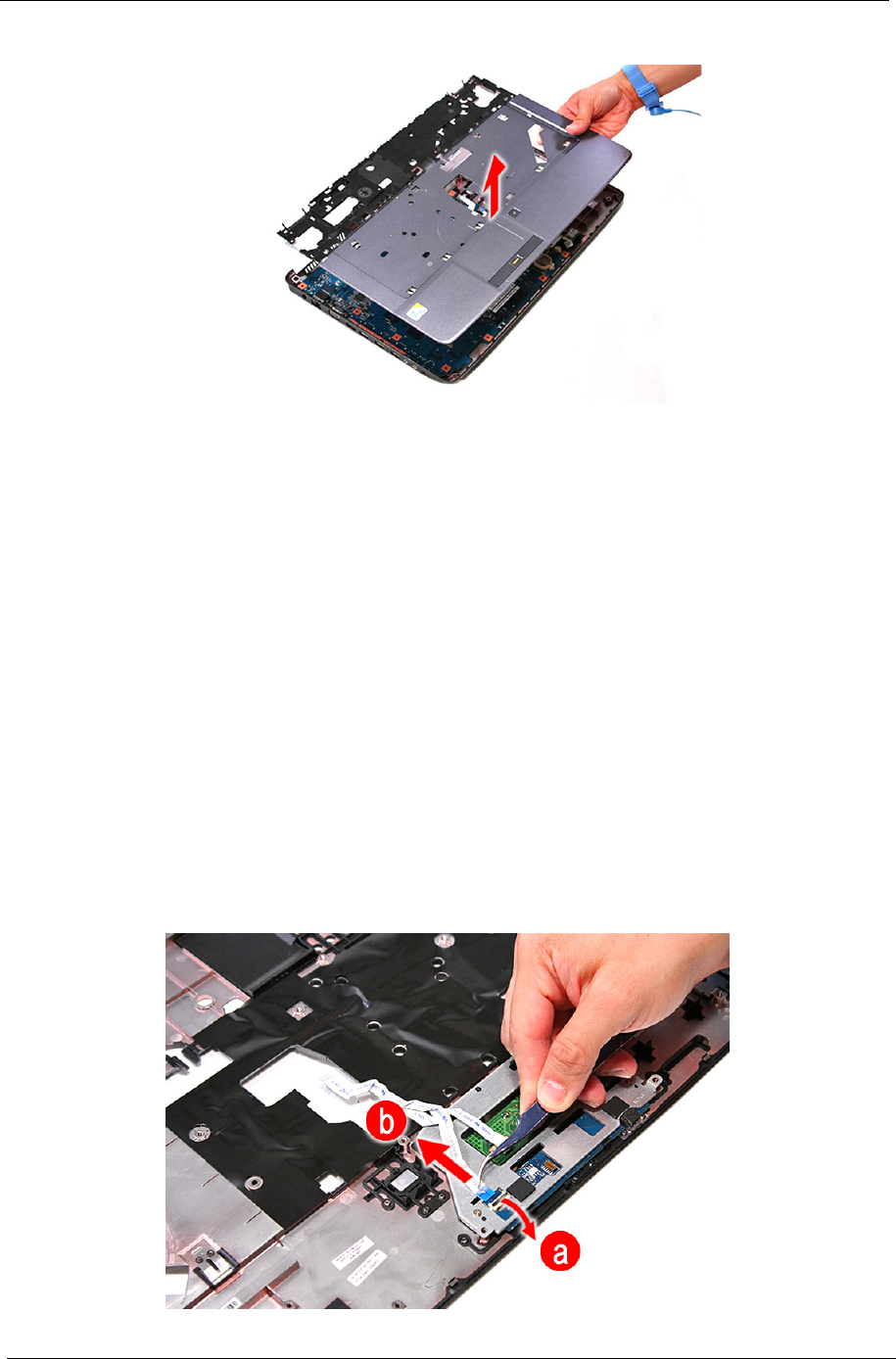

18. Gently lift and detach the upper case from the lower case.
Removing the Fingerprint/Button and Touchpad Boards
1. See “Removing the SD Dummy Card” on page 44.
2. See “Removing the Battery Pack” on page 45.
3. See “Removing the Back Cover” on page 46.
4. See “Removing the Hard Disk Drive Module” on page 48.
5. See “Removing the Wireless LAN Card” on page 50.
6. See “Removing the DIMM Module” on page 51.
7. See “Removing the Heatsink Module” on page 52.
8. See “Removing the CPU” on page 54.
9. See “Removing the Optical Drive Module” on page 55.
10. See “Removing the Middle Cover” on page 58.
11. See “Removing the Keyboard” on page 60.
12. See “Removing the LCD Module” on page 61.
13. See “Separating the Upper Case from the Lower Case” on page 63.
14. Release the latch (a) and disconnect the fingerprint/ button cable (b) from the fingerprint/ button board.
Chapter 3 67
15. Detach the fingerprint/ button cable and touchpad cable from the upper case.
16. Release the latch (a) and disconnect the touchpad cable (b) from the touchpad board.
17. Remove the two screws (B) securing the touchpad and fingerprint/button bracket to the upper case.
Size (Quantity) Color Torque Part No.
M2 x L4 (2) Silver 1.6 kgf-cm 86.9A552.4R0
68 Chapter 3
18. Lift and detach the touchpad and fingerprint/button bracket.
19. Detach the fingerprint/button board.
20. Pry to loosen the touchpad board and detach the touchpad board from the upper case.
WARNING: The touchpad board is glued to the upper case, only remove the touchpad board if it is defective.
Note: Circuit boards > 10cm2 has been highlighted with the yellow square as shown in the figure
above. Please detach the circuit boards and follow the local regulations for disposal.
Chapter 3 69

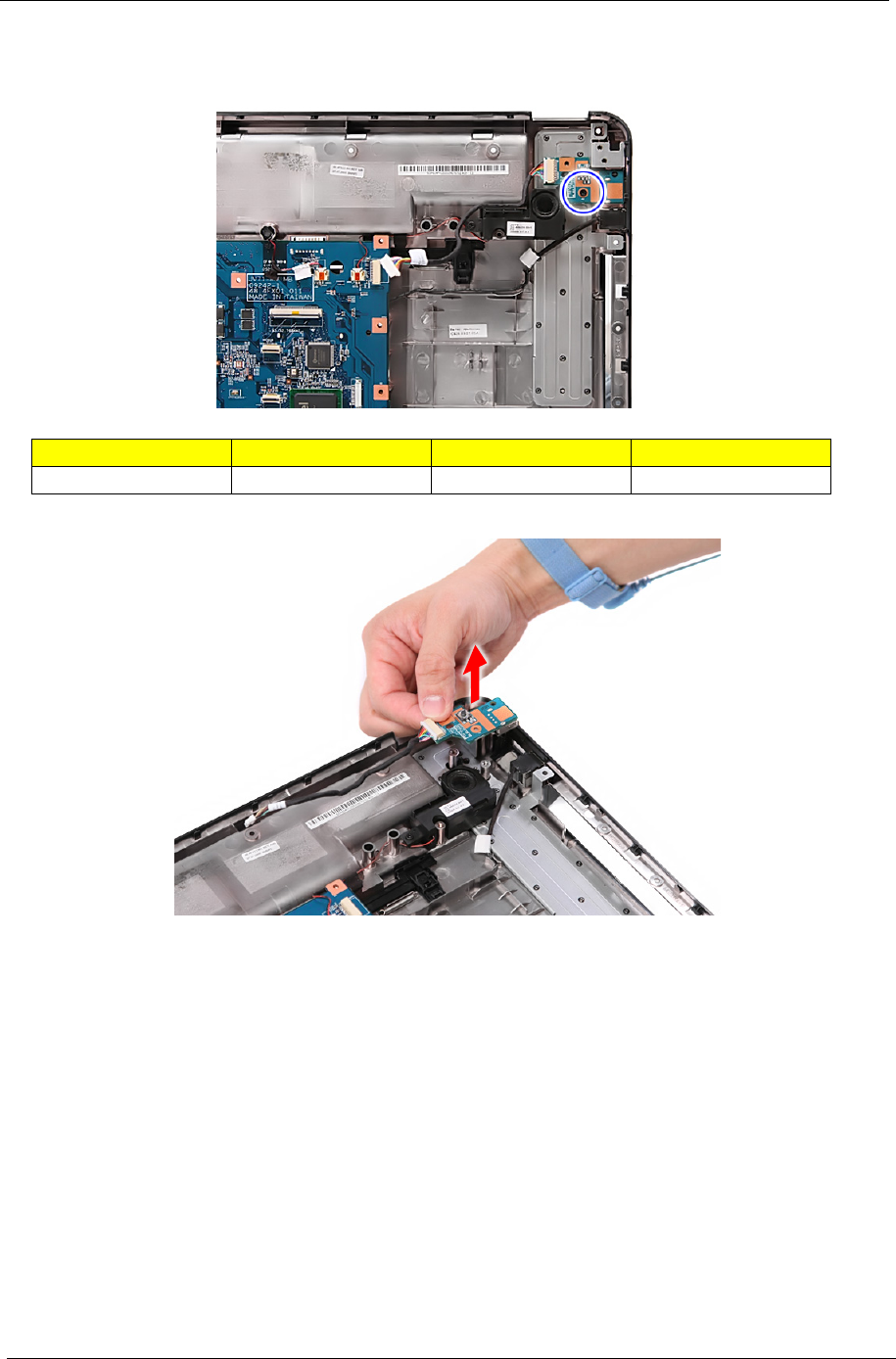

Removing the USB Board Module
1. See “Removing the SD Dummy Card” on page 44.
2. See “Removing the Battery Pack” on page 45.
3. See “Removing the Back Cover” on page 46.
4. See “Removing the Hard Disk Drive Module” on page 48.
5. See “Removing the Wireless LAN Card” on page 50.
6. See “Removing the DIMM Module” on page 51.
7. See “Removing the Heatsink Module” on page 52.
8. See “Removing the Optical Drive Module” on page 55.
9. See “Removing the CPU” on page 54.
10. See “Removing the Middle Cover” on page 58.
11. See “Removing the Keyboard” on page 60.
12. See “Removing the LCD Module” on page 61.
13. See “Separating the Upper Case from the Lower Case” on page 63.
14. See “Removing the Fingerprint/Button and Touchpad Boards” on page 66.
15. Disconnect the USB cable from its connector on the main board and release the cable from the latches.
70 Chapter 3
16. Remove the one screw (A) securing the USB board to the lower case.
17. Remove the USB board module from the lower case.
Size (Quantity) Color Torque Part No.
M2.5 x L4 (1) Black 3.0 kgf-cm 86.00H59.734
Chapter 3 71
Removing the Modem Board
1. See “Removing the SD Dummy Card” on page 44.
2. See “Removing the Battery Pack” on page 45.
3. See “Removing the Back Cover” on page 46.
4. See “Removing the Hard Disk Drive Module” on page 48.
5. See “Removing the Wireless LAN Card” on page 50.
6. See “Removing the DIMM Module” on page 51.
7. See “Removing the Heatsink Module” on page 52.
8. See “Removing the CPU” on page 54.
9. See “Removing the Optical Drive Module” on page 55.
10. See “Removing the Middle Cover” on page 58.
11. See “Removing the Keyboard” on page 60.
12. See “Removing the LCD Module” on page 61.
13. See “Separating the Upper Case from the Lower Case” on page 63.
14. See “Removing the Fingerprint/Button and Touchpad Boards” on page 66.
15. See “Removing the USB Board Module” on page 69.

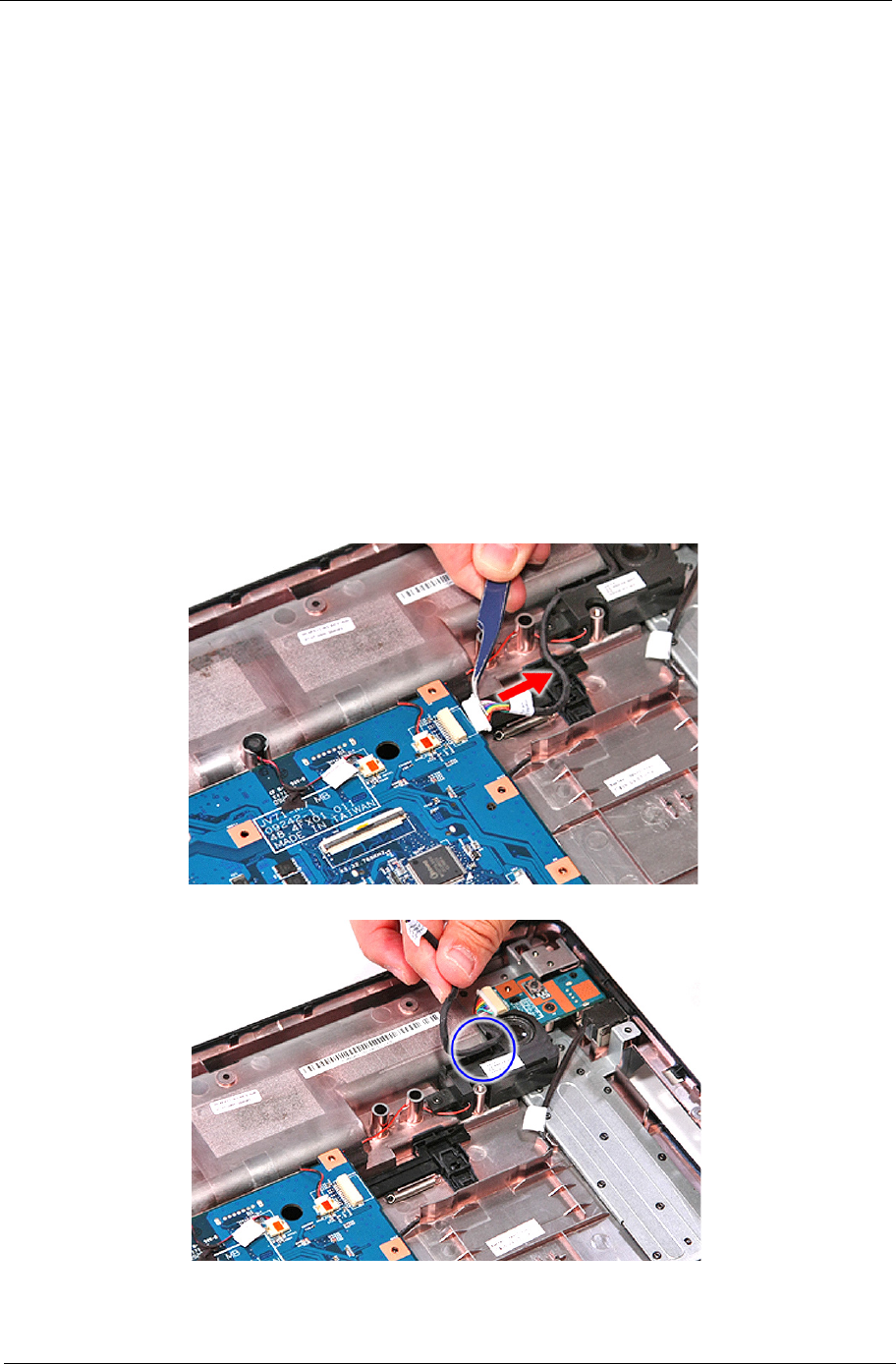

16. Disconnect the modem cable from its connector on the main board.
17. Remove the one screw (??) on the modem board and detach the modem board.
72 Chapter 3

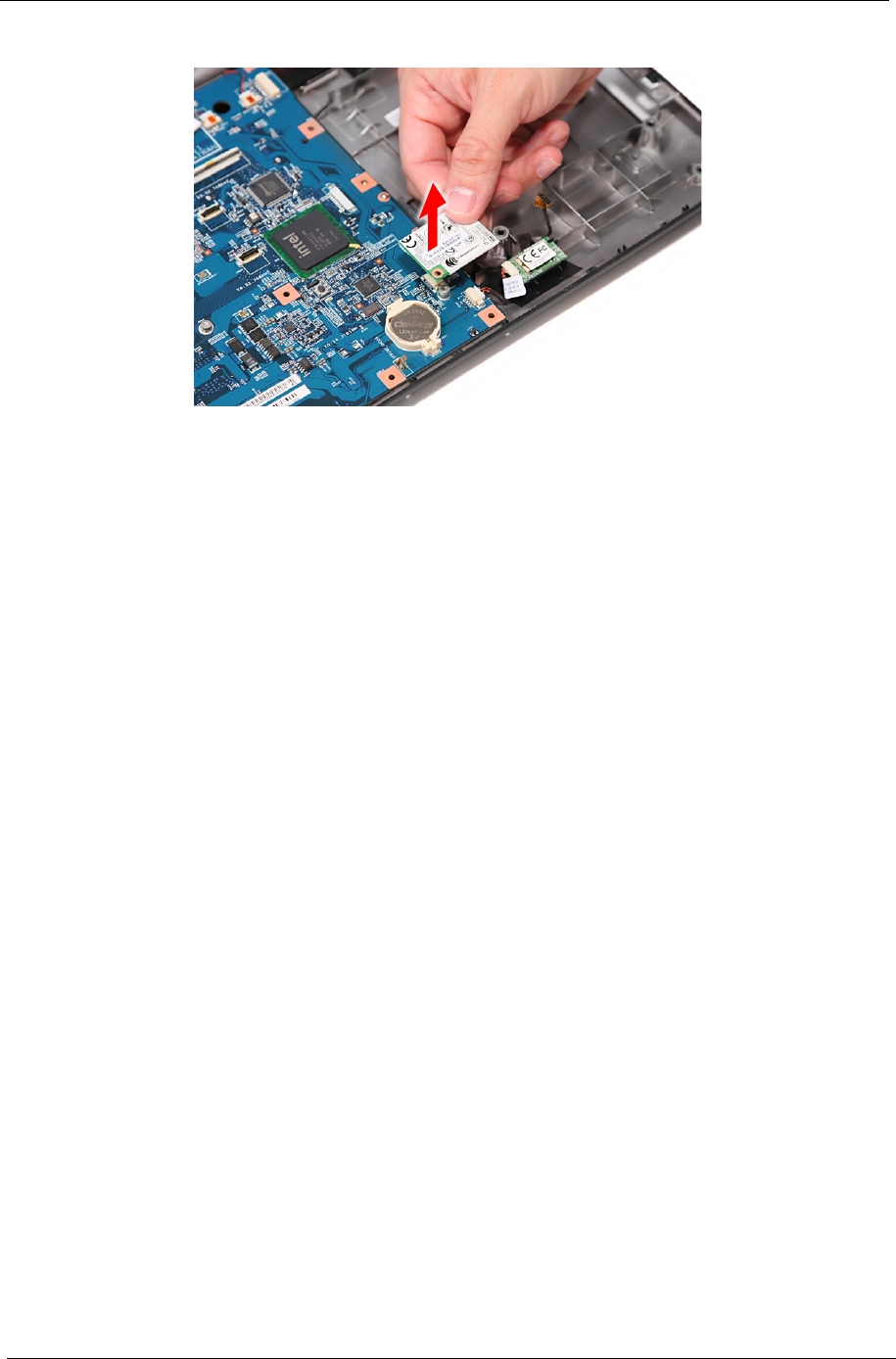

18. Remove the modem board module from the main board.
Removing the Bluetooth Board
1. See “Removing the SD Dummy Card” on page 44.
2. See “Removing the Battery Pack” on page 45.
3. See “Removing the Back Cover” on page 46.
4. See “Removing the Hard Disk Drive Module” on page 48.
5. See “Removing the Wireless LAN Card” on page 50.
6. See “Removing the DIMM Module” on page 51.
7. See “Removing the Heatsink Module” on page 52.
8. See “Removing the CPU” on page 54.
9. See “Removing the Optical Drive Module” on page 55.
10. See “Removing the Middle Cover” on page 58.
11. See “Removing the Keyboard” on page 60.
12. See “Removing the LCD Module” on page 61.
13. See “Separating the Upper Case from the Lower Case” on page 63.
14. See “Removing the Fingerprint/Button and Touchpad Boards” on page 66.
15. See “Removing the USB Board Module” on page 69.
16. See “Removing the Modem Board” on page 71.
Chapter 3 73
17. Disconnect the bluetooth cable from its connector on the main board.
18. Detach the bluetooth card.
74 Chapter 3
Removing the Microphone Module
1. See “Removing the SD Dummy Card” on page 44.
2. See “Removing the Battery Pack” on page 45.
3. See “Removing the Back Cover” on page 46.
4. See “Removing the Hard Disk Drive Module” on page 48.
5. See “Removing the Wireless LAN Card” on page 50.
6. See “Removing the DIMM Module” on page 51.
7. See “Removing the Heatsink Module” on page 52.
8. See “Removing the CPU” on page 54.
9. See “Removing the Optical Drive Module” on page 55.
10. See “Removing the Middle Cover” on page 58.
11. See “Removing the Keyboard” on page 60.
12. See “Removing the LCD Module” on page 61.
13. See “Separating the Upper Case from the Lower Case” on page 63.
14. See “Removing the Fingerprint/Button and Touchpad Boards” on page 66.
15. See “Removing the USB Board Module” on page 69.
16. See “Removing the Modem Board” on page 71.
17. See “Removing the Bluetooth Board” on page 72.

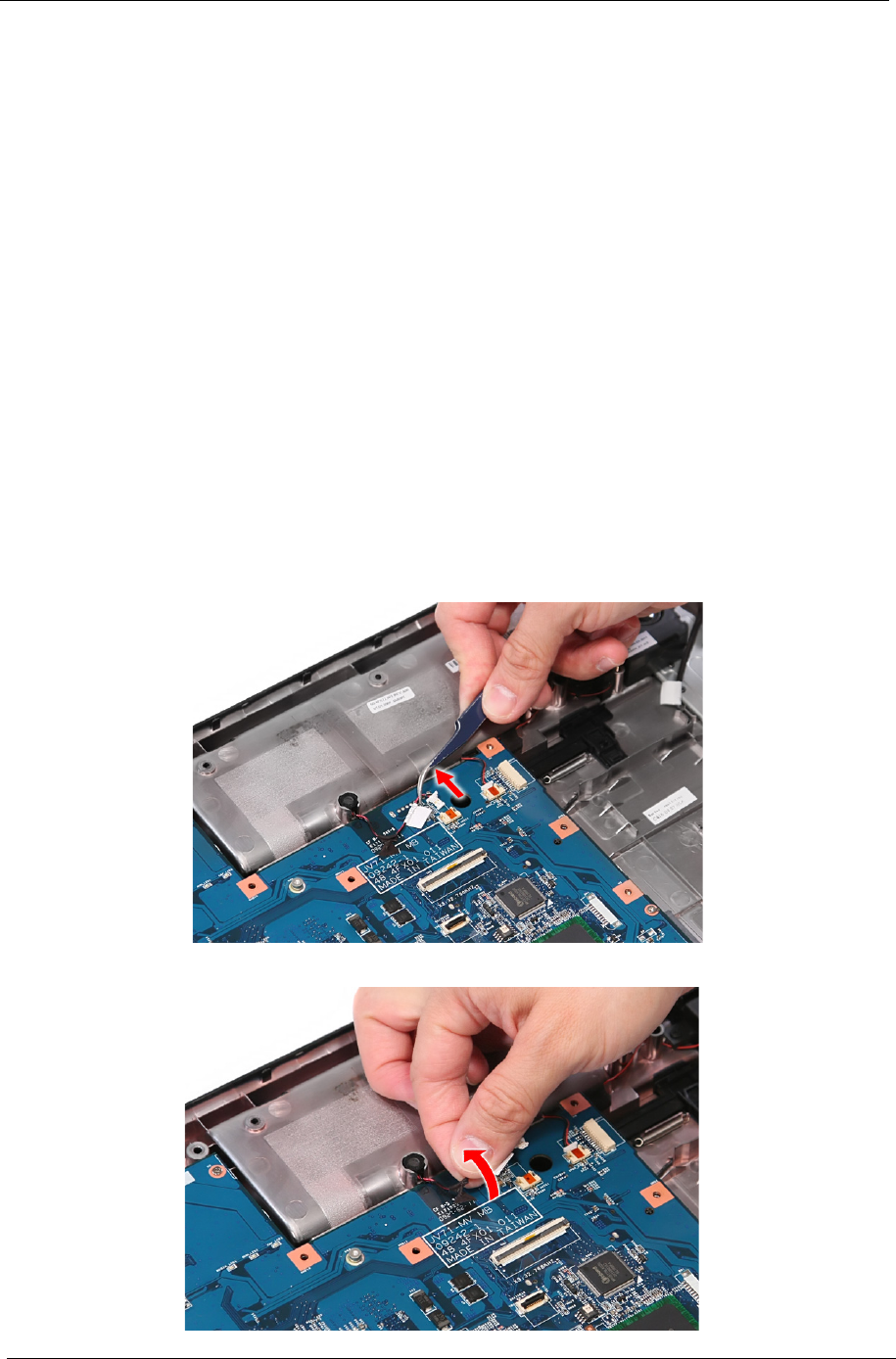

18. Disconnect the microphone cable from its connector on the main board.
19. Detach the microphone module.
Chapter 3 75
Removing the Main Board
1. See “Removing the SD Dummy Card” on page 44.
2. See “Removing the Battery Pack” on page 45.
3. See “Removing the Back Cover” on page 46.
4. See “Removing the Hard Disk Drive Module” on page 48.
5. See “Removing the Wireless LAN Card” on page 50.
6. See “Removing the DIMM Module” on page 51.
7. See “Removing the Heatsink Module” on page 52.
8. See “Removing the CPU” on page 54.
9. See “Removing the Optical Drive Module” on page 55.
10. See “Removing the Middle Cover” on page 58.
11. See “Removing the Keyboard” on page 60.
12. See “Removing the LCD Module” on page 61.
13. See “Separating the Upper Case from the Lower Case” on page 63.
14. See “Removing the Fingerprint/Button and Touchpad Boards” on page 66.
15. See “Removing the USB Board Module” on page 69.
16. See “Removing the Modem Board” on page 71.
17. See “Removing the Bluetooth Board” on page 72.
18. See “Removing the Microphone Module” on page 74.
19. Disconnect the right speaker cable from its connector on the main board.
76 Chapter 3
20. Remove the one screw (H) securing the main board in place.
Note: RTC battery has been highlighted with the yellow circle as shown in the figure above. Please
detach the RTC battery and follow local regulations for disposal.
Note: Circuit boards > 10cm2 has been highlighted with the yellow square as shown in the figure
above. Please detach the circuit boards and follow the local regulations for disposal.
21. Lift the main board gently and remove it carefully from the lower case..
Size (Quantity) Color Torque Part No.
M2 x L3 (1) Silver 1.6 kgf-cm 86.9A552.3R0
Chapter 3 77
LCD Module Disassembly Process
LCD Module Disassembly Flowchart
Screw List
Item Screw Color Part No.
E M2.5 x L5 (6) Black 86.00F87.735
H M2 x L3 Silver 86.9A552.3R0
LCD MODULE
LCD BEZEL
Ex6
LCD ASSEMBLY
LEFT LCD
BRACKET
Hx3
RIGHT LCD
BRACKET
LCD FPC
CABLE
LCD BACK PANEL
ANTENNAS
LCD MODULE DISASSEMBLY
WEB
CAMERA
LEFT HINGE RIGHT HINGE
Ex2 Ex2
Hx3
78 Chapter 3
Removing the LCD Bezel
1. See “Removing the SD Dummy Card” on page 44.
2. See “Removing the Battery Pack” on page 45.
3. See “Removing the Back Cover” on page 46.
4. See “Removing the Hard Disk Drive Module” on page 48.
5. See “Removing the Wireless LAN Card” on page 50.
6. See “Removing the DIMM Module” on page 51.
7. See “Removing the Heatsink Module” on page 52.
8. See “Removing the CPU” on page 54.
9. See “Removing the Optical Drive Module” on page 55.
10. See “Removing the Middle Cover” on page 58.
11. See “Removing the Keyboard” on page 60.
12. See “Removing the LCD Module” on page 61.
13. Remove the six screw covers on the LCD bezel.
14. Remove the six screws (E) on the LCD bezel. .
Size (Quantity) Color Torque Part No.
M2.5 x L5 (6) Black 3.0 kgf-cm 86.00F87.735
Chapter 3 79
15. Carefully pry open the LCD bezel and remove it from the LCD panel.
Removing the LCD panel with the Brackets
1. See “Removing the SD Dummy Card” on page 44.
2. See “Removing the Battery Pack” on page 45.
3. See “Removing the Back Cover” on page 46.
4. See “Removing the Hard Disk Drive Module” on page 48.
5. See “Removing the Wireless LAN Card” on page 50.
6. See “Removing the DIMM Module” on page 51.
7. See “Removing the Heatsink Module” on page 52.
8. See “Removing the CPU” on page 54.
9. See “Removing the Optical Drive Module” on page 55.
10. See “Removing the Middle Cover” on page 58.
11. See “Removing the Keyboard” on page 60.
12. See “Removing the LCD Module” on page 61.
13. See “Removing the LCD Bezel” on page 78.
80 Chapter 3
14. Remove the four screws (E) on the left and right hinges as shown.
15. Disconnect the web camera cable from its connector on the LCD bezel.
16. Remove the LCD panel with brackets from the LCD bezel.
Size (Quantity) Color Torque Part No.
M2.5 x L5 (4) Black 3.0 kgf-cm 86.00F87.735
Chapter 3 81
Removing the LCD Brackets
1. See “Removing the SD Dummy Card” on page 44.
2. See “Removing the Battery Pack” on page 45.
3. See “Removing the Back Cover” on page 46.
4. See “Removing the Hard Disk Drive Module” on page 48.
5. See “Removing the Wireless LAN Card” on page 50.
6. See “Removing the DIMM Module” on page 51.
7. See “Removing the Heatsink Module” on page 52.
8. See “Removing the CPU” on page 54.
9. See “Removing the Optical Drive Module” on page 55.
10. See “Removing the Middle Cover” on page 58.
11. See “Removing the Keyboard” on page 60.
12. See “Removing the LCD Module” on page 61.
13. See “Removing the LCD Bezel” on page 78.
14. See “Removing the LCD panel with the Brackets” on page 79.
15. Remove the six screws (H) securing the left and right LCD brackets to remove the brackets.
Removing the Web Camera
1. See “Removing the SD Dummy Card” on page 44.
2. See “Removing the Battery Pack” on page 45.
3. See “Removing the Back Cover” on page 46.
4. See “Removing the Hard Disk Drive Module” on page 48.
5. See “Removing the Wireless LAN Card” on page 50.
6. See “Removing the DIMM Module” on page 51.
7. See “Removing the Heatsink Module” on page 52.
8. See “Removing the CPU” on page 54.
9. See “Removing the Optical Drive Module” on page 55.
10. See “Removing the Middle Cover” on page 58.
Size (Quantity) Color Torque Part No.
M2 x L3 (6) Silver 86.9A552.3R0
82 Chapter 3
11. See “Removing the Keyboard” on page 60.
12. See “Removing the LCD Module” on page 61.
13. See “Removing the LCD Bezel” on page 78.
14. See “Removing the LCD panel with the Brackets” on page 79.
15. Pry to remove the web camera module from the LCD bezel.
WARNING: The web camera module is glued to the LCD module back cover, only remove the web camera
module if it is defective.
Removing the FPC Cable
1. See “Removing the SD Dummy Card” on page 44.
2. See “Removing the Battery Pack” on page 45.
3. See “Removing the Back Cover” on page 46.
4. See “Removing the Hard Disk Drive Module” on page 48.
5. See “Removing the Wireless LAN Card” on page 50.
6. See “Removing the DIMM Module” on page 51.
7. See “Removing the Heatsink Module” on page 52.
8. See “Removing the CPU” on page 54.
9. See “Removing the Optical Drive Module” on page 55.
10. See “Removing the Middle Cover” on page 58.
11. See “Removing the Keyboard” on page 60.
12. See “Removing the LCD Module” on page 61.
13. See “Removing the LCD Bezel” on page 78.
14. See “Removing the LCD panel with the Brackets” on page 79.
Chapter 3 83

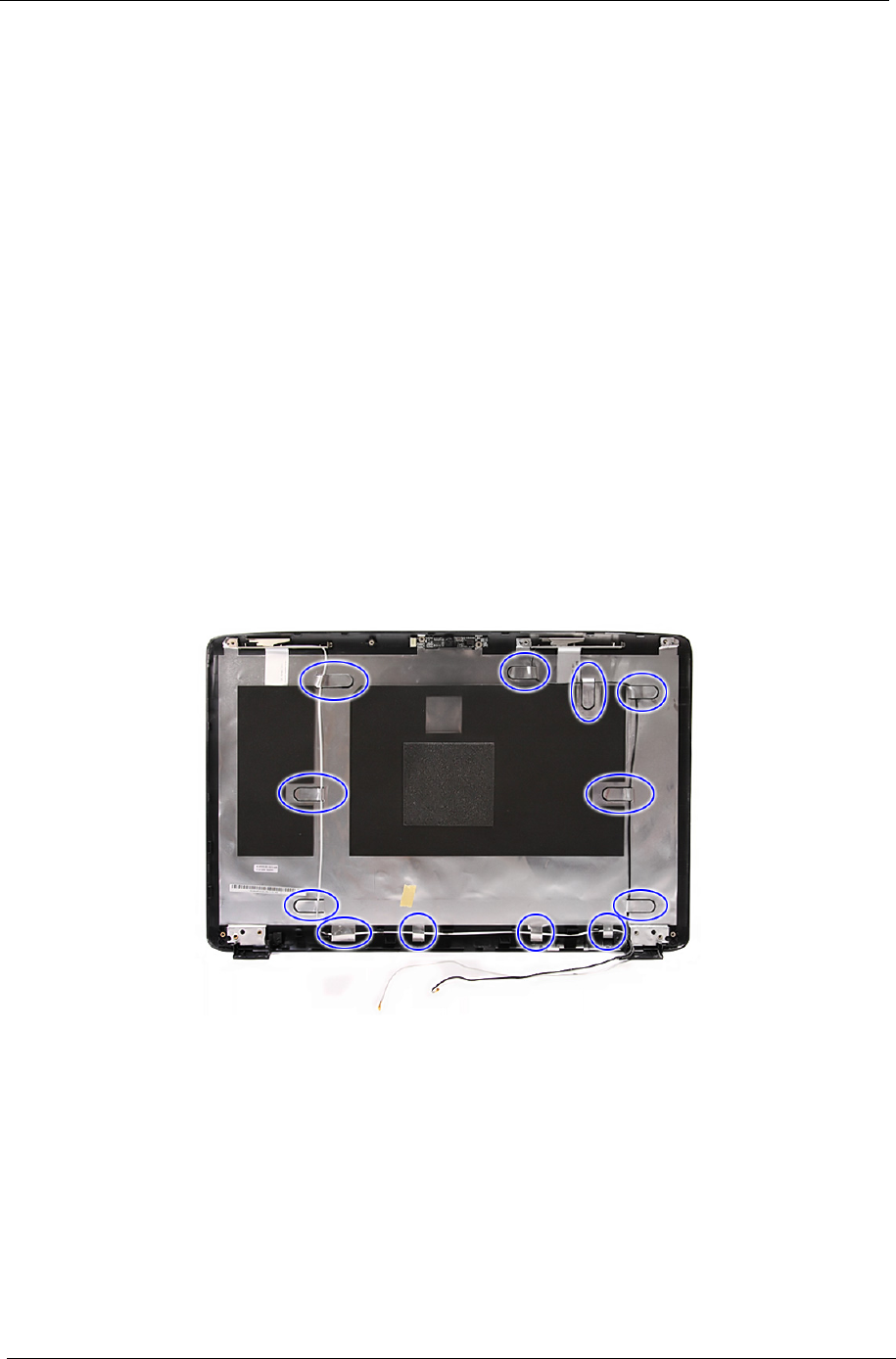

15. Detach all adhesive tapes and any cable that is glued to the LCD panel.
16. Detach the FPC cable from its connector on the back of the LCD panel.
17. Disconnect the FPC cable from the LCD panel.
84 Chapter 3
Removing the Antennas
1. See “Removing the SD Dummy Card” on page 44.
2. See “Removing the Battery Pack” on page 45.
3. See “Removing the Back Cover” on page 46.
4. See “Removing the Hard Disk Drive Module” on page 48.
5. See “Removing the Wireless LAN Card” on page 50.
6. See “Removing the DIMM Module” on page 51.
7. See “Removing the Heatsink Module” on page 52.
8. See “Removing the CPU” on page 54.
9. See “Removing the Optical Drive Module” on page 55.
10. See “Removing the Middle Cover” on page 58.
11. See “Removing the Keyboard” on page 60.
12. See “Removing the LCD Module” on page 61.
13. See “Removing the LCD Bezel” on page 78.
14. See “Removing the LCD panel with the Brackets” on page 79.
15. See “Removing the Web Camera” on page 81.
16. See “Removing the FPC Cable” on page 82.
17. Release the antenna cables from the aluminium notches as shown.
NOTE: There is no need to remove the antenna unless you really need to replace it.
Chapter 4 85
Use the following procedure as a guide for computer problems.
NOTE: The diagnostic tests are intended to test only Acer products. Non-Acer products, prototype cards, or
modified options can give false errors and invalid system responses.
1. Obtain the failing symptoms in as much detail as possible.
2. Verify the symptoms by attempting to re-create the failure by running the diagnostic test or by repeating
the same operation.
3. Use the following table with the verified symptom to determine which page to go to.
Symptoms (Verified) Go To
Power failure. (The power indicator does
not go on or stay on.)
“Power System Check” on page 87.
POST does not complete. No beep or error
codes are indicated.
“Power-On Self-Test (POST) Error
Message” on page 88
“Undetermined Problems” on page 102
POST detects an error and displayed
messages on screen.
“Error Message List” on page 90
Other symptoms (i.e. LCD display problems
or others).
“Power-On Self-Test (POST) Error
Message” on page 88
Symptoms cannot be re-created
(intermittent problems).
Use the customer-reported symptoms and
go to “Power-On Self-Test (POST) Error
Message” on page 88
“Intermittent Problems” on page 101
“Undetermined Problems” on page 102
Troubleshooting
Chapter 4
86 Chapter 4
System Check Procedures
External Diskette Drive Check
Do the following to isolate the problem to a controller, driver, or diskette. A write-enabled, diagnostic diskette is
required.
NOTE: Make sure that the diskette does not have more than one label attached to it. Multiple labels can cause
damage to the drive or cause the drive to fail.
Do the following to select the test device.
1. Boot from the diagnostics diskette and start the diagnostics program.
2. See if FDD Test is passed as the program runs to FDD Test.
3. Follow the instructions in the message window.
If an error occurs with the internal diskette drive, reconnect the diskette connector on the system board.
If the error still remains:
1. Reconnect the external diskette drive/DVD-ROM module.
2. Replace the external diskette drive/CD-ROM module.
3. Replace the main board.
External Optical Disk Drive Check
Do the following to isolate the problem to a controller, drive, or optical disk drive. Make sure that the CD-ROM
does not have any label attached to it. The label can cause damage to the drive or can cause the drive to fail.
Do the following to select the test device:
1. Boot from the diagnostics diskette and start the diagnostics program.
2. See if CD-ROM Test is passed when the program runs to CD-ROM Test.
3. Follow the instructions in the message window.
If an error occurs, reconnect the connector on the System board. If the error still remains:
1. Reconnect the external diskette drive/CD-ROM module.
2. Replace the external diskette drive/CD-ROM module.
3. Replace the main board.
Keyboard or Auxiliary Input Device Check
Remove the external keyboard if the internal keyboard is to be tested.
If the internal keyboard does not work or an unexpected character appears, make sure that the flexible cable
extending from the keyboard is correctly seated in the connector on the system board.
If the keyboard cable connection is correct, run the Keyboard Test.
If the tests detect a keyboard problem, do the following one at a time to correct the problem. Do not replace a
non-defective FRU:
1. Reconnect the keyboard cables.
2. Replace the keyboard.
3. Replace the main board.
The following auxiliary input devices are supported by this computer:
•Numeric keypad
•External keyboard
Chapter 4 87
If any of these devices do not work, reconnect the cable connector and repeat the failing operation.
Memory Check
Memory errors might stop system operations, show error messages on the screen, or hang the system.
1. Boot from the diagnostics diskette and start the diagnostic program (please refer to main board.
2. Go to the diagnostic memory in the test items.
3. Press F2 in the test items.
4. Follow the instructions in the message window.
NOTE: Make sure that the DIMM is fully installed into the connector. A loose connection can cause an error.
Power System Check
To verify the symptom of the problem, power on the computer using each of the following power sources:
1. Remove the battery pack.
2. Connect the power adapter and check that power is supplied.
3. Disconnect the power adapter and install the charged battery pack; then check that power is supplied by
the battery pack.
If you suspect a power problem, see the appropriate power supply check in the following list:
•“Check the Power Adapter” on page 87
•“Check the Battery Pack” on page 88
Check the Power Adapter
Unplug the power adapter cable from the computer and measure the output voltage at the plug of the power
adapter cable. See the following figure
1. If the voltage is not correct, replace the power adapter.
2. If the voltage is within the range, do the following:
•Replace the System board.
•If the problem is not corrected, see “Undetermined Problems” on page 102.
•If the voltage is not correct, go to the next step.
NOTE: An audible noise from the power adapter does not always indicate a defect.
3. If the power-on indicator does not light up, check the power cord of the power adapter for correct
continuity and installation.
4. If the operational charge does not work, see “Check the Battery Pack” on page 88.
Pin 1: +19 to +20.5V
Pin 2: 0V, Ground
88 Chapter 4
Check the Battery Pack
To check the battery pack, do the following:
From Software:
1. Check out the Power Management in control Panel.
2. In Power Meter, confirm that if the parameters shown in the screen for Current Power Source and Total
Battery Power Remaining are correct.
3. Repeat the steps 1 and 2, for both battery and adapter.
4. This helps you identify first the problem is on recharging or discharging.
From Hardware:
1. Power off the computer.
2. Remove the battery pack and measure the voltage between battery terminals 1(+) and 6(ground).
3. If the voltage is still less than 7.5 Vdc after recharging, replace the battery.
To check the battery charge operation, use a discharged battery pack or a battery pack that has less than 50%
of the total power remaining when installed in the computer.
If the battery status indicator does not light up, remove the battery pack and let it return to room temperature.
Re-install the battery pack.
If the charge indicator still does not light up, replace the battery pack. If the charge indicator still does not light
up, replace the DC/DC charger board.
Touchpad Check
If the touchpad doesn’t work, do the following actions one at a time to correct the problem. Do not replace a
non-defective FRU:
1. Reconnect the touchpad cables.
2. Replace the touchpad.
3. Replace the system board.
After you use the touchpad, the pointer drifts on the screen for a short time. This self-acting pointer movement
can occur when a slight, steady pressure is applied to the touchpad pointer. This symptom is not a hardware
problem. No service actions are necessary if the pointer movement stops in a short period of time.
Power-On Self-Test (POST) Error Message
The POST error message index lists the error message and their possible causes. The most likely cause is
listed first.
NOTE: Perform the FRU replacement or actions in the sequence shown in FRU/Action column, if the FRU
replacement does not solve the problem, put the original part back in the computer. Do not replace a
non-defective FRU.
This index can also help you determine the next possible FRU to be replaced when servicing a computer.
If the symptom is not listed, see “Undetermined Problems” on page 102.
The following lists the error messages that the BIOS displays on the screen and the error symptoms classified
by function.
NOTE: Most of the error messages occur during POST. Some of them display information about a hardware
device, e.g., the amount of memory installed. Others may indicate a problem with a device, such as the
way it has been configured.
NOTE: If the system fails after you make changes in the BIOS Setup Utility menus, reset the computer, enter
Setup and install Setup defaults or correct the error.
Chapter 4 89
Index of Error Messages
Error Code List
Error Codes Error Messages
006 Equipment Configuration Error
Causes:
1. CPU BIOS Update Code Mismatch
2. IDE Primary Channel Master Drive Error
(THe causes will be shown before “Equipment
Configuration Error”)
010 Memory Error at xxxx:xxxx:xxxxh (R:xxxxh, W:xxxxh)
070 Real Time Clock Error
071 CMOS Battery Bad
072 CMOS Checksum Error
110 System disabled.
Incorrect password is specified.
<No error code> Battery critical LOW
In this situation BIOS will issue 4 short beeps then shut
down system, no message will show.
<No error code> Thermal critical High
In this situation BIOS will shut down system, not show
message.
90 Chapter 4
Error Message List
Error Messages FRU/Action in Sequence
Failure Fixed Disk Reconnect hard disk drive connector.
“Load Default Settings” in BIOS Setup Utility.
Hard disk drive
System board
Stuck Key see “Keyboard or Auxiliary Input Device Check” on page 86.
Keyboard error see “Keyboard or Auxiliary Input Device Check” on page 86.
Keyboard Controller Failed see “Keyboard or Auxiliary Input Device Check” on page 86.
Keyboard locked - Unlock key switch Unlock external keyboard
Monitor type does not match CMOS - Run
Setup
Run “Load Default Settings” in BIOS Setup Utility.
Shadow RAM Failed at offset: nnnn BIOS ROM
System board
System RAM Failed at offset: nnnn DIMM
System board
Extended RAM Failed at offset: nnnn DIMM
System board
System battery is dead - Replace and run
Setup
Replace RTC battery and Run BIOS Setup Utility to
reconfigure system time, then reboot system.
System CMOS checksum bad - Default
configuration used
RTC battery
Run BIOS Setup Utility to reconfigure system time, then
reboot system.
System timer error RTC battery
Run BIOS Setup Utility to reconfigure system time, then
reboot system.
System board
Real time clock error RTC battery
Run BIOS Setup Utility to reconfigure system time, then
reboot system.
System board
Previous boot incomplete - Default
configuration used
Run “Load Default Settings” in BIOS Setup Utility.
RTC battery
System board
Memory size found by POST differed from
CMOS
Run “Load Default Settings” in BIOS Setup Utility.
DIMM
System board
Diskette drive A error Check the drive is defined with the proper diskette type in
BIOS Setup Utility
See “External Diskette Drive Check” on page 86.
Incorrect Drive A type - run SETUP Check the drive is defined with the proper diskette type in
BIOS Setup Utility
System cache error - Cache disabled System board
CPU ID: System board
DMA Test Failed DIMM
System board
Software NMI Failed DIMM
System board
Chapter 4 91
Fail-Safe Timer NMI Failed DIMM
System board
Device Address Conflict Run “Load Default Settings” in BIOS Setup Utility.
RTC battery
System board
Allocation Error for device Run “Load Default Settings” in BIOS Setup Utility.
RTC battery
System board
Failing Bits: nnnn DIMM
BIOS ROM
System board
Fixed Disk n None
Invalid System Configuration Data BIOS ROM
System board
I/O device IRQ conflict Run “Load Default Settings” in BIOS Setup Utility.
RTC battery
System board
Operating system not found Enter Setup and see if fixed disk and drive A: are properly
identified.
Diskette drive
Hard disk drive
System board
Error Message List
No beep Error Messages FRU/Action in Sequence
No beep, power-on indicator turns off and
LCD is blank.
Power source (battery pack and power adapter). See “Power
System Check” on page 87..
Ensure every connector is connected tightly and correctly.
Reconnect the DIMM.
LED board.
System board.
No beep, power-on indicator turns on and
LCD is blank.
Power source (battery pack and power adapter). See “Power
System Check” on page 87..
Reconnect the LCD connector
Hard disk drive
LCD inverter ID
LCD cable
LCD Inverter
LCD
System board
No beep, power-on indicator turns on and
LCD is blank. But you can see POST on an
external CRT.
Reconnect the LCD connectors.
LCD inverter ID
LCD cable
LCD inverter
LCD
System board
Error Message List
Error Messages FRU/Action in Sequence
92 Chapter 4
No beep, power-on indicator turns on and a
blinking cursor shown on LCD during
POST.
Ensure every connector is connected tightly and correctly.
System board
No beep during POST but system runs
correctly.
Speaker
System board
Error Message List
No beep Error Messages FRU/Action in Sequence
Chapter 4 93
Phoenix BIOS Beep Codes
Code Beeps POST Routine Description
02h Verify Real Mode
03h Disable Non-Maskable Interrupt (NMI)
04h Get CPU type
06h Initialize system hardware
08h Initialize chipset with initial POST values
09h Set IN POST flag
0Ah Initialize CPU registers
0Bh Enable CPU cache
0Ch Initialize caches to initial POST values
0Eh Initialize I/O component
0Fh Initialize the local bus IDE
10h Initialize Power Management
11h Load alternate registers with initial POST
values
12h Restore CPU control word during warm
boot
13h Initialize PCI Bus Mastering devices
14h Initialize keyboard controller
16h 1-2-2-3 BIOS ROM checksum
17h Initialize cache before memory autosize
18h 8254 timer initialization
1Ah 8237 DMA controller initialization
1Ch Reset Programmable Interrupt Controller
20h 1-3-1-1 Test DRAM refresh
22h 1-3-1-3 Test 8742 Keyboard Controller
24h Set ES segment register to 4 GB
26h Enable A20 line
28h Autosize DRAM
29h Initialize POST Memory Manager
2Ah Clear 215 KB base RAM
2Ch 1-3-4-1 RAM failure on address line xxxx
2Eh 1-3-4-3 RAM failure on data bits xxxx of low byte
of memory bus
2Fh Enable cache before system BIOS
shadow
30h 1-4-1-1 RAM failure on data bits xxxx of high byte
of memory bus
32h Test CPU bus-clock frequency
33h Initialize Phoenix Dispatch Manager
36h Warm start shut down
38h Shadow system BIOS ROM
3Ah Autosize cache
94 Chapter 4
3Ch Advanced configuration of chipset
registers
3Dh Load alternate registers with CMOS
values
42h Initialize interrupt vectors
45h POST device initialization
46h 2-1-2-3 Check ROM copyright notice
48h Check video configuration against CMOS
49h Initialize PCI bus and devices
4Ah Initialize all video adapters in system
4Bh QuietBoot start (optional)
4Ch Shadow video BIOS ROM
4Eh Display BIOS copyright notice
50h Display CPU type and speed
51h Initialize EISA board
52h Test keyboard
54h Set key click if enabled
58h 2-2-3-1 Test for unexpected interrupts
59h Initialize POST display service
5Ah Display prompt “Press F2 to enter
SETUP”
5Bh Disable CPU cache
5Ch Test RAM between 512 and 640 KB
60h Test extended memory
62h Test extended memory address lines
64h Jump to User Patch1
66h Configure advanced cache registers
67h Initialize Multi Processor APIC
68h Enable external and CPU caches
69h Setup System Management Mode (SMM)
area
6Ah Display external L2 cache size
6Bh Load custom defaults (optional)
6Ch Display shadow-area message
6Eh Display possible high address for UMB
recovery
70h Display error messages
72h Check for configuration errors
76h Check for keyboard errors
7Ch Set up hardware interrupt vectors
7Eh Initialize coprocessor if present
80h Disable onboard Super I/O ports and
IRQs
81h Late POST device initialization
Code Beeps POST Routine Description
Chapter 4 95
82h Detect and install external RS232 ports
83h Configure non-MCD IDE controllers
84h Detect and install external parallel ports
85h Initialize PC-compatible PnP ISA devices
86h Re-initialize onboard I/O ports
87h Configure Motherboard Configurable
Devices (optional)
88h Initialize BIOS Area
89h Enable Non-Maskable Interrupts (NMIs)
8Ah Initialize Extended BIOS Data Area
8Bh Test and initialize PS/2 mouse
8Ch Initialize floppy controller
8Fh Determine number of ATA drives
(optional)
90h Initialize hard-disk controllers
91h Initialize local-bus hard-disk controllers
92h Jump to UserPatch2
93h Build MPTABLE for multi-processor
boards
95h Install CD ROM for boot
96h Clear huge ES segment register
97h Fixup Multi Processor table
98h 1-2 Search for option ROMs. One long, two
short beeps on checksum failure.
99h Check for SMART drive (optional)
9Ah Shadow option ROMs
9Ch Set up Power Management
9Dh Initialize security engine (optional)
9Eh Enable hardware interrupts
9Fh Determine number of ATA and SCSI
drives
A0h Set time of day
A2h Check key lock
A4h Initialize Typematic rate
A8h Erase F2 prompt
AAh Scan for F2 key stroke
ACh Enter SETUP
AEh Clear Boot flag
B0h Check for errors
B2h POST done- prepare to boot operating
system
B4h 1 One short beep before boot
B5h Terminate QuietBoot (optional)
B6h Check password (optional)
Code Beeps POST Routine Description
96 Chapter 4
B9h Prepare Boot
BAh Initialize DMI parameters
BBh Initialize PnP Option ROMs
BCh Clear parity checkers
BDh Display MultiBoot menu
BEh Clear screen (optional)
BFh Check virus and backup reminders
C0h Try to boot with INT 19
C1h Initialize POST Error Manager (PEM)
C2h Initialize error logging
C3h Initialize error display function
C4h Initialize system error handler
C5h PnPnd dual CMOS (optional)
C6h Initialize notebook docking (optional)
C7h Initialize notebook docking late
C8h Force check (optional)
C9h Extended checksum (optional)
D2h Unknown interrupt
E0h Initialize the chipset
E1h Initialize the bridge
E2h Initialize the CPU
E3h Initialize the system timer
E4h Initialize system I/O
E5h Check force recovery boot
E6h Checksum BIOS ROM
E7h Go to BIOS
E8h Set Huge Segment
E9h Initialize Multi Processor
EAh Initialize OEM special code
EBh Initialize PIC and DMA
ECh Initialize Memory type
EDh Initialize Memory size
EEh Shadow Boot Block
EFh System memory test
F0h Initialize interrupt vectors
F1h Initialize Run Time Clock
F2h Initialize video
F3h Initialize System Management Mode
F4h 1 Output one beep before boot
F5h Boot to Mini DOS
F6h Clear Huge Segment
F7h Boot to Full DOS
Code Beeps POST Routine Description
Chapter 4 97
Index of Symptom-to-FRU Error Message
LCD-Related Symptoms
Symptom / Error Action in Sequence
LCD backlight doesn't work
LCD is too dark
LCD brightness cannot be adjusted
LCD contrast cannot be adjusted
Enter BIOS Utility to execute “Load Setup Default Settings”,
then reboot system.
Reconnect the LCD connectors.
Keyboard (if contrast and brightness function key doesn't
work).
LCD inverter ID
LCD cable
LCD inverter
LCD
System board
Unreadable LCD screen
Missing pels in characters
Abnormal screen
Wrong color displayed
Reconnect the LCD connector
LCD inverter ID
LCD cable
LCD inverter
LCD
System board
LCD has extra horizontal or vertical lines
displayed.
LCD inverter ID
LCD inverter
LCD cable
LCD
System board
Indicator-Related Symptoms
Symptom / Error Action in Sequence
Indicator incorrectly remains off or on, but
system runs correctly
Reconnect the inverter board
Inverter board
System board
Power-Related Symptoms
Symptom / Error Action in Sequence
Power shuts down during operation Power source (battery pack and power adapter). See “Power
System Check” on page 87.
Battery pack
Power adapter
Hard drive & battery connection board
System board
The system doesn’t power-on. Power source (battery pack and power adapter). See “Power
System Check” on page 87.
Battery pack
Power adapter
Hard drive & battery connection board
System board
98 Chapter 4
The system doesn’t power-off. Power source (battery pack and power adapter). See “Power
System Check” on page 87.
Hold and press the power switch for more than 4 seconds.
System board
Battery can’t be charged See “Check the Battery Pack” on page 88.
Battery pack
System board
PCMCIA-Related Symptoms
Symptom / Error Action in Sequence
System cannot detect the PC Card
(PCMCIA)
PCMCIA slot assembly
System board
PCMCIA slot pin is damaged. PCMCIA slot assembly
Memory-Related Symptoms
Symptom / Error Action in Sequence
Memory count (size) appears different from
actual size.
Enter BIOS Setup Utility to execute “Load Default Settings,
then reboot system.
DIMM
System board
Speaker-Related Symptoms
Symptom / Error Action in Sequence
In Windows, multimedia programs, no
sound comes from the computer.
Audio driver
Speaker
System board
Internal speakers make noise or emit no
sound.
Speaker
System board
Power Management-Related Symptoms
Symptom / Error Action in Sequence
The system will not enter hibernation See “Save to Disk (S4)” on page 26.
Keyboard (if control is from the keyboard)
Hard disk drive
System board
The system doesn't enter hibernation mode
and four short beeps every minute.
Press Fn+o and see if the computer enters hibernation
mode.
Touchpad
Keyboard
Hard disk connection board
Hard disk drive
System board
The system doesn’t enter standby mode
after closing the LCD
See “Save to Disk (S4)” on page 26.
LCD cover switch
System board
Power-Related Symptoms
Symptom / Error Action in Sequence
Chapter 4 99
The system doesn't resume from
hibernation mode.
See “Save to Disk (S4)” on page 26.
Hard disk connection board
Hard disk drive
System board
The system doesn't resume from standby
mode after opening the LCD.
See “Save to Disk (S4)” on page 26.
LCD cover switch
System board
Battery fuel gauge in Windows doesn’t go
higher than 90%.
Remove battery pack and let it cool for 2 hours.
Refresh battery (continue use battery until power off, then
charge battery).
Battery pack
System board
System hangs intermittently. Reconnect hard disk/CD-ROM drives.
Hard disk connection board
System board
Peripheral-Related Symptoms
Symptom / Error Action in Sequence
System configuration does not match the
installed devices.
Enter BIOS Setup Utility to execute “Load Default Settings”,
then reboot system.
Reconnect hard disk/CD-ROM/diskette drives.
External display does not work correctly. Press Fn+F5, LCD/CRT/Both display switching
System board
USB does not work correctly System board
Print problems. Onboard Devices Configuration
Run printer self-test.
Printer driver
Printer cable
Printer
System Board
Serial or parallel port device problems. Device driver
Device cable
Device
System board
Keyboard/Touchpad-Related Symptoms
Symptom / Error Action in Sequence
Keyboard (one or more keys) does not
work.
Reconnect the keyboard cable.
Keyboard
System board
Touchpad does not work. Reconnect touchpad cable.
Touchpad board
System board
Power Management-Related Symptoms
Symptom / Error Action in Sequence
100 Chapter 4
NOTE: If you cannot find a symptom or an error in this list and the problem remains, see “Undetermined
Problems” on page 102.
Modem-Related Symptoms
Symptom / Error Action in Sequence
Internal modem does not work correctly. Modem phone port
modem combo board
System board
Chapter 4 101
Intermittent Problems
Intermittent system hang problems can be caused by a variety of reasons that have nothing to do with a
hardware defect, such as: cosmic radiation, electrostatic discharge, or software errors. FRU replacement
should be considered only when a recurring problem exists.
When analyzing an intermittent problem, do the following:
1. Run the advanced diagnostic test for the system board in loop mode at least 10 times.
2. If no error is detected, do not replace any FRU.
3. If any error is detected, replace the FRU. Rerun the test to verify that there are no more errors.
102 Chapter 4
Undetermined Problems
The diagnostic problems does not identify which adapter or device failed, which installed devices are incorrect,
whether a short circuit is suspected, or whether the system is inoperative.
Follow these procedures to isolate the failing FRU (do not isolate non-defective FRU).
NOTE: Verify that all attached devices are supported by the computer.
NOTE: Verify that the power supply being used at the time of the failure is operating correctly. (See “Power
System Check” on page 87.):
1. Power-off the computer.
2. Visually check them for damage. If any problems are found, replace the FRU.
3. Remove or disconnect all of the following devices:
•Non-Acer devices
•Printer, mouse, and other external devices
•Battery pack
•Hard disk drive
•DIMM
•CD-ROM/Diskette drive Module
•PC Cards
4. Power-on the computer.
5. Determine if the problem has changed.
6. If the problem does not recur, reconnect the removed devices one at a time until you find the failing FRU.
7. If the problem remains, replace the following FRU one at a time. Do not replace a non-defective FRU:
•System board
•LCD assembly
Chapter 5 103
Main Board
Aspire 7736/7736Z/7336 and 7540 Top View
No. Code Connector
1LCD1 LCD cable connector
2SPKR_L1 Left speaker cable connector
3MIC1 Microphone cable connector
4SPKR_R1 Right speaker cable connector
5USBCN1 USB cable connector
6CN1 Keyboard cable connector
7TP1CN1 Touchpad cable connector
8FPCN1 Fingerprint or button connector
9MDC1 Modem board connector
10 BT1 Bluetooth cable connector
11 RTC1 RTC battery socket
Connector Locations
Chapter 5
104 Chapter 5
Aspire 7736/7736Z/7336 and 7540 Bottom View
No. Code Connector
1 BAT1 Battery connector
2 CPU1 CPU socket
3 FAN1 Heatsink fan cable connector
4 DCIN1 DC-in connector
5 RJ45 Ethernet port
6 CRT1 External display (VGA) port
7 HDMI1 HDMI port
8 USB1~3 USB 2.0 Ports
9 LIN1 Line-in jack
10 MICIN1 Microphone in jack
11 LOUT1 Headphones/speaker/line-out jack with S/PDIF support
12 CARD1 SD card slot
13 DM1 and 2 DIMM slots 1 and 2
14 ODD1 Optical disk drive connector
15 SATA1 HDD connector
Chapter 5 105
Clearing Password Check and BIOS Recovery
This section provides the standard operating procedures for clearing the password and BIOS recovery for
Aspire 7736/7736Z/7336 and Aspire 7540 Series. There is one Hardware Open Gap on the main board for
clearing the password check and one Hotkey for enabling BIOS Recovery.
Clearing Password Check
Hardware Open Gap Description
HW Gap position on the main board:
Gap name in 7736/7736Z/7336 Series is G78.
Hardware Default Setting Operation Description
Gap Open (Normal) Short (Clearing Password Check)
G78
106 Chapter 5
. Gap name in Aspire 7540 Series is G106.
Steps for Clearing BIOS Password Check
If the user sets the BIOS Password (Supervisor Password and/or User Password) for a security reason, the
BIOS will ask for the password during system POST or when the system enters into the BIOS Setup menu. If
it is necessary to bypass the password check, the user needs to short the hardware gap to clear the password
by following these steps:
• Power off the system, and remove the HDD, AC adapter and battery from the computer.
• Open the back cover of the computer and look for the hardware gap on the main board as shown
in the picture(s) above.
• Use an electric conductivity tool to short the two points of the hardware gap.
• Plug in the AC adapter while retaining the short condition on the hardware gap. Press the power
button to turn on the computer until the BIOS POST routine is finished. Finally, remove the tool
from the hardware gap.
• Restart the system. Press the F2 key to enter BIOS Setup menu.
• If there is no password request, the BIOS Password is cleared. Otherwise, repeat the steps above
and try again.
NOTE: The steps are only for clearing the BIOS password (Supervisor Password and User Password).
G106
Chapter 5 107
BIOS Recovery by Crisis Disk
BIOS Recovery Boot Block:
BIOS Recovery Boot Block is a special block of the BIOS. It is used to boot up the system with minimum BIOS
initialization. Users can enable this feature to restore the BIOS firmware to a successful one once the previous
BIOS flashing process failed.
BIOS Recovery Hotkey
The system provides a function hotkey: Fn+Esc, for enabling the BIOS Recovery process at system power-on
during BIOS POST. To use this function, the AC adapter and the battery must be connected. If this function is
enabled, the system will force the BIOS to enter a special BIOS block called Boot Block.
Steps for BIOS Recovery by Crisis Disk
Before doing this, prepare a Crisis Disk (refer to the “Steps for Creating the Crisis Disk in Windows XP/Vista”
section below) and keep it ready in hand.
Follow these steps for BIOS recovery:
1. Power off the system.
2. Connect a removable USB storage device containing the Crisis Disk to a USB port connected to the BIOS
flash failed system.
3. Under power-off state, press and hold Fn+Esc and then press the power button. The system should be
powered on with the Crisis BIOS Recovery process.
4. BIOS Boot Block starts to restore the BIOS code from the Crisis Disk to BIOS ROM on the failed system.
5. After the crisis flashing process is finished, the system will restart.
After the Crisis Recovery process is finished, the system should have a successful and workable BIOS after
power on. The user can then update the latest BIOS version for this system using the regular BIOS flashing
process.
Creating the Crisis Disk in Windows XP/Vista
Follow these steps to create the Crisis Disk:
1. Prepare a removable USB storage device (size greater than 10MB). Note that all data on the USB
storage device will be cleared during the creation of the Crisis Disk.
2. Set up another computer loaded with Windows XP or Vista operating system.
108 Chapter 5

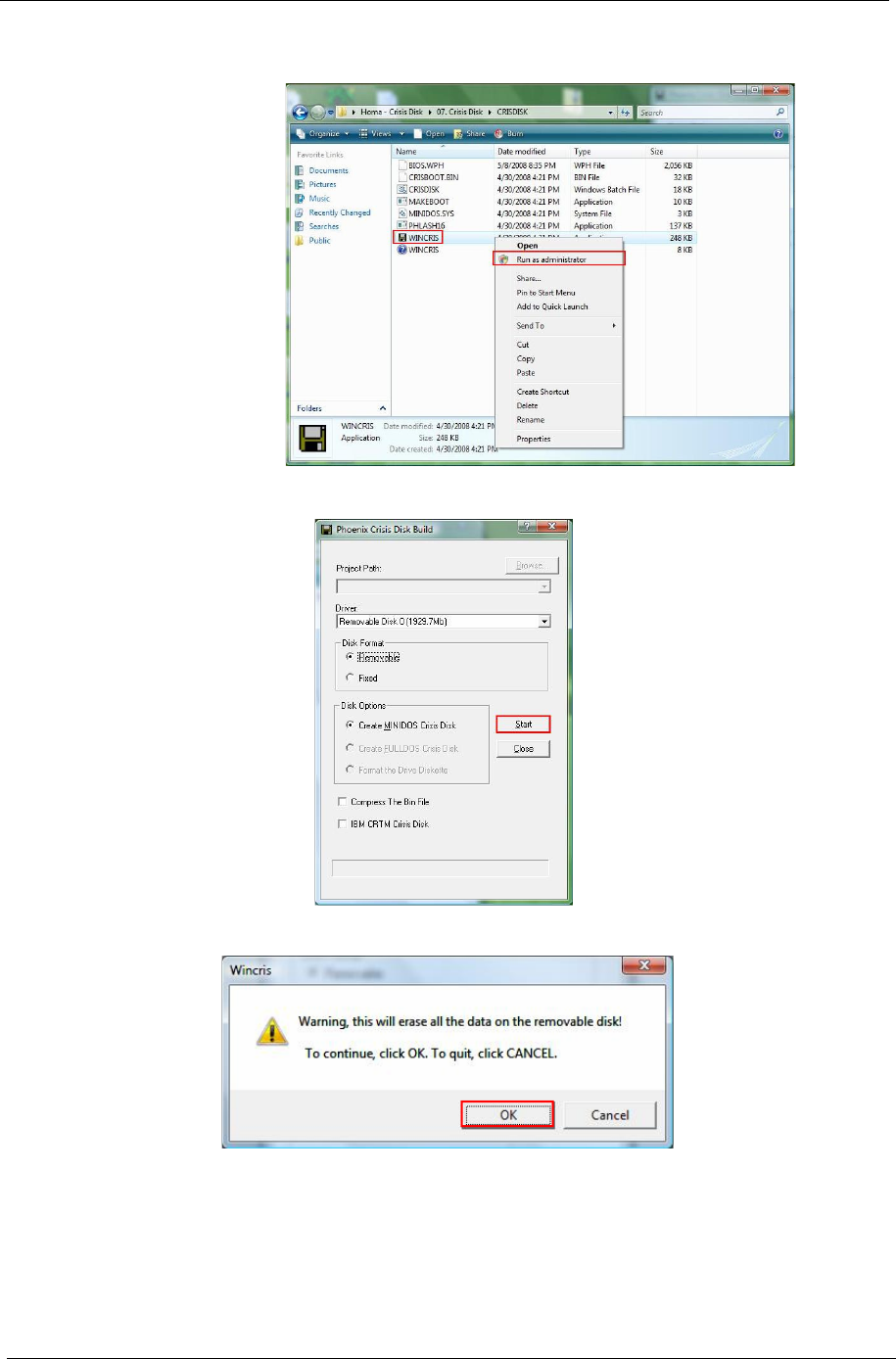

3. Decompress the Crisis Package Source. Select WINCRIS.EXE and then select Run as administrator
under Vista.
4. Keep the default settings and then click on the Start button.
5. When the pop-up warning dialog box appears, press OK to continue creating the Crisis Disk.
Chapter 5 109
6. The Crisis Disk will be created after a few seconds.
7. Press No if you do not want to create another Crisis Disk.
110 Chapter 5
8. Reconnect the USB removable storage device and check if it contains the 3 files shown in the following
figure.
Chapter 6 111
This chapter gives you the FRU (Field Replaceable Unit) listing in global configurations of Aspire 7736/7736Z/
7336 and Aspire 7540 Series. Refer to this chapter whenever ordering for parts to repair or for RMA (Return
Merchandise Authorization).
Please note that WHEN ORDERING FRU PARTS, you should check the most up-to-date information available
on your regional web or channel. For whatever reasons a part number change is made, it will not be noted on
the printed Service Guide. For ACER AUTHORIZED SERVICE PROVIDERS, your Acer office may have a
DIFFERENT part number code from those given in the FRU list of this printed Service Guide. You MUST use
the local FRU list provided by your regional Acer office to order FRU parts for repair and service of customer
machines.
NOTE: To scrap or to return the defective parts, you should follow the local government ordinance or regulations on how to
dispose it properly, or follow the rules set by your regional Acer office on how to return it.
FRU (Field Replaceable Unit) List
Chapter 6
112 Chapter 6
Aspire 7736/7736Z/7336 Series and Aspire 7540 Series
Exploded Diagram
Chapter 6 113
Aspire 7736/7736Z/7336 Series FRU List
1. ACER_ASPIRE 7336 UMACBK_JV71_MV (NO: 91.4FX01.004G )
Category No. Part Name Acer Part No.
ADAPTER 1 ADP 65W 19V 3P ADP-65JH DB A, AP.06501.026
1 ADP 65W 19V 3P PA-1650-22AC LV AP.06503.024
1 ADP 65W 19V 3P HP-A0652R3B 1LF AP.0650A.012
BATTERY 1 BTY PACK LI+ 6C 2.2AH PANA BT.00605.021
1 BTY PACK LI+ 6C 2.2AH SANYO BT.00603.042
1 BTY PACK LI+ 6C 2.2AH SONY BT.00604.025
1 BTY PACK LI+ 6C 2.2AH SDI BT.00606.001
1 BTY PACK LI+ 8C 2.4AH SONY BT.00804.020
1 BTY PACK LI+ 8C 2.4AH SANYO BT.00803.024
BOARDS 1 BT MODULE FOXCONN BCM2046 V2.1 BH.21100.004
1 JV71-MV FP BD W/O FP 09587-1(D TBD
1 JV71-MV USB 09582-1 BD(D) TBD
2 MODEM MDC FOX_LSI AM5-V2H FX.22500.023
1 TOUCHPAD SYNAPTICS TM00540-005 56.ATR01.001
1 TOUCHPAD ALPS KGDFF0038A 56.PAW01.001
1 WLAN 802.11BGN ATHEROS HB93 AR NI.23600.054
1 WLAN 802.11BGN ATHEROS HB93 NI.23600.046
1 WLAN 802.11BG ATHEROS AR9285(H NI.23600.047
CABLES 1 CORD USA/W CNS 2.5A 125V 8121- 27.01518.781
1 POWER CORD TAIWANESE BLACK,1.8 27.01518.A11
1 CORD SWISS 2.5A 250V 3P BK 27.01518.581
1 CORD 10A 250V 3P SWISS BK 27.01518.691
1 CORD ARGENTINE,10A 250V3G,1.8M 27.01518.0U1
1 CORD US 7A 125V BK 27.T30V1.001
1 CORD 10A 125V 3P US BK 27.01518.641
1 CORD 7A250V 2P 1830 KOREAN 27.01518.531
1 CORD UK 2.5A 250V 3P BK 27.01518.541
1 CORD 5A 250V 3P UK BK 27.03118.001
114 Chapter 6
CABLES 1 CORD JAPAN 7A 125V 2P BK 27.01518.551
1 CORD DENMARK 2.5A 250V 3P BK 27.01518.561
1 CORD 10A 250V 3P DENMARK BK 27.01518.671
1 CORD SOUTH AFRICA 16A 250V BK 27.01518.571
1 CORD 16A 250V SOUTH AFRICA BK 27.01518.681
1 CORD CHINA 10A 250V 3P 27.01518.591
1 CORD 10A 250V 3P CHINA BK 27.01518.701
1 CORD EUR 250V 3P BK 27.T30V1.004
1 CORD 16A 250V 3P EUR BK 27.01518.731
1 CORD ITALY 10A 250V 3P BK 27.01518.611
1 CORD 10A 250V 3P ITALY BK 27.01518.711
1 CORD 2.5A 250V AUSTRALIA BK 27.01518.621
1 CORD 2.5A 250V SOUTH AFRICA BK 27.01518.631
1 CORD 6A 250V SOUTH AFRICA BK 27.01518.721
1 CORD 7A 125V 2P JAPAN BK 27.01518.661
1 CORD 250V 10~16A 3P ISRAEL 27.01518.761
1 POWER CORD BRAZIL,BLK,1.8M 27.01518.A41
1 POWER CORD ACA / ACNZ ANNIE 27.03218.021
1 CORD 7.5A 250V 3P AUSTRALIA BK 27.03218.051
1 CORD 7A 125V JAPAN 2PIN BK 27.03518.161
1 JV71_TP_FFC TBD
1 TR_JV71_TP_FFC TBD
1 JV71_FP_FFC TBD
1 TR_JV71_FP_FFC TBD
2 CABLE RJ11 JV71 TBD
1 CABLE USB JV71 TBD
1 C.A. USB JV71(HT) TBD
1 C.A. BLUETOOTH JV71 TBD
1 C.A. BLUETOOTH JV71(WANSH) TBD
1 C.A. BLUETOOTH JV71(HT) TBD
2 C.A. LCD JV71(MEC) TBD
2 C.A. LCD JV71(WANSH) TBD

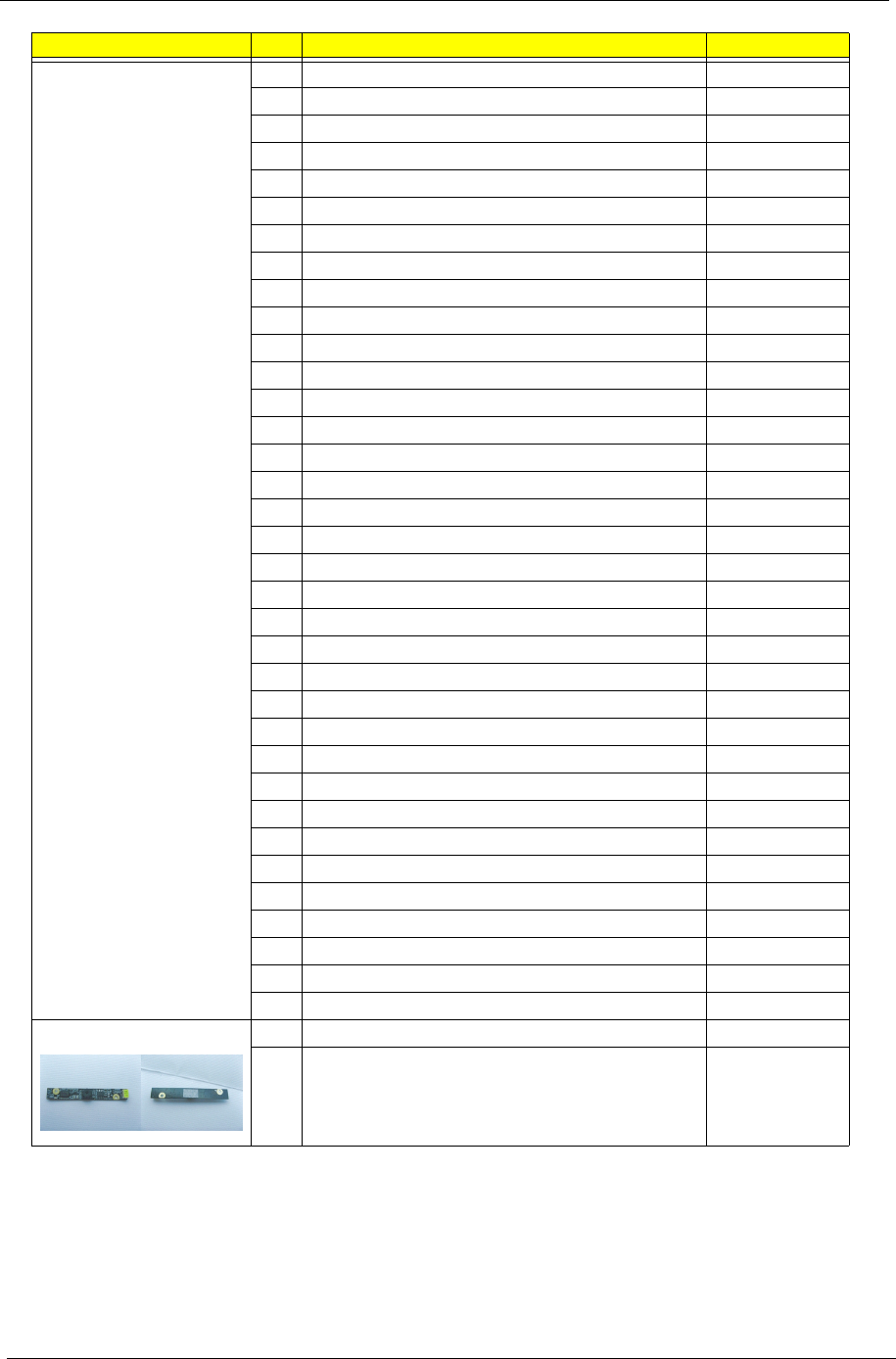

CAMERA 2 CAMERA 0.3M CN0314-SN30-OV03-5 57.N4401.001
2 CAMERA 0.3M CNF701721004973L 57.W9401.001
Category No. Part Name Acer Part No.
Chapter 6 115
CASE/COVER/BRACKET
ASSEMBLY
2 ASSY 60 LCD BEZEL JV71 TBD
2 ASSY 60 LCD PANEL JV71(1+1) TBD
1 ASSY JV71 TP BRKT TBD
1 ASSY JV71 AMD MIDDLE COVER TBD
1 ASSY JV71_HDD_DOR TBD
1 ASSY 60 NO FINGER UCASE JV71 TBD
1 ASSY 60_LCASE_JV71 TBD
2 ASSY 60 HDD JV50 33.PAW01.003
2 ASSY ODD BEZEL JV71 TBD
2 BRKT ODD JV50 33.PAW01.002
2 HINGE LEFT ASSYJV71(LH) TBD
2 HINGE LEFT ASSY JV71(SZS) TBD
2 HINGE RIGHT ASSYJV71(LH) TBD
2 HINGE RIGHTT ASSY JV71(SZS) TBD
1 SD DUMMY CARD MYALL2 42.TKJ01.001
2 JV71_ODD_BLUE RAY_ASSY TBD
COMBO MODULE 1 ODD NBDCB4XS BLU-RAY JV71_MV
2 BD COMBO SATA W7 PLDS DS-4E1S KO.0040F.003
2 BD COMBO SATA W7 SONY BC-5500S KO.0040E.002
CPU/PROCESSOR 1 IC CPU CELERON 900 2.2G PGA KC.N0001.900
1 IC CPU CELERON T3100 1.9G PGA KC.31001.CMT
DVD-RW DRIVE 1 ODD NSM8XS SUPER-MULTI JV71_MV
2 ODD SM12.7 HFW7 TSST TS-L633C KU.00801.035
2 ODD SM12.7 HF+W7 HLDS GT30N KU.0080D.048
HDD/HARD DISK DRIVE 1 HDD N160GB5.4KS FOR JV71_MV
2 HDD 160GB HGST HTS545016B9A300 KH.16007.024
2 HDD 160GB WD WD1600BEVT-22ZCT0 KH.16008.022
1 HDD N250GB5.4KS FOR JV71_MV
2 HDD 250GB HGST HTS545025B9A300 KH.25007.015
1 HDD N320GB5.4KS FOR JV71_MV
2 HDD 320GB HGST HTS545032B9A300 KH.32007.007
2 HDD 320GB WD WD3200BEVT-22ZCT0 KH.32008.013
1 HDD N500GB5.4KS FOR JV71_MV
2 HDD 500GB WD5000BEVT-22ZAT0 KH.50008.013
HEATSINK 1 ASSY THERMAL JV71 MV UMA FCVF TBD
1 ASSY THERMAL JV71 MV UMA FOXS TBD
Category No. Part Name Acer Part No.
Fan Cable
116 Chapter 6
KEYBOARD 1 KB MP-09B26GB-442 UK 104 AC7T KB.I170A.055
1 KB NSK-ALA0U UK 104KEY AC7T KB.I170A.055
1 KB NSK-ALA1D US-IN 103KEY AC7T KB.I170A.056
1 KB MP-09B23U4-442 USI 103 AC7T KB.I170A.056
1 KB NSK-ALA0A ARABI 103KEY AC7T KB.I170A.032
1 KB MP-09B23A0-442 ARA 103 AC7T KB.I170A.032
1 KB NSK-ALA1A BELGI 104KEY AC7T KB.I170A.033
1 KB MP-09B26B0-442 BEL 104 AC7T KB.I170A.033
1 KB NSK-ALA1B BRZ 104KEY AC7T KB.I170A.034
1 KB MP-09B26PA-442 BRA 104 AC7T KB.I170A.034
1 KB NSK-ALA13 CZ/SK 104KEY AC7T KB.I170A.035
1 KB MP-09B26CS-442 CZK 104 AC7T KB.I170A.035
1 KB NSK-ALA02 TAIWA 103KEY AC7T KB.I170A.036
1 KB MP-09B23RC-442 CHI 103 AC7T KB.I170A.036
1 KB NSK-ALA0D DANIS 104KEY AC7T KB.I170A.037
1 KB MP-09B26DK-442 DAN 104 AC7T KB.I170A.037
1 KB NSK-ALA2A FRA 104KEY AC7T KB.I170A.038
1 KB MP-09B26AF-442 FRA 104 AC7T KB.I170A.038
1 KB NSK-ALA0F FRENC 104KEY AC7T KB.I170A.039
1 KB MP-09B26F0-442 FRE 104 AC7T KB.I170A.039
1 KB NSK-ALA0G GERMA 104KEY AC7T KB.I170A.040
1 KB MP-09B26D0-442 GER 104 AC7T KB.I170A.040
1 KB NSK-ALA0L GREEK 103KEY AC7T KB.I170A.041
1 KB MP-09B23GR-442 GRE 103 AC7T KB.I170A.041
1 KB NSK-ALA0Q HUNGA 104KEY AC7T KB.I170A.042
1 KB MP-09B26HU-442 HUN 104 AC7T KB.I170A.042
1 KB NSK-ALA0E ITALI 104KEY AC7T KB.I170A.043
1 KB MP-09B26I0-442 ITA 104 AC7T KB.I170A.043
1 KB NSK-ALA0J JAPAN 107KEY AC7T KB.I170A.044
1 KB MP-09B20J0-442 JAP 107 AC7T KB.I170A.044
1 KB NSK-ALA1K NORDI 104KEY AC7T KB.I170A.045
1 KB MP-09B26DN-442 NOD 104 AC7T KB.I170A.045
1 KB NSK-ALA0N NORWE 104KEY AC7T KB.I170A.046
1 KB MP-09B26N0-442 NOR 104 AC7T KB.I170A.046
1 KB NSK-ALA06 PORTU 104KEY AC7T KB.I170A.047
1 KB MP-09B26P0-442 POR 104 AC7T KB.I170A.047
1 KB NSK-ALA0R RUSSI 103KEY AC7T KB.I170A.048
1 KB MP-09B23SU-442 RUS 103 AC7T KB.I170A.048
Category No. Part Name Acer Part No.
Chapter 6 117
KEYBOARD 1 KB NSK-ALA1F SLOVE 104KEY AC7T KB.I170A.049
1 KB MP-09B26SA-442 SLO 104 AC7T KB.I170A.049
1 KB NSK-ALA0S SPANI 104KEY AC7T KB.I170A.050
1 KB MP-09B26E0-442 SPA 104 AC7T KB.I170A.050
1 KB NSK-ALA0W SWEDI 104KEY AC7T KB.I170A.051
1 KB MP-09B26S0-442 SWE 104 AC7T KB.I170A.051
1 KB NSK-ALA00 SWISS 104KEY AC7T KB.I170A.052
1 KB MP-09B26CH-442 SWI 104 AC7T KB.I170A.052
1 KB NSK-ALA03 THAIL 103KEY AC7T KB.I170A.053
1 KB MP-09B23T0-442 THA 103 AC7T KB.I170A.053
1 KB NSK-ALA0T TURKI 104KEY AC7T KB.I170A.054
1 KB MP-09B26TQ-442 TUR 104 AC7T KB.I170A.054
1 KB NSK-ALA0H HEBRE 103KEY AC7T KB.I170A.057
1 KB MP-09B23HB-442 HEB 103 AC7T KB.I170A.057
1 KB NSK-ALA2M FCE 104KEY AC7T KB.I170A.058
1 KB MP-09B26CU-442 FCE 104 AC7T KB.I170A.058
LCD 1 LCD NLED17.3WXGA+G ANT*2 W/CAM
2 LCD 17.3"WXGA+ LP173WD1-TLA1 G LK.17308.001
2 LCD 17.3"WXGA+ AU B173RW01-V0 LK.17305.001
2 LCD 17.3"WXGA+ CMO N173O6-L02 LK.1730D.001
MAINBOARD 1 JV71-MV UMA MB 09242-1 GL40(D) MB.PJB01.001
MEMORY 1 SODIMM 1G HYMP112S64CP6-S6 KN.1GB0G.016
1 SODIMM 1G M470T2864QZ3-CE6 KN.1GB0B.016
1 SODIMM 1G HYMP112S64CP6-Y5 KN.1GB0G.012
1 SODIMM 1G NT1GT64UH8D0FN-AD KN.1GB03.025
1 SODIMM 2G HMP125S6EFR8C-Y5 KN.2GB0G.012
1 SODIMM 2G NT2GT64U8HD0BN-AD KN.2GB03.010
1 SODIMM 2G M470T5663EH3-CF7 KN.2GB0B.018
MICROPHONE 2 MICROPHONE XINGMENG JV71 TBD
2 MICROPHONE HIT JV71 TBD
MISCELLANEOUS 1 JV71_7336_NAME_PLATE TBD
1 RUB CIRCLE BEZEL JV71 TBD
SPEAKER 2 SPEAKER FG JV71 L TBD
2 SPEAKER ZULUX JV71 L TBD
2 SPEAKER FG JV71 R TBD
2 SPEAKER ZYLUX JV71 R TBD
Category No. Part Name Acer Part No.
118 Chapter 6
2. ACER_ASPIRE 7736G N10MGS512CFBK V3_JV71_MV (NO: 91.4FX01.001G )
SCREWS 1 ISO M2.5X6(H=0.7~0.8MM) 86.00E12.536
1 M2.5*L10 BLACK ZN 86.00F84.73A
1 M2.5*L5 BLACK ZN+NYLOK 86.TK501.001
1 SCRW M2.5XL4 D4.5 T0.8 GL 86.00H59.734
1 SCREW M2-3 86.9A522.3R0
1 SCRW M2*4 WAFER NI 86.9A552.4R0
1 SCREW MACH WAFER M3*L4 NI 86.9A554.4R0
1 SCRW M2.5L3.5 86.9A563.3R5
Category No. Part Name Acer Part No.
ADAPTER 1 ADAPTER 65W 19V 3PIN DELTA ADP-65JH DB A LV5
LED LF YELLOW
AP.06501.026
1 ADAPTER 65W 19V 3PIN LITEON PA-1650-22AC LV5
LED LF YELLOW
AP.06503.024
1 ADAPTER 65W 19V 3PIN HIPRO HP-A0652R3B 1LF
LV5 LED LF YELLOW
AP.0650A.012
BATTERY 1 BATTERY SONY AS-2007B LI-ION 4S2P SONY 8 CELL
4800MAH MAIN COMMON
BT.00804.020
1 BATTERY SANYO AS-2007B LI-ION 4S2P SANYO 8
CELL 4800MAH MAIN COMMON
BT.00803.024
1 BATTERY SANYO AS-2007B LI-ION 3S2P SANYO 6
CELL 4400MAH MAIN COMMON NORMAL TYPE
BT.00603.042
1 BATTERY SONY AS-2007B LI-ION 3S2P SONY 6 CELL
4400MAH MAIN COMMON NORMAL TYPE
BT.00604.025
1 BATTERY PANASONIC AS-2007B LI-ION 3S2P
PANASONIC 6 CELL 4400MAH MAIN COMMON PSS
BT.00605.021
1 BATTERY SIMPLO AS-2007B LI-ION 3S2P SAMSUNG
6 CELL 4400MAH MAIN COMMON SDI 2.2F
BT.00606.001
BOARDS 1 BLUETOOTH BOARD FOXCONN BRM 2046 BT2.1
T60H928.33 F/W:861
BH.21100.004
1 FINGER PRINT SENSOR BOARD 55.PCC01.005
1 FINGER PRINT BASE BOARD TBD
2 MODEM BOARD FOXCONN DELPHI-AM5 V2H
1.5_3.3V AUS T60M951.36
FX.22500.023
1 TOUCHPAD BOARD ALPS KGDFF0038A 56.PAW01.001
1 TOUCHPAD BOARD SYNAPTICS TM00540-005 56.ATR01.001
Category No. Part Name Acer Part No.
Chapter 6 119
1 USB BOARD TBD
1 WIRELESS LAN BOARD 512AN_HMWG SHIRLEY
PEAK 5100 MM#895373
KI.SPH01.003
1 WIRELESS LAN BOARD 512AG_MMWG SHIRLEY
PEAK 5100 MM#897004
KI.SPM01.005
1 WIRELESS LAN BOARD 512AN_MMWG SHIRLEY
PEAK 5100 MM#895361
KI.SPM01.003
CABLES 1 BLUETOOTH BOARD CABLE TBD
1 BLUETOOTH BOARD CABLE TBD
1 BLUETOOTH BOARD CABLE TBD
1 FINGER PRINT / TP BUTTON BAORD CABLE TBD
1 FINGER PRINT / TP BUTTON BAORD CABLE TBD
2 LED LCD/CAMERA CABLE TBD
2 LED LCD/CAMERA CABLE TBD
2 MODEM CABLE TBD
1 POWER CABLE 16A 250V 3PIN EUR BK 27.01518.731
1 POWER CORD 2.5A 125V USA 27.01518.781
1 POWER CORD 2.5A 125V 1.8M BLACK TAIWANESE 27.01518.A11
1 POWER CORD 10A 250V SWISS 27.01518.581
1 POWER CORD 10A 250V 3PIN SWISS BK 27.01518.691
1 POWER CORD 10A 250V ARGENTINE 27.01518.0U1
1 POWER CORD 10A 125V US 27.T30V1.001
1 POWER CORD 10A 125V 3PIN US BK 27.01518.641
1 POWER CORD 7A 250V 2PIN KOREAN 27.01518.531
1 POWER CORD 3A 250V 3PIN UK 27.01518.541
1 POWER CORD 5A 250V 3PIN UK BK 27.03118.001
1 POWER CORD 7A 125V 2PIN JAPAN 27.01518.551
1 POWER CORD 10A 3PIN BK DENMARK 27.01518.561
1 POWER CORD 10A 250V 3PIN DENMARK BK 27.01518.671
1 POWER CORD 10A 250V 3PIN BK SOUTH AFRICA 27.01518.571
1 POWER CORD 16A 250V SOUTH AFRICA BK 27.01518.681
1 POWER CORD 10A 250V 3PIN CHINA 27.01518.591
1 POWER CORD 10A 250V 3PIN CHINA BK 27.01518.701
1 POWER CORD 250V 3PIN EUR BK 27.T30V1.004
1 POWER CORD 10A 250V 3PIN ITALY 27.01518.611
1 POWER CORD 10A 250V 3PIN ITALY BK 27.01518.711
1 POWER CORD 2.5A 250V AUSTRALIA 27.01518.621
1 POWER CORD 2.5A 250V SOUTH AFRICA BK (INDIA) 27.01518.631
1 POWER CORD 10A 250V SOUTH AFRICA BK (INDIA) 27.01518.721
1 POWER CORD 7A 125V 2PIN JAPAN BK 27.01518.661
1 POWER CORD 250V 10A 3PIN ISRAEL 27.01518.761
1 POWER CORD 10A 250V 1.8M BRAZIL BLK 27.01518.A41
1 POWER CORD ACA / ACNZ 27.03218.021
1 POWER CORD 7.5A 250V 3P AUSTRALIA BK 27.03218.051
Category No. Part Name Acer Part No.
120 Chapter 6
CABLES 1 POWER CORD 7A 125V 2PIN JAPAN 27.03518.161
1 TOUCHPAD BOARD CABLE TBD
1 TOUCHPAD BOARD CABLE TBD
1 USB BOARD CABLE TBD
1 USB BOARD CABLE TBD
1 USB BOARD CABLE TBD
CAMERA 2 CAMERA 0.3M CHICONY CNF701721004973L 57.W9401.001
2 CAMERA 0.3M SUYIN CN0314-SN30-OV03-5 57.N4401.001
CASE/COVER/BRACKET
ASSEMBLY
2 BLUE-RAY COMBO BEZEL TBD
2 DVD-RW SUPER-MULTI BEZEL TBD
2 LED LCD BRACKET LEFT W/HINGE TBD
2 LED LCD BRACKET LEFT W/HINGE TBD
2 LED LCD BRACKET RIGHT W/HINGE TBD
2 LED LCD BRACKET RIGHT W/HINGE TBD
2 LED LCD BEZEL 17.3" W/CAMERA HOLE TBD
2 LED LCD COVER 17.3" IMR BLUE W/ANTENNA*2 &
LOGO
TBD
1 LOWER CASE W/MODEM CABLE & MICROPHONE &
SPEAKER
TBD
1 MIDDLE COVER TBD
2 OPTICAL BRACKET 33.PAW01.002
1 SD DUMMY CARD 42.TKJ01.001
1 TOUCHPAD BRACKET TBD
1 UNITLOAD COVER TBD
1 UPPER CASE BLACK W/SPEAKER & FINGER PRINT
HOLE
TBD
COMBO MODULE 1 BLU-RAY COMBO MODULE 4X SATA WINDOWS7
2 ODD SONY BD COMBO 12.7MM TRAY DL 4X BC-
5500S LF W/O BEZEL FW 1.E1 SATA FOR
WINDOWS7
KO.0040E.002
2 ODD PLDS BD COMBO 12.7MM TRAY DL 4X DS-4E1S
LF W/O BEZEL SATA FOR WINDOWS7
KO.0040F.003
CPU/PROCESSOR 1 CPU INTEL CORE2DUAL P8800 PGA 2.66G 3M 1066
25W R-0
KC.88R01.DPP
1 CPU INTEL CORE2DUAL P7350 PGA 2.0G 3M 1066
25W
KC.73501.DPP
1 CPU INTEL CORE2DUAL P7550 PGA 2.26G 3M 1066
R-0
KC.75501.DPP
1 CPU INTEL CORE2DUAL T6500 PGA 2.1G 2M 800 R-0 KC.65001.DTP
DVD-RW DRIVE 1 DVD-RW SUPER-MULTI MODULE 8X SATA
WINDOWS7
2 ODD TOSHIBA SUPER-MULTI DRIVE 12.7MM TRAY
DL 8X TS-L633C LF W/O BEZEL SATA FOR
HF+WINDOWS7
KU.00801.035
2 ODD HLDS SUPER-MULTI DRIVE 12.7MM TRAY DL
8X GT30N LF W/O BEZEL SATA FOR HF+WINDOWS7
KU.0080D.048
Category No. Part Name Acer Part No.
Chapter 6 121
HDD/HARD DISK DRIVE 1 HDD MODULE 160GB 5400RPM SATA
2 HDD 160GB 5400RPM SATA HGST PANTHER-B
PANTHER-B HTS545016B9A300 F/W:C60F
KH.16007.024
2 HDD 160GB 5400RPM 2.5" SATA WD WD1600BEVT-
22ZCT0 FW:11.01A11
KH.16008.022
1 HDD MODULE 250GB 5400RPM SATA
2 HDD 250GB 5400RPM SATA HGST
HTS545025B9A300 PANTHER-B LF
KH.25007.015
1 HDD MODULE 320GB 5400RPM SATA
2 HDD 320GB 5400RPM SATA HGST
HTS545032B9A300 PANTHER B LF
KH.32007.007
2 HDD 320GB 5400RPM SATA WD WD3200BEVT-
22ZCT0 ML125 F/W:01.01A01
KH.32008.013
1 HDD MODULE 500GB 5400RPM SATA
2 HDD 500GB 5400RPM WD SATA WD5000BEVT-
22ZAT0 F/W:01.01A01
KH.50008.013
HEATSINK 1 CPU HEATSINK DISCRETE W/FAN TBD
1 CPU HEATSINK DISCRETE W/FAN TBD
KEYBOARD 1 KEYBOARD 103KEYS NSK-ALA0J AC7T JV50
INTERNAL 17 STANDARD BLACK TEXTURE US-
INTERNATIONAL
KB.I170A.056
1 KEYBOARD 103KEYS NSK-ALA0J AC7T JV50
INTERNAL 17 STANDARD BLACK TEXTURE US-
INTERNATIONAL
KB.I170A.056
1 KEYBOARD 103KEYS NSK-ALA0J AC7T JV50
INTERNAL 17 STANDARD BLACK TEXTURE ARABIC
KB.I170A.032
1 KEYBOARD 103KEYS NSK-ALA0J AC7T JV50
INTERNAL 17 STANDARD BLACK TEXTURE ARABIC
KB.I170A.032
1 KEYBOARD 104KEYS NSK-ALA0J AC7T JV50
INTERNAL 17 STANDARD BLACK TEXTURE
BELGIAN
KB.I170A.033
1 KEYBOARD 104KEYS NSK-ALA0J AC7T JV50
INTERNAL 17 STANDARD BLACK TEXTURE
BELGIAN
KB.I170A.033
1 KEYBOARD 104KEYS NSK-ALA0J AC7T JV50
INTERNAL 17 STANDARD BLACK TEXTURE
BRAZILIAN PORTUGUESE
KB.I170A.034
1 KEYBOARD 104KEYS NSK-ALA0J AC7T JV50
INTERNAL 17 STANDARD BLACK TEXTURE
BRAZILIAN PORTUGUESE
KB.I170A.034
1 KEYBOARD 104KEYS NSK-ALA0J AC7T JV50
INTERNAL 17 STANDARD BLACK TEXTURE CZECH/
SLOVAK
KB.I170A.035
1 KEYBOARD 104KEYS NSK-ALA0J AC7T JV50
INTERNAL 17 STANDARD BLACK TEXTURE CZECH/
SLOVAK
KB.I170A.035
1 KEYBOARD 103KEYS NSK-ALA0J AC7T JV50
INTERNAL 17 STANDARD BLACK TEXTURE TAIWAN
KB.I170A.036
Category No. Part Name Acer Part No.
122 Chapter 6
KEYBOARD 1 KEYBOARD 103KEYS NSK-ALA0J AC7T JV50
INTERNAL 17 STANDARD BLACK TEXTURE TAIWAN
KB.I170A.036
1 KEYBOARD 104KEYS NSK-ALA0J AC7T JV50
INTERNAL 17 STANDARD BLACK TEXTURE DANISH
KB.I170A.037
1 KEYBOARD 104KEYS NSK-ALA0J AC7T JV50
INTERNAL 17 STANDARD BLACK TEXTURE DANISH
KB.I170A.037
1 KEYBOARD 104KEYS NSK-ALA0J AC7T JV50
INTERNAL 17 STANDARD BLACK TEXTURE FRENCH
ARABIC
KB.I170A.038
1 KEYBOARD 104KEYS NSK-ALA0J AC7T JV50
INTERNAL 17 STANDARD BLACK TEXTURE FRENCH
ARABIC
KB.I170A.038
1 KEYBOARD 104KEYS NSK-ALA0J AC7T JV50
INTERNAL 17 STANDARD BLACK TEXTURE FRENCH
KB.I170A.039
1 KEYBOARD 104KEYS NSK-ALA0J AC7T JV50
INTERNAL 17 STANDARD BLACK TEXTURE FRENCH
KB.I170A.039
1 KEYBOARD 104KEYS NSK-ALA0J AC7T JV50
INTERNAL 17 STANDARD BLACK TEXTURE
GERMAN
KB.I170A.040
1 KEYBOARD 104KEYS NSK-ALA0J AC7T JV50
INTERNAL 17 STANDARD BLACK TEXTURE
GERMAN
KB.I170A.040
1 KEYBOARD 103KEYS NSK-ALA0J AC7T JV50
INTERNAL 17 STANDARD BLACK TEXTURE GREEK
KB.I170A.041
1 KEYBOARD 103KEYS NSK-ALA0J AC7T JV50
INTERNAL 17 STANDARD BLACK TEXTURE GREEK
KB.I170A.041
1 KEYBOARD 104KEYS NSK-ALA0J AC7T JV50
INTERNAL 17 STANDARD BLACK TEXTURE
HUNGARIAN
KB.I170A.042
1 KEYBOARD 104KEYS NSK-ALA0J AC7T JV50
INTERNAL 17 STANDARD BLACK TEXTURE
HUNGARIAN
KB.I170A.042
1 KEYBOARD 104KEYS NSK-ALA0J AC7T JV50
INTERNAL 17 STANDARD BLACK TEXTURE ITALIAN
KB.I170A.043
1 KEYBOARD 104KEYS NSK-ALA0J AC7T JV50
INTERNAL 17 STANDARD BLACK TEXTURE ITALIAN
KB.I170A.043
1 KEYBOARD 107KEYS NSK-ALA0J AC7T JV50
INTERNAL 17 STANDARD BLACK TEXTURE
JAPANESE
KB.I170A.044
1 KEYBOARD 107KEYS NSK-ALA0J AC7T JV50
INTERNAL 17 STANDARD BLACK TEXTURE
JAPANESE
KB.I170A.044
1 KEYBOARD 104KEYS NSK-ALA0J AC7T JV50
INTERNAL 17 STANDARD BLACK TEXTURE NORDIC
KB.I170A.045
1 KEYBOARD 104KEYS NSK-ALA0J AC7T JV50
INTERNAL 17 STANDARD BLACK TEXTURE NORDIC
KB.I170A.045
1 KEYBOARD 104KEYS NSK-ALA0J AC7T JV50
INTERNAL 17 STANDARD BLACK TEXTURE
NORWEGIAN
KB.I170A.046
1 KEYBOARD 104KEYS NSK-ALA0J AC7T JV50
INTERNAL 17 STANDARD BLACK TEXTURE
NORWEGIAN
KB.I170A.046
1 KEYBOARD 104KEYS NSK-ALA0J AC7T JV50
INTERNAL 17 STANDARD BLACK TEXTURE
PORTUGAL
KB.I170A.047
Category No. Part Name Acer Part No.
Chapter 6 123
KEYBOARD 1 KEYBOARD 104KEYS NSK-ALA0J AC7T JV50
INTERNAL 17 STANDARD BLACK TEXTURE
PORTUGAL
KB.I170A.047
1 KEYBOARD 103KEYS NSK-ALA0J AC7T JV50
INTERNAL 17 STANDARD BLACK TEXTURE
RUSSIAN
KB.I170A.048
1 KEYBOARD 103KEYS NSK-ALA0J AC7T JV50
INTERNAL 17 STANDARD BLACK TEXTURE
RUSSIAN
KB.I170A.048
1 KEYBOARD 104KEYS NSK-ALA0J AC7T JV50
INTERNAL 17 STANDARD BLACK TEXTURE SLOVE
KB.I170A.049
1 KEYBOARD 104KEYS NSK-ALA0J AC7T JV50
INTERNAL 17 STANDARD BLACK TEXTURE SLOVE
KB.I170A.049
1 KEYBOARD 104KEYS NSK-ALA0J AC7T JV50
INTERNAL 17 STANDARD BLACK TEXTURE SPANISH
KB.I170A.050
1 KEYBOARD 104KEYS NSK-ALA0J AC7T JV50
INTERNAL 17 STANDARD BLACK TEXTURE SPANISH
KB.I170A.050
1 KEYBOARD 104KEYS NSK-ALA0J AC7T JV50
INTERNAL 17 STANDARD BLACK TEXTURE
SWEDISH
KB.I170A.051
1 KEYBOARD 104KEYS NSK-ALA0J AC7T JV50
INTERNAL 17 STANDARD BLACK TEXTURE
SWEDISH
KB.I170A.051
1 KEYBOARD 104KEYS NSK-ALA0J AC7T JV50
INTERNAL 17 STANDARD BLACK TEXTURE SWISS
KB.I170A.052
1 KEYBOARD 104KEYS NSK-ALA0J AC7T JV50
INTERNAL 17 STANDARD BLACK TEXTURE SWISS
KB.I170A.052
1 KEYBOARD 103KEYS NSK-ALA0J AC7T JV50
INTERNAL 17 STANDARD BLACK TEXTURE
THAILAND
KB.I170A.053
1 KEYBOARD 103KEYS NSK-ALA0J AC7T JV50
INTERNAL 17 STANDARD BLACK TEXTURE
THAILAND
KB.I170A.053
1 KEYBOARD 104KEYS NSK-ALA0J AC7T JV50
INTERNAL 17 STANDARD BLACK TEXTURE
TURKISH
KB.I170A.054
1 KEYBOARD 104KEYS NSK-ALA0J AC7T JV50
INTERNAL 17 STANDARD BLACK TEXTURE
TURKISH
KB.I170A.054
1 KEYBOARD 104KEYS NSK-ALA0J AC7T JV50
INTERNAL 17 STANDARD BLACK TEXTURE UK
KB.I170A.055
1 KEYBOARD 104KEYS NSK-ALA0J AC7T JV50
INTERNAL 17 STANDARD BLACK TEXTURE UK
KB.I170A.055
1 KEYBOARD 103KEYS NSK-ALA0J AC7T JV50
INTERNAL 17 STANDARD BLACK TEXTURE
HEBREW
KB.I170A.057
1 KEYBOARD 103KEYS NSK-ALA0J AC7T JV50
INTERNAL 17 STANDARD BLACK TEXTURE
HEBREW
KB.I170A.057
1 KEYBOARD 104KEYS NSK-ALA0J AC7T JV50
INTERNAL 17 STANDARD BLACK TEXTURE FRENCH
CANADIAN
KB.I170A.058
1 KEYBOARD 104KEYS NSK-ALA0J AC7T JV50
INTERNAL 17 STANDARD BLACK TEXTURE FRENCH
CANADIAN
KB.I170A.058
Category No. Part Name Acer Part No.
124 Chapter 6
LCD 1 LED LCD MODULE 17.3" WXGA GLARE IMR BLUE W/
ANTENNA*2&CAMERA 0.3M
2 LED LCD LPL 17.3" WXGA+ GLARE LP173WD1-TLA1
LF 220NIT 8MS 600:1
LK.17308.001
2 LED LCD AUO 17.3" WXGA+ GLARE B173RW01-V0
LF 220NIT 8MS 600:1
LK.17305.001
2 LED LCD CMO 17.3" WXGA+ GLARE N173O6-L02 LF
220NIT 8MS 600:1
LK.1730D.001
MAINBOARD 1 MAINBOARD JV71_MV AS7736G DISCRETE INTEL
PM45 ICH9M VRAM HYNIX GRAPHIC DDRIII 800 1GB
H5TQ1G63BFR-12C LF W/RTC BATTERY&MODEM
BOARD
MB.PHU01.001

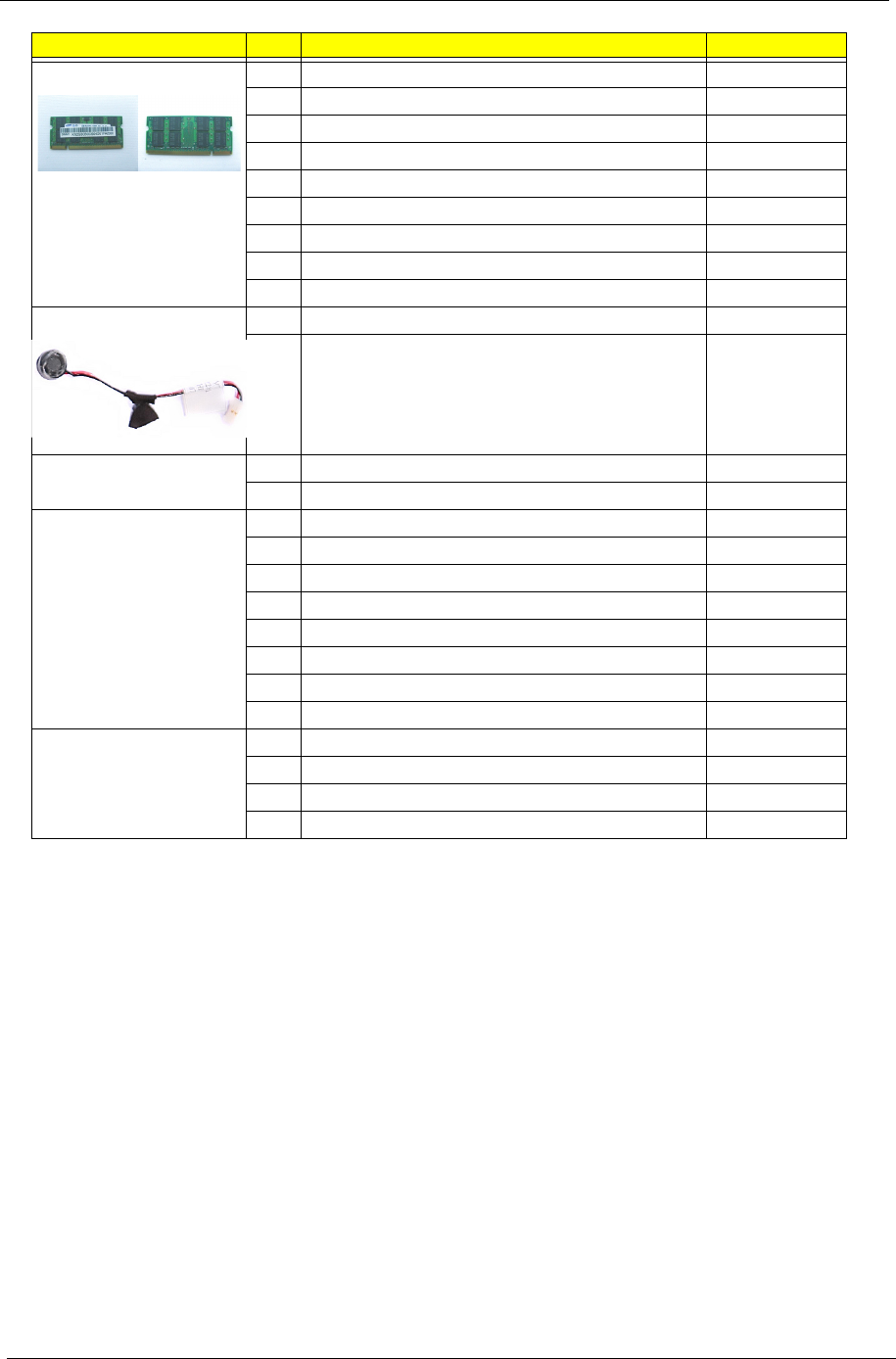

MEMORY 1 SODIMM 1GB DDRII667 SAMSUNG M470T2864QZ3-
CE6 LF
KN.1GB0B.016
1 SODIMM 1GB DDRII667 HYNIX HYMP112S64CP6-Y5
LF
KN.1GB0G.012
1 SODIMM 1GB DDRII 800 NANYA NT1GT64UH8D0FN-
AD LF 64*16 0.07UM
KN.1GB03.025
1 SODIMM 1GB DDRII 800 HYNIX HYMP112S64CP6-S6
LF 64*16 0.065UM
KN.1GB0G.016
1 SODIMM 2GB DDRII667 HYNIX HMP125S6EFR8C-Y5
LF
KN.2GB0G.012
1 SODIMM 2GB DDRII 800 NANYA NT2GT64U8HD0BN-
AD LF 128*8 0.07UM
KN.2GB03.010
1 SODIMM 2GB DDRII 800 SAMSUNG M470T5663EH3-
CF7 LF 128*8 0.055UM
KN.2GB0B.018
MICROPHONE 2MICROPHONE TBD
2MICROPHONE TBD
MISCELLANEOUS 1 NAME PLATE AS7736 TBD
1 LCD SCREW RUBBER TBD
SCREWS 1 SCREW M2.5X6 H=0.7~0.8MM 86.00E12.536
1 SCREW M2.5*L10 BLACK ZN 86.00F84.73A
1 SCREW M2.5*L5 BLACK ZN+NYLOK 86.TK501.001
1 SCREW M2.5XL4 D4.5 T0.8 GL 86.00H59.734
1 SCREW M2-3 86.9A522.3R0
1 SCREW M2*4 WAFER NI 86.9A552.4R0
1 SCREW MACH WAFER M3*L4 NI 86.9A554.4R0
1 SCREW M2.5L3.5 86.9A563.3R5
SPEAKER 2 SPEAKER ON UPPER CASE TBD
2 SPEAKER ON UPPER CASE TBD
2 SPEAKER ON LOWER CASE TBD
2 SPEAKER ON LOWER CASE TBD
Category No. Part Name Acer Part No.
Chapter 6 125
3. ACER_ASPIRE 7736ZG N10MGS512Cbk V3_JV71_MV (NO: S2.PJA02.002 )
Category No. Part Name Acer Part No.
ADAPTER 1 ADP 65W 19V 3P HP-A0652R3B 1LF AP.0650A.012
1 ADP 65W 19V 3P ADP-65JH DB A, AP.06501.026
1 ADP 65W 19V 3P PA-1650-22AC LV AP.06503.024
BATTERY 1 BTY PACK LI+ 6C 2.2AH SONY BT.00604.025
1 BTY PACK LI+ 6C 2.2AH SANYO BT.00603.042
1 BTY PACK LI+ 6C 2.2AH PANA BT.00605.021
1 BTY PACK LI+ 6C 2.2AH SDI BT.00606.001
1 BTY PACK LI+ 8C 2.4AH SONY BT.00804.020
1 BTY PACK LI+ 8C 2.4AH SANYO BT.00803.024
BOARDS 1 BT MODULE FOXCONN BCM2046 V2.1 BH.21100.004
2 MODEM MDC FOX_LSI AM5-V2H FX.22500.023
1 JV71-MV FP BD W/O FP 09587-1(D TBD
1 JV71-MV USB 09582-1 BD(D) TBD
1 TOUCHPAD SYNAPTICS TM00540-005 56.ATR01.001
1 TOUCHPAD ALPS KGDFF0038A 56.PAW01.001
1 WLAN 802.11BG ATHEROS AR9285(H NI.23600.047
1 WLAN 802.11BGN ATHEROS HB93 NI.23600.046
1 WLAN 802.11BGN ATHEROS HB93 AR NI.23600.054
126 Chapter 6
CABLES 1 C.A. USB JV71(WANSH) TBD
1 C.A. USB JV71(HT) TBD
1C.A. BLUETOOTH JV71 TBD
1 C.A. BLUETOOTH JV71(WANSH) TBD
1 C.A. BLUETOOTH JV71(HT) TBD
2 C.A. LCD JV71(MEC) TBD
2 C.A. LCD JV71(WANSH) TBD
1 CABLE USB JV71 TBD
1 CORD USA/W CNS 2.5A 125V 8121- 27.01518.781
1 CODE SWISS 2.5A 250V 3P BK 27.01518.581
1 CODE 10A 250V 3P SWISS BK 27.01518.691
1 CORD ARGENTINE,10A 250V3G,1.8M 27.01518.0U1
1 CODE US 7A 125V BK 27.T30V1.001
1 CODE 10A 125V 3P US BK 27.01518.641
1 CORD 7A250V 2P 1830 KOREAN 27.01518.531
1 CODE UK 2.5A 250V 3P BK 27.01518.541
1 CODE 5A 250V 3P UK BK 27.03118.001
1 CODE JAPAN 7A 125V 2P BK 27.01518.551
1 CODE DENMARK 2.5A 250V 3P BK 27.01518.561
1 CODE 10A 250V 3P DENMARK BK 27.01518.671
1 CODE SOUTH AFRICA 16A 250V BK 27.01518.571
1 CODE 16A 250V SOUTH AFRICA BK 27.01518.681
1 CORD CHINA 10A 250V 3P 27.01518.591
1 CORD 10A 250V 3P CHINA BK 27.01518.701
1 CORD EUR 250V 3P BK 27.T30V1.004
1 CORD 16A 250V 3P EUR BK 27.01518.731
1 CORD ITALY 10A 250V 3P BK 27.01518.611
1 CORD 10A 250V 3P ITALY BK 27.01518.711
1 CORD 2.5A 250V AUSTRALIA BK 27.01518.621
1 CORD 2.5A 250V SOUTH AFRICA BK 27.01518.631
1 CORD 6A 250V SOUTH AFRICA BK 27.01518.721
1 CODE 7A 125V 2P JAPAN BK 27.01518.661
1 CORD 250V 10~16A 3P ISRAEL 27.01518.761
1 POWER CORD BRAZIL,BLK,1.8M 27.01518.A41
1 POWER CODE ACA / ACNZ ANNIE 27.03218.021
1 POWER CORD TAIWANESE BLACK,1.8 27.01518.A11
1 CORD 7.5A 250V 3P AUSTRALIA BK 27.03218.051
1 CORD 7A 125V JAPAN 2PIN BK 27.03518.161
1 JV71_FP_FFC TBD
1 JV71_TP_FFC TBD
2 CABLE RJ11 JV71 TBD
1 TR_JV71_FP_FFC TBD
1 TR_JV71_TP_FFC TBD
Category No. Part Name Acer Part No.
Chapter 6 127
CAMERA 2 CAMERA 0.3M CN0314-SN30-OV03-5 57.N4401.001
2 CAMERA 0.3M CNF701721004973L 57.W9401.001
CASE/COVER/BRACKET
ASSEMBLY
2 ASSY 60 LCD BEZEL JV71 TBD
2 ASSY 60 LCD PANEL JV71(1+1) TBD
1 ASSY 60 NO FINGER UCASE JV71 TBD
1 ASSY 60_LCASE_JV71 TBD
2 ASSY 60 HDD JV50 33.PAW01.003
2 ASSY ODD BEZEL JV71 TBD
1 ASSY JV71 AMD MIDDLE COVER TBD
1 ASSY JV71_HDD_DOR TBD
1 ASSY JV71 TP BRKT TBD
2 BRKT ODD JV50 33.PAW01.002
2 HINGE LEFT ASSYJV71(LH) TBD
2 HINGE LEFT ASSY JV71(SZS) TBD
2 HINGE RIGHT ASSYJV71(LH) TBD
2 HINGE RIGHTT ASSY JV71(SZS) TBD
2 JV71_ODD_BLUE RAY_ASSY TBD
1 SD DUMMY CARD MYALL2 42.TKJ01.001
COMBO MODULE 1 ODD NBDCB4XS BLU-RAY JV71_MV
2 BD COMBO SATA W7 SONY BC-5500S KO.0040E.002
2 BD COMBO SATA W7 PLDS DS-4E1S KO.0040F.003
CPU/PROCESSOR 1 IC CPU PENRYN T4200 2.0G PGA KC.42001.DTP
1 IC CPU PENRYN T4300 2.1G PGA KC.43001.DTP
DVD-RW DRIVE 1 ODD NSM8XS SUPER-MULTI JV71_MV
2 ODD SM12.7 HF+W7 HLDS GT30N KU.0080D.048
2 ODD SM12.7 HFW7 TSST TS-L633C KU.00801.035
HDD/HARD DISK DRIVE 1 HDD N160GB5.4KS FOR JV71_MV
2 HDD 160GB HGST HTS545016B9A300 KH.16007.024
2 HDD 160GB WD WD1600BEVT-22ZCT0 KH.16008.022
1 HDD N250GB5.4KS FOR JV71_MV
2 HDD 250GB HGST HTS545025B9A300 KH.25007.015
1 HDD N320GB5.4KS FOR JV71_MV
2 HDD 320GB HGST HTS545032B9A300 KH.32007.007
2 HDD 320GB WD WD3200BEVT-22ZCT0 KH.32008.013
1 HDD N500GB5.4KS FOR JV71_MV
2 HDD 500GB WD5000BEVT-22ZAT0 KH.50008.013
Category No. Part Name Acer Part No.
128 Chapter 6
HEATSINK 1 ASSY THERMAL JV71 MV DIS FCVF TBD
1 ASSY THERMAL JV71 MV DIS FOXS TBD
KEYBOARD 1 KB MP-09B23U4-442 USI 103 AC7T KB.I170A.056
1 KB NSK-ALA1D US-IN 103KEY AC7T KB.I170A.056
1 KB NSK-ALA0A ARABI 103KEY AC7T KB.I170A.032
1 KB MP-09B23A0-442 ARA 103 AC7T KB.I170A.032
1 KB NSK-ALA1A BELGI 104KEY AC7T KB.I170A.033
1 KB MP-09B26B0-442 BEL 104 AC7T KB.I170A.033
1 KB NSK-ALA1B BRZ 104KEY AC7T KB.I170A.034
1 KB MP-09B26PA-442 BRA 104 AC7T KB.I170A.034
1 KB NSK-ALA13 CZ/SK 104KEY AC7T KB.I170A.035
1 KB MP-09B26CS-442 CZK 104 AC7T KB.I170A.035
1 KB NSK-ALA02 TAIWA 103KEY AC7T KB.I170A.036
1 KB MP-09B23RC-442 CHI 103 AC7T KB.I170A.036
1 KB NSK-ALA0D DANIS 104KEY AC7T KB.I170A.037
1 KB MP-09B26DK-442 DAN 104 AC7T KB.I170A.037
1 KB NSK-ALA2A FRA 104KEY AC7T KB.I170A.038
1 KB MP-09B26AF-442 FRA 104 AC7T KB.I170A.038
1 KB NSK-ALA0F FRENC 104KEY AC7T KB.I170A.039
1 KB MP-09B26F0-442 FRE 104 AC7T KB.I170A.039
1 KB NSK-ALA0G GERMA 104KEY AC7T KB.I170A.040
1 KB MP-09B26D0-442 GER 104 AC7T KB.I170A.040
1 KB NSK-ALA0L GREEK 103KEY AC7T KB.I170A.041
1 KB MP-09B23GR-442 GRE 103 AC7T KB.I170A.041
1 KB NSK-ALA0Q HUNGA 104KEY AC7T KB.I170A.042
1 KB MP-09B26HU-442 HUN 104 AC7T KB.I170A.042
1 KB NSK-ALA0E ITALI 104KEY AC7T KB.I170A.043
1 KB MP-09B26I0-442 ITA 104 AC7T KB.I170A.043
1 KB NSK-ALA0J JAPAN 107KEY AC7T KB.I170A.044
1 KB MP-09B20J0-442 JAP 107 AC7T KB.I170A.044
1 KB NSK-ALA1K NORDI 104KEY AC7T KB.I170A.045
1 KB MP-09B26DN-442 NOD 104 AC7T KB.I170A.045
1 KB NSK-ALA0N NORWE 104KEY AC7T KB.I170A.046
1 KB MP-09B26N0-442 NOR 104 AC7T KB.I170A.046
1 KB NSK-ALA06 PORTU 104KEY AC7T KB.I170A.047
1 KB MP-09B26P0-442 POR 104 AC7T KB.I170A.047
1 KB NSK-ALA0R RUSSI 103KEY AC7T KB.I170A.048
1 KB MP-09B23SU-442 RUS 103 AC7T KB.I170A.048
1 KB NSK-ALA1F SLOVE 104KEY AC7T KB.I170A.049
1 KB MP-09B26SA-442 SLO 104 AC7T KB.I170A.049
1 KB NSK-ALA0S SPANI 104KEY AC7T KB.I170A.050
1 KB MP-09B26E0-442 SPA 104 AC7T KB.I170A.050
Category No. Part Name Acer Part No.
Fan Cable
Chapter 6 129
KEYBOARD 1 KB NSK-ALA0W SWEDI 104KEY AC7T KB.I170A.051
1 KB MP-09B26S0-442 SWE 104 AC7T KB.I170A.051
1 KB NSK-ALA00 SWISS 104KEY AC7T KB.I170A.052
1 KB MP-09B26CH-442 SWI 104 AC7T KB.I170A.052
1 KB NSK-ALA03 THAIL 103KEY AC7T KB.I170A.053
1 KB MP-09B23T0-442 THA 103 AC7T KB.I170A.053
1 KB NSK-ALA0T TURKI 104KEY AC7T KB.I170A.054
1 KB MP-09B26TQ-442 TUR 104 AC7T KB.I170A.054
1 KB NSK-ALA0U UK 104KEY AC7T KB.I170A.055
1 KB MP-09B26GB-442 UK 104 AC7T KB.I170A.055
1 KB NSK-ALA0H HEBRE 103KEY AC7T KB.I170A.057
1 KB MP-09B23HB-442 HEB 103 AC7T KB.I170A.057
1 KB NSK-ALA2M FCE 104KEY AC7T KB.I170A.058
1 KB MP-09B26CU-442 FCE 104 AC7T KB.I170A.058
LCD 1 LCD NLED17.3WXGA+G ANT*2 W/CAM
2 LCD 17.3"WXGA+ CMO N173O6-L02 LK.1730D.001
2 LCD 17.3"WXGA+ LP173WD1-TLA1 G LK.17308.001
2 LCD 17.3"WXGA+ AU B173RW01-V0 LK.17305.001
MAINBOARD 1 JV71-MV DIS MB 09242-1 SM(D) MB.PJA01.001
MEMORY 1 SODIMM 1G M470T2864QZ3-CE6 KN.1GB0B.016
1 SODIMM 1G HYMP112S64CP6-Y5 KN.1GB0G.012
1 SODIMM 1G NT1GT64UH8D0FN-AD KN.1GB03.025
1 SODIMM 1G HYMP112S64CP6-S6 KN.1GB0G.016
1 SODIMM 2G M470T5663EH3-CF7 KN.2GB0B.018
1 SODIMM 2G HMP125S6EFR8C-Y5 KN.2GB0G.012
1 SODIMM 2G NT2GT64U8HD0BN-AD KN.2GB03.010
MICROPHONE 2 MICROPHONE XINGMENG JV71 TBD
2 MICROPHONE HIT JV71 TBD
MISCELLANEOUS 1 JV71_7736Z_NAME_PLATE TBD
1 RUB CIRCLE BEZEL JV71 TBD
Category No. Part Name Acer Part No.
130 Chapter 6
SCREWS 1 ISO M2.5X6(H=0.7~0.8MM) 86.00E12.536
1 M2.5*L10 BLACK ZN 86.00F84.73A
1 M2.5*L5 BLACK ZN+NYLOK 86.TK501.001
1 SCRW M2.5XL4 D4.5 T0.8 GL 86.00H59.734
1 SCREW M2-3 86.9A522.3R0
1 SCRW M2*4 WAFER NI 86.9A552.4R0
1 SCREW MACH WAFER M3*L4 NI 86.9A554.4R0
1 SCRW M2.5L3.5 86.9A563.3R5
SPEAKER 2 SPEAKER FG JV71 L TBD
2 SPEAKER ZULUX JV71 L TBD
2 SPEAKER FG JV71 R TBD
2 SPEAKER ZYLUX JV71 R TBD
Category No. Part Name Acer Part No.
Chapter 6 131
Aspire 7540 Series FRU List
1. ACER_ASPIRE 77540 UMACBK_JV71_TR (NO:91.4FP01.003G)
Category No. Part Name Acer Part No.
ADAPTER 1 ADP 65W 19V 3P HP-A0652R3B 1LF AP.0650A.012
1 ADP 65W 19V 3P ADP-65JH DB A, AP.06501.026
1 ADP 65W 19V 3P PA-1650-22AC LV AP.06503.024
BATTERY 1 BTY PACK LI+ 6C 2.2AH SANYO BT.00603.042
1 BTY PACK LI+ 6C 2.2AH PANA BT.00605.021
1 BTY PACK LI+ 6C 2.2AH SDI BT.00606.001
1 BTY PACK LI+ 8C 2.4AH SANYO BT.00803.024
1 BTY PACK LI+ 8C 2.4AH SONY BT.00804.020
BOARDS 1 BT MODULE FOXCONN BCM2046 V2.1 BH.21100.004
1 JV71-TR FP BD W/0 FP 09587-1 D TBD
1 JV71-TR USB BD PD 09582-1(D) TBD
2 MODEM MDC FOX_LSI AM5-V2H FX.22500.023
1 TOUCHPAD ALPS KGDFF0038A 56.PAW01.001
1 TOUCHPAD SYNAPTICS TM00540-005 56.ATR01.001
1 WLAN 802.11BGN ATHEROS HB93 NI.23600.046
1 WLAN 802.11BGN ATHEROS HB93 AR NI.23600.054
1 WLAN 802.11BG ATHEROS AR9285(H NI.23600.047
132 Chapter 6
CABLES 1 C.A. BLUETOOTH JV71 TBD
1 C.A. BLUETOOTH JV71(WANSH) TBD
1 C.A. BLUETOOTH JV71(HT) TBD
2 C.A. LCD JV71(MEC) TBD
2 C.A. LCD JV71(WANSH) TBD
1 C.A. USB JV71(WANSH) TBD
1 C.A. USB JV71(HT) TBD
2 CABLE RJ11 JV71 TBD
1 CABLE USB JV71 TBD
1 CORD USA/W CNS 2.5A 125V 8121- 27.01518.781
1 CORD SWISS 2.5A 250V 3P BK 27.01518.581
1 CORD 10A 250V 3P SWISS BK 27.01518.691
1 CORD ARGENTINE,10A 250V3G,1.8M 27.01518.0U1
1 CORD US 7A 125V BK 27.T30V1.001
1 CORD10A 125V 3P US BK 27.01518.641
1 CORD 7A250V 2P 1830 KOREAN 27.01518.531
1 CORD UK 2.5A 250V 3P BK 27.01518.541
1 CORD 5A 250V 3P UK BK 27.03118.001
1 CORD JAPAN 7A 125V 2P BK 27.01518.551
1 CORD DENMARK 2.5A 250V 3P BK 27.01518.561
1 CORD10A 250V 3P DENMARK BK 27.01518.671
1 CORDSOUTH AFRICA 16A 250V BK 27.01518.571
1 CORD 16A 250V SOUTH AFRICA BK 27.01518.681
1 CORD CHINA 10A 250V 3P 27.01518.591
1 CORD 10A 250V 3P CHINA BK 27.01518.701
1 CORD EUR 250V 3P BK 27.T30V1.004
1 CORD 16A 250V 3P EUR BK 27.01518.731
1 CORD ITALY 10A 250V 3P BK 27.01518.611
1 CORD 10A 250V 3P ITALY BK 27.01518.711
1 CORD 2.5A 250V AUSTRALIA BK 27.01518.621
1 CORD 2.5A 250V SOUTH AFRICA BK 27.01518.631
1 CORD 6A 250V SOUTH AFRICA BK 27.01518.721
1 CORD 7A 125V 2P JAPAN BK 27.01518.661
1 CORD 7.5A 250V 3P AUSTRALIA BK 27.03218.051
1 CORD 7A 125V JAPAN 2PIN BK 27.03518.161
1 CORD 250V 10~16A 3P ISRAEL 27.01518.761
1 POWER CORD BRAZIL,BLK,1.8M 27.01518.A41
1 POWER CODE ACA / ACNZ ANNIE 27.03218.021
1 POWER CORD TAIWANESE BLACK,1.8 27.01518.A11
1 JV71_FP_FFC TBD
1 JV71_TP_FFC TBD
1 TR_JV71_FP_FFC TBD
1 TR_JV71_TP_FFC TBD
Category No. Part Name Acer Part No.
Chapter 6 133
CAMERA 2 CAMERA 0.3M CNF701721004973L 57.W9401.001
2 CAMERA 0.3M CN0314-SN30-OV03-5 57.N4401.001
CASE/COVER/BRACKET
ASSEMBLY
2 ASSY 60 HDD JV50 33.PAW01.003
1 ASSY 60 NO FINGER UCASE JV71 TBD
1 ASSY 60_LCASE_JV71 TBD
2 ASSY 60 LCD BEZEL JV71 TBD
2 ASSY 60 LCD PANEL JV71(1+1) TBD
1 ASSY JV71 TP BRKT TBD
1 ASSY JV71 AMD MIDDLE COVER TBD
1 ASSY JV71_HDD_DOR TBD
2 ASSY ODD BEZEL JV71 TBD
2 HINGE LEFT ASSYJV71(LH) TBD
2 HINGE LEFT ASSY JV71(SZS) TBD
2 HINGE RIGHT ASSYJV71(LH) TBD
2 HINGE RIGHTT ASSY JV71(SZS) TBD
2 JV71_ODD_BLUE RAY_ASSY TBD
2 BRKT ODD JV50 33.PAW01.002
1 SD DUMMY CARD MYALL2 42.TKJ01.001
2 BRKT ODD JV50 33.PAW01.002
COMBO MODULE 2 BD COMBO SATA W7 PLDS DS-4E1S KO.0040F.003
2 BD COMBO SATA W7 SONY BC-5500S KO.0040E.002
1 ODD NBDCB4XS BD COMBO JV71_TR
CPU/PROCESSOR 1 IC CPU ATHLONII M320 2.1G 1M 3 KC.AM002.320
1 IC CPU ATHLONII M300 2.0G 1M 3 KC.AM002.300
DVD-RW DRIVE 1 ODD NSM8XS SUPER-MULTI JV71_TR
2 ODD SM12.7 HFW7 TSST TS-L633C KU.00801.035
2 ODD SM12.7 HF+W7 HLDS GT30N KU.0080D.048
Category No. Part Name Acer Part No.
134 Chapter 6
HDD/HARD DISK DRIVE 1 HDD N160GB5.4KS FOR JV71_TR
2 HDD 160GB HGST HTS545016B9A300 KH.16007.024
2 HDD 160GB WD WD1600BEVT-22ZCT0 KH.16008.022
1 HDD N250GB5.4KS FOR JV71_TR
2 HDD 250GB HGST HTS545025B9A300 KH.25007.015
1 HDD N320GB5.4KS FOR JV71_TR
2 HDD 320GB HGST HTS545032B9A300 KH.32007.007
2 HDD 320GB WD WD3200BEVT-22ZCT0 KH.32008.013
1 HDD N500GB5.4KS FOR JV71_TR
2 HDD 500GB SGT ST9500325AS 5.4K KH.50001.011
2 HDD 500GB HGST HTS545050B9A300 KH.50007.009
2 HDD 500GB WD5000BEVT-22ZAT0 KH.50008.013
HEATSINK 1 ASSY THERMAL JV71 TR UMA FOXS TBD
1 ASSY THERMAL JV71 TR UMA FCVF TBD
KEYBOARD 1 KB NSK-ALA1D US-IN 103KEY AC7T KB.I170A.056
1 KB MP-09B23U4-442 USI 103 AC7T KB.I170A.056
1 KB NSK-ALA0A ARABI 103KEY AC7T KB.I170A.032
1 KB MP-09B23A0-442 ARA 103 AC7T KB.I170A.032
1 KB NSK-ALA1A BELGI 104KEY AC7T KB.I170A.033
1 KB MP-09B26B0-442 BEL 104 AC7T KB.I170A.033
1 KB NSK-ALA1B BRZ 104KEY AC7T KB.I170A.034
1 KB MP-09B26PA-442 BRA 104 AC7T KB.I170A.034
1 KB NSK-ALA13 CZ/SK 104KEY AC7T KB.I170A.035
1 KB MP-09B26CS-442 CZK 104 AC7T KB.I170A.035
1 KB NSK-ALA02 TAIWA 103KEY AC7T KB.I170A.036
1 KB MP-09B23RC-442 CHI 103 AC7T KB.I170A.036
1 KB NSK-ALA0D DANIS 104KEY AC7T KB.I170A.037
1 KB MP-09B26DK-442 DAN 104 AC7T KB.I170A.037
1 KB NSK-ALA2A FRA 104KEY AC7T KB.I170A.038
1 KB MP-09B26AF-442 FRA 104 AC7T KB.I170A.038
1 KB NSK-ALA0F FRENC 104KEY AC7T KB.I170A.039
1 KB MP-09B26F0-442 FRE 104 AC7T KB.I170A.039
1 KB NSK-ALA0G GERMA 104KEY AC7T KB.I170A.040
1 KB MP-09B26D0-442 GER 104 AC7T KB.I170A.040
1 KB NSK-ALA0L GREEK 103KEY AC7T KB.I170A.041
1 KB MP-09B23GR-442 GRE 103 AC7T KB.I170A.041
1 KB NSK-ALA0Q HUNGA 104KEY AC7T KB.I170A.042
Category No. Part Name Acer Part No.
Chapter 6 135
KEYBOARD 1 KB MP-09B26HU-442 HUN 104 AC7T KB.I170A.042
1 KB NSK-ALA0E ITALI 104KEY AC7T KB.I170A.043
1 KB MP-09B26I0-442 ITA 104 AC7T KB.I170A.043
1 KB NSK-ALA0J JAPAN 107KEY AC7T KB.I170A.044
1 KB MP-09B20J0-442 JAP 107 AC7T KB.I170A.044
1 KB NSK-ALA1K NORDI 104KEY AC7T KB.I170A.045
1 KB MP-09B26DN-442 NOD 104 AC7T KB.I170A.045
1 KB NSK-ALA0N NORWE 104KEY AC7T KB.I170A.046
1 KB MP-09B26N0-442 NOR 104 AC7T KB.I170A.046
1 KB NSK-ALA06 PORTU 104KEY AC7T KB.I170A.047
1 KB MP-09B26P0-442 POR 104 AC7T KB.I170A.047
1 KB NSK-ALA0R RUSSI 103KEY AC7T KB.I170A.048
1 KB MP-09B23SU-442 RUS 103 AC7T KB.I170A.048
1 KB NSK-ALA1F SLOVE 104KEY AC7T KB.I170A.049
1 KB MP-09B26SA-442 SLO 104 AC7T KB.I170A.049
1 KB NSK-ALA0S SPANI 104KEY AC7T KB.I170A.050
1 KB MP-09B26E0-442 SPA 104 AC7T KB.I170A.050
1 KB NSK-ALA0W SWEDI 104KEY AC7T KB.I170A.051
1 KB MP-09B26S0-442 SWE 104 AC7T KB.I170A.051
1 KB NSK-ALA00 SWISS 104KEY AC7T KB.I170A.052
1 KB MP-09B26CH-442 SWI 104 AC7T KB.I170A.052
1 KB NSK-ALA03 THAIL 103KEY AC7T KB.I170A.053
1 KB MP-09B23T0-442 THA 103 AC7T KB.I170A.053
1 KB NSK-ALA0T TURKI 104KEY AC7T KB.I170A.054
1 KB MP-09B26TQ-442 TUR 104 AC7T KB.I170A.054
1 KB NSK-ALA0U UK 104KEY AC7T KB.I170A.055
1 KB MP-09B26GB-442 UK 104 AC7T KB.I170A.055
1 KB NSK-ALA0H HEBRE 103KEY AC7T KB.I170A.057
1 KB MP-09B23HB-442 HEB 103 AC7T KB.I170A.057
1 KB NSK-ALA2M FCE 104KEY AC7T KB.I170A.058
1 KB MP-09B26CU-442 FCE 104 AC7T KB.I170A.058
LCD 1 LCD NLED17.3WXGA+G ANT*2 W/CAM
2 LCD 17.3"WXGA+ LTN173KT01-A01 LK.17306.001
2 LCD 17.3"WXGA+ AU B173RW01-V0 LK.17305.001
2 LCD 17.3"WXGA+ LP173WD1-TLA1 G LK.17308.001
2 LCD 17.3"WXGA+ CMO N173O6-L02 LK.1730D.001
MAINBOARD 1 JV71-TR MB 09243-1 UMA PD(D) MB.PJD01.001
Category No. Part Name Acer Part No.
136 Chapter 6
MEMORY 1 SODIMM 1G HYMP112S64CP6-Y5 KN.1GB0G.012
1 SODIMM 1G NT1GT64UH8D0FN-AD KN.1GB03.025
1 SODIMM 1G M470T2864QZ3-CE6 KN.1GB0B.016
1 SODIMM 1G M470T2864EH3-CF7 KN.1GB0B.033
1 SODIMM 1G HYMP112S64CP6-S6 KN.1GB0G.016
1 SODIMM 2G NT2GT64U8HD0BN-AD KN.2GB03.010
1 SODIMM 2G M470T5663QZ3-CE6 KN.2GB0B.003
1 SODIMM 2G M470T5663EH3-CF7 KN.2GB0B.018
1 SODIMM 2G HYMP125S64CP8-Y5 KN.2GB0G.004
MICROPHONE 2 MICROPHONE XINGMENG JV71 TBD
2 MICROPHONE HIT JV71 TBD
MISCELLANEOUS 1 JV71_7540_NAME_PLATE TBD
1 RUB CIRCLE BEZEL JV71 TBD
SCREWS 1 ISO M2.5X6(H=0.7~0.8MM) 86.00E12.536
1 M2.5*L10 BLACK ZN 86.00F84.73A
1 M2.5*L5 BLACK ZN+NYLOK 86.TK501.001
1 SCRW M2.5XL4 D4.5 T0.8 GL 86.00H59.734
1 SCREW M2-3 86.9A522.3R0
1 SCRW M2*4 WAFER NI 86.9A552.4R0
1 SCREW MACH WAFER M3*L4 NI 86.9A554.4R0
1 SCRW M2.5L3.5 86.9A563.3R5
SPEAKER 2 SPEAKER FG JV71 L TBD
2 SPEAKER ZULUX JV71 L TBD
2 SPEAKER FG JV71 R TBD
2 SPEAKER ZYLUX JV71 R TBD
Category No. Part Name Acer Part No.
Chapter 6 137
2. ACER_ASPIRE 7540G M92XT512CFBK_V3_JV71_TR (NO: S2.PJC02.002)
Category No. Part Name Acer Part No.
ADAPTER 1 ADP 90W 19V 3P HP-A0904A3 B1LF AP.0900A.005
1 ADP 90W 19V 3P ADP-90CD DB A L AP.09001.027
1 ADP 90W 19V 3P PA-1900-34AR LV AP.09003.021
BATTERY 1 BTY PACK LI+ 8C 2.4AH SANYO BT.00803.024
1 BTY PACK LI+ 8C 2.4AH SONY BT.00804.020
1 BTY PACK LI+ 6C 2.2AH SANYO BT.00603.042
1 BTY PACK LI+ 6C 2.2AH PANA BT.00605.021
1 BTY PACK LI+ 6C 2.2AH SDI BT.00606.001
BOARDS 1 BT MODULE FOXCONN BCM2046 V2.1 BH.21100.004
1 JM70-MV FPSENSOR 08647-1 BD(D) 55.PCC01.005
1 JV71-TR FP BD W/FP 09587-1(D) TBD
1 JV71-TR USB BD PD 09582-1(D) TBD
2 MODEM MDC FOX_LSI AM5-V2H FX.22500.023
1 TOUCHPAD SYNAPTICS TM00540-005 56.ATR01.001
1 TOUCHPAD ALPS KGDFF0038A 56.PAW01.001
1 WLAN 802.11BGN ATHEROS HB93 AR NI.23600.054
1 WLAN 802.11BGN ATHEROS HB93 NI.23600.046
1 WLAN 802.11BG ATHEROS AR9285(H NI.23600.047
CABLES 1 CORD USA/W CNS 2.5A 125V 8121- 27.01518.781
1 POWER CORD TAIWANESE BLACK,1.8 27.01518.A11
1 CORD SWISS 2.5A 250V 3P BK 27.01518.581
1 CORD 10A 250V 3P SWISS BK 27.01518.691
1 CORD ARGENTINE,10A 250V3G,1.8M 27.01518.0U1
1 CORD US 7A 125V BK 27.T30V1.001
1 CORD 10A 125V 3P US BK 27.01518.641
1 CORD 7A250V 2P 1830 KOREAN 27.01518.531

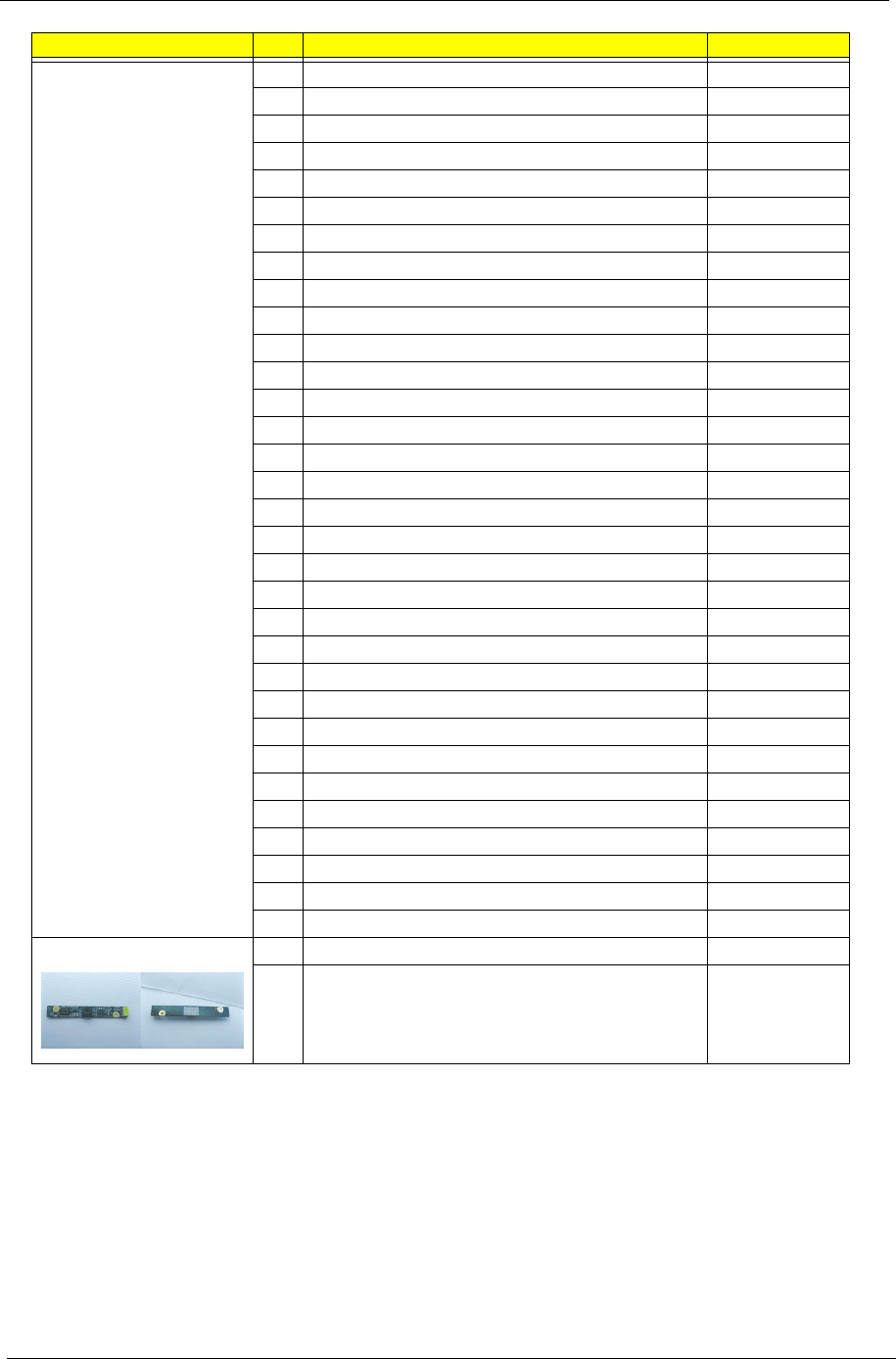

138 Chapter 6
CABLES 1 CORD UK 2.5A 250V 3P BK 27.01518.541
1 CORD 5A 250V 3P UK BK 27.03118.001
1 CORD JAPAN 7A 125V 2P BK 27.01518.551
1 CORD DENMARK 2.5A 250V 3P BK 27.01518.561
1 CORD 10A 250V 3P DENMARK BK 27.01518.671
1 CORD SOUTH AFRICA 16A 250V BK 27.01518.571
1 CORD 16A 250V SOUTH AFRICA BK 27.01518.681
1 CORD CHINA 10A 250V 3P 27.01518.591
1 CORD 10A 250V 3P CHINA BK 27.01518.701
1 CORD EUR 250V 3P BK 27.T30V1.004
1 CORD 16A 250V 3P EUR BK 27.01518.731
1 CORD ITALY 10A 250V 3P BK 27.01518.611
1 CORD 10A 250V 3P ITALY BK 27.01518.711
1 CORD 2.5A 250V AUSTRALIA BK 27.01518.621
1 CORD 2.5A 250V SOUTH AFRICA BK 27.01518.631
1 CORD 6A 250V SOUTH AFRICA BK 27.01518.721
1 CORD 7A 125V 2P JAPAN BK 27.01518.661
1 CORD 250V 10~16A 3P ISRAEL 27.01518.761
1 POWER CORD BRAZIL,BLK,1.8M 27.01518.A41
1 POWER CORD ACA / ACNZ ANNIE 27.03218.021
1 CORD 7.5A 250V 3P AUSTRALIA BK 27.03218.051
1 CORD 7A 125V JAPAN 2PIN BK 27.03518.161
1 JV71_TP_FFC TBD
1 TR_JV71_TP_FFC TBD
1 JV71_FP_FFC TBD
1 TR_JV71_FP_FFC TBD
2 CABLE RJ11 JV71 TBD
1 CABLE USB JV71 TBD
1 C.A. BLUETOOTH JV71 TBD
1 C.A. BLUETOOTH JV71(WANSH) TBD
1 C.A. BLUETOOTH JV71(HT) TBD
2 C.A. LCD JV71(MEC) TBD
2 C.A. LCD JV71(WANSH) TBD
1 C.A. USB JV71(WANSH) TBD
1 C.A. USB JV71(HT) TBD
CAMERA 2 CAMERA 0.3M CN0314-SN30-OV03-5 57.N4401.001
2 CAMERA 0.3M CNF701721004973L 57.W9401.001
Category No. Part Name Acer Part No.
Chapter 6 139
CASE/COVER/BRACKET
ASSEMBLY
1 ASSY JV71 TP BRKT TBD
1 SD DUMMY CARD MYALL2 42.TKJ01.001
1 ASSY JV71 AMD MIDDLE COVER TBD
1 ASSY JV71_HDD_DOR TBD
1 ASSY 60 FINGER UCASE JV71 TBD
1 ASSY 60_LCASE_JV71 TBD
1 ODD NBDCB4XS BD COMBO JV71_TR
2 JV71_ODD_BLUE RAY_ASSY TBD
2 BRKT ODD JV50 33.PAW01.002
2 HINGE LEFT ASSYJV71(LH) TBD
2 HINGE LEFT ASSY JV71(SZS) TBD
2 HINGE RIGHT ASSYJV71(LH) TBD
2 HINGE RIGHTT ASSY JV71(SZS) TBD
2 ASSY 60 HDD JV50 33.PAW01.003
2 ASSY 60 LCD BEZEL JV71 TBD
2 ASSY 60 LCD PANEL JV71(1+1) TBD
2 ASSY ODD BEZEL JV71 TBD
COMBO MODULE 2 BD COMBO SATA W7 PLDS DS-4E1S KO.0040F.003
2 BD COMBO SATA W7 SONY BC-5500S KO.0040E.002
CPU/PROCESSOR 1 IC CPU ATHLONII M320 2.1G 1M 3 KC.AM002.320
1 IC CPU ATHLONII M300 2.0G 1M 3 KC.AM002.300
DVD-RW DRIVE 1 ODD NSM8XS SUPER-MULTI JV71_TR
2 ODD SM12.7 HFW7 TSST TS-L633C KU.00801.035
2 ODD SM12.7 HF+W7 HLDS GT30N KU.0080D.048
HDD/HARD DISK DRIVE 1 HDD N160GB5.4KS FOR JV71_TR
2 HDD 160GB HGST HTS545016B9A300 KH.16007.024
2 HDD 160GB WD WD1600BEVT-22ZCT0 KH.16008.022
1 HDD N250GB5.4KS FOR JV71_TR
2 HDD 250GB HGST HTS545025B9A300 KH.25007.015
1 HDD N320GB5.4KS FOR JV71_TR
2 HDD 320GB HGST HTS545032B9A300 KH.32007.007
2 HDD 320GB WD WD3200BEVT-22ZCT0 KH.32008.013
1 HDD N500GB5.4KS FOR JV71_TR
2 HDD 500GB SGT ST9500325AS 5.4K KH.50001.011
2 HDD 500GB HGST HTS545050B9A300 KH.50007.009
2 HDD 500GB WD5000BEVT-22ZAT0 KH.50008.013
Category No. Part Name Acer Part No.
140 Chapter 6
HEATSINK 1 ASSY THERMAL JV71 TR DIS FOXS TBD
1 ASSY THERMAL JV71 TR DIS FCVF TBD
KEYBOARD 1 KB NSK-ALA1D US-IN 103KEY AC7T KB.I170A.056
1 KB MP-09B23U4-442 USI 103 AC7T KB.I170A.056
1 KB NSK-ALA0A ARABI 103KEY AC7T KB.I170A.032
1 KB MP-09B23A0-442 ARA 103 AC7T KB.I170A.032
1 KB NSK-ALA1A BELGI 104KEY AC7T KB.I170A.033
1 KB MP-09B26B0-442 BEL 104 AC7T KB.I170A.033
1 KB NSK-ALA1B BRZ 104KEY AC7T KB.I170A.034
1 KB MP-09B26PA-442 BRA 104 AC7T KB.I170A.034
1 KB NSK-ALA13 CZ/SK 104KEY AC7T KB.I170A.035
1 KB MP-09B26CS-442 CZK 104 AC7T KB.I170A.035
1 KB NSK-ALA02 TAIWA 103KEY AC7T KB.I170A.036
1 KB MP-09B23RC-442 CHI 103 AC7T KB.I170A.036
1 KB NSK-ALA0D DANIS 104KEY AC7T KB.I170A.037
1 KB MP-09B26DK-442 DAN 104 AC7T KB.I170A.037
1 KB NSK-ALA2A FRA 104KEY AC7T KB.I170A.038
1 KB MP-09B26AF-442 FRA 104 AC7T KB.I170A.038
1 KB NSK-ALA0F FRENC 104KEY AC7T KB.I170A.039
1 KB MP-09B26F0-442 FRE 104 AC7T KB.I170A.039
1 KB NSK-ALA0G GERMA 104KEY AC7T KB.I170A.040
1 KB MP-09B26D0-442 GER 104 AC7T KB.I170A.040
1 KB NSK-ALA0L GREEK 103KEY AC7T KB.I170A.041
1 KB MP-09B23GR-442 GRE 103 AC7T KB.I170A.041
1 KB NSK-ALA0Q HUNGA 104KEY AC7T KB.I170A.042
1 KB MP-09B26HU-442 HUN 104 AC7T KB.I170A.042
1 KB NSK-ALA0E ITALI 104KEY AC7T KB.I170A.043
1 KB MP-09B26I0-442 ITA 104 AC7T KB.I170A.043
1 KB NSK-ALA0J JAPAN 107KEY AC7T KB.I170A.044
1 KB MP-09B20J0-442 JAP 107 AC7T KB.I170A.044
1 KB NSK-ALA1K NORDI 104KEY AC7T KB.I170A.045
1 KB MP-09B26DN-442 NOD 104 AC7T KB.I170A.045
1 KB NSK-ALA0N NORWE 104KEY AC7T KB.I170A.046
1 KB MP-09B26N0-442 NOR 104 AC7T KB.I170A.046
1 KB NSK-ALA06 PORTU 104KEY AC7T KB.I170A.047
1 KB MP-09B26P0-442 POR 104 AC7T KB.I170A.047
1 KB NSK-ALA0R RUSSI 103KEY AC7T KB.I170A.048
1 KB MP-09B23SU-442 RUS 103 AC7T KB.I170A.048
Category No. Part Name Acer Part No.
Chapter 6 141
KEYBOARD 1 KB NSK-ALA1F SLOVE 104KEY AC7T KB.I170A.049
1 KB MP-09B26SA-442 SLO 104 AC7T KB.I170A.049
1 KB NSK-ALA0S SPANI 104KEY AC7T KB.I170A.050
1 KB MP-09B26E0-442 SPA 104 AC7T KB.I170A.050
1 KB NSK-ALA0W SWEDI 104KEY AC7T KB.I170A.051
1 KB MP-09B26S0-442 SWE 104 AC7T KB.I170A.051
1 KB NSK-ALA00 SWISS 104KEY AC7T KB.I170A.052
1 KB MP-09B26CH-442 SWI 104 AC7T KB.I170A.052
1 KB NSK-ALA03 THAIL 103KEY AC7T KB.I170A.053
1 KB MP-09B23T0-442 THA 103 AC7T KB.I170A.053
1 KB NSK-ALA0T TURKI 104KEY AC7T KB.I170A.054
1 KB MP-09B26TQ-442 TUR 104 AC7T KB.I170A.054
1 KB NSK-ALA0U UK 104KEY AC7T KB.I170A.055
1 KB MP-09B26GB-442 UK 104 AC7T KB.I170A.055
1 KB NSK-ALA0H HEBRE 103KEY AC7T KB.I170A.057
1 KB MP-09B23HB-442 HEB 103 AC7T KB.I170A.057
1 KB NSK-ALA2M FCE 104KEY AC7T KB.I170A.058
1 KB MP-09B26CU-442 FCE 104 AC7T KB.I170A.058
LCD 1 LCD NLED17.3WXGA+G ANT*2 W/CAM
2 LCD 17.3"WXGA+ LP173WD1-TLA1 G LK.17308.001
2 LCD 17.3"WXGA+ AU B173RW01-V0 LK.17305.001
2 LCD 17.3"WXGA+ CMO N173O6-L02 LK.1730D.001
MAINBOARD 1 JV71-TR MB 09243-1 PD DIS SN(D MB.PJC01.001
MEMORY 1 SODIMM 1G NT1GT64UH8D0FN-AD KN.1GB03.025
1 SODIMM 1G M470T2864QZ3-CE6 KN.1GB0B.016
1 SODIMM 1G M470T2864EH3-CF7 KN.1GB0B.033
1 SODIMM 1G HYMP112S64CP6-Y5 KN.1GB0G.012
1 SODIMM 1G HYMP112S64CP6-S6 KN.1GB0G.016
1 SODIMM 2G NT2GT64U8HD0BN-AD KN.2GB03.010
1 SODIMM 2G M470T5663QZ3-CE6 KN.2GB0B.003
1 SODIMM 2G M470T5663EH3-CF7 KN.2GB0B.018
1 SODIMM 2G HYMP125S64CP8-Y5 KN.2GB0G.004
MICROPHONE 2 MICROPHONE XINGMENG JV71 TBD
2 MICROPHONE HIT JV71 TBD
MISCELLANEOUS 1 JV71_7540_NAME_PLATE TBD
1 RUB CIRCLE BEZEL JV71 TBD
Category No. Part Name Acer Part No.
142 Chapter 6
SCREWS 1 ISO M2.5X6(H=0.7~0.8MM) 86.00E12.536
1 M2.5*L10 BLACK ZN 86.00F84.73A
1 M2.5*L5 BLACK ZN+NYLOK 86.TK501.001
1 SCRW M2.5XL4 D4.5 T0.8 GL 86.00H59.734
1 SCREW M2-3 86.9A522.3R0
1 SCRW M2*4 WAFER NI 86.9A552.4R0
1 SCREW MACH WAFER M3*L4 NI 86.9A554.4R0
1 SCRW M2.5L3.5 86.9A563.3R5
SPEAKER 2 SPEAKER FG JV71 L TBD
2 SPEAKER ZULUX JV71 L TBD
2 SPEAKER FG JV71 R TBD
2 SPEAKER ZYLUX JV71 R TBD
Category No. Part Name Acer Part No.
Appendix A 143
Model Definition and Configuration
Appendix A
144 Appendix A
Aspire 7736/7736Z/7336 Series
Model RO Country Acer Part No Description CPU LCD VGA
Chip VRAM 1 Memory 1/
Memory 2 HDD 1(GB) ODD Card
Reader
Wireless
LAN1
Bluetooth
/Finger
Print
NB
Chipset
SB
Chipset Battery Adapter Camera
AS7736G-
744G32Mn EMEA France LX.PHU02.092
AS7736G-744G32Mn W7HP64ATFR1
MC N10MGS512Cbk_V3 2*2G/320/
6L2.2/5R/CB_n2_0.3D_HG_FR21
C2DP7450 NLED17.3WXGA+G N10MGS 512M-DDR3
(64*16*4) SO2GBII6 N320GB5.4KS NSM8XS 5 in 1-
Build in SP1x2HMW N PM45 ICH9M 6CELL2.2 65W 0.3M DV
AS7736G-
664G50Bn EMEA Switzerland LX.PHU02.099
AS7736G-664G50Bn W7HP64ATCH1
MC N10MGS512Cbk_V3 2*2G/500_L/
6L2.2/5R/CB_n2_0.3D_HG_IT41
C2DT6600 NLED17.3WXGA+G N10MGS 512M-DDR3
(64*16*4) SO2GBII6 N500GB5.4KS NBDCB4XS 5 in 1-
Build in SP1x2MMW N PM45 ICH9M 6CELL2.2 65W 0.3M DV
AS7736G-
664G50Mn EMEA France LX.PHU02.091
AS7736G-664G50Mn W7HP64ATFR1
MC N10MGS512Cbk_V3 2*2G/500_L/
6L2.2/5R/CB_n2_0.3D_HG_FR21
C2DT6600 NLED17.3WXGA+G N10MGS 512M-DDR3
(64*16*4) SO2GBII6 N500GB5.4KS NSM8XS 5 in 1-
Build in SP1x2MMW N PM45 ICH9M 6CELL2.2 65W 0.3M DV
AS7736G-
664G32Mn EMEA Turkey LX.PHU02.104
AS7736G-664G32Mn EM
W7HP64EMATTR1 MC
N10MGS512Cbk_V3 2*2G/320/6L2.2/
5R/CB_n2_0.3D_HG_TR31
C2DT6600 NLED17.3WXGA+G N10MGS 512M-DDR3
(64*16*4) SO2GBII6 N320GB5.4KS NSM8XS 5 in 1-
Build in SP1x2MMW N PM45 ICH9M 6CELL2.2 65W 0.3M DV
AS7736G-
664G32Mn EMEA Switzerland LX.PHU02.103
AS7736G-664G32Mn W7HP64ATCH1
MC N10MGS512Cbk_V3 2*2G/320/
6L2.2/5R/CB_n2_0.3D_HG_IT41
C2DT6600 NLED17.3WXGA+G N10MGS 512M-DDR3
(64*16*4) SO2GBII6 N320GB5.4KS NSM8XS 5 in 1-
Build in SP1x2MMW N PM45 ICH9M 6CELL2.2 65W 0.3M DV
AS7736G-
664G50Mn EMEA Germany LX.PHU02.097
AS7736G-664G50Mn W7HP64ATDE1
MC N10MGS512Cbk_V3 2*2G/500_L/
6L2.2/5R/CB_n2_0.3D_HG_DE11
C2DT6600 NLED17.3WXGA+G N10MGS 512M-DDR3
(64*16*4) SO2GBII6 N500GB5.4KS NSM8XS 5 in 1-
Build in SP1x2MMW N PM45 ICH9M 6CELL2.2 65W 0.3M DV
AS7736G-
664G50Mn EMEA UK LX.PHU02.094
AS7736G-664G50Mn W7HP64ATGB1
MC N10MGS512Cbk_V3 2*2G/500_L/
6L2.2/5R/CB_n2_0.3D_N_HG_EN11
C2DT6600 NLED17.3WXGA+G N10MGS 512M-DDR3
(64*16*4) SO2GBII6 N500GB5.4KS NSM8XS 5 in 1-
Build in SP1x2MMW N PM45 ICH9M 6CELL2.2 65W 0.3M DV
AS7736G-
744G50Mi EMEA Ukraine LX.PHU02.002
AS7736G-744G50Mi
W7HP64RUATUK1 MC
N10MGS512Cbk_V3 2*2G/500_L/
6L2.2/5R/CB_abg_0.3D_HG_RU61
C2DP7450 NLED17.3WXGA+G N10MGS 512M-DDR3
(64*16*4) SO2GBII6 N500GB5.4KS NSM8XS 5 in 1-
Build in
SP1x2MAB
GN PM45 ICH9M 6CELL2.2 65W 0.3M DV
AS7736G-
664G25Mi EMEA Ukraine LX.PHU02.063
AS7736G-664G25Mi
W7HP64RUATUK1 MC
N10MGS512Cbk_V3 2*2G/250/6L2.2/
5R/CB_abg_0.3D_HG_RU61
C2DT6600 NLED17.3WXGA+G N10MGS 512M-DDR3
(64*16*4) SO2GBII6 N250GB5.4KS NSM8XS 5 in 1-
Build in
SP1x2MAB
GN PM45 ICH9M 6CELL2.2 65W 0.3M DV
AS7736G-
664G50Mn EMEA Spain LX.PHU02.102
AS7736G-664G50Mn W7HP64ATES1
MC N10MGS512Cbk_V3 2*2G/500_L/
6L2.2/5R/CB_n2_0.3D_HG_ES51
C2DT6600 NLED17.3WXGA+G N10MGS 512M-DDR3
(64*16*4) SO2GBII6 N500GB5.4KS NSM8XS 5 in 1-
Build in SP1x2MMW N PM45 ICH9M 6CELL2.2 65W 0.3M DV
AS7736G-
744G50Bn EMEA Switzerland LX.PHU02.101
AS7736G-744G50Bn W7HP64ATCH1
MC N10MGS512Cbk_V3 2*2G/500_L/
BT/6L2.2/5R/CB_n2_0.3D_HG_IT41
C2DP7450 NLED17.3WXGA+G N10MGS 512M-DDR3
(64*16*4) SO2GBII6 N500GB5.4KS NBDCB4XS 5 in 1-
Build in SP1x2MMW BT 2.1/N PM45 ICH9M 6CELL2.2 65W 0.3M DV
AS7736G-
664G50Mn EMEA Germany LX.PHU02.098
AS7736G-664G50Mn W7HP64ATDE1
MC N10MGS512Cbk_V3 2*2G/500_L/
BT/6L2.2/5R/CB_n2_0.3D_HG_DE11
C2DT6600 NLED17.3WXGA+G N10MGS 512M-DDR3
(64*16*4) SO2GBII6 N500GB5.4KS NSM8XS 5 in 1-
Build in SP1x2MMW BT 2.1/N PM45 ICH9M 6CELL2.2 65W 0.3M DV
AS7736G-
664G25Mn EMEA Middle East LX.PHU02.053
AS7736G-664G25Mn EM
W7HP64EMATME2 MC
N10MGS512Cbk_V3 2*2G/250/6L2.2/
5R/CB_n2_0.3D_HG_AR21
C2DT6600 NLED17.3WXGA+G N10MGS 512M-DDR3
(64*16*4) SO2GBII6 N250GB5.4KS NSM8XS 5 in 1-
Build in SP1x2MMW N PM45 ICH9M 6CELL2.2 65W 0.3M DV
AS7736G-
744G50Mn EMEA Middle East LX.PHU02.007
AS7736G-744G50Mn EM
W7HP64EMATME2 MC
N10MGS512Cbk_V3 2*2G/500_L/
6L2.2/5R/CB_n2_0.3D_HG_AR21
C2DP7450 NLED17.3WXGA+G N10MGS 512M-DDR3
(64*16*4) SO2GBII6 N500GB5.4KS NSM8XS 5 in 1-
Build in SP1x2MMW N PM45 ICH9M 6CELL2.2 65W 0.3M DV
AS7736G-
663G32Mn EMEA UK LX.PHU02.096
AS7736G-663G32Mn W7HP64ATGB1
MC N10MGS512Cbk_V3 2G+1G/320/
6L2.2/5R/CB_n2_0.3D_HG_EN11
C2DT6600 NLED17.3WXGA+G N10MGS 512M-DDR3
(64*16*4) SO2GBII6 N320GB5.4KS NSM8XS 5 in 1-
Build in SP1x2MMW N PM45 ICH9M 6CELL2.2 65W 0.3M DV
AS7736G-
744G32Mn EMEA UK LX.PHU02.095
AS7736G-744G32Mn W7HP64ATGB1
MC N10MGS512Cbk_V3 2*2G/320/
6L2.2/5R/CB_n2_0.3D_HG_EN11
C2DP7450 NLED17.3WXGA+G N10MGS 512M-DDR3
(64*16*4) SO2GBII6 N320GB5.4KS NSM8XS 5 in 1-
Build in SP1x2MMW N PM45 ICH9M 6CELL2.2 65W 0.3M DV
AS7736G-
884G50Bn WW WW S2.PHU02.002
AS7736G-884G50Bn W7HP64AWW1
MC N10MGS512Cbk_V3 2*2G/500_L/
BT/6L2.2/5R/CB_n2_0.3D_HG_ES62
C2DP8800 NLED17.3WXGA+G N10MGS 512M-DDR3
(64*16*4) SO2GBII6 N500GB5.4KS NBDCB4XS 5 in 1-
Build in SP1x2MMW BT 2.1/N PM45 ICH9M 6CELL2.2 65W 0.3M DV
Appendix A 145
AS7736G-
884G50Bn WW GCTWN S2.PHU02.001
AS7736G-884G50Bn W7HP64AWW1
MC N10MGS512Cbk_V3 2*2G/500_L/
BT/6L2.2/5R/CB_n2_0.3D_HG_ES61
C2DP8800 NLED17.3WXGA+G N10MGS 512M-DDR3
(64*16*4) SO2GBII6 N500GB5.4KS NBDCB4XS 5 in 1-
Build in SP1x2MMW BT 2.1/N PM45 ICH9M 6CELL2.2 65W 0.3M DV
AS7736G-
744G50Mn EMEA Germany LX.PHU02.022
AS7736G-744G50Mn W7HP64ATDE1
MC N10MGS512Cbk_V3 2*2G/500_L/
6L2.2/5R/CB_n2_0.3D_HG_DE11
C2DP7450 NLED17.3WXGA+G N10MGS 512M-DDR3
(64*16*4) SO2GBII6 N500GB5.4KS NSM8XS 5 in 1-
Build in SP1x2MMW N PM45 ICH9M 6CELL2.2 65W 0.3M DV
AS7736G-
744G50Mn EMEA Portugal LX.PHU02.023
AS7736G-744G50Mn W7HP64ATPT1
MC N10MGS512Cbk_V3 2*2G/500_L/
6L2.2/5R/CB_n2_0.3D_HG_PT11
C2DP7450 NLED17.3WXGA+G N10MGS 512M-DDR3
(64*16*4) SO2GBII6 N500GB5.4KS NSM8XS 5 in 1-
Build in SP1x2MMW N PM45 ICH9M 6CELL2.2 65W 0.3M DV
AS7736G-
744G50Mn EMEA Norway LX.PHU02.021
AS7736G-744G50Mn W7HP64ATNO3
MC N10MGS512Cbk_V3 2*2G/500_L/
6L2.2/5R/CB_n2_0.3D_HG_ENS1
C2DP7450 NLED17.3WXGA+G N10MGS 512M-DDR3
(64*16*4) SO2GBII6 N500GB5.4KS NSM8XS 5 in 1-
Build in SP1x2MMW N PM45 ICH9M 6CELL2.2 65W 0.3M DV
AS7736G-
744G50Mn EMEA Denmark LX.PHU02.026
AS7736G-744G50Mn W7HP64ATDK2
MC N10MGS512Cbk_V3 2*2G/500_L/
6L2.2/5R/CB_n2_0.3D_HG_ENS1
C2DP7450 NLED17.3WXGA+G N10MGS 512M-DDR3
(64*16*4) SO2GBII6 N500GB5.4KS NSM8XS 5 in 1-
Build in SP1x2MMW N PM45 ICH9M 6CELL2.2 65W 0.3M DV
AS7736G-
744G50Mn EMEA Denmark LX.PHU02.030
AS7736G-744G50Mn W7HP64ATDK1
MC N10MGS512Cbk_V3 2*2G/500_L/
6L2.2/5R/CB_n2_0.3D_HG_NO11
C2DP7450 NLED17.3WXGA+G N10MGS 512M-DDR3
(64*16*4) SO2GBII6 N500GB5.4KS NSM8XS 5 in 1-
Build in SP1x2MMW N PM45 ICH9M 6CELL2.2 65W 0.3M DV
AS7736G-
744G50Mn EMEA Hungary LX.PHU02.024
AS7736G-744G50Mn W7HP64ATHU1
MC N10MGS512Cbk_V3 2*2G/500_L/
6L2.2/5R/CB_n2_0.3D_HG_HU11
C2DP7450 NLED17.3WXGA+G N10MGS 512M-DDR3
(64*16*4) SO2GBII6 N500GB5.4KS NSM8XS 5 in 1-
Build in SP1x2MMW N PM45 ICH9M 6CELL2.2 65W 0.3M DV
AS7736G-
744G50Mn EMEA Spain LX.PHU02.025
AS7736G-744G50Mn W7HP64ATES1
MC N10MGS512Cbk_V3 2*2G/500_L/
6L2.2/5R/CB_n2_0.3D_HG_ES51
C2DP7450 NLED17.3WXGA+G N10MGS 512M-DDR3
(64*16*4) SO2GBII6 N500GB5.4KS NSM8XS 5 in 1-
Build in SP1x2MMW N PM45 ICH9M 6CELL2.2 65W 0.3M DV
AS7736G-
664G25Mn EMEA Serbia/
Macedonia LX.PHU02.046
AS7736G-664G25Mn EM
W7HP64ATCS1 MC
N10MGS512Cbk_V3 2*2G/250/6L2.2/
5R/CB_n2_0.3D_HG_SL11
C2DT6600 NLED17.3WXGA+G N10MGS 512M-DDR3
(64*16*4) SO2GBII6 N250GB5.4KS NSM8XS 5 in 1-
Build in SP1x2MMW N PM45 ICH9M 6CELL2.2 65W 0.3M DV
AS7736G-
744G50Mn EMEA Eastern
Europe LX.PHU02.029
AS7736G-744G50Mn W7HP64ATEU5
MC N10MGS512Cbk_V3 2*2G/500_L/
6L2.2/5R/CB_n2_0.3D_HG_RO11
C2DP7450 NLED17.3WXGA+G N10MGS 512M-DDR3
(64*16*4) SO2GBII6 N500GB5.4KS NSM8XS 5 in 1-
Build in SP1x2MMW N PM45 ICH9M 6CELL2.2 65W 0.3M DV
AS7736G-
744G50Mn EMEA Switzerland LX.PHU02.035
AS7736G-744G50Mn W7HP64ATCH1
MC N10MGS512Cbk_V3 2*2G/500_L/
6L2.2/5R/CB_n2_0.3D_HG_IT41
C2DP7450 NLED17.3WXGA+G N10MGS 512M-DDR3
(64*16*4) SO2GBII6 N500GB5.4KS NSM8XS 5 in 1-
Build in SP1x2MMW N PM45 ICH9M 6CELL2.2 65W 0.3M DV
AS7736G-
744G50Mn EMEA Holland LX.PHU02.032
AS7736G-744G50Mn W7HP64ATNL1
MC N10MGS512Cbk_V3 2*2G/500_L/
6L2.2/5R/CB_n2_0.3D_HG_NL11
C2DP7450 NLED17.3WXGA+G N10MGS 512M-DDR3
(64*16*4) SO2GBII6 N500GB5.4KS NSM8XS 5 in 1-
Build in SP1x2MMW N PM45 ICH9M 6CELL2.2 65W 0.3M DV
AS7736G-
744G50Mn EMEA Poland LX.PHU02.028
AS7736G-744G50Mn W7HP64ATPL1
MC N10MGS512Cbk_V3 2*2G/500_L/
6L2.2/5R/CB_n2_0.3D_HG_PL11
C2DP7450 NLED17.3WXGA+G N10MGS 512M-DDR3
(64*16*4) SO2GBII6 N500GB5.4KS NSM8XS 5 in 1-
Build in SP1x2MMW N PM45 ICH9M 6CELL2.2 65W 0.3M DV
AS7736G-
744G50Mn EMEA Greece LX.PHU02.031
AS7736G-744G50Mn W7HP64ATGR1
MC N10MGS512Cbk_V3 2*2G/500_L/
6L2.2/5R/CB_n2_0.3D_HG_EL31
C2DP7450 NLED17.3WXGA+G N10MGS 512M-DDR3
(64*16*4) SO2GBII6 N500GB5.4KS NSM8XS 5 in 1-
Build in SP1x2MMW N PM45 ICH9M 6CELL2.2 65W 0.3M DV
AS7736G-
744G50Mn EMEA Belgium LX.PHU02.027
AS7736G-744G50Mn W7HP64ATBE1
MC N10MGS512Cbk_V3 2*2G/500_L/
6L2.2/5R/CB_n2_0.3D_HG_NL11
C2DP7450 NLED17.3WXGA+G N10MGS 512M-DDR3
(64*16*4) SO2GBII6 N500GB5.4KS NSM8XS 5 in 1-
Build in SP1x2MMW N PM45 ICH9M 6CELL2.2 65W 0.3M DV
AS7736G-
744G50Mn EMEA Eastern
Europe LX.PHU02.034
AS7736G-744G50Mn W7HP64ATEU5
MC N10MGS512Cbk_V3 2*2G/500_L/
6L2.2/5R/CB_n2_0.3D_HG_PL71
C2DP7450 NLED17.3WXGA+G N10MGS 512M-DDR3
(64*16*4) SO2GBII6 N500GB5.4KS NSM8XS 5 in 1-
Build in SP1x2MMW N PM45 ICH9M 6CELL2.2 65W 0.3M DV
AS7736G-
664G25Mn EMEA Israel LX.PHU02.048
AS7736G-664G25Mn W7HP64ATIL1
MC N10MGS512Cbk_V3 2*2G/250/
6L2.2/5R/CB_n2_0.3D_HG_HE11
C2DT6600 NLED17.3WXGA+G N10MGS 512M-DDR3
(64*16*4) SO2GBII6 N250GB5.4KS NSM8XS 5 in 1-
Build in SP1x2MMW N PM45 ICH9M 6CELL2.2 65W 0.3M DV
AS7736G-
664G25Mn EMEA Israel LX.PHU02.047
AS7736G-664G25Mn W7HP64ATIL1
MC N10MGS512Cbk_V3 2*2G/250/
6L2.2/5R/CB_n2_0.3D_HG_HE31
C2DT6600 NLED17.3WXGA+G N10MGS 512M-DDR3
(64*16*4) SO2GBII6 N250GB5.4KS NSM8XS 5 in 1-
Build in SP1x2MMW N PM45 ICH9M 6CELL2.2 65W 0.3M DV
AS7736G-
664G25Mi EMEA Russia LX.PHU02.062
AS7736G-664G25Mi
W7HP64RUATRU1 MC
N10MGS512Cbk_V3 2*2G/250/6L2.2/
5R/CB_abg_0.3D_HG_RU11
C2DT6600 NLED17.3WXGA+G N10MGS 512M-DDR3
(64*16*4) SO2GBII6 N250GB5.4KS NSM8XS 5 in 1-
Build in
SP1x2MAB
GN PM45 ICH9M 6CELL2.2 65W 0.3M DV
AS7736G-
664G25Mn EMEA Algeria LX.PHU02.049
AS7736G-664G25Mn EM
W7HP64EMATDZ1 MC
N10MGS512Cbk_V3 2*2G/250/6L2.2/
5R/CB_n2_0.3D_HG_ES81
C2DT6600 NLED17.3WXGA+G N10MGS 512M-DDR3
(64*16*4) SO2GBII6 N250GB5.4KS NSM8XS 5 in 1-
Build in SP1x2MMW N PM45 ICH9M 6CELL2.2 65W 0.3M DV
146 Appendix A
AS7736G-
664G25Mn EMEA South Africa LX.PHU02.055
AS7736G-664G25Mn EM
W7HP64EMATZA1 MC
N10MGS512Cbk_V3 2*2G/250/6L2.2/
5R/CB_n2_0.3D_HG_ES81
C2DT6600 NLED17.3WXGA+G N10MGS 512M-DDR3
(64*16*4) SO2GBII6 N250GB5.4KS NSM8XS 5 in 1-
Build in SP1x2MMW N PM45 ICH9M 6CELL2.2 65W 0.3M DV
AS7736G-
664G25Mn EMEA Middle East LX.PHU02.050
AS7736G-664G25Mn EM
W7HP64EMATME4 MC
N10MGS512Cbk_V3 2*2G/250/6L2.2/
5R/CB_n2_0.3D_HG_RU61
C2DT6600 NLED17.3WXGA+G N10MGS 512M-DDR3
(64*16*4) SO2GBII6 N250GB5.4KS NSM8XS 5 in 1-
Build in SP1x2MMW N PM45 ICH9M 6CELL2.2 65W 0.3M DV
AS7736G-
664G25Mn EMEA Middle East LX.PHU02.054
AS7736G-664G25Mn EM
W7HP64EMATME2 MC
N10MGS512Cbk_V3 2*2G/250/6L2.2/
5R/CB_n2_0.3D_HG_ES61
C2DT6600 NLED17.3WXGA+G N10MGS 512M-DDR3
(64*16*4) SO2GBII6 N250GB5.4KS NSM8XS 5 in 1-
Build in SP1x2MMW N PM45 ICH9M 6CELL2.2 65W 0.3M DV
AS7736G-
664G25Mn EMEA South Africa LX.PHU02.051
AS7736G-664G25Mn EM
W7HP64EMATZA4 MC
N10MGS512Cbk_V3 2*2G/250/6L2.2/
5R/CB_n2_0.3D_HG_ES61
C2DT6600 NLED17.3WXGA+G N10MGS 512M-DDR3
(64*16*4) SO2GBII6 N250GB5.4KS NSM8XS 5 in 1-
Build in SP1x2MMW N PM45 ICH9M 6CELL2.2 65W 0.3M DV
AS7736G-
664G25Mn EMEA Middle East LX.PHU02.052
AS7736G-664G25Mn EM
W7HP64EMATME3 MC
N10MGS512Cbk_V3 2*2G/250/6L2.2/
5R/CB_n2_0.3D_HG_ES81
C2DT6600 NLED17.3WXGA+G N10MGS 512M-DDR3
(64*16*4) SO2GBII6 N250GB5.4KS NSM8XS 5 in 1-
Build in SP1x2MMW N PM45 ICH9M 6CELL2.2 65W 0.3M DV
AS7736G-
664G25Mn EMEA Turkey LX.PHU02.056
AS7736G-664G25Mn EM
W7HP64EMATTR1 MC
N10MGS512Cbk_V3 2*2G/250/6L2.2/
5R/CB_n2_0.3D_HG_TR31
C2DT6600 NLED17.3WXGA+G N10MGS 512M-DDR3
(64*16*4) SO2GBII6 N250GB5.4KS NSM8XS 5 in 1-
Build in SP1x2MMW N PM45 ICH9M 6CELL2.2 65W 0.3M DV
AS7736G-
664G25Mn EMEA Middle East LX.PHU02.058
AS7736G-664G25Mn EM
W7HP64EMATME9 MC
N10MGS512Cbk_V3 2*2G/250/6L2.2/
5R/CB_n2_0.3D_HG_ES81
C2DT6600 NLED17.3WXGA+G N10MGS 512M-DDR3
(64*16*4) SO2GBII6 N250GB5.4KS NSM8XS 5 in 1-
Build in SP1x2MMW N PM45 ICH9M 6CELL2.2 65W 0.3M DV
AS7736G-
664G25Mn EMEA Middle East LX.PHU02.061
AS7736G-664G25Mn EM
W7HP64EMATME2 MC
N10MGS512Cbk_V3 2*2G/250/6L2.2/
5R/CB_n2_0.3D_HG_AR11
C2DT6600 NLED17.3WXGA+G N10MGS 512M-DDR3
(64*16*4) SO2GBII6 N250GB5.4KS NSM8XS 5 in 1-
Build in SP1x2MMW N PM45 ICH9M 6CELL2.2 65W 0.3M DV
AS7736G-
664G25Mn EMEA Middle East LX.PHU02.059
AS7736G-664G25Mn EM
W7HP64EMATME4 MC
N10MGS512Cbk_V3 2*2G/250/6L2.2/
5R/CB_n2_0.3D_HG_ES61
C2DT6600 NLED17.3WXGA+G N10MGS 512M-DDR3
(64*16*4) SO2GBII6 N250GB5.4KS NSM8XS 5 in 1-
Build in SP1x2MMW N PM45 ICH9M 6CELL2.2 65W 0.3M DV
AS7736G-
664G25Mn EMEA South Africa LX.PHU02.057
AS7736G-664G25Mn EM
W7HP64EMATZA2 MC
N10MGS512Cbk_V3 2*2G/250/6L2.2/
5R/CB_n2_0.3D_HG_ES61
C2DT6600 NLED17.3WXGA+G N10MGS 512M-DDR3
(64*16*4) SO2GBII6 N250GB5.4KS NSM8XS 5 in 1-
Build in SP1x2MMW N PM45 ICH9M 6CELL2.2 65W 0.3M DV
AS7736G-
664G25Mn EMEA Sweden LX.PHU02.066
AS7736G-664G25Mn W7HP64ATSE1
MC N10MGS512Cbk_V3 2*2G/250/
6L2.2/5R/CB_n2_0.3D_HG_FI11
C2DT6600 NLED17.3WXGA+G N10MGS 512M-DDR3
(64*16*4) SO2GBII6 N250GB5.4KS NSM8XS 5 in 1-
Build in SP1x2MMW N PM45 ICH9M 6CELL2.2 65W 0.3M DV
AS7736G-
664G25Mn EMEA Eastern
Europe LX.PHU02.065
AS7736G-664G25Mn W7HP64ATEU7
MC N10MGS512Cbk_V3 2*2G/250/
6L2.2/5R/CB_n2_0.3D_HG_ENQ1
C2DT6600 NLED17.3WXGA+G N10MGS 512M-DDR3
(64*16*4) SO2GBII6 N250GB5.4KS NSM8XS 5 in 1-
Build in SP1x2MMW N PM45 ICH9M 6CELL2.2 65W 0.3M DV
AS7736G-
664G25Mn EMEA Luxembour
gLX.PHU02.067
AS7736G-664G25Mn W7HP64ATLU3
MC N10MGS512Cbk_V3 2*2G/250/
6L2.2/5R/CB_n2_0.3D_HG_IT41
C2DT6600 NLED17.3WXGA+G N10MGS 512M-DDR3
(64*16*4) SO2GBII6 N250GB5.4KS NSM8XS 5 in 1-
Build in SP1x2MMW N PM45 ICH9M 6CELL2.2 65W 0.3M DV
AS7736G-
664G25Mn EMEA Eastern
Europe LX.PHU02.064
AS7736G-664G25Mn W7HP64ATEU7
MC N10MGS512Cbk_V3 2*2G/250/
6L2.2/5R/CB_n2_0.3D_HG_SL11
C2DT6600 NLED17.3WXGA+G N10MGS 512M-DDR3
(64*16*4) SO2GBII6 N250GB5.4KS NSM8XS 5 in 1-
Build in SP1x2MMW N PM45 ICH9M 6CELL2.2 65W 0.3M DV
AS7736G-
664G25Mn EMEA Middle East LX.PHU02.060
AS7736G-664G25Mn EM
W7HP64EMATME6 MC
N10MGS512Cbk_V3 2*2G/250/6L2.2/
5R/CB_n2_0.3D_HG_ES61
C2DT6600 NLED17.3WXGA+G N10MGS 512M-DDR3
(64*16*4) SO2GBII6 N250GB5.4KS NSM8XS 5 in 1-
Build in SP1x2MMW N PM45 ICH9M 6CELL2.2 65W 0.3M DV
AS7736G-
664G25Mn EMEA Finland LX.PHU02.070
AS7736G-664G25Mn W7HP64ATFI2
MC N10MGS512Cbk_V3 2*2G/250/
6L2.2/5R/CB_n2_0.3D_HG_FI11
C2DT6600 NLED17.3WXGA+G N10MGS 512M-DDR3
(64*16*4) SO2GBII6 N250GB5.4KS NSM8XS 5 in 1-
Build in SP1x2MMW N PM45 ICH9M 6CELL2.2 65W 0.3M DV
AS7736G-
664G25Mn EMEA Italy LX.PHU02.069
AS7736G-664G25Mn W7HP64ATIT1
MC N10MGS512Cbk_V3 2*2G/250/
6L2.2/5R/CB_n2_0.3D_HG_IT11
C2DT6600 NLED17.3WXGA+G N10MGS 512M-DDR3
(64*16*4) SO2GBII6 N250GB5.4KS NSM8XS 5 in 1-
Build in SP1x2MMW N PM45 ICH9M 6CELL2.2 65W 0.3M DV
AS7736G-
664G25Mn EMEA Cyprus LX.PHU02.068
AS7736G-664G25Mn W7HP64ATCY1
MC N10MGS512Cbk_V3 2*2G/250/
6L2.2/5R/CB_n2_0.3D_HG_ES61
C2DT6600 NLED17.3WXGA+G N10MGS 512M-DDR3
(64*16*4) SO2GBII6 N250GB5.4KS NSM8XS 5 in 1-
Build in SP1x2MMW N PM45 ICH9M 6CELL2.2 65W 0.3M DV
Appendix A 147
AS7736G-
664G25Mn EMEA Austria LX.PHU02.074
AS7736G-664G25Mn W7HP64ATAT1
MC N10MGS512Cbk_V3 2*2G/250/
6L2.2/5R/CB_n2_0.3D_HG_DE61
C2DT6600 NLED17.3WXGA+G N10MGS 512M-DDR3
(64*16*4) SO2GBII6 N250GB5.4KS NSM8XS 5 in 1-
Build in SP1x2MMW N PM45 ICH9M 6CELL2.2 65W 0.3M DV
AS7736G-
664G25Mn EMEA Norway LX.PHU02.072
AS7736G-664G25Mn W7HP64ATNO1
MC N10MGS512Cbk_V3 2*2G/250/
6L2.2/5R/CB_n2_0.3D_HG_NO11
C2DT6600 NLED17.3WXGA+G N10MGS 512M-DDR3
(64*16*4) SO2GBII6 N250GB5.4KS NSM8XS 5 in 1-
Build in SP1x2MMW N PM45 ICH9M 6CELL2.2 65W 0.3M DV
AS7736G-
664G25Mn EMEA Czech LX.PHU02.071
AS7736G-664G25Mn W7HP64ATCZ2
MC N10MGS512Cbk_V3 2*2G/250/
6L2.2/5R/CB_n2_0.3D_HG_SK11
C2DT6600 NLED17.3WXGA+G N10MGS 512M-DDR3
(64*16*4) SO2GBII6 N250GB5.4KS NSM8XS 5 in 1-
Build in SP1x2MMW N PM45 ICH9M 6CELL2.2 65W 0.3M DV
AS7736G-
664G25Mn EMEA Eastern
Europe LX.PHU02.073
AS7736G-664G25Mn W7HP64ATEU4
MC N10MGS512Cbk_V3 2*2G/250/
6L2.2/5R/CB_n2_0.3D_HG_SV21
C2DT6600 NLED17.3WXGA+G N10MGS 512M-DDR3
(64*16*4) SO2GBII6 N250GB5.4KS NSM8XS 5 in 1-
Build in SP1x2MMW N PM45 ICH9M 6CELL2.2 65W 0.3M DV
AS7736G-
664G25Mn EMEA UK LX.PHU02.075
AS7736G-664G25Mn W7HP64ATGB1
MC N10MGS512Cbk_V3 2*2G/250/
6L2.2/5R/CB_n2_0.3D_HG_EN11
C2DT6600 NLED17.3WXGA+G N10MGS 512M-DDR3
(64*16*4) SO2GBII6 N250GB5.4KS NSM8XS 5 in 1-
Build in SP1x2MMW N PM45 ICH9M 6CELL2.2 65W 0.3M DV
AS7736G-
664G25Mn EMEA Germany LX.PHU02.078
AS7736G-664G25Mn W7HP64ATDE1
MC N10MGS512Cbk_V3 2*2G/250/
6L2.2/5R/CB_n2_0.3D_HG_DE11
C2DT6600 NLED17.3WXGA+G N10MGS 512M-DDR3
(64*16*4) SO2GBII6 N250GB5.4KS NSM8XS 5 in 1-
Build in SP1x2MMW N PM45 ICH9M 6CELL2.2 65W 0.3M DV
AS7736G-
664G25Mn EMEA France LX.PHU02.076
AS7736G-664G25Mn W7HP64ATFR1
MC N10MGS512Cbk_V3 2*2G/250/
6L2.2/5R/CB_n2_0.3D_HG_FR21
C2DT6600 NLED17.3WXGA+G N10MGS 512M-DDR3
(64*16*4) SO2GBII6 N250GB5.4KS NSM8XS 5 in 1-
Build in SP1x2MMW N PM45 ICH9M 6CELL2.2 65W 0.3M DV
AS7736G-
664G25Mn EMEA Norway LX.PHU02.077
AS7736G-664G25Mn W7HP64ATNO3
MC N10MGS512Cbk_V3 2*2G/250/
6L2.2/5R/CB_n2_0.3D_HG_ENS1
C2DT6600 NLED17.3WXGA+G N10MGS 512M-DDR3
(64*16*4) SO2GBII6 N250GB5.4KS NSM8XS 5 in 1-
Build in SP1x2MMW N PM45 ICH9M 6CELL2.2 65W 0.3M DV
AS7736G-
664G25Mn EMEA Spain LX.PHU02.081
AS7736G-664G25Mn W7HP64ATES1
MC N10MGS512Cbk_V3 2*2G/250/
6L2.2/5R/CB_n2_0.3D_HG_ES51
C2DT6600 NLED17.3WXGA+G N10MGS 512M-DDR3
(64*16*4) SO2GBII6 N250GB5.4KS NSM8XS 5 in 1-
Build in SP1x2MMW N PM45 ICH9M 6CELL2.2 65W 0.3M DV
AS7736G-
664G25Mn EMEA Denmark LX.PHU02.080
AS7736G-664G25Mn W7HP64ATDK2
MC N10MGS512Cbk_V3 2*2G/250/
6L2.2/5R/CB_n2_0.3D_HG_ENS1
C2DT6600 NLED17.3WXGA+G N10MGS 512M-DDR3
(64*16*4) SO2GBII6 N250GB5.4KS NSM8XS 5 in 1-
Build in SP1x2MMW N PM45 ICH9M 6CELL2.2 65W 0.3M DV
AS7736G-
664G25Mn EMEA Hungary LX.PHU02.082
AS7736G-664G25Mn W7HP64ATHU1
MC N10MGS512Cbk_V3 2*2G/250/
6L2.2/5R/CB_n2_0.3D_HG_HU11
C2DT6600 NLED17.3WXGA+G N10MGS 512M-DDR3
(64*16*4) SO2GBII6 N250GB5.4KS NSM8XS 5 in 1-
Build in SP1x2MMW N PM45 ICH9M 6CELL2.2 65W 0.3M DV
AS7736G-
664G25Mn EMEA Denmark LX.PHU02.083
AS7736G-664G25Mn W7HP64ATDK1
MC N10MGS512Cbk_V3 2*2G/250/
6L2.2/5R/CB_n2_0.3D_HG_NO11
C2DT6600 NLED17.3WXGA+G N10MGS 512M-DDR3
(64*16*4) SO2GBII6 N250GB5.4KS NSM8XS 5 in 1-
Build in SP1x2MMW N PM45 ICH9M 6CELL2.2 65W 0.3M DV
AS7736G-
664G25Mn EMEA Portugal LX.PHU02.079
AS7736G-664G25Mn W7HP64ATPT1
MC N10MGS512Cbk_V3 2*2G/250/
6L2.2/5R/CB_n2_0.3D_HG_PT11
C2DT6600 NLED17.3WXGA+G N10MGS 512M-DDR3
(64*16*4) SO2GBII6 N250GB5.4KS NSM8XS 5 in 1-
Build in SP1x2MMW N PM45 ICH9M 6CELL2.2 65W 0.3M DV
AS7736G-
664G25Mn EMEA Belgium LX.PHU02.086
AS7736G-664G25Mn W7HP64ATBE1
MC N10MGS512Cbk_V3 2*2G/250/
6L2.2/5R/CB_n2_0.3D_HG_NL11
C2DT6600 NLED17.3WXGA+G N10MGS 512M-DDR3
(64*16*4) SO2GBII6 N250GB5.4KS NSM8XS 5 in 1-
Build in SP1x2MMW N PM45 ICH9M 6CELL2.2 65W 0.3M DV
AS7736G-
664G25Mn EMEA Poland LX.PHU02.085
AS7736G-664G25Mn W7HP64ATPL1
MC N10MGS512Cbk_V3 2*2G/250/
6L2.2/5R/CB_n2_0.3D_HG_PL11
C2DT6600 NLED17.3WXGA+G N10MGS 512M-DDR3
(64*16*4) SO2GBII6 N250GB5.4KS NSM8XS 5 in 1-
Build in SP1x2MMW N PM45 ICH9M 6CELL2.2 65W 0.3M DV
AS7736G-
664G25Mn EMEA Eastern
Europe LX.PHU02.084
AS7736G-664G25Mn W7HP64ATEU5
MC N10MGS512Cbk_V3 2*2G/250/
6L2.2/5R/CB_n2_0.3D_HG_RO11
C2DT6600 NLED17.3WXGA+G N10MGS 512M-DDR3
(64*16*4) SO2GBII6 N250GB5.4KS NSM8XS 5 in 1-
Build in SP1x2MMW N PM45 ICH9M 6CELL2.2 65W 0.3M DV
AS7736G-
664G25Mn EMEA Greece LX.PHU02.087
AS7736G-664G25Mn W7HP64ATGR1
MC N10MGS512Cbk_V3 2*2G/250/
6L2.2/5R/CB_n2_0.3D_HG_EL31
C2DT6600 NLED17.3WXGA+G N10MGS 512M-DDR3
(64*16*4) SO2GBII6 N250GB5.4KS NSM8XS 5 in 1-
Build in SP1x2MMW N PM45 ICH9M 6CELL2.2 65W 0.3M DV
AS7736G-
664G25Mn EMEA Eastern
Europe LX.PHU02.090
AS7736G-664G25Mn W7HP64ATEU5
MC N10MGS512Cbk_V3 2*2G/250/
6L2.2/5R/CB_n2_0.3D_HG_PL71
C2DT6600 NLED17.3WXGA+G N10MGS 512M-DDR3
(64*16*4) SO2GBII6 N250GB5.4KS NSM8XS 5 in 1-
Build in SP1x2MMW N PM45 ICH9M 6CELL2.2 65W 0.3M DV
AS7736G-
664G25Mn EMEA Switzerland LX.PHU02.089
AS7736G-664G25Mn W7HP64ATCH1
MC N10MGS512Cbk_V3 2*2G/250/
6L2.2/5R/CB_n2_0.3D_HG_IT41
C2DT6600 NLED17.3WXGA+G N10MGS 512M-DDR3
(64*16*4) SO2GBII6 N250GB5.4KS NSM8XS 5 in 1-
Build in SP1x2MMW N PM45 ICH9M 6CELL2.2 65W 0.3M DV
AS7736G-
664G25Mn EMEA Holland LX.PHU02.088
AS7736G-664G25Mn W7HP64ATNL1
MC N10MGS512Cbk_V3 2*2G/250/
6L2.2/5R/CB_n2_0.3D_HG_NL11
C2DT6600 NLED17.3WXGA+G N10MGS 512M-DDR3
(64*16*4) SO2GBII6 N250GB5.4KS NSM8XS 5 in 1-
Build in SP1x2MMW N PM45 ICH9M 6CELL2.2 65W 0.3M DV
148 Appendix A
AS7736G-
744G50Mn EMEA Serbia/
Macedonia LX.PHU02.016
AS7736G-744G50Mn EM
W7HP64ATCS1 MC
N10MGS512Cbk_V3 2*2G/500_L/
6L2.2/5R/CB_n2_0.3D_HG_SL11
C2DP7450 NLED17.3WXGA+G N10MGS 512M-DDR3
(64*16*4) SO2GBII6 N500GB5.4KS NSM8XS 5 in 1-
Build in SP1x2MMW N PM45 ICH9M 6CELL2.2 65W 0.3M DV
AS7736G-
744G50Mn EMEA Israel LX.PHU02.018
AS7736G-744G50Mn W7HP64ATIL1
MC N10MGS512Cbk_V3 2*2G/500_L/
6L2.2/5R/CB_n2_0.3D_HG_HE11
C2DP7450 NLED17.3WXGA+G N10MGS 512M-DDR3
(64*16*4) SO2GBII6 N500GB5.4KS NSM8XS 5 in 1-
Build in SP1x2MMW N PM45 ICH9M 6CELL2.2 65W 0.3M DV
AS7736G-
744G50Mi EMEA Russia LX.PHU02.001
AS7736G-744G50Mi
W7HP64RUATRU1 MC
N10MGS512Cbk_V3 2*2G/500_L/
6L2.2/5R/CB_abg_0.3D_HG_RU11
C2DP7450 NLED17.3WXGA+G N10MGS 512M-DDR3
(64*16*4) SO2GBII6 N500GB5.4KS NSM8XS 5 in 1-
Build in
SP1x2MAB
GN PM45 ICH9M 6CELL2.2 65W 0.3M DV
AS7736G-
744G50Mn EMEA Israel LX.PHU02.017
AS7736G-744G50Mn W7HP64ATIL1
MC N10MGS512Cbk_V3 2*2G/500_L/
6L2.2/5R/CB_n2_0.3D_HG_HE31
C2DP7450 NLED17.3WXGA+G N10MGS 512M-DDR3
(64*16*4) SO2GBII6 N500GB5.4KS NSM8XS 5 in 1-
Build in SP1x2MMW N PM45 ICH9M 6CELL2.2 65W 0.3M DV
AS7736G-
744G50Mn EMEA Algeria LX.PHU02.003
AS7736G-744G50Mn EM
W7HP64EMATDZ1 MC
N10MGS512Cbk_V3 2*2G/500_L/
6L2.2/5R/CB_n2_0.3D_HG_ES81
C2DP7450 NLED17.3WXGA+G N10MGS 512M-DDR3
(64*16*4) SO2GBII6 N500GB5.4KS NSM8XS 5 in 1-
Build in SP1x2MMW N PM45 ICH9M 6CELL2.2 65W 0.3M DV
AS7736G-
744G50Mn EMEA South Africa LX.PHU02.004
AS7736G-744G50Mn EM
W7HP64EMATZA1 MC
N10MGS512Cbk_V3 2*2G/500_L/
6L2.2/5R/CB_n2_0.3D_HG_ES81
C2DP7450 NLED17.3WXGA+G N10MGS 512M-DDR3
(64*16*4) SO2GBII6 N500GB5.4KS NSM8XS 5 in 1-
Build in SP1x2MMW N PM45 ICH9M 6CELL2.2 65W 0.3M DV
AS7736G-
744G50Mn EMEA Middle East LX.PHU02.009
AS7736G-744G50Mn EM
W7HP64EMATME2 MC
N10MGS512Cbk_V3 2*2G/500_L/
6L2.2/5R/CB_n2_0.3D_HG_ES61
C2DP7450 NLED17.3WXGA+G N10MGS 512M-DDR3
(64*16*4) SO2GBII6 N500GB5.4KS NSM8XS 5 in 1-
Build in SP1x2MMW N PM45 ICH9M 6CELL2.2 65W 0.3M DV
AS7736G-
744G50Mn EMEA Middle East LX.PHU02.005
AS7736G-744G50Mn EM
W7HP64EMATME4 MC
N10MGS512Cbk_V3 2*2G/500_L/
6L2.2/5R/CB_n2_0.3D_HG_RU61
C2DP7450 NLED17.3WXGA+G N10MGS 512M-DDR3
(64*16*4) SO2GBII6 N500GB5.4KS NSM8XS 5 in 1-
Build in SP1x2MMW N PM45 ICH9M 6CELL2.2 65W 0.3M DV
AS7736G-
744G50Mn EMEA South Africa LX.PHU02.008
AS7736G-744G50Mn EM
W7HP64EMATZA4 MC
N10MGS512Cbk_V3 2*2G/500_L/
6L2.2/5R/CB_n2_0.3D_HG_ES61
C2DP7450 NLED17.3WXGA+G N10MGS 512M-DDR3
(64*16*4) SO2GBII6 N500GB5.4KS NSM8XS 5 in 1-
Build in SP1x2MMW N PM45 ICH9M 6CELL2.2 65W 0.3M DV
AS7736G-
744G50Mn EMEA Middle East LX.PHU02.006
AS7736G-744G50Mn EM
W7HP64EMATME3 MC
N10MGS512Cbk_V3 2*2G/500_L/
6L2.2/5R/CB_n2_0.3D_HG_ES81
C2DP7450 NLED17.3WXGA+G N10MGS 512M-DDR3
(64*16*4) SO2GBII6 N500GB5.4KS NSM8XS 5 in 1-
Build in SP1x2MMW N PM45 ICH9M 6CELL2.2 65W 0.3M DV
AS7736G-
744G50Mn EMEA Middle East LX.PHU02.012
AS7736G-744G50Mn EM
W7HP64EMATME9 MC
N10MGS512Cbk_V3 2*2G/500_L/
6L2.2/5R/CB_n2_0.3D_HG_ES81
C2DP7450 NLED17.3WXGA+G N10MGS 512M-DDR3
(64*16*4) SO2GBII6 N500GB5.4KS NSM8XS 5 in 1-
Build in SP1x2MMW N PM45 ICH9M 6CELL2.2 65W 0.3M DV
AS7736G-
744G50Mn EMEA Turkey LX.PHU02.010
AS7736G-744G50Mn EM
W7HP64EMATTR1 MC
N10MGS512Cbk_V3 2*2G/500_L/
6L2.2/5R/CB_n2_0.3D_HG_TR31
C2DP7450 NLED17.3WXGA+G N10MGS 512M-DDR3
(64*16*4) SO2GBII6 N500GB5.4KS NSM8XS 5 in 1-
Build in SP1x2MMW N PM45 ICH9M 6CELL2.2 65W 0.3M DV
AS7736G-
744G50Mn EMEA South Africa LX.PHU02.011
AS7736G-744G50Mn EM
W7HP64EMATZA2 MC
N10MGS512Cbk_V3 2*2G/500_L/
6L2.2/5R/CB_n2_0.3D_HG_ES61
C2DP7450 NLED17.3WXGA+G N10MGS 512M-DDR3
(64*16*4) SO2GBII6 N500GB5.4KS NSM8XS 5 in 1-
Build in SP1x2MMW N PM45 ICH9M 6CELL2.2 65W 0.3M DV
AS7736G-
744G50Mn EMEA Eastern
Europe LX.PHU02.019
AS7736G-744G50Mn W7HP64ATEU7
MC N10MGS512Cbk_V3 2*2G/500_L/
6L2.2/5R/CB_n2_0.3D_HG_SL11
C2DP7450 NLED17.3WXGA+G N10MGS 512M-DDR3
(64*16*4) SO2GBII6 N500GB5.4KS NSM8XS 5 in 1-
Build in SP1x2MMW N PM45 ICH9M 6CELL2.2 65W 0.3M DV
AS7736G-
744G50Mn EMEA Middle East LX.PHU02.013
AS7736G-744G50Mn EM
W7HP64EMATME6 MC
N10MGS512Cbk_V3 2*2G/500_L/
6L2.2/5R/CB_n2_0.3D_HG_ES61
C2DP7450 NLED17.3WXGA+G N10MGS 512M-DDR3
(64*16*4) SO2GBII6 N500GB5.4KS NSM8XS 5 in 1-
Build in SP1x2MMW N PM45 ICH9M 6CELL2.2 65W 0.3M DV
AS7736G-
744G50Mn EMEA Middle East LX.PHU02.014
AS7736G-744G50Mn EM
W7HP64EMATME2 MC
N10MGS512Cbk_V3 2*2G/500_L/
6L2.2/5R/CB_n2_0.3D_HG_AR11
C2DP7450 NLED17.3WXGA+G N10MGS 512M-DDR3
(64*16*4) SO2GBII6 N500GB5.4KS NSM8XS 5 in 1-
Build in SP1x2MMW N PM45 ICH9M 6CELL2.2 65W 0.3M DV
AS7736G-
744G50Mn EMEA Middle East LX.PHU02.015
AS7736G-744G50Mn EM
W7HP64EMATME4 MC
N10MGS512Cbk_V3 2*2G/500_L/
6L2.2/5R/CB_n2_0.3D_HG_ES61
C2DP7450 NLED17.3WXGA+G N10MGS 512M-DDR3
(64*16*4) SO2GBII6 N500GB5.4KS NSM8XS 5 in 1-
Build in SP1x2MMW N PM45 ICH9M 6CELL2.2 65W 0.3M DV
Appendix A 149
AS7736G-
744G50Mn EMEA Sweden LX.PHU02.033
AS7736G-744G50Mn W7HP64ATSE1
MC N10MGS512Cbk_V3 2*2G/500_L/
6L2.2/5R/CB_n2_0.3D_HG_FI11
C2DP7450 NLED17.3WXGA+G N10MGS 512M-DDR3
(64*16*4) SO2GBII6 N500GB5.4KS NSM8XS 5 in 1-
Build in SP1x2MMW N PM45 ICH9M 6CELL2.2 65W 0.3M DV
AS7736G-
744G50Mn EMEA Luxembour
gLX.PHU02.039
AS7736G-744G50Mn W7HP64ATLU3
MC N10MGS512Cbk_V3 2*2G/500_L/
6L2.2/5R/CB_n2_0.3D_HG_IT41
C2DP7450 NLED17.3WXGA+G N10MGS 512M-DDR3
(64*16*4) SO2GBII6 N500GB5.4KS NSM8XS 5 in 1-
Build in SP1x2MMW N PM45 ICH9M 6CELL2.2 65W 0.3M DV
AS7736G-
744G50Mn EMEA Cyprus LX.PHU02.038
AS7736G-744G50Mn W7HP64ATCY1
MC N10MGS512Cbk_V3 2*2G/500_L/
6L2.2/5R/CB_n2_0.3D_HG_ES61
C2DP7450 NLED17.3WXGA+G N10MGS 512M-DDR3
(64*16*4) SO2GBII6 N500GB5.4KS NSM8XS 5 in 1-
Build in SP1x2MMW N PM45 ICH9M 6CELL2.2 65W 0.3M DV
AS7736G-
744G50Mn EMEA Eastern
Europe LX.PHU02.020
AS7736G-744G50Mn W7HP64ATEU7
MC N10MGS512Cbk_V3 2*2G/500_L/
6L2.2/5R/CB_n2_0.3D_HG_ENQ1
C2DP7450 NLED17.3WXGA+G N10MGS 512M-DDR3
(64*16*4) SO2GBII6 N500GB5.4KS NSM8XS 5 in 1-
Build in SP1x2MMW N PM45 ICH9M 6CELL2.2 65W 0.3M DV
AS7736G-
744G50Mn EMEA Italy LX.PHU02.037
AS7736G-744G50Mn W7HP64ATIT1
MC N10MGS512Cbk_V3 2*2G/500_L/
6L2.2/5R/CB_n2_0.3D_HG_IT11
C2DP7450 NLED17.3WXGA+G N10MGS 512M-DDR3
(64*16*4) SO2GBII6 N500GB5.4KS NSM8XS 5 in 1-
Build in SP1x2MMW N PM45 ICH9M 6CELL2.2 65W 0.3M DV
AS7736G-
744G50Mn EMEA Finland LX.PHU02.036
AS7736G-744G50Mn W7HP64ATFI2
MC N10MGS512Cbk_V3 2*2G/500_L/
6L2.2/5R/CB_n2_0.3D_HG_FI11
C2DP7450 NLED17.3WXGA+G N10MGS 512M-DDR3
(64*16*4) SO2GBII6 N500GB5.4KS NSM8XS 5 in 1-
Build in SP1x2MMW N PM45 ICH9M 6CELL2.2 65W 0.3M DV
AS7736G-
744G50Mn EMEA Norway LX.PHU02.041
AS7736G-744G50Mn W7HP64ATNO1
MC N10MGS512Cbk_V3 2*2G/500_L/
6L2.2/5R/CB_n2_0.3D_HG_NO11
C2DP7450 NLED17.3WXGA+G N10MGS 512M-DDR3
(64*16*4) SO2GBII6 N500GB5.4KS NSM8XS 5 in 1-
Build in SP1x2MMW N PM45 ICH9M 6CELL2.2 65W 0.3M DV
AS7736G-
744G50Mn EMEA UK LX.PHU02.044
AS7736G-744G50Mn W7HP64ATGB1
MC N10MGS512Cbk_V3 2*2G/500_L/
6L2.2/5R/CB_n2_0.3D_HG_EN11
C2DP7450 NLED17.3WXGA+G N10MGS 512M-DDR3
(64*16*4) SO2GBII6 N500GB5.4KS NSM8XS 5 in 1-
Build in SP1x2MMW N PM45 ICH9M 6CELL2.2 65W 0.3M DV
AS7736G-
744G50Mn EMEA Eastern
Europe LX.PHU02.042
AS7736G-744G50Mn W7HP64ATEU4
MC N10MGS512Cbk_V3 2*2G/500_L/
6L2.2/5R/CB_n2_0.3D_HG_SV21
C2DP7450 NLED17.3WXGA+G N10MGS 512M-DDR3
(64*16*4) SO2GBII6 N500GB5.4KS NSM8XS 5 in 1-
Build in SP1x2MMW N PM45 ICH9M 6CELL2.2 65W 0.3M DV
AS7736G-
744G50Mn EMEA Austria LX.PHU02.045
AS7736G-744G50Mn W7HP64ATAT1
MC N10MGS512Cbk_V3 2*2G/500_L/
6L2.2/5R/CB_n2_0.3D_HG_DE61
C2DP7450 NLED17.3WXGA+G N10MGS 512M-DDR3
(64*16*4) SO2GBII6 N500GB5.4KS NSM8XS 5 in 1-
Build in SP1x2MMW N PM45 ICH9M 6CELL2.2 65W 0.3M DV
AS7736G-
744G50Mn EMEA Czech LX.PHU02.040
AS7736G-744G50Mn W7HP64ATCZ2
MC N10MGS512Cbk_V3 2*2G/500_L/
6L2.2/5R/CB_n2_0.3D_HG_SK11
C2DP7450 NLED17.3WXGA+G N10MGS 512M-DDR3
(64*16*4) SO2GBII6 N500GB5.4KS NSM8XS 5 in 1-
Build in SP1x2MMW N PM45 ICH9M 6CELL2.2 65W 0.3M DV
AS7736G-
744G50Mn EMEA France LX.PHU02.043
AS7736G-744G50Mn W7HP64ATFR1
MC N10MGS512Cbk_V3 2*2G/500_L/
6L2.2/5R/CB_n2_0.3D_HG_FR21
C2DP7450 NLED17.3WXGA+G N10MGS 512M-DDR3
(64*16*4) SO2GBII6 N500GB5.4KS NSM8XS 5 in 1-
Build in SP1x2MMW N PM45 ICH9M 6CELL2.2 65W 0.3M DV
AS7736ZG-
434G32Mn EMEA France LX.PJA02.132
AS7736ZG-434G32Mn
W7HP64ATFR1 MC
N10MGS512Cbk_V3 2*2G/320/6L2.2/
5R/CB_bgn_0.3D_HG_FR21
PMDT4300 NLED17.3WXGA+G N10MGS 512M-DDR3
(64*16*4) SO2GBII6 N320GB5.4KS NSM8XS 5 in 1-
Build in
3rd WiFi 1x2
BGN N GM45 ICH9M 6CELL2.2 65W 0.3M DV
AS7736ZG-
433G32Mn EMEA Germany LX.PJA02.134
AS7736ZG-433G32Mn
W7HP64ATDE1 MC
N10MGS512Cbk_V3 2G+1G/320/
6L2.2/5R/CB_bgn_0.3D_HG_DE11
PMDT4300 NLED17.3WXGA+G N10MGS 512M-DDR3
(64*16*4)
SO2GBII6/
SO1GBII6 N320GB5.4KS NSM8XS 5 in 1-
Build in
3rd WiFi 1x2
BGN N GM45 ICH9M 6CELL2.2 65W 0.3M DV
AS7736ZG-
434G50Mn EMEA France LX.PJA02.043
AS7736ZG-434G50Mn
W7HP64ATFR1 MC
N10MGS512Cbk_V3 2*2G/500_L/
6L2.2/5R/CB_bgn_0.3D_HG_FR21
PMDT4300 NLED17.3WXGA+G N10MGS 512M-DDR3
(64*16*4) SO2GBII6 N500GB5.4KS NSM8XS 5 in 1-
Build in
3rd WiFi 1x2
BGN N GM45 ICH9M 6CELL2.2 65W 0.3M DV
AS7736ZG-
434G25Mn EMEA France LX.PJA02.139
AS7736ZG-434G25Mn
W7HP64ATFR1 MC
N10MGS512Cbk_V3 2*2G/250/6L2.2/
5R/CB_bgn_0.3D_HG_FR21
PMDT4300 NLED17.3WXGA+G N10MGS 512M-DDR3
(64*16*4) SO2GBII6 N250GB5.4KS NSM8XS 5 in 1-
Build in
3rd WiFi 1x2
BGN N GM45 ICH9M 6CELL2.2 65W 0.3M DV
AS7736ZG-
434G50Mn EMEA Sweden LX.PJA02.033
AS7736ZG-434G50Mn
W7HP64ATSE1 MC
N10MGS512Cbk_V3 2*2G/500_L/
6L2.2/5R/CB_bgn_0.3D_HG_FI11
PMDT4300 NLED17.3WXGA+G N10MGS 512M-DDR3
(64*16*4) SO2GBII6 N500GB5.4KS NSM8XS 5 in 1-
Build in
3rd WiFi 1x2
BGN N GM45 ICH9M 6CELL2.2 65W 0.3M DV
AS7736ZG-
433G50Mn EMEA Latvia LX.PJA0C.004
AS7736ZG-433G50Mn LINPUSALV1
N10MGS512Cbk_V3 2G+1G/500_L/
BT/6L2.2/5R/
CB_bgn_0.3D_HG_EN71
PMDT4300 NLED17.3WXGA+G N10MGS 512M-DDR3
(64*16*4)
SO2GBII6/
SO1GBII6 N500GB5.4KS NSM8XS 5 in 1-
Build in
3rd WiFi 1x2
BGN BT 2.1/N GM45 ICH9M 6CELL2.2 65W 0.3M DV
AS7736ZG-
434G50Mn EMEA Eastern
Europe LX.PJA0C.007
AS7736ZG-434G50Mn LINPUSAEU7
N10MGS512Cbk_V3 2*2G/500_L/BT/
6L2.2/5R/CB_bgn_0.3D_HG_EN11
PMDT4300 NLED17.3WXGA+G N10MGS 512M-DDR3
(64*16*4) SO2GBII6 N500GB5.4KS NSM8XS 5 in 1-
Build in
3rd WiFi 1x2
BGN BT 2.1/N GM45 ICH9M 6CELL2.2 65W 0.3M DV
150 Appendix A
AS7736ZG-
434G50Mn EMEA Eastern
Europe LX.PJA02.136
AS7736ZG-434G50Mn
W7HP64ATEU7 MC
N10MGS512Cbk_V3 2*2G/500_L/BT/
6L2.2/5R/CB_bgn_0.3D_HG_SL11
PMDT4300 NLED17.3WXGA+G N10MGS 512M-DDR3
(64*16*4) SO2GBII6 N500GB5.4KS NSM8XS 5 in 1-
Build in
3rd WiFi 1x2
BGN BT 2.1/N GM45 ICH9M 6CELL2.2 65W 0.3M DV
AS7736ZG-
434G32Mn EMEA Germany LX.PJA02.138
AS7736ZG-434G32Mn
W7HP64ATDE1 MC
N10MGS512Cbk_V3 2*2G/320/6L2.2/
5R/CB_bgn_0.3D_HG_DE11
PMDT4300 NLED17.3WXGA+G N10MGS 512M-DDR3
(64*16*4) SO2GBII6 N320GB5.4KS NSM8XS 5 in 1-
Build in
3rd WiFi 1x2
BGN N GM45 ICH9M 6CELL2.2 65W 0.3M DV
AS7736ZG-
434G32Mn EMEA Eastern
Europe LX.PJA0C.006
AS7736ZG-434G32Mn LINPUSAEU5
N10MGS512Cbk_V3 2*2G/320/BT/
6L2.2/5R/CB_bgn_0.3D_HG_ENF1
PMDT4300 NLED17.3WXGA+G N10MGS 512M-DDR3
(64*16*4) SO2GBII6 N320GB5.4KS NSM8XS 5 in 1-
Build in
3rd WiFi 1x2
BGN BT 2.1/N GM45 ICH9M 6CELL2.2 65W 0.3M DV
AS7736ZG-
433G25Mn EMEA Middle East LX.PJA02.096
AS7736ZG-433G25Mn EM
W7HP64EMATME2 MC
N10MGS512Cbk_V3 2G+1G/250/
6L2.2/5R/CB_bgn_0.3D_HG_AR21
PMDT4300 NLED17.3WXGA+G N10MGS 512M-DDR3
(64*16*4)
SO2GBII6/
SO1GBII6 N250GB5.4KS NSM8XS 5 in 1-
Build in
3rd WiFi 1x2
BGN N GM45 ICH9M 6CELL2.2 65W 0.3M DV
AS7736ZG-
434G50Mn EMEA Middle East LX.PJA02.055
AS7736ZG-434G50Mn EM
W7HP64EMATME2 MC
N10MGS512Cbk_V3 2*2G/500_L/
6L2.2/5R/CB_bgn_0.3D_HG_AR21
PMDT4300 NLED17.3WXGA+G N10MGS 512M-DDR3
(64*16*4) SO2GBII6 N500GB5.4KS NSM8XS 5 in 1-
Build in
3rd WiFi 1x2
BGN N GM45 ICH9M 6CELL2.2 65W 0.3M DV
AS7736ZG-
434G50Mn EMEA Middle East LX.PJA02.008
AS7736ZG-434G50Mn EM
W7HP64EMATME2 MC
N10MGS512Cbk_V3 2*2G/500_L/
6L2.2/5R/CB_bgn_0.3D_HG_AR21
PMDT4300 NLED17.3WXGA+G N10MGS 512M-DDR3
(64*16*4) SO2GBII6 N500GB5.4KS NSM8XS 5 in 1-
Build in
3rd WiFi 1x2
BGN N GM45 ICH9M 6CELL2.2 65W 0.3M DV
AS7736ZG-
434G50Mn EMEA Eastern
Europe LX.PJA02.137
AS7736ZG-434G50Mn
W7HP64ATEU7 MC
N10MGS512Cbk_V3 2*2G/500_L/BT/
6L2.2/5R/CB_bgn_0.3D_HG_ENQ1
PMDT4300 NLED17.3WXGA+G N10MGS 512M-DDR3
(64*16*4) SO2GBII6 N500GB5.4KS NSM8XS 5 in 1-
Build in
3rd WiFi 1x2
BGN BT 2.1/N GM45 ICH9M 6CELL2.2 65W 0.3M DV
AS7736ZG-
433G50Mn EMEA Eastern
Europe LX.PJA0C.005
AS7736ZG-433G50Mn LINPUSAEU5
N10MGS512Cbk_V3 2G+1G/500_L/
BT/6L2.2/5R/
CB_bgn_0.3D_HG_ENF1
PMDT4300 NLED17.3WXGA+G N10MGS 512M-DDR3
(64*16*4)
SO2GBII6/
SO1GBII6 N500GB5.4KS NSM8XS 5 in 1-
Build in
3rd WiFi 1x2
BGN BT 2.1/N GM45 ICH9M 6CELL2.2 65W 0.3M DV
AS7736ZG-
434G32Mn EMEA Eastern
Europe LX.PJA02.133
AS7736ZG-434G32Mn
W7HP64ATEU5 MC
N10MGS512Cbk_V3 2*2G/320/BT/
6L2.2/5R/CB_bgn_0.3D_HG_RO11
PMDT4300 NLED17.3WXGA+G N10MGS 512M-DDR3
(64*16*4) SO2GBII6 N320GB5.4KS NSM8XS 5 in 1-
Build in
3rd WiFi 1x2
BGN BT 2.1/N GM45 ICH9M 6CELL2.2 65W 0.3M DV
AS7736ZG-
434G50Mn EMEA Poland LX.PJA02.064
AS7736ZG-434G50Mn
W7HP64ATPL1 MC
N10MGS512Cbk_V3 2*2G/500_L/
6L2.2/5R/CB_bgn_0.3D_HG_PL11
PMDT4300 NLED17.3WXGA+G N10MGS 512M-DDR3
(64*16*4) SO2GBII6 N500GB5.4KS NSM8XS 5 in 1-
Build in
3rd WiFi 1x2
BGN N GM45 ICH9M 6CELL2.2 65W 0.3M DV
AS7736ZG-
434G50Mn EMEA Denmark LX.PJA02.062
AS7736ZG-434G50Mn
W7HP64ATDK1 MC
N10MGS512Cbk_V3 2*2G/500_L/
6L2.2/5R/CB_bgn_0.3D_HGO11
PMDT4300 NLED17.3WXGA+G N10MGS 512M-DDR3
(64*16*4) SO2GBII6 N500GB5.4KS NSM8XS 5 in 1-
Build in
3rd WiFi 1x2
BGN N GM45 ICH9M 6CELL2.2 65W 0.3M DV
AS7736ZG-
434G50Mn EMEA Eastern
Europe LX.PJA02.063
AS7736ZG-434G50Mn
W7HP64ATEU5 MC
N10MGS512Cbk_V3 2*2G/500_L/
6L2.2/5R/CB_bgn_0.3D_HG_RO11
PMDT4300 NLED17.3WXGA+G N10MGS 512M-DDR3
(64*16*4) SO2GBII6 N500GB5.4KS NSM8XS 5 in 1-
Build in
3rd WiFi 1x2
BGN N GM45 ICH9M 6CELL2.2 65W 0.3M DV
AS7736ZG-
434G50Mn EMEA Greece LX.PJA02.066
AS7736ZG-434G50Mn
W7HP64ATGR1 MC
N10MGS512Cbk_V3 2*2G/500_L/
6L2.2/5R/CB_bgn_0.3D_HG_EL31
PMDT4300 NLED17.3WXGA+G N10MGS 512M-DDR3
(64*16*4) SO2GBII6 N500GB5.4KS NSM8XS 5 in 1-
Build in
3rd WiFi 1x2
BGN N GM45 ICH9M 6CELL2.2 65W 0.3M DV
AS7736ZG-
434G50Mn EMEA Belgium LX.PJA02.065
AS7736ZG-434G50Mn
W7HP64ATBE1 MC
N10MGS512Cbk_V3 2*2G/500_L/
6L2.2/5R/CB_bgn_0.3D_HGL11
PMDT4300 NLED17.3WXGA+G N10MGS 512M-DDR3
(64*16*4) SO2GBII6 N500GB5.4KS NSM8XS 5 in 1-
Build in
3rd WiFi 1x2
BGN N GM45 ICH9M 6CELL2.2 65W 0.3M DV
AS7736ZG-
434G50Mn EMEA Switzerland LX.PJA02.068
AS7736ZG-434G50Mn
W7HP64ATCH1 MC
N10MGS512Cbk_V3 2*2G/500_L/
6L2.2/5R/CB_bgn_0.3D_HG_IT41
PMDT4300 NLED17.3WXGA+G N10MGS 512M-DDR3
(64*16*4) SO2GBII6 N500GB5.4KS NSM8XS 5 in 1-
Build in
3rd WiFi 1x2
BGN N GM45 ICH9M 6CELL2.2 65W 0.3M DV
AS7736ZG-
434G50Mn EMEA Eastern
Europe LX.PJA02.069
AS7736ZG-434G50Mn
W7HP64ATEU5 MC
N10MGS512Cbk_V3 2*2G/500_L/
6L2.2/5R/CB_bgn_0.3D_HG_PL71
PMDT4300 NLED17.3WXGA+G N10MGS 512M-DDR3
(64*16*4) SO2GBII6 N500GB5.4KS NSM8XS 5 in 1-
Build in
3rd WiFi 1x2
BGN N GM45 ICH9M 6CELL2.2 65W 0.3M DV
AS7736ZG-
434G50Mn EMEA Holland LX.PJA02.067
AS7736ZG-434G50Mn
W7HP64ATNL1 MC
N10MGS512Cbk_V3 2*2G/500_L/
6L2.2/5R/CB_bgn_0.3D_HGL11
PMDT4300 NLED17.3WXGA+G N10MGS 512M-DDR3
(64*16*4) SO2GBII6 N500GB5.4KS NSM8XS 5 in 1-
Build in
3rd WiFi 1x2
BGN N GM45 ICH9M 6CELL2.2 65W 0.3M DV
Appendix A 151
AS7736ZG-
433G25Mi EMEA Russia LX.PJA02.089
AS7736ZG-433G25Mi
W7HP64RUATRU1 MC
N10MGS512Cbk_V3 2G+1G/250/
6L2.2/5R/CB_bg_0.3D_HG_RU11
PMDT4300 NLED17.3WXGA+G N10MGS 512M-DDR3
(64*16*4)
SO2GBII6/
SO1GBII6 N250GB5.4KS NSM8XS 5 in 1-
Build in 3rd WiFi BG N GM45 ICH9M 6CELL2.2 65W 0.3M DV
AS7736ZG-
433G25Mn EMEA Ukraine LX.PJA02.090
AS7736ZG-433G25Mn
W7HP64RUATUK1 MC
N10MGS512Cbk_V3 2G+1G/250/
6L2.2/5R/CB_bgn_0.3D_HG_RU61
PMDT4300 NLED17.3WXGA+G N10MGS 512M-DDR3
(64*16*4)
SO2GBII6/
SO1GBII6 N250GB5.4KS NSM8XS 5 in 1-
Build in
3rd WiFi 1x2
BGN N GM45 ICH9M 6CELL2.2 65W 0.3M DV
AS7736ZG-
433G25Mn EMEA Middle East LX.PJA02.094
AS7736ZG-433G25Mn EM
W7HP64EMATME2 MC
N10MGS512Cbk_V3 2G+1G/250/
6L2.2/5R/CB_bgn_0.3D_HG_ES61
PMDT4300 NLED17.3WXGA+G N10MGS 512M-DDR3
(64*16*4)
SO2GBII6/
SO1GBII6 N250GB5.4KS NSM8XS 5 in 1-
Build in
3rd WiFi 1x2
BGN N GM45 ICH9M 6CELL2.2 65W 0.3M DV
AS7736ZG-
433G25Mn EMEA Algeria LX.PJA02.091
AS7736ZG-433G25Mn EM
W7HP64EMATDZ1 MC
N10MGS512Cbk_V3 2G+1G/250/
6L2.2/5R/CB_bgn_0.3D_HG_ES81
PMDT4300 NLED17.3WXGA+G N10MGS 512M-DDR3
(64*16*4)
SO2GBII6/
SO1GBII6 N250GB5.4KS NSM8XS 5 in 1-
Build in
3rd WiFi 1x2
BGN N GM45 ICH9M 6CELL2.2 65W 0.3M DV
AS7736ZG-
433G25Mn EMEA South Africa LX.PJA02.092
AS7736ZG-433G25Mn EM
W7HP64EMATZA1 MC
N10MGS512Cbk_V3 2G+1G/250/
6L2.2/5R/CB_bgn_0.3D_HG_ES81
PMDT4300 NLED17.3WXGA+G N10MGS 512M-DDR3
(64*16*4)
SO2GBII6/
SO1GBII6 N250GB5.4KS NSM8XS 5 in 1-
Build in
3rd WiFi 1x2
BGN N GM45 ICH9M 6CELL2.2 65W 0.3M DV
AS7736ZG-
433G25Mn EMEA Middle East LX.PJA02.093
AS7736ZG-433G25Mn EM
W7HP64EMATME4 MC
N10MGS512Cbk_V3 2G+1G/250/
6L2.2/5R/CB_bgn_0.3D_HG_RU61
PMDT4300 NLED17.3WXGA+G N10MGS 512M-DDR3
(64*16*4)
SO2GBII6/
SO1GBII6 N250GB5.4KS NSM8XS 5 in 1-
Build in
3rd WiFi 1x2
BGN N GM45 ICH9M 6CELL2.2 65W 0.3M DV
AS7736ZG-
433G25Mn EMEA South Africa LX.PJA02.095
AS7736ZG-433G25Mn EM
W7HP64EMATZA4 MC
N10MGS512Cbk_V3 2G+1G/250/
6L2.2/5R/CB_bgn_0.3D_HG_ES61
PMDT4300 NLED17.3WXGA+G N10MGS 512M-DDR3
(64*16*4)
SO2GBII6/
SO1GBII6 N250GB5.4KS NSM8XS 5 in 1-
Build in
3rd WiFi 1x2
BGN N GM45 ICH9M 6CELL2.2 65W 0.3M DV
AS7736ZG-
433G25Mn EMEA Middle East LX.PJA02.097
AS7736ZG-433G25Mn EM
W7HP64EMATME3 MC
N10MGS512Cbk_V3 2G+1G/250/
6L2.2/5R/CB_bgn_0.3D_HG_ES81
PMDT4300 NLED17.3WXGA+G N10MGS 512M-DDR3
(64*16*4)
SO2GBII6/
SO1GBII6 N250GB5.4KS NSM8XS 5 in 1-
Build in
3rd WiFi 1x2
BGN N GM45 ICH9M 6CELL2.2 65W 0.3M DV
AS7736ZG-
433G25Mn EMEA Middle East LX.PJA02.101
AS7736ZG-433G25Mn EM
W7HP64EMATME9 MC
N10MGS512Cbk_V3 2G+1G/250/
6L2.2/5R/CB_bgn_0.3D_HG_ES81
PMDT4300 NLED17.3WXGA+G N10MGS 512M-DDR3
(64*16*4)
SO2GBII6/
SO1GBII6 N250GB5.4KS NSM8XS 5 in 1-
Build in
3rd WiFi 1x2
BGN N GM45 ICH9M 6CELL2.2 65W 0.3M DV
AS7736ZG-
433G25Mn EMEA Middle East LX.PJA02.102
AS7736ZG-433G25Mn EM
W7HP64EMATME4 MC
N10MGS512Cbk_V3 2G+1G/250/
6L2.2/5R/CB_bgn_0.3D_HG_ES61
PMDT4300 NLED17.3WXGA+G N10MGS 512M-DDR3
(64*16*4)
SO2GBII6/
SO1GBII6 N250GB5.4KS NSM8XS 5 in 1-
Build in
3rd WiFi 1x2
BGN N GM45 ICH9M 6CELL2.2 65W 0.3M DV
AS7736ZG-
433G25Mn EMEA Turkey LX.PJA02.098
AS7736ZG-433G25Mn EM
W7HP64EMATTR1 MC
N10MGS512Cbk_V3 2G+1G/250/
6L2.2/5R/CB_bgn_0.3D_HG_TR31
PMDT4300 NLED17.3WXGA+G N10MGS 512M-DDR3
(64*16*4)
SO2GBII6/
SO1GBII6 N250GB5.4KS NSM8XS 5 in 1-
Build in
3rd WiFi 1x2
BGN N GM45 ICH9M 6CELL2.2 65W 0.3M DV
AS7736ZG-
433G25Mn EMEA South Africa LX.PJA02.099
AS7736ZG-433G25Mn EM
W7HP64EMATZA2 MC
N10MGS512Cbk_V3 2G+1G/250/
6L2.2/5R/CB_bgn_0.3D_HG_ES61
PMDT4300 NLED17.3WXGA+G N10MGS 512M-DDR3
(64*16*4)
SO2GBII6/
SO1GBII6 N250GB5.4KS NSM8XS 5 in 1-
Build in
3rd WiFi 1x2
BGN N GM45 ICH9M 6CELL2.2 65W 0.3M DV
AS7736ZG-
433G25Mn EMEA Middle East LX.PJA02.103
AS7736ZG-433G25Mn EM
W7HP64EMATME2 MC
N10MGS512Cbk_V3 2G+1G/250/
6L2.2/5R/CB_bgn_0.3D_HG_AR11
PMDT4300 NLED17.3WXGA+G N10MGS 512M-DDR3
(64*16*4)
SO2GBII6/
SO1GBII6 N250GB5.4KS NSM8XS 5 in 1-
Build in
3rd WiFi 1x2
BGN N GM45 ICH9M 6CELL2.2 65W 0.3M DV
AS7736ZG-
433G25Mn EMEA Eastern
Europe LX.PJA02.105
AS7736ZG-433G25Mn
W7HP64ATEU7 MC
N10MGS512Cbk_V3 2G+1G/250/
6L2.2/5R/CB_bgn_0.3D_HG_SL11
PMDT4300 NLED17.3WXGA+G N10MGS 512M-DDR3
(64*16*4)
SO2GBII6/
SO1GBII6 N250GB5.4KS NSM8XS 5 in 1-
Build in
3rd WiFi 1x2
BGN N GM45 ICH9M 6CELL2.2 65W 0.3M DV
AS7736ZG-
433G25Mn EMEA Middle East LX.PJA02.104
AS7736ZG-433G25Mn EM
W7HP64EMATME6 MC
N10MGS512Cbk_V3 2G+1G/250/
6L2.2/5R/CB_bgn_0.3D_HG_ES61
PMDT4300 NLED17.3WXGA+G N10MGS 512M-DDR3
(64*16*4)
SO2GBII6/
SO1GBII6 N250GB5.4KS NSM8XS 5 in 1-
Build in
3rd WiFi 1x2
BGN N GM45 ICH9M 6CELL2.2 65W 0.3M DV
AS7736ZG-
433G25Mn EMEA Eastern
Europe LX.PJA02.106
AS7736ZG-433G25Mn
W7HP64ATEU7 MC
N10MGS512Cbk_V3 2G+1G/250/
6L2.2/5R/CB_bgn_0.3D_HG_ENQ1
PMDT4300 NLED17.3WXGA+G N10MGS 512M-DDR3
(64*16*4)
SO2GBII6/
SO1GBII6 N250GB5.4KS NSM8XS 5 in 1-
Build in
3rd WiFi 1x2
BGN N GM45 ICH9M 6CELL2.2 65W 0.3M DV
AS7736ZG-
433G25Mn EMEA Italy LX.PJA02.110
AS7736ZG-433G25Mn W7HP64ATIT1
MC N10MGS512Cbk_V3 2G+1G/250/
6L2.2/5R/CB_bgn_0.3D_HG_IT11
PMDT4300 NLED17.3WXGA+G N10MGS 512M-DDR3
(64*16*4)
SO2GBII6/
SO1GBII6 N250GB5.4KS NSM8XS 5 in 1-
Build in
3rd WiFi 1x2
BGN N GM45 ICH9M 6CELL2.2 65W 0.3M DV
152 Appendix A
AS7736ZG-
433G25Mn EMEA Cyprus LX.PJA02.109
AS7736ZG-433G25Mn
W7HP64ATCY1 MC
N10MGS512Cbk_V3 2G+1G/250/
6L2.2/5R/CB_bgn_0.3D_HG_ES61
PMDT4300 NLED17.3WXGA+G N10MGS 512M-DDR3
(64*16*4)
SO2GBII6/
SO1GBII6 N250GB5.4KS NSM8XS 5 in 1-
Build in
3rd WiFi 1x2
BGN N GM45 ICH9M 6CELL2.2 65W 0.3M DV
AS7736ZG-
433G25Mn EMEA Luxembour
gLX.PJA02.108
AS7736ZG-433G25Mn
W7HP64ATLU3 MC
N10MGS512Cbk_V3 2G+1G/250/
6L2.2/5R/CB_bgn_0.3D_HG_IT41
PMDT4300 NLED17.3WXGA+G N10MGS 512M-DDR3
(64*16*4)
SO2GBII6/
SO1GBII6 N250GB5.4KS NSM8XS 5 in 1-
Build in
3rd WiFi 1x2
BGN N GM45 ICH9M 6CELL2.2 65W 0.3M DV
AS7736ZG-
433G25Mn EMEA Finland LX.PJA02.111
AS7736ZG-433G25Mn W7HP64ATFI2
MC N10MGS512Cbk_V3 2G+1G/250/
6L2.2/5R/CB_bgn_0.3D_HG_FI11
PMDT4300 NLED17.3WXGA+G N10MGS 512M-DDR3
(64*16*4)
SO2GBII6/
SO1GBII6 N250GB5.4KS NSM8XS 5 in 1-
Build in
3rd WiFi 1x2
BGN N GM45 ICH9M 6CELL2.2 65W 0.3M DV
AS7736ZG-
433G25Mn EMEA Sweden LX.PJA02.107
AS7736ZG-433G25Mn
W7HP64ATSE1 MC
N10MGS512Cbk_V3 2G+1G/250/
6L2.2/5R/CB_bgn_0.3D_HG_FI11
PMDT4300 NLED17.3WXGA+G N10MGS 512M-DDR3
(64*16*4)
SO2GBII6/
SO1GBII6 N250GB5.4KS NSM8XS 5 in 1-
Build in
3rd WiFi 1x2
BGN N GM45 ICH9M 6CELL2.2 65W 0.3M DV
AS7736ZG-
433G25Mn EMEA Norway LX.PJA02.113
AS7736ZG-433G25Mn
W7HP64ATNO1 MC
N10MGS512Cbk_V3 2G+1G/250/
6L2.2/5R/CB_bgn_0.3D_HGO11
PMDT4300 NLED17.3WXGA+G N10MGS 512M-DDR3
(64*16*4)
SO2GBII6/
SO1GBII6 N250GB5.4KS NSM8XS 5 in 1-
Build in
3rd WiFi 1x2
BGN N GM45 ICH9M 6CELL2.2 65W 0.3M DV
AS7736ZG-
433G25Mn EMEA Eastern
Europe LX.PJA02.114
AS7736ZG-433G25Mn
W7HP64ATEU4 MC
N10MGS512Cbk_V3 2G+1G/250/
6L2.2/5R/CB_bgn_0.3D_HG_SV21
PMDT4300 NLED17.3WXGA+G N10MGS 512M-DDR3
(64*16*4)
SO2GBII6/
SO1GBII6 N250GB5.4KS NSM8XS 5 in 1-
Build in
3rd WiFi 1x2
BGN N GM45 ICH9M 6CELL2.2 65W 0.3M DV
AS7736ZG-
433G25Mn EMEA Austria LX.PJA02.115
AS7736ZG-433G25Mn
W7HP64ATAT1 MC
N10MGS512Cbk_V3 2G+1G/250/
6L2.2/5R/CB_bgn_0.3D_HG_DE61
PMDT4300 NLED17.3WXGA+G N10MGS 512M-DDR3
(64*16*4)
SO2GBII6/
SO1GBII6 N250GB5.4KS NSM8XS 5 in 1-
Build in
3rd WiFi 1x2
BGN N GM45 ICH9M 6CELL2.2 65W 0.3M DV
AS7736ZG-
433G25Mn EMEA UK LX.PJA02.116
AS7736ZG-433G25Mn
W7HP64ATGB1 MC
N10MGS512Cbk_V3 2G+1G/250/
6L2.2/5R/CB_bgn_0.3D_HG_EN11
PMDT4300 NLED17.3WXGA+G N10MGS 512M-DDR3
(64*16*4)
SO2GBII6/
SO1GBII6 N250GB5.4KS NSM8XS 5 in 1-
Build in
3rd WiFi 1x2
BGN N GM45 ICH9M 6CELL2.2 65W 0.3M DV
AS7736ZG-
433G25Mn EMEA Czech LX.PJA02.112
AS7736ZG-433G25Mn
W7HP64ATCZ2 MC
N10MGS512Cbk_V3 2G+1G/250/
6L2.2/5R/CB_bgn_0.3D_HG_SK11
PMDT4300 NLED17.3WXGA+G N10MGS 512M-DDR3
(64*16*4)
SO2GBII6/
SO1GBII6 N250GB5.4KS NSM8XS 5 in 1-
Build in
3rd WiFi 1x2
BGN N GM45 ICH9M 6CELL2.2 65W 0.3M DV
AS7736ZG-
433G25Mn EMEA Norway LX.PJA02.118
AS7736ZG-433G25Mn
W7HP64ATNO3 MC
N10MGS512Cbk_V3 2G+1G/250/
6L2.2/5R/CB_bgn_0.3D_HG_ENS1
PMDT4300 NLED17.3WXGA+G N10MGS 512M-DDR3
(64*16*4)
SO2GBII6/
SO1GBII6 N250GB5.4KS NSM8XS 5 in 1-
Build in
3rd WiFi 1x2
BGN N GM45 ICH9M 6CELL2.2 65W 0.3M DV
AS7736ZG-
433G25Mn EMEA France LX.PJA02.117
AS7736ZG-433G25Mn
W7HP64ATFR1 MC
N10MGS512Cbk_V3 2G+1G/250/
6L2.2/5R/CB_bgn_0.3D_HG_FR21
PMDT4300 NLED17.3WXGA+G N10MGS 512M-DDR3
(64*16*4)
SO2GBII6/
SO1GBII6 N250GB5.4KS NSM8XS 5 in 1-
Build in
3rd WiFi 1x2
BGN N GM45 ICH9M 6CELL2.2 65W 0.3M DV
AS7736ZG-
433G25Mn EMEA Germany LX.PJA02.119
AS7736ZG-433G25Mn
W7HP64ATDE1 MC
N10MGS512Cbk_V3 2G+1G/250/
6L2.2/5R/CB_bgn_0.3D_HG_DE11
PMDT4300 NLED17.3WXGA+G N10MGS 512M-DDR3
(64*16*4)
SO2GBII6/
SO1GBII6 N250GB5.4KS NSM8XS 5 in 1-
Build in
3rd WiFi 1x2
BGN N GM45 ICH9M 6CELL2.2 65W 0.3M DV
AS7736ZG-
433G25Mn EMEA Denmark LX.PJA02.124
AS7736ZG-433G25Mn
W7HP64ATDK1 MC
N10MGS512Cbk_V3 2G+1G/250/
6L2.2/5R/CB_bgn_0.3D_HGO11
PMDT4300 NLED17.3WXGA+G N10MGS 512M-DDR3
(64*16*4)
SO2GBII6/
SO1GBII6 N250GB5.4KS NSM8XS 5 in 1-
Build in
3rd WiFi 1x2
BGN N GM45 ICH9M 6CELL2.2 65W 0.3M DV
AS7736ZG-
433G25Mn EMEA Spain LX.PJA02.122
AS7736ZG-433G25Mn
W7HP64ATES1 MC
N10MGS512Cbk_V3 2G+1G/250/
6L2.2/5R/CB_bgn_0.3D_HG_ES51
PMDT4300 NLED17.3WXGA+G N10MGS 512M-DDR3
(64*16*4)
SO2GBII6/
SO1GBII6 N250GB5.4KS NSM8XS 5 in 1-
Build in
3rd WiFi 1x2
BGN N GM45 ICH9M 6CELL2.2 65W 0.3M DV
AS7736ZG-
433G25Mn EMEA Portugal LX.PJA02.120
AS7736ZG-433G25Mn
W7HP64ATPT1 MC
N10MGS512Cbk_V3 2G+1G/250/
6L2.2/5R/CB_bgn_0.3D_HG_PT11
PMDT4300 NLED17.3WXGA+G N10MGS 512M-DDR3
(64*16*4)
SO2GBII6/
SO1GBII6 N250GB5.4KS NSM8XS 5 in 1-
Build in
3rd WiFi 1x2
BGN N GM45 ICH9M 6CELL2.2 65W 0.3M DV
AS7736ZG-
433G25Mn EMEA Denmark LX.PJA02.121
AS7736ZG-433G25Mn
W7HP64ATDK2 MC
N10MGS512Cbk_V3 2G+1G/250/
6L2.2/5R/CB_bgn_0.3D_HG_ENS1
PMDT4300 NLED17.3WXGA+G N10MGS 512M-DDR3
(64*16*4)
SO2GBII6/
SO1GBII6 N250GB5.4KS NSM8XS 5 in 1-
Build in
3rd WiFi 1x2
BGN N GM45 ICH9M 6CELL2.2 65W 0.3M DV
AS7736ZG-
433G25Mn EMEA Hungary LX.PJA02.123
AS7736ZG-433G25Mn
W7HP64ATHU1 MC
N10MGS512Cbk_V3 2G+1G/250/
6L2.2/5R/CB_bgn_0.3D_HG_HU11
PMDT4300 NLED17.3WXGA+G N10MGS 512M-DDR3
(64*16*4)
SO2GBII6/
SO1GBII6 N250GB5.4KS NSM8XS 5 in 1-
Build in
3rd WiFi 1x2
BGN N GM45 ICH9M 6CELL2.2 65W 0.3M DV
Appendix A 153
AS7736ZG-
433G25Mn EMEA Poland LX.PJA02.126
AS7736ZG-433G25Mn
W7HP64ATPL1 MC
N10MGS512Cbk_V3 2G+1G/250/
6L2.2/5R/CB_bgn_0.3D_HG_PL11
PMDT4300 NLED17.3WXGA+G N10MGS 512M-DDR3
(64*16*4)
SO2GBII6/
SO1GBII6 N250GB5.4KS NSM8XS 5 in 1-
Build in
3rd WiFi 1x2
BGN N GM45 ICH9M 6CELL2.2 65W 0.3M DV
AS7736ZG-
433G25Mn EMEA Eastern
Europe LX.PJA02.125
AS7736ZG-433G25Mn
W7HP64ATEU5 MC
N10MGS512Cbk_V3 2G+1G/250/
6L2.2/5R/CB_bgn_0.3D_HG_RO11
PMDT4300 NLED17.3WXGA+G N10MGS 512M-DDR3
(64*16*4)
SO2GBII6/
SO1GBII6 N250GB5.4KS NSM8XS 5 in 1-
Build in
3rd WiFi 1x2
BGN N GM45 ICH9M 6CELL2.2 65W 0.3M DV
AS7736ZG-
433G25Mn EMEA Belgium LX.PJA02.127
AS7736ZG-433G25Mn
W7HP64ATBE1 MC
N10MGS512Cbk_V3 2G+1G/250/
6L2.2/5R/CB_bgn_0.3D_HGL11
PMDT4300 NLED17.3WXGA+G N10MGS 512M-DDR3
(64*16*4)
SO2GBII6/
SO1GBII6 N250GB5.4KS NSM8XS 5 in 1-
Build in
3rd WiFi 1x2
BGN N GM45 ICH9M 6CELL2.2 65W 0.3M DV
AS7736ZG-
433G25Mn EMEA Greece LX.PJA02.128
AS7736ZG-433G25Mn
W7HP64ATGR1 MC
N10MGS512Cbk_V3 2G+1G/250/
6L2.2/5R/CB_bgn_0.3D_HG_EL31
PMDT4300 NLED17.3WXGA+G N10MGS 512M-DDR3
(64*16*4)
SO2GBII6/
SO1GBII6 N250GB5.4KS NSM8XS 5 in 1-
Build in
3rd WiFi 1x2
BGN N GM45 ICH9M 6CELL2.2 65W 0.3M DV
AS7736ZG-
433G25Mn EMEA Holland LX.PJA02.129
AS7736ZG-433G25Mn
W7HP64ATNL1 MC
N10MGS512Cbk_V3 2G+1G/250/
6L2.2/5R/CB_bgn_0.3D_HGL11
PMDT4300 NLED17.3WXGA+G N10MGS 512M-DDR3
(64*16*4)
SO2GBII6/
SO1GBII6 N250GB5.4KS NSM8XS 5 in 1-
Build in
3rd WiFi 1x2
BGN N GM45 ICH9M 6CELL2.2 65W 0.3M DV
AS7736ZG-
433G25Mn EMEA Eastern
Europe LX.PJA02.131
AS7736ZG-433G25Mn
W7HP64ATEU5 MC
N10MGS512Cbk_V3 2G+1G/250/
6L2.2/5R/CB_bgn_0.3D_HG_PL71
PMDT4300 NLED17.3WXGA+G N10MGS 512M-DDR3
(64*16*4)
SO2GBII6/
SO1GBII6 N250GB5.4KS NSM8XS 5 in 1-
Build in
3rd WiFi 1x2
BGN N GM45 ICH9M 6CELL2.2 65W 0.3M DV
AS7736ZG-
433G25Mn EMEA Switzerland LX.PJA02.130
AS7736ZG-433G25Mn
W7HP64ATCH1 MC
N10MGS512Cbk_V3 2G+1G/250/
6L2.2/5R/CB_bgn_0.3D_HG_IT41
PMDT4300 NLED17.3WXGA+G N10MGS 512M-DDR3
(64*16*4)
SO2GBII6/
SO1GBII6 N250GB5.4KS NSM8XS 5 in 1-
Build in
3rd WiFi 1x2
BGN N GM45 ICH9M 6CELL2.2 65W 0.3M DV
AS7736ZG-
434G50Mn EMEA Ukraine LX.PJA02.048
AS7736ZG-434G50Mn
W7HP64RUATUK1 MC
N10MGS512Cbk_V3 2*2G/500_L/
6L2.2/5R/CB_bgn_0.3D_HG_RU61
PMDT4300 NLED17.3WXGA+G N10MGS 512M-DDR3
(64*16*4) SO2GBII6 N500GB5.4KS NSM8XS 5 in 1-
Build in
3rd WiFi 1x2
BGN N GM45 ICH9M 6CELL2.2 65W 0.3M DV
AS7736ZG-
434G50Mi EMEA Russia LX.PJA02.047
AS7736ZG-434G50Mi
W7HP64RUATRU1 MC
N10MGS512Cbk_V3 2*2G/500_L/
6L2.2/5R/CB_bg_0.3D_HG_RU11
PMDT4300 NLED17.3WXGA+G N10MGS 512M-DDR3
(64*16*4) SO2GBII6 N500GB5.4KS NSM8XS 5 in 1-
Build in 3rd WiFi BG N GM45 ICH9M 6CELL2.2 65W 0.3M DV
AS7736ZG-
434G50Mn EMEA South Africa LX.PJA02.052
AS7736ZG-434G50Mn EM
W7HP64EMATZA1 MC
N10MGS512Cbk_V3 2*2G/500_L/
6L2.2/5R/CB_bgn_0.3D_HG_ES81
PMDT4300 NLED17.3WXGA+G N10MGS 512M-DDR3
(64*16*4) SO2GBII6 N500GB5.4KS NSM8XS 5 in 1-
Build in
3rd WiFi 1x2
BGN N GM45 ICH9M 6CELL2.2 65W 0.3M DV
AS7736ZG-
434G50Mn EMEA Algeria LX.PJA02.049
AS7736ZG-434G50Mn EM
W7HP64EMATDZ1 MC
N10MGS512Cbk_V3 2*2G/500_L/
6L2.2/5R/CB_bgn_0.3D_HG_ES81
PMDT4300 NLED17.3WXGA+G N10MGS 512M-DDR3
(64*16*4) SO2GBII6 N500GB5.4KS NSM8XS 5 in 1-
Build in
3rd WiFi 1x2
BGN N GM45 ICH9M 6CELL2.2 65W 0.3M DV
AS7736ZG-
434G50Mn EMEA Middle East LX.PJA02.050
AS7736ZG-434G50Mn EM
W7HP64EMATME2 MC
N10MGS512Cbk_V3 2*2G/500_L/
6L2.2/5R/CB_bgn_0.3D_HG_ES61
PMDT4300 NLED17.3WXGA+G N10MGS 512M-DDR3
(64*16*4) SO2GBII6 N500GB5.4KS NSM8XS 5 in 1-
Build in
3rd WiFi 1x2
BGN N GM45 ICH9M 6CELL2.2 65W 0.3M DV
AS7736ZG-
434G50Mn EMEA Middle East LX.PJA02.054
AS7736ZG-434G50Mn EM
W7HP64EMATME3 MC
N10MGS512Cbk_V3 2*2G/500_L/
6L2.2/5R/CB_bgn_0.3D_HG_ES81
PMDT4300 NLED17.3WXGA+G N10MGS 512M-DDR3
(64*16*4) SO2GBII6 N500GB5.4KS NSM8XS 5 in 1-
Build in
3rd WiFi 1x2
BGN N GM45 ICH9M 6CELL2.2 65W 0.3M DV
AS7736ZG-
434G50Mn EMEA Middle East LX.PJA02.051
AS7736ZG-434G50Mn EM
W7HP64EMATME4 MC
N10MGS512Cbk_V3 2*2G/500_L/
6L2.2/5R/CB_bgn_0.3D_HG_RU61
PMDT4300 NLED17.3WXGA+G N10MGS 512M-DDR3
(64*16*4) SO2GBII6 N500GB5.4KS NSM8XS 5 in 1-
Build in
3rd WiFi 1x2
BGN N GM45 ICH9M 6CELL2.2 65W 0.3M DV
AS7736ZG-
434G50Mn EMEA South Africa LX.PJA02.056
AS7736ZG-434G50Mn EM
W7HP64EMATZA4 MC
N10MGS512Cbk_V3 2*2G/500_L/
6L2.2/5R/CB_bgn_0.3D_HG_ES61
PMDT4300 NLED17.3WXGA+G N10MGS 512M-DDR3
(64*16*4) SO2GBII6 N500GB5.4KS NSM8XS 5 in 1-
Build in
3rd WiFi 1x2
BGN N GM45 ICH9M 6CELL2.2 65W 0.3M DV
AS7736ZG-
434G50Mn EMEA Turkey LX.PJA02.053
AS7736ZG-434G50Mn EM
W7HP64EMATTR1 MC
N10MGS512Cbk_V3 2*2G/500_L/
6L2.2/5R/CB_bgn_0.3D_HG_TR31
PMDT4300 NLED17.3WXGA+G N10MGS 512M-DDR3
(64*16*4) SO2GBII6 N500GB5.4KS NSM8XS 5 in 1-
Build in
3rd WiFi 1x2
BGN N GM45 ICH9M 6CELL2.2 65W 0.3M DV
154 Appendix A
AS7736ZG-
434G50Mn EMEA South Africa LX.PJA02.057
AS7736ZG-434G50Mn EM
W7HP64EMATZA2 MC
N10MGS512Cbk_V3 2*2G/500_L/
6L2.2/5R/CB_bgn_0.3D_HG_ES61
PMDT4300 NLED17.3WXGA+G N10MGS 512M-DDR3
(64*16*4) SO2GBII6 N500GB5.4KS NSM8XS 5 in 1-
Build in
3rd WiFi 1x2
BGN N GM45 ICH9M 6CELL2.2 65W 0.3M DV
AS7736ZG-
434G50Mn EMEA Eastern
Europe LX.PJA02.072
AS7736ZG-434G50Mn
W7HP64ATEU7 MC
N10MGS512Cbk_V3 2*2G/500_L/
6L2.2/5R/CB_bgn_0.3D_HG_SL11
PMDT4300 NLED17.3WXGA+G N10MGS 512M-DDR3
(64*16*4) SO2GBII6 N500GB5.4KS NSM8XS 5 in 1-
Build in
3rd WiFi 1x2
BGN N GM45 ICH9M 6CELL2.2 65W 0.3M DV
AS7736ZG-
434G50Mn EMEA Middle East LX.PJA02.058
AS7736ZG-434G50Mn EM
W7HP64EMATME9 MC
N10MGS512Cbk_V3 2*2G/500_L/
6L2.2/5R/CB_bgn_0.3D_HG_ES81
PMDT4300 NLED17.3WXGA+G N10MGS 512M-DDR3
(64*16*4) SO2GBII6 N500GB5.4KS NSM8XS 5 in 1-
Build in
3rd WiFi 1x2
BGN N GM45 ICH9M 6CELL2.2 65W 0.3M DV
AS7736ZG-
434G50Mn EMEA Middle East LX.PJA02.059
AS7736ZG-434G50Mn EM
W7HP64EMATME4 MC
N10MGS512Cbk_V3 2*2G/500_L/
6L2.2/5R/CB_bgn_0.3D_HG_ES61
PMDT4300 NLED17.3WXGA+G N10MGS 512M-DDR3
(64*16*4) SO2GBII6 N500GB5.4KS NSM8XS 5 in 1-
Build in
3rd WiFi 1x2
BGN N GM45 ICH9M 6CELL2.2 65W 0.3M DV
AS7736ZG-
434G50Mn EMEA Middle East LX.PJA02.060
AS7736ZG-434G50Mn EM
W7HP64EMATME6 MC
N10MGS512Cbk_V3 2*2G/500_L/
6L2.2/5R/CB_bgn_0.3D_HG_ES61
PMDT4300 NLED17.3WXGA+G N10MGS 512M-DDR3
(64*16*4) SO2GBII6 N500GB5.4KS NSM8XS 5 in 1-
Build in
3rd WiFi 1x2
BGN N GM45 ICH9M 6CELL2.2 65W 0.3M DV
AS7736ZG-
434G50Mn EMEA Middle East LX.PJA02.061
AS7736ZG-434G50Mn EM
W7HP64EMATME2 MC
N10MGS512Cbk_V3 2*2G/500_L/
6L2.2/5R/CB_bgn_0.3D_HG_AR11
PMDT4300 NLED17.3WXGA+G N10MGS 512M-DDR3
(64*16*4) SO2GBII6 N500GB5.4KS NSM8XS 5 in 1-
Build in
3rd WiFi 1x2
BGN N GM45 ICH9M 6CELL2.2 65W 0.3M DV
AS7736ZG-
434G50Mn EMEA Eastern
Europe LX.PJA02.071
AS7736ZG-434G50Mn
W7HP64ATEU7 MC
N10MGS512Cbk_V3 2*2G/500_L/
6L2.2/5R/CB_bgn_0.3D_HG_ENQ1
PMDT4300 NLED17.3WXGA+G N10MGS 512M-DDR3
(64*16*4) SO2GBII6 N500GB5.4KS NSM8XS 5 in 1-
Build in
3rd WiFi 1x2
BGN N GM45 ICH9M 6CELL2.2 65W 0.3M DV
AS7736ZG-
434G50Mn EMEA Sweden LX.PJA02.070
AS7736ZG-434G50Mn
W7HP64ATSE1 MC
N10MGS512Cbk_V3 2*2G/500_L/
6L2.2/5R/CB_bgn_0.3D_HG_FI11
PMDT4300 NLED17.3WXGA+G N10MGS 512M-DDR3
(64*16*4) SO2GBII6 N500GB5.4KS NSM8XS 5 in 1-
Build in
3rd WiFi 1x2
BGN N GM45 ICH9M 6CELL2.2 65W 0.3M DV
AS7736ZG-
434G50Mn EMEA Italy LX.PJA02.074
AS7736ZG-434G50Mn W7HP64ATIT1
MC N10MGS512Cbk_V3 2*2G/500_L/
6L2.2/5R/CB_bgn_0.3D_HG_IT11
PMDT4300 NLED17.3WXGA+G N10MGS 512M-DDR3
(64*16*4) SO2GBII6 N500GB5.4KS NSM8XS 5 in 1-
Build in
3rd WiFi 1x2
BGN N GM45 ICH9M 6CELL2.2 65W 0.3M DV
AS7736ZG-
434G50Mn EMEA Luxembour
gLX.PJA02.076
AS7736ZG-434G50Mn
W7HP64ATLU3 MC
N10MGS512Cbk_V3 2*2G/500_L/
6L2.2/5R/CB_bgn_0.3D_HG_IT41
PMDT4300 NLED17.3WXGA+G N10MGS 512M-DDR3
(64*16*4) SO2GBII6 N500GB5.4KS NSM8XS 5 in 1-
Build in
3rd WiFi 1x2
BGN N GM45 ICH9M 6CELL2.2 65W 0.3M DV
AS7736ZG-
434G50Mn EMEA Czech LX.PJA02.077
AS7736ZG-434G50Mn
W7HP64ATCZ2 MC
N10MGS512Cbk_V3 2*2G/500_L/
6L2.2/5R/CB_bgn_0.3D_HG_SK11
PMDT4300 NLED17.3WXGA+G N10MGS 512M-DDR3
(64*16*4) SO2GBII6 N500GB5.4KS NSM8XS 5 in 1-
Build in
3rd WiFi 1x2
BGN N GM45 ICH9M 6CELL2.2 65W 0.3M DV
AS7736ZG-
434G50Mn EMEA Cyprus LX.PJA02.075
AS7736ZG-434G50Mn
W7HP64ATCY1 MC
N10MGS512Cbk_V3 2*2G/500_L/
6L2.2/5R/CB_bgn_0.3D_HG_ES61
PMDT4300 NLED17.3WXGA+G N10MGS 512M-DDR3
(64*16*4) SO2GBII6 N500GB5.4KS NSM8XS 5 in 1-
Build in
3rd WiFi 1x2
BGN N GM45 ICH9M 6CELL2.2 65W 0.3M DV
AS7736ZG-
434G50Mn EMEA Finland LX.PJA02.073
AS7736ZG-434G50Mn W7HP64ATFI2
MC N10MGS512Cbk_V3 2*2G/500_L/
6L2.2/5R/CB_bgn_0.3D_HG_FI11
PMDT4300 NLED17.3WXGA+G N10MGS 512M-DDR3
(64*16*4) SO2GBII6 N500GB5.4KS NSM8XS 5 in 1-
Build in
3rd WiFi 1x2
BGN N GM45 ICH9M 6CELL2.2 65W 0.3M DV
AS7736ZG-
434G50Mn EMEA Norway LX.PJA02.078
AS7736ZG-434G50Mn
W7HP64ATNO1 MC
N10MGS512Cbk_V3 2*2G/500_L/
6L2.2/5R/CB_bgn_0.3D_HGO11
PMDT4300 NLED17.3WXGA+G N10MGS 512M-DDR3
(64*16*4) SO2GBII6 N500GB5.4KS NSM8XS 5 in 1-
Build in
3rd WiFi 1x2
BGN N GM45 ICH9M 6CELL2.2 65W 0.3M DV
AS7736ZG-
434G50Mn EMEA Austria LX.PJA02.082
AS7736ZG-434G50Mn
W7HP64ATAT1 MC
N10MGS512Cbk_V3 2*2G/500_L/
6L2.2/5R/CB_bgn_0.3D_HG_DE61
PMDT4300 NLED17.3WXGA+G N10MGS 512M-DDR3
(64*16*4) SO2GBII6 N500GB5.4KS NSM8XS 5 in 1-
Build in
3rd WiFi 1x2
BGN N GM45 ICH9M 6CELL2.2 65W 0.3M DV
AS7736ZG-
434G50Mn EMEA Eastern
Europe LX.PJA02.079
AS7736ZG-434G50Mn
W7HP64ATEU4 MC
N10MGS512Cbk_V3 2*2G/500_L/
6L2.2/5R/CB_bgn_0.3D_HG_SV21
PMDT4300 NLED17.3WXGA+G N10MGS 512M-DDR3
(64*16*4) SO2GBII6 N500GB5.4KS NSM8XS 5 in 1-
Build in
3rd WiFi 1x2
BGN N GM45 ICH9M 6CELL2.2 65W 0.3M DV
AS7736ZG-
434G50Mn EMEA Portugal LX.PJA02.084
AS7736ZG-434G50Mn
W7HP64ATPT1 MC
N10MGS512Cbk_V3 2*2G/500_L/
6L2.2/5R/CB_bgn_0.3D_HG_PT11
PMDT4300 NLED17.3WXGA+G N10MGS 512M-DDR3
(64*16*4) SO2GBII6 N500GB5.4KS NSM8XS 5 in 1-
Build in
3rd WiFi 1x2
BGN N GM45 ICH9M 6CELL2.2 65W 0.3M DV
Appendix A 155
AS7736ZG-
434G50Mn EMEA Norway LX.PJA02.086
AS7736ZG-434G50Mn
W7HP64ATNO3 MC
N10MGS512Cbk_V3 2*2G/500_L/
6L2.2/5R/CB_bgn_0.3D_HG_ENS1
PMDT4300 NLED17.3WXGA+G N10MGS 512M-DDR3
(64*16*4) SO2GBII6 N500GB5.4KS NSM8XS 5 in 1-
Build in
3rd WiFi 1x2
BGN N GM45 ICH9M 6CELL2.2 65W 0.3M DV
AS7736ZG-
434G50Mn EMEA UK LX.PJA02.081
AS7736ZG-434G50Mn
W7HP64ATGB1 MC
N10MGS512Cbk_V3 2*2G/500_L/
6L2.2/5R/CB_bgn_0.3D_HG_EN11
PMDT4300 NLED17.3WXGA+G N10MGS 512M-DDR3
(64*16*4) SO2GBII6 N500GB5.4KS NSM8XS 5 in 1-
Build in
3rd WiFi 1x2
BGN N GM45 ICH9M 6CELL2.2 65W 0.3M DV
AS7736ZG-
434G50Mn EMEA France LX.PJA02.080
AS7736ZG-434G50Mn
W7HP64ATFR1 MC
N10MGS512Cbk_V3 2*2G/500_L/
6L2.2/5R/CB_bgn_0.3D_HG_FR21
PMDT4300 NLED17.3WXGA+G N10MGS 512M-DDR3
(64*16*4) SO2GBII6 N500GB5.4KS NSM8XS 5 in 1-
Build in
3rd WiFi 1x2
BGN N GM45 ICH9M 6CELL2.2 65W 0.3M DV
AS7736ZG-
434G50Mn EMEA Germany LX.PJA02.085
AS7736ZG-434G50Mn
W7HP64ATDE1 MC
N10MGS512Cbk_V3 2*2G/500_L/
6L2.2/5R/CB_bgn_0.3D_HG_DE11
PMDT4300 NLED17.3WXGA+G N10MGS 512M-DDR3
(64*16*4) SO2GBII6 N500GB5.4KS NSM8XS 5 in 1-
Build in
3rd WiFi 1x2
BGN N GM45 ICH9M 6CELL2.2 65W 0.3M DV
AS7736ZG-
434G50Mn EMEA Denmark LX.PJA02.083
AS7736ZG-434G50Mn
W7HP64ATDK2 MC
N10MGS512Cbk_V3 2*2G/500_L/
6L2.2/5R/CB_bgn_0.3D_HG_ENS1
PMDT4300 NLED17.3WXGA+G N10MGS 512M-DDR3
(64*16*4) SO2GBII6 N500GB5.4KS NSM8XS 5 in 1-
Build in
3rd WiFi 1x2
BGN N GM45 ICH9M 6CELL2.2 65W 0.3M DV
AS7736ZG-
434G50Mn EMEA Spain LX.PJA02.087
AS7736ZG-434G50Mn
W7HP64ATES1 MC
N10MGS512Cbk_V3 2*2G/500_L/
6L2.2/5R/CB_bgn_0.3D_HG_ES51
PMDT4300 NLED17.3WXGA+G N10MGS 512M-DDR3
(64*16*4) SO2GBII6 N500GB5.4KS NSM8XS 5 in 1-
Build in
3rd WiFi 1x2
BGN N GM45 ICH9M 6CELL2.2 65W 0.3M DV
AS7736ZG-
434G50Mn EMEA Hungary LX.PJA02.088
AS7736ZG-434G50Mn
W7HP64ATHU1 MC
N10MGS512Cbk_V3 2*2G/500_L/
6L2.2/5R/CB_bgn_0.3D_HG_HU11
PMDT4300 NLED17.3WXGA+G N10MGS 512M-DDR3
(64*16*4) SO2GBII6 N500GB5.4KS NSM8XS 5 in 1-
Build in
3rd WiFi 1x2
BGN N GM45 ICH9M 6CELL2.2 65W 0.3M DV
AS7736ZG-
434G50Mn EMEA Israel LX.PJA02.001
AS7736ZG-434G50Mn W7HP64ATIL1
MC N10MGS512Cbk_V3 2*2G/500_L/
6L2.2/5R/CB_bgn_0.3D_HG_HE11
PMDT4300 NLED17.3WXGA+G N10MGS 512M-DDR3
(64*16*4) SO2GBII6 N500GB5.4KS NSM8XS 5 in 1-
Build in
3rd WiFi 1x2
BGN N GM45 ICH9M 6CELL2.2 65W 0.3M DV
AS7736ZG-
434G50Mn EMEA Ukraine LX.PJA02.004
AS7736ZG-434G50Mn
W7HP64RUATUK1 MC
N10MGS512Cbk_V3 2*2G/500_L/
6L2.2/5R/CB_bgn_0.3D_HG_RU61
PMDT4300 NLED17.3WXGA+G N10MGS 512M-DDR3
(64*16*4) SO2GBII6 N500GB5.4KS NSM8XS 5 in 1-
Build in
3rd WiFi 1x2
BGN N GM45 ICH9M 6CELL2.2 65W 0.3M DV
AS7736ZG-
434G50Mi EMEA Russia LX.PJA02.005
AS7736ZG-434G50Mi
W7HP64RUATRU1 MC
N10MGS512Cbk_V3 2*2G/500_L/
6L2.2/5R/CB_bg_0.3D_HG_RU11
PMDT4300 NLED17.3WXGA+G N10MGS 512M-DDR3
(64*16*4) SO2GBII6 N500GB5.4KS NSM8XS 5 in 1-
Build in 3rd WiFi BG N GM45 ICH9M 6CELL2.2 65W 0.3M DV
AS7736ZG-
434G50Mn EMEA Israel LX.PJA02.002
AS7736ZG-434G50Mn W7HP64ATIL1
MC N10MGS512Cbk_V3 2*2G/500_L/
6L2.2/5R/CB_bgn_0.3D_HG_HE31
PMDT4300 NLED17.3WXGA+G N10MGS 512M-DDR3
(64*16*4) SO2GBII6 N500GB5.4KS NSM8XS 5 in 1-
Build in
3rd WiFi 1x2
BGN N GM45 ICH9M 6CELL2.2 65W 0.3M DV
AS7736ZG-
434G50Mn EMEA Turkey LX.PJA02.006
AS7736ZG-434G50Mn EM
W7HP64EMATTR1 MC
N10MGS512Cbk_V3 2*2G/500_L/
6L2.2/5R/CB_bgn_0.3D_HG_TR31
PMDT4300 NLED17.3WXGA+G N10MGS 512M-DDR3
(64*16*4) SO2GBII6 N500GB5.4KS NSM8XS 5 in 1-
Build in
3rd WiFi 1x2
BGN N GM45 ICH9M 6CELL2.2 65W 0.3M DV
AS7736ZG-
434G50Mn EMEA Serbia/
Macedonia LX.PJA02.003
AS7736ZG-434G50Mn EM
W7HP64ATCS1 MC
N10MGS512Cbk_V3 2*2G/500_L/
6L2.2/5R/CB_bgn_0.3D_HG_SL11
PMDT4300 NLED17.3WXGA+G N10MGS 512M-DDR3
(64*16*4) SO2GBII6 N500GB5.4KS NSM8XS 5 in 1-
Build in
3rd WiFi 1x2
BGN N GM45 ICH9M 6CELL2.2 65W 0.3M DV
AS7736ZG-
434G50Mn EMEA Middle East LX.PJA02.007
AS7736ZG-434G50Mn EM
W7HP64EMATME6 MC
N10MGS512Cbk_V3 2*2G/500_L/
6L2.2/5R/CB_bgn_0.3D_HG_ES61
PMDT4300 NLED17.3WXGA+G N10MGS 512M-DDR3
(64*16*4) SO2GBII6 N500GB5.4KS NSM8XS 5 in 1-
Build in
3rd WiFi 1x2
BGN N GM45 ICH9M 6CELL2.2 65W 0.3M DV
AS7736ZG-
434G50Mn EMEA Middle East LX.PJA02.009
AS7736ZG-434G50Mn EM
W7HP64EMATME2 MC
N10MGS512Cbk_V3 2*2G/500_L/
6L2.2/5R/CB_bgn_0.3D_HG_AR11
PMDT4300 NLED17.3WXGA+G N10MGS 512M-DDR3
(64*16*4) SO2GBII6 N500GB5.4KS NSM8XS 5 in 1-
Build in
3rd WiFi 1x2
BGN N GM45 ICH9M 6CELL2.2 65W 0.3M DV
AS7736ZG-
434G50Mn EMEA Middle East LX.PJA02.015
AS7736ZG-434G50Mn EM
W7HP64EMATME3 MC
N10MGS512Cbk_V3 2*2G/500_L/
6L2.2/5R/CB_bgn_0.3D_HG_ES81
PMDT4300 NLED17.3WXGA+G N10MGS 512M-DDR3
(64*16*4) SO2GBII6 N500GB5.4KS NSM8XS 5 in 1-
Build in
3rd WiFi 1x2
BGN N GM45 ICH9M 6CELL2.2 65W 0.3M DV
AS7736ZG-
434G50Mn EMEA Middle East LX.PJA02.013
AS7736ZG-434G50Mn EM
W7HP64EMATME2 MC
N10MGS512Cbk_V3 2*2G/500_L/
6L2.2/5R/CB_bgn_0.3D_HG_ES61
PMDT4300 NLED17.3WXGA+G N10MGS 512M-DDR3
(64*16*4) SO2GBII6 N500GB5.4KS NSM8XS 5 in 1-
Build in
3rd WiFi 1x2
BGN N GM45 ICH9M 6CELL2.2 65W 0.3M DV
156 Appendix A
AS7736ZG-
434G50Mn EMEA Middle East LX.PJA02.014
AS7736ZG-434G50Mn EM
W7HP64EMATME4 MC
N10MGS512Cbk_V3 2*2G/500_L/
6L2.2/5R/CB_bgn_0.3D_HG_RU61
PMDT4300 NLED17.3WXGA+G N10MGS 512M-DDR3
(64*16*4) SO2GBII6 N500GB5.4KS NSM8XS 5 in 1-
Build in
3rd WiFi 1x2
BGN N GM45 ICH9M 6CELL2.2 65W 0.3M DV
AS7736ZG-
434G50Mn EMEA Middle East LX.PJA02.010
AS7736ZG-434G50Mn EM
W7HP64EMATME4 MC
N10MGS512Cbk_V3 2*2G/500_L/
6L2.2/5R/CB_bgn_0.3D_HG_ES61
PMDT4300 NLED17.3WXGA+G N10MGS 512M-DDR3
(64*16*4) SO2GBII6 N500GB5.4KS NSM8XS 5 in 1-
Build in
3rd WiFi 1x2
BGN N GM45 ICH9M 6CELL2.2 65W 0.3M DV
AS7736ZG-
434G50Mn EMEA Algeria LX.PJA02.012
AS7736ZG-434G50Mn EM
W7HP64EMATDZ1 MC
N10MGS512Cbk_V3 2*2G/500_L/
6L2.2/5R/CB_bgn_0.3D_HG_ES81
PMDT4300 NLED17.3WXGA+G N10MGS 512M-DDR3
(64*16*4) SO2GBII6 N500GB5.4KS NSM8XS 5 in 1-
Build in
3rd WiFi 1x2
BGN N GM45 ICH9M 6CELL2.2 65W 0.3M DV
AS7736ZG-
434G50Mn EMEA Middle East LX.PJA02.011
AS7736ZG-434G50Mn EM
W7HP64EMATME9 MC
N10MGS512Cbk_V3 2*2G/500_L/
6L2.2/5R/CB_bgn_0.3D_HG_ES81
PMDT4300 NLED17.3WXGA+G N10MGS 512M-DDR3
(64*16*4) SO2GBII6 N500GB5.4KS NSM8XS 5 in 1-
Build in
3rd WiFi 1x2
BGN N GM45 ICH9M 6CELL2.2 65W 0.3M DV
AS7736ZG-
434G50Mn EMEA South Africa LX.PJA02.016
AS7736ZG-434G50Mn EM
W7HP64EMATZA4 MC
N10MGS512Cbk_V3 2*2G/500_L/
6L2.2/5R/CB_bgn_0.3D_HG_ES61
PMDT4300 NLED17.3WXGA+G N10MGS 512M-DDR3
(64*16*4) SO2GBII6 N500GB5.4KS NSM8XS 5 in 1-
Build in
3rd WiFi 1x2
BGN N GM45 ICH9M 6CELL2.2 65W 0.3M DV
AS7736ZG-
434G50Mn EMEA South Africa LX.PJA02.017
AS7736ZG-434G50Mn EM
W7HP64EMATZA1 MC
N10MGS512Cbk_V3 2*2G/500_L/
6L2.2/5R/CB_bgn_0.3D_HG_ES81
PMDT4300 NLED17.3WXGA+G N10MGS 512M-DDR3
(64*16*4) SO2GBII6 N500GB5.4KS NSM8XS 5 in 1-
Build in
3rd WiFi 1x2
BGN N GM45 ICH9M 6CELL2.2 65W 0.3M DV
AS7736ZG-
434G50Mn EMEA South Africa LX.PJA02.018
AS7736ZG-434G50Mn EM
W7HP64EMATZA2 MC
N10MGS512Cbk_V3 2*2G/500_L/
6L2.2/5R/CB_bgn_0.3D_HG_ES61
PMDT4300 NLED17.3WXGA+G N10MGS 512M-DDR3
(64*16*4) SO2GBII6 N500GB5.4KS NSM8XS 5 in 1-
Build in
3rd WiFi 1x2
BGN N GM45 ICH9M 6CELL2.2 65W 0.3M DV
AS7736ZG-
434G50Mn EMEA Cyprus LX.PJA02.020
AS7736ZG-434G50Mn
W7HP64ATCY1 MC
N10MGS512Cbk_V3 2*2G/500_L/
6L2.2/5R/CB_bgn_0.3D_HG_ES61
PMDT4300 NLED17.3WXGA+G N10MGS 512M-DDR3
(64*16*4) SO2GBII6 N500GB5.4KS NSM8XS 5 in 1-
Build in
3rd WiFi 1x2
BGN N GM45 ICH9M 6CELL2.2 65W 0.3M DV
AS7736ZG-
434G50Mn EMEA Portugal LX.PJA02.021
AS7736ZG-434G50Mn
W7HP64ATPT1 MC
N10MGS512Cbk_V3 2*2G/500_L/
6L2.2/5R/CB_bgn_0.3D_HG_PT11
PMDT4300 NLED17.3WXGA+G N10MGS 512M-DDR3
(64*16*4) SO2GBII6 N500GB5.4KS NSM8XS 5 in 1-
Build in
3rd WiFi 1x2
BGN N GM45 ICH9M 6CELL2.2 65W 0.3M DV
AS7736ZG-
434G50Mn EMEA Poland LX.PJA02.019
AS7736ZG-434G50Mn
W7HP64ATPL1 MC
N10MGS512Cbk_V3 2*2G/500_L/
6L2.2/5R/CB_bgn_0.3D_HG_PL11
PMDT4300 NLED17.3WXGA+G N10MGS 512M-DDR3
(64*16*4) SO2GBII6 N500GB5.4KS NSM8XS 5 in 1-
Build in
3rd WiFi 1x2
BGN N GM45 ICH9M 6CELL2.2 65W 0.3M DV
AS7736ZG-
434G50Mn EMEA Greece LX.PJA02.024
AS7736ZG-434G50Mn
W7HP64ATGR1 MC
N10MGS512Cbk_V3 2*2G/500_L/
6L2.2/5R/CB_bgn_0.3D_HG_EL31
PMDT4300 NLED17.3WXGA+G N10MGS 512M-DDR3
(64*16*4) SO2GBII6 N500GB5.4KS NSM8XS 5 in 1-
Build in
3rd WiFi 1x2
BGN N GM45 ICH9M 6CELL2.2 65W 0.3M DV
AS7736ZG-
434G50Mn EMEA Italy LX.PJA02.025
AS7736ZG-434G50Mn W7HP64ATIT1
MC N10MGS512Cbk_V3 2*2G/500_L/
6L2.2/5R/CB_bgn_0.3D_HG_IT11
PMDT4300 NLED17.3WXGA+G N10MGS 512M-DDR3
(64*16*4) SO2GBII6 N500GB5.4KS NSM8XS 5 in 1-
Build in
3rd WiFi 1x2
BGN N GM45 ICH9M 6CELL2.2 65W 0.3M DV
AS7736ZG-
434G50Mn EMEA Spain LX.PJA02.023
AS7736ZG-434G50Mn
W7HP64ATES1 MC
N10MGS512Cbk_V3 2*2G/500_L/
6L2.2/5R/CB_bgn_0.3D_HG_ES51
PMDT4300 NLED17.3WXGA+G N10MGS 512M-DDR3
(64*16*4) SO2GBII6 N500GB5.4KS NSM8XS 5 in 1-
Build in
3rd WiFi 1x2
BGN N GM45 ICH9M 6CELL2.2 65W 0.3M DV
AS7736ZG-
434G50Mn EMEA Hungary LX.PJA02.022
AS7736ZG-434G50Mn
W7HP64ATHU1 MC
N10MGS512Cbk_V3 2*2G/500_L/
6L2.2/5R/CB_bgn_0.3D_HG_HU11
PMDT4300 NLED17.3WXGA+G N10MGS 512M-DDR3
(64*16*4) SO2GBII6 N500GB5.4KS NSM8XS 5 in 1-
Build in
3rd WiFi 1x2
BGN N GM45 ICH9M 6CELL2.2 65W 0.3M DV
AS7736ZG-
434G50Mn EMEA Eastern
Europe LX.PJA02.027
AS7736ZG-434G50Mn
W7HP64ATEU5 MC
N10MGS512Cbk_V3 2*2G/500_L/
6L2.2/5R/CB_bgn_0.3D_HG_RO11
PMDT4300 NLED17.3WXGA+G N10MGS 512M-DDR3
(64*16*4) SO2GBII6 N500GB5.4KS NSM8XS 5 in 1-
Build in
3rd WiFi 1x2
BGN N GM45 ICH9M 6CELL2.2 65W 0.3M DV
AS7736ZG-
434G50Mn EMEA Eastern
Europe LX.PJA02.028
AS7736ZG-434G50Mn
W7HP64ATEU5 MC
N10MGS512Cbk_V3 2*2G/500_L/
6L2.2/5R/CB_bgn_0.3D_HG_PL71
PMDT4300 NLED17.3WXGA+G N10MGS 512M-DDR3
(64*16*4) SO2GBII6 N500GB5.4KS NSM8XS 5 in 1-
Build in
3rd WiFi 1x2
BGN N GM45 ICH9M 6CELL2.2 65W 0.3M DV
AS7736ZG-
434G50Mn EMEA Eastern
Europe LX.PJA02.035
AS7736ZG-434G50Mn
W7HP64ATEU4 MC
N10MGS512Cbk_V3 2*2G/500_L/
6L2.2/5R/CB_bgn_0.3D_HG_SV21
PMDT4300 NLED17.3WXGA+G N10MGS 512M-DDR3
(64*16*4) SO2GBII6 N500GB5.4KS NSM8XS 5 in 1-
Build in
3rd WiFi 1x2
BGN N GM45 ICH9M 6CELL2.2 65W 0.3M DV
Appendix A 157
AS7736ZG-
434G50Mn EMEA Eastern
Europe LX.PJA02.029
AS7736ZG-434G50Mn
W7HP64ATEU7 MC
N10MGS512Cbk_V3 2*2G/500_L/
6L2.2/5R/CB_bgn_0.3D_HG_ENQ1
PMDT4300 NLED17.3WXGA+G N10MGS 512M-DDR3
(64*16*4) SO2GBII6 N500GB5.4KS NSM8XS 5 in 1-
Build in
3rd WiFi 1x2
BGN N GM45 ICH9M 6CELL2.2 65W 0.3M DV
AS7736ZG-
434G50Mn EMEA Finland LX.PJA02.026
AS7736ZG-434G50Mn W7HP64ATFI2
MC N10MGS512Cbk_V3 2*2G/500_L/
6L2.2/5R/CB_bgn_0.3D_HG_FI11
PMDT4300 NLED17.3WXGA+G N10MGS 512M-DDR3
(64*16*4) SO2GBII6 N500GB5.4KS NSM8XS 5 in 1-
Build in
3rd WiFi 1x2
BGN N GM45 ICH9M 6CELL2.2 65W 0.3M DV
AS7736ZG-
434G50Mn EMEA Eastern
Europe LX.PJA02.034
AS7736ZG-434G50Mn
W7HP64ATEU7 MC
N10MGS512Cbk_V3 2*2G/500_L/
6L2.2/5R/CB_bgn_0.3D_HG_SL11
PMDT4300 NLED17.3WXGA+G N10MGS 512M-DDR3
(64*16*4) SO2GBII6 N500GB5.4KS NSM8XS 5 in 1-
Build in
3rd WiFi 1x2
BGN N GM45 ICH9M 6CELL2.2 65W 0.3M DV
AS7736ZG-
434G50Mn EMEA Czech LX.PJA02.030
AS7736ZG-434G50Mn
W7HP64ATCZ2 MC
N10MGS512Cbk_V3 2*2G/500_L/
6L2.2/5R/CB_bgn_0.3D_HG_SK11
PMDT4300 NLED17.3WXGA+G N10MGS 512M-DDR3
(64*16*4) SO2GBII6 N500GB5.4KS NSM8XS 5 in 1-
Build in
3rd WiFi 1x2
BGN N GM45 ICH9M 6CELL2.2 65W 0.3M DV
AS7736ZG-
434G50Mn EMEA Norway LX.PJA02.032
AS7736ZG-434G50Mn
W7HP64ATNO3 MC
N10MGS512Cbk_V3 2*2G/500_L/
6L2.2/5R/CB_bgn_0.3D_HG_ENS1
PMDT4300 NLED17.3WXGA+G N10MGS 512M-DDR3
(64*16*4) SO2GBII6 N500GB5.4KS NSM8XS 5 in 1-
Build in
3rd WiFi 1x2
BGN N GM45 ICH9M 6CELL2.2 65W 0.3M DV
AS7736ZG-
434G50Mn EMEA Austria LX.PJA02.031
AS7736ZG-434G50Mn
W7HP64ATAT1 MC
N10MGS512Cbk_V3 2*2G/500_L/
6L2.2/5R/CB_bgn_0.3D_HG_DE61
PMDT4300 NLED17.3WXGA+G N10MGS 512M-DDR3
(64*16*4) SO2GBII6 N500GB5.4KS NSM8XS 5 in 1-
Build in
3rd WiFi 1x2
BGN N GM45 ICH9M 6CELL2.2 65W 0.3M DV
AS7736ZG-
434G50Mn EMEA Belgium LX.PJA02.044
AS7736ZG-434G50Mn
W7HP64ATBE1 MC
N10MGS512Cbk_V3 2*2G/500_L/
6L2.2/5R/CB_bgn_0.3D_HG_NL11
PMDT4300 NLED17.3WXGA+G N10MGS 512M-DDR3
(64*16*4) SO2GBII6 N500GB5.4KS NSM8XS 5 in 1-
Build in
3rd WiFi 1x2
BGN N GM45 ICH9M 6CELL2.2 65W 0.3M DV
AS7736ZG-
434G50Mn EMEA Norway LX.PJA02.036
AS7736ZG-434G50Mn
W7HP64ATNO1 MC
N10MGS512Cbk_V3 2*2G/500_L/
6L2.2/5R/CB_bgn_0.3D_HG_NO11
PMDT4300 NLED17.3WXGA+G N10MGS 512M-DDR3
(64*16*4) SO2GBII6 N500GB5.4KS NSM8XS 5 in 1-
Build in
3rd WiFi 1x2
BGN N GM45 ICH9M 6CELL2.2 65W 0.3M DV
AS7736ZG-
434G50Mn EMEA Holland LX.PJA02.038
AS7736ZG-434G50Mn
W7HP64ATNL1 MC
N10MGS512Cbk_V3 2*2G/500_L/
6L2.2/5R/CB_bgn_0.3D_HG_NL11
PMDT4300 NLED17.3WXGA+G N10MGS 512M-DDR3
(64*16*4) SO2GBII6 N500GB5.4KS NSM8XS 5 in 1-
Build in
3rd WiFi 1x2
BGN N GM45 ICH9M 6CELL2.2 65W 0.3M DV
AS7736ZG-
434G50Mn EMEA Luxembour
gLX.PJA02.037
AS7736ZG-434G50Mn
W7HP64ATLU3 MC
N10MGS512Cbk_V3 2*2G/500_L/
6L2.2/5R/CB_bgn_0.3D_HG_IT41
PMDT4300 NLED17.3WXGA+G N10MGS 512M-DDR3
(64*16*4) SO2GBII6 N500GB5.4KS NSM8XS 5 in 1-
Build in
3rd WiFi 1x2
BGN N GM45 ICH9M 6CELL2.2 65W 0.3M DV
AS7736ZG-
434G50Mn EMEA Germany LX.PJA02.039
AS7736ZG-434G50Mn
W7HP64ATDE1 MC
N10MGS512Cbk_V3 2*2G/500_L/
6L2.2/5R/CB_bgn_0.3D_HG_DE11
PMDT4300 NLED17.3WXGA+G N10MGS 512M-DDR3
(64*16*4) SO2GBII6 N500GB5.4KS NSM8XS 5 in 1-
Build in
3rd WiFi 1x2
BGN N GM45 ICH9M 6CELL2.2 65W 0.3M DV
AS7736ZG-
434G50Mn EMEA Denmark LX.PJA02.045
AS7736ZG-434G50Mn
W7HP64ATDK1 MC
N10MGS512Cbk_V3 2*2G/500_L/
6L2.2/5R/CB_bgn_0.3D_HG_NO11
PMDT4300 NLED17.3WXGA+G N10MGS 512M-DDR3
(64*16*4) SO2GBII6 N500GB5.4KS NSM8XS 5 in 1-
Build in
3rd WiFi 1x2
BGN N GM45 ICH9M 6CELL2.2 65W 0.3M DV
AS7736ZG-
434G50Mn EMEA Denmark LX.PJA02.040
AS7736ZG-434G50Mn
W7HP64ATDK2 MC
N10MGS512Cbk_V3 2*2G/500_L/
6L2.2/5R/CB_bgn_0.3D_HG_ENS1
PMDT4300 NLED17.3WXGA+G N10MGS 512M-DDR3
(64*16*4) SO2GBII6 N500GB5.4KS NSM8XS 5 in 1-
Build in
3rd WiFi 1x2
BGN N GM45 ICH9M 6CELL2.2 65W 0.3M DV
AS7736ZG-
423G32Mn WW GCTWN S2.PJA02.001
AS7736ZG-423G32Mn
W7HP64AWW1 MC
N10MGS512Cbk_V3 2G+1G/320/BT/
6L2.2/5R/CB_bgn_0.3D_HG_ES61
PMDT4200 NLED17.3WXGA+G N10MGS 512M-DDR3
(64*16*4) SO2GBII6 N320GB5.4KS NSM8XS 5 in 1-
Build in
3rd WiFi 1x2
BGN BT 2.1/N GM45 ICH9M 6CELL2.2 65W 0.3M DV
AS7736ZG-
423G32Mn WW WW S2.PJA02.002
AS7736ZG-423G32Mn
W7HP64AWW1 MC
N10MGS512Cbk_V3 2G+1G/320/BT/
6L2.2/5R/CB_bgn_0.3D_HG_ES62
PMDT4200 NLED17.3WXGA+G N10MGS 512M-DDR3
(64*16*4) SO2GBII6 N320GB5.4KS NSM8XS 5 in 1-
Build in
3rd WiFi 1x2
BGN BT 2.1/N GM45 ICH9M 6CELL2.2 65W 0.3M DV
AS7736ZG-
434G50Mn EMEA Switzerland LX.PJA02.042
AS7736ZG-434G50Mn
W7HP64ATCH1 MC
N10MGS512Cbk_V3 2*2G/500_L/
6L2.2/5R/CB_bgn_0.3D_HG_IT41
PMDT4300 NLED17.3WXGA+G N10MGS 512M-DDR3
(64*16*4) SO2GBII6 N500GB5.4KS NSM8XS 5 in 1-
Build in
3rd WiFi 1x2
BGN N GM45 ICH9M 6CELL2.2 65W 0.3M DV
AS7736ZG-
434G50Mn EMEA UK LX.PJA02.041
AS7736ZG-434G50Mn
W7HP64ATGB1 MC
N10MGS512Cbk_V3 2*2G/500_L/
6L2.2/5R/CB_bgn_0.3D_HG_EN11
PMDT4300 NLED17.3WXGA+G N10MGS 512M-DDR3
(64*16*4) SO2GBII6 N500GB5.4KS NSM8XS 5 in 1-
Build in
3rd WiFi 1x2
BGN N GM45 ICH9M 6CELL2.2 65W 0.3M DV
158 Appendix A
AS7736ZG-
434G32Mn EMEA Eastern
Europe LX.PJA0C.002
AS7736ZG-434G32Mn LINPUSAEU7
N10MGS512Cbk_V3 2*2G/320/BT/
6L2.2/5R/CB_bgn_0.3D_HG_ENQ1
PMDT4300 NLED17.3WXGA+G N10MGS 512M-DDR3
(64*16*4) SO2GBII6 N320GB5.4KS NSM8XS 5 in 1-
Build in
3rd WiFi 1x2
BGN BT 2.1/N GM45 ICH9M 6CELL2.2 65W 0.3M DV
AS7736ZG-
434G32Bn EMEA Eastern
Europe LX.PJA0C.003
AS7736ZG-434G32Bn LINPUSAEU7
N10MGS512Cbk_V3 2*2G/320/BT/
6L2.2/5R/CB_bgn_0.3D_HG_EN11
PMDT4300 NLED17.3WXGA+G N10MGS 512M-DDR3
(64*16*4) SO2GBII6 N320GB5.4KS NBDCB4XS 5 in 1-
Build in
3rd WiFi 1x2
BGN BT 2.1/N GM45 ICH9M 6CELL2.2 65W 0.3M DV
AS7736ZG-
432G32Mn EMEA Eastern
Europe LX.PJA0C.001
AS7736ZG-432G32Mn LINPUSAEU7
N10MGS512Cbk_V3 1*2G/320/BT/
6L2.2/5R/CB_bgn_0.3D_N_HG_ENQ1
PMDT4300 NLED17.3WXGA+G N10MGS 512M-DDR3
(64*16*4)
SO2GBII6/
NN320GB5.4KS NSM8XS 5 in 1-
Build in
3rd WiFi 1x2
BGN BT 2.1/N GM45 ICH9M 6CELL2.2 65W 0.3M DV
AS7736Z-
434G32Mn PA Canada LX.PJB02.106
AS7736Z-434G32Mn W7HP64ATCA2
MC UMACbk 2*2G/320/6L2.2/5R/
CB_bgn_0.3D_HG_FR82
PMDT4300 NLED17.3WXGA+G UMA N SO2GBII6 N320GB5.4KS NSM8XS 5 in 1-
Build in
3rd WiFi 1x2
BGN N GL40(A1) ICH9M 6CELL2.2 65W 0.3M DV
AS7736Z-
434G32Mn EMEA Switzerland LX.PJB02.097
AS7736Z-434G32Mn W7HP64ATCH1
MC UMACbk 2*2G/320/6L2.2/5R/
CB_bgn_0.3D_HG_IT41
PMDT4300 NLED17.3WXGA+G UMA N SO2GBII6 N320GB5.4KS NSM8XS 5 in 1-
Build in
3rd WiFi 1x2
BGN N GL40(A1) ICH9M 6CELL2.2 65W 0.3M DV
AS7736Z-
434G32Mn EMEA France LX.PJB02.046
AS7736Z-434G32Mn W7HP64ATFR1
MC UMACbk 2*2G/320/6L2.2/5R/
CB_bgn_0.3D_HG_FR21
PMDT4300 NLED17.3WXGA+G UMA N SO2GBII6 N320GB5.4KS NSM8XS 5 in 1-
Build in
3rd WiFi 1x2
BGN N GL40(A1) ICH9M 6CELL2.2 65W 0.3M DV
AS7736Z-
434G50Mn PA USA LX.PJB02.105
AS7736Z-434G50Mn W7HP64ATUS1
MC UMACbk 2*2G/500_L/6L2.2/5R/
CB_bgn_0.3D_HG_FRB3
PMDT4300 NLED17.3WXGA+G UMA N SO2GBII6 N500GB5.4KS NSM8XS 5 in 1-
Build in
3rd WiFi 1x2
BGN N GL40(A1) ICH9M 6CELL2.2 65W 0.3M DV
AS7736Z-
434G50Mn PA USA LX.PJB02.104
AS7736Z-434G50Mn W7HP64ATUS1
MC UMACbk 2*2G/500_L/6L2.2/5R/
CB_bgn_0.3D_HG_FRB2
PMDT4300 NLED17.3WXGA+G UMA N SO2GBII6 N500GB5.4KS NSM8XS 5 in 1-
Build in
3rd WiFi 1x2
BGN N GL40(A1) ICH9M 6CELL2.2 65W 0.3M DV
AS7736Z-
434G50Mn PA USA LX.PJB02.103
AS7736Z-434G50Mn W7HP64ATUS1
MC UMACbk 2*2G/500_L/6L2.2/5R/
CB_bgn_0.3D_HG_FRB1
PMDT4300 NLED17.3WXGA+G UMA N SO2GBII6 N500GB5.4KS NSM8XS 5 in 1-
Build in
3rd WiFi 1x2
BGN N GL40(A1) ICH9M 6CELL2.2 65W 0.3M DV
AS7736Z-
434G50Mn PA Canada LX.PJB02.102
AS7736Z-434G50Mn W7HP64ATCA2
MC UMACbk 2*2G/500_L/6L2.2/5R/
CB_bgn_0.3D_HG_FR84
PMDT4300 NLED17.3WXGA+G UMA N SO2GBII6 N500GB5.4KS NSM8XS 5 in 1-
Build in
3rd WiFi 1x2
BGN N GL40(A1) ICH9M 6CELL2.2 65W 0.3M DV
AS7736Z-
434G50Mn PA Canada LX.PJB02.099
AS7736Z-434G50Mn W7HP64ATCA2
MC UMACbk 2*2G/500_L/6L2.2/5R/
CB_bgn_0.3D_HG_FR81
PMDT4300 NLED17.3WXGA+G UMA N SO2GBII6 N500GB5.4KS NSM8XS 5 in 1-
Build in
3rd WiFi 1x2
BGN N GL40(A1) ICH9M 6CELL2.2 65W 0.3M DV
AS7736Z-
434G50Mn PA Canada LX.PJB02.101
AS7736Z-434G50Mn W7HP64ATCA2
MC UMACbk 2*2G/500_L/6L2.2/5R/
CB_bgn_0.3D_HG_FR82
PMDT4300 NLED17.3WXGA+G UMA N SO2GBII6 N500GB5.4KS NSM8XS 5 in 1-
Build in
3rd WiFi 1x2
BGN N GL40(A1) ICH9M 6CELL2.2 65W 0.3M DV
AS7736Z-
433G32Mn EMEA Middle East LX.PJB02.098
AS7736Z-433G32Mn EM
W7HP64EMATME2 MC UMACbk
2G+1G/320/BT/6L2.2/5R/
CB_bgn_0.3D_HG_AR21
PMDT4300 NLED17.3WXGA+G UMA N SO2GBII6/
SO1GBII6 N320GB5.4KS NSM8XS 5 in 1-
Build in
3rd WiFi 1x2
BGN BT 2.1/N GL40(A1) ICH9M 6CELL2.2 65W 0.3M DV
AS7736Z-
432G25Mn EMEA Eastern
Europe LX.PJB0C.004
AS7736Z-432G25Mn LINPUSAEU7
UMACbk 1*2G/250/BT/6L2.2/5R/
CB_bgn_0.3D_HG_ENQ1
PMDT4300 NLED17.3WXGA+G UMA N SO2GBII6/
NN250GB5.4KS NSM8XS 5 in 1-
Build in
3rd WiFi 1x2
BGN BT 2.1/N GL40(A1) ICH9M 6CELL2.2 65W 0.3M DV
AS7736Z-
433G25Mn EMEA Middle East LX.PJB02.056
AS7736Z-433G25Mn EM
W7HP64EMATME2 MC UMACbk
2G+1G/250/6L2.2/5R/
CB_bgn_0.3D_HG_AR21
PMDT4300 NLED17.3WXGA+G UMA N SO2GBII6/
SO1GBII6 N250GB5.4KS NSM8XS 5 in 1-
Build in
3rd WiFi 1x2
BGN N GL40(A1) ICH9M 6CELL2.2 65W 0.3M DV
AS7736Z-
433G32Mn EMEA Middle East LX.PJB02.008
AS7736Z-433G32Mn EM
W7HP64EMATME2 MC UMACbk
2G+1G/320/6L2.2/5R/
CB_bgn_0.3D_HG_AR21
PMDT4300 NLED17.3WXGA+G UMA N SO2GBII6/
SO1GBII6 N320GB5.4KS NSM8XS 5 in 1-
Build in
3rd WiFi 1x2
BGN N GL40(A1) ICH9M 6CELL2.2 65W 0.3M DV
AS7736Z-
432G32Mn EMEA Switzerland LX.PJB02.096
AS7736Z-432G32Mn W7HP64ATCH1
MC UMACbk 1*2G/320/6L2.2/5R/
CB_bgn_0.3D_HG_IT41
PMDT4300 NLED17.3WXGA+G UMA N SO2GBII6/
NN320GB5.4KS NSM8XS 5 in 1-
Build in
3rd WiFi 1x2
BGN N GL40(A1) ICH9M 6CELL2.2 65W 0.3M DV
AS7736Z-
434G32Mn PA USA LX.PJB02.092
AS7736Z-434G32Mn W7HP64ATUS1
MC UMACbk 2*2G/320/6L2.2/5R/
CB_bgn_0.3D_HG_FRB1
PMDT4300 NLED17.3WXGA+G UMA N SO2GBII6 N320GB5.4KS NSM8XS 5 in 1-
Build in
3rd WiFi 1x2
BGN N GL40(A1) ICH9M 6CELL2.2 65W 0.3M DV
AS7736Z-
433G32Mn EMEA Spain LX.PJB02.091
AS7736Z-433G32Mn W7HP64ATES1
MC UMACbk 2G+1G/320/6L2.2/5R/
CB_bgn_0.3D_HG_ES51
PMDT4300 NLED17.3WXGA+G UMA N SO2GBII6/
SO1GBII6 N320GB5.4KS NSM8XS 5 in 1-
Build in
3rd WiFi 1x2
BGN N GL40(A1) ICH9M 6CELL2.2 65W 0.3M DV
AS7736Z-
433G25Mn EMEA Ukraine LX.PJB02.050
AS7736Z-433G25Mn
W7HP64RUATUK1 MC UMACbk
2G+1G/250/6L2.2/5R/
CB_bgn_0.3D_HG_RU61
PMDT4300 NLED17.3WXGA+G UMA N SO2GBII6/
SO1GBII6 N250GB5.4KS NSM8XS 5 in 1-
Build in
3rd WiFi 1x2
BGN N GL40(A1) ICH9M 6CELL2.2 65W 0.3M DV
Appendix A 159
AS7736Z-
433G25Mn EMEA Algeria LX.PJB02.051
AS7736Z-433G25Mn EM
W7HP64EMATDZ1 MC UMACbk
2G+1G/250/6L2.2/5R/
CB_bgn_0.3D_HG_ES81
PMDT4300 NLED17.3WXGA+G UMA N SO2GBII6/
SO1GBII6 N250GB5.4KS NSM8XS 5 in 1-
Build in
3rd WiFi 1x2
BGN N GL40(A1) ICH9M 6CELL2.2 65W 0.3M DV
AS7736Z-
433G25Mi EMEA Russia LX.PJB02.049
AS7736Z-433G25Mi
W7HP64RUATRU1 MC UMACbk
2G+1G/250/6L2.2/5R/
CB_bg_0.3D_HG_RU11
PMDT4300 NLED17.3WXGA+G UMA N SO2GBII6/
SO1GBII6 N250GB5.4KS NSM8XS 5 in 1-
Build in 3rd WiFi BG N GL40(A1) ICH9M 6CELL2.2 65W 0.3M DV
AS7736Z-
433G25Mn EMEA South Africa LX.PJB02.052
AS7736Z-433G25Mn EM
W7HP64EMATZA1 MC UMACbk
2G+1G/250/6L2.2/5R/
CB_bgn_0.3D_HG_ES81
PMDT4300 NLED17.3WXGA+G UMA N SO2GBII6/
SO1GBII6 N250GB5.4KS NSM8XS 5 in 1-
Build in
3rd WiFi 1x2
BGN N GL40(A1) ICH9M 6CELL2.2 65W 0.3M DV
AS7736Z-
433G25Mn EMEA Middle East LX.PJB02.053
AS7736Z-433G25Mn EM
W7HP64EMATME4 MC UMACbk
2G+1G/250/6L2.2/5R/
CB_bgn_0.3D_HG_RU61
PMDT4300 NLED17.3WXGA+G UMA N SO2GBII6/
SO1GBII6 N250GB5.4KS NSM8XS 5 in 1-
Build in
3rd WiFi 1x2
BGN N GL40(A1) ICH9M 6CELL2.2 65W 0.3M DV
AS7736Z-
433G25Mn EMEA Turkey LX.PJB02.060
AS7736Z-433G25Mn EM
W7HP64EMATTR1 MC UMACbk
2G+1G/250/6L2.2/5R/
CB_bgn_0.3D_HG_TR31
PMDT4300 NLED17.3WXGA+G UMA N SO2GBII6/
SO1GBII6 N250GB5.4KS NSM8XS 5 in 1-
Build in
3rd WiFi 1x2
BGN N GL40(A1) ICH9M 6CELL2.2 65W 0.3M DV
AS7736Z-
433G25Mn EMEA Middle East LX.PJB02.057
AS7736Z-433G25Mn EM
W7HP64EMATME3 MC UMACbk
2G+1G/250/6L2.2/5R/
CB_bgn_0.3D_HG_ES81
PMDT4300 NLED17.3WXGA+G UMA N SO2GBII6/
SO1GBII6 N250GB5.4KS NSM8XS 5 in 1-
Build in
3rd WiFi 1x2
BGN N GL40(A1) ICH9M 6CELL2.2 65W 0.3M DV
AS7736Z-
433G25Mn EMEA South Africa LX.PJB02.055
AS7736Z-433G25Mn EM
W7HP64EMATZA4 MC UMACbk
2G+1G/250/6L2.2/5R/
CB_bgn_0.3D_HG_ES61
PMDT4300 NLED17.3WXGA+G UMA N SO2GBII6/
SO1GBII6 N250GB5.4KS NSM8XS 5 in 1-
Build in
3rd WiFi 1x2
BGN N GL40(A1) ICH9M 6CELL2.2 65W 0.3M DV
AS7736Z-
433G25Mn EMEA South Africa LX.PJB02.059
AS7736Z-433G25Mn EM
W7HP64EMATZA2 MC UMACbk
2G+1G/250/6L2.2/5R/
CB_bgn_0.3D_HG_ES61
PMDT4300 NLED17.3WXGA+G UMA N SO2GBII6/
SO1GBII6 N250GB5.4KS NSM8XS 5 in 1-
Build in
3rd WiFi 1x2
BGN N GL40(A1) ICH9M 6CELL2.2 65W 0.3M DV
AS7736Z-
433G25Mn EMEA Middle East LX.PJB02.054
AS7736Z-433G25Mn EM
W7HP64EMATME2 MC UMACbk
2G+1G/250/6L2.2/5R/
CB_bgn_0.3D_HG_ES61
PMDT4300 NLED17.3WXGA+G UMA N SO2GBII6/
SO1GBII6 N250GB5.4KS NSM8XS 5 in 1-
Build in
3rd WiFi 1x2
BGN N GL40(A1) ICH9M 6CELL2.2 65W 0.3M DV
AS7736Z-
433G25Mn EMEA Middle East LX.PJB02.058
AS7736Z-433G25Mn EM
W7HP64EMATME9 MC UMACbk
2G+1G/250/6L2.2/5R/
CB_bgn_0.3D_HG_ES81
PMDT4300 NLED17.3WXGA+G UMA N SO2GBII6/
SO1GBII6 N250GB5.4KS NSM8XS 5 in 1-
Build in
3rd WiFi 1x2
BGN N GL40(A1) ICH9M 6CELL2.2 65W 0.3M DV
AS7736Z-
433G25Mn EMEA Middle East LX.PJB02.061
AS7736Z-433G25Mn EM
W7HP64EMATME6 MC UMACbk
2G+1G/250/6L2.2/5R/
CB_bgn_0.3D_HG_ES61
PMDT4300 NLED17.3WXGA+G UMA N SO2GBII6/
SO1GBII6 N250GB5.4KS NSM8XS 5 in 1-
Build in
3rd WiFi 1x2
BGN N GL40(A1) ICH9M 6CELL2.2 65W 0.3M DV
AS7736Z-
433G25Mn EMEA Eastern
Europe LX.PJB02.064
AS7736Z-433G25Mn W7HP64ATEU7
MC UMACbk 2G+1G/250/6L2.2/5R/
CB_bgn_0.3D_HG_SL11
PMDT4300 NLED17.3WXGA+G UMA N SO2GBII6/
SO1GBII6 N250GB5.4KS NSM8XS 5 in 1-
Build in
3rd WiFi 1x2
BGN N GL40(A1) ICH9M 6CELL2.2 65W 0.3M DV
AS7736Z-
433G25Mn EMEA Eastern
Europe LX.PJB02.065
AS7736Z-433G25Mn W7HP64ATEU7
MC UMACbk 2G+1G/250/6L2.2/5R/
CB_bgn_0.3D_HG_ENQ1
PMDT4300 NLED17.3WXGA+G UMA N SO2GBII6/
SO1GBII6 N250GB5.4KS NSM8XS 5 in 1-
Build in
3rd WiFi 1x2
BGN N GL40(A1) ICH9M 6CELL2.2 65W 0.3M DV
AS7736Z-
433G25Mn EMEA Middle East LX.PJB02.063
AS7736Z-433G25Mn EM
W7HP64EMATME4 MC UMACbk
2G+1G/250/6L2.2/5R/
CB_bgn_0.3D_HG_ES61
PMDT4300 NLED17.3WXGA+G UMA N SO2GBII6/
SO1GBII6 N250GB5.4KS NSM8XS 5 in 1-
Build in
3rd WiFi 1x2
BGN N GL40(A1) ICH9M 6CELL2.2 65W 0.3M DV
AS7736Z-
433G25Mn EMEA Middle East LX.PJB02.062
AS7736Z-433G25Mn EM
W7HP64EMATME2 MC UMACbk
2G+1G/250/6L2.2/5R/
CB_bgn_0.3D_HG_AR11
PMDT4300 NLED17.3WXGA+G UMA N SO2GBII6/
SO1GBII6 N250GB5.4KS NSM8XS 5 in 1-
Build in
3rd WiFi 1x2
BGN N GL40(A1) ICH9M 6CELL2.2 65W 0.3M DV
AS7736Z-
433G25Mn EMEA Cyprus LX.PJB02.070
AS7736Z-433G25Mn W7HP64ATCY1
MC UMACbk 2G+1G/250/6L2.2/5R/
CB_bgn_0.3D_HG_ES61
PMDT4300 NLED17.3WXGA+G UMA N SO2GBII6/
SO1GBII6 N250GB5.4KS NSM8XS 5 in 1-
Build in
3rd WiFi 1x2
BGN N GL40(A1) ICH9M 6CELL2.2 65W 0.3M DV
AS7736Z-
433G25Mn EMEA Luxembour
gLX.PJB02.067
AS7736Z-433G25Mn W7HP64ATLU3
MC UMACbk 2G+1G/250/6L2.2/5R/
CB_bgn_0.3D_HG_IT41
PMDT4300 NLED17.3WXGA+G UMA N SO2GBII6/
SO1GBII6 N250GB5.4KS NSM8XS 5 in 1-
Build in
3rd WiFi 1x2
BGN N GL40(A1) ICH9M 6CELL2.2 65W 0.3M DV
160 Appendix A
AS7736Z-
433G25Mn EMEA Sweden LX.PJB02.066
AS7736Z-433G25Mn W7HP64ATSE1
MC UMACbk 2G+1G/250/6L2.2/5R/
CB_bgn_0.3D_HG_FI11
PMDT4300 NLED17.3WXGA+G UMA N SO2GBII6/
SO1GBII6 N250GB5.4KS NSM8XS 5 in 1-
Build in
3rd WiFi 1x2
BGN N GL40(A1) ICH9M 6CELL2.2 65W 0.3M DV
AS7736Z-
433G25Mn EMEA Italy LX.PJB02.069
AS7736Z-433G25Mn W7HP64ATIT1
MC UMACbk 2G+1G/250/6L2.2/5R/
CB_bgn_0.3D_HG_IT11
PMDT4300 NLED17.3WXGA+G UMA N SO2GBII6/
SO1GBII6 N250GB5.4KS NSM8XS 5 in 1-
Build in
3rd WiFi 1x2
BGN N GL40(A1) ICH9M 6CELL2.2 65W 0.3M DV
AS7736Z-
433G25Mn EMEA Eastern
Europe LX.PJB02.072
AS7736Z-433G25Mn W7HP64ATEU4
MC UMACbk 2G+1G/250/6L2.2/5R/
CB_bgn_0.3D_HG_SV21
PMDT4300 NLED17.3WXGA+G UMA N SO2GBII6/
SO1GBII6 N250GB5.4KS NSM8XS 5 in 1-
Build in
3rd WiFi 1x2
BGN N GL40(A1) ICH9M 6CELL2.2 65W 0.3M DV
AS7736Z-
433G25Mn EMEA Austria LX.PJB02.071
AS7736Z-433G25Mn W7HP64ATAT1
MC UMACbk 2G+1G/250/6L2.2/5R/
CB_bgn_0.3D_HG_DE61
PMDT4300 NLED17.3WXGA+G UMA N SO2GBII6/
SO1GBII6 N250GB5.4KS NSM8XS 5 in 1-
Build in
3rd WiFi 1x2
BGN N GL40(A1) ICH9M 6CELL2.2 65W 0.3M DV
AS7736Z-
433G25Mn EMEA Czech LX.PJB02.074
AS7736Z-433G25Mn W7HP64ATCZ2
MC UMACbk 2G+1G/250/6L2.2/5R/
CB_bgn_0.3D_HG_SK11
PMDT4300 NLED17.3WXGA+G UMA N SO2GBII6/
SO1GBII6 N250GB5.4KS NSM8XS 5 in 1-
Build in
3rd WiFi 1x2
BGN N GL40(A1) ICH9M 6CELL2.2 65W 0.3M DV
AS7736Z-
433G25Mn EMEA Norway LX.PJB02.073
AS7736Z-433G25Mn W7HP64ATNO1
MC UMACbk 2G+1G/250/6L2.2/5R/
CB_bgn_0.3D_HGO11
PMDT4300 NLED17.3WXGA+G UMA N SO2GBII6/
SO1GBII6 N250GB5.4KS NSM8XS 5 in 1-
Build in
3rd WiFi 1x2
BGN N GL40(A1) ICH9M 6CELL2.2 65W 0.3M DV
AS7736Z-
433G25Mn EMEA Finland LX.PJB02.068
AS7736Z-433G25Mn W7HP64ATFI2
MC UMACbk 2G+1G/250/6L2.2/5R/
CB_bgn_0.3D_HG_FI11
PMDT4300 NLED17.3WXGA+G UMA N SO2GBII6/
SO1GBII6 N250GB5.4KS NSM8XS 5 in 1-
Build in
3rd WiFi 1x2
BGN N GL40(A1) ICH9M 6CELL2.2 65W 0.3M DV
AS7736Z-
433G25Mn EMEA UK LX.PJB02.075
AS7736Z-433G25Mn W7HP64ATGB1
MC UMACbk 2G+1G/250/6L2.2/5R/
CB_bgn_0.3D_HG_EN11
PMDT4300 NLED17.3WXGA+G UMA N SO2GBII6/
SO1GBII6 N250GB5.4KS NSM8XS 5 in 1-
Build in
3rd WiFi 1x2
BGN N GL40(A1) ICH9M 6CELL2.2 65W 0.3M DV
AS7736Z-
433G25Mn EMEA France LX.PJB02.076
AS7736Z-433G25Mn W7HP64ATFR1
MC UMACbk 2G+1G/250/6L2.2/5R/
CB_bgn_0.3D_HG_FR21
PMDT4300 NLED17.3WXGA+G UMA N SO2GBII6/
SO1GBII6 N250GB5.4KS NSM8XS 5 in 1-
Build in
3rd WiFi 1x2
BGN N GL40(A1) ICH9M 6CELL2.2 65W 0.3M DV
AS7736Z-
433G25Mn EMEA Norway LX.PJB02.077
AS7736Z-433G25Mn W7HP64ATNO3
MC UMACbk 2G+1G/250/6L2.2/5R/
CB_bgn_0.3D_HG_ENS1
PMDT4300 NLED17.3WXGA+G UMA N SO2GBII6/
SO1GBII6 N250GB5.4KS NSM8XS 5 in 1-
Build in
3rd WiFi 1x2
BGN N GL40(A1) ICH9M 6CELL2.2 65W 0.3M DV
AS7736Z-
433G25Mn EMEA Germany LX.PJB02.080
AS7736Z-433G25Mn W7HP64ATDE1
MC UMACbk 2G+1G/250/6L2.2/5R/
CB_bgn_0.3D_HG_DE11
PMDT4300 NLED17.3WXGA+G UMA N SO2GBII6/
SO1GBII6 N250GB5.4KS NSM8XS 5 in 1-
Build in
3rd WiFi 1x2
BGN N GL40(A1) ICH9M 6CELL2.2 65W 0.3M DV
AS7736Z-
433G25Mn EMEA Denmark LX.PJB02.078
AS7736Z-433G25Mn W7HP64ATDK2
MC UMACbk 2G+1G/250/6L2.2/5R/
CB_bgn_0.3D_HG_ENS1
PMDT4300 NLED17.3WXGA+G UMA N SO2GBII6/
SO1GBII6 N250GB5.4KS NSM8XS 5 in 1-
Build in
3rd WiFi 1x2
BGN N GL40(A1) ICH9M 6CELL2.2 65W 0.3M DV
AS7736Z-
433G25Mn EMEA Portugal LX.PJB02.079
AS7736Z-433G25Mn W7HP64ATPT1
MC UMACbk 2G+1G/250/6L2.2/5R/
CB_bgn_0.3D_HG_PT11
PMDT4300 NLED17.3WXGA+G UMA N SO2GBII6/
SO1GBII6 N250GB5.4KS NSM8XS 5 in 1-
Build in
3rd WiFi 1x2
BGN N GL40(A1) ICH9M 6CELL2.2 65W 0.3M DV
AS7736Z-
433G25Mn EMEA Hungary LX.PJB02.083
AS7736Z-433G25Mn W7HP64ATHU1
MC UMACbk 2G+1G/250/6L2.2/5R/
CB_bgn_0.3D_HG_HU11
PMDT4300 NLED17.3WXGA+G UMA N SO2GBII6/
SO1GBII6 N250GB5.4KS NSM8XS 5 in 1-
Build in
3rd WiFi 1x2
BGN N GL40(A1) ICH9M 6CELL2.2 65W 0.3M DV
AS7736Z-
433G25Mn EMEA Denmark LX.PJB02.082
AS7736Z-433G25Mn W7HP64ATDK1
MC UMACbk 2G+1G/250/6L2.2/5R/
CB_bgn_0.3D_HGO11
PMDT4300 NLED17.3WXGA+G UMA N SO2GBII6/
SO1GBII6 N250GB5.4KS NSM8XS 5 in 1-
Build in
3rd WiFi 1x2
BGN N GL40(A1) ICH9M 6CELL2.2 65W 0.3M DV
AS7736Z-
433G25Mn EMEA Eastern
Europe LX.PJB02.081
AS7736Z-433G25Mn W7HP64ATEU5
MC UMACbk 2G+1G/250/6L2.2/5R/
CB_bgn_0.3D_HG_RO11
PMDT4300 NLED17.3WXGA+G UMA N SO2GBII6/
SO1GBII6 N250GB5.4KS NSM8XS 5 in 1-
Build in
3rd WiFi 1x2
BGN N GL40(A1) ICH9M 6CELL2.2 65W 0.3M DV
AS7736Z-
433G25Mn EMEA Spain LX.PJB02.084
AS7736Z-433G25Mn W7HP64ATES1
MC UMACbk 2G+1G/250/6L2.2/5R/
CB_bgn_0.3D_HG_ES51
PMDT4300 NLED17.3WXGA+G UMA N SO2GBII6/
SO1GBII6 N250GB5.4KS NSM8XS 5 in 1-
Build in
3rd WiFi 1x2
BGN N GL40(A1) ICH9M 6CELL2.2 65W 0.3M DV
AS7736Z-
434G32Mn EMEA Spain LX.PJB02.048
AS7736Z-434G32Mn W7HP64ATES1
MC UMACbk 2*2G/320/6L2.2/5R/
CB_bgn_0.3D_HG_ES51
PMDT4300 NLED17.3WXGA+G UMA N SO2GBII6/
SO1GBII6 N320GB5.4KS NSM8XS 5 in 1-
Build in
3rd WiFi 1x2
BGN N GL40(A1) ICH9M 6CELL2.2 65W 0.3M DV
AS7736Z-
433G25Mn EMEA Belgium LX.PJB02.086
AS7736Z-433G25Mn W7HP64ATBE1
MC UMACbk 2G+1G/250/6L2.2/5R/
CB_bgn_0.3D_HGL11
PMDT4300 NLED17.3WXGA+G UMA N SO2GBII6/
SO1GBII6 N250GB5.4KS NSM8XS 5 in 1-
Build in
3rd WiFi 1x2
BGN N GL40(A1) ICH9M 6CELL2.2 65W 0.3M DV
AS7736Z-
433G25Mn EMEA Greece LX.PJB02.087
AS7736Z-433G25Mn W7HP64ATGR1
MC UMACbk 2G+1G/250/6L2.2/5R/
CB_bgn_0.3D_HG_EL31
PMDT4300 NLED17.3WXGA+G UMA N SO2GBII6/
SO1GBII6 N250GB5.4KS NSM8XS 5 in 1-
Build in
3rd WiFi 1x2
BGN N GL40(A1) ICH9M 6CELL2.2 65W 0.3M DV
AS7736Z-
433G25Mn EMEA Poland LX.PJB02.085
AS7736Z-433G25Mn W7HP64ATPL1
MC UMACbk 2G+1G/250/6L2.2/5R/
CB_bgn_0.3D_HG_PL11
PMDT4300 NLED17.3WXGA+G UMA N SO2GBII6/
SO1GBII6 N250GB5.4KS NSM8XS 5 in 1-
Build in
3rd WiFi 1x2
BGN N GL40(A1) ICH9M 6CELL2.2 65W 0.3M DV
161 Appendix A
AS7736Z-
433G25Mn EMEA Holland LX.PJB02.090
AS7736Z-433G25Mn W7HP64ATNL1
MC UMACbk 2G+1G/250/6L2.2/5R/
CB_bgn_0.3D_HGL11
PMDT4300 NLED17.3WXGA+G UMA N SO2GBII6/
SO1GBII6 N250GB5.4KS NSM8XS 5 in 1-
Build in
3rd WiFi 1x2
BGN N GL40(A1) ICH9M 6CELL2.2 65W 0.3M DV
AS7736Z-
433G25Mn EMEA Switzerland LX.PJB02.089
AS7736Z-433G25Mn W7HP64ATCH1
MC UMACbk 2G+1G/250/6L2.2/5R/
CB_bgn_0.3D_HG_IT41
PMDT4300 NLED17.3WXGA+G UMA N SO2GBII6/
SO1GBII6 N250GB5.4KS NSM8XS 5 in 1-
Build in
3rd WiFi 1x2
BGN N GL40(A1) ICH9M 6CELL2.2 65W 0.3M DV
AS7736Z-
433G25Mn EMEA Eastern
Europe LX.PJB02.088
AS7736Z-433G25Mn W7HP64ATEU5
MC UMACbk 2G+1G/250/6L2.2/5R/
CB_bgn_0.3D_HG_PL71
PMDT4300 NLED17.3WXGA+G UMA N SO2GBII6/
SO1GBII6 N250GB5.4KS NSM8XS 5 in 1-
Build in
3rd WiFi 1x2
BGN N GL40(A1) ICH9M 6CELL2.2 65W 0.3M DV
AS7736Z-
434G32Mn PA Canada LX.PJB02.047
AS7736Z-434G32Mn W7HP64ATCA2
MC UMACbk 2*2G/320/6L2.2/5R/
CB_bgn_0.3D_HG_FR81
PMDT4300 NLED17.3WXGA+G UMA N SO2GBII6/
SO1GBII6 N320GB5.4KS NSM8XS 5 in 1-
Build in
3rd WiFi 1x2
BGN N GL40(A1) ICH9M 6CELL2.2 65W 0.3M DV
AS7736Z-
433G32Mn EMEA Israel LX.PJB02.002
AS7736Z-433G32Mn W7HP64ATIL1
MC UMACbk 2G+1G/320/6L2.2/5R/
CB_bgn_0.3D_HG_HE31
PMDT4300 NLED17.3WXGA+G UMA N SO2GBII6/
SO1GBII6 N320GB5.4KS NSM8XS 5 in 1-
Build in
3rd WiFi 1x2
BGN N GL40(A1) ICH9M 6CELL2.2 65W 0.3M DV
AS7736Z-
433G32Mn EMEA Serbia/
Macedonia LX.PJB02.001
AS7736Z-433G32Mn EM
W7HP64ATCS1 MC UMACbk 2G+1G/
320/6L2.2/5R/
CB_bgn_0.3D_HG_SL11
PMDT4300 NLED17.3WXGA+G UMA N SO2GBII6/
SO1GBII6 N320GB5.4KS NSM8XS 5 in 1-
Build in
3rd WiFi 1x2
BGN N GL40(A1) ICH9M 6CELL2.2 65W 0.3M DV
AS7736Z-
433G32Mn EMEA Israel LX.PJB02.003
AS7736Z-433G32Mn W7HP64ATIL1
MC UMACbk 2G+1G/320/6L2.2/5R/
CB_bgn_0.3D_HG_HE11
PMDT4300 NLED17.3WXGA+G UMA N SO2GBII6/
SO1GBII6 N320GB5.4KS NSM8XS 5 in 1-
Build in
3rd WiFi 1x2
BGN N GL40(A1) ICH9M 6CELL2.2 65W 0.3M DV
AS7736Z-
433G32Mn EMEA Middle East LX.PJB02.006
AS7736Z-433G32Mn EM
W7HP64EMATME4 MC UMACbk
2G+1G/320/6L2.2/5R/
CB_bgn_0.3D_HG_RU61
PMDT4300 NLED17.3WXGA+G UMA N SO2GBII6/
SO1GBII6 N320GB5.4KS NSM8XS 5 in 1-
Build in
3rd WiFi 1x2
BGN N GL40(A1) ICH9M 6CELL2.2 65W 0.3M DV
AS7736Z-
433G32Mn EMEA South Africa LX.PJB02.005
AS7736Z-433G32Mn EM
W7HP64EMATZA1 MC UMACbk
2G+1G/320/6L2.2/5R/
CB_bgn_0.3D_HG_ES81
PMDT4300 NLED17.3WXGA+G UMA N SO2GBII6/
SO1GBII6 N320GB5.4KS NSM8XS 5 in 1-
Build in
3rd WiFi 1x2
BGN N GL40(A1) ICH9M 6CELL2.2 65W 0.3M DV
AS7736Z-
433G32Mn EMEA Algeria LX.PJB02.004
AS7736Z-433G32Mn EM
W7HP64EMATDZ1 MC UMACbk
2G+1G/320/6L2.2/5R/
CB_bgn_0.3D_HG_ES81
PMDT4300 NLED17.3WXGA+G UMA N SO2GBII6/
SO1GBII6 N320GB5.4KS NSM8XS 5 in 1-
Build in
3rd WiFi 1x2
BGN N GL40(A1) ICH9M 6CELL2.2 65W 0.3M DV
AS7736Z-
433G32Mn EMEA Middle East LX.PJB02.007
AS7736Z-433G32Mn EM
W7HP64EMATME2 MC UMACbk
2G+1G/320/6L2.2/5R/
CB_bgn_0.3D_HG_ES61
PMDT4300 NLED17.3WXGA+G UMA N SO2GBII6/
SO1GBII6 N320GB5.4KS NSM8XS 5 in 1-
Build in
3rd WiFi 1x2
BGN N GL40(A1) ICH9M 6CELL2.2 65W 0.3M DV
AS7736Z-
433G32Mn EMEA South Africa LX.PJB02.013
AS7736Z-433G32Mn EM
W7HP64EMATZA4 MC UMACbk
2G+1G/320/6L2.2/5R/
CB_bgn_0.3D_HG_ES61
PMDT4300 NLED17.3WXGA+G UMA N SO2GBII6/
SO1GBII6 N320GB5.4KS NSM8XS 5 in 1-
Build in
3rd WiFi 1x2
BGN N GL40(A1) ICH9M 6CELL2.2 65W 0.3M DV
AS7736Z-
433G32Mn EMEA Middle East LX.PJB02.012
AS7736Z-433G32Mn EM
W7HP64EMATME3 MC UMACbk
2G+1G/320/6L2.2/5R/
CB_bgn_0.3D_HG_ES81
PMDT4300 NLED17.3WXGA+G UMA N SO2GBII6/
SO1GBII6 N320GB5.4KS NSM8XS 5 in 1-
Build in
3rd WiFi 1x2
BGN N GL40(A1) ICH9M 6CELL2.2 65W 0.3M DV
AS7736Z-
433G32Mn EMEA Middle East LX.PJB02.015
AS7736Z-433G32Mn EM
W7HP64EMATME2 MC UMACbk
2G+1G/320/6L2.2/5R/
CB_bgn_0.3D_HG_AR11
PMDT4300 NLED17.3WXGA+G UMA N SO2GBII6/
SO1GBII6 N320GB5.4KS NSM8XS 5 in 1-
Build in
3rd WiFi 1x2
BGN N GL40(A1) ICH9M 6CELL2.2 65W 0.3M DV
AS7736Z-
433G32Mn EMEA Middle East LX.PJB02.010
AS7736Z-433G32Mn EM
W7HP64EMATME9 MC UMACbk
2G+1G/320/6L2.2/5R/
CB_bgn_0.3D_HG_ES81
PMDT4300 NLED17.3WXGA+G UMA N SO2GBII6/
SO1GBII6 N320GB5.4KS NSM8XS 5 in 1-
Build in
3rd WiFi 1x2
BGN N GL40(A1) ICH9M 6CELL2.2 65W 0.3M DV
AS7736Z-
433G32Mn EMEA Middle East LX.PJB02.014
AS7736Z-433G32Mn EM
W7HP64EMATME4 MC UMACbk
2G+1G/320/6L2.2/5R/
CB_bgn_0.3D_HG_ES61
PMDT4300 NLED17.3WXGA+G UMA N SO2GBII6/
SO1GBII6 N320GB5.4KS NSM8XS 5 in 1-
Build in
3rd WiFi 1x2
BGN N GL40(A1) ICH9M 6CELL2.2 65W 0.3M DV
AS7736Z-
433G32Mn EMEA Turkey LX.PJB02.009
AS7736Z-433G32Mn EM
W7HP64EMATTR1 MC UMACbk
2G+1G/320/6L2.2/5R/
CB_bgn_0.3D_HG_TR31
PMDT4300 NLED17.3WXGA+G UMA N SO2GBII6/
SO1GBII6 N320GB5.4KS NSM8XS 5 in 1-
Build in
3rd WiFi 1x2
BGN N GL40(A1) ICH9M 6CELL2.2 65W 0.3M DV
AS7736Z-
433G32Mn EMEA South Africa LX.PJB02.011
AS7736Z-433G32Mn EM
W7HP64EMATZA2 MC UMACbk
2G+1G/320/6L2.2/5R/
CB_bgn_0.3D_HG_ES61
PMDT4300 NLED17.3WXGA+G UMA N SO2GBII6/
SO1GBII6 N320GB5.4KS NSM8XS 5 in 1-
Build in
3rd WiFi 1x2
BGN N GL40(A1) ICH9M 6CELL2.2 65W 0.3M DV
Appendix A 162
AS7736Z-
433G32Mn EMEA Ukraine LX.PJB02.018
AS7736Z-433G32Mn
W7HP64RUATUK1 MC UMACbk
2G+1G/320/6L2.2/5R/
CB_bgn_0.3D_HG_RU61
PMDT4300 NLED17.3WXGA+G UMA N SO2GBII6/
SO1GBII6 N320GB5.4KS NSM8XS 5 in 1-
Build in
3rd WiFi 1x2
BGN N GL40(A1) ICH9M 6CELL2.2 65W 0.3M DV
AS7736Z-
433G32Mi EMEA Russia LX.PJB02.017
AS7736Z-433G32Mi
W7HP64RUATRU1 MC UMACbk
2G+1G/320/6L2.2/5R/
CB_bg_0.3D_HG_RU11
PMDT4300 NLED17.3WXGA+G UMA N SO2GBII6/
SO1GBII6 N320GB5.4KS NSM8XS 5 in 1-
Build in 3rd WiFi BG N GL40(A1) ICH9M 6CELL2.2 65W 0.3M DV
AS7736Z-
433G32Mn EMEA Middle East LX.PJB02.016
AS7736Z-433G32Mn EM
W7HP64EMATME6 MC UMACbk
2G+1G/320/6L2.2/5R/
CB_bgn_0.3D_HG_ES61
PMDT4300 NLED17.3WXGA+G UMA N SO2GBII6/
SO1GBII6 N320GB5.4KS NSM8XS 5 in 1-
Build in
3rd WiFi 1x2
BGN N GL40(A1) ICH9M 6CELL2.2 65W 0.3M DV
AS7736Z-
433G32Mn EMEA Cyprus LX.PJB02.020
AS7736Z-433G32Mn W7HP64ATCY1
MC UMACbk 2G+1G/320/6L2.2/5R/
CB_bgn_0.3D_HG_ES61
PMDT4300 NLED17.3WXGA+G UMA N SO2GBII6/
SO1GBII6 N320GB5.4KS NSM8XS 5 in 1-
Build in
3rd WiFi 1x2
BGN N GL40(A1) ICH9M 6CELL2.2 65W 0.3M DV
AS7736Z-
433G32Mn EMEA Sweden LX.PJB02.024
AS7736Z-433G32Mn W7HP64ATSE1
MC UMACbk 2G+1G/320/6L2.2/5R/
CB_bgn_0.3D_HG_FI11
PMDT4300 NLED17.3WXGA+G UMA N SO2GBII6/
SO1GBII6 N320GB5.4KS NSM8XS 5 in 1-
Build in
3rd WiFi 1x2
BGN N GL40(A1) ICH9M 6CELL2.2 65W 0.3M DV
AS7736Z-
433G32Mn EMEA Luxembour
gLX.PJB02.022
AS7736Z-433G32Mn W7HP64ATLU3
MC UMACbk 2G+1G/320/6L2.2/5R/
CB_bgn_0.3D_HG_IT41
PMDT4300 NLED17.3WXGA+G UMA N SO2GBII6/
SO1GBII6 N320GB5.4KS NSM8XS 5 in 1-
Build in
3rd WiFi 1x2
BGN N GL40(A1) ICH9M 6CELL2.2 65W 0.3M DV
AS7736Z-
433G32Mn EMEA Eastern
Europe LX.PJB02.023
AS7736Z-433G32Mn W7HP64ATEU7
MC UMACbk 2G+1G/320/6L2.2/5R/
CB_bgn_0.3D_HG_ENQ1
PMDT4300 NLED17.3WXGA+G UMA N SO2GBII6/
SO1GBII6 N320GB5.4KS NSM8XS 5 in 1-
Build in
3rd WiFi 1x2
BGN N GL40(A1) ICH9M 6CELL2.2 65W 0.3M DV
AS7736Z-
433G32Mn EMEA Eastern
Europe LX.PJB02.019
AS7736Z-433G32Mn W7HP64ATEU7
MC UMACbk 2G+1G/320/6L2.2/5R/
CB_bgn_0.3D_HG_SL11
PMDT4300 NLED17.3WXGA+G UMA N SO2GBII6/
SO1GBII6 N320GB5.4KS NSM8XS 5 in 1-
Build in
3rd WiFi 1x2
BGN N GL40(A1) ICH9M 6CELL2.2 65W 0.3M DV
AS7736Z-
433G32Mn EMEA Finland LX.PJB02.025
AS7736Z-433G32Mn W7HP64ATFI2
MC UMACbk 2G+1G/320/6L2.2/5R/
CB_bgn_0.3D_HG_FI11
PMDT4300 NLED17.3WXGA+G UMA N SO2GBII6/
SO1GBII6 N320GB5.4KS NSM8XS 5 in 1-
Build in
3rd WiFi 1x2
BGN N GL40(A1) ICH9M 6CELL2.2 65W 0.3M DV
AS7736Z-
433G32Mn EMEA Italy LX.PJB02.021
AS7736Z-433G32Mn W7HP64ATIT1
MC UMACbk 2G+1G/320/6L2.2/5R/
CB_bgn_0.3D_HG_IT11
PMDT4300 NLED17.3WXGA+G UMA N SO2GBII6/
SO1GBII6 N320GB5.4KS NSM8XS 5 in 1-
Build in
3rd WiFi 1x2
BGN N GL40(A1) ICH9M 6CELL2.2 65W 0.3M DV
AS7736Z-
433G32Mn EMEA UK LX.PJB02.033
AS7736Z-433G32Mn W7HP64ATGB1
MC UMACbk 2G+1G/320/6L2.2/5R/
CB_bgn_0.3D_HG_EN11
PMDT4300 NLED17.3WXGA+G UMA N SO2GBII6/
SO1GBII6 N320GB5.4KS NSM8XS 5 in 1-
Build in
3rd WiFi 1x2
BGN N GL40(A1) ICH9M 6CELL2.2 65W 0.3M DV
AS7736Z-
433G32Mn EMEA Austria LX.PJB02.028
AS7736Z-433G32Mn W7HP64ATAT1
MC UMACbk 2G+1G/320/6L2.2/5R/
CB_bgn_0.3D_HG_DE61
PMDT4300 NLED17.3WXGA+G UMA N SO2GBII6/
SO1GBII6 N320GB5.4KS NSM8XS 5 in 1-
Build in
3rd WiFi 1x2
BGN N GL40(A1) ICH9M 6CELL2.2 65W 0.3M DV
AS7736Z-
433G32Mn EMEA Eastern
Europe LX.PJB02.034
AS7736Z-433G32Mn W7HP64ATEU4
MC UMACbk 2G+1G/320/6L2.2/5R/
CB_bgn_0.3D_HG_SV21
PMDT4300 NLED17.3WXGA+G UMA N SO2GBII6/
SO1GBII6 N320GB5.4KS NSM8XS 5 in 1-
Build in
3rd WiFi 1x2
BGN N GL40(A1) ICH9M 6CELL2.2 65W 0.3M DV
AS7736Z-
433G32Mn EMEA Norway LX.PJB02.027
AS7736Z-433G32Mn W7HP64ATNO1
MC UMACbk 2G+1G/320/6L2.2/5R/
CB_bgn_0.3D_HG_NO11
PMDT4300 NLED17.3WXGA+G UMA N SO2GBII6/
SO1GBII6 N320GB5.4KS NSM8XS 5 in 1-
Build in
3rd WiFi 1x2
BGN N GL40(A1) ICH9M 6CELL2.2 65W 0.3M DV
AS7736Z-
433G32Mn EMEA France LX.PJB02.029
AS7736Z-433G32Mn W7HP64ATFR1
MC UMACbk 2G+1G/320/6L2.2/5R/
CB_bgn_0.3D_HG_FR21
PMDT4300 NLED17.3WXGA+G UMA N SO2GBII6/
SO1GBII6 N320GB5.4KS NSM8XS 5 in 1-
Build in
3rd WiFi 1x2
BGN N GL40(A1) ICH9M 6CELL2.2 65W 0.3M DV
AS7736Z-
433G32Mn EMEA Czech LX.PJB02.026
AS7736Z-433G32Mn W7HP64ATCZ2
MC UMACbk 2G+1G/320/6L2.2/5R/
CB_bgn_0.3D_HG_SK11
PMDT4300 NLED17.3WXGA+G UMA N SO2GBII6/
SO1GBII6 N320GB5.4KS NSM8XS 5 in 1-
Build in
3rd WiFi 1x2
BGN N GL40(A1) ICH9M 6CELL2.2 65W 0.3M DV
AS7736Z-
433G32Mn EMEA Norway LX.PJB02.032
AS7736Z-433G32Mn W7HP64ATNO3
MC UMACbk 2G+1G/320/6L2.2/5R/
CB_bgn_0.3D_HG_ENS1
PMDT4300 NLED17.3WXGA+G UMA N SO2GBII6/
SO1GBII6 N320GB5.4KS NSM8XS 5 in 1-
Build in
3rd WiFi 1x2
BGN N GL40(A1) ICH9M 6CELL2.2 65W 0.3M DV
AS7736Z-
433G32Mn EMEA Germany LX.PJB02.030
AS7736Z-433G32Mn W7HP64ATDE1
MC UMACbk 2G+1G/320/6L2.2/5R/
CB_bgn_0.3D_HG_DE11
PMDT4300 NLED17.3WXGA+G UMA N SO2GBII6/
SO1GBII6 N320GB5.4KS NSM8XS 5 in 1-
Build in
3rd WiFi 1x2
BGN N GL40(A1) ICH9M 6CELL2.2 65W 0.3M DV
AS7736Z-
433G32Mn EMEA Portugal LX.PJB02.031
AS7736Z-433G32Mn W7HP64ATPT1
MC UMACbk 2G+1G/320/6L2.2/5R/
CB_bgn_0.3D_HG_PT11
PMDT4300 NLED17.3WXGA+G UMA N SO2GBII6/
SO1GBII6 N320GB5.4KS NSM8XS 5 in 1-
Build in
3rd WiFi 1x2
BGN N GL40(A1) ICH9M 6CELL2.2 65W 0.3M DV
AS7736Z-
433G32Mn EMEA Denmark LX.PJB02.035
AS7736Z-433G32Mn W7HP64ATDK2
MC UMACbk 2G+1G/320/6L2.2/5R/
CB_bgn_0.3D_HG_ENS1
PMDT4300 NLED17.3WXGA+G UMA N SO2GBII6/
SO1GBII6 N320GB5.4KS NSM8XS 5 in 1-
Build in
3rd WiFi 1x2
BGN N GL40(A1) ICH9M 6CELL2.2 65W 0.3M DV
163 Appendix A
AS7736Z-
433G32Mn EMEA Denmark LX.PJB02.044
AS7736Z-433G32Mn W7HP64ATDK1
MC UMACbk 2G+1G/320/6L2.2/5R/
CB_bgn_0.3D_HG_NO11
PMDT4300 NLED17.3WXGA+G UMA N SO2GBII6/
SO1GBII6 N320GB5.4KS NSM8XS 5 in 1-
Build in
3rd WiFi 1x2
BGN N GL40(A1) ICH9M 6CELL2.2 65W 0.3M DV
AS7736Z-
433G32Mn EMEA Hungary LX.PJB02.037
AS7736Z-433G32Mn W7HP64ATHU1
MC UMACbk 2G+1G/320/6L2.2/5R/
CB_bgn_0.3D_HG_HU11
PMDT4300 NLED17.3WXGA+G UMA N SO2GBII6/
SO1GBII6 N320GB5.4KS NSM8XS 5 in 1-
Build in
3rd WiFi 1x2
BGN N GL40(A1) ICH9M 6CELL2.2 65W 0.3M DV
AS7736Z-
442G32Mn WW WW S2.PJB02.002
AS7736Z-442G32Mn W7HP64AWW1
MC UMACbk 2*1G/320/BT/6L2.2/5R/
CB_bgn_0.3D_HG_ES62
PMDT4400 NLED17.3WXGA+G UMA N SO1GBII6 N320GB5.4KS NSM8XS 5 in 1-
Build in
3rd WiFi 1x2
BGN BT 2.1/N GL40(A1) ICH9M 6CELL2.2 65W 0.3M DV
AS7736Z-
442G32Mn WW GCTWN S2.PJB02.001
AS7736Z-442G32Mn W7HP64AWW1
MC UMACbk 2*1G/320/BT/6L2.2/5R/
CB_bgn_0.3D_HG_ES61
PMDT4400 NLED17.3WXGA+G UMA N SO1GBII6 N320GB5.4KS NSM8XS 5 in 1-
Build in
3rd WiFi 1x2
BGN BT 2.1/N GL40(A1) ICH9M 6CELL2.2 65W 0.3M DV
AS7736Z-
433G32Mn EMEA Belgium LX.PJB02.039
AS7736Z-433G32Mn W7HP64ATBE1
MC UMACbk 2G+1G/320/6L2.2/5R/
CB_bgn_0.3D_HG_NL11
PMDT4300 NLED17.3WXGA+G UMA N SO2GBII6/
SO1GBII6 N320GB5.4KS NSM8XS 5 in 1-
Build in
3rd WiFi 1x2
BGN N GL40(A1) ICH9M 6CELL2.2 65W 0.3M DV
AS7736Z-
433G32Mn EMEA Eastern
Europe LX.PJB02.038
AS7736Z-433G32Mn W7HP64ATEU5
MC UMACbk 2G+1G/320/6L2.2/5R/
CB_bgn_0.3D_HG_RO11
PMDT4300 NLED17.3WXGA+G UMA N SO2GBII6/
SO1GBII6 N320GB5.4KS NSM8XS 5 in 1-
Build in
3rd WiFi 1x2
BGN N GL40(A1) ICH9M 6CELL2.2 65W 0.3M DV
AS7736Z-
433G32Mn EMEA Greece LX.PJB02.042
AS7736Z-433G32Mn W7HP64ATGR1
MC UMACbk 2G+1G/320/6L2.2/5R/
CB_bgn_0.3D_HG_EL31
PMDT4300 NLED17.3WXGA+G UMA N SO2GBII6/
SO1GBII6 N320GB5.4KS NSM8XS 5 in 1-
Build in
3rd WiFi 1x2
BGN N GL40(A1) ICH9M 6CELL2.2 65W 0.3M DV
AS7736Z-
433G32Mn EMEA Poland LX.PJB02.043
AS7736Z-433G32Mn W7HP64ATPL1
MC UMACbk 2G+1G/320/6L2.2/5R/
CB_bgn_0.3D_HG_PL11
PMDT4300 NLED17.3WXGA+G UMA N SO2GBII6/
SO1GBII6 N320GB5.4KS NSM8XS 5 in 1-
Build in
3rd WiFi 1x2
BGN N GL40(A1) ICH9M 6CELL2.2 65W 0.3M DV
AS7736Z-
433G32Mn EMEA Holland LX.PJB02.040
AS7736Z-433G32Mn W7HP64ATNL1
MC UMACbk 2G+1G/320/6L2.2/5R/
CB_bgn_0.3D_HG_NL11
PMDT4300 NLED17.3WXGA+G UMA N SO2GBII6/
SO1GBII6 N320GB5.4KS NSM8XS 5 in 1-
Build in
3rd WiFi 1x2
BGN N GL40(A1) ICH9M 6CELL2.2 65W 0.3M DV
AS7736Z-
433G32Mn EMEA Switzerland LX.PJB02.041
AS7736Z-433G32Mn W7HP64ATCH1
MC UMACbk 2G+1G/320/6L2.2/5R/
CB_bgn_0.3D_HG_IT41
PMDT4300 NLED17.3WXGA+G UMA N SO2GBII6/
SO1GBII6 N320GB5.4KS NSM8XS 5 in 1-
Build in
3rd WiFi 1x2
BGN N GL40(A1) ICH9M 6CELL2.2 65W 0.3M DV
AS7736Z-
433G32Mn EMEA Eastern
Europe LX.PJB02.045
AS7736Z-433G32Mn W7HP64ATEU5
MC UMACbk 2G+1G/320/6L2.2/5R/
CB_bgn_0.3D_HG_PL71
PMDT4300 NLED17.3WXGA+G UMA N SO2GBII6/
SO1GBII6 N320GB5.4KS NSM8XS 5 in 1-
Build in
3rd WiFi 1x2
BGN N GL40(A1) ICH9M 6CELL2.2 65W 0.3M DV
AS7736Z-
434G32Mn PA USA LX.PJB02.094
AS7736Z-434G32Mn W7HP64ATUS1
MC UMACbk 2*2G/320/6L2.2/5R/
CB_bgn_0.3D_HG_FRB3
PMDT4300 NLED17.3WXGA+G UMA N SO2GBII6 N320GB5.4KS NSM8XS 5 in 1-
Build in
3rd WiFi 1x2
BGN N GL40(A1) ICH9M 6CELL2.2 65W 0.3M DV
AS7736Z-
434G32Mn PA USA LX.PJB02.095
AS7736Z-434G32Mn W7HP64ATUS1
MC UMACbk 2*2G/320/6L2.2/5R/
CB_bgn_0.3D_HG_FRB2
PMDT4300 NLED17.3WXGA+G UMA N SO2GBII6 N320GB5.4KS NSM8XS 5 in 1-
Build in
3rd WiFi 1x2
BGN N GL40(A1) ICH9M 6CELL2.2 65W 0.3M DV
AS7736Z-
433G25Mn EMEA Hungary LX.PJB0C.003
AS7736Z-433G25Mn LINPUSAHU1
UMACbk 2G+1G/250/6L2.2/5R/
CB_bgn_0.3D_HG_EN41
PMDT4300 NLED17.3WXGA+G UMA N SO2GBII6/
SO1GBII6 N250GB5.4KS NSM8XS 5 in 1-
Build in
3rd WiFi 1x2
BGN N GL40(A1) ICH9M 6CELL2.2 65W 0.3M DV
AS7736Z-
433G50Mn EMEA Latvia LX.PJB0C.002
AS7736Z-433G50Mn LINPUSALV1
UMACbk 2G+1G/500_L/BT/6L2.2/5R/
CB_bgn_0.3D_HG_EN71
PMDT4300 NLED17.3WXGA+G UMA N SO2GBII6/
SO1GBII6 N500GB5.4KS NSM8XS 5 in 1-
Build in
3rd WiFi 1x2
BGN BT 2.1/N GL40(A1) ICH9M 6CELL2.2 65W 0.3M DV
AS7736Z-
433G50Mn EMEA Eastern
Europe LX.PJB0C.001
AS7736Z-433G50Mn LINPUSAEU5
UMACbk 2G+1G/500_L/BT/6L2.2/5R/
CB_bgn_0.3D_HG_ENF1
PMDT4300 NLED17.3WXGA+G UMA N SO2GBII6/
SO1GBII6 N500GB5.4KS NSM8XS 5 in 1-
Build in
3rd WiFi 1x2
BGN BT 2.1/N GL40(A1) ICH9M 6CELL2.2 65W 0.3M DV
AS7736-
664G32Mn PA Canada LX.PHZ02.008
AS7736-664G32Mn W7HP64ATCA2
MC UMACbk 2*2G/320/6L2.2/5R/
CB_n2_0.3D_HG_FR81
C2DT6600 NLED17.3WXGA+G UMA N SO2GBII6 N320GB5.4KS NSM8XS 5 in 1-
Build in SP1x2MMW N GM45 ICH9M 6CELL2.2 65W 0.3M DV
AS7736-
664G50Mn PA USA LX.PHZ02.007
AS7736-664G50Mn W7HP64ATUS1
MC UMACbk 2*2G/500_L/6L2.2/5R/
CB_n2_0.3D_HG_FRB3
C2DT6600 NLED17.3WXGA+G UMA N SO2GBII6 N500GB5.4KS NSM8XS 5 in 1-
Build in SP1x2MMW N GM45 ICH9M 6CELL2.2 65W 0.3M DV
AS7736-
664G50Mn PA USA LX.PHZ02.005
AS7736-664G50Mn W7HP64ATUS1
MC UMACbk 2*2G/500_L/6L2.2/5R/
CB_n2_0.3D_HG_FRB1
C2DT6600 NLED17.3WXGA+G UMA N SO2GBII6 N500GB5.4KS NSM8XS 5 in 1-
Build in SP1x2MMW N GM45 ICH9M 6CELL2.2 65W 0.3M DV
AS7736-
664G50Mn PA USA LX.PHZ02.006
AS7736-664G50Mn W7HP64ATUS1
MC UMACbk 2*2G/500_L/6L2.2/5R/
CB_n2_0.3D_HG_FRB2
C2DT6600 NLED17.3WXGA+G UMA N SO2GBII6 N500GB5.4KS NSM8XS 5 in 1-
Build in SP1x2MMW N GM45 ICH9M 6CELL2.2 65W 0.3M DV
AS7736-
664G50Mn PA Canada LX.PHZ02.004
AS7736-664G50Mn W7HP64ATCA2
MC UMACbk 2*2G/500_L/6L2.2/5R/
CB_n2_0.3D_HG_FR84
C2DT6600 NLED17.3WXGA+G UMA N SO2GBII6 N500GB5.4KS NSM8XS 5 in 1-
Build in SP1x2MMW N GM45 ICH9M 6CELL2.2 65W 0.3M DV
Appendix A 164
AS7736-
664G50Mn PA Canada LX.PHZ02.002
AS7736-664G50Mn W7HP64ATCA2
MC UMACbk 2*2G/500_L/6L2.2/5R/
CB_n2_0.3D_HG_FR81
C2DT6600 NLED17.3WXGA+G UMA N SO2GBII6 N500GB5.4KS NSM8XS 5 in 1-
Build in SP1x2MMW N GM45 ICH9M 6CELL2.2 65W 0.3M DV
AS7736-
664G50Mn PA Canada LX.PHZ02.003
AS7736-664G50Mn W7HP64ATCA2
MC UMACbk 2*2G/500_L/6L2.2/5R/
CB_n2_0.3D_HG_FR82
C2DT6600 NLED17.3WXGA+G UMA N SO2GBII6 N500GB5.4KS NSM8XS 5 in 1-
Build in SP1x2MMW N GM45 ICH9M 6CELL2.2 65W 0.3M DV
AS7736-
872G25Mn WW WW S2.PHZ02.002
AS7736-872G25Mn W7HP64AWW1
MC UMACbk 2*1G/250/BT/6L2.2/5R/
CB_n2_0.3D_HG_ES62
C2DP8700 NLED17.3WXGA+G UMA N SO2GBII6/
SO1GBII6 N250GB5.4KS NSM8XS 5 in 1-
Build in SP1x2MMW BT 2.1/N GM45 ICH9M 6CELL2.2 65W 0.3M DV
AS7736-
872G25Mn WW GCTWN S2.PHZ02.001
AS7736-872G25Mn W7HP64AWW1
MC UMACbk 2*1G/250/BT/6L2.2/5R/
CB_n2_0.3D_HG_ES61
C2DP8700 NLED17.3WXGA+G UMA N SO2GBII6/
SO1GBII6 N250GB5.4KS NSM8XS 5 in 1-
Build in SP1x2MMW BT 2.1/N GM45 ICH9M 6CELL2.2 65W 0.3M DV
AS7736-
663G25Mn EMEA UK LX.PHZ02.001
AS7736-663G25Mn W7HP64ATGB1
MC UMACbk 2G+1G/250/6L2.2/5R/
CB_n2_0.3D_HG_EN11
C2DT6600 NLED17.3WXGA+G UMA N SO2GBII6/
SO1GBII6 N250GB5.4KS NSM8XS 5 in 1-
Build in SP1x2MMW N GM45 ICH9M 6CELL2.2 65W 0.3M DV
165 Appendix A
Aspire 7540 Series
Model RO Country Acer Part No Description CPU LCD VGA
Chip VRAM 1 Memory 1/
Memory 2
HDD
1(GB) ODD Card Reader Wireless
LAN1 Bluetooth NB Chipset SB Chipset Battery Adapter Camera
AS7540G-
304G50Mn EMEA Denmark LX.PJC02.052
AS7540G-304G50Mn
W7HP64ATDK2 MC
M92XT512Cbk_V3 2*2G/500_L/BT/
8L2.4/5R/CB_bgn_0.3D_HG_ENS1
AAM300 NLED17.3
WXGA+G M92XT 512M-DDR3
(64*16*4) SO2GBII6 N500G
B 5.4KS NSM8XS 5 in 1-Build in 3rd WiFi
1x2 BGN BT 2.1 AMDRS880M AMDSB710 8CELL2.4 90W 0.3M DV
AS7540G-304G50Mi EMEA Russia LX.PJC02.051
AS7540G-304G50Mi
W7HP64RUATRU1 MC
M92XT512Cbk_V3 2*2G/500_L/BT/
8L2.4/5R/CB_bg_0.3D_HG_RU11
AAM300 NLED17.3
WXGA+G M92XT 512M-DDR3
(64*16*4) SO2GBII6 N500G
B 5.4KS NSM8XS 5 in 1-Build in 3rd WiFi
BG BT 2.1 AMDRS880M AMDSB710 8CELL2.4 90W 0.3M DV
AS7540G-
303G32Mn EMEA Austria LX.PJC02.049
AS7540G-303G32Mn
W7HP64ATAT1 MC
M92XT512Cbk_V3 2G+1G/320/
8L2.4/5R/CB_bgn_0.3D_HG_DE61
AAM300 NLED17.3
WXGA+G M92XT 512M-DDR3
(64*16*4)
SO2GBII6/
SO1GBII6
N320G
B 5.4KS NSM8XS 5 in 1-Build in 3rd WiFi
1x2 BGN N AMDRS880M AMDSB710 8CELL2.4 90W 0.3M DV
AS7540G-
303G32Mn EMEA Germany LX.PJC02.047
AS7540G-303G32Mn
W7HP64ATDE1 MC
M92XT512Cbk_V3 2G+1G/320/
8L2.4/5R/CB_bgn_0.3D_HG_DE11
AAM300 NLED17.3
WXGA+G M92XT 512M-DDR3
(64*16*4)
SO2GBII6/
SO1GBII6
N320G
B 5.4KS NSM8XS 5 in 1-Build in 3rd WiFi
1x2 BGN N AMDRS880M AMDSB710 8CELL2.4 90W 0.3M DV
AS7540G-
304G32Mn EMEA Germany LX.PJC02.050
AS7540G-304G32Mn
W7HP64ATDE1 MC
M92XT512Cbk_V3 2*2G/320/8L2.4/
5R/CB_bgn_0.3D_HG_DE11
AAM300 NLED17.3
WXGA+G M92XT 512M-DDR3
(64*16*4) SO2GBII6 N320G
B 5.4KS NSM8XS 5 in 1-Build in 3rd WiFi
1x2 BGN N AMDRS880M AMDSB710 8CELL2.4 90W 0.3M DV
AS7540G-
524G50Mn EMEA Germany LX.PJC02.048
AS7540G-524G50Mn
W7HP64ATDE1 MC
M92XT512Cbk_V3 2*2G/500_L/
8L2.4/5R/CB_bgn_0.3D_HG_DE11
ATM5 20 NLED17.3
WXGA+G M92XT 512M-DDR3
(64*16*4) SO2GBII6 N500G
B5.4KS NSM8XS 5 in 1-Build in 3rd WiFi
1x2 BGN N AMDRS880M AMDSB710 8CELL2.4 90W 0.3M DV
AS7540G-
304G50Mn EMEA Middle
East LX.PJC02.009
AS7540G-304G50Mn EM
W7HP64EMATME2 MC
M92XT512Cbk_V3 2*2G/500_L/
8L2.4/5R/CB_bgn_0.3D_HG_AR21
AAM300 NLED17.3
WXGA+G M92XT 512M-DDR3
(64*16*4) SO2GBII6 N500G
B5.4KS NSM8XS 5 in 1-Build in 3rd WiFi
1x2 BGN N AMDRS880M AMDSB710 8CELL2.4 90W 0.3M DV
AS7540G-
304G50Mn EMEA UK LX.PJC02.019
AS7540G-304G50Mn
W7HP64ATGB1 MC
M92XT512Cbk_V3 2*2G/500_L/
8L2.4/5R/CB_bgn_0.3D_HG_EN11
AAM300 NLED17.3
WXGA+G M92XT 512M-DDR3
(64*16*4) SO2GBII6 N500G
B5.4KS NSM8XS 5 in 1-Build in 3rd WiFi
1x2 BGN N AMDRS880M AMDSB710 8CELL2.4 90W 0.3M DV
AS7540G-
304G50Mn EMEA
Serbia/
Macedoni
a
LX.PJC02.001
AS7540G-304G50Mn EM
W7HP64ATCS1 MC
M92XT512Cbk_V3 2*2G/500_L/
8L2.4/5R/CB_bgn_0.3D_HG_SL11
AAM300 NLED17.3
WXGA+G M92XT 512M-DDR3
(64*16*4) SO2GBII6 N500G
B5.4KS NSM8XS 5 in 1-Build in 3rd WiFi
1x2 BGN N AMDRS880M AMDSB710 8CELL2.4 90W 0.3M DV
AS7540G-
304G50Mn EMEA Israel LX.PJC02.003
AS7540G-304G50Mn
W7HP64ATIL1 MC
M92XT512Cbk_V3 2*2G/500_L/
8L2.4/5R/CB_bgn_0.3D_HG_HE31
AAM300 NLED17.3
WXGA+G M92XT 512M-DDR3
(64*16*4) SO2GBII6 N500G
B5.4KS NSM8XS 5 in 1-Build in 3rd WiFi
1x2 BGN N AMDRS880M AMDSB710 8CELL2.4 90W 0.3M DV
AS7540G-
304G50Mn EMEA Israel LX.PJC02.002
AS7540G-304G50Mn
W7HP64ATIL1 MC
M92XT512Cbk_V3 2*2G/500_L/
8L2.4/5R/CB_bgn_0.3D_HG_HE11
AAM300 NLED17.3
WXGA+G M92XT 512M-DDR3
(64*16*4) SO2GBII6 N500G
B5.4KS NSM8XS 5 in 1-Build in 3rd WiFi
1x2 BGN N AMDRS880M AMDSB710 8CELL2.4 90W 0.3M DV
AS7540G-
304G50Mn EMEA Ukraine LX.PJC02.004
AS7540G-304G50Mn
W7HP64RUATUK1 MC
M92XT512Cbk_V3 2*2G/500_L/
8L2.4/5R/CB_bgn_0.3D_HG_RU61
AAM300 NLED17.3
WXGA+G M92XT 512M-DDR3
(64*16*4) SO2GBII6 N500G
B5.4KS NSM8XS 5 in 1-Build in 3rd WiFi
1x2 BGN N AMDRS880M AMDSB710 8CELL2.4 90W 0.3M DV
AS7540G-
304G50Mn EMEA Switzerla
nd LX.PJC02.020
AS7540G-304G50Mn
W7HP64ATCH1 MC
M92XT512Cbk_V3 2*2G/500_L/
8L2.4/5R/CB_bgn_0.3D_HG_IT41
AAM300 NLED17.3
WXGA+G M92XT 512M-DDR3
(64*16*4) SO2GBII6 N500G
B5.4KS NSM8XS 5 in 1-Build in 3rd WiFi
1x2 BGN N AMDRS880M AMDSB710 8CELL2.4 90W 0.3M DV
AS7540G-
304G50Mn EMEA Italy LX.PJC02.022
AS7540G-304G50Mn
W7HP64ATIT1 MC
M92XT512Cbk_V3 2*2G/500_L/
8L2.4/5R/CB_bgn_0.3D_HG_IT11
AAM300 NLED17.3
WXGA+G M92XT 512M-DDR3
(64*16*4) SO2GBII6 N500G
B5.4KS NSM8XS 5 in 1-Build in 3rd WiFi
1x2 BGN N AMDRS880M AMDSB710 8CELL2.4 90W 0.3M DV
AS7540G-304G50Mi EMEA Russia LX.PJC02.005
AS7540G-304G50Mi
W7HP64RUATRU1 MC
M92XT512Cbk_V3 2*2G/500_L/
8L2.4/5R/CB_bg_0.3D_HG_RU11
AAM300 NLED17.3
WXGA+G M92XT 512M-DDR3
(64*16*4) SO2GBII6 N500G
B5.4KS NSM8XS 5 in 1-Build in 3rd WiFi
BG N AMDRS880M AMDSB710 8CELL2.4 90W 0.3M DV
Appendix A 166
AS7540G-
304G50Mn EMEA Poland LX.PJC02.021
AS7540G-304G50Mn
W7HP64ATPL1 MC
M92XT512Cbk_V3 2*2G/500_L/
8L2.4/5R/CB_bgn_0.3D_HG_PL11
AAM300 NLED17.3
WXGA+G M92XT 512M-DDR3
(64*16*4) SO2GBII6 N500G
B5.4KS NSM8XS 5 in 1-Build in 3rd WiFi
1x2 BGN N AMDRS880M AMDSB710 8CELL2.4 90W 0.3M DV
AS7540G-
304G50Mn EMEA Eastern
Europe LX.PJC02.027
AS7540G-304G50Mn
W7HP64ATEU5 MC
M92XT512Cbk_V3 2*2G/500_L/
8L2.4/5R/CB_bgn_0.3D_HG_PL71
AAM300 NLED17.3
WXGA+G M92XT 512M-DDR3
(64*16*4) SO2GBII6 N500G
B5.4KS NSM8XS 5 in 1-Build in 3rd WiFi
1x2 BGN N AMDRS880M AMDSB710 8CELL2.4 90W 0.3M DV
AS7540G-
304G50Mn EMEA Cyprus LX.PJC02.026
AS7540G-304G50Mn
W7HP64ATCY1 MC
M92XT512Cbk_V3 2*2G/500_L/
8L2.4/5R/CB_bgn_0.3D_HG_ES61
AAM300 NLED17.3
WXGA+G M92XT 512M-DDR3
(64*16*4) SO2GBII6 N500G
B5.4KS NSM8XS 5 in 1-Build in 3rd WiFi
1x2 BGN N AMDRS880M AMDSB710 8CELL2.4 90W 0.3M DV
AS7540G-
304G50Mn EMEA Finland LX.PJC02.029
AS7540G-304G50Mn
W7HP64ATFI2 MC
M92XT512Cbk_V3 2*2G/500_L/
8L2.4/5R/CB_bgn_0.3D_HG_FI11
AAM300 NLED17.3
WXGA+G M92XT 512M-DDR3
(64*16*4) SO2GBII6 N500G
B5.4KS NSM8XS 5 in 1-Build in 3rd WiFi
1x2 BGN N AMDRS880M AMDSB710 8CELL2.4 90W 0.3M DV
AS7540G-
304G50Mn EMEA Spain LX.PJC02.025
AS7540G-304G50Mn
W7HP64ATES1 MC
M92XT512Cbk_V3 2*2G/500_L/
8L2.4/5R/CB_bgn_0.3D_HG_ES51
AAM300 NLED17.3
WXGA+G M92XT 512M-DDR3
(64*16*4) SO2GBII6 N500G
B5.4KS NSM8XS 5 in 1-Build in 3rd WiFi
1x2 BGN N AMDRS880M AMDSB710 8CELL2.4 90W 0.3M DV
AS7540G-
304G50Mn EMEA Hungary LX.PJC02.028
AS7540G-304G50Mn
W7HP64ATHU1 MC
M92XT512Cbk_V3 2*2G/500_L/
8L2.4/5R/CB_bgn_0.3D_HG_HU11
AAM300 NLED17.3
WXGA+G M92XT 512M-DDR3
(64*16*4) SO2GBII6 N500G
B5.4KS NSM8XS 5 in 1-Build in 3rd WiFi
1x2 BGN N AMDRS880M AMDSB710 8CELL2.4 90W 0.3M DV
AS7540G-
304G50Mn EMEA Greece LX.PJC02.023
AS7540G-304G50Mn
W7HP64ATGR1 MC
M92XT512Cbk_V3 2*2G/500_L/
8L2.4/5R/CB_bgn_0.3D_HG_EL31
AAM300 NLED17.3
WXGA+G M92XT 512M-DDR3
(64*16*4) SO2GBII6 N500G
B5.4KS NSM8XS 5 in 1-Build in 3rd WiFi
1x2 BGN N AMDRS880M AMDSB710 8CELL2.4 90W 0.3M DV
AS7540G-
304G50Mn EMEA Portugal LX.PJC02.024
AS7540G-304G50Mn
W7HP64ATPT1 MC
M92XT512Cbk_V3 2*2G/500_L/
8L2.4/5R/CB_bgn_0.3D_HG_PT11
AAM300 NLED17.3
WXGA+G M92XT 512M-DDR3
(64*16*4) SO2GBII6 N500G
B5.4KS NSM8XS 5 in 1-Build in 3rd WiFi
1x2 BGN N AMDRS880M AMDSB710 8CELL2.4 90W 0.3M DV
AS7540G-
304G50Mn EMEA Eastern
Europe LX.PJC02.030
AS7540G-304G50Mn
W7HP64ATEU5 MC
M92XT512Cbk_V3 2*2G/500_L/
8L2.4/5R/CB_bgn_0.3D_HG_RO11
AAM300 NLED17.3
WXGA+G M92XT 512M-DDR3
(64*16*4) SO2GBII6 N500G
B5.4KS NSM8XS 5 in 1-Build in 3rd WiFi
1x2 BGN N AMDRS880M AMDSB710 8CELL2.4 90W 0.3M DV
AS7540G-
304G50Mn EMEA Eastern
Europe LX.PJC02.031
AS7540G-304G50Mn
W7HP64ATEU4 MC
M92XT512Cbk_V3 2*2G/500_L/
8L2.4/5R/CB_bgn_0.3D_HG_SV21
AAM300 NLED17.3
WXGA+G M92XT 512M-DDR3
(64*16*4) SO2GBII6 N500G
B5.4KS NSM8XS 5 in 1-Build in 3rd WiFi
1x2 BGN N AMDRS880M AMDSB710 8CELL2.4 90W 0.3M DV
AS7540G-
304G50Mn EMEA Eastern
Europe LX.PJC02.032
AS7540G-304G50Mn
W7HP64ATEU7 MC
M92XT512Cbk_V3 2*2G/500_L/
8L2.4/5R/CB_bgn_0.3D_HG_ENQ1
AAM300 NLED17.3
WXGA+G M92XT 512M-DDR3
(64*16*4) SO2GBII6 N500G
B5.4KS NSM8XS 5 in 1-Build in 3rd WiFi
1x2 BGN N AMDRS880M AMDSB710 8CELL2.4 90W 0.3M DV
AS7540G-
304G50Mn EMEA Norway LX.PJC02.040
AS7540G-304G50Mn
W7HP64ATNO3 MC
M92XT512Cbk_V3 2*2G/500_L/
8L2.4/5R/CB_bgn_0.3D_HG_ENS1
AAM300 NLED17.3
WXGA+G M92XT 512M-DDR3
(64*16*4) SO2GBII6 N500G
B5.4KS NSM8XS 5 in 1-Build in 3rd WiFi
1x2 BGN N AMDRS880M AMDSB710 8CELL2.4 90W 0.3M DV
AS7540G-
304G50Mn EMEA Austria LX.PJC02.034
AS7540G-304G50Mn
W7HP64ATAT1 MC
M92XT512Cbk_V3 2*2G/500_L/
8L2.4/5R/CB_bgn_0.3D_HG_DE61
AAM300 NLED17.3
WXGA+G M92XT 512M-DDR3
(64*16*4) SO2GBII6 N500G
B5.4KS NSM8XS 5 in 1-Build in 3rd WiFi
1x2 BGN N AMDRS880M AMDSB710 8CELL2.4 90W 0.3M DV
AS7540G-
304G50Mn EMEA Czech LX.PJC02.036
AS7540G-304G50Mn
W7HP64ATCZ2 MC
M92XT512Cbk_V3 2*2G/500_L/
8L2.4/5R/CB_bgn_0.3D_HG_SK11
AAM300 NLED17.3
WXGA+G M92XT 512M-DDR3
(64*16*4) SO2GBII6 N500G
B5.4KS NSM8XS 5 in 1-Build in 3rd WiFi
1x2 BGN N AMDRS880M AMDSB710 8CELL2.4 90W 0.3M DV
AS7540G-
304G50Mn EMEA Sweden LX.PJC02.035
AS7540G-304G50Mn
W7HP64ATSE1 MC
M92XT512Cbk_V3 2*2G/500_L/
8L2.4/5R/CB_bgn_0.3D_HG_FI11
AAM300 NLED17.3
WXGA+G M92XT 512M-DDR3
(64*16*4) SO2GBII6 N500G
B5.4KS NSM8XS 5 in 1-Build in 3rd WiFi
1x2 BGN N AMDRS880M AMDSB710 8CELL2.4 90W 0.3M DV
AS7540G-
304G50Mn EMEA Eastern
Europe LX.PJC02.033
AS7540G-304G50Mn
W7HP64ATEU7 MC
M92XT512Cbk_V3 2*2G/500_L/
8L2.4/5R/CB_bgn_0.3D_HG_SL11
AAM300 NLED17.3
WXGA+G M92XT 512M-DDR3
(64*16*4) SO2GBII6 N500G
B5.4KS NSM8XS 5 in 1-Build in 3rd WiFi
1x2 BGN N AMDRS880M AMDSB710 8CELL2.4 90W 0.3M DV
167 Appendix A
AS7540G-
304G50Mn EMEA Luxembo
urg LX.PJC02.038
AS7540G-304G50Mn
W7HP64ATLU3 MC
M92XT512Cbk_V3 2*2G/500_L/
8L2.4/5R/CB_bgn_0.3D_HG_IT41
AAM300 NLED17.3
WXGA+G M92XT 512M-DDR3
(64*16*4) SO2GBII6 N500G
B5.4KS NSM8XS 5 in 1-Build in 3rd WiFi
1x2 BGN N AMDRS880M AMDSB710 8CELL2.4 90W 0.3M DV
AS7540G-
304G50Mn EMEA Belgium LX.PJC02.041
AS7540G-304G50Mn
W7HP64ATBE1 MC
M92XT512Cbk_V3 2*2G/500_L/
8L2.4/5R/CB_bgn_0.3D_HG_NL11
AAM300 NLED17.3
WXGA+G M92XT 512M-DDR3
(64*16*4) SO2GBII6 N500G
B5.4KS NSM8XS 5 in 1-Build in 3rd WiFi
1x2 BGN N AMDRS880M AMDSB710 8CELL2.4 90W 0.3M DV
AS7540G-
304G50Mn EMEA Norway LX.PJC02.039
AS7540G-304G50Mn
W7HP64ATNO1 MC
M92XT512Cbk_V3 2*2G/500_L/
8L2.4/5R/CB_bgn_0.3D_HG_NO11
AAM300 NLED17.3
WXGA+G M92XT 512M-DDR3
(64*16*4) SO2GBII6 N500G
B5.4KS NSM8XS 5 in 1-Build in 3rd WiFi
1x2 BGN N AMDRS880M AMDSB710 8CELL2.4 90W 0.3M DV
AS7540G-
304G50Mn EMEA Holland LX.PJC02.037
AS7540G-304G50Mn
W7HP64ATNL1 MC
M92XT512Cbk_V3 2*2G/500_L/
8L2.4/5R/CB_bgn_0.3D_HG_NL11
AAM300 NLED17.3
WXGA+G M92XT 512M-DDR3
(64*16*4) SO2GBII6 N500G
B5.4KS NSM8XS 5 in 1-Build in 3rd WiFi
1x2 BGN N AMDRS880M AMDSB710 8CELL2.4 90W 0.3M DV
AS7540G-
304G50Mn EMEA Germany LX.PJC02.042
AS7540G-304G50Mn
W7HP64ATDE1 MC
M92XT512Cbk_V3 2*2G/500_L/
8L2.4/5R/CB_bgn_0.3D_HG_DE11
AAM300 NLED17.3
WXGA+G M92XT 512M-DDR3
(64*16*4) SO2GBII6 N500G
B5.4KS NSM8XS 5 in 1-Build in 3rd WiFi
1x2 BGN N AMDRS880M AMDSB710 8CELL2.4 90W 0.3M DV
AS7540G-
304G50Mn EMEA France LX.PJC02.043
AS7540G-304G50Mn
W7HP64ATFR1 MC
M92XT512Cbk_V3 2*2G/500_L/
8L2.4/5R/CB_bgn_0.3D_HG_FR21
AAM300 NLED17.3
WXGA+G M92XT 512M-DDR3
(64*16*4) SO2GBII6 N500G
B5.4KS NSM8XS 5 in 1-Build in 3rd WiFi
1x2 BGN N AMDRS880M AMDSB710 8CELL2.4 90W 0.3M DV
AS7540G-
304G50Mn EMEA Denmark LX.PJC02.045
AS7540G-304G50Mn
W7HP64ATDK2 MC
M92XT512Cbk_V3 2*2G/500_L/
8L2.4/5R/CB_bgn_0.3D_HG_ENS1
AAM300 NLED17.3
WXGA+G M92XT 512M-DDR3
(64*16*4) SO2GBII6 N500G
B5.4KS NSM8XS 5 in 1-Build in 3rd WiFi
1x2 BGN N AMDRS880M AMDSB710 8CELL2.4 90W 0.3M DV
AS7540G-
304G50Mn EMEA Denmark LX.PJC02.044
AS7540G-304G50Mn
W7HP64ATDK1 MC
M92XT512Cbk_V3 2*2G/500_L/
8L2.4/5R/CB_bgn_0.3D_HG_NO11
AAM300 NLED17.3
WXGA+G M92XT 512M-DDR3
(64*16*4) SO2GBII6 N500G
B5.4KS NSM8XS 5 in 1-Build in 3rd WiFi
1x2 BGN N AMDRS880M AMDSB710 8CELL2.4 90W 0.3M DV
AS7540G-
304G50Mn EMEA Middle
East LX.PJC02.010
AS7540G-304G50Mn EM
W7HP64EMATME6 MC
M92XT512Cbk_V3 2*2G/500_L/
8L2.4/5R/CB_bgn_0.3D_HG_ES61
AAM300 NLED17.3
WXGA+G M92XT 512M-DDR3
(64*16*4) SO2GBII6 N500G
B5.4KS NSM8XS 5 in 1-Build in 3rd WiFi
1x2 BGN N AMDRS880M AMDSB710 8CELL2.4 90W 0.3M DV
AS7540G-
304G50Mn EMEA Middle
East LX.PJC02.008
AS7540G-304G50Mn EM
W7HP64EMATME3 MC
M92XT512Cbk_V3 2*2G/500_L/
8L2.4/5R/CB_bgn_0.3D_HG_ES81
AAM300 NLED17.3
WXGA+G M92XT 512M-DDR3
(64*16*4) SO2GBII6 N500G
B5.4KS NSM8XS 5 in 1-Build in 3rd WiFi
1x2 BGN N AMDRS880M AMDSB710 8CELL2.4 90W 0.3M DV
AS7540G-
304G50Mn EMEA Turkey LX.PJC02.006
AS7540G-304G50Mn EM
W7HP64EMATTR1 MC
M92XT512Cbk_V3 2*2G/500_L/
8L2.4/5R/CB_bgn_0.3D_HG_TR31
AAM300 NLED17.3
WXGA+G M92XT 512M-DDR3
(64*16*4) SO2GBII6 N500G
B5.4KS NSM8XS 5 in 1-Build in 3rd WiFi
1x2 BGN N AMDRS880M AMDSB710 8CELL2.4 90W 0.3M DV
AS7540G-
304G50Mn EMEA Middle
East LX.PJC02.007
AS7540G-304G50Mn EM
W7HP64EMATME2 MC
M92XT512Cbk_V3 2*2G/500_L/
8L2.4/5R/CB_bgn_0.3D_HG_AR11
AAM300 NLED17.3
WXGA+G M92XT 512M-DDR3
(64*16*4) SO2GBII6 N500G
B5.4KS NSM8XS 5 in 1-Build in 3rd WiFi
1x2 BGN N AMDRS880M AMDSB710 8CELL2.4 90W 0.3M DV
AS7540G-
304G50Mn EMEA Middle
East LX.PJC02.011
AS7540G-304G50Mn EM
W7HP64EMATME4 MC
M92XT512Cbk_V3 2*2G/500_L/
8L2.4/5R/CB_bgn_0.3D_HG_RU61
AAM300 NLED17.3
WXGA+G M92XT 512M-DDR3
(64*16*4) SO2GBII6 N500G
B5.4KS NSM8XS 5 in 1-Build in 3rd WiFi
1x2 BGN N AMDRS880M AMDSB710 8CELL2.4 90W 0.3M DV
AS7540G-
304G50Mn EMEA Middle
East LX.PJC02.012
AS7540G-304G50Mn EM
W7HP64EMATME4 MC
M92XT512Cbk_V3 2*2G/500_L/
8L2.4/5R/CB_bgn_0.3D_HG_ES61
AAM300 NLED17.3
WXGA+G M92XT 512M-DDR3
(64*16*4) SO2GBII6 N500G
B5.4KS NSM8XS 5 in 1-Build in 3rd WiFi
1x2 BGN N AMDRS880M AMDSB710 8CELL2.4 90W 0.3M DV
AS7540G-
304G50Mn EMEA Middle
East LX.PJC02.016
AS7540G-304G50Mn EM
W7HP64EMATME9 MC
M92XT512Cbk_V3 2*2G/500_L/
8L2.4/5R/CB_bgn_0.3D_HG_ES81
AAM300 NLED17.3
WXGA+G M92XT 512M-DDR3
(64*16*4) SO2GBII6 N500G
B5.4KS NSM8XS 5 in 1-Build in 3rd WiFi
1x2 BGN N AMDRS880M AMDSB710 8CELL2.4 90W 0.3M DV
AS7540G-
304G50Mn EMEA Middle
East LX.PJC02.013
AS7540G-304G50Mn EM
W7HP64EMATME2 MC
M92XT512Cbk_V3 2*2G/500_L/
8L2.4/5R/CB_bgn_0.3D_HG_ES61
AAM300 NLED17.3
WXGA+G M92XT 512M-DDR3
(64*16*4) SO2GBII6 N500G
B5.4KS NSM8XS 5 in 1-Build in 3rd WiFi
1x2 BGN N AMDRS880M AMDSB710 8CELL2.4 90W 0.3M DV
Appendix A 168
AS7540G-
304G50Mn EMEA South
Africa LX.PJC02.018
AS7540G-304G50Mn EM
W7HP64EMATZA1 MC
M92XT512Cbk_V3 2*2G/500_L/
8L2.4/5R/CB_bgn_0.3D_HG_ES81
AAM300 NLED17.3
WXGA+G M92XT 512M-DDR3
(64*16*4) SO2GBII6 N500G
B5.4KS NSM8XS 5 in 1-Build in 3rd WiFi
1x2 BGN N AMDRS880M AMDSB710 8CELL2.4 90W 0.3M DV
AS7540G-
304G50Mn EMEA Algeria LX.PJC02.015
AS7540G-304G50Mn EM
W7HP64EMATDZ1 MC
M92XT512Cbk_V3 2*2G/500_L/
8L2.4/5R/CB_bgn_0.3D_HG_ES81
AAM300 NLED17.3
WXGA+G M92XT 512M-DDR3
(64*16*4) SO2GBII6 N500G
B5.4KS NSM8XS 5 in 1-Build in 3rd WiFi
1x2 BGN N AMDRS880M AMDSB710 8CELL2.4 90W 0.3M DV
AS7540G-
304G50Mn EMEA South
Africa LX.PJC02.014
AS7540G-304G50Mn EM
W7HP64EMATZA4 MC
M92XT512Cbk_V3 2*2G/500_L/
8L2.4/5R/CB_bgn_0.3D_HG_ES61
AAM300 NLED17.3
WXGA+G M92XT 512M-DDR3
(64*16*4) SO2GBII6 N500G
B5.4KS NSM8XS 5 in 1-Build in 3rd WiFi
1x2 BGN N AMDRS880M AMDSB710 8CELL2.4 90W 0.3M DV
AS7540G-
304G50Mn EMEA South
Africa LX.PJC02.017
AS7540G-304G50Mn EM
W7HP64EMATZA2 MC
M92XT512Cbk_V3 2*2G/500_L/
8L2.4/5R/CB_bgn_0.3D_HG_ES61
AAM300 NLED17.3
WXGA+G M92XT 512M-DDR3
(64*16*4) SO2GBII6 N500G
B5.4KS NSM8XS 5 in 1-Build in 3rd WiFi
1x2 BGN N AMDRS880M AMDSB710 8CELL2.4 90W 0.3M DV
AS7540G-
304G50Mn EMEA France LX.PJC02.046
AS7540G-304G50Mn
W7HP64ATFR1 MC
M92XT512Cbk_V3 2*2G/500_L/
8L2.4/5R/CB_bgn_0.3D_HG_FR21
AAM300 NLED17.3
WXGA+G M92XT 512M-DDR3
(64*16*4) SO2GBII6 N500G
B5.4KS NSM8XS 5 in 1-Build in 3rd WiFi
1x2 BGN N AMDRS880M AMDSB710 8CELL2.4 90W 0.3M DV
AS7540G-
324G50Bn WW GCTWN S2.PJC02.001
AS7540G-324G50Bn
W7HP64AWW1 MC
M92XT512Cbk_V3 2*2G/500_L/BT/
8L2.4/5R/CB_bgn_0.3D_HG_ES61
AAM320 NLED17.3
WXGA+G M92XT 512M-DDR3
(64*16*4) SO2GBII6 N500G
B5.4KS
NBDCB4X
S5 in 1-Build in 3rd WiFi
1x2 BGN BT 2.1 AMDRS880M AMDSB710 8CELL2.4 90W 0.3M DV
AS7540G-
324G50Bn WW WW S2.PJC02.002
AS7540G-324G50Bn
W7HP64AWW1 MC
M92XT512Cbk_V3 2*2G/500_L/BT/
8L2.4/5R/CB_bgn_0.3D_HG_ES62
AAM320 NLED17.3
WXGA+G M92XT 512M-DDR3
(64*16*4) SO2GBII6 N500G
B5.4KS
NBDCB4X
S5 in 1-Build in 3rd WiFi
1x2 BGN BT 2.1 AMDRS880M AMDSB710 8CELL2.4 90W 0.3M DV
AS7540G-
502G25Mn AAP Vietnam LX.PJC0C.012
AS7540G-502G25Mn LINPUSAVN1
M92XT512Cbk_V3 1*2G/250/BT/
8L2.4/5R/CB_bgn_0.3D_HG_EN11
ATM5 00 NLED17.3
WXGA+G M92XT 512M-DDR3
(64*16*4)
SO2GBII6/
N
N250G
B5.4KS NSM8XS 5 in 1-Build in 3rd WiFi
1x2 BGN BT 2.1 AMDRS880M AMDSB710 8CELL2.4 90W 0.3M DV
AS7540G-
322G32Mn AAP Vietnam LX.PJC0C.007
AS7540G-322G32Mn LINPUSAVN1
M92XT512Cbk_V3 1*2G/320/BT/
8L2.4/5R/CB_bgn_0.3D_HG_EN11
AAM320 NLED17.3
WXGA+G M92XT 512M-DDR3
(64*16*4)
SO2GBII6/
N
N320G
B5.4KS NSM8XS 5 in 1-Build in 3rd WiFi
1x2 BGN BT 2.1 AMDRS880M AMDSB710 8CELL2.4 90W 0.3M DV
AS7540G-
604G50Mn AAP Vietnam LX.PJC0C.005
AS7540G-604G50Mn LINPUSAVN1
M92XT512Cbk_V3 2*2G/500_L/BT/
8L2.4/5R/CB_bgn_0.3D_HG_EN11
ATUM 600 NLED17.3
WXGA+G M92XT 512M-DDR3
(64*16*4) SO2GBII6 N500G
B5.4KS NSM8XS 5 in 1-Build in 3rd WiFi
1x2 BGN BT 2.1 AMDRS880M AMDSB710 8CELL2.4 90W 0.3M DV
AS7540G-
624G50Mn AAP Vietnam LX.PJC0C.003
AS7540G-624G50Mn LINPUSAVN1
M92XT512Cbk_V3 2*2G/500_L/BT/
8L2.4/5R/CB_bgn_0.3D_HG_EN11
ATUM 620 NLED17.3
WXGA+G M92XT 512M-DDR3
(64*16*4) SO2GBII6 N500G
B5.4KS NSM8XS 5 in 1-Build in 3rd WiFi
1x2 BGN BT 2.1 AMDRS880M AMDSB710 8CELL2.4 90W 0.3M DV
AS7540G-
323G32Mn AAP Vietnam LX.PJC0C.002
AS7540G-323G32Mn LINPUSAVN1
M92XT512Cbk_V3 2G+1G/320/BT/
8L2.4/5R/CB_bgn_0.3D_HG_EN11
AAM320 NLED17.3
WXGA+G M92XT 512M-DDR3
(64*16*4) SO2GBII6 N320G
B5.4KS NSM8XS 5 in 1-Build in 3rd WiFi
1x2 BGN BT 2.1 AMDRS880M AMDSB710 8CELL2.4 90W 0.3M DV
AS7540G-
322G25Mn AAP Vietnam LX.PJC0C.013
AS7540G-322G25Mn LINPUSAVN1
M92XT512Cbk_V3 1*2G/250/BT/
8L2.4/5R/CB_bgn_0.3D_HG_EN11
AAM320 NLED17.3
WXGA+G M92XT 512M-DDR3
(64*16*4)
SO2GBII6/
N
N250G
B5.4KS NSM8XS 5 in 1-Build in 3rd WiFi
1x2 BGN BT 2.1 AMDRS880M AMDSB710 8CELL2.4 90W 0.3M DV
AS7540G-
644G50Mn AAP Vietnam LX.PJC0C.004
AS7540G-644G50Mn LINPUSAVN1
M92XT512Cbk_V3 2*2G/500_L/BT/
8L2.4/5R/CB_bgn_0.3D_HG_EN11
ATUM 640 NLED17.3
WXGA+G M92XT 512M-DDR3
(64*16*4) SO2GBII6 N500G
B5.4KS NSM8XS 5 in 1-Build in 3rd WiFi
1x2 BGN BT 2.1 AMDRS880M AMDSB710 8CELL2.4 90W 0.3M DV
AS7540G-
622G25Mn AAP Vietnam LX.PJC0C.009
AS7540G-622G25Mn LINPUSAVN1
M92XT512Cbk_V3 1*2G/250/BT/
8L2.4/5R/CB_bgn_0.3D_HG_EN11
ATUM 620 NLED17.3
WXGA+G M92XT 512M-DDR3
(64*16*4)
SO2GBII6/
N
N250G
B5.4KS NSM8XS 5 in 1-Build in 3rd WiFi
1x2 BGN BT 2.1 AMDRS880M AMDSB710 8CELL2.4 90W 0.3M DV
AS7540G-
642G25Mn AAP Vietnam LX.PJC0C.008
AS7540G-642G25Mn LINPUSAVN1
M92XT512Cbk_V3 1*2G/250/BT/
8L2.4/5R/CB_bgn_0.3D_HG_EN11
ATUM 640 NLED17.3
WXGA+G M92XT 512M-DDR3
(64*16*4)
SO2GBII6/
N
N250G
B5.4KS NSM8XS 5 in 1-Build in 3rd WiFi
1x2 BGN BT 2.1 AMDRS880M AMDSB710 8CELL2.4 90W 0.3M DV
AS7540G-
504G50Mn AAP Vietnam LX.PJC0C.006
AS7540G-504G50Mn LINPUSAVN1
M92XT512Cbk_V3 2*2G/500_L/BT/
8L2.4/5R/CB_bgn_0.3D_HG_EN11
ATM5 00 NLED17.3
WXGA+G M92XT 512M-DDR3
(64*16*4) SO2GBII6 N500G
B5.4KS NSM8XS 5 in 1-Build in 3rd WiFi
1x2 BGN BT 2.1 AMDRS880M AMDSB710 8CELL2.4 90W 0.3M DV
AS7540G-
503G32Mn AAP Vietnam LX.PJC0C.001
AS7540G-503G32Mn LINPUSAVN1
M92XT512Cbk_V3 2G+1G/320/BT/
8L2.4/5R/CB_bgn_0.3D_HG_EN11
ATM5 00 NLED17.3
WXGA+G M92XT 512M-DDR3
(64*16*4) SO2GBII6 N320G
B5.4KS NSM8XS 5 in 1-Build in 3rd WiFi
1x2 BGN BT 2.1 AMDRS880M AMDSB710 8CELL2.4 90W 0.3M DV
AS7540G-
522G25Mn AAP Vietnam LX.PJC0C.011
AS7540G-522G25Mn LINPUSAVN1
M92XT512Cbk_V3 1*2G/250/BT/
8L2.4/5R/CB_bgn_0.3D_HG_EN11
ATM5 20 NLED17.3
WXGA+G M92XT 512M-DDR3
(64*16*4)
SO2GBII6/
N
N250G
B5.4KS NSM8XS 5 in 1-Build in 3rd WiFi
1x2 BGN BT 2.1 AMDRS880M AMDSB710 8CELL2.4 90W 0.3M DV
169 Appendix A
AS7540G-
602G25Mn AAP Vietnam LX.PJC0C.010
AS7540G-602G25Mn LINPUSAVN1
M92XT512Cbk_V3 1*2G/250/BT/
8L2.4/5R/CB_bgn_0.3D_HG_EN11
ATUM 600 NLED17.3
WXGA+G M92XT 512M-DDR3
(64*16*4)
SO2GBII6/
N
N250G
B5.4KS NSM8XS 5 in 1-Build in 3rd WiFi
1x2 BGN BT 2.1 AMDRS880M AMDSB710 8CELL2.4 90W 0.3M DV
AS7540-304G32Mn PA
ACLA-
Portugue
se
LX.PJD02.006
AS7540-304G32Mn EM
W7HP64EMATXC2 MC UMACbk
2*2G/320/BT/6L2.2/5R/
CB_bgn_0.3D_HG_XC21
AAM300 NLED17.3
WXGA+G UMA N SO2GBII6 N320G
B5.4KS NSM8XS 5 in 1-Build in 3rd WiFi
1x2 BGN BT 2.1 AMDRS880M AMDSB710 6CELL2.2 65W 0.3M DV
AS7540-303G32Mn EMEA UK LX.PJD02.002
AS7540-303G32Mn W7HP64ATGB1
MC UMACbk 2G+1G/320/6L2.2/5R/
CB_bgn_0.3D_N_HG_EN11
AAM300 NLED17.3
WXGA+G UMA N SO2GBII6/
SO1GBII6
N320G
B5.4KS NSM8XS 5 in 1-Build in 3rd WiFi
1x2 BGN N AMDRS880M AMDSB710 6CELL2.2 65W 0.3M DV
AS7540-304G50Mn EMEA France LX.PJD02.018
AS7540-304G50Mn W7HP64ATFR1
MC UMACbk 2*2G/500_L/6L2.2/5R/
CB_bgn_0.3D_HG_FR21
AAM300 NLED17.3
WXGA+G UMA N SO2GBII6 N500G
B5.4KS NSM8XS 5 in 1-Build in 3rd WiFi
1x2 BGN N AMDRS880M AMDSB710 6CELL2.2 65W 0.3M DV
AS7540-304G50Mn PA USA LX.PJD02.017
AS7540-304G50Mn W7HP64ATUS1
MC UMACbk 2*2G/500_L/6L2.2/5R/
CB_bgn_0.3D_HG_FRB3
AAM300 NLED17.3
WXGA+G UMA N SO2GBII6 N500G
B5.4KS NSM8XS 5 in 1-Build in 3rd WiFi
1x2 BGN N AMDRS880M AMDSB710 6CELL2.2 65W 0.3M DV
AS7540-304G50Mn PA USA LX.PJD02.016
AS7540-304G50Mn W7HP64ATUS1
MC UMACbk 2*2G/500_L/6L2.2/5R/
CB_bgn_0.3D_HG_FRB2
AAM300 NLED17.3
WXGA+G UMA N SO2GBII6 N500G
B5.4KS NSM8XS 5 in 1-Build in 3rd WiFi
1x2 BGN N AMDRS880M AMDSB710 6CELL2.2 65W 0.3M DV
AS7540-304G50Mn PA USA LX.PJD02.015
AS7540-304G50Mn W7HP64ATUS1
MC UMACbk 2*2G/500_L/6L2.2/5R/
CB_bgn_0.3D_HG_FRB1
AAM300 NLED17.3
WXGA+G UMA N SO2GBII6 N500G
B5.4KS NSM8XS 5 in 1-Build in 3rd WiFi
1x2 BGN N AMDRS880M AMDSB710 6CELL2.2 65W 0.3M DV
AS7540-304G50Mn PA Canada LX.PJD02.014
AS7540-304G50Mn W7HP64ATCA2
MC UMACbk 2*2G/500_L/6L2.2/5R/
CB_bgn_0.3D_HG_FR84
AAM300 NLED17.3
WXGA+G UMA N SO2GBII6 N500G
B5.4KS NSM8XS 5 in 1-Build in 3rd WiFi
1x2 BGN N AMDRS880M AMDSB710 6CELL2.2 65W 0.3M DV
AS7540-304G50Mn PA Canada LX.PJD02.013
AS7540-304G50Mn W7HP64ATCA2
MC UMACbk 2*2G/500_L/6L2.2/5R/
CB_bgn_0.3D_HG_FR82
AAM300 NLED17.3
WXGA+G UMA N SO2GBII6 N500G
B5.4KS NSM8XS 5 in 1-Build in 3rd WiFi
1x2 BGN N AMDRS880M AMDSB710 6CELL2.2 65W 0.3M DV
AS7540-304G50Mn PA Canada LX.PJD02.012
AS7540-304G50Mn W7HP64ATCA2
MC UMACbk 2*2G/500_L/6L2.2/5R/
CB_bgn_0.3D_HG_FR81
AAM300 NLED17.3
WXGA+G UMA N SO2GBII6 N500G
B5.4KS NSM8XS 5 in 1-Build in 3rd WiFi
1x2 BGN N AMDRS880M AMDSB710 6CELL2.2 65W 0.3M DV
AS7540-304G32Mn PA Chile LX.PJD02.011
AS7540-304G32Mn EM
W7HP64EMATCL3 MC UMACbk
2*2G/320/BT/6L2.2/5R/
CB_bgn_0.3D_HG_ES51
AAM300 NLED17.3
WXGA+G UMA N SO2GBII6 N320G
B5.4KS NSM8XS 5 in 1-Build in 3rd WiFi
1x2 BGN BT 2.1 AMDRS880M AMDSB710 6CELL2.2 65W 0.3M DV
AS7540-304G32Mn PA ACLA-
Spanish LX.PJD02.010
AS7540-304G32Mn EM
W7HP64EMATEA4 MC UMACbk
2*2G/320/BT/6L2.2/5R/
CB_bgn_0.3D_HG_EN31
AAM300 NLED17.3
WXGA+G UMA N SO2GBII6 N320G
B5.4KS NSM8XS 5 in 1-Build in 3rd WiFi
1x2 BGN BT 2.1 AMDRS880M AMDSB710 6CELL2.2 65W 0.3M DV
AS7540-304G32Mn PA ACLA-
Spanish LX.PJD02.009
AS7540-304G32Mn EM
W7HP64EMATEA1 MC UMACbk
2*2G/320/BT/6L2.2/5R/
CB_bgn_0.3D_HG_ES51
AAM300 NLED17.3
WXGA+G UMA N SO2GBII6 N320G
B5.4KS NSM8XS 5 in 1-Build in 3rd WiFi
1x2 BGN BT 2.1 AMDRS880M AMDSB710 6CELL2.2 65W 0.3M DV
AS7540-304G32Mn PA ACLA-
Spanish LX.PJD02.008
AS7540-304G32Mn EM
W7HP64EMATEA3 MC UMACbk
2*2G/320/BT/6L2.2/5R/
CB_bgn_0.3D_HG_ES51
AAM300 NLED17.3
WXGA+G UMA N SO2GBII6 N320G
B5.4KS NSM8XS 5 in 1-Build in 3rd WiFi
1x2 BGN BT 2.1 AMDRS880M AMDSB710 6CELL2.2 65W 0.3M DV
AS7540-304G32Mn PA
ACLA-
Portugue
se
LX.PJD02.007
AS7540-304G32Mn EM
W7HP64EMATXC3 MC UMACbk
2*2G/320/BT/6L2.2/5R/
CB_bgn_0.3D_HG_EN61
AAM300 NLED17.3
WXGA+G UMA N SO2GBII6 N320G
B5.4KS NSM8XS 5 in 1-Build in 3rd WiFi
1x2 BGN BT 2.1 AMDRS880M AMDSB710 6CELL2.2 65W 0.3M DV
AS7540-302G16Mn EMEA UK LX.PJD02.005
AS7540-302G16Mn W7HP64ATGB1
MC UMACbk 1*2G/160/6L2.2/5R/
CB_bgn_0.3D_HG_EN11
AAM300 NLED17.3
WXGA+G UMA N SO2GBII6
N
N160G
B5.4KS NSM8XS 5 in 1-Build in 3rd WiFi
1x2 BGN N AMDRS880M AMDSB710 6CELL2.2 65W 0.3M DV
AS7540-302G16Mn EMEA UK LX.PJD02.004
AS7540-302G16Mn W7HP64ATGB1
MC UMACbk 2*1G/160/6L2.2/5R/
CB_bgn_0.3D_HG_EN11
AAM300 NLED17.3
WXGA+G UMA N SO1GBII6 N160G
B5.4KS NSM8XS 5 in 1-Build in 3rd WiFi
1x2 BGN N AMDRS880M AMDSB710 6CELL2.2 65W 0.3M DV
AS7540-304G32Mn PA Canada LX.PJD02.001
AS7540-304G32Mn W7HP64ATCA2
MC UMACbk 2*2G/320/6L2.2/5R/
CB_bgn_0.3D_HG_FR81
AAM300 NLED17.3
WXGA+G UMA N SO2GBII6 N320G
B5.4KS NSM8XS 5 in 1-Build in 3rd WiFi
1x2 BGN N AMDRS880M AMDSB710 6CELL2.2 65W 0.3M DV
AS7540-322G32Mn WW GCTWN S2.PJD02.001
AS7540-322G32Mn W7HP64AWW1
MC UMACbk 2*1G/320/BT/6L2.2/
5R/CB_bgn_0.3D_HG_ES61
AAM320 NLED17.3
WXGA+G UMA N SO1GBII6 N320G
B5.4KS NSM8XS 5 in 1-Build in 3rd WiFi
1x2 BGN BT 2.1 AMDRS880M AMDSB710 6CELL2.2 65W 0.3M DV
Appendix A 170
AS7540-322G32Mn WW WW S2.PJD02.002
AS7540-322G32Mn W7HP64AWW1
MC UMACbk 2*1G/320/BT/6L2.2/
5R/CB_bgn_0.3D_HG_ES62
AAM320 NLED17.3
WXGA+G UMA N SO1GBII6 N320G
B5.4KS NSM8XS 5 in 1-Build in 3rd WiFi
1x2 BGN BT 2.1 AMDRS880M AMDSB710 6CELL2.2 65W 0.3M DV
AS7540-304G32Mn PA Canada LX.PJD02.003
AS7540-304G32Mn W7HP64ATCA2
MC UMACbk 2*2G/320/6L2.2/5R/
CB_bgn_0.3D_HG_FR82
AAM300 NLED17.3
WXGA+G UMA N SO2GBII6 N320G
B5.4KS NSM8XS 5 in 1-Build in 3rd WiFi
1x2 BGN N AMDRS880M AMDSB710 6CELL2.2 65W 0.3M DV
Appendix B 171
This computer’s compatibility is tested and verified by Acer’s internal testing department. All of its system
functions are tested under Windows® XP Home, Windows® XP Pro environment, Windows® Vista.
Refer to the following lists for components, adapter cards, and peripherals which have passed these tests.
Regarding configuration, combination and test procedures, please refer to the Aspire 7736/7736Z/7336 series
and Aspire 7540 Series Compatibility Test Report released by the Acer Mobile System Testing Department.
Test Compatible Components
Appendix B
172 Appendix B
Microsoft® Windows® Vista Environment Test
Item Specification
CRT Port Test
CRT Monitor Acer 211c 21”, ViewSonic G220F, ViewSonic PF790 19”
LCD Monitor Acer FP751 17” TFT LCD, Acer AL1521, Acer AL1721, ViewSonic VD201b,
Westinghouse W37G, HP LP2065, HP S9500
Projector Dell 3300MP
USB Port Test
USB Keyboard/Mouse Microsoft Natural Keyboard Pro
Dell USB Keyboard
Logicool USB Mouse (OWCM-USB)
Logitech USB Wheel Mouse
Logitech First Wheel Mouse
Dell by Logitech
Dell Internet Navigator Keyboard
Dell Smart Card Keyboard
HP USB Optical Austin Mouse
Belkin Miniglow Optical USB Mouse
HP USB Optical Mouse (RB129AA)
USB Speaker/Joystick Aiwa Multimedia Digital Speaker (SC-UC78)
Panasonic USB Speaker EAB-MPC57USB
USB Storage Drive Iomega USB Zip 250MB
Transcend 80G HDD
Plextor DVD+R/RW
LG DVD+R/RW
Sony DVD+R/RW
USB Camera Intel Easy PC Camera (A20953-001)
Orange Micro USB 2.0 Web Cam
USB HUB and Others A TEN UH-204
IOGEAR 4-Port Hub
Corega CG-WLUSBST11
USB Printer/Scanner HP 450WBT Deskjet Printer
USB Flash Drive Sony Memory Key 128MB
Sony Micro Vault Pro USD-5G
IBM 128MB Memory Key
IBM 512MB Memory Key
Apacer Handy Drive
Apacer The USB Flash Drive 256MB
USB ODD Logitec CDRW+DVDROM combo
LG DVD+R/RW
Sony DVD+R/RW
1394 Camera Sony DV-TRV10
Access Point 802.11a Intel Pro/Wireless 5000
NetGear HE 102
Access Point 802.11g D-Link Building Networks People WiFi Certified a/b/g Wireless 108AG
Access Point 802.11n Belkin N1MIMO Wireless Router High Performance wireless 802.11n
Bluetooth Device Sony Ericsson Wireless Headset
Sony Ericsson T610
X Bridge Bluetooth Access Point BT300
Appendix B 173
PCMCIA Test
LAN/Modem Card TDK CardBus Ethernet 10/100 32-Bit CBE-10/100BTX
Storage Card Hitachi Microdrive 4G
1394 Card Buffalo 1394 Interface Cardbus (IFC-ILCB/DV)
USB2.0 Card IBM EtherJet CardBus Adapter 10/100
Wireless Lan Card
(Not recommended for wireless ready
model)
Cisco Wireless LAN Card 802.11a
NETGEAR Wireless LAN card 802.11a
ISDN Card Toshiba Type B for Bluetooth 128K ISDN Card
GPRS Card Vodafone QL1ACC-21581 3G/GPRS card
Sony Ericsson GC83 GPRS card
Sony Ericsson GC89 GPRS card
ExpressCard Test
Express Card Abcom 5-in-1 Adapter ExpressCard Reader
Abcom GigaLan ExpressCard
Sunix ECF2400 2 Ports 1394A ExpressCard
Memory Card Test (SD/MS/MMC/SM/CF/Microdrive/XD)
SD Card Apacer 128/256MB
SanDisk 256MB
Apacer 2GB (150x Hi-Speed)
KINGMAX 1GB (66x Hi-Speed)
SanDisk 1GB
RiDATA 4GB SD PRO Memory Card
MS Card Sony 512 MS PRO
Lexar 512MB MS PRO
Lexar 1GB MS PRO
Sony 2GB MS PRO
MMC Card SanDisk 32MB
Transcend 64/128MB
Transcend 256MB
SanDisk RS-MMC 128MB
PQI RS-MMC 256MB
Transcend 512MB
A-DATA Turbo 200X 2GB MMC Card
XD Card Apacer 256/512MB
SanDisk 2GB
Olympus 512MB
CF Card Apacer 256/512
SanDisk 2GB
Item Specification
174 Appendix B
Appendix C 175
This section describes online technical support services available to help you repair your Acer Systems.
If you are a distributor, dealer, ASP or TPM, please refer your technical queries to your local Acer branch
office. Acer Branch Offices and Regional Business Units may access our website. However some information
sources will require a user i.d. and password. These can be obtained directly from Acer CSD Taiwan.
Acer's Website offers you convenient and valuable support resources whenever you need them.
In the Technical Information section you can download information on all of Acer's Notebook, Desktop and
Server models including:
•Service guides for all models
•User's manuals
•Training materials
•Bios updates
•Software utilities
•Spare parts lists
•TABs (Technical Announcement Bulletin)
For these purposes, we have included an Acrobat File to facilitate the problem-free downloading of our
technical material.
Also contained on this website are:
•Detailed information on Acer's International Traveller’s Warranty (ITW)
•Returned material authorization procedures
•An overview of all the support services we offer, accompanied by a list of telephone, fax and email
contacts for all your technical queries.
We are always looking for ways to optimize and improve our services, so if you have any suggestions or
comments, please do not hesitate to communicate these to us.
Online Support Information
Appendix C
176 Appendix C
177
A
AFLASH Utility 39
antennas
removing 84
Audio 23
B
Back cover
removing 46
battery pack
removing 45
BIOS 19
vendor 19
Version 19
BIOS Recovery 105
BIOS Recovery Boot Block 107
BIOS Recovery by Crisis Disk 107
steps 107
BIOS Recovery Hotkey 107
BIOS Utility 27–39
Navigating 28
System Security 38
block diagram
Aspire 7540 Series 5
Aspire 7738/7738G Series and 7735/7735G/
7735Z/7735ZG Series 4
bluetooth board
removing 72
button/indicator
Bluetooth 11
Wireless LAN 11
buttons
easy-launch 11
C
caps lock
on indicator 7
Clearing BIOS Password
steps 106
Clearing Password 105
computer
on indicator 7
CPU
removing 54
CPU Fan True Value Table 19
Crisis Disk
creating 107
Crisis Recovery Disk 39
D
DIMM module
removing 51
E
Environment Test 172
Euro 15
External CD-ROM Drive Check 86
External Module Disassembly
Flowchart 43
F
Fingerprint/button and touchpad boards
removing 66
Flash Utility 39
FRU (Field Replaceable Unit) List 111
H
Hard disk 21
HDD 21
HDD1 module
removing 48
Hot Keys 13, 15
Hotkeys
sleep 15
hotkeys
Bluetooth 15
brightness down 15
brightness up 15
display 15
Screen blank 15
speaker 15
System property 15
volume down 15
volume up 15
HW Gap position 105
I
indicator
battery 10
power-on 10
Indicators 10
Intermittent Problems 101
K
Key
Special 15
key
Backup 11
Index
178
US dollar 15
Keyboard 13, 25
removing 60
Keyboard or Auxiliary Input Device Check 86
L
Launch board
removing 71
LCD bezel
removing 78
LCD Brackets
removing 81
LCD Module Disassembly
Flowchart 77
LCD with the brackets
removing 79
Locations
connectors 103
M
Main Screw List 42
Main Unit Disassembly
Flowchart 57
media access
on indicator 7
Memory Check 87
menu
Boot 37
Exit 38
Information 29
Security 33
middle cover
removing 58
Model Definition 143
modem board
removing 71
N
notebook tour 6
num lock
on indicator 7
O
Online Support Information 175
P
password
changing 35
removing 35
setting 34
Power Adapter Check 87
Power System Check 87
Battery Pack 88
Power-On Self-Test (POST) Error Message 88
Processor 19
S
Screw List 42
System 4
Block Diagram 4
System Check Procedures 86
System Memory 19
System Utilities 17, 27
System utilities
Acer GridVista 18
T
Test Compatible Components 171
touchpad
using 11
Touchpad Check 88
Troubleshooting 85
U
Undetermined Problems 102
utility
BIOS 27–39
V
view
bottom 10
left 8
rear 9
right 9
view front 6
W
Windows 2000 Environment Test 172
www.s-manuals.com

Navigation menu
