Acer TravelMate 660

Acer TravelMate 660 Series

Service Guide

PART NO.: VD.T29V7.001

PRINTED IN TAIWAN

Service guide files and updates are available

on the ACER/CSD web; for more information,

please refer to http://csd.acer.com.tw

Revision History

Please refer to the table below for the updates made on TravelMate 660 service guide.

Date Chapter Updates

III

transmitted, transcribed, stored in a retrieval system, or translated into any language or computer language, in

any form or by any means, electronic, mechanical, magnetic, optical, chemical, manual or otherwise, without

the prior written permission of Acer Incorporated.

Disclaimer

The information in this guide is subject to change without notice.

Acer Incorporated makes no representations or warranties, either expressed or implied, with respect to the

contents hereof and specifically disclaims any warranties of merchantability or fitness for any particular

purpose. Any Acer Incorporated software described in this manual is sold or licensed "as is". Should the

programs prove defective following their purchase, the buyer (and not Acer Incorporated, its distributor, or its

dealer) assumes the entire cost of all necessary servicing, repair, and any incidental or consequential

damages resulting from any defect in the software.

Acer is a registered trademark of Acer Corporation.

Intel is a registered trademark of Intel Corporation.

Pentium and Pentium II/III are trademarks of Intel Corporation.

Other brand and product names are trademarks and/or registered trademarks of their respective holders.

Conventions

The following conventions are used in this manual:

SCREEN MESSAGES Denotes actual messages that appear

on screen.

NOTE Gives bits and pieces of additional

information related to the current

topic.

WARNING Alerts you to any damage that might

result from doing or not doing specific

actions.

CAUTION Gives precautionary measures to

avoid possible hardware or software

problems.

IMPORTANT Reminds you to do specific actions

relevant to the accomplishment of

procedures.

Preface

Before using this information and the product it supports, please read the following general information.

1. This Service Guide provides you with all technical information relating to the BASIC CONFIGURATION

decided for Acer's "global" product offering. To better fit local market requirements and enhance product

competitiveness, your regional office MAY have decided to extend the functionality of a machine (e.g.

add-on card, modem, or extra memory capability). These LOCALIZED FEATURES will NOT be covered

in this generic service guide. In such cases, please contact your regional offices or the responsible

personnel/channel to provide you with further technical details.

2. Please note WHEN ORDERING FRU PARTS, that you should check the most up-to-date information

available on your regional web or channel. If, for whatever reason, a part number change is made, it will

not be noted in the printed Service Guide. For ACER-AUTHORIZED SERVICE PROVIDERS, your Acer

office may have a DIFFERENT part number code to those given in the FRU list of this printed Service

Guide. You MUST use the list provided by your regional Acer office to order FRU parts for repair and

service of customer machines.

VII

Table of Contents

Chapter 1 System Specifications 1

Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1

System Block Diagram . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3

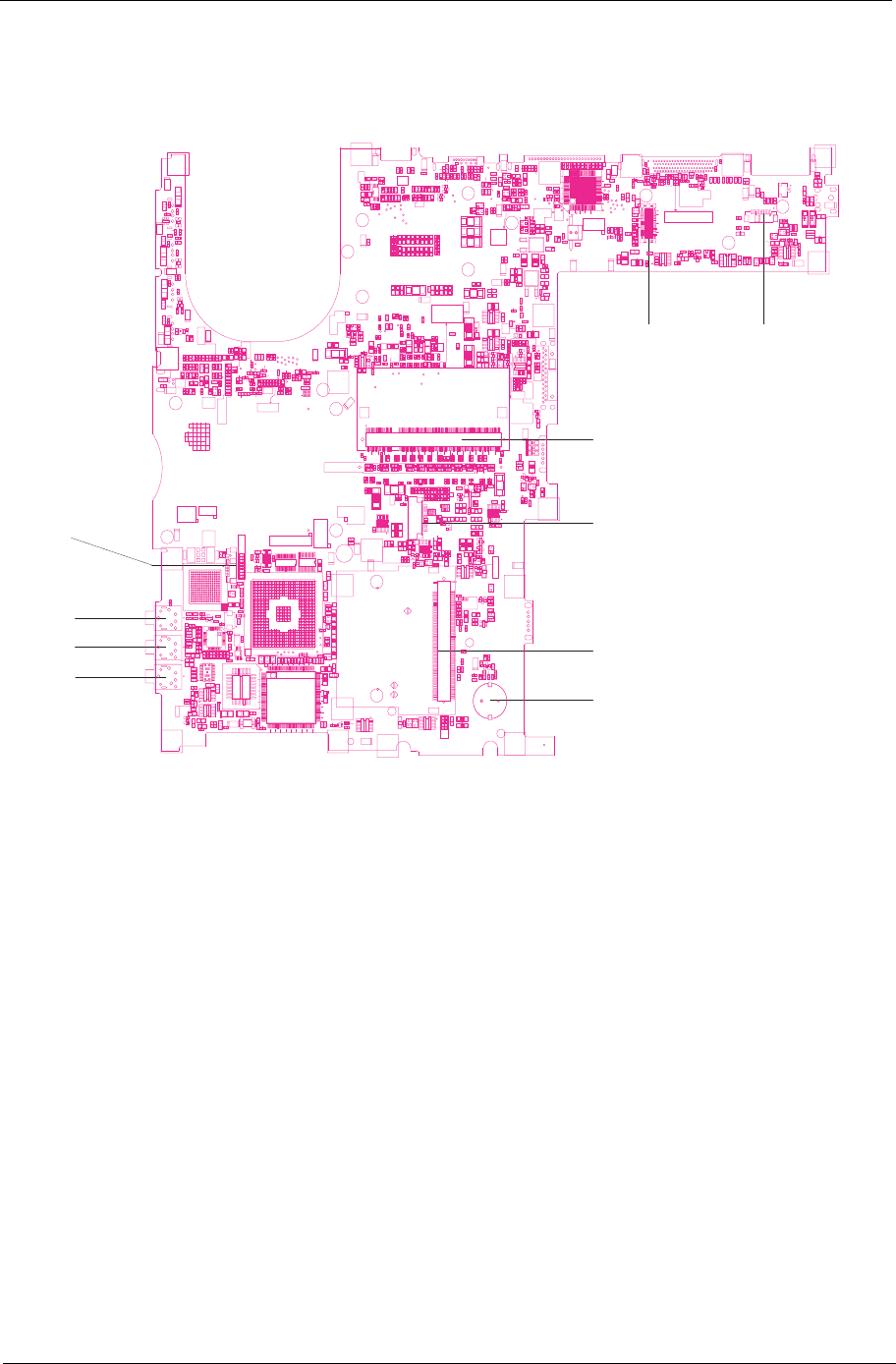

Board Layout . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4

Top View . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4

Bottom View . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5

Outlook View . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6

Front Open View . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6

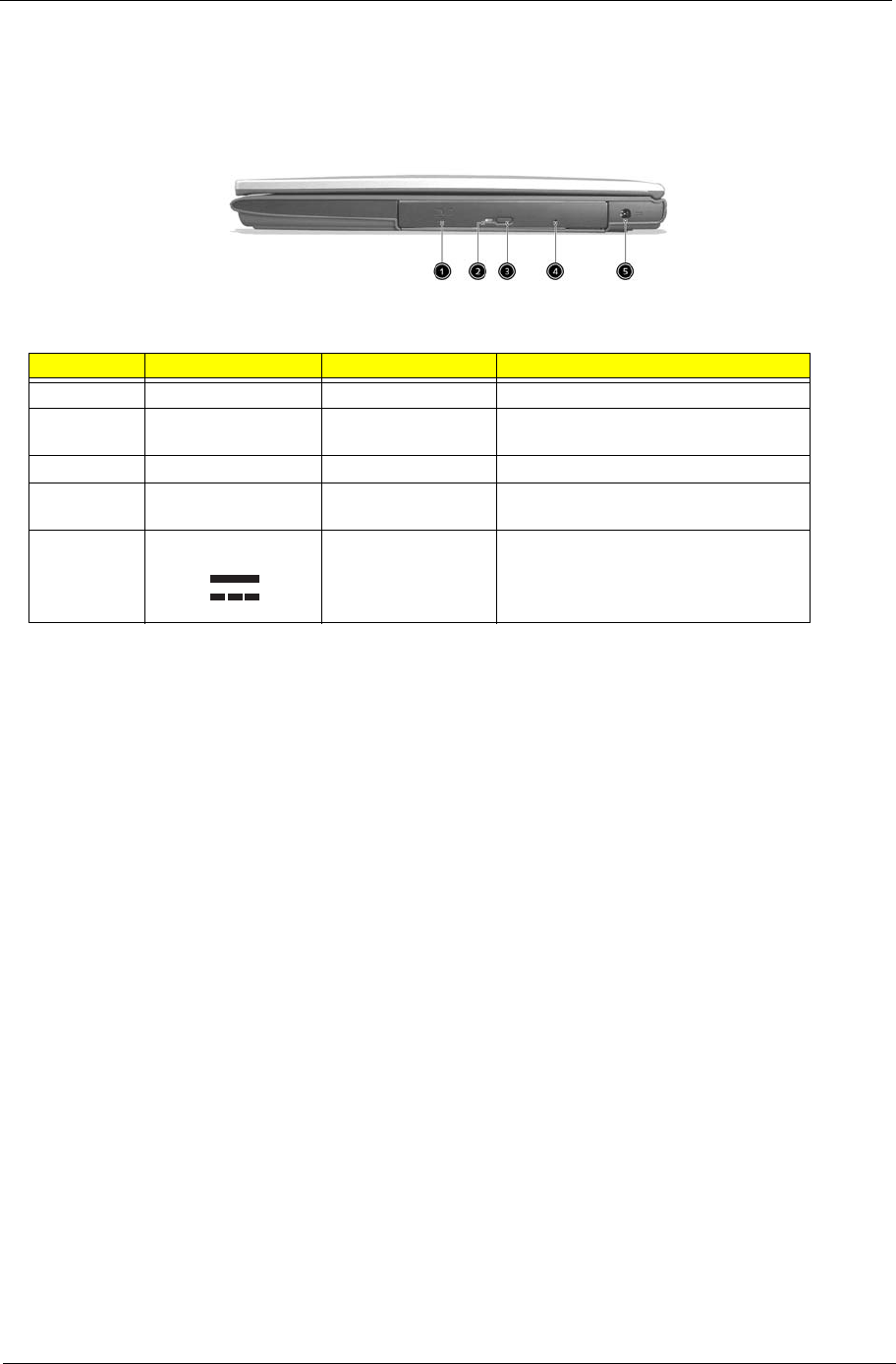

Front Panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7

Left Panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8

Right Panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9

Rear Panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10

Bottom Panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11

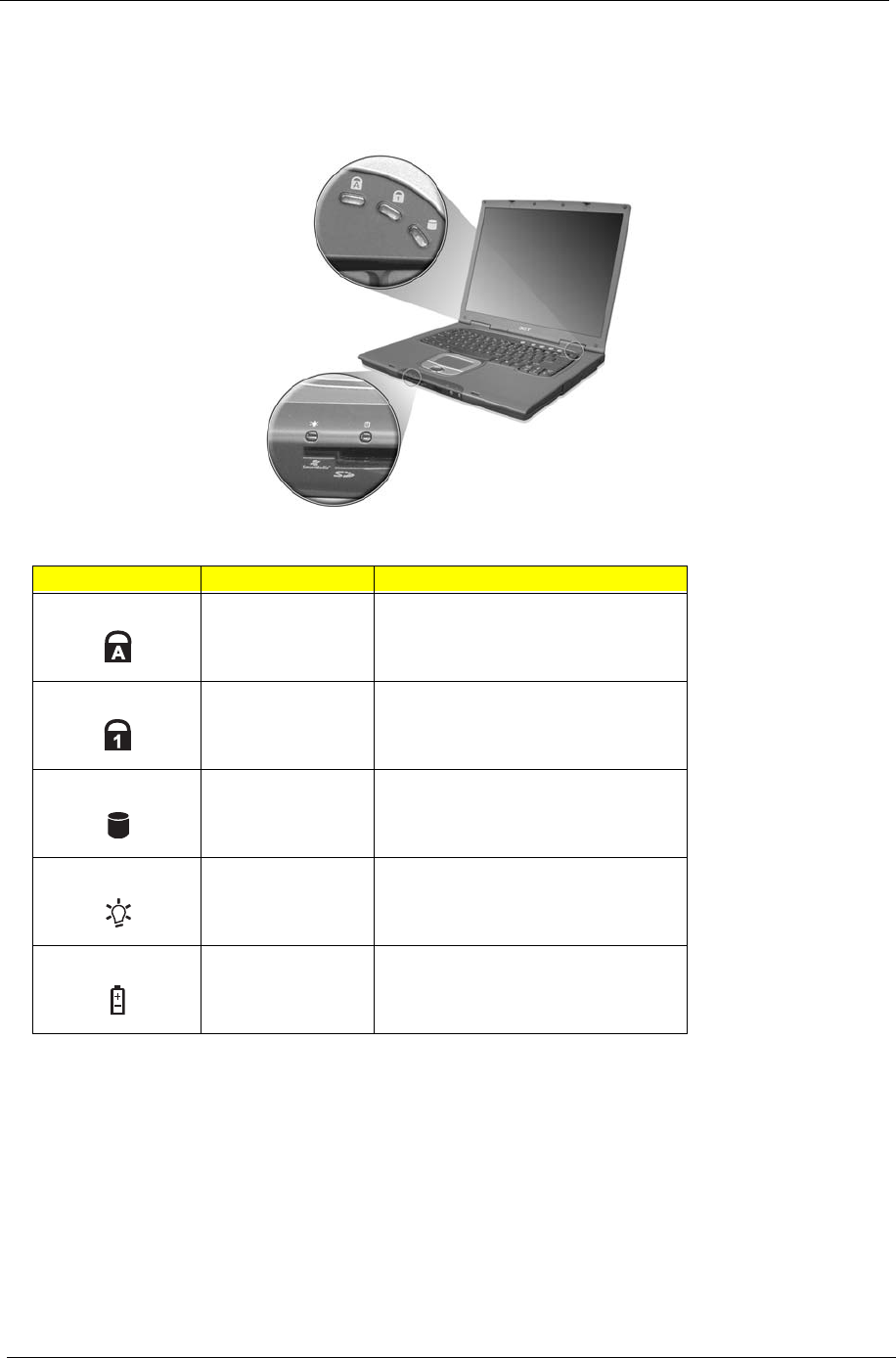

Indicators . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12

Lock Keys . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13

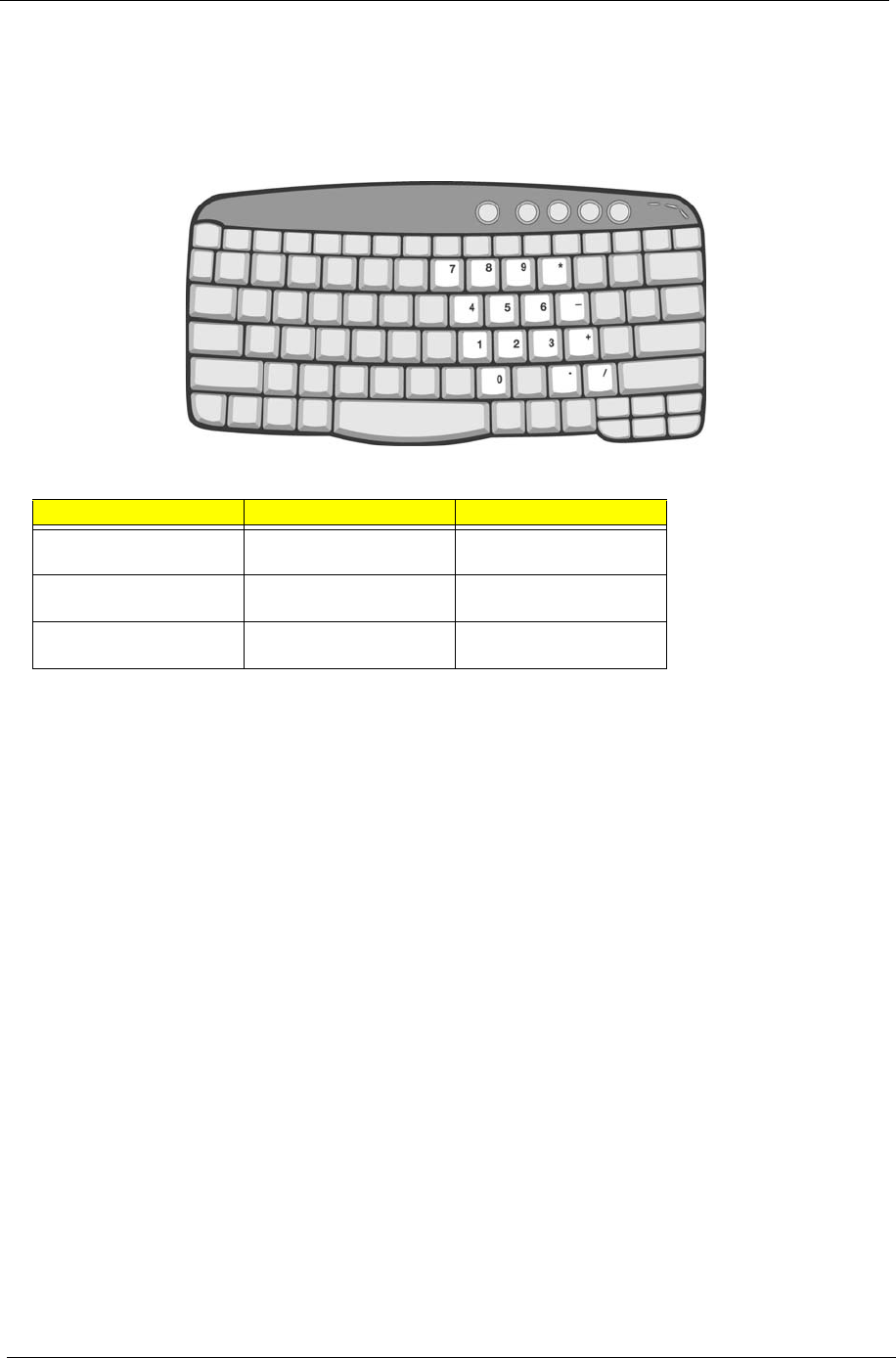

Embedded Numeric Keypad . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14

Windows Keys . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .15

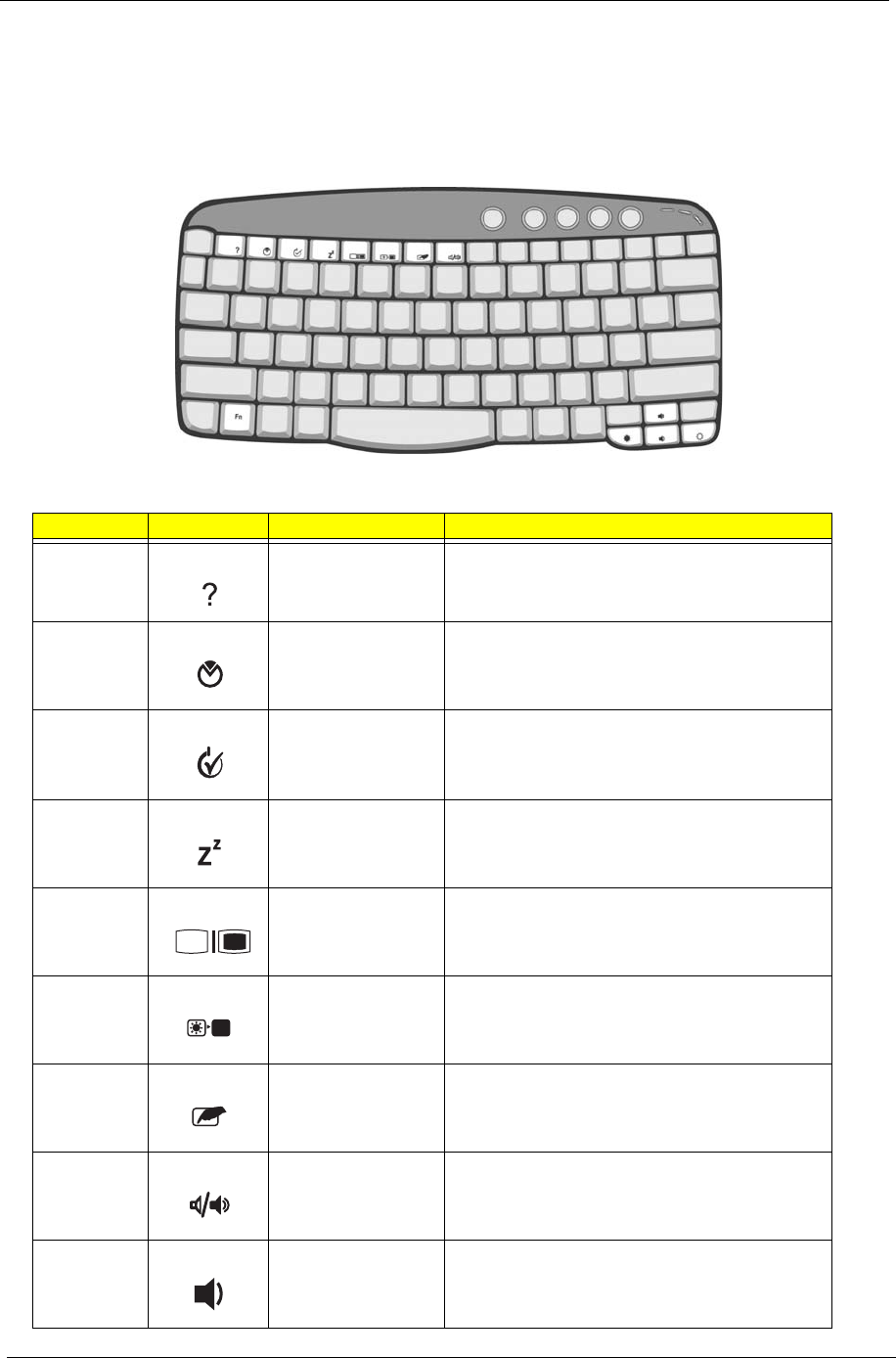

Hot Keys . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .16

The Euro Symbol . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .18

Launch Keys . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .19

E-mail Detection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .19

Touchpad . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .21

Touchpad Basics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .21

Hardware Specifications and Configurations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .23

Chapter 2 System Utilities 33

BIOS Setup Utility . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .33

Navigating the BIOS Utility . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .34

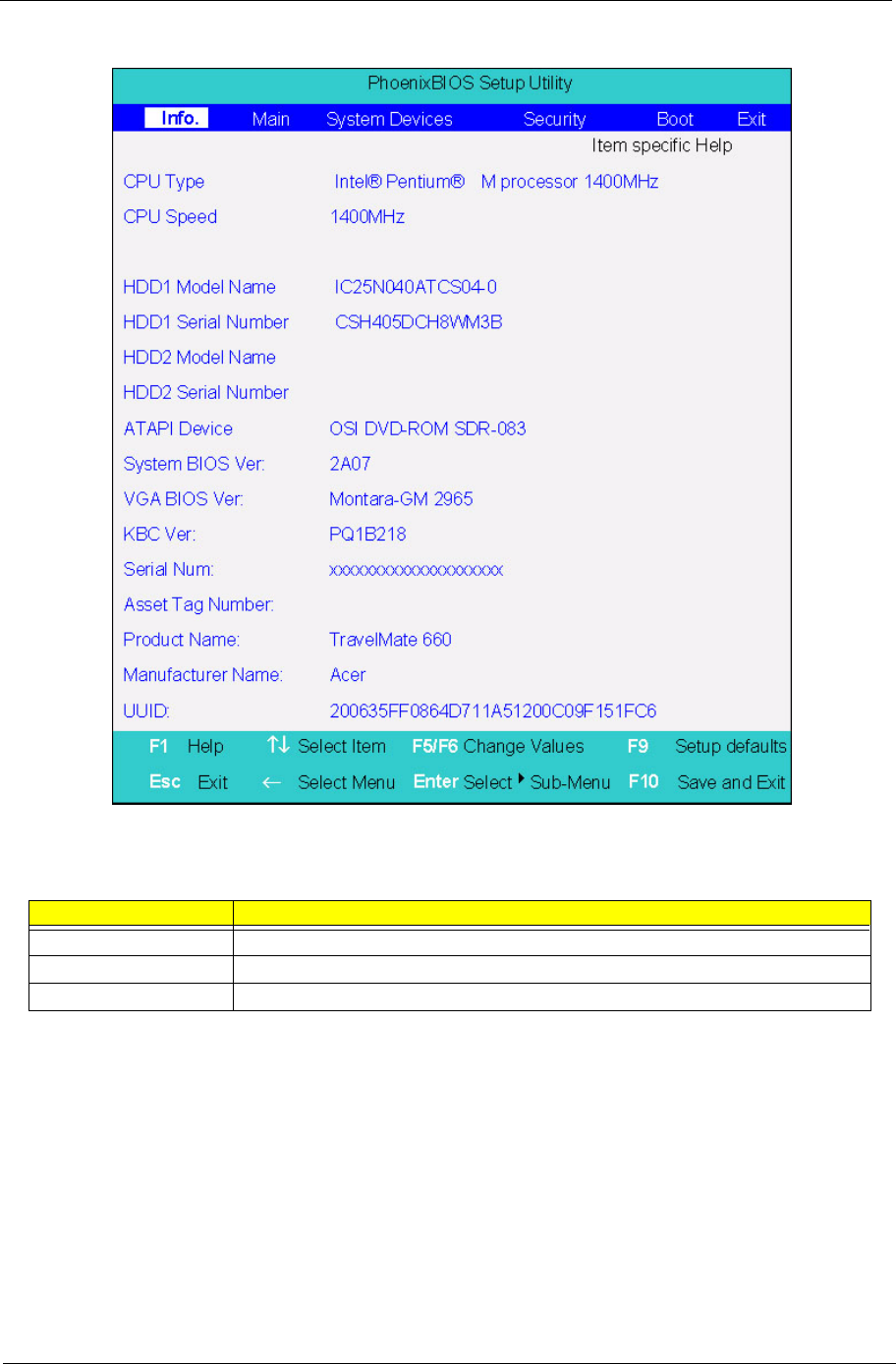

Info. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .35

Main . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .36

System Devices . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .38

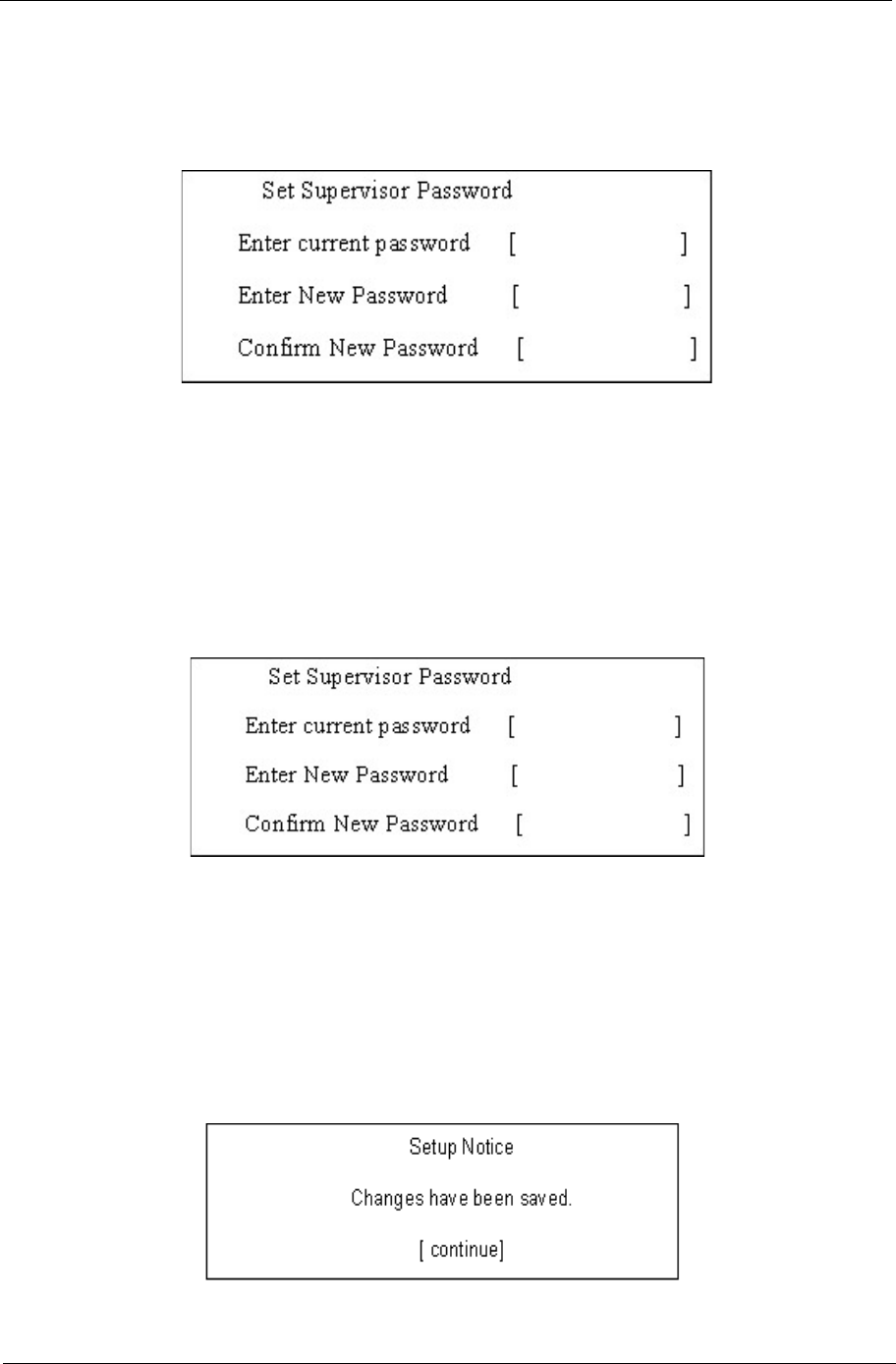

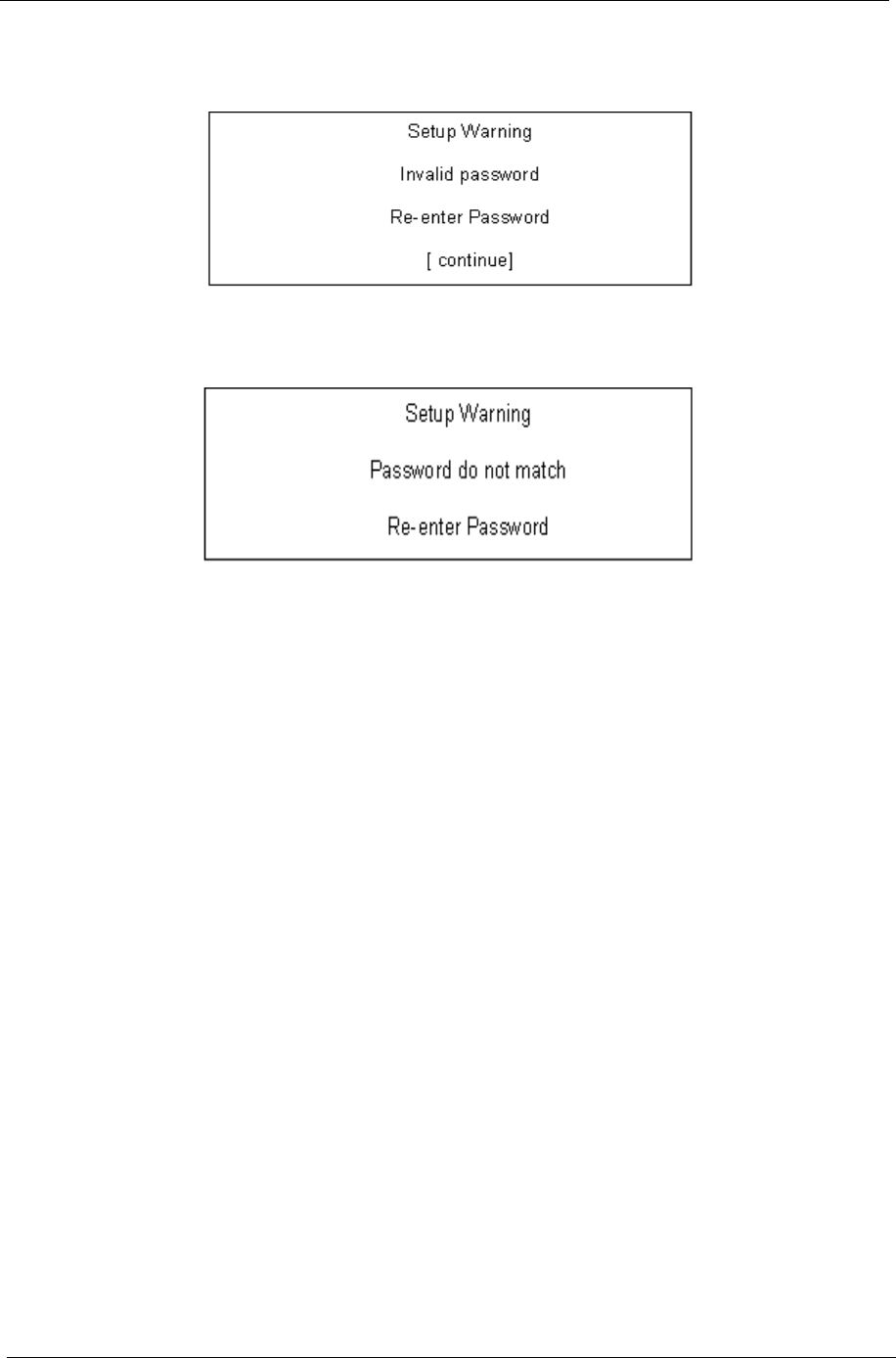

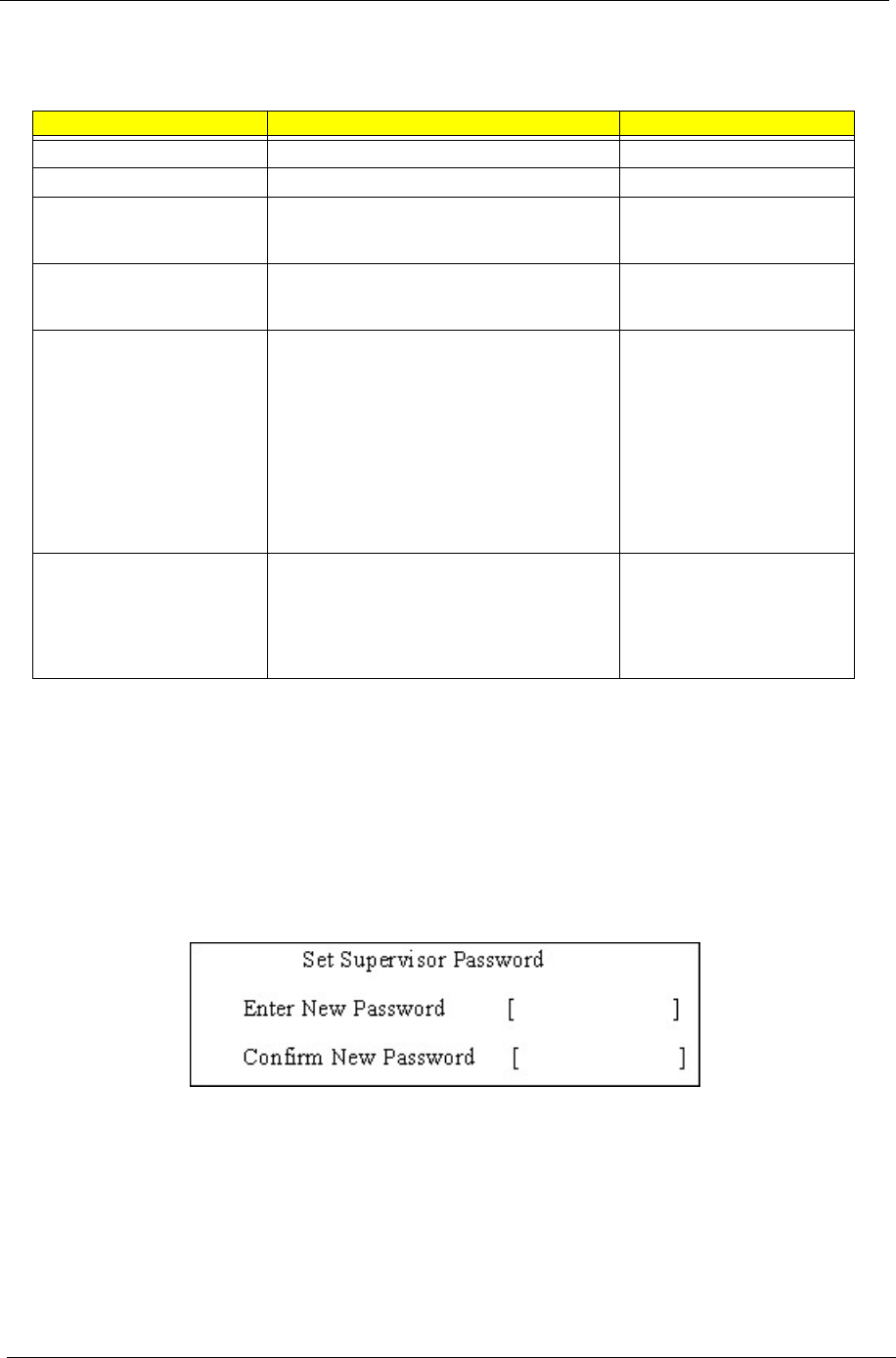

Security . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .39

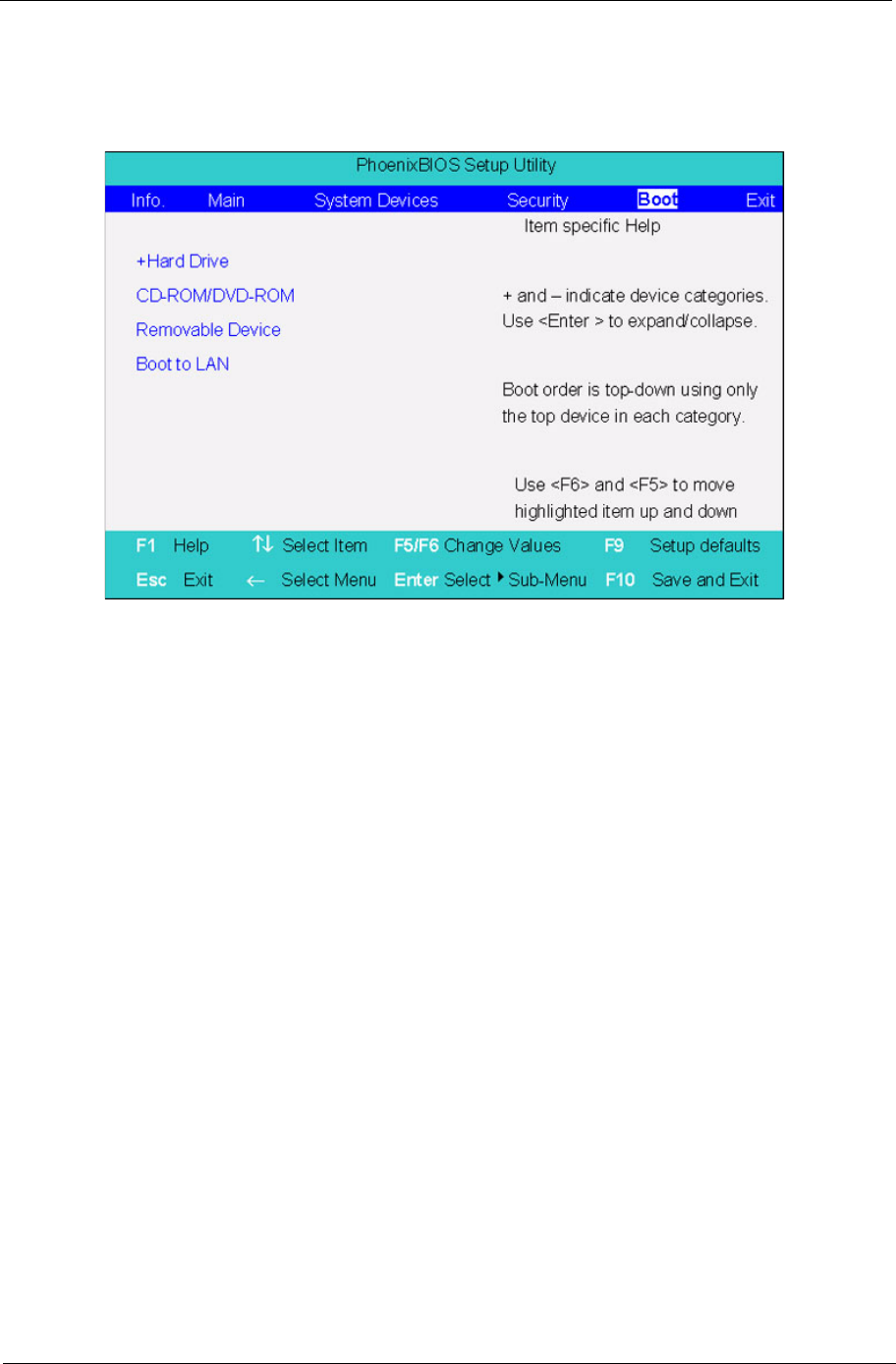

Boot . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .43

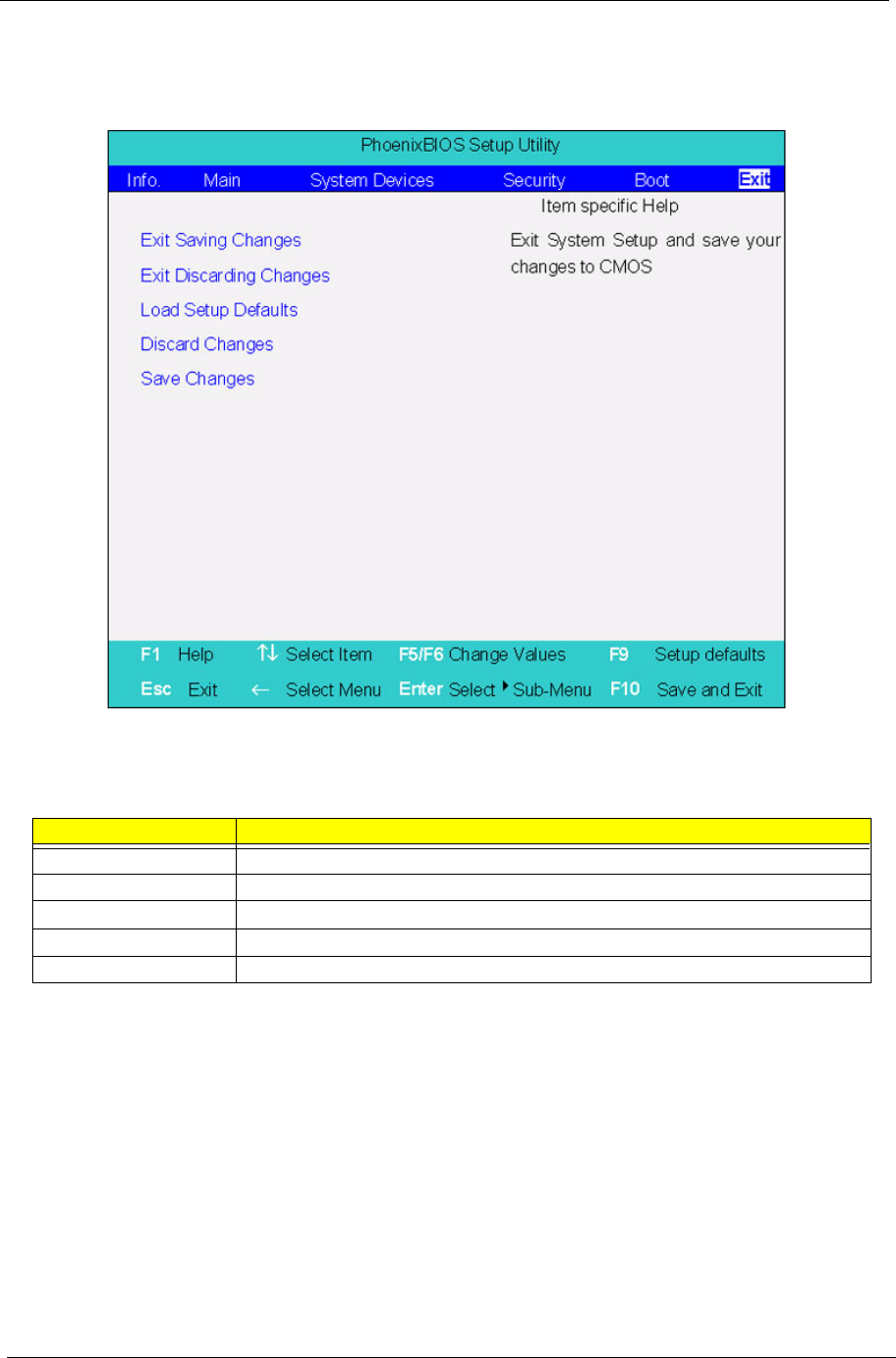

Exit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .44

BIOS Flash Utility . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .45

Chapter 3 Machine Disassembly and Replacement 47

General Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .48

Before You Begin . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .48

Disassembly Procedure Flowchart . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .49

Removing the Battery Pack . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .52

Removing the Optical Module/HDD Module/Wireless Lan Card and LCD module . .53

Removing the Optical Module . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .53

Removing the HDD Module . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .53

Removing the Wireless LAN Card . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .53

Removing the LCD Module . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .54

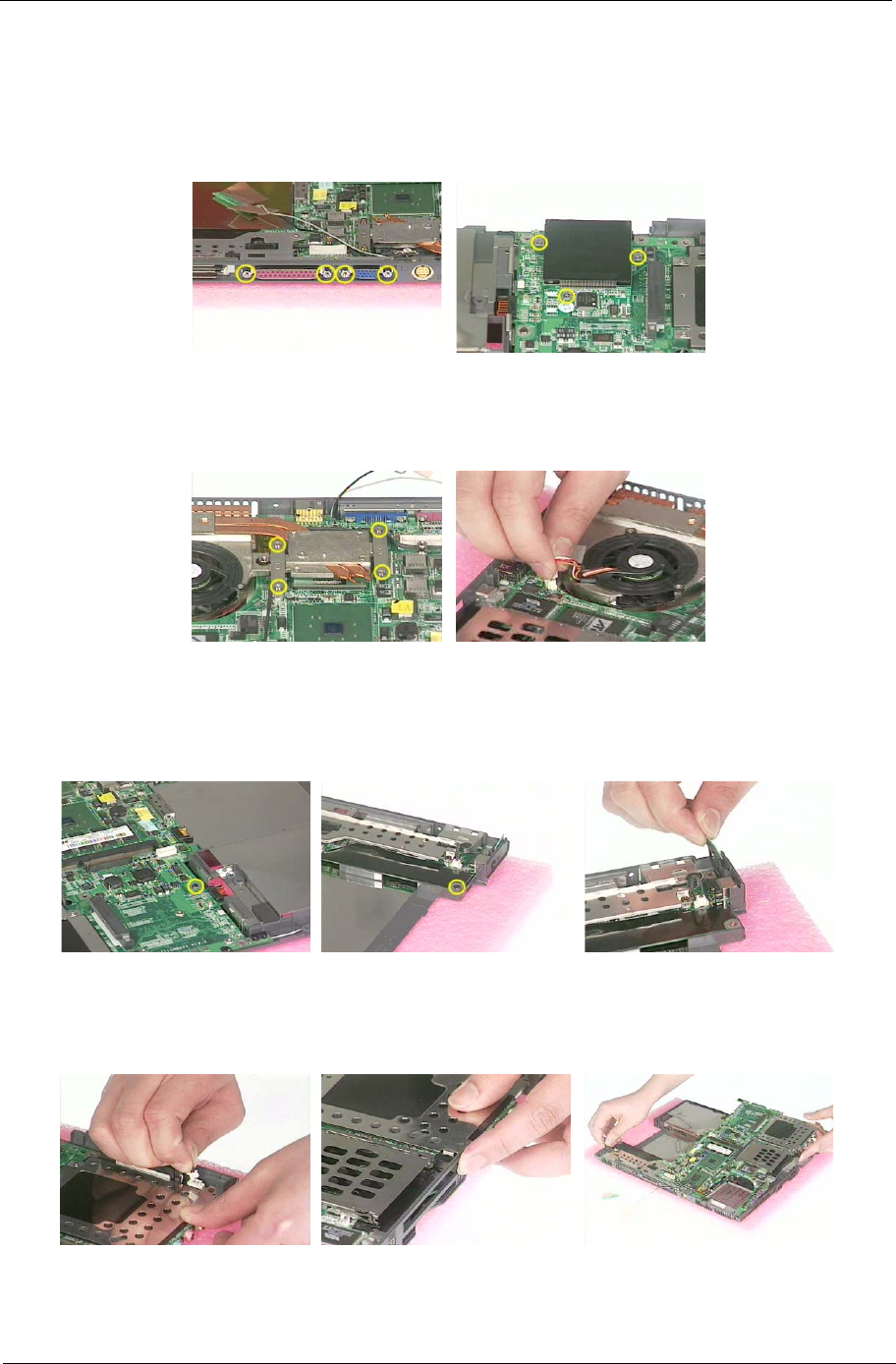

Disassembling the Main Unit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .55

Remove the function key board and the keyboard . . . . . . . . . . . . . . . . . . . . . . .55

Separate the main unit into the logic upper and the logic lower assembly . . . . .55

Disassembling the logic upper assembly . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .56

Disassembling the logic lower assembly . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .57

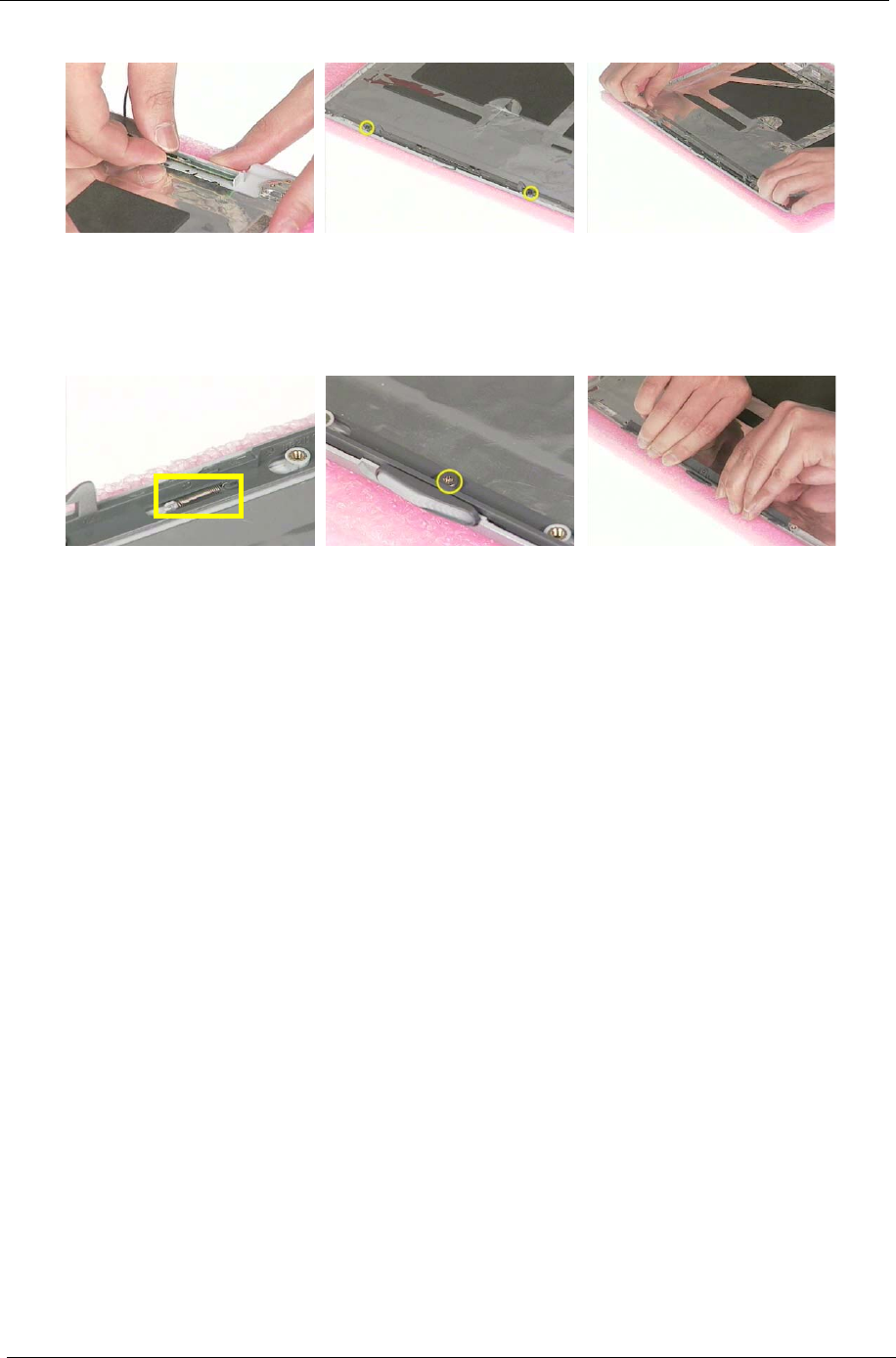

Disassembling the LCD Module . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .59

Disassembling the External Modules . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .61

Disassembling the HDD Module . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .61

VIII

Table of Contents

Disassembling the Optical Drive Module . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .61

Chpater 4 Troubleshooting 63

System Check Procedures . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .64

External Diskette Drive Check . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .64

External CD-ROM Drive Check . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .64

Keyboard or Auxiliary Input Device Check . . . . . . . . . . . . . . . . . . . . . . . . . . . . .64

Memory check . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .65

Power System Check . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .65

Touchpad check . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .66

Power-On Self-Test (POST) Error Message . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .67

Index of Error Messages . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .68

Index of Symptom-to-FRU Error Message . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .70

Intermittent Problems . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .74

Undetermined Problems . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .75

Chpater 5 Jumper and Connector Locations 77

Top View . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .77

Bottom View . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .79

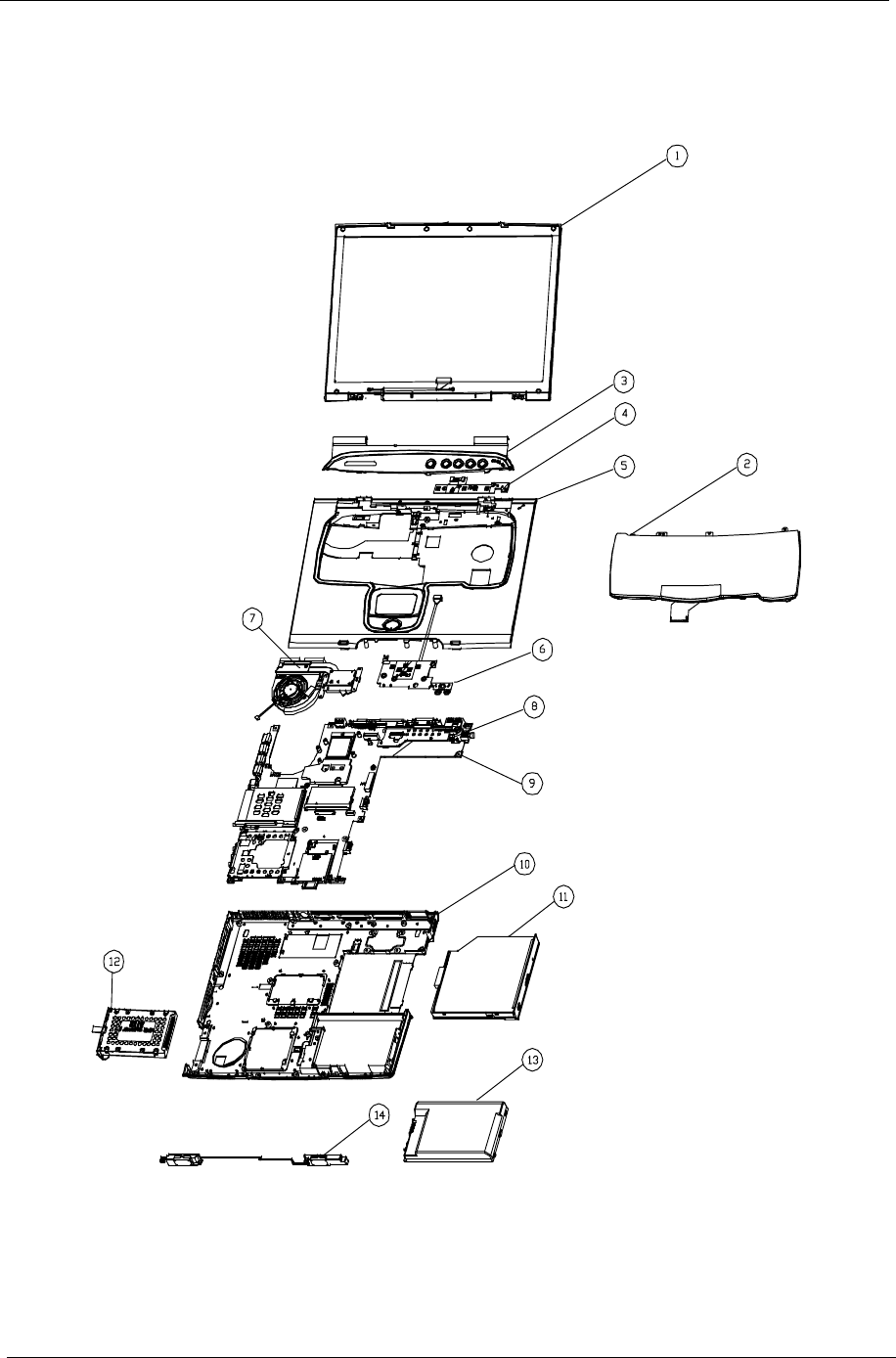

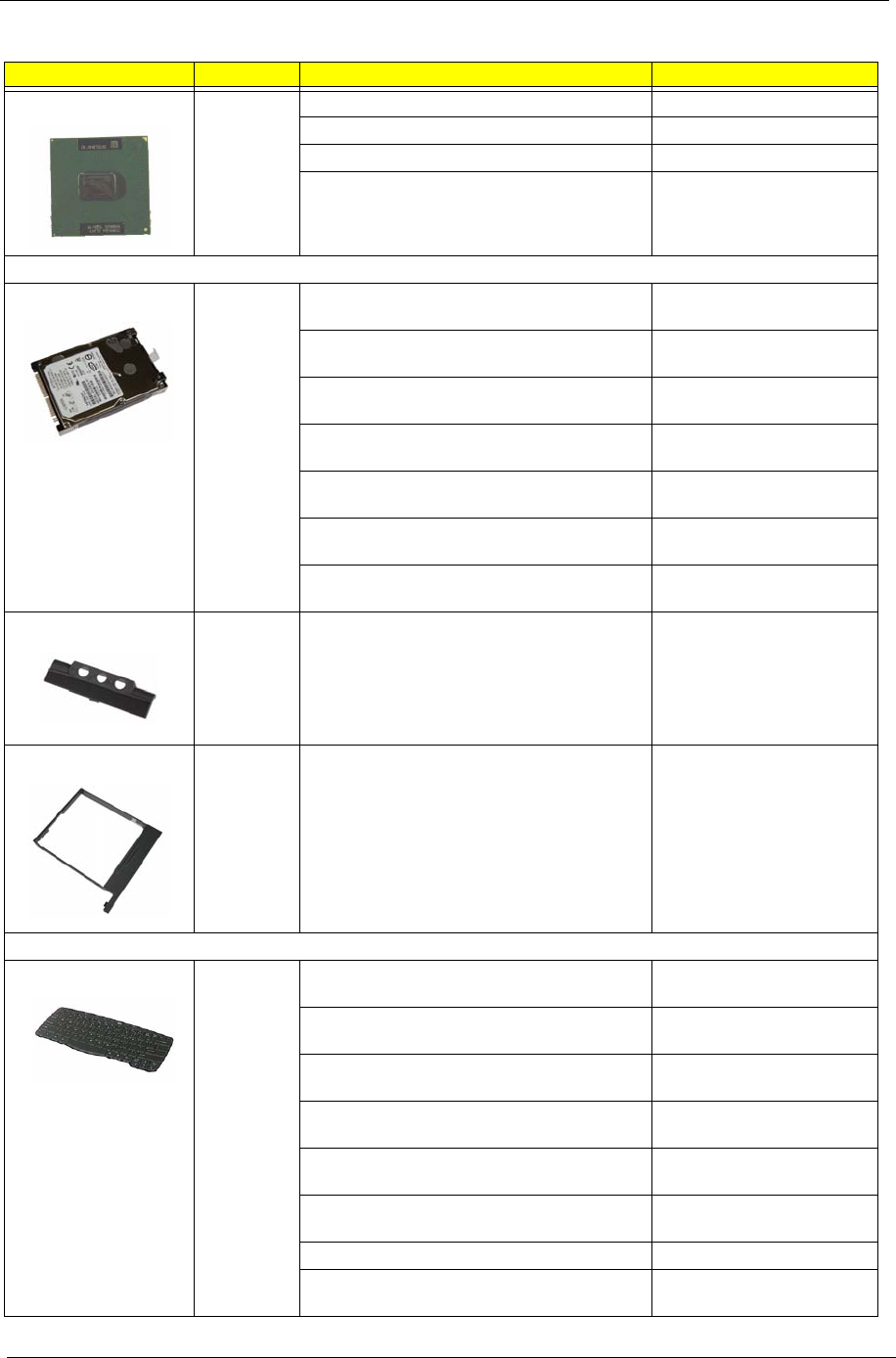

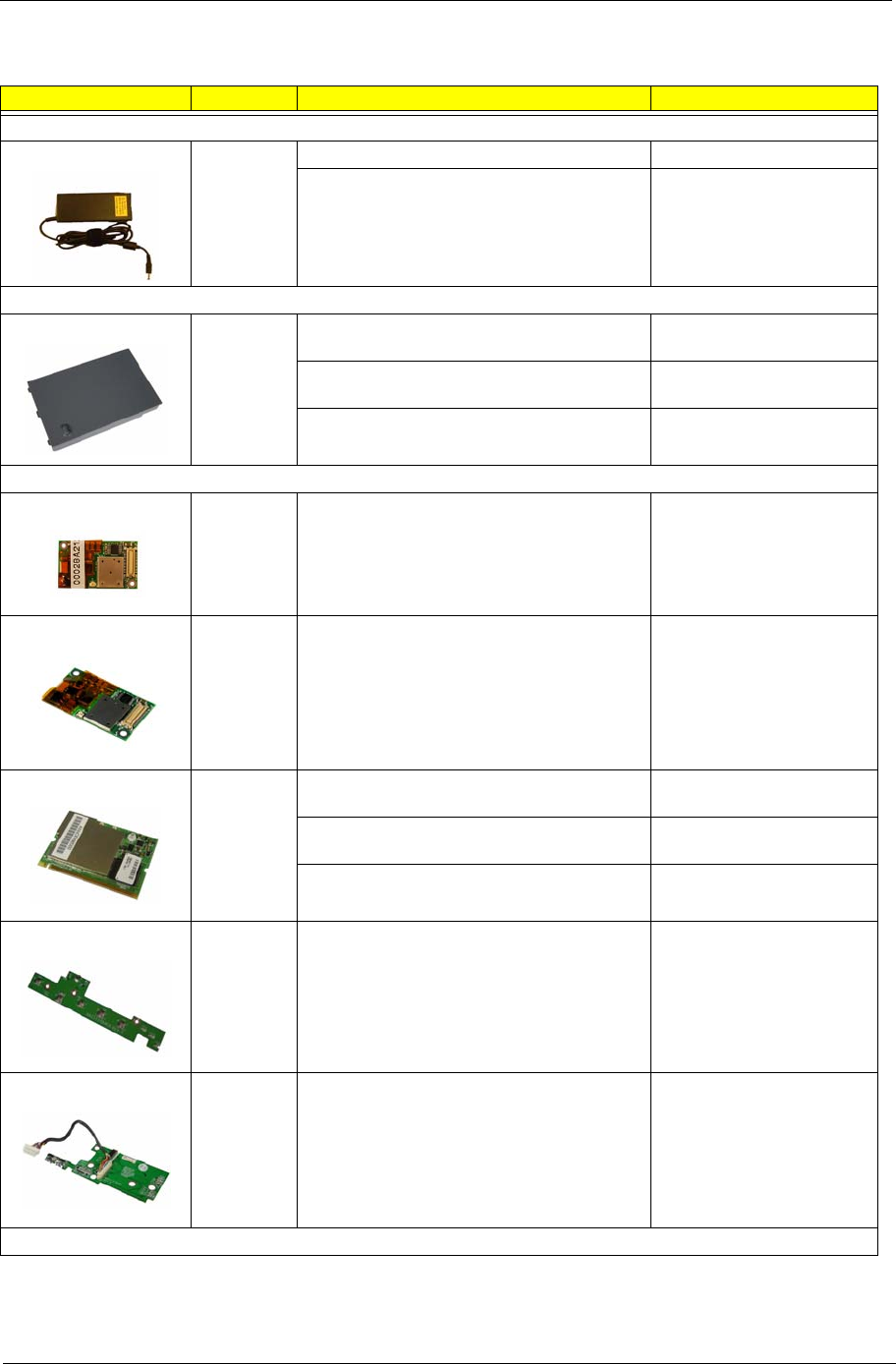

Chapter 6 FRU (Field Replaceable Unit) List 81

TravelMate 660 Series . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .92

Appendix A Model Definition and Configuration 92

Main Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .93

Appendix B Test Compatible Components 95

Microsoft® Windows® XP Pro Environment Test . . . . . . . . . . . . . . . . . . . . . . . . . . . .96

Microsoft® Windows® 2000 Environment Test . . . . . . . . . . . . . . . . . . . . . . . . . . . .100

Appendix C Online Support Information 105

Index 107

Chapter 1 1

Features

This computer was designed with the user in mind. Here are just a few of its many features:

Performance

TIntel® Pentium®M Processor at 1.3G~1.7G and higher

TMemory expandable up to 2GB with 2 slots (Only one slot for user accessible)

TInternal removable optical drive (AcerMedia bay)

THigh-capacity, Enhanced-IDE hard disk

TLi-Ion main battery pack

TPower management system with ACPI (Advanced Configuration Power Interface)

TSmart Card interface with pre-boot authentication system for added security

Display

TThin-Film Transistor (TFT) liquid-crystal display (LCD) displaying 32-bit high colour up to

1024X768 eXtended Graphics Array (XGA) resolution for 14.1”/15” and 1400X1050 Super

eXtended Graphics Array + (SXGA+) resolution for 15.0”(specification varies depending on the

model)

T3D capabilities

TSimultaneous display on LCD and CRT

TS-video for output to a television or display device that supports S-video input

T“Automatic LCD dim” feature that automatically decides the best settings for your display and

conserves pwer

TDual independent display

Multimedia

T16-bit high-fidelity AC’97 stereo audio

TBuilt-in dual speakers

TBuilt-in microphone

THigh-speed optical drive (AcerMedia bay)

Connectivity

THigh-speed fax/data modem port

TEthernet/Fast Ethernet port

TFast infrared wireless communication

TFour (4) USB 2.0 (Universal Serial Bus) ports

TIEEE 1394 port

TInvilink 802.11b or 802.11a/g wireless LAN (manufacturing optional)

TBluetooth ready (manufacturing optional)

TSD/MMC/SM/MS memory slot (manufacturing optional)

System Specifications

Chapter 1

2Chapter 1

Keyboard and Pointing Device

TInternet 4-way scroll button

TSleek, smooth and stylish design

TAcer FinTouch full-sized curved keyboard

TErgonomically-centered touchpad pointing device

Expansion

TOne type II CardBus PC Card slot

TUpgradeable memory

I/O Ports

TOne type II CardBus PC Card slot

TOne RJ-11 phone jack (V.90/92)

TOne RJ-45 jack (Ethernet 10/100)

TOne DC-in jack for AC adapter

TOne parallel port

TOne VGA port for external monitor

TOne speaker/headphone-out jack (3.5mm mini jack)

TOne audio line-in jack (3.5mm mini jack)

TOne microphone-in jack

TOne IEEE 1394 port

TOne S-video TV-out port

TOne 100-pin port replicator

TFour USB 2.0 ports

TOne FIR port (IrDA)

TOne Smart Card slot

T4-in-1 Card Reader (Manufacture optional)

Chapter 1 3

System Block Diagram

A A

B B

C C

D D

(Micro-FCPGA)

PG 3,4

Montara-GM

MGM

PG 5,6,7

4X100MHZ

66(266)MHZ, 1.8V

HUB I/F

CLOCKS

PG 12

Banias

DDR-SODIMM1

PG 13

VGA

Panel Connector

PG 15

732 Micro-FCBGA

266/200 MHZ DDR

ZI2 BLOCK DIAGRAM

PG 10

DDR-Termiation

PG 11

PG 14

Chrontel 7009

TV EN-CONDE

S-Video

LVDS

DVOB

SEE I/O Board PG 13

DDR-SODIMM2

PG 10

Secondary IDE - Swap Bay

PG 17

OZ711EC1

IEEE-1394

IDE BUS

BUFFER

Primary IDE

HDD

PG 8,9

PG 21

TSB43AB21

1394 CONN.

PG 17

SOCKET

33MHZ, 3.3V PCI

CARDBUS SLOT

SCR SLOT

(Optical Drive, 2ND HDD)

RJ45

ATA 66/100

MINI-PCI

ICH4-M

4-IN-1 SLOT PG 16

PG 18

421 BGA

USB 2.0

PG 20

PG 28

LED/B

Connector

CARDBUS

PG 20

RJ11

PG 17

PG 18

CONNECTOR

PG 21

SIO PC87391

3.3V LPC, 33MHz

PC87591

AC LINK

USB 1.1

PG 26

MDC

PG 27

100 Pins TQFP 176 Pins LQFP

HEAD PHONE

AUDIO

AMP

LINE IN

TPA0312

AC LINK

EXT. /INT.

MIC

PG 25

PG 24

AUDIO

CODEC

PG 24, 25

Touchpad

PG 29

ParallelFIR Keyboard FLASH

PG 26 PG 19

FAN 1,2

PG 26 PG 27 PG 29

1.5V/1.8V

CPU CORE

System Power

MAX1632

BATT SELECTOR

PG 31

1.25VDDR

2.5VDDR

PG 32

PG 33

PG 36

BATT CHARGER

AC/BATT

CONNECTOR

PG 34

PG 37

DC/DC

Port Replicator

PG 30

PS2 X2

1S1P

LINE-IN

LINE-OUT

MICROPHONE-IN

USB 1.1 X2

CRT

S-VIDEO

LAN

REQ#/GNT#

IDSEL

VGA

CARDBUS

IEEE 1394

MINI-PCI

LAN

USB 2.0

PIRQ#

C, (B)

E, F

BCM4401

PG 22

LAN

CENTRINO

PG 19

PG 21

USB connec*4

PG 19

CALEXICO

ZI2

Schematic Block Diagram1

137, 29, 2003

ਣཚԲ ؄ִ

Title

Size Document Number Rev

Date: Sheet of

Acer Inc.

4Chapter 1

Board Layout

Top View

1 S-Video 13 HDD connector

2 CRT 14 Keyboard connector

3 LPT 15 Touchpad board connector

4 Docking 16 IR

5 RJ45 17 Main battery connector

6 RJ11 18 Second battery connector

7 Power jack 19 Swap bay connector

8 CPU socket 20 DDR Dimm 0

9 Fan connector 21 LCD cable connector

10 USB connector 22 LED board connector

11 1394 connector 23 Internal microphone connector

12 PCMCIA

2 3 4 5 6 7

32 33 34

+++++

EB[J2TNC7E2!SFW;EEB[J2TNC7E2!SFW;EEB[J2TNC7E2!SFW;EEB[J2TNC7E2!SFW;EEB[J2TNC7E2!SFW;E

QQQQQQ

OOOOO

NNNNN

NNNNNN

25 24

27 26 :21

543

345 6

89:

22 23 24 25 26

2::

31153

:98765432

76213

214

239

23456789:

CDEF

VWX

BGBF BD

BE BCBBZXVWSUOQNMLKHIFGDEBC

211

221

239

3534

2726

25 24

232221

DO27

QS292

QS293

QBE9

QBE8

QBE7

QBE62

QBE6

QBE5:

QBE58

QBE5

QBE49

QBE3

QBE2

I56

I54

I55

TX2

I44

I24

D568

D569

DPO2

DQBE5

DQBE4

DQBE3

DQBE2

DO36

DO4:

I43

I47

I46

I52

I4:

I2:

I45

I42

I35

I23

SO3

SO6

SO7

SO2:

SO9

SO8

SO25

SO2

SO24

SO27

SO26

SO31

SO28

SO29

SO5

SO4

SO22

SO23

SO21

SO:

QV22

DO21

I34

I22

I31

I53

I29

V39

I32

I28

I33

I38

I39

I51

I41

DO26

TQ2

DO37

DO25

DO33

DO31

DO7

DO29

DO2:

QE24

QV7

QS75

QS8

QS24

QD56

QD57

QE7

QE5

QE6

QE3

QE4

E52

E51

QE23 QE22

QE8

QE9

QE21

QE:

QE2

QM9

QM4

QM8

QM22

QM5

QM2

QM3

QR7:

QR81

QR29

QR2:

QV8

QV4

QV23

D566

V3:

S8:1

S899

S898

S889

S878

S879

S87:

S4:1

S458

S4:5

S468

S471

S478

S489

S496

S4:9

S48:

S487

S491

S493

S479

S466

QV6

V37

DO24

V22

D:54

D:55

D39

D:46

D:49

D:47

D:4:

D:45

D:48

D:51

D:44

D:43

D:19

D:25

D:21

D:27

D556

D555

D434

D438

D442 D4:7

D49:

D44:

D458

D497

D473

D486

D511 D517 D522 D527

D529

D4::

D51:

D525

D4:3

D466

D456

D435

D43:

D437

D425

D426

D431

D52:

D528

D523D518D512

D4:8

D4:1

D498

D487

D474D459

D451

D443

D4:4

D4:5

D436

D42:

D41:

DB2 DB3

DB5

SQ5

SQ:

SQ21

SQ7

SQ2

V35

V2:

QV3

V38

S25

E47

DO22

V29

E35

E33

E34

DO6

DO:

DO23

DO52

DO28

DO9

D:52

D9:8

D9:9

D233

QD86

QD75

QD68

QD67

D644

D258 D259

D23:

D567

D93

D4:

D3:

D25

D53:

D432

D263

D26:

D274

D264

D215

D72

D59

D4:9

D461

D464

D549

D476

D45: D475

D478

D477

D479

D465 D47:

D462

D463

QD275

D:9

D381

D3:1

D382

QD5

QD34

QD3:

QD8

QD27

QD39

QD28

QD2:

QD33

QD29

QD41

QD31

QD32

QD21

QD26

D424

D423

D513

D514

D564

D:6:

D:62

D:61

D:64

D:57

D:53

D:56

D:58

D:59

D69

QD277

D:41

D:35

D:36

D:37

D:38

D:39

D:3:

D273

D245

D:11

D:12

D:13

QD74

D9::

QD276

D9:4

D9:7

D496

D439

D441

D515

D472

D531

D4:6

QD23

D547

D3::

D481

D483

D241

D374

D28

D279

D242

D267

D286

D375

D248

D376

D361

D54

D55

QD3

D217

D311

D23

D21:

D282 D297

D327

D262

D275

D353

D276

D294

D377

D378

D2:5

QD2

D225

D226

QD4

QD46

QD7

QD73

D53

D482

D4:2

D468

D499

D533

QD37

QD38

QD42

QD43

QD79

QD83

QD81

QD7:

QD47

QD45

QD66

QD82

QD76

QD85

QD44

QD59

QD84

QD55

QD53

QD54

QD65

QD63

QD64

QD49

QD62

QD35

QD22

QD25

QD69

QD61

QD51

QD48

QD4:

QD6

QD58

QD6:

QD71

QD72

D:3

D247

D236

D221

D239

D234

D235

D25:

D565

D::

D246

D8:

D:2

D316

D544

D545

D541

D543

D558

D557

D535

D85

D43

D76

D:4

D78

D44

D75

D79

D552

D54:

D551

D71

D546

D22

D537

D542

D3:5

D3:4

D292

D433

D3:9

D411

D534

D252

D27:

D2::

D318

D349

D322

D268

D296

D346

D312

D337

D251

D255

D256

D2:6

D34:

D315

D324

D314

D373

D358

D33:

D317

D295

D331

D29:

D2:1

D2:7

D2:8

D386

D372

D356

D328

D222

D219

D28:

D293

D66

D579

D31

D82

D68

D:1

D67

D536

D413

D561

D563

D562

D228

D271

D:7

D213

D283

D227

D237

D391 D38:

D393

D313

D2:9

D3:3

D3:7

D383

D379

D355

D3:8

D336

D354

D342

D362

D445

D448

D491

D521

D492

D422

D421

D428

D395

D347

D397

D22:

D32

D33

D254

D218

D229

D253

D3:6

D416

D364

D368

D35:

D352

D341

D329

D335

D323

D266

D298

D299

D394

D2:2 D348

D359

D272

D238

D244

D24:

D214

D211

D289

D92

D243

D291

D277

D269

D212

D392

D344

D414

D49

D42

D285

D32:

D332

D365

D388

D287

D288

D284

D343

D548

D46

D47

D48

D84

D74

D87

D88

D333

D89

D61

D5:

D64

D:5

D231

D51

D31:

D24

D249

D52

D7:

D63

D99

D9:

D83

D56

D29

D41

D77

D94

D81

D45

D95

D58

D6:

D96

D2:

D97

D98

D86

D36

D384

D2:4

D278

D257

D396

D417

D418

D419

D2:3

D484

D37:

D366

D319

D339

D325

D385

D36:

D321

D351

D334

D363

D457

D449

D469

D495

D429

D427

D369

D326

D357

D345

D367

D387

D46:

D447

D485

D455

D519

D48:

D415

D494

D452 D488

D21

D493

D489

D516

D:8

D65

D:6

D73

D453

D454

D524

D389

D371

D26

D27

D37

D38

D34

D35

QD77

QD78

QD52

D526

D446

D398

D338

D281

D223

QD:

QD9

QD::

QD211

QD36

D3:2

D261

D62

D532

D467

D412

D216

D232

D91

D57

D399

D39:

D471

DO34

R:8

R:6

QR78

R32

R93

R55

R37

E32

R54

R61

R59

R56

R49

R53

R63

R5:

R51

R47

R64

E27

QR26

QR41

QR3:

QR4

R26

R35

R33

R3:

R31

R28

R2:

R58

R22

E31

E2:

R42

R52

R4:R48

R41

R46

R62

R29

R65

E5:

E61

E58

E59

E55

S848

E53

E4:

E48

E26

E21

E24

E25

E36

E29

E28

E22

E23

M28

QS4:

QS47

QS49

QM7

QM6

QM:

QM21

S:1

M47

M25

M24

S228

S514

S539

M26

M21

M23

M22

M27

S8:2

S897

S885

S888

S884

S88:

S882

S892

S895

S883

S887

S896

S881

S893

S891

S894

QS291

QS288

QS285

S871

S872

S869

S873

S874

S876

QS281

S27

S865

S864

S854

S855

S856

S857

S858

S859

S85:

S861

S853

S862

S852

S851

S825

S826

S81:

S821

S824

QS272

QS274

S827

S828

S829

S831

S823

M79

M7:

S784

S785

S786

S798

S799

S815 S816

S813

S792

S79:

S7:1

S783

S782

S779

S773

S777

S76:

S771

S774

S769

S481

QS58

S498

S4:7

S523

S524

S51:

S517

QS:

QS9

S529

S212 S211

S94

S89

S518

S528

S526

S4:4

S4:6

S527

S4:3

S497

S49:

S65

S274

S75

S84

S488 S492

S494

S482

S392

S327

QS4

S231

S344

S383

S352

S363

S335

S324

S245

S38

S3:5

S3:4

S393

S2:7

S296

S289

S3:1

S389

S395

S3:9

S382

S394

S213

QS3

QS2

S96

S:2

S95

S:3

S219

S35

S215

S248

S242

S358

S372

S343

S314

S353

S373

S226

S4:

S42

S51

S88

S253

S278

S293

S93

S:5

S312

S223

S244

QS23

S319

S338

S337

S297

QS34

QS35

QS44

QS45

QS85

QS8:

QS77

QS83

QS33

QS43

QS88

QS86

QS91

QS76

QS73

QS74

QS78

QS89

QS82

QS92

QS94

QS84

QS93

QS7:

QS87QS81

QS79

QS46

QS36

QS39

QS26

QS48

QS29 QS27

QS31

QS57

QS64

QS41

QS25

QS2:

QS28

QS67

QS53

QS:7

QS21

QS68

QS69

QS6:

QS71

QS72

QS22

QS3:

QS37

QS65

QS7

QS42

QS32

QS6

QS5

QS38

QS56

QS55

QS63

QS52

QS66

QS59

QS51

QS54 QS61

QS62

S541

S53:

S:8

S2:

S3:

S41

S37

S31

S34

S29

S33

S28

S::

S46

S45

S:7

S:6

S256

S255

S:9

S232

S44

S72

S243

S4:2S495

S499

M29

S225

S246

S525

S42:

S367

S436

S433

S265

S235

S39:

S37:

S421

S268

S259

S249

S99

S52:

S83

S7:

S531

S332

S354

S355

S345

S334

S427

S428

S31:

S391

S263

S425

S26:

S257

S36:

S36

S:4

S464

S467

S326

S247

S287

S459

S224

S484

S241

S27:

S38:

S3:3

S384

S371

S362

S348

S357

S33:

S439

S229

S71

S67

S56

S63

S55

S57

S61

S333

S331

S264

S285

S431

S417

S222

S82

S214

S364

S28:

S453

S456

S23:

S41:

S267

S515

S519

S25:

S271

S261

S254

S217

S277

S24:

S238

S239

S218

S216

S283 S282

S291

S398

S4:8

S463

S437

S413

S419

S414

S416

S452

S435

S418

S432

S472

S473

S475

S474

S269

S98

S97

S9:

S22:

S21

S45:

S3::

S91

S92

S221

S511

S21:

S4::

S512

S513

S396

S412

S454

S2:6

S422

S449

S44:

S447

S448

S451

S442

S455

S476

S483

S46:

S486

S485

S477

S443

S426

S284

S286

S298

S446

S444

S537

S536

S366

S361

S385

S3:6S3:7

S397

S2:1

S32:

S318

S538

S53

S43

S411

S313

S323

S262

S34:

S351

S275

S381

S281

S288

S299

S522

S59

S5:

S2:5

S26

S66

S76

S69

S68

S79

S86

S8:

S553

S423S424

S81

S39

S32

S386

S74

S87

S376

S54

S48

S47

S325

S336

S346

S328

S252

S233

S273

S266

S356

S251

S2:9

S369

S236

S258

S237

S379

S279

S276

S292

S316

S388

S2:4

S441

S399

S3:8

S438

S375

S349

S342

S2:2

S2:3

S365

S359

S294

M2:

M39

M35

M3:

M36

M41

M37

M42

M38

M43

M44

M45

M46

M31

M32

M33

M34

S35:

S43:

S3:2

S415

S434

S272

S22

S23

S24

S377

S47:

S78

S49

S374

S227

S311

S321

S469

S329

S341

S445

S315

S461

S429

R:7

R25

R:5

QR74

QR75

QR76

QR71

R9:

R98

R94

R91

R27

R23

R24

QR32

QR7

QR8 QR6

QR22

QR5

QR: QR9

QR21

R45

R21

R34

R39

R38

R44

R43

R2R3

R36

QR6:

QR2

QV2

V31

QR31

QR23

QR25

QR28

QR27

QR24

QR38

QR3

QV9

QV21

QV:

R57

QS276

QS268

QS269

QS26:

S7:3

SQ23

SQ22

SQ3

SQ6

SQ4

U245

U46

U42

U38

U34

U2:

U28

U39

U36

U35

U33

U26

U5:

U61

U62

U49

U48

U47

U45

U52

U51

U63

U76

U75

U59

U25

U78

BET2

U71

U6:U69

U4:

U57

U31

U72

V25

V36

V28

V27

V34

V33

V32

V24

V23

V26

QV5

DO32

DO5 DO4 DO3 DO2

Chapter 1 5

Bottom View

1 LAN cable connector 6 RTC battery connector

2 MDC connector 7 Line-in connector

3 DDR Dimm 1 8 Microphone-in connector

4 Smart card connector 9 Headphone out connector

5 Mini PCI connector 10 LAN cable connector

HHHHH

DDDDD

GGGGG

7272

2::

311

211

21 2

9: 243

244

287 541

25 31

DO49

DO39

DO38

QBE63

QBE:

QBE61

QBE59

QBE57

QBE56

QBE55

QBE54

QBE53

QBE52

QBE51

QBE4:

QBE48

QBE47

QBE46

QBE45

QBE44

QBE43

QBE42

QBE41

QBE4

QBE3:

QBE39 QBE38

QBE37

QBE36

QBE35

QBE34

QBE33

QBE32

QBE31

QBE2:

QBE29

QBE28

QBE27

QBE26

QBE25

QBE24

QBE23

QBE22

QBE21

TX3

I27

I25

I48

I49

TQ3

DO48

QR33

DO46

DO3:

DO51

DO41

QR69

QR63

QR65

QR46

QR55

QS262

QD232

QD233

QE2:

QE28

QE29

QE25

QE36

QE37

QE27

QM25

QR62

QR59

R71

R72

V42

S89:

S71:

S687

S689

S637

S641

S65:

S662

S691

S699

S6:4

S711

DO42

DO43

D:1:

D:26

D:22

D:23

D:24

D:28

D:29

D:2:

D:31

D:32

D994

D993

D992

D991

D98:

D987

D986

D985

D984

D983

D982

D981

D979 D976

D921

D731

D745

D766

D77:

D7:3

D823

D852

D868 D711

D6:9

D919

D729 D716

D794

D813

D827

D862

D891 D871

D8:1

D914

D91:

D89:

D913

D732

D721

D746

D767

D781

D7:6

D824

D853

D869

D885

D71:

D715

D776

D795

D814

D828

D863D872D892

D918

D926

D717

D722

D72:

D751

D8:2

D915 D6::

D884

D899

D912

D798

D771

D858

D777

D727

D723

D724

D719

D778

D78:

D742

D838

D832

D763

D799

D759

D754

D726

D725

D812D7:9

D733

D743

D755

D765

D728

D834

D789

D851

D76:

D762

D744

D74:

D757

D768

D773

D774

D764

D265 D224

D775

D819

SQ24

V57

V4:

V52

QV25

V41

V58

M52

M51

M4: M49

R87

D583

D571

D573

D572

CU2

D:5:

D:34

D:42

D615

D598

D597

QD95

QD263

QD273

QD274

QD269

QD256

QD265

QD262

QD271

QD234

QD24:

QD226

QD251

QD252

QD:8

QD:5

QD:9

QD217

QD213

QD92

QD249

QD254

QD248

QD253

D99:

D634

D878

D611

D595

D618

D756

D696

D995

D972

D5::

D59:

D5:2

D659

D825

D749

D796

D783

D861

D769

D924

D866

D847

D797

D833

D747

D761

D75:

D748

D826

D772

D854

D6:4

D697

D879

D96:

D817

D735

D7:7

D818

D786

D8:8

D7:8

D923

QD218

QD91

QD222

QD97

D444

D791

D898

D896

D928

D897

D8:4

D:69

D:65

D:67

D:66

D:68

D:63

D625

QD279

QD27:

QD278

D591

D97:

D978

D:14

D:15

D:16

D:17

D:18

D:33

D9:6

D784

D815

D811

D836

D81:

D7::

D821

D829

D865

D785

D793

D79:

D7:1

D792

D848

D816

D859

D855

D85:

D835

D849

D856

D864

D82:

D663

D687

D686

D679

D671

D68:

D689

D646

D668

D656

D653

D655

D672

D683

D692

D693

D652

D674

D675

D665

D681

D658

D664

D673

D667

D662

D666

D63:

D685

D684

D67:

D688

D64:

D661

D651

D649

D682

D669

QD87

D639

D676

D677

D6:7

D599

D56:

QD223

QD261

QD219

QD268

QD267

QD266

QD264

QD26:

QD229

QD224

QD259

QD25:

QD242

QD255

QD237

QD:4

QD236

QD:7

QD215

QD23:

QD93

QD94

QD24

QD:6

QD214

QD221

QD228

QD:2

QD99

QD:1

QD98

QD243

QD235

QD225

QD5:

QD241

D999

D996

D997

D998

D9:2

D9:1

D9:3

D539

D989

D988

D6:6

D971

D69:

D92:

D944

D588

D631

D596

D632

D623

D612

D83:

D931

D927

D943

D932

D937

D936

D8::

D886

D874

D888

D882

D883

D881

D626

D58:

D633

D622

D61:

D616

D629

D589 D586

D627

D587

D5:1

D5:9

D592

D577

D977

D831

D8:7

D8:3

D841

D842

D843

D844

D845

D714

D974

D84:

D758

D822

D933

D837

D911

D916

D8:9

D973

D594

D593

D643

D638

D617

D636

D62:

D635

D57:

D582

D585 D581

D575

D576

D578

D584

D574

D65:

D657

D94:

D948

D945

D93:

D969

D968

D967

D966

D961

D95:

D959

D951

D965

D964

D963

D962

D934

D956

D957

D958

D5:3

D5:8

D5:6

D5:7

D641

D642

D87:

D873

D875

D877

D893

D975

D876

D955

D952

D953

D954

D699

D941

D678

D66:

D698

D895

D8:6

D867

D86:

D887

D857

D925

D922

D949

D929

D939

D938

D6:8

D713

D753

D779

D7:2

D839

D718

D782

D752

D917

D741

D737

D736

D8:5

D846

D7:4

D787

D788

D7:5

D738

D73:

D5:4

D5:5

D628

D624

D621

D613

D614

D739

QD257

QD258

QD245

QD272

QD244

QD247

QD238

QD239

QD:3

QD9:

QD216

QD21:

QD246

QD22:

QD231

QD88

D691

D654

D647

D637

QD96

QD89

QD227

QD8:

QD212

D935

D619

D894

D942

D645

D6:2

D6:3

D694

D6:5D6:1

D695

D946

D947

D889

D88:

D712

D734

DO45

DO44

QR82

R:3

QR77

R:1

R95 R96

R76

QE32

QR68

QR49

QR4:

QR5:

QR57

QR67

QR66

QE26

QR36

QR53

QR42

R6:

R69

R85

R86

R89

R8:

R77

R83

R75

R74

R73

R82

R79

E57

E56

E41

E54

E49

E46

QE35

QE34

QE31

QE33

E43

E42

E38

E45

E44

E39

E3:

KQ24

S794

S796

S795

S797

M63

M62

M5:

M59

QM29

QM2:

QM28

QM23

QM24

QM27

QM26

M76

M48

M73

M65M66

M58

S543

M64

M78

S724

S545

S542

S544

S886

QS28:

QS289

S877

QS284

QS286

QS287

S867

S868

S875

QS282

QS283

S866

QS27:

QS279

QS278

S863

S84:

S846

S845 S844

S843

S842

S841

S83:

S839

S838

QS271

QS273

S822

S82:

S835

S836

S819

S787

S814

S818

S793

S7:2

S788

S789

S78:

S791

S7:7

S7:8

S7:9

S7::

S817

S781

S77:

S772

S778

S766

S761

S775

QS263

QS264

S75:

S767

S776

S668

QS248

S745

S746

S6:9

S6:8

S713

S712

S717

S716

S593

S599

S5:4

S597

S618

S592

M61 S5:7

S5:3

S58:

S587

S589

S591

S588

S5:6

S5:2

S5:9

S611

S584

S585

S586

S594

QS232

QS225

QS98

QS97

S757

S756

S759

S755

S758

QS226

QS25:

QS254

QS257

QS224

QS252

QS23:

QS236

QS258

QS261

QS249

QS243

QS242

QS255

QS253

QS259

QS256

QS24:

QS251

QS223

QS22:

QS229

QS222

QS238

QS241

QS:1

QS247

QS246

QS244

QS245

QS5:

QS:3

QS:6

QS99

QS9:

QS95

QS228

QS231

QS227

QS:5

QS213

QS:4

QS217

QS221

QS239

QS233

QS237

QS234

QS96

QS235

QS:2

QS:8

S747

S748

S749

S74:

S743

S744

S581

S52

S58

S62

S64

S6:

S73

S77

S85

S751

S752

S753

S754

S582

M75

S658

S666

M77

M74

S693

S696

S739

S736

S644

S723

S721

S725

S565

S718

S6:6

S737 S684

S683

S576

S57:

S579

S578

S575

S577

S566

S555

S557

S6:5

S692

S562

S738

S556

S675

S573

S6:7

S685

S596

S661

S631

S735

S61:

S621

S619

S617

S616

S614

S615

S613

S563

S626

S627

S633

S574

S564

S558

S554

S549

S552

S548

S551

S547

S677

S64:

S69:

S695

S688

S645

S648

S655

S652

S66:

S657

S654

S647

S651

S67:

S656

S674

S665

S659

S68:

S671

S628

S54:

S546

S731

S732

S734

S733

S572

S571

S583

S559

S6:1

S567

S568

S569

S56:

S6:2

S5:8

S612

S5::

S741

S73:

S697

S72:

S624

S714

S6:3

S598

S5:5

S622

S625

S686

S727

S726

S728

S722

S635

S642

S634

S632

S643

S636

S63:

M6:

M69

M68

M67

M72

M71

M57

M55

M56

M53

M54

S623

S715

S6::

S719

S729

S742

S698

S55:

S561

S59:

S5:1

S629

S62:

S673

S676

S667

S681

S678

S663

S639

S646

S638

S672

S682

S669

S679

S694

S664

S649

S653

R99

R92

R:4

QR73

QR79

QR72

R97

QR45

QR61

QR58

QR37

QR51

QR52QR54

QR56

QR43

QR44

R7:

R81

R67

R84

R68

QV24

QR64

QV27

QR35

QR39

QR34

QR47

QR48

QV26

QV28

V55

R88

V44

V21

R78

QS277

QS267

QS275

S762

QS218

QS219

QS21:

QS212

QS::

QS216

QS214 QS211

QS:9

QS215

SO37

SO32

SO33

SO34

SO35

SO41

SO3:

SO39

SO38

SQ26

SQ28

SO36

SQ25

SQ27

U243

U217

U84

U83

U216

U:7 U:6

U::

U:8

U:1

U9:

U93

U98

U96

U94

U91

U8:

U86

U85

U:3

U99

U7:

U88

U95

U82

U81

U219

U218

U215

U74

U73

U:9

U:5

U213

U68

U66

U64

U214

U67

U65

U79

U211

U212

U77

V53

V54

V56

V47

V45

V43

V51

V48

V49

6Chapter 1

Outlook View

A general introduction of ports allow you to connect peripheral devices, as you would with a desktop PC.

Front Open View

#Icon Item Description

1 1 Display screen Also called LCD (liquid-crystal display),

displays computer output.

2 Launch keys Special keys for launching Internet

browser, E-mail program and frequently

used programs. Located at the top of the

keyboard are five buttons. They are

designated as P1, P2, P3, E-mail button

and Web browser button. P1, P2 and P3

launch user-programmable applications; E-

mail and Web browser launch E-mail and

Internet browser applications.

3 Touchpad Touch-sensitive pointing device which

functions like a computer mouse.

Turns on the computer power.

4 Click buttons (left,

center and right)

The left and right buttons function like the

left and right mouse buttons; the center

button serves as a 4-way scroll button.

5 Palmrest Comfortable support area for your hands

when you use the computer.

6 Keyboard Inputs data into your computer.

7 Status indicators LEDs (light-emitting diode) that turn on and

off to show the status of the computer, its

functions and components.

8 Microphone Internal microphone for sound recording.

9 Status indicators LEDs (light-emitting diode) that turn on and

off to show the status of the computer, its

functions and components.

Chapter 1 7

Front Panel

#Icon Item Description

1 Left Speaker Outputs sound for the left stereo speaker.

2 4-in-1 memory reader Reads cards from Smart Media, Memory

Stick, MultiMedia, and Secure Digital cards.

3 4-in-1 status indicator Displays activity of 4-in-1 memory reader.

4 Infrared port Interfaces with infrared devices (e.g., infra-

red printer, IR-aware computer).

5 Bluetooth button Starts Bluetooth functionality.

6 Bluetooth indicator Indicates that (optional) Bluetooth is

enabled.

7 InviLink button Enables or disables wireless LAN feature.

8 InviLink indicator Indicates status of wireless LAN communi-

cation

9 Latch Latch for opening and closing the laptop.

8Chapter 1

Left Panel

#Icon Item Description

1 Four (4) USB ports Connect to Universal Serial Bus devices

(e.g., USB mouse, USB camera).

2 IEEE 1394 port Connects to IEEE 1394 devices.

3 Smart Card slot Slot for Smart Card interface with pre-boot

authentication system.

4 Line-in jack Accepts audio line-in devices (e.g., audio

CD player, stereo walkman).

5 Microphone Jack Accepts input from external microphones.

6 Headphone/Speaker/

Line-out Jack

Connect to headphones or other line-out

audio devices (speakers).

7 PC Card eject button Ejects the PC Card from the slot.

8PC Card slot

Accepts one Type II 16-bit PC Card or 32-bit

CardBus PC Card.

Chapter 1 9

Right Panel

#Icon Item Description

1 AcerMedia drive Houses a removable media drive module.

2 AcerMedia indicator Lights up when the AcerMedia drive is

active.

3 Eject button Ejects the drive tray.

4 Emergency eject slot Ejects the drive tray when the computer is

turned off.

5 Power jack Connects to an AC adapter.

10 Chapter 1

Rear Panel

#Icon Item Description

1 Connects to a phone line.

2 Connect to an Ethernet 10/100-based

network.

3 Connects to I/O port replicator or EasyPort

expansion devices.

4 Parallel port Connects to a parallel device (e.g., parallel

printer).

5 Connects to a display device (e.g., external

monitor, LCD projector) and display up to

16.7 million colors and upt 1400X1050

resolution.

6 S-video Connects t a television or display device

with S-video input.

7 Security keylock Connects to a Kensington-compatible

computer security lock.

Chapter 1 11

Bottom Panel

#Icon Item Description

1 AcerMedia bay release

latch

Unlatches the AcerMedia drive for removal

or swapping.

2 AcerMedia bay Houses an AcerMedia drive module.

3 Battery bay Houses the computer’s battery pack.

4 Battery release latch Unlatches the battery to remove the battery

pack.

5 Battery lock Locks the battery in place.

6 Mini-PCI slot Slot for adding mini-PCI cards.

7 Hard disk protector Protects the hard disk from accidental

bumps and vibration.

8 Hard disk bay Houses the computer’s hard disk (secured

by a screw).

9 Memory compartment Houses the computer’s main memory.

10 Cooling fan Helps keep the computer cool.

Note: Don’t cover or obstruct the opening

of the fan.

11 Personal identification

slot

Insert a business card or similar-sized

identification card to personalize your

computer.

12 Chapter 1

Indicators

The computer has seven easy-to-read status icons below the display screen.

The status LCD displays icons that show the status of the computer and its components.

Icon Function Description

Caps lock Lights when Caps Lock is activated.

Num lock Lights when Num Lock is activated.

Media Activity Lights when the disc or AcerMedia is

activated.

Power Lights green when the power is on and

orange when the computer is in standby

mode.

Battery Lights orange when the battery is charging.

Chapter 1 13

Lock Keys

The keyboard has three lock keys which you can toggle on and off.

Lock Key Description

Caps Lock When Caps Lock is on, all alphabetic characters typed

are in uppercase.

Num lock

(Fn-F11)

When Num Lock is on, the embedded keypad is in

numeric mode. The keys function as a calculator

(complete with the arithmetic operators +, -, *, and /).

Use this mode when you need to do a lot of numeric

data entry. A better solution would be to connect an

external keypad.

Scroll lock

(Fn-F12)

When Scroll Lock is on, the screen moves one line up

or down when you press w and y respectively.

Scroll Lock does not work with some applications.

14 Chapter 1

Embedded Numeric Keypad

The embedded numeric keypad functions like a desktop numeric keypad. It is indicated by small characters

located on the upper right corner of the keycaps. To simplify the keyboard legend, cursor-control key symbols

are not printed on the keys.

Desired Access Num Lock On Num Lock Off

Number keys on embedded

keypad

Type numbers in a normal

manner.

Cursor-control keys on

embedded keypad

Hold j while using

cursor-control keys.

Hold Fn while using cursor-

control keys.

Main keyboard keys Hold Fn while typing letters

on embedded keypad.

Type the letters in a normal

manner.

Chapter 1 15

Windows Keys

The keyboard has two keys that perform Windows-specific functions.

Key Icon Description

Windows logo

key

Start button. Combinations with this key perform

shortcut functions. Below are a few examples:

+ Tab (Activates next taskbar button)

+ E (Explores My Computer)

+ F (Finds Document)

+ M (Minimizes All)

Shift + + M (Undoes Minimize All)

+ R (Displays the Run... dialog box)

Application

key

Opens a context menu (same as a right-click).

16 Chapter 1

Hot Keys

The computer uses hotkey or key combinations to access most of the computer’s controls like sreen

brightness, volume output.

To activate hot keys, press and hold the Fn key before pressing the other key in the hot key combination.

Hot Key Icon Function Description

Fn-F1 Hot key help Displays help on hot keys.

Fn-F2 System Property Displays the System Property.

Fn-F3 Power Options Display the Power Options Properties used by the

computer (function available if supported by operating

system).

See “Power management” on page 25.

Fn-F4 Sleep Puts the computer in Sleep mode.

See “Power management” on page 25.

Fn-F5 Display toggle Switches display output between the display screen,

external monitor (if connected) and both the display

screen and external monitor.

Fn-F6 Screen blank Turns the display screen backlight off to save power.

Press any key to return.

Fn-F7 Touchpad toggle Turns the internal touchpad on and off.

Fn-F8 Speaker toggle Turns the speakers on and off.

Fn-wVolume up Increases the speaker volume.

Chapter 1 17

Fn-yVolume down Decreases the speaker volume.

Fn-xBrightness up Increases the screen brightness.

Fn-zBrightness down Decreases the screen brightness

Hot Key Icon Function Description

18 Chapter 1

The Euro Symbol

If your keyboard layout is set to United States-International or United Kingdom or if you have a keyboard with a

European layout, you can type the Euro symbol on your keyboard.

NOTE: For US keyboard users: The keyboard layout is set when you first set up Windows. For the Euro

symbol to work, the keyboard layout has to be set to United States-International.

To verify the keyboard type in Windows Millennium Edition and Windows 2000, follow the steps below:

1. Click on Start, Settings, Control Panel.

2. Double-click on Keyboard.

3. Click on the Language tab.

4. Verify that keyboard layout used for En English (United States)” is set to United States-International. If not,

select and click on Properties; then select United States-International and click on OK.

5. Click on OK.

To verify the keyboard type in Windows XP, follow the steps below:

1. Click on Start, Control Panel.

2. Double-click on Regional and Language Options.

3. Click on the Language tab and click on Details.

4. Verify that the keyboard layout used for "En English (United States)" is set to United States-International.

If not, select and click on ADD; then select United States-International and click on OK.

5. Click on OK.

To type the Euro symbol:

1. Locate the Euro symbol on your keyboard.

2. Open a text editor or word processor.

3. Hold Alt Gr and press the Euro symbol.

NOTE: Some fonts and software do not support the Euro symbol. Please refer to www.microsoft.com/

typography/faq/faq12.htm for more information.

Chapter 1 19

Launch Keys

Located at the top of keyboard are five buttons. These buttons are called launch keys. They are designated as

the mail button, the web browser button and two programmable buttons (P1 and P2).

E-mail Detection

Click right button at the Launch Manager icon on the taskbar and click on E-Mail Detection. In this dialog box,

you have the option to enable disable mail checking, set the time interval for mail checking, etc. If you already

have an e-mil account, you can fill in User Name, Password and POP3 server in the dialog box. The POP3

Sever is the mail server where you get your email.

Launch Key Default application

Mail Email application

Web browser Internet browser application

P1 User-programmable

P2 User-programmable

20 Chapter 1

Aside from the email checking function, there is a mail button that is used to launch the email application. It is

located above the keyboard right below the LCD.

Chapter 1 21

Touchpad

The built-in touchpad is a pointing device that senses movement on its surface. This means the cursor

responds as you move your finger on the surface of the touchpad. The central location on the palmrest

provides optimal comfort and support.

NOTE: If you are using an external USB mouse, you can press Fn-F7 to disable the touchpad.

Touchpad Basics

The following teaches you how to use the touchpad:

TMove your finger across the touchpad to move the cursor.

TPress the left (1) and right (3) buttons located on the edge of the touchpad to do selection and

execution functions. These two buttons are similar to the left and right buttons on a mouse.

Tapping on the touchpad produces similar results.

TUse the 4-way scroll (2) button (top/bottom/left/and right) to scroll.

Function Left Button Right Button Scroll Button Tap

Execute Click twice

quickly

Tap twice (at the same

speed as double-clicking

the mouse button)

Select Click once Tap once

Drag Click and hold,

then use finger

to drag the

cursor on the

touchpad

Tap twice (at the same

speed as double-clicking

a mouse button) then hold

finger to the touchpad on

the second tap to drag the

cursor

Access context

Click once

22 Chapter 1

NOTE: Keep your fingers dry and clean when using the touchpad. Also keep the touchpad dry and clean. The

touchpad is sensitive to finger movements. Hence, the lighter the touch, the better the response.

Tapping too hard will not increase the touchpad’s responsiveness.

Scroll Click and hold

the button in the

desired

direction (up/

down/left/right)

Function Left Button Right Button Scroll Button Tap

Chapter 1 23

Hardware Specifications and Configurations

Processor

Item Specification

CPU type Intel Mobile Pentium M 1.3G ~1.7G and higher

CPU package / -FCPGA package

CPU core voltage 1.468V (Full speed)

BIOS

Item Specification

BIOS vendor Phoenix

BIOS Version 3A01

BIOS ROM type Flash ROM

BIOS ROM size 512KB

BIOS package PLCC

Supported protocols ACPI 1.0b,PC Card 95, SM BIOS 2.3, EPP/IEEE 1284, ECP/IEEE 1284

1.7 & 1.9, PCI 2.2, PnP 1.0a, DMI 2.0, PS/2 keyboard and mouse, USB

2.0, VGA BIOS, CD-ROM bootable, IEEE 1394

BIOS password control Set by setup manual

Second Level Cache

Item Specification

Cache controller Built-in CPU

Cache size 1024KB

1st level cache control Always enabled

2st level cache control Always enabled

Cache scheme control Fixed in write-back

System Memory

Item Specification

Memory controller Intel 855GM built-in

Memory size 0MB (no on-board memory)

DIMM socket number 2 sockets

Supports memory size per socket 256MB, 512MB and 1G

Supports maximum memory size 2G (by two 1024MB DDR RAM module)

Supports DIMM type DDR RAM

Supports DIMM Speed 266 MHz

Supports DIMM voltage 2.5V

Supports DIMM package 200-pin soDIMM

Memory module combinations You can install memory modules in any combinations as long as they

match the above specifications.

24 Chapter 1

NOTE: Above table lists some system memory configurations. You may combine DIMMs with various

capacities to form other combinations. On above table, the configuration of slot 1 and slot 2 could be

reversed.

Memory Combinations

Slot 1 Slot 2 Total Memory

0MB 256MB 256MB

0MB 512MB 512MB

0MB 1024MB 1024MB

256MB 0MB 256MB

256MB 256MB 512MB

256MB 512MB 768MB

256MB 1024MB 1280MB

512MB 0MB 512MB

512MB 256MB 768MB

512MB 512MB 1024MB

512MB 1024MB 1536MB

1024MB 0MB 1024MB

1024MB 256MB 1280MB

1024MB 512MB 1536MB

1024MB 1024MB 2G

LAN Interface

Item Specification

Chipset BroadCom 4401

Supports LAN protocol 10/100 Mbps

LAN connector type RJ45

LAN connector location Rear panel

Modem Interface

Item Specification

Data modem data baud rate (bps) 56K

Supports modem protocol V.90/V92 MDC

Modem connector type RJ11

Modem connector location Rear panel

Bluetooth-MODEM Interface

Item Specification

Chipset CSR BC02 (Blue-tooth)/Agere Scorpio I (MODEM)

Data throughput 200k bps (Blue-tooth)/56K bps (MODEM)

Protocol Blue-tooth 1.1

Interface USB 1.1+MDC

Connector type RJ11 (MODEM)

Wireless Module 802.11b (optional device)

Item Specification

Chipset Intel CALEXICO

Data throughput 11M bps

Chapter 1 25

Protocol 802.11b

Interface Mini-PCI type III

Wireless Module 802.11a/g (optional device)

Item Specification

Chipset Atheros

Data throughput 11M~54M bps

Protocol 802.11 a+g

Interface Mini_PCI type III

Four-in-One Card Reader

Item Specification

Chipset ICH4-M

Data throughput USB 1.1

Protocol SMC, MS, MMC, and SD

Hard Disk Drive Interface

Item Specification

Vendor &

Model Name

FUJITSU HORNET

16L MHS2030AT

TOSHIBA NEPTUNE

MK3021GAS

FUJITSU HORNET

16L MHS2040AT

TOSHIBA NEPTUNE

MK4021GAS

FUJITSU HORNET

16L MHS2060AT

TOSHIBA NEPTUNE

MK6021GAS

TOSHIBA TRITON

MK6022GAX

Capacity (GB) 30 40 60 60

Bytes per

sector

512 512 512 512

Data heads 2 3 4 4

Drive Format

Disks 1 2 2 2

Spindle speed

(RPM)

4200 RPM 4200 RPM 4200 RPM 5400 RPM

Performance Specifications

Buffer size 2048KB 2048KB 2048KB 16,384KB

Interface ATA-6 for FUJITSU

16L MHS series

ATA-5 for TOSHIBA

MK series

ATA-6 for FUJITSU

16L MHS series

ATA-5 for TOSHIBA

MK series

ATA-6 for FUJITSU

16L MHS series

ATA-5 for TOSHIBA

MK series

ATA-5

Max. media

transfer rate

(disk-buffer,

Mbytes/s)

317 317 317

Data transfer

rate

(host~buffer,

Mbytes/s)

100 MB/Sec.

Ultra DMA mode-5

100 MB/Sec.

Ultra DMA mode-5

100 MB/Sec.

Ultra DMA mode-5

100 MB/Sec.

Ultra DMA mode-5

DC Power Requirements

Voltage

tolerance

5V(DC) +/- 5% 5V(DC) +/- 5% 5V(DC) +/- 5% 5V(DC) +/- 5%

Wireless Module 802.11b (optional device)

Item Specification

26 Chapter 1

Speakers

Item Specification

Number of speaker 2

Rating 1W, max; 4 ohm

Connector type Headphone out, microphone in and line-in

DVD-ROM Interface

Item Specification

Vendor & model name CD-ROM MODULE 24X QSI SCR-242-S

DVD-ROM MODULE 8X QSI SDR-083

DVD/CDRW COMBO MODULE 24X QSI SBW-242

Performance Specification With CD Diskette With DVD Diskette

Transfer rate (KB/sec) Sustained:

Max 3.6Mbytes/sec

Sustained:

Max 10.8Mbytes/sec

Data Buffer Capacity 128 KBytes

Interface IDE/ATAPI

Applicable disc format DVD: DVD-ROM (DVD-5, DVD-9, DVD-10, DVD-18),DVD-R,

DVD-RW, DVD+R, DVD+RW, (new added items) DVD-RAM

(optional)

CD: CD-DA, CD-ROM, CD-ROM/XA, Karaoke CD, video CD,

Multi-session photo CD, Enhanced CD, i-trax CD, CD extra,

CD-Plus, CD-Text, CD-R and CD-RW Discs compliant

Loading mechanism Load: Manual

Release: (a) Electrical Release (Release Button)

(b) Release by ATAPI command

Power Requirement

Input Voltage 5 V +/- 5 % (Operating)

Video Interface

Item Specification

Chipset Montara-GM

Interface Integration

Supports ZV (Zoomed Video) port No

Maximum resolution LCD 1600X1200 (UXGA)

Maximum resolution CRT 2048X1536@75HZ

Audio Interface

Item Specification

Audio Controller ICH4-M

Audio onboard or optional Built-in

Mono or Stereo Stereo

Resolution 20 bit stereo Digital to analog

converter

18 bit stereo Analog to Ditial

converter

Compatibility AC97

Mixed sound source Line-in, CD

Voice channel 8/16-bit, mono/stereo

Chapter 1 27

Sampling rate 44,1 KHz (48K byte for AC97

interface)

Internal microphone Yes

Internal speaker / Quantity Yes/2

Supports PnP IRQ IRQ10

Video Resolutions Mode (for both LCD and CRT)

Resolution 16 bits

(High color)

32 bits

(True color)

480x600 Yes Yes

800x600 Yes Yes

1024x768 Yes Yes

1152x864 Yes Yes

1280x1024 Yes Yes

1400x1050

(SXGA+panel only)

Yes Yes

Video Memory

Item Specification

Chipset UMA-System memory

Memory size Default 16M(Adjust)

Interface DDR

Parallel Port

Item Specification

Parallel port controller SIO PC87391

Number of parallel port 1

Location Rear side

Connector type 25-pin D-SUB

Parallel port function control Enable/Disable/Auto (BIOS or operating system chooses

configuration) by BIOS Setup

Note: Depending on your operating system, disabling an unused

device may help free system resources for other devices.

Supports ECP/EPP/Bi-directional/Output only

(PS/2 compatible)

Yes (set by BIOS setup)

Note: When Mode is selected as EPP mode, “3BCh” will not be

available.

Optional ECP DMA channel (in BIOS Setup) DMA channel 3

Optional parallel port I/O address (in BIOS

Setup)

378h, 278h, 3BCH

Optional parallel port IRQ (in BIOS Setup) IRQ7, IRQ5

USB Port

Item Specification

Chipset ICH4-M

USB Compliancy Level 2.0

Audio Interface

Item Specification

28 Chapter 1

OHCI USB 2.0

Number of USB port 4

Location Rear side

Serial port function control Enable/Disable by BIOS Setup

IEEE 1394 Port

Item Specification

Chipset TI 43AB21

InterfaceUSB Compliancy Level IEEE 1394 1.0

Number of IEEE 1394 port 1

Location Left side

Connector type IEEE 1394

PCMCIA Port

Item Specification

PCMCIA controller O2 Micro OZ711EC1

Supports card type Type-II

Number of slots One type-II

Access location Right panel

Supports ZV (Zoomed Video) port No ZV support

Supports 32 bit CardBus Yes (IRQ10)

Smart Card Reader

Item Specification

Chipset PCMCIA chip built-in

Number of slot 1

Location Front side

System Board Major Chips

Item Controller

Core logic Intel Petium M (Montara-GM) +ICH4-M

VGA Montara-GM

LAN BroadCom 4401

IEEE 1394 TI 43AB21

USB 2.0 ICH4-M

Super I/O controller NS 87391

MODEM Agere Scorpio I

Blue tooth CSR BC02

Wireless 802.11 b Intel-CALEXIO

Wireless 802.11 a/g Atheros

PCMCIA O2 Micro OZ7111EC1

Smart card reader O2 Micro OZ7111EC1

Audio RealTek ALC202

USB Port

Item Specification

Chapter 1 29

Four-in-one card reader ST7265

Touchpad PC87591

Keyboard

Item Specification

Keyboard controller PC87591

Keyboard vendor & model name DARFON

Total number of keypads 84/85 key

Windows logo key Yes

Internal & external keyboard work

simultaneously

Note: Internal and external keyboard can not work

simultaneously by software specification.

Battery

Item Specification

Vendor & model name Main battery:

SANYO(4UR1865

0F-2-QC-ZG1)

Main battery:

SIMPLO(ZG14S2

Aux battery:

SANYO(3UF1034

50P-2-QC-20

Battery Type Li-ion Li-ion Li-ion

Pack capacity 4400 Ah 4400 Ah 3600 Ah

Cell voltage 3.7V/cell 3.7V/cell 3.7V/cell

Number of battery cell 8 8 6

Package configuration 4 cells in series, 2

series in parallel

4 cells in series, 2

series in parallel

3 cells in series, 2

series in parallel

Package voltage 14.8V 14.8V 11.1V

LCD

Item Specification

Vendor & model

name

QDI QD141X1LH12

LG LP141X13-C1M1

AU B141XG05

AU B150XG01 V2

CPT CLAA150XH01

LG LP150X05-A2C1

AU B150PG01

LG LP150E02

Hitachi TX38D91VC1FAB

CPT CLAA150PA01

Mechanical Specifications

LCD display area

(diagonal, inch)

14.1 15.0 15.0

Display technology TFT TFT TFT

Resolution XGA (1024x768) XGA (1024x768) SXGA+ (1400x1050)

Supports colors 262K 262K 262K

Optical Specification

Brightness control keyboard hotkey keyboard hotkey keyboard hotkey

Contrast control No No No

Electrical Specification

Supply voltage for

LCD display (V)

3.3 3.3 3.3

System Board Major Chips

Item Controller

30 Chapter 1

LCD Inverter

Item Specification

Vendor & model name Ambit

Brightness conditions Vadj=3.3V

Input voltage (V) 14.4

Input current (mA) 410 (max)

Output voltage (V, rms) 1400 (no load)

Output current (mA, rms) 5.6~5.4

Output voltage frequency (k Hz) 55~58K Hz

AC Adaptor

Item Specification

Model number Lite-On PA-1750-02CA (PFC), 3pins

Delta ADP-75FB BA (PFC), 3pins

Input rating 90VAC to 264VAC, 47Hz to 63Hz

Output rating 75W, 19V (18.8V, min to 20V, max), 4A (0A, min to 4A, max)

System Power Management

ACPI mode Power Management

Mech. Off (G3) All devices in the system are turned off completely.

Soft Off (G2/S5) OS initiated shutdown. All devices in the system are turned off

completely.

Working (G0/S0) Individual devices such as the CPU and hard disk may be power

managed in this state.

Suspend to RAM (S3) CPU set power down

VGA Suspend

PCMCIA Suspend

Audio Power Down

Hard Disk Power Down

CD-ROM Power Down

Super I/O Low Power mode

Save to Disk (S4) Also called Hibernate state. System saves all system states and

data onto the disk prior to power off the whole system.

Memory Address Map

Memory Address Size Function

00100000h-000F0000h 512 KB System BIOS

000CFFFFh-000C0000h VGA BIOS

00009FFFFh-00000000h 640KB Conventional memory

I/O Address Map

I/O Address Function

000-00F DMA controller-1

020-021 Interrupt controller-1

040-043 Timer 1

060, 064 Keyboard controller 87591 chip select

Chapter 1 31

061 System speaker

000-00F DMA controller-1

020-021 Interrupt controller-1

040-043 Timer 1

060, 064 Keyboard controller PC87591 chip select

070-073 Real-time clock and CMOS

0A0-0A1 Interrupt controller-2

0C0-0DF DMA controller-2

066, 062 ACPI EC interface (NS87591)

170-177 Secondary IDE channel

1F0-1F7 Primary IDE channel

378, 37F Parallel port

3B0-3BB

3C0-3DF

VGA I/O adress

CF8-CFF PCI configuration register

000-00F DMA controller-1

IRQ Assignment Map

Interrupt Channel Function(Hardware)

IRQ00 System timer

IRQ01 Keyboard

IRQ02 Programmable interrupt controller

IRQ03 IrDA Fast Infrared Port

IRQ04 Communication port (COM1)

IRQ05 OSMicro SmartCardBus Reader

IRQ06 Standard floppy disk controller

IRQ07 ECP printer port (LPT1)

IRQ08 CMOS/RTC

IRQ09 SCI IRQ used by ACPI bus

IRQ12 PS/2 mouse

IRQ13 Numeric data processor

IRQ14 Primary IDE channel

IRQ15 Secondary IDE channel

DMA Channel Assignment

Item Specification

Channel 1 IrDA Fast Infrared Port

Channel 3 ECP printer port

Channel 4 DMA controller

I/O Address Map

I/O Address Function

32 Chapter 1

Chapter 2 33

BIOS Setup Utility

The BIOS Setup Utility is a hardware configuration program built into your computer’s BIOS (Basic Input/

Output System).

Your computer is already properly configured and optimized, and you do not need to run this utility. However, if

you encounter configuration problems, you may need to run Setup. Please also refer to Chapter 4

Troubleshooting when problem arises.

To activate the BIOS Utility, press m during POST (when “Press <F2> to enter Setup” message is prompted

on the bottom of screen).

Press m to enter setup. Press <F12> during POST to enter multi-boot menu. In this menu, user can change

boot device without entering BIOS SETUP Utility.

System Utilities

Chapter 2

34 Chapter 2

Navigating the BIOS Utility

There are six menu options: Info., Main, System Devices, Security, Boot, and Exit.

Follow these instructions:

TTo choose a menu, use the cursor left/right keys (zx).

TTo choose a parameter, use the cursor up/down keys ( wy).

TTo change the value of a parameter, press por q.

TA plus sign (+) indicates the item has sub-items. Press e to expand this item.

TPress ^ while you are in any of the menu options to go to the Exit menu.

TIn any menu, you can load default settings by pressing t. You can also press u to save any

changes made and exit the BIOS Setup Utility.

NOTE: You can change the value of a parameter if it is enclosed in square brackets. Navigation keys for a

particular menu are shown on the bottom of the screen. Help for parameters are found in the Item

Specific Help part of the screen. Read this carefully when making changes to parameter values.

This menu provides you the information of the system.

Chapter 2 35

Info.

Parameter Description

Floppy Disk Drive Shows floppy drive type informaiton.

Serial Number This field displays the serial number of this unit.

UUID Number UUID=32bytes

36 Chapter 2

Main

The Main screen displays a summary of your computer hardware information, and also includes basic setup

parameters. It allows the user to specify standard IBM PC AT system parameters.

NOTE: The screen above is for reference only. Actual values may differ.

Chapter 2 37

The table below describes the parameters in this screen. Settings in boldface are the default and suggested

parameter settings.

NOTE: The sub-items under each device will not be shown if the device control is set to disable or auto. This is

because the user is not allowed to control the settings in these cases.

Parameter Description Format/Option

System Time Sets the system time. Format: HH:MM:SS

(hour:minute:second) System Time

System Date Sets the system date. Format MM/DD/YYYY (month/day/

year)

System Date

System Memory This field reports the memory size of the system.

Memory size is fixed to 640MB

Extended Memory This field reports the memory size of the

extended memory in the system.

Extended Memory size=Total memory size-1MB

Video Memory Shows the VGA memory size. The default value

is set to 16MB

Option:16/32MB

Quiet Boot Determines if Customer Logo will be displayed or

not; shows Summary Screen is disabled or

enabled.

Enabled: Customer Logo is displayed, and

Summary Screen is disabled.

Disabled: Customer Logo is not displayed, and

Summary Screen is enabled.

Option: Enabled or Disabled

Power on display Auto: During power process, the system will

detect if any display device is connected on

external video port. If any external display device

is connected, the power on display will be in CRT

(or projector) only mode. Otherwise it will be in

LCD only mode.

Both: Simultaneously enable both the integrated

LCD screen and the system’s external video port

(for an external CRT or projector).

Option: Auto or Both

LCD Auto Dim Determines if the system will automatically dim

the LCD brightness in order to save power when

AC is not present.

Option: Enabled or Disabled

38 Chapter 2

System Devices

The Advanced menu screen contains parameters involving your hardware devices. It also provides advanced

settings of the system.

The table below describes the parameters in the screen. Settings in boldface are the default and suggested

parameter settings.

Parameter Description Options

Serial Port Enables, disables or auto detects the serial port. Enabled/Disabled/Auto

Parallel Port Enables, disables or auto detects the parallel port. Enabled/Disabled/Auto

Mode Sets the operation mode of the parallel port. ECP, EPP, Output only or Bi-

directional

Base I/O address Sets the I/O address of the parallel port. This

parameter is enabled only if Mode is set to ECP or

Bi-directional. This parameter is enabled only if

Mode is set to ECP.

378/278/3BC

Interrupt Sets the interrupt request of the parallel port. IRQ7/IRQ5

DMA channel Sets a DMA channel for the printer to operate in

ECP mode. This parameter is enabled only if Mode

is set to ECP.

DMA3/DMA1

Internal Touchpad Determines whether or not to disable the internal

pointing device as the PS/2 mouse is connected.

Both or Auto

Infrared Port (FIR) Enables, disables or auto detects the infrared port. Disabled/EnabledDisabled/Auto

Chapter 2 39

Security

The Security screen contains parameters that help safeguard and protect your computer from unauthorized

use.

40 Chapter 2

The table below describes the parameters in this screen. Settings in boldface are the default and suggested

parameter settings.

NOTE: When you are prompted to enter a password, you have three tries before the system halts. Don’t forget

your password. If you forget your password, you may have to return your notebook computer to your

dealer to reset it.

Setting a Password

Follow these steps as you set the user or the supervisor password:

1. Use the w andy keys to highlight the Set Supervisor Password parameter and press the e key. The

Set Supervisor Password box appears:

2. Type a password in the “Enter New Password” field. The password length can not exceeds 8

alphanumeric characters (A-Z, a-z, 0-9, not case sensitive). Retype the password in the “Confirm New

Password” field.

IMPORTANT:Be very careful when typing your password because the characters do not appear on the screen.

3. Press e.

After setting the password, the computer sets the User Password parameter to “Set”.

4. If desired, you can opt to enable the Password on boot parameter.

5. When you are done, press u to save the changes and exit the BIOS Setup Utility.

Parameter Description Option

User Password is Shows the setting of the uer password. Clear or Set

Supervisor Password is Shows the setting of the Supervisor password Clear or Set

Set User Password Press Enter to set the user password. When

set, this password protects the BIOS Setup

Utility from unauthorized access.

Set Supervisor Password Press Enter to set the supervisor password.

When set, this password protects the BIOS

Setup Utility from unauthorized access.

Primary Harddisk Security This feature is available to user when

Supervisor password is set. Password can be

written on HDD only when Supervisor

password or user password is set and

password on HDD is set to enabled.

Supervisor Password is written to HDD only

when Supervisor password is being set. User

password is written to HDD when both

passwords are set. When both Supervisor and

user password are present, both passwords

can unlock the HDD.

Disabled or Enabled

Password on Boot Defines whether a password is required or not

while the events defined in this group

happened. The following sub-options are all

requires the Supervisor password for changes

and should be grayed out if the user password

was used to enter setup.

Disabled or Enabled

Chapter 2 41

Removing a Password

Follow these steps:

1. Use the w and y keys to highlight the Set Supervisor Password parameter and press the e key. The

Set Password box appears:

2. Type the current password in the Enter Current Password field and press e.

3. Press e twice without typing anything in the Enter New Password and Confirm New Password fields.

The computer then sets the Supervisor Password parameter to “Clear”.

4. When you have changed the settings, press u to save the changes and exit the BIOS Setup Utility.

Changing a Password

1. Use the w and y keys to highlight the Set Supervisor Password parameter and press the e key. The

Set Password box appears:

2. Type the current password in the Enter Current Password field and press e.

3. Type a password in the Enter New Password field. Retype the password in the Confirm New Password

field.

4. Press e. After setting the password, the computer sets the User Password parameter to “Set”.

5. If desired, you can enable the Password on boot parameter.

6. When you are done, press u to save the changes and exit the BIOS Setup Utility.

If the verification is OK, the screen will display as following.

The password setting is complete after the user presses u.

42 Chapter 2

If the current password entered does not match the actual current password, the screen will show you the

Setup Warning.

If the new password and confirm new password strings do not match, the screen will display the following

message.

Chapter 2 43

Boot

This menu allows the user to decide the order of boot devices to load the operating system. Bootable devices

includes the distette drive in module bay, the onboard hard disk drive and the CD-ROM in module bay.

44 Chapter 2

Exit

The Exit screen contains parameters that help safeguard and protect your computer from unauthorized use.

The table below describes the parameters in this screen.

Parameter Description

Exit Saving Changes Exit System Setup and save your changes to CMOS.

Exit Discarding Changes Exit utility without saving setup data to CMOS.

Load Setup Default Load default values for all SETUP item.

Discard Changes Load previous values from CMOS for all SETUP items.

Save Changes Save Setup Data to CMOS.

Chapter 2 45

BIOS Flash Utility

The BIOS flash memory update is required for the following conditions:

TNew versions of system programs

TNew features or options

TRestore a BIOS when it becomes corrupted.

Use the Phlash utility to update the system BIOS flash ROM.

NOTE: If you do not have a crisis recovery diskette at hand, then you should create a Crisis Recovery

Diskette before you use the Phlash utility.

NOTE: Do not install memory-related drivers (XMS, EMS, DPMI) when you use the Phlash.

NOTE: Please use the AC adaptor power supply when you run the Phlash utility. If the battery pack does not

contain enough power to finish BIOS flash, you may not boot the system because the BIOS is not

completely loaded.

Fellow the steps below to run the Phlash.

1. Prepare a bootable diskette.

2. Copy the Phlash utilities to the bootable diskette.

3. Then boot the system from the bootable diskette. The Phlash utility has auto-execution function.

46 Chapter 2

Chapter 3 47

This chapter contains step-by-step procedures on how to disassemble the notebook computer for

maintenance and troubleshooting.

To disassemble the computer, you need the following tools:

TWrist grounding strap and conductive mat for preventing electrostatic discharge

TSmall Philips screw driver

TPhilips screw driver

TFlat head screwdriver

TPlastic flat head screw driver

THex screw driver

TTweezers

NOTE: The screws for the different components vary in size. During the disassembly process, group the

screws with the corresponding components to avoid mismatch when putting back the components.

When you remove the stripe cover, please be careful not to scrape the cover.

Chapter 3

Machine Disassembly and Replacement

48 Chapter 3

General Information

Before You Begin

Before proceeding with the disassembly procedure, make sure that you do the following:

1. Turn off the power to the system and all peripherals.

2. Unplug the AC adapter and all power and signal cables from the system.

3. Remove the battery pack.

NOTE: TravelMate 660 series product uses mylar or tape to fasten the FFC/FPC/connectors/cable, you may

need to tear the tape or mylar before you disconnect different FFC/FPC/connectors.

Chapter 3 49

Disassembly Procedure Flowchart

The flowchart on the succeeding page gives you a graphic representation on the entire disassembly sequence

and instructs you on the components that need to be removed during servicing. For example, if you want to

remove the system board, you must first remove the keyboard, then disassemble the inside assembly frame in

that order.

Start

Battery

HDD Door Middle Cover ODD Module

HDD Module

Hx2

Fx2

LCD Module

Sx4

ODD BoardODD Bracket

Keyboard

Hx2

Mx3

Main Unit

Assembly

Front Bezel

Logic Upper

Assembly

Sx19

Hx2

Ux3

Logic Lower

Assembly

Dimm Door

Memory

Hx2 Ox4

Function Key

Board

PCI Door

Wireless LAN

Card

Hx2

Hx3

ODD

Ax4

Hx1

Main Board

CPU

Dimm

HDD

Bracket

4-in-1 Card

Rearder

Modem/

Bluetooth

Combo Card

Smart Card

Reader

Thermal

Module

Top Cover

Shielding

Fx2

Ex4Tx2

Dx3

Hx2

Hx1

Touchpad

Shielding

Qx4

Touchpad

Board

Touchpad

Holder

Hx4

Touchpad Touchpad

Cable (FFC)

Antenna Line Modem Cable

Cx4

50 Chapter 3

Screw List

Item Description

A NUT-I/O

B SCREW M1.6X4.0-I-NI-NYLOK

C SCREW M2.0X2.5-I-NI-NYLOK

D SCREW M2.0X3.0-I-NI-NYLOK

E SCREW M2.0X3.5-I-NI-NYLOK

F SCREW M2.0X5-I-NI-NYLOK

G SCREW M2.5X3-I-NI-NYLOK

H SCREW M2.5X4.0-B-NI-NYLOK

I SCREW M2.5X4-I-NYLOK

J SCREW M2.5X5.0-I-NI-NYLOK

K SCREW M2.5X5.5-P-NI-NYLOK

LCD Module

6 LCD

Cushions

Jx6

LCD Bezel

LCD Inverter

LCD

Assembly

Hx4

LCD Panel

LCD Brackets

Hx4

LCD Coaxial

Cable

LCD Wireless

Antenna

Hx2

LCD Latch Kit

Bracket

Dx1

LCD Latch Kit

Dx4

Chapter 3 51

L SCREW M2.5X0.45+7I-NYLOK

M SCREW M1.7X3.5-I-BZN

N SCREW M2X3-I-BNI-NYLOK

O SCREW M2.0X5.0-I-BNI-NYLOK

P SCREW M2.0X6.0-I-NI-NYLOK

Q SCREW M2.5X2-I-NI-NYLOK

R SCREW M2.5X4-I-BNI

S SCREW M2.5X7

T SCREW M3.0X3.5

U SCREW M2.5X5 (BLACK)

Item Description

52 Chapter 3

Removing the Battery Pack

1. Release the battery lock.

2. Slide the battery latch then remove the battery.

Chapter 3 53

Removing the Optical Module/HDD Module/Wireless Lan Card and LCD

module

Removing the Optical Module

1. Slide the optical disk drive latch.

2. Remove the ODD module.

Removing the HDD Module

1. Remove the two screws holding the HDD cover.

2. Remove the HDD cover.

3. Remove the HDD module.

Removing the Wireless LAN Card

1. Remove the screw that secures the PCI door then remove the PCI door.

2. Disconnect the right and the left wireless antenna.

3. Pop out the wireless LAN card then remove it.

54 Chapter 3

Removing the LCD Module

1. Remove the four screws that secures the middle cover; two one each side.

2. Detach middle cover with the assistance of a plastic flat head screw driver.

3. Disconnect the LCD cable then take out the cable from the upper case.

4. Disconnect the left bluetooth antenna line. Then take out the antenna from the upper case with a

tweezers.

5. Unscrew the four screws holding the LCD hinges; two on each side.

6. Then remove the entire LCD module.

Chapter 3 55

Disassembling the Main Unit

Remove the function key board and the keyboard

1. Take the wireless antenna out of the hook on the function key board.

2. Disconnect function key board connector

3. Unscrew the three screws holding the function key board.

4. Remove the three screws that secure the keyboard.

5. Turn over the unit and remove the two screws as the picture shows.

6. Turn over the keyboard. Disconnect the keyboard FFC then remove the keyboard.

Separate the main unit into the logic upper and the logic lower assembly

1. Remove the three screws on the rear panel.

2. Unscrew the 19 screws on the bottom panel.

3. Detach the front bezel from the main unit.

4. Remove the two screws. Then take the right and the left antenna off the main unit.

5. Disconnect the touchpad cable.

6. Pull out the right and the left antenna, then detach the logic upper assembly from the logic lower

assembly.

56 Chapter 3

Disassembling the logic upper assembly

1. Take out the touchpad cable from the small hook on touchpad holder.

2. Remove the four screws holding the touchpad shielding and the touchpad board.

3. Disconnect the touchpad FFC from the touchpad board.

4. Remove the touchpad board.

5. Remove the wireless and bluetooth button off the touchpad board.

6. Remove the four screws that fasten the touchpad holder.

7. Remove the touchpad off the logic upper assembly.

8. Disconnect touchpad FFC.

Chapter 3 57

Disassembling the logic lower assembly

1. In order to take out the main board from the upper case, first remove the four screws that fasten the top

cover shielding.

2. Remove the three screws holding the 4-in-1 card reader, then remove it.

3. Unscrew the four screws that secure the thermal module.

4. Disconnect the fan connector then remove the thermal module.

5. Remove one screw that secures the main board as picture shows.

6. Remove another screw that fastens the main board.

7. Take out the bluetooth antenna.

8. Disconnect the speaker set cable.

9. To remove the main board from the lower case assembly, first press the PCMCIA card button.

10. Then take the main board off the lower case assembly.

11. Unscrew the two screws that fasten the HDD bracket.

12. Remove one screw holding the top cover shielding.

58 Chapter 3

13. Disconnect the microphone cable. Then remove the top cover shielding.

14. Turn the CPU lock counter clock-wise with a flat head screw driver. Then remove the CPU.

15. Pop out the memory then remove it.

16. Unscrew the two screws that secure the modem/bluetooth combo card. Remove the modem/bluetooth

combo card then disconnect the connector.

17. Disconnect the bluetooth antenna and the modem cable.

18. Disconnect the smart card reader FPC.

19. Unscrew the two screws holding the smart card reader then remove it.

Chapter 3 59

Disassembling the LCD Module

1. Remove the six screw pad and the six screws.

2. Detach the LCD bezel carefully.

3. Disconnect LCD inverter.

4. Remove the two screws holding the LCD to LCD panel.

5. Then remove the LCD.

6. Remove the four screws that fasten the right and the left LCD brackets. Then remove the right and the left

LCD brackets.

7. Tear off the electric conductive tape that fastens the LCD coaxial cable.

8. Tear off another electric conductive tape that fastens the LCD coaxial cable.

9. Disconnect the LCD coaxial cable.

10. Detach the wireless antenna from the LCD panel.

11. Remove the two screws holding the LCD latch kit.

12. Remove the LCD latch kit bracket.

60 Chapter 3

13. Unhook the spring.

14. Remove the screw that fastens the LCD latch kit.

15. Then remove the LCD latch kit.

Chapter 3 61

Disassembling the External Modules

Disassembling the HDD Module

1. Remove the four screws holding the HDD bracket; two on each side.

2. Take out the HDD from the HDD bracket.

Disassembling the Optical Drive Module

1. Remove the two screws holding the ODD bracket.

2. Remove another screw as the picture shows.

3. Then remove the last two screws on the back side of the ODD module.

4. Slide the ODD from the ODD bracket.

5. Then remove the optical bracket.

6. In order to open the ODD, use an uncurved pin to press the emergency eject hole.

7. Remove the three screws that fasten the ODD door.

8. Then detach the ODD door.

62 Chapter 3

Chapter 4 63

Use the following procedure as a guide for computer problems.

NOTE: The diagnostic tests are intended to test this model. Non-Acer products, prototype cards, or modified

options can give false errors and invalid system responses.

1. Duplicate symptom and obtain the failing symptoms in as much detail as possible.

2. Distinguish symptom. Verify the symptoms by attempting to re-create the failure by running the diagnostic

test or by repeating the same operation.

3. Disassemble and assemble the unit without any power sources.

4. If any problem occurs, you can perform visual inspection before you fellow this chapter’s instructions. You

can check the following:

power cords are properly connected and secured;

there are no obvious shorts or opens;

there are no obviously burned or heated components;

all components appear normal.

5. Use the following table with the verified symptom to determine which page to go to.

Symptoms (Verified) Go To

Power failure. (The power indicator does not go

on or stay on.)

“Power System Check” on page 65.

POST does not complete. No beep or error

codes are indicated.

“Power-On Self-Test (POST) Error Message” on

page 67

“Undetermined Problems” on page 75

POST detects an error and displayed messages

on screen.

“Error Message List” on page 68

Other symptoms (i.e. LCD display problems or

others).

“Power-On Self-Test (POST) Error Message” on

page 67

Symptoms cannot be re-created (intermittent

problems).

Use the customer-reported symptoms and go to

“Power-On Self-Test (POST) Error Message” on

page 67

“Intermittent Problems” on page 74

“Undetermined Problems” on page 75

Troubleshooting

Chapter 4

64 Chapter 4

System Check Procedures

External Diskette Drive Check

Do the following to isolate the problem to a controller, driver, or diskette. A write-enabled, diagnostic diskette is

required.

NOTE: Make sure that the diskette does not have more than one label attached to it. Multiple labels can cause

damage to the drive or cause the drive to fail.

Do the following to select the test device.

1. Boot from the diagnostics diskette and start the diagnostics program.

2. See if FDD Test is passed as the program runs to FDD Test.

3. Follow the instructions in the message window.

If an error occurs with the internal diskette drive, reconnect the diskette connector on the system board.

If the error still remains:

1. Reconnect the external diskette drive/DVD-ROM module.

2. Replace the external diskette drive/CD-ROM module.

3. Replace the main board.

External CD-ROM Drive Check

Do the following to isolate the problem to a controller, drive, or CD-ROM. Make sure that the CD-ROM does

not have any label attached to it. The label can cause damage to the drive or can cause the drive to fail.

Do the following to select the test device:

1. Boot from the diagnostics diskette and start the diagnostics program.

2. See if CD-ROM Test is passed when the program runs to CD-ROM Test.

3. Follow the instructions in the message window.

If an error occurs, reconnect the connector on the System board. If the error still remains:

1. Reconnect the external diskette drive/CD-ROM module.

2. Replace the external diskette drive/CD-ROM module.

3. Replace the main board.

Keyboard or Auxiliary Input Device Check

Remove the external keyboard if the internal keyboard is to be tested.

If the internal keyboard does not work or an unexpected character appears, make sure that the flexible cable

extending from the keyboard is correctly seated in the connector on the system board.

If the keyboard cable connection is correct, run the Keyboard Test.

If the tests detect a keyboard problem, do the following one at a time to correct the problem. Do not replace a

non-defective FRU:

1. Reconnect the keyboard cables.

2. Replace the keyboard.

3. Replace the main board.

The following auxiliary input devices are supported by this computer:

TNumeric keypad

TExternal keyboard

If any of these devices do not work, reconnect the cable connector and repeat the failing operation.

Chapter 4 65

Memory check

Memory errors might stop system operations, show error messages on the screen, or hang the system.

1. Boot from the diagnostics diskette and start the doagmpstotics program (please refer to main board.

2. Go to the diagnostic memory in the test items.

3. Press F2 in the test items.

4. Follow the instructions in the message window.

NOTE: Make sure that the DIMM is fully installed into the connector. A loose connection can cause an error.

Power System Check

To verify the symptom of the problem, power on the computer using each of the following power sources:

1. Remove the battery pack.

2. Connect the power adapter and check that power is supplied.

3. Disconnect the power adapter and install the charged battery pack; then check that power is supplied by

the battery pack.

If you suspect a power problem, see the appropriate power supply check in the following list:

T“Check the Battery Pack” on page 66

66 Chapter 4

Check the Battery Pack

To check the battery pack, do the following:

From Software:

1. Check out the Power Management in control Panel

2. In Power Meter, confirm that if the parameters shown in the screen for Current Power Source and Total

Battery Power Remaining are correct.

3. Repeat the steps 1 and 2, for both battery and adapter.

4. This helps you identify first the problem is on recharging or discharging.

From Hardware:

1. Power off the computer.

2. Remove the battery pack and measure the voltage between battery terminals 1(+) and 6(ground). See the

following figure

3. If the voltage is still less than 7.5 Vdc after recharging, replace the battery.

To check the battery charge operation, use a discharged battery pack or a battery pack that has less than 50%

of the total power remaining when installed in the computer.

If the battery status indicator does not light up, remove the battery pack and let it return to room temperature.

Re-install the battery pack.

If the charge indicator still does not light up, replace the battery pack. If the charge indicator still does not light

up, replace the DC/DC charger board.

Touchpad check

If the touchpad doesn’t work, do the following actions one at a time to correct the problem. Do not replace a

non-defective FRU:

1. After rebooting, run Tracking Pad PS2 Mode Driver. For example, run Syn touch driver.

2. Run utility with the PS/2 mouse function and check if the mouse is working.

3. If the the PS/2 mouse does not work, then check if the main board to switch board FPC is connected O.K.

4. If the main board to switch board FPC is connected well, then check if the FCC on touch pad PCB

connects properly.

5. If the FFC on touch pad PCB connects properly, then check if LS851 JP1 Pin6=5V are pulese. If yes, then

replace switch board. If no, then go to next step.

6. Replace touch pad PCB.

7. If the touch pad still does not work, then replace FPC on Track Pad PCB.

After you use the touchpad, the pointer drifts on the screen for a short time. This self-acting pointer movement

can occur when a slight, steady pressure is applied to the touchpad pointer. This symptom is not a hardware

problem. No service actions are necessary if the pointer movement stops in a short period of time.

Chapter 4 67

Power-On Self-Test (POST) Error Message

The POST error message index lists the error message and their possible causes. The most likely cause is

listed first.

NOTE: Perform the FRU replacement or actions in the sequence shown in FRU/Action column, if the FRU

replacement does not solve the problem, put the original part back in the computer. Do not replace a

non-defective FRU.

This index can also help you determine the next possible FRU to be replaced when servicing a computer.

If the symptom is not listed, see “Undetermined Problems” on page 75.

The following lists the error messages that the BIOS displays on the screen and the error symptoms classified

by function.

NOTE: Most of the error messages occur during POST. Some of them display information about a hardware

device, e.g., the amount of memory installed. Others may indicate a problem with a device, such as the

way it has been configured.

NOTE: If the system fails after you make changes in the BIOS Setup Utility menus, reset the computer, enter

Setup and install Setup defaults or correct the error.

68 Chapter 4

Index of Error Messages

Error Message List

Error Messages FRU/Action in Sequence

Struck Key See ““Keyboard or Auxiliary Input Device Check” on page 64

System CMOS checksum bad - Default

configuration used

RTC battery

Run BIOS Setup Utility to reconfigure system, then reboot system.

Real time clock error RTC battery

Run BIOS Setup Utility to reconfigure system time, then reboot

system.

Main board

Previous boot incomplete - Default configuration

used

“Load Default Settings” in BIOS Setup Utility.

RTC batter

Main baord.

Invalid System Configuration Data “Load Default Settings” in BIOS Setup Utility.

Main board.

Operating system not found Enter Setup and see if fixed disk and drive A are properly identified.

Dikette drive

Hard disk drive

Main board.

Chapter 4 69

Error Message List

No beep Error Messages FRU/Action in Sequence

Power-on indicator turns off and LCD is blank. Power source (battery pack and power adapter.) See “Power

System Check” on page 65

Ensure every connector is connected tightly and correctly.

Reconnect the DIMM.

Main board.

Power-on indicator turns on and LCD is blank. Power source (battery pack and power adapter.) See “Power

System Check” on page 65

Reconnect the LCD connector

Hard disk drive

LCD cable

LCD inverter

LCD

Main board

Power-on indicator turns on and LCD is blank.

But you can see POST on an external CRT.

Reconnect the LCD connectors.

LCD cable

LCD inverter

LCD

Main board

Power-on indicator turns on and a blinking cursor

shown on LCD during POST.

Ensure every connector is connected tightly and correctly.

Main board

70 Chapter 4

Index of Symptom-to-FRU Error Message

LCD-Related Symptoms

Symptom / Error Action in Sequence

LCD backlight doesn't work First, plug a monitor to CRT port. Next, enter BIOS utility to running

“Load Default Settings” then reboot the system.

Reconnect the LCD connectors.

Keyboard (if the brightness function key doesn't work).

LCD cable

LCD inverter

LCD

Main board

LCD is too dark

LCD brightness cannot be adjusted

Enter BIOS Utility to execute “Load Setup Default Settings”, then

reboot system.

Reconnect the LCD connectors.

Keyboard (if the brightness function key doesn't work).

LCD cable

LCD inverter

LCD

Main board

Unreadable LCD screen

Missing pels in characters

Abnormal screen

Wrong color displayed

LCD has extra horizontal or vertical lines

displayed.

Reconnect the LCD cable

LCD cable

LCD

Main board

Indicator-Related Symptoms

Symptom / Error Action in Sequence

Indicator incorrectly remains off or on, but system

runs correctly

Main board

HDD/CD-ROM active indicators cannot work HDD/CD-ROM drive

Device driver

Main board

Power-Related Symptoms

Symptom / Error Action in Sequence

Power shuts down during operation Power source (battery pack and power adapter). See “Power

System Check” on page 65.

Battery pack

AC adapter

See if the thermal module is overheat (Heat sink or fan).

Main board

The system cannot power-on. Power source (battery pack and power adapter). See “Power

System Check” on page 65.

Battery pack

Power adapter

CPU

Main board

The system cannot power-off. In Windows XP operating system, hold and press the power switch

for more than 4 seconds. If the system can power off, then the main

board is OK. Verify OS in the HDD.

Main board

Chapter 4 71

Battery can’t be charged or discharged See “Check the Battery Pack” on page 66.

Battery pack

Main board

System hang during POST ODD/HDD/FDD/RAM module

Main board

PCMCIA-Related Symptoms

Symptom / Error Action in Sequence

System cannot detect the PC Card (PCMCIA) PCMCIA slot assembly

Main board

PCMCIA slot pin is damaged. PCMCIA slot assembly

PC Card cannot be inserted or ejected Check if the PCMCIA slot is blocked

Main board

Memory-Related Symptoms

Symptom / Error Action in Sequence

Memory count (size) appears different from

actual size.

Enter BIOS Setup Utility to execute “Load Default Settings” then

reboot system.

RAM module

Main board

Check BIOS revision

System can power on, but you hear two long

beeps: “B--, B--” and the LCD is blank.

Reinsert DIMM

DIMM

Main board

Speaker-Related Symptoms

Symptom / Error Action in Sequence

In Windows, multimedia programs, no sound

comes from the computer.

OS volume control

Audio driver

Speaker

Main board

Internal speakers make noise or emit no sound. Speaker

Main board

Microphone cannot work Audio driver

Volume control in Windows XP

Main board

Power Management-Related Symptoms

Symptom / Error Action in Sequence

The system will not enter hibernation mode Power option in Windows XP

Hard disk drive

Main board

The system doesn’t enter standby mode after

closing the lid of the portable computer.

Driver of Power Option Properties

Lid close switch in upper case

Main board

Power-Related Symptoms

Symptom / Error Action in Sequence

72 Chapter 4

The system doesn't resume from hibernation/

standby mode.

Connect AC adapter then check if the system resumes from

Standby/Hibernation mode.

Check if the battery is low.

Hard disk drive

Main board

The system doesn't resume from standby mode

after opening the lid of the portable computer.

LCD cover switch

Main board

Battery fuel gauge in Windows doesn’t go higher

than 90%.

Refresh battery (continue use battery until power off, then charge

battery).

Battery pack

Main board

System hangs intermittently. Reconnect hard disk/CD-ROM drives.

Main board

Peripheral-Related Symptoms

Symptom / Error Action in Sequence

System configuration does not match the

installed devices.

Enter BIOS Setup Utility to execute “Load Setup defaults”, then

reboot system.

Reconnect hard disk/CD-ROM drives/FDD or other peripherals.

Main board

External display does not work correctly. Press Fn+F5, LCD/CRT/Both display switching

Keyboard

Main board

USB does not work correctly Main board

Print problems. Enter BIOS Setup Utility to execute “Load Default Settings” then

reboot the system.

Run printer self-test.

Printer driver

Printer cable

Printer

Main board

Parallel port device problems Enter BIOS Setup Utility to execute “Load Default Settings” then

reboot the system.

Device driver

Device cable

Device

Main board

Keyboard/Touchpad-Related Symptoms

Symptom / Error Action in Sequence

Keyboard (one or more keys) does not work. Reconnect the keyboard cable.

Keyboard

Main board

Touchpad does not work. Reconnect touchpad cable.

Touchpad board

Main board

Power Management-Related Symptoms

Symptom / Error Action in Sequence

Chapter 4 73

NOTE: If you cannot find a symptom or an error in this list and the problem remains, see “Undetermined

Problems” on page 75.

Modem/LAN-Related Symptoms

Symptom / Error Action in Sequence

Internal modem does not work correctly. Phone cable

Driver

Reconnect the Internal modem cable to the main board tightly.

Main board

Internal LAN does not work correctly Lan cable

Driver

Main board

74 Chapter 4

Intermittent Problems

Intermittent system hang problems can be caused by a variety of reasons that have nothing to do with a

hardware defect, such as: cosmic radiation, electrostatic discharge, or software errors. FRU replacement

should be considered only when a recurring problem exists.

When analyzing an intermittent problem, do the following:

1. Run the diagnostic test for the system board in loop mode at least 10 times.

2. If no error is detected, do not replace any FRU.

3. If any error is detected, replace the FRU. Rerun the test to verify that there are no more errors.

Chapter 4 75

Undetermined Problems

The diagnostic problems does not identify which adapter or device failed, which installed devices are incorrect,

whether a short circuit is suspected, or whether the system is inoperative.

Follow these procedures to isolate the failing FRU (do not isolate non-defective FRU).

NOTE: Verify that all attached devices are supported by the computer.

NOTE: Verify that the power supply being used at the time of the failure is operating correctly. (See “Power

System Check” on page 65):

1. Power-off the computer.

2. Visually check them for damage. If any problems are found, replace the FRU.

3. Remove or disconnect all of the following devices:

TNon-Acer devices

TPrinter, mouse, and other external devices

TBattery pack

THard disk drive

TDIMM

TPC Cards

4. Power-on the computer.

5. Determine if the problem has changed.

6. If the problem does not recur, reconnect the removed devices one at a time until you find the failing FRU.

7. If the problem remains, replace the following FRU one at a time. Do not replace a non-defective FRU:

TSystem board

TLCD assembly

76 Chapter 4

Chapter 5 77

Top View

CN9 S-Video CN12 DDR Dimm 0

CN13 CRT CN14 Touchpad board connector

CN20 LPT CN18 Second battery connector

CN22 Docking U27 IR

DO: DO24 DO31 DO33 DO34 DO34

DO36

DO8

DO25

DO6

DPO2

DO2:

DO22

DO25

V38

DO29

DO28

DO23

DO26 DO32 DO35

DO2:

V32

+++++

EB[J2TNC7E2!SFW;EEB[J2TNC7E2!SFW;EEB[J2TNC7E2!SFW;EEB[J2TNC7E2!SFW;EEB[J2TNC7E2!SFW;E

QQQQQQ

OOOOO

NNNNN

NNNNNN

25 24

27 26 :21

543

345 6

89:

22 23 24 25 26

2::

31153

:98765432

76213

214

239

23456789:

CDEF

VWX

BGBF BD

BE BCBB ZXVWSUOQNMLKHIFGDEBC

211

221

239

3534

2726

25 24

232221

DO27

QS292

QS293

QBE9

QBE8

QBE7

QBE62

QBE6

QBE5:

QBE58

QBE5

QBE49

QBE3

QBE2

I56

I54

I55

TX2

I44

I24

D568

D569

DPO2

DQBE5

DQBE4

DQBE3

DQBE2

DO36

DO4:

I43

I47

I46

I52

I4:

I2:

I45

I42

I35

I23

SO3

SO6

SO7

SO2:

SO9

SO8

SO25

SO2

SO24

SO27

SO26

SO31

SO28

SO29

SO5

SO4

SO22

SO23

SO21

SO:

QV22

DO21

I34

I22

I31

I53

I29

V39

I32

I28

I33

I38

I39

I51

I41

DO26

TQ2

DO37

DO25

DO33

DO31

DO7

DO29

DO2:

QE24

QV7

QS75

QS8

QS24

QD56

QD57

QE7

QE5

QE6

QE3

QE4

E52

E51

QE23 QE22

QE8

QE9

QE21

QE:

QE2

QM9

QM4

QM8

QM22

QM5

QM2

QM3

QR7:

QR81

QR29

QR2:

QV8

QV4

QV23

D566

V3:

S8:1

S899

S898

S889

S878

S879

S87:

S4:1

S458

S4:5

S468

S471

S478

S489

S496

S4:9

S48:

S487

S491

S493

S479

S466

QV6

V37

DO24

V22

D:54

D:55

D39

D:46

D:49

D:47

D:4:

D:45

D:48

D:51

D:44

D:43

D:19

D:25

D:21

D:27

D556

D555

D434

D438

D442 D4:7

D49:

D44:

D458

D497

D473

D486

D511 D517 D522 D527

D529

D4::

D51:

D525

D4:3

D466

D456

D435

D43:

D437

D425

D426

D431

D52:

D528

D523D518D512

D4:8

D4:1

D498

D487

D474D459

D451

D443

D4:4

D4:5

D436

D42:

D41:

DB2 DB3

DB5

SQ5

SQ:

SQ21

SQ7

SQ2

V35

V2:

QV3

V38

S25

E47

DO22

V29

E35

E33

E34

DO6

DO:

DO23

DO52

DO28

DO9

D:52

D9:8

D9:9

D233

QD86

QD75

QD68

QD67

D644

D258 D259

D23:

D567

D93

D4:

D3:

D25

D53:

D432

D263

D26:

D274

D264

D215

D72

D59

D4:9

D461

D464

D549

D476

D45: D475

D478

D477

D479

D465 D47:

D462

D463

QD275

D:9

D381

D3:1

D382

QD5

QD34

QD3:

QD8

QD27

QD39

QD28

QD2:

QD33

QD29

QD41

QD31

QD32

QD21

QD26

D424

D423

D513

D514

D564

D:6:

D:62

D:61

D:64

D:57

D:53

D:56

D:58

D:59

D69

QD277

D:41

D:35

D:36

D:37

D:38

D:39

D:3:

D273

D245

D:11

D:12

D:13

QD74

D9::

QD276

D9:4

D9:7

D496

D439

D441

D515

D472

D531

D4:6

QD23

D547

D3::

D481

D483

D241

D374

D28

D279

D242

D267

D286

D375

D248

D376

D361

D54

D55

QD3

D217

D311

D23

D21:

D282 D297

D327

D262

D275

D353

D276

D294

D377

D378

D2:5

QD2

D225

D226

QD4

QD46

QD7

QD73

D53

D482

D4:2

D468

D499

D533

QD37

QD38

QD42

QD43

QD79

QD83

QD81

QD7:

QD47

QD45

QD66

QD82

QD76

QD85

QD44

QD59

QD84

QD55

QD53

QD54

QD65

QD63

QD64

QD49

QD62

QD35

QD22

QD25

QD69

QD61

QD51

QD48

QD4:

QD6

QD58

QD6:

QD71

QD72

D:3

D247

D236

D221

D239

D234

D235

D25:

D565

D::

D246

D8:

D:2

D316

D544

D545

D541

D543

D558

D557

D535

D85

D43

D76

D:4

D78

D44

D75

D79

D552

D54:

D551

D71

D546

D22

D537

D542

D3:5

D3:4

D292

D433

D3:9

D411

D534

D252

D27:

D2::

D318

D349

D322

D268

D296

D346

D312

D337

D251

D255

D256

D2:6

D34:

D315

D324

D314

D373

D358

D33:

D317

D295

D331

D29:

D2:1

D2:7

D2:8

D386

D372

D356

D328

D222

D219

D28:

D293

D66

D579

D31

D82

D68

D:1

D67

D536

D413

D561

D563

D562

D228

D271

D:7

D213

D283

D227

D237

D391 D38:

D393

D313

D2:9

D3:3

D3:7

D383

D379

D355

D3:8

D336

D354

D342

D362

D445

D448

D491

D521

D492

D422

D421

D428

D395

D347

D397

D22:

D32

D33

D254

D218

D229

D253

D3:6

D416

D364

D368

D35:

D352

D341

D329

D335

D323

D266

D298

D299

D394

D2:2 D348

D359

D272

D238

D244

D24:

D214

D211

D289

D92

D243

D291

D277

D269

D212

D392

D344

D414

D49

D42

D285

D32:

D332

D365

D388

D287

D288

D284

D343

D548

D46

D47

D48

D84

D74

D87

D88

D333

D89

D61

D5:

D64

D:5

D231

D51

D31:

D24

D249

D52

D7:

D63

D99

D9:

D83

D56

D29

D41

D77

D94

D81

D45

D95

D58

D6:

D96

D2:

D97

D98

D86

D36

D384

D2:4

D278

D257

D396

D417

D418

D419

D2:3

D484

D37:

D366

D319

D339

D325

D385

D36:

D321

D351

D334

D363

D457

D449

D469

D495

D429

D427

D369

D326

D357

D345

D367

D387

D46:

D447

D485

D455

D519

D48:

D415

D494

D452 D488

D21

D493

D489

D516

D:8

D65

D:6

D73

D453

D454

D524

D389

D371

D26

D27

D37

D38

D34

D35

QD77

QD78

QD52

D526

D446

D398

D338

D281

D223

QD:

QD9

QD::

QD211

QD36

D3:2

D261

D62

D532

D467

D412

D216

D232

D91

D57

D399

D39:

D471

DO34

R:8

R:6

QR78

R32

R93

R55

R37

E32

R54

R61

R59

R56

R49

R53

R63

R5:

R51

R47

R64

E27

QR26

QR41

QR3:

QR4

R26

R35

R33

R3:

R31

R28

R2:

R58

R22

E31

E2:

R42

R52

R4:R48

R41

R46

R62

R29

R65

E5:

E61

E58

E59

E55

S848

E53

E4:

E48

E26

E21

E24

E25

E36

E29

E28

E22

E23

M28

QS4:

QS47

QS49

QM7

QM6

QM:

QM21

S:1

M47

M25

M24

S228

S514

S539

M26

M21

M23

M22

M27

S8:2

S897

S885

S888

S884

S88:

S882

S892

S895

S883

S887

S896

S881

S893

S891

S894

QS291

QS288

QS285

S871

S872

S869

S873

S874

S876

QS281

S27

S865

S864

S854

S855

S856

S857

S858

S859

S85:

S861

S853

S862

S852

S851

S825

S826

S81:

S821

S824

QS272

QS274

S827

S828

S829

S831

S823

M79

M7:

S784

S785

S786

S798

S799

S815 S816

S813

S792

S79:

S7:1

S783

S782

S779

S773

S777

S76:

S771

S774

S769

S481

QS58

S498

S4:7

S523

S524

S51:

S517

QS:

QS9

S529

S212 S211

S94

S89

S518

S528

S526

S4:4

S4:6

S527

S4:3

S497

S49:

S65

S274

S75

S84

S488 S492

S494

S482

S392

S327

QS4

S231

S344

S383

S352

S363

S335

S324

S245

S38

S3:5

S3:4

S393

S2:7

S296

S289

S3:1

S389

S395

S3:9

S382

S394

S213

QS3

QS2

S96

S:2

S95

S:3

S219

S35

S215

S248

S242

S358

S372

S343

S314

S353

S373

S226

S4:

S42

S51

S88

S253

S278

S293

S93

S:5

S312

S223

S244

QS23

S319

S338

S337

S297

QS34

QS35

QS44

QS45

QS85

QS8:

QS77

QS83

QS33

QS43

QS88

QS86

QS91

QS76

QS73

QS74

QS78

QS89

QS82

QS92

QS94

QS84

QS93

QS7:

QS87QS81

QS79

QS46

QS36

QS39

QS26

QS48

QS29 QS27

QS31

QS57

QS64

QS41

QS25

QS2:

QS28

QS67

QS53

QS:7

QS21

QS68

QS69

QS6:

QS71

QS72

QS22

QS3:

QS37

QS65

QS7

QS42

QS32

QS6

QS5

QS38

QS56

QS55

QS63

QS52

QS66

QS59

QS51

QS54 QS61

QS62

S541

S53:

S:8

S2:

S3:

S41

S37

S31

S34

S29

S33

S28

S::

S46

S45

S:7

S:6

S256

S255

S:9

S232

S44

S72

S243

S4:2S495

S499

M29

S225

S246

S525

S42:

S367

S436

S433

S265

S235

S39:

S37:

S421

S268

S259

S249

S99

S52:

S83

S7:

S531

S332

S354

S355

S345

S334

S427

S428

S31:

S391

S263

S425

S26:

S257

S36:

S36

S:4

S464

S467

S326

S247

S287

S459

S224

S484

S241

S27:

S38:

S3:3

S384

S371

S362

S348

S357

S33:

S439

S229

S71

S67

S56

S63

S55

S57

S61

S333

S331

S264

S285

S431

S417

S222

S82

S214

S364

S28:

S453

S456

S23:

S41:

S267

S515

S519

S25:

S271

S261

S254

S217

S277

S24:

S238

S239

S218

S216

S283 S282

S291

S398

S4:8

S463

S437

S413

S419

S414

S416

S452

S435

S418

S432

S472

S473

S475

S474

S269

S98

S97

S9:

S22:

S21

S45:

S3::

S91

S92

S221

S511

S21:

S4::

S512

S513

S396

S412

S454

S2:6

S422

S449

S44:

S447

S448

S451

S442

S455

S476

S483

S46:

S486

S485

S477

S443

S426

S284

S286

S298

S446

S444

S537

S536

S366

S361

S385

S3:6S3:7

S397

S2:1

S32:

S318

S538

S53

S43

S411

S313

S323

S262

S34:

S351

S275

S381

S281

S288

S299

S522

S59

S5:

S2:5

S26

S66

S76

S69

S68

S79

S86

S8:

S553

S423S424

S81

S39

S32

S386

S74

S87

S376

S54

S48

S47

S325

S336

S346

S328

S252

S233

S273

S266

S356

S251

S2:9

S369

S236

S258

S237

S379

S279

S276

S292

S316

S388

S2:4

S441

S399

S3:8

S438

S375

S349

S342

S2:2

S2:3

S365

S359

S294

M2:

M39

M35

M3:

M36

M41

M37

M42

M38

M43

M44

M45

M46

M31

M32

M33

M34

S35:

S43:

S3:2

S415

S434

S272

S22

S23

S24

S377

S47:

S78

S49

S374

S227

S311

S321

S469

S329

S341

S445

S315

S461

S429

R:7

R25

R:5

QR74

QR75

QR76

QR71

R9:

R98

R94

R91

R27

R23

R24

QR32

QR7

QR8 QR6

QR22

QR5

QR: QR9

QR21

R45

R21

R34

R39

R38

R44

R43

R2R3

R36

QR6:

QR2

QV2

V31

QR31

QR23

QR25

QR28

QR27

QR24

QR38

QR3

QV9

QV21

QV:

R57

QS276

QS268

QS269

QS26:

S7:3

SQ23

SQ22

SQ3

SQ6

SQ4

U245

U46

U42

U38

U34

U2:

U28

U39

U36

U35

U33

U26

U5:

U61

U62

U49

U48

U47

U45

U52

U51

U63

U76

U75

U59

U25

U78

BET2

U71

U6:U69

U4:

U57

U31

U72

V25

V36

V28

V27

V34

V33

V32

V24

V23

V26

QV5

DO32

DO5 DO4 DO3 DO2

Jumper and Connector Locations

Chapter 5

78 Chapter 5

CN23 RJ45 CN11 Keyboard connector

CN23 RJ11 CN19 Swap bay connector

CN25 Power jack CON1 PCMCIA

CN24 Internal microphone connector CN5 IEEE 1394 connector

CN21 LED board connector CN1~4 USB connector

CN15 LCD cable connector CN7 FAN connector

CN19 Swap bay connector U21 CPU socket

CN17 Main battery connector

Chapter 5 79

Bottom View

CN35 LAN cable connector BT1 RTC battery connector

CN33 MDC connector CN27 Line-in connector

CN31 DDR Dimm 1 CN26 Microphone-in connector

CN30 Smart card connector CN28 Headphone out connector

CN32 Mini PCI connector CN37 LAN cable connector

DO46DO44

DO42

DO41

DO43

CU2

DO38

DO37

DO39

DO48

HHHHH

DDDDD

GGGGG

7272

2::

311

211

21 2

9: 243

244

287 541

25 31

DO49

DO39

DO38

QBE63

QBE:

QBE61

QBE59

QBE57

QBE56

QBE55

QBE54

QBE53

QBE52

QBE51

QBE4:

QBE48

QBE47

QBE46

QBE45

QBE44

QBE43

QBE42

QBE41

QBE4

QBE3:

QBE39 QBE38

QBE37

QBE36

QBE35

QBE34

QBE33

QBE32

QBE31

QBE2:

QBE29

QBE28

QBE27

QBE26

QBE25

QBE24

QBE23

QBE22

QBE21

TX3

I27

I25

I48

I49

TQ3

DO48

QR33

DO46

DO3:

DO51

DO41

QR69

QR63

QR65

QR46

QR55

QS262

QD232

QD233

QE2:

QE28

QE29

QE25

QE36

QE37

QE27

QM25

QR62

QR59

R71

R72

V42

S89:

S71:

S687

S689

S637

S641

S65:

S662

S691

S699

S6:4

S711

DO42

DO43

D:1:

D:26

D:22

D:23

D:24

D:28

D:29

D:2:

D:31

D:32

D994

D993

D992

D991

D98:

D987

D986

D985

D984

D983

D982

D981

D979 D976

D921

D731

D745

D766

D77:

D7:3

D823

D852

D868 D711

D6:9

D919

D729 D716

D794

D813

D827

D862

D891 D871

D8:1

D914

D91:

D89:

D913

D732

D721

D746

D767

D781

D7:6

D824

D853

D869

D885

D71:

D715

D776

D795

D814

D828

D863D872D892

D918

D926

D717

D722

D72:

D751

D8:2

D915 D6::

D884

D899

D912

D798

D771

D858

D777

D727

D723

D724

D719

D778

D78:

D742

D838

D832

D763

D799

D759

D754

D726

D725

D812D7:9

D733

D743

D755

D765

D728

D834

D789

D851

D76:

D762

D744

D74:

D757

D768

D773

D774

D764

D265 D224

D775

D819

SQ24

V57

V4:

V52

QV25

V41

V58

M52

M51

M4: M49

R87

D583

D571

D573

D572

CU2

D:5:

D:34

D:42

D615

D598

D597

QD95

QD263

QD273

QD274

QD269

QD256

QD265

QD262

QD271

QD234

QD24:

QD226

QD251

QD252

QD:8

QD:5

QD:9

QD217

QD213

QD92

QD249

QD254

QD248

QD253

D99:

D634

D878

D611

D595

D618

D756

D696

D995

D972

D5::

D59:

D5:2

D659

D825

D749

D796

D783

D861

D769

D924

D866

D847

D797

D833

D747

D761

D75:

D748

D826

D772

D854

D6:4

D697

D879

D96:

D817

D735

D7:7

D818

D786

D8:8

D7:8

D923

QD218

QD91

QD222

QD97

D444

D791

D898

D896

D928

D897

D8:4

D:69

D:65

D:67

D:66

D:68

D:63

D625

QD279

QD27:

QD278

D591

D97:

D978

D:14

D:15

D:16

D:17

D:18

D:33

D9:6

D784

D815

D811

D836

D81:

D7::

D821

D829

D865

D785

D793

D79:

D7:1

D792

D848

D816

D859

D855

D85:

D835

D849

D856

D864

D82:

D663

D687

D686

D679

D671

D68:

D689

D646

D668

D656

D653

D655

D672

D683

D692

D693

D652

D674

D675

D665

D681

D658

D664

D673

D667

D662

D666

D63:

D685

D684

D67:

D688

D64:

D661

D651

D649

D682

D669

QD87

D639

D676

D677

D6:7

D599

D56:

QD223

QD261

QD219

QD268

QD267

QD266

QD264

QD26:

QD229

QD224

QD259

QD25:

QD242

QD255

QD237

QD:4

QD236

QD:7

QD215

QD23:

QD93

QD94

QD24

QD:6

QD214

QD221

QD228

QD:2

QD99

QD:1

QD98

QD243

QD235

QD225

QD5:

QD241

D999

D996

D997

D998

D9:2

D9:1

D9:3

D539

D989

D988

D6:6

D971

D69:

D92:

D944

D588

D631

D596

D632

D623

D612

D83:

D931

D927

D943

D932

D937

D936

D8::

D886

D874

D888

D882

D883

D881

D626

D58:

D633

D622

D61:

D616

D629

D589 D586

D627

D587

D5:1

D5:9

D592

D577

D977

D831

D8:7

D8:3

D841

D842

D843

D844

D845

D714

D974

D84:

D758

D822

D933

D837

D911

D916

D8:9

D973

D594

D593

D643

D638

D617

D636

D62:

D635

D57:

D582

D585 D581

D575

D576

D578

D584

D574

D65:

D657

D94:

D948

D945

D93:

D969

D968

D967

D966

D961

D95:

D959

D951

D965

D964

D963

D962

D934

D956

D957

D958

D5:3

D5:8

D5:6

D5:7

D641

D642

D87:

D873

D875

D877

D893

D975

D876

D955

D952

D953

D954

D699

D941

D678

D66:

D698

D895

D8:6

D867

D86:

D887

D857

D925

D922

D949

D929

D939

D938

D6:8

D713

D753

D779

D7:2

D839

D718

D782

D752

D917

D741

D737

D736

D8:5

D846

D7:4

D787

D788

D7:5

D738

D73:

D5:4

D5:5

D628

D624

D621

D613

D614

D739

QD257

QD258

QD245

QD272

QD244

QD247

QD238

QD239

QD:3

QD9:

QD216

QD21:

QD246

QD22:

QD231

QD88

D691

D654

D647

D637

QD96

QD89

QD227

QD8:

QD212

D935

D619

D894

D942

D645

D6:2

D6:3

D694

D6:5D6:1

D695

D946

D947

D889

D88:

D712

D734

DO45

DO44

QR82

R:3

QR77

R:1

R95 R96

R76

QE32

QR68

QR49

QR4:

QR5:

QR57

QR67

QR66

QE26

QR36

QR53

QR42

R6:

R69

R85

R86

R89

R8:

R77

R83

R75

R74

R73

R82

R79

E57

E56

E41

E54

E49

E46

QE35

QE34

QE31

QE33

E43

E42

E38

E45

E44

E39

E3:

KQ24

S794

S796

S795

S797

M63

M62

M5:

M59

QM29

QM2:

QM28

QM23

QM24

QM27

QM26

M76

M48

M73

M65M66

M58

S543

M64

M78

S724

S545

S542

S544

S886

QS28:

QS289

S877

QS284

QS286

QS287

S867

S868

S875

QS282

QS283

S866

QS27:

QS279

QS278

S863

S84:

S846

S845 S844

S843

S842

S841

S83:

S839

S838

QS271

QS273

S822

S82:

S835

S836

S819

S787

S814

S818

S793

S7:2

S788

S789

S78:

S791

S7:7

S7:8

S7:9

S7::

S817

S781

S77:

S772

S778

S766

S761

S775

QS263

QS264

S75:

S767

S776

S668

QS248

S745

S746

S6:9

S6:8

S713

S712

S717

S716

S593

S599

S5:4

S597

S618

S592

M61 S5:7

S5:3

S58:

S587

S589

S591

S588

S5:6

S5:2

S5:9

S611

S584

S585

S586

S594

QS232

QS225

QS98

QS97

S757

S756

S759

S755

S758

QS226

QS25:

QS254

QS257

QS224

QS252

QS23:

QS236

QS258

QS261

QS249

QS243

QS242

QS255

QS253

QS259

QS256

QS24:

QS251

QS223

QS22:

QS229

QS222

QS238

QS241

QS:1

QS247

QS246

QS244

QS245

QS5:

QS:3

QS:6

QS99

QS9:

QS95

QS228

QS231

QS227

QS:5

QS213

QS:4

QS217

QS221

QS239

QS233

QS237

QS234

QS96

QS235

QS:2

QS:8

S747

S748

S749

S74:

S743

S744

S581

S52

S58

S62

S64

S6:

S73

S77

S85

S751

S752

S753

S754

S582

M75

S658

S666

M77

M74

S693

S696

S739

S736

S644

S723

S721

S725

S565

S718

S6:6

S737 S684

S683

S576

S57:

S579

S578

S575

S577

S566

S555

S557

S6:5

S692

S562

S738

S556

S675

S573

S6:7

S685

S596

S661

S631

S735

S61:

S621

S619

S617

S616

S614

S615

S613

S563

S626

S627

S633

S574

S564

S558

S554

S549

S552

S548

S551

S547

S677

S64:

S69:

S695

S688

S645

S648

S655

S652

S66:

S657

S654

S647

S651

S67:

S656

S674

S665

S659

S68:

S671

S628

S54:

S546

S731

S732

S734

S733

S572

S571

S583

S559

S6:1

S567

S568

S569

S56:

S6:2

S5:8

S612

S5::

S741

S73:

S697

S72:

S624

S714

S6:3

S598

S5:5

S622

S625

S686

S727

S726

S728

S722

S635

S642

S634

S632

S643

S636

S63:

M6:

M69

M68

M67

M72

M71

M57

M55

M56

M53

M54

S623

S715

S6::

S719

S729

S742

S698

S55:

S561

S59:

S5:1

S629

S62:

S673

S676

S667

S681

S678

S663

S639

S646

S638

S672

S682

S669

S679

S694

S664

S649

S653

R99

R92

R:4

QR73

QR79

QR72

R97

QR45

QR61

QR58

QR37

QR51

QR52QR54

QR56

QR43

QR44

R7:

R81

R67

R84

R68

QV24

QR64

QV27

QR35

QR39

QR34

QR47

QR48

QV26

QV28

V55

R88

V44

V21

R78

QS277

QS267

QS275

S762

QS218

QS219

QS21:

QS212

QS::

QS216

QS214 QS211

QS:9

QS215

SO37

SO32

SO33

SO34

SO35

SO41

SO3:

SO39

SO38

SQ26

SQ28

SO36

SQ25

SQ27

U243

U217

U84

U83

U216

U:7 U:6

U::

U:8

U:1

U9:

U93

U98

U96

U94

U91

U8:

U86

U85

U:3

U99

U7:

U88

U95

U82

U81

U219

U218

U215

U74

U73

U:9

U:5

U213

U68

U66

U64

U214

U67

U65

U79

U211

U212

U77

V53

V54

V56

V47

V45

V43

V51

V48

V49

80 Chapter 5

Chapter 6 81

This chapter gives you the FRU (Field Replaceable Unit) listing in global configurations of TravelMate 660

series products. Refer to this chapter whenever ordering for parts to repair or for RMA (Return Merchandise

Authorization).

Please note that WHEN ORDERING FRU PARTS, you should check the most up-to-date information available

on your regional web or channel. For whatever reasons a part number change is made, it will not be noted on

the printed Service Guide. For ACER AUTHORIZED SERVICE PROVIDERS, your Acer office may have a

DIFFERENT part number code from those given in the FRU list of this printed Service Guide. You MUST use

the local FRU list provided by your regional Acer office to order FRU parts for repair and service of customer

machines.

NOTE: To scrap or to return the defective parts, you should follow the local government ordinance or

regulations on how to dispose it properly, or follow the rules set by your regional Acer office on how to

return it.

FRU (Field Replaceable Unit) List

Chapter 6

82 Chapter 6

Exploded Diagram

The System

Chapter 6 83

Picture No. Partname And Description Part Number

Adapter

NS ADPATER DELTA 75W 3PAPD-75FB BA PFC AP.T2301.001

ADPATER LITEON 75W 3P PA-1750-02CA

PFC

AP.T2303.001

Battery

13 BATTERY SANYO LI-ION 8CELL 4UR18650F-2-

QC-ZG1 4400mAH

BT.T2303.001

BATTERY SIMPLO LI-ION 8CELL (LI-ION

BATTERY PACK ZG14S2P, 4400mAH)

BT.T2306.001

BATTERY SANYO LI-ION 6CELL 3UF103450P-

2-QC-20 3600 mAH

BT.T2303.002

Boards

NS MODEM CARD (Ambit T60M283.10) 54.T29V7.001

NS MODEM /BLUETOOTH COMBO BOARD AMBIT

T60M665.00

54.T23V7.002

NS WIRELESS LAN CARD (802.11a+g) (Ambit

T60H677.03)

54.T29V7.002

WIRELESS LAN BOARD (802.11b) INTEL

WM3B2100

54.T25V7.001

WIRELESS LAN BOARD (802.11a+b) INTEL

WM3B7100

54.T25V7.002

4 LAUNCH BOARD 55.T23V7.001

6 TOUCH PAD BOARD W/CABLE 55.T23V7.002

Cables

84 Chapter 6

NS TOUCHPAD CABLE 50.T23V7.001

NS MODEM CABLE 50.T23V7.002

NS COVER SWITCH CABLE 50.T23V7.003

POWER CORD US (3 pin) 27.A03V7.001

POWER CORD PRC ( 3 Pin) 27.A03V7.003

POWER CORD KOREA ( 3 Pin) 27.T23V7.006

POWER CORD CONTINENTAL ( 3 Pin) 27.A03V7.002

POWER CORD UK ( 3 Pin) 27.A03V7.004

POWER CORD ITALIAN ( 3 Pin) 27.A03V7.005

POWER CORD SWISS ( 3 Pin) 27.A03V7.007

POWER CORD AUS ( 3 Pin) 27.A03V7.008

POWER CORD DANISH ( 3 Pin) 27.A03V7.006

Case/Cover/Bracket Assembly

3 MIDDLE COVER W/ NAME PLATE 42.T29V7.001

NS DIMM DOOR W/SCREW 42.T23V7.002

10 LOWER CASE W/O SPEAKER 60.T23V7.001

5 UPPER CASE W/TOUCHPAD HOLDER 60.T23V7.002

Picture No. Partname And Description Part Number

Chapter 6 85

8 I/O BRACKET W/MICROPHONE 6K.T23V7.001

NS FRONT BEZEL FOR 4 IN 1 MODEL 42.T23V7.003

FRONT BEZEL FOR NON-4 IN 1 MODEL 42.T23V7.004

NS TOUCH PAD SHIELDING FOR TOUCH PAD

BOARD

33.T23V7.001

NS TOUCH PAD BRACKET FOR TOUCH PAD 33.T23V7.002

NS WIRELESS BOARD COVER 42.T23V7.003

Communication Module

NS BLUETOOTH ANTENNA 50.T23V7.004

NS WIRELESS LAN ANTENNA Y CABLE 50.T29V7.001

NS WIRELESS LAN ANTENNA 50.T23V7.006

CPU

Picture No. Partname And Description Part Number

86 Chapter 6

NS INTEL BANIAS 1.3GHz 1M 1.35V UFCPGA2 KC.BS001.13G

INTEL BANIAS 1.4GHz 1M 1.48V UFCPGA2 KC.BS001.14G

INTEL BANIAS 1.5GHz 1M 1.48V UFCPGA2 KC.BS001.15G

INTEL BANIAS 1.6GHz 1M 1.48V UFCPGA2 KC.BS001.16G

HDD/ Hard Disk Drive

12 HDD 30GB/2.5 IN./4200RPM/FUJITSU

HORNET 16L MHS2030AT

KH.03006.001

HDD 30GB/2.5 IN./4200RPM/TOSHIBA

NEPTUNE MK3021GAS

KH.33004.001

HDD 40GB/2.5 IN./4200RPM/FUJITSU

HORNET 16L MHS2040AT

KH.04006.001

HDD 40GB/2.5 IN./4200RPM/TOSHIBA

NEPTUNE MK4021GAS

KH.34004.001

HDD 60GB/2.5 IN./4200RPM/TOSHIBA

NEPTUNE MK6021GAS

KH.36004.001

HDD 60GB/2.5 IN./4200RPM/FUJITSU

HORNET 16L MHS2060AT

KH.06006.001

HDD 60GB/2.5 IN./5400RPM/TOSHIBA TRITON

MK6022GAX

KH.06004.001

HDD COVER 42.T23V7.010

HDD CASE 33.T23V7.004

Keyboard

2 KEYBOARD DARFON US INTERNATIONAL

(Model name: 99.N3482.41D, 84 keys)

KB.T2307.001

KEYBOARD DARFON CHINESE ( 99.N3482.02,

84 keys)

KB.T2307.002

KEYBOARD DARFON SPANISH

(99.N3482.40S, 85 keys)

KB.T2307.003

KEYBOARD DARFON THAI (99.3482N.403, 84

keys)

KB.T2307.004

KEYBOARD DARFON BRAZILIAN

PROTUGESE (99.N3482.406, 85 Keys)

KB.T2307.005

KEYBOARD DARFON Korea (99.3482N.40K, 84

keys)

KB.T2307.006

KEYBOARD DARFON UK NSK-A640U 85KEYS KB.T2507.002

KEYBOARD DARFON GERMAN NSK-A640G

85KEYS

KB.T2507.003

Picture No. Partname And Description Part Number

Chapter 6 87

KEYBOARD DARFON ITALIAN NSK-A640E

85KEYS

KB.T2507.004

KEYBOARD DARFON FRENCH NSK-A640F

85KEYS

KB.T2507.006

KEYBOARD DARFON SWISS/G NSK-A6400

85KEYS

KB.T2507.007

KEYBOARD DARFON PORTUGUESE NSK-06

85KEYS

KB.T2507.009

KEYBOARD DARFON ARABIC NSK-A640A

84KEYS

KB.T2507.010

KEYBOARD DARFON BELGIUM NSK-A641A

85KEYS

KB.T2507.012

KEYBOARD DARFON SWEDEN NSK-A640W

85KEYS

KB.T2507.013

KEYBOARD DARFON CZECH NSK-A640C

85KEYS

KB.T2507.014

KEYBOARD DARFON HUNGAIAN NSK-A640Q

85KEYS

KB.T2507.015

KEYBOARD DARFON NORWAY NSK-A640N

85KEYS

KB.T2507.016

KEYBOARD DARFON DANISH NSK-A640D

85KEYS

KB.T2507.017

LCD

1 LCD MODULE 14.1" TFT XGA QDI

QD141X1LH12

6M.T23V7.011

LCD MODULE 14.1" TFT XGA LG LP141X13-

C1M1

6M.T29V7.005

LCD MODULE 15" TFT XGA AU B150XG01 V2 6M.T23V7.021

LCD MODULE 15.1" TFT XGA LG LP150X05-

A2C1

6M.T23V7.022

LCD MODULE 15" TFT SXGA+ AU B150PG01 6M.T23V7.025

LCD MODULE 15" TFT SXGA+ LG LP150E02 6M.T23V7.026

LCD MOUULE 15" TFT SXGA+ Hitachi

TX38D91VC1FAB (spwg-B)

6M.T29V7.007

LCD MODULE 15" TFT SXGA+ CPT

CLAA150PA01

6M.T23V7.028

NS LCD 14.1" TFT XGA QDI QD141X1LH12 (spwg-

LK.14109.003

LCD 14.1" TFT XGA LG LP141X13-C1M1

(spwg-B)

LK.14108.001

LCD 15" TFT XGA AU B150XG01 V2 (spwg-B) LK.15005.001

LCD 15" TFT XGA LG LP150X05-A2C1 (spwg-

LK.15008.003

LCD 15" TFT SXGA+ AU B150PG01 LK.15005.002

LCD 15" TFT SXGA+ LG LP150E02 LK.15008.004

LCD 15" TFT SXGA+ Hitachi TX38D91VC1FAB

(spwg-B)

LK.15004.005

LCD 15" TFT SXGA+ CPT CLAA150PA01 LK.15009.001

Picture No. Partname And Description Part Number

88 Chapter 6

NS INVERTER BOARD W/MAYLAR E AMBIT

T18I064

19.T23V7.001

INVERTER BOARD W/MAYLAR E SUMIDA

53261-0590

19.T23V7.002

NS LCD BRACKET 14.1" RIGHT W/HINGE 33.T23V7.005

LCD BRACKET 15" RIGHT W/HINGE 33.T23V7.007

NS LCD BRACKET 14.1” LEFT W/HINGE 33.T23V7.006

LCD BRACKET 14.1” LEFT W/HINGE 33.T23V7.008

NS LCD PANEL WITH LOGO-14” 60.T23V7.003

LCD PANEL WITH LOGO-15” 60.T23V7.005

NS LCD BEZEL 14” 60.T23V7.004

LCD BEZEL 15” 60.T23V7.006

NS LCD COAXIAL CABLE FOR 14.1" spwg-B 50.T23V7.011

LCD COAXIAL CABLE FOR 15" XGA spwg-B 50.T23V7.021

LCD COAXIAL CABLE 15" FOR LG SXGA+ 50.T23V7.026

LCD COAXIAL CABLE 15" FOR SHARP SXGA+ 50.T23V7.027

LCD COAXIAL CABLE 15" FOR CPT SXGA+ 50.T23V7.028

Main Board

9 TM650 (ZI1S) MAINBOARD W/SMART CARD

READER,PCMCI SLOT,W/O CPU MEORY

MB.T2906.001

NS PCMCIA SLOT 21.T23V7.001

Picture No. Partname And Description Part Number

Chapter 6 89

Memory

NS MEMORY SO-DIMM DDR266/256MB/0.14U /

INFINEON HYS64D32020 GDL-7-B

KN.25602.001

MEMORY SO-DIMM DDR266/256MB/0.15U /

MICRON MT8VDDT3264HDG-265C3

KN.25604.004

MEMORY SO-DIMM DDR266/256MB/0.14U /

NANYA NT256D64SH8B0GM-75B

KN.25603.004

MEMORY SO-DIMM DDR266/256MB/ ELPIDA

W30256A6EP1652A

KN.25609.001

MEMORY SO-DIMM DDR266/512MB/0.14U /

INFINEON HYS64D64020GBDL-7-B

KN.51202.003

MEMORY SO-DIMM DDR266/512MB/ MICRON

MT16VDDS6464HG-265B4

KN.51204.002

Optical Drive

11 CD-ROM MODULE 24X QSI SCR-242-S 6M.T23V5.001

DVD-ROM MODULE 8X MKE SR-8178 6M.T23V5.003

DVD-ROM MODULE 8X QSI SDR-083 6M.T23V5.004

DVD-RW COMBO MODULE 24X QSI SBW-242 6M.T23V7.005

NS CD-ROM DRIVE 24X QSI SCR-242-S KD.24X03.001

DVD-ROM DRIVE 8X MKE SR-8178 KV.08X02.002

DVD-ROM DRIVE 8X QSI SDR-083 KV.08X03.001

DVD/CDRW COMBO DRIVE 24X QSI SBW-242 KO.24X07.002

NS CD-ROM BEBEL FOR QSI 42.T23V7.004

DVD-ROM BEZEL FOR MKE 42.T23V7.006

DVD-ROM BEZEL FOR QSI 42.T23V7.007

DVD-RW COMBO BEZEL FOR QSI 42.T23V7.008

NS OPTICAL DEVICE BOARD 55.T23V7.003

NS OPTICAL DEVICE BRACKET 33.T23V7.003

Pointing Device

Picture No. Partname And Description Part Number

90 Chapter 6

NS TOUCHPAD 56.T23V7.001

Speaker

14 SPEAKER SET 6K.T23V7.002

Heatsink

7 HEATSINK W/FAN 60.T29V7.001

Reader

NS SMART CARD READER 60.T23V7.007

NS 4 IN 1 READER 6K.T23V7.004

Microphone

NS MICROPHONE 23.T23V7.001

Others

NS LCD LATCH W/O SPRING 6K.T23V7.005

NS LCD SCREW RUBBER UPPER 47.T23V7.001

NS LCD SCREW RUBBER LOWER 47.T23V7.002

Screws

NS NUT-I/O 86.T23V7.001

NS SCREW M1.6X4.0-I-NI-NYLOK 86.T23V7.002

NS SCREW M2.0X2.5-I-NI-NYLOK 86.A03V7.007

NS SCREW M2.0X3.0-I-NI-NYLOK 86.A03V7.012

NS SCREW M2.0X3.5-I-NI-NYLOK 86.T23V7.005

NS SCREW M2.0X5-I-NI-NYLOK 86.T23V7.006

NS SCREW M2.5X3-I-NI-NYLOK 86.A03V7.010

NS SCREW M2.5X4.0-B-NI-NYLOK 86.T23V7.008

NS SCREW M2.5X4-I-NYLOK 86.T23V7.009

NS SCREW M2.5X5.0-I-NI-NYLOK 86.T23V7.010

NS SCREW M2.5X5.5-P-NI-NYLOK 86.T23V7.011

NS SCREW M2.5X0.45+7I-NYLOK 86.T23V7.012

Picture No. Partname And Description Part Number

Chapter 6 91

NS SCREW M1.7X3.5-I-BZN 86.A03V7.009

NS SCREW M2X3-I-BNI-NYLOK 86.T23V7.014

NS SCREW M2.0X5.0-I-BNI-NYLOK 86.T23V7.015

NS SCREW M2.0X6.0-I-NI-NYLOK 86.T23V7.017

NS SCREW M2.5X2-I-NI-NYLOK 86.T23V7.018

NS SCREW M2.5X4-I-BNI 86.T23V7.019

Picture No. Partname And Description Part Number

Appendix A 92

TravelMate 660 Series

Model

Number CPU LCD Memory HDD

(GB) ODD Card

Reader

Wirele

ss LAN

660XVi P-M1.3G 14.1XGA 1x256MB 30/40 8XDVD 4-in-1 11b

660XCi P-M1.3G 14.1XGA 1x256MB 40/60 24x

CDRW+DVD

4-in-1 11b

661XCi P-M1.4G 14.1XGA 2x256MB 40 24x

CDRW+DVD

4-in-1 11b

660LCi P-M1.3G 15.0

SXGA+

256MB 30/40 24x

CDRW+DVD

4-in-1 11b

Model Definition and Configuration

Appendix A

Appendix B 93

This computer’s compatibility is tested and verified by Acer’s internal testing department. All of its system

functions are tested under Windows® XP Home, Windows® XP Pro and Windows® 2000 environment.

Refer to the following lists for components, adapter cards, and peripherals which have passed these tests.

Regarding configuration, combination and test procedures, please refer to the TravelMate 660 series

Compatibility Test Report released by the Acer Mobile System Testing Department.

Test Compatible Components

Appendix B

94 Appendix B

Microsoft® Windows® XP Pro Environment Test

Item Specifications

Display LCD Philips 109P 10

CRT Philips Brilliance 109P 19”

CRT Dell Trinitron 21”

CRT Silicon Graphics 21”

CRT ViewSonic GS773

CRT ViewSonic GS790

CRT Trinitron D1626HT 21” for DELL

LCD FPD 1530

CRT DELL \2000FP

Parallel Port Printer:

HP Laser Jet 5M

HP Desk Jet 930C

HP Desk Jet 840C

HP Laser Jet 2100

IOMega ZIP 250 (LPT Port)

Parallel Port Cable:

ECP Cable

1394 Port HDD:

1394 4GB HDD\VST FireWire Hard Drive

1394 HDD /IEEE 1394 (Fire Wire)/USB 1.1 Combo Hard Drive\FUJITSU

MHS2030AT;18.6GB

1394 CCD: Stealth Fire

1394 HUB: Aten 1394 HUB/FH-600

1394 External HDDCase: Storage BOX (2500E)

1394Video Camera: 1394 SONY DV/DCR-PC100

1394 MO: FUJITSU LIMITED MDF3130EE

Projector Panasonic PT_L757U

Acer 7755c

USB 2.0 HUB:

Highspeed\4 Port

Adaptec\4 Port (XHUB4) for DELL

USB 2.0 HDD:

Iogear HI-SPEE HDD USB 2.0 Enclosure\GHE125U

Iogear HI-SPEE HDD USB 2.0 EXTERNAL

LACIE For DELL

USB DRIVE 128MB

USB DRIVE 256MB

CardBus Card:

Iogear GPU202

USB CDR/W:

YAMAHA CRW-70

Ricoh MP5125A DVD+RW/+R

LACIE (16*10*40) For DELL

USB DVD/CD-RW (Pioneer DVR-104)

GB LAN HUB 3 Com GB LAN Hub

PS/2 Port Keyboard:

Microsoft Natural Keyboard

Gateway SK-9920

Acer 6311-TW

Appendix B 95

Keypad:

PC Concepts Keypad KB-5640

Mouse:

COMPAQ Mouse M-SF14-2

COMPAQ Mouse M-S48a

Logitech Mouse \M-S35

PSC QUICKSCAN 6000plus

Only Support S3,Hut Plug

S-Video TV: DELL \2000FP

PC Card Modem Card:

Xircom CreditCard Modem 56 (CM-56G)

3Com 56K Modem (3CXM556)

3Com 56K Modem (3CXM356)

3Com 56K Modem (3CXM756)

Billionton 56K Modem (FM56C-BF)

Gold Card Glabal 56K+Fax

LAN Card:

D-Link Fast Ethernet DFE-650

D-Link CardBus DFE-660

3COM 10/100 CardBus LAN Card (3CCFE575CT)

3COM 10/100 CardBus LAN Card (3CCFE575BT)

Xircom CreditCard Ethernet 10/100 (CE3B-100)

Xircom CardBus Ethernet II 10/100 (CBE2-100)/32bit

Linksys EtherFast PC Card PCM100

RATOC REX-CB80

Accton 16bit Ethernet (EN2216-2)

Pci_ Fast Ethernet Card FNW-3602-TX

SCSI:

Adaptec SlimSCSI APA-1460D Card

Adaptec SlimSCSI 1480A CardBus UltraSCSI Card

LAN+Modem Card:

3COM 10/100 LAN+56k Modem Card (3CCFEM556B)

3COM 10/100 LAN+56k Modem Card (3CXFEM656C)

Xircom CreditCard Ethernet + Modem 56k (CEM56-100)

ATA Card:

IBM Microdrives 340MB

PCMCIA IDE/ATAPI Controller(FLASH/32MB)

IOMEGA Clik! PC CARD DRIVE

Passport CardBus + HDD

Travel HDD 3.2GB + Passport CardBus /ACCURITE

Compaq 1394 CardBus Card

IEEE 1394 CardBus Card\DV Magician\UPMOST

1394 CardBus Card:

Compaq Flash 96MB

Wireless LAN Card:

COMPAQ Wireless LAN Card \WL 100

Wireless LAN Card \ WL-211F

CISCO AIRONET 350 SERIES\AIR-PCM350

Bluetooth Card:

3Com BlueTooth Card(3CRWB6096)

Item Specifications

96 Appendix B

MMC Card:

SanDisk 64MB

PQI 64MB

Apacer 32MB

Apacer 64MB

MS Card:

SONY 128MB

Apacer 128MB

SD Card:

SanDisk 128MB

Apacer 128MB

Toshiba 128MB

SM Card:

SanDisk 128MB

Transcend 128MB

Apacer 128MB

CF Card:

SanDisk 4MB

Canon FC-16M

USB Port USB Mouse:

Microsoft Optical Mouse\IET78CJ

TARGUS Wheel Mouse

Logitech Wheel Mouse BE-58

Logitech Optical Mouse M-BD58

Logitech Optical Mouse M-un58a

Acer USB Mouse M012BO

eenius USB Mouse

USB Keyboard:

Microsoft Internet Keyboard Pro

SILITEK K/B SK-6000

NMB K/B

USB Camera:

Logitech QuickCam Home

Dlink DSC 350 USB CCD

Intel YC72

CREATIVE Video BLASTER WEBCAM GO Plus

USB CCD:

Intel USB CCD /CS430

USB HDD:

USB DRIVE 128MB

Apacer HandyDrive 256MB

HITACHI DK23EA-60 (60GB)

IEEE 1394 (Fire Wire)/USB 1.1 Combo Hard Drive\FUJITSU

MHS2030AT;18.6GB

USB CD-ROM/W:

YAMAHA CRW-70

PHILIPS JR24CDRW/17

USB Printer:

HP DeskJet 930C

HP DeskJet 840C

Item Specifications

Appendix B 97

USB FDD:

MIC USB FDD YD-8U10

Logitec USB FDD

Teac USB FDD(FD-05PUB)

USB LAN:

Billionton USB-10/100 FastEthernet USB-100B

BUFFALD USB-10/100M Ethernet LUA-TX

USB Zip:

Iomega ZIP 250

Iomega ZIP-100

USB Scanner:

HP ScanJet 5300C

USB Speaker:

Philips UPS DSS330 Speaker

USB Hub:

PCI_ USB HUB\UH-400

General purpose USB Hub /UH-9124

USB Gamepad:

Microsoft Sidewinder Gamepad

Logitech WingMan GAMEPAD EXTREME

Logitech WingMan RUMBLEPAD

USB Card Reader:

CARRY 6 in 1

Image Card Reader \POCFSM-USB

Pro Compact Flash Card Reader

KINOMAX Compact Flash Card Reader

Audio Jack JS-100 Jazz 3D Speaker

J-S 3D Speaker /J-2201W

J-S 3D Speaker /J-2202

SANYO 3D Speaker/OTTO-301

DELL harman/kardon

Ladtec ELITE-840

SONY Earphone MDR-CD60

Panasonic Earphone RP-H1254

Philips Earphone

Alwa Earphone

Microphone Alwa Mini Microphone

Labtec Verse 504

Access Point Intel Access Point

Bluetooth Buletooth mobile phone: Sony Ericsson

Fujitsu PDA

Nokia Mobile phone : 8910

Port Replicator Acer Port Replicator

Item Specifications

98 Appendix B

Microsoft® Windows® 2000 Environment Test

Item Specifications

Display LCD Philips 109P 10

CRT Philips Brilliance 109P 19”

CRT Dell Trinitron 21”

CRT Silicon Graphics 21”

CRT ViewSonic GS773

CRT ViewSonic GS790

CRT Trinitron D1626HT 21” for DELL

LCD FPD 1530

CRT DELL \2000FP

Parallel Port Printer:

HP Laser Jet 5M

HP Desk Jet 930C

HP Desk Jet 840C

HP Laser Jet 2100

IOMega ZIP 250 (LPT Port)

Parallel Port Cable:

ECP Cable

1394 Port HDD:

1394 4GB HDD\VST FireWire Hard Drive

1394 HDD /IEEE 1394 (Fire Wire)/USB 1.1 Combo Hard Drive\FUJITSU

MHS2030AT;18.6GB

1394 CCD: Stealth Fire

1394 HUB: Aten 1394 HUB/FH-600

1394 External HDDCase: Storage BOX (2500E)

1394Video Camera: 1394 SONY DV/DCR-PC100

1394 MO: FUJITSU LIMITED MDF3130EE

Projector Panasonic PT_L757U

Acer 7755c

USB 2.0 HUB:

Highspeed\4 Port

Adaptec\4 Port (XHUB4) for DELL

USB 2.0 HDD:

Iogear HI-SPEE HDD USB 2.0 Enclosure\GHE125U

Iogear HI-SPEE HDD USB 2.0 EXTERNAL

LACIE For DELL

USB DRIVE 128MB

USB DRIVE 256MB

CardBus Card:

Iogear GPU202

USB CDR/W:

YAMAHA CRW-70

Ricoh MP5125A DVD+RW/+R

LACIE (16*10*40) For DELL

USB DVD/CD-RW (Pioneer DVR-104)

GB LAN HUB 3 Com GB LAN Hub

PS/2 Port Keyboard:

Microsoft Natural Keyboard

Gateway SK-9920

Acer 6311-TW

Appendix B 99

Keypad:

PC Concepts Keypad KB-5640

Mouse:

COMPAQ Mouse M-SF14-2

COMPAQ Mouse M-S48a

Logitech Mouse \M-S35

PSC QUICKSCAN 6000plus

Only Support S3,Hut Plug

S-Video TV: DELL \2000FP

PC Card Modem Card:

Xircom CreditCard Modem 56 (CM-56G)

3Com 56K Modem (3CXM556)

3Com 56K Modem (3CXM356)

3Com 56K Modem (3CXM756)

Billionton 56K Modem (FM56C-BF)

Gold Card Glabal 56K+Fax

LAN Card:

D-Link Fast Ethernet DFE-650

D-Link CardBus DFE-660

3COM 10/100 CardBus LAN Card (3CCFE575CT)

3COM 10/100 CardBus LAN Card (3CCFE575BT)

Xircom CreditCard Ethernet 10/100 (CE3B-100)

Xircom CardBus Ethernet II 10/100 (CBE2-100)/32bit

RATOC REX-CB80

Accton 16bit Ethernet (EN2216-2)

Pci_ Fast Ethernet Card FNW-3602-TX

SCSI:

Adaptec SlimSCSI APA-1460D Card

Adaptec SlimSCSI 1480A CardBus UltraSCSI Card

LAN+Modem Card:

3COM 10/100 LAN+56k Modem Card (3CCFEM556B)

3COM 10/100 LAN+56k Modem Card (3CXFEM656C)

Xircom CreditCard Ethernet + Modem 56k (CEM56-100)

ATA Card:

IBM Microdrives 340MB

PCMCIA IDE/ATAPI Controller(FLASH/32MB)

IOMEGA Clik! PC CARD DRIVE

Passport CardBus + HDD

Travel HDD 3.2GB + Passport CardBus /ACCURITE

Compaq 1394 CardBus Card

IEEE 1394 CardBus Card\DV Magician\UPMOST

1394 CardBus Card:

Compaq Flash 96MB

Wireless LAN Card:

COMPAQ Wireless LAN Card \WL 100

Wireless LAN Card \ WL-211F

Bluetooth Card:

3Com BlueTooth Card(3CRWB6096)

Item Specifications

100 Appendix B

MMC Card:

SanDisk 64MB

PQI 64MB

Apacer 32MB

Apacer 64MB

MS Card:

SONY 128MB

Apacer 128MB

SD Card:

SanDisk 128MB

Apacer 128MB

Toshiba 128MB

SM Card:

SanDisk 128MB

Transcend 128MB

Apacer 128MB

CF Card:

SanDisk 4MB

Canon FC-16M

USB Port USB Mouse:

Microsoft Optical Mouse\IET78CJ

TARGUS Wheel Mouse

Logitech Wheel Mouse BE-58

Logitech Optical Mouse M-BD58

Logitech Optical Mouse M-un58a

Acer USB Mouse M012BO

eenius USB Mouse

USB Keyboard:

Microsoft Internet Keyboard Pro

SILITEK K/B SK-6000

NMB K/B

USB Camera:

Logitech QuickCam Home

Dlink DSC 350 USB CCD

Intel YC72

CREATIVE Video BLASTER WEBCAM GO Plus

USB CCD:

Intel USB CCD /CS430

USB HDD:

USB DRIVE 128MB

Apacer HandyDrive 256MB

HITACHI DK23EA-60 (60GB)

IEEE 1394 (Fire Wire)/USB 1.1 Combo Hard Drive\FUJITSU

MHS2030AT;18.6GB

USB CD-ROM/W:

YAMAHA CRW-70

PHILIPS JR24CDRW/17

USB Printer:

HP DeskJet 930C

HP DeskJet 840C

Item Specifications

Appendix B 101

USB FDD:

MIC USB FDD YD-8U10

Logitec USB FDD

Teac USB FDD(FD-05PUB)

USB LAN:

Billionton USB-10/100 FastEthernet USB-100B

BUFFALD USB-10/100M Ethernet LUA-TX

USB Zip:

Iomega ZIP 250

Iomega ZIP-100

USB Scanner:

HP ScanJet 5300C

USB Speaker:

Philips UPS DSS330 Speaker

USB Hub:

PCI_ USB HUB\UH-400

General purpose USB Hub /UH-9124

USB Gamepad:

Microsoft Sidewinder Gamepad

Logitech WingMan GAMEPAD EXTREME

Logitech WingMan RUMBLEPAD

USB Card Reader:

CARRY 6 in 1

Image Card Reader \POCFSM-USB

Pro Compact Flash Card Reader

KINOMAX Compact Flash Card Reader

Audio Jack JS-100 Jazz 3D Speaker

J-S 3D Speaker /J-2201W

J-S 3D Speaker /J-2202

SANYO 3D Speaker/OTTO-301

DELL harman/kardon

Ladtec ELITE-840

SONY Earphone MDR-CD60

Panasonic Earphone RP-H1254

Philips Earphone

Alwa Earphone

Microphone Alwa Mini Microphone

Labtec Verse 504

Access Point Intel Access Point

Bluetooth Buletooth mobile phone: Sony Ericsson

Fujitsu PDA

Nokia Mobile phone : 8910

Port Replicator Acer Port Replicator

Item Specifications

102 Appendix B

Appendix C 103

This section describes online technical support services available to help you repair your Acer Systems.

If you are a distributor, dealer, ASP or TPM, please refer your technical queries to your local Acer branch

office. Acer Branch Offices and Regional Business Units may access our website. However some information

sources will require a user i.d. and password. These can be obtained directly from Acer CSD Taiwan.

Acer's Website offers you convenient and valuable support resources whenever you need them.

In the Technical Information section you can download information on all of Acer's Notebook, Desktop and

Server models including:

TService guides for all models

TUser's manuals

TTraining materials

TBios updates

TSoftware utilities

TSpare parts lists

TTABs (Technical Announcement Bulletin)

For these purposes, we have included an Acrobat File to facilitate the problem-free downloading of our

technical material.

Also contained on this website are:

TDetailed information on Acer's International Traveler's Warranty (ITW)

TReturned material authorization procedures

TAn overview of all the support services we offer, accompanied by a list of telephone, fax and email

contacts for all your technical queries.

We are always looking for ways to optimize and improve our services, so if you have any suggestions or

comments, please do not hesitate to communicate these to us.

Online Support Information

Appendix C

104 Appendix C

Index 105

ACPI 1.0a 23

AFLASH Utility 45

Battery Pack 52

BIOS 23

package 23

password control 23

ROM size 23

ROM type 23

vendor 23

Version 23

BIOS Setup Utility 33

BIOS Supports protocol 23

BIOS Utility 33

Basic System Settings 38

Navigating 34

Onboard Device Configuration 40

Startup Configuration 39

System Information 34

System Security 44

Board Layout 4

Bottom View 5

Top View 4

Cache

controller 23

size 23

caps lock

on indicator 12

CardBus 28

CPU

core voltage 23

package 23

type 23

DIMM 23

Combinations 24

external 53

package 23

removing 53

Speed 23

voltage 23

Disassembly

Battery Pack 50

CD-ROM/DVD-ROM Module 55

Floppy Disk Drive 59

Procedure Flowchart 49

Display 3

Error Symptom-to-Spare Part Index 67

External CD-ROM Drive Check 64

External Diskette Drive Check 64

Features 1

features 93

Flash Utility 45

Floppy Disk

removing the 59

FRU (Field Replaceable Unit) List 81

Hard disk 25

HDD 25

Hot Keys 13

Indicators 12

Intermittent Problems 74

Jumper and Connector Locations 77

Top View 77

Keyboard 29

Keyboard or Auxiliary Input Device Check 64

L2 cache 23

LAN/Modem Combo 24

Memory Check 65

Index

106 Index

Model Definition 92

Modem 24

num lock

on indicator 12

Online Support Information 105

Panel 6

Bottom 11

left 6

Rear 9

right 9

Parallel Port 27

PC Card 12, 28

PCMCIA 28

Pentium III 23

Power System Check 65

Battery Pack 66

Processor 23

RMA 81

Second Level Cache 23

System

Block Diagram 3

Layout 4

System Diagnostic Diskette 45

System Memory 23

System Specifications

Features 93

System Utilities 33

System Utility Diskette 45

Test Compatible Components 95

Touchpad Check 66

Troubleshooting 63

Undetermined Problems 75

USB 27, 28

utility

BIOS 33

Video 26

Resolutions 27

Windows 2000 Environment Test 96, 100

www.s-manuals.com

Acer TravelMate 660 Series Service Guide. Www.s Manuals.com. Guide

Navigation menu

Versions of this User Manual:

Views

Navigation
