![](asset-1.png)
S A F E T Y &
T I E - B A C K
A N C H O R S
Window Cleaning/
Suspended Maintenance
Equipment & Fall
Protection Systems
Pro-Bel Enterprises 1 11010 MAINTENANCE EQUIPMENT
Limited 03 window washing systems
1 - 8 0 0 - 4 6 1 - 0 5 7 5
www.pro-bel.ca info@pro-bel.ca
EXPERTS
THE SAFETY ROOF ANCHOR
![](asset-2.png)
EXPLANATION
A fundamental concept in the use of
maintenance contractor supplied conven-
tional suspended access equipment such
as bosun’s chair, single work cage or
platform is that there must be two inde-
pendent means of support for each
worker using the equipment.
The first means of support is the access
equipment itself tied back to an anchor.
The second is usually provided by a sep-
arate fall arrest system consisting of a:
• full body harness;
• lanyard (with shock absorber);
• mechanical rope grabbing device;
• lifeline;
• lifeline anchor.
In addition, anchors, which are used for
tie-backs or for securing lifelines, are also
an effective, practical means for directly
securing a bosun’s chair with descent
control equipment, the most popular
method of window cleaning today (direct
rigging).
Bosun’s chair is the equipment of choice
among window cleaners. Pro-Bel safety
anchors (see photo at right) are used to
secure chair and separate lifeline.
A-2

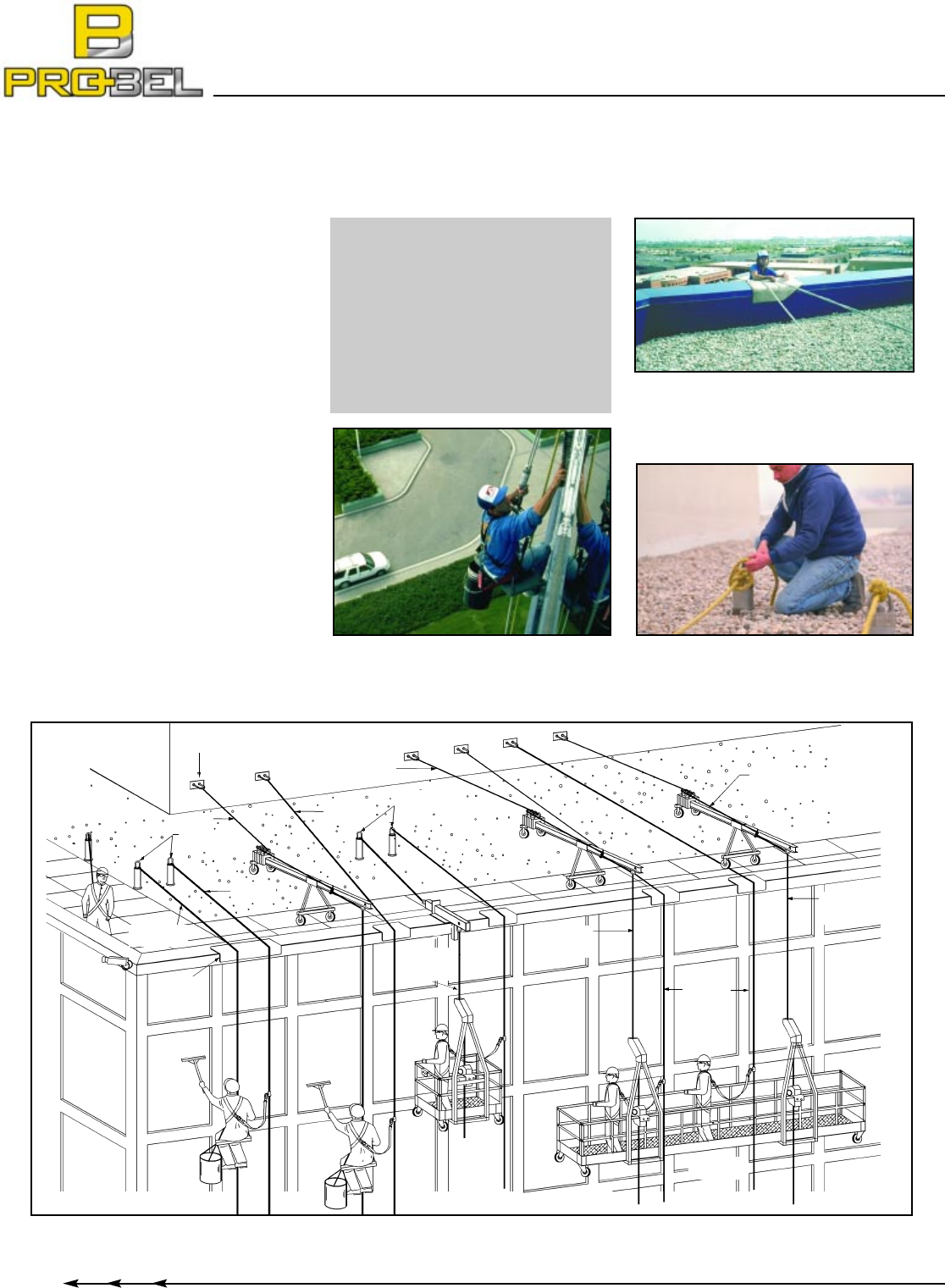

Typical rigging and fall arrest requirement scenarios using Pro-Bel safety lifeline and tie-back anchors.
Pro-Bel safety anchors may be used for
securing lifeline, for tie-back of primary
rigging equipment or to directly rig a
bosun’s chair.
LIFELINES
SUSPENSION
LINE
SAFETY ANCHOR
FOR SERVICING
VIDEO CAMERA
CARPET
STRIP
PRIMARY
SUSPENSION
LINE
BOSUN’S
CHAIR
BOSUN’S
CHAIR SINGLE
WORK
CAGE POWERED
PLATFORM
PRIMARY
SUSPENSION
LINE
LIFELINE
LIFELINE
PRO-BEL ROOF
ANCHORS
PRO-BEL ROOF
ANCHORS
TIE-BACK
TIE-BACK
OUTRIGGER BEAM WITH
COUNTERWEIGHTS
PRO-BEL
WALL ANCHORS
PRIMARY
SUSPENSION
LINE
PARAPET
WALL
CLAMP
The chair is rigged directly to an anchor in
line with the point of suspension. A sep-
arate independent anchor on the roof is
required to secure the worker’s fall arrest
lifeline.
All Buildings Require Roof Anchors
Extract From ANSI/IWCA I-14.1
Window Cleaning Safety Standard:
4.1.1 All buildings where window clean-
ing is performed that employ suspended
equipment shall be equipped with roof
anchorages or other approved devices
which will provide for the safe use of the
equipment in conformance with the pro-
visions of this Standard.
SAFETY & TIE-BACK ANCHORS
![](asset-3.png)
DESCRIPTION
Note: Pro-Bel tie-back/lifeline anchors
and direct rigging anchors are the same
and are used interchangeably.
Safety Anchor Types
There are literally dozens of Pro-Bel
safety anchor products available. Each
has been engineered to satisfy a particu-
lar job requirement. They can be catego-
rized as follows:
PB and PBE Series Wall Anchors
PB wall anchors are fabricated using a
patented stainless steel U-bar which is
detachable for ease of replacement, con-
crete forming and waterproofing. PBE
anchors are a more economical alterna-
tive to PB anchors and are used when
flashing or waterproofing is not a consid-
eration.
PBE Series Roof Anchors
PBE Series anchors have a non-detach-
able stainless steel U-bar and are flashed
using a spun aluminum flashing sealed at
the top with a heat-shrink rubber collar
flashing.

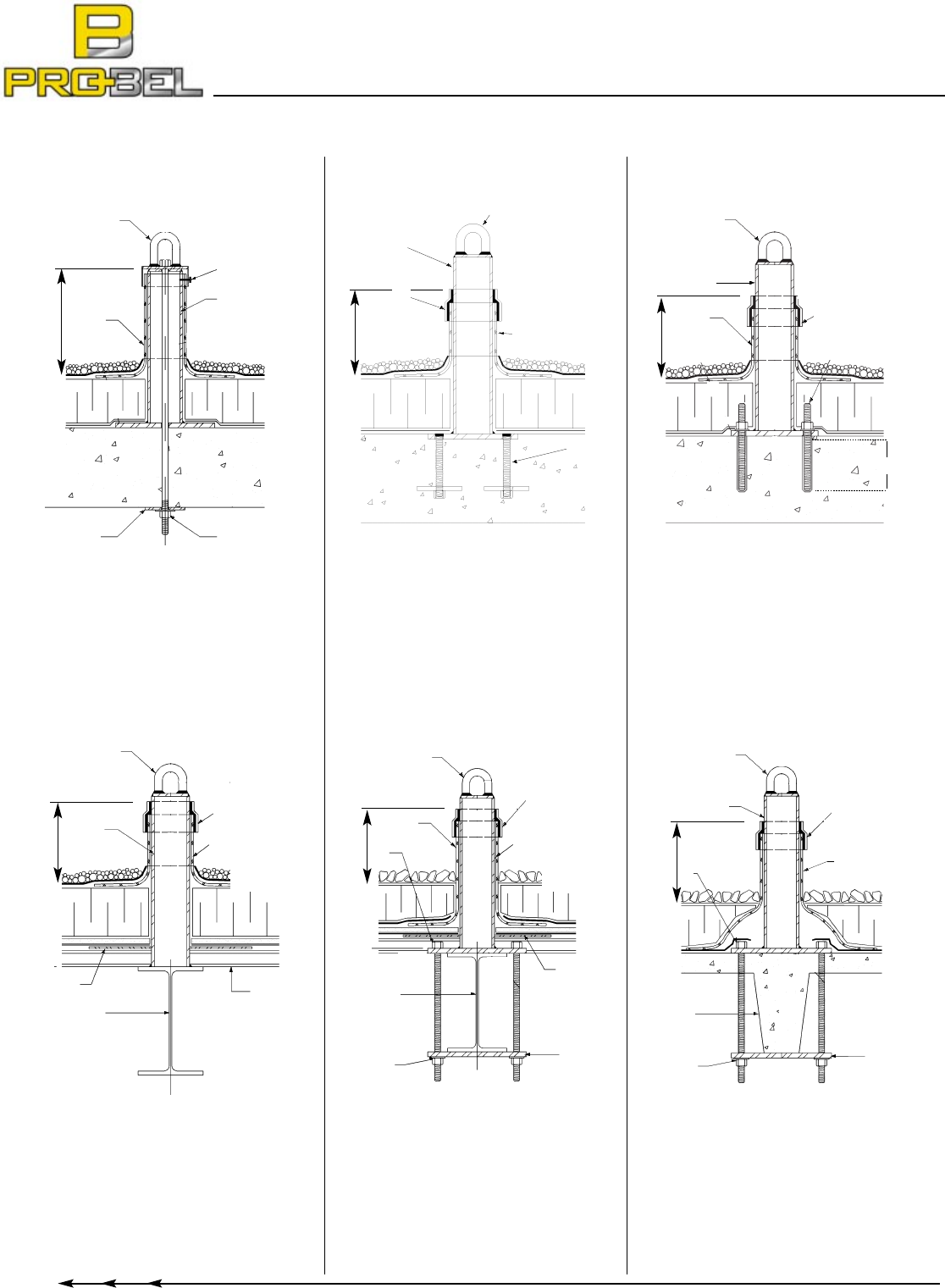

PB Series Roof Anchors
PB Series anchors, somewhat more
expensive than PBE Series anchors, are
fabricated using a patented stainless
steel U-bar and stainless steel cap flash-
ing which is detachable for ease of
replacement.
USE
ANSI/IWCA I-14.1 (3.9 Anchorages)
states that “Building owners and window
cleaning contractors shall not allow sus-
pended work to be performed unless it
has determinded that the building has
provided, identified and certified anchor-
ages complying with Section 9 or 10 for:
independent safety lines; tie-backs for
outriggers, parapet clamps and cornice
hooks; primary support anchorages for
powered and manual boatswain’s chairs;
primary support anchorages for rope
descent systems; horizontal (rope) lines

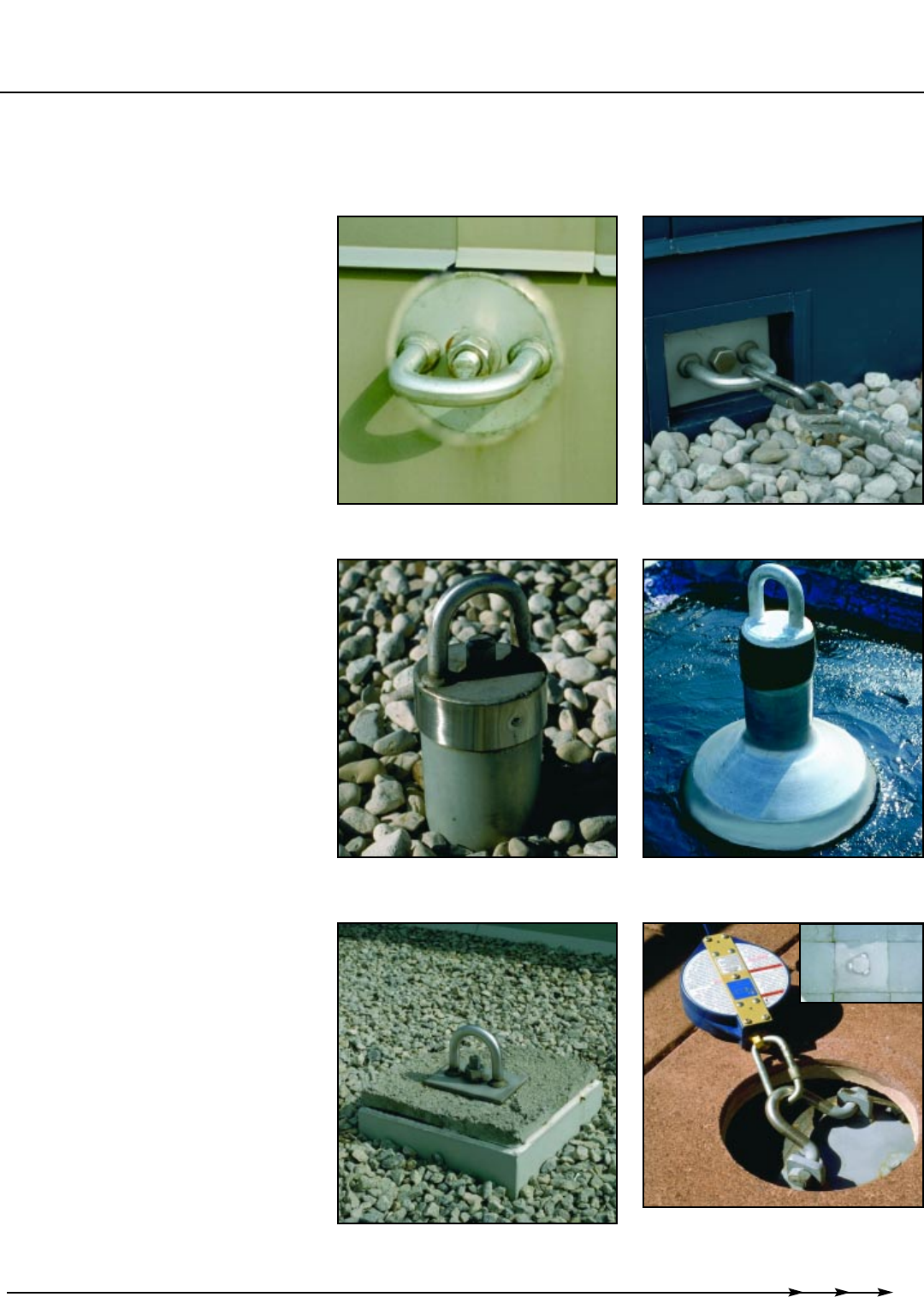

or lifelines; and wherever else required.” Pro-Bel roof anchor set into concrete pier
(PB70).
Pro-Bel PB type wall anchor in concrete
wall of rooftop mechanical room.
Pro-Bel wall anchor recessed in box flash-
ing (PB71S).
Pro-Bel PB type steel pier roof anchor with
detachable cap and aluminum flashing.
A-3
Pro-Bel PBE type roof anchor with alu-
minum flashing and heat-shrink rubber
collar flashing.

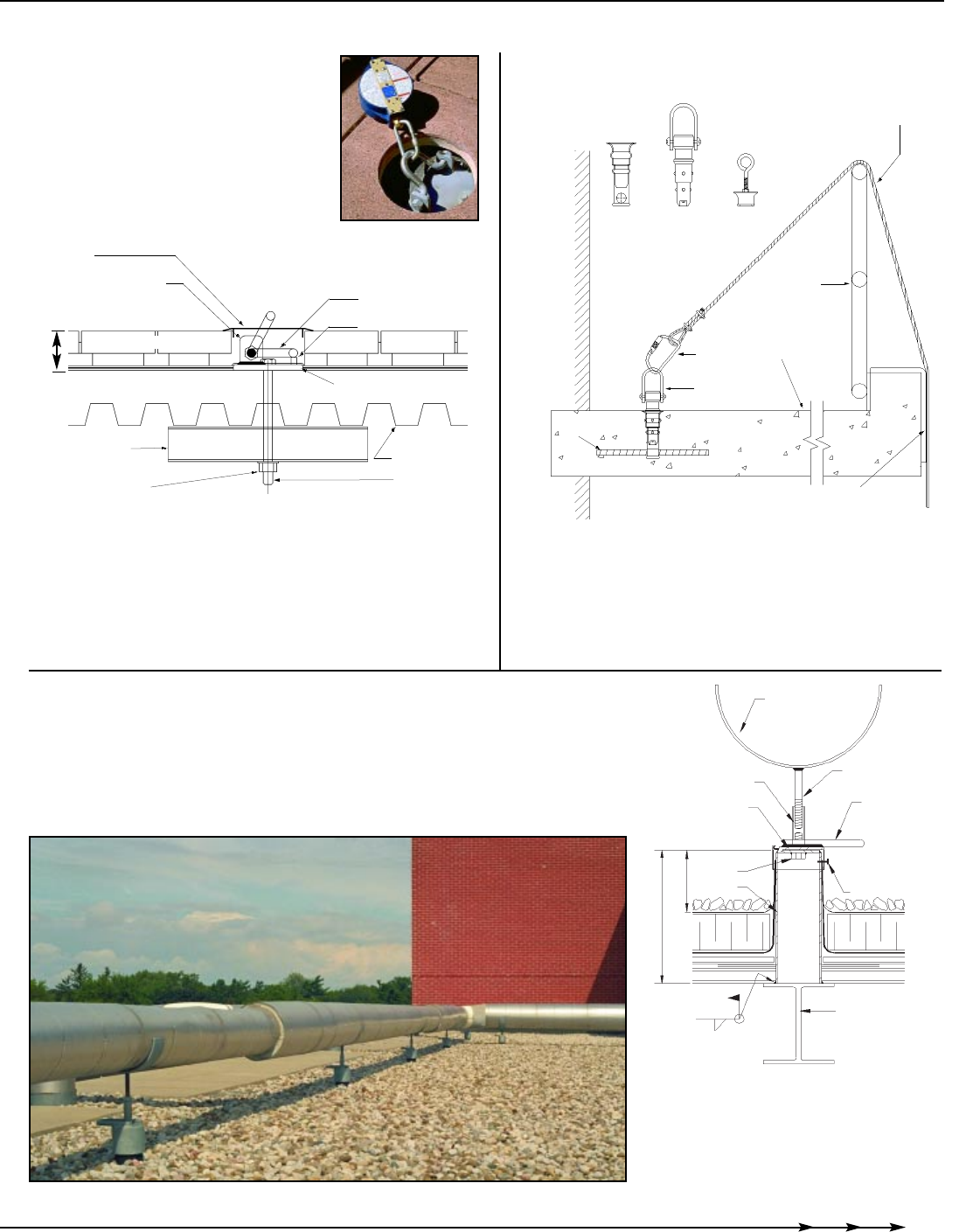

Pro-Bel “flip-up” terrace anchor con-
cealed with cut out core trimmed with
stainless steel band and tabs.
![](asset-4.png)
FEATURES
All corrosion resistant materials;
anchor components are stainless steel
and/or hot dipped galvanized steel.
Standards conformance; all anchors
comply with OSHA and ASME/ANSI/
IWCA safety requirements for window
cleaning, and various materials stan-
dards.
Installation flexibility; Pro-Bel safety
anchors are suited to a broad range of
building structures, including concrete,
structural steel or precast panels.
Securement methods include cast-in-
place, through bolts, bolt around, weld-
ing, or chemical epoxy fastening.
Engineer certified; OSHA and ANSI/
IWCA I-14.1 requires that safety anchor-
ing devices be designed by or under the
direction of a registered professional
engineer experienced in such design.
Pro-Bel safety anchors meet this criteria
and anchor performance is based on
data derived from testing and/or engi-
neering calculations. Anchors have been
tested to ensure fracture or detachment
does not occur with the application of a
5,000 lb (22.2 kN) load in any direction.
Compatible with roofing; Due to strin-
gent OSHA anchor placement require-
ments i.e. in line with the point of sus-
pension and free fall distance, anchors,
for the most part, must necessarily be
placed on the roof. An important consid-
eration in the design of Pro-Bel anchor
products is the need to maintain the long
term watertight integrity of the building.
Pro-Bel products are designed with a full
understanding of reliable flashing/sealing
techniques to satisfy any roof condition.
Where anchors are located in water-
proofed areas of a roof, a pier is normal-
ly provided to elevate the anchor above
the waterproofing. In the case of metal
pier anchors, the pier is supplied with the
anchor and a prefabricated flashing to
suit roof type as required. With concrete
pier anchors, the pier must be formed,
the anchor cast in, and the flashing fabri-
cated at the job site.
Sole responsibility; Pro-Bel provides
complete fall protection products/sys-
tems from concept to the supply and
installation of same, including annual
inspection.
Specific liability insurance; all Pro-Bel
davit installations automatically carry
$2,000,000.00 coverage against product/
system failure (over 4000 projects suc-
cessfully completed to date).
MATERIALS/FABRICATION
(as applicable)
U-bar, anchor bolts, detachable caps:
Type 304 stainless steel with yield
strength of 42 Ksi (290 MPa) or mild steel
to ASTM A36, Type 350W with yield
strength of 43 Ksi (297 MPa), hot dipped
galvanized to ASTM A123/A 123M-2000.
Hollow steel section (HSS) piers: gal-
vanized mild steel as above with yield
strength of 50 Ksi (345 MPa), with or
without urethane foam insulation.
Plate and all other sections: galva-
nized mild steel as above with yield
strength of 43 Ksi (297 MPa).
Seamless spun aluminum flashing (for
steel pier anchors): Type 6061-T6 alloy
to ASTM B221-2000 with deck flange
flashed in using felt plies to NRCA or
CRCA recommendations or roofing
membrane manufacturer’s instructions,
as applicable.
Top of anchor sealing (for steel pier
anchors): torch applied heat-shrink rub-
ber collar flashing or detachable U-bar
complete with stainless steel watertight
cap.
Bolts, nuts and washers: Type 304
stainless steel or galvanized steel to
ASTM A325.
Note: Illustrated on the next few pages
are only some of the many model varia-
tions of anchor products available.
Anchors can be engineered to satisfy vir-
tually any access requirement.
A-4

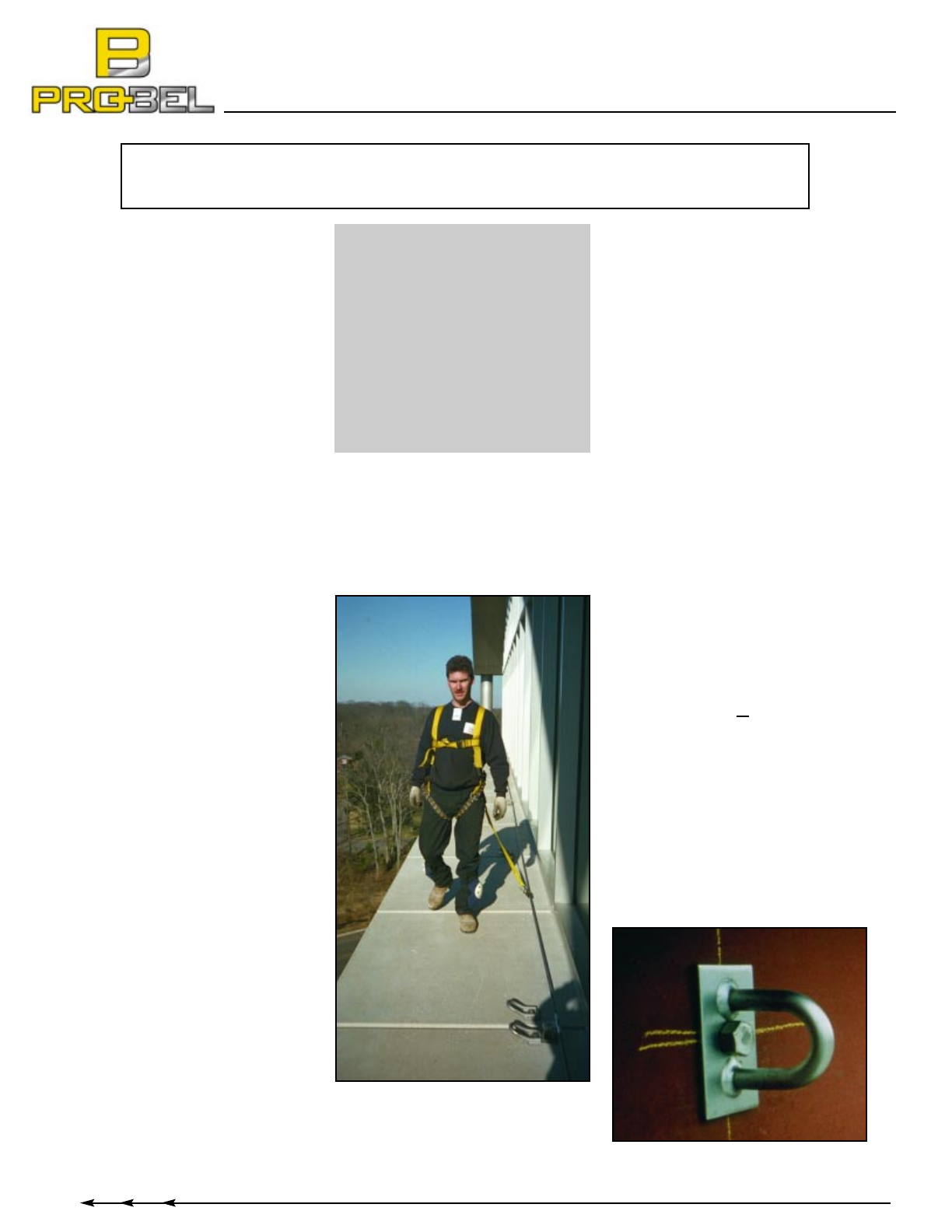

Worker above uses Pro-Bel “Hands-Free”
horizontal lifeline cable to safely access
recessed windows as well as custom
ledge-mounted Pro-Bel safety anchors
(one for bosun’s chair and one for lifeline)
for” drops” below.
Pro-Bel wall anchor bolted to steel beam
supporting rooftop AC chiller unit.

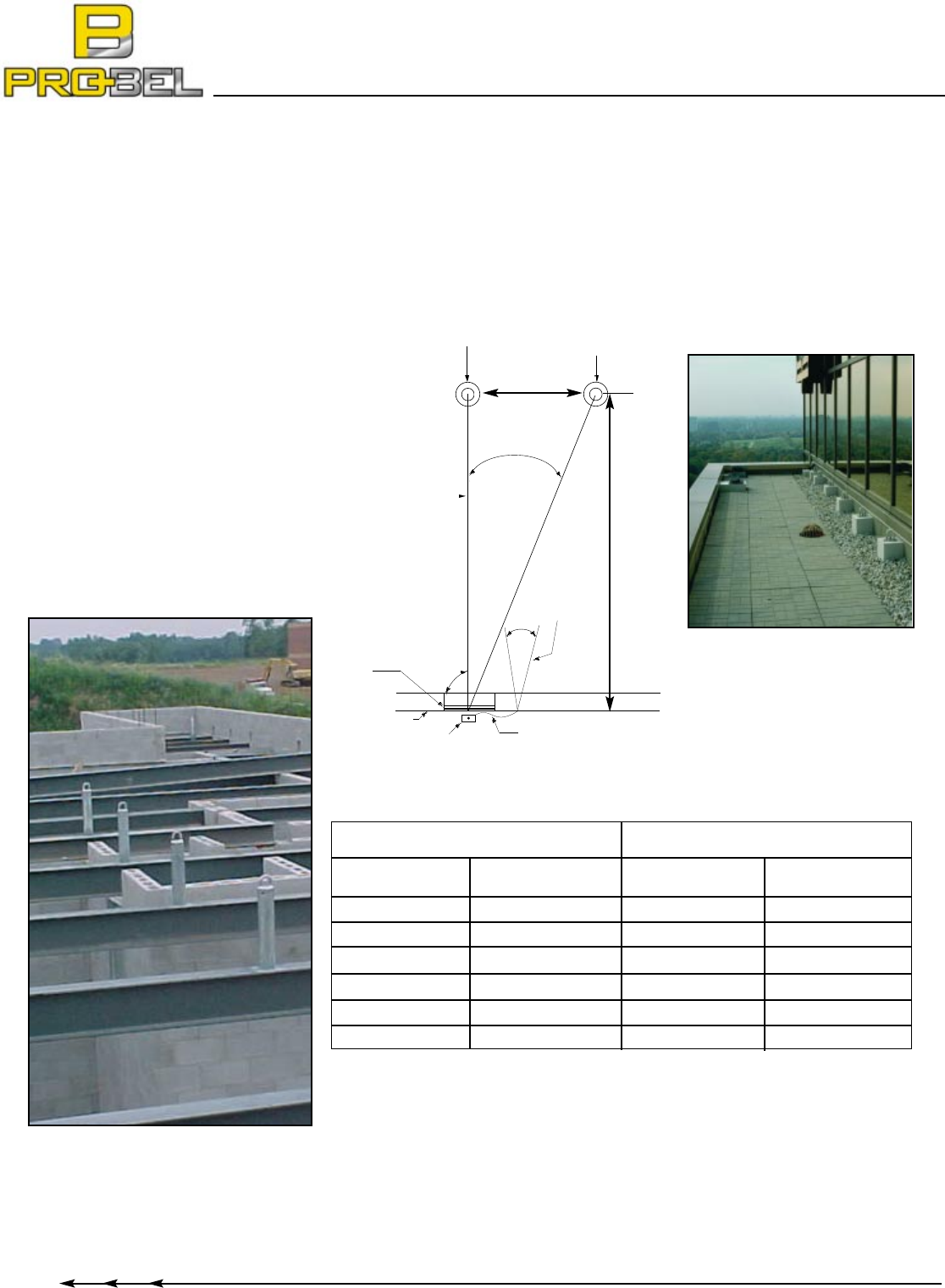

Minimum anchors; OSHA and ANSI/
IWCA I-14.1 requires that equipment tie-
backs be “installed at right angles to the
face of the building whenever possible”.
This requirement, can result in an
unnecessary number of installed
anchors. Pro-Bel has developed anchor
placement chart data to help designers
locate anchors to suit tie-back and life-
line requirements. This data ensures
compliance with OSHA fall protection
criteria while reducing the number of
anchors (and roof penetrations) required.
SAFETY & TIE-BACK ANCHORS Fall Protection Systems (continued)
Note Re: Alternative Finish to Galvanizing. For all anchor bases and supports, Pro-Bel offer a superior protective coating _Protex _in
lieu of galvanizing if desired. Pro-Bel Protex is a 3/32” (2.4 mm) thickness, black colored, two component spray on, flexible 100% solids ther-
moplastic (TPU) polyurethane/polyurea system. Protex provides exceptional impact and abrasion resistance and is factory applied via high
pressure impingement mix polyurethane dispensing equipment. See Pro-Bel Protex Technical Data Sheet # R-2 for complete information.
![](asset-5.png)
A-5

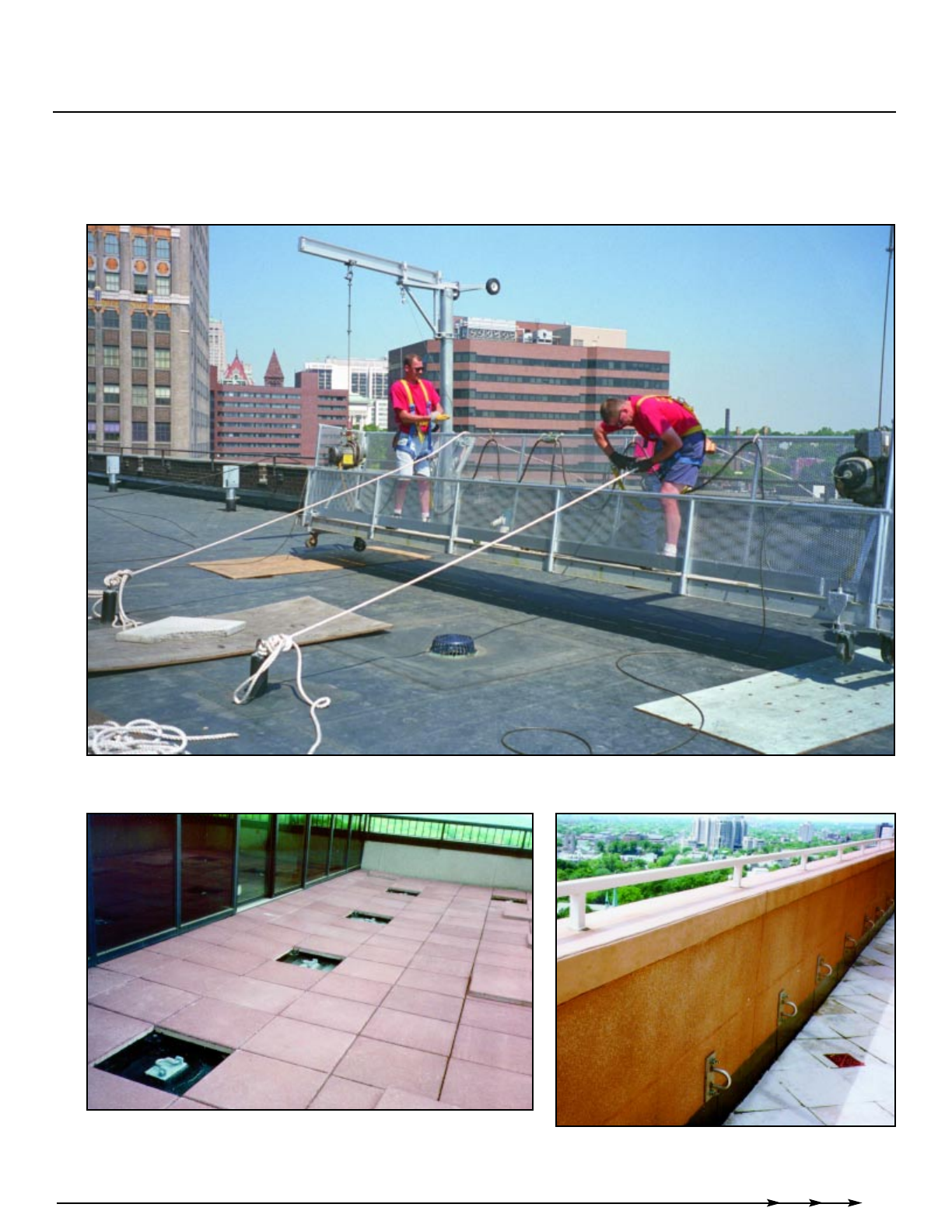

Terrace application shows how a series of Pro-Bel stainless steel “flip-up”
anchors can be completely concealed with pavers when not in use.
Anchors are arranged to suit both bosun’s chair and suspended platform
applications.
Series of Pro-Bel wall anchors bolted to structural con-
crete parapet, used to secure a bosun’s chair suspension
line and workers’ lifeline (interchangable).
Window cleaners preparing to launch a contractor supplied platform over a parapet wall using Pro-Bel davits with rotating heads. Steel
cables are used to suspend the platform while workers are tethered to independent Pro-Bel roof anchors with rope lifelines.
![](asset-6.png)

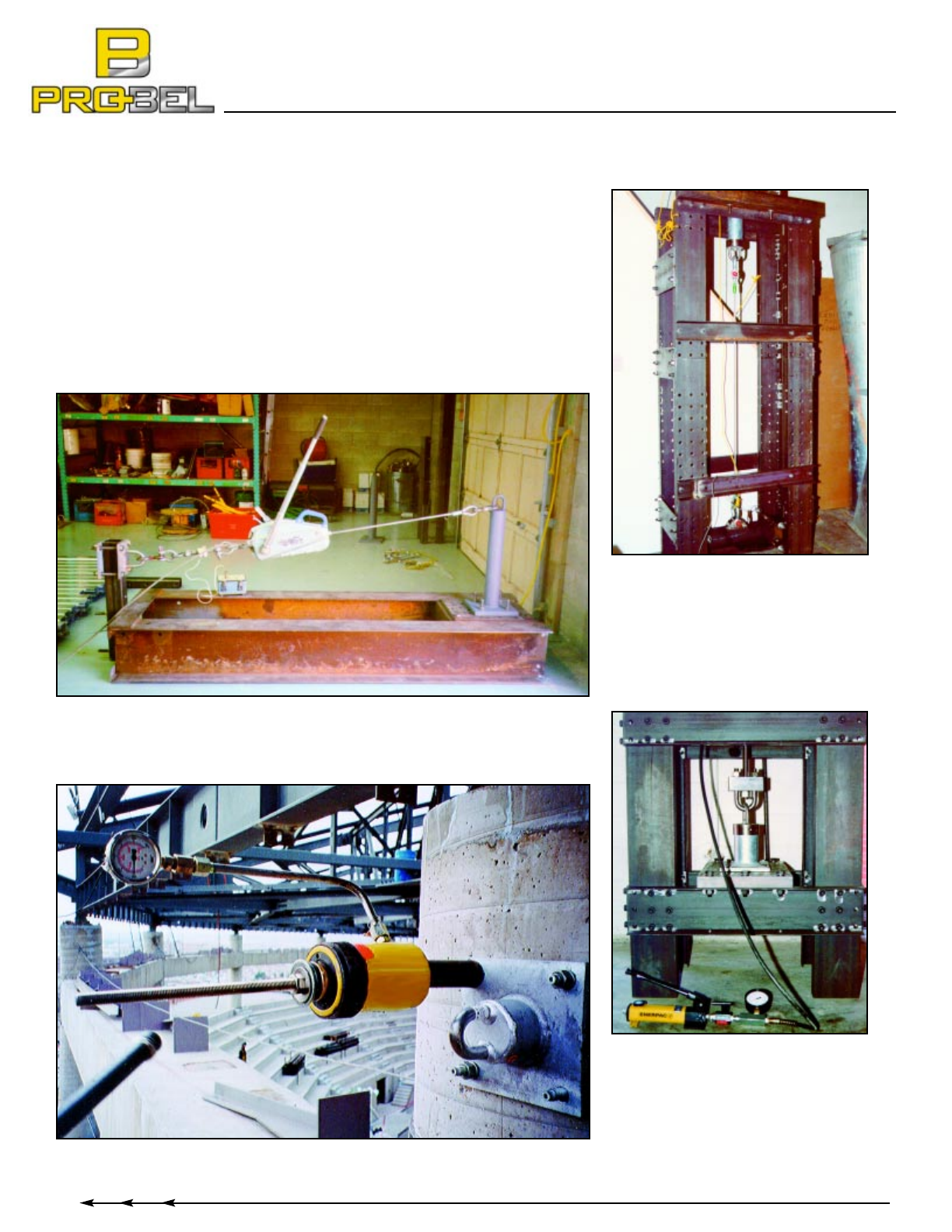

TESTING*
Testing of Pro-Bel wall and roof anchors
involve a variety of both shop and on-site
test methods including static, dynamic and
destructive procedures. All testing is car-
ried out by independent testing agencies
or under the direction of a professional
engineer in accordance with recognized
standards.
Anchors secured using epoxy adhesive
are tested to 5000 lbs (22.2 kN) to ensure
against failure. The photos on this page
provide an overview of Pro-Bel test pro-
cedures.
* Test data available upon request.
The static load test in the above photo, which applies force using a heavy duty cable
come-along, was conducted to show that Pro-Bel wall and roof anchors comply with stan-
dards that require the anchors be capable of resisting without fracture and/or pull-out a
force of 5000 lbs (22.2 kN). A similar test is performed on-site to verify strength of epoxy
adhesive roof anchors.
Pro-Bel wall anchors secured to structural concrete using epoxy adhesive are load tested
on-site using a hydraulic pull tester to verify strength and anchor bolt integrity.
Photo shows 8’-0” (2440 mm) high apparatus
used for shock (drop) testing of Pro-Bel safe-
ty U-Bar anchors. A 220 lb. (100 kg) weight
was connected to the anchor using a steel
test lanyard and dropped a distance of 4’- 0”
(1220 mm). A series of anchors employing
different securements were tested and peak
forces up to 18,522 lbs (8400 kg) were gener-
ated without fracture to any part of the
anchors.
A series of Pro-Bel safety U-Bar anchors
were tested to determine their ultimate
strength (destructive testing). The force
used to break the test specimens was pro-
vided by a hydraulic system, a hooking
mechanism, and support structure. The
highest pressure recorded just before a
specimen was broken in this series of tests
measured 32,445 lbs (4500 psi *7.210 in2).
A-6
SAFETY & TIE-BACK ANCHORS Fall Protection Systems (continued)
![](asset-7.png)

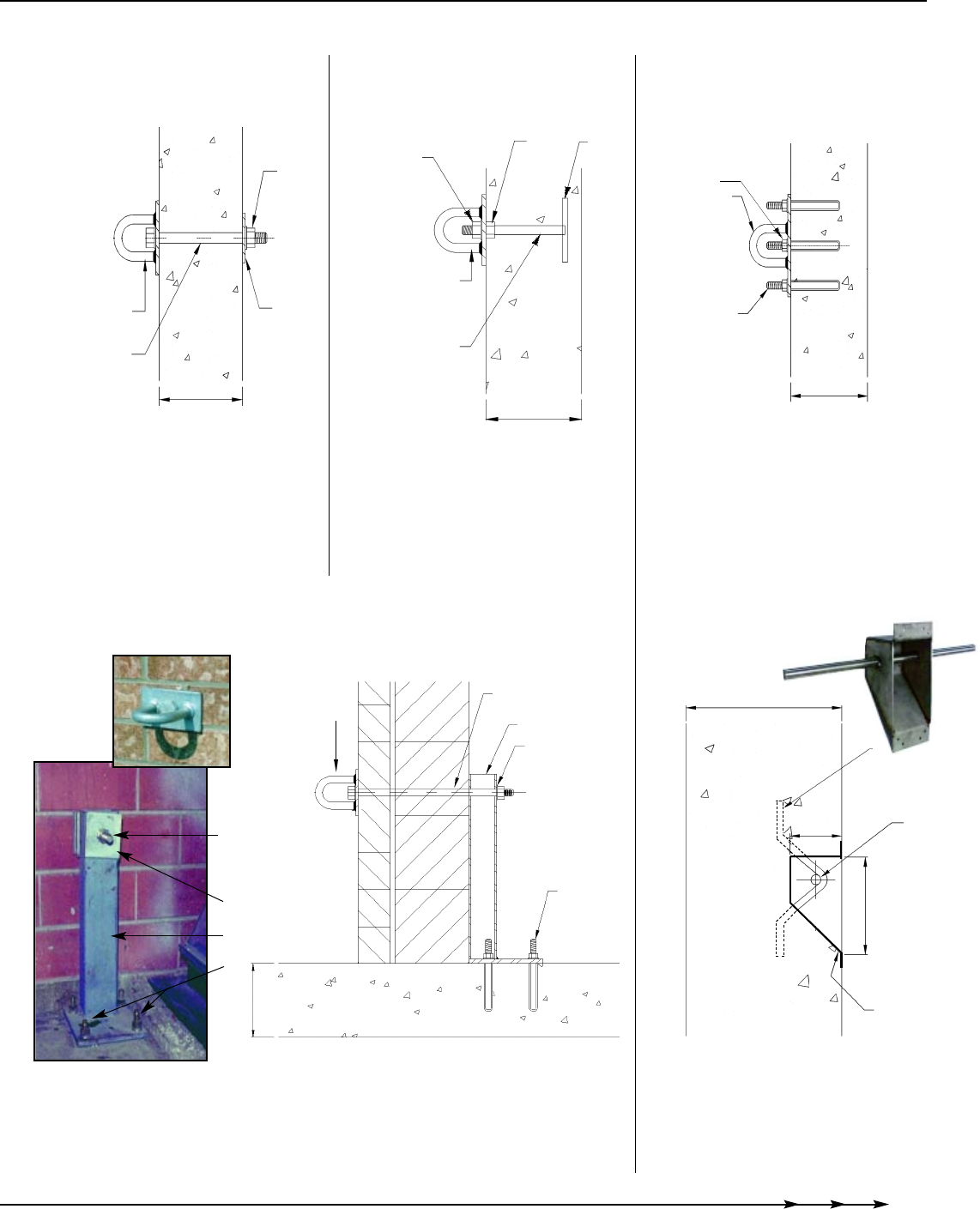

PRO-BEL MODEL # PB71S:
1. STAINLESS STEEL U-BAR SAFETY ANCHOR;
2. STAINLESS STEEL OR GALVANIZED BOLT;
3. HEAVY DUTY HEX NUT & LOCK WASHER;
4. GALVANIZED STEEL BACK PLATE.
RECESSED, CAST-IN-PLACE
Anchors are
designed to a maxi-
mum fall arresting
force of typically
1800 lbs (8.0 kN)
when wearing a
body harness with a
safety factor of 2
without any perma-
nent deformation
and to 5000 lbs
(22.24 kN) against
fracture or detach-
ment.
Anchors are
designed to a maxi-
mum fall arresting
force of typically
1800 lbs (8.0 kN)
when wearing a
body harness with a
safety factor of 2
without any perma-
nent deformation
and to 5000 lbs
(22.24 kN) against
fracture or detach-
ment.
6” (150 mm) MIN
6” (150 mm) MIN
6” (150 mm) MIN
6” (150 mm) MIN
7-1/2” (190 mm)
4”
(100 mm)
CAST-IN-PLACE
PRO-BEL MODEL # PB69S:
1. STAINLESS STEEL U-BAR SAFETY ANCHOR;
2. S.S. LOCK WASHER AND NUT
3. STAINLESS STEEL CAST- IN-PLACE ROD;
4. FORMING NUT.
5. GALVANIZED STEEL BACK PLATE.
2
45
1
3
EPOXY ADHESIVE BOLTS
PRO-BEL MODEL # PB48S:
1. STAINLESS STEEL U-BAR SAFETY ANCHOR;
2. LOCK WASHER AND NUT;
3. EXPOXY ADHESIVE ANCHOR BOLTS
PRO-BEL MODEL # PBE68:
1. REINFORCING ROD TIES BY OTHERS;
2. STAINLESS STEEL RECESSED BOX TYPE
SAFETY ANCHOR;
3. S.S. FORM NAILING FLANGE
PRO-BEL MODEL # PB93S-A
1. STAINLESS STEEL U-BAR SAFETY ANCHOR; 2. S.S. OR GALVANIZED BOLT, EXPOSED
THREADS TO BE DEFORMED AFTER INSTALLATION; 3. STEEL REINFORCING c/w STEEL BASE
PLATE TO SUIT; 4. HEAVY DUTY HEX NUT & LOCK WASHER; 5. EPOXY ADHESIVE ANCHOR
BOLTS.
2
3
2
1
3
THROUGH-BOLT
1
2
4
3
6” (150 mm) MIN
REINFORCED WALL ANCHOR WITH EPOXY ADHESIVE BOLT SECUREMENT AT FLOOR
BACK PLATE
2
3
4
5
3
5
WALL ANCHOR SECUREMENTS
A-7
1
2Anchors are
designed to a maxi-
mum fall arresting
force of typically
1800 lbs (8.0 kN)
when wearing a
body harness with a
safety factor of 2
without any perma-
nent deformation
and to 5000 lbs
(22.24 kN) against
fracture or detach-
ment.
Anchors are
designed to a maxi-
mum fall arresting
force of typically
1800 lbs (8.0 kN)
when wearing a
body harness with a
safety factor of 2
without any perma-
nent deformation
and to 5000 lbs
(22.24 kN) against
fracture or detach-
ment.
Anchors are
designed to a maxi-
mum fall arresting
force of typically
1800 lbs (8.0 kN)
when wearing a
body harness with
a safety factor of 2
without any perma-
nent deformation
and to 5000 lbs
(22.24 kN) against
fracture or detach-
ment.
1
![](asset-8.png)
THROUGH-BOLT
PRO-BEL MODEL # PB73-SDC1:
1. STAINLESS STEEL U-BAR SAFETY ANCHOR
c/w S.S. BOLT & DETACHABLE S.S. CAP;
2. SEAMLESS SPUN ALUMINUM FASHING;
3. GALVANIZED STEEL PIER;
4. STAINLESS STEEL HEAVY DUTY HEX NUT &
LOCK WASHER;
5. GALVANIZED STEEL BACK PLATE;
6. TAMPERPROOF PIN
PRO-BEL MODEL # PBE74-00A4-S:
1. STAINLESS STEEL U-BAR SAFETY ANCHOR
2. GALVANIZED STEEL PIER c/w BASE PLATE;
3. SEAMLESS SPUN ALUMINUM FLASHING;
4. HEAT-SHRINK RUBBER COLLAR FLASHING;
5. STAINLESS STEEL BOLTS c/w PLATES
WELDED TO BOLTS.
PRO-BEL MODEL # PBE75-S:
1. STAINLESS STEEL U-BAR SAFETY ANCHOR;
2. GALVANIZED STEEL PIER;
3. HEAT-SHRINK RUBBER COLLAR FLASHING;
4. SEAMLESS SPUN ALUMINUM FLASHING;
5. EXISTING METAL DECK;
6. FLAT STOCK DECK CLOSURE PLATE
(OPTIONAL)
PRO-BEL MODEL # PBE76-S:
1. STAINLESS STEEL U-BAR SAFETY ANCHOR;
2. GALVANIZED STEEL PIER c/w BASE PLATE;
3. GALVANIZED STEEL BOLTS;
4. HEAT-SHRINK RUBBER COLLAR FLASHING;
5. SEAMLESS SPUN ALUMINUM FLASHING;
6. FLAT STOCK DECK CLOSURE PLATE
(OPTIONAL);
7. STEEL BACK PLATE;
8. HEAVY DUTY HEX NUT & LOCK WASHER.
PRO-BEL MODEL # PBE76-S:
1. STAINLESS STEEL U-BAR SAFETY ANCHOR;
2. GALVANIZED STEEL PIER c/w BASE PLATE;
3. GALVANIZED STEEL BOLTS;
4. HEAT-SHRINK RUBBER COLLAR FLASHING;
5. SEAMLESS SPUN ALUMINUM FLASHING;
6. STEEL BACK PLATE;
7. HEAVY DUTY HEX NUT & LOCK WASHER.
PRO-BEL MODEL # PBE78-S:
1. STAINLESS STEEL U-BAR SAFETY ANCHOR;
2. GALVANIZED STEEL PIER c/w BASE PLATE;
3. SEAMLESS SPUN ALUMINUM FLASHING;
4. HEAT-SHRINK RUBBER COLLAR FLASHING;
5. EPOXY ANCHOR BOLTS.
1
3
6
4
2
4
2
3
1
5
6
I-BEAM
4
3
2
1
5
6
87
I-BEAM
1
4
3
2
EPOXY ADHESIVE BOLT
WELDMENT
WRAPPING I-BEAM
WRAPPING CONCRETE JOIST
4
5
3
1
2
6
7
CONCRETE
JOIST
ROOF ANCHOR SECUREMENTS
A-8
5”
8” (200 mm) MIN.
8” (200 mm) MIN.
8” (200 mm) MIN.
8” (200 mm) MIN.
8” (200 mm) MIN.
Anchors are
designed to a maxi-
mum fall arresting
force of typically
1800 lbs (8.0 kN)
when wearing a
body harness with a
safety factor of 2
without any perma-
nent deformation
and to 5000 lbs
(22.24 kN) against
fracture or detach-
ment.
Anchors are
designed to a maxi-
mum fall arresting
force of typically
1800 lbs (8.0 kN)
when wearing a
body harness with a
safety factor of 2
without any perma-
nent deformation
and to 5000 lbs
(22.24 kN) against
fracture or detach-
ment.
Anchors are
designed to a maxi-
mum fall arresting
force of typically
1800 lbs (8.0 kN)
when wearing a
body harness with a
safety factor of 2
without any perma-
nent deformation
and to 5000 lbs
(22.24 kN) against
fracture or detach-
ment.
Anchors are
designed to a maxi-
mum fall arresting
force of typically
1800 lbs (8.0 kN)
when wearing a
body harness with a
safety factor of 2
without any perma-
nent deformation
and to 5000 lbs
(22.24 kN) against
fracture or detach-
ment.
Anchors are
designed to a maxi-
mum fall arresting
force of typically
1800 lbs (8.0 kN)
when wearing a
body harness with a
safety factor of 2
without any perma-
nent deformation
and to 5000 lbs
(22.24 kN) against
fracture or detach-
ment.
5
SAFETY & TIE-BACK ANCHORS Fall Protection Systems (continued)
1
2
3
5
5
Anchors are
designed to a maxi-
mum fall arresting
force of typically
1800 lbs (8.0 kN)
when wearing a
body harness with a
safety factor of 2
without any perma-
nent deformation
and to 5000 lbs
(22.24 kN) against
fracture or detach-
ment.
CAST-IN-PLACE
4
8” (200 mm) MIN.
![](asset-9.png)
PRO-BEL ROOFTOP SUPPORTS
Application
Recommended for use in new construction or retrofit applica-
tions where it is necessary or desirable to conceal the anchor
when not in use i.e. terrace, balcony or roof deck locations. Pro-
Bel flip-up and recessed anchors are designed to suit all roof
conditions including cast-in-place and weldment applications.
Application
Ideal for use in new contruction for exposed concrete bal-
conies where it is desirable to directly rig a bosun’s chair
over a balcony rail. If the rail cannot accommodate the loads,
outrigger beams may be employed for exterior maintenance
using a ground rigged platform. The embed anchor (con-
nector) is removed and capped flush when not in use.
Pro-Bel galvanized steel pipe support complete with U-Bar safety anchor.
Pro-Bel also manufactures a complementary line of rooftop supports for pipes, satel-
lite dishes, catwalks, cellular towers, antenna, guy wire securement, air conditioning
units and similar equipment. These supports can be supplied as stand alone items or
combined with U-bar safety anchors and are secured and flashed in using the same
reliable methods employed for Pro-Bel anchors. For further information contact a Pro-
Bel representative. 4
32
1
5
8
6
7
I-BEAM
VARIES
PRO-BEL MODEL # PB75-HP1 PIPE SUPPORT:
1. GALV. STEEL PIPE SADDLE;
2. THREADED GALV. ROD;
3. GALV. ROD DRILLED & TAPPED;
4. GALV. ANCHOR CAP;
5. TAMPERPROOF PIN;
6. SUPPORT BASE SECUREMENT BOLT;
7. GALV. STEEL SUPPORT BASE;
8. S.S. OR GALV. U-BAR SAFETY ANCHOR.
A-9
1/4”
(6 mm)
Anchors are designed to a maximum fall arresting force of typi-
cally 1800 lbs (8.0 kN) when wearing a body harness with a
safety factor of 2 without any permanent deformation and to
5000 lbs (22.24 kN) against fracture or detachment.
Anchors are
designed to a maxi-
mum fall arresting
force of typically
1800 lbs (8.0 kN)
when wearing a
body harness with a
safety factor of 2
without any perma-
nent deformation
and to 5000 lbs
(22.24 kN) against
fracture or detach-
ment.
Anchor in terrace deck.
Paver cutout conceals
anchor when not in
use.
NOTE: WHEN THE ANCHOR IS COMPLETELY RECESSED BELOW
THE PAVER. THE PAVER CAN BE CORED OUT AND THE CORE CAN
BE USED AS A CAP.
PRO-BEL MODEL # PB96-RP2 “FLIP-UP”
ROOF ANCHOR
2-1/2” (64 mm)
STEEL LOCK WASHER
& HEAVY DUTY HEX NUT
PRIMED STEEL HSS
REINFORCEMENT
STAINLESS STEEL
THREADED ROD
EXISTING
COMPOSITE DECK
PIVOTING STAINLESS STEEL
U-BAR ANCHOR
STOP LUG
STEEL BASE PLATE
METAL
COVER CAP
EXISTING PAVERS
STAINLESS STEEL ANCHOR
SECUREMENT LUG
RECEIVER
D-CUP
CONNECTOR
RE-BAR
INSERT
CONCRETE
BALCONY
CARPET
PROTECTION
RAILING
DETENT-
TYPE
CONNECTOR
NOT-IN-USE
PLUG
PRO-BEL MODEL # PB97 HEAVY DUTY DETENT-TYPE
CONCRETE EMBED ANCHOR
SUSPENSION LINE
FOR BOSUN’S CHAIR
![](asset-a.png)

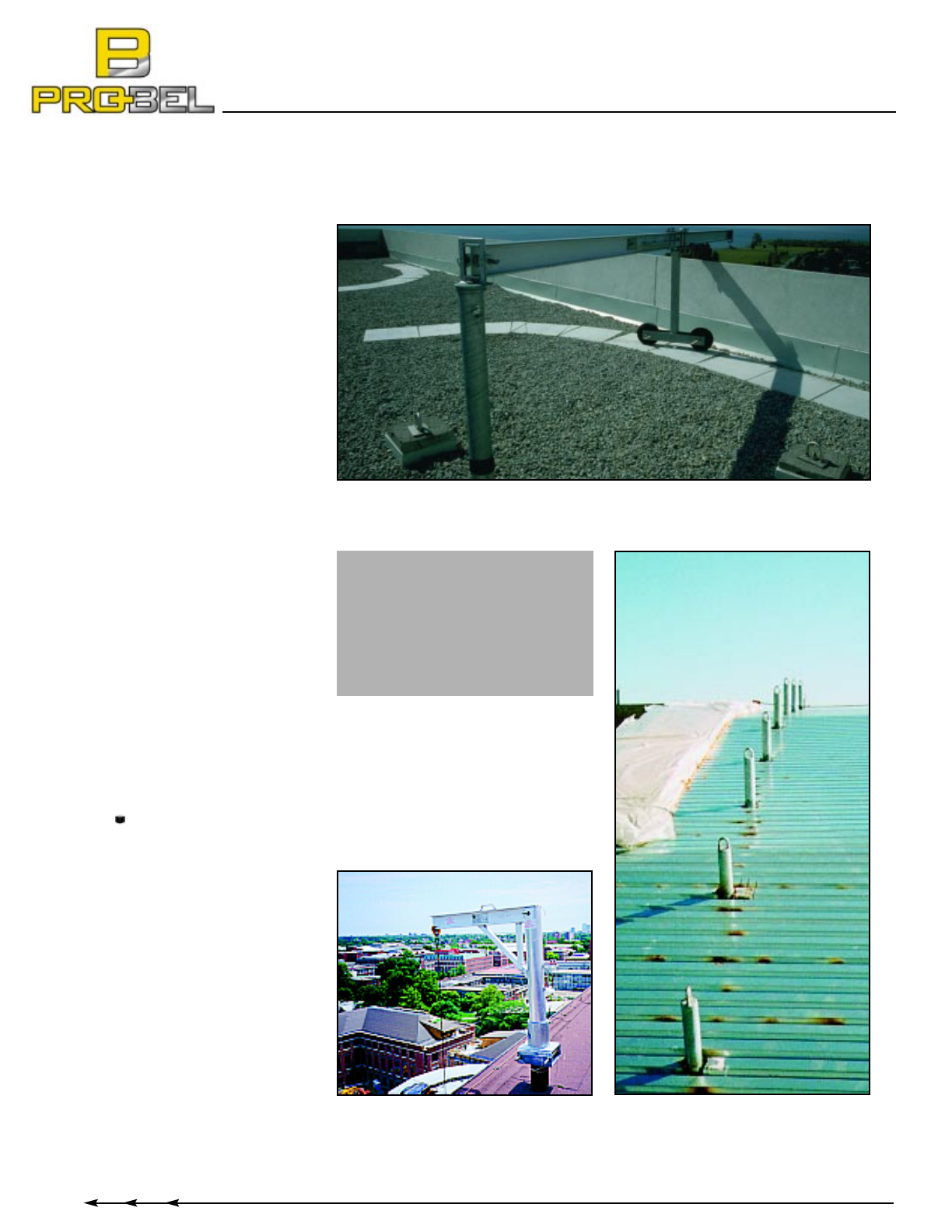

DESIGN CONSIDERATIONS
Roof Space: Conventional (non-perma-
nent) outrigger beams employing coun-
terweights, when used with descent con-
trolled bosun’s chair, single work cage or
platforms are normally supported to clear
a low non-structural parapet wall. Con-
ventional outrigger beams are typically
12’-0” to 15’-0” (3658 mm to 4572 mm)
long and have a reach of 3’-0” (915 mm)
or less beyond the roof edge. They
require sufficient space on the roof to
accommodate the inboard portion of the
beam and the tie-back.
Parapet Strength: If the parapet wall is
structurally sufficient, a parapet wall
clamp may be secured to the wall for the
suspension of access equipment.
Also, a bosun’s chair can be directly
secured to a safety anchor. This is known
as direct rigging. The chair is rigged
directly to wall or roof anchors in line with
the point of suspension, and the primary
synthetic rope suspension lines are nor-
mally protected at the parapet using con-
tractor supplied carpet or other anti-abra-
sion protection devices.
When the parapet is not capable of sup-
porting the applied loads, primary sus-
pension support equipment such as out-
rigger beam dollys or davits must be con-
sidered. See Pro-Bel Outrigger Beam
Systems or Davit Systems literature.
Parapet Height: Anchors can be
installed in parapet walls provided walls
meet the following criteria:
Wall is 42” (1067 mm) minimum
guardrail height;
Wall has been engineered to take the
applied loads.
Structural loads: Anchors are designed
to a maximum fall arresting force of typi-
cally 1800 lbs (8.0 kN) when wearing a
body harness with a safety factor of 2
without any permanent deformation and
to 5000 lbs (22.24 kN) against fracture or
detachment.
Free Design Service: The selection of
window cleaning equipment is a perfor-
mance oriented and highly specialized
field requiring an in-depth knowledge of
Rigging Methods, Safety and OSHA
Standards/State Codes. Pro-Bel provides
a free design service to ensure that Pro-
Bel systems are properly specified.
Pro-Bel portable outrigger with beam dolly is ideal for clearing non-structural parapet.
Note separate pier-type safety anchors for securing lifelines. See Pro-Bel Outrigger Beam
Systems literature.
This photo shows a Pro-Bel roof anchor
installation. Anchors are welded to struc-
tural steel before a horizontal lifeline cable
system is installed to provide fall protec-
tion on this arched roof.
Pro-Bel portable aluminum ground rigged
davit arms are ideal for clearing non-struc-
tural parapets or reaching out past build-
ing face obstructions. See Pro-Bel Davit
Systems literature.
1.
2.
Location of Lifeline Anchors: The
location of lifeline anchors relative to tie-
back anchors must be such that a work-
er can neither fall more than 6’-0” (1.8
m), nor contact any lower level (OSHA
1910.66, Subpart F and ANSI/IWCA
I-14.1, section 9.2.2 (g) 2). See Layout
data on page A-12.
A-10
SAFETY & TIE-BACK ANCHORS Fall Protection Systems (continued)
![](asset-b.png)
ANCHOR LAYOUT PROCEDURE
1. Review the Pro-Bel System & Equipment
Introduction literature (pages G-6 to G-
18). This data provides an overview of the
various equipment options used to clean
windows or perform other suspended build-
ing maintenance.
2. Identify all roof levels. Mark window loca-
tions on other areas requiring access on
the architectural roof plan drawing(s).
3. Examine building section drawings to
assess construction of parapet wall,
mechanical room wall and roof assembly or
other building elements as necessary.
4. Examine roof structural drawings for possi-
ble anchorage locations.
5. Examine building elevations or other draw-
ings to identify any setbacks, recesses or
other unusual features.
6. Review the Design Considerations on page
A-10 to assist in making a "rigging" deci-
sion.
7. If it has been determined that "rigging" is
suited to using anchors only, for both the
support of primary suspension equipment
and lifelines, refer to Anchor Spacing Chart
at right on page A-12.
Note: Primary suspension equipment refers to
conventional, maintenance contractor supplied
equipment i.e. bosun's chair, transportable out-
rigger beams, single work cage, temporary
platform and parapet wall clamps.
ANCHOR PLACEMENT
1. After determining what areas of the build-
ing face will need to be accessed for main-
tenance, anchor locations can now be cho-
sen.
2. Anchors are located on the roof of the
building and are generally secured to any
or all of the following acceptable vertical or
horizontal elements: mechanical room curb
walls; parapet walls minimum 42" (1067
mm) high; roof mounted structural ele-
ments e.g. rooftop equipment structural
support beams or columns, and similar
structures; roof decks (to concrete slab,
precast deck, structural steel, and similar
structures); finished roof top terraces.
3. Ideally locations for Pro-Bel safety anchors
are in direct line with the anticipated
"drops" and are suited to both bosun's chair
and suspended platform. A "drop" for a
chair is typically a 6'-0" (1830 mm) wide
area, and 20'-0" to 28'-0" (7000 mm to
8535 mm) for a platform. Two anchors are
required for bosun's chair (1 primary and 1
lifeline) and 4 anchors are required for a
platform (2 primary and 2 lifeline).
4. Lifeline anchors and primary tie-back
anchors for transportable outrigger beams
and parapet wall clamps should be located
in line with the point of suspension (per-
pendicular) whenever practical, but should
not be offset more than 10'-0" (3084 mm)
measured horizontally from running at a
right angle to the building face at the point
of suspension. The angle created by the
offset distance should not exceed 25º. See
anchor spacing chart data on page A-12.
5. If a bosun's chair or similar single point
suspension equipment is used with the pri-
mary support lines directly attached to
anchors (direct rigging), the horizontal por-
tion of the descent line (that portion of the
support from the anchor to the roof edge)
should be in a plane at right angles to the
face of the building at the "drop". This
guideline will ensure that slide distance and
swing action in the event of a fall will be
reduced to a reasonably safe minimum
thereby lessening the potential for worker
collision injury, while allowing for self-
recovery.
Essentially, OSHA 1910.66, Subpart F and
ANSI/IWCA I-14.1, section 9.2.2 (g) 2
requires personal fall arrest systems be
rigged such that an employee can neither
free fall more than 6'-0" (1.8 m), nor contact
any lower level. Any anchor placement sce-
nario should reflect this requirement.

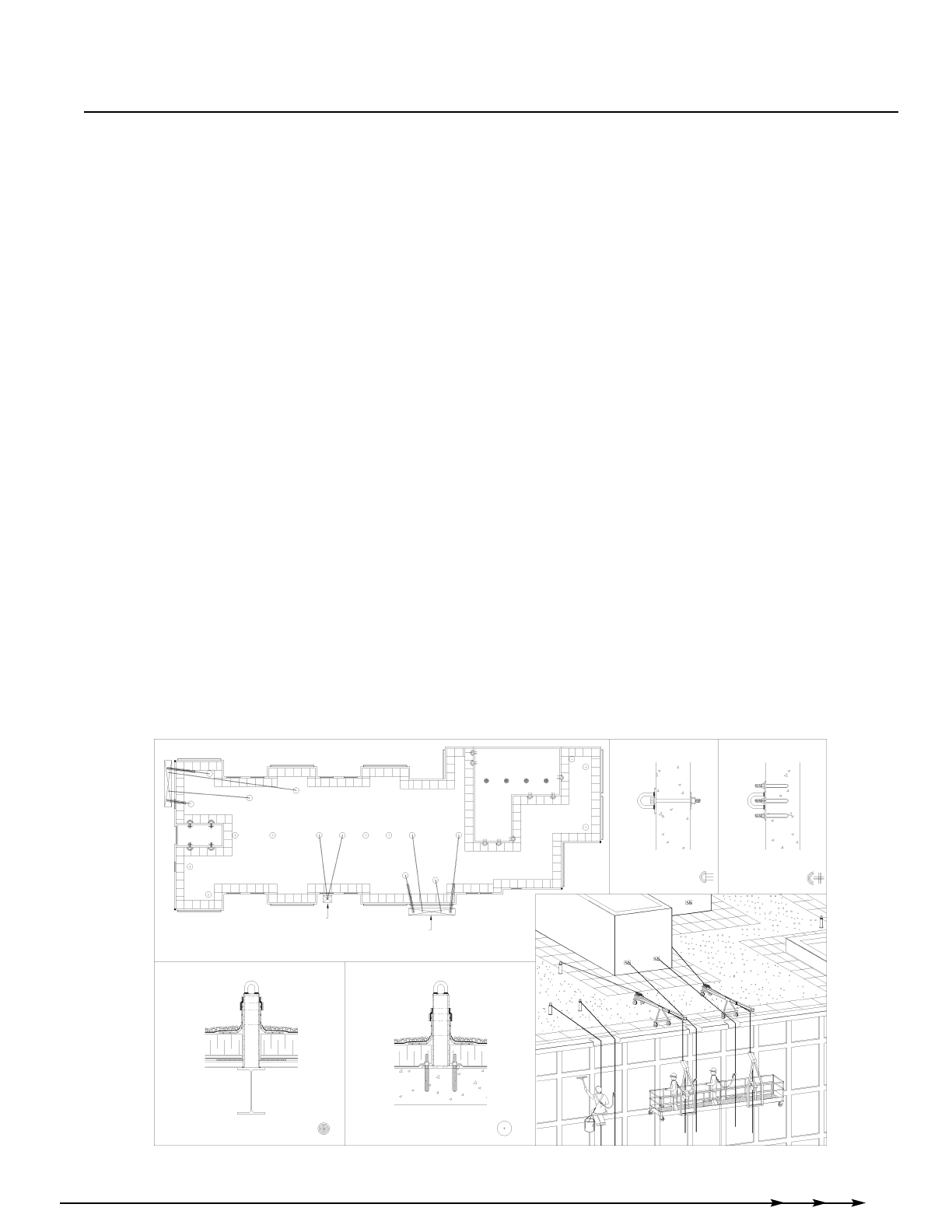

ROOF PLAN / ANCHOR LAYOUT SHOWING TYPICAL CHAIR AND PLATFORM DROPS
TYPICAL CHAIR DROP
TYPICAL PLATFORM DROP
MAIN ROOF
STAIRWELL
ROOF
MECHANICAL
ROOM
Weld to Structure
Bolt Through Wall Epoxy Adhesive
Bolts
Typical Anchor Layout Plan
Adhesive Roof Anchor
A-11
![](asset-c.png)
ANCHOR PLACEMENT (continued)
6. Locate the very first roof anchor, which
should be a primary suspension or tie-back
anchor. If the parapet wall is less than 42"
(1067 mm) guardrail height, this anchor
should be a minimum of 6'-0" (1830 mm)
distance from the parapet so that the work-
er can tie off whenever the worker has to
step within 6'-0" (1830 mm) of an unguard-
ed edge. If the parapet is minimum 42"
(1067 mm) high, the anchor can be located
any distance inside the parapet.
7. The second and subsequent primary sus-
pension or tie-back anchors can now be
located as per item 3.
8. After primary anchors have been located,
lifeline anchors can now be located relative
to the primary anchors using the anchor
spacing chart data at right.
9. Anchor spacing must be adjusted, of
course, to circumvent any obstruction.
Note: Pro-Bel tie-back/lifeline anchors and
direct rigging anchors are the same and are
used interchangeably.
A-12
RELATIVE SPACING BETWEEN PRIMARY SUSPENSION ANCHOR AND LIFELINE ANCHOR
The anchor spacing data shown below indicates recommended spacing of fall arrest
safety anchors relative to primary suspension or tie-back anchors.
Plan View of Roof Showing Rigging In Line with
Anchors
DEPTH MAXIMUM SPACING
U.S./Imperial U.S./Imperial
Metric (mm) Metric (mm)
10’-0”
9’-0”
8’-0”
7’-0”
6’-0”
5’-0”
3048
2743
2438
2134
1829
1524
21’-5” 6528
19’-4”
17’-2”
5893
5232
4597
3937
3251
15’-1”
12’-11”
10’-8”
ANCHOR SPACING CHART
This narrow roof area requires
anchors on 5’-0” (1830 mm) cen-
ters. See Anchor Spacing Chart
below.
Pro-Bel roof anchors welded to beams
before steel deck is installed.
ANCHORS
ARE WITHIN
FALL ARREST
LIFELINE
ZONE
WINDOW
BOSUNS CHAIR
DEPTH (SEE CHART BELOW)
25ºMAX
INDEPENDENT
FALL ARREST
LIFELINE ANCHOR
LANYARD LENGTH 4’-3” (1295 mm) MIN.
OUTSIDE FACE OF
PARAPET WALL OR
BUILDING
MAXIMUM SPACING
PRIMARY SUSPENSION
EQUIPMENT ANCHOR
PRIMARY SUSPENSION LINE
(FOR DIRECT RIGGING OF
BOSUN’S CHAIR OR TIE-BACK
OF OUTRIGGERS FOR SINGLE
MAN CAGE OR PLATFORM).
LOCATE ANCHORS IN ACCOR-
DANCE WITH THE ANCHOR
SPACING CHART BELOW SO AS
NOT TO EXCEED AN ANGLE OF
25º, TO ENSURE THAT PRIMA-
RY SUPPORT LIINES, TIE-BACK
LINES AND LIFELINES ARE
RIGGED WITHIN THE 15ºOFF-
SET ANGLE RECOMMENDED IN
ANSI/IWCA I-14.1.
When rigging primary lines, tie-back lines
and lifelines for a bosun’s chair, single
work cage or platform, there are many sce-
narios having an influence on whether
lines are anchored in line with or offset
from the point of suspension. Ultimately,
the object is to place the anchors in a man-
ner that will suit chair and platform loca-
tions within the variable work zones while
ensuring that the OSHA maximum free fall
distance of 6’-0” (1.8 m) is not exceeded, in
the event of a worker falling.
Recognizing this, Pro-Bel employ a 25O
angle placement criteria for the location of
both primary support lines and secondary
lifelines. This criteria will ensure that lines
are rigged within 15Oof the point of sus-
pension in accordance with the
ANSI/IWCA I-14.1 Window Cleaning
Safety Standard.
SAFETY & TIE-BACK ANCHORS Fall Protection Systems (continued)
15º
90º
![](asset-d.png)

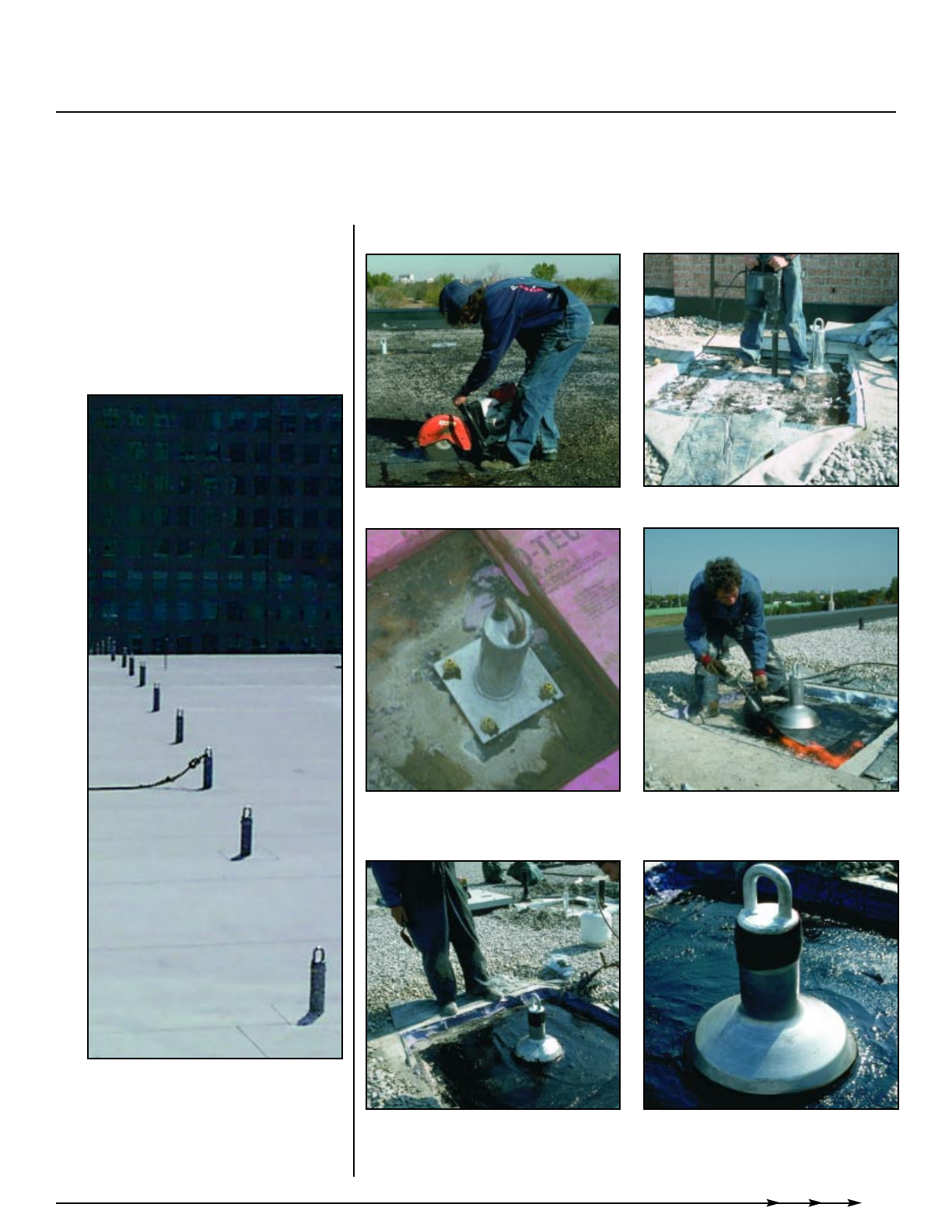

1. Small area of roof covering is removed
down to concrete deck.
2. Holes are drilled into or through concrete
deck to accommodate roof anchor bolts.
6. Close-up of anchor. Installation method
is similar for both conventional roof (mem-
brane above insulation) and protected
membrane roof (membrane below insulation).
4. Watertight integrity of roof is restored
using spun aluminum flashing and new
roof covering (roof patch). Photo shows
protected membrane roof.
5. Top of spun aluminum flashing is sealed
to steel anchor using a conformable mas-
tic tape and heat-shrink rubber collar
flashing.
3. Anchor is installed using either bolt-
through or chemical adhesive securement
depending on access from below.
Pro-Bel PBE Series roof anchors installed
in single ply roof.
A-13
EXAMPLE INSTALLATION _RETROFIT ROOF ANCHOR
RELATED DATA
For general data relating to all Pro-Bel
products and services e.g. codes, instal-
lation, warranty, etc., refer to the Pro-Bel
System & Equipment Introduction litera-
ture (pages G-2 to G-32). For product
data relating to other fall protection sys-
tems and primary suspension equip-
ment, see other Pro-Bel literature.
![](asset-e.png)

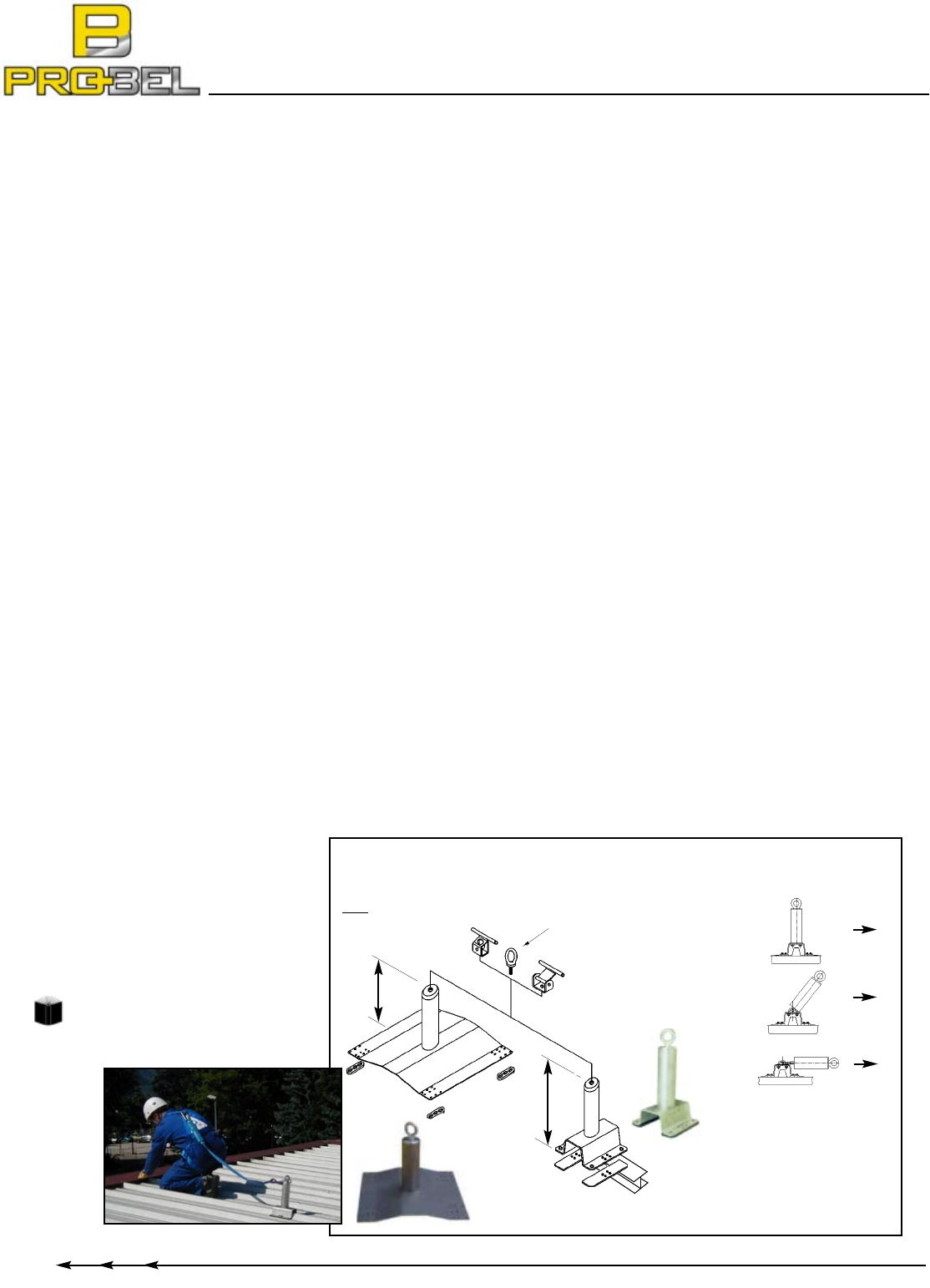

OTHER USES
Generally, Pro-Bel window cleaning/sus-
pended maintenance anchor systems are
economical or practical for all new or
retrofit buildings 3 storeys and higher
where windows or building facades are
accessed from the roof.
In addition to window cleaning applica-
tions, Pro-Bel safety anchor systems are
recommended for work such as:
• construction, restoration, cleaning,
sandblasting, caulking, or pointing;
• fall protection for ladder work using full
body harness and lanyard; and
• interior or exterior industrial applica-
tions wherever maintenance personnel
are exposed to falls from elevation.
Pro-Bel safety anchor systems are com-
patible with all types of suspended main-
tenance equipment and can be used
interchangeably for either tying off sus-
pended equipment or fall protection life-
lines.
BUILDING OWNER ASSURANCE
There is a shared responsibility between
the building owner/employer and the win-
dow cleaning/suspended maintenance
contractor. OSHA and ANSI/IWCA I-14.1
acknowledges that the building owner/
employer is the controlling employer and
must assure the contractor that the sys-
tem has been installed in accordance
with engineered drawings, test data
(when required), and equipment specifi-
cations. The building owner/employer
shall provide written assurance that the
installation has been annually inspected
and maintained to ensure that all equip-
ment is safe and operating as required.
Refer to Pro-Bel “Digest for Building
Owners, Property Managers, and General
Contractors” literature for more detailed
information.
AVAILABILITY & COST
Pro-Bel window cleaning/suspended
maintenance safety systems are distrib-
uted throughout the United States,
Canada and internationally.
Budget pricing is provided on a project-
to-project basis for both materials and
installation, or materials only. See “Tech-
nical Consultation” at right.
FREE DESIGN SERVICE
The selection of window cleaning
equipment is a performance oriented
and highly specialized area. Also the
issues of fall protection and fall arrest
are serious concerns with OSHA
inspection authorities. Interpreting the
myriad of OSHA standards, including
the separate requirements of various
states, and proposed changes, is a
daunting task at best.
Each building is different, requiring an
individual technical approach and a
time commitment beyond the scope of
most professional offices. Even with a
high degree of knowledge and the
best of intentions, the planning
process can go askew. It is for these
reasons that Pro-Bel provides archi-
tects and engineers with a FREE
DESIGN SERVICE, and to ensure that
Pro-Bel Window Cleaning/Suspended
Maintenance Systems are properly
specified and installed.
TECHNICAL CONSULTATION
Pro-Bel Enterprises Limited provides a
complete technical consultation service,
available to architects, consultants, engi-
neers, contractors, and building owners.
Without obligation, Pro-Bel will provide
interested parties with a proposed win-
dow cleaning/suspended maintenance
design concept to OSHA requirements,
including anchor and equipment loca-
tions, securement, roofing details and
specifications.
Simply provide the following information:
• roof plans (architectural & structural);
• building elevations;
• typical floor plans
• section drawings showing parapet walls
or roof edge condition and mechanical
room walls; and
• any other drawings pertinent to window
cleaning/suspended maintenance re-
quirements.
Pro-Bel will review drawings and provide
one or more concepts as required with
respect to equipment, tie-back methods
and similar options.
In addition, Pro-Bel Enterprises Limited
will provide budget pricing for window
cleaning/suspended maintenance sys-
tems contingent upon design acceptance
between Pro-Bel and architect/owner for
the proposed project.
A-14
SAFETY & TIE-BACK ANCHORS Fall Protection Systems (continued)
PRO-BEL PB-00 AND PB-01 STAINLESS STEEL BREAKAWAY ANCHORS FOR STEEL ROOFS
(Safety Anchor and/or Horizontal Lifeline Support)
OPTIONAL POST HEADS
INCLUDE ANCHOR EYE,
STANDARD RUNNER,
AND REVERSIBLE
RUNNER
Application (Breakaway Concept)
In a fall arrest situation, a break-
away mechanism is activated at a
pre-determined point e.g. 617 lbs
(280 kg). A built-in energy absorb-
ing device ensures the anchorage
will hold in case of a fall. Concept
substantially reduces load applied
to securement screws.
NOTE: NO CUTTING
OR WATERPROOFING
REQUIRED
PB-00
PB-01
PB-00
UNIVERSAL
SOLUTION
FOR NEW
STEEL
ROOFS, NO
MATTER THE
FRAMEWORK
10” (250 mm)
8-3/8” (210 mm)
PB-01
SAFEST SOLUTION FOR
OLD STEEL ROOFS
FIXED TO METALLIC
FRAMEWORK
![](asset-f.png)
SPECIFICATION
SPEC NOTE: This basic guide specification
(Section 11010 - Window Washing Systems) is
devoted exclusively to safety and tie-back
anchors and is written in accordance with the
CSI/CSC Three Part Section Format. It must be
adapted to suit the requirements of individual pro-
jects. If other equipment such as outrigger
beams, davits, monorails, horizontal cable life-
lines or other equipment is required, refer to
appropriate Pro-Bel literature and incorporate
materials and/or other clauses as required.
Square brackets [ ] indicate choice, alternatives,
data required or need for the specifier to make a
decision.
PART 1 - GENERAL
General Requirements
Comply with the conditions of the Contract and
Division 1 - General Requirements.
Section Includes
Work of this section includes the design, supply
and installation of window cleaning/suspended
maintenance equipment.
Related Sections
Unloading and hoisting of equipment to roof
Section [01500]
Cast-in-place concrete, including installation of
embedded items Section [03300]
Precast concrete Section [03400]
Structural Steel Section [05120]
Open Web Steel Joists Section [05210]
Metal Deck Section [05310]
Catwalks Section [05516]
Roofing Section [07500]
Flashing Section [07600]
Sealants Section [07900]
Rigging access doors in walls Section [08111]
Guiding tracks or mullions on exterior of building
Section [08800]
Hot & Cold water supply, faucets and drain at
[every] roof level Section [15400]
Three phase 208 volts 60 Hertz service at [every ] roof
level Section [16050]
SPEC NOTE: Re 1.03,O. Specify independent
protected main line power and weatherproof
Hubbell twist-lock 208 volts,3 phase, 60
Hertz, 30 amperes receptacle (HBL2620SW,
NEMA No. L6-30R for rental powered plat-
forms). Power to be located no more than
100'-0" (30 m) from window cleaning/suspend-
ed maintenance equipment location. Outlets to
experience no more than 3% voltage drop
under full loading. Pro-Bel wall or roof anchors
may be employed for strain relief. Contact Pro-
Bel for requirements.
Weatherproof power supply outlets with strain
relief anchors Section [16132]
References
AISC S342L-1993, with Supplement No.1 "Load
and Resistance Factor Design Specification for
Structural Steel Buildings".
AISI SG-971-1996, with 2000 Supplement
"Specification for Design of Cold-Formed Steel
Structural Members”.
Aluminum Association AA ADM-1-Aluminum
Design Manual, 2000 and AWS D1.2-97 Struc-
tural Welding Code - Aluminum.
AWS D1.1-2000 Structural Welding Code - Steel.
ANSI/IWCA I-14.1-2001 Window Cleaning Safety
Standard (International Window Cleaning Associ-
ation).
Design Requirements
Design window cleaning/suspended mainte-
nance system to suit building and in accordance
with plans, specifications, standards, and regula-
tions/codes contained in section 1.04 and 1.08.
Locate safety and tie-back anchors to suit sus-
pension equipment which will be used on the
building with respect to items such as rigging,
spacing, roof edge condition and similar items.
Design all anchor components to provide ade-
quate attachment to the building and suited to
current window cleaning/suspended mainte-
nance practices. Ensure compatibility with indus-
try standard equipment.
Ensure all anchor components conform to prop-
er engineering principles and have been
designed by a Professional Engineer qualified in
the design of window cleaning/suspended main-
tenance equipment, its application and safety
requirements.
Design system fall arrest safety anchors to com-
ply with the following structural requirements:
1. Fall arrest safety anchors are designed to a
typical maximum fall arresting force of 1800 lbs
(8.0 kN) when wearing a body harness with a fac-
tor of safety of 2 without any permanent deforma-
tion and to 5000 lbs (22.2 kN) against fracture or
detachment.
SPEC NOTE: For California State, substitute
5400 lbs (24 kN) in lieu of 5000 lbs. (22.2 kN).
Shop Drawings and Engineering Certification
Submit shop drawings showing complete layout
and configuration of complete window cleaning/
suspended maintenance system, including all
components and accessories. Clearly indicate
design and fabrication details, window "drops",
hardware, and installation details.
Shop drawings to include installation and rigging
instructions and all necessary Restrictive and
Non-Restrictive Working Usage Notes and
General Safety Notes.
Shop drawings to be reviewed by a professional
engineer, and upon request, complete with test
reports.
Qualifications
Manufacturer: Work of this Section to be execut-
ed by manufacturer specializing in the design,
fabrication and installation of window cleaning/
suspended maintenance systems having a mini-
mum of 5 years documented experience.
Loading and safety assurance: Work of this
Section to meet the requirements of governing
codes and jurisdiction and to comply with proper-
ly engineered loading and safety criteria for the
intended use.
Insurance: Manufacturer to carry specific liability
insurance (products and completed operations) in
the amount of $2,000,000.00 to protect against
product/system failure.
Welding to be executed by certified welders in
accordance with AWS requirements.
Regulatory Requirements
SPEC NOTE: Re 1.08,A. Specify for all States
other than New York and California.
Comply with the following OSHA regulations:
1. 1910, Subpart D (Walking and Working
Surfaces).
2. Appendix C to 1910 Subpart F (Personal Fall
Arrest Systems).
3. "OSHA Ruling on Window Cleaning by
Bosun's Chair" Memorandum to Regional
Administrators from P. K. Clark, Director,
Directorate of Compliance Programs.
4. 1910.66, Subpart F (Powered Platforms).
SPEC NOTE: Re1.08.B and 1.08.C. Specify for
New York State or California only as applicable.
Comply with the following New York State regula-
tions:
1. Department of Labor Advisory Standard 101
- Construction, Operation and Maintenance of
Suspended Scaffolds Used for Window Cleaning
and Light Maintenance.
2. Advisory Standard 111 - Hoisting Machines
Used for Suspended Scaffolds.
3. Department of Labor Industrial Code Rule 21
- Protection of Persons Employed at Window
Cleaning - Structural Requirements, Equipment
and Procedures.
Comply with the following California State regula-
tion:
1. Code of Regulations, Title 8 - Industrial
Relations, Article 5 (Window Cleaning), Article 6
(Powered Platforms for Exterior Building
Maintenance), and Appendix C to Article 6
(Personal Fall Arrest System).
Maintenance Data
Submit 1 copy of system Equipment Manual &
Inspection Log Book, with "Initial Inspection -
Certification for Use" and "Inspection Sign-Off"
forms completed.
Submit 2 copies of a reduced plastic laminated
as-built shop drawing showing equipment loca-
tions and details. This drawing is to be posted
near exits onto the roof.
1.01
A.
1.02
A.
1.03
A.
B.
C.
D.
E.
F.
G.
H.
I.
J.
K.
L.
M.
N.
O.
1.04
A.
B.
C.
D.
E.
1.05
A.
B.
C.
D.
E.
1.06
A.
B.
C.
1.07
A.
B.
C.
D.
1.08
A.
B.
C.
1.09
A.
B.
A-15
![](asset-10.png)
PART 2 - PRODUCTS
Manufacturer
This specification is based on systems currently
being manufactured by PRO-BEL ENTERPRISES
LTD. Toll free: 1-800-461-0575. Telephone: 905-
427-0616, Fax: 905-427-2545, info@pro-bel.ca.
Other manufactured products meeting this speci-
fication may be substituted provided that manu-
facturers show proof of product insurance.
Equipment details to be approved by the architect
and/or consultant. Companies, such as miscella-
neous metal fabricators, who are not normally
engaged in the design and manufacture of win-
dow cleaning/suspended maintenance equipment
are not permitted to bid.
Equipment
SPEC NOTE: List type and quantity as required.
[ ]
[ ]
[ ]
Materials
SPEC NOTE: Delete items not required.
Safety U-bars: [Type 304 stainless steel with yield
strength of 35 Ksi (240 MPa)] [mild steel, Type
300W with yield strength of 44 Ksi (300 MPa), hot-
dip galvanized to ASTM A123/A 123M-2000]. U-
bar to be not less than 3/4" (19 mm) diameter
material with 1-1/2" (38 mm) eye opening.
Securement bolts: mild steel, Type 300W with
yield strength of 44 Ksi (300 MPa), hot-dip galva-
nized to ASTM A123/A 123M-2000.
Hollow steel section (HSS) piers: mild steel, Type
300W with yield strength of 50 Ksi (350 MPa).
Wall thickness to suit application, [hot dipped gal-
vanized to ASTM A123/A 123M-2000] [with Pro-
Bel Protex 3/16” (2.4 mm) thickness, black col-
ored, two-component TPU polyurethane/polyurea
coating system].
SPEC NOTE: Pro-Bel Protex is a superior substi-
tute to galvanizing and provides exceptional
impact and abrasion resistance.
Base plate and all other sections: [galvanized]
[Pro-Bel Protex coated] mild steel as above with
yield strength of 44 Ksi (300 MPa). Thickness and
securement to suit application.
SPEC NOTE: Re 2.03,E. Specify aluminum
flashing for BUR or modified bitumen roofs only
(membrane above or below insulation). For sin-
gle ply roofs, flashing to be in accordance with
membrane manufacturer's instructions. Specify
conformable mastic tape and heat-shrink rubber
collar flashing for EPB Series roof anchors (BUR
or modified bitumen roofs) or s.s. cap for PB
series roof anchors (any type roof).
Seamless spun aluminum flashing (for steel pier
anchors): Type 6061-T6 alloy to ASTM B221-
2000 with deck flange flashed in to NRCA or
CRCA recommendations. Seal top of aluminum
flashing with [conformable mastic tape and torch
applied heat-shrink rubber collar flashing]
[detachable watertight stainless steel cap].
Miscellaneous bolts, nuts and washers: mild
steel, Type 300W with yield strength of 44 Ksi
(300 MPa), hot-dip galvanized to ASTM A123/A
123M-2000 or Type 304 stainless steel with yield
strength of 35 Ksi (240 MPa).
Fabrication
General:
1. Fabricate work true to dimension, square,
plumb, level and free from distortion or defects
detrimental to appearance and performance.
2. Grind off surplus welding material and ensure
exposed internal corners have smooth lines.
PART 3 - EXECUTION
Examination
Examine surfaces and areas upon which the
work of this Section depends. Report to the
Contractor in writing, defects of work prepared by
other trades and other unsatisfactory site condi-
tions which would cause defective installation of
products, or cause latent defects in workmanship
and function.
Verify site dimensions.
Commencement of work will imply acceptance of
prepared work.
Installation
Install equipment in accordance with approved
shop drawings and manufacturer's recommenda-
tions.
Co-ordinate installation with work of related
trades.
Install all work true, level, tightly fitted and flush
with adjacent surfaces as required.
Deform threads of tail end of anchor studs after
nuts have been tightened to prevent accidental
removal or vandalism.
SPEC NOTE: Re 3.02,E. Specify for furnish only
projects if required.
Manufacturer to assist and/or supervise installa-
tion of window cleaning/suspended maintenance
equipment installed by others.
Structural steel to receive safety anchors to have
adequate bearing surface as indicated on shop
drawings and/or to ensure 100% weld.
Final Adjusting and Inspection
Adjust and leave equipment in proper working
order.
Complete "Initial Inspection - Certification for
Use" form included in Equipment Manual &
Inspection Log Book.
Testing
All anchors relying upon chemical adhesive fas-
teners to be 100% tested on site using load cell
test apparatus in accordance with manufacturer's
recommendations.
2.01
A.
B.
2.02
A.
B.
C.
2.03
A.
B.
C.
D.
E.
]
F.
2.04
A.
3.01
A.
B.
C.
3.02
A.
B.
C.
D.
E.
F.
3.03
A.
B.
3.04
A.
Printed in Canada
SERVING U.S.A. AND CANADA, COAST TO COAST.
PRO-BEL ENTERPRISES LIMITED
Head Office
765 Westney Road S,
Ajax, ON CA L1S 6W1
[t] 905.427.0616
[f t] 800.461.0575
[f] 905.427.2545
[e] info@pro-bel.ca
Western Office
#103-350, East Kent Ave S
Vancouver, BC V5X 4N6
[t] 604.687.1301
[f ] 604.687.1306
[e] infovan@pro-bel.ca
PRO-GRESS • PRO-BEL
www.pro-bel.ca
