User Manual: Audiophile AP2496

Open the PDF directly: View PDF .
Page Count: 1

1

2

3

4

5

6

7

8

9

DB-9

(Male)

Molded

label:

"OUT"

5-Pin DIN

1

2

3

4

5

RCA Female

gold-plated

Molded

label:

"IN<---"

RCA Female

gold-plated

Molded

label:

"OUT--->"

Molded

label:

"IN"

5-Pin DIN

1

2

3

4

5

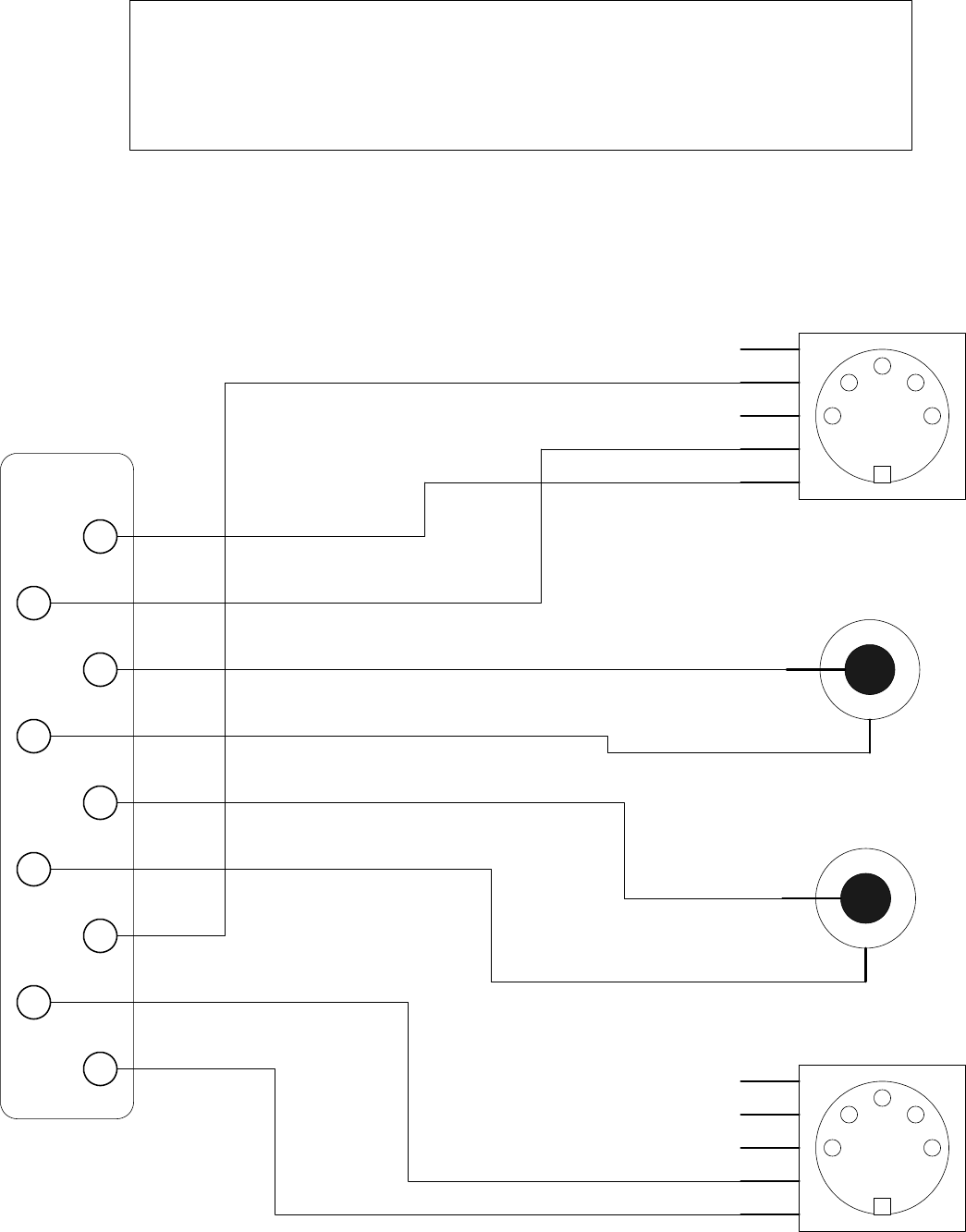

Delta "Audiophile 2496" Cable

Wires and plastic molding in BLACK color.

Wire length = 6 inches.
