1B

Appendix B

DL105/DL205/DL350/DL405

Application Examples

In This Appendix. . . .

— DL105/DL205/DL350/DL405 Application Example

Appendix BAppendix B

B–2 DL105/DL205/DL350/DL405 Application Example

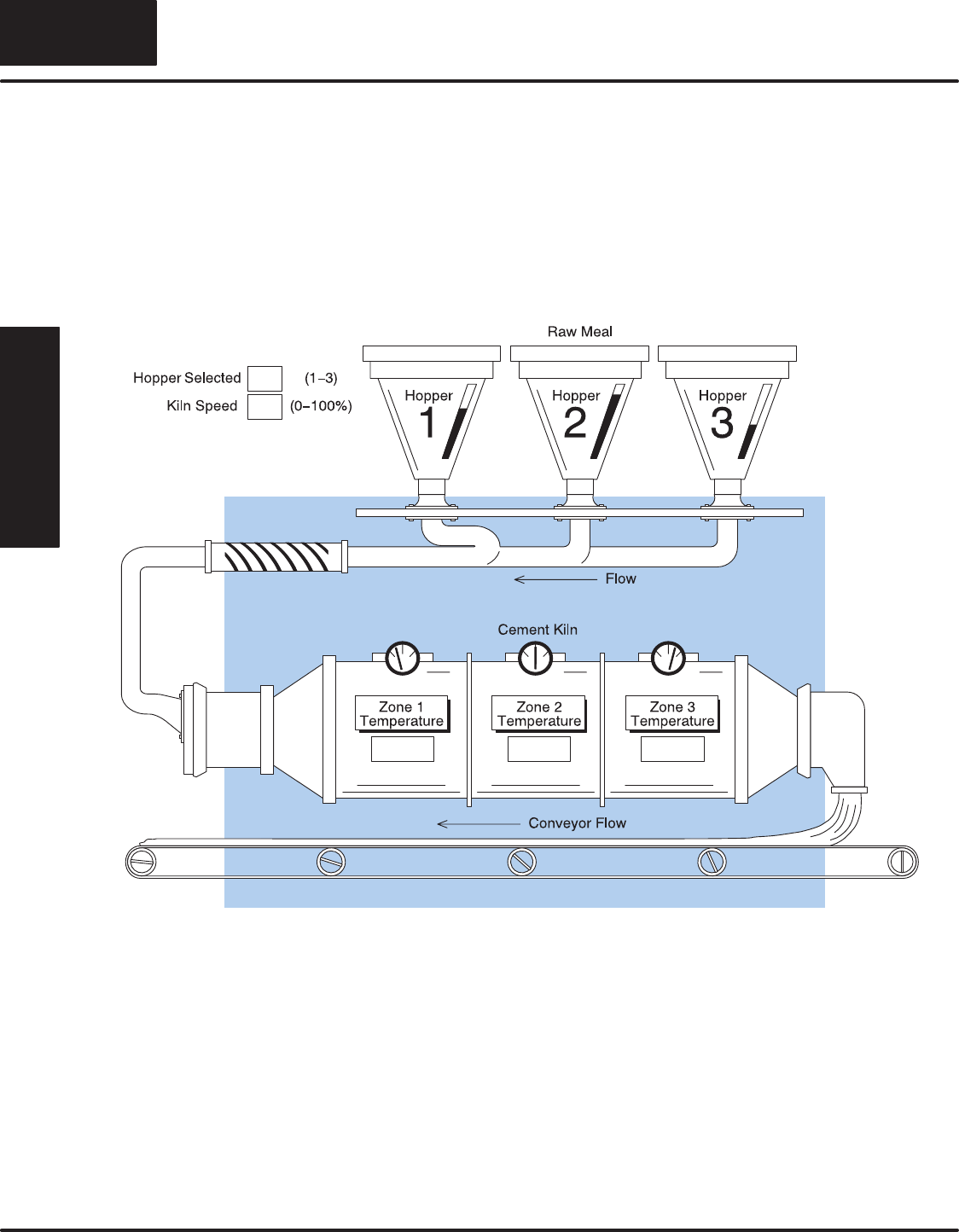

In this manual a Cement Kiln System is the model for demonstrating the ladder logic

required to support the various OP-panel features. The programs provide ladder

logic which demonstrates controlling pushbuttons, lamps, messages and menu

operations.

Items listed in the figure below such as Hopper Selection, Kiln Speed,

Start/Stop/Run controls, and Kiln Zone Temperatures are monitored and controlled

by the OP-panel example programs.

These example programs and additional technical support information may be

accessed on PLC

Direct

’s worldwide web site:

http:\\www.plcdirect.com (website for general info/file transfers)

You may also find these programs on our 24-hour per day BBS system at:

770–844–4209

If you find a problem with any of our products, services, or manuals, please fill out

and return the ‘Suggestions’ card that was shipped with this manual.

Understanding the

Example Programs

Appendix A

DL205 Memory Map Appendix B

B–3

DL105/DL205/DL350/DL405 Application Example

Direct

LOGIC and Compatible Example Program

The example program listed on the following pages is designed for

Direct

LOGIC

DL105, DL205, DL350, and DL405 PLC systems. The program supports the

OP–1510 Kiln Demo program.This program is included on the 3 1/2 disk labeled

“OP-1500/OP-1510 Example Disk” which is provided with this manual.

This example program (1510_105.PRJ) must be used with the OP–1510

configuration file 1510_105.OCF. Load these program files to the PLC and OP-panel

for connection and operation of the Kiln Demo application. You may also refer to the

Appendix A “Example Worksheets” to help understand how the OP-panel is

configured.

This program is designed to be used with the

Direct

Logic DL105, DL205, DL350,

and DL405 PLC and compatible systems. The following program is intended for

training purposes and

may not

resolve all possible OP-panel applications. Some

PLC programming knowledge is required to fully understand and implement the

following program examples.

If the CPU power cycles or machine and operator conditions are idle, this rung will

initialize OP-panel and display message #1 and message #2.

LD

K1

Load constant K1 to select message #1 for

top line display.

OUT

V2000

Output to base register m+0 (V2000) for top

line message display.

Direct

SOFT

LD

K2

Load constant K2 to select message #2 for

bottom line display.

OUT

V2001

C51

Kiln Starting

Internal

SET

C27

Menu Enable

OP–1510 Only

SET

SET

RST

SET

Output to base register m+1 (V2001) for

bottom line message display.

C20

Lamp1

Green

C7

Clear/Abort

(OP–1510)

C1

F2 Status

Pushbutton

C30

Menu Return

OP–1510 Only

C31

BD

Status Register

C20

L1 Lamp

Green

C22

L3 Lamp

Red

SP0

FirstScan

(OP–1510)

ME bit set ON allows menu operations.

MR bit set ON returns last menu selected.

Beeper Disable set ON which disables

pushbutton and keypad beeper.

L1 bit reset OFF which de-energizes Green

Lamp.

L3 bit set ON which energizes Red Lamp.

a:\1510_105.prj

OP-1510

Kiln Demo

RUNG 1

Appendix BAppendix B

B–4 DL105/DL205/DL350/DL405 Application Example

Memory Mapping

This rung is necessary for all

Direct

LOGIC CPUs which

do not

support bit-of-word

instructions. Mapping the Status and Control registers into Internal Control Relays is

necessary to have bit level access to this data. The Status and Control register bits

are used to monitor pushbuttons, control lamps, and perform asynchronous data

exchange between the OP-panel and PLC.

LD

V2006

Load the Status Register (m+6) V2006.

OUT

VC0

Output Status Register into Internal Control

Relays C0–C17.

LD

VC20

Load the Internal Control Relays C20–C37.

OUT

V2007

Output to Control Register (m+7) V2007.

SP1

Always_ON

Enable

Kiln Start Control

This rung starts the machine process. The internal control relay Kiln Start (C51) is

used to start the Startup Delay Timer, and will remain ON until the C20 (Lamp1)

control bit is energized.

Kiln Start signal is energized (ON) if start

pushbutton F1 pressed.

OUT

C20

L1 Lamp

Green

C51

Kiln Start

Internal

C51

Kiln Start

Internal

C0

F1

Pushbutton

Kiln Starting Lamp Control

This rung controls the annunciator lamps during startup mode.

Yellow Lamp (L2) set ON.

SET

C21

L2 Lamp

Yellow

C51

Kiln Start

Internal

SET

RST

C24

L2F Flash

Yellow

C22

L3 Lamp

Red

Yellow Flash (L2F) set ON.

Reset Red Lamp (L3) OFF.

RUNG 2

RUNG 3

RUNG 4

Appendix A

DL205 Memory Map Appendix B

B–5

DL105/DL205/DL350/DL405 Application Example

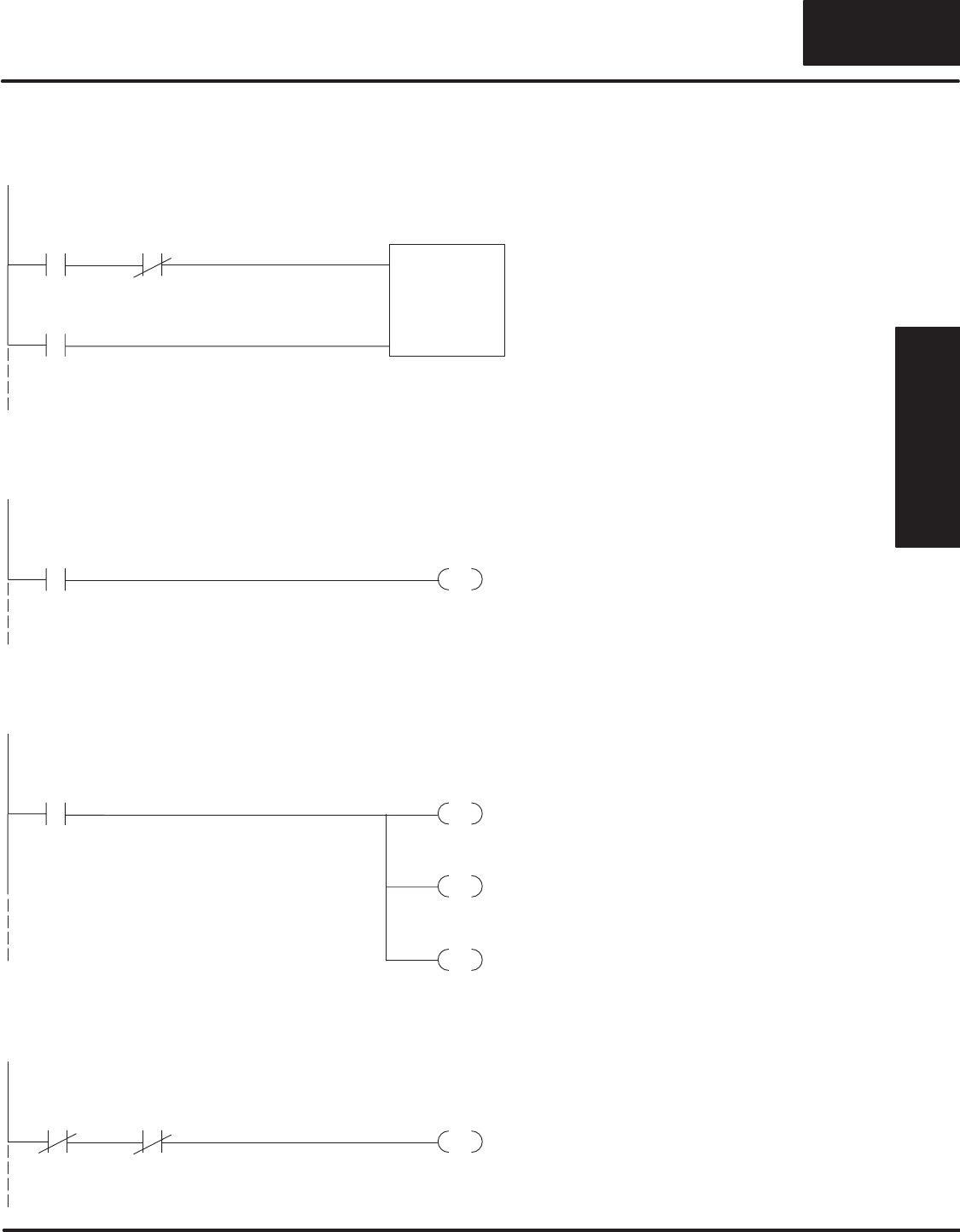

Startup Delay Timer

This delay timer signals the System Start (C52) control relay.

Kiln Starrt signal is energized (ON) if start

pushbutton F1 pressed.

C1

F2

Pushbutton

T0

Delay Timer

System Startup

C51

Kiln Starting

Internal

TMRA

System Startup

Delay Timer

T0

K20

System Running

This rung controls sets internal control relay System Running (C52) ON.

Set ON when timer T0 accumulative = preset.

SET

C52

System Running

Internal

T0

Delay Timer

System Startup

System Running Lamp Control

This rung controls the annunciator lamps when System Running (C52) is ON.

Kiln running sets Green Lamp (L1) ON.

SET

C20

L1 Lamp

Green

C52

System Running

Internal

RST

RST

C21

L2 Lamp

Yellow

C24

L2 Flash

Yellow

Resets Yellow Lamp (L2) OFF.

Reset Yellow Flash (L2F) OFF.

This rung resets internal control relay (C52) System Running when alternating

pushbutton 2 (F2) is OFF.

Reset C52 System Running control relay.

RST

C52

System Running

Internal

T0

Delay Timer

System Startup

C1

F2

Pushbutton

RUNG 5

RUNG 6

RUNG 7

RUNG 8

Appendix BAppendix B

B–6 DL105/DL205/DL350/DL405 Application Example

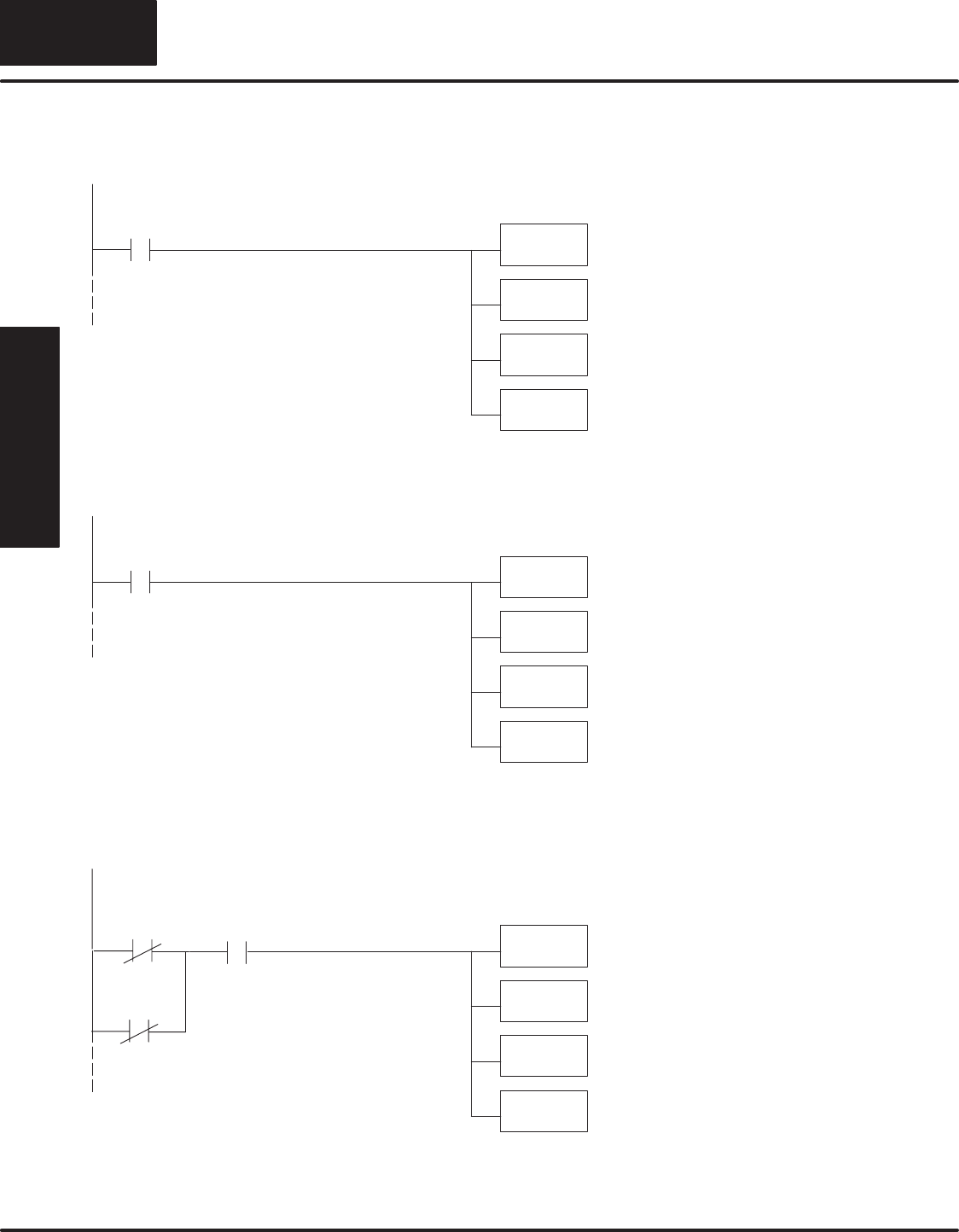

Kiln Starting Message

This rung displays “Kiln Starting” message when internal input (C51) is ON.

LD

K3

Load integer value K3 = 3.

OUT

V2000

Output Top Line message #3 selection.

LD

K4

Load integer value K4 = 4.

OUT

V2001

Output bottom line message #4 selection.

C51

Kiln Starting

Internal

System Running Message

This rung displays “System Running” message when internal input C52 is ON.

LD

K5

Load integer value K5 = 5.

OUT

V2000

Output top line message #5 selection.

LD

K6

Load integer value K6 = 6.

OUT

V2001

Output bottom line message #6 selection.

C52

System Running

Internal

Kiln System Stopped Message

This rung displays “Kiln System Stopped” when the system is

not

running or

not

starting and F2 (pushbutton No.2) is pressed.

LD

K7

Load integer value K7 = 7.

OUT

V2000

Output top line message #7 selection.

LD

K8

Load integer value K8 = 8.

OUT

V2001

Output bottom line message #8 selection.

C52

Kiln Running

Internal

C1

F2

Pushbutton

C51

Kiln Starting

Internal

RUNG 9

RUNG 10

RUNG 11

Appendix A

DL205 Memory Map Appendix B

B–7

DL105/DL205/DL350/DL405 Application Example

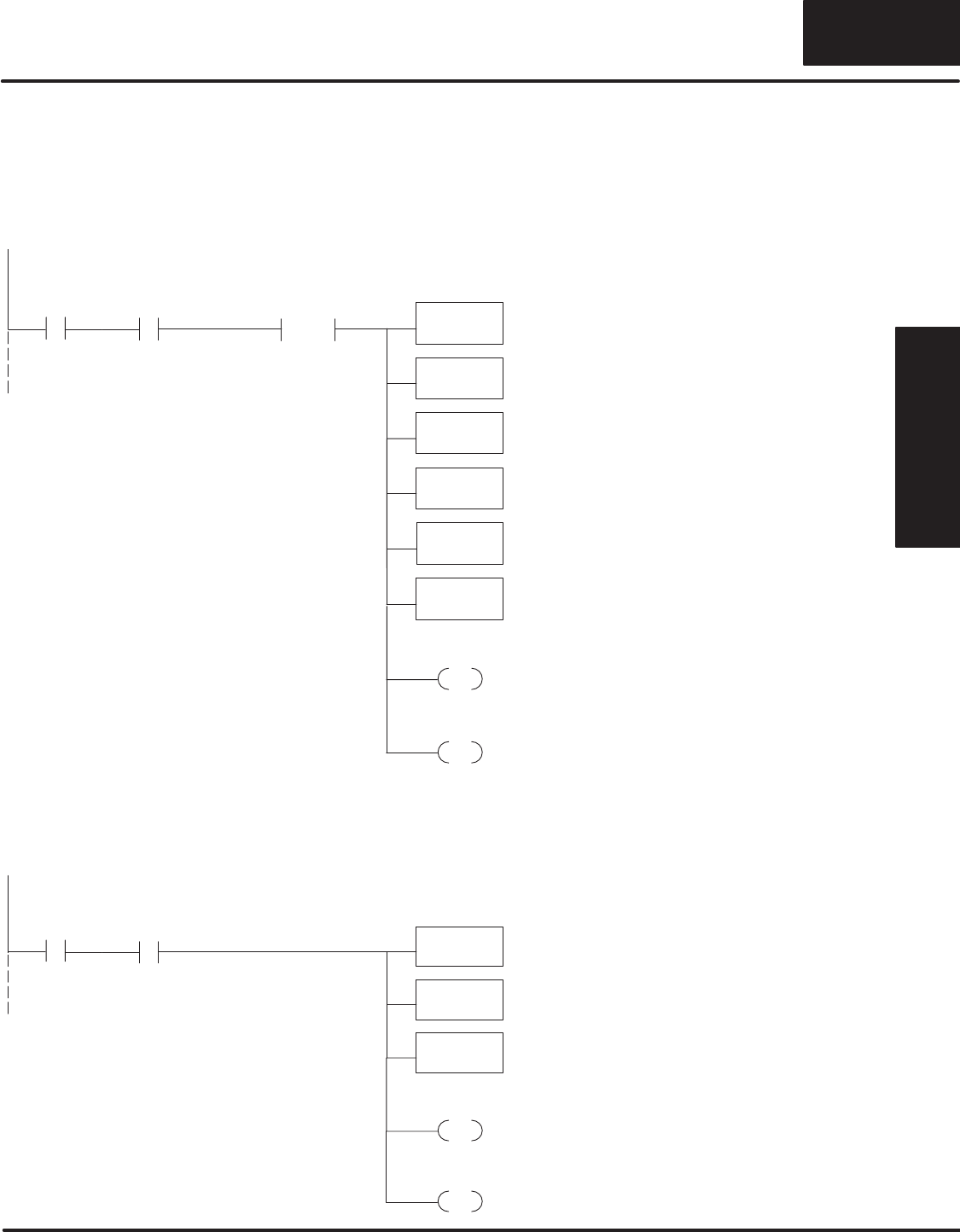

Setpoint #1 Message Controls

This rung is executed when the function select bit and Menu Enabled are ON and

compare statement is equal such as menu function 1 has been selected.

The output displays the message “Meal Hopper (1–3): ”

“Arrow UP/DOWN = ”

LD

K9

Load integer value in K9 = 9.

OUT

V2000

LD

K10

OUT

V2001

SET

RST

C141

In Process

SP1

C27

Menu Enable

OP–1510 Only

C6

Select Bit

Function

C27

Menu Enable

OP–1510 Only

V2002

Data/Entry

Top Line

=

K1

OUT

V2002

LD

V2401

Output top line message #9 selection.

Load integer value K10 = 10.

Output bottom line message #10 selection.

Load value in Storage register for Setpoint #1.

Output top line data for SP1 current value.

Set operator entry internal SP1 in process.

Reset ME control bit OFF.

Setpoint #1 Data Storage

This rung stores the up/down arrow value selected for Setpoint #1 after the ENTER

key is pressed and Data Available status bit is ON.

LD

V2004

Load bottom line data entry value.

OUT

V2401

OUT

V2002

RST

SET

C141

In Process

SP1

C140

Entry Complete

Internal

C141

In Process

SP1

C5

DA

Data Available

Output to Setpoint #1 storage register V2401.

Output top line data for SP1 current value.

Reset operator entry internal SP1 in process.

Set operator entry complete.

RUNG 12

RUNG 13

Appendix BAppendix B

B–8 DL105/DL205/DL350/DL405 Application Example

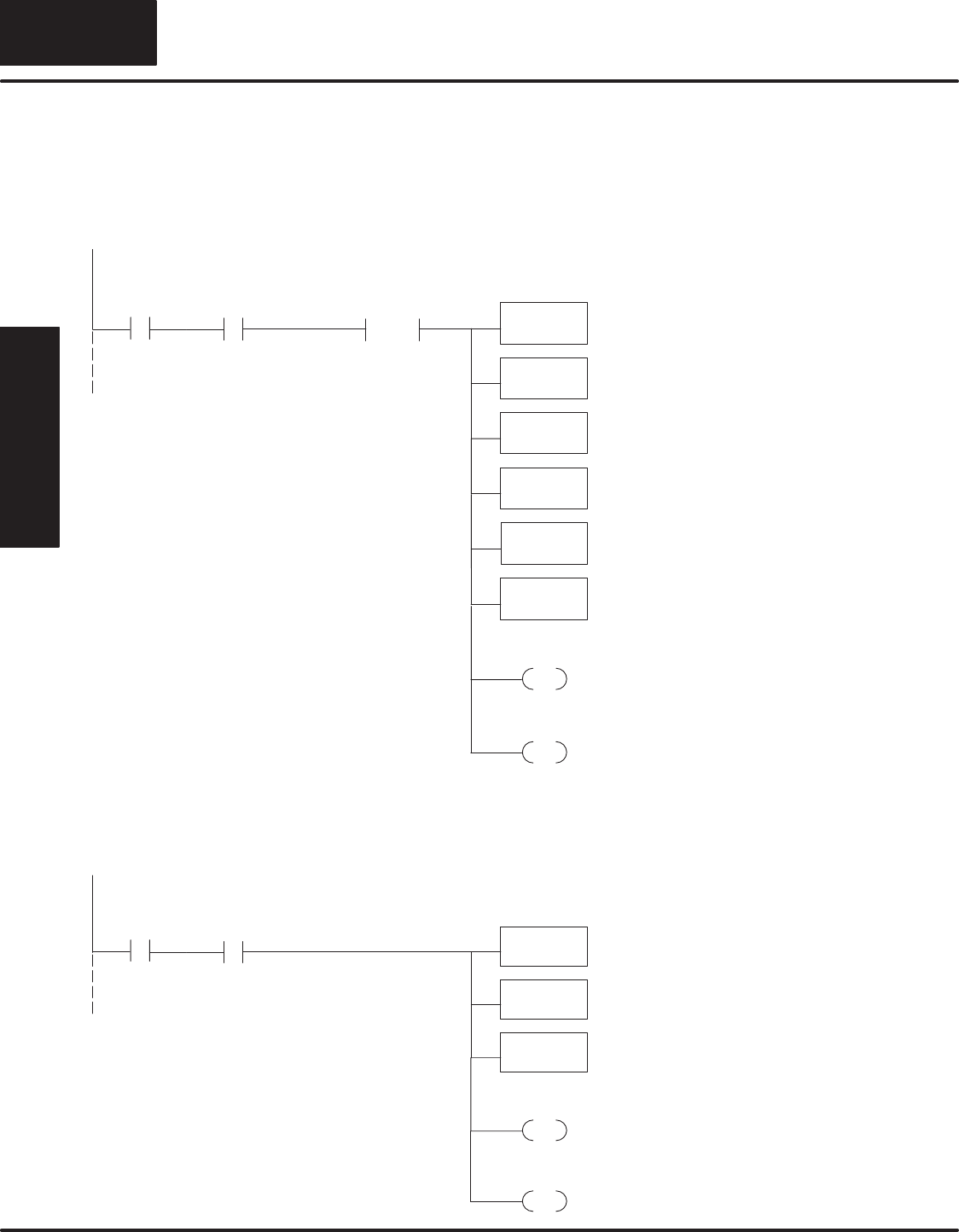

Setpoint #2 Message Controls

This rung is executed when the function select bit and Menu Enabled are ON and

compare statement is equal such as menu function 2 has been seleted.

The output displays the message. “Kiln Speed (%) : ”

“New Kiln Speed = ”

LD

K11

Load integer value in K11 = 11.

OUT

V2000

LD

K12

OUT

V2001

SET

RST

C142

In Process

SP2

C27

Menu Enable

OP–1510 Only

C6

Select Bit

Function

C27

Menu Enable

OP–1510 Only

V2002

Data/Entry

Top Line

=

K2

OUT

V2002

LD

V2402

Output top line message #11 selection.

Load integer value K12 = 12.

Output bottom line message #12 selection.

Load value in Storage register for Setpoint #2.

Output top line data for SP2 current value.

Set operator entry internal SP2 in process.

Reset ME control bit OFF.

Setpoint #2 Data Storage

This rung stores the keypad entry value selected for Setpoint #2 after the ENTER

key is pressed and Data Available status bit is ON.

LD

V2004

Load bottom line data entry value.

OUT

V2402

OUT

V2002

RST

SET

C142

In Process

SP2

C140

Entry Complete

Internal

C142

In Process

SP2

C5

DA

Data Available

Output to Setpoint #2 storage register V2402.

Output top line data for SP2 current value.

Reset operator entry internal SP2 in process.

Set operator entry complete.

RUNG 14

RUNG 15

Appendix A

DL205 Memory Map Appendix B

B–9

DL105/DL205/DL350/DL405 Application Example

Setpoint #3 Message Controls

This rung is executed when Select key and Menu Enabled are ON and compare

statement is equal such as menu function 3 has been selected.

The output displays the message “Zone1 Temp SP : ”

“Enter New Temp.= ”

LD

K13

Load integer value in K13 = 13.

OUT

V2000

LD

K14

OUT

V2001

SET

RST

C143

In Process

SP3

C27

Menu Enable

OP–1510 Only

C6

Select Bit

Function

C27

Menu Enable

OP–1510 Only

V2002

Data/Entry

Top Line

=

K3

OUT

V2002

LD

V2403

Output top line message #13 selection.

Load integer value K14 = 14.

Output bottom line message #14 selection.

Load value in Storage register for Setpoint #3.

Output top line data for SP3 current value.

Set operator entry internal SP3 in process.

Reset ME control bit OFF.

Setpoint #3 Data Storage

This rung stores the keypad entry value selected for Setpoint #3 after the ENTER

key is pressed and Data Available status bit is ON.

LD

V2004

Load bottom line data entry value.

OUT

V2403

OUT

V2002

RST

SET

C143

In Process

SP3

C140

Entry Complete

Internal

C143

In Process

SP3

C5

DA

Data Available

Output to Setpoint #3 storage register V2403.

Output top line data for SP3 current value.

Reset operator entry internal SP3 in process.

Set operator entry complete.

RUNG 16

RUNG 17

Appendix BAppendix B

B–10 DL105/DL205/DL350/DL405 Application Example

Setpoint #4 Message Controls

This rung is executed when Select key and Menu Enabled are ON and compare

statement is equal such as menu function 4 has been selected.

The output displays the message “Zone2 Temp SP : ”

“Enter New Temp.= ”

LD

K15

Load integer value in K15 = 15.

OUT

V2000

LD

K16

OUT

V2001

SET

RST

C144

In Process

SP4

C27

Menu Enable

OP–1510 Only

C6

Select Bit

Function

C27

Menu Enable

OP–1510 Only

V2002

Data/Entry

Top Line

=

K4

OUT

V2003

LD

K3

Output top line message #15 selection.

Load integer value K16 = 16.

Output bottom line message #16 selection.

Load integer value in K3 = 3.

Output top line decimal point.

Set operator entry internal SP4 in process.

Reset ME control bit OFF.

OUT

V2002

LD

V2404

Load value in Storage register for Setpoint #4.

Output top line data for SP4 current value.

Setpoint #4 Data Storage

This rung stores the keypad entry value selected for Setpoint #4 after the ENTER

key is pressed and Data Available status bit is ON.

LD

V2004 Load bottom line data entry value.

OUT

V2404

OUT

V2002

RST

SET

C144

In Process

SP4

C140

Entry Complete

Internal

C144

In Process

SP4

C5

DA

Data Available

Output to Setpoint #4 storage register V2404.

Output top line data for SP4 current value.

Reset operator entry internal SP4 in process.

Set operator entry complete.

RUNG 18

RUNG 19

Appendix A

DL205 Memory Map Appendix B

B–11

DL105/DL205/DL350/DL405 Application Example

Setpoint #5 Message Controls

This rung is executed when the function select bit and Menu Enabled are ON and the

compare statement is equal.

The output displays the message. “Zone3 Temp SP : ”

“Enter New Temp.= ”

LD

K17

Load integer value in K17 = 17.

OUT

V2000

LD

K18

OUT

V2001

SET

RST

C145

In Process

SP5

C27

Menu Enable

OP–1510 Only

C6

Select Bit

Function

C27

Menu Enable

OP–1510 Only

V2002

Data/Entry

Top Line

=

K5

OUT

V2002

LD

V2405

Output top line message #17 selection.

Load integer value K18 = 18.

Output bottom line message #18 selection.

Load value in Storage register for Setpoint #5.

Output top line data for SP5 current value.

Set operator entry internal SP5 in process.

Reset ME control bit OFF.

Setpoint #5 Data Storage

This rung stores the up/down arrow value selected for Setpoint #5 after the ENTER

key is pressed and Data Available status bit is ON.

LD

V2004

Load bottom line data entry value.

OUT

V2405

OUT

V2002

RST

SET

C145

In Process

SP5

C140

Entry Complete

Internal

C145

In Process

SP5

C5

DA

Data Available

Output to Setpoint #5 storage register V2405.

Output top line data for SP5 current value.

Reset operator entry internal SP5 in process.

Set operator entry complete.

RUNG 20

RUNG 21

Appendix BAppendix B

B–12 DL105/DL205/DL350/DL405 Application Example

Data Entry Acknowledge

This rung controls confirmation to OP-panel that data entry and storage is complete.

Output is ON when C5=1.

OUT

C26

Data Acknowledge

Control Register

C5

Data Available

Status Register

Post Entry Control

This rung prepares the program for the next OP-panel operation.

Sets ME control it ON.

SET

C27

Menu Enable

OP1510 Only

C140

Entry Complete

Internal

RST

C140

Entry Complete

Internal

Resets internal control relay Data Entry

Complete.

C5

Available

Data

Entry Mode

This rung sets internal relay C100 for Setpoint Entry Mode.

Sets internal Setpoint Entry Mode ON.

SET

C100

Entry Mode

Setpoint

C141

SP1 in Process

C142

SP2 in Process

C143

SP3 in Process

C144

SP4 in Process

C145

SP5 in Process

RUNG 22

RUNG 23

RUNG 24

Appendix A

DL205 Memory Map Appendix B

B–13

DL105/DL205/DL350/DL405 Application Example

Entry Mode

This rung enables menu operations and resets the setpoint in process for Setpoint

Entry Mode interlocking.

C7

Clear/Abort

OP–1510

C7

Clear/Abort

OP–1510

SET

C27

Menu Enable

OP–1510 Only

RST

RST

RST

RST

C100

Entry Mode

Setpoint

C141

In Process

SP1

C142

In Process

SP2

C143

In Process

SP3

ME bit set ON allows Menu Operations.

Reset internal setpoint entry mode.

Reset internal Setpoint #1 in Process.

Reset internal Setpoint #2 in Process.

Reset internal Setpoint #3 in Process.

C100

Entry Mode

Setpoint

C100

Entry Mode

Setpoint

C140

Entry Complete

Internal

RST

RST

C144

In Process

SP4

C145

SP5 in Process

Reset internal Setpoint #4 in Process.

Reset internal Setpoint #5 in Process.

C5

Availbale

Data

End of program

This rung marks the END of program.

END

RUNG 25

RUNG 26
