Asus A6T Schematics. Www.s Manuals.com. R1.01 Schematics
User Manual: Motherboard Asus A6T - Schematics. Free.
Open the PDF directly: View PDF
.
Page Count: 74
5
5
4
4
3
3
2
2
1
1
D D
C C
B B
A
A

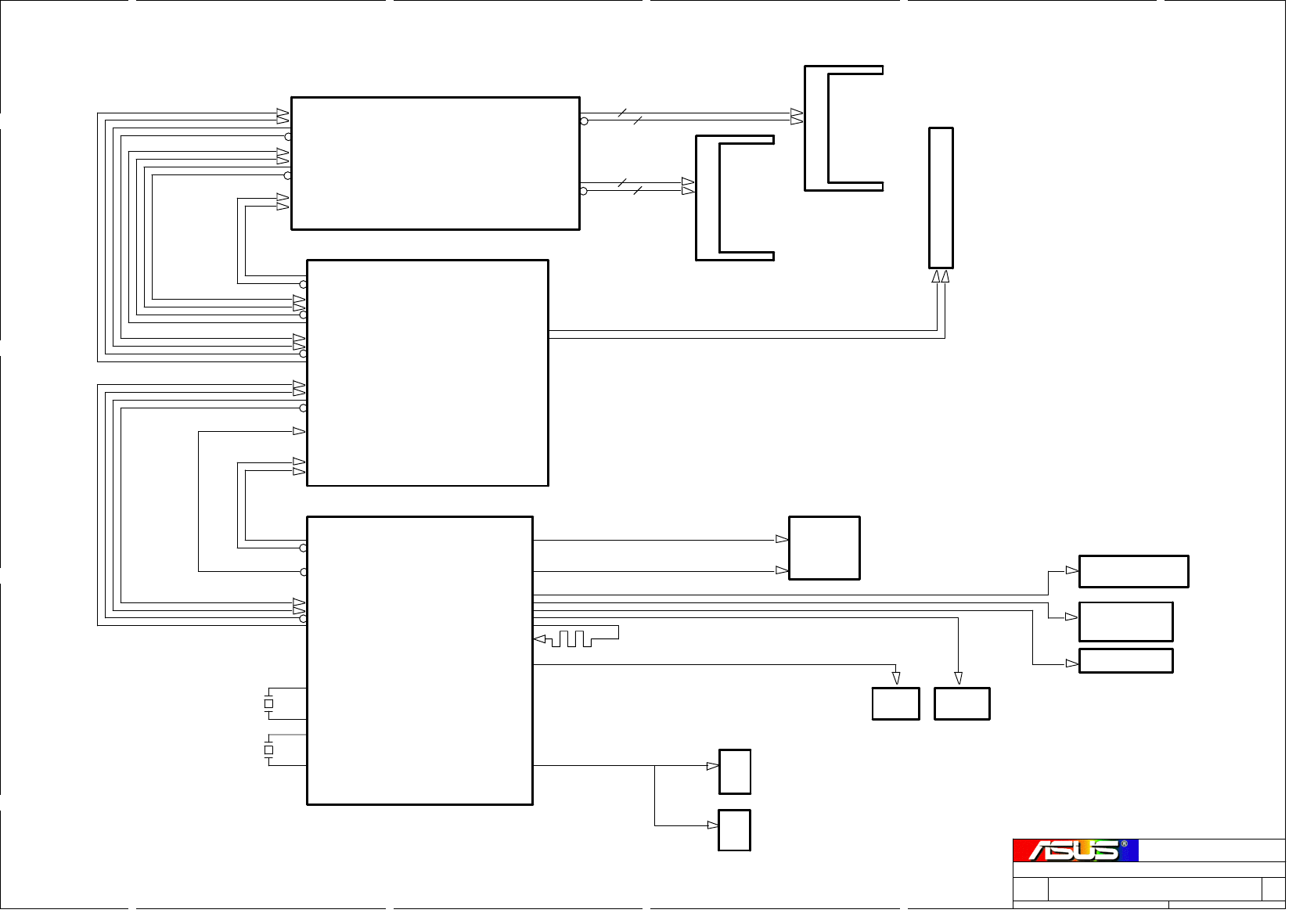

x16
AMD S1g1
Channel A/B
Unbuffer
DDR2
SO-DIMM
638 PIN
PACKAGE
REVISION: 1.01
A6T
nVIDIA
G73M
nVIDIA
C51MV
200/400/800
MHz
HyperTransport
LVDS
CRT
SDTV
LPC BUS
SUPPER I/O
LPC47N217
PCI BUS
PCMCIA
R5C841
nVIDIA
MCP51
MINI-PCI
/WIRE LESS
CARD READER
INSTANT KEY
1394
KBC 38857
AUDIO DJ KEY
FWH
X8 /X4
HyperTransport
IDE BUS
Pri
Sec
CD-ROM
HDD
33MHz 33MHz
128-BIT
BGA 468
BGA 508
AZALIA CODEC
ALC660
MDC
HEADER
DVI
SIR

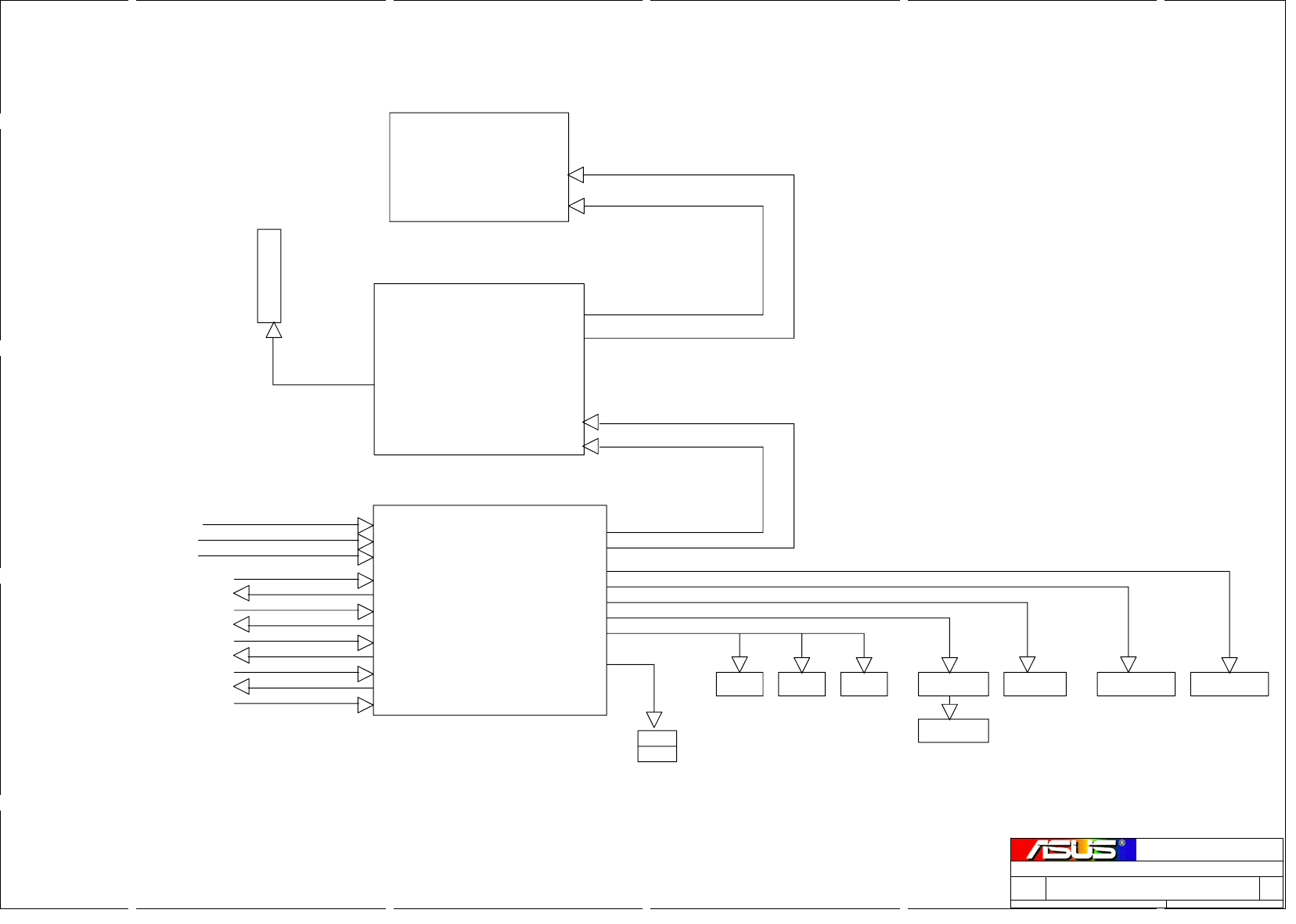

01.BLOCK DIAGRAM
02.RESET MAP
03.CLOCK MAP
04.S1_HT_C51
05.S1_DDR2
06.S1_CNTL/DEBUG/THERM
07.S1_POWER
08.DDR2_SODIMM
09.DDR2 TER/FETGAGE
10.C51_HT_CPU
11.C51_HT_MCP
12.C51_PCIE
13.C51_VIDEO
14.C51_VCC_GND
15.FAN/THERM SENSOR
16.MCP51_HT
17.MCP51_PCI/LPC
18.MCP51_IDE/SATA
19.MCP51_USB/AC97/SMB
20.MCP51_RGMI/XTAL
21.MCP51_VCC
22.G73M_PCIE
23.G73M_FB I/F
24.G73M_LVDS/GND
25.G73M_VGA/TV
26.G73M_TMDS/GPIO
27.G73M_XTAL/ROM STRAP
28.G73M_STRAPS
29.G73M_MEM_PART1
30.G73M_MEM_PART2
31.HDD/CDROM
32.MINI PCI
33.CARD BUS
34.PCMCIA
35.1394/SD_CARD
36.SIO/SIR
37.FWH
38.KBC
39.USB/BLUE TOOTH
40.CRT/TV CON
41.LVDS/INVERTER
42.ALC880
43.AMP
44.MIC/LINE-IN JACK
45.RJ45/11/MDC
46.LAN
47.BLANK
48.FUNCTION KEY
49.LED
50.POWER SEQEUNCE(1)
51.POWER SEQUENCE(2)
52.SCREW HOLE
53.Battery
54.CHARGE
55.BATLOW/SD#
56.LOAD SWITCH
57.BLANK
58.BLANK
59.BLANK
60.POWER SEQUENCE BLCOK
61.POWER BUDGET BLOCK
62.BLANK
PCI-E x1
Gigabit
Ethernet
RTL8111B
SATA 2 /SATA
USB
CCD
USB 2.0 X4
BLUE
TOOTH MiniCard
/WIRE LESS
USB BUS
200/400/800
MHz
PCI-E x16
C
172Wednesday, March 08, 2006
ASUSTECH CO.,LTD.

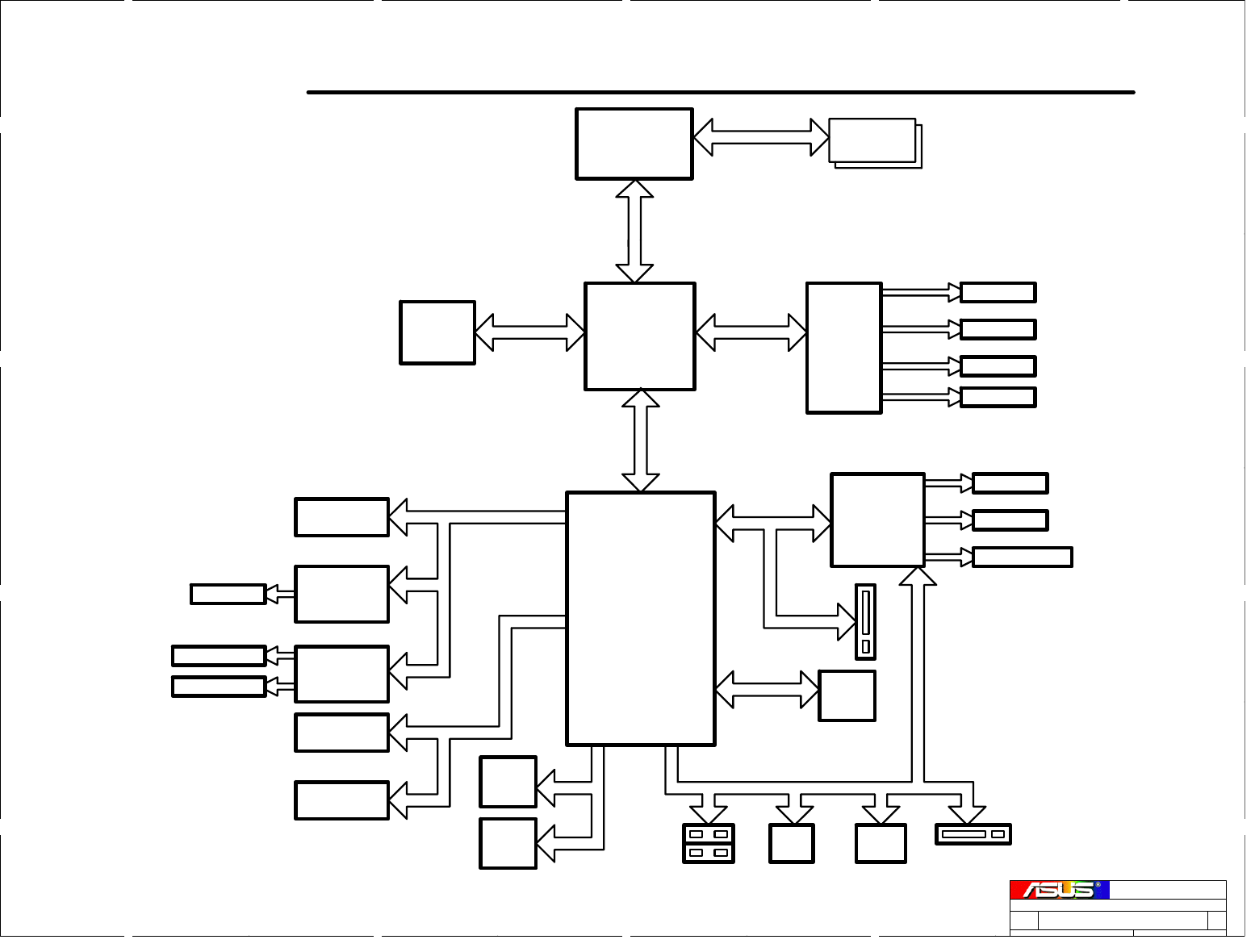

BLOCK DIAGRAM
1.01
A6T
Jefing_Li
A6TcSKU1
Size Project Name Rev
Date: Sheet of
Title :
Engineer:
5
5
4
4
3
3
2
2
1
1
D D
C C
B B
A
A
HT_MCP_PWRGD
PCI RST0#
RESET MAP
HT_MCP_RESET#
PCI RST1#
CARDBUS
CD ROM
PCIE RST*
PWRGD
MINI PCI
MEM VLD
PWRBTN#
SKT638 S1 CPU
RSTBTN#
SIO
PWRGD_SB
CPU_RESET#
HT_MCP_PWRGD
PCI_IDE_RST#
PCI RST3#
CARD_PCI_RST#
HT_CPU_PWRGD
AUDIO
PCI RST2#
HT_CPU_RST#
MDC
LPC_RST# LPC_RST#
HT_VLD
G73M
PWROK
CPU_PWROK
FLASH
RESET#
C51MV
IDE
MCP51
PE_RESET#
HT_MCP_RST#
AC_RESET#
HT_MCP_RST# HT_MCP_PWRGD
KBC
AC_RESET#
PWRBTN#
RESET Button
POWER SWTCH
RSTBTN#
KBC
KBRST#
KBRDRSTIN#
SLP_S5#
SLP_S3#
CPUVDD_EN
CPU_VLD
HTVDD_EN
PWRGD_SB
SUSC#
MEM_VLD
SUSB#
PWRGD
CPUVDD_EN
CPU_VLD
HTVDD_EN
HT_VLD
LAN_PCI_RST#
MINI_PCI_RST#
88E8001.
A3
272Wednesday, March 08, 2006
ASUSTECH CO.,LTD.
RESET MAP
1.0
A6T
Jefing_Li
A6TcSKU1
Size Project Name Rev
Date: Sheet of
Title :
Engineer:
5
5
4
4
3
3
2
2
1
1
D D
C C
B B
A
A
CPUCLK_IN*
25MHZ_CLKOUT
PCI_CLK0
CLKOUT_200MHZ
HT_CPU_RXCLK0*
SIO
HT_CPU_RXCLK1
HT_MCP_TXCLK0*
PCI_CLK1
HT_CPU_TXCLK0
SO-DIMM 0
MEMORY_A_CLK[2:1]
AC_BITCLK
PCI_CLK3
HT_CPU_TXCLK0*
HT_CPU_RXCLK0
SO-DIMM 1
MEMORY_A_CLK[2:1]*
PCI_CLK4
HT_CPU_TXCLK0
MEMORY_B_CLK[2:1]*
MII_TXCLK
PCI_CLK2
HT_CPU_RXCLK0
HT_CPU_TXCLK0*
MINI PCI
MEMORY_B_CLK[2:1]
BUF_SIO
HT_CPU_RXCLK1*
SKT638 S1 CPU
32.768 KHZ
2
SUSCLK
HT_MCP_RXCLK0*
PE1_REFCLK
14.31818MHZ
25.0 MHZ
C51M
2
CLKOUT_200MHZ*
PE1_REFCLK*
AC_BITCLK
MCP51M
2
LPC_CLK0
HT_CPU_TXCLK1*
PE2_REFCLK
MDC
XTAL_OUT
CLKIN_200MHZ*
HT_CPU_RXCLK0*
PE2_REFCLK*
HT_MCP_TXCLK0
2
CLKIN_25MHZ
HT_MCP_RXCLK0
PE0_REFCLK*
MCPCLK_OUT*
XTAL_IN
CLKIN_200MHZ
HT_MCP_TXCLK0
CPUCLK_IN
HT_MCP_RXCLK0*
RTC_XTAL
PCI_CLK_FB
XTAL_IN
HT_MCP_TXCLK0*
HT_CPU_TXCLK1*
MCPCLK_OUT
XTAL_OUT
PE0_REFCLK
HT_CPU_TXCLK1
HT_CPU_RXCLK1
HT_MCP_RXCLK0
LPC_CLK1
HT_CPU_TXCLK1
HT_CPU_RXCLK1*
CONTROLLER
CARDBUS
R5C841
KBC
33MHZ
33MHZ
33MHZ
G73M
ALC880
24MHZ
FLASH
CLOCK MAP
88E8001
MII_RXCLK
BUF_25MHZ
A3
372Wednesday, March 08, 2006
ASUSTECH CO.,LTD.
CLOCK MAP
1.0
A6T
Jefing_Li
A6TcSKU1
Size Project Name Rev
Date: Sheet of
Title :
Engineer:

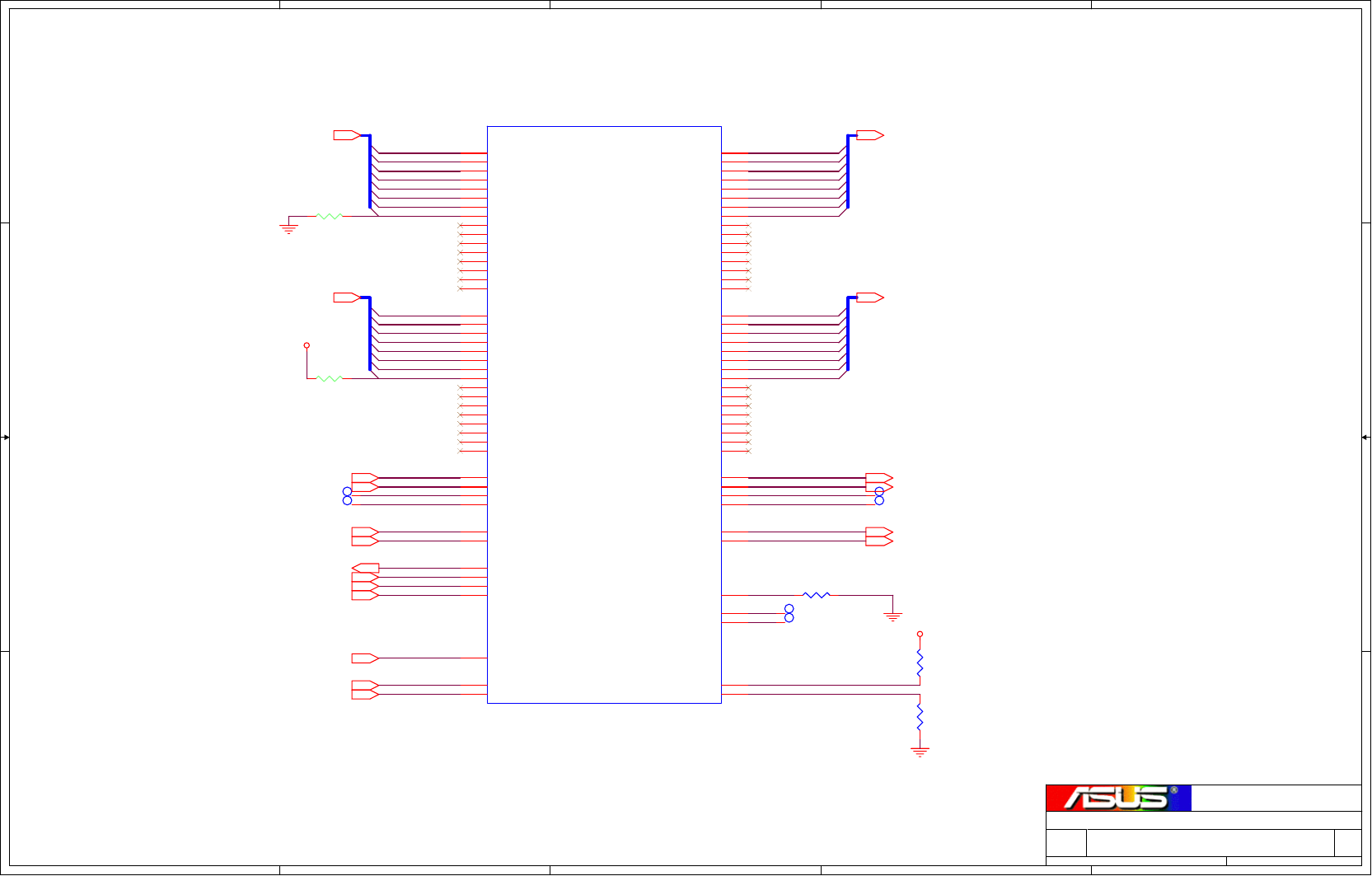

5
5
4
4
3
3
2
2
1
1
D D
C C
B B
A
A

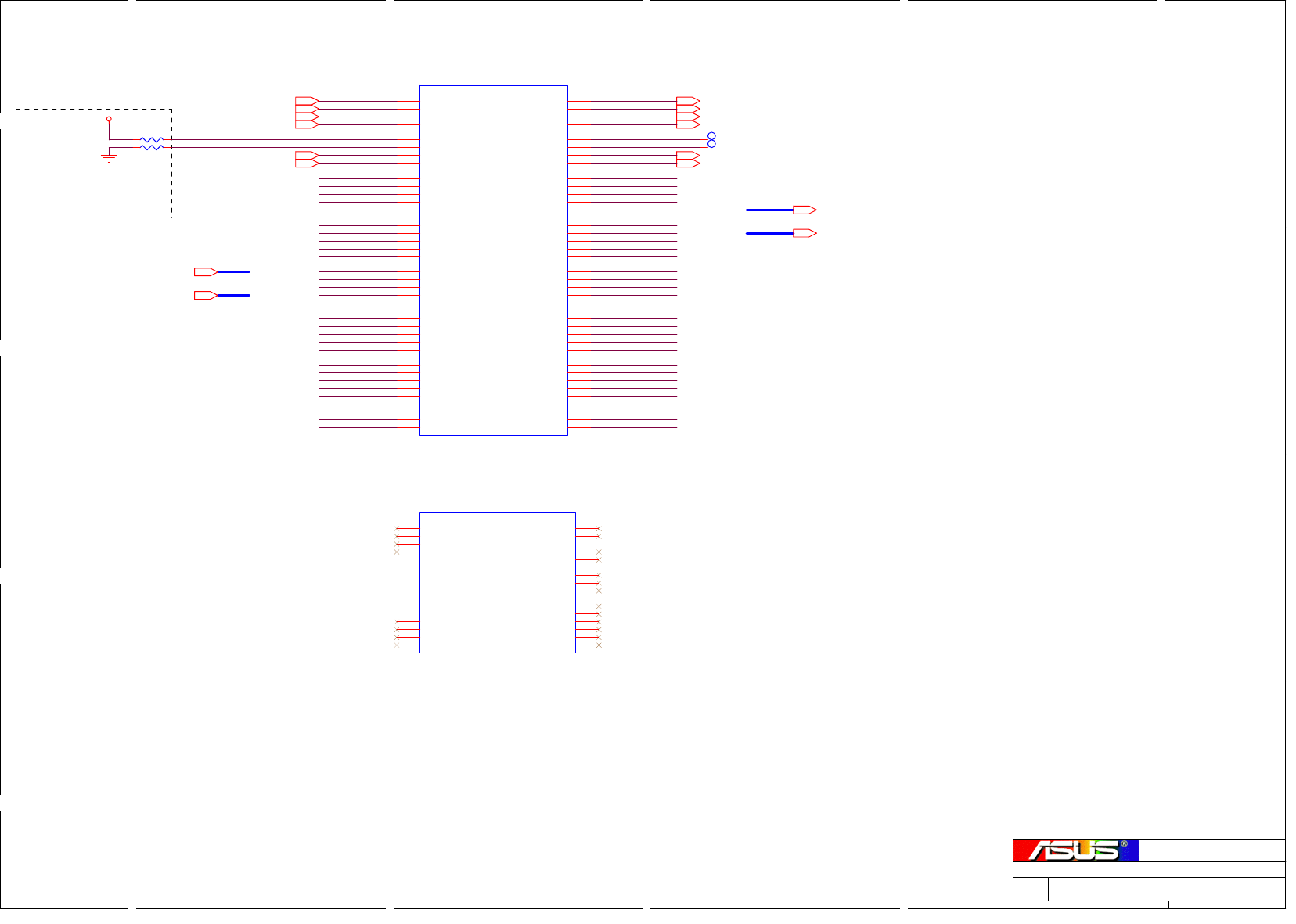

LAYOUT: PLACE NEAR CPU
STUFF WHEN CONFIGURED AS
16-BIT LINK
Do not cross plane.
A3
472Wednesday, March 08, 2006
ASUSTECH CO.,LTD.

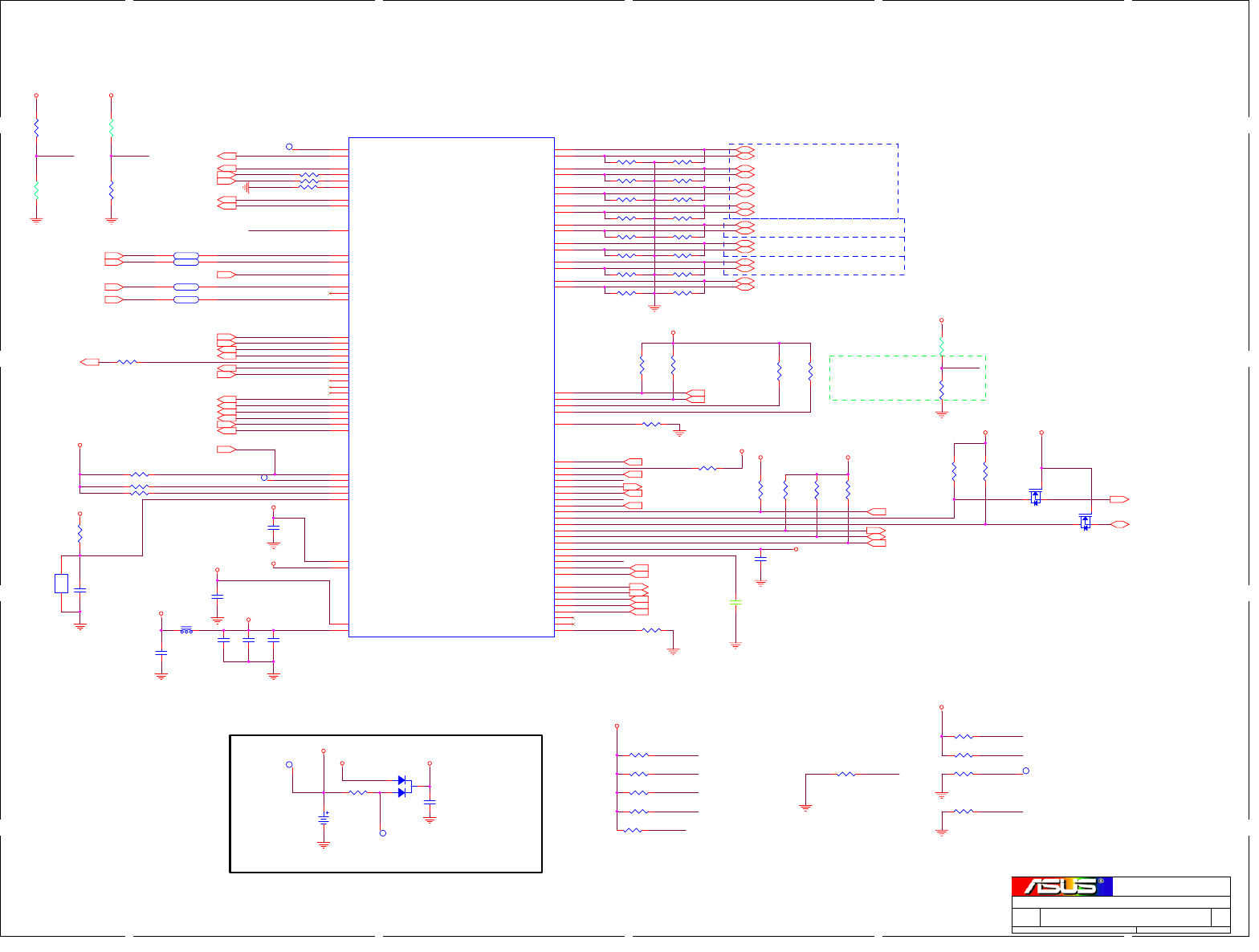

S1_HT_C51
1.0
A6T
Jefing_Li
A6TcSKU1
Size Project Name Rev
Date: Sheet of
Title :
Engineer:
HT_CPU_TX_CAD_H6
HT_CPU_TX_CAD_H9 HT_CPU_RX_CAD_L9
HT_CPU_RX_CAD_H4
HT_CPU_TX_CAD_L2
HT_CPU_RX_CTL_H1
HT_CPU_RX_CLK_H1
HT_CPU_TX_CAD_H14
HT_CPU_RX_CAD_H2
HT_CPU_RX_CAD_L15
HT_CPU_TX_CTL_H1
HT_CPU_RX_CAD_H11
HT_CPU_TX_CAD_H12
HT_CPU_TX_CAD_L15
HT_CPU_RX_CAD_L13
HT_CPU_TX_CAD_L7
HT_CPU_TX_CAD_L10
HT_CPU_TX_CLK_H1
HT_CPU_TX_CAD_H4 HT_CPU_RX_CAD_L5
HT_CPU_RX_CAD_L7
HT_CPU_RX_CLK_L0
HT_CPU_TX_CAD_H2
HT_CPU_TX_CAD_L0
HT_CPU_RX_CAD_L3
HT_CPU_RX_CAD_H15
HT_CPU_TX_CLK_L0
HT_CPU_RX_CAD_L12
HT_CPU_TX_CAD_L13
HT_CPU_TX_CAD_H15
HT_CPU_RX_CAD_H13
HT_CPU_TX_CAD_H7
HT_CPU_TX_CAD_H10
HT_CPU_RX_CAD_H9
HT_CPU_TX_CAD_L5 HT_CPU_RX_CAD_H5
HT_CPU_RX_CAD_H7
HT_CPU_TX_CAD_L3
HT_CPU_RX_CAD_H12
HT_CPU_TX_CAD_H0
HT_CPU_RX_CAD_H3
HT_CPU_RX_CTL_L0
HT_CPU_RX_CLK_H0
HT_CPU_TX_CAD_H13
HT_CPU_TX_CLK_H0
HT_CPU_TX_CTL_L0
HT_CPU_RX_CAD_L14
HT_CPU_TX_CAD_L8
HT_CPU_RX_CAD_L1
HT_CPU_TX_CAD_L11
HT_CPU_RX_CAD_L10
HT_CPU_RX_CAD_L6
HT_CPU_TX_CAD_H5
HT_CPU_RX_CAD_L8
HT_CPU_TX_CAD_H3
HT_CPU_TX_CAD_L1
HT_CPU_RX_CAD_L4
HT_CPU_RX_CTL_H0
HT_CPU_RX_CAD_H1
HT_CPU_RX_CLK_L1
HT_CPU_TX_CAD_L14
HT_CPU_TX_CLK_L1
HT_CPU_TX_CTL_H0
HT_CPU_TX_CAD_H8
HT_CPU_RX_CAD_H10
HT_CPU_TX_CAD_H11
HT_CPU_RX_CAD_H6
HT_CPU_RX_CAD_H0
HT_CPU_TX_CAD_L6
HT_CPU_RX_CAD_H8
HT_CPU_TX_CAD_L4
HT_CPU_TX_CAD_H1
HT_CPU_RX_CAD_L0
HT_CPU_RX_CTL_L1
HT_CPU_RX_CAD_L2
HT_CPU_RX_CAD_H14
HT_CPU_TX_CTL_L1
HT_CPU_TX_CAD_L9
HT_CPU_RX_CAD_L11
HT_CPU_TX_CAD_L12
+1.2V_HT
R401 49.9Ohm
1 2 T402 Do Not StuffN/A
1
T401 Do Not StuffN/A
1
R402 49.9Ohm
1 2
MISC
INTERNAL
U1E
SOCKET638
P20
P19
N20
N19
R26
R25
P22
R22
H16
B18
B3
C1
H6
G6
D5
R24
W18
R23
AA8
H18
H19
RSVD_MA0_CLK_H3
RSVD_MA0_CLK_L3
RSVD_MA0_CLK_H0
RSVD_MA0_CLK_L0
RSVD_MB0_CLK_H3
RSVD_MB0_CLK_L3
RSVD_MB0_CLK_H0
RSVD_MB0_CLK_L0
RSVD_MA_RESET_L
RSVD_MB_RESET_L
RSVD_VIDSTRB1
RSVD_VIDSTRB0
RSVD_VDDNB_FB_H
RSVD_VDDNB_FB_L
RSVD_CORE_TYPE
FREE5
FREE6
FREE4
FREE1
FREE2
FREE3
HYPERTRANSPORT
U1A
SOCKET638
J5
K5
J3
J2
P3
P4
N1
P1
N5
P5
M3
M4
L5
M5
K3
K4
H3
H4
G5
H5
F3
F4
E5
F5
N3
N2
L1
M1
L3
L2
J1
K1
G1
H1
G3
G2
E1
F1
E3
E2
Y4
Y3
Y1
W1
T5
R5
R2
R3
T4
T3
V5
U5
V4
V3
Y5
W5
AB5
AA5
AB4
AB3
AD5
AC5
AD4
AD3
T1
R1
U2
U3
V1
U1
W2
W3
AA2
AA3
AB1
AA1
AC2
AC3
AD1
AC1
L0_CLKIN_H1
L0_CLKIN_L1
L0_CLKIN_H0
L0_CLKIN_L0
L0_CTLIN_H1
L0_CTLIN_L1
L0_CTLIN_H0
L0_CTLIN_L0
L0_CADIN_H15
L0_CADIN_L15
L0_CADIN_H14
L0_CADIN_L14
L0_CADIN_H13
L0_CADIN_L13
L0_CADIN_H12
L0_CADIN_L12
L0_CADIN_H11
L0_CADIN_L11
L0_CADIN_H10
L0_CADIN_L10
L0_CADIN_H9
L0_CADIN_L9
L0_CADIN_H8
L0_CADIN_L8
L0_CADIN_H7
L0_CADIN_L7
L0_CADIN_H6
L0_CADIN_L6
L0_CADIN_H5
L0_CADIN_L5
L0_CADIN_H4
L0_CADIN_L4
L0_CADIN_H3
L0_CADIN_L3
L0_CADIN_H2
L0_CADIN_L2
L0_CADIN_H1
L0_CADIN_L1
L0_CADIN_H0
L0_CADIN_L0
L0_CLKOUT_H1
L0_CLKOUT_L1
L0_CLKOUT_H0
L0_CLKOUT_L0
L0_CTLOUT_H1
L0_CTLOUT_L1
L0_CTLOUT_H0
L0_CTLOUT_L0
L0_CADOUT_H15
L0_CADOUT_L15
L0_CADOUT_H14
L0_CADOUT_L14
L0_CADOUT_H13
L0_CADOUT_L13
L0_CADOUT_H12
L0_CADOUT_L12
L0_CADOUT_H11
L0_CADOUT_L11
L0_CADOUT_H10
L0_CADOUT_L10
L0_CADOUT_H9
L0_CADOUT_L9
L0_CADOUT_H8
L0_CADOUT_L8
L0_CADOUT_H7
L0_CADOUT_L7
L0_CADOUT_H6
L0_CADOUT_L6
L0_CADOUT_H5
L0_CADOUT_L5
L0_CADOUT_H4
L0_CADOUT_L4
L0_CADOUT_H3
L0_CADOUT_L3
L0_CADOUT_H2
L0_CADOUT_L2
L0_CADOUT_H1
L0_CADOUT_L1
L0_CADOUT_H0
L0_CADOUT_L0
HT_CPU_TX_CAD_L[0..15][10]
HT_CPU_TX_CAD_H[0..15][10]
HT_CPU_TX_CLK_H1[10] HT_CPU_TX_CLK_L1[10] HT_CPU_TX_CLK_H0[10] HT_CPU_TX_CLK_L0[10]
HT_CPU_TX_CTL_H0[10] HT_CPU_TX_CTL_L0[10]
HT_CPU_RX_CAD_L[0..15] [10]
HT_CPU_RX_CAD_H[0..15] [10]
HT_CPU_RX_CLK_H1 [10]
HT_CPU_RX_CLK_L1 [10]
HT_CPU_RX_CLK_H0 [10]
HT_CPU_RX_CLK_L0 [10]
HT_CPU_RX_CTL_H0 [10]
HT_CPU_RX_CTL_L0 [10]

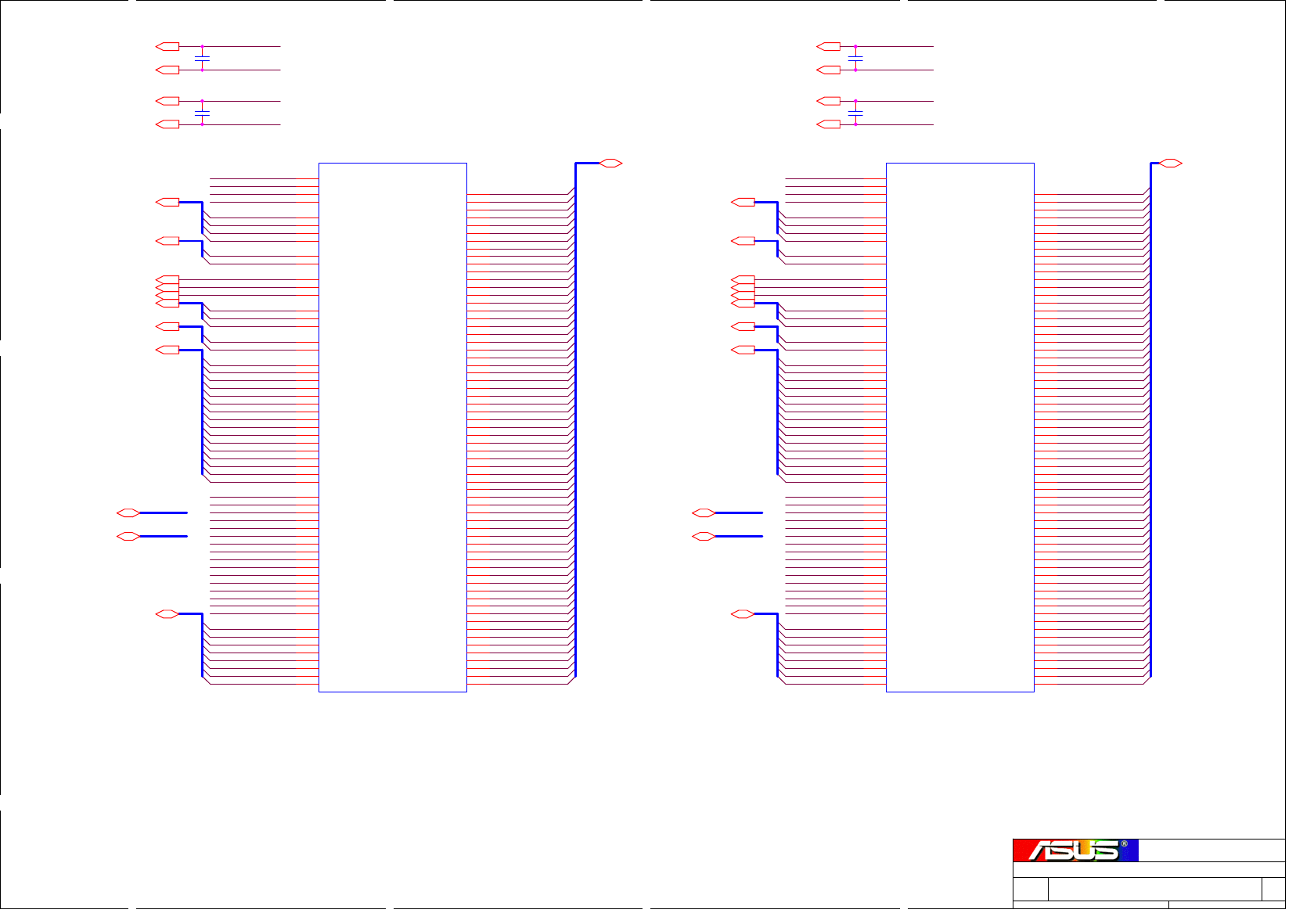

5
5
4
4
3
3
2
2
1
1
D D
C C
B B
A
A
the cap close to cpu less than 1200mil
max neckdown to & from caps is 500mil
A3
572Wednesday, March 08, 2006
ASUSTECH CO.,LTD.

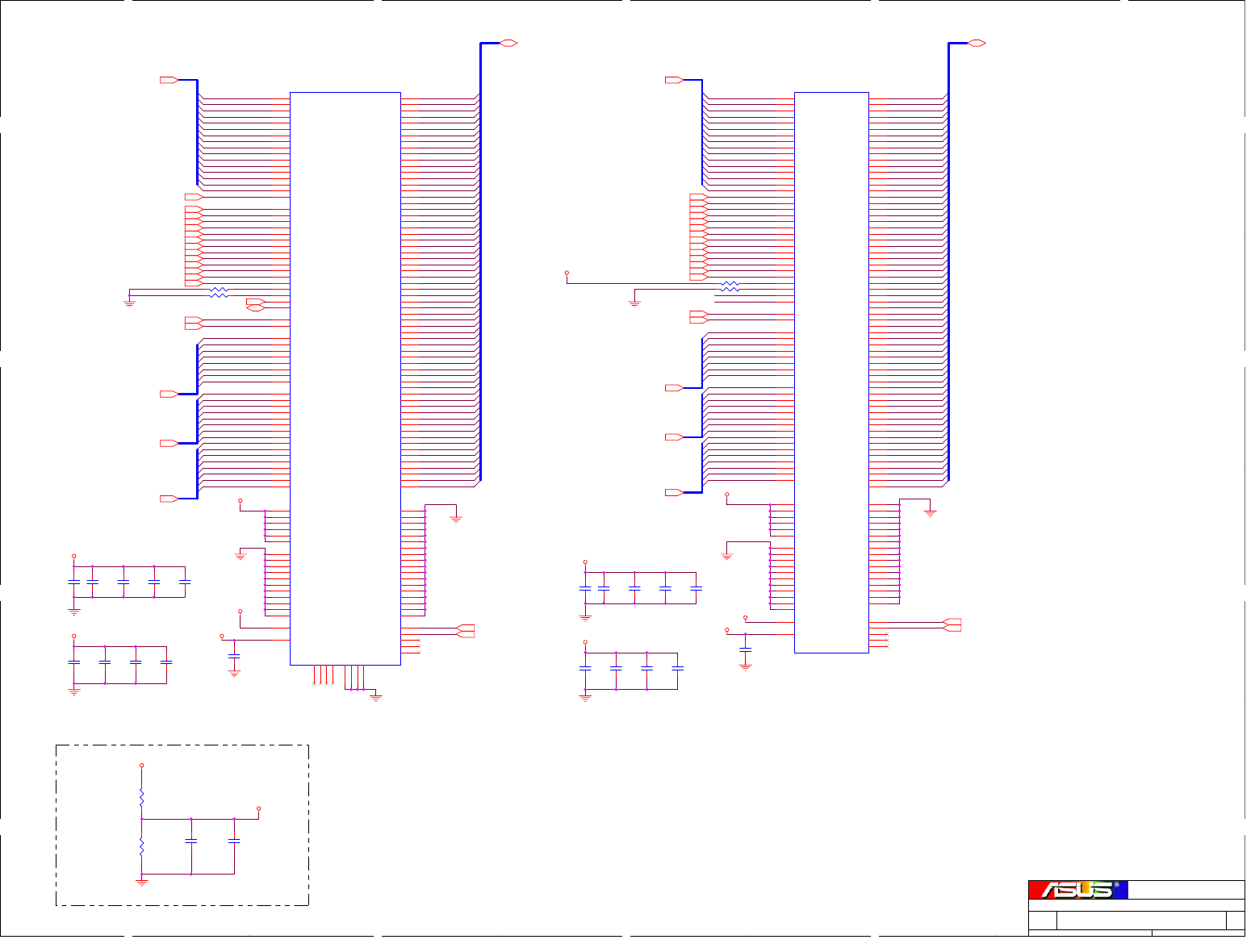

S1_DDR2
1.0
A6T
Jefing_Li
A6TcSKU1
Size Project Name Rev
Date: Sheet of
Title :
Engineer:
MEM_MB_DATA39
MEM_MB_DATA47
MEM_MB_DM7
MEM_MA_DM3
MEM_MA_DQS_H1
MEM_MB_DATA8
MEM_MA_DATA26
MEM_MA_RAS_L
MEM_MB_DATA42
MEM_MA_DATA56
MEM_MA_CKE0
MEM_MA_ADD12
MEM_MA_DATA62
MEM_MB_DATA34
MEM_MA_DATA17
MEM_MB_ADD8
MEM_MA_DATA51
MEM_MB_DATA26
MEM_MA_ADD7
MEM_MB_DATA60
MEM_MB_DM6
MEM_MA_DATA46
MEM_MB_ADD1
MEM_MA_DATA10
MEM_MB_DATA21
MEM_MB_BANK0
MEM_MA_DATA41
MEM_MA_DATA47
MEM_MB_DM0
MEM_MA0_CLK_L2
MEM_MA_DATA5
MEM_MA_DQS_L7
MEM_MA0_CS_L1
MEM_MB_DATA13
MEM_MA_DATA31
MEM_MA0_CS_L0
MEM_MB_DATA17
MEM_MB_DATA56
MEM_MA_DATA0
MEM_MA_DATA37
MEM_MB_DATA5
MEM_MA_DATA22
MEM_MB_DATA48
MEM_MB_DATA51
MEM_MA_DM4
MEM_MA_DQS_L2
MEM_MB_DATA9
MEM_MA_DATA27
MEM_MA_WE_L
MEM_MB_DATA0
MEM_MB_DATA61
MEM_MB_DM3
MEM_MA_DATA57
MEM_MA_DM7
MEM_MB_DATA43
MEM_MA_CKE1
MEM_MB_DATA35
MEM_MB0_CLK_H1MEM_MA_DATA63
MEM_MA_DATA18
MEM_MA_ADD3
MEM_MB_DATA27
MEM_MB_ADD0
MEM_MA_DATA52
MEM_MB_DATA30
MEM_MA_ADD8
MEM_MA_DATA59
MEM_MA_DQS_H4
MEM_MB_DATA22
MEM_MB0_CLK_L2
MEM_MA_DATA42
MEM_MA_DATA48 MEM_MB_BANK2
MEM_MA_DATA6
MEM_MA_DATA58
MEM_MA_DQS_H7
MEM_MB_DATA14
MEM_MA0_CS_L2
MEM_MA_DATA32
MEM_MA_DQS_L5 MEM_MB_DATA18
MEM_MB_DATA57
MEM_MA_DATA23
MEM_MA_DATA38
MEM_MB_DATA49
MEM_MB_DM1
MEM_MA_DM5
MEM_MB_DATA52
MEM_MB_DATA28
MEM_MA_DQS_H2
MEM_MA_DATA28
MEM_MA_ADD13
MEM_MB_DATA1
MEM_MB_CKE0
MEM_MA_DQS_L0
MEM_MB_DATA44
MEM_MB_DM5
MEM_MA_BANK0
MEM_MB_CKE1
MEM_MB_DATA36
MEM_MB0_CS_L1
MEM_MA_DM0
MEM_MB_ADD10
MEM_MA_DATA19
MEM_MA_ADD4
MEM_MB_WE_L
MEM_MA_DATA11
MEM_MB0_CLK_L1
MEM_MA_DATA53
MEM_MB_DATA31
MEM_MA_DATA14
MEM_MA_ADD9
MEM_MB_ADD2
MEM_MA_DATA60
MEM_MB_ADD6
MEM_MB_DATA23
MEM_MA_DATA43
MEM_MA_DATA49
MEM_MA_DATA1
MEM_MB_DATA15
MEM_MA_DATA7
MEM_MA_ADD0
MEM_MA0_CS_L3
MEM_MB_DATA58
MEM_MA_DATA2
MEM_MA_DATA24
MEM_MA_DATA33
MEM_MA_DQS_H5 MEM_MB_DATA19
MEM_MB_ADD13MEM_MA_DATA39
MEM_MB_DATA10
MEM_MA_CAS_L MEM_MB_DATA53
MEM_MB0_CLK_H2
MEM_MA_DQS_L3
MEM_MA_ADD14
MEM_MA_DATA29
MEM_MB_DATA2
MEM_MB0_CS_L3
MEM_MA_DQS_H0
MEM_MB_DATA6
MEM_MB_DATA45
MEM_MA_BANK1
MEM_MB_DATA37
MEM_MB_BANK1
MEM_MB0_ODT1
MEM_MA_DM1
MEM_MB_DATA40
MEM_MB_ADD3
MEM_MA_DATA20
MEM_MA_DATA12
MEM_MB_RAS_L
MEM_MA_DATA54
MEM_MB_DATA32
MEM_MA_DATA15
MEM_MA_ADD10
MEM_MA0_CLK_H2
MEM_MB_DM4
MEM_MA_ADD5
MEM_MB_DATA24
MEM_MA_DATA44
MEM_MA_DATA50
MEM_MB_DATA16
MEM_MB0_ODT0
MEM_MA_ADD1
MEM_MA_DATA8
MEM_MB_DATA59
MEM_MB_DATA62MEM_MA0_CLK_L1
MEM_MA_DATA3
MEM_MA_DATA34
MEM_MA_DQS_L6
MEM_MA_DATA40
MEM_MB_DATA11
MEM_MA_DATA13
MEM_MA0_ODT0 MEM_MB_DATA54
MEM_MA_ADD15
MEM_MA_DQS_H3
MEM_MB_ADD4MEM_MA_DATA30
MEM_MB_DATA3
MEM_MA_DQS_L1
MEM_MB_DATA7
MEM_MB_DATA38
MEM_MB_DATA46
MEM_MB_ADD11
MEM_MA_DATA25
MEM_MA_DM2
MEM_MA_BANK2
MEM_MB_ADD12
MEM_MB_ADD7
MEM_MB_DATA41MEM_MB_ADD15
MEM_MA_DATA55
MEM_MB_CAS_L
MEM_MA_DM6
MEM_MA_DATA61
MEM_MA_ADD11
MEM_MB_DATA33
MEM_MA_DATA16
MEM_MB0_CS_L0
MEM_MB0_CS_L2
MEM_MA_ADD6
MEM_MB_DATA25
MEM_MB_ADD5
MEM_MA_DATA45
MEM_MA_ADD2 MEM_MB_DATA29
MEM_MA_DATA9
MEM_MB_DATA20
MEM_MB_DATA63
MEM_MB_ADD9
MEM_MA0_CLK_H1
MEM_MB_DM2
MEM_MA_DATA4
MEM_MA_DATA35
MEM_MA_DQS_H6
MEM_MB_DATA12
MEM_MA0_ODT1 MEM_MB_DATA55
MEM_MA_DATA36
MEM_MB_ADD14
MEM_MA_DQS_L4
MEM_MB_DATA4
MEM_MB_DATA50
MEM_MA_DATA21
MEM_MB_DQS_L4
MEM_MB_DQS_H3
MEM_MB_DQS_L1
MEM_MB_DQS_H7
MEM_MB_DQS_H4
MEM_MB_DQS_H1
MEM_MB_DQS_H5
MEM_MB_DQS_H2
MEM_MB_DQS_L6
MEM_MB_DQS_L5
MEM_MB_DQS_H6
MEM_MB_DQS_L3
MEM_MB_DQS_H0
MEM_MB_DQS_L2
MEM_MB_DQS_L0
MEM_MB_DQS_L7
MEM_MB0_CLK_H2
MEM_MB0_CLK_L2
MEM_MB0_CLK_H1
MEM_MB0_CLK_L1
MEM_MA0_CLK_H2
MEM_MA0_CLK_L2
MEM_MA0_CLK_H1
MEM_MA0_CLK_L1
C502
1.5PF/50V
12
MEMORY
INTERFACE
U1C
SOCKET638
AF18
AF17
A17
A18
Y26
J24
W24
U23
W23
W26
V26
U22
U24
K26
T26
U26
H26
J23
J25
J26
W25
L23
L25
U25
L24
M26
L26
N23
N24
N25
N26
P24
P26
T24
AF12
AE12
AE16
AD16
AF21
AF22
AC25
AC26
F26
E26
A24
A23
D16
C16
C12
B12
AD12
AC16
AE22
AB26
E25
A22
B16
A12
AD11
AF11
AF14
AE14
Y11
AB11
AC12
AF13
AF15
AF16
AC18
AF19
AD14
AC14
AE18
AD18
AD20
AC20
AF23
AF24
AF20
AE20
AD22
AC22
AE25
AD26
AA25
AA26
AE24
AD24
AA23
AA24
G24
G23
D26
C26
G26
G25
E24
E23
C24
B24
C20
B20
C25
D24
A21
D20
D18
C18
D14
C14
A20
A19
A16
A15
A13
D12
E11
G11
B14
A14
A11
C11
MB0_CLK_H2
MB0_CLK_L2
MB0_CLK_H1
MB0_CLK_L1
MB0_CS_L3
MB0_CS_L2
MB0_CS_L1
MB0_CS_L0
MB0_ODT1
MB0_ODT0
MB_CAS_L
MB_WE_L
MB_RAS_L
MB_BANK2
MB_BANK1
MB_BANK0
MB_CKE1
MB_CKE0
MB_ADD15
MB_ADD14
MB_ADD13
MB_ADD12
MB_ADD11
MB_ADD10
MB_ADD9
MB_ADD8
MB_ADD7
MB_ADD6
MB_ADD5
MB_ADD4
MB_ADD3
MB_ADD2
MB_ADD1
MB_ADD0
MB_DQS_H7
MB_DQS_L7
MB_DQS_H6
MB_DQS_L6
MB_DQS_H5
MB_DQS_L5
MB_DQS_H4
MB_DQS_L4
MB_DQS_H3
MB_DQS_L3
MB_DQS_H2
MB_DQS_L2
MB_DQS_H1
MB_DQS_L1
MB_DQS_H0
MB_DQS_L0
MB_DM7
MB_DM6
MB_DM5
MB_DM4
MB_DM3
MB_DM2
MB_DM1
MB_DM0
MB_DATA63
MB_DATA62
MB_DATA61
MB_DATA60
MB_DATA59
MB_DATA58
MB_DATA57
MB_DATA56
MB_DATA55
MB_DATA54
MB_DATA53
MB_DATA52
MB_DATA51
MB_DATA50
MB_DATA49
MB_DATA48
MB_DATA47
MB_DATA46
MB_DATA45
MB_DATA44
MB_DATA43
MB_DATA42
MB_DATA41
MB_DATA40
MB_DATA39
MB_DATA38
MB_DATA37
MB_DATA36
MB_DATA35
MB_DATA34
MB_DATA33
MB_DATA32
MB_DATA31
MB_DATA30
MB_DATA29
MB_DATA28
MB_DATA27
MB_DATA26
MB_DATA25
MB_DATA24
MB_DATA23
MB_DATA22
MB_DATA21
MB_DATA20
MB_DATA19
MB_DATA18
MB_DATA17
MB_DATA16
MB_DATA15
MB_DATA14
MB_DATA13
MB_DATA12
MB_DATA11
MB_DATA10
MB_DATA9
MB_DATA8
MB_DATA7
MB_DATA6
MB_DATA5
MB_DATA4
MB_DATA3
MB_DATA2
MB_DATA1
MB_DATA0
C504
1.5PF/50V
12
C501
1.5PF/50V
12
C503
1.5PF/50V
12
INTERFACE
MEMORY
U1B
SOCKET638
Y16
AA16
E16
F16
V19
J22
V22
T19
V20
U19
U20
U21
T20
K22
R20
T22
J20
J21
K19
K20
V24
K24
L20
R19
L19
L22
L21
M19
M20
M24
M22
N22
N21
R21
W12
W13
Y15
W15
AB19
AB20
AD23
AC23
G22
G21
C22
C21
G16
G15
G13
H13
Y13
AB16
Y19
AC24
F24
E19
C15
E12
AA12
AB12
AA14
AB14
W11
Y12
AD13
AB13
AD15
AB15
AB17
Y17
Y14
W14
W16
AD17
Y18
AD19
AD21
AB21
AB18
AA18
AA20
Y20
AA22
Y22
W21
W22
AA21
AB22
AB24
Y24
H22
H20
E22
E21
J19
H24
F22
F20
C23
B22
F18
E18
E20
D22
C19
G18
G17
C17
F14
E14
H17
E17
E15
H15
E13
C13
H12
H11
G14
H14
F12
G12
MA0_CLK_H2
MA0_CLK_L2
MA0_CLK_H1
MA0_CLK_L1
MA0_CS_L3
MA0_CS_L2
MA0_CS_L1
MA0_CS_L0
MA0_ODT1
MA0_ODT0
MA_CAS_L
MA_WE_L
MA_RAS_L
MA_BANK2
MA_BANK1
MA_BANK0
MA_CKE1
MA_CKE0
MA_ADD15
MA_ADD14
MA_ADD13
MA_ADD12
MA_ADD11
MA_ADD10
MA_ADD9
MA_ADD8
MA_ADD7
MA_ADD6
MA_ADD5
MA_ADD4
MA_ADD3
MA_ADD2
MA_ADD1
MA_ADD0
MA_DQS_H7
MA_DQS_L7
MA_DQS_H6
MA_DQS_L6
MA_DQS_H5
MA_DQS_L5
MA_DQS_H4
MA_DQS_L4
MA_DQS_H3
MA_DQS_L3
MA_DQS_H2
MA_DQS_L2
MA_DQS_H1
MA_DQS_L1
MA_DQS_H0
MA_DQS_L0
MA_DM7
MA_DM6
MA_DM5
MA_DM4
MA_DM3
MA_DM2
MA_DM1
MA_DM0
MA_DATA63
MA_DATA62
MA_DATA61
MA_DATA60
MA_DATA59
MA_DATA58
MA_DATA57
MA_DATA56
MA_DATA55
MA_DATA54
MA_DATA53
MA_DATA52
MA_DATA51
MA_DATA50
MA_DATA49
MA_DATA48
MA_DATA47
MA_DATA46
MA_DATA45
MA_DATA44
MA_DATA43
MA_DATA42
MA_DATA41
MA_DATA40
MA_DATA39
MA_DATA38
MA_DATA37
MA_DATA36
MA_DATA35
MA_DATA34
MA_DATA33
MA_DATA32
MA_DATA31
MA_DATA30
MA_DATA29
MA_DATA28
MA_DATA27
MA_DATA26
MA_DATA25
MA_DATA24
MA_DATA23
MA_DATA22
MA_DATA21
MA_DATA20
MA_DATA19
MA_DATA18
MA_DATA17
MA_DATA16
MA_DATA15
MA_DATA14
MA_DATA13
MA_DATA12
MA_DATA11
MA_DATA10
MA_DATA9
MA_DATA8
MA_DATA7
MA_DATA6
MA_DATA5
MA_DATA4
MA_DATA3
MA_DATA2
MA_DATA1
MA_DATA0
MEM_MA_DATA[0..63] [8] MEM_MB_DATA[0..63] [8]
MEM_MA_DM[0..7][8]
MEM_MA_ADD[0..15][8,9]
MEM_MA_BANK[0..2][8,9]
MEM_MA0_CS_L[0..3][8,9]
MEM_MA_DQS_H[0..7][8]
MEM_MA_DQS_L[0..7][8]
MEM_MA_CKE[0..1][8,9]
MEM_MA0_ODT[0..1][8,9]
MEM_MA_CAS_L[8,9] MEM_MA_WE_L[8,9] MEM_MA_RAS_L[8,9] MEM_MB_WE_L[8,9]
MEM_MB_DQS_H[0..7][8]
MEM_MB_CAS_L[8,9]
MEM_MB_DM[0..7][8]
MEM_MB_DQS_L[0..7][8]
MEM_MB_CKE[0..1][8,9]
MEM_MB_ADD[0..15][8,9]
MEM_MB_RAS_L[8,9] MEM_MB_BANK[0..2][8,9]
MEM_MB0_CS_L[0..3][8,9]
MEM_MB0_ODT[0..1][8,9]
MEM_MA0_CLK_H2[8]
MEM_MA0_CLK_L2[8]
MEM_MA0_CLK_H1[8]
MEM_MA0_CLK_L1[8]
MEM_MB0_CLK_H2[8]
MEM_MB0_CLK_L1[8]
MEM_MB0_CLK_H1[8]
MEM_MB0_CLK_L2[8]
5
5
4
4
3
3
2
2
1
1
D D
C C
B B
A
A
Need decoupling
capacitors
Keep trace to
resistors less
than 1.5" from
CPU pin Route as 80Ohm
differential
impedance.
Keep trace to
resistors less
than 1" from
CPU pin
Not use,
pull up.
Required for
compatibility
with future
processors
Erratum 133,
Revision Guide
for AMD NPT
0Fh Processors
Keep trace to resistors
less than 600mils from
CPU pin and trace to AC
caps less than 1250mils
Keep trace to
resistors less
than 1.5" from
CPU pin
CPU_M_VREF
15mil trace.20mil space
shorter than 6 inches
close to the ferrite bead
route as diff
pair 5/5/5,10mil
VDDIO +1.8V
for filter the glitch
C
672Wednesday, March 08, 2006
ASUSTECH CO.,LTD.
S1_CNTL/DEBUG/THERM
1.01
A6T
Jefing_Li
A6TcSKU1
Size Project Name Rev
Date: Sheet of
Title :
Engineer:
CPU_TEST25_H
CPU_VTT_SENSE
CPU_TEST29_H
CPU_PRESENT#
_CPU_LDTSTOP#
CPU_TEST21
CPU_TMS
CPU_TEST25_H
CPU_CLK_H
CPU_TEST29_L
CPU_THERMADC
CPU_CLK_L
CPU_PRESENT#
CPU_PSI#
CPU_VCORE_FB_L
CPU_VCORE_FB_L
_CPU_PWROK
CPU_VID1
CPU_VID2
CPU_THERMADA
CPU_TCK
+1.8V_DRAM_FB#
CPU_VCORE_FB_H
_CPU_RESET#
CPU_VCORE_FB_H
CPU_TEST26
_CPU_LDTSTOP# CPU_VID3
CPU_DBREQ#
CPU_SIC
CPU_TRST#
+1.8V_DRAM_FB
_CPU_THERMTRIP#
CPU_TEST21
_CPU_PROCHOT# +1.8V_DRAM_FB
CPU_TEST26
CPU_TDI
CPU_VID4
CPU_DBRDY
_CPU_RESET#
CPU_M_VREF
CPU_TEST25_L
CPU_CLK_H
CPU_TEST29_L
CPU_VID0
CPU_TEST25_L
CPU_CLK_L
CPU_VID5
CPU_TDO
_CPU_PWROK
_CPU_PWROK
CPU_VTT_SENSE
_CPU_THERMTRIP#
CPU_TDO
CPU_TDI
H_CPU_RESET#
CPU_DBREQ#
CPU_TRST#
CPU_TMS
CPU_TCK
CPU_DBRDY
+1.8V_DRAM_FB#
CPU_M_VREF
CPU_TEST29_H
_PWROK
_CPU_LDTSTOP#
_PWROK
_CPU_RESET#
H_CPU_RESET#
CPU_RESET#
_PWROK +1.8V
+2.5V_VDDA
+2.5VS +1.8V
+0.9V
+1.2V_HT
+2.5VS +2.5V_VDDA+3VSUS
+1.8V
+1.8V
+1.8V
+1.8V
+1.8V
+3VSUS
+3VSUS +1.8V
+3VSUS
+2.5VS
+3VSUS +1.8V
+3VSUS
+2.5VS
+3VS
GND
T612 Do Not StuffN/A
1
VCC
GND
U2C
SN74LVC07APWR
5 6
147
Q601B
UM6K1N
5
34
R624
2KOhm
1%
1 2
VCC
GND
U2F
SN74LVC07APWR
13 12
147
R617
80.6Ohm
1 2
R620 1KOhm
1 2
C605
0.1UF/10V
12
L601
30Ohm/100Mhz
21
VCC
GND
U2E
SN74LVC07APWR
11 10
147
C607
3900PF/50V 12
2KOhm
1%
R628
1 2
T605 Do Not StuffN/A
1
T615 Do Not StuffN/A
1
R631
0Ohm
1 2
C604
3300PF/50V
12
VCC
GND
U2B
SN74LVC07APWR
3 4
147
R632
0Ohm
N/A
1 2
T613 Do Not StuffN/A
1
T604 Do Not StuffN/A
1
T614 Do Not StuffN/A 1T617 Do Not StuffN/A
1
MISC
U1D
SOCKET638
F8
F9
A9
A8
A7
F10
B7
AC6
AF4
AF5
AF9
AD9
AC9
AA9
E10
F6
E6
Y10
W17
AE10
AF10
E9
E8
G9
H10
AA7
C2
D7
E7
F7
C7
AC8
C3
AA6
W7
W8
Y6
AB6
A5
C6
A6
A4
C5
B5
AF6
AC7
AE9
G10
W9
Y9
A3
P6
R6
C9
C8
AE7
AD7
AE8
AB8
AF7
J7
H8
AF8
AE6
K8
C4
VDDA1
VDDA2
CLKIN_H
CLKIN_L
PWROK
LDTSTOP_L
RESET_L
CPU_PRESENT_L
SIC
SID
TDI
TRST_L
TCK
TMS
DBREQ_L
VDD_FB_H
VDD_FB_L
VTT_SENSE
M_VREF
M_ZN
M_ZP
TEST25_H
TEST25_L
TEST19
TEST18
TEST13
TEST9
TEST17
TEST16
TEST15
TEST14
TEST12
TEST7
TEST6
THERMDC
THERMDA
TEST3
TEST2
VID5
VID4
VID3
VID2
VID1
VID0
THERMTRIP_L
PROCHOT_L
TDO
DBRDY
VDDIO_FB_H
VDDIO_FB_L
PSI_L
HTREF1
HTREF0
TEST29_H
TEST29_L
TEST24
TEST23
TEST22
TEST21
TEST20
TEST28_H
TEST28_L
TEST27
TEST26
TEST10
TEST8
C606
3900PF/50V 12
R634
8.2KOhm
12
C608
1000PF/50V
12
R636 Do Not Stuff
/X
1 2
Q601A
UM6K1N
2
61
C603
0.22UF/6.3V
12
T606 Do Not StuffN/A
1
T616 Do Not StuffN/A 1
T620 Do Not StuffN/A
1
R604 300Ohm
1 2
P601
Do Not Stuff
/X
1
3
5
7
9
11
13
15
17
19
21
23
2
4
6
8
10
12
14
16
18
20
22
24
26
NC
DBREQ_L1
DBRDY1
DBREQ_L2
DBRDY2
DBREQ_L3
DBRDY3
DBREQ_L4
DBRDY4
DBREQ_L5
DBRDY5
DBREQ_L6
GND1
GND2
GND3
GND4
GND5
GND6
GND7
GND8
DBRDY7
DBREQ_L7
DBRDY6
GND9
GND10
R612 39.2Ohm
1 2
R610 300Ohm
1 2
R623 300Ohm
1 2
R606
300Ohm
1 2
T618 Do Not StuffN/A 1
R607 300Ohm
12
VCC
GND
U2A
SN74LVC07APWR
1 2
147
C609
0.1UF/10V
12
R616 300Ohm
1 2
T608 Do Not StuffN/A
1
C601
100UF/6.3V
12
R622 510Ohm
1 2
R601
1KOhm
1 2
T619 Do Not StuffN/A 1
R635
0Ohm
1 2
R618 300Ohm
1 2
R614
Do Not Stuff/x
1 2
C602
4.7UF/6.3V
12
R611 44.2Ohm
1 2
R633
8.2KOhm
12
T607 Do Not StuffN/A
1
R615 39.2Ohm
1 2
T602 Do Not StuffN/A
1
R621 510Ohm
1 2
T621 Do Not StuffN/A 1
T611 Do Not StuffN/A
1
R602 300Ohm
1 2
R603
1KOhm
1 2
T609 Do Not StuffN/A
1
T601 Do Not StuffN/A
1
R613 44.2Ohm
1 2
T610 Do Not StuffN/A
1
R609
1KOhm
1 2
R605
169Ohm
1 2
R619 300Ohm
1 2
R630
0Ohm
1 2
T603 Do Not StuffN/A
1
VCC
GND
U2D
SN74LVC07APWR
9 8
147
CPU_PWROK[10]
CPU_CLK_H[10]
CPU_CLK_L[10]
CPU_VDD_FB[61] CPU_VDD_FB#[61]
CPU_VID[0..5] [61]
_CPU_THERMTRIP# [9]
_CPU_PROCHOT# [9]
CPU_PSI# [61]
CPU_THERMADC[15] CPU_THERMADA[15]
_HT_MCP_PWRGD[16]
CPU_LDTSTOP#[10]
CPU_RESET#[10]
HT_VLD[16,64]

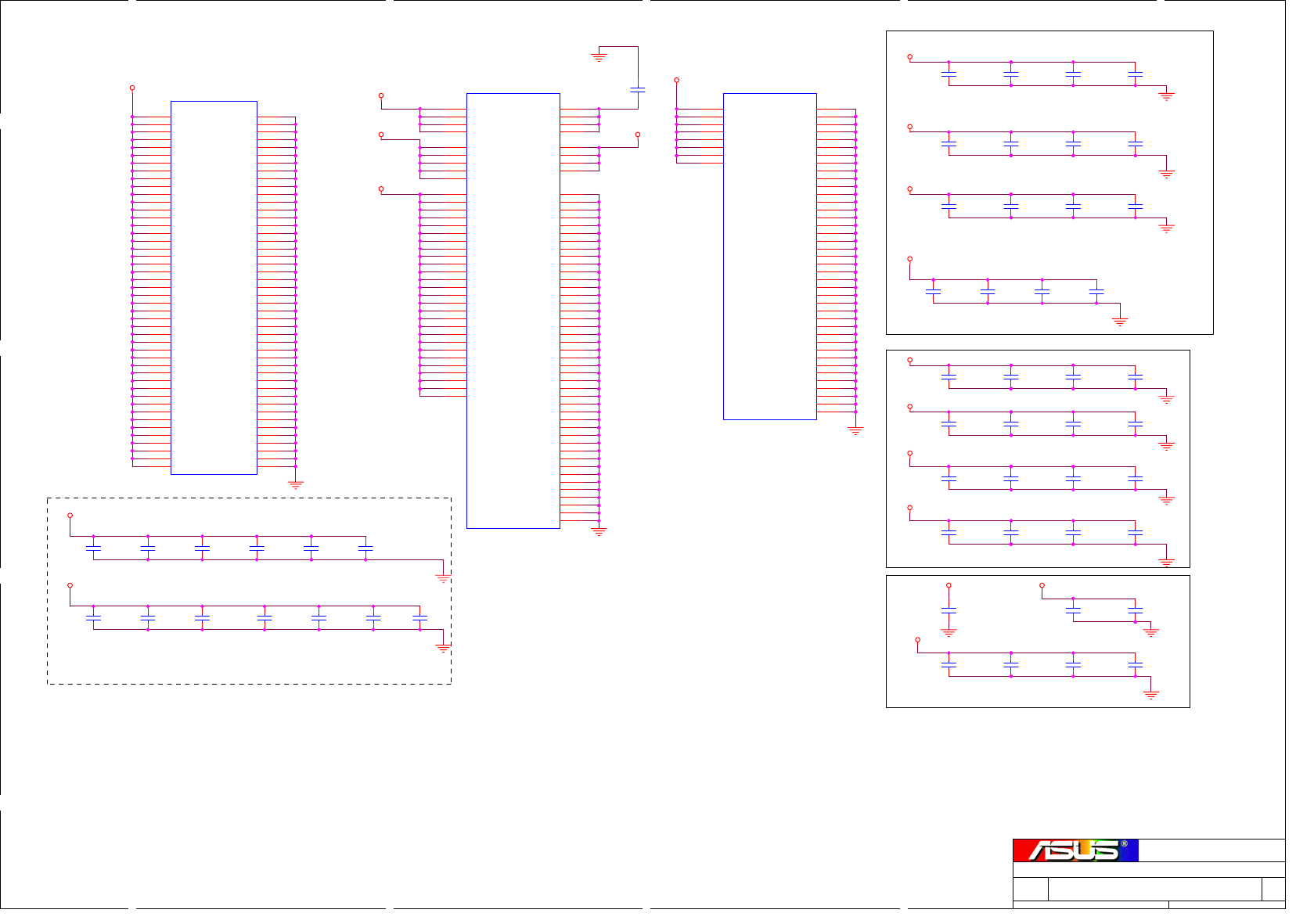

5
5
4
4
3
3
2
2
1
1
D D
C C
B B
A
A
place under socket on bottom side
place close to socket
place close to socket
DRAM_VTT 0.9V
place close to socket
place under socket on bottom side
A3
772Wednesday, March 08, 2006
ASUSTECH CO.,LTD.
S1_POWER
1.0
A6T
Jefing_Li
A6TcSKU1
Size Project Name Rev
Date: Sheet of
Title :
Engineer:
+VCORE
+1.2V_HT
+1.2V_HT
+VCORE
+1.2V_HT
+0.9V
+VCORE
+1.8V
+1.2V_HT
+VCORE
+0.9V
+1.8V
+1.8V
+1.8V
+0.9V
+0.9V
+0.9V
+0.9V
+1.8V
C721
4.7UF/6.3V
12
C703
0.22UF/6.3V
12
C739
22UF/6.3V
12
C749
180PF/50V
12
C735
22UF/6.3V
12
C706
4.7UF/16V
12
C725
0.22UF/6.3V
12
VDD
U1G
SOCKET638
J15
K16
L15
M16
P16
T16
U15
V16
M17
N4
N8
N10
N16
N18
P2
P7
P9
P11
P17
R8
R10
R16
R18
T7
T9
T11
T13
T15
T17
U4
U6
U8
U10
U12
U14
U16
U18
V2
V7
V9
V11
V13
V15
V17
W6
Y21
Y23
N6
VDD47
VDD48
VDD49
VDD50
VDD51
VDD52
VDD53
VDD54
VSS91
VSS92
VSS93
VSS94
VSS95
VSS96
VSS97
VSS98
VSS99
VSS100
VSS101
VSS102
VSS103
VSS104
VSS105
VSS106
VSS107
VSS108
VSS109
VSS110
VSS111
VSS112
VSS113
VSS114
VSS115
VSS116
VSS117
VSS118
VSS119
VSS120
VSS121
VSS122
VSS123
VSS124
VSS125
VSS126
VSS130
VSS131
VSS132
VSS133
POWER
I O
U1H
SOCKET638
D4
D3
D2
D1
D10
C10
B10
AD10
W10
H25
J17
K18
K21
K23
K25
L17
M18
M21
M23
M25
N17
P18
P21
P23
P25
R17
T18
T21
T23
T25
U17
V18
V21
V23
V25
Y25
AE5
AE4
AE3
AE2
AC10
AB10
AA10
A10
D19
D21
D23
D25
E4
F2
F11
F13
F15
F17
F19
F21
F23
F25
H7
H9
H21
H23
J4
J6
J8
J10
J12
J14
J16
J18
K2
K7
K9
K11
K13
K15
K17
L6
L8
L10
L12
L14
L16
L18
M7
M9
M11
VLDT_A4
VLDT_A3
VLDT_A2
VLDT_A1
VTT8
VTT7
VTT6
VTT5
VTT9
VDDIO23
VDDIO1
VDDIO2
VDDIO3
VDDIO4
VDDIO5
VDDIO6
VDDIO7
VDDIO8
VDDIO9
VDDIO10
VDDIO11
VDDIO12
VDDIO13
VDDIO14
VDDIO15
VDDIO16
VDDIO17
VDDIO18
VDDIO19
VDDIO20
VDDIO21
VDDIO22
VDDIO24
VDDIO25
VDDIO26
VDDIO27
VLDT_B4
VLDT_B3
VLDT_B2
VLDT_B1
VTT4
VTT3
VTT2
VTT1
VSS47
VSS48
VSS49
VSS50
VSS51
VSS52
VSS53
VSS54
VSS55
VSS56
VSS57
VSS58
VSS59
VSS60
VSS61
VSS62
VSS63
VSS64
VSS66
VSS67
VSS68
VSS69
VSS70
VSS71
VSS72
VSS73
VSS74
VSS75
VSS76
VSS77
VSS78
VSS79
VSS80
VSS81
VSS82
VSS83
VSS84
VSS85
VSS86
VSS87
VSS88
VSS89
VSS90
C709
4.7UF/6.3V
12
C748
0.01UF/10V
12
C742
4.7UF/6.3V
12
C717
0.22UF/6.3V
12
C751
0.22UF/6.3V
12
C745
22UF/6.3V
12
C702
0.22UF/6.3V
12
C707
4.7UF/6.3V
12
C728
1000PF/50V
12
VDD
U1F
SOCKET638
AC4
AD2
G4
H2
J9
J11
J13
K6
K10
K12
K14
L4
L7
L9
L11
L13
M2
M6
M8
M10
N7
N9
N11
P8
P10
R4
R7
R9
R11
T2
T6
T8
T10
T12
T14
U7
U9
U11
U13
V6
V8
V10
V12
V14
W4
Y2
AA4
AA11
AA13
AA15
AA17
AA19
AB2
AB7
AB9
AB23
AB25
AC11
AC13
AC15
AC17
AC19
AC21
AD6
AD8
AD25
AE11
AE13
AE15
AE17
AE19
AE21
AE23
B4
B6
B8
B9
B11
B13
B15
B17
B19
B21
B23
B25
D6
D8
D9
D11
D13
D15
D17
VDD1
VDD2
VDD3
VDD4
VDD5
VDD6
VDD7
VDD8
VDD9
VDD10
VDD11
VDD12
VDD13
VDD14
VDD15
VDD16
VDD17
VDD18
VDD19
VDD20
VDD21
VDD22
VDD23
VDD24
VDD25
VDD26
VDD27
VDD28
VDD29
VDD30
VDD31
VDD32
VDD33
VDD34
VDD35
VDD36
VDD37
VDD38
VDD39
VDD40
VDD41
VDD42
VDD43
VDD44
VDD45
VDD46
VSS1
VSS2
VSS3
VSS4
VSS5
VSS6
VSS7
VSS8
VSS9
VSS10
VSS11
VSS12
VSS13
VSS14
VSS15
VSS16
VSS17
VSS18
VSS19
VSS20
VSS21
VSS22
VSS23
VSS24
VSS25
VSS26
VSS27
VSS28
VSS29
VSS30
VSS31
VSS32
VSS33
VSS34
VSS35
VSS36
VSS37
VSS38
VSS39
VSS40
VSS41
VSS42
VSS43
VSS44
VSS45
VSS46
C734
180PF/50V
12
C711
0.01UF/10V
12
C746
0.22UF/6.3V
12
C720
4.7UF/6.3V
12
C736
22UF/6.3V
12
C701
22UF/6.3V
12
C723
0.22UF/6.3V
12
C731
180PF/50V
12
C744
22UF/6.3V
12
C712
0.01UF/10V
12
C747
0.22UF/6.3V
12
C729
1000PF/50V
12
C752
180PF/50V
12
C727
1000PF/50V
12
C733
180PF/50V
12
C719
4.7UF/6.3V
12
C737
22UF/6.3V
12
C716
22UF/6.3V
12
C704
0.22UF/6.3V
12
C705
0.22UF/6.3V
12
C724
0.22UF/6.3V
12
C718
0.22UF/6.3V
12
C753
180PF/50V
12
C710
4.7UF/6.3V
12
C722
4.7UF/6.3V
12
C730
1000PF/50V
12
C740
4.7UF/6.3V
12
C713
180PF/50V
12
C738
22UF/6.3V
12
C714
180PF/50V
12
C715
22UF/6.3V
12
C732
180PF/50V
12
C726
0.22UF/6.3V
12
C750
0.22UF/6.3V
12
C743
22UF/6.3V
12
C708
4.7UF/6.3V
12
C741
4.7UF/6.3V
12

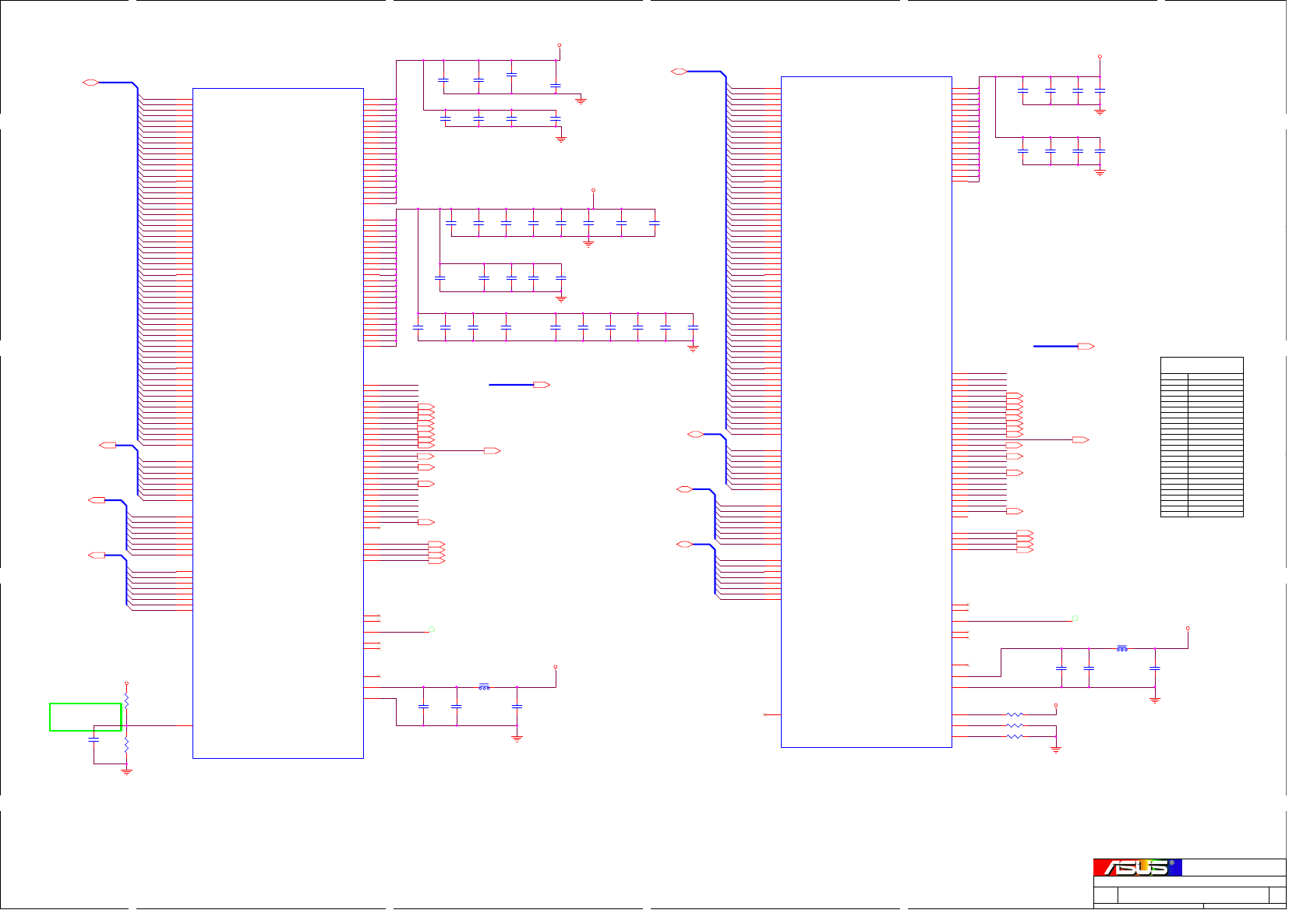

5
5
4
4
3
3
2
2
1
1
D D
C C
B B
A
A
MEM_M_VREF
15mil trace.20mil space
shorter than 6 inches
C
872Wednesday, March 08, 2006
ASUSTECH CO.,LTD.
DDR2_SODIMM
1.0
A6T
Jefing_Li
A6TcSKU1
Size Project Name Rev
Date: Sheet of
Title :
Engineer:
MEM_MA_DATA54
MEM_MB_DQS_L0
MEM_MB_DQS_H4
MEM_MB_DATA4
MEM_MA_DATA43
MEM_MA_ADD5
MEM_MA_DATA41
MEM_MA_DATA48
MEM_MA_DQS_H2
MEM_MA_DQS_L4
I2C_CLK0_S
MEM_MA_DATA27
MEM_MB_DQS_L5
MEM_MB_DATA62
MEM_MB_DATA47
MEM_MB_DATA7
MEM_MB_DATA28
MEM_MB_DATA23
MEM_MB_DM1
MEM_MB_DQS_L6
MEM_MB_DQS_H7
MEM_MB_DATA53
MEM_MA_DATA21
MEM_MB_DATA61
MEM_MB_DQS_H6
MEM_MA_DATA3
MEM_MA_DM4
MEM_MB_DATA20
MEM_MB_ADD15
MEM_MA_DQS_L3
MEM_MA_ADD12
MEM_MB_DATA24
MEM_MA_DATA60
MEM_MA_DATA58
MEM_MA_ADD2
MEM_MA_DATA18
MEM_MA_DQS_H1
MEM_MA_DATA24
MEM_MB_DATA57
MEM_MA_DATA30
MEM_MA_DATA2
MEM_MB_DQS_H3
MEM_MA_DATA50
I2C_DATA0_S
MEM_MB_ADD9
MEM_MA_DATA4
MEM_MA_ADD14 MEM_MA_DATA47
MEM_MA_DM3
MEM_MA_DQS_H3
MEM_MB_ADD2
MEM_MB_DQS_L2
MEM_MB_DATA0
MEM_MB_DATA37
MEM_MA_DATA20
MEM_MA_ADD3
MEM_MA_DATA7
MEM_MB_ADD3
MEM_MB_DATA35
MEM_MB_DQS_L3
MEM_MB_DATA52
MEM_MB_DATA43
MEM_MB_DATA55
MEM_MB_ADD1
MEM_MB_DATA44
MEM_MA_DATA19
MEM_MA_DQS_L1
MEM_MB_DATA17
MEM_MB_DATA11
MEM_MB_DATA59
MEM_MA_DATA35
MEM_MA_DQS_H6
MEM_MB_DATA63
MEM_MB_DQS_H0
MEM_MA_DATA8
MEM_MA_DATA52
MEM_MA_DM1
MEM_MB_DM3
MEM_MA_DQS_H7
MEM_MB_DM5
MEM_MB_DM2
MEM_MB_DATA40
MEM_MA_DATA13
MEM_MB_DATA5
MEM_MA_DATA23
MEM_MB_DATA32
MEM_MB_ADD6
MEM_MA_DATA49
MEM_MA_DATA63
MEM_MA_ADD11
MEM_MA_DQS_H0
MEM_MB_DM6
MEM_MB_DATA18
MEM_MA_ADD13
MEM_MB_DATA33
MEM_MA_DATA1
MEM_MB_ADD12
MEM_MA_ADD1 MEM_MB_DATA48
MEM_MA_DATA16
MEM_MB_DATA15
MEM_MB_DATA14
MEM_MB_ADD11
MEM_MB_DATA45
MEM_MA_DATA56
MEM_MA_DQS_L0
MEM_MB_DATA26
MEM_MB_ADD0
MEM_MA_DQS_L7
MEM_MB_DATA46
MEM_MA_DATA44
MEM_MA_DATA38
MEM_MA_DM2
MEM_MB_DM7
MEM_MA_DATA5
MEM_MA_DM0
MEM_MB_DATA36
MEM_MA_DATA57
MEM_MA_DM5
MEM_MA_DATA42
MEM_MB_DATA51
MEM_MB_DATA34
MEM_MB_DATA25
MEM_MA_DATA61
MEM_MA_ADD8
MEM_MB_ADD4
MEM_MB_DATA27
MEM_MA_DATA14
MEM_MA_DQS_H4
MEM_MA_ADD6
MEM_MB_DATA31
MEM_MB_DATA10
MEM_MA_DATA17
MEM_MA_DATA46
MEM_MA_DATA32
MEM_MB_ADD14
MEM_MB_DATA49
MEM_MB_DATA6
MEM_MB_DATA12
MEM_MA_ADD9
MEM_MB_DATA2
MEM_MB_DATA56
MEM_MA_DM6
MEM_MB_DQS_H1
MEM_MB_ADD10
MEM_MA_DATA62
MEM_MB_DQS_H5
MEM_MA_DATA37
MEM_MA_DATA11
MEM_MB_DM0
MEM_MB_DATA19
MEM_MA_DATA53
MEM_MB_DQS_L4
MEM_MB_DATA41
MEM_MA_DQS_L5
MEM_MB_DATA29
MEM_MB_DATA16MEM_MA_DATA12
MEM_MA_DQS_L6
MEM_MA_DATA51
MEM_MA_DATA45
MEM_MA_DATA59
MEM_MA_DATA40
MEM_MB_ADD13
MEM_MB_ADD7
MEM_MA_DATA33
MEM_MA_ADD0
MEM_MA_DATA15
MEM_MA_DATA6
MEM_MA_DATA28
MEM_MB_DQS_L1 MEM_MB_DATA9
MEM_MA_DATA22
MEM_MA_DATA36
MEM_MA_DATA39
MEM_MB_DQS_H2
MEM_MA_ADD4
MEM_MB_DATA38
MEM_MA_DQS_H5
MEM_MA_ADD10
MEM_MB_DQS_L7
MEM_MB_DATA42
MEM_MB_DATA30
MEM_MB_ADD5
MEM_MA_DATA29
MEM_MA_DM7
MEM_MB_DATA60
MEM_MA_DATA9
MEM_MB_DATA54
MEM_MB_DATA21
MEM_MB_DATA39
MEM_MB_DATA13
MEM_MB_DATA50
MEM_MB_DATA58
MEM_MB_DATA3
MEM_MA_DATA25
MEM_MA_DATA34
MEM_MA_DATA26
MEM_MB_DM4
MEM_MB_DATA22
MEM_MB_DATA8
MEM_MA_ADD15
MEM_MB_ADD8
MEM_MA_DATA0
MEM_MA_ADD7
MEM_MA_DATA55
MEM_MA_DATA31
MEM_MA_DQS_L2
MEM_MB_DATA1
MEM_MA_DATA10
+3VS
+3VS
MEM_M_VREF MEM_M_VREF
+1.8V
MEM_M_VREF
+1.8V
+1.8V
+1.8V
+1.8V
+1.8V
+1.8V
+3VS
C805
1UF/16V
12
C809
1UF/16V
12
C801
4.7UF/6.3V
12
CON1A
DDR_DIMM_331P
A102
A101
A100
A99
A98
A97
A94
A92
A93
A91
A105
A90
A89
A116
A86
A84
A85
A107
A106
A110
A115
A30
A32
A164
A166
A79
A80
A113
A108
A109
A198
A200
A197
A195
A114
A119
A10
A26
A52
A67
A130
A147
A170
A185
A13
A31
A51
A70
A131
A148
A169
A188
A11
A29
A49
A68
A129
A146
A167
A186
A112
A96
A118
A82
A88
A104
A12
A48
A184
A78
A72
A122
A196
A8
A18
A24
A42
A199
A1
A5
A7
A17
A19
A4
A6
A14
A16
A23
A25
A35
A37
A20
A22
A36
A38
A43
A45
A55
A57
A44
A46
A56
A58
A61
A63
A73
A75
A62
A64
A74
A76
A123
A125
A135
A137
A124
A126
A134
A136
A141
A143
A151
A153
A140
A142
A152
A154
A157
A159
A173
A175
A158
A160
A174
A176
A179
A181
A189
A191
A180
A182
A192
A194
A54
A60
A66
A128
A172
A178
A190
A34
A132
A144
A156
A168
A2
A28
A40
A138
A150
A162
A83
A120
A50
A69
A163
201
202
203
204
205
206
207
208
A:A0
A:A1
A:A2
A:A3
A:A4
A:A5
A:A6
A:A7
A:A8
A:A9
A:A10/AP
A:A11
A:A12
A:A13
A:A14
A:A15
A:A16_BA2
A:BA0
A:BA1
A:S0#
A:S1#
A:CK0
A:CK0#
A:CK1
A:CK1#
A:CKE0
A:CKE1
A:CAS#
A:RAS#
A:WE#
A:SA0
A:SA1
A:SCL
A:SDA
A:ODT0
A:ODT1
A:DM0
A:DM1
A:DM2
A:DM3
A:DM4
A:DM5
A:DM6
A:DM7
A:DQS0
A:DQS1
A:DQS2
A:DQS3
A:DQS4
A:DQS5
A:DQS6
A:DQS7
A:DQS0#
A:DQS1#
A:DQS2#
A:DQS3#
A:DQS4#
A:DQS5#
A:DQS6#
A:DQS7#
A:VDD1
A:VDD4
A:VDD6
A:VDD8
A:VDD11
A:VDD12
A:VSS5
A:VSS6
A:VSS7
A:VSS8
A:VSS10
A:VSS12
A:VSS13
A:VSS15
A:VSS16
A:VSS17
A:VSS20
A:VDDSPD
A:VREF
A:DQ0
A:DQ1
A:DQ2
A:DQ3
A:DQ4
A:DQ5
A:DQ6
A:DQ7
A:DQ8
A:DQ9
A:DQ10
A:DQ11
A:DQ12
A:DQ13
A:DQ14
A:DQ15
A:DQ16
A:DQ17
A:DQ18
A:DQ19
A:DQ20
A:DQ21
A:DQ22
A:DQ23
A:DQ24
A:DQ25
A:DQ26
A:DQ27
A:DQ28
A:DQ29
A:DQ30
A:DQ31
A:DQ32
A:DQ33
A:DQ34
A:DQ35
A:DQ36
A:DQ37
A:DQ38
A:DQ39
A:DQ40
A:DQ41
A:DQ42
A:DQ43
A:DQ44
A:DQ45
A:DQ46
A:DQ47
A:DQ48
A:DQ49
A:DQ50
A:DQ51
A:DQ52
A:DQ53
A:DQ54
A:DQ55
A:DQ56
A:DQ57
A:DQ58
A:DQ59
A:DQ60
A:DQ61
A:DQ62
A:DQ63
A:VSS21
A:VSS24
A:VSS25
A:VSS28
A:VSS32
A:VSS35
A:VSS36
A:VSS41
A:VSS42
A:VSS43
A:VSS44
A:VSS45
A:VSS46
A:VSS53
A:VSS54
A:VSS55
A:VSS56
A:VSS57
A:NC1
A:NC2
A:NC3
A:NC4
A:NCTEST
NP_NC1
NP_NC2
NP_NC3
NP_NC4
GND1
GND2
GND4
GND3
C808
1UF/16V
12
C802
4.7UF/6.3V
12
C815
0.1UF/10V
12
C818
0.1UF/10V
12
R802 1KOhm
12
C816
0.1UF/10V
12
CON1B
DDR_DIMM_331P
B102
B101
B100
B99
B98
B97
B94
B92
B93
B91
B105
B90
B89
B116
B86
B84
B85
B107
B106
B110
B115
B30
B32
B164
B166
B79
B80
B113
B108
B109
B198
B200
B197
B195
B114
B119
B10
B26
B52
B67
B130
B147
B170
B185
B13
B31
B51
B70
B131
B148
B169
B188
B11
B29
B49
B68
B129
B146
B167
B186
B111
B117
B95
B81
B87
B103
B47
B133
B183
B77
B71
B121
B193
B41
B53
B59
B65
B199
B1
B5
B7
B17
B19
B4
B6
B14
B16
B23
B25
B35
B37
B20
B22
B36
B38
B43
B45
B55
B57
B44
B46
B56
B58
B61
B63
B73
B75
B62
B64
B74
B76
B123
B125
B135
B137
B124
B126
B134
B136
B141
B143
B151
B153
B140
B142
B152
B154
B157
B159
B173
B175
B158
B160
B174
B176
B179
B181
B189
B191
B180
B182
B192
B194
B127
B139
B145
B165
B171
B177
B187
B9
B21
B33
B155
B3
B15
B27
B39
B149
B161
B83
B120
B50
B69
B163
B:A0
B:A1
B:A2
B:A3
B:A4
B:A5
B:A6
B:A7
B:A8
B:A9
B:A10/AP
B:A11
B:A12
B:A13
B:A14
B:A15
B:A16_BA2
B:BA0
B:BA1
B:S0#
B:S1#
B:CK0
B:CK0#
B:CK1
B:CK1#
B:CKE0
B:CKE1
B:CBS#
B:RAS#
B:WE#
B:SA0
B:SA1
B:SCL
B:SDA
B:ODT0
B:ODT1
B:DM0
B:DM1
B:DM2
B:DM3
B:DM4
B:DM5
B:DM6
B:DM7
B:DQS0
B:DQS1
B:DQS2
B:DQS3
B:DQS4
B:DQS5
B:DQS6
B:DQS7
B:DQS0#
B:DQS1#
B:DQS2#
B:DQS3#
B:DQS4#
B:DQS5#
B:DQS6#
B:DQS7#
B:VDD2
B:VDD3
B:VDD5
B:VDD7
B:VDD9
B:VDD10
B:VSS1
B:VSS2
B:VSS3
B:VSS4
B:VSS9
B:VSS11
B:VSS14
B:VSS18
B:VSS19
B:VSS22
B:VSS23
B:VDDSPD
B:VREF
B:DQ0
B:DQ1
B:DQ2
B:DQ3
B:DQ4
B:DQ5
B:DQ6
B:DQ7
B:DQ8
B:DQ9
B:DQ10
B:DQ11
B:DQ12
B:DQ13
B:DQ14
B:DQ15
B:DQ16
B:DQ17
B:DQ18
B:DQ19
B:DQ20
B:DQ21
B:DQ22
B:DQ23
B:DQ24
B:DQ25
B:DQ26
B:DQ27
B:DQ28
B:DQ29
B:DQ30
B:DQ31
B:DQ32
B:DQ33
B:DQ34
B:DQ35
B:DQ36
B:DQ37
B:DQ38
B:DQ39
B:DQ40
B:DQ41
B:DQ42
B:DQ43
B:DQ44
B:DQ45
B:DQ46
B:DQ47
B:DQ48
B:DQ49
B:DQ50
B:DQ51
B:DQ52
B:DQ53
B:DQ54
B:DQ55
B:DQ56
B:DQ57
B:DQ58
B:DQ59
B:DQ60
B:DQ61
B:DQ62
B:DQ63
B:VSS26
B:VSS27
B:VSS29
B:VSS30
B:VSS31
B:VSS33
B:VSS34
B:VSS37
B:VSS38
B:VSS39
B:VSS40
B:VSS47
B:VSS48
B:VSS49
B:VSS50
B:VSS51
B:VSS52
B:NC1
B:NC2
B:NC3
B:NC4
B:NCTEST
R804 1KOhm
12
C810
1UF/16V
12
C806
4.7UF/6.3V
12
C821
1000PF/50V
12
R803 1KOhm
12
R801 1KOhm
12
C807
4.7UF/6.3V
12
C817
10UF/10V
12
R805
2KOhm
1%
1 2
C812
0.1UF/10V
12
C804
1UF/16V
12
R806
2KOhm
1%
1 2
C819
0.1UF/10V
12
C803
1UF/16V
12
C813
10UF/10V
12
C811
0.1UF/10V
12
C822
0.1UF/10V
12
C814
0.1UF/10V
12
C820
0.1UF/10V
12
I2C_CLK0_S[15,19] I2C_DATA0_S[15,19]
MEM_MA_ADD[0..15][5,9]
MEM_MA_BANK2[5,9]
MEM_MA_BANK0[5,9] MEM_MA_BANK1[5,9] MEM_MA0_CS_L0[5,9] MEM_MA0_CS_L1[5,9] MEM_MA0_CLK_H2[5] MEM_MA0_CLK_L2[5] MEM_MA0_CLK_H1[5] MEM_MA0_CLK_L1[5] MEM_MA_CKE0[5,9] MEM_MA_CKE1[5,9] MEM_MA_CAS_L[5,9] MEM_MA_RAS_L[5,9] MEM_MA_WE_L[5,9]
MEM_MA0_ODT0[5,9] MEM_MA0_ODT1[5,9]
MEM_MA_DM[0..7][5]
MEM_MA_DQS_H[0..7][5]
MEM_MA_DQS_L[0..7][5]
MEM_MA0_CS_L2 [5,9]
MEM_MA0_CS_L3 [5,9]
MEM_MA_DATA[0..63] [5]
MEM_MB_DQS_L[0..7][5]
MEM_MB_DM[0..7][5]
MEM_MB_DQS_H[0..7][5]
MEM_MB0_ODT1[5,9] MEM_MB0_ODT0[5,9]
MEM_MB0_CLK_L1[5]
MEM_MB0_CLK_H2[5] MEM_MB0_CS_L1[5,9]
MEM_MB_CAS_L[5,9]
MEM_MB0_CLK_L2[5]
MEM_MB_WE_L[5,9]
MEM_MB_CKE1[5,9]
MEM_MB0_CS_L0[5,9]
MEM_MB_RAS_L[5,9]
MEM_MB_CKE0[5,9]
MEM_MB0_CLK_H1[5]
MEM_MB_ADD[0..15][5,9]
MEM_MB_BANK2[5,9] MEM_MB_BANK0[5,9] MEM_MB_BANK1[5,9]
MEM_MB_DATA[0..63] [5]
MEM_MB0_CS_L2 [5,9]
MEM_MB0_CS_L3 [5,9]

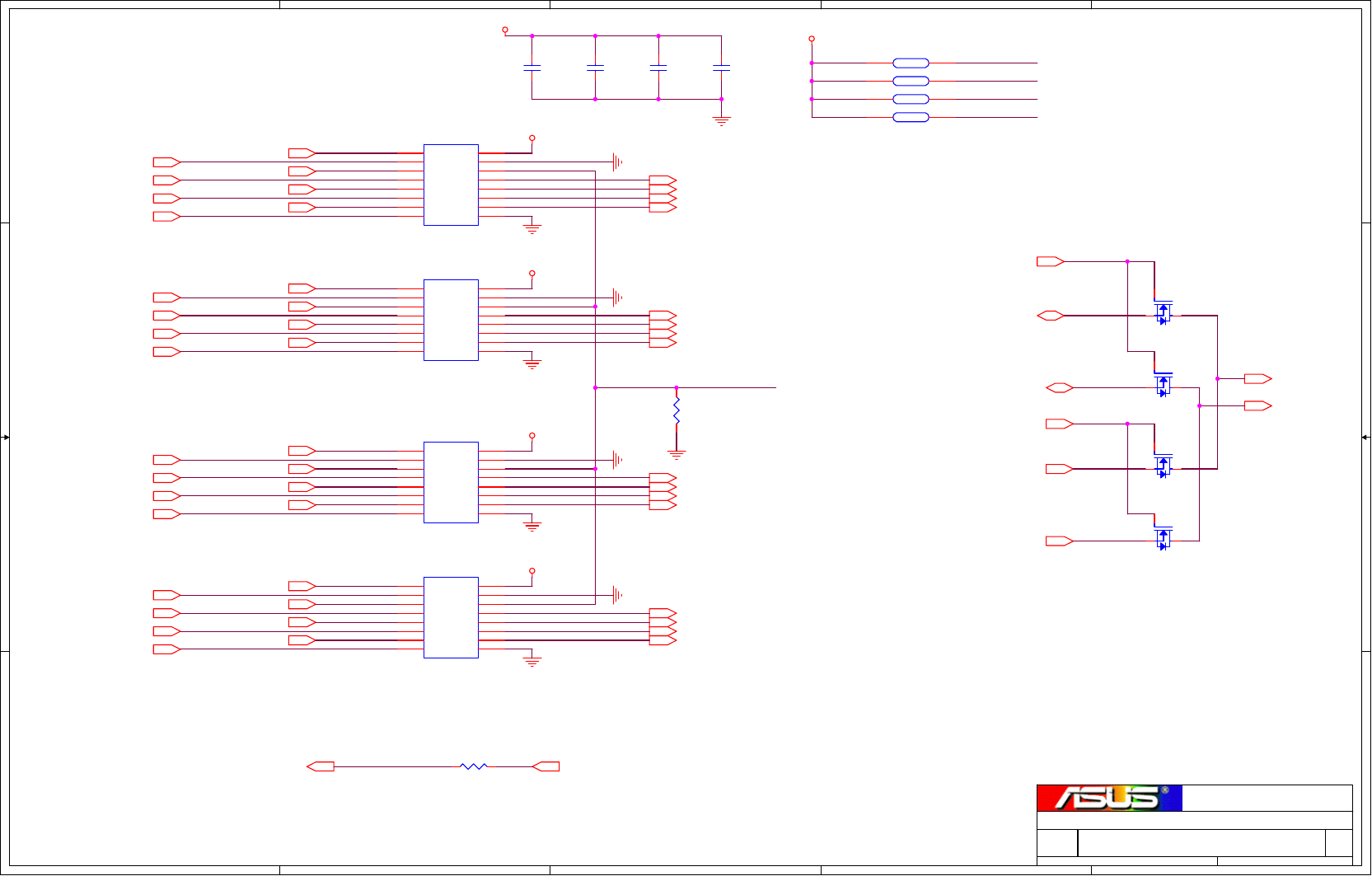

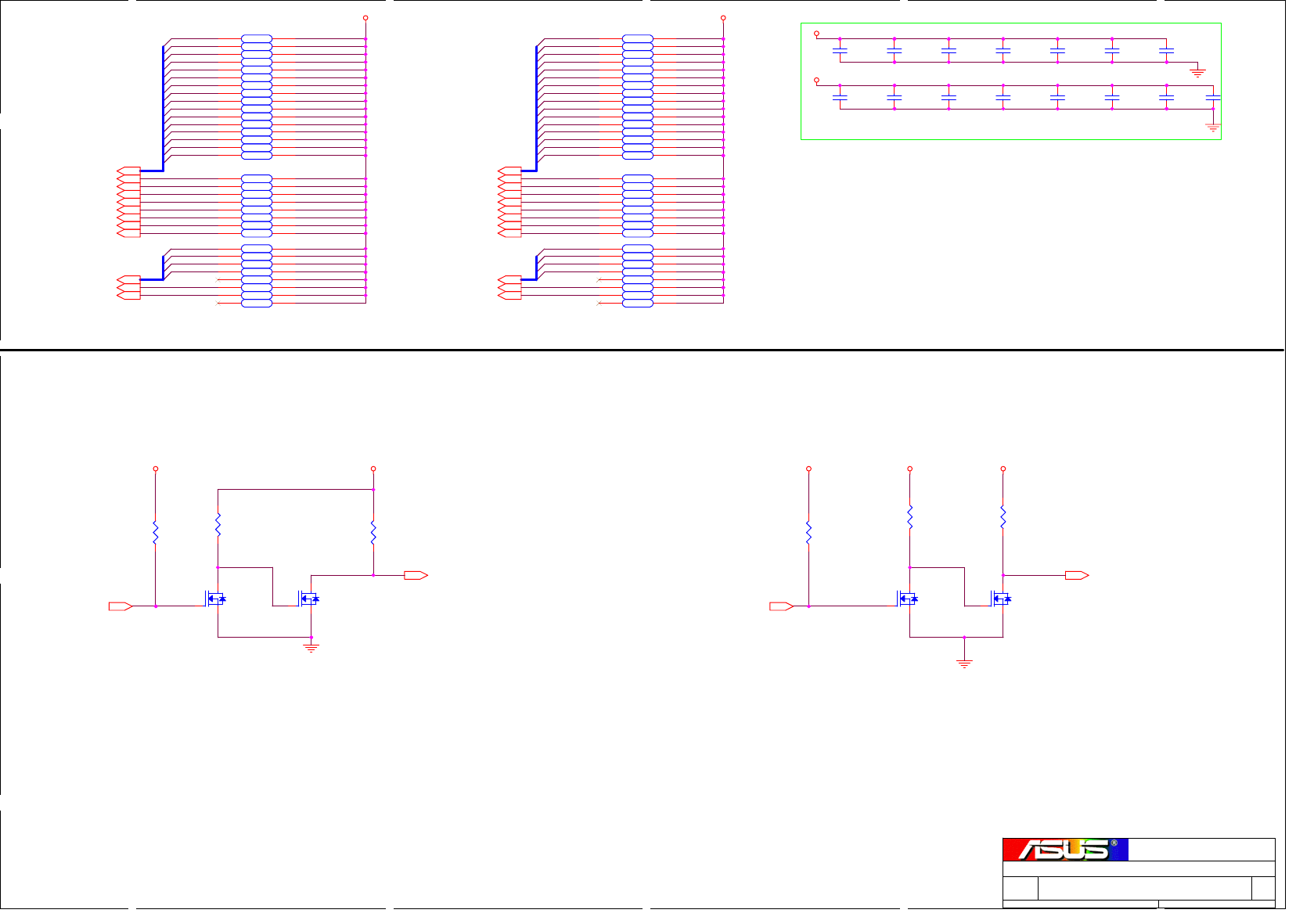

5
5
4
4
3
3
2
2
1
1
D D
C C
B B
A
A
place behind DIMMs
DDR2 TERMINATION
LAYOUT :COULD BE SWAP
A3
972Wednesday, March 08, 2006
ASUSTECH CO.,LTD.
DDR2 TER/FETGAGE
1.0
A6T
Jefing_Li
A6TcSKU1
Size Project Name Rev
Date: Sheet of
Title :
Engineer:
MEM_MA_ADD5
MEM_MA_CKE1
MEM_MA_ADD0
MEM_MA_ADD10
MEM_MA_ADD11
MEM_MA_RAS_L
MEM_MA_ADD4
MEM_MA_CKE0
MEM_MA0_CS_L3
MEM_MA_ADD2
MEM_MA_WE_L
MEM_MA_ADD13
MEM_MA_BANK1
MEM_MA0_CS_L2
MEM_MA_ADD8
MEM_MA_ADD15
MEM_MA_CAS_L
MEM_MA_ADD6
MEM_MA_ADD14
MEM_MA0_ODT0
MEM_MA0_CS_L1
MEM_MA_ADD9
MEM_MA_ADD12
MEM_MA_ADD3
MEM_MA_BANK2
MEM_MA0_ODT1
MEM_MA0_CS_L0
MEM_MA_ADD7
MEM_MA_ADD1
MEM_MA_BANK0
MEM_MB_RAS_L
MEM_MB_BANK1
MEM_MB_WE_L
MEM_MB_ADD2
MEM_MB_ADD4
MEM_MB0_CS_L1
MEM_MB_BANK2
MEM_MB_CKE0
MEM_MB_ADD15
MEM_MB_CAS_L
MEM_MB_BANK0
MEM_MB_ADD10
MEM_MB_ADD3
MEM_MB0_CS_L3
MEM_MB_ADD1
MEM_MB0_ODT0
MEM_MB_ADD9
MEM_MB_ADD13
MEM_MB_ADD0
MEM_MB_ADD6
MEM_MB_CKE1
MEM_MB_ADD8
MEM_MB_ADD12
MEM_MB0_ODT1
MEM_MB0_CS_L0
MEM_MB_ADD14
MEM_MB0_CS_L2
MEM_MB_ADD11
MEM_MB_ADD5
MEM_MB_ADD7
+0.9V
+0.9V
+0.9V +0.9V
+1.8V +3VS
GND
GND
+3VS+3VS +1.8V
C905
0.1UF/10V
12
RN908D
47OHM
7 8
RN906C
47OHM
5 6
C912
0.1UF/10V
12
C913
0.1UF/10V
12
RN910B
47OHM
3 4
RN904A
47OHM
1 2
RN913C
47OHM
5 6
C903
0.1UF/10V
12
RN909A
47OHM
1 2
RN902A
47OHM
1 2
RN906D
47OHM
7 8
RN911A
47OHM
1 2
RN904D
47OHM
7 8
R905
10KOhm
12
RN914A
47OHM
1 2
RN916C
47OHM
5 6
RN909C
47OHM
5 6
RN902D
47OHM
7 8
R918
300Ohm
1 2
R916
4.7KOhm
1 2
R914
300Ohm
1 2
RN907A
47OHM
1 2
RN901A
47OHM
1 2
C910
0.1UF/10V
12
C907
0.1UF/10V
12
RN910D
47OHM
7 8
RN905A
47OHM
1 2
RN904B
47OHM
3 4 C904
0.1UF/10V
12
RN913A
47OHM
1 2
C901
0.1UF/10V
12
C902
0.1UF/10V
12
RN916A
47OHM
1 2
RN909B
47OHM
3 4
RN902B
47OHM
3 4
Q906A
UM6K1N
2
61
RN907B
47OHM
3 4
RN915D
47OHM
7 8
RN911B
47OHM
3 4
RN905B
47OHM
3 4
RN904C
47OHM
5 6
RN913D
47OHM
7 8
RN916B
47OHM
3 4
RN909D
47OHM
7 8
RN902C
47OHM
5 6
RN907C
47OHM
5 6
Q906B
UM6K1N
5
34
RN915A
47OHM
1 2
C906
0.1UF/10V
12
RN901B
47OHM
3 4
RN911C
47OHM
5 6
RN905C
47OHM
5 6
RN914B
47OHM
3 4
R912
4.7KOhm
1 2
RN916D
47OHM
7 8
RN912A
47OHM
1 2
RN903A
47OHM
1 2
RN907D
47OHM
7 8
RN915B
47OHM
3 4
RN908A
47OHM
1 2
RN901C
47OHM
5 6
RN905D
47OHM
7 8
Q908A
UM6K1N
2
61
C909
0.1UF/10V
12
RN914C
47OHM
5 6
RN910C
47OHM
5 6
RN912C
47OHM
5 6
RN903D
47OHM
7 8
RN915C
47OHM
5 6
C915
0.1UF/10V
12
C914
0.1UF/10V
12
RN908C
47OHM
5 6
RN901D
47OHM
7 8
R906
10KOhm
12
RN906A
47OHM
1 2
C908
0.1UF/10V
12
RN911D
47OHM
7 8
RN912B
47OHM
3 4
RN903B
47OHM
3 4
RN913B
47OHM
3 4
RN908B
47OHM
3 4
RN906B
47OHM
3 4
C911
0.1UF/10V
12
Q908B
UM6K1N
5
34
RN910A
47OHM
1 2
RN912D
47OHM
7 8
RN903C
47OHM
5 6
RN914D
47OHM
7 8
MEM_MA_ADD[0..15][5,8]
MEM_MA0_CS_L[0..3][5,8] MEM_MA0_ODT0[5,8] MEM_MA0_ODT1[5,8]
MEM_MA_CAS_L[5,8] MEM_MA_RAS_L[5,8] MEM_MA_WE_L[5,8] MEM_MA_BANK0[5,8] MEM_MA_BANK1[5,8] MEM_MA_BANK2[5,8] MEM_MA_CKE1[5,8] MEM_MA_CKE0[5,8]
MEM_MB_ADD[0..15][5,8]
MEM_MB0_CS_L[0..3][5,8]
MEM_MB0_ODT1[5,8]
MEM_MB_BANK2[5,8] MEM_MB_CKE1[5,8]
MEM_MB_BANK0[5,8]
MEM_MB_RAS_L[5,8] MEM_MB_WE_L[5,8]
MEM_MB_CAS_L[5,8]
MEM_MB0_ODT0[5,8]
MEM_MB_CKE0[5,8]
MEM_MB_BANK1[5,8]
CPU_THERMTRIP# [15,16]
_CPU_THERMTRIP#[6]
_CPU_PROCHOT# [6]
CPU_PROCHOT#[19]

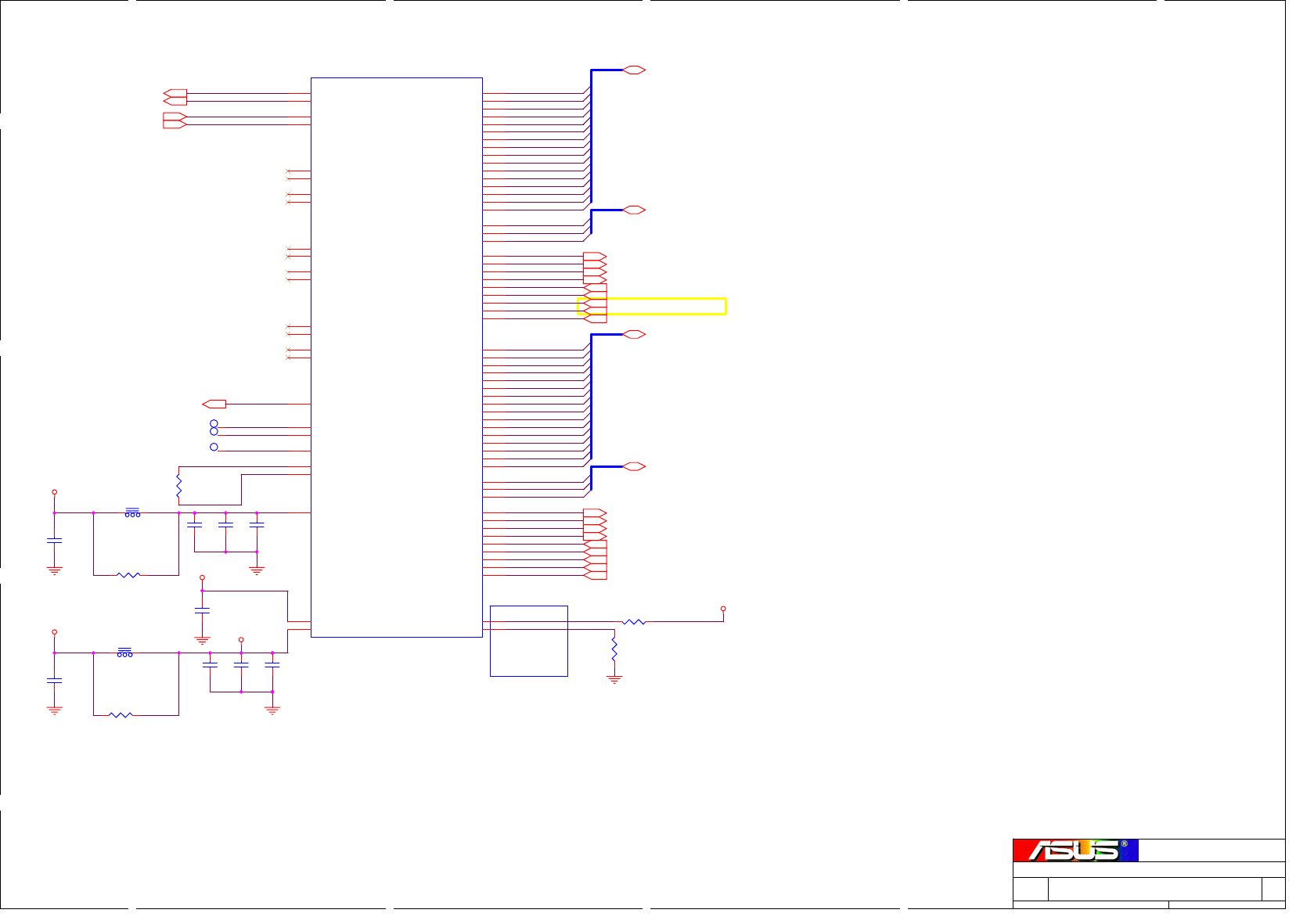

5
5
4
4
3
3
2
2
1
1
D D
C C
B B
A A
Place on back side
B
10 72Wednesday, March 08, 2006
ASUSTECH CO.,LTD.
C51_HT_CPU
1.0
A6T
Jefing_Li
A6TcSKU1
Size Project Name Rev
Date: Sheet of
Title :
Engineer:
HT_CPU_TX_CLK_H1
HT_CPU_TX_CLK_L0
HT_CPU_TX_CLK_H0
HT_CPU_TX_CLK_L1
HT_CPU_TX_CAD_H0
HT_CPU_TX_CAD_H1
HT_CPU_TX_CAD_H2
HT_CPU_TX_CAD_H3
HT_CPU_TX_CAD_H4
HT_CPU_TX_CAD_H5
HT_CPU_TX_CAD_H6
HT_CPU_TX_CAD_H7
HT_CPU_TX_CAD_H8
HT_CPU_TX_CAD_H9
HT_CPU_TX_CAD_H10
HT_CPU_TX_CAD_H11
HT_CPU_TX_CAD_H12
HT_CPU_TX_CAD_H13
HT_CPU_TX_CAD_H14
HT_CPU_TX_CAD_H15
HT_CPU_TX_CAD_L0
HT_CPU_TX_CAD_L1
HT_CPU_TX_CAD_L2
HT_CPU_TX_CAD_L3
HT_CPU_TX_CAD_L4
HT_CPU_TX_CAD_L5
HT_CPU_TX_CAD_L6
HT_CPU_TX_CAD_L7
HT_CPU_TX_CAD_L8
HT_CPU_TX_CAD_L9
HT_CPU_TX_CAD_L10
HT_CPU_TX_CAD_L11
HT_CPU_TX_CAD_L12
HT_CPU_TX_CAD_L13
HT_CPU_TX_CAD_L14
HT_CPU_TX_CAD_L15
HT_CPU_TX_CTL_H0
HT_CPU_TX_CTL_L0
HT_CPU_RX_CAD_H0
HT_CPU_RX_CAD_H1
HT_CPU_RX_CAD_H2
HT_CPU_RX_CAD_H3
HT_CPU_RX_CAD_H4
HT_CPU_RX_CAD_H5
HT_CPU_RX_CAD_H6
HT_CPU_RX_CAD_H7
HT_CPU_RX_CAD_H8
HT_CPU_RX_CAD_H9
HT_CPU_RX_CAD_H10
HT_CPU_RX_CAD_H11
HT_CPU_RX_CAD_H12
HT_CPU_RX_CAD_H13
HT_CPU_RX_CAD_H14
HT_CPU_RX_CAD_H15
HT_CPU_RX_CAD_L6
HT_CPU_RX_CAD_L12
HT_CPU_RX_CAD_L10
HT_CPU_RX_CAD_L3
HT_CPU_RX_CAD_L15
HT_CPU_RX_CAD_L9
HT_CPU_RX_CAD_L4
HT_CPU_RX_CAD_L14
HT_CPU_RX_CAD_L2
HT_CPU_RX_CAD_L13
HT_CPU_RX_CAD_L8
HT_CPU_RX_CAD_L7
HT_CPU_RX_CAD_L11
HT_CPU_RX_CAD_L5
HT_CPU_RX_CAD_L1
HT_CPU_RX_CAD_L0
HT_CPU_RX_CLK_H0
HT_CPU_RX_CLK_L0
HT_CPU_RX_CLK_H1
HT_CPU_RX_CLK_L1
HT_CPU_RX_CTL_H0
HT_CPU_RX_CTL_L0
HT_CPU_CAL_1P2V
HT_CPU_CAL_GND
+1.2V_PLLHTCPU
CPU_CLK_H
CPU_CLK_L
CPU_RESET#
CPU_PWROK
CPU_LDTSTOP#
+2.5V_PLLTHCPU
+1.2V_HT
+1.2V_C51_PLL
+2.5VS
+2.5VS
L1001
30Ohm/100Mhz
21
L1002
30Ohm/100Mhz
21
T1002 Do Not StuffN/A
1
C1002
4.7UF/6.3V
12
T1001 Do Not StuffN/A
1
U3A
C51MV
Y23
W24
V24
U22
R24
P24
P22
N22
Y21
V21
W21
T21
R18
P16
N20
M17
Y22
W23
V23
U21
R23
P23
P21
N21
Y20
W20
W22
U20
R19
P17
N19
N18
T23
T22
R21
R20
M23
M22
W19
Y19
N16
T13
C23
D23
E22
F23
H22
J21
K21
K23
D21
F19
F21
G20
J19
L17
L20
L18
C24
D24
E23
F24
H23
J22
K22
K24
D22
E20
E21
G19
J18
K17
K19
L19
G23
G24
G22
G21
L23
L24
B24
B23
A22
B21
F18
G18
D20
E19
L16
HT_CPU_RXD0_P
HT_CPU_RXD1_P
HT_CPU_RXD2_P
HT_CPU_RXD3_P
HT_CPU_RXD4_P
HT_CPU_RXD5_P
HT_CPU_RXD6_P
HT_CPU_RXD7_P
HT_CPU_RXD8_P
HT_CPU_RXD9_P
HT_CPU_RXD10_P
HT_CPU_RXD11_P
HT_CPU_RXD12_P
HT_CPU_RXD13_P
HT_CPU_RXD14_P
HT_CPU_RXD15_P
HT_CPU_RXD0_N
HT_CPU_RXD1_N
HT_CPU_RXD2_N
HT_CPU_RXD3_N
HT_CPU_RXD4_N
HT_CPU_RXD5_N
HT_CPU_RXD6_N
HT_CPU_RXD7_N
HT_CPU_RXD8_N
HT_CPU_RXD9_N
HT_CPU_RXD10_N
HT_CPU_RXD11_N
HT_CPU_RXD12_N
HT_CPU_RXD13_N
HT_CPU_RXD14_N
HT_CPU_RXD15_N
HT_CPU_RX_CLK0_P
HT_CPU_RX_CLK0_N
HT_CPU_RX_CLK1_P
HT_CPU_RX_CLK1_N
HT_CPU_RXCTL_P
HT_CPU_RXCTL_N
HT_CPU_CAL_1P2V
HT_CPU_CAL_GND
+1.2V_PLLHTCPU
+1.2V_PLLHTMCP
HT_CPU_TXD0_P
HT_CPU_TXD1_P
HT_CPU_TXD2_P
HT_CPU_TXD3_P
HT_CPU_TXD4_P
HT_CPU_TXD5_P
HT_CPU_TXD6_P
HT_CPU_TXD7_P
HT_CPU_TXD8_P
HT_CPU_TXD9_P
HT_CPU_TXD10_P
HT_CPU_TXD11_P
HT_CPU_TXD12_P
HT_CPU_TXD13_P
HT_CPU_TXD14_P
HT_CPU_TXD15_P
HT_CPU_TXD0_N
HT_CPU_TXD1_N
HT_CPU_TXD2_N
HT_CPU_TXD3_N
HT_CPU_TXD4_N
HT_CPU_TXD5_N
HT_CPU_TXD6_N
HT_CPU_TXD7_N
HT_CPU_TXD8_N
HT_CPU_TXD9_N
HT_CPU_TXD10_N
HT_CPU_TXD11_N
HT_CPU_TXD12_N
HT_CPU_TXD13_N
HT_CPU_TXD14_N
HT_CPU_TXD15_N
HT_CPU_TX_CLK0_P
HT_CPU_TX_CLK0_N
HT_CPU_TX_CLK1_P
HT_CPU_TX_CLK1_N
HT_CPU_TXCTL_P
HT_CPU_TXCTL_N
CLKOUT_PRI_200MHZ_P
CLKOUT_PRI_200MHZ_N
CLKOUT_SEC_200MHZ_P
CLKOUT_SEC_200MHZ_N
HT_CPU_REQ*
HT_CPU_STOP*
HT_CPU_RESET*
HT_CPU_PWRGD
+2.5V_PLLHTCPU
R1001
150Ohm
1 2
R1003 150Ohm
12
C1003
0.1UF/10V
12
R1002
22KOHM
1 2
C1001
1UF/16V
12
C1004
0.1UF/10V
12
HT_CPU_RX_CAD_H[0..15][4]
HT_CPU_RX_CAD_L[0..15][4]
HT_CPU_RX_CLK_H0[4] HT_CPU_RX_CLK_L0[4] HT_CPU_RX_CLK_H1[4] HT_CPU_RX_CLK_L1[4]
HT_CPU_RX_CTL_H0[4] HT_CPU_RX_CTL_L0[4]
HT_CPU_TX_CAD_H[0..15] [4]
HT_CPU_TX_CAD_L[0..15] [4]
HT_CPU_TX_CLK_H0 [4]
HT_CPU_TX_CLK_L0 [4]
HT_CPU_TX_CLK_H1 [4]
HT_CPU_TX_CLK_L1 [4]
HT_CPU_TX_CTL_H0 [4]
HT_CPU_TX_CTL_L0 [4]
CPU_CLK_H [6]
CPU_CLK_L [6]
CPU_LDTSTOP# [6]
CPU_RESET# [6]
CPU_PWROK [6]
5
5
4
4
3
3
2
2
1
1
D D
C C
B B
A A
FOR 4X4 LINK TO FLOAT UNUSED PIN
FOR 4X4 LINK TO FLOAT UNUSED PIN
B
11 72Wednesday, March 08, 2006
ASUSTECH CO.,LTD.
C51_HT_MCP
1.0
A6T
Jefing_Li
A6TcSKU1
Size Project Name Rev
Date: Sheet of
Title :
Engineer:
HT_MCP_RX_H0
HT_MCP_RX_H1
HT_MCP_RX_H2
HT_MCP_RX_H3
HT_MCP_RX_H4
HT_MCP_RX_H5
HT_MCP_RX_H6
HT_MCP_RX_CLK_H0
HT_MCP_RX_CLK_L0
HT_MCP_C_CLK_H1
HT_MCP_C_CLK_L1
HT_MCP_RX_CTL_H
HT_MCP_RX_CTL_L
HT_MCP_REQ#
HT_MCP_STOP#
HT_MCP_RST#
HT_MCP_PWRGD
HT_MCP_TX_H0
HT_MCP_TX_H1
HT_MCP_TX_H2
HT_MCP_TX_H3
HT_MCP_TX_H4
HT_MCP_TX_H5
HT_MCP_TX_H6
HT_MCP_TX_H7
HT_MCP_TX_L5
HT_MCP_TX_L2
HT_MCP_TX_L0
HT_MCP_TX_L6
HT_MCP_TX_L7
HT_MCP_TX_L3
HT_MCP_TX_L4
HT_MCP_TX_L1
MCP_OUT_25M
MCP_OUT_200M_H
MCP_OUT_200M_L
HT_MCP_TX_CLK_H0
HT_MCP_TX_CLK_L0
HT_C_MCP_CLK_H1
HT_MCP_TX_CTL_H
HT_MCP_TX_CTL_L
HT_C_MCP_CLK_L1
HT_MCP_RX_H7
HT_MCP_RX_L6
HT_MCP_RX_L3
HT_MCP_RX_L7
HT_MCP_RX_L5
HT_MCP_RX_L1
HT_MCP_RX_L0
HT_MCP_RX_L4
HT_MCP_RX_L2
HT_MCP_CAL_1P2V
HT_MCP_CAL_GND
+1.2VS
+1.2VS
T1103Do Not Stuff N/A 1
R1105
150Ohm
1%
1 2
T1106 Do Not StuffN/A
1
T1105 Do Not StuffN/A
1
T1102N/A 1
R1101 Do Not Stuff
/X
1 2
R1103
2.37KOhm
1%
1 2
R1104
150Ohm
1%
1 2
T1101Do Not Stuff N/A 1
U3B
C51MV
AD6
AC7
AA8
AA9
AD10
AD11
AC12
AC13
AA6
W7
Y8
V9
Y10
AA11
V11
W12
AC6
AB7
AB8
AB9
AC10
AC11
AB12
AB13
Y6
Y7
AA7
W9
W10
Y12
W11
V13
AD9
AC9
U10
T10
AD14
AC14
AB5
AA5
AC5
AD5
AB24
AC4
Y5
W5
AC24
AD23
AC22
AC20
AB18
AA17
AB16
AC16
AB21
AB20
AB19
W18
W15
AA15
Y14
W13
AC23
AD22
AC21
AD20
AC18
AB17
AB15
AD16
AB22
AA20
AA19
V17
V15
Y15
W14
Y13
AC19
AD19
Y17
W17
AC15
AD15
B22
A20
B20
AB23
HT_MCP_RXD0_P
HT_MCP_RXD1_P
HT_MCP_RXD2_P
HT_MCP_RXD3_P
HT_MCP_RXD4_P
HT_MCP_RXD5_P
HT_MCP_RXD6_P
HT_MCP_RXD7_P
HT_MCP_RXD8_P
HT_MCP_RXD9_P
HT_MCP_RXD10_P
HT_MCP_RXD11_P
HT_MCP_RXD12_P
HT_MCP_RXD13_P
HT_MCP_RXD14_P
HT_MCP_RXD15_P
HT_MCP_RXD0_N
HT_MCP_RXD1_N
HT_MCP_RXD2_N
HT_MCP_RXD3_N
HT_MCP_RXD4_N
HT_MCP_RXD5_N
HT_MCP_RXD6_N
HT_MCP_RXD7_N
HT_MCP_RXD8_N
HT_MCP_RXD9_N
HT_MCP_RXD10_N
HT_MCP_RXD11_N
HT_MCP_RXD12_N
HT_MCP_RXD13_N
HT_MCP_RXD14_N
HT_MCP_RXD15_N
HT_MCP_RX_CLK0_P
HT_MCP_RX_CLK0_N
HT_MCP_RX_CLK1_P
HT_MCP_RX_CLK1_N
HT_MCP_RXCTL_P
HT_MCP_RXCTL_N
HT_MCP_REQ*
HT_MCP_STOP*
HT_MCP_RESET*
HT_MCP_PWRGD
HT_MCP_CAL_GND
CLKIN_25MHZ
CLKIN_200MHZ_P
CLKIN_200MHZ_N
HT_MCP_TXD0_P
HT_MCP_TXD1_P
HT_MCP_TXD2_P
HT_MCP_TXD3_P
HT_MCP_TXD4_P
HT_MCP_TXD5_P
HT_MCP_TXD6_P
HT_MCP_TXD7_P
HT_MCP_TXD8_P
HT_MCP_TXD9_P
HT_MCP_TXD10_P
HT_MCP_TXD11_P
HT_MCP_TXD12_P
HT_MCP_TXD13_P
HT_MCP_TXD14_P
HT_MCP_TXD15_P
HT_MCP_TXD0_N
HT_MCP_TXD1_N
HT_MCP_TXD2_N
HT_MCP_TXD3_N
HT_MCP_TXD4_N
HT_MCP_TXD5_N
HT_MCP_TXD6_N
HT_MCP_TXD7_N
HT_MCP_TXD8_N
HT_MCP_TXD9_N
HT_MCP_TXD10_N
HT_MCP_TXD11_N
HT_MCP_TXD12_N
HT_MCP_TXD13_N
HT_MCP_TXD14_N
HT_MCP_TXD15_N
HT_MCP_TX_CLK0_P
HT_MCP_TX_CLK0_N
HT_MCP_TX_CLK1_P
HT_MCP_TX_CLK1_N
HT_MCP_TXCTL_P
HT_MCP_TXCTL_N
CLKOUT_CTERM_GND
SCLKIN_MCLKOUT_200MHZ_P
SCLKIN_MCLKOUT_200MHZ_N
HT_MCP_CAL_1P2V
R1102 Do Not Stuff
/X
1 2
T1104N/A 1
HT_MCP_RX_H[0..7][16]
HT_MCP_RX_L[0..7][16]
HT_MCP_RX_CLK_H0[16] HT_MCP_RX_CLK_L0[16]
HT_MCP_RX_CTL_H[16]
HT_MCP_REQ#[16] HT_MCP_STOP#[16] HT_MCP_RST#[16] HT_MCP_PWRGD[16]
MCP_OUT_25M[16]
MCP_OUT_200M_H[16] MCP_OUT_200M_L[16]
HT_MCP_TX_H[0..7] [16]
HT_MCP_TX_L[0..7] [16]
HT_MCP_TX_CLK_H0 [16]
HT_MCP_TX_CLK_L0 [16]
HT_MCP_TX_CTL_H [16]
HT_MCP_TX_CTL_L [16]HT_MCP_RX_CTL_L[16]

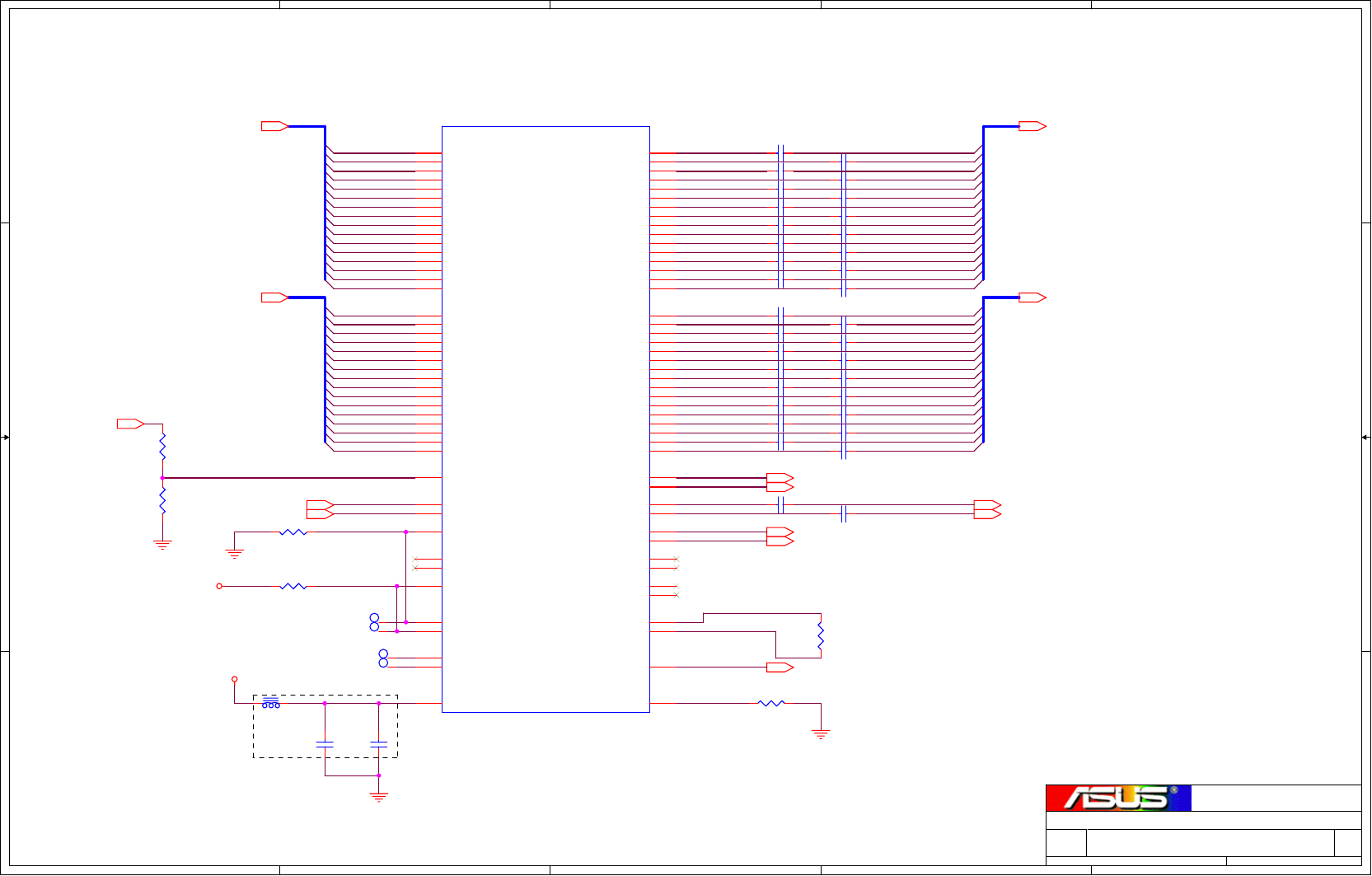

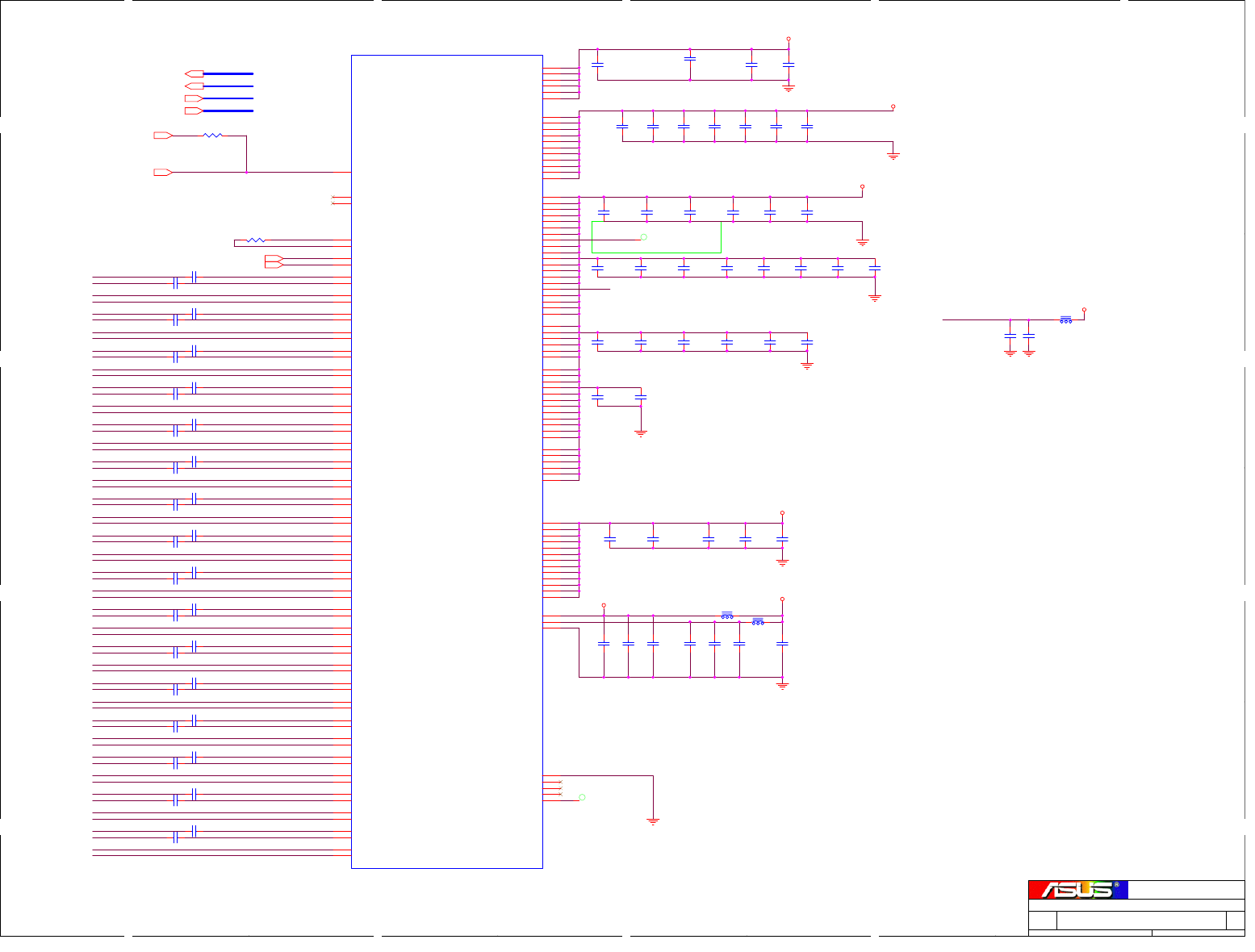

5
5
4
4
3
3
2
2
1
1
D D
C C
B B
A A
Place on back side
B
12 72Wednesday, March 08, 2006
ASUSTECH CO.,LTD.
C51_PCIE
1.0
A6T
Jefing_Li
A6TcSKU1
Size Project Name Rev
Date: Sheet of
Title :
Engineer:
PE0_X16_RX_P14
PE0_X16_RX_P13
PE0_X16_RX_P12
PE0_X16_RX_P11
PE0_X16_RX_P10
PE0_X16_RX_P9
PE0_X16_RX_P8
PE0_X16_RX_P7
PE0_X16_RX_P5
PE0_X16_RX_P4
PE0_X16_RX_P3
PE0_X16_RX_P2
PE0_X16_RX_P1
PE0_X16_RX_P0
PE0_X16_RX_N10
PE0_X16_RX_N5
PE0_X16_RX_N9
PE0_X16_RX_N6
PE0_X16_RX_N0
PE0_X16_RX_N8
PE0_X16_RX_N3
PE0_X16_RX_N14
PE0_X16_RX_N13
PE0_X16_RX_N7
PE0_X16_RX_N11
PE0_X16_RX_N4
PE0_X16_RX_N2
PE0_X16_RX_N15
PE0_X16_RX_N12
PE0_X16_RX_N1
PE0_X16_RX_P6
PE0_X16_CLK_N
PE_CTERM_GND+1.2V_PLLPE
PE0_X16_CLK_P
PE_RESET#
PE0_PRSENT#
RPE0_X16_TX_P8
RPE0_X16_TX_P2
RPE0_X16_TX_P6
RPE0_X16_TX_P10
RPE0_X16_TX_P4
RPE0_X16_TX_P0
RPE0_X16_TX_P14
RPE0_X16_TX_P12
RPE0_X16_TX_N8
RPE0_X16_TX_N2
RPE0_X16_TX_N6
RPE0_X16_TX_N10
RPE0_X16_TX_N4
RPE0_X16_TX_N0
RPE0_X16_TX_N14
RPE0_X16_TX_N12
PE2_PRSENT#
PE1_PRSENT#
RPE0_X16_TX_P3
RPE0_X16_TX_N3 PE0_X16_TX_N12
RPE0_X16_TX_P11
RPE0_X16_TX_P7
RPE0_X16_TX_N5
RPE0_X16_TX_N7
PE0_X16_TX_P7
PE0_X16_TX_P8
PE0_X16_TX_N6
PE0_X16_TX_N4
RPE0_X16_TX_N13
PE0_X16_TX_N10
PE0_X16_TX_P2
PE0_X16_TX_N14
PE0_X16_TX_P14
PE0_X16_TX_P5
PE0_X16_TX_P9
PE0_X16_TX_N2
PE0_X16_TX_N1
PE0_X16_TX_P3
RPE0_X16_TX_N9
RPE0_X16_TX_N11 PE0_X16_TX_N3
PE0_X16_TX_P0
PE0_X16_TX_P1
PE0_X16_TX_P12
PE0_X16_TX_P15
PE0_X16_TX_P10
PE0_X16_TX_N7
RPE0_X16_TX_P15
PE0_X16_TX_P13
PE0_X16_TX_N8
PE0_X16_TX_P4
RPE0_X16_TX_N1 PE0_X16_TX_N13
PE0_X16_TX_N5
PE0_X16_TX_N15
RPE0_X16_TX_P5
PE0_X16_TX_P6
PE0_X16_TX_N9
RPE0_X16_TX_P1
PE0_X16_TX_P11
PE0_X16_TX_N0
PE0_X16_TX_N11
RPE0_X16_TX_P9
RPE0_X16_TX_P13
RPE0_X16_TX_N15
PE0_X16_RX_P15
PE1_X1_RX_N
PE1_X1_RX_P
PE1_X1_CLK_N
PE1_X1_CLK_P
RPE1_X1_TX_P PE1_X1_TX_N
PE1_X1_TX_P
RPE1_X1_TX_N
+1.2V_C51_PLL
+3VS
C1224 0.1UF/10V
1 2
C1205 0.1UF/10V
1 2
C1202 0.1UF/10V
1 2
C1211 0.1UF/10V
1 2
C1215 0.1UF/10V
1 2
C1204 0.1UF/10V
1 2
C1230 0.1UF/10V
1 2
T1202Do Not Stuff N/A 1
C1223 0.1UF/10V
1 2
C1216 0.1UF/10V
1 2
U3C
C51MV
J8
J6
K9
L6
L7
M9
N8
N6
R6
P3
R8
U6
T8
U7
V4
Y3
J7
J5
J9
L5
L8
M8
N7
N5
R5
P4
R7
U5
T9
U8
V3
AA3
D1
G6
H6
E2
J4
K3
E3
J3
H2
D3
H3
E4 F1
AC3
F2
AB3
T11
L1
L3
L4
M4
P1
R1
R3
R4
U4
V1
W1
W3
AA1
AB1
AC1
AD2
L2
M2
M3
N3
P2
R2
T2
T3
U3
V2
W2
Y2
AA2
AB2
AC2
AD3
K1
K2
G4
G5
G2
G3
H4
G1
D2
PE0_RX0_P
PE0_RX1_P
PE0_RX2_P
PE0_RX3_P
PE0_RX4_P
PE0_RX5_P
PE0_RX6_P
PE0_RX7_P
PE0_RX8_P
PE0_RX9_P
PE0_RX10_P
PE0_RX11_P
PE0_RX12_P
PE0_RX13_P
PE0_RX14_P
PE0_RX15_P
PE0_RX0_N
PE0_RX1_N
PE0_RX2_N
PE0_RX3_N
PE0_RX4_N
PE0_RX5_N
PE0_RX6_N
PE0_RX7_N
PE0_RX8_N
PE0_RX9_N
PE0_RX10_N
PE0_RX11_N
PE0_RX12_N
PE0_RX13_N
PE0_RX14_N
PE0_RX15_N
PE0_PRSNT*
PE1_RX_P
PE1_RX_N
PE1_PRSNT*
PE2_RX_P
PE2_RX_N
PE2_PRSNT*
PE2_TX_N
PE2_REFCLK_P
PE1_CLKREQ*/CLK
PE2_REFCLK_N
PE2_CLKREQ*/DATA PE_TSTCLK_P
PE_REFCLKIN_P
PE_TSTCLK_N
PE_REFCLKIN_N
+1.2V_PLLPE
PE0_TX0_P
PE0_TX1_P
PE0_TX2_P
PE0_TX3_P
PE0_TX4_P
PE0_TX5_P
PE0_TX6_P
PE0_TX7_P
PE0_TX8_P
PE0_TX9_P
PE0_TX10_P
PE0_TX11_P
PE0_TX12_P
PE0_TX13_P
PE0_TX14_P
PE0_TX15_P
PE0_TX0_N
PE0_TX1_N
PE0_TX2_N
PE0_TX3_N
PE0_TX4_N
PE0_TX5_N
PE0_TX6_N
PE0_TX7_N
PE0_TX8_N
PE0_TX9_N
PE0_TX10_N
PE0_TX11_N
PE0_TX12_N
PE0_TX13_N
PE0_TX14_N
PE0_TX15_N
PE0_REFCLK_P
PE0_REFCLK_N
PE1_TX_P
PE1_TX_N
PE1_REFCLK_P
PE1_REFCLK_N
PE2_TX_P
PE_RESET*
PE_CTERM_GND
C1203 0.1UF/10V
1 2
C1210 0.1UF/10V
1 2
T1204Do Not Stuff N/A 1
T1201Do Not Stuff N/A 1
C1225 0.1UF/10V
1 2
C1234
0.1UF/10V
12
C1206 0.1UF/10V
1 2
L1201
30Ohm/100Mhz
21
C1229 0.1UF/10V
1 2
T1203Do Not Stuff N/A 1
C1217 0.1UF/10V
1 2
C1212 0.1UF/10V
1 2
C1208 0.1UF/10V
1 2
C1221 0.1UF/10V
1 2
R1202
10KOhm
12
R1206
0Ohm
12
C1218 0.1UF/10V
1 2
R1205 2.37KOhm
1 2
C1227 0.1UF/10V
1 2
C1231 0.1UF/10V
1 2
C1220 0.1UF/10V
1 2
C1214 0.1UF/10V
1 2
C1233
1UF/16V
12
C1207 0.1UF/10V
1 2
C1232 0.1UF/10V
1 2
C1219 0.1UF/10V
1 2
R1201
10KOhm
12
C1226 0.1UF/10V
1 2
C1209 0.1UF/10V
1 2
C1235 0.1UF/10V
1 2
C1222 0.1UF/10V
1 2
R1203
10KOhm
12
R1204
Do Not Stuff
/X
1 2
C1213 0.1UF/10V
1 2
C1236 0.1UF/10V
1 2
C1201 0.1UF/10V
1 2
C1228 0.1UF/10V
1 2
PE0_X16_CLK_P [22]
PE0_X16_CLK_N [22]
PE_RESET# [22,46]
PE0_X16_RX_P[0..15][22]
PE0_X16_RX_N[0..15][22] PE0_X16_TX_N[0..15] [22]
PE0_X16_TX_P[0..15] [22]
PE1_X1_CLK_P [46]
PE1_X1_CLK_N [46]
PE1_X1_RX_P[46] PE1_X1_RX_N[46] PE1_X1_TX_P [46]
PE1_X1_TX_N [46]
GPU_PRESENT#[17]

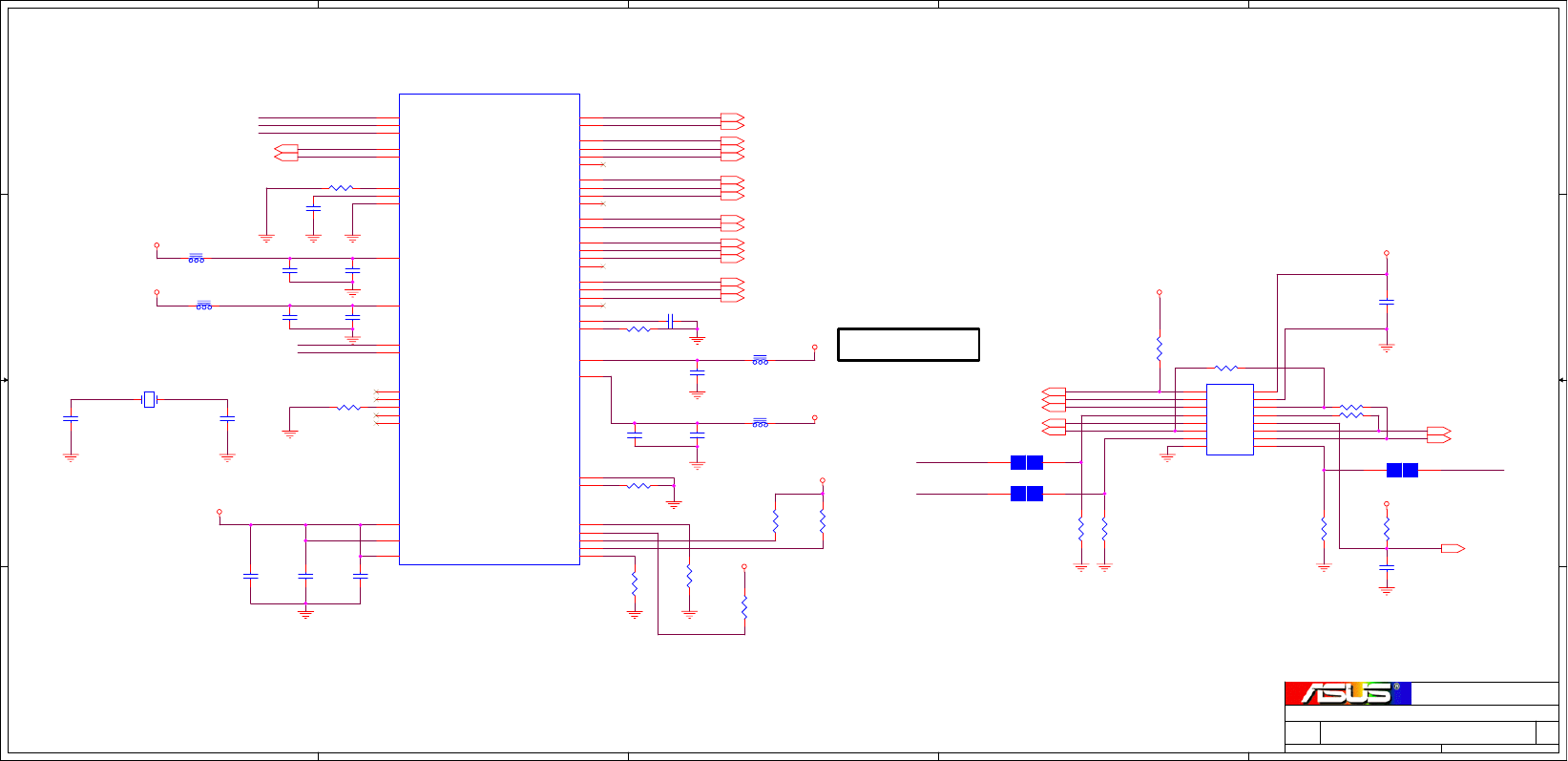

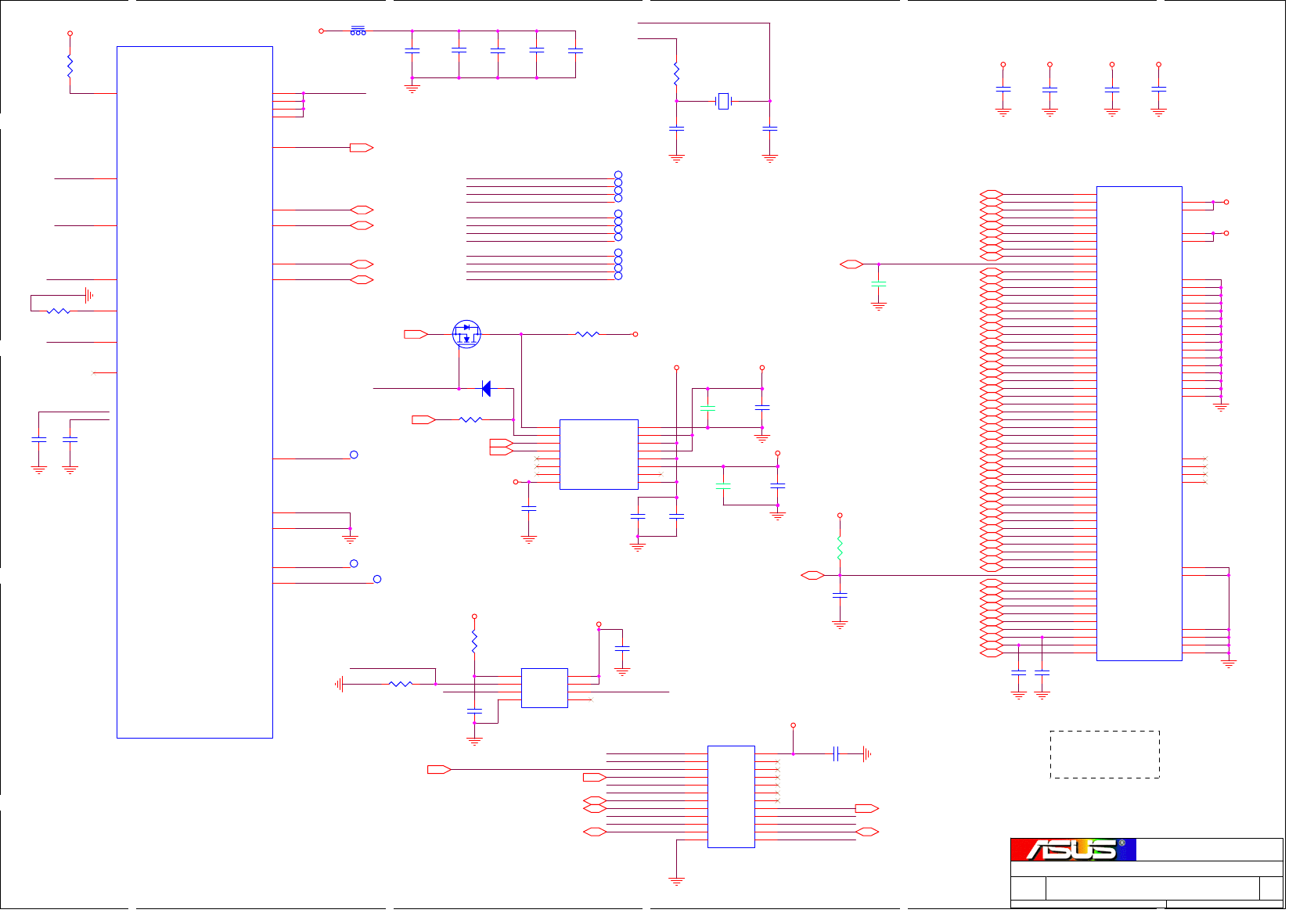

5
5
4
4
3
3
2
2
1
1
D D
C C
B B
A A
Share C1435 and C1436
Custom
13 72Wednesday, March 08, 2006
ASUSTECH CO.,LTD.
C51_VIDEO
1.0
A6T
Jefing_Li
A6TcSKU1
Size Project Name Rev
Date: Sheet of
Title :
Engineer:
+3.3V_DAC
+2.5V_PLLGPU
C61M_XTAL_IN
+2.5V_PLLIFP
C61M_XTAL_OUT C61M_XTAL_IN
C61M_XTAL_OUT
C61M_GREEN
C61M_BLUE
C61M_RED
+2.5V_PLLCORE _C61M_RED
_C61M_BLUE
LOAD_VIDEO
C61M_GREEN

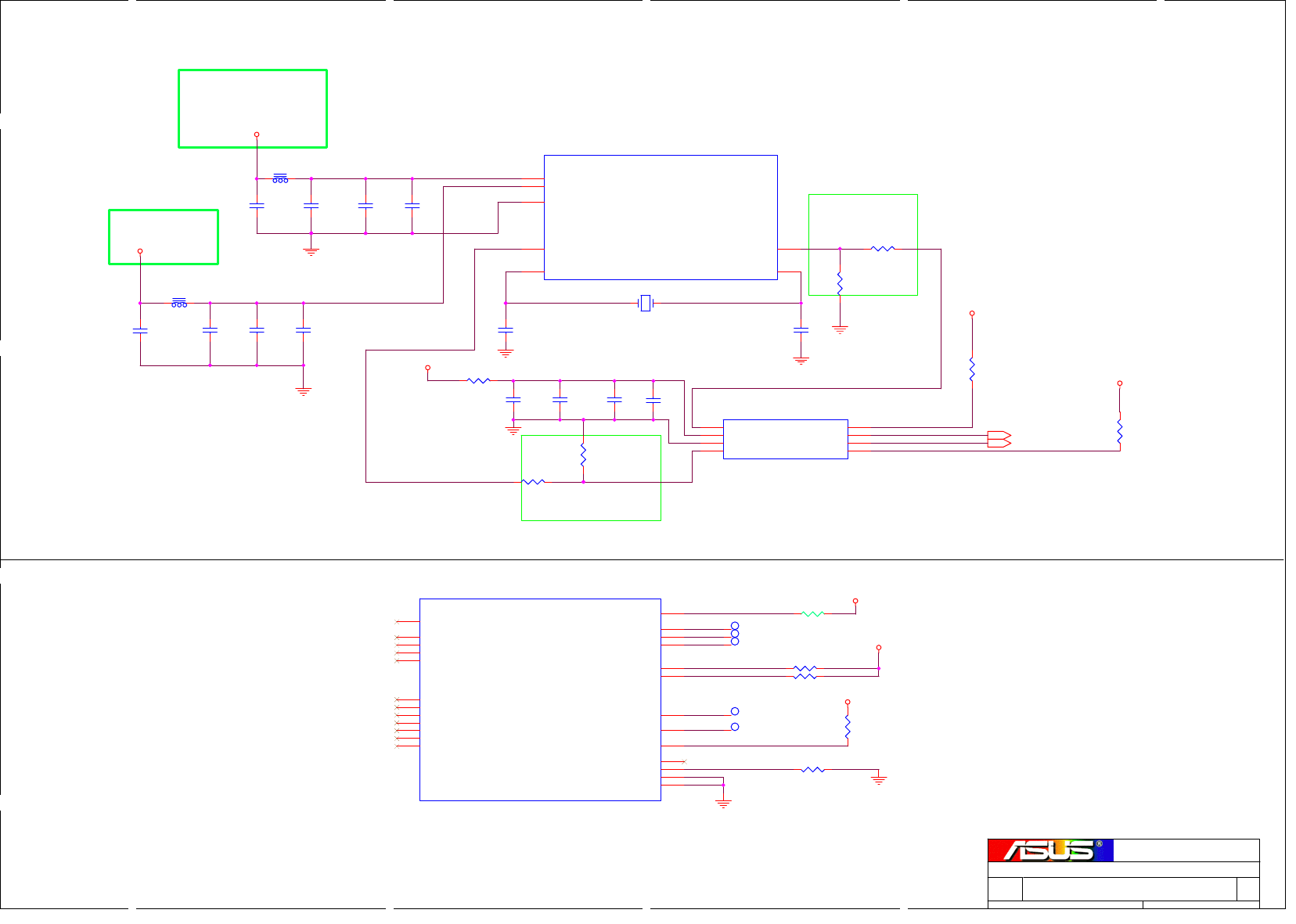

C61M_RED C61M_BLUE
LOAD_VGA
_C61M_GREEN
C61M_LVDS_YBP0
C61M_LVDS_CLKBP
C61M_LVDS_YAM2
C61M_LVDS_CLKAP
C61M_LVDS_YBM2
C61M_LVDS_YAM0
C61M_LVDS_YBP1
C61M_LVDS_YAP1
C61M_LVDS_YBP2
C61M_LVDS_YAP0
C61M_LVDS_YBM0
C61M_LVDS_YBM1
C61M_LVDS_YAM1
C61M_LVDS_CLKAM
C61M_LVDS_YAP2
C61M_LVDS_CLKBM
TV_EN
+3VS
+2.5VS
+2.5VS
GND
+1.2V_C51_PLL
+3VS
GND
+2.5VS
+3VS
+3VS
+5VS
+3VS
R1310
Do Not Stuff
/x
1 2
C1314
18PF/50V
1 2
R1309 1KOhm
12
C1304
4.7UF/6.3V
12
C1306 0.1UF/10V
1 2
C1303
0.1UF/10V
12
L1304
30Ohm/100Mhz
21
C1316
0.01UF/10V
1 2
R1328
100KOHM
12
U36
IDTQS3257QG
1
2
3
4
5
6
7
8 9
10
11
12
13
14
15
16
S
I0A
I1A
YA
I0B
I1B
YB
GND YC
I1C
I0C
YD
I1D
I0D
E#
VCC
12
X1301
27Mhz
C1301
0.01UF/10V
12
C1310
0.1UF/10V
12
R1326
22KOHM
1 2
C1307
1UF/16V
12
R1304 124Ohm
1 2
C1302
4.7UF/6.3V
12
R1332
75Ohm
1 2
L1302
30Ohm/100Mhz
21
L1301
47Ohm/100Mhz
21
R1311
22KOHM
1 2
R1329 10KOhm
1 2
R1333
75Ohm
1 2
R1330 10KOhm
1 2
R1334
75Ohm
1 2
JP1301
1 2
R1312
22KOHM
1 2
C1315
0.1UF/10V
12
R1331 10KOhm
1 2
R1314
22KOHM
12
C1309
0.1UF/10V
12
C1312
0.1UF/10V
12
U3D
C51MV
A5
B6
A6
B7
C7
D8
D9
C8
A9
H13
C9
B9
F12
E11
E17
F17
G17
R9
P9
H16
C14
B13
A15
D15
A14
F14
B15
C15
B14
E14
A10
B10
B11
E13
D13
B12
A11
F13
C13
C12
A16
F15
E16
H12
D17
C17
C18
B19
C19
B18
A19
DAC_RED
DAC_GREEN
DAC_BLUE
DAC_HSYNC
DAC_VSYNC
DAC_RSET
DAC_VREF
DAC_IDUMP
+3.3V_DAC
+2.5V_PLLGPU
XTAL_IN
XTAL_OUT
NC1/DDC_CLK
NC2/DDC_DATA
NC3/HPDET
NC4/EE_CLK
NC5/EE_DATA
+1.2V_PLLGPU
+1.2V_PLLCORE
+1.2V_PLLIFP
IFPA_TXC_P
IFPA_TXC_N
IFPA_TXD0_P
IFPA_TXD1_P
IFPA_TXD2_P
IFPA_TXD3_P
IFPA_TXD0_N
IFPA_TXD1_N
IFPA_TXD2_N
IFPA_TXD3_N
IFPB_TXC_P
IFPB_TXC_N
IFPB_TXD4_P
IFPB_TXD5_P
IFPB_TXD6_P
IFPB_TXD7_P
IFPB_TXD4_N
IFPB_TXD5_N
IFPB_TXD6_N
IFPB_TXD7_N
IFPAB_VPROBE
IFPAB_RSET
+2.5V_PLLIFP
+2.5V_PLLCORE
PKG_TEST
TEST_MODE_EN
JTAG_TCK
JTAG_TDI
JTAG_TDO
JTAG_TMS
JTAG_TRST*
JP1303
1 2
L1303
30Ohm/100Mhz
21
R1308Do Not Stuff
/x 12
C1305
0.1UF/10V
12
R1305 1KOhm
12
JP1302
1 2
C1313
18PF/50V
1 2
C1308
4.7UF/6.3V
12
R1313
22KOHM
1 2
C1311
0.1UF/10V
12
C51MV_CRT_HSYNC[55] C51MV_CRT_VSYNC[55]
C51MV_CRT_GREEN[55]
TV_EN[19]
C51MV_TV_C[55]
LOAD_TEST [19]
C51MV_TV_CVBS [55]
C51MV_CRT_BLUE [55]
C51MV_CRT_RED[55]
C51MV_TV_Y[55]
C61M_LVDS_YAM0 [54]
C61M_LVDS_CLKAM [54]
C61M_LVDS_YBM2 [54]
C61M_LVDS_YAP1 [54]
C61M_LVDS_CLKAP [54]
C61M_LVDS_YBM1 [54]
C61M_LVDS_YBP0 [54]
C61M_LVDS_YAP0 [54]
C61M_LVDS_CLKBP [54]
C61M_LVDS_CLKBM [54]
C61M_LVDS_YAM2 [54]
C61M_LVDS_YAP2 [54]
C61M_LVDS_YBM0 [54]
C61M_LVDS_YBP2 [54]
C61M_LVDS_YAM1 [54]
C61M_LVDS_YBP1 [54]

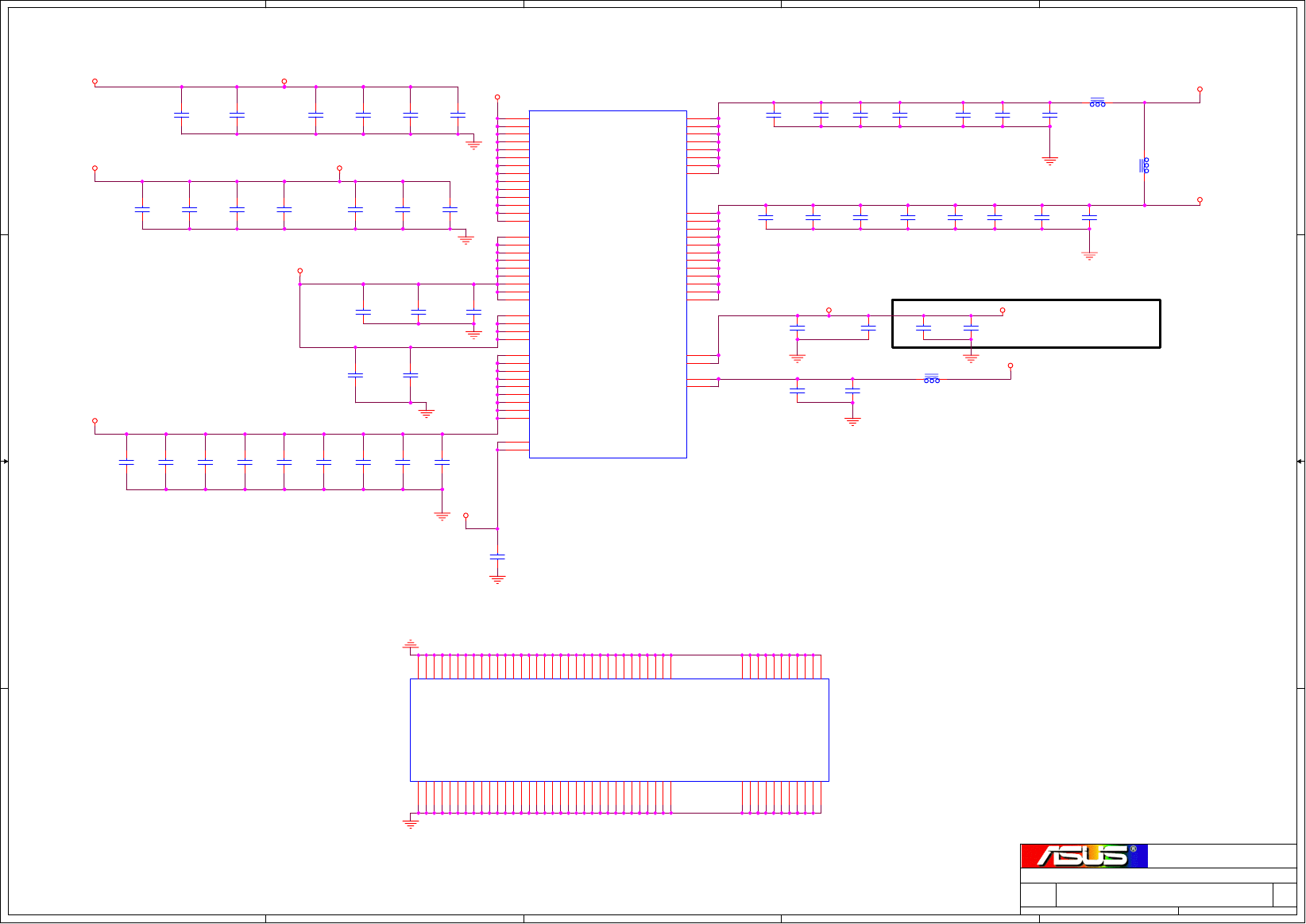

5
5
4
4
3
3
2
2
1
1
D D
C C
B B
A A
LVDS 1.8V
TMDS 3.3V
Share C1435 and C1436
with L1303
A3
14 72Wednesday, March 08, 2006
ASUSTECH CO.,LTD.
C51_VCC_GND
1.0
A6T
Jefing_Li
A6TcSKU1
Size Project Name Rev
Date: Sheet of
Title :
Engineer:
+1.2V_PEA_C51MV
+1.2V_PLL_C51MV
+2.5V_IFPAB
+1.2VS
+1.2VS +1.2VS
+1.2VS
+1.2V_HT
+3VS
+1.2VS
+1.2V_C51_PLL
+2.5VS
+1.2VS
+2.5VS
+1.8VS_C51
+1.2VS
C1423
0.1UF/10V
12
C1446
0.1UF/10V
12
C1417
1UF/16V
12
L1403
47Ohm/100Mhz
21
C1434
0.1UF/10V
12
C1448
0.1UF/10V
12
C1419
0.1UF/10V
12
C1441
47UF/6.3V
12
L1401
42Ohm/100Mhz
21
C1432
1UF/16V
12
C1407
0.1UF/10V
12
C1435
1UF/16V
12
C1437
0.1UF/10V
12
C1418
1UF/16V
12
C1403
1UF/16V
12
C1442
0.1UF/10V
12
C1401
22UF/6.3V
12
C1445
0.1UF/10V
12
C1413
22UF/6.3V
12
C1421
0.1UF/10V
12
C1425
4.7UF/6.3V
12
C1450
1UF/16V
12
C1410
0.1UF/10V
12
C1415
1UF/16V
12
C1436
22UF/6.3V
12
C1424
0.1UF/10V
12
C1427
0.1UF/10V
12
U3F
C51MV
C1
AA21
AA13
U14
H14
C11
AB4
AA4
J15
E12
AB10
Y18
E18
U18
E15
Y11
U19
N17
F16
J17
L13
B1
T17
D11
T12
J16
D19
H19
L21
M19
P19
T19
L14
F3
L9
P8
N9
K4
N4
T4
W4
Y4
U9
H9
V19
T14
C20
R17
AB14
U12
G13
Y16
H21
C22
AB6
F22
L22
R22
V22
AA22
A23
AA23
AA24
L11
M11
N11
P11
M12
N12
P12
M13
N13
P13
M14
N14
P14
L12
K6
M6
P6
T6
W6
W8
H8
K8
V6
F4
V8
GND1
GND2
GND3
GND4
GND5
GND6
GND7
GND8
GND9
GND10
GND11
GND12
GND13
GND14
GND15
GND16
GND17
GND18
GND19
GND20
GND21
GND22
GND23
GND24
GND25
GND26
GND27
GND28
GND29
GND30
GND31
GND32
GND33
PE_GND1
PE_GND2
PE_GND3
PE_GND4
PE_GND5
PE_GND6
PE_GND7
PE_GND8
PE_GND9
PE_GND10
PE_GND11
GND34
GND35
GND36
GND37
GND38
GND39
GND40
GND41
GND42
GND43
GND44
GND45
GND46
GND47
GND48
GND49
GND50
GND51
GND52
GND53
GND54
GND55
GND56
GND57
GND58
GND59
GND60
GND61
GND62
GND63
GND64
GND65
GND66
PE_GND12
PE_GND13
PE_GND14
PE_GND15
PE_GND16
PE_GND17
PE_GND18
PE_GND19
PE_GND20
PE_GND21
PE_GND22
C1447
0.1UF/10V
12
C1431
1UF/16V
12
C1449
0.1UF/10V
12
U3E
C51MV
B5
C6
D7
E8
E9
E10
F10
F11
G11
H11
J11
J12
J13
J14
T15
U13
U11
Y9
AB11
AA18
W16
U16
U15
B4
C5
D6
E7
K16
M16
R16
M21
J20
T16
U17
C21
H17
D18
C10
A3
B3
C4
D5
E6
F7
F8
F9
A2
B2
C2
C3
D4
E5
F6
G7
G8
G9
H10
J10
C16
B16
G15
H15
+1.2V_CORE1
+1.2V_CORE2
+1.2V_CORE3
+1.2V_CORE4
+1.2V_CORE5
+1.2V_CORE6
+1.2V_CORE7
+1.2V_CORE8
+1.2V_CORE9
+1.2V_CORE10
+1.2V_CORE11
+1.2V_CORE12
+1.2V_CORE13
+1.2V_CORE14
+1.2V_HTMCP1
+1.2V_HTMCP2
+1.2V_HTMCP3
+1.2V_HTMCP4
+1.2V_HTMCP5
+1.2V_HTMCP6
+1.2V_HTMCP7
+1.2V_HTMCP8
+1.2V_HTMCP9
+1.2V_PED1
+1.2V_PED2
+1.2V_PED3
+1.2V_PED4
+1.2V_HT1
+1.2V_HT2
+1.2V_HT3
+1.2V_HT4
+1.2V_HT5
+1.2V_HT6
+1.2V_HT7
+1.2V_HT8
+1.2V_HT9
+3.3V_1
+3.3V_2
+1.2V_PEA1
+1.2V_PEA2
+1.2V_PEA3
+1.2V_PEA4
+1.2V_PEA5
+1.2V_PEA6
+1.2V_PEA7
+1.2V_PEA8
+1.2V_PLL1
+1.2V_PLL2
+1.2V_PLL3
+1.2V_PLL4
+1.2V_PLL5
+1.2V_PLL6
+1.2V_PLL7
+1.2V_PLL8
+1.2V_PLL9
+1.2V_PLL10
+1.2V_PLL11
+1.2V_PLL12
+2.5V_CORE_1
+2.5V_CORE_2
+2.5V_IFPA
+2.5V_IFPB
C1405
1UF/16V
12
C1439
0.1UF/10V
12
C1428
0.1UF/10V
12
C1406
1UF/16V
12
C1420
0.1UF/10V
12
C1414
22UF/6.3V
12
C1409
0.1UF/10V
12
C1438
0.1UF/10V
12
C1444
0.1UF/10V
12
C1404
1UF/16V
12
L1404
47Ohm/100Mhz
21
C1416
1UF/16V
12
C1440
1UF/16V
12
C1429
0.1UF/10V
12
C1412
1UF/16V
12
C1443
0.1UF/10V
12
C1402
22UF/6.3V
12
C1433
0.1UF/10V
12
C1422
0.1UF/10V
12
C1430
1UF/16V
12
C1426
22UF/6.3V
12
C1408
0.1UF/10V
12

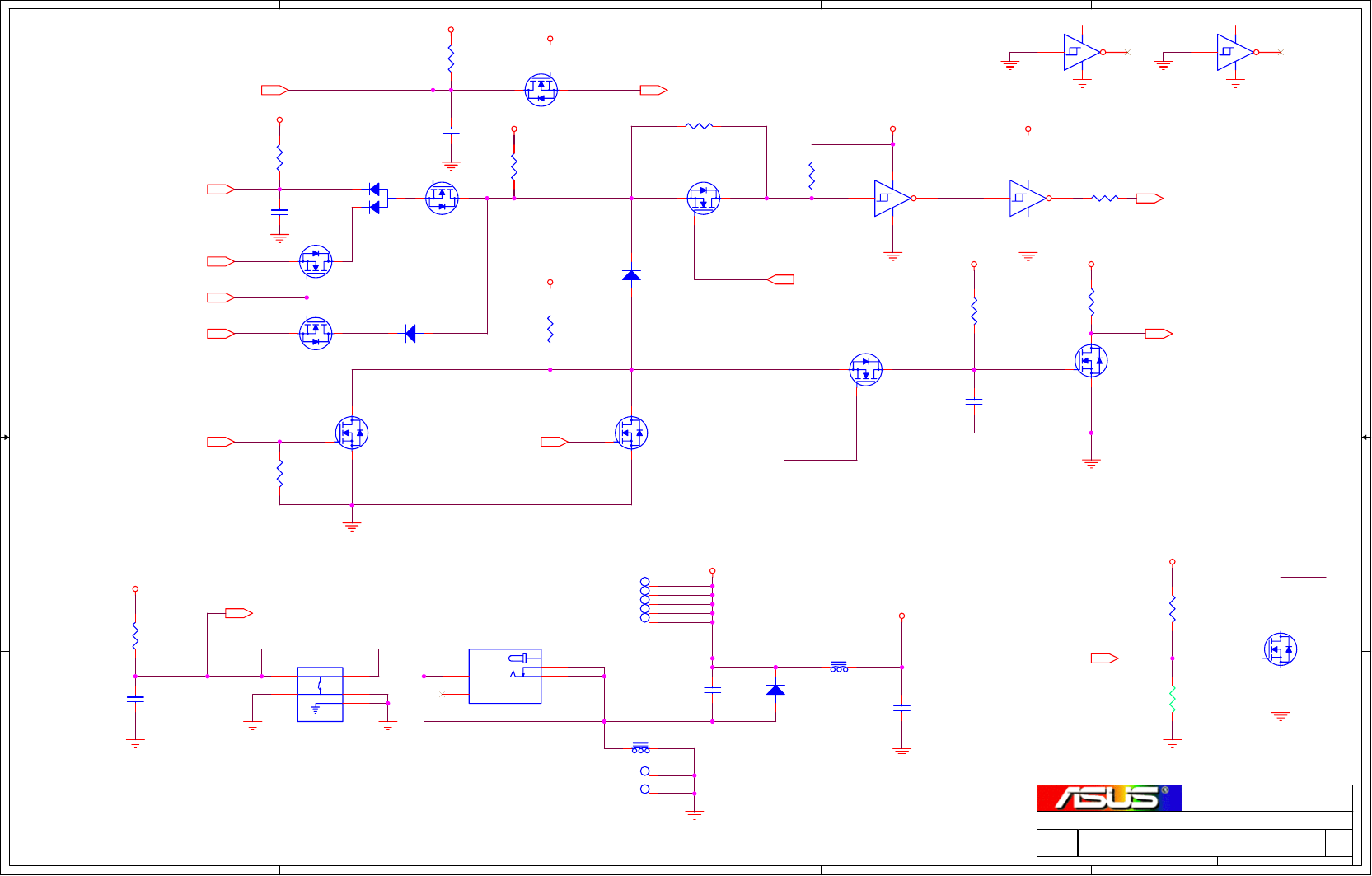

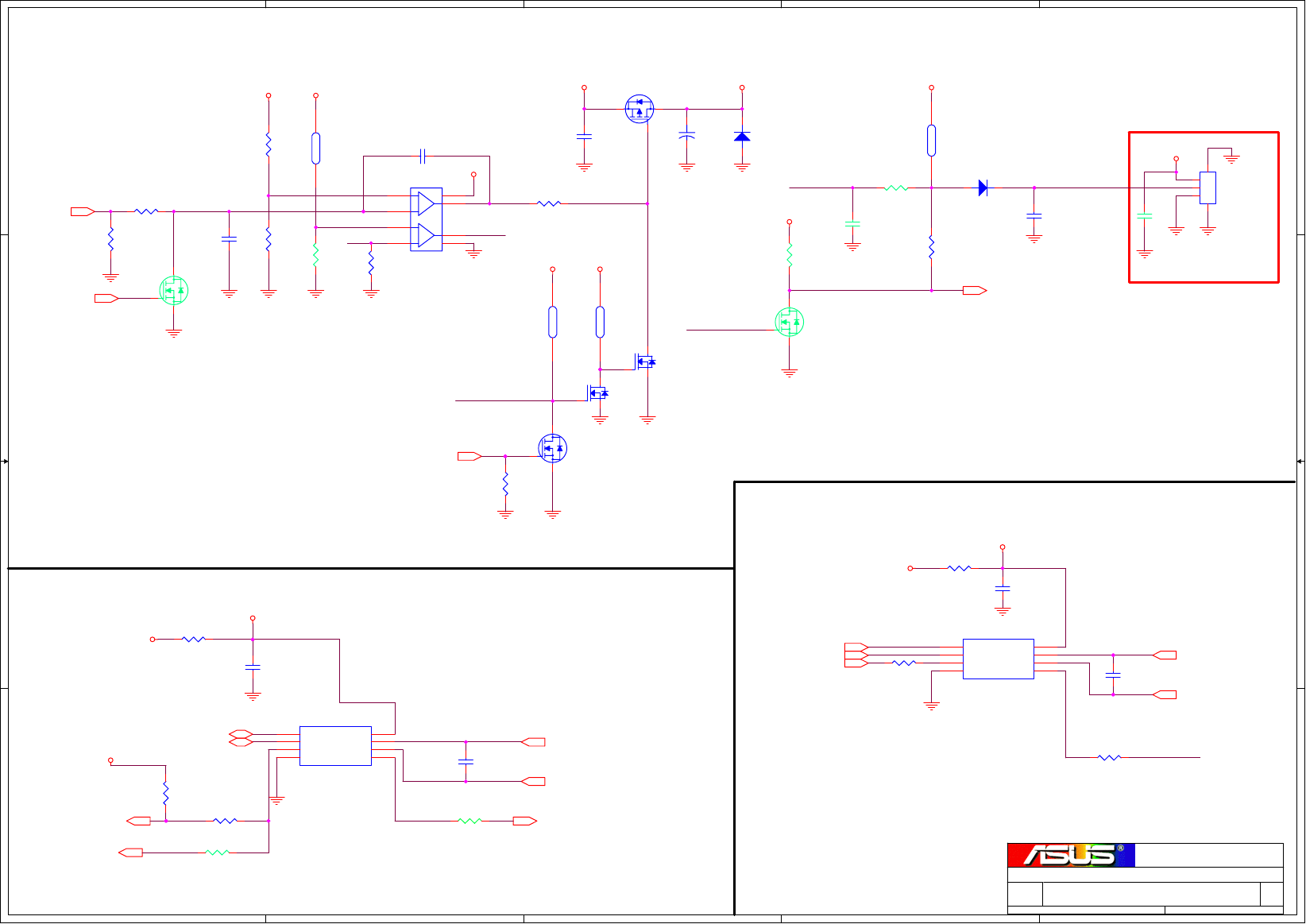

5
5
4
4
3
3
2
2
1
1
D D
C C
B B
A A
R1.1
SW: FAN_DA1 must
be low during S3
When fan speed is
very slow, after RC
integrator the level
of FANSP1 will be
very low that may
make south bridge do
the wrong detection.
Fan Speed Control
KBC will issue a
analog ( a voltage
level ) signal.
CPU FAN will be forced on:
1) Thermal Sensor
Over-temperture
2) PROCHOT asserted(CPU)
3) WATCHDOG asserted(KBC)
CPU FAN
Using a OP AMP and
fine-tuning the level,
we can improve the fan
speed accuracy.
Close to Pin W7 & W8 of CPU
Standby Mode: 3uA(Max. 10uA)
Full Active: 0.5 mA(Max. 1mA)
Fixed Slave Address: 98H
CPU THERM SENSOR
VGA THERM SENSOR
Fixed Slave Address: 98H
A3
15 72Wednesday, March 08, 2006
ASUSTECH CO.,LTD.
FAN/THERM SENSOR
1.0
A6T
Jefing_Li
A6TcSKU1
Size Project Name Rev
Date: Sheet of
Title :
Engineer:
OS_OC#
CPUFAN_SPD
FAN_SPD
CPUFAN_SPD
FANSP1
FAN_SPD
H_THERMDC
OS_OC#
OS_OC#
H_THERMDA
GND
GND
GND
GND
+12V
GND GND
GND
+5VS_FAN
GND
+5VS_FAN
GND GND
GND GND
+5VS_FAN +5VS
GND
GND
GND
GND
+3VS_THM2
+3VS
GND
GND
GND
GND
GND
GND
GND
GND
GND
+3VS_THM1
+5VS
+3VS
+3VS
+3VS
+3VS
+3VS
+3VS_GPU
C1508
0.1UF/10V
c0402
12
RN1501A
10KOhm
12
R1513
100Ohm
1 2
D
S
G
1
2
3
Q1501
SI2301BDS_T1_E3
1
2 3
+
-
-
+
A+
A-
B+
B-
AO
BO
VCC
GND
U4
LM358MX
1
2
3
4
8
7
6
5
R1520 Do Not Stuff
/x
1 2
R1511
10KOhm
r0402_h16
12
R1501
10KOhm
YAGEO/RC0402FR-0710KL <G>
r0402_h16
1 2
R1515 Do Not Stuff
/x
1 2
R1509
Do Not Stuff
/x
r0402_h16
12
RN1501B
10KOhm
34
R1517 0Ohm
1 2
+
CE1501
47UF/6.3V
12
R1506
15KOhm
1%
1 2
RN1501D
10KOhm
78
Q1504B
UM6K1N
5
34
U6
MAX6657MSA
8
7
6
1
4
2
3
5
SCLK
SDA
ALERT#
VCC
OVERT#
DXP
DXN
GND
GS
D
3
2
1
Q1502
Do Not Stuff
/x
1
32
Q1504A
UM6K1N
2
61
R1507
0Ohm
1 2
C1505
Do Not Stuff
/x
12
R1512
100Ohm
1 2
C1507
0.1UF/10V
c0402
12
D1502
1N4148W
1 2
C1502
0.1UF/10V
c0402
12
R1519 0Ohm
1 2
R1504
4.7KOhm
1 2
RN1501C
10KOhm
56
R1508
Do Not Stuff
/x
1 2
R1518
4.7KOhm
1 2
R1502
Do Not Stuff
r0402 /x
12
D1501
RB751V_40
1 2
R15140Ohm
1 2
GS
D
3
2
1
Q1505
2N7002
1
32
C1504
Do Not Stuff
c0402
/x
12
C1506
0.1UF/25V
1 2
C1509
2200PF/50V
12
U5
MAX6649MUA
8
7
6
1
4
2
3
5
SCLK
SDA
ALERT#
VCC
OVERT#
DXP
DXN
GND
GS
D
3
2
1
Q1503
Do Not Stuff
/x
1
32
R1505
1MOhm
r0402_h16
1 2
R1510
10KOhm
1 2
R1503 330Ohm
1 2
C1501 1000PF/50V
c0402
1 2
HOLD1
HOLD2
CON2
WTOB_CON_3P
12G170000039
1
2
3
45
C1503
100PF/50V
c0402
12
C1510
2200PF/50V
c0402
12
OTEMP#[26] NV_I2CC_SDA[26,27,54]
CPUFAN_SPD_A [19]
NV_I2CC_SCL[26,27,54] VGA_THRM_DA [26]
WATCHDOG[38]
VGA_THRM_DC [26]
1S_DEL[43]
CPU_THERMADA [6]
PM_THERM#[19]
I2C_CLK0_S[8,19]
CPU_THERMADC [6]
SMB_ALERT#[19]
FAN_DA1[38]
I2C_DATA0_S[8,19]
CPU_THERMTRIP# [9,16]
5
5
4
4
3
3
2
2
1
1
D D
C C
B B
A
A
OPEN DRAID
For HT X4
B
16 72Wednesday, March 08, 2006
ASUSTECH CO.,LTD.
MCP51_HT
1.0
A6T
Jefing_Li
A6TcSKU1
Size Project Name Rev
Date: Sheet of
Title :
Engineer:
MCP_TRST#
HT_MCP_TX_H4
HT_MCP_COMP_GND2
HT_MCP_RX_CLK_H0
HT_MCP_RST#
HT_MCP_RX_CTL_H
HT_MCP_TX_H3
HT_MCP_TX_CLK_H0
MCP_OUT_200M_H
CPU_VLD
HT_MCP_RX_CLK_L0
HT_MCP_RX_H7
HT_MCP_COMP_GND1
HT_MCP_RX_H0
HT_MCP_TX_L3
HT_MCP_RX_H2
HT_MCP_TX_L1
HT_MCP_TX_CTL_L
CPUVDD_EN
MCP_OUT_200M_L
HT_MCP_RX_L6
HT_VLD
MCP_TCK
HT_MCP_RX_CTL_L
MCP_TMS
HT_MCP_RX_H1
HT_MCP_TX_L4
HT_MCP_RX_L1
HT_MCP_TX_H0
HT_MCP_RX_H6
HT_MCP_RX_H4
HT_MCP_TX_CTL_H
HT_MCP_REQ#
HT_MCP_TX_L6
HT_MCP_TX_L7
HT_MCP_TX_L5
HT_MCP_TX_H1
HT_MCP_RX_L5
HT_MCP_RX_H3
HT_MCP_RX_L4
HT_MCP_TX_H2
HT_MCP_STOP#
HT_MCP_RX_L7
HT_MCP_RX_L0
+3.3V_PLL_CPU_HT
HTVDD_EN
HT_MCP_TX_L2
HT_MCP_RX_H5HT_MCP_TX_H5
HT_MCP_RX_L3
MCP_TDI
HT_MCP_TX_H6
CPU_THERMTRIP#
HT_MCP_TX_CLK_L0
HT_MCP_RX_L2
MEM_VLD
HT_MCP_TX_L0
HT_MCP_TX_H7
HT_MCP_REQ#
HT_MCP_STOP#
_HT_MCP_PWRGD
HT_MCP_RST#
MCP_TDO
MEM_VLD
CPUVDD_EN HT_MCP_PWRGD
_HT_MCP_PWRGD
+1.5VS
+3VS
+3VS
+3VS
+1.2VS
C1602
10UF/10V
12
R1609 49.9Ohm
1 2
R1608 22Ohm
1 2
C1601
0.1UF/10V
12
U7A
MCP51
K1
L1
M1
N1
R1
T1
U1
V1
K2
L2
M2
N2
R2
T2
U2
V2
P1
P2
W1
W2
AD1
AA5
AB1
AB2
F22
N26
M24
F23
N25
M6
M5
AA1
Y1
AA3
W5
U5
T5
R5
P5
AA2
Y2
AA4
W6
U6
T6
R6
P6
V5
V6
N5
N6
AC2
AC1
Y5
AD2
AE1
J6
K6
H22
H21
H23
D26
F25
HT_MCP_RXD0_P
HT_MCP_RXD1_P
HT_MCP_RXD2_P
HT_MCP_RXD3_P
HT_MCP_RXD4_P
HT_MCP_RXD5_P
HT_MCP_RXD6_P
HT_MCP_RXD7_P
HT_MCP_RXD0_N
HT_MCP_RXD1_N
HT_MCP_RXD2_N
HT_MCP_RXD3_N
HT_MCP_RXD4_N
HT_MCP_RXD5_N
HT_MCP_RXD6_N
HT_MCP_RXD7_N
HT_MCP_RX_CLK_P
HT_MCP_RX_CLK_N
HT_MCP_RXCTL_P
HT_MCP_RXCTL_N
HT_MCP_REQ#
HT_MCP_STOP#
HT_MCP_COMP_GND1
HT_MCP_COMP_GND2
HT_VLD
CPU_VLD
MEM_VLD
HTVDD_EN
CPUVDD_EN
+1.5V_PLL_CPU_HT
+3.3V_PLL_CPU_HT
HT_MCP_TXD0_P
HT_MCP_TXD1_P
HT_MCP_TXD2_P
HT_MCP_TXD3_P
HT_MCP_TXD4_P
HT_MCP_TXD5_P
HT_MCP_TXD6_P
HT_MCP_TXD7_P
HT_MCP_TXD0_N
HT_MCP_TXD1_N
HT_MCP_TXD2_N
HT_MCP_TXD3_N
HT_MCP_TXD4_N
HT_MCP_TXD5_N
HT_MCP_TXD6_N
HT_MCP_TXD7_N
HT_MCP_TX_CLK_P
HT_MCP_TX_CLK_N
HT_MCP_TXCTL_P
HT_MCP_TXCTL_N
CLKOUT_200MHZ_N
CLKOUT_200MHZ_P
CLKOUT_25MHZ
HT_MCP_PWRGD
HT_MCP_RST#
THERMTRIP#/GPIO_58
CLK200_TERM_GND
JTAG_TCK
JTAG_TDI
JTAG_TDO
JTAG_TMS
JTAG_TRST#
R1612
Do Not Stuff
/x
1 2
C1605
0.1UF/10V
12
R1611
10KOhm
1 2
R1601 Do Not Stuff
/X
1 2
C1604
0.01UF/10V
12
R1604 1.5KOhm
1 2
R1603 1.5KOhm
1 2
R1614
10KOhm
1 2
R1605 1.5KOhm
1 2
L1601
30Ohm/100Mhz
21 C1603
0.1UF/10V
12
R1617 0Ohm
1 2
R1602 Do Not Stuff
/X
1 2
R1613
10KOhm
1 2
R1606 1.5KOhm
1 2
R1618 Do Not Stuff/x 1 2
R1607 150Ohm
12
R1610
562Ohm
1%
1 2
R1615
10KOhm
1 2
HT_MCP_RX_CTL_L [11]
HT_MCP_RX_L[0..7] [11]
HT_MCP_TX_CTL_L[11]
HT_MCP_RX_CLK_H0 [11]
HT_MCP_RST# [11]
MCP_OUT_200M_H [11]
CPU_THERMTRIP# [9,15]
HT_MCP_TX_CLK_H0[11] HT_MCP_RX_CLK_L0 [11]
HT_MCP_STOP#[11]
HT_MCP_TX_H[0..7][11]
HT_MCP_REQ#[11]
HT_MCP_TX_CTL_H[11]
MCP_OUT_25M [11]
HT_MCP_TX_L[0..7][11]
MCP_OUT_200M_L [11]
HT_MCP_TX_CLK_L0[11]
HT_MCP_RX_H[0..7] [11]
HT_MCP_RX_CTL_H [11]
HT_VLD[6,64] CPU_VLD[17,61,70] MEM_VLD[64] HTVDD_EN[67]
CPUVDD_EN[61]
1.8V_PWRGD[64]
HT_MCP_PWRGD [11]
_HT_MCP_PWRGD [6]

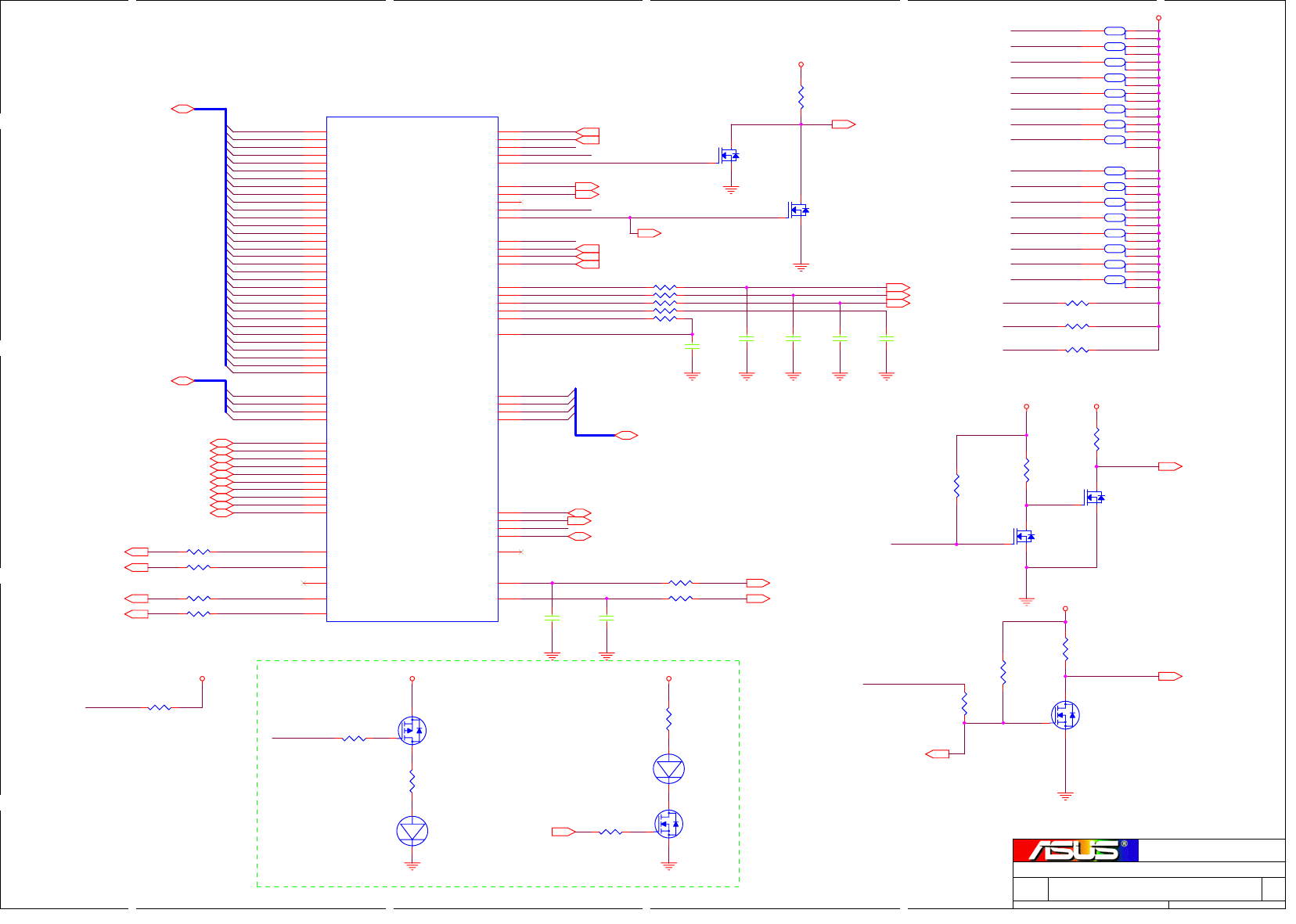

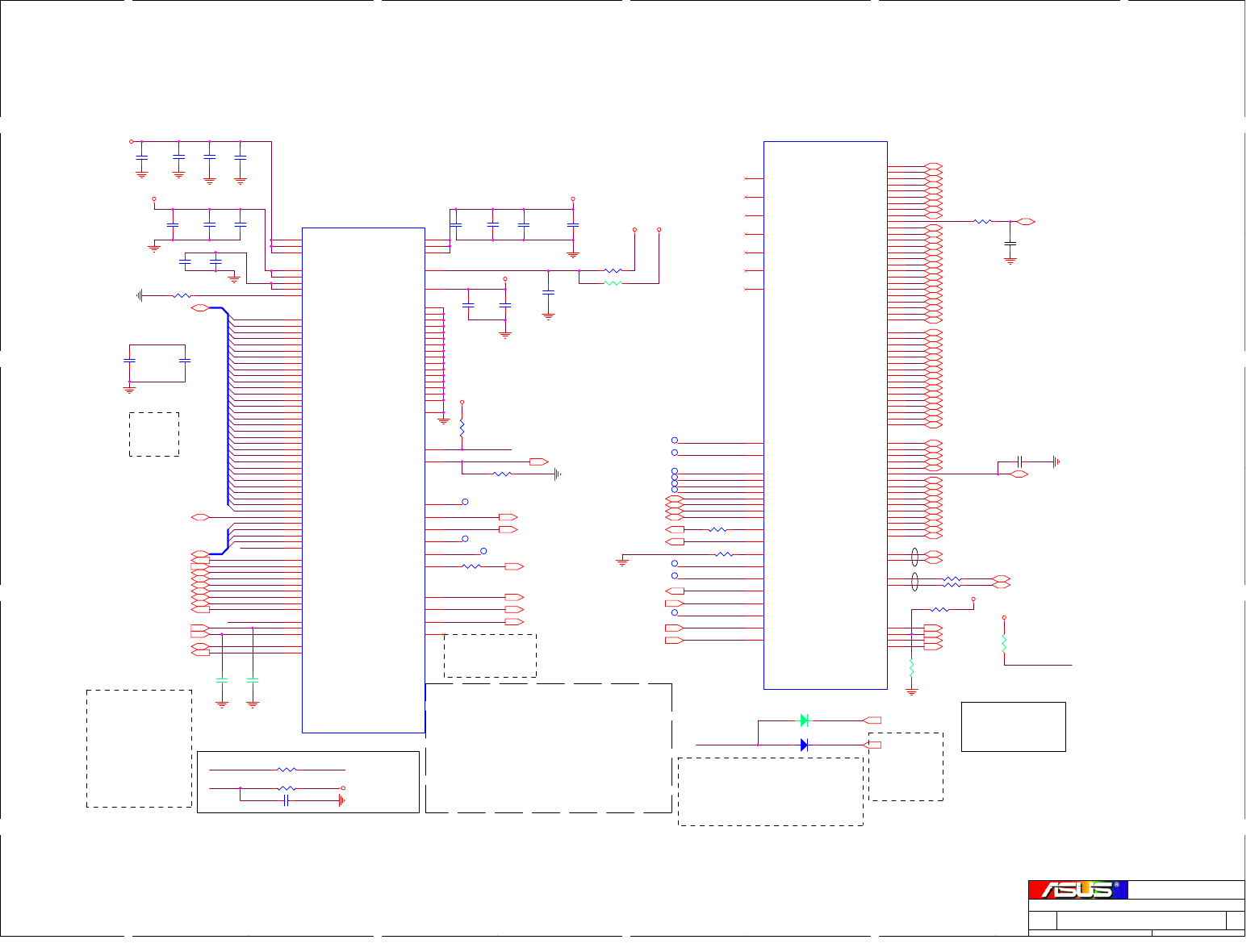

5
5
4
4
3
3
2
2
1
1
D D
C C
B B
A
A
FOR DEBUG
FOR SLi POWER
A3
17 72Wednesday, March 08, 2006
ASUSTECH CO.,LTD.
MCP51_PCI/LPC
1.0
A6T
Jefing_Li
A6TcSKU1
Size Project Name Rev
Date: Sheet of
Title :
Engineer:
LPC_AD3
PCI_AD1
PCI_AD23
PCI_AD18
PCI_STOP#
PCI_AD30
LPC_FRAME#
PCI_DEVSEL#
PCI_AD24
LPC_AD1
PCI_AD11
PM_CLKRUN#
PCI_AD0
PCI_AD28
_PCI_IDE_RST#
PCI_AD15
PCI_AD14
PCI_C/BE#1
PCI_AD9
PCI_CLKIN
PCI_C/BE#2
CLK_SIOLPC_
PCI_AD31
PCI_AD10
PCI_PERR#
LPC_AD0
PCI_AD25
PCI_AD17
PCI_PME#
PCI_AD21
PCI_SERR#
PCI_AD5
PCI_IRDY#
PCI_AD12
PCI_AD6
PCI_AD8
PCI_TRDY#
PCI_AD4
_LPC_RST#
LPC_AD2
PCI_AD16
PCI_AD13
INT_SERIRQ
CLK_FWHPCI_
PCI_C/BE#0
_CARD_PCI_RST#
PCI_PAR
PCI_FRAME#
PCI_AD27
PCI_AD2
LPC_DRQ1#
PCI_AD19
PCI_AD29
PCI_C/BE#3
PCI_AD26
PCI_AD22
PCI_AD7
PCI_AD20
_MINI_PCI_RST#
PCI_AD3
PCI_REQ#0
PCI_REQ#1
PCI_REQ#2
PCI_GNT#0
PCI_GNT#1
PCI_INTW#
PCI_INTX#
PCI_INTY#
PCI_INTZ#
CLK_MINIPCI_
CLK_CB_
CLK_KBC_
PCI_INTW#
PCI_INTX#
PCI_INTY#
PCI_INTZ#
PCI_SERR#
PCI_DEVSEL#
PCI_IRDY#
PCI_PERR#
PCI_FRAME#
PCI_TRDY#
PCI_STOP#
PM_CLKRUN#
PCI_REQ#0
PCI_REQ#1
PCI_REQ#2
LPC_DRQ#0
LPC_DRQ0#
MINI_PCI_RST#
PCI_CLKOUT
GPU_PWR_EN_
GPU_PWR_EN
SEL_DDC_G73M/C51_
GPE_RESET
SEL_DDC_G73M/C51_ SEL_DDC_G73M/C51#
GPU_PWR_EN_
PCI_PME#
LPC_DRQ1#
GPE_RESET
INT_SERIRQ
GPU_PRESENT#
+3VS
+3VSUS +3VSUS
+3VSUS +12VSUS
GND
+3VS
GND
+3VS
+3VSUS
GND
R1710 33Ohm
1 2
C1704
Do Not Stuff
/x
12
R1707 8.2KOhm
1 2
RP1702E 8.2KOHM
6 5
10
RP1701G 8.2KOHM
8 5
10
R1704 22Ohm
1 2
RP1701E 8.2KOHM
6 5
10
Q1703B
UM6K1N
5
34
R1711 33Ohm
1 2
R1708 8.2KOhm
12
C1701
Do Not Stuff
/x
12
R1717
Do Not Stuff
/debug
1 2
RP1702C 8.2KOHM
3 5
10
R1705 22Ohm
1 2
R1706 22Ohm
1 2
RP1701D 8.2KOHM
4 5
10
R1723
10KOhm
12
GS
D
3
2
1
Q1702
Do Not Stuff
/debug
1
32
RP1702G 8.2KOHM
8 5
10
D
S
G
1
2
3
Q1701
SI2305DS
/debug
1
23
R1728 10KOhm
12
Q1703A
UM6K1N
2
61
RP1702F 8.2KOHM
7 5
10
R1727
10KOhm
r0402
12
R1718
0Ohm
/debug
12
RP1701A 8.2KOHM
1 5
10
RP1701B 8.2KOHM
2 5
10
Q1705A
UM6K1N
2
61
RP1702B 8.2KOHM
2 5
10
GS
D
3
2
1
Q1704
2N7002
1
32
R1725
10KOhm
r0402
12
R1721
100KOhm
12
RP1701H 8.2KOHM
9 5
10
R1719
330Ohm
/debug
1 2
U7B
MCP51
AF19
AB21
AC19
AA20
AA19
AF20
AE19
AE20
AB20
AB19
AA18
AB18
AE18
AF18
AC17
AA17
AB15
AF15
AE15
AF14
AE14
AA14
AB14
AC13
AB13
AE13
AA12
AF13
AB12
AF12
AE12
AF11
AD19
AB17
AA15
AA13
AC15
AD15
AB16
AE16
AA16
AE17
AF16
AF17
AD11
AF25
AE25
AD24
AE26
W22
L26
AA22
AE22
AF21
AF22
AE23
AE21
AC21
AA21
AB24
AB22
AE11
AB11
AC11
AA11
AE24
AF24
AD23
AF23
AB23
AC23
K24
H26
H25
K22
G25
K21
K23
L22
H24
F26
G26
PCI_AD0
PCI_AD1
PCI_AD2
PCI_AD3
PCI_AD4
PCI_AD5
PCI_AD6
PCI_AD7
PCI_AD8
PCI_AD9
PCI_AD10
PCI_AD11
PCI_AD12
PCI_AD13
PCI_AD14
PCI_AD15
PCI_AD16
PCI_AD17
PCI_AD18
PCI_AD19
PCI_AD20
PCI_AD21
PCI_AD22
PCI_AD23
PCI_AD24
PCI_AD25
PCI_AD26
PCI_AD27
PCI_AD28
PCI_AD29
PCI_AD30
PCI_AD31
PCI_CBE0#
PCI_CBE1#
PCI_CBE2#
PCI_CBE3#
PCI_FRAME#
PCI_IRDY#
PCI_TRDY#
PCI_STOP#
PCI_DEVSEL#
PCI_PAR
PCI_PERR#/GPIO_43
PCI_SERR#
PCI_PME#/GPIO_30
PCI_CLKRUN#/GPIO_42
PCI_RESET0#
PCI_RESET1#
PCI_RESET2#
PCI_RESET3#
LPC_RESET#
PCI_REQ0#
PCI_REQ1#
PCI_REQ2#
PCI_REQ3#/GPIO_38
PCI_REQ4#/GPIO_40
PCI_GNT0#
PCI_GNT1#
PCI_GNT2#
PCI_GNT3#/GPIO_39
PCI_GNT4#/GPIO_41
PCI_INTW#
PCI_INTX#
PCI_INTY#
PCI_INTZ#
PCI_CLK0
PCI_CLK1
PCI_CLK2
PCI_CLK3
PCI_CLK4
PCI_CLKIN
LPC_AD0
LPC_AD1
LPC_AD2
LPC_AD3
LPC_FRAME#
LPC_DRQ0#
LPC_CS#/LPC_DRQ1#
LPC_SERIRQ
LPC_PWRDWN#/GPIO_54
LPC_CLK0
LPC_CLK1
R1714 33Ohm
1 2
RP1702H 8.2KOHM
9 5
10
Q1705B
UM6K1N
5
34
R1726
10KOhm
r0402
12
R1701
8.2KOhm
12
C1706
Do Not Stuff
/X
12
R1715 22Ohm
1 2
R1724
0Ohm
12
C1702
Do Not Stuff
/x
12
RP1702D 8.2KOHM
4 5
10
C1707
Do Not Stuff
/x
12
C1705
Do Not Stuff
/X
12
+
LED1701
RED
/debug
12
R1702 22Ohm
1 2
R1722
100KOhm
12
R1716 33Ohm
1 2
+
LED1702
Do Not Stuff
/debug
12
R1713 22Ohm
1 2
C1703
Do Not Stuff
/x
12
RP1702A 8.2KOHM
1 5
10
R1720
Do Not Stuff
/debug
12
RP1701C 8.2KOHM
3 5
10
R1703 22Ohm
1 2
RP1701F 8.2KOHM
7 5
10
PCI_AD[0..31][32,33]
PCI_C/BE#[0..3][32,33]
PCI_FRAME#[32,33] PCI_IRDY#[32,33] PCI_TRDY#[32,33] PCI_STOP#[32,33] PCI_DEVSEL#[32,33] PCI_PAR[32,33] PCI_PERR#[32,33] PCI_SERR#[32,33] PCI_PME#[32,33] PM_CLKRUN#[32,33,38]
LPC_AD[0..3] [32,34,37,38]
LPC_FRAME# [32,34,37,38]
INT_SERIRQ [32,33,38]
MINI_PCI_RST#[32]
CARD_PCI_RST#[33]
PCI_IDE_RST#[31]
LPC_RST#[37,38]
CLK_SIOLPC [34]
CLK_FWHPCI [37]
LPC_DRQ#0
PCI_INTX# [32,33]
PCI_INTY# [32,33]
PCI_INTZ# [33]
PCI_REQ#0 [32]
PCI_REQ#1 [33]
PCI_GNT#0 [32]
PCI_GNT#1 [33]
CLK_MINIPCI [32]
CLK_CB [33]
CLK_KBC [38]
CPU_VLD[16,61,70]
GPU_PWR_EN [53,66,67,70]
SEL_DDC_G73M/C51# [40,41,54]
SEL_DDC_G73M/C51[40,41,54]
GPE_RESET# [22]
GPU_PRESENT# [12]
5
5
4
4
3
3
2
2
1
1
D D
C C
B B
A
A
width >10mil
length match within
100mil,5mil wide and
10mil away from
others
A3
18 72Wednesday, March 08, 2006
ASUSTECH CO.,LTD.
MCP51_IDE/SATA
1.0
A6T
Jefing_Li
A6TcSKU1
Size Project Name Rev
Date: Sheet of
Title :
Engineer:
IDE_PDIOW#
IDE_PDD12
IDE_PDCS1#
IDE_SDD10
IDE_PDD2
IDE_SDA2
IDE_SDDACK#
IDE_PDD15
IDE_SDD0
IDE_SDD2
IDE_SIORDY
IDE_SDD11
IDE_SDD12
UDMA_DET_S
IDE_PDA2
IDE_PDD1
IDE_SDD1
IDE_PDDACK#
IDE_PDD11
IDE_PDINTR
IDE_SDCS1#
IDE_SDCS3#
IDE_SDD6
IDE_SDIOW#
IDE_SDD9
IDE_SDIOR#
IDE_PDD14
IDE_PDCS3#
IDE_PIORDY
IDE_SDD5
IDE_PDA1
IDE_SDD7
UDMA_DET_P
IDE_PDA0
IDE_SDD3
IDE_PDIOR#
IDE_PDD5
IDE_PDD7
IDE_SDD13
IDE_COMP_GND
IDE_PDD10
IDE_PDD0
IDE_SDD14
IDE_SDINTR
IDE_PDD4
IDE_SDDREQ
IDE_PDD6
IDE_PDDREQ
IDE_SDD4
IDE_PDD13
IDE_COMP_3P3V
IDE_PDD9
IDE_SDD15
IDE_SDD8
IDE_PDD3
IDE_SDA1
SATA_A0_RX_N
IDE_SDA0
IDE_PDD8
SATA_A0_RX_P
SATA_TERMN
SATA_TERMP
+1.5V_PLL_SP_VDD
SATA_A0_TX_N
SATA_A0_TX_P
SATA_LED#
+3VS
+1.5VS
+3VS
+1.5VS
+3.3V_PLL_SP_SS
L1802
30Ohm/100Mhz
/satap
21 C1806
10UF/10V
/satap
12
C1801
10UF/10V
/satap
12
C1809
0.1UF/10V
/satap
12
L1801
30Ohm/100Mhz
/satap
21
T1803Do Not Stuff N/A 1
C1808
0.01UF/10V
/satap
12
R1810
121Ohm
12
C1805
0.1UF/10V
/satap
12
C1804
0.1UF/10V
/satap
12
R1809
2.49KOhm
1 2
T1802Do Not Stuff N/A 1
C1807
0.1UF/10V
/satap
12
R1812 Do Not Stuff
/sata0
1 2
T1801Do Not Stuff N/A 1
U7C
MCP51
B20
A20
A19
B19
B18
A18
A17
B17
B15
A15
A16
B16
B13
A13
A14
B14
C20
D14
E13
F13
F14
E14
F18
F19
D20
F8
D8
A9
E9
A10
E10
C10
E11
F11
D10
F10
B10
F9
B9
E8
A8
A6
D6
B6
A5
B5
B7
F7
E6
B8
E7
A7
C6
E4
D1
D4
C2
B2
C3
A3
A4
B4
B3
A2
B1
C1
D2
E3
E5
G4
G6
G2
G1
G3
F5
E1
F6
E2
F2
F1
G5
B11
A11
SATA_A0_TX_P
SATA_A0_TX_N
SATA_A0_RX_N
SATA_A0_RX_P
SATA_A1_TX_P
SATA_A1_TX_N
SATA_A1_RX_N
SATA_A1_RX_P
SATA_B0_TX_P
SATA_B0_TX_N
SATA_B0_RX_N
SATA_B0_RX_P
SATA_B1_TX_P
SATA_B1_TX_N
SATA_B1_RX_N
SATA_B1_RX_P
SATA_LED#/GPIO_57
SATA_TSTCLK_P
SATA_GND
SATA_TEST
SATA_TERMP
SATA_TERMN
+1.5V_PLL_SP_VDD
+1.5V_PLL_SP_SS
+3.3V_PLL_SP_SS
IDE_DATA_P0
IDE_DATA_P1
IDE_DATA_P2
IDE_DATA_P3
IDE_DATA_P4
IDE_DATA_P5
IDE_DATA_P6
IDE_DATA_P7
IDE_DATA_P8
IDE_DATA_P9
IDE_DATA_P10
IDE_DATA_P11
IDE_DATA_P12
IDE_DATA_P13
IDE_DATA_P14
IDE_DATA_P15
IDE_ADDR_P0
IDE_ADDR_P1
IDE_ADDR_P2
IDE_CS1_P#
IDE_CS3_P#
IDE_DACK_P#
IDE_IOW_P#
IDE_INTR_P
IDE_DREQ_P
IDE_IOR_P#
IDE_RDY_P
CABLE_DET_P/GPIO_63
IDE_DATA_S0
IDE_DATA_S1
IDE_DATA_S2
IDE_DATA_S3
IDE_DATA_S4
IDE_DATA_S5
IDE_DATA_S6
IDE_DATA_S7
IDE_DATA_S8
IDE_DATA_S9
IDE_DATA_S10
IDE_DATA_S11
IDE_DATA_S12
IDE_DATA_S13
IDE_DATA_S14
IDE_DATA_S15
IDE_ADDR_S0
IDE_ADDR_S1
IDE_ADDR_S2
IDE_CS1_S#
IDE_CS3_S#
IDE_DACK_S#
IDE_IOW_S#
IDE_INTR_S
IDE_DREQ_S
IDE_IOR_S#
IDE_RDY_S
CABLE_DET_S/GPIO_64
IDE_COMP_3P3
IDE_COMP_GND
C1802
0.1UF/10V
/satap
12
R1811
121Ohm
1 2
R1813 Do Not Stuff
/sata0
1 2
C1803
0.01UF/10V
/satap
12
UDMA_DET_P [31]
IDE_SDDREQ [31]
IDE_SDCS1# [31]
IDE_SDIOR# [31]
IDE_SIORDY [31]
IDE_PDIOW# [31]
IDE_PDINTR [31]
IDE_PDCS1# [31]
IDE_PDCS3# [31]
IDE_SDCS3# [31]
IDE_PDD[0..15] [31]
IDE_SDD[0..15] [31]
UDMA_DET_S [31]
IDE_SDINTR [31]
IDE_PDA[0..2] [31]
IDE_PDDACK# [31]
IDE_SDDACK# [31]
IDE_SDA[0..2] [31]
IDE_PIORDY [31]
IDE_PDIOR# [31]
IDE_SDIOW# [31]
IDE_PDDREQ [31]
SATA_A0_RX_N[31] SATA_A0_RX_P[31]
SATA_A0_TX_N[31] SATA_A0_TX_P[31]
SATA_LED#[31]
5
5
4
4
3
3
2
2
1
1
D D
C C
B B
A
A
USB 4 PORTS
BLUE TOOTH
CARD BUS
USB
CAMERA
DELAY 18~25ms
SIO CLK
0 14.314MHz
1 24MHz
SPKR STRAP
0 =USER MODE BOOT
1 =SAFE MODE BOOT
SUS_CLK STRAP
0 =MCP51 NORMAL
1 =MCP51 SLAVE
MODE
RTC Battery
P/N=07G016102032
0 MII
1 RGMII
Custom
19 72Wednesday, March 08, 2006
ASUSTECH CO.,LTD.
MCP51_USB/AC97/SMB
1.0
A6T
Jefing_Li
A6TcSKU1
Size Project Name Rev
Date: Sheet of
Title :
Engineer:
SB_SPKR
KBRST#
EXT_SMI#
PE_WAKE#
SMB_ALERT#
AC_CLK
PM_THERM#
USB_OC2#
I2C_CLK1
PWRBTN#
USB_RBIAS_GND
A20GATE
USB_OC_01#
INTRUDER#
I2C_CLK0
AC_SPDIF0
RI#
RSTBTN#
USB_OC_23#
I2C_DATA1
PM_SLP_DEEP#
RI#
EXT_SMI#
PWRBTN#
SIO_PME#
SUS_CLK
AC_BITCLK
AC_SOUT
SB_SPKR
AC_SYNC
AC_RESET#
KBRST#
VGA_PWRGD
BACK_OFF#
KB_SCI#
FWH_WP#
802_LED_EN_
802_LED_EN
KB_SCI#
BACK_OFF#
WLAN_ON#
I2C_DATA0
USB_OC3#
CLK_SIO14_
SUS_CLK
CRT_DDC_CLK_MCP
NV_I2CC_SDA_MCP
NV_I2CC_SCL_MCP
AC_RESET#
CRT_DDC_DATA_MCP
PWRLMT#
SIO_PME#
AC_SPDIF0
PM_V3P3_DEEP
PM_BATLOW#
PM_LID#
AC_SDIN0
AC_SDIN1
SUSB#
+3VS
+3VA
+VCC_RTC
GND
+RTCBAT
+1.5VS
GND
+3VSUS
+VCC_RTC
+3VSUS
GND
+1.5VS
+3.3V_PLL_USB
+VCC_RTC
+3.3V_PLL_SP_SS
+3VSUS
+3VSUS
+VCC_RTC
+3VSUS
+3VS
+3VSUS
+3VSUS
+5VS
+3VSUS +3VS
R1956 10KOhm
12
C1909
1UF/10V
12
R1949 10KOhm
12
JRST1
Do Not Stuff
12 12
R1929
22KOHM
1 2
R1926
22KOHM
1 2
Q1901A
UM6K1N
2
6 1
RN1902A
33Ohm
1 2
T1905
Do Not Stuff
1
C1902
1UF/10V
12
R1923
Do Not Stuff
/X
12
R1903
15KOhm
1 2
R1930
1KOhm
1 2
R1955 10KOhm
12
RN1901A
33Ohm
1 2
T1902 1
R1904 0Ohm 12
R1941
1KOhm
1 2
R1935
2.7KOhm
1 2
R1917
15KOhm
1 2
RN1902B
33Ohm
3 4
R1932
49.9KOhm
1 2
D1901
1
23
C1907
0.01UF/10V
12
C1901
0.1UF/10V
12
R1937
2.7KOhm
1 2
T1901
Do Not Stuff
1
R1905 0Ohm 12
R1957
0Ohm
1 2
R1942 1KOhm
1 2
R1934
2.7KOhm
1 2
R1939
2.7KOhm
1 2
R1944 10KOhm
12
T1903
Do Not Stuff
1
R1947 10KOhm
12
R1912
15KOhm
1 2
R1924
Do Not Stuff
/x
1 2
C1905
10UF/10V
12
R1906
15KOhm
1 2
R1943 1KOhm
12
R1933
1MOhm
12
C1904
0.1UF/10V
12
R1914
15KOhm
1 2
R1919
15KOhm
1 2
R1948 4.7KOhm
12
BAT1
BATT_HOLDER
12
R1921
15KOhm
1 2
C1910
Do Not Stuff/X
12
R1907
15KOhm
1 2
R1938
2.7KOhm
1 2
R1911
15KOhm
1 2
R1901
10KOhm
12
R1928
22KOHM
1 2
U7D
MCP51
R22
U26
T25
R26
T24
U21
U25
R21
T26
AE10
AF10
AF9
AB10
AE9
AA10
J4
J3
J5
AE2
K5
J2
J1
AC9
AB9
AA9
P24
P25
P22
P26
R25
P23
B25
B24
E22
G22
A25
B22
A22
Y21
AD26
AC26
AC25
AB26
AB25
AA26
AA25
Y26
Y25
W26
W25
V24
V23
V26
V25
T22
T23
Y24
Y23
U22
V22
AD25
J22
A24
M26
M25
E26
D23
M23
J21
AC3
H1
H2
M21
L25
M22
A23
J26
N21
K25
F21
C26
F24
B26
N22
L21
J25
K26
D25
AC97_CLK
AC_BITCLK/HDA_BCLK
(AC/HAD)_SDATA_OUT0/GPIO_45
(AC/HAD)_SDATA_IN0/GPIO_22
(AC/HAD)_SDATA_IN1/GPIO_23
(AC/HAD)_SDATA_IN2/GPIO_24
AC_RESET#/HDA_RST#
AC_SYNC/HDA_SYNC/GPIO_44
SPDIF0/GPIO_46
DDC_CLK0
DDC_DATA0
HPLUG_DET0/GPIO_47
DDC_DATA1/GPIO_53
NC
DDC_CLK1/GPIO_52
GPIO_1/SLV_RDY4PWRDWN
GPIO_2/CPU_SLP
GPIO_3/CPU_CLKRUN
GPIO_4/AGPSTP/SUS_STAT
GPIO_5/SYS_SHUTDOWN
GPIO_6/NFERR/SYS_PERR
GPIO_7/FERR/SYS_SERR
GPIO_8/CR_VID0
GPIO_9/CR_VID1
GPIO_10/CR_VID2
GPIO_11/CPU_VID0
GPIO_12/CPU_VID1
GPIO_13/CPU_VID2
GPIO_14/CPU_VID3
GPIO_15/CPU_VID4
GPIO_16/CPU_VID5
LID#/GPIO_17
SLP_DEEP#
V3P3_DEEP
LLB#
RTC_RST#
+1.5V_PLL_LEG
+3.3V_PLL_LEG
+1.5V_PLL_USB
+3.3V_PLL_USB
USB0_P
USB0_N
USB1_P
USB1_N
USB2_P
USB2_N
USB3_P
USB3_N
USB4_P
USB4_N
USB5_P
USB5_N
USB6_P
USB6_N
USB7_P
USB7_N
USB_OC0#/GPIO_18
USB_OC1#/GPIO_19
USB_OC2#/GPIO_20
USB_OC3#/GPIO_21
USB_RBIAS_GND
A20GATE/GPIO_55
INTRUDER#
EXT_SMI#/GPIO_32
RI#/GPIO_33
SPKR
PWRBTN#
SIO_PME#/GPIO_31
KBRDRSTIN#/GPIO_56
PE_WAKE#
SMB_CLK0/GPIO_25
SMB_DATA0/GPIO_26
SMB_CLK1/GPIO_27
SMB_DATA1/GPIO_28
SMB_ALERT#/GPIO_29
+3.3V_VBAT
BUF_SIO_CLK
SUS_CLK/GPIO_34
THERM#/GPIO_59
RSTBTN#
SLP_S5#
SLP_S3#
PWRGD_SB
PWRGD
FANRPM/GPIO_60
FANCTL0/GPIO_61
FANCTL1/GPIO_62
TEST_MODE_EN
R1951 10KOhm
12
R1950 10KOhm
12
R1922
15KOhm
1 2
RN1901B
33Ohm
3 4
R1902
15KOhm
1 2
R1916
15KOhm
1 2
R1925
10KOhm
12
C1903
0.1UF/10V
12
R1927
22KOHM
1 2
R1931
732Ohm
1%
1 2
R1908 10KOhm
1 2
R1946 0Ohm
1 2
R1945 10KOhm
12
R1909
15KOhm
1 2 R1910
15KOhm
1 2
R1913
Do Not Stuff
/X
12
Q1901B
UM6K1N
5
3 4
C1906
0.1UF/10V
12
R1953 10KOhm
12
R1920
15KOhm
1 2
C1908
0.1UF/10V
12
T1904
Do Not Stuff
1
L1901
30Ohm/100Mhz
21
R1936
10KOhm
1 2
R1958
22KOHM
12
R1915
15KOhm
1 2
SB_SPKR [42]
SUSB# [33,41,67,70]
USB_PN2_B [39]
USB_PP6_B [39]
USB_OC_01# [39]
USB_OC_23# [39]
EXT_SMI# [38]
USB_PN0_B [39]
USB_PP2_B [39]
USB_PN5_B [33]
A20GATE [38]
PWRGD_SB [49,50]
USB_PN4_B [41]
SB_PWRBTN# [49]
USB_PP0_B [39]
USB_PN1_B [39]
USB_PP5_B [33]
USB_PN6_B [39]
USB_PN3_B [39]
USB_PP4_B [41]
KBRST# [38]
SUSC# [47,49,67]
USB_PP1_B [39]
PWRGD [70]
USB_PP3_B [39]
I2C_DATA0_S [8,15]
I2C_DATA1 [38]
I2C_CLK0_S [8,15]
I2C_CLK1 [38]
PM_THERM# [15]
RSTBTN# [21]
SMB_ALERT# [15]
CPUFAN_SPD_A [15]
AC_SDIN0[42] AC_SDIN1[45]
AC_SOUT[42,45]
AC_RESET#[42,43,45] AC_SYNC[42,45]
AC_BITCLK[42,45]
BACK_OFF#[41]
KB_SCI#[38] VGA_PWRGD[66,70]
FWH_WP#[37]
802_LED_EN[32,39,48]
BT_ON[39] WLAN_ON#[32]
CPU_PROCHOT#[9]
TV_EN[13]
PE_WAKE# [46]
CB_SD#[33]
USB_PP7_B [39]
USB_PN7_B [39]
MCP51_CRT_DDC_CLK[40] MCP51_CRT_DDC_DATA[40]
MINIWL_ON[39]
PWRLMT#[68]
MCP51_I2CC_SDA[54]
MCP51_I2CC_SCL[54]
SEL_LVDS_C51/G73M_[54]
LOAD_TEST[13]
LID_SW_SB#[49]
5
5
4
4
3
3
2
2
1
1
D D
C C
B B
A
A

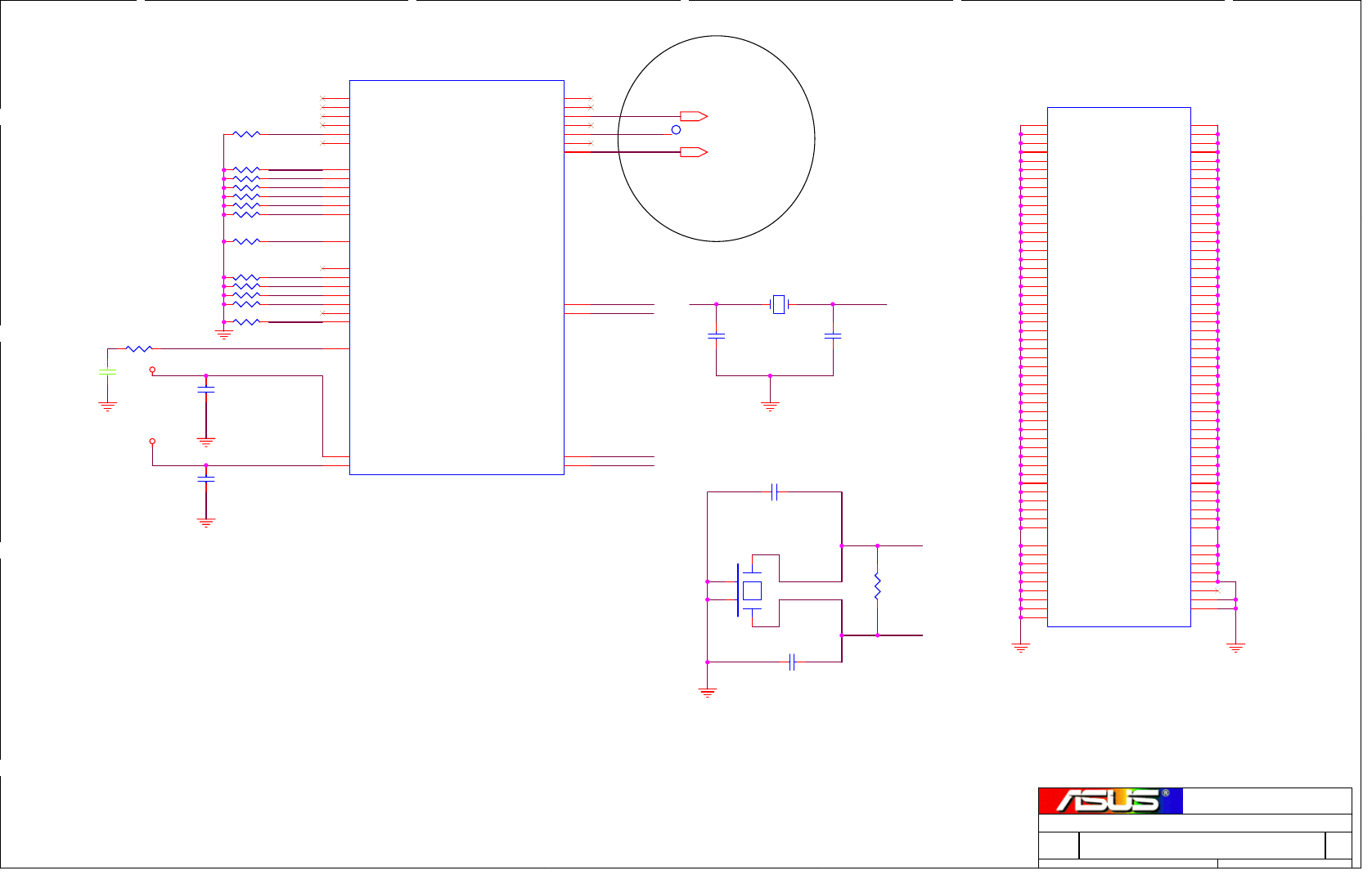

FOR LAN PHY
RTC Crystal
for NV SLI power
B
20 72Wednesday, March 08, 2006
ASUSTECH CO.,LTD.
MCP51_RGMI/XTAL
1.0
A6T
Jefing_Li
A6TcSKU1
Size Project Name Rev
Date: Sheet of
Title :
Engineer:
25M_XTALOUT
RTC_XTALIN
25M_XTALIN
RTC_XTALOUT
RTC_XTALOUT
RTC_XTALIN
25M_XTALOUT25M_XTALIN
SB_BKL_ON
SB_BKL_CTL
SB_PANEL_PWR
+3VSUS
+1.5VSUS
GND
GND
R2005 10KOhm
1 2
12
X2001
25Mhz
R2013 Do Not Stuff
/x
1 2
R2007 10KOhm
1 2
T7196Do Not Stuff
1
R2011 10KOhm
1 2
X2002
32.768Khz
1 4
2
3
R2009 4.7KOhm
12
R2002 10KOhm
1 2
R2015 10KOhm
1 2
R2014
10MOhm
1 2
R2008 10KOhm
1 2
R2001 10KOhm
1 2
C2012
18PF/50V
12
C2008
Do Not Stuff
/x
12
R2004 10KOhm
1 2
R2006 10KOhm
1 2
R2010 10KOhm
1 2
C2002
22PF/50V
NPO
12
R2012 10KOhm
1 2
U7G
MCP51
AF26
AF1
AD22
AD20
AD18
AD16
AD14
AD12
AD10
AD8
AD6
AD4
AC24
AB3
AA24
Y3
W24
V3
U24
U14
U13
T16
T15
T14
T13
T12
T11
T3
R24
R16
R15
R14
R13
R12
R11
P17
P16
P15
P14
P13
P12
P11
P10
P3
N24
N17
F20
E18
D18
D16
E20
C18
C16
B21
A21
N16
N15
N14
N13
N12
N11
N10
M16
M15
M14
M13
M12
M11
M3
L24
L16
L15
L14
L13
L12
L11
K14
K13
K3
J24
H3
G24
F3
E24
D3
C23
C11
C9
C7
C5
A26
A1
H5
H6
U4
R4
N4
L4
W4
L5
L6
C21
C19
C17
C15
C13
C14
B12
A12
GND1
GND2
GND3
GND4
GND5
GND6
GND7
GND8
GND9
GND10
GND11
GND12
GND13
GND14
GND15
GND16
GND17
GND18
GND19
GND20
GND21
GND22
GND23
GND24
GND25
GND26
GND27
GND28
GND29
GND30
GND31
GND32
GND33
GND34
GND35
GND36
GND37
GND38
GND39
GND40
GND41
GND42
GND43
GND44
GND45
GND46
SATA_GND1
SATA_GND2
SATA_GND3
SATA_GND4
SATA_GND5
SATA_GND6
SATA_GND7
SATA_GND8
SATA_GND9
GND47
GND48
GND49
GND50
GND51
GND52
GND53
GND54
GND55
GND56
GND57
GND58
GND59
GND60
GND61
GND62
GND63
GND64
GND65
GND66
GND67
GND68
GND69
GND70
GND71
GND72
GND73
GND74
GND75
GND76
GND77
GND78
GND79
GND80
GND81
GND82
GND83
GND84
GND85
GND86
GND87
GND88
GND89
GND90
GND91
GND92
SATA_GND10
SATA_GND11
SATA_GND12
SATA_GND13
SATA_GND14
SATA_TSTCLK_N
SATA_GND15
SATA_GND16
C2011
18PF/50V
12
U7E
MCP51
AE7
AF6
AB6
AA6
AA7
AB7
AF7
AF8
AD7
AB8
AC7
AE8
AF4
AF5
AE6
AD3
AC4
AF2
AE5
AA8
AC5
AE4
AB5
E19
D12
C25
E25
C24
E12
D24
E21
D22
C22
B23
RGMII_TXD0/MII_TXD0
RGMII_TXD1/MII_TXD1
RGMII_TXD2/MII_TXD2
RGMII_TXD3/MII_TXD3
RGMII_TXCLK/MII_TXCLK
RGMII_TXCTL/MII_TXEN
RGMII_RXD0/MII_RXD0
RGMII_RXD1/MII_RXD1
RGMII_RXD2/MII_RXD2
RGMII_RXD3/MII_RXD3
RGMII_RXCLK/MII_RXCLK
RGMII_RXCTL/MII_RXDV
RGMII_VREF/MII_VREF
RGMII_MDC/MII_MDC
RGMII_MDIO/MII_MDIO
MII_RXER/GPIO_36
MII_COL
MII_CRS
RGMII_PWRDWN/MII_PWRDWN/GPIO_37
RGMII_INTR/MII_INTR/GPIO_35
BUF_25MHZ
+1.2V_PLL_MAC_DUAL
+3.3V_PLL_MAC_DUAL
NC1
NC2
LCD_BKL_ON/GPIO_51
NC3
LCD_BKL_CTL/GPIO_49
NC4
LCD_PANEL_PWR/GPIO_50
XTALIN
XTALOUT
XTALIN_RTC
XTALOUT_RTC
C2003
22PF/50V
NPO
12
C2005
Do Not Stuff
/x
12
C2001
Do Not Stuff
/X
12
R2003 10KOhm
1 2
SB_BKL_ON [41]
SB_PANEL_PWR [41]

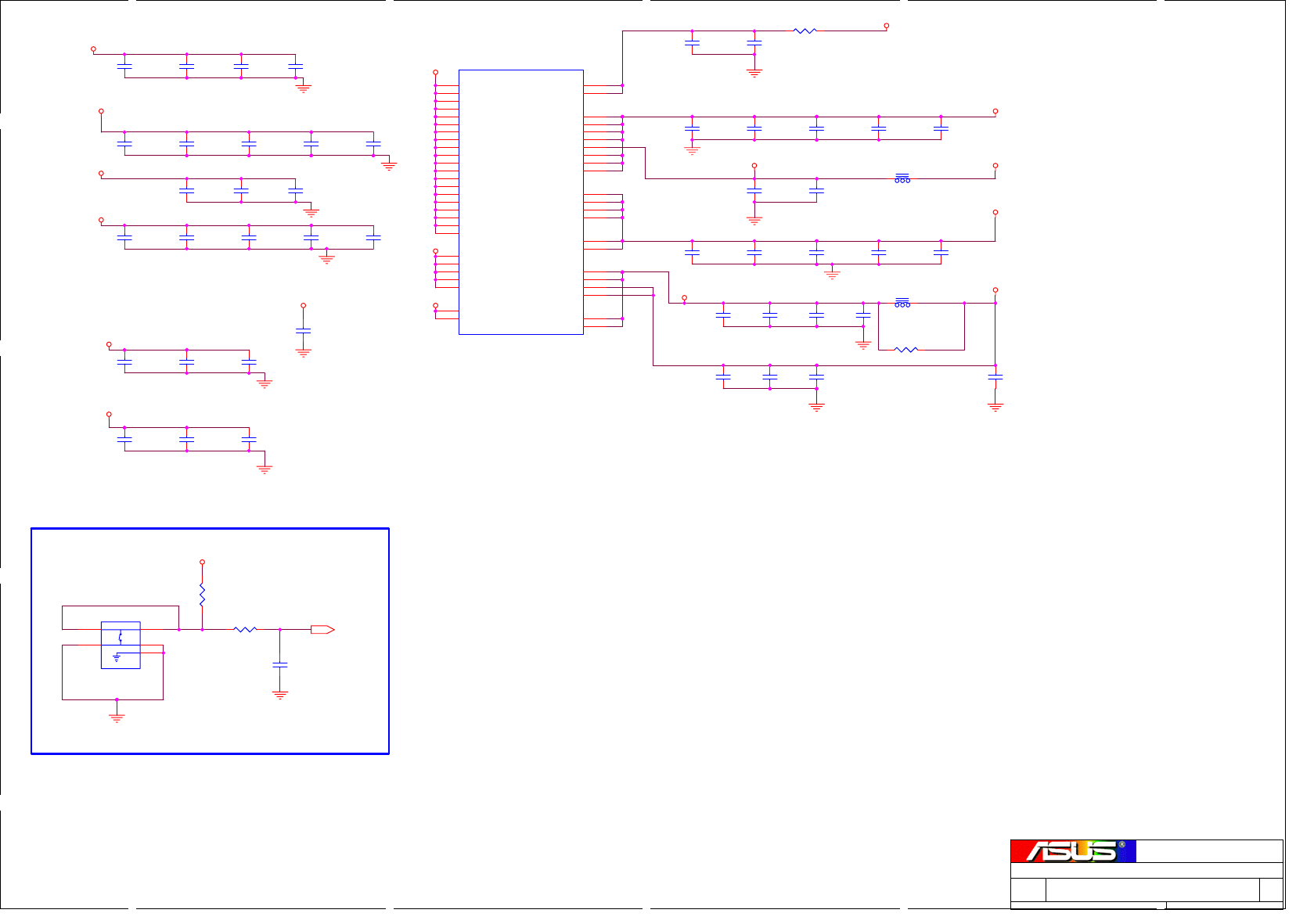

5
5
4
4
3
3
2
2
1
1
D D
C C
B B
A
A
1.5V_SP_A @440MA
1.5V_SP_D @164MA
1.5V_PLL_SP_DVDD @20MA
1.5V_PLL_SP_AVDD @160MA
1.5V_PLL_CPU_HT @71MA
1.5V_PLL_SP_SS @10MA
1.5V_PLL_LEG @4MA
1.5V_PLL_USB_CORE @16MA
FOR SATA & MXM CONNECTOR
1.5V
/RESET button
A3
21 72Wednesday, March 08, 2006
ASUSTECH CO.,LTD.
MCP51_VCC
1.0
A6T
Jefing_Li
A6TcSKU1
Size Project Name Rev
Date: Sheet of
Title :
Engineer:
+1.5V_SP_A_MCP
+1.2VS
+1.2VS
+1.5VSUS
+1.2VS
+1.2VS
+3V_HT_MCP
+1.5VS
+3VS
+1.2VS
+1.2VS
+1.2VS
+1.2VS
+1.5VSUS
+5VS
+3VSUS
+3VSUS
+3VS
L2102
30Ohm/100Mhz
21
C2121
4.7UF/6.3V
12
C2107
0.1UF/10V
12
C2109
0.1UF/10V
12
C2114
0.1UF/10V
12
C2144
0.1UF/10V
12
C2153
0.01UF/10V
12
L2101
47Ohm/100Mhz
/satap
21
C2154
1UF/16V
/debug
12
C2147
0.1UF/10V
12
C2118
4.7UF/6.3V
12
C2101
22UF/6.3V
12
C2106
0.1UF/10V
12
C2124
0.1UF/10V
12
C2134
1UF/16V
12
C2151
1UF/16V
12
C2116
0.1UF/10V
12
C2115
0.1UF/10V
12
C2110
0.1UF/10V
12
C2112 0.1UF/10V
12
C2128
0.1UF/10V
/satap
12
C2120
1UF/16V
12
C2148
0.1UF/10V
12
SW2101
Do Not Stuff
/debug
1
3
2
5
4
1
3
2
5
4
C2126
0.1UF/10V
12
C2129
0.1UF/10V
/satap
12
C2103
1UF/16V
12
U7F
MCP51
U17
U16
U15
U12
U11
U10
T17
T10
R17
R10
M17
M10
L17
L10
K17
K16
K15
K12
K11
K10
U3
R3
N3
L3
W3
AE3
AF3
Y22
F12
AD21
AD17
AD13
AD9
AD5
C12
C8
C4
Y6
T21
P21
G21
W21
V21
F17
E17
F15
E15
E16
F16
+1.2V_1
+1.2V_2
+1.2V_3
+1.2V_4
+1.2V_5
+1.2V_6
+1.2V_7
+1.2V_8
+1.2V_9
+1.2V_10
+1.2V_11
+1.2V_12
+1.2V_13
+1.2V_14
+1.2V_15
+1.2V_16
+1.2V_17
+1.2V_18
+1.2V_19
+1.2V_20
+1.2V_HT_1
+1.2V_HT_2
+1.2V_HT_3
+1.2V_HT_4
+1.2V_HT_5
+1.2V_DUAL_1
+1.2V_DUAL_2
+5V_1
+5V_2
+3.3V_1
+3.3V_2
+3.3V_3
+3.3V_4
+3.3V_HT
+3.3V_5
+3.3V_6
+3.3V_7
+3.3V_DUAL_1
+3.3V_DUAL_2
+3.3V_DUAL_3
+3.3V_DUAL_4
+3.3V_USB_DUAL_1
+3.3V_USB_DUAL_2
+1.5V_SP_A_1
+1.5V_SP_A_2
+1.5V_SP_D_1
+1.5V_SP_D_2
+1.5V_SP_A_3
+1.5V_SP_A_4
C2143
0.1UF/10V
12
C2111
0.1UF/10V
12
C2138
0.1UF/10V
/satap
12
C2102
4.7UF/6.3V
12
C2146
0.1UF/10V
12
C2137
0.1UF/10V
/satap
12
C2149
0.1UF/10V
12
R2104 Do Not Stuff
/sata0
1 2
R2102
10KOhm
12
C2139
10UF/10V
12
C2105
0.1UF/10V
12
C2127
0.1UF/10V
12
R2103 33Ohm
1 2
C2104
1UF/16V
12
C2145
0.1UF/10V
12
C2150
0.1UF/10V
12
C2117
0.1UF/10V
12
C2108
0.1UF/10V
12
C2113
0.1UF/10V
12
C2135
10UF/10V
/satap
12
C2152
0.1UF/10V
12
C2119
1UF/16V
12
C2131
0.1UF/10V
/satap
12
C2123
0.01UF/10V
12
C2130
0.1UF/10V
/satap
12
C2125
0.1UF/10V
12
R2105
100Ohm
1 2
RSTBTN# [19]
5
5
4
4
3
3
2
2
1
1
D D
C C
B B
A
A
80mil
80mil
G3-128 only
12mil
12mil
<< Place on bottom
west of GPU
<< Place on bottom
north of GPU
<< Place on bottom
south of GPU
<< Place on bottom
east of GPU
<< Place near balls
<< Place near balls
<< Place near balls
<< Place near balls
PEX_IOVDD/Q 1.2V,Imax=1420mA
VDD 0.95V,Imax=12.75A
VDD 1.025V,Imax=16.25A
PEX_PLLAVDD 1.2V,Imax=100mA
PEX_PLLDVDD 1.2V,Imax=20mA
8 mA
at least 5 mils
C
22 72Wednesday, March 08, 2006
ASUSTECH CO.,LTD.
G73M_PCIE
1.0
A6T
Jefing_Li
A6TcSKU1
Size Project Name Rev
Date: Sheet of
Title :
Engineer:
PE0_X16_RX_P11
PE0_X16_RX_N4
PE0_X16_RX_P10
PE0_X16_RX_P6
PE0_X16_RX_N13
PE0_X16_RX_P3
PE0_X16_RX_P14
PE0_X16_RX_N1
PE0_X16_RX_N11
PE0_X16_RX_P7
PE0_X16_RX_P13
PE0_X16_RX_P8
PE0_X16_RX_P4
PE0_X16_RX_N0
PE0_X16_RX_N15
PE0_X16_RX_N14
PE0_X16_RX_P1
PE0_X16_RX_P5
PE0_X16_RX_N10
PE0_X16_RX_N5
PE0_X16_RX_N12
PE0_X16_RX_P0
PE0_X16_RX_N3
PE0_X16_RX_N8
PE0_X16_RX_P2
PE0_X16_RX_P12
PE0_X16_RX_N2
PE0_X16_RX_N9
PE0_X16_RX_P9
PE0_X16_RX_N6
PE0_X16_RX_P15
PE0_X16_RX_N7
RPE0_X16_RX_P15
NV_PLLAVDD
PE0_X16_CLK_N
PE0_X16_TX_P6
PE0_X16_TX_N10
RPE0_X16_RX_N14
PE0_X16_CLK_P
RPE0_X16_RX_P2
PE0_X16_TX_N3
PE0_X16_TX_P4
RPE0_X16_RX_P12
VDD_SENSE
PE0_X16_TX_P5
PE0_X16_TX_N11
RPE0_X16_RX_N3
PE0_X16_TX_P10
RPE0_X16_RX_N1
RPE0_X16_RX_N2
RPE0_X16_RX_P4
RPE0_X16_RX_P7
PE0_X16_TX_P11
PE0_X16_TX_P12
RPE0_X16_RX_N13
PE0_X16_TX_N14
RPE0_X16_RX_N4
PE0_X16_TX_P9
RPE0_X16_RX_N10
PE0_X16_TX_N13
PE0_X16_TX_P1
PE0_X16_TX_P3
RPE0_X16_RX_N5
RPE0_X16_RX_N7
RPE0_X16_RX_N9
PE0_X16_TX_P15
RPE0_X16_RX_P3
RPE0_X16_RX_P14
PE0_X16_TX_P14
RPE0_X16_RX_P0
PE0_X16_TX_P0
PE0_X16_TX_N0
PE0_X16_TX_N9
RPE0_X16_RX_N0
PE0_X16_TX_N1
RPE0_X16_RX_P5
RPE0_X16_RX_N6
RPE0_X16_RX_P10
RPE0_X16_RX_N12
PE0_X16_TX_P13
PE0_X16_TX_P2
PE0_X16_TX_N4
PE0_X16_TX_N5
PE0_X16_TX_N6
RPE0_X16_RX_P9
RPE0_X16_RX_N11
PE0_X16_TX_N15
RPE0_X16_RX_P1
RPE0_X16_RX_P6
PE0_X16_TX_N12
RPE0_X16_RX_P13
RPE0_X16_RX_P8
PE0_X16_TX_P8
PE0_X16_TX_N2
PE0_X16_TX_P7
PE0_X16_TX_N7
RPE0_X16_RX_N8
PE0_X16_TX_N8
RPE0_X16_RX_P11
RPE0_X16_RX_N15
NV_PLLAVDD
GPE_RESET# GND
+1.2VS_GPU
GND
+1.2VS_GPU
GND
GND
GND
GND
+3VS_GPU
GND
+1.2VS_GPU
PEX_PLL_AVDD
GND
VGA_VCORE
GND
GND GND
+1.2VS_GPU
C22063
0.1UF/10V
12
C22080
0.1UF/10V
12
C22060
0.1UF/10V
12
C22051
0.1UF/10V
12
R2201 Do Not Stuff
/x
12
C22100
4.7UF/6.3V
12
C22011
1UF/10V
12
C22031
0.47UF/6.3V
12
C22034
0.1UF/10V
12
C22019
0.47UF/6.3V
12
C22059
0.1UF/10V
12
C22005
4.7UF/6.3V
12
C22109
0.1UF/10V
12
C22043
0.1UF/10V
12
C22104
0.1UF/10V
12
T2201
Do Not Stuff
N/A
1
C22030
0.47UF/6.3V
12
C22046
0.47UF/6.3V
12
C22033
0.1UF/10V
12
C22081
0.1UF/10V
12
C22107
0.1UF/10V
12
C22108
0.1UF/10V
12
C22113
0.1UF/10V
12
L2202
120Ohm/100Mhz
21
C22037
10UF/10V
12
C22112
0.1UF/10V
12
C22083
0.47UF/6.3V
12
C22035
0.1UF/10V
12
C22013
4.7UF/6.3V
12
C22105
0.1UF/10V
12
C22022
0.1UF/10V
12
C22106
0.1UF/10V
12
T2202
Do Not Stuff
N/A
1
R2202
1KOhm
1 2
C22092
0.1UF/10V
12
C22009
0.47UF/6.3V
12
C22047
0.47UF/6.3V
12
C22090
0.1UF/10V
12
C22084
0.47UF/6.3V
12
C22103
0.1UF/10V
12
C22020
0.1UF/10V
12
C22042
0.1UF/10V
12
C22018
0.47UF/6.3V
12
C22102
0.1UF/10V
12
C22049
0.47UF/6.3V
12
C22086
0.1UF/10V
12
C22111
0.1UF/10V
12
C22003
1UF/10V
12
C22032
0.47UF/6.3V
12
C22017
0.47UF/6.3V
12
C22093
0.1UF/10V
12
C22010
0.47UF/6.3V
12
U8A
G73M
AL29
AL28
AH27
AJ28
AM28
AM27
AJ27
AK27
AL27
AL26
AG26
AH26
AK26
AK25
AH25
AJ25
AM25
AM24
AJ24
AK24
AL24
AL23
AH23
AG23
AK23
AK22
AH22
AJ22
AM22
AM21
AJ21
AK21
AL21
AL20
AH21
AG21
AK20
AK19
AH20
AG20
AM19
AM18
AH19
AJ19
AL18
AL17
AJ18
AK18
AK17
AK16
AH18
AG18
AL16
AL15
AH17
AG17
AM15
AM14
AG16
AH16
AK14
AK13
AK15
AJ15
AJ14
AH14
AM11
AM12
AH13
AG12
AH15
AM10
AE16
AE15
AF15
AC11
U13
K16
AC16
AD23
AM8
AM9
B32
J6
AC12
AC24
AD24
AE11
AE12
H7
J7
K7
L10
L7
L8
M10
AF23
AF24
AF25
AG24
AG25
AC17
AC21
AC22
AE18
AE21
AE22
AF12
AF18
AF21
AF22
K17
N13
N14
N16
N17
N19
N20
P13
P14
P16
P17
P19
R16
R17
T13
T14
T15
T18
T19
U14
U15
U18
U19
V16
V17
W13
W14
W16
W17
W19
Y13
Y14
Y16
Y17
Y19
Y20
P20
T20
T23
U20
U23
W20
PEX_RX15_N
PEX_RX15
PEX_TX15_N
PEX_TX15
PEX_RX14_N
PEX_RX14
PEX_TX14_N
PEX_TX14
PEX_RX13_N
PEX_RX13
PEX_TX13_N
PEX_TX13
PEX_RX12_N
PEX_RX12
PEX_TX12_N
PEX_TX12
PEX_RX11_N
PEX_RX11
PEX_TX11_N
PEX_TX11
PEX_RX10_N
PEX_RX10
PEX_TX10_N
PEX_TX10
PEX_RX9_N
PEX_RX9
PEX_TX9_N
PEX_TX9
PEX_RX8_N
PEX_RX8
PEX_TX8_N
PEX_TX8
PEX_RX7_N
PEX_RX7
PEX_TX7_N
PEX_TX7
PEX_RX6_N
PEX_RX6
PEX_TX6_N
PEX_TX6
PEX_RX5_N
PEX_RX5
PEX_TX5_N
PEX_TX5
PEX_RX4_N
PEX_RX4
PEX_TX4_N
PEX_TX4
PEX_RX3_N
PEX_RX3
PEX_TX3_N
PEX_TX3
PEX_RX2_N
PEX_RX2
PEX_TX2_N
PEX_TX2
PEX_RX1_N
PEX_RX1
PEX_TX1_N
PEX_TX1
PEX_RX0_N
PEX_RX0
PEX_TX0_N
PEX_TX0
PEX_REFCLK_N
PEX_REFCLK
PEX_TSTCLK_OUT_N
PEX_TSTCLK_OUT
NC1
NC2
PEX_RST_N
GND1
PEX_PLLGND
PEX_PLLDVDD
PEX_PLLAVDD
VDD33_13
VDD18
VDD36
PEX_IOVDDQ11
PEX_IOVDD6
NC5
NC4
NC3
SPDIF
VDD33_12
VDD33_11
VDD33_10
VDD33_9
VDD33_8
VDD33_7
VDD33_6
VDD33_5
VDD33_4
VDD33_3
VDD33_2
VDD33_1
PEX_IOVDD5
PEX_IOVDD4
PEX_IOVDD3
PEX_IOVDD2
PEX_IOVDD1
PEX_IOVDDQ10
PEX_IOVDDQ9
PEX_IOVDDQ8
PEX_IOVDDQ7
PEX_IOVDDQ6
PEX_IOVDDQ5
PEX_IOVDDQ4
PEX_IOVDDQ3
PEX_IOVDDQ2
PEX_IOVDDQ1
VDD35
VDD34
VDD33
VDD32
VDD31
VDD30
VDD_SENSE
VDD29
VDD28
VDD27
VDD26
VDD25
VDD24
VDD23
NV_PLLAVDD
VDD22
VDD21
VDD20
VDD19
VDD17
VDD16
VDD15
VDD14
VDD13
VDD12
VDD11
VDD10
VDD9
VDD8
VDD7
VDD6
VDD5
VDD4
VDD3
VDD2
VDD1
VDD_LP6
VDD_LP5
VDD_LP4
VDD_LP3
VDD_LP2
VDD_LP1
C22101
4.7UF/6.3V
12
L2201
120Ohm/100Mhz
21
C22085
0.1UF/10V
12
C22110
0.1UF/10V
12
C22012
1UF/10V
12
C22007
0.1UF/10V
12
C22114
4.7UF/6.3V
12
C22091
0.1UF/10V
12
C22021
0.1UF/10V
12
C22079
0.1UF/10V
12
C22082
0.1UF/10V
12
C22062
0.1UF/10V
12
C22077
0.1UF/10V
12
C22087
0.1UF/10V
12
C22075
0.1UF/10V
12
C22076
0.1UF/10V
12
C22094
0.1UF/10V
12
L2203
220Ohm
21
C22064
0.1UF/10V
12
C22061
0.1UF/10V
12
C22096
0.1UF/10V
12
C22078
0.1UF/10V
12
C22001
0.1UF/10V
12
C22048
0.47UF/6.3V
12
C22099
0.1UF/10V
12
C22050
0.1UF/10V
12
C22098
0.01UF/10V
12
C22008
0.1UF/10V
12
C22097
4.7UF/6.3V
12
C22045
0.1UF/10V
12
C22036
10UF/10V
12
C22044
0.1UF/10V
12
C22006
10UF/10V
12
C22095
0.01UF/10V
12
PE0_X16_RX_P[0..15][12]
PE0_X16_RX_N[0..15][12]
PE0_X16_CLK_P[12]
PE0_X16_TX_N[0..15][12]
PE0_X16_TX_P[0..15][12]
PE0_X16_CLK_N[12]
PE_RESET#[12,46]
GPE_RESET#[17]
5
5
4
4
3
3
2
2
1
1
D D
C C
B B
A
A
NVVDD is a
Variable,range
from 0.95 to
1.025V for
G73M
BA1
CMD14
CAS# not use
A2
A8
144 BGA CMD MAPPING
CMD6
A5
CMD23
A9
A3
A10
CMD5
CMD20
A2
CMD25
RESET
CMD17
CS1# not use
CS0
A4
CMD24 A7
CMD4
BA0
A3
CMD22
CMD9
CMD2
A5
A1
CMD8
A0
CMD21
CMD7
RAS#
WE#
CKE
A6
CMD3
CMD1
CMD ADDR
A11
CMD12
CMD19
CMD10
A4
CMD18
CMD13
CMD15 A12
CMD11
CMD0
CMD16
0.5*FBVDDQ FOR DDR &DDR2
0.7*FBVDDQ FOR DDR3
CLOSE TO THE BGA
CLOSE TO THE BGA
FBVDD/Q 1.8V,Imax=3300~3600mA
A2
23 72Wednesday, March 08, 2006
ASUSTECH CO.,LTD.
G73M_FB I/F
1.0
A6T
Jefing_Li
A6TcSKU1
Size Project Name Rev
Date: Sheet of
Title :
Engineer:
FBA_DEBUG
FBAD48
FBAD15
FBAD58
FBADQS#4
FBADQS2
FBAD51
FBAD61
FBADQS1
FBAD44
FBAD47
FBAD28
FBAD38
FBAD21
FBADQM3
FBADQM7
FBADQS#5
FBAD17
FBAD19
FBAD31
FBAD40
FBAD33
FBAD1
FBAD23
FBAD18
FBAD24
FBAD27
FBAD3
FBADQS0
FBAD30
FBADQM5
FBADQS#3
FBADQS6
FBAD25
FBAD6
FBAD60
FBAD20
FBADQS#0
FBADQM0
FBADQS#2
FBAD57
FBAD42
FBAD32
FBAD9
FBAD43
FBAD8
FBAD62
FBAD37
FBAD39
FBADQS#1
FBAD2
FBAD13
FBAD46
FBAD54
FBAD50
FBAD35
FBAD45
FBADQS#6
FBAD4
FBAD12
FBAD10
FBAD16
FBADQS3
FBAD63
FBAD7
FBADQM6
FBADQS5
FBADQS#7
FBADQS7
FBADQM2
FBAD34
FBAD29
FBADQS4
FBAD11
FBAD22
FBAD26
FBAD5
FBAD41
FBAD0
FBAD36
FBAD59
FBAD14
FBADQM1
FBAD56
FBAD53
FBAD49
FBADQM4
FBAD55
FBAD52
G73_FB_VREF1
FBA_A9
FBA_CAS#
FBA_A10
FBA_A11
FBA_A6
FBA_A0
FBA_A3
FBA_WE#
FBA_A4
FBA_A12
FBB_A2
FBA_BA0
FBA_RAS#
FBA_A8
FBA_A5
FBA_A2
FBA_A7
FBA_CKE
FBA_PLLAVDD
FBB_A4
FBB_A5
FBA_CS#1
FBA_CS#0
FBB_A3
FBA_A1
FBA_BA1
FBA_CLK1P
FBA_CLK0P
FBA_CLK0N
FBA_CLK1N
FBCD12
FBCD44
FBCD13
FBCD60
FBCD53
FBCDQS3
FBCD28
FBCD8
FBCDQS#5
FBCD0
FBCDQM1
FBCD52
FBCD19
FBCD37
FBCD46
FBCD15
FBCD29
FBCDQS#2
FBCDQM4
FBCDQS#6
FBCD26
FBCD10
FBCD2
FBCD41
FBCD38
FBCD49
FBCD48
FBCD42
FBCD6
FBCD3
FBCDQS#7
FBCD59
FBCD56
FBCD25
FBCD16
FBCDQM6
FBCD63
FBCDQS5
FBCDQS4
FBCD18
FBCDQS#4
FBCD43
FBCD33
FBCD9
FBCDQM5
FBCD17
FBCD31
FBCDQS0
FBCDQM0
FBCD50
FBCD57
FBCD1
FBCDQM7
FBCD51
FBCD55
FBCD11
FBCD34
FBCD7
FBCDQM2
FBCD32
FBCD40
FBCD45
FBCD54
FBCD27
FBCD24
FBCD14
FBCD5
FBCDQS1
FBCD23
FBCD35
FBCD39
FBCD20
FBCD58
FBCD22
FBCDQS7
FBCD36
FBCDQS#3
FBCDQS#1
FBCD21
FBCD4
FBCDQM3
FBCD47
FBCD61
FBCD30
FBCDQS6
FBCD62
FBCDQS2
FBCDQS#0
FBC_A0
FBD_A4
FBC_WE#
FBD_A5
FBC_A12
FBC_A4
FBC_CAS#
FBC_CKE
FBD_A3
FBC_BA1
FBC_A3
FBC_CLK1P
FBC_A6
FBC_A8
FBC_CS#1
FBC_A7
FBC_BA0
FBC_A11
FBC_CLK0P
FBC_RAS#
FBC_CLK0N
FBC_A5
FBC_A1
FBD_A2
FBC_CS#0
FBC_A10
FBC_CLK1N
FBC_A9
FBC_A2
FBC_PLLAVDD
FBC_DEBUG
GND
+1.8VS
GND
GND
GND
+1.8VS
GND
GND
+1.2VS_GPU
+1.2VS_GPU
GND
GND
+1.8VS
+1.8VS
GND
GND
+1.8VS
GND
C23054
4.7UF/6.3V
12
C23014
0.1UF/10V
1 2
C23021
0.47UF/6.3V
12
L2302 Do Not Stuff
/A6Tc
21
C23055
1UF/6.3V
12
C23006
1UF/10V
12
R2304 40.2Ohm
1 2
U8C
G73M
A28
B7
J26
H26
K26
G9
G10
G8
C1
B1
F12
D1
C20
E17
F18
F13
E13
A20
F15
E15
B13
E14
C18
C14
F16
D14
C16
A17
C17
D15
C19
F17
B16
C15
A14
E16
B14
B19
A19
B20
B17
A13
A16
C13
U25
T25
M23
L23
K9
K24
K22
K21
K12
K11
J9
J24
J23
J10
H17
H16
AB23
AA23
A7
C7
A2
B2
C4
A5
B5
F9
F10
D12
D9
E12
D11
E8
D8
E7
F7
D6
D5
D3
E4
C3
B4
C10
B10
C8
A10
C11
C12
A11
B11
B28
C27
C26
B26
C30
B31
C29
A31
D28
D27
F26
D24
E23
E26
E24
F23
B23
A23
C25
C23
A22
C22
C21
B22
E22
D22
D21
E21
E18
D19
D18
E19
A4
E11
F5
C9
C28
F24
C24
E20
C5
E10
E5
B8
A29
D25
B25
F20
C6
E9
E6
A8
B29
E25
A25
F21
NC10
FBCD0
FBCAL_TERM_GND
FBCAL_PU_GND
FBCAL_PD_VDDQ
FBC_PLLGND
FBC_PLLAVDD
NC11
FBC_REFCLK_N
FBC_REFCLK
FBC_DEBUG
NC12
NC13
FBC_CLK1_N
FBC_CLK1
FBC_CLK0_N
FBC_CLK0
NC14
FBC_CMD25
FBC_CMD24
FBC_CMD23
FBC_CMD22
FBC_CMD21
FBC_CMD20
FBC_CMD19
FBC_CMD18
FBC_CMD17
FBC_CMD16
FBC_CMD15
FBC_CMD14
FBC_CMD13
FBC_CMD12
FBC_CMD11
FBC_CMD10
FBC_CMD9
FBC_CMD8
FBC_CMD7
FBC_CMD6
FBC_CMD5
FBC_CMD4
FBC_CMD3
FBC_CMD2
FBC_CMD1
FBC_CMD0
FBVTT1
FBVTT2
FBVTT3
FBVTT4
FBVTT5
FBVTT6
FBVTT7
FBVTT8
FBVTT9
FBVTT10
FBVTT11
FBVTT12
FBVTT13
FBVTT14
FBVTT15
FBVTT16
FBVTT17
FBVTT18
FBCD1
FBCD2
FBCD3
FBCD4
FBCD5
FBCD6
FBCD7
FBCD8
FBCD9
FBCD10
FBCD11
FBCD12
FBCD13
FBCD14
FBCD15
FBCD16
FBCD17
FBCD18
FBCD19
FBCD20
FBCD21
FBCD22
FBCD23
FBCD24
FBCD25
FBCD26
FBCD27
FBCD28
FBCD29
FBCD30
FBCD31
FBCD32
FBCD33
FBCD34
FBCD35
FBCD36
FBCD37
FBCD38
FBCD39
FBCD40
FBCD41
FBCD42
FBCD43
FBCD44
FBCD45
FBCD46
FBCD47
FBCD48
FBCD49
FBCD50
FBCD51
FBCD52
FBCD53
FBCD54
FBCD55
FBCD56
FBCD57
FBCD58
FBCD59
FBCD60
FBCD61
FBCD62
FBCD63
FBCDQM0
FBCDQM1
FBCDQM2
FBCDQM3
FBCDQM4
FBCDQM5
FBCDQM6
FBCDQM7
FBCDQS_WP0
FBCDQS_WP1
FBCDQS_WP2
FBCDQS_WP3
FBCDQS_WP4
FBCDQS_WP5
FBCDQS_WP6
FBCDQS_WP7
FBCDQS_RN0
FBCDQS_RN1
FBCDQS_RN2
FBCDQS_RN3
FBCDQS_RN4
FBCDQS_RN5
FBCDQS_RN6
FBCDQS_RN7
L2301 120Ohm/100Mhz
21
C23009
0.022UF/16V
1 2
C23043
0.1UF/10V
12
R2305
1KOhm
1%
1 2
R2302 40.2Ohm
1 2
R2303 30.1Ohm
1 2
T2301 Do Not Stuff
N/A
1
C23011
0.1UF/10V
1 2
C23026
4.7UF/6.3V
12
T2302
Do Not Stuff
N/A
1
C23045
0.1UF/10V
12
C23044
0.1UF/10V
12
C23029
1UF/10V
12
C23024
0.47UF/6.3V
12
C23018
0.47UF/6.3V
12
C23003
0.47UF/6.3V
12
C23001
1UF/10V
12
C23036
47UF/6.3V
12
C23007
0.47UF/6.3V
12
U8B
G73M
E32
N27
G24
G25
G23
D31
D32
AC27
AC26
Y30
AA27
Y27
R28
P28
Y32
U28
P29
R30
R29
W28
T30
V29
R27
U31
V30
V28
T27
W30
W29
U32
T31
T28
V27
T32
W31
W32
Y31
U30
P31
U27
P32
V26
V25
R26
R25
M26
M25
L26
L25
H22
H21
H18
H15
H12
H11
G22
G21
G18
G15
G12
G11
AB26
AB25
AA26
AA25
V32
R32
M32
J32
F32
C32
AK32
AG32
AD32
AA32
A9
A6
A30
A3
A27
A24
A21
A18
A15
A12
M27
N28
L29
K27
K28
J29
J28
P30
N31
N30
N32
L31
L30
J30
L32
H30
K30
H31
F30
H32
E31
D30
E30
H28
H29
E29
J27
F27
E27
E28
F28
AD29
AE29
AD28
AC28
AB29
AA30
Y28
AB30
AM30
AF30
AJ31
AJ30
AJ32
AK29
AM31
AL30
AE32
AE30
AE31
AD30
AC31
AC32
AB32
AB31
AG27
AF28
AH28
AG28
AG29
AD27
AF27
AE28
M29
M30
G30
F29
AA29
AK30
AC30
AG30
L28
K31
G32
G28
AB28
AL32
AF32
AH30
M28
K32
G31
G27
AA28
AL31
AF31
AH29
FB_VREF1
FBAD0
FBA_PLLGND
FBA_PLLAVDD
NC6
FBA_REFCLK_N
FBA_REFCLK
FBA_DEBUG
NC7
NC8
FBA_CLK1_N
FBA_CLK1
FBA_CLK0_N
FBA_CLK0
NC9
FBA_CMD25
FBA_CMD24
FBA_CMD23
FBA_CMD22
FBA_CMD21
FBA_CMD20
FBA_CMD19
FBA_CMD18
FBA_CMD17
FBA_CMD16
FBA_CMD15
FBA_CMD14
FBA_CMD13
FBA_CMD12
FBA_CMD11
FBA_CMD10
FBA_CMD9
FBA_CMD8
FBA_CMD7
FBA_CMD6
FBA_CMD5
FBA_CMD4
FBA_CMD3
FBA_CMD2
FBA_CMD1
FBA_CMD0
FBVDDQ1
FBVDDQ2
FBVDDQ3
FBVDDQ4
FBVDDQ5
FBVDDQ6
FBVDDQ7
FBVDDQ8
FBVDDQ9
FBVDDQ10
FBVDDQ11
FBVDDQ12
FBVDDQ13
FBVDDQ14
FBVDDQ15
FBVDDQ16
FBVDDQ17
FBVDDQ18
FBVDDQ19
FBVDDQ20
FBVDDQ21
FBVDDQ22
FBVDDQ23
FBVDDQ24
FBVDD1
FBVDD2
FBVDD3
FBVDD4
FBVDD5
FBVDD6
FBVDD7
FBVDD8
FBVDD9
FBVDD10
FBVDD11
FBVDD12
FBVDD13
FBVDD14
FBVDD15
FBVDD16
FBVDD17
FBVDD18
FBVDD19
FBVDD20
FBAD1
FBAD2
FBAD3
FBAD4
FBAD5
FBAD6
FBAD7
FBAD8
FBAD9
FBAD10
FBAD11
FBAD12
FBAD13
FBAD14
FBAD15
FBAD16
FBAD17
FBAD18
FBAD19
FBAD20
FBAD21
FBAD22
FBAD23
FBAD24
FBAD25
FBAD26
FBAD27
FBAD28
FBAD29
FBAD30
FBAD31
FBAD32
FBAD33
FBAD34
FBAD35
FBAD36
FBAD37
FBAD38
FBAD39
FBAD40
FBAD41
FBAD42
FBAD43
FBAD44
FBAD45
FBAD46
FBAD47
FBAD48
FBAD49
FBAD50
FBAD51
FBAD52
FBAD53
FBAD54
FBAD55
FBAD56
FBAD57
FBAD58
FBAD59
FBAD60
FBAD61
FBAD62
FBAD63
FBADQM0
FBADQM1
FBADQM2
FBADQM3
FBADQM4
FBADQM5
FBADQM6
FBADQM7
FBADQS_WP0
FBADQS_WP1
FBADQS_WP2
FBADQS_WP3
FBADQS_WP4
FBADQS_WP5
FBADQS_WP6
FBADQS_WP7
FBADQS_RN0
FBADQS_RN1
FBADQS_RN2
FBADQS_RN3
FBADQS_RN4
FBADQS_RN5
FBADQS_RN6
FBADQS_RN7
C23051
0.01UF/10V
12
C23015
0.1UF/10V
1 2
C23023
0.47UF/6.3V
12
C23005
1UF/10V
12
C23027
1UF/10V
12
C23042
0.1UF/10V
12
C23047
Do Not Stuff
/A6Tc
12
C23038
4.7UF/6.3V
12
C23028
1UF/10V
12
C23012
4.7UF/6.3V
1 2
C23010
0.1UF/10V
1 2
C23050
Do Not Stuff
/A6Tc
12
C23046
0.1UF/10V
12
C23048
Do Not Stuff
/A6Tc
12
C23030
1UF/10V
12
C23002
1UF/10V
12
C23008
0.47UF/6.3V
12
C23016
4.7UF/6.3V
1 2
C23017
0.47UF/6.3V
12
R2301
1KOhm
1%
1 2
C23013
0.022UF/16V
1 2
C23019
0.47UF/6.3V
12
C23004
0.47UF/6.3V
12
C23022
0.47UF/6.3V
12
C23039
4.7UF/6.3V
12
C23041
0.1UF/10V
12
C23052
0.1UF/10V
12
C23020
0.47UF/6.3V
12
C23037
0.01UF/10V
12
FBAD[0..63][29]
FBB_A2 [29]
FBB_A3 [29]
FBB_A4 [29]
FBB_A5 [29]
FBA_CS#1 [29]
FBA_CS#0 [29]
FBA_WE# [29]
FBA_BA0 [29]
FBA_CKE [29]
FBA_RAS# [29]
FBA_BA1 [29]
FBA_CAS# [29]
FBA_CLK0P [29]
FBA_CLK1N [29]
FBA_CLK0N [29]
FBA_CLK1P [29]
FBCDQS[0..7][30]
FBCDQS#[0..7][30]
FBCDQM[0..7][30]
FBCD[0..63][30]
FBC_CLK0N [30]
FBC_RAS# [30]
FBC_BA0 [30]
FBC_WE# [30]
FBD_A3 [30]
FBC_CLK1N [30]
FBD_A5 [30]
FBC_CLK1P [30]
FBC_CKE [30]
FBC_BA1 [30]
FBC_CLK0P [30]
FBC_CS#0 [30]
FBD_A2 [30]
FBC_CS#1 [30]
FBD_A4 [30]
FBC_CAS# [30]
FBA_A[0..12] [29]
FBC_A[0..12] [30]
FBADQM[0..7][29]
FBADQS[0..7][29]
FBADQS#[0..7][29]
FBA_ODT [29]
FBC_ODT [30]

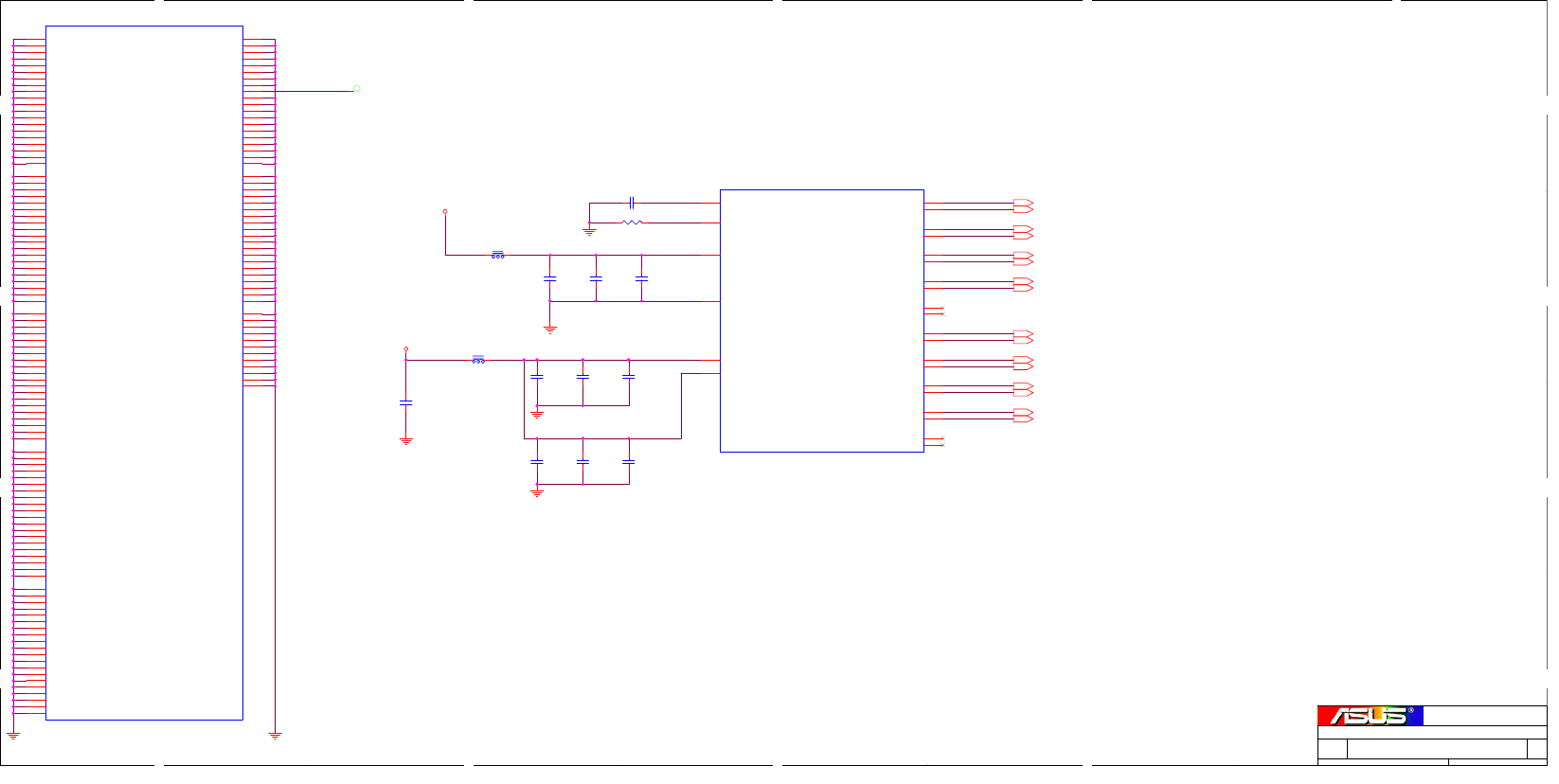

5
5
4
4
3
3
2
2
1
1
D D
C C
B B
A
A
G3-128 only
LVDS
DIFF IMPEDANCE 100 OHM+/-10%
IFPA_IOVDD-- 1.8V +/- 5% Imax= 120mA
IFPB_IOVDD-- 1.8V +/- 5% Imax= 120mA
IFPAB_PLLVDD-- 2.5V +/- 5% Imax= 40mA
Custom
24 72Wednesday, March 08, 2006
ASUSTECH CO.,LTD.
G73M_LVDS/GND
1.0
A6T
Jefing_Li
A6TcSKU1
Size Project Name Rev
Date: Sheet of
Title :
Engineer:
GND_SENSE
IFPAB_PLLGND
IFPAB_PLLVDD
IFPAB_IOVDD
G_LVDS_CLKAM
G_LVDS_CLKBP
G_LVDS_YB1P
G_LVDS_YA0M
G_LVDS_YB2P
G_LVDS_YA2P
G_LVDS_YB0P
G_LVDS_CLKAP
G_LVDS_YB1M
G_LVDS_YB0M
G_LVDS_YA2M
G_LVDS_YA1M
G_LVDS_CLKBM
G_LVDS_YA0P
G_LVDS_YA1P
G_LVDS_YB2M
GND GND
GND
GND
GND
+2.5VS_GPU
GND
GND
+1.8VS
C24002
4.7UF/6.3V
12
C24009
4.7UF/6.3V
12
C24005
4.7UF/6.3V
12
C24011
470PF/50V
12
C24010
470PF/50V
12
U8I
G73M
AF8
AF9
AD9
AC9
AL5
AM4
AK7
AL8
AK6
AK5
AM7
AL7
AM6
AM5
AK4
AL4
AJ5
AH5
AJ8
AK8
AH8
AH7
AH6
AJ6
AK9
AJ9
IFPB_IOVDD
IFPA_IOVDD
IFPAB_PLLGND
IFPAB_PLLVDD
IFPAB_RSET
IFPAB_VPROBE
IFPB_TXD7
IFPB_TXD7_N
IFPB_TXD6
IFPB_TXD6_N
IFPB_TXD5
IFPB_TXD5_N
IFPB_TXD4
IFPB_TXD4_N
IFPB_TXC
IFPB_TXC_N
IFPA_TXD3
IFPA_TXD3_N
IFPA_TXD2
IFPA_TXD2_N
IFPA_TXD1
IFPA_TXD1_N
IFPA_TXD0
IFPA_TXD0_N
IFPA_TXC
IFPA_TXC_N
C24008
4.7UF/6.3V
12
C24004
470PF/50V
12
14/14 _GND_
U8D
G73M
AA12 K10
K23
K29
K4
L27
L6
M12
M2
M21
M31
N15
N18
N29
N4
P15
P18
P27
P6
R13
R14
R15
R18
R19
R2
R20
R31
T16
T17
T24
T29
T4
U16
U17
U24
U29
U8
V13
V14
V15
V18
V19
V2
V20
V31
W15
W18
W27
W6
Y15
Y18
Y29
Y4
AA2
AA21
AA31
AB27
AB6
AC10
AC23
AC29
AC4
AD16
AD17
AD2
AD31
AE17
AE27
AE6
AF11
AF26
AF29
AF4
AF7
AG10
AG11
AG14
AG15
AG19
AG2
AG22
AG31
AG8
AH24
AJ10
AJ13
AJ16
AJ17
AJ20
AJ23
AJ26
AJ29
AJ4
AJ7
AK2
AK28
AK31
AL11
AL14
AL19
AL22
AL25
AL3
AL6
AL9
AM13
AM16
AM17
AM20
AM23
AM26
AM29
B12
B15
B18
B21
B24
B27
B3
B30
B6
B9
C2
C31
D10
D13
D16
D17
D20
D23
D26
D29
D4
D7
F11
F14
F19
F2
F22
F25
F31
F8
G26
G29
G4
G7
H27
H6
J16
J17
J2
J31
GND101 GND152
GND151
GND150
GND149
GND148
GND147
GND146
GND145
GND_SENSE
GND144
GND143
GND142
GND141
GND140
GND139
GND138
GND137
GND136
GND135
GND134
GND133
GND132
GND131
GND130
GND129
GND128
GND127
GND126
GND125
GND124
GND123
GND122
GND121
GND120
GND119
GND118
GND117
GND116
GND115
GND114
GND113
GND112
GND111
GND110
GND109
GND108
GND107
GND106
GND105
GND104
GND103
GND102
GND100
GND99
GND98
GND97
GND96
GND95
GND94
GND93
GND92
GND91
GND90
GND89
GND88
GND87
GND86
GND85
GND84
GND83
GND82
GND81
GND80
GND79
GND78
GND77
GND76
GND75
GND74
GND73
GND72
GND71
GND70
GND69
GND68
GND67
GND66
GND65
GND64
GND63
GND62
GND61
GND60
GND59
GND58
GND57
GND56
GND55
GND54
GND53
GND52
GND51
GND50
GND49
GND48
GND47
GND46
GND45
GND44
GND43
GND42
GND41
GND40
GND39
GND38
GND37
GND36
GND35
GND34
GND33
GND32
GND31
GND30
GND29
GND28
GND27
GND26
GND25
GND24
GND23
GND22
GND21
GND20
GND19
GND18
GND17
GND16
GND15
GND14
GND13
GND12
GND11
GND10
GND9
GND8
GND7
GND6
GND5
GND4
GND3
GND2
C24007
470PF/50V
12
R2401
1KOhm
1 2
C24001
Do Not Stuff
/x
12
T2401 Do Not Stuff
N/A
1
L2401
120Ohm/100Mhz
21
L2402
120Ohm/100Mhz
21
C24006
470PF/50V
12
C24003
4700PF/25V
12
G_LVDS_YB0M [54]
G_LVDS_CLKBP [54]
G_LVDS_YB2P [54]
G_LVDS_YB1M [54]
G_LVDS_CLKAM [54]
G_LVDS_CLKAP [54]
G_LVDS_YA2P [54]
G_LVDS_YA1M [54]
G_LVDS_YB0P [54]
G_LVDS_YA1P [54]
G_LVDS_YA0P [54]
G_LVDS_YB1P [54]
G_LVDS_CLKBM [54]
G_LVDS_YB2M [54]
G_LVDS_YA2M [54]
G_LVDS_YA0M [54]
5
5
4
4
3
3
2
2
1
1
D D
C C
B B
A
A

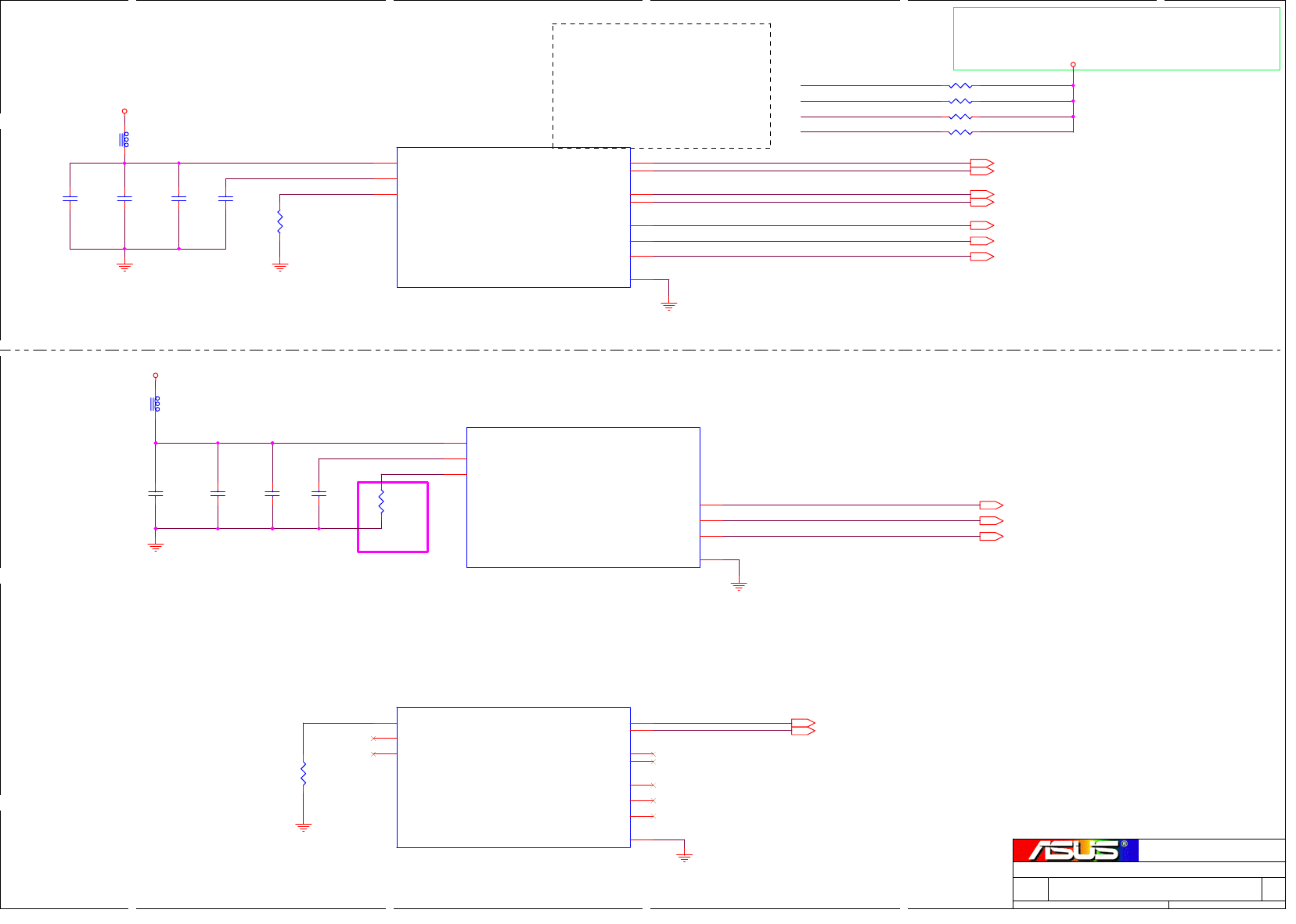

NOT USE
FOR VGA
FOR TV OUT
The I2C interface on the G7x
devices is 5V tolerant; pull-ups
may be connected to 5V
directly.
DACA_VDD-- 3.3V +/- 5% Imax=80mA
DACB_VDD-- 3.3V +/- 5% Imax= 110mA
DACB_RSET 86.6 Ohm 1%
(HDTV)
DACB_RSET 69 Ohm 1% (TV)
37.5 OHM IMPEDANCE
37.5 OHM IMPEDANCE
A3
25 72Wednesday, March 08, 2006
ASUSTECH CO.,LTD.
G73M_VGA/TV
1.0
A6T
Jefing_Li
A6TcSKU1
Size Project Name Rev
Date: Sheet of
Title :
Engineer:
GPU_CRT_DDC_CLK
GPU_CRT_RED
GPU_CRT_DDC_DATA
GPU_CRT_VSYNC
GPU_CRT_HSYNC
GPU_CRT_GREEN
GPU_TV_Y
NV_I2CB_SDA
DACA_RSET
DACA_VREF
DACA_VDD
DACB_VREF
DACB_VDD
DACB_RSET
NV_I2CB_SCL
GPU_CRT_BLUE
GPU_TV_CVBS
GPU_TV_C
GPU_CRT_DDC_CLK
NV_I2CB_SCL
NV_I2CB_SDA
GPU_CRT_DDC_DATA
GND
+3VS_GPU
GND
GND
GND
+3VS_GPU
GND
+3VS_GPU
GND
L2501
120Ohm/100Mhz
21
R2513 4.7KOhm
12
U8H
G73M
R5
V8
V7
T6
T5
R6
R7
DACB_VREF
DACB_VDD
DACB_IDUMP
DACB_BLUE
DACB_GREEN
DACB_RED
DACB_RSET
R2505
124Ohm
12
C25001
4.7UF/6.3V
12
C25003
4700PF/25V
12
C25007
4700PF/25V
12
C25004
470PF/50V
12
C25005
4.7UF/6.3V
12
C25002
0.01UF/10V
12
U8G
G73M
AF5
AH4
AD7
AG4
AE5
AG6
AF6
AG5
AG7
J4
H4
DACC_RSET
DACC_VREF
DACC_VDD
DACC_IDUMP
DACC_BLUE
DACC_GREEN
DACC_RED
DACC_VSYNC
DACC_HSYNC
I2CB_SDA
I2CB_SCL
R2509
10KOhm
12
R2510 4.7KOhm
12
C25008
470PF/50V
12
C25006
0.01UF/10V
12
R2511 4.7KOhm
12
R2501
124Ohm
1 2
U8F
G73M
AH9
AH10
AD10
AG9
AH12
AJ12
AH11
AK10
AF10
J3
K2
DACA_RSET
DACA_VREF
DACA_VDD
DACA_IDUMP
DACA_BLUE
DACA_GREEN
DACA_RED
DACA_VSYNC
DACA_HSYNC
I2CA_SDA
I2CA_SCL
R2512 4.7KOhm
12
L2502
120Ohm/100Mhz
21
GPU_CRT_RED [55]
GPU_CRT_VSYNC [55]
GPU_CRT_BLUE [55]
GPU_CRT_HSYNC [55]
GPU_CRT_GREEN [55]
GPU_CRT_DDC_CLK [40]
GPU_CRT_DDC_DATA [40]
GPU_TV_CVBS [55]
GPU_TV_Y [55]
GPU_TV_C [55]
NV_I2CB_SDA [36]
NV_I2CB_SCL [36]

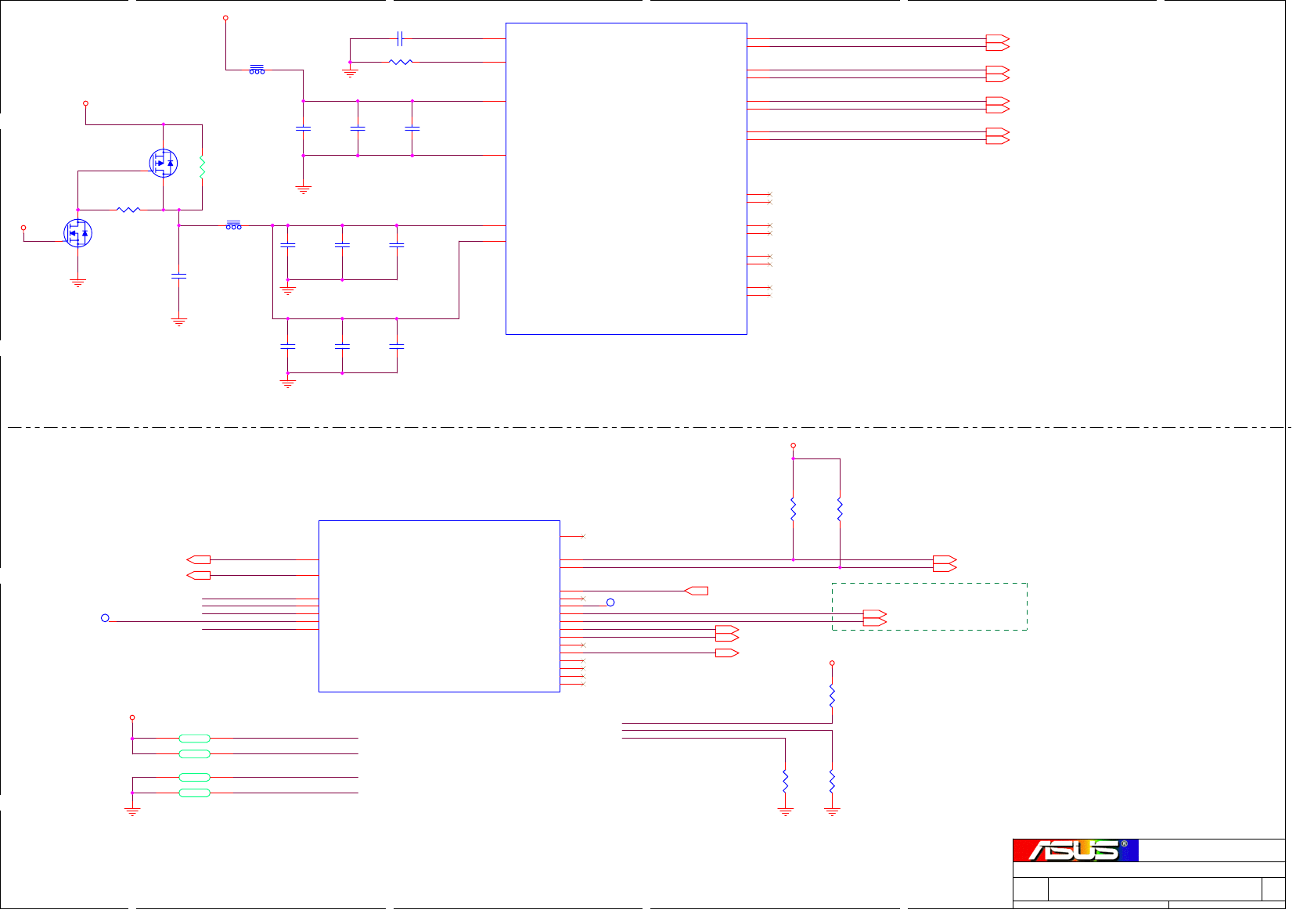

5
5
4
4
3
3
2
2
1
1
D D
C C
B B
A
A
GPIO
Active
High
IFPC_IOVDD-- 1.8V +/- 5% Imax= 120mA
IFPCD_PLLVDD-- 2.5V +/- 5% Imax= 40mA
IFPD_IOVDD-- 1.8V +/- 5% Imax= 120mA
A3
26 72Wednesday, March 08, 2006
ASUSTECH CO.,LTD.
G73M_TMDS/GPIO
1.0
A6T
Jefing_Li
A6TcSKU1
Size Project Name Rev
Date: Sheet of
Title :
Engineer:
NV_JTAG_TRST
VGA_THRM_DA
NV_JTAG_TCK
VGA_THRM_DC
NV_JTAG_TCK
NV_JTAG_TDI
NV_JTAG_TMS
NV_JTAG_TDI
NV_JTAG_TRST
NV_JTAG_TMS
GPU_VID1
GPU_VID0
OTEMP#
OTEMP#
LVDS_VDD_EN
LVDS_VDD_EN
LVDS_BACK_EN
LVDS_BACK_EN
IFPCD_PLLVDD
IFPAB_PLLGND
IFPCD_IOVDD
TMDS_HPD
NV_I2CC_SDA
NV_I2CC_SCL
+3VS_GPU
GND GND GND
+3VS_GPU
GND
GND
GND
GND
+2.5VS_GPU
GND
GND
+3VS_GPU
+3VS_GPU
+3VS_GPU
T2601Do Not Stuff
1
C26007
4700PF/25V
12
D
S
G
1
2
3
Q2601
SI2305DS
1
23
C26018
470PF/50V
12
C26006
4.7UF/6.3V
12
C26012
470PF/50V
12
L2601
120Ohm/100Mhz
21
R2610
Do Not Stuff
/x
1 2
RN2601B
Do Not Stuff
/x
3 4
C26014
4.7UF/6.3V
12
C26008
470PF/50V
12
C26016
4.7UF/6.3V
12
C26001
0.01UF/10V
12
T2602 Do Not Stuff
1
RN2601C
Do Not Stuff
/x
5 6
R2611
10KOhm
1 2
U8J
G73M
AE7
AD6
AB10
AA10
AH3
AK3
AJ2
AJ3
AL2
AL1
AK1
AJ1
AG3
AH2
AG1
AH1
AF1
AF2
AE2
AE1
AM2
AM3
IFPD_IOVDD
IFPC_IOVDD
IFPCD_PLLGND
IFPCD_PLLVDD
IFPCD_RSET
IFPCD_VPROBE
IFPD_TXD6
IFPD_TXD6_N
IFPD_TXD5
IFPD_TXD5_N
IFPD_TXD4
IFPD_TXD4_N
IFPD_TXC
IFPD_TXC_N
IFPC_TXD2
IFPC_TXD2_N
IFPC_TXD1
IFPC_TXD1_N
IFPC_TXD0
IFPC_TXD0_N
IFPC_TXC
IFPC_TXC_N
R2620
2.2KOhm
1 2
R2621
10KOhm
1 2
GS
D
3
2
1
Q2602
2N7002
1
32
R2603
1KOhm
1 2
R2622
10KOhm
1 2
U8L
G73M
AL13
AL12
AK12
AK11
AJ11
K1
J1
K3
G1
G2
F6
H1
K5
G5
E2
J5
G6
K6
E1
D2
H5
F4
E3
JTAG_TRST_N
JTAG_TDO
JTAG_TDI
JTAG_TMS
JTAG_TCK
THERMDP
THERMDN
GPIO0
I2CC_SDA
I2CC_SCL
NC28
GPIO1
GPIO2
GPIO3
GPIO4
GPIO5
GPIO6
GPIO7
GPIO8
GPIO9
GPIO10
GPIO11
GPIO12
L2602
120Ohm/100Mhz
21
R2618
4.7KOhm
1 2
RN2601A
Do Not Stuff
/x
1 2
C26011
470PF/50V
12
C26017
470PF/50V
12
R2619
4.7KOhm
1 2
RN2601D
Do Not Stuff
/x
7 8
C26010
4.7UF/6.3V
12
VGA_THRM_DC[15]
VGA_THRM_DA[15]
GPIO5 [66]
GPIO6 [66]
OTEMP# [15]
LVDS_VDD_EN [41]
LVDS_BACK_EN [41]
NV_I2CC_SDA [15,27,54]
NV_I2CC_SCL [15,27,54]
TMDS_YA2M [36]
TMDS_YA2P [36]
TMDS_YA1M [36]
TMDS_CLKAP [36]
TMDS_YA0M [36]
TMDS_YA0P [36]
TMDS_YA1P [36]
TMDS_CLKAM [36]
TMDS_HPD [36]
5
5
4
4
3
3
2
2
1
1
D D
C C
B B
A
A
CLOSE TO ICS
2.5V for G71,G72,G73
3.3V for G70
CLOSE TO GPU
2.5V,Imax=30mA
2.5V,Imax=30mA
A3
27 72Wednesday, March 08, 2006
ASUSTECH CO.,LTD.
G73M_XTAL/ROM STRAP
1.0
A6T
Jefing_Li
A6TcSKU1
Size Project Name Rev
Date: Sheet of
Title :
Engineer:
VID_PLLVDD_G73M
PLLVDD_G73M
SWAPRDY_A
TESTMODE
HDCPROMSDA
NVROMCS
HDCPROMSCL
GND
+2.5VS_GPU
GND
+3VS_GPU
GND
GND
GND
+3VS_GPU
+2.5VS_GPU
+3VS_GPU
+3VS_GPU
+3VS_GPU
+3VS_GPU
GND
GND
T2702Do Not Stuff
1
R2712 10KOhm
12
R2708
Do Not Stuff
/x 1 2
C27010
4.7UF/6.3V
12
T2703Do Not Stuff
1
C27006
0.1UF/10V
1 2
L2701
120Ohm/100Mhz
21
R2701
22Ohm
1 2
R2704
4.7Ohm
1 2
12
X2701
27Mhz
C27008
18PF/50V
1 2
R2705
10KOhm
12
C27014
470PF/50V
12
R2707
22Ohm
1 2
C27011
4.7UF/6.3V
1 2
C27005
4.7UF/6.3V
1 2
C27002
4.7UF/6.3V
1 2
U9
ICS91730AMLF
1
2
3
4 5
6
7
8
CLKIN
VDD
GND
CLKOUT/FS_IN0 REF_OUT/FS_IN1
SDATA
SCLK
PD#
C27004
0.01UF/10V
1 2
R2711
10KOhm
1 2
R2702
10KOhm
12
C27012
4.7UF/6.3V
1 2
L2702
120Ohm/100Mhz
21
R2703
10KOhm
12
T2704Do Not Stuff
1
C27001
4.7UF/6.3V
1 2
R2706
Do Not Stuff
/x
12
T2705Do Not Stuff
1
T2701Do Not Stuff
1
U8E
G73M
U3
AH32
AH31
AD26
AE26
F1
AG13
AL10
H2
A26
M6
T3
F3
H3
G3
AA7
W2
AA6
AA4
V3
U6
U5
U4
V4
V6
NC21
NC22
NC23
NC24
NC25
NC26
GND153
GND154
TESTMODE
NC27
SWAPRDY_A
STEREO
BUFRST_N
I2CH_SDA
I2CH_SCL
ROM_SCLK
ROM_SI
ROM_SO
ROMCS_N
NC20
NC19
NC18
NC17
NC16
NC15
C27013
0.1UF/10V
1 2
R2709 2.2KOhm
1 2
C27003
0.1UF/10V
1 2
C27009
18PF/50V
1 2
C27007
0.01UF/10V
1 2
U8M
G73M
T1
U10
T10
T9
U2
T2
U1
XTALSSIN
PLLGND
VID_PLLVDD
PLLVDD
XTALOUT
XTALOUTBUFF
XTALIN
R2710 2.2KOhm
12
NV_I2CC_SCL [15,26,54]
NV_I2CC_SDA [15,26,54]
5
5
4
4
3
3
2
2
1
1
D D
C C
B B
A
A
STRAP11----CRYSTAL0
01, NTSC
1,ADAPTER BIOS
STRAPS
STRAP7----RAM_CFG0
10,27MHZ
STRAP16----PCI_DEVID3
STRAP20----TVMODE1
01,14.318MHZ
STRAP
STRAP3----USER2 0011,SXGA+ -/-
STRAP0----SUB_VENDOR: 0,SYSTEM BIOS
MIOAD8----3GIO_PADCFG1
DESIGN GUIDE Page51
FOR MORE
INFORMATION
0,FULL WIDTH 1,HALF WIDTH
1,DISABLE
STRAP18----ROMTYPE1
STRAP19----TVMODE0
STRAP12----CRYSTAL1
STRAP1----USER0
1110,NV41-GL
00,13.5MHZ
STRAP4----USER3
0000,XGA -/-
0001,XGA +/+
0000,NV41-U
STRAP8----RAM_CFG1
STRAP10----RAM_CFG3
STRAP9----RAM_CFG2
00, SECAM
0,GPU and MCH do not share a
commom reference clk
1,GPU and MCH shared
11,RESERVED
STRAP17----ROMTYPE0
STRAP15----PCI_DEVID2
STRAP14----PCI_DEVID1 0010,NV41-V
1000,NV41M
MIOAD6----3GIO_PADCFG0 001,FOR NV43/NV44;
010,FOR G7x,NV42
0100, UXGA +/+
MIOAD9----3GIO_PADCFG2
STRAP5---PEX_PLL_TERM100EN#: 0,ENABLE INTERNAL
TERMINATION 100 OHM
10, PAL
for mobile
10,SERIAL SST45VF
STRAP2----USER1 0010,SXGA +/+
0001,NV41
00,PARALLEL
01,SERIAL AT25F
1001,NV41M-U
STRAP13----PCI_DEVID0
11, CRT
11,RESERVED
no stuff
no stuff
PLACE CAPS & RES CLOSE TO GPU
PINS
no stuff
no stuff
PLACE CAPS CLOSE TO GPU PINS
3.3V,Imax=10mA
3.3V,Imax=10mA
1000,G73M
0111,G72M-V
C
28 72Wednesday, March 08, 2006
ASUSTECH CO.,LTD.
G73M_STRAPS
1.0
A6T
Jefing_Li
A6TcSKU1
Size Project Name Rev
Date: Sheet of
Title :
Engineer:
STRAP13
STRAP2
STRAP0
STRAP8
STRAP9
STRAP3
STRAP14
STRAP10
STRAP10
STRAP13
MIOAD8
STRAP16
STRAP4
STRAP2
STRAP7
MIOAD9
STRAP1
STRAP14
STRAP15
MIOAD8
STRAP7
STRAP8
STRAP5
STRAP16
STRAP4
SLOT_CLK_CFG
STRAP15
MIOAD6
MIOAD9
MIOAD6
STRAP9
STRAP1
STRAP3
STRAP5
STRAP0
MIOA_VREF
MIOB_VDDQ
MIOB_VREF
MIOA_VDDQ
+3VS_GPU
GND
+3VS_GPU
GND
GND
GND
+3VS_GPU
GND
GND
+3VS_GPU
+3VS_GPU
GND
+3VS_GPU
+3VS_GPU
GND
C28002
Do Not Stuff
/x
12
R2842
Do Not Stuff
/x
1 2
R2820 2KOhm
1 2
R2833 Do Not Stuff/x
1 2
T2805 Do Not Stuff
1
T2808 Do Not Stuff
1
T2810 Do Not Stuff
1
R2853
Do Not Stuff
/x
1 2
T2803
Do Not Stuff
1
R2805 Do Not Stuff/x 1 2
R2830Do Not Stuff/x 1 2
R2801 2KOhm
1 2
C28001
0.1UF/10V
12
T2812 Do Not Stuff
1
R2841 2KOhm N/A
1 2
T2811
Do Not Stuff
1
R2823
2KOhm
1 2
U8N
G73M
Y2
Y3
Y1
AC7
AC6
AB8
AB7
AA8
AE4
AD5
AD4
AD3
AD1
AF3
AE3
Y6
V5
W5
W4
W1
Y5
V1
W3
AA5
AB4
AB5
AC5
AA3
AB3
AA1
AB1
AB2
AC2
AC1
AC3
MIOB_VREF
MIOBCAL_PU_GND
MIOBCAL_PD_VDDQ
MIOB_VDDQ5
MIOB_VDDQ4
MIOB_VDDQ3
MIOB_VDDQ2
MIOB_VDDQ1
MIOB_CLKIN
MIOB_CLKOUT_N
MIOB_CLKOUT
MIOB_CTL3
MIOB_DE
MIOB_HSYNC
MIOB_VSYNC
NC29
NC30
NC31
NC32
NC33
NC34
NC35
NC36
MIOBD11
MIOBD10
MIOBD9
MIOBD8
MIOBD7
MIOBD6
MIOBD5
MIOBD4
MIOBD3
MIOBD2
MIOBD1
MIOBD0
R28322KOhm 1 2
R2855
10KOhm
1 2
R2807 Do Not Stuff/x 1 2
C28004
Do Not Stuff
/x
12
T2804 Do Not Stuff
1
R2844 2KOhm N/A
1 2
C28003
0.1UF/10V
12
R2854
Do Not Stuff
/x
1 2
R2846 2KOhm N/A
1 2
R2804 10KOhmN/A 1 2
R2824
Do Not Stuff
/x
1 2
R28342KOhm 1 2
R2809 Do Not Stuff/x 1 2
R28282KOhm 1 2
R2825
Do Not Stuff
/x
1 2
R2818 Do Not Stuff/x
1 2
T2806
Do Not Stuff
1
U8K
G73M
L2
L3
L1
U9
T8
R8
M8
M7
M5
P4
R4
P3
P1
R1
R3
L5
L4
M4
N5
N6
P5
M3
M1
N3
N1
N2
P2
MIOA_VREF
MIOACAL_PU_GND
MIOACAL_PD_VDDQ
MIOA_VDDQ5
MIOA_VDDQ4
MIOA_VDDQ3
MIOA_VDDQ2
MIOA_VDDQ1
MIOA_CLKIN
MIOA_CLKOUT_N
MIOA_CLKOUT
MIOA_CTL3
MIOA_DE
MIOA_VSYNC
MIOA_HSYNC
MIOAD11
MIOAD10
MIOAD9
MIOAD8
MIOAD7
MIOAD6
MIOAD5
MIOAD4
MIOAD3
MIOAD2
MIOAD1
MIOAD0
R2829 Do Not Stuff/x
1 2
R2822 Do Not Stuff/x
1 2
R2848 Do Not Stuff
/X
1 2
R2812 Do Not Stuff/x
1 2
T2802 Do Not Stuff
1
R2803 Do Not Stuff/x 1 2
R2810 10KOhmN/A 1 2
T2801 Do Not Stuff
1
R2808 10KOhmN/A 1 2
R2831 2KOhm
1 2
R2826
Do Not Stuff
/x
1 2
R2835 Do Not Stuff/x
1 2
T2807 Do Not Stuff
1
T2809 Do Not Stuff
1
R2827
10KOhm
1 2
R2806 10KOhmN/A 1 2

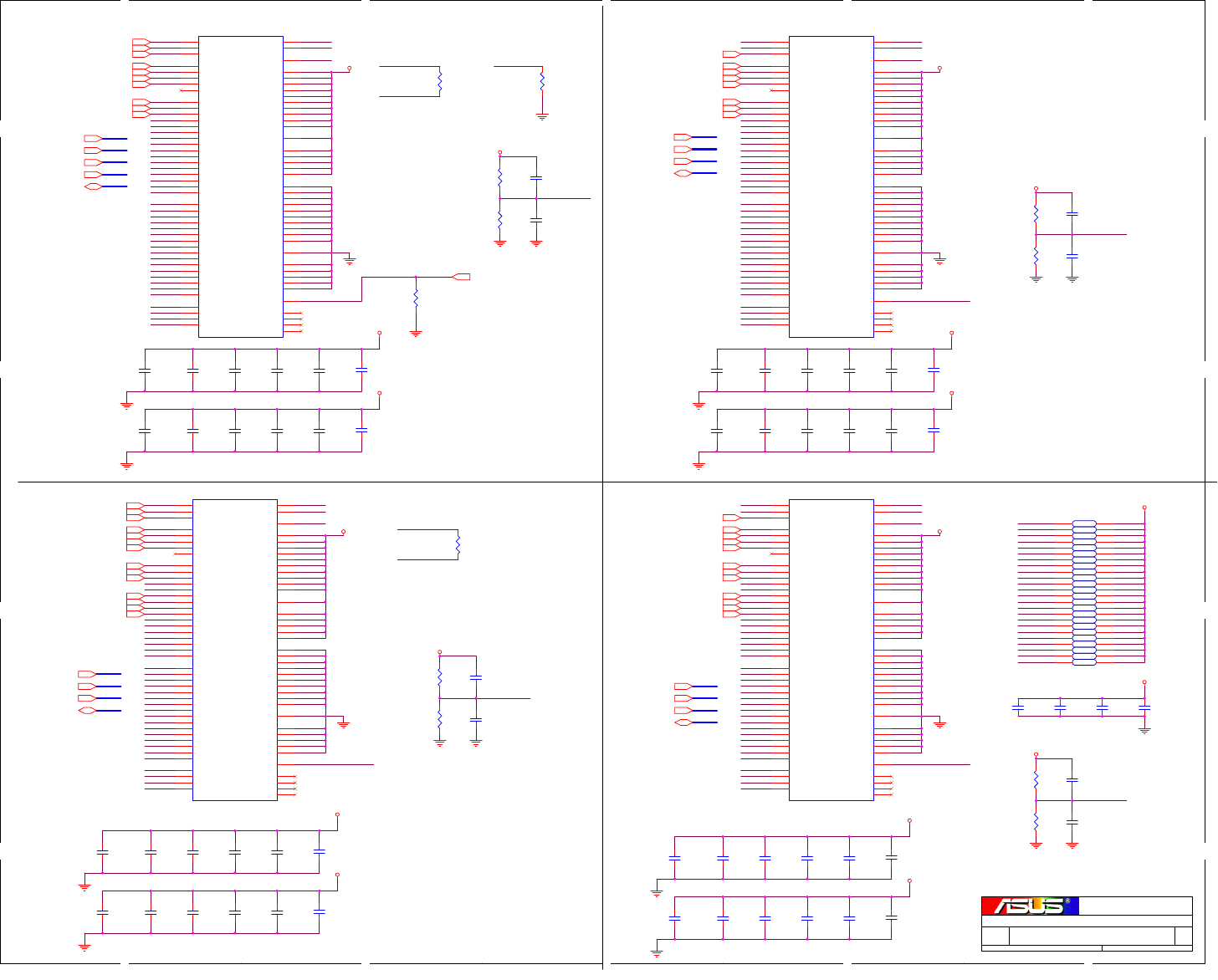

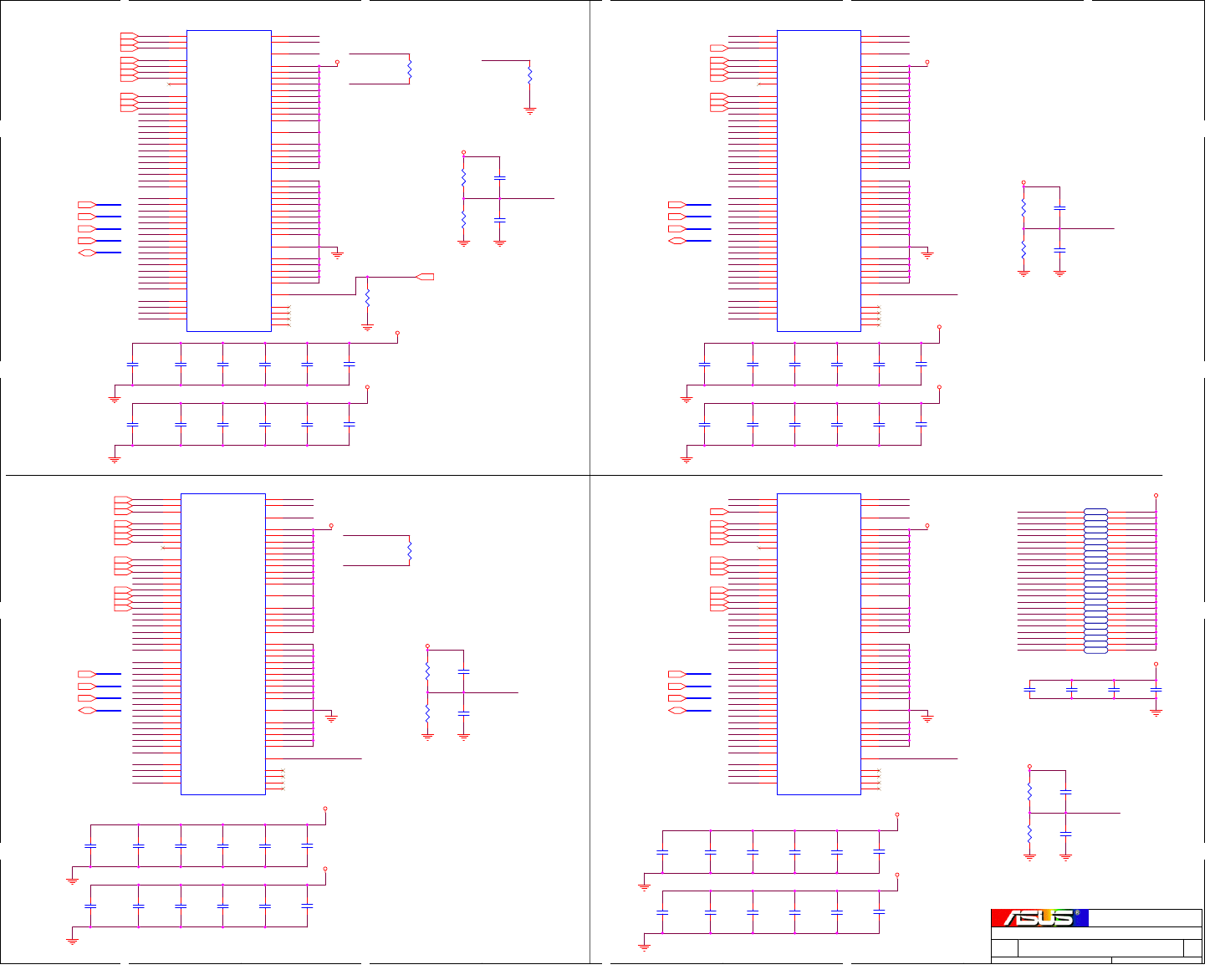

5
5
4
4
3
3
2
2
1
1
D D
C C
B B
A
A
SWAPABLE
Custom
29 72Wednesday, March 08, 2006
ASUSTECH CO.,LTD.
G73M_MEM_PART1
1.0
A6T
Jefing_Li
A6TcSKU1
Size Project Name Rev
Date: Sheet of
Title :
Engineer:
FBA_CLK0P
FBA_CLK0N
FBA_A0
FBA_A1
FBA_A3
FBA_A5
FBA_A6
FBA_A2
FBA_A4
FBA_A8
FBA_A10
FBA_A11
FBA_A7
FBA_A9
FBA_A12
FBADQS1
FBADQS0
FBADQS#0
FBADQS#1
FBADQM1
FBADQM0
FBAVREF0
FBA_CLK0N
FBA_CLK0P FBA_CKE
FBAVREF0
FBADQS#2
FBAD17
FBA_A8
FBADQM2
FBAD22
FBADQM3
FBAD23
FBA_A7
FBA_A5
FBA_A0
FBADQS2
FBAVREF1
FBAD30
FBAD25
FBAD18
FBA_A3
FBA_A6
FBA_A12
FBAD26
FBAD24
FBAD29
FBA_A1
FBAD31
FBA_A11
FBA_A2
FBAD28
FBA_A4
FBAVREF1
FBA_ODT
FBADQS3
FBA_A9
FBAD27
FBAD21
FBADQS#3
FBAD16
FBA_A10
FBAD20
FBAD19
FBADQS#4
FBAD37
FBA_A8
FBADQM4
FBAD32
FBADQM5
FBAD34
FBA_A7
FBB_A5
FBA_A0
FBADQS4
FBAVREF2
FBAD43
FBAD47
FBAD38
FBB_A3
FBA_A6
FBA_A12
FBAD41
FBAD40
FBAD44
FBA_A1
FBAD42
FBA_A11
FBB_A2
FBAD46
FBB_A4
FBAVREF2
FBA_ODT
FBADQS5
FBA_A9
FBAD45
FBAD35
FBADQS#5
FBAD36
FBA_A10
FBA_CLK1N
FBAD39
FBAD33
FBADQS#7
FBA_A0
FBA_A9
FBADQS6
FBAVREF3
FBADQS#6
FBADQM6
FBA_A7
FBA_A10
FBADQM7
FBA_A11
FBB_A3
FBA_A8
FBB_A2
FBB_A5
FBAVREF3
FBB_A4
FBA_ODT
FBA_A1
FBADQS7
FBA_A6
FBA_A12
FBA_CLK0N
FBA_CLK0P
FBA_CLK1N
FBA_CLK1P FBA_CLK1N
FBA_CLK1P
FBA_CLK1P
FBA_A1
FBA_A0
FBA_A2
FBA_A3
FBA_A5
FBA_A4
FBA_A7
FBA_A6
FBA_A9
FBA_A8
FBA_A11
FBA_A10
FBA_RAS#
FBA_A12
FBA_WE#
FBA_CAS#
FBA_CS#1
FBA_CS#0
FBA_BA1
FBA_BA0
FBB_A3
FBB_A2
FBB_A5
FBB_A4
FBAD12
FBAD1
FBAD6
FBAD9
FBAD7
FBAD5
FBAD15
FBAD13
FBAD0
FBAD4
FBAD3
FBAD11
FBAD8
FBAD14
FBAD10
FBAD2
FBAD48
FBAD52
FBAD55
FBAD51
FBAD60
FBAD57
FBAD59
FBAD58
FBAD53
FBAD49
FBAD62
FBAD61
FBAD63
FBAD50
FBAD56
FBAD54
+1.8VS
GND
GND
GND
+1.8VS
GND
GND
GND
+1.8VS
GND
+1.8VS
GND
GND
+1.8VS
GND
+1.8VS
GND
+1.8VS
+1.8VS
GND
GND
+1.8VS +1.8VS
+1.8VS
+1.8VS
GND
+0.9VS
+0.9VS
GND
GND
+1.8VS
+1.8VS
+1.8VS
GND
+1.8VS
GND
GND
GND
GND
GND
GND
R2916
1KOhm
1%
1 2
C29018
0.1UF/25V
12
C29039
1000PF/50V
12
RN2902A56Ohm
1 2
C29049
1UF/16V
12
C29026
1UF/16V
12
RN2902D56Ohm
7 8
C29023
1000PF/50V
12
U12
HYB18T256161AFL_25
A1
A2
A3
A9
B1
B2
B3
B8
B9
C1
C2
C3
C7
C8
C9
D1
D2
D3
D7
D8
D9
E1
E2
E3
E7
E9
F1
F2
F3
F7
F8
F9
G1
G2
G3
G7
G8
G9
H1
H2
H3
H7 H8
H9
J1
J2
J3
J7
J8
J9
K2
K3
K7
K8
K9
L1
L2
L3
L7
L8
M2
M3
M7
M8
M9
N1
N2
N3
N7
N8
P2
P3
P7
P8
P9
R1
R2
R3
R7
R8
B7
A8
A7
E8
VDD1
NC1
VSS1
VDDQ6
UDQ6/DQ6
VSSQ7
UDM
VSSQ8
UDQ7/DQ7
VDDQ7
UDQ1/DQ1
VDDQ8
VDDQ9
UDQ0/DQ0
VDDQ10
UDQ4/DQ4
VSSQ9
UDQ3/DQ3
UDQ2/DQ2
VSSQ10
UDQ5/DQ5
VDD2
NC2
VSS5
VSSQ1
VDDQ1
LDQ6/DQ6
VSSQ2
LDM
LDQS
VSSQ3
LDQ7/DQ7
VDDQ2
LDQ1/DQ1
VDDQ3
VDDQ4
LDQ0/DQ0
VDDQ5
LDQ4/DQ4
VSSQ4
LDQ3/DQ3
LDQ2/DQ2 VSSQ5
LDQ5/DQ5
VDDL
VREF
VSS2
VSSDL
CK
VDD3
CKE
WE#
RAS#
CK#
ODT
NC/BA2
BA0
BA1
CAS#
CS#
A10/AP
A1
A2
A0
VDD4
VSS3
A3
A5
A6
A4
A7
A9
A11
A8
VSS4
VDD5
A12
NC3
NC4
NC/A13
UDQS
UDQS#
VSSQ6
LDQS#
RN2905B56Ohm
3 4
C29020
1UF/16V
12
R2918
1KOhm
1%
1 2
C29016
4.7UF/6.3V
1 2
C29035
0.1UF/25V
12
C29007
0.1UF/25V
12
C29036
1UF/16V
12
C29060
0.1UF/10V
12
C29051
1000PF/50V
12
RN2903C56Ohm
5 6
C29044
4.7UF/6.3V
1 2
RN2901C56Ohm
5 6
C29001
0.1UF/10V
12
R2906
1KOhm
1%
1 2
C29003
0.1UF/10V
12
C29012
0.1UF/25V
12
C29031
0.1UF/10V
12
C29025
0.1UF/25V
12
C29021
1UF/16V
12
RN2903B56Ohm
3 4
C29008
1UF/16V
12
C29058
0.1UF/10V
12
RN2904D56Ohm
7 8
C29029
0.1UF/10V
12
C29017
1000PF/50V
12
R2908
1KOhm
1%
1 2
RN2903A56Ohm
1 2
C29027
1UF/16V
12
RN2904A56Ohm
1 2
C29040
0.1UF/25V
12
C29046
0.1UF/25V
12
C29030
0.1UF/10V
12
C29057
0.1UF/10V
12
RN2905A56Ohm
1 2
RN2906D56Ohm
7 8
U10
HYB18T256161AFL_25
A1
A2
A3
A9
B1
B2
B3
B8
B9
C1
C2
C3
C7
C8
C9
D1
D2
D3
D7
D8
D9
E1
E2
E3
E7
E9
F1
F2
F3
F7
F8
F9
G1
G2
G3
G7
G8
G9
H1
H2
H3
H7 H8
H9
J1
J2
J3
J7
J8
J9
K2
K3
K7
K8
K9
L1
L2
L3
L7
L8
M2
M3
M7
M8
M9
N1
N2
N3
N7
N8
P2
P3
P7
P8
P9
R1
R2
R3
R7
R8
B7
A8
A7
E8
VDD1
NC1
VSS1
VDDQ6
UDQ6/DQ6
VSSQ7
UDM
VSSQ8
UDQ7/DQ7
VDDQ7
UDQ1/DQ1
VDDQ8
VDDQ9
UDQ0/DQ0
VDDQ10
UDQ4/DQ4
VSSQ9
UDQ3/DQ3
UDQ2/DQ2
VSSQ10
UDQ5/DQ5
VDD2
NC2
VSS5
VSSQ1
VDDQ1
LDQ6/DQ6
VSSQ2
LDM
LDQS
VSSQ3
LDQ7/DQ7
VDDQ2
LDQ1/DQ1
VDDQ3
VDDQ4
LDQ0/DQ0
VDDQ5
LDQ4/DQ4
VSSQ4
LDQ3/DQ3
LDQ2/DQ2 VSSQ5
LDQ5/DQ5
VDDL
VREF
VSS2
VSSDL
CK
VDD3
CKE
WE#
RAS#
CK#
ODT
NC/BA2
BA0
BA1
CAS#
CS#
A10/AP
A1
A2
A0
VDD4
VSS3
A3
A5
A6
A4
A7
A9
A11
A8
VSS4
VDD5
A12
NC3
NC4
NC/A13
UDQS
UDQS#
VSSQ6
LDQS#
C29033
1000PF/50V
12
C29054
1UF/16V
12
C29022
4.7UF/6.3V
1 2
C29037
1UF/16V
12
R2901
100Ohm
12
RN2901A56Ohm
1 2
C29013
0.1UF/25V
12
C29014
1UF/16V
12
C29010
4.7UF/6.3V
1 2
RN2904B56Ohm
3 4
R2911
100Ohm
12
C29041
0.1UF/25V
12
C29059
0.1UF/10V
12
RN2906B56Ohm
3 4
RN2903D56Ohm
7 8
C29050
4.7UF/6.3V
1 2
R2909
1KOhm
1%
1 2
C29055
1UF/16V
12
RN2901D56Ohm
7 8
RN2904C56Ohm
5 6
U11
HYB18T256161AFL_25
A1
A2
A3
A9
B1
B2
B3
B8
B9
C1
C2
C3
C7
C8
C9
D1
D2
D3
D7
D8
D9
E1
E2
E3
E7
E9
F1
F2
F3
F7
F8
F9
G1
G2
G3
G7
G8
G9
H1
H2
H3
H7 H8
H9
J1
J2
J3
J7
J8
J9
K2
K3
K7
K8
K9
L1
L2
L3
L7
L8
M2
M3
M7
M8
M9
N1
N2
N3
N7
N8
P2
P3
P7
P8
P9
R1
R2
R3
R7
R8
B7
A8
A7
E8
VDD1
NC1
VSS1
VDDQ6
UDQ6/DQ6
VSSQ7
UDM
VSSQ8
UDQ7/DQ7
VDDQ7
UDQ1/DQ1
VDDQ8
VDDQ9
UDQ0/DQ0
VDDQ10
UDQ4/DQ4
VSSQ9
UDQ3/DQ3
UDQ2/DQ2
VSSQ10
UDQ5/DQ5
VDD2
NC2
VSS5
VSSQ1
VDDQ1
LDQ6/DQ6
VSSQ2
LDM
LDQS
VSSQ3
LDQ7/DQ7
VDDQ2
LDQ1/DQ1
VDDQ3
VDDQ4
LDQ0/DQ0
VDDQ5
LDQ4/DQ4
VSSQ4
LDQ3/DQ3
LDQ2/DQ2 VSSQ5
LDQ5/DQ5
VDDL
VREF
VSS2
VSSDL
CK
VDD3
CKE
WE#
RAS#
CK#
ODT
NC/BA2
BA0
BA1
CAS#
CS#
A10/AP
A1
A2
A0
VDD4
VSS3
A3
A5
A6
A4
A7
A9
A11
A8
VSS4
VDD5
A12
NC3
NC4
NC/A13
UDQS
UDQS#
VSSQ6
LDQS#
C29006
0.1UF/25V
12
RN2906A56Ohm
1 2
RN2902B56Ohm
3 4
C29032
0.1UF/10V
12
R2907
1KOhm
1%
1 2
C29053
0.1UF/25V
12
C29042
1UF/16V
12
C29019
0.1UF/25V
12
C29048
1UF/16V
12
C29024
0.1UF/25V
12
R2915
1KOhm
1%
1 2
RN2905C56Ohm
5 6
U13
HYB18T256161AFL_25
A1
A2
A3
A9
B1
B2
B3
B8
B9
C1
C2
C3
C7
C8
C9
D1
D2
D3
D7
D8
D9
E1
E2
E3
E7
E9
F1
F2
F3
F7
F8
F9
G1
G2
G3
G7
G8
G9
H1
H2
H3
H7 H8
H9
J1
J2
J3
J7
J8
J9
K2
K3
K7
K8
K9
L1
L2
L3
L7
L8
M2
M3
M7
M8
M9
N1
N2
N3
N7
N8
P2
P3
P7
P8
P9
R1
R2
R3
R7
R8
B7
A8
A7
E8
VDD1
NC1
VSS1
VDDQ6
UDQ6/DQ6
VSSQ7
UDM
VSSQ8
UDQ7/DQ7
VDDQ7
UDQ1/DQ1
VDDQ8
VDDQ9
UDQ0/DQ0
VDDQ10
UDQ4/DQ4
VSSQ9
UDQ3/DQ3
UDQ2/DQ2
VSSQ10
UDQ5/DQ5
VDD2
NC2
VSS5
VSSQ1
VDDQ1
LDQ6/DQ6
VSSQ2
LDM
LDQS
VSSQ3
LDQ7/DQ7
VDDQ2
LDQ1/DQ1
VDDQ3
VDDQ4
LDQ0/DQ0
VDDQ5
LDQ4/DQ4
VSSQ4
LDQ3/DQ3
LDQ2/DQ2 VSSQ5
LDQ5/DQ5
VDDL
VREF
VSS2
VSSDL
CK
VDD3
CKE
WE#
RAS#
CK#
ODT
NC/BA2
BA0
BA1
CAS#
CS#
A10/AP
A1
A2
A0
VDD4
VSS3
A3
A5
A6
A4
A7
A9
A11
A8
VSS4
VDD5
A12
NC3
NC4
NC/A13
UDQS
UDQS#
VSSQ6
LDQS#
C29045
1000PF/50V
12
C29005
1000PF/50V
12
C29011
1000PF/50V
12
C29052
0.1UF/25V
12
C29004
0.1UF/10V
12
RN2906C56Ohm
5 6
C29015
1UF/16V
12
R2903
10KOhm
1 2
C29038
4.7UF/6.3V
1 2
C29043
1UF/16V
12
C29002
0.1UF/10V
12
R2917
1KOhm
1%
1 2
RN2902C56Ohm
5 6
C29009
1UF/16V
12
C29028
4.7UF/6.3V
1 2
RN2901B56Ohm
3 4
C29034
0.1UF/25V
12
C29056
4.7UF/6.3V
1 2
C29047
0.1UF/25V
12
RN2905D56Ohm
7 8
R2910
10KOhm
12
FBA_RAS#[23] FBA_CAS#[23] FBA_WE#[23] FBA_CS#0[23]
FBA_BA0[23] FBA_BA1[23]
FBA_CKE[23]
FBA_CS#1[23]
FBA_WE#[23]
FBA_CS#1[23]
FBA_CAS#[23]
FBA_CS#0[23]
FBA_BA0[23]
FBA_RAS#[23]
FBA_BA1[23]
FBA_CKE[23]
FBA_WE#[23]
FBA_CS#1[23]
FBA_CAS#[23]
FBA_CS#0[23]
FBA_BA0[23]
FBA_RAS#[23]
FBA_BA1[23]
FBA_CKE[23]
FBB_A2[23] FBB_A3[23] FBB_A4[23] FBB_A5[23]
FBA_CAS#[23] FBA_RAS#[23]
FBB_A3[23] FBB_A2[23]
FBB_A4[23] FBB_A5[23]
FBA_WE#[23]
FBA_BA1[23]
FBA_CS#0[23]
FBA_CS#1[23]
FBA_BA0[23]
FBA_CKE[23]
FBA_CLK0P[23] FBA_CLK0N[23]
FBA_CLK1N[23] FBA_CLK1P[23]
FBA_ODT [23]
FBAD[32..47][23]
FBADQS[4..5][23]
FBADQS#[4..5][23]
FBADQM[4..5][23]
FBADQS[6..7][23]
FBAD[48..63][23]
FBADQS#[6..7][23]
FBADQM[6..7][23]
FBADQM[2..3][23]
FBADQS#[2..3][23]
FBAD[16..31][23]
FBADQS[2..3][23]
FBADQS[0..1][23]
FBA_A[0..12][23]
FBADQS#[0..1][23]
FBADQM[0..1][23]
FBAD[0:15][23]
5
5
4
4
3
3
2
2
1
1
D D
C C
B B
A
A
SWAPABLE
Custom
30 72Wednesday, March 08, 2006
ASUSTECH CO.,LTD.
G73M_MEM_PART2
1.0
A6T
Jefing_Li
A6TcSKU1
Size Project Name Rev
Date: Sheet of
Title :
Engineer:
FBCD42
FBC_CLK1N
FBC_CLK0P
FBCDQS#1
FBCD12
FBCDQS#6
FBCVREF3
FBCDQS#2
FBC_A8
FBCD33
FBCDQM1
FBCD36
FBC_A9
FBCD15
FBC_ODT
FBCDQM3
FBCDQS#0
FBC_A11
FBC_CLK0P
FBCVREF3
FBCDQS#4
FBCDQM2
FBCDQS7
FBCD14
FBCD6
FBCD47
FBC_A4
FBC_CLK1N
FBCDQS#7
FBC_A7
FBCDQS0
FBC_A5
FBC_A0
FBC_A8
FBC_A6
FBC_A0
FBCD19
FBC_A2
FBCDQS1
FBCD7
FBCVREF0
FBC_A9
FBCD30
FBCD35
FBC_ODT
FBCD46
FBCD25
FBCD39
FBCD10
FBC_A3
FBC_A6
FBC_A12
FBCD22
FBCD31
FBCDQS5
FBCDQM0
FBCD40
FBC_A7
FBCD28
FBCD27
FBCVREF2
FBC_A1
FBCDQS#5
FBC_CLK1P
FBCD29
FBC_A11
FBC_A2
FBCD26
FBC_A4
FBCD1
FBCDQM5
FBC_A7
FBC_A10
FBCVREF1
FBC_A0
FBCDQM4
FBCVREF0
FBC_CLK0N
FBCD0
FBC_A10
FBCD2
FBC_A11
FBCD37
FBD_A3
FBCD41
FBCD23
FBC_A8
FBD_A2
FBCD38
FBC_CLK1P
FBD_A5
FBC_CKE
FBCDQM7
FBCVREF2
FBCD34
FBCDQS6
FBCD44
FBC_A3
FBCD32
FBCD5
FBCD21
FBCD20
FBCD16
FBD_A4
FBCD43
FBC_ODT
FBCDQS3
FBC_A1
FBC_A9
FBCD24
FBCDQS2
FBCD17
FBCD11
FBCDQS4
FBCDQS#3
FBCD13
FBCD45
FBCDQM6
FBC_A1
FBCD18
FBC_A10
FBC_A12
FBC_CLK0N
FBC_A6
FBCD4
FBCD3
FBC_A5
FBCD9
FBC_A12
FBCD8
FBC_A7
FBC_A11
FBC_A6
FBD_A2
FBD_A3
FBC_A1
FBD_A5
FBC_A10
FBC_A8
FBD_A4
FBC_A12
FBC_A9
FBC_A0
FBC_CLK0N
FBC_CLK0P
FBC_CLK1N
FBC_CLK1P
FBD_A2
FBD_A3
FBC_BA1
FBC_A9
FBC_A12
FBC_RAS#
FBC_A1
FBC_CAS#
FBC_A10
FBC_A6
FBC_CS#0
FBC_WE#
FBC_A11
FBC_BA0
FBC_A7
FBC_CS#1
FBC_A4
FBC_A5
FBD_A4
FBC_A0
FBC_A3
FBD_A5
FBC_A2
FBC_A8
FBCVREF1
FBCD63
FBCD54
FBCD52
FBCD53
FBCD59
FBCD57
FBCD50
FBCD49
FBCD55
FBCD60
FBCD51
FBCD56
FBCD61
FBCD48
FBCD58
FBCD62
GND
GND
GND
+1.8VS
+1.8VS
+1.8VS
GND
GND
GND
+1.8VS
GND
+1.8VS
+1.8VS
+1.8VS
GND
GND
+1.8VS
GND
GND
+1.8VS
+1.8VS
+1.8VS
GND
+1.8VS
GND
GND
+0.9VS
+0.9VS
GND
GND
+1.8VS
GND
GND
GND
+1.8VS
+1.8VS +1.8VS
GND
GND
GND
GND
C30003
Do Not Stuff
/A6Tc
12
R3016
Do Not Stuff
1%
/A6Tc
1 2
R3010
Do Not Stuff
/A6Tc
12
RN3002DDo Not Stuff
/A6Tc
7 8
C30015
Do Not Stuff
/A6Tc
12
R3003
Do Not Stuff
/A6Tc
1 2
RN3005DDo Not Stuff
/A6Tc
7 8
C30013
Do Not Stuff
/A6Tc
12
C30043
Do Not Stuff
/A6Tc
12
RN3001ADo Not Stuff
/A6Tc
1 2
RN3003ADo Not Stuff
/A6Tc
1 2
C30027
Do Not Stuff
/A6Tc
12
C30054
Do Not Stuff
/A6Tc
12
C30001
Do Not Stuff
/A6Tc
12
C30031
Do Not Stuff
/A6Tc
12
C30032
Do Not Stuff
/A6Tc
12
RN3001BDo Not Stuff
/A6Tc
3 4
C30022
Do Not Stuff
/A6Tc
1 2
C30039
Do Not Stuff
/A6Tc
12
RN3006ADo Not Stuff
/A6Tc
1 2
R3018
Do Not Stuff
1%
/A6Tc
1 2
C30021
Do Not Stuff
/A6Tc
12
C30026
Do Not Stuff
/A6Tc
12
C30033
Do Not Stuff
/A6Tc
12
C30005
Do Not Stuff
/A6Tc
12
C30024
Do Not Stuff
/A6Tc
12
C30040
Do Not Stuff
/A6Tc
12
C30007
Do Not Stuff
/A6Tc
12
C30052
Do Not Stuff
/A6Tc
12
RN3003BDo Not Stuff
/A6Tc
3 4
RN3005BDo Not Stuff
/A6Tc
3 4
RN3004ADo Not Stuff
/A6Tc
1 2
C30045
Do Not Stuff
/A6Tc
12
C30006
Do Not Stuff
/A6Tc
12
C30018
Do Not Stuff
/A6Tc
12
C30058
Do Not Stuff
/A6Tc
12
RN3006CDo Not Stuff
/A6Tc
5 6
C30002
Do Not Stuff
/A6Tc
12
C30004
Do Not Stuff
/A6Tc
12
C30010
Do Not Stuff
/A6Tc
1 2
R3001
Do Not Stuff
/A6Tc
12
C30011
Do Not Stuff
/A6Tc
12
RN3004BDo Not Stuff
/A6Tc
3 4
C30034
Do Not Stuff
/A6Tc
12
U16
Do Not Stuff
/A6Tc
A1
A2
A3
A9
B1
B2
B3
B8
B9
C1
C2
C3
C7
C8
C9
D1
D2
D3
D7
D8
D9
E1
E2
E3
E7
E9
F1
F2
F3
F7
F8
F9
G1
G2
G3
G7
G8
G9
H1
H2
H3
H7 H8
H9
J1
J2
J3
J7
J8
J9
K2
K3
K7
K8
K9
L1
L2
L3
L7
L8
M2
M3
M7
M8
M9
N1
N2
N3
N7
N8
P2
P3
P7
P8
P9
R1
R2
R3
R7
R8
B7
A8
A7
E8
VDD1
NC1
VSS1
VDDQ6
UDQ6/DQ6
VSSQ7
UDM
VSSQ8
UDQ7/DQ7
VDDQ7
UDQ1/DQ1
VDDQ8
VDDQ9
UDQ0/DQ0
VDDQ10
UDQ4/DQ4
VSSQ9
UDQ3/DQ3
UDQ2/DQ2
VSSQ10
UDQ5/DQ5
VDD2
NC2
VSS5
VSSQ1
VDDQ1
LDQ6/DQ6
VSSQ2
LDM
LDQS
VSSQ3
LDQ7/DQ7
VDDQ2
LDQ1/DQ1
VDDQ3
VDDQ4
LDQ0/DQ0
VDDQ5
LDQ4/DQ4
VSSQ4
LDQ3/DQ3
LDQ2/DQ2 VSSQ5
LDQ5/DQ5
VDDL
VREF
VSS2
VSSDL
CK
VDD3
CKE
WE#
RAS#
CK#
ODT
NC/BA2
BA0
BA1
CAS#
CS#
A10/AP
A1
A2
A0
VDD4
VSS3
A3
A5
A6
A4
A7
A9
A11
A8
VSS4
VDD5
A12
NC3
NC4
NC/A13
UDQS
UDQS#
VSSQ6
LDQS#
RN3004CDo Not Stuff
/A6Tc
5 6
RN3002BDo Not Stuff
/A6Tc
3 4
C30059
Do Not Stuff
/A6Tc
12
RN3006DDo Not Stuff
/A6Tc
7 8
C30009
Do Not Stuff
/A6Tc
12
C30012
Do Not Stuff
/A6Tc
12
C30042
Do Not Stuff
/A6Tc
12
C30046
Do Not Stuff
/A6Tc
12
C30036
Do Not Stuff
/A6Tc
12
RN3004DDo Not Stuff
/A6Tc
7 8
C30025
Do Not Stuff
/A6Tc
12
C30060
Do Not Stuff
/A6Tc
12
C30051
Do Not Stuff
/A6Tc
12
R3007
Do Not Stuff
1%
/A6Tc
1 2
C30044
Do Not Stuff
/A6Tc
1 2
C30049
Do Not Stuff
/A6Tc
12
C30028
Do Not Stuff
/A6Tc
1 2
RN3002CDo Not Stuff
/A6Tc
5 6
C30023
Do Not Stuff
/A6Tc
12
C30019
Do Not Stuff
/A6Tc
12
C30014
Do Not Stuff
/A6Tc
12
U17
Do Not Stuff
/A6Tc
A1
A2
A3
A9
B1
B2
B3
B8
B9
C1
C2
C3
C7
C8
C9
D1
D2
D3
D7
D8
D9
E1
E2
E3
E7
E9
F1
F2
F3
F7
F8
F9
G1
G2
G3
G7
G8
G9
H1
H2
H3
H7 H8
H9
J1
J2
J3
J7
J8
J9
K2
K3
K7
K8
K9
L1
L2
L3
L7
L8
M2
M3
M7
M8
M9
N1
N2
N3
N7
N8
P2
P3
P7
P8
P9
R1
R2
R3
R7
R8
B7
A8
A7
E8
VDD1
NC1
VSS1
VDDQ6
UDQ6/DQ6
VSSQ7
UDM
VSSQ8
UDQ7/DQ7
VDDQ7
UDQ1/DQ1
VDDQ8
VDDQ9
UDQ0/DQ0
VDDQ10
UDQ4/DQ4
VSSQ9
UDQ3/DQ3
UDQ2/DQ2
VSSQ10
UDQ5/DQ5
VDD2
NC2
VSS5
VSSQ1
VDDQ1
LDQ6/DQ6
VSSQ2
LDM
LDQS
VSSQ3
LDQ7/DQ7
VDDQ2
LDQ1/DQ1
VDDQ3
VDDQ4
LDQ0/DQ0
VDDQ5
LDQ4/DQ4
VSSQ4
LDQ3/DQ3
LDQ2/DQ2 VSSQ5
LDQ5/DQ5
VDDL
VREF
VSS2
VSSDL
CK
VDD3
CKE
WE#
RAS#
CK#
ODT
NC/BA2
BA0
BA1
CAS#
CS#
A10/AP
A1
A2
A0
VDD4
VSS3
A3
A5
A6
A4
A7
A9
A11
A8
VSS4
VDD5
A12
NC3
NC4
NC/A13
UDQS
UDQS#
VSSQ6
LDQS#
R3015
Do Not Stuff
1%
/A6Tc
1 2
U14
Do Not Stuff
/A6Tc
A1
A2
A3
A9
B1
B2
B3
B8
B9
C1
C2
C3
C7
C8
C9
D1
D2
D3
D7
D8
D9
E1
E2
E3
E7
E9
F1
F2
F3
F7
F8
F9
G1
G2
G3
G7
G8
G9
H1
H2
H3
H7 H8
H9
J1
J2
J3
J7
J8
J9
K2
K3
K7
K8
K9
L1
L2
L3
L7
L8
M2
M3
M7
M8
M9
N1
N2
N3
N7
N8
P2
P3
P7
P8
P9
R1
R2
R3
R7
R8
B7
A8
A7
E8
VDD1
NC1
VSS1
VDDQ6
UDQ6/DQ6
VSSQ7
UDM
VSSQ8
UDQ7/DQ7
VDDQ7
UDQ1/DQ1
VDDQ8
VDDQ9
UDQ0/DQ0
VDDQ10
UDQ4/DQ4
VSSQ9
UDQ3/DQ3
UDQ2/DQ2
VSSQ10
UDQ5/DQ5
VDD2
NC2
VSS5
VSSQ1
VDDQ1
LDQ6/DQ6
VSSQ2
LDM
LDQS
VSSQ3
LDQ7/DQ7
VDDQ2
LDQ1/DQ1
VDDQ3
VDDQ4
LDQ0/DQ0
VDDQ5
LDQ4/DQ4
VSSQ4
LDQ3/DQ3
LDQ2/DQ2 VSSQ5
LDQ5/DQ5
VDDL
VREF
VSS2
VSSDL
CK
VDD3
CKE
WE#
RAS#
CK#
ODT
NC/BA2
BA0
BA1
CAS#
CS#
A10/AP
A1
A2
A0
VDD4
VSS3
A3
A5
A6
A4
A7
A9
A11
A8
VSS4
VDD5
A12
NC3
NC4
NC/A13
UDQS
UDQS#
VSSQ6
LDQS#
RN3005CDo Not Stuff
/A6Tc
5 6
RN3003DDo Not Stuff
/A6Tc
7 8
U15
Do Not Stuff
/A6Tc
A1
A2
A3
A9
B1
B2
B3
B8
B9
C1
C2
C3
C7
C8
C9
D1
D2
D3
D7
D8
D9
E1
E2
E3
E7
E9
F1
F2
F3
F7
F8
F9
G1
G2
G3
G7
G8
G9
H1
H2
H3
H7 H8
H9
J1
J2
J3
J7
J8
J9
K2
K3
K7
K8
K9
L1
L2
L3
L7
L8
M2
M3
M7
M8
M9
N1
N2
N3
N7
N8
P2
P3
P7
P8
P9
R1
R2
R3
R7
R8
B7
A8
A7
E8
VDD1
NC1
VSS1
VDDQ6
UDQ6/DQ6
VSSQ7
UDM
VSSQ8
UDQ7/DQ7
VDDQ7
UDQ1/DQ1
VDDQ8
VDDQ9
UDQ0/DQ0
VDDQ10
UDQ4/DQ4
VSSQ9
UDQ3/DQ3
UDQ2/DQ2
VSSQ10
UDQ5/DQ5
VDD2
NC2
VSS5
VSSQ1
VDDQ1
LDQ6/DQ6
VSSQ2
LDM
LDQS
VSSQ3
LDQ7/DQ7
VDDQ2
LDQ1/DQ1
VDDQ3
VDDQ4
LDQ0/DQ0
VDDQ5
LDQ4/DQ4
VSSQ4
LDQ3/DQ3
LDQ2/DQ2 VSSQ5
LDQ5/DQ5
VDDL
VREF
VSS2
VSSDL
CK
VDD3
CKE
WE#
RAS#
CK#
ODT
NC/BA2
BA0
BA1
CAS#
CS#
A10/AP
A1
A2
A0
VDD4
VSS3
A3
A5
A6
A4
A7
A9
A11
A8
VSS4
VDD5
A12
NC3
NC4
NC/A13
UDQS
UDQS#
VSSQ6
LDQS#
C30008
Do Not Stuff
/A6Tc
12
C30017
Do Not Stuff
/A6Tc
12
R3009
Do Not Stuff
1%
/A6Tc
1 2
RN3006BDo Not Stuff
/A6Tc
3 4
C30050
Do Not Stuff
/A6Tc
1 2
C30047
Do Not Stuff
/A6Tc
12
RN3001CDo Not Stuff
/A6Tc
5 6
C30057
Do Not Stuff
/A6Tc
12
C30055
Do Not Stuff
/A6Tc
12
C30048
Do Not Stuff
/A6Tc
12
R3011
Do Not Stuff
/A6Tc
12
R3017
Do Not Stuff
1%
/A6Tc
1 2
C30035
Do Not Stuff
/A6Tc
12
C30056
Do Not Stuff
/A6Tc
1 2
C30038
Do Not Stuff
/A6Tc
1 2
R3006
Do Not Stuff
1%
/A6Tc
1 2
RN3002ADo Not Stuff
/A6Tc
1 2
RN3001DDo Not Stuff
/A6Tc
7 8
RN3005ADo Not Stuff
/A6Tc
1 2
C30030
Do Not Stuff
/A6Tc
12
RN3003CDo Not Stuff
/A6Tc
5 6
C30020
Do Not Stuff
/A6Tc
12
C30016
Do Not Stuff
/A6Tc
1 2
C30041
Do Not Stuff
/A6Tc
12
C30029
Do Not Stuff
/A6Tc
12
C30037
Do Not Stuff
/A6Tc
12
C30053
Do Not Stuff
/A6Tc
12
R3008
Do Not Stuff
1%
/A6Tc
1 2
FBC_CAS#[23]
FBC_WE#[23]
FBC_CS#1[23]FBC_CS#1[23]
FBC_CAS#[23]
FBC_CS#0[23]
FBC_CKE[23]
FBC_BA0[23]
FBD_A3[23]
FBC_BA0[23] FBC_BA1[23]
FBD_A2[23]
FBC_RAS#[23]FBC_RAS#[23]
FBD_A4[23] FBD_A5[23]
FBC_BA1[23]
FBC_WE#[23]
FBC_CKE[23]
FBC_CS#0[23]
FBC_CKE[23]
FBC_CS#0[23]
FBC_CAS#[23]
FBC_BA0[23]
FBC_CS#1[23] FBC_BA1[23]
FBC_WE#[23]
FBC_RAS#[23]
FBC_CKE[23]
FBC_RAS#[23]
FBC_CS#0[23]
FBC_BA0[23]
FBD_A3[23]
FBC_WE#[23]
FBD_A2[23]
FBC_CAS#[23]
FBC_BA1[23] FBC_CS#1[23]
FBD_A5[23] FBD_A4[23]
FBC_CLK0P[23] FBC_CLK0N[23]
FBC_CLK1P[23] FBC_CLK1N[23]
FBC_ODT [23]
FBCDQS#[6..7][23]
FBCDQM[6..7][23]
FBCDQS[6..7][23]
FBCD[48..63][23]
FBCDQS[2..3][23]
FBCDQS#[2..3][23]
FBCD[16..31][23]
FBCDQM[2..3][23]
FBCDQS#[0..1][23]
FBC_A[0..12][23]
FBCDQS[0..1][23]
FBCD[0:15][23]
FBCDQM[0..1][23]
FBCDQM[4..5][23]
FBCD[32..47][23]
FBCDQS[4..5][23]
FBCDQS#[4..5][23]
5
5
4
4
3
3
2
2
1
1
D D
C C
B B
A
A
SATA HDD
12G15110022F
A3
31 72Wednesday, March 08, 2006
ASUSTECH CO.,LTD.
HDD/CDROM
1.0
A6T
Jefing_Li
A6TcSKU1
Size Project Name Rev
Date: Sheet of
Title :
Engineer:
UDMA_DET_S
HD_LED#
IDE_SDINTR
IDE_RST#
IDE_SDDREQ
IDE_SDD14
IDE_SDD1
IDE_SDD12
IDE_SDD2
IDE_SDD3
IDE_SDD9
IDE_SDD7
IDE_SDD4
IDE_SDD0
IDE_SDD11
IDE_SDD13
IDE_SDD15
IDE_SDD10
IDE_SDD5
IDE_SDD6
IDE_SDD8
IDE_SCSEL
IDE_SCSEL
CD_LED#
SATA_HDD_TXN0
SATA_HDD_RXP0
SATA_HDD_RXN0
SATA_HDD_TXP0
CD_LED#
HD_LED#
IDE_LED#
CD_GND_A
UDMA_DET_P
PIDE_HDLED#
IDE_RST#
IDE_PCSEL
IDE_RST#
UDMA_DET_P
IDE_PDD7
IDE_PDDREQ
IDE_PDINTR
IDE_SDINTR
UDMA_DET_S
IDE_SDDREQ
IDE_SDD7
IDE_PCSEL
+5VS
+3VS
GND GND
GND
GND
+5VS
+3VS
+5VS
+5VS
+5VS
+5VS
+3VS
+5VS
GND
+3VS
GND
GND
+5VSR3114
10KOhm
1 2
R3112
Do Not Stuff
/x
12
+
CE3102
47UF/6.3V
12
R3109 10KOhm
1 2
D3101 RB717F
1
2
3
R3120 10KOhm
/PATA
1 2
CON3
HDD_CON_44P
/PATA
44
43
42
41
40
39
38
37
36
35
34
33
32
31
30
29
28
27
26
25
24
23
22
21
20
19
18
17
16
15
14
13
12
11
10
9
8
7
6
5
4
3
2
1
45
46
47
48
49
50
44
43
42
41
40
39
38
37
36
35
34
33
32
31
30
29
28
27
26
25
24
23
22
21
20
19
18
17
16
15
14
13
12
11
10
9
8
7
6
5
4
3
2
1
NP_NC1
NP_NC2
NP_NC3
NP_NC4
GND1
GND2
R3103
10KOhm
1 2
R3121 15KOhm
/PATA
1 2
R3105
Do Not Stuff
/x
1 2
R3111 5.6KOhm
1 2
Q3101B
UM6K1N
5
34
C31002
0.1UF/10V
c0402
12
C31003
10UF/10V
c0805
12
C31007 Do Not Stuff
/sata
1 2
R3115
0Ohm
/PATA
1 2
R3101
4.7KOhm
/PATA
1 2
C31004
0.1UF/10V
c0402
12
C31001
10UF/10V
c0805
12
C31008 Do Not Stuff
/sata
1 2
NP_NC3
NP_NC1
NP_NC4
NP_NC2
CON4
BtoB_CON_50P
1
3
5
7
9
11
13
15
17
19
21
23
25
27
29
31
33
35
37
39
41
43
45
47
49
2
4
6
8
10
12
14
16
18
20
22
24
26
28
30
32
34
36
38
40
42
44
46
48
50
52 51
5354
R3122 5.6KOhm
/PATA
1 2
R3107 22Ohm
/PATA
1 2
R3108 10KOhm
1 2
C31006 Do Not Stuff
/sata
1 2
R3119
0Ohm
12
Q3101A
UM6K1N
2
61
R3106
0Ohm
1 2
C31009 Do Not Stuff
/sata
1 2
R3104
Do Not Stuff
/x
12
R3118 10KOhm
/PATA
1 2
+
CE3101
47UF/6.3V
12
R3110 15KOhm
1 2
R3113
10KOhm
1 2
CON25
Do Not Stuff
/sata
22
21
20
19
18
17
16
15
14
13
12
11
10
23
24
25
26
9
8
7
6
5
4
3
2
1
22
21
20
19
18
17
16
15
14
13
12
11
10
NP_NC1
NP_NC2
P_GND1
P_GND2
9
8
7
6
5
4
3
2
1
R3102
10KOhm
1 2
R3117 22Ohm
1 2
D3102 Do Not Stuff
/sata
1 2
R3116
4.7KOhm
1 2
IDE_SDCS3#[18]
IDE_SDDREQ[18]
IDE_SDIOW#[18]
IDE_SDINTR[18]
IDE_SIORDY[18]
IDE_SDA0[18]
PCI_IDE_RST#[17]
IDE_SDA1[18]
IDE_SDA2[18]
IDE_SDCS1#[18]
IDE_SDDACK#[18]
IDE_SDD[0..15][18]
IDE_SDIOR#[18]
UDMA_DET_S[18]
IDE_PDINTR[18]
IDE_PDD14 [18]
IDE_PDD9 [18]
IDE_PDD8 [18]
IDE_PDD10 [18]
IDE_PDD1[18]
IDE_PDA0[18]
IDE_PIORDY[18]
IDE_PDD6[18]
IDE_PDD3[18]
IDE_PDDREQ [18]
IDE_PDD11 [18]
IDE_PDA2 [18]
IDE_PDD13 [18]
CD_GND_A[42]
IDE_PDD0[18]
IDE_PDA1[18]
IDE_PDCS1#[18]
IDE_PDD2[18]
IDE_PDIOR# [18]
IDE_PDD5[18]
IDE_PDD15 [18]
CD_R_A [42]
IDE_PDCS3# [18]
IDE_PDD12 [18]IDE_PDD4[18]
IDE_PDIOW#[18] IDE_PDDACK# [18]
IDE_PDD7[18]
CD_L_A[42]
UDMA_DET_P [18]
SATA_A0_RX_P[18]
SATA_A0_TX_P[18] SATA_A0_TX_N[18]
SATA_A0_RX_N[18]
SATA_LED# [18]
IDE_LED#[48]

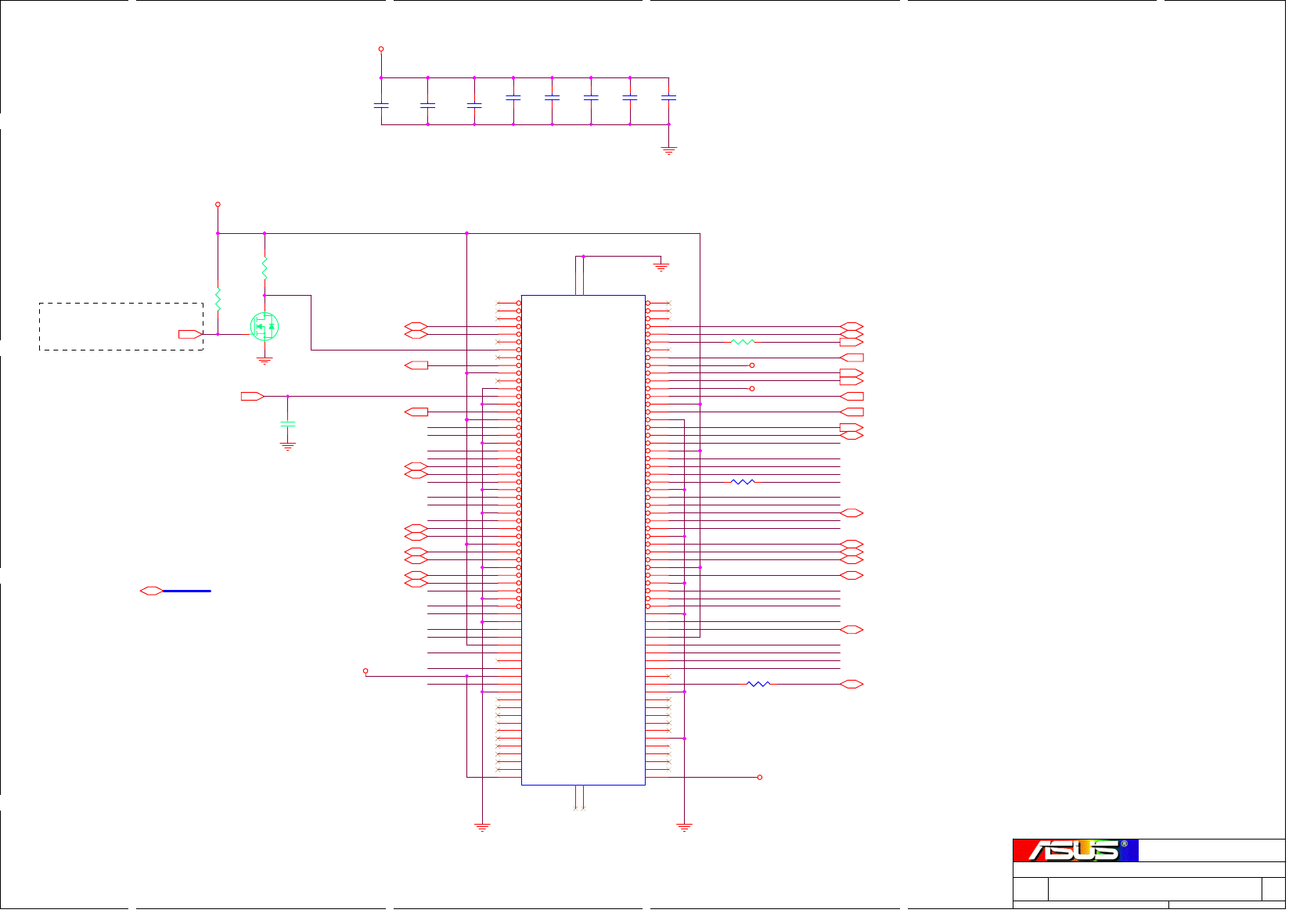

5
5
4
4
3
3
2
2
1
1
D D
C C
B B
A
A
SOUTH BRIDGE GPIO PIN
A3
32 72Wednesday, March 08, 2006
ASUSTECH CO.,LTD.
MINI PCI
1.0
A6T
Jefing_Li
A6TcSKU1
Size Project Name Rev
Date: Sheet of
Title :
Engineer:
PCI_AD2
PCI_AD18
PCI_AD20
PCI_AD11
PCI_AD6
PCI_AD13
PCI_AD9
PCI_AD15
PCI_AD22
PCI_AD28
PCI_AD26
PCI_AD16
PCI_AD30
PCI_AD4
PCI_AD19
PCI_AD24
PCI_AD0
PCI_AD21
PCI_AD25
PCI_AD8
PCI_AD31
PCI_AD19
WLAN_ON
PCI_AD27
PCI_AD12
PCI_AD29
PCI_AD7
PCI_AD14
PCI_AD10
PCI_AD1
PCI_AD5
PCI_AD17
PCI_AD23
PCI_AD3
+3V
GND
+5VS
GND
+3V
GND
+5VS
GND
GND
GND
+3VS
+3VS
C32004
0.01UF/50V
12
GS
D
3
2
1
Q3201
Do Not Stuff
/x
1
32
C32006
0.01UF/50V
12
C32008
0.1UF/10V
c0402
12
R3202
Do Not Stuff
r0402_h16
/x
12
C32007
0.1UF/10V
c0402
12
R3205
0Ohm
1 2
R3204
33Ohm
1 2
C32003
0.01UF/50V
12
R3203 Do Not Stuff
/x
1 2
C32002
0.01UF/50V
12
C32005
0.01UF/50V
12
CON5
MINI_PCI_124P
3
115
4
5
82
117
76
81
9
119
8
11
84
18
13
10
86
15
83
12
88
25
14
90
85
16
92
20
94
87
96
1
98
89
100
22
102
91
104
27
106
93
108
24
110
95
112
2
114
97
116
26
118
99
120
29
122
101
124
28
103
105
30
107
31
109
32
111
113
3433 36
121
38
123
35
40
42
37
44
46
39
48
50
41
52
54
43
56
58
45
60
62
47
64
66
49
68
70
51
72
74
53
76
78
55
80
57
17
59
61
19
63
65
21
69
71
23
73
67
75
77
79
125
126
127
128
LAN_RESERV1
S_AUDIO_OUT
LAN_RESERV2
LAN_RESERV3
GROUND1
S_AUDIO_OGND
LAN_RESERV4 LAN_RESERV5
AD[10]
LAN_RESERV6
AUDIO_GND1
LAN_RESERV7
LAN_RESERV8
AD[09]
5V_1
LAN_RESERV9
LAN_RESERV10
C/BE[0]#
LAN_RESERV11
GROUND2
LAN_RESERV12
3.3V_1
CLK
LAN_RESERV13
AD[06]
AD[08]
LAN_RESERV14
AD[04]
INTA#
AD[02]
AD[07]
AD[00]
TIP
RESERVED1
3.3V_2
RESERVED2
RESERVED3
GROUND3
AD[05]
M66EN
GROUND4
AC_SDATA_OUT
RESERVED4
AC_CODEC_ID0#
3.3VAUX1
AC_RESET#
AD[03]
RESERVED5
RING
GROUND5
5V_2
S_AUDIO_IN
RST#
S_AUDIO_I GND
AD[01]
AUDIO_GND
REQ#
MCPIACT#
GROUND6
3.3VAUX2
3.3V_3
AC_SYNC
AC_SDATA_IN
GNT#
AC_BIT_CLK
3.3V_4
AC_CODEC_ID1#
GROUND7
MOD_AUDIO_MON
AUDIO_GND2
PME#AD[31] RESERVED6
RESERVED7
AD[30]
VCC5A
AD[29]
3.3V_5
AD[28]
GROUND8
AD[26]
AD[24]
AD[27]
IDSEL
GROUND9
AD[25]
AD[22]
AD[20]
RESERVED8
PAR
AD[18]
C/BE[3]#
AD[16]
GROUND10
AD[23]
FRAME#
TRDY#
GROUND11
STOP#
3.3V_6
AD[21]
DEVSEL#
GROUND12
AD[19]
AD[15]
AD[13]
GROUND13
AD[11]
AD[17]
INTB#
C/BE[2]#
IRDY#
3.3V_7
3.3V_8
CLKRUN#
RESERVED9
GROUND14
PERR#
GROUND15
C/BE[1]#
SERR#
AD[14]
GROUND16
AD[12]
SIDE1
SIDE2
POST1
POST2
C32001
10UF/10V
c0805
12
C32009
Do Not Stuff
/x
c0402
12
R3201
Do Not Stuff
r0402_h16
/x
12
PCI_FRAME# [17,33]
PCI_INTY#[17,33]
PCI_C/BE#2[17,33]
WLAN_ON#[19]
PCI_GNT#0 [17]
CH_CLK [39]
CLK_MINIPCI[17]
PCI_TRDY# [17,33]
PCI_REQ#0[17]
PCI_SERR#[17,33]
PCI_INTX# [17,33]
INT_SERIRQ [17,33,38]
PCI_AD[0..31][17,33]
MINI_PCI_RST# [17]
PCI_IRDY#[17,33]
PCI_C/BE#1[17,33]
PCI_STOP# [17,33]
PM_CLKRUN#[17,33,38]
PCI_PME# [17,33]
LPC_AD3 [17,34,37,38]
LPC_AD1 [17,34,37,38]
PCI_C/BE#0 [17,33]
PCI_C/BE#3[17,33]
802_LED_EN [19,39,48]
DIS_SYSBIOS [34,37]
PCI_PAR [17,33]
LPC_AD2[17,34,37,38]
LPC_FRAME# [17,34,37,38]
PCI_PERR#[17,33]
CH_DATA[39]
PCI_DEVSEL# [17,33]
LPC_AD0[17,34,37,38]
5
5
4
4
3
3
2
2
1
1
D D
C C
B B
A
A
MDIO05--> XD Card Write Protect
SHIELD GND
GBRST# POWER SEQ
+3V ==> (GBRST#/CB_HWSUSP#) ==>PCIRST#
H/W SUSPEND# POWER SEQ :
SUSPEND : CB_HWSUSP# LO=> PCIRST# LO=> +3VS OFF
RESUME : +3VS ON => PCIRST# HI=> CB_HWSUSP# HI
5mA
MDIO13--> SD/MS/XD Data 3
MDIO04--> SD/MS/XD Card Power0 Control
MDIO09--> SD/MS Clock /XD Card Read Enable
INT Z#--> 1394
+3V ==> CB_GBRST#
1ms < T < 100ms
VCC_3V POWER :
PME#, SPKROUT, RI_OUT#
HWSUSP#, GBRST#, IRQn
CCD1#, CCD2#, VS1# , VS2#
TEST, VCC5EN#, VCC3EN#
VPPEN0, VPPEN1, SD/MS I/F
VCCPCI POWER :
PCI BUS
VCC_SLOT POWER :
CARD_BUS,
CAUDIO , CSTSCHG
MDIO10--> SD/MS/XD Data 0
MDIO11--> SD/MS/XD Data 1
MDIO14--> XD Data 4
MDIO01--> MS Card Detect
Open Drain :
PME#,
SERR#,
INTn#
INT W#--> CARD
READER
MDIO03--> SD Write Protect XD Card Ready/Busy#
8mA
4mA
SHIELD GND
L.C.A
MDIO00--> SD Card Detect
90 ohm
71mA
MDIO08--> SD Command/MS Bus State /XD Card Write Enable
MDIO19--> XD Card Address Latch
MDIO15--> XD Data 5
90 ohm
INT Y#--> CARDBUS
MDIO12--> SD/MS/XD Data 2
SHIELD GND
L.C.A
MDIO17--> XD Data 7
MDIO07--> SD/MS External Clock
UDIO03 H : Enable SD
UDIO04 H : Enable MS
VPPEN0 H : Enable XD
MDIO18--> XD Card Command Latch
MDIO06--> SD/MSXD LED
MDIO16--> XD Data 6
L.C.A
L.C.A
MDIO02--> XD Card Enable
SPKRCB PULL DOWN : USE SROM
RICOH R5C841 :
SOUTH BRIDGE
GPIO PIN
C
33 72Wednesday, March 08, 2006
ASUSTECH CO.,LTD.
CARD BUS
1.0
A6T
Jefing_Li
A6TcSKU1
Size Project Name Rev
Date: Sheet of
Title :
Engineer:
PCI_C/BE#2
PCI_AD22
PCI_AD0
PCI_AD31
PCI_AD18
PCI_AD25
PCI_AD6
PCI_AD17
PCI_AD30
PCI_AD27
PCI_C/BE#0
PCI_C/BE#1
PCI_AD7
PCI_AD4
CB_HWSUSP#
VCC_ROUT_CB
PCI_AD21
PCI_AD29
CB_GBRST#
PCI_AD8
IDSEL_CB
PCI_AD24
CB_GBRST#
PCI_AD16
CB_HWSUSP#
PCI_AD19
PCI_AD13
VCC_RIN_CB
PCI_C/BE#3
PCI_AD26
PCI_AD28
PCI_AD1
PCI_AD12
PCI_AD5
PCI_AD15
PCI_AD3
PCI_AD14
VCC_ROUT_CB
PCI_AD23
PCI_AD17
PCI_AD2
PCI_AD20
PCI_AD10
IDSEL_CB
PCI_AD11
PCI_AD9
MDIO17_XDDAT7
MDIO15_XDDAT5
CCLKRUN#/IOIS16#
MDIO19_XDADSLA
MDIO5_XDWP#
MDIO6_SD/MS/XD LED
MDIO16_XDDAT6
MDIO18_XDCMDLA
MDIO14_XDDAT4
MDIO2_XDCE#
GND
GND
+3VS
+3V
GND
GND
GND
GND
+3V
GND
GND
+VCCCB
+3V
GND
GND
+3V
+3V
GND
GND
GND
GND
GND
GND
GND
GND
+3V
+3V
+MC_VCC
GND
GND
C33012
15PF/50V
c0402
12
C33002
0.1UF/10V
c0402
1 2
R3310 0Ohm
12
C33010
1000PF/50V
c0402
12
T3311 Do Not Stuff 1
U18A
R5C841-CSP208Q
W13
P18
U18
V13
J18
P19
T13
W18
T19
J15
V17
R13
M15
T18
V16
K16
V19
V15
F16
L16
B19
H19
C18
G16
L18
A18
D18
M16
M18
N19
W17
N16
F19
W16
P16
L19
W15
K15
E18
N18
N15
T15
K18
R18
R14
U19
H16
R19
P15
C19
J16
H15
D19
H18
R16
G15
G18
E19
F15
D15
F18
E16
T14
G19
C1
D1
E1
C2
D2
E2
E4
B7
A7
E6
D6
B6
A6
D5
B5
A5
B4
B3
A3
A2
B1
V14
W14
D7
E7
A8
B8
D8
E8
VPPEN1
IORD#
CDATA15
VPPEN0
CADR25
IOWR#
VCC3EN#
CDATA14
OE#
CADR24
CDATA13
VCC5EN#
WE#
CE2#
CDATA12
CADR23
CE1#
CDATA11
REG#
CADR22
CDATA10
RESET
CDATA9
WAIT#
CADR21
WP/IOIS16#
CDATA8
CADR20
RDY/IREQ#
CADR19
CDATA7
CADR18
BVD2
CDATA6
CADR17
CADR16
CDATA5
CADR15
BVD1
CADR14
CADR13
CDATA4
CADR12
CADR11
CDATA3
CADR10
VS2#
CADR9
CADR8
CDATA2
CADR7
CADR6
CDATA1
CADR5
VS1#
CADR4
CADR3
CDATA0
CADR2
CD2#
CADR1
CADR0
CD1#
INPACK#
NC2
NC3
NC4
NC5
NC6
NC7
NC8
MDIO13
MDIO12
MDIO11
MDIO10
MDIO09
MDIO08
MDIO07
MDIO06
MDIO05
MDIO04
MDIO03
MDIO02
MDIO01
MDIO00
USBDP
USBDM
MDIO14
MDIO15
MDIO16
MDIO17
MDIO18
MDIO19
C33018
0.47UF/16V
12
C33019
0.47UF/16V
12
R3311 0Ohm
12
C33005
10UF/10V
c0805
12
C33008
10UF/10V
c0805
12
C33023 0.1UF/10V
c0402
12
R3316 100KOHM
r0402
12
T3305 Do Not Stuff 1
R3304 Do Not Stuff/x
1 2
R3314
Do Not Stuff
r0402
/x
1 2
C33016
10UF/10V
c0805
12
R3313
Do Not Stuff
r0402
/x
1 2
C33021
Do Not Stuff
c0402
/x
12
C33015
0.1UF/10V
c0402
1 2
R3303 0Ohm
1 2
R3301 100KOHM
r0402 12
T3310 Do Not Stuff 1
C33007
0.1UF/10V
c0402
1 2
C33006
0.1UF/10V
c0402
1 2
R3308 0Ohm
r0402_h16
12
T3306 Do Not Stuff 1
T3302 Do Not Stuff 1
D3301
Do Not Stuff
/x
1 2
R3312 100KOHM
r0402 12
T3303 Do Not Stuff 1
C33011
1000PF/50V
c0402
12
T3304 Do Not Stuff 1
C33014
0.1UF/10V
c0402
1 2
C33001
10UF/10V
c0805
12
T3312 Do Not Stuff 1
R3307 0Ohmr0402_h16
12
R3306 100KOHM
r0402
1 2
C33017
1000PF/50V
c0402
12
U18B
R5C841-CSP208Q
G1
J4
F5
J2
G4
T9
W6
W2
P2
W12
V12
T12
W11
V11
T11
W9
V9
R9
F2
W8
V8
T8
R8
W7
V7
T7
V1
U1
U2
T1
T2
R1
R2
R4
P4
P5
N1
N2
N4
N5
M1
M2
J1
G5
W3
R11
R12
L1
R6
R7
E13
V6
M4
M5
T6
W5
V5
T5
W4
P1
V4
V3
L5
L4
K1
G2
J19
K19
J5
K5
E9
R10
T10
V10
W10
L15
M19
E14 A4
F1
F4
K4
H5
H4
H2
H1
K2
L2
A9
D14
A15
B15
D9
B9
UDIO5
UDIO0/SRIRQ#
VCC_3V_1
INTA#
RI_OUT#/PME#
C/BE0#
C/BE1#
C/BE2#
C/BE3#
AD0
AD1
AD2
AD3
AD4
AD5
AD6
AD7
AD8
HWSPND#
AD9
AD10
AD11
AD12
AD13
AD14
AD15
AD16
AD17
AD18
AD19
AD20
AD21
AD22
AD23
AD24
AD25
AD26
AD27
AD28
AD29
AD30
AD31
GND1
VCC_3V_2
VCC_PCI3V_1
VCC_PCI3V_2
VCC_PCI3V_3
VCC_ROUT_1
VCC_RIN_1
REGEN#
VCC_RIN_2
PAR
REQ#
GNT#
SERR#
PERR#
STOP#
DEVSEL#
TRDY#
IDSEL
IRDY#
FRAME#
CLKRUN#
PCIRST#
PCICLK
GBRST#
VCC_3V_3
VCC_3V_4
GND2
GND3
GND4
GND5
GND6
GND7
GND8
GND9
GND10
VCC_ROUT_2 VCC_MD3V
SPKROUT
TEST
INTB#
UDIO4
UDIO3
UDIO2
UDIO1
INTC#
NC1
AGND_1
AGND_4
AGND_5
AGND_6
AGND_3
AGND_2
C33020
0.01UF/50V
1 2
C33004
0.01UF/50V
12
T3309
Do Not Stuff
1
R3302
22Ohm
r0402
1 2
D3302
1N4148W
1 2
C33003
0.1UF/10V
c0402
1 2
R3309 0Ohm
1 2
C33009
0.1UF/10V
c0402
1 2
R3305
10KOhm
r0402_h16
1 2
C33013
0.1UF/10V
c0402
1 2
C33022
Do Not Stuff
c0402
/x
12
T3308
Do Not Stuff
1
R3315 100Ohm
r0402_h16
1 2
T3301 Do Not Stuff 1
T3307
Do Not Stuff
1
PCI_IRDY#[17,32]
AD2/D11 [34]
CB_SPKR [42]
CBLOCK#/A19 [34]
CBE1#/A8 [34]
PCI_TRDY#[17,32]
AD20/A6 [34]
AD22/A4 [34]
AD10/CE2# [34]
CARD_PCI_RST#[17]
CINT#/IREQ# [34]
SDWP_XDR/B#[35]
AD9/A10 [34]
CCD2# [34]
CSTOP#/A20 [34]
CREQ#/INPACK# [34]
VCC5_EN# [34]
AD6/D13 [34]
AD30/D9 [34]
AD21/A5 [34]
INT_SERIRQ [17,32,38]
1394_SCL [35]
PCI_INTZ# [17]
CGNT#/WE# [34]
SUSB# [19,41,67,70]
PCI_FRAME#[17,32]
PCI_PERR#[17,32]
AD12/A11 [34]
AD27/D0 [34]
PCI_INTX# [17,32] SD/MS/XDPWR[35]
AD18/A7 [34]
CSTSCHG/STSCHG#/BVD1 [34]
CPERR#/A14 [34]
AVPP1 [34]
SDCD#[35]
AD17/A24 [34]
CCLKRUN#/IOIS16# [34]
PCI_AD[31:0][17,32]
RFU/D14 [34]
PM_CLKRUN#[17,32,38]
CPAR/A13 [34]
AD23/A3 [34]
PCI_PME#[17,32]
CDEVSEL#/A21 [34]
SD/MS/XDDAT2[35]
CBE2#/A12 [34]
CRST#/RESET [34]
AD24/A2 [34]
CSERR#/WAIT# [34]
AD0/D3 [34]
PCI_SERR#[17,32]
SD/MS/XDDAT0[35]
CIRDY#/A15 [34]
AD31/D10 [34]
AD8/D15 [34]
1394_SDA [35]
AD26/A0 [34]
SD/MS/XDDAT1[35]
CAUDIO/SPKR_IN#/BVD2 [34]
AD25/A1 [34]
MSCD#[35]
PCI_GNT#1[17]
AD4/D12 [34]
AD13/IORD# [34]
PCI_C/BE#[3:0][17,32]
PCI_PAR[17,32]
CCLK/A16 [34]
AD5/D6 [34]
PCI_REQ#1[17]
AD3/D5 [34]
RFU/A18 [34]
AD15/IOWR# [34]
AD28/D8 [34]
CB_SD# [19]
AVPP0 [34]
SDCMD_MSBS_XDWE#[35]
CBE0#/CE1# [34]
CVS1 [34]
AD29/D1 [34]
SD/MSCLK_XDRE#[35]
PCI_STOP#[17,32]
RFU/D2 [34]
PCI_DEVSEL#[17,32]
AD14/A9 [34]
AD11/OE# [34]
CBE3#/REG# [34]
AD7/D7 [34]
AD19/A25 [34]
AD1/D4 [34]
CFRAME#/A23 [34]
PCI_INTY# [17,32]
VCC3_EN# [34]
USB_PN5_B [19]
SD/MS/XDDAT3[35]
CLK_CB[17]
CTRDY#/A22 [34]
AD16/A17 [34]
CCD1# [34]
USB_PP5_B [19]
CVS2 [34]
5
5
4
4
3
3
2
2
1
1
D D
C C
B B
A
A
PCMCIA
Layout: SHIELD GND
CCD1# CCD2#
L L 16bit
OTHER 32bit
P/N:12G161400684
41mA
A3
34 72Wednesday, March 08, 2006
ASUSTECH CO.,LTD.
PCMCIA
1.0
A6T
Jefing_Li
A6TcSKU1
Size Project Name Rev
Date: Sheet of
Title :
Engineer:
CIRDY#/A15
TPBIAS0
1394_FIL
CREQ#/INPACK#
CTRDY#/A22
CDEVSEL#/A21
TPA0-_1
X2_1394
TPA0+_1
CSERR#/WAIT#
CSTOP#/A20
1394_REF
TPBIAS1
CINT#/IREQ#
CBLOCK#/A19
X1_1394 TPB0+_1
CSTSCHG/STSCHG#/BVD1
CCLKRUN#/IOIS16#
CPS
TPA1+_1
TPA1-_1
CAUDIO/SPKR_IN#/BVD2
CPERR#/A14
TPB0-_1
X2_1394
X1_1394
AVCC_PHY_CB
AVCC_PHY_CB
CBDEBUGEN#
1394_REF
1394_FIL
CSERR#/WAIT#
RFU/A18
CBDEBUGEN#
RFU/D14
RFU/D2
CPERR#/A14
CAUDIO/SPKR_IN#/BVD2
CCLKRUN#/IOIS16#
CBDEBUGEN#
CCD1#CBDEBUGEN#
CSTSCHG/STSCHG#/BVD1 GND
+5V
+VCCCB
GND
+VPPCB
GND
GND
GND GND
GND
GND
+VPPCB
GND
+VPPCB
GND
+VCCCB
GND
+VCCCB
GND
+VPPCB
+3V
+VCCCB
GND
+VCCCB
GND
GND
GND
GND GND
+3V
GND
+3V
+3V
GNDGND
GND
GND
+5V
GND
+3V
+3V
GND
GND
C34023
0.1UF/10V
c0402
1 2
C34020
Do Not Stuff
c0805
/x
12
T3403Do Not Stuff
1
C34031
0.1UF/10V
c0402
1 2
U19
R5531V002
1
2
3
4
5
6
7
8 9
10
11
12
13
14
15
16
VCC5_EN
VCC3_EN
EN0
EN1
FLG
NC1
NC2
VPPOUT VCCOUT1
NC3
VCC3IN
VCCOUT2
VCC5IN1
VCCOUT3
VCC5IN2
GND
R3405
10KOhm
1 2
G
S
D3
2
1
Q3401
2N7002
1
32
C34008
0.1UF/10V
c0402
1 2
C34018
Do Not Stuff
c0805
/x
12
T3415
Do Not Stuff
1
C34004
0.1UF/10V
c0402
1 2
C34024
0.1UF/10V
c0402
1 2
T3405Do Not Stuff
1
C34007
10UF/10V
c0805
12
C34006
22PF/25V
c0402
12
R3401
0Ohm
1 2
C34003
10UF/10V
c0805
12
T3408Do Not Stuff
1
L3401
120Ohm/100Mhz
21
U3402
PI5C3384QEX
1
2
3
4
5
6
7
8
9
10
11
12
24
23
22
21
20
19
18
17
16
15
14
13
BEA#
B0
A0
A1
B1
B2
A2
A3
B3
B4
A4
GND
Vcc
B9
A9
A8
B8
B7
A7
A6
B6
B5
A5
BEB#
R3408
100KOHM
1 2
12
X3401
24.576Mhz
T3411Do Not Stuff
1
U3401
NC7SZ74K8X
1
2
3
4
8
7
6
5
CLK
D
Q#
GND
VCC
PRE#
CLR#
Q
T3410Do Not Stuff
1
C34011
1000PF/50V
c0402
12
D3401
1SS355
12
R3402
10KOhm
12
R3407
1MOhm r0402_h16
12
T3413
Do Not Stuff
1
C34010
0.1UF/10V
c0402
1 2
C34019
0.1UF/10V
c0402
1 2
T3407Do Not Stuff
1
C34014
0.01UF/50V
12
T3404Do Not Stuff
1
C34021
0.1UF/10V
c0402
1 2
C34005
22PF/25V
c0402
12
R3404
0Ohm
1 2
C34002
10UF/10V
c0805
12
T3409Do Not Stuff
1
U18C
R5C841-CSP208Q
E10
E11
A17
B17
D12
A13
B13
A12
B12
D10
A11
B11
A10
B10
D11
A16
B16
A14
B14
D13
E12
AVCC_PHY_1
AVCC_PHY_2
AVCC_PHY_3
AVCC_PHY_4
TPBIAS0
TPBN0
TPBP0
TPAN0
TPAP0
TPBIAS1
TPBN1
TPBP1
TPAN1
TPAP1
CPS
XI
XO
FIL0
REXT
VREF
NC9
T3412Do Not Stuff
1
C34016
270PF/50V
c0402
12
T3401Do Not Stuff
1
R3403
Do Not Stuff
/x
r0402
1 2
CON6
PCMCIA_CON_84P
56
55
54
53
50
49
48
47
46
19
20
14
13
21
10
8
11
12
22
23
24
25
26
27
28
29
41
40
39
38
37
66
65
64
6
5
4
3
2
32
31
30
44
45
9
15
42
7
61
58
59
33
16
62
63
57
43
67
36
60 68
35
34
1
17
51
18
52
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
A25
A24
A23
A22
A21
A20
A19
A18
A17
A16
A15
A14
A13
A12
A11
A10
A9
A8
A7
A6
A5
A4
A3
A2
A1
A0
D15
D14
D13
D12
D11
D10
D9
D8
D7
D6
D5
D4
D3
D2
D1
D0
IORD#
IOWR#
OE#
WE#
CE2#
CE1#
REG#
RESET
WAIT#
WP
READY
BVD2
BVD1
VS2#
VS1#
CD2#
CD1#
INPACK# GND4
GND3
GND2
GND1
VCC1
VCC2
VPP1
VPP2
GND_POWER1
GND_POWER2
GND_POWER3
GND_POWER4
GND_POWER5
GND_POWER6
GND_POWER7
GND_POWER8
GND_POWER9
GND_POWER10
GND_POWER11
GND_POWER12
GND_POWER13
GND_POWER14
GND_POWER15
GND_POWER16
NP_NC1
NP_NC2
NP_NC3
NP_NC4
P_GND3
P_GND4
T3402Do Not Stuff
1
R3406
10KOhm
1 2
C34032
0.1UF/10Vc0402
12
C34022
0.1UF/10V
c0402
1 2
T3406Do Not Stuff
1
C34009
1000PF/50V
c0402
12
C34017
270PF/50V
c0402
12
C34030
0.1UF/10V
c0402
1 2
C34012
Do Not Stuff
/x
c0402
12
C34013
0.01UF/50V
12
T3414
Do Not Stuff
1
C34001
0.1UF/10V
c0402
1 2
C34015
0.01UF/50V
12
AD27/D0[33]
CCD1#[33]
CCLKRUN#/IOIS16#[33]
AD17/A24[33]
TPB0-_1 [35]
AD8/D15[33]
AD20/A6[33]
CRST#/RESET[33] CBE3#/REG#[33]
AD1/D4[33]
CINT#/IREQ#[33]
AD0/D3[33]
AD5/D6[33]
CSTSCHG/STSCHG#/BVD1[33]
CCLK/A16[33]
CAUDIO/SPKR_IN#/BVD2[33]
AD10/CE2#[33]
AD19/A25[33]
CGNT#/WE#[33]
AD21/A5[33]
CFRAME#/A23[33]
AD26/A0[33]
AD7/D7[33]
AVPP1[33]
CPERR#/A14[33]
CVS1[33]
AD22/A4[33]
RFU/A18[33]
CSERR#/WAIT#[33]
AD2/D11[33]
RFU/D14[33]
AD11/OE#[33]
AD4/D12[33]
AVPP0[33]
AD29/D1[33]
CVS2[33]
CCD2#[33]
CDEVSEL#/A21[33]
AD25/A1[33]
AD16/A17[33]
TPBIAS0 [35]
TPA0+_1 [35]
CSTOP#/A20[33]
AD23/A3[33]
AD9/A10[33]
AD18/A7[33]
AD24/A2[33]
AD14/A9[33]
CIRDY#/A15[33]
CPAR/A13[33]
AD28/D8[33] AD30/D9[33]
TPB0+_1 [35]
AD3/D5[33]
AD12/A11[33]
TPA0-_1 [35]
RFU/D2[33]
AD15/IOWR#[33]
AD6/D13[33]
AD13/IORD#[33]
CBE0#/CE1#[33]
CBE2#/A12[33]
CBE1#/A8[33]
CREQ#/INPACK#[33]
CBLOCK#/A19[33]
CTRDY#/A22[33]
AD31/D10[33]
VCC5_EN#[33]
VCC3_EN#[33]
LPC_FRAME#[17,32,37,38]
LPC_AD0[17,32,37,38] LPC_AD1[17,32,37,38]
LPC_AD2[17,32,37,38] LPC_AD3 [17,32,37,38]
DIS_SYSBIOS [32,37]
CLK_SIOLPC[17]
5
5
4
4
3
3
2
2
1
1
D D
C C
B B
A
A
1.CLOSE TO R5C841
2.The area is as compact as possible,length < 10 mm
3.TPA Pair and TPB pair mismatch < 2.5mm
4.No via recommend , maxmium is one.
5.Total length < 50 mm
6.Differential impedance is 110+/- 6 ohm
7.TPA Pair trace or TPB pair trace mismatch <
1.25mm
Place as close to
card reader socket
as possible
Layout: SHIELD GND
A3
35 72Wednesday, March 08, 2006
ASUSTECH CO.,LTD.
1394/SD_CARD
1.0
A6T
Jefing_Li
A6TcSKU1
Size Project Name Rev
Date: Sheet of
Title :
Engineer:
SD/MS/XDDAT0
SD/MS/XDDAT3
SDCMD_MSBS_XDWE# SD/MS/XDDAT3
LTPA0+
SDWP_XDR/B#
SD/MS/XDDAT2
SD/MS/XDDAT2
SD/MS/XDDAT1
SD/MSCLK_XDRE#
SDCMD_MSBS_XDWE#
LTPB0+
SD/MS/XDDAT1
LTPA0-
SD/MS/XDDAT0
SD/MSCLK_XDRE#
SDCD#
LTPB0-
MSCD#
LTPA0+
LTPA0-
LTPB0+
LTPB0-
+MC_VCC
+3V
+MC_VCC
GND
GND
GND
+MC_VCC
GND
+3V
GND
GND
GND
GND
+3V
GND
GND
+MC_VCC
GND
GND
R3507 5.11KOhm
r0402_h16
TA-I/RM04FTN5111
12
C35005
0.1UF/10V
c0402
1 2
CON8
SD_CARD_19P
M1
M2
M3
M4
M5
M6
M7
M8
M9
M10
S8
S7
S6
S5
S4
S3
S2
S1
S9
1
2
SWP1
GND2
SCD1
GND1
MS_VSS1
MS_BS
MS_VCC1
MS_SDIO
MS_RESERVED1
MS_INS
MS_RESERVED2
MS_SCLK
MS_VCC2
MS_VSS2
SD_DAT1
SD_DAT0
SD_VSS1
SD_CLK
SD_VCC
SD_VSS2
SD_CMD
SD_DAT3
SD_DAT2
NP_NC1
NP_NC2
SD_WP_PROTECT
GND2
SD_CD_DETECT
GND1
C35006
0.1UF/10V
c0402
1 2
C35007
Do Not Stuff
/x
c0402
1 2
GS
D
3
2
1
Q3502
2N7002
1
32
C35002 0.01UF/10V
c0402
12
C35003
0.33UF/16V
1 2
C35004 270PF/50V
c0402
1 2
R3511
150KOhm
1 2
R3510
Do Not Stuff
r0402_h16
/x
1 2
Common
Choke
L3501
1
2
3
4 5
6
7
8
R3508 56Ohm
1%
12
R3509
Do Not Stuff
r0402_h16
/x
1 2
R3501
10KOhm
r0402_h16
1 2
R3503 56Ohm
1%
12
CON7
IEEE_1394
5 6
4
3
2
1
P_GND1 P_GND2
4
3
2
1
C35008
Do Not Stuff
/x
c0402
1 2
C35009
Do Not Stuff
/x
c0402
1 2
R3504 56Ohm
1%
12
R3506 56Ohm
1%
12
D
S
G
1
2
3
Q3501
SI2301BDS_T1_E3
1
23
C35001
0.1UF/10V
c0402
1 2
R3505
10KOhm
r0402_h16
1 2
R3502
10KOhm
r0402_h16
1 2
U20
AT24C02N
1
2
3
4
8
7
6
5
A0
A1
A2
GND
VCC
WP
SCL
SDA
SDCD#[33]
1394_SDA [33]
SDCMD_MSBS_XDWE# [33]SD/MS/XDDAT0[33]
SDWP_XDR/B#[33]
MSCD#[33]
MSCD# [33]
TPBIAS0 [34]
SD/MS/XDDAT2[33]
TPA0-_1 [34]
TPB0-_1 [34]
1394_SCL [33]
SD/MS/XDPWR[33]
SD/MS/XDDAT1[33]
TPB0+_1 [34]
SD/MS/XDDAT3[33] SD/MSCLK_XDRE# [33]
TPA0+_1 [34]
5
5
4
4
3
3
2
2
1
1
D D
C C
B B
A
A
B
36 72Wednesday, March 08, 2006
ASUSTECH CO.,LTD.
SIO/SIR/DVI
1.0
A6T
Jefing_Li
A6TcSKU1
Size Project Name Rev
Date: Sheet of
Title :
Engineer:
TMDS_TX0P_R
TMDS_TX2P_R
TMDS_TX0N_R
TMDS_TXCP_R
TMDS_TX1N_R
TMDS_TX2N_R
TMDS_TXCN_R
TMDS_TX1P_R
TMDS_TX2N_R
TMDS_TX2P_R
TMDS_TX1N_R
TMDS_TX0N_R
TMDS_TX1P_R
TMDS_TX0P_R
TMDS_TXCP_R
TMDS_TXCN_R
TMDS_HPD
DDC Clock
DDC Data
+5VS
+3VS
GND
GND
+5VS
GND
GND
GND
+3VS
C36012
0.1UF/10V
12
L3
Do Not Stuff
/x
1
4
2
3
R3610
20KOhm 12
Q3602A
UM6K1N
2
6 1
D3603
F01J2E
12
Q3602B
UM6K1N
5
3 4
RN3607A
0OHM
1 2
CON9
DVI_CON_24P
2
1
5
4
10
9
13
12
18
17
21
20
23
24
26
25
8
16
7
6
15
14
22
3
11
19
27
28
TMDS_DATA_2+
TMDS_DATA_2-
TMDS_DATA_4+
TMDS_DATA_4-
TMDS_DATA_1+
TMDS_DATA_1-
TMDS_DATA_3+
TMDS_DATA_3-
TMDS_DATA_0+
TMDS_DATA_0-
TMDS_DATA_5+
TMDS_DATA_5-
TMDS_CLK+
TMDS_CLK-
P_GND2
P_GND1
V_SYNC
HOT_PLUG_DETECT
DDC_DATA
DDC_CK
GND_for+5V
+5V_POWER
TMDS_CLK_Shield
TMDS_2/4_Shield
TMDS_DATA_1/3_Shield
TMDS_DATA_0/5_Shield
NP_NC1
NP_NC2
L2
Do Not Stuff
/x
1
4
2
3
L4
Do Not Stuff
/x
1
4
2
3
R3608
4.7KOhm
1 2
RN3606B
0OHM
3 4
R3611
100KOHM
1 2
R3609
4.7KOhm
1 2
RN3605A
0OHM
1 2
RN3606A
0OHM
1 2
RN3605B
0OHM
3 4
RN3608B
0OHM
3 4
D3604
BAV99
1
23
D3602
SS0540
12
L1
Do Not Stuff
/x
1
4
2
3
RN3607B
0OHM
3 4
RN3608A
0OHM
1 2
NV_I2CB_SCL [25]
NV_I2CB_SDA [25]
TMDS_CLKAP[26]
TMDS_YA1P[26]
TMDS_CLKAM[26]TMDS_YA0M[26]
TMDS_YA2P[26]
TMDS_YA2M[26]
TMDS_YA0P[26]
TMDS_YA1M[26]
TMDS_HPD [26]
5
5
4
4
3
3
2
2
1
1
D D
C C
B B
A
A
FWH
PLCC32 Socket Part Number : 12-043000323
SST FWH/LPC Part Number :
05G00101712L(
燒
)
A4
37 72Wednesday, March 08, 2006
ASUSTECH CO.,LTD.
FWH
1.0
A6T
Jefing_Li
A6TcSKU1
Size Project Name Rev
Date: Sheet of
Title :
Engineer:
CLK_FWHPCI
FWH_IC
FWH_INIT#
FWH_WP#
FWH_IC
LPC_AD3
LPC_AD2
LPC_AD1
LPC_AD0
FWH_INIT#
+3VS
GND
+3VS
GND
GND
GND
+3VS
GND
GND
+3VS
C37002
0.1UF/10V
12
RN3701D 10KOhm
7 8
RN3701B 10KOhm
3 4
U23
WHUB
4
3
2
1
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
32
31
30
29
28
27
26
25
24
23
22
21
A8
A9
RST#
VPP
A7
A6
A5
A4/TBL#
A3
A2
A1
A0
DQ0
DQ1
DQ2
GND1
DQ3
DQ4
DQ5
DQ6
VCC2
R/C#/CLK
A10
IC
GNDA
VCCA
GND2
VCC1
INIT#/OE#
WE#
RY/BY#
DQ7
RN3701A 10KOhm
1 2
C37001
Do Not Stuff
/x
c0402
12
RN3701C 10KOhm
5 6
C37003
0.1UF/10V
12
RN3702D 10KOhm
7 8
RN3702B 10KOhm
3 4
RN3702A 10KOhm
1 2
RN3702C 10KOhm
5 6
FWH_WP#[19]
CLK_FWHPCI [17]
LPC_FRAME# [17,32,34,38]
LPC_RST#[17,38]
LPC_AD2 [17,32,34,38]
LPC_AD1 [17,32,34,38]
LPC_AD3 [17,32,34,38]
LPC_AD0[17,32,34,38] DIS_SYSBIOS[32,34]
5
5
4
4
3
3
2
2
1
1
D D
C C
B B
A
A
Hi : 8 Cell
Low: 4 Cell
BAT_SEL#:
MITSUBISHI
KID0 : 1 0 0
KID1 : 1 1 0
Mode : US UK JP
12/28
C
38 72Wednesday, March 08, 2006
ASUSTECH CO.,LTD.
KBC
1.0
A6T
Jefing_Li
A6TcSKU1
Size Project Name Rev
Date: Sheet of
Title :
Engineer:
KSO14
KB_CPURST
XOUT_KBC
KSO12
KSI6
KSO1
KBC21
KSO11
KSO7
GAIN_AMP_K#
MS_DAT
KBSCI#
BAT_SEL#
KSI3
DISTP#
KSO11
KSO4
INTERNET#
KID1
KSI3
XOUT_KBC
KSI5
KID0
KSI1
KSO2
CLR_DJ#
BAT_LEARN
KSI6
KBSCI#
KSO0
KSI1
XIN_KBC
EXT_SMI
KSO3
KSI5
KSO4
KSO2
KSI3
KSI5
KSO13
SET_PLTRSTNS#
KSO8
I2C_CLK1_KBC
CHG_FULL_OC
NUM_LED#
KSO13
KID0
ACIN_OC
KSO8
BAT_IN#_OC
KBC21
KSO6
TPAD_DAT
KSI7
KSI7
BAT_LLOW#_KBC
KID1 KSO3
KSO5
KSO12
KSO10
SET_PLTRSTNS#
KSI4
BAT_LLOW#_OC
KSI7
KSI2
KID0
KSI0
KB_CPURST
KSI4
LPC_RST#
KB_GATEA20
KSI4
BAT_SEL#
KSO15
KSI2
KID1
KSO6
KSI0
PLT_RSTNS#
KSO0
SCROLL_LED#
KSI2
XIN_KBC
KSI0
KSO15
KSO1
EMAIL#
MARATHON#
KSO10
KSO14
KB_GATEA20
CAP_LED#
KSO5
GAIN_AMP_K#
KSO9
EMAIL_LED
KSO9
KSO7
KSI1
KSI6
I2C_DATA1_KBC
I2C_CLK1_KBC
I2C_DATA1_KBC
KB_CLK
TPAD_CLK
MS_CLK
+3V
+5VS
GND
GND
GND
GND
+3V
GND
+5VS
GND
GND
+5VS
+3V
GND
GND
+3V
GND
GND
+3V
GND
GND
+3V
GND
GND
GND
+3VS
GND
+5VS
+3V
+5V
GND
RN3807C 10KOhm
5 6
Q3805B
UM6K1N
5
34
RP3802B 1KOhm
2 5
10
RN3804B 10KOhm
3 4
RN3803D 10KOhm
7 8
C38006
0.1UF/10V
c0402
12
C38004
0.1UF/10V
c0402
12
R3813
10KOhm
r0402_h16
1 2
RN3807A 10KOhm
1 2
GS
D
3
2
1
Q3809
2N7002
1
32
RN3808D
10KOhm
78
Q3805A
UM6K1N
2
61
RN3803C 10KOhm
5 6
CON10
FPC_CON_28P
29
30
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
SIDE1
SIDE2
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
R3814
10KOhm
r0402_h16
1 2
R3805
10KOhm
r0402_h16
1 2
GS
D
3
2
1
Q3801
2N7002
1
32
RN3807B 10KOhm
3 4
GS
D
3
2
1
Q3802 2N7002
1
32
RP3802D 1KOhm
4 5
10
R3810 Do Not Stuff
/x 12
RN3804D 10KOhm
7 8
RN3808C
10KOhm
56
RN3806D 10KOhm
7 8
RN3806C 10KOhm
5 6
RN3804A 10KOhm
1 2
RP3802F 1KOhm
7 5
10
C38001
Do Not Stuff
c0402
/x
12
R3803
8.2KOhm
1 2
RN3804C 10KOhm
5 6
RN3805C 10KOhm
5 6
R3806
10KOhm
r0402_h16
1 2
RN3806A 10KOhm
1 2
RN3802A 10KOhm
1 2
R3809 Do Not Stuff
/x 12
RP3802C 1KOhm
3 5
10
G
S
D3
2
1
Q3810
2N7002
1
3 2 RP3802G 1KOhm
8 5
10
RN3805B 10KOhm
3 4
RN3802C 10KOhm
5 6
RN3806B 10KOhm
3 4
RN3808A
10KOhm
12
C38003
22PF/25V
c0402
12
RP3802A 1KOhm
1 5
10
RN3802B 10KOhm
3 4
RN3805D 10KOhm
7 8
P54,P55,P43,P50 are
wake-up event
inputs when KBC in
standby mode
U24
M38857M8
qfp_80p_20_551x551
63
64
65
66
67
68
69
70
35
36
37
38
18
19
20
21
22
23
10
11
12
13
14
15
16
17
74
75
76
77
78
79
80
1
4
5
6
7
8
9
2
3
71
72
31
32
33
34
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
28
29
27
26
25
24
30
73
P87/SERIRQ
P86/LCLK
P85/LRESET#
P84/LFRAME#
P83/LAD3
P82/LAD2
P81/LAD1
P80/LAD0
P23
P22
P21
P20
P47/SRDY1#/CLKRUN#
P46/SCLK1
P45/TXD
P44/RXD
P43/INT1*
P42/INT0
P57/DA2/PWM11
P56/DA1/PWM01
P55/CNTR1*
P54/CNTR0*
P53/INT40/1-WIRE2
P52/INT30/1-WIRE1
P51/INT20
P50/INT5*
P67/AN7
P66/AN6
P65/AN5
P64/AN4
P63/AN3
P62/AN2
P61/AN1
P60/AN0
P75/INT41
P74/INT31
P73/INT21
P72
P71
P70
P77/SCL
P76/SDA
VCC
VREF
P27
P26
P25
P24
P17/KSO15
P16/KOS14
P15/KSO13
P14/KSO12
P13/KSO11
P12/KSO10
P11/KSO9
P10/KSO8
P07/KSO7
P06/KSO6
P05/KSO5
P04/KSO4
P03/KSO3
P02/KSO2
P01/KSO1
P00/KSO0
P37/KSI8
P36/KSI7
P35/KSI6
P34/KSI5
P33/KSI4
P32/KSI3
P31/PWM10/KSI2
P30/PWM00/KSI0
XIN
XOUT
P40/XCOUT
P41/XCIN
RESET#
CNVSS
VSS
AVSS
R3804
8.2KOhm
1 2
GND
X3801
8MHZ
1 3
2
A
B
GND
VCC
Y
U25
NC7SZ32P5
1
2
34
5
RP3802E 1KOhm
6 5
10
RN3808B
10KOhm
34
RN3803B 10KOhm
3 4
GS
D
3
2
1
Q3804
2N7002
1
32
R3812
8.2KOhm
1 2
C38005
0.1UF/10V
c0402
12
GS
D
3
2
1
Q3803
2N7002
1
32
C38002
22PF/25V
c0402
12
RN3807D 10KOhm
7 8
RN3805A 10KOhm
1 2
RP3802H 1KOhm
9 5
10
RN3802D 10KOhm
7 8
G
S
D3
2
1
Q3811
2N7002
1
3 2
RN3803A 10KOhm
1 2
GAIN_AMP# [43]
NUM_LED# [48]
CLR_DJ#[47]
TPAD_DAT[48]
LPC_FRAME#[17,32,34,37]
SMC_BAT [69]
TPAD_CLK[48]
SMD_BAT [69]
LPC_AD3[17,32,34,37]
ACIN_OC[68]
EXT_SMI# [19]
FAN_DA1[15]
KBCRSM[49]
SCROLL_LED# [48]
DJ_SCAN [48]
BAT_LLOW#_OC[69]
EMAIL_LED [48]
INTERNET#[47]
KSI5 [48]
LPC_AD1[17,32,34,37] LPC_AD2[17,32,34,37]
LPC_AD0[17,32,34,37]
BAT_LEARN[68]
INT_SERIRQ[17,32,33]
INV_DA[41]
CHG_FULL_OC[69]
CLK_KBC[17]
KSI3 [48]
LPC_RST#[17,37]
EMAIL#[47]
CAP_LED# [48]
BAT_IN#_OC[71]
A20GATE [19]
WATCHDOG[15]
DISTP#[47]
BAT_SEL[68,69]
KSI4 [48]
KSI2 [48]
MARATHON#[47]
OP_SD#[43]
DJ_LED#[48]
PM_CLKRUN#[17,32,33]
KBRST# [19]
SWDJ_EN#[47]
KB_SCI#[19]
I2C_DATA1 [19]
I2C_CLK1 [19]
5
5
4
4
3
3
2
2
1
1
D D
C C
B B
A
A
Close to USB Con.
Prevent Current
Rating Problem
BLUE TOOTH
MOLUDE
Close to USB Con.
Close to USB Con.
Close to USB Con.
SOUTH BRIDGE GPIO PIN
ESD Guard
Close to
USB Port
Co-layout L4101 with R4101
NO
STUFF
changeB
UNMOUNT
Prevent Current
Rating Problem
SOUTH BRIDGE GPIO PIN
USB
WIRLESS
LAN
Custom
39 72Wednesday, March 08, 2006
ASUSTECH CO.,LTD.
USB/BLUE TOOTH
1.0
A6T
Jefing_Li
A6TcSKU1
Size Project Name Rev
Date: Sheet of
Title :
Engineer:
LP1-_B
LP2-_B
USB_PP1_B
LP3-_B
USB_PP0_B
LP1+_B
USB_PN2_B
USB_PN1_B
USB_PN0_B
LP3+_B USB_PP2_B
USB_BTP
USB_BTN
BT_ON
BT_RST
USB_BTP
USB_BTN
BT_ACTIVE
LP0-_B
LP3+_B
LP2+_B
LP1+_B
LP2-_B
LP3-_B
LP1-_B
LP0+_B
USB_WLN
USB_WLP
USB_WLN
USB_WLP
LP0+_B
LP0-_B
LP2+_B
LP0-_B
LP0+_B
USB_PP3_B
USB_PN3_B
LP2+_B
LP3+_B
LP1+_B
LP1-_B
LP3-_B
LP2-_B
+5V_USB01
+5V_USB23
GND
GND
GND
GND
+3V_BT
GND
+3V
GND
GND
+5VS
GND
GND
GND
GND
GND
+3V_BT
GND
GND GND
GND
GND
GND
GND
GND
GND
+3V_WL
GND
GND
+5VS
+3V
+3V_WL
GND
+3V_WL
GNDGND GND
+5V
GND
+5V
GND
+3VSUS
GND
+3V
GND
GND
CON23
Do Not Stuff
/X
1
3
5
7
9
11
13
15
17
19
21
23
25
27
29
31
33
35
37
39
41
43
45
47
49
51
2
4
6
8
10
12
14
16
18
20
22
24
26
28
30
32
34
36
38
40
42
44
46
48
50
52
53
54 56
55
WAKE#
Reserved1
Reserved2
CLKREQ#
GND1
REFCLK-
REFCLK+
GND2
Reserved/UIM_C8
Reserved/UIM_C4
GND3
PERn0
PERp0
GND4
GND5
PETn0
PETp0
GND6
Reserved3
Reserved4
Reserved5
Reserved6
Reserved7
Reserved8
Reserved9
Reserved10
3.3V_1
GND7
1.5V_1
UIM_PWR
UIM_DATA
UIM_CLK
UIM_RESET
UIM_VPP
GND8
W_DISABLE#
PERST#
+3.3Vaux
GND9
1.5V_2
SMB_CLK
SMB_DATA
GND10
USB_D-
USB_D+
GND11
LED_WWAN#
LED_WLAN#
LED_WPAN#
1.5V_3
GND12
3.3V_2
GND13
GND14 NP_NC2
NP_NC1
RN3902B
0OHM
3 4
G
S
D3
2
1
Q3901
2N7002
1
32
L3908
Do Not Stuff
/x
1 4
2 3
R3920 Do Not Stuff
/x
12
R3925 Do Not Stuff
r0402_h16
/X 12
C39020
0.1UF/10V
c0402
12
D3902
Do Not Stuff /x
12
RN3903B
0OHM
3 4
C39002
0.1UF/10V
12
L3905
Do Not Stuff
/x
1 4
2 3
R3923
Do Not Stuff
r0402_h16
/X
1 2
D3907
/x
12
C39001
0.1UF/10V
12
D3908
/x
12
C39015
0.1UF/10V
12
C39021
0.1UF/10V
c0402
12
L3911
Do Not Stuff
/X
1 4
2 3
R3927
100KOHM
12
U3901
TPS2024DR
1
2
3
4
8
7
6
5
GND
IN1
IN2
EN#
OUT3
OUT2
OUT1
OC#
+
CE3902
100U/6.3V
12
RN3901A
0OHM
1 2
C39004
0.1UF/10V
c0402
12
+
CE3901
100U/6.3V
12
RN3904A
0OHM
1 2
D
S
G1
2
3
Q3904
Do Not Stuff
/X
1
23
C39009
0.1UF/10V
c0402
12
R3915
Do Not Stuff
r0402_h16
/x
1 2
D3912
Do Not Stuff
/X
12
CON11
USB_CON_2X4P
1
2
3
4
5
6
7
8
9
10
11
12
VCC1
1P-
1P+
GND1
VCC2
0P-
0P+
GND2
GND3
GND4
GND5
GND6
RN3901B
0OHM
3 4
D3910
/x
12
D
S
G1
2
3
Q3902
SI2305DS
1
23
RN3906A
Do Not Stuff
/X
1 2
RN3904B
0OHM
3 4
L3901
Do Not Stuff
/x
1 4
2 3
L3904
Do Not Stuff
/x
1 4
2 3
D3906
/x
12
T3901 Do Not StuffN/A
1
CON22
WtoB_CON_8P
1
2
3
4
5
6
7
8
9
10
1
2
3
4
5
6
7
8
SIDE1
SIDE2
L3906
80Ohm/100Mhz
2 1
C39017
0.1UF/10V
12
D3904
/x
12
RN3906B
Do Not Stuff
/X
3 4
G
S
D3
2
1
Q3903
2N7002
1
32
D3911
Do Not Stuff
/X
12
R3913
10KOhm
1 2
R3922
Do Not Stuff
/X
1 2
C39019
Do Not Stuff
/X
12
D3909
/x
12
RN3905A
0OHM
1 2
CON24
Do Not Stuff
/X
1 2
3 4
5 6
SIDE1 SIDE2
SIDE3 SIDE4
NP_NC1 NP_NC2
D3905
/x
12
R3914
Do Not Stuff
r0402_h16
/x
1 2
L3902
80Ohm/100Mhz
2 1
C39018
Do Not Stuff
/X
12
L3910
Do Not Stuff
/x
1 4
2 3
RN3905B
0OHM
3 4
R3917 Do Not Stuff
r0402_h16
/x 12
R3930
1KOhm
1 2
D3901
Do Not Stuff
/x
12
R3929
1KOhm
1 2
R3926
100KOHM
12
RN3902A
0OHM
1 2
G
S
D3
2
1
Q3905
Do Not Stuff
/X 1
32
C39016
0.1UF/10V
12
R3928
Do Not Stuff/X
1 2
R3924
Do Not Stuff
r0402_h16
/X
1 2
U3902
TPS2024DR
1
2
3
4
8
7
6
5
GND
IN1
IN2
EN#
OUT3
OUT2
OUT1
OC#
CON12
USB_CON_2X4P
1
2
3
4
5
6
7
8
9
10
11
12
VCC1
1P-
1P+
GND1
VCC2
0P-
0P+
GND2
GND3
GND4
GND5
GND6
RN3903A
0OHM
1 2
D3903
/x
12
USB_PN0_B[19]
USB_PP3_B[19]
USB_PP0_B[19]
USB_PP1_B[19]
USB_PN1_B[19]
BT_ON [19]
USB_PP2_B[19]
USB_PN2_B[19]
USB_OC_01# [19]
USB_PN3_B[19]
USB_PP6_B[19]
USB_PN6_B[19]
CH_CLK [32]
CH_DATA [32]
MINIWL_ON [19]
USB_PP7_B[19]
USB_PN7_B[19]
802_LED_EN [19,32,48]
USB_OC_23# [19]
5
5
4
4
3
3
2
2
1
1
D D
C C
B B
A
A
PLACE ESD
Diodes near
VGA port
75ohm
75ohm
75ohm
75ohm
75ohm
75ohm
PLACE ESD
Diodes near
TV port
75ohm
75ohm
75 Ohm
75ohm
12/28
Custom
40 72Wednesday, March 08, 2006
ASUSTECH CO.,LTD.
CRT/TV CON
1.0
A6T
Jefing_Li
A6TcSKU1
Size Project Name Rev
Date: Sheet of
Title :
Engineer:
CRT_R
CRT_B
DDC_CLK_CON
DDC_DAT_CON
HSYNC
VSYNC_CON
CRT_G
CRT_G
CRT_R_CON
+5VS_CRT_DDC
CRT_G_CON
HSYNC_CON
VSYNC
CRT_B_CON
TV_C_
TV_Y_
TV_CVBS_
Y_CON
TV_Y_
TV_CVBS_
TV_C_ C_CON
DDC_CLK_5V
DDC_DAT_5V
DDC_DAT_5V
DDC_CLK_5V
CRT_R
CRT_B
HSYNC
VSYNC
GND
GND
GND
GND
GND
GND
GND
GND
GND
+5VS
GND
+3VS
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
+3VS
GND
+3VS
+3VS
+5VS
+5VS
+3VS
+3VS
GND
GND
GND
GND GND
+3VS
+12VS
+12VS
D4009
1SS355
12
L4001
120Ohm/100Mhz
21
12-141011072
CON14
MINI_DIN_7P
1
2
3
4
5
6
7
8 9
GND0
CVBS1
GND1
Y
NC
C
CVBS2
HC1 HC2
1
15
CRT
PIN
CON13
D_SUB_15P
6
1
11
7
2
12
8
3
13
9
4
14
10
5
15
16
17
GND2
RED
NC2
GND3
GREEN
DATA
GND4
BLUE
HSYNC
VCC
NC1
VSYNC
GND5
GND1
DCLK
SIDE_G16
SIDE_G17
L4005
120Ohm/100Mhz
21
C40015
22PF/25V
c0402
12
C40002
22PF/25V
1 2
C40017
47PF/50V
c0402
1 2
C40014
15PF/50V
c0402
12
Q4005B
UM6K1N
5
34
D4008
BAV99
1
23
Q4001A
UM6K1N
2
61
C40004
22PF/25V
c0402
12
L4007
120Ohm/100Mhz
21
Q4005A
UM6K1N
2
61
C40016
47PF/50V
c0402
1 2
L4008
120Ohm/100Mhz
21
D4006
BAV99
1
23
L4002 1.8UH
21
D4004
BAV99
1
23
Q4001B
UM6K1N
5
34
C40005
22PF/25V
1 2
L4003 1.8UH
21
C40018
47PF/50V
c0402
1 2
Q4004A
UM6K1N
2
61
RN4001B 2.2kOhm 34
C40001
22PF/25V
1 2
C40009
330PF/50V
c0402
12
D4005
BAV99
1
23
RN4001A 2.2kOhm 12
C40010
330PF/50V
c0402
12
C40020
47PF/50V
c0402
1 2
C40006
270PF/50V
c0402
12
C40003
15PF/50V
c0402
12
RN4001C 2.2kOhm 56
D4002
BAV99
1
23
C40012
15PF/50V
c0402
12
C40007
270PF/50V
c0402
12
D4003
BAV99
1
23
C40011
330PF/50V
c0402
12
L4004 1.8UH
21
C40013
22PF/25V
c0402
12
RN4001D 2.2kOhm 78
D4007
BAV99
1
23
Q4004B
UM6K1N
5
34
R4009
0Ohm
1 2
L4006
120Ohm/100Mhz
21
R4007
0Ohm
1 2
C40019
0.1UF/10V
12
D4001
BAV99
1
23
C40008
270PF/50V
c0402
12
R4008
0Ohm
1 2
TV_CVBS [55]
TV_C [55]
CRT_GREEN[55]
CRT_BLUE[55]
TV_Y [55]
CRT_RED[55]
SEL_DDC_G73M/C51#[17,41,54]
GPU_CRT_DDC_CLK[25]
MCP51_CRT_DDC_DATA[19]
MCP51_CRT_DDC_CLK[19]
GPU_CRT_DDC_DATA[25]
SEL_DDC_G73M/C51[17,41,54]
CRT_VSYNC[55]
CRT_HSYNC[55]
5
5
4
4
3
3
2
2
1
1
D D
C C
B B
A
A
3/10
5/9
R2.0
USB PORT 4 for USB CAMERA
discharge +3VS_LCD
BIOS
INV_DA: KBC
output D/A signal
(adjust voltage level)
to adjust Back light.
INVERTER Interface
BIOS
BACK_OFF#: When user
pushs "Fn+F7" button,
BIOS activate this pin to
turn off back light.
Pin 19 : Add a USB 2.0
Shielding GND cable to
USB module.
LCD LVDS Interface
LCD Power
3V-3.6V
Full
Active:
410
mA(Max.
500 mA)
Cable Requirement:
Impedence: 100 ohm +/- 10%
Length Mismatch <= 10 mils
Twisted Pair(Not Ribbon)
Maximum Length <= 16"
for NV SLi power
for NV SLi power
12/28
3/13
A3
41 72Wednesday, March 08, 2006
ASUSTECH CO.,LTD.
LVDS/INVERTER
1.0
A6T
Jefing_Li
A6TcSKU1
Size Project Name Rev
Date: Sheet of
Title :
Engineer:
BL_EN_CON
+3VA_CON
LVDS_YA1P
LVDS_YA1N
INTMIC_A_CON
BACK_EN
+3VSLCD
LVDS_ACLKN
INV_DA_CON
+VIN_INV
BL_EN
LVDS_YA0P
INTMIC_A_GND_CON
LVDS_YA0N
LVDS_YA2N
LP4-_B
LID_SW_CON#
LP4+_B
LVDS_YA2P
LVDS_ACLKP
LP4-_B
LP4+_B
BACK_EN
BACK_EN_SB
BACK_EN_SB
+3VS_LCD+3VS
GND
+3VS
+3VS_LCD
GND
+3VS
+5V
GND
+12VS
+3VA
GND
+3V
GND
GND
GND
GND_MIC
+V5_USB4
AC_BAT_SYS
GNDGND
GND GND
+3VS_LCD
+3VS_LCD
GNDGND
+5V +V5_USB4
GS
D
3
2
1
Q4104
2N7002
1
32
D4107
1SS355
12
C41002
Do Not Stuff
c0402
/x
12
C41006
1UF/10V
12
Q4105B
UM6K1N
5
34
C41013
0.01UF/10V
12
R4105
10KOhm
r0402_h16
1 2
C41016
1UF/10V
12
L4104
120Ohm/100Mhz
2 1
Q4105A
UM6K1N
2
61
L4103
80Ohm/100Mhz
2 1
R4101
10KOhm
r0402_h16
12
C41009
Do Not Stuff
/x
1 2
D4104 1SS355
12
L4113 120Ohm/100Mhz
21
C41007
0.1UF/10V
c0402
12
T3416 Do Not Stuff
1
C41015
0.1UF/10V
12
D4103 1SS355
12
L4107
80Ohm/100Mhz
2 1
C41004
0.1UF/10V
c0402
12
+
CE4101
Do Not Stuff
/x
12
S
D
G
Q4101
SI3456DV
1
2
35
6
4
C41014
0.1UF/10V
12
L4109
120Ohm/100Mhz
2 1
L4108
90Ohm/100Mhz
14
23
C41003
0.1UF/10V
c0402
12
L4106
80Ohm/100Mhz
2 1
C41008
Do Not Stuff
c0402
/x
12
D4101
RB717F
1
23
R4106
15KOhm
12
D4102
RB717F
1
23
CON15
WTOB_CON_30P
1
3
5
7
9
11
13
15
17
19
21
23
25
27
29
2
4
6
8
10
12
14
16
18
20
22
24
26
28
30
3132
1
3
5
7
9
11
13
15
17
19
21
23
25
27
29
2
4
6
8
10
12
14
16
18
20
22
24
26
28
30
SIDE1SIDE2
L4105
80Ohm/100Mhz
2 1
R4104
1KOhm
1 2
C41005
10UF/10V
c0805
12
C41012
0.01UF/10V
12
C41011
Do Not Stuff
/x
12
L4102
80Ohm/100Mhz
21
GS
D
3
2
1
Q4102
2N7002
1
32
L4101
120Ohm/100Mhz
2 1
C41018
0.1UF/10V
12
L4112 120Ohm/100Mhz
21
C41001
1UF/16V
12
GS
D
3
2
1
Q4103
2N7002
1
32
L4111
120Ohm/100Mhz
21
R4103
33Ohm
1 2
R4102
10KOhm
r0402_h16
1 2
CON16
WTOB_CON_20P
12G171010203
1
3
5
7
9
11
13
15
17
19
2
4
6
8
10
12
14
16
18
20 2122
1
3
5
7
9
11
13
15
17
19
2
4
6
8
10
12
14
16
18
20 SIDE1SIDE2
C41010
Do Not Stuff
/x
12
C41017
0.01UF/10V
12
L4110 120Ohm/100Mhz
21
LVDS_YA1M[54] LVDS_YB1M [54]
INV_DA[38]
LVDS_YA2M[54]
LVDS_CLKBM [54]
LVDS_CLKAM[54]
LVDS_YB0P [54]
LVDS_YA0P[54]
LVDS_YA1P[54]
LVDS_CLKBP [54]
LVDS_YB2M [54]
LVDS_YB2P [54]
LVDS_YB0M [54]
LVDS_CLKAP[54]
LVDS_YA2P[54]
SUSB#[19,33,67,70]
BACK_OFF#[19]
LID_SW#[49]
INTMIC_A[44]
LVDS_YA0M[54]
LVDS_YB1P [54]
SB_PANEL_PWR [20]
LVDS_VDD_EN [26]
LVDS_BACK_EN[26]
SB_BKL_ON[20]
LCD_I2CC_SCL[54]
LCD_I2CC_SDA[54]
USB_PP4_B[19]
USB_PN4_B[19]
SEL_DDC_G73M/C51#[17,40,54]
SEL_DDC_G73M/C51[17,40,54]
5
5
4
4
3
3
2
2
1
1
D D
C C
B B
A
A
1%
Vout=1.25*(1+(100K/34K))
+5V_AUDIO
For ALC861
Impedance
Match
Custom
42 72Wednesday, March 08, 2006
ASUSTECH CO.,LTD.
ALC880
1.0
A6T
Jefing_Li
A6TcSKU1
Size Project Name Rev
Date: Sheet of
Title :
Engineer:
VREF_CODEC
AC_BITCLK
PC_BEEP
CD_L
CD_G
VREF_CODEC
PC_BEEP
CD_R
POP#0
GND GNDGND
GND
GND_AUDIO
+5V_AUDIO
GND_AUDIOGND_AUDIO
GND_AUDIO GND_AUDIO
GND
+5VS
GND_AUDIO
GND
GND
GND_AUDIO
GND_AUDIO
GND_AUDIO
GND_AUDIO
+5V_AUDIO
GND_AUDIOGND_AUDIO
GND_AUDIO
GND_AUDIO
+3VS_CODEC
+5V_AUDIO
GND GND_AUDIO
+3VS_CODEC
GND GNDGND
+3VS
GND_AUDIO
C42004
0.1UF/10V
c0402
12
R4208 0Ohm
1 2
C42029
1000PF/50V
12
L4203 120Ohm/100Mhz
21
C42027
0.1UF/10V
c0402
1 2
R4206 0Ohm
12
R4219 Do Not Stuff
/x
1 2
C42022 1000PF/50V
c0402
1 2
MAX8863
U31
MAX8863TEUK
1
2
3
4
5
SHDN#
GND
IN
OUT
SET
C42026
1UF/10V
12
C42009
0.1UF/10V
c0402
1 2
R4218
34KOhm
1 2
R4210 0Ohm
1 2
R4216
Do Not Stuff
/x
12
R4217 100KOHM
1 2
C42025
10UF/10V
c0805
12
C42008
0.1UF/10V
c0402
1 2
U30
ALC660-GR
20
21
22
23
24
1
2
3
4
5
6
7
8
9
10
11
12
14
15
16
17
18
19
13
37
38
39
40
41
42
43
44
45
46
47
48
36
35
34
33
32
31
30
29
28
27
26
25
CD-R
MIC1-L(PORT-B-L)
MIC1-R(PORT-B-R)
LINE1-L(PORT-C-L)
LINE1-R(PORT-C-R)
DVDD1
NC5
NC6
DVSS1
SDATA-OUT
BCLK
DVSS2
SDATA-IN
DVDD2
SYNC
RESET#
PCBEEP
LINE2-L(PORT-E-L)
LINE2-R(PORT-E-R)
MIC2-L(PORT-F-L)
MIC2-R(PORT-F-R)
CD-L
CD-GND
SenseA
NC1
AVDD2
SURR-L(PORT-A-L)
JDREF
SURR-R(PORT-A-R)
AVSS2
CENTER(PORT-G-L)
LFE(PORT-G-R)
NC2
NC3
NC4
SPDIFO
FRONT-R(PORT-D-R)
FRONT-L(PORT-D-L)
SenseB
NC7
MIC1-VREFO-R
LINE2-VREFO
MIC2-VREFO
NC8
MIC1-VREFO-L
VREF
AVSS1
AVDD1
R4207 0Ohm
12
C42005
0.1UF/10V
c0402
12
C42013 2.2UF/6.3V
1 2
C42010
10UF/10V
c0805
12
C42019 1UF/16V
1 2
D4201
1N4148W
1 2
R4211 0Ohm
1 2
C42001
Do Not Stuff
c0402
/x
12
C42020 1UF/16V
1 2
C42023
10UF/10V
c0805
12
R4215
Do Not Stuff
/x
12
R4220
4.99KOhm
1 2
D4204 Do Not Stuff
/x
1 2
+
CE4202 47UF/6.3V
1 2
C42002
0.1UF/10V
c0402
1 2
C42024
1UF/10V
12
C42003
10UF/10V
c0805
12
C42012 2.2UF/6.3V
1 2
R4213 0Ohm
1 2
C42006
0.1UF/10V
c0402
12
C42021 1UF/16V
1 2
R4214
Do Not Stuff
/x
12
C42028
0.1UF/10V
c0402
1 2
C42017 1UF/16V
1 2
R4204 22Ohm
1 2
D42031N4148W
1 2
R4202
33KOhm
12
C42011
0.1UF/10V
c0402
12
R4209 0Ohm
1 2
R4212 0Ohm
1 2
C42007
10UF/10V
c0805
12
R4201
33KOhm
12
C42016 1UF/16V
1 2
R4205 22Ohm
1 2
L4201 120Ohm/100Mhz
21
C42018 1UF/16V
1 2
+
CE4201 47UF/6.3V
1 2
C42014
0.1UF/10V
12
L4202 400Ohm/100Mhz
21
C42015 1UF/16V
1 2
CB_SPKR[33]
SB_SPKR[19]
S/PDIF[43]
FRONT_L [43]
CD_L_A[31]
AC_SYNC[19,45]
FRONT_R [43]
AC_BITCLK[19,45]
AC_RESET#[19,43,45]
AC_SDIN0[19]
LINEIN_R [44]
CD_R_A[31]
CODEC_SD#[43] REAR_R [43]
REAR_L [43]
CD_GND_A[31]
VREFOUT_B [44]
AC_SOUT[19,45]
LINEIN_L [44]
MIC_IN [44]
5
5
4
4
3
3
2
2
1
1
D D
C C
B B
A
A
NO CONNECT
LINE OUT
SPDIF
OPTIC_HPEAR_SW
H
L
1->-6 V/V
0->NORMAL
H
H
L
L
Default : H
Jack In : L
X7RX7R
10V/X7R 0805
10V/X7R 0805
X7R
DIGITAL
A3
43 72Wednesday, March 08, 2006
ASUSTECH CO.,LTD.
AMP
1.0
A6T
Jefing_Li
A6TcSKU1
Size Project Name Rev
Date: Sheet of
Title :
Engineer:
EAR_POP
OPTIC_HP
SPKL+
SPKR+
OP_SD#
FL2
SPKL-
S/PDIF_O
SPKR-
DLY_OP_SD#
OPTIC_VCC
SPKL+
SPKR-
SE/BTL#
SPKL-
SPKR+ AMP_SHDN#
AC_RESET#
DLY_OP_SD# DLY_OP_SE#
SE/BTL#
FL1
FR2FR1
EAR_POP
S/PDIF_O
OPTIC_VCC_EN#
EAR_SW
OPTIC_VCC
OPTIC_HP
EAR_SW
VDD_AMP
GND
GND
GND
GND
+3VS
GND_AUDIO
GND
GNDGND
GND
GND
GND
+3VS
PVDD_AMP
GND_AUDIO
+12V
GND_AUDIO
GND
GND
GND
GND
+3VSUS
+5VS
GND_AUDIO
GND
+5V_AUDIO
+3VSUS
GND
+12VS
+5V_AUDIO
GND
GND_AUDIO
VDD_AMP
GND_AUDIO
VDD_AMP
GND_AUDIO GND_AUDIO
PVDD_AMP
GND_AUDIO GND_AUDIOGND_AUDIO
GND
GND
+5VS
GND_AUDIO GND_AUDIO
+5V_AUDIO
GND_AUDIO
+5V_AUDIO +5V_AUDIO
GND_AUDIO
GND_AUDIO
+5V_AUDIO
C43012
0.47UF/16V
12
C43016
1UF/10V
12
R4315
100KOHM
r0402
1 2
R4302
0Ohm
r0402_h16
1 2
C43005
10UF/10V
c0805
12
J4301
PHONE_JACK_8P
5
4
2
3
1
9
7
8
6
10
11
12
CON17
WtoB_CON_4P
4
3
2
1 5
6
4
3
2
1 SIDE1
SIDE2
R4203
10KOhm
r0402_h16
1 2
GS
D
3
2
1
Q4304
2N7002
1
32
L4302
80Ohm/100Mhz
21
C43022
Do Not Stuff
/x
1 2
D
S
G
1
2
3
Q4307
SI2301BDS_T1_E3
1
2 3
C43008
1UF/16V
12
Q4305B
UM6K1N
5
34
R4305 10Ohm
12
VCC
GND
U33B
SN74LV14APWR
3 4
147
C43019
0.1UF/10V
12
C43013
Do Not Stuff
/x
1 2
R4308
10KOhm
r0402_h16
1 2
D4303
1N4148W
12
C43010
0.47UF/16V
12
C43011
0.47UF/16V
12
L4306 120Ohm/100Mhz
21
D4302
1N4148W
12
R4316
Do Not Stuff
r0402_h16
/x
1 2
R4301
10KOhm
r0402_h16
12
R4312
10MOhm
1 2
L4301
80Ohm/100Mhz
21
G
S
D3
2
1
Q4303
2N7002
1
3 2
VCC
GND
U33A
SN74LV14APWR
1 2
147
R4303
10KOhm
r0402_h16
12
C43009 1UF/16V
12
R4314
100KOHM
r0402
1 2
L4307 120Ohm/100Mhz
21
GS
D
3
2
1
Q4306
2N7002
1
32
L4308
120Ohm/100Mhz
2 1
L4305 120Ohm/100Mhz
21
R4304
10KOhm
r0402_h16
1 2
U32
TPA0212PWPRG4
OP AMP. TPA0212PWPR HTSSOP-24
1
2
3
4
5
6
7
8
9
10
11
12
24
23
22
21
20
19
18
17
16
15
14
13
GND1
GAIN0
GAIN1
LOUT+
LLINEIN
LHPIN
PVDD1
RIN
LOUT-
LIN
BYPASS
GND2
GND4
RLINEIN
SHUTDOWN#
ROUT+
RHPIN
VDD
PVDD2
HP/LINE#
ROUT-
SE/BTL#
PC-BEEP
GND3
C43020
0.1UF/10V
c0402
12
D4202
1N4148W
1 2
A
B
GND
VCC
Y
U34
NC7SZ08P5X
1
2
3 4
5
C43018
Do Not Stuff
c0402
/X
12
R4307
1MOhm
r0402_h16
1 2
C43006
Do Not Stuff /x
12
Q4305A
UM6K1N
2
61
L4303 120Ohm/100Mhz
21
C43004
10UF/10V
c0805
12
C43003
Do Not Stuff
/x
12
C43014
Do Not Stuff
/x
c0402
12
GS
D
3
2
1
Q4301
2N7002
1
3 2
C43023
0.1UF/10V
c0402
12
R4311 Do Not Stuff
/x
1 2
GS
D
3
2
1
Q4308
2N7002
1
32
R4313
10KOhm
r0402_h16
Default
1 2
D4301
1N4148W
12
L4304 120Ohm/100Mhz
21
C43017
0.1UF/10V
c0402
12
R4309
100KOHM
r0402
1 2
C43021
0.22UF/6.3V
1 2
C43007
Do Not Stuff
/x
12
C43024
0.1UF/10V
c0402
12
L4309
Do Not Stuff
/x
2 1
G
S
D3
2
1
Q4302
2N7002
1
32
C43001
0.1UF/10V
12
C43002
Do Not Stuff /x
12
R4310
0Ohm
1 2
R4306 10Ohm
12
C43015
Do Not Stuff
/x
c0402
12
OP_SD#[38]
FRONT_R[42]
1S_DEL[15]
S/PDIF[42]
GAIN_AMP#[38] REAR_R [42]
REAR_L[42]
AC_RESET#[19,42,45]
CODEC_SD#[42]
FRONT_L[42]
S/PDIF[42]
5
5
4
4
3
3
2
2
1
1
D D
C C
B B
A
A
NO STUFF
INTMIC_A:GND_AUDIO
: W/P/X = 12/5/15mils
LINE_IN
MICROPHONE IN
A3
44 72Wednesday, March 08, 2006
ASUSTECH CO.,LTD.
MIC/LINE-IN JACK
1.0
A6T
Jefing_Li
A6TcSKU1
Size Project Name Rev
Date: Sheet of
Title :
Engineer:
INTMIC_A
MIC_JACK
GND_MIC
GND_AUDIO
GND
GND_AUDIO
GND
GND
GND_AUDIO
GND
GND_AUDIO
GND_AUDIO
GND
GND
+5V_AUDIO
GND_AUDIO
GND_AUDIO
GND_AUDIO
GND
GND
GND_AUDIO
GND_AUDIO
+5V_AUDIO
GND
GND
GND
R4404 0Ohm
r0402_h16
12
+
-
V+
V-
U35
MAX4490AXK
1
34
52
C44006
150PF/50V
12
R4413
1KOhm
1 2
R4407 Do Not Stuff
/x
12
C44008
Do Not Stuff
/x
c0402
12
L4404 120Ohm/100Mhz
21
R4405 0Ohm
r0402_h16
12
C44007
Do Not Stuff
/x
c0402
12
C44005
1000PF/50V
12
L4405 120Ohm/100Mhz
21
JP4401
Do Not Stuff
/x
1 2
L4403
120Ohm/100Mhz
21
R4409 4.7KOhm
12
R4408
4.7KOhm
12
R
L
AUDIO JACK
J4401
PHONE_5P
4
3
6
2
1
57
8
9
10
C44001
Do Not Stuff
/x
c0402
12
C44004
1UF/16V
1 2
R
L
AUDIO JACK
J4402
PHONE_5P
4
3
6
2
1
57
8
9
10
R4412
Do Not Stuff
/x
1 2
R4403 0Ohm
r0402_h16
12
R4410
Do Not Stuff
/x
12
R4402 0Ohm
r0402_h16
12
R4406 0Ohm
r0402_h16
12
C44003
1UF/16V
1 2
C44002
Do Not Stuff
/x
c0402
12
L4402 120Ohm/100Mhz
21
R4411
39KOhm
1 2
L4401 120Ohm/100Mhz
21
R4401 0Ohm
1 2
LINEIN_R[42]
LINEIN_L[42]
INTMIC_A[41]
MIC_IN [42]
VREFOUT_B[42]
5
5
4
4
3
3
2
2
1
1
D D
C C
B B
A
A
Must change to
13-N7510M270
MDC
4/12
4/11
LAN
PORT
A3
45 72Wednesday, March 08, 2006
ASUSTECH CO.,LTD.
RJ45/11/MDC
1.0
A6T
Jefing_Li
A6TcSKU1
Size Project Name Rev
Date: Sheet of
Title :
Engineer:
L_TRLM0
L_CMT0
LTRLM2
LTRLP0
L_TRLP2
L_TRLM2
L_CMT3
MODEM_RING_CON
MODEM_TIP_CON
L_CMT1
L_TRLM1
L_TRLP2
L_TRLM3
L_CMT3
LTRLM0
L_TRLP1
MODEM_RING
LTRLM1
L_TRLM2
L_CMT0
L_TRLP0
L_TRLP3
LTRLP3
MODEM_TIP
L_TRLM1
L_CMT2 LTRLP1
FGND1S
RDC
L_TRLM0
LTRLM3
L_TRLP0
L_CMT1
L_TRLP3
L_TRLP1
L_TRLM3
LTRLP2
L_CMT2
LTRLM2
LTRLP2
LTRLP3
LTRLM3
LTRLM1
LTRLP1
LTRLP0
LTRLM0
GND
+3VSUS
GND
GND
GND
+1.8V_LAN
GND
GND
GND
GND
GND
+3V
+3V
C45003
0.01UF/50V
12
R4501
Do Not Stuff
/x
1 2
L45031KOhm/100Mhz
Irat=100mA
21
MCT1
MCT2
MCT3
MCT4
MX1+
MX1-
MX2+
MX2-
MX3+
MX3-
MX4+
MX4-
TCT1
TD1+
TD1-
TD2+
TD2-
TD3+
TD3-
TD4+
TD4-
TCT2
TCT3
TCT4
L4607
1GB
1
2
3
4
5
6
7
8
9
10
11
12
24
23
22
21
20
19
18
17
16
15
14
13
R4505 22Ohm
1 2
R4506 0Ohm
12
RN4502B
75Ohm
3 4
C45001
1000PF/3KV
12
R4502 0Ohm
12
CON19
MODULAR_JACK_12P
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
1
2
3
4
5
6
7
8
9
10
11
12
NP_NC1
NP_NC2
P_GND1
P_GND2
SIDE1
SIDE2
H4502
L4E_1A
R4503 Do Not Stuff
/X
1 2
C45009
0.1UF/10V
c0402
12
RN4503B
0OHM
3 4
RN4502D
75Ohm
7 8
L4506
Do Not Stuff
/x
1 4
2 3
RN4503A
0OHM
1 2
C45010
Do Not Stuff
/x
12
CON18
WTOB_CON_2P
3
4
1
2
SIDE1
SIDE2
1
2
C45005
0.01UF/50V
12
R4507 22Ohm
1 2
RN4502A
75Ohm
1 2
RN4504B
0OHM
3 4
RN4506B
0OHM
3 4
L4502
1KOhm/100Mhz
Irat=100mA
21
C45008
1000PF/2KV
12
RN4502C
75Ohm
5 6
RN4504A
0OHM
1 2
RN4506A
0OHM
1 2
H4501
L4E_1A
L4501
Do Not Stuff
/x
1 4
2 3
C45006
0.01UF/50V
12
CON20 BTOB_CON_12P
1 2
3 4
5 6
7 8
9 10
11 12
1314
1920
1516 1718
12
34
56
78
910
11 12
GND1GND2
NP_NC1NP_NC2
GND3GND4 GND5GND6
L4505
Do Not Stuff
/x
1 4
2 3
RN4505B
0OHM
3 4
R4508 0Ohm
1 2
R4504 0Ohm
12
C45002
1000PF/3KV
12
L4504
Do Not Stuff
/x
1 4
2 3
C45007
1500PF/50V
12
C45004
0.01UF/50V
12
RN4505A
0OHM
1 2
L_TRDP3[46]
L_TRDP0[46]
L_TRDM2[46]
L_TRDP2[46]
L_TRDP1[46]
AC_SYNC[19,42]
L_TRDM3[46]
AC_BITCLK [19,42]AC_RESET#[19,42,43]
AC_SOUT[19,42]
AC_SDIN1[19]
L_TRDM1[46]
L_TRDM0[46]
5
5
4
4
3
3
2
2
1
1
D D
C C
B B
A
A
CLOSE TO RTL8111B
CLOSE TO TRL8111B
A3
46 72Wednesday, March 08, 2006
ASUSTECH CO.,LTD.
RJ45/11/MDC
1.0
A6T
Jefing_Li
A6TcSKU1
Size Project Name Rev
Date: Sheet of
Title :
Engineer:
1.5V_CTL
LAN_EEDO
PCI_RSTLAN#
LAN_EEDI
1.5V_CTL
PCIE_HOSP
LAN_EECS
LAN_WAKE#
1.8V_CTLLAN_EESK
PCIE_HOSN
LAN_EECS
LAN_EESK
LAN_EEDI
LAN_EEDO
MDIP1
MDIN0
MDIN1
MDIP0
MDIN2
MDIP3
MDIN3
MDIP2
MDIP1
MDIN0
MDIN1
MDIP0
MDIN2
MDIP3
MDIN3
MDIP2
X1_LAN
X2_LAN
1.8V_CTL
+3.3V_LAN
+3V
+3VSUS +1.5V_LAN
+1.5V_LAN
+3.3V_LAN
+1.8V_LAN
+1.8V_LAN
+3VSUS
+3.3V_LAN_DIGITAL
+3V
+3.3V_LAN
+1.8V_LAN_E
+3VS
+3V_LAN_ANALOG
+3.3V_LAN
+3V
+3V_LAN_ANALOG
+3VSUS
+3V
+1.8V_LAN +1.8V_LAN_E
GND_LAN GND_LAN
GNDGND_LAN
GND_LAN
GNDGND
C46005
0.1UF/10V
12
L4602 Do Not Stuff
/x
21
C46023
0.1UF/10V
12
R4602 0Ohm
1 2
R4611 Do Not Stuff
/x
1 2
C46014
0.1UF/10V
12
L4601 80Ohm/100Mhz
21
L4604
120Ohm/100Mhz
21
R4613 Do Not Stuff
/x
1 2
C46040
0.1UF/10V
12
12
X4601
25Mhz
C46019
10UF/10V
12
R4608
4.7KOhm
1 2
U37
RTL8111B
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
VCTRL18
AVDD33_1
MDIP0
MDIN0
AVDD18_1
MDIP1
MDIN1
AVDD18_2
MDIP2
MDIN2
AVDD18_3
MDIP3
MDIN3
AVDD18_4
VDD15_1
VDD33_1
NC1
NC2
LANWAKEB
PERSTB
VDD15_2
EVDD18_1
HSIP
HSIN
EGND1
REFCLK_P
REFCLK_N
EVDD18_2
HSOP
HSON
EGND2
VDD15_3
VDD15_4
NC3
NC4
ISOLATEB
VDD33_2
VDD15_5
NC5
NC6
VDD15_6
NC7
VDD15_7
EECS
EEDO
VDD33_3
EEDI/AUX
EESK
VDD15_8
NC8
NC9
VDD15_9
VDD33_4
LED3
LED2
LED1
LED0
VDD15_10
AVDD33_2
CKTAL1
CKTAL2
GVDD
VCTRL15
RSET
GND
L4606 80Ohm/100Mhz
21
C46039 Do Not Stuff
/x
1 2
R4605
1KOhm
1 2
C46007
0.1UF/10V
12
C46017
0.1UF/10V
12
C46016
0.1UF/10V
12
C46010
10UF/10V
12
U38
AT93C46
1
2
3
45
6
7
8CS
SK
DI
DOGND
ORG
DC
VCC
R4609 Do Not Stuff
/x
1 2
C46008
0.1UF/10V
12
C46026 0.1UF/10V
12
C46018
0.1UF/10V
12
L4605
Do Not Stuff
/x
21
C46035
0.1UF/10V
12
C46037
22PF/50V
NPO
12
L4609
120Ohm/100Mhz
21
C46009
0.1UF/10V
12
C46002
0.1UF/10V
R4614 Do Not Stuff
/x
1 2
C46004
10UF/10V
12
R4615 Do Not Stuff
/x
1 2
C46024
0.1UF/10V
12
C46042 Do Not Stuff
/x
1 2
L4608 Do Not Stuff
/x
21
C46011
0.1UF/10V
12
L4603
120Ohm/100Mhz
21
C46012
0.1UF/10V
12
C46006
0.1UF/10V
12
R4612 Do Not Stuff
/x
1 2
C46015
10UF/10V
12
BC
E
1
2
3
Q4602 2SB1424
BC
E
1
2
3
Q4601 2SB1424
C46025 0.1UF/10V
12
R4607 2.49KOhm
1 2
R4616 Do Not Stuff
/x
1 2
R4610 Do Not Stuff
/x
1 2
C46003
0.1UF/10V
R4606
15KOhm
1 2
C46021
0.1UF/10V
12
C46034
0.1UF/10V
12
C46038 Do Not Stuff
/x
1 2
C46041 Do Not Stuff
/x
1 2
G
S
D3
2
1
Q4603 Do Not Stuff
/X
1
3 2
C46013
0.1UF/10V
12
R4601 0Ohm
1 2
C46001
10UF/10V
12
C46020
Do Not Stuff
/x
12
C46036
22PF/50V
NPO
12
C46022
0.1UF/10V
12
PE1_X1_TX_P[12]
PE1_X1_CLK_N[12]
PE1_X1_RX_P[12]
PE_RESET#[12,22]
PE_WAKE#[19]
PE1_X1_RX_N[12]
PE1_X1_CLK_P[12]
PE1_X1_TX_N[12]
L_TRDM3 [45]
L_TRDP2 [45]
L_TRDP1 [45]
L_TRDM1 [45]
L_TRDP0 [45]
L_TRDM2 [45]
L_TRDM0 [45]
L_TRDP3 [45]
5
5
4
4
3
3
2
2
1
1
D D
C C
B B
A A
Power4 Gear
1.1-141.1-14
Touchpad DisableE-Mail Internet
FUNCTION KEY
1.1-14 1.1-14
Power Switch
1.1-14
12.26
03/03
B
47 72Wednesday, March 08, 2006
ASUSTECH CO.,LTD.
FUNCTION KEY
1.0
A6T
Jefing_Li
A6TcSKU1
Size Project Name Rev
Date: Sheet of
Title :
Engineer:
HOTKEY2#HOTKEY5# HOTKEY3#HOTKEY4# HOTKEY1#
HOTKEY3#
HOTKEY5#
HOTKEY1# PWR_SW#
HOTKEY4#
HOTKEY2#
SUSC#
DJ_SW_R
PWR_SW_R#
SUSC#
PWR_SW_R
PWR_SW#
SUSC#
DJ_SW#
PWR_SW#
GND
GND
+5V
+3VA
+3V
+3VA
GND
+3VA
GND
+3VA
+5V
GND
GND
+3VA
+3VA
GND
+3VA
GND
+3VA
+5VS
+3VA
GND
GND
+5V
+3VA
GND
+3VA
+3VA
GND
+3VA
GND
SW4701
TACT_SWITCH_5P
1
3
2
5
4
1
3
2
5
4
CN4701D
0.1U
7 8
R4707
0Ohm
12
GS
D
3
2
1
Q4704
2N7002
1
32
CN4701A
0.1U
1 2
R4704
Do Not Stuff
/x
1 2
C47003
0.1UF/10V
1 2
SW4705
TACT_SWITCH_5P
1
3
2
5
4
1
3
2
5
4
U40A
74LV74A
1
2
3
4
5
6
7 14
CLR
D
CK
PR
Q
Q#
GND VCC
R4705
100KOHM
12
GS
D
3
2
1
Q4705
2N7002
1
32
C47002
0.1UF/10V
12
R4780
Do Not Stuff
/x
1 2
R4709
100KOHM
12
R4714
100KOHM
12
D4701
Do Not Stuff
/x
12
GS
D
3
2
1
Q4706
2N7002
1
32
R4706
330Ohm
1 2
R4702
10KOhm
1 2
R4711
10KOhm
1 2
D4702
Do Not Stuff
/x
12
R4701
100KOHM
12
R4712
100KOHM
12
R4710
10KOhm
1 2
RN4702A
330Ohm
1 2
GS
D
3
2
1
Q4707
2N7002
1
32
R4715
100KOHM
1 2
SW4702
TACT_SWITCH_5P
1
3
2
5
4
1
3
2
5
4
C47007
0.1UF/10V
1 2
R4717
100KOHM
12
C47006
0.1UF/10V
12
R4703
100KOHM
12
C47005
0.1UF/10V
1 2
GS
D
3
2
1
Q4703
2N7002
1
32
GS
D
3
2
1
Q4701
2N7002
1
32
D4708
1SS355
1 2
SW4703
TACT_SWITCH_5P
1
3
2
5
4
1
3
2
5
4
RN4702C
330Ohm
5 6
D4703
Do Not Stuff
/x
12
U39B
74LV74A
10
9
8
12
147
11
13
PR
Q
Q#
D
VCCGND
CK
CLR
C470010.1UF/10V
1 2
U40B
74LV74A
10
9
8
12
147
11
13
PR
Q
Q#
D
VCCGND
CK
CLR
RN4702B
330Ohm
3 4
SW4704
TACT_SWITCH_5P
1
3
2
5
4
1
3
2
5
4
R4713
10KOhm
1 2
R4708
100KOHM
12
RN4702D
330Ohm
7 8
D4705
Do Not Stuff
/x
12
GS
D
3
2
1
Q4702
2N7002
1
32
D4704
Do Not Stuff
/x
12
C470040.1UF/10V
1 2
CN4701B
0.1U
3 4
D4706
1N4148W
12
R4716
10KOhm
1 2
U39A
74LV74A
1
2
3
4
5
6
7 14
CLR
D
CK
PR
Q
Q#
GND VCC
CN4701C
0.1U
5 6
INTERNET# [38]
DISTP# [38]
MARATHON# [38]
EMAIL# [38]
SUSC#[19,49,67]
CLR_DJ#[38]
DJ_SW#[48]
DJ_LED_ON [48]
DJ_SW_R# [49]
PWR_SW_R# [49]
PWR_SW_R
SWDJ_EN# [38]
PWR_SW# [49]
FORCE_OFF# [49,50,70]
5
5
4
4
3
3
2
2
1
1
D D
C C
B B
A A
POWER_LED
802_LED
EMAIL_LED
CHG_LED
NUMIDE SCR
CAP
DJ_LED
DJ Mode L
Nomal H
B
48 72Wednesday, March 08, 2006
ASUSTECH CO.,LTD.
LED
1.0
A6T
Jefing_Li
A6TcSKU1
Size Project Name Rev
Date: Sheet of
Title :
Engineer:
PWR_LED#_R
DJ_LED_ON_
802_LED_EN#_R
DJ_LED_R
DJ_LED_ON_
CHG_LED#_R EMAIL_LED#_R
DJ_SW#
802_LED_EN#_R
DJBWARD#
DJSTOP#
DJPLAY#
DJFWARD#
CHG_LED#_R
TPAD_DAT
EMAIL_LED#_R
PWR_LED#_R
DJ_SCAN
DJ_LED_R
TPAD_CLK
+3V
GND
GND
GND
+5VS +3V
+5V_TP
+5VS
+5VS
+5VLCM
+5VSUS
+5VSUS
CON21
FPC_20P
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
GND1
GND2
R4816
220Ohm
12
R4811
330Ohm
1 2
R4807
Do Not Stuff
/x
12
+
LED4802
GREEN
12
D4802
1SS355
12
T4802
1
R4802
470Ohm
1 2
GS
D
3
2
1
Q4801
2N7002
1
32
GS
D
3
2
1
Q4806
2N7002
1
32
R4815
220Ohm
12
R4817
220Ohm
12
GS
D
3
2
1
Q4804
BSS138
1
32
+
LED4803
GREEN
12
R4818
1KOhm
1 2
C48001
1UF/10V
12
+
LED4804
GREEN
12
R4805
Do Not Stuff
/x
12
R4801
470Ohm
1 2
R4814
330Ohm
12
L4801
80Ohm/100Mhz
21
R4813
10KOhm
1 2
R4812
470Ohm
1 2
R4806
470Ohm
1 2
GS
D
3
2
1
Q4805
2N7002
1
32
C48002
0.1UF/10V
12
R4810
Do Not Stuff
/x
12
GS
D
3
2
1
Q4802
2N7002
1
32
T4803
1
R4804
100KOhm
1 2
GS
D
3
2
1
Q4803
BSS138
1
32
GS
D
3
2
1
Q4807
2N7002
1
32
+
LED4805
GREEN
12
DJ_LED_ON[47]
802_LED_EN[19,32,39]
DJ_LED#[38]
CHG_LED_UP[69]
EMAIL_LED[38]
CAP_LED#[38]
NUM_LED#[38]IDE_LED#[31] SCROLL_LED#[38]
KSI3[38]
TPAD_DAT[38]
DJ_SW#[47]
DJ_SCAN[38]
KSI2[38] KSI5[38]
TPAD_CLK[38]
KSI4[38]
PWR_LED_UP[69]
5
5
4
4
3
3
2
2
1
1
D D
C C
B B
A A
Adaptor IN
B
49 72Wednesday, March 08, 2006
ASUSTECH CO.,LTD.
POWER SEQEUNCE(1)
1.0
A6T
Jefing_Li
A6TcSKU1
Size Project Name Rev
Date: Sheet of
Title :
Engineer:
LID_SW# LID_SW_SB#
PWR_ON#
PWR_ON#
KBC_RSM
FORCE_OFF#
FORCE_OFF#
GND_DC
+5VS
+3VA +3VA
++AC_IN
GND
A/D_DOCK_IN
GND
GND
+3VA
GND GND
+3VSUS +3VSUS
+3VA
+5VA+3VA
+3V
+3VA
GND
GNDGND
GND
C49004
1UF/25V
12
GS
D
3
2
1
Q4908
2N7002
1
32
T4901 Do Not Stuff 1
VCC
GND
U33E
SN74LV14APWR
11 10
147
R4904
100KOHM
1 2
C490020.1UF/10V
12
D4905
1SS355
1 2
VCC
GND
U33D
SN74LV14APWR
9 8
147
R4908
100KOhm
12
T4906 Do Not Stuff 1
G
S
D3
2
1
Q4901
2N7002
1
3 2
R4903
100KOHM
1 2
VCC
GND
U33C
SN74LV14APWR
5 6
147
D4907
SS0540
1 2
J4901
DC_PWR_JACK_3P
1
2
3
6
4
5
1
2
3
NP_NC
P_GND1
P_GND2
G
S
D3
2
1
Q4907
2N7002
1
32
R4912
10KOhm
12
T4903 Do Not Stuff 1
R4909
100KOhm
12
GS
D
3
2
1
Q4911
2N7002
1
32
L4901
47Ohm/100Mhz
21
GS
D
3
2
1
Q4902
2N7002
1
32
R4906
100KOHM
1 2
T4907 Do Not Stuff 1
T4908 Do Not Stuff 1
GS
D
3
2
1
Q4910
2N7002
1
32
R4911
100KOHM
12
R4913
100KOHM
1 2
VCC
GND
U33F
SN74LV14APWR
13 12
147
R4901
100KOHM
1 2
GS
D
3
2
1
Q4906
2N7002
1
32
C49006
0.1UF/25V
12
C49005
0.1UF/10V
12
R4907
33Ohm
1 2
D4902
RB717F
1
23
C49003
4.7UF/6.3V
12
D4903
1SS355
12
R4902
Do Not Stuff
/x
1 2
GS
D
3
2
1
Q4909
2N7002
1
32
T4905 Do Not Stuff 1
T4904 Do Not Stuff 1
C49001
0.1UF/10V
12
L4902
47Ohm/100Mhz
21
R4914
Do Not Stuff
/x
12
R4910
100KOHM
1 2
SW4901
TACT_SWITCH_5P
1
3
2
5
4
1
3
2
5
4
G
S
D3
2
1
Q4903
2N7002
1
32
G
S
D3
2
1
Q4905
2N7002
1
32
LID_SW_SB# [19]LID_SW#[41]
PWR_SW#[47]
PWRGD_SB [19,50]
FORCE_OFF# [47,50,70]
SUSC_PWR[50]
SB_PWRBTN# [19]
PWR_SW_R#[47]
DJ_SW_R#[47] ON_SUS [62]
SUSC#[19,47,67]
KBCRSM[38]
AC_APR_UC[68,69]
5
5
4
4
3
3
2
2
1
1
D D
C C
B B
A A
for adjust
B
50 72Wednesday, March 08, 2006
ASUSTECH CO.,LTD.
POWER SEQUENCE(2)
1.0
A6T
Jefing_Li
A6TcSKU1
Size Project Name Rev
Date: Sheet of
Title :
Engineer:
SUSC#_PWRSUSB#_PWR
FORCE_OFF#
+1.5VSUS
+3VSUS
+3VA
+12V
GND GND
+5V
GND GND
+1.8V
+1.5VS+2.5VS+5VS
+3V
GNDGND
GND
+12VS
GND
GND
+3VS
GND
+1.8V+0.9V
GND
GND
+3VA
GND
R5007
33Ohm
1 2
R5015
100Ohm
1 2
R5017
100KOhm
12
R5003
100Ohm
1 2
R5010
18KOhm
1 2
R5012
100Ohm
12
R5014
100Ohm
1 2
D5001
1SS355
12
GS
D
3
2
1
Q5009
2N7002
1
32
C50001
0.1UF/25V
c0603
12
C50002
4.7UF/6.3V
12
GS
D
3
2
1
Q5005
2N7002
1
32
D5002
1SS355
12
R5011
100Ohm
12
GS
D
3
2
1
Q5007
2N7002
1
32
Q5014B
UM6K1N
5
34
R5008
100KOHM
1 2
GS
D
3
2
1
Q5013
2N7002
1
32
R5001
100KOHM
1 2
R5013
100Ohm
1 2
BC
E
1
2
3
Q5008
PMBS3904
GS
D
3
2
1
Q5003
2N7002
1
32
GS
D
3
2
1
Q5002
2N7002
1
32
R5002
100Ohm
12
GS
D
3
2
1
Q5001
2N7002
1
32
R5004
100Ohm
12
R5016
100KOhm
12
GS
D
3
2
1
Q5011
2N7002
1
32
R5005
100Ohm
1 2
Q5014A
UM6K1N
2
61
GS
D
3
2
1
Q5006
2N7002
1
32
GS
D
3
2
1
Q5004
2N7002
1
32
R5006
33Ohm
1 2
R5009
10KOhm
1 2
GS
D
3
2
1
Q5012
2N7002
1
32
GS
D
3
2
1
Q5010
2N7002
1
32
PWRGD_SB [19,49]
SUSB_PWR
SUSC_PWR[49]
SUSC#_PWR[65,67]
SUSB#_PWR[62..64,66,67,69]
SUSB_PWR SUSC_PWR[49]
FORCE_OFF#[47,49,70]
5
5
4
4
3
3
2
2
1
1
D D
C C
B B
A
A
CPU
VGA
B
51 72Wednesday, March 08, 2006
ASUSTECH CO.,LTD.
SCREW HOLE
1.0
A6T
Jefing_Li
A6TcSKU1
Size Project Name Rev
Date: Sheet of
Title :
Engineer:
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND GND
GND
GND
GND
GND
GNDGND
GND GND
GND
GND
GND
+1.2VS
+5VLCM
+1.2VS
AC_BAT_SYS
+5V
+5VS
+5V
GND
GND
GND
GND
GND
GND
GND
GND
T5103
Do Not Stuff
/X
1
H5116
Do Not Stuff
@
1
2
3
4
8
7
6
5
9
NP_NC
GND1
GND2
GND3
GND7
GND6
GND5
GND4
GND8
H5104
C268B178D138
N/A
1
C5102
0.1UF/25V
12
H5102
C268B178D138
N/A
1
C5103
0.1UF/25V
12
H5121
E40M20
N/A
T5101
Do Not Stuff
/X
1
C5104
0.1UF/25V
12
H5118
Do Not Stuff
@
1
2
3
4
8
7
6
5
9
NP_NC
GND1
GND2
GND3
GND7
GND6
GND5
GND4
GND8
T5102
Do Not Stuff
/X
1
H5110
Do Not Stuff
@
1
2
3
4
8
7
6
5
NP_NC
GND1
GND2
GND3
GND7
GND6
GND5
GND4
H5106
E40M20
N/A
C5105
0.1UF/25V
12
H5117
Do Not Stuff
@
1
2
3
4
8
7
6
5
9
NP_NC
GND1
GND2
GND3
GND7
GND6
GND5
GND4
GND8
H5112
Do Not Stuff
@
1
2
3
4
8
7
6
5
9
NP_NC
GND1
GND2
GND3
GND7
GND6
GND5
GND4
GND8
H5107
Do Not Stuff
@
1
2
3
4
8
7
6
5
9
NP_NC
GND1
GND2
GND3
GND7
GND6
GND5
GND4
GND8
H5103
C268B178D138
N/A
1
C5106
0.1UF/25V
12
H5109
Do Not Stuff
@
1
14
3
4
8
7
6
5
9 10
11
12
13
2
15
16
NP_NC1
GND12
GND1
GND2
GND6
GND5
GND4
GND3
GND7 GND8
GND9
GND10
GND11
NP_NC2
GND13
GND14
H5115
E40M20
N/A
C5107
0.1UF/25V
12
H5101
C268B178D138
N/A
1
H5111
Do Not Stuff
@
1
14
3
4
8
7
6
5
9 10
11
12
13
2
15
16
NP_NC1
GND12
GND1
GND2
GND6
GND5
GND4
GND3
GND7 GND8
GND9
GND10
GND11
NP_NC2
GND13
GND14 H5113
Do Not Stuff
@
1
2
3
4
8
7
6
5
9
NP_NC
GND1
GND2
GND3
GND7
GND6
GND5
GND4
GND8
H5114
Do Not Stuff
@
1
2
3
4
8
7
6
5
9
NP_NC
GND1
GND2
GND3
GND7
GND6
GND5
GND4
GND8
H5120
E40M20
N/A
C5101
0.1UF/25V
12
H5108
Do Not Stuff
@
1
2
3
4
8
7
6
5
9
NP_NC
GND1
GND2
GND3
GND7
GND6
GND5
GND4
GND8
5
5
4
4
3
3
2
2
1
1
D D
C C
B B
A A
RUN S0-S1 This voltage rail is present when the
system is “running”
SUS S0-S1-S3 This voltage rail is present when
the system is running or in suspend-to-RAM
ALWAYS S0-S1-S3-S4-S5 This voltage rail is always
present as long as there is main power, whether in
the form of a system battery, an AC adapter, or
other type of main power supply
RTC S0-S5, G3 This voltage rail is always
present for the Real Time Clock and CMOS RAM
circuitry even in the mechanical off state as
long as the coin cell is present and not
discharged.
AC MODE BAT MODE
+V_RTC
+5VCHG
+5VLCM
+2.5VREF
+3VSUS
SUSC#
SUSB#
+1.8V
+0.9V +0.9V
+1.8V
+3VSUS
SUSB#
SUSC#
+V_RTC
PWR_SW#
+3VA +3VA
PWR_SW#
+1.2SUS +1.2VSUS
+5VS
+VCORE
+3VS
+1.2VS
+5VS
+3VS
+1.2VS
+VCORE
+1.2V_HT +1.2V_HT
+5VSUS +5VSUS
Custom
52 72Wednesday, March 08, 2006
ASUSTECH CO.,LTD.
POWER SEQUENCE BLCOK
1.0
A6T
Jefing_Li
A6TcSKU1
Size Project Name Rev
Date: Sheet of
Title :
Engineer:
5
5
4
4
3
3
2
2
1
1
D D
C C
B B
A A
12/28
12/28
12/28
1.6A
0.66A
0.13A
B
53 72Wednesday, March 08, 2006
ASUSTECH CO.,LTD.
BLANK
1.0
A6T
Jefing_Li
A6TcSKU1
Size Project Name Rev
Date: Sheet of
Title :
Engineer:
GPU_PWR_EN
+1.2VS_GPU+1.2VS
+3VS_GPU+3VS
+2.5VS_GPU+2.5VS
S
D
G
Q5313
PMN45EN
1
2
35
6
4
C5316
0.1UF/50V
12
C5320
0.1UF/25V
12
C5315
0.1UF/25V
12
C5317
0.1UF/50V
12
S
D
G
Q5314
PMN45EN
1
2
35
6
4
C5318
0.1UF/25V
12
C5319
0.1UF/50V
12
S
D
G
Q5315
PMN45EN
1
2
35
6
4
GPU_PWR_EN[17,66,67,70]
5
5
4
4
3
3
2
2
1
1
D D
C C
B B
A A
S=1 C
S
4C
4A
S=0 B
4C
S=1 C
3B
4A
2C
S
2C
1A
S
3C
1A
4A
1B
3B
2B
1B
2A
2C
VCC
4C
VCC
4B
1C
3A
1B
GND
S=0 B
GND
3A
OE_N1C
S
1B
2A
OE_N
S=1 C
4C
1A
2B
VCC
3C
1C
4B
2B
4A
S=0 B
OE_N
GND
3A
1A
2B
3B 3A
2C
3C
VCC
3C
S=0 B
GND
3B
OE_N
1C
2A
2A
4B
S=1 C
4B
B
54 72Wednesday, March 08, 2006
ASUSTECH CO.,LTD.
BLANK
1.0
A6T
Jefing_Li
A6TcSKU1
Size Project Name Rev
Date: Sheet of
Title :
Engineer:
LCD_I2CC_SCL
LCD_I2CC_SDA
MCP51_I2CC_SCL
MCP51_I2CC_SDA
SEL_LVDS_C51/G73M
SEL_LVDS_C51/G73M
+5VS
GND
+5VS
GND
GND
+5VS
GND
GND
+5VS
GND
+3VS
GND
+5VS
GND
GND
GND
C5403
0.1UF/10V
12
U5401
STMAV340
1
2
3
4
5
6
7
8 9
10
11
12
13
14
15
16
1B
1C
2B
2C
3B
3C
4B
4C GND
4A
3A
2A
1A
S
OE_N
VCC
RN5401A 2.2kOhm 12
U5404
STMAV340
1
2
3
4
5
6
7
8 9
10
11
12
13
14
15
16
1B
1C
2B
2C
3B
3C
4B
4C GND
4A
3A
2A
1A
S
OE_N
VCC
C5404
0.1UF/10V
12
R54020Ohm
1 2
RN5401B 2.2kOhm 34
RN5401C 2.2kOhm 56
U5403
STMAV340
1
2
3
4
5
6
7
8 9
10
11
12
13
14
15
16
1B
1C
2B
2C
3B
3C
4B
4C GND
4A
3A
2A
1A
S
OE_N
VCC
U5402
STMAV340
1
2
3
4
5
6
7
8 9
10
11
12
13
14
15
16
1B
1C
2B
2C
3B
3C
4B
4C GND
4A
3A
2A
1A
S
OE_N
VCC
RN5401D 2.2kOhm 78
Q5403A
UM6K1N
2
61
Q5402A
UM6K1N
2
61
C5401
0.1UF/10V
12
Q5402B
UM6K1N
5
34
C5402
0.1UF/10V
12
R5403
10KOhm
r0402
12
Q5403B
UM6K1N
5
34
C61M_LVDS_YBP1[13] LVDS_YB1P [41]
C61M_LVDS_YBM2[13]
C61M_LVDS_YAP0[13]
LVDS_YA2M [41]
LVDS_YA1M [41]
G_LVDS_CLKAM[24]
C61M_LVDS_YBP2[13]
G_LVDS_YA2M[24]
MCP51_I2CC_SCL[19]
G_LVDS_YB2P[24]
LVDS_CLKAP [41]
C61M_LVDS_YAP2[13]
G_LVDS_YA1P[24]
G_LVDS_YA1M[24]
LCD_I2CC_SCL [41]
G_LVDS_YB1P[24]
C61M_LVDS_YAM2[13]
LCD_I2CC_SDA [41]
G_LVDS_YA0P[24]
MCP51_I2CC_SDA[19]
G_LVDS_YA2P[24]
G_LVDS_YB1M[24]
LVDS_YA1P [41]
LVDS_YB1M [41]
C61M_LVDS_YBM1[13]
G_LVDS_CLKAP[24]
G_LVDS_YA0M[24]
NV_I2CC_SCL[15,26,27]C61M_LVDS_YAM1[13]
LVDS_CLKAM [41]
G_LVDS_YB2M[24]
C61M_LVDS_YAP1[13]
C61M_LVDS_CLKAP[13]
LVDS_YA2P [41]
NV_I2CC_SDA[15,26,27]
C61M_LVDS_YAM0[13]
C61M_LVDS_CLKAM[13]
C61M_LVDS_YBP0[13]
C61M_LVDS_YBM0[13]
G_LVDS_YB0P[24]
G_LVDS_YB0M[24]
C61M_LVDS_CLKBP[13] G_LVDS_CLKBM[24]
C61M_LVDS_CLKBM[13]
G_LVDS_CLKBP[24] LVDS_YB0M [41]
LVDS_YB0P [41]
LVDS_CLKBM [41]
LVDS_CLKBP [41]
LVDS_YB2M [41]
LVDS_YB2P [41]
LVDS_YA0P [41]
LVDS_YA0M [41]
SEL_LVDS_C51/G73M_ [19]SEL_LVDS_C51/G73M[55]
SEL_DDC_G73M/C51[17,40,41]
SEL_DDC_G73M/C51#[17,40,41]
5
5
4
4
3
3
2
2
1
1
D D
C C
B B
A A
OE_N
OE_N
2A
1C
3B
1B
4C
S
S=1 C
S=0 B
4C
4B
S
4B
2C
2C
VCC
2A
1C
3C
3B
VCC
3A
2B
GND
2B 1A
S=0 B
4A
4A
3A
S=1 C
1B
1A
GND
3C
75 ohm
75 ohm
place close to U5501 place close to U5502
B
55 72Wednesday, March 08, 2006
ASUSTECH CO.,LTD.
BLANK
1.0
A6T
Jefing_Li
A6TcSKU1
Size Project Name Rev
Date: Sheet of
Title :
Engineer:
GPU_CRT_GREEN_
GPU_CRT_RED_
GPU_CRT_BLUE_
GPU_CRT_BLUE_
GPU_CRT_GREEN_
GPU_CRT_RED_
GPU_TV_CVBS_
GPU_TV_C_
GPU_TV_Y_
GPU_TV_CVBS_
GPU_TV_Y_
GPU_TV_C_
+5VS
+5VS
GND
GND
GND GND GND GNDGND GND
GND
+5VS
GND
GND
R5511
75Ohm
1 2
JP5501
1 2
R5513
75Ohm
1 2
JP5502
1 2
R5512
75Ohm
1 2
JP5503
1 2
R5515
75Ohm
1 2
U5502
STMAV340
1
2
3
4
5
6
7
8 9
10
11
12
13
14
15
16
1B
1C
2B
2C
3B
3C
4B
4C GND
4A
3A
2A
1A
S
OE_N
VCC
U5501
STMAV340
1
2
3
4
5
6
7
8 9
10
11
12
13
14
15
16
1B
1C
2B
2C
3B
3C
4B
4C GND
4A
3A
2A
1A
S
OE_N
VCC
R5514
75Ohm
1 2
JP5504
1 2
C5501
0.1UF/10V
12
JP5505
1 2
C5502
0.1UF/10V
12
R5510
75Ohm
1 2
JP5506
1 2
CRT_BLUE [40]
CRT_HSYNC [40]
C51MV_CRT_HSYNC[13]
CRT_RED [40]
GPU_TV_Y[25]
GPU_CRT_BLUE[25]
GPU_TV_C[25]
CRT_VSYNC [40]
TV_Y [40]
GPU_CRT_GREEN[25]
C51MV_TV_CVBS[13] GPU_CRT_VSYNC[25]
GPU_TV_CVBS[25]
GPU_CRT_HSYNC[25]
C51MV_CRT_RED[13]
C51MV_CRT_GREEN[13]
TV_CVBS [40]
SEL_LVDS_C51/G73M [54]
GPU_CRT_RED[25]
C51MV_CRT_VSYNC[13]
C51MV_TV_Y[13] TV_C [40]
C51MV_CRT_BLUE[13]
C51MV_TV_C[13]
CRT_GREEN [40]
5
5
4
4
3
3
2
2
1
1
D D
C C
B B
A A
AC_BAT_SYS
A/D_DOCK_IN +5VCHG +5VCHG
+5VALW +2.5VREF
BAT
CHG_EN# ACIN_OC
AC_APR_UC
+12VS+12V
SUSC#_PWR SUSB#_PWR
+3VA +3VALWAYS
+12V
+3V
+1.2VSUS+3VSUS
+3VSUS +2.5VS
+12VS
+3VS
+5VS+5V
+12VS
+5VO
SHUT_DOWN#
ON_SUS
SUSC#_PWR
FORCE_OFF#
+5VA +5VALWAYS
VGA_CORE
VCORE_EN
SUSB#_PWR
CPU_CORE
+1.8V +0.9V
SUSC#_PWR
+1.2V_HT
+1.2V_C51
+1.2VHT_EN
SUSB#_PWR
+1.2VS
+1.8VO
+12VS
+1.8VS
+1.5VS
ON_SUS
+5VSUS
Custom
56 72Wednesday, March 08, 2006
ASUSTECH CO.,LTD.
POWER BUDGET BLOCK
1.0
A6T
Jefing_Li
A6TcSKU1
Size Project Name Rev
Date: Sheet of
Title :
Engineer:
5
5
4
4
3
3
2
2
1
1
D D
C C
B B
A A
B
57 72Wednesday, March 08, 2006
ASUSTECH CO.,LTD.
BLANK
1.0
A6T
Jefing_Li
A6TcSKU1
Size Project Name Rev
Date: Sheet of
Title :
Engineer:
5
5
4
4
3
3
2
2
1
1
D D
C C
B B
A A
B
58 72Wednesday, March 08, 2006
ASUSTECH CO.,LTD.
BLANK
1.0
A6T
Jefing_Li
A6TcSKU1
Size Project Name Rev
Date: Sheet of
Title :
Engineer:
5
5
4
4
3
3
2
2
1
1
D D
C C
B B
A A
B
59 72Wednesday, March 08, 2006
ASUSTECH CO.,LTD.
BLANK
1.0
A6T
Jefing_Li
A6TcSKU1
Size Project Name Rev
Date: Sheet of
Title :
Engineer:
5
5
4
4
3
3
2
2
1
1
D D
C C
B B
A A
B
60 72Wednesday, March 08, 2006
ASUSTECH CO.,LTD.
BLANK
1.0
A6T
Jefing_Li
A6TcSKU1
Size Project Name Rev
Date: Sheet of
Title :
Engineer:
5
5
4
4
3
3
2
2
1
1
D D
C C
B B
A A
(35A)
DCR=1.9mohm
VREF = 2V
REF =
300kHz,
R6139 close to
L6101
(4.2A)
01/03
11G233222422370
Custom
61 72Wednesday, March 08, 2006
ASUSTECH
1.0
A6T
Limei_chen
POWER_VCORE
A6TcSKU1
Size Project Name Rev
Date: Sheet of
Title :
Engineer:
+VCORE
OAIN+
OAIN-
OAIN+
OAIN-
CPU_VID4
CPU_VID3
CPU_VID2
CPU_VID1
CPU_VID0
CPUVDD_EN
CPU_VLD
CPU_VDD_FB
CPU_VDD_FB#
AC_BAT_SYS
CPU_VID5
CPU_PSI#
OAIN+
+VCORE
+VCORE
AC_BAT_SYS
+5VS
+3VS
+5VS
R6121 Do Not Stuff
@
12
R6104
Do Not Stuff
@
12
T6135 Do Not Stuff
1
R6116
Do Not Stuff
@
12
R6123 Do Not Stuff
12
R6129
Do Not Stuff
1 2
R6128 Do Not Stuff
12
+
CE6102
Do Not Stuff
12
C6126
Do Not Stuff
12
+
CE6103
Do Not Stuff
12
T6111 Do Not Stuff
1
D6103
Do Not Stuff
1 2
C6120
Do Not Stuff
12
R6136Do Not Stuff
@
1 2
C6117 Do Not Stuff
1 2
C6106
Do Not Stuff
12
R6102
Do Not Stuff
1 2
T6126
Do Not Stuff
1
C6102
Do Not Stuff
12
T6102
Do Not Stuff
1
+
CE6104
Do Not Stuff
12
T6105
Do Not Stuff
1
R6105
Do Not Stuff
@
12
+
CE6105
Do Not Stuff
12
T6130
Do Not Stuff
1
+
CE6108
Do Not Stuff
12
+
CE6107
Do Not Stuff
12
T6120
Do Not Stuff
1
R6134Do Not Stuff
1 2
R6132
Do Not Stuff
1 2
T6113
Do Not Stuff
1
T6133 Do Not Stuff
1
T6125
Do Not Stuff
1
R6109
Do Not Stuff
1 2
C6124 Do Not Stuff
12
R6135
Do Not Stuff
R6117
Do Not Stuff
@
12
C6113
Do Not Stuff
12
R6122
Do Not Stuff
1 2
R6114
Do Not Stuff
@
12
C6109
Do Not Stuff
@
1 2
T6104
Do Not Stuff
1
R6101
Do Not Stuff
12
C6103
Do Not Stuff
12
T6109 Do Not Stuff
1
C6119
Do Not Stuff
12
T6134 Do Not Stuff
1
T6132
Do Not Stuff
1
C6125 Do Not Stuff
12
C6116
Do Not Stuff
12
S
S
G
D
D
D
D
Q6101
Do Not Stuff
1
2
6
7
3
4
5
T6112
Do Not Stuff
1
+
CE6106
Do Not Stuff
12
T6108 Do Not Stuff
1
T6129
Do Not Stuff
1
U6101
Do Not Stuff
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
TIME
TON
SUS
S0
S1
SHDN#
OFS
REF
ILIM
VCC
GND1
CCV
GNDS
CCI
FB
OAIN-
OAIN+
SKIP#
D5
D4
D3
D2
D1
D0
VROK
BSTM
LXM
DHM
DLM
VDD
PGND
DLS
DHS
LXS
BSTS
V+
CMP
CMN
CSN
CSP
GND2
C6107
Do Not Stuff
12
C6108
Do Not Stuff
12
R6110
Do Not Stuff
1 2
R6103
Do Not Stuff
@
12
C6121
Do Not Stuff
12
T6128
Do Not Stuff
1
D6102
Do Not Stuff
1 2
T6121
Do Not Stuff
1
R6138
Do Not Stuff
12
R6115
Do Not Stuff
@
12
C6118
Do Not Stuff
12
T6115
Do Not Stuff
1
R6125
Do Not Stuff
12
T6122 Do Not Stuff
1
T6131
Do Not Stuff
1
R6139 Do Not Stuff@
1 2
T6124
Do Not Stuff
1
T6110 Do Not Stuff
1
L6101
Do Not Stuff
21
T6103
Do Not Stuff
1
R6111
Do Not Stuff
1 2
C6101
Do Not Stuff
@
12
T6117
Do Not Stuff
1
C6112
Do Not Stuff
12
T6127
Do Not Stuff
1
Q6109B
Do Not Stuff
5
34
S
S
G
D
D
D
D
Q6103
Do Not Stuff
1
2
6
7
3
4
5
R6119 Do Not Stuff
12
Q6109A
Do Not Stuff
2
61
R6131
Do Not Stuff
12
C6122
Do Not Stuff
12
T6123
Do Not Stuff
1
T6106 Do Not Stuff
1
T6116
Do Not Stuff
1
S
S
G
D
D
D
D
Q6107
Do Not Stuff
1
2
6
7
3
4
5
R6133Do Not Stuff
1 2
R6118
Do Not Stuff
@
12
S
S
G
D
D
D
D
Q6105
Do Not Stuff
1
2
6
7
3
4
5
T6101 Do Not Stuff
1
T6114
Do Not Stuff
1
R6137Do Not Stuff
@
1 2
R6113
Do Not Stuff
@
12
R6106
Do Not Stuff
@
12
R6127
Do Not Stuff
@
12
R6120 Do Not Stuff
12
C6110
Do Not Stuff
12
T6119
Do Not Stuff
1
C6123
Do Not Stuff
12
R6126
Do Not Stuff
1 2
R6112
Do Not Stuff
1 2
T6118
Do Not Stuff
1
R6124 Do Not Stuff
12
R6108
Do Not Stuff
@
12
R6140 Do Not Stuff
1 2
R6130
Do Not Stuff
@
12
L6102
Do Not Stuff
21
+
CE6101
Do Not Stuff
12
R6107
Do Not Stuff
@
12
D6101
Do Not Stuff
1
2
3
T6107 Do Not Stuff
1
CPU_VID3[6]
CPU_VID1[6] CPU_VID2[6]
CPU_VID4[6]
CPU_VLD[16,17,70]
CPU_VDD_FB#[6]
CPUVDD_EN[16]
CPU_VDD_FB[6]
CPU_VID5[6]
CPU_VID0[6]
CPU_PSI#[6]
CPU_VRON_PWR[67]
5
5
4
4
3
3
2
2
1
1
D D
C C
B B
A A
(8A)
(6A)
(0.02A)
(REF=1.24V)
1.24*(95.3+845)/95.3=12.235
F=450KHZ
(0.8A)
(MAX=60mA)
(0.03A)
Rtrip=Rdson*(Iocp+Iripple/2)/(12.5*10E-6)
SI4894
Rdson=18mohm(MAX)
(5.3A)
12/20
12/20
12/28
8.3A/6.1A
3/1
Custom
62 72Wednesday, March 08, 2006
ASUSTECH
1.0
A6T
Limei_chen
POWER_SYSTEM
A6TcSKU1
Size Project Name Rev
Date: Sheet of
Title :
Engineer:
3V_5V_PWRGD
RUN_5VO
RUN_3VO
+5VAO
RUN_5VO
RUN_3VO
+12VSUS
ON_SUS
3V_5V_PWRGD
+5VAO
+5VA
+3VSUS
+3VO
AC_BAT_SYS +5VAO
+5VO
+5VO
AC_BAT_SYS
+3VSUS
+12VSUS
AC_BAT_SYS
AC_BAT_SYS
+5VA
+5VSUS
U6202
Do Not Stuff
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
30
29
28
27
26
25
24
23
22
21
20
19
18
17
16
INV1
COMP1
SSTRT1
SKIP#
VO1_VDDQ
DDR#
GND
REF_X
ENBL1
ENBL2
VO2
PGOOD
SSTRT2
COMP2
INV2
VBST1
OUT1_U
LL1
OUT1_D
OUTGND1
TRIP1
VIN
TRIP2
VREG5
REG5_IN
OUTGND2
OUT2_D
LL2
OUT2_U
VBST2
T6203
Do Not Stuff
1
C6212
Do Not Stuff
1 2
SD
G
Q6202
Do Not Stuff
1
2
35
6
7
8
4
JP6203
Do Not Stuff
1 2
12
R6210
Do Not Stuff
1 2
C6219
Do Not Stuff
12
R6207Do Not Stuff
@
12
C6208
Do Not Stuff
12
R6218 Do Not Stuff
12
T6212
Do Not Stuff
1
R6213 Do Not Stuff
1 2
T6205
Do Not Stuff
1
U6201
Do Not Stuff
3 4
5
2
1
EN NC or ADJ
OUT
GND
IN
C6218
Do Not Stuff
12
R6201 Do Not Stuff
12
T6204
Do Not Stuff
1
C6215 Do Not Stuff
12
C6214 Do Not Stuff
12
R6205
Do Not Stuff
1 2
C6207
Do Not Stuff
1 2
T6201
Do Not Stuff
1
C6211
Do Not Stuff
12
JP6202
Do Not Stuff @
1 2
12
R6206
Do Not Stuff
1 2
T6221
Do Not Stuff
1
+
CE6201
Do Not Stuff
12
D6202
Do Not Stuff
1 2
+
CE6202Do Not Stuff
12
R6221 Do Not Stuff
12
R6216
Do Not Stuff
12
R6219
Do Not Stuff
1 2
T6219
Do Not Stuff
1
C6217
Do Not Stuff
12
T6220
Do Not Stuff
1
T6215
Do Not Stuff
1
C6206
Do Not Stuff
12
R6214
Do Not Stuff
T6211
Do Not Stuff
1
C6203
Do Not Stuff
12
D6201
Do Not Stuff
1 2
JP6201
Do Not Stuff
1 2
12
SD
G
Q6204
Do Not Stuff
1
2
35
6
7
8
4
T6202
Do Not Stuff
1
T6217
Do Not Stuff
1
L6201
Do Not Stuff
21
R6217Do Not Stuff
1 2
+
CE6204
Do Not Stuff
12
R6202
Do Not Stuff
1 2
SD
G
Q6201
Do Not Stuff
1
2
35
6
7
8
4
R6204Do Not Stuff
1 2
SD
G
Q6203
Do Not Stuff
1
2
35
6
7
8
4
T6206
Do Not Stuff
1
C6202
Do Not Stuff
C6213
Do Not Stuff
12
T6207
Do Not Stuff
1
L6202
Do Not Stuff
21
R6220
Do Not Stuff
1 2
T6213
Do Not Stuff
1
C6216Do Not Stuff
12
T6209
Do Not Stuff
1
+
CE6203
Do Not Stuff
12
T6216
Do Not Stuff
1
R6209
Do Not Stuff
1 2
R6215
Do Not Stuff
1 2
R6212Do Not Stuff @
12
R6211 Do Not Stuff
12
T6208
Do Not Stuff
1
R6203Do Not Stuff
1 2
+
CE6205Do Not Stuff
12
T6218
Do Not Stuff
1
C6201
Do Not Stuff
12
T6210 1
C6210
Do Not Stuff
12
C6205
Do Not Stuff
12
R6208 Do Not Stuff
12
ON_SUS[49]
3V_5V_PWRGD[70]
SUSB#_PWR
6
4,66,67,69]
5
5
4
4
3
3
2
2
1
1
D D
C C
B B
A A
REF =2V
Rdson=4.2mohm
(1.2A)
Change to Green parts when BOM.
06G008219011
TON = floating (300kHz)
FB=1V
1.22V
11A
0.625V
3/1
Custom
63 72Wednesday, March 08, 2006
ASUSTECH
1.0
A6T
Limei_chen
POWER_I/O_1.2V&1.0V
A6TcSKU1
Size Project Name Rev
Date: Sheet of
Title :
Engineer:
1844VCC_
1844VCC_
AC_BAT_SYS
GND
+5VAO
GND
+1.2VO
+1.2VS
+1.2VS
T6310
Do Not Stuff
1
T6305
Do Not Stuff
1
SD
G
Q6302
Do Not Stuff
1
2
35
6
7
8
4
+
CE6306Do Not Stuff
12
+
CE6304Do Not Stuff
12
T6306
Do Not Stuff
1
R6301
Do Not Stuff
12
C6311
Do Not Stuff
1 2
C6307
Do Not Stuff
12
R6304
Do Not Stuff
@
1 2
R6308
Do Not Stuff
1 2
+
CE6302Do Not Stuff
12
C6302
Do Not Stuff
12
C6309 Do Not Stuff
12
C6306
Do Not Stuff
12
D6301
Do Not Stuff
12
C6313
Do Not Stuff
@
12
C6303
Do Not Stuff
12
C6315
Do Not Stuff
@
12
T6309
Do Not Stuff
1
C6301
Do Not Stuff
12
C6312
Do Not Stuff
12
U6301
Do Not Stuff
13
14
17
10
3
7
2
8
15
11
16
18
20
19
1
12
4
9
6
5
VDD
VCC
SKIP
PGOOD
SHDN
ILIM
LATCH
REF
TON
GND
V+
BST
DH
LX
CS
DL
OVP
UVP
OUT
FB
JP6302
Do Not Stuff
@
1 2
12
+
CE6305 Do Not Stuff
12
R6316
Do Not Stuff
R6303
Do Not Stuff
1 2
R6302
Do Not Stuff
1 2
D
S
G
SOP8
Q6305
Do Not Stuff
5
6
7
8
1
4
2
3
T6304
Do Not Stuff
1
T6308
Do Not Stuff
1
R6307
Do Not Stuff
12
R6314
Do Not Stuff
D6303
Do Not Stuff
1 2
C6310
Do Not Stuff
12
T6301
Do Not Stuff
1
JP6303
Do Not Stuff
@
1 2
12
T6302
Do Not Stuff
1
D6302
Do Not Stuff
1 2
T6303
Do Not Stuff
1
L6301 Do Not Stuff
21
1.2VO_1.0VO_PWRGD[70]
SUSB#_PWR[50,62,64,66,67,69]
5
5
4
4
3
3
2
2
1
1
D D
C C
B B
A
A
+1.5VSUS
+2.5VS
+1.5VS
+3VA
Iout = 20 ~ 50mA
Vref = 1.24V
Vref=1.215V
(0.12A)
Von=0.8V
(0.413A)
(1A)
(0.42A)
(1A)
(0.12A)
C
64 72Wednesday, March 08, 2006
ASUSTECH
1.0
A6T
Limei_chen
POWER_I/O_LDO
A6TcSKU1
Size Project Name Rev
Date: Sheet of
Title :
Engineer:
AC_BAT_SYS
+3VAO
+3VO
+3VA
+3VSUS
+1.2V_HT
+3VSUS
+3VSUS
+0.9V
+3VSUS
+1.5VSUS
+3V
+3VA
+5VO +2.5VREF
+2.5VO
+2.5VS
+1.8VO
+5VO +3VA
+1.5VO
+5VO
+1.5VS
R6410
Do Not Stuff
12
BC
E
1
2
3
Q6404
Do Not Stuff
JP6405 Do Not Stuff
@
1 2
12 T6414
Do Not Stuff
1
T6406
Do Not Stuff
1
R6411
Do Not Stuff
1 2
Q6406A
Do Not Stuff
2
61
R6404
Do Not Stuff
1 2
JP6403
Do Not Stuff
@
1 2
12
R6406
Do Not Stuff
1 2
R6415
Do Not Stuff
1 2
+
CE6401
Do Not Stuff
12
GS
D
3
2
1
Q6401
Do Not Stuff
1
32
U6402
Do Not Stuff
1
2
3
4 5
6
7
8
9
VIN
VFB
VOUT0
VOUT1 REFEN
VCCA
AGND
PGND
GND
C6414
Do Not Stuff
12
R6412
Do Not Stuff
1 2
T6412
Do Not Stuff
1
Q6406B
Do Not Stuff
5
34
C6409
Do Not Stuff
12
C6413
Do Not Stuff
12
R6409
Do Not Stuff
1 2
C6405
Do Not Stuff
12
C6404
Do Not Stuff
12
U6404
Do Not Stuff
1
2
34
5
VIN
GND
SD# FB
VOUT
R6408
Do Not Stuff
12
C6407
Do Not Stuff
@
12
U6403
Do Not Stuff
3 4
5
2
1
EN NC or ADJ
OUT
GND
IN
Q6402A
Do Not Stuff
2
61
T6402
Do Not Stuff
1
R6414
Do Not Stuff
12
T6411
Do Not Stuff
1
Q6402B
Do Not Stuff
5
34
C6411
Do Not Stuff
@
12
JP6406 Do Not Stuff
@
1 2
12
T6407
Do Not Stuff
1
T6401
Do Not Stuff
1
C6401
Do Not Stuff
12
C6402
Do Not Stuff
12
JP6402
Do Not Stuff
@
1 2
12
C6415
Do Not Stuff
12
R6401
Do Not Stuff
1 2
R6402
Do Not Stuff
1 2
+
CE6402
Do Not Stuff
12
T6405
Do Not Stuff
1
C6408
Do Not Stuff
12
BC
E
1
2
3
Q6405
Do Not Stuff
U6401
Do Not Stuff
1
2
3
4 5
6
7
8
9
VIN
VFB
VOUT0
VOUT1 REFEN
VCCA
AGND
PGND
GND
C6412
Do Not Stuff
12
C6403
Do Not Stuff
12
T6409
Do Not Stuff
1
R6419
Do Not Stuff
1 2
R6420
Do Not Stuff
T6404
Do Not Stuff
1
GS
D
3
2
1
Q6403
Do Not Stuff
1
32
R6418
Do Not Stuff
12
T6413
Do Not Stuff
1
T6416
Do Not Stuff
1
JP6401
Do Not Stuff
@
1 2
12
R6405Do Not Stuff
12
C6406
Do Not Stuff
@
12
R6407
Do Not Stuff
R6413
Do Not Stuff
12
JP6404
Do Not Stuff
@
1 2
12
C6410
Do Not Stuff
12
C6416
Do Not Stuff
@
12
T6410
Do Not Stuff
1
T6408
Do Not Stuff
1
R6416
Do Not Stuff
12
T6415
Do Not Stuff
1
R6417
Do Not Stuff
12
T6403
Do Not Stuff
1
R6403
Do Not Stuff
12
HT_VLD [6,16]
MEM_VLD [16]
SUSB#_PWR [50,62,63,66,67,69]
SUSB#_PWR [50,62,63,66,67,69]
5
5
4
4
3
3
2
2
1
1
D D
C C
B B
A A
(16.1A)
VREF = 0.9V
F=300KHZ
(6.7A)
(3A)
Rdson=4.2mohm
(2.5A)
(2.4A)
01/03
3/1
Custom
65 72Wednesday, March 08, 2006
ASUSTECH
1.0
A6T
Limei_chen
POWER_I/O_DDRII
A6TcSKU1
Size Project Name Rev
Date: Sheet of
Title :
Engineer:
+1.8VO
+1.8VO
+0.9VO
+0.9VO
+0.9V
+1.8V
AC_BAT_SYS
+1.8VO
+5VAO
C6501 Do Not Stuff
12
+
CE6504
Do Not Stuff
12
C6517Do Not Stuff
12
R6513
Do Not Stuff
12
R6511
Do Not Stuff
1 2
T6511
Do Not Stuff
1
C6505
Do Not Stuff
12
C6510 Do Not Stuff
12
T6510
Do Not Stuff
1
SD
G
Q6501
Do Not Stuff
1
2
35
6
7
8
4
C6512 Do Not Stuff
12
R6501
Do Not Stuff
1 2
C6508 Do Not Stuff
1 2
T6501
Do Not Stuff
1
D
S
G
SOP8
Q6504
Do Not Stuff
5
6
7
8
1
4
2
3
T6503
Do Not Stuff
1
R6512
Do Not Stuff
12
C6518
Do Not Stuff
12
C6507
Do Not Stuff
12
L6501
Do Not Stuff
21
T6513
Do Not Stuff
1
T6507
Do Not Stuff
1
R6515 Do Not Stuff
1 2
C6515 Do Not Stuff
@
12
T6506
Do Not Stuff
1
JP6502
Do Not Stuff
1 2
12
C6516 Do Not Stuff
@
12
C6511
Do Not Stuff
12
D6501
Do Not Stuff
1
2
3
R6508
Do Not Stuff
@
12
D1_1
D1_2
G2
G1
S2S1/D2_1
S1/D2_2
S1/D2_3
Q6502
Do Not Stuff
5
6
7
8 1
2
3
4
T6512
Do Not Stuff
1
R6502
Do Not Stuff
1 2
U6501
Do Not Stuff
1
2
3
4
5
6
7
8
9
10
11
12
13
14
28
27
26
25
24
23
22
21
20
19
18
17
16
15
GND
LGATE1
PGND1
PHASE1
UGATE1
BOOT1
ISEN1
EN1
VOUT1
VSEN1
OCSET1
SOFT1
DDR
VIN
VCC
LGATE2
PGND2
PHASE2
UGATE2
BOOT2
ISEN2
EN2
VOUT2
VSEN2
OCSET2
SOFT2
PG2/REF
PG1
R6510
Do Not Stuff
1 2
+
CE6501Do Not Stuff
12
R6503
Do Not Stuff
1 2
+
CE6505
Do Not Stuff
12
R6505
Do Not Stuff
1 2
C6519
Do Not Stuff
12
R6504 Do Not Stuff
1 2
R6507 Do Not Stuff
12
C6513
Do Not Stuff
12
R6514Do Not Stuff
1 2
T6509
Do Not Stuff
1
+
CE6502Do Not Stuff
12
R6509 Do Not Stuff
1 2
T6505
Do Not Stuff
1
C6514 Do Not Stuff
12
T6504
Do Not Stuff
1
JP6501
Do Not Stuff
1 2
12
JP6503
Do Not Stuff
1 2
12
T6508
Do Not Stuff
1
+
CE6503
Do Not Stuff
12
T6514
Do Not Stuff
1
T6502
Do Not Stuff
1
C6509
Do Not Stuff
12
L6502
Do Not Stuff
R6506
Do Not Stuff
1 2
D6502
Do Not Stuff
1 2
D
S
G
SOP8
Q6503
Do Not Stuff
5
6
7
8
1
4
2
3
C6502
Do Not Stuff
12
DDR_PWRGD[70]
SUSC#_PWR[50,67]
SUSC#_PWR[50,67]
5
5
4
4
3
3
2
2
1
1
D D
C C
B B
A A
16.5A
FB=1V
TON = REF
(450kHz)
1
GPIO5
GPIO6
1.1V 1.025V
0
VGA_CORE
0
01
1.0V
0
Change to Green parts when BOM.
06G008219011
(1.6A)
Rdson=4.2mohm
REF =2V
12/28
12/20
3/1
Custom
66 72Wednesday, March 08, 2006
ASUSTECH
1.0
A6T
Limei_chen
POWER_VGACORE
A6TcSKU1
Size Project Name Rev
Date: Sheet of
Title :
Engineer:
1844VCC
DH
ILIM DL
1844VCC
CS
REF
VGA_VCORE
+5VO
AC_BAT_SYS
GND
GND
C6611
Do Not Stuff
1 2
SD
G
Q6602
Do Not Stuff
1
2
35
6
7
8
4
JP6602
Do Not Stuff
@
1 2
12
D
S
G
SOP8
Q6604
Do Not Stuff
5
6
7
8
1
4
2
3
C6601
Do Not Stuff
@
12
+
CE6601Do Not Stuff
12
D6601
Do Not Stuff
1 2
D6603
Do Not Stuff
1 2
T6606
Do Not Stuff
1
L6601
Do Not Stuff
21
C6607
Do Not Stuff
12
R6607
Do Not Stuff
1 2
T6604
Do Not Stuff
1
D6604
Do Not Stuff
12
+
CE6603Do Not Stuff
12
R6602
Do Not Stuff
1 2
R6603
Do Not Stuff
1 2
T6608
Do Not Stuff
1
T6603
Do Not Stuff
1
C6615
Do Not Stuff
12
D6602
Do Not Stuff
12
C6606
Do Not Stuff
12
C6602
Do Not Stuff
12
C6612
Do Not Stuff
12
R6604
Do Not Stuff
1 2
+
CE6602Do Not Stuff
12
GS
D
3
2
1
Q6603
Do Not Stuff
1
32
C6610 Do Not Stuff
12
C6608
Do Not Stuff
12
R6609
Do Not Stuff
12
T6601
Do Not Stuff
1
R6608
Do Not Stuff
+
CE6604
Do Not Stuff
12
G
S
D3
2
1
Q6606
Do Not Stuff
1
32
T6607
Do Not Stuff
1
R6606
Do Not Stuff
C6614
Do Not Stuff
12
C6613
Do Not Stuff
@
12
U6601
Do Not Stuff
13
14
17
10
3
7
2
8
15
11
16
18
20
19
1
12
4
9
6
5
VDD
VCC
SKIP
PGOOD
SHDN
ILIM
LATCH
REF
TON
GND
V+
BST
DH
LX
CS
DL
OVP
UVP
OUT
FB
R6601
Do Not Stuff
12
C6603
Do Not Stuff
12
JP6603
Do Not Stuff
@
1 2
12
C6609
Do Not Stuff
12
T6602
Do Not Stuff
1
T6605
Do Not Stuff
1
D
S
G
SOP8
Q6605
Do Not Stuff
5
6
7
8
1
4
2
3
R6610
Do Not Stuff
VGA_PWRGD[19,70]
SUSB#_PWR[50,62..64,67,69]
GPIO6 [26]GPIO5[26]
GPU_PWR_EN
3
,67,70]
5
5
4
4
3
3
2
2
1
1
D D
C C
B B
A A
(6.9A)
(0.01A)
FOR TEST
(1.25A)
(2.81A)
(3.4A)
12/20
(2A)
(4.82A)
(0.01A)
(3.24A)
(0.3A)
12/28
12/29
Custom
67 72Wednesday, March 08, 2006
ASUSTECH
1.0
A6T
Limei_chen
POWER_LOAD SWITCH
A6TcSKU1
Size Project Name Rev
Date: Sheet of
Title :
Engineer:
SUSB#_PWR
SUSC#_PWR
SUSC#_PWR
SUSB#_PWR
SUSC#_PWR_ON
SUSC#_PWR_ON
HTVDD_EN
1.2VHT_EN_ON
1.2VHT_EN_ON
SUSB#_PWR_ON
SUSB#_PWR_ON
SUSB#_PWR_ON
+3V
+5VO
+2.5VO
AC_BAT_SYS
+3VO
+3VA
+VCORE
+5VAO
+5VA
+0.9VS
+12VSUS
+3VO
+3VA
+3VO
VGA_VCORE
+12V
+12VSUS
+3VS
+3VSUS
+1.8VS
+1.2V_HT
+12V
+5VCHG
+12VS
+1.8VO
+2.5VS
+2.5VREF
+5V
+0.9V
+1.8V
+1.5VSUS
+1.2VS
BAT
+5VLCM
+5VS
+3VO
+3VAO
+5VSUS
+0.9VO
+1.5VS
+0.9VS
+1.8VO
+1.8VS
+3VO
+3V
+5VO
+5V
+12VSUS
+1.2V_HT
+1.2VS
+0.9VO
+12VSUS
+3VS
+5VS
+12VS
+5VO
+3VO
+1.8V +1.8VS_C51
C6706
Do Not Stuff
12
JP6702
Do Not Stuff
N/A
1 2
12
T6733
Do Not Stuff
1
N
DRAIN_1
SOURCE_1
SOURCE_2
GATE_1 GATE_2
SOURCE_4
SOURCE_3
DRAIN_2
Q6707
Do Not Stuff
5
6
7
81
2
3
4
N
DRAIN_1
SOURCE_1
SOURCE_2
GATE_1 GATE_2
SOURCE_4
SOURCE_3
DRAIN_2
Q6704
Do Not Stuff
5
6
7
81
2
3
4
T6701
Do Not Stuff
1
BB
E
E
C
C
12 3
46
47K
47K
47K
10K
Q6711
Do Not Stuff
T6705
Do Not Stuff
1
T6726
Do Not Stuff
1
C6713
Do Not Stuff
@
12
R6702
Do Not Stuff
12
N
DRAIN_1
SOURCE_1
SOURCE_2
GATE_1 GATE_2
SOURCE_4
SOURCE_3
DRAIN_2
Q6710
Do Not Stuff
5
6
7
81
2
3
4
R6716
Do Not Stuff
1 2
T6728
Do Not Stuff
1
Q6703A
Do Not Stuff
2
61
T6736
Do Not Stuff
1
R6703
Do Not Stuff
12
JP6703
Do Not Stuff
N/A
1 2
12
SD
G
Q6702
Do Not Stuff
1
2
3
5
6
7
8
4
N
DRAIN_1
SOURCE_1
SOURCE_2
GATE_1 GATE_2
SOURCE_4
SOURCE_3
DRAIN_2
Q6712
Do Not Stuff
5
6
7
81
2
3
4
S
D
G
Q6713
Do Not Stuff
1
2
35
6
4
T6737
Do Not Stuff
1
T6738
Do Not Stuff
1
T6716
Do Not Stuff
1
C6702
Do Not Stuff
12
T6710
Do Not Stuff
1
C6712
Do Not Stuff
@
12
T6712
Do Not Stuff
1
T6725
Do Not Stuff
1
T6709
Do Not Stuff
1
R6707 Do Not Stuff
R6711 Do Not Stuff
R6714Do Not Stuff
1 2
C6715
Do Not Stuff
12
T6704
Do Not Stuff
1
C6707
Do Not Stuff
12
R6712
Do Not Stuff
1 2
C6716
Do Not Stuff
@
12
BB
E
E
C
C
12 3
46
47K
47K
47K
10K
Q6708
Do Not Stuff
T6718
Do Not Stuff
1
R6710 Do Not Stuff
12
JP6701
Do Not Stuff
N/A
1 2
12
D6701
Do Not Stuff
1 2
R6706
Do Not Stuff
12
T6734
Do Not Stuff
1
C6711
Do Not Stuff
12
R6709
Do Not Stuff
1 2
Q6705B
Do Not Stuff
5
34
C6709
Do Not Stuff
12
Q6706B
Do Not Stuff
5
34
R6715Do Not Stuff
1 2
Q6705A
Do Not Stuff
2
61
C6705
Do Not Stuff
@
12
T6713
Do Not Stuff
1
T6735
Do Not Stuff
1
T6724
Do Not Stuff
1
C6701 Do Not Stuff
12
T6723
Do Not Stuff
1
T6711
Do Not Stuff
1
C6710
Do Not Stuff
12
R6717Do Not Stuff
1 2
R6718
Do Not Stuff
12
T6731
Do Not Stuff
1
T6727
Do Not Stuff
1
T6729
Do Not Stuff
1
T6719
Do Not Stuff
1
T6702
Do Not Stuff
1
R6713
Do Not Stuff
1 2
Q6703B
Do Not Stuff
5
34
C6708Do Not Stuff
12
T6730
Do Not Stuff
1
T6732
Do Not Stuff
1
T6721
Do Not Stuff
1
T6706
Do Not Stuff
1
T6739
Do Not Stuff
1
T6714
Do Not Stuff
1
R6708
Do Not Stuff
1 2
Q6706A
Do Not Stuff
2
61
C6703
Do Not Stuff
@
1 2
T6740
Do Not Stuff
1
R6705
Do Not Stuff
12
R6701
Do Not Stuff
12
T6717
Do Not Stuff
1
N
DRAIN_1
SOURCE_1
SOURCE_2
GATE_1 GATE_2
SOURCE_4
SOURCE_3
DRAIN_2
Q6709
Do Not Stuff
5
6
7
81
2
3
4
T6722
Do Not Stuff
1
C6714
Do Not Stuff
@
12
T6720
Do Not Stuff
1
T6715
Do Not Stuff
1
N
DRAIN_1
SOURCE_1
SOURCE_2
GATE_1 GATE_2
SOURCE_4
SOURCE_3
DRAIN_2
Q6701
Do Not Stuff
5
6
7
81
2
3
4
T6707
Do Not Stuff
1
C6704
Do Not Stuff
12
T6708
Do Not Stuff
1
+3V [32..35,38,39,41,45..50,64]
+5VO [62,64,66,71]
+2.5VO [64]
+3VA [19,41,47,49,50,64,71] AC_BAT_SYS [41,51,61..66,68,71]
+3VO [62,64] +VCORE [7,61]
+5VAO [62,63,65,70]
+5VA [49,62]
+12VSUS [17,62]
CPU_VRON_PWR [61]
+1.2V_HT [4,6,7,10,14,64]
VGA_VCORE [22,66]
SUSC#_PWR[50,65]
SUSC#[19,47,49]
+5VLCM [48,51,68..71]
+3VS [6,8,9,12..19,21,31..33,36..38,40..43,46,50,53,54,61]
+2.5VS [6,10,13,14,50,53,64]
+5VCHG [68,71]
+1.8VO [64,65]
+0.9V [6,7,9,50,64,65]
+5V [34,38,39,41,47,50,51]
+1.8V [6..9,50,65]
+1.5VSUS [20,21,50,64]
+12V [15,43,50]
+5VS [13,15,19,21,31,32,36,38..40,42,43,47..51,54,55,61]
+2.5VREF [64,68,70,71]
BAT [68,69,71]
+3VSUS [6,17,19..21,39,43,45,46,49,50,62,64,68..70]
+1.2VS [11,14,16,21,51,53,63]
+1.8VS [23,24,29,30]
+12VS [40,41,43,50]
+3VAO [64]
HTVDD_EN[16]
+5VSUS [48,62]
+0.9VO [65]
+1.5VS [16,18,19,21,50,64]
+0.9VS [29,30]
SUSB#[19,33,41,70]
SUSB#_PWR[50,62..64,66,69]
GPU_PWR_EN [17,53,66,70]
A
A
B
B
C
C
D
D
E
E
1 1
2 2
3 3
4 4
5 5
LDO : 5.4V
Charge Current Ichg = [0.075V/Rsense(CHG)]*[ICTL/3.6V]
2.0 > Vmode > 1.6V (floating) ----> 3 Cells
Adapter Iin(max) = [0.075V/Rsense(ADin)]*[VCLS/VREF]
REF : 4.2235V
Rsense(ADin)=0.01 ohm VCLS= 2.534V
VICTL< 0.8V or DCIN < 7V -->Charger Disable
Mode pin : Vmode > 2.8V (trie to LDO pin) ----> 4 Cells
=> Vbatt = 4.2V
VICTL= 1.68V => Ichg = 1.4A
AC_IN Threshold 2.048Vmax A/D_DOCK_IN >17.46V
active
0.8 > Vmode (trie to GND) ----> Learning mode
VICTL= 3.0V => Ichg = 2.5A
VICTL= 0.18V => Ichg = 150mA
=> Constant Power = 19 * 4.737A = 90W
=> Iin(max)=4.5A
Rsense(CHG)=0.025 ohm
Vbatt = Cell * { Vref +[ (VCTL- 1.8V) / 9.52 ] }
VCTL= 1.615V
(2.6A)
46.96*3uA*10K = 1.409V
4.46A * 10mOHM = 44.6mV
90W / 19V * 0.941 = 4.46A
AD_IINP(5%) , R(0.7%) , 2.5VERF(0.2%) = 5.9%
（實際值：
4.696A
）
12/20
01/03
01/05
1.588V
2.991V
0.188V
2.534V
3/1
03/03
Custom
68 72Wednesday, March 08, 2006
ASUSTECH
1.0
A6T
Limei_chen
POWER_CHARGE
A6TcSKU1
Size Project Name Rev
Date: Sheet of
Title :
Engineer:
CHG_CCS
CHG_CCV
AD_IINP
BAT
CHG_CCI
CHG_GND
CHG_GND
PKPRES#
AC_BAT_SYS
PKPRES#
AD_IINP
BAT
MAX8725_LDO
AC_BAT_SYS
A/D_DOCK_IN
MAX8725_LDO
A/D_DOCK_IN
MAX8725_LDO
MAX8725_REF
+5VCHG
MAX8725_REF
MAX8725_LDO
+5VLCM +2.5VREF
+3VSUS
C6802
Do Not Stuff
12
R6825
Do Not Stuff
12
+
CE6801
Do Not Stuff
12
C6812
Do Not Stuff
12
T6810
Do Not Stuff
1
GS
D
3
2
1
Q6809
Do Not Stuff
1
32
+
-
V+
V-
U6802
Do Not Stuff
1
3
4
52
C6814
Do Not Stuff
12
R6815
Do Not Stuff
1 2
R6818
Do Not Stuff
1 2
R6814
Do Not Stuff
1 2
T6805
Do Not Stuff
1
R6820
Do Not Stuff
1 2
R6810
Do Not Stuff
1 2
T6815
Do Not Stuff
1
Q6804B
Do Not Stuff
5
34
T6811
Do Not Stuff
1
T6817
Do Not Stuff
1
G
S
D3
2
1
Q6807
Do Not Stuff 1
32
R6816
Do Not Stuff
1 2
T6809
Do Not Stuff
1
C6819
Do Not Stuff
12
R6806
Do Not Stuff
1 2
R6822
Do Not Stuff1%
12
C6806 Do Not Stuff
1 2
R6824
Do Not Stuff
12
T6807
Do Not Stuff
1
R6821
Do Not Stuff
12
T6813
Do Not Stuff
1
R6823
Do Not Stuff
12
C6821
Do Not Stuff
12
D6803Do Not Stuff
12
D6801
Do Not Stuff
12
Q6805B
Do Not Stuff
5
34
C6811 Do Not Stuff
12
R6807
Do Not Stuff
1 2
U6801
Do Not Stuff
28
27
26
25
24
23
22
21
20
19
18
17
16
15
1
2
3
4
5
6
7
8
9
10
11
12
13
14
29
PDL
PDS
CSSP
CSSN
SRC
DHI
DHIV
DLOV
DLO
PGND
CSIP
CSIN
BATT
GND1
DCIN
LDO
ACIN
REF
GND/PKPRES#
ACOK
MODE
IINP
CLS
ICTL
VCTL
CCI
CCV
CCS
GND2
R6811
Do Not Stuff
1 2
T6803
Do Not Stuff
1
+
CE6802
Do Not Stuff
12
C6801
Do Not Stuff
12
C6818
Do Not Stuff
12
R6801
Do Not Stuff
1 2
R6808
Do Not Stuff
1 2
R6826
Do Not Stuff
Q6806B
Do Not Stuff
5
34
Q6806A
Do Not Stuff
2
61
JP6803 Do Not Stuff
1 2
T6804
Do Not Stuff
1
T6816
Do Not Stuff
1R6809
Do Not Stuff
1 2
C6813
Do Not Stuff
12
JP6801 Do Not Stuff
1 2
R6804
Do Not Stuff
1 2
C6807 Do Not Stuff
12
T6812
Do Not Stuff
1
Q6801B
Do Not Stuff
5
34
C6809Do Not Stuff
12
T6801
Do Not Stuff
1
C6805Do Not Stuff
12
Q6801A
Do Not Stuff
2
61
C6815
Do Not Stuff
12
C6816
Do Not Stuff
12
R6803
Do Not Stuff
1 2
S D
G
Q6802
Do Not Stuff
1
2
3
5
6
7
8
4
T6806
Do Not Stuff
1
L6801
Do Not Stuff
21
R6812
Do Not Stuff
1 2
R6802
Do Not Stuff
1 2
D6802
Do Not Stuff
12
R6805
Do Not Stuff
1 2
Q6805A
Do Not Stuff
2
61
R6819 Do Not Stuff
1 2
R6817
Do Not Stuff
1 2
R6813
Do Not Stuff
1 2
T6808
Do Not Stuff
1
C6817
Do Not Stuff
12
Q6804A
Do Not Stuff
2
61
C6803
Do Not Stuff
12
T6814
Do Not Stuff
1
C6808 Do Not Stuff
12
SD
G
Q6803
Do Not Stuff
1
2
35
6
7
8
4
T6802
Do Not Stuff
1
AC_APR_UC[49,69]
MAX8725_PDS[71]
CHG_EN#[69]
BAT_SEL
8
,69]
BAT_LEARN[38]
SEL_PRECHG[69]
MAX8725_PDL[71]
CSSP[71] CSSN[71]
ACIN_OC [38]
A/D_SD#[70]
TS#[69,71]
PWRLMT#[19]
CHG_SRC[71]
5
5
4
4
3
3
2
2
1
1
D D
C C
B B
A A
12G200010818
11/02
11/15
Custom
69 72Wednesday, March 08, 2006
ASUSTECH
1.0
A6T
Limei_chen
POWER_PIC
A6TcSKU1
Size Project Name Rev
Date: Sheet of
Title :
Engineer:
PWR_LED_UP
BAT_LLOW
SUSB#_PIC
BAT_LLOW
SUSB#_PIC
TS#
+5VLCM
+5VLCM
+3VSUS
BAT_S
BAT
C6901
Do Not Stuff
12
T6906
Do Not Stuff
1
T6903
Do Not Stuff
1
L6905 Do Not Stuff
21
T6910
Do Not Stuff
1
U6901
Do Not Stuff
1
2
3
4
5
6
7
8
9
10
20
19
18
17
16
15
14
13
12
11
RA2
RA3
T0CKI
MCLR#/VPP
VSS1
VSS2
RB0
RB1
RB2
RB3
RA1
RA0
OSC1/CLKIN
OSC2/CLKOUT
VDD2
VDD1
RB7/ICSPDAT
RB6/ICSPCLK
RB5
RB4
T6907
Do Not Stuff
1
C6906 Do Not Stuff
12
D6902
Do Not Stuff
12
T6905
Do Not Stuff
1
R6907
Do Not Stuff
1 2
R6906
Do Not Stuff
1 2
L6904
Do Not Stuff
21
T6918
Do Not Stuff
1
L6903Do Not Stuff
21
T6901
Do Not Stuff
1
L6902 Do Not Stuff
21
R6904 Do Not Stuff
1 2
Q6902
Do Not Stuff
1
2
34
5NC
SUB
GNDVOUT
VCC
T6915
Do Not Stuff
1
T6916
Do Not Stuff
1
GND
X6901 Do Not Stuff
1 3
2
C6902
Do Not Stuff
12
L6906 Do Not Stuff
@
21
T6911
Do Not Stuff
1
GS
D
3
2
1
Q6901
Do Not Stuff
1
32
T6914
Do Not Stuff
1
T6908
Do Not Stuff
1
CON6901
Do Not Stuff
1
2
3
4
5
6
7
8
1
2
3
4
5
6
7
8
R6908 Do Not Stuff
@
1 2
T6912
Do Not Stuff
1
T6922
Do Not Stuff
1
D6901
Do Not Stuff
1 2
C6905
Do Not Stuff
12
T6921
Do Not Stuff
1
R6901
Do Not Stuff
1 2
T6909
Do Not Stuff
1
R6902 Do Not Stuff
1 2
T6919
Do Not Stuff
1
T6917
Do Not Stuff
1
T6920
Do Not Stuff
1
T6904
Do Not Stuff
1
C6903Do Not Stuff
12
C6904Do Not Stuff
12
L6901 Do Not Stuff
21
T6913
Do Not Stuff
1
R6903
Do Not Stuff
1 2
R6905
Do Not Stuff
1 2
T6902
Do Not Stuff
1
CHG_LED_UP[48]
SMD_BAT[38] PWR_LED_UP[48]
CHG_FULL_OC[38]
SMC_BAT[38]
BAT_LLOW#_OC [38]
BAT_SEL [38,68]
CHG_EN#[68]
SUSB#_PWR[50,62..64,66,67]
TS# [68,71]
AC_APR_UC [49,68]
SEL_PRECHG [68]
SMD_BAT [38]
SMC_BAT [38]
TS# [68,71]
A
A
B
B
C
C
D
D
E
E
1 1
2 2
3 3
4 4
5 5
Place under CPU
THERMAL PROTECTION
OVP=17.25V
11/24
11/14
11/09
Custom
70 72Wednesday, March 08, 2006
ASUSTECH
1.0
A6T
Limei_chen
POWER_PROTECT
A6TcSKU1
Size Project Name Rev
Date: Sheet of
Title :
Engineer:
PWROK
VGA_PWRGD_
VGA_PWRGD_
A/D_DOCK_IN
+2.5VREF
+5VLCM
BAT_S
+5VAO
+5VLCM
+3VSUS
+3VSUS
+3VSUS
+3VSUS
U7002
Do Not Stuff
@
1
2
3 4
5
NC
SUB
GND VOUT
VCC
T7006
Do Not Stuff
1
GS
D
3
2
1
Q7004
Do Not Stuff
1
32
R7014
Do Not Stuff
1 2
R7012
Do Not Stuff
1 2
R7002
Do Not Stuff
12
R7003
Do Not Stuff
12
D7001
Do Not Stuff
1 2
T7010
Do Not Stuff
1
T7002
Do Not Stuff
1
R7005
Do Not Stuff
12
R7011
Do Not Stuff
JP7004
Do Not Stuff
@
12
U7001
Do Not Stuff
1
2
3
4 5
6
7
8
VOUT1
VIN1-
VIN1+
GND VIN2+
VIN2-
VOUT2
VCC
R7015
Do Not Stuff
1 2
R7010
Do Not Stuff
@
12 12
T7008
Do Not Stuff
1
Q7001B
Do Not Stuff
5
34
C7004
Do Not Stuff
12
R7004
Do Not Stuff
@
1 2
Q7001A
Do Not Stuff
2
61
R7001
Do Not Stuff
0.1%
12
C7001
Do Not Stuff
12
T7009
Do Not Stuff
1
R7007
Do Not Stuff
0.1%
1 2
JP7005
Do Not Stuff
@
12
C7005
Do Not Stuff
12
T7011
Do Not Stuff
1
T7001
Do Not Stuff
1
R7009
Do Not Stuff
@
1 2
T7013
Do Not Stuff
1
T7004
Do Not Stuff
1
R7006
Do Not Stuff
1 2
C7002
Do Not Stuff
12
A
B
GND
VCC
Y
U7003
Do Not Stuff
1
2
3 4
5
R7013
Do Not Stuff
1 2
T7012
Do Not Stuff
1
T7005
Do Not Stuff
1
T7003
Do Not Stuff
1
C7007
Do Not Stuff
12
R7008
Do Not Stuff
@
12
B
C
E
1
2
3
Q7003
Do Not Stuff
C7006
Do Not Stuff
@
12
JP7003
Do Not Stuff
@
12
T7007
Do Not Stuff
1
B
C
E
1
2
3
Q7002
Do Not Stuff
C7003
Do Not Stuff
12
JP7002
Do Not Stuff
@
12
A/D_SD#[68]
FORCE_OFF# [47,49,50]
PWROK
SUSB#[19,33,41,67]
CPU_VLD[16,17,61]
FORCE_OFF# [47,49,50]
3V_5V_PWRGD[62]
DDR_PWRGD[65]
1.2VO_1.0VO_PWRGD[63]
PWRGD[19]
VGA_PWRGD[19,66]
GPU_PWR_EN [17,53,66,67]
5
5
4
4
3
3
2
2
1
1
D D
C C
B B
A A
ON: EN>2V (A/D_DOCK_IN:17V)
20050406
OFF: EN<0.6V(A/D_DOCK_IN:5.1V)
+5VCHG, +5VLCM, +2.5VREF
Ref: 1.24V
BATTERY IN CIRCUIT
(4.737A)
change to 10mohm when BOM
Custom
71 72Wednesday, March 08, 2006
ASUSTECH
1.0
A6T
Limei_chen
POWER_SWITCH_5VLCM
A6TcSKU1
Size Project Name Rev
Date: Sheet of
Title :
Engineer:
+5VCHG
A/D_DOCK_IN
AC_BAT_SYS
AC_BAT_SYS_IN
BAT
GND
+5VO
+5VCHG
A/D_DOCK_IN
+2.5VREF
+5VLCM +3VA
GND
D7101
Do Not Stuff
12
Q7104A
Do Not Stuff
2
61
Q7103
Do Not Stuff
1
23
T7116
Do Not Stuff
1
T7105
Do Not Stuff
1
R7106
Do Not Stuff
1 2
T7115Do Not Stuff
1
R7103
Do Not Stuff
1 2
T7104
Do Not Stuff
1
T7108
Do Not Stuff
1
R7108
Do Not Stuff
1 2
T7113
Do Not Stuff
1
R7101
Do Not Stuff
1 2
C7101
Do Not Stuff
12
R7110
Do Not Stuff
1 2
JP7101 Do Not Stuff
1 2
T7111
Do Not Stuff
1
C7105
Do Not Stuff
12
T7102
Do Not Stuff
1
C7107
Do Not Stuff
12
T7117
Do Not Stuff
1
R7107Do Not Stuff
12
T7106
Do Not Stuff
1
U7102
Do Not Stuff
2 1
3
D1
S1
D1G1
S2
G2
D2
D2
P
P
Q7102
Do Not Stuff
5
6
7
81
2
3
4
U7101
Do Not Stuff
3 4
5
2
1
EN NC or ADJ
OUT
GND
IN
C7102
Do Not Stuff
12
R7102
Do Not Stuff
1 2
T7107
Do Not Stuff
1
GS
D
Q7101
Do Not Stuff
1
2
3
45
6
7
8
T7109
Do Not Stuff
1
T7103
Do Not Stuff
1
T7112
Do Not Stuff
1
T7110
Do Not Stuff
1
R7109Do Not Stuff
12
JP7102 Do Not Stuff
1 2
C7103 Do Not Stuff
12
Q7104B
Do Not Stuff
5
34
C7106
Do Not Stuff
12
R7104
Do Not Stuff
1 2
C7104
Do Not Stuff
12
R7105
Do Not Stuff
12
T7114
Do Not Stuff
1
T7101
Do Not Stuff
1
CHG_SRC[68]
MAX8725_PDL[68]
MAX8725_PDS[68]
TS#[68,69]
CSSN [68]
CSSP [68]
BAT_IN#_OC [38]
5
5
4
4
3
3
2
2
1
1
D D
C C
B B
A A
SWITCH
TPS51020
+5VO
ON_SUS
+5VCHG
(20mA) SWITCH
+5VO
(100mA)
78L05
(Regulator) (F02JK2E)
A/D_VIN
SI4925BDY
(Charger)
PIC16C54+MAX8725
BAT
TPC8107
CPU_VDD_FB,
CPU_VDD_FB#,AVID0-AVID4
CPU_VLD
+VCORE
MAX8706 (35A)
A/D_DOCK_IN
AC_BAT_SYS
+3VO
LM4040BIM +2.5VREF (500uA)
+5VLCM
EA60QC04
(8.2A)
(6.8A)
(2.8A)
+3V (3.2A)
+3VS
(0.01A)
+12VS
(6.9A)
(0.01A)
(8.25A)
+12V
+1.2VS
+1.8VS
SUSB#_PWR
(5.8A)
(12.7A)
+1.8V
SUSC#_PWR
(6.6A)
(0.02A)+12VO
MIC5233BM
+1.8VO
+1.2VO
ON_SUS
ISL6227
+2.5V
+1.5VSUS
+2.5VO
(0.12A)MIC37102 +1.5VO
MIC37102
(0.8A)
+3VSUS
SUSC#_PWR
SUSC#_PWR
SUSB#_PWR
SUSB#_PWR
SUSB#_PWR
SUSB#_PWR
3V_5V_PWRGD
CM8562 +0.9V
SUSC#_PWR MEM_VLD
(1A)
+5VSUS
(4.8A)
+5VS
(Regulator)
SUSB#_PWR (1A)
+1.5VS
SUSC#_PWR SUSB#_PWR +2.5VS (0.41A)
PMN45EN
1.2VHT_EN_ON (1A)
+1.2V_HT
ON_SUS
SUSC#_PWR (3.4A)
+5V
+5VAO +5VA
+3VA
MIC5233BM +3VAO
Custom
72 72Wednesday, March 08, 2006
ASUSTECH
POWER DIAGRAM
1.0
A6T
Limei_chen
A6TcSKU1
Size Project Name Rev
Date: Sheet of
Title :
Engineer:
5
5
4
4
3
3
2
2
1
1
D D
C C
B B
A A
12/20 P62 Add CE6205 100UF/6.3V(the high trancient ripple )
P66 Add C6614 1UF/25V(due to bad Highside Gate)
P67 exchange 0.9VS &1.8VS
P67 change Q6702 from PMN45EN(Rdson=40mohm-max)to SI4800(Rdson=18.5mohm-max)
P68 change C6807 from 1UF/25V to 4.7UF/25V
P68 change A/D_DOCK_in to CHG_SRC
P71 change C7105 from 1UF/25V to 4.7UF
／
25V
P63 change R6312 from 1K to 6.81K
P63 change R6315 from 9.09K to 20K
P67 change Q6702 to SI4800(due to the Voltage is low)
P62 change L6202 from 1.8uh to 3.7uh (because of the low enficiency and the thermal issue)
12/28
P67 Add Q6713,R6717,C6716,C6715,R6718,D6701
P67 add net GPU_PWR__EN,+1.8VS_C51
P66 Add D6604& net GPU_PWR_EN
P62 change L6201 from 1.8uh to 2.8uh (because of the low enficiency and the thermal issue)
P63 change R6314 from 6.81K to 7.5K(becouse of the low voltage in device side )
12/30 P68 Add R6826(due to D7103's leakage current is high when the tempreture is high,thermal team 49 degree)
12/29
01/03 P61 change R6135 from 100Kohm to 120kohm(due to OCP)
P65 change R6506 from 330ohm to 402ohm(due to OCP)
P66 change R6602 from 0ohm to 2.7ohm(due to bad Highside Gate)
P68 change R6818 from 49.9Kohm to 4.7Kohm
P68 Add R6826 15Kohm
01/04 P68 connect R6807.2,R6808.2,R6809.2 to MAX8725_REF(due to REF+-0.5%,but LDO +-2.8%)
P68 change R6807,R6812,R6807,R6808,R6809,R6813,R6814,R6815(due to MAX8725_REF)
P67 change 1.8VO to 1.8V(EE)
C
73 73Wednesday, March 08, 2006
ASUSTEK COMPUTER INC
History
1.00
History
Rui-xing
A6TcSKU1
Size Project Name Rev
Date: Sheet of
Title :
Engineer:
